水星 Mercury 120 H.P. (1995) 0E093700 THRU 0E138599 - 爆炸图零件明细

Force 系列 · Cat.# 90-820756 · 共 23 个部位 · 695 条零件

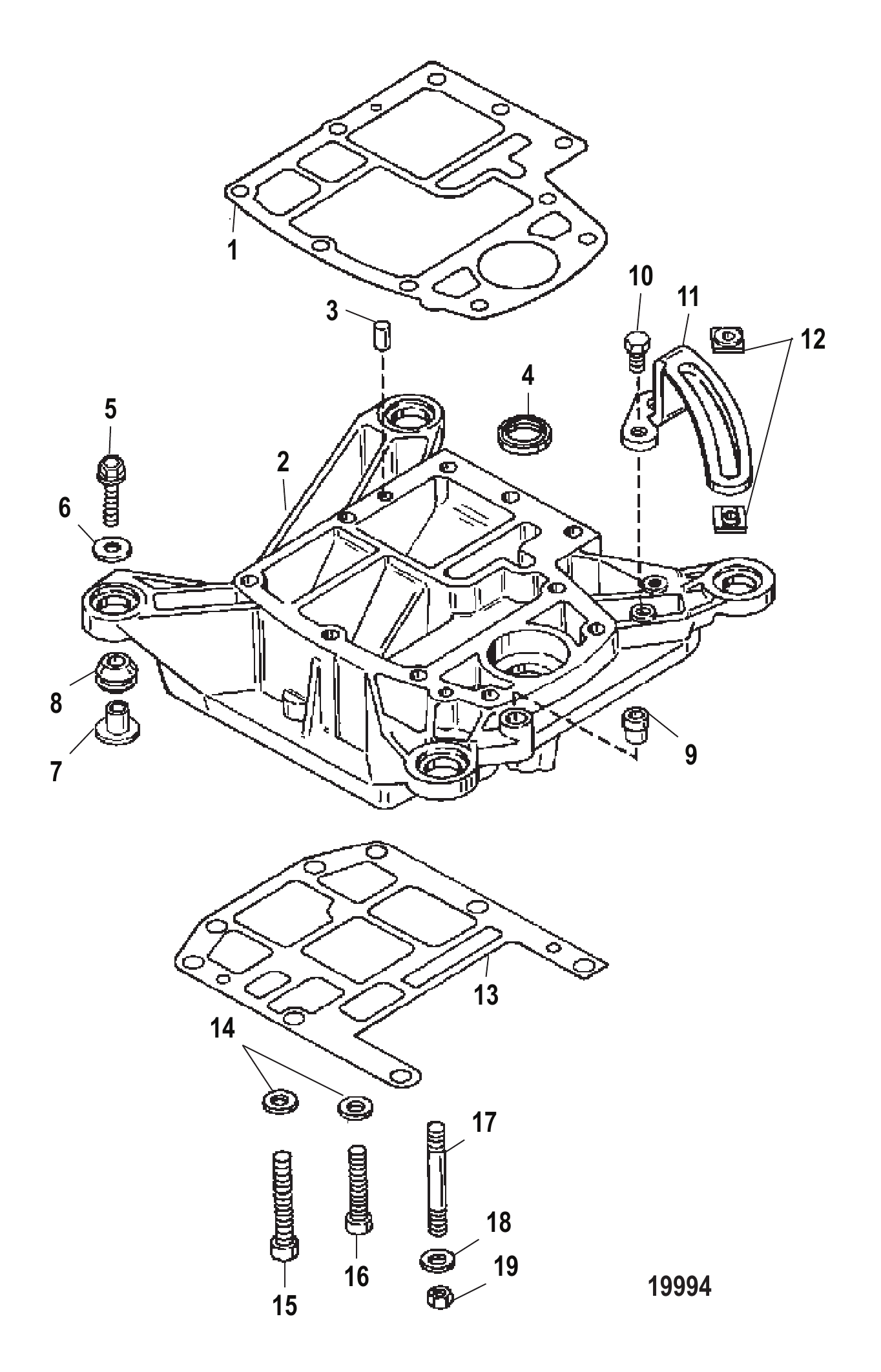

图 1适配板（上） Adapter Plate Upper

REF	零件编号	中文名称	英文名称	数量
1	826549	动力头至上适配板衬垫	GASKET Powerhead To Upper Adapter Plate	1
2	820192A1	上适配板总成	PLATE ASSEMBLY Upper Adapter	1
3	23784	定位销	PIN Dowel	2
4	819740	传动轴密封件	SEAL Driveshaft	1
5	81893435	螺钉(M8×35)	SCREW (M8 x 35)	4
6	49436	垫圈	WASHER	4
7	19064	适配板衬套	BUSHING Adapter Plate Grommet	4
8	825380	适配板衬套	GROMMET Adapter Plate	4
9	F40689-1	塔轴下轴承	BEARING Towershaft Lower	1
10	1993820	螺钉(M8 x 20)	SCREW (M8 x 20)	2
11	820280	换挡导轨	SHIFT RAIL Shift	1
12	820277	换挡滑块	SLIDE Shift	2
13	826550	适配板/传动轴壳体衬垫	GASKET Adapter Plate/Driveshaft Housing	1
14	828271	垫圈	WASHER	10
15	19929325	.325-16×3.25 螺钉	SCREW (.325-16 x 3.25)	3
16	19929175	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	7
17	8207021	M10 双头螺柱	STUD (M10) (M10)	8
18	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	8
19	13914	螺母(M10)	NUT (M10)	8
-	809122A2	动力头衬垫套件	GASKET SET Powerhead	1
-	818153A64	动力头总成	POWERHEAD ASSEMBLY	1

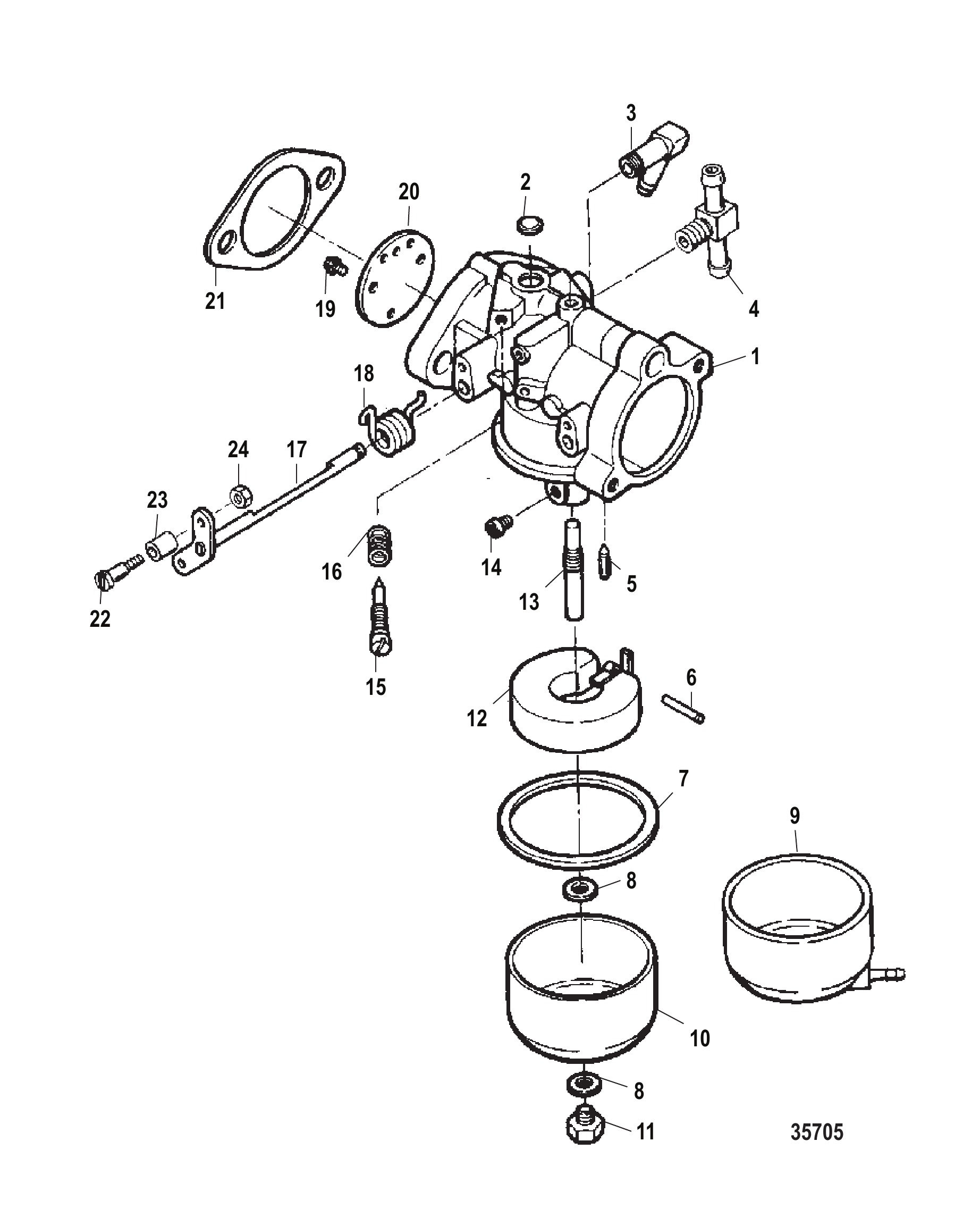

图 2化油器 Carburetor

REF	零件编号	中文名称	英文名称	数量
1	857133T	化油器 (WB-135A)	CARBURETOR (WB-135A)	1
1	857134T	化油器 (WB-139A)	CARBURETOR (WB-139A)	2
1	854449	化油器 (WB-133A)	CARBURETOR (WB-133A)	1
1	854450	化油器 (WB-134A)	CARBURETOR (WB-134A)	2
2	FO16128	韦尔奇塞	PLUG Welch	1
3	F84314-2	L型弯头	ELBOW (L) ( L STYLE)	1
4	F85314-1	T型接头	FITTING (T) ( T STYLE)	1
5	F10265	进油针阀	NEEDLE Inlet	1
6	FO13944	浮子销	PIN Float	1
7	FO15623	燃油杯衬垫	GASKET Fuel Bowl	1
8	FO2510	燃油杯衬垫	GASKET Fuel Bowl	2
9	820491	燃油杯	BOWL Fuel	1
10	F10333	燃油杯	BOWL Fuel	1
11	5128	燃油杯螺钉	SCREW Fuel Bowl	1
12	F10346	燃油杯浮子	FLOAT Fuel Bowl	1
13	F10302	主喷嘴	NOZZLE Main	1
14	5213	主量孔 (.056) 主燃油 (0-2500英尺)	JET Main (.056) Main Fuel (0 - 2500 Feet)	1
14	5225	主量孔 (.054) 主燃油 (2500-5000英尺)	JET Main (.054) Main Fuel (2500-5000 Feet)	OPT
14	6359	量孔 (.052) 主燃油 (5000-7500英尺)	JET (.052) Main Fuel (5000-7500 Feet)	OPT
14	6028	量孔 (.050) 主燃油 (7500-10000英尺)	JET (.050) Main Fuel (7500-10000 Feet)	OPT
14	3794	量孔 (.074) 主燃油 (0-2500英尺)	JET (.074) Main Fuel (0 - 2500 Feet)	1
14	6207	量孔 (.072) 主燃油 (2500-5000英尺)	JET (.072) Main Fuel (2500 - 5000 Feet)	OPT
14	6030	量孔 (.070) 主燃油 (5000-7500英尺)	JET (.070) Main Fuel (5000 - 7500 Feet)	OPT
14	6029	量孔 (.068) 主燃油 (7500-10000英尺)	JET (.068) Main Fuel (7500 - 10000 Feet)	OPT
14	6207	量孔 (.072) 主燃油 (0-2500英尺)	JET (.072) Main Fuel (0 - 2500 Feet)	1
14	6030	量孔 (.070) 主燃油 (2500-5000英尺)	JET (.070) Main Fuel (2500 - 5000 Feet)	OPT
14	6029	量孔 (.068) 主燃油 (5000-7500英尺)	JET (.068) Main Fuel (5000 - 7500 Feet)	OPT
14	4215	主量孔 (.066) 主燃油 (7500-10000英尺)	JET Main Fuel (.066) Main Fuel (7500 - 10000 Feet)	OPT
15	F10268	怠速混合气螺钉	SCREW Idle Mixture	1
16	27160	怠速混合气螺钉弹簧	SPRING Idle Mixture Screw	1
17	F10305	油门轴	SHAFT Throttle	1
18	F10334	节气门轴弹簧	SPRING Throttle Shaft	1
19	F10345	百叶窗螺钉	SCREW Shutter Shutter	2
19	F10328	百叶窗螺钉	SCREW Shutter	2
20	F10315	节气门片	SHUTTER Throttle	1
21	828925	化油器衬垫	GASKET Carburetor	3
22	830110	节气门滚轮轴	SHAFT Throttle Roller	1
23	819225	节气门轴滚轮	ROLLER Throttle Shaft	1
24	F1997	螺母（#8-32）	NUT (#8-32)	1
-	809735A1	化油器维修套件	REPAIR KIT Carburetor	1
-	809736A1	化油器衬垫组	GASKET SET Carburetor	1
-	809122A2	动力头衬垫套件	GASKET SET Powerhead	1
-	818153A64	动力头总成	POWERHEAD ASSEMBLY	1

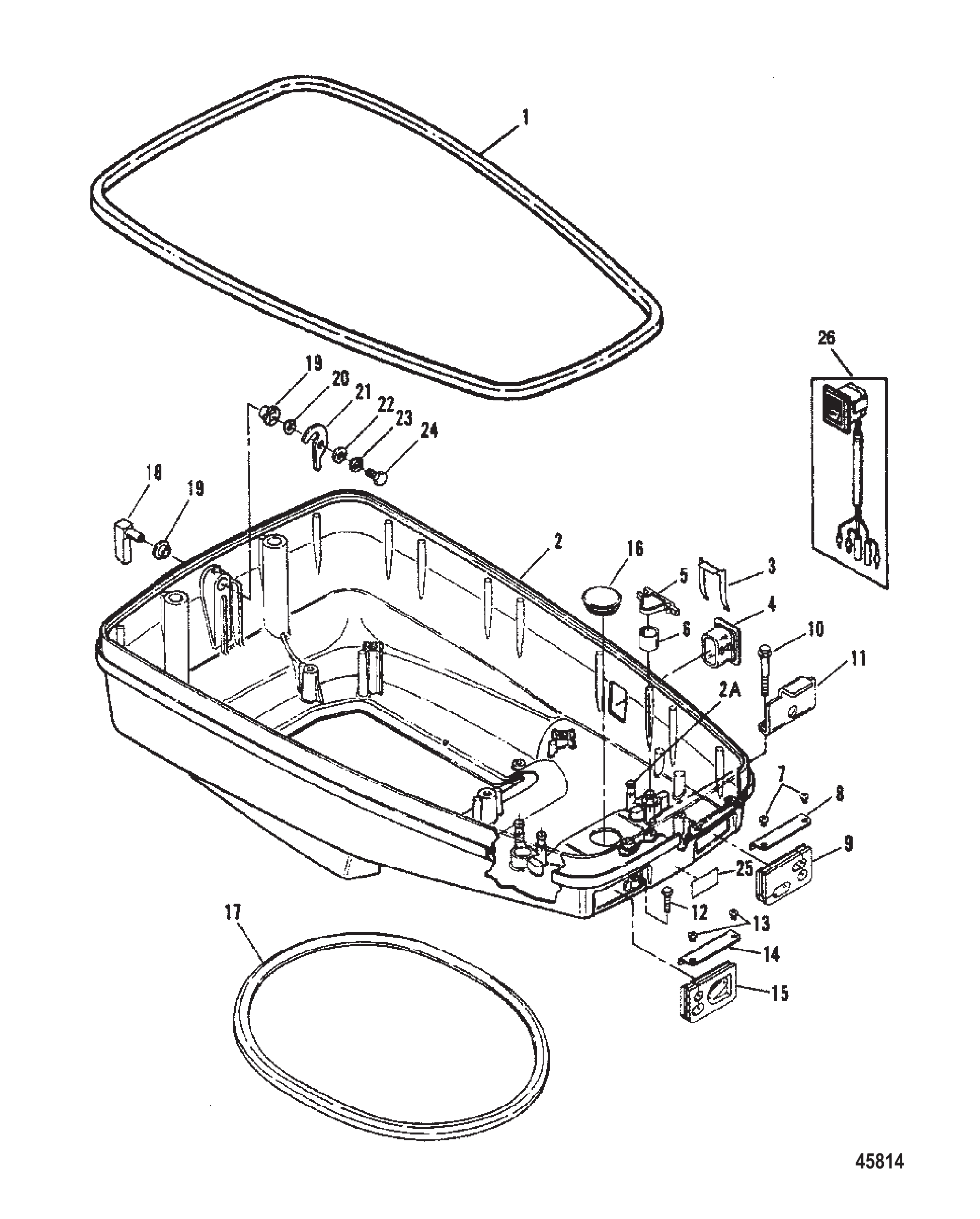

图 3外罩总成（底部） Cowl Assembly-Bottom

REF	零件编号	中文名称	英文名称	数量
1	F663756-1	罩盖支撑填料	PACKING Cowl Support	1
2	819983F	底部罩盖总成 (喷漆)	BOTTOM COWL ASSEMBLY (PAINTED)	1
2A	42975	驱动螺钉 (专用)	DRIVE SCREW (SPECIAL)	4
3	8124431	固定座	RETAINER	1
4	8128301	堵头	PLUG	1
5	820313	控制电缆锁扣	LATCH Control Cable	2
6	824015	筒形保持杯	CUP Barrel Retainer	2
7	40019104	螺钉（M5×8）	SCREW (M5 x 8)	2
8	823551	进线密封保持架	RETAINER Entry Cable Seal	1
9	823550	遥控线密封件	SEAL Remote Cables	1
10	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	2
11	F663480-1	前罩盖固定架	RETAINER Cowl Front	1
12	40011131	螺钉(M6 x 35) 不锈钢	SCREW (M6 x 35) Stainless Steel	1
13	40019104	螺钉（M5×8）	SCREW (M5 x 8)	2
14	823551	进线密封保持架	RETAINER Entry Cable Seal	1
15	823549	燃油连接器及遥控线密封件	SEAL Fuel Connector And Remote Cables	1
16	8199541	堵头	PLUG	1
17	8136076	底罩密封条	SEAL Bottom Cowl	1
18	820000A4	手柄总成 (喷漆)	HANDLE ASSEMBLY (PAINTED)	1
19	812707	衬套	BUSHING	2
20	F2047	波形垫圈	WASHER Wave	1
21	F481777	凸轮锁轴	CAM Latch Shaft	1
22	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
23	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
24	28635	不锈钢螺丝(.250-20 x .620)	SCREW (.250-20 x .620) Stainless Steel	1
25	818029	贴花 (燃油混合比)	DECAL (Fuel Mix)	1
26	18286A40	开关总成 (动力调整)	SWITCH ASSEMBLY (POWER TRIM)	OPT

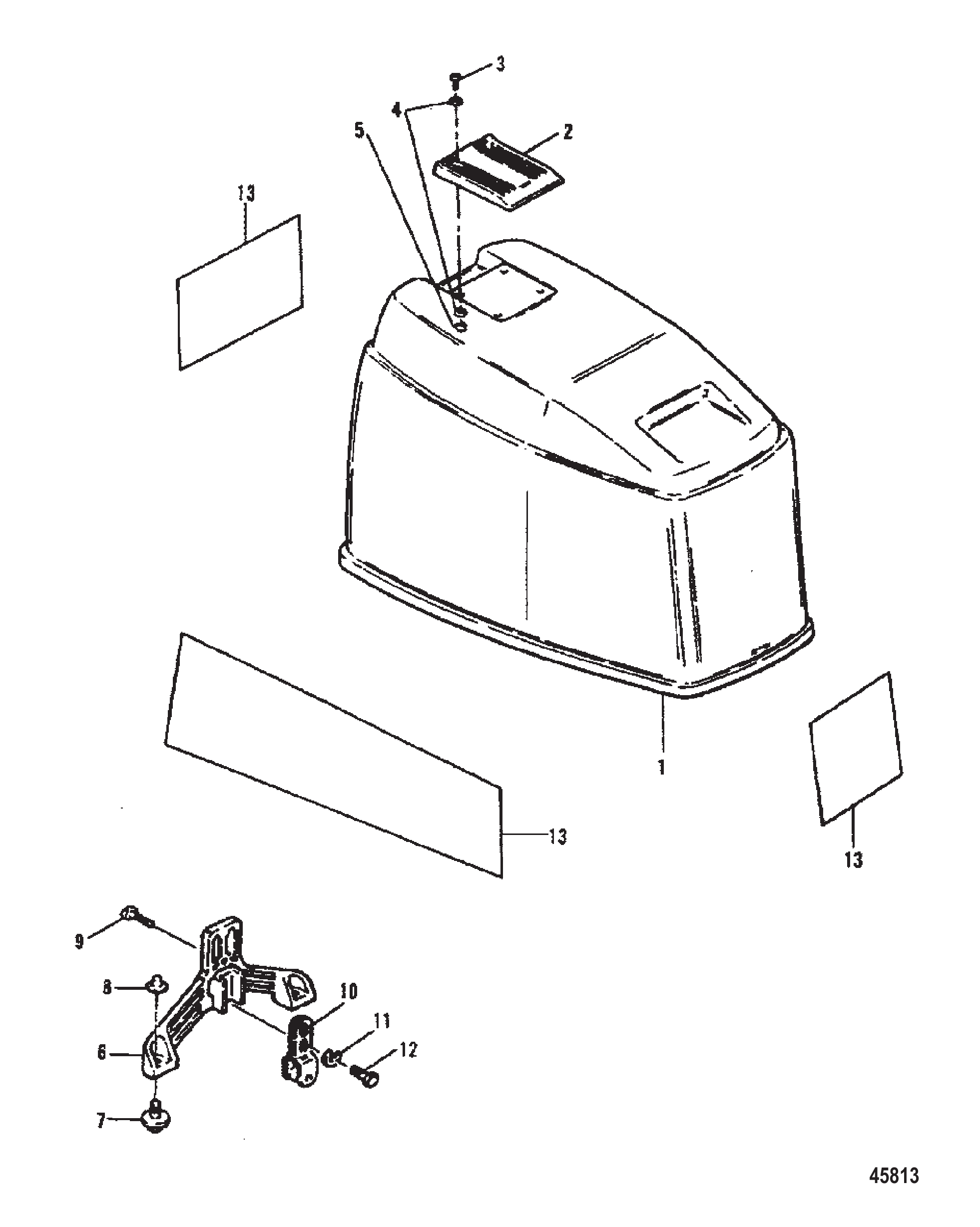

图 4外罩总成（顶部） Cowl Assembly - Top

REF	零件编号	中文名称	英文名称	数量
1	819747A6	顶盖总成	TOP COWL ASSEMBLY	1
2	816518	手柄	HANDLE	1
3	F2143	螺钉 (0.250-20 x 1.00) 不锈钢	SCREW (.250-20 x 1.00) Stainless Steel	4
4	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	8
5	13855	螺母 (.250-20)	NUT (.250-20)	4
6	8198141	罩盖锁扣支架	BRACKET Cowl Latch	1
7	F481434	罩盖锁扣导架	GUIDE Cowl Latch Bracket	2
8	F2088	紧固件	FASTENER	2
9	28639	250-20×0.625 螺钉	SCREW (250-20 x .625)	3
10	18173	锁扣滚轮支架总成	BRACKET ASSEMBLY Latch Roller	1
11	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
12	90285	螺钉 (.312-18 x .625)	SCREW (.312-18 x .625)	2
NS	827291	隔音罩(顶部)	BLANKET Sound (TOP)	1
NS	F664985	隔音罩(侧面)	BLANKET Sound (SIDE)	2
13	820738A95	顶罩贴花套件	DECAL SET Top Cowl	1
13	820743A95	贝灵翰贴花套装	DECAL SET BAYLINER	1

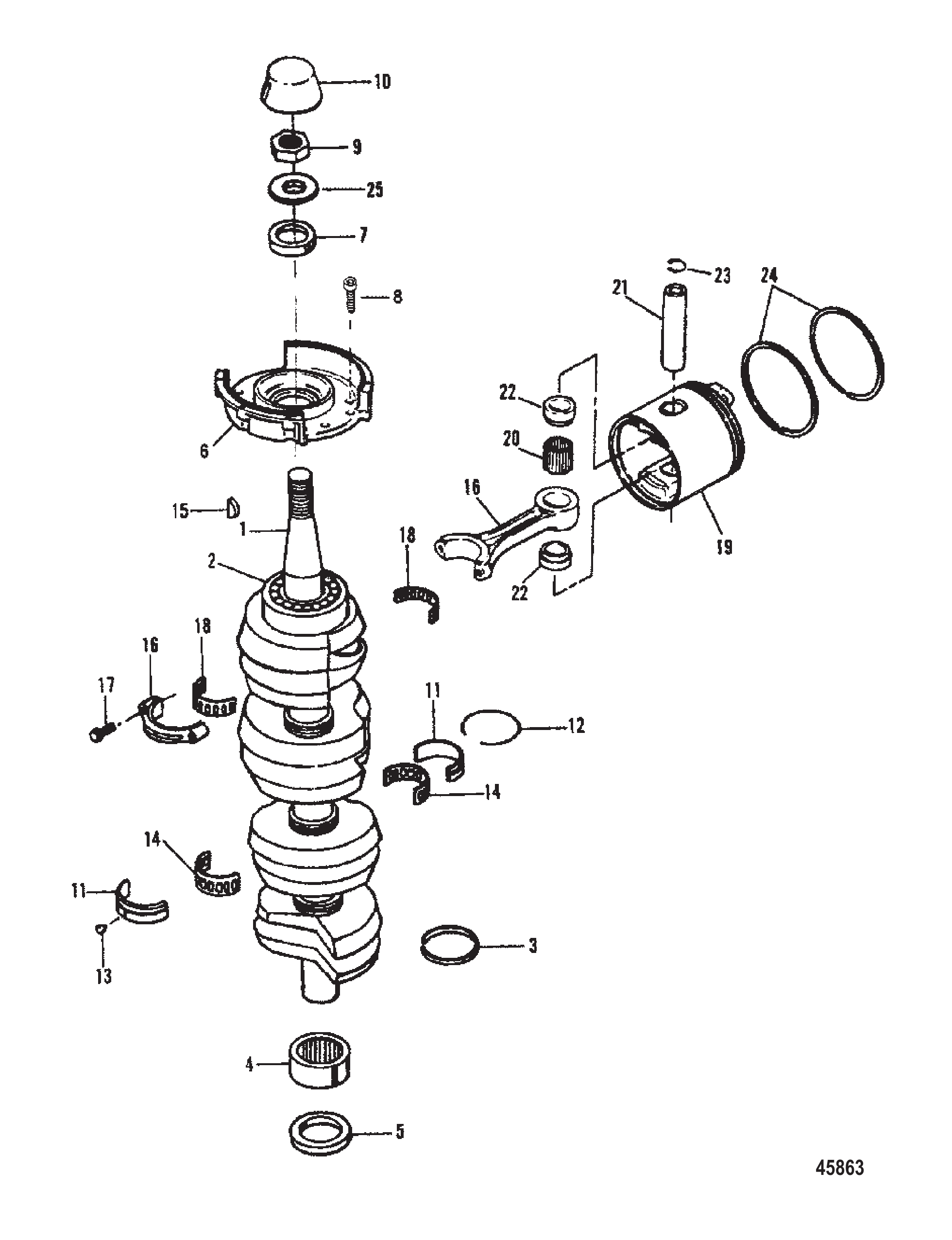

图 5曲轴和活塞 Crankshaft and Piston

REF	零件编号	中文名称	英文名称	数量
1	820319A1	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	F284659-2	滚珠轴承	BEARING Ball	1
3	F316579	密封件	SEAL	3
4	818050A3	轴承总成	BEARING ASSEMBLY	1
5	F523146-1	密封件	SEAL	1
6	819312A1	保持架总成	CAGE ASSEMBLY	1
7	F523146-1	密封件	SEAL	1
8	92160	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	5
9	F1968	螺母(.750-16)	NUT (.750-16)	1
10	F2067	塑料溶胶盖	CAP Plastisol	1
11	FA85655-1	轴承总成	BEARING ASSEMBLY	3
12	F85410	环	RING	3
13	823605	销(压入缸体)	PIN (PRESSED INTO BLOCK)	4
14	819193	保持架/滚子组	CAGE/ROLLER SET	3
15	F85498-1	飞轮键	FLYWHEEL KEY	1
16	818052A6	连杆总成	CONNECTING ROD ASSEMBLY	4
17	91012	螺钉(0.250-28特殊)	SCREW (.250-28 Special)	8
18	62596A2	保持架/滚子组	CAGE/ROLLER SET	4
19	819690A4	活塞套件(标准)	PISTON KIT (STANDARD)	4
19	819690A5	活塞套件(加大0.010英寸)	PISTON KIT (.010 O.S.)	OPT
19	819690A6	活塞套件(加大0.030英寸)	PISTON KIT (.030 O.S.)	OPT
20	F335217-1	活塞销轴承(26)	BEARING (26)-PISTON PIN	4
21	F694017-1	销	PIN	4
22	F366215	隔套	SPACER	8
23	F694096	固定座	RETAINER	8
24	820457A2	活塞环组(2环)	RING SET (2 RINGS)-PISTON	4
24	820641A1	活塞环组(2环)	RING SET (2 RINGS)-PISTON	OPT
24	818129A2	活塞环组(2环)	RING SET (2 RINGS)-PISTON	OPT
25	31247	垫圈	WASHER	1
-	818154A22	动力头总成	POWERHEAD ASSEMBLY	-
-	809125A1	衬垫套件	GASKET SET	-

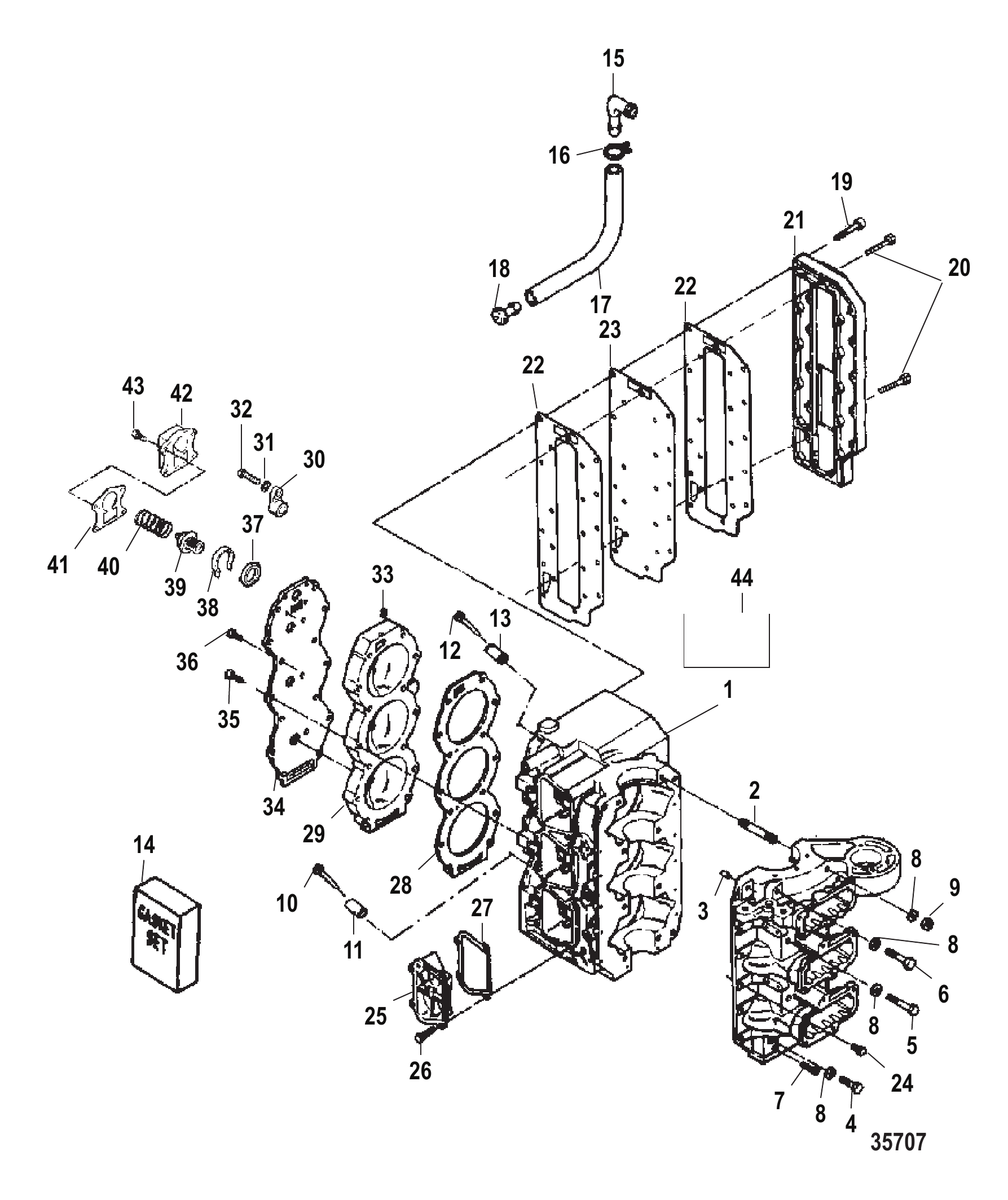

图 6气缸体 Cylinder Block

REF	零件编号	中文名称	英文名称	数量
1	818153A64	动力头总成(喷漆)	POWERHEAD ASSEMBLY (Painted)	1
1	818153A55	气缸体套件	CYLINDER BLOCK KIT	1
2	826394	双头螺柱(.375-16 x 3.843)	STUD (.375-16 x 3.843)	1
2	8263942	螺柱	STUD	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	32132	螺钉(.375-16 x 1.750)	SCREW (.375-16 x 1.750)	2
5	53734	螺钉 (.375-16 x 3.00)	SCREW (.375-16 x 3.00)	4
6	47688	螺丝 (.375-16 x 2.750)	SCREW (.375-16 x 2.750)	1
7	820589	螺丝(.250-20 x 1.250)	SCREW (.250-20 x 1.250)	2
8	828271	垫圈	WASHER	8
9	86226	螺母（.375-16）	NUT (.375-16)	1
9	8M0204671	螺母	NUT	1
10	F719372	水套管销	PIN Water Jacket Tube	2
11	F719418	水套管	TUBE Water Jacket	2
12	F691372	水套管销(顶部)	PIN Water Jacket Tube (Top)	1
13	F719943	水套管(顶部)	TUBE Water Jacket (Top)	1
14	809122A2	动力头衬垫套件	GASKET SET Powerhead	1
15	996641	弯头	ELBOW	1
15	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
16	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
16	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
17	830756109	软管(57.00英寸散装)	HOSE (57.00 Inches Bulk)	1
17	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
18	813613	示踪接头	FITTING Tell Tale	1
19	819110125	螺丝(.250-20 x 1.250)	SCREW (.250-20 x 1.250)	21
20	819110150	螺钉(.250-20 x 1.500)	SCREW (.250-20 x 1.500)	2
21	F692152	排气口盖	COVER Exhaust Port	1
21	803932T	排气盖	COVER-EXHAUST	1
22	8190231	排气口板衬垫	GASKET Exhaust Port Plate	2
23	8192831	排气口板	PLATE Exhaust Port	1
24	819110075	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	12
25	8197373	换气口盖	COVER Transfer Port	2
26	819110062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	8
27	8205002	换气口盖垫片	GASKET Transfer Port Cover	2
28	820438	气缸盖衬垫	GASKET Cylinder Head	1
29	819857A3	气缸盖套件	CYLINDER HEAD KIT Cylinder	1
30	44552	温控开关固定座	RETAINER Thermoswitch	1
30	889733	固定座	RETAINER	1
31	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
31	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
32	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
32	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
33	328022	管塞(.125-27)黄铜气缸盖	PLUG Pipe (.125-27) Brass Cylinder Head	1
34	F692995	气缸盖罩	COVER Cylinder Head	1
35	79654	螺钉(.312-18 x 2.380)	SCREW (.312-18 x 2.380)	14
36	819110062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	3
37	F664914	密封件（节温器）	SEAL Thermostat	1
38	8283111	隔套	SPACER	1
39	F664068	节温器54°C(130°F)	THERMOSTAT 54°C (130°F)	1
39	859620	节温器	THERMOSTAT	OPT
40	F664268	弹簧	SPRING	1
41	828319	节温器盖衬垫	GASKET Thermostat Cover	1
42	8196931	节温器盖	COVER Thermostat	1
43	19932075	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
44	85698516	EPA信息标签(贴于排气盖附近缸体顶部)	DECAL EPA Label Information (Applied Top Of Block Near Exhaust Cover)	1
44	856985A16	REF SOB 09-18	REF SOB 09-18	1
-	809122A2	动力头衬垫套件	GASKET SET Powerhead	1
-	818153A64	动力头总成	POWERHEAD ASSEMBLY	1

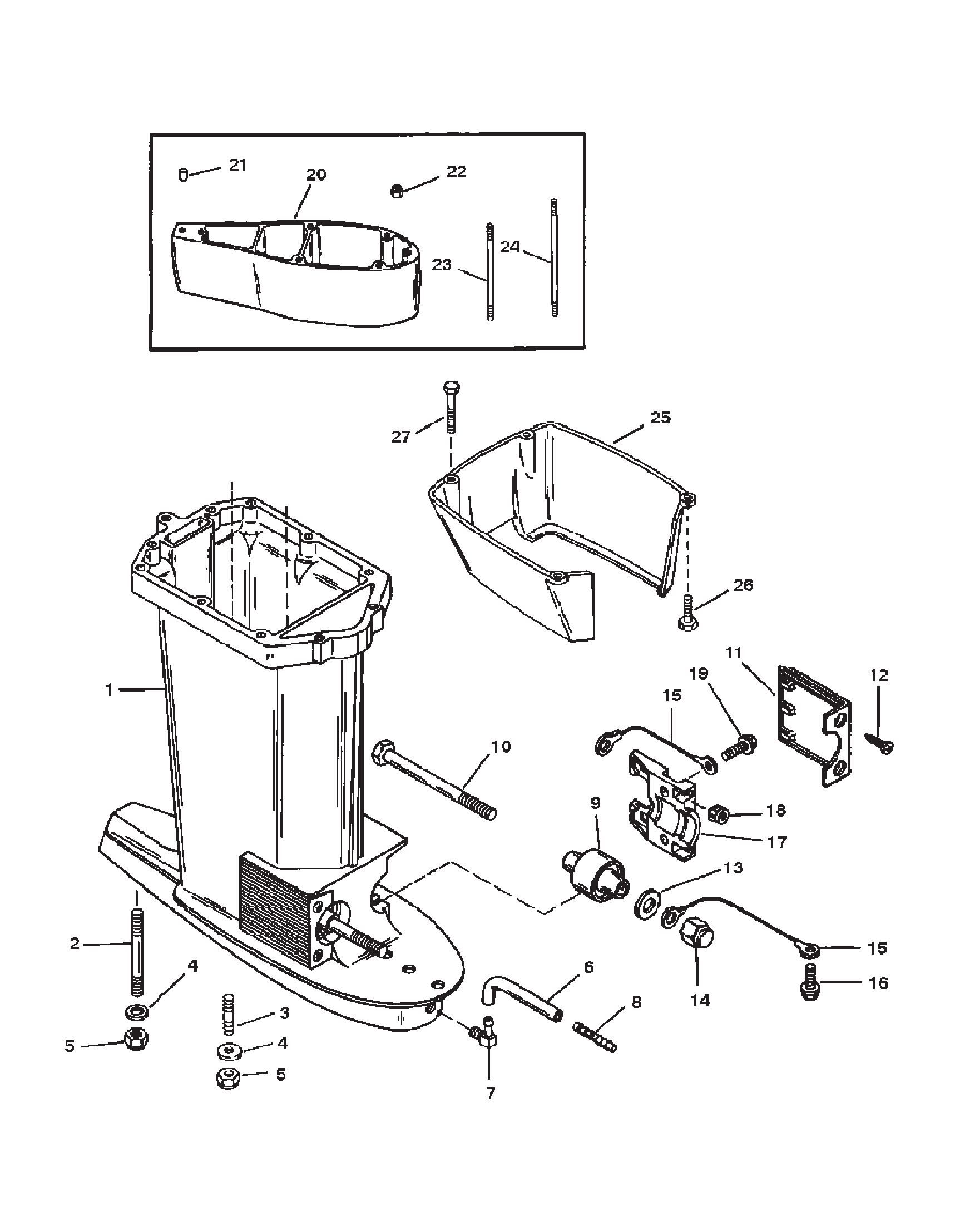

图 7驱动轴壳体 Driveshaft Housing

REF	零件编号	中文名称	英文名称	数量
1	8974A28	传动轴壳体套件(喷漆)	HOUSING KIT Driveshaft (Painted)	1
2	903501	双头螺柱(M10×100)	STUD (M10 x 100)	1
3	9035012	双头螺柱(M10×63)	STUD (M10 x 63)	4
4	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	5
4	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	5
5	13914	螺母(M10)	NUT (M10)	5
6	85822A4	速度计传感器总成	PICKUP ASSEMBLY Speedometer	1
7	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	1
8	85822	直通接头	CONNECTOR Straight	1
9	42930A1	下支架总成	MOUNT ASSEMBLY Lower	2
9	443431	支架	MOUNT	2
10	42973	螺栓(M12×154)	BOLT (M12 x 154)	2
11	67077F3	下安装夹盖(喷漆)	COVER Lower Mount Clamp (Painted)	2
12	88417	螺钉(#12-24×0.620)	SCREW (#12-24 x .620)	4
13	30119	垫圈(外径0.875英寸)	WASHER (.875 Inch Outside Diameter)	2
14	43528	螺母(M12)	NUT (M12)	2
15	88238A10	接地线总成	CABLE ASSEMBLY Ground	2
16	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
17	93192	下支座夹箍	CLAMP Lower Mount	2
18	35521	专用螺母	NUT (Special)	4
19	4010725	螺钉 (M8 x 25)	SCREW (M8 x 25)	4
20	12092A15	垫片套件(喷漆)	SPACER KIT (Painted)	1
21	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
21	43043	定位销-带孔(0.375×0.625)	PIN Dowel - With Hole (.375 x .625)	1
22	13914	螺母(M10)	NUT (M10)	4
23	903503	双头螺柱(M10×190)	STUD (M10 x 190)	4
24	903502	双头螺柱(M10×227)	STUD (M10 x 227)	1
25	819955F	装饰盖(喷漆)	TRIM COVER (Painted)	1
26	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	2
27	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2

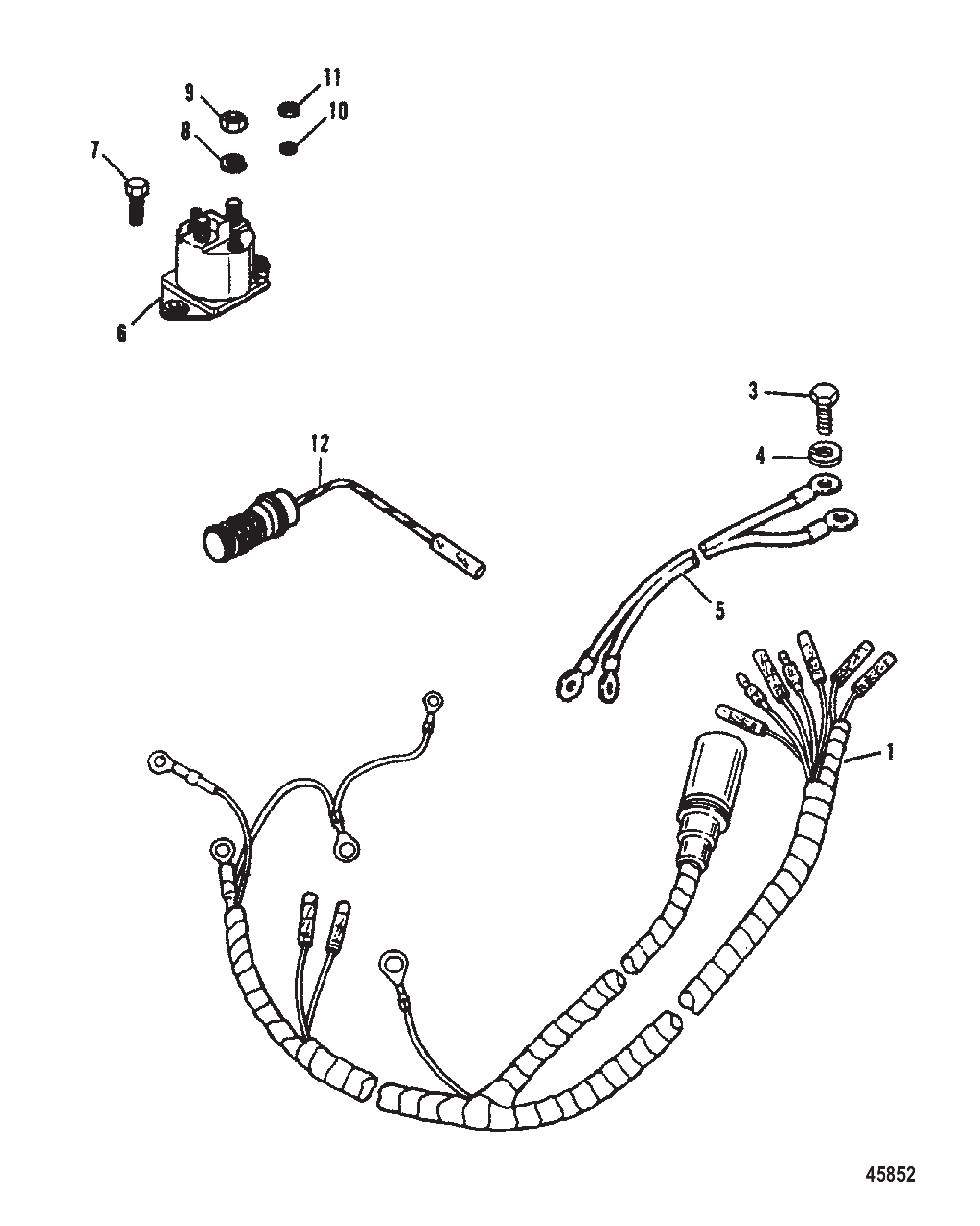

图 8电气组件 Electrical Components

REF	零件编号	中文名称	英文名称	数量
1	827244A1	线束总成	HARNESS ASSEMBLY	1
3	F2000	螺钉 (0.312-18 x 0.750)	SCREW (.312-18 x .750)	1
4	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
5	F381896-4	电池电缆总成	CABLE ASSEMBLY Battery	1
6	F460917-1	继电器	RELAY	1
7	19932062	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
8	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
9	68292	螺母(.312-18)	NUT (.312-18)	2
10	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
11	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
12	8190221	温控开关	THERMOSWITCH	1
NS	F717096	挡圈	RING Retaining	1

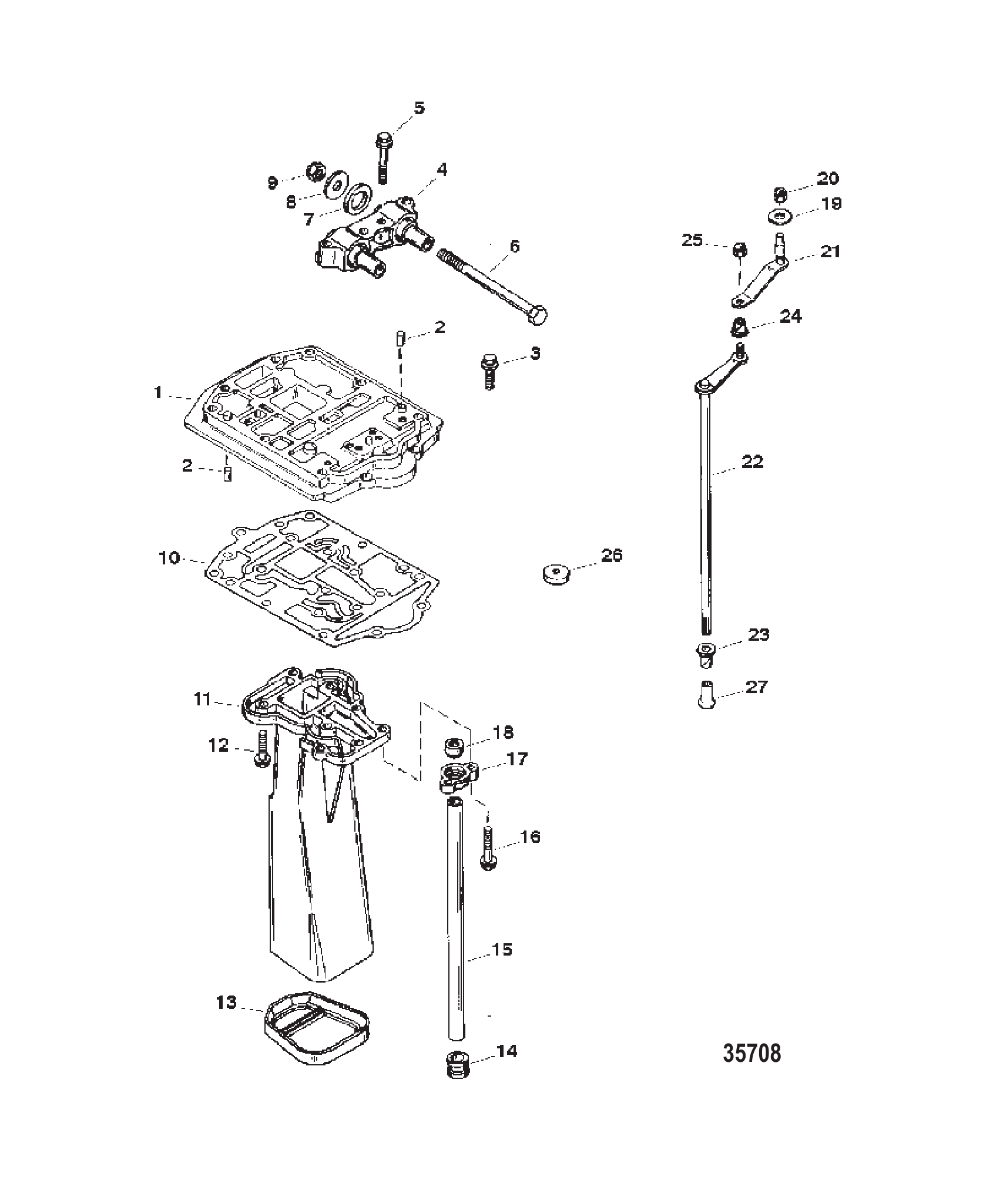

图 9排气板 Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	856098T1	排气板总成	PLATE ASSEMBLY Exhaust	1
2	23784	定位销	PIN Dowel	5
3	4008920	不锈钢螺钉(M8 x 20)	SCREW (M8 x 20) Stainless Steel	3
4	429492	支架(2.375英寸)	MOUNT (2.375 Inch)	1
4	8M0021331	ORD 881900T03	ORD 881900T03	1
4	443442	支架(2.375英寸)	MOUNT (2.375 Inch)	1
4	881900T03	支架	MOUNT	1
5	4010750	螺钉(M8 x 50)	SCREW (M8 x 50)	4
6	42974	螺栓(M12×175)	BOLT (M12 x 175)	2
6	8M0238139	螺钉	SCREW	2
7	934161	氯丁橡胶垫圈	WASHER Neoprene	2
7	32834	垫圈(0.9375x1.750x0.172)	WASHER (.9375 x 1.750 x .172)	2
8	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
8	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
9	90099	螺母(M12)	NUT (M12)	2
9	896963	螺母(M12)	NUT (M12)	2
10	430086	排气板/排气管衬垫	GASKET Exhaust Plate/Exhaust Tube	1
11	429664	排气管	TUBE Exhaust	1
11	87917216T	排气管	TUBE-EXHAUST	1
12	4010725	螺钉 (M8 x 25)	SCREW (M8 x 25)	6
13	42962	排气管密封件	SEAL Exhaust Tube	1
13	8M0039075	密封件	SEAL	1
14	894171	水管护圈(下部)	GROMMET Water Tube (Lower)	1
14	89417004	护孔环	GROMMET	1
15	8246601	水管	TUBE Water	1
15	8M0042791	长型水管	TUBE-WATER-LONG	1
15	8246602	水管	TUBE Water	1
15	8M0042792	水管-XL	TUBE-WATER-XL	1
16	4010750	螺钉(M8 x 50)	SCREW (M8 x 50)	2
17	824661	水管夹	CLAMP Water Tube	1
18	814080	水管密封件(上部)	SEAL Water Tube (Upper)	1
18	814080001	密封件	SEAL	1
19	35459	垫圈	WASHER	1
20	8268336	螺母 (M6)	NUT (M6)	1
20	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
21	820278A1	换挡连杆总成	LINK ASSEMBLY Shift	1
22	79932A20	换挡轴总成	SHIFT SHAFT ASSEMBLY Shift Shaft	1
23	48237	衬套	BUSHING	1
24	48475	衬套	BUSHING	1
25	8268336	螺母 (M6)	NUT (M6)	1
25	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
26	43041	隔套	SPACER	1
26	813745	隔套	SPACER	1
26	11289	隔套	SPACER	1
27	43585		COUPLING Shift Shaft	1

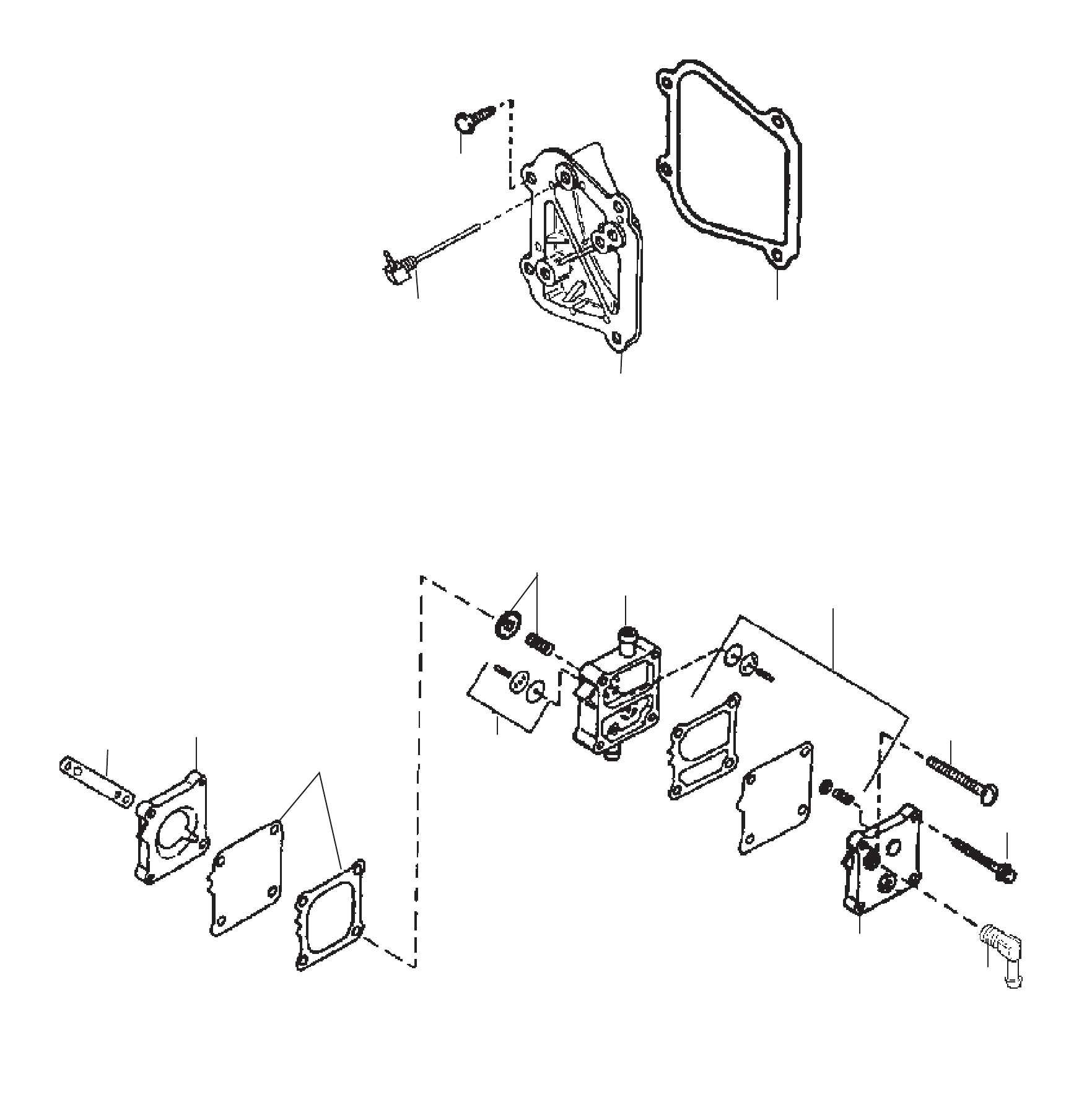

图 10燃油泵总成 Fuel Pump Assembly

REF	零件编号	中文名称	英文名称	数量
1	14360A49	燃油泵套件	PUMP KIT Fuel	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
3	82104540		SCREW (M5 x 40) Fuel Pump	2
4	987752	燃油泵板	PLATE Fuel Pump	1
5	996641	弯头	ELBOW	1
6	144303		BASE Fuel Pump	1
7	987691	燃油泵底座衬垫	GASKET Fuel Pump Base	1
8	819110062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	4
9	8178703	燃油泵盖	COVER Fuel Pump	1
10	8205002	燃油泵盖衬垫	GASKET Fuel Pump Cover	1
11	F743314	循环弯头	ELBOW Recirculating	1
12	827357	螺钉(#12-24x2.00)	SCREW (#12-24 x 2.00)	2
-	809122A2	动力头衬垫套件	GASKET SET Powerhead	1
-	818153A64	动力头总成	POWERHEAD ASSEMBLY	1

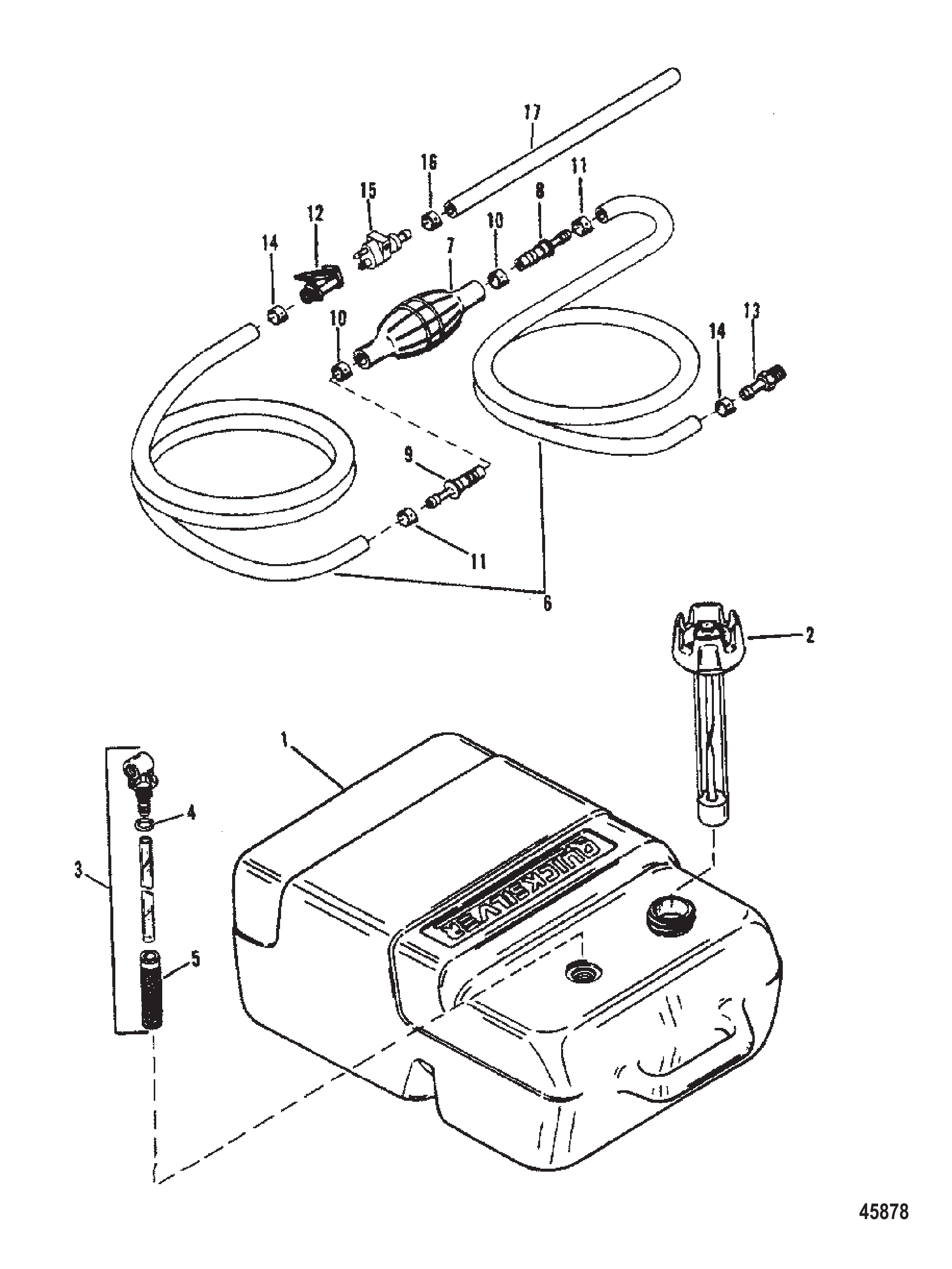

图 11燃油箱与油管（塑料6.6加仑） Fuel Tank and Fuel Line (Plastic 6.6 Gallon)

REF	零件编号	中文名称	英文名称	数量
-	823504A2	燃油箱总成	TANK ASSEMBLY Fuel	1
1	823504A1	燃油箱总成-塑料6.6加仑	TANK ASSEMBLY Fuel - Plastic 6.6 Gallon	1
2	823536	油量表/油箱盖总成	GAUGE/CAP ASSEMBLY	1
3	823532	连接器总成	CONNECTOR ASSEMBLY	1
4	823533	O型圈	O-RING	1
5	823534	滤网	SCREEN	1
6	17146A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
7	13330A3	注油泵总成	BULB ASSEMBLY Primer	1
8	13331A1		CHECK VALVE ASSEMBLY (INLET)	1
9	13331A2		CHECK VALVE ASSEMBLY (OUTLET)	1
10	4158210		CLAMP Nylon (LARGE)	2
11	415827		CLAMP Nylon (SMALL)	2
12	13563A3	燃油管接头总成	FITTING ASSEMBLY Fuel Line	1
13	897711	连接器(.250-18)	CONNECTOR (.250-18)	1
14	415827	尼龙卡箍	CLAMP Nylon	2
6	16789A26	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
7	13330A3	注油泵总成	BULB ASSEMBLY Primer	1
8	13331A1		CHECK VALVE ASSEMBLY (INLET)	1
9	13331A2		CHECK VALVE ASSEMBLY (OUTLET)	1
10	4158210		CLAMP Nylon (LARGE)	2
11	415827		CLAMP Nylon (SMALL)	2
12	13563A3	燃油管接头总成	FITTING ASSEMBLY Fuel Line	1
13	897711	连接器(.250-18)	CONNECTOR (.250-18)	1
14	F698772	蜗杆卡箍	CLAMP Worm Gear	1
15	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
16	415827	尼龙卡箍	CLAMP Nylon	1
17	1678978	软管(9.00英尺整卷)	HOSE (9.00 Feet Bulk)	AR
17	16789100	软管(100.00英尺整卷)	HOSE (100.00 Feet Bulk)	AR

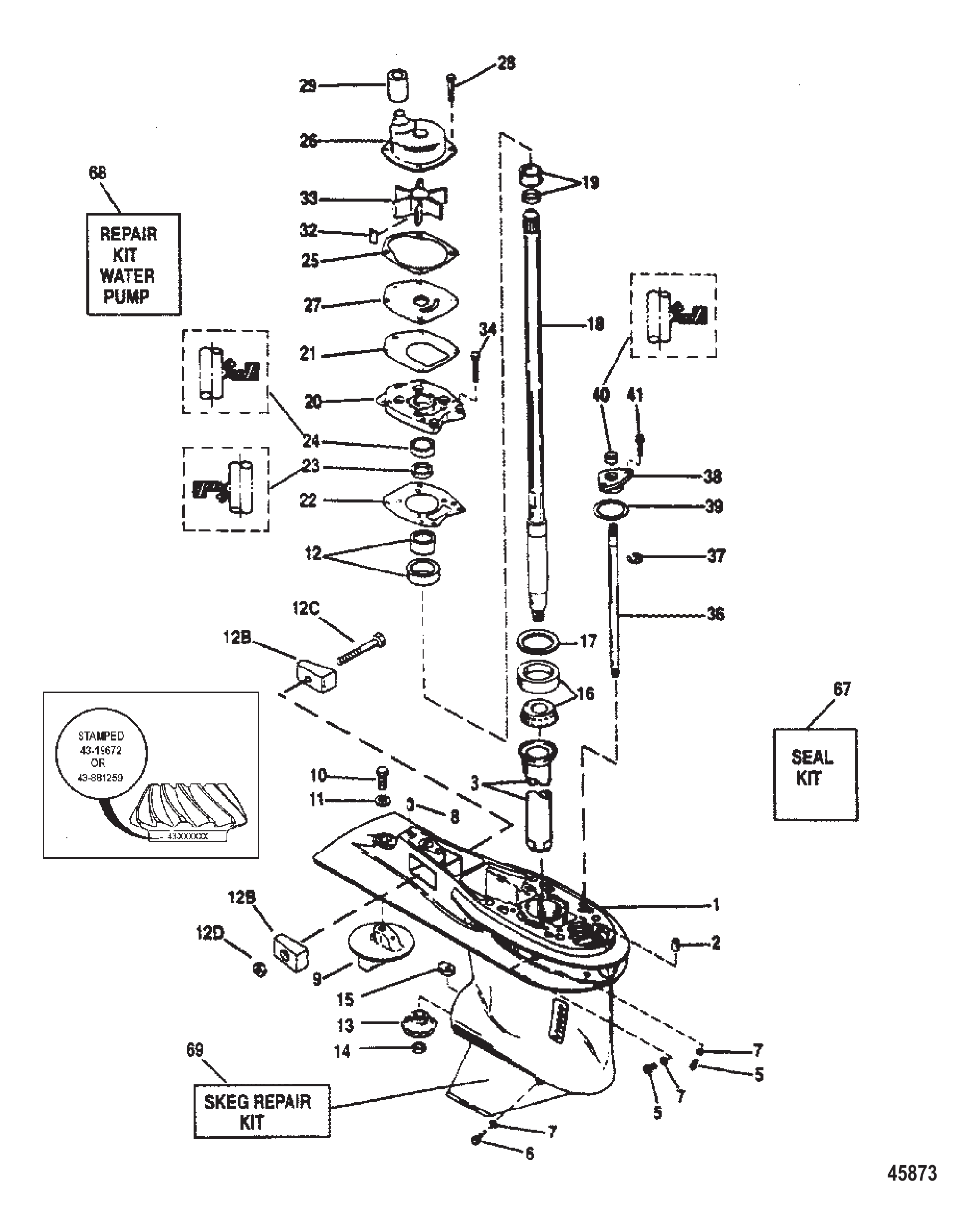

图 12齿轮箱（驱动轴） Gear Housing (Driveshaft)

REF	零件编号	中文名称	英文名称	数量
-	9011A85	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	9011A84	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	9011A80	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	43043	定位销-带孔(.375 x .625)(前)	PIN Dowel - With Hole (.375 x .625) (FRONT)	1
3	43046	注油管	TUBE Oiler	1
5	79953	螺钉(0.375-16x0.250)	SCREW (.375-16 x .250)	2
6	67892	磁性螺钉	SCREW Magnetic	1
7	19183	纤维垫圈	WASHER Fiber	3
8	43044	定位销-无孔(.375 x .625)(后)	PIN Dowel - Without Hole (.375 x .625) (REAR)	1
9	316405	平衡鳍板	TRIM TAB	1
10	15942	螺钉(0.437-14x1.250)	SCREW (.437-14 x 1.250)	1
11	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	1
12	43040A1	托架总成	CARRIER ASSEMBLY	1
12B	826134	阳极块	ANODE	2
12C	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
12D	400634	螺母 (M6)	NUT (M6)	1
13	19672	小齿轮	GEAR Pinion	1
14	35921	专用螺母(.625-18)	NUT (.625-18) (SPECIAL)	1
15	76039	换挡凸轮控制	CAM Shift Control	1
16	42677A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
16	883047A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
17	44492A1	垫片组	SHIM SET	1
18	43031A1	驱动轴总成(长)	DRIVESHAFT ASSEMBLY (LONG)	1
18	43032A4	驱动轴总成(加长)	DRIVESHAFT ASSEMBLY (X-LONG)	1
19	42461A1	套筒/环套件	SLEEVE/RING KIT	1
20	43055A4	水泵盖总成	COVER ASSEMBLY Water Pump	1
21	430331	衬垫	GASKET	1
22	430472	衬垫	GASKET	1
23	43036	油封(下)	SEAL Oil (LOWER)	1
24	43035	油封(上)	SEAL Oil (UPPER)	1
25	817277	衬垫(亦包含在水泵套件中)	GASKET (ALSO INCLUDED WITH WATER PUMP KIT)	1
26	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
27	817276	面板	FACEPLATE	1
28	8248327	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
29	430232	密封件	SEAL	1
32	43037	键	KEY	1
33	430262	叶轮	IMPELLER	1
34	8248326	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	6
36	43048A1	换挡轴总成 (长)	SHIFT SHAFT ASSEMBLY (LONG)	1
36	43049A1	换挡轴总成 (加长)	SHIFT SHAFT ASSEMBLY (X-LONG)	1
37	29641	E型卡环	E RING	1
38	43052A4	衬套总成	BUSHING ASSEMBLY	1
39	45710	O型圈(1.424x0.103)	O-RING (1.424 x .103)	1
40	8164641	油封	SEAL Oil	1
41	8248326	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	-
-	43024A7	水泵维修套件	REPAIR KIT Water Pump	-

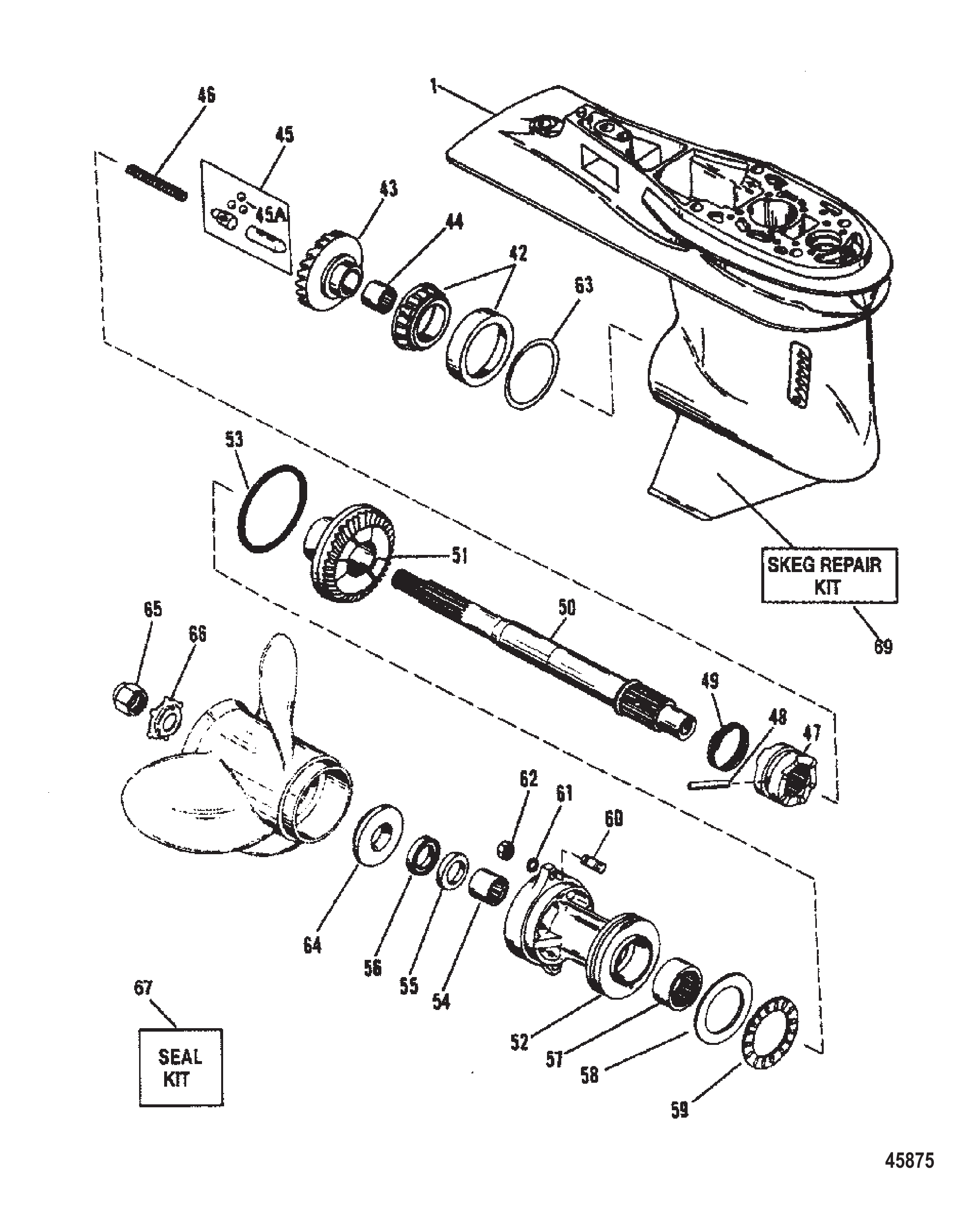

图 13齿轮箱（螺旋桨轴） Gear Housing (Propeller Shaft)

REF	零件编号	中文名称	英文名称	数量
-	9011A85	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	9011A90	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	9011A80	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
42	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
43	19673A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
44	30895	滚针轴承	BEARING Needle	1
45	12239A1	凸轮从动件套件	FOLLOWER KIT Cam	1
45A	44530	钢球	BALL	3
46	30622	弹簧	SPRING	1
47	822539	离合器	CLUTCH	1
48	30632	十字销	PIN Cross	1
49	30893	弹簧	SPRING	1
50	12238T	螺旋桨轴	PROPELLER SHAFT	1
51	19671	倒挡齿轮	GEAR Reverse	1
52	12596A2	轴承座总成(喷漆)	CARRIER ASSEMBLY Bearing (PAINTED)	1
53	97386	O型圈 (3.609 x .139)	O-RING (3.609 x .139)	1
54	30956	滚针轴承	BEARING Needle	1
55	76868	内密封件	SEAL (INNER)	1
56	70081	油封(外)	SEAL Oil (OUTER)	1
57	12578	滚针轴承	BEARING Needle	1
58	12577	止推垫片	THRUST WASHER	1
59	12576	推力轴承	BEARING Thrust	1
60	429174	双头螺栓(M8 x 1.25 x 48)	STUD (M8 x 1.25 x 48)	2
61	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
62	401198	螺母 (M8)	NUT (M8)	2
63	44491A1	垫片组	SHIM SET	1
64	13191A1	止推垫片	THRUST WASHER	1
65	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
66	816629	锁紧垫圈	TAB WASHER	1
67	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1
68	43024A7	水泵维修套件	REPAIR KIT Water Pump	1
69	15986A1	齿轮箱尾鳍修复套件	SKEG KIT Gear Housing Repair	1

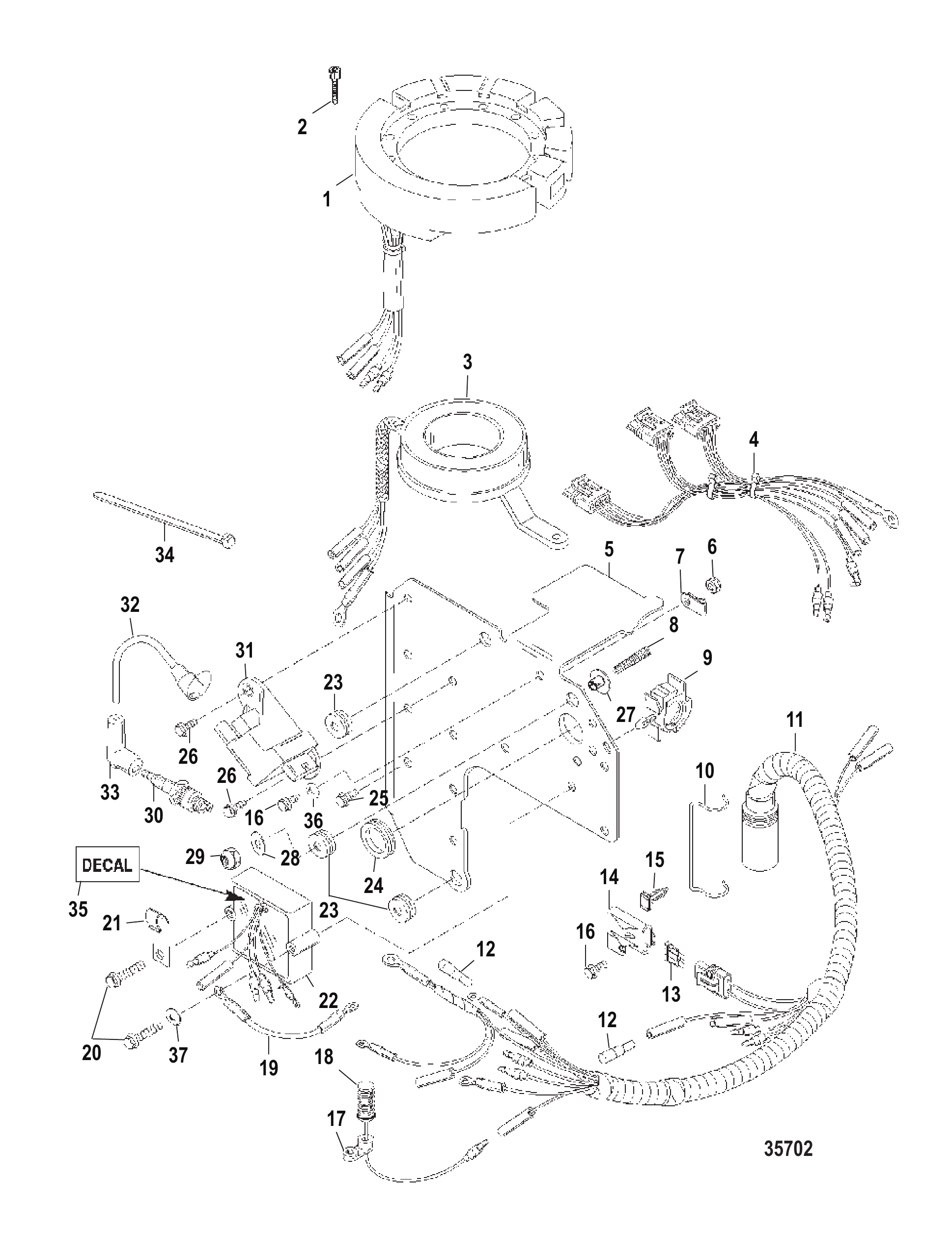

图 14点火组件 Ignition Components

REF	零件编号	中文名称	英文名称	数量
1	832075A4	点火定子套件	IGNITION STATOR KIT	1
2	19926100	螺丝（#10-24 x 1.00）	SCREW (#10-24 x 1.00)	6
3	828302A1	触发器总成	TRIGGER ASSEMBLY	1
4	828298A1	点火线束总成	HARNESS ASSEMBLY Ignition	1
5	8283121	点火组件板	PLATE Ignition Components	1
6	8268336	螺母 (M6)	NUT (M6)	2
7	820437	线束固定夹	CLIP Harness Retainer	1
8	830228	双头螺柱(.312-18/.250-28 x 1.750)	STUD (.312-18/.250-28 x 1.750)	3
9	828791	线束压紧夹	CLIP Harness Hold Down	1
10	92753	线束固定座	RETAINER Harness	1
11	828297A1	线束总成	HARNESS ASSEMBLY	1
12	13541	公插头	PLUG Male	2
13	812619	黄色保险丝-20安培	FUSE Yellow - 20 Ampere	1
14	828054	保险丝盖	COVER Fuse	1
15	828991	保险丝固定夹	CLIP Fuse Holder	1
16	82239312	螺钉(M5 x 12)	SCREW (M5 x 12)	2
17	44552	温控开关至气缸头固定座	RETAINER Thermoswitch To Cylinder Head	1
18	8190221	温控开关	THERMOSWITCH	1
19	856583A1	线缆总成(黑色)	CABLE ASSEMBLY Black	1
20	82129140	螺钉(M6 x 40)	SCREW (M6 x 40)	2
21	54457	J型卡扣	J CLIP	1
22	854514A1	电压调节器总成	REGULATOR ASSEMBLY Voltage	1
23	822002	护孔环	GROMMET	3
24	828836	护孔环	GROMMET	1
25	4010620	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	1
26	82129116	螺钉(M6 x 16)	SCREW (M6 x 16)	6
27	822003	衬套	BUSHING	3
28	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	3
29	828451	螺母(.250-28)	NUT (.250-28)	3
30	827C	火花塞	SPARK PLUG	3
30	898	火花塞	SPARK PLUG	OPT
31	827509A10	点火CDM模块总成	CDM MODULE ASSEMBLY Ignition	3
32	821945A61	高压电缆总成	CABLE ASSEMBLY Hi Tension	1
32	857124A1	高压线总成	CABLE ASSEMBLY Hi-Tension	1
33	63709A1	点火电缆护套/端子套件	BOOT/TERMINAL KIT Ignition Cable	1
33	857074A1	点火电缆护套/端子套件	BOOT/TERMINAL KIT Ignition Cable	1
34	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
35	819526	油门线调节标签	DECAL Throttle Cable Adjustment	1
36	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	1
37	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
-	818153A64	动力头总成	POWERHEAD ASSEMBLY	1

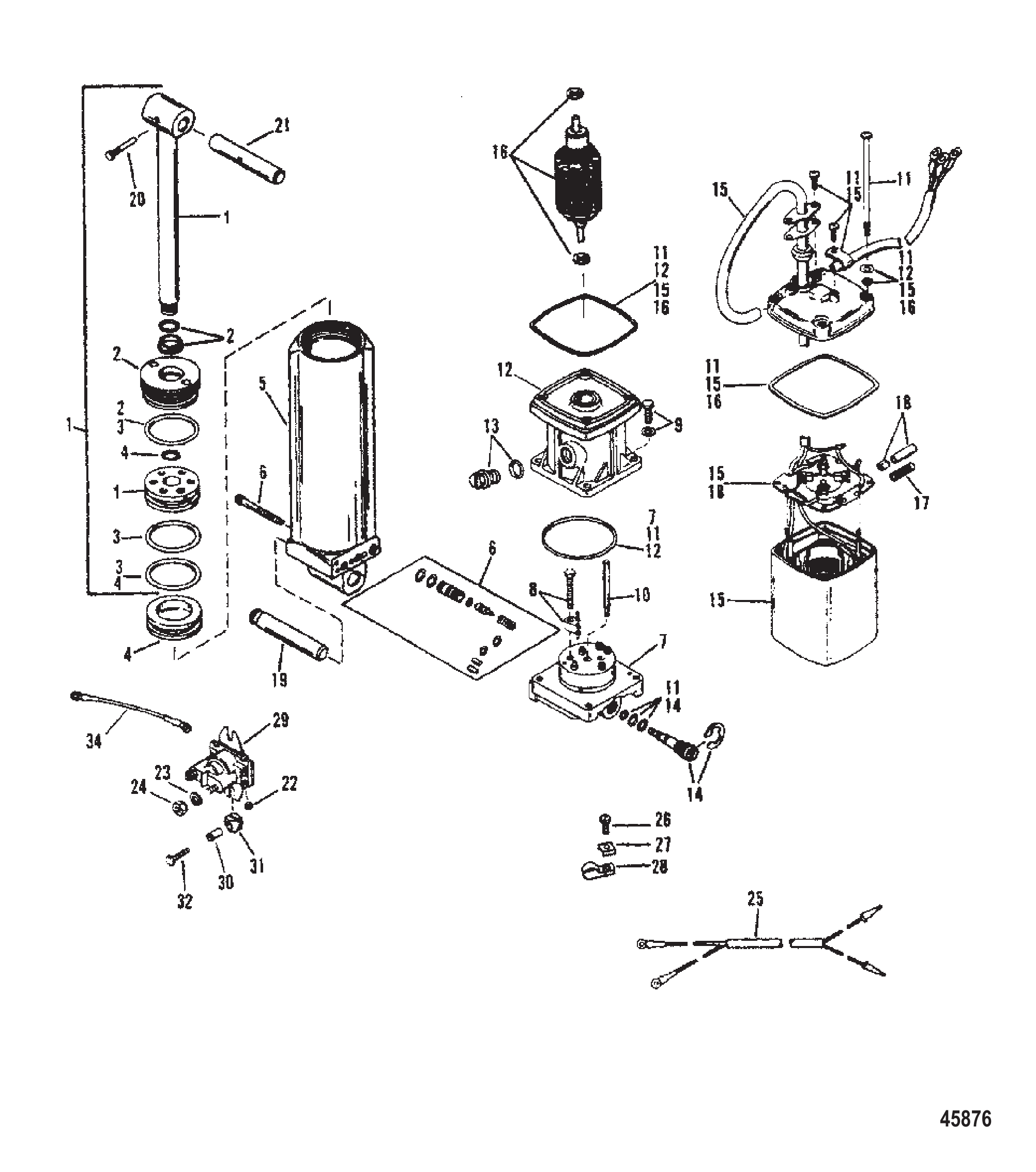

图 15动力升降倾斜组件 Power Trim Components

REF	零件编号	中文名称	英文名称	数量
-	824051	配平泵总成	PUMP ASSEMBLY Trim	1
1	8116661	减震杆总成	SHOCK ROD ASSEMBLY	1
2	813428	升降缸端盖总成	END CAP ASSEMBLY Trim Cylinder	1
3	813432A3	气缸密封套件	SEAL KIT Cylinder	1
4	810776	记忆活塞套件	PISTON KIT Memory	1
5	8116691	气缸总成 配平	CYLINDER ASSEMBLY Trim	1
6	811678A4	螺钉与密封套件	SCREW AND SEAL KIT	1
7	8116707	泵/歧管套件	PUMP/MANIFOLD KIT	1
8	823180A1	摇臂套件	ROCKER ARM KIT	1
9	813436	螺钉套件(4件)	SCREW KIT (4 PCS)	1
10	8116711	驱动轴	DRIVESHAFT	1
11	811626A3	密封套件(含箱体螺栓)	SEAL KIT (WITH CASE BOLTS)	1
12	8116731	储液罐套件	RESERVOIR KIT	1
13	813435	塞套件	PLUG KIT	1
14	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
15	8116241	机架与磁场套件	FRAME AND FIELD KIT	1
16	8116271	电枢套件	ARMATURE KIT	1
17	12665	电刷弹簧套件	SPRING KIT Brush	1
18	811625	电刷卡套件	BRUSH CARD KIT	1
19	818898	锚销	PIN Anchor	1
20	821539	三叶销	PIN Trilobe	1
21	996251	轴	SHAFT	1
22	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	4
23	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
24	64015	螺母 (.250-20)	NUT (.250-20)	4
25	17201A2	电缆总成 (17.00 英寸)	CABLE ASSEMBLY (17.00 Inches)	1
26	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	1
27	69205	C形垫圈	C WASHER	1
28	22875	卡扣	CLIP	2
29	818997A1	电磁阀总成	SOLENOID ASSEMBLY	2
30	818968	衬套	BUSHING	3
31	818967	护孔环	GROMMET	3
32	19932100	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	3
34	87379A14	电线总成 (2.750英寸)	WIRE ASSEMBLY (2.750 Inches)	1
34	87379A46	线缆总成(5.750英寸)	CABLE ASSEMBLY (5.750 Inches)	1
34	88807A16	黑色电缆总成(4.00英寸)	CABLE ASSEMBLY (4.00 Inches) Black	2

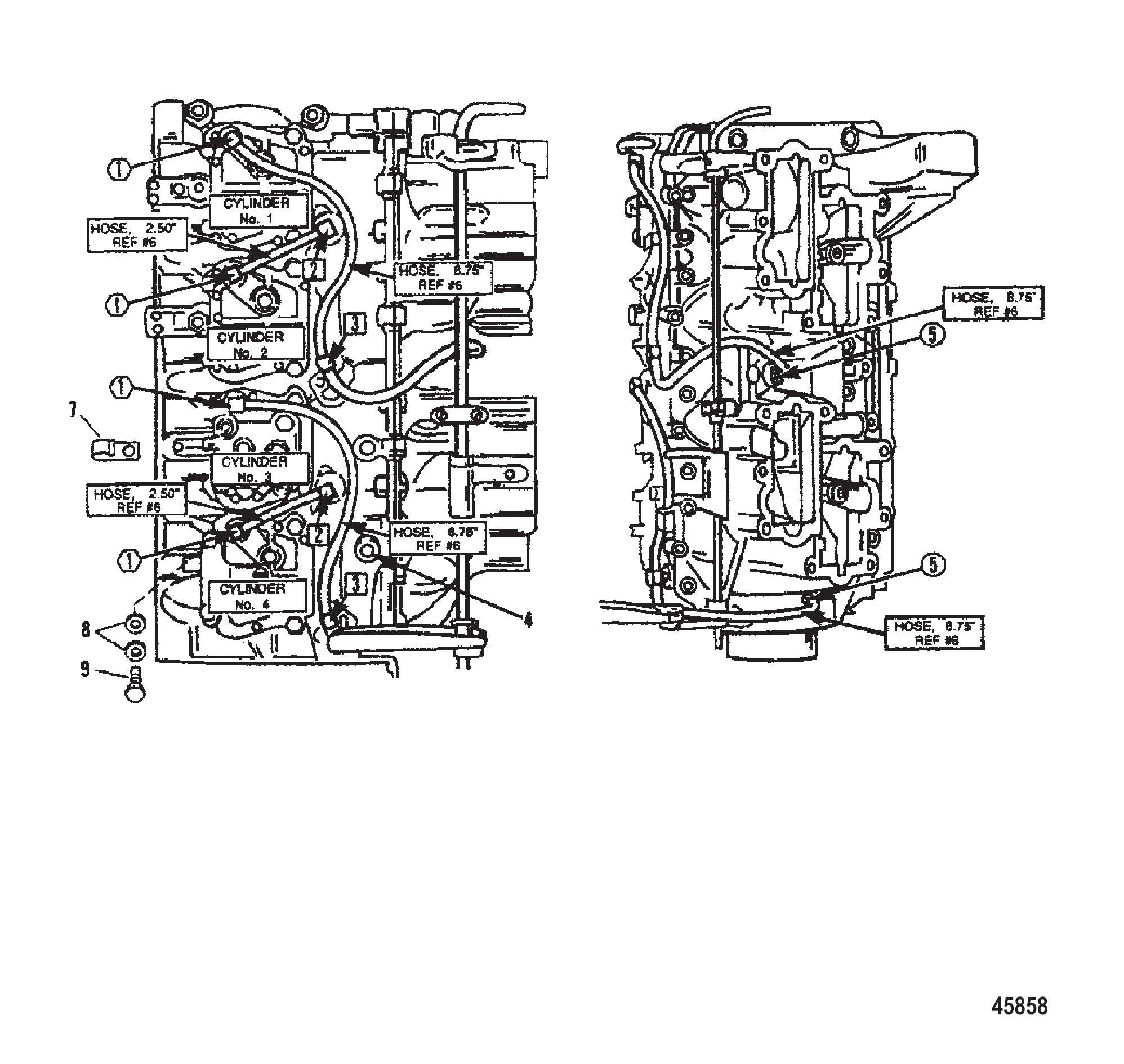

图 16循环系统 Recirculation System

REF	零件编号	中文名称	英文名称	数量
1	F743314	弯头	ELBOW	4
2	42864	90度弯头	FITTING (90 DEGREES)	2
3	820706	弯头	ELBOW	2
4	99664	弯头	ELBOW	1
5	42658	止回阀	CHECK VALVE	2
6	99130122	油管(20.00英尺 散装)	TUBING (20.00 Feet Bulk)	1
7	55098	J型卡扣	J CLIP	1
8	78968	内锁紧垫圈 (.250)	LOCKWASHER Internal (.250)	2
9	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	1
-	818154A22	动力头总成	POWERHEAD ASSEMBLY	AR

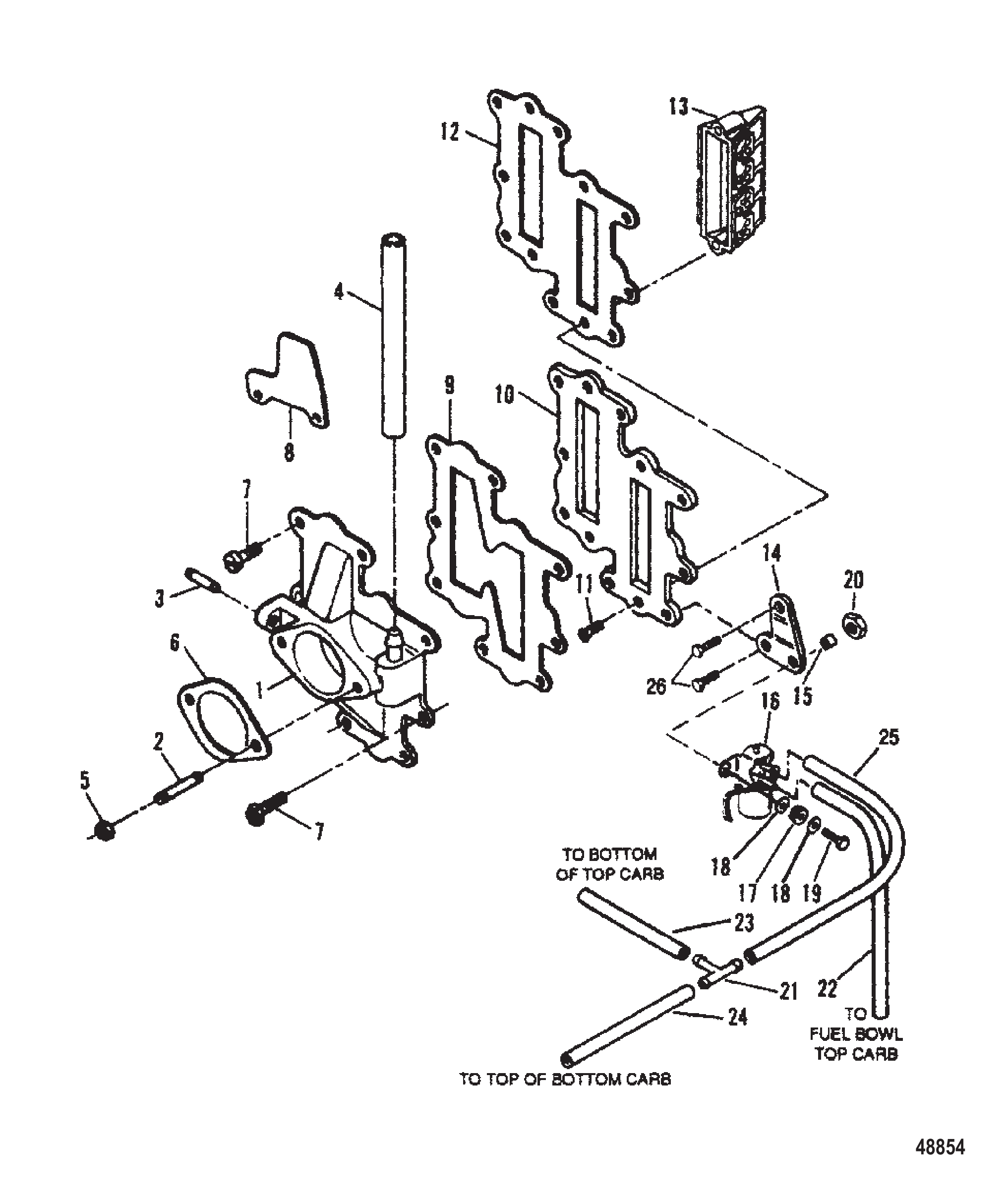

图 17簧片板与启动泵 Reed Plate and Primer

REF	零件编号	中文名称	英文名称	数量
1	817799A1	适配器总成(上部)	ADAPTER ASSEMBLY (UPPER)	1
2	826387	双头螺栓(.375-16 x 1.625)	STUD (.375-16 x 1.625)	2
1	817800A1	适配器总成(下部)	ADAPTER ASSEMBLY (LOWER)	1
2	826387	双头螺栓(.375-16 x 1.625)	STUD (.375-16 x 1.625)	2
3	826389	双头螺栓(.250-20 x 1.250)	STUD (.250-20 x 1.250)	1
4	817736	软管(6.00英寸)	HOSE (6.00 IN.)	1
5	86226	螺母（.375-16）	NUT (.375-16)	4
6	F440906	衬垫	GASKET	2
7	F1532	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	14
8	F500894	正时指针	POINTER Timing	1
9	F178168-1	衬垫	GASKET	2
10	820501	安装板	PLATE	2
11	826380	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	8
12	F406406	导流板衬垫	GASKET Deflector Plate	2
13	11645	簧片阀组	REED BLOCK	4
14	819705	电磁阀支架	BRACKET Solenoid	1
15	F694359	隔套	SPACER	1
16	819503	电磁阀	SOLENOID	1
17	F694504	护孔环	GROMMET	1
18	35044	垫圈(0.281×0.625×0.065)不锈钢	WASHER (.281 x .625 x .065) Stainless Steel	2
19	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	1
20	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	1
21	F694922	三通接头	FITTING Tee	1
22	9912688	管材 (36.00英寸散装)	TUBING (36.00 Inches Bulk)	1
23	9912688	管材 (36.00英寸散装)	TUBING (36.00 Inches Bulk)	1
24	9912688	管材 (36.00英寸散装)	TUBING (36.00 Inches Bulk)	1
25	9912688	管材 (36.00英寸散装)	TUBING (36.00 Inches Bulk)	1
26	F2030	螺钉 (.250-20 x 1.250) 不锈钢	SCREW (.250-20 x 1.250) Stainless Steel	2
NS	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	3
-	818154A22	动力头总成	POWERHEAD ASSEMBLY	-
-	809125A1	衬垫套件	GASKET SET	-
-	FK10023	化油器衬垫组	GASKET SET Carburetor	-

图 18维修/支撑材料 Service/Support Material

REF	零件编号	中文名称	英文名称	数量
-	820756	零件手册 120马力Force	PARTS MANUAL 120 Hp Force	1
-	826880950	操作手册	OPERATION MANUAL	1
-	832749	维修手册 F90/120 (1995至1998)	SERVICE MANUAL F90/120 (1995 Thru 1998)	1
-	81910412	清漆	LACQUER	AR
-	82532112	石墨灰丙烯酸漆	PAINT Graphite Gray Acrylic	AR
-	81910712	透明丙烯酸漆	PAINT Clear Acrylic	AR

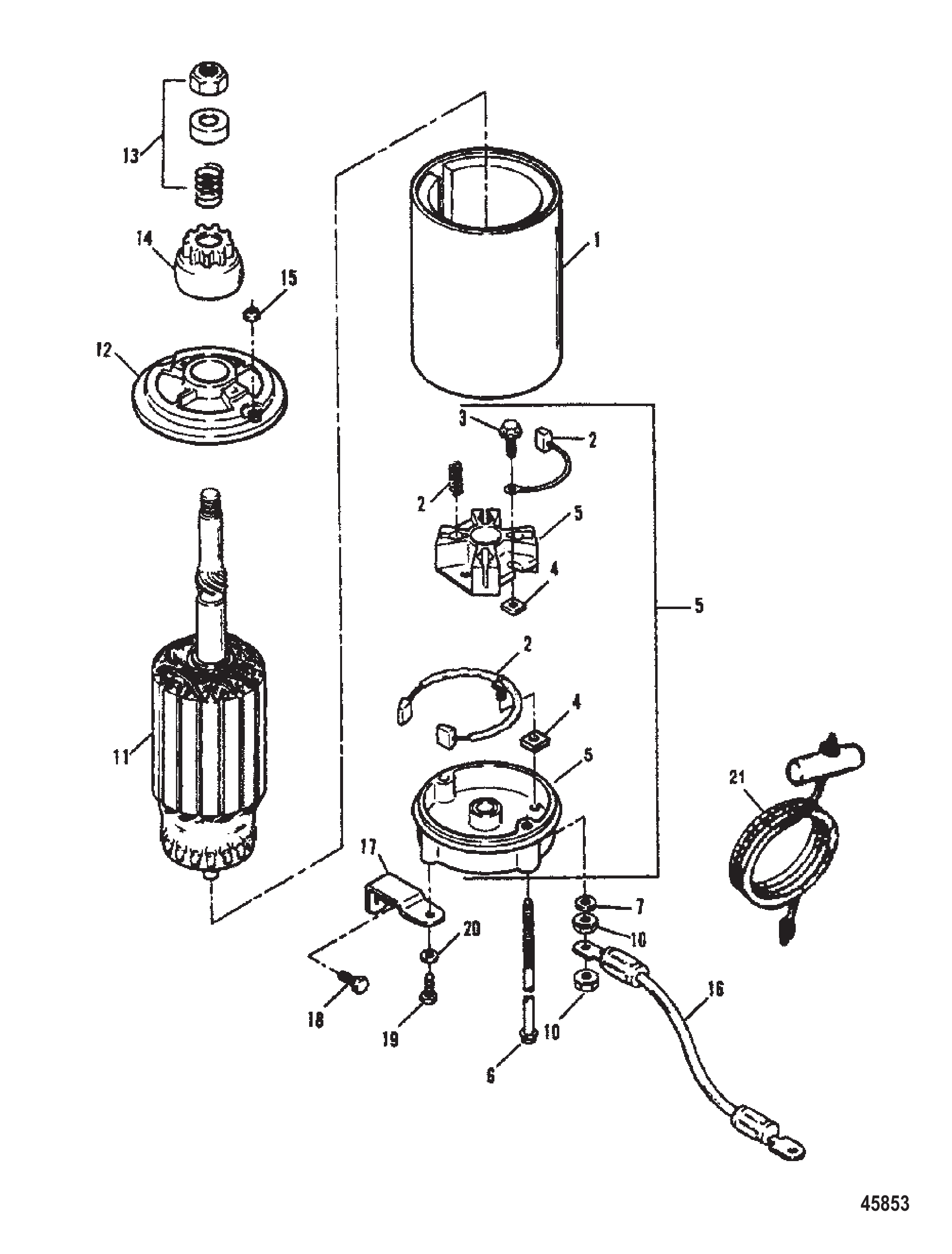

图 19启动器总成 Starter Assembly

REF	零件编号	中文名称	英文名称	数量
1	819085	启动电机总成	STARTER MOTOR ASSEMBLY	1
2	F15190	电刷/弹簧套件	BRUSH/SPRING KIT	1
3	F15158	螺钉	SCREW	2
4	F15159	绝缘体	INSULATOR	2
5	F15189	端盖总成	END CAP ASSEMBLY	1
6	F15178	贯穿螺栓	THRU BOLT	2
7	F15160	垫圈	WASHER	1
10	F15162	螺母	NUT	2
11	F15177	电枢	ARMATURE	1
12	F15176	端盖	END CAP	1
13	90644	驱动套件	DRIVE KIT	1
14	819222	驱动总成	DRIVE ASSEMBLY	1
15	828451	螺母(.250-28)	NUT (.250-28)	2
16	93388A6	线缆总成(5.500英寸)	CABLE ASSEMBLY (5.500 Inches)	1
17	F616675	支架	BRACKET	1
18	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	1
19	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	1
20	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
21	47341A1	手动/应急启动绳柄套件	ROPE AND HANDLE KIT Manual/Emergency Start	1
NS	825064	贴纸-注意挂挡启动	DECAL Caution Start In Gear	1
NS	825066	警告标贴	DECAL Warning	1

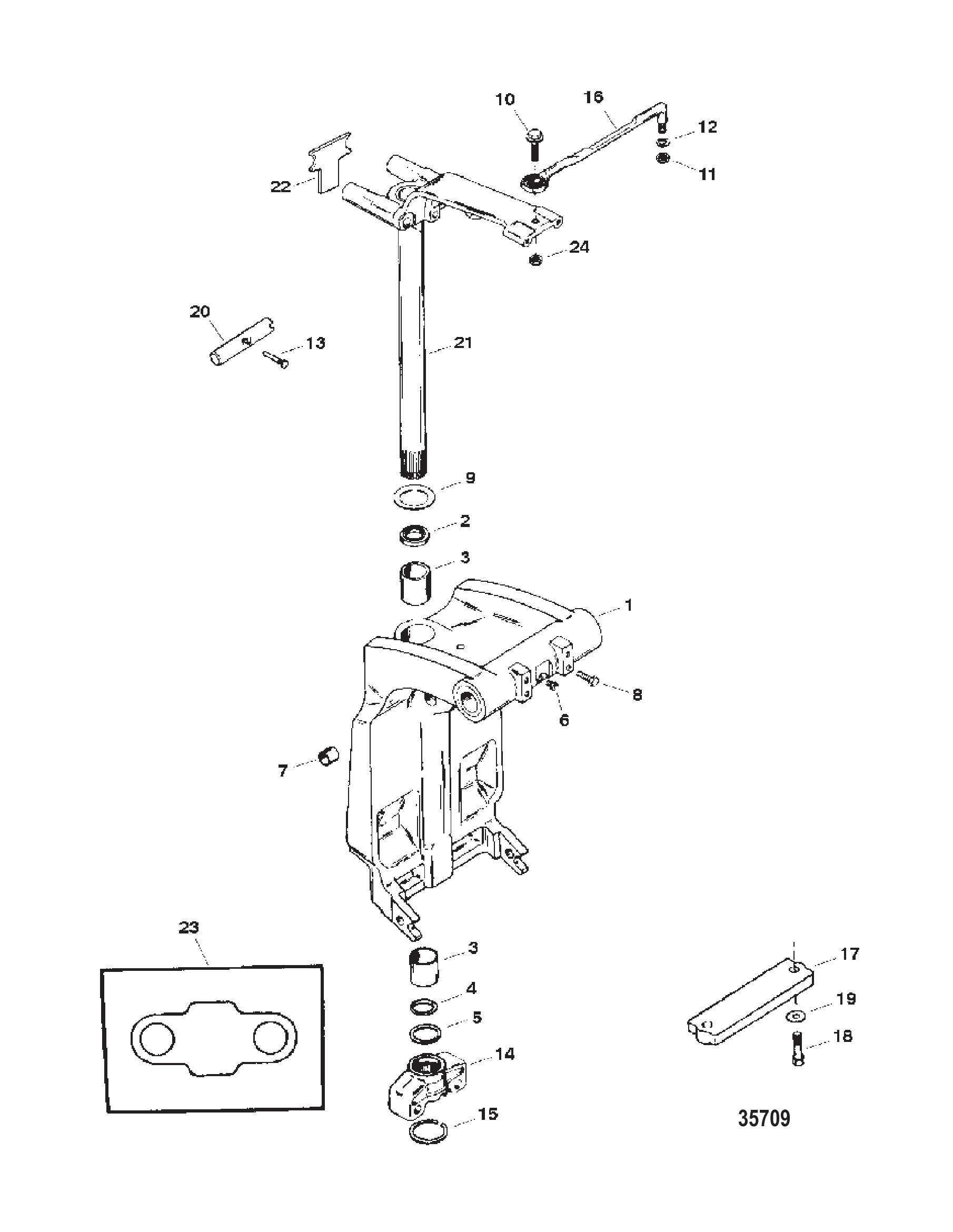

图 20旋转支架与转向臂 Swivel Bracket and Steering Arm

REF	零件编号	中文名称	英文名称	数量
1	818904A4	旋转支架总成(喷漆)	BRACKET ASSEMBLY Swivel (Painted)	1
2	87735	油封	SEAL Oil	1
3	818764	衬套	BUSHING	2
4	33504	O型圈	O-RING	1
5	816039	隔套	SPACER	1
6	74036	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
9	816432	止推垫片	THRUST WASHER	1
10	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	1
11	34863	螺母 (.375-24)	NUT (.375-24)	1
12	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
13	821539	三叶销	PIN Trilobe	1
14	42961A5	底部轭架总成(喷漆)	YOKE ASSEMBLY Bottom (Painted)	1
15	67684	挡圈	RING Retaining	1
16	92876A1	转向连杆总成	LINK ASSEMBLY Steering	1
17	818298A1	阳极套件	ANODE KIT	1
18	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
19	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
20	996251	轴(上部)	SHAFT (UPPER)	1
21	99661A31	旋转销总成(喷漆)	SWIVEL PIN ASSEMBLY (Painted)	1
22	88882	上轭缓冲垫	BUMPER Top Yoke	1
23	11288	下轭缓冲垫	BUMPER Bottom Yoke	1
24	34863	螺母 (.375-24)	NUT (.375-24)	1

图 21专用工具 Tools Special

REF	零件编号	中文名称	英文名称	数量
-	FT8948-1	轴承拉拔器	PULLER TOOL Bearing	1
-	F1800	螺栓(.250-20 x 7.00)	BOLT (.250-20 x 7.00)	2
-	F1972	螺钉(.250-20 x 2.500)	SCREW (.250-20 x 2.500)	3
-	4000358	螺钉(M8 x 50)	SCREW (M8 x 50)	3
-	35044	垫圈(0.281×0.625×0.065)不锈钢	WASHER (.281 x .625 x .065) Stainless Steel	3
-	F8012	垫圈(.203 x .469 x .049)	WASHER (.203 x .469 x .049)	2
-	25909	垫圈(.406 x .812 x .065)	WASHER (.406 x .812 x .065)	3
-	FT2991	钢丝刷	BRUSH Wire	1
-	FT8914	密封件拆卸工具	REMOVER Seal	1
-	FT8903	密封安装工具	INSTALLER TOOL Seal	1
-	FT8907	驱动手柄	HANDLE Driver	1
-	FT8925	密封安装工具	INSTALLER TOOL Seal	1
-	FT2953	插座	SOCKET	1
-	FT2990-1	活塞与活塞销定位块	BLOCK Piston And Piston Pin	1
-	FT2996	活塞环压缩工具	COMPRESSOR TOOL Piston Ring	1
-	FT8926	活塞环扩张工具	EXPANDER TOOL Piston Ring	1
-	FT8933	吊钩	LIFTING HOOK	1
-	112301	对正工具	ALIGNMENT TOOL	1
-	44486A1	调整杆拆卸工具	REMOVAL TOOL Trim Rod	1
-	44487A1	调整杆导向器拆卸工具	REMOVER TOOL Trim Rod Guide	1
-	52915A6	测试仪表套件	TEST GAUGE KIT	1
-	11243	连接器	CONNECTOR	1
-	74951	扳手	SPANNER WRENCH	1
-	63209	加热灯	HEAT LAMP	1
-	12349A2	小齿轮定位工具	LOCATION TOOL Pinion	1
-	13945	轴承安装工具	INSTALLATION TOOL Bearing	1
-	13949	油封安装工具	DRIVER TOOL Oil Seal	1
-	14308A1	轴承座圈工具	RACE TOOL Bearing	1
-	14309A1	轴承安装工具	INSTALLATION TOOL Bearing	1
-	14310A1	磨损套筒安装工具	INSTALLATION TOOL Wear Sleeve	1
-	14311A2	轴承预紧工具	PRE LOAD TOOL Bearing	1
-	196601	背隙测量仪	INDICATOR TOOL Backlash	1
-	31106	轴承安装心轴杯	MANDREL Bearing Driver Cup	1
-	31108	油封安装工具	DRIVER TOOL Oil Seal	1
-	31229A7	轴承拉拔器套件	PULLER KIT Bearing	1
-	24156	螺母(0.625-18)	NUT (.625-18)	1
-	31229	轴	SHAFT	1
-	36569	驱动头工具	DRIVE HEAD TOOL	1
-	15755	心轴	MANDREL	1
-	37323	滚针轴承导杆工具	DRIVER ROD TOOL Needle Bearings	1
-	34569A1	滑动锤拉拔器总成	PULLER ASSEMBLY Slide Hammer	1
-	37241	通用拉拔板	PULLER PLATE Universal	1
-	37350	导向垫圈	PILOT WASHER	1
-	46086A1	拉拔器爪头总成	PULLER JAW ASSEMBLY	1
-	56775	传动轴固定工具	HOLDING TOOL Driveshaft	1
-	58222A1	百分表工具	DIAL INDICATOR TOOL	1
-	83155	千分表转接套件	ADAPTER KIT Dial Indicator	1
-	83165M	轴承拉拔器总成	PULLER ASSEMBLY Bearing	1
-	85716	拉拔螺栓工具-轴承座	PULLER BOLT TOOL Bearing Carrier	1
-	FT8978-1	正时灯	TIMING LIGHT	1
-	FT2951	电路测试追踪器	TRACER TOOL Circuit Test	1
-	FT8950	测试套件	TESTER KIT	1
-	FT11295	火花测试器	SPARK TESTER	1
-	FT2938-1	通断测试仪	CONTINUITY TESTER	1
-	99750A1	万用表	MULTI METER	1
-	58222A1	百分表工具	DIAL INDICATOR TOOL	1
-	FT2969	螺纹修复套件(-10-24)	HELI COIL KIT (-10-24)	1
-	FT2970	螺纹修复套件(.250-20)	HELI COIL KIT (.250-20)	1
-	FT2971	螺纹修复套件(.312-18)	HELI COIL KIT (.312-18)	1
-	FT2948	螺纹修复套件(.375-16)	HELI COIL KIT (.375-16)	1
-	825265A1	针轴承润滑脂 (8盎司)	COMPOUND (8 Ounce) NEEDLE BEARINGS	1
-	FT2987-1	润滑剂	LUBRICANT	1
-	FT8969	润滑剂	LUBRICANT	1
-	916011	红色RTV密封胶	SEALER Red RTV	1
-	342271	密封剂(16盎司)	SEALING COMPOUND (16 Ounce)	1
-	FT8936-1	乐泰RC 609密封胶	SEALANT Loctite RC 609	1
-	FT2962-2	密封胶	SEALANT	1
-	8230891	密封胶	SEALANT	1
-	825407A12	多功能润滑剂2 4 C	MULTI LUBE 2 4 C	1
-	13872A1	专用润滑脂101(8盎司管装)	SPECIAL LUBE 101 (8 Ounce Tube)	1

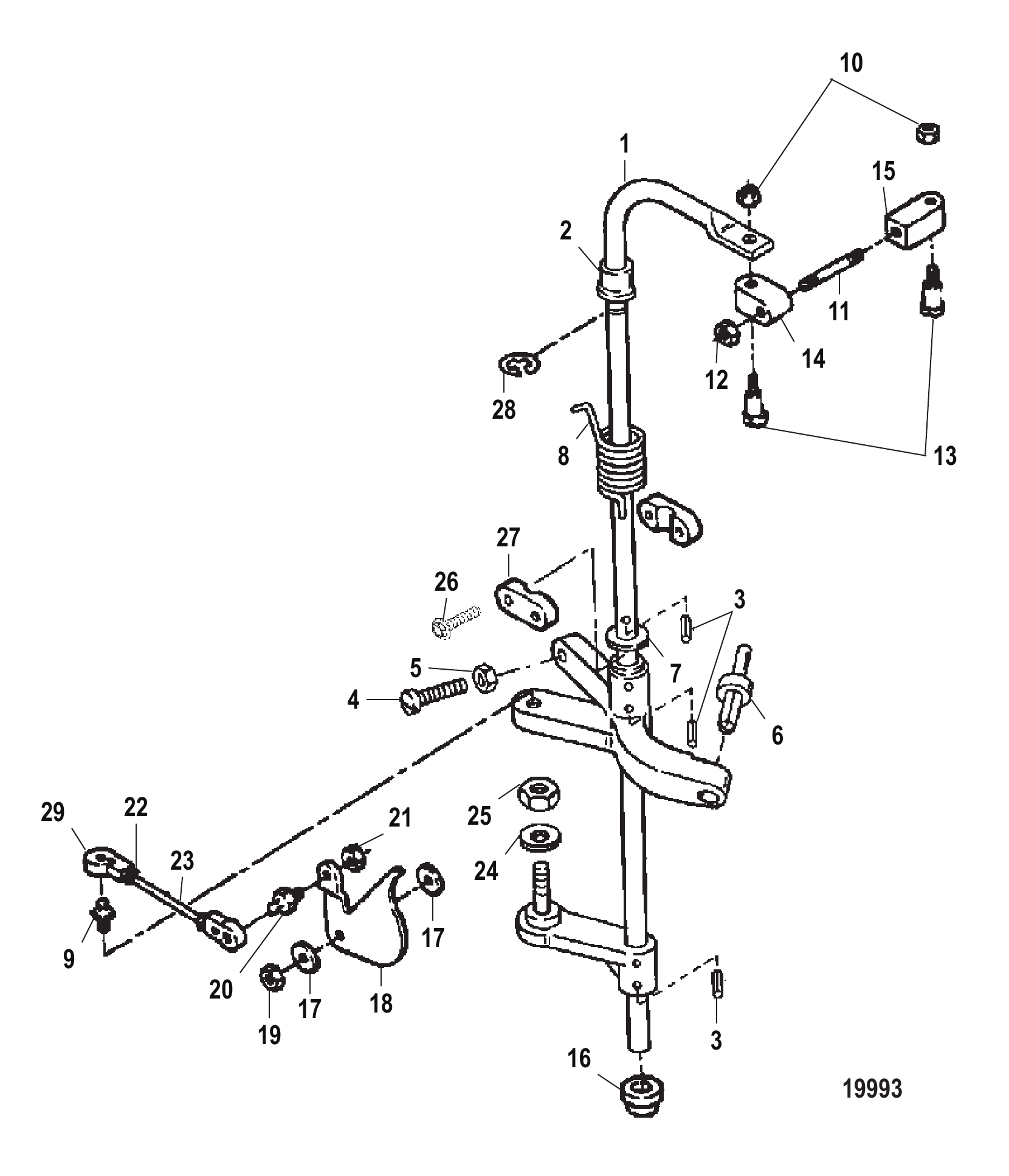

图 22塔轴与油门联动装置 Towershaft and Throttle Linkage

REF	零件编号	中文名称	英文名称	数量
1	820302A1	塔轴总成	TOWERSHAFT ASSEMBLY	1
2	819513	衬套 上部	BUSHING Upper	1
3	38489	滚动销	PIN Roll	5
4	F1504	螺丝(.250-20 x 1.250)	SCREW (.250-20 x 1.250)	1
5	64015	螺母 (.250-20)	NUT (.250-20)	1
6	F1727	尼龙铆钉	RIVET (Nylon)	1
7	F1856	垫圈	WASHER	1
8	819533	节气门回位弹簧	SPRING Throttle Return	1
9	828514	螺纹球头	BALL Threaded	1
10	F7009	螺母(#10-24)	NUT (#10-24)	2
11	F85445-1	火花控制杆	ROD Spark Control Spark Control	1
12	F2015	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
13	F499026	控制杆旋转端	SWIVEL Control Rod End	2
14	F499035	控制杆端头(连接塔轴)	END Control Rod (To Towershaft)	1
15	F4990361	控制杆端头(连接触发器)	END Control Rod (To Trigger)	1
16	F40689-1	塔轴下轴承	BEARING Towershaft Lower	1
17	F269319	节气门凸轮轴承	BEARING Throttle Cam	2
18	8191184	节气门凸轮	CAM Throttle	1
19	72008	螺母 (.250-20)	NUT (.250-20)	1
20	828514	螺纹球头	BALL Threaded	1
21	20110	螺母 (#10-32)	NUT (#10-32)	1
22	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
23	819002	油门连杆	LINK Throttle	1
24	35459	垫圈	WASHER	1
25	8268336	螺母 (M6)	NUT (M6)	1
26	19961088	螺钉 (#10-24 x 0.880)	SCREW (#10-24 x .880)	2
27	F607689	轴承	BEARING	2
28	13194	挡圈	RING Retaining	1
29	830875	球窝接头	SOCKET Ball	2

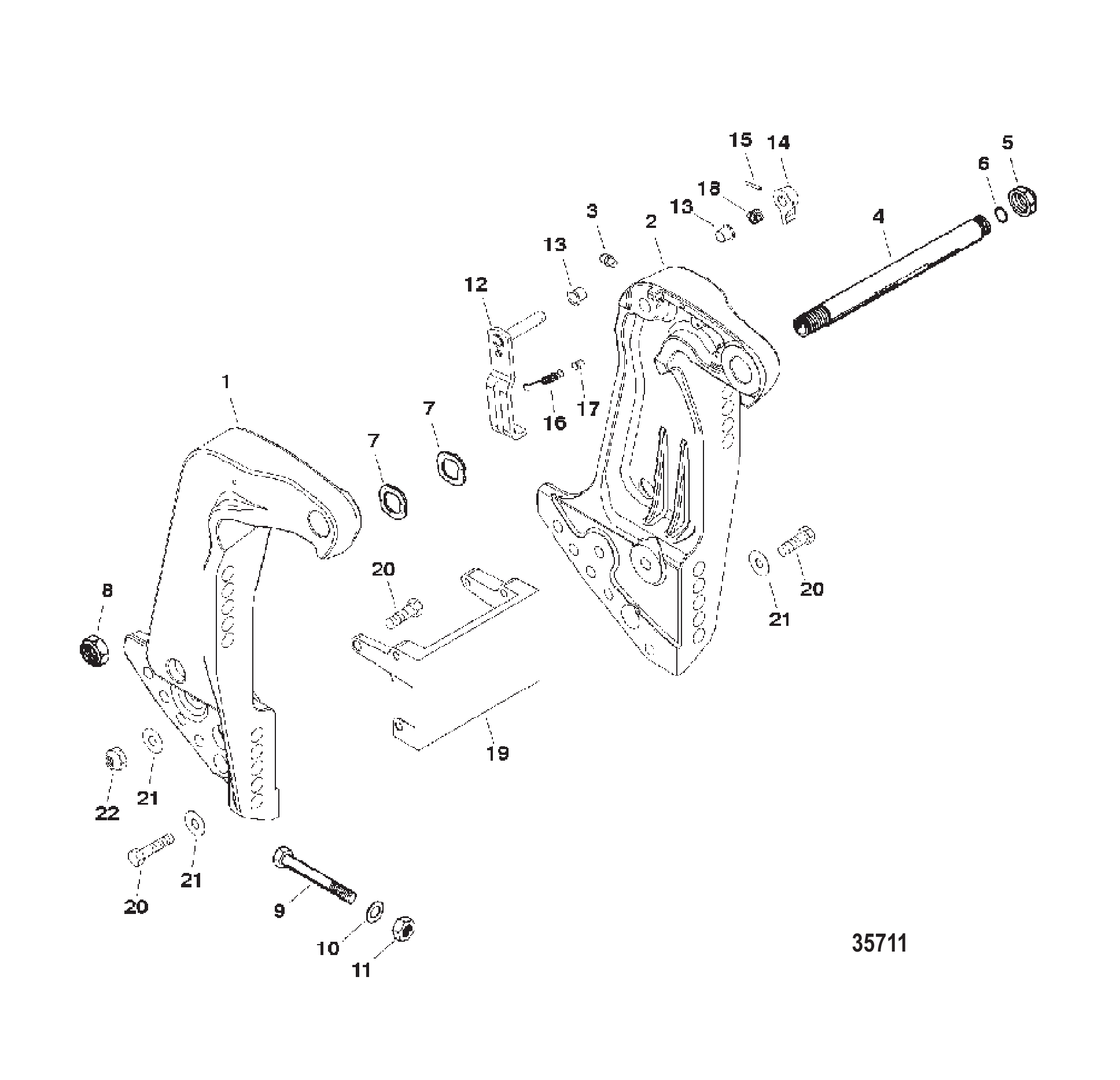

图 23艉板支架 Transom Bracket

REF	零件编号	中文名称	英文名称	数量
1	828334F4	艉板支架(喷漆)	BRACKET Transom (Painted)	1
2	828333A6	艉板支架总成(喷漆)	BRACKET ASSEMBLY Transom (Painted)	1
3	98727	润滑脂接头	FITTING Grease	1
4	99170A2	倾斜管套件	TUBE KIT Tilt	1
5	34862	螺母(1.00-14)	NUT (1.00-14)	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈(1.62 x 1.05)	WASHER Wave (1.62 x 1.05) Wave	2
8	30499	螺母(7/8-14)	NUT (7/8-14)	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
10	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	91962	螺母(.500-20)	NUT (.500-20)	4
12	821176A1	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	65830	尼龙衬套	NYLINER	2
14	99633		KNOB Tilt Lock Lever	1
15	99615	槽销	PIN Groove	1
16	830899	倾斜锁紧张力弹簧	SPRING Tension Tilt Lock	1
17	99617	槽销	PIN Groove	1
18	830900	压缩弹簧	SPRING Compression	1
19	818771F8	锚定支架(喷漆)	BRACKET Anchor (Painted)	1
20	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
21	4002319	垫圈	WASHER	6
22	40114	螺母(M10 x 1.5)	NUT (M10 x 1.5)	1
