水星 Mercury 450R HP 4.6L V8 Racing 1E083006 THRU 1E099720 - 爆炸图零件明细

四冲程电喷 EFI · USA - Cat.# 90-8M0155664 · 共 42 个部位 · 1828 条零件

1装饰面板 2附件 3适配板 4发电机安装/皮带设计I型 5发电机安装/皮带设计II型 6凸轮轴盖 7冷却系统 8曲轴、活塞及连杆 9气缸体 10气缸盖与凸轮轴 11贴花 12驱动轴延长套件 13驱动轴壳体 1E093311 及以下 14驱动轴壳体 1E093312 及以上 15电气板 16排气系统 17飞轮与张紧器总成 18燃油滤清器 19燃油供给模块组件 - 8M0161387 20燃油系统 21齿轮箱螺旋桨轴-标准旋转 Sport Master 1.60 22齿轮箱螺旋桨轴-标准旋转 5.44鱼雷型 1.60 23齿轮箱驱动轴 5.44鱼雷型 1.60 24齿轮箱驱动轴 Sport Master 1.60 25齿轮箱螺旋桨轴-反向旋转 Sport Master 1.60 26齿轮箱螺旋桨轴-反向旋转 5.44鱼雷型 1.60 27点火系统 28进气系统增压器 29底罩 30维护套件 31安装支架 32安装支架仅限20英寸拉杆型号 33润滑油系统 34动力控制模块/传感器电气 35动力升降倾斜组件 36动力升降/艉板总成 37维修/支撑材料 38垫片组 8M0076745 39启动电机 40拉杆 41工具 42顶罩

图 1装饰面板 Accent Panel

REF	零件编号	中文名称	英文名称	数量
1	8M0147686	装饰罩总成魔鬼眼红	ACCENT COWL ASSEMBLY Devils Eye Red	1
1	8M0147683	装饰罩总成（石墨灰）	ACCENT COWL ASSEMBLY Graphite Grey	1
1	8M0147687	装饰罩总成魔鬼眼红	ACCENT COWL ASSEMBLY Devils Eye Red	1
1	8M0147684	装饰罩总成（石墨灰）	ACCENT COWL ASSEMBLY Graphite Grey	1
1	8M0147685	装饰罩总成（待喷涂）	ACCENT COWL ASSEMBLY Ready to Paint	1
1	8M0192256	装饰面板漆	ACCENT PNL PAINT	1
1	8M0159911	装饰罩总成碳纤维(无贴花) 需另购贴花套装	ACCENT COWL ASSEMBLY Carbon Fiber (Undecaled) MUST ORDER DECAL SET	1
1	8M0172910	装饰罩总成碳纤维(无贴花)	ACCENT COWL ASSEMBLY Carbon Fiber (Non-Decaled)	1
2	8M0159921	贴花套装装饰面板 250R	DECAL SET Accent Panel, 250R	1
2	8M0159922	贴花套装装饰面板 300R	DECAL SET Accent Panel, 300R	1
3	8M0149565	水星黑色贴花	DECAL Mercury, Black	1
3	8M0147920	水星标贴（银色）	DECAL Mercury, Silver	1
4	8M0143774	后贴花 250马力	DECAL Rear, 250 HP	1
5	8M0149567	后贴花 300马力	DECAL Rear, 300 HP	1
6	8M0080153	M-ICON 66毫米赛车贴花	DECAL M-ICON 66 MM Racing	1
7	8M0149566	红色贴花 R	DECAL Red, R	1
8	8M0149568	黑色R贴花	DECAL Black, R	1

图 2附件 Accessories

REF	零件编号	中文名称	英文名称	数量
-	8M0236724	快速冲洗连接套件	FLUSH QUICK CONNECT KIT	1
-	893395A01	嵌入式安装板	PLATE Flush Mount	1
-	875207	三通接头	TEE Fitting	1
-	892486K08	模拟转换套件	CONVERSION KIT Analog	1
-	899785K04	附件电源线束总成(30英尺)	HARNESS ASSEMBLY Accessory Power (30 Feet)	1
-	880717A01	齿轮箱螺丝/密封套件	SCREW/SEAL KIT Gearcase	1
-	88439A50	电池电缆组	CABLE SET Battery	1
-	8M0210761	电池电缆组(12英尺)	CABLE SET (12 ft) Battery	1
-	8M0133542	电池电缆套件(12英尺)	CABLE KIT (12 ft) Battery	1
-	44357Q2	冲洗附件	FLUSHING ATTACHMENT	1
-	44357T2	冲洗附件	FLUSHING ATTACHMENT	1
-	881150Q1	双进水口冲洗套件	FLUSH KIT Dual Water Pick Up	1
-	881150K1	双进水口冲洗密封套件	SEAL KIT Flush - Dual Water Pickup	1
-	899712A01	连续性电缆套件	CABLE KIT Continuity	1
-	8M0131810	MP警报罩套件(镀铬边框)	MP ALERT COWL KIT (Chrome Bezel)	1
-	8M0072341	MP警报边框-椭圆形(镀铬)	BEZEL MP Alert - Oval (Chrome)	1
-	8M0138978	MP警报边框(暖融白)	BEZEL MP Alert (Warm Fusion White)	1
-	8M0142265	油位传感器	SENSOR Oil Level	1
-	8M0145987	重新供电方案线束套件	HARNESS KIT Re-power Plan	1
-	8M0142696	压力传感器-DTS	SENSOR Pressure-DTS	1
-	8M0145165	模拟水压块套件	BLOCK WATER PRESSURE KIT Analog	1
-	8M0146953	大孔衬套-机械式	GROMMET Large Hole, Mechanical	1
-	8M0146954	大孔衬套-DTS CMS	GROMMET Large Hole, DTS CMS	1
-	8M0146955	大孔衬套-DTS	GROMMET Large Hole, DTS	1
-	825191A03	索具软管套件	HOSE KIT Rigging	1
-	8M0135386	船用燃油滤清器套件	FUEL FILTER KIT Boat Mounted	1
-	8M0126144	燃油滤清器	FUEL FILTER	1
-	8M0113732	DTS清洁电源线束总成(14英尺)	HARNESS ASSEMBLY DTS, Clean Power, 14 Feet	1
-	889244T01	线束总成 DTS清洁电源(25英尺)	HARNESS ASSEMBLY DTS Clean Power (25 Feet)	1
-	8M0207790	DTS清洁电源线束总成(25英尺)	HARNESS ASSEMBLY DTS Clean Power, 25 Feet	1
-	8M0127682	操舵电源线束总成(15英尺)	POWER HARNESS ASSEMBLY Helm (15 feet)	1
-	8M0127681	操舵电源线束总成(10英尺)	POWER HARNESS ASSEMBLY Helm (10 feet)	1
-	896333T25	线束总成(25英尺)	HARNESS ASSEMBLY (25 Feet)	1
-	896305001	支架	BRACKET	1
-	896392	垫圈	WASHER	1
-	67755A22	艉板螺栓套件(2.50英寸)	BOLT KIT Transom (2.50 Inch)	1
-	67755A26	艉板螺栓套件(3.50英寸)	BOLT KIT Transom (3.50 Inch)	1
-	67755A13	艉板螺栓套件(4.50英寸)	BOLT KIT Transom (4.50 Inch)	1
-	67755A14	艉板螺栓套件(5.50英寸)	BOLT KIT Transom (5.50 Inch)	1
-	67755A15	艉板螺栓套件(6.50英寸)	BOLT KIT Transom (6.50 Inch)	1
-	67755A17	艉板螺栓套件(7.50英寸)	BOLT KIT Transom (7.50 Inch)	1
-	67755A18	艉板螺栓套件(8.00英寸)	BOLT KIT Transom (8.00 Inches)	1
-	8M0149614	艉板螺栓套件(8.00英寸)	BOLT KIT Transom (8.00 Inches)	1
-	8M0109756	艉板螺栓双螺母套件	DOUBLE NUT KIT Transom Bolt	1
-	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	1
-	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	1
-	895062	垫圈	WASHER	1
-	8M0204704	垫圈	WASHER	1
-	82671117	螺母(.500-20)	NUT (.500-20)	1
-	8M0097226	转速表套件舵机安装	TACHOMETER KIT Helm Mount	1
-	8M0150994	接头连接套件	FITTING CONNECTOR KIT	1
-	8M0225356	卡箍套件全套	CLAMP KIT Clamp Kit-Complete	1

图 3适配板 Adapter Plate

REF	零件编号	中文名称	英文名称	数量
1	8M0142705	适配板	ADAPTER PLATE	1
2	8M0142744	螺柱（M10×185）	STUD (M10 x 185)	8
3	8M0142743	螺母(M10 x 1.5)	NUT (M10 x 1.5)	10
4	8M0149603	螺柱 (M10 x 1.5 x 81.5)	STUD (M10 x 1.5 x 81.5)	2
4	8M0158595	双头螺柱(M10)	STUD (M10)	2
5	8M0069690	螺丝(M10×1.5×60)	SCREW (M10 X 1.5 X 60)	3
6	821327	定位销	PIN Dowel	2
7	8M0142275	衬垫	GASKET	1
8	8M0142742	上部安装支架	BRACKET Upper Mount	1
8	8M0239528	支架固定座	BRACKET Mount Retainer	1
9	4010730	螺钉 (M8 x 30)	SCREW (M8 x 30)	4
9	8M0231451	六角法兰螺钉M8×30	SCREW M8 x 30 HEX FLG	4
10	8M0038205	直通接头	FITTING Straight	2
11	8M0142745	上部安装支架密封件	SEAL Upper Mount Bracket	1
12	8M0142981	螺丝 M14x2.00x100 六角法兰头	SCREW (M14x2.00x100) Hex Flg Hd	2
12	8M0230598	螺钉（M14×2×100 HX FLG）	SCREW (M14 x 2 x 100 HX FLG)	2
13	8M0142711	垫圈（28.4毫米×1.6毫米）	WASHER (28.4 MM x 1.6 MM)	2
13	8M0224254	垫圈（28.4毫米×1.6毫米）	WASHER (28.4 MM x 1.6 MM)	2
14	8M0149560	刚性上部支架	MOUNT UPPER Stiff	1
15	8M0103823	六角法兰螺钉(M10×45)	SCREW (M10 x 45 Hex Flange)	4
16	8M0142274	衬垫	GASKET	1
16	8M0205773	适配板衬垫	GASKET Adapter Plate	1
17	8M0142982	挡油板	SHIELD Oil Deflector	1
18	8M0103805	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	3
19	8M0142708	螺钉 (M6)	SCREW (M6)	9
20	8M0142748	接头	FITTING	1
21	8M0142619	软管	HOSE	1
22	8M0146171	喷雾器软管总成	HOSE ASSEMBLY Sprayer	1
23	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
24	8M0142618	冷却器出口软管	HOSE Mount Cooler Out	1
25	8M0149562	护板总成	CHAP PLATE ASSEMBLY	1
25	8M0142707	适配器板	PLATE Adapter	1
25	8M0149562	护板总成	CHAP PLATE ASSEMBLY	1
26	8M0142710	排水罩	DRAIN Cowl	2
27	8M0142830	螺钉 (M6 x 20)	SCREW (M6 x 20)	1
28	8M0142831	底部锁扣	LATCH Bottom	1
29	8M0142832	顶部锁扣	LATCH Top	1
30	8M0142917	适配板密封件	SEAL Adapter Plate	1
-	8M0149551	动力头垫片套装	POWERHEAD GASKET SET	1

图 4发电机安装/皮带设计I型 Alternator Mounting/Belt Design I

REF	零件编号	中文名称	英文名称	数量
1	8M0142248	85安交流发电机	ALTERNATOR 85 AMP	1
2	8M0151156	隔套	SPACER	1
3	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
4	8M0142675	熔断式电缆总成	CABLE ASSEMBLY Fusable Link	1
4	8M0169564	熔断链接线组件	CABLE ASSEMBLY Fuseable Link	1
5	8M0142460	六角法兰螺钉(M8×45)	SCREW (M8 x 45) Hex Flg	2
6	8M0142251	皮带	BELT	1
6	8M0218433	皮带	BELT	1
7	8M0142460	六角法兰螺钉(M8×45)	SCREW (M8 x 45) Hex Flg	6
8	8M0142692	发电机支架	BRACKET Alternator	1
8	8M0237475	发电机支架	BRACKET Alternator	1
9	8M0142693	发电机支架	BRACKET Alternator	1
9	8M0237474	发电机支架	BRACKET Alternator	1
10	8M0142677	螺钉(M8×85)	SCREW (M8 x 85)	2
11	8M0183795	中心支架	MOUNT CENTER	6

图 5发电机安装/皮带设计II型 Alternator Mounting/Belt Design II

REF	零件编号	中文名称	英文名称	数量
1	8M0142248	85安交流发电机	ALTERNATOR 85 AMP	1
1	8M0176702	发电机升级套件	UPGRADE KIT Alternator	1
2	8M0151156	隔套	SPACER	1
3	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
4	8M0142675	熔断式电缆总成	CABLE ASSEMBLY Fusable Link	1
4	8M0169564	熔断链接线组件	CABLE ASSEMBLY Fuseable Link	1
5	8M0142460	六角法兰螺钉(M8×45)	SCREW (M8 x 45) Hex Flg	2
6	8M0142251	皮带	BELT	1
6	8M0218433	皮带	BELT	1
7	8M0142460	六角法兰螺钉(M8×45)	SCREW (M8 x 45) Hex Flg	2
8	826365	螺母 (M8)	NUT (M8)	4
9	8M0022161	双头螺柱(M8×71.5)	STUD (M8 x 71.5)	4
10	8M0183795	中心支架	MOUNT CENTER	6
11	8M0142674	平垫圈	WASHER Plain	12
12	8M0142678	接地线总成	CABLE ASSEMBLY Ground	1
13	8M0142673	发电机支架	BRACKET Alternator	1
14	8M0142672	发电机支架	BRACKET Alternator	1
15	8M0142677	螺钉(M8×85)	SCREW (M8 x 85)	2
16	814806	垫圈 (.344 x .688 x .065) 不锈钢	WASHER (.344 x .688 x .065) Stainless Steel	4
16	8M0204690	垫圈 (.344 x .688 x .065) 不锈钢	WASHER (.344 x .688 x .065) Stainless Steel	4
-	8M0183802	飞轮套件	Flywheel Kit	1

图 6凸轮轴盖 Camshaft Cover

REF	零件编号	中文名称	英文名称	数量
1	8M0142282	右舷凸轮轴盖总成	CAMSHAFT COVER ASSEMBLY Starboard	1
1	8M0142281	左舷凸轮轴盖总成	CAMSHAFT COVER ASSEMBLY Port	1
2	8M0142284	右舷凸轮轴盖密封件	SEAL Camshaft Cover, Starboard	1
2	8M0142283	左舷凸轮轴盖密封件	SEAL Camshaft Cover, Port	1
3	8M0142285	火花塞密封圈	SEAL Spark Plug	4
4	8M0022324	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	38
4	8M0230977	螺钉 (M6 x 25 MM)	SCREW (M6 x 25 MM)	38
5	8M0142472	左舷至右舷通气管	HOSE Port to Starboard Breather	1
6	855228	卡箍	CLAMP	4
7	8M0142473	右舷通气管至进气口软管	HOSE Starboard Breather to Intake	1
-	8M0149551	动力头垫片套装	POWERHEAD GASKET SET	1
-	8M0149557	长缸体总成	LONG BLOCK	1

图 7冷却系统 Cooling System

REF	零件编号	中文名称	英文名称	数量
1	8M0142494	接头	FITTING	1
2	35480	O型圈（1.237×0.103）	O-RING (1.237 x .103)	1
3	8M0103806	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	9
4	8M0028753	欧梯克卡箍(直径31.6)	CLAMP Oetiker (31.6 Diameter)	6
5	8M0142503	冷却软管	HOSE Cooling	1
6	8M0142516	倒钩接头	FITTING Barbed	1
7	8M0142517	O型圈(内径23.6×线径2.9)	O-RING (23.6 MM ID X 2.9 MM)	1
8	8M0162139	节温器总成	THERMOSTAT ASSEMBLY	1
9	8M0187145	卡箍	CLAMP	2
10	8M0172178	接头总成	FITTING ASSEMBLY	1
11	201951	O型圈(0.487x0.103)	O-RING (.487 x .103)	1
12	8M0103805	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	1
13	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
14	8M0142513	软管	HOSE	1
15	8M0142511	软管总成	HOSE ASSEMBLY	1
16	8M0142500	节温器出口软管	HOSE Thermostat Outlet	1
17	8M0142501	护孔环	GROMMET	2
18	8M0142509	连接接头	FITTING Connector	1
19	8M0173463	进口接头	FITTING Inlet	1
20	888988011	卡箍(38.1毫米)	CLAMP (38.1 MM)	2
21	8M0172177	软管	HOSE	1
22	8M0142506	连接接头	FITTING Connector	1
23	888988011	卡箍(38.1毫米)	CLAMP (38.1 MM)	4
24	8M0142507	Y型接头	Y FITTING	1
25	26317	O型圈(1.109x0.139)	O-RING (1.109 x .139)	1
26	8M0142505	软管	HOSE	1
27	8M0142504	软管	HOSE	1
28	8M0142510	接头	FITTING	2
29	8M0204650	O型圈	O-RING	1
30	8M0142518	软管总成	HOSE ASSEMBLY	1
31	884546	护孔环	GROMMET	1
32	8M0203912	M10×1.5接头	FITTING M10 x 1.5	2
33	8M0142523	O型圈(内径8.1×线径1.6)	O-RING (8.1 MM ID X 1.6MM)	1
34	8M0142662	软管	HOSE	2
35	8M0183109	软管总成	HOSE ASSEMBLY	1
36	888523001	卡扣	CLIP	2
37	8M0183083	软管总成	HOSE ASSEMBLY	1
38	884546	护孔环	GROMMET	2
39	NSS	不单独出售-指示软管	NOT SOLD SEPARATE HOSE, Tell Tale	1
40	8M0183082	软管	HOSE	1
41	8M0142731	弯头接头	FITTING ELBOW	1
42	86614	O型圈 (1.049 x 0.103)	O-RING (1.049 x .103)	1
-	8M0149551	动力头垫片套装	POWERHEAD GASKET SET	1
-	NSS	不单独出售-完整长缸体总成	NOT SOLD SEPARATE Complete Long Block Assembly	1

图 8曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	8M0142417	曲轴	CRANKSHAFT	1
2	8M0034912	O型圈 3.78×21.32	O-RING 3.78 X 21.32	1
3	8M0142386	挡圈	RING RETAINING	1
4	8M0142379	主轴承油封	SEAL Main Bearing	1
4	8M0168880	主轴承油封	SEAL Main Bearing	1
5	8M0142385	隔套	SPACER	1
6	8M0147976	主轴承绿色	BEARING MAIN Green	AR
6	8M0147977	主轴承蓝色	BEARING MAIN Blue	AR
6	8M0147978	主轴承白色	BEARING MAIN White	AR
6	8M0147979	主轴承橙色	BEARING MAIN Orange	AR
7	8M0142424	止推垫圈	WASHER THRUST	2
8	8M0148077	连杆轴承(绿色)	BEARING Connecting Rod, Green	AR
8	8M0217817	连杆轴承(绿色)	BEARING Connecting Rod, Green	AR
8	8M0148078	连杆轴承(蓝色)	BEARING Connecting Rod, Blue	AR
8	8M0217818	连杆轴承(蓝色)	BEARING Connecting Rod, Blue	AR
8	8M0148079	连杆轴承(白色)	BEARING Connecting Rod, White	AR
8	8M0217819	连杆轴承(白色)	BEARING Connecting Rod, White	AR
9	8M0142575	活塞总成	PISTON ASSEMBLY	8
9	8M0200040	活塞总成	PISTON ASSEMBLY	8
10	8M0142381	活塞环组件	PISTON RING ASSEMBLY	8
11	8M0142383	卡簧	CIRCLIP	16
12	8M0142418	连杆	CONNECTING ROD	8
12	8M0159647	连杆	CONNECTING ROD	8
13	8M6002637	连杆螺栓	BOLT Connecting Rod	16
13	8M0159648	连杆螺栓	BOLT, CONNECTING ROD	16
-	8M0142279	长缸体总成	LONG BLOCK	1
-	8M0149557	长缸体总成	LONG BLOCK	1
-	8M0149551	动力头垫片套装	POWERHEAD GASKET SET	1

图 9气缸体 Cylinder Block

REF	零件编号	中文名称	英文名称	数量
1	8M0142344	气缸体	CYLINDER BLOCK	1
2	NSS	不单独销售	NOT SOLD SEPARATE	1
3	8M0142349	气缸体盖	COVER Cylinder Block	1
4	8M0080651	螺钉 (M6 x 20)	SCREW (M6 x 20)	5
5	8M0142352	18毫米螺塞	PLUG 18 MM	1
6	8M0142353	O型圈(0.614x0.070)	O-RING (0.614 x 0.070)	1
7	893540	定位销 8x12长	PIN Dowel, 8x12 long	6
8	8M0087447	堵头(10毫米)	PLUG (10MM)	2
9	8M0142348	盖板垫片	GASKET Cover Plate	1
10	8M0103809	螺钉(M6x40毫米)不锈钢	SCREW (M6 x 40 mm) Stainless Steel	10
11	8M0142347	螺钉(M10x96毫米)六角凸缘头	SCREW (M10 x 96 MM) HEX FLG HD	10
11	8M0168893	螺钉 M10x96	SCREW M10 x 96	10
12	8M0142346	螺钉(M11x107毫米)12角头	SCREW (M11 x 107 MM) 12 POINT HEX HEAD	10
13	8M0087454	30毫米螺塞	PLUG (30 mm)	1
14	8M0142409	平衡器螺塞	PLUG Balancer	1
15	8M0142421	平衡轴	BALANCE SHAFT	1
16	8M0142429	滚珠轴承	BEARING Ball	1
17	8M0142427	挡板	PLATE Retainer	1
18	8M0142428	螺钉(M5x12)六角凸缘	SCREW (M5 x 12) HEX FLG	2
19	8M0142426	定位销	PIN Dowel	1
20	8M0142423	螺钉(M8x1.25)六角凸缘带垫	SCREW (M8 x 1.25) HEX FL SEMS	1
21	8M0142422	链轮	SPROCKET	1
22	8M0142410	平衡器盖冲压件	COVER Balancer, Stamped	1
23	40011106	不锈钢螺钉(M5x13)	SCREW (M5 x 13) Stainless Steel	10
24	8M0103807	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	2
25	8M0064752	凸轮张紧器端盖	END CAP Cam Tensioner	1
26	898836	棕色O型圈	O-RING Brown	1
26	8M0237361	O型圈	O-RING	1
27	8M0142394	正时链条张紧器总成	TENSIONER ASSEMBLY Timing Chain	1
27	8M0231253	正时链条张紧器总成	TENSIONER ASSEMBLY Timing Chain	1
28	8M0142399	凸轮驱动链条	CHAIN CAM DRIVE	1
29	8M0142395	凸轮螺栓 M12特殊左旋	CAM BOLT M12 Special Left Hand	2
30	8M0142390	凸轮轴链轮	SPROCKET Camshaft	2
31	8M0142400	短跨距导板	GUIDE SHORT SPAN	2
32	8M0086569	台阶螺钉(M8x1.25)	SCREW Shoulder (M8 x 1.25)	2
33	8M0142393	凸轮驱动导板	GUIDE Cam Drive	1
34	8M0142392	活动导板	GUIDE Moveable	1
35	8M0103821	螺钉	SCREW	4
36	8M0142459	左舷吊环	LIFTING EYE Port	1
37	8M0142448	右舷吊环	LIFTING EYE Starboard	1
-	8M0142279	长缸体总成	LONG BLOCK	1
-	8M0149557	长缸体总成	LONG BLOCK	1
-	8M0149551	动力头垫片套装	POWERHEAD GASKET SET	1

图 10气缸盖与凸轮轴 Cylinder Head and Camshaft

REF	零件编号	中文名称	英文名称	数量
1	8M0150214	气缸盖总成(右舷)	CYLINDER HEAD ASSEMBLY Starboard	1
1	8M0150215	气缸盖总成(左舷)	CYLINDER HEAD ASSEMBLY Port	1
1	8M0150490	气缸盖总成(右舷)	CYLINDER HEAD ASSEMBLY Starboard	1
1	8M0221005	气缸盖总成(右舷)	CYLINDER HEAD ASSEMBLY Starboard	1
1	8M0150491	气缸盖总成(左舷)	CYLINDER HEAD ASSEMBLY Port	1
1	8M0221003	气缸盖总成(左舷)	CYLINDER HEAD ASSEMBLY Port	1
2	8M0142354	气门座-进气	VALVE Seat, Intake	16
3	8M0142355	气门座-排气	VALVE Seat, Exhaust	16
4	8M0142358	气门导管	VALVE Guide	32
5	NSS	不单独销售	NOT SOLD SEPARATE	18
6	892454035	螺栓（M6×36）	BOLT (M6 x 36)	36
6	8M0163131	M6螺钉	SCREW M6	36
7	8M0142357	专用塞(21毫米)	PLUG (21 MM) Special	6
8	8M0087447	堵头(10毫米)	PLUG (10MM)	12
9	8M0087451	堵头（18毫米）	PLUG (18 mm)	2
10	8M0087453	堵头(24毫米)	PLUG (24 MM)	6
11	8M0087454	30毫米螺塞	PLUG (30 mm)	2
12	8M0142364	气门键	VALVE Key	32
13	8M0142363	固定座	RETAINER	32
14	8M0142360	弹簧	SPRING	32
15	8M0142359	气门油封	SEAL Valve	32
16	8M0142361	进气阀	VALVE Intake	16
17	8M0142362	排气阀	VALVE Exhaust	16
18	892454030	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
19	8M0142367	张紧器	TENSIONER	2
20	8M0142366	凸轮间链条	CHAIN Cam to Cam	2
21	8M0142411	凸轮轴-排气右舷	CAMSHAFT Exhaust, Starboard	1
21	8M0142416	凸轮轴-排气左舷	CAMSHAFT Exhaust, Port	1
22	8M0142412	凸轮轴-进气右舷	CAMSHAFT Intake, Starboard	1
22	8M0142415	凸轮轴-进气左舷	CAMSHAFT Intake, Port	1
22	8M0149556	凸轮轴-进气右舷	CAMSHAFT Intake, Starboard	1
22	8M0149555	凸轮轴-进气左舷	CAMSHAFT Intake, Port	1
23	8M0142365	挺杆 (3.000)	TAPPET (3.000)	32/AR
23	8M0142431	挺杆 (3.015)	TAPPET (3.015)	32/AR
23	8M0142439	挺杆 (3.030)	TAPPET (3.030)	32/AR
23	8M0142440	挺杆 (3.045)	TAPPET (3.045)	32/AR
23	8M0142441	挺杆 (3.060)	TAPPET (3.060)	32/AR
23	8M0142438	挺杆 (3.075)	TAPPET (3.075)	32/AR
23	8M0142495	挺杆 (3.090)	TAPPET (3.090)	32/AR
23	8M0142492	挺杆 (3.105)	TAPPET (3.105)	32/AR
23	8M0142443	挺杆 (3.120)	TAPPET (3.120)	32/AR
23	8M0142447	挺杆 (3.135)	TAPPET (3.135)	32/AR
23	8M0142464	挺杆 (3.150)	TAPPET (3.150)	32/AR
23	8M0142465	挺杆 (3.165)	TAPPET (3.165)	32/AR
23	8M0142466	挺杆 (3.180)	TAPPET (3.180)	32/AR
23	8M0142487	挺杆 (3.195)	TAPPET (3.195)	32/AR
23	8M0142488	挺杆 (3.210)	TAPPET (3.210)	32/AR
23	8M0142489	挺杆 (3.225)	TAPPET (3.225)	32/AR
23	8M0142490	挺杆 (3.240)	TAPPET (3.240)	32/AR
23	8M0142491	挺杆 (3.255)	TAPPET (3.255)	32/AR
23	8M0142519	挺杆 (3.270)	TAPPET (3.270)	32/AR
23	8M0142520	挺杆 (3.285)	TAPPET (3.285)	32/AR
23	8M0142521	挺杆 (3.300)	TAPPET (3.300)	32/AR
23	8M0142525	挺杆 (3.315)	TAPPET (3.315)	32/AR
23	8M0142527	挺杆 (3.330)	TAPPET (3.330)	32/AR
23	8M0142532	挺杆 (3.345)	TAPPET (3.345)	32/AR
23	8M0142613	挺杆 (3.360)	TAPPET (3.360)	32/AR
23	8M0142252	挺杆 (3.375)	TAPPET (3.375)	32/AR
23	8M0142255	挺杆 (3.390)	TAPPET (3.390)	32/AR
23	8M0142256	挺杆 (3.405)	TAPPET (3.405)	32/AR
23	8M0142257	挺杆 (3.420)	TAPPET (3.420)	32/AR
23	8M0142258	挺杆 (3.435)	TAPPET (3.435)	32/AR
23	8M0142261	挺杆 (3.450)	TAPPET (3.450)	32/AR
23	8M0142263	挺杆 (3.465)	TAPPET (3.465)	32/AR
23	8M0142277	挺杆 (3.480)	TAPPET (3.480)	32/AR
23	8M0142291	挺杆 (3.495)	TAPPET (3.495)	32/AR
23	8M0142292	挺杆 (3.510)	TAPPET (3.510)	32/AR
23	8M0142666	挺杆 (3.525)	TAPPET (3.525)	32/AR
23	8M0142667	挺杆 (3.540)	TAPPET (3.540)	32/AR
23	8M0142668	挺杆 (3.555)	TAPPET (3.555)	32/AR
23	8M0142669	挺杆 (3.570)	TAPPET (3.570)	32/AR
23	8M0142670	挺杆 (3.585)	TAPPET (3.585)	32/AR
23	8M0142698	挺杆 (3.600)	TAPPET (3.600)	32/AR
23	8M0142699	挺杆 (3.615)	TAPPET (3.615)	32/AR
23	8M0142700	挺杆 (3.630)	TAPPET (3.630)	32/AR
23	8M0142701	挺杆 (3.645)	TAPPET (3.645)	32/AR
23	8M0142702	挺杆 (3.660)	TAPPET (3.660)	32/AR
23	8M0142703	挺杆 (3.675)	TAPPET (3.675)	32/AR
23	8M0142704	挺杆 (3.690)	TAPPET (3.690)	32/AR
24	8M0142369	螺钉 (M10 x 107) 内六角法兰头	SCREW (M10 x 107) TORX FLG HD	20
25	893754035	螺钉（M6×35）	SCREW (M6 X 35)	4
25	8M0205943	螺钉(M6x35)	SCREW (M6 x 35)	4
26	8M0142273	气缸盖衬垫	GASKET Cylinder Head	1
26	8M0142272	气缸盖衬垫	GASKET Cylinder Head	1
27	8M0142368	O型圈 (230 2.484 x .139)	O-RING (230 2.484 x .139)	1
28	8M0142537	排气歧管衬垫	GASKET Exhaust Manifold	1
-	8M0142279	长缸体总成	LONG BLOCK	1
-	8M0149557	长缸体总成	LONG BLOCK	1
-	8M0149551	动力头垫片套装	POWERHEAD GASKET SET	1

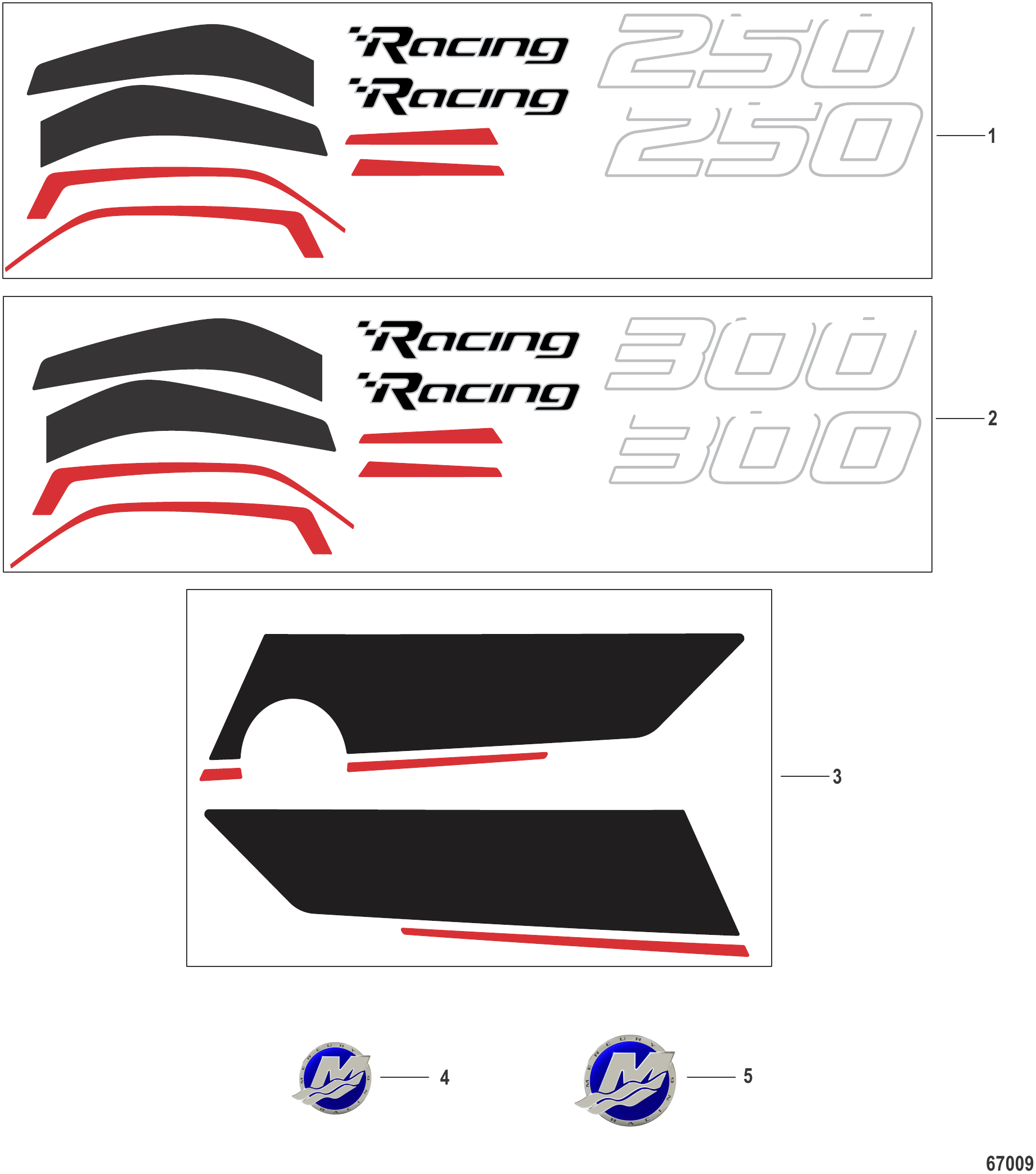

图 11贴花 Decals

REF	零件编号	中文名称	英文名称	数量
1	8M0143772	顶罩贴花套件	DECAL SET Top Cowl	1
2	8M0145974	顶罩贴花套件	DECAL SET Top Cowl	1
3	8M0143773	贴花套件	DECAL SET	1
4	8M0151525	M-ICON 53毫米赛车贴花	DECAL M-ICON 53 MM, Racing	1
5	8M0080153	M-ICON 66毫米赛车贴花	DECAL M-ICON 66 MM Racing	1

图 12驱动轴延长套件 Driveshaft Extension Kits

REF	零件编号	中文名称	英文名称	数量
1	8M0142779	5英寸黑色垫片总成	SPACER ASSEMBLY 5 IN Black	1
1	8M0147047	5英寸银色垫片总成	SPACER ASSEMBLY 5 IN Silver	1
1	8M0228079	5英寸银色垫片总成	SPACER ASSEMBLY 5 IN Silver	1
2	8M0042271	水管导向器	GUIDE Water Tube	1
3	8M0142780	水管	TUBE Water	1
4	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	2
5	8M0142781	双头螺柱（M12×179）	STUD (M12 x 179)	5
6	856982	垫圈(0.5×0.81×0.09英寸)不锈钢	WASHER (.500 x .810 x .090) Stainless Steel	5
7	896895	螺母(M12)	NUT (M12)	5
8	8M0142787	10英寸黑色垫片总成	SPACER ASSEMBLY 10 IN Black	1
8	8M0230288	垫片套件 10英寸黑色	DSH SPACER KIT 10 IN Black	1
8	8M0147046	垫片总成 10英寸银色	SPACER ASSEMBLY 10 IN Silver	1
8	8M0230292	10英寸银色驱动轴垫片套件	DSH SPACER KIT 10 IN Silver	1
9	8M0042271	水管导向器	GUIDE Water Tube	1
10	8M0142789	水管	WATER TUBE	1
11	8M0142788	双头螺柱(M12x306)	STUD (M12 x 306)	5
12	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	2
13	856982	垫圈(0.5×0.81×0.09英寸)不锈钢	WASHER (.500 x .810 x .090) Stainless Steel	5
14	896895	螺母(M12)	NUT (M12)	5
15	8M0146065	长型驱动轴套件	DRIVESHAFT KIT Long	1
15	8M0168204	长型驱动轴套件	DRIVESHAFT KIT Long	1
15	8M0146066	加长型驱动轴套件	DRIVESHAFT KIT X-Long	1
15	8M0168208	加长型驱动轴套件	DRIVESHAFT KIT X-Long	1
15	8M0146067	超长型驱动轴套件	DRIVESHAFT KIT XX-Long	1
15	8M0168210	超长型驱动轴套件	DRIVESHAFT KIT XX-Long	1
16	8M0168204	长型驱动轴套件	DRIVESHAFT KIT Long	1
16	8M0168208	加长型驱动轴套件	DRIVESHAFT KIT X-Long	1
16	8M0168210	超长型驱动轴套件	DRIVESHAFT KIT XX-Long	1

图 13驱动轴壳体 1E093311 及以下 Driveshaft Housing 1E093311 and Below

REF	零件编号	中文名称	英文名称	数量
1	8M0161431	驱动轴外壳石墨灰	HOUSING DRIVESHAFT Graphite Grey	1
1	8M0208362	ORD 8M0210458	ORD 8M0210458	1
1	8M0161432	驱动轴外壳冷聚白	HOUSING DRIVESHAFT Cold Fusion White	1
1	8M0208363	ORD 8M0214502	ORD 8M0214502	1
2	8M0164308	支架总成石墨灰	Bracket Assembly Graphite Grey	1
2	8M0187152	支架总成石墨灰	BRACKET ASSEMBLY Graphite Grey	1
2	8M0164309	支架总成冷聚白	Bracket Assembly Cold Fusion White	1
2	8M0187151	支架总成冷聚白	BRACKET ASSEMBLY Cold Fusion White	1
3	88552514	不锈钢螺钉(M6×14mm)	SCREW (M6 x 14 mm) Stainless Steel	1
4	85944975	管材(72.00英寸散装)	TUBING (72.00 Inches Bulk)	1
5	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
6	8M0142714	接头	FITTING	1
7	8M0142778	安装缓冲垫圈	WASHER Mount Snubber	4
7	8M0200009	安装缓冲垫圈	WASHER Mount Snubber	4
8	8M0112869	油塞总成	OIL PLUG ASSEMBLY	1
9	85045	O型圈(.551 x .070)	O-RING (.551 x .070)	1
10	863006	O型圈(10.82x1.78)	O-RING (10.82 x 1.78)	1
11	8M0036228	O型圈(8.1x1.6)	O-RING (8.1 X 1.6)	1
12	8M0154653	安装支架	BRACKET MOUNT SUPPORT	2
12	8M0205786	安装支架	BRACKET Mount Support	2
12	8M0239529	安装支架	BRACKET MOUNT	2
13	8M0084475	螺钉 (M8 x 40)	SCREW (M8 x 40)	6
13	8M0200075	螺钉	SCREW	6
13	8M0211309	螺钉 M10 x 1.5 x 40 六角凸缘头	SCREW M10 x 1.5 x 40 HEX FLG HD	6
14	821327	定位销	PIN Dowel	2
15	8M0142784	换挡线束支架	BRACKET Shift Harness	1
16	8M0142785	换挡线束支架	BRACKET Shift Harness	1
17	8M0142829	螺钉 (M6 x 20)	SCREW (M6 x 20)	4
18	8M0142253	换挡执行器	SHIFT ACTUATOR	1
18	8M0204944	换挡执行器	SHIFT ACTUATOR	1
18	8M0175849	换挡执行器	SHIFT ACTUATOR	1
18	8M0204944	换挡执行器	SHIFT ACTUATOR	1
19	8M0147857	联轴器轴	SHAFT Coupling	1
20	8M0142978	执行器密封件	SEAL ACTUATOR	1
21	69355	扎带(5.50英寸)	TIE STRAP (5.50 Inches)	1
21	8M0214940	扎带	TIE STRAP	1
22	8M0147674	换挡执行器线束护套	BOOT Shift Actuator Wires	1
23	8M0147675	卡扣	CLIP	1
24	8M0008031	双头螺柱(M12 x 1.75 x 52)	STUD (M12 x 1.75 x 52)	5
24	8M0142781	双头螺柱（M12×179）	STUD (M12 x 179)	5
24	8M0142788	双头螺柱(M12x306)	STUD (M12 x 306)	5
25	856982	垫圈(0.5×0.81×0.09英寸)不锈钢	WASHER (.500 x .810 x .090) Stainless Steel	5
26	896895	螺母(M12)	NUT (M12)	5
27	8M0200171	联轴器	COUPLING	1
28	8M0200170	水管延长件	EXTENSION Water Tube	1
28	8M0200173	水管延长件	EXTENSION Water Tube	1
29	8M0200169	水管导向器	GUIDE Water Tube	1
30	8M0200071	拉线总成	CABLE ASSEMBLY	1
31	8M0103804	不锈钢螺钉 (M6 x 12 mm)	SCREW (M6 x 12 MM) Stainless Steel	1
32	8M0200079	卡箍	CLAMP	1
33	8M0103805	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	1
34	8M0222234	卡箍	CLAMP	1
35	8M0144417	螺钉(M6 x 16)	SCREW (M6 x 16)	2
-	8M0205845	传动轴壳体硬件升级套件	HARDWARE UPGRADE KIT Driveshaft Housing	1

图 14驱动轴壳体 1E093312 及以上 Driveshaft Housing 1E093312 and Up

REF	零件编号	中文名称	英文名称	数量
1	8M0210458	驱动轴外壳石墨灰	DRIVESHAFT HOUSING Graphite Grey	1
1	8M0214502	驱动轴外壳冷聚白	DRIVESHAFT HOUSING Cold Fusion White	1
2	8M0205786	安装支架	BRACKET Mount Support	2
2	8M0239529	安装支架	BRACKET MOUNT	2
3	8M0200075	螺钉	SCREW	6
3	8M0211309	螺钉 M10 x 1.5 x 40 六角凸缘头	SCREW M10 x 1.5 x 40 HEX FLG HD	6
4	8M0200071	拉线总成	CABLE ASSEMBLY	1
5	8M0103804	不锈钢螺钉 (M6 x 12 mm)	SCREW (M6 x 12 MM) Stainless Steel	1
6	8M0200169	水管导向器	GUIDE Water Tube	1
7	8M0200170	水管延长件	EXTENSION Water Tube	1
7	8M0200173	水管延长件	EXTENSION Water Tube	1
8	8M0200171	联轴器	COUPLING	1
9	8M0103805	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	2
9	8M0144417	螺钉(M6 x 16)	SCREW (M6 x 16)	2
10	8M0200079	卡箍	CLAMP	1
10	8M0222234	卡箍	CLAMP	1
11	8M0103807	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	1
12	8M0142714	接头	FITTING	1
13	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
14	85944975	管材(72.00英寸散装)	TUBING (72.00 Inches Bulk)	1
15	821327	定位销	PIN Dowel	2
16	8M0142784	换挡线束支架	BRACKET Shift Harness	1
17	8M0142785	换挡线束支架	BRACKET Shift Harness	1
18	8M0142778	安装缓冲垫圈	WASHER Mount Snubber	4
18	8M0200009	安装缓冲垫圈	WASHER Mount Snubber	4
19	8M0112869	油塞总成	OIL PLUG ASSEMBLY	1
20	85045	O型圈(.551 x .070)	O-RING (.551 x .070)	1
21	863006	O型圈(10.82x1.78)	O-RING (10.82 x 1.78)	1
22	8M0036228	O型圈(8.1x1.6)	O-RING (8.1 X 1.6)	1
23	8M0164308	支架总成石墨灰	Bracket Assembly Graphite Grey	1
23	8M0187152	支架总成石墨灰	BRACKET ASSEMBLY Graphite Grey	1
23	8M0164309	支架总成冷聚白	Bracket Assembly Cold Fusion White	1
23	8M0187151	支架总成冷聚白	BRACKET ASSEMBLY Cold Fusion White	1
24	8M0008031	双头螺柱(M12 x 1.75 x 52)	STUD (M12 x 1.75 x 52)	5
24	8M0142781	双头螺柱（M12×179）	STUD (M12 x 179)	5
24	8M0142788	双头螺柱(M12x306)	STUD (M12 x 306)	5
25	856982	垫圈(0.5×0.81×0.09英寸)不锈钢	WASHER (.500 x .810 x .090) Stainless Steel	5
26	896895	螺母(M12)	NUT (M12)	5
27	8M0147675	卡扣	CLIP	1
28	8M0147674	换挡执行器线束护套	BOOT Shift Actuator Wires	1
29	69355	扎带(5.50英寸)	TIE STRAP (5.50 Inches)	1
29	8M0214940	扎带	TIE STRAP	1
30	8M0142253	换挡执行器	SHIFT ACTUATOR	1
30	8M0204944	换挡执行器	SHIFT ACTUATOR	1
30	8M0175849	换挡执行器	SHIFT ACTUATOR	1
30	8M0204944	换挡执行器	SHIFT ACTUATOR	1
31	8M0142978	执行器密封件	SEAL ACTUATOR	1
32	8M0147857	联轴器轴	SHAFT Coupling	1
33	8M0142829	螺钉 (M6 x 20)	SCREW (M6 x 20)	4
-	8M0205845	传动轴壳体硬件升级套件	HARDWARE UPGRADE KIT Driveshaft Housing	1

图 15电气板 Electrical Plate

REF	零件编号	中文名称	英文名称	数量
1	8M0159601	电气板	PLATE ELECTRICAL	1
2	856954	衬套	BUSHING	4
3	834985	护孔环	GROMMET	4
3	8M0190980	护孔环	GROMMET	4
4	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	4
5	8M0142686	螺钉(M6x25)	SCREW (M6 x 25)	4
6	8M0096302	护孔环	GROMMET	4
7	899145	绑带夹	CLIP Tie Strap	2
8	882751	继电器微调	RELAY Trim	2
8	8M0219830	继电器	RELAY	2
9	8M0142479	电气板盖	COVER Electrical Plate	1
10	8M0159602	维护周期标贴	DECAL Maintenance Schedule	1
11	8M0159599	发动机线束	HARNESS Engine	1
11	8M0237473	发动机线束	HARNESS ENGINE	1
-	8M0057697	立方体继电器 MPR,启动,燃油	CUBE RELAY MPR, Start, Fuel	3
-	8M0219829	立方体继电器	CUBE RELAY	3

图 16排气系统 Exhaust

REF	零件编号	中文名称	英文名称	数量
1	8M0142728	排气管	PIPE Exhaust	1
2	8M0103806	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	3
3	8M0142731	弯头接头	FITTING ELBOW	2
4	86614	O型圈 (1.049 x 0.103)	O-RING (1.049 x .103)	2
5	888988011	卡箍(38.1毫米)	CLAMP (38.1 MM)	3
6	8M0142727	出水管	TUBE Water Outlet	1
7	8M0028753	欧梯克卡箍(直径31.6)	CLAMP Oetiker (31.6 Diameter)	1
8	8M0142725	进水口管	TUBE Water Inlet	1
9	8M0142719	滤网总成	STRAINER ASSEMBLY	1
10	8M0142720	密封件	SEAL	1
11	8M0103805	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	3
12	8M0142721	排气孔护圈	GROMMET Exhaust	1
13	8M0142726	螺钉 (M6)	SCREW (M6)	4
14	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
15	8M0142738	软管	HOSE	1
16	8M0142729	接头	FITTING	2
17	8M0142792	左舷消音器	MUFFLER Port	1
18	8M0142740	护孔环	GROMMET	1
19	8M0155262	管口护圈	GROMMET TUBE OUTLET	1
20	8M0142732	弯头接头	FITTING ELBOW	1
21	8M0142730	接头	FITTING	1
21	8M0157112	滤网接头	FITTING STRAINER	1
22	201951	O型圈(0.487x0.103)	O-RING (.487 x .103)	1
23	8M0142793	放油塞	PLUG Drain	1
24	8M0142541	卡箍 93.7毫米直径	CLAMP (93.7 MM DIA)	4
24	8M0161579	卡箍 93.7毫米	CLAMP 93.7 MM	4
25	8M0142538	联轴器	COUPLING	2
25	8M0172179	排气总成联轴器	COUPLING Exhaust Assembly	2
26	8M0142535	排气歧管	MANIFOLD Exhaust	1
26	8M0219003	上部排气歧管	MANIFOLD Exhaust, Upper	1
27	8M0087451	堵头（18毫米）	PLUG (18 mm)	1
28	8M0087453	堵头(24毫米)	PLUG (24 MM)	1
29	8M0142533	螺钉(M8×85)	SCREW (M8 x 85)	1
30	88552645	螺钉（M8X45）	SCREW (M8X45)	3
31	8M0142534	喷雾器接头	FITTING Sprayer	1
32	892446	O型圈(14×1.78毫米)	O-RING (14 X 1.78 MM)	1
33	8M0142536	喷雾器接头	FITTING Sprayer	1
34	863006	O型圈(10.82x1.78)	O-RING (10.82 x 1.78)	1
35	8M0148727	乙烯基盖帽	CAP Vinyl	4
36	8M0172180	排气管	EXHAUST TUBE	1
37	8M0211273	排气联轴器	COUPLER Exhaust	1
38	8M0161414	O型圈	ORING	3
-	8M0149551	动力头垫片套装	POWERHEAD GASKET SET	1

图 17飞轮与张紧器总成 Flywheel and Tensioner Assembly

REF	零件编号	中文名称	英文名称	数量
1	8M0159593	飞轮	FLYWHEEL	1
2	8M0159595	皮带	BELT	1
3	8M0159594	飞轮皮带轮	FLYWHEEL PULLEY	1
4	8M0159596	螺钉 M8 x 1 x 150 六角法兰头	SCREW M8 x 1 x 150 HEX FLANGE HD	10
5	8M0142389	飞轮塞	PLUG Flywheel	1
5	8M0207687	飞轮塞	PLUG Flywheel	1
6	8M0096302	护孔环	GROMMET	5
7	8M0159597	飞轮总成盖	COVER, FLYWHEEL ASSEMBLY	1
7	8M0169413	飞轮盖	COVER-FLYWHEEL	1
8	8M0080154	贴花 M-ICON 蓝色	DECAL M-ICON, Blue	1
9	8M0142470	护孔环	GROMMET	1
10	8M0159598	检查机油标贴	DECAL Check Engine Oil	1
11	8M0164060	张紧器总成	TENSIONER ASSEMBLY	1
12	8M0175978	螺钉张紧器	SCREW Tensioner	1
13	896522	O型圈(799×.103)	O-RING (799 x .103)	2
14	98727	润滑脂接头	FITTING Grease	1
14	8M0169588	润滑脂接头	FITTING Grease	1
15	823943	衬套	BUSHING	2
16	4002320	垫圈	WASHER	1
17	8M0164261	皮带轮惰轮	PULLEY Idler	1
18	841388	垫圈(0.410x0.810x0.050英寸)不锈钢	WASHER (.410 x .810 x .050) Stainless Steel	1
19	885349501	螺钉	SCREW	1
20	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
21	866029	卡箍	CLAMP	1
22	88552514	不锈钢螺钉(M6×14mm)	SCREW (M6 x 14 mm) Stainless Steel	1
23	8M0103817	螺钉 (M8 x 60)	SCREW (M8 x 60)	1

图 18燃油滤清器 Fuel Filter

REF	零件编号	中文名称	英文名称	数量
-	8M0166540	燃油滤清器套件 MPP	FUEL FILTER KIT MPP	1
1	8M0166596	燃油滤清器	FUEL FILTER	1
2	8M0095674	燃油滤清器底座总成	BASE ASSEMBLY Fuel Filter	1
3	8M0157779	WIF传感器总成	SENSOR ASSEMBLY WIF	1
4	8552141	接头	FITTING	2
4	8M0214961	接头	FITTING	2
5	47841	接头 (.375-18 x .500 )	FITTING (.375-18 x .500 )	2
5	8M0214935	接头	FITTING	2
6	36373	六角堵头（.375-18）-钢制	PLUG (.375-18) Hex - Steel	2
6	8M0204657	堵头	PLUG	2
7	8M0042697	燃油滤清器传感器延长线束 (144英寸)	HARNESS Fuel Filter Sensor Extension (144 in)	1

图 19燃油供给模块组件 - 8M0161387 Fuel Supply Module Components - 8M0161387

REF	零件编号	中文名称	英文名称	数量
-	8M0161387	燃油供给模块	FUEL SUPPLY MODULE	1
1	8M0053726	燃油供应模块上壳体	FSM TOP HOUSING	1
1	8M0158344	燃油供应模块上壳体	FSM TOP HOUSING	1
2	8M0053756	螺钉 Plastite W/ HX WSR HD	SCREW Plastite W/ HX WSR HD	4
3	NSS	O型圈(不单独销售)	NOT SOLD SEPARATE O-Ring	2
4	NSS		NOT SOLD SEPARATE Spacer	1
5	8M0053749	调节器总成	REGULATOR ASSEMBLY	1
5	8M0242586	调节器总成	REGULATOR ASSEMBLY	1
6	NSS	O型圈(不单独销售)	NOT SOLD SEPARATE O-Ring	1
7	NSS	不单独销售密封件	NOT SOLD SEPARATE Seal	3
8	8M0161397	燃油供应模块盖	FSM CAP	1
9	NSS	O型圈(不单独销售)	NOT SOLD SEPARATE O-Ring	2
10	8M0161398	吸管	TUBE SUCTION	1
11	NSS	不单独销售密封件	NOT SOLD SEPARATE Seal	2
12	8M0161400	泵总成高压	PUMP ASSEMBLY HIGH PRESSURE	1
13	8M0161399	泵总成低压	PUMP ASSEMBLY LOW PRESSURE	1
14	NSS	不单独销售密封件	NOT SOLD SEPARATE Seal	4
15	NSS	O型圈(不单独销售)	NOT SOLD SEPARATE O-Ring	4
16	8M0120073	水管	TUBE Water	2
17	8M0161401	燃油管	TUBE FUEL	2
18	NSS	不单独销售密封件	NOT SOLD SEPARATE Seal	1
19	8M0130878	燃油供应模块下壳体	FSM BOTTOM HOUSING	1
19	8M0158426	燃油供应模块下壳体	FSM BOTTOM HOUSING	1
20	895319	护孔环	GROMMET	1
21	856954	衬套	BUSHING	1
22	8M0086888	FSM线束间隔护圈	GROMMET FSM Harness Spacer	1
23	8M0161402	线束总成	HARNESS ASSEMBLY	1
24	NSS	O型圈(不单独销售)	NOT SOLD SEPARATE O-Ring	1
25	NSS	O型圈(不单独销售)	NOT SOLD SEPARATE O-Ring	1
-	8M0133370	燃油供应模块密封件套装	FSM SEAL KIT	1

图 20燃油系统 Fuel System

REF	零件编号	中文名称	英文名称	数量
1	8M0132732	燃油供给模块	FUEL SUPPLY MODULE	1
2	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	1
3	8M0103807	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	1
4	8M0142432	进气至燃油模块软管	HOSE Intake to FSM	1
4	8M0231308	歧管参考下软管	HOSE Manifold Reference Lower	1
5	8M0142436	歧管参考上软管总成	HOSE ASSEMBLY Manifold Ref Upper	1
5	8M0203775	上部歧管参考软管	HOSE Manifold Reference, Upper	1
6	884546	护孔环	GROMMET	3
7	8M0005773	螺钉(M6x14)带肩六角凸缘不锈钢	SCREW (M6 x 14) Shoulder HEX FLG SS	4
8	8M0142475	左舷燃油轨盖	COVER Fuel Rail, Port	1
9	8M0142830	螺钉 (M6 x 20)	SCREW (M6 x 20)	4
10	8M0142434	燃油轨左舷	FUEL RAIL Port	1
10	8M0220616	燃油轨左舷	FUEL RAIL Port	1
10	8M0142433	燃油轨右舷	FUEL RAIL Starboard	1
10	8M0220615	燃油轨右舷	FUEL RAIL Starboard	1
11	8M0046566	阀帽	CAP Valve	2
12	8M0142264	燃油喷射器	FUEL INJECTOR	8
13	8M0221321	O型圈套件	ORING KIT	1
14	8M0090809	燃油轨滤网	SCREEN Fuel Rail	2
15	8M0142585	卡箍(16.2x7x0.6毫米)	CLAMP (16.2 x 7 x .6 MM)	3
16	8M0142442	燃油供给模块至左舷轨软管总成	HOSE ASSEMBLY FSM To Port Rail	1
17	8M0142437	燃油供给模块至燃油轨软管总成	HOSE ASSEMBLY FSM To Fuel Rail	1
18	8M0142444	燃油供给模块至右舷轨软管总成	HOSE ASSEMBLY FSM To Starboard Rail	1
19	8M0142476	右舷燃油轨盖	COVER Fuel Rail, Starboard	1
20	8M0142445	卡扣	CLIP	1
21	899145	绑带夹	CLIP Tie Strap	2
22	8M0142446	罩壳至燃油供给模块软管总成	HOSE ASSEMBLY Cowl to FSM	1
23	8M0106635	燃油滤清器	FUEL FILTER	1
23	8M0176313	燃油滤清器	FUEL FILTER	1
24	8M0142430	燃油滤清器至燃油供给模块软管	HOSE Fuel Filter to FSM	1
24	8M0203776	燃油滤清器至燃油供给模块软管	HOSE Fuel Filter to Fuel Supply Module	1
25	8M0037209	燃油供给模块固定衬套	GROMMET FSM Retainer	1
26	8M0142722	燃油供给模块支架	BRACKET FSM	1
27	8M0142724	护孔环	GROMMET	5
28	8M0103805	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	4
29	8M0208431	燃油入口套件3/8英寸转1/2英寸	FUEL INLET KIT 3/8 Inch to 1/2 Inch	1
30	8M0157397	欧梯克卡箍17.5	CLAMP Oetiker, 17.5	1

图 21齿轮箱螺旋桨轴-标准旋转 Sport Master 1.60 Gear Housing, Prop Shaft-Standard Rotation, Sport Master, 1.60

REF	零件编号	中文名称	英文名称	数量
-	8M0159661	齿轮箱总成完整,SportMaster标准长1.60石墨灰	GEAR HOUSING ASSEMBLY Complete, SportMaster Standard Long 1.60 Graphite Gray	1
-	8M0159663	齿轮箱总成完整,SportMaster标准旋转加长1.60石墨灰	GEAR HOUSING ASSEMBLY Complete, SportMaster Standard Rotation X-Long 1.60 Graphite Gray	1
-	8M0236316	GC SM XL 1.60 GRY	GC SM XL 1.60 GRY	1
-	8M0159665	齿轮箱总成完整,SportMaster标准旋转超长1.60石墨灰	GEAR HOUSING ASSEMBLY Complete, SportMaster Standard Rotation XX-Long 1.60 Graphite Gray	1
-	8M0236317	GC SM XXL 1.60 GR	GC SM XXL 1.60 GR	1
-	8M0159667	齿轮箱总成完整 SportMaster标准长弧形尾鳍1.60石墨灰	GEAR HOUSING ASSEMBLY Complete SportMaster Standard Long Cambered Skeg 1.60 Graphite Gray	1
-	8M0236318	GC L CMB 1.60 SLV	GC L CMB 1.60 SLV	1
-	8M0159668	齿轮箱总成完整 SportMaster标准旋转加长弧形尾鳍石墨灰	GEAR HOUSING ASSEMBLY Complete SportMaster Standard Rotation X-Long Cambered Skeg Graphite Gray	1
-	8M0236319	GC SM XL CMB GRY	GC SM XL CMB GRY	1
-	8M0159669	齿轮箱总成完整 SportMaster标准旋转超长弧形尾鳍石墨灰	GEAR HOUSING ASSEMBLY Complete SportMaster Standard Rotation XX-Long Cambered Skeg Graphite Gray	1
-	8M0236320	GC SM XXL CMB GRY	GC SM XXL CMB GRY	1
-	8M0159685	齿轮箱总成完整 SportMaster长1.60冷聚白	GEAR HOUSING ASSEMBLY Complete SportMaster Long 1.60 Cold Fusion White	1
-	8M0236321	GC SM L 1.60 WHT	GC SM L 1.60 WHT	1
-	8M0159689	齿轮箱总成完整 SportMaster标准旋转加长1.60冷聚白	GEAR HOUSING ASSEMBLY Complete SportMaster Standard Rotation X-Long 1.60 Cold Fusion White	1
-	8M0236322	GC SM XL 1.60 WHT	GC SM XL 1.60 WHT	1
-	8M0159693	齿轮箱总成完整 SportMaster标准旋转超长1.60冷聚白	GEAR HOUSING ASSEMBLY Complete SportMaster Standard Rotation XX-Long 1.60 Cold Fusion White	1
-	8M0236324	GC SM XXL 1.60 WH	GC SM XXL 1.60 WH	1
-	8M0159696	齿轮箱总成完整 SportMaster标准旋转长弧形尾鳍1.60冷聚白	GEAR HOUSING ASSEMBLY Complete SportMaster Standard Rotation Long Cambered Skeg 1.60 Cold Fusion White	1
-	8M0236325	GC SM L CMB WHT	GC SM L CMB WHT	1
-	8M0159697	齿轮箱总成完整 SportMaster标准旋转加长弧形尾鳍1.60冷聚白	GEAR HOUSING ASSEMBLY Complete SportMaster Standard Rotation X-Long Cambered Skeg 1.60 Cold Fusion White	1
-	8M0236326	GC SM XL CMB WHT	GC SM XL CMB WHT	1
-	8M0159699	齿轮箱总成完整 SportMaster标准旋转超长弧形尾鳍1.60冷聚白	GEAR HOUSING ASSEMBLY Complete SportMaster Standard Rotation XX-Long Cambered Skeg 1.60 Cold Fusion White	1
-	8M0236327	GC SM XXL CMB WHT	GC SM XXL CMB WHT	1
1	8M0159710	齿轮箱总成基础 SportMaster冷聚白	GEAR HOUSING ASSEMBLY Basic SportMaster Cold Fusion White	1
1	8M0159711	齿轮箱总成基础型 SportMaster 石墨灰	GEAR HOUSING ASSEMBLY Basic SportMaster Graphite Gray	1
1	8M0159712	齿轮箱总成基础型 SportMaster 冷聚白弯舵	GEAR HOUSING ASSEMBLY Basic SportMaster Cold Fusion White Camber Skeg	1
1	8M0187436	GC 450R SM BASIC	GC 450R SM BASIC	1
1	8M0159713	齿轮箱总成基础型 SportMaster 弯舵石墨灰	GEAR HOUSING ASSEMBLY Basic, SportMaster Camber Skeg Graphite Grey	1
1	8M0159714	齿轮箱总成基础型 SportMaster 反转向弯舵冷聚白	GEAR HOUSING ASSEMBLY Basic SportMaster Counter Rotation Camber Skeg Cold Fusion White	1
1	8M0187438	GC SM BAS CMB C	GC SM BAS CMB C	1
1	8M0159715	齿轮箱总成基础型 SportMaster 反转向弯舵石墨灰	GEAR HOUSING ASSEMBLY Basic SportMaster Counter Rotation Camber Skeg Graphite Grey	1
2	8M0157111	鱼雷形塞	PLUG Torpedo	1
3	8M0046563	挡圈	RING Retaining	1
4	880719	挡圈	RING Retaining	1
5	8M0158926	齿轮组标准转向前进/倒档/小齿轮 1.60速比 (15/24)	GEAR SET Standard Rotation, Foward/Reverse/Pinion 1.60 Ratio (15/24)	1
6	8M0063270	垫片组	SHIM SET	1
7	8M0053823	止推垫圈(内径1.50×外径2.046)	WASHER Thrust, (1.50 ID x 2.046 OD)	1
8	8M0051043	挡圈	RING Retaining	1
9	884325T01	圆锥滚子轴承组件	BEARING ASSEMBLY Roller-Tappered	1
9	8M0142835	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
10	884323T01	滚柱轴承总成	BEARING ASSEMBLY Roller	1
10	8M0142836	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
11	8M0046215	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
11	8M0220880	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
12	8M0142857	阀芯总成	SPOOL ASSEMBLY	1
12	8M0242491	阀芯总成	SPOOL ASSEMBLY	1
13	8M0045493	十字销	PIN Cross	1
14	8M0142871	滑动式6爪离合器	CLUTCH Sliding 6 Jaw	1
15	8M0050575	十字弹簧	SPRING Cross	1
16	8M0156191	螺旋桨轴	SHAFT Propeller	1
17	8M0064306	止推隔套	SPACER Thrust	1
18	8M0050434	垫片 0.040	WASHER .040	1
19	8M0167590	轴承座总成标准转向 (1.60速比)	BEARING CARRIER ASSEMBLY Standard Rotation, (1.60 Gear Ratio)	1
20	8M0071653	特殊螺钉0.375-16 UNC	SCREW Special, .375-16 UNC	2
21	830749	密封件	SEAL	2
21	8M0204693	放油螺塞密封件	SEAL Drain Plug	2
22	8M0148319	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper Cup/Cone	1
23	8M0053183	前进齿轮适配器	ADAPTER Foward Gear	1
24	8M0050692	轴承	BEARING	1
25	8M0050688	垫圈	WASHER	1
26	8M0050704	滚针轴承	BEARING Needle	1
27	8M0046569	止推环	RING Thrust	1
27	8M0161546	推力环	THRUST RING	1
28	8M0000190	O型圈(4.475x0.210英寸)	O-RING (4.475 x .210)	1
29	8M0056639	挡圈	RING Retainer	1
30	888483	油封	SEAL Oil	2
30	8M0204700	油封	SEAL Oil	2
31	8M0109164	销 3/8直径 x 0.625长	PIN 3/8 Dia x .625 LG	1
32	8M0158926	齿轮组标准转向前进/倒档/小齿轮 1.60速比 (15/24)	GEAR SET Standard Rotation, Foward/Reverse/Pinion 1.60 Ratio (15/24)	1
33	8M0053116	垫片组	SHIM SET	1
34	8M0108527	锁紧垫片	WASHER Tab	1
35	8M0111653	固定螺母	NUT Retainer	1
35	8M0162798	轴承座固定环	RETAINER Bearing Carrier	1
36	8M0050821	平齐式盖板套件, 标准型	COVER KIT Flush, Standard	1
36	8M0180306	鱼雷形盖	COVER Torpedo	1
-	8M0166531	齿轮箱密封套件	GEARCASE SEAL KIT	1

图 22齿轮箱螺旋桨轴-标准旋转 5.44鱼雷型 1.60 Gear Housing, Prop Shaft - Standard Rotation, 5.44 Torpedo, 1.60

REF	零件编号	中文名称	英文名称	数量
-	8M0159649	齿轮箱总成完整套件(标准长型) 5.44 1.60 石墨灰	GEAR HOUSING ASSEMBLY Complete (Standard Long) 5.44 1.60 GRAPHITE GREY	1
-	8M0159651	齿轮箱总成完整套件(标准加长型) 5.44 1.60 石墨灰	GEAR HOUSING ASSEMBLY Complete (Standard X-Long) 5.44 1.60 GRAPHITE GREY	1
-	8M0250689	GC 5.44 XL 1.60 S	GC 5.44 XL 1.60 S	1
-	8M0159653	齿轮箱总成完整套件(标准超长型) 5.44 1.60 石墨灰	GEAR HOUSING ASSEMBLY Complete (Standard XX-Long) 5.44 1.60 GRAPHITE GREY	1
-	8M0236149	GC 5.44 XXL 1.6 W	GC 5.44 XXL 1.6 W	1
-	8M0159655	齿轮箱总成完整套件(标准长型) 5.44 1.60 弯舵石墨灰	GEAR HOUSING ASSEMBLY Complete (Standard Long) 5.44 1.60 Cambered Skeg GRAPHITE GREY	1
-	8M0236333	GC 5.44 L 1.6 CMB	GC 5.44 L 1.6 CMB	1
-	8M0159656	齿轮箱总成完整套件(标准加长型) 5.44 1.60 弯舵石墨灰	GEAR HOUSING ASSEMBLY Complete (Standard X-Long) 5.44 1.60 Cambered GRAPHITE GREY	1
-	8M0236147	GC 5.44 XL 1.60 C	GC 5.44 XL 1.60 C	1
-	8M0159657	齿轮箱总成完整套件(标准超长型) 5.44 1.60 弯舵石墨灰	GEAR HOUSING ASSEMBLY Complete (Standard XX-Long) 5.44 1.60 Cambered GRAPHITE GREY	1
-	8M0236151	GC 5.44 XXL 1.6W	GC 5.44 XXL 1.6W	1
-	8M0159673	齿轮箱总成完整套件(标准长型) 5.44 1.60 冷聚白	GEAR HOUSING ASSEMBLY Complete (Standard Long) 5.44 1.60 COLD FUSION WHITE	1
-	8M0236330	GC 5.44 L 1.60 WH	GC 5.44 L 1.60 WH	1
-	8M0159675	齿轮箱总成完整套件(标准加长型) 5.44 1.60 冷聚白	GEAR HOUSING ASSEMBLY Complete (Standard X-Long) 5.44 1.60 COLD FUSION WHITE	1
-	8M0236144	GC 5.44 XL 1.6 WH	GC 5.44 XL 1.6 WH	1
-	8M0159677	齿轮箱总成完整套件(标准超长型) 5.44 1.60 冷聚白	GEAR HOUSING ASSEMBLY Complete (Standard XX-Long) 5.44 1.60 COLD FUSION WHITE	1
-	8M0236148	GC 5.44 XXL 1.6 W	GC 5.44 XXL 1.6 W	1
-	8M0159679	齿轮箱总成完整套件(标准长型) 5.44 1.60 弯舵冷聚白	GEAR HOUSING ASSEMBLY Complete (Standard Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE	1
-	8M0236332	GC 5.44 L 1.6 CMB	GC 5.44 L 1.6 CMB	1
-	8M0159680	齿轮箱总成完整套件(标准加长型) 5.44 1.60 弯舵冷聚白	GEAR HOUSING ASSEMBLY Complete (Standard X-Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE	1
-	8M0236146	GC 5.44 XL 1.6 CM	GC 5.44 XL 1.6 CM	1
-	8M0159681	齿轮箱总成完整套件(标准超长型) 5.44 1.60 弯舵冷聚白	GEAR HOUSING ASSEMBLY Complete (Standard XX-Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE	1
-	8M0176870	GC 5.44 XXL 1.6 W	GC 5.44 XXL 1.6 W	1
1	8M0159704	齿轮总成基础型 5.44 1.60 冷聚白	GEAR ASSEMBLY Basic, 5.44 1.60 COLD FUSION WHITE	1
1	8M0176877	GC 5.44 BASIC WHT	GC 5.44 BASIC WHT	1
1	8M0159705	齿轮箱总成基础型 5.44 1.60 石墨灰	GEAR HOUSING ASSEMBLY Basic, 5.44 1.60 GRAPHITE GREY	1
1	8M0176878	GC 5.44 BASIC GRE	GC 5.44 BASIC GRE	1
1	8M0159706	齿轮箱总成基础型 5.44 1.60 弯舵冷聚白	GEAR HOUSING ASSEMBLY Basic, 5.44 1.60 Camber Skeg COLD FUSION WHITE	1
1	8M0176879	GC 5.44 CMB BAS W	GC 5.44 CMB BAS W	1
1	8M0159707	齿轮箱总成基础型 5.44 1.60 弯舵石墨灰	GEAR HOUSING ASSEMBLY Basic 5.44 1.60 Camber Skeg GRAPHITE GREY	1
1	8M0176880	GC 5.44 BAS CMB S	GC 5.44 BAS CMB S	1
1	8M0159708	齿轮箱总成基础型(反转向) 5.44 1.60 弯舵冷聚白	GEAR HOUSING ASSEMBLY Basic, (Counter Rotation) 5.44 1.60 Camber Skeg COLD FUSION WHITE	1
1	8M0176881	GC 5.44 BAS CMBCW	GC 5.44 BAS CMBCW	1
1	8M0159709	齿轮箱总成基础型(反转向) 5.44 1.60 弯舵石墨灰	GEAR HOUSING ASSEMBLY Basic, (Counter Rotation) 5.44 1.60 Camber Skeg GRAPHITE GREY	1
1	8M0176882	GC 5.44 BAS CMBCS	GC 5.44 BAS CMBCS	1
2	8M0157111	鱼雷形塞	PLUG Torpedo	1
3	8M0046563	挡圈	RING Retaining	1
4	880719	挡圈	RING Retaining	1
5	8M0158926	齿轮组标准转向前进/倒档/小齿轮 1.60速比 (15/24)	GEAR SET Standard Rotation, Foward/Reverse/Pinion 1.60 Ratio (15/24)	1
6	8M0063270	垫片组	SHIM SET	1
7	8M0053823	止推垫圈(内径1.50×外径2.046)	WASHER Thrust, (1.50 ID x 2.046 OD)	1
8	8M0051043	挡圈	RING Retaining	1
9	8M0142835	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
10	8M0142836	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
11	8M0046215	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
11	8M0220880	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
12	8M0142857	阀芯总成	SPOOL ASSEMBLY	1
12	8M0242491	阀芯总成	SPOOL ASSEMBLY	1
13	469501	开口销	COTTER PIN	1
14	8M0045493	十字销	PIN Cross	1
15	8M0142871	滑动式6爪离合器	CLUTCH Sliding 6 Jaw	1
16	8M0050575	十字弹簧	SPRING Cross	1
17	8M0142877	螺旋桨轴	SHAFT Propeller	1
18	8M0064306	止推隔套	SPACER Thrust	1
19	8M0076745	垫片组	SHIM SET	1
20	8M0161449	轴承座总成	BEARING CARRIER ASSEMBLY	1
21	8M0158926	齿轮组标准转向前进/倒档/小齿轮 1.60速比 (15/24)	GEAR SET Standard Rotation, Foward/Reverse/Pinion 1.60 Ratio (15/24)	1
22	8M0050704	滚针轴承	BEARING Needle	1
23	8M0053183	前进齿轮适配器	ADAPTER Foward Gear	1
24	8M0046569	止推环	RING Thrust	1
24	8M0161546	推力环	THRUST RING	1
25	8M0148319	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper Cup/Cone	1
26	888483	油封	SEAL Oil	2
26	8M0204700	油封	SEAL Oil	2
27	8M0000190	O型圈(4.475x0.210英寸)	O-RING (4.475 x .210)	1
28	8M0050692	轴承	BEARING	1
29	8M0053116	垫片组	SHIM SET	1
30	8M0050688	垫圈	WASHER	1
31	8M0165801	轴承适配器	BEARING Adaptor	1
32	8M0109164	销 3/8直径 x 0.625长	PIN 3/8 Dia x .625 LG	1
33	830749	密封件	SEAL	2
33	8M0204693	放油螺塞密封件	SEAL Drain Plug	2
34	8M0071653	特殊螺钉0.375-16 UNC	SCREW Special, .375-16 UNC	2
35	8M0108527	锁紧垫片	WASHER Tab	1
36	8M0162798	轴承座固定环	RETAINER Bearing Carrier	1
37	8M0050821	平齐式盖板套件, 标准型	COVER KIT Flush, Standard	1
37	8M0180306	鱼雷形盖	COVER Torpedo	1
38	8M0036819	紧定螺钉(10-32)	SET SCREW (10-32)	1
-	8M0166531	齿轮箱密封套件	GEARCASE SEAL KIT	1

图 23齿轮箱驱动轴 5.44鱼雷型 1.60 Gear Housing Driveshaft, 5.44 Torpedo, 1.60

REF	零件编号	中文名称	英文名称	数量
-	8M0159649	齿轮箱总成完整套件(标准长型) 5.44 1.60 石墨灰	GEAR HOUSING ASSEMBLY Complete (Standard Long) 5.44 1.60 GRAPHITE GREY	1
-	8M0159650	齿轮箱总成完整套件(反转向长型) 5.44 1.60 石墨灰	GEAR HOUSING ASSEMBLY Complete (Counter Rotation Long) 5.44 1.60 GRAPHITE GREY	1
-	8M0236157	GC 5.44 CL 1.60	GC 5.44 CL 1.60	1
-	8M0159651	齿轮箱总成完整套件(标准加长型) 5.44 1.60 石墨灰	GEAR HOUSING ASSEMBLY Complete (Standard X-Long) 5.44 1.60 GRAPHITE GREY	1
-	8M0250689	GC 5.44 XL 1.60 S	GC 5.44 XL 1.60 S	1
-	8M0159652	齿轮箱总成完整套件(反转向加长型) 5.44 1.60 石墨灰	GEAR HOUSING ASSEMBLY Complete (Counter Rotation X-Long) 5.44 1.60 GRAPHITE GREY	1
-	8M0236161	GC 5.44 CXL 1.6 G	GC 5.44 CXL 1.6 G	1
-	8M0159653	齿轮箱总成完整套件(标准超长型) 5.44 1.60 石墨灰	GEAR HOUSING ASSEMBLY Complete (Standard XX-Long) 5.44 1.60 GRAPHITE GREY	1
-	8M0236149	GC 5.44 XXL 1.6 W	GC 5.44 XXL 1.6 W	1
-	8M0159654	齿轮箱总成完整套件(反转向超长型) 5.44 1.60 石墨灰	GEAR HOUSING ASSEMBLY Complete (Counter Rotation XX-Long) 5.44 1.60 GRAPHITE GREY	1
-	8M0236166	GC 5.44 CXXL 1.6S	GC 5.44 CXXL 1.6S	1
-	8M0159655	齿轮箱总成完整套件(标准长型) 5.44 1.60 弯舵石墨灰	GEAR HOUSING ASSEMBLY Complete (Standard Long) 5.44 1.60 Cambered Skeg GRAPHITE GREY	1
-	8M0236333	GC 5.44 L 1.6 CMB	GC 5.44 L 1.6 CMB	1
-	8M0159656	齿轮箱总成完整套件(标准加长型) 5.44 1.60 弯舵石墨灰	GEAR HOUSING ASSEMBLY Complete (Standard X-Long) 5.44 1.60 Cambered GRAPHITE GREY	1
-	8M0236147	GC 5.44 XL 1.60 C	GC 5.44 XL 1.60 C	1
-	8M0159657	齿轮箱总成完整套件(标准超长型) 5.44 1.60 弯舵石墨灰	GEAR HOUSING ASSEMBLY Complete (Standard XX-Long) 5.44 1.60 Cambered GRAPHITE GREY	1
-	8M0236151	GC 5.44 XXL 1.6W	GC 5.44 XXL 1.6W	1
-	8M0159658	齿轮箱总成完整套件(反转向长型) 5.44 1.60 弯舵石墨灰	GEAR HOUSING ASSEMBLY Complete (Counter Rotation Long) 5.44 1.60 Cambered Skeg GRAPHITE GREY	1
-	8M0236159	GC 5.44 CL CMB	GC 5.44 CL CMB	1
-	8M0159659	齿轮箱总成完整套件(反转向加长型) 5.44 1.60 弯舵石墨灰	GEAR HOUSING ASSEMBLY Complete (Counter Rotation X-Long) 5.44 1.60 Cambered GRAPHITE GREY	1
-	8M0236163	GC 5.44 CXL CMB G	GC 5.44 CXL CMB G	1
-	8M0159660	齿轮箱总成完整套件(反转向超长型) 5.44 1.60 弯舵石墨灰	GEAR HOUSING ASSEMBLY Complete (Counter Rotation XX-Long) 5.44 1.60 Cambered Skeg GRAPHITE GREY	1
-	8M0236168	GC 5.44 CXXL 1.6	GC 5.44 CXXL 1.6	1
-	8M0159673	齿轮箱总成完整套件(标准长型) 5.44 1.60 冷聚白	GEAR HOUSING ASSEMBLY Complete (Standard Long) 5.44 1.60 COLD FUSION WHITE	1
-	8M0236330	GC 5.44 L 1.60 WH	GC 5.44 L 1.60 WH	1
-	8M0159674	齿轮箱总成完整套件(反转向长型) 5.44 1.60 冷聚白	GEAR HOUSING ASSEMBLY Complete (Counter Rotation Long) 5.44 1.60 COLD FUSION WHITE	1
-	8M0236156	GC 5.44 CL 1.60 W	GC 5.44 CL 1.60 W	1
-	8M0159675	齿轮箱总成完整套件(标准加长型) 5.44 1.60 冷聚白	GEAR HOUSING ASSEMBLY Complete (Standard X-Long) 5.44 1.60 COLD FUSION WHITE	1
-	8M0236144	GC 5.44 XL 1.6 WH	GC 5.44 XL 1.6 WH	1
-	8M0159676	齿轮箱总成完整套件(反转向加长型) 5.44 1.60 冷聚白	GEAR HOUSING ASSEMBLY Complete (Counter Rotation X-Long) 5.44 1.60 COLD FUSION WHITE	1
-	8M0236160	GC 5.44 CXL 1.60W	GC 5.44 CXL 1.60W	1
-	8M0159677	齿轮箱总成完整套件(标准超长型) 5.44 1.60 冷聚白	GEAR HOUSING ASSEMBLY Complete (Standard XX-Long) 5.44 1.60 COLD FUSION WHITE	1
-	8M0236148	GC 5.44 XXL 1.6 W	GC 5.44 XXL 1.6 W	1
-	8M0159678	齿轮箱总成完整套件(反转向超长型) 5.44 1.60 冷聚白	GEAR HOUSING ASSEMBLY Complete (Counter Rotation XX-Long) 5.44 1.60 COLD FUSION WHITE	1
-	8M0236164	GC 5.44 CXXL 1.6W	GC 5.44 CXXL 1.6W	1
-	8M0159679	齿轮箱总成完整套件(标准长型) 5.44 1.60 弯舵冷聚白	GEAR HOUSING ASSEMBLY Complete (Standard Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE	1
-	8M0236332	GC 5.44 L 1.6 CMB	GC 5.44 L 1.6 CMB	1
-	8M0159680	齿轮箱总成完整套件(标准加长型) 5.44 1.60 弯舵冷聚白	GEAR HOUSING ASSEMBLY Complete (Standard X-Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE	1
-	8M0236146	GC 5.44 XL 1.6 CM	GC 5.44 XL 1.6 CM	1
-	8M0159681	齿轮箱总成完整套件(标准超长型) 5.44 1.60 弯舵冷聚白	GEAR HOUSING ASSEMBLY Complete (Standard XX-Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE	1
-	8M0176870	GC 5.44 XXL 1.6 W	GC 5.44 XXL 1.6 W	1
-	8M0159682	齿轮箱总成完整套件(反转向长型) 5.44 1.60 弯舵冷聚白	GEAR HOUSING ASSEMBLY Complete (Counter Rotation Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE	1
-	8M0236158	GC 5.44 CL CMB W	GC 5.44 CL CMB W	1
-	8M0159683	齿轮箱总成完整套件(反转向加长型) 5.44 1.60 弯舵冷聚白	GEAR HOUSING ASSEMBLY Complete (Counter Rotation X-Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE	1
-	8M0236162	GC 5.44 CXL CMB W	GC 5.44 CXL CMB W	1
-	8M0159684	齿轮箱总成（反转XX长型）5.44 1.60 弯形舵龙骨冷融合白色	GEAR HOUSING ASSEMBLY Complete (Counter Rotation XX-Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE	1
-	8M0236167	GC 5.44 CXXL 1.6W	GC 5.44 CXXL 1.6W	1
1	8M0159704	齿轮总成基础型 5.44 1.60 冷聚白	GEAR ASSEMBLY Basic, 5.44 1.60 COLD FUSION WHITE	1
1	8M0176877	GC 5.44 BASIC WHT	GC 5.44 BASIC WHT	1
1	8M0159705	齿轮箱总成基础型 5.44 1.60 石墨灰	GEAR HOUSING ASSEMBLY Basic, 5.44 1.60 GRAPHITE GREY	1
1	8M0176878	GC 5.44 BASIC GRE	GC 5.44 BASIC GRE	1
1	8M0159706	齿轮箱总成基础型 5.44 1.60 弯舵冷聚白	GEAR HOUSING ASSEMBLY Basic, 5.44 1.60 Camber Skeg COLD FUSION WHITE	1
1	8M0176879	GC 5.44 CMB BAS W	GC 5.44 CMB BAS W	1
1	8M0159707	齿轮箱总成基础型 5.44 1.60 弯舵石墨灰	GEAR HOUSING ASSEMBLY Basic 5.44 1.60 Camber Skeg GRAPHITE GREY	1
1	8M0176880	GC 5.44 BAS CMB S	GC 5.44 BAS CMB S	1
1	8M0159708	齿轮箱总成基础型(反转向) 5.44 1.60 弯舵冷聚白	GEAR HOUSING ASSEMBLY Basic, (Counter Rotation) 5.44 1.60 Camber Skeg COLD FUSION WHITE	1
1	8M0176881	GC 5.44 BAS CMBCW	GC 5.44 BAS CMBCW	1
1	8M0159709	齿轮箱总成基础型(反转向) 5.44 1.60 弯舵石墨灰	GEAR HOUSING ASSEMBLY Basic, (Counter Rotation) 5.44 1.60 Camber Skeg GRAPHITE GREY	1
1	8M0176882	GC 5.44 BAS CMBCS	GC 5.44 BAS CMBCS	1
2	8M0137814	防涡流阳极板(铝)	ANODE Antivent Plate (Aluminum)	1
2	8M0200103	防涡流板阳极 (镁)	ANODE Antivent Plate (Magnesium)	AR/1
3	8M0142850	螺钉(M10×25)	SCREW (M10 X 25)	2
4	8M0142878	螺塞	PLUG Screw	2
-	8M0158926	齿轮组标准转向前进/倒档/小齿轮 1.60速比 (15/24)	GEAR SET Standard Rotation, Foward/Reverse/Pinion 1.60 Ratio (15/24)	1
-	8M0208545	齿轮组反转向前进/倒档/小齿轮 1.60速比 (15/24)	GEAR SET Counter Rotation, Forward/Reverse/Pinion 1.60 Ratio (15/24)	1
5	NSS	小齿轮(不单独销售)	NOT SOLD SEPARATE Pinion	1
6	8M0046636	螺母	NUT	1
7	8M0062703	垫圈	WASHER	2
8	8M0045676	滚柱轴承	BEARING Roller	1
9	8M0149608	长型驱动轴总成	DRIVESHAFT ASSEMBLY Long	1
9	8M0141337	驱动轴总成 X加长型	DRIVESHAFT ASSEMBLY X-Long	1
9	8M0141338	驱动轴总成(超长型)	DRIVESHAFT ASSEMBLY XX-Long	1
10	8M0063268	垫片组	SHIM SET	1
11	8M0146553	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
12	8M0063267	垫片组	SHIM SET	1
13	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
14	8245191	固定座	RETAINER	1
15	880719	挡圈	RING Retaining	1
16	8M0161436	油封载体总成	OIL SEAL CARRIER ASSEMBLY	1
17	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
18	8M0146938	水泵底座衬垫	GASKET Water Pump Base	1
19	8M0142869	齿轮箱外壳盖	COVER HOUSING Gearcase	1
19	8M0174560	齿轮箱壳体盖	COVER Gearcase Housing	1
20	8M0142659	成型密封件, 执行器	SEAL Formed, Actuator	2
21	8M0161897	面板衬垫	FACEPLATE GASKET	1
21	8M0168838	面板衬垫	GASKET Faceplate	1
22	8M0032833	键	KEY	1
22	8M0204723	键	KEY	1
23	43026T2	叶轮	IMPELLER	1
24	817275A1	水泵壳体套件	HOUSING KIT Water Pump	1
25	8M0166309	联轴器水泵	COUPLING Water Pump	1
25	8M0200112	联轴器水泵	COUPLING Water Pump	1
26	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
26	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
27	8M0142851	V型面密封环	V RING Face Seal	1
28	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
28	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
29	1993720	螺钉 (M6 x 20)	SCREW (M6 x 20)	4
29	8M0204706	螺丝M6x20六角	SCREW M6 x 20 Hex	4
30	8M0142858	换挡轴(长型)	SHIFT SHAFT Long	1
30	8M0164968	换挡轴(长型)	SHIFT SHAFT Long	1
30	8M0164968	换挡轴长型含衬套设计II	SHIFT SHAFT Long Includes Bushing Design II	1
30	8M0142865	换挡轴加长型	SHIFT SHAFT X-Long	1
30	8M0164969	加长型换挡轴	SHIFT SHAFT XLong	1
30	8M0164969	换挡轴加长型含衬套设计II	SHIFT SHAFT XLong Includes Bushing Design II	1
30	8M0142885	换档轴超长型	SHIFT SHAFT XX-Long	1
30	8M0164970	换档轴超长型	SHIFT SHAFT XX-Long	1
30	8M0164970	换挡轴超长型含衬套设计II	SHIFT SHAFT XX-Long Includes Bushing Design II	1
31	8M0142866	挡圈	RING Retaining	1
32	8M0142859	换挡轴衬套	BUSHING Shift Shaft	1
32	8M0249400	换挡轴衬套	BUSHING Shift Shaft	1
33	8M0142860	O型圈 .706 x .097	O-RING .706 x .097	1
34	8M0046563	挡圈	RING Retaining	1
35	8164641	油封	SEAL Oil	1
35	8M0246145	油封	OIL SEAL	1
36	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
37	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	2
38	8M0142786	下部排气消声器	MUFFLER Lower Exhaust	1
38	8M0188206	下部排气消声器	MUFFLER Lower Exhaust	1
38	8M0142587	下部减压消音器塞	PLUG Lower Relief Muffler	1
-	8M0185160	叶轮维修套件	IMPELLER REPAIR KIT	1
-	8M0166531	齿轮箱密封套件	GEARCASE SEAL KIT	1

图 24齿轮箱驱动轴 Sport Master 1.60 Gear Housing Driveshaft, Sport Master 1.60

REF	零件编号	中文名称	英文名称	数量
-	8M0159661	齿轮箱总成完整,SportMaster标准长1.60石墨灰	GEAR HOUSING ASSEMBLY Complete, SportMaster Standard Long 1.60 Graphite Gray	1
-	8M0159662	齿轮箱总成，SportMaster反转长型1.60石墨灰	GEAR HOUSING ASSEMBLY Complete, SportMaster Counter Rotation Long 1.60 Graphite Gray	1
-	8M0236170	GC SM CL GRPH GRY	GC SM CL GRPH GRY	1
-	8M0159663	齿轮箱总成完整,SportMaster标准旋转加长1.60石墨灰	GEAR HOUSING ASSEMBLY Complete, SportMaster Standard Rotation X-Long 1.60 Graphite Gray	1
-	8M0236316	GC SM XL 1.60 GRY	GC SM XL 1.60 GRY	1
-	8M0159664	齿轮箱总成，SportMaster反转X长型1.60石墨灰	GEAR HOUSING ASSEMBLY Complete, SportMaster Counter Rotation X-Long 1.60 Graphite Gray	1
-	8M0236172	GC SM 1.60 CXL SL	GC SM 1.60 CXL SL	1
-	8M0159665	齿轮箱总成完整,SportMaster标准旋转超长1.60石墨灰	GEAR HOUSING ASSEMBLY Complete, SportMaster Standard Rotation XX-Long 1.60 Graphite Gray	1
-	8M0236317	GC SM XXL 1.60 GR	GC SM XXL 1.60 GR	1
-	8M0159666	齿轮箱总成，SportMaster反转XX长型1.60石墨灰	GEAR HOUSING ASSEMBLY Complete, SportMaster Counter Rotation XX-Long 1.60 Graphite Gray	1
-	8M0236177	GC SM CXXL GREY	GC SM CXXL GREY	1
-	8M0159667	齿轮箱总成完整 SportMaster标准长弧形尾鳍1.60石墨灰	GEAR HOUSING ASSEMBLY Complete SportMaster Standard Long Cambered Skeg 1.60 Graphite Gray	1
-	8M0236318	GC L CMB 1.60 SLV	GC L CMB 1.60 SLV	1
-	8M0159668	齿轮箱总成完整 SportMaster标准旋转加长弧形尾鳍石墨灰	GEAR HOUSING ASSEMBLY Complete SportMaster Standard Rotation X-Long Cambered Skeg Graphite Gray	1
-	8M0236319	GC SM XL CMB GRY	GC SM XL CMB GRY	1
-	8M0159669	齿轮箱总成完整 SportMaster标准旋转超长弧形尾鳍石墨灰	GEAR HOUSING ASSEMBLY Complete SportMaster Standard Rotation XX-Long Cambered Skeg Graphite Gray	1
-	8M0236320	GC SM XXL CMB GRY	GC SM XXL CMB GRY	1
-	8M0159670	齿轮箱总成，SportMaster反转长型弯形舵龙骨1.60石墨灰	GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation Long Cambered Skeg 1.60 Graphite Gray	1
-	8M0236171	GC SM CL CMB GREY	GC SM CL CMB GREY	1
-	8M0159671	齿轮箱总成，SportMaster反转X长型弯形舵龙骨1.60石墨灰	GEAR HOUSING ASSENBLY Complete SportMaster Counter Rotation X-Long Cambered Skeg 1.60 Graphite Gray	1
-	8M0236174	GC SM CXL CMB GRY	GC SM CXL CMB GRY	1
-	8M0159672	齿轮箱总成，SportMaster反转XX长型弯形舵龙骨1.60石墨灰	GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation XX-Long Cambered Skeg 1.60 Graphite Gray	1
-	8M0189229	GC CXXL CMB GREY	GC CXXL CMB GREY	1
-	8M0159685	齿轮箱总成完整 SportMaster长1.60冷聚白	GEAR HOUSING ASSEMBLY Complete SportMaster Long 1.60 Cold Fusion White	1
-	8M0236321	GC SM L 1.60 WHT	GC SM L 1.60 WHT	1
-	8M0159687	齿轮箱总成，SportMaster反转长型1.60冷融合白色	GEAR HOUSING ASSEMBLY Completely SportMaster Counter Rotation Long 1.60 Cold Fusion White	1
-	8M0236169	GC SM CL WHITE	GC SM CL WHITE	1
-	8M0159689	齿轮箱总成完整 SportMaster标准旋转加长1.60冷聚白	GEAR HOUSING ASSEMBLY Complete SportMaster Standard Rotation X-Long 1.60 Cold Fusion White	1
-	8M0236322	GC SM XL 1.60 WHT	GC SM XL 1.60 WHT	1
-	8M0159691	齿轮箱总成，SportMaster反转X长型1.60冷融合白色	GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation X-Long 1.60 Cold Fusion White	1
-	8M0189222	GC SM CXL WHITE	GC SM CXL WHITE	1
-	8M0159693	齿轮箱总成完整 SportMaster标准旋转超长1.60冷聚白	GEAR HOUSING ASSEMBLY Complete SportMaster Standard Rotation XX-Long 1.60 Cold Fusion White	1
-	8M0236324	GC SM XXL 1.60 WH	GC SM XXL 1.60 WH	1
-	8M0159694	齿轮箱总成，SportMaster反转XX长型1.60冷融合白色	GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation XX-Long 1.60 Cold Fusion White	1
-	8M0236175	GC SM CXXL WHITE	GC SM CXXL WHITE	1
-	8M0159696	齿轮箱总成完整 SportMaster标准旋转长弧形尾鳍1.60冷聚白	GEAR HOUSING ASSEMBLY Complete SportMaster Standard Rotation Long Cambered Skeg 1.60 Cold Fusion White	1
-	8M0236325	GC SM L CMB WHT	GC SM L CMB WHT	1
-	8M0159697	齿轮箱总成完整 SportMaster标准旋转加长弧形尾鳍1.60冷聚白	GEAR HOUSING ASSEMBLY Complete SportMaster Standard Rotation X-Long Cambered Skeg 1.60 Cold Fusion White	1
-	8M0236326	GC SM XL CMB WHT	GC SM XL CMB WHT	1
-	8M0159700	齿轮箱总成，SportMaster反转长型弯形舵龙骨1.60冷融合白色	GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation Long Cambered Skeg 1.60 Cold Fusion White	1
-	8M0189220	GC SM CL CMB WHIT	GC SM CL CMB WHIT	1
-	8M0159701	齿轮箱总成，SportMaster反转X长型弯形舵龙骨1.60冷融合白色	GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation X-Long Camber Skeg 1.60 Cold Fusion White	1
-	8M0236173	GC SM CXL CMB WHI	GC SM CXL CMB WHI	1
-	8M0159699	齿轮箱总成完整 SportMaster标准旋转超长弧形尾鳍1.60冷聚白	GEAR HOUSING ASSEMBLY Complete SportMaster Standard Rotation XX-Long Cambered Skeg 1.60 Cold Fusion White	1
-	8M0236327	GC SM XXL CMB WHT	GC SM XXL CMB WHT	1
-	8M0159703	齿轮箱总成，SportMaster反转XX长型弯形舵龙骨1.60冷融合白色	GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation XX-Long Camber Skeg 1.60 Cold Fusion White	1
-	8M0236178	GC CXXL CMB WHITE	GC CXXL CMB WHITE	1
1	8M0159710	齿轮箱总成基础 SportMaster冷聚白	GEAR HOUSING ASSEMBLY Basic SportMaster Cold Fusion White	1
1	8M0159711	齿轮箱总成基础型 SportMaster 石墨灰	GEAR HOUSING ASSEMBLY Basic SportMaster Graphite Gray	1
1	8M0159712	齿轮箱总成基础型 SportMaster 冷聚白弯舵	GEAR HOUSING ASSEMBLY Basic SportMaster Cold Fusion White Camber Skeg	1
1	8M0187436	GC 450R SM BASIC	GC 450R SM BASIC	1
1	8M0159713	齿轮箱总成基础型 SportMaster 弯舵石墨灰	GEAR HOUSING ASSEMBLY Basic, SportMaster Camber Skeg Graphite Grey	1
1	8M0159714	齿轮箱总成基础型 SportMaster 反转向弯舵冷聚白	GEAR HOUSING ASSEMBLY Basic SportMaster Counter Rotation Camber Skeg Cold Fusion White	1
1	8M0187438	GC SM BAS CMB C	GC SM BAS CMB C	1
1	8M0159715	齿轮箱总成基础型 SportMaster 反转向弯舵石墨灰	GEAR HOUSING ASSEMBLY Basic SportMaster Counter Rotation Camber Skeg Graphite Grey	1
2	847635001	阳极块	ANODE	1
3	8M0036047	螺钉(0.375x0.62英寸)	SCREW (.375 x .62)	2
4	841388	垫圈(0.410x0.810x0.050英寸)不锈钢	WASHER (.410 x .810 x .050) Stainless Steel	2
-	8M0158926	齿轮组标准转向前进/倒档/小齿轮 1.60速比 (15/24)	GEAR SET Standard Rotation, Foward/Reverse/Pinion 1.60 Ratio (15/24)	1
-	8M0208545	齿轮组反转向前进/倒档/小齿轮 1.60速比 (15/24)	GEAR SET Counter Rotation, Forward/Reverse/Pinion 1.60 Ratio (15/24)	1
5	NSS	小齿轮(不单独销售)	NOT SOLD SEPARATE Pinion	1
6	8M0046636	螺母	NUT	1
7	8M0062703	垫圈	WASHER	1
8	8M0045676	滚柱轴承	BEARING Roller	1
9	8M0149608	长型驱动轴总成	DRIVESHAFT ASSEMBLY Long	1
9	8M0141337	驱动轴总成 X加长型	DRIVESHAFT ASSEMBLY X-Long	1
9	8M0141338	驱动轴总成(超长型)	DRIVESHAFT ASSEMBLY XX-Long	1
10	8M0063268	垫片组	SHIM SET	1
11	8M0146553	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
12	8M0063267	垫片组	SHIM SET	1
13	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
14	8245191	固定座	RETAINER	1
15	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
16	880719	挡圈	RING Retaining	1
17	8M0161436	油封载体总成	OIL SEAL CARRIER ASSEMBLY	1
18	8M0146938	水泵底座衬垫	GASKET Water Pump Base	1
19	8M0142869	齿轮箱外壳盖	COVER HOUSING Gearcase	1
19	8M0174560	齿轮箱壳体盖	COVER Gearcase Housing	1
20	8M0161897	面板衬垫	FACEPLATE GASKET	1
20	8M0168838	面板衬垫	GASKET Faceplate	1
21	8M0032833	键	KEY	1
21	8M0204723	键	KEY	1
22	43026Q02	叶轮	IMPELLER	1
23	817275A1	水泵壳体套件	HOUSING KIT Water Pump	1
24	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	2
24	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	2
25	8M0142851	V型面密封环	V RING Face Seal	1
26	8M0166309	联轴器水泵	COUPLING Water Pump	1
26	8M0200112	联轴器水泵	COUPLING Water Pump	1
27	1993720	螺钉 (M6 x 20)	SCREW (M6 x 20)	4
27	8M0204706	螺丝M6x20六角	SCREW M6 x 20 Hex	4
28	8M0142858	换挡轴(长型)	SHIFT SHAFT Long	1
28	8M0164968	换挡轴(长型)	SHIFT SHAFT Long	1
28	8M0164968	换档轴长型含衬套	SHIFT SHAFT Long Includes Bushing	1
28	8M0142865	换挡轴加长型	SHIFT SHAFT X-Long	1
28	8M0164969	加长型换挡轴	SHIFT SHAFT XLong	1
28	8M0164969	换档轴加长型含衬套	SHIFT SHAFT XLong Includes Bushing	1
28	8M0142885	换档轴超长型	SHIFT SHAFT XX-Long	1
28	8M0164970	换档轴超长型	SHIFT SHAFT XX-Long	1
28	8M0164970	换档轴超长型含衬套	SHIFT SHAFT XX-Long Includes Bushing	1
29	8M0142859	换挡轴衬套	BUSHING Shift Shaft	1
29	8M0249400	换挡轴衬套	BUSHING Shift Shaft	1
30	8M0142866	挡圈	RING Retaining	1
31	8M0046563	挡圈	RING Retaining	1
32	8M0142860	O型圈 .706 x .097	O-RING .706 x .097	1
33	8164641	油封	SEAL Oil	1
33	8M0246145	油封	OIL SEAL	1
34	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
35	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
36	8M0142659	成型密封件, 执行器	SEAL Formed, Actuator	2
-	8M0185160	叶轮维修套件	IMPELLER REPAIR KIT	1
-	8M0166531	齿轮箱密封套件	GEARCASE SEAL KIT	1

图 25齿轮箱螺旋桨轴-反向旋转 Sport Master 1.60 Gear Housing Prop Shaft-Counter Rotation, Sport Master 1.60

REF	零件编号	中文名称	英文名称	数量
-	8M0159662	齿轮箱总成，SportMaster反转长型1.60石墨灰	GEAR HOUSING ASSEMBLY Complete, SportMaster Counter Rotation Long 1.60 Graphite Gray	1
-	8M0159664	齿轮箱总成，SportMaster反转X长型1.60石墨灰	GEAR HOUSING ASSEMBLY Complete, SportMaster Counter Rotation X-Long 1.60 Graphite Gray	1
-	8M0236172	GC SM 1.60 CXL SL	GC SM 1.60 CXL SL	1
-	8M0159666	齿轮箱总成，SportMaster反转XX长型1.60石墨灰	GEAR HOUSING ASSEMBLY Complete, SportMaster Counter Rotation XX-Long 1.60 Graphite Gray	1
-	8M0236177	GC SM CXXL GREY	GC SM CXXL GREY	1
-	8M0159670	齿轮箱总成，SportMaster反转长型弯形舵龙骨1.60石墨灰	GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation Long Cambered Skeg 1.60 Graphite Gray	1
-	8M0236171	GC SM CL CMB GREY	GC SM CL CMB GREY	1
-	8M0159671	齿轮箱总成，SportMaster反转X长型弯形舵龙骨1.60石墨灰	GEAR HOUSING ASSENBLY Complete SportMaster Counter Rotation X-Long Cambered Skeg 1.60 Graphite Gray	1
-	8M0236174	GC SM CXL CMB GRY	GC SM CXL CMB GRY	1
-	8M0159672	齿轮箱总成，SportMaster反转XX长型弯形舵龙骨1.60石墨灰	GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation XX-Long Cambered Skeg 1.60 Graphite Gray	1
-	8M0189229	GC CXXL CMB GREY	GC CXXL CMB GREY	1
-	8M0159687	齿轮箱总成，SportMaster反转长型1.60冷融合白色	GEAR HOUSING ASSEMBLY Completely SportMaster Counter Rotation Long 1.60 Cold Fusion White	1
-	8M0236169	GC SM CL WHITE	GC SM CL WHITE	1
-	8M0159691	齿轮箱总成，SportMaster反转X长型1.60冷融合白色	GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation X-Long 1.60 Cold Fusion White	1
-	8M0189222	GC SM CXL WHITE	GC SM CXL WHITE	1
-	8M0159694	齿轮箱总成，SportMaster反转XX长型1.60冷融合白色	GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation XX-Long 1.60 Cold Fusion White	1
-	8M0236175	GC SM CXXL WHITE	GC SM CXXL WHITE	1
-	8M0159700	齿轮箱总成，SportMaster反转长型弯形舵龙骨1.60冷融合白色	GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation Long Cambered Skeg 1.60 Cold Fusion White	1
-	8M0189220	GC SM CL CMB WHIT	GC SM CL CMB WHIT	1
-	8M0159701	齿轮箱总成，SportMaster反转X长型弯形舵龙骨1.60冷融合白色	GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation X-Long Camber Skeg 1.60 Cold Fusion White	1
-	8M0236173	GC SM CXL CMB WHI	GC SM CXL CMB WHI	1
-	8M0159703	齿轮箱总成，SportMaster反转XX长型弯形舵龙骨1.60冷融合白色	GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation XX-Long Camber Skeg 1.60 Cold Fusion White	1
-	8M0236178	GC CXXL CMB WHITE	GC CXXL CMB WHITE	1
1	8M0159714	齿轮箱总成基础型 SportMaster 反转向弯舵冷聚白	GEAR HOUSING ASSEMBLY Basic SportMaster Counter Rotation Camber Skeg Cold Fusion White	1
1	8M0187438	GC SM BAS CMB C	GC SM BAS CMB C	1
1	8M0159715	齿轮箱总成基础型 SportMaster 反转向弯舵石墨灰	GEAR HOUSING ASSEMBLY Basic SportMaster Counter Rotation Camber Skeg Graphite Grey	1
2	8M0142853	鱼雷形塞	PLUG Torpedo	1
2	8M0157111	鱼雷形塞	PLUG Torpedo	1
3	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
4	880719	挡圈	RING Retaining	1
5	8M0063270	垫片组	SHIM SET	1
6	8M0208545	齿轮组反转向前进/倒档/小齿轮 1.60速比 (15/24)	GEAR SET Counter Rotation, Forward/Reverse/Pinion 1.60 Ratio (15/24)	1
7	8M0053823	止推垫圈(内径1.50×外径2.046)	WASHER Thrust, (1.50 ID x 2.046 OD)	1
8	8M0051043	挡圈	RING Retaining	1
9	884325T01	圆锥滚子轴承组件	BEARING ASSEMBLY Roller-Tappered	1
9	8M0142835	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
10	884323T01	滚柱轴承总成	BEARING ASSEMBLY Roller	1
10	8M0142836	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
11	8M0046215	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
11	8M0220880	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
12	8M0142857	阀芯总成	SPOOL ASSEMBLY	1
12	8M0242491	阀芯总成	SPOOL ASSEMBLY	1
13	8M0045493	十字销	PIN Cross	1
14	8M0142871	滑动式6爪离合器	CLUTCH Sliding 6 Jaw	1
15	8M0050575	十字弹簧	SPRING Cross	1
16	8M0156191	螺旋桨轴	SHAFT Propeller	1
17	8M0064306	止推隔套	SPACER Thrust	1
18	8M0050434	垫片 0.040	WASHER .040	1
19	NSS	轴承座总成（不单独销售）	NOT SOLD SEPARATE Bearing Carrier Assembly	1
20	8M0148319	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper Cup/Cone	1
21	NSS	齿轮组（不单独销售）	NOT SOLD SEPARATE Gear Set	1
22	NSS	适配器(不单独销售)	NOT SOLD SEPARATE Adapter	1
23	NSS	轴承（不单独销售）	NOT SOLD SEPARATE Bearing	1
24	NSS	不单独销售垫圈	NOT SOLD SEPARATE Washer	1
25	NSS	垫片组（不单独销售）	NOT SOLD SEPARATE Shim Set	1
26	NSS	滚针轴承(不单独销售)	NOT SOLD SEPARATE Bearing-Needle	1
27	NSS	止推环（不单独销售）	NOT SOLD SEPARATE Ring-Thrust	1
28	8M0000190	O型圈(4.475x0.210英寸)	O-RING (4.475 x .210)	1
29	8M0056639	挡圈	RING Retainer	1
30	888483	油封	SEAL Oil	2
30	8M0204700	油封	SEAL Oil	2
31	8M0109164	销 3/8直径 x 0.625长	PIN 3/8 Dia x .625 LG	1
32	830749	密封件	SEAL	2
32	8M0204693	放油螺塞密封件	SEAL Drain Plug	2
33	8M0071653	特殊螺钉0.375-16 UNC	SCREW Special, .375-16 UNC	2
34	8M0108527	锁紧垫片	WASHER Tab	1
34	8M0191587	锁紧垫片	WASHER Tab	1
35	8M0111653	固定螺母	NUT Retainer	1
35	8M0162798	轴承座固定环	RETAINER Bearing Carrier	1
36	8M0050821	平齐式盖板套件, 标准型	COVER KIT Flush, Standard	1
36	8M0180306	鱼雷形盖	COVER Torpedo	1
37	8M0199860	轴承座总成反转向 (1.60速比)	BEARING CARRIER ASSEMBLY Counter Rotation (1.60 Ratio)	1
38	8M0161546	推力环	THRUST RING	1
39	8M0000190	O型圈(4.475x0.210英寸)	O-RING (4.475 x .210)	1
40	8M0208545	齿轮组反转向前进/倒档/小齿轮 1.60速比 (15/24)	GEAR SET Counter Rotation, Forward/Reverse/Pinion 1.60 Ratio (15/24)	1
41	8M0199861	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
42	8M0199862	轴承杯垫片	SPACER Bearing Cup	1
43	8M0199863	隔套	SPACER	1
44	8M0199864	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
45	8M0064178	锁紧螺母	LOCK NUT	1
46	8M0066130	半圆头定位螺钉组	SCREW- HALF DOG POINT SET	1
46	8M0233826	半圆头定位螺钉组	SCREW-HALF DOG POINT SET	1
47	8M0148319	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper Cup/Cone	1
48	888483	油封	SEAL Oil	2
48	8M0204700	油封	SEAL Oil	2
-	8M0166531	齿轮箱密封套件	GEARCASE SEAL KIT	1

图 26齿轮箱螺旋桨轴-反向旋转 5.44鱼雷型 1.60 Gear Housing Prop Shaft - Counter Rotation, 5.44 Torpedo 1.60

REF	零件编号	中文名称	英文名称	数量
-	8M0159650	齿轮箱总成完整套件(反转向长型) 5.44 1.60 石墨灰	GEAR HOUSING ASSEMBLY Complete (Counter Rotation Long) 5.44 1.60 GRAPHITE GREY	1
-	8M0159652	齿轮箱总成完整套件(反转向加长型) 5.44 1.60 石墨灰	GEAR HOUSING ASSEMBLY Complete (Counter Rotation X-Long) 5.44 1.60 GRAPHITE GREY	1
-	8M0236161	GC 5.44 CXL 1.6 G	GC 5.44 CXL 1.6 G	1
-	8M0159654	齿轮箱总成完整套件(反转向超长型) 5.44 1.60 石墨灰	GEAR HOUSING ASSEMBLY Complete (Counter Rotation XX-Long) 5.44 1.60 GRAPHITE GREY	1
-	8M0236166	GC 5.44 CXXL 1.6S	GC 5.44 CXXL 1.6S	1
-	8M0159658	齿轮箱总成完整套件(反转向长型) 5.44 1.60 弯舵石墨灰	GEAR HOUSING ASSEMBLY Complete (Counter Rotation Long) 5.44 1.60 Cambered Skeg GRAPHITE GREY	1
-	8M0236159	GC 5.44 CL CMB	GC 5.44 CL CMB	1
-	8M0159659	齿轮箱总成完整套件(反转向加长型) 5.44 1.60 弯舵石墨灰	GEAR HOUSING ASSEMBLY Complete (Counter Rotation X-Long) 5.44 1.60 Cambered GRAPHITE GREY	1
-	8M0236163	GC 5.44 CXL CMB G	GC 5.44 CXL CMB G	1
-	8M0159660	齿轮箱总成完整套件(反转向超长型) 5.44 1.60 弯舵石墨灰	GEAR HOUSING ASSEMBLY Complete (Counter Rotation XX-Long) 5.44 1.60 Cambered Skeg GRAPHITE GREY	1
-	8M0236168	GC 5.44 CXXL 1.6	GC 5.44 CXXL 1.6	1
-	8M0159674	齿轮箱总成完整套件(反转向长型) 5.44 1.60 冷聚白	GEAR HOUSING ASSEMBLY Complete (Counter Rotation Long) 5.44 1.60 COLD FUSION WHITE	1
-	8M0236156	GC 5.44 CL 1.60 W	GC 5.44 CL 1.60 W	1
-	8M0159676	齿轮箱总成完整套件(反转向加长型) 5.44 1.60 冷聚白	GEAR HOUSING ASSEMBLY Complete (Counter Rotation X-Long) 5.44 1.60 COLD FUSION WHITE	1
-	8M0236160	GC 5.44 CXL 1.60W	GC 5.44 CXL 1.60W	1
-	8M0159678	齿轮箱总成完整套件(反转向超长型) 5.44 1.60 冷聚白	GEAR HOUSING ASSEMBLY Complete (Counter Rotation XX-Long) 5.44 1.60 COLD FUSION WHITE	1
-	8M0236164	GC 5.44 CXXL 1.6W	GC 5.44 CXXL 1.6W	1
-	8M0159682	齿轮箱总成完整套件(反转向长型) 5.44 1.60 弯舵冷聚白	GEAR HOUSING ASSEMBLY Complete (Counter Rotation Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE	1
-	8M0236158	GC 5.44 CL CMB W	GC 5.44 CL CMB W	1
-	8M0159683	齿轮箱总成完整套件(反转向加长型) 5.44 1.60 弯舵冷聚白	GEAR HOUSING ASSEMBLY Complete (Counter Rotation X-Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE	1
-	8M0236162	GC 5.44 CXL CMB W	GC 5.44 CXL CMB W	1
-	8M0159684	齿轮箱总成（反转XX长型）5.44 1.60 弯形舵龙骨冷融合白色	GEAR HOUSING ASSEMBLY Complete (Counter Rotation XX-Long) 5.44 1.60 Cambered Skeg COLD FUSION WHITE	1
-	8M0236167	GC 5.44 CXXL 1.6W	GC 5.44 CXXL 1.6W	1
1	8M0159704	齿轮总成基础型 5.44 1.60 冷聚白	GEAR ASSEMBLY Basic, 5.44 1.60 COLD FUSION WHITE	1
1	8M0176877	GC 5.44 BASIC WHT	GC 5.44 BASIC WHT	1
1	8M0159705	齿轮箱总成基础型 5.44 1.60 石墨灰	GEAR HOUSING ASSEMBLY Basic, 5.44 1.60 GRAPHITE GREY	1
1	8M0176878	GC 5.44 BASIC GRE	GC 5.44 BASIC GRE	1
1	8M0159706	齿轮箱总成基础型 5.44 1.60 弯舵冷聚白	GEAR HOUSING ASSEMBLY Basic, 5.44 1.60 Camber Skeg COLD FUSION WHITE	1
1	8M0176879	GC 5.44 CMB BAS W	GC 5.44 CMB BAS W	1
1	8M0159707	齿轮箱总成基础型 5.44 1.60 弯舵石墨灰	GEAR HOUSING ASSEMBLY Basic 5.44 1.60 Camber Skeg GRAPHITE GREY	1
1	8M0176880	GC 5.44 BAS CMB S	GC 5.44 BAS CMB S	1
1	8M0159708	齿轮箱总成基础型(反转向) 5.44 1.60 弯舵冷聚白	GEAR HOUSING ASSEMBLY Basic, (Counter Rotation) 5.44 1.60 Camber Skeg COLD FUSION WHITE	1
1	8M0176881	GC 5.44 BAS CMBCW	GC 5.44 BAS CMBCW	1
1	8M0159709	齿轮箱总成基础型(反转向) 5.44 1.60 弯舵石墨灰	GEAR HOUSING ASSEMBLY Basic, (Counter Rotation) 5.44 1.60 Camber Skeg GRAPHITE GREY	1
1	8M0176882	GC 5.44 BAS CMBCS	GC 5.44 BAS CMBCS	1
2	8M0157111	鱼雷形塞	PLUG Torpedo	1
3	8M0046563	挡圈	RING Retaining	1
4	880719	挡圈	RING Retaining	1
5	8M0063270	垫片组	SHIM SET	1
6	8M0208545	齿轮组反转向前进/倒档/小齿轮 1.60速比 (15/24)	GEAR SET Counter Rotation, Forward/Reverse/Pinion 1.60 Ratio (15/24)	1
7	8M0053823	止推垫圈(内径1.50×外径2.046)	WASHER Thrust, (1.50 ID x 2.046 OD)	1
8	8M0051043	挡圈	RING Retaining	1
9	8M0142835	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
10	8M0142836	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
11	8M0046215	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
11	8M0220880	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
12	8M0142857	阀芯总成	SPOOL ASSEMBLY	1
12	8M0242491	阀芯总成	SPOOL ASSEMBLY	1
13	469501	开口销	COTTER PIN	1
14	8M0045493	十字销	PIN Cross	1
15	8M0142871	滑动式6爪离合器	CLUTCH Sliding 6 Jaw	1
16	8M0050575	十字弹簧	SPRING Cross	1
17	8M0142877	螺旋桨轴	SHAFT Propeller	1
18	8M0064306	止推隔套	SPACER Thrust	1
19	8M0076745	垫片组	SHIM SET	1
20	NSS	轴承座总成（不单独销售）	NOT SOLD SEPARATE Bearing Carrier Assembly	1
21	NSS	齿轮组（不单独销售）	NOT SOLD SEPARATE Gear Set	1
22	NSS	滚针轴承(不单独销售)	NOT SOLD SEPARATE Bearing-Needle	1
23	NSS	适配器(不单独销售)	NOT SOLD SEPARATE Adapter	1
24	8M0046569	止推环	RING Thrust	1
24	8M0161546	推力环	THRUST RING	1
25	8M0148319	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper Cup/Cone	1
26	888483	油封	SEAL Oil	2
26	8M0204700	油封	SEAL Oil	2
27	8M0000190	O型圈(4.475x0.210英寸)	O-RING (4.475 x .210)	1
28	NSS	轴承（不单独销售）	NOT SOLD SEPARATE Bearing	1
29	NSS	垫片组（不单独销售）	NOT SOLD SEPARATE Shim Set	1
30	NSS	不单独销售垫圈	NOT SOLD SEPARATE Washer	1
31	NSS	轴承适配器（不单独销售）	NOT SOLD SEPARATE Bearing-Adaptor	1
32	8M0109164	销 3/8直径 x 0.625长	PIN 3/8 Dia x .625 LG	1
33	830749	密封件	SEAL	2
33	8M0204693	放油螺塞密封件	SEAL Drain Plug	2
34	8M0071653	特殊螺钉0.375-16 UNC	SCREW Special, .375-16 UNC	2
35	8M0108527	锁紧垫片	WASHER Tab	1
36	8M0162798	轴承座固定环	RETAINER Bearing Carrier	1
37	8M0050821	平齐式盖板套件, 标准型	COVER KIT Flush, Standard	1
37	8M0180306	鱼雷形盖	COVER Torpedo	1
38	8M0036819	紧定螺钉(10-32)	SET SCREW (10-32)	1
39	8M0191582	轴承座总成1.60速比	BEARING CARRIER ASSEMBLY 1.60 Gear Ratio	1
40	8M0161546	推力环	THRUST RING	1
41	8M0000190	O型圈(4.475x0.210英寸)	O-RING (4.475 x .210)	1
42	8M0208545	齿轮组反转向前进/倒档/小齿轮 1.60速比 (15/24)	GEAR SET Counter Rotation, Forward/Reverse/Pinion 1.60 Ratio (15/24)	1
43	8M0199861	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
44	8M0199862	轴承杯垫片	SPACER Bearing Cup	1
45	8M0199863	隔套	SPACER	1
46	8M0199864	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
47	8M0064178	锁紧螺母	LOCK NUT	1
48	8M0066130	半圆头定位螺钉组	SCREW- HALF DOG POINT SET	1
48	8M0233826	半圆头定位螺钉组	SCREW-HALF DOG POINT SET	1
49	8M0148319	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper Cup/Cone	1
50	888483	油封	SEAL Oil	2
50	8M0204700	油封	SEAL Oil	2
-	8M0166531	齿轮箱密封套件	GEARCASE SEAL KIT	1

图 27点火系统 Ignition

REF	零件编号	中文名称	英文名称	数量
1	8M0142697	火花塞导线	SPARK PLUG WIRES	1
2	8M0142671	导套	GUIDE	1
3	897445501	螺丝(M6×20毫米)	SCREW (M6 x 20 MM)	2
4	8M0103808	螺丝(M6×30毫米)不锈钢	SCREW (M6 x 30 mm) Stainless Steel	8
5	8M0044991	双输出点火线圈	IGNITION COIL Ignition Dual Output	4
6	8M0135348	火花塞	SPARK PLUGS	8
6	8M0204737	火花塞	SPARK PLUG	8
7	8M0142694	线圈适配器线束	WIRE HARNESS Coil Adapter	1

图 28进气系统增压器 Intake System Supercharger

REF	零件编号	中文名称	英文名称	数量
1	8M0159608	机械增压器	SUPERCHARGER	1
NS	8M0204263	进气口总成	INLET NOSE ASSEMBLY	1
NS	8M0204264	齿轮盖总成	GEAR COVER ASSEMBLY	1
NS	8M0204265	增压器进气口衬套及垫片组	BUSHING AND GASKET SET Supercharger Inlet Nose	1
2	8M0159609	增压器垫片	GASKET SUPERCHARGER	1
2	8M0210770	增压器垫片	GASKET Supercharger	1
3	8M0159617	底座垫片	GASKET BEDPLATE	1
4	8M0150516	水管接头	FITTING Water	1
5	8M0142481	O型圈 (0.362 x 0.103)	O-RING (0.362 x 0.103)	1
6	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	4
7	8M0159610	水管接头	FITTING WATER	1
8	8M0142481	O型圈 (0.362 x 0.103)	O-RING (0.362 x 0.103)	1
9	8M0103813	螺钉 (M8 x 30)	SCREW (M8 x 30)	10
10	8M0159611	中冷器进气垫片	GASKET CAC INLET	2
11	853219	螺钉 (M8 x 25)	SCREW (M8 x 25)	7
12	8M0159612	水管接头总成	FITTING ASSY WATER	1
13	8M0142481	O型圈 (0.362 x 0.103)	O-RING (0.362 x 0.103)	1
14	8M0159613	底座盖软管	HOSE BEDPLATE COVER	1
15	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
16	892228	定位销	PIN Dowel	2
17	8M0159616	螺柱	STUD	1
18	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
19	88552645	螺钉（M8X45）	SCREW (M8X45)	5
20	8M0109442	节气门体衬垫	GASKET Throttle Body	1
21	8M0114805	节气门体总成 80毫米	THROTTLE BODY ASSEMBLY 80 MM	1
21	8M0222358	节气门体 80毫米	THROTTLE BODY 80 MM	1
22	8M0103809	螺钉(M6x40毫米)不锈钢	SCREW (M6 x 40 mm) Stainless Steel	4
23	8M0159620	节气门体进气密封	SEAL INLET THROTTLE BODY	1
24	8M0159621	软管夹80-100毫米9毫米宽	CLAMP HOSE 80-100 MM 9 MM WIDE	1
25	8M0159622	消音器总成	ATTENUATOR ASSEMBLY	1
26	8M0096302	护孔环	GROMMET	2
27	8M0159629	推入式卡扣	CLIP PUSH IN	4
28	8M0159623	进气滤网	SCREEN INTAKE	1
29	8M0159630	电子增压控制阀	VALVE Electronic Boost Control	1
30	88552514	不锈钢螺钉(M6×14mm)	SCREW (M6 x 14 mm) Stainless Steel	3
31	8M0159631	旁通管道总成	BYPASS DUCT ASSEMBLY	1
31	8M0220976	旁通	BYPASS	1
32	8M0159632	欧梯克夹	CLAMP OETIKER	2
33	8M0103806	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	4
34	8M0159633	旁通管道垫片	GASKET BYPASS DUCT	2
35	8M0159634	左舷歧管总成	MANIFOLD ASSEMBLY PORT	1
36	8M0103807	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	10
37	8M0159635	M8x25六角法兰头螺钉	SCREW M8 x 25 HEX FLANGE HD	4
38	8M0103810	不锈钢螺钉(M6×45mm)	SCREW (M6 x 45 MM) Stainless Steel	4
39	8M0159636	右舷歧管总成	MANIFOLD ASSEMBLY STARBOARD	1
40	16739	连接器	CONNECTOR	2
40	8M0180507	接头	FITTING	2
41	8M0159633	旁通管道垫片	GASKET BYPASS DUCT	1
42	400213	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	3
43	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
44	8M0080651	螺钉 (M6 x 20)	SCREW (M6 x 20)	5
45	8M0153609	护孔环	GROMMET	2
46	88552612	螺钉（M8×12）	SCREW (M8 x 12)	1
47	8M0161644	200A蓝色保险丝	FUSE 200A Blue	1
48	8M0161892	母线排总成	BUS BAR ASSEMBLY	1
48	8M0212643	母线排总成	BUS BAR ASSEMBLY	1
49	8M0161893	空气盖	COVER AIR	1
49	8M0199448	中冷器盖	COVER Charge Air Cooler	1
50	8M0162821	旁通隔离器	ISOLATER Bypass	1
51	8M0161440	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
52	8M0167615	底座盖板	COVER Bedplate	1
52	8M0208378	底座盖	BEDPLATE COVER	1
53	8M0168882	气缸盖至增压器油管	HOSE Oil, Cylinder Head to Supercharger	1
54	8M0175149	进气垫片	GASKET Intake	2
55	891663001	温度传感器	SENSOR Temperature	1
56	40056107	螺钉(M5×16)	SCREW (M5 x 16)	2
57	8M0103804	不锈钢螺钉 (M6 x 12 mm)	SCREW (M6 x 12 MM) Stainless Steel	2
58	8M0175480	接地支架总成	BRACKET Ground Assembly	1
59	88552620	螺钉(M8 x 20)	SCREW (M8 x 20)	1
60	8M0084726	定位销	PIN Dowel	4
61	8M0219118	左舷中冷器盖	COVER CAC Port	AR/1
61	8M0219119	右侧增压空气冷却器盖	COVER CAC Starboard	AR/1

图 29底罩 Lower Cowl

REF	零件编号	中文名称	英文名称	数量
1	8M0142219	下部罩壳总成左舷和右舷	LOWER COWL ASSEMBLY Port and Starboard	1
1	8M0142217	下部罩壳总成黑色（左右舷）	LOWER COWL ASSEMBLY Black, Port and Starboard	1
1	8M0245395	下部罩盖总成黑色 (左舷和右舷)	LOWER COWL ASSEMBLY Black (Port and Starboard)	1
1	8M0149569	下部罩壳总成黑色重型	LOWER COWL ASSEMBLY Black, Heavy Duty	1
1	8M0236687	护板总成拉杆槽	CHAP ASSEMBLY, TIE BAR NOTCH	1
1	8M0236688	右舷转向槽护套总成	CHAP ASSEMBLY, STARBOARD STEER NOTCH	1
1	8M0236689	左舷转向槽护套总成	CHAP ASSEMBLY, PORT STEER NOTCH	1
2	8M0142918	螺钉(M5 x 12)	SCREW (M5 x 12)	9
3	8M0142923	后挡板（左舷）	RETAINER Rear, Port	1
3	8M0142930	后挡板（右舷）	RETAINER Rear, Starboard	1
4	8M0142922	前挡板（左舷）	RETAINER Front, Port	1
4	8M0142929	前挡板（右舷）	RETAINER Front, Starboard	1
5	8M0142919	撞板总成（左舷）	STRIKER ASSEMBLY Port	1
5	8M0142925	撞板总成（右舷）	STRIKER ASSEMBLY Starboard	1
6	8M0142921	螺丝（M6 X 16）	SCREW (M6 X 16)	6
7	8M0142928	缸体	BLOCK	1
8	8M0142946	安装板	PLATE	1
9	8M0047718	螺钉(M5×8mm)	SCREW (M5 X 8MM)	2
10	8M0142927	衬套	BUSHING	1
11	8M0247126	护孔环	GROMMET	1
12	888958001	嵌入式端口塞	PLUG Flush Port	1
12	8M0215105	嵌入式塞	PLUG Flush	1
13	8M0047301	嵌入式插槽密封件	SEAL Flush Plug Pocket	1
13	8M0219168	嵌入式系绳插头	TETHER Flush Plug	1
14	889823001	嵌入式系绳插头	TETHER Flush Plug	1
14	8M0224266	嵌入式插槽密封件	SEAL Flush Plug Pocket	1
15	885361A01	接头总成冲洗	FITTING ASSEMBLY Flush	1
16	8M0142945	前导板（左舷）	GUIDE Front, Port	1
16	8M0142944	前导板（右舷）	GUIDE Front, Starboard	1
17	8M0142918	螺钉(M5 x 12)	SCREW (M5 x 12)	4
18	8M0142943	后导板（左舷）	GUIDE Rear, Port	1
18	8M0142942	后导板（右舷）	GUIDE Rear, Starboard	1
19	8M0032848	开关固定座	RETAINER Switch	1
20	8M0037225	圆形微调开关面板	TRIM SWITCH Round Bezel	1
20	8M0235190	圆形微调开关面板	TRIM SWITCH Round Bezel	1
21	8M0022324	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	11
21	8M0230977	螺钉 (M6 x 25 MM)	SCREW (M6 x 25 MM)	11
22	8M0073002	六角法兰螺钉(M6×20)	SCREW (M6 X 20), Hex Flg	2
23	8M0142229	前下部罩壳总成黑色	LOWER FRONT COWL ASSEMBLY Black	1
23	8M0142228	前下部罩壳总成黑色	LOWER FRONT COWL ASSEMBLY Black	1
23	8M0142228	前下部罩壳总成黑色	LOWER FRONT COWL ASSEMBLY Black	1
24	8M0142932	前撞板总成	STRIKER ASSEMBLY Front	1
25	8M0142921	螺丝（M6 X 16）	SCREW (M6 X 16)	3
26	8M0142924	左舷盖	COVER Port	1
26	8M0142931	右舷盖	COVER Starboard	1
27	892073002	台阶螺丝 (M6)	SHOULDER SCREW (M6)	2
27	8M0230980	螺丝 (M6x14) 六角法兰B型	SCREW (M6 x 14) Hex Flange B	2
28	8M0142949	适配器	ADAPTER	1
29	8M0075735	六角法兰螺钉(M6×30)	SCREW (M6 X 30) Hex Flg	3
30	8M0142948	衬套机械版	GROMMET Mechanical	1
30	8M0142950	衬套 DTS版	GROMMET DTS	1
30	8M0146953	大孔衬套-机械式	GROMMET Large Hole, Mechanical	1
30	8M0146954	大孔衬套-DTS CMS	GROMMET Large Hole, DTS CMS	1
31	8M0146710	装配门销	PIN Rigging Door	1
32	8M0154581	微调传感器护圈	GROMMET Trim Sensor	1
33	8M0142582	装配门黑色	RIGGING DOOR Black	1
34	8M0071078	六角法兰螺钉(M6×85)	SCREW (M6 X 85) Hex Flg	1
34	8M0230974	六角法兰螺钉M6×85	SCREW M6 x 85 HEX FLG	1
35	8M0142933	螺钉(M6 x 40)	SCREW (M6 x 40)	1
35	8M0230975	螺丝 M6x40 六角法兰头	SCREW M6 x 40 HEX FLG	1
36	8M0142224	后下部罩壳总成黑色	LOWER REAR COWL ASSEMBLY Black	1
36	8M0245377	后下部罩壳总成黑色	LOWER REAR COWL ASSEMBLY Black	1
36	8M0142223	后下部罩壳总成黑色	LOWER REAR COWL ASSEMBLY Black	1
36	8M0245377	后下部罩壳总成黑色	LOWER REAR COWL ASSEMBLY Black	1
37	8M0142371	黑色阅读手册贴花	DECAL Read Manual, Black	1
38	8M0149605	边缘保护套	SLEEVE Edge Protector	1

图 30维护套件 Maintenance Kits

REF	零件编号	中文名称	英文名称	数量
-	8M0149929	100小时保养套件-V6/V8四冲程	100 HR MAINTENANCE KIT V6 and V8 4 stroke	1
-	8M0123025	机油滤清器	OIL FILTER	1
-	8M0106635	燃油滤清器	FUEL FILTER	1
-	830749	密封件	SEAL	1
-	8M0204693	放油螺塞密封件	SEAL Drain Plug	1
-	8M0149932	300小时保养套件-V8四冲程	300 HR MAINTENANCE KIT V8 4 Stroke	1
-	8M0123025	机油滤清器	OIL FILTER	1
-	8M0106635	燃油滤清器	FUEL FILTER	1
-	830749	密封件	SEAL	2
-	8M0204693	放油螺塞密封件	SEAL Drain Plug	2
-	8M0135348	火花塞	SPARK PLUGS	8
-	8M0204737	火花塞	SPARK PLUG	8
-	8M0162139	节温器总成	THERMOSTAT ASSEMBLY	1
-	888988008	卡箍(34.6毫米)	CLAMP (34.6 MM)	1
-	8M0187145	卡箍	CLAMP	1
-	8M0142251	皮带	BELT	1
-	8M0218433	皮带	BELT	1
-	8M0142980	叶轮维修套件	IMPELLER REPAIR KIT	1
-	8M0205803	水泵维修套件	REPAIR KIT Water Pump	1
-	8M0137814	防涡流阳极板(铝)	ANODE Antivent Plate (Aluminum)	1
-	8M0142850	螺钉(M10×25)	SCREW (M10 X 25)	2
-	8M0142878	螺塞	PLUG Screw	2
-	893404	阳极块	ANODE	4
-	8M0220986	配平阳极	ANODE Trim	4
-	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
-	880653	阳极块	ANODE	1
-	8M0220987	配平歧管阳极	ANODE Trim Manifold	1
-	889543016	螺栓	BOLT	4
-	8M0161430	平垫圈	WASHER Flat	6
-	8M0205955	水星阳极套件	ANODE KIT Mercury	1
-	8M0205956	快银阳极套件	ANODE KIT Quicksilver	1

图 31安装支架 Mount Cradle

REF	零件编号	中文名称	英文名称	数量
1	885546002	密封件	SEAL	1
2	884887T04	安装支架	MOUNT CRADLE	1
2	884887T07	支架安装总成	CRADLE ASSEMBLY Mount	1
3	884888003	密封件	SEAL	1
3	8M0060014	密封件	SEAL	1
4	888538T	后安装座	MOUNT Rear	2
4	8M0103708	后安装座	MOUNT Rear	2
5	888535T	前安装座	MOUNT Front	2
5	8M0103365	前安装座	MOUNT Front	2
6	889745030	螺钉（M12×30）	SCREW (M12 x 30)	12
7	896531090	螺钉（M16×90）	SCREW (M16 x 90)	4
7	8M0103832	螺钉	SCREW	4
8	19565002	护孔环	GROMMET	1
9	40011126	不锈钢螺丝(M6 x 13)	SCREW (M6 x 13) Stainless Steel	1
10	830756109	软管（57英寸散装裁至35英寸）	HOSE (57.00 Inches Bulk) Cut to 35 Inches	1
10	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
11	895797	示踪管接头	FITTING Telltale	1
11	895797001	接头	FITTING	1
12	895851	卡箍(8英寸)	CLAMP (8.00 Inches)	2
13	73194	滚销(.125 x 1.12)	PIN Roll (.125 x 1.12)	2
14	880649002	倾斜锁杆	LEVER Tilt Lock	2
15	47968	弹簧	SPRING	2
16	889540A03	离合器套件	CLUTCH KIT	1
17	880651002	倾斜锁止支架	BRACKET Tilt Lock	1
17	8M0109693	倾斜锁止支架	BRACKET Tilt Lock	1
18	889539001	倾斜锁止垫	PAD Tilt Lock	1
18	8M0076907	倾斜锁止垫	PAD Tilt Lock	1
19	880650003	倾斜锁定轴	SHAFT Tilt Lock	1
20	889546	螺钉 (M5 x 10)	SCREW (M5 x 10)	1
21	8806641	轴承（0.625英寸）	BEARING (.625 Inch)	2
22	888590002	升降位置传感器	SENSOR Trim Position	1
23	889547	螺丝(M5 x 30)	SCREW (M5 x 30)	2

图 32安装支架仅限20英寸拉杆型号 Mount Cradle 20 inch Tie Bar Models Only

REF	零件编号	中文名称	英文名称	数量
1	8M0161416	石墨灰安装支架	MOUNT CRADLE Graphite Grey	1
1	8M0161415	冷聚变白安装支架	MOUNT CRADLE Cold Fusion, White	1
1	8M0187439	白色安装支架	MOUNT CRADLE WHT	1
2	8M0162853	支架盖	BRACKET COVER	2
3	8M0187300	螺钉 M6 x 1	SCREW M6 x 1	8
3	8M0224250	M6x1 T30按钮头螺钉	SCREW M6 x 1, T30 Button Head	8
4	8M0142713	支撑盖帽	CAP Chap Support	2
5	8M0154651	螺钉（M14×2×100 HX FLG）	SCREW (M14 x 2 x 100 HX FLG)	4
5	8M0230598	螺钉（M14×2×100 HX FLG）	SCREW (M14 x 2 x 100 HX FLG)	4
6	4010735	螺钉(M8×35)	SCREW (M8 x 35)	2
7	4010725	螺钉 (M8 x 25)	SCREW (M8 x 25)	2
8	8M0142816	安装垫圈	WASHER Mount	2
9	8M0161417	安装垫圈	WASHER Mount	2
10	8M0142711	垫圈（28.4毫米×1.6毫米）	WASHER (28.4 MM x 1.6 MM)	4
10	8M0224254	垫圈（28.4毫米×1.6毫米）	WASHER (28.4 MM x 1.6 MM)	4
11	8M0161418	支架	MOUNT	4
12	8M0147872	定位销	PIN DOWEL	4
12	8M0220467	定位销	PIN Dowel	4
13	880650003	倾斜锁定轴	SHAFT Tilt Lock	1
14	880649002	倾斜锁杆	LEVER Tilt Lock	2
15	73194	滚销(.125 x 1.12)	PIN Roll (.125 x 1.12)	2
16	47968	弹簧	SPRING	2
17	889540A03	离合器套件	CLUTCH KIT	2
18	8806641	轴承（0.625英寸）	BEARING (.625 Inch)	2
19	8M0109693	倾斜锁止支架	BRACKET Tilt Lock	1
20	8M0076907	倾斜锁止垫	PAD Tilt Lock	1
21	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
22	8M0142710	排水罩	DRAIN Cowl	2
23	8M0103805	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	2
24	8M0147884	右舷密封嵌件	INSERT SEAL STBD	2
25	8M0103806	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	2
26	8M0142817	缓冲器	SNUBBER	2
27	8M0147892	泡沫支架	FOAM CRADLE	2
28	8M0147883	左舷密封嵌件	INSERT SEAL PORT	2
29	895390	倾斜销	TILT PIN	1
29	8M0228705	倾斜销	TILT PIN	1
30	8M0142821	系缆孔销	PIN Rodeye	2
31	8M0161419	轴承挡肩	BEARING Shoulder	4
32	821539	三叶销	PIN Trilobe	2
33	8M0164144	系缆孔销帽	PIN Rodeye Cap	1
34	8M0038931	挡圈	RING Retaining	1
35	889546	螺钉 (M5 x 10)	SCREW (M5 x 10)	1
36	8M0142815	配平位置传感器	TRIM POSITION SENSOR	1
36	8M0161231	升降位置传感器	SENSOR Trim Position	1
37	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	2
38	8M0151153	系缆孔销帽	RODEYE PIN CAP	1
38	8M0164144	系缆孔销帽	PIN Rodeye Cap	1
39	8M0180025	轴承	BEARING	2

图 33润滑油系统 Oil System

REF	零件编号	中文名称	英文名称	数量
1	8M0142467	加油口支架	BRACKET Oil Fill	1
2	8M0096302	护孔环	GROMMET	2
3	8M0142460	六角法兰螺钉(M8×45)	SCREW (M8 x 45) Hex Flg	4
4	8M0103805	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	2
5	8M0142478	加油口颈	NECK Oil Fill	1
6	8M0142470	护孔环	GROMMET	1
7	8M0142290	机油盖	CAP Oil	1
8	90196	O型圈 (.921 x .139)	O-RING (.921 x .139)	1
8	8M0204673	O型圈 .921 x .139	O-Ring .921 x .139	1
9	8M6001459	卡箍 (45.5)	CLAMP (45.5)	2
10	8M0142469	机油加注软管	HOSE Oil Fill	1
10	8M0190557	机油加注软管	HOSE Oil Fill	1
11	8M0103806	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	1
12	8M0142468	机油加注管	TUBE Oil Fill	1
13	8M0044601	O型圈	O-RING	1
14	8M0142480	油尺上管	TUBE Dipstick- Upper	1
15	8M0142481	O型圈 (0.362 x 0.103)	O-RING (0.362 x 0.103)	1
16	8M0142463	量油尺管	TUBE Dipstick	1
16	8M0237477	油尺管	TUBE OIL GAUGE	1
17	8M0142471	衬套 0.375英寸	GROMMET (0.375 IN)	1
17	8M0178207	护孔环	GROMMET	1
18	8M0142449	机油泵至滤清器油管	TUBE Oil Pump to Filter	1
18	8M0158591	机油泵至滤清器油管总成	OIL TUBE ASSEMBLY Pump to Filter	1
19	8M0142452	O型圈 (70硬度)	O-RING (70 Durometer)	2
20	8M0142450	O型圈 (70硬度)	O-RING (70 Durometer)	2
20	8M0171370	机油管密封件	SEAL Oil Tube	2
21	8M0142484	机油滤清器支架	BRACKET Oil FIlter	1
22	8M0142485	螺钉 (M6) 六角法兰	SCREW (M6) HX FLG	2
23	8M0142454	机油滴盘	OIL DRIP TRAY	1
24	8M0142457	滴盘软管	HOSE Drip tray	1
25	8M0142456	接头	FITTING	1
26	8M0143229	滴油盘塞	PLUG Drip Tray	1
27	895054	螺丝(M4×16毫米)	SCREW (M4 x 16 mm)	2
28	8M0103804	不锈钢螺钉 (M6 x 12 mm)	SCREW (M6 x 12 MM) Stainless Steel	1
29	8M0080651	螺钉 (M6 x 20)	SCREW (M6 x 20)	4
30	8M0142482	适配器衬垫	GASKET Adapter	1
31	8M0142483	机油滤清器适配器	ADAPTER Oil Filter	1
31	8M0156635	机油滤清器适配器	ADAPTER Oil Filter	1
32	8M0142453	机油滤清器接头	FITTING Oil FIlter	1
33	8M0123025	机油滤清器	OIL FILTER	1
33	8M0176312	机油滤清器	OIL FILTER	1
34	8M0142576	量油尺	DIPSTICK	1
35	8M0142403	机油泵总成	OIL PUMP ASSEMBLY	1
36	8M0142408	定位销	DOWEL Pin	2
37	8M0142407	螺钉 (M6) 内六角平头 x 16长	SCREW (M6) HEX SOCKET FLAT X 16 LG	6
38	8M6001577	O型圈(M6×46)	O-RING M6 X 46	1
39	8M0142401	螺钉 (M6) 六角小头	SCREW (M6) HX FL REDUCED HEAD	4
40	8M6000385	卡箍(39.6毫米)	CLAMP (39.6 MM)	2
40	8M0187146	卡箍	CLAMP	2
41	8M0142402	机油收集组件	OIL PICK UP ASSEMBLY	1
42	8M0142570	检查机油标贴	DECAL Check Engine Oil	1
-	8M0149551	动力头垫片套装	POWERHEAD GASKET SET	1

图 34动力控制模块/传感器电气 PCM/Sensors Electrical

REF	零件编号	中文名称	英文名称	数量
1	8M0227659	PCM 450R	PCM 450R	1
1	8M0227660	PCM 450R	PCM 450R	1
2	834985	护孔环	GROMMET	4
2	8M0190980	护孔环	GROMMET	4
3	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	4
4	8M0103807	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	4
5	856954	衬套	BUSHING	4
6	8M0159607	ECU盖	COVER ECU	1
7	8M0159606	保险丝盒盖	COVER Fuse Box	1
8	8M0047886	保险丝座备用件	HOLDER Spare Fuse	3
9	8329692	迷你保险丝-灰色-2安培	FUSE Mini - Gray - 2 Ampere	1
9	8M0207797	迷你保险丝-灰色-2安培	FUSE Mini - Gray - 2 Ampere	1
9	832969T05	迷你保险丝-棕色-5安培	FUSE Mini - Tan - 5 Ampere	1
9	83296910	迷你保险丝 - 红色 - 10安培	FUSE Mini - Red - 10 Ampere	1
9	832969T15	迷你保险丝-蓝色-15安培	FUSE Mini - Blue - 15 Ampere	1
9	832969T20	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	4
10	895099	保险丝拔取器	EXTRACTOR Fuse	1
11	8M0159619	14针安装支架	BRACKET 14 PIN MOUNT	1
11	8M0216021	14针支架	BRACKET 14 Pin	1
12	8M0103806	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	3
13	8M0153609	护孔环	GROMMET	1
14	8M0142542	温度传感器	SENSOR Temperature	2
14	8M0205787	温度传感器	SENSOR Temperature	2
15	896699	O型圈（1.78毫米 x 0.08毫米）	O-RING (1.78 mm x .08 mm)	2
16	8M0142688	压力传感器(机油/水)	SENSOR Pressure (Oil/Water)	1
17	8M6000639	传感器压力	SENSOR Pressure	1
17	8M0234766	压力传感器	SENSOR PRESSURE	1
18	8M0082988	曲轴位置传感器	SENSOR Crankshaft Position	1
19	40011106	不锈钢螺钉(M5x13)	SCREW (M5 x 13) Stainless Steel	2
20	8M0159600	传感器压力	SENSOR Pressure	1
21	891663001	温度传感器	SENSOR Temperature	1
22	892317001	O型圈	O-RING	1
23	8M0142578	传感器衬垫	GASKET MAT Sensor	1
24	40056107	螺钉(M5×16)	SCREW (M5 x 16)	2
25	8M0142265	油位传感器	SENSOR Oil Level	1
26	8M0142689	温度传感器	SENSOR Temperature	1
26	8M0161580	温度传感器	SENSOR Temperature	1
27	896699	O型圈（1.78毫米 x 0.08毫米）	O-RING (1.78 mm x .08 mm)	1
28	8M0142695	氧传感器	SENSOR Oxygen	1
29	8M0011987	传感器	SENSOR	1
29	8M0233140	传感器	SENSOR	1
30	8M0142691	凸轮传感器支架	BRACKET Cam Sensor	1
31	8M0142569	警告标贴	DECAL Warning	1
-	8M0159599	发动机线束	HARNESS Engine	1
-	8M0237473	发动机线束	HARNESS ENGINE	1

图 35动力升降倾斜组件 Power Trim Components

REF	零件编号	中文名称	英文名称	数量
1	896156A01	配平油缸套件	TRIM CYLINDER KIT	1
2	896157A01	升降杆套件	TRIM ROD KIT	1
2	8M0118299	升降杆套件	TRIM ROD KIT	1
3	896158A01	O型圈套件	O-RING KIT	1
4	896159A01	活塞套件	PISTON KIT	1
5	896166A01	配平歧管套件	MANIFOLD KIT Trim	1
6	896165A01	配平止回套件PO型	CHECK KIT Trim PO	1
7	896160A01	O型圈套件	O-RING KIT	1
8	8M0010183	O型圈	O-RING	1
8	8M0204938	O型圈	O-RING	1
9	896163A01	配平泵套件	PUMP KIT Trim	1
10	896164A01	配平过滤器套件	TRIM FILTER KIT	1
11	896162A01	配平颈套件	TRIM NECK KIT	1
12	895854A01	O型圈套件	O-RING KIT	1
13	893419	盖套件	CAP KIT	1
14	893420A01	手动释放套件	MANUAL RELEASE KIT	1
14	8M0224397	手动释放套件	MANUAL RELEASE KIT	1
15	8M0224410	O型圈套件	ORING KIT	1
16	8M0184377	卡环	SNAP RING	1
17	893408A01	配平销套件	PIN KIT Trim	1
18	896161A01	配平电机套件	TRIM MOTOR KIT	1
18	896161A02	配平电机套件	TRIM MOTOR KIT	1
18	896161A02	配平电机套件	TRIM MOTOR KIT	1
19	896167A01	储液罐套件	RESERVOIR KIT	1

图 36动力升降/艉板总成 Power Trim/Transom Assembly

REF	零件编号	中文名称	英文名称	数量
1	8M0142800	支架艉板左舷	BRACKET Transom, Port	1
1	8M0156255	支架艉板左舷	BRACKET Transom, Port	1
2	8M0142801	支架艉板右舷	BRACKET Transom, Starboard	1
2	8M0156256	支架艉板右舷	BRACKET Transom, Starboard	1
3	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
4	4002319	垫圈	WASHER	6
5	98727	润滑脂接头	FITTING Grease	1
5	8M0169588	润滑脂接头	FITTING Grease	1
6	99633	旋钮	KNOB	1
7	830900	压缩弹簧	SPRING Compression	1
8	65830	尼龙衬套	NYLINER	2
9	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
9	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
10	8M0146189	倾斜管锁紧螺母黑色	NUT TILT TUBE LOCK Black	1
10	8M0146190	倾斜管锁紧螺母银色	NUT TILT TUBE LOCK Silver	1
11	8M0142811	螺钉	SCREW	1
12	8M0147844	倾斜管	TILT TUBE	1
13	8M0142810	O型圈 (0.612 x 0.103)	O-RING (0.612 x .0103)	1
14	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
15	99615	槽销	PIN Groove	1
16	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
17	8M0084613	C形垫圈	C-WASHER	1
18	22740	卡扣	CLIP	2
19	8M0142809	倾斜管支架	BRACKET Tilt Tube	1
19	8M0147678	倾斜管支架	BRACKET Tilt Tube	1
20	826164	螺母 (.875-14)	NUT (.875-14)	1
20	8M0231351	锁紧螺母	NUT Lock	1
21	8M0142341	动力升降总成	POWER TRIM ASSEMBLY	1
21	8M0225374	动力升降总成	POWER TRIM ASSEMBLY	1
21	8M0164977	动力升降总成	POWER TRIM ASSEMBLY	1
21	8M0225374	动力升降总成	POWER TRIM ASSEMBLY	1
21	8M0225374	动力升降总成	POWER TRIM ASSEMBLY	1
22	8M0094889	销	PIN	1
22	8M0161312	连杆销眼总成	PIN ROD EYE ASSEMBLY	1
22	8M0164978	连杆销眼总成	PIN ROD EYE ASSEMBLY	1
22	8M0230946	销杆眼套件	PIN ROD EYE KIT	1
22	8M0230946	销杆眼套件	PIN ROD EYE KIT	1
23	8M0079640	拉线总成	CABLE ASSEMBLY	1
24	8M0113176	螺钉	SCREW	1
25	821539	三叶销	PIN Trilobe	1
25	8M0050058	螺钉5/16-24 X .5	SCREW 5/16-24 X .5	1
25	8M0177279	螺钉(5/16-24×0.5英寸)	SCREW 5/16-24 x .5	1
25	8M0232231	螺钉螺母套件	SCREW NUT KIT	1
26	821207	衬套	BUSHING	2
27	4002319	垫圈	WASHER	1
28	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	1
29	818298Q1	阳极套件	ANODE KIT	1
30	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
30	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
31	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
31	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
32	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
33	8M0142682	配平线束	WIRE HARNESS Trim	1
34	893709	销	PIN	1
35	830899	张力弹簧	SPRING Tension	1

图 37维修/支撑材料 Service/Support Material

REF	零件编号	中文名称	英文名称	数量
-	8M0142639	零件手册250R/300R 4.6L V8四冲程	PARTS MANUAL 250R/300R 4.6L V8 4 Stroke	1
-	8M0146888	维修手册250R/300R/300R HD 4.6L V8	SERVICE MANUAL 250R/300R/300R HD 4.6L V8	1
-	8M0145934	安装手册V6/V8 CMS	INSTALLATION MANUAL V6/V8 CMS	1
-	8M0156797	安装手册V6(175-225)/V8(200-300)CMS	INSTALLATION MANUAL V6 (175-225), V8 (200-300) CMS	1
-	8M0140588	300R HD安装手册	INSTALLATION MANUAL 300R HD	1
-	8M0156799	IM-300R HD CMS	IM-300R HD CMS	1
-	8M0145541	操作手册V6/V8 CMS机械式	OPERATION MANUAL V6/V8 CMS Mechanical	1
-	8M0175491	操作手册	MANUAL- OPERATION	1
-	8M0145542	操作手册V6/V8 CMS DTS	OPERATION MANUAL V6/V8 CMS DTS	1
-	8M0230588	操作手册150R和200R	OPERATION MANUAL 150R and 200R	1
-	8M0140585	300R CMS HD机械版操作手册	OPERATION MANUAL 300R CMS HD Mechanical	1
-	8M0175494	操作手册	MANUAL-OPERATION	1
-	8M0140789	300R CMS HD DTS版操作手册	OPERATION MANUAL 300R CMS HD DTS	1
-	8M0175495	操作手册	MANUAL-OPERATIONS	1
-	8M0146617	诊断维修手册	SERVICE MANUAL Diagnostic	1
-	8M0182076	诊断手册	DIAGNOSTIC MANUAL	1
-	NSS	不单独销售贴纸, EPA	NOT SOLD SEPARATE DECAL, EPA	1

图 38垫片组 8M0076745 Shim Set 8M0076745

REF	零件编号	中文名称	英文名称	数量
-	8M0076745	垫片组	SHIM SET	1
-	8M0050423	垫片 .020	WASHER .020	1
-	8M0050424	垫片 .022	WASHER .022	1
-	8M0050425	垫片 .024	WASHER .024	1
-	8M0050427	垫片 .026	WASHER .026	1
-	8M0050428	垫片 .028	WASHER .028	1
-	8M0050429	垫片 .030	WASHER .030	1
-	8M0050430	垫片 .032	WASHER .032	1
-	8M0050431	垫片 .034	WASHER .034	1
-	8M0050432	垫片 .036	WASHER .036	1
-	8M0050433	垫片 0.038	WASHER .038	1
-	8M0050434	垫片 0.040	WASHER .040	1
-	8M0050435	垫片 0.042	WASHER .042	1
-	8M0050436	垫片 0.044	WASHER .044	1
-	8M0050437	垫片 0.046	WASHER .046	1
-	8M0050438	垫片 0.048	WASHER .048	1
-	8M0050439	垫片 0.050	WASHER .050	1

图 39启动电机 Starter Motor

REF	零件编号	中文名称	英文名称	数量
1	8M0142679	起动机	STARTER	1
2	8M0070367	管状支架 8MM	MOUNT - TUBULAR 8MM	6
2	8M0154659	管状支架 8MM	MOUNT TUBULAR 8 mm	6
3	8M0070369	垫圈（内径8.3 X 外径11.8）	SPACER (8.3 I.D. X 11.8 O.D.)	2
4	8M0070368	垫圈（内径8.3 X 外径11.8）	SPACER (8.3 I.D. X 11.8 O.D.)	1
5	8M0056666	起动机接地带	GROUND STRAP Starter	1
6	40011126	不锈钢螺丝(M6 x 13)	SCREW (M6 x 13) Stainless Steel	1
7	43430	垫圈	WASHER	3
8	8M0142896	螺钉(M8 x 80)	SCREW (M8 x 80)	2
8	8M0188530	螺钉 M8 X 80 六角凸缘头	SCREW M8 X 80 HEX FLG HD	2
9	88552645	螺钉（M8X45）	SCREW (M8X45)	1
10	8M0142680	热柱支架	BRACKET HOT STUD	1
11	8M0080651	螺钉 (M6 x 20)	SCREW (M6 x 20)	3
12	40011145	螺钉（M8 X 10）不锈钢	SCREW (M8 x 10) Stainless Steel	1
13	8M0146003	螺母 M8 X 1.25 六角	NUT M8 x 1.25 Hex	4
14	400257	锁紧垫圈（M8）	LOCKWASHER (M8)	2
15	8M0142681	电缆总成起动机-正极	CABLE ASSEMBLY Starter - Postitive	1
16	88439A46	电缆总成蓄电池-正极	CABLE ASSEMBLY Battery - Positive	1
17	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
18	8M0146902	电缆总成起动机-负极	CABLE ASSEMBLY Starter - Negative	1
19	40011148	螺钉(M8 x 20)	SCREW (M8 x 20)	1
19	8M0214929	螺钉(M8 x 20)	SCREW (M8 x 20)	1
20	88439A26	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
21	8M0142687	热柱盖	COVER Hot Stud	1

图 40拉杆 Tie Bar

REF	零件编号	中文名称	英文名称	数量
1	8M0177045	支架盖总成银色	COVER CRADLE ASSEMBLY Silver	1
2	8M0164954	隔音垫左舷/右舷	SOUND BLANKET Port/Starboard	1
3	8M0177046	拉杆总成银色	TIEBAR ASSEMBLY Silver	1
4	8M0161437	螺钉 (M10x1.5x30)	SCREW (M10x1.5x30)	6
5	8M0161438	螺钉 (M10x1.5x60)	SCREW (M10x1.5x60)	3
6	47379	螺母(.625-18)不锈钢	NUT (.625-18) Stainless Steel	1
7	8M0161439	螺栓	BOLT	1
7	8M0237099	肩螺栓	SHOULDER BOLT	1
8	844850	垫圈 (.660 x 1.310 x .09) 不锈钢	WASHER (.660 x 1.310 x .09) Stainless Steel	2
9	895797001	接头	FITTING	1
10	8M0161443	油管	TUBING	1
11	895851	卡箍(8英寸)	CLAMP (8.00 Inches)	1
12	8M0161441	倒钩接头	FITTING BARB	1
13	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

图 41工具 Tools

REF	零件编号	中文名称	英文名称	数量
1	8M0142969	换挡轴工具	SHIFT SHAFT TOOL	1
2	8M0142970	对正工具-预载驱动器	ALIGNMENT TOOL Preload Driver	1
3	8M0142973	换挡轴手柄工具	SHIFT SHAFT HANDLE TOOL	1
4	8M0142974	保持器压装夹具	RETAINER PRESS FIXTURE	1
5	8M0142976	工具-压装夹具底座	TOOL Press Fixture Base	1
6	8M0142983	轴工具-轴承座总成	SHAFT TOOL Bearing Carrier Assembly	1
7	8M0145393	工具-螺纹离合器总成	TOOL Threaded Clutch Assembly	1
8	8M0142559	齿轮总成固定夹具	HOLDING FIXTURE Gear Assembly	1
9	8M0142615	心轴-压装垫片	MANDREL Press Spacer	1
10	8M0142624	导板-轴承座	GUIDE PLATE Bearing Carrier	1
11	8M0142413	心轴-后齿轮轴承锥	MANDREL Rear Gear Bearing Cone	1
12	8M0142414	工具-齿轮总成驱动器	TOOL Gear Assembly Driver	1
13	8M0142636	轴承心轴	BEARING MANDREL	1
14	8M0146861	工具-飞轮	TOOL Flywheel	1
15	8M0146862	工具-张紧皮带	TOOL Stretch Belt	1
16	8M0129230	软管-放油	HOSE Oil Drain	1
17	8M0146935	安装工具-轴承卷轴	INSTALLATION TOOL Bearing Spool	1
18	8M0146936	拉拔器-上部支架	BAR MOUNT PULLER Upper	1
19	8M0147118	工具-推进轴	TOOL Propshaft	1
20	8M0147078	安装工具-配平线束	INSTALLATION TOOL Trim Harness	1
20	8M0193581	安装工具-配平线束	INSTALLATION TOOL Trim Harness	1
21	8M0130705	齿轮箱高度工具套件	GEARCASE HEIGHT TOOL KIT	1
22	8M0138392	CDS-G3诊断工具套件	DIAGNOSTIC TOOL KIT CDS -G3	1
22	8M0153916	CDS G3诊断工具套件	DIAGNOSTIC TOOL KIT CDS G3	1
NS	883705T01	工具-发动机吊装带	STRAP TOOL Engine Lifting	1
NS	98234A2	钻孔夹具套件-艉板	DRILL FIXTURE KIT Transom	1
NS	8M0147671	工具-对正销上部支架	TOOL ALIGNMENT PIN UPPER MOUNT	1
NS	8M0145607	工具-拉杆器	TOOL Bar Puller	1
NS	8M0147116	工具-导向密封驱动器	TOOL GUIDE SEAL DRIVER	1
NS	8M0149553	工具-上部支架杆安装	TOOL Upper Mount Rod Installation	1
NS	8M0148868	扳手-AMS支架	WRENCH AMS Mount	1
NS	8M0148865	工具-齿轮安装	TOOL Install Gear	1
NS	FT8950	测试套件	TESTER KIT	1
NS	58222A1	百分表工具	DIAL INDICATOR TOOL	1
NS	83155	千分表转接套件	ADAPTER KIT Dial Indicator	1
NS	8M0237356	适配器套件	ADAPTER KIT	1
NS	89897	固定工具-百分表	HOLDING TOOL Dial Indicator	1
NS	8M0039309	环安装工具	TOOL Ring Installer	1
NS	8M0046632	轴承座固定螺母套筒工具	TOOL Socket, Carrier Retainer Nut	1
NS	46086A1	拉拔器爪头总成	PULLER JAW ASSEMBLY	1
NS	34569A1	滑动锤拉拔器总成	PULLER ASSEMBLY Slide Hammer	1
NS	37241	通用拉拔板	PULLER PLATE Universal	1
NS	63209	加热灯	HEAT LAMP	1
NS	83165T	拉拔器总成	PULLER ASSEMBLY	1
NS	36571T	导向垫圈	PILOT WASHER	1
NS	888414T01	轴承/油封安装工具	BEARING / SEAL DRIVER	1
NS	31229A7	轴承拉拔器套件	PULLER KIT Bearing	1
NS	8M0070085	锁紧螺母工具	TOOL Retaining Nut	1
NS	861792	推力轴承	BEARING Thrust	1
NS	43506T	轴承固定工具	RETAINING TOOL Bearing	1
NS	889958T	传动轴固定工具	DRIVESHAFT HOLDING TOOL	1
NS	8M0142028	小齿轮螺母固定工具	TOOL Holder Pinion Nut	1
NS	8M0035594	螺旋桨轴固定工具	TOOL Propeller Shaft Holder	1
NS	8M0052590	上传动轴轴承安装工具	TOOL Driver, Upper Driveshaft Bearing	1
NS	8M0046348	小齿轮轴承拆卸工具	TOOL Bearing Driver, Pinion Removal	1
NS	37323	滚针轴承导杆工具	DRIVER ROD TOOL Needle Bearings	1
NS	885592T	轴承杯安装工具	BEARING CUP DRIVER	1
NS	8M0046360	小齿轮轴承安装工具	TOOL Bearing Driver, Pinion Install	1
NS	8M0046443	小齿轮定位工具	TOOL Pinion Gear Locating	1
NS	8M0054594	小齿轮高度工具	TOOL-PINION HGT	1
NS	8M0059911	轴承座安装工具	INSTALLATION TOOL Bearing Carrier	1
NS	8M0053505	背隙指示工具	TOOL Indicator, Backlash	1
NS	8M0182653	工具-驱动对正	TOOL Drive Alignment	1
-	8M0235704	工具-动力输出轴套安装	TOOL SLEEVE INSTALLATION PTO	1
-	8M0235705	工具-耐磨轴套安装	TOOL INSTALL WEAR SLEEVE	1
-	8M0235706	工具-耐磨轴套安装	TOOL INSTALL WEAR SLEEVE	1
-	8M0235707	耐磨轴套安装	INSTALL WEAR SLEEVE	1

图 42顶罩 Top Cowl

REF	零件编号	中文名称	英文名称	数量
1	8M0143491	黑色顶盖总成（带标贴，无装饰面板贴纸组）	TOP COWL ASSEMBLY Black, Decaled without Accent Panel Decal Set	1
1	8M0143492	黑色顶盖总成（带标贴，无装饰面板贴纸组）	TOP COWL ASSEMBLY Black, Decaled without Accent Panel Decal Set	1
1	8M0231250	黑色顶盖总成（带标贴，无装饰面板贴纸组）	TOP COWL ASSEMBLY Black, Decaled without Accent Panel Decal Set	1
2	8M0142904	校准支腿套件	ALIGNMENT LEG KIT	4
2	8M0240715	校准支腿套件	ALIGNMENT LEG KIT	4
3	8M0178589	螺丝M6×12	SCREW M6 x 12	2
4	8M0142916	左舷缓冲垫	BUMPER Port	1
5	8M0142915	右舷缓冲垫	BUMPER Starboard	1
6	8M0142906	上罩壳密封件	SEAL Top Cowl	1
6	8M0242486	上罩壳密封件	SEAL Top Cowl	1
7	8M0142242	罩壳锁扣总成	COWL LATCH ASSEMBLY	1
7	8M0232582	罩壳锁扣总成	LATCH ASSEMBLY Cowl	1
8	8M0103806	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	10
9	8M0142903	卡扣	CLIP	7
10	8M0142955	螺丝（M5×0.8）	SCREW (M5 x 0.8)	2
11	8M0142954	卡扣	CLIP	2
12	88552514	不锈钢螺钉(M6×14mm)	SCREW (M6 x 14 mm) Stainless Steel	8
13	8M0219155	左/右舷边框总成	BEZEL ASSEBMBLY Port/Starboard	1
14	8M0142238	黑色门总成	DOOR ASSEMBLY Black	1
14	8M0157771	黑色门总成	DOOR ASSEMBLY Black	1
15	8M0142913	定位器总成	KEEPER ASSEMBLY	1
16	8M0204400	自攻螺丝	SCREW Thread Forming	1
17	8M0142908	门密封条	SEAL Door	1
18	8M0148533	锁扣位置贴纸	DECAL Latch Position	1
19	8M0142907	按压式锁	LOCK PUSH	1
20	8M0142914	锁扣垫片组	SHIM SET Latch	1
21	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
22	8M0187755	导水器	WATER DIVERTER	1
