水星 Mercury 40 HP EFI Jet 4 CYL 0R936270 THRU 1R280495 - 爆炸图零件明细

四冲程电喷 EFI · Cat.# 90-8M0154337 · 共 13 个部位 · 374 条零件

1附件 2夹紧支架 3遥控转换套件-5四冲程 4下罩壳 5上罩壳 6曲轴箱盖 7曲轴、活塞及连杆 8气缸盖/气缸体 9贴花 10驱动轴壳体 11电气组件 12发动机衬垫套件 13齿轮箱驱动轴

图 1附件 Accessories

REF	零件编号	中文名称	英文名称	数量
-	858045Q01	10W30舷外机机油 1升	10W30 OB OIL 1 Liter	1
-	858048Q01	25W40 SD/IB机油 1夸脱	25W40 SD/IB OIL 1 Quart	1
-	877680Q8	燃油软管总成(8英尺)带快速接头	HOSE ASSEMBLY Fuel (8 Feet) With Quick Disconnect	1
-	858107Q08	燃油软管总成(8英尺)带快速接头	HOSE ASSEMBLY Fuel (8 Feet) - With Quick Disconnect	1
-	877680Q12	燃油软管总成(12英尺)带快速接头	HOSE ASSEMBLY Fuel (12 Feet) With Quick Disconnect	1
-	858109Q12	燃油软管总成(12英尺)-带快速接头	HOSE ASSEMBLY Fuel (12 Feet) - With Quick Disconnect	1
-	877681Q8	燃油软管总成(8英尺)仅发动机端带快速接头	HOSE ASSEMBLY Fuel (8 Feet) With Quick Disconnect Engine End Only	1
-	858104Q08	燃油软管总成(8英尺)-仅发动机端带快速接头	HOSE ASSEMBLY Fuel (8 Feet) - With Quick Disconnect Engine End Only	1
-	877681Q12	燃油软管总成(12英尺)仅发动机端带快速接头	HOSE ASSEMBLY Fuel (12 Feet) With Quick Disconnect Engine End Only	1
-	858106Q12	燃油软管总成(12英尺)-仅发动机端带快速接头	HOSE ASSEMBLY Fuel (12 Feet) - With Quick Disconnect Engine End Only	1
-	877683Q12	燃油软管总成(12英尺)无配件	HOSE ASSEMBLY Fuel (12 Feet) No Fittings	1
-	858108Q12	燃油软管总成(8英尺)-无接头	HOSE ASSEMBLY Fuel (8 Feet) - No Fittings	1
-	881140K08	燃油管路总成 Mercury品牌	LINE ASSEMBLY Fuel - Mercury Brand	1
-	858113K08	燃油软管总成(8英尺)带燃油接头-Mercury品牌	HOSE ASSEMBLY Fuel (8 Feet) With Fuel Connector - Mercury Brand	1
-	881140Q08	燃油管路总成 Quicksilver品牌	LINE ASSEMBLY Fuel - Quicksilver Brand	1
-	858113Q08	燃油软管总成(8英尺)带燃油接头-Quicksilver品牌	HOSE ASSEMBLY Fuel (8 Feet) With Fuel Connector - Quicksilver Brand	1
-	821400A2	动力升降倾斜传感器套件	SENDER KIT Power Trim	1
-	15000A14	钥匙开关套件远程点火	KEY SWITCH KIT Remote Ignition	1
-	816667A2	转向支架总成无提手	BRACKET ASSEMBLY Steering Without Carrying Handle	1
-	12092A20	转换套件加长型-指令推力	CONVERSION KIT X-Long-Command Thrust	1
-	889246A37	转换套件-舵柄手柄(电动遥控转电动手柄)	CONVERSION KIT Tiller Handle - Electric Remote Control to Electric Handle	1
-	880095A08	转换套件舵柄转遥控(40马力四冲程)	CONVERSION KIT Tiller Handle to Remote Control (40 Hp 4-Stroke)	1
-	880093A03	40/50/60马力EFI舵柄转换套件	TILLER HANDLE CONVERSION KIT 40/50/60 HP EFI	1
-	879291A04	舵柄总成大型舵柄，40-60 EFI四冲程，手动机械非动力转向	TILLER HANDLE ASSEMBLY Big Tiller, 40-60 EFI FourStroke, Manual Mechanical Non Power Steering	1
-	897978K04	油门和换挡套件 40-60 EFI 四冲程 (32.5英寸换挡, 36英寸油门)	THROTTLE AND SHIFT KIT 40-60 EFI FourStroke (32.5 In. Shift, 36 In. Throttle)	1
-	897978T02	LED灯与开关套件	LED LIGHT AND SWITCH KIT	1

图 2夹紧支架 Clamp Brackets

REF	零件编号	中文名称	英文名称	数量
1	813029T9	前旋转支架	SWIVEL BRACKET Front	1
2	883300T	后旋转支架	SWIVEL BRACKET Rear	1
3	9622T6	右舷夹紧支架	CLAMP BRACKET Starboard	1
4	96231	左舷夹紧支架	CLAMP BRACKET Port	1
5	898101337	螺钉	SCREW	1
6	95375	垫圈	WASHER	2
7	16192	垫圈	WASHER	1
8	95374	尼龙螺母	NUT Nylon	1
9	16198004	推力杆	THRUST ROD	1
10	815093003	弹簧	SPRING	1
11	161951	弹簧	SPRING	1
12	16197	垫圈	WASHER	1
13	16196	螺钉	SCREW	1
14	8035821	推力板	THRUST PLATE	2
15	8035674	下轴套	BUSHING Lower	1
16	8M0124744	摩擦带总成	FRICTION BAND ASSEMBLY	1
17	8M0124305	衬套	BUSHING	1
18	8035672	衬套上部	BUSHING Upper	1
19	803582	推力板	THRUST PLATE	1
20	8M0102279	螺栓	BOLT	4
21	883302	蝶形螺母	WING NUT	1
22	953921	不锈钢垫圈	WASHER Stainless Steel	1
23	953839	弹簧	SPRING	1
24	824969	润滑脂接头	FITTING Grease	2
25	161931	间隔板	DISTANCE PLATE	1
26	16194	螺钉	SCREW	2
27	82304223	螺栓	BOLT	2
28	16216	弹簧	SPRING	1
29	16215	弹簧	SPRING	1
30	162133	倒车锁臂	ARM Reverse Lock	1
31	8M0056352	倾斜止动器总成	STOPPER ASSEMBLY Tilt	1
32	8M0090337	握把	GRIP	1
33	825113	衬套	BUSHING	2
34	16210002	定位板	SET PLATE	1
35	8230427	螺栓总成(M6 x 12)	BOLT ASSEMBLY (M6 x 12)	2
36	8M0156642	夹紧螺钉总成	CLAMP SCREW ASSEMBLY	2
37	NSS		NOT SOLD SEPARATE Clamp screw	2
38	NSS	非单独销售衬垫	NOT SOLD SEPARATE Pad	2
39	NSS	非单独销售衬垫	NOT SOLD SEPARATE Pad	2
40	NSS	螺丝(不单独销售)	NOT SOLD SEPARATE Screw	2

图 3遥控转换套件-5四冲程 Conversion Kit-Remote Control 5 FourStroke

REF	零件编号	中文名称	英文名称	数量
-	8M0062241	遥控转换套件	REMOTE CONTROL CONVERSION KIT	1
1	8M0056547	燃油滤清器-水分分离器	FUEL FILTER Water Seperator	1
2	853733A1	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
3	8M0057044	支架	BRACKET	1
4	823042059	螺栓	BOLT	1
5	400213	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
6	4002217	垫圈	WASHER	1
7	8M0057046	软管	HOSE	1
8	8M0057045	软管	HOSE	1
9	8M0129429	软管夹	HOSE CLAMP	4
10	803563005	卡箍	CLAMP	1
11	16223	螺栓(M6x14)	BOLT (M6 x 14)	1
12	953951	卡箍	CLAMP	1
13	8M0062260	油门拉线	THROTTLE WIRE	1
14	8M0062262	线缆固定架	HOLDER-CABLE	1
15	898101992	螺栓总成	BOLT ASSEMBLY	1
16	82304223	螺栓	BOLT	1
17	8M0062258	油门线支架	BRACKET Throttle Wire	1
18	8M0062173	护孔环	GROMMET	1
19	898101309	衬套	BUSHING	1
20	8M0062261	节气门鼓轮	THROTTLE DRUM	1
21	898101937	垫圈	WASHER	1
22	8537227	尼龙螺母	NUT Nylon	2
23	16220	衬套	BUSHING	1
24	16219	密封件	SEAL	1
25	8M0062269	节气门杆	THROTTLE LEVER	1
26	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
27	898101327	螺钉	SCREW	1
28	892775	电缆接头	JOINT Cable	1
29	161404	垫圈	WASHER	1
30	8M0062172	Y型线束	Y-HARNESS	1
31	17029	垫圈	WASHER	2
32	8M0062268	停机线束(5900毫米)	STOP HARNESS (5900 mm)	1
32	8M0062265	停机线束(2000毫米)	STOP HARNESS (2000 mm)	OPT
32	8M0062266	停机线束(3200毫米)	STOP HARNESS (3200 mm)	OPT
32	8M0062267	停机线束(3900毫米)	STOP HARNESS (3900 mm)	OPT
33	8M0062270	弹簧销	SPRING PIN	1
34	17031	锁止销	PIN Lock	1
35	17032	弹簧	SPRING	1
36	17030	套筒	SLEEVE	1
37	8M0062263	换挡杆	SHIFT LEVER	1
38	803509014	螺栓	BOLT	1
39	8M0062259	线缆夹组件	CABLE CLIP ASSEMBLY	1
40	82304221	螺栓	BOLT	2
41	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
42	885154	护孔环	GROMMET	1
43	8M0062264	护孔环	GROMMET	1
44	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	2
45	17025	锁紧垫圈	LOCKWASHER	2
46	16192	垫圈	WASHER	2
47	8M0062171	安装板	PLATE	1
48	95374	尼龙螺母	NUT Nylon	2

图 4下罩壳 Cowling Bottom

REF	零件编号	中文名称	英文名称	数量
1	8M0147037	下罩壳	COWL Lower	1
2	8248324	螺钉(M6 x 16)	SCREW (M6 x 16)	1
3	8M0063135	罩壳锁扣总成	COWL LATCH ASSEMBLY	1
4	16085	销	PIN	1
5	8M0056363	护孔环	GROMMET	1
6	953871	护孔环	GROMMET	1
7	803567	衬套	BUSHING	2
8	803566	隔套	SPACER	1
9	804508	垫圈	WASHER	1
10	803996T07	舵柄	TILLER HANDLE	1
11	8M0154525	铭牌-启动步骤	DECAL Start Procedure	1
12	8M0056353	护孔环	GROMMET	1
13	8M0056359	护孔环	GROMMET	1
14	823054	拉绳	LANYARD	1
15	8M0157228	燃油接头盖	CAP Fuel Fitting	1
16	4000330	螺钉(M6x25)	SCREW (M6 x 25)	1
17	895106003	垫圈	WASHER	1
18	8M0157230	燃油接头	FITTING Fuel	1
19	8M0157232	燃油接头转接器	ADAPTER Fuel Fitting	1
20	8M0155479	卡箍	CLAMP	2
21	8M0157317	软管	HOSE	1
22	8M0155131	阻风门拉杆	ROD Choke	1
23	8M0056364	衬套	BUSHING	1
24	8M0056382	贴花	DECAL	1
25	896854007	油压警示贴纸	DECAL Oil Pressure	1
26	898101952	螺栓	BOLT	2
27	8M0056372	盖板	COVER	1
28	8M0157824	保护套	PROTECTIVE SLEEVE	1
29	8M0056371	节气门拉线	THROTTLE CABLE	2
30	8M0056341	警告灯	WARNING LAMP	1
31	8M0155467	固定座	RETAINER	1
32	823042067	螺钉	SCREW	1
33	8M0157275	铭牌-此面向上	DECAL Notice This Side Up	1
34	855551	护孔环	GROMMET	1
35	8M0056358	护孔环	GROMMET	1
36	898101952	螺栓	BOLT	4
-	8M0081456	铭牌套装(水星款下罩)	DECAL SET Mercury, Lower Cowl	1

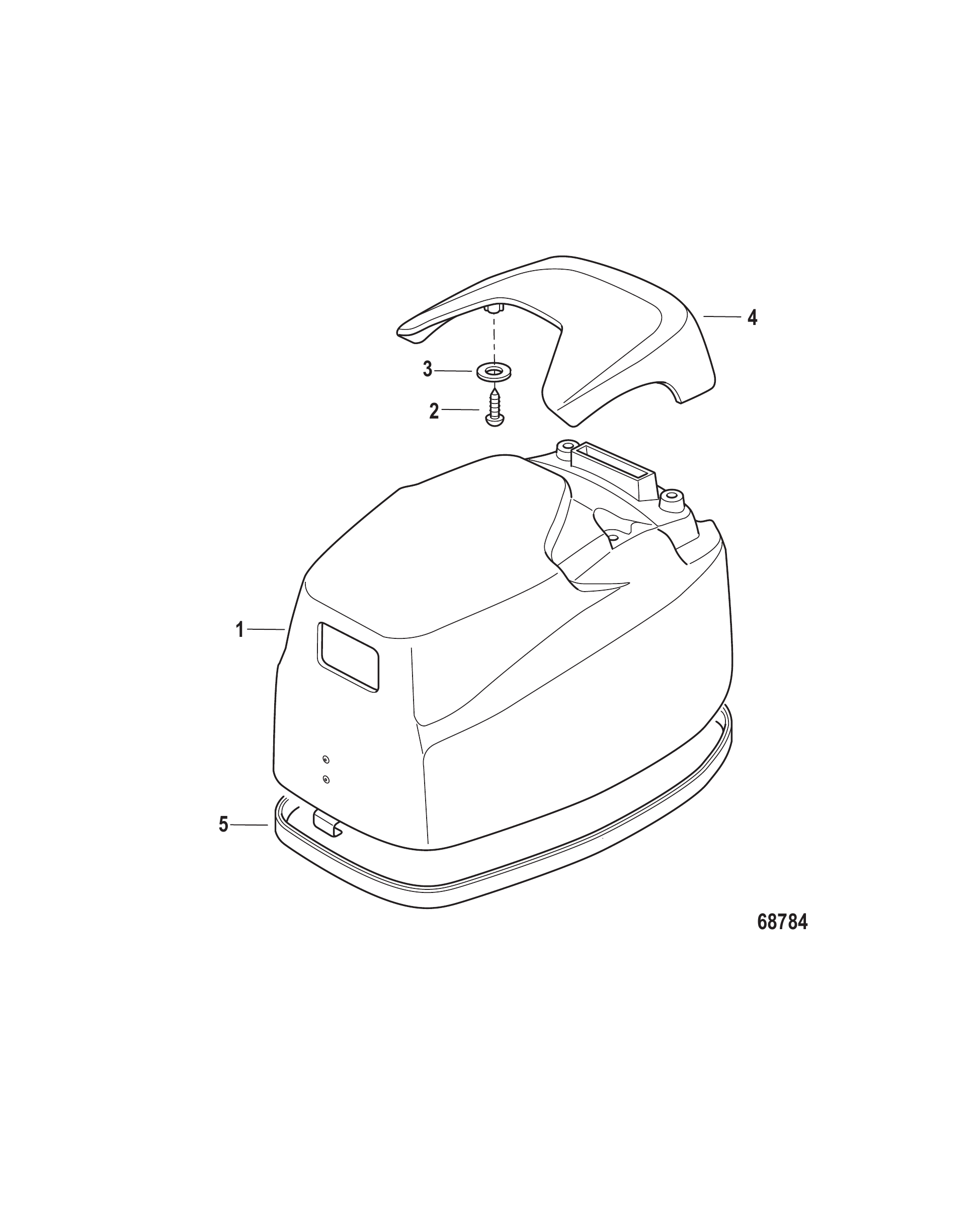

图 5上罩壳 Cowling Top

REF	零件编号	中文名称	英文名称	数量
1	8M0155483	无标贴上罩壳总成	COWL ASSEMBLY Top Non-decaled	1
2	8M0056377	螺钉	SCREW	4
3	16826	不锈钢垫圈	WASHER Stainless Steel	4
4	8M0056435	外罩把手-黑色	COWL HANDLE Black	1
5	8107512	密封件	SEAL	1

图 6曲轴箱盖 Crankcase Cover

REF	零件编号	中文名称	英文名称	数量
1	803531T	油底壳	PAN Oil	1
2	803508014	衬垫	GASKET	1
3	803535	控制柱塞	CONTROL PLUNGER	1
4	8035541	弹簧	SPRING	1
5	168231	O型圈	O-RING	1
6	803536	阀座	SEAT	1
7	168287	螺栓(M6 x 16)	BOLT (M6 x 16)	3
8	803537	盖板	COVER	1
9	16119	定位销	PIN Dowel	2
10	803541	杯套	CUP	1
11	803542	滤网	STRAINER	1
12	803540	滤网壳体	HOUSING Strainer	1
13	160721	垫圈	WASHER	2
14	855558	螺钉(M5×16)	SCREW (M5 x 16)	2
15	8035202	密封件	SEAL	2
16	82303110	螺钉(M5×16)	SCREW (M5 x 16)	1
17	803543	止动器	STOPPER	1
18	952237	油管	TUBING	1
19	803538	油压开关总成	SWITCH ASSEMBLY Oil Pressure	1
20	8035135	护孔环	GROMMET	1
21	810755007	螺栓	BOLT	3
22	8M0056310	引线	LEAD WIRE	1
23	803532001	排气板	PLATE Exhaust	1
24	803508015	衬垫	GASKET	1
25	168306	螺栓(M6x40)	BOLT (M6 x 40)	3
26	8035331	外转子	ROTOR Outer	1
27	162563	销	PIN	1
28	803533	内转子	ROTOR Inner	1
29	803513010	O型圈	O-RING	1
30	803534	盖板	COVER	1
31	167051	螺栓 (M6 x 20)	BOLT (M6 x 20)	2
32	8150162	壳体	HOUSING	1
33	8M0101649	密封件	SEAL	2
34	815018	隔套	SPACER	1
35	8M0152378	曲轴箱衬垫	GASKET Crankcase	1
36	8M0101648	密封件	SEAL	1
37	8035161	垫圈	WASHER	1
38	803509021	螺栓	BOLT	1
39	8150685	螺栓(M8x40)	BOLT (M8 x 40)	6
-	8M0155489	动力头衬垫套件	GASKET SET Powerhead	1
-	8M0155485	长缸体总成	LONG BLOCK	1

图 7曲轴、活塞及连杆 Crankshaft, Piston and Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	803515T	曲轴	CRANKSHAFT	1
2	803516	垫圈	WASHER	1
3	16053	键	KEY	1
4	8M0124936	连杆	CONNECTING ROD	1
5	8035092	螺栓	BOLT	2
6	804768A03	活塞总成	PISTON ASSEMBLY	1
6	8M0094922	活塞总成	PISTON ASSEMBLY	1
7	160573	E型卡环	E RING	2
8	898103113	活塞销	PIN Piston	1
9	803518T01	活塞环组	RING SET Piston	1
9	803518T02	活塞环组	RING SET Piston	AR
10	NSS	油环（不单独销售）	NOT SOLD SEPARATE Oil Ring	1
11	NSS	第二道活塞环(不单独销售)	NOT SOLD SEPARATE Piston Ring-Second	1

图 8气缸盖/气缸体 Cylinder Head/Block

REF	零件编号	中文名称	英文名称	数量
-	858045Q01	10W30舷外机机油 1升	10W30 OB OIL 1 Liter	1
-	858048Q01	25W40 SD/IB机油 1夸脱	25W40 SD/IB OIL 1 Quart	1
-	877680Q8	燃油软管总成(8英尺)带快速接头	HOSE ASSEMBLY Fuel (8 Feet) With Quick Disconnect	1
-	858107Q08	燃油软管总成(8英尺)带快速接头	HOSE ASSEMBLY Fuel (8 Feet) - With Quick Disconnect	1
-	877680Q12	燃油软管总成(12英尺)带快速接头	HOSE ASSEMBLY Fuel (12 Feet) With Quick Disconnect	1
-	858109Q12	燃油软管总成(12英尺)-带快速接头	HOSE ASSEMBLY Fuel (12 Feet) - With Quick Disconnect	1
-	877681Q8	燃油软管总成(8英尺)仅发动机端带快速接头	HOSE ASSEMBLY Fuel (8 Feet) With Quick Disconnect Engine End Only	1
-	858104Q08	燃油软管总成(8英尺)-仅发动机端带快速接头	HOSE ASSEMBLY Fuel (8 Feet) - With Quick Disconnect Engine End Only	1
-	877681Q12	燃油软管总成(12英尺)仅发动机端带快速接头	HOSE ASSEMBLY Fuel (12 Feet) With Quick Disconnect Engine End Only	1
-	858106Q12	燃油软管总成(12英尺)-仅发动机端带快速接头	HOSE ASSEMBLY Fuel (12 Feet) - With Quick Disconnect Engine End Only	1
-	877683Q12	燃油软管总成(12英尺)无配件	HOSE ASSEMBLY Fuel (12 Feet) No Fittings	1
-	858108Q12	燃油软管总成(8英尺)-无接头	HOSE ASSEMBLY Fuel (8 Feet) - No Fittings	1
-	881140K08	燃油管路总成 Mercury品牌	LINE ASSEMBLY Fuel - Mercury Brand	1
-	858113K08	燃油软管总成(8英尺)带燃油接头-Mercury品牌	HOSE ASSEMBLY Fuel (8 Feet) With Fuel Connector - Mercury Brand	1
-	881140Q08	燃油管路总成 Quicksilver品牌	LINE ASSEMBLY Fuel - Quicksilver Brand	1
-	858113Q08	燃油软管总成(8英尺)带燃油接头-Quicksilver品牌	HOSE ASSEMBLY Fuel (8 Feet) With Fuel Connector - Quicksilver Brand	1
-	821400A2	动力升降倾斜传感器套件	SENDER KIT Power Trim	1
-	15000A14	钥匙开关套件远程点火	KEY SWITCH KIT Remote Ignition	1
-	816667A2	转向支架总成无提手	BRACKET ASSEMBLY Steering Without Carrying Handle	1
-	12092A20	转换套件加长型-指令推力	CONVERSION KIT X-Long-Command Thrust	1
-	889246A37	转换套件-舵柄手柄(电动遥控转电动手柄)	CONVERSION KIT Tiller Handle - Electric Remote Control to Electric Handle	1
-	880095A08	转换套件舵柄转遥控(40马力四冲程)	CONVERSION KIT Tiller Handle to Remote Control (40 Hp 4-Stroke)	1
-	880093A03	40/50/60马力EFI舵柄转换套件	TILLER HANDLE CONVERSION KIT 40/50/60 HP EFI	1
-	879291A04	舵柄总成大型舵柄，40-60 EFI四冲程，手动机械非动力转向	TILLER HANDLE ASSEMBLY Big Tiller, 40-60 EFI FourStroke, Manual Mechanical Non Power Steering	1
-	897978K04	油门和换挡套件 40-60 EFI 四冲程 (32.5英寸换挡, 36英寸油门)	THROTTLE AND SHIFT KIT 40-60 EFI FourStroke (32.5 In. Shift, 36 In. Throttle)	1
-	897978T02	LED灯与开关套件	LED LIGHT AND SWITCH KIT	1

图 9贴花 Decals

REF	零件编号	中文名称	英文名称	数量
-	858045Q01	10W30舷外机机油 1升	10W30 OB OIL 1 Liter	1
-	858048Q01	25W40 SD/IB机油 1夸脱	25W40 SD/IB OIL 1 Quart	1
-	877680Q8	燃油软管总成(8英尺)带快速接头	HOSE ASSEMBLY Fuel (8 Feet) With Quick Disconnect	1
-	858107Q08	燃油软管总成(8英尺)带快速接头	HOSE ASSEMBLY Fuel (8 Feet) - With Quick Disconnect	1
-	877680Q12	燃油软管总成(12英尺)带快速接头	HOSE ASSEMBLY Fuel (12 Feet) With Quick Disconnect	1
-	858109Q12	燃油软管总成(12英尺)-带快速接头	HOSE ASSEMBLY Fuel (12 Feet) - With Quick Disconnect	1
-	877681Q8	燃油软管总成(8英尺)仅发动机端带快速接头	HOSE ASSEMBLY Fuel (8 Feet) With Quick Disconnect Engine End Only	1
-	858104Q08	燃油软管总成(8英尺)-仅发动机端带快速接头	HOSE ASSEMBLY Fuel (8 Feet) - With Quick Disconnect Engine End Only	1
-	877681Q12	燃油软管总成(12英尺)仅发动机端带快速接头	HOSE ASSEMBLY Fuel (12 Feet) With Quick Disconnect Engine End Only	1
-	858106Q12	燃油软管总成(12英尺)-仅发动机端带快速接头	HOSE ASSEMBLY Fuel (12 Feet) - With Quick Disconnect Engine End Only	1
-	877683Q12	燃油软管总成(12英尺)无配件	HOSE ASSEMBLY Fuel (12 Feet) No Fittings	1
-	858108Q12	燃油软管总成(8英尺)-无接头	HOSE ASSEMBLY Fuel (8 Feet) - No Fittings	1
-	881140K08	燃油管路总成 Mercury品牌	LINE ASSEMBLY Fuel - Mercury Brand	1
-	858113K08	燃油软管总成(8英尺)带燃油接头-Mercury品牌	HOSE ASSEMBLY Fuel (8 Feet) With Fuel Connector - Mercury Brand	1
-	881140Q08	燃油管路总成 Quicksilver品牌	LINE ASSEMBLY Fuel - Quicksilver Brand	1
-	858113Q08	燃油软管总成(8英尺)带燃油接头-Quicksilver品牌	HOSE ASSEMBLY Fuel (8 Feet) With Fuel Connector - Quicksilver Brand	1
-	821400A2	动力升降倾斜传感器套件	SENDER KIT Power Trim	1
-	15000A14	钥匙开关套件远程点火	KEY SWITCH KIT Remote Ignition	1
-	816667A2	转向支架总成无提手	BRACKET ASSEMBLY Steering Without Carrying Handle	1
-	12092A20	转换套件加长型-指令推力	CONVERSION KIT X-Long-Command Thrust	1
-	889246A37	转换套件-舵柄手柄(电动遥控转电动手柄)	CONVERSION KIT Tiller Handle - Electric Remote Control to Electric Handle	1
-	880095A08	转换套件舵柄转遥控(40马力四冲程)	CONVERSION KIT Tiller Handle to Remote Control (40 Hp 4-Stroke)	1
-	880093A03	40/50/60马力EFI舵柄转换套件	TILLER HANDLE CONVERSION KIT 40/50/60 HP EFI	1
-	879291A04	舵柄总成大型舵柄，40-60 EFI四冲程，手动机械非动力转向	TILLER HANDLE ASSEMBLY Big Tiller, 40-60 EFI FourStroke, Manual Mechanical Non Power Steering	1
-	897978K04	油门和换挡套件 40-60 EFI 四冲程 (32.5英寸换挡, 36英寸油门)	THROTTLE AND SHIFT KIT 40-60 EFI FourStroke (32.5 In. Shift, 36 In. Throttle)	1
-	897978T02	LED灯与开关套件	LED LIGHT AND SWITCH KIT	1

图 10驱动轴壳体 Driveshaft Housing

REF	零件编号	中文名称	英文名称	数量
1	852421T07	驱动轴壳体-长型	HOUSING Driveshaft - Long	1
1	852421T09	驱动轴壳体	HOUSING Driveshaft	1
2	825220T06	排气管	PIPE Exhaust	1
2	NSS	保持器总成不单独销售	NOT SOLD SEPARATE Retainer Assembly	1
3	1993325	螺钉(M10x25mm)	SCREW (M10 x 25 mm)	1
3	4000376	螺钉 (M10 x 25)	SCREW (M10 x 25)	1
4	88960845	螺钉 (M8 x 45)	SCREW (M8 x 45)	5
5	824459110	螺丝(M8 x 110)不锈钢	SCREW (M8 x 110) Stainless Steel	8
6	8288181	放油塞	PLUG Drain	1
7	8M0007119	放油螺塞密封件	SEAL Drain Plug	1
8	826276	缓冲垫	BUMPER	1
9	828817001	护孔环	GROMMET	1
10	13035002	接头	FITTING	1
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
12	892286	盖帽	CAP	1
13	828706	缓冲垫	BUMPER	1
14	823984	螺柱（M10×50）	STUD (M10 x 50)	1
14	903501	双头螺柱(M10×100)	STUD (M10 x 100)	1
15	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	1
16	40140	螺母(M10)	NUT (M10)	1
17	897971A01	水管/密封件套件-长型	TUBE/SEAL KIT Water - Long	1
17	897970A01	水管/密封件套件-短型	TUBE/SEAL KIT Water - Short	1
18	8M0021959	水封	SEAL Water	1
19	828529	导套	GUIDE	1
20	893770	驱动轴壳体盖板	PLATE Driveshaft Housing	1
21	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	4
22	4000380	螺丝(M10 x 45)	SCREW (M10 x 45)	4

图 11电气组件 Electrical Components

REF	零件编号	中文名称	英文名称	数量
1	852421T07	驱动轴壳体-长型	HOUSING Driveshaft - Long	1
1	852421T09	驱动轴壳体	HOUSING Driveshaft	1
2	825220T06	排气管	PIPE Exhaust	1
2	NSS	保持器总成不单独销售	NOT SOLD SEPARATE Retainer Assembly	1
3	1993325	螺钉(M10x25mm)	SCREW (M10 x 25 mm)	1
3	4000376	螺钉 (M10 x 25)	SCREW (M10 x 25)	1
4	88960845	螺钉 (M8 x 45)	SCREW (M8 x 45)	5
5	824459110	螺丝(M8 x 110)不锈钢	SCREW (M8 x 110) Stainless Steel	8
6	8288181	放油塞	PLUG Drain	1
7	8M0007119	放油螺塞密封件	SEAL Drain Plug	1
8	826276	缓冲垫	BUMPER	1
9	828817001	护孔环	GROMMET	1
10	13035002	接头	FITTING	1
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
12	892286	盖帽	CAP	1
13	828706	缓冲垫	BUMPER	1
14	823984	螺柱（M10×50）	STUD (M10 x 50)	1
14	903501	双头螺柱(M10×100)	STUD (M10 x 100)	1
15	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	1
16	40140	螺母(M10)	NUT (M10)	1
17	897971A01	水管/密封件套件-长型	TUBE/SEAL KIT Water - Long	1
17	897970A01	水管/密封件套件-短型	TUBE/SEAL KIT Water - Short	1
18	8M0021959	水封	SEAL Water	1
19	828529	导套	GUIDE	1
20	893770	驱动轴壳体盖板	PLATE Driveshaft Housing	1
21	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	4
22	4000380	螺丝(M10 x 45)	SCREW (M10 x 45)	4

图 12发动机衬垫套件 Engine Gasket Set Components

REF	零件编号	中文名称	英文名称	数量
1	852421T07	驱动轴壳体-长型	HOUSING Driveshaft - Long	1
1	852421T09	驱动轴壳体	HOUSING Driveshaft	1
2	825220T06	排气管	PIPE Exhaust	1
2	NSS	保持器总成不单独销售	NOT SOLD SEPARATE Retainer Assembly	1
3	1993325	螺钉(M10x25mm)	SCREW (M10 x 25 mm)	1
3	4000376	螺钉 (M10 x 25)	SCREW (M10 x 25)	1
4	88960845	螺钉 (M8 x 45)	SCREW (M8 x 45)	5
5	824459110	螺丝(M8 x 110)不锈钢	SCREW (M8 x 110) Stainless Steel	8
6	8288181	放油塞	PLUG Drain	1
7	8M0007119	放油螺塞密封件	SEAL Drain Plug	1
8	826276	缓冲垫	BUMPER	1
9	828817001	护孔环	GROMMET	1
10	13035002	接头	FITTING	1
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
12	892286	盖帽	CAP	1
13	828706	缓冲垫	BUMPER	1
14	823984	螺柱（M10×50）	STUD (M10 x 50)	1
14	903501	双头螺柱(M10×100)	STUD (M10 x 100)	1
15	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	1
16	40140	螺母(M10)	NUT (M10)	1
17	897971A01	水管/密封件套件-长型	TUBE/SEAL KIT Water - Long	1
17	897970A01	水管/密封件套件-短型	TUBE/SEAL KIT Water - Short	1
18	8M0021959	水封	SEAL Water	1
19	828529	导套	GUIDE	1
20	893770	驱动轴壳体盖板	PLATE Driveshaft Housing	1
21	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	4
22	4000380	螺丝(M10 x 45)	SCREW (M10 x 45)	4

图 13齿轮箱驱动轴 Gear Housing Driveshaft

REF	零件编号	中文名称	英文名称	数量
1	852421T07	驱动轴壳体-长型	HOUSING Driveshaft - Long	1
1	852421T09	驱动轴壳体	HOUSING Driveshaft	1
2	825220T06	排气管	PIPE Exhaust	1
2	NSS	保持器总成不单独销售	NOT SOLD SEPARATE Retainer Assembly	1
3	1993325	螺钉(M10x25mm)	SCREW (M10 x 25 mm)	1
3	4000376	螺钉 (M10 x 25)	SCREW (M10 x 25)	1
4	88960845	螺钉 (M8 x 45)	SCREW (M8 x 45)	5
5	824459110	螺丝(M8 x 110)不锈钢	SCREW (M8 x 110) Stainless Steel	8
6	8288181	放油塞	PLUG Drain	1
7	8M0007119	放油螺塞密封件	SEAL Drain Plug	1
8	826276	缓冲垫	BUMPER	1
9	828817001	护孔环	GROMMET	1
10	13035002	接头	FITTING	1
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
12	892286	盖帽	CAP	1
13	828706	缓冲垫	BUMPER	1
14	823984	螺柱（M10×50）	STUD (M10 x 50)	1
14	903501	双头螺柱(M10×100)	STUD (M10 x 100)	1
15	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	1
16	40140	螺母(M10)	NUT (M10)	1
17	897971A01	水管/密封件套件-长型	TUBE/SEAL KIT Water - Long	1
17	897970A01	水管/密封件套件-短型	TUBE/SEAL KIT Water - Short	1
18	8M0021959	水封	SEAL Water	1
19	828529	导套	GUIDE	1
20	893770	驱动轴壳体盖板	PLATE Driveshaft Housing	1
21	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	4
22	4000380	螺丝(M10 x 45)	SCREW (M10 x 45)	4
