四冲程 电喷 EFI · USA - Cat.# 90-8M0103726 · 共 39 个部位 · 1521 条零件
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0236724 | 快速冲洗连接套件 | FLUSH QUICK CONNECT KIT | 1 |
| - | 893395A01 | 嵌入式安装板 | PLATE Flush Mount | 1 |
| - | 875207 | 三通接头 | TEE Fitting | 1 |
| - | 892486K08 | 模拟转换套件 | CONVERSION KIT Analog | 1 |
| - | 899785K04 | 附件电源线束总成(30英尺) | HARNESS ASSEMBLY Accessory Power (30 Feet) | 1 |
| - | 880717A01 | 齿轮箱螺丝/密封套件 | SCREW/SEAL KIT Gearcase | 1 |
| - | 88439A50 | 电池电缆组 | CABLE SET Battery | 1 |
| - | 8M0210761 | 电池电缆组(12英尺) | CABLE SET (12 ft) Battery | 1 |
| - | 8M0133542 | 电池电缆套件(12英尺) | CABLE KIT (12 ft) Battery | 1 |
| - | 44357Q2 | 冲洗附件 | FLUSHING ATTACHMENT | 1 |
| - | 44357T2 | 冲洗附件 | FLUSHING ATTACHMENT | 1 |
| - | 881150Q1 | 双进水口冲洗套件 | FLUSH KIT Dual Water Pick Up | 1 |
| - | 881150K1 | 双进水口冲洗密封套件 | SEAL KIT Flush - Dual Water Pickup | 1 |

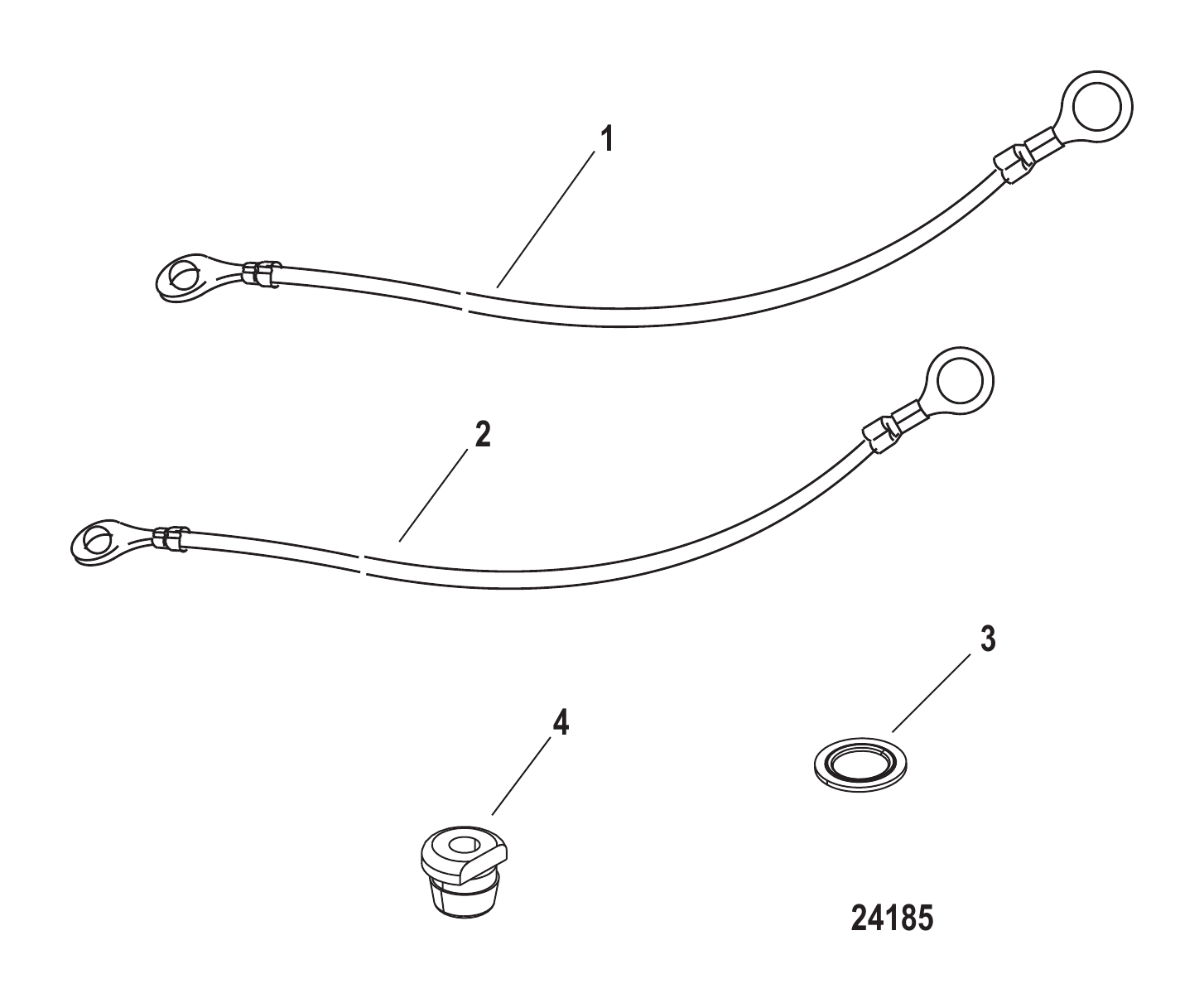

| - | 899712A01 | 连续性电缆套件 | CABLE KIT Continuity | 1 |
| - | 8M0131810 | MP警报罩套件(镀铬边框) | MP ALERT COWL KIT (Chrome Bezel) | 1 |
| - | 8M0072341 | MP警报边框-椭圆形(镀铬) | BEZEL MP Alert - Oval (Chrome) | 1 |
| - | 8M0138978 | MP警报边框(暖融白) | BEZEL MP Alert (Warm Fusion White) | 1 |
| - | 8M0142265 | 油位传感器 | SENSOR Oil Level | 1 |
| - | 8M0145987 | 重新供电方案线束套件 | HARNESS KIT Re-power Plan | 1 |
| - | 8M0142696 | 压力传感器-DTS | SENSOR Pressure-DTS | 1 |
| - | 8M0145165 | 模拟水压块套件 | BLOCK WATER PRESSURE KIT Analog | 1 |
| - | 8M0146953 | 大孔衬套-机械式 | GROMMET Large Hole, Mechanical | 1 |
| - | 8M0146954 | 大孔衬套-DTS CMS | GROMMET Large Hole, DTS CMS | 1 |
| - | 8M0146955 | 大孔衬套-DTS | GROMMET Large Hole, DTS | 1 |
| - | 825191A03 | 索具软管套件 | HOSE KIT Rigging | 1 |

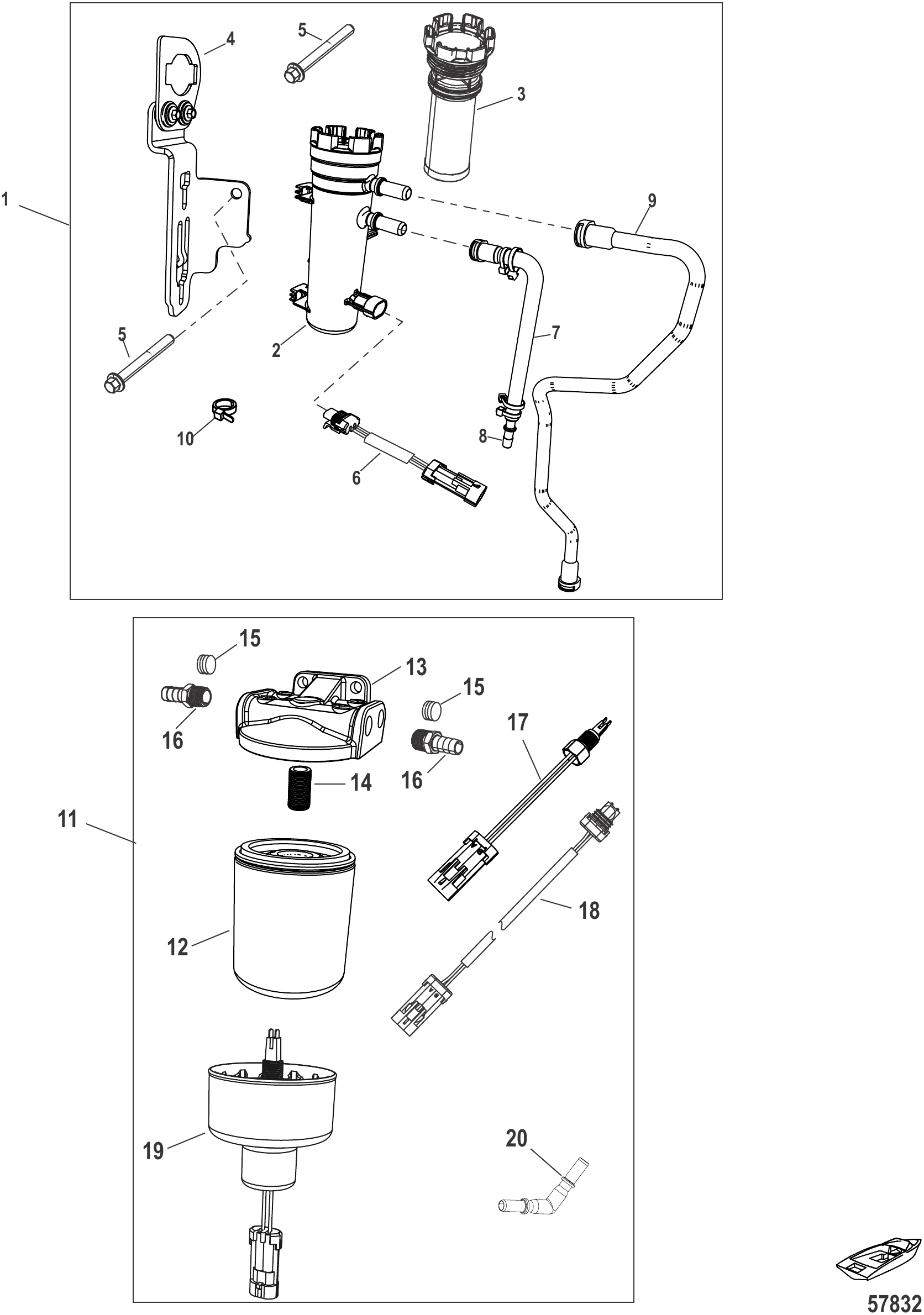

| - | 8M0135386 | 船用燃油滤清器套件 | FUEL FILTER KIT Boat Mounted | 1 |
| - | 8M0126144 | 燃油滤清器 | FUEL FILTER | 1 |
| - | 8M0113732 | DTS清洁电源线束总成(14英尺) | HARNESS ASSEMBLY DTS, Clean Power, 14 Feet | 1 |
| - | 889244T01 | 线束总成 DTS清洁电源(25英尺) | HARNESS ASSEMBLY DTS Clean Power (25 Feet) | 1 |
| - | 8M0207790 | DTS清洁电源线束总成(25英尺) | HARNESS ASSEMBLY DTS Clean Power, 25 Feet | 1 |
| - | 8M0127682 | 操舵电源线束总成(15英尺) | POWER HARNESS ASSEMBLY Helm (15 feet) | 1 |
| - | 8M0127681 | 操舵电源线束总成(10英尺) | POWER HARNESS ASSEMBLY Helm (10 feet) | 1 |
| - | 896333T25 | 线束总成(25英尺) | HARNESS ASSEMBLY (25 Feet) | 1 |
| - | 896305001 | 支架 | BRACKET | 1 |
| - | 896392 | 垫圈 | WASHER | 1 |
| - | 67755A22 | 艉板螺栓套件(2.50英寸) | BOLT KIT Transom (2.50 Inch) | 1 |
| - | 67755A26 | 艉板螺栓套件(3.50英寸) | BOLT KIT Transom (3.50 Inch) | 1 |
| - | 67755A13 | 艉板螺栓套件(4.50英寸) | BOLT KIT Transom (4.50 Inch) | 1 |
| - | 67755A14 | 艉板螺栓套件(5.50英寸) | BOLT KIT Transom (5.50 Inch) | 1 |
| - | 67755A15 | 艉板螺栓套件(6.50英寸) | BOLT KIT Transom (6.50 Inch) | 1 |
| - | 67755A17 | 艉板螺栓套件(7.50英寸) | BOLT KIT Transom (7.50 Inch) | 1 |
| - | 67755A18 | 艉板螺栓套件(8.00英寸) | BOLT KIT Transom (8.00 Inches) | 1 |
| - | 8M0149614 | 艉板螺栓套件(8.00英寸) | BOLT KIT Transom (8.00 Inches) | 1 |
| - | 8M0109756 | 艉板螺栓双螺母套件 | DOUBLE NUT KIT Transom Bolt | 1 |
| - | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 1 |
| - | 8M0204648 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 1 |
| - | 895062 | 垫圈 | WASHER | 1 |
| - | 8M0204704 | 垫圈 | WASHER | 1 |
| - | 82671117 | 螺母(.500-20) | NUT (.500-20) | 1 |
| - | 8M0097226 | 转速表套件 舵机安装 | TACHOMETER KIT Helm Mount | 1 |
| - | 8M0150994 | 接头连接套件 | FITTING CONNECTOR KIT | 1 |
| - | 8M0225356 | 卡箍套件 全套 | CLAMP KIT Clamp Kit-Complete | 1 |

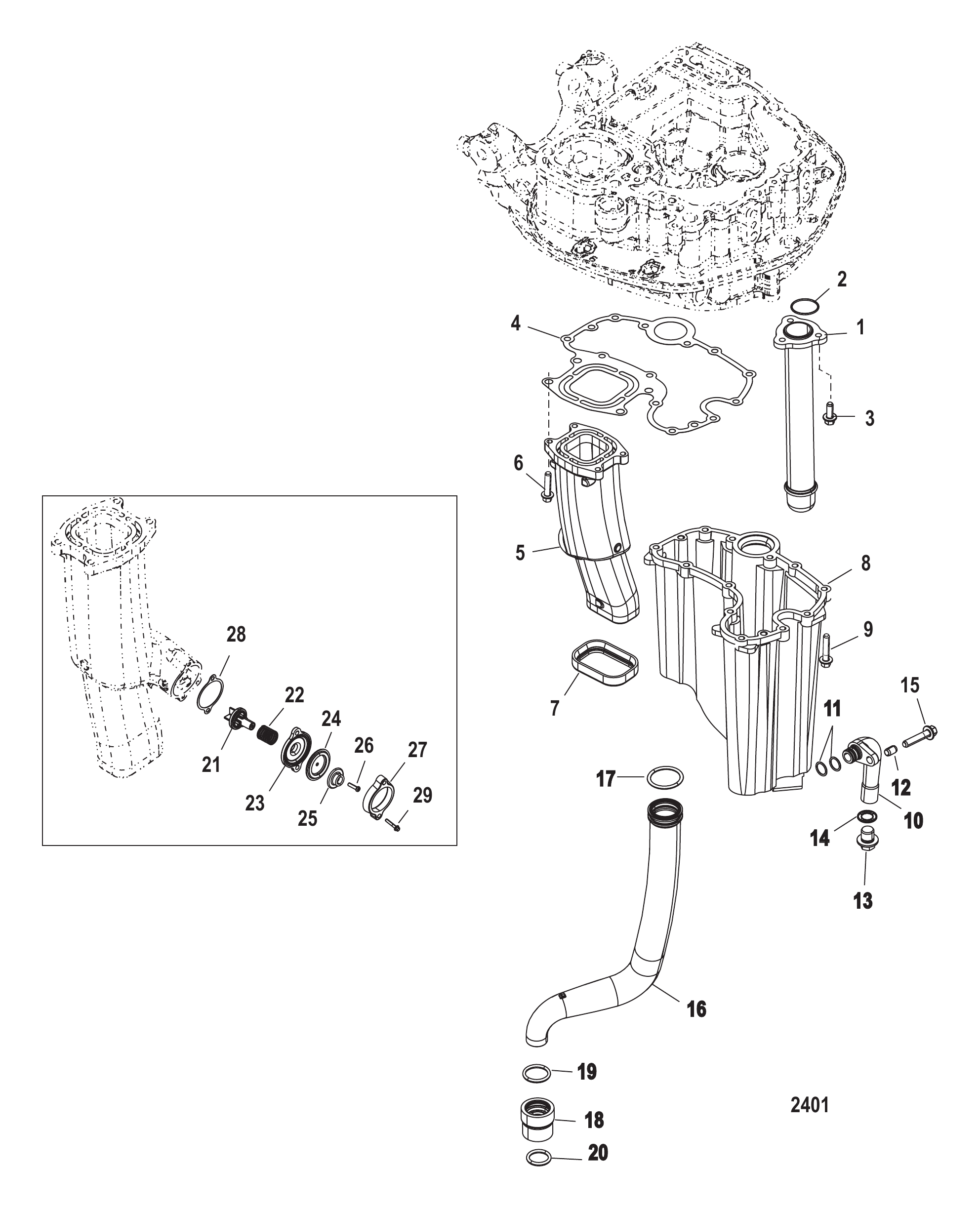

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 887623T03 | 机油收集器总成 | PICKUP ASSEMBLY Oil | 1 |
| 2 | 846594 | O型圈 (1.239 x .070) 黑色 | O-RING (1.239 x .070) Black | 1 |
| 2 | 8M0092943 | O型圈 橙色 | O-RING Orange | 1 |
| 3 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 3 |
| 3 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 3 |
| 4 | 889618001 | 衬垫 油底壳 | GASKET Oil Sump | 1 |
| 5 | 880626T01 | 排气管总成 | TUBE ASSEMBLY Exhaust | 1 |
| 6 | 88552635 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 4 |
| 6 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 4 |
| 7 | 880629 | 排气管密封件 | SEAL Exhaust Tube | 1 |
| 8 | 880639T | 油底壳总成 | SUMP ASSEMBLY Oil | 1 |
| 9 | 88552530 | 螺丝(M6×30毫米)不锈钢 | SCREW (M6 x 30 mm) Stainless Steel | 12 |
| 9 | 8M0103808 | 螺丝(M6×30毫米)不锈钢 | SCREW (M6 x 30 mm) Stainless Steel | 12 |
| 10 | 887753A02 | 排油管总成 | TUBE ASSEMBLY Oil Drain | 1 |
| 10 | 888513A02 | 排油管总成 | TUBE ASSEMBLY Oil Drain | 1 |
| 10 | 8M0082193 | 排油管总成 | TUBE ASSEMBLY Oil Drain | 1 |
| 11 | 892446 | O型圈(14×1.78毫米) | O-RING (14 X 1.78 MM) | 2 |
| 12 | 892228 | 定位销 | PIN Dowel | 1 |
| 13 | 888592005 | 放油塞总成 | PLUG ASSEMBLY Oil Drain | 1 |
| 14 | 888593 | 放油螺塞密封件 | SEAL Drain Plug | 1 |
| 14 | 8M0188614 | 放油螺塞密封件 | SEAL Drain Plug | 1 |
| 15 | 88552530 | 螺丝(M6×30毫米)不锈钢 | SCREW (M6 x 30 mm) Stainless Steel | 1 |
| 15 | 8M0103808 | 螺丝(M6×30毫米)不锈钢 | SCREW (M6 x 30 mm) Stainless Steel | 1 |
| 16 | 885541A01 | 水管总成 (20.00英寸) | TUBE ASSEMBLY Water (20.00 Inch) | 1 |
| 16 | 885541A02 | 水管总成 (25.00英寸) | TUBE ASSEMBLY Water (25.00 Inch) | 1 |
| 16 | 885541A03 | 水管总成 (30.00英寸) | TUBE ASSEMBLY Water (30.00 Inch) | 1 |
| 17 | 892445 | O型圈 | O-RING | 1 |
| 18 | 887987A1 | 联轴器 | COUPLING | 1 |
| 18 | 8M0214983 | 联轴器总成 | COUPLING ASSY | 1 |
| 19 | 90196 | O型圈 (.921 x .139) | O-RING (.921 x .139) | 1 |
| 19 | 8M0204673 | O型圈 .921 x .139 | O-Ring .921 x .139 | 1 |
| 20 | 21836 | O型圈(.796 x .139) | O-RING (.796 x .139) | 1 |
| 20 | 8M0204645 | O型圈(.796 x .139) | O-RING (.796 x .139) | 1 |
| 21 | 888913A01 | 提升阀总成 | POPPET ASSEMBLY | 1 |
| 21 | 8M0114707 | 提升阀总成 | POPPET VALVE ASSY | 1 |
| 22 | 64878 | 弹簧(黑色) | SPRING (Black) | 1 |
| 23 | 893385001 | 固定座 | RETAINER | 1 |
| 24 | 648771 | 隔膜 | DIAPHRAGM | 1 |
| 25 | 889706 | 垫圈 | WASHER | 1 |
| 26 | 69570 | 螺钉(#10-16 x .750) | SCREW (#10-16 x .750) | 1 |
| 27 | 893384001 | 提升阀盖 | COVER Poppet | 1 |
| 28 | 889561 | 提升阀垫片 | GASKET Poppet | 1 |
| 29 | 88552535 | 不锈钢螺钉(M6×35mm) | SCREW (M6 x 35 mm) Stainless Steel | 2 |
| - | 880552A06 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 880552A07 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 895247A06 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 895247R06 | RM L6 GEN1 VERADO | RM L6 GEN1 VERADO | 1 |

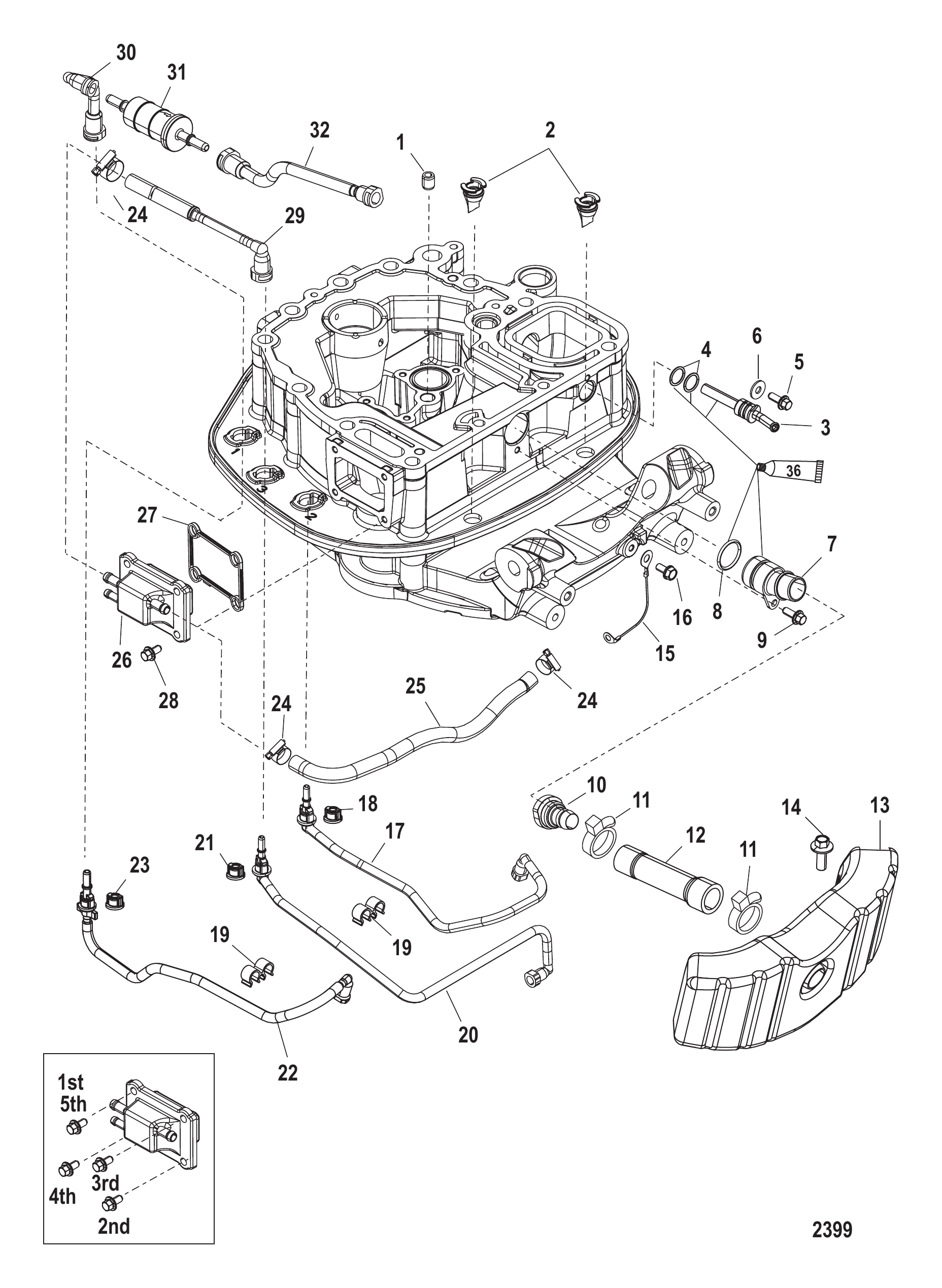

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 884474001 | 定位销 (12毫米) | PIN Dowel (12 mm) | 1 |
| 2 | 888819002 | 排水罩 | DRAIN Cowl | 2 |
| 3 | 888461A01 | 配件套件 | FITTING KIT | 1 |
| 4 | 892446 | O型圈(14×1.78毫米) | O-RING (14 X 1.78 MM) | 2 |
| 5 | 88552512 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 mm) Stainless Steel | 1 |
| 5 | 8M0103804 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 MM) Stainless Steel | 1 |
| 6 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 1 |
| 6 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 1 |
| 7 | 889792A01 | 怠速排气接头套件 | FITTING KIT Idle Exhaust | 1 |
| 8 | 889828 | O型圈 0.924×0.103 | O-RING (.924 x .103) | 1 |
| 9 | 88552512 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 mm) Stainless Steel | 1 |
| 9 | 8M0103804 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 MM) Stainless Steel | 1 |
| 10 | 889846 | 接头 | FITTING | 1 |
| 11 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 2 |
| 12 | 888981001 | 怠速排气软管 | HOSE Idle Exhaust | 1 |
| 13 | 892384T | 排气集气室 | PLENUM Exhaust | 1 |
| 14 | 4006731 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 2 |
| 15 | 88238A21 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 16 | 40011126 | 不锈钢螺丝(M6 x 13) | SCREW (M6 x 13) Stainless Steel | 1 |
| 17 | 884548 | 歧管参考软管-下部 | HOSE Manifold Reference-Lower | 1 |
| 17 | 8M0087120 | 软管 | HOSE | 1 |
| 18 | 884546 | 护孔环 | GROMMET | 1 |
| 19 | 888523001 | 卡扣 | CLIP | 2 |
| 20 | 884547 | 进水软管-下部 | HOSE Water In-Lower | 1 |
| 20 | 8M0087106 | 软管 | HOSE | 1 |
| 21 | 884546 | 护孔环 | GROMMET | 1 |
| 22 | 892241 | 燃油供应模块输出软管 | HOSE Fuel Supply Module-Out | 1 |
| 22 | 8M0087116 | 软管 | HOSE | 1 |
| 23 | 884546 | 护孔环 | GROMMET | 1 |
| 24 | 815504104 | 蜗杆卡箍 | CLAMP Worm Gear | 3 |
| 25 | 830757130 | 管材 (.312) (70.00英寸整卷) 裁切至21英寸 | TUBING (.312) (70.00 Inches Bulk) Cut to 21 Inches | 1 |
| 25 | 8M0108349 | 软管 (70英寸散装) | HOSE (70 Inches Bulk) | 1 |
| 26 | 892562T01 | 歧管壳体 | HOUSING Manifold | 1 |
| 27 | 892117 | 密封件 | SEAL | 1 |
| 28 | 88552516 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 4 |
| 28 | 8M0103805 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 4 |
| 29 | 887756 | 进水软管-上部 | HOSE Water In-Upper | 1 |
| 30 | 887757 | 高压过滤器软管 | HOSE Hi-Pressure Filter | 1 |
| 30 | 8M0203762 | 燃油管路总成 | FUEL LINE ASSY | 1 |
| 31 | 879885T | 燃油滤清器 | FILTER Fuel | 1 |
| 31 | 879885Q | 燃油管路滤清器 | FILTER Fuel In-Line | 1 |
| 32 | 887758 | 高压滤清器至燃油轨软管 | HOSE Hi-Pressure Filter To Fuel Rail | 1 |
| 32 | 8M0203763 | 燃油管 | FUEL LINE | 1 |
| - | 880552A06 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 880552A07 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 895247A06 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 895247R06 | RM L6 GEN1 VERADO | RM L6 GEN1 VERADO | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

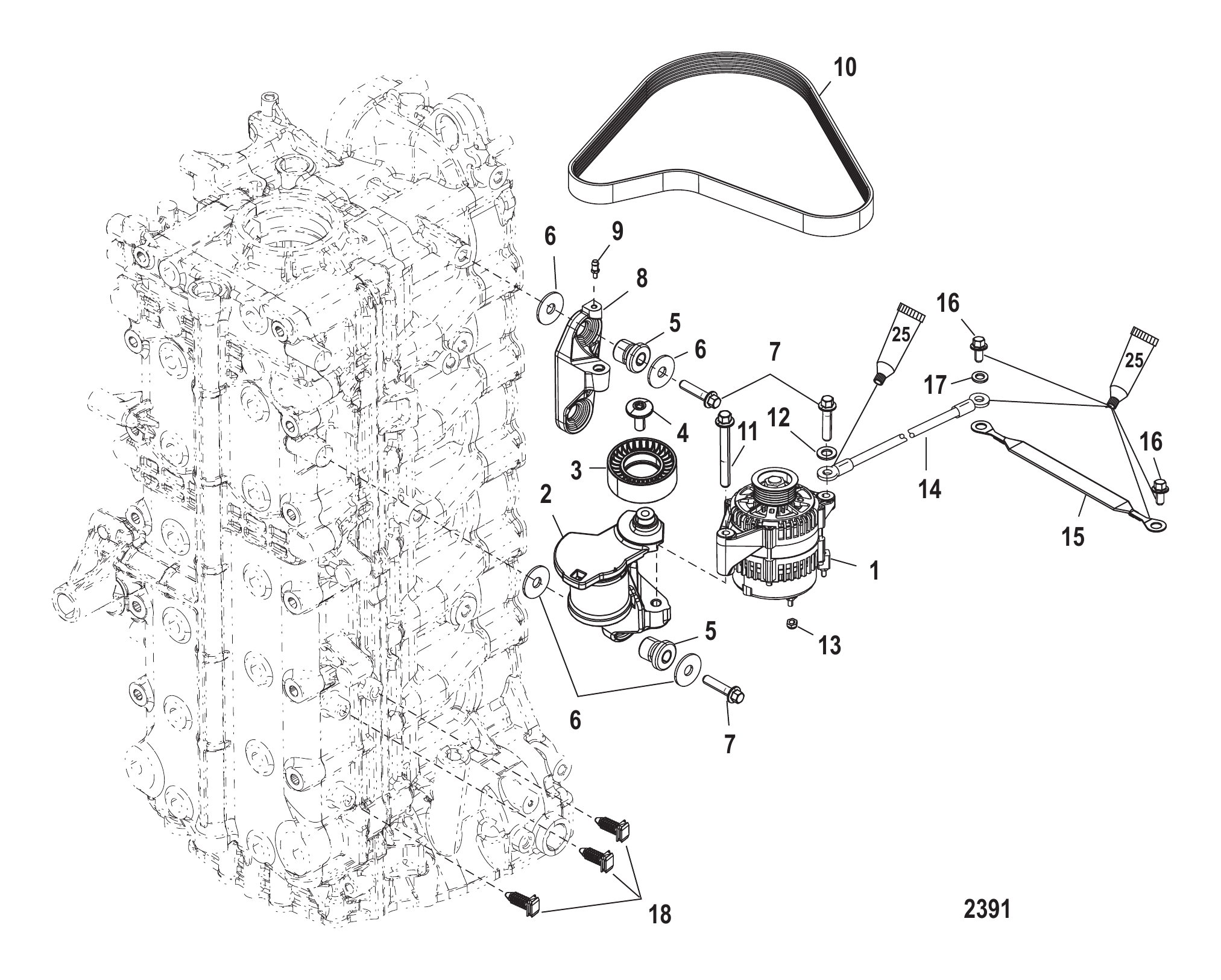

| 1 | 892940T | 70安培发电机 | ALTERNATOR 70 Ampere | 1 |
| 2 | 885349T05 | 皮带张紧器 | BELT TENSIONER | 1 |
| 2 | 8M0101707 | 皮带张紧器 | BELT TENSIONER | 1 |
| 3 | 885349500 | 滑轮 | PULLEY | 1 |
| 3 | 8M6003035 | 滑轮 | PULLEY | 1 |
| 4 | 885349501 | 螺钉 | SCREW | 1 |
| 5 | 855729 | 支架 | MOUNT | 4 |
| 6 | 845998 | 垫圈(0.406×1.250×0.089) | WASHER (.406 x 1.250 x .089) | 8 |
| 7 | 88552745 | 螺丝(M10 x 45) | SCREW (M10 x 45) | 5 |
| 7 | 8M0103823 | 六角法兰螺钉(M10×45) | SCREW (M10 x 45 Hex Flange) | 5 |
| 8 | 88535303S | 支架 | BRACKET | 1 |
| 8 | 8M0219204 | 支架 | BRACKET | 1 |
| 9 | 888517 | 销 | PIN | 1 |
| 10 | 880566014 | 驱动皮带 | BELT Drive | 1 |
| 10 | 8M0232583 | 蛇形皮带 | BELT SERPENTINE | 1 |
| 11 | 88552785 | 螺钉(M10×85) | SCREW (M10 x 85) | 1 |
| 11 | 8M0103824 | 螺钉 | SCREW | 1 |
| 12 | 4002319 | 垫圈 | WASHER | 1 |
| 13 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 14 | 856583A09 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 14 | 856583A12 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 15 | 858414A04 | 铜编织电缆总成 | CABLE ASSEMBLY Brass Braided | 1 |
| 16 | 88552516 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 2 |
| 16 | 8M0103805 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 2 |
| 17 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 17 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 18 | 828991 | 卡扣 | CLIP | 3 |
| 18 | 828991T | 卡扣 | CLIP | 3 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

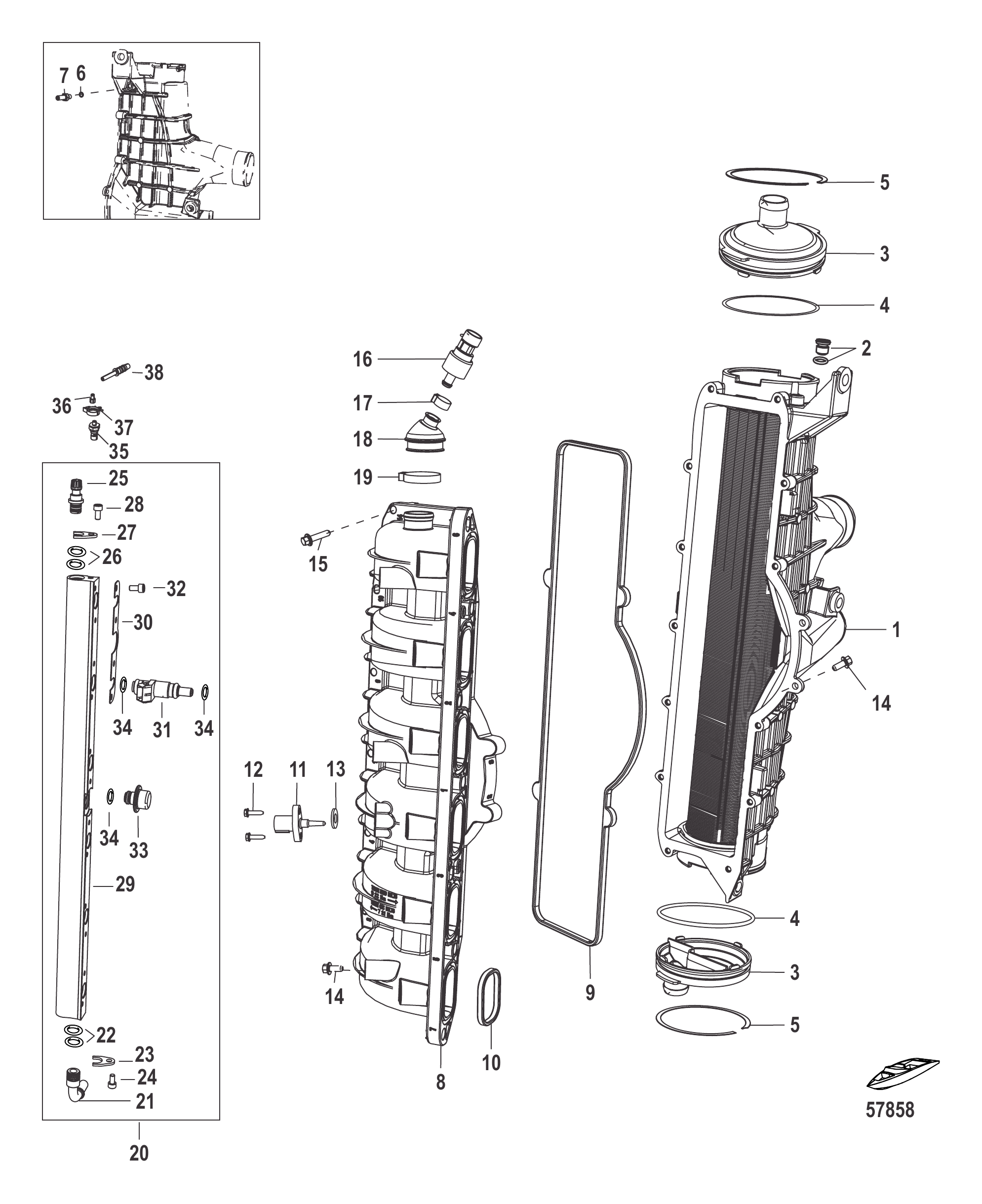

| - | 8M0092408 | 集成空气燃油模块总成 | MODULE ASSEMBLY Integrated Air Fuel | 1 |
| 1 | 8M0092462 | 中冷器总成 | CAC ASSEMBLY | 1 |
| 1 | 8M0132388 | 中冷器总成 | CAC ASSEMBLY | 1 |
| 2 | 8M0048079 | 8毫米塞 | PLUG 8MM | 1 |
| 3 | 8M0046698 | 端盖总成 | END CAP ASSEMBLY | 2 |
| 4 | 8M0039516 | O型圈 | O-RING | 1 |
| 5 | 8M0039464 | 挡圈 | RING Retaining | 1 |
| 6 | 8M0040116 | O型圈 | O-RING | 1 |
| 7 | 8M0039993 | 接头 | FITTING | 1 |
| 8 | 8M0083678 | 进气歧管总成 | MANIFOLD ASSEMBLY Intake | 1 |
| 9 | 895019 | 歧管至CAC密封件 | SEAL Manifold to CAC | 1 |
| 10 | 895020 | 歧管头部密封件 | SEAL Manifold Head | 6 |
| 11 | 891663001 | 温度传感器 | SENSOR Temperature | 1 |
| 12 | 8M0041480 | 螺钉 | SCREW | 2 |
| 12 | 895054 | 螺丝(M4×16毫米) | SCREW (M4 x 16 mm) | 2 |
| 13 | 892317001 | O型圈 | O-RING | 1 |
| 14 | 88552516 | 螺钉（M6×16毫米）不锈钢燃油轨至歧管 | SCREW (M6 x 16 mm) Stainless Steel Fuel Rail to Manifold | 3 |
| 14 | 8M0103805 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 3 |
| 14 | 88552516 | 螺钉（M6×16毫米）不锈钢CAC至歧管 | SCREW (M6 x 16 mm) Stainless Steel CAC to Manifold | 2 |
| 14 | 8M0103805 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 2 |
| 15 | 88552525 | 螺钉（M6×25毫米）不锈钢歧管至CAC | SCREW (M6 x 25 mm) Stainless Steel Manifold to CAC | 13 |
| 15 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 13 |
| 16 | 8M6000639 | 压力传感器 | SENSOR Pressure Pressure | 1 |
| 16 | 8M0234766 | 压力传感器 | SENSOR PRESSURE | 1 |
| 17 | 13791 | 卡箍(15.7) | CLAMP (15.7) | 1 |
| 17 | 8M0214911 | 卡箍@5 | CLAMP @5 | 1 |
| 18 | 8M0041053 | MAP传感器护套 | BOOT MAP Sensor | 1 |
| 19 | 888988001 | 卡箍(36.1毫米) | CLAMP (36.1 mm) | 1 |
| 19 | 8M0204719 | 卡箍 36.1毫米 | CLAMP 36.1 MM | 1 |
| 20 | 8M0041080 | 燃油导轨总成 | FUEL RAIL ASSEMBLY | 1 |
| 20 | 8M0185166 | 燃油导轨总成 | FUEL RAIL ASSY | 1 |
| 21 | 8M0047054 | 燃油进管套件 | TUBE KIT Fuel Inlet | 1 |
| 22 | NSS | O型圈(管用)不单独销售 | NOT SOLD SEPARATE O-RING Tube | 1 |
| 23 | 8M0041097 | 固定支架 | BRACKET Retaining | 1 |
| 24 | 8M0041100 | 螺钉 (M5 x 10) | SCREW (M5 x 10) | 1 |
| 25 | 8M0047053 | 施拉德阀维修包 | VALVE KIT Shrader | 1 |
| 26 | NSS | O型圈(施拉德阀用)不单独销售 | NOT SOLD SEPARATE O-ring- Shrader Valve | 1 |
| 27 | 8M0041097 | 固定支架 | BRACKET Retaining | 1 |
| 28 | 8M0041100 | 螺钉 (M5 x 10) | SCREW (M5 x 10) | 1 |
| 29 | NSS | 燃油轨不单独销售 | NOT SOLD SEPARATE FUEL RAIL | 1 |
| 30 | 8M0041096 | 喷油器安装支架 | BRACKET Fuel Injector Mounting | 3 |
| 31 | 8M0041571 | 燃油喷油器总成 | INJECTOR ASSEMBLY Fuel | 6 |
| 31 | 8M0222278 | 燃油喷射器 | FUEL INJECTOR | 6 |
| 32 | 8M0041100 | 螺钉 (M5 x 10) | SCREW (M5 x 10) | 12 |
| 33 | 8M0041101 | 燃油轨减震器 | DAMPER Fuel Rail | 1 |
| 34 | 851889 | O型圈 | O-RING | 1 |
| 35 | 8M0103315 | 皮托管传感器套件 | PITOT SENSOR KIT | 1 |
| 36 | 892403 | 接头 | FITTING | 1 |
| 36 | 8M0207782 | 直通接头 | FITTING Straight | 1 |
| 37 | 883066 | 夹子 (.865) | CLIP (.865) | 1 |
| 38 | 859731 | 适配管接头 | FITTING Adapter | 1 |
| 38 | 8M0214970 | 接头 | FITTING | 1 |
| - | 8M0132737 | O型圈套件 | O-RING KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 826292 | 螺母(M10)黄铜/镀镍 | NUT (M10) Brass/Nickel Plated | 1 |
| 2 | 892487001 | 螺钉 | SCREW | 7 |
| 2 | 8M0048051 | 不锈钢螺钉(M6x30) | SCREW (M6 x 30) Stainless Steel | 7 |
| - | NSS | 不单独出售-软管总成 | NOT SOLD SEPARATE Hose Assembly | 1 |
| 3 | 889593001 | 软管 | HOSE | 1 |
| 4 | 889633A04 | 冲洗接头总成 | FITTING ASSEMBLY Flushing | 1 |
| 4 | 8M0188433 | 冲洗接头总成 | FITTING ASY-FLUSH | 1 |
| 5 | 889592001 | 软管 | HOSE | 1 |
| 6 | 888988008 | 卡箍(34.6毫米) | CLAMP (34.6 MM) | 2 |
| 6 | 8M0187145 | 卡箍 | CLAMP | 2 |
| 7 | 892967 | 软管 | HOSE | 1 |
| 8 | 850181 | 捆扎带(11.750英寸) | TIE STRAP (11.750 Inches) | 1 |
| 9 | 888988008 | 卡箍(34.6毫米) | CLAMP (34.6 MM) | 2 |
| 9 | 8M0187145 | 卡箍 | CLAMP | 2 |
| 10 | 880529 | 增压歧管参考软管-上部 | HOSE Boost Manifold Reference-Upper | 1 |
| 10 | 8M0203767 | 软管 歧管 | HOSE MANIFOLD | 1 |
| 11 | 88552730 | 螺钉 (M10 x 30) | SCREW (M10 x 30) | 2 |
| 11 | 8M0103821 | 螺钉 | SCREW | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

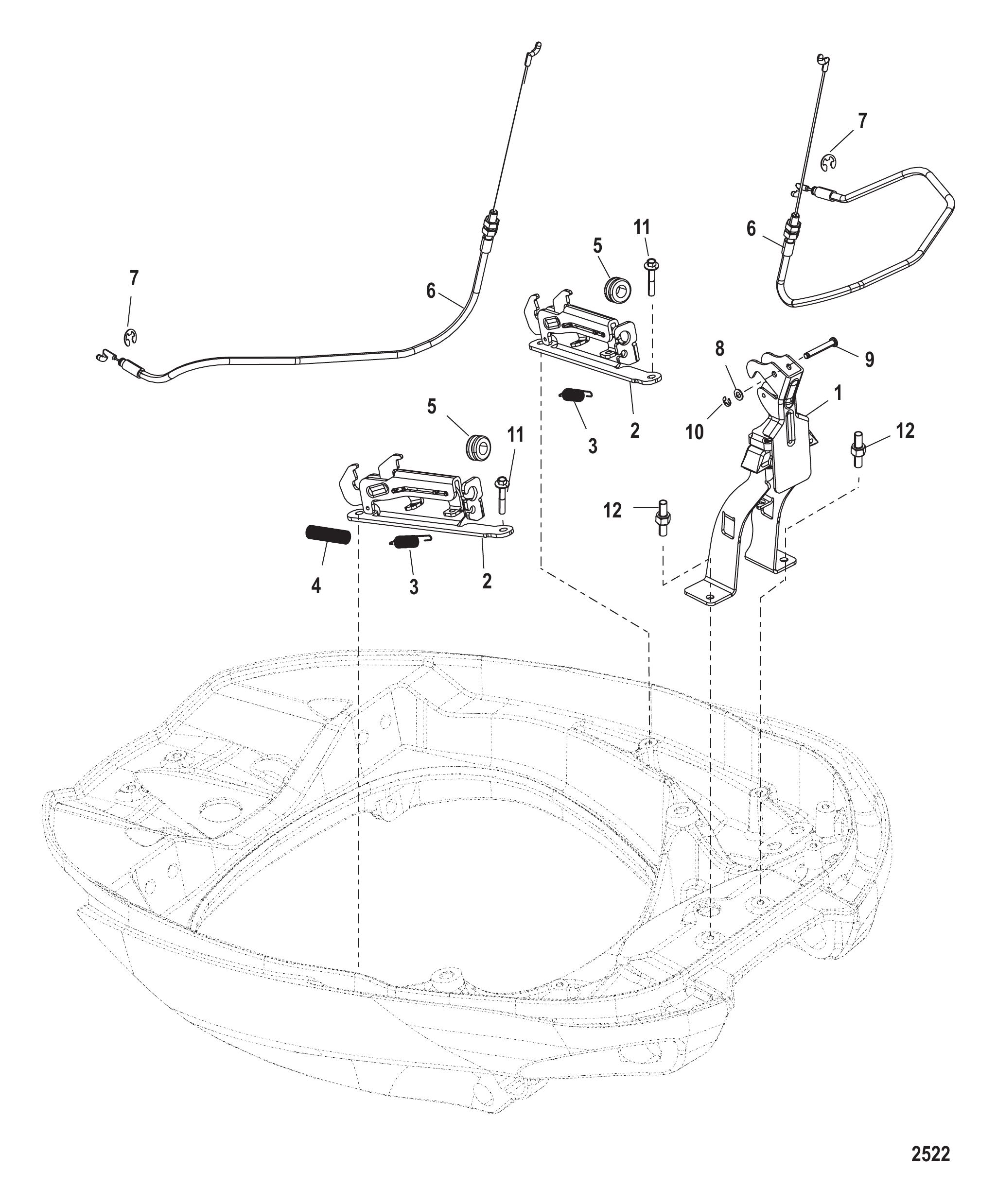

| - | 892062T02 | 前侧锁扣总成 | LATCH ASSEMBLY Front and Side | 1 |
| 1 | 888976T01 | 支架 | BRACKET | 1 |
| 2 | 888974A02 | 侧锁扣总成 | SIDE LATCH ASSEMBLY | 2 |
| 3 | 888996 | 弹簧 | SPRING | 4 |
| 4 | 896124 | 套筒 | SLEEVE | 4 |
| 5 | 828249 | 护孔环 | GROMMET | 2 |
| 6 | 889694 | 电缆 | CABLE | 2 |
| 6 | 8M0080491 | 电缆 | CABLE | 2 |
| 7 | 27290 | 挡圈 | RING Retaining | 2 |
| 8 | 30164 | 垫圈(0.192x0.375x0.0312)不锈钢 | WASHER (.192 x .375 x .0312) Stainless Steel | 1 |
| 9 | 893380 | U型销 | PIN Clevis | 1 |
| 10 | 61319 | E型卡环 | E RING | 1 |
| 11 | 4006731 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 4 |
| 12 | 889627 | 螺柱 | STUD | 2 |
| 12 | 8M0099404 | 螺柱 | STUD | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

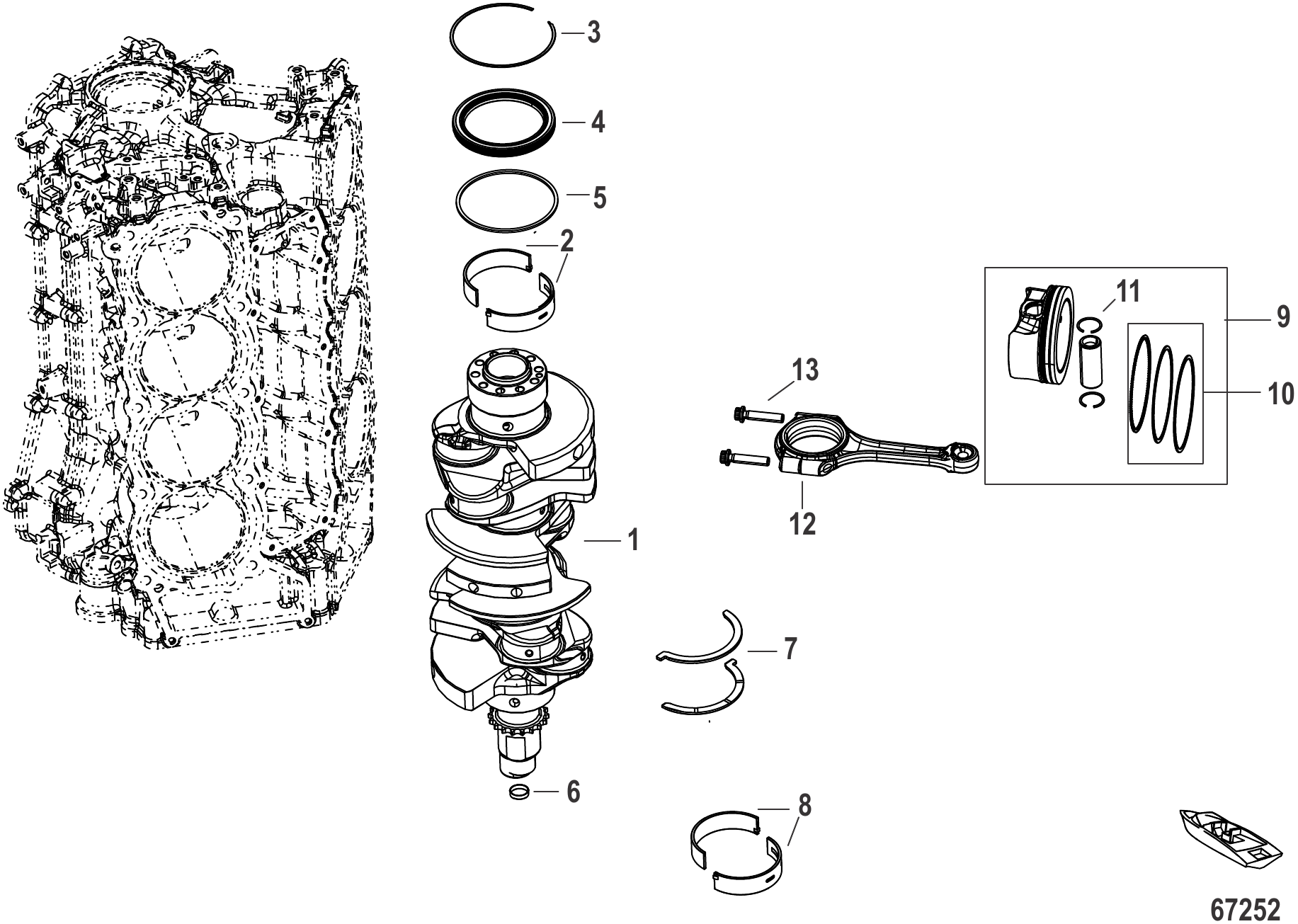

| 1 | 8M0142417 | 曲轴 | CRANKSHAFT | 1 |
| 2 | 8M0034912 | O型圈 3.78×21.32 | O-RING 3.78 X 21.32 | 1 |
| 3 | 8M0142386 | 挡圈 | RING RETAINING | 1 |
| 4 | 8M0142379 | 主轴承油封 | SEAL Main Bearing | 1 |
| 4 | 8M0168880 | 主轴承油封 | SEAL Main Bearing | 1 |
| 5 | 8M0142385 | 隔套 | SPACER | 1 |
| 6 | 8M0147976 | 主轴承绿色 | BEARING MAIN Green | AR |
| 6 | 8M0147977 | 主轴承蓝色 | BEARING MAIN Blue | AR |
| 6 | 8M0147978 | 主轴承白色 | BEARING MAIN White | AR |
| 6 | 8M0147979 | 主轴承橙色 | BEARING MAIN Orange | AR |
| 7 | 8M0142424 | 止推垫圈 | WASHER THRUST | 2 |
| 8 | 8M0148077 | 连杆轴承(绿色) | BEARING Connecting Rod, Green | AR |
| 8 | 8M0217817 | 连杆轴承(绿色) | BEARING Connecting Rod, Green | AR |
| 8 | 8M0148078 | 连杆轴承(蓝色) | BEARING Connecting Rod, Blue | AR |
| 8 | 8M0217818 | 连杆轴承(蓝色) | BEARING Connecting Rod, Blue | AR |
| 8 | 8M0148079 | 连杆轴承(白色) | BEARING Connecting Rod, White | AR |
| 8 | 8M0217819 | 连杆轴承(白色) | BEARING Connecting Rod, White | AR |
| 9 | 8M0142575 | 活塞总成 | PISTON ASSEMBLY | 8 |
| 9 | 8M0200040 | 活塞总成 | PISTON ASSEMBLY | 8 |
| 10 | 8M0142381 | 活塞环组件 | PISTON RING ASSEMBLY | 8 |
| 11 | 8M0142383 | 卡簧 | CIRCLIP | 16 |
| 12 | 8M0142418 | 连杆 | CONNECTING ROD | 8 |
| 12 | 8M0159647 | 连杆 | CONNECTING ROD | 8 |
| 13 | 8M6002637 | 连杆螺栓 | BOLT Connecting Rod | 16 |
| 13 | 8M0159648 | 连杆螺栓 | BOLT, CONNECTING ROD | 16 |
| - | 8M0142279 | 长缸体总成 | LONG BLOCK | 1 |
| - | 8M0149557 | 长缸体总成 | LONG BLOCK | 1 |
| - | 8M0149551 | 动力头垫片套装 | POWERHEAD GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

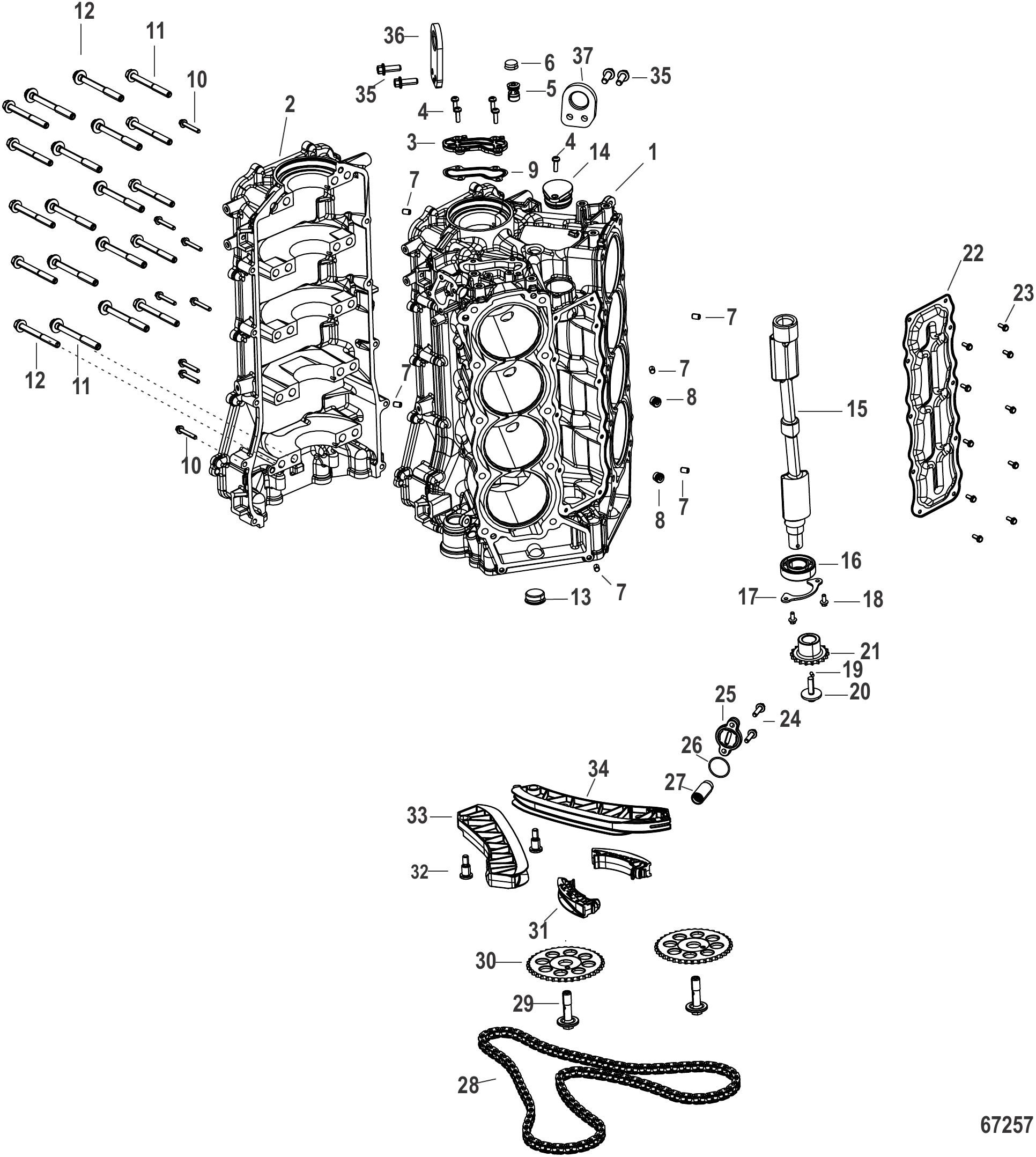

| 1 | 8M0142344 | 气缸体 | CYLINDER BLOCK | 1 |
| 2 | NSS | 不单独销售 | NOT SOLD SEPARATE | 1 |
| 3 | 8M0142349 | 气缸体盖 | COVER Cylinder Block | 1 |
| 4 | 8M0080651 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 5 |
| 5 | 8M0142352 | 18毫米螺塞 | PLUG 18 MM | 1 |
| 6 | 8M0142353 | O型圈(0.614x0.070) | O-RING (0.614 x 0.070) | 1 |
| 7 | 893540 | 定位销 8x12长 | PIN Dowel, 8x12 long | 6 |
| 8 | 8M0087447 | 堵头(10毫米) | PLUG (10MM) | 2 |
| 9 | 8M0142348 | 盖板垫片 | GASKET Cover Plate | 1 |
| 10 | 8M0103809 | 螺钉(M6x40毫米)不锈钢 | SCREW (M6 x 40 mm) Stainless Steel | 10 |
| 11 | 8M0142347 | 螺钉(M10x96毫米)六角凸缘头 | SCREW (M10 x 96 MM) HEX FLG HD | 10 |
| 11 | 8M0168893 | 螺钉 M10x96 | SCREW M10 x 96 | 10 |
| 12 | 8M0142346 | 螺钉(M11x107毫米)12角头 | SCREW (M11 x 107 MM) 12 POINT HEX HEAD | 10 |
| 13 | 8M0087454 | 30毫米螺塞 | PLUG (30 mm) | 1 |
| 14 | 8M0142409 | 平衡器螺塞 | PLUG Balancer | 1 |
| 15 | 8M0142421 | 平衡轴 | BALANCE SHAFT | 1 |
| 16 | 8M0142429 | 滚珠轴承 | BEARING Ball | 1 |
| 17 | 8M0142427 | 挡板 | PLATE Retainer | 1 |
| 18 | 8M0142428 | 螺钉(M5x12)六角凸缘 | SCREW (M5 x 12) HEX FLG | 2 |
| 19 | 8M0142426 | 定位销 | PIN Dowel | 1 |
| 20 | 8M0142423 | 螺钉(M8x1.25)六角凸缘带垫 | SCREW (M8 x 1.25) HEX FL SEMS | 1 |
| 21 | 8M0142422 | 链轮 | SPROCKET | 1 |
| 22 | 8M0142410 | 平衡器盖 冲压件 | COVER Balancer, Stamped | 1 |
| 23 | 40011106 | 不锈钢螺钉(M5x13) | SCREW (M5 x 13) Stainless Steel | 10 |
| 24 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| 25 | 8M0064752 | 凸轮张紧器端盖 | END CAP Cam Tensioner | 1 |
| 26 | 898836 | 棕色O型圈 | O-RING Brown | 1 |
| 26 | 8M0237361 | O型圈 | O-RING | 1 |
| 27 | 8M0142394 | 正时链条张紧器总成 | TENSIONER ASSEMBLY Timing Chain | 1 |
| 27 | 8M0231253 | 正时链条张紧器总成 | TENSIONER ASSEMBLY Timing Chain | 1 |
| 28 | 8M0142399 | 凸轮驱动链条 | CHAIN CAM DRIVE | 1 |
| 29 | 8M0142395 | 凸轮螺栓 M12特殊左旋 | CAM BOLT M12 Special Left Hand | 2 |
| 30 | 8M0142390 | 凸轮轴链轮 | SPROCKET Camshaft | 2 |
| 31 | 8M0142400 | 短跨距导板 | GUIDE SHORT SPAN | 2 |
| 32 | 8M0086569 | 台阶螺钉(M8x1.25) | SCREW Shoulder (M8 x 1.25) | 2 |
| 33 | 8M0142393 | 凸轮驱动导板 | GUIDE Cam Drive | 1 |
| 34 | 8M0142392 | 活动导板 | GUIDE Moveable | 1 |
| 35 | 8M0103821 | 螺钉 | SCREW | 4 |
| 36 | 8M0142459 | 左舷吊环 | LIFTING EYE Port | 1 |
| 37 | 8M0142448 | 右舷吊环 | LIFTING EYE Starboard | 1 |
| - | 8M0142279 | 长缸体总成 | LONG BLOCK | 1 |
| - | 8M0149557 | 长缸体总成 | LONG BLOCK | 1 |
| - | 8M0149551 | 动力头垫片套装 | POWERHEAD GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

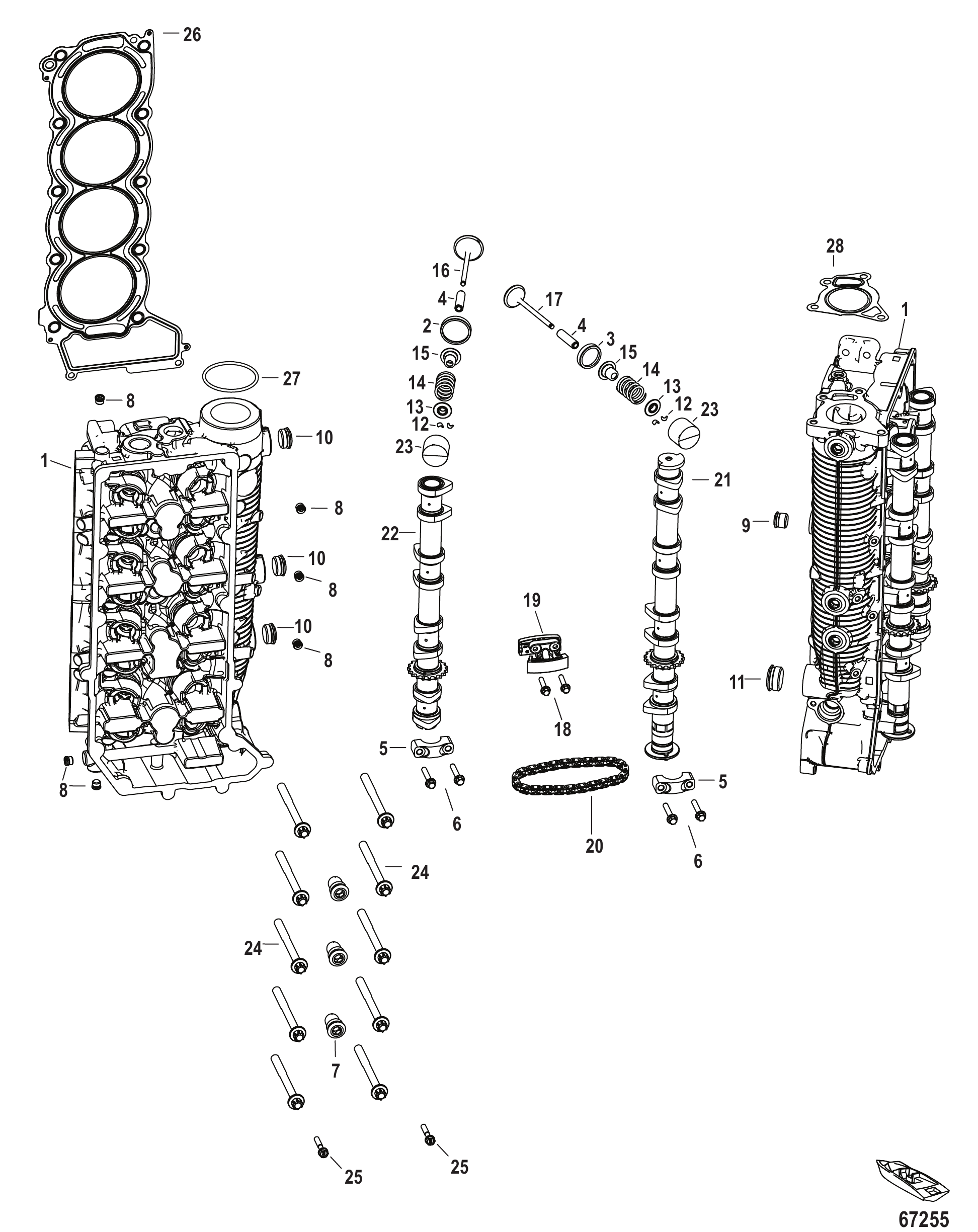

| 1 | 8M0150214 | 气缸盖总成(右舷) | CYLINDER HEAD ASSEMBLY Starboard | 1 |
| 1 | 8M0150215 | 气缸盖总成(左舷) | CYLINDER HEAD ASSEMBLY Port | 1 |
| 1 | 8M0150490 | 气缸盖总成(右舷) | CYLINDER HEAD ASSEMBLY Starboard | 1 |
| 1 | 8M0221005 | 气缸盖总成(右舷) | CYLINDER HEAD ASSEMBLY Starboard | 1 |
| 1 | 8M0150491 | 气缸盖总成(左舷) | CYLINDER HEAD ASSEMBLY Port | 1 |
| 1 | 8M0221003 | 气缸盖总成(左舷) | CYLINDER HEAD ASSEMBLY Port | 1 |
| 2 | 8M0142354 | 气门座-进气 | VALVE Seat, Intake | 16 |
| 3 | 8M0142355 | 气门座-排气 | VALVE Seat, Exhaust | 16 |
| 4 | 8M0142358 | 气门导管 | VALVE Guide | 32 |
| 5 | NSS | 不单独销售 | NOT SOLD SEPARATE | 18 |
| 6 | 892454035 | 螺栓（M6×36） | BOLT (M6 x 36) | 36 |
| 6 | 8M0163131 | M6螺钉 | SCREW M6 | 36 |
| 7 | 8M0142357 | 专用塞(21毫米) | PLUG (21 MM) Special | 6 |
| 8 | 8M0087447 | 堵头(10毫米) | PLUG (10MM) | 12 |
| 9 | 8M0087451 | 堵头（18毫米） | PLUG (18 mm) | 2 |
| 10 | 8M0087453 | 堵头(24毫米) | PLUG (24 MM) | 6 |
| 11 | 8M0087454 | 30毫米螺塞 | PLUG (30 mm) | 2 |
| 12 | 8M0142364 | 气门键 | VALVE Key | 32 |
| 13 | 8M0142363 | 固定座 | RETAINER | 32 |
| 14 | 8M0142360 | 弹簧 | SPRING | 32 |
| 15 | 8M0142359 | 气门油封 | SEAL Valve | 32 |
| 16 | 8M0142361 | 进气阀 | VALVE Intake | 16 |
| 17 | 8M0142362 | 排气阀 | VALVE Exhaust | 16 |
| 18 | 892454030 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 4 |
| 19 | 8M0142367 | 张紧器 | TENSIONER | 2 |
| 20 | 8M0142366 | 凸轮间链条 | CHAIN Cam to Cam | 2 |
| 21 | 8M0142411 | 凸轮轴-排气右舷 | CAMSHAFT Exhaust, Starboard | 1 |
| 21 | 8M0142416 | 凸轮轴-排气左舷 | CAMSHAFT Exhaust, Port | 1 |
| 22 | 8M0142412 | 凸轮轴-进气右舷 | CAMSHAFT Intake, Starboard | 1 |
| 22 | 8M0142415 | 凸轮轴-进气左舷 | CAMSHAFT Intake, Port | 1 |
| 22 | 8M0149556 | 凸轮轴-进气右舷 | CAMSHAFT Intake, Starboard | 1 |
| 22 | 8M0149555 | 凸轮轴-进气左舷 | CAMSHAFT Intake, Port | 1 |
| 23 | 8M0142365 | 挺杆 (3.000) | TAPPET (3.000) | 32/AR |
| 23 | 8M0142431 | 挺杆 (3.015) | TAPPET (3.015) | 32/AR |
| 23 | 8M0142439 | 挺杆 (3.030) | TAPPET (3.030) | 32/AR |
| 23 | 8M0142440 | 挺杆 (3.045) | TAPPET (3.045) | 32/AR |
| 23 | 8M0142441 | 挺杆 (3.060) | TAPPET (3.060) | 32/AR |
| 23 | 8M0142438 | 挺杆 (3.075) | TAPPET (3.075) | 32/AR |
| 23 | 8M0142495 | 挺杆 (3.090) | TAPPET (3.090) | 32/AR |
| 23 | 8M0142492 | 挺杆 (3.105) | TAPPET (3.105) | 32/AR |
| 23 | 8M0142443 | 挺杆 (3.120) | TAPPET (3.120) | 32/AR |
| 23 | 8M0142447 | 挺杆 (3.135) | TAPPET (3.135) | 32/AR |
| 23 | 8M0142464 | 挺杆 (3.150) | TAPPET (3.150) | 32/AR |
| 23 | 8M0142465 | 挺杆 (3.165) | TAPPET (3.165) | 32/AR |
| 23 | 8M0142466 | 挺杆 (3.180) | TAPPET (3.180) | 32/AR |
| 23 | 8M0142487 | 挺杆 (3.195) | TAPPET (3.195) | 32/AR |
| 23 | 8M0142488 | 挺杆 (3.210) | TAPPET (3.210) | 32/AR |
| 23 | 8M0142489 | 挺杆 (3.225) | TAPPET (3.225) | 32/AR |
| 23 | 8M0142490 | 挺杆 (3.240) | TAPPET (3.240) | 32/AR |
| 23 | 8M0142491 | 挺杆 (3.255) | TAPPET (3.255) | 32/AR |
| 23 | 8M0142519 | 挺杆 (3.270) | TAPPET (3.270) | 32/AR |
| 23 | 8M0142520 | 挺杆 (3.285) | TAPPET (3.285) | 32/AR |
| 23 | 8M0142521 | 挺杆 (3.300) | TAPPET (3.300) | 32/AR |
| 23 | 8M0142525 | 挺杆 (3.315) | TAPPET (3.315) | 32/AR |
| 23 | 8M0142527 | 挺杆 (3.330) | TAPPET (3.330) | 32/AR |
| 23 | 8M0142532 | 挺杆 (3.345) | TAPPET (3.345) | 32/AR |
| 23 | 8M0142613 | 挺杆 (3.360) | TAPPET (3.360) | 32/AR |
| 23 | 8M0142252 | 挺杆 (3.375) | TAPPET (3.375) | 32/AR |
| 23 | 8M0142255 | 挺杆 (3.390) | TAPPET (3.390) | 32/AR |
| 23 | 8M0142256 | 挺杆 (3.405) | TAPPET (3.405) | 32/AR |
| 23 | 8M0142257 | 挺杆 (3.420) | TAPPET (3.420) | 32/AR |
| 23 | 8M0142258 | 挺杆 (3.435) | TAPPET (3.435) | 32/AR |
| 23 | 8M0142261 | 挺杆 (3.450) | TAPPET (3.450) | 32/AR |
| 23 | 8M0142263 | 挺杆 (3.465) | TAPPET (3.465) | 32/AR |
| 23 | 8M0142277 | 挺杆 (3.480) | TAPPET (3.480) | 32/AR |
| 23 | 8M0142291 | 挺杆 (3.495) | TAPPET (3.495) | 32/AR |
| 23 | 8M0142292 | 挺杆 (3.510) | TAPPET (3.510) | 32/AR |
| 23 | 8M0142666 | 挺杆 (3.525) | TAPPET (3.525) | 32/AR |
| 23 | 8M0142667 | 挺杆 (3.540) | TAPPET (3.540) | 32/AR |
| 23 | 8M0142668 | 挺杆 (3.555) | TAPPET (3.555) | 32/AR |
| 23 | 8M0142669 | 挺杆 (3.570) | TAPPET (3.570) | 32/AR |
| 23 | 8M0142670 | 挺杆 (3.585) | TAPPET (3.585) | 32/AR |
| 23 | 8M0142698 | 挺杆 (3.600) | TAPPET (3.600) | 32/AR |
| 23 | 8M0142699 | 挺杆 (3.615) | TAPPET (3.615) | 32/AR |
| 23 | 8M0142700 | 挺杆 (3.630) | TAPPET (3.630) | 32/AR |
| 23 | 8M0142701 | 挺杆 (3.645) | TAPPET (3.645) | 32/AR |
| 23 | 8M0142702 | 挺杆 (3.660) | TAPPET (3.660) | 32/AR |
| 23 | 8M0142703 | 挺杆 (3.675) | TAPPET (3.675) | 32/AR |
| 23 | 8M0142704 | 挺杆 (3.690) | TAPPET (3.690) | 32/AR |
| 24 | 8M0142369 | 螺钉 (M10 x 107) 内六角法兰头 | SCREW (M10 x 107) TORX FLG HD | 20 |
| 25 | 893754035 | 螺钉（M6×35） | SCREW (M6 X 35) | 4 |
| 25 | 8M0205943 | 螺钉(M6x35) | SCREW (M6 x 35) | 4 |
| 26 | 8M0142273 | 气缸盖衬垫 | GASKET Cylinder Head | 1 |
| 26 | 8M0142272 | 气缸盖衬垫 | GASKET Cylinder Head | 1 |
| 27 | 8M0142368 | O型圈 (230 2.484 x .139) | O-RING (230 2.484 x .139) | 1 |
| 28 | 8M0142537 | 排气歧管衬垫 | GASKET Exhaust Manifold | 1 |
| - | 8M0142279 | 长缸体总成 | LONG BLOCK | 1 |
| - | 8M0149557 | 长缸体总成 | LONG BLOCK | 1 |
| - | 8M0149551 | 动力头垫片套装 | POWERHEAD GASKET SET | 1 |

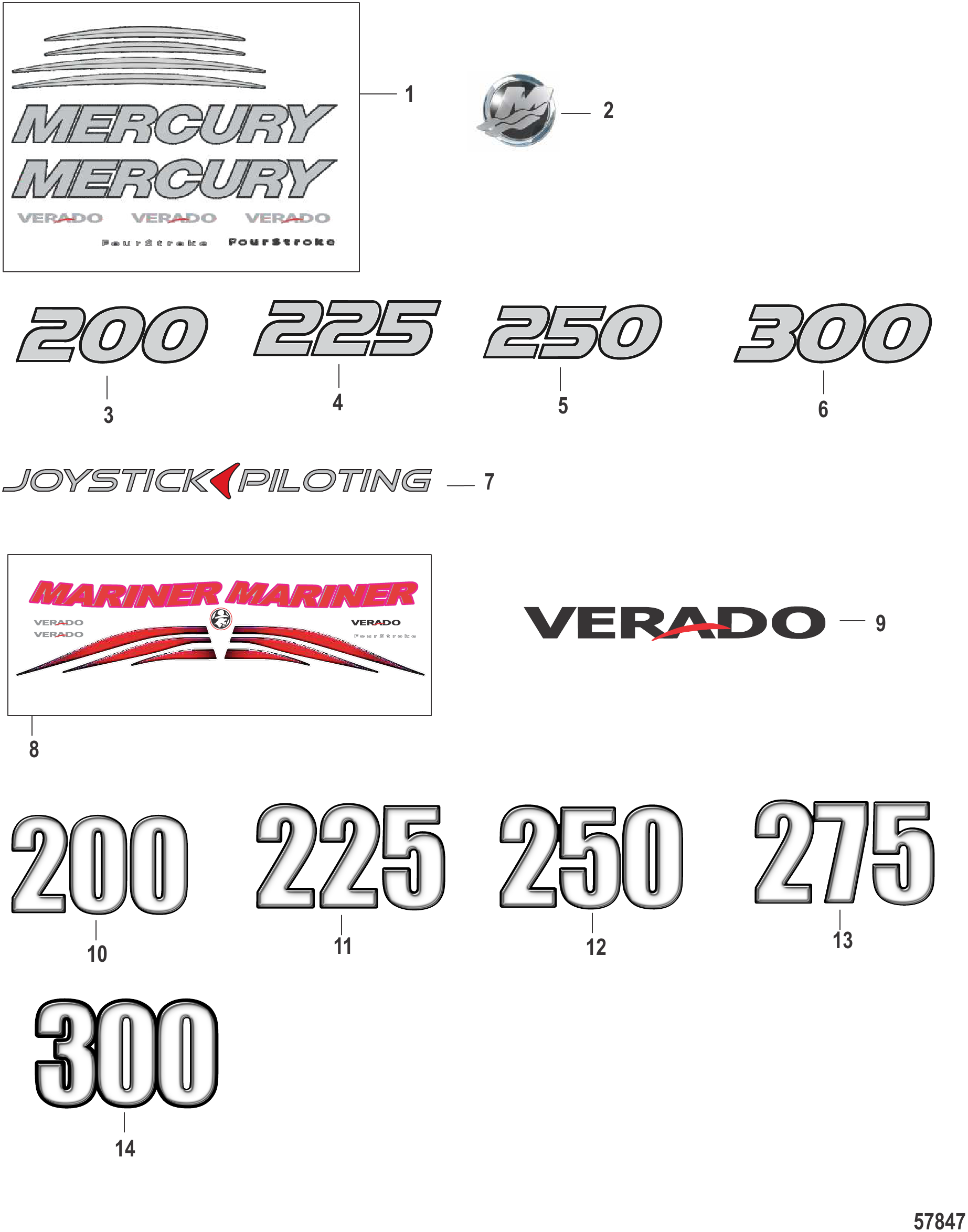

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0102448 | 水星贴花套装 | DECAL SET Mercury | 1 |
| 2 | 8M0043703 | M标志贴纸66mm黑色 | DECAL M-Icon, 66 MM, Black | 1 |
| 3 | 8M0085363 | 200马力银色贴花 | DECAL 200 HP Silver | 1 |
| 4 | 8M0085364 | 225马力银色贴花 | DECAL 225 HP Silver | 1 |
| 5 | 8M0085365 | 250马力银色贴花 | DECAL 250 HP Silver | 1 |
| 6 | 8M0085366 | 300马力银色贴花 | DECAL 300 HP Silver | 1 |
| 7 | 8M0075217 | 操纵杆驾驶贴花 | DECAL Joystick Piloting | 1 |
| 8 | 892870A02 | Mariner贴纸套装 | DECAL SET Mariner | 1 |
| 9 | 8M0025965 | 水星Verado贴花 | DECAL (Mariner Verado) | 1 |
| 10 | 899324003 | 水星200贴花 | DECAL (Mariner 200) | 1 |
| 11 | 899324004 | 水星225贴花 | DECAL (Mariner 225) | 1 |
| 12 | 899324005 | 水星250贴花 | DECAL (Mariner 250) | 1 |
| 13 | 899324006 | 水星275贴花 | DECAL (Mariner 275) | 1 |
| 14 | 8M0025964 | 水星300贴花 | DECAL (Mariner 300) | 1 |

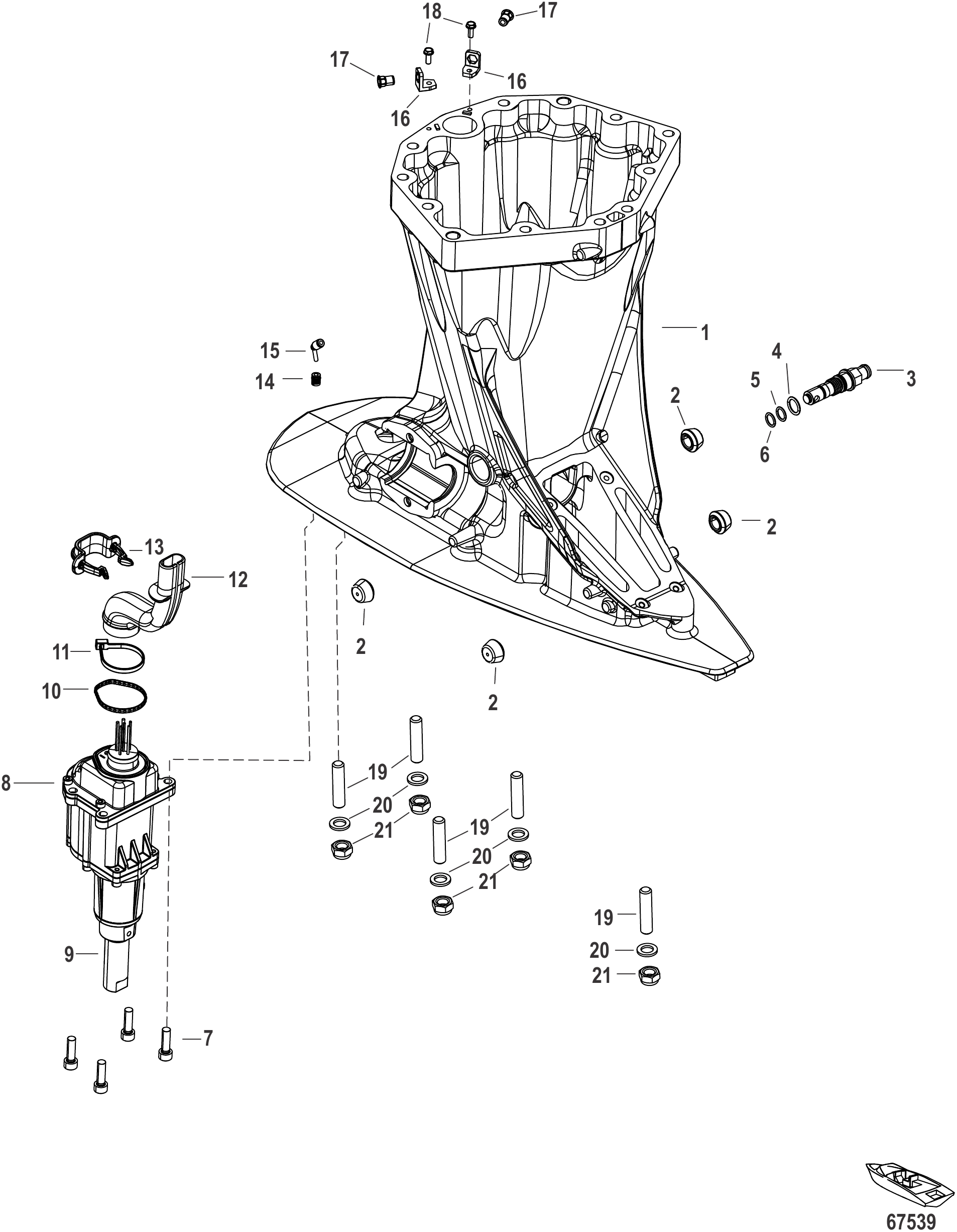

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0142775 | 驱动轴壳体-黑色 | HOUSING Driveshaft, Black | 1 |
| 2 | 8M0142713 | 支撑盖帽 | CAP Chap Support | 4 |
| 3 | 8M0112869 | 油塞总成 | OIL PLUG ASSEMBLY | 1 |
| 4 | 85045 | O型圈(.551 x .070) | O-RING (.551 x .070) | 1 |
| 5 | 863006 | O型圈(10.82x1.78) | O-RING (10.82 x 1.78) | 1 |
| 6 | 8M0036228 | O型圈(8.1x1.6) | O-RING (8.1 X 1.6) | 1 |
| 7 | 8M0142829 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 4 |
| 8 | 8M0142253 | 换挡执行器 | SHIFT ACTUATOR | 1 |
| 8 | 8M0204944 | 换挡执行器 | SHIFT ACTUATOR | 1 |
| 9 | 8M0147857 | 联轴器轴 | SHAFT Coupling | 1 |
| 10 | 8M0142978 | 执行器密封件 | SEAL ACTUATOR | 1 |
| 11 | 69355 | 扎带(5.50英寸) | TIE STRAP (5.50 Inches) | 1 |
| 11 | 8M0214940 | 扎带 | TIE STRAP | 1 |
| 12 | 8M0147674 | 换挡执行器线束护套 | BOOT Shift Actuator Wires | 1 |
| 13 | 8M0147675 | 卡扣 | CLIP | 1 |
| 14 | 8M0142714 | 接头 | FITTING | 1 |
| 15 | 8M0155119 | 乐可利接头 | FITTING Legris | 1 |
| 16 | 8M0142715 | 围嘴安装支架 | BRACKET Bib Mount | 2 |
| 17 | 8M0142716 | 嵌件 | INSERT | 2 |
| 18 | 40011106 | 不锈钢螺钉(M5x13) | SCREW (M5 x 13) Stainless Steel | 2 |
| 19 | 8M0008031 | 双头螺柱(M12 x 1.75 x 52) | STUD (M12 x 1.75 x 52) | 5 |
| 19 | 8M0142781 | 双头螺柱（M12×179） | STUD (M12 x 179) | 5/AR |
| 19 | 8M0142788 | 双头螺柱(M12x306) | STUD (M12 x 306) | 5/AR |
| 20 | 856982 | 垫圈(0.5×0.81×0.09英寸)不锈钢 | WASHER (.500 x .810 x .090) Stainless Steel | 5/AR |
| 21 | 896895 | 螺母(M12) | NUT (M12) | 5/AR |

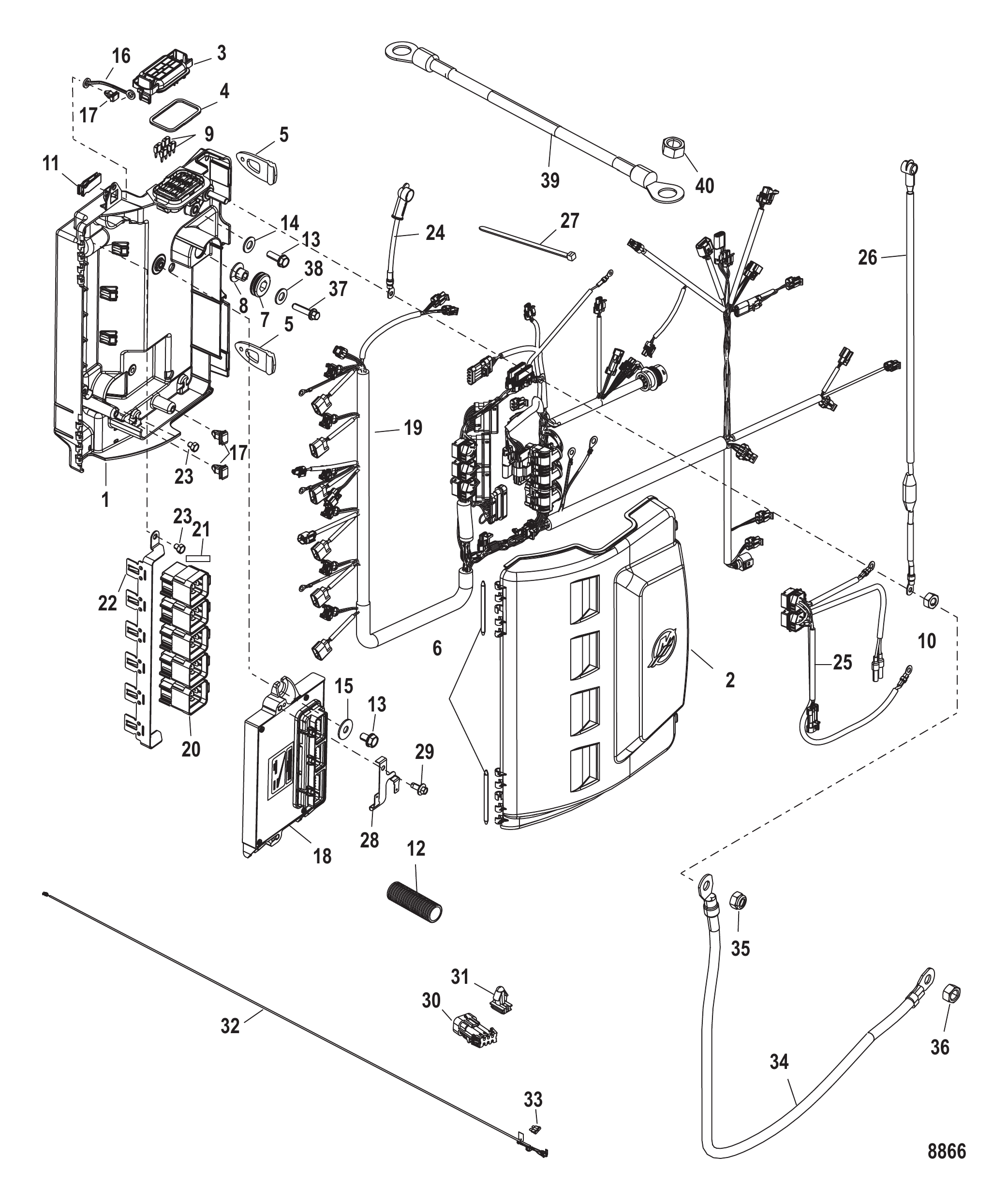

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | NSS | 不单独销售 电气箱总成 | NOT SOLD SEPARATE Electrical Box-Complete | 1 |
| - | NSS | 不单独销售 电气箱 | NOT SOLD SEPARATE Electrical Box | 1 |
| 1 | 885560T03 | 电气箱底座 | BASE Electrical Box | 1 |
| 2 | 885561T | 保险丝盒盖 | COVER Fuse Box | 1 |
| 3 | 888491 | 保险丝盖 | COVER Fuse | 1 |
| 3 | 8M0167280 | 保险丝盖 | FUSE COVER | 1 |
| 4 | 885583 | 密封件 | SEAL | 1 |
| 5 | 889531 | 绑带 | STRAP | 2 |
| 6 | 885584 | 铰链销 | PIN Hinge | 2 |
| 7 | 833155 | 护孔环 | GROMMET | 1 |
| 8 | 8502341 | 衬套 | BUSHING | 1 |
| 9 | 83296920 | 迷你保险丝-黄色-20安 | FUSE Mini - Yellow - 20 Ampere | 7 |
| 9 | 832969T20 | 迷你保险丝-黄色-20安 | FUSE Mini - Yellow - 20 Ampere | 7 |
| 10 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 1 |
| 11 | 895099 | 保险丝拔取器 | EXTRACTOR Fuse | 1 |
| 12 | 828547753 | 导管（内径0.750英寸×3英尺散装） | CONDUIT (.750 Inside Diameter x 3.00 Feet Bulk) | 1 |
| 13 | 40011146 | 螺钉（M8×13不锈钢） | SCREW (M8 x 13) Stainless Steel | 2 |
| 14 | 843108 | 垫圈（.330 x .560 x .060）不锈钢 | WASHER (.330 x .560 x .060) Stainless Steel | 1 |
| 15 | 817274 | 垫圈(0.344×1.00×0.063)不锈钢 | WASHER (.344 x 1.00 x .063) Stainless Steel | 1 |
| 16 | 892244 | 盖板固定带 | STRAP Cover | 1 |
| 17 | 879962 | 卡扣 | CLIP | 4 |
| 18 | 88555839T | 推进控制模块PCM | PCM Propulsion Control Module | 1 |
| 18 | 89790721T | PCM控制模块 | PCM | 1 |
| 18 | 88555843T | 推进控制模块PCM | PCM Propulsion Control Module | 1 |
| 18 | 89790721T | PCM控制模块 | PCM | 1 |
| 18 | 88555820T | 推进控制模块PCM | PCM Propulsion Control Module | 1 |
| 18 | 89790722T | PCM控制模块 | PCM | 1 |
| 18 | 88555840T | 推进控制模块PCM | PCM Propulsion Control Module | 1 |
| 18 | 89790723T | PCM控制模块 | PCM | 1 |
| 18 | 88555844T | 推进控制模块PCM | PCM Propulsion Control Module | 1 |
| 18 | 89790723T | PCM控制模块 | PCM | 1 |
| 18 | 88555821T | 推进控制模块PCM | PCM Propulsion Control Module | 1 |
| 18 | 89790724T | PCM控制模块 | PCM | 1 |
| 18 | 88555841T | 推进控制模块PCM | PCM Propulsion Control Module | 1 |
| 18 | 89790725T | PCM控制模块 | PCM | 1 |
| 18 | 88555845T | 推进控制模块PCM | PCM Propulsion Control Module | 1 |
| 18 | 89790725T | PCM控制模块 | PCM | 1 |
| 18 | 88555822T | 推进控制模块PCM | PCM Propulsion Control Module | 1 |
| 18 | 89790726T | PCM控制模块 | PCM | 1 |
| 18 | 88555842T | 推进控制模块PCM | PCM Propulsion Control Module | 1 |
| 18 | 89790727T | PCM控制模块 | PCM | 1 |
| 18 | 88555846T | 推进控制模块PCM | PCM Propulsion Control Module | 1 |
| 18 | 89790727T | PCM控制模块 | PCM | 1 |
| 18 | 88555823T | 推进控制模块PCM | PCM Propulsion Control Module | 1 |
| 18 | 89790728T | PCM控制模块 | PCM | 1 |
| 19 | 880616T05 | 发动机线束总成 | HARNESS ASSEMBLY Engine | 1 |
| 19 | 8M0082643 | 发动机线束总成 | HARNESS ASSEMBLY Engine | 1 |
| - | NSS | 不单独销售 继电器支架总成 | NOT SOLD SEPARATE Relay Bracket Assembly | 1 |
| 20 | 882751A04 | 继电器总成 | RELAY ASSEMBLY | 4 |
| 21 | NSS | 微调继电器标识贴(不单独销售) | NOT SOLD SEPARATE Decal-Trim Relay | 4 |
| 22 | 889532 | 支架 | BRACKET | 1 |
| 23 | 40007103 | 螺钉 (M5 x 6) | SCREW (M5 x 6) | 2 |
| 24 | 93388A17 | 线缆总成(8.50英寸) | CABLE ASSEMBLY (8.50 Inches) | 1 |
| 25 | 819514A20 | 升降线束总成 | HARNESS ASSEMBLY Trim | 1 |
| 25 | 879345T34 | 升降线束总成 | HARNESS ASSEMBLY Trim | 1 |
| 26 | 8M0088927 | 保险丝线束总成 | HARNESS ASSEMBLY Fuse | 1 |
| 27 | 850181 | 捆扎带(11.750英寸) | TIE STRAP (11.750 Inches) | 6 |
| 27 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 28 | 891520001 | 卡扣 | CLIP | 1 |
| 29 | 82129114 | 螺钉 (M6 x 14) | SCREW (M6 x 14) | 1 |
| 30 | 877613A02 | 防水插头总成6针 | CONNECTOR ASSEMBLY Weather Cap 6 Pin | 1 |
| 31 | 879962 | 卡扣 | CLIP | 1 |
| 32 | 888416T03 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 32 | 8M0113732 | DTS清洁电源线束总成(14英尺) | HARNESS ASSEMBLY DTS, Clean Power, 14 Feet | 1 |
| 33 | 862646 | 褐色保险丝-5安培 | FUSE Tan - 5 Ampere | 1 |
| 34 | 88439A25 | 电缆总成 蓄电池-正极 | CABLE ASSEMBLY Battery - Positive | 1 |
| 35 | 401388 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 5 |
| 36 | 86226 | 螺母(.375-16 蓄电池正极电缆) | NUT (.375-16) Battery Cable-Positive | 1 |
| 36 | 8M0204671 | 螺母 | NUT | 1 |
| 37 | 88552635 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 1 |
| 37 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 1 |
| 38 | 817274 | 垫圈(0.344×1.00×0.063)不锈钢 | WASHER (.344 x 1.00 x .063) Stainless Steel | 1 |
| 39 | 88439A26 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 40 | 68292 | 螺母(.312-18 蓄电池负极电缆) | NUT (.312-18) Battery Cable-Negative | 1 |
| 40 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0103686 | 发动机安装燃油滤清器套件 | FUEL FILTER KIT Engine Mounted | 1 |
| 2 | 8M0062950 | 滤清器总成 | FILTER ASSEMBLY | 1 |
| 3 | 8M0060041 | 燃油滤清器 | FILTER Fuel | 1 |
| 3 | 8M0122423 | 水星燃油滤清器 | FUEL FILTER Quicksilver | 1 |
| 4 | 8M0009261 | 支架总成 | BRACKET ASSEMBLY | 1 |
| 5 | 88552785 | 螺钉(M10×85) | SCREW (M10 x 85) | 1 |
| 5 | 8M0103824 | 螺钉 | SCREW | 1 |
| 6 | 8M0103724 | WIF延长线束 | HARNESS WIF Extension | 1 |
| 7 | 8M0046557 | 燃油进口软管总成（8.2英寸） | HOSE ASSMEBLY Fuel Inlet, 8.2 Inch | 1 |
| 8 | 892356 | 连接器 | CONNECTOR | 1 |
| 9 | 8M0087107 | 软管 | HOSE | 1 |
| 10 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 3 |
| 11 | 8M0095669 | 带O型圈的MPP远程安装燃油滤清器套件 | FUEL FILTER KIT with o-ring, MPP Remote Mounted | 1 |
| 11 | 8M0157707 | 燃油滤清器套件 | FUEL FILTER KIT | 1 |
| 12 | 8M0095659 | 带O型圈的MPP燃油滤清器总成 | FUEL FILTER ASSEMBLY with o-ring, MPP | 1 |
| 12 | 8M0157616 | 燃油滤清器总成 | FUEL FILTER ASSEMBLY | 1 |
| 13 | 8M0095674 | 燃油滤清器底座总成 | BASE ASSEMBLY Fuel Filter | 1 |
| 14 | 816133 | 接头 | FITTING | 1 |
| 15 | 36373 | 六角堵头（.375-18）-钢制 | PLUG (.375-18) Hex - Steel | 2 |
| 15 | 8M0204657 | 堵头 | PLUG | 2 |
| 16 | 8M0086290 | 倒钩接头 | CONNECTOR Barb | 2 |
| 16 | 8M0204732 | 倒钩接头 | CONNECTOR Barb | 2 |
| 17 | 8M0021043 | 传感器总成 燃油和水 | SENSOR ASSEMBLY Fuel and Water | 1 |
| 17 | 8M0214989 | 燃油含水传感器 | SENSOR WIF | 1 |
| 18 | 8M0042697 | 燃油滤清器传感器延长线束 (144英寸) | HARNESS Fuel Filter Sensor Extension (144 in) | 1 |
| 19 | 8M0157779 | WIF传感器总成 | SENSOR ASSEMBLY WIF | 1 |
| 20 | 8M0152433 | 弯头接头 | FITTING ELBOW | 1 |
| - | 8M0105263 | WIF传感器延长线束-36英寸 | HARNESS WIF Sensor Extension - 36 Inches | 1 |
| - | 8M0105264 | WIF传感器延长线束-72英寸 | HARNESS WIF Sensor Extension - 72 Inches | 1 |

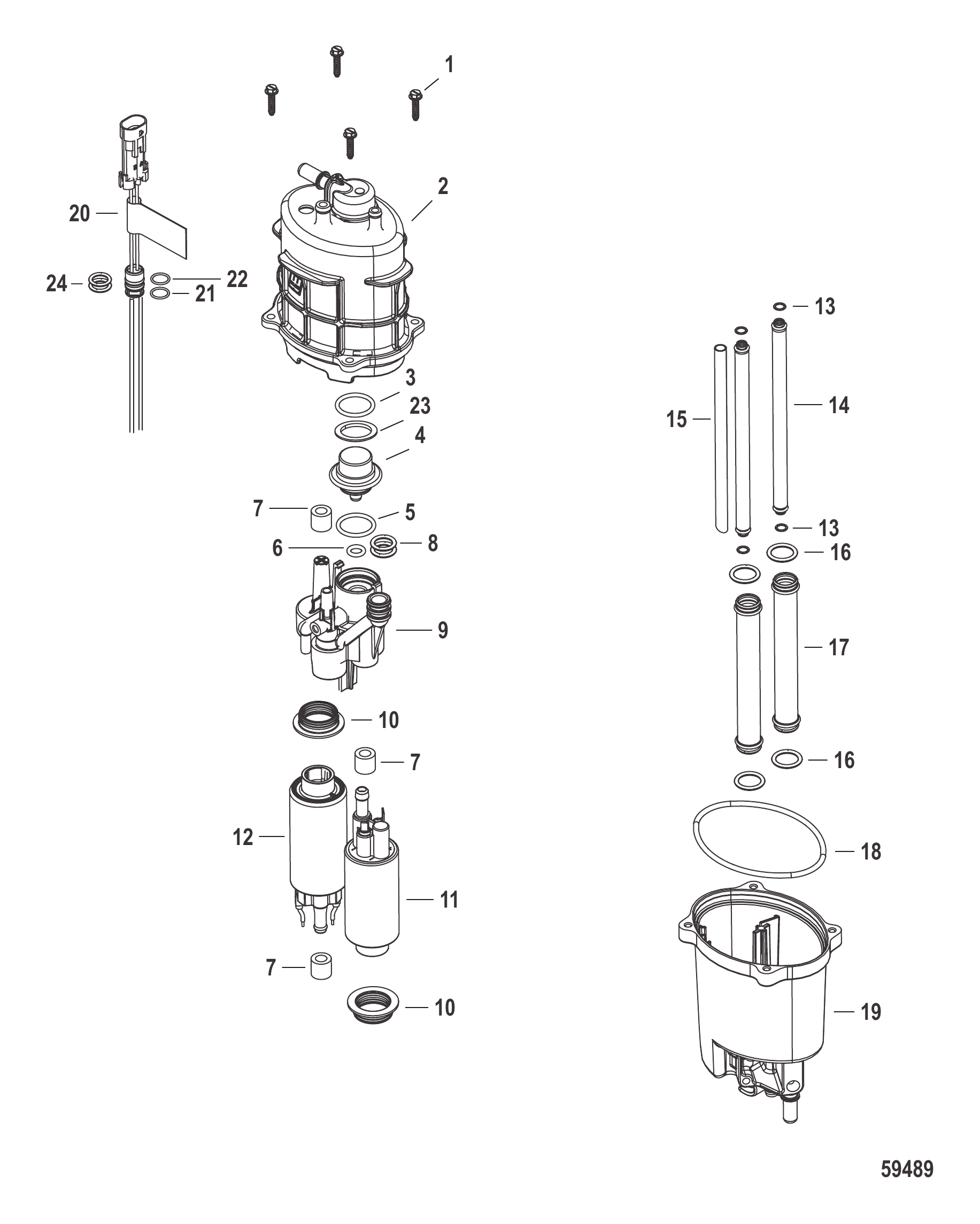

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0102455 | 燃油供应模块 | MODULE Fuel Supply | 1 |
| 1 | 8M0053756 | 螺钉 Plastite W/ HX WSR HD | SCREW Plastite W/ HX WSR HD | 4 |
| 2 | 8M0053726 | 燃油供应模块 上壳体 | FSM TOP HOUSING | 1 |
| 2 | 8M0158344 | 燃油供应模块 上壳体 | FSM TOP HOUSING | 1 |
| 3 | NSS | NOT SOLD SEPARATE O-ring | 1 | |
| 4 | 8M0053749 | 调节器总成 | REGULATOR ASSEMBLY | 1 |
| 4 | 8M0242586 | 调节器总成 | REGULATOR ASSEMBLY | 1 |
| 5 | NSS | NOT SOLD SEPARATE O-ring | 1 | |
| 6 | NSS | NOT SOLD SEPARATE O-ring | 1 | |
| 7 | NSS | 不单独销售 | NOT SOLD SEPARATE | 3 |
| 8 | NSS | 不单独销售 | NOT SOLD SEPARATE | 2 |
| 9 | 8M0053727 | 燃油供应模块 盖 | FSM CAP | 1 |
| 10 | NSS | 不单独销售 | NOT SOLD SEPARATE | 2 |
| 11 | 8M0103289 | 泵总成 低压 | PUMP ASSEMBLY Low Pressure | 1 |
| 12 | 8M0103288 | 泵总成 高压 | PUMP ASSEMBLY High Pressure | 1 |
| 13 | NSS | NOT SOLD SEPARATE O-ring | 4 | |
| 14 | 8M0053735 | 管 | TUBE | 2 |
| 14 | 8M0119250 | 管 | TUBE | 2 |
| 15 | 8M0053755 | 管 | TUBE | 1 |
| 16 | NSS | NOT SOLD SEPARATE O-ring | 4 | |
| 17 | 8M0053734 | 管 | TUBE | 2 |
| 17 | 8M0120073 | 管 | TUBE | 2 |
| 18 | NSS | 不单独销售 密封件 | NOT SOLD SEPARATE Seal | 1 |
| 19 | 8M0053725 | 燃油供应模块 下壳体 | FSM BOTTOM HOUSING | 1 |
| 19 | 8M0132733 | 燃油供应模块 双泵 | FUEL SUPPLY MODULE Dual Pump | 1 |
| 20 | 8M0103287 | FSM线束总成 | HARNESS ASSEMBLY FSM | 1 |
| 21 | NSS | NOT SOLD SEPARATE O-ring | 1 | |
| 22 | NSS | NOT SOLD SEPARATE O-ring | 1 | |
| 23 | NSS | NOT SOLD SEPARATE Spacer | 1 | |
| 24 | 8M0086888 | FSM线束护圈 | GROMMET FSM Harness | 1 |
| - | 8M0057679 | 燃油供应模块 密封件套装 | FSM SEAL KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0132732 | 燃油供给模块 | FUEL SUPPLY MODULE | 1 |
| 1 | 8M0053726 | 燃油供应模块 上壳体 | FSM TOP HOUSING | 1 |
| 1 | 8M0158344 | 燃油供应模块 上壳体 | FSM TOP HOUSING | 1 |
| 2 | 8M0053756 | 螺钉 Plastite W/ HX WSR HD | SCREW Plastite W/ HX WSR HD | 4 |
| 3 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 2 |
| 4 | NSS | NOT SOLD SEPARATE Spacer | 1 | |
| 5 | 8M0053749 | 调节器总成 | REGULATOR ASSEMBLY | 1 |
| 5 | 8M0242586 | 调节器总成 | REGULATOR ASSEMBLY | 1 |
| 6 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 1 |
| 7 | NSS | 不单独销售 密封件 | NOT SOLD SEPARATE Seal | 3 |
| 8 | 8M0130877 | 燃油供应模块 盖 | FSM CAP | 1 |
| 8 | 8M0158425 | 燃油供应模块 盖 | FSM CAP | 1 |
| 9 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 2 |
| 10 | 8M0053755 | 油管 吸油 | TUBE Suction | 1 |
| 11 | NSS | 不单独销售 密封件 | NOT SOLD SEPARATE Seal | 2 |
| 12 | 8M0103288 | 泵总成 高压 | PUMP ASSEMBLY High Pressure | 1 |
| 13 | 8M0103289 | 泵总成 低压 | PUMP ASSEMBLY Low Pressure | 1 |
| 14 | NSS | 不单独销售 密封件 | NOT SOLD SEPARATE Seal | 4 |
| 15 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 4 |
| 16 | 8M0120073 | 水管 | TUBE Water | 2 |
| 17 | 8M0130873 | 油管 燃油 | TUBE Fuel | 2 |
| 18 | NSS | 不单独销售 密封件 | NOT SOLD SEPARATE Seal | 1 |
| 19 | 8M0130878 | 燃油供应模块 下壳体 | FSM BOTTOM HOUSING | 1 |
| 19 | 8M0158426 | 燃油供应模块 下壳体 | FSM BOTTOM HOUSING | 1 |
| 20 | 895319 | 护孔环 | GROMMET | 1 |
| 21 | 856954 | 衬套 | BUSHING | 1 |
| 22 | 8M0086888 | FSM线束护圈 | GROMMET FSM Harness | 1 |
| 23 | 8M0103287 | FSM线束总成 | HARNESS ASSEMBLY FSM | 1 |
| 24 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 1 |
| 25 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 1 |
| - | 8M0133370 | 燃油供应模块 密封件套装 | FSM SEAL KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 880686T13 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236255 | GC L6 4S L | GC L6 4S L | 1 |
| - | 880686T14 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236256 | GC L6 4S XL | GC L6 4S XL | 1 |
| - | 880686T16 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236259 | GC L6 4S XXL | GC L6 4S XXL | 1 |
| - | 880686T15 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236258 | GC L6 4S CXL | GC L6 4S CXL | 1 |
| - | 880686T17 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236260 | GC L6 4S CXXL | GC L6 4S CXXL | 1 |
| - | 880686T54 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236264 | GC L6 1.75 L | GC L6 1.75 L | 1 |
| - | 880686T55 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236265 | GC L6 1.75 XL | GC L6 1.75 XL | 1 |
| - | 880686T56 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236266 | GC L6 1.75 XXL | GC L6 1.75 XXL | 1 |
| - | 880686T57 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236267 | GC L6 1.75 CXL | GC L6 1.75 CXL | 1 |
| - | 880686T58 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236269 | GC L6 1.75 CXL | GC L6 1.75 CXL | 1 |
| - | 880686T59 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236270 | GC L6 1.75 CXXL | GC L6 1.75 CXXL | 1 |

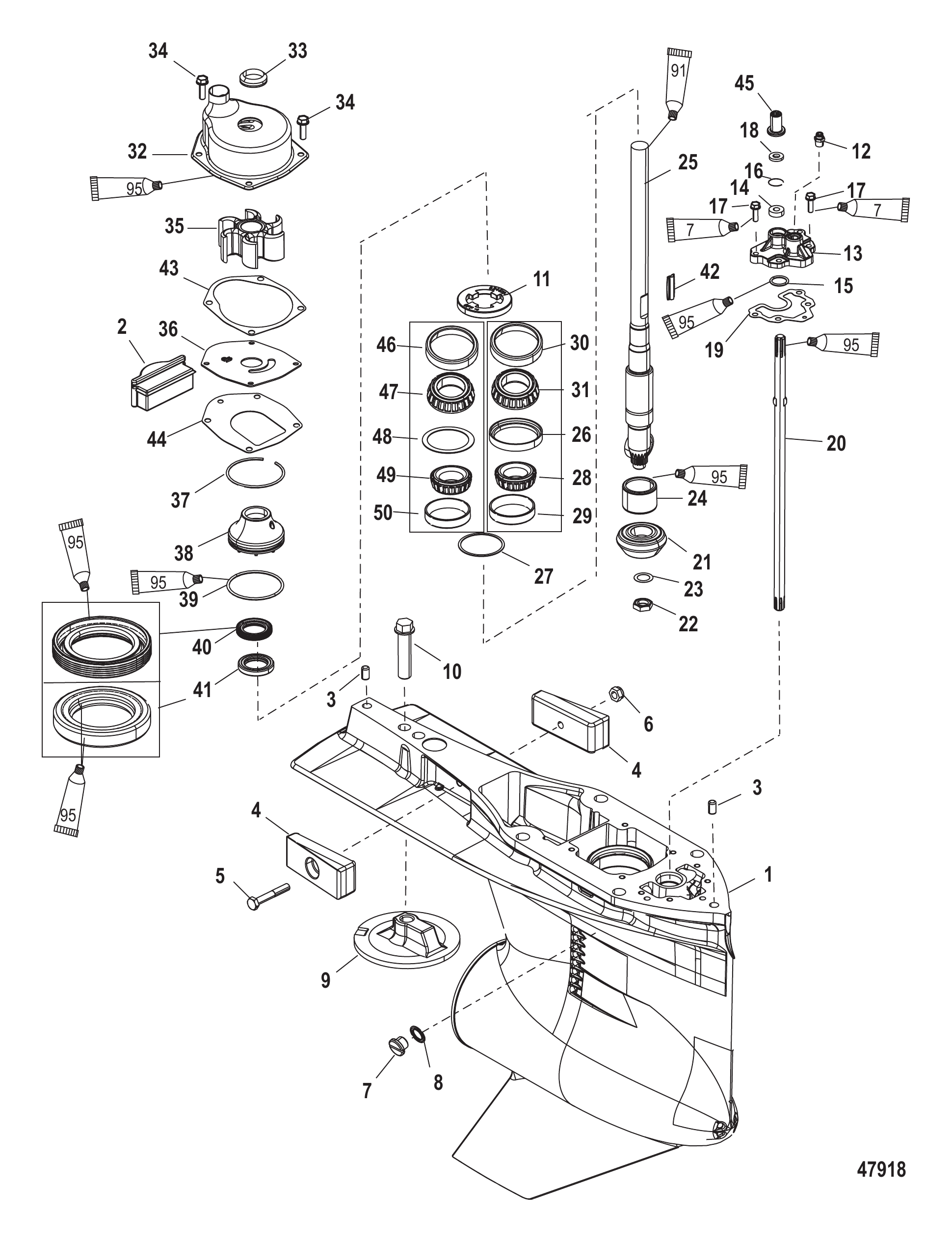

| 1 | 880687T01 | GEAR HOUSING ASSEMBLY Basic Used with 5/16 Inch Shift Crank | 1 | |
| 1 | 8M0056631 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 1 | 8M0046215 | 曲柄 换挡1/4枢轴销 配1/4英寸换挡曲柄 | CRANK, Shifter 1/4 Pivot Pin Used with 1/4 Inch Shift Crank | 1 |
| 1 | 8M0220880 | 曲柄，换挡器1/4枢轴销 | CRANK, Shifter 1/4 Pivot Pin | 1 |
| 2 | 821526001 | 填充块 | FILLER BLOCK | 1 |
| 2 | 8M0010459 | 填充块 | FILLER BLOCK | 1 |
| 3 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 2 |
| 4 | 826134Q | 阳极块 | ANODE | 2 |
| 5 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 1 |
| 6 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 7 | 79953A04 | 塞组件(.375-16×.250) | PLUG ASSEMBLY (.375-16 x .250) | 1 |
| 8 | 830749 | 密封件 | SEAL | 1 |
| 8 | 8M0204693 | 放油螺塞密封件 | SEAL Drain Plug | 1 |
| 9 | 76214T5 | 阳极套件 | ANODE KIT | 1 |
| 9 | 76214Q5 | 阳极套件 | ANODE KIT | 1 |
| 10 | 806327 | 螺钉(.437-14 x 1.750) | SCREW (.437-14 x 1.750) | 1 |
| 10 | 8M0204686 | 螺钉 | SCREW | 1 |
| 11 | 8245191 | 固定座 | RETAINER | 1 |
| 12 | 881866 | 接头 | FITTING | 1 |
| 13 | 880703A1 | 盖总成 | COVER ASSEMBLY | 1 |
| 13 | 8M0047129 | 盖总成 | COVER ASSEMBLY | 1 |
| 13 | 8M0047129 | 盖总成 | COVER ASSEMBLY | 1 |
| 14 | 8164641 | 油封 | SEAL Oil | 1 |
| 14 | 8M0246145 | 油封 | OIL SEAL | 1 |
| 15 | 896522 | O型圈(799×.103) | O-RING (799 x .103) | 1 |
| 16 | 8M0046563 | 挡圈 | RING Retaining | 1 |
| 17 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 4 |
| 17 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 4 |
| 18 | 77674 | 垫圈(.35 x .75 x .12) | WASHER (.35 x .75 x .12) | 1 |
| 19 | 880729 | 衬垫 | GASKET | 1 |
| 20 | 824145 | 换档轴 | SHIFT SHAFT | 1 |
| 21 | NSS | 不单独销售 小齿轮13齿 | NOT SOLD SEPARATE Pinion Gear 13 Teeth | 1 |
| 22 | 35921 | 螺母(0.625-18) | NUT (.625-18) | 1 |
| 23 | 92721 | 垫圈(.965×0.630) | WASHER (.965 x .630) | 1 |
| 24 | 42647A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 25 | 888572 | 驱动轴 | DRIVESHAFT | 1 |
| 25 | 888573 | 驱动轴 | DRIVESHAFT | 1 |
| 25 | 888574 | 驱动轴 | DRIVESHAFT | 1 |
| 26 | 884327A02 | 垫片/轴承组件 | SHIM/BEARING ASSEMBLY | 1 |
| 27 | 38657A1 | 垫片组 | SHIM ASSEMBLY | AR |
| 27 | 8M0063268 | 垫片组 | SHIM SET | AR |
| 28 | NSS | 不单独销售 滚子轴承组件 | NOT SOLD SEPARATE Roller Bearing Assembly | 1 |
| 29 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 30 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 31 | NSS | 不单独销售 滚子轴承组件 | NOT SOLD SEPARATE Roller Bearing Assembly | 1 |
| 32 | 817275A09 | 水泵壳体-总成 | HOUSING Water Pump-Complete | 1 |
| 33 | 861415A1 | 密封套件 | SEAL KIT | 1 |
| 34 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 4 |
| 34 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 4 |
| 35 | 43026T2 | 叶轮 | IMPELLER | 1 |
| 36 | 8172761 | 面板 | FACEPLATE | 1 |
| 36 | 8M0204709 | 面板 | FACEPLATE | 1 |
| 37 | 880719 | 挡圈 | RING Retaining | 1 |
| 38 | 8M0007131 | 油封座组件 | CARRIER ASSEMBLY Oil Seal | 1 |
| 39 | 896523 | O型圈(2.175 x 0.103) | O-RING (2.175 x .103) | 1 |
| 39 | 8M0142854 | O型圈(2.175 x 0.103) | O-RING (2.175 x .103) | 1 |
| 40 | NSS | 不单独销售 油封 | NOT SOLD SEPARATE Oil Seal | 1 |
| 41 | NSS | 不单独销售 油封 | NOT SOLD SEPARATE Oil Seal | 1 |
| 42 | 8M0032833 | 键 | KEY | 1 |
| 42 | 8M0204723 | 键 | KEY | 1 |
| 43 | 8172771 | 水泵上垫片 | GASKET Water Pump, Upper | 1 |
| 44 | 430331 | 衬垫 | GASKET | 1 |
| 45 | 43585 | 联轴器 | COUPLING | 1 |
| 46 | 36387A1 | 轴承总成(滚子/外圈) | BEARING ASSEMBLY Roller/Cup | 1 |
| 46 | 8M0146566 | 杯/锥轴承总成 | BEARING ASSEMBLY Cup/Cone | 1 |
| 47 | NSS | 不单独销售 滚柱轴承 | NOT SOLD SEPARATE Roller Bearing | 1 |
| 48 | 8M0053110 | 垫片组 | SHIM SET | 1 |
| 48 | 8M0063267 | 垫片组 | SHIM SET | 1 |
| 49 | 48939A2 | 圆锥滚子轴承 | BEARING Taper Roller | 1 |
| 49 | 8M0146553 | 杯/锥轴承总成 | BEARING ASSEMBLY Cup/Cone | 1 |
| 50 | NSS | NOT SOLD SEPARATE CUP | 1 | |
| - | 830749A01 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| - | 43026Q06 | 水泵叶轮维修套件 | REPAIR KIT Water Pump Impeller | 1 |
| - | 8M0100526 | 水泵叶轮维修套件 | REPAIR KIT Water Impeller | 1 |
| - | 817275A08 | 水泵上修包 | REPAIR KIT Water Pump-Upper | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 880686T13 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236255 | GC L6 4S L | GC L6 4S L | 1 |
| - | 880686T14 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236256 | GC L6 4S XL | GC L6 4S XL | 1 |
| - | 880686T16 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236259 | GC L6 4S XXL | GC L6 4S XXL | 1 |
| - | 880686T54 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236264 | GC L6 1.75 L | GC L6 1.75 L | 1 |
| - | 880686T55 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236265 | GC L6 1.75 XL | GC L6 1.75 XL | 1 |
| - | 880686T56 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236266 | GC L6 1.75 XXL | GC L6 1.75 XXL | 1 |

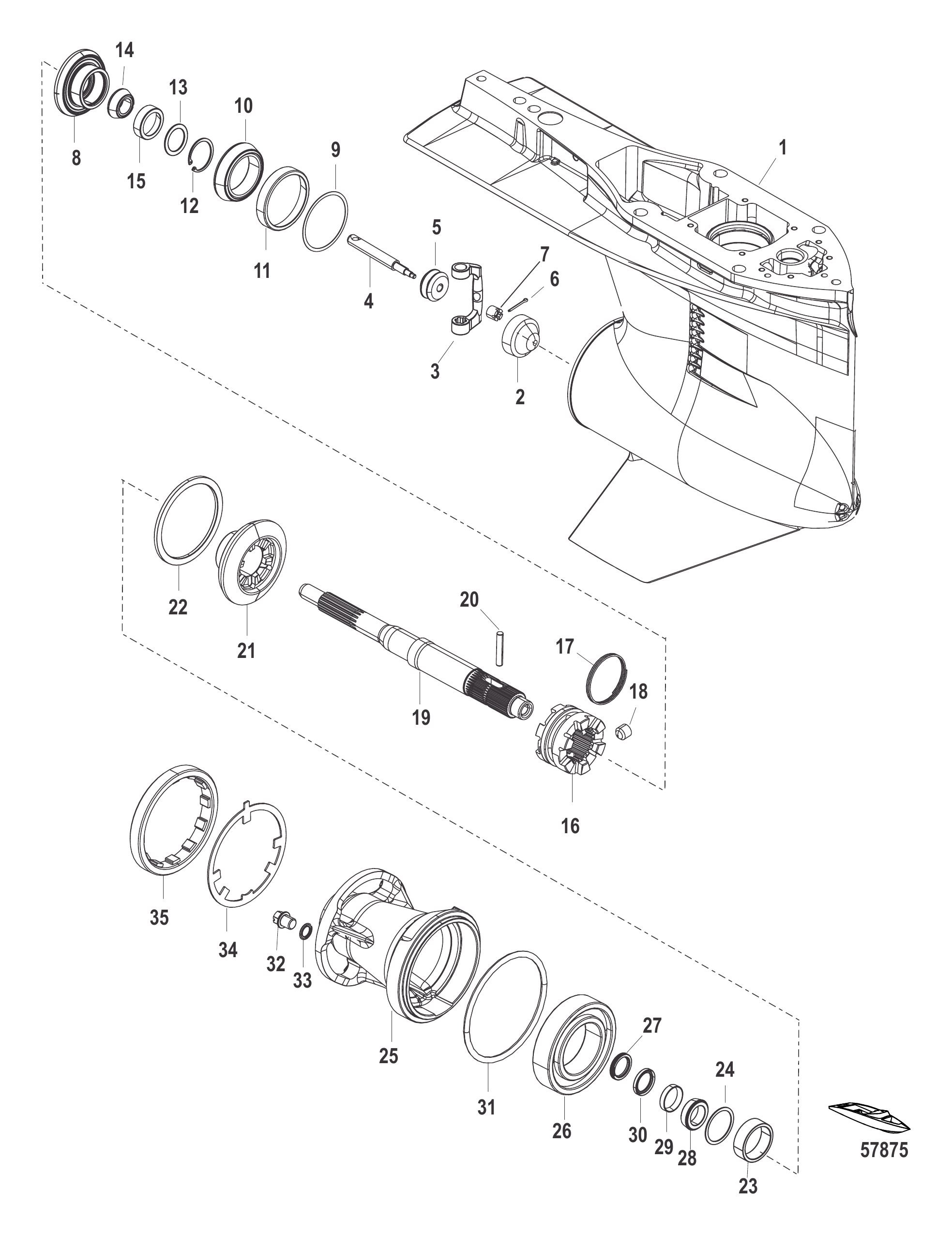

| 1 | 8M0056631 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 2 | NSS | 不单独销售 塞 | NOT SOLD SEPARATE Plug | 1 |
| 3 | 8M0046215 | 曲柄，换挡器1/4枢轴销 | CRANK, Shifter 1/4 Pivot Pin | 1 |
| 3 | 8M0220880 | 曲柄，换挡器1/4枢轴销 | CRANK, Shifter 1/4 Pivot Pin | 1 |
| 4 | 19755T7 | 阀芯总成 | SPOOL ASSEMBLY | 1 |
| 4 | 8M0235940 | 阀芯总成 | SPOOL ASSY | 1 |
| 5 | NSS | 不单独销售线轴 | NOT SOLD SEPARATE Spool | 1 |
| 6 | 469501 | 开口销 | COTTER PIN | 1 |
| 7 | NSS | 不单独销售 调节套筒 | NOT SOLD SEPARATE Sleeve Adjusting | 1 |
| 8 | 892595A05 | 前进/小齿轮组 | GEAR SET Forward/Pinion | 1 |
| 8 | 892595A04 | 前进/小齿轮组 | GEAR SET Forward/Pinion | 1 |
| 9 | 8M0063270 | 垫片组 | SHIM SET | AR |
| 10 | 884323T01 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 10 | 8M0142836 | 圆锥滚子轴承(外圈/内圈) | BEARING Roller Taper (Cup/Cone) | 1 |
| 11 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 12 | 8M0051043 | 挡圈 | RING Retaining | 1 |
| 13 | 8M0053823 | 止推垫圈(内径1.50×外径2.046) | WASHER Thrust, (1.50 ID x 2.046 OD) | 1 |
| 14 | 884325T01 | 圆锥滚子轴承组件 | BEARING ASSEMBLY Roller-Tappered | 1 |
| 14 | 8M0142835 | 圆锥滚子轴承(外圈/内圈) | BEARING Roller Taper (Cup/Cone) | 1 |
| 15 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 16 | 880714T | 离合器 | CLUTCH | 1 |
| 17 | 30893 | 弹簧 | SPRING | 1 |
| 18 | 828356 | 定位销 | PIN Detent | 1 |
| 19 | 8M0069774 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 19 | 8M0140446 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 20 | 8M0084681 | 十字销 | PIN Cross | 1 |
| 20 | 8M0100263 | 十字销 | PIN Cross | 1 |
| 21 | 880695A01 | 倒车齿轮总成 | GEAR ASSEMBLY Reverse | 1 |
| 21 | 8M0142891 | 倒挡齿轮24齿 | GEAR Reverse, 24T | 1 |
| 21 | 880707A01 | 倒挡齿轮 | GEAR Reverse | 1 |
| 21 | 8M0118363 | 倒车齿轮 21齿 | GEAR Reverse, 21T | 1 |
| 22 | 880699 | 推力环 | THRUST RING | 1 |
| 23 | 8M0064306 | 止推隔套 | SPACER Thrust | 1 |
| 24 | 8M0076745 | 垫片组 | SHIM SET | 1 |
| 24 | 8M0050423 | 垫片 .020 | WASHER .020 | AR |
| 24 | 8M0050424 | 垫片 .022 | WASHER .022 | AR |
| 24 | 8M0050425 | 垫片 .024 | WASHER .024 | AR |
| 24 | 8M0050427 | 垫片 .026 | WASHER .026 | AR |
| 24 | 8M0050428 | 垫片 .028 | WASHER .028 | AR |
| 24 | 8M0050429 | 垫片 .030 | WASHER .030 | AR |
| 24 | 8M0050430 | 垫片 .032 | WASHER .032 | AR |
| 24 | 8M0050431 | 垫片 .034 | WASHER .034 | AR |
| 24 | 8M0050432 | 垫片 .036 | WASHER .036 | AR |
| 24 | 8M0050433 | 垫片 0.038 | WASHER .038 | AR |
| 24 | 8M0050434 | 垫片 0.040 | WASHER .040 | AR |
| 24 | 8M0050435 | 垫片 0.042 | WASHER .042 | AR |
| 24 | 8M0050436 | 垫片 0.044 | WASHER .044 | AR |
| 24 | 8M0050437 | 垫片 0.046 | WASHER .046 | AR |
| 24 | 8M0050438 | 垫片 0.048 | WASHER .048 | AR |
| 24 | 8M0050439 | 垫片 0.050 | WASHER .050 | AR |
| 25 | 8M0083392 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 26 | 884329T | 滚珠轴承 | BEARING Ball | 1 |
| 26 | 8M0142873 | 滚珠轴承 | BEARING Ball | 1 |
| 27 | 888483 | 油封 | SEAL Oil | 1 |
| 27 | 8M0204700 | 油封 | SEAL Oil | 1 |
| 28 | 884330T01 | 圆锥轴承组件 | BEARING ASSEMBLY Taper | 1 |
| 28 | 8M0148319 | 圆锥滚子轴承(外圈/内圈) | BEARING Roller Taper Cup/Cone | 1 |
| 29 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 30 | 888483 | 油封 | SEAL Oil | 1 |
| 30 | 8M0204700 | 油封 | SEAL Oil | 1 |
| 31 | 896524 | O型圈(3.850×.210) | O-RING (3.850 x .210) | 1 |
| 31 | 8M0142840 | O型圈(3.85×0.210) | O-RING (3.85 x 0.210) | 1 |
| 32 | 880717A01 | 螺钉/密封套件 .38英寸长 | SCREW/SEAL KIT .38 Inch Long | 1 |
| 32 | 8M0077071 | 螺钉/密封套件 .75英寸长 | SCREW/SEAL KIT .75 Inch Long | 1 |
| 33 | 830749 | 密封件 | SEAL | 1 |
| 33 | 8M0204693 | 放油螺塞密封件 | SEAL Drain Plug | 1 |
| 34 | 880697 | 键槽垫圈 | KEYED WASHER | 1 |
| 35 | 8M2011027 | 固定座 | RETAINER | 1 |
| 35 | 8M2000347 | 固定座 | RETAINER | 1 |
| - | 830749A01 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

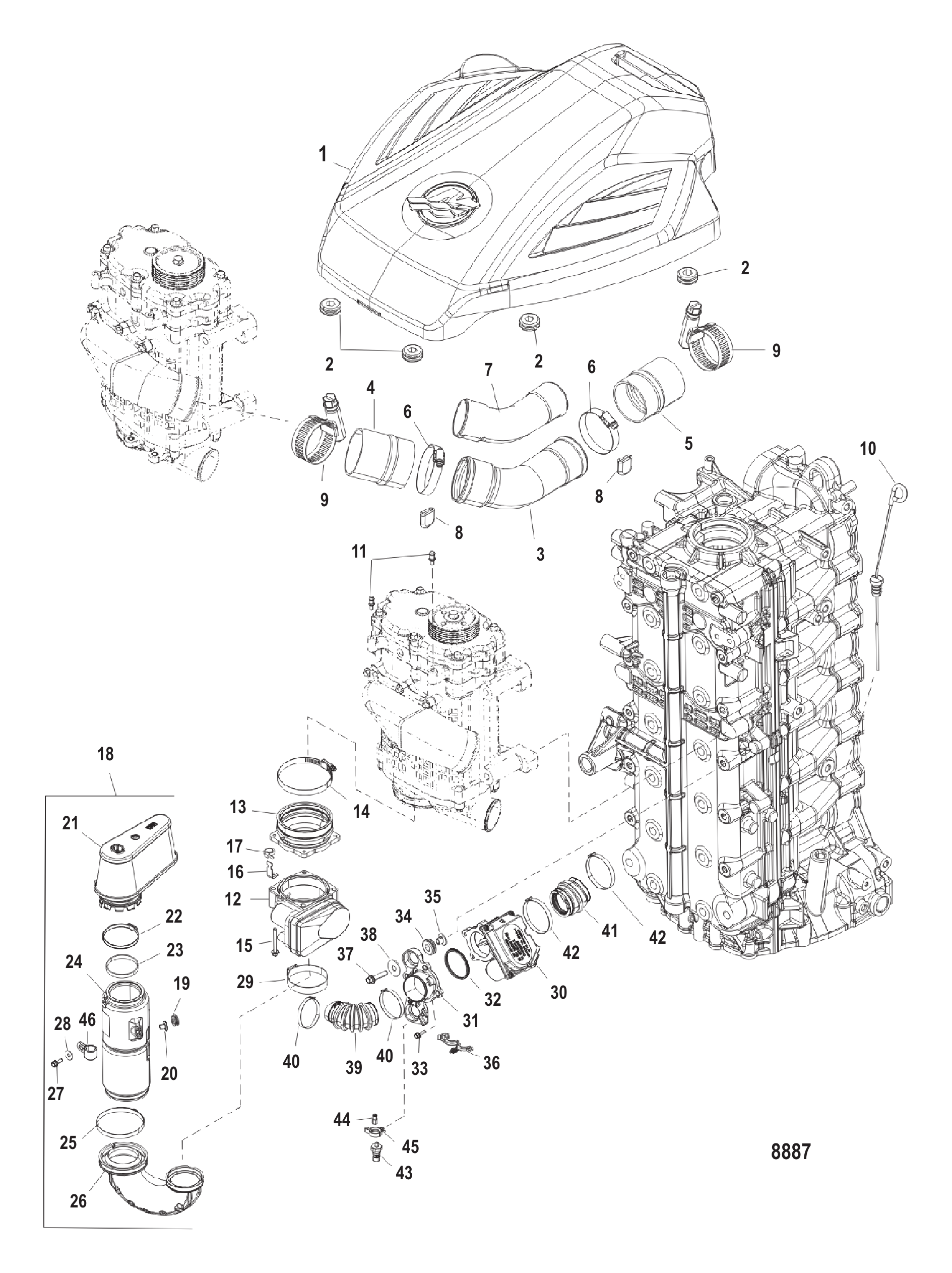

| 1 | 887936T04 | 飞轮盖 | COVER Flywheel | 1 |
| 2 | 834985 | 护孔环 | GROMMET | 4 |
| 2 | 8M0190980 | 护孔环 | GROMMET | 4 |
| 3 | 893307A01 | 出管总成 | TUBE OUTLET ASSEMBLY | 1 |
| 3 | 8M0035481 | 热风管总成 | TUBE ASSEMBLY Hot Air Duct | 1 |
| 4 | 893389 | 软管(内径65) | HOSE (65 Inside Diameter) | 1 |
| 4 | 8M0035481 | 热风管总成 | TUBE ASSEMBLY Hot Air Duct | 1 |
| 5 | 893390 | 软管(内径60) | HOSE (60 Inside Diameter) | 1 |
| 5 | 8M0035481 | 热风管总成 | TUBE ASSEMBLY Hot Air Duct | 1 |
| 6 | 893342 | 卡箍 | CLAMP | 2 |
| 7 | 893391 | 软管套管 | HOSE SLEEVE | 1 |
| 7 | 8M0035481 | 热风管总成 | TUBE ASSEMBLY Hot Air Duct | 1 |
| 8 | 8079923 | 软管夹端盖 | COVER Hose Clamp End | 2 |
| 8 | 8M0074364 | 软管夹盖 | COVER Hose Clamp | 2 |
| 9 | 893342 | 卡箍 | CLAMP | 2 |
| 10 | 898022 | 机油尺 | DIPSTICK Oil | 1 |
| 11 | 888517 | 销 | PIN | 2 |
| 12 | 888991T03 | 电子节气门控制总成 | THROTTLE CONTROL ASSEMBLY Electronic | 1 |
| 12 | 8M0113515 | 节气门控制器 | THROTTLE CONTROL | 1 |
| 13 | 880576005 | 隔离器 | ISOLATOR | 1 |
| 13 | 8M0113513 | ETC隔离器 | ISOLATOR-ETC | 1 |
| 14 | 815504256 | 蜗杆卡箍 | CLAMP Worm Gear | 1 |
| 15 | 88552550 | 不锈钢螺钉 (M6 x 50 mm) | SCREW (M6 x 50 mm) Stainless Steel | 4 |
| 16 | 884353 | 支架 | BRACKET | 2 |
| 17 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 2 |
| 18 | 892383T05 | 进气总成 | INTAKE ASSEMBLY Air | 1 |
| 18 | 892383T06 | 进气总成 | INTAKE ASSEMBLY Air | 1 |
| 19 | 8349851 | 护孔环 | GROMMET | 1 |
| 20 | 856954 | 衬套 | BUSHING | 1 |
| 21 | 893318T01 | 空气滤清器 | FILTER Air | 1 |
| 21 | 893318T02 | 空气滤清器 | FILTER Air | 1 |
| 22 | 895842 | 卡箍 | CLAMP | 1 |
| 23 | 893317 | 衬垫 | GASKET | 1 |
| 24 | 892383001 | 谐振器 | RESONATOR | 1 |
| 24 | 8M0007183 | 谐振器 | RESONATOR | 1 |
| 25 | 888988027 | 卡箍 | CLAMP | 1 |
| 26 | 893314002 | 进气管 | DUCT Inlet | 1 |
| 27 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 1 |
| 27 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 1 |
| 28 | 65567 | 不锈钢垫圈(0.265x0.750x0.048) | WASHER (.265 x .750 x .048) Stainless Steel | 1 |
| 29 | 888988016 | 卡箍（96.5毫米） | CLAMP (96.5 mm) | 1 |
| 30 | 884408A07 | 电动增压控制阀套件 | VALVE KIT Control - Electric Boost | 1 |
| 30 | 884408A08 | 电动增压控制阀套件 | VALVE KIT Control - Electric Boost | 1 |
| 31 | 887939007 | 增压阀安装板 | PLATE Boost Valve Mounting | 1 |
| 32 | 892079 | O型圈 | O-RING | 1 |
| 33 | 88552520 | 螺钉(M6 x 20毫米)不锈钢 | SCREW (M6 x 20 mm) Stainless Steel | 4 |
| 33 | 8M0103806 | 螺钉(M6 x 20毫米)不锈钢 | SCREW (M6 x 20 mm) Stainless Steel | 4 |
| 34 | 833155 | 护孔环 | GROMMET | 2 |
| 35 | 8502341 | 衬套 | BUSHING | 2 |
| 36 | 859376 | 卡扣 | CLIP | 1 |
| 37 | 88552635 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 2 |
| 37 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 2 |
| 38 | 817274 | 垫圈(0.344×1.00×0.063)不锈钢 | WASHER (.344 x 1.00 x .063) Stainless Steel | 2 |
| 39 | 887937006 | 前部软管 | HOSE Front | 1 |
| 40 | 888988002 | 卡箍(57.5毫米 前电子增压控制) | CLAMP (57.5 mm) Front Electronic Boost Control | 2 |
| 41 | 887938003 | 后管 | TUBE Rear | 1 |
| 42 | 888988004 | 卡箍(62.0毫米 后电子增压控制) | CLAMP (62.0 mm) Rear Electronic Boost Control | 2 |
| 43 | 881879A16 | 皮托管传感器总成 | SENSOR ASSEMBLY Pitot | 1 |
| 43 | 881879T25 | 皮托管传感器总成 | SENSOR ASSEMBLY Pitot | 1 |
| 44 | 892403 | 接头 | FITTING | 1 |
| 44 | 8M0207782 | 直通接头 | FITTING Straight | 1 |
| 45 | 883066 | 夹子 (.865) | CLIP (.865) | 1 |
| 46 | 8589781 | 燃油软管卡箍（适用处使用） | CLIP Fuel Hose (Use where Applicable) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0142219 | 下部罩壳总成 左舷和右舷 | LOWER COWL ASSEMBLY Port and Starboard | 1 |
| 1 | 8M0142217 | 下部罩壳总成黑色（左右舷） | LOWER COWL ASSEMBLY Black, Port and Starboard | 1 |
| 1 | 8M0245395 | 下部罩盖总成 黑色 (左舷和右舷) | LOWER COWL ASSEMBLY Black (Port and Starboard) | 1 |
| 1 | 8M0149569 | 下部罩壳总成 黑色 重型 | LOWER COWL ASSEMBLY Black, Heavy Duty | 1 |
| 1 | 8M0236687 | 护板总成 拉杆槽 | CHAP ASSEMBLY, TIE BAR NOTCH | 1 |
| 1 | 8M0236688 | 右舷转向槽护套总成 | CHAP ASSEMBLY, STARBOARD STEER NOTCH | 1 |
| 1 | 8M0236689 | 左舷转向槽护套总成 | CHAP ASSEMBLY, PORT STEER NOTCH | 1 |
| 2 | 8M0142918 | 螺钉(M5 x 12) | SCREW (M5 x 12) | 9 |
| 3 | 8M0142923 | 后挡板（左舷） | RETAINER Rear, Port | 1 |
| 3 | 8M0142930 | 后挡板（右舷） | RETAINER Rear, Starboard | 1 |
| 4 | 8M0142922 | 前挡板（左舷） | RETAINER Front, Port | 1 |
| 4 | 8M0142929 | 前挡板（右舷） | RETAINER Front, Starboard | 1 |
| 5 | 8M0142919 | 撞板总成（左舷） | STRIKER ASSEMBLY Port | 1 |
| 5 | 8M0142925 | 撞板总成（右舷） | STRIKER ASSEMBLY Starboard | 1 |
| 6 | 8M0142921 | 螺丝（M6 X 16） | SCREW (M6 X 16) | 6 |
| 7 | 8M0142928 | 缸体 | BLOCK | 1 |
| 8 | 8M0142946 | 安装板 | PLATE | 1 |
| 9 | 8M0047718 | 螺钉(M5×8mm) | SCREW (M5 X 8MM) | 2 |
| 10 | 8M0142927 | 衬套 | BUSHING | 1 |
| 11 | 8M0247126 | 护孔环 | GROMMET | 1 |
| 12 | 888958001 | 嵌入式端口塞 | PLUG Flush Port | 1 |
| 12 | 8M0215105 | 嵌入式塞 | PLUG Flush | 1 |
| 13 | 8M0047301 | 嵌入式插槽密封件 | SEAL Flush Plug Pocket | 1 |
| 13 | 8M0219168 | 嵌入式系绳插头 | TETHER Flush Plug | 1 |
| 14 | 889823001 | 嵌入式系绳插头 | TETHER Flush Plug | 1 |
| 14 | 8M0224266 | 嵌入式插槽密封件 | SEAL Flush Plug Pocket | 1 |
| 15 | 885361A01 | 接头总成 冲洗 | FITTING ASSEMBLY Flush | 1 |
| 16 | 8M0142945 | 前导板（左舷） | GUIDE Front, Port | 1 |
| 16 | 8M0142944 | 前导板（右舷） | GUIDE Front, Starboard | 1 |
| 17 | 8M0142918 | 螺钉(M5 x 12) | SCREW (M5 x 12) | 4 |
| 18 | 8M0142943 | 后导板（左舷） | GUIDE Rear, Port | 1 |
| 18 | 8M0142942 | 后导板（右舷） | GUIDE Rear, Starboard | 1 |
| 19 | 8M0032848 | 开关固定座 | RETAINER Switch | 1 |
| 20 | 8M0037225 | 圆形微调开关面板 | TRIM SWITCH Round Bezel | 1 |
| 20 | 8M0235190 | 圆形微调开关面板 | TRIM SWITCH Round Bezel | 1 |
| 21 | 8M0022324 | 螺丝(M6 x 25毫米) | SCREW (M6 x 25 mm) | 11 |
| 21 | 8M0230977 | 螺钉 (M6 x 25 MM) | SCREW (M6 x 25 MM) | 11 |
| 22 | 8M0073002 | 六角法兰螺钉(M6×20) | SCREW (M6 X 20), Hex Flg | 2 |
| 23 | 8M0142229 | 前下部罩壳总成黑色 | LOWER FRONT COWL ASSEMBLY Black | 1 |
| 23 | 8M0142228 | 前下部罩壳总成黑色 | LOWER FRONT COWL ASSEMBLY Black | 1 |
| 23 | 8M0142228 | 前下部罩壳总成黑色 | LOWER FRONT COWL ASSEMBLY Black | 1 |
| 24 | 8M0142932 | 前撞板总成 | STRIKER ASSEMBLY Front | 1 |
| 25 | 8M0142921 | 螺丝（M6 X 16） | SCREW (M6 X 16) | 3 |
| 26 | 8M0142924 | 左舷盖 | COVER Port | 1 |
| 26 | 8M0142931 | 右舷盖 | COVER Starboard | 1 |
| 27 | 892073002 | 台阶螺丝 (M6) | SHOULDER SCREW (M6) | 2 |
| 27 | 8M0230980 | 螺丝 (M6x14) 六角法兰B型 | SCREW (M6 x 14) Hex Flange B | 2 |
| 28 | 8M0142949 | 适配器 | ADAPTER | 1 |
| 29 | 8M0075735 | 六角法兰螺钉(M6×30) | SCREW (M6 X 30) Hex Flg | 3 |
| 30 | 8M0142948 | 衬套 机械版 | GROMMET Mechanical | 1 |
| 30 | 8M0142950 | 衬套 DTS版 | GROMMET DTS | 1 |
| 30 | 8M0146953 | 大孔衬套-机械式 | GROMMET Large Hole, Mechanical | 1 |
| 30 | 8M0146954 | 大孔衬套-DTS CMS | GROMMET Large Hole, DTS CMS | 1 |
| 31 | 8M0146710 | 装配门销 | PIN Rigging Door | 1 |
| 32 | 8M0154581 | 微调传感器护圈 | GROMMET Trim Sensor | 1 |
| 33 | 8M0142582 | 装配门黑色 | RIGGING DOOR Black | 1 |
| 34 | 8M0071078 | 六角法兰螺钉(M6×85) | SCREW (M6 X 85) Hex Flg | 1 |
| 34 | 8M0230974 | 六角法兰螺钉M6×85 | SCREW M6 x 85 HEX FLG | 1 |
| 35 | 8M0142933 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 1 |
| 35 | 8M0230975 | 螺丝 M6x40 六角法兰头 | SCREW M6 x 40 HEX FLG | 1 |
| 36 | 8M0142224 | 后下部罩壳总成黑色 | LOWER REAR COWL ASSEMBLY Black | 1 |
| 36 | 8M0245377 | 后下部罩壳总成黑色 | LOWER REAR COWL ASSEMBLY Black | 1 |
| 36 | 8M0142223 | 后下部罩壳总成黑色 | LOWER REAR COWL ASSEMBLY Black | 1 |
| 36 | 8M0245377 | 后下部罩壳总成黑色 | LOWER REAR COWL ASSEMBLY Black | 1 |
| 37 | 8M0142371 | 黑色阅读手册贴花 | DECAL Read Manual, Black | 1 |
| 38 | 8M0149605 | 边缘保护套 | SLEEVE Edge Protector | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 88334A2 | 防腐电极套件 | MERCATHODE KIT | 1 |
| 2 | 42600A09 | 防腐电极总成 | MERCATHODE ASSEMBLY | 1 |
| 3 | 22793 | 螺丝(#9-14x0.875) | SCREW (#9-14 x .875) | 2 |
| 4 | 30164 | 垫圈(0.192x0.375x0.0312)不锈钢 | WASHER (.192 x .375 x .0312) Stainless Steel | 2 |
| 5 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 4 |
| 6 | 72958A5 | 电极总成 | ELECTRODE ASSEMBLY | 1 |
| 7 | 21836 | O型圈(.796 x .139) | O-RING (.796 x .139) | 1 |
| 7 | 8M0204645 | O型圈(.796 x .139) | O-RING (.796 x .139) | 1 |
| 8 | 87698 | 螺丝(#10-16 x 1.250)不锈钢 | SCREW (#10-16 x 1.250) Stainless Steel | 2 |
| 9 | 72957A5 | 阳极总成 | ANODE ASSEMBLY | 1 |
| 9 | 8M0181304 | 阳极总成 | ANODE ASSY | 1 |
| 10 | 21836 | O型圈(.796 x .139) | O-RING (.796 x .139) | 1 |
| 10 | 8M0204645 | O型圈(.796 x .139) | O-RING (.796 x .139) | 1 |
| 11 | 87698 | 螺丝(#10-16 x 1.250)不锈钢 | SCREW (#10-16 x 1.250) Stainless Steel | 2 |
| 12 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 12 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 13 | 95084A10 | 电缆总成(5.00英寸)红色 | CABLE ASSEMBLY (5.00 Inches) Red | 1 |
| 13 | 8M0207788 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 14 | 95084A13 | 电缆总成(64.00英寸) | CABLE ASSEMBLY (64.00 Inches) | 1 |
| 15 | 79138A8 | 电缆总成(72.00英寸)黑色 | CABLE ASSEMBLY (72.00 Inches) Black | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 885546002 | 密封件 | SEAL | 1 |
| 2 | 884887T04 | 安装支架 | MOUNT CRADLE | 1 |
| 2 | 884887T07 | 支架安装总成 | CRADLE ASSEMBLY Mount | 1 |
| 3 | 884888003 | 密封件 | SEAL | 1 |
| 3 | 8M0060014 | 密封件 | SEAL | 1 |
| 4 | 888538T | 后安装座 | MOUNT Rear | 2 |
| 4 | 8M0103708 | 后安装座 | MOUNT Rear | 2 |
| 5 | 888535T | 前安装座 | MOUNT Front | 2 |
| 5 | 8M0103365 | 前安装座 | MOUNT Front | 2 |
| 6 | 889745030 | 螺钉（M12×30） | SCREW (M12 x 30) | 12 |
| 7 | 896531090 | 螺钉（M16×90） | SCREW (M16 x 90) | 4 |
| 7 | 8M0103832 | 螺钉 | SCREW | 4 |
| 8 | 19565002 | 护孔环 | GROMMET | 1 |
| 9 | 40011126 | 不锈钢螺丝(M6 x 13) | SCREW (M6 x 13) Stainless Steel | 1 |
| 10 | 830756109 | 软管（57英寸散装裁至35英寸） | HOSE (57.00 Inches Bulk) Cut to 35 Inches | 1 |
| 10 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 11 | 895797 | 示踪管接头 | FITTING Telltale | 1 |
| 11 | 895797001 | 接头 | FITTING | 1 |
| 12 | 895851 | 卡箍(8英寸) | CLAMP (8.00 Inches) | 2 |
| 13 | 73194 | 滚销(.125 x 1.12) | PIN Roll (.125 x 1.12) | 2 |
| 14 | 880649002 | 倾斜锁杆 | LEVER Tilt Lock | 2 |
| 15 | 47968 | 弹簧 | SPRING | 2 |
| 16 | 889540A03 | 离合器套件 | CLUTCH KIT | 1 |
| 17 | 880651002 | 倾斜锁止支架 | BRACKET Tilt Lock | 1 |
| 17 | 8M0109693 | 倾斜锁止支架 | BRACKET Tilt Lock | 1 |
| 18 | 889539001 | 倾斜锁止垫 | PAD Tilt Lock | 1 |
| 18 | 8M0076907 | 倾斜锁止垫 | PAD Tilt Lock | 1 |
| 19 | 880650003 | 倾斜锁定轴 | SHAFT Tilt Lock | 1 |
| 20 | 889546 | 螺钉 (M5 x 10) | SCREW (M5 x 10) | 1 |
| 21 | 8806641 | 轴承（0.625英寸） | BEARING (.625 Inch) | 2 |
| 22 | 888590002 | 升降位置传感器 | SENSOR Trim Position | 1 |
| 23 | 889547 | 螺丝(M5 x 30) | SCREW (M5 x 30) | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 892126A01 | 适配板套件 | ADAPTER PLATE KIT | 1 |
| 2 | 892228 | 定位销 | PIN Dowel | 8 |
| 3 | 896951 | 堵头（24毫米） | PLUG (24 mm) | 1 |
| 4 | 884462 | 水封 | SEAL Water | 2 |
| 5 | 887930 | O型圈 | O-RING | 2 |
| 6 | 884461 | 油封 | SEAL Oil | 1 |
| 6 | 8M0033928 | 油封 | SEAL Oil | 1 |
| 7 | 884422A07 | 油泵泄压阀 | PRESSURE RELIEF VALVE Oil Pump | 1 |
| 8 | 884457 | 油泵驱动链条 | CHAIN Oil Pump Drive | 1 |
| 8 | 8M6002692 | 油泵驱动链条 | CHAIN Oil Pump Drive | 1 |
| 9 | 892491 | 垫圈 | WASHER | 1 |
| 10 | 892165 | 螺母 | NUT | 1 |
| 11 | 884458T06 | 油泵驱动轴 | DRIVESHAFT Oil Pump | 1 |
| 11 | 8M0217265 | 机油泵 | OIL PUMP | 1 |
| 12 | 895791 | O型圈 | O-RING | 2 |
| 12 | 8M0034912 | O型圈 3.78×21.32 | O-RING 3.78 X 21.32 | 2 |
| 13 | 884456 | 从动链轮 | SPROCKET Driven | 1 |
| 14 | 884418A1 | 油泵驱动张紧器总成 | TENSIONER ASSEMBLY Oil Pump Drive | 1 |
| 15 | 884446T04 | 油泵总成 | PUMP ASSEMBLY Oil | 1 |
| 16 | 892455065 | 螺钉 | SCREW | 5 |
| 17 | 892335001 | 导油板 | DEFLECTOR Oil | 1 |
| 18 | 88552516 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 2 |
| 18 | 8M0103805 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 2 |
| 19 | 888819002 | 排水罩 | DRAIN Cowl | 2 |
| 20 | 888163 | 护孔环 | GROMMET | 1 |
| 21 | 884477A01 | 止回阀总成 | CHECK VALVE ASSEMBLY | 1 |
| 21 | 8M0062064 | 止回阀总成 | CHECK VALVE ASSY. | 1 |
| 22 | 885516004 | 泄放接头 | FITTING Dump | 1 |
| 22 | 8M0092321 | EDP黑色接头 | FITTING EDP Black | 1 |
| 23 | 846594 | O型圈 (1.239 x .070) 黑色 | O-RING (1.239 x .070) Black | 1 |
| 23 | 8M0092943 | O型圈 橙色 | O-RING Orange | 1 |
| 24 | 88552512 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 mm) Stainless Steel | 1 |
| 24 | 8M0103804 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 MM) Stainless Steel | 1 |
| 25 | 884549 | 下部通风软管 | HOSE Vent-Lower | 1 |
| 25 | 8M0087108 | 软管 | HOSE | 1 |
| 26 | 884546 | 护孔环 | GROMMET | 1 |
| 27 | 888523001 | 卡扣 | CLIP | 1 |
| 28 | 892240 | 燃油进油管至燃油供应模块 | HOSE Fuel into Fuel Supply Module | 1 |
| 28 | 8M0087118 | 软管 | HOSE | 1 |
| 29 | 884546 | 护孔环 | GROMMET | 1 |
| 30 | 889617001 | 衬垫 | GASKET | 1 |
| 31 | 8877551 | 燃油通风软管 | HOSE Fuel-Vent | 1 |
| 31 | 8M0225335 | 燃油通风软管 | HOSE FUEL VENT | 1 |
| 32 | 884545T01 | 通风罐总成 | VENT CANISTER ASSEMBLY | 1 |
| 32 | 8M0175814 | 通气罐总成 | CANISTER-VENT ASY | 1 |
| 33 | 853947 | 卡扣 | CLIP | 1 |
| 34 | 895775A01 | 燃油管路净化阀总成 | VALVE ASSEMBLY Fuel Line Purge | 1 |
| 34 | 8M0126303 | 净化通气总成 | PURGE VENT ASSY | 1 |
| 35 | 884546 | 护孔环 | GROMMET | 1 |
| - | 880552A06 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 880552A07 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 895247A06 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 895247R06 | RM L6 GEN1 VERADO | RM L6 GEN1 VERADO | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 880668001 | 双头螺柱（M10×1.5） | STUD (M10 x 1.5) | 10 |
| 2 | 888997001 | 螺柱 | STUD | 1 |
| 2 | 8M0022162 | 双头螺栓(M10×60) | STUD (M10 x 60) | 1 |
| 3 | 878187 | 爆震传感器总成 | SENSOR ASSEMBLY Knock | 2 |
| 3 | 8M6003194 | 爆震传感器总成 | SENSOR ASSEMBLY Knock | 2 |
| 4 | 892086035 | 螺钉(M10 x 35) | SCREW (M10 x 35) | 2 |
| 5 | 4002319 | 垫圈 | WASHER | 2 |
| 6 | 884268A1 | 机油喷嘴总成 | JET ASSEMBLY Oil | 6 |
| 7 | 888988008 | 卡箍(34.6毫米) | CLAMP (34.6 MM) | 2 |
| 7 | 8M0187145 | 卡箍 | CLAMP | 2 |
| 8 | 885544002 | 软管 | HOSE | 1 |
| 9 | 896094A01 | 接头总成 | FITTING ASSEMBLY | 1 |
| 10 | 888814 | O型圈(0.351 x 0.072) | O-RING (.351 x .072) | 1 |
| 10 | 896699 | O型圈（1.78毫米 x 0.08毫米） | O-RING (1.78 mm x .08 mm) | 1 |
| 11 | 85978571 | 水管(52.00英寸散装)至水压传感器-裁切至29英寸 | TUBING (52.00 Inches Bulk) To Water Pressure Sensor - Cut to 29 Inches | 1 |
| 12 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 13 | 881879A20 | 水压传感器总成 | SENSOR ASSEMBLY Pressure Water Pressure | 1 |
| 13 | 881879T26 | 传感器 压力 | SENSOR Pressure | 1 |
| 14 | 888849001 | 双头螺栓(M8x49) | STUD (M8 x 49) | 2 |
| 14 | 8M0000274 | 双头螺栓(M8x44) | STUD (M8 x 44) | 2 |
| 15 | 826365 | 螺母 (M8) | NUT (M8) | 2 |
| 16 | 885517A05 | 接头总成 | FITTING ASSEMBLY | 1 |
| 17 | 892077 | O型圈 | O-RING | 1 |
| - | 880552A06 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 880552A07 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 895247A06 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 895247R06 | RM L6 GEN1 VERADO | RM L6 GEN1 VERADO | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 880552A06 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 62701 | 接头总成O型圈 | O-RING Fitting Assembly | 2 |
| - | 90196 | O型圈(.921 x .139)油塞总成 | O-RING (.921 x .139) Oil Plug Assembly | 1 |
| - | 8M0204673 | O型圈 .921 x .139 | O-Ring .921 x .139 | 1 |
| - | 846594 | O型圈 (1.239 x .070) 黑色适配板排放接头 | O-RING (1.239 x .070) Black Adaptor Plate Dump Fitting | 1 |
| - | 8M0092943 | O型圈 橙色 | O-RING Orange | 1 |
| - | 846594 | O型圈 (1.239 x .070) 黑色机油吸油管 | O-RING (1.239 x .070) Black Oil Pickup | 1 |
| - | 8M0092943 | O型圈 橙色 | O-RING Orange | 1 |
| - | 8805251 | 油封(主轴承顶部) | SEAL Top Main Bearing | 1 |
| - | 8M0032912 | 密封件 | SEAL | 1 |
| - | 895374006 | 衬垫 气缸盖至缸体 | GASKET Head Cylinder Head to Block | 1 |
| - | 8M0033476 | 衬垫 缸盖 | GASKET Head | 1 |
| - | 880624003 | 衬垫 缸体至适配器 | GASKET Block to Adaptor | 1 |
| - | 880629 | 排气管密封件 | SEAL Exhaust Tube | 1 |
| - | 880631001 | O型圈 橙色张紧器盖 | O-RING Orange Tensioner Cap | 1 |
| - | 8M0237361 | O型圈 | O-RING | 1 |
| - | 884409 | O型圈 缸体机油定位销 | O-RING Block Oil Dowel | 1 |
| - | 884423 | O型圈 缸体机油定位销 | O-RING Block Oil Dowel | 1 |
| - | 884461 | 油封 适配板 | SEAL Oil Adaptor Plate | 1 |
| - | 8M0033928 | 油封 | SEAL Oil | 1 |
| - | 884462 | 水封 适配板 | SEAL Water Adaptor Plate-Water | 2 |
| - | 887930 | O型圈 适配板 | O-RING Adaptor Plate | 2 |
| - | 888593 | 油封 排油管塞 | SEAL Oil Drain Tube Plug | 1 |
| - | 8M0188614 | 放油螺塞密封件 | SEAL Drain Plug | 1 |
| - | 889617001 | 适配板垫片 | GASKET Adaptor Plate | 1 |
| - | 889618001 | 衬垫 油底壳 | GASKET Oil Sump | 1 |
| - | 892077 | O型圈 缸体接头总成 | O-RING Block Fitting Assembly | |
| - | 892117 | 密封件 歧管壳体 | SEAL Manifold Housing | 1 |
| - | 892445 | O型圈 水管 | O-RING Water Tube | 1 |
| - | 892446 | O型圈 (14 X 1.78 MM) 适配板接头 | O-RING (14 X 1.78 MM) Adaptor Plate Fitting | 1 |
| - | 895791 | O型圈 机油泵驱动轴 | O-RING Oil Pump Driveshaft | 2 |
| - | 8M0034912 | O型圈 3.78×21.32 | O-RING 3.78 X 21.32 | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 896156A01 | 配平油缸套件 | TRIM CYLINDER KIT | 1 |
| 2 | 896157A01 | 升降杆套件 | TRIM ROD KIT | 1 |
| 2 | 8M0118299 | 升降杆套件 | TRIM ROD KIT | 1 |
| 3 | 896158A01 | O型圈套件 | O-RING KIT | 1 |
| 4 | 896159A01 | 活塞套件 | PISTON KIT | 1 |
| 5 | 896166A01 | 配平歧管套件 | MANIFOLD KIT Trim | 1 |
| 6 | 896165A01 | 配平止回套件PO型 | CHECK KIT Trim PO | 1 |
| 7 | 896160A01 | O型圈套件 | O-RING KIT | 1 |
| 8 | 8M0010183 | O型圈 | O-RING | 1 |
| 8 | 8M0204938 | O型圈 | O-RING | 1 |
| 9 | 896163A01 | 配平泵套件 | PUMP KIT Trim | 1 |
| 10 | 896164A01 | 配平过滤器套件 | TRIM FILTER KIT | 1 |
| 11 | 896162A01 | 配平颈套件 | TRIM NECK KIT | 1 |
| 12 | 895854A01 | O型圈套件 | O-RING KIT | 1 |
| 13 | 893419 | 盖套件 | CAP KIT | 1 |
| 14 | 893420A01 | 手动释放套件 | MANUAL RELEASE KIT | 1 |
| 14 | 8M0224397 | 手动释放套件 | MANUAL RELEASE KIT | 1 |
| 15 | 8M0224410 | O型圈套件 | ORING KIT | 1 |
| 16 | 8M0184377 | 卡环 | SNAP RING | 1 |
| 17 | 893408A01 | 配平销套件 | PIN KIT Trim | 1 |
| 18 | 896161A01 | 配平电机套件 | TRIM MOTOR KIT | 1 |
| 18 | 896161A02 | 配平电机套件 | TRIM MOTOR KIT | 1 |
| 18 | 896161A02 | 配平电机套件 | TRIM MOTOR KIT | 1 |
| 19 | 896167A01 | 储液罐套件 | RESERVOIR KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0142800 | 支架 艉板 左舷 | BRACKET Transom, Port | 1 |
| 1 | 8M0156255 | 支架 艉板 左舷 | BRACKET Transom, Port | 1 |
| 2 | 8M0142801 | 支架 艉板 右舷 | BRACKET Transom, Starboard | 1 |
| 2 | 8M0156256 | 支架 艉板 右舷 | BRACKET Transom, Starboard | 1 |
| 3 | 858771 | 螺钉 (M10 x 30) | SCREW (M10 x 30) | 6 |
| 4 | 4002319 | 垫圈 | WASHER | 6 |
| 5 | 98727 | 润滑脂接头 | FITTING Grease | 1 |
| 5 | 8M0169588 | 润滑脂接头 | FITTING Grease | 1 |
| 6 | 99633 | 旋钮 | KNOB | 1 |
| 7 | 830900 | 压缩弹簧 | SPRING Compression | 1 |
| 8 | 65830 | 尼龙衬套 | NYLINER | 2 |
| 9 | 4000330 | 螺钉(M6x25) | SCREW (M6 x 25) | 2 |
| 9 | 8M0204707 | 不锈钢六角大帽螺钉(M6x25) | SCREW M6 x 25 HX HD CAP SS | 2 |
| 10 | 8M0146189 | 倾斜管锁紧螺母 黑色 | NUT TILT TUBE LOCK Black | 1 |
| 10 | 8M0146190 | 倾斜管锁紧螺母 银色 | NUT TILT TUBE LOCK Silver | 1 |
| 11 | 8M0142811 | 螺钉 | SCREW | 1 |
| 12 | 8M0147844 | 倾斜管 | TILT TUBE | 1 |
| 13 | 8M0142810 | O型圈 (0.612 x 0.103) | O-RING (0.612 x .0103) | 1 |
| 14 | 8M0115104 | 倾斜锁定杆总成 | LEVER ASSEMBLY Tilt Lock | 1 |
| 15 | 99615 | 槽销 | PIN Groove | 1 |
| 16 | 878609 | 螺钉 (#10-16 x .600) | SCREW (#10-16 x .600) | 1 |
| 17 | 8M0084613 | C形垫圈 | C-WASHER | 1 |
| 18 | 22740 | 卡扣 | CLIP | 2 |
| 19 | 8M0142809 | 倾斜管支架 | BRACKET Tilt Tube | 1 |
| 19 | 8M0147678 | 倾斜管支架 | BRACKET Tilt Tube | 1 |
| 20 | 826164 | 螺母 (.875-14) | NUT (.875-14) | 1 |
| 20 | 8M0231351 | 锁紧螺母 | NUT Lock | 1 |
| 21 | 8M0142341 | 动力升降总成 | POWER TRIM ASSEMBLY | 1 |
| 21 | 8M0225374 | 动力升降总成 | POWER TRIM ASSEMBLY | 1 |
| 21 | 8M0164977 | 动力升降总成 | POWER TRIM ASSEMBLY | 1 |
| 21 | 8M0225374 | 动力升降总成 | POWER TRIM ASSEMBLY | 1 |
| 21 | 8M0225374 | 动力升降总成 | POWER TRIM ASSEMBLY | 1 |
| 22 | 8M0094889 | 销 | PIN | 1 |
| 22 | 8M0161312 | 连杆销眼总成 | PIN ROD EYE ASSEMBLY | 1 |
| 22 | 8M0164978 | 连杆销眼总成 | PIN ROD EYE ASSEMBLY | 1 |
| 22 | 8M0230946 | 销杆眼套件 | PIN ROD EYE KIT | 1 |
| 22 | 8M0230946 | 销杆眼套件 | PIN ROD EYE KIT | 1 |
| 23 | 8M0079640 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 24 | 8M0113176 | 螺钉 | SCREW | 1 |
| 25 | 821539 | 三叶销 | PIN Trilobe | 1 |
| 25 | 8M0050058 | 螺钉5/16-24 X .5 | SCREW 5/16-24 X .5 | 1 |
| 25 | 8M0177279 | 螺钉(5/16-24×0.5英寸) | SCREW 5/16-24 x .5 | 1 |
| 25 | 8M0232231 | 螺钉螺母套件 | SCREW NUT KIT | 1 |
| 26 | 821207 | 衬套 | BUSHING | 2 |
| 27 | 4002319 | 垫圈 | WASHER | 1 |
| 28 | 858771 | 螺钉 (M10 x 30) | SCREW (M10 x 30) | 1 |
| 29 | 818298Q1 | 阳极套件 | ANODE KIT | 1 |
| 30 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 30 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 31 | 4000330 | 螺钉(M6x25) | SCREW (M6 x 25) | 2 |
| 31 | 8M0204707 | 不锈钢六角大帽螺钉(M6x25) | SCREW M6 x 25 HX HD CAP SS | 2 |
| 32 | 88750 | 波浪垫圈 (1.62 x 1.05) | WASHER Wave (1.62 x 1.05) | 2 |
| 33 | 8M0142682 | 配平线束 | WIRE HARNESS Trim | 1 |
| 34 | 893709 | 销 | PIN | 1 |
| 35 | 830899 | 张力弹簧 | SPRING Tension | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0080199 | 动力转向泵套件(4英尺) | PUMP KIT Power Steering (4 Feet) | 1 |
| - | 8M0080200 | 动力转向泵套件(12英尺) | PUMP KIT Power Steering (12 Feet) | 1 |
| - | 8M0131262 | 动力转向泵套件(12英尺) | PUMP KIT Power Steering (12 Feet) | 1 |
| - | 8M0080201 | 动力转向泵套件(24英尺) | PUMP KIT Power Steering (24 Feet) | 1 |
| - | 8M0131263 | 动力转向泵套件(24英尺) | PUMP KIT Power Steering (24 Feet) | 1 |
| 1 | NSS | 不单独销售 泵 | NOT SOLD SEPARATE PUMP | 1 |
| 2 | 892485003 | 泵盖 | CAP Pump | 1 |
| 3 | NSS | 不单独销售 油液类型标贴 | NOT SOLD SEPARATE DECAL, Fluid Type | 1 |
| 4 | 893364A05 | 动力转向泵完整外壳总成 | ENCLOSURE ASSEMBLY Complete-Power Steering Pump | 1 |
| - | 893365A03 | 动力转向泵上/下盖总成 | COVER ASSEMBLY Top/Bottom, Power Steering Pump | 1 |
| 5 | 893365T02 | 动力转向泵上外壳总成 | ENCLOSURE ASSEMBLY Top, Power Steering Pump | 1 |
| 6 | 8M0080707 | 动力转向泵下外壳总成 | ENCLOSURE ASSEMBLY Bottom-Power Steering Pump | 1 |
| 7 | 889531 | 绑带 | STRAP | 2 |
| 8 | 817519A2 | 排水单向阀总成 | CHECK VALVE ASSEMBLY Drain | 1 |
| 9 | 893368001 | 护孔环 | GROMMET | 1 |
| 10 | 893369 | 护孔环 | GROMMET | 1 |
| 11 | 815504206 | 蜗杆卡箍 | CLAMP Worm Gear | 1 |
| 12 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 3 |
| 12 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 3 |
| 13 | 401366 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 3 |
| 14 | 895378 | 螺钉 (M6) | SCREW (M6) | 4 |
| 15 | 895319 | 护孔环 | GROMMET | 4 |
| 16 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 4 |
| 16 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 4 |
| 17 | 895320F1 | 衬套 | BUSHING | 4 |
| 18 | 79023A94 | 50安培保险丝-Maxi型 | FUSE 50 Ampere - Maxi | 1 |
| 19 | 879346T24 | 保险丝盖及O型圈 | FUSE COVER AND O-RING | 1 |
| 20 | 8M0026568 | 信号驱动器线束总成 | HARNESS ASSEMBLY Signal Driver | 1 |
| 21 | 897643A01 | 减震软管套件 | HOSE KIT Dampening | 1 |
| 22 | 89879 | O型圈（0.301×0.064英寸） | O-RING (.301 x .064) | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 885358T02 | 后罩 | COWL Rear | 1 |
| 2 | 888961A01 | 销总成 | PIN ASSEMBLY | 2 |
| 3 | 892233 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 2 |
| 4 | 885360 | 怠速泄压阀 | IDLE RELIEF | 1 |
| 5 | 893343001 | 密封件(左舷) | SEAL Port (Port) | 1 |
| 6 | 893344001 | 密封件(右舷) | SEAL Starboard (Starboard) | 1 |
| 7 | 885356T02 | 进气口-左舷 | INTAKE Air - Port (Port) | 1 |
| 7 | 885356T03 | ORD 885357T04 | ORD 885357T04 | 1 |
| 8 | 885357T02 | 进气口-右舷 | INTAKE Air - Starboard (Starboard) | 1 |
| 8 | 885357T03 | ORD 885357T04 | ORD 885357T04 | 1 |
| 9 | 892315 | 衬垫 | GASKET | 1 |
| 10 | 897125 | 密封件 | SEAL | 2 |
| 10 | 8M0043266 | 密封件 | SEAL | 2 |
| 11 | 888957 | O型圈 | O-RING | 1 |
| 12 | 889823001 | 嵌入式系绳插头 | TETHER Flush Plug | 1 |
| 12 | 8M0224266 | 嵌入式插槽密封件 | SEAL Flush Plug Pocket | 1 |
| 13 | 896620001 | 升降倾斜开关 | SWITCH Trim | 1 |
| 13 | 8M0235191 | 升降倾斜开关 | SWITCH Trim | 1 |
| 14 | 888958001 | 左舷冲洗口堵头 | PLUG Flush Port Flush | 1 |
| 14 | 8M0215105 | 嵌入式塞 | PLUG Flush | 1 |
| 15 | 892233 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 16 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 2 |
| 16 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 2 |
| 17 | 885361A01 | 接头总成 冲洗 | FITTING ASSEMBLY Flush | 1 |
| 18 | 4006731 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 1 |
| 19 | 858951A01 | 卡箍套件 | CLAMP KIT | 1 |
| 20 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 1 |
| 20 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 1 |
| 21 | 4006731 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 1 |
| 22 | 892233 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 23 | 895316 | 适配器 | ADAPTER | 1 |
| 23 | 8M0214997 | 适配器 | ADAPTOR | 1 |
| 24 | 897169 | 护孔环 | GROMMET | 1 |
| 24 | 8M0214987 | 护孔环 | GROMMET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0142639 | 零件手册250R/300R 4.6L V8四冲程 | PARTS MANUAL 250R/300R 4.6L V8 4 Stroke | 1 |
| - | 8M0146888 | 维修手册250R/300R/300R HD 4.6L V8 | SERVICE MANUAL 250R/300R/300R HD 4.6L V8 | 1 |
| - | 8M0145934 | 安装手册V6/V8 CMS | INSTALLATION MANUAL V6/V8 CMS | 1 |
| - | 8M0156797 | 安装手册V6(175-225)/V8(200-300)CMS | INSTALLATION MANUAL V6 (175-225), V8 (200-300) CMS | 1 |
| - | 8M0140588 | 300R HD安装手册 | INSTALLATION MANUAL 300R HD | 1 |
| - | 8M0156799 | IM-300R HD CMS | IM-300R HD CMS | 1 |
| - | 8M0145541 | 操作手册V6/V8 CMS机械式 | OPERATION MANUAL V6/V8 CMS Mechanical | 1 |
| - | 8M0175491 | 操作手册 | MANUAL- OPERATION | 1 |
| - | 8M0145542 | 操作手册V6/V8 CMS DTS | OPERATION MANUAL V6/V8 CMS DTS | 1 |
| - | 8M0230588 | 操作手册150R和200R | OPERATION MANUAL 150R and 200R | 1 |
| - | 8M0140585 | 300R CMS HD机械版操作手册 | OPERATION MANUAL 300R CMS HD Mechanical | 1 |
| - | 8M0175494 | 操作手册 | MANUAL-OPERATION | 1 |
| - | 8M0140789 | 300R CMS HD DTS版操作手册 | OPERATION MANUAL 300R CMS HD DTS | 1 |
| - | 8M0175495 | 操作手册 | MANUAL-OPERATIONS | 1 |
| - | 8M0146617 | 诊断维修手册 | SERVICE MANUAL Diagnostic | 1 |
| - | 8M0182076 | 诊断手册 | DIAGNOSTIC MANUAL | 1 |
| - | NSS | 不单独销售贴纸, EPA | NOT SOLD SEPARATE DECAL, EPA | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 892404A05 | 导水板总成 | DEFLECTOR ASSEMBLY Water | 2 |
| 2 | 885518A02 | 接头总成 | FITTING ASSEMBLY | 1 |
| 3 | 62701 | O型圈 | O-RING | 2 |
| 4 | 88552516 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 1 |
| 4 | 8M0103805 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 1 |
| 5 | 888988011 | 卡箍(38.1毫米) | CLAMP (38.1 MM) | 1 |
| 6 | 888930003 | 软管 | HOSE | 1 |
| 7 | 888988008 | 卡箍(34.6毫米) | CLAMP (34.6 MM) | 1 |
| 7 | 8M0187145 | 卡箍 | CLAMP | 1 |
| 8 | 892864T04 | 节温器总成 | THERMOSTAT ASSEMBLY | 1 |
| 8 | 8M0174561 | 节温器总成 | THERMOSTAT ASSY | 1 |
| 9 | 892864500 | O型圈 | O-RING | 1 |
| 9 | 8M0005958 | O型圈 | O-RING | 1 |
| 10 | 888988001 | 卡箍(36.1毫米) | CLAMP (36.1 mm) | 1 |
| 10 | 8M0204719 | 卡箍 36.1毫米 | CLAMP 36.1 MM | 1 |
| 11 | 892865 | 节温器软管 | HOSE Thermostat | 1 |
| 12 | 888988007 | 卡箍(42.5毫米) | CLAMP (42.5 mm) | 1 |
| 13 | 892242T | 燃油滤清器总成 | FILTER ASSEMBLY Fuel | 1 |
| 13 | 8M0062950 | 滤清器总成 | FILTER ASSEMBLY | 1 |
| 14 | 884380T | 燃油滤清器 | FILTER Fuel | 1 |
| 14 | 8M0122423 | 水星燃油滤清器 | FUEL FILTER Quicksilver | 1 |
| 15 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 16 | 892356 | 连接器 | CONNECTOR | 1 |
| 17 | 863156 | 拉手片 | GRAB TAB | 1 |
| 18 | 880598 | 燃油至升压泵软管 | HOSE Fuel to Lift Pump | 1 |
| 18 | 8M0240714 | 燃油进油软管 | HOSE FUEL INLET | 1 |
| 19 | 892147001 | 支架 | BRACKET | 1 |
| 20 | 88552785 | 螺钉(M10×85) | SCREW (M10 x 85) | 3 |
| 20 | 8M0103824 | 螺钉 | SCREW | 3 |
| 21 | 885527105 | 螺钉(M10x105) | SCREW (M10 x 105) | 1 |
| 21 | 8M0103820 | 螺钉(M10x105) | SCREW (M10 x 105) | 1 |
| 22 | 880597 | 燃油入口软管 | HOSE Fuel Inlet | 1 |
| 22 | 8M0043788 | 31.5英寸软管 | HOSE 31.5 Inch | 1 |
| 23 | 880640T10 | 集成式机油模块总成 | MODULE ASSEMBLY Intergrated Oil - Complete | 1 |
| 23 | 8M0132390 | 机油冷却模块 | OIL COOLER MODULE | 1 |
| 24 | 883701K01 | 机油滤清器 | FILTER Oil | 1 |
| 24 | 877769K01 | 机油滤清器(水星品牌) | FILTER Oil (Mercury Branded) | 1 |
| 25 | 880640A05 | 集成式机油模块壳体总成 | HOUSING ASSEMBLY Intergrated Oil Module | 1 |
| 25 | 8M0046694 | 壳体总成 | HOUSING ASSEMBLY | 1 |
| 26 | 895336 | 螺钉(M6x18) | SCREW (M6 x 18) | 6 |
| 26 | 8M0041014 | 螺钉(M6x18) | SCREW (M6 x 18) | 6 |
| 27 | 880640500 | 衬垫 | GASKET | 1 |
| 27 | 8M0034568 | 衬垫 | GASKET | 1 |
| 28 | 880640A06 | 节温器/导套套件 | THERMOSTAT/GUIDE KIT | 1 |
| 29 | 880640508 | 节温器 | THERMOSTAT | 1 |
| 30 | 892801T53 | 大修套件 | OVERHAUL KIT | 1 |
| 31 | 880640500 | 衬垫 | GASKET | 1 |
| 31 | 8M0034568 | 衬垫 | GASKET | 1 |
| 32 | 880640A09 | O型圈套件 | O-RING KIT | 1 |
| 32 | 8M0071635 | O型圈套件 | O-RING KIT | 1 |
| 33 | 895032 | 绑带 | STRAP | 2 |
| 34 | 895336 | 螺钉(M6x18) | SCREW (M6 x 18) | 4 |
| 34 | 8M0041014 | 螺钉(M6x18) | SCREW (M6 x 18) | 4 |
| 35 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| 35 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| - | 880552A06 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 880552A07 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 895247A06 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 895247R06 | RM L6 GEN1 VERADO | RM L6 GEN1 VERADO | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0142679 | 起动机 | STARTER | 1 |
| 2 | 8M0070367 | 管状支架 8MM | MOUNT - TUBULAR 8MM | 6 |
| 2 | 8M0154659 | 管状支架 8MM | MOUNT TUBULAR 8 mm | 6 |
| 3 | 8M0070369 | 垫圈（内径8.3 X 外径11.8） | SPACER (8.3 I.D. X 11.8 O.D.) | 2 |
| 4 | 8M0070368 | 垫圈（内径8.3 X 外径11.8） | SPACER (8.3 I.D. X 11.8 O.D.) | 1 |
| 5 | 8M0056666 | 起动机接地带 | GROUND STRAP Starter | 1 |
| 6 | 40011126 | 不锈钢螺丝(M6 x 13) | SCREW (M6 x 13) Stainless Steel | 1 |
| 7 | 43430 | 垫圈 | WASHER | 3 |
| 8 | 8M0142896 | 螺钉(M8 x 80) | SCREW (M8 x 80) | 2 |
| 8 | 8M0188530 | 螺钉 M8 X 80 六角凸缘头 | SCREW M8 X 80 HEX FLG HD | 2 |
| 9 | 88552645 | 螺钉（M8X45） | SCREW (M8X45) | 1 |
| 10 | 8M0142680 | 热柱支架 | BRACKET HOT STUD | 1 |
| 11 | 8M0080651 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 3 |
| 12 | 40011145 | 螺钉（M8 X 10）不锈钢 | SCREW (M8 x 10) Stainless Steel | 1 |
| 13 | 8M0146003 | 螺母 M8 X 1.25 六角 | NUT M8 x 1.25 Hex | 4 |
| 14 | 400257 | 锁紧垫圈（M8） | LOCKWASHER (M8) | 2 |
| 15 | 8M0142681 | 电缆总成 起动机-正极 | CABLE ASSEMBLY Starter - Postitive | 1 |
| 16 | 88439A46 | 电缆总成 蓄电池-正极 | CABLE ASSEMBLY Battery - Positive | 1 |
| 17 | 401388 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 1 |
| 18 | 8M0146902 | 电缆总成 起动机-负极 | CABLE ASSEMBLY Starter - Negative | 1 |
| 19 | 40011148 | 螺钉(M8 x 20) | SCREW (M8 x 20) | 1 |
| 19 | 8M0214929 | 螺钉(M8 x 20) | SCREW (M8 x 20) | 1 |
| 20 | 88439A26 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 21 | 8M0142687 | 热柱盖 | COVER Hot Stud | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 892557A02 | 标准转向舵机套件(32cc) | STEERING HELM KIT Standard (32 cc) | 1 |
| - | 892380A02 | 标准转向舵机套件(40cc) | STEERING HELM KIT Standard (40 cc) | 1 |
| - | 8M0240080 | 标准舵机套件40CM | HELM KIT-STD 40CM | 1 |
| - | 892558A02 | 标准转向舵机套件(50cc) | STEERING HELM KIT Standard (50 cc) | 1 |
| - | 8M0240081 | 标准舵机套件50CM | HELM KIT-STD 50CM | 1 |
| 1 | 892557T01 | 标准舵机(32立方厘米) | HELM Standard (32 cc) | 1 |
| 1 | 8M0137438 | 标准舵机(32立方厘米) | HELM Standard (32 cm3) | 1 |
| 1 | 892380T01 | 舵机标准型(40毫升) | HELM Standard (40 cc) | 1 |
| 1 | 8M0137444 | 舵机标准型(40立方厘米) | HELM Standard (40 cm3) | 1 |
| 1 | 892558T01 | 舵机标准型(50毫升) | HELM Standard (50 cc) | 1 |
| 1 | 8M0137448 | 舵机标准型(50立方厘米) | HELM Standard (50 cm3) | 1 |
| 2 | 627021 | O型圈(.301 x .070) | O-RING (.301 x .070) | 2 |
| 3 | 8M6001491 | O型圈(.364×.070) | O-RING (.364 x .070) | 2 |
| 3 | 8M0047399 | O型圈-6 ORFS型 | O-RING -6 ORFS | 2 |
| 4 | 893394 | 带锁片键(6.35毫米) | KEY With Lock Tab (6.35 mm) | 1 |
| 5 | 4008875 | 螺钉(M6×75) | SCREW (M6 x 75) | 4 |
| 5 | 4008850 | 螺钉(M6 x 50) | SCREW (M6 x 50) | 4 |
| 6 | 826709121 | 螺母(.625-18)不锈钢 | NUT (.625-18) Stainless Steel | 1 |
| 7 | 892328T | 舵机盖 | COVER Helm | 1 |
| 8 | 896842 | 螺钉 (M6 x 14) | SCREW (M6 x 14) | 4 |
| 9 | 892327 | 舵机背板 | PLATE Helm Backing | 4 |
| 9 | 892327 | 舵机背板 | PLATE Helm Backing | 3 |
| 9 | 892327 | 舵机背板 | PLATE Helm Backing | 2 |
| 10 | 401196 | 螺母 (M6) | NUT (M6) | 4 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 898096A02 | 机械增压器套件 | SUPERCHARGER KIT | 1 |
| 2 | 885342001 | 传感器总成 | SENSOR ASSEMBLY | 1 |
| 2 | 8M0148668 | 传感器总成 | SENSOR ASSEMBLY | 1 |
| 3 | 888814 | O型圈(0.351 x 0.072) | O-RING (.351 x .072) | 1 |
| 3 | 896699 | O型圈（1.78毫米 x 0.08毫米） | O-RING (1.78 mm x .08 mm) | 1 |
| 4 | 888947A05 | 进气导管套件 | DUCT KIT Inlet | 1 |
| 5 | 888947501 | 衬垫 | GASKET | 1 |
| 6 | 888947A04 | 出口导管套件 | OUTLET DUCT KIT | 1 |
| 6 | 8M0060303 | 机械增压器套件 | SUPERCHARGER KIT | 1 |
| 7 | 888947504 | 衬垫 | GASKET | 1 |
| 8 | 888947502 | 螺栓 | BOLT | 9 |
| 9 | 847803A02 | 衬套/垫片套件 | BUSHING/GASKET KIT | 1 |
| 10 | 885527105 | 螺钉(M10x105) | SCREW (M10 x 105) | 4 |
| 10 | 8M0103820 | 螺钉(M10x105) | SCREW (M10 x 105) | 4 |
| 11 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0142969 | 换挡轴工具 | SHIFT SHAFT TOOL | 1 |
| 2 | 8M0142970 | 对正工具-预载驱动器 | ALIGNMENT TOOL Preload Driver | 1 |
| 3 | 8M0142973 | 换挡轴手柄工具 | SHIFT SHAFT HANDLE TOOL | 1 |
| 4 | 8M0142974 | 保持器压装夹具 | RETAINER PRESS FIXTURE | 1 |
| 5 | 8M0142976 | 工具-压装夹具底座 | TOOL Press Fixture Base | 1 |
| 6 | 8M0142983 | 轴工具-轴承座总成 | SHAFT TOOL Bearing Carrier Assembly | 1 |
| 7 | 8M0145393 | 工具-螺纹离合器总成 | TOOL Threaded Clutch Assembly | 1 |
| 8 | 8M0142559 | 齿轮总成固定夹具 | HOLDING FIXTURE Gear Assembly | 1 |
| 9 | 8M0142615 | 心轴-压装垫片 | MANDREL Press Spacer | 1 |
| 10 | 8M0142624 | 导板-轴承座 | GUIDE PLATE Bearing Carrier | 1 |
| 11 | 8M0142413 | 心轴-后齿轮轴承锥 | MANDREL Rear Gear Bearing Cone | 1 |
| 12 | 8M0142414 | 工具-齿轮总成驱动器 | TOOL Gear Assembly Driver | 1 |
| 13 | 8M0142636 | 轴承心轴 | BEARING MANDREL | 1 |
| 14 | 8M0146861 | 工具-飞轮 | TOOL Flywheel | 1 |
| 15 | 8M0146862 | 工具-张紧皮带 | TOOL Stretch Belt | 1 |
| 16 | 8M0129230 | 软管-放油 | HOSE Oil Drain | 1 |
| 17 | 8M0146935 | 安装工具-轴承卷轴 | INSTALLATION TOOL Bearing Spool | 1 |
| 18 | 8M0146936 | 拉拔器-上部支架 | BAR MOUNT PULLER Upper | 1 |
| 19 | 8M0147118 | 工具-推进轴 | TOOL Propshaft | 1 |
| 20 | 8M0147078 | 安装工具-配平线束 | INSTALLATION TOOL Trim Harness | 1 |
| 20 | 8M0193581 | 安装工具-配平线束 | INSTALLATION TOOL Trim Harness | 1 |
| 21 | 8M0130705 | 齿轮箱高度工具套件 | GEARCASE HEIGHT TOOL KIT | 1 |
| 22 | 8M0138392 | CDS-G3诊断工具套件 | DIAGNOSTIC TOOL KIT CDS -G3 | 1 |
| 22 | 8M0153916 | CDS G3诊断工具套件 | DIAGNOSTIC TOOL KIT CDS G3 | 1 |
| NS | 883705T01 | 工具-发动机吊装带 | STRAP TOOL Engine Lifting | 1 |
| NS | 98234A2 | 钻孔夹具套件-艉板 | DRILL FIXTURE KIT Transom | 1 |
| NS | 8M0147671 | 工具-对正销上部支架 | TOOL ALIGNMENT PIN UPPER MOUNT | 1 |
| NS | 8M0145607 | 工具-拉杆器 | TOOL Bar Puller | 1 |
| NS | 8M0147116 | 工具-导向密封驱动器 | TOOL GUIDE SEAL DRIVER | 1 |
| NS | 8M0149553 | 工具-上部支架杆安装 | TOOL Upper Mount Rod Installation | 1 |
| NS | 8M0148868 | 扳手-AMS支架 | WRENCH AMS Mount | 1 |
| NS | 8M0148865 | 工具-齿轮安装 | TOOL Install Gear | 1 |
| NS | FT8950 | 测试套件 | TESTER KIT | 1 |
| NS | 58222A1 | 百分表工具 | DIAL INDICATOR TOOL | 1 |
| NS | 83155 | 千分表转接套件 | ADAPTER KIT Dial Indicator | 1 |
| NS | 8M0237356 | 适配器套件 | ADAPTER KIT | 1 |
| NS | 89897 | 固定工具-百分表 | HOLDING TOOL Dial Indicator | 1 |
| NS | 8M0039309 | 环安装工具 | TOOL Ring Installer | 1 |
| NS | 8M0046632 | 轴承座固定螺母套筒工具 | TOOL Socket, Carrier Retainer Nut | 1 |
| NS | 46086A1 | 拉拔器爪头总成 | PULLER JAW ASSEMBLY | 1 |
| NS | 34569A1 | 滑动锤拉拔器总成 | PULLER ASSEMBLY Slide Hammer | 1 |
| NS | 37241 | 通用拉拔板 | PULLER PLATE Universal | 1 |
| NS | 63209 | 加热灯 | HEAT LAMP | 1 |
| NS | 83165T | 拉拔器总成 | PULLER ASSEMBLY | 1 |
| NS | 36571T | 导向垫圈 | PILOT WASHER | 1 |
| NS | 888414T01 | 轴承/油封安装工具 | BEARING / SEAL DRIVER | 1 |
| NS | 31229A7 | 轴承拉拔器套件 | PULLER KIT Bearing | 1 |
| NS | 8M0070085 | 锁紧螺母工具 | TOOL Retaining Nut | 1 |
| NS | 861792 | 推力轴承 | BEARING Thrust | 1 |
| NS | 43506T | 轴承固定工具 | RETAINING TOOL Bearing | 1 |
| NS | 889958T | 传动轴固定工具 | DRIVESHAFT HOLDING TOOL | 1 |
| NS | 8M0142028 | 小齿轮螺母固定工具 | TOOL Holder Pinion Nut | 1 |
| NS | 8M0035594 | 螺旋桨轴固定工具 | TOOL Propeller Shaft Holder | 1 |
| NS | 8M0052590 | 上传动轴轴承安装工具 | TOOL Driver, Upper Driveshaft Bearing | 1 |
| NS | 8M0046348 | 小齿轮轴承拆卸工具 | TOOL Bearing Driver, Pinion Removal | 1 |
| NS | 37323 | 滚针轴承导杆工具 | DRIVER ROD TOOL Needle Bearings | 1 |
| NS | 885592T | 轴承杯安装工具 | BEARING CUP DRIVER | 1 |
| NS | 8M0046360 | 小齿轮轴承安装工具 | TOOL Bearing Driver, Pinion Install | 1 |
| NS | 8M0046443 | 小齿轮定位工具 | TOOL Pinion Gear Locating | 1 |
| NS | 8M0054594 | 小齿轮高度工具 | TOOL-PINION HGT | 1 |
| NS | 8M0059911 | 轴承座安装工具 | INSTALLATION TOOL Bearing Carrier | 1 |
| NS | 8M0053505 | 背隙指示工具 | TOOL Indicator, Backlash | 1 |
| NS | 8M0182653 | 工具-驱动对正 | TOOL Drive Alignment | 1 |
| - | 8M0235704 | 工具-动力输出轴套安装 | TOOL SLEEVE INSTALLATION PTO | 1 |
| - | 8M0235705 | 工具-耐磨轴套安装 | TOOL INSTALL WEAR SLEEVE | 1 |
| - | 8M0235706 | 工具-耐磨轴套安装 | TOOL INSTALL WEAR SLEEVE | 1 |
| - | 8M0235707 | 耐磨轴套安装 | INSTALL WEAR SLEEVE | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0143491 | 黑色顶盖总成（带标贴，无装饰面板贴纸组） | TOP COWL ASSEMBLY Black, Decaled without Accent Panel Decal Set | 1 |
| 1 | 8M0143492 | 黑色顶盖总成（带标贴，无装饰面板贴纸组） | TOP COWL ASSEMBLY Black, Decaled without Accent Panel Decal Set | 1 |
| 1 | 8M0231250 | 黑色顶盖总成（带标贴，无装饰面板贴纸组） | TOP COWL ASSEMBLY Black, Decaled without Accent Panel Decal Set | 1 |
| 2 | 8M0142904 | 校准支腿套件 | ALIGNMENT LEG KIT | 4 |
| 2 | 8M0240715 | 校准支腿套件 | ALIGNMENT LEG KIT | 4 |
| 3 | 8M0178589 | 螺丝M6×12 | SCREW M6 x 12 | 2 |
| 4 | 8M0142916 | 左舷缓冲垫 | BUMPER Port | 1 |
| 5 | 8M0142915 | 右舷缓冲垫 | BUMPER Starboard | 1 |
| 6 | 8M0142906 | 上罩壳密封件 | SEAL Top Cowl | 1 |
| 6 | 8M0242486 | 上罩壳密封件 | SEAL Top Cowl | 1 |
| 7 | 8M0142242 | 罩壳锁扣总成 | COWL LATCH ASSEMBLY | 1 |
| 7 | 8M0232582 | 罩壳锁扣总成 | LATCH ASSEMBLY Cowl | 1 |
| 8 | 8M0103806 | 螺钉(M6 x 20毫米)不锈钢 | SCREW (M6 x 20 mm) Stainless Steel | 10 |
| 9 | 8M0142903 | 卡扣 | CLIP | 7 |
| 10 | 8M0142955 | 螺丝（M5×0.8） | SCREW (M5 x 0.8) | 2 |
| 11 | 8M0142954 | 卡扣 | CLIP | 2 |
| 12 | 88552514 | 不锈钢螺钉(M6×14mm) | SCREW (M6 x 14 mm) Stainless Steel | 8 |
| 13 | 8M0219155 | 左/右舷边框总成 | BEZEL ASSEBMBLY Port/Starboard | 1 |
| 14 | 8M0142238 | 黑色门总成 | DOOR ASSEMBLY Black | 1 |
| 14 | 8M0157771 | 黑色门总成 | DOOR ASSEMBLY Black | 1 |
| 15 | 8M0142913 | 定位器总成 | KEEPER ASSEMBLY | 1 |
| 16 | 8M0204400 | 自攻螺丝 | SCREW Thread Forming | 1 |
| 17 | 8M0142908 | 门密封条 | SEAL Door | 1 |
| 18 | 8M0148533 | 锁扣位置贴纸 | DECAL Latch Position | 1 |
| 19 | 8M0142907 | 按压式锁 | LOCK PUSH | 1 |
| 20 | 8M0142914 | 锁扣垫片组 | SHIM SET Latch | 1 |
| 21 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 22 | 8M0187755 | 导水器 | WATER DIVERTER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 888994T03 | 前安装支架总成 | BRACKET ASSEMBLY Front Mount | 1 |
| 1 | NSS | 不单独销售 支架 | NOT SOLD SEPARATE Bracket | 1 |
| 2 | 892417 | 衬套 | BUSHING | 2 |
| 3 | 892049 | 隔套 | SPACER | 1 |
| 3 | 8M0047763 | 隔套 | SPACER | 1 |
| 4 | 885506001 | 换档轴 | SHIFT SHAFT | 1 |
| 4 | 8M0026131 | 换挡轴 | SHAFT-SHIFT | 1 |
| 5 | 889727001 | 曲柄摇臂 | BELL CRANK | 1 |
| 6 | 25319 | 销钉(.125 x 0.75英寸) | PIN (.125 x 0.75 Inches) | 1 |
| 7 | 833155 | 护孔环 | GROMMET | 2 |
| 8 | 889514A01 | 开关 | SWITCH | 1 |
| 8 | 8M0207794 | 开关 | SWITCH | 1 |
| 9 | 88075020 | 螺丝(M3 x 20) | SCREW (M3 x 20) | 2 |
| 10 | 85999 | 衬套 | BUSHING | 1 |
| 11 | 8M0048114 | 换挡执行器 | SHIFT ACTUATOR | 1 |
| 11 | 8M0124413 | 换挡执行器 | SHIFT ACTUATOR | 1 |
| 12 | 8855091 | 螺钉 | SCREW | 1 |
| 13 | 885512 | 开口销 | COTTER PIN | 2 |
| 14 | 885511003 | 垫圈 | WASHER | 2 |
| 15 | 895770 | 枢轴销 | Pin Pivot | 1 |
| 16 | 895811155 | 螺钉(M10×155) | SCREW (M10 x 155) | 2 |
| 16 | 8M0207826 | 螺钉 | SCREW | 2 |
| 17 | 88510940 | 螺钉(M14) | SCREW (M14) | 4 |
| 17 | 8M0103802 | 螺钉 | SCREW | 4 |
| 18 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 2 |
| 19 | 97896 | 衬套 | BUSHING | 2 |
| 20 | 885505 | 换挡轴连杆 | LINK Shift Shaft | 1 |
| 21 | 888987001 | 换挡轴(长型) | SHAFT Shift (Long) | 1 |
| 21 | 8M0181378 | 上部换挡轴 | SHAFT SHIFT UPPER | 1 |
| 21 | 888987002 | 换挡轴（加长型） | SHIFT SHAFT (X-Long) | 1 |
| 21 | 8M0183223 | 换挡轴上段 | SHIFT SHAFT UPPER | 1 |
| 21 | 888987003 | 换挡轴（超长型） | SHIFT SHAFT (XX-Long) | 1 |
| 21 | 8M0180097 | 超长换挡轴 | SHAFT SHIFT XXL | 1 |
