水星 Mercury 275 HP Verado 6 CYL 2B144123 THRU 2B578935 - 爆炸图零件明细

四冲程电喷 EFI · USA - Cat.# 90-8M0103725 · 共 45 个部位 · 2060 条零件

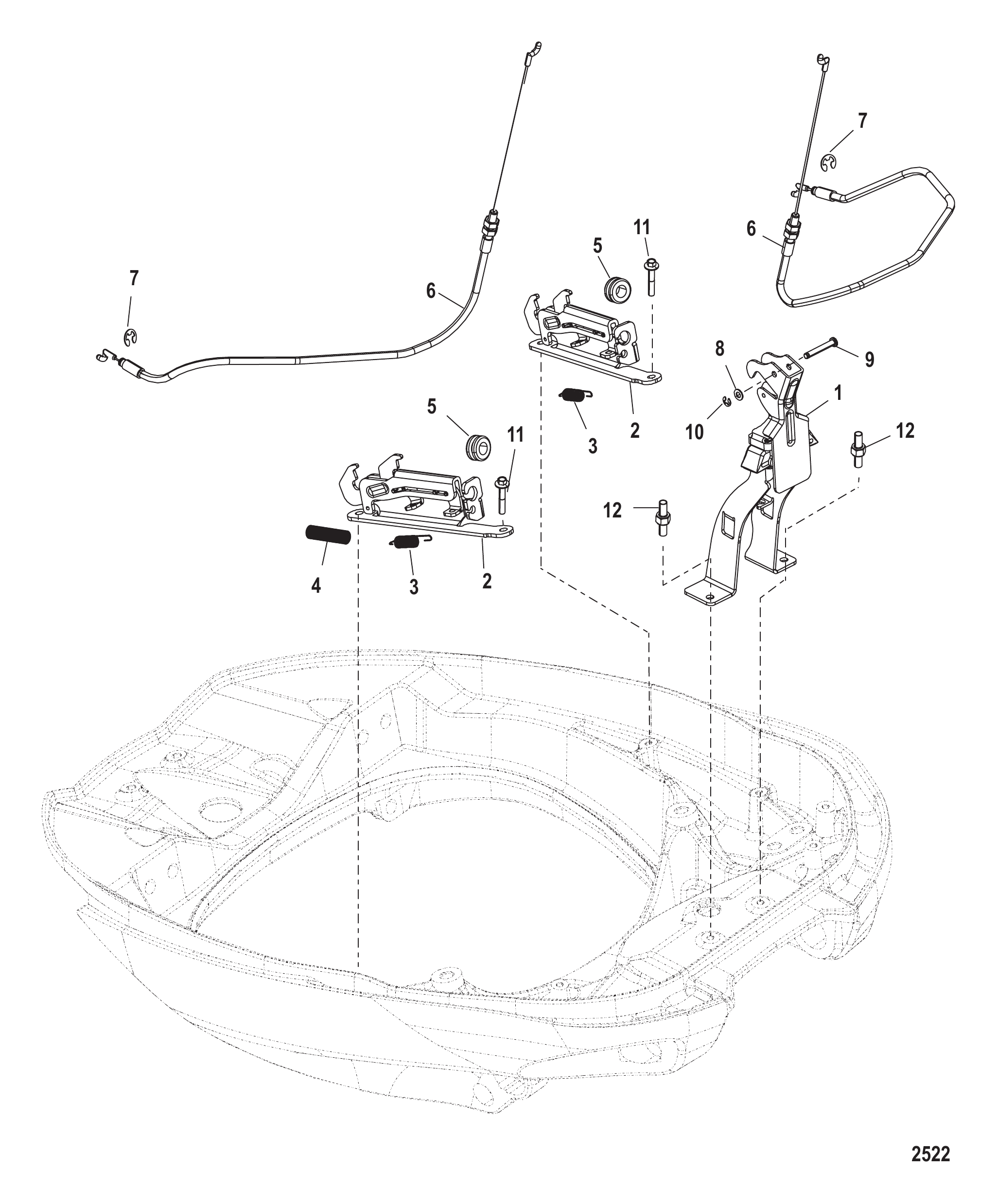

1附件 2下适配板 3适配板管路布置 4发电机/皮带张紧器安装座 5增压冷却器/进气歧管 6增压冷却器/进气歧管管路布置 7外罩锁扣装置 8曲轴、活塞及连杆 9气缸体 10气缸盖与凸轮轴 11贴花 - 顶罩 12驱动轴壳体 13电气箱组件 14飞轮与盖 15燃油滤清器套件 16燃油供给模块组件 8M0102455 2B457609及以下 17燃油供给模块组件 8M0132732 2B457610及以上 18齿轮箱，驱动轴，5.44鱼雷型 19齿轮箱，螺旋桨轴-正向旋转，5.44鱼雷型 20齿轮箱1.75:1，螺旋桨轴反向旋转，5.44鱼雷型，II型设计，锥形前轴承 21齿轮箱1.75:1/1.85:1，螺旋桨轴反向旋转，5.44鱼雷型，I型设计滚子前轴承 22齿轮箱驱动轴,4.80鱼雷型 23齿轮箱螺旋桨轴-反向旋转，4.80鱼雷型 24齿轮箱螺旋桨轴-正向旋转，4.80鱼雷型 25接地线套件 899712A01 26进气系统组件 27底罩 28维护套件 29防腐电极套件 30安装支架 31机油泵/上适配板 32左舷气缸体组件 33动力头衬垫组件 34动力升降倾斜组件 35动力升降/艉板总成 36动力转向泵套件(4至24英尺)37后罩 38维修/支撑材料 39右舷气缸体/机油冷却器 40启动电机 41标准转向舵套件(892557A02, 892380A02, 892558A02)42增压器 43工具 44顶罩 45上部换挡组件

图 1附件 Accessories

REF	零件编号	中文名称	英文名称	数量
-	8M0236724	快速冲洗连接套件	FLUSH QUICK CONNECT KIT	1
-	893395A01	嵌入式安装板	PLATE Flush Mount	1
-	875207	三通接头	TEE Fitting	1
-	892486K08	模拟转换套件	CONVERSION KIT Analog	1
-	899785K04	附件电源线束总成(30英尺)	HARNESS ASSEMBLY Accessory Power (30 Feet)	1
-	880717A01	齿轮箱螺丝/密封套件	SCREW/SEAL KIT Gearcase	1
-	88439A50	电池电缆组	CABLE SET Battery	1
-	8M0210761	电池电缆组(12英尺)	CABLE SET (12 ft) Battery	1
-	8M0133542	电池电缆套件(12英尺)	CABLE KIT (12 ft) Battery	1
-	44357Q2	冲洗附件	FLUSHING ATTACHMENT	1
-	44357T2	冲洗附件	FLUSHING ATTACHMENT	1
-	881150Q1	双进水口冲洗套件	FLUSH KIT Dual Water Pick Up	1
-	881150K1	双进水口冲洗密封套件	SEAL KIT Flush - Dual Water Pickup	1

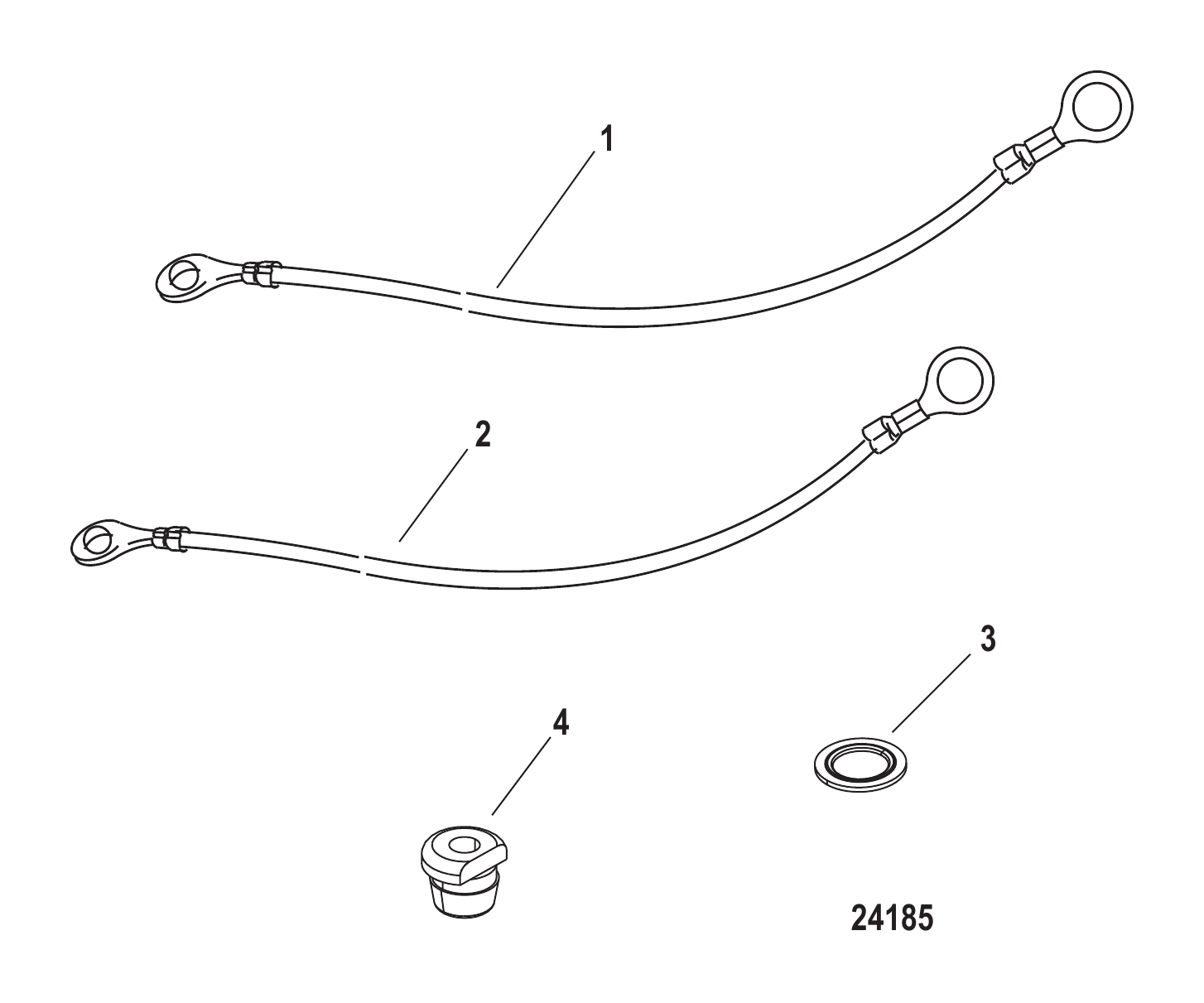

-	899712A01	连续性电缆套件	CABLE KIT Continuity	1
-	8M0131810	MP警报罩套件(镀铬边框)	MP ALERT COWL KIT (Chrome Bezel)	1
-	8M0072341	MP警报边框-椭圆形(镀铬)	BEZEL MP Alert - Oval (Chrome)	1
-	8M0138978	MP警报边框(暖融白)	BEZEL MP Alert (Warm Fusion White)	1
-	8M0142265	油位传感器	SENSOR Oil Level	1
-	8M0145987	重新供电方案线束套件	HARNESS KIT Re-power Plan	1
-	8M0142696	压力传感器-DTS	SENSOR Pressure-DTS	1
-	8M0145165	模拟水压块套件	BLOCK WATER PRESSURE KIT Analog	1
-	8M0146953	大孔衬套-机械式	GROMMET Large Hole, Mechanical	1
-	8M0146954	大孔衬套-DTS CMS	GROMMET Large Hole, DTS CMS	1
-	8M0146955	大孔衬套-DTS	GROMMET Large Hole, DTS	1
-	825191A03	索具软管套件	HOSE KIT Rigging	1
-	8M0135386	船用燃油滤清器套件	FUEL FILTER KIT Boat Mounted	1
-	8M0126144	燃油滤清器	FUEL FILTER	1
-	8M0113732	DTS清洁电源线束总成(14英尺)	HARNESS ASSEMBLY DTS, Clean Power, 14 Feet	1
-	889244T01	线束总成 DTS清洁电源(25英尺)	HARNESS ASSEMBLY DTS Clean Power (25 Feet)	1
-	8M0207790	DTS清洁电源线束总成(25英尺)	HARNESS ASSEMBLY DTS Clean Power, 25 Feet	1
-	8M0127682	操舵电源线束总成(15英尺)	POWER HARNESS ASSEMBLY Helm (15 feet)	1
-	8M0127681	操舵电源线束总成(10英尺)	POWER HARNESS ASSEMBLY Helm (10 feet)	1
-	896333T25	线束总成(25英尺)	HARNESS ASSEMBLY (25 Feet)	1
-	896305001	支架	BRACKET	1
-	896392	垫圈	WASHER	1
-	67755A22	艉板螺栓套件(2.50英寸)	BOLT KIT Transom (2.50 Inch)	1
-	67755A26	艉板螺栓套件(3.50英寸)	BOLT KIT Transom (3.50 Inch)	1
-	67755A13	艉板螺栓套件(4.50英寸)	BOLT KIT Transom (4.50 Inch)	1
-	67755A14	艉板螺栓套件(5.50英寸)	BOLT KIT Transom (5.50 Inch)	1
-	67755A15	艉板螺栓套件(6.50英寸)	BOLT KIT Transom (6.50 Inch)	1
-	67755A17	艉板螺栓套件(7.50英寸)	BOLT KIT Transom (7.50 Inch)	1
-	67755A18	艉板螺栓套件(8.00英寸)	BOLT KIT Transom (8.00 Inches)	1
-	8M0149614	艉板螺栓套件(8.00英寸)	BOLT KIT Transom (8.00 Inches)	1
-	8M0109756	艉板螺栓双螺母套件	DOUBLE NUT KIT Transom Bolt	1
-	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	1
-	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	1
-	895062	垫圈	WASHER	1
-	8M0204704	垫圈	WASHER	1
-	82671117	螺母(.500-20)	NUT (.500-20)	1
-	8M0097226	转速表套件舵机安装	TACHOMETER KIT Helm Mount	1
-	8M0150994	接头连接套件	FITTING CONNECTOR KIT	1
-	8M0225356	卡箍套件全套	CLAMP KIT Clamp Kit-Complete	1

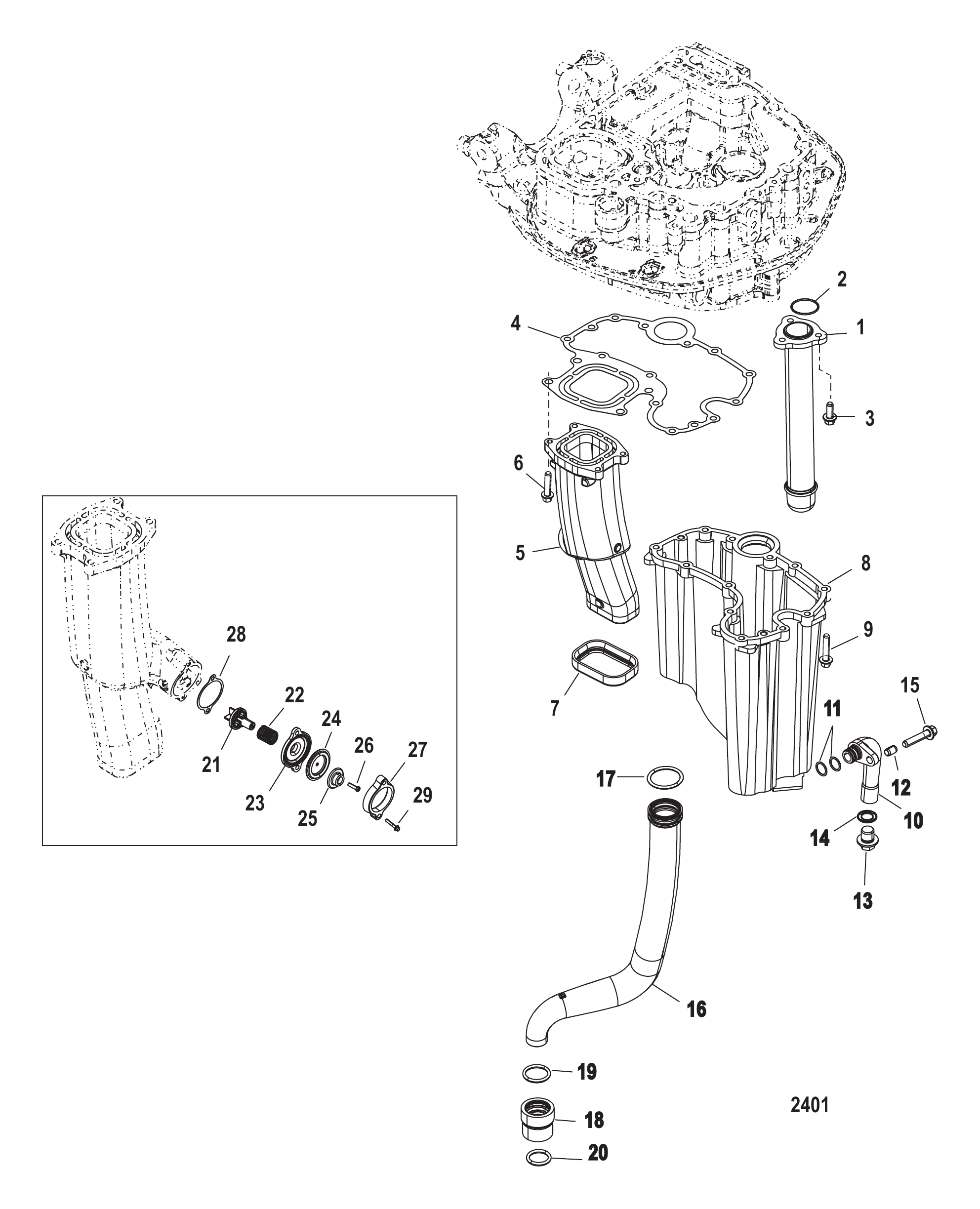

图 2下适配板 Adapter Plate-Lower

REF	零件编号	中文名称	英文名称	数量
1	887623T03	机油收集器总成	PICKUP ASSEMBLY Oil	1
2	846594	O型圈 (1.239 x .070) 黑色	O-RING (1.239 x .070) Black	1
2	8M0092943	O型圈橙色	O-RING Orange	1
3	88552525	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	3
3	8M0103807	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	3
4	889618001	衬垫油底壳	GASKET Oil Sump	1
5	880626T01	排气管总成	TUBE ASSEMBLY Exhaust	1
6	88552635	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
6	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
7	880629	排气管密封件	SEAL Exhaust Tube	1
8	880639T	油底壳总成	SUMP ASSEMBLY Oil	1
9	88552530	螺丝(M6×30毫米)不锈钢	SCREW (M6 x 30 mm) Stainless Steel	12
9	8M0103808	螺丝(M6×30毫米)不锈钢	SCREW (M6 x 30 mm) Stainless Steel	12
10	887753A02	排油管总成	TUBE ASSEMBLY Oil Drain	1
10	888513A02	排油管总成	TUBE ASSEMBLY Oil Drain	1
10	8M0082193	排油管总成	TUBE ASSEMBLY Oil Drain	1
11	892446	O型圈(14×1.78毫米)	O-RING (14 X 1.78 MM)	2
12	892228	定位销	PIN Dowel	1
13	888592005	放油塞总成	PLUG ASSEMBLY Oil Drain	1
14	888593	放油螺塞密封件	SEAL Drain Plug	1
14	8M0188614	放油螺塞密封件	SEAL Drain Plug	1
15	88552530	螺丝(M6×30毫米)不锈钢	SCREW (M6 x 30 mm) Stainless Steel	1
15	8M0103808	螺丝(M6×30毫米)不锈钢	SCREW (M6 x 30 mm) Stainless Steel	1
16	885541A01	水管总成 (20.00英寸)	TUBE ASSEMBLY Water (20.00 Inch)	1
16	885541A02	水管总成 (25.00英寸)	TUBE ASSEMBLY Water (25.00 Inch)	1
16	885541A03	水管总成 (30.00英寸)	TUBE ASSEMBLY Water (30.00 Inch)	1
17	892445	O型圈	O-RING	1
18	887987A1	联轴器	COUPLING	1
18	8M0214983	联轴器总成	COUPLING ASSY	1
19	90196	O型圈 (.921 x .139)	O-RING (.921 x .139)	1
19	8M0204673	O型圈 .921 x .139	O-Ring .921 x .139	1
20	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
20	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
21	888913A01	提升阀总成	POPPET ASSEMBLY	1
21	8M0114707	提升阀总成	POPPET VALVE ASSY	1
22	64878	弹簧(黑色)	SPRING (Black)	1
23	893385001	固定座	RETAINER	1
24	648771	隔膜	DIAPHRAGM	1
25	889706	垫圈	WASHER	1
26	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
27	893384001	提升阀盖	COVER Poppet	1
28	889561	提升阀垫片	GASKET Poppet	1
29	88552535	不锈钢螺钉(M6×35mm)	SCREW (M6 x 35 mm) Stainless Steel	2
-	880552A06	动力头衬垫套件	GASKET SET Powerhead	1
-	880552A07	动力头衬垫套件	GASKET SET Powerhead	1
-	895247A06	动力头总成	POWERHEAD ASSEMBLY	1
-	895247R06	RM L6 GEN1 VERADO	RM L6 GEN1 VERADO	1

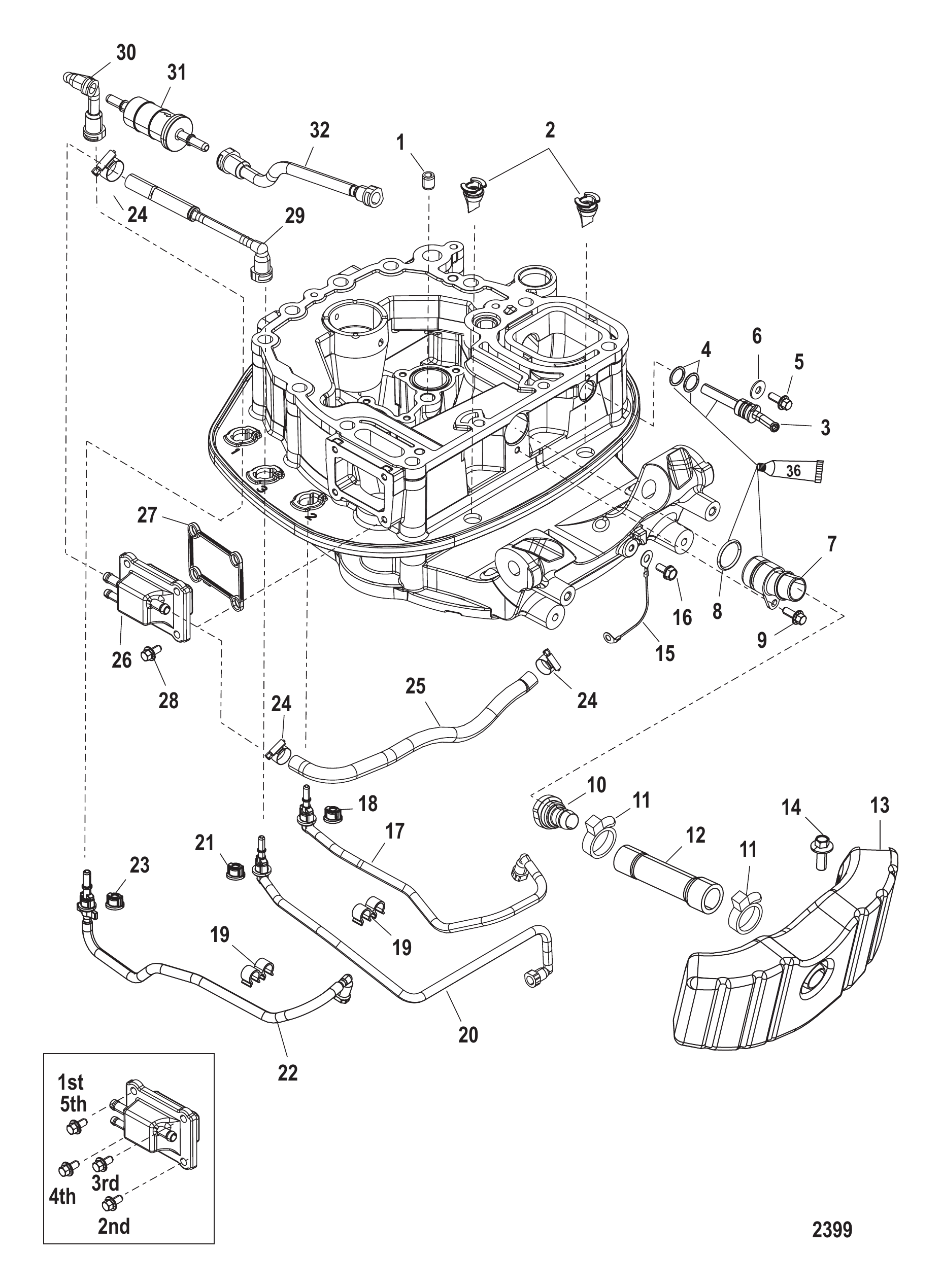

图 3适配板管路布置 Adapter Plate Hose Routings

REF	零件编号	中文名称	英文名称	数量
1	884474001	定位销 (12毫米)	PIN Dowel (12 mm)	1
2	888819002	排水罩	DRAIN Cowl	2
3	888461A01	配件套件	FITTING KIT	1
4	892446	O型圈(14×1.78毫米)	O-RING (14 X 1.78 MM)	2
5	88552512	不锈钢螺钉 (M6 x 12 mm)	SCREW (M6 x 12 mm) Stainless Steel	1
5	8M0103804	不锈钢螺钉 (M6 x 12 mm)	SCREW (M6 x 12 MM) Stainless Steel	1
6	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
6	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
7	889792A01	怠速排气接头套件	FITTING KIT Idle Exhaust	1
8	889828	O型圈 0.924×0.103	O-RING (.924 x .103)	1
9	88552512	不锈钢螺钉 (M6 x 12 mm)	SCREW (M6 x 12 mm) Stainless Steel	1
9	8M0103804	不锈钢螺钉 (M6 x 12 mm)	SCREW (M6 x 12 MM) Stainless Steel	1
10	889846	接头	FITTING	1
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
12	888981001	怠速排气软管	HOSE Idle Exhaust	1
13	892384T	排气集气室	PLENUM Exhaust	1
14	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	2
15	88238A21	拉线总成	CABLE ASSEMBLY	1
16	40011126	不锈钢螺丝(M6 x 13)	SCREW (M6 x 13) Stainless Steel	1
17	884548	歧管参考软管-下部	HOSE Manifold Reference-Lower	1
17	8M0087120	软管	HOSE	1
18	884546	护孔环	GROMMET	1
19	888523001	卡扣	CLIP	2
20	884547	进水软管-下部	HOSE Water In-Lower	1
20	8M0087106	软管	HOSE	1
21	884546	护孔环	GROMMET	1
22	892241	燃油供应模块输出软管	HOSE Fuel Supply Module-Out	1
22	8M0087116	软管	HOSE	1
23	884546	护孔环	GROMMET	1
24	815504104	蜗杆卡箍	CLAMP Worm Gear	3
25	830757130	管材 (.312) (70.00英寸整卷) 裁切至21英寸	TUBING (.312) (70.00 Inches Bulk) Cut to 21 Inches	1
25	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
26	892562T01	歧管壳体	HOUSING Manifold	1
27	892117	密封件	SEAL	1
28	88552516	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	4
28	8M0103805	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	4
29	887756	进水软管-上部	HOSE Water In-Upper	1
30	887757	高压过滤器软管	HOSE Hi-Pressure Filter	1
30	8M0203762	燃油管路总成	FUEL LINE ASSY	1
31	879885T	燃油滤清器	FILTER Fuel	1
31	879885Q	燃油管路滤清器	FILTER Fuel In-Line	1
32	887758	高压滤清器至燃油轨软管	HOSE Hi-Pressure Filter To Fuel Rail	1
32	8M0203763	燃油管	FUEL LINE	1
-	880552A06	动力头衬垫套件	GASKET SET Powerhead	1
-	880552A07	动力头衬垫套件	GASKET SET Powerhead	1
-	895247A06	动力头总成	POWERHEAD ASSEMBLY	1
-	895247R06	RM L6 GEN1 VERADO	RM L6 GEN1 VERADO	1

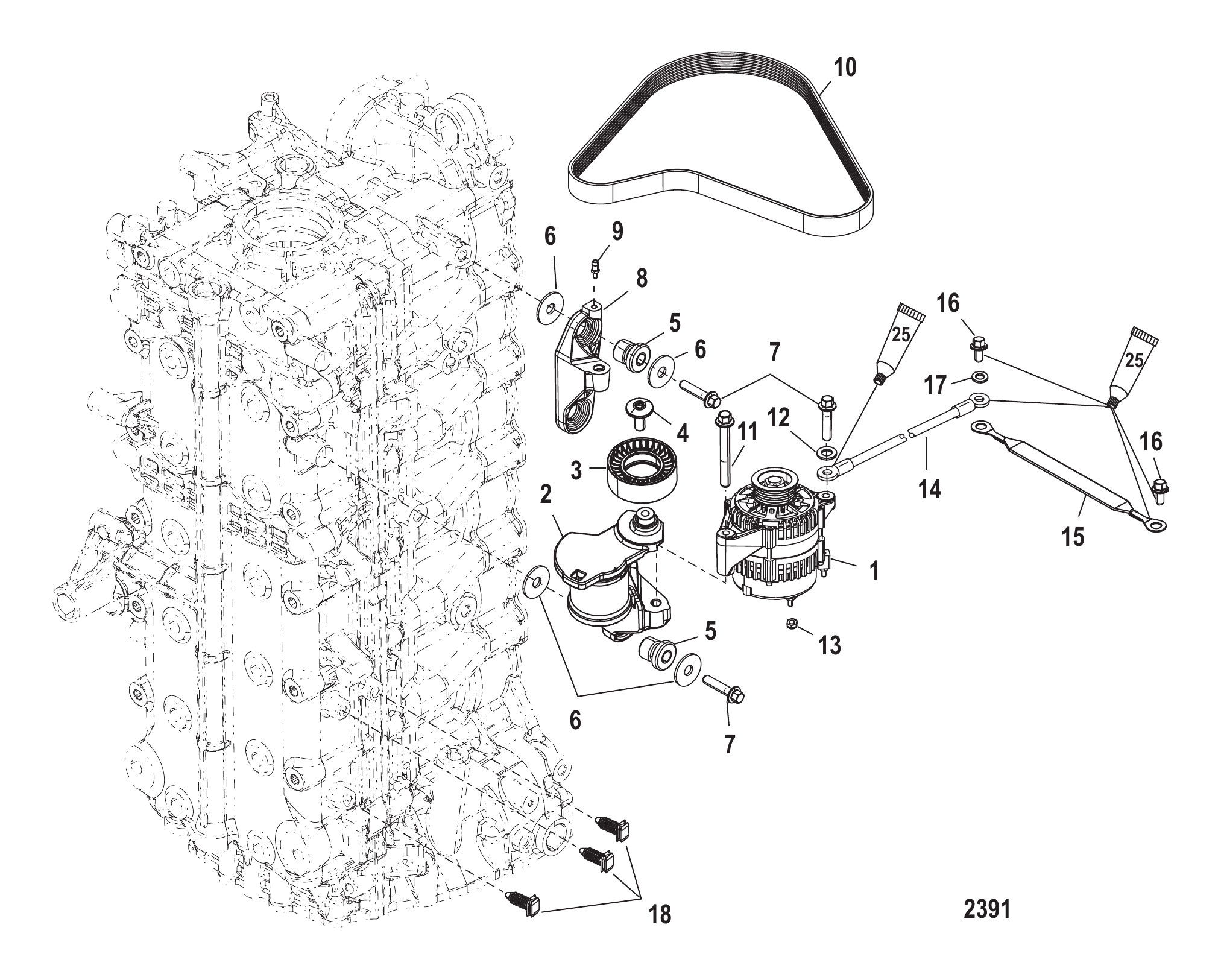

图 4发电机/皮带张紧器安装座 Alternator/Belt Tensioner Mounting

REF	零件编号	中文名称	英文名称	数量
1	892940T	70安培发电机	ALTERNATOR 70 Ampere	1
2	885349T05	皮带张紧器	BELT TENSIONER	1
2	8M0101707	皮带张紧器	BELT TENSIONER	1
3	885349500	滑轮	PULLEY	1
3	8M6003035	滑轮	PULLEY	1
4	885349501	螺钉	SCREW	1
5	855729	支架	MOUNT	4
6	845998	垫圈(0.406×1.250×0.089)	WASHER (.406 x 1.250 x .089)	8
7	88552745	螺丝(M10 x 45)	SCREW (M10 x 45)	5
7	8M0103823	六角法兰螺钉(M10×45)	SCREW (M10 x 45 Hex Flange)	5
8	88535303S	支架	BRACKET	1
8	8M0219204	支架	BRACKET	1
9	888517	销	PIN	1
10	880566014	驱动皮带	BELT Drive	1
10	8M0232583	蛇形皮带	BELT SERPENTINE	1
11	88552785	螺钉(M10×85)	SCREW (M10 x 85)	1
11	8M0103824	螺钉	SCREW	1
12	4002319	垫圈	WASHER	1
13	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
14	856583A09	拉线总成	CABLE ASSEMBLY	1
14	856583A12	拉线总成	CABLE ASSEMBLY	1
15	858414A04	铜编织电缆总成	CABLE ASSEMBLY Brass Braided	1
16	88552516	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	2
16	8M0103805	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	2
17	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
17	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
18	828991	卡扣	CLIP	3
18	828991T	卡扣	CLIP	3

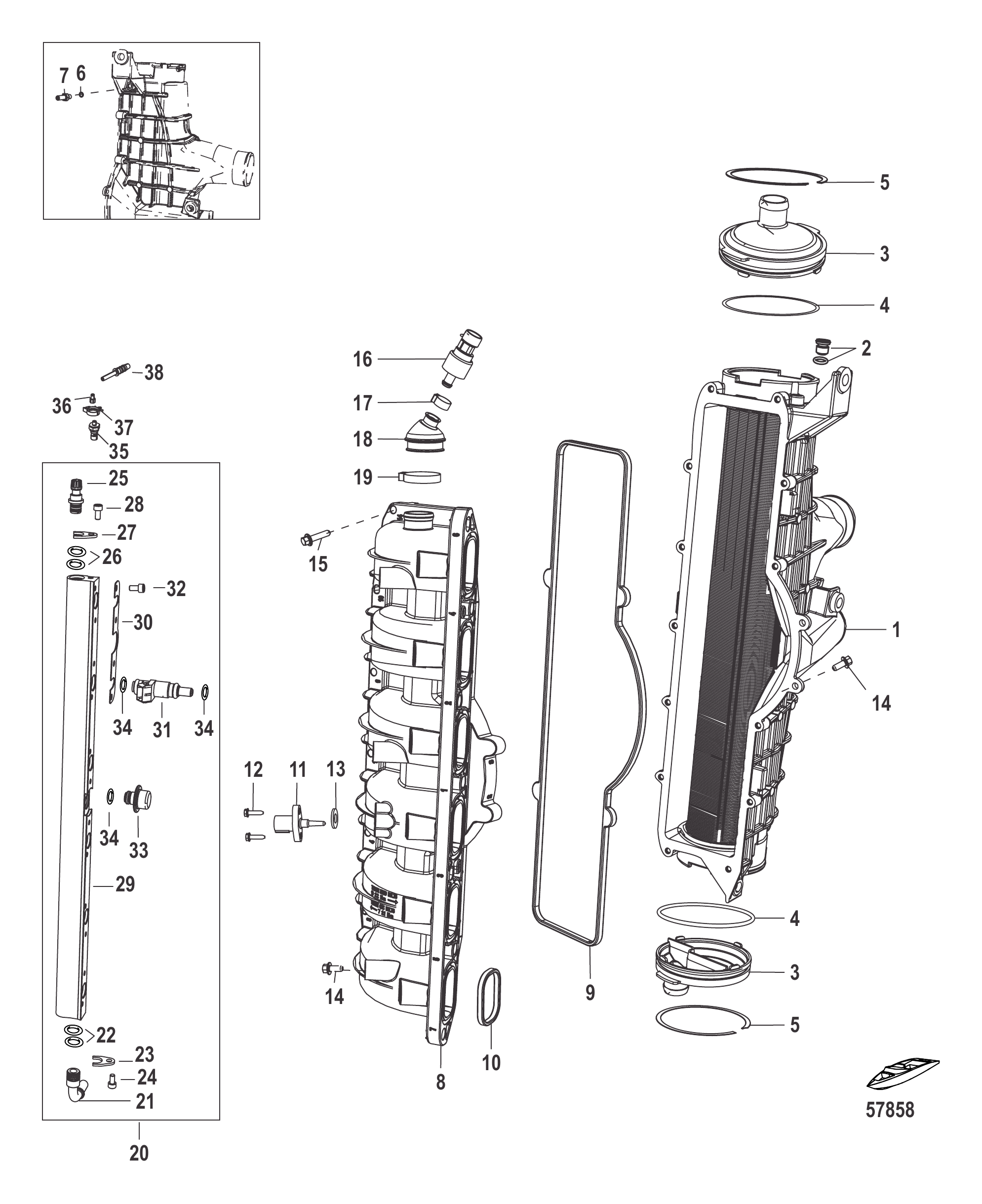

图 5增压冷却器/进气歧管 Charge Cooler/Intake Manifold

REF	零件编号	中文名称	英文名称	数量
-	8M0092408	集成空气燃油模块总成	MODULE ASSEMBLY Integrated Air Fuel	1
1	8M0092462	中冷器总成	CAC ASSEMBLY	1
1	8M0132388	中冷器总成	CAC ASSEMBLY	1
2	8M0048079	8毫米塞	PLUG 8MM	1
3	8M0046698	端盖总成	END CAP ASSEMBLY	2
4	8M0039516	O型圈	O-RING	1
5	8M0039464	挡圈	RING Retaining	1
6	8M0040116	O型圈	O-RING	1
7	8M0039993	接头	FITTING	1
8	8M0083678	进气歧管总成	MANIFOLD ASSEMBLY Intake	1
9	895019	歧管至CAC密封件	SEAL Manifold to CAC	1
10	895020	歧管头部密封件	SEAL Manifold Head	6
11	891663001	温度传感器	SENSOR Temperature	1
12	8M0041480	螺钉	SCREW	2
12	895054	螺丝(M4×16毫米)	SCREW (M4 x 16 mm)	2
13	892317001	O型圈	O-RING	1
14	88552516	螺钉（M6×16毫米）不锈钢燃油轨至歧管	SCREW (M6 x 16 mm) Stainless Steel Fuel Rail to Manifold	3
14	8M0103805	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	3
14	88552516	螺钉（M6×16毫米）不锈钢CAC至歧管	SCREW (M6 x 16 mm) Stainless Steel CAC to Manifold	2
14	8M0103805	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	2
15	88552525	螺钉（M6×25毫米）不锈钢歧管至CAC	SCREW (M6 x 25 mm) Stainless Steel Manifold to CAC	13
15	8M0103807	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	13
16	8M6000639	压力传感器	SENSOR Pressure Pressure	1
16	8M0234766	压力传感器	SENSOR PRESSURE	1
17	13791	卡箍(15.7)	CLAMP (15.7)	1
17	8M0214911	卡箍@5	CLAMP @5	1
18	8M0041053	MAP传感器护套	BOOT MAP Sensor	1
19	888988001	卡箍(36.1毫米)	CLAMP (36.1 mm)	1
19	8M0204719	卡箍 36.1毫米	CLAMP 36.1 MM	1
20	8M0041080	燃油导轨总成	FUEL RAIL ASSEMBLY	1
20	8M0185166	燃油导轨总成	FUEL RAIL ASSY	1
21	8M0047054	燃油进管套件	TUBE KIT Fuel Inlet	1
22	NSS	O型圈(管用)不单独销售	NOT SOLD SEPARATE O-RING Tube	1
23	8M0041097	固定支架	BRACKET Retaining	1
24	8M0041100	螺钉 (M5 x 10)	SCREW (M5 x 10)	1
25	8M0047053	施拉德阀维修包	VALVE KIT Shrader	1
26	NSS	O型圈(施拉德阀用)不单独销售	NOT SOLD SEPARATE O-ring- Shrader Valve	1
27	8M0041097	固定支架	BRACKET Retaining	1
28	8M0041100	螺钉 (M5 x 10)	SCREW (M5 x 10)	1
29	NSS	燃油轨不单独销售	NOT SOLD SEPARATE FUEL RAIL	1
30	8M0041096	喷油器安装支架	BRACKET Fuel Injector Mounting	3
31	8M0041571	燃油喷油器总成	INJECTOR ASSEMBLY Fuel	6
31	8M0222278	燃油喷射器	FUEL INJECTOR	6
32	8M0041100	螺钉 (M5 x 10)	SCREW (M5 x 10)	12
33	8M0041101	燃油轨减震器	DAMPER Fuel Rail	1
34	851889	O型圈	O-RING	1
35	8M0103315	皮托管传感器套件	PITOT SENSOR KIT	1
36	892403	接头	FITTING	1
36	8M0207782	直通接头	FITTING Straight	1
37	883066	夹子 (.865)	CLIP (.865)	1
38	859731	适配管接头	FITTING Adapter	1
38	8M0214970	接头	FITTING	1
-	8M0132737	O型圈套件	O-RING KIT	1

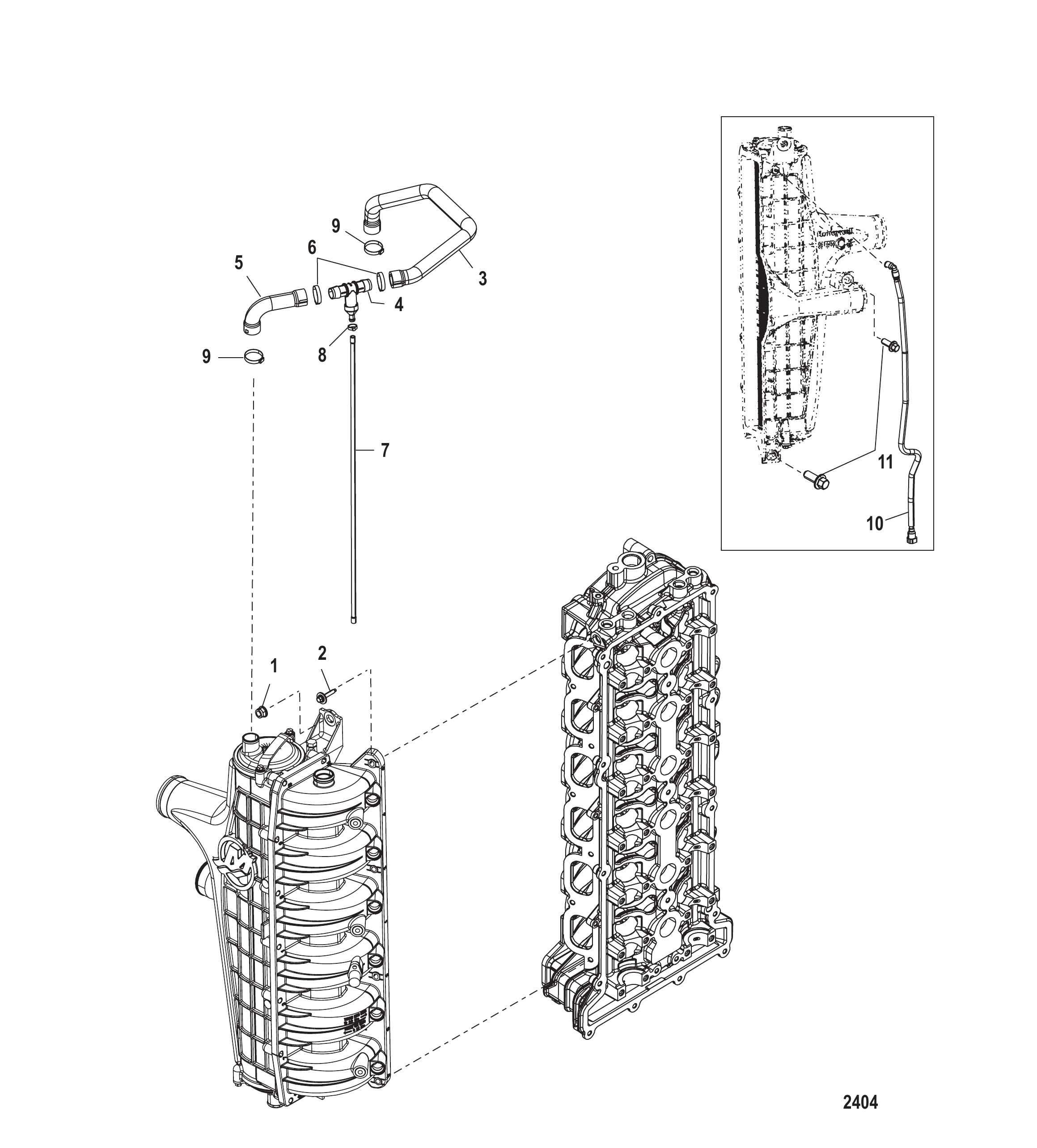

图 6增压冷却器/进气歧管管路布置 Charge Cooler/Intake Manifold Hose Routings

REF	零件编号	中文名称	英文名称	数量
1	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	1
2	892487001	螺钉	SCREW	7
2	8M0048051	不锈钢螺钉(M6x30)	SCREW (M6 x 30) Stainless Steel	7
-	NSS	不单独出售-软管总成	NOT SOLD SEPARATE Hose Assembly	1
3	889593001	软管	HOSE	1
4	889633A04	冲洗接头总成	FITTING ASSEMBLY Flushing	1
4	8M0188433	冲洗接头总成	FITTING ASY-FLUSH	1
5	889592001	软管	HOSE	1
6	888988008	卡箍(34.6毫米)	CLAMP (34.6 MM)	2
6	8M0187145	卡箍	CLAMP	2
7	892967	软管	HOSE	1
8	850181	捆扎带(11.750英寸)	TIE STRAP (11.750 Inches)	1
9	888988008	卡箍(34.6毫米)	CLAMP (34.6 MM)	2
9	8M0187145	卡箍	CLAMP	2
10	880529	增压歧管参考软管-上部	HOSE Boost Manifold Reference-Upper	1
10	8M0203767	软管歧管	HOSE MANIFOLD	1
11	88552730	螺钉 (M10 x 30)	SCREW (M10 x 30)	2
11	8M0103821	螺钉	SCREW	2

图 7外罩锁扣装置 Cowl Latching

REF	零件编号	中文名称	英文名称	数量
-	892062T02	前侧锁扣总成	LATCH ASSEMBLY Front and Side	1
1	888976T01	支架	BRACKET	1
2	888974A02	侧锁扣总成	SIDE LATCH ASSEMBLY	2
3	888996	弹簧	SPRING	4
4	896124	套筒	SLEEVE	4
5	828249	护孔环	GROMMET	2
6	889694	电缆	CABLE	2
6	8M0080491	电缆	CABLE	2
7	27290	挡圈	RING Retaining	2
8	30164	垫圈(0.192x0.375x0.0312)不锈钢	WASHER (.192 x .375 x .0312) Stainless Steel	1
9	893380	U型销	PIN Clevis	1
10	61319	E型卡环	E RING	1
11	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	4
12	889627	螺柱	STUD	2
12	8M0099404	螺柱	STUD	2

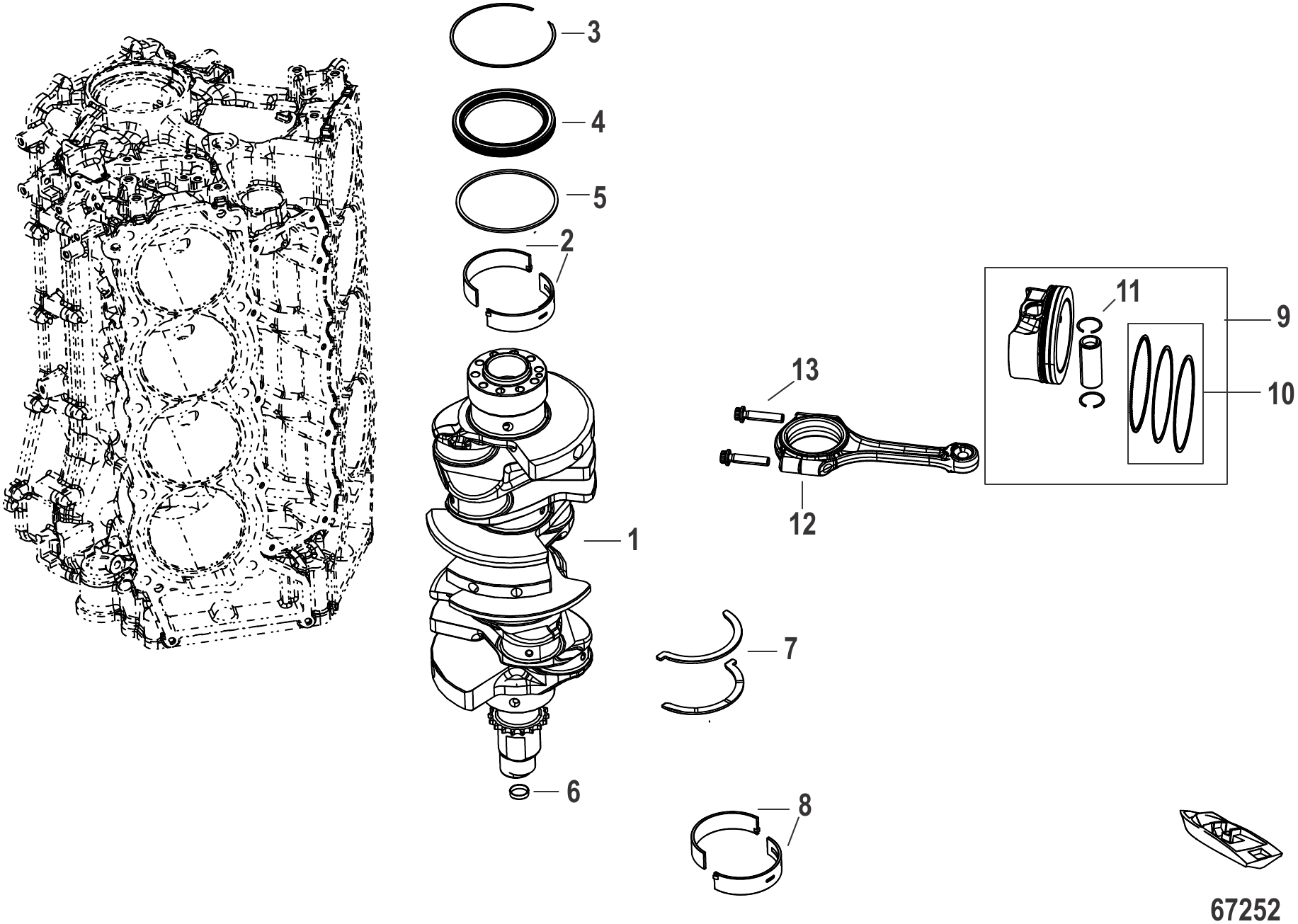

图 8曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	8M0142417	曲轴	CRANKSHAFT	1
2	8M0034912	O型圈 3.78×21.32	O-RING 3.78 X 21.32	1
3	8M0142386	挡圈	RING RETAINING	1
4	8M0142379	主轴承油封	SEAL Main Bearing	1
4	8M0168880	主轴承油封	SEAL Main Bearing	1
5	8M0142385	隔套	SPACER	1
6	8M0147976	主轴承绿色	BEARING MAIN Green	AR
6	8M0147977	主轴承蓝色	BEARING MAIN Blue	AR
6	8M0147978	主轴承白色	BEARING MAIN White	AR
6	8M0147979	主轴承橙色	BEARING MAIN Orange	AR
7	8M0142424	止推垫圈	WASHER THRUST	2
8	8M0148077	连杆轴承(绿色)	BEARING Connecting Rod, Green	AR
8	8M0217817	连杆轴承(绿色)	BEARING Connecting Rod, Green	AR
8	8M0148078	连杆轴承(蓝色)	BEARING Connecting Rod, Blue	AR
8	8M0217818	连杆轴承(蓝色)	BEARING Connecting Rod, Blue	AR
8	8M0148079	连杆轴承(白色)	BEARING Connecting Rod, White	AR
8	8M0217819	连杆轴承(白色)	BEARING Connecting Rod, White	AR
9	8M0142575	活塞总成	PISTON ASSEMBLY	8
9	8M0200040	活塞总成	PISTON ASSEMBLY	8
10	8M0142381	活塞环组件	PISTON RING ASSEMBLY	8
11	8M0142383	卡簧	CIRCLIP	16
12	8M0142418	连杆	CONNECTING ROD	8
12	8M0159647	连杆	CONNECTING ROD	8
13	8M6002637	连杆螺栓	BOLT Connecting Rod	16
13	8M0159648	连杆螺栓	BOLT, CONNECTING ROD	16
-	8M0142279	长缸体总成	LONG BLOCK	1
-	8M0149557	长缸体总成	LONG BLOCK	1
-	8M0149551	动力头垫片套装	POWERHEAD GASKET SET	1

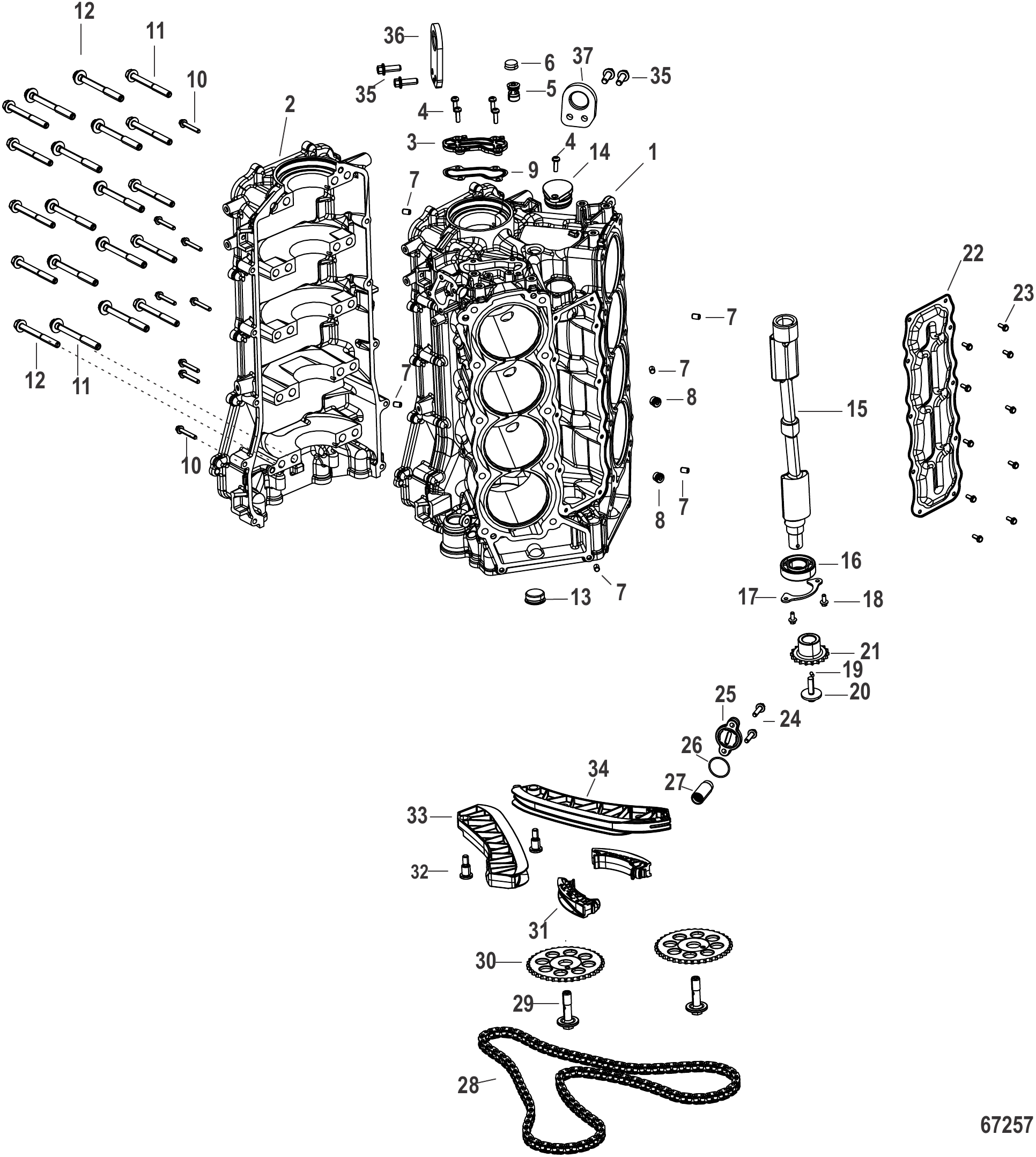

图 9气缸体 Cylinder Block

REF	零件编号	中文名称	英文名称	数量
1	8M0142344	气缸体	CYLINDER BLOCK	1
2	NSS	不单独销售	NOT SOLD SEPARATE	1
3	8M0142349	气缸体盖	COVER Cylinder Block	1
4	8M0080651	螺钉 (M6 x 20)	SCREW (M6 x 20)	5
5	8M0142352	18毫米螺塞	PLUG 18 MM	1
6	8M0142353	O型圈(0.614x0.070)	O-RING (0.614 x 0.070)	1
7	893540	定位销 8x12长	PIN Dowel, 8x12 long	6
8	8M0087447	堵头(10毫米)	PLUG (10MM)	2
9	8M0142348	盖板垫片	GASKET Cover Plate	1
10	8M0103809	螺钉(M6x40毫米)不锈钢	SCREW (M6 x 40 mm) Stainless Steel	10
11	8M0142347	螺钉(M10x96毫米)六角凸缘头	SCREW (M10 x 96 MM) HEX FLG HD	10
11	8M0168893	螺钉 M10x96	SCREW M10 x 96	10
12	8M0142346	螺钉(M11x107毫米)12角头	SCREW (M11 x 107 MM) 12 POINT HEX HEAD	10
13	8M0087454	30毫米螺塞	PLUG (30 mm)	1
14	8M0142409	平衡器螺塞	PLUG Balancer	1
15	8M0142421	平衡轴	BALANCE SHAFT	1
16	8M0142429	滚珠轴承	BEARING Ball	1
17	8M0142427	挡板	PLATE Retainer	1
18	8M0142428	螺钉(M5x12)六角凸缘	SCREW (M5 x 12) HEX FLG	2
19	8M0142426	定位销	PIN Dowel	1
20	8M0142423	螺钉(M8x1.25)六角凸缘带垫	SCREW (M8 x 1.25) HEX FL SEMS	1
21	8M0142422	链轮	SPROCKET	1
22	8M0142410	平衡器盖冲压件	COVER Balancer, Stamped	1
23	40011106	不锈钢螺钉(M5x13)	SCREW (M5 x 13) Stainless Steel	10
24	8M0103807	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	2
25	8M0064752	凸轮张紧器端盖	END CAP Cam Tensioner	1
26	898836	棕色O型圈	O-RING Brown	1
26	8M0237361	O型圈	O-RING	1
27	8M0142394	正时链条张紧器总成	TENSIONER ASSEMBLY Timing Chain	1
27	8M0231253	正时链条张紧器总成	TENSIONER ASSEMBLY Timing Chain	1
28	8M0142399	凸轮驱动链条	CHAIN CAM DRIVE	1
29	8M0142395	凸轮螺栓 M12特殊左旋	CAM BOLT M12 Special Left Hand	2
30	8M0142390	凸轮轴链轮	SPROCKET Camshaft	2
31	8M0142400	短跨距导板	GUIDE SHORT SPAN	2
32	8M0086569	台阶螺钉(M8x1.25)	SCREW Shoulder (M8 x 1.25)	2
33	8M0142393	凸轮驱动导板	GUIDE Cam Drive	1
34	8M0142392	活动导板	GUIDE Moveable	1
35	8M0103821	螺钉	SCREW	4
36	8M0142459	左舷吊环	LIFTING EYE Port	1
37	8M0142448	右舷吊环	LIFTING EYE Starboard	1
-	8M0142279	长缸体总成	LONG BLOCK	1
-	8M0149557	长缸体总成	LONG BLOCK	1
-	8M0149551	动力头垫片套装	POWERHEAD GASKET SET	1

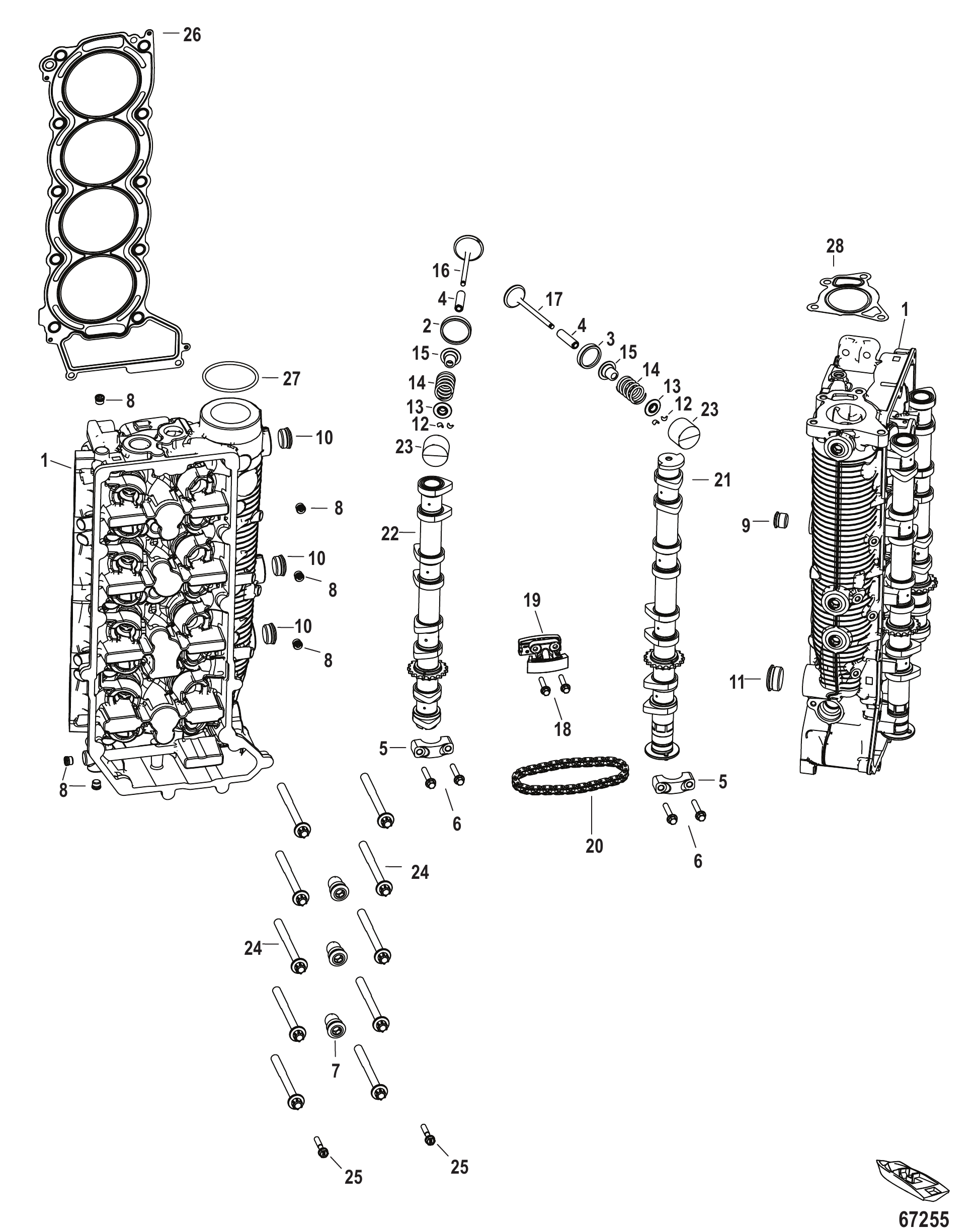

图 10气缸盖与凸轮轴 Cylinder Head and Camshaft

REF	零件编号	中文名称	英文名称	数量
1	8M0150214	气缸盖总成(右舷)	CYLINDER HEAD ASSEMBLY Starboard	1
1	8M0150215	气缸盖总成(左舷)	CYLINDER HEAD ASSEMBLY Port	1
1	8M0150490	气缸盖总成(右舷)	CYLINDER HEAD ASSEMBLY Starboard	1
1	8M0221005	气缸盖总成(右舷)	CYLINDER HEAD ASSEMBLY Starboard	1
1	8M0150491	气缸盖总成(左舷)	CYLINDER HEAD ASSEMBLY Port	1
1	8M0221003	气缸盖总成(左舷)	CYLINDER HEAD ASSEMBLY Port	1
2	8M0142354	气门座-进气	VALVE Seat, Intake	16
3	8M0142355	气门座-排气	VALVE Seat, Exhaust	16
4	8M0142358	气门导管	VALVE Guide	32
5	NSS	不单独销售	NOT SOLD SEPARATE	18
6	892454035	螺栓（M6×36）	BOLT (M6 x 36)	36
6	8M0163131	M6螺钉	SCREW M6	36
7	8M0142357	专用塞(21毫米)	PLUG (21 MM) Special	6
8	8M0087447	堵头(10毫米)	PLUG (10MM)	12
9	8M0087451	堵头（18毫米）	PLUG (18 mm)	2
10	8M0087453	堵头(24毫米)	PLUG (24 MM)	6
11	8M0087454	30毫米螺塞	PLUG (30 mm)	2
12	8M0142364	气门键	VALVE Key	32
13	8M0142363	固定座	RETAINER	32
14	8M0142360	弹簧	SPRING	32
15	8M0142359	气门油封	SEAL Valve	32
16	8M0142361	进气阀	VALVE Intake	16
17	8M0142362	排气阀	VALVE Exhaust	16
18	892454030	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
19	8M0142367	张紧器	TENSIONER	2
20	8M0142366	凸轮间链条	CHAIN Cam to Cam	2
21	8M0142411	凸轮轴-排气右舷	CAMSHAFT Exhaust, Starboard	1
21	8M0142416	凸轮轴-排气左舷	CAMSHAFT Exhaust, Port	1
22	8M0142412	凸轮轴-进气右舷	CAMSHAFT Intake, Starboard	1
22	8M0142415	凸轮轴-进气左舷	CAMSHAFT Intake, Port	1
22	8M0149556	凸轮轴-进气右舷	CAMSHAFT Intake, Starboard	1
22	8M0149555	凸轮轴-进气左舷	CAMSHAFT Intake, Port	1
23	8M0142365	挺杆 (3.000)	TAPPET (3.000)	32/AR
23	8M0142431	挺杆 (3.015)	TAPPET (3.015)	32/AR
23	8M0142439	挺杆 (3.030)	TAPPET (3.030)	32/AR
23	8M0142440	挺杆 (3.045)	TAPPET (3.045)	32/AR
23	8M0142441	挺杆 (3.060)	TAPPET (3.060)	32/AR
23	8M0142438	挺杆 (3.075)	TAPPET (3.075)	32/AR
23	8M0142495	挺杆 (3.090)	TAPPET (3.090)	32/AR
23	8M0142492	挺杆 (3.105)	TAPPET (3.105)	32/AR
23	8M0142443	挺杆 (3.120)	TAPPET (3.120)	32/AR
23	8M0142447	挺杆 (3.135)	TAPPET (3.135)	32/AR
23	8M0142464	挺杆 (3.150)	TAPPET (3.150)	32/AR
23	8M0142465	挺杆 (3.165)	TAPPET (3.165)	32/AR
23	8M0142466	挺杆 (3.180)	TAPPET (3.180)	32/AR
23	8M0142487	挺杆 (3.195)	TAPPET (3.195)	32/AR
23	8M0142488	挺杆 (3.210)	TAPPET (3.210)	32/AR
23	8M0142489	挺杆 (3.225)	TAPPET (3.225)	32/AR
23	8M0142490	挺杆 (3.240)	TAPPET (3.240)	32/AR
23	8M0142491	挺杆 (3.255)	TAPPET (3.255)	32/AR
23	8M0142519	挺杆 (3.270)	TAPPET (3.270)	32/AR
23	8M0142520	挺杆 (3.285)	TAPPET (3.285)	32/AR
23	8M0142521	挺杆 (3.300)	TAPPET (3.300)	32/AR
23	8M0142525	挺杆 (3.315)	TAPPET (3.315)	32/AR
23	8M0142527	挺杆 (3.330)	TAPPET (3.330)	32/AR
23	8M0142532	挺杆 (3.345)	TAPPET (3.345)	32/AR
23	8M0142613	挺杆 (3.360)	TAPPET (3.360)	32/AR
23	8M0142252	挺杆 (3.375)	TAPPET (3.375)	32/AR
23	8M0142255	挺杆 (3.390)	TAPPET (3.390)	32/AR
23	8M0142256	挺杆 (3.405)	TAPPET (3.405)	32/AR
23	8M0142257	挺杆 (3.420)	TAPPET (3.420)	32/AR
23	8M0142258	挺杆 (3.435)	TAPPET (3.435)	32/AR
23	8M0142261	挺杆 (3.450)	TAPPET (3.450)	32/AR
23	8M0142263	挺杆 (3.465)	TAPPET (3.465)	32/AR
23	8M0142277	挺杆 (3.480)	TAPPET (3.480)	32/AR
23	8M0142291	挺杆 (3.495)	TAPPET (3.495)	32/AR
23	8M0142292	挺杆 (3.510)	TAPPET (3.510)	32/AR
23	8M0142666	挺杆 (3.525)	TAPPET (3.525)	32/AR
23	8M0142667	挺杆 (3.540)	TAPPET (3.540)	32/AR
23	8M0142668	挺杆 (3.555)	TAPPET (3.555)	32/AR
23	8M0142669	挺杆 (3.570)	TAPPET (3.570)	32/AR
23	8M0142670	挺杆 (3.585)	TAPPET (3.585)	32/AR
23	8M0142698	挺杆 (3.600)	TAPPET (3.600)	32/AR
23	8M0142699	挺杆 (3.615)	TAPPET (3.615)	32/AR
23	8M0142700	挺杆 (3.630)	TAPPET (3.630)	32/AR
23	8M0142701	挺杆 (3.645)	TAPPET (3.645)	32/AR
23	8M0142702	挺杆 (3.660)	TAPPET (3.660)	32/AR
23	8M0142703	挺杆 (3.675)	TAPPET (3.675)	32/AR
23	8M0142704	挺杆 (3.690)	TAPPET (3.690)	32/AR
24	8M0142369	螺钉 (M10 x 107) 内六角法兰头	SCREW (M10 x 107) TORX FLG HD	20
25	893754035	螺钉（M6×35）	SCREW (M6 X 35)	4
25	8M0205943	螺钉(M6x35)	SCREW (M6 x 35)	4
26	8M0142273	气缸盖衬垫	GASKET Cylinder Head	1
26	8M0142272	气缸盖衬垫	GASKET Cylinder Head	1
27	8M0142368	O型圈 (230 2.484 x .139)	O-RING (230 2.484 x .139)	1
28	8M0142537	排气歧管衬垫	GASKET Exhaust Manifold	1
-	8M0142279	长缸体总成	LONG BLOCK	1
-	8M0149557	长缸体总成	LONG BLOCK	1
-	8M0149551	动力头垫片套装	POWERHEAD GASKET SET	1

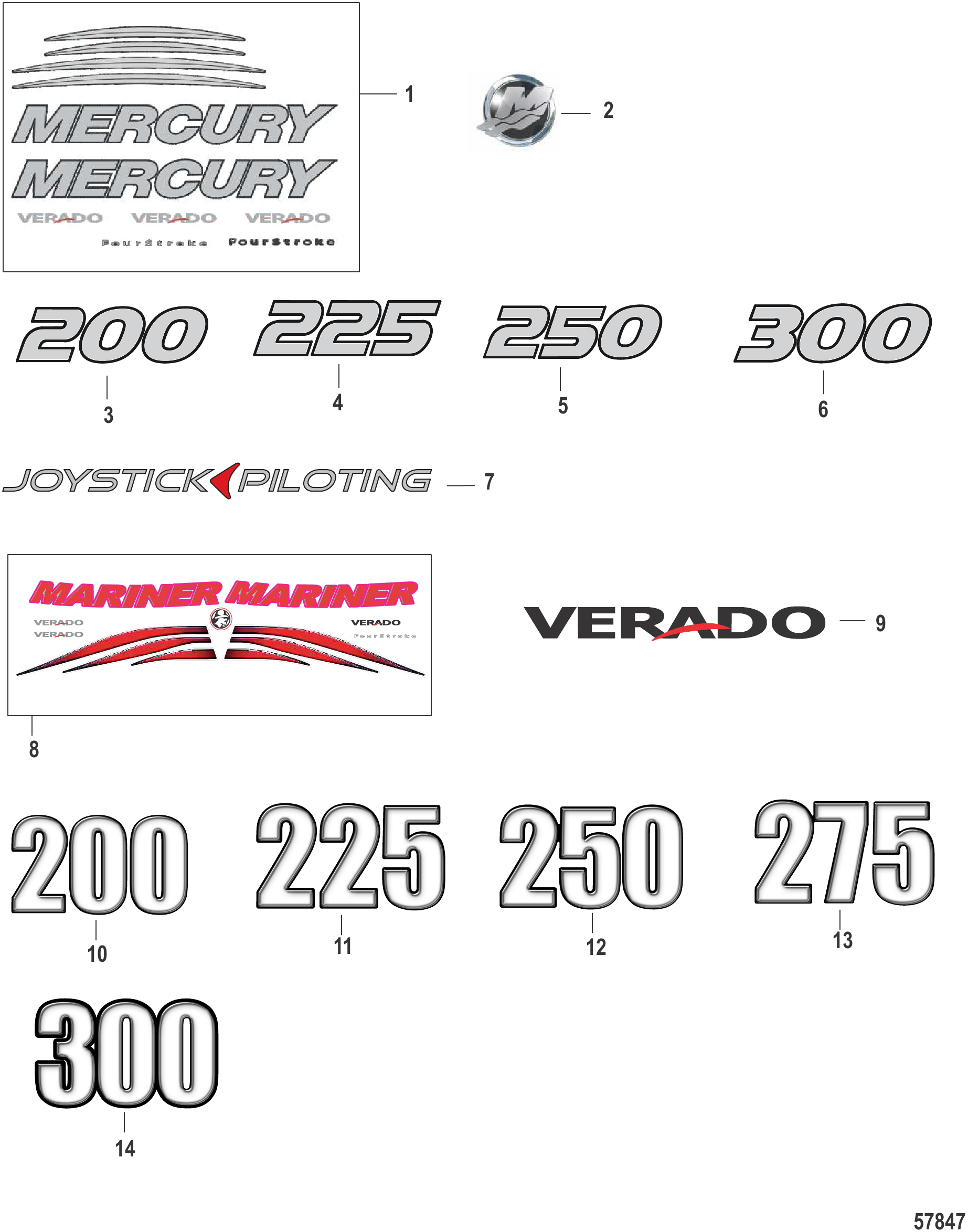

图 11贴花 - 顶罩 Decals - Top Cowl

REF	零件编号	中文名称	英文名称	数量
1	8M0102448	水星贴花套装	DECAL SET Mercury	1
2	8M0043703	M标志贴纸66mm黑色	DECAL M-Icon, 66 MM, Black	1
3	8M0085363	200马力银色贴花	DECAL 200 HP Silver	1
4	8M0085364	225马力银色贴花	DECAL 225 HP Silver	1
5	8M0085365	250马力银色贴花	DECAL 250 HP Silver	1
6	8M0085366	300马力银色贴花	DECAL 300 HP Silver	1
7	8M0075217	操纵杆驾驶贴花	DECAL Joystick Piloting	1
8	892870A02	Mariner贴纸套装	DECAL SET Mariner	1
9	8M0025965	水星Verado贴花	DECAL (Mariner Verado)	1
10	899324003	水星200贴花	DECAL (Mariner 200)	1
11	899324004	水星225贴花	DECAL (Mariner 225)	1
12	899324005	水星250贴花	DECAL (Mariner 250)	1
13	899324006	水星275贴花	DECAL (Mariner 275)	1
14	8M0025964	水星300贴花	DECAL (Mariner 300)	1

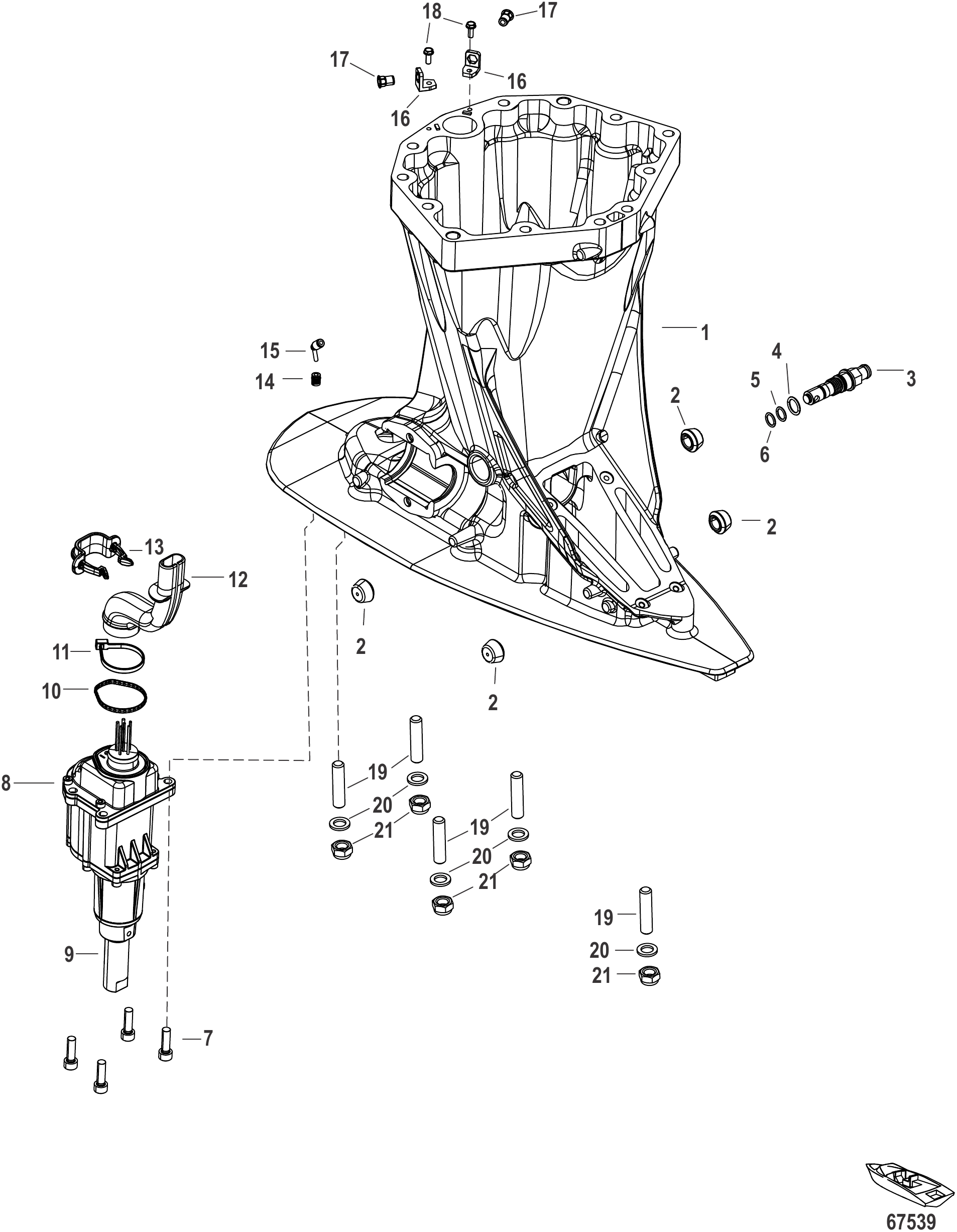

图 12驱动轴壳体 Driveshaft Housing

REF	零件编号	中文名称	英文名称	数量
1	8M0142775	驱动轴壳体-黑色	HOUSING Driveshaft, Black	1
2	8M0142713	支撑盖帽	CAP Chap Support	4
3	8M0112869	油塞总成	OIL PLUG ASSEMBLY	1
4	85045	O型圈(.551 x .070)	O-RING (.551 x .070)	1
5	863006	O型圈(10.82x1.78)	O-RING (10.82 x 1.78)	1
6	8M0036228	O型圈(8.1x1.6)	O-RING (8.1 X 1.6)	1
7	8M0142829	螺钉 (M6 x 20)	SCREW (M6 x 20)	4
8	8M0142253	换挡执行器	SHIFT ACTUATOR	1
8	8M0204944	换挡执行器	SHIFT ACTUATOR	1
9	8M0147857	联轴器轴	SHAFT Coupling	1
10	8M0142978	执行器密封件	SEAL ACTUATOR	1
11	69355	扎带(5.50英寸)	TIE STRAP (5.50 Inches)	1
11	8M0214940	扎带	TIE STRAP	1
12	8M0147674	换挡执行器线束护套	BOOT Shift Actuator Wires	1
13	8M0147675	卡扣	CLIP	1
14	8M0142714	接头	FITTING	1
15	8M0155119	乐可利接头	FITTING Legris	1
16	8M0142715	围嘴安装支架	BRACKET Bib Mount	2
17	8M0142716	嵌件	INSERT	2
18	40011106	不锈钢螺钉(M5x13)	SCREW (M5 x 13) Stainless Steel	2
19	8M0008031	双头螺柱(M12 x 1.75 x 52)	STUD (M12 x 1.75 x 52)	5
19	8M0142781	双头螺柱（M12×179）	STUD (M12 x 179)	5/AR
19	8M0142788	双头螺柱(M12x306)	STUD (M12 x 306)	5/AR
20	856982	垫圈(0.5×0.81×0.09英寸)不锈钢	WASHER (.500 x .810 x .090) Stainless Steel	5/AR
21	896895	螺母(M12)	NUT (M12)	5/AR

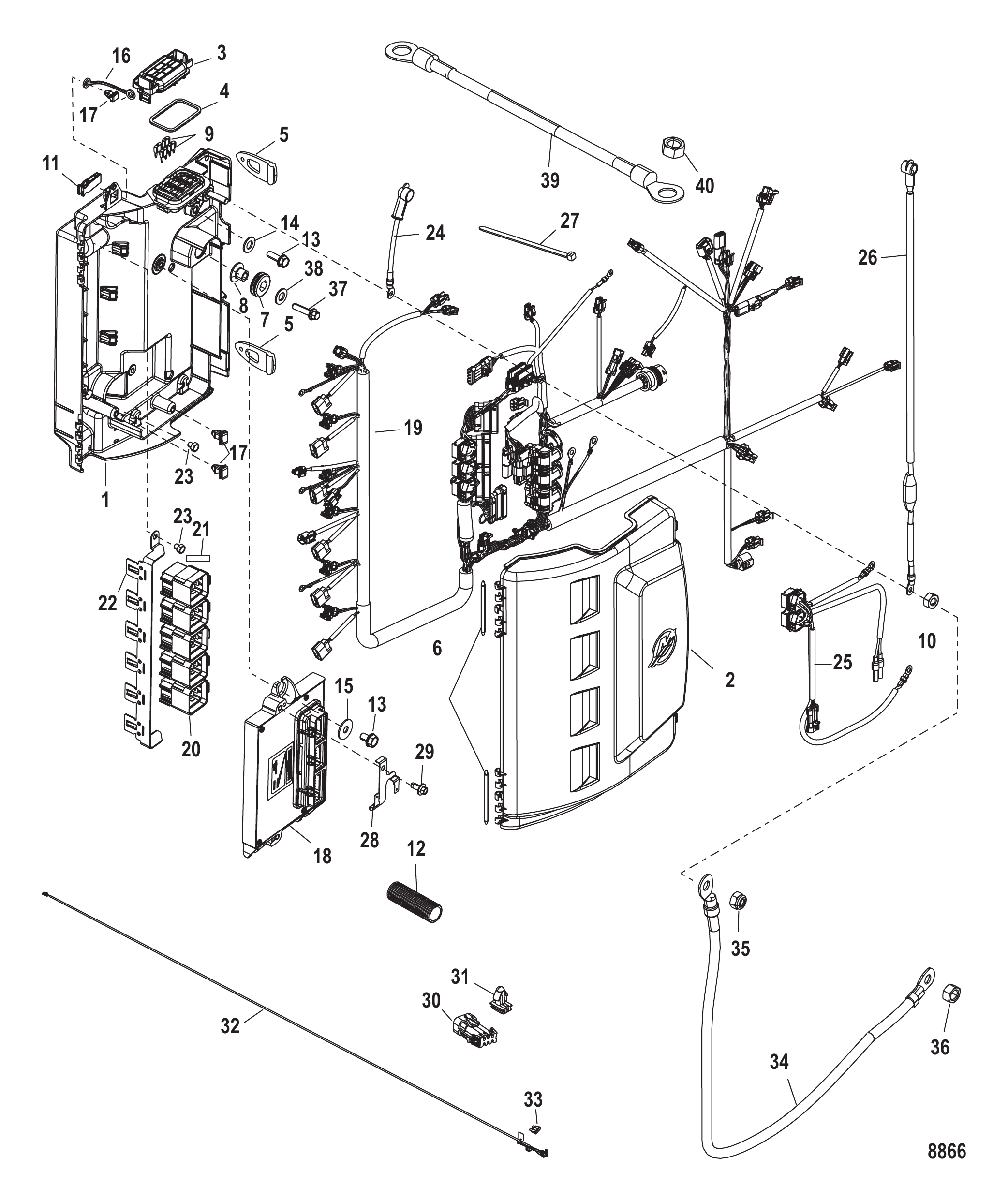

图 13电气箱组件 Electrical Box Components

REF	零件编号	中文名称	英文名称	数量
-	NSS	不单独销售电气箱总成	NOT SOLD SEPARATE Electrical Box-Complete	1
-	NSS	不单独销售电气箱	NOT SOLD SEPARATE Electrical Box	1
1	885560T03	电气箱底座	BASE Electrical Box	1
2	885561T	保险丝盒盖	COVER Fuse Box	1
3	888491	保险丝盖	COVER Fuse	1
3	8M0167280	保险丝盖	FUSE COVER	1
4	885583	密封件	SEAL	1
5	889531	绑带	STRAP	2
6	885584	铰链销	PIN Hinge	2
7	833155	护孔环	GROMMET	1
8	8502341	衬套	BUSHING	1
9	83296920	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	7
9	832969T20	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	7
10	400213	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
11	895099	保险丝拔取器	EXTRACTOR Fuse	1
12	828547753	导管（内径0.750英寸×3英尺散装）	CONDUIT (.750 Inside Diameter x 3.00 Feet Bulk)	1
13	40011146	螺钉（M8×13不锈钢）	SCREW (M8 x 13) Stainless Steel	2
14	843108	垫圈（.330 x .560 x .060）不锈钢	WASHER (.330 x .560 x .060) Stainless Steel	1
15	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	1
16	892244	盖板固定带	STRAP Cover	1
17	879962	卡扣	CLIP	4
18	88555839T	推进控制模块PCM	PCM Propulsion Control Module	1
18	89790721T	PCM控制模块	PCM	1
18	88555843T	推进控制模块PCM	PCM Propulsion Control Module	1
18	89790721T	PCM控制模块	PCM	1
18	88555820T	推进控制模块PCM	PCM Propulsion Control Module	1
18	89790722T	PCM控制模块	PCM	1
18	88555840T	推进控制模块PCM	PCM Propulsion Control Module	1
18	89790723T	PCM控制模块	PCM	1
18	88555844T	推进控制模块PCM	PCM Propulsion Control Module	1
18	89790723T	PCM控制模块	PCM	1
18	88555821T	推进控制模块PCM	PCM Propulsion Control Module	1
18	89790724T	PCM控制模块	PCM	1
18	88555841T	推进控制模块PCM	PCM Propulsion Control Module	1
18	89790725T	PCM控制模块	PCM	1
18	88555845T	推进控制模块PCM	PCM Propulsion Control Module	1
18	89790725T	PCM控制模块	PCM	1
18	88555822T	推进控制模块PCM	PCM Propulsion Control Module	1
18	89790726T	PCM控制模块	PCM	1
18	88555842T	推进控制模块PCM	PCM Propulsion Control Module	1
18	89790727T	PCM控制模块	PCM	1
18	88555846T	推进控制模块PCM	PCM Propulsion Control Module	1
18	89790727T	PCM控制模块	PCM	1
18	88555823T	推进控制模块PCM	PCM Propulsion Control Module	1
18	89790728T	PCM控制模块	PCM	1
19	880616T05	发动机线束总成	HARNESS ASSEMBLY Engine	1
19	8M0082643	发动机线束总成	HARNESS ASSEMBLY Engine	1
-	NSS	不单独销售继电器支架总成	NOT SOLD SEPARATE Relay Bracket Assembly	1
20	882751A04	继电器总成	RELAY ASSEMBLY	4
21	NSS	微调继电器标识贴(不单独销售)	NOT SOLD SEPARATE Decal-Trim Relay	4
22	889532	支架	BRACKET	1
23	40007103	螺钉 (M5 x 6)	SCREW (M5 x 6)	2
24	93388A17	线缆总成(8.50英寸)	CABLE ASSEMBLY (8.50 Inches)	1
25	819514A20	升降线束总成	HARNESS ASSEMBLY Trim	1
25	879345T34	升降线束总成	HARNESS ASSEMBLY Trim	1
26	8M0088927	保险丝线束总成	HARNESS ASSEMBLY Fuse	1
27	850181	捆扎带(11.750英寸)	TIE STRAP (11.750 Inches)	6
27	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
28	891520001	卡扣	CLIP	1
29	82129114	螺钉 (M6 x 14)	SCREW (M6 x 14)	1
30	877613A02	防水插头总成6针	CONNECTOR ASSEMBLY Weather Cap 6 Pin	1
31	879962	卡扣	CLIP	1
32	888416T03	线束总成	HARNESS ASSEMBLY	1
32	8M0113732	DTS清洁电源线束总成(14英尺)	HARNESS ASSEMBLY DTS, Clean Power, 14 Feet	1
33	862646	褐色保险丝-5安培	FUSE Tan - 5 Ampere	1
34	88439A25	电缆总成蓄电池-正极	CABLE ASSEMBLY Battery - Positive	1
35	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	5
36	86226	螺母(.375-16 蓄电池正极电缆)	NUT (.375-16) Battery Cable-Positive	1
36	8M0204671	螺母	NUT	1
37	88552635	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	1
37	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	1
38	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	1
39	88439A26	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
40	68292	螺母(.312-18 蓄电池负极电缆)	NUT (.312-18) Battery Cable-Negative	1
40	8M0204668	螺母(.312-18)	NUT (.312-18)	1

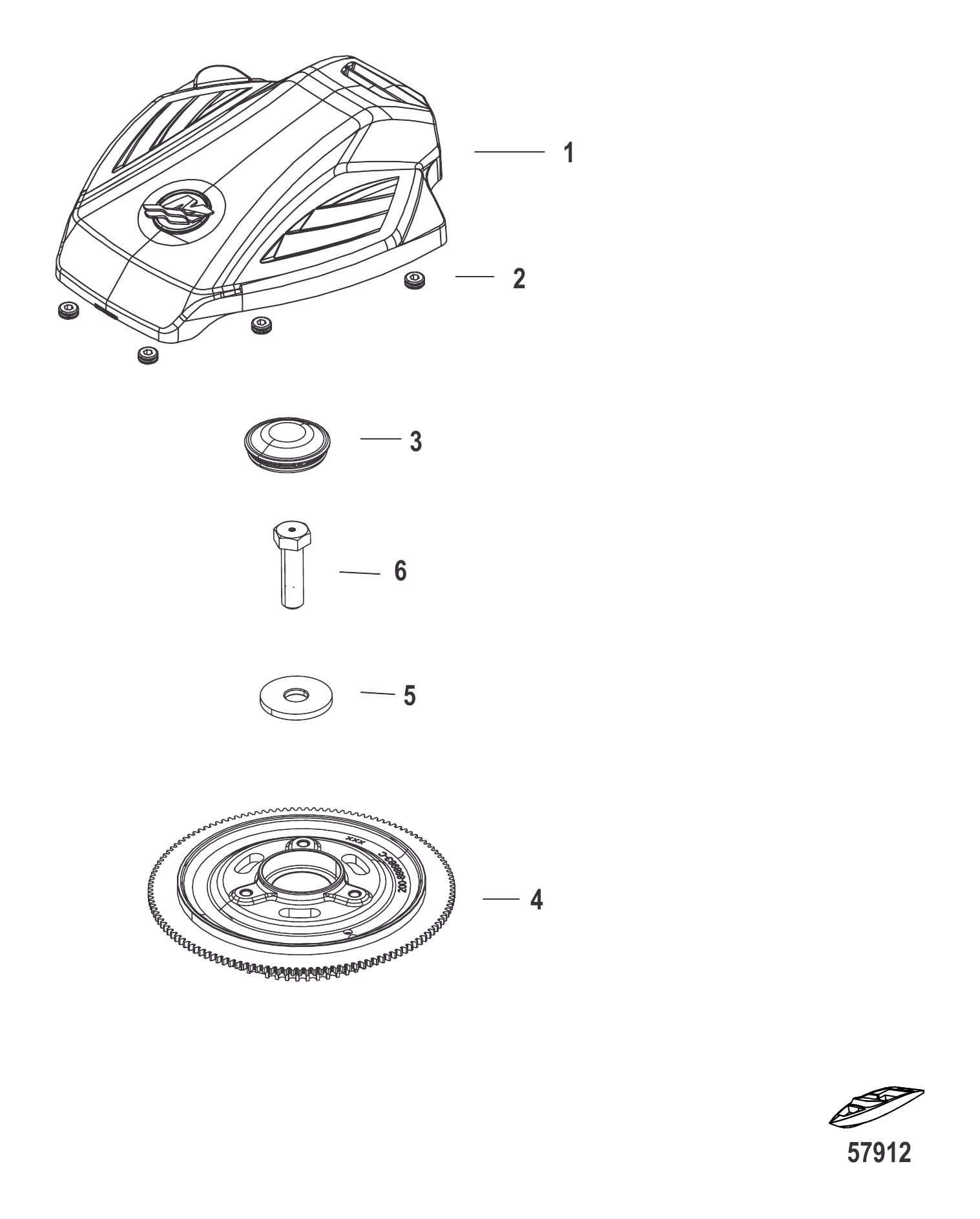

图 14飞轮与盖 Flywheel and Cover

REF	零件编号	中文名称	英文名称	数量
1	887936T04	飞轮盖	COVER Flywheel	1
2	834985	护孔环	GROMMET	4
2	8M0190980	护孔环	GROMMET	4
3	885348	盖帽	CAP	1
4	888983T03	飞轮总成	FLYWHEEL ASSEMBLY	1
5	8M0090010	垫圈	WASHER	1
6	880515	螺栓(M20×68)	BOLT (M20 x 68)	6
6	8M0147042	螺栓	BOLT	6

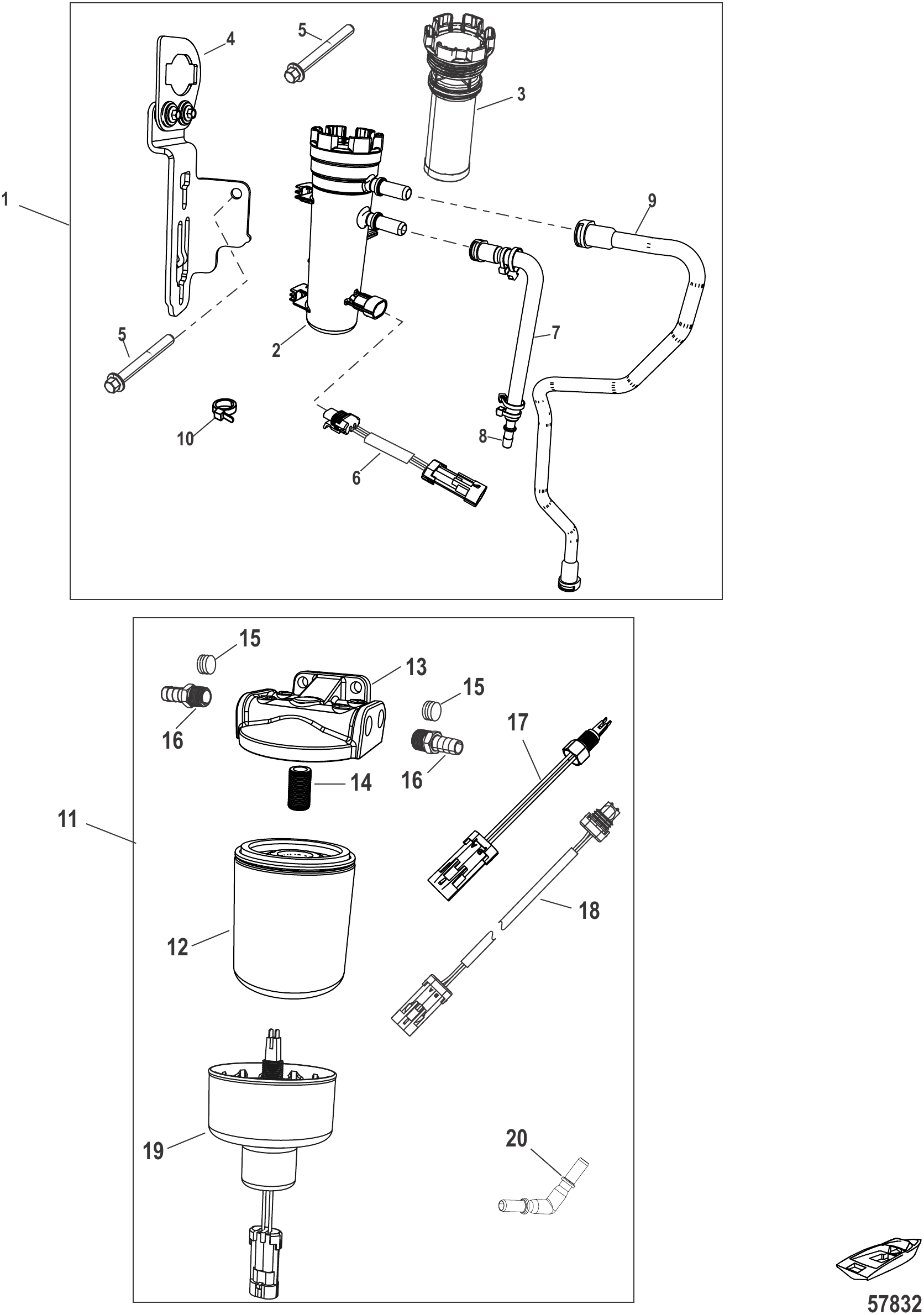

图 15燃油滤清器套件 Fuel Filter Kits

REF	零件编号	中文名称	英文名称	数量
1	8M0103686	发动机安装燃油滤清器套件	FUEL FILTER KIT Engine Mounted	1
2	8M0062950	滤清器总成	FILTER ASSEMBLY	1
3	8M0060041	燃油滤清器	FILTER Fuel	1
3	8M0122423	水星燃油滤清器	FUEL FILTER Quicksilver	1
4	8M0009261	支架总成	BRACKET ASSEMBLY	1
5	88552785	螺钉(M10×85)	SCREW (M10 x 85)	1
5	8M0103824	螺钉	SCREW	1
6	8M0103724	WIF延长线束	HARNESS WIF Extension	1
7	8M0046557	燃油进口软管总成（8.2英寸）	HOSE ASSMEBLY Fuel Inlet, 8.2 Inch	1
8	892356	连接器	CONNECTOR	1
9	8M0087107	软管	HOSE	1
10	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	3
11	8M0095669	带O型圈的MPP远程安装燃油滤清器套件	FUEL FILTER KIT with o-ring, MPP Remote Mounted	1
11	8M0157707	燃油滤清器套件	FUEL FILTER KIT	1
12	8M0095659	带O型圈的MPP燃油滤清器总成	FUEL FILTER ASSEMBLY with o-ring, MPP	1
12	8M0157616	燃油滤清器总成	FUEL FILTER ASSEMBLY	1
13	8M0095674	燃油滤清器底座总成	BASE ASSEMBLY Fuel Filter	1
14	816133	接头	FITTING	1
15	36373	六角堵头（.375-18）-钢制	PLUG (.375-18) Hex - Steel	2
15	8M0204657	堵头	PLUG	2
16	8M0086290	倒钩接头	CONNECTOR Barb	2
16	8M0204732	倒钩接头	CONNECTOR Barb	2
17	8M0021043	传感器总成燃油和水	SENSOR ASSEMBLY Fuel and Water	1
17	8M0214989	燃油含水传感器	SENSOR WIF	1
18	8M0042697	燃油滤清器传感器延长线束 (144英寸)	HARNESS Fuel Filter Sensor Extension (144 in)	1
19	8M0157779	WIF传感器总成	SENSOR ASSEMBLY WIF	1
20	8M0152433	弯头接头	FITTING ELBOW	1
-	8M0105263	WIF传感器延长线束-36英寸	HARNESS WIF Sensor Extension - 36 Inches	1
-	8M0105264	WIF传感器延长线束-72英寸	HARNESS WIF Sensor Extension - 72 Inches	1

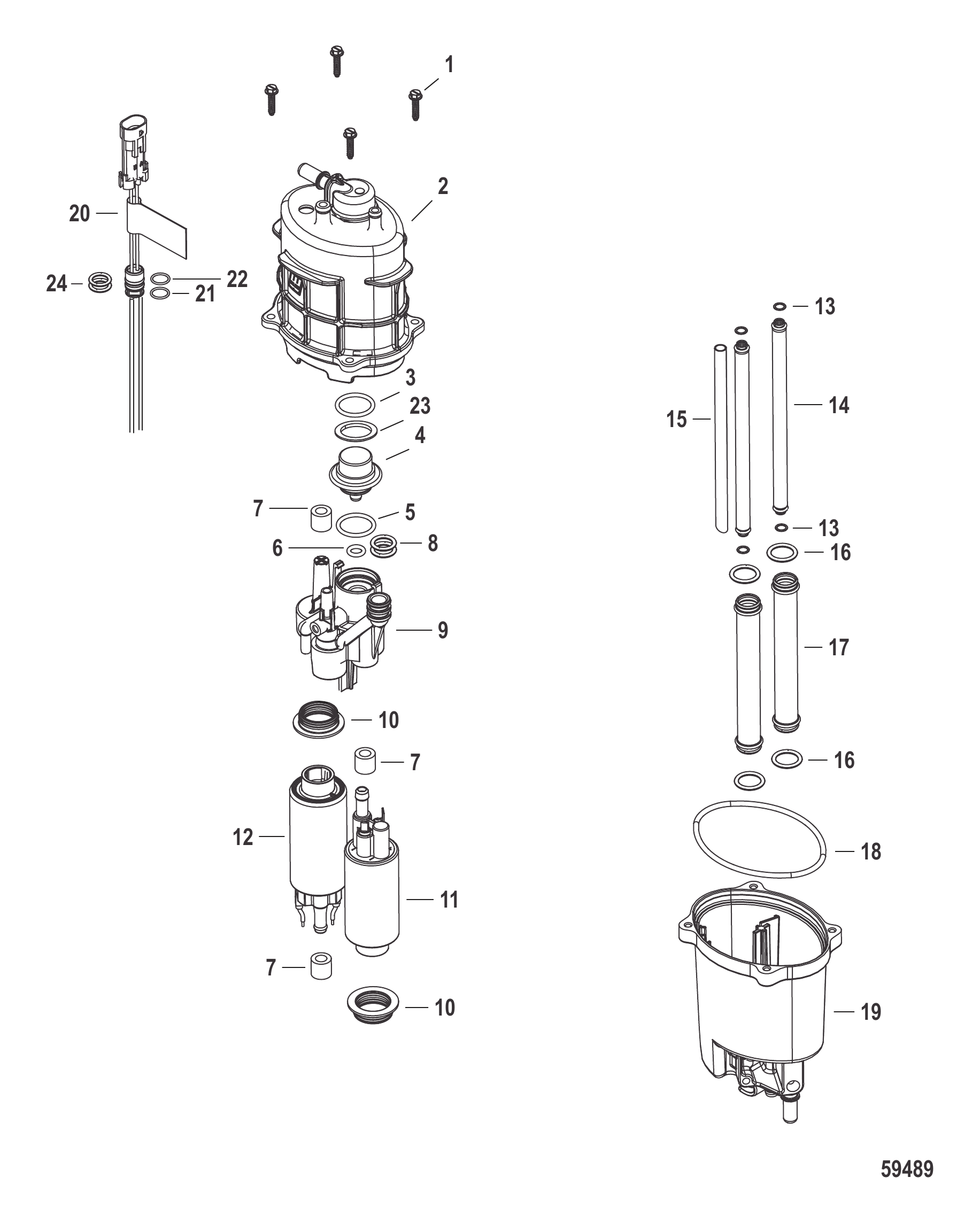

图 16燃油供给模块组件 8M0102455 2B457609及以下 Fuel Supply Module Components - 8M0102455 2B457609 and Below

REF	零件编号	中文名称	英文名称	数量
-	8M0102455	燃油供应模块	MODULE Fuel Supply	1
1	8M0053756	螺钉 Plastite W/ HX WSR HD	SCREW Plastite W/ HX WSR HD	4
2	8M0053726	燃油供应模块上壳体	FSM TOP HOUSING	1
2	8M0158344	燃油供应模块上壳体	FSM TOP HOUSING	1
3	NSS		NOT SOLD SEPARATE O-ring	1
4	8M0053749	调节器总成	REGULATOR ASSEMBLY	1
4	8M0242586	调节器总成	REGULATOR ASSEMBLY	1
5	NSS		NOT SOLD SEPARATE O-ring	1
6	NSS		NOT SOLD SEPARATE O-ring	1
7	NSS	不单独销售	NOT SOLD SEPARATE	3
8	NSS	不单独销售	NOT SOLD SEPARATE	2
9	8M0053727	燃油供应模块盖	FSM CAP	1
10	NSS	不单独销售	NOT SOLD SEPARATE	2
11	8M0103289	泵总成低压	PUMP ASSEMBLY Low Pressure	1
12	8M0103288	泵总成高压	PUMP ASSEMBLY High Pressure	1
13	NSS		NOT SOLD SEPARATE O-ring	4
14	8M0053735	管	TUBE	2
14	8M0119250	管	TUBE	2
15	8M0053755	管	TUBE	1
16	NSS		NOT SOLD SEPARATE O-ring	4
17	8M0053734	管	TUBE	2
17	8M0120073	管	TUBE	2
18	NSS	不单独销售密封件	NOT SOLD SEPARATE Seal	1
19	8M0053725	燃油供应模块下壳体	FSM BOTTOM HOUSING	1
19	8M0132733	燃油供应模块双泵	FUEL SUPPLY MODULE Dual Pump	1
20	8M0103287	FSM线束总成	HARNESS ASSEMBLY FSM	1
21	NSS		NOT SOLD SEPARATE O-ring	1
22	NSS		NOT SOLD SEPARATE O-ring	1
23	NSS		NOT SOLD SEPARATE Spacer	1
24	8M0086888	FSM线束护圈	GROMMET FSM Harness	1
-	8M0057679	燃油供应模块密封件套装	FSM SEAL KIT	1

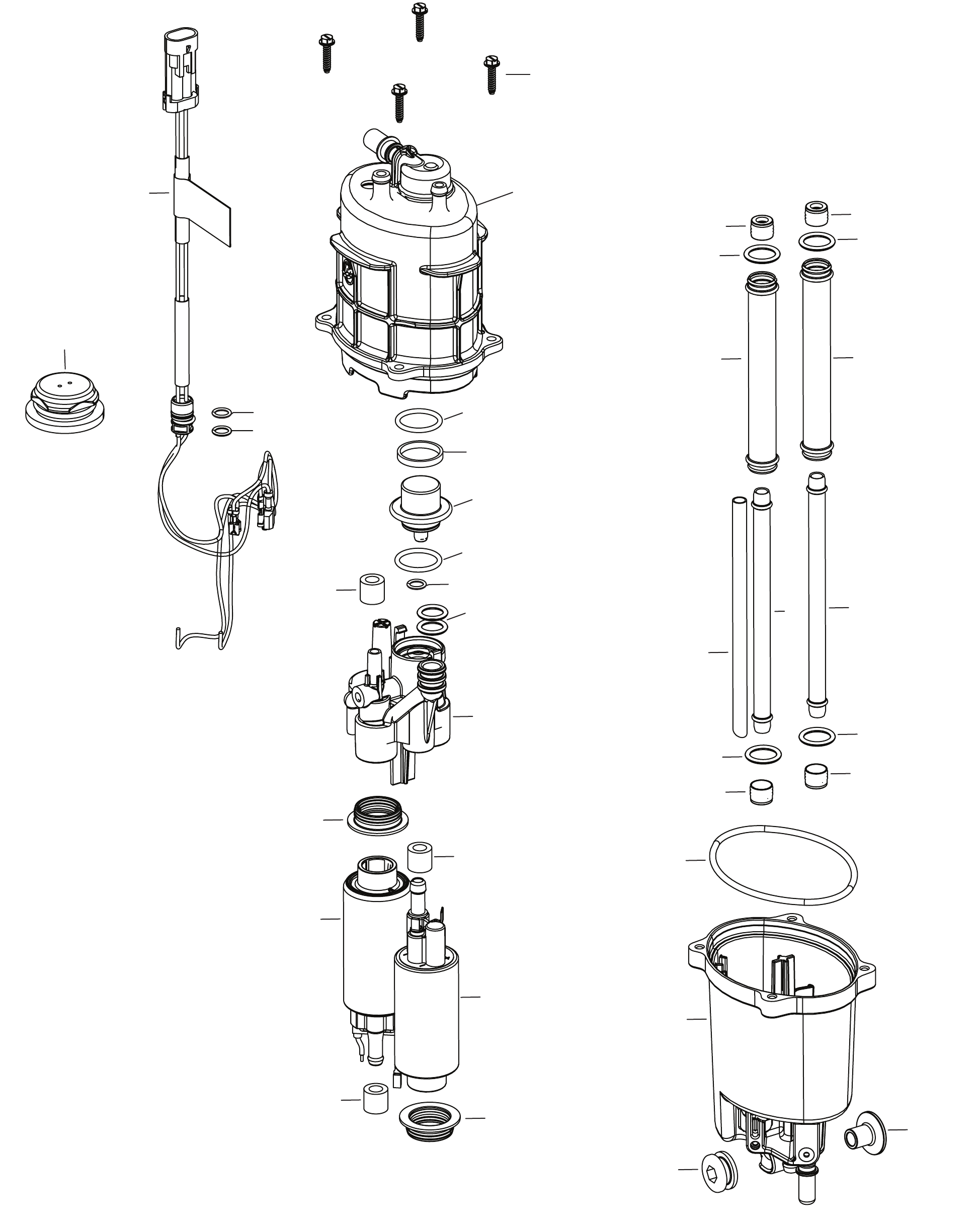

图 17燃油供给模块组件 8M0132732 2B457610及以上 Fuel Supply Module Components - 8M0132732 2B457610 and Up

REF	零件编号	中文名称	英文名称	数量
-	8M0132732	燃油供给模块	FUEL SUPPLY MODULE	1
1	8M0053726	燃油供应模块上壳体	FSM TOP HOUSING	1
1	8M0158344	燃油供应模块上壳体	FSM TOP HOUSING	1
2	8M0053756	螺钉 Plastite W/ HX WSR HD	SCREW Plastite W/ HX WSR HD	4
3	NSS	O型圈(不单独销售)	NOT SOLD SEPARATE O-Ring	2
4	NSS		NOT SOLD SEPARATE Spacer	1
5	8M0053749	调节器总成	REGULATOR ASSEMBLY	1
5	8M0242586	调节器总成	REGULATOR ASSEMBLY	1
6	NSS	O型圈(不单独销售)	NOT SOLD SEPARATE O-Ring	1
7	NSS	不单独销售密封件	NOT SOLD SEPARATE Seal	3
8	8M0130877	燃油供应模块盖	FSM CAP	1
8	8M0158425	燃油供应模块盖	FSM CAP	1
9	NSS	O型圈(不单独销售)	NOT SOLD SEPARATE O-Ring	2
10	8M0053755	油管吸油	TUBE Suction	1
11	NSS	不单独销售密封件	NOT SOLD SEPARATE Seal	2
12	8M0103288	泵总成高压	PUMP ASSEMBLY High Pressure	1
13	8M0103289	泵总成低压	PUMP ASSEMBLY Low Pressure	1
14	NSS	不单独销售密封件	NOT SOLD SEPARATE Seal	4
15	NSS	O型圈(不单独销售)	NOT SOLD SEPARATE O-Ring	4
16	8M0120073	水管	TUBE Water	2
17	8M0130873	油管燃油	TUBE Fuel	2
18	NSS	不单独销售密封件	NOT SOLD SEPARATE Seal	1
19	8M0130878	燃油供应模块下壳体	FSM BOTTOM HOUSING	1
19	8M0158426	燃油供应模块下壳体	FSM BOTTOM HOUSING	1
20	895319	护孔环	GROMMET	1
21	856954	衬套	BUSHING	1
22	8M0086888	FSM线束护圈	GROMMET FSM Harness	1
23	8M0103287	FSM线束总成	HARNESS ASSEMBLY FSM	1
24	NSS	O型圈(不单独销售)	NOT SOLD SEPARATE O-Ring	1
25	NSS	O型圈(不单独销售)	NOT SOLD SEPARATE O-Ring	1
-	8M0133370	燃油供应模块密封件套装	FSM SEAL KIT	1

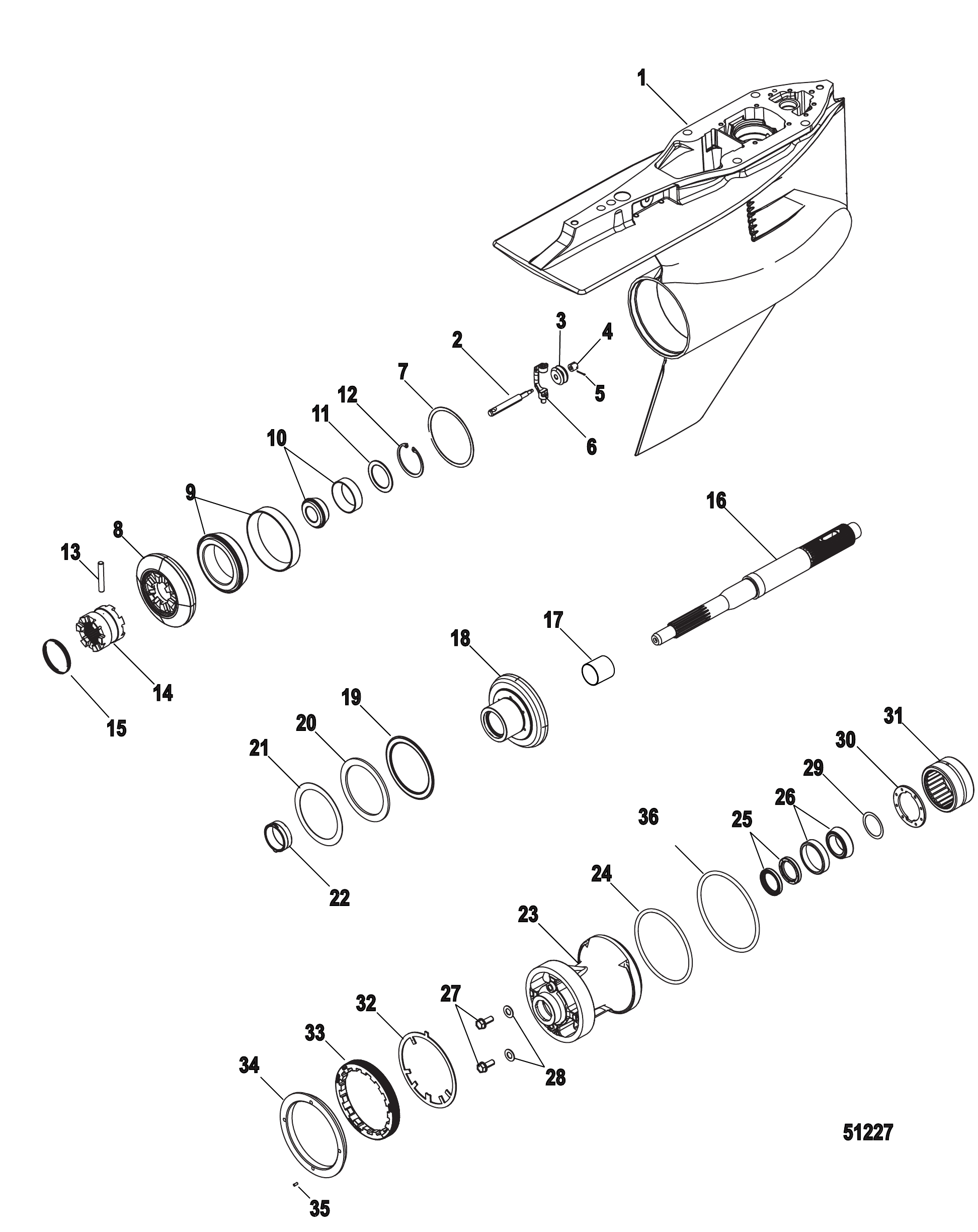

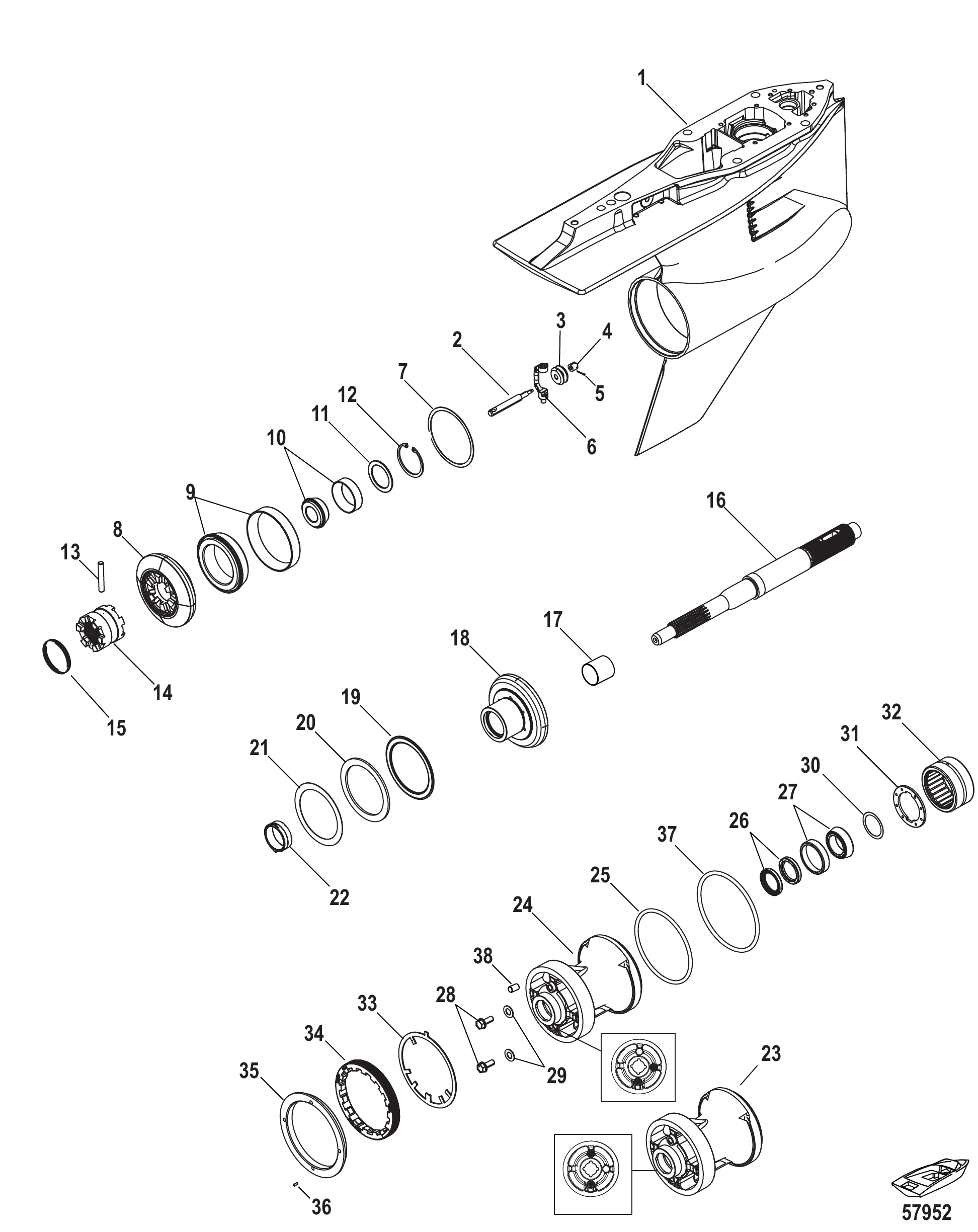

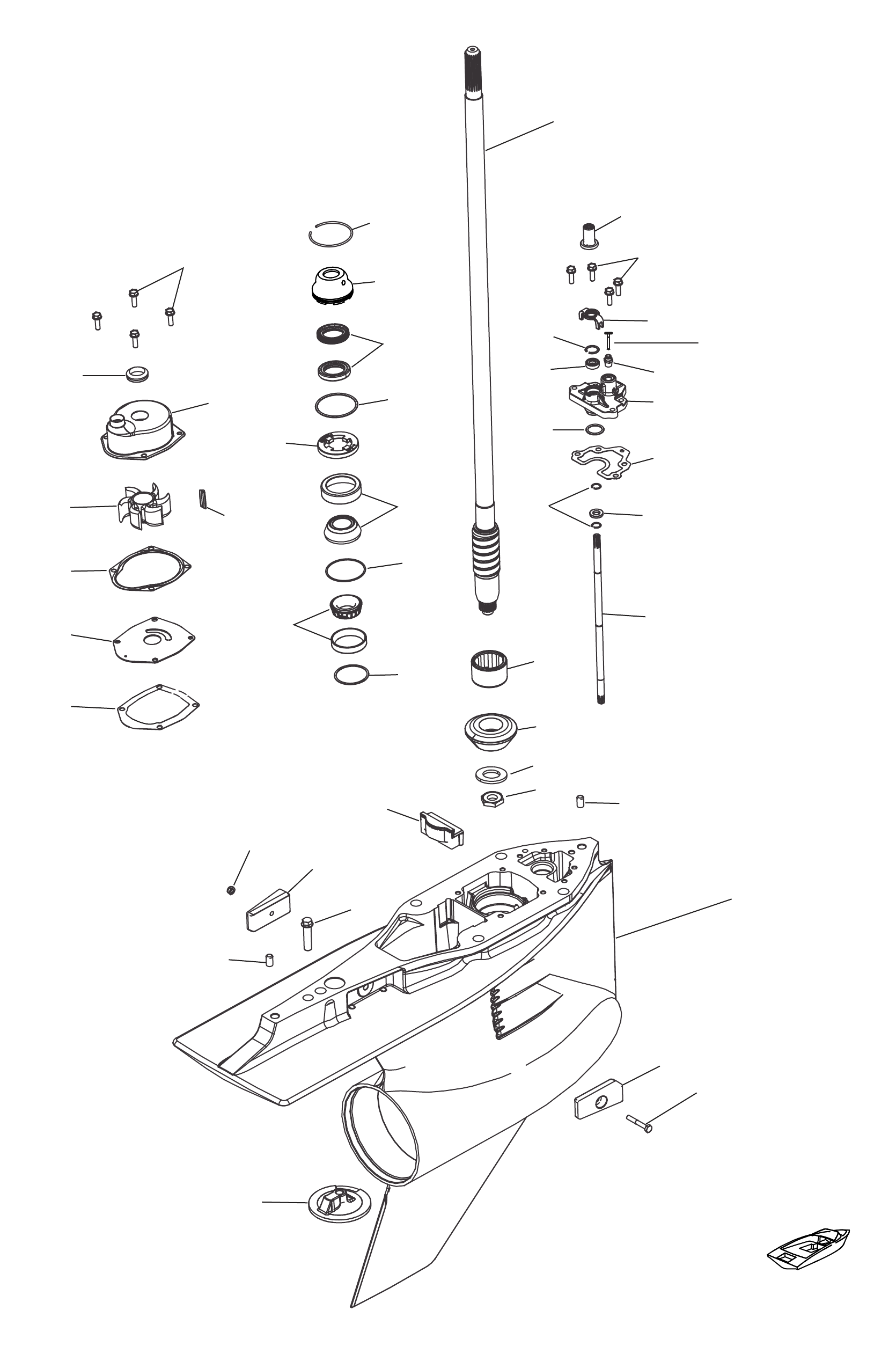

图 18齿轮箱，驱动轴，5.44鱼雷型 Gear Housing, Driveshaft, 5.44 Torpedo

REF	零件编号	中文名称	英文名称	数量
-	8M0078246	齿轮箱总成(黑色标准长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Standard Long)(1.85:1)	1
-	8M0089983	齿轮箱总成(银色标准长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Standard Long)(1.85:1)	1
-	8M0228059	GC-L6 S 1.85 L	GC-L6 S 1.85 L	1
-	8M0078247	齿轮箱总成(黑色标准加长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Standard X-Long)(1.85:1)	1
-	8M0236284	GC VER 1.85 B XL	GC VER 1.85 B XL	1
-	8M0089985	齿轮箱总成(银色标准加长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Standard X-Long)(1.85:1)	1
-	8M0236237	GC-L6 S 1.85 XL	GC-L6 S 1.85 XL	1
-	8M0078249	齿轮箱总成(黑色标准超长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Standard XX-Long)(1.85:1)	1
-	8M0236286	GC VER 1.85 XXL	GC VER 1.85 XXL	1
-	8M0089987	齿轮箱总成(银色标准超长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Standard XX-Long)(1.85:1)	1
-	8M0117243	GC-L6 S 1.85 XXL	GC-L6 S 1.85 XXL	1
-	8M0078251	齿轮箱总成(黑色反转向长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Counter Rotation-Long)(1.85:1)	1
-	8M0117257	GC VER 1.85 CL	GC VER 1.85 CL	1
-	8M0089984	齿轮箱总成(银色反转向长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Counter Rotation-Long)(1.85:1)	1
-	8M0228060	GC-L6 S 1.85 CL	GC-L6 S 1.85 CL	1
-	8M0078248	齿轮箱总成(黑色反转向加长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Counter Rotation X-Long)(1.85:1)	1
-	8M0236285	GC VER 1.85 CXL	GC VER 1.85 CXL	1
-	8M0089986	齿轮箱总成(银色反转向加长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Counter Rotation X-Long)(1.85:1)	1
-	8M0228062	GC-L6 S 1.85 CXL	GC-L6 S 1.85 CXL	1
-	8M0078250	齿轮箱总成(黑色反转向超长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Counter Rotation XX-Long)(1.85:1)	1
-	8M0236287	GC VER 1.85 CXXL	GC VER 1.85 CXXL	1
-	8M0089988	齿轮箱总成(银色反转向超长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Counter Rotation XX-Long)(1.85:1)	1
-	8M0117244	GC-L6 S 1.85 CXXL	GC-L6 S 1.85 CXXL	1
-	8M0102480	齿轮箱总成完整, 银色 (标准长轴)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Standard Long)(1.75:1)	1
-	8M0236238	GC-L6 S 1.75 L	GC-L6 S 1.75 L	1
-	8M0102481	齿轮箱总成完整, 银色 (标准X型长轴)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Standard X-Long)(1.75:1)	1
-	8M0236239	GC-L6 S 1.75 XL	GC-L6 S 1.75 XL	1
-	8M0102482	齿轮箱总成完整, 银色 (标准XX型长轴)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Standard XX-Long)(1.75:1)	1
-	8M0236240	GC-L6 S 1.75 XXL	GC-L6 S 1.75 XXL	1
-	8M0102483	齿轮箱总成完整, 银色 (反转长轴)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Counter Rotation-Long)(1.75:1)	1
-	8M0236232	GC L6 S 1.75 CL	GC L6 S 1.75 CL	1
-	8M0102484	齿轮箱总成完整, 银色 (反转X型长轴)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Counter Rotation X-Long)(1.75:1)	1
-	8M0236233	GC L6 S 1.75 CXL	GC L6 S 1.75 CXL	1
-	8M0102485	齿轮箱总成完整, 银色 (反转XX型长轴)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Counter Rotation XX-Long)(1.75:1)	1
-	8M0236234	GC 1.75 CXXL SLVR	GC 1.75 CXXL SLVR	1
-	8M0110266	齿轮箱总成完整, 黑色 (弧形标准转向长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Cambered Standard Rotation Long)(1.85:1)	1
-	8M0117259	GC VER 1.85 L	GC VER 1.85 L	1
-	8M0110267	齿轮箱总成完整, 黑色 (弧形标准转向X型长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Cambered Standard Rotation X-Long)(1.85:1)	1
-	8M0117260	GC VER 1.85 XL	GC VER 1.85 XL	1
-	8M0110268	齿轮箱总成完整, 黑色 (弧形标准转向XX型长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Cambered Standard Rotation XX-Long)(1.85:1)	1
-	8M0117261	GC VER 1.85 XXL	GC VER 1.85 XXL	1
-	8M0110263	齿轮箱总成完整, 黑色 (弧形反转长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Cambered Counter Rotation Long)(1.85:1)	1
-	8M0117272	GC-L6 B 185L CL	GC-L6 B 185L CL	1
-	8M0110264	齿轮箱总成完整,黑色(弧形反转向超长)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Cambered Counter Rotation X-Long)(1.85:1)	1
-	8M0236293	GC L6 1.85L CXL	GC L6 1.85L CXL	1
-	8M0110265	齿轮箱总成完整,黑色(弧形反转向超超长)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Cambered Counter Rotation XX-Long)(1.85:1)	1
-	8M0236294	GC L6 1.85L CXXL	GC L6 1.85L CXXL	1
-	8M0110254	齿轮箱总成完整,银色(弧形标准转向长)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Cambered Standard Rotation Long)(1.85:1)	1
-	8M0110255	齿轮箱总成完整,银色(弧形标准转向超长)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Cambered Standard Rotation X-Long)(1.85:1)	1
-	8M0117267	GC VER XL SILVER	GC VER XL SILVER	1
-	8M0110256	齿轮箱总成完整,银色(弧形标准转向超超长)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Cambered Standard Rotation XX-Long)(1.85:1)	1
-	8M0117268	GC VER XXL SILVER	GC VER XXL SILVER	1
-	8M0110260	齿轮箱总成完整,银色(弧形反转向长)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Cambered Counter Rotation Long)(1.85:1)	1
-	8M0117279	GC CL SILVER	GC CL SILVER	1
-	8M0110261	齿轮箱总成完整,银色(弧形反转向超长)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Cambered Counter Rotation X-Long)(1.85:1)	1
-	8M0117280	GC-L6 S 185L CXL	GC-L6 S 185L CXL	1
-	8M0110262	齿轮箱总成完整,银色(弧形反转向超超长)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Cambered Counter Rotation XX-Long)(1.85:1)	1
-	8M0117281	GC CXXL SILVER	GC CXXL SILVER	1
-	8M0110251	齿轮箱总成完整,银色(弧形标准转向长)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Cambered Standard Rotation Long)(1.75:1)	1
-	8M0228068	GC VER L	GC VER L	1
-	8M0110252	齿轮箱总成完整,银色(标准转向超长)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver ered Standard Rotation X-Long)(1.75:1)	1
-	8M0236243	GC VER XL	GC VER XL	1
-	8M0110253	齿轮箱总成完整,银色(标准转向超超长)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver ered Standard Rotation XX-Long)(1.75:1)	1
-	8M0236244	GC VER XXL	GC VER XXL	1
-	8M0110257	齿轮箱总成完整,银色(反转向长)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver ered Counter Rotation Long)(1.75:1)	1
-	8M0236228	GC L6 S 1.75 L CL	GC L6 S 1.75 L CL	1
-	8M0110258	齿轮箱总成完整,银色(反转向超长)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver ered Counter Rotation X-Long)(1.75:1)	1
-	8M0236229	GC L6 S 1.75 CXL	GC L6 S 1.75 CXL	1
-	8M0110259	齿轮箱总成完整,银色(反转向超超长)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver ered Counter Rotation XX-Long)(1.75:1)	1
-	8M0215261	银色齿轮箱总成	GEAR HOUSING ASSEMBLY Complete, Silver	1
1	8M0053108	基础型黑色齿轮箱总成	GEAR HOUSING ASSEMBLY Basic, Black	1
1	8M0117258	GC BASIC BLACK	GC BASIC BLACK	1
1	8M0053107	齿轮箱总成基础款银色	GEAR HOUSING ASSEMBLY Basic, Silver	1
1	8M0228048	GC - BASIC	GC - BASIC	1
1	8M0110355	齿轮箱总成基础型,黑色弧形	GEAR HOUSING ASSEMBLY Basic, Black Cambered	1
1	8M0117275	GC BASIC LH BLACK	GC BASIC LH BLACK	1
1	8M0110365	齿轮箱总成基础型,黑色弧形	GEAR HOUSING ASSEMBLY Basic, Black Cambered	1
1	8M0117262	GC BASIC BLACK	GC BASIC BLACK	1
1	8M0110354	齿轮箱总成基础型,银色(弧形标准转向)	GEAR HOUSING ASSEMBLY Basic, Silver (Cambered Standard Rotation)	1
1	8M0228073	GC VER BASIC SILV	GC VER BASIC SILV	1
1	8M0110363	齿轮箱总成基础型,银色(弧形反转向)	GEAR HOUSING ASSEMBLY Basic, Silver (Cambered Counter Rotation)	1
1	8M0228049	GC BASIC SIL LH	GC BASIC SIL LH	1
2	826134Q	阳极块	ANODE	2
3	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
4	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
5	76214Q5	阳极套件	ANODE KIT	1
6	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
6	8M0204686	螺钉	SCREW	1
7	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
8	8M0010459	填充块	FILLER BLOCK	1
9	817275A1	水泵壳体套件	HOUSING KIT Water Pump	1
10	1993720	螺钉 (M6 x 20)	SCREW (M6 x 20)	4
10	8M0204706	螺丝M6x20六角	SCREW M6 x 20 Hex	4
-	8M0057717	叶轮维修套件	IMPELLER REPAIR KIT	1
-	8M0100526	水泵叶轮维修套件	REPAIR KIT Water Impeller	1
11	8M2014338	端面密封	SEAL Face	1
11	8M0142851	V型面密封环	V RING Face Seal	1
12	43026Q02	叶轮	IMPELLER	1
13	8172771	水泵上垫片	GASKET Water Pump, Upper	1
14	8172761	面板	FACEPLATE	1
14	8M0204709	面板	FACEPLATE	1
15	8M0050720	衬垫	GASKET	1
15	8M0142616	衬垫面板至齿轮箱	GASKET Face Plate to Gearcase	1
16	8M0032833	键	KEY	1
16	8M0204723	键	KEY	1
17	8M0046297	油封载体总成	OIL SEAL CARRIER ASSEMBLY	1
18	NSS		NOT SOLD SEPARATE SEAL	2
19	896523	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
19	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
20	880719	挡圈	RING Retaining	1
21	8245191	固定座	RETAINER	1
22	8M0063267	垫片组	SHIM SET	1
23	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
23	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
24	48939A2	圆锥滚子轴承	BEARING Taper Roller	1
24	8M0146553	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
25	8M0063268	垫片组	SHIM SET	1
26	8M0103301	驱动轴,长型	SHAFT Drive, Long	1
26	8M0149608	长型驱动轴总成	DRIVESHAFT ASSEMBLY Long	1
26	8M0103303	驱动轴,超长型	SHAFT Drive, X-Long	1
26	8M0141337	驱动轴总成 X加长型	DRIVESHAFT ASSEMBLY X-Long	1
26	8M0103304	驱动轴(超长型)	SHAFT Drive, XX-Long	1
26	8M0141338	驱动轴总成(超长型)	DRIVESHAFT ASSEMBLY XX-Long	1
27	8M0045676	滚柱轴承	BEARING Roller	1
28	8M0078259	齿轮组13/24(速比1.85:1)前进档与小齿轮	GEAR SET 13/24(1.85:1) Forward and Pinion	1
28	8M0078258	标准转向齿轮组(前进档/小齿轮)(速比1.75)(12/21)前进档与小齿轮	GEAR SET Standard Rotation, Forward/Pinion, 1.75 Ratio (12/21) Forward and Pinion	1
28	8M0053119	齿轮组13/24(速比1.85:1)前进档与小齿轮	GEAR SET 13/24 (1.85:1) Forward and Pinion	1
28	8M0053120	反转向齿轮组(前进档/小齿轮)(速比1.75)(12/21)前进档与小齿轮	GEAR SET Counter Rotation, Forward/Pinion, 1.75 Ratio (12/21) Forward and Pinion	1
29	8M0062703	小齿轮螺母垫圈	WASHER Pinon nut	1
30	8M0046636	小齿轮螺母	NUT Pinion	1
31	43585	联轴器	COUPLING	1
32	1993720	螺钉 (M6 x 20)	SCREW (M6 x 20)	1
32	8M0204706	螺丝M6x20六角	SCREW M6 x 20 Hex	1
33	8M0050809	索环组件	GROMMET ASSEMBLY	1
34	8M0047129	盖总成	COVER ASSEMBLY	1
35	896522	O型圈(799×.103)	O-RING (799 x .103)	1
36	8164641	油封	SEAL Oil	1
36	8M0246145	油封	OIL SEAL	1
37	8M0046563	挡圈	RING Retaining	1
38	881866	接头	FITTING	1
39	880729	衬垫	GASKET	1
40	29641	E型卡环	E RING	2
41	8M0050602	磁铁	MAGNET	1
42	8M0046104	换档轴	SHIFT SHAFT	1
43	859732	堵头	PLUG	1
-	8M0065064	齿轮箱密封套件	SEAL KIT Gearcase	1
-	8M0078858	水泵维修套件(完整)	WATER PUMP REPAIR KIT Complete	1
-	8M0065072	水泵维修套件(上部)	WATER PUMP REPAIR KIT Upper	1

图 19齿轮箱，螺旋桨轴-正向旋转，5.44鱼雷型 Gear Housing, Prop Shaft-Standard Rotation, 5.44 Torpedo

REF	零件编号	中文名称	英文名称	数量
-	8M0049863	齿轮箱总成(黑色长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Long)(1.85:1)	1
-	8M0089983	齿轮箱总成完整, 银色 (长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Long)(1.85:1)	1
-	8M0228059	GC-L6 S 1.85 L	GC-L6 S 1.85 L	1
-	8M0049864	齿轮箱总成(黑色加长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (X-Long)(1.85:1)	1
-	8M0236284	GC VER 1.85 B XL	GC VER 1.85 B XL	1
-	8M0089985	齿轮箱总成完整, 银色 (X型长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (X-Long)(1.85:1)	1
-	8M0236237	GC-L6 S 1.85 XL	GC-L6 S 1.85 XL	1
-	8M0049866	齿轮箱总成(黑色超长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (XX-Long)(1.85:1)	1
-	8M0236286	GC VER 1.85 XXL	GC VER 1.85 XXL	1
-	8M0089987	齿轮箱总成完整, 银色 (XX型长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (XX-Long)(1.85:1)	1
-	8M0117243	GC-L6 S 1.85 XXL	GC-L6 S 1.85 XXL	1
-	8M0049869	齿轮箱总成完整 (长型)(1.75:1)	GEAR HOUSING ASSEMBLY Complete (Long)(1.75:1)	1
-	8M0078252	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0049870	齿轮箱总成完整 (加长型)(1.75:1)	GEAR HOUSING ASSEMBLY Complete (X-Long)(1.75:1)	1
-	8M0078253	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0049872	齿轮箱总成完整 (XX型长轴)(1.75:1)	GEAR HOUSING ASSEMBLY Complete (XX-Long)(1.75:1)	1
-	8M0078255	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	8M0053108	基础型黑色齿轮箱总成	GEAR HOUSING ASSEMBLY Basic, Black	1
1	8M0117258	GC BASIC BLACK	GC BASIC BLACK	1
1	8M0053107	齿轮箱总成基础款银色	GEAR HOUSING ASSEMBLY Basic, Silver	1
1	8M0228048	GC - BASIC	GC - BASIC	1
2	8M0053114	阀芯总成	SPOOL ASSEMBLY	1
2	8M0235941	换挡轴套总成	SPOOL ASSY SHIFT	1
3	NSS		NOT SOLD SEPARATE SPOOL	1
4	NSS		NOT SOLD SEPARATE SLEEVE	1
5	469501	开口销	COTTER PIN	1
6	8M0046215	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
6	8M0220880	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
7	884328A01	垫片组	SHIM SET	1
7	8M0063270	垫片组	SHIM SET	1
8	8M0053118	齿轮组 13/24齿 (1.85:1) 前进挡	GEAR SET 13/24 (1.85:1) Forward	1
8	8M0078259	齿轮组 13/24齿(1.85:1)	GEAR SET 13/24(1.85:1)	1
8	8M0053117	齿轮组 12/21齿(1.75:1) 前进挡	GEAR SET 12/21(1.75:1) Forward	1
8	8M0078258	齿轮组（标准转向，前进/小齿轮，1.75速比 12/21）	GEAR SET Standard Rotation, Forward/Pinion, 1.75 Ratio (12/21)	1
9	884323T01	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	8M0142836	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
10	884325T01	圆锥滚子轴承组件	BEARING ASSEMBLY Roller-Tappered	1
10	8M0142835	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
11	892805	止推垫片	THRUST WASHER	1
11	8M0053823	止推垫圈(内径1.50×外径2.046)	WASHER Thrust, (1.50 ID x 2.046 OD)	1
12	8M0051043	挡圈	RING Retaining	1
13	8M0045493	十字销	PIN Cross	1
14	8M0053113	离合器	CLUTCH	1
15	8M0050575	十字弹簧	SPRING Cross	1
16	8M0053112	螺旋桨轴 1英寸 (1B921719及以下)	PROPELLER SHAFT 1 Inch (1B921719 and below)	1
16	8M0073657	螺旋桨轴 1英寸	PROPELLER SHAFT 1 Inch	1
16	8M0073657	螺旋桨轴 1英寸 (1B921720及以上)	PROPELLER SHAFT 1 Inch (1B921720 and above)	1
16	8M0142968	螺旋桨轴	SHAFT Propeller	1
16	8M0053111	螺旋桨轴 1.25英寸 (1B921719及以下)	PROPELLER SHAFT 1.25 Inch (1B921719 and below)	1
16	8M0073667	螺旋桨轴 1.25英寸	PROPELLER SHAFT 1.25 Inch	1
16	8M0073667	螺旋桨轴 1.25英寸 (1B9217120及以上)	PROPELLER SHAFT 1.25 Inch (1B9217120 and above)	1
16	8M0142764	螺旋桨轴	SHAFT Propeller	1
17	8M0064306	止推隔套	SPACER Thrust	A/R
18	8M0053123	倒档齿轮套件	GEAR KIT Reverse	1
18	8M0053124	倒挡齿轮套件	GEAR KIT Reverse Reverse	1
19	8M0050692	轴承	BEARING	1
20	8M0050688	垫圈	WASHER	1
21	8M0053116	垫片组	SHIM SET	A/R
22	8M0053183	前进齿轮适配器	ADAPTER Foward Gear	1
23	8M0053115	托架总成	CARRIER ASSEMBLY	1
23	8M0097323	轴承座总成	CARRIER ASSEMBLY Bearing	1
24	8M0000190	O型圈(4.475x0.210英寸)	O-RING (4.475 x .210)	1
25	888483	油封	SEAL Oil	2
25	8M0204700	油封	SEAL Oil	2
26	884330T01	圆锥轴承组件	BEARING ASSEMBLY Taper	1
26	8M0148319	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper Cup/Cone	1
27	8M0046727	螺钉	SCREW	2
27	8M0071653	特殊螺钉0.375-16 UNC	SCREW Special, .375-16 UNC	2
28	830749	密封件	SEAL	2
28	8M0204693	放油螺塞密封件	SEAL Drain Plug	2
29	8M0076745	垫片组	SHIM SET	1
29	8M0050423	垫片 .020	WASHER .020	A/R
29	8M0050424	垫片 .022	WASHER .022	A/R
29	8M0050425	垫片 .024	WASHER .024	A/R
29	8M0050427	垫片 .026	WASHER .026	A/R
29	8M0050428	垫片 .028	WASHER .028	A/R
29	8M0050429	垫片 .030	WASHER .030	A/R
29	8M0050430	垫片 .032	WASHER .032	A/R
29	8M0050431	垫片 .034	WASHER .034	A/R
29	8M0050432	垫片 .036	WASHER .036	A/R
29	8M0050433	垫片 0.038	WASHER .038	A/R
29	8M0050434	垫片 0.040	WASHER .040	A/R
29	8M0050435	垫片 0.042	WASHER .042	A/R
29	8M0050436	垫片 0.044	WASHER .044	A/R
29	8M0050437	垫片 0.046	WASHER .046	A/R
29	8M0050438	垫片 0.048	WASHER .048	A/R
29	8M0050439	垫片 0.050	WASHER .050	A/R
30	8M0050662	挡圈	RETAINING RING	1
30	8M0056639	挡圈	RING Retainer	1
31	8M0050704	滚针轴承	BEARING Needle	1
32	8M0045434	锁紧垫圈	TAB WASHER	1
32	8M0108527	锁紧垫片	WASHER Tab	1
33	8M0001491	固定螺母	NUT Retainer	1
33	8M0162798	轴承座固定环	RETAINER Bearing Carrier	1
34	8M0050726	盖板套件	COVER KIT	1
34	8M0180308	盖板套件	COVER KIT	1
34	8M0050821	平齐式盖板套件, 标准型	COVER KIT Flush, Standard	1
34	8M0180306	鱼雷形盖	COVER Torpedo	1
35	8M0036819	紧定螺钉(10-32)	SET SCREW (10-32)	1
36	8M0046569	止推环	RING Thrust	1
36	8M0161546	推力环	THRUST RING	1
-	8M0235174	标贴齿轮箱 1.75:1	DECAL Gearcase, 1.75:1	1

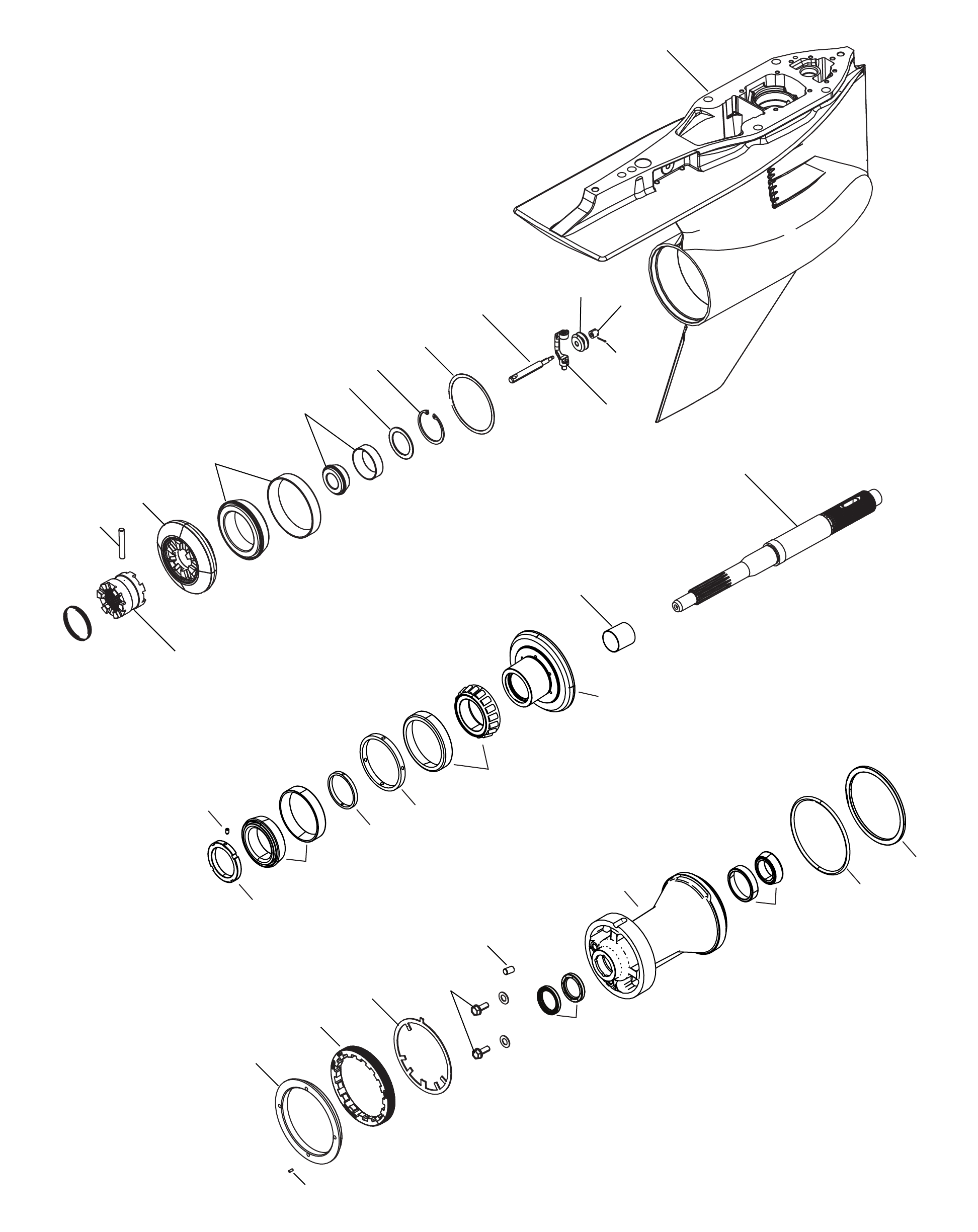

图 20齿轮箱1.75:1，螺旋桨轴反向旋转，5.44鱼雷型，II型设计，锥形前轴承 Gear Housing 1.75:1, Prop Shaft Counter Rotation, 5.44 Torpedo, Design-II, Tapered Forward Bearing

REF	零件编号	中文名称	英文名称	数量
-	8M0215263	齿轮箱总成完整,银色(长型)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Long) (1.75:1)	1
-	8M0215264	齿轮箱总成完整,银色(反转向超长)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Counter Rotation X-Long)(1.75:1) (X-Long) (1.75:1)	1
-	8M0236233	GC L6 S 1.75 CXL	GC L6 S 1.75 CXL	1
-	8M0215265	齿轮箱总成完整,银色(超超长)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (XX-Long) (1.75:1)	1
-	8M0236234	GC 1.75 CXXL SLVR	GC 1.75 CXXL SLVR	1
-	8M0215259	齿轮箱总成完整,银色(弧形长)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Camber Long)(1.75:1)	1
-	8M0236228	GC L6 S 1.75 L CL	GC L6 S 1.75 L CL	1
-	8M0215260	齿轮箱总成完整,银色(弧形超长)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Camber X-Long)(1.75:1)	1
-	8M0236229	GC L6 S 1.75 CXL	GC L6 S 1.75 CXL	1
-	8M0215261	齿轮箱总成完整,银色(弧形超超长)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Camber XX-Long)(1.75:1)	1
1	8M0117251	齿轮箱总成基础款银色	GEAR HOUSING ASSEMBLY Basic, Silver	1
1	8M0228048	GC - BASIC	GC - BASIC	1
1	8M0117282	齿轮箱总成基础型,银色弧形	GEAR HOUSING ASSEMBLY Basic, Silver Camber	1
1	8M0228049	GC BASIC SIL LH	GC BASIC SIL LH	1
2	8M0053114	阀芯总成	SPOOL ASSEMBLY	1
2	8M0235941	换挡轴套总成	SPOOL ASSY SHIFT	1
3	NSS		NOT SOLD SEPARATE SPOOL	1
4	NSS		NOT SOLD SEPARATE SLEEVE	1
5	469501	开口销	COTTER PIN	1
6	8M0046215	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
6	8M0220880	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
7	8M0063270	垫片组	SHIM SET	1
8	8M0053121	倒挡齿轮总成	GEAR ASSEMBLY Reverse Reverse	1
8	8M0146676	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
9	884323T01	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	8M0142836	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
10	884325T01	圆锥滚子轴承组件	BEARING ASSEMBLY Roller-Tappered	1
10	8M0142835	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
11	8M0053823	止推垫圈(内径1.50×外径2.046)	WASHER Thrust, (1.50 ID x 2.046 OD)	1
12	8M0051043	挡圈	RING Retaining	1
13	8M0045493	十字销	PIN Cross	1
14	8M0053113	离合器	CLUTCH	1
14	8M0142871	滑动式6爪离合器	CLUTCH Sliding 6 Jaw	1
15	8M0050575	十字弹簧	SPRING Cross	1
16	8M0103300	螺旋桨轴 1.25英寸	PROPELLER SHAFT 1.25 Inch	1
16	8M0142764	螺旋桨轴	SHAFT Propeller	1
17	8M0064306	止推隔套	SPACER Thrust	A/R
18	8M0204764	轴承座总成	BEARING CARRIER ASSEMBLY	1
19	8M0146659	反转向齿轮组, 前进/小齿轮1.75速比 (12/21)	GEAR SET Counter Rotation, Forward/Pinion 1.75 Ratio (12/21)	1
20	8M0199861	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
21	8M0142875	隔套	SPACER	1
22	8M0199863	隔套	SPACER	1
23	8M0199864	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
24	8M0066130	半圆头定位螺钉组	SCREW- HALF DOG POINT SET	1
24	8M0233826	半圆头定位螺钉组	SCREW-HALF DOG POINT SET	1
25	8M0064178	锁紧螺母	LOCK NUT	1
26	8M0161546	推力环	THRUST RING	1
27	8M0000190	O型圈(4.475x0.210英寸)	O-RING (4.475 x .210)	1
28	8M0148319	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper Cup/Cone	1
29	888483	油封	SEAL Oil	2
29	8M0204700	油封	SEAL Oil	2
30	8M0109164	销 3/8直径 x 0.625长	PIN 3/8 Dia x .625 LG	1
31	8M0071653	特殊螺钉0.375-16 UNC	SCREW Special, .375-16 UNC	1
32	8M0108527	锁紧垫片	WASHER Tab	1
33	8M0162798	轴承座固定环	RETAINER Bearing Carrier	1
34	8M0180306	鱼雷形盖	COVER Torpedo	1
34	8M0180308	盖板套件	COVER KIT	1
35	8M0036819	紧定螺钉(10-32)	SET SCREW (10-32)	1

图 21齿轮箱1.75:1/1.85:1，螺旋桨轴反向旋转，5.44鱼雷型，I型设计滚子前轴承 Gear Housing 1.75:1/1.85:1, Prop Shaft Counter Rotation, 5.44 Torpedo, Design-I Roller Forward Bearing

REF	零件编号	中文名称	英文名称	数量
-	8M0078251	齿轮箱总成(黑色长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Long)(1.85:1)	1
-	8M0089984	齿轮箱总成完整, 银色 (长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Long)(1.85:1)	1
-	8M0228060	GC-L6 S 1.85 CL	GC-L6 S 1.85 CL	1
-	8M0078248	齿轮箱总成(黑色加长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (X-Long)(1.85:1)	1
-	8M0236285	GC VER 1.85 CXL	GC VER 1.85 CXL	1
-	8M0089986	齿轮箱总成完整, 银色 (X型长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (X-Long)(1.85:1)	1
-	8M0228062	GC-L6 S 1.85 CXL	GC-L6 S 1.85 CXL	1
-	8M0078250	齿轮箱总成(黑色超长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (XX-Long)(1.85:1)	1
-	8M0236287	GC VER 1.85 CXXL	GC VER 1.85 CXXL	1
-	8M0089988	齿轮箱总成完整, 银色 (XX型长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (XX-Long)(1.85:1)	1
-	8M0117244	GC-L6 S 1.85 CXXL	GC-L6 S 1.85 CXXL	1
-	8M0102483	齿轮箱总成完整,银色(长型)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Long)(1.75:1)	1
-	8M0236232	GC L6 S 1.75 CL	GC L6 S 1.75 CL	1
-	8M0102484	齿轮箱总成完整,银色(超长型)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (X-Long)(1.75:1)	1
-	8M0236233	GC L6 S 1.75 CXL	GC L6 S 1.75 CXL	1
-	8M0102485	齿轮箱总成完整,银色(超超长型)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (XX-Long)(1.75:1)	1
-	8M0236234	GC 1.75 CXXL SLVR	GC 1.75 CXXL SLVR	1
-	8M0110263	齿轮箱总成完整,黑色(弧形反转向长)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Camber Counter Rotation Long)(1.85:1)	1
-	8M0117272	GC-L6 B 185L CL	GC-L6 B 185L CL	1
-	8M0110264	齿轮箱总成完整,黑色(弧形反转向超长)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Camber Counter Rotation X-Long)(1.85:1)	1
-	8M0236293	GC L6 1.85L CXL	GC L6 1.85L CXL	1
-	8M0110265	齿轮箱总成完整,黑色(弧形反转向超超长)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Camber Counter Rotation XX-Long)(1.85:1)	1
-	8M0236294	GC L6 1.85L CXXL	GC L6 1.85L CXXL	1
-	8M0110260	齿轮箱总成完整,银色(弧形反转向长)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Camber Counter Rotation Long)(1.85:1)	1
-	8M0117279	GC CL SILVER	GC CL SILVER	1
-	8M0110261	齿轮箱总成完整,银色(弧形反转向超长)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Camber Counter Rotation X-Long)(1.85:1)	1
-	8M0117280	GC-L6 S 185L CXL	GC-L6 S 185L CXL	1
-	8M0110262	齿轮箱总成完整,银色(弧形反转向超超长)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Camber Counter Rotation XX-Long)(1.85:1)	1
-	8M0117281	GC CXXL SILVER	GC CXXL SILVER	1
-	8M0110257	齿轮箱总成完整,银色(弧形反转向长)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Camber Counter Rotation Long)(1.75:1)	1
-	8M0236228	GC L6 S 1.75 L CL	GC L6 S 1.75 L CL	1
-	8M0110258	齿轮箱总成完整,银色(弧形反转向超长)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Camber Counter Rotation X-Long)(1.75:1)	1
-	8M0236229	GC L6 S 1.75 CXL	GC L6 S 1.75 CXL	1
-	8M0110259	齿轮箱总成完整,银色(弧形反转向超超长)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Camber Counter Rotation XX-Long)(1.75:1)	1
-	8M0215261	银色齿轮箱总成	GEAR HOUSING ASSEMBLY Complete, Silver	1
1	8M0053108	基础型黑色齿轮箱总成	GEAR HOUSING ASSEMBLY Basic, Black	1
1	8M0117258	GC BASIC BLACK	GC BASIC BLACK	1
1	8M0053107	齿轮箱总成基础款银色	GEAR HOUSING ASSEMBLY Basic, Silver	1
1	8M0228048	GC - BASIC	GC - BASIC	1
1	8M0110355	齿轮箱总成基础型,黑色弧形	GEAR HOUSING ASSEMBLY Basic, Black Camber	1
1	8M0117275	GC BASIC LH BLACK	GC BASIC LH BLACK	1
1	8M0110363	齿轮箱总成基础型,银色弧形	GEAR HOUSING ASSEMBLY Basic, Silver Camber	1
1	8M0228049	GC BASIC SIL LH	GC BASIC SIL LH	1
2	8M0053114	阀芯总成	SPOOL ASSEMBLY	1
2	8M0235941	换挡轴套总成	SPOOL ASSY SHIFT	1
3	NSS		NOT SOLD SEPARATE SPOOL	1
4	NSS		NOT SOLD SEPARATE SLEEVE	1
5	469501	开口销	COTTER PIN	1
6	8M0046215	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
6	8M0220880	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
7	8M0063270	垫片组	SHIM SET	1
8	8M0053122	倒档齿轮套件	GEAR KIT Reverse	1
8	8M0053121	倒挡齿轮总成	GEAR ASSEMBLY Reverse Reverse	1
8	8M0146676	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
9	884323T01	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	8M0142836	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
10	884325T01	圆锥滚子轴承组件	BEARING ASSEMBLY Roller-Tappered	1
10	8M0142835	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
11	8M0053823	止推垫圈(内径1.50×外径2.046)	WASHER Thrust, (1.50 ID x 2.046 OD)	1
12	8M0051043	挡圈	RING Retaining	1
13	8M0045493	十字销	PIN Cross	1
14	8M0053113	离合器	CLUTCH	1
14	8M0142968	螺旋桨轴	SHAFT Propeller	1
15	8M0050575	十字弹簧	SPRING Cross	1
16	8M0073657	螺旋桨轴 1英寸	PROPELLER SHAFT 1 Inch	1
16	8M0142968	螺旋桨轴	SHAFT Propeller	1
16	8M0103300	螺旋桨轴 1.25英寸	PROPELLER SHAFT 1.25 Inch	1
16	8M0142764	螺旋桨轴	SHAFT Propeller	1
17	8M0064306	止推隔套	SPACER Thrust	A/R
18	8M0053119	齿轮组 13/24齿 (1.85:1) 前进挡	GEAR SET 13/24 (1.85:1) Forward	1
18	8M0053120	齿轮组反转, 前进/小齿轮, 1.75速比 (12/21齿) 前进挡	GEAR SET Counter Rotation, Forward/Pinion, 1.75 Ratio (12/21) Forward	1
19	8M0050692	轴承	BEARING	1
20	8M0050688	垫圈	WASHER	1
21	8M0053116	垫片组	SHIM SET	A/R
22	8M0053183	前进齿轮适配器	ADAPTER Foward Gear	1
23	8M0097323	轴承座总成 1.85速比	CARRIER ASSEMBLY Bearing 1.85 Ratio	1
24	NSS	不单独销售 1.75速比-使用Design-II轴承座总成8M0204764	NOT SOLD SEPARATE 1.75 Ratio-Use Design-II Carrier assembly 8M0204764	1
25	8M0000190	O型圈(4.475x0.210英寸)	O-RING (4.475 x .210)	1
26	888483	油封	SEAL Oil	2
26	8M0204700	油封	SEAL Oil	2
27	884330T01	圆锥轴承组件	BEARING ASSEMBLY Taper	1
27	8M0148319	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper Cup/Cone	1
28	8M0071653	特殊螺钉0.375-16 UNC	SCREW Special, .375-16 UNC	2
29	830749	密封件	SEAL	2
29	8M0204693	放油螺塞密封件	SEAL Drain Plug	2
30	8M0076745	垫片组	SHIM SET	1
30	8M0050423	垫片 .020	WASHER .020	A/R
30	8M0050424	垫片 .022	WASHER .022	A/R
30	8M0050425	垫片 .024	WASHER .024	A/R
30	8M0050427	垫片 .026	WASHER .026	A/R
30	8M0050428	垫片 .028	WASHER .028	A/R
30	8M0050429	垫片 .030	WASHER .030	A/R
30	8M0050430	垫片 .032	WASHER .032	A/R
30	8M0050431	垫片 .034	WASHER .034	A/R
30	8M0050432	垫片 .036	WASHER .036	A/R
30	8M0050433	垫片 0.038	WASHER .038	A/R
30	8M0050434	垫片 0.040	WASHER .040	A/R
30	8M0050435	垫片 0.042	WASHER .042	A/R
30	8M0050436	垫片 0.044	WASHER .044	A/R
30	8M0050437	垫片 0.046	WASHER .046	A/R
30	8M0050438	垫片 0.048	WASHER .048	A/R
30	8M0050439	垫片 0.050	WASHER .050	A/R
31	8M0056639	挡圈	RING Retainer	1
32	NSS	不单独销售 1.75:1-使用Design-II轴承座总成8M0204764	NOT SOLD SEPARATE 1.75:1-Use Design-II Carrier assembly 8M0204764	1
32	8M0050704	滚针轴承 1.85速比	BEARING Needle 1.85 Ratio	1
33	8M0055058	锁紧垫圈	TAB WASHER	1
33	8M0108527	锁紧垫片	WASHER Tab	1
34	8M0001491	固定螺母	NUT Retainer	1
34	8M0162798	轴承座固定环	RETAINER Bearing Carrier	1
35	8M0050821	平齐式盖板套件, 标准型	COVER KIT Flush, Standard	1
35	8M0180306	鱼雷形盖	COVER Torpedo	1
35	8M0050726	盖板套件	COVER KIT	AR
35	8M0180308	盖板套件	COVER KIT	AR
36	8M0036819	紧定螺钉(10-32)	SET SCREW (10-32)	1
37	8M0046569	止推环	RING Thrust	1
37	8M0161546	推力环	THRUST RING	1
38	8M0109164	销 3/8直径 x 0.625长	PIN 3/8 Dia x .625 LG	1

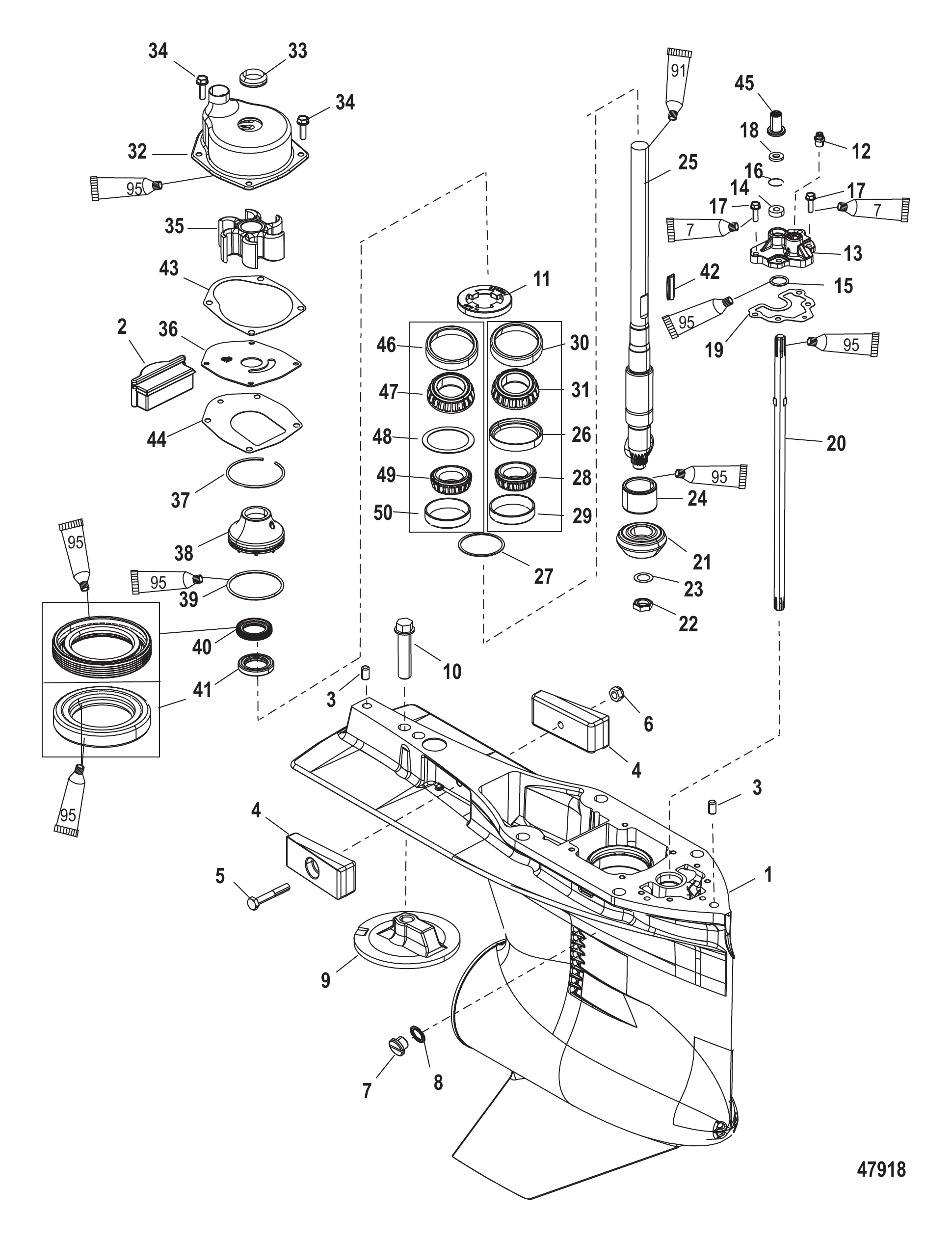

图 22齿轮箱驱动轴,4.80鱼雷型 Gear Housing Driveshaft, 4.80 Torpedo

REF	零件编号	中文名称	英文名称	数量
-	880686T13	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236255	GC L6 4S L	GC L6 4S L	1
-	880686T14	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236256	GC L6 4S XL	GC L6 4S XL	1
-	880686T16	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236259	GC L6 4S XXL	GC L6 4S XXL	1
-	880686T15	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236258	GC L6 4S CXL	GC L6 4S CXL	1
-	880686T17	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236260	GC L6 4S CXXL	GC L6 4S CXXL	1
-	880686T54	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236264	GC L6 1.75 L	GC L6 1.75 L	1
-	880686T55	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236265	GC L6 1.75 XL	GC L6 1.75 XL	1
-	880686T56	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236266	GC L6 1.75 XXL	GC L6 1.75 XXL	1
-	880686T57	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236267	GC L6 1.75 CXL	GC L6 1.75 CXL	1
-	880686T58	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236269	GC L6 1.75 CXL	GC L6 1.75 CXL	1
-	880686T59	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236270	GC L6 1.75 CXXL	GC L6 1.75 CXXL	1
1	880687T01		GEAR HOUSING ASSEMBLY Basic Used with 5/16 Inch Shift Crank	1
1	8M0056631	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	8M0046215	曲柄换挡1/4枢轴销配1/4英寸换挡曲柄	CRANK, Shifter 1/4 Pivot Pin Used with 1/4 Inch Shift Crank	1
1	8M0220880	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
2	821526001	填充块	FILLER BLOCK	1
2	8M0010459	填充块	FILLER BLOCK	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	826134Q	阳极块	ANODE	2
5	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
6	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
7	79953A04	塞组件(.375-16×.250)	PLUG ASSEMBLY (.375-16 x .250)	1
8	830749	密封件	SEAL	1
8	8M0204693	放油螺塞密封件	SEAL Drain Plug	1
9	76214T5	阳极套件	ANODE KIT	1
9	76214Q5	阳极套件	ANODE KIT	1
10	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
10	8M0204686	螺钉	SCREW	1
11	8245191	固定座	RETAINER	1
12	881866	接头	FITTING	1
13	880703A1	盖总成	COVER ASSEMBLY	1
13	8M0047129	盖总成	COVER ASSEMBLY	1
13	8M0047129	盖总成	COVER ASSEMBLY	1
14	8164641	油封	SEAL Oil	1
14	8M0246145	油封	OIL SEAL	1
15	896522	O型圈(799×.103)	O-RING (799 x .103)	1
16	8M0046563	挡圈	RING Retaining	1
17	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	4
17	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	4
18	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
19	880729	衬垫	GASKET	1
20	824145	换档轴	SHIFT SHAFT	1
21	NSS	不单独销售小齿轮13齿	NOT SOLD SEPARATE Pinion Gear 13 Teeth	1
22	35921	螺母(0.625-18)	NUT (.625-18)	1
23	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
24	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
25	888572	驱动轴	DRIVESHAFT	1
25	888573	驱动轴	DRIVESHAFT	1
25	888574	驱动轴	DRIVESHAFT	1
26	884327A02	垫片/轴承组件	SHIM/BEARING ASSEMBLY	1
27	38657A1	垫片组	SHIM ASSEMBLY	AR
27	8M0063268	垫片组	SHIM SET	AR
28	NSS	不单独销售滚子轴承组件	NOT SOLD SEPARATE Roller Bearing Assembly	1
29	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
30	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
31	NSS	不单独销售滚子轴承组件	NOT SOLD SEPARATE Roller Bearing Assembly	1
32	817275A09	水泵壳体-总成	HOUSING Water Pump-Complete	1
33	861415A1	密封套件	SEAL KIT	1
34	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	4
34	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	4
35	43026T2	叶轮	IMPELLER	1
36	8172761	面板	FACEPLATE	1
36	8M0204709	面板	FACEPLATE	1
37	880719	挡圈	RING Retaining	1
38	8M0007131	油封座组件	CARRIER ASSEMBLY Oil Seal	1
39	896523	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
39	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
40	NSS	不单独销售油封	NOT SOLD SEPARATE Oil Seal	1
41	NSS	不单独销售油封	NOT SOLD SEPARATE Oil Seal	1
42	8M0032833	键	KEY	1
42	8M0204723	键	KEY	1
43	8172771	水泵上垫片	GASKET Water Pump, Upper	1
44	430331	衬垫	GASKET	1
45	43585	联轴器	COUPLING	1
46	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
46	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
47	NSS	不单独销售滚柱轴承	NOT SOLD SEPARATE Roller Bearing	1
48	8M0053110	垫片组	SHIM SET	1
48	8M0063267	垫片组	SHIM SET	1
49	48939A2	圆锥滚子轴承	BEARING Taper Roller	1
49	8M0146553	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
50	NSS		NOT SOLD SEPARATE CUP	1
-	830749A01	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	43026Q06	水泵叶轮维修套件	REPAIR KIT Water Pump Impeller	1
-	8M0100526	水泵叶轮维修套件	REPAIR KIT Water Impeller	1
-	817275A08	水泵上修包	REPAIR KIT Water Pump-Upper	1

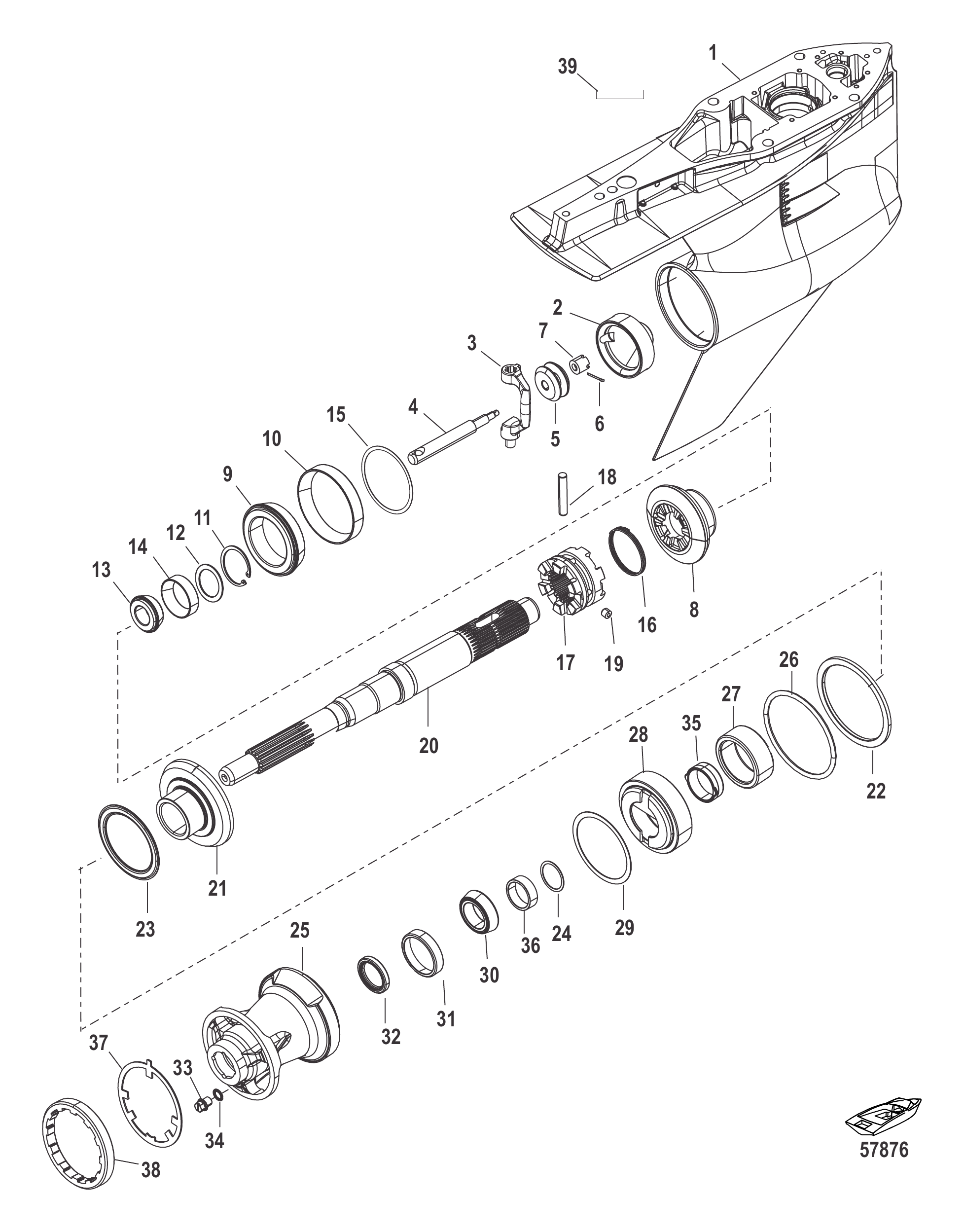

图 23齿轮箱螺旋桨轴-反向旋转，4.80鱼雷型 Gear Housing Prop Shaft-Count Rot, 4.80 Torpedo

REF	零件编号	中文名称	英文名称	数量
-	880686T15	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236258	GC L6 4S CXL	GC L6 4S CXL	1
-	880686T17	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236260	GC L6 4S CXXL	GC L6 4S CXXL	1
-	880686T57	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236267	GC L6 1.75 CXL	GC L6 1.75 CXL	1
-	880686T58	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236269	GC L6 1.75 CXL	GC L6 1.75 CXL	1
-	880686T59	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236270	GC L6 1.75 CXXL	GC L6 1.75 CXXL	1
1	8M0056631	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	NSS	不单独销售塞	NOT SOLD SEPARATE Plug	1
3	8M0046215	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
3	8M0220880	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
4	19755T7	阀芯总成	SPOOL ASSEMBLY	1
4	8M0235940	阀芯总成	SPOOL ASSY	1
5	NSS	不单独销售线轴	NOT SOLD SEPARATE Spool	1
6	469501	开口销	COTTER PIN	1
7	NSS	不单独销售调节套筒	NOT SOLD SEPARATE Sleeve Adjusting	1
8	892809A02	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
8	880723A02	倒挡齿轮	GEAR Reverse	1
9	884323T01	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	8M0142836	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
10	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
11	8M0051043	挡圈	RING Retaining	1
12	8M0053823	止推垫圈(内径1.50×外径2.046)	WASHER Thrust, (1.50 ID x 2.046 OD)	1
13	884325T01	圆锥滚子轴承组件	BEARING ASSEMBLY Roller-Tappered	1
13	8M0142835	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
14	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
15	8M0063270	垫片组	SHIM SET	AR
16	30893	弹簧	SPRING	1
17	880714T	离合器	CLUTCH	1
18	8M0084681	十字销	PIN Cross	1
18	8M0100263	十字销	PIN Cross	1
19	828356	定位销	PIN Detent	1
20	8M0069774	螺旋桨轴	PROPELLER SHAFT	1
20	8M0140446	螺旋桨轴	PROPELLER SHAFT	1
21	880720A02	前进/小齿轮组	GEAR SET Forward/Pinion	1
21	8M0119540	前进齿轮套件	GEAR KIT-FORWARD	1
21	880720A03	齿轮套件前进/小齿轮	GEAR KIT Forward/Pinion	1
21	8M0119539	齿轮总成	GEAR ASSEMBLY	1
22	880699	推力环	THRUST RING	1
23	815480	推力轴承	BEARING Thrust	1
24	8M0076745	垫片组	SHIM SET	1
24	8M0050423	垫片 .020	WASHER .020	AR
24	8M0050424	垫片 .022	WASHER .022	AR
24	8M0050425	垫片 .024	WASHER .024	AR
24	8M0050427	垫片 .026	WASHER .026	AR
24	8M0050428	垫片 .028	WASHER .028	AR
24	8M0050429	垫片 .030	WASHER .030	AR
24	8M0050430	垫片 .032	WASHER .032	AR
24	8M0050431	垫片 .034	WASHER .034	AR
24	8M0050432	垫片 .036	WASHER .036	AR
24	8M0050433	垫片 0.038	WASHER .038	AR
24	8M0050434	垫片 0.040	WASHER .040	AR
24	8M0050435	垫片 0.042	WASHER .042	AR
24	8M0050436	垫片 0.044	WASHER .044	AR
24	8M0050437	垫片 0.046	WASHER .046	AR
24	8M0050438	垫片 0.048	WASHER .048	AR
24	8M0050439	垫片 0.050	WASHER .050	AR
25	8M0086846	轴承座总成	CARRIER ASSEMBLY Bearing	1
26	896524	O型圈(3.850×.210)	O-RING (3.850 x .210)	1
26	8M0142840	O型圈(3.85×0.210)	O-RING (3.85 x 0.210)	1
27	814653T	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
28	880728	轴承适配器	ADAPTER Bearing	1
28	8M0148384	前进齿轮轴承适配器	ADAPTER Bearing Forward Gear	1
29	47397A1	垫片组	SHIM SET	AR
30	884330T01	圆锥轴承组件	BEARING ASSEMBLY Taper	1
30	8M0148319	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper Cup/Cone	1
31	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
32	888483	油封	SEAL Oil	1
32	8M0204700	油封	SEAL Oil	1
33	880717A01	螺钉/密封套件 .38英寸长	SCREW/SEAL KIT .38 Inch Long	1
33	8M0077071	螺钉/密封套件 .75英寸长	SCREW/SEAL KIT .75 Inch Long	1
34	830749	密封件	SEAL	1
34	8M0204693	放油螺塞密封件	SEAL Drain Plug	1
35	8M0053183	前进齿轮适配器	ADAPTER Foward Gear	1
36	8M0064306	止推隔套	SPACER Thrust	1
37	880697	键槽垫圈	KEYED WASHER	1
38	8M2011027	固定座	RETAINER	1
38	8M2000347	固定座	RETAINER	1
39	NSS	不单独销售-反向旋转标识	NOT SOLD SEPARATE Decal-Counter Rotation	1
-	830749A01	齿轮箱密封套件	SEAL KIT Gear Housing	1

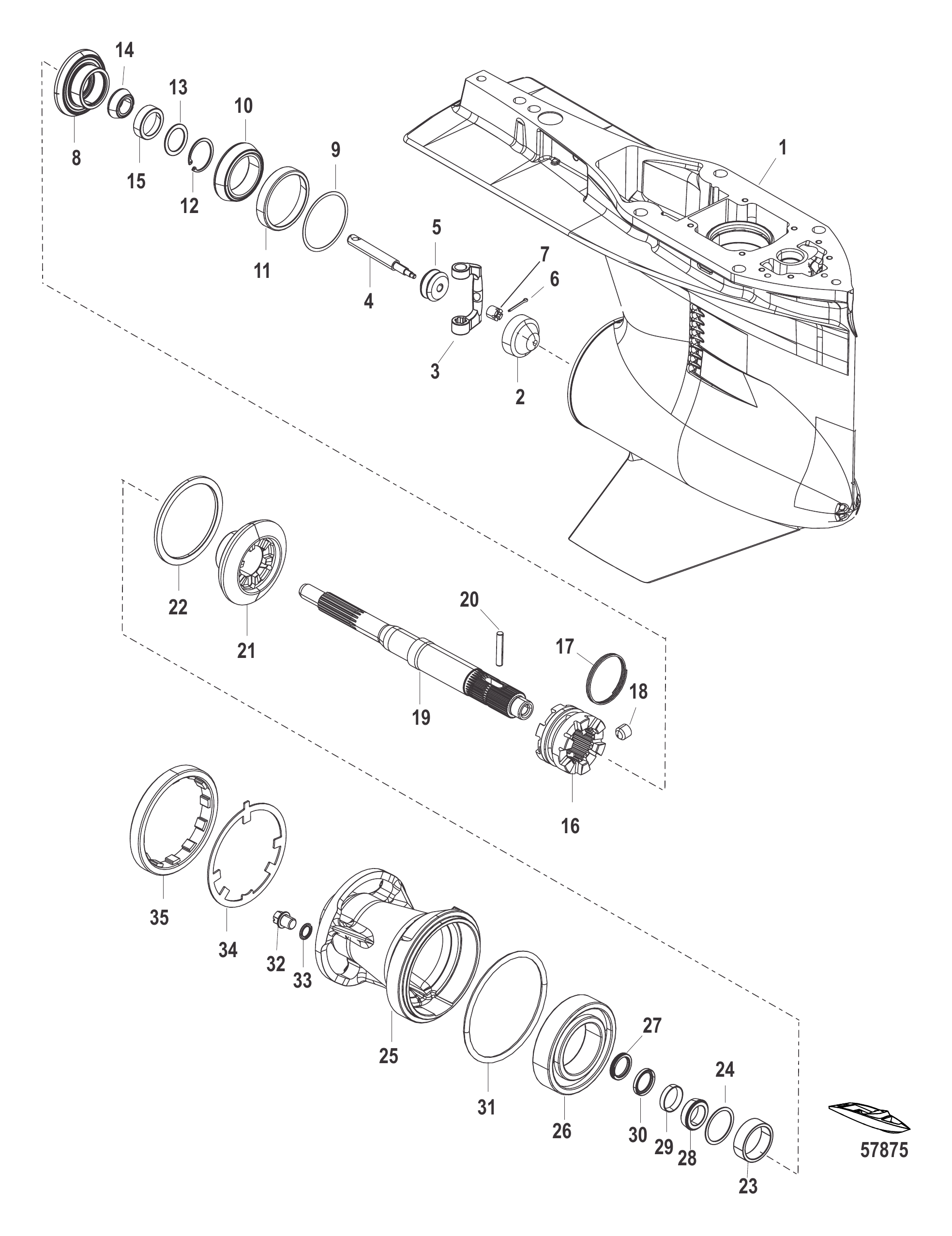

图 24齿轮箱螺旋桨轴-正向旋转，4.80鱼雷型 Gear Housing Prop Shaft - Std Rot, 4.80 Torpedo

REF	零件编号	中文名称	英文名称	数量
-	880686T13	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236255	GC L6 4S L	GC L6 4S L	1
-	880686T14	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236256	GC L6 4S XL	GC L6 4S XL	1
-	880686T16	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236259	GC L6 4S XXL	GC L6 4S XXL	1
-	880686T54	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236264	GC L6 1.75 L	GC L6 1.75 L	1
-	880686T55	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236265	GC L6 1.75 XL	GC L6 1.75 XL	1
-	880686T56	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236266	GC L6 1.75 XXL	GC L6 1.75 XXL	1
1	8M0056631	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	NSS	不单独销售塞	NOT SOLD SEPARATE Plug	1
3	8M0046215	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
3	8M0220880	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
4	19755T7	阀芯总成	SPOOL ASSEMBLY	1
4	8M0235940	阀芯总成	SPOOL ASSY	1
5	NSS	不单独销售线轴	NOT SOLD SEPARATE Spool	1
6	469501	开口销	COTTER PIN	1
7	NSS	不单独销售调节套筒	NOT SOLD SEPARATE Sleeve Adjusting	1
8	892595A05	前进/小齿轮组	GEAR SET Forward/Pinion	1
8	892595A04	前进/小齿轮组	GEAR SET Forward/Pinion	1
9	8M0063270	垫片组	SHIM SET	AR
10	884323T01	滚柱轴承总成	BEARING ASSEMBLY Roller	1
10	8M0142836	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
11	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
12	8M0051043	挡圈	RING Retaining	1
13	8M0053823	止推垫圈(内径1.50×外径2.046)	WASHER Thrust, (1.50 ID x 2.046 OD)	1
14	884325T01	圆锥滚子轴承组件	BEARING ASSEMBLY Roller-Tappered	1
14	8M0142835	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
15	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
16	880714T	离合器	CLUTCH	1
17	30893	弹簧	SPRING	1
18	828356	定位销	PIN Detent	1
19	8M0069774	螺旋桨轴	PROPELLER SHAFT	1
19	8M0140446	螺旋桨轴	PROPELLER SHAFT	1
20	8M0084681	十字销	PIN Cross	1
20	8M0100263	十字销	PIN Cross	1
21	880695A01	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
21	8M0142891	倒挡齿轮24齿	GEAR Reverse, 24T	1
21	880707A01	倒挡齿轮	GEAR Reverse	1
21	8M0118363	倒车齿轮 21齿	GEAR Reverse, 21T	1
22	880699	推力环	THRUST RING	1
23	8M0064306	止推隔套	SPACER Thrust	1
24	8M0076745	垫片组	SHIM SET	1
24	8M0050423	垫片 .020	WASHER .020	AR
24	8M0050424	垫片 .022	WASHER .022	AR
24	8M0050425	垫片 .024	WASHER .024	AR
24	8M0050427	垫片 .026	WASHER .026	AR
24	8M0050428	垫片 .028	WASHER .028	AR
24	8M0050429	垫片 .030	WASHER .030	AR
24	8M0050430	垫片 .032	WASHER .032	AR
24	8M0050431	垫片 .034	WASHER .034	AR
24	8M0050432	垫片 .036	WASHER .036	AR
24	8M0050433	垫片 0.038	WASHER .038	AR
24	8M0050434	垫片 0.040	WASHER .040	AR
24	8M0050435	垫片 0.042	WASHER .042	AR
24	8M0050436	垫片 0.044	WASHER .044	AR
24	8M0050437	垫片 0.046	WASHER .046	AR
24	8M0050438	垫片 0.048	WASHER .048	AR
24	8M0050439	垫片 0.050	WASHER .050	AR
25	8M0083392	轴承座总成	CARRIER ASSEMBLY Bearing	1
26	884329T	滚珠轴承	BEARING Ball	1
26	8M0142873	滚珠轴承	BEARING Ball	1
27	888483	油封	SEAL Oil	1
27	8M0204700	油封	SEAL Oil	1
28	884330T01	圆锥轴承组件	BEARING ASSEMBLY Taper	1
28	8M0148319	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper Cup/Cone	1
29	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
30	888483	油封	SEAL Oil	1
30	8M0204700	油封	SEAL Oil	1
31	896524	O型圈(3.850×.210)	O-RING (3.850 x .210)	1
31	8M0142840	O型圈(3.85×0.210)	O-RING (3.85 x 0.210)	1
32	880717A01	螺钉/密封套件 .38英寸长	SCREW/SEAL KIT .38 Inch Long	1
32	8M0077071	螺钉/密封套件 .75英寸长	SCREW/SEAL KIT .75 Inch Long	1
33	830749	密封件	SEAL	1
33	8M0204693	放油螺塞密封件	SEAL Drain Plug	1
34	880697	键槽垫圈	KEYED WASHER	1
35	8M2011027	固定座	RETAINER	1
35	8M2000347	固定座	RETAINER	1
-	830749A01	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 25接地线套件 899712A01 Ground Cable Kit (899712A01)

REF	零件编号	中文名称	英文名称	数量
-	899712A01	连续性电缆套件	CABLE KIT Continuity	1
1	88238T23	拉线总成	CABLE ASSEMBLY	1
2	88238T24	拉线总成	CABLE ASSEMBLY	1
3	885112	垫圈	WASHER	1
3	8M0217559	垫圈	WASHER	1
4	12602002	护孔环	GROMMET	1

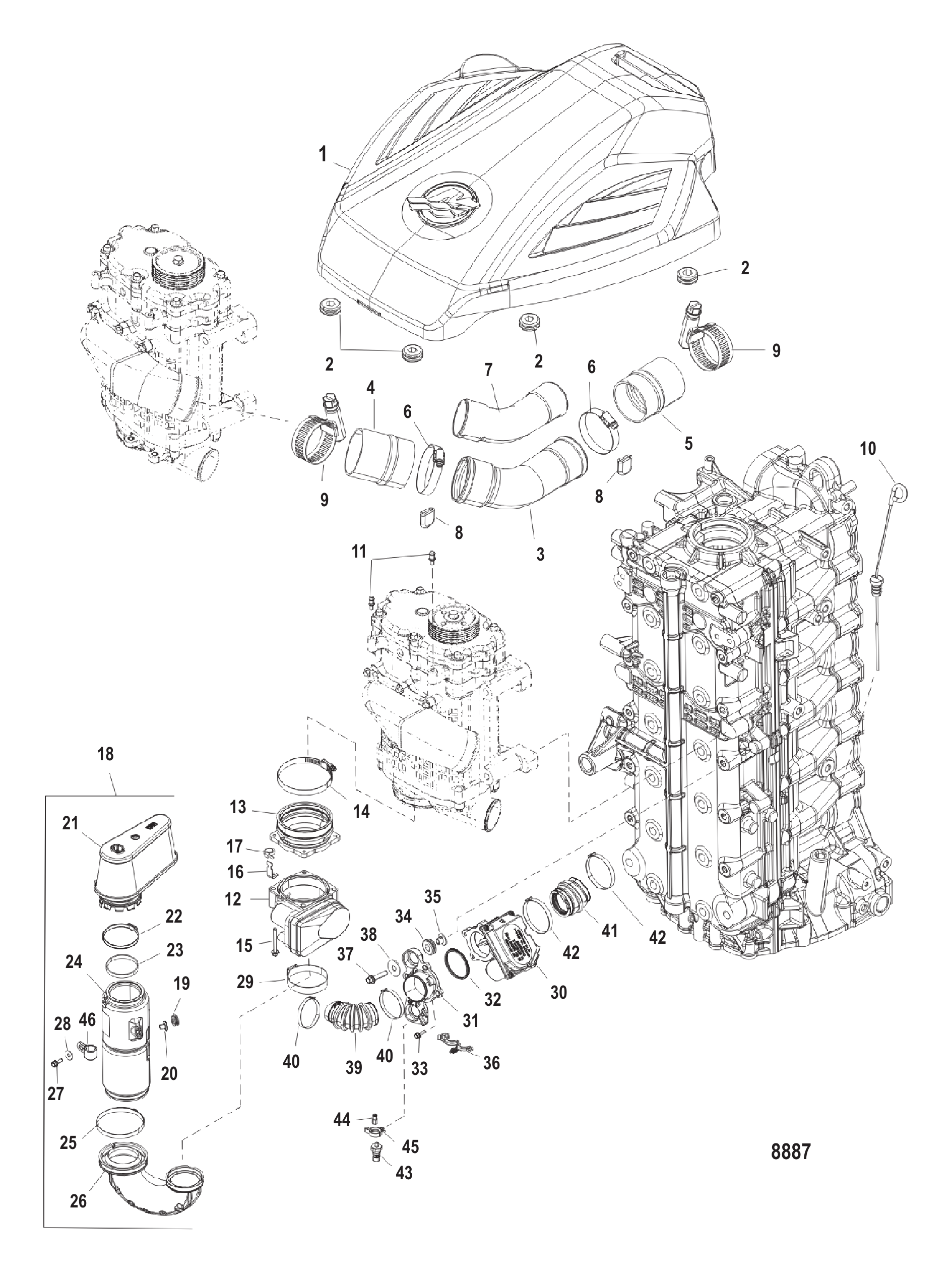

图 26进气系统组件 Induction Components

REF	零件编号	中文名称	英文名称	数量
1	887936T04	飞轮盖	COVER Flywheel	1
2	834985	护孔环	GROMMET	4
2	8M0190980	护孔环	GROMMET	4
3	893307A01	出管总成	TUBE OUTLET ASSEMBLY	1
3	8M0035481	热风管总成	TUBE ASSEMBLY Hot Air Duct	1
4	893389	软管(内径65)	HOSE (65 Inside Diameter)	1
4	8M0035481	热风管总成	TUBE ASSEMBLY Hot Air Duct	1
5	893390	软管(内径60)	HOSE (60 Inside Diameter)	1
5	8M0035481	热风管总成	TUBE ASSEMBLY Hot Air Duct	1
6	893342	卡箍	CLAMP	2
7	893391	软管套管	HOSE SLEEVE	1
7	8M0035481	热风管总成	TUBE ASSEMBLY Hot Air Duct	1
8	8079923	软管夹端盖	COVER Hose Clamp End	2
8	8M0074364	软管夹盖	COVER Hose Clamp	2
9	893342	卡箍	CLAMP	2
10	898022	机油尺	DIPSTICK Oil	1
11	888517	销	PIN	2
12	888991T03	电子节气门控制总成	THROTTLE CONTROL ASSEMBLY Electronic	1
12	8M0113515	节气门控制器	THROTTLE CONTROL	1
13	880576005	隔离器	ISOLATOR	1
13	8M0113513	ETC隔离器	ISOLATOR-ETC	1
14	815504256	蜗杆卡箍	CLAMP Worm Gear	1
15	88552550	不锈钢螺钉 (M6 x 50 mm)	SCREW (M6 x 50 mm) Stainless Steel	4
16	884353	支架	BRACKET	2
17	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
18	892383T05	进气总成	INTAKE ASSEMBLY Air	1
18	892383T06	进气总成	INTAKE ASSEMBLY Air	1
19	8349851	护孔环	GROMMET	1
20	856954	衬套	BUSHING	1
21	893318T01	空气滤清器	FILTER Air	1
21	893318T02	空气滤清器	FILTER Air	1
22	895842	卡箍	CLAMP	1
23	893317	衬垫	GASKET	1
24	892383001	谐振器	RESONATOR	1
24	8M0007183	谐振器	RESONATOR	1
25	888988027	卡箍	CLAMP	1
26	893314002	进气管	DUCT Inlet	1
27	88552525	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	1
27	8M0103807	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	1
28	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	1
29	888988016	卡箍（96.5毫米）	CLAMP (96.5 mm)	1
30	884408A07	电动增压控制阀套件	VALVE KIT Control - Electric Boost	1
30	884408A08	电动增压控制阀套件	VALVE KIT Control - Electric Boost	1
31	887939007	增压阀安装板	PLATE Boost Valve Mounting	1
32	892079	O型圈	O-RING	1
33	88552520	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	4
33	8M0103806	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	4
34	833155	护孔环	GROMMET	2
35	8502341	衬套	BUSHING	2
36	859376	卡扣	CLIP	1
37	88552635	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	2
37	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	2
38	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	2
39	887937006	前部软管	HOSE Front	1
40	888988002	卡箍(57.5毫米前电子增压控制)	CLAMP (57.5 mm) Front Electronic Boost Control	2
41	887938003	后管	TUBE Rear	1
42	888988004	卡箍(62.0毫米后电子增压控制)	CLAMP (62.0 mm) Rear Electronic Boost Control	2
43	881879A16	皮托管传感器总成	SENSOR ASSEMBLY Pitot	1
43	881879T25	皮托管传感器总成	SENSOR ASSEMBLY Pitot	1
44	892403	接头	FITTING	1
44	8M0207782	直通接头	FITTING Straight	1
45	883066	夹子 (.865)	CLIP (.865)	1
46	8589781	燃油软管卡箍（适用处使用）	CLIP Fuel Hose (Use where Applicable)	1

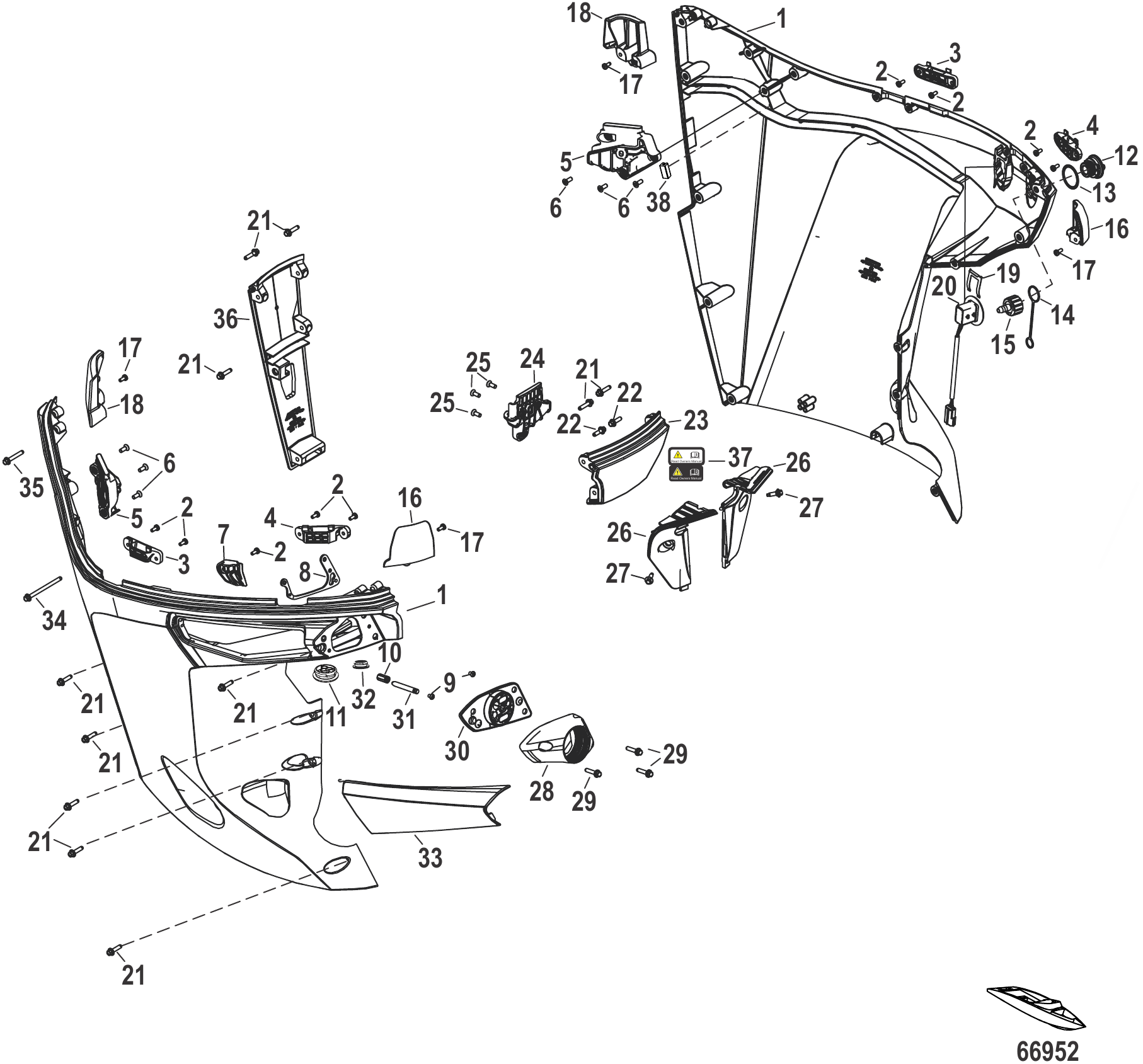

图 27底罩 Lower Cowl

REF	零件编号	中文名称	英文名称	数量
1	8M0142219	下部罩壳总成左舷和右舷	LOWER COWL ASSEMBLY Port and Starboard	1
1	8M0142217	下部罩壳总成黑色（左右舷）	LOWER COWL ASSEMBLY Black, Port and Starboard	1
1	8M0245395	下部罩盖总成黑色 (左舷和右舷)	LOWER COWL ASSEMBLY Black (Port and Starboard)	1
1	8M0149569	下部罩壳总成黑色重型	LOWER COWL ASSEMBLY Black, Heavy Duty	1
1	8M0236687	护板总成拉杆槽	CHAP ASSEMBLY, TIE BAR NOTCH	1
1	8M0236688	右舷转向槽护套总成	CHAP ASSEMBLY, STARBOARD STEER NOTCH	1
1	8M0236689	左舷转向槽护套总成	CHAP ASSEMBLY, PORT STEER NOTCH	1
2	8M0142918	螺钉(M5 x 12)	SCREW (M5 x 12)	9
3	8M0142923	后挡板（左舷）	RETAINER Rear, Port	1
3	8M0142930	后挡板（右舷）	RETAINER Rear, Starboard	1
4	8M0142922	前挡板（左舷）	RETAINER Front, Port	1
4	8M0142929	前挡板（右舷）	RETAINER Front, Starboard	1
5	8M0142919	撞板总成（左舷）	STRIKER ASSEMBLY Port	1
5	8M0142925	撞板总成（右舷）	STRIKER ASSEMBLY Starboard	1
6	8M0142921	螺丝（M6 X 16）	SCREW (M6 X 16)	6
7	8M0142928	缸体	BLOCK	1
8	8M0142946	安装板	PLATE	1
9	8M0047718	螺钉(M5×8mm)	SCREW (M5 X 8MM)	2
10	8M0142927	衬套	BUSHING	1
11	8M0247126	护孔环	GROMMET	1
12	888958001	嵌入式端口塞	PLUG Flush Port	1
12	8M0215105	嵌入式塞	PLUG Flush	1
13	8M0047301	嵌入式插槽密封件	SEAL Flush Plug Pocket	1
13	8M0219168	嵌入式系绳插头	TETHER Flush Plug	1
14	889823001	嵌入式系绳插头	TETHER Flush Plug	1
14	8M0224266	嵌入式插槽密封件	SEAL Flush Plug Pocket	1
15	885361A01	接头总成冲洗	FITTING ASSEMBLY Flush	1
16	8M0142945	前导板（左舷）	GUIDE Front, Port	1
16	8M0142944	前导板（右舷）	GUIDE Front, Starboard	1
17	8M0142918	螺钉(M5 x 12)	SCREW (M5 x 12)	4
18	8M0142943	后导板（左舷）	GUIDE Rear, Port	1
18	8M0142942	后导板（右舷）	GUIDE Rear, Starboard	1
19	8M0032848	开关固定座	RETAINER Switch	1
20	8M0037225	圆形微调开关面板	TRIM SWITCH Round Bezel	1
20	8M0235190	圆形微调开关面板	TRIM SWITCH Round Bezel	1
21	8M0022324	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	11
21	8M0230977	螺钉 (M6 x 25 MM)	SCREW (M6 x 25 MM)	11
22	8M0073002	六角法兰螺钉(M6×20)	SCREW (M6 X 20), Hex Flg	2
23	8M0142229	前下部罩壳总成黑色	LOWER FRONT COWL ASSEMBLY Black	1
23	8M0142228	前下部罩壳总成黑色	LOWER FRONT COWL ASSEMBLY Black	1
23	8M0142228	前下部罩壳总成黑色	LOWER FRONT COWL ASSEMBLY Black	1
24	8M0142932	前撞板总成	STRIKER ASSEMBLY Front	1
25	8M0142921	螺丝（M6 X 16）	SCREW (M6 X 16)	3
26	8M0142924	左舷盖	COVER Port	1
26	8M0142931	右舷盖	COVER Starboard	1
27	892073002	台阶螺丝 (M6)	SHOULDER SCREW (M6)	2
27	8M0230980	螺丝 (M6x14) 六角法兰B型	SCREW (M6 x 14) Hex Flange B	2
28	8M0142949	适配器	ADAPTER	1
29	8M0075735	六角法兰螺钉(M6×30)	SCREW (M6 X 30) Hex Flg	3
30	8M0142948	衬套机械版	GROMMET Mechanical	1
30	8M0142950	衬套 DTS版	GROMMET DTS	1
30	8M0146953	大孔衬套-机械式	GROMMET Large Hole, Mechanical	1
30	8M0146954	大孔衬套-DTS CMS	GROMMET Large Hole, DTS CMS	1
31	8M0146710	装配门销	PIN Rigging Door	1
32	8M0154581	微调传感器护圈	GROMMET Trim Sensor	1
33	8M0142582	装配门黑色	RIGGING DOOR Black	1
34	8M0071078	六角法兰螺钉(M6×85)	SCREW (M6 X 85) Hex Flg	1
34	8M0230974	六角法兰螺钉M6×85	SCREW M6 x 85 HEX FLG	1
35	8M0142933	螺钉(M6 x 40)	SCREW (M6 x 40)	1
35	8M0230975	螺丝 M6x40 六角法兰头	SCREW M6 x 40 HEX FLG	1
36	8M0142224	后下部罩壳总成黑色	LOWER REAR COWL ASSEMBLY Black	1
36	8M0245377	后下部罩壳总成黑色	LOWER REAR COWL ASSEMBLY Black	1
36	8M0142223	后下部罩壳总成黑色	LOWER REAR COWL ASSEMBLY Black	1
36	8M0245377	后下部罩壳总成黑色	LOWER REAR COWL ASSEMBLY Black	1
37	8M0142371	黑色阅读手册贴花	DECAL Read Manual, Black	1
38	8M0149605	边缘保护套	SLEEVE Edge Protector	1

图 28维护套件 Maintenance Kits

REF	零件编号	中文名称	英文名称	数量
-	8M0149929	100小时保养套件-V6/V8四冲程	100 HR MAINTENANCE KIT V6 and V8 4 stroke	1
-	8M0123025	机油滤清器	OIL FILTER	1
-	8M0106635	燃油滤清器	FUEL FILTER	1
-	830749	密封件	SEAL	1
-	8M0204693	放油螺塞密封件	SEAL Drain Plug	1
-	8M0149932	300小时保养套件-V8四冲程	300 HR MAINTENANCE KIT V8 4 Stroke	1
-	8M0123025	机油滤清器	OIL FILTER	1
-	8M0106635	燃油滤清器	FUEL FILTER	1
-	830749	密封件	SEAL	2
-	8M0204693	放油螺塞密封件	SEAL Drain Plug	2
-	8M0135348	火花塞	SPARK PLUGS	8
-	8M0204737	火花塞	SPARK PLUG	8
-	8M0162139	节温器总成	THERMOSTAT ASSEMBLY	1
-	888988008	卡箍(34.6毫米)	CLAMP (34.6 MM)	1
-	8M0187145	卡箍	CLAMP	1
-	8M0142251	皮带	BELT	1
-	8M0218433	皮带	BELT	1
-	8M0142980	叶轮维修套件	IMPELLER REPAIR KIT	1
-	8M0205803	水泵维修套件	REPAIR KIT Water Pump	1
-	8M0137814	防涡流阳极板(铝)	ANODE Antivent Plate (Aluminum)	1
-	8M0142850	螺钉(M10×25)	SCREW (M10 X 25)	2
-	8M0142878	螺塞	PLUG Screw	2
-	893404	阳极块	ANODE	4
-	8M0220986	配平阳极	ANODE Trim	4
-	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
-	880653	阳极块	ANODE	1
-	8M0220987	配平歧管阳极	ANODE Trim Manifold	1
-	889543016	螺栓	BOLT	4
-	8M0161430	平垫圈	WASHER Flat	6
-	8M0205955	水星阳极套件	ANODE KIT Mercury	1
-	8M0205956	快银阳极套件	ANODE KIT Quicksilver	1

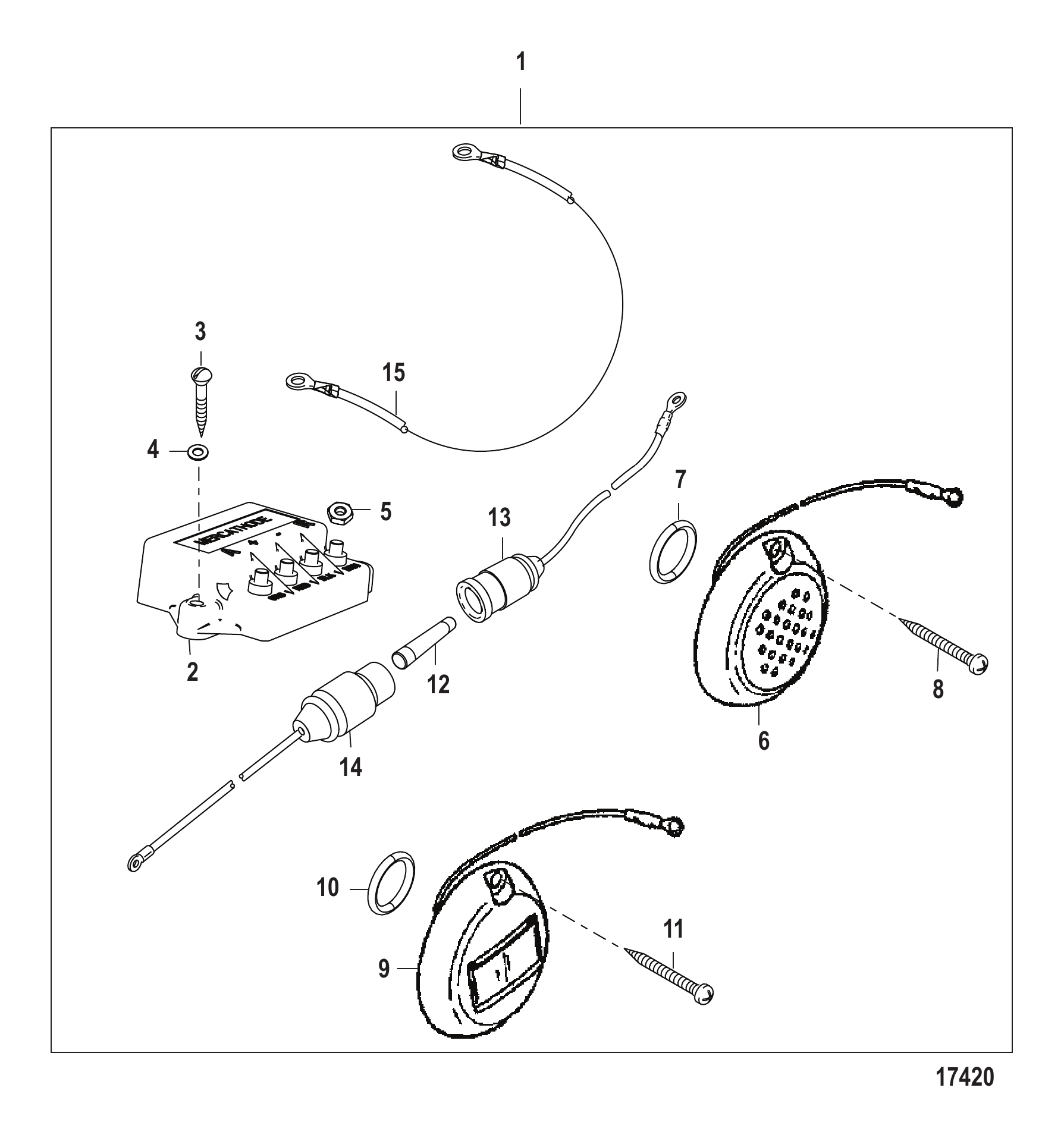

图 29防腐电极套件 Mercathode Kit

REF	零件编号	中文名称	英文名称	数量
1	88334A2	防腐电极套件	MERCATHODE KIT	1
2	42600A09	防腐电极总成	MERCATHODE ASSEMBLY	1
3	22793	螺丝(#9-14x0.875)	SCREW (#9-14 x .875)	2
4	30164	垫圈(0.192x0.375x0.0312)不锈钢	WASHER (.192 x .375 x .0312) Stainless Steel	2
5	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	4
6	72958A5	电极总成	ELECTRODE ASSEMBLY	1
7	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
7	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
8	87698	螺丝(#10-16 x 1.250)不锈钢	SCREW (#10-16 x 1.250) Stainless Steel	2
9	72957A5	阳极总成	ANODE ASSEMBLY	1
9	8M0181304	阳极总成	ANODE ASSY	1
10	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
10	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
11	87698	螺丝(#10-16 x 1.250)不锈钢	SCREW (#10-16 x 1.250) Stainless Steel	2
12	79091	保险丝20安培	FUSE 20 Ampere	1
12	8M0207796	保险丝20安培	FUSE 20 AMP	1
13	95084A10	电缆总成(5.00英寸)红色	CABLE ASSEMBLY (5.00 Inches) Red	1
13	8M0207788	拉线总成	CABLE ASSEMBLY	1
14	95084A13	电缆总成(64.00英寸)	CABLE ASSEMBLY (64.00 Inches)	1
15	79138A8	电缆总成(72.00英寸)黑色	CABLE ASSEMBLY (72.00 Inches) Black	1

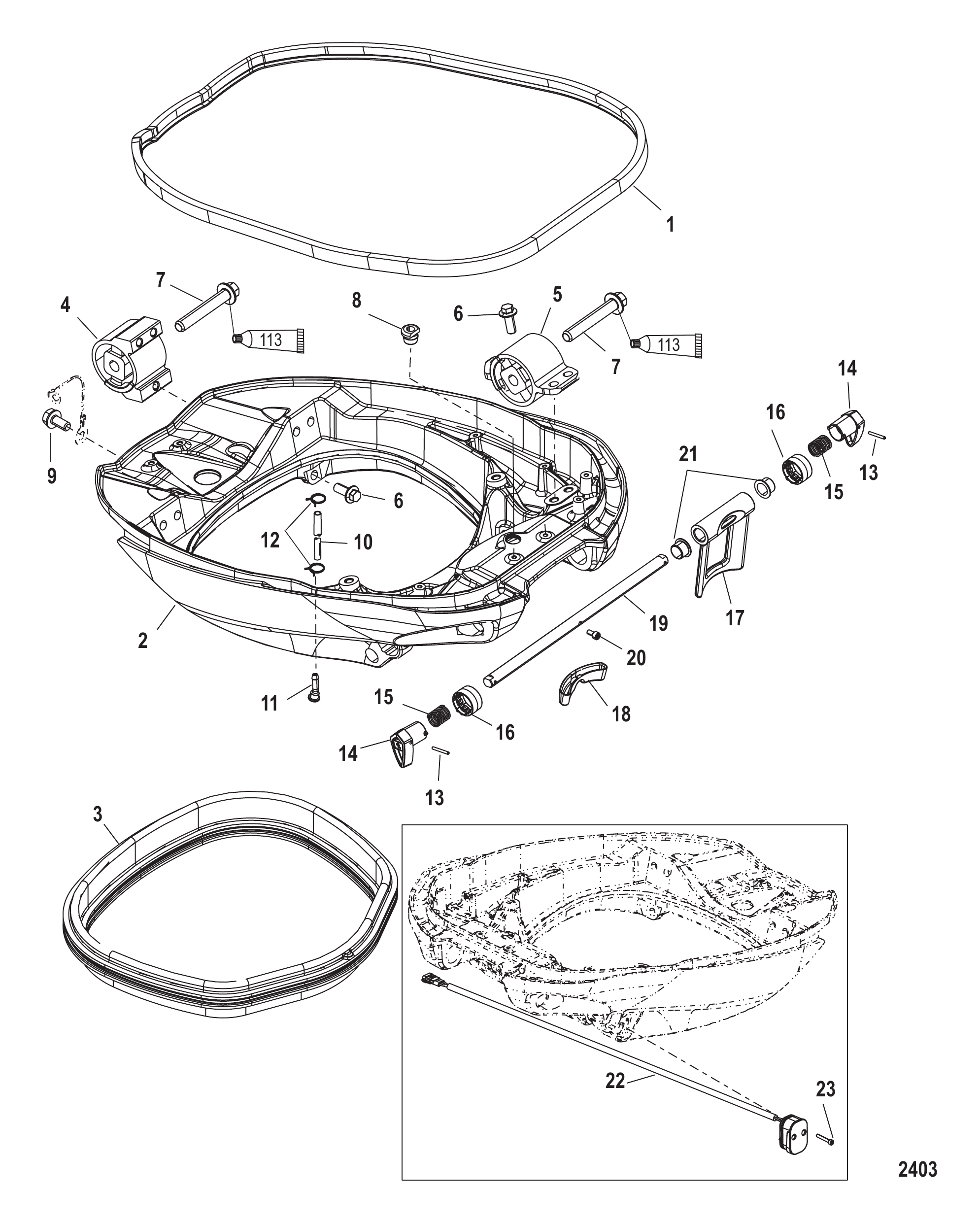

图 30安装支架 Mount Cradle

REF	零件编号	中文名称	英文名称	数量
1	885546002	密封件	SEAL	1
2	884887T04	安装支架	MOUNT CRADLE	1
2	884887T07	支架安装总成	CRADLE ASSEMBLY Mount	1
3	884888003	密封件	SEAL	1
3	8M0060014	密封件	SEAL	1
4	888538T	后安装座	MOUNT Rear	2
4	8M0103708	后安装座	MOUNT Rear	2
5	888535T	前安装座	MOUNT Front	2
5	8M0103365	前安装座	MOUNT Front	2
6	889745030	螺钉（M12×30）	SCREW (M12 x 30)	12
7	896531090	螺钉（M16×90）	SCREW (M16 x 90)	4
7	8M0103832	螺钉	SCREW	4
8	19565002	护孔环	GROMMET	1
9	40011126	不锈钢螺丝(M6 x 13)	SCREW (M6 x 13) Stainless Steel	1
10	830756109	软管（57英寸散装裁至35英寸）	HOSE (57.00 Inches Bulk) Cut to 35 Inches	1
10	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
11	895797	示踪管接头	FITTING Telltale	1
11	895797001	接头	FITTING	1
12	895851	卡箍(8英寸)	CLAMP (8.00 Inches)	2
13	73194	滚销(.125 x 1.12)	PIN Roll (.125 x 1.12)	2
14	880649002	倾斜锁杆	LEVER Tilt Lock	2
15	47968	弹簧	SPRING	2
16	889540A03	离合器套件	CLUTCH KIT	1
17	880651002	倾斜锁止支架	BRACKET Tilt Lock	1
17	8M0109693	倾斜锁止支架	BRACKET Tilt Lock	1
18	889539001	倾斜锁止垫	PAD Tilt Lock	1
18	8M0076907	倾斜锁止垫	PAD Tilt Lock	1
19	880650003	倾斜锁定轴	SHAFT Tilt Lock	1
20	889546	螺钉 (M5 x 10)	SCREW (M5 x 10)	1
21	8806641	轴承（0.625英寸）	BEARING (.625 Inch)	2
22	888590002	升降位置传感器	SENSOR Trim Position	1
23	889547	螺丝(M5 x 30)	SCREW (M5 x 30)	2

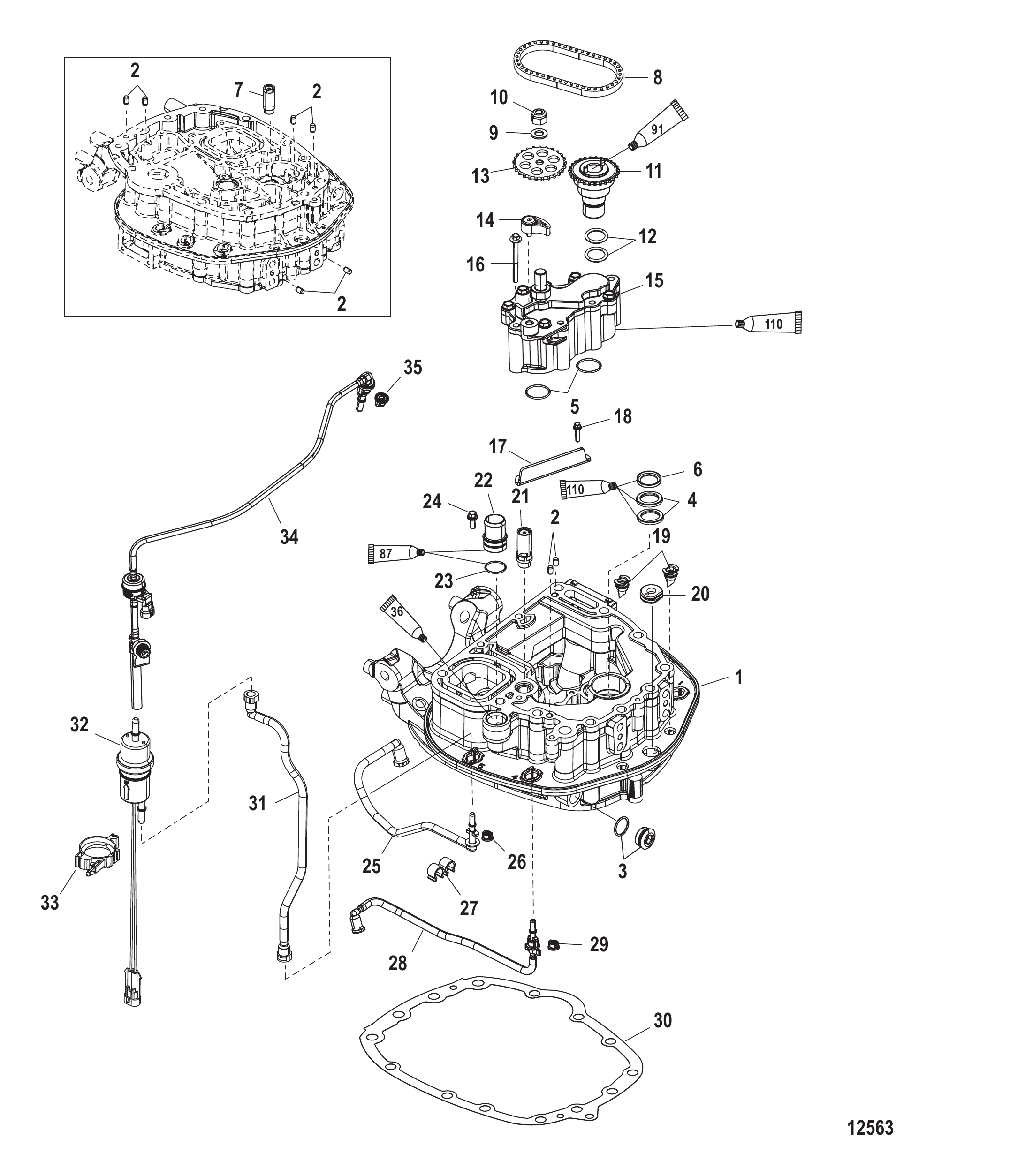

图 31机油泵/上适配板 Oil Pump/Adaptor Plate-Upper

REF	零件编号	中文名称	英文名称	数量
1	892126A01	适配板套件	ADAPTER PLATE KIT	1
2	892228	定位销	PIN Dowel	8
3	896951	堵头（24毫米）	PLUG (24 mm)	1
4	884462	水封	SEAL Water	2
5	887930	O型圈	O-RING	2
6	884461	油封	SEAL Oil	1
6	8M0033928	油封	SEAL Oil	1
7	884422A07	油泵泄压阀	PRESSURE RELIEF VALVE Oil Pump	1
8	884457	油泵驱动链条	CHAIN Oil Pump Drive	1
8	8M6002692	油泵驱动链条	CHAIN Oil Pump Drive	1
9	892491	垫圈	WASHER	1
10	892165	螺母	NUT	1
11	884458T06	油泵驱动轴	DRIVESHAFT Oil Pump	1
11	8M0217265	机油泵	OIL PUMP	1
12	895791	O型圈	O-RING	2
12	8M0034912	O型圈 3.78×21.32	O-RING 3.78 X 21.32	2
13	884456	从动链轮	SPROCKET Driven	1
14	884418A1	油泵驱动张紧器总成	TENSIONER ASSEMBLY Oil Pump Drive	1
15	884446T04	油泵总成	PUMP ASSEMBLY Oil	1
16	892455065	螺钉	SCREW	5
17	892335001	导油板	DEFLECTOR Oil	1
18	88552516	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	2
18	8M0103805	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	2
19	888819002	排水罩	DRAIN Cowl	2
20	888163	护孔环	GROMMET	1
21	884477A01	止回阀总成	CHECK VALVE ASSEMBLY	1
21	8M0062064	止回阀总成	CHECK VALVE ASSY.	1
22	885516004	泄放接头	FITTING Dump	1
22	8M0092321	EDP黑色接头	FITTING EDP Black	1
23	846594	O型圈 (1.239 x .070) 黑色	O-RING (1.239 x .070) Black	1
23	8M0092943	O型圈橙色	O-RING Orange	1
24	88552512	不锈钢螺钉 (M6 x 12 mm)	SCREW (M6 x 12 mm) Stainless Steel	1
24	8M0103804	不锈钢螺钉 (M6 x 12 mm)	SCREW (M6 x 12 MM) Stainless Steel	1
25	884549	下部通风软管	HOSE Vent-Lower	1
25	8M0087108	软管	HOSE	1
26	884546	护孔环	GROMMET	1
27	888523001	卡扣	CLIP	1
28	892240	燃油进油管至燃油供应模块	HOSE Fuel into Fuel Supply Module	1
28	8M0087118	软管	HOSE	1
29	884546	护孔环	GROMMET	1
30	889617001	衬垫	GASKET	1
31	8877551	燃油通风软管	HOSE Fuel-Vent	1
31	8M0225335	燃油通风软管	HOSE FUEL VENT	1
32	884545T01	通风罐总成	VENT CANISTER ASSEMBLY	1
32	8M0175814	通气罐总成	CANISTER-VENT ASY	1
33	853947	卡扣	CLIP	1
34	895775A01	燃油管路净化阀总成	VALVE ASSEMBLY Fuel Line Purge	1
34	8M0126303	净化通气总成	PURGE VENT ASSY	1
35	884546	护孔环	GROMMET	1
-	880552A06	动力头衬垫套件	GASKET SET Powerhead	1
-	880552A07	动力头衬垫套件	GASKET SET Powerhead	1
-	895247A06	动力头总成	POWERHEAD ASSEMBLY	1
-	895247R06	RM L6 GEN1 VERADO	RM L6 GEN1 VERADO	1

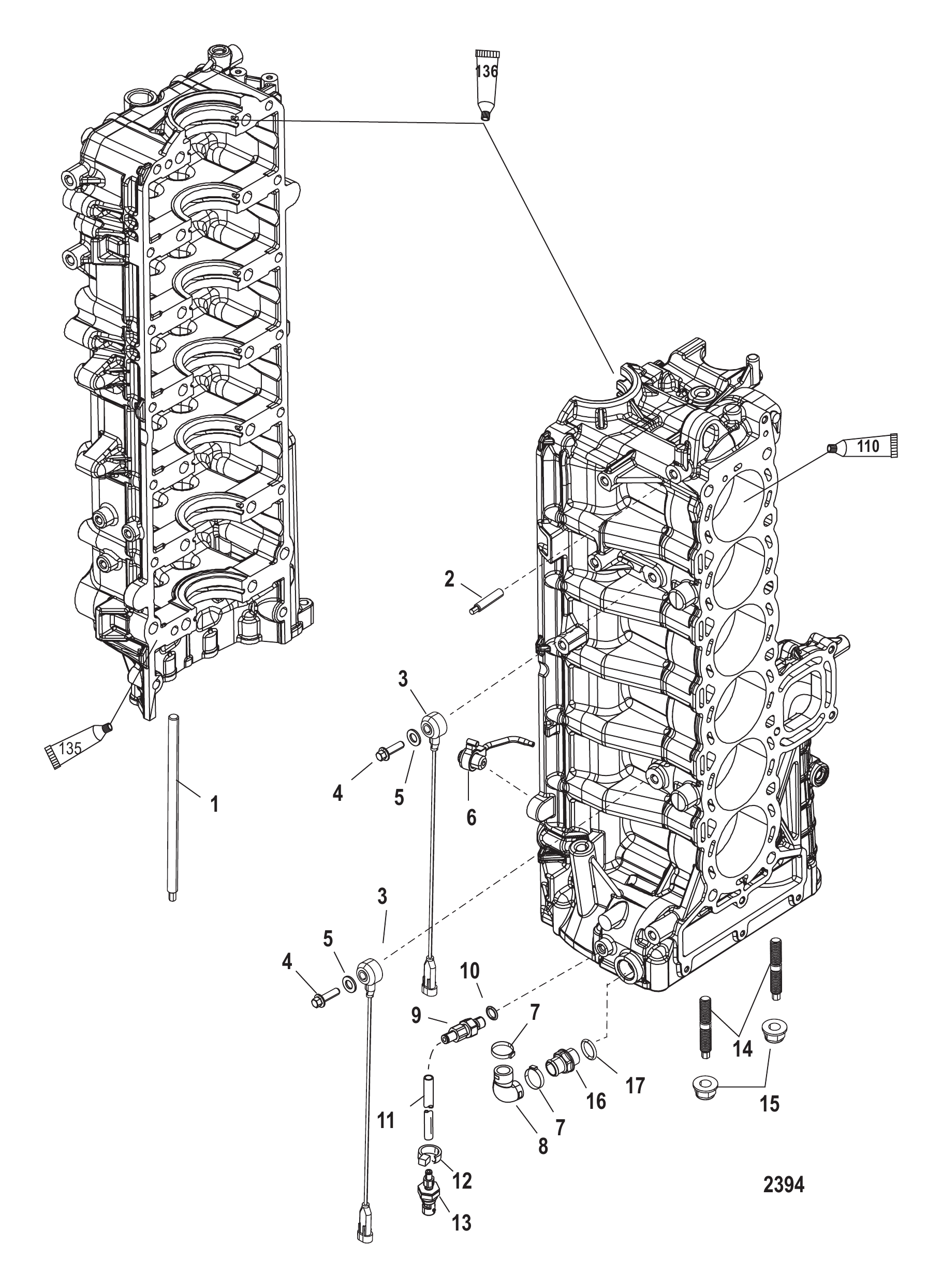

图 32左舷气缸体组件 Port Cylinder Block Components

REF	零件编号	中文名称	英文名称	数量
1	880668001	双头螺柱（M10×1.5）	STUD (M10 x 1.5)	10
2	888997001	螺柱	STUD	1
2	8M0022162	双头螺栓(M10×60)	STUD (M10 x 60)	1
3	878187	爆震传感器总成	SENSOR ASSEMBLY Knock	2
3	8M6003194	爆震传感器总成	SENSOR ASSEMBLY Knock	2
4	892086035	螺钉(M10 x 35)	SCREW (M10 x 35)	2
5	4002319	垫圈	WASHER	2
6	884268A1	机油喷嘴总成	JET ASSEMBLY Oil	6
7	888988008	卡箍(34.6毫米)	CLAMP (34.6 MM)	2
7	8M0187145	卡箍	CLAMP	2
8	885544002	软管	HOSE	1
9	896094A01	接头总成	FITTING ASSEMBLY	1
10	888814	O型圈(0.351 x 0.072)	O-RING (.351 x .072)	1
10	896699	O型圈（1.78毫米 x 0.08毫米）	O-RING (1.78 mm x .08 mm)	1
11	85978571	水管(52.00英寸散装)至水压传感器-裁切至29英寸	TUBING (52.00 Inches Bulk) To Water Pressure Sensor - Cut to 29 Inches	1
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
13	881879A20	水压传感器总成	SENSOR ASSEMBLY Pressure Water Pressure	1
13	881879T26	传感器压力	SENSOR Pressure	1
14	888849001	双头螺栓(M8x49)	STUD (M8 x 49)	2
14	8M0000274	双头螺栓(M8x44)	STUD (M8 x 44)	2
15	826365	螺母 (M8)	NUT (M8)	2
16	885517A05	接头总成	FITTING ASSEMBLY	1
17	892077	O型圈	O-RING	1
-	880552A06	动力头衬垫套件	GASKET SET Powerhead	1
-	880552A07	动力头衬垫套件	GASKET SET Powerhead	1
-	895247A06	动力头总成	POWERHEAD ASSEMBLY	1
-	895247R06	RM L6 GEN1 VERADO	RM L6 GEN1 VERADO	1

图 33动力头衬垫组件 Powerhead Gasket Set Components

REF	零件编号	中文名称	英文名称	数量
-	880552A06	动力头衬垫套件	GASKET SET Powerhead	1
-	62701	接头总成O型圈	O-RING Fitting Assembly	2
-	90196	O型圈(.921 x .139)油塞总成	O-RING (.921 x .139) Oil Plug Assembly	1
-	8M0204673	O型圈 .921 x .139	O-Ring .921 x .139	1
-	846594	O型圈 (1.239 x .070) 黑色适配板排放接头	O-RING (1.239 x .070) Black Adaptor Plate Dump Fitting	1
-	8M0092943	O型圈橙色	O-RING Orange	1
-	846594	O型圈 (1.239 x .070) 黑色机油吸油管	O-RING (1.239 x .070) Black Oil Pickup	1
-	8M0092943	O型圈橙色	O-RING Orange	1
-	8805251	油封(主轴承顶部)	SEAL Top Main Bearing	1
-	8M0032912	密封件	SEAL	1
-	895374006	衬垫气缸盖至缸体	GASKET Head Cylinder Head to Block	1
-	8M0033476	衬垫缸盖	GASKET Head	1
-	880624003	衬垫缸体至适配器	GASKET Block to Adaptor	1
-	880629	排气管密封件	SEAL Exhaust Tube	1
-	880631001	O型圈橙色张紧器盖	O-RING Orange Tensioner Cap	1
-	8M0237361	O型圈	O-RING	1
-	884409	O型圈缸体机油定位销	O-RING Block Oil Dowel	1
-	884423	O型圈缸体机油定位销	O-RING Block Oil Dowel	1
-	884461	油封适配板	SEAL Oil Adaptor Plate	1
-	8M0033928	油封	SEAL Oil	1
-	884462	水封适配板	SEAL Water Adaptor Plate-Water	2
-	887930	O型圈适配板	O-RING Adaptor Plate	2
-	888593	油封排油管塞	SEAL Oil Drain Tube Plug	1
-	8M0188614	放油螺塞密封件	SEAL Drain Plug	1
-	889617001	适配板垫片	GASKET Adaptor Plate	1
-	889618001	衬垫油底壳	GASKET Oil Sump	1
-	892077	O型圈缸体接头总成	O-RING Block Fitting Assembly
-	892117	密封件歧管壳体	SEAL Manifold Housing	1
-	892445	O型圈水管	O-RING Water Tube	1
-	892446	O型圈 (14 X 1.78 MM) 适配板接头	O-RING (14 X 1.78 MM) Adaptor Plate Fitting	1
-	895791	O型圈机油泵驱动轴	O-RING Oil Pump Driveshaft	2
-	8M0034912	O型圈 3.78×21.32	O-RING 3.78 X 21.32	2

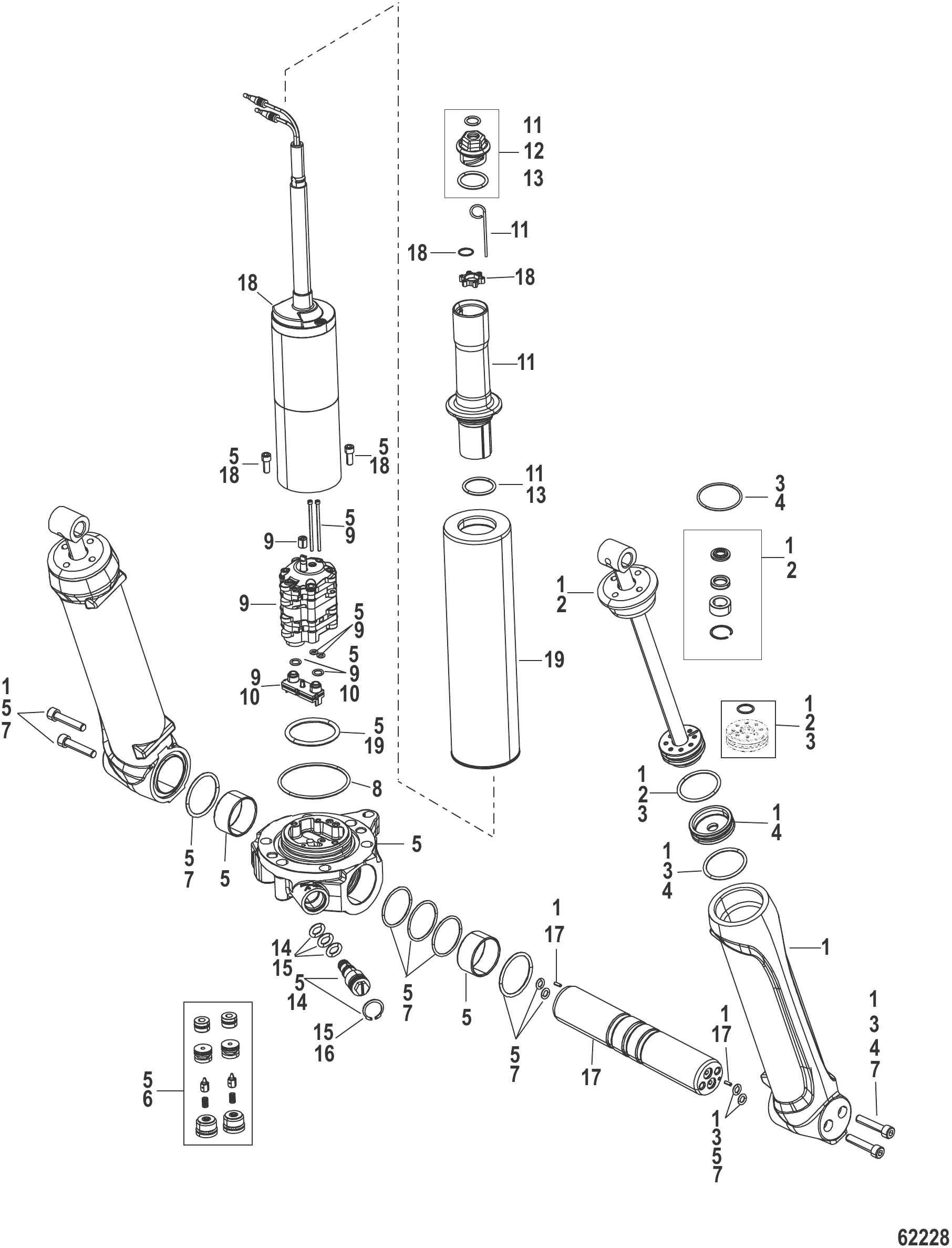

图 34动力升降倾斜组件 Power Trim Components

REF	零件编号	中文名称	英文名称	数量
1	896156A01	配平油缸套件	TRIM CYLINDER KIT	1
2	896157A01	升降杆套件	TRIM ROD KIT	1
2	8M0118299	升降杆套件	TRIM ROD KIT	1
3	896158A01	O型圈套件	O-RING KIT	1
4	896159A01	活塞套件	PISTON KIT	1
5	896166A01	配平歧管套件	MANIFOLD KIT Trim	1
6	896165A01	配平止回套件PO型	CHECK KIT Trim PO	1
7	896160A01	O型圈套件	O-RING KIT	1
8	8M0010183	O型圈	O-RING	1
8	8M0204938	O型圈	O-RING	1
9	896163A01	配平泵套件	PUMP KIT Trim	1
10	896164A01	配平过滤器套件	TRIM FILTER KIT	1
11	896162A01	配平颈套件	TRIM NECK KIT	1
12	895854A01	O型圈套件	O-RING KIT	1
13	893419	盖套件	CAP KIT	1
14	893420A01	手动释放套件	MANUAL RELEASE KIT	1
14	8M0224397	手动释放套件	MANUAL RELEASE KIT	1
15	8M0224410	O型圈套件	ORING KIT	1
16	8M0184377	卡环	SNAP RING	1
17	893408A01	配平销套件	PIN KIT Trim	1
18	896161A01	配平电机套件	TRIM MOTOR KIT	1
18	896161A02	配平电机套件	TRIM MOTOR KIT	1
18	896161A02	配平电机套件	TRIM MOTOR KIT	1
19	896167A01	储液罐套件	RESERVOIR KIT	1

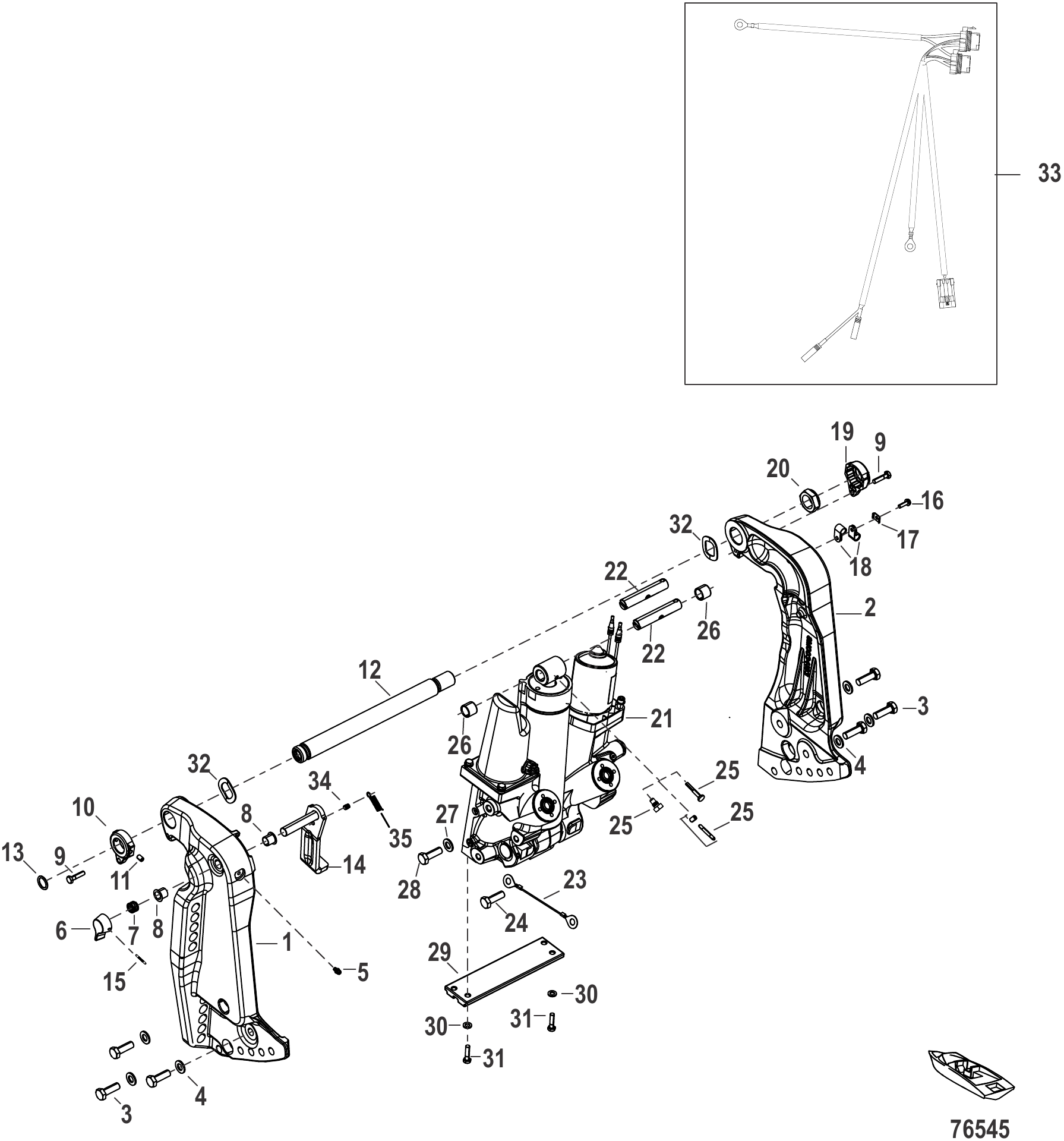

图 35动力升降/艉板总成 Power Trim/Transom Assembly

REF	零件编号	中文名称	英文名称	数量
1	8M0142800	支架艉板左舷	BRACKET Transom, Port	1
1	8M0156255	支架艉板左舷	BRACKET Transom, Port	1
2	8M0142801	支架艉板右舷	BRACKET Transom, Starboard	1
2	8M0156256	支架艉板右舷	BRACKET Transom, Starboard	1
3	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
4	4002319	垫圈	WASHER	6
5	98727	润滑脂接头	FITTING Grease	1
5	8M0169588	润滑脂接头	FITTING Grease	1
6	99633	旋钮	KNOB	1
7	830900	压缩弹簧	SPRING Compression	1
8	65830	尼龙衬套	NYLINER	2
9	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
9	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
10	8M0146189	倾斜管锁紧螺母黑色	NUT TILT TUBE LOCK Black	1
10	8M0146190	倾斜管锁紧螺母银色	NUT TILT TUBE LOCK Silver	1
11	8M0142811	螺钉	SCREW	1
12	8M0147844	倾斜管	TILT TUBE	1
13	8M0142810	O型圈 (0.612 x 0.103)	O-RING (0.612 x .0103)	1
14	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
15	99615	槽销	PIN Groove	1
16	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
17	8M0084613	C形垫圈	C-WASHER	1
18	22740	卡扣	CLIP	2
19	8M0142809	倾斜管支架	BRACKET Tilt Tube	1
19	8M0147678	倾斜管支架	BRACKET Tilt Tube	1
20	826164	螺母 (.875-14)	NUT (.875-14)	1
20	8M0231351	锁紧螺母	NUT Lock	1
21	8M0142341	动力升降总成	POWER TRIM ASSEMBLY	1
21	8M0225374	动力升降总成	POWER TRIM ASSEMBLY	1
21	8M0164977	动力升降总成	POWER TRIM ASSEMBLY	1
21	8M0225374	动力升降总成	POWER TRIM ASSEMBLY	1
21	8M0225374	动力升降总成	POWER TRIM ASSEMBLY	1
22	8M0094889	销	PIN	1
22	8M0161312	连杆销眼总成	PIN ROD EYE ASSEMBLY	1
22	8M0164978	连杆销眼总成	PIN ROD EYE ASSEMBLY	1
22	8M0230946	销杆眼套件	PIN ROD EYE KIT	1
22	8M0230946	销杆眼套件	PIN ROD EYE KIT	1
23	8M0079640	拉线总成	CABLE ASSEMBLY	1
24	8M0113176	螺钉	SCREW	1
25	821539	三叶销	PIN Trilobe	1
25	8M0050058	螺钉5/16-24 X .5	SCREW 5/16-24 X .5	1
25	8M0177279	螺钉(5/16-24×0.5英寸)	SCREW 5/16-24 x .5	1
25	8M0232231	螺钉螺母套件	SCREW NUT KIT	1
26	821207	衬套	BUSHING	2
27	4002319	垫圈	WASHER	1
28	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	1
29	818298Q1	阳极套件	ANODE KIT	1
30	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
30	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
31	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
31	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
32	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
33	8M0142682	配平线束	WIRE HARNESS Trim	1
34	893709	销	PIN	1
35	830899	张力弹簧	SPRING Tension	1

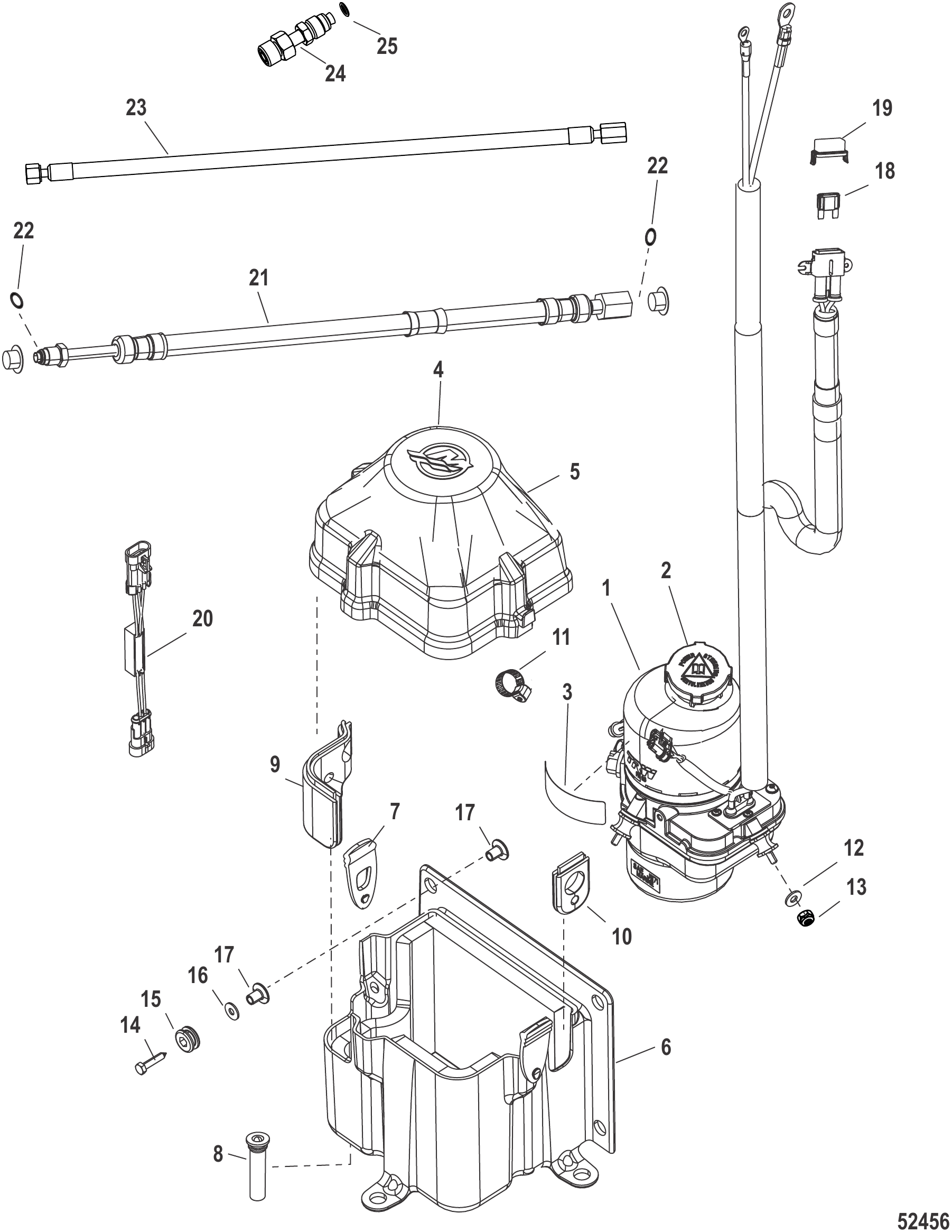

图 36动力转向泵套件(4至24英尺) Pump Kit-Power Steering (4 thru 24 Feet)

REF	零件编号	中文名称	英文名称	数量
-	8M0080199	动力转向泵套件(4英尺)	PUMP KIT Power Steering (4 Feet)	1
-	8M0080200	动力转向泵套件(12英尺)	PUMP KIT Power Steering (12 Feet)	1
-	8M0131262	动力转向泵套件(12英尺)	PUMP KIT Power Steering (12 Feet)	1
-	8M0080201	动力转向泵套件(24英尺)	PUMP KIT Power Steering (24 Feet)	1
-	8M0131263	动力转向泵套件(24英尺)	PUMP KIT Power Steering (24 Feet)	1
1	NSS	不单独销售泵	NOT SOLD SEPARATE PUMP	1
2	892485003	泵盖	CAP Pump	1
3	NSS	不单独销售油液类型标贴	NOT SOLD SEPARATE DECAL, Fluid Type	1
4	893364A05	动力转向泵完整外壳总成	ENCLOSURE ASSEMBLY Complete-Power Steering Pump	1
-	893365A03	动力转向泵上/下盖总成	COVER ASSEMBLY Top/Bottom, Power Steering Pump	1
5	893365T02	动力转向泵上外壳总成	ENCLOSURE ASSEMBLY Top, Power Steering Pump	1
6	8M0080707	动力转向泵下外壳总成	ENCLOSURE ASSEMBLY Bottom-Power Steering Pump	1
7	889531	绑带	STRAP	2
8	817519A2	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	1
9	893368001	护孔环	GROMMET	1
10	893369	护孔环	GROMMET	1
11	815504206	蜗杆卡箍	CLAMP Worm Gear	1
12	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	3
12	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	3
13	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	3
14	895378	螺钉 (M6)	SCREW (M6)	4
15	895319	护孔环	GROMMET	4
16	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	4
16	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	4
17	895320F1	衬套	BUSHING	4
18	79023A94	50安培保险丝-Maxi型	FUSE 50 Ampere - Maxi	1
19	879346T24	保险丝盖及O型圈	FUSE COVER AND O-RING	1
20	8M0026568	信号驱动器线束总成	HARNESS ASSEMBLY Signal Driver	1
21	897643A01	减震软管套件	HOSE KIT Dampening	1
22	89879	O型圈（0.301×0.064英寸）	O-RING (.301 x .064)	2

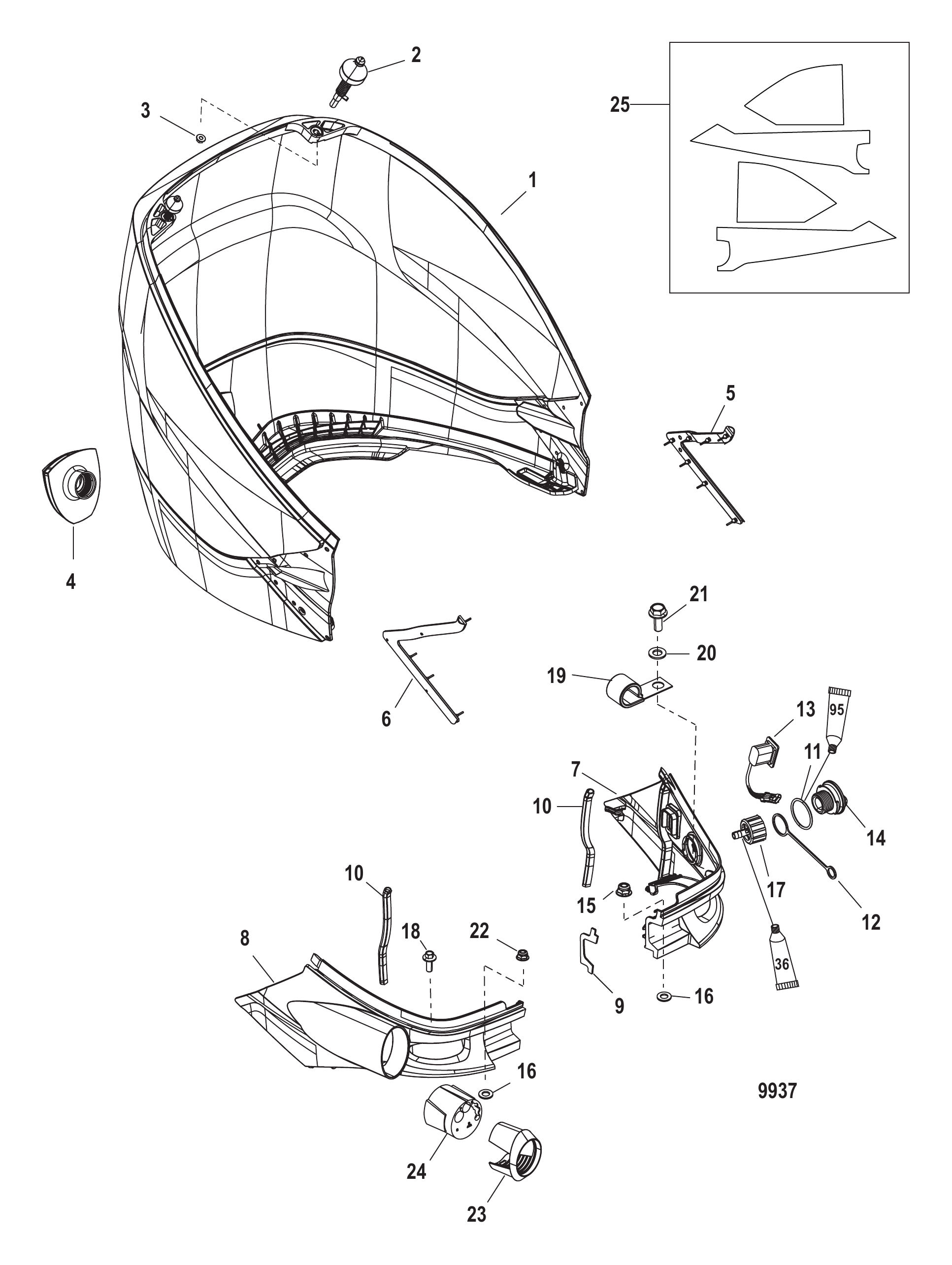

图 37后罩 Rear Cowl

REF	零件编号	中文名称	英文名称	数量
1	885358T02	后罩	COWL Rear	1
2	888961A01	销总成	PIN ASSEMBLY	2
3	892233	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
4	885360	怠速泄压阀	IDLE RELIEF	1
5	893343001	密封件(左舷)	SEAL Port (Port)	1
6	893344001	密封件(右舷)	SEAL Starboard (Starboard)	1
7	885356T02	进气口-左舷	INTAKE Air - Port (Port)	1
7	885356T03	ORD 885357T04	ORD 885357T04	1
8	885357T02	进气口-右舷	INTAKE Air - Starboard (Starboard)	1
8	885357T03	ORD 885357T04	ORD 885357T04	1
9	892315	衬垫	GASKET	1
10	897125	密封件	SEAL	2
10	8M0043266	密封件	SEAL	2
11	888957	O型圈	O-RING	1
12	889823001	嵌入式系绳插头	TETHER Flush Plug	1
12	8M0224266	嵌入式插槽密封件	SEAL Flush Plug Pocket	1
13	896620001	升降倾斜开关	SWITCH Trim	1
13	8M0235191	升降倾斜开关	SWITCH Trim	1
14	888958001	左舷冲洗口堵头	PLUG Flush Port Flush	1
14	8M0215105	嵌入式塞	PLUG Flush	1
15	892233	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
16	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	2
16	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	2
17	885361A01	接头总成冲洗	FITTING ASSEMBLY Flush	1
18	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	1
19	858951A01	卡箍套件	CLAMP KIT	1
20	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
20	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
21	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	1
22	892233	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
23	895316	适配器	ADAPTER	1
23	8M0214997	适配器	ADAPTOR	1
24	897169	护孔环	GROMMET	1
24	8M0214987	护孔环	GROMMET	1

图 38维修/支撑材料 Service/Support Material

REF	零件编号	中文名称	英文名称	数量
-	8M0142639	零件手册250R/300R 4.6L V8四冲程	PARTS MANUAL 250R/300R 4.6L V8 4 Stroke	1
-	8M0146888	维修手册250R/300R/300R HD 4.6L V8	SERVICE MANUAL 250R/300R/300R HD 4.6L V8	1
-	8M0145934	安装手册V6/V8 CMS	INSTALLATION MANUAL V6/V8 CMS	1
-	8M0156797	安装手册V6(175-225)/V8(200-300)CMS	INSTALLATION MANUAL V6 (175-225), V8 (200-300) CMS	1
-	8M0140588	300R HD安装手册	INSTALLATION MANUAL 300R HD	1
-	8M0156799	IM-300R HD CMS	IM-300R HD CMS	1
-	8M0145541	操作手册V6/V8 CMS机械式	OPERATION MANUAL V6/V8 CMS Mechanical	1
-	8M0175491	操作手册	MANUAL- OPERATION	1
-	8M0145542	操作手册V6/V8 CMS DTS	OPERATION MANUAL V6/V8 CMS DTS	1
-	8M0230588	操作手册150R和200R	OPERATION MANUAL 150R and 200R	1
-	8M0140585	300R CMS HD机械版操作手册	OPERATION MANUAL 300R CMS HD Mechanical	1
-	8M0175494	操作手册	MANUAL-OPERATION	1
-	8M0140789	300R CMS HD DTS版操作手册	OPERATION MANUAL 300R CMS HD DTS	1
-	8M0175495	操作手册	MANUAL-OPERATIONS	1
-	8M0146617	诊断维修手册	SERVICE MANUAL Diagnostic	1
-	8M0182076	诊断手册	DIAGNOSTIC MANUAL	1
-	NSS	不单独销售贴纸, EPA	NOT SOLD SEPARATE DECAL, EPA	1

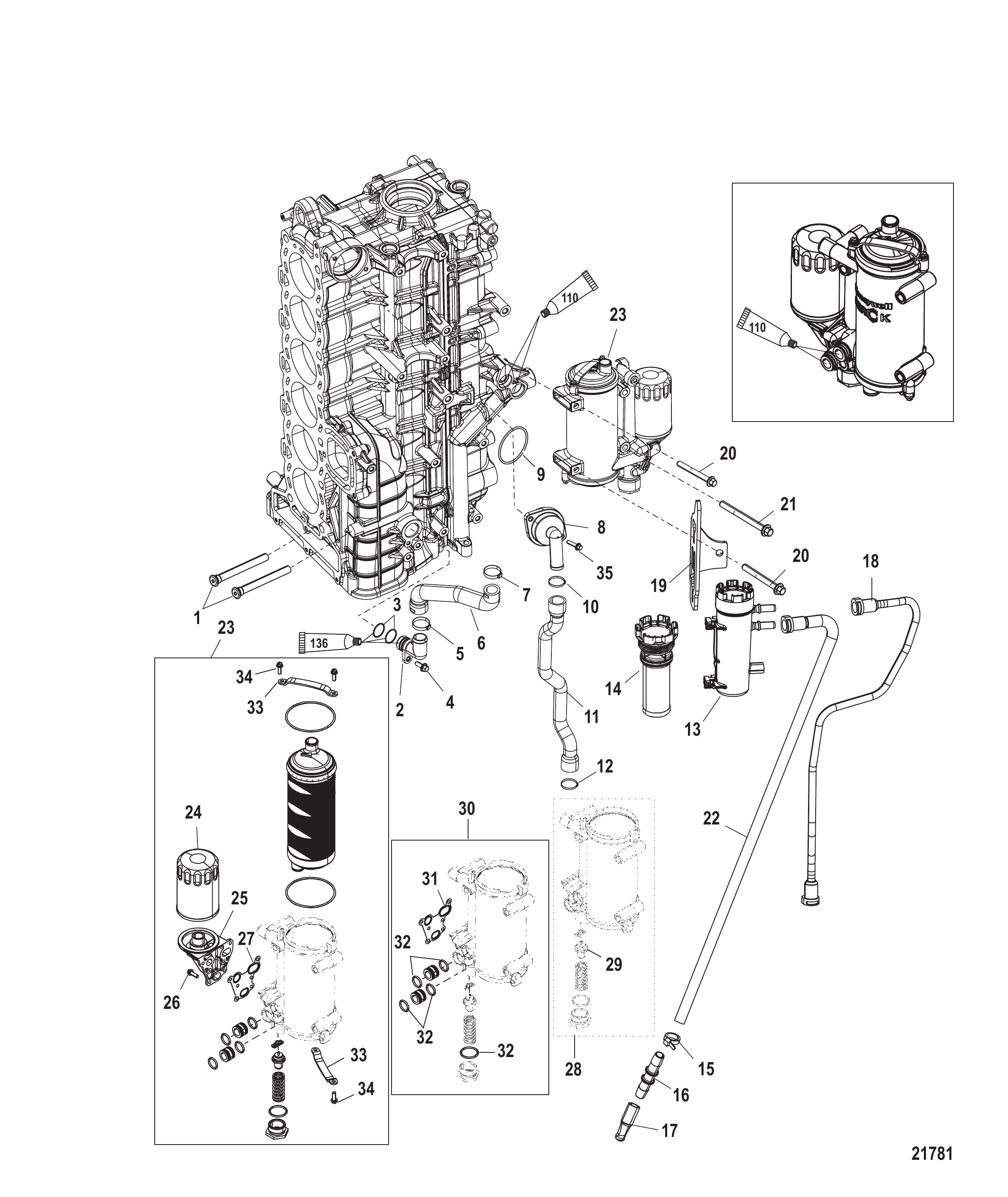

图 39右舷气缸体/机油冷却器 Starboard Cylinder Block/Oil Cooler

REF	零件编号	中文名称	英文名称	数量
1	892404A05	导水板总成	DEFLECTOR ASSEMBLY Water	2
2	885518A02	接头总成	FITTING ASSEMBLY	1
3	62701	O型圈	O-RING	2
4	88552516	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	1
4	8M0103805	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	1
5	888988011	卡箍(38.1毫米)	CLAMP (38.1 MM)	1
6	888930003	软管	HOSE	1
7	888988008	卡箍(34.6毫米)	CLAMP (34.6 MM)	1
7	8M0187145	卡箍	CLAMP	1
8	892864T04	节温器总成	THERMOSTAT ASSEMBLY	1
8	8M0174561	节温器总成	THERMOSTAT ASSY	1
9	892864500	O型圈	O-RING	1
9	8M0005958	O型圈	O-RING	1
10	888988001	卡箍(36.1毫米)	CLAMP (36.1 mm)	1
10	8M0204719	卡箍 36.1毫米	CLAMP 36.1 MM	1
11	892865	节温器软管	HOSE Thermostat	1
12	888988007	卡箍(42.5毫米)	CLAMP (42.5 mm)	1
13	892242T	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
13	8M0062950	滤清器总成	FILTER ASSEMBLY	1
14	884380T	燃油滤清器	FILTER Fuel	1
14	8M0122423	水星燃油滤清器	FUEL FILTER Quicksilver	1
15	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
16	892356	连接器	CONNECTOR	1
17	863156	拉手片	GRAB TAB	1
18	880598	燃油至升压泵软管	HOSE Fuel to Lift Pump	1
18	8M0240714	燃油进油软管	HOSE FUEL INLET	1
19	892147001	支架	BRACKET	1
20	88552785	螺钉(M10×85)	SCREW (M10 x 85)	3
20	8M0103824	螺钉	SCREW	3
21	885527105	螺钉(M10x105)	SCREW (M10 x 105)	1
21	8M0103820	螺钉(M10x105)	SCREW (M10 x 105)	1
22	880597	燃油入口软管	HOSE Fuel Inlet	1
22	8M0043788	31.5英寸软管	HOSE 31.5 Inch	1
23	880640T10	集成式机油模块总成	MODULE ASSEMBLY Intergrated Oil - Complete	1
23	8M0132390	机油冷却模块	OIL COOLER MODULE	1
24	883701K01	机油滤清器	FILTER Oil	1
24	877769K01	机油滤清器(水星品牌)	FILTER Oil (Mercury Branded)	1
25	880640A05	集成式机油模块壳体总成	HOUSING ASSEMBLY Intergrated Oil Module	1
25	8M0046694	壳体总成	HOUSING ASSEMBLY	1
26	895336	螺钉(M6x18)	SCREW (M6 x 18)	6
26	8M0041014	螺钉(M6x18)	SCREW (M6 x 18)	6
27	880640500	衬垫	GASKET	1
27	8M0034568	衬垫	GASKET	1
28	880640A06	节温器/导套套件	THERMOSTAT/GUIDE KIT	1
29	880640508	节温器	THERMOSTAT	1
30	892801T53	大修套件	OVERHAUL KIT	1
31	880640500	衬垫	GASKET	1
31	8M0034568	衬垫	GASKET	1
32	880640A09	O型圈套件	O-RING KIT	1
32	8M0071635	O型圈套件	O-RING KIT	1
33	895032	绑带	STRAP	2
34	895336	螺钉(M6x18)	SCREW (M6 x 18)	4
34	8M0041014	螺钉(M6x18)	SCREW (M6 x 18)	4
35	88552525	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	2
35	8M0103807	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	2
-	880552A06	动力头衬垫套件	GASKET SET Powerhead	1
-	880552A07	动力头衬垫套件	GASKET SET Powerhead	1
-	895247A06	动力头总成	POWERHEAD ASSEMBLY	1
-	895247R06	RM L6 GEN1 VERADO	RM L6 GEN1 VERADO	1

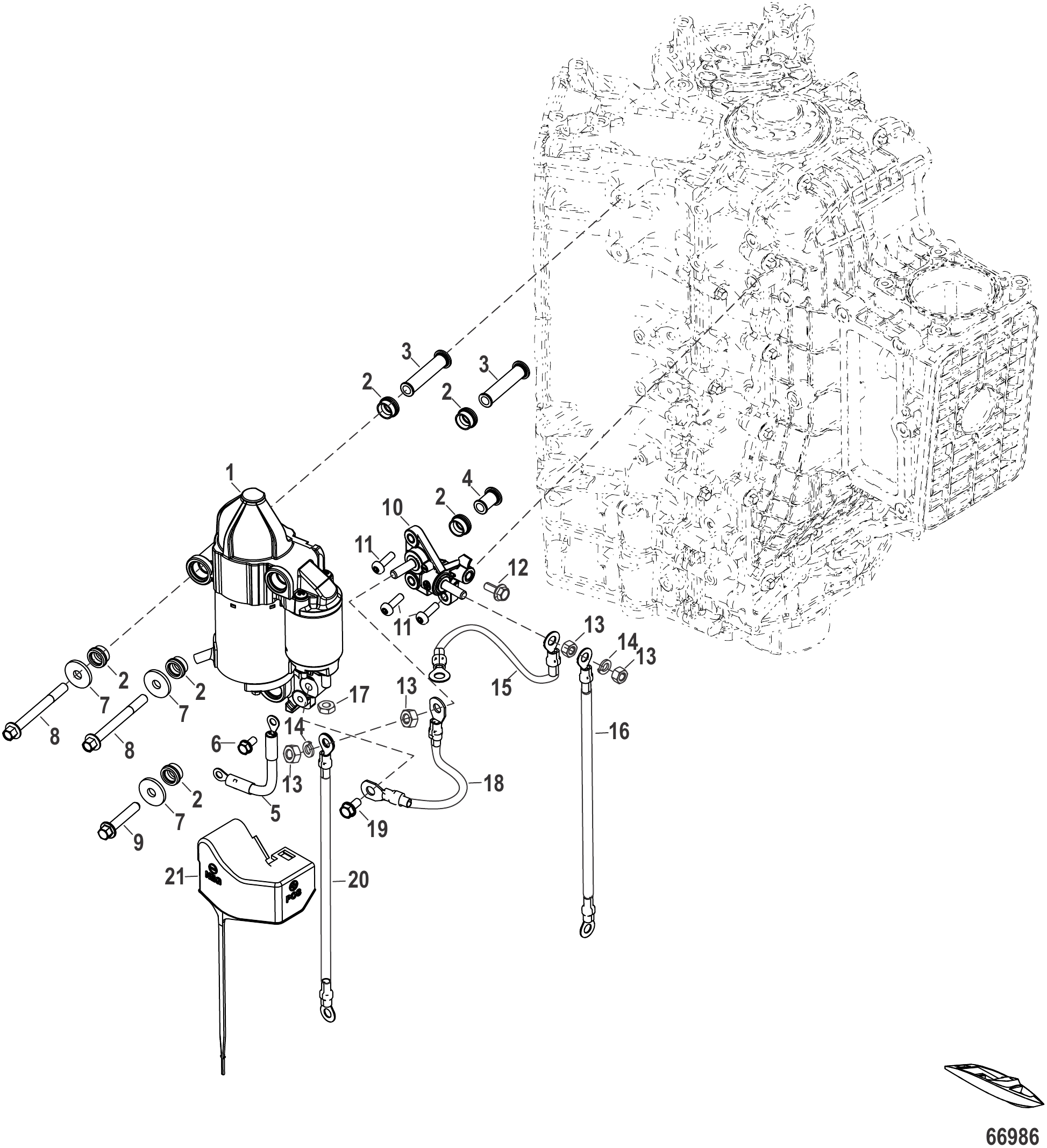

图 40启动电机 Starter Motor

REF	零件编号	中文名称	英文名称	数量
1	8M0142679	起动机	STARTER	1
2	8M0070367	管状支架 8MM	MOUNT - TUBULAR 8MM	6
2	8M0154659	管状支架 8MM	MOUNT TUBULAR 8 mm	6
3	8M0070369	垫圈（内径8.3 X 外径11.8）	SPACER (8.3 I.D. X 11.8 O.D.)	2
4	8M0070368	垫圈（内径8.3 X 外径11.8）	SPACER (8.3 I.D. X 11.8 O.D.)	1
5	8M0056666	起动机接地带	GROUND STRAP Starter	1
6	40011126	不锈钢螺丝(M6 x 13)	SCREW (M6 x 13) Stainless Steel	1
7	43430	垫圈	WASHER	3
8	8M0142896	螺钉(M8 x 80)	SCREW (M8 x 80)	2
8	8M0188530	螺钉 M8 X 80 六角凸缘头	SCREW M8 X 80 HEX FLG HD	2
9	88552645	螺钉（M8X45）	SCREW (M8X45)	1
10	8M0142680	热柱支架	BRACKET HOT STUD	1
11	8M0080651	螺钉 (M6 x 20)	SCREW (M6 x 20)	3
12	40011145	螺钉（M8 X 10）不锈钢	SCREW (M8 x 10) Stainless Steel	1
13	8M0146003	螺母 M8 X 1.25 六角	NUT M8 x 1.25 Hex	4
14	400257	锁紧垫圈（M8）	LOCKWASHER (M8)	2
15	8M0142681	电缆总成起动机-正极	CABLE ASSEMBLY Starter - Postitive	1
16	88439A46	电缆总成蓄电池-正极	CABLE ASSEMBLY Battery - Positive	1
17	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
18	8M0146902	电缆总成起动机-负极	CABLE ASSEMBLY Starter - Negative	1
19	40011148	螺钉(M8 x 20)	SCREW (M8 x 20)	1
19	8M0214929	螺钉(M8 x 20)	SCREW (M8 x 20)	1
20	88439A26	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
21	8M0142687	热柱盖	COVER Hot Stud	1

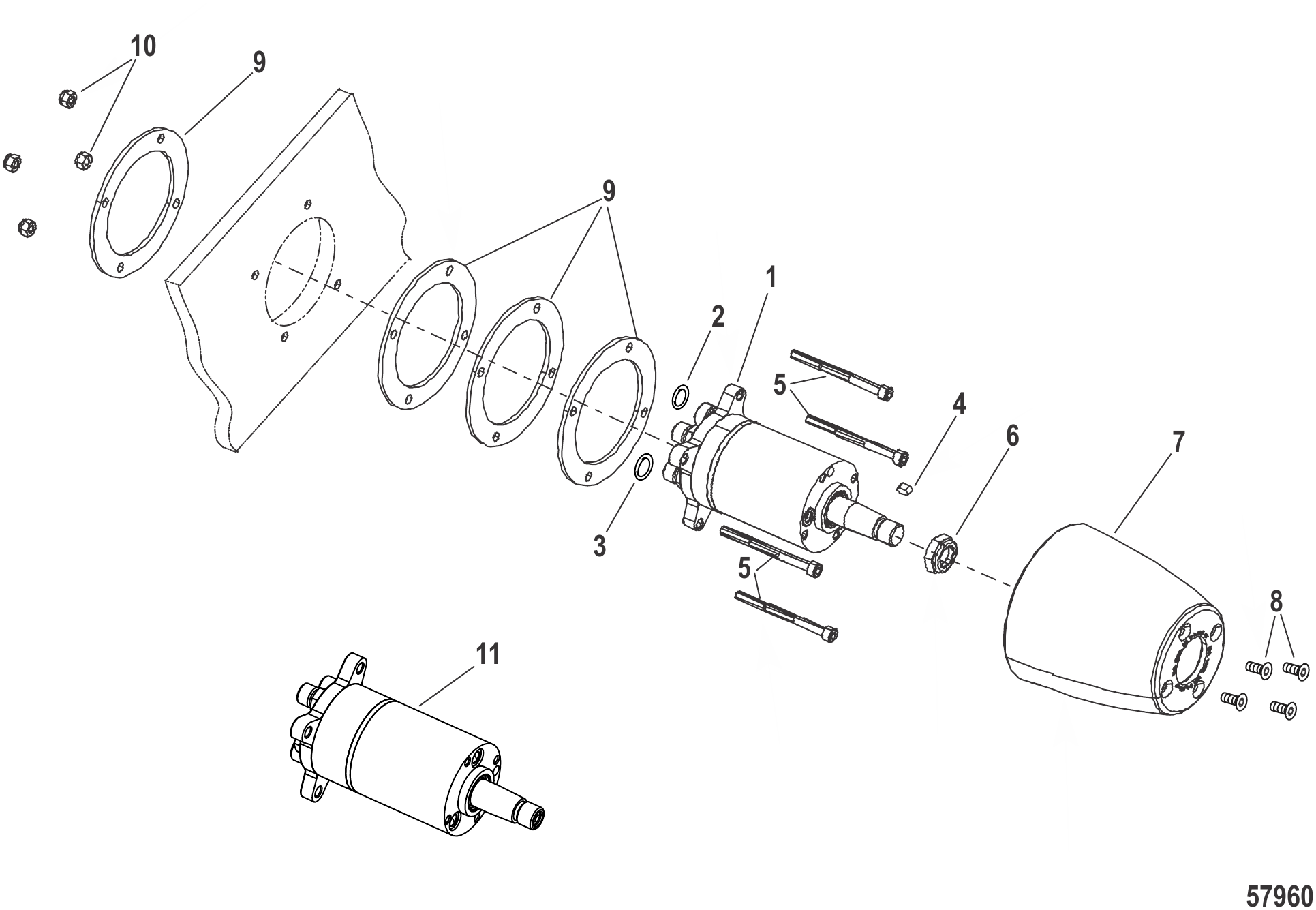

图 41标准转向舵套件(892557A02, 892380A02, 892558A02) Steering Helm Kit-Standard (892557A02, 892380A02, 892558A02)

REF	零件编号	中文名称	英文名称	数量
-	892557A02	标准转向舵机套件(32cc)	STEERING HELM KIT Standard (32 cc)	1
-	892380A02	标准转向舵机套件(40cc)	STEERING HELM KIT Standard (40 cc)	1
-	8M0240080	标准舵机套件40CM	HELM KIT-STD 40CM	1
-	892558A02	标准转向舵机套件(50cc)	STEERING HELM KIT Standard (50 cc)	1
-	8M0240081	标准舵机套件50CM	HELM KIT-STD 50CM	1
1	892557T01	标准舵机(32立方厘米)	HELM Standard (32 cc)	1
1	8M0137438	标准舵机(32立方厘米)	HELM Standard (32 cm3)	1
1	892380T01	舵机标准型(40毫升)	HELM Standard (40 cc)	1
1	8M0137444	舵机标准型(40立方厘米)	HELM Standard (40 cm3)	1
1	892558T01	舵机标准型(50毫升)	HELM Standard (50 cc)	1
1	8M0137448	舵机标准型(50立方厘米)	HELM Standard (50 cm3)	1
2	627021	O型圈(.301 x .070)	O-RING (.301 x .070)	2
3	8M6001491	O型圈(.364×.070)	O-RING (.364 x .070)	2
3	8M0047399	O型圈-6 ORFS型	O-RING -6 ORFS	2
4	893394	带锁片键(6.35毫米)	KEY With Lock Tab (6.35 mm)	1
5	4008875	螺钉(M6×75)	SCREW (M6 x 75)	4
5	4008850	螺钉(M6 x 50)	SCREW (M6 x 50)	4
6	826709121	螺母(.625-18)不锈钢	NUT (.625-18) Stainless Steel	1
7	892328T	舵机盖	COVER Helm	1
8	896842	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
9	892327	舵机背板	PLATE Helm Backing	4
9	892327	舵机背板	PLATE Helm Backing	3
9	892327	舵机背板	PLATE Helm Backing	2
10	401196	螺母 (M6)	NUT (M6)	4

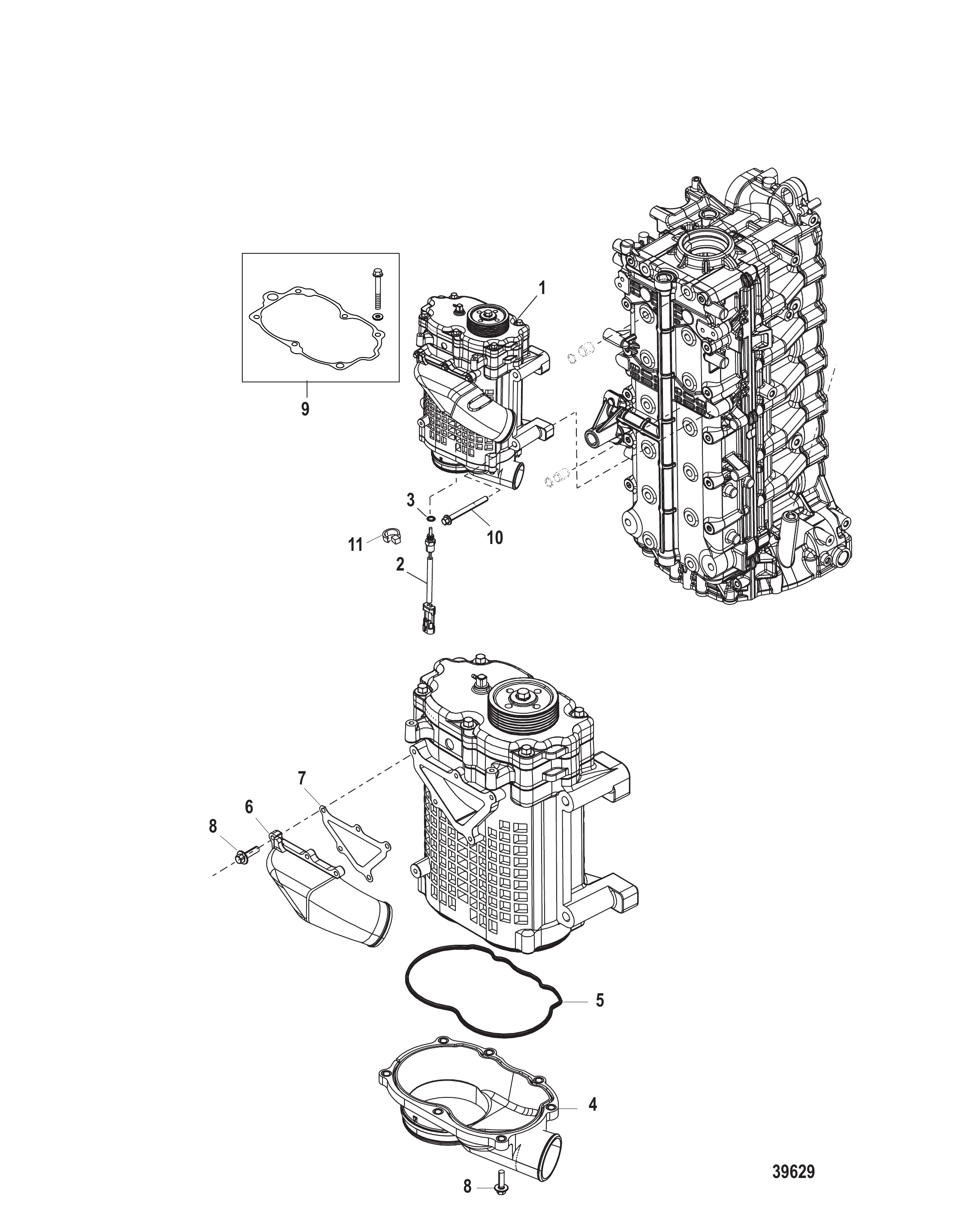

图 42增压器 SuperCharger

REF	零件编号	中文名称	英文名称	数量
1	898096A02	机械增压器套件	SUPERCHARGER KIT	1
2	885342001	传感器总成	SENSOR ASSEMBLY	1
2	8M0148668	传感器总成	SENSOR ASSEMBLY	1
3	888814	O型圈(0.351 x 0.072)	O-RING (.351 x .072)	1
3	896699	O型圈（1.78毫米 x 0.08毫米）	O-RING (1.78 mm x .08 mm)	1
4	888947A05	进气导管套件	DUCT KIT Inlet	1
5	888947501	衬垫	GASKET	1
6	888947A04	出口导管套件	OUTLET DUCT KIT	1
6	8M0060303	机械增压器套件	SUPERCHARGER KIT	1
7	888947504	衬垫	GASKET	1
8	888947502	螺栓	BOLT	9
9	847803A02	衬套/垫片套件	BUSHING/GASKET KIT	1
10	885527105	螺钉(M10x105)	SCREW (M10 x 105)	4
10	8M0103820	螺钉(M10x105)	SCREW (M10 x 105)	4
11	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	1

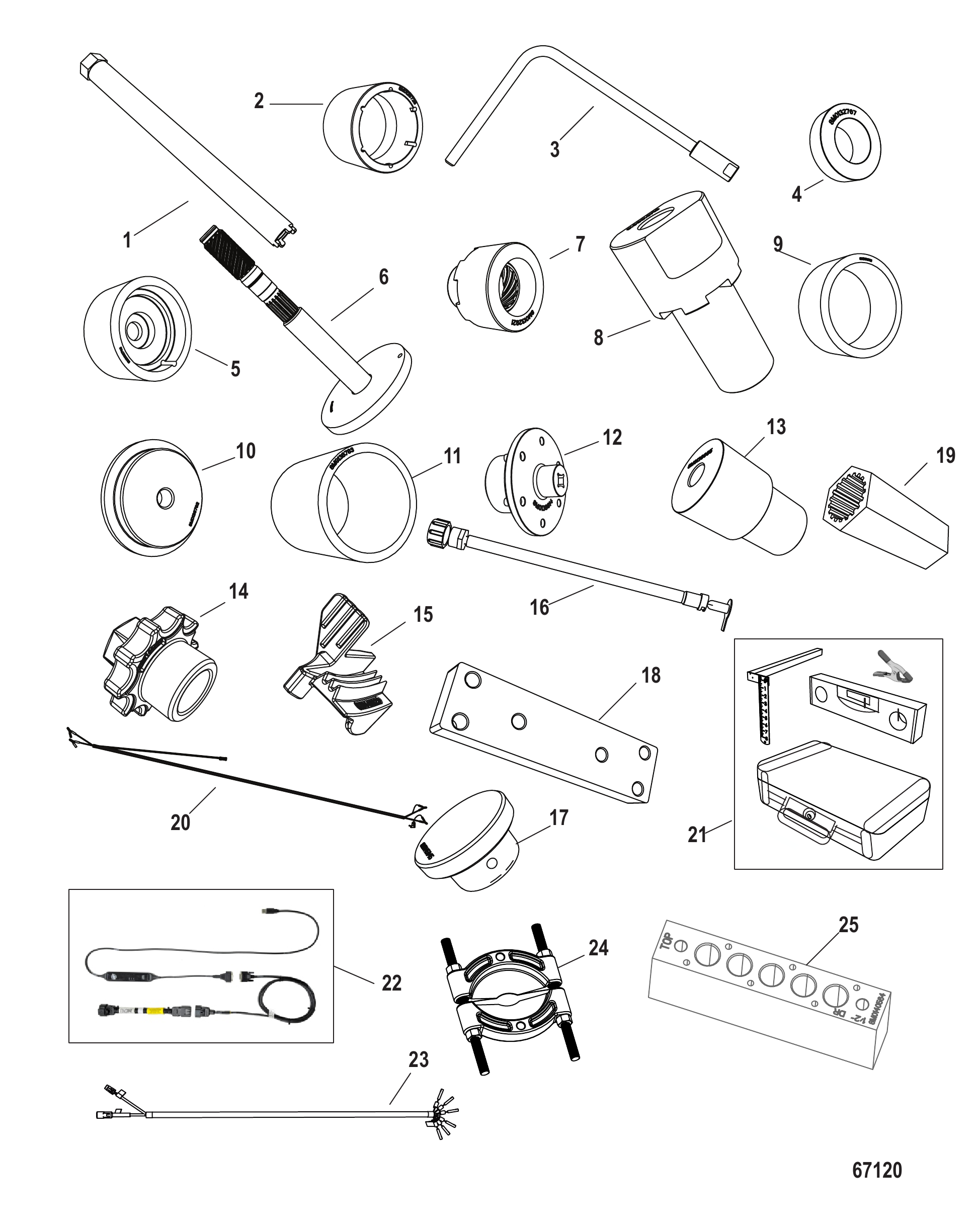

图 43工具 Tools

REF	零件编号	中文名称	英文名称	数量
1	8M0142969	换挡轴工具	SHIFT SHAFT TOOL	1
2	8M0142970	对正工具-预载驱动器	ALIGNMENT TOOL Preload Driver	1
3	8M0142973	换挡轴手柄工具	SHIFT SHAFT HANDLE TOOL	1
4	8M0142974	保持器压装夹具	RETAINER PRESS FIXTURE	1
5	8M0142976	工具-压装夹具底座	TOOL Press Fixture Base	1
6	8M0142983	轴工具-轴承座总成	SHAFT TOOL Bearing Carrier Assembly	1
7	8M0145393	工具-螺纹离合器总成	TOOL Threaded Clutch Assembly	1
8	8M0142559	齿轮总成固定夹具	HOLDING FIXTURE Gear Assembly	1
9	8M0142615	心轴-压装垫片	MANDREL Press Spacer	1
10	8M0142624	导板-轴承座	GUIDE PLATE Bearing Carrier	1
11	8M0142413	心轴-后齿轮轴承锥	MANDREL Rear Gear Bearing Cone	1
12	8M0142414	工具-齿轮总成驱动器	TOOL Gear Assembly Driver	1
13	8M0142636	轴承心轴	BEARING MANDREL	1
14	8M0146861	工具-飞轮	TOOL Flywheel	1
15	8M0146862	工具-张紧皮带	TOOL Stretch Belt	1
16	8M0129230	软管-放油	HOSE Oil Drain	1
17	8M0146935	安装工具-轴承卷轴	INSTALLATION TOOL Bearing Spool	1
18	8M0146936	拉拔器-上部支架	BAR MOUNT PULLER Upper	1
19	8M0147118	工具-推进轴	TOOL Propshaft	1
20	8M0147078	安装工具-配平线束	INSTALLATION TOOL Trim Harness	1
20	8M0193581	安装工具-配平线束	INSTALLATION TOOL Trim Harness	1
21	8M0130705	齿轮箱高度工具套件	GEARCASE HEIGHT TOOL KIT	1
22	8M0138392	CDS-G3诊断工具套件	DIAGNOSTIC TOOL KIT CDS -G3	1
22	8M0153916	CDS G3诊断工具套件	DIAGNOSTIC TOOL KIT CDS G3	1
NS	883705T01	工具-发动机吊装带	STRAP TOOL Engine Lifting	1
NS	98234A2	钻孔夹具套件-艉板	DRILL FIXTURE KIT Transom	1
NS	8M0147671	工具-对正销上部支架	TOOL ALIGNMENT PIN UPPER MOUNT	1
NS	8M0145607	工具-拉杆器	TOOL Bar Puller	1
NS	8M0147116	工具-导向密封驱动器	TOOL GUIDE SEAL DRIVER	1
NS	8M0149553	工具-上部支架杆安装	TOOL Upper Mount Rod Installation	1
NS	8M0148868	扳手-AMS支架	WRENCH AMS Mount	1
NS	8M0148865	工具-齿轮安装	TOOL Install Gear	1
NS	FT8950	测试套件	TESTER KIT	1
NS	58222A1	百分表工具	DIAL INDICATOR TOOL	1
NS	83155	千分表转接套件	ADAPTER KIT Dial Indicator	1
NS	8M0237356	适配器套件	ADAPTER KIT	1
NS	89897	固定工具-百分表	HOLDING TOOL Dial Indicator	1
NS	8M0039309	环安装工具	TOOL Ring Installer	1
NS	8M0046632	轴承座固定螺母套筒工具	TOOL Socket, Carrier Retainer Nut	1
NS	46086A1	拉拔器爪头总成	PULLER JAW ASSEMBLY	1
NS	34569A1	滑动锤拉拔器总成	PULLER ASSEMBLY Slide Hammer	1
NS	37241	通用拉拔板	PULLER PLATE Universal	1
NS	63209	加热灯	HEAT LAMP	1
NS	83165T	拉拔器总成	PULLER ASSEMBLY	1
NS	36571T	导向垫圈	PILOT WASHER	1
NS	888414T01	轴承/油封安装工具	BEARING / SEAL DRIVER	1
NS	31229A7	轴承拉拔器套件	PULLER KIT Bearing	1
NS	8M0070085	锁紧螺母工具	TOOL Retaining Nut	1
NS	861792	推力轴承	BEARING Thrust	1
NS	43506T	轴承固定工具	RETAINING TOOL Bearing	1
NS	889958T	传动轴固定工具	DRIVESHAFT HOLDING TOOL	1
NS	8M0142028	小齿轮螺母固定工具	TOOL Holder Pinion Nut	1
NS	8M0035594	螺旋桨轴固定工具	TOOL Propeller Shaft Holder	1
NS	8M0052590	上传动轴轴承安装工具	TOOL Driver, Upper Driveshaft Bearing	1
NS	8M0046348	小齿轮轴承拆卸工具	TOOL Bearing Driver, Pinion Removal	1
NS	37323	滚针轴承导杆工具	DRIVER ROD TOOL Needle Bearings	1
NS	885592T	轴承杯安装工具	BEARING CUP DRIVER	1
NS	8M0046360	小齿轮轴承安装工具	TOOL Bearing Driver, Pinion Install	1
NS	8M0046443	小齿轮定位工具	TOOL Pinion Gear Locating	1
NS	8M0054594	小齿轮高度工具	TOOL-PINION HGT	1
NS	8M0059911	轴承座安装工具	INSTALLATION TOOL Bearing Carrier	1
NS	8M0053505	背隙指示工具	TOOL Indicator, Backlash	1
NS	8M0182653	工具-驱动对正	TOOL Drive Alignment	1
-	8M0235704	工具-动力输出轴套安装	TOOL SLEEVE INSTALLATION PTO	1
-	8M0235705	工具-耐磨轴套安装	TOOL INSTALL WEAR SLEEVE	1
-	8M0235706	工具-耐磨轴套安装	TOOL INSTALL WEAR SLEEVE	1
-	8M0235707	耐磨轴套安装	INSTALL WEAR SLEEVE	1

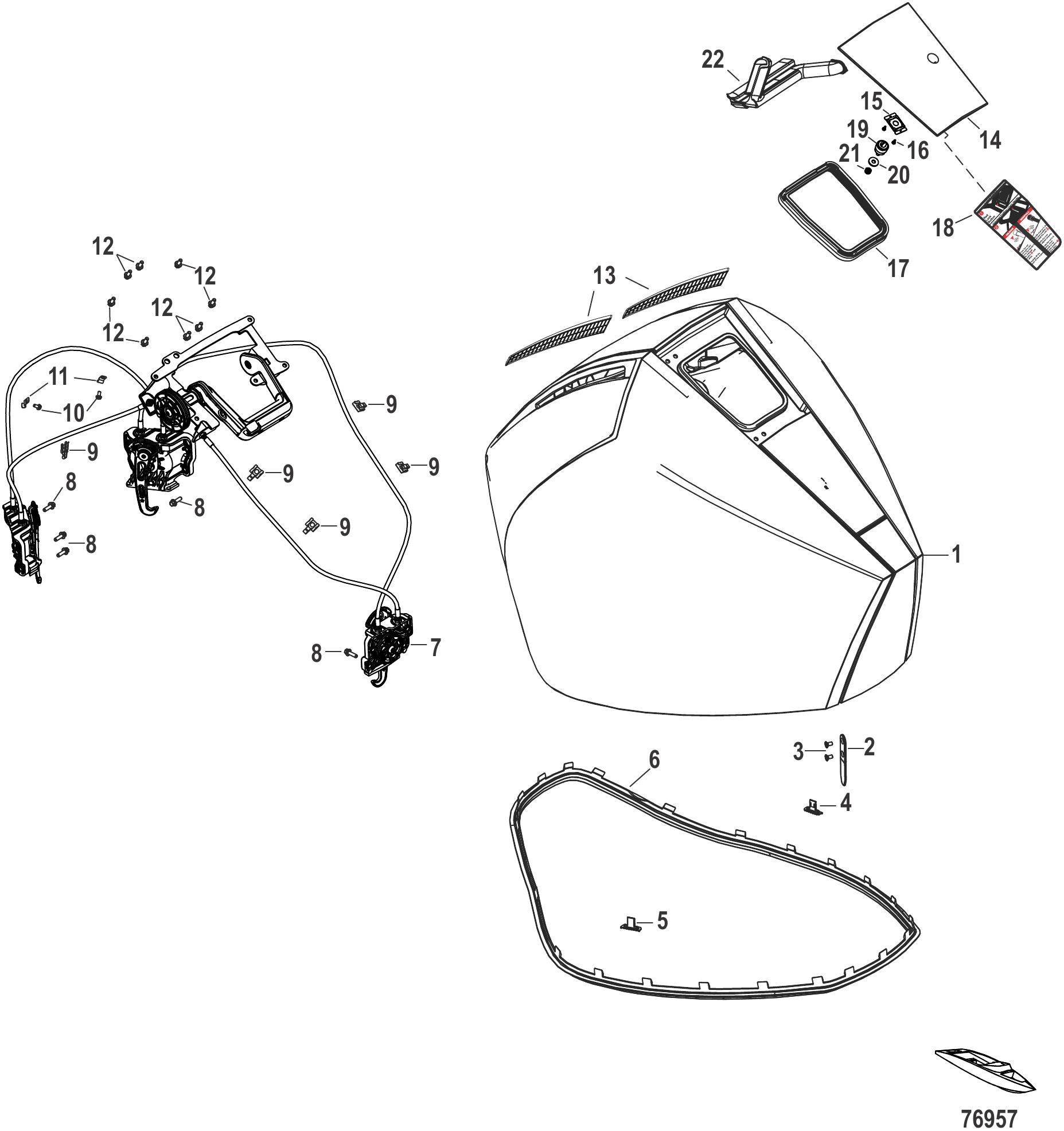

图 44顶罩 Top Cowl

REF	零件编号	中文名称	英文名称	数量
1	8M0143491	黑色顶盖总成（带标贴，无装饰面板贴纸组）	TOP COWL ASSEMBLY Black, Decaled without Accent Panel Decal Set	1
1	8M0143492	黑色顶盖总成（带标贴，无装饰面板贴纸组）	TOP COWL ASSEMBLY Black, Decaled without Accent Panel Decal Set	1
1	8M0231250	黑色顶盖总成（带标贴，无装饰面板贴纸组）	TOP COWL ASSEMBLY Black, Decaled without Accent Panel Decal Set	1
2	8M0142904	校准支腿套件	ALIGNMENT LEG KIT	4
2	8M0240715	校准支腿套件	ALIGNMENT LEG KIT	4
3	8M0178589	螺丝M6×12	SCREW M6 x 12	2
4	8M0142916	左舷缓冲垫	BUMPER Port	1
5	8M0142915	右舷缓冲垫	BUMPER Starboard	1
6	8M0142906	上罩壳密封件	SEAL Top Cowl	1
6	8M0242486	上罩壳密封件	SEAL Top Cowl	1
7	8M0142242	罩壳锁扣总成	COWL LATCH ASSEMBLY	1
7	8M0232582	罩壳锁扣总成	LATCH ASSEMBLY Cowl	1
8	8M0103806	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	10
9	8M0142903	卡扣	CLIP	7
10	8M0142955	螺丝（M5×0.8）	SCREW (M5 x 0.8)	2
11	8M0142954	卡扣	CLIP	2
12	88552514	不锈钢螺钉(M6×14mm)	SCREW (M6 x 14 mm) Stainless Steel	8
13	8M0219155	左/右舷边框总成	BEZEL ASSEBMBLY Port/Starboard	1
14	8M0142238	黑色门总成	DOOR ASSEMBLY Black	1
14	8M0157771	黑色门总成	DOOR ASSEMBLY Black	1
15	8M0142913	定位器总成	KEEPER ASSEMBLY	1
16	8M0204400	自攻螺丝	SCREW Thread Forming	1
17	8M0142908	门密封条	SEAL Door	1
18	8M0148533	锁扣位置贴纸	DECAL Latch Position	1
19	8M0142907	按压式锁	LOCK PUSH	1
20	8M0142914	锁扣垫片组	SHIM SET Latch	1
21	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
22	8M0187755	导水器	WATER DIVERTER	1

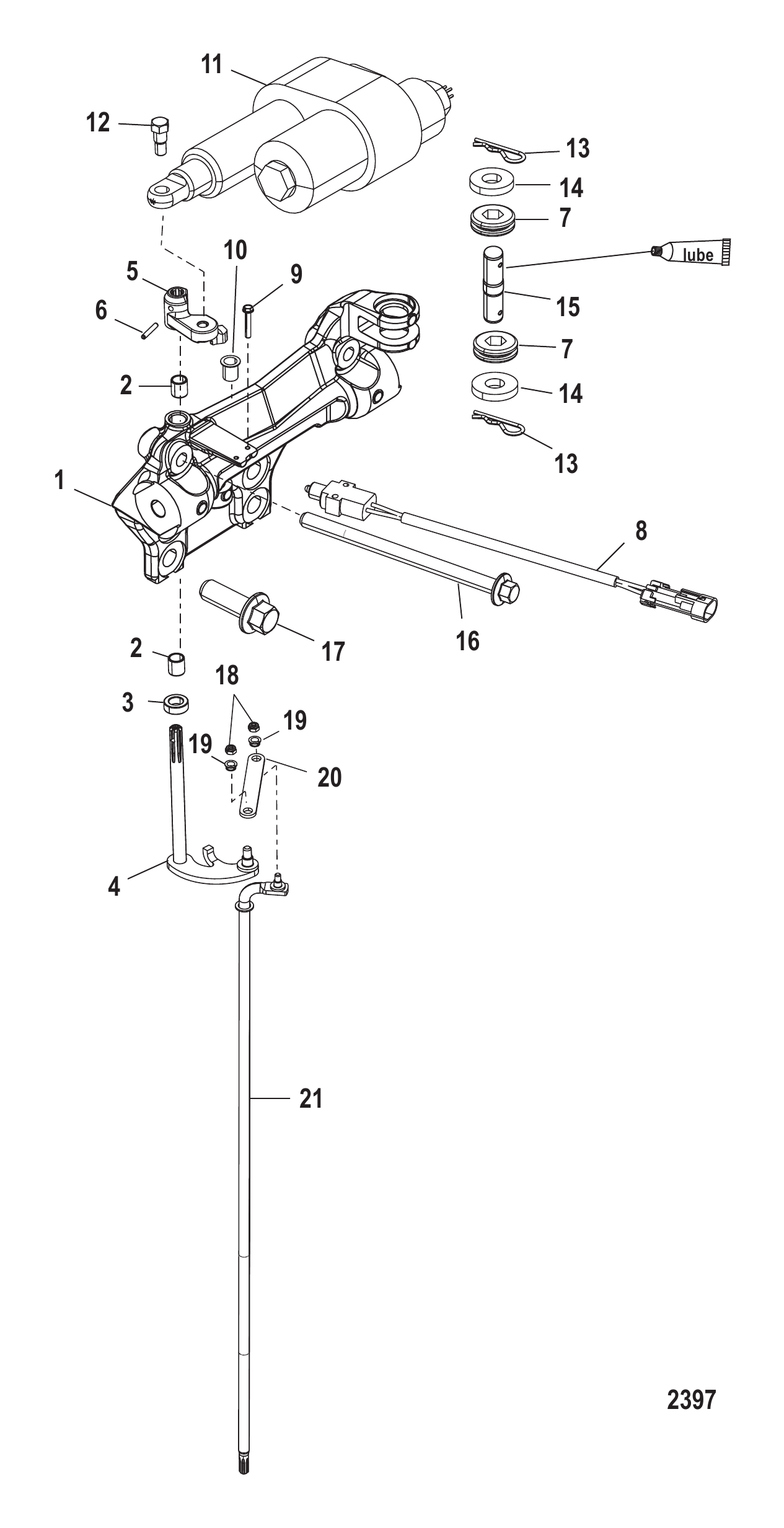

图 45上部换挡组件 Upper Shift Components

REF	零件编号	中文名称	英文名称	数量
-	888994T03	前安装支架总成	BRACKET ASSEMBLY Front Mount	1
1	NSS	不单独销售支架	NOT SOLD SEPARATE Bracket	1
2	892417	衬套	BUSHING	2
3	892049	隔套	SPACER	1
3	8M0047763	隔套	SPACER	1
4	885506001	换档轴	SHIFT SHAFT	1
4	8M0026131	换挡轴	SHAFT-SHIFT	1
5	889727001	曲柄摇臂	BELL CRANK	1
6	25319	销钉(.125 x 0.75英寸)	PIN (.125 x 0.75 Inches)	1
7	833155	护孔环	GROMMET	2
8	889514A01	开关	SWITCH	1
8	8M0207794	开关	SWITCH	1
9	88075020	螺丝(M3 x 20)	SCREW (M3 x 20)	2
10	85999	衬套	BUSHING	1
11	8M0048114	换挡执行器	SHIFT ACTUATOR	1
11	8M0124413	换挡执行器	SHIFT ACTUATOR	1
12	8855091	螺钉	SCREW	1
13	885512	开口销	COTTER PIN	2
14	885511003	垫圈	WASHER	2
15	895770	枢轴销	Pin Pivot	1
16	895811155	螺钉(M10×155)	SCREW (M10 x 155)	2
16	8M0207826	螺钉	SCREW	2
17	88510940	螺钉(M14)	SCREW (M14)	4
17	8M0103802	螺钉	SCREW	4
18	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
19	97896	衬套	BUSHING	2
20	885505	换挡轴连杆	LINK Shift Shaft	1
21	888987001	换挡轴(长型)	SHAFT Shift (Long)	1
21	8M0181378	上部换挡轴	SHAFT SHIFT UPPER	1
21	888987002	换挡轴（加长型）	SHIFT SHAFT (X-Long)	1
21	8M0183223	换挡轴上段	SHIFT SHAFT UPPER	1
21	888987003	换挡轴（超长型）	SHIFT SHAFT (XX-Long)	1
21	8M0180097	超长换挡轴	SHAFT SHIFT XXL	1
