水星 Mercury 250 HP Verado 6 CYL 2B144123 THRU 2B578935 - 爆炸图零件明细

四冲程电喷 EFI · USA - Cat.# 90-8M0103725 · 共 45 个部位 · 1932 条零件

1附件 2下适配板 3适配板管路布置 4发电机/皮带张紧器安装座 5增压冷却器/进气歧管 6增压冷却器/进气歧管管路布置 7外罩锁扣装置 8曲轴、活塞及连杆 9气缸体 10气缸盖与凸轮轴 11贴花 - 顶罩 12驱动轴壳体 13电气箱组件 14飞轮与盖 15燃油滤清器套件 16燃油供给模块组件 8M0102455 2B457609及以下 17燃油供给模块组件 8M0132732 2B457610及以上 18齿轮箱，驱动轴，5.44鱼雷型 19齿轮箱，螺旋桨轴-正向旋转，5.44鱼雷型 20齿轮箱1.75:1，螺旋桨轴反向旋转，5.44鱼雷型，II型设计，锥形前轴承 21齿轮箱1.75:1/1.85:1，螺旋桨轴反向旋转，5.44鱼雷型，I型设计滚子前轴承 22齿轮箱驱动轴,4.80鱼雷型 23齿轮箱螺旋桨轴-反向旋转，4.80鱼雷型 24齿轮箱螺旋桨轴-正向旋转，4.80鱼雷型 25接地线套件 899712A01 26进气系统组件 27底罩 28维护套件 29防腐电极套件 30安装支架 31机油泵/上适配板 32左舷气缸体组件 33动力头衬垫组件 34动力升降倾斜组件 35动力升降/艉板总成 36动力转向泵套件(4至24英尺)37后罩 38维修/支撑材料 39右舷气缸体/机油冷却器 40启动电机 41标准转向舵套件(892557A02, 892380A02, 892558A02)42增压器 43工具 44顶罩 45上部换挡组件

图 1附件 Accessories

零件编号	中文名称	英文名称	数量
892440A03	动力转向泵套件(12英尺)	PUMP KIT Power Steering (12 Feet)	1
8M0131262	动力转向泵套件(12英尺)	PUMP KIT Power Steering (12 Feet)	1
892440A04	动力转向泵套件(24英尺)	PUMP KIT Power Steering (24 Feet)	1
8M0131263	动力转向泵套件(24英尺)	PUMP KIT Power Steering (24 Feet)	1
892380A01	标准转向舵机套件(40cc)	STEERING HELM KIT Standard (40 cc)	1
8M0240080	标准舵机套件40CM	HELM KIT-STD 40CM	1
892557A01	标准转向舵机套件(32cc)	STEERING HELM KIT Standard (32 cc)	1
8M0240079	标准舵机套件32CM	HELM KIT-STD 32CM	1
892558A01	标准转向舵机套件(50cc)	STEERING HELM KIT Standard (50 cc)	1
8M0240081	标准舵机套件50CM	HELM KIT-STD 50CM	1
893395A01	嵌入式安装板 40厘米 3	PLATE Flush Mount 40 CM 3	1
875207	三通接头	TEE Fitting	1

图 2下适配板 Adapter Plate-Lower

REF	零件编号	中文名称	英文名称	数量
1	887623T03	机油收集器总成	PICKUP ASSEMBLY Oil	1
2	846594	O型圈 (1.239 x .070) 黑色	O-RING (1.239 x .070) Black	1
2	8M0092943	O型圈橙色	O-RING Orange	1
3	88552525	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	3
3	8M0103807	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	3
4	889618001	衬垫油底壳	GASKET Oil Sump	1
5	880626T01	排气管总成	TUBE ASSEMBLY Exhaust	1
6	88552635	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
6	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
7	880629	排气管密封件	SEAL Exhaust Tube	1
8	880639T	油底壳总成	SUMP ASSEMBLY Oil	1
9	88552530	螺丝(M6×30毫米)不锈钢	SCREW (M6 x 30 mm) Stainless Steel	12
9	8M0103808	螺丝(M6×30毫米)不锈钢	SCREW (M6 x 30 mm) Stainless Steel	12
10	887753A01	排油管总成	TUBE ASSEMBLY Oil Drain Oil Drain	1
10	887753A02	排油管总成	TUBE ASSEMBLY Oil Drain	1
10	888513A01	排油管	TUBE Oil Drain	1
10	8M0082193	排油管总成	TUBE ASSEMBLY Oil Drain	1
11	892446	O型圈(14×1.78毫米)	O-RING (14 X 1.78 MM)	2
12	892228	定位销	PIN Dowel	1
13	888592004	放油塞总成	PLUG ASSEMBLY Oil Drain	1
13	888592005	放油塞总成	PLUG ASSEMBLY Oil Drain	1
13	888592005	放油塞总成	PLUG ASSEMBLY Oil Drain	1
14	888593	放油螺塞密封件	SEAL Drain Plug	1
14	8M0188614	放油螺塞密封件	SEAL Drain Plug	1
15	88552530	螺丝(M6×30毫米)不锈钢	SCREW (M6 x 30 mm) Stainless Steel	1
15	8M0103808	螺丝(M6×30毫米)不锈钢	SCREW (M6 x 30 mm) Stainless Steel	1
16	885541A01	水管总成 (20.00英寸)	TUBE ASSEMBLY Water (20.00 Inch)	1
16	885541A02	水管总成 (25.00英寸)	TUBE ASSEMBLY Water (25.00 Inch)	1
16	885541A03	水管总成 (30.00英寸)	TUBE ASSEMBLY Water (30.00 Inch)	1
17	892445	O型圈	O-RING	1
18	887987A1	联轴器	COUPLING	1
18	8M0214983	联轴器总成	COUPLING ASSY	1
19	90196	O型圈 (.921 x .139)	O-RING (.921 x .139)	1
19	8M0204673	O型圈 .921 x .139	O-Ring .921 x .139	1
20	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
20	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
21	888913A01	提升阀总成	POPPET ASSEMBLY	1
21	8M0114707	提升阀总成	POPPET VALVE ASSY	1
22	64878	弹簧(黑色)	SPRING (Black)	1
23	893385001	固定座	RETAINER	1
24	648771	隔膜	DIAPHRAGM	1
25	889706	垫圈	WASHER	1
26	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
27	893384001	提升阀盖	COVER Poppet	1
28	889561	提升阀垫片	GASKET Poppet	1
29	88552535	不锈钢螺钉(M6×35mm)	SCREW (M6 x 35 mm) Stainless Steel	2
-	880552A05	动力头衬垫套件	GASKET SET Powerhead	1
-	880552A07	动力头衬垫套件	GASKET SET Powerhead	1
-	895247A05	动力头总成	POWERHEAD ASSEMBLY	1
-	895247A06	动力头总成	POWERHEAD ASSEMBLY	1

图 3适配板管路布置 Adapter Plate Hose Routings

REF	零件编号	中文名称	英文名称	数量
1	884474001	定位销(12 mm)	PIN Dowel (12 mm) (12MM)	1
2	888819002	排水罩	DRAIN Cowl	2
3	888461A01	配件套件	FITTING KIT	1
4	892446	O型圈(14×1.78毫米)	O-RING (14 X 1.78 MM)	2
5	88552512	不锈钢螺钉 (M6 x 12 mm)	SCREW (M6 x 12 mm) Stainless Steel	1
5	8M0103804	不锈钢螺钉 (M6 x 12 mm)	SCREW (M6 x 12 MM) Stainless Steel	1
6	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
6	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
7	889792A01	怠速排气接头套件	FITTING KIT Idle Exhaust	1
8	889828	O型圈 0.924×0.103	O-RING (.924 x .103)	1
9	88552512	不锈钢螺钉 (M6 x 12 mm)	SCREW (M6 x 12 mm) Stainless Steel	1
9	8M0103804	不锈钢螺钉 (M6 x 12 mm)	SCREW (M6 x 12 MM) Stainless Steel	1
10	889846	接头	FITTING	1
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
12	888981001	怠速排气软管	HOSE Idle Exhaust	1
13	892384T	排气集气室	PLENUM Exhaust	1
14	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	2
15	88238A21	拉线总成	CABLE ASSEMBLY	1
16	40011126	不锈钢螺丝(M6 x 13)	SCREW (M6 x 13) Stainless Steel	1
17	884548	歧管参考软管-下部	HOSE Manifold Reference-Lower	1
17	8M0087120	软管	HOSE	1
18	884546	护孔环	GROMMET	1
19	888523001	卡扣	CLIP	2
20	884547	进水软管-下部	HOSE Water In-Lower	1
20	8M0087106	软管	HOSE	1
21	884546	护孔环	GROMMET	1
22	892241	FSM输出软管	HOSE FSM-Out	1
22	8M0087116	软管	HOSE	1
23	884546	护孔环	GROMMET	1
24	815504104	蜗杆卡箍	CLAMP Worm Gear	3
25	830757130	管材 (.312) (70.00英寸整卷) 裁切至21英寸	TUBING (.312) (70.00 Inches Bulk) Cut to 21 Inches	1
25	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
26	892562T01	歧管壳体	HOUSING Manifold	1
27	892117	密封件	SEAL	1
28	88552516	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	4
28	8M0103805	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	4
29	887756	进水软管-上部	HOSE Water In-Upper	1
30	887757	高压过滤器软管(前)	HOSE Hi-Pressure Filter (PRE)	1
30	8M0203762	燃油管路总成	FUEL LINE ASSY	1
31	879885T	燃油滤清器	FILTER Fuel	1
31	879885Q	燃油管路滤清器	FILTER Fuel In-Line	1
32	887758	高压过滤器至燃油轨软管(后)	HOSE Hi-Pressure Filter-To Fuel Rail (POST)	1
32	8M0203763	燃油管	FUEL LINE	1
-	880552A05	动力头衬垫套件	GASKET SET Powerhead	1
-	880552A07	动力头衬垫套件	GASKET SET Powerhead	1
-	895247A05	动力头总成	POWERHEAD ASSEMBLY	1
-	895247A06	动力头总成	POWERHEAD ASSEMBLY	1

图 4发电机/皮带张紧器安装座 Alternator/Belt Tensioner Mounting

REF	零件编号	中文名称	英文名称	数量
1	892940T	70安培发电机	ALTERNATOR 70 Ampere	1
1	892940T02	交流发电机	ALTERNATOR	1
2	885349T05	皮带张紧器	BELT TENSIONER	1
2	8M0101707	皮带张紧器	BELT TENSIONER	1
3	885349500	滑轮	PULLEY	1
3	8M6003035	滑轮	PULLEY	1
4	885349501	螺钉	SCREW	1
5	855729	支架	MOUNT	4
6	855725	垫圈	WASHER	8
7	88552745	螺丝(M10 x 45)	SCREW (M10 x 45)	5
7	8M0103823	六角法兰螺钉(M10×45)	SCREW (M10 x 45 Hex Flange)	5
8	88535303S	支架	BRACKET	1
8	8M0219204	支架	BRACKET	1
9	888517	销	PIN	1
10	880566014	驱动皮带	BELT Drive	1
10	8M0232583	蛇形皮带	BELT SERPENTINE	1
11	88552785	螺钉(M10×85)	SCREW (M10 x 85)	1
11	8M0103824	螺钉	SCREW	1
12	4002319	垫圈	WASHER	1
13	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
14	856583A09	拉线总成	CABLE ASSEMBLY	1
14	856583A12	拉线总成	CABLE ASSEMBLY	1
15	858414A04	铜编织电缆总成	CABLE ASSEMBLY Brass Braided	1
16	88552516	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	2
16	8M0103805	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	2
17	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
17	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
18	828991	卡扣	CLIP	3
18	828991T	卡扣	CLIP	3

图 5增压冷却器/进气歧管 Charge Cooler/Intake Manifold

REF	零件编号	中文名称	英文名称	数量
-	8M0092408	集成空气燃油模块总成	MODULE ASSEMBLY Integrated Air Fuel	1
1	8M0092462	中冷器总成	CAC ASSEMBLY	1
1	8M0132388	中冷器总成	CAC ASSEMBLY	1
2	8M0048079	8毫米塞	PLUG 8MM	1
3	8M0046698	端盖总成	END CAP ASSEMBLY	2
4	8M0039516	O型圈	O-RING	1
5	8M0039464	挡圈	RING Retaining	1
6	8M0040116	O型圈	O-RING	1
7	8M0039993	接头	FITTING	1
8	8M0083678	进气歧管总成	MANIFOLD ASSEMBLY Intake	1
9	895019	歧管至CAC密封件	SEAL Manifold to CAC	1
10	895020	歧管头部密封件	SEAL Manifold Head	6
11	891663001	温度传感器	SENSOR Temperature	1
12	8M0041480	螺钉	SCREW	2
12	895054	螺丝(M4×16毫米)	SCREW (M4 x 16 mm)	2
13	892317001	O型圈	O-RING	1
14	88552516	螺钉（M6×16毫米）不锈钢燃油轨至歧管	SCREW (M6 x 16 mm) Stainless Steel Fuel Rail to Manifold	3
14	8M0103805	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	3
14	88552516	螺钉（M6×16毫米）不锈钢CAC至歧管	SCREW (M6 x 16 mm) Stainless Steel CAC to Manifold	2
14	8M0103805	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	2
15	88552525	螺钉（M6×25毫米）不锈钢歧管至CAC	SCREW (M6 x 25 mm) Stainless Steel Manifold to CAC	13
15	8M0103807	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	13
16	8M6000639	压力传感器	SENSOR Pressure Pressure	1
16	8M0234766	压力传感器	SENSOR PRESSURE	1
17	13791	卡箍(15.7)	CLAMP (15.7)	1
17	8M0214911	卡箍@5	CLAMP @5	1
18	8M0041053	MAP传感器护套	BOOT MAP Sensor	1
19	888988001	卡箍(36.1毫米)	CLAMP (36.1 mm)	1
19	8M0204719	卡箍 36.1毫米	CLAMP 36.1 MM	1
20	8M0041080	燃油导轨总成	FUEL RAIL ASSEMBLY	1
20	8M0185166	燃油导轨总成	FUEL RAIL ASSY	1
21	8M0047054	燃油进管套件	TUBE KIT Fuel Inlet	1
22	NSS	O型圈(管用)不单独销售	NOT SOLD SEPARATE O-RING Tube	1
23	8M0041097	固定支架	BRACKET Retaining	1
24	8M0041100	螺钉 (M5 x 10)	SCREW (M5 x 10)	1
25	8M0047053	施拉德阀维修包	VALVE KIT Shrader	1
26	NSS	O型圈(施拉德阀用)不单独销售	NOT SOLD SEPARATE O-ring- Shrader Valve	1
27	8M0041097	固定支架	BRACKET Retaining	1
28	8M0041100	螺钉 (M5 x 10)	SCREW (M5 x 10)	1
29	NSS	燃油轨不单独销售	NOT SOLD SEPARATE FUEL RAIL	1
30	8M0041096	喷油器安装支架	BRACKET Fuel Injector Mounting	3
31	8M0041571	燃油喷油器总成	INJECTOR ASSEMBLY Fuel	6
31	8M0222278	燃油喷射器	FUEL INJECTOR	6
32	8M0041100	螺钉 (M5 x 10)	SCREW (M5 x 10)	12
33	8M0041101	燃油轨减震器	DAMPER Fuel Rail	1
34	851889	O型圈	O-RING	1
35	8M0103315	皮托管传感器套件	PITOT SENSOR KIT	1
36	892403	接头	FITTING	1
36	8M0207782	直通接头	FITTING Straight	1
37	883066	夹子 (.865)	CLIP (.865)	1
38	859731	适配管接头	FITTING Adapter	1
38	8M0214970	接头	FITTING	1
-	8M0132737	O型圈套件	O-RING KIT	1

图 6增压冷却器/进气歧管管路布置 Charge Cooler/Intake Manifold Hose Routings

REF	零件编号	中文名称	英文名称	数量
1	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	1
2	892487001	螺钉	SCREW	7
2	8M0048051	不锈钢螺钉(M6x30)	SCREW (M6 x 30) Stainless Steel	7
-	NSS	不单独出售-软管总成	NOT SOLD SEPARATE Hose Assembly	1
3	889593001	软管	HOSE	1
4	889633A02	冲洗接头总成	FITTING ASSEMBLY Flushing	1
4	8M0188433	冲洗接头总成	FITTING ASY-FLUSH	1
4	889633A03	冲洗接头总成	FITTING ASSEMBLY Flushing	1
4	8M0188433	冲洗接头总成	FITTING ASY-FLUSH	1
5	889592001	软管	HOSE	1
6	888988008	卡箍(34.6毫米)	CLAMP (34.6 MM)	2
6	8M0187145	卡箍	CLAMP	2
7	892967	软管	HOSE	1
8	850181	捆扎带(11.750英寸)(11-1/2英寸)	TIE STRAP (11.750 Inches) (11-1/2 IN.)	1
9	888988008	卡箍(34.6毫米)	CLAMP (34.6 MM)	2
9	8M0187145	卡箍	CLAMP	2
10	880529	增压歧管参考软管-上部	HOSE Boost Manifold Reference-Upper	1
10	8M0203767	软管歧管	HOSE MANIFOLD	1
11	88552730	螺钉 (M10 x 30)	SCREW (M10 x 30)	2
11	8M0103821	螺钉	SCREW	2

图 7外罩锁扣装置 Cowl Latching

REF	零件编号	中文名称	英文名称	数量
-	892062T02	前侧锁扣总成	LATCH ASSEMBLY Front and Side	1
-	8M0100547	前侧锁扣总成	LATCH ASSEMBLY Front and Side	1
1	888976T01	支架	BRACKET	1
2	888974A02	侧锁扣总成	SIDE LATCH ASSEMBLY	2
3	888996	弹簧	SPRING	4
4	896124	套筒	SLEEVE	4
5	828249	护孔环	GROMMET	2
6	889694	电缆	CABLE	2
6	8M0080491	电缆	CABLE	2
7	27290	挡圈	RING Retaining	2
8	30164	垫圈(0.192x0.375x0.0312)不锈钢	WASHER (.192 x .375 x .0312) Stainless Steel	1
9	893380	U型销	PIN Clevis	1
10	61319	E型卡环	E RING	1
11	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	4
12	889627	螺柱	STUD	2
12	8M0099404	螺柱	STUD	2

图 8曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	891644A04	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	895715T01	轴承绿色-上曲轴	BEARING Green-Upper Crankshaft	12/AR
2	897498T01	主轴承 - 绿色	BEARING Main - Green	12/AR
2	895715T02	轴承海军蓝-上曲轴	BEARING Navy Blue-Upper Crankshaft	12/AR
2	897498T02	主轴承 - 海军蓝	BEARING Main - Navy Blue	12/AR
2	895715T03	轴承白色-上曲轴	BEARING White-Upper Crankshaft	12/AR
2	897498T03	主轴承 - 白色	BEARING Main - White	12/AR
2	895715T04	轴承橙色-上曲轴	BEARING Orange-Upper Crankshaft	12/AR
2	897498T04	主轴承 - 橙色	BEARING Main - Orange	12/AR
3	895716T01	推力轴承-绿色-下曲轴	BEARING Thrust-Green-Lower Crankshaft	2/AR
3	8M0117003	轴承	BEARING	2/AR
3	895716T02	推力轴承-海军蓝-下曲轴	BEARING Thrust-Navy Blue-Lower Crankshaft	2/AR
3	892309T02	推力轴承 - 海军蓝	BEARING Thrust - Navy Blue	2/AR
3	895716T03	推力轴承-白色-下曲轴	BEARING Thrust-White-Lower Crankshaft	2/AR
3	892309T03	推力轴承 - 白色	BEARING Thrust - White	2/AR
3	895716T04	推力轴承-橙色-下曲轴	BEARING Thrust-Orange-Lower Crankshaft	2/AR
3	8M0117004	轴承	BEARING	2/AR
4	8805251	油封(主轴承顶部)	SEAL Top Main Bearing	1
4	8M0032912	密封件	SEAL	1
5	91800	半圆键	KEY Woodruff	1
6	885348	飞轮螺栓盖	CAP Flywheel Bolt	1
7	880556	链条	CHAIN	1
7	897797A02	张紧/链条套件	TENSION/CHAIN KT	1
8	881210T02	连杆总成	CONNECTING ROD ASSEMBLY	6
8	8M0103285	连杆总成	CONNECTING ROD ASSEMBLY	6
9	884441	螺栓	BOLT	12
10	881211	衬套	BUSHING	6
11	892005A01	连杆轴承-蓝色	BEARING Connecting Rod - Blue	12/AR
11	892005A02	连杆轴承-白色	BEARING Connecting Rod - White	12/AR
11	892005A03	连杆轴承-橙色	BEARING Connecting Rod - Orange	12/AR
12	896092T01	活塞总成	PISTON ASSEMBLY	6
12	897737T01	活塞总成	PISTON ASSEMBLY	6
13	881180A01	活塞环组	RING SET Piston	1
13	881180A02	活塞环组	RING SET Piston	1
14	NSS	活塞环-油环(不单独销售)	NOT SOLD SEPARATE Piston Ring-Oil	6
15	NSS	活塞环-第二道(不单独销售)	NOT SOLD SEPARATE Piston Ring-2nd	6
16	NSS	活塞销（不单独销售）	NOT SOLD SEPARATE Piston Pin	6
17	881184	卡簧	CIRCLIP	12
18	888983T02	飞轮	FLYWHEEL	1
18	888983T03	飞轮总成	FLYWHEEL ASSEMBLY	1
19	880515	螺栓(M20×68)	BOLT (M20 x 68)	1
19	8M0147042	螺栓	BOLT	1
20	880517	垫圈	WASHER	1
20	8M0090010	垫圈	WASHER	1
-	880552A05	动力头衬垫套件	GASKET SET Powerhead	1
-	880552A07	动力头衬垫套件	GASKET SET Powerhead	1
-	895247A05	动力头总成	POWERHEAD ASSEMBLY	1
-	895247A06	动力头总成	POWERHEAD ASSEMBLY	1

图 9气缸体 Cylinder Block

REF	零件编号	中文名称	英文名称	数量
1	880506A08	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	880506A11	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
2	8569662	起动机安装支架	BRACKET Mounting-Starter Motor	2
2	8M0111325	盖板	COVER	2
3	88552640	螺钉 (M8 x 40)	SCREW (M8 x 40)	4
3	8M0103815	螺钉	SCREW	4
4	889767	堵头（12毫米）	PLUG (12 mm)	1
5	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
6	893392001	减震器	DAMPER	14
7	881855001	堵头	PLUG	4
8	881856001	垫圈	WASHER	4
9	880524	定位销（14毫米）	PIN Dowel (14 MM)	1
10	884409	O型圈	O-RING	1
11	884424	定位销(11毫米)	PIN Dowel (11 mm)	1
12	884423	O型圈	O-RING	1
13	896923	螺钉（M10×342）	SCREW (M10 x 342)	14
13	8M4501000	螺钉（M10×342）	SCREW (M10 X 342)	14
14	892573001	垫圈	WASHER	14
15	8283582	传感器	SENSOR	1
15	8M0082988	曲轴位置传感器	SENSOR Crankshaft Position	1
16	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	2
17	885342001	传感器总成	SENSOR ASSEMBLY	1
17	8M0148668	传感器总成	SENSOR ASSEMBLY	1
18	888814	O型圈(0.351 x 0.072)	O-RING (.351 x .072)	2
18	896699	O型圈（1.78毫米 x 0.08毫米）	O-RING (1.78 mm x .08 mm)	2
19	889659002	机油压力传感器	SENSOR Oil Pressure	1
19	8M0142688	压力传感器(机油/水)	SENSOR Pressure (Oil/Water)	1
20	880552007	衬垫缸盖	GASKET Head	1
20	8M0033476	衬垫缸盖	GASKET Head	1
21	888517	销	PIN	1
22	895810115	螺钉(M8×115)	SCREW (M8 x 115)	12
22	8M0193831	螺丝@2	SCREW @2	12
23	895810050	螺钉(M8 x 50)	SCREW (M8 x 50)	2
23	8M0193659	螺钉	SCREW	2
24	880624003	缸体至适配器衬垫	GASKET Block to Adapter	1
25	880559	固定导套	GUIDE Fixed	1
26	880557	活动导板	GUIDE Moveable	1
27	892456045	螺钉	SCREW	2
28	888849002	螺柱	STUD	2
28	8M0022160	双头螺柱（M8×43）	STUD (M8 x 43)	2
29	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
30	88552635	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	1
30	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	1
31	88552675	螺钉 (M8 x 75)	SCREW (M8 x 75)	1
31	8M0103818	螺丝 (M8x75)	SCREW (M8 X 75)	1
32	885342001	传感器总成	SENSOR ASSEMBLY	1
32	8M0148668	传感器总成	SENSOR ASSEMBLY	1
-	880552A05	动力头衬垫套件	GASKET SET Powerhead	1
-	880552A07	动力头衬垫套件	GASKET SET Powerhead	1
-	895247A05	动力头总成	POWERHEAD ASSEMBLY	1
-	895247A06	动力头总成	POWERHEAD ASSEMBLY	1

图 10气缸盖与凸轮轴 Cylinder Head and Camshaft

REF	零件编号	中文名称	英文名称	数量
-	880536A10	气缸盖总成完整件	CYLINDER HEAD ASSEMBLY Complete	1
1	880536A08	气缸盖总成	CYLINDER HEAD ASSEMBLY	1
1	8M0152336	气缸盖底座	CYLINDER HEAD BAS	1
2	889767	堵头（12毫米）	PLUG (12 mm)	8
3	891953	堵头（18毫米）	PLUG (18 mm)	3
4	881855001	堵头	PLUG	1
4	896951	堵头（24毫米）	PLUG (24 mm)	1
5	881856001	垫圈	WASHER	1
6	880524	定位销（14毫米）	PIN Dowel (14 MM)	2
7	892454035	螺栓（M6×36）	BOLT (M6 x 36)	28
7	8M0163131	M6螺钉	SCREW M6	28
8	880533	进气门座	SEAT Intake Valve	12
9	880535	排气门座	SEAT Exhaust Valve	12
9	8M0089477	排气门座	SEAT Exhaust Seat	12
10	880537	进排气门导管	GUIDE Intake Exhaust Valve Intake and Exhaust Valves	24
11	880539T	进气阀	VALVE Intake	12
11	898907	进气阀	VALVE Intake	12
12	880540T	排气阀	VALVE Exhaust	12
12	898908	排气阀	VALVE Exhaust	12
13	884410	密封阀与弹簧座	SEAL Valve and Spring Seat	24
13	8M0214986	密封件	SEAL	24
14	895815	进排气门弹簧	SPRING Intake and Exhaust Valve	24
14	8M0011503	弹簧	SPRING	24
15	880542A1	气门锁夹总成	RETAINER ASSEMBLY Valves	24
15	8M0908500	气门锁夹总成	RETAINER ASSEMBLY Valves	24
16	880543	键	KEY	48
17	NSS		NOT SOLD SEPARATE CAP	14
18	892112T02	进气凸轮轴	CAMSHAFT Intake	1
19	892113T02	排气凸轮轴	CAMSHAFT Exhaust	1
19	892113T04	排气凸轮轴	CAMSHAFT Exhaust	1
20	8805481	挺柱	TAPPET	24/AR
20	899912001	挺柱（2.996）	TAPPET (2.996)	24/AR
20	8805482	挺柱	TAPPET	24/AR
20	899912002	挺柱（3.021）	TAPPET (3.021)	24/AR
20	8805483	挺柱	TAPPET	24/AR
20	899912003	挺柱（3.046）	TAPPET (3.046)	24/AR
20	8805484	挺柱	TAPPET	24/AR
20	899912004	挺柱（3.071）	TAPPET (3.071)	24/AR
20	8805485	挺柱	TAPPET	24/AR
20	899912005	挺柱（3.096）	TAPPET (3.096)	24/AR
20	8805486	挺柱	TAPPET	24/AR
20	899912006	挺柱（3.118）	TAPPET (3.118)	24/AR
20	8805487	挺柱	TAPPET	24/AR
20	899912007	挺柱（3.138）	TAPPET (3.138)	24/AR
20	8805488	挺柱	TAPPET	24/AR
20	899912008	挺柱（3.158）	TAPPET (3.158)	24/AR
20	8805489	挺柱	TAPPET	24/AR
20	899912009	挺柱（3.178）	TAPPET (3.178)	24/AR
20	88054810	挺柱	TAPPET	24/AR
20	899912010	挺柱（3.198）	TAPPET (3.198)	24/AR
20	88054811	挺柱	TAPPET	24/AR
20	899912011	挺柱（3.218）	TAPPET (3.218)	24/AR
20	88054812	挺柱	TAPPET	24/AR
20	899912012	挺柱（3.238）	TAPPET (3.238)	24/AR
20	88054813	挺柱	TAPPET	24/AR
20	899912013	挺柱（3.258）	TAPPET (3.258)	24/AR
20	88054814	挺柱	TAPPET	24/AR
20	899912014	挺柱（3.278）	TAPPET (3.278)	24/AR
20	88054815	挺柱	TAPPET	24/AR
20	899912015	挺柱（3.298）	TAPPET (3.298)	24/AR
20	88054816	挺柱	TAPPET	24/AR
20	899912016	挺柱（3.318）	TAPPET (3.318)	24/AR
20	88054817	挺柱	TAPPET	24/AR
20	899912017	挺柱（3.338）	TAPPET (3.338)	24/AR
20	88054818	挺柱	TAPPET	24/AR
20	899912018	挺柱（3.358）	TAPPET (3.358)	24/AR
20	88054819	挺柱	TAPPET	24/AR
20	899912019	挺柱（3.378）	TAPPET (3.378)	24/AR
20	88054820	挺柱	TAPPET	24/AR
20	899912020	挺柱（3.398）	TAPPET (3.398)	24/AR
20	88054821	挺柱	TAPPET	24/AR
20	899912021	挺柱（3.418）	TAPPET (3.418)	24/AR
20	88054822	挺柱	TAPPET	24/AR
20	899912022	挺柱（3.438）	TAPPET (3.438)	24/AR
20	88054823	挺柱	TAPPET	24/AR
20	899912023	挺柱（3.458）	TAPPET (3.458)	24/AR
20	88054824	挺柱	TAPPET	24/AR
20	899912024	挺柱（3.478）	TAPPET (3.478)	24/AR
20	88054825	挺柱	TAPPET	24/AR
20	88054826	挺柱	TAPPET	24/AR
20	88054827	挺柱	TAPPET	24/AR
20	899912027	挺柱（3.538）	TAPPET (3.538)	24/AR
20	88054828	挺柱	TAPPET	24/AR
20	899912028	挺柱（3.558）	TAPPET (3.558)	24/AR
20	88054829	挺柱	TAPPET	24/AR
20	899912029	挺柱（3.578）	TAPPET (3.578)	24/AR
20	88054830	挺柱	TAPPET	24/AR
20	88054831	挺柱	TAPPET	24/AR
20	899912031	挺杆 (3.621)	TAPPET (3.621)	24/AR
20	88054832	挺柱	TAPPET	24/AR
20	88054833	挺柱	TAPPET	24/AR
20	899912033	挺杆 (3.671)	TAPPET (3.671)	24/AR
20	88054834	挺柱	TAPPET	24/AR
20	899912034	挺杆 (3.696)	TAPPET (3.696)	24/AR
20	88054835	挺柱	TAPPET	24/AR
21	892454030	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
22	892596T03	凸轮轴盖	COVER Camshaft	1
22	892596T04	凸轮盖总成	COVER ASSEMBLY Cam	1
23	88552525	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	3
23	8M0103807	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	3
24	880609	传感器总成	SENSOR ASSEMBLY	1
24	8M0233140	传感器	SENSOR	1
25	88552516	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	1
25	8M0103805	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	1
26	859578A1	油塞总成	PLUG ASSEMBLY Oil	1
26	8M0240831	油塞	OIL PLUG	1
27	90196	O型圈 (.921 x .139)	O-RING (.921 x .139)	1
27	8M0204673	O型圈 .921 x .139	O-Ring .921 x .139	1
28	880558	短导杆	GUIDE Short	1
29	885342001	传感器总成	SENSOR ASSEMBLY	1
29	8M0148668	传感器总成	SENSOR ASSEMBLY	1
30	888814	O型圈(0.351 x 0.072)	O-RING (.351 x .072)	1
30	896699	O型圈（1.78毫米 x 0.08毫米）	O-RING (1.78 mm x .08 mm)	1
31	88552660	螺钉 (M8 x 60)	SCREW (M8 x 60)	4
31	8M0103817	螺钉 (M8 x 60)	SCREW (M8 x 60)	4
32	884404A1	张紧器总成	TENSIONER ASSEMBLY	1
32	897797A02	张紧/链条套件	TENSION/CHAIN KT	1
33	880631001	O型圈橙色	O-RING Orange	1
33	8M0237361	O型圈	O-RING	1
34	893338	张紧器端盖	END CAP Tensioner	1
34	8M0064752	凸轮张紧器端盖	END CAP Cam Tensioner	1
35	88552525	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	2
35	8M0103807	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	2
36	88552540	螺钉(M6x40毫米)不锈钢	SCREW (M6 x 40 mm) Stainless Steel	3
36	8M0103809	螺钉(M6x40毫米)不锈钢	SCREW (M6 x 40 mm) Stainless Steel	3
37	88552635	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	2
37	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	2
38	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	2
39	833155	护孔环	GROMMET	2
40	8502341	衬套	BUSHING	2
41	892833	卡扣	CLIP	1
42	889591A03	呼吸软管	BREATHER HOSE	1
43	880615T01	线圈总成	COIL ASSEMBLY	6
44	88552525	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	6
44	8M0103807	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	6
45	889680001	火花塞 NGK-ILFR6G	SPARK PLUG NGK-ILFR6G	6
45	889246Q39	NGK-ILFR6GE火花塞	SPARK PLUG NGK-ILFR6GE	6
46	858954	卡箍(0.625英寸)	CLIP (.625)	3
47	88552525	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	13
47	8M0103807	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	13
48	880550	凸轮驱动链轮	SPROCKET Cam Drive	2
48	8M0241408	凸轮链轮	SPROCKET CAM	2
49	884403	螺钉 (M12 x 40)	SCREW (M12 x 40)	2
49	8M0237436	螺钉	SCREW	2
50	88552512	不锈钢螺钉 (M6 x 12 mm)	SCREW (M6 x 12 mm) Stainless Steel	3
50	8M0103804	不锈钢螺钉 (M6 x 12 mm)	SCREW (M6 x 12 MM) Stainless Steel	3
51	889746	卡扣	CLIP	1
52	888988019	卡箍 (22.6 mm)	CLAMP (22.6 mm)	1
53	892584	密封件	SEAL	1
54	892585	密封件	SEAL	1
-	880552A05	动力头衬垫套件	GASKET SET Powerhead	1
-	895247A05	动力头总成	POWERHEAD ASSEMBLY	1

图 11贴花 - 顶罩 Decals - Top Cowl

REF	零件编号	中文名称	英文名称	数量
1	8M0102448	水星贴花套装	DECAL SET Mercury	1
2	8M0043703	M标志贴纸66mm黑色	DECAL M-Icon, 66 MM, Black	1
3	8M0085363	200马力银色贴花	DECAL 200 HP Silver	1
4	8M0085364	225马力银色贴花	DECAL 225 HP Silver	1
5	8M0085365	250马力银色贴花	DECAL 250 HP Silver	1
6	8M0085366	300马力银色贴花	DECAL 300 HP Silver	1
7	8M0075217	操纵杆驾驶贴花	DECAL Joystick Piloting	1
8	892870A02	Mariner贴纸套装	DECAL SET Mariner	1
9	8M0025965	水星Verado贴花	DECAL (Mariner Verado)	1
10	899324003	水星200贴花	DECAL (Mariner 200)	1
11	899324004	水星225贴花	DECAL (Mariner 225)	1
12	899324005	水星250贴花	DECAL (Mariner 250)	1
13	899324006	水星275贴花	DECAL (Mariner 275)	1
14	8M0025964	水星300贴花	DECAL (Mariner 300)	1

图 12驱动轴壳体 Driveshaft Housing

REF	零件编号	中文名称	英文名称	数量
1	880646T01	驱动轴壳体-黑色	HOUSING Driveshaft, Black	1
1	8M0113286	DSH BLACK L	DSH BLACK L	1
2	885366T01	下部护套总成-左舷	CHAP ASSEMBLY Lower-Port	1
2	885365T03	加长护套总成-左右舷-黑色	CHAP ASSEMBLY Long - Port and Starboard, Black	1
2	885364T01	下部护套总成-左舷	CHAP ASSEMBLY Lower-Port	1
2	885363T04	超长/特超长护套总成-左右舷	CHAP ASSEMBLY X-Long/XX-Long - Port and Starboard	1
3	885365T01	下部护套总成-右舷	CHAP ASSEMBLY Lower-Starboard	1
3	885365T03	加长护套总成-左右舷-黑色	CHAP ASSEMBLY Long - Port and Starboard, Black	1
3	885363T01	下部护套总成-右舷	CHAP ASSEMBLY Lower-Starboard	1
3	885363T04	超长/特超长护套总成-左右舷	CHAP ASSEMBLY X-Long/XX-Long - Port and Starboard	1
4	892073	螺钉	SCREW	4
4	8M0230980	螺丝 (M6x14) 六角法兰B型	SCREW (M6 x 14) Hex Flange B	4
5	889568001	护孔环	GROMMET	1
6	889656T	蒸汽分离器罩	SHROUD Vapor Separator	1
6	889656T01	护罩	SHROUD	1
7	88552675	螺钉 (M8 x 75)	SCREW (M8 x 75)	2
7	8M0103818	螺丝 (M8x75)	SCREW (M8 X 75)	2
8	885526120	螺丝 (M8x120)	SCREW (M8 x 120)	2
8	8M0103812	螺钉	SCREW	2
9	88552650	螺钉(M8 x 50)	SCREW (M8 x 50)	2
9	8M0103816	螺丝 M8x50 六角法兰	SCREW M8 x 50 HEX FLG	2
10	88552640	螺钉 (M8 x 40)	SCREW (M8 x 40)	1
10	8M0103815	螺钉	SCREW	1
11	88552635	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
11	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
12	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	3
13	897784A01	上部护套支架套件	BRACKET KIT Upper Chap	2
14	88552520	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	2
14	8M0103806	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	2
15	88552630	螺钉 (M8 x 30)	SCREW (M8 x 30)	1
15	8M0103813	螺钉 (M8 x 30)	SCREW (M8 x 30)	1
16	85944975	管材 (72英寸整卷) 裁切至26英寸	TUBING (72.00 Inches Bulk) Cut to 26 Inches	1
17	859448	接头	FITTING	1
17	859448T	接头	FITTING	1
18	821555001	护孔环	GROMMET	1
18	8M0153609	护孔环	GROMMET	1
19	889831	固定座	RETAINER	1
20	856983	双头螺柱(M12 x 52)	STUD (M12 x 52)	4
20	8M0008031	双头螺柱(M12 x 1.75 x 52)	STUD (M12 x 1.75 x 52)	4
21	856982	垫圈(0.5×0.81×0.09英寸)不锈钢	WASHER (.500 x .810 x .090) Stainless Steel	4 or 5
22	857008	螺母(M12×1.75)	NUT (M12 x 1.75)	4
22	896895	螺母(M12)	NUT (M12)	4
23	88552835	螺钉(M12×35毫米)	SCREW (M12 x 35 MM)	1
23	8M0102995	螺丝 (M12)	SCREW (M12)	1
24	824928001	橡胶塞	PLUG Rubber	1
25	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	10
25	8M0214963	垫圈	WASHER	10
26	884412	螺母	NUT	10
27	88552845	螺丝 (M12x45)	SCREW (M12 x 45)	4
27	8M0103825	螺丝@2	SCREW @2	4
28	880647T	隔套	SPACER	1
28	8M0105088	传动轴壳体加长隔套（黑色）	SPACER Driveshaft Housing X-Long, Black	1
29	857137	螺钉 (M12 X 160)	SCREW (M12 x 160)	1
30	857009	双头螺柱（M12×179）	STUD (M12 x 179)	4
30	8M0008047	双头螺柱（M12×179）	STUD (M12 x 179)	4
31	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
32	855623	衬套	BUSHING	1
33	896251	O型圈	O-RING	2
33	898033	卡扣	CLIP	2
34	NSS	非单独销售贴纸-放油口	NOT SOLD SEPARATE Decal-Oil Drain	1
35	880648T01	驱动轴壳体-黑色	HOUSING Driveshaft, Black	1
35	8M0113287	驱动轴壳体黑色加长型	DSH BLACK XL	1
36	891966006	外罩支架	BRACKET Cowl	2
37	88552520	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	2
37	8M0103806	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	2
-	895247A05	动力头总成	POWERHEAD ASSEMBLY	1
-	895247A06	动力头总成	POWERHEAD ASSEMBLY	1

图 13电气箱组件 Electrical Box Components

REF	零件编号	中文名称	英文名称	数量
-	NSS	不单独销售电气箱总成	NOT SOLD SEPARATE Electrical Box-Complete	1
-	NSS	不单独销售电气箱	NOT SOLD SEPARATE Electrical Box	1
1	885560T01	电气箱底座	BASE Electricl box	1
1	885560T03	电气箱底座	BASE Electrical Box	1
2	885561T	保险丝盒盖	COVER Fuse Box	1
3	888491	盖板	COVER	1
3	8M0167280	保险丝盖	FUSE COVER	1
4	885583	密封件	SEAL	1
5	889531	绑带	STRAP	2
6	885584	铰链销	PIN Hinge	2
7	833155	护孔环	GROMMET	1
8	8502341	衬套	BUSHING	1
9	83296920	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	7
9	832969T20	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	7
10	400213	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
11	895099	保险丝拔取器	EXTRACTOR Fuse	1
12	828547753	导管（内径0.750英寸×3英尺散装）	CONDUIT (.750 Inside Diameter x 3.00 Feet Bulk)	1
13	40011146	螺钉（M8×13不锈钢）	SCREW (M8 x 13) Stainless Steel	2
14	843108	垫圈（.330 x .560 x .060）不锈钢	WASHER (.330 x .560 x .060) Stainless Steel	1
15	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	1
16	892244	盖板固定带	STRAP Cover	1
17	892448	卡扣	CLIP	5
18	88555802T	推进控制模块PCM	PCM Propulsion Control Module	1
18	89790717T	PCM控制模块	PCM	1
18	88555803T	推进控制模块PCM	PCM Propulsion Control Module	1
18	89790718T	PCM控制模块	PCM	1
18	88555814T	推进控制模块PCM	PCM Propulsion Control Module	1
18	89790719T	PCM控制模块	PCM	1
18	88555815T	推进控制模块PCM	PCM Propulsion Control Module	1
18	89790720T	PCM控制模块	PCM	1
19	880616T04	发动机线束总成	HARNESS ASSEMBLY Engine	1
-	NSS	不单独销售继电器支架总成	NOT SOLD SEPARATE Relay Bracket Assembly	1
20	882751A04	继电器总成	RELAY ASSEMBLY	4
21	NSS	标贴(不单独销售)	NOT SOLD SEPARATE Decal	4
22	889532	支架	BRACKET	1
23	40007103	螺钉 (M5 x 6)	SCREW (M5 x 6)	2
24	93388A17	线缆总成(8.50英寸)	CABLE ASSEMBLY (8.50 Inches)	1
25	819514A20	升降线束总成	HARNESS ASSEMBLY Trim	1
25	879345T34	升降线束总成	HARNESS ASSEMBLY Trim	1
26	892137A01	保险丝线束总成	HARNESS ASSEMBLY Fuse	1
26	892137A02	线束总成	HARNESS ASSY	1
27	850181	捆扎带(11.750英寸)	TIE STRAP (11.750 Inches)	6
27	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
28	88439A26	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
29	888416A1	线束总成 CHI电源	HARNESS ASSEMBLY CHI Power	1
29	8M0113732	DTS清洁电源线束总成(14英尺)	HARNESS ASSEMBLY DTS, Clean Power, 14 Feet	1
30	862646	褐色保险丝-5安培	FUSE Tan - 5 Ampere	1
31	883459A1	线束总成-电子油门船用适配器	HARNESS ASSEMBLY DBW Boat Adaptor	1
31	883459T01	线束适配器	HARNESS-ADAPTOR	1
32	889664	螺母(1.500-18)尼龙黑	NUT (1.500-18) Black Nylon	1
33	88552635	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	1
33	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	1
34	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	1
35	88439A25	电缆总成蓄电池-正极	CABLE ASSEMBLY Battery - Positive	1
36	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	5
37	86226	螺母(.375-16 蓄电池正极电缆)	NUT (.375-16) Battery Cable-Positive	1
37	8M0204671	螺母	NUT	1
38	68292	螺母(.312-18 蓄电池负极电缆)	NUT (.312-18) Battery Cable-Negative	1
38	8M0204668	螺母(.312-18)	NUT (.312-18)	1
39	879962	卡扣	CLIP	1

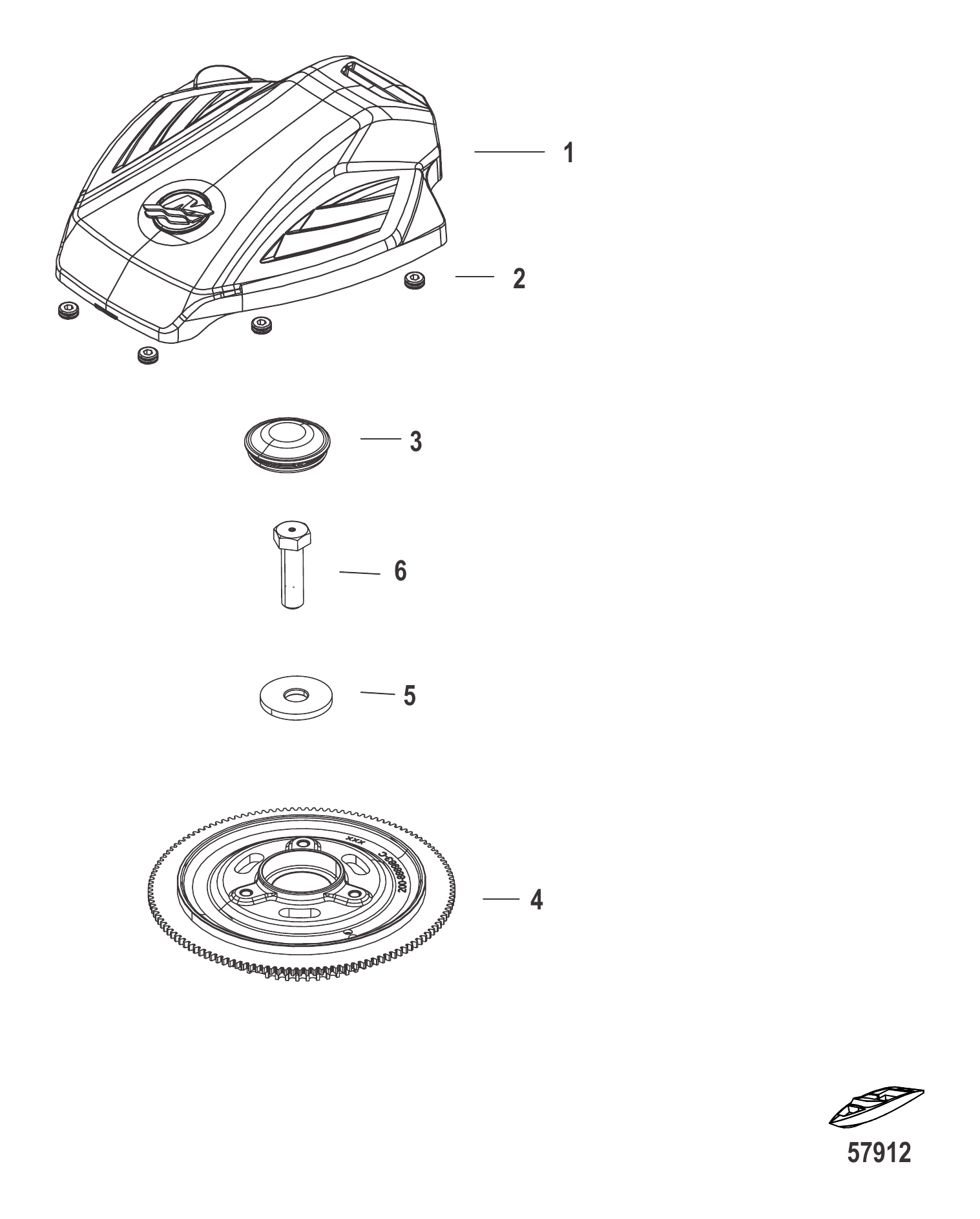

图 14飞轮与盖 Flywheel and Cover

REF	零件编号	中文名称	英文名称	数量
1	887936T04	飞轮盖	COVER Flywheel	1
2	834985	护孔环	GROMMET	4
2	8M0190980	护孔环	GROMMET	4
3	885348	盖帽	CAP	1
4	888983T03	飞轮总成	FLYWHEEL ASSEMBLY	1
5	8M0090010	垫圈	WASHER	1
6	880515	螺栓(M20×68)	BOLT (M20 x 68)	6
6	8M0147042	螺栓	BOLT	6

图 15燃油滤清器套件 Fuel Filter Kits

REF	零件编号	中文名称	英文名称	数量
1	8M0103686	发动机安装燃油滤清器套件	FUEL FILTER KIT Engine Mounted	1
2	8M0062950	滤清器总成	FILTER ASSEMBLY	1
3	8M0060041	燃油滤清器	FILTER Fuel	1
3	8M0122423	水星燃油滤清器	FUEL FILTER Quicksilver	1
4	8M0009261	支架总成	BRACKET ASSEMBLY	1
5	88552785	螺钉(M10×85)	SCREW (M10 x 85)	1
5	8M0103824	螺钉	SCREW	1
6	8M0103724	WIF延长线束	HARNESS WIF Extension	1
7	8M0046557	燃油进口软管总成（8.2英寸）	HOSE ASSMEBLY Fuel Inlet, 8.2 Inch	1
8	892356	连接器	CONNECTOR	1
9	8M0087107	软管	HOSE	1
10	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	3
11	8M0095669	带O型圈的MPP远程安装燃油滤清器套件	FUEL FILTER KIT with o-ring, MPP Remote Mounted	1
11	8M0157707	燃油滤清器套件	FUEL FILTER KIT	1
12	8M0095659	带O型圈的MPP燃油滤清器总成	FUEL FILTER ASSEMBLY with o-ring, MPP	1
12	8M0157616	燃油滤清器总成	FUEL FILTER ASSEMBLY	1
13	8M0095674	燃油滤清器底座总成	BASE ASSEMBLY Fuel Filter	1
14	816133	接头	FITTING	1
15	36373	六角堵头（.375-18）-钢制	PLUG (.375-18) Hex - Steel	2
15	8M0204657	堵头	PLUG	2
16	8M0086290	倒钩接头	CONNECTOR Barb	2
16	8M0204732	倒钩接头	CONNECTOR Barb	2
17	8M0021043	传感器总成燃油和水	SENSOR ASSEMBLY Fuel and Water	1
17	8M0214989	燃油含水传感器	SENSOR WIF	1
18	8M0042697	燃油滤清器传感器延长线束 (144英寸)	HARNESS Fuel Filter Sensor Extension (144 in)	1
19	8M0157779	WIF传感器总成	SENSOR ASSEMBLY WIF	1
20	8M0152433	弯头接头	FITTING ELBOW	1
-	8M0105263	WIF传感器延长线束-36英寸	HARNESS WIF Sensor Extension - 36 Inches	1
-	8M0105264	WIF传感器延长线束-72英寸	HARNESS WIF Sensor Extension - 72 Inches	1

图 16燃油供给模块组件 8M0102455 2B457609及以下 Fuel Supply Module Components - 8M0102455 2B457609 and Below

REF	零件编号	中文名称	英文名称	数量
-	8M0102455	燃油供应模块	MODULE Fuel Supply	1
1	8M0053756	螺钉 Plastite W/ HX WSR HD	SCREW Plastite W/ HX WSR HD	4
2	8M0053726	燃油供应模块上壳体	FSM TOP HOUSING	1
2	8M0158344	燃油供应模块上壳体	FSM TOP HOUSING	1
3	NSS		NOT SOLD SEPARATE O-ring	1
4	8M0053749	调节器总成	REGULATOR ASSEMBLY	1
4	8M0242586	调节器总成	REGULATOR ASSEMBLY	1
5	NSS		NOT SOLD SEPARATE O-ring	1
6	NSS		NOT SOLD SEPARATE O-ring	1
7	NSS	不单独销售	NOT SOLD SEPARATE	3
8	NSS	不单独销售	NOT SOLD SEPARATE	2
9	8M0053727	燃油供应模块盖	FSM CAP	1
10	NSS	不单独销售	NOT SOLD SEPARATE	2
11	8M0103289	泵总成低压	PUMP ASSEMBLY Low Pressure	1
12	8M0103288	泵总成高压	PUMP ASSEMBLY High Pressure	1
13	NSS		NOT SOLD SEPARATE O-ring	4
14	8M0053735	管	TUBE	2
14	8M0119250	管	TUBE	2
15	8M0053755	管	TUBE	1
16	NSS		NOT SOLD SEPARATE O-ring	4
17	8M0053734	管	TUBE	2
17	8M0120073	管	TUBE	2
18	NSS	不单独销售密封件	NOT SOLD SEPARATE Seal	1
19	8M0053725	燃油供应模块下壳体	FSM BOTTOM HOUSING	1
19	8M0132733	燃油供应模块双泵	FUEL SUPPLY MODULE Dual Pump	1
20	8M0103287	FSM线束总成	HARNESS ASSEMBLY FSM	1
21	NSS		NOT SOLD SEPARATE O-ring	1
22	NSS		NOT SOLD SEPARATE O-ring	1
23	NSS		NOT SOLD SEPARATE Spacer	1
24	8M0086888	FSM线束护圈	GROMMET FSM Harness	1
-	8M0057679	燃油供应模块密封件套装	FSM SEAL KIT	1

图 17燃油供给模块组件 8M0132732 2B457610及以上 Fuel Supply Module Components - 8M0132732 2B457610 and Up

REF	零件编号	中文名称	英文名称	数量
-	8M0132732	燃油供给模块	FUEL SUPPLY MODULE	1
1	8M0053726	燃油供应模块上壳体	FSM TOP HOUSING	1
1	8M0158344	燃油供应模块上壳体	FSM TOP HOUSING	1
2	8M0053756	螺钉 Plastite W/ HX WSR HD	SCREW Plastite W/ HX WSR HD	4
3	NSS	O型圈(不单独销售)	NOT SOLD SEPARATE O-Ring	2
4	NSS		NOT SOLD SEPARATE Spacer	1
5	8M0053749	调节器总成	REGULATOR ASSEMBLY	1
5	8M0242586	调节器总成	REGULATOR ASSEMBLY	1
6	NSS	O型圈(不单独销售)	NOT SOLD SEPARATE O-Ring	1
7	NSS	不单独销售密封件	NOT SOLD SEPARATE Seal	3
8	8M0130877	燃油供应模块盖	FSM CAP	1
8	8M0158425	燃油供应模块盖	FSM CAP	1
9	NSS	O型圈(不单独销售)	NOT SOLD SEPARATE O-Ring	2
10	8M0053755	油管吸油	TUBE Suction	1
11	NSS	不单独销售密封件	NOT SOLD SEPARATE Seal	2
12	8M0103288	泵总成高压	PUMP ASSEMBLY High Pressure	1
13	8M0103289	泵总成低压	PUMP ASSEMBLY Low Pressure	1
14	NSS	不单独销售密封件	NOT SOLD SEPARATE Seal	4
15	NSS	O型圈(不单独销售)	NOT SOLD SEPARATE O-Ring	4
16	8M0120073	水管	TUBE Water	2
17	8M0130873	油管燃油	TUBE Fuel	2
18	NSS	不单独销售密封件	NOT SOLD SEPARATE Seal	1
19	8M0130878	燃油供应模块下壳体	FSM BOTTOM HOUSING	1
19	8M0158426	燃油供应模块下壳体	FSM BOTTOM HOUSING	1
20	895319	护孔环	GROMMET	1
21	856954	衬套	BUSHING	1
22	8M0086888	FSM线束护圈	GROMMET FSM Harness	1
23	8M0103287	FSM线束总成	HARNESS ASSEMBLY FSM	1
24	NSS	O型圈(不单独销售)	NOT SOLD SEPARATE O-Ring	1
25	NSS	O型圈(不单独销售)	NOT SOLD SEPARATE O-Ring	1
-	8M0133370	燃油供应模块密封件套装	FSM SEAL KIT	1

图 18齿轮箱，驱动轴，5.44鱼雷型 Gear Housing, Driveshaft, 5.44 Torpedo

REF	零件编号	中文名称	英文名称	数量
-	8M0078246	齿轮箱总成(黑色标准长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Standard Long)(1.85:1)	1
-	8M0089983	齿轮箱总成(银色标准长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Standard Long)(1.85:1)	1
-	8M0228059	GC-L6 S 1.85 L	GC-L6 S 1.85 L	1
-	8M0078247	齿轮箱总成(黑色标准加长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Standard X-Long)(1.85:1)	1
-	8M0236284	GC VER 1.85 B XL	GC VER 1.85 B XL	1
-	8M0089985	齿轮箱总成(银色标准加长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Standard X-Long)(1.85:1)	1
-	8M0236237	GC-L6 S 1.85 XL	GC-L6 S 1.85 XL	1
-	8M0078249	齿轮箱总成(黑色标准超长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Standard XX-Long)(1.85:1)	1
-	8M0236286	GC VER 1.85 XXL	GC VER 1.85 XXL	1
-	8M0089987	齿轮箱总成(银色标准超长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Standard XX-Long)(1.85:1)	1
-	8M0117243	GC-L6 S 1.85 XXL	GC-L6 S 1.85 XXL	1
-	8M0078251	齿轮箱总成(黑色反转向长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Counter Rotation-Long)(1.85:1)	1
-	8M0117257	GC VER 1.85 CL	GC VER 1.85 CL	1
-	8M0089984	齿轮箱总成(银色反转向长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Counter Rotation-Long)(1.85:1)	1
-	8M0228060	GC-L6 S 1.85 CL	GC-L6 S 1.85 CL	1
-	8M0078248	齿轮箱总成(黑色反转向加长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Counter Rotation X-Long)(1.85:1)	1
-	8M0236285	GC VER 1.85 CXL	GC VER 1.85 CXL	1
-	8M0089986	齿轮箱总成(银色反转向加长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Counter Rotation X-Long)(1.85:1)	1
-	8M0228062	GC-L6 S 1.85 CXL	GC-L6 S 1.85 CXL	1
-	8M0078250	齿轮箱总成(黑色反转向超长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Counter Rotation XX-Long)(1.85:1)	1
-	8M0236287	GC VER 1.85 CXXL	GC VER 1.85 CXXL	1
-	8M0089988	齿轮箱总成(银色反转向超长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Counter Rotation XX-Long)(1.85:1)	1
-	8M0117244	GC-L6 S 1.85 CXXL	GC-L6 S 1.85 CXXL	1
-	8M0102480	齿轮箱总成完整, 银色 (标准长轴)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Standard Long)(1.75:1)	1
-	8M0236238	GC-L6 S 1.75 L	GC-L6 S 1.75 L	1
-	8M0102481	齿轮箱总成完整, 银色 (标准X型长轴)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Standard X-Long)(1.75:1)	1
-	8M0236239	GC-L6 S 1.75 XL	GC-L6 S 1.75 XL	1
-	8M0102482	齿轮箱总成完整, 银色 (标准XX型长轴)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Standard XX-Long)(1.75:1)	1
-	8M0236240	GC-L6 S 1.75 XXL	GC-L6 S 1.75 XXL	1
-	8M0102483	齿轮箱总成完整, 银色 (反转长轴)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Counter Rotation-Long)(1.75:1)	1
-	8M0236232	GC L6 S 1.75 CL	GC L6 S 1.75 CL	1
-	8M0102484	齿轮箱总成完整, 银色 (反转X型长轴)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Counter Rotation X-Long)(1.75:1)	1
-	8M0236233	GC L6 S 1.75 CXL	GC L6 S 1.75 CXL	1
-	8M0102485	齿轮箱总成完整, 银色 (反转XX型长轴)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Counter Rotation XX-Long)(1.75:1)	1
-	8M0236234	GC 1.75 CXXL SLVR	GC 1.75 CXXL SLVR	1
-	8M0110266	齿轮箱总成完整, 黑色 (弧形标准转向长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Cambered Standard Rotation Long)(1.85:1)	1
-	8M0117259	GC VER 1.85 L	GC VER 1.85 L	1
-	8M0110267	齿轮箱总成完整, 黑色 (弧形标准转向X型长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Cambered Standard Rotation X-Long)(1.85:1)	1
-	8M0117260	GC VER 1.85 XL	GC VER 1.85 XL	1
-	8M0110268	齿轮箱总成完整, 黑色 (弧形标准转向XX型长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Cambered Standard Rotation XX-Long)(1.85:1)	1
-	8M0117261	GC VER 1.85 XXL	GC VER 1.85 XXL	1
-	8M0110263	齿轮箱总成完整, 黑色 (弧形反转长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Cambered Counter Rotation Long)(1.85:1)	1
-	8M0117272	GC-L6 B 185L CL	GC-L6 B 185L CL	1
-	8M0110264	齿轮箱总成完整,黑色(弧形反转向超长)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Cambered Counter Rotation X-Long)(1.85:1)	1
-	8M0236293	GC L6 1.85L CXL	GC L6 1.85L CXL	1
-	8M0110265	齿轮箱总成完整,黑色(弧形反转向超超长)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Cambered Counter Rotation XX-Long)(1.85:1)	1
-	8M0236294	GC L6 1.85L CXXL	GC L6 1.85L CXXL	1
-	8M0110254	齿轮箱总成完整,银色(弧形标准转向长)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Cambered Standard Rotation Long)(1.85:1)	1
-	8M0110255	齿轮箱总成完整,银色(弧形标准转向超长)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Cambered Standard Rotation X-Long)(1.85:1)	1
-	8M0117267	GC VER XL SILVER	GC VER XL SILVER	1
-	8M0110256	齿轮箱总成完整,银色(弧形标准转向超超长)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Cambered Standard Rotation XX-Long)(1.85:1)	1
-	8M0117268	GC VER XXL SILVER	GC VER XXL SILVER	1
-	8M0110260	齿轮箱总成完整,银色(弧形反转向长)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Cambered Counter Rotation Long)(1.85:1)	1
-	8M0117279	GC CL SILVER	GC CL SILVER	1
-	8M0110261	齿轮箱总成完整,银色(弧形反转向超长)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Cambered Counter Rotation X-Long)(1.85:1)	1
-	8M0117280	GC-L6 S 185L CXL	GC-L6 S 185L CXL	1
-	8M0110262	齿轮箱总成完整,银色(弧形反转向超超长)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Cambered Counter Rotation XX-Long)(1.85:1)	1
-	8M0117281	GC CXXL SILVER	GC CXXL SILVER	1
-	8M0110251	齿轮箱总成完整,银色(弧形标准转向长)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Cambered Standard Rotation Long)(1.75:1)	1
-	8M0228068	GC VER L	GC VER L	1
-	8M0110252	齿轮箱总成完整,银色(标准转向超长)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver ered Standard Rotation X-Long)(1.75:1)	1
-	8M0236243	GC VER XL	GC VER XL	1
-	8M0110253	齿轮箱总成完整,银色(标准转向超超长)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver ered Standard Rotation XX-Long)(1.75:1)	1
-	8M0236244	GC VER XXL	GC VER XXL	1
-	8M0110257	齿轮箱总成完整,银色(反转向长)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver ered Counter Rotation Long)(1.75:1)	1
-	8M0236228	GC L6 S 1.75 L CL	GC L6 S 1.75 L CL	1
-	8M0110258	齿轮箱总成完整,银色(反转向超长)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver ered Counter Rotation X-Long)(1.75:1)	1
-	8M0236229	GC L6 S 1.75 CXL	GC L6 S 1.75 CXL	1
-	8M0110259	齿轮箱总成完整,银色(反转向超超长)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver ered Counter Rotation XX-Long)(1.75:1)	1
-	8M0215261	银色齿轮箱总成	GEAR HOUSING ASSEMBLY Complete, Silver	1
1	8M0053108	基础型黑色齿轮箱总成	GEAR HOUSING ASSEMBLY Basic, Black	1
1	8M0117258	GC BASIC BLACK	GC BASIC BLACK	1
1	8M0053107	齿轮箱总成基础款银色	GEAR HOUSING ASSEMBLY Basic, Silver	1
1	8M0228048	GC - BASIC	GC - BASIC	1
1	8M0110355	齿轮箱总成基础型,黑色弧形	GEAR HOUSING ASSEMBLY Basic, Black Cambered	1
1	8M0117275	GC BASIC LH BLACK	GC BASIC LH BLACK	1
1	8M0110365	齿轮箱总成基础型,黑色弧形	GEAR HOUSING ASSEMBLY Basic, Black Cambered	1
1	8M0117262	GC BASIC BLACK	GC BASIC BLACK	1
1	8M0110354	齿轮箱总成基础型,银色(弧形标准转向)	GEAR HOUSING ASSEMBLY Basic, Silver (Cambered Standard Rotation)	1
1	8M0228073	GC VER BASIC SILV	GC VER BASIC SILV	1
1	8M0110363	齿轮箱总成基础型,银色(弧形反转向)	GEAR HOUSING ASSEMBLY Basic, Silver (Cambered Counter Rotation)	1
1	8M0228049	GC BASIC SIL LH	GC BASIC SIL LH	1
2	826134Q	阳极块	ANODE	2
3	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
4	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
5	76214Q5	阳极套件	ANODE KIT	1
6	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
6	8M0204686	螺钉	SCREW	1
7	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
8	8M0010459	填充块	FILLER BLOCK	1
9	817275A1	水泵壳体套件	HOUSING KIT Water Pump	1
10	1993720	螺钉 (M6 x 20)	SCREW (M6 x 20)	4
10	8M0204706	螺丝M6x20六角	SCREW M6 x 20 Hex	4
-	8M0057717	叶轮维修套件	IMPELLER REPAIR KIT	1
-	8M0100526	水泵叶轮维修套件	REPAIR KIT Water Impeller	1
11	8M2014338	端面密封	SEAL Face	1
11	8M0142851	V型面密封环	V RING Face Seal	1
12	43026Q02	叶轮	IMPELLER	1
13	8172771	水泵上垫片	GASKET Water Pump, Upper	1
14	8172761	面板	FACEPLATE	1
14	8M0204709	面板	FACEPLATE	1
15	8M0050720	衬垫	GASKET	1
15	8M0142616	衬垫面板至齿轮箱	GASKET Face Plate to Gearcase	1
16	8M0032833	键	KEY	1
16	8M0204723	键	KEY	1
17	8M0046297	油封载体总成	OIL SEAL CARRIER ASSEMBLY	1
18	NSS		NOT SOLD SEPARATE SEAL	2
19	896523	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
19	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
20	880719	挡圈	RING Retaining	1
21	8245191	固定座	RETAINER	1
22	8M0063267	垫片组	SHIM SET	1
23	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
23	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
24	48939A2	圆锥滚子轴承	BEARING Taper Roller	1
24	8M0146553	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
25	8M0063268	垫片组	SHIM SET	1
26	8M0103301	驱动轴,长型	SHAFT Drive, Long	1
26	8M0149608	长型驱动轴总成	DRIVESHAFT ASSEMBLY Long	1
26	8M0103303	驱动轴,超长型	SHAFT Drive, X-Long	1
26	8M0141337	驱动轴总成 X加长型	DRIVESHAFT ASSEMBLY X-Long	1
26	8M0103304	驱动轴(超长型)	SHAFT Drive, XX-Long	1
26	8M0141338	驱动轴总成(超长型)	DRIVESHAFT ASSEMBLY XX-Long	1
27	8M0045676	滚柱轴承	BEARING Roller	1
28	8M0078259	齿轮组13/24(速比1.85:1)前进档与小齿轮	GEAR SET 13/24(1.85:1) Forward and Pinion	1
28	8M0078258	标准转向齿轮组(前进档/小齿轮)(速比1.75)(12/21)前进档与小齿轮	GEAR SET Standard Rotation, Forward/Pinion, 1.75 Ratio (12/21) Forward and Pinion	1
28	8M0053119	齿轮组13/24(速比1.85:1)前进档与小齿轮	GEAR SET 13/24 (1.85:1) Forward and Pinion	1
28	8M0053120	反转向齿轮组(前进档/小齿轮)(速比1.75)(12/21)前进档与小齿轮	GEAR SET Counter Rotation, Forward/Pinion, 1.75 Ratio (12/21) Forward and Pinion	1
29	8M0062703	小齿轮螺母垫圈	WASHER Pinon nut	1
30	8M0046636	小齿轮螺母	NUT Pinion	1
31	43585	联轴器	COUPLING	1
32	1993720	螺钉 (M6 x 20)	SCREW (M6 x 20)	1
32	8M0204706	螺丝M6x20六角	SCREW M6 x 20 Hex	1
33	8M0050809	索环组件	GROMMET ASSEMBLY	1
34	8M0047129	盖总成	COVER ASSEMBLY	1
35	896522	O型圈(799×.103)	O-RING (799 x .103)	1
36	8164641	油封	SEAL Oil	1
36	8M0246145	油封	OIL SEAL	1
37	8M0046563	挡圈	RING Retaining	1
38	881866	接头	FITTING	1
39	880729	衬垫	GASKET	1
40	29641	E型卡环	E RING	2
41	8M0050602	磁铁	MAGNET	1
42	8M0046104	换档轴	SHIFT SHAFT	1
43	859732	堵头	PLUG	1
-	8M0065064	齿轮箱密封套件	SEAL KIT Gearcase	1
-	8M0078858	水泵维修套件(完整)	WATER PUMP REPAIR KIT Complete	1
-	8M0065072	水泵维修套件(上部)	WATER PUMP REPAIR KIT Upper	1

图 19齿轮箱，螺旋桨轴-正向旋转，5.44鱼雷型 Gear Housing, Prop Shaft-Standard Rotation, 5.44 Torpedo

REF	零件编号	中文名称	英文名称	数量
-	8M0078246	齿轮箱总成(黑色长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Long)(1.85:1)	1
-	8M0089983	齿轮箱总成完整, 银色 (长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Long)(1.85:1)	1
-	8M0078247	齿轮箱总成(黑色加长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (X-Long)(1.85:1)	1
-	8M0089985	齿轮箱总成完整, 银色 (X型长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (X-Long)(1.85:1)	1
-	8M0078249	齿轮箱总成(黑色超长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (XX-Long)(1.85:1)	1
-	8M0089987	齿轮箱总成完整, 银色 (XX型长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (XX-Long)(1.85:1)	1
-	8M0102480	齿轮箱总成完整,银色(长型)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Long)(1.75:1)	1
-	8M0102481	齿轮箱总成完整,银色(超长型)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (X-Long)(1.75:1)	1
-	8M0102482	齿轮箱总成完整,银色(超超长型)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (XX-Long)(1.75:1)	1
-	8M0110266	齿轮箱总成完整黑色 (弧形长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Cambered Long)(1.85:1)	1
-	8M0110267	齿轮箱总成完整黑色 (弧形加长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Cambered X-Long)(1.85:1)	1
-	8M0110268	齿轮箱总成完整黑色 (弧形超长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Cambered XX-Long)(1.85:1)	1
-	8M0110254	齿轮箱总成完整银色 (弧形长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Cambered Long)(1.85:1)	1
-	8M0110255	齿轮箱总成完整银色 (弧形加长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Cambered X-Long)(1.85:1)	1
-	8M0110256	齿轮箱总成完整银色 (弧形超长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Cambered XX-Long)(1.85:1)	1
-	8M0110251	齿轮箱总成完整银色 (弧形长轴)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Cambered Long)(1.75:1)	1
-	8M0110252	齿轮箱总成完整银色 (弧形加长轴)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Cambered X-Long)(1.75:1)	1
-	8M0110253	齿轮箱总成完整银色 (弧形超长轴)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Cambered XX-Long)(1.75:1)	1
1	8M0053108	基础型黑色齿轮箱总成	GEAR HOUSING ASSEMBLY Basic, Black	1
1	8M0053107	齿轮箱总成基础款银色	GEAR HOUSING ASSEMBLY Basic, Silver	1
1	8M0110365	齿轮箱总成基础型,黑色弧形	GEAR HOUSING ASSEMBLY Basic, Black Cambered	1
1	8M0110354	齿轮箱总成基础银色弧形	GEAR HOUSING ASSEMBLY Basic, Silver Cambered	1
2	8M0053114	阀芯总成	SPOOL ASSEMBLY	1
3	NSS		NOT SOLD SEPARATE SPOOL	1
4	NSS		NOT SOLD SEPARATE SLEEVE	1
5	469501	开口销	COTTER PIN	1
6	8M0046215	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
7	8M0063270	垫片组	SHIM SET	1
8	8M0078259	齿轮组 13/24(1.85:1) 前进档	GEAR SET 13/24(1.85:1) Forward	1
8	8M0078258	齿轮组标准转向前进档/小齿轮 1.75速比 (12/21) 前进档	GEAR SET Standard Rotation, Forward/Pinion, 1.75 Ratio (12/21) Forward	1
9	884323T01	滚柱轴承总成	BEARING ASSEMBLY Roller	1
10	884325T01	圆锥滚子轴承组件	BEARING ASSEMBLY Roller-Tappered	1
11	8M0053823	止推垫圈(内径1.50×外径2.046)	WASHER Thrust, (1.50 ID x 2.046 OD)	1
12	8M0051043	挡圈	RING Retaining	1
13	8M0045493	十字销	PIN Cross	1
14	8M0053113	离合器	CLUTCH	1
14	8M0142871	滑动式6爪离合器	CLUTCH Sliding 6 Jaw	1
15	8M0050575	十字弹簧	SPRING Cross	1
16	8M0073657	螺旋桨轴 1英寸	PROPELLER SHAFT 1 Inch	1
16	8M0103300	螺旋桨轴 1.25英寸	PROPELLER SHAFT 1.25 Inch	1
17	8M0064306	止推隔套	SPACER Thrust	A/R
18	8M0053123	倒档齿轮套件	GEAR KIT Reverse	1
18	8M0053124	倒挡齿轮套件	GEAR KIT Reverse Reverse	1
19	8M0050692	轴承	BEARING	1
20	8M0050688	垫圈	WASHER	1
21	8M0053116	垫片组	SHIM SET	A/R
22	8M0053183	前进齿轮适配器	ADAPTER Foward Gear	1
23	8M0097323	轴承座总成 1.85速比	CARRIER ASSEMBLY Bearing 1.85 Ratio	1
24	8M0103302	轴承座总成 1.75速比	CARRIER ASSEMBLY Bearing 1.75 Ratio	1
25	8M0000190	O型圈(4.475x0.210英寸)	O-RING (4.475 x .210)	1
26	888483	油封	SEAL Oil	2
27	884330T01	圆锥轴承组件	BEARING ASSEMBLY Taper	1
28	8M0071653	特殊螺钉0.375-16 UNC	SCREW Special, .375-16 UNC	2
29	830749	密封件	SEAL	2
30	8M0076745	垫片组	SHIM SET	1
30	8M0050423	垫片 .020	WASHER .020	A/R
30	8M0050424	垫片 .022	WASHER .022	A/R
30	8M0050425	垫片 .024	WASHER .024	A/R
30	8M0050427	垫片 .026	WASHER .026	A/R
30	8M0050428	垫片 .028	WASHER .028	A/R
30	8M0050429	垫片 .030	WASHER .030	A/R
30	8M0050430	垫片 .032	WASHER .032	A/R
30	8M0050431	垫片 .034	WASHER .034	A/R
30	8M0050432	垫片 .036	WASHER .036	A/R
30	8M0050433	垫片 0.038	WASHER .038	A/R
30	8M0050434	垫片 0.040	WASHER .040	A/R
30	8M0050435	垫片 0.042	WASHER .042	A/R
30	8M0050436	垫片 0.044	WASHER .044	A/R
30	8M0050437	垫片 0.046	WASHER .046	A/R
30	8M0050438	垫片 0.048	WASHER .048	A/R
30	8M0050439	垫片 0.050	WASHER .050	A/R
31	8M0056639	挡圈	RING Retainer	1
32	8M0050704	滚针轴承	BEARING Needle	1
33	8M0055058	锁紧垫圈	TAB WASHER	1
34	8M0001491	固定螺母	NUT Retainer	1
35	8M0050821	平齐式盖板套件, 标准型	COVER KIT Flush, Standard	1
35	8M0050726	盖板套件	COVER KIT	1
36	8M0036819	紧定螺钉(10-32)	SET SCREW (10-32)	1
37	8M0046569	止推环	RING Thrust	1
38	8M0109164	销 3/8直径 x 0.625长	PIN 3/8 Dia x .625 LG	1

图 20齿轮箱1.75:1，螺旋桨轴反向旋转，5.44鱼雷型，II型设计，锥形前轴承 Gear Housing 1.75:1, Prop Shaft Counter Rotation, 5.44 Torpedo, Design-II, Tapered Forward Bearing

REF	零件编号	中文名称	英文名称	数量
-	8M0215263	齿轮箱总成完整,银色(长型)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Long) (1.75:1)	1
-	8M0215264	齿轮箱总成完整,银色(反转向超长)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Counter Rotation X-Long)(1.75:1) (X-Long) (1.75:1)	1
-	8M0236233	GC L6 S 1.75 CXL	GC L6 S 1.75 CXL	1
-	8M0215265	齿轮箱总成完整,银色(超超长)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (XX-Long) (1.75:1)	1
-	8M0236234	GC 1.75 CXXL SLVR	GC 1.75 CXXL SLVR	1
-	8M0215259	齿轮箱总成完整,银色(弧形长)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Camber Long)(1.75:1)	1
-	8M0236228	GC L6 S 1.75 L CL	GC L6 S 1.75 L CL	1
-	8M0215260	齿轮箱总成完整,银色(弧形超长)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Camber X-Long)(1.75:1)	1
-	8M0236229	GC L6 S 1.75 CXL	GC L6 S 1.75 CXL	1
-	8M0215261	齿轮箱总成完整,银色(弧形超超长)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Camber XX-Long)(1.75:1)	1
1	8M0117251	齿轮箱总成基础款银色	GEAR HOUSING ASSEMBLY Basic, Silver	1
1	8M0228048	GC - BASIC	GC - BASIC	1
1	8M0117282	齿轮箱总成基础型,银色弧形	GEAR HOUSING ASSEMBLY Basic, Silver Camber	1
1	8M0228049	GC BASIC SIL LH	GC BASIC SIL LH	1
2	8M0053114	阀芯总成	SPOOL ASSEMBLY	1
2	8M0235941	换挡轴套总成	SPOOL ASSY SHIFT	1
3	NSS		NOT SOLD SEPARATE SPOOL	1
4	NSS		NOT SOLD SEPARATE SLEEVE	1
5	469501	开口销	COTTER PIN	1
6	8M0046215	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
6	8M0220880	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
7	8M0063270	垫片组	SHIM SET	1
8	8M0053121	倒挡齿轮总成	GEAR ASSEMBLY Reverse Reverse	1
8	8M0146676	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
9	884323T01	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	8M0142836	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
10	884325T01	圆锥滚子轴承组件	BEARING ASSEMBLY Roller-Tappered	1
10	8M0142835	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
11	8M0053823	止推垫圈(内径1.50×外径2.046)	WASHER Thrust, (1.50 ID x 2.046 OD)	1
12	8M0051043	挡圈	RING Retaining	1
13	8M0045493	十字销	PIN Cross	1
14	8M0053113	离合器	CLUTCH	1
14	8M0142871	滑动式6爪离合器	CLUTCH Sliding 6 Jaw	1
15	8M0050575	十字弹簧	SPRING Cross	1
16	8M0103300	螺旋桨轴 1.25英寸	PROPELLER SHAFT 1.25 Inch	1
16	8M0142764	螺旋桨轴	SHAFT Propeller	1
17	8M0064306	止推隔套	SPACER Thrust	A/R
18	8M0204764	轴承座总成	BEARING CARRIER ASSEMBLY	1
19	8M0146659	反转向齿轮组, 前进/小齿轮1.75速比 (12/21)	GEAR SET Counter Rotation, Forward/Pinion 1.75 Ratio (12/21)	1
20	8M0199861	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
21	8M0142875	隔套	SPACER	1
22	8M0199863	隔套	SPACER	1
23	8M0199864	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
24	8M0066130	半圆头定位螺钉组	SCREW- HALF DOG POINT SET	1
24	8M0233826	半圆头定位螺钉组	SCREW-HALF DOG POINT SET	1
25	8M0064178	锁紧螺母	LOCK NUT	1
26	8M0161546	推力环	THRUST RING	1
27	8M0000190	O型圈(4.475x0.210英寸)	O-RING (4.475 x .210)	1
28	8M0148319	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper Cup/Cone	1
29	888483	油封	SEAL Oil	2
29	8M0204700	油封	SEAL Oil	2
30	8M0109164	销 3/8直径 x 0.625长	PIN 3/8 Dia x .625 LG	1
31	8M0071653	特殊螺钉0.375-16 UNC	SCREW Special, .375-16 UNC	1
32	8M0108527	锁紧垫片	WASHER Tab	1
33	8M0162798	轴承座固定环	RETAINER Bearing Carrier	1
34	8M0180306	鱼雷形盖	COVER Torpedo	1
34	8M0180308	盖板套件	COVER KIT	1
35	8M0036819	紧定螺钉(10-32)	SET SCREW (10-32)	1

图 21齿轮箱1.75:1/1.85:1，螺旋桨轴反向旋转，5.44鱼雷型，I型设计滚子前轴承 Gear Housing 1.75:1/1.85:1, Prop Shaft Counter Rotation, 5.44 Torpedo, Design-I Roller Forward Bearing

REF	零件编号	中文名称	英文名称	数量
-	8M0078251	齿轮箱总成(黑色长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Long)(1.85:1)	1
-	8M0089984	齿轮箱总成完整, 银色 (长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Long)(1.85:1)	1
-	8M0228060	GC-L6 S 1.85 CL	GC-L6 S 1.85 CL	1
-	8M0078248	齿轮箱总成(黑色加长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (X-Long)(1.85:1)	1
-	8M0236285	GC VER 1.85 CXL	GC VER 1.85 CXL	1
-	8M0089986	齿轮箱总成完整, 银色 (X型长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (X-Long)(1.85:1)	1
-	8M0228062	GC-L6 S 1.85 CXL	GC-L6 S 1.85 CXL	1
-	8M0078250	齿轮箱总成(黑色超长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (XX-Long)(1.85:1)	1
-	8M0236287	GC VER 1.85 CXXL	GC VER 1.85 CXXL	1
-	8M0089988	齿轮箱总成完整, 银色 (XX型长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (XX-Long)(1.85:1)	1
-	8M0117244	GC-L6 S 1.85 CXXL	GC-L6 S 1.85 CXXL	1
-	8M0102483	齿轮箱总成完整,银色(长型)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Long)(1.75:1)	1
-	8M0236232	GC L6 S 1.75 CL	GC L6 S 1.75 CL	1
-	8M0102484	齿轮箱总成完整,银色(超长型)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (X-Long)(1.75:1)	1
-	8M0236233	GC L6 S 1.75 CXL	GC L6 S 1.75 CXL	1
-	8M0102485	齿轮箱总成完整,银色(超超长型)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (XX-Long)(1.75:1)	1
-	8M0236234	GC 1.75 CXXL SLVR	GC 1.75 CXXL SLVR	1
-	8M0110263	齿轮箱总成完整,黑色(弧形反转向长)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Camber Counter Rotation Long)(1.85:1)	1
-	8M0117272	GC-L6 B 185L CL	GC-L6 B 185L CL	1
-	8M0110264	齿轮箱总成完整,黑色(弧形反转向超长)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Camber Counter Rotation X-Long)(1.85:1)	1
-	8M0236293	GC L6 1.85L CXL	GC L6 1.85L CXL	1
-	8M0110265	齿轮箱总成完整,黑色(弧形反转向超超长)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Camber Counter Rotation XX-Long)(1.85:1)	1
-	8M0236294	GC L6 1.85L CXXL	GC L6 1.85L CXXL	1
-	8M0110260	齿轮箱总成完整,银色(弧形反转向长)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Camber Counter Rotation Long)(1.85:1)	1
-	8M0117279	GC CL SILVER	GC CL SILVER	1
-	8M0110261	齿轮箱总成完整,银色(弧形反转向超长)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Camber Counter Rotation X-Long)(1.85:1)	1
-	8M0117280	GC-L6 S 185L CXL	GC-L6 S 185L CXL	1
-	8M0110262	齿轮箱总成完整,银色(弧形反转向超超长)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Camber Counter Rotation XX-Long)(1.85:1)	1
-	8M0117281	GC CXXL SILVER	GC CXXL SILVER	1
-	8M0110257	齿轮箱总成完整,银色(弧形反转向长)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Camber Counter Rotation Long)(1.75:1)	1
-	8M0236228	GC L6 S 1.75 L CL	GC L6 S 1.75 L CL	1
-	8M0110258	齿轮箱总成完整,银色(弧形反转向超长)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Camber Counter Rotation X-Long)(1.75:1)	1
-	8M0236229	GC L6 S 1.75 CXL	GC L6 S 1.75 CXL	1
-	8M0110259	齿轮箱总成完整,银色(弧形反转向超超长)(1.75:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Camber Counter Rotation XX-Long)(1.75:1)	1
-	8M0215261	银色齿轮箱总成	GEAR HOUSING ASSEMBLY Complete, Silver	1
1	8M0053108	基础型黑色齿轮箱总成	GEAR HOUSING ASSEMBLY Basic, Black	1
1	8M0117258	GC BASIC BLACK	GC BASIC BLACK	1
1	8M0053107	齿轮箱总成基础款银色	GEAR HOUSING ASSEMBLY Basic, Silver	1
1	8M0228048	GC - BASIC	GC - BASIC	1
1	8M0110355	齿轮箱总成基础型,黑色弧形	GEAR HOUSING ASSEMBLY Basic, Black Camber	1
1	8M0117275	GC BASIC LH BLACK	GC BASIC LH BLACK	1
1	8M0110363	齿轮箱总成基础型,银色弧形	GEAR HOUSING ASSEMBLY Basic, Silver Camber	1
1	8M0228049	GC BASIC SIL LH	GC BASIC SIL LH	1
2	8M0053114	阀芯总成	SPOOL ASSEMBLY	1
2	8M0235941	换挡轴套总成	SPOOL ASSY SHIFT	1
3	NSS		NOT SOLD SEPARATE SPOOL	1
4	NSS		NOT SOLD SEPARATE SLEEVE	1
5	469501	开口销	COTTER PIN	1
6	8M0046215	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
6	8M0220880	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
7	8M0063270	垫片组	SHIM SET	1
8	8M0053122	倒档齿轮套件	GEAR KIT Reverse	1
8	8M0053121	倒挡齿轮总成	GEAR ASSEMBLY Reverse Reverse	1
8	8M0146676	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
9	884323T01	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	8M0142836	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
10	884325T01	圆锥滚子轴承组件	BEARING ASSEMBLY Roller-Tappered	1
10	8M0142835	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
11	8M0053823	止推垫圈(内径1.50×外径2.046)	WASHER Thrust, (1.50 ID x 2.046 OD)	1
12	8M0051043	挡圈	RING Retaining	1
13	8M0045493	十字销	PIN Cross	1
14	8M0053113	离合器	CLUTCH	1
14	8M0142968	螺旋桨轴	SHAFT Propeller	1
15	8M0050575	十字弹簧	SPRING Cross	1
16	8M0073657	螺旋桨轴 1英寸	PROPELLER SHAFT 1 Inch	1
16	8M0142968	螺旋桨轴	SHAFT Propeller	1
16	8M0103300	螺旋桨轴 1.25英寸	PROPELLER SHAFT 1.25 Inch	1
16	8M0142764	螺旋桨轴	SHAFT Propeller	1
17	8M0064306	止推隔套	SPACER Thrust	A/R
18	8M0053119	齿轮组 13/24齿 (1.85:1) 前进挡	GEAR SET 13/24 (1.85:1) Forward	1
18	8M0053120	齿轮组反转, 前进/小齿轮, 1.75速比 (12/21齿) 前进挡	GEAR SET Counter Rotation, Forward/Pinion, 1.75 Ratio (12/21) Forward	1
19	8M0050692	轴承	BEARING	1
20	8M0050688	垫圈	WASHER	1
21	8M0053116	垫片组	SHIM SET	A/R
22	8M0053183	前进齿轮适配器	ADAPTER Foward Gear	1
23	8M0097323	轴承座总成 1.85速比	CARRIER ASSEMBLY Bearing 1.85 Ratio	1
24	NSS	不单独销售 1.75速比-使用Design-II轴承座总成8M0204764	NOT SOLD SEPARATE 1.75 Ratio-Use Design-II Carrier assembly 8M0204764	1
25	8M0000190	O型圈(4.475x0.210英寸)	O-RING (4.475 x .210)	1
26	888483	油封	SEAL Oil	2
26	8M0204700	油封	SEAL Oil	2
27	884330T01	圆锥轴承组件	BEARING ASSEMBLY Taper	1
27	8M0148319	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper Cup/Cone	1
28	8M0071653	特殊螺钉0.375-16 UNC	SCREW Special, .375-16 UNC	2
29	830749	密封件	SEAL	2
29	8M0204693	放油螺塞密封件	SEAL Drain Plug	2
30	8M0076745	垫片组	SHIM SET	1
30	8M0050423	垫片 .020	WASHER .020	A/R
30	8M0050424	垫片 .022	WASHER .022	A/R
30	8M0050425	垫片 .024	WASHER .024	A/R
30	8M0050427	垫片 .026	WASHER .026	A/R
30	8M0050428	垫片 .028	WASHER .028	A/R
30	8M0050429	垫片 .030	WASHER .030	A/R
30	8M0050430	垫片 .032	WASHER .032	A/R
30	8M0050431	垫片 .034	WASHER .034	A/R
30	8M0050432	垫片 .036	WASHER .036	A/R
30	8M0050433	垫片 0.038	WASHER .038	A/R
30	8M0050434	垫片 0.040	WASHER .040	A/R
30	8M0050435	垫片 0.042	WASHER .042	A/R
30	8M0050436	垫片 0.044	WASHER .044	A/R
30	8M0050437	垫片 0.046	WASHER .046	A/R
30	8M0050438	垫片 0.048	WASHER .048	A/R
30	8M0050439	垫片 0.050	WASHER .050	A/R
31	8M0056639	挡圈	RING Retainer	1
32	NSS	不单独销售 1.75:1-使用Design-II轴承座总成8M0204764	NOT SOLD SEPARATE 1.75:1-Use Design-II Carrier assembly 8M0204764	1
32	8M0050704	滚针轴承 1.85速比	BEARING Needle 1.85 Ratio	1
33	8M0055058	锁紧垫圈	TAB WASHER	1
33	8M0108527	锁紧垫片	WASHER Tab	1
34	8M0001491	固定螺母	NUT Retainer	1
34	8M0162798	轴承座固定环	RETAINER Bearing Carrier	1
35	8M0050821	平齐式盖板套件, 标准型	COVER KIT Flush, Standard	1
35	8M0180306	鱼雷形盖	COVER Torpedo	1
35	8M0050726	盖板套件	COVER KIT	AR
35	8M0180308	盖板套件	COVER KIT	AR
36	8M0036819	紧定螺钉(10-32)	SET SCREW (10-32)	1
37	8M0046569	止推环	RING Thrust	1
37	8M0161546	推力环	THRUST RING	1
38	8M0109164	销 3/8直径 x 0.625长	PIN 3/8 Dia x .625 LG	1

图 22齿轮箱驱动轴,4.80鱼雷型 Gear Housing Driveshaft, 4.80 Torpedo

REF	零件编号	中文名称	英文名称	数量
-	880686T13	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236255	GC L6 4S L	GC L6 4S L	1
-	880686T14	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236256	GC L6 4S XL	GC L6 4S XL	1
-	880686T16	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236259	GC L6 4S XXL	GC L6 4S XXL	1
-	880686T15	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236258	GC L6 4S CXL	GC L6 4S CXL	1
-	880686T17	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236260	GC L6 4S CXXL	GC L6 4S CXXL	1
-	880686T54	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236264	GC L6 1.75 L	GC L6 1.75 L	1
-	880686T55	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236265	GC L6 1.75 XL	GC L6 1.75 XL	1
-	880686T56	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236266	GC L6 1.75 XXL	GC L6 1.75 XXL	1
-	880686T57	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236267	GC L6 1.75 CXL	GC L6 1.75 CXL	1
-	880686T58	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236269	GC L6 1.75 CXL	GC L6 1.75 CXL	1
-	880686T59	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236270	GC L6 1.75 CXXL	GC L6 1.75 CXXL	1
1	880687T01		GEAR HOUSING ASSEMBLY Basic Used with 5/16 Inch Shift Crank	1
1	8M0056631	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	8M0046215	曲柄换挡1/4枢轴销配1/4英寸换挡曲柄	CRANK, Shifter 1/4 Pivot Pin Used with 1/4 Inch Shift Crank	1
1	8M0220880	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
2	821526001	填充块	FILLER BLOCK	1
2	8M0010459	填充块	FILLER BLOCK	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	826134Q	阳极块	ANODE	2
5	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
6	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
7	79953A04	塞组件(.375-16×.250)	PLUG ASSEMBLY (.375-16 x .250)	1
8	830749	密封件	SEAL	1
8	8M0204693	放油螺塞密封件	SEAL Drain Plug	1
9	76214T5	阳极套件	ANODE KIT	1
9	76214Q5	阳极套件	ANODE KIT	1
10	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
10	8M0204686	螺钉	SCREW	1
11	8245191	固定座	RETAINER	1
12	881866	接头	FITTING	1
13	880703A1	盖总成	COVER ASSEMBLY	1
13	8M0047129	盖总成	COVER ASSEMBLY	1
13	8M0047129	盖总成	COVER ASSEMBLY	1
14	8164641	油封	SEAL Oil	1
14	8M0246145	油封	OIL SEAL	1
15	896522	O型圈(799×.103)	O-RING (799 x .103)	1
16	8M0046563	挡圈	RING Retaining	1
17	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	4
17	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	4
18	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
19	880729	衬垫	GASKET	1
20	824145	换档轴	SHIFT SHAFT	1
21	NSS	不单独销售小齿轮13齿	NOT SOLD SEPARATE Pinion Gear 13 Teeth	1
22	35921	螺母(0.625-18)	NUT (.625-18)	1
23	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
24	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
25	888572	驱动轴	DRIVESHAFT	1
25	888573	驱动轴	DRIVESHAFT	1
25	888574	驱动轴	DRIVESHAFT	1
26	884327A02	垫片/轴承组件	SHIM/BEARING ASSEMBLY	1
27	38657A1	垫片组	SHIM ASSEMBLY	AR
27	8M0063268	垫片组	SHIM SET	AR
28	NSS	不单独销售滚子轴承组件	NOT SOLD SEPARATE Roller Bearing Assembly	1
29	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
30	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
31	NSS	不单独销售滚子轴承组件	NOT SOLD SEPARATE Roller Bearing Assembly	1
32	817275A09	水泵壳体-总成	HOUSING Water Pump-Complete	1
33	861415A1	密封套件	SEAL KIT	1
34	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	4
34	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	4
35	43026T2	叶轮	IMPELLER	1
36	8172761	面板	FACEPLATE	1
36	8M0204709	面板	FACEPLATE	1
37	880719	挡圈	RING Retaining	1
38	8M0007131	油封座组件	CARRIER ASSEMBLY Oil Seal	1
39	896523	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
39	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
40	NSS	不单独销售油封	NOT SOLD SEPARATE Oil Seal	1
41	NSS	不单独销售油封	NOT SOLD SEPARATE Oil Seal	1
42	8M0032833	键	KEY	1
42	8M0204723	键	KEY	1
43	8172771	水泵上垫片	GASKET Water Pump, Upper	1
44	430331	衬垫	GASKET	1
45	43585	联轴器	COUPLING	1
46	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
46	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
47	NSS	不单独销售滚柱轴承	NOT SOLD SEPARATE Roller Bearing	1
48	8M0053110	垫片组	SHIM SET	1
48	8M0063267	垫片组	SHIM SET	1
49	48939A2	圆锥滚子轴承	BEARING Taper Roller	1
49	8M0146553	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
50	NSS		NOT SOLD SEPARATE CUP	1
-	830749A01	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	43026Q06	水泵叶轮维修套件	REPAIR KIT Water Pump Impeller	1
-	8M0100526	水泵叶轮维修套件	REPAIR KIT Water Impeller	1
-	817275A08	水泵上修包	REPAIR KIT Water Pump-Upper	1

图 23齿轮箱螺旋桨轴-反向旋转，4.80鱼雷型 Gear Housing Prop Shaft-Count Rot, 4.80 Torpedo

REF	零件编号	中文名称	英文名称	数量
-	880686T15	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236258	GC L6 4S CXL	GC L6 4S CXL	1
-	880686T17	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236260	GC L6 4S CXXL	GC L6 4S CXXL	1
-	880686T57	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236267	GC L6 1.75 CXL	GC L6 1.75 CXL	1
-	880686T58	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236269	GC L6 1.75 CXL	GC L6 1.75 CXL	1
-	880686T59	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236270	GC L6 1.75 CXXL	GC L6 1.75 CXXL	1
1	8M0056631	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	NSS	不单独销售塞	NOT SOLD SEPARATE Plug	1
3	8M0046215	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
3	8M0220880	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
4	19755T7	阀芯总成	SPOOL ASSEMBLY	1
4	8M0235940	阀芯总成	SPOOL ASSY	1
5	NSS	不单独销售线轴	NOT SOLD SEPARATE Spool	1
6	469501	开口销	COTTER PIN	1
7	NSS	不单独销售调节套筒	NOT SOLD SEPARATE Sleeve Adjusting	1
8	892809A02	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
8	880723A02	倒挡齿轮	GEAR Reverse	1
9	884323T01	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	8M0142836	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
10	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
11	8M0051043	挡圈	RING Retaining	1
12	8M0053823	止推垫圈(内径1.50×外径2.046)	WASHER Thrust, (1.50 ID x 2.046 OD)	1
13	884325T01	圆锥滚子轴承组件	BEARING ASSEMBLY Roller-Tappered	1
13	8M0142835	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
14	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
15	8M0063270	垫片组	SHIM SET	AR
16	30893	弹簧	SPRING	1
17	880714T	离合器	CLUTCH	1
18	8M0084681	十字销	PIN Cross	1
18	8M0100263	十字销	PIN Cross	1
19	828356	定位销	PIN Detent	1
20	8M0069774	螺旋桨轴	PROPELLER SHAFT	1
20	8M0140446	螺旋桨轴	PROPELLER SHAFT	1
21	880720A02	前进/小齿轮组	GEAR SET Forward/Pinion	1
21	8M0119540	前进齿轮套件	GEAR KIT-FORWARD	1
21	880720A03	齿轮套件前进/小齿轮	GEAR KIT Forward/Pinion	1
21	8M0119539	齿轮总成	GEAR ASSEMBLY	1
22	880699	推力环	THRUST RING	1
23	815480	推力轴承	BEARING Thrust	1
24	8M0076745	垫片组	SHIM SET	1
24	8M0050423	垫片 .020	WASHER .020	AR
24	8M0050424	垫片 .022	WASHER .022	AR
24	8M0050425	垫片 .024	WASHER .024	AR
24	8M0050427	垫片 .026	WASHER .026	AR
24	8M0050428	垫片 .028	WASHER .028	AR
24	8M0050429	垫片 .030	WASHER .030	AR
24	8M0050430	垫片 .032	WASHER .032	AR
24	8M0050431	垫片 .034	WASHER .034	AR
24	8M0050432	垫片 .036	WASHER .036	AR
24	8M0050433	垫片 0.038	WASHER .038	AR
24	8M0050434	垫片 0.040	WASHER .040	AR
24	8M0050435	垫片 0.042	WASHER .042	AR
24	8M0050436	垫片 0.044	WASHER .044	AR
24	8M0050437	垫片 0.046	WASHER .046	AR
24	8M0050438	垫片 0.048	WASHER .048	AR
24	8M0050439	垫片 0.050	WASHER .050	AR
25	8M0086846	轴承座总成	CARRIER ASSEMBLY Bearing	1
26	896524	O型圈(3.850×.210)	O-RING (3.850 x .210)	1
26	8M0142840	O型圈(3.85×0.210)	O-RING (3.85 x 0.210)	1
27	814653T	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
28	880728	轴承适配器	ADAPTER Bearing	1
28	8M0148384	前进齿轮轴承适配器	ADAPTER Bearing Forward Gear	1
29	47397A1	垫片组	SHIM SET	AR
30	884330T01	圆锥轴承组件	BEARING ASSEMBLY Taper	1
30	8M0148319	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper Cup/Cone	1
31	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
32	888483	油封	SEAL Oil	1
32	8M0204700	油封	SEAL Oil	1
33	880717A01	螺钉/密封套件 .38英寸长	SCREW/SEAL KIT .38 Inch Long	1
33	8M0077071	螺钉/密封套件 .75英寸长	SCREW/SEAL KIT .75 Inch Long	1
34	830749	密封件	SEAL	1
34	8M0204693	放油螺塞密封件	SEAL Drain Plug	1
35	8M0053183	前进齿轮适配器	ADAPTER Foward Gear	1
36	8M0064306	止推隔套	SPACER Thrust	1
37	880697	键槽垫圈	KEYED WASHER	1
38	8M2011027	固定座	RETAINER	1
38	8M2000347	固定座	RETAINER	1
39	NSS	不单独销售-反向旋转标识	NOT SOLD SEPARATE Decal-Counter Rotation	1
-	830749A01	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 24齿轮箱螺旋桨轴-正向旋转，4.80鱼雷型 Gear Housing Prop Shaft - Std Rot, 4.80 Torpedo

REF	零件编号	中文名称	英文名称	数量
-	880686T13	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236255	GC L6 4S L	GC L6 4S L	1
-	880686T14	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236256	GC L6 4S XL	GC L6 4S XL	1
-	880686T16	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236259	GC L6 4S XXL	GC L6 4S XXL	1
-	880686T54	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236264	GC L6 1.75 L	GC L6 1.75 L	1
-	880686T55	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236265	GC L6 1.75 XL	GC L6 1.75 XL	1
-	880686T56	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236266	GC L6 1.75 XXL	GC L6 1.75 XXL	1
1	8M0056631	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	NSS	不单独销售塞	NOT SOLD SEPARATE Plug	1
3	8M0046215	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
3	8M0220880	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
4	19755T7	阀芯总成	SPOOL ASSEMBLY	1
4	8M0235940	阀芯总成	SPOOL ASSY	1
5	NSS	不单独销售线轴	NOT SOLD SEPARATE Spool	1
6	469501	开口销	COTTER PIN	1
7	NSS	不单独销售调节套筒	NOT SOLD SEPARATE Sleeve Adjusting	1
8	892595A05	前进/小齿轮组	GEAR SET Forward/Pinion	1
8	892595A04	前进/小齿轮组	GEAR SET Forward/Pinion	1
9	8M0063270	垫片组	SHIM SET	AR
10	884323T01	滚柱轴承总成	BEARING ASSEMBLY Roller	1
10	8M0142836	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
11	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
12	8M0051043	挡圈	RING Retaining	1
13	8M0053823	止推垫圈(内径1.50×外径2.046)	WASHER Thrust, (1.50 ID x 2.046 OD)	1
14	884325T01	圆锥滚子轴承组件	BEARING ASSEMBLY Roller-Tappered	1
14	8M0142835	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
15	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
16	880714T	离合器	CLUTCH	1
17	30893	弹簧	SPRING	1
18	828356	定位销	PIN Detent	1
19	8M0069774	螺旋桨轴	PROPELLER SHAFT	1
19	8M0140446	螺旋桨轴	PROPELLER SHAFT	1
20	8M0084681	十字销	PIN Cross	1
20	8M0100263	十字销	PIN Cross	1
21	880695A01	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
21	8M0142891	倒挡齿轮24齿	GEAR Reverse, 24T	1
21	880707A01	倒挡齿轮	GEAR Reverse	1
21	8M0118363	倒车齿轮 21齿	GEAR Reverse, 21T	1
22	880699	推力环	THRUST RING	1
23	8M0064306	止推隔套	SPACER Thrust	1
24	8M0076745	垫片组	SHIM SET	1
24	8M0050423	垫片 .020	WASHER .020	AR
24	8M0050424	垫片 .022	WASHER .022	AR
24	8M0050425	垫片 .024	WASHER .024	AR
24	8M0050427	垫片 .026	WASHER .026	AR
24	8M0050428	垫片 .028	WASHER .028	AR
24	8M0050429	垫片 .030	WASHER .030	AR
24	8M0050430	垫片 .032	WASHER .032	AR
24	8M0050431	垫片 .034	WASHER .034	AR
24	8M0050432	垫片 .036	WASHER .036	AR
24	8M0050433	垫片 0.038	WASHER .038	AR
24	8M0050434	垫片 0.040	WASHER .040	AR
24	8M0050435	垫片 0.042	WASHER .042	AR
24	8M0050436	垫片 0.044	WASHER .044	AR
24	8M0050437	垫片 0.046	WASHER .046	AR
24	8M0050438	垫片 0.048	WASHER .048	AR
24	8M0050439	垫片 0.050	WASHER .050	AR
25	8M0083392	轴承座总成	CARRIER ASSEMBLY Bearing	1
26	884329T	滚珠轴承	BEARING Ball	1
26	8M0142873	滚珠轴承	BEARING Ball	1
27	888483	油封	SEAL Oil	1
27	8M0204700	油封	SEAL Oil	1
28	884330T01	圆锥轴承组件	BEARING ASSEMBLY Taper	1
28	8M0148319	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper Cup/Cone	1
29	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
30	888483	油封	SEAL Oil	1
30	8M0204700	油封	SEAL Oil	1
31	896524	O型圈(3.850×.210)	O-RING (3.850 x .210)	1
31	8M0142840	O型圈(3.85×0.210)	O-RING (3.85 x 0.210)	1
32	880717A01	螺钉/密封套件 .38英寸长	SCREW/SEAL KIT .38 Inch Long	1
32	8M0077071	螺钉/密封套件 .75英寸长	SCREW/SEAL KIT .75 Inch Long	1
33	830749	密封件	SEAL	1
33	8M0204693	放油螺塞密封件	SEAL Drain Plug	1
34	880697	键槽垫圈	KEYED WASHER	1
35	8M2011027	固定座	RETAINER	1
35	8M2000347	固定座	RETAINER	1
-	830749A01	齿轮箱密封套件	SEAL KIT Gear Housing	1

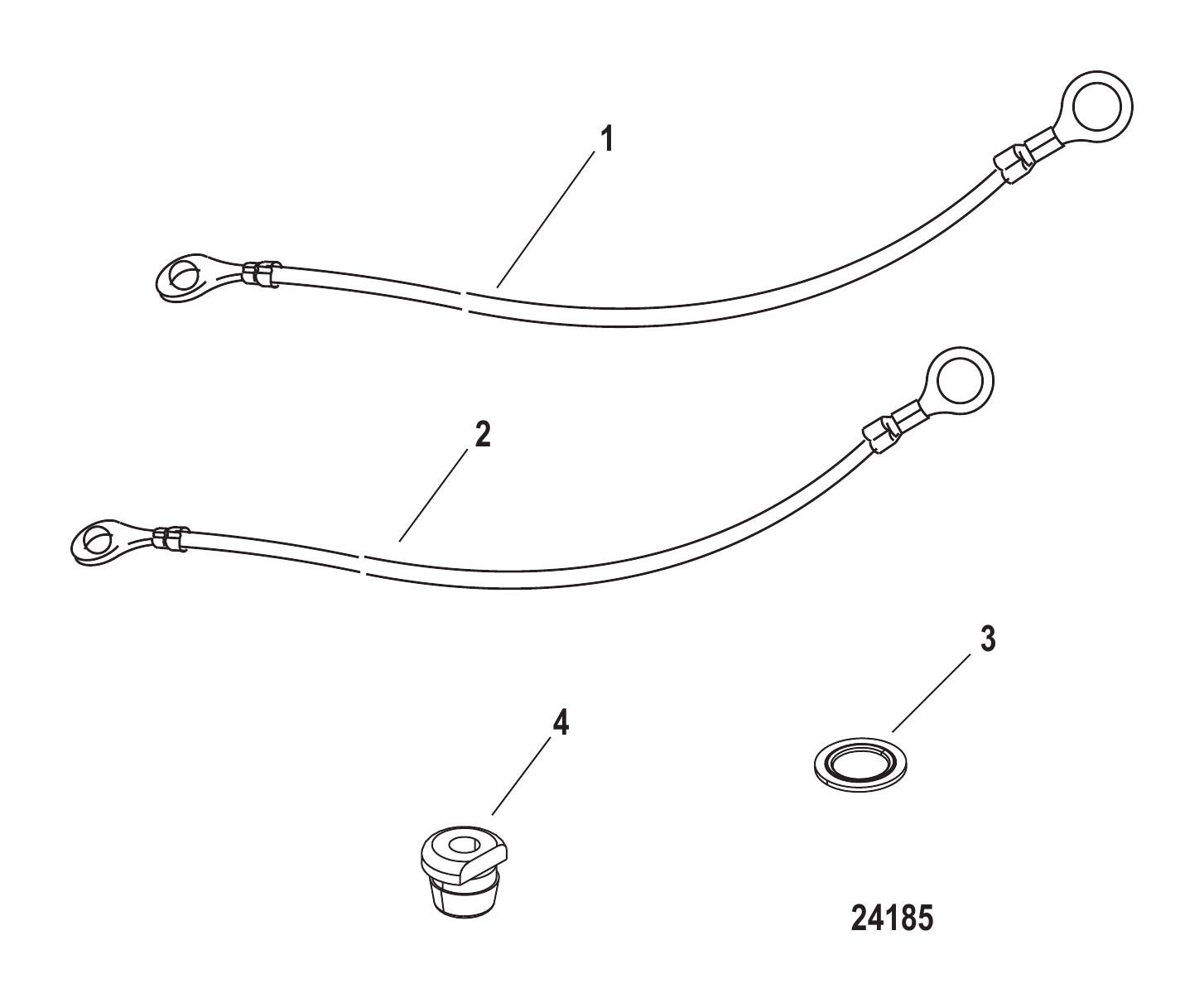

图 25接地线套件 899712A01 Ground Cable Kit (899712A01)

REF	零件编号	中文名称	英文名称	数量
-	899712A01	连续性电缆套件	CABLE KIT Continuity	1
1	88238T23	拉线总成	CABLE ASSEMBLY	1
2	88238T24	拉线总成	CABLE ASSEMBLY	1
3	885112	垫圈	WASHER	1
3	8M0217559	垫圈	WASHER	1
4	12602002	护孔环	GROMMET	1

图 26进气系统组件 Induction Components

REF	零件编号	中文名称	英文名称	数量
1	8M0035481	热风管总成	TUBE ASSEMBLY Hot Air Duct	1
2	896259	软管	HOSE	1
3	896271	软管	HOSE	1
4	893342	卡箍	CLAMP	2
5	893342	卡箍	CLAMP	2
6	8M0074364	软管夹盖	COVER Hose Clamp	2
7	898022	机油尺	DIPSTICK Oil	1
8	888517	销	PIN	2
9	888991T04	电子节气门控制总成	CONTROL ASSEMBLY Throttle - Electronic	1
10	87928815T	隔离器	ISOLATOR	1
11	815504256	蜗杆卡箍	CLAMP Worm Gear	1
12	88552550	不锈钢螺钉 (M6 x 50 mm)	SCREW (M6 x 50 mm) Stainless Steel	4
13	884353	支架	BRACKET	2
14	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
15	8M0088815	面板塞	PLUG Panel	1
16	8349851	护孔环	GROMMET	1
17	856954	衬套	BUSHING	1
18	893318T02	空气滤清器	FILTER Air	1
19	895842	卡箍	CLAMP	1
20	893317	衬垫	GASKET	1
21	8M0007183	谐振器	RESONATOR	1
22	888988027	卡箍	CLAMP	1
23	8M0089697	进气管	DUCT Inlet	1
24	88552525	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	1
25	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	1
26	888988016	卡箍（96.5毫米）	CLAMP (96.5 mm)	1
27	884408A08	电动增压控制阀套件	VALVE KIT Control - Electric Boost	1
28	887939007	增压阀安装板	PLATE Boost Valve Mounting	1
29	892079	O型圈	O-RING	1
30	88552520	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	4
31	833155	护孔环	GROMMET	2
32	8502341	衬套	BUSHING	2
33	859376	卡扣	CLIP	1
34	88552635	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	2
35	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	2
36	887937006	软管	HOSE	1
37	888988002	卡箍 (57.5毫米)	CLAMP (57.5 mm)	2
38	887938003	后管	TUBE Rear	1
39	888988004	卡箍 (62.0毫米)	CLAMP (62.0 mm)	2
40	8589781	燃油软管卡扣	CLIP Fuel Hose	1
41	881879T25	皮托管传感器总成	SENSOR ASSEMBLY Pitot	1
42	892403	接头	FITTING	1
43	883066	夹子 (.865)	CLIP (.865)	1

图 27底罩 Lower Cowl

REF	零件编号	中文名称	英文名称	数量
-	885365T03	加长护套总成-左右舷-黑色	CHAP ASSEMBLY Long - Port and Starboard, Black	1
-	8M0090481	长型左右舷护板总成(冷融合)	CHAP ASSEMBLY Long - Port and Starboard, Cold Fusion	1
-	8M0090482	长型左右舷护板总成(暖融合)	CHAP ASSEMBLY Long - Port and Starboard, Warm Fusion	1
-	8M0119295	长型左右舷护板总成(珍珠融合)	CHAP ASSEMBLY Long - Port and Starboard, Pearl Fusion	1
-	885363T04	超长/特超长护套总成-左右舷	CHAP ASSEMBLY X-Long/XX-Long - Port and Starboard	1
-	8M0090483	加长/超长型左右舷护板总成(冷融合)	CHAP ASSEMBLY X-Long/XX-Long - Port and Starboard, Cold Fusion	1
-	8M0090484	加长/超长型左右舷护板总成(暖融合)	CHAP ASSEMBLY X-Long/XX-Long - Port and Starboard, Warm Fusion	1
-	8M0119294	加长/超长型左右舷护板总成(珍珠融合)	CHAP ASSEMBLY X-Long/XX-Long - Port and Starboard, Pearl Fusion	1
1	NSS	左舷下部护板(长型)不单独销售	NOT SOLD SEPARATE Lower Port Chap (Long)	1
1	NSS	左舷下部护板(加长-超长型)不单独销售	NOT SOLD SEPARATE Lower Port Chap (X-Long-XX-Long)	1
2	NSS	右舷下部护板(长型)不单独销售	NOT SOLD SEPARATE Lower Starboard Chap (Long)	1
2	NSS	右舷下部护板(加长-超长型)不单独销售	NOT SOLD SEPARATE Lower Starboard Chap (X-Long-XX-Long)	1
3	892073002	肩部螺钉(M6)长护板用	SHOULDER SCREW (M6) Long Chaps	8
3	892073002	肩部螺钉(M6)加长-超长护板用	SHOULDER SCREW (M6) X-Long - XX-Long Chaps	12
4	898033	卡扣	CLIP	1

图 28维护套件 Maintenance Kits

REF	零件编号	中文名称	英文名称	数量
-	8M0097858	维修套件 200-350马力Verado 6缸(100小时)	SERVICE KIT 200-350 HP Verado 6 cyl (100 Hour)	1
-	877769K01	机油滤清器(水星品牌)	FILTER Oil (Mercury Branded)	1
-	8M0122424	燃油滤清器（水星）	FUEL FILTER Mercury	1
-	888593	密封件	SEAL	1
-	830749	密封件	SEAL	2
-	8M0097859	维修套件 200-300马力Verado 6缸(300小时)	SERVICE KIT 200-300 HP Verado 6 cyl (300 Hour)	1
-	877769K01	机油滤清器(水星品牌)	FILTER Oil (Mercury Branded)	1
-	8M0122424	燃油滤清器（水星）	FUEL FILTER Mercury	1
-	879885Q	燃油管路滤清器	FILTER Fuel In-Line	1
-	889246Q39	NGK-ILFR6GE火花塞	SPARK PLUG NGK-ILFR6GE	6
-	892864T04	节温器总成	THERMOSTAT ASSEMBLY	1
-	8M0100527	水泵维修套件	REPAIR KIT Water Pump	1
-	880566Q14	驱动皮带	BELT Drive	1
-	8M0126671	阳极套件-VERADO MPP	ANODE KIT-VERADO MPP	1
-	888593	密封件	SEAL	1
-	830749	密封件	SEAL	2
-	8M0120657	保养套件-100小时 200-400马力 L6 Verado	SERVICE KIT-100 HOUR 200-400 HP L6 Verado	1
-	877769K01	机油滤清器(水星品牌)	FILTER Oil (Mercury Branded)	1
-	8M0157616	燃油滤清器总成	FUEL FILTER ASSEMBLY	1
-	8M0090809	燃油轨滤网	SCREEN Fuel Rail	1
-	888593	密封件	SEAL	1
-	830749	密封件	SEAL	2
-	8M0133617	维护套件 L6 (300小时)	MAINTENANCE KIT L6 (300 Hr)	1
-	877769K01	机油滤清器(水星品牌)	FILTER Oil (Mercury Branded)	1
-	8M0157616	燃油滤清器总成	FUEL FILTER ASSEMBLY	1
-	8M0090809	燃油轨滤网	SCREEN Fuel Rail	1
-	888988001	卡箍(36.1毫米)	CLAMP (36.1 mm)	1
-	889246Q39	NGK-ILFR6GE火花塞	SPARK PLUG NGK-ILFR6GE	6
-	892864T04	节温器总成	THERMOSTAT ASSEMBLY	1
-	8M0100527	水泵维修套件	REPAIR KIT Water Pump	1
-	880566Q14	驱动皮带	BELT Drive	1
-	8M0126671	阳极套件-VERADO MPP	ANODE KIT-VERADO MPP	1
-	888593	密封件	SEAL	1
-	830749	密封件	SEAL	2
-	8M0149428	维护套件 200-400马力 L6 SeaPro (300小时)	MAINTENANCE KIT 200-400 HP L6 SeaPro (300 Hr)	1
-	877769K01	机油滤清器(水星品牌)	FILTER Oil (Mercury Branded)	1
-	8M0157616	燃油滤清器总成	FUEL FILTER ASSEMBLY	1
-	8M0090809	燃油轨滤网	SCREEN Fuel Rail	1
-	888988001	卡箍(36.1毫米)	CLAMP (36.1 mm)	1
-	889246Q39	NGK-ILFR6GE火花塞	SPARK PLUG NGK-ILFR6GE	6
-	892864T04	节温器总成	THERMOSTAT ASSEMBLY	1
-	8M0065072	水泵维修套件(上部)	WATER PUMP REPAIR KIT Upper	1
-	880566Q14	驱动皮带	BELT Drive	1
-	888593	密封件	SEAL	1
-	830749	密封件	SEAL	2
-	8M0149427	维护套件 200-350马力 L6 SeaPro (300小时)	MAINTENANCE KIT 200-350 L6 SeaPro (300 Hr)	1
-	8M0149428	维护套件 200-400马力 L6 SeaPro (300小时)	MAINTENANCE KIT 200-400 HP L6 SeaPro (300 Hr)	1

图 29防腐电极套件 Mercathode Kit

REF	零件编号	中文名称	英文名称	数量
1	88334A2	防腐电极套件	MERCATHODE KIT	1
2	42600A09	防腐电极总成	MERCATHODE ASSEMBLY	1
3	22793	螺丝(#9-14x0.875)	SCREW (#9-14 x .875)	2
4	30164	垫圈(0.192x0.375x0.0312)不锈钢	WASHER (.192 x .375 x .0312) Stainless Steel	2
5	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	4
6	72958A5	电极总成	ELECTRODE ASSEMBLY	1
7	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
7	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
8	87698	螺丝(#10-16 x 1.250)不锈钢	SCREW (#10-16 x 1.250) Stainless Steel	2
9	72957A5	阳极总成	ANODE ASSEMBLY	1
9	8M0181304	阳极总成	ANODE ASSY	1
10	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
10	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
11	87698	螺丝(#10-16 x 1.250)不锈钢	SCREW (#10-16 x 1.250) Stainless Steel	2
12	79091	保险丝20安培	FUSE 20 Ampere	1
12	8M0207796	保险丝20安培	FUSE 20 AMP	1
13	95084A10	电缆总成(5.00英寸)红色	CABLE ASSEMBLY (5.00 Inches) Red	1
13	8M0207788	拉线总成	CABLE ASSEMBLY	1
14	95084A13	电缆总成(64.00英寸)	CABLE ASSEMBLY (64.00 Inches)	1
15	79138A8	电缆总成(72.00英寸)黑色	CABLE ASSEMBLY (72.00 Inches) Black	1

图 30安装支架 Mount Cradle

REF	零件编号	中文名称	英文名称	数量
1	8M0077359	密封件	SEAL	1
2	8M0052577	支架总成 (仅限Pro型号)	CRADLE ASSEMBLY Mount Pro Models Only	1
2	884887T07	支架安装总成	CRADLE ASSEMBLY Mount	1
3	NSS	不单独销售密封件	NOT SOLD SEPARATE Seal	1
4	8M0103708	后安装座	MOUNT Rear	2
5	8M0103365	前安装座	MOUNT Front	2
6	889745030	螺钉（M12×30）	SCREW (M12 x 30)	12
7	896531090	螺钉（M16×90）	SCREW (M16 x 90)	4
8	12602002	护孔环	GROMMET	1
9	8M0098784	螺钉 (M6 x 1 x 12)	SCREW (M6 x 1 x 12)	1
10	8M0047428	软管 (.25英寸内径, 57.00英寸整卷) 裁至35英寸	HOSE (.25 inch ID, 57.00 Inches Bulk) Cut to 35 Inches	1
11	895797001	示踪管接头	FITTING Telltale	1
12	895851	卡箍(8英寸)	CLAMP (8.00 Inches)	2
13	73194	滚销(.125 x 1.12)	PIN Roll (.125 x 1.12)	2
14	880649002	倾斜锁杆	LEVER Tilt Lock	2
15	47968	弹簧	SPRING	2
16	889540A03	离合器套件	CLUTCH KIT	1
17	8M0055029	倾斜锁止支架	BRACKET Tilt Lock	1
18	8M0076907	倾斜锁止垫	PAD Tilt Lock	1
19	880650003	倾斜锁定轴	SHAFT Tilt Lock	1
20	889546	螺钉 (M5 x 10)	SCREW (M5 x 10)	1
21	8806641	轴承（0.625英寸）	BEARING (.625 Inch)	2
22	8M0010626	配平位置传感器 (黑色)	SENSOR Trim Position-Black	1
23	889547	螺丝(M5 x 30)	SCREW (M5 x 30)	2
24	8M0146963	AMS贴花	DECAL AMS	2

图 31机油泵/上适配板 Oil Pump/Adaptor Plate-Upper

REF	零件编号	中文名称	英文名称	数量
1	892126A03	适配板套件	ADAPTER PLATE KIT	1
2	892228	定位销	PIN Dowel	8
3	896951	堵头（24毫米）	PLUG (24 mm)	1
4	884462	水封	SEAL Water	2
5	887930	O型圈	O-RING	2
6	8M0033928	油封	SEAL Oil	1
7	8M0034048	油泵阀总成	VALVE ASSEMBLY Oil Pump	1
8	8M6002692	油泵驱动链条	CHAIN Oil Pump Drive	1
9	892491	垫圈	WASHER	1
10	892165	螺母	NUT	1
11	884458T07	油泵驱动轴	DRIVESHAFT Oil Pump	1
12	8M0034912	O型圈 3.78×21.32	O-RING 3.78 X 21.32	2
13	895063001	塑料嵌件	INSERT Plastic	1
14	884418A1	油泵驱动张紧器总成	TENSIONER ASSEMBLY Oil Pump Drive	1
15	884446T04	油泵总成	PUMP ASSEMBLY Oil	1
16	892455065	螺钉	SCREW	5
17	892335001	导油板	DEFLECTOR Oil	1
18	88552516	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	2
19	888819002	排水罩	DRAIN Cowl	2
20	888163	护孔环	GROMMET	1
21	8M0027347	堵头 (M18 x 1.5)	PLUG (M18 x 1.5)	1
22	8M0092321	EDP黑色接头	FITTING EDP Black	1
23	8M0092943	O型圈橙色	O-RING Orange	1
24	88552512	不锈钢螺钉 (M6 x 12 mm)	SCREW (M6 x 12 mm) Stainless Steel	1
25	8M0088815	面板塞	PLUG Panel	1
26	8M0084506	燃油入口软管	HOSE Fuel Inlet	1
27	889617001	衬垫	GASKET	1
28	884456	从动链轮 (燃油入口至燃油供应模块)	SPROCKET Driven Fuel Inlet to Fuel Supply Module	1
29	8M0094213	燃油进口软管总成	HOSE ASSEMBLY Fuel Inlet	1
30	8M0090809	燃油轨滤网	SCREEN Fuel Rail	1
-	880552A07	动力头衬垫套件	GASKET SET Powerhead	1
-	896966A07	长缸体总成	ASSEMBLY Long Block	1
-	8M0162891	翻新动力头总成(带附件)	POWERHEAD ASSEMBLY Reman Dressed	1

图 32左舷气缸体组件 Port Cylinder Block Components

REF	零件编号	中文名称	英文名称	数量
1	8M0022158	双头螺柱(M10x205)	STUD (M10 x 205)	10
2	8M0022162	双头螺栓(M10×60)	STUD (M10 x 60)	1
3	8M6002872	爆震传感器总成	SENSOR ASSEMBLY Knock	2
4	8M0093638	螺钉(M8 x 20)	SCREW (M8 x 20)	2
5	826365	螺母 (M8)	NUT (M8)	2
6	888988008	卡箍(34.6毫米)	CLAMP (34.6 MM)	2
7	8M0043736	软管	HOSE	1
8	896094A01	接头总成	FITTING ASSEMBLY	1
9	896699	O型圈（1.78毫米 x 0.08毫米）	O-RING (1.78 mm x .08 mm)	1
10	85978571	水管(散装52英寸)-接水压传感器-裁切至21.5英寸	TUBING (52.00 Inches Bulk) To Water Pressure Sensor - Cut to 21.5 Inches	1
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
12	881879T26	水压传感器	SENSOR Pressure Water	1
13	8M0000274	双头螺栓(M8x44)	STUD (M8 x 44)	2
14	885517A05	接头总成	FITTING ASSEMBLY	1
15	892077	O型圈	O-RING	1
-	896966A07	长缸体总成	ASSEMBLY Long Block	1
-	8M0162891	翻新动力头总成(带附件)	POWERHEAD ASSEMBLY Reman Dressed	1

图 33动力头衬垫组件 Powerhead Gasket Set Components

REF	零件编号	中文名称	英文名称	数量
-	880552A07	动力头衬垫套件	GASKET SET Powerhead	1
-	62701	接头总成O型圈	O-RING Fitting Assembly	2
-	90196	O型圈(.921 x .139)油塞总成	O-RING (.921 x .139) Oil Plug Assembly	1
-	8M0092943	O型圈橙色	O-RING Orange	1
-	8M0032912	油封(主轴承顶部)	SEAL Top Main Bearing	1
-	8M0033476	衬垫气缸盖至缸体	GASKET Head Cylinder Head to Block	1
-	880624003	衬垫缸体至适配器	GASKET Block to Adaptor	1
-	880629	排气管密封件	SEAL Exhaust Tube	1
-	898836	棕色张紧器盖O型圈	O-RING Brown Tensioner Cap	1
-	884409	O型圈缸体机油定位销	O-RING Block Oil Dowel	1
-	884423	O型圈缸体机油定位销	O-RING Block Oil Dowel	1
-	8M0033928	油封适配板	SEAL Oil Adaptor Plate	1
-	884462	水封适配板	SEAL Water Adaptor Plate-Water	2
-	887930	O型圈适配板	O-RING Adaptor Plate	2
-	888593	油封排油管塞	SEAL Oil Drain Tube Plug	1
-	889617001	适配板垫片	GASKET Adaptor Plate	1
-	889618001	衬垫油底壳	GASKET Oil Sump	1
-	892077	O型圈缸体接头总成	O-RING Block Fitting Assembly	1
-	892117	密封件歧管壳体	SEAL Manifold Housing	1
-	892445	O型圈水管	O-RING Water Tube	1
-	892446	O型圈 (14 X 1.78 MM) 适配板接头	O-RING (14 X 1.78 MM) Adaptor Plate Fitting	1
-	8M0034912	O型圈 3.78 X 21.32 (油泵驱动轴)	O-RING 3.78 X 21.32 Oil Pump Driveshaft	2

图 34动力升降倾斜组件 Power Trim Components

REF	零件编号	中文名称	英文名称	数量
1	896156A01	配平油缸套件	TRIM CYLINDER KIT	2
1	8M0118298	配平油缸套件	TRIM CYLINDER KIT	2
2	896157A01	升降杆套件	TRIM ROD KIT	2
2	8M0118299	升降杆套件	TRIM ROD KIT	2
3	896158A01	O型圈套件	O-RING KIT	2
4	896159A01	活塞套件	PISTON KIT	2
5	896166A01	配平歧管套件	MANIFOLD KIT Trim	1
6	896165A01	配平止回套件PO型	CHECK KIT Trim PO	1
7	896160A01	O型圈套件	O-RING KIT	1
8	8M0010183	O型圈	O-RING	1
9	896163A01	配平泵套件	PUMP KIT Trim	1
10	896164A01	配平过滤器套件	TRIM FILTER KIT	1
11	896162A01	配平颈套件	TRIM NECK KIT	1
12	895854A01	O型圈套件	O-RING KIT	1
13	893419	盖套件	CAP KIT	1
14	893420A01	手动释放套件	MANUAL RELEASE KIT	1
15	8M0224410	O型圈套件	ORING KIT	1
16	8M0184377	卡环	SNAP RING	1
17	893408A01	配平销套件	PIN KIT Trim	1
18	896161A02	配平电机套件	TRIM MOTOR KIT	1
19	896167A01	储液罐套件	RESERVOIR KIT	1

图 35动力升降/艉板总成 Power Trim/Transom Assembly

REF	零件编号	中文名称	英文名称	数量
-	NSS	艉板总成(不单独销售)	NOT SOLD SEPARATE Transom Assembly	1
1	880652T02	基座	PEDESTAL	1
2	896500A01	转向油缸套件	STEERING CYLINDER KIT	1
3	893409	固定座	RETAINER	2
4	895853	垫圈	WASHER	4
5	88509530	螺钉 (M8 x 30)	SCREW (M8 x 30)	4
6	889552	-6 ORB转-6 ORFS接头(90度)	FITTING -6 ORB to -6 ORFS (90 Degree)	1
7	889550	乙烯基放气帽	CAP Bleeder - Vinyl	2
8	880667	密封件	SEAL	1
9	8M0045604	转向油缸密封件套件	SEAL KIT Steering Cylinder	1
10	892524	接头	FITTING	2
11	8806621	轴承	BEARING	2
12	880661	密封件	SEAL	2
13	8806561	轴承	BEARING	2
14	8M0103373	转向头	HEAD Steering	1
15	8806551	轴承(1.25英寸)	BEARING (1.25 Inch)	2
16	885094105	螺钉(M14x105)	SCREW (M14 x 105)	6
17	885112	垫圈	WASHER	7
18	88238T23	拉线总成	CABLE ASSEMBLY	1
19	889545	垫圈	WASHER	6
20	4010720	螺钉(M8 x 20)	SCREW (M8 x 20)	2
21	72397	垫圈	WASHER	2
22	8M0045157	导流板(黑色)	PLATE Deflector (Black)	1
23	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
24	893404	阳极块	ANODE	4
24	8M0220986	配平阳极	ANODE Trim	4
25	880660T02	转向管	TUBE Steering	1
26	885111	定位销(0.375x0.875英寸)	PIN Dowel (.375 x .875)	6/8
27	880658T03	动力升降总成	POWER TRIM ASSEMBLY	1
27	8M0118296	动力升降总成	POWER TRIM ASSEMBLY	1
28	895854	O型圈	O-RING	1
29	880653	阳极块	ANODE	1
29	8M0220987	配平歧管阳极	ANODE Trim Manifold	1
30	889549	垫圈	WASHER	6
31	889543016	螺栓	BOLT	4
32	88510450	螺钉	SCREW	6
33	88238T24	拉线总成	CABLE ASSEMBLY	1
34	893405T	盖板	COVER	1
35	880665T01	转向臂	ARM Steering	1
36	895390	倾斜销	TILT PIN	1
37	8M0038931	挡圈	RING Retaining	1
38	NSS	不单独销售-序列号覆膜标贴	NOT SOLD SEPARATE Decal-Serial Overlaminate	1
39	8M0038370	螺钉(0.500-20x5.50英寸)	SCREW (.500-20 x 5.50)	4
40	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
41	895062	垫圈	WASHER	4
42	82671117	螺母(.500-20)	NUT (.500-20)	4
43	884889002	销	PIN	2
44	821539	三叶销	PIN Trilobe	2
45	895304	挡圈	RING Retaining	2
46	8M0085825	法兰轴颈轴承	BEARING Flanged Journal	4
47	NSS	不单独销售	NOT SOLD SEPARATE	2
48	8M0043059	警告标贴	DECAL Warning	1
49	8M0109756	艉板螺栓双螺母套件	DOUBLE NUT KIT Transom Bolt	1
50	8M0104274	六角螺母(.500-20)黄铜	NUT (.500-20) HEX, Brass	6
51	82671117	螺母(.500-20)	NUT (.500-20)	2
52	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
53	54012	垫圈(0.530×0.870×0.105不锈钢)	WASHER (.530 x .870 x .105) Stainless Steel	2

图 36动力转向泵套件(4至24英尺) Pump Kit-Power Steering (4 thru 24 Feet)

REF	零件编号	中文名称	英文名称	数量
-	8M0080199	动力转向泵套件(4英尺)	PUMP KIT Power Steering (4 Feet)	1
-	8M0080200	动力转向泵套件(12英尺)	PUMP KIT Power Steering (12 Feet)	1
-	8M0131262	动力转向泵套件(12英尺)	PUMP KIT Power Steering (12 Feet)	1
-	8M0080201	动力转向泵套件(24英尺)	PUMP KIT Power Steering (24 Feet)	1
-	8M0131263	动力转向泵套件(24英尺)	PUMP KIT Power Steering (24 Feet)	1
1	NSS	不单独销售泵	NOT SOLD SEPARATE PUMP	1
2	892485003	泵盖	CAP Pump	1
3	NSS	不单独销售油液类型标贴	NOT SOLD SEPARATE DECAL, Fluid Type	1
4	893364A05	动力转向泵完整外壳总成	ENCLOSURE ASSEMBLY Complete-Power Steering Pump	1
-	893365A03	动力转向泵上/下盖总成	COVER ASSEMBLY Top/Bottom, Power Steering Pump	1
5	893365T02	动力转向泵上外壳总成	ENCLOSURE ASSEMBLY Top, Power Steering Pump	1
6	8M0080707	动力转向泵下外壳总成	ENCLOSURE ASSEMBLY Bottom-Power Steering Pump	1
7	889531	绑带	STRAP	2
8	817519A2	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	1
9	893368001	护孔环	GROMMET	1
10	893369	护孔环	GROMMET	1
11	815504206	蜗杆卡箍	CLAMP Worm Gear	1
12	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	3
12	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	3
13	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	3
14	895378	螺钉 (M6)	SCREW (M6)	4
15	895319	护孔环	GROMMET	4
16	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	4
16	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	4
17	895320F1	衬套	BUSHING	4
18	79023A94	50安培保险丝-Maxi型	FUSE 50 Ampere - Maxi	1
19	879346T24	保险丝盖及O型圈	FUSE COVER AND O-RING	1
20	8M0026568	信号驱动器线束总成	HARNESS ASSEMBLY Signal Driver	1
21	897643A01	减震软管套件	HOSE KIT Dampening	1
22	89879	O型圈（0.301×0.064英寸）	O-RING (.301 x .064)	2

图 37后罩 Rear Cowl

REF	零件编号	中文名称	英文名称	数量
1	8M0100175	后罩总成黑色无标贴	REAR COWL ASSEMBLY Black Non-Decaled	1
1	8M0100176	后罩总成 (冷聚变版, 无贴花)	REAR COWL ASSEMBLY Cold Fusion, Non-Decaled	1
1	8M0100177	后罩总成 (暖聚变版, 无贴花)	REAR COWL ASSEMBLY Warm Fusion, Non-Decaled	1
1	8M0119302	后罩总成 (珍珠聚变版, 无贴花)	REAR COWL ASSEMBLY Pearl Fusion, Non-Decaled	1
2	888961A01	销总成	PIN ASSEMBLY	2
3	892233	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
4	885360	怠速泄压阀	IDLE RELIEF	1
5	8M0100563	后罩密封总成 (左舷和右舷)	SEAL ASSEMBLY Rear Cowl, Port and Starboard	1
6	8M4501634	隔音毯套装	SOUND BLANKET KIT	1
-	8M0100172	前罩总成 (左舷和右舷, 水星版)	FRONT COWL ASSEMBLY Port and Starboard, Mercury	1
-	8M0100173	前罩总成 (左舷和右舷, 冷聚变版)	FRONT COWL ASSEMBLY Port and Starboard, Cold Fusion	1
-	8M0100174	前罩总成 (左舷和右舷, 暖聚变版)	FRONT COWL ASSEMBLY Port and Starboard, Warm Fusion	1
-	8M0119301	前罩总成 (左舷和右舷, 珍珠聚变版)	FRONT COWL ASSEMBLY Port and Starboard, Pearl Fusion	1
7	NSS	前罩左舷 (不单独销售)	NOT SOLD SEPARATE Front Cowl, Port	1
8	NSS	前罩右舷 (不单独销售)	NOT SOLD SEPARATE Front Cowl, Starboard	1
9	892315	衬垫	GASKET	1
10	8M0043266	密封件	SEAL	2
11	888957	O型圈	O-RING	1
12	889823001	嵌入式系绳插头	TETHER Flush Plug	1
13	8M0042300	升降倾斜开关	SWITCH Trim	1
14	888958001	左舷冲洗口堵头	PLUG Flush Port Flush	1
15	892233	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
16	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	2
17	885361A01	接头总成冲洗	FITTING ASSEMBLY Flush	1
18	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	1
19	858951A01	卡箍套件	CLAMP KIT	1
20	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
21	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	1
22	892233	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
23	8M0043519	适配器	ADAPTER	1
24	897169	护孔环	GROMMET	1

图 38维修/支撑材料 Service/Support Material

REF	零件编号	中文名称	英文名称	数量
-	8M0103725	零件手册 200/225/250/275/300 Verado (四冲程)(6缸)	PARTS MANUAL 200/225/250/275/300 Verado (4-Stroke)(6 Cylinder)	1
-	8M0089147	维修手册 Verado L6	SERVICE MANUAL Verado L6	1
-	8M0076286	维修手册舷外机摇杆操控系统	SERVICE MANUAL Outboard Joystick Piloting	1
-	8M0089145	安装手册 Verado L6	INSTALLATION MANUAL Verado L6	1
-	8M0089146	操作手册 Verado L6	OPERATION MANUAL Verado L6	1
-	8M0093150	操作手册摇杆操控	OPERATION MANUAL Joystick Piloting
-	NSS	不单独销售贴纸, EPA	NOT SOLD SEPARATE DECAL, EPA	1

图 39右舷气缸体/机油冷却器 Starboard Cylinder Block/Oil Cooler

REF	零件编号	中文名称	英文名称	数量
1	892404A05	导水板总成	DEFLECTOR ASSEMBLY Water	2
2	885518A02	接头总成	FITTING ASSEMBLY	1
3	62701	O型圈	O-RING	2
4	88552516	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	1
5	888988011	卡箍(38.1毫米)	CLAMP (38.1 MM)	1
6	888930003	软管	HOSE	1
7	888988008	卡箍(34.6毫米)	CLAMP (34.6 MM)	1
8	892864T04	节温器总成	THERMOSTAT ASSEMBLY	1
9	8M0005958	O型圈	O-RING	1
10	888988001	卡箍(36.1毫米)	CLAMP (36.1 mm)	1
11	892865	节温器软管	HOSE Thermostat	1
12	888988007	卡箍(42.5毫米)	CLAMP (42.5 mm)	1
13	78945	J型卡箍	J CLAMP	1
14	88552785	螺钉(M10×85)	SCREW (M10 x 85)	3
15	885527105	螺钉(M10x105)	SCREW (M10 x 105)	1
16	8M0092405	模块集成式机油	MODULE Integrated Oil	1
17	NSS		NOT SOLD SEPARATE Oil Cooler Housing	1
18	891953	堵头（18毫米）	PLUG (18 mm)	2
19	8M0046698	端盖总成	END CAP ASSEMBLY	2
20	8M0039464	挡圈	RING Retaining	1
21	8M0039516	O型圈	O-RING	1
22	877769K01	机油滤清器(水星品牌)	FILTER Oil (Mercury Branded)	1
23	8M0046693	节温器总成	THERMOSTAT ASSEMBLY	1
24	NSS		NOT SOLD SEPARATE Thermostat Stop	1
25	NSS		NOT SOLD SEPARATE SPRING	1
26	8M0046697	堵头	PLUG	1
27	NSS		NOT SOLD SEPARATE O-RING	1
28	8M0046696	适配器总成 (含2个适配器)	ADAPTER ASSEMBLY (Contains 2 Adaptors)	1
29	8M0188540	O型圈	O-RING	4
30	8M0046694	壳体总成	HOUSING ASSEMBLY	1
31	8M0034568	衬垫	GASKET	1
32	88552516	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	2
33	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
34	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	2
35	88552525	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	2
36	822003	衬套	BUSHING	2
37	834985	护孔环	GROMMET	2
38	8M0011480	安装板 14针	PLATE Mounting, 14 Pin	1
39	8M0011478	安装支架 14针	BRACKET Mounting, 14 Pin	1
40	879962	卡扣	CLIP	3
-	880552A07	动力头衬垫套件	GASKET SET Powerhead	1
-	896966A07	长缸体总成	ASSEMBLY Long Block	1
-	8M0162891	翻新动力头总成(带附件)	POWERHEAD ASSEMBLY Reman Dressed	1

图 40启动电机 Starter Motor

REF	零件编号	中文名称	英文名称	数量
1	892339T01	启动电机总成	STARTER MOTOR ASSEMBLY	1
2	NSS	螺钉组(不单独销售)	NOT SOLD SEPARATE Screws	2
3	880805A1	齿轮套件	GEAR KIT	1
4	809463A1	电磁阀组件	SOLENOID KIT	1
5	8M0065258	电刷组	BRUSH SET	1
6	8M0034918	轴环	COLLAR	2
7	8M0043276	停机开关	STOP	1
8	NSS	高压警告贴纸(不单独销售)	NOT SOLD SEPARATE Decal-Waring-High Voltage	1
9	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
10	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
11	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
12	400213	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
13	400255	锁紧垫圈(M5)	LOCKWASHER (M5)	1
14	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1

图 41标准转向舵套件(892557A02, 892380A02, 892558A02) Steering Helm Kit-Standard (892557A02, 892380A02, 892558A02)

REF	零件编号	中文名称	英文名称	数量
-	892557A02	标准转向舵机套件(32cc)	STEERING HELM KIT Standard (32 cc)	1
-	892380A02	标准转向舵机套件(40cc)	STEERING HELM KIT Standard (40 cc)	1
-	8M0240080	标准舵机套件40CM	HELM KIT-STD 40CM	1
-	892558A02	标准转向舵机套件(50cc)	STEERING HELM KIT Standard (50 cc)	1
-	8M0240081	标准舵机套件50CM	HELM KIT-STD 50CM	1
1	892557T01	标准舵机(32立方厘米)	HELM Standard (32 cc)	1
1	8M0137438	标准舵机(32立方厘米)	HELM Standard (32 cm3)	1
1	892380T01	舵机标准型(40毫升)	HELM Standard (40 cc)	1
1	8M0137444	舵机标准型(40立方厘米)	HELM Standard (40 cm3)	1
1	892558T01	舵机标准型(50毫升)	HELM Standard (50 cc)	1
1	8M0137448	舵机标准型(50立方厘米)	HELM Standard (50 cm3)	1
2	627021	O型圈(.301 x .070)	O-RING (.301 x .070)	2
3	8M6001491	O型圈(.364×.070)	O-RING (.364 x .070)	2
3	8M0047399	O型圈-6 ORFS型	O-RING -6 ORFS	2
4	893394	带锁片键(6.35毫米)	KEY With Lock Tab (6.35 mm)	1
5	4008875	螺钉(M6×75)	SCREW (M6 x 75)	4
5	4008850	螺钉(M6 x 50)	SCREW (M6 x 50)	4
6	826709121	螺母(.625-18)不锈钢	NUT (.625-18) Stainless Steel	1
7	892328T	舵机盖	COVER Helm	1
8	896842	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
9	892327	舵机背板	PLATE Helm Backing	4
9	892327	舵机背板	PLATE Helm Backing	3
9	892327	舵机背板	PLATE Helm Backing	2
10	401196	螺母 (M6)	NUT (M6)	4

图 42增压器 SuperCharger

REF	零件编号	中文名称	英文名称	数量
1	8M0102809	机械增压器	SUPERCHARGER	1
2	885342002	传感器总成	SENSOR ASSEMBLY	1
3	896699	O型圈（1.78毫米 x 0.08毫米）	O-RING (1.78 mm x .08 mm)	1
4	8M0104803	导管总成进气口	DUCT ASSEMBLY Inlet	1
5	888947501	衬垫	GASKET	1
6	8M0033976	导管套件出口	DUCT KIT Outlet	1
7	888947504	衬垫	GASKET	1
8	888947502	螺栓	BOLT	9
9	847803A02	衬套/垫片套件	BUSHING/GASKET KIT	1
10	885527105	螺钉(M10x105)	SCREW (M10 x 105)	4
11	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	1

图 43工具 Tools

REF	零件编号	中文名称	英文名称	数量
1	805382T01	工具延长杆-千分表	TOOL Extension-Dial Indicator	1
2	8M0046443	小齿轮定位工具	TOOL Pinion Gear Locating	1
3	8M0046348	小齿轮轴承拆卸工具	TOOL Bearing Driver, Pinion Removal	1
4	8M0036288	工具小齿轮螺母固定器	TOOL Holder, Pinion Nut	1
5	8M0046632	轴承座固定螺母套筒工具	TOOL Socket, Carrier Retainer Nut	1
6	8M0046360	小齿轮轴承安装工具	TOOL Bearing Driver, Pinion Install	1
7	8M0050615	工具换挡轴固定器	TOOL Holder, Shift Shaft	1
8	8M0053505	背隙指示工具	TOOL Indicator, Backlash	1
9	8M0035594	螺旋桨轴固定工具	TOOL Propeller Shaft Holder	1
10	8M0052590	上传动轴轴承安装工具	TOOL Driver, Upper Driveshaft Bearing	1
-	889283A01	燃油灌注工具包	TOOL KIT Fuel Priming	1
-	809905001	扭矩转换扳手	WRENCH Torque Adapter	1
-	895343T02	飞轮拉拔器工具	TOOL Flywheel Puller	1
-	895346	螺栓	BOLT	1
-	889675A01	14针分流器工具	TOOL Shunt 14-Pin	1
-	822778004	动力调整适配器工具	TOOL Adaptor Fitting-Power Trim	1
-	896661	燃油滤清器工具	TOOL Fuel Filter	1
-	8M0078614	扳手动力转向缸端盖专用	WRENCH Power Steering Cylinder End Cap Spanner	1
-	8M0105203	工具平衡缸端盖	TOOL TRIM CYLINDER END CAP	1
-	8M0182653	工具-驱动对正	TOOL Drive Alignment	1

图 44顶罩 Top Cowl

REF	零件编号	中文名称	英文名称	数量
1	8M0100167	顶盖总成水星版带贴纸无马力标识	TOP COWL ASSEMBLY Mercury, Decaled without Horsepower	1
1	8M0100170	顶罩总成-冷聚变色不带马力标识贴纸	TOP COWL ASSEMBLY Cold Fusion, Decaled without Horsepower	1
1	8M0100171	顶罩总成-暖聚变色不带马力标识贴纸	TOP COWL ASSEMBLY Warm Fusion, Decaled without Horsepower	1
1	8M0119291	顶罩总成-珍珠聚变色不带马力标识贴纸	TOP COWL ASSEMBLY Pearl Fusion, Decaled without Horsepower	1
1	8M0100180	顶盖总成水手版带贴纸无马力标识	TOP COWL ASSEMBLY Mariner Decaled without Horsepower	1
1	8M0100220	水星顶罩总成(无标识)	TOP COWL ASSEMBLY Mercury, Non-Decaled	1
1	8M0100221	顶盖总成冷聚变版无贴纸	TOP COWL ASSEMBLY Cold Fusion, Non-Decaled	1
1	8M0100222	顶盖总成暖聚变版无贴纸	TOP COWL ASSEMBLY Warm Fusion, Non-Decaled	1
1	8M0119289	顶盖总成珍珠聚变版无贴纸	TOP COWL ASSEMBLY Pearl Fusion, Non-Decaled	1
1	8M0100223	顶部罩盖总成水手版无贴花	TOP COWL ASSEMBLY Mariner, Non-Decaled	1
2	885354T01	空气导流帽-水星黑色款	CAP, Air Dam Mercury, Black	1
2	8M0024870	贴纸水星Verado	DECAL Mercury Verado	1
2	8M0090474	盖板风挡-冷聚变版	CAP, Air Dam Cold Fusion	1
2	8M0090475	盖板风挡-暖聚变版	CAP, Air Dam Warm Fusion	1
2	8M0119293	盖板风挡-珍珠聚变版	CAP, Air Dam Pearl Fusion	1
2	895838T01	空气导流帽-水星型	CAP Air Dam - Mariner	1
3	888971	前锁扣槽	FRONT LATCH RECEIVER	1
4	8M0043229	密封件	SEAL	1
5	8M0080461	锁扣拉索	CABLE Latch	1
6	888959	铰链销	PIN Hinge	1
7	888956	手控锁杆	LATCH Hand Lever	1
8	895373	弹簧	SPRING	1
9	888955	锁扣连杆	LINK Latch Connecting	1
10	26953	开口销	COTTER PIN	2
11	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
12	888952	联动臂	LINKAGE ARM	2
13	888953	弹簧	SPRING	2
14	822417	销	PIN	2
15	897678020	螺丝 (M4 x 20mm)	SCREW (M4 x 20mm)	6
16	8M0033614	贴花左舷, 水星	APPLIQUE Port, Mercury	1
16	8M0088807	饰板左舷-冷聚变版	APPLIQUE Port, Cold Fusion	1
16	8M0088808	饰板左舷-暖聚变版	APPLIQUE Port, Warm Fusion	1
16	8M0117520	饰板左舷-珍珠聚变版	APPLIQUE Port, Pearl Fusion	1
16	8M0033604	饰板左舷-水手版	APPLIQUE Port, Mariner	1
17	8M0033615	贴花右舷, 水星	APPLIQUE Starboard, Mercury	1
17	8M0088809	饰板右舷-冷聚变版	APPLIQUE Starboard, Cold Fusion	1
17	8M0088810	饰板右舷-暖聚变版	APPLIQUE Starboard, Warm Fusion	1
17	8M0117518	饰板右舷-珍珠聚变版	APPLIQUE Starboard, Pearl Fusion	1
17	8M0033603	饰板右舷-水手版	APPLIQUE Starboard, Mariner	1
18	88552512	不锈钢螺钉 (M6 x 12 mm)	SCREW (M6 x 12 mm) Stainless Steel	2
19	8M4501639	隔音毯套装	SOUND BLANKET KIT	1

图 45上部换挡组件 Upper Shift Components

REF	零件编号	中文名称	英文名称	数量
-	8M0103311	前安装支架总成	BRACKET ASSEMBLY Front Mount	1
1	NSS	不单独销售支架	NOT SOLD SEPARATE Bracket	1
2	892417	衬套	BUSHING	2
3	8M0047763	隔套	SPACER	1
4	8M0047949	换档轴	SHIFT SHAFT	1
5	889727001	曲柄摇臂	BELL CRANK	1
6	25319	销钉(.125 x 0.75英寸)	PIN (.125 x 0.75 Inches)	1
7	833155	护孔环	GROMMET	2
8	85999	衬套	BUSHING	1
9	8M0048114	换挡执行器	SHIFT ACTUATOR	1
10	8855091	螺钉	SCREW	1
11	885512	开口销	COTTER PIN	2
12	885511003	垫圈	WASHER	2
13	895770	枢轴销	Pin Pivot	1
14	895811155	螺钉(M10×155)	SCREW (M10 x 155)	2
15	88510940	螺钉(M14)	SCREW (M14)	4
16	8M0045046	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
17	97896	衬套	BUSHING	2
18	885505	换挡轴连杆	LINK Shift Shaft	1
19	8M0048178	换挡轴(长型)	SHAFT Shift (Long)	1
19	8M0048179	换挡轴 (加长型)	SHAFT Shift (X-Long)	1
19	8M0048180	换挡轴 (超长型)	SHAFT Shift (XX-Long)	1
