水星 Mercury 250 HP Verado 6 CYL 0P520553 THRU 2B144122 - 爆炸图零件明细

四冲程 电喷 EFI · Belgium - Cat.# 90-896280008 · 共 50 个部位 · 2474 条零件

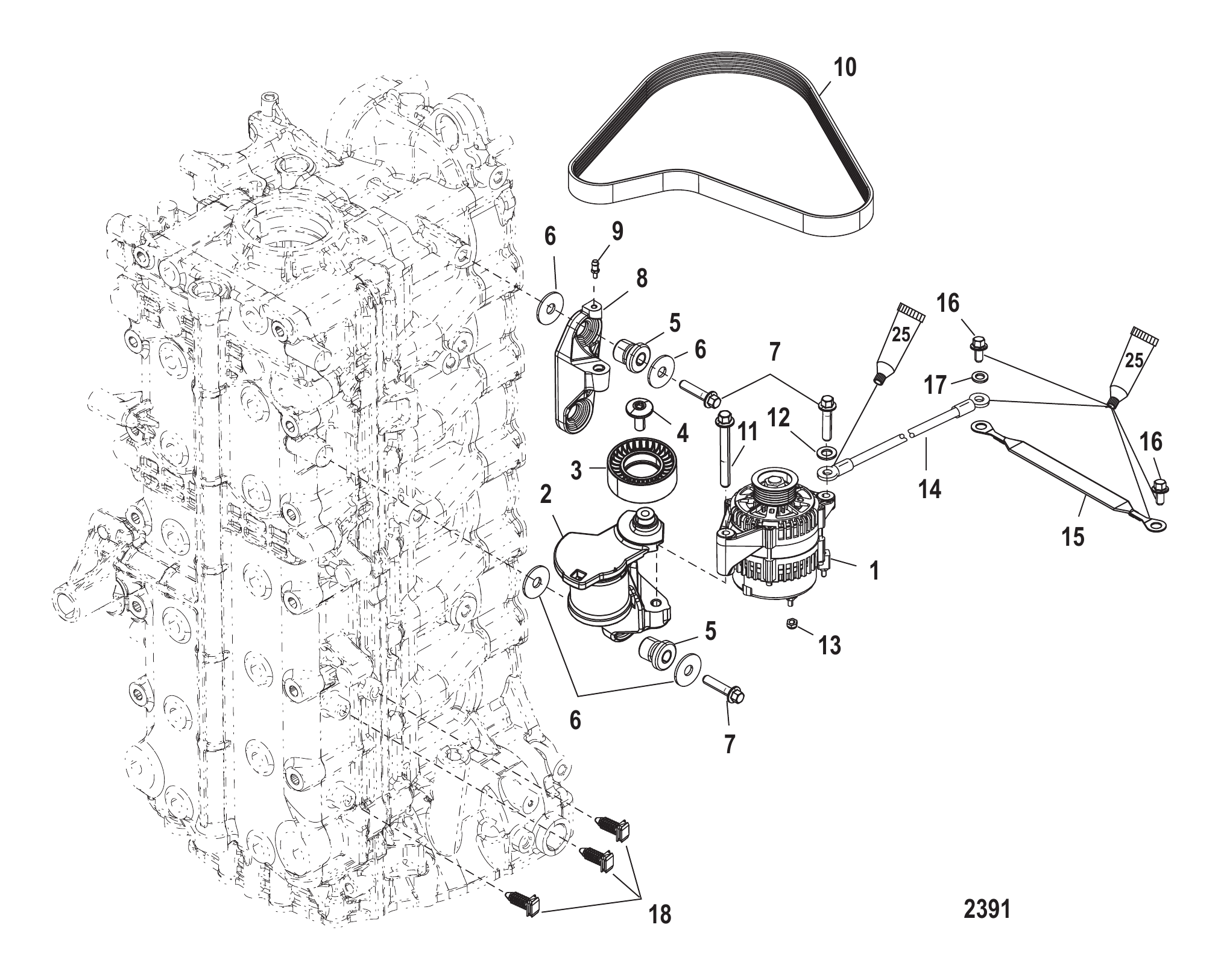

1附件2下适配板3适配板管路布置4适配板管路布置 CCT5发电机/皮带张紧器安装座6CCT索具套件7增压冷却器/进气歧管（一代）端盖不可维修8增压冷却器/进气歧管（二代）端盖可维修9增压冷却器/进气歧管管路布置10外罩锁扣装置11曲轴、活塞及连杆12气缸体13气缸盖与凸轮轴14驱动轴壳体15电气箱组件16燃油供给模块17齿轮箱，驱动轴，5.44鱼雷型，序列号1B980360及以上18齿轮箱，驱动轴，5.44鱼雷型，序列号1B980359及以下19齿轮箱，螺旋桨轴-反向旋转，5.44鱼雷型20齿轮箱，螺旋桨轴-正向旋转，5.44鱼雷型21齿轮箱驱动轴,4.80鱼雷型22齿轮箱螺旋桨轴-反向旋转，4.80鱼雷型 2B026816及以下23齿轮箱螺旋桨轴-反向旋转，4.80鱼雷型 2B026817及以上24齿轮箱螺旋桨轴-正向旋转，4.80鱼雷型 2B026816及以下25齿轮箱螺旋桨轴-正向旋转，4.80鱼雷型 2B026817及以上26接地线套件 899712A0127进气系统组件28进气组件 CCT29润滑图表30防腐电极套件31安装支架32机油泵/上适配板33左舷气缸体组件34动力头衬垫组件35动力升降倾斜组件36动力升降/转向油缸37动力转向泵套件(8M0080200/8M0080201)38后罩39后罩 CCT40维修/支撑材料41右气缸体/油冷器(1B830815及以下)42右气缸体/油冷器(1B830816及以上)43启动电机44标准转向舵套件(892557A02, 892380A02, 892558A02)45增压器46工具47顶罩48顶罩 CCT49上部换挡组件50水分分离滤清器套件 886638A01
图 1附件 Accessories
附件 Accessories
REF零件编号中文名称英文名称数量
-892440A08动力转向泵套件PUMP KIT Power Steering Pump Kit1
-8M0131262动力转向泵套件(12英尺)PUMP KIT Power Steering (12 Feet)1
-892440A09动力转向泵套件PUMP KIT Power Steering Pump Kit1
-8M0131263动力转向泵套件(24英尺)PUMP KIT Power Steering (24 Feet)1
-892380A02标准转向舵机套件(40cc)STEERING HELM KIT Standard (40 cc)1
-8M0240080标准舵机套件40CMHELM KIT-STD 40CM1
-892557A02标准转向舵机套件(32cc)STEERING HELM KIT Standard (32 cc)1
-8M0240079标准舵机套件32CMHELM KIT-STD 32CM1
-892558A02标准转向舵机套件(50cc)STEERING HELM KIT Standard (50 cc)1
-8M0240081标准舵机套件50CMHELM KIT-STD 50CM1
-892450K01液压软管套件(1英尺)油缸至舵机HOSE KIT (1 Foot) Hydraulic, Cylinder to Helm1
-897982K01ORD 32-897982K02ORD 32-897982K021
-892450K02液压软管套件(2英尺)油缸至舵机HOSE KIT (2 Feet) Hydraulic, Cylinder to Helm1
-8M0167281软管套件2FTHOSE KIT 2FT1
-892450K03液压软管套件(3英尺)油缸至舵机HOSE KIT (3 Feet) Hydraulic, Cylinder to Helm1
-8M0167282软管套件3FTHOSE KIT 3 FT1
-892450K04液压软管套件(4英尺)油缸至舵机HOSE KIT (4 Feet) Hydraulic, Cylinder to Helm1
-8M0167283软管套件4FTHOSE KIT 4 FT1
-892450K05液压软管套件(5英尺)油缸至舵机HOSE KIT (5 Feet) Hydraulic, Cylinder to Helm1
-8M0167284软管套件5FTHOSE KIT 5 FT1
-892450K06液压软管套件(6英尺)油缸至舵机HOSE KIT (6 Feet) Hydraulic, Cylinder to Helm1
-8M0167285软管套件6FTHOSE KIT 6 FT1
-892450K07液压软管套件(7英尺)油缸至舵机HOSE KIT (7 Feet) Hydraulic, Cylinder to Helm1
-8M0167286软管套件7FTHOSE KIT 7 FT1
-892450K08液压软管套件(8英尺)油缸至舵机HOSE KIT (8 Feet) Hydraulic, Cylinder to Helm1
-8M0167287软管套件8FTHOSE KIT 8 FT1
-892450K10液压软管套件(10英尺)油缸至舵机HOSE KIT (10 Feet) Hydraulic, Cylinder to Helm1
-8M0167288软管套件10FTHOSE KIT 10 FT1
-892450K12液压软管套件(12英尺)油缸至舵机HOSE KIT (12 Feet) Hydraulic, Cylinder to Helm1
-8M0167289软管套件12FTHOSE KIT 12 FT1
-892450K14液压软管套件(14英尺)油缸至舵机HOSE KIT (14 Feet) Hydraulic, Cylinder to Helm1
-8M0167290软管套件 14英尺HOSE KIT 14 FT1
-892450K16液压软管套件(16英尺)油缸至舵机HOSE KIT (16 Feet) Hydraulic, Cylinder to Helm1
-8M0167291软管套件 16英尺HOSE KIT 16 FT1
-892450K18液压软管套件(18英尺)油缸至舵机HOSE KIT (18 Feet) Hydraulic, Cylinder to Helm1
-8M0167292软管套件 18英尺HOSE KIT 18 FT1
-892450K22液压软管套件(22英尺)油缸至舵机HOSE KIT (22 Feet) Hydraulic, Cylinder to Helm1
-8M0167294软管套件 22英尺HOSE KIT 22 FT1
-892450K24液压软管套件(24英尺)油缸至舵机HOSE KIT (24 Feet) Hydraulic, Cylinder to Helm1
-8M0167295软管套件 24英尺HOSE KIT 24 FT1
-892450K26液压软管套件(26英尺)油缸至舵机HOSE KIT (26 Feet) Hydraulic, Cylinder to Helm1
-8M0167296软管套件 26英尺HOSE KIT 26 FT1
-892450K30液压软管套件(30英尺)油缸至舵机HOSE KIT (30 Feet) Hydraulic, Cylinder to Helm1
-8M0167298软管套件 30英尺HOSE KIT 30 FT1
-892438K02动力转向软管套件 动力模块 (2英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (2 Feet) Hydraulic, Pump to Helm1
-8M0150604泵至舱壁/舵机套件 2英尺PUMP TO BULKHEAD/HELM KIT 2 Ft1
-892438K03动力转向软管套件 动力模块 (3英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (3 Feet) Hydraulic, Pump to Helm1
-8M0150605泵至舱壁/舵机套件 3英尺PUMP TO BULKHEAD/HELM KIT 3 Ft1
-892438K04动力转向软管套件 动力模块 (4英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (4 Feet) Hydraulic, Pump to Helm1
-8M0150606泵至舱壁/舵机套件 4英尺PUMP TO BULKHEAD/HELM KIT 4 Ft1
-892438K05动力转向软管套件 动力模块 (5英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (5 Feet) Hydraulic, Pump to Helm1
-8M0150607泵至舱壁/舵机套件 5英尺PUMP TO BULKHEAD/HELM KIT 5 Ft1
-892438K06软管套件 动力模块 (6英尺) 液压, 泵至舵机HOSE KIT Power Module (6 Feet) Hydraulic, Pump to Helm1
-8M0150608泵至舱壁/舵机套件 6英尺PUMP TO BULKHEAD/HELM KIT 6 Ft1
-892438K07软管套件 动力模块 (7英尺) 液压, 泵至舵机HOSE KIT Power Module (7 Feet) Hydraulic, Pump to Helm1
-8M0150610泵至舱壁/舵机套件 7英尺PUMP TO BULKHEAD/HELM KIT 7 Ft1
-892438K08软管套件 动力模块 (8英尺) 液压, 泵至舵机HOSE KIT Power Module (8 Feet) Hydraulic, Pump to Helm1
-8M0150612泵至舱壁/舵机套件 8英尺PUMP TO BULKHEAD/HELM KIT 8 Ft1
-892438K10动力转向软管套件 动力模块 (10英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (10 Feet) Hydraulic, Pump to Helm1
-8M0150613泵至舱壁/舵机套件 10英尺PUMP TO BULKHEAD/HELM KIT 10 Ft1
-892438K12动力转向软管套件 动力模块 (12英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (12 Feet) Hydraulic, Pump to Helm1
-8M0150614泵至舱壁/舵机套件 12英尺PUMP TO BULKHEAD/HELM KIT 12 Ft1
-892438K14动力转向软管套件 动力模块 (14英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (14 Feet) Hydraulic, Pump to Helm1
-8M0150615泵至舱壁/舵机套件 14英尺PUMP TO BULKHEAD/HELM KIT 14 Ft1
-892438K16动力转向软管套件 动力模块 (16英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (16 Feet) Hydraulic, Pump to Helm1
-8M0150616泵至舱壁/舵机套件 16英尺PUMP TO BULKHEAD/HELM KIT 16 Ft1
-892438K18动力转向软管套件 动力模块 (18英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (18 Feet) Hydraulic, Pump to Helm1
-8M0150617泵至舱壁/舵机套件 18英尺PUMP TO BULKHEAD/HELM KIT 18 Ft1
-892438K20动力转向软管套件 动力模块 (20英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (20 Feet) Hydraulic, Pump to Helm1
-8M0150618泵至舱壁/舵机套件 20英尺PUMP TO BULKHEAD/HELM KIT 20 ft1
-892438K22动力转向软管套件 动力模块 (22英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (22 Feet) Hydraulic, Pump to Helm1
-8M0150619泵至舱壁/舵机套件 22英尺PUMP TO BULKHEAD/HELM KIT 22 FT1
-892438K24动力转向软管套件 动力模块 (24英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (24 Feet) Hydraulic, Pump to Helm1
-8M0150620泵至舱壁/舵机套件 24英尺PUMP TO BULKHEAD/HELM KIT 24 FT1
-892825008液压软管 (8英尺) 舵机至压力罐HOSE (8 Feet) Hydraulic, Helm to Pressure Tank1
-892825010液压软管 (10英尺) 舵机至压力罐HOSE (10 Feet) Hydraulic, Helm to Pressure Tank1
-892825012液压软管 (12英尺) 舵机至压力罐HOSE (12 Feet) Hydraulic, Helm to Pressure Tank1
-892825014液压软管 (14英尺) 舵机至压力罐HOSE (14 Feet) Hydraulic, Helm to Pressure Tank1
-892825016液压软管 (16英尺) 舵机至压力罐HOSE (16 Feet) Hydraulic, Helm to Pressure Tank1
-892825018液压软管 (18英尺) 舵机至压力罐HOSE (18 Feet) Hydraulic, Helm to Pressure Tank1
-892825020液压软管 (20英尺) 舵机至压力罐HOSE (20 Feet) Hydraulic, Helm to Pressure Tank1
-892825022液压软管 (22英尺) 舵机至压力罐HOSE (22 Feet) Hydraulic, Helm to Pressure Tank1
-892825024液压软管 (24英尺) 舵机至压力罐HOSE (24 Feet) Hydraulic, Helm to Pressure Tank1
-892825026液压软管 (26英尺) 舵机至压力罐HOSE (26 Feet) Hydraulic, Helm to Pressure Tank1
-893395A01嵌入式安装板PLATE Flush Mount1
-875207三通接头TEE Fitting1
-892486K08模拟转换套件CONVERSION KIT Analog1
-889611K02附件电源线束套件(30英尺)HARNESS KIT Accessory Power (30 Feet)1
-899785K04附件电源线束总成(30英尺)HARNESS ASSEMBLY Accessory Power (30 Feet)1
-88334A2防腐电极套件MERCATHODE KIT1
-8M0180081防腐电极套件MERCATHODE KIT1
-825191A03索具软管套件HOSE KIT Rigging1
-880717A01齿轮箱螺丝/密封套件SCREW/SEAL KIT Gearcase1
-88439A50电池电缆组CABLE SET Battery1
-8M0210761电池电缆组(12英尺)CABLE SET (12 ft) Battery1
-44357Q2冲洗附件FLUSHING ATTACHMENT1
-44357T2冲洗附件FLUSHING ATTACHMENT1
-881150Q1双进水口冲洗套件FLUSH KIT Dual Water Pick Up1
-881150K1双进水口冲洗密封套件SEAL KIT Flush - Dual Water Pickup1
-897967100燃油管路 (100.00英尺)LINE Fuel (100.00 Feet)1
-8M0038563燃油管路 (100.00英尺)LINE Fuel (100.00 Feet)1

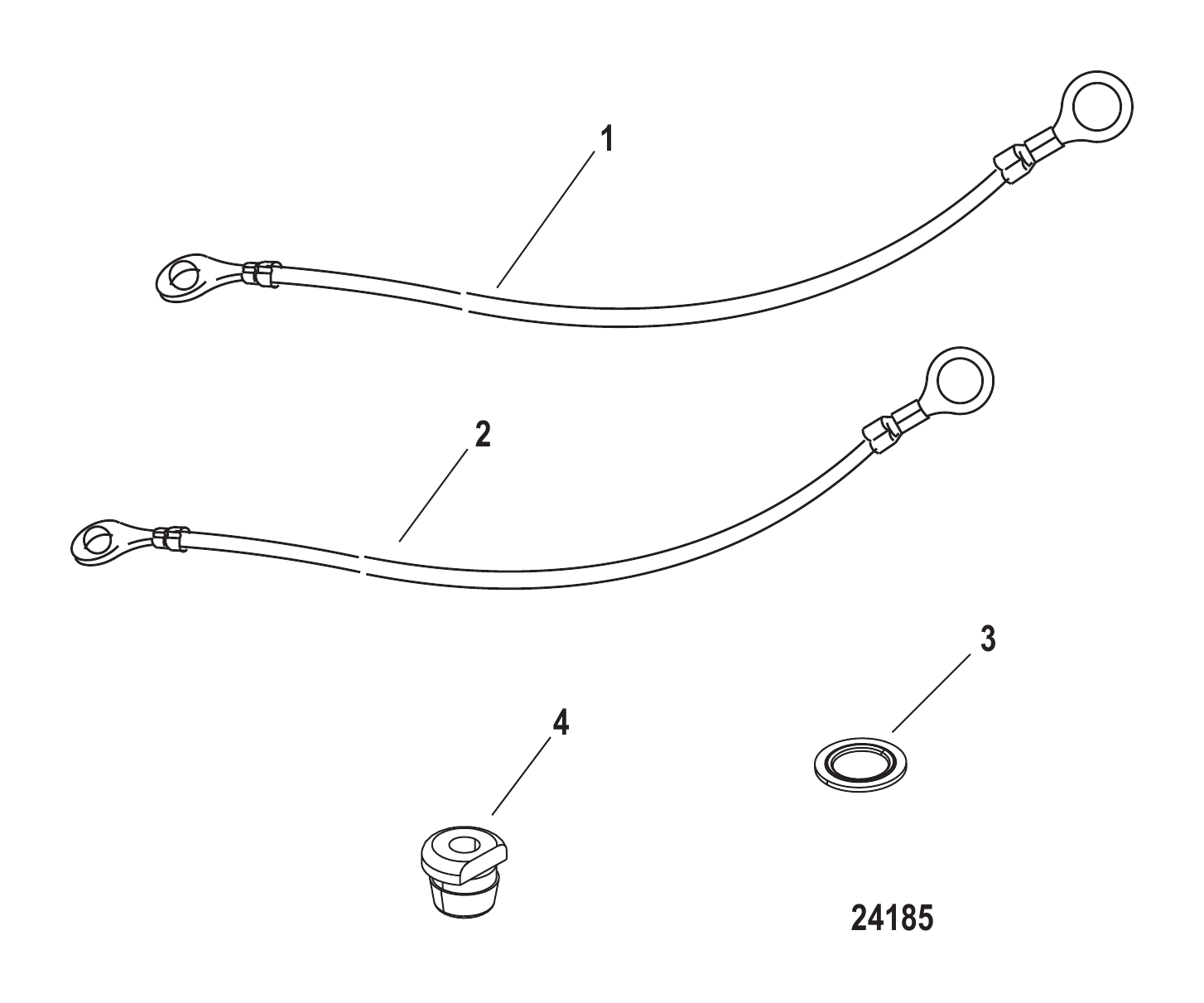

-899712A01连续性电缆套件CABLE KIT Continuity1

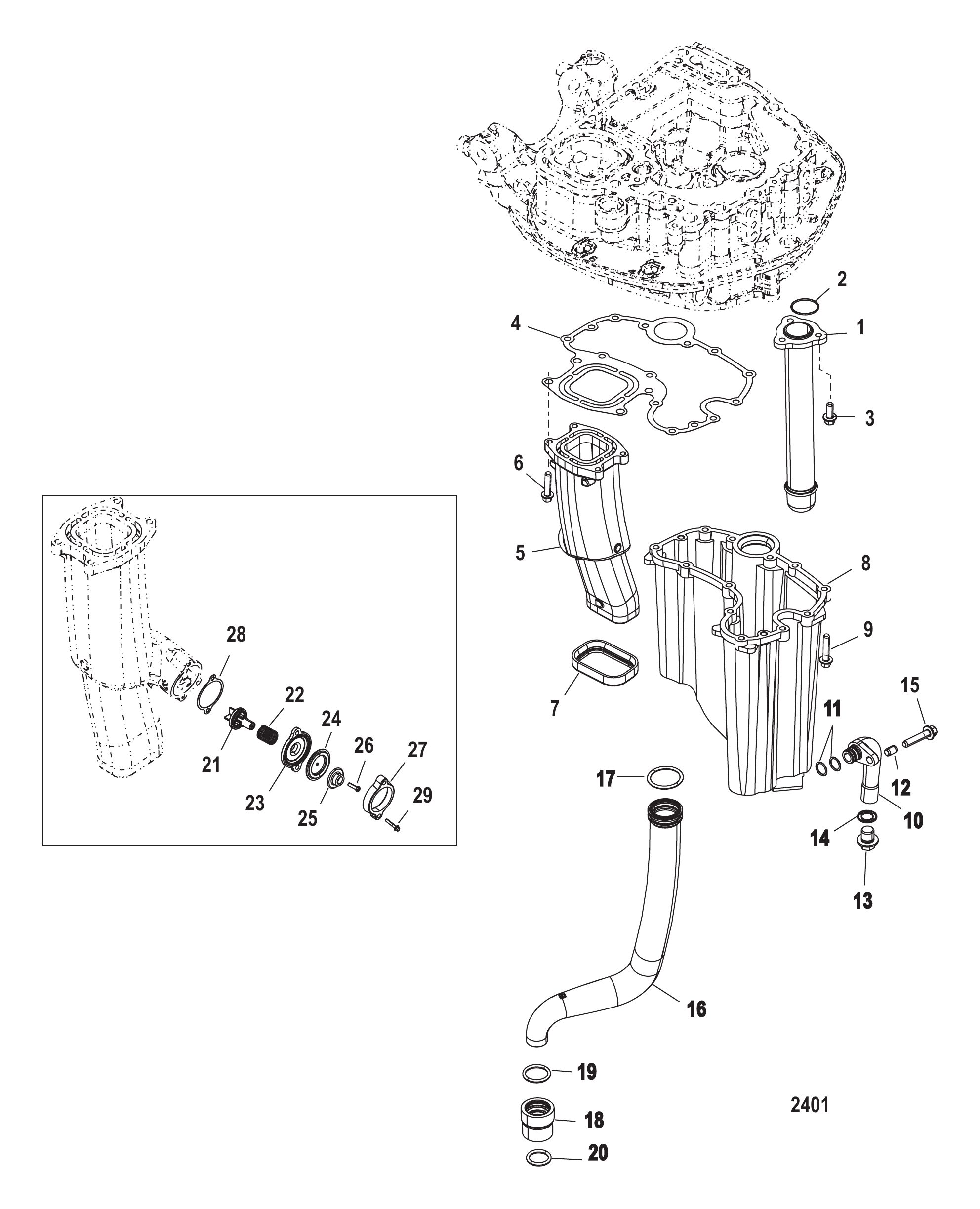

图 2下适配板 Adapter Plate-Lower
下适配板 Adapter Plate-Lower
REF零件编号中文名称英文名称数量
1887623T03机油收集器总成PICKUP ASSEMBLY Oil1
2846594O型圈 (1.239 x .070) 黑色O-RING (1.239 x .070) Black1
28M0092943O型圈 橙色O-RING Orange1
388552525不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel3
38M0103807不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel3
4889618001衬垫 油底壳GASKET Oil Sump1
5880626T01排气管总成TUBE ASSEMBLY Exhaust1
688552635螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)4
68M0103814螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)4
7880629排气管密封件SEAL Exhaust Tube1
8880639T油底壳总成SUMP ASSEMBLY Oil1
988552530螺丝(M6×30毫米)不锈钢SCREW (M6 x 30 mm) Stainless Steel12
98M0103808螺丝(M6×30毫米)不锈钢SCREW (M6 x 30 mm) Stainless Steel12
10887753A02排油管总成TUBE ASSEMBLY Oil Drain1
10888513A02排油管总成TUBE ASSEMBLY Oil Drain1
108M0082193排油管总成TUBE ASSEMBLY Oil Drain1
11892446O型圈(14×1.78毫米)O-RING (14 X 1.78 MM)2
12892228定位销PIN Dowel1
13888592005放油塞总成PLUG ASSEMBLY Oil Drain1
14888593放油螺塞密封件SEAL Drain Plug1
148M0188614放油螺塞密封件SEAL Drain Plug1
1588552530螺丝(M6×30毫米)不锈钢SCREW (M6 x 30 mm) Stainless Steel1
158M0103808螺丝(M6×30毫米)不锈钢SCREW (M6 x 30 mm) Stainless Steel1
16885541A01水管总成 (20.00英寸)TUBE ASSEMBLY Water (20.00 Inch)1
16885541A02水管总成 (25.00英寸)TUBE ASSEMBLY Water (25.00 Inch)1
16885541A03水管总成 (30.00英寸)TUBE ASSEMBLY Water (30.00 Inch)1
17892445O型圈O-RING1
18887987A1联轴器COUPLING1
188M0214983联轴器总成COUPLING ASSY1
1990196O型圈 (.921 x .139)O-RING (.921 x .139)1
198M0204673O型圈 .921 x .139O-Ring .921 x .1391
2021836O型圈(.796 x .139)O-RING (.796 x .139)1
208M0204645O型圈(.796 x .139)O-RING (.796 x .139)1
21888913A01提升阀总成POPPET ASSEMBLY1
218M0114707提升阀总成POPPET VALVE ASSY1
2264878弹簧(黑色)SPRING (Black)1
23893385001固定座RETAINER1
24648771隔膜DIAPHRAGM1
25889706垫圈WASHER1
2669570螺钉(#10-16 x .750)SCREW (#10-16 x .750)1
27893384001提升阀盖COVER Poppet1
28889561提升阀垫片GASKET Poppet1
2988552535不锈钢螺钉(M6×35mm)SCREW (M6 x 35 mm) Stainless Steel2
-880552A06动力头衬垫套件GASKET SET Powerhead1
-880552A07动力头衬垫套件GASKET SET Powerhead1
-895247A06动力头总成POWERHEAD ASSEMBLY1
-895247R06RM L6 GEN1 VERADORM L6 GEN1 VERADO1

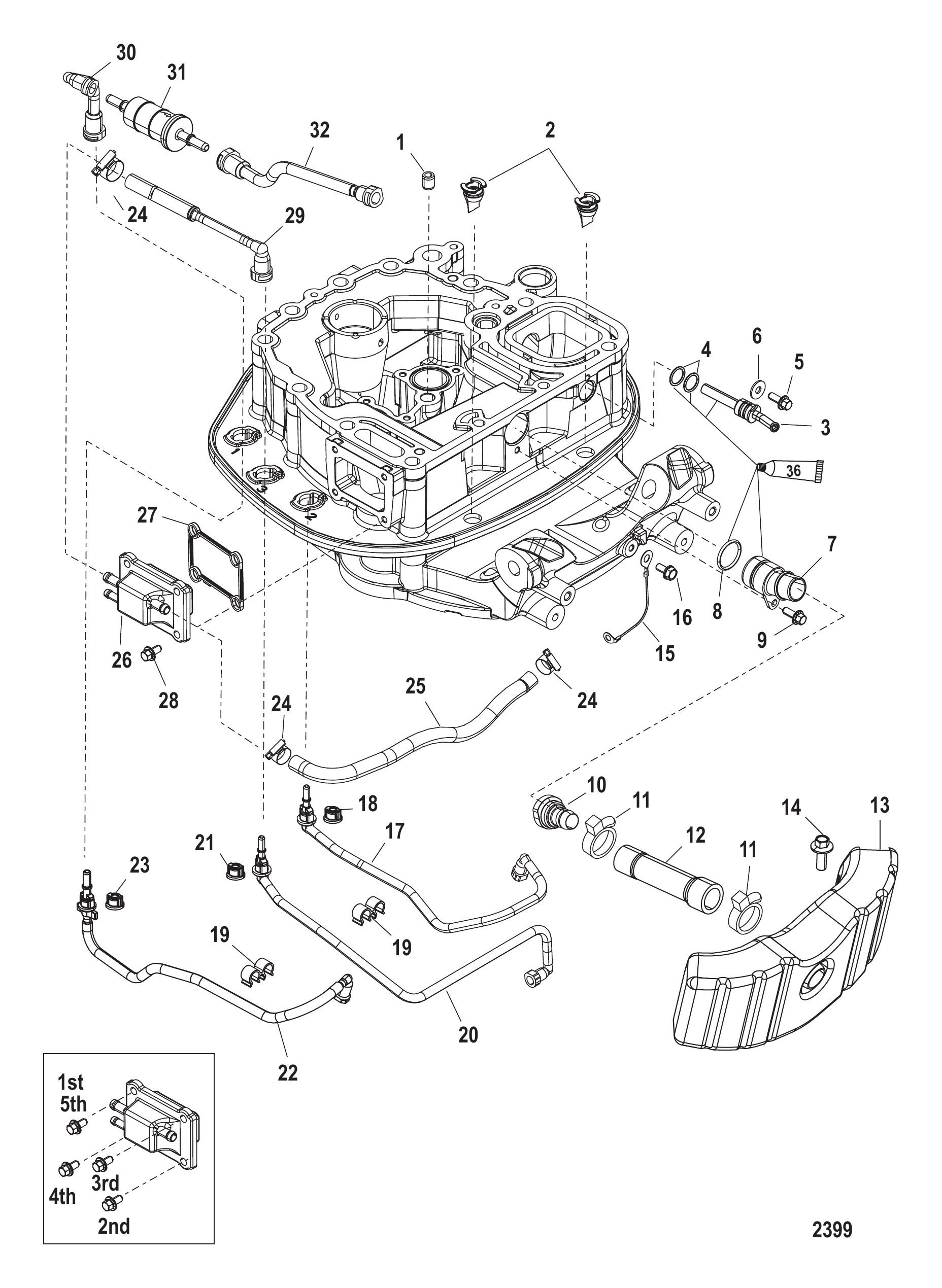

图 3适配板管路布置 Adapter Plate Hose Routings
适配板管路布置 Adapter Plate Hose Routings
REF零件编号中文名称英文名称数量
1884474001定位销 (12毫米)PIN Dowel (12 mm)1
2888819002排水罩DRAIN Cowl2
3888461A01配件套件FITTING KIT1
4892446O型圈(14×1.78毫米)O-RING (14 X 1.78 MM)2
588552512不锈钢螺钉 (M6 x 12 mm)SCREW (M6 x 12 mm) Stainless Steel1
58M0103804不锈钢螺钉 (M6 x 12 mm)SCREW (M6 x 12 MM) Stainless Steel1
64002316垫圈(6.60 X 17.0 X 1.5不锈钢)WASHER (6.60 X 17.0 X 1.5SS)1
68M0214930垫圈6.60 x 17.0 x 1.5WASHER 6.60 x 17.0 x 1.51
7889792A01怠速排气接头套件FITTING KIT Idle Exhaust1
8889828O型圈 0.924×0.103O-RING (.924 x .103)1
988552512不锈钢螺钉 (M6 x 12 mm)SCREW (M6 x 12 mm) Stainless Steel1
98M0103804不锈钢螺钉 (M6 x 12 mm)SCREW (M6 x 12 MM) Stainless Steel1
10889846接头FITTING1
11816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)2
12888981001怠速排气软管HOSE Idle Exhaust1
13892384T排气集气室PLENUM Exhaust1
144006731螺钉(M6 x 16)SCREW (M6 x 16)2
1588238A21拉线总成CABLE ASSEMBLY1
1640011126不锈钢螺丝(M6 x 13)SCREW (M6 x 13) Stainless Steel1
17884548歧管参考软管-下部HOSE Manifold Reference-Lower1
178M0087120软管HOSE1
18884546护孔环GROMMET1
19888523001卡扣CLIP2
20884547进水软管-下部HOSE Water In-Lower1
208M0087106软管HOSE1
21884546护孔环GROMMET1
22892241燃油供应模块输出软管HOSE Fuel Supply Module-Out1
228M0087116软管HOSE1
23884546护孔环GROMMET1
24815504104蜗杆卡箍CLAMP Worm Gear3
25830757130管材 (.312) (70.00英寸整卷) 裁切至21英寸TUBING (.312) (70.00 Inches Bulk) Cut to 21 Inches1
258M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
26892562T01歧管壳体HOUSING Manifold1
27892117密封件SEAL1
2888552516螺丝 (M6 x 16毫米) 不锈钢SCREW (M6 x 16 mm) Stainless Steel4
288M0103805螺丝 (M6 x 16毫米) 不锈钢SCREW (M6 x 16 mm) Stainless Steel4
29887756进水软管-上部HOSE Water In-Upper1
30887757高压过滤器软管HOSE Hi-Pressure Filter1
308M0203762燃油管路总成FUEL LINE ASSY1
31879885T燃油滤清器FILTER Fuel1
31879885Q燃油管路滤清器FILTER Fuel In-Line1
32887758高压滤清器至燃油轨软管HOSE Hi-Pressure Filter To Fuel Rail1
328M0203763燃油管FUEL LINE1
-880552A06动力头衬垫套件GASKET SET Powerhead1
-880552A07动力头衬垫套件GASKET SET Powerhead1
-895247A06动力头总成POWERHEAD ASSEMBLY1
-895247R06RM L6 GEN1 VERADORM L6 GEN1 VERADO1

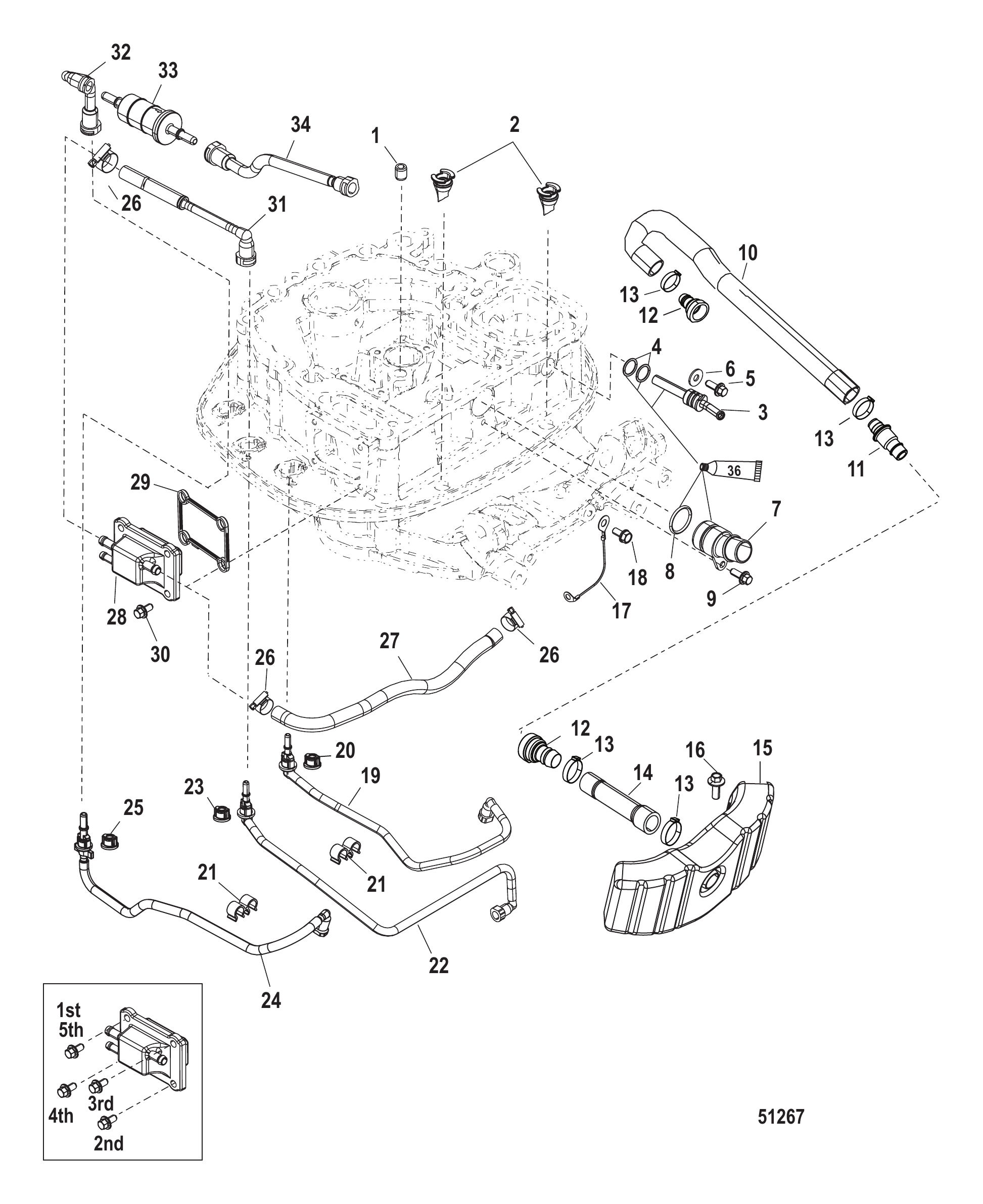

图 4适配板管路布置 CCT Adapter Plate Hose Routings CCT
适配板管路布置 CCT Adapter Plate Hose Routings CCT
REF零件编号中文名称英文名称数量
1884474001定位销 (12毫米)PIN Dowel (12 mm)1
2888819002排水罩DRAIN Cowl2
3888461A01配件套件FITTING KIT1
4892446O型圈(14×1.78毫米)O-RING (14 X 1.78 MM)2
588552512不锈钢螺钉 (M6 x 12 mm)SCREW (M6 x 12 mm) Stainless Steel1
58M0103804不锈钢螺钉 (M6 x 12 mm)SCREW (M6 x 12 MM) Stainless Steel1
64002316垫圈(6.60 X 17.0 X 1.5不锈钢)WASHER (6.60 X 17.0 X 1.5SS)1
68M0214930垫圈6.60 x 17.0 x 1.5WASHER 6.60 x 17.0 x 1.51
7889792A01怠速排气接头套件FITTING KIT Idle Exhaust1
8889828O型圈 0.924×0.103O-RING (.924 x .103)1
988552512不锈钢螺钉 (M6 x 12 mm)SCREW (M6 x 12 mm) Stainless Steel1
98M0103804不锈钢螺钉 (M6 x 12 mm)SCREW (M6 x 12 MM) Stainless Steel1
108M0074946怠速泄压软管HOSE Idle Relief1
118M00745337/8快速断开接头FITTING 7/8 Quick disconnect1
12889846接头FITTING1
138M6001924卡箍CLAMP2
14888981001怠速排气软管HOSE Idle Exhaust1
15892384T远程排气集气室PLENUM Exhaust Remotely Located1
164006731螺钉(M6 x 16)SCREW (M6 x 16)2
1788238A21拉线总成CABLE ASSEMBLY1
1840011126不锈钢螺丝(M6 x 13)SCREW (M6 x 13) Stainless Steel1
198M0012199歧管参考软管-下部HOSE Manifold Reference-Lower1
198M0087120软管HOSE1
20884546护孔环GROMMET1
21888523001卡扣CLIP2
228M0012198进水软管-下部HOSE Water In-Lower1
228M0087106软管HOSE1
23884546护孔环GROMMET1
248M0043794燃油供应模块输出软管HOSE Fuel Supply Module-Out1
248M0087116软管HOSE1
25884546护孔环GROMMET1
26815504104蜗杆卡箍CLAMP Worm Gear3
27830757130管材 (.312) (70.00英寸整卷) 裁切至21英寸TUBING (.312) (70.00 Inches Bulk) Cut to 21 Inches1
278M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
28892562T01歧管壳体HOUSING Manifold1
29892117密封件SEAL1
3088552516螺丝 (M6 x 16毫米) 不锈钢SCREW (M6 x 16 mm) Stainless Steel4
308M0103805螺丝 (M6 x 16毫米) 不锈钢SCREW (M6 x 16 mm) Stainless Steel4
31887756进水软管-上部HOSE Water In-Upper1
328M0043789高压过滤器软管HOSE Hi-Pressure Filter1
328M0203762燃油管路总成FUEL LINE ASSY1
33879885T燃油滤清器FILTER Fuel1
33879885Q燃油管路滤清器FILTER Fuel In-Line1
348M0043790高压滤清器至燃油轨软管HOSE Hi-Pressure Filter To Fuel Rail1
348M0203763燃油管FUEL LINE1
-880552A06动力头衬垫套件GASKET SET Powerhead1
-880552A07动力头衬垫套件GASKET SET Powerhead1
-895247A07动力头总成POWERHEAD ASSEMBLY1
-8M0162888翻新动力头总成(带附件)POWERHEAD ASSEMBLY Reman Dressed1
图 5发电机/皮带张紧器安装座 Alternator/Belt Tensioner Mounting
发电机/皮带张紧器安装座 Alternator/Belt Tensioner Mounting
REF零件编号中文名称英文名称数量
1892940T70安培发电机ALTERNATOR 70 Ampere1
2885349T05皮带张紧器BELT TENSIONER1
28M0101707皮带张紧器BELT TENSIONER1
3885349500滑轮PULLEY1
38M6003035滑轮PULLEY1
4885349501螺钉SCREW1
5855729支架MOUNT4
6845998垫圈(0.406×1.250×0.089)WASHER (.406 x 1.250 x .089)8
788552745螺丝(M10 x 45)SCREW (M10 x 45)5
78M0103823六角法兰螺钉(M10×45)SCREW (M10 x 45 Hex Flange)5
888535303S支架BRACKET1
88M0219204支架BRACKET1
9888517销PIN1
10880566014驱动皮带BELT Drive1
108M0232583蛇形皮带BELT SERPENTINE1
1188552785螺钉(M10×85)SCREW (M10 x 85)1
118M0103824螺钉SCREW1
124002319垫圈WASHER1
13401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
14856583A09拉线总成CABLE ASSEMBLY1
14856583A12拉线总成CABLE ASSEMBLY1
15858414A04铜编织电缆总成CABLE ASSEMBLY Brass Braided1
1688552516螺丝 (M6 x 16毫米) 不锈钢SCREW (M6 x 16 mm) Stainless Steel2
168M0103805螺丝 (M6 x 16毫米) 不锈钢SCREW (M6 x 16 mm) Stainless Steel2
1729245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
178M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
18828991卡扣CLIP3
18828991T卡扣CLIP3

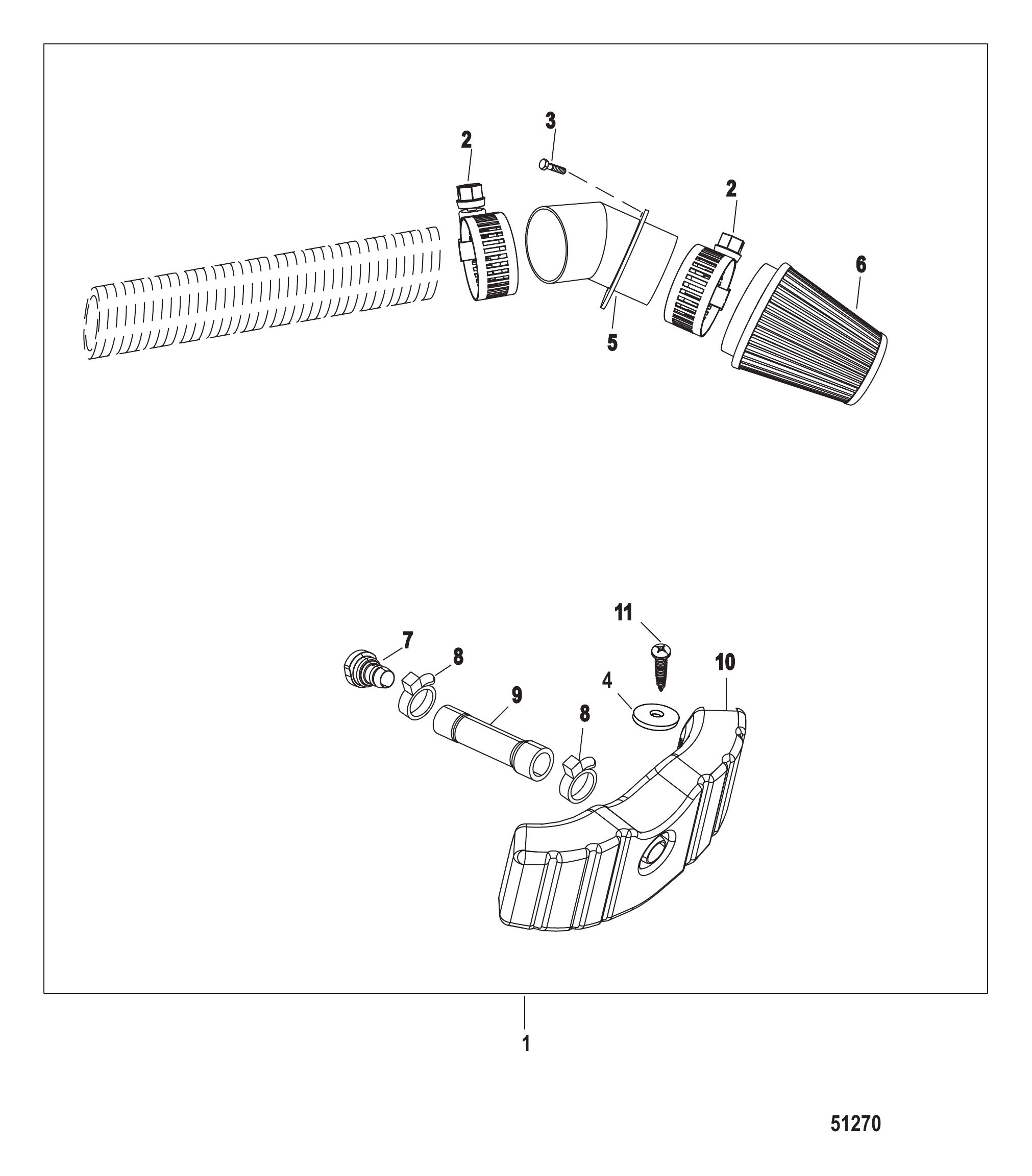

图 6CCT索具套件 CCT Rigging Kit
CCT索具套件 CCT Rigging Kit
REF零件编号中文名称英文名称数量
18M0070600CCT索具套件RIGGING KIT CCT1
2815504216蜗轮卡箍(1.56直径)CLAMP Worm Gear (1.56 Diameter)4
379968螺丝(#12-11 x .750)SCREW (#12-11 x .750)3
442118垫圈WASHER2
5NSS通气管(不单独销售)NOT SOLD SEPARATE Snorkel1
68M0042287滤清器FILTER1
7889846接头FITTING1
8815504272蜗杆卡箍CLAMP Worm Gear2
98M0070576怠速泄压软管HOSE Idle Relief1
98M0075715软管HOSE1
108M0074780排气集气室PLENUM Exhaust1
11884543螺钉(#12 x 1.25)SCREW (#12 x 1.25)2
118M0214982木螺钉 #12 x 1.25SCREW Wood, #12 x 1.252

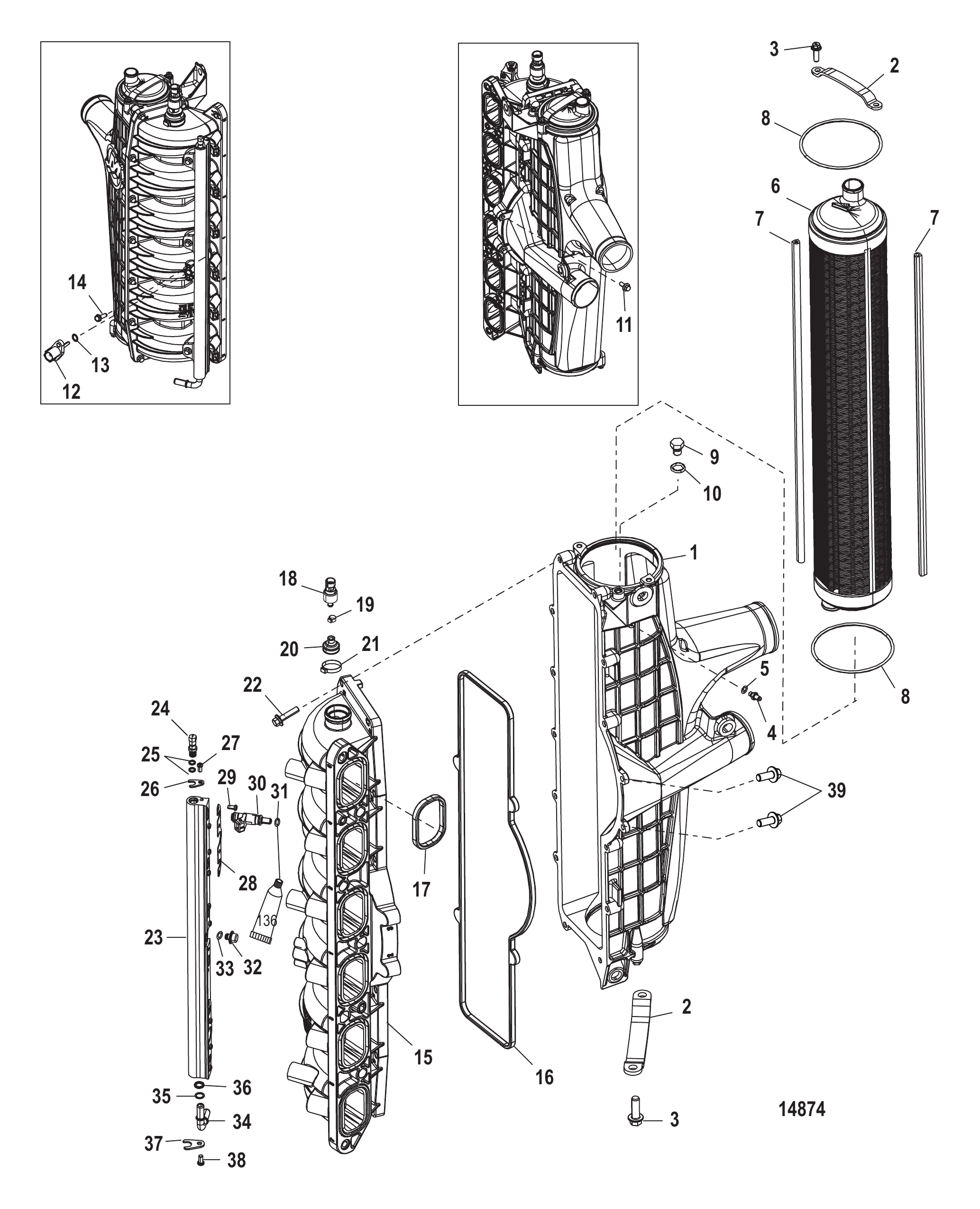

图 7增压冷却器/进气歧管（一代）端盖不可维修 Charge Cooler/Intake Manifold (Gen I) End Cap Not Serviced
增压冷却器/进气歧管（一代）端盖不可维修 Charge Cooler/Intake Manifold (Gen I) End Cap Not Serviced
REF零件编号中文名称英文名称数量
-880608T07集成式空气燃油模块总成MODULE ASSEMBLY Intergrated Air Fuel1
1880587A03中冷器总成CAC ASSEMBLY1
18M0132388中冷器总成CAC ASSEMBLY1
2895032绑带STRAP2
3895336螺钉(M6x18)SCREW (M6 x 18)4
38M0041014螺钉(M6x18)SCREW (M6 x 18)4
4895033接头FITTING1
48M0039993接头FITTING1
5NSS不单独销售 O型圈（895031套件部件）NOT SOLD SEPARATE O-Ring (Part of 895031 Kit)1
6NSS非单独销售堆叠组件NOT SOLD SEPARATE Stack Assembly1
7NSS不单独销售 密封件NOT SOLD SEPARATE Seal1
8NSS不单独销售 O型圈（895031套件部件）NOT SOLD SEPARATE O-Ring (Part of 895031 Kit)2
9895034接头FITTING1
98M00480798毫米塞PLUG 8MM1
10NSS不单独销售 O型圈（895031套件部件）NOT SOLD SEPARATE O-Ring (Part of 895031 Kit)1
11NSSNOT SOLD SEPARATE Plate1
12891663001温度传感器SENSOR Temperature1
13892317001O型圈O-RING1
14895054螺丝(M4×16毫米)SCREW (M4 x 16 mm)2
15880582T05进气歧管总成MANIFOLD ASSEMBLY Intake1
158M0041479进气歧管总成MANIFOLD ASSEMBLY Intake1
16895019密封件SEAL1
17895020密封件SEAL6
18885548002传感器SENSOR1
188M0234766压力传感器SENSOR PRESSURE1
19888988015卡箍(15.7毫米 进气压力传感器至护套)CLAMP (15.7 mm) Map Sensor to Boot1
198M0214911卡箍@5CLAMP @51
20892952500护套BOOT1
21888988001卡箍(36.1毫米)CLAMP (36.1 mm)1
218M0204719卡箍 36.1毫米CLAMP 36.1 MM1
22895052螺丝(M6 x 25毫米)SCREW (M6 x 25 mm)13
228M0103807不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel13
23895022A01燃油轨套件FUEL RAIL KIT1
238M0041080燃油导轨总成FUEL RAIL ASSEMBLY1
24895028A01施拉德阀VALVE Schrader1
25895056O型圈O-RING2
26895026支架BRACKET1
27895051螺钉 (M5 x 10)SCREW (M5 x 10)1
28895024支架BRACKET3
29895051螺钉 (M5 x 10)SCREW (M5 x 10)12
308M0006027燃油喷油器INJECTOR Fuel6
308M0222278燃油喷射器FUEL INJECTOR6
31851889O型圈O-RING12
32895025减震器DAMPER1
33851889O型圈O-RING1
34895029A01燃油进管套件TUBE KIT Fuel Inlet1
35895055垫圈WASHER1
36895057O型圈O-RING1
37895027支架BRACKET1
38895051螺钉 (M5 x 10)SCREW (M5 x 10)1
39895053螺丝(M6x15)SCREW (M6 x 15)2

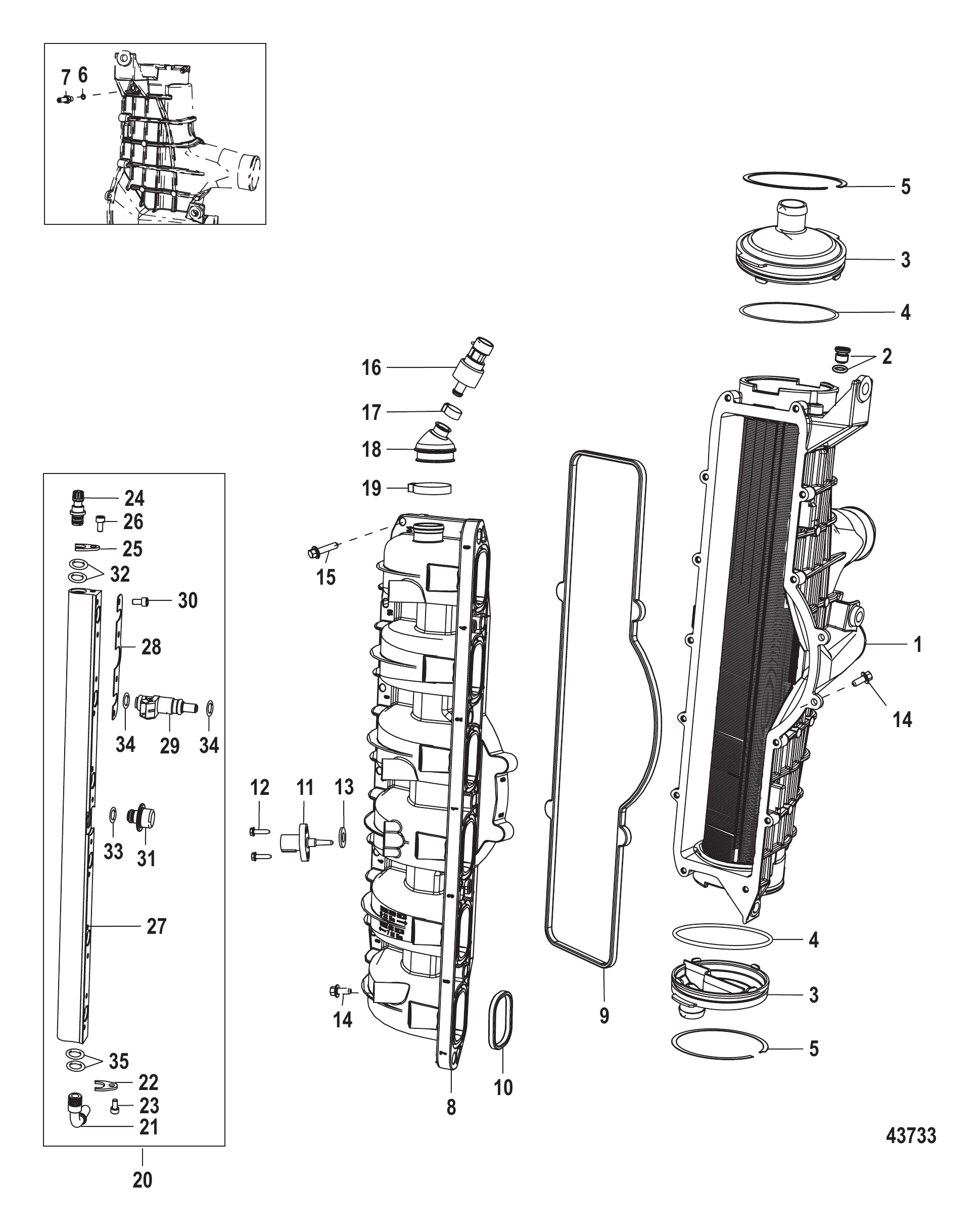

图 8增压冷却器/进气歧管（二代）端盖可维修 Charge Cooler/Intake Manifold (Gen II) End Cap Serviced
增压冷却器/进气歧管（二代）端盖可维修 Charge Cooler/Intake Manifold (Gen II) End Cap Serviced
REF零件编号中文名称英文名称数量
-8M0053763集成空气燃油模块总成MODULE ASSEMBLY Integrated Air Fuel1
-8M0185613IAFMIAFM1
-8M0092408集成空气燃油模块总成MODULE ASSEMBLY Integrated Air Fuel1
-8M0185613IAFMIAFM1
18M0046692中冷器总成CAC ASSEMBLY1
18M0132388中冷器总成CAC ASSEMBLY1
28M0039519零泄漏螺塞（M8×1.0）PLUG Zero Leak (M8 x 1.0)1
28M00480798毫米塞PLUG 8MM1
38M0046698端盖总成END CAP ASSEMBLY2
48M0039516O型圈O-RING1
58M0039464挡圈RING Retaining1
68M0040116O型圈O-RING1
78M0039993接头FITTING1
88M0041479进气歧管总成MANIFOLD ASSEMBLY Intake1
88M0083678进气歧管总成MANIFOLD ASSEMBLY Intake1
9895019歧管至CAC密封件SEAL Manifold to CAC1
10895020歧管头部密封件SEAL Manifold Head6
11891663001温度传感器SENSOR Temperature1
12895054螺丝(M4×16毫米)SCREW (M4 x 16 mm)2
13892317001O型圈O-RING1
1488552516螺钉（M6×16毫米）不锈钢燃油轨至歧管SCREW (M6 x 16 mm) Stainless Steel Fuel Rail to Manifold3
148M0103805螺丝 (M6 x 16毫米) 不锈钢SCREW (M6 x 16 mm) Stainless Steel3
1488552516螺钉（M6×16毫米）不锈钢CAC至歧管SCREW (M6 x 16 mm) Stainless Steel CAC to Manifold2
148M0103805螺丝 (M6 x 16毫米) 不锈钢SCREW (M6 x 16 mm) Stainless Steel2
1588552525螺钉（M6×25毫米）不锈钢歧管至CACSCREW (M6 x 25 mm) Stainless Steel Manifold to CAC13
158M0103807不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel13
168M0010248传感器 压力SENSOR Pressure1
168M0234766压力传感器SENSOR PRESSURE1
17888988015卡箍 (15.7 mm)CLAMP (15.7 mm)1
178M0214911卡箍@5CLAMP @51
188M0041053MAP传感器护套BOOT MAP Sensor1
19888988001卡箍(36.1毫米)CLAMP (36.1 mm)1
198M0204719卡箍 36.1毫米CLAMP 36.1 MM1
208M0041080燃油导轨总成FUEL RAIL ASSEMBLY1
208M0185166燃油导轨总成FUEL RAIL ASSY1
218M0047054燃油进管套件TUBE KIT Fuel Inlet1
228M0041097固定支架BRACKET Retaining1
238M0041100螺钉 (M5 x 10)SCREW (M5 x 10)1
248M0047053施拉德阀维修包VALVE KIT Shrader1
258M0041097固定支架BRACKET Retaining1
268M0041100螺钉 (M5 x 10)SCREW (M5 x 10)1
27NSS燃油轨不单独销售NOT SOLD SEPARATE FUEL RAIL1
288M0041096喷油器安装支架BRACKET Fuel Injector Mounting3
298M0041571燃油喷油器总成INJECTOR ASSEMBLY Fuel6
298M0222278燃油喷射器FUEL INJECTOR6
308M0041100螺钉 (M5 x 10)SCREW (M5 x 10)12
318M0041101燃油轨减震器DAMPER Fuel Rail1
-8M0132737O型圈套件O-RING KIT1
32NSS不单独销售 O型圈（施拉德阀用）NOT SOLD SEPARATE O-RING, Shrader Valve2
33851889减震器O型圈O-RING Damper1
34851889喷油器O型圈O-RING Fuel Injector6
35NSSO型圈（管用）不单独销售NOT SOLD SEPARATE O-RING, Tube2

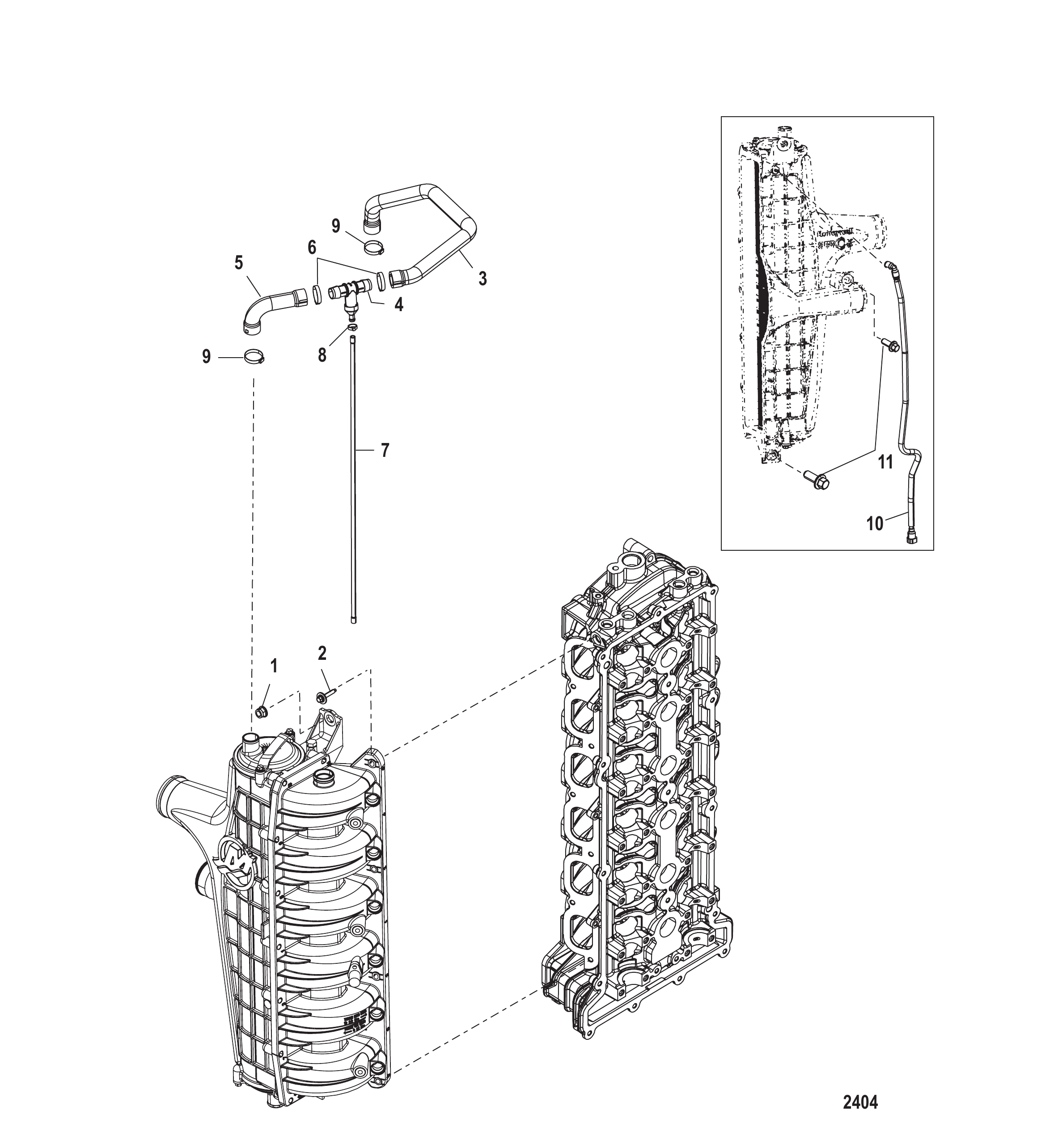

图 9增压冷却器/进气歧管管路布置 Charge Cooler/Intake Manifold Hose Routings
增压冷却器/进气歧管管路布置 Charge Cooler/Intake Manifold Hose Routings
REF零件编号中文名称英文名称数量
1826292螺母(M10)黄铜/镀镍NUT (M10) Brass/Nickel Plated1
2892487001螺钉SCREW7
28M0048051不锈钢螺钉(M6x30)SCREW (M6 x 30) Stainless Steel7
-NSS不单独出售-软管总成NOT SOLD SEPARATE Hose Assembly1
3889593001软管HOSE1
4889633A04冲洗接头总成FITTING ASSEMBLY Flushing1
48M0188433冲洗接头总成FITTING ASY-FLUSH1
5889592001软管HOSE1
6888988008卡箍(34.6毫米)CLAMP (34.6 MM)2
68M0187145卡箍CLAMP2
7892967软管HOSE1
8850181捆扎带(11.750英寸)TIE STRAP (11.750 Inches)1
9888988008卡箍(34.6毫米)CLAMP (34.6 MM)2
98M0187145卡箍CLAMP2
10880529增压歧管参考软管-上部HOSE Boost Manifold Reference-Upper1
108M0203767软管 歧管HOSE MANIFOLD1
1188552730螺钉 (M10 x 30)SCREW (M10 x 30)2
118M0103821螺钉SCREW2

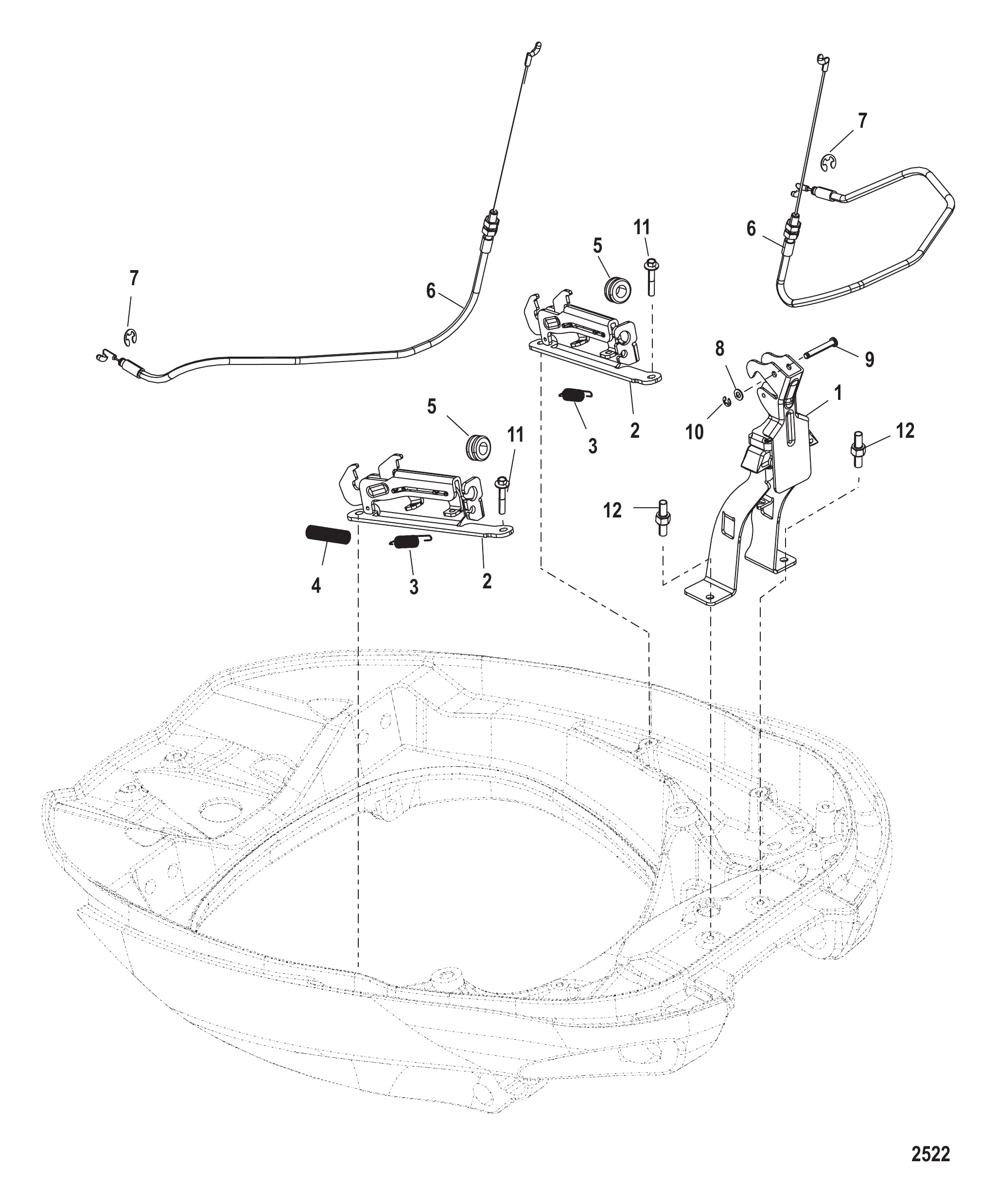

图 10外罩锁扣装置 Cowl Latching
外罩锁扣装置 Cowl Latching
REF零件编号中文名称英文名称数量
-892062T02前侧锁扣总成LATCH ASSEMBLY Front and Side1
1888976T01支架BRACKET1
2888974A02侧锁扣总成SIDE LATCH ASSEMBLY2
3888996弹簧SPRING4
4896124套筒SLEEVE4
5828249护孔环GROMMET2
6889694电缆CABLE2
68M0080491电缆CABLE2
727290挡圈RING Retaining2
830164垫圈(0.192x0.375x0.0312)不锈钢WASHER (.192 x .375 x .0312) Stainless Steel1
9893380U型销PIN Clevis1
1061319E型卡环E RING1
114006731螺钉(M6 x 16)SCREW (M6 x 16)4
12889627螺柱STUD2
128M0099404螺柱STUD2

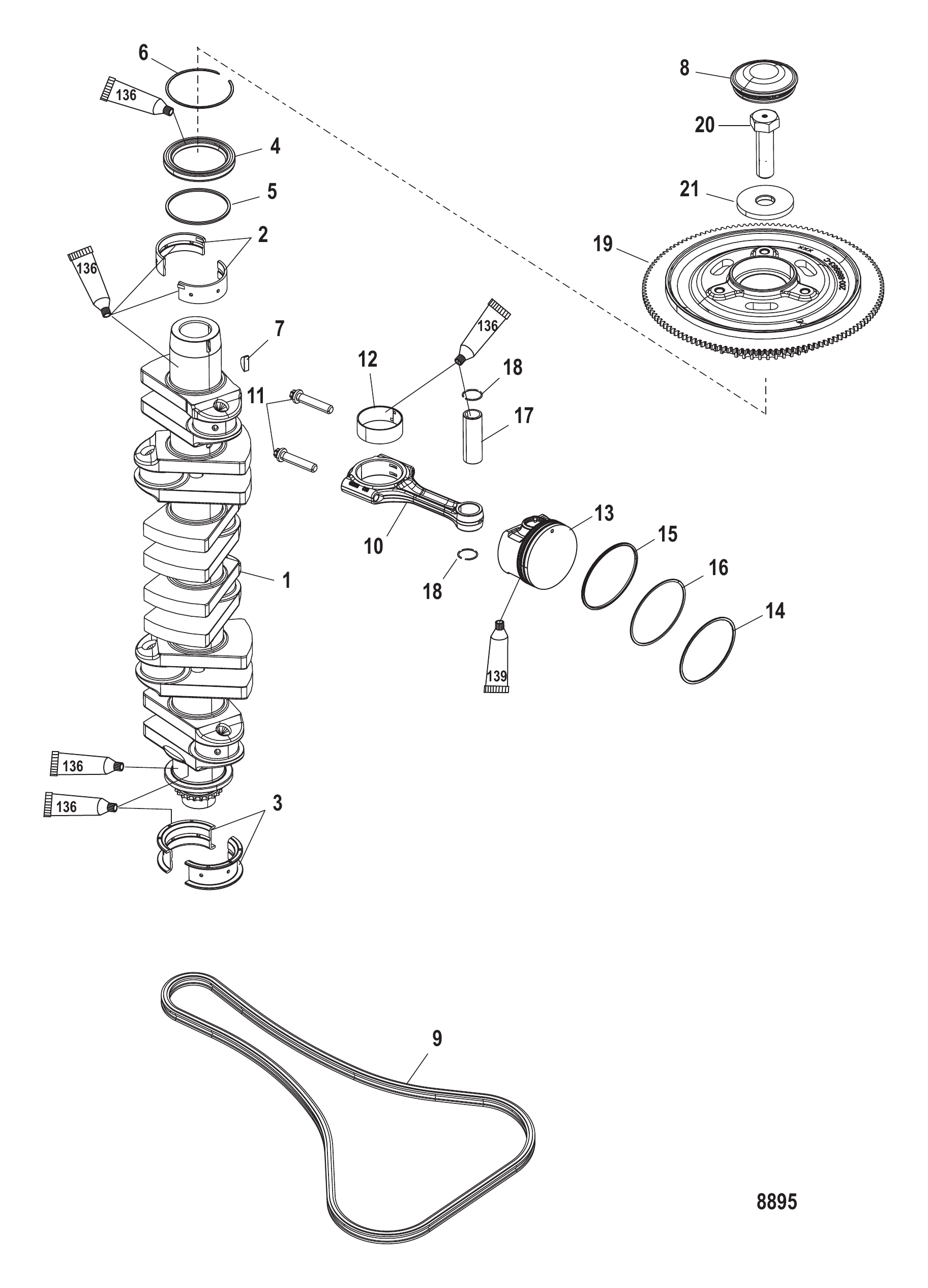

图 11曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods
曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods
REF零件编号中文名称英文名称数量
1891644A04曲轴总成CRANKSHAFT ASSEMBLY1
2897498T01主轴承-绿色(曲轴上端)BEARING Main - Green Crankshaft-Upper12/AR
2897498T02主轴承-海军蓝(曲轴上端)BEARING Main - Navy Blue Crankshaft-Upper12/AR
2897498T03主轴承-白色(曲轴上端)BEARING Main - White Crankshaft-Upper12/AR
2897498T04主轴承-橙色(曲轴上端)BEARING Main - Orange Crankshaft-Upper12/AR
3892309T01推力轴承-绿色(曲轴下端)BEARING Thrust - Green Crankshaft-Lower2/AR
38M0117003轴承BEARING2/AR
3892309T02推力轴承-海军蓝(曲轴下端)BEARING Thrust - Navy Blue Crankshaft-Lower2/AR
38M0117001轴承BEARING2/AR
3892309T03推力轴承-白色(曲轴下端)BEARING Thrust - White Crankshaft-Lower2/AR
38M0117002轴承BEARING2/AR
3892309T04推力轴承-橙色(曲轴下端)BEARING Thrust - Orange Crankshaft-Lower2/AR
38M0117004轴承BEARING2/AR
48805251油封(主轴承顶部)SEAL Top Main Bearing1
48M0032912密封件SEAL1
5896883隔套SPACER1
6896882挡圈RING Retaining1
791800半圆键KEY Woodruff1
8885348飞轮螺栓盖CAP Flywheel Bolt1
9897796链条(凸轮轴驱动滚子链)CHAIN Roller Cam Drive1
98M0103398链条(凸轮轴驱动滚子链)CHAIN Roller Cam Drive1
10881210T02连杆总成CONNECTING ROD ASSEMBLY6
108M0103285连杆总成CONNECTING ROD ASSEMBLY6
11884441螺栓BOLT12
12892005A01连杆轴承-蓝色BEARING Connecting Rod - Blue12/AR
12892005A02连杆轴承-白色BEARING Connecting Rod - White12/AR
12892005A03连杆轴承-橙色BEARING Connecting Rod - Orange12/AR
13897737T01活塞总成PISTON ASSEMBLY6
13897737A04活塞/喷油嘴套件PISTON/OILJET KIT6
14881180A02活塞环组RING SET Piston6
15NSS活塞环-油环(不单独销售)NOT SOLD SEPARATE Piston Ring-Oil6
16NSS活塞环-第二道(不单独销售)NOT SOLD SEPARATE Piston Ring-2nd6
17NSS活塞销（不单独销售）NOT SOLD SEPARATE Piston Pin6
18881184卡簧CIRCLIP12
19888983T02飞轮FLYWHEEL1
19888983T03飞轮总成FLYWHEEL ASSEMBLY1
20880515螺栓(M20×68)BOLT (M20 x 68)1
208M0147042螺栓BOLT1
21880517垫圈WASHER1
218M0090010垫圈WASHER1
-880552A06动力头衬垫套件GASKET SET Powerhead1
-880552A07动力头衬垫套件GASKET SET Powerhead1
-895247A06动力头总成POWERHEAD ASSEMBLY1
-895247R06RM L6 GEN1 VERADORM L6 GEN1 VERADO1

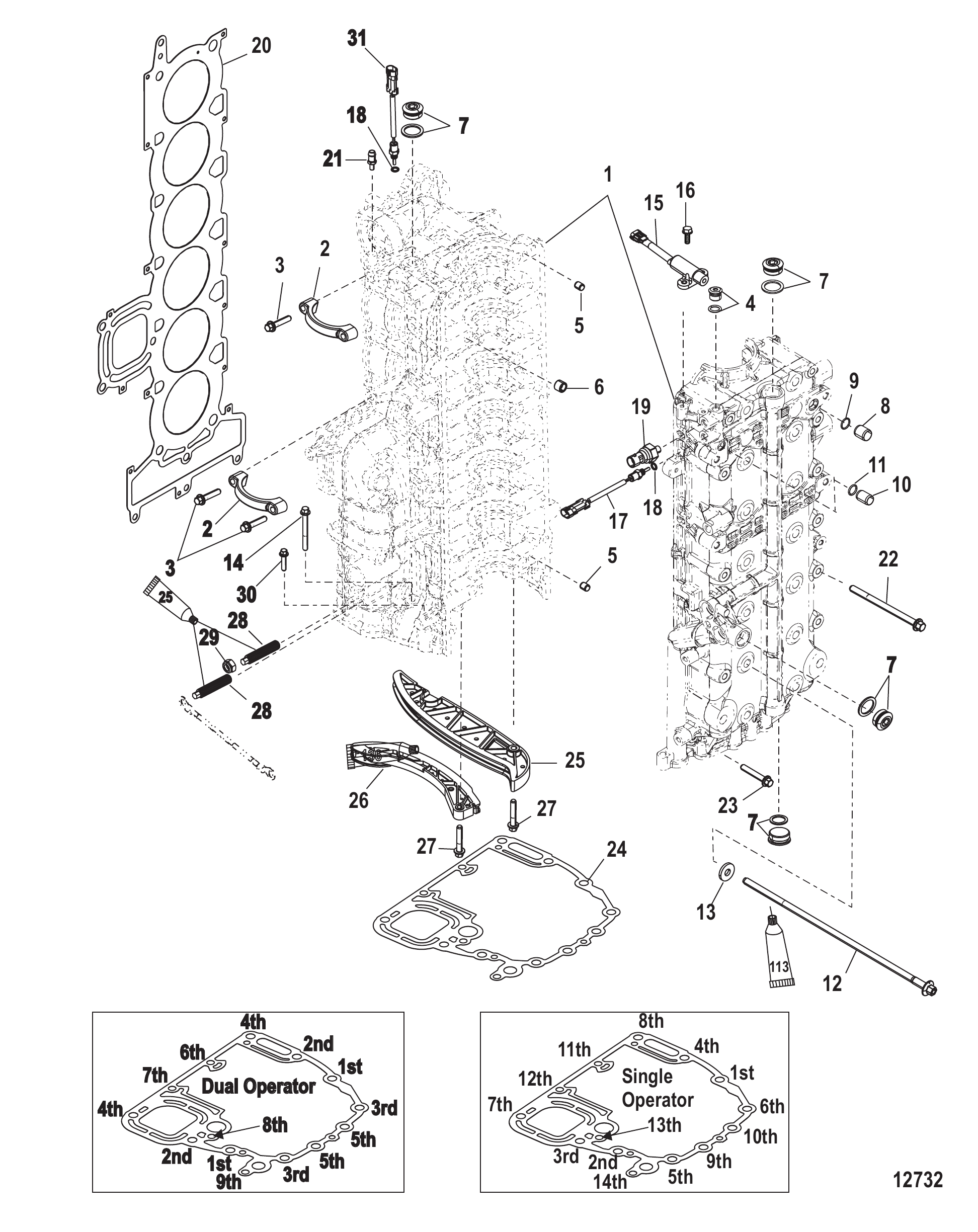

图 12气缸体 Cylinder Block
气缸体 Cylinder Block
REF零件编号中文名称英文名称数量
1880506A11气缸体总成CYLINDER BLOCK ASSEMBLY1
28569662起动机安装支架BRACKET Mounting-Starter Motor2
28M0111325盖板COVER2
388552640螺钉 (M8 x 40)SCREW (M8 x 40)4
38M0103815螺钉SCREW4
4889767堵头（12毫米）PLUG (12 mm)1
543044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
6893392001减震器DAMPER14
7896951堵头（24毫米）PLUG (24 mm)4
8880524定位销（14毫米）PIN Dowel (14 MM)1
9884409O型圈O-RING1
10884424定位销(11毫米)PIN Dowel (11 mm)1
11884423O型圈O-RING1
12896923螺钉（M10×342）SCREW (M10 x 342)14
128M4501000螺钉（M10×342）SCREW (M10 X 342)14
13892573001垫圈WASHER14
1488552675螺钉 (M8 x 75)SCREW (M8 x 75)1
148M0103818螺丝 (M8x75)SCREW (M8 X 75)1
158283582传感器SENSOR1
158M0082988曲轴位置传感器SENSOR Crankshaft Position1
1640011107不锈钢螺钉(M5x16)SCREW (M5 x 16) Stainless Steel2
17885342001传感器总成SENSOR ASSEMBLY1
178M0148668传感器总成SENSOR ASSEMBLY1
18888814O型圈(0.351 x 0.072)O-RING (.351 x .072)2
18896699O型圈（1.78毫米 x 0.08毫米）O-RING (1.78 mm x .08 mm)2
19889659002机油压力传感器SENSOR Oil Pressure1
198M0142688压力传感器(机油/水)SENSOR Pressure (Oil/Water)1
20895374006衬垫 缸盖GASKET Head1
208M0033476衬垫 缸盖GASKET Head1
21888517销PIN1
22895810115螺钉(M8×115)SCREW (M8 x 115)12
228M0193831螺丝@2SCREW @212
23895810050螺钉(M8 x 50)SCREW (M8 x 50)2
238M0193659螺钉SCREW2
24880624003缸体至适配器衬垫GASKET Block to Adapter1
25880559固定导套GUIDE Fixed1
26880557活动导板GUIDE Moveable1
27892456045螺钉SCREW2
28888849002螺柱STUD2
288M0022160双头螺柱（M8×43）STUD (M8 x 43)2
29401388不锈钢螺母 (M8)NUT (M8) Stainless Steel1
3088552635螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)1
308M0103814螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)1
31885342001传感器总成SENSOR ASSEMBLY1
318M0148668传感器总成SENSOR ASSEMBLY1
-880552A06动力头衬垫套件GASKET SET Powerhead1
-880552A07动力头衬垫套件GASKET SET Powerhead1
-895247A06动力头总成POWERHEAD ASSEMBLY1
-895247R06RM L6 GEN1 VERADORM L6 GEN1 VERADO1

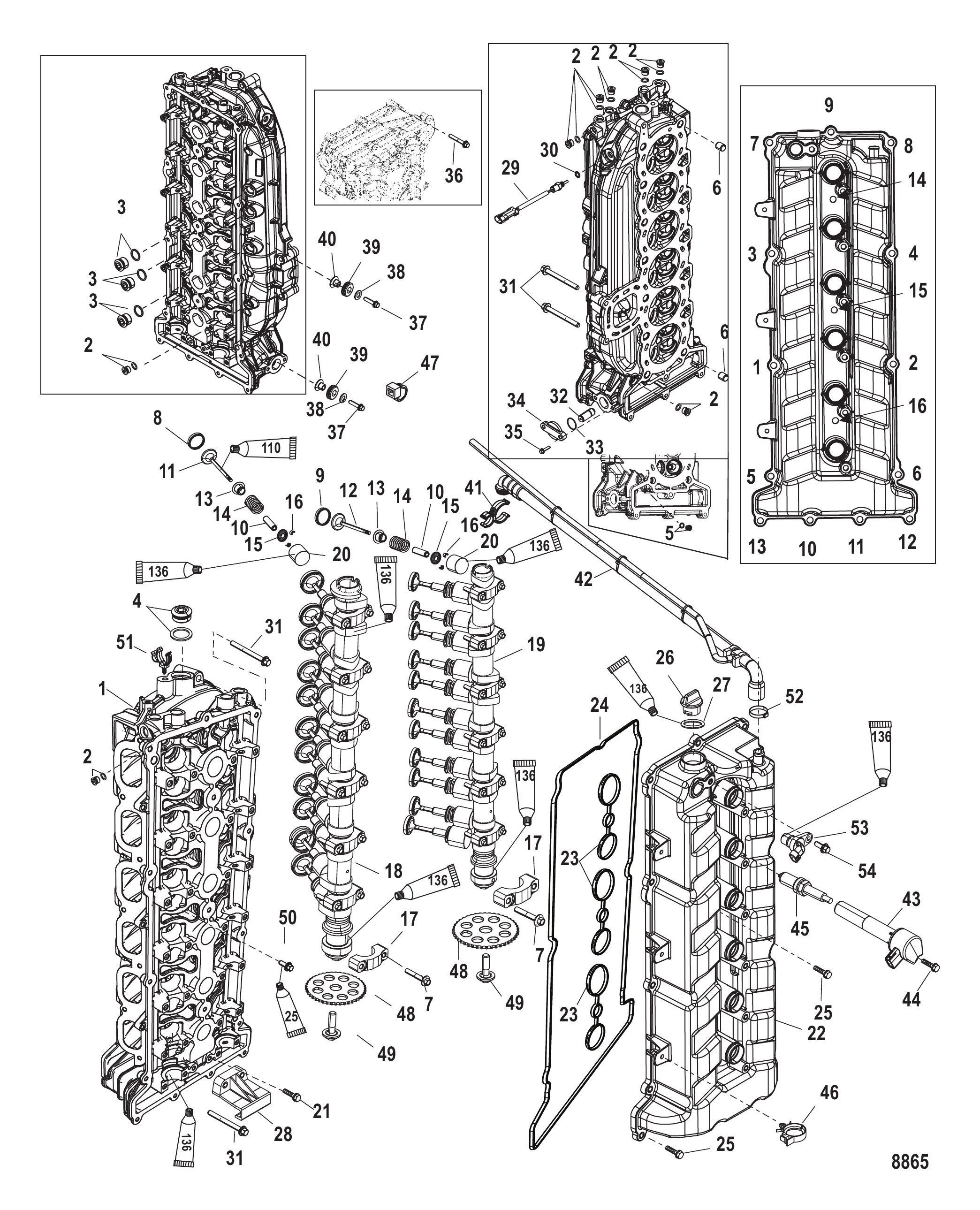

图 13气缸盖与凸轮轴 Cylinder Head and Camshaft
气缸盖与凸轮轴 Cylinder Head and Camshaft
REF零件编号中文名称英文名称数量
-880536A10气缸盖总成 完整件CYLINDER HEAD ASSEMBLY Complete1
1880536A08气缸盖总成CYLINDER HEAD ASSEMBLY1
18M0152336气缸盖底座CYLINDER HEAD BAS1
2889767堵头（12毫米）PLUG (12 mm)8
3891953堵头（18毫米）PLUG (18 mm)3
4896951堵头（24毫米）PLUG (24 mm)1
5896576堵头（10毫米）PLUG (10 mm)1
58M0087446堵头（10毫米）PLUG (10 mm)1
6880524定位销（14毫米）PIN Dowel (14 MM)2
7892454035螺栓（M6×36）BOLT (M6 x 36)28
78M0163131M6螺钉SCREW M628
8880533进气门座SEAT Intake Valve12
9880535排气门座SEAT Exhaust Valve12
98M0089477排气门座SEAT Exhaust Seat12
10880537进排气门导管GUIDE Intake Exhaust Valve Intake and Exhaust Valves24
11897629进气阀VALVE Intake12
11898907进气阀VALVE Intake12
12897630排气阀VALVE Exhaust12
12898908排气阀VALVE Exhaust12
13896880气门油封SEAL Valve24
138M0214986密封件SEAL24
14895815进排气门弹簧SPRING Intake and Exhaust Valve24
148M0011503弹簧SPRING24
15880542A1气门锁夹总成RETAINER ASSEMBLY Valves24
158M0908500气门锁夹总成RETAINER ASSEMBLY Valves24
16880543键KEY48
17NSSNOT SOLD SEPARATE CAP10
18892112T02进气凸轮轴CAMSHAFT Intake1
19892113T02排气凸轮轴CAMSHAFT Exhaust1
19892113T04排气凸轮轴CAMSHAFT Exhaust1
208805481挺柱TAPPET24/AR
20899912001挺柱（2.996）TAPPET (2.996)24/AR
208805482挺柱TAPPET24/AR
20899912002挺柱（3.021）TAPPET (3.021)24/AR
208805483挺柱TAPPET24/AR
20899912003挺柱（3.046）TAPPET (3.046)24/AR
208805484挺柱TAPPET24/AR
20899912004挺柱（3.071）TAPPET (3.071)24/AR
208805485挺柱TAPPET24/AR
20899912005挺柱（3.096）TAPPET (3.096)24/AR
208805486挺柱TAPPET24/AR
20899912006挺柱（3.118）TAPPET (3.118)24/AR
208805487挺柱TAPPET24/AR
20899912007挺柱（3.138）TAPPET (3.138)24/AR
208805488挺柱TAPPET24/AR
20899912008挺柱（3.158）TAPPET (3.158)24/AR
208805489挺柱TAPPET24/AR
20899912009挺柱（3.178）TAPPET (3.178)24/AR
2088054810挺柱TAPPET24/AR
20899912010挺柱（3.198）TAPPET (3.198)24/AR
2088054811挺柱TAPPET24/AR
20899912011挺柱（3.218）TAPPET (3.218)24/AR
2088054812挺柱TAPPET24/AR
20899912012挺柱（3.238）TAPPET (3.238)24/AR
2088054813挺柱TAPPET24/AR
20899912013挺柱（3.258）TAPPET (3.258)24/AR
2088054814挺柱TAPPET24/AR
20899912014挺柱（3.278）TAPPET (3.278)24/AR
2088054815挺柱TAPPET24/AR
20899912015挺柱（3.298）TAPPET (3.298)24/AR
2088054816挺柱TAPPET24/AR
20899912016挺柱（3.318）TAPPET (3.318)24/AR
2088054817挺柱TAPPET24/AR
20899912017挺柱（3.338）TAPPET (3.338)24/AR
2088054818挺柱TAPPET24/AR
20899912018挺柱（3.358）TAPPET (3.358)24/AR
2088054819挺柱TAPPET24/AR
20899912019挺柱（3.378）TAPPET (3.378)24/AR
2088054820挺柱TAPPET24/AR
20899912020挺柱（3.398）TAPPET (3.398)24/AR
2088054821挺柱TAPPET24/AR
20899912021挺柱（3.418）TAPPET (3.418)24/AR
2088054822挺柱TAPPET24/AR
20899912022挺柱（3.438）TAPPET (3.438)24/AR
2088054823挺柱TAPPET24/AR
20899912023挺柱（3.458）TAPPET (3.458)24/AR
2088054824挺柱TAPPET24/AR
20899912024挺柱（3.478）TAPPET (3.478)24/AR
2088054825挺柱TAPPET24/AR
2088054826挺柱TAPPET24/AR
2088054827挺柱TAPPET24/AR
20899912027挺柱（3.538）TAPPET (3.538)24/AR
2088054828挺柱TAPPET24/AR
20899912028挺柱（3.558）TAPPET (3.558)24/AR
2088054829挺柱TAPPET24/AR
20899912029挺柱（3.578）TAPPET (3.578)24/AR
2088054830挺柱TAPPET24/AR
2088054831挺柱TAPPET24/AR
20899912031挺杆 (3.621)TAPPET (3.621)24/AR
2088054832挺柱TAPPET24/AR
2088054833挺柱TAPPET24/AR
20899912033挺杆 (3.671)TAPPET (3.671)24/AR
2088054834挺柱TAPPET24/AR
20899912034挺杆 (3.696)TAPPET (3.696)24/AR
2088054835挺柱TAPPET24/AR
21892454030螺钉 (M6 x 30)SCREW (M6 x 30)2
22892596T03凸轮轴盖COVER Camshaft1
22892596T04凸轮盖总成COVER ASSEMBLY Cam1
23892584密封件SEAL3
24892585密封件SEAL1
248M6000959密封件SEAL1
2588552525不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel3
258M0103807不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel3
26859578A1油塞总成PLUG ASSEMBLY Oil1
268M0240831油塞OIL PLUG1
2790196O型圈 (.921 x .139)O-RING (.921 x .139)1
278M0204673O型圈 .921 x .139O-Ring .921 x .1391
28880558短导杆GUIDE Short1
29885342001传感器总成SENSOR ASSEMBLY1
298M0148668传感器总成SENSOR ASSEMBLY1
30888814O型圈(0.351 x 0.072)O-RING (.351 x .072)1
30896699O型圈（1.78毫米 x 0.08毫米）O-RING (1.78 mm x .08 mm)1
3188552660螺钉 (M8 x 60)SCREW (M8 x 60)4
318M0103817螺钉 (M8 x 60)SCREW (M8 x 60)4
32897797A01张紧器总成TENSIONER ASSEMBLY1
32898463A01张紧器总成TENSIONER ASSEMBLY1
33880631001O型圈 橙色O-RING Orange1
338M0237361O型圈O-RING1
34893338张紧器端盖END CAP Tensioner1
348M0064752凸轮张紧器端盖END CAP Cam Tensioner1
3588552525不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel2
358M0103807不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel2
3688552540螺钉(M6x40毫米)不锈钢SCREW (M6 x 40 mm) Stainless Steel3
368M0103809螺钉(M6x40毫米)不锈钢SCREW (M6 x 40 mm) Stainless Steel3
3788552635螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)2
378M0103814螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)2
38817274垫圈(0.344×1.00×0.063)不锈钢WASHER (.344 x 1.00 x .063) Stainless Steel2
39833155护孔环GROMMET2
408502341衬套BUSHING2
41892833卡扣CLIP1
42889591A05通气软管总成HOSE ASSEMBLY Breather1
43880615T01线圈总成COIL ASSEMBLY6
4488552525不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel6
448M0103807不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel6
45889680001火花塞 NGK-ILFR6GSPARK PLUG NGK-ILFR6G6
45889246Q39NGK-ILFR6GE火花塞SPARK PLUG NGK-ILFR6GE6
46858954卡箍(0.625英寸)CLIP (.625)3
47850181捆扎带(11.750英寸)TIE STRAP (11.750 Inches)1
48880550凸轮驱动链轮SPROCKET Cam Drive2
488M0241408凸轮链轮SPROCKET CAM2
49884403螺钉 (M12 x 40)SCREW (M12 x 40)2
498M0237436螺钉SCREW2
5088552512不锈钢螺钉 (M6 x 12 mm)SCREW (M6 x 12 mm) Stainless Steel3
508M0103804不锈钢螺钉 (M6 x 12 mm)SCREW (M6 x 12 MM) Stainless Steel3
51889746001卡扣CLIP1
52888988019卡箍 (22.6 mm)CLAMP (22.6 mm)1
53880609传感器总成SENSOR ASSEMBLY1
538M0233140传感器SENSOR1
5488552516螺丝 (M6 x 16毫米) 不锈钢SCREW (M6 x 16 mm) Stainless Steel1
-880552A06动力头衬垫套件GASKET SET Powerhead1
-895247A06动力头总成POWERHEAD ASSEMBLY1

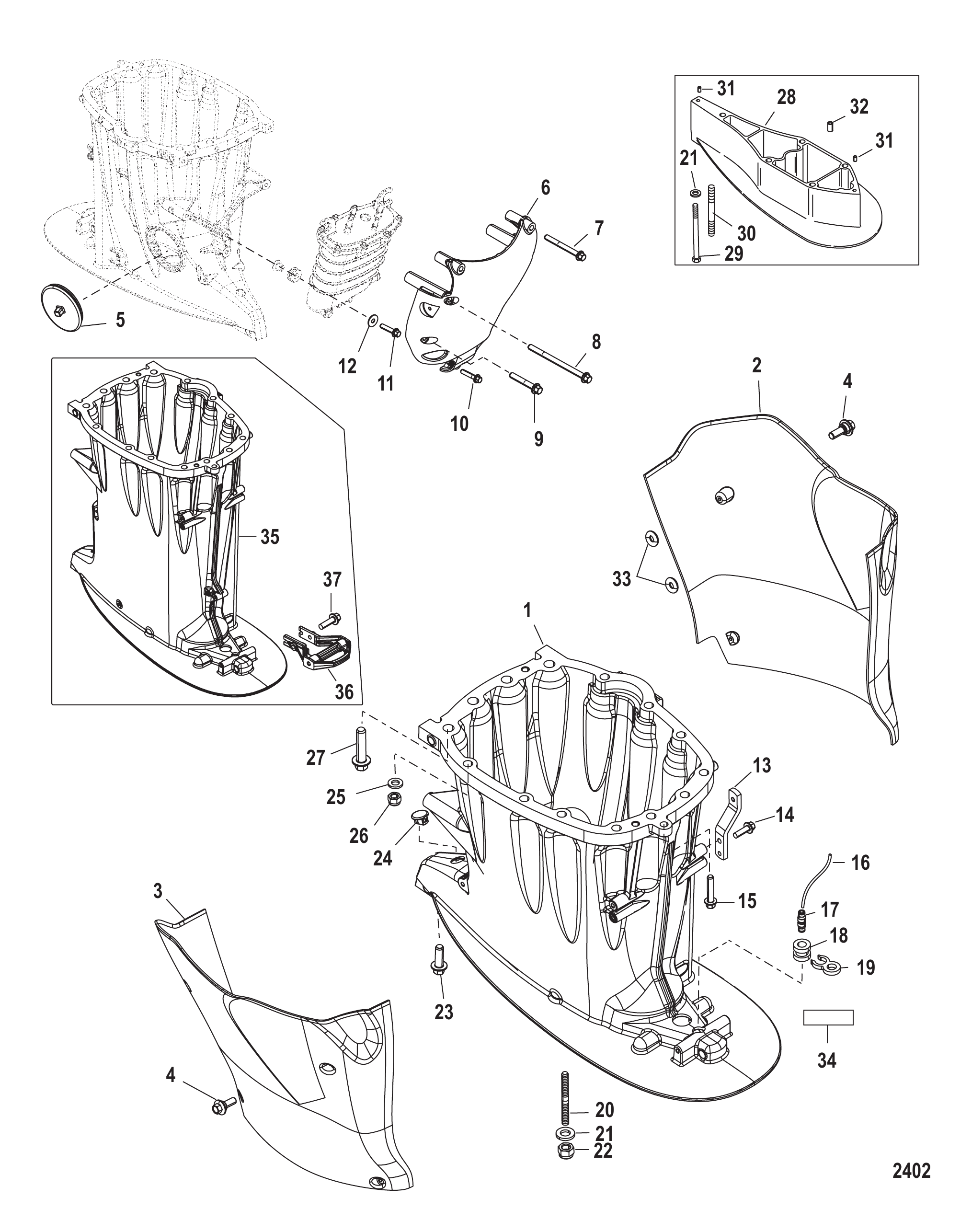

图 14驱动轴壳体 Driveshaft Housing
驱动轴壳体 Driveshaft Housing
REF零件编号中文名称英文名称数量
1880646T01驱动轴壳体-黑色HOUSING Driveshaft, Black1
18M0113286DSH BLACK LDSH BLACK L1
2885366T01下部护套总成-左舷CHAP ASSEMBLY Lower-Port1
2885365T03加长护套总成-左右舷-黑色CHAP ASSEMBLY Long - Port and Starboard, Black1
2885364T01下部护套总成-左舷CHAP ASSEMBLY Lower-Port1
2885363T04超长/特超长护套总成-左右舷CHAP ASSEMBLY X-Long/XX-Long - Port and Starboard1
3885365T01下部护套总成-右舷CHAP ASSEMBLY Lower-Starboard1
3885365T03加长护套总成-左右舷-黑色CHAP ASSEMBLY Long - Port and Starboard, Black1
3885363T01下部护套总成-右舷CHAP ASSEMBLY Lower-Starboard1
3885363T04超长/特超长护套总成-左右舷CHAP ASSEMBLY X-Long/XX-Long - Port and Starboard1
4892073002台阶螺丝 (M6)SHOULDER SCREW (M6)8 or 12
48M0230980螺丝 (M6x14) 六角法兰B型SCREW (M6 x 14) Hex Flange B8 or 12
5889568001护孔环GROMMET1
6889656T蒸汽分离器罩SHROUD Vapor Separator1
6889656T01护罩SHROUD1
788552675螺钉 (M8 x 75)SCREW (M8 x 75)2
78M0103818螺丝 (M8x75)SCREW (M8 X 75)2
8885526120螺丝 (M8x120)SCREW (M8 x 120)2
88M0103812螺钉SCREW2
988552650螺钉(M8 x 50)SCREW (M8 x 50)2
98M0103816螺丝 M8x50 六角法兰SCREW M8 x 50 HEX FLG2
1088552640螺钉 (M8 x 40)SCREW (M8 x 40)1
108M0103815螺钉SCREW1
1188552635螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)3
118M0103814螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)3
12817274垫圈(0.344×1.00×0.063)不锈钢WASHER (.344 x 1.00 x .063) Stainless Steel3
13897784A01上部护套支架套件BRACKET KIT Upper Chap2
1488552520螺钉(M6 x 20毫米)不锈钢SCREW (M6 x 20 mm) Stainless Steel2
148M0103806螺钉(M6 x 20毫米)不锈钢SCREW (M6 x 20 mm) Stainless Steel2
1588552630螺钉 (M8 x 30)SCREW (M8 x 30)1
158M0103813螺钉 (M8 x 30)SCREW (M8 x 30)1
1685944975管材 (72英寸整卷) 裁切至26英寸TUBING (72.00 Inches Bulk) Cut to 26 Inches1
1685944975管材 (72英寸整卷) 裁切至44英寸TUBING (72.00 Inches Bulk) Cut to 44 Inches)1
17859448接头FITTING1
17859448T接头FITTING1
18821555001护孔环GROMMET1
188M0153609护孔环GROMMET1
19889831固定座RETAINER1
19889831001固定座RETAINER
20856983双头螺柱(M12 x 52)STUD (M12 x 52)4
208M0008031双头螺柱(M12 x 1.75 x 52)STUD (M12 x 1.75 x 52)4
21856982垫圈(0.5×0.81×0.09英寸)不锈钢WASHER (.500 x .810 x .090) Stainless Steel4 or 5
22896895螺母(M12)NUT (M12)4
2388552835螺钉(M12×35毫米)SCREW (M12 x 35 MM)1
238M0102995螺丝 (M12)SCREW (M12)1
24824928001橡胶塞PLUG Rubber1
25856774垫圈(0.406×0.750×0.105)不锈钢WASHER (.406 x .750 x .105) Stainless Steel10
258M0214963垫圈WASHER10
26884412螺母NUT10
2788552845螺丝 (M12x45)SCREW (M12 x 45)4
278M0103825螺丝@2SCREW @24
28880647T隔套SPACER1
288M0105088传动轴壳体加长隔套（黑色）SPACER Driveshaft Housing X-Long, Black1
29857137螺钉 (M12 X 160)SCREW (M12 x 160)1
30857009双头螺柱（M12×179）STUD (M12 x 179)4
308M0008047双头螺柱（M12×179）STUD (M12 x 179)4
3143044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
32855623衬套 (按需使用)BUSHING (Use where Applicable)1
33896251O型圈O-RING2
33898033卡扣CLIP2
34NSS非单独销售贴纸-放油口NOT SOLD SEPARATE Decal-Oil Drain1
35880648T01驱动轴壳体-黑色HOUSING Driveshaft, Black1
358M0113287驱动轴壳体黑色加长型DSH BLACK XL1
36891966006外罩支架BRACKET Cowl1
3788552520螺钉(M6 x 20毫米)不锈钢SCREW (M6 x 20 mm) Stainless Steel2
378M0103806螺钉(M6 x 20毫米)不锈钢SCREW (M6 x 20 mm) Stainless Steel2
-895247A06动力头总成POWERHEAD ASSEMBLY1
-895247R06RM L6 GEN1 VERADORM L6 GEN1 VERADO1

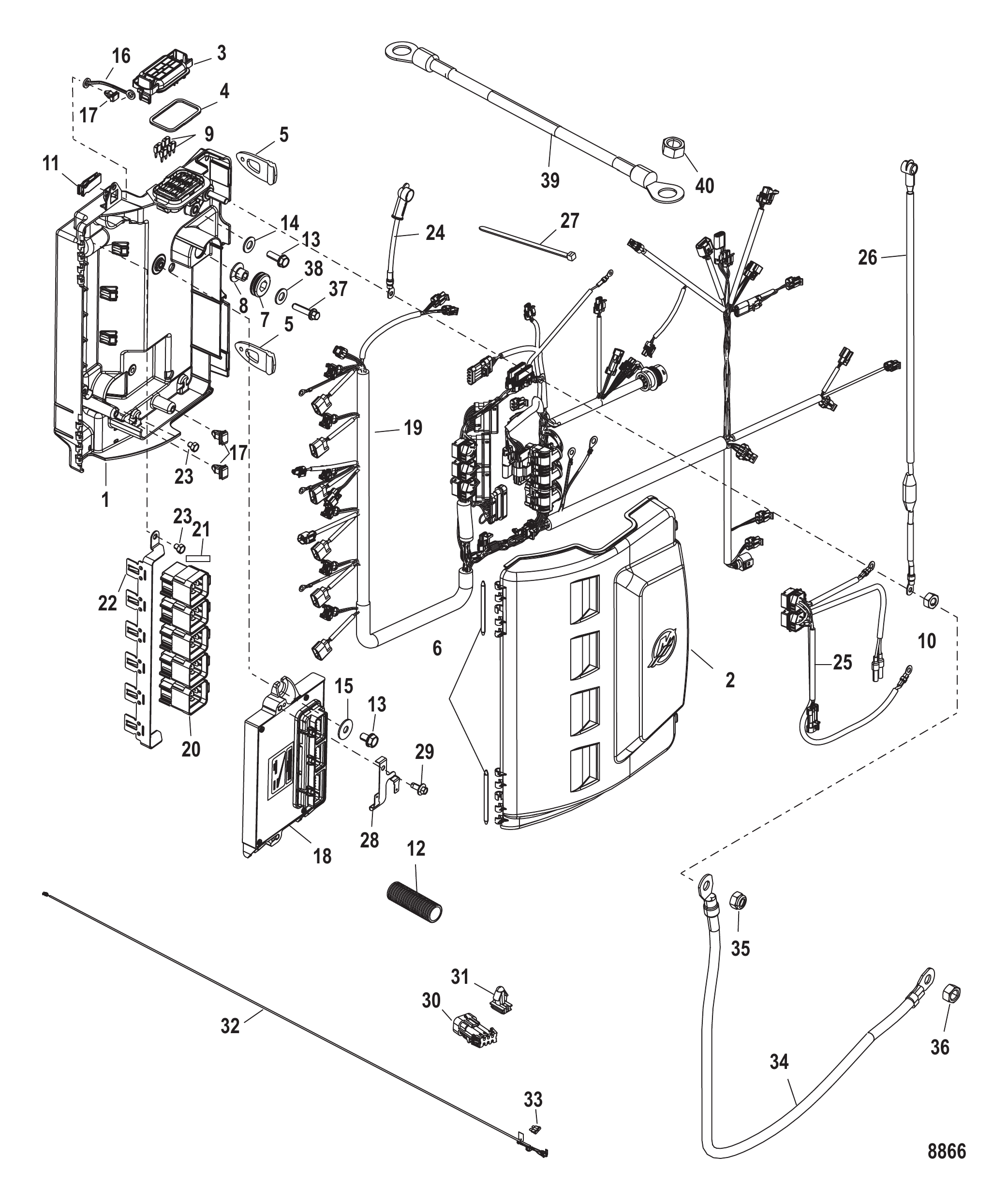

图 15电气箱组件 Electrical Box Components
电气箱组件 Electrical Box Components
REF零件编号中文名称英文名称数量
-NSS不单独销售 电气箱总成NOT SOLD SEPARATE Electrical Box-Complete1
-NSS不单独销售 电气箱NOT SOLD SEPARATE Electrical Box1
1885560T03电气箱底座BASE Electrical Box1
2885561T保险丝盒盖COVER Fuse Box1
3888491保险丝盖COVER Fuse1
38M0167280保险丝盖FUSE COVER1
4885583密封件SEAL1
5889531绑带STRAP2
6885584铰链销PIN Hinge2
7833155护孔环GROMMET1
88502341衬套BUSHING1
983296920迷你保险丝-黄色-20安FUSE Mini - Yellow - 20 Ampere7
9832969T20迷你保险丝-黄色-20安FUSE Mini - Yellow - 20 Ampere7
10400213不锈钢螺母 (M8)NUT (M8) Stainless Steel1
11895099保险丝拔取器EXTRACTOR Fuse1
12828547753导管（内径0.750英寸×3英尺散装）CONDUIT (.750 Inside Diameter x 3.00 Feet Bulk)1
1340011146螺钉（M8×13不锈钢）SCREW (M8 x 13) Stainless Steel2
14843108垫圈（.330 x .560 x .060）不锈钢WASHER (.330 x .560 x .060) Stainless Steel1
15817274垫圈(0.344×1.00×0.063)不锈钢WASHER (.344 x 1.00 x .063) Stainless Steel1
16892244盖板固定带STRAP Cover1
17879962卡扣CLIP4
1888555839T推进控制模块PCMPCM Propulsion Control Module1
1889790721TPCM控制模块PCM1
1888555843T推进控制模块PCMPCM Propulsion Control Module1
1889790721TPCM控制模块PCM1
1888555820T推进控制模块PCMPCM Propulsion Control Module1
1889790722TPCM控制模块PCM1
1888555840T推进控制模块PCMPCM Propulsion Control Module1
1889790723TPCM控制模块PCM1
1888555844T推进控制模块PCMPCM Propulsion Control Module1
1889790723TPCM控制模块PCM1
1888555821T推进控制模块PCMPCM Propulsion Control Module1
1889790724TPCM控制模块PCM1
1888555841T推进控制模块PCMPCM Propulsion Control Module1
1889790725TPCM控制模块PCM1
1888555845T推进控制模块PCMPCM Propulsion Control Module1
1889790725TPCM控制模块PCM1
1888555822T推进控制模块PCMPCM Propulsion Control Module1
1889790726TPCM控制模块PCM1
1888555842T推进控制模块PCMPCM Propulsion Control Module1
1889790727TPCM控制模块PCM1
1888555846T推进控制模块PCMPCM Propulsion Control Module1
1889790727TPCM控制模块PCM1
1888555823T推进控制模块PCMPCM Propulsion Control Module1
1889790728TPCM控制模块PCM1
19880616T05发动机线束总成HARNESS ASSEMBLY Engine1
198M0082643发动机线束总成HARNESS ASSEMBLY Engine1
-NSS不单独销售 继电器支架总成NOT SOLD SEPARATE Relay Bracket Assembly1
20882751A04继电器总成RELAY ASSEMBLY4
21NSS微调继电器标识贴(不单独销售)NOT SOLD SEPARATE Decal-Trim Relay4
22889532支架BRACKET1
2340007103螺钉 (M5 x 6)SCREW (M5 x 6)2
2493388A17线缆总成(8.50英寸)CABLE ASSEMBLY (8.50 Inches)1
25819514A20升降线束总成HARNESS ASSEMBLY Trim1
25879345T34升降线束总成HARNESS ASSEMBLY Trim1
268M0088927保险丝线束总成HARNESS ASSEMBLY Fuse1
27850181捆扎带(11.750英寸)TIE STRAP (11.750 Inches)6
27816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
28891520001卡扣CLIP1
2982129114螺钉 (M6 x 14)SCREW (M6 x 14)1
30877613A02防水插头总成6针CONNECTOR ASSEMBLY Weather Cap 6 Pin1
31879962卡扣CLIP1
32888416T03线束总成HARNESS ASSEMBLY1
328M0113732DTS清洁电源线束总成(14英尺)HARNESS ASSEMBLY DTS, Clean Power, 14 Feet1
33862646褐色保险丝-5安培FUSE Tan - 5 Ampere1
3488439A25电缆总成 蓄电池-正极CABLE ASSEMBLY Battery - Positive1
35401388不锈钢螺母 (M8)NUT (M8) Stainless Steel5
3686226螺母(.375-16 蓄电池正极电缆)NUT (.375-16) Battery Cable-Positive1
368M0204671螺母NUT1
3788552635螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)1
378M0103814螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)1
38817274垫圈(0.344×1.00×0.063)不锈钢WASHER (.344 x 1.00 x .063) Stainless Steel1
3988439A26蓄电池负极电缆总成CABLE ASSEMBLY Battery - Negative1
4068292螺母(.312-18 蓄电池负极电缆)NUT (.312-18) Battery Cable-Negative1
408M0204668螺母(.312-18)NUT (.312-18)1

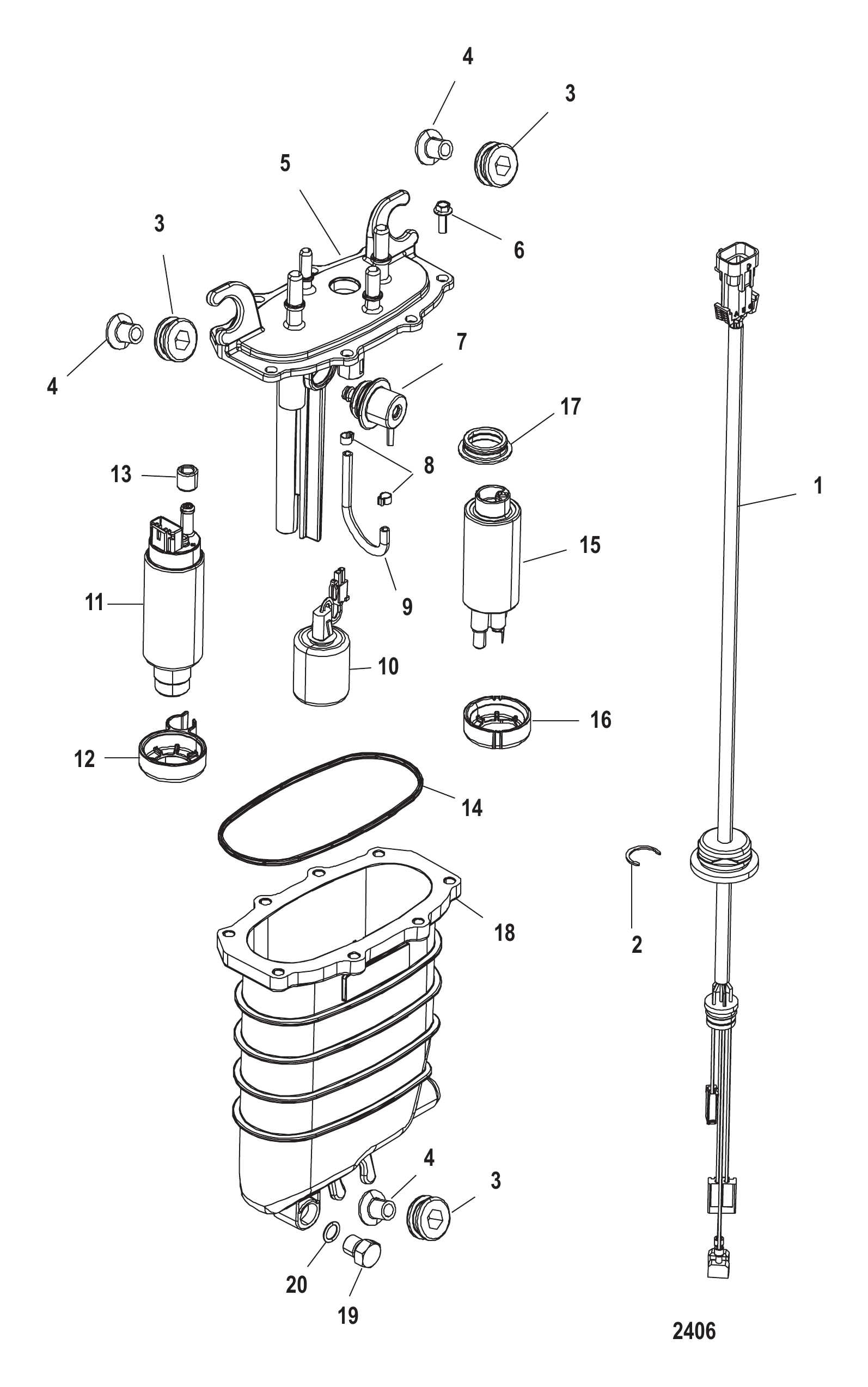

图 16燃油供给模块 Fuel Supply Module
燃油供给模块 Fuel Supply Module
REF零件编号中文名称英文名称数量
-880596T02燃油供应模块MODULE Fuel Supply1
1880596514线束总成HARNESS ASSEMBLY1
18M0130900线束总成HARNESS ASSY1
2880596515卡扣CLIP1
3855362001护孔环GROMMET3
4855364衬套BUSHING3
5880596T50盖板套件COVER KIT1
6880596513螺钉SCREW8
7880596503带O型圈的调节器REGULATOR With O-Rings1
8880596512卡箍CLAMP2
9880596511软管HOSE1
9880596A05软管套件HOSE KIT1
10880596522浮子FLOAT1
108M6000359浮子FLOAT1
11880596T55燃油泵总成-高压PUMP ASSEMBLY Fuel - High Pressure1
12880596506密封件SEAL1
13880596507密封件SEAL1
14880596502密封件SEAL1
15880596T58燃油提升泵套件PUMP KIT Fuel - Lift1
16880596509隔离器ISOLATOR1
17880596510密封件SEAL1
18880596T51壳体总成HOUSING ASSEMBLY1
18880596501壳体HOUSING1
19880596516堵头PLUG1
20880596517O型圈O-RING1
-880596A01密封修理包REPAIR KIT Seal1
-889283A01燃油灌注工具包TOOL KIT Fuel Priming1

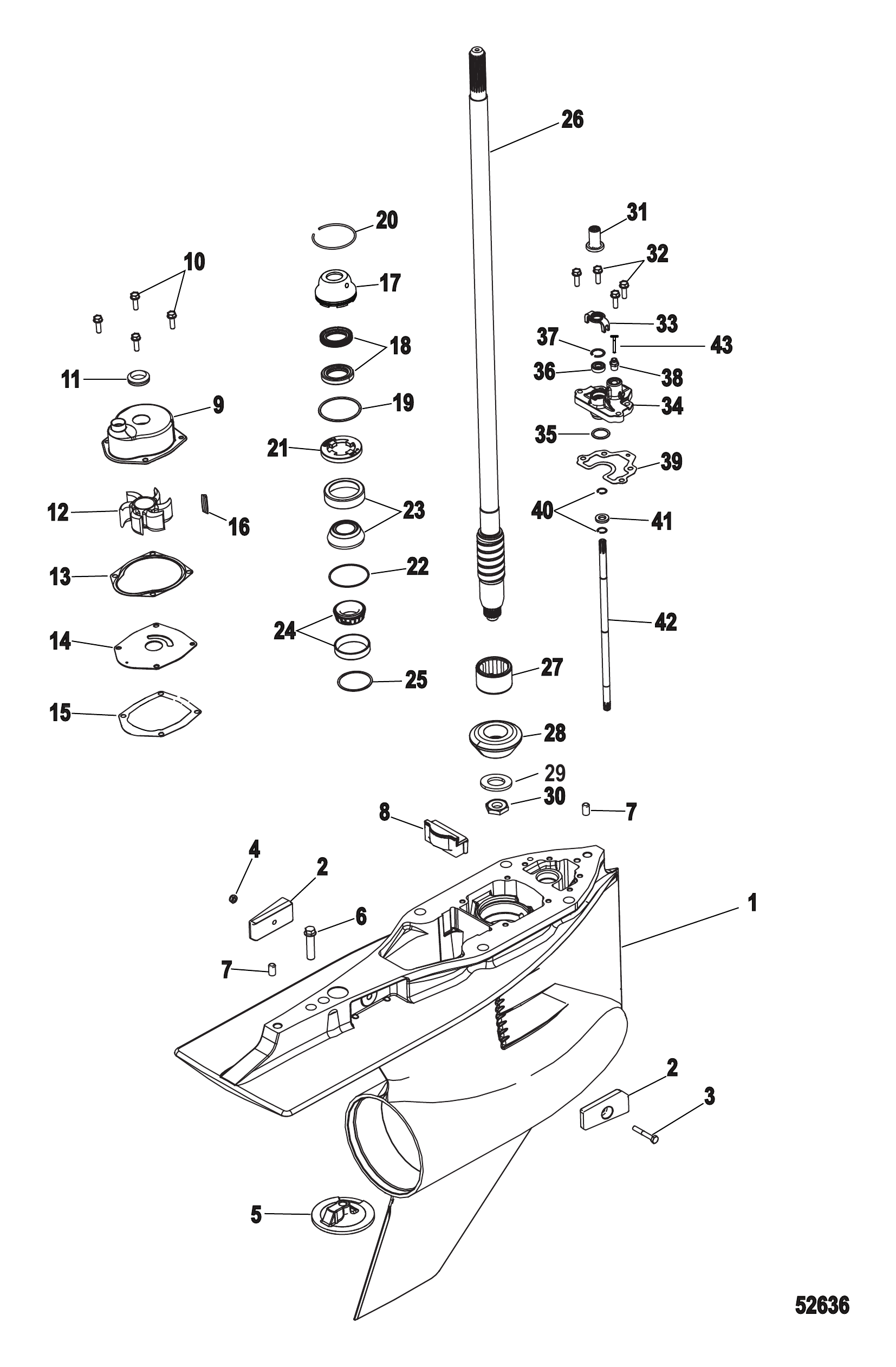

图 17齿轮箱，驱动轴，5.44鱼雷型，序列号1B980360及以上 Gear Housing, Driveshaft, 5.44 Torpedo, SN 1B980360 and Up
齿轮箱，驱动轴，5.44鱼雷型，序列号1B980360及以上 Gear Housing, Driveshaft, 5.44 Torpedo, SN 1B980360 and Up
REF零件编号中文名称英文名称数量
-8M0078246齿轮箱总成(黑色标准长型)(速比1.85:1)GEAR HOUSING ASSEMBLY Complete, Black (Standard Long)(1.85:1)1
-8M0089983齿轮箱总成(银色标准长型)(速比1.85:1)GEAR HOUSING ASSEMBLY Complete, Silver (Standard Long)(1.85:1)1
-8M0228059GC-L6 S 1.85 LGC-L6 S 1.85 L1
-8M0078247齿轮箱总成(黑色标准加长型)(速比1.85:1)GEAR HOUSING ASSEMBLY Complete, Black (Standard X-Long)(1.85:1)1
-8M0236284GC VER 1.85 B XLGC VER 1.85 B XL1
-8M0089985齿轮箱总成(银色标准加长型)(速比1.85:1)GEAR HOUSING ASSEMBLY Complete, Silver (Standard X-Long)(1.85:1)1
-8M0236237GC-L6 S 1.85 XLGC-L6 S 1.85 XL1
-8M0078249齿轮箱总成(黑色标准超长型)(速比1.85:1)GEAR HOUSING ASSEMBLY Complete, Black (Standard XX-Long)(1.85:1)1
-8M0236286GC VER 1.85 XXLGC VER 1.85 XXL1
-8M0089987齿轮箱总成(银色标准超长型)(速比1.85:1)GEAR HOUSING ASSEMBLY Complete, Silver (Standard XX-Long)(1.85:1)1
-8M0117243GC-L6 S 1.85 XXLGC-L6 S 1.85 XXL1
-8M0078251齿轮箱总成(黑色反转向长型)(速比1.85:1)GEAR HOUSING ASSEMBLY Complete, Black (Counter Rotation-Long)(1.85:1)1
-8M0117257GC VER 1.85 CLGC VER 1.85 CL1
-8M0089984齿轮箱总成(银色反转向长型)(速比1.85:1)GEAR HOUSING ASSEMBLY Complete, Silver (Counter Rotation-Long)(1.85:1)1
-8M0228060GC-L6 S 1.85 CLGC-L6 S 1.85 CL1
-8M0078248齿轮箱总成(黑色反转向加长型)(速比1.85:1)GEAR HOUSING ASSEMBLY Complete, Black (Counter Rotation X-Long)(1.85:1)1
-8M0236285GC VER 1.85 CXLGC VER 1.85 CXL1
-8M0089986齿轮箱总成(银色反转向加长型)(速比1.85:1)GEAR HOUSING ASSEMBLY Complete, Silver (Counter Rotation X-Long)(1.85:1)1
-8M0228062GC-L6 S 1.85 CXLGC-L6 S 1.85 CXL1
-8M0078250齿轮箱总成(黑色反转向超长型)(速比1.85:1)GEAR HOUSING ASSEMBLY Complete, Black (Counter Rotation XX-Long)(1.85:1)1
-8M0236287GC VER 1.85 CXXLGC VER 1.85 CXXL1
-8M0089988齿轮箱总成(银色反转向超长型)(速比1.85:1)GEAR HOUSING ASSEMBLY Complete, Silver (Counter Rotation XX-Long)(1.85:1)1
-8M0117244GC-L6 S 1.85 CXXLGC-L6 S 1.85 CXXL1
-8M0078252齿轮箱总成(标准长型)(速比1.75:1)GEAR HOUSING ASSEMBLY Complete (Standard Long)(1.75:1)1
-8M0078253齿轮箱总成(标准加长型)(速比1.75:1)GEAR HOUSING ASSEMBLY Complete (Standard X-Long)(1.75:1)1
-8M0102481银色齿轮箱总成GEAR HOUSING ASSEMBLY Complete, Silver1
-8M0078255齿轮箱总成(标准超长型)(速比1.75:1)GEAR HOUSING ASSEMBLY Complete (Standard XX-Long)(1.75:1)1
-8M0102482银色齿轮箱总成GEAR HOUSING ASSEMBLY Complete, Silver1
-8M0078257齿轮箱总成(反转向长型)(速比1.75:1)GEAR HOUSING ASSEMBLY Complete (Counter Rotation-Long)(1.75:1)1
-8M0102483银色齿轮箱总成GEAR HOUSING ASSEMBLY Complete, Silver1
-8M0078254齿轮箱总成(反转向加长型)(速比1.75:1)GEAR HOUSING ASSEMBLY Complete (Counter Rotation X-Long)(1.75:1)1
-8M0102484银色齿轮箱总成GEAR HOUSING ASSEMBLY Complete, Silver1
-8M0078256齿轮箱总成(反转向超长型)(速比1.75:1)GEAR HOUSING ASSEMBLY Complete (Counter Rotation XX-Long)(1.75:1)1
-8M0102485银色齿轮箱总成GEAR HOUSING ASSEMBLY Complete, Silver1
18M0053108基础型黑色齿轮箱总成GEAR HOUSING ASSEMBLY Basic, Black1
18M0117258GC BASIC BLACKGC BASIC BLACK1
18M0053107齿轮箱总成 基础款银色GEAR HOUSING ASSEMBLY Basic, Silver1
18M0228048GC - BASICGC - BASIC1
2826134Q阳极块ANODE2
34000333螺钉(M6 x 40)SCREW (M6 x 40)1
4401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
576214Q5阳极套件ANODE KIT1
6806327螺钉(.437-14 x 1.750)SCREW (.437-14 x 1.750)1
68M0204686螺钉SCREW1
743044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
88M0010459填充块FILLER BLOCK1
9817275A1水泵壳体套件HOUSING KIT Water Pump1
101993720螺钉 (M6 x 20)SCREW (M6 x 20)4
108M0204706螺丝M6x20六角SCREW M6 x 20 Hex4
-8M0057717叶轮维修套件IMPELLER REPAIR KIT1
-8M0100526水泵叶轮维修套件REPAIR KIT Water Impeller1
118M2014338端面密封SEAL Face1
118M0142851V型面密封环V RING Face Seal1
1243026Q02叶轮IMPELLER1
138172771水泵上垫片GASKET Water Pump, Upper1
148172761面板FACEPLATE1
148M0204709面板FACEPLATE1
158M0050720衬垫GASKET1
158M0142616衬垫 面板至齿轮箱GASKET Face Plate to Gearcase1
168M0032833键KEY1
168M0204723键KEY1
178M0046297油封载体总成OIL SEAL CARRIER ASSEMBLY1
18NSSNOT SOLD SEPARATE SEAL2
19896523O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
198M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
20880719挡圈RING Retaining1
218245191固定座RETAINER1
228M0053110垫片组SHIM SET1
228M0063267垫片组SHIM SET1
2336387A1轴承总成(滚子/外圈)BEARING ASSEMBLY Roller/Cup1
238M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
2448939A2圆锥滚子轴承BEARING Taper Roller1
248M0146553杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
2538657A1垫片组SHIM ASSEMBLY1
258M0063268垫片组SHIM SET1
268M0053106驱动轴DRIVESHAFT1
268M0149608长型驱动轴总成DRIVESHAFT ASSEMBLY Long1
268M0053105驱动轴DRIVESHAFT1
268M0141337驱动轴总成 X加长型DRIVESHAFT ASSEMBLY X-Long1
268M0103304驱动轴(超长型)SHAFT Drive, XX-Long1
268M0141338驱动轴总成(超长型)DRIVESHAFT ASSEMBLY XX-Long1
278M0045676滚柱轴承BEARING Roller1
288M0078259齿轮组13/24(速比1.85:1)前进档与小齿轮GEAR SET 13/24(1.85:1) Forward and Pinion1
288M0078258标准转向齿轮组(前进档/小齿轮)(速比1.75)(12/21)前进档与小齿轮GEAR SET Standard Rotation, Forward/Pinion, 1.75 Ratio (12/21) Forward and Pinion1
288M0053119齿轮组13/24(速比1.85:1)前进档与小齿轮GEAR SET 13/24 (1.85:1) Forward and Pinion1
288M0053120反转向齿轮组(前进档/小齿轮)(速比1.75)(12/21)前进档与小齿轮GEAR SET Counter Rotation, Forward/Pinion, 1.75 Ratio (12/21) Forward and Pinion1
298M0062703小齿轮螺母垫圈WASHER Pinon nut1
308M0046636小齿轮螺母NUT Pinion1
3143585联轴器COUPLING1
321993720螺钉 (M6 x 20)SCREW (M6 x 20)1
328M0204706螺丝M6x20六角SCREW M6 x 20 Hex1
338M0050809索环组件GROMMET ASSEMBLY1
348M0047129盖总成COVER ASSEMBLY1
35896522O型圈(799×.103)O-RING (799 x .103)1
368164641油封SEAL Oil1
368M0246145油封OIL SEAL1
378M0046563挡圈RING Retaining1
38881866接头FITTING1
39880729衬垫GASKET1
4029641E型卡环E RING2
418M0050602磁铁MAGNET1
428M0046104换档轴SHIFT SHAFT1
43859732堵头PLUG1
-8M0235174标贴 齿轮箱 1.75:1DECAL Gearcase, 1.75:11
-8M0065064齿轮箱密封套件SEAL KIT Gearcase1
-8M0078858水泵维修套件(完整)WATER PUMP REPAIR KIT Complete1
-8M0065072水泵维修套件(上部)WATER PUMP REPAIR KIT Upper1
图 18齿轮箱，驱动轴，5.44鱼雷型，序列号1B980359及以下 Gear Housing, Driveshaft, 5.44 Torpedo SN 1B980359 and Below
齿轮箱，驱动轴，5.44鱼雷型，序列号1B980359及以下 Gear Housing, Driveshaft, 5.44 Torpedo SN 1B980359 and Below
REF零件编号中文名称英文名称数量
-8M0049863齿轮箱总成(黑色长型)(速比1.85:1)GEAR HOUSING ASSEMBLY Complete, Black (Long)(1.85:1)1
-8M0049864齿轮箱总成(黑色加长型)(速比1.85:1)GEAR HOUSING ASSEMBLY Complete, Black (X-Long)(1.85:1)1
-8M0236284GC VER 1.85 B XLGC VER 1.85 B XL1
-8M0049866齿轮箱总成(黑色超长型)(速比1.85:1)GEAR HOUSING ASSEMBLY Complete, Black (XX-Long)(1.85:1)1
-8M0236286GC VER 1.85 XXLGC VER 1.85 XXL1
-8M0049868齿轮箱总成 完整, 黑色 (C型长轴)(1.85:1)GEAR HOUSING ASSEMBLY Complete, Black (C-Long)(1.85:1)1
-8M0117257GC VER 1.85 CLGC VER 1.85 CL1
-8M0049865齿轮箱总成 完整, 黑色 (CX型长轴)(1.85:1)GEAR HOUSING ASSEMBLY Complete, Black (CX-Long)(1.85:1)1
-8M0236285GC VER 1.85 CXLGC VER 1.85 CXL1
-8M0049867齿轮箱总成 完整, 黑色 (CXX型长轴)(1.85:1)GEAR HOUSING ASSEMBLY Complete, Black (CXX-Long)(1.85:1)1
-8M0236287GC VER 1.85 CXXLGC VER 1.85 CXXL1
-8M0049869齿轮箱总成 完整 (长型)(1.75:1)GEAR HOUSING ASSEMBLY Complete (Long)(1.75:1)1
-8M0078252齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0049870齿轮箱总成 完整 (加长型)(1.75:1)GEAR HOUSING ASSEMBLY Complete (X-Long)(1.75:1)1
-8M0078253齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0049872齿轮箱总成 完整 (XX型长轴)(1.75:1)GEAR HOUSING ASSEMBLY Complete (XX-Long)(1.75:1)1
-8M0078255齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0049874齿轮箱总成 完整 (C型长轴)(1.75:1)GEAR HOUSING ASSEMBLY Complete (C-Long)(1.75:1)1
-8M0078257齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0049871齿轮箱总成 完整 (CX型长轴)(1.75:1)GEAR HOUSING ASSEMBLY Complete (CX-Long)(1.75:1)1
-8M0078254齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0049873齿轮箱总成 完整 (CXX型长轴)(1.75:1)GEAR HOUSING ASSEMBLY Complete (CXX-Long)(1.75:1)1
-8M0078256齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
18M0053108基础型黑色齿轮箱总成GEAR HOUSING ASSEMBLY Basic, Black1
18M0117258GC BASIC BLACKGC BASIC BLACK1
18M0053107齿轮箱总成 基础款银色GEAR HOUSING ASSEMBLY Basic, Silver1
18M0228048GC - BASICGC - BASIC1
2826134Q阳极块ANODE2
34000333螺钉(M6 x 40)SCREW (M6 x 40)1
4401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
576214Q5阳极套件ANODE KIT1
6806327螺钉(.437-14 x 1.750)SCREW (.437-14 x 1.750)1
68M0204686螺钉SCREW1
743044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
88M0010459填充块FILLER BLOCK1
9817275A1水泵壳体套件HOUSING KIT Water Pump1
101993720螺钉 (M6 x 20)SCREW (M6 x 20)4
108M0204706螺丝M6x20六角SCREW M6 x 20 Hex4
-8M0057717叶轮维修套件IMPELLER REPAIR KIT1
-8M0100526水泵叶轮维修套件REPAIR KIT Water Impeller1
118M2014338端面密封SEAL Face1
118M0142851V型面密封环V RING Face Seal1
1243026Q02叶轮IMPELLER1
138172771水泵上垫片GASKET Water Pump, Upper1
148172761面板FACEPLATE1
148M0204709面板FACEPLATE1
158M0050720衬垫GASKET1
158M0142616衬垫 面板至齿轮箱GASKET Face Plate to Gearcase1
168M0032833键KEY1
168M0204723键KEY1
178M0046297油封载体总成OIL SEAL CARRIER ASSEMBLY1
18NSSNOT SOLD SEPARATE SEAL2
19896523O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
198M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
20880719挡圈RING Retaining1
218245191固定座RETAINER1
228M0053110垫片组SHIM SET1
228M0063267垫片组SHIM SET1
2336387A1轴承总成(滚子/外圈)BEARING ASSEMBLY Roller/Cup1
238M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
2448939A2圆锥滚子轴承BEARING Taper Roller1
248M0146553杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
2538657A1垫片组SHIM ASSEMBLY1
258M0063268垫片组SHIM SET1
268M0053106驱动轴DRIVESHAFT1
268M0149608长型驱动轴总成DRIVESHAFT ASSEMBLY Long1
268M0053105驱动轴DRIVESHAFT1
268M0141337驱动轴总成 X加长型DRIVESHAFT ASSEMBLY X-Long1
268M0053104驱动轴DRIVESHAFT1
268M0141338驱动轴总成(超长型)DRIVESHAFT ASSEMBLY XX-Long1
278M0045676滚柱轴承BEARING Roller1
288M0053118齿轮组13/24(速比1.85:1)前进档与小齿轮GEAR SET 13/24 (1.85:1) Forward and Pinion1
288M0078259齿轮组 13/24齿(1.85:1)GEAR SET 13/24(1.85:1)1
288M0053117齿轮组 12/21齿(1.75:1) 前进与小齿轮GEAR SET 12/21(1.75:1) Forward and Pinion1
288M0078258齿轮组（标准转向，前进/小齿轮，1.75速比 12/21）GEAR SET Standard Rotation, Forward/Pinion, 1.75 Ratio (12/21)1
288M0053119齿轮组13/24(速比1.85:1)前进档与小齿轮GEAR SET 13/24 (1.85:1) Forward and Pinion1
288M0053120反转向齿轮组(前进档/小齿轮)(速比1.75)(12/21)前进档与小齿轮GEAR SET Counter Rotation, Forward/Pinion, 1.75 Ratio (12/21) Forward and Pinion1
298M0046636螺母NUT1
3043585联轴器COUPLING1
311993720螺钉 (M6 x 20)SCREW (M6 x 20)1
318M0204706螺丝M6x20六角SCREW M6 x 20 Hex1
328M0050809索环组件GROMMET ASSEMBLY1
338M0047129盖总成COVER ASSEMBLY1
34896522O型圈(799×.103)O-RING (799 x .103)1
358164641油封SEAL Oil1
358M0246145油封OIL SEAL1
368M0046563挡圈RING Retaining1
37881866接头FITTING1
38880729衬垫GASKET1
3929641E型卡环E RING2
408M0050602磁铁MAGNET1
418M0046104换档轴SHIFT SHAFT1
42859732堵头PLUG1
-8M0235174标贴 齿轮箱 1.75:1DECAL Gearcase, 1.75:11
-8M0065064齿轮箱密封套件SEAL KIT Gearcase1
-8M0078858水泵维修套件(完整)WATER PUMP REPAIR KIT Complete1
-8M0065072水泵维修套件(上部)WATER PUMP REPAIR KIT Upper1

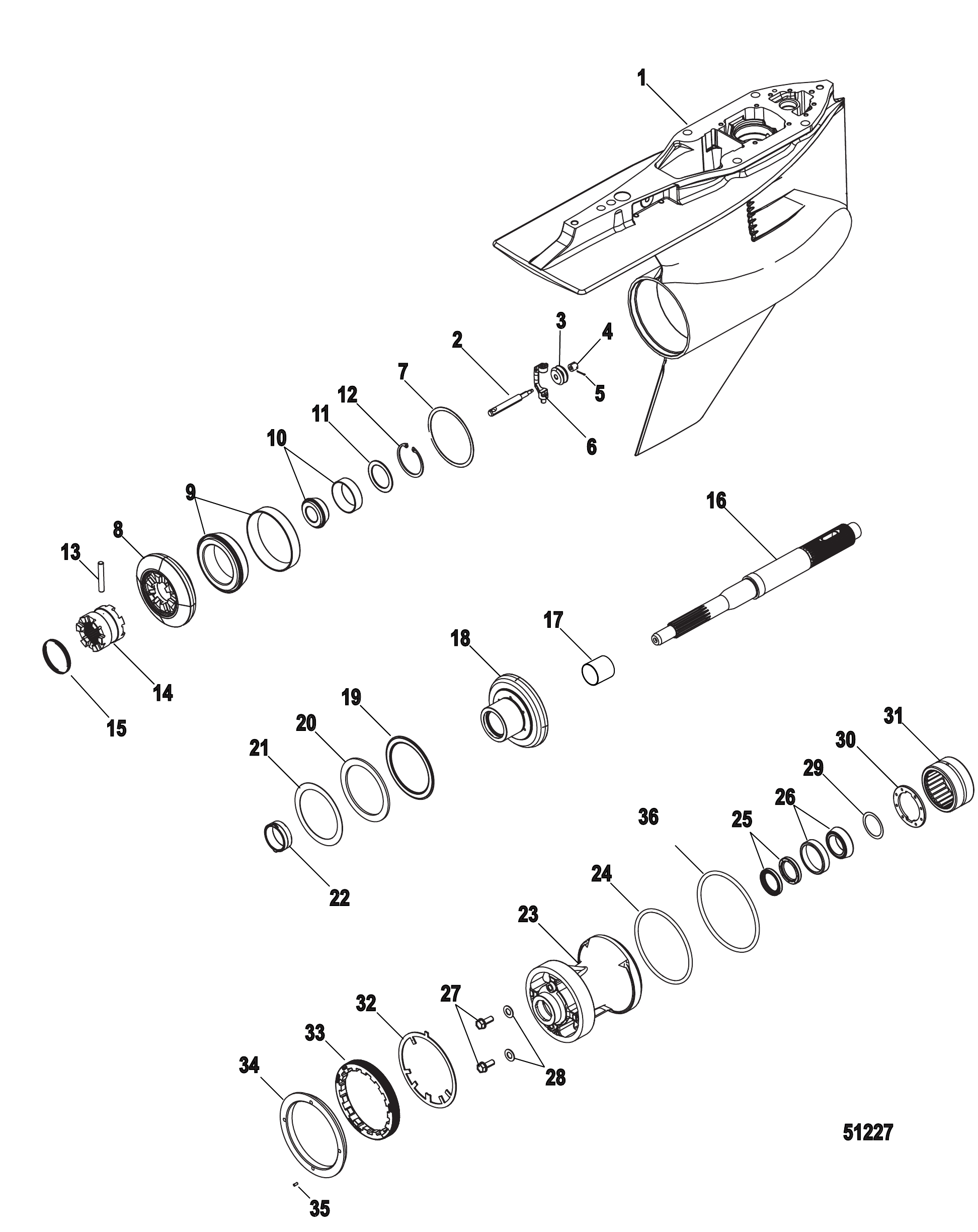

图 19齿轮箱，螺旋桨轴-反向旋转，5.44鱼雷型 Gear Housing, Prop Shaft-Counter Rotation, 5.44 Torpedo
齿轮箱，螺旋桨轴-反向旋转，5.44鱼雷型 Gear Housing, Prop Shaft-Counter Rotation, 5.44 Torpedo
REF零件编号中文名称英文名称数量
-8M0049868齿轮箱总成(黑色长型)(速比1.85:1)GEAR HOUSING ASSEMBLY Complete, Black (Long)(1.85:1)1
-8M0089984齿轮箱总成 完整, 银色 (长轴)(1.85:1)GEAR HOUSING ASSEMBLY Complete, Silver (Long)(1.85:1)1
-8M0228060GC-L6 S 1.85 CLGC-L6 S 1.85 CL1
-8M0049865齿轮箱总成(黑色加长型)(速比1.85:1)GEAR HOUSING ASSEMBLY Complete, Black (X-Long)(1.85:1)1
-8M0236285GC VER 1.85 CXLGC VER 1.85 CXL1
-8M0089986齿轮箱总成 完整, 银色 (X型长轴)(1.85:1)GEAR HOUSING ASSEMBLY Complete, Silver (X-Long)(1.85:1)1
-8M0228062GC-L6 S 1.85 CXLGC-L6 S 1.85 CXL1
-8M0049867齿轮箱总成(黑色超长型)(速比1.85:1)GEAR HOUSING ASSEMBLY Complete, Black (XX-Long)(1.85:1)1
-8M0236287GC VER 1.85 CXXLGC VER 1.85 CXXL1
-8M0089988齿轮箱总成 完整, 银色 (XX型长轴)(1.85:1)GEAR HOUSING ASSEMBLY Complete, Silver (XX-Long)(1.85:1)1
-8M0117244GC-L6 S 1.85 CXXLGC-L6 S 1.85 CXXL1
-8M0049874齿轮箱总成 完整 (长型)(1.75:1)GEAR HOUSING ASSEMBLY Complete (Long)(1.75:1)1
-8M0078257齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0049871齿轮箱总成 完整 (加长型)(1.75:1)GEAR HOUSING ASSEMBLY Complete (X-Long)(1.75:1)1
-8M0078254齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0049873齿轮箱总成 完整 (XX型长轴)(1.75:1)GEAR HOUSING ASSEMBLY Complete (XX-Long)(1.75:1)1
-8M0078256齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
18M0053108基础型黑色齿轮箱总成GEAR HOUSING ASSEMBLY Basic, Black1
18M0117258GC BASIC BLACKGC BASIC BLACK1
18M0053107齿轮箱总成 基础款银色GEAR HOUSING ASSEMBLY Basic, Silver1
18M0228048GC - BASICGC - BASIC1
28M0053114阀芯总成SPOOL ASSEMBLY1
28M0235941换挡轴套总成SPOOL ASSY SHIFT1
3NSSNOT SOLD SEPARATE SPOOL1
4NSSNOT SOLD SEPARATE SLEEVE1
5469501开口销COTTER PIN1
68M0046215曲柄，换挡器1/4枢轴销CRANK, Shifter 1/4 Pivot Pin1
68M0220880曲柄，换挡器1/4枢轴销CRANK, Shifter 1/4 Pivot Pin1
7884328A01垫片组SHIM SET1
78M0063270垫片组SHIM SET1
88M0053122倒档齿轮套件GEAR KIT Reverse1
88M0053121倒挡齿轮总成GEAR ASSEMBLY Reverse Reverse1
88M0146676倒车齿轮总成GEAR ASSEMBLY Reverse1
9884323T01滚柱轴承总成BEARING ASSEMBLY Roller1
98M0142836圆锥滚子轴承(外圈/内圈)BEARING Roller Taper (Cup/Cone)1
10884325T01圆锥滚子轴承组件BEARING ASSEMBLY Roller-Tappered1
108M0142835圆锥滚子轴承(外圈/内圈)BEARING Roller Taper (Cup/Cone)1
11892805止推垫片THRUST WASHER1
118M0053823止推垫圈(内径1.50×外径2.046)WASHER Thrust, (1.50 ID x 2.046 OD)1
128M0051043挡圈RING Retaining1
138M0045493十字销PIN Cross1
148M0053113离合器CLUTCH1
158M0050575十字弹簧SPRING Cross1
168M0053112螺旋桨轴 1英寸PROPELLER SHAFT 1 Inch1
168M0073657螺旋桨轴 1英寸PROPELLER SHAFT 1 Inch1
168M0073657螺旋桨轴 1英寸PROPELLER SHAFT 1 Inch1
168M0142968螺旋桨轴SHAFT Propeller1
168M0053111螺旋桨轴 1.25英寸PROPELLER SHAFT 1.25 Inch1
168M0073667螺旋桨轴 1.25英寸PROPELLER SHAFT 1.25 Inch1
168M0073667螺旋桨轴 1.25英寸PROPELLER SHAFT 1.25 Inch1
168M0142764螺旋桨轴SHAFT Propeller1
178M0064306止推隔套SPACER ThrustA/R
188M0053119齿轮组 13/24齿 (1.85:1) 前进挡GEAR SET 13/24 (1.85:1) Forward1
188M0053120齿轮组 反转, 前进/小齿轮, 1.75速比 (12/21齿) 前进挡GEAR SET Counter Rotation, Forward/Pinion, 1.75 Ratio (12/21) Forward1
198M0050692轴承BEARING1
208M0050688垫圈WASHER1
218M0053116垫片组SHIM SETA/R
228M0053183前进齿轮适配器ADAPTER Foward Gear1
238M0053115托架总成CARRIER ASSEMBLY1
238M0097323轴承座总成CARRIER ASSEMBLY Bearing1
248M0000190O型圈(4.475x0.210英寸)O-RING (4.475 x .210)1
25888483油封SEAL Oil2
258M0204700油封SEAL Oil2
26884330T01圆锥轴承组件BEARING ASSEMBLY Taper1
268M0148319圆锥滚子轴承(外圈/内圈)BEARING Roller Taper Cup/Cone1
278M0046727螺钉SCREW2
278M0071653特殊螺钉0.375-16 UNCSCREW Special, .375-16 UNC2
28830749密封件SEAL2
288M0204693放油螺塞密封件SEAL Drain Plug2
298M0076745垫片组SHIM SET1
298M0050423垫片 .020WASHER .020A/R
298M0050424垫片 .022WASHER .022A/R
298M0050425垫片 .024WASHER .024A/R
298M0050427垫片 .026WASHER .026A/R
298M0050428垫片 .028WASHER .028A/R
298M0050429垫片 .030WASHER .030A/R
298M0050430垫片 .032WASHER .032A/R
298M0050431垫片 .034WASHER .034A/R
298M0050432垫片 .036WASHER .036A/R
298M0050433垫片 0.038WASHER .038A/R
298M0050434垫片 0.040WASHER .040A/R
298M0050435垫片 0.042WASHER .042A/R
298M0050436垫片 0.044WASHER .044A/R
298M0050437垫片 0.046WASHER .046A/R
298M0050438垫片 0.048WASHER .048A/R
298M0050439垫片 0.050WASHER .050A/R
308M0050662挡圈RETAINING RING1
308M0056639挡圈RING Retainer1
318M0050704滚针轴承BEARING Needle1
328M0045434锁紧垫圈TAB WASHER1
328M0108527锁紧垫片WASHER Tab1
338M0001491固定螺母NUT Retainer1
338M0162798轴承座固定环RETAINER Bearing Carrier1
348M0050726盖板套件COVER KIT1
348M0180308盖板套件COVER KIT1
348M0050821平齐式盖板套件, 标准型COVER KIT Flush, Standard1
348M0180306鱼雷形盖COVER Torpedo1
358M0036819紧定螺钉(10-32)SET SCREW (10-32)1
368M0046569止推环RING Thrust1
368M0161546推力环THRUST RING1
图 20齿轮箱，螺旋桨轴-正向旋转，5.44鱼雷型 Gear Housing, Prop Shaft-Standard Rotation, 5.44 Torpedo
齿轮箱，螺旋桨轴-正向旋转，5.44鱼雷型 Gear Housing, Prop Shaft-Standard Rotation, 5.44 Torpedo
REF零件编号中文名称英文名称数量
-8M0049863齿轮箱总成(黑色长型)(速比1.85:1)GEAR HOUSING ASSEMBLY Complete, Black (Long)(1.85:1)1
-8M0089983齿轮箱总成 完整, 银色 (长轴)(1.85:1)GEAR HOUSING ASSEMBLY Complete, Silver (Long)(1.85:1)1
-8M0228059GC-L6 S 1.85 LGC-L6 S 1.85 L1
-8M0049864齿轮箱总成(黑色加长型)(速比1.85:1)GEAR HOUSING ASSEMBLY Complete, Black (X-Long)(1.85:1)1
-8M0236284GC VER 1.85 B XLGC VER 1.85 B XL1
-8M0089985齿轮箱总成 完整, 银色 (X型长轴)(1.85:1)GEAR HOUSING ASSEMBLY Complete, Silver (X-Long)(1.85:1)1
-8M0236237GC-L6 S 1.85 XLGC-L6 S 1.85 XL1
-8M0049866齿轮箱总成(黑色超长型)(速比1.85:1)GEAR HOUSING ASSEMBLY Complete, Black (XX-Long)(1.85:1)1
-8M0236286GC VER 1.85 XXLGC VER 1.85 XXL1
-8M0089987齿轮箱总成 完整, 银色 (XX型长轴)(1.85:1)GEAR HOUSING ASSEMBLY Complete, Silver (XX-Long)(1.85:1)1
-8M0117243GC-L6 S 1.85 XXLGC-L6 S 1.85 XXL1
-8M0049869齿轮箱总成 完整 (长型)(1.75:1)GEAR HOUSING ASSEMBLY Complete (Long)(1.75:1)1
-8M0078252齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0049870齿轮箱总成 完整 (加长型)(1.75:1)GEAR HOUSING ASSEMBLY Complete (X-Long)(1.75:1)1
-8M0078253齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0049872齿轮箱总成 完整 (XX型长轴)(1.75:1)GEAR HOUSING ASSEMBLY Complete (XX-Long)(1.75:1)1
-8M0078255齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
18M0053108基础型黑色齿轮箱总成GEAR HOUSING ASSEMBLY Basic, Black1
18M0117258GC BASIC BLACKGC BASIC BLACK1
18M0053107齿轮箱总成 基础款银色GEAR HOUSING ASSEMBLY Basic, Silver1
18M0228048GC - BASICGC - BASIC1
28M0053114阀芯总成SPOOL ASSEMBLY1
28M0235941换挡轴套总成SPOOL ASSY SHIFT1
3NSSNOT SOLD SEPARATE SPOOL1
4NSSNOT SOLD SEPARATE SLEEVE1
5469501开口销COTTER PIN1
68M0046215曲柄，换挡器1/4枢轴销CRANK, Shifter 1/4 Pivot Pin1
68M0220880曲柄，换挡器1/4枢轴销CRANK, Shifter 1/4 Pivot Pin1
7884328A01垫片组SHIM SET1
78M0063270垫片组SHIM SET1
88M0053118齿轮组 13/24齿 (1.85:1) 前进挡GEAR SET 13/24 (1.85:1) Forward1
88M0078259齿轮组 13/24齿(1.85:1)GEAR SET 13/24(1.85:1)1
88M0053117齿轮组 12/21齿(1.75:1) 前进挡GEAR SET 12/21(1.75:1) Forward1
88M0078258齿轮组（标准转向，前进/小齿轮，1.75速比 12/21）GEAR SET Standard Rotation, Forward/Pinion, 1.75 Ratio (12/21)1
9884323T01滚柱轴承总成BEARING ASSEMBLY Roller1
98M0142836圆锥滚子轴承(外圈/内圈)BEARING Roller Taper (Cup/Cone)1
10884325T01圆锥滚子轴承组件BEARING ASSEMBLY Roller-Tappered1
108M0142835圆锥滚子轴承(外圈/内圈)BEARING Roller Taper (Cup/Cone)1
11892805止推垫片THRUST WASHER1
118M0053823止推垫圈(内径1.50×外径2.046)WASHER Thrust, (1.50 ID x 2.046 OD)1
128M0051043挡圈RING Retaining1
138M0045493十字销PIN Cross1
148M0053113离合器CLUTCH1
158M0050575十字弹簧SPRING Cross1
168M0053112螺旋桨轴 1英寸 (1B921719及以下)PROPELLER SHAFT 1 Inch (1B921719 and below)1
168M0073657螺旋桨轴 1英寸PROPELLER SHAFT 1 Inch1
168M0073657螺旋桨轴 1英寸 (1B921720及以上)PROPELLER SHAFT 1 Inch (1B921720 and above)1
168M0142968螺旋桨轴SHAFT Propeller1
168M0053111螺旋桨轴 1.25英寸 (1B921719及以下)PROPELLER SHAFT 1.25 Inch (1B921719 and below)1
168M0073667螺旋桨轴 1.25英寸PROPELLER SHAFT 1.25 Inch1
168M0073667螺旋桨轴 1.25英寸 (1B9217120及以上)PROPELLER SHAFT 1.25 Inch (1B9217120 and above)1
168M0142764螺旋桨轴SHAFT Propeller1
178M0064306止推隔套SPACER ThrustA/R
188M0053123倒档齿轮套件GEAR KIT Reverse1
188M0053124倒挡齿轮套件GEAR KIT Reverse Reverse1
198M0050692轴承BEARING1
208M0050688垫圈WASHER1
218M0053116垫片组SHIM SETA/R
228M0053183前进齿轮适配器ADAPTER Foward Gear1
238M0053115托架总成CARRIER ASSEMBLY1
238M0097323轴承座总成CARRIER ASSEMBLY Bearing1
248M0000190O型圈(4.475x0.210英寸)O-RING (4.475 x .210)1
25888483油封SEAL Oil2
258M0204700油封SEAL Oil2
26884330T01圆锥轴承组件BEARING ASSEMBLY Taper1
268M0148319圆锥滚子轴承(外圈/内圈)BEARING Roller Taper Cup/Cone1
278M0046727螺钉SCREW2
278M0071653特殊螺钉0.375-16 UNCSCREW Special, .375-16 UNC2
28830749密封件SEAL2
288M0204693放油螺塞密封件SEAL Drain Plug2
298M0076745垫片组SHIM SET1
298M0050423垫片 .020WASHER .020A/R
298M0050424垫片 .022WASHER .022A/R
298M0050425垫片 .024WASHER .024A/R
298M0050427垫片 .026WASHER .026A/R
298M0050428垫片 .028WASHER .028A/R
298M0050429垫片 .030WASHER .030A/R
298M0050430垫片 .032WASHER .032A/R
298M0050431垫片 .034WASHER .034A/R
298M0050432垫片 .036WASHER .036A/R
298M0050433垫片 0.038WASHER .038A/R
298M0050434垫片 0.040WASHER .040A/R
298M0050435垫片 0.042WASHER .042A/R
298M0050436垫片 0.044WASHER .044A/R
298M0050437垫片 0.046WASHER .046A/R
298M0050438垫片 0.048WASHER .048A/R
298M0050439垫片 0.050WASHER .050A/R
308M0050662挡圈RETAINING RING1
308M0056639挡圈RING Retainer1
318M0050704滚针轴承BEARING Needle1
328M0045434锁紧垫圈TAB WASHER1
328M0108527锁紧垫片WASHER Tab1
338M0001491固定螺母NUT Retainer1
338M0162798轴承座固定环RETAINER Bearing Carrier1
348M0050726盖板套件COVER KIT1
348M0180308盖板套件COVER KIT1
348M0050821平齐式盖板套件, 标准型COVER KIT Flush, Standard1
348M0180306鱼雷形盖COVER Torpedo1
358M0036819紧定螺钉(10-32)SET SCREW (10-32)1
368M0046569止推环RING Thrust1
368M0161546推力环THRUST RING1
-8M0235174标贴 齿轮箱 1.75:1DECAL Gearcase, 1.75:11

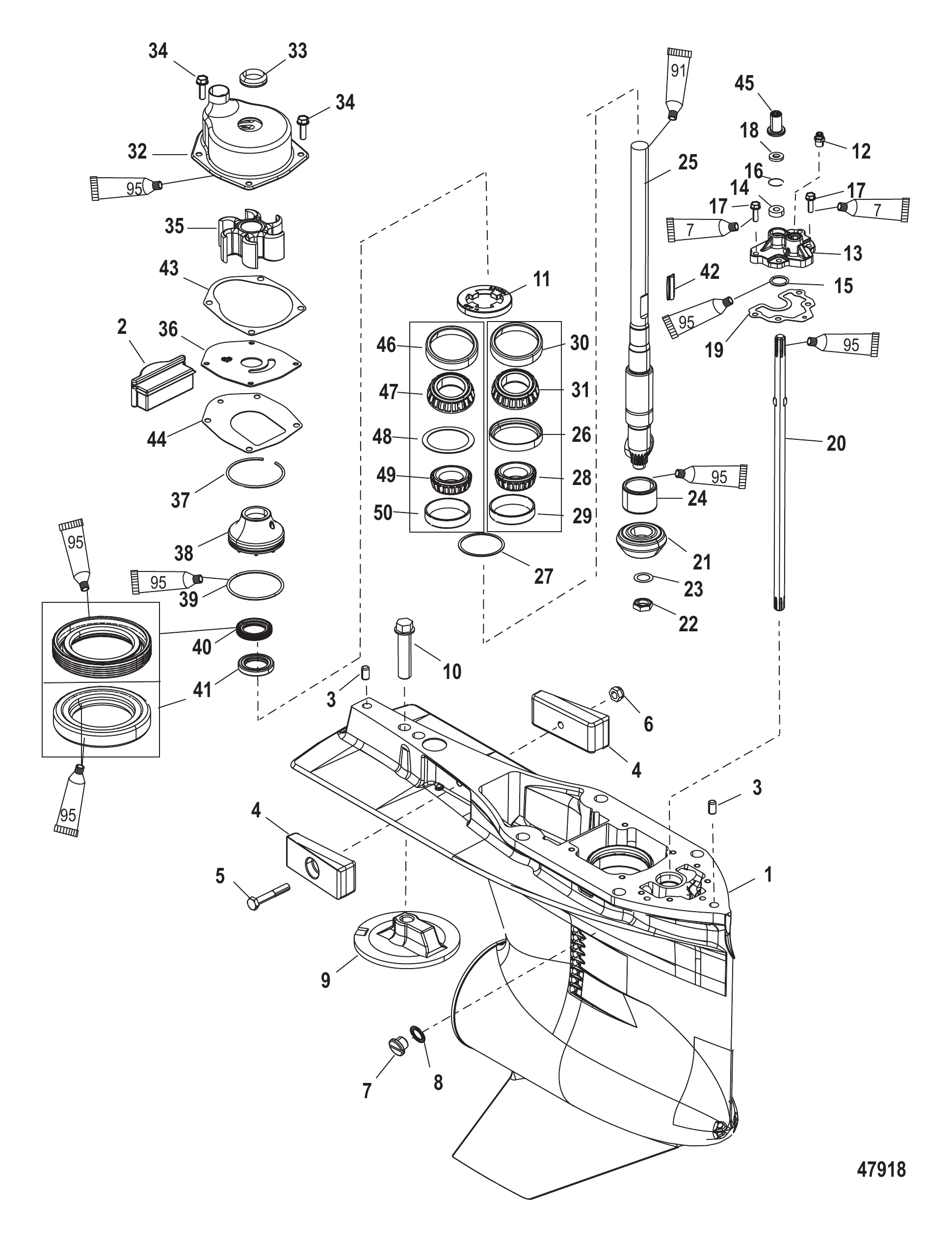

图 21齿轮箱驱动轴,4.80鱼雷型 Gear Housing Driveshaft, 4.80 Torpedo
齿轮箱驱动轴,4.80鱼雷型 Gear Housing Driveshaft, 4.80 Torpedo
REF零件编号中文名称英文名称数量
-880686T13齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236255GC L6 4S LGC L6 4S L1
-880686T14齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236256GC L6 4S XLGC L6 4S XL1
-880686T16齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236259GC L6 4S XXLGC L6 4S XXL1
-880686T15齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236258GC L6 4S CXLGC L6 4S CXL1
-880686T17齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236260GC L6 4S CXXLGC L6 4S CXXL1
-880686T54齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236264GC L6 1.75 LGC L6 1.75 L1
-880686T55齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236265GC L6 1.75 XLGC L6 1.75 XL1
-880686T56齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236266GC L6 1.75 XXLGC L6 1.75 XXL1
-880686T57齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236267GC L6 1.75 CXLGC L6 1.75 CXL1
-880686T58齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236269GC L6 1.75 CXLGC L6 1.75 CXL1
-880686T59齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236270GC L6 1.75 CXXLGC L6 1.75 CXXL1
1880687T01GEAR HOUSING ASSEMBLY Basic Used with 5/16 Inch Shift Crank1
18M0056631基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
18M0046215曲柄 换挡1/4枢轴销 配1/4英寸换挡曲柄CRANK, Shifter 1/4 Pivot Pin Used with 1/4 Inch Shift Crank1
18M0220880曲柄，换挡器1/4枢轴销CRANK, Shifter 1/4 Pivot Pin1
2821526001填充块FILLER BLOCK1
28M0010459填充块FILLER BLOCK1
343044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
4826134Q阳极块ANODE2
54000333螺钉(M6 x 40)SCREW (M6 x 40)1
6401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
779953A04塞组件(.375-16×.250)PLUG ASSEMBLY (.375-16 x .250)1
8830749密封件SEAL1
88M0204693放油螺塞密封件SEAL Drain Plug1
976214T5阳极套件ANODE KIT1
976214Q5阳极套件ANODE KIT1
10806327螺钉(.437-14 x 1.750)SCREW (.437-14 x 1.750)1
108M0204686螺钉SCREW1
118245191固定座RETAINER1
12881866接头FITTING1
13880703A1盖总成COVER ASSEMBLY1
138M0047129盖总成COVER ASSEMBLY1
138M0047129盖总成COVER ASSEMBLY1
148164641油封SEAL Oil1
148M0246145油封OIL SEAL1
15896522O型圈(799×.103)O-RING (799 x .103)1
168M0046563挡圈RING Retaining1
1740011128不锈钢螺钉(M6x20)SCREW (M6 x 20) Stainless Steel4
178M0204741六角带垫大帽螺钉(M6x1.0x20)SCREW (M6 x 1.0 x 20) Hex Wash HD4
1877674垫圈(.35 x .75 x .12)WASHER (.35 x .75 x .12)1
19880729衬垫GASKET1
20824145换档轴SHIFT SHAFT1
21NSS不单独销售 小齿轮13齿NOT SOLD SEPARATE Pinion Gear 13 Teeth1
2235921螺母(0.625-18)NUT (.625-18)1
2392721垫圈(.965×0.630)WASHER (.965 x .630)1
2442647A1滚柱轴承总成BEARING ASSEMBLY Roller1
25888572驱动轴DRIVESHAFT1
25888573驱动轴DRIVESHAFT1
25888574驱动轴DRIVESHAFT1
26884327A02垫片/轴承组件SHIM/BEARING ASSEMBLY1
2738657A1垫片组SHIM ASSEMBLYAR
278M0063268垫片组SHIM SETAR
28NSS不单独销售 滚子轴承组件NOT SOLD SEPARATE Roller Bearing Assembly1
29NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
30NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
31NSS不单独销售 滚子轴承组件NOT SOLD SEPARATE Roller Bearing Assembly1
32817275A09水泵壳体-总成HOUSING Water Pump-Complete1
33861415A1密封套件SEAL KIT1
3440011128不锈钢螺钉(M6x20)SCREW (M6 x 20) Stainless Steel4
348M0204741六角带垫大帽螺钉(M6x1.0x20)SCREW (M6 x 1.0 x 20) Hex Wash HD4
3543026T2叶轮IMPELLER1
368172761面板FACEPLATE1
368M0204709面板FACEPLATE1
37880719挡圈RING Retaining1
388M0007131油封座组件CARRIER ASSEMBLY Oil Seal1
39896523O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
398M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
40NSS不单独销售 油封NOT SOLD SEPARATE Oil Seal1
41NSS不单独销售 油封NOT SOLD SEPARATE Oil Seal1
428M0032833键KEY1
428M0204723键KEY1
438172771水泵上垫片GASKET Water Pump, Upper1
44430331衬垫GASKET1
4543585联轴器COUPLING1
4636387A1轴承总成(滚子/外圈)BEARING ASSEMBLY Roller/Cup1
468M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
47NSS不单独销售 滚柱轴承NOT SOLD SEPARATE Roller Bearing1
488M0053110垫片组SHIM SET1
488M0063267垫片组SHIM SET1
4948939A2圆锥滚子轴承BEARING Taper Roller1
498M0146553杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
50NSSNOT SOLD SEPARATE CUP1
-830749A01齿轮箱密封套件SEAL KIT Gear Housing1
-43026Q06水泵叶轮维修套件REPAIR KIT Water Pump Impeller1
-8M0100526水泵叶轮维修套件REPAIR KIT Water Impeller1
-817275A08水泵上修包REPAIR KIT Water Pump-Upper1
图 22齿轮箱螺旋桨轴-反向旋转，4.80鱼雷型 2B026816及以下 Gear Housing PropShaft-Counter Rotation,4.80 Torpedo 2B026816 and Below
齿轮箱螺旋桨轴-反向旋转，4.80鱼雷型 2B026816及以下 Gear Housing PropShaft-Counter Rotation,4.80 Torpedo 2B026816 and Below
REF零件编号中文名称英文名称数量
-880686T15齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236258GC L6 4S CXLGC L6 4S CXL1
-880686T17齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236260GC L6 4S CXXLGC L6 4S CXXL1
-880686T57齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236267GC L6 1.75 CXLGC L6 1.75 CXL1
-880686T58齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236269GC L6 1.75 CXLGC L6 1.75 CXL1
-880686T59齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236270GC L6 1.75 CXXLGC L6 1.75 CXXL1
1880687T01齿轮箱总成 基础型 配5/16英寸换挡曲柄GEAR HOUSING ASSEMBLY Basic Used With 5/16 Inch Shift Crank1
18M0056631基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
18M0056631齿轮箱总成 基础型 配1/4英寸换挡曲柄GEAR HOUSING ASSEMBLY Basic Used With 1/4 Inch Shift Crank1
2NSS不单独销售 塞NOT SOLD SEPARATE Plug1
3896847A01换挡曲柄5/16枢轴销CRANK, Shifter 5/16 Pivot Pin1
38M0046215曲柄，换挡器1/4枢轴销CRANK, Shifter 1/4 Pivot Pin1
38M0220880曲柄，换挡器1/4枢轴销CRANK, Shifter 1/4 Pivot Pin1
419755T7阀芯总成SPOOL ASSEMBLY1
48M0235940阀芯总成SPOOL ASSY1
5NSS不单独销售线轴NOT SOLD SEPARATE Spool1
6469501开口销COTTER PIN1
7NSS不单独销售 调节套筒NOT SOLD SEPARATE Sleeve Adjusting1
8892809A02倒车齿轮总成GEAR ASSEMBLY Reverse1
8880723A02倒挡齿轮GEAR Reverse1
9884323T01滚柱轴承总成BEARING ASSEMBLY Roller1
98M0142836圆锥滚子轴承(外圈/内圈)BEARING Roller Taper (Cup/Cone)1
10NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
1123721挡圈RING Retaining1
118M0051043挡圈RING Retaining1
12892805止推垫片THRUST WASHER1
128M0053823止推垫圈(内径1.50×外径2.046)WASHER Thrust, (1.50 ID x 2.046 OD)1
13884325T01圆锥滚子轴承组件BEARING ASSEMBLY Roller-Tappered1
138M0142835圆锥滚子轴承(外圈/内圈)BEARING Roller Taper (Cup/Cone)1
14NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
15884328A01垫片组SHIM SETAR
158M0063270垫片组SHIM SETAR
1630893弹簧SPRING1
17880714T离合器CLUTCH1
1830632十字销PIN Cross1
188M0100263十字销PIN Cross1
19828356定位销PIN Detent1
20888530螺旋桨轴PROPELLER SHAFT1
21880720A02前进/小齿轮组GEAR SET Forward/Pinion1
218M0119540前进齿轮套件GEAR KIT-FORWARD1
21880720A03齿轮套件 前进/小齿轮GEAR KIT Forward/Pinion1
218M0119539齿轮总成GEAR ASSEMBLY1
22880699推力环THRUST RING1
23815480推力轴承BEARING Thrust1
24880696A10轴承座总成CARRIER ASSEMBLY Bearing1
25896524O型圈(3.850×.210)O-RING (3.850 x .210)1
258M0142840O型圈(3.85×0.210)O-RING (3.85 x 0.210)1
26814653T滚针轴承总成BEARING ASSEMBLY Needle Rollers1
27880728轴承适配器ADAPTER Bearing1
278M0148384前进齿轮轴承适配器ADAPTER Bearing Forward Gear1
2847397A1垫片组SHIM SETAR
29891936A01垫片组SHIM SETAR
30884330T01圆锥轴承组件BEARING ASSEMBLY Taper1
308M0148319圆锥滚子轴承(外圈/内圈)BEARING Roller Taper Cup/Cone1
31NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
32896600油封SEAL Oil1
328M0204700油封SEAL Oil1
33888483油封SEAL Oil1
338M0204700油封SEAL Oil1
34880717A01螺丝/密封套件SCREW/SEAL KIT1
35830749密封件SEAL1
358M0204693放油螺塞密封件SEAL Drain Plug1
36892818适配器ADAPTER1
368M0053183前进齿轮适配器ADAPTER Foward Gear1
37891919001止推隔套SPACER Thrust1
38880697键槽垫圈KEYED WASHER1
3979448固定座RETAINER1
398M2011027固定座RETAINER1
40NSS不单独销售-反向旋转标识NOT SOLD SEPARATE Decal-Counter Rotation1
-830749A01齿轮箱密封套件SEAL KIT Gear Housing1

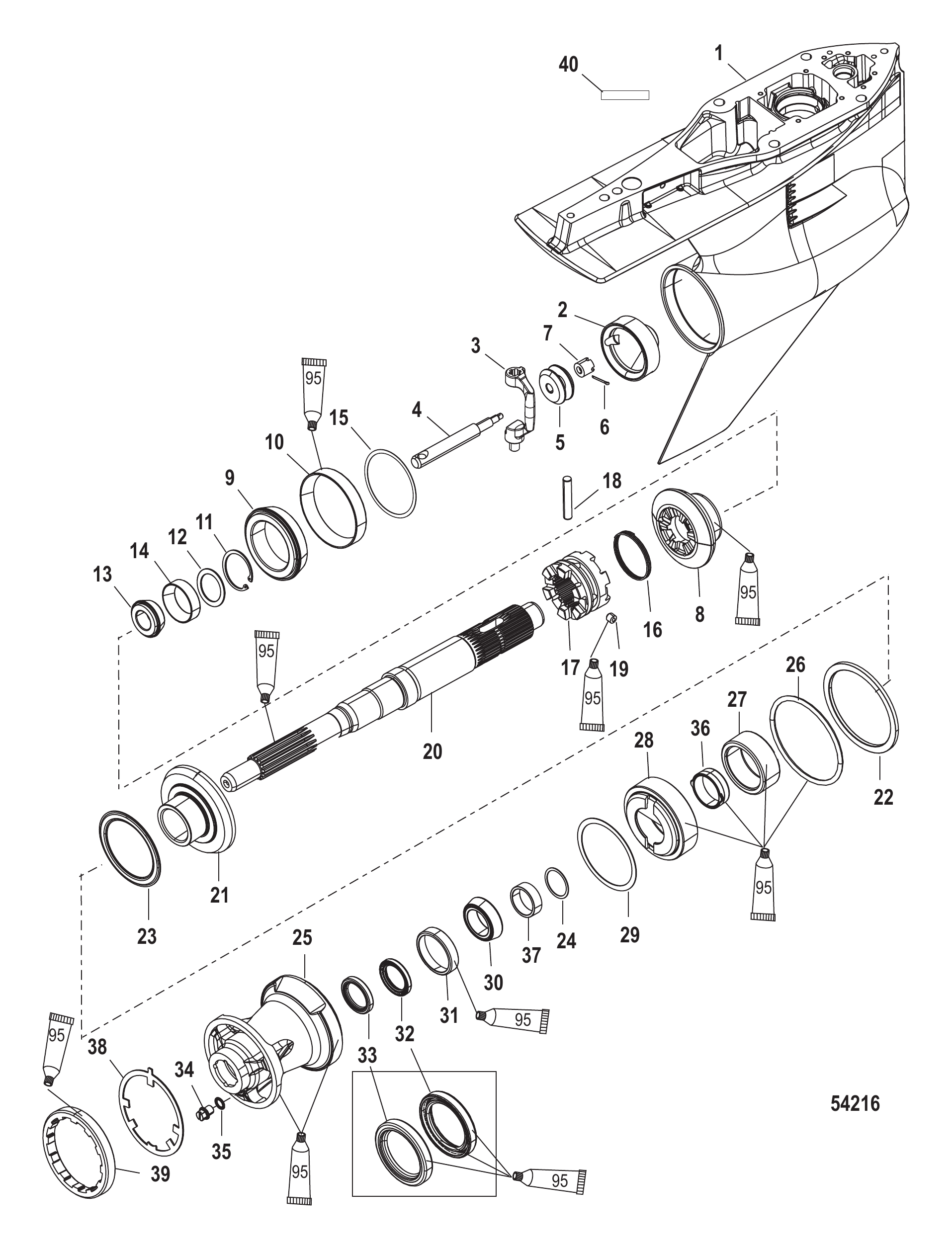

图 23齿轮箱螺旋桨轴-反向旋转，4.80鱼雷型 2B026817及以上 Gear Housing Prop Shaft-Counter Rotation, 4.80 Torpedo 2B026817 and Up
齿轮箱螺旋桨轴-反向旋转，4.80鱼雷型 2B026817及以上 Gear Housing Prop Shaft-Counter Rotation, 4.80 Torpedo 2B026817 and Up
REF零件编号中文名称英文名称数量
-880686T15齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236258GC L6 4S CXLGC L6 4S CXL1
-880686T17齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236260GC L6 4S CXXLGC L6 4S CXXL1
-880686T57齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236267GC L6 1.75 CXLGC L6 1.75 CXL1
-880686T58齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236269GC L6 1.75 CXLGC L6 1.75 CXL1
-880686T59齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236270GC L6 1.75 CXXLGC L6 1.75 CXXL1
18M0056631齿轮箱总成 基础款 配1/4英寸换挡曲柄 (1B853028及以上)GEAR HOUSING ASSEMBLY Basic Used with 1/4 inch Shift Crank (1B853028 and above)1
2NSS不单独销售 塞NOT SOLD SEPARATE Plug1
38M0046215曲柄, 换挡器 1/4英寸枢轴销 (1B853028及以上)CRANK, Shifter 1/4 Pivot Pin (1B853028 and above)1
38M0220880曲柄，换挡器1/4枢轴销CRANK, Shifter 1/4 Pivot Pin1
419755T7阀芯总成SPOOL ASSEMBLY1
48M0235940阀芯总成SPOOL ASSY1
5NSS不单独销售线轴NOT SOLD SEPARATE Spool1
6469501开口销COTTER PIN1
7NSS不单独销售 调节套筒NOT SOLD SEPARATE Sleeve Adjusting1
8892809A02倒车齿轮总成GEAR ASSEMBLY Reverse1
8880723A02倒挡齿轮GEAR Reverse1
9884323T01滚柱轴承总成BEARING ASSEMBLY Roller1
98M0142836圆锥滚子轴承(外圈/内圈)BEARING Roller Taper (Cup/Cone)1
10NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
1123721挡圈RING Retaining1
118M0051043挡圈RING Retaining1
12892805止推垫片THRUST WASHER1
128M0053823止推垫圈(内径1.50×外径2.046)WASHER Thrust, (1.50 ID x 2.046 OD)1
13884325T01圆锥滚子轴承组件BEARING ASSEMBLY Roller-Tappered1
138M0142835圆锥滚子轴承(外圈/内圈)BEARING Roller Taper (Cup/Cone)1
14NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
15884328A01垫片组SHIM SETAR
158M0063270垫片组SHIM SETAR
1630893弹簧SPRING1
17880714T离合器CLUTCH1
1830632十字销PIN Cross1
188M0100263十字销PIN Cross1
19828356定位销PIN Detent1
208M0069774螺旋桨轴PROPELLER SHAFT1
208M0140446螺旋桨轴PROPELLER SHAFT1
21880720A02前进/小齿轮组GEAR SET Forward/Pinion1
218M0119540前进齿轮套件GEAR KIT-FORWARD1
21880720A03齿轮套件 前进/小齿轮GEAR KIT Forward/Pinion1
218M0119539齿轮总成GEAR ASSEMBLY1
22880699推力环THRUST RING1
23815480推力轴承BEARING Thrust1
248M0076745垫片组SHIM SET1
248M0050423垫片 .020WASHER .020AR
248M0050424垫片 .022WASHER .022AR
248M0050425垫片 .024WASHER .024AR
248M0050427垫片 .026WASHER .026AR
248M0050428垫片 .028WASHER .028AR
248M0050429垫片 .030WASHER .030AR
248M0050430垫片 .032WASHER .032AR
248M0050431垫片 .034WASHER .034AR
248M0050432垫片 .036WASHER .036AR
248M0050433垫片 0.038WASHER .038AR
248M0050434垫片 0.040WASHER .040AR
248M0050435垫片 0.042WASHER .042AR
248M0050436垫片 0.044WASHER .044AR
248M0050437垫片 0.046WASHER .046AR
248M0050438垫片 0.048WASHER .048AR
248M0050439垫片 0.050WASHER .050AR
258M0086846轴承座总成CARRIER ASSEMBLY Bearing1
26896524O型圈(3.850×.210)O-RING (3.850 x .210)1
268M0142840O型圈(3.85×0.210)O-RING (3.85 x 0.210)1
27814653T滚针轴承总成BEARING ASSEMBLY Needle Rollers1
28880728轴承适配器ADAPTER Bearing1
288M0148384前进齿轮轴承适配器ADAPTER Bearing Forward Gear1
2947397A1垫片组SHIM SETAR
30884330T01圆锥轴承组件BEARING ASSEMBLY Taper1
308M0148319圆锥滚子轴承(外圈/内圈)BEARING Roller Taper Cup/Cone1
31NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
32896600油封SEAL Oil1
328M0204700油封SEAL Oil1
33888483油封SEAL Oil1
338M0204700油封SEAL Oil1
34880717A01螺钉/密封套件 .38英寸长SCREW/SEAL KIT .38 Inch Long1
348M0077071螺钉/密封套件 .75英寸长SCREW/SEAL KIT .75 Inch Long1
35830749密封件SEAL1
358M0204693放油螺塞密封件SEAL Drain Plug1
368M0053183前进齿轮适配器ADAPTER Foward Gear1
378M0064306止推隔套SPACER Thrust1
38880697键槽垫圈KEYED WASHER1
398M2011027固定座RETAINER1
398M2000347固定座RETAINER1
40NSS不单独销售-反向旋转标识NOT SOLD SEPARATE Decal-Counter Rotation1
-830749A01齿轮箱密封套件SEAL KIT Gear Housing1

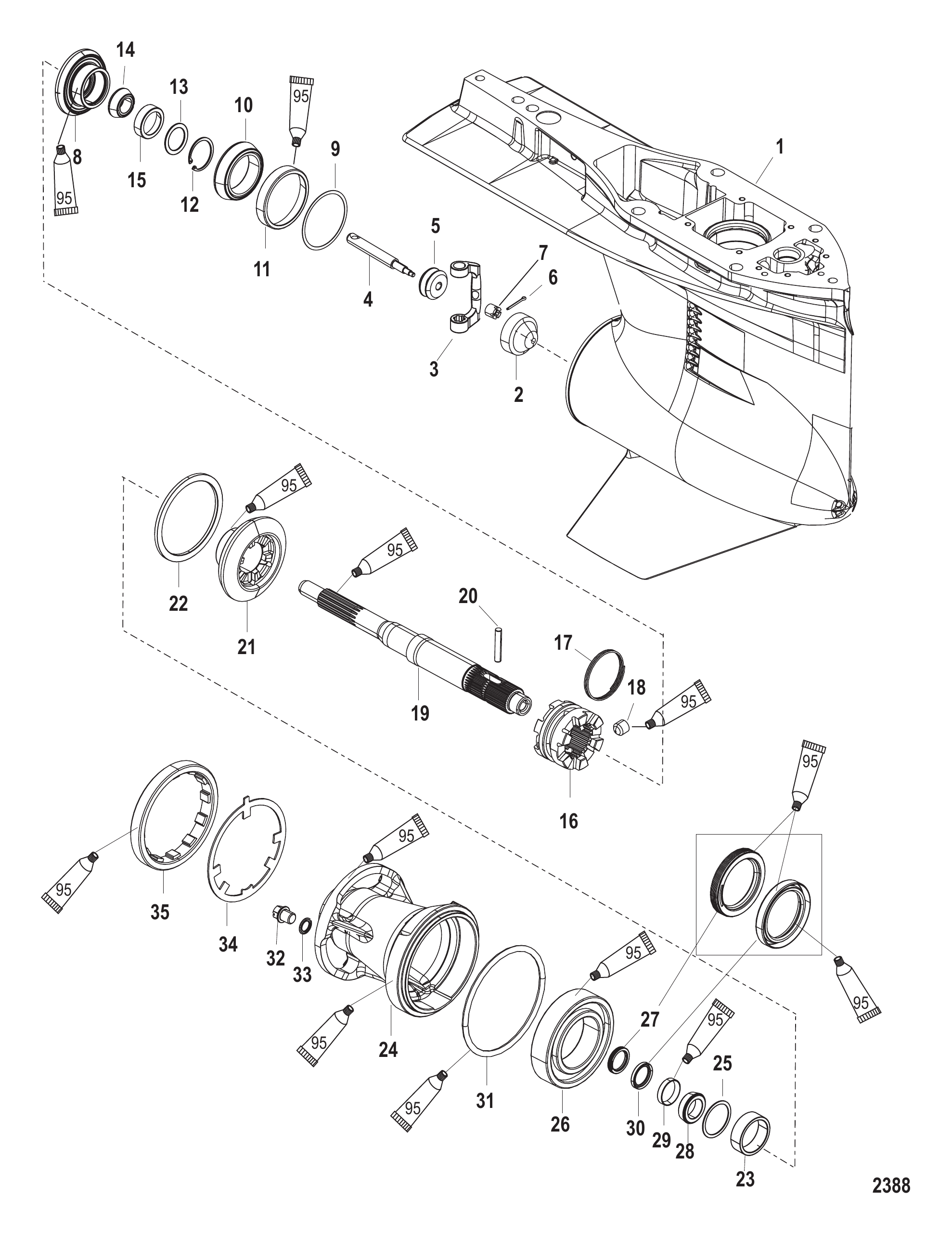

图 24齿轮箱螺旋桨轴-正向旋转，4.80鱼雷型 2B026816及以下 Gear Housing Prop Shaft-Standard Rotation, 4.80 Torpedo 2B026816 and Below
齿轮箱螺旋桨轴-正向旋转，4.80鱼雷型 2B026816及以下 Gear Housing Prop Shaft-Standard Rotation, 4.80 Torpedo 2B026816 and Below
REF零件编号中文名称英文名称数量
-880686T13齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236255GC L6 4S LGC L6 4S L1
-880686T14齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236256GC L6 4S XLGC L6 4S XL1
-880686T16齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236259GC L6 4S XXLGC L6 4S XXL1
-880686T54齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236264GC L6 1.75 LGC L6 1.75 L1
-880686T55齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236265GC L6 1.75 XLGC L6 1.75 XL1
-880686T56齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236266GC L6 1.75 XXLGC L6 1.75 XXL1
1880687T01齿轮箱总成 基础型 配5/16英寸换挡曲柄GEAR HOUSING ASSEMBLY Basic Used With 5/16 Inch Shift Crank1
18M0056631基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
18M0056631齿轮箱总成 基础型 配1/4英寸换挡曲柄GEAR HOUSING ASSEMBLY Basic Used With 1/4 Inch Shift Crank1
2NSS不单独销售 塞NOT SOLD SEPARATE Plug1
3896847A01换挡曲柄5/16枢轴销CRANK, Shifter 5/16 Pivot Pin1
38M0046215曲柄，换挡器1/4枢轴销CRANK, Shifter 1/4 Pivot Pin1
38M0220880曲柄，换挡器1/4枢轴销CRANK, Shifter 1/4 Pivot Pin1
419755T7阀芯总成SPOOL ASSEMBLY1
48M0235940阀芯总成SPOOL ASSY1
5NSS不单独销售线轴NOT SOLD SEPARATE Spool1
6469501开口销COTTER PIN1
7NSS不单独销售 调节套筒NOT SOLD SEPARATE Sleeve Adjusting1
8892595A05前进/小齿轮组GEAR SET Forward/Pinion1
8892595A04前进/小齿轮组GEAR SET Forward/Pinion1
9884328A01垫片组SHIM SETAR
98M0063270垫片组SHIM SETAR
10884323T01滚柱轴承总成BEARING ASSEMBLY Roller1
108M0142836圆锥滚子轴承(外圈/内圈)BEARING Roller Taper (Cup/Cone)1
11NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
1223721挡圈RING Retaining1
128M0051043挡圈RING Retaining1
13892805止推垫片THRUST WASHER1
138M0053823止推垫圈(内径1.50×外径2.046)WASHER Thrust, (1.50 ID x 2.046 OD)1
14884325T01圆锥滚子轴承组件BEARING ASSEMBLY Roller-Tappered1
148M0142835圆锥滚子轴承(外圈/内圈)BEARING Roller Taper (Cup/Cone)1
15NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
16880714T离合器CLUTCH1
1730893弹簧SPRING1
18828356定位销PIN Detent1
19888530螺旋桨轴PROPELLER SHAFT1
208M0020941十字销PIN Cross1
208M0100263十字销PIN Cross1
21880695A01倒车齿轮总成GEAR ASSEMBLY Reverse1
218M0142891倒挡齿轮24齿GEAR Reverse, 24T1
21880707A01倒挡齿轮GEAR Reverse1
218M0118363倒车齿轮 21齿GEAR Reverse, 21T1
22880699推力环THRUST RING1
23891919001止推隔套SPACER Thrust1
24880696A08轴承座总成CARRIER ASSEMBLY Bearing1
25891936A01垫片组SHIM SETAR
26884329T滚珠轴承BEARING Ball1
268M0142873滚珠轴承BEARING Ball1
27888483油封SEAL Oil1
278M0204700油封SEAL Oil1
28884330T01圆锥轴承组件BEARING ASSEMBLY Taper1
288M0148319圆锥滚子轴承(外圈/内圈)BEARING Roller Taper Cup/Cone1
29NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
30888483油封SEAL Oil1
308M0204700油封SEAL Oil1
31896524O型圈(3.850×.210)O-RING (3.850 x .210)1
318M0142840O型圈(3.85×0.210)O-RING (3.85 x 0.210)1
32880717A01螺丝/密封套件SCREW/SEAL KIT1
33830749密封件SEAL1
338M0204693放油螺塞密封件SEAL Drain Plug1
34880697键槽垫圈KEYED WASHER1
3579448固定座RETAINER1
358M2011027固定座RETAINER1
-8M0235174标贴 齿轮箱 1.75:1DECAL Gearcase, 1.75:11
-830749A01齿轮箱密封套件SEAL KIT Gear Housing1

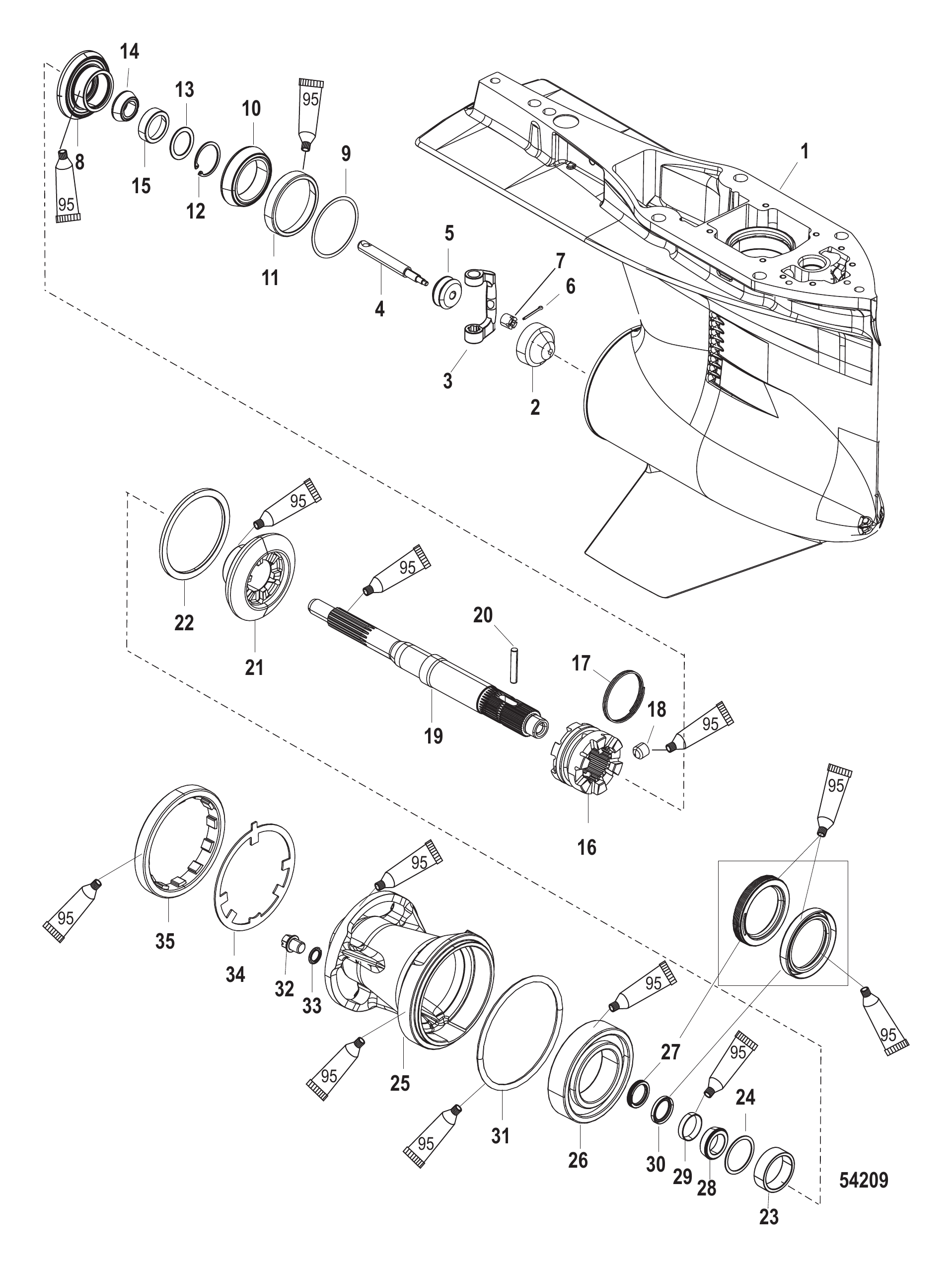

图 25齿轮箱螺旋桨轴-正向旋转，4.80鱼雷型 2B026817及以上 Gear Housing Prop Shaft-Standard Rotation, 4.80 Torpedo 2B026817 and Up
齿轮箱螺旋桨轴-正向旋转，4.80鱼雷型 2B026817及以上 Gear Housing Prop Shaft-Standard Rotation, 4.80 Torpedo 2B026817 and Up
REF零件编号中文名称英文名称数量
-880686T13齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236255GC L6 4S LGC L6 4S L1
-880686T14齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236256GC L6 4S XLGC L6 4S XL1
-880686T16齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236259GC L6 4S XXLGC L6 4S XXL1
-880686T54齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236264GC L6 1.75 LGC L6 1.75 L1
-880686T55齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236265GC L6 1.75 XLGC L6 1.75 XL1
-880686T56齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-8M0236266GC L6 1.75 XXLGC L6 1.75 XXL1
18M0056631GEAR HOUSING ASSEMBLY Basic Used With 1/4 Inch Shift Crank (1B853028 and above)1
2NSS不单独销售 塞NOT SOLD SEPARATE Plug1
38M0046215曲柄, 换挡器 1/4英寸枢轴销 (1B853028及以上)CRANK, Shifter 1/4 Pivot Pin (1B853028 and above)1
38M0220880曲柄，换挡器1/4枢轴销CRANK, Shifter 1/4 Pivot Pin1
419755T7阀芯总成SPOOL ASSEMBLY1
48M0235940阀芯总成SPOOL ASSY1
5NSS不单独销售线轴NOT SOLD SEPARATE Spool1
6469501开口销COTTER PIN1
7NSS不单独销售 调节套筒NOT SOLD SEPARATE Sleeve Adjusting1
8892595A05前进/小齿轮组GEAR SET Forward/Pinion1
8892595A04前进/小齿轮组GEAR SET Forward/Pinion1
9884328A01垫片组SHIM SETAR
98M0063270垫片组SHIM SETAR
10884323T01滚柱轴承总成BEARING ASSEMBLY Roller1
108M0142836圆锥滚子轴承(外圈/内圈)BEARING Roller Taper (Cup/Cone)1
11NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
1223721挡圈RING Retaining1
128M0051043挡圈RING Retaining1
13892805止推垫片THRUST WASHER1
138M0053823止推垫圈(内径1.50×外径2.046)WASHER Thrust, (1.50 ID x 2.046 OD)1
14884325T01圆锥滚子轴承组件BEARING ASSEMBLY Roller-Tappered1
148M0142835圆锥滚子轴承(外圈/内圈)BEARING Roller Taper (Cup/Cone)1
15NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
16880714T离合器CLUTCH1
1730893弹簧SPRING1
18828356定位销PIN Detent1
198M0069774螺旋桨轴PROPELLER SHAFT1
198M0140446螺旋桨轴PROPELLER SHAFT1
208M0020941十字销PIN Cross1
208M0100263十字销PIN Cross1
21880695A01倒车齿轮总成GEAR ASSEMBLY Reverse1
218M0142891倒挡齿轮24齿GEAR Reverse, 24T1
21880707A01倒挡齿轮GEAR Reverse1
218M0118363倒车齿轮 21齿GEAR Reverse, 21T1
22880699推力环THRUST RING1
238M0064306止推隔套SPACER Thrust1
248M0076745垫片组SHIM SET1
248M0050423垫片 .020WASHER .020AR
248M0050424垫片 .022WASHER .022AR
248M0050425垫片 .024WASHER .024AR
248M0050427垫片 .026WASHER .026AR
248M0050428垫片 .028WASHER .028AR
248M0050429垫片 .030WASHER .030AR
248M0050430垫片 .032WASHER .032AR
248M0050431垫片 .034WASHER .034AR
248M0050432垫片 .036WASHER .036AR
248M0050433垫片 0.038WASHER .038AR
248M0050434垫片 0.040WASHER .040AR
248M0050435垫片 0.042WASHER .042AR
248M0050436垫片 0.044WASHER .044AR
248M0050437垫片 0.046WASHER .046AR
248M0050438垫片 0.048WASHER .048AR
248M0050439垫片 0.050WASHER .050AR
258M0083392轴承座总成CARRIER ASSEMBLY Bearing1
26884329T滚珠轴承BEARING Ball1
268M0142873滚珠轴承BEARING Ball1
27888483油封SEAL Oil1
278M0204700油封SEAL Oil1
28884330T01圆锥轴承组件BEARING ASSEMBLY Taper1
288M0148319圆锥滚子轴承(外圈/内圈)BEARING Roller Taper Cup/Cone1
29NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
30888483油封SEAL Oil1
308M0204700油封SEAL Oil1
31896524O型圈(3.850×.210)O-RING (3.850 x .210)1
318M0142840O型圈(3.85×0.210)O-RING (3.85 x 0.210)1
32880717A01螺钉/密封套件 .38英寸长SCREW/SEAL KIT .38 Inch Long1
328M0077071螺钉/密封套件 .75英寸长SCREW/SEAL KIT .75 Inch Long1
33830749密封件SEAL1
338M0204693放油螺塞密封件SEAL Drain Plug1
34880697键槽垫圈KEYED WASHER1
3579448固定座RETAINER1
358M2011027固定座RETAINER1
-8M0235174标贴 齿轮箱 1.75:1DECAL Gearcase, 1.75:11
-830749A01齿轮箱密封套件SEAL KIT Gear Housing1
图 26接地线套件 899712A01 Ground Cable Kit (899712A01)
接地线套件 899712A01 Ground Cable Kit (899712A01)
REF零件编号中文名称英文名称数量
-899712A01连续性电缆套件CABLE KIT Continuity1
188238T23拉线总成CABLE ASSEMBLY1
288238T24拉线总成CABLE ASSEMBLY1
3885112垫圈WASHER1
38M0217559垫圈WASHER1
412602002护孔环GROMMET1

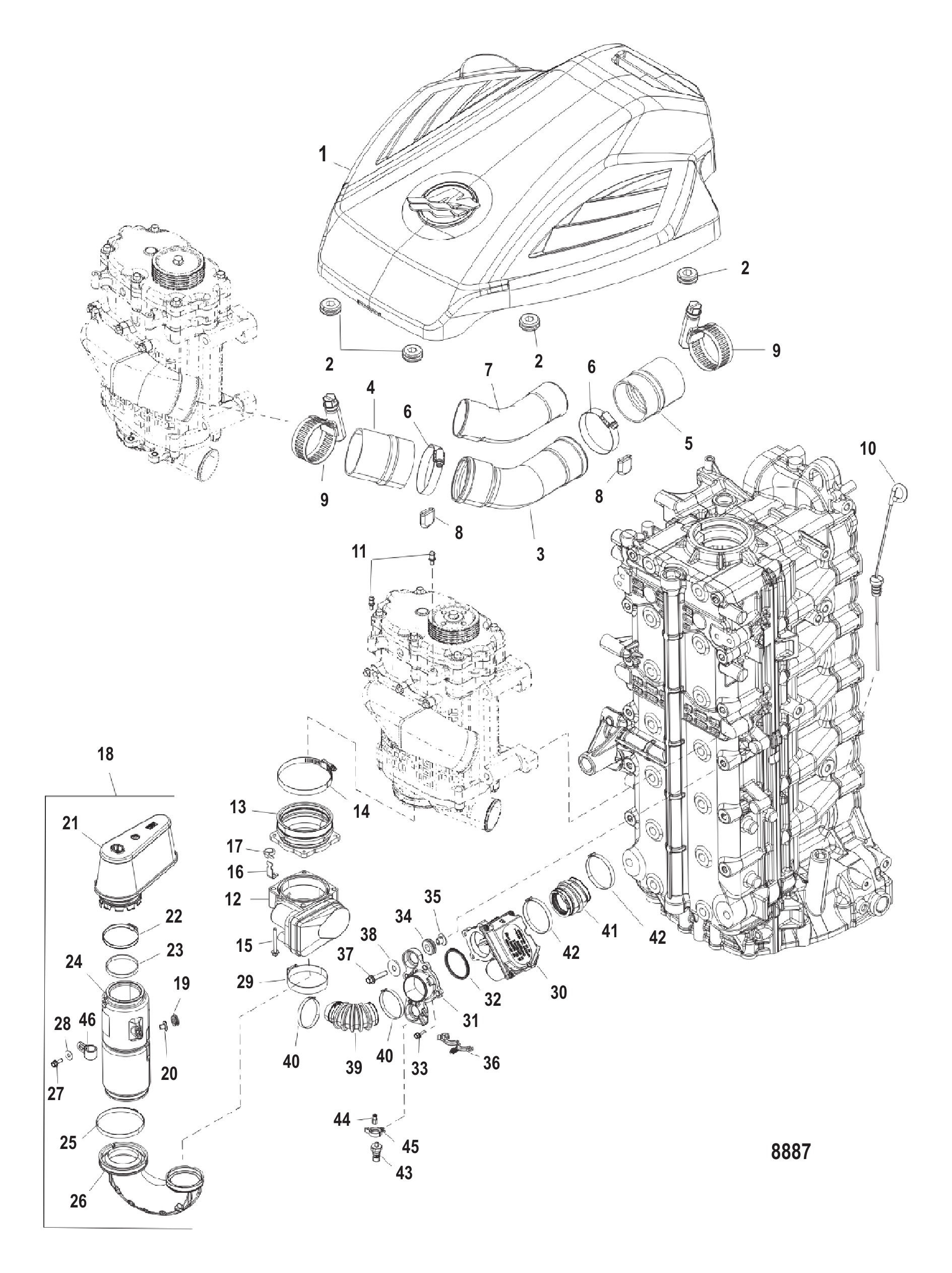

图 27进气系统组件 Induction Components
进气系统组件 Induction Components
REF零件编号中文名称英文名称数量
1887936T04飞轮盖COVER Flywheel1
2834985护孔环GROMMET4
28M0190980护孔环GROMMET4
3893307A01出管总成TUBE OUTLET ASSEMBLY1
38M0035481热风管总成TUBE ASSEMBLY Hot Air Duct1
4893389软管(内径65)HOSE (65 Inside Diameter)1
48M0035481热风管总成TUBE ASSEMBLY Hot Air Duct1
5893390软管(内径60)HOSE (60 Inside Diameter)1
58M0035481热风管总成TUBE ASSEMBLY Hot Air Duct1
6893342卡箍CLAMP2
7893391软管套管HOSE SLEEVE1
78M0035481热风管总成TUBE ASSEMBLY Hot Air Duct1
88079923软管夹端盖COVER Hose Clamp End2
88M0074364软管夹盖COVER Hose Clamp2
9893342卡箍CLAMP2
10898022机油尺DIPSTICK Oil1
11888517销PIN2
12888991T03电子节气门控制总成THROTTLE CONTROL ASSEMBLY Electronic1
128M0113515节气门控制器THROTTLE CONTROL1
13880576005隔离器ISOLATOR1
138M0113513ETC隔离器ISOLATOR-ETC1
14815504256蜗杆卡箍CLAMP Worm Gear1
1588552550不锈钢螺钉 (M6 x 50 mm)SCREW (M6 x 50 mm) Stainless Steel4
16884353支架BRACKET2
17816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)2
18892383T05进气总成INTAKE ASSEMBLY Air1
18892383T06进气总成INTAKE ASSEMBLY Air1
198349851护孔环GROMMET1
20856954衬套BUSHING1
21893318T01空气滤清器FILTER Air1
21893318T02空气滤清器FILTER Air1
22895842卡箍CLAMP1
23893317衬垫GASKET1
24892383001谐振器RESONATOR1
248M0007183谐振器RESONATOR1
25888988027卡箍CLAMP1
26893314002进气管DUCT Inlet1
2788552525不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel1
278M0103807不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel1
2865567不锈钢垫圈(0.265x0.750x0.048)WASHER (.265 x .750 x .048) Stainless Steel1
29888988016卡箍（96.5毫米）CLAMP (96.5 mm)1
30884408A07电动增压控制阀套件VALVE KIT Control - Electric Boost1
30884408A08电动增压控制阀套件VALVE KIT Control - Electric Boost1
31887939007增压阀安装板PLATE Boost Valve Mounting1
32892079O型圈O-RING1
3388552520螺钉(M6 x 20毫米)不锈钢SCREW (M6 x 20 mm) Stainless Steel4
338M0103806螺钉(M6 x 20毫米)不锈钢SCREW (M6 x 20 mm) Stainless Steel4
34833155护孔环GROMMET2
358502341衬套BUSHING2
36859376卡扣CLIP1
3788552635螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)2
378M0103814螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)2
38817274垫圈(0.344×1.00×0.063)不锈钢WASHER (.344 x 1.00 x .063) Stainless Steel2
39887937006前部软管HOSE Front1
40888988002卡箍(57.5毫米 前电子增压控制)CLAMP (57.5 mm) Front Electronic Boost Control2
41887938003后管TUBE Rear1
42888988004卡箍(62.0毫米 后电子增压控制)CLAMP (62.0 mm) Rear Electronic Boost Control2
43881879A16皮托管传感器总成SENSOR ASSEMBLY Pitot1
43881879T25皮托管传感器总成SENSOR ASSEMBLY Pitot1
44892403接头FITTING1
448M0207782直通接头FITTING Straight1
45883066夹子 (.865)CLIP (.865)1
468589781燃油软管卡箍（适用处使用）CLIP Fuel Hose (Use where Applicable)1

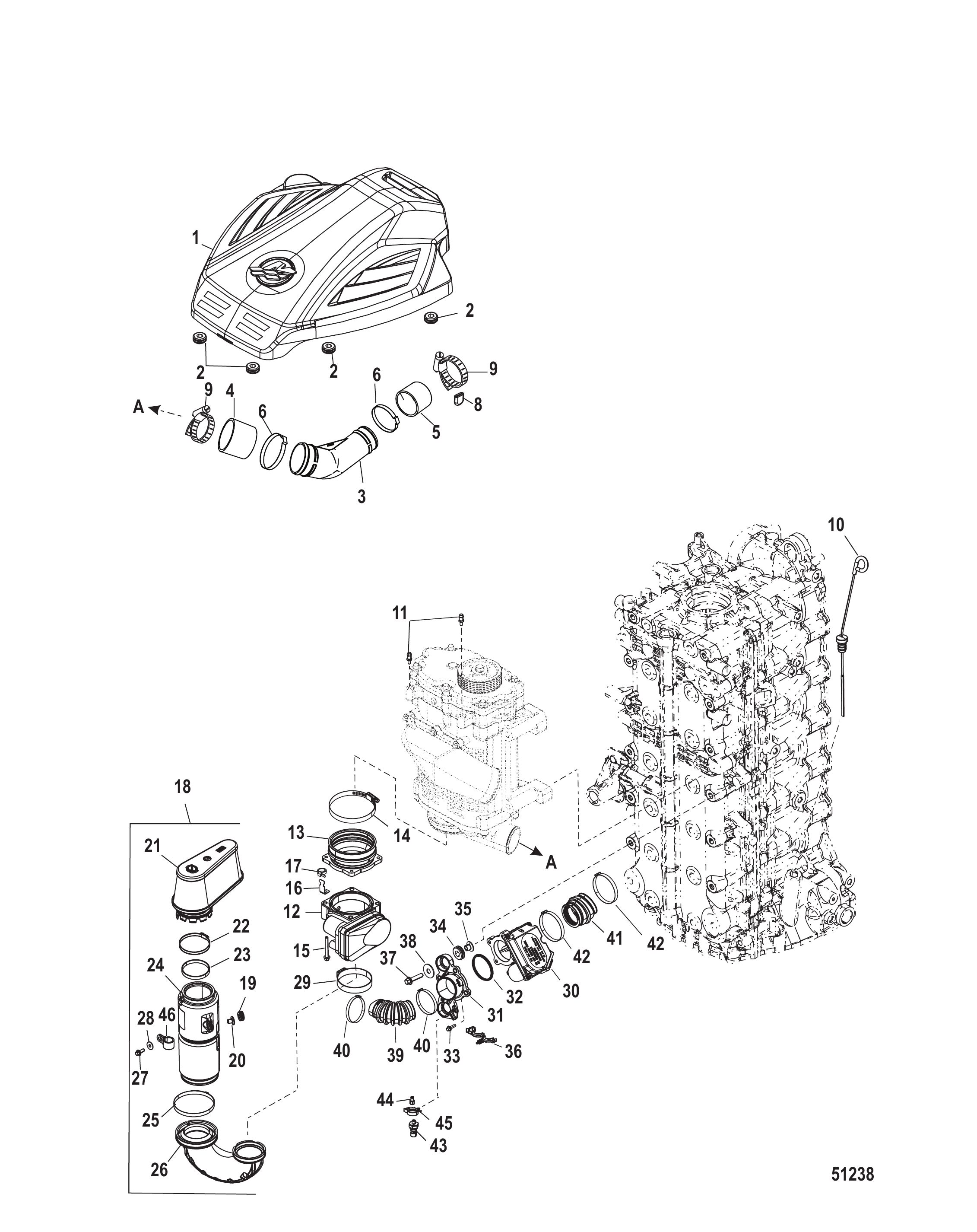

图 28进气组件 CCT Induction Components CCT
进气组件 CCT Induction Components CCT
REF零件编号中文名称英文名称数量
18M0071814飞轮盖COVER Flywheel1
2834985护孔环GROMMET4
28M0190980护孔环GROMMET4
38M0035481热风管总成TUBE ASSEMBLY Hot Air Duct1
4896259软管HOSE1
5896271软管HOSE1
6893342卡箍CLAMP2
7893391软管套管HOSE SLEEVE1
78M0035481热风管总成TUBE ASSEMBLY Hot Air Duct1
88079923软管夹端盖COVER Hose Clamp End2
88M0074364软管夹盖COVER Hose Clamp2
9893342卡箍CLAMP2
10898022机油尺DIPSTICK Oil1
11888517销PIN2
12888991T04电子节气门控制总成CONTROL ASSEMBLY Throttle - Electronic1
128M0113515节气门控制器THROTTLE CONTROL1
13880576005隔离器ISOLATOR1
138M0113513ETC隔离器ISOLATOR-ETC1
14815504256蜗杆卡箍CLAMP Worm Gear1
1588552550不锈钢螺钉 (M6 x 50 mm)SCREW (M6 x 50 mm) Stainless Steel4
16884353支架BRACKET2
17816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)2
18892383T06进气总成INTAKE ASSEMBLY Air1
198349851护孔环GROMMET1
20856954衬套BUSHING1
21893318T02空气滤清器FILTER Air1
22895842卡箍CLAMP1
23893317衬垫GASKET1
24892383001谐振器RESONATOR1
248M0007183谐振器RESONATOR1
25888988027卡箍CLAMP1
26893314002进气管DUCT Inlet1
2788552525不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel1
278M0103807不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel1
2865567不锈钢垫圈(0.265x0.750x0.048)WASHER (.265 x .750 x .048) Stainless Steel1
29888988016卡箍（96.5毫米）CLAMP (96.5 mm)1
30884408A07电动增压控制阀套件VALVE KIT Control - Electric Boost1
30884408A08电动增压控制阀套件VALVE KIT Control - Electric Boost1
31887939007增压阀安装板PLATE Boost Valve Mounting1
32892079O型圈O-RING1
3388552520螺钉(M6 x 20毫米)不锈钢SCREW (M6 x 20 mm) Stainless Steel4
338M0103806螺钉(M6 x 20毫米)不锈钢SCREW (M6 x 20 mm) Stainless Steel4
34833155护孔环GROMMET2
358502341衬套BUSHING2
36859376卡扣CLIP1
3788552635螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)2
378M0103814螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)2
38817274垫圈(0.344×1.00×0.063)不锈钢WASHER (.344 x 1.00 x .063) Stainless Steel2
39887937006前部软管HOSE Front1
40888988002卡箍(57.5毫米 前电子增压控制)CLAMP (57.5 mm) Front Electronic Boost Control2
41887938003后管TUBE Rear1
42888988004卡箍(62.0毫米 后电子增压控制)CLAMP (62.0 mm) Rear Electronic Boost Control2
43881879A16皮托管传感器总成SENSOR ASSEMBLY Pitot1
43881879T25皮托管传感器总成SENSOR ASSEMBLY Pitot1
44892403接头FITTING1
448M0207782直通接头FITTING Straight1
45883066夹子 (.865)CLIP (.865)1
468589781燃油软管卡箍（适用处使用）CLIP Fuel Hose (Use where Applicable)1
图 29润滑图表 Lube Chart
润滑图表 Lube Chart
REF零件编号中文名称英文名称数量
-NOPART无零件清单NO PARTS LIST1

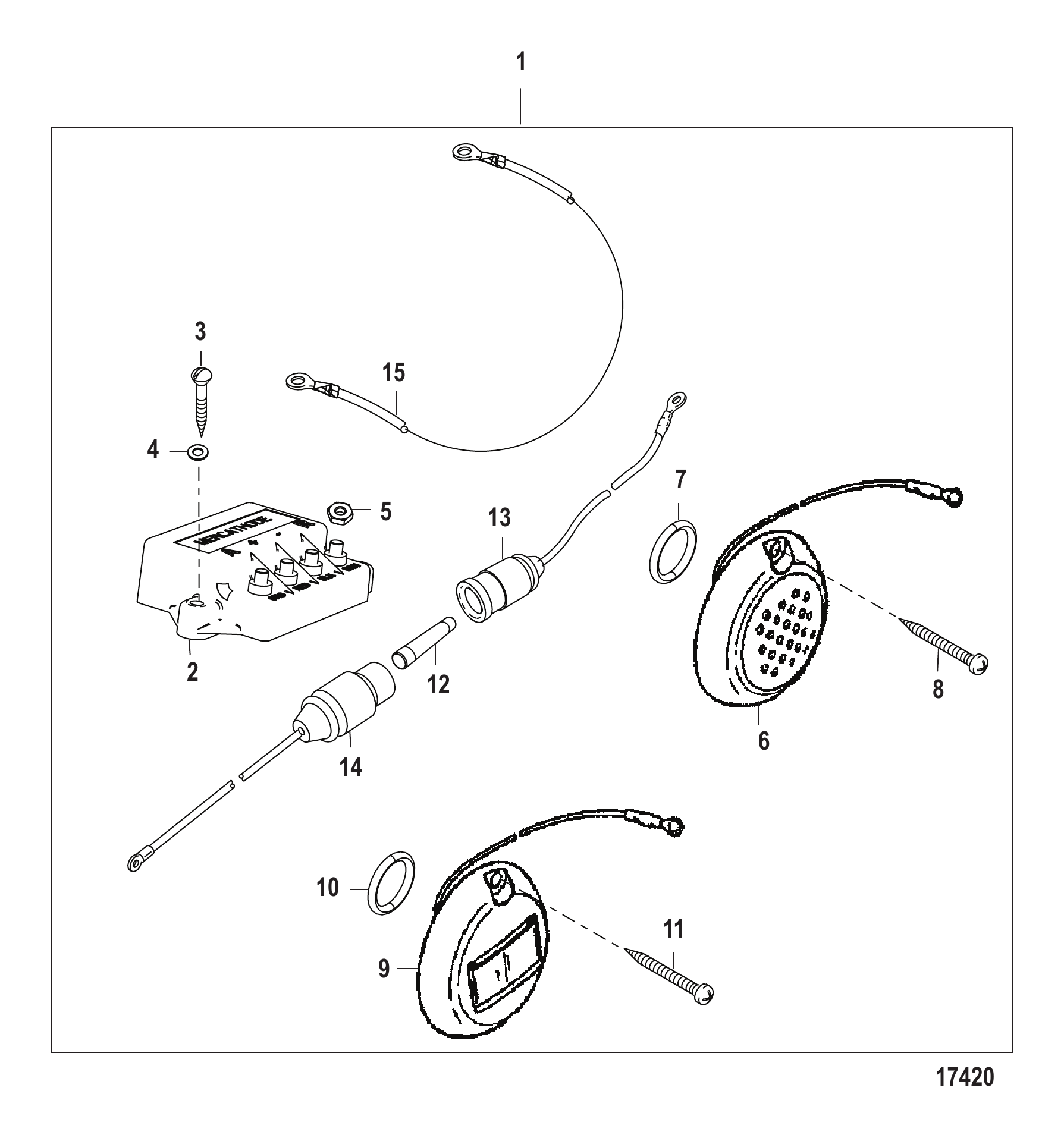

图 30防腐电极套件 Mercathode Kit
防腐电极套件 Mercathode Kit
REF零件编号中文名称英文名称数量
188334A2防腐电极套件MERCATHODE KIT1
242600A09防腐电极总成MERCATHODE ASSEMBLY1
322793螺丝(#9-14x0.875)SCREW (#9-14 x .875)2
430164垫圈(0.192x0.375x0.0312)不锈钢WASHER (.192 x .375 x .0312) Stainless Steel2
545076黄铜螺母(#10-32)NUT (#10-32) Brass4
672958A5电极总成ELECTRODE ASSEMBLY1
721836O型圈(.796 x .139)O-RING (.796 x .139)1
78M0204645O型圈(.796 x .139)O-RING (.796 x .139)1
887698螺丝(#10-16 x 1.250)不锈钢SCREW (#10-16 x 1.250) Stainless Steel2
972957A5阳极总成ANODE ASSEMBLY1
98M0181304阳极总成ANODE ASSY1
1021836O型圈(.796 x .139)O-RING (.796 x .139)1
108M0204645O型圈(.796 x .139)O-RING (.796 x .139)1
1187698螺丝(#10-16 x 1.250)不锈钢SCREW (#10-16 x 1.250) Stainless Steel2
1279091保险丝20安培FUSE 20 Ampere1
128M0207796保险丝20安培FUSE 20 AMP1
1395084A10电缆总成(5.00英寸)红色CABLE ASSEMBLY (5.00 Inches) Red1
138M0207788拉线总成CABLE ASSEMBLY1
1495084A13电缆总成(64.00英寸)CABLE ASSEMBLY (64.00 Inches)1
1579138A8电缆总成(72.00英寸)黑色CABLE ASSEMBLY (72.00 Inches) Black1

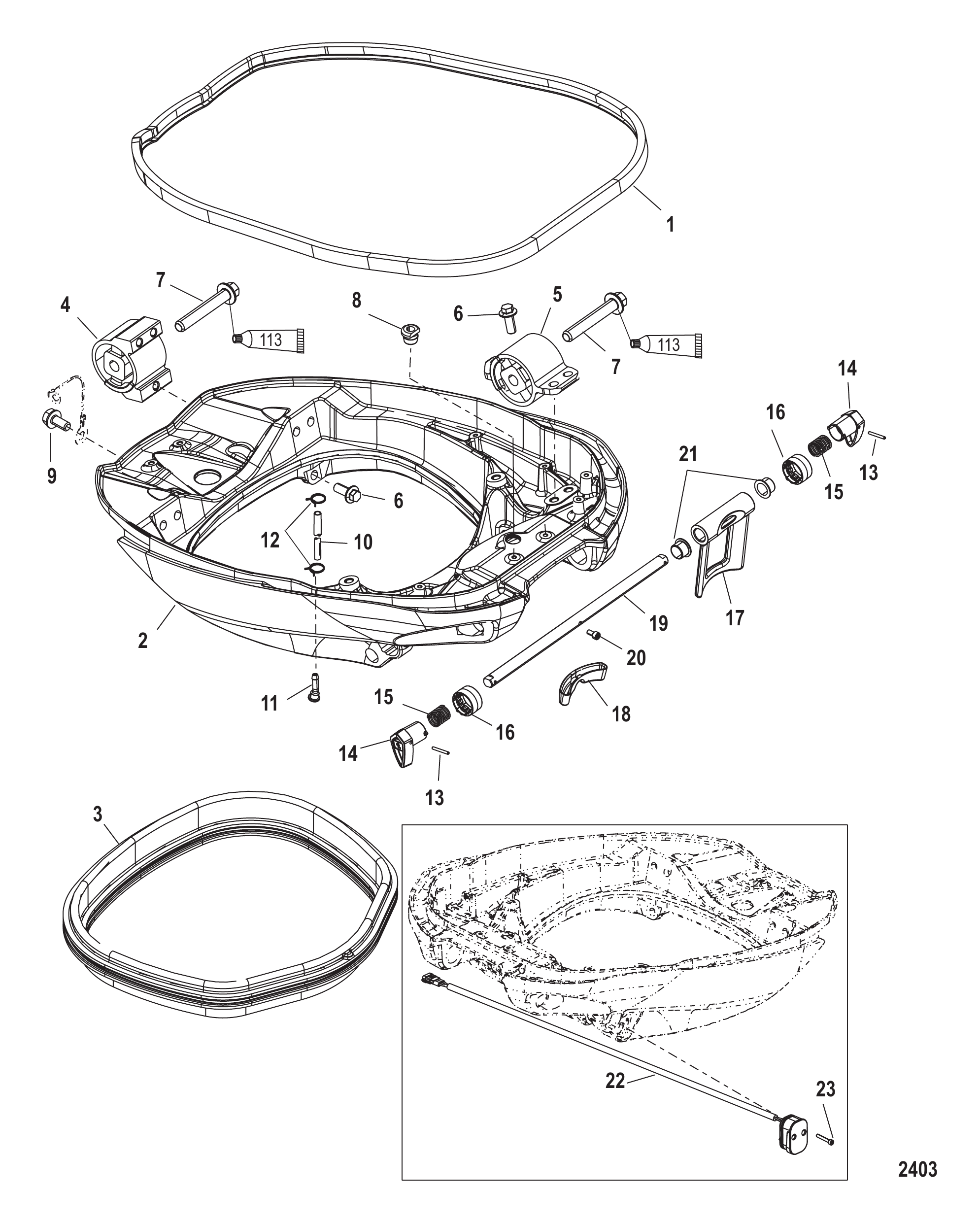

图 31安装支架 Mount Cradle
安装支架 Mount Cradle
REF零件编号中文名称英文名称数量
1885546002密封件SEAL1
2884887T04安装支架MOUNT CRADLE1
2884887T07支架安装总成CRADLE ASSEMBLY Mount1
3884888003密封件SEAL1
38M0060014密封件SEAL1
4888538T后安装座MOUNT Rear2
48M0103708后安装座MOUNT Rear2
5888535T前安装座MOUNT Front2
58M0103365前安装座MOUNT Front2
6889745030螺钉（M12×30）SCREW (M12 x 30)12
7896531090螺钉（M16×90）SCREW (M16 x 90)4
78M0103832螺钉SCREW4
819565002护孔环GROMMET1
940011126不锈钢螺丝(M6 x 13)SCREW (M6 x 13) Stainless Steel1
10830756109软管（57英寸散装裁至35英寸）HOSE (57.00 Inches Bulk) Cut to 35 Inches1
108M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
11895797示踪管接头FITTING Telltale1
11895797001接头FITTING1
12895851卡箍(8英寸)CLAMP (8.00 Inches)2
1373194滚销(.125 x 1.12)PIN Roll (.125 x 1.12)2
14880649002倾斜锁杆LEVER Tilt Lock2
1547968弹簧SPRING2
16889540A03离合器套件CLUTCH KIT1
17880651002倾斜锁止支架BRACKET Tilt Lock1
178M0109693倾斜锁止支架BRACKET Tilt Lock1
18889539001倾斜锁止垫PAD Tilt Lock1
188M0076907倾斜锁止垫PAD Tilt Lock1
19880650003倾斜锁定轴SHAFT Tilt Lock1
20889546螺钉 (M5 x 10)SCREW (M5 x 10)1
218806641轴承（0.625英寸）BEARING (.625 Inch)2
22888590002升降位置传感器SENSOR Trim Position1
23889547螺丝(M5 x 30)SCREW (M5 x 30)2

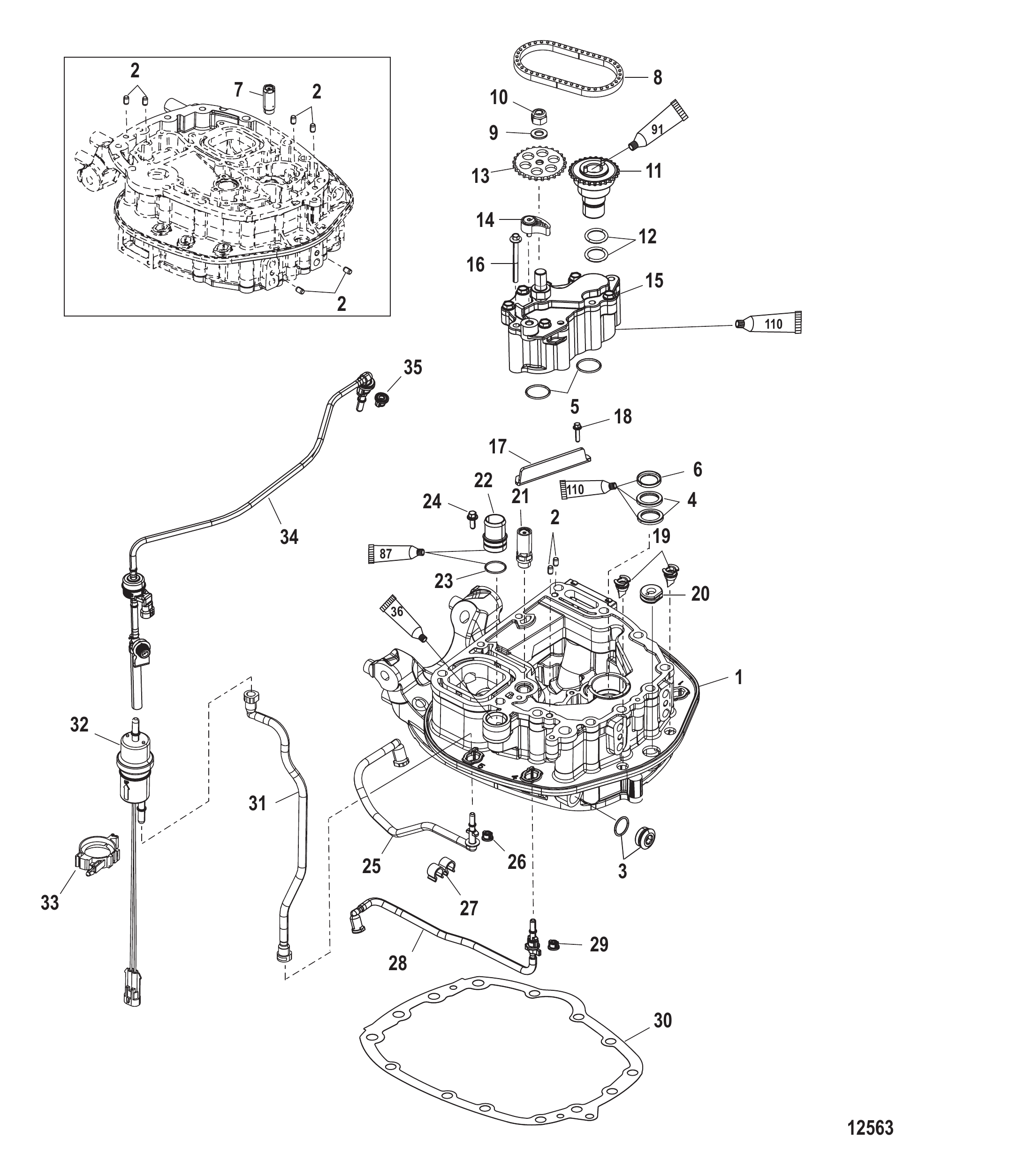

图 32机油泵/上适配板 Oil Pump/Adaptor Plate-Upper
机油泵/上适配板 Oil Pump/Adaptor Plate-Upper
REF零件编号中文名称英文名称数量
1892126A01适配板套件ADAPTER PLATE KIT1
2892228定位销PIN Dowel8
3896951堵头（24毫米）PLUG (24 mm)1
4884462水封SEAL Water2
5887930O型圈O-RING2
6884461油封SEAL Oil1
68M0033928油封SEAL Oil1
7884422A07油泵泄压阀PRESSURE RELIEF VALVE Oil Pump1
8884457油泵驱动链条CHAIN Oil Pump Drive1
88M6002692油泵驱动链条CHAIN Oil Pump Drive1
9892491垫圈WASHER1
10892165螺母NUT1
11884458T06油泵驱动轴DRIVESHAFT Oil Pump1
118M0217265机油泵OIL PUMP1
12895791O型圈O-RING2
128M0034912O型圈 3.78×21.32O-RING 3.78 X 21.322
13884456从动链轮SPROCKET Driven1
14884418A1油泵驱动张紧器总成TENSIONER ASSEMBLY Oil Pump Drive1
15884446T04油泵总成PUMP ASSEMBLY Oil1
16892455065螺钉SCREW5
17892335001导油板DEFLECTOR Oil1
1888552516螺丝 (M6 x 16毫米) 不锈钢SCREW (M6 x 16 mm) Stainless Steel2
188M0103805螺丝 (M6 x 16毫米) 不锈钢SCREW (M6 x 16 mm) Stainless Steel2
19888819002排水罩DRAIN Cowl2
20888163护孔环GROMMET1
21884477A01止回阀总成CHECK VALVE ASSEMBLY1
218M0062064止回阀总成CHECK VALVE ASSY.1
22885516004泄放接头FITTING Dump1
228M0092321EDP黑色接头FITTING EDP Black1
23846594O型圈 (1.239 x .070) 黑色O-RING (1.239 x .070) Black1
238M0092943O型圈 橙色O-RING Orange1
2488552512不锈钢螺钉 (M6 x 12 mm)SCREW (M6 x 12 mm) Stainless Steel1
248M0103804不锈钢螺钉 (M6 x 12 mm)SCREW (M6 x 12 MM) Stainless Steel1
25884549下部通风软管HOSE Vent-Lower1
258M0087108软管HOSE1
26884546护孔环GROMMET1
27888523001卡扣CLIP1
28892240燃油进油管至燃油供应模块HOSE Fuel into Fuel Supply Module1
288M0087118软管HOSE1
29884546护孔环GROMMET1
30889617001衬垫GASKET1
318877551燃油通风软管HOSE Fuel-Vent1
318M0225335燃油通风软管HOSE FUEL VENT1
32884545T01通风罐总成VENT CANISTER ASSEMBLY1
328M0175814通气罐总成CANISTER-VENT ASY1
33853947卡扣CLIP1
34895775A01燃油管路净化阀总成VALVE ASSEMBLY Fuel Line Purge1
348M0126303净化通气总成PURGE VENT ASSY1
35884546护孔环GROMMET1
-880552A06动力头衬垫套件GASKET SET Powerhead1
-880552A07动力头衬垫套件GASKET SET Powerhead1
-895247A06动力头总成POWERHEAD ASSEMBLY1
-895247R06RM L6 GEN1 VERADORM L6 GEN1 VERADO1

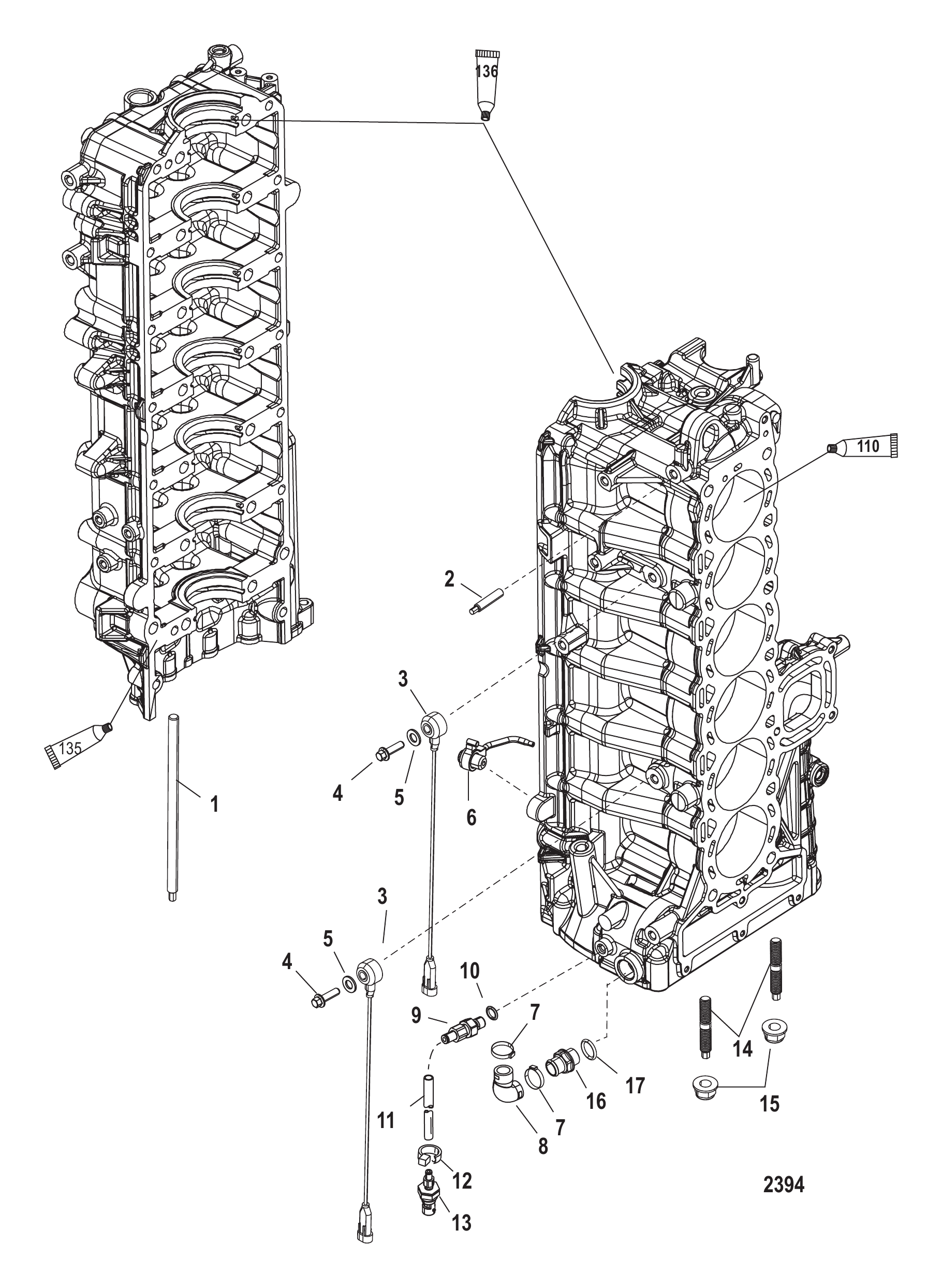

图 33左舷气缸体组件 Port Cylinder Block Components
左舷气缸体组件 Port Cylinder Block Components
REF零件编号中文名称英文名称数量
1880668001双头螺柱（M10×1.5）STUD (M10 x 1.5)10
2888997001螺柱STUD1
28M0022162双头螺栓(M10×60)STUD (M10 x 60)1
3878187爆震传感器总成SENSOR ASSEMBLY Knock2
38M6003194爆震传感器总成SENSOR ASSEMBLY Knock2
4892086035螺钉(M10 x 35)SCREW (M10 x 35)2
54002319垫圈WASHER2
6884268A1机油喷嘴总成JET ASSEMBLY Oil6
7888988008卡箍(34.6毫米)CLAMP (34.6 MM)2
78M0187145卡箍CLAMP2
8885544002软管HOSE1
9896094A01接头总成FITTING ASSEMBLY1
10888814O型圈(0.351 x 0.072)O-RING (.351 x .072)1
10896699O型圈（1.78毫米 x 0.08毫米）O-RING (1.78 mm x .08 mm)1
1185978571水管(52.00英寸散装)至水压传感器-裁切至29英寸TUBING (52.00 Inches Bulk) To Water Pressure Sensor - Cut to 29 Inches1
12816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
13881879A20水压传感器总成SENSOR ASSEMBLY Pressure Water Pressure1
13881879T26传感器 压力SENSOR Pressure1
14888849001双头螺栓(M8x49)STUD (M8 x 49)2
148M0000274双头螺栓(M8x44)STUD (M8 x 44)2
15826365螺母 (M8)NUT (M8)2
16885517A05接头总成FITTING ASSEMBLY1
17892077O型圈O-RING1
-880552A06动力头衬垫套件GASKET SET Powerhead1
-880552A07动力头衬垫套件GASKET SET Powerhead1
-895247A06动力头总成POWERHEAD ASSEMBLY1
-895247R06RM L6 GEN1 VERADORM L6 GEN1 VERADO1
图 34动力头衬垫组件 Powerhead Gasket Set Components
动力头衬垫组件 Powerhead Gasket Set Components
REF零件编号中文名称英文名称数量
-880552A06动力头衬垫套件GASKET SET Powerhead1
-62701接头总成O型圈O-RING Fitting Assembly2
-90196O型圈(.921 x .139)油塞总成O-RING (.921 x .139) Oil Plug Assembly1
-8M0204673O型圈 .921 x .139O-Ring .921 x .1391
-846594O型圈 (1.239 x .070) 黑色适配板排放接头O-RING (1.239 x .070) Black Adaptor Plate Dump Fitting1
-8M0092943O型圈 橙色O-RING Orange1
-846594O型圈 (1.239 x .070) 黑色机油吸油管O-RING (1.239 x .070) Black Oil Pickup1
-8M0092943O型圈 橙色O-RING Orange1
-8805251油封(主轴承顶部)SEAL Top Main Bearing1
-8M0032912密封件SEAL1
-895374006衬垫 气缸盖至缸体GASKET Head Cylinder Head to Block1
-8M0033476衬垫 缸盖GASKET Head1
-880624003衬垫 缸体至适配器GASKET Block to Adaptor1
-880629排气管密封件SEAL Exhaust Tube1
-880631001O型圈 橙色张紧器盖O-RING Orange Tensioner Cap1
-8M0237361O型圈O-RING1
-884409O型圈 缸体机油定位销O-RING Block Oil Dowel1
-884423O型圈 缸体机油定位销O-RING Block Oil Dowel1
-884461油封 适配板SEAL Oil Adaptor Plate1
-8M0033928油封SEAL Oil1
-884462水封 适配板SEAL Water Adaptor Plate-Water2
-887930O型圈 适配板O-RING Adaptor Plate2
-888593油封 排油管塞SEAL Oil Drain Tube Plug1
-8M0188614放油螺塞密封件SEAL Drain Plug1
-889617001适配板垫片GASKET Adaptor Plate1
-889618001衬垫 油底壳GASKET Oil Sump1
-892077O型圈 缸体接头总成O-RING Block Fitting Assembly
-892117密封件 歧管壳体SEAL Manifold Housing1
-892445O型圈 水管O-RING Water Tube1
-892446O型圈 (14 X 1.78 MM) 适配板接头O-RING (14 X 1.78 MM) Adaptor Plate Fitting1
-895791O型圈 机油泵驱动轴O-RING Oil Pump Driveshaft2
-8M0034912O型圈 3.78×21.32O-RING 3.78 X 21.322

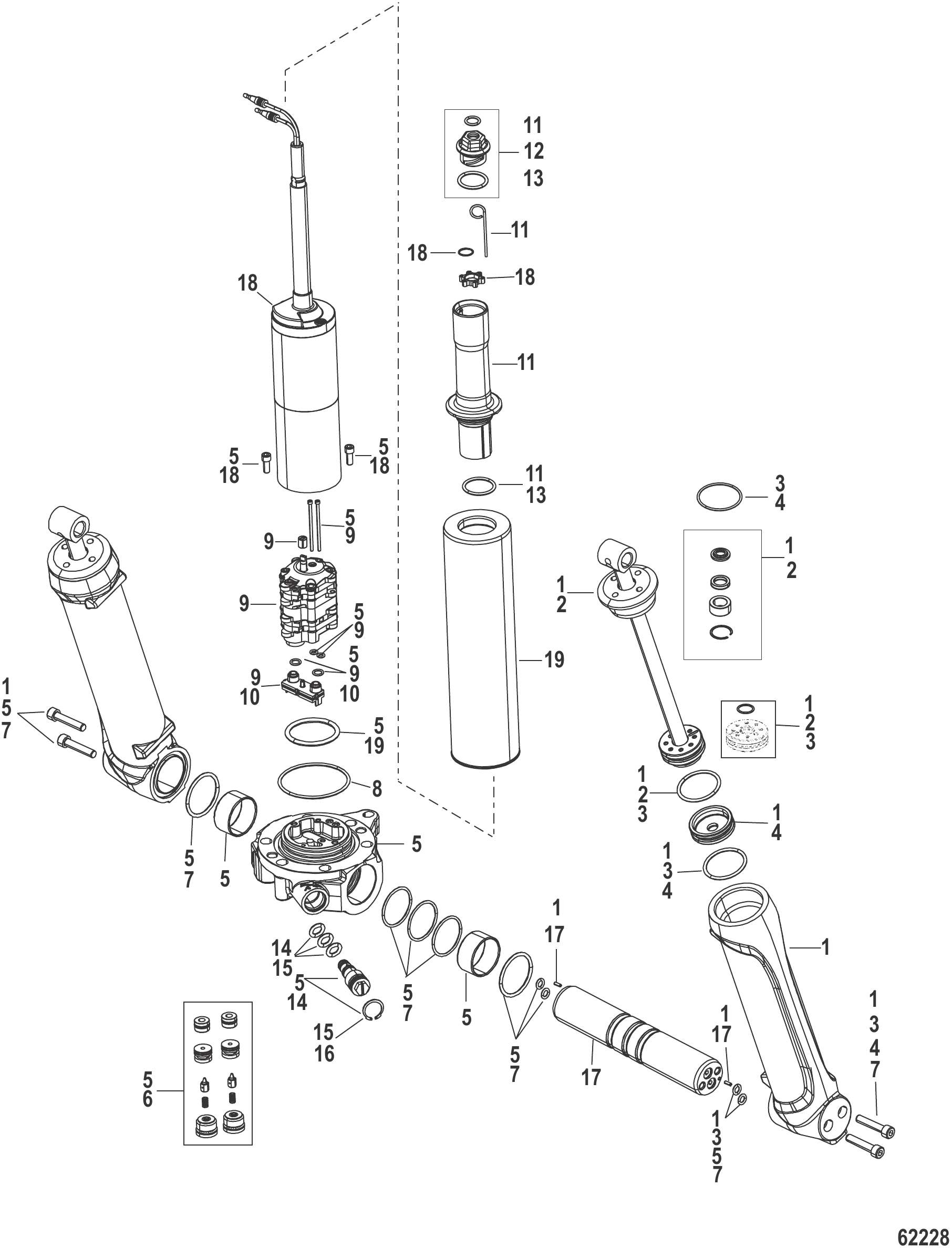

图 35动力升降倾斜组件 Power Trim Components
动力升降倾斜组件 Power Trim Components
REF零件编号中文名称英文名称数量
1896156A01配平油缸套件TRIM CYLINDER KIT1
2896157A01升降杆套件TRIM ROD KIT1
28M0118299升降杆套件TRIM ROD KIT1
3896158A01O型圈套件O-RING KIT1
4896159A01活塞套件PISTON KIT1
5896166A01配平歧管套件MANIFOLD KIT Trim1
6896165A01配平止回套件PO型CHECK KIT Trim PO1
7896160A01O型圈套件O-RING KIT1
88M0010183O型圈O-RING1
88M0204938O型圈O-RING1
9896163A01配平泵套件PUMP KIT Trim1
10896164A01配平过滤器套件TRIM FILTER KIT1
11896162A01配平颈套件TRIM NECK KIT1
12895854A01O型圈套件O-RING KIT1
13893419盖套件CAP KIT1
14893420A01手动释放套件MANUAL RELEASE KIT1
148M0224397手动释放套件MANUAL RELEASE KIT1
158M0224410O型圈套件ORING KIT1
168M0184377卡环SNAP RING1
17893408A01配平销套件PIN KIT Trim1
18896161A01配平电机套件TRIM MOTOR KIT1
18896161A02配平电机套件TRIM MOTOR KIT1
18896161A02配平电机套件TRIM MOTOR KIT1
19896167A01储液罐套件RESERVOIR KIT1

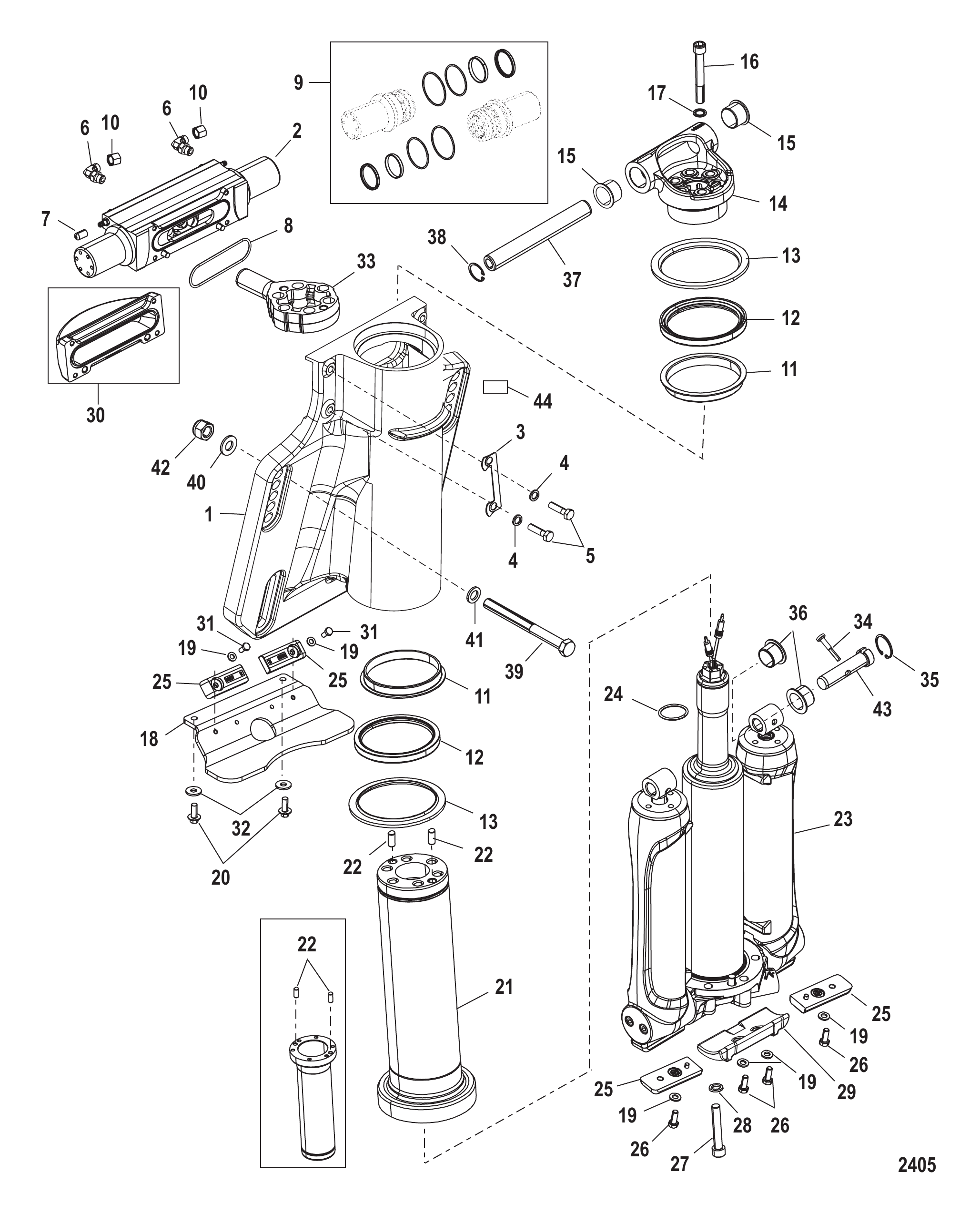

图 36动力升降/转向油缸 Power Trim/Steering Cylinder
动力升降/转向油缸 Power Trim/Steering Cylinder
REF零件编号中文名称英文名称数量
-NSS艉板总成(不单独销售)NOT SOLD SEPARATE Transom Assembly1
1880652T基座PEDESTAL1
1880652T02基座PEDESTAL1
2896500A01转向油缸套件STEERING CYLINDER KIT1
28M0118141转向油缸STEERING CYLINDER1
3893409固定座RETAINER2
38M0168425固定座RETAINER2
4895853垫圈WASHER4
588509530螺钉 (M8 x 30)SCREW (M8 x 30)4
6889552-6 ORB转-6 ORFS接头(90度)FITTING -6 ORB to -6 ORFS (90 Degree)1
7889550乙烯基放气帽CAP Bleeder - Vinyl2
8880667密封件SEAL1
88M0155530基座密封件SEAL Pedestal1
9896173A01转向油缸密封件套件SEAL KIT Steering Cylinder1
98M0045604转向油缸密封件套件SEAL KIT Steering Cylinder1
10892524接头FITTING2
118806621轴承BEARING2
118M0217557轴承BEARING2
12880661密封件SEAL2
128M0217558密封件SEAL2
138806561轴承BEARING2
138M0217560推力轴承BEARING Thrust2
14880654T02转向头HEAD Steering1
14880654T03转向头HEAD Steering1
158806551轴承(1.25英寸)BEARING (1.25 Inch)2
16885094105螺钉(M14x105)SCREW (M14 x 105)6
17885112垫圈WASHER6
178M0217559垫圈WASHER6
18896120T导流板(银色)PLATE Deflector (Silver)1
188M0045157导流板(黑色)PLATE Deflector (Black)1
19889545垫圈WASHER6
198M0161430平垫圈WASHER Flat6
204010720螺钉(M8 x 20)SCREW (M8 x 20)2
21880660T01转向管TUBE Steering1
218M0220571转向管TUBE-STEERING1
22885111定位销(0.375x0.875英寸)PIN Dowel (.375 x .875)6/8
23880658T动力升降总成POWER TRIM ASSEMBLY1
23880658T03动力升降总成POWER TRIM ASSEMBLY1
23880658T01动力升降总成POWER TRIM ASSEMBLY1
23880658T03动力升降总成POWER TRIM ASSEMBLY1
24895854O型圈O-RING1
248M0217562O型圈O-RING1
25893404阳极块ANODE4
258M0220986配平阳极ANODE Trim4
26889543016螺栓BOLT4
2788510450螺钉SCREW6
28889549垫圈WASHER6
29880653阳极块ANODE1
298M0220987配平歧管阳极ANODE Trim Manifold1
30893405T盖板COVER1
308M0217564转向臂盖COVER Steering Arm1
314000327螺钉 (M6 x 14)SCREW (M6 x 14)2
3272397垫圈WASHER2
33880665T01转向臂ARM Steering1
34821539三叶销PIN Trilobe2
35895304挡圈RING Retaining2
368806641轴承（0.625英寸）BEARING (.625 Inch)4
37895390倾斜销TILT PIN1
378M0228705倾斜销TILT PIN1
38885100挡圈RING Retaining1
388M0038931挡圈RING Retaining1
3967755003螺钉 (0.500-20 x 5.500)SCREW (.500-20 x 5.500)4
398M0038370螺钉(0.500-20x5.50英寸)SCREW (.500-20 x 5.50)4
4028421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
408M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
41895062垫圈WASHER4
418M0204704垫圈WASHER4
4282671117螺母(.500-20)NUT (.500-20)4
43884889002销PIN2
438M0146467销PIN2
44NSS不单独销售-序列号覆膜标贴NOT SOLD SEPARATE Decal-Serial Overlaminate1

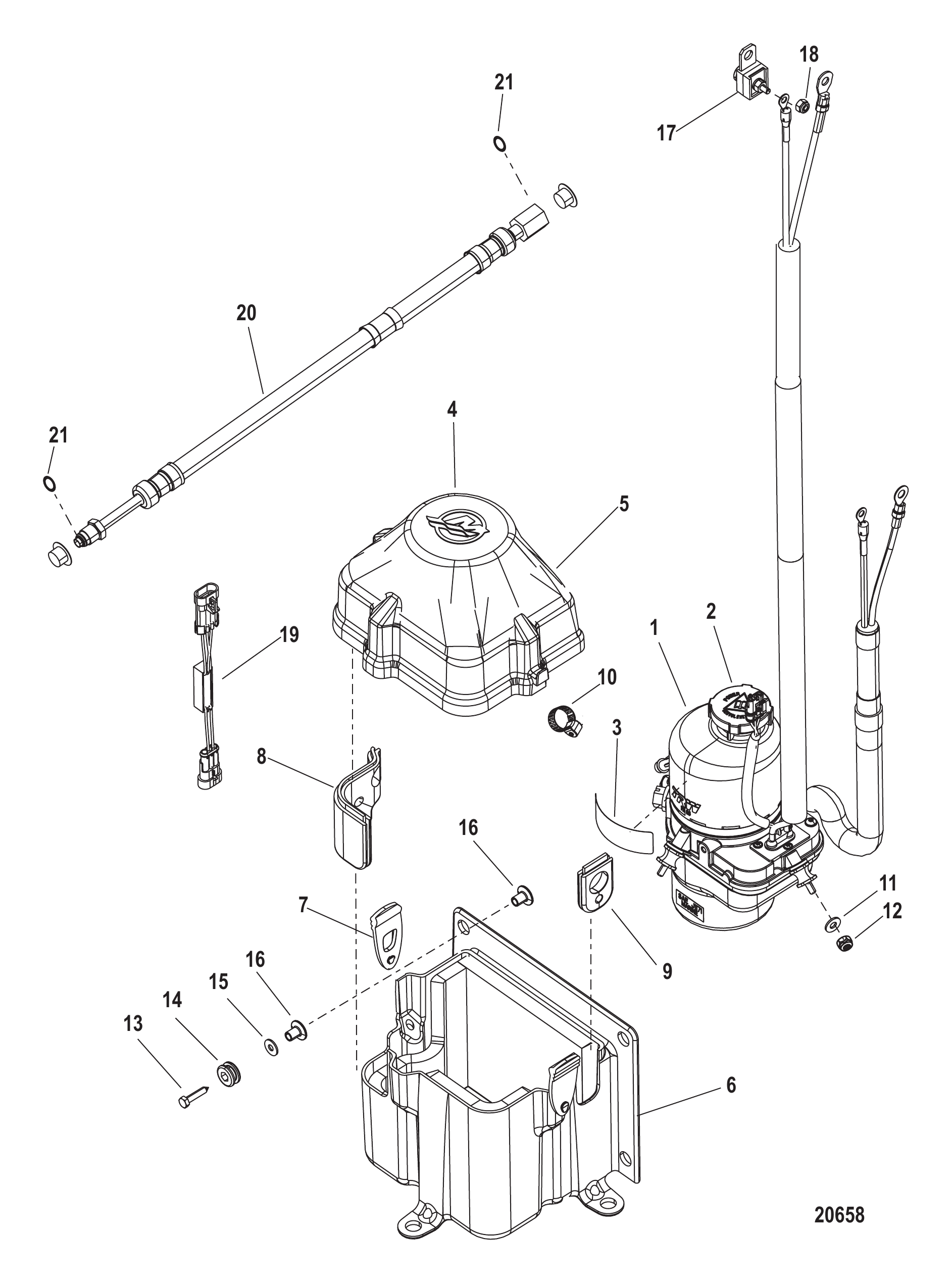

图 37动力转向泵套件(8M0080200/8M0080201) Pump Kit-Power Steering (8M0080200/8M0080201)
动力转向泵套件(8M0080200/8M0080201) Pump Kit-Power Steering (8M0080200/8M0080201)
REF零件编号中文名称英文名称数量
-8M0080200动力转向泵套件(12英尺)PUMP KIT Power Steering (12 Feet)1
-8M0080201动力转向泵套件(24英尺)PUMP KIT Power Steering (24 Feet)1
-8M0131263动力转向泵套件(24英尺)PUMP KIT Power Steering (24 Feet)1
1NSS不单独销售 泵NOT SOLD SEPARATE PUMP1
2892485003泵盖CAP Pump1
3NSS不单独销售 油液类型标贴NOT SOLD SEPARATE DECAL, Fluid Type1
4893364A05动力转向泵完整外壳总成ENCLOSURE ASSEMBLY Complete-Power Steering Pump1
-893365A03动力转向泵上/下盖总成COVER ASSEMBLY Top/Bottom, Power Steering Pump1
5893365T02动力转向泵上外壳总成ENCLOSURE ASSEMBLY Top, Power Steering Pump1
68M0080707动力转向泵下外壳总成ENCLOSURE ASSEMBLY Bottom-Power Steering Pump1
7889531绑带STRAP2
8893368001护孔环GROMMET1
9893369护孔环GROMMET1
10815504105蜗轮卡箍(11-18毫米)CLAMP Worm Gear (11-18 mm)1
108M0188618蜗轮卡箍(11-18毫米)CLAMP Worm Gear (11-18 mm)1
114002316垫圈(6.60 X 17.0 X 1.5不锈钢)WASHER (6.60 X 17.0 X 1.5SS)3
118M0214930垫圈6.60 x 17.0 x 1.5WASHER 6.60 x 17.0 x 1.53
12401366螺母(M6)不锈钢NUT (M6) Stainless Steel3
13895378螺钉 (M6)SCREW (M6)4
14895319护孔环GROMMET4
154002316垫圈(6.60 X 17.0 X 1.5不锈钢)WASHER (6.60 X 17.0 X 1.5SS)4
158M0214930垫圈6.60 x 17.0 x 1.5WASHER 6.60 x 17.0 x 1.54
16895320F1衬套BUSHING4
1779023T9290安培保险丝总成FUSE ASSEMBLY 90 Ampere1
1820184螺母（1/4-28X7/32）NUT (1/4-28X7/32)1
188M0207775螺母 @5NUT @51
198M0026568信号驱动器线束总成HARNESS ASSEMBLY Signal Driver1
20897643A01减震软管套件HOSE KIT Dampening1
2189879O型圈（0.301×0.064英寸）O-RING (.301 x .064)2

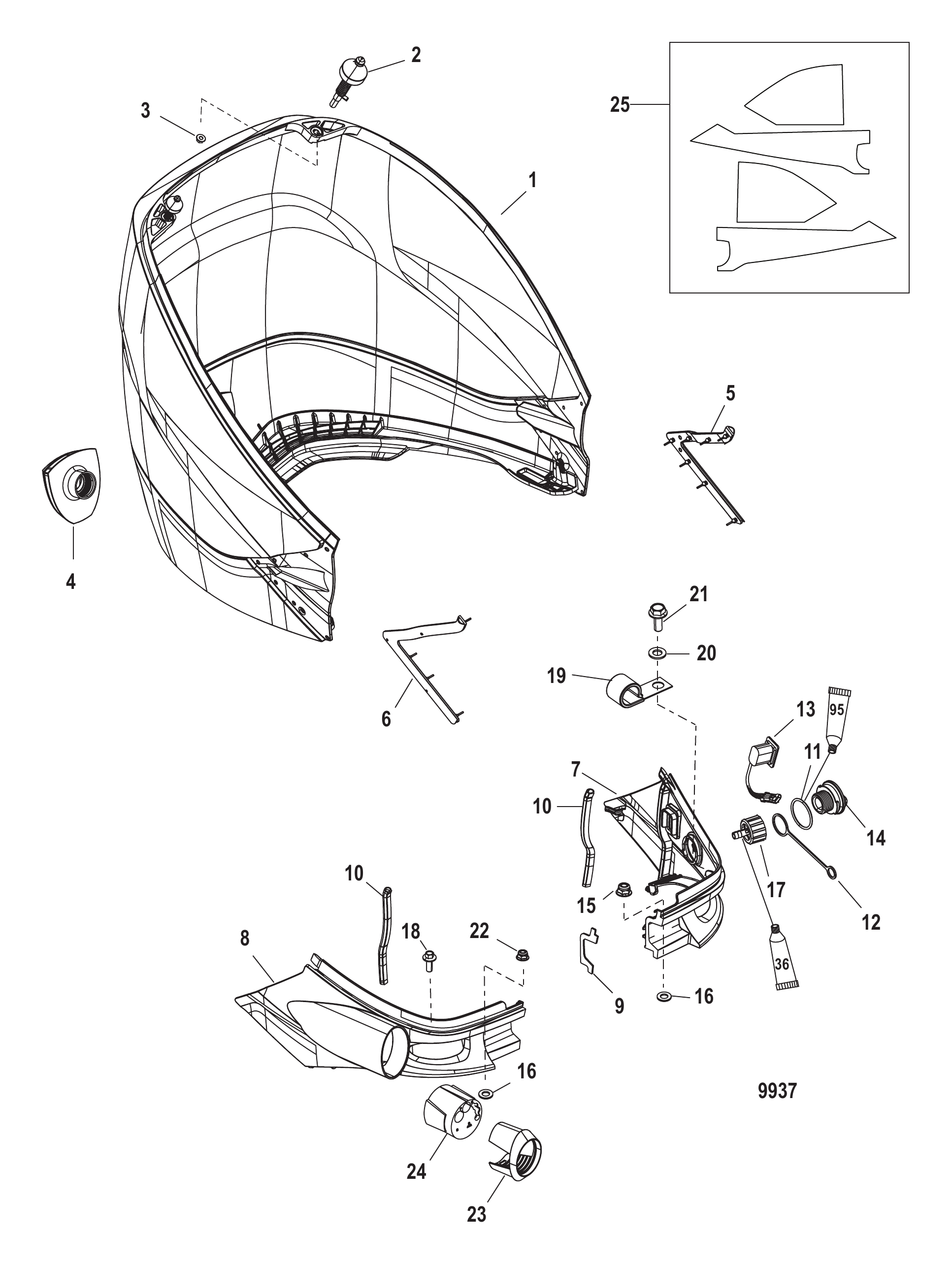

图 38后罩 Rear Cowl
后罩 Rear Cowl
REF零件编号中文名称英文名称数量
1885358T02后罩COWL Rear1
2888961A01销总成PIN ASSEMBLY2
3892233螺母(M6)不锈钢NUT (M6) Stainless Steel2
4885360怠速泄压阀IDLE RELIEF1
5893343001密封件(左舷)SEAL Port (Port)1
6893344001密封件(右舷)SEAL Starboard (Starboard)1
7885356T02进气口-左舷INTAKE Air - Port (Port)1
7885356T03ORD 885357T04ORD 885357T041
8885357T02进气口-右舷INTAKE Air - Starboard (Starboard)1
8885357T03ORD 885357T04ORD 885357T041
9892315衬垫GASKET1
10897125密封件SEAL2
108M0043266密封件SEAL2
11888957O型圈O-RING1
12889823001嵌入式系绳插头TETHER Flush Plug1
128M0224266嵌入式插槽密封件SEAL Flush Plug Pocket1
13896620001升降倾斜开关SWITCH Trim1
138M0235191升降倾斜开关SWITCH Trim1
14888958001左舷冲洗口堵头PLUG Flush Port Flush1
148M0215105嵌入式塞PLUG Flush1
15892233螺母(M6)不锈钢NUT (M6) Stainless Steel1
164002316垫圈(6.60 X 17.0 X 1.5不锈钢)WASHER (6.60 X 17.0 X 1.5SS)2
168M0214930垫圈6.60 x 17.0 x 1.5WASHER 6.60 x 17.0 x 1.52
17885361A01接头总成 冲洗FITTING ASSEMBLY Flush1
184006731螺钉(M6 x 16)SCREW (M6 x 16)1
19858951A01卡箍套件CLAMP KIT1
204002316垫圈(6.60 X 17.0 X 1.5不锈钢)WASHER (6.60 X 17.0 X 1.5SS)1
208M0214930垫圈6.60 x 17.0 x 1.5WASHER 6.60 x 17.0 x 1.51
214006731螺钉(M6 x 16)SCREW (M6 x 16)1
22892233螺母(M6)不锈钢NUT (M6) Stainless Steel1
23895316适配器ADAPTER1
238M0214997适配器ADAPTOR1
24897169护孔环GROMMET1
248M0214987护孔环GROMMET1

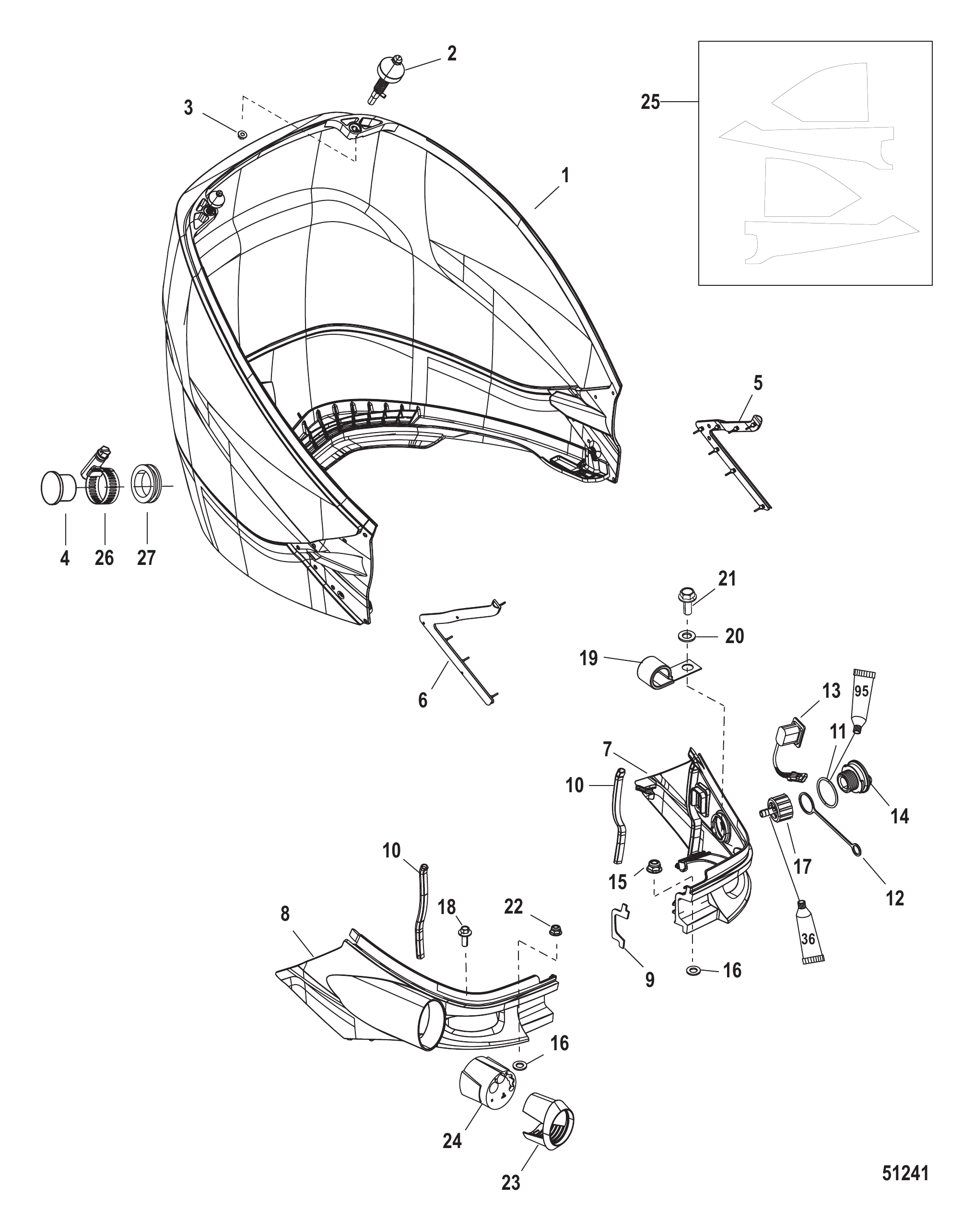

图 39后罩 CCT Rear Cowl CCT
后罩 CCT Rear Cowl CCT
REF零件编号中文名称英文名称数量
1NSS不单独销售 需订购顶盖总成NOT SOLD SEPARATE Order Top Cowl Assy1
2888961A01销总成PIN ASSEMBLY2
3892233螺母(M6)不锈钢NUT (M6) Stainless Steel4
4885360怠速泄压阀IDLE RELIEF1
5893343001左舷密封件SEAL Port1
6893344001右舷密封件SEAL Starboard1
78M0074311前盖FRONT COWL1
8NSS不单独销售 需订购8M0074311总成NOT SOLD SEPARATE Order 8M0074311 Assy1
9892315衬垫GASKET1
10897125密封件SEAL2
108M0043266密封件SEAL2
11888957O型圈O-RING1
12889823001嵌入式系绳插头TETHER Flush Plug1
128M0224266嵌入式插槽密封件SEAL Flush Plug Pocket1
13896620001升降倾斜开关SWITCH Trim1
138M0235191升降倾斜开关SWITCH Trim1
14888958001左舷冲洗口堵头PLUG Flush Port Flush1
148M0215105嵌入式塞PLUG Flush1
15892233螺母(M6)不锈钢NUT (M6) Stainless Steel1
164002316垫圈(6.60 X 17.0 X 1.5不锈钢)WASHER (6.60 X 17.0 X 1.5SS)2
168M0214930垫圈6.60 x 17.0 x 1.5WASHER 6.60 x 17.0 x 1.52
17885361A01接头总成 冲洗FITTING ASSEMBLY Flush1
184006731螺钉(M6 x 16)SCREW (M6 x 16)1
19858951A01卡箍套件CLAMP KIT1
204002316垫圈(6.60 X 17.0 X 1.5不锈钢)WASHER (6.60 X 17.0 X 1.5SS)1
208M0214930垫圈6.60 x 17.0 x 1.5WASHER 6.60 x 17.0 x 1.51
214006731螺钉(M6 x 16)SCREW (M6 x 16)1
22892233螺母(M6)不锈钢NUT (M6) Stainless Steel1
23895316适配器ADAPTER1
238M0214997适配器ADAPTOR1
24897169护孔环GROMMET1
248M0214987护孔环GROMMET1
258M4501634隔音毯套件(885358T04组件)SOUND BLANKET KIT Component of 885358T041
268M6001459卡箍 (45.5)CLAMP (45.5)1
278M6001460堵头PLUG1
28814191护孔环GROMMET1
图 40维修/支撑材料 Service/Support Material
维修/支撑材料 Service/Support Material
REF零件编号中文名称英文名称数量
-896280006零件手册200/225/250/275四冲程VeradoPARTS MANUAL 200/225/250/275 4-Stroke Verado1
-896579T00维修手册SERVICE MANUAL1
-8M0082470MNL-SERV 200-300VMNL-SERV 200-300V1
-10238060安装手册INSTALLATION MANUAL1
-10237060用户手册OWNERS MANUAL1
-10237J60用户手册(西班牙语)OWNERS MANUAL Spanish1
-10237D60用户手册(法语)OWNERS MANUAL French1
-895269001产品指南PRODUCT GUIDE1
-895269002产品指南GUIDE-PRODUCT1
-895282A06EPA标签信息贴花DECAL EPA Label Information1

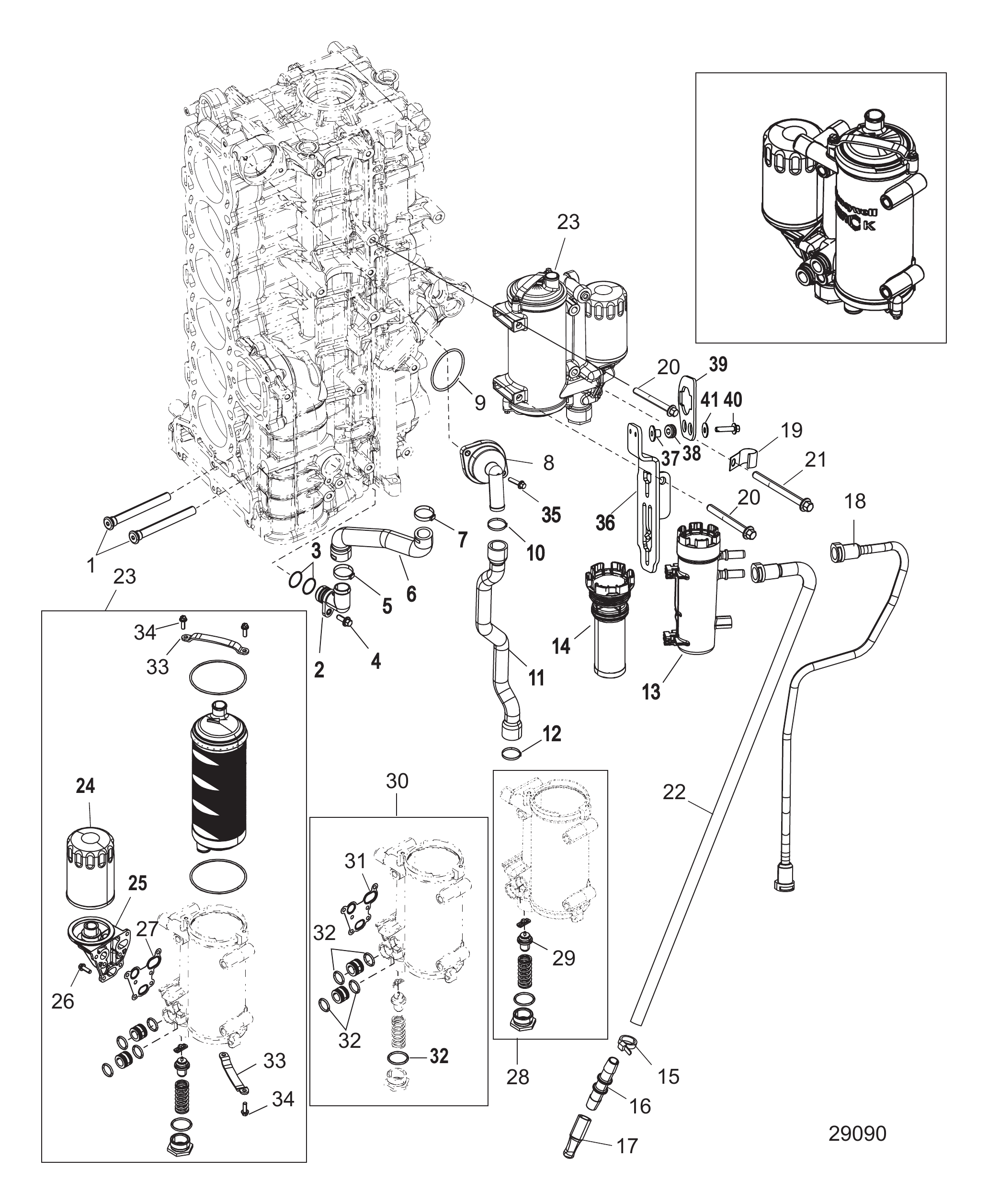

图 41右气缸体/油冷器(1B830815及以下) Starboard Cylinder Block/Oil Cooler (1B830815 and Below)
右气缸体/油冷器(1B830815及以下) Starboard Cylinder Block/Oil Cooler (1B830815 and Below)
REF零件编号中文名称英文名称数量
1892404A05导水板总成DEFLECTOR ASSEMBLY Water2
2885518A02接头总成FITTING ASSEMBLY1
362701O型圈O-RING2
488552516螺丝 (M6 x 16毫米) 不锈钢SCREW (M6 x 16 mm) Stainless Steel1
48M0103805螺丝 (M6 x 16毫米) 不锈钢SCREW (M6 x 16 mm) Stainless Steel1
5888988011卡箍(38.1毫米)CLAMP (38.1 MM)1
6888930003软管HOSE1
7888988008卡箍(34.6毫米)CLAMP (34.6 MM)1
78M0187145卡箍CLAMP1
8892864T04节温器总成THERMOSTAT ASSEMBLY1
88M0174561节温器总成THERMOSTAT ASSY1
98M0005958O型圈O-RING1
10888988001卡箍(36.1毫米)CLAMP (36.1 mm)1
108M0204719卡箍 36.1毫米CLAMP 36.1 MM1
11892865节温器软管HOSE Thermostat1
12888988007卡箍(42.5毫米)CLAMP (42.5 mm)1
13892242T燃油滤清器总成FILTER ASSEMBLY Fuel1
138M0062950滤清器总成FILTER ASSEMBLY1
148M0020349滤清器 燃油 滤芯FILTER Fuel, Element1
148M0122423水星燃油滤清器FUEL FILTER Quicksilver1
15816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
16892356连接器CONNECTOR1
17863156拉手片GRAB TAB1
188M0008224燃油至升压泵软管HOSE Fuel to Lift Pump1
188M0087107软管HOSE1
188M0042628燃油至升压泵软管HOSE Fuel to Lift Pump1
188M0087107软管HOSE1
1978945J型卡箍J CLAMP1
2088552785螺钉(M10×85)SCREW (M10 x 85)3
208M0103824螺钉SCREW3
21885527105螺钉(M10x105)SCREW (M10 x 105)1
218M0103820螺钉(M10x105)SCREW (M10 x 105)1
22880597燃油入口软管HOSE Fuel Inlet1
228M004378831.5英寸软管HOSE 31.5 Inch1
228M004378831.5英寸燃油入口软管HOSE 31.5 Inch Fuel Inlet1
228M0045343燃油进口软管总成,32.5英寸HOSE ASSMEBLY Fuel Inlet, 32.5 Inch1
228M0046557燃油进口软管总成（8.2英寸）HOSE ASSMEBLY Fuel Inlet, 8.2 Inch1
23880640T11集成式机油模块-总成MODULE Intergrated Oil - Complete1
238M0132390机油冷却模块OIL COOLER MODULE1
24877769K01机油滤清器(水星品牌)FILTER Oil (Mercury Branded)1
24877769Q01机油滤清器(快银品牌)FILTER Oil (Quicksilver Branded)1
25880640A05集成式机油模块壳体总成HOUSING ASSEMBLY Intergrated Oil Module1
258M0046694壳体总成HOUSING ASSEMBLY1
26895336螺钉(M6x18)SCREW (M6 x 18)6
268M0041014螺钉(M6x18)SCREW (M6 x 18)6
27880640500衬垫GASKET1
278M0034568衬垫GASKET1
28880640A06节温器/导套套件THERMOSTAT/GUIDE KIT1
29880640508节温器THERMOSTAT1
30892801T53大修套件OVERHAUL KIT1
31880640500衬垫GASKET1
318M0034568衬垫GASKET1
32880640A09O型圈套件O-RING KIT1
328M0071635O型圈套件O-RING KIT1
33895032绑带STRAP2
34895336螺钉(M6x18)SCREW (M6 x 18)4
348M0041014螺钉(M6x18)SCREW (M6 x 18)4
3588552525不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel2
358M0103807不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel2
368M0007906支架BRACKET1
37822003衬套BUSHING2
38834985护孔环GROMMET2
388M0190980护孔环GROMMET2
398M0007908支架BRACKET1
4082129125螺丝(M6 x 25毫米)SCREW (M6 x 25 mm)2
4165567不锈钢垫圈(0.265x0.750x0.048)WASHER (.265 x .750 x .048) Stainless Steel2
-895247A07动力头总成POWERHEAD ASSEMBLY1

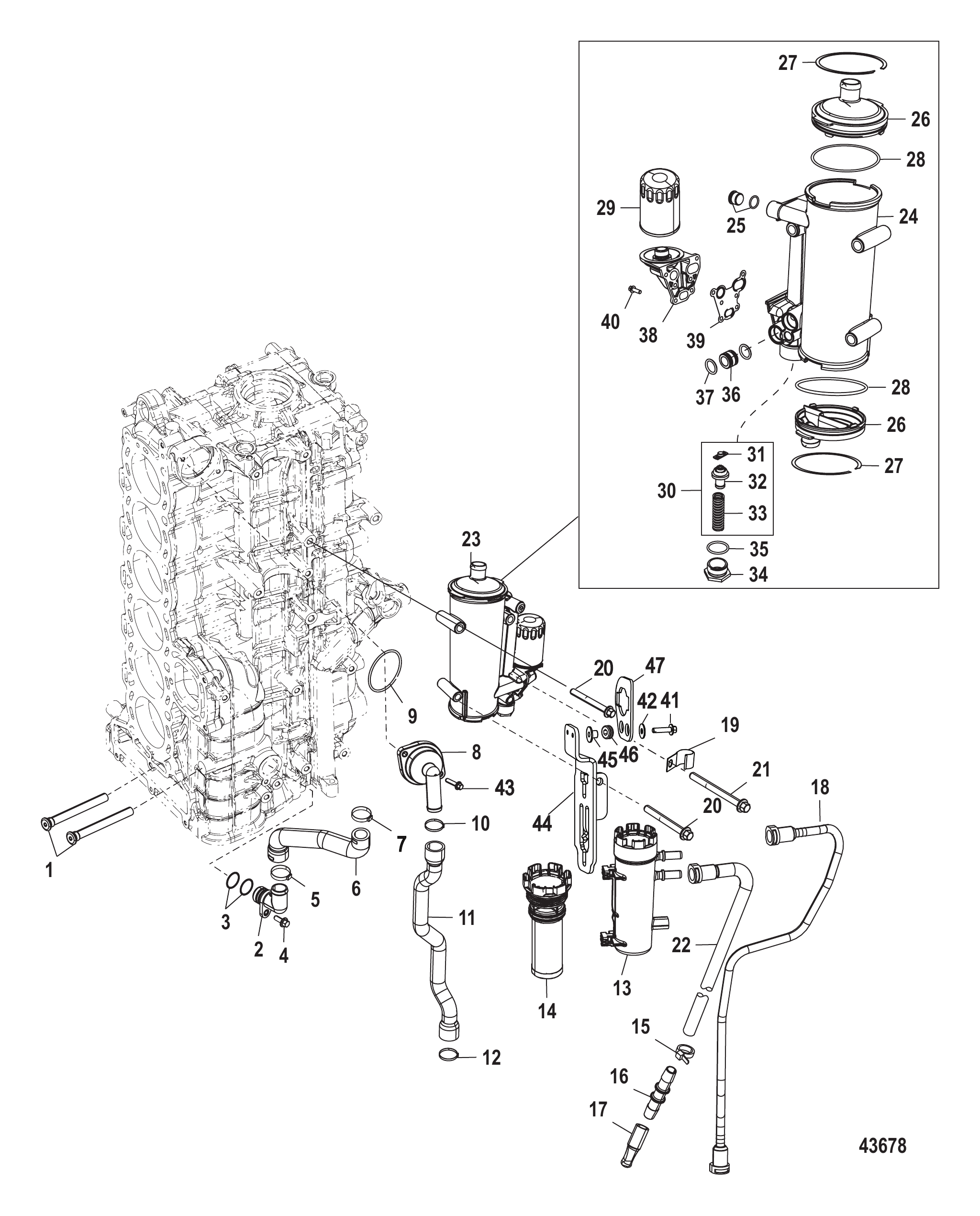

图 42右气缸体/油冷器(1B830816及以上) Starboard Cylinder Block/Oil Cooler (1B830816 and Above)
右气缸体/油冷器(1B830816及以上) Starboard Cylinder Block/Oil Cooler (1B830816 and Above)
REF零件编号中文名称英文名称数量
1892404A05导水板总成DEFLECTOR ASSEMBLY Water2
2885518A02接头总成FITTING ASSEMBLY1
362701O型圈O-RING2
488552516螺丝 (M6 x 16毫米) 不锈钢SCREW (M6 x 16 mm) Stainless Steel1
48M0103805螺丝 (M6 x 16毫米) 不锈钢SCREW (M6 x 16 mm) Stainless Steel1
5888988011卡箍(38.1毫米)CLAMP (38.1 MM)1
6888930003软管HOSE1
7888988008卡箍(34.6毫米)CLAMP (34.6 MM)1
78M0187145卡箍CLAMP1
8892864T04节温器总成THERMOSTAT ASSEMBLY1
88M0174561节温器总成THERMOSTAT ASSY1
98M0005958O型圈O-RING1
10888988001卡箍(36.1毫米)CLAMP (36.1 mm)1
108M0204719卡箍 36.1毫米CLAMP 36.1 MM1
11892865节温器软管HOSE Thermostat1
12888988007卡箍(42.5毫米)CLAMP (42.5 mm)1
13892242T燃油滤清器总成FILTER ASSEMBLY Fuel1
138M0062950滤清器总成FILTER ASSEMBLY1
148M0020349滤清器 燃油 滤芯FILTER Fuel, Element1
148M0122423水星燃油滤清器FUEL FILTER Quicksilver1
15816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
16892356连接器CONNECTOR1
17863156拉手片GRAB TAB1
188M0042628燃油至升压泵软管HOSE Fuel to Lift Pump1
188M0087107软管HOSE1
1978945J型卡箍J CLAMP1
2088552785螺钉(M10×85)SCREW (M10 x 85)3
208M0103824螺钉SCREW3
21885527105螺钉(M10x105)SCREW (M10 x 105)1
218M0103820螺钉(M10x105)SCREW (M10 x 105)1
228M0046557燃油进口软管总成（8.2英寸）HOSE ASSMEBLY Fuel Inlet, 8.2 Inch1
238M0046690集成式机油模块总成MODULE Integrated Oil, Complete1
238M0132390机油冷却模块OIL COOLER MODULE1
24NSS机油冷却器壳体不单独销售NOT SOLD SEPARATE OIL COOLER HOUSING1
25891953堵头（18毫米）PLUG (18 mm)2
268M0046698端盖总成END CAP ASSEMBLY2
278M0039464挡圈RING Retaining1
288M0039516O型圈O-RING1
29877769K01机油滤清器(水星品牌)FILTER Oil (Mercury Branded)1
308M0046693节温器总成THERMOSTAT ASSEMBLY1
31NSSNOT SOLD SEPARATE Thermostat Stop1
328M0041064节温器THERMOSTAT1
328M0046693节温器总成THERMOSTAT ASSEMBLY1
33NSSNOT SOLD SEPARATE SPRING1
348M0046697堵头PLUG1
35NSSNOT SOLD SEPARATE O-RING1
368M0046696适配器组件ADAPTER ASSEMBLY1
378M0188540O型圈O-RING4
388M0046694壳体总成HOUSING ASSEMBLY1
398M0034568衬垫GASKET1
408M0041014螺钉(M6x18)SCREW (M6 x 18)2
4088552516螺丝 (M6 x 16毫米) 不锈钢SCREW (M6 x 16 mm) Stainless Steel2
4182129125螺丝(M6 x 25毫米)SCREW (M6 x 25 mm)2
4265567不锈钢垫圈(0.265x0.750x0.048)WASHER (.265 x .750 x .048) Stainless Steel2
4388552525不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel2
438M0103807不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel2
448M0007906支架BRACKET1
45822003衬套BUSHING2
46834985护孔环GROMMET2
468M0190980护孔环GROMMET2
478M0007908支架BRACKET1
-880552A07动力头衬垫套件GASKET SET Powerhead1
-895247A07动力头总成POWERHEAD ASSEMBLY1
-8M0162888翻新动力头总成(带附件)POWERHEAD ASSEMBLY Reman Dressed1

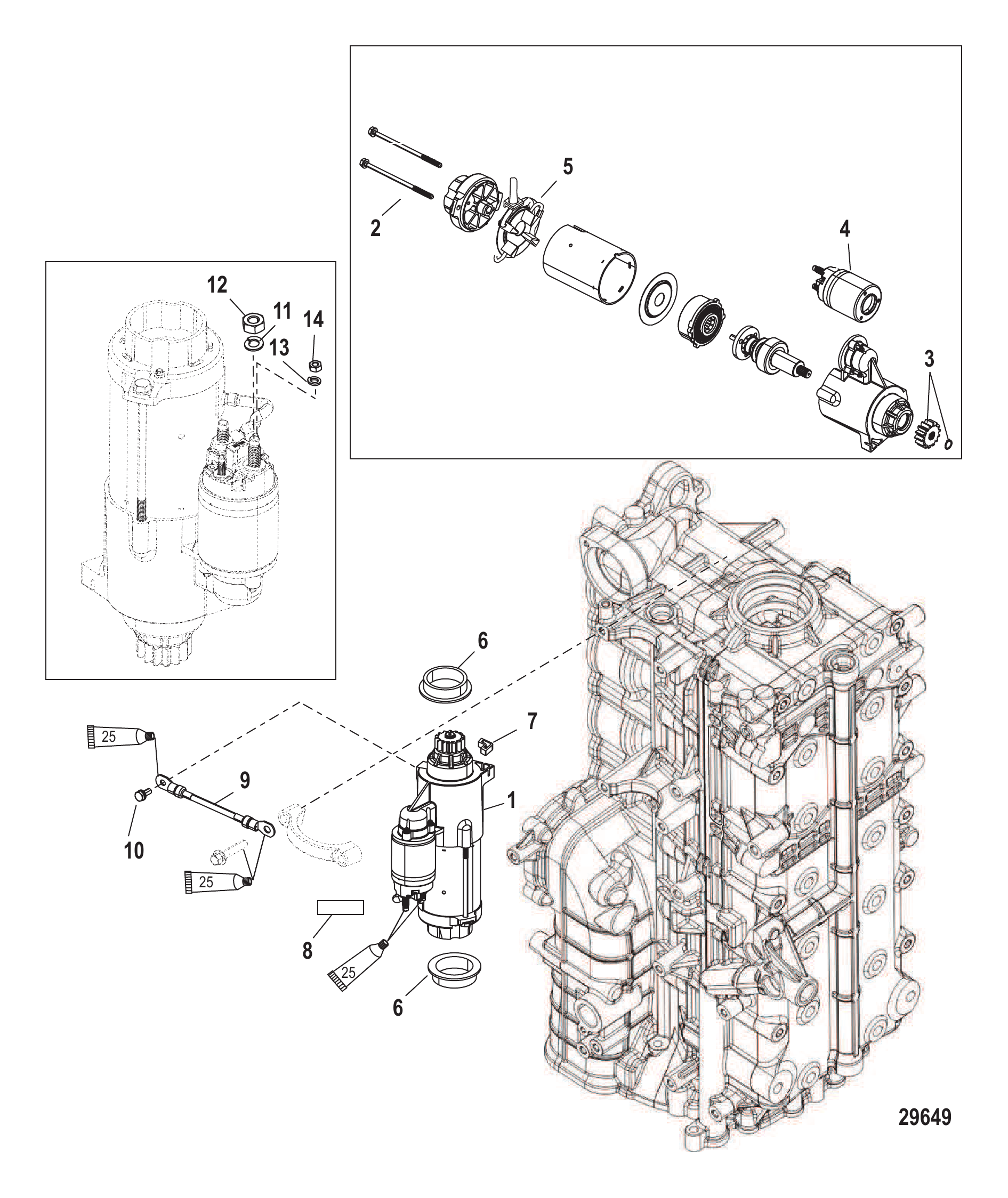

图 43启动电机 Starter Motor
启动电机 Starter Motor
REF零件编号中文名称英文名称数量
-NSS起动机总成(不单独销售)NOT SOLD SEPARATE Starter Motor Assembly1
1892339T01启动电机总成STARTER MOTOR ASSEMBLY1
2NSS螺钉组(不单独销售)NOT SOLD SEPARATE Screws2
3880805A1齿轮套件GEAR KIT1
4809463A1电磁阀组件SOLENOID KIT1
58M0065258电刷组BRUSH SET1
68M0034918轴环COLLAR2
78M0043276停机开关STOP1
8NSS高压警告贴纸(不单独销售)NOT SOLD SEPARATE Decal-Waring-High Voltage1
993388A1电缆总成(6.00英寸)黑色CABLE ASSEMBLY (6.00 Inches) Black1
1069035螺丝与锁紧垫圈(.250-20 x .625)不锈钢SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel1
1126993锁紧垫圈 (.312)LOCKWASHER (.312)1
118M0204647锁紧垫圈 (.312)LOCKWASHER (.312)1
12400213不锈钢螺母 (M8)NUT (M8) Stainless Steel1
13400255锁紧垫圈(M5)LOCKWASHER (M5)1
14400211不锈钢螺母(M5)NUT (M5) Stainless Steel1

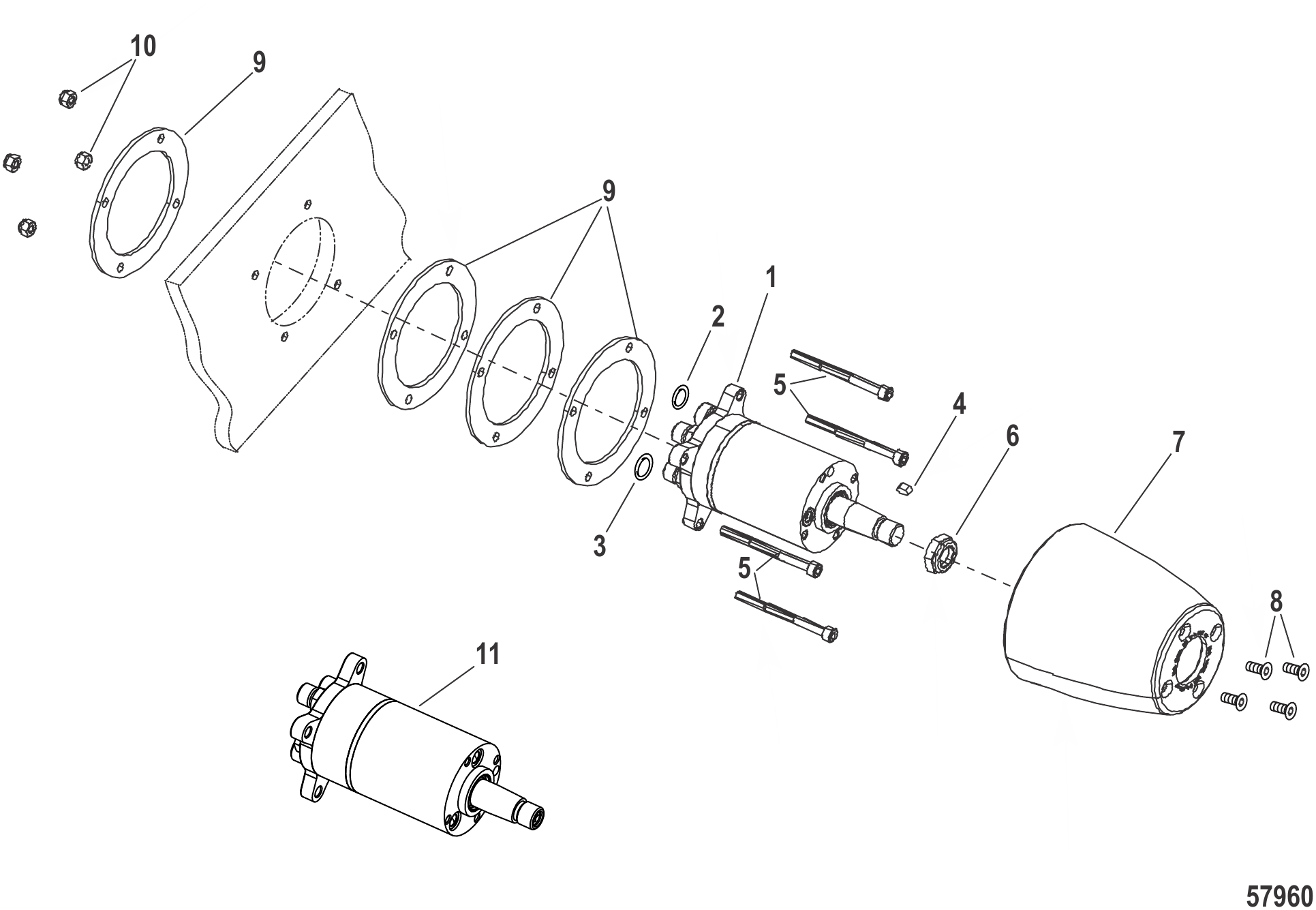

图 44标准转向舵套件(892557A02, 892380A02, 892558A02) Steering Helm Kit-Standard (892557A02, 892380A02, 892558A02)
标准转向舵套件(892557A02, 892380A02, 892558A02) Steering Helm Kit-Standard (892557A02, 892380A02, 892558A02)
REF零件编号中文名称英文名称数量
-892557A02标准转向舵机套件(32cc)STEERING HELM KIT Standard (32 cc)1
-892380A02标准转向舵机套件(40cc)STEERING HELM KIT Standard (40 cc)1
-8M0240080标准舵机套件40CMHELM KIT-STD 40CM1
-892558A02标准转向舵机套件(50cc)STEERING HELM KIT Standard (50 cc)1
-8M0240081标准舵机套件50CMHELM KIT-STD 50CM1
1892557T01标准舵机(32立方厘米)HELM Standard (32 cc)1
18M0137438标准舵机(32立方厘米)HELM Standard (32 cm3)1
1892380T01舵机标准型(40毫升)HELM Standard (40 cc)1
18M0137444舵机标准型(40立方厘米)HELM Standard (40 cm3)1
1892558T01舵机标准型(50毫升)HELM Standard (50 cc)1
18M0137448舵机标准型(50立方厘米)HELM Standard (50 cm3)1
2627021O型圈(.301 x .070)O-RING (.301 x .070)2
38M6001491O型圈(.364×.070)O-RING (.364 x .070)2
38M0047399O型圈-6 ORFS型O-RING -6 ORFS2
4893394带锁片键(6.35毫米)KEY With Lock Tab (6.35 mm)1
54008875螺钉(M6×75)SCREW (M6 x 75)4
54008850螺钉(M6 x 50)SCREW (M6 x 50)4
6826709121螺母(.625-18)不锈钢NUT (.625-18) Stainless Steel1
7892328T舵机盖COVER Helm1
8896842螺钉 (M6 x 14)SCREW (M6 x 14)4
9892327舵机背板PLATE Helm Backing4
9892327舵机背板PLATE Helm Backing3
9892327舵机背板PLATE Helm Backing2
10401196螺母 (M6)NUT (M6)4

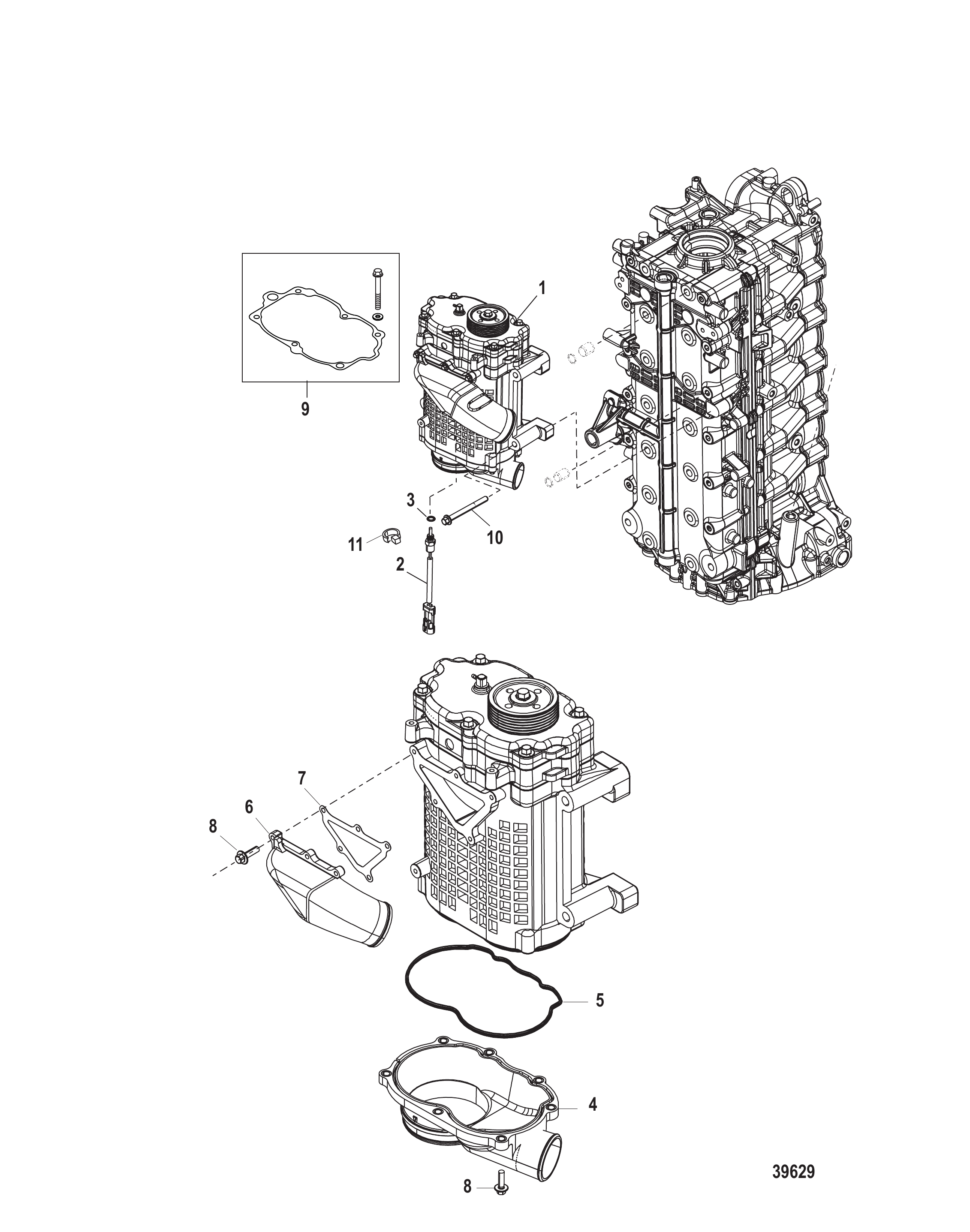

图 45增压器 SuperCharger
增压器 SuperCharger
REF零件编号中文名称英文名称数量
1898096A02机械增压器套件SUPERCHARGER KIT1
2885342001传感器总成SENSOR ASSEMBLY1
28M0148668传感器总成SENSOR ASSEMBLY1
3888814O型圈(0.351 x 0.072)O-RING (.351 x .072)1
3896699O型圈（1.78毫米 x 0.08毫米）O-RING (1.78 mm x .08 mm)1
4888947A05进气导管套件DUCT KIT Inlet1
5888947501衬垫GASKET1
6888947A04出口导管套件OUTLET DUCT KIT1
68M0060303机械增压器套件SUPERCHARGER KIT1
7888947504衬垫GASKET1
8888947502螺栓BOLT9
9847803A02衬套/垫片套件BUSHING/GASKET KIT1
10885527105螺钉(M10x105)SCREW (M10 x 105)4
108M0103820螺钉(M10x105)SCREW (M10 x 105)4
1156762扎带(4.00英寸)TIE STRAP (4.00 Inches)1
图 46工具 Tools
工具 Tools
REF零件编号中文名称英文名称数量
-895277001扳手工具(75毫米x30)带槽TOOL Wrench (75 mm x 30) Flute1
-889277Q03扳手WRENCH1
-809905001扭矩转换扳手WRENCH Torque Adapter1
-822778004动力调整适配器工具TOOL Adaptor Fitting-Power Trim1
-895343T02飞轮拉拔器工具TOOL Flywheel Puller1
-895346螺栓BOLT1
-896504A01舷外机吊装机构工具TOOL ASSEMBLY OB Lifting Mech1
-889675A0114针分流器工具TOOL Shunt 14-Pin1
-804998T齿轮油加注/排放工具DRAIN/FILL TOOL Gearlube1
-896661燃油滤清器工具TOOL Fuel Filter1
-889283A01燃油灌注工具包TOOL KIT Fuel Priming1

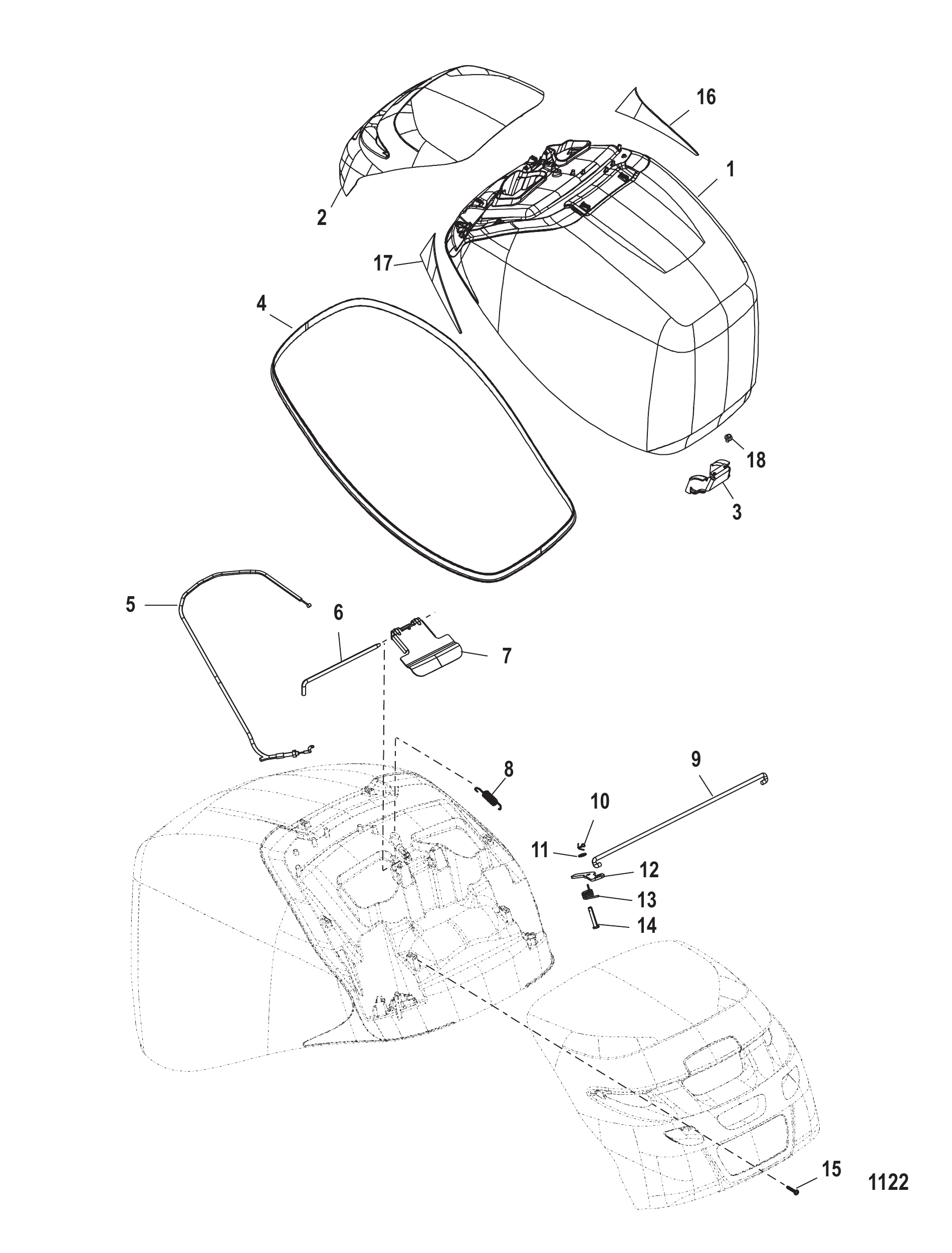

图 47顶罩 Top Cowl
顶罩 Top Cowl
REF零件编号中文名称英文名称数量
1885355T03顶盖总成TOP COWL ASSEMBLY1
18M0049999ORD 100-8M0063711ORD 100-8M00637111
1885355T02顶盖总成TOP COWL ASSEMBLY1
18M0050000顶罩-水星型COWL-TOP MARINER1
2885354T空气导流帽CAP Air Dam1
2885354T01空气导流帽-水星黑色款CAP, Air Dam Mercury, Black1
2895838T空气导流帽CAP Air Dam1
2895838T01空气导流帽-水星型CAP Air Dam - Mariner1
3888971前锁扣槽FRONT LATCH RECEIVER1
4885545上罩壳密封件SEAL Top Cowl1
48M0111178密封件SEAL1
5888951电缆CABLE1
58M0080461锁扣拉索CABLE Latch1
6888959铰链销PIN Hinge1
7888956手控锁杆LATCH Hand Lever1
8895373弹簧SPRING1
9888955锁扣连杆LINK Latch Connecting1
1026953开口销COTTER PIN2
1189302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)2
12888952联动臂LINKAGE ARM2
13888953弹簧SPRING2
14822417销PIN2
15888950020螺钉(M4x20毫米)(M4x1.75)SCREW (M4 x 20 mm) (M4 x 1.75)6
16888970左舷饰板(左)APPLIQUE Port (Port)1
16888970A01饰板套件APPLIQUE KIT1
16895839左舷饰板(左)APPLIQUE Port (Port)1
16895839A01饰板套件APPLIQUE KIT1
17888969右舷饰板(右)APPLIQUE Starboard (Starboard)1
17895840右舷饰板(右)APPLIQUE Starboard (Starboard)1
184010610不锈钢螺钉(M6x10)SCREW (M6 x 10) Stainless Steel2
-892564A05贴花套件DECAL SET1
-859271A05贴花套件DECAL SET1
-895252A05贴花套件DECAL SET1
-895253A05贴花套件DECAL SET1
-892571A05贴花套件DECAL SET1
-892571A07贴花套件(水星200)DECAL SET (Mariner 200)1
-892871A05贴花套件DECAL SET1
-892871A07贴花套件(水星225)DECAL SET (Mariner 225)1
-895254A05贴花套件DECAL SET1
-895254A07贴花套件(水星250)DECAL SET (Mariner 250)1
-895255A05贴花套件DECAL SET1
-895255A07贴花套件(水星275)DECAL SET (Mariner 275)1

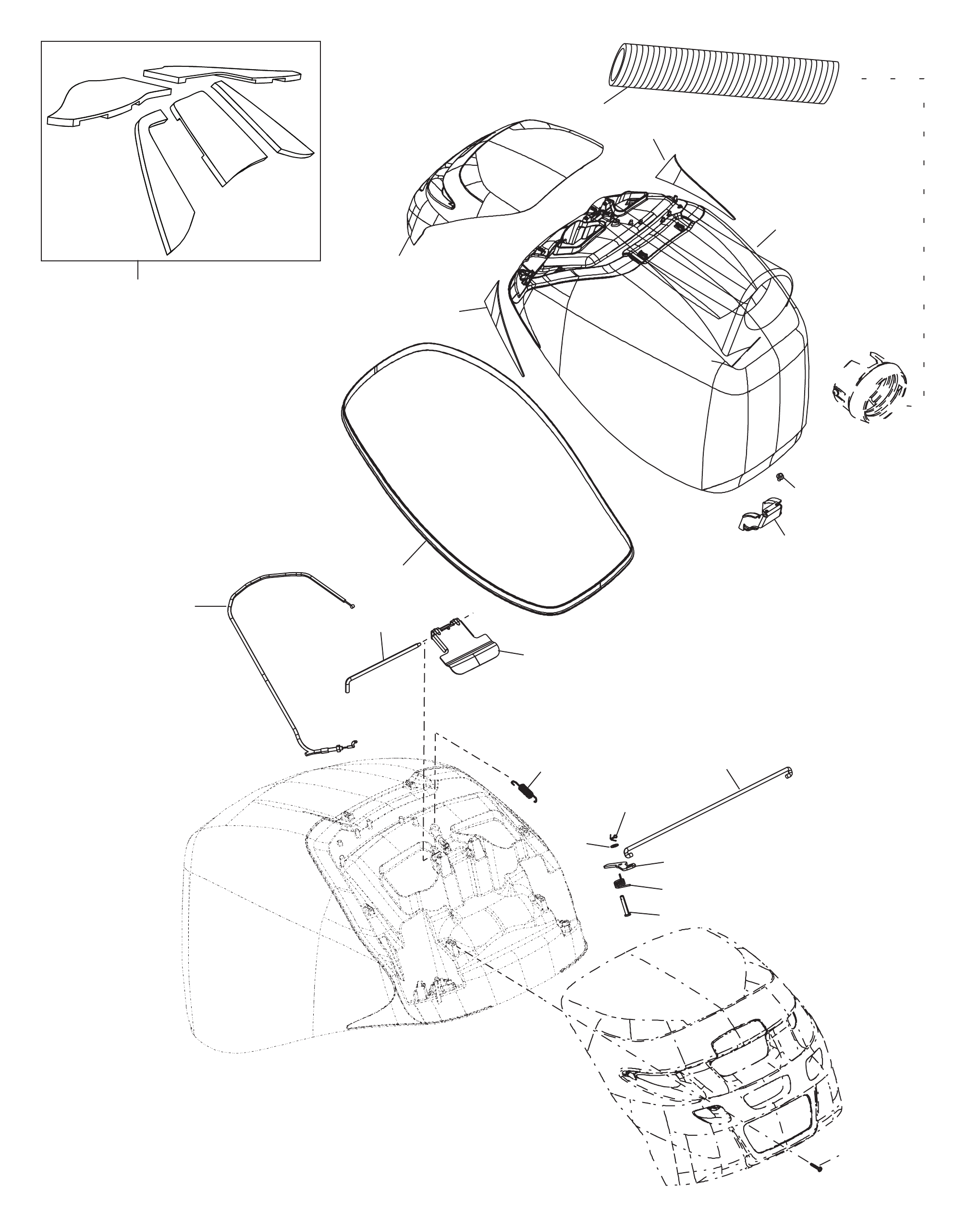

图 48顶罩 CCT Top Cowl CCT
顶罩 CCT Top Cowl CCT
REF零件编号中文名称英文名称数量
18M0074520顶盖总成 CCTTOP COWL ASSEMBLY CCT1
2NSS不单独销售 风挡盖NOT SOLD SEPARATE Air Dam Cap1
3888971前锁扣槽FRONT LATCH RECEIVER1
4NSS不单独销售 密封件NOT SOLD SEPARATE Seal1
5888951电缆CABLE1
58M0080461锁扣拉索CABLE Latch1
6888959铰链销PIN Hinge1
7888956手控锁杆LATCH Hand Lever1
8895373弹簧SPRING1
9888955锁扣连杆LINK Latch Connecting1
1026953开口销COTTER PIN2
1189302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)2
12888952联动臂LINKAGE ARM2
13888953弹簧SPRING2
14822417销PIN2
15NSS不单独销售 (#8-15 x 1.25)NOT SOLD SEPARATE (#8-15 x 1.25)4
168M0025654贴花 左舷 (水星)(黑色)APPLIQUE Port (Mercury)(Black)1
168M0033614贴花 左舷, 水星APPLIQUE Port, Mercury1
178M0025680贴花 右舷 (水星)(黑色)APPLIQUE Starboard (Mercury)(Black)1
178M0033615贴花 右舷, 水星APPLIQUE Starboard, Mercury1
1888552512不锈钢螺钉 (M6 x 12 mm)SCREW (M6 x 12 mm) Stainless Steel2
188M0103804不锈钢螺钉 (M6 x 12 mm)SCREW (M6 x 12 MM) Stainless Steel2
19889824A01隔音毯套件 需裁剪SOUND BLANKET KIT Cut to fit1
198M4501639隔音毯套装SOUND BLANKET KIT1
208M0072385衬垫GASKET1
218M0064952适配器 索具ADAPTER Rigging1
228M0068924软管 4英寸HOSE 4 Inch1
-8M0024870贴纸 水星VeradoDECAL Mercury Verado1
-8M0043703M标志贴纸66mm黑色DECAL M-Icon, 66 MM, Black1
-NSS不单独销售 通用贴纸套装NOT SOLD SEPARATE Generic Decal Set1

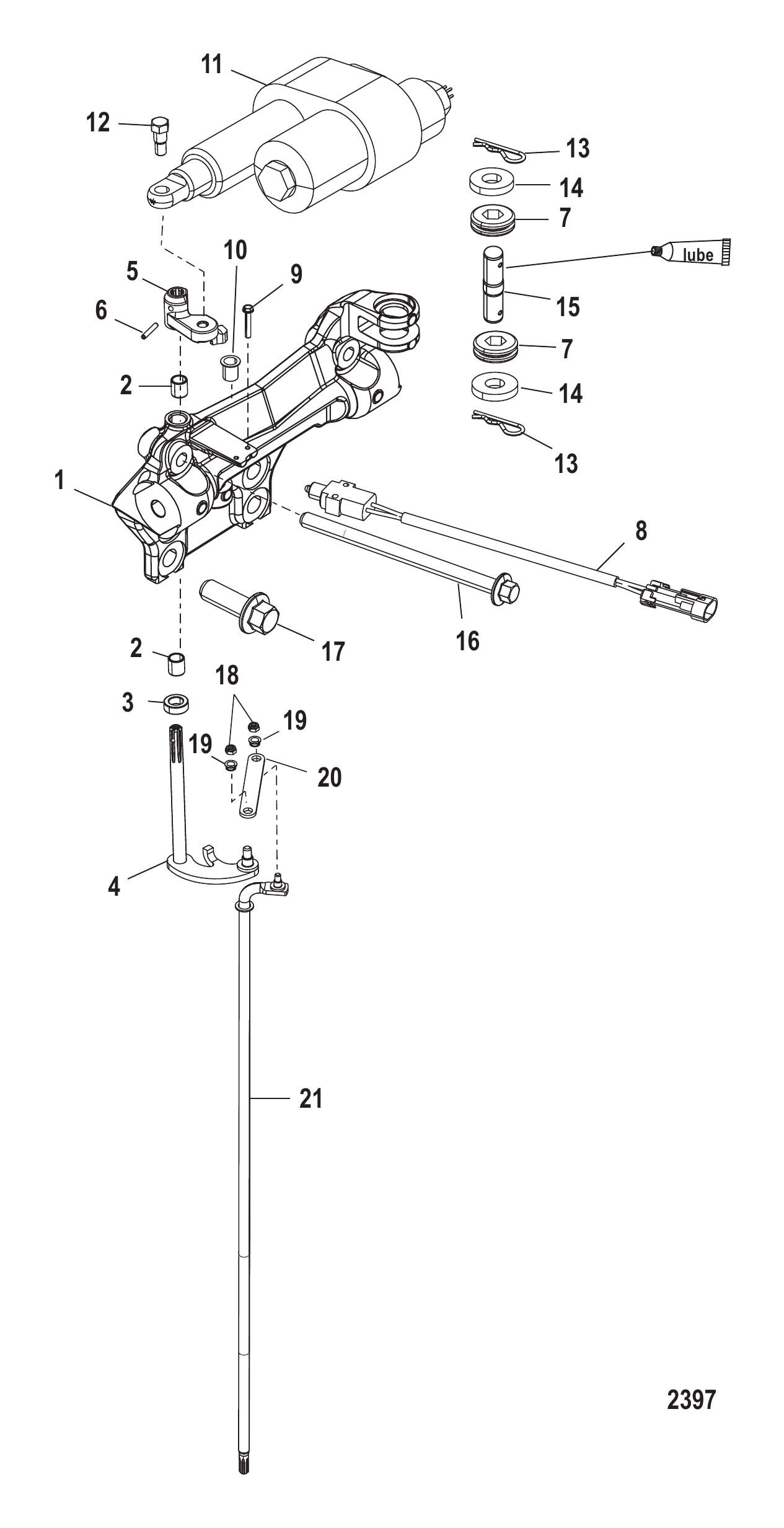

图 49上部换挡组件 Upper Shift Components
上部换挡组件 Upper Shift Components
REF零件编号中文名称英文名称数量
-888994T03前安装支架总成BRACKET ASSEMBLY Front Mount1
1NSS不单独销售 支架NOT SOLD SEPARATE Bracket1
2892417衬套BUSHING2
3892049隔套SPACER1
38M0047763隔套SPACER1
4885506001换档轴SHIFT SHAFT1
48M0026131换挡轴SHAFT-SHIFT1
5889727001曲柄摇臂BELL CRANK1
625319销钉(.125 x 0.75英寸)PIN (.125 x 0.75 Inches)1
7833155护孔环GROMMET2
8889514A01开关SWITCH1
88M0207794开关SWITCH1
988075020螺丝(M3 x 20)SCREW (M3 x 20)2
1085999衬套BUSHING1
118M0048114换挡执行器SHIFT ACTUATOR1
118M0124413换挡执行器SHIFT ACTUATOR1
128855091螺钉SCREW1
13885512开口销COTTER PIN2
14885511003垫圈WASHER2
15895770枢轴销Pin Pivot1
16895811155螺钉(M10×155)SCREW (M10 x 155)2
168M0207826螺钉SCREW2
1788510940螺钉(M14)SCREW (M14)4
178M0103802螺钉SCREW4
18401386螺母(M6)不锈钢NUT (M6) Stainless Steel2
1997896衬套BUSHING2
20885505换挡轴连杆LINK Shift Shaft1
21888987001换挡轴(长型)SHAFT Shift (Long)1
218M0181378上部换挡轴SHAFT SHIFT UPPER1
21888987002换挡轴（加长型）SHIFT SHAFT (X-Long)1
218M0183223换挡轴上段SHIFT SHAFT UPPER1
21888987003换挡轴（超长型）SHIFT SHAFT (XX-Long)1
218M0180097超长换挡轴SHAFT SHIFT XXL1

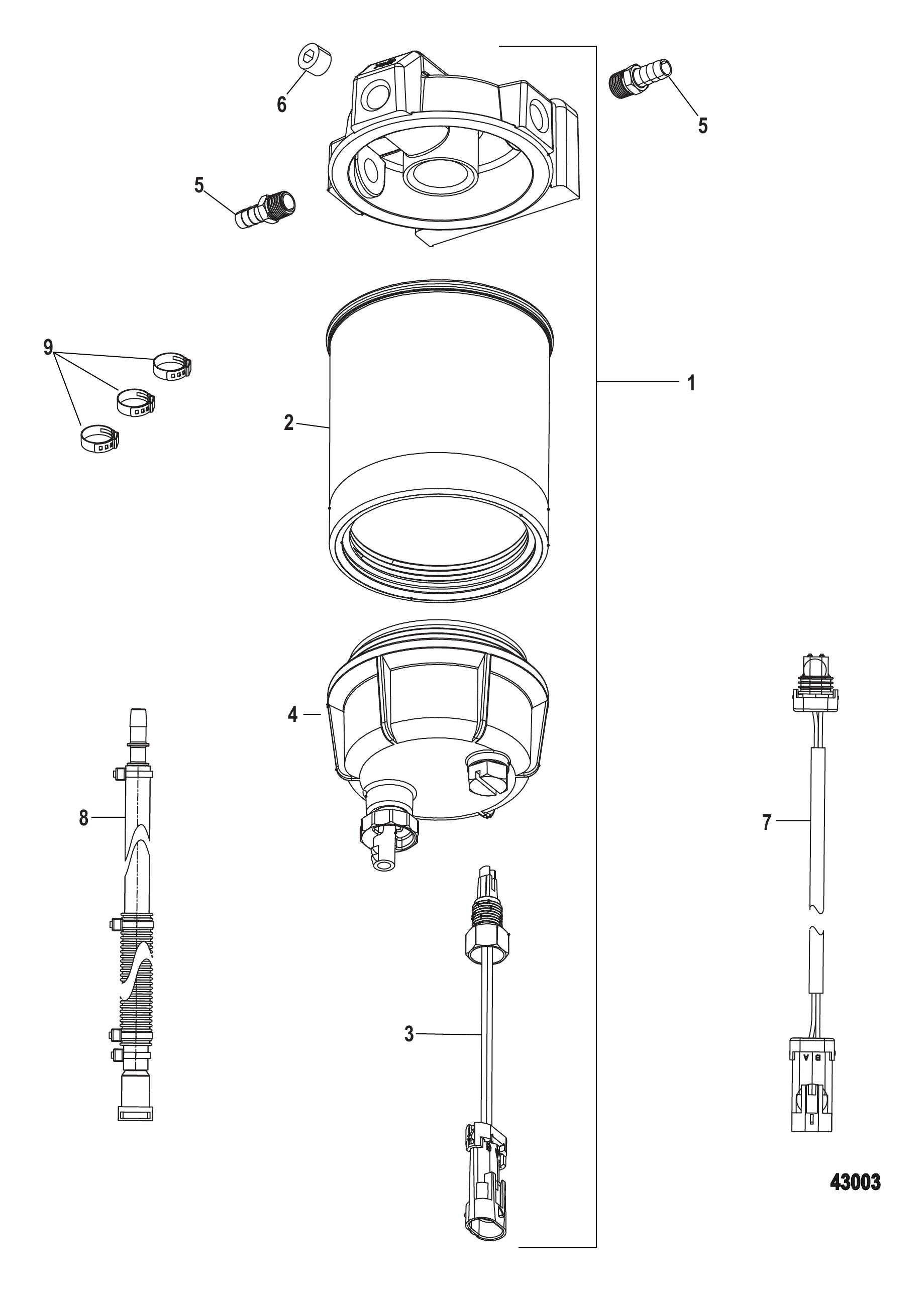

图 50水分分离滤清器套件 886638A01 Water Separator Filter Kit 886638A01
水分分离滤清器套件 886638A01 Water Separator Filter Kit 886638A01
REF零件编号中文名称英文名称数量
-886638A01油水分离器套件WATER SEPERATOR KIT1
18M0022130燃油水分分离器套件SEPERATOR KIT Fuel and Water1
18M0109360分离器套件SEPARATOR KIT1
2886638燃油滤清器滤芯ELEMENT Fuel Filter1
28M01462061英寸滤芯ELEMENT 1 IN1
38M0021043传感器总成 燃油和水SENSOR ASSEMBLY Fuel and Water1
38M0214989燃油含水传感器SENSOR WIF1
48M0021044滤杯BOWL1
48M0214990滤清器杯体FILTER BOWL1
534982连接器CONNECTOR2
673379塞(.250-18)PLUG (.250-18)1
68M0180564塞(.250-18)PLUG (.250-18)1
78M0042697燃油滤清器传感器延长线束（144英寸）水位传感器HARNESS Fuel Filter Sensor Extension (144 in) Water Sensor1
88M0044043软管总成HOSE ASSEMBLY1
9855697卡箍CLAMP3
98M0204696卡箍CLAMP3
-8M0105263WIF传感器延长线束-36英寸HARNESS WIF Sensor Extension - 36 Inches1
-8M0105264WIF传感器延长线束-72英寸HARNESS WIF Sensor Extension - 72 Inches1
