四冲程 电喷 EFI · Cat.# 90-8M0052567 · 共 39 个部位 · 1351 条零件
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0221494 | 存储罩 225-400马力 | COVER-STORAGE 225-400HP | 1 |
| - | 8M0228513 | 通风盖 200马力 | COVER-VENTED 200HP | 1 |
| - | 8M0228514 | 通风盖 225马力 | COVER-VENTED 225HP | 1 |
| - | 8M0228515 | 通风罩 250马力 | COVER-VENTED 250HP | 1 |
| - | 8M0228516 | 通风罩 275马力 | COVER-VENTED 275HP | 1 |
| - | 8M0228517 | 通风罩 300马力 | COVER-VENTED 300HP | 1 |
| - | 8M0228518 | 通风罩 350马力 | COVER-VENTED 350HP | 1 |
| - | 8M0228519 | 通风罩 400马力 | COVER-VENTED 400HP | 1 |
| - | 8M0080199 | 动力转向泵套件(4英尺) | PUMP KIT Power Steering (4 Feet) | 1 |
| - | 8M0080200 | 动力转向泵套件(12英尺) | PUMP KIT Power Steering (12 Feet) | 1 |
| - | 8M0080201 | 动力转向泵套件(24英尺) | PUMP KIT Power Steering (24 Feet) | 1 |
| - | 892380A02 | 标准转向舵机套件(40cc) | STEERING HELM KIT Standard (40 cc) | 1 |
| - | 892557A02 | 标准转向舵机套件(32cc) | STEERING HELM KIT Standard (32 cc) | 1 |
| - | 892558A02 | 标准转向舵机套件(50cc) | STEERING HELM KIT Standard (50 cc) | 1 |
| - | 8M0046914 | 液压软管套件(2英尺)油缸至舵机 | HOSE KIT Hydraulic (2 Feet) Cylinder to Helm | 1 |
| - | 8M0046915 | 液压软管套件(3英尺)油缸至舵机 | HOSE KIT Hydraulic (3 Feet) Cylinder to Helm | 1 |
| - | 8M0046916 | 液压软管套件(4英尺)油缸至舵机 | HOSE KIT Hydraulic (4 Feet) Cylinder to Helm | 1 |
| - | 8M0046917 | 液压软管套件(5英尺)油缸至舵机 | HOSE KIT Hydraulic (5 Feet) Cylinder to Helm | 1 |
| - | 8M0046918 | 液压软管套件(6英尺)油缸至舵机 | HOSE KIT Hydraulic (6 Feet) Cylinder to Helm | 1 |
| - | 8M0046919 | 液压软管套件(7英尺)油缸至舵机 | HOSE KIT Hydraulic (7 Feet) Cylinder to Helm | 1 |
| - | 8M0046920 | 液压软管套件(8英尺)油缸至舵机 | HOSE KIT Hydraulic (8 Feet) Cylinder to Helm | 1 |
| - | 8M0046921 | 液压软管套件(10英尺)油缸至舵机 | HOSE KIT Hydraulic (10 Feet) Cylinder to Helm | 1 |
| - | 8M0046922 | 液压软管套件(12英尺)油缸至舵机 | HOSE KIT Hydraulic (12 Feet) Cylinder to Helm | 1 |
| - | 8M0046923 | 液压软管套件(14英尺)油缸至舵机 | HOSE KIT Hydraulic (14 Feet) Cylinder to Helm | 1 |
| - | 8M0046924 | 液压软管套件 (16英尺) 油缸至舵机 | HOSE KIT Hydraulic (16 Feet) Cylinder to Helm | 1 |
| - | 8M0046925 | 液压软管套件 (18英尺) 油缸至舵机 | HOSE KIT Hydraulic (18 Feet) Cylinder to Helm | 1 |
| - | 8M0046927 | 液压软管套件 (22英尺) 油缸至舵机 | HOSE KIT Hydraulic (22 Feet) Cylinder to Helm | 1 |
| - | 8M0046928 | 液压软管套件 (24英尺) 油缸至舵机 | HOSE KIT Hydraulic (24 Feet) Cylinder to Helm | 1 |
| - | 8M0046929 | 液压软管套件 (26英尺) 油缸至舵机 | HOSE KIT Hydraulic (26 Feet) Cylinder to Helm | 1 |
| - | 8M0046931 | 液压软管套件 (30英尺) 油缸至舵机 | HOSE KIT Hydraulic (30 Feet) Cylinder to Helm | 1 |
| - | 892438K02 | 动力转向软管套件 动力模块 (2英尺) 液压, 泵至舵机 | POWER STEERING HOSE KIT Power Module (2 Feet) Hydraulic, Pump to Helm | 1 |
| - | 892438K03 | 动力转向软管套件 动力模块 (3英尺) 液压, 泵至舵机 | POWER STEERING HOSE KIT Power Module (3 Feet) Hydraulic, Pump to Helm | 1 |
| - | 892438K04 | 动力转向软管套件 动力模块 (4英尺) 液压, 泵至舵机 | POWER STEERING HOSE KIT Power Module (4 Feet) Hydraulic, Pump to Helm | 1 |
| - | 892438K05 | 动力转向软管套件 动力模块 (5英尺) 液压, 泵至舵机 | POWER STEERING HOSE KIT Power Module (5 Feet) Hydraulic, Pump to Helm | 1 |
| - | 892438K06 | 软管套件 动力模块 (6英尺) 液压, 泵至舵机 | HOSE KIT Power Module (6 Feet) Hydraulic, Pump to Helm | 1 |
| - | 892438K07 | 软管套件 动力模块 (7英尺) 液压, 泵至舵机 | HOSE KIT Power Module (7 Feet) Hydraulic, Pump to Helm | 1 |
| - | 892438K08 | 软管套件 动力模块 (8英尺) 液压, 泵至舵机 | HOSE KIT Power Module (8 Feet) Hydraulic, Pump to Helm | 1 |
| - | 892438K10 | 动力转向软管套件 动力模块 (10英尺) 液压, 泵至舵机 | POWER STEERING HOSE KIT Power Module (10 Feet) Hydraulic, Pump to Helm | 1 |
| - | 892438K12 | 动力转向软管套件 动力模块 (12英尺) 液压, 泵至舵机 | POWER STEERING HOSE KIT Power Module (12 Feet) Hydraulic, Pump to Helm | 1 |
| - | 892438K14 | 动力转向软管套件 动力模块 (14英尺) 液压, 泵至舵机 | POWER STEERING HOSE KIT Power Module (14 Feet) Hydraulic, Pump to Helm | 1 |
| - | 892438K16 | 动力转向软管套件 动力模块 (16英尺) 液压, 泵至舵机 | POWER STEERING HOSE KIT Power Module (16 Feet) Hydraulic, Pump to Helm | 1 |
| - | 892438K18 | 动力转向软管套件 动力模块 (18英尺) 液压, 泵至舵机 | POWER STEERING HOSE KIT Power Module (18 Feet) Hydraulic, Pump to Helm | 1 |
| - | 892438K20 | 动力转向软管套件 动力模块 (20英尺) 液压, 泵至舵机 | POWER STEERING HOSE KIT Power Module (20 Feet) Hydraulic, Pump to Helm | 1 |
| - | 892438K22 | 动力转向软管套件 动力模块 (22英尺) 液压, 泵至舵机 | POWER STEERING HOSE KIT Power Module (22 Feet) Hydraulic, Pump to Helm | 1 |
| - | 892438K24 | 动力转向软管套件 动力模块 (24英尺) 液压, 泵至舵机 | POWER STEERING HOSE KIT Power Module (24 Feet) Hydraulic, Pump to Helm | 1 |
| - | 892825008 | 液压软管 (8英尺) 舵机至压力罐 | HOSE (8 Feet) Hydraulic, Helm to Pressure Tank | 1 |
| - | 892825010 | 液压软管 (10英尺) 舵机至压力罐 | HOSE (10 Feet) Hydraulic, Helm to Pressure Tank | 1 |
| - | 892825012 | 液压软管 (12英尺) 舵机至压力罐 | HOSE (12 Feet) Hydraulic, Helm to Pressure Tank | 1 |
| - | 892825014 | 液压软管 (14英尺) 舵机至压力罐 | HOSE (14 Feet) Hydraulic, Helm to Pressure Tank | 1 |
| - | 892825016 | 液压软管 (16英尺) 舵机至压力罐 | HOSE (16 Feet) Hydraulic, Helm to Pressure Tank | 1 |
| - | 892825018 | 液压软管 (18英尺) 舵机至压力罐 | HOSE (18 Feet) Hydraulic, Helm to Pressure Tank | 1 |
| - | 892825020 | 液压软管 (20英尺) 舵机至压力罐 | HOSE (20 Feet) Hydraulic, Helm to Pressure Tank | 1 |
| - | 892825022 | 液压软管 (22英尺) 舵机至压力罐 | HOSE (22 Feet) Hydraulic, Helm to Pressure Tank | 1 |
| - | 892825024 | 液压软管 (24英尺) 舵机至压力罐 | HOSE (24 Feet) Hydraulic, Helm to Pressure Tank | 1 |
| - | 892825026 | 液压软管 (26英尺) 舵机至压力罐 | HOSE (26 Feet) Hydraulic, Helm to Pressure Tank | 1 |
| - | 893395A01 | 嵌入式安装板 | PLATE Flush Mount | 1 |
| - | 875207 | 三通接头 | TEE Fitting | 1 |
| - | 892486K08 | 模拟转换套件 | CONVERSION KIT Analog | 1 |
| - | 899785K04 | 附件电源线束总成(30英尺) | HARNESS ASSEMBLY Accessory Power (30 Feet) | 1 |
| - | 88334A2 | 防腐电极套件 | MERCATHODE KIT | 1 |
| - | 825191A03 | 索具软管套件 | HOSE KIT Rigging | 1 |
| - | 880717A01 | 齿轮箱螺丝/密封套件 | SCREW/SEAL KIT Gearcase | 1 |
| - | 88439A50 | 电池电缆组 | CABLE SET Battery | 1 |
| - | 44357Q2 | 冲洗附件 | FLUSHING ATTACHMENT | 1 |
| - | 881150Q1 | 双进水口冲洗套件 | FLUSH KIT Dual Water Pick Up | 1 |
| - | 8M0038563 | 燃油管路 (100.00英尺) | LINE Fuel (100.00 Feet) | 1 |

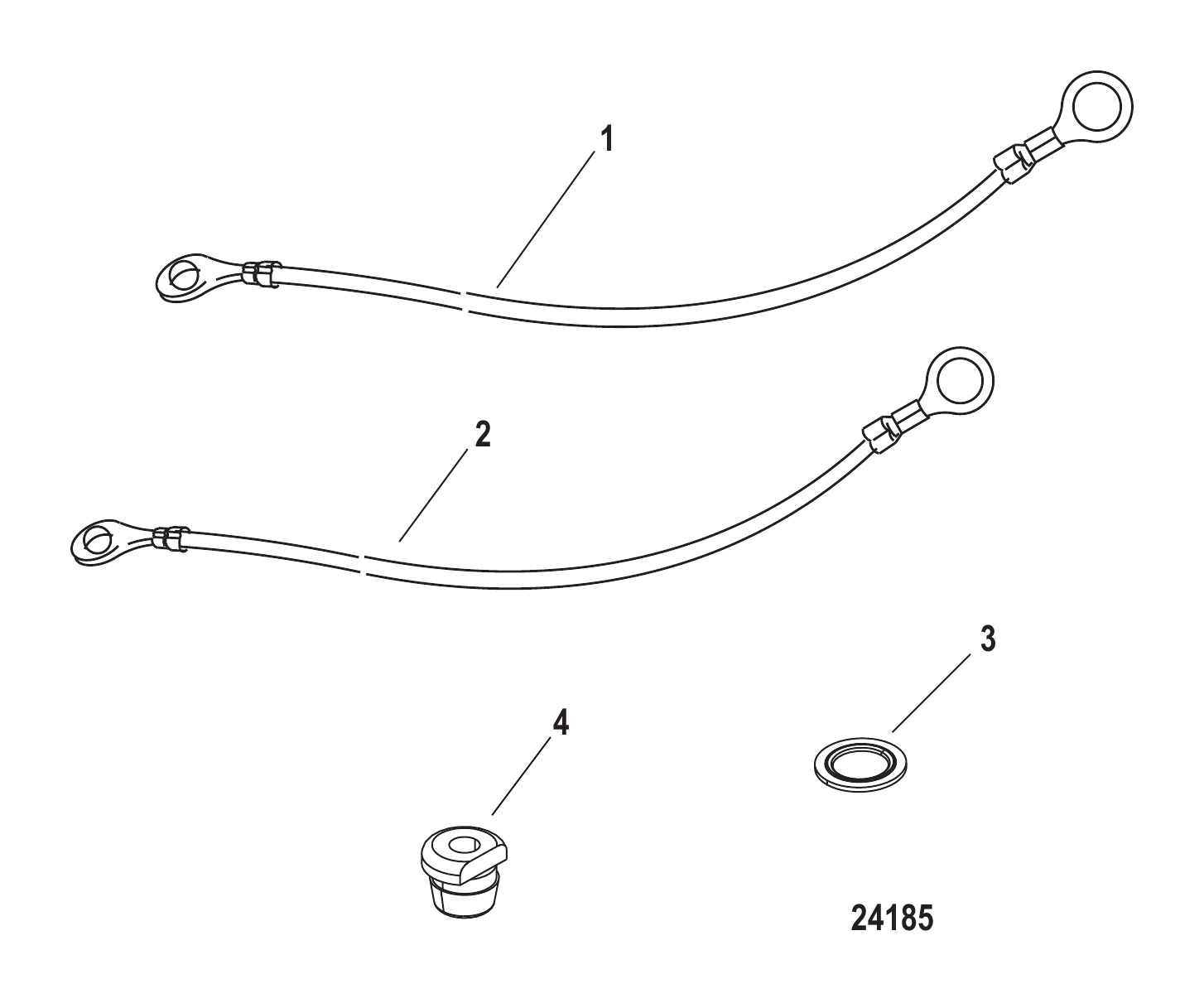

| - | 899712A01 | 连续性电缆套件 | CABLE KIT Continuity | 1 |
| - | 8M0052924 | 尾鳍 | SKEG | 1 |
| - | 8M0052921 | 水道堵塞套件 | PLUG KIT Water Passage | 1 |
| - | 8M0075876 | 发动机冲洗适配器套件 | ENGINE FLUSH ADAPTER KIT | 1 |
| - | 8M0079968 | 泵排水套件升级包 | PUMP DRAIN KIT Upgrade kit | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 887623T03 | 机油收集器总成 | PICKUP ASSEMBLY Oil | 1 |
| 2 | 8M0092943 | O型圈 橙色 | O-RING Orange | 1 |
| 3 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 3 |
| 4 | 889618001 | 衬垫 油底壳 | GASKET Oil Sump | 1 |
| 5 | 8M0080961 | 排气管总成 | TUBE ASSEMBLY Exhaust | 1 |
| 6 | 88552635 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 4 |
| 7 | 880629 | 排气管密封件 | SEAL Exhaust Tube | 1 |
| 8 | 880639T | 油底壳总成 | SUMP ASSEMBLY Oil | 1 |
| 9 | 88552530 | 螺丝(M6×30毫米)不锈钢 | SCREW (M6 x 30 mm) Stainless Steel | 12 |
| 10 | 887753A02 | 排油管总成 | TUBE ASSEMBLY Oil Drain | 1 |
| 10 | 8M0082193 | 排油管总成 | TUBE ASSEMBLY Oil Drain | 1 |
| 11 | 892446 | O型圈(14×1.78毫米) | O-RING (14 X 1.78 MM) | 2 |
| 12 | 892228 | 定位销 | PIN Dowel | 1 |
| 13 | 8M0079733 | O型圈 | O-Ring | 1 |
| 14 | 888593 | 放油螺塞密封件 | SEAL Drain Plug | 1 |
| 15 | 88552530 | 螺丝(M6×30毫米)不锈钢 | SCREW (M6 x 30 mm) Stainless Steel | 1 |
| 16 | 885541A01 | 水管总成 (20.00英寸) | TUBE ASSEMBLY Water (20.00 Inch) | 1 |
| 16 | 885541A02 | 水管总成 (25.00英寸) | TUBE ASSEMBLY Water (25.00 Inch) | 1 |
| 16 | 885541A03 | 水管总成 (30.00英寸) | TUBE ASSEMBLY Water (30.00 Inch) | 1 |
| 17 | 892445 | O型圈 | O-RING | 1 |
| 18 | 887987A1 | 联轴器 | COUPLING | 1 |
| 19 | 90196 | O型圈 (.921 x .139) | O-RING (.921 x .139) | 1 |
| 20 | 21836 | O型圈(.796 x .139) | O-RING (.796 x .139) | 1 |
| 21 | 888913A01 | 提升阀总成 | POPPET ASSEMBLY | 1 |
| 22 | 64878 | 弹簧(黑色) | SPRING (Black) | 1 |
| 23 | 893385001 | 固定座 | RETAINER | 1 |
| 24 | 648771 | 隔膜 | DIAPHRAGM | 1 |
| 25 | 889706 | 垫圈 | WASHER | 1 |
| 26 | 69570 | 螺钉(#10-16 x .750) | SCREW (#10-16 x .750) | 1 |
| 27 | 893384001 | 提升阀盖 | COVER Poppet | 1 |
| 28 | 889561 | 提升阀垫片 | GASKET Poppet | 1 |
| 29 | 88552535 | 不锈钢螺钉(M6×35mm) | SCREW (M6 x 35 mm) Stainless Steel | 2 |
| 30 | 888592005 | 放油塞总成 | PLUG ASSEMBLY Oil Drain | 1 |
| 31 | 8M0107908 | 水管导向器 | GUIDE Water Tube | 1 |
| - | 880552A07 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 896966A07 | 长缸体总成 | ASSEMBLY Long Block | 1 |
| - | 8M0162891 | 翻新动力头总成(带附件) | POWERHEAD ASSEMBLY Reman Dressed | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 884474001 | 定位销 (12毫米) | PIN Dowel (12 mm) | 1 |
| 2 | 888819002 | 排水罩 | DRAIN Cowl | 2 |
| 3 | 888461A01 | 配件套件 | FITTING KIT | 1 |
| 4 | 892446 | O型圈(14×1.78毫米) | O-RING (14 X 1.78 MM) | 2 |
| 5 | 88552512 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 mm) Stainless Steel | 1 |
| 6 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 1 |
| 7 | 889792A01 | 怠速排气接头套件 | FITTING KIT Idle Exhaust | 1 |
| 8 | 889828 | O型圈 0.924×0.103 | O-RING (.924 x .103) | 1 |
| 9 | 889846 | 接头 | FITTING | 1 |
| 10 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 2 |
| 11 | 888981001 | 怠速排气软管 | HOSE Idle Exhaust | 1 |
| 12 | 892384T | 排气集气室 | PLENUM Exhaust | 1 |
| 13 | 4006731 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 2 |
| 14 | 88238A21 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 15 | 8M0098784 | 螺钉 (M6 x 1 x 12) | SCREW (M6 x 1 x 12) | 1 |
| 16 | 8M0084774 | 歧管参考下软管 | HOSE Manifold Reference Lower | 1 |
| 17 | 884546 | 护孔环 | GROMMET | 1 |
| 18 | 8M0097735 | 固定卡箍 (3孔软管) | CLIP Retaining, 3 Hose | 2 |
| 19 | 8M0084552 | 下部进水管 | HOSE Water In Lower | 1 |
| 20 | 8M0084660 | 燃油供应模块出油管 | HOSE Fuel Out Fuel Supply Module | 1 |
| 21 | 815504104 | 蜗杆卡箍 | CLAMP Worm Gear | 3 |
| 22 | 8M0047448 | 管材 (.312) (70英寸整卷) 裁至21英寸 | TUBING (.312) (70 Inches Bulk) Cut to 21 Inches | 1 |
| 23 | 892562T01 | 歧管壳体 | HOUSING Manifold | 1 |
| 24 | 892117 | 密封件 | SEAL | 1 |
| 25 | 88552516 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 4 |
| 26 | 887756 | 进水软管-上部 | HOSE Water In-Upper | 1 |
| 27 | 8M0087104 | 高压滤清器软管 | HOSE Hi Pressure Filter | 1 |
| 28 | 879885Q | 燃油管路滤清器 | FILTER Fuel In-Line | 1 |
| 29 | 8M0087122 | 高压滤清器至油轨软管 | HOSE Hi Pressure Filter to Fuel Rail | 1 |
| 30 | 13791 | 卡箍(15.7) | CLAMP (15.7) | 1 |
| 31 | 855697 | 卡箍 | CLAMP | 1 |
| 32 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| - | 880552A07 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 896966A07 | 长缸体总成 | ASSEMBLY Long Block | 1 |
| - | 8M0162891 | 翻新动力头总成(带附件) | POWERHEAD ASSEMBLY Reman Dressed | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 892940T02 | 交流发电机 | ALTERNATOR | 1 |
| 2 | 8M0101707 | 皮带张紧器 | BELT TENSIONER | 1 |
| 3 | 8M6003035 | 滑轮 | PULLEY | 1 |
| 4 | 885349501 | 螺钉 | SCREW | 1 |
| 5 | 855729 | 支架 | MOUNT | 2 |
| 5 | 855729 | 支架 | MOUNT | 2 |
| 6 | 845998 | 垫圈(0.406×1.250×0.089) | WASHER (.406 x 1.250 x .089) | 8 |
| 7 | 88552745 | 螺丝(M10 x 45) | SCREW (M10 x 45) | 5 |
| 8 | 88535303S | 支架 | BRACKET | 1 |
| 9 | 888517 | 销 | PIN | 1 |
| 10 | 880566Q14 | 驱动皮带 | BELT Drive | 1 |
| 11 | 88552785 | 螺钉(M10×85) | SCREW (M10 x 85) | 1 |
| 12 | 4002319 | 垫圈 | WASHER | 1 |
| 13 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 14 | 856583A12 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 15 | 858414A04 | 铜编织电缆总成 | CABLE ASSEMBLY Brass Braided | 1 |
| 16 | 88552516 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 2 |
| 17 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 18 | 828991T | 卡扣 | CLIP | 3 |
| 19 | 8M0096285 | 皮带更换警示贴纸 | DECAL Notice Belt Replace | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 880608T07 | 集成式空气燃油模块总成 | MODULE ASSEMBLY Intergrated Air Fuel | 1 |
| 1 | 880587A03 | 中冷器总成 | CAC ASSEMBLY | 1 |
| 1 | 8M0132388 | 中冷器总成 | CAC ASSEMBLY | 1 |
| 2 | 895032 | 绑带 | STRAP | 2 |
| 3 | 895336 | 螺钉(M6x18) | SCREW (M6 x 18) | 4 |
| 3 | 8M0041014 | 螺钉(M6x18) | SCREW (M6 x 18) | 4 |
| 4 | 895033 | 接头 | FITTING | 1 |
| 4 | 8M0039993 | 接头 | FITTING | 1 |
| 5 | NSS | 不单独销售 O型圈（895031套件部件） | NOT SOLD SEPARATE O-Ring (Part of 895031 Kit) | 1 |
| 6 | NSS | 非单独销售堆叠组件 | NOT SOLD SEPARATE Stack Assembly | 1 |
| 7 | NSS | 不单独销售 密封件 | NOT SOLD SEPARATE Seal | 1 |
| 8 | NSS | 不单独销售 O型圈（895031套件部件） | NOT SOLD SEPARATE O-Ring (Part of 895031 Kit) | 2 |
| 9 | 895034 | 接头 | FITTING | 1 |
| 9 | 8M0048079 | 8毫米塞 | PLUG 8MM | 1 |
| 10 | NSS | 不单独销售 O型圈（895031套件部件） | NOT SOLD SEPARATE O-Ring (Part of 895031 Kit) | 1 |
| 11 | NSS | NOT SOLD SEPARATE Plate | 1 | |
| 12 | 891663001 | 温度传感器 | SENSOR Temperature | 1 |
| 13 | 892317001 | O型圈 | O-RING | 1 |
| 14 | 895054 | 螺丝(M4×16毫米) | SCREW (M4 x 16 mm) | 2 |
| 15 | 880582T05 | 进气歧管总成 | MANIFOLD ASSEMBLY Intake | 1 |
| 15 | 8M0041479 | 进气歧管总成 | MANIFOLD ASSEMBLY Intake | 1 |
| 16 | 895019 | 密封件 | SEAL | 1 |
| 17 | 895020 | 密封件 | SEAL | 6 |
| 18 | 885548002 | 传感器 | SENSOR | 1 |
| 18 | 8M0234766 | 压力传感器 | SENSOR PRESSURE | 1 |
| 19 | 888988015 | 卡箍(15.7毫米 进气压力传感器至护套) | CLAMP (15.7 mm) Map Sensor to Boot | 1 |
| 19 | 8M0214911 | 卡箍@5 | CLAMP @5 | 1 |
| 20 | 892952500 | 护套 | BOOT | 1 |
| 21 | 888988001 | 卡箍(36.1毫米) | CLAMP (36.1 mm) | 1 |
| 21 | 8M0204719 | 卡箍 36.1毫米 | CLAMP 36.1 MM | 1 |
| 22 | 895052 | 螺丝(M6 x 25毫米) | SCREW (M6 x 25 mm) | 13 |
| 22 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 13 |
| 23 | 895022A01 | 燃油轨套件 | FUEL RAIL KIT | 1 |
| 23 | 8M0041080 | 燃油导轨总成 | FUEL RAIL ASSEMBLY | 1 |
| 24 | 895028A01 | 施拉德阀 | VALVE Schrader | 1 |
| 25 | 895056 | O型圈 | O-RING | 2 |
| 26 | 895026 | 支架 | BRACKET | 1 |
| 27 | 895051 | 螺钉 (M5 x 10) | SCREW (M5 x 10) | 1 |
| 28 | 895024 | 支架 | BRACKET | 3 |
| 29 | 895051 | 螺钉 (M5 x 10) | SCREW (M5 x 10) | 12 |
| 30 | 8M0006027 | 燃油喷油器 | INJECTOR Fuel | 6 |
| 30 | 8M0222278 | 燃油喷射器 | FUEL INJECTOR | 6 |
| 31 | 851889 | O型圈 | O-RING | 12 |
| 32 | 895025 | 减震器 | DAMPER | 1 |
| 33 | 851889 | O型圈 | O-RING | 1 |
| 34 | 895029A01 | 燃油进管套件 | TUBE KIT Fuel Inlet | 1 |
| 35 | 895055 | 垫圈 | WASHER | 1 |
| 36 | 895057 | O型圈 | O-RING | 1 |
| 37 | 895027 | 支架 | BRACKET | 1 |
| 38 | 895051 | 螺钉 (M5 x 10) | SCREW (M5 x 10) | 1 |
| 39 | 895053 | 螺丝(M6x15) | SCREW (M6 x 15) | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0053763 | 集成空气燃油模块总成 | MODULE ASSEMBLY Integrated Air Fuel | 1 |
| - | 8M0185613 | IAFM | IAFM | 1 |
| - | 8M0092408 | 集成空气燃油模块总成 | MODULE ASSEMBLY Integrated Air Fuel | 1 |
| - | 8M0185613 | IAFM | IAFM | 1 |
| 1 | 8M0046692 | 中冷器总成 | CAC ASSEMBLY | 1 |
| 1 | 8M0132388 | 中冷器总成 | CAC ASSEMBLY | 1 |
| 2 | 8M0039519 | 零泄漏螺塞（M8×1.0） | PLUG Zero Leak (M8 x 1.0) | 1 |
| 2 | 8M0048079 | 8毫米塞 | PLUG 8MM | 1 |
| 3 | 8M0046698 | 端盖总成 | END CAP ASSEMBLY | 2 |
| 4 | 8M0039516 | O型圈 | O-RING | 1 |
| 5 | 8M0039464 | 挡圈 | RING Retaining | 1 |
| 6 | 8M0040116 | O型圈 | O-RING | 1 |
| 7 | 8M0039993 | 接头 | FITTING | 1 |
| 8 | 8M0041479 | 进气歧管总成 | MANIFOLD ASSEMBLY Intake | 1 |
| 8 | 8M0083678 | 进气歧管总成 | MANIFOLD ASSEMBLY Intake | 1 |
| 9 | 895019 | 歧管至CAC密封件 | SEAL Manifold to CAC | 1 |
| 10 | 895020 | 歧管头部密封件 | SEAL Manifold Head | 6 |
| 11 | 891663001 | 温度传感器 | SENSOR Temperature | 1 |
| 12 | 895054 | 螺丝(M4×16毫米) | SCREW (M4 x 16 mm) | 2 |
| 13 | 892317001 | O型圈 | O-RING | 1 |
| 14 | 88552516 | 螺钉（M6×16毫米）不锈钢燃油轨至歧管 | SCREW (M6 x 16 mm) Stainless Steel Fuel Rail to Manifold | 3 |
| 14 | 8M0103805 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 3 |
| 14 | 88552516 | 螺钉（M6×16毫米）不锈钢CAC至歧管 | SCREW (M6 x 16 mm) Stainless Steel CAC to Manifold | 2 |
| 14 | 8M0103805 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 2 |
| 15 | 88552525 | 螺钉（M6×25毫米）不锈钢歧管至CAC | SCREW (M6 x 25 mm) Stainless Steel Manifold to CAC | 13 |
| 15 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 13 |
| 16 | 8M0010248 | 传感器 压力 | SENSOR Pressure | 1 |
| 16 | 8M0234766 | 压力传感器 | SENSOR PRESSURE | 1 |
| 17 | 888988015 | 卡箍 (15.7 mm) | CLAMP (15.7 mm) | 1 |
| 17 | 8M0214911 | 卡箍@5 | CLAMP @5 | 1 |
| 18 | 8M0041053 | MAP传感器护套 | BOOT MAP Sensor | 1 |
| 19 | 888988001 | 卡箍(36.1毫米) | CLAMP (36.1 mm) | 1 |
| 19 | 8M0204719 | 卡箍 36.1毫米 | CLAMP 36.1 MM | 1 |
| 20 | 8M0041080 | 燃油导轨总成 | FUEL RAIL ASSEMBLY | 1 |
| 20 | 8M0185166 | 燃油导轨总成 | FUEL RAIL ASSY | 1 |
| 21 | 8M0047054 | 燃油进管套件 | TUBE KIT Fuel Inlet | 1 |
| 22 | 8M0041097 | 固定支架 | BRACKET Retaining | 1 |
| 23 | 8M0041100 | 螺钉 (M5 x 10) | SCREW (M5 x 10) | 1 |
| 24 | 8M0047053 | 施拉德阀维修包 | VALVE KIT Shrader | 1 |
| 25 | 8M0041097 | 固定支架 | BRACKET Retaining | 1 |
| 26 | 8M0041100 | 螺钉 (M5 x 10) | SCREW (M5 x 10) | 1 |
| 27 | NSS | 燃油轨不单独销售 | NOT SOLD SEPARATE FUEL RAIL | 1 |
| 28 | 8M0041096 | 喷油器安装支架 | BRACKET Fuel Injector Mounting | 3 |
| 29 | 8M0041571 | 燃油喷油器总成 | INJECTOR ASSEMBLY Fuel | 6 |
| 29 | 8M0222278 | 燃油喷射器 | FUEL INJECTOR | 6 |
| 30 | 8M0041100 | 螺钉 (M5 x 10) | SCREW (M5 x 10) | 12 |
| 31 | 8M0041101 | 燃油轨减震器 | DAMPER Fuel Rail | 1 |
| - | 8M0132737 | O型圈套件 | O-RING KIT | 1 |
| 32 | NSS | 不单独销售 O型圈（施拉德阀用） | NOT SOLD SEPARATE O-RING, Shrader Valve | 2 |
| 33 | 851889 | 减震器O型圈 | O-RING Damper | 1 |
| 34 | 851889 | 喷油器O型圈 | O-RING Fuel Injector | 6 |
| 35 | NSS | O型圈（管用）不单独销售 | NOT SOLD SEPARATE O-RING, Tube | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 826292 | 螺母(M10)黄铜/镀镍 | NUT (M10) Brass/Nickel Plated | 1 |
| 2 | 8M0048051 | 不锈钢螺钉(M6x30) | SCREW (M6 x 30) Stainless Steel | 7 |
| - | NSS | 不单独出售-软管总成 | NOT SOLD SEPARATE Hose Assembly | 1 |
| 3 | 889593001 | 软管 | HOSE | 1 |
| 4 | 889633A04 | 冲洗接头总成 | FITTING ASSEMBLY Flushing | 1 |
| 5 | 889592001 | 软管 | HOSE | 1 |
| 6 | 888988008 | 卡箍(34.6毫米) | CLAMP (34.6 MM) | 2 |
| 7 | 892967 | 软管 | HOSE | 1 |
| 8 | 850181 | 捆扎带(11.750英寸) | TIE STRAP (11.750 Inches) | 1 |
| 9 | 8M0087119 | 上部歧管参考软管 | HOSE Manifold Reference Upper | 1 |
| 10 | 88552730 | 螺钉 (M10 x 30) | SCREW (M10 x 30) | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0100547 | 前侧锁扣总成 | LATCH ASSEMBLY Front and Side | 1 |
| 1 | 888976T01 | 支架 | BRACKET | 1 |
| 2 | 888974A02 | 侧锁扣总成 | SIDE LATCH ASSEMBLY | 2 |
| 3 | 888996 | 弹簧 | SPRING | 4 |
| 4 | 896124 | 套筒 | SLEEVE | 4 |
| 5 | 828249 | 护孔环 | GROMMET | 2 |
| 6 | 8M0080491 | 电缆 | CABLE | 2 |
| 7 | 27290 | 挡圈 | RING Retaining | 2 |
| 8 | 30164 | 垫圈(0.192x0.375x0.0312)不锈钢 | WASHER (.192 x .375 x .0312) Stainless Steel | 1 |
| 9 | 893380 | U型销 | PIN Clevis | 1 |
| 10 | 61319 | E型卡环 | E RING | 1 |
| 11 | 4006731 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 4 |
| 12 | 889627 | 螺柱 | STUD | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 891644A04 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 2 | 897498T05 | 主轴承 - 绿色 | BEARING Main - Green | AR |
| 2 | 897498T06 | 主轴承 - 海军蓝 | BEARING Main - Navy Blue | AR |
| 2 | 897498T07 | 主轴承 - 白色 | BEARING Main - White | AR |
| 2 | 897498T08 | 主轴承 - 橙色 | BEARING Main - Orange | AR |
| 3 | 892309T01 | 推力轴承-绿色(曲轴下端) | BEARING Thrust - Green Crankshaft-Lower | AR |
| 3 | 892309T02 | 推力轴承-海军蓝(曲轴下端) | BEARING Thrust - Navy Blue Crankshaft-Lower | AR |
| 3 | 892309T03 | 推力轴承-白色(曲轴下端) | BEARING Thrust - White Crankshaft-Lower | AR |
| 3 | 892309T04 | 推力轴承-橙色(曲轴下端) | BEARING Thrust - Orange Crankshaft-Lower | AR |
| 4 | 8M0032912 | 油封(主轴承顶部) | SEAL Top Main Bearing | 1 |
| 5 | 896883 | 隔套 | SPACER | 1 |
| 6 | 896882 | 挡圈 | RING Retaining | 1 |
| 7 | 91800 | 半圆键 | KEY Woodruff | 1 |
| 8 | 8M0103398 | 链条(凸轮轴驱动滚子链) | CHAIN Roller Cam Drive | 1 |
| 9 | 881210T02 | 连杆总成 | CONNECTING ROD ASSEMBLY | 6 |
| 10 | 884441 | 螺栓 | BOLT | 12 |
| 11 | 892005A01 | 连杆轴承-蓝色 | BEARING Connecting Rod - Blue | AR |
| 11 | 892005A02 | 连杆轴承-白色 | BEARING Connecting Rod - White | AR |
| 11 | 892005A03 | 连杆轴承-橙色 | BEARING Connecting Rod - Orange | AR |
| 12 | 898499T02 | 活塞总成 | PISTON ASSEMBLY | 6 |
| 13 | 881180A02 | 活塞环组 | RING SET Piston | 6 |
| 14 | NSS | 活塞环-油环(不单独销售) | NOT SOLD SEPARATE Piston Ring-Oil | 6 |
| 15 | NSS | 活塞环-第二道(不单独销售) | NOT SOLD SEPARATE Piston Ring-2nd | 6 |
| 16 | NSS | 活塞销（不单独销售） | NOT SOLD SEPARATE Piston Pin | 6 |
| 17 | 896594 | 卡簧 | CIRCLIP | 12 |
| - | 896966A07 | 长缸体总成 | ASSEMBLY Long Block | 1 |
| - | 8M0162891 | 翻新动力头总成(带附件) | POWERHEAD ASSEMBLY Reman Dressed | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0103280 | 气缸体 | CYLINDER BLOCK | 1 |
| 2 | 8M0041759 | 起动机安装支架 | BRACKET Mounting-Starter Motor | 2 |
| 3 | 88552640 | 螺钉 (M8 x 40) | SCREW (M8 x 40) | 4 |
| 4 | 889767 | 堵头（12毫米） | PLUG (12 mm) | 1 |
| 5 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 2 |
| 6 | 893392001 | 减震器 | DAMPER | 14 |
| 7 | 896951 | 堵头（24毫米） | PLUG (24 mm) | 4 |
| 8 | 880524 | 定位销（14毫米） | PIN Dowel (14 MM) | 1 |
| 9 | 884409 | O型圈 | O-RING | 1 |
| 10 | 884424 | 定位销(11毫米) | PIN Dowel (11 mm) | 1 |
| 11 | 884423 | O型圈 | O-RING | 1 |
| 12 | 8M4501000 | 螺钉（M10×342） | SCREW (M10 X 342) | 14 |
| 13 | 892573001 | 垫圈 | WASHER | 14 |
| 14 | 88552675 | 螺钉 (M8 x 75) | SCREW (M8 x 75) | 1 |
| 15 | 8M0082988 | 曲轴位置传感器 | SENSOR Crankshaft Position | 1 |
| 16 | 40011107 | 不锈钢螺钉(M5x16) | SCREW (M5 x 16) Stainless Steel | 2 |
| 17 | 8M0010146 | 传感器 | SENSOR | 1 |
| 18 | 896699 | O型圈（1.78毫米 x 0.08毫米） | O-RING (1.78 mm x .08 mm) | 2 |
| 19 | 8M6000637 | 传感器 压力 | SENSOR Pressure | 1 |
| 20 | 8M0033476 | 衬垫 缸盖 | GASKET Head | 1 |
| 21 | 888517 | 销 | PIN | 1 |
| 22 | 895810115 | 螺钉(M8×115) | SCREW (M8 x 115) | 12 |
| 23 | 895810050 | 螺钉(M8 x 50) | SCREW (M8 x 50) | 2 |
| 24 | 880624003 | 衬垫 缸体至适配器 | GASKET Block to Adaptor | 1 |
| 25 | 880559 | 固定导套 | GUIDE Fixed | 1 |
| 26 | 880557 | 活动导板 | GUIDE Moveable | 1 |
| 27 | 892456045 | 螺钉 | SCREW | 2 |
| 28 | 8M0022160 | 双头螺柱（M8×43） | STUD (M8 x 43) | 2 |
| 29 | 401388 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 1 |
| 30 | 88552635 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 1 |
| 31 | 8M0010146 | 传感器 | SENSOR | 1 |
| - | 880552A07 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 896966A07 | 长缸体总成 | ASSEMBLY Long Block | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 880536A15 | 气缸盖总成 | CYLINDER HEAD ASSEMBLY | 1 |
| 1 | 8M0103282 | 气缸盖总成基础款 | CYLINDER HEAD ASSEMBLY Basic | 1 |
| 2 | 8M0047994 | 堵头（12毫米） | PLUG (12 MM) | 8 |
| 3 | 8M0047995 | 塞子 (18毫米) | PLUG (18 MM) | 3 |
| 4 | 8M0047996 | 堵头(24毫米) | PLUG (24 MM) | 1 |
| 5 | 8M0047992 | 堵头(10毫米) | PLUG (10 MM) | 1 |
| 6 | 880524 | 定位销（14毫米） | PIN Dowel (14 MM) | 2 |
| 7 | 892454035 | 螺栓（M6×36） | BOLT (M6 x 36) | 28 |
| 8 | 880533 | 进气门座 | SEAT Intake Valve | 12 |
| 9 | 8M0089477 | 排气阀座 | SEAT Exhaust Seat Exhaust Valve | 12 |
| 10 | 880537 | 进排气门导管 | GUIDE Intake Exhaust Valve Intake and Exhaust Valves | 24 |
| 11 | 898907 | 进气阀 | VALVE Intake | 12 |
| 12 | 898908 | 排气阀 | VALVE Exhaust | 12 |
| 13 | 896880 | 气门油封 | SEAL Valve | 24 |
| 14 | 8M0103092 | 气门弹簧套件 | SPRING VALVE KIT | 24 |
| 15 | 8M0908500 | 气门锁夹总成 | RETAINER ASSEMBLY Valves | 24 |
| 16 | 880543 | 键 | KEY | 48 |
| 17 | NSS | NOT SOLD SEPARATE CAP | 14 | |
| 18 | 892112T05 | 进气凸轮轴 | CAMSHAFT Intake | 1 |
| 19 | 892113T04 | 排气凸轮轴 | CAMSHAFT Exhaust | 1 |
| 20 | 899912001 | 挺柱（2.996） | TAPPET (2.996) | 24/AR |
| 20 | 899912002 | 挺柱（3.021） | TAPPET (3.021) | 24/AR |
| 20 | 899912003 | 挺柱（3.046） | TAPPET (3.046) | 24/AR |
| 20 | 899912004 | 挺柱（3.071） | TAPPET (3.071) | 24/AR |
| 20 | 899912005 | 挺柱（3.096） | TAPPET (3.096) | 24/AR |
| 20 | 899912006 | 挺柱（3.118） | TAPPET (3.118) | 24/AR |
| 20 | 899912007 | 挺柱（3.138） | TAPPET (3.138) | 24/AR |
| 20 | 899912008 | 挺柱（3.158） | TAPPET (3.158) | 24/AR |
| 20 | 899912009 | 挺柱（3.178） | TAPPET (3.178) | 24/AR |
| 20 | 899912010 | 挺柱（3.198） | TAPPET (3.198) | 24/AR |
| 20 | 899912011 | 挺柱（3.218） | TAPPET (3.218) | 24/AR |
| 20 | 899912012 | 挺柱（3.238） | TAPPET (3.238) | 24/AR |
| 20 | 899912013 | 挺柱（3.258） | TAPPET (3.258) | 24/AR |
| 20 | 899912014 | 挺柱（3.278） | TAPPET (3.278) | 24/AR |
| 20 | 899912015 | 挺柱（3.298） | TAPPET (3.298) | 24/AR |
| 20 | 899912016 | 挺柱（3.318） | TAPPET (3.318) | 24/AR |
| 20 | 899912017 | 挺柱（3.338） | TAPPET (3.338) | 24/AR |
| 20 | 899912018 | 挺柱（3.358） | TAPPET (3.358) | 24/AR |
| 20 | 899912019 | 挺柱（3.378） | TAPPET (3.378) | 24/AR |
| 20 | 899912020 | 挺柱（3.398） | TAPPET (3.398) | 24/AR |
| 20 | 899912021 | 挺柱（3.418） | TAPPET (3.418) | 24/AR |
| 20 | 899912022 | 挺柱（3.438） | TAPPET (3.438) | 24/AR |
| 20 | 899912023 | 挺柱（3.458） | TAPPET (3.458) | 24/AR |
| 20 | 899912024 | 挺柱（3.478） | TAPPET (3.478) | 24/AR |
| 20 | 899912025 | 挺柱(3.498) | TAPPET (3.498) | 24/AR |
| 20 | 899912026 | 挺柱(3.518) | TAPPET (3.518) | 24/AR |
| 20 | 899912027 | 挺柱（3.538） | TAPPET (3.538) | 24/AR |
| 20 | 899912028 | 挺柱（3.558） | TAPPET (3.558) | 24/AR |
| 20 | 899912029 | 挺柱（3.578） | TAPPET (3.578) | 24/AR |
| 20 | 899912030 | 挺柱(3.598) | TAPPET (3.598) | 24/AR |
| 20 | 899912031 | 挺杆 (3.621) | TAPPET (3.621) | 24/AR |
| 20 | 899912032 | 挺柱(3.646) | TAPPET (3.646) | 24/AR |
| 20 | 899912033 | 挺杆 (3.671) | TAPPET (3.671) | 24/AR |
| 20 | 899912034 | 挺杆 (3.696) | TAPPET (3.696) | 24/AR |
| 20 | 899912035 | 挺柱(3.721) | TAPPET (3.721) | 24/AR |
| 21 | 892596T04 | 凸轮盖总成 | COVER ASSEMBLY Cam | 1 |
| 22 | 892584 | 密封件 | SEAL | 3 |
| 23 | 8M6000959 | 密封件 | SEAL | 1 |
| 24 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 3 |
| 25 | 859578A1 | 油塞总成 | PLUG ASSEMBLY Oil | 1 |
| 26 | 90196 | O型圈 (.921 x .139) | O-RING (.921 x .139) | 1 |
| 27 | 88552660 | 螺钉 (M8 x 60) | SCREW (M8 x 60) | 4 |
| 28 | 898463A01 | 张紧器总成 | TENSIONER ASSEMBLY | 1 |
| 29 | 898836 | 棕色O型圈 | O-RING Brown | 1 |
| 30 | 8M0064752 | 凸轮张紧器端盖 | END CAP Cam Tensioner Tensioner | 1 |
| 31 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| 32 | 88552540 | 螺钉(M6x40毫米)不锈钢 | SCREW (M6 x 40 mm) Stainless Steel | 3 |
| 33 | 88552635 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 2 |
| 34 | 817274 | 垫圈(0.344×1.00×0.063)不锈钢 | WASHER (.344 x 1.00 x .063) Stainless Steel | 2 |
| 35 | 833155 | 护孔环 | GROMMET | 2 |
| 36 | 8502341 | 衬套 | BUSHING | 2 |
| 37 | 892833 | 卡扣 | CLIP | 1 |
| 38 | 889591A05 | 通气软管总成 | HOSE ASSEMBLY Breather | 1 |
| 39 | 880615T01 | 线圈总成 | COIL ASSEMBLY | 6 |
| 40 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 6 |
| 41 | 889246Q39 | NGK-ILFR6GE火花塞 | SPARK PLUG NGK-ILFR6GE | 6 |
| 42 | 858954 | 卡箍(0.625英寸) | CLIP (.625) | 3 |
| 43 | 850181 | 捆扎带(11.750英寸) | TIE STRAP (11.750 Inches) | 1 |
| 44 | 880550 | 凸轮驱动链轮 | SPROCKET Cam Drive | 2 |
| 45 | 8M0021532 | 螺钉(M12×40毫米) | SCREW (M12 x 40 MM) | 2 |
| 46 | 88552512 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 mm) Stainless Steel | 3 |
| 47 | 889746001 | 卡扣 | CLIP | 1 |
| 48 | 888988019 | 卡箍 (22.6 mm) | CLAMP (22.6 mm) | 1 |
| 49 | 8M0011987 | 传感器 | SENSOR | 1 |
| 50 | 88552516 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 1 |
| - | 896966A07 | 长缸体总成 | ASSEMBLY Long Block | 1 |
| - | 8M0162891 | 翻新动力头总成(带附件) | POWERHEAD ASSEMBLY Reman Dressed | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0103297 | 驱动轴长壳体 (黑色) | HOUSING Driveshaft Long, Black | 1 |
| 1 | 8M0103298 | 驱动轴超长壳体 (黑色) | HOUSING Driveshaft X-Long, Black | 1 |
| 1 | 8M0103294 | 驱动轴长壳体 (银色) | HOUSING Driveshaft Long, Silver | 1 |
| 1 | 8M0103306 | 驱动轴超长壳体 (银色) | HOUSING Driveshaft X-Long, Silver | 1 |
| 2 | 889568001 | 护孔环 | GROMMET | 1 |
| 3 | 889656T01 | 护罩 | SHROUD | 1 |
| 4 | 88552675 | 螺钉 (M8 x 75) | SCREW (M8 x 75) | 2 |
| 5 | 885526120 | 螺丝 (M8x120) | SCREW (M8 x 120) | 2 |
| 6 | 88552650 | 螺钉(M8 x 50) | SCREW (M8 x 50) | 2 |
| 7 | 88552640 | 螺钉 (M8 x 40) | SCREW (M8 x 40) | 1 |
| 8 | 88552635 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 3 |
| 9 | 817274 | 垫圈(0.344×1.00×0.063)不锈钢 | WASHER (.344 x 1.00 x .063) Stainless Steel | 3 |
| 10 | 834985 | 护孔环 | GROMMET | 3 |
| 11 | 856954 | 衬套 | BUSHING | 3 |
| 12 | 897784A01 | 上部护套支架套件 | BRACKET KIT Upper Chap | 2 |
| 13 | 88552520 | 螺钉(M6 x 20毫米)不锈钢 | SCREW (M6 x 20 mm) Stainless Steel | 2 |
| 14 | 88552630 | 螺钉 (M8 x 30) | SCREW (M8 x 30) | 1 |
| 15 | 85944975 | 管材 (72.00英寸整卷) 裁至64英寸 | TUBING (72.00 Inches Bulk) Cut to 64 Inches) | 1 |
| 16 | 889831001 | 固定座 | RETAINER | 1 |
| 17 | NSS | 非单独销售贴纸-放油口 | NOT SOLD SEPARATE Decal-Oil Drain | 1 |
| 18 | 8M0008031 | 双头螺柱(M12 x 1.75 x 52) | STUD (M12 x 1.75 x 52) | 4 |
| 19 | 856982 | 垫圈(0.5×0.81×0.09英寸)不锈钢 | WASHER (.500 x .810 x .090) Stainless Steel | 4 or 5 |
| 20 | 897926 | 尼龙嵌件螺母(M12) | NUT (M12), Nylon Insert | 4 |
| 21 | 8M0102995 | 螺丝 (M12) | SCREW (M12) | 1 |
| 22 | 824928001 | 橡胶塞 | PLUG Rubber | 1 |
| 23 | 856774 | 垫圈(0.406×0.750×0.105)不锈钢 | WASHER (.406 x .750 x .105) Stainless Steel | 10 |
| 24 | 884412 | 螺母 | NUT | 10 |
| 25 | 88552845 | 螺丝 (M12x45) | SCREW (M12 x 45) | 4 |
| 26 | 8M0071622 | 驱动轴壳体垫片 (黑色) | SPACER Driveshaft Housing Black | 1 |
| 26 | 8M0100196 | 驱动轴壳体垫片 (银色) | SPACER Driveshaft Housing Silver | 1 |
| 27 | 857137 | 螺钉 (M12 X 160) | SCREW (M12 x 160) | 1 |
| 28 | 8M0008047 | 双头螺柱（M12×179） | STUD (M12 x 179) | 4 |
| 29 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 2 |
| 30 | 891966006 | 外罩支架 | BRACKET Cowl | 1 |
| 31 | 8M0037209 | 燃油供给模块固定衬套 | GROMMET FSM Retainer | 1 |
| 32 | 8M0085120 | 燃油供应模块上支架 | BRACKET FSM Upper | 1 |
| 33 | 88552620 | 螺钉(M8 x 20) | SCREW (M8 x 20) | 3 |
| 34 | 8M0090092 | 燃油供应模块下支架 | BRACKET FSM Lower | 1 |
| 35 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 1 |
| 36 | 65567 | 不锈钢垫圈(0.265x0.750x0.048) | WASHER (.265 x .750 x .048) Stainless Steel | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 885560T03 | 电气箱底座 | BASE Electrical Box | 1 |
| 2 | 885561T | 保险丝盒盖 | COVER Fuse Box | 1 |
| 3 | 888491 | 保险丝盖 | COVER Fuse | 1 |
| 4 | 885583 | 密封件 | SEAL | 1 |
| 5 | 889531 | 绑带 | STRAP | 2 |
| 6 | 885584 | 铰链销 | PIN Hinge | 2 |
| 7 | 833155 | 护孔环 | GROMMET | 1 |
| 8 | 8502341 | 衬套 | BUSHING | 1 |
| 9 | 832969T20 | 迷你保险丝-黄色-20安 | FUSE Mini - Yellow - 20 Ampere | 7 |
| 10 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 1 |
| 11 | 895099 | 保险丝拔取器 | EXTRACTOR Fuse | 1 |
| 12 | 828547753 | 导管（内径0.750英寸×3英尺散装） | CONDUIT (.750 Inside Diameter x 3.00 Feet Bulk) | 1 |
| 13 | 40011146 | 螺钉（M8×13不锈钢） | SCREW (M8 x 13) Stainless Steel | 2 |
| 14 | 843108 | 垫圈（.330 x .560 x .060）不锈钢 | WASHER (.330 x .560 x .060) Stainless Steel | 1 |
| 15 | 817274 | 垫圈(0.344×1.00×0.063)不锈钢 | WASHER (.344 x 1.00 x .063) Stainless Steel | 1 |
| 16 | 892244 | 盖板固定带 | STRAP Cover | 1 |
| 17 | 879962 | 卡扣 | CLIP | 4 |
| 18 | 8M0103413 | 推进控制模块 200 (EPA 2星)(EU RCD-1) | PROPULSION CONTROL MODULE 200 (EPA 2-Star)(EU RCD-1) | 1 |
| 18 | 8M0120287 | 推进控制模块 200 (EPA 2星)(EU RCD-1) | PROPULSION CONTROL MODULE 200 (EPA 2-Star)(EU RCD-1) | 1 |
| 18 | 8M0103417 | 推进控制模块 225 (EPA 2星)(EU RCD-1) | PROPULSION CONTROL MODULE 225 (EPA 2-Star)(EU RCD-1) | 1 |
| 18 | 8M0120288 | 推进控制模块 225 (EPA 2星)(EU RCD-1) | PROPULSION CONTROL MODULE 225 (EPA 2-Star)(EU RCD-1) | 1 |
| 18 | 8M0103419 | 推进控制模块 250 (EPA 2星)(EU RCD-1) | PROPULSION CONTROL MODULE 250 (EPA 2-Star)(EU RCD-1) | 1 |
| 18 | 8M0120289 | 推进控制模块 250 (EPA 2星)(EU RCD-1) | PROPULSION CONTROL MODULE 250 (EPA 2-Star)(EU RCD-1) | 1 |
| 18 | 8M0103423 | 推进控制模块 275 (EPA 2星)(EU RCD-1) | PROPULSION CONTROL MODULE 275 (EPA 2-Star)(EU RCD-1) | 1 |
| 18 | 8M0120290 | 推进控制模块 275 (EPA 2星)(EU RCD-1) | PROPULSION CONTROL MODULE 275 (EPA 2-Star)(EU RCD-1) | 1 |
| 18 | 8M0103425 | 推进控制模块 300 (EPA 2星)(EU RCD-1) | PROPULSION CONTROL MODULE 300 (EPA 2-Star)(EU RCD-1) | 1 |
| 18 | 8M0120291 | 推进控制模块 300 (EPA 2星)(EU RCD-1) | PROPULSION CONTROL MODULE 300 (EPA 2-Star)(EU RCD-1) | 1 |
| 18 | 8M0131825 | 推进控制模块 200 EU RCD II | PROPULSION CONTROL MODULE 200 EU RCD II | 1 |
| 18 | 8M0121052 | 推进控制模块 225 EU RCD II | PROPULSION CONTROL MODULE 225 EU RCD II | 1 |
| 18 | 8M0103420 | 推进控制模块 250 (3星) | PROPULSION CONTROL MODULE 250 (3-Star) | 1 |
| 18 | 8M0120370 | 推进控制模块 250 EU RCD II | PROPULSION CONTROL MODULE 250 EU RCD II | 1 |
| 18 | 8M0103426 | 推进控制模块 300 (3星) | PROPULSION CONTROL MODULE 300 (3-Star) | 1 |
| 18 | 8M0120371 | 推进控制模块 300 EU RCD II | PROPULSION CONTROL MODULE 300 EU RCD II | 1 |
| 19 | 8M0102454 | 发动机线束总成 | HARNESS ASSEMBLY Engine | 1 |
| 20 | 882751A04 | 继电器总成 | RELAY ASSEMBLY | 4 |
| 21 | NSS | 微调继电器标识贴(不单独销售) | NOT SOLD SEPARATE Decal-Trim Relay | 4 |
| 22 | 889532 | 支架 | BRACKET | 1 |
| 23 | 40007103 | 螺钉 (M5 x 6) | SCREW (M5 x 6) | 2 |
| 24 | 93388A17 | 线缆总成(8.50英寸) | CABLE ASSEMBLY (8.50 Inches) | 1 |
| 25 | 879345T34 | 升降线束总成 | HARNESS ASSEMBLY Trim | 1 |
| 26 | 8M0088927 | 保险丝线束总成 | HARNESS ASSEMBLY Fuse | 1 |
| 27 | 830796A03 | 连接器总成防雨帽-2针公头 | CONNECTOR ASSEMBLY Weather Cap - 2 Pin Male | 1 |
| 28 | 850181 | 捆扎带(11.750英寸) | TIE STRAP (11.750 Inches) | 6 |
| 28 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 29 | 82129114 | 螺钉 (M6 x 14) | SCREW (M6 x 14) | 1 |
| 30 | 877613A02 | 防水插头总成6针 | CONNECTOR ASSEMBLY Weather Cap 6 Pin | 1 |
| 31 | 879962 | 卡扣 | CLIP | 1 |
| 32 | 888416T04 | 线束总成 DTS, 清洁电源, 15英尺 | HARNESS ASSEMBLY DTS, Clean Power, 15 Feet | 1 |
| 33 | 862646 | 褐色保险丝-5安培 | FUSE Tan - 5 Ampere | 1 |
| 34 | 88439A25 | 电缆总成 蓄电池-正极 | CABLE ASSEMBLY Battery - Positive | 1 |
| 35 | 401388 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 5 |
| 36 | 86226 | 螺母(.375-16 蓄电池正极电缆) | NUT (.375-16) Battery Cable-Positive | 1 |
| 37 | 88552635 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 1 |
| 38 | 817274 | 垫圈(0.344×1.00×0.063)不锈钢 | WASHER (.344 x 1.00 x .063) Stainless Steel | 1 |
| 39 | 88439A26 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 40 | 68292 | 螺母(.312-18 蓄电池负极电缆) | NUT (.312-18) Battery Cable-Negative | 1 |
| 41 | 891520001 | 卡扣 | CLIP | 1 |
| 42 | 8M0087378 | 维护周期标贴 | DECAL Maintenance Schedule | 1 |
| 43 | 893388A01 | 电阻帽 - 2针, 120欧姆 (CAN 1, 2和3) | CAP Resistor - 2 Pin, 120 Ohm (CAN 1, 2 and 3) | 1 |
| 44 | 8M0055652 | 终端接头总成 10针 (CAN P和H) | TERMINATOR ASSEMBLY 10 Pin (CAN P and H) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 880596T10 | 燃油供应模块 | MODULE Fuel Supply | 1 |
| 1 | 8M0052613 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 2 | 880596515 | 卡扣 | CLIP | 1 |
| 3 | 855362001 | 护孔环 | GROMMET | 3 |
| 4 | 855364 | 衬套 | BUSHING | 3 |
| 5 | 880596T50 | 盖板套件 | COVER KIT | 1 |
| 6 | 880596513 | 螺钉 | SCREW | 8 |
| 7 | 880596503 | 带O型圈的调节器 | REGULATOR With O-Rings | 1 |
| 8 | 880596512 | 卡箍 | CLAMP | 2 |
| 9 | 880596A05 | 软管套件 | HOSE KIT | 1 |
| 10 | 8M0007943 | 浮子 | FLOAT | 1 |
| 11 | 880596T55 | 燃油泵总成-高压 | PUMP ASSEMBLY Fuel - High Pressure | 1 |
| 12 | 880596506 | 密封件 | SEAL | 1 |
| 13 | 880596507 | 密封件 | SEAL | 1 |
| 14 | 880596502 | 密封件 | SEAL | 1 |
| 15 | 880596T58 | 燃油提升泵套件 | PUMP KIT Fuel - Lift | 1 |
| 16 | 880596509 | 隔离器 | ISOLATOR | 1 |
| 17 | 880596510 | 密封件 | SEAL | 1 |
| 18 | 880596T51 | 壳体总成 | HOUSING ASSEMBLY | 1 |
| 19 | 880596516 | 堵头 | PLUG | 1 |
| 20 | 880596517 | O型圈 | O-RING | 1 |
| - | 880596A01 | 密封修理包 | REPAIR KIT Seal | 1 |
| - | 889283A01 | 燃油灌注工具包 | TOOL KIT Fuel Priming | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 880686T13 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236255 | GC L6 4S L | GC L6 4S L | 1 |
| - | 880686T14 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236256 | GC L6 4S XL | GC L6 4S XL | 1 |
| - | 880686T54 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236264 | GC L6 1.75 L | GC L6 1.75 L | 1 |
| - | 880686T55 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236265 | GC L6 1.75 XL | GC L6 1.75 XL | 1 |
| 1 | 880687T01 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 1 | 8M0056631 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 1 | 8M0056631 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 2 | 8M0010459 | 填充块 | FILLER BLOCK | 1 |
| 3 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 2 |
| 4 | 826134Q | 阳极块 | ANODE | 2 |
| 5 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 1 |
| 6 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 7 | 79953A04 | 塞组件(.375-16×.250) | PLUG ASSEMBLY (.375-16 x .250) | 1 |
| 8 | 830749 | 密封件 | SEAL | 1 |
| 8 | 8M0204693 | 放油螺塞密封件 | SEAL Drain Plug | 1 |
| 9 | 76214T5 | 阳极套件 | ANODE KIT | 1 |
| 9 | 76214Q5 | 阳极套件 | ANODE KIT | 1 |
| 10 | 806327 | 螺钉(.437-14 x 1.750) | SCREW (.437-14 x 1.750) | 1 |
| 10 | 8M0204686 | 螺钉 | SCREW | 1 |
| 11 | 8245191 | 固定座 | RETAINER | 1 |
| 12 | 881866 | 接头 | FITTING | 1 |
| 13 | 8M0047129 | 盖总成 | COVER ASSEMBLY | 1 |
| 14 | 8164641 | 油封 | SEAL Oil | 1 |
| 14 | 8M0246145 | 油封 | OIL SEAL | 1 |
| 15 | 896522 | O型圈(799×.103) | O-RING (799 x .103) | 1 |
| 16 | 8M0046563 | 挡圈 | RING Retaining | 1 |
| 17 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 4 |
| 17 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 4 |
| 18 | 77674 | 垫圈(.35 x .75 x .12) | WASHER (.35 x .75 x .12) | 1 |
| 19 | 880729 | 衬垫 | GASKET | 1 |
| 20 | 824145 | 换档轴 | SHIFT SHAFT | 1 |
| 21 | NSS | 不单独销售 小齿轮13齿 | NOT SOLD SEPARATE Pinion Gear 13 Teeth | 1 |
| 22 | 35921 | 螺母(0.625-18) | NUT (.625-18) | 1 |
| 23 | 92721 | 垫圈(.965×0.630) | WASHER (.965 x .630) | 1 |
| 24 | 42647A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 25 | 888572 | 驱动轴 | DRIVESHAFT | 1 |
| 25 | 888573 | 驱动轴 | DRIVESHAFT | 1 |
| 26 | 8M0053110 | 垫片组 | SHIM SET | 1 |
| 26 | 8M0063267 | 垫片组 | SHIM SET | 1 |
| 27 | 38657A1 | 垫片组 | SHIM ASSEMBLY | AR |
| 27 | 8M0063268 | 垫片组 | SHIM SET | AR |
| 28 | 48939A2 | 圆锥滚子轴承 | BEARING Taper Roller | 1 |
| 28 | 8M0146553 | 杯/锥轴承总成 | BEARING ASSEMBLY Cup/Cone | 1 |
| 29 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 30 | 36387A1 | 轴承总成(滚子/外圈) | BEARING ASSEMBLY Roller/Cup | 1 |
| 30 | 8M0146566 | 杯/锥轴承总成 | BEARING ASSEMBLY Cup/Cone | 1 |
| 31 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 32 | 817275A09 | 水泵壳体-总成 | HOUSING Water Pump-Complete | 1 |
| 33 | 861415A1 | 密封套件 | SEAL KIT | 1 |
| 34 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 4 |
| 34 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 4 |
| 35 | 43026T2 | 叶轮 | IMPELLER | 1 |
| 36 | 8172761 | 面板 | FACEPLATE | 1 |
| 36 | 8M0204709 | 面板 | FACEPLATE | 1 |
| 37 | 880719 | 挡圈 | RING Retaining | 1 |
| 38 | 8M0007131 | 油封座组件 | CARRIER ASSEMBLY Oil Seal | 1 |
| 39 | 896523 | O型圈(2.175 x 0.103) | O-RING (2.175 x .103) | 1 |
| 39 | 8M0142854 | O型圈(2.175 x 0.103) | O-RING (2.175 x .103) | 1 |
| 40 | NSS | 不单独销售 油封 | NOT SOLD SEPARATE Oil Seal | 1 |
| 41 | NSS | 不单独销售 油封 | NOT SOLD SEPARATE Oil Seal | 1 |
| 42 | 8M0032833 | 键 | KEY | 1 |
| 42 | 8M0204723 | 键 | KEY | 1 |
| 43 | 8172771 | 水泵上垫片 | GASKET Water Pump, Upper | 1 |
| 44 | 430331 | 衬垫 | GASKET | 1 |
| 45 | 43585 | 联轴器 | COUPLING | 1 |
| - | 830749A01 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| - | 43026Q06 | 水泵叶轮维修套件 | REPAIR KIT Water Pump Impeller | 1 |
| - | 8M0100526 | 水泵叶轮维修套件 | REPAIR KIT Water Impeller | 1 |
| - | 817275A08 | 水泵上修包 | REPAIR KIT Water Pump-Upper | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 880686T13 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236255 | GC L6 4S L | GC L6 4S L | 1 |
| - | 880686T14 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236256 | GC L6 4S XL | GC L6 4S XL | 1 |
| - | 880686T54 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236264 | GC L6 1.75 L | GC L6 1.75 L | 1 |
| - | 880686T55 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236265 | GC L6 1.75 XL | GC L6 1.75 XL | 1 |
| 1 | 880687T01 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 1 | 8M0056631 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 1 | 8M0056631 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 2 | NSS | 不单独销售 塞 | NOT SOLD SEPARATE Plug | 1 |
| 3 | 896847A01 | 换挡曲柄5/16枢轴销 | CRANK, Shifter 5/16 Pivot Pin | 1 |
| 3 | 8M0046215 | 曲柄，换挡器1/4枢轴销 | CRANK, Shifter 1/4 Pivot Pin | 1 |
| 3 | 8M0220880 | 曲柄，换挡器1/4枢轴销 | CRANK, Shifter 1/4 Pivot Pin | 1 |
| 4 | 19755T7 | 阀芯总成 | SPOOL ASSEMBLY | 1 |
| 4 | 8M0235940 | 阀芯总成 | SPOOL ASSY | 1 |
| 5 | NSS | 不单独销售线轴 | NOT SOLD SEPARATE Spool | 1 |
| 6 | 469501 | 开口销 | COTTER PIN | 1 |
| 7 | NSS | 不单独销售 调节套筒 | NOT SOLD SEPARATE Sleeve Adjusting | 1 |
| 8 | 892595A05 | 前进/小齿轮组 | GEAR SET Forward/Pinion | 1 |
| 8 | 892595A04 | 前进/小齿轮组 | GEAR SET Forward/Pinion | 1 |
| 9 | 884328A01 | 垫片组 | SHIM SET | AR |
| 9 | 8M0063270 | 垫片组 | SHIM SET | AR |
| 10 | 884323T01 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 10 | 8M0142836 | 圆锥滚子轴承(外圈/内圈) | BEARING Roller Taper (Cup/Cone) | 1 |
| 11 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 12 | 23721 | 挡圈 | RING Retaining | 1 |
| 12 | 8M0051043 | 挡圈 | RING Retaining | 1 |
| 13 | 892805 | 止推垫片 | THRUST WASHER | 1 |
| 13 | 8M0053823 | 止推垫圈(内径1.50×外径2.046) | WASHER Thrust, (1.50 ID x 2.046 OD) | 1 |
| 14 | 884325T01 | 圆锥滚子轴承组件 | BEARING ASSEMBLY Roller-Tappered | 1 |
| 14 | 8M0142835 | 圆锥滚子轴承(外圈/内圈) | BEARING Roller Taper (Cup/Cone) | 1 |
| 15 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 16 | 880714T | 离合器 | CLUTCH | 1 |
| 17 | 30893 | 弹簧 | SPRING | 1 |
| 18 | 828356 | 定位销 | PIN Detent | 1 |
| 19 | 888530 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 20 | 8M0020941 | 十字销 | PIN Cross | 1 |
| 20 | 8M0100263 | 十字销 | PIN Cross | 1 |
| 21 | 880695A01 | 倒车齿轮总成 | GEAR ASSEMBLY Reverse | 1 |
| 21 | 8M0142891 | 倒挡齿轮24齿 | GEAR Reverse, 24T | 1 |
| 21 | 880707A01 | 倒挡齿轮 | GEAR Reverse | 1 |
| 21 | 8M0118363 | 倒车齿轮 21齿 | GEAR Reverse, 21T | 1 |
| 22 | 880699 | 推力环 | THRUST RING | 1 |
| 23 | 891919001 | 止推隔套 | SPACER Thrust | 1 |
| 24 | 880696A08 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 25 | 891936A01 | 垫片组 | SHIM SET | AR |
| 26 | 884329T | 滚珠轴承 | BEARING Ball | 1 |
| 26 | 8M0142873 | 滚珠轴承 | BEARING Ball | 1 |
| 27 | 888483 | 油封 | SEAL Oil | 1 |
| 27 | 8M0204700 | 油封 | SEAL Oil | 1 |
| 28 | 884330T01 | 圆锥轴承组件 | BEARING ASSEMBLY Taper | 1 |
| 28 | 8M0148319 | 圆锥滚子轴承(外圈/内圈) | BEARING Roller Taper Cup/Cone | 1 |
| 29 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 30 | 888483 | 油封 | SEAL Oil | 1 |
| 30 | 8M0204700 | 油封 | SEAL Oil | 1 |
| 31 | 896524 | O型圈(3.850×.210) | O-RING (3.850 x .210) | 1 |
| 31 | 8M0142840 | O型圈(3.85×0.210) | O-RING (3.85 x 0.210) | 1 |
| 32 | 880717A01 | 螺丝/密封套件 | SCREW/SEAL KIT | 1 |
| 33 | 830749 | 密封件 | SEAL | 1 |
| 33 | 8M0204693 | 放油螺塞密封件 | SEAL Drain Plug | 1 |
| 34 | 880697 | 键槽垫圈 | KEYED WASHER | 1 |
| 35 | 79448 | 固定座 | RETAINER | 1 |
| 35 | 8M2011027 | 固定座 | RETAINER | 1 |
| - | 830749A01 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 880686T13 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236255 | GC L6 4S L | GC L6 4S L | 1 |
| - | 880686T14 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236256 | GC L6 4S XL | GC L6 4S XL | 1 |
| - | 880686T54 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236264 | GC L6 1.75 L | GC L6 1.75 L | 1 |
| - | 880686T55 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236265 | GC L6 1.75 XL | GC L6 1.75 XL | 1 |
| 1 | 8M0056631 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 2 | NSS | 不单独销售 塞 | NOT SOLD SEPARATE Plug | 1 |
| 3 | 8M0046215 | 曲柄，换挡器1/4枢轴销 | CRANK, Shifter 1/4 Pivot Pin | 1 |
| 3 | 8M0220880 | 曲柄，换挡器1/4枢轴销 | CRANK, Shifter 1/4 Pivot Pin | 1 |
| 4 | 19755T7 | 阀芯总成 | SPOOL ASSEMBLY | 1 |
| 4 | 8M0235940 | 阀芯总成 | SPOOL ASSY | 1 |
| 5 | NSS | 不单独销售线轴 | NOT SOLD SEPARATE Spool | 1 |
| 6 | 469501 | 开口销 | COTTER PIN | 1 |
| 7 | NSS | 不单独销售 调节套筒 | NOT SOLD SEPARATE Sleeve Adjusting | 1 |
| 8 | 892595A05 | 前进/小齿轮组 | GEAR SET Forward/Pinion | 1 |
| 8 | 892595A04 | 前进/小齿轮组 | GEAR SET Forward/Pinion | 1 |
| 9 | 884328A01 | 垫片组 | SHIM SET | AR |
| 9 | 8M0063270 | 垫片组 | SHIM SET | AR |
| 10 | 884323T01 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 10 | 8M0142836 | 圆锥滚子轴承(外圈/内圈) | BEARING Roller Taper (Cup/Cone) | 1 |
| 11 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 12 | 23721 | 挡圈 | RING Retaining | 1 |
| 12 | 8M0051043 | 挡圈 | RING Retaining | 1 |
| 13 | 892805 | 止推垫片 | THRUST WASHER | 1 |
| 13 | 8M0053823 | 止推垫圈(内径1.50×外径2.046) | WASHER Thrust, (1.50 ID x 2.046 OD) | 1 |
| 14 | 884325T01 | 圆锥滚子轴承组件 | BEARING ASSEMBLY Roller-Tappered | 1 |
| 14 | 8M0142835 | 圆锥滚子轴承(外圈/内圈) | BEARING Roller Taper (Cup/Cone) | 1 |
| 15 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 16 | 880714T | 离合器 | CLUTCH | 1 |
| 17 | 30893 | 弹簧 | SPRING | 1 |
| 18 | 828356 | 定位销 | PIN Detent | 1 |
| 19 | 8M0069774 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 19 | 8M0140446 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 20 | 8M0020941 | 十字销 | PIN Cross | 1 |
| 20 | 8M0100263 | 十字销 | PIN Cross | 1 |
| 21 | 880695A01 | 倒车齿轮总成 | GEAR ASSEMBLY Reverse | 1 |
| 21 | 8M0142891 | 倒挡齿轮24齿 | GEAR Reverse, 24T | 1 |
| 21 | 880707A01 | 倒挡齿轮 | GEAR Reverse | 1 |
| 21 | 8M0118363 | 倒车齿轮 21齿 | GEAR Reverse, 21T | 1 |
| 22 | 880699 | 推力环 | THRUST RING | 1 |
| 23 | 8M0064306 | 止推隔套 | SPACER Thrust | 1 |
| 24 | 8M0076745 | 垫片组 | SHIM SET | 1 |
| 24 | 8M0050423 | 垫片 .020 | WASHER .020 | AR |
| 24 | 8M0050424 | 垫片 .022 | WASHER .022 | AR |
| 24 | 8M0050425 | 垫片 .024 | WASHER .024 | AR |
| 24 | 8M0050427 | 垫片 .026 | WASHER .026 | AR |
| 24 | 8M0050428 | 垫片 .028 | WASHER .028 | AR |
| 24 | 8M0050429 | 垫片 .030 | WASHER .030 | AR |
| 24 | 8M0050430 | 垫片 .032 | WASHER .032 | AR |
| 24 | 8M0050431 | 垫片 .034 | WASHER .034 | AR |
| 24 | 8M0050432 | 垫片 .036 | WASHER .036 | AR |
| 24 | 8M0050433 | 垫片 0.038 | WASHER .038 | AR |
| 24 | 8M0050434 | 垫片 0.040 | WASHER .040 | AR |
| 24 | 8M0050435 | 垫片 0.042 | WASHER .042 | AR |
| 24 | 8M0050436 | 垫片 0.044 | WASHER .044 | AR |
| 24 | 8M0050437 | 垫片 0.046 | WASHER .046 | AR |
| 24 | 8M0050438 | 垫片 0.048 | WASHER .048 | AR |
| 24 | 8M0050439 | 垫片 0.050 | WASHER .050 | AR |
| 25 | 8M0083392 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 26 | 884329T | 滚珠轴承 | BEARING Ball | 1 |
| 26 | 8M0142873 | 滚珠轴承 | BEARING Ball | 1 |
| 27 | 888483 | 油封 | SEAL Oil | 1 |
| 27 | 8M0204700 | 油封 | SEAL Oil | 1 |
| 28 | 884330T01 | 圆锥轴承组件 | BEARING ASSEMBLY Taper | 1 |
| 28 | 8M0148319 | 圆锥滚子轴承(外圈/内圈) | BEARING Roller Taper Cup/Cone | 1 |
| 29 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 30 | 888483 | 油封 | SEAL Oil | 1 |
| 30 | 8M0204700 | 油封 | SEAL Oil | 1 |
| 31 | 896524 | O型圈(3.850×.210) | O-RING (3.850 x .210) | 1 |
| 31 | 8M0142840 | O型圈(3.85×0.210) | O-RING (3.85 x 0.210) | 1 |
| 32 | 880717A01 | 螺丝/密封套件 | SCREW/SEAL KIT | 1 |
| 33 | 830749 | 密封件 | SEAL | 1 |
| 33 | 8M0204693 | 放油螺塞密封件 | SEAL Drain Plug | 1 |
| 34 | 880697 | 键槽垫圈 | KEYED WASHER | 1 |
| 35 | 79448 | 固定座 | RETAINER | 1 |
| 35 | 8M2011027 | 固定座 | RETAINER | 1 |
| - | 830749A01 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 892440A17 | 动力转向泵套件(4英尺) | PUMP KIT Power Steering (4 Feet) | 1 |
| - | 892440A18 | 动力转向泵套件(12英尺) | PUMP KIT Power Steering (12 Feet) | 1 |
| - | 8M0131262 | 动力转向泵套件(12英尺) | PUMP KIT Power Steering (12 Feet) | 1 |
| - | 892440A19 | 动力转向泵套件(24英尺) | PUMP KIT Power Steering (24 Feet) | 1 |
| - | 8M0131263 | 动力转向泵套件(24英尺) | PUMP KIT Power Steering (24 Feet) | 1 |
| - | 8M0148159 | 动力转向泵 Gen C | POWER STEERING PUMP Gen C | 1 |
| - | 8M0199048 | 标准型Gen C泵 | PUMP-GEN C STD | 1 |
| 1 | NSS | 不单独销售 泵 | NOT SOLD SEPARATE PUMP | 1 |
| 2 | 892485003 | 泵盖 | CAP Pump | 1 |
| 3 | NSS | 不单独销售 油液类型标贴 | NOT SOLD SEPARATE DECAL, Fluid Type | 1 |
| 4 | 893364A05 | 动力转向泵完整外壳总成 | ENCLOSURE ASSEMBLY Complete-Power Steering Pump | 1 |
| - | 893365A03 | 动力转向泵上/下盖总成 | COVER ASSEMBLY Top/Bottom, Power Steering Pump | 1 |
| 5 | 893365T02 | 动力转向泵上外壳总成 | ENCLOSURE ASSEMBLY Top, Power Steering Pump | 1 |
| 6 | 893364T02 | 动力转向泵下外壳总成 | ENCLOSURE ASSEMBLY Bottom-Power Steering Pump | 1 |
| 6 | 8M0080707 | 动力转向泵下外壳总成 | ENCLOSURE ASSEMBLY Bottom-Power Steering Pump | 1 |
| 7 | 889531 | 绑带 | STRAP | 2 |
| 8 | 893368001 | 护孔环 | GROMMET | 1 |
| 9 | 893369 | 护孔环 | GROMMET | 1 |
| 10 | 815504206 | 蜗杆卡箍 | CLAMP Worm Gear | 1 |
| 11 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 3 |
| 11 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 3 |
| 12 | 401366 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 3 |
| 13 | 895378 | 螺钉 (M6) | SCREW (M6) | 4 |
| 14 | 895319 | 护孔环 | GROMMET | 4 |
| 15 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 4 |
| 15 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 4 |
| 16 | 895320F1 | 衬套 | BUSHING | 4 |
| 17 | 817519A2 | 排水单向阀总成 | CHECK VALVE ASSEMBLY Drain | 1 |
| 18 | 79023A94 | 50安培保险丝-Maxi型 | FUSE 50 Ampere - Maxi | 1 |
| 19 | 879346T24 | 保险丝盖及O型圈 | FUSE COVER AND O-RING | 1 |
| 20 | 8M0026568 | 信号驱动器线束总成 | HARNESS ASSEMBLY Signal Driver | 1 |
| 21 | 897643A01 | 减震软管套件 | HOSE KIT Dampening | 1 |
| 22 | 89879 | O型圈（0.301×0.064英寸） | O-RING (.301 x .064) | 2 |
| 23 | 8M0147795 | 软管转接头 | HOSE ADAPTOR | AR |
| 24 | 89879 | O型圈（0.301×0.064英寸） | O-RING (.301 x .064) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0035481 | 热风管总成 | TUBE ASSEMBLY Hot Air Duct | 1 |
| 2 | 896259 | 软管 | HOSE | 1 |
| 3 | 896271 | 软管 | HOSE | 1 |
| 4 | 893342 | 卡箍 | CLAMP | 2 |
| 5 | 893342 | 卡箍 | CLAMP | 2 |
| 6 | 8M0074364 | 软管夹盖 | COVER Hose Clamp | 2 |
| 7 | 898022 | 机油尺 | DIPSTICK Oil | 1 |
| 8 | 888517 | 销 | PIN | 2 |
| 9 | 888991T04 | 电子节气门控制总成 | CONTROL ASSEMBLY Throttle - Electronic | 1 |
| 10 | 87928815T | 隔离器 | ISOLATOR | 1 |
| 11 | 815504256 | 蜗杆卡箍 | CLAMP Worm Gear | 1 |
| 12 | 88552550 | 不锈钢螺钉 (M6 x 50 mm) | SCREW (M6 x 50 mm) Stainless Steel | 4 |
| 13 | 884353 | 支架 | BRACKET | 2 |
| 14 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 2 |
| 15 | 8M0088815 | 面板塞 | PLUG Panel | 1 |
| 16 | 8349851 | 护孔环 | GROMMET | 1 |
| 17 | 856954 | 衬套 | BUSHING | 1 |
| 18 | 893318T02 | 空气滤清器 | FILTER Air | 1 |
| 19 | 895842 | 卡箍 | CLAMP | 1 |
| 20 | 893317 | 衬垫 | GASKET | 1 |
| 21 | 8M0007183 | 谐振器 | RESONATOR | 1 |
| 22 | 888988027 | 卡箍 | CLAMP | 1 |
| 23 | 8M0089697 | 进气管 | DUCT Inlet | 1 |
| 24 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 1 |
| 25 | 65567 | 不锈钢垫圈(0.265x0.750x0.048) | WASHER (.265 x .750 x .048) Stainless Steel | 1 |
| 26 | 888988016 | 卡箍（96.5毫米） | CLAMP (96.5 mm) | 1 |
| 27 | 884408A08 | 电动增压控制阀套件 | VALVE KIT Control - Electric Boost | 1 |
| 28 | 887939007 | 增压阀安装板 | PLATE Boost Valve Mounting | 1 |
| 29 | 892079 | O型圈 | O-RING | 1 |
| 30 | 88552520 | 螺钉(M6 x 20毫米)不锈钢 | SCREW (M6 x 20 mm) Stainless Steel | 4 |
| 31 | 833155 | 护孔环 | GROMMET | 2 |
| 32 | 8502341 | 衬套 | BUSHING | 2 |
| 33 | 859376 | 卡扣 | CLIP | 1 |
| 34 | 88552635 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 2 |
| 35 | 817274 | 垫圈(0.344×1.00×0.063)不锈钢 | WASHER (.344 x 1.00 x .063) Stainless Steel | 2 |
| 36 | 887937006 | 软管 | HOSE | 1 |
| 37 | 888988002 | 卡箍 (57.5毫米) | CLAMP (57.5 mm) | 2 |
| 38 | 887938003 | 后管 | TUBE Rear | 1 |
| 39 | 888988004 | 卡箍 (62.0毫米) | CLAMP (62.0 mm) | 2 |
| 40 | 8589781 | 燃油软管卡扣 | CLIP Fuel Hose | 1 |
| 41 | 881879T25 | 皮托管传感器总成 | SENSOR ASSEMBLY Pitot | 1 |
| 42 | 892403 | 接头 | FITTING | 1 |
| 43 | 883066 | 夹子 (.865) | CLIP (.865) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | NOPART | 无零件清单 | NO PARTS LIST | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 88334A2 | 防腐电极套件 | MERCATHODE KIT | 1 |
| 2 | 42600A09 | 防腐电极总成 | MERCATHODE ASSEMBLY | 1 |
| 3 | 22793 | 螺丝(#9-14x0.875) | SCREW (#9-14 x .875) | 2 |
| 4 | 30164 | 垫圈(0.192x0.375x0.0312)不锈钢 | WASHER (.192 x .375 x .0312) Stainless Steel | 2 |
| 5 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 4 |
| 6 | 72958A5 | 电极总成 | ELECTRODE ASSEMBLY | 1 |
| 7 | 21836 | O型圈(.796 x .139) | O-RING (.796 x .139) | 1 |
| 7 | 8M0204645 | O型圈(.796 x .139) | O-RING (.796 x .139) | 1 |
| 8 | 87698 | 螺丝(#10-16 x 1.250)不锈钢 | SCREW (#10-16 x 1.250) Stainless Steel | 2 |
| 9 | 72957A5 | 阳极总成 | ANODE ASSEMBLY | 1 |
| 9 | 8M0181304 | 阳极总成 | ANODE ASSY | 1 |
| 10 | 21836 | O型圈(.796 x .139) | O-RING (.796 x .139) | 1 |
| 10 | 8M0204645 | O型圈(.796 x .139) | O-RING (.796 x .139) | 1 |
| 11 | 87698 | 螺丝(#10-16 x 1.250)不锈钢 | SCREW (#10-16 x 1.250) Stainless Steel | 2 |
| 12 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 12 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 13 | 95084A10 | 电缆总成(5.00英寸)红色 | CABLE ASSEMBLY (5.00 Inches) Red | 1 |
| 13 | 8M0207788 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 14 | 95084A13 | 电缆总成(64.00英寸) | CABLE ASSEMBLY (64.00 Inches) | 1 |
| 15 | 79138A8 | 电缆总成(72.00英寸)黑色 | CABLE ASSEMBLY (72.00 Inches) Black | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0077359 | 密封件 | SEAL | 1 |
| 2 | 8M0052577 | 支架总成 (仅限Pro型号) | CRADLE ASSEMBLY Mount Pro Models Only | 1 |
| 2 | 884887T07 | 支架安装总成 | CRADLE ASSEMBLY Mount | 1 |
| 3 | NSS | 不单独销售 密封件 | NOT SOLD SEPARATE Seal | 1 |
| 4 | 8M0103708 | 后安装座 | MOUNT Rear | 2 |
| 5 | 8M0103365 | 前安装座 | MOUNT Front | 2 |
| 6 | 889745030 | 螺钉（M12×30） | SCREW (M12 x 30) | 12 |
| 7 | 896531090 | 螺钉（M16×90） | SCREW (M16 x 90) | 4 |
| 8 | 12602002 | 护孔环 | GROMMET | 1 |
| 9 | 8M0098784 | 螺钉 (M6 x 1 x 12) | SCREW (M6 x 1 x 12) | 1 |
| 10 | 8M0047428 | 软管 (.25英寸内径, 57.00英寸整卷) 裁至35英寸 | HOSE (.25 inch ID, 57.00 Inches Bulk) Cut to 35 Inches | 1 |
| 11 | 895797001 | 示踪管接头 | FITTING Telltale | 1 |
| 12 | 895851 | 卡箍(8英寸) | CLAMP (8.00 Inches) | 2 |
| 13 | 73194 | 滚销(.125 x 1.12) | PIN Roll (.125 x 1.12) | 2 |
| 14 | 880649002 | 倾斜锁杆 | LEVER Tilt Lock | 2 |
| 15 | 47968 | 弹簧 | SPRING | 2 |
| 16 | 889540A03 | 离合器套件 | CLUTCH KIT | 1 |
| 17 | 8M0055029 | 倾斜锁止支架 | BRACKET Tilt Lock | 1 |
| 18 | 8M0076907 | 倾斜锁止垫 | PAD Tilt Lock | 1 |
| 19 | 880650003 | 倾斜锁定轴 | SHAFT Tilt Lock | 1 |
| 20 | 889546 | 螺钉 (M5 x 10) | SCREW (M5 x 10) | 1 |
| 21 | 8806641 | 轴承（0.625英寸） | BEARING (.625 Inch) | 2 |
| 22 | 8M0010626 | 配平位置传感器 (黑色) | SENSOR Trim Position-Black | 1 |
| 23 | 889547 | 螺丝(M5 x 30) | SCREW (M5 x 30) | 2 |
| 24 | 8M0146963 | AMS贴花 | DECAL AMS | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 892126A03 | 适配板套件 | ADAPTER PLATE KIT | 1 |
| 2 | 892228 | 定位销 | PIN Dowel | 8 |
| 3 | 896951 | 堵头（24毫米） | PLUG (24 mm) | 1 |
| 4 | 884462 | 水封 | SEAL Water | 2 |
| 5 | 887930 | O型圈 | O-RING | 2 |
| 6 | 8M0033928 | 油封 | SEAL Oil | 1 |
| 7 | 8M0034048 | 油泵阀总成 | VALVE ASSEMBLY Oil Pump | 1 |
| 8 | 8M6002692 | 油泵驱动链条 | CHAIN Oil Pump Drive | 1 |
| 9 | 892491 | 垫圈 | WASHER | 1 |
| 10 | 892165 | 螺母 | NUT | 1 |
| 11 | 884458T07 | 油泵驱动轴 | DRIVESHAFT Oil Pump | 1 |
| 12 | 8M0034912 | O型圈 3.78×21.32 | O-RING 3.78 X 21.32 | 2 |
| 13 | 895063001 | 塑料嵌件 | INSERT Plastic | 1 |
| 14 | 884418A1 | 油泵驱动张紧器总成 | TENSIONER ASSEMBLY Oil Pump Drive | 1 |
| 15 | 884446T04 | 油泵总成 | PUMP ASSEMBLY Oil | 1 |
| 16 | 892455065 | 螺钉 | SCREW | 5 |
| 17 | 892335001 | 导油板 | DEFLECTOR Oil | 1 |
| 18 | 88552516 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 2 |
| 19 | 888819002 | 排水罩 | DRAIN Cowl | 2 |
| 20 | 888163 | 护孔环 | GROMMET | 1 |
| 21 | 8M0027347 | 堵头 (M18 x 1.5) | PLUG (M18 x 1.5) | 1 |
| 22 | 8M0092321 | EDP黑色接头 | FITTING EDP Black | 1 |
| 23 | 8M0092943 | O型圈 橙色 | O-RING Orange | 1 |
| 24 | 88552512 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 mm) Stainless Steel | 1 |
| 25 | 8M0088815 | 面板塞 | PLUG Panel | 1 |
| 26 | 8M0084506 | 燃油入口软管 | HOSE Fuel Inlet | 1 |
| 27 | 889617001 | 衬垫 | GASKET | 1 |
| 28 | 884456 | 从动链轮 (燃油入口至燃油供应模块) | SPROCKET Driven Fuel Inlet to Fuel Supply Module | 1 |
| 29 | 8M0094213 | 燃油进口软管总成 | HOSE ASSEMBLY Fuel Inlet | 1 |
| 30 | 8M0090809 | 燃油轨滤网 | SCREEN Fuel Rail | 1 |
| - | 880552A07 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 896966A07 | 长缸体总成 | ASSEMBLY Long Block | 1 |
| - | 8M0162891 | 翻新动力头总成(带附件) | POWERHEAD ASSEMBLY Reman Dressed | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0022158 | 双头螺柱(M10x205) | STUD (M10 x 205) | 10 |
| 2 | 8M0022162 | 双头螺栓(M10×60) | STUD (M10 x 60) | 1 |
| 3 | 8M6002872 | 爆震传感器总成 | SENSOR ASSEMBLY Knock | 2 |
| 4 | 8M0093638 | 螺钉(M8 x 20) | SCREW (M8 x 20) | 2 |
| 5 | 826365 | 螺母 (M8) | NUT (M8) | 2 |
| 6 | 888988008 | 卡箍(34.6毫米) | CLAMP (34.6 MM) | 2 |
| 7 | 8M0043736 | 软管 | HOSE | 1 |
| 8 | 896094A01 | 接头总成 | FITTING ASSEMBLY | 1 |
| 9 | 896699 | O型圈（1.78毫米 x 0.08毫米） | O-RING (1.78 mm x .08 mm) | 1 |
| 10 | 85978571 | 水管(散装52英寸)-接水压传感器-裁切至21.5英寸 | TUBING (52.00 Inches Bulk) To Water Pressure Sensor - Cut to 21.5 Inches | 1 |
| 11 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 12 | 881879T26 | 水压传感器 | SENSOR Pressure Water | 1 |
| 13 | 8M0000274 | 双头螺栓(M8x44) | STUD (M8 x 44) | 2 |
| 14 | 885517A05 | 接头总成 | FITTING ASSEMBLY | 1 |
| 15 | 892077 | O型圈 | O-RING | 1 |
| - | 896966A07 | 长缸体总成 | ASSEMBLY Long Block | 1 |
| - | 8M0162891 | 翻新动力头总成(带附件) | POWERHEAD ASSEMBLY Reman Dressed | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 880552A07 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 62701 | 接头总成O型圈 | O-RING Fitting Assembly | 2 |
| - | 90196 | O型圈(.921 x .139)油塞总成 | O-RING (.921 x .139) Oil Plug Assembly | 1 |
| - | 8M0092943 | O型圈 橙色 | O-RING Orange | 1 |
| - | 8M0032912 | 油封(主轴承顶部) | SEAL Top Main Bearing | 1 |
| - | 8M0033476 | 衬垫 气缸盖至缸体 | GASKET Head Cylinder Head to Block | 1 |
| - | 880624003 | 衬垫 缸体至适配器 | GASKET Block to Adaptor | 1 |
| - | 880629 | 排气管密封件 | SEAL Exhaust Tube | 1 |
| - | 898836 | 棕色张紧器盖O型圈 | O-RING Brown Tensioner Cap | 1 |
| - | 884409 | O型圈 缸体机油定位销 | O-RING Block Oil Dowel | 1 |
| - | 884423 | O型圈 缸体机油定位销 | O-RING Block Oil Dowel | 1 |
| - | 8M0033928 | 油封 适配板 | SEAL Oil Adaptor Plate | 1 |
| - | 884462 | 水封 适配板 | SEAL Water Adaptor Plate-Water | 2 |
| - | 887930 | O型圈 适配板 | O-RING Adaptor Plate | 2 |
| - | 888593 | 油封 排油管塞 | SEAL Oil Drain Tube Plug | 1 |
| - | 889617001 | 适配板垫片 | GASKET Adaptor Plate | 1 |
| - | 889618001 | 衬垫 油底壳 | GASKET Oil Sump | 1 |
| - | 892077 | O型圈 缸体接头总成 | O-RING Block Fitting Assembly | 1 |
| - | 892117 | 密封件 歧管壳体 | SEAL Manifold Housing | 1 |
| - | 892445 | O型圈 水管 | O-RING Water Tube | 1 |
| - | 892446 | O型圈 (14 X 1.78 MM) 适配板接头 | O-RING (14 X 1.78 MM) Adaptor Plate Fitting | 1 |
| - | 8M0034912 | O型圈 3.78 X 21.32 (油泵驱动轴) | O-RING 3.78 X 21.32 Oil Pump Driveshaft | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 896156A01 | 配平油缸套件 | TRIM CYLINDER KIT | 2 |
| 1 | 8M0118298 | 配平油缸套件 | TRIM CYLINDER KIT | 2 |
| 2 | 896157A01 | 升降杆套件 | TRIM ROD KIT | 2 |
| 2 | 8M0118299 | 升降杆套件 | TRIM ROD KIT | 2 |
| 3 | 896158A01 | O型圈套件 | O-RING KIT | 2 |
| 4 | 896159A01 | 活塞套件 | PISTON KIT | 2 |
| 5 | 896166A01 | 配平歧管套件 | MANIFOLD KIT Trim | 1 |
| 6 | 896165A01 | 配平止回套件PO型 | CHECK KIT Trim PO | 1 |
| 7 | 896160A01 | O型圈套件 | O-RING KIT | 1 |
| 8 | 8M0010183 | O型圈 | O-RING | 1 |
| 9 | 896163A01 | 配平泵套件 | PUMP KIT Trim | 1 |
| 10 | 896164A01 | 配平过滤器套件 | TRIM FILTER KIT | 1 |
| 11 | 896162A01 | 配平颈套件 | TRIM NECK KIT | 1 |
| 12 | 895854A01 | O型圈套件 | O-RING KIT | 1 |
| 13 | 893419 | 盖套件 | CAP KIT | 1 |
| 14 | 893420A01 | 手动释放套件 | MANUAL RELEASE KIT | 1 |
| 15 | 8M0224410 | O型圈套件 | ORING KIT | 1 |
| 16 | 8M0184377 | 卡环 | SNAP RING | 1 |
| 17 | 893408A01 | 配平销套件 | PIN KIT Trim | 1 |
| 18 | 896161A02 | 配平电机套件 | TRIM MOTOR KIT | 1 |
| 19 | 896167A01 | 储液罐套件 | RESERVOIR KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | NSS | 艉板总成(不单独销售) | NOT SOLD SEPARATE Transom Assembly | 1 |
| 1 | 880652T01 | 基座 | PEDESTAL | 1 |
| 2 | 896500A01 | 转向油缸套件 | STEERING CYLINDER KIT | 1 |
| 3 | 893409 | 固定座 | RETAINER | 2 |
| 4 | 895853 | 垫圈 | WASHER | 4 |
| 5 | 88509530 | 螺钉 (M8 x 30) | SCREW (M8 x 30) | 4 |
| 6 | 889552 | -6 ORB转-6 ORFS接头(90度) | FITTING -6 ORB to -6 ORFS (90 Degree) | 1 |
| 7 | 889550 | 乙烯基放气帽 | CAP Bleeder - Vinyl | 2 |
| - | 8M0141330 | 放气接头 | FITTING Bleeder | 1 |
| 8 | 880667 | 密封件 | SEAL | 1 |
| 9 | 8M0045604 | 转向油缸密封件套件 | SEAL KIT Steering Cylinder | 1 |
| 10 | 892524 | 接头 | FITTING | 2 |
| 11 | 8806621 | 轴承 | BEARING | 2 |
| 12 | 880661 | 密封件 | SEAL | 2 |
| 13 | 8806561 | 轴承 | BEARING | 2 |
| 14 | 880654T03 | 转向头 | HEAD Steering | 1 |
| 15 | 8806551 | 轴承(1.25英寸) | BEARING (1.25 Inch) | 2 |
| 16 | 885094105 | 螺钉(M14x105) | SCREW (M14 x 105) | 6 |
| 17 | 885112 | 垫圈 | WASHER | 7 |
| 18 | 88238T23 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 19 | 889545 | 垫圈 | WASHER | 6 |
| 20 | 4010720 | 螺钉(M8 x 20) | SCREW (M8 x 20) | 2 |
| 21 | 72397 | 垫圈 | WASHER | 2 |
| 22 | 896120T | 导流板(银色) | PLATE Deflector (Silver) | 1 |
| 22 | 8M0045157 | 导流板(黑色) | PLATE Deflector (Black) | 1 |
| 23 | 4000327 | 螺钉 (M6 x 14) | SCREW (M6 x 14) | 2 |
| 24 | 893404 | 阳极块 | ANODE | 4 |
| 24 | 8M0220986 | 配平阳极 | ANODE Trim | 4 |
| 25 | 880660T02 | 转向管 | TUBE Steering | 1 |
| 26 | 885111 | 定位销(0.375x0.875英寸) | PIN Dowel (.375 x .875) | 6/8 |
| 27 | 880658T03 | 动力升降总成 | POWER TRIM ASSEMBLY | 1 |
| 28 | 895854 | O型圈 | O-RING | 1 |
| 29 | 880653 | 阳极块 | ANODE | 1 |
| 29 | 8M0220987 | 配平歧管阳极 | ANODE Trim Manifold | 1 |
| 30 | 889549 | 垫圈 | WASHER | 6 |
| 31 | 889543016 | 螺栓 | BOLT | 4 |
| 32 | 88510450 | 螺钉 | SCREW | 6 |
| 33 | 88238T24 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 34 | 893405T | 盖板 | COVER | 1 |
| 35 | 880665T01 | 转向臂 | ARM Steering | 1 |
| 36 | 895390 | 倾斜销 | TILT PIN | 1 |
| 37 | 8M0038931 | 挡圈 | RING Retaining | 1 |
| 38 | NSS | 不单独销售-序列号覆膜标贴 | NOT SOLD SEPARATE Decal-Serial Overlaminate | 1 |
| 39 | 8M0038370 | 螺钉(0.500-20x5.50英寸) | SCREW (.500-20 x 5.50) | 4 |
| 40 | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 41 | 895062 | 垫圈 | WASHER | 4 |
| 42 | 82671117 | 螺母(.500-20) | NUT (.500-20) | 4 |
| 43 | 884889002 | 销 | PIN | 2 |
| 44 | 821539 | 三叶销 | PIN Trilobe | 2 |
| 45 | 895304 | 挡圈 | RING Retaining | 2 |
| 46 | 8M0032437 | 法兰轴颈轴承 | BEARING Flanged Journal | 4 |
| 47 | 95925 | 堵头 | PLUG | 2 |
| 48 | 8M0043059 | 警告标贴 | DECAL Warning | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0100175 | 后罩总成黑色无标贴 | REAR COWL ASSEMBLY Black Non-Decaled | 1 |
| 1 | 8M0100176 | 后罩总成 (冷聚变版, 无贴花) | REAR COWL ASSEMBLY Cold Fusion, Non-Decaled | 1 |
| 1 | 8M0100177 | 后罩总成 (暖聚变版, 无贴花) | REAR COWL ASSEMBLY Warm Fusion, Non-Decaled | 1 |
| 1 | 8M0119302 | 后罩总成 (珍珠聚变版, 无贴花) | REAR COWL ASSEMBLY Pearl Fusion, Non-Decaled | 1 |
| 2 | 888961A01 | 销总成 | PIN ASSEMBLY | 2 |
| 3 | 892233 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 2 |
| 4 | 885360 | 怠速泄压阀 | IDLE RELIEF | 1 |
| 5 | 8M0100563 | 后罩密封总成 (左舷和右舷) | SEAL ASSEMBLY Rear Cowl, Port and Starboard | 1 |
| 6 | 8M4501634 | 隔音毯套装 | SOUND BLANKET KIT | 1 |
| - | 8M0100172 | 前罩总成 (左舷和右舷, 水星版) | FRONT COWL ASSEMBLY Port and Starboard, Mercury | 1 |
| - | 8M0100173 | 前罩总成 (左舷和右舷, 冷聚变版) | FRONT COWL ASSEMBLY Port and Starboard, Cold Fusion | 1 |
| - | 8M0100174 | 前罩总成 (左舷和右舷, 暖聚变版) | FRONT COWL ASSEMBLY Port and Starboard, Warm Fusion | 1 |
| - | 8M0119301 | 前罩总成 (左舷和右舷, 珍珠聚变版) | FRONT COWL ASSEMBLY Port and Starboard, Pearl Fusion | 1 |
| 7 | NSS | 前罩左舷 (不单独销售) | NOT SOLD SEPARATE Front Cowl, Port | 1 |
| 8 | NSS | 前罩右舷 (不单独销售) | NOT SOLD SEPARATE Front Cowl, Starboard | 1 |
| 9 | 892315 | 衬垫 | GASKET | 1 |
| 10 | 8M0043266 | 密封件 | SEAL | 2 |
| 11 | 888957 | O型圈 | O-RING | 1 |
| 12 | 889823001 | 嵌入式系绳插头 | TETHER Flush Plug | 1 |
| 13 | 8M0042300 | 升降倾斜开关 | SWITCH Trim | 1 |
| 14 | 888958001 | 左舷冲洗口堵头 | PLUG Flush Port Flush | 1 |
| 15 | 892233 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 16 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 2 |
| 17 | 885361A01 | 接头总成 冲洗 | FITTING ASSEMBLY Flush | 1 |
| 18 | 4006731 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 1 |
| 19 | 858951A01 | 卡箍套件 | CLAMP KIT | 1 |
| 20 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 1 |
| 21 | 4006731 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 1 |
| 22 | 892233 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 23 | 8M0043519 | 适配器 | ADAPTER | 1 |
| 24 | 897169 | 护孔环 | GROMMET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0103725 | 零件手册 200/225/250/275/300 Verado (四冲程)(6缸) | PARTS MANUAL 200/225/250/275/300 Verado (4-Stroke)(6 Cylinder) | 1 |
| - | 8M0089147 | 维修手册 Verado L6 | SERVICE MANUAL Verado L6 | 1 |
| - | 8M0076286 | 维修手册 舷外机摇杆操控系统 | SERVICE MANUAL Outboard Joystick Piloting | 1 |
| - | 8M0089145 | 安装手册 Verado L6 | INSTALLATION MANUAL Verado L6 | 1 |
| - | 8M0089146 | 操作手册 Verado L6 | OPERATION MANUAL Verado L6 | 1 |
| - | 8M0093150 | 操作手册 摇杆操控 | OPERATION MANUAL Joystick Piloting | |
| - | NSS | 不单独销售贴纸, EPA | NOT SOLD SEPARATE DECAL, EPA | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 892404A05 | 导水板总成 | DEFLECTOR ASSEMBLY Water | 2 |
| 2 | 885518A02 | 接头总成 | FITTING ASSEMBLY | 1 |
| 3 | 62701 | O型圈 | O-RING | 2 |
| 4 | 88552516 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 1 |
| 5 | 888988011 | 卡箍(38.1毫米) | CLAMP (38.1 MM) | 1 |
| 6 | 888930003 | 软管 | HOSE | 1 |
| 7 | 888988008 | 卡箍(34.6毫米) | CLAMP (34.6 MM) | 1 |
| 8 | 892864T04 | 节温器总成 | THERMOSTAT ASSEMBLY | 1 |
| 9 | 8M0005958 | O型圈 | O-RING | 1 |
| 10 | 888988001 | 卡箍(36.1毫米) | CLAMP (36.1 mm) | 1 |
| 11 | 892865 | 节温器软管 | HOSE Thermostat | 1 |
| 12 | 888988007 | 卡箍(42.5毫米) | CLAMP (42.5 mm) | 1 |
| 13 | 892242T | 燃油滤清器总成 | FILTER ASSEMBLY Fuel | 1 |
| 14 | 8M0020349 | 滤清器 燃油 滤芯 | FILTER Fuel, Element | 1 |
| 15 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 16 | 892356 | 连接器 | CONNECTOR | 1 |
| 17 | 863156 | 拉手片 | GRAB TAB | 1 |
| 18 | 8M0042628 | 燃油至升压泵软管 | HOSE Fuel to Lift Pump | 1 |
| 19 | 78945 | J型卡箍 | J CLAMP | 1 |
| 20 | 88552785 | 螺钉(M10×85) | SCREW (M10 x 85) | 3 |
| 21 | 885527105 | 螺钉(M10x105) | SCREW (M10 x 105) | 1 |
| 22 | 8M0043788 | 31.5英寸燃油入口软管 | HOSE 31.5 Inch Fuel Inlet | 1 |
| 22 | 8M0046557 | 燃油进口软管总成（8.2英寸） | HOSE ASSMEBLY Fuel Inlet, 8.2 Inch | 1 |
| 23 | 880640T11 | 集成式机油模块-总成 | MODULE Intergrated Oil - Complete | 1 |
| 24 | 877769K01 | 机油滤清器(水星品牌) | FILTER Oil (Mercury Branded) | 1 |
| 24 | 877769Q01 | 机油滤清器(快银品牌) | FILTER Oil (Quicksilver Branded) | 1 |
| 25 | 880640A05 | 集成式机油模块壳体总成 | HOUSING ASSEMBLY Intergrated Oil Module | 1 |
| 26 | 895336 | 螺钉(M6x18) | SCREW (M6 x 18) | 6 |
| 27 | 880640500 | 衬垫 | GASKET | 1 |
| 28 | 880640A06 | 节温器/导套套件 | THERMOSTAT/GUIDE KIT | 1 |
| 29 | 880640508 | 节温器 | THERMOSTAT | 1 |
| 30 | 892801T53 | 大修套件 | OVERHAUL KIT | 1 |
| 31 | 880640500 | 衬垫 | GASKET | 1 |
| 32 | 880640A09 | O型圈套件 | O-RING KIT | 1 |
| 33 | 895032 | 绑带 | STRAP | 2 |
| 34 | 895336 | 螺钉(M6x18) | SCREW (M6 x 18) | 4 |
| 35 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| 36 | 8M0007906 | 支架 | BRACKET | 1 |
| 37 | 822003 | 衬套 | BUSHING | 2 |
| 38 | 834985 | 护孔环 | GROMMET | 2 |
| 39 | 8M0007908 | 支架 | BRACKET | 1 |
| 40 | 82129125 | 螺丝(M6 x 25毫米) | SCREW (M6 x 25 mm) | 2 |
| 41 | 65567 | 不锈钢垫圈(0.265x0.750x0.048) | WASHER (.265 x .750 x .048) Stainless Steel | 2 |
| - | 895247A07 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 892404A05 | 导水板总成 | DEFLECTOR ASSEMBLY Water | 2 |
| 2 | 885518A02 | 接头总成 | FITTING ASSEMBLY | 1 |
| 3 | 62701 | O型圈 | O-RING | 2 |
| 4 | 88552516 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 1 |
| 4 | 8M0103805 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 1 |
| 5 | 888988011 | 卡箍(38.1毫米) | CLAMP (38.1 MM) | 1 |
| 6 | 888930003 | 软管 | HOSE | 1 |
| 7 | 888988008 | 卡箍(34.6毫米) | CLAMP (34.6 MM) | 1 |
| 7 | 8M0187145 | 卡箍 | CLAMP | 1 |
| 8 | 892864T04 | 节温器总成 | THERMOSTAT ASSEMBLY | 1 |
| 8 | 8M0174561 | 节温器总成 | THERMOSTAT ASSY | 1 |
| 9 | 8M0005958 | O型圈 | O-RING | 1 |
| 10 | 888988001 | 卡箍(36.1毫米) | CLAMP (36.1 mm) | 1 |
| 10 | 8M0204719 | 卡箍 36.1毫米 | CLAMP 36.1 MM | 1 |
| 11 | 892865 | 节温器软管 | HOSE Thermostat | 1 |
| 12 | 888988007 | 卡箍(42.5毫米) | CLAMP (42.5 mm) | 1 |
| 13 | 892242T | 燃油滤清器总成 | FILTER ASSEMBLY Fuel | 1 |
| 13 | 8M0062950 | 滤清器总成 | FILTER ASSEMBLY | 1 |
| 14 | 8M0020349 | 滤清器 燃油 滤芯 | FILTER Fuel, Element | 1 |
| 14 | 8M0122423 | 水星燃油滤清器 | FUEL FILTER Quicksilver | 1 |
| 15 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 16 | 892356 | 连接器 | CONNECTOR | 1 |
| 17 | 863156 | 拉手片 | GRAB TAB | 1 |
| 18 | 8M0042628 | 燃油至升压泵软管 | HOSE Fuel to Lift Pump | 1 |
| 18 | 8M0087107 | 软管 | HOSE | 1 |
| 19 | 78945 | J型卡箍 | J CLAMP | 1 |
| 20 | 88552785 | 螺钉(M10×85) | SCREW (M10 x 85) | 3 |
| 20 | 8M0103824 | 螺钉 | SCREW | 3 |
| 21 | 885527105 | 螺钉(M10x105) | SCREW (M10 x 105) | 1 |
| 21 | 8M0103820 | 螺钉(M10x105) | SCREW (M10 x 105) | 1 |
| 22 | 8M0046557 | 燃油进口软管总成（8.2英寸） | HOSE ASSMEBLY Fuel Inlet, 8.2 Inch | 1 |
| 23 | 8M0046690 | 集成式机油模块总成 | MODULE Integrated Oil, Complete | 1 |
| 23 | 8M0132390 | 机油冷却模块 | OIL COOLER MODULE | 1 |
| 24 | NSS | 机油冷却器壳体不单独销售 | NOT SOLD SEPARATE OIL COOLER HOUSING | 1 |
| 25 | 891953 | 堵头（18毫米） | PLUG (18 mm) | 2 |
| 26 | 8M0046698 | 端盖总成 | END CAP ASSEMBLY | 2 |
| 27 | 8M0039464 | 挡圈 | RING Retaining | 1 |
| 28 | 8M0039516 | O型圈 | O-RING | 1 |
| 29 | 877769K01 | 机油滤清器(水星品牌) | FILTER Oil (Mercury Branded) | 1 |
| 30 | 8M0046693 | 节温器总成 | THERMOSTAT ASSEMBLY | 1 |
| 31 | NSS | NOT SOLD SEPARATE Thermostat Stop | 1 | |
| 32 | 8M0041064 | 节温器 | THERMOSTAT | 1 |
| 32 | 8M0046693 | 节温器总成 | THERMOSTAT ASSEMBLY | 1 |
| 33 | NSS | NOT SOLD SEPARATE SPRING | 1 | |
| 34 | 8M0046697 | 堵头 | PLUG | 1 |
| 35 | NSS | NOT SOLD SEPARATE O-RING | 1 | |
| 36 | 8M0046696 | 适配器组件 | ADAPTER ASSEMBLY | 1 |
| 37 | 8M0188540 | O型圈 | O-RING | 4 |
| 38 | 8M0046694 | 壳体总成 | HOUSING ASSEMBLY | 1 |
| 39 | 8M0034568 | 衬垫 | GASKET | 1 |
| 40 | 8M0041014 | 螺钉(M6x18) | SCREW (M6 x 18) | 2 |
| 40 | 88552516 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 2 |
| 41 | 82129125 | 螺丝(M6 x 25毫米) | SCREW (M6 x 25 mm) | 2 |
| 42 | 65567 | 不锈钢垫圈(0.265x0.750x0.048) | WASHER (.265 x .750 x .048) Stainless Steel | 2 |
| 43 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| 43 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| 44 | 8M0007906 | 支架 | BRACKET | 1 |
| 45 | 822003 | 衬套 | BUSHING | 2 |
| 46 | 834985 | 护孔环 | GROMMET | 2 |
| 46 | 8M0190980 | 护孔环 | GROMMET | 2 |
| 47 | 8M0007908 | 支架 | BRACKET | 1 |
| - | 880552A07 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 895247A07 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 8M0162888 | 翻新动力头总成(带附件) | POWERHEAD ASSEMBLY Reman Dressed | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 892339T01 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 2 | NSS | 螺钉组(不单独销售) | NOT SOLD SEPARATE Screws | 2 |
| 3 | 880805A1 | 齿轮套件 | GEAR KIT | 1 |
| 4 | 809463A1 | 电磁阀组件 | SOLENOID KIT | 1 |
| 5 | 8M0065258 | 电刷组 | BRUSH SET | 1 |
| 6 | 8M0034918 | 轴环 | COLLAR | 2 |
| 7 | 8M0043276 | 停机开关 | STOP | 1 |
| 8 | NSS | 高压警告贴纸(不单独销售) | NOT SOLD SEPARATE Decal-Waring-High Voltage | 1 |
| 9 | 93388A1 | 电缆总成(6.00英寸)黑色 | CABLE ASSEMBLY (6.00 Inches) Black | 1 |
| 10 | 69035 | 螺丝与锁紧垫圈(.250-20 x .625)不锈钢 | SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel | 1 |
| 11 | 26993 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 1 |
| 12 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 1 |
| 13 | 400255 | 锁紧垫圈(M5) | LOCKWASHER (M5) | 1 |
| 14 | 400211 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 892557A02 | 标准转向舵机套件(32cc) | STEERING HELM KIT Standard (32 cc) | 1 |
| - | 892380A02 | 标准转向舵机套件(40cc) | STEERING HELM KIT Standard (40 cc) | 1 |
| - | 8M0240080 | 标准舵机套件40CM | HELM KIT-STD 40CM | 1 |
| - | 892558A02 | 标准转向舵机套件(50cc) | STEERING HELM KIT Standard (50 cc) | 1 |
| - | 8M0240081 | 标准舵机套件50CM | HELM KIT-STD 50CM | 1 |
| 1 | 892557T01 | 标准舵机(32立方厘米) | HELM Standard (32 cc) | 1 |
| 1 | 8M0137438 | 标准舵机(32立方厘米) | HELM Standard (32 cm3) | 1 |
| 1 | 892380T01 | 舵机标准型(40毫升) | HELM Standard (40 cc) | 1 |
| 1 | 8M0137444 | 舵机标准型(40立方厘米) | HELM Standard (40 cm3) | 1 |
| 1 | 892558T01 | 舵机标准型(50毫升) | HELM Standard (50 cc) | 1 |
| 1 | 8M0137448 | 舵机标准型(50立方厘米) | HELM Standard (50 cm3) | 1 |
| 2 | 627021 | O型圈(.301 x .070) | O-RING (.301 x .070) | 2 |
| 3 | 8M6001491 | O型圈(.364×.070) | O-RING (.364 x .070) | 2 |
| 3 | 8M0047399 | O型圈-6 ORFS型 | O-RING -6 ORFS | 2 |
| 4 | 893394 | 带锁片键(6.35毫米) | KEY With Lock Tab (6.35 mm) | 1 |
| 5 | 4008875 | 螺钉(M6×75) | SCREW (M6 x 75) | 4 |
| 5 | 4008850 | 螺钉(M6 x 50) | SCREW (M6 x 50) | 4 |
| 6 | 826709121 | 螺母(.625-18)不锈钢 | NUT (.625-18) Stainless Steel | 1 |
| 7 | 892328T | 舵机盖 | COVER Helm | 1 |
| 8 | 896842 | 螺钉 (M6 x 14) | SCREW (M6 x 14) | 4 |
| 9 | 892327 | 舵机背板 | PLATE Helm Backing | 4 |
| 9 | 892327 | 舵机背板 | PLATE Helm Backing | 3 |
| 9 | 892327 | 舵机背板 | PLATE Helm Backing | 2 |
| 10 | 401196 | 螺母 (M6) | NUT (M6) | 4 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0102809 | 机械增压器 | SUPERCHARGER | 1 |
| 2 | 885342002 | 传感器总成 | SENSOR ASSEMBLY | 1 |
| 3 | 896699 | O型圈（1.78毫米 x 0.08毫米） | O-RING (1.78 mm x .08 mm) | 1 |
| 4 | 8M0104803 | 导管总成 进气口 | DUCT ASSEMBLY Inlet | 1 |
| 5 | 888947501 | 衬垫 | GASKET | 1 |
| 6 | 8M0033976 | 导管套件 出口 | DUCT KIT Outlet | 1 |
| 7 | 888947504 | 衬垫 | GASKET | 1 |
| 8 | 888947502 | 螺栓 | BOLT | 9 |
| 9 | 847803A02 | 衬套/垫片套件 | BUSHING/GASKET KIT | 1 |
| 10 | 885527105 | 螺钉(M10x105) | SCREW (M10 x 105) | 4 |
| 11 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 805382T01 | 工具 延长杆-千分表 | TOOL Extension-Dial Indicator | 1 |
| 2 | 8M0046443 | 小齿轮定位工具 | TOOL Pinion Gear Locating | 1 |
| 3 | 8M0046348 | 小齿轮轴承拆卸工具 | TOOL Bearing Driver, Pinion Removal | 1 |
| 4 | 8M0036288 | 工具 小齿轮螺母固定器 | TOOL Holder, Pinion Nut | 1 |
| 5 | 8M0046632 | 轴承座固定螺母套筒工具 | TOOL Socket, Carrier Retainer Nut | 1 |
| 6 | 8M0046360 | 小齿轮轴承安装工具 | TOOL Bearing Driver, Pinion Install | 1 |
| 7 | 8M0050615 | 工具 换挡轴固定器 | TOOL Holder, Shift Shaft | 1 |
| 8 | 8M0053505 | 背隙指示工具 | TOOL Indicator, Backlash | 1 |
| 9 | 8M0035594 | 螺旋桨轴固定工具 | TOOL Propeller Shaft Holder | 1 |
| 10 | 8M0052590 | 上传动轴轴承安装工具 | TOOL Driver, Upper Driveshaft Bearing | 1 |
| - | 889283A01 | 燃油灌注工具包 | TOOL KIT Fuel Priming | 1 |
| - | 809905001 | 扭矩转换扳手 | WRENCH Torque Adapter | 1 |
| - | 895343T02 | 飞轮拉拔器工具 | TOOL Flywheel Puller | 1 |
| - | 895346 | 螺栓 | BOLT | 1 |
| - | 889675A01 | 14针分流器工具 | TOOL Shunt 14-Pin | 1 |
| - | 822778004 | 动力调整适配器工具 | TOOL Adaptor Fitting-Power Trim | 1 |
| - | 896661 | 燃油滤清器工具 | TOOL Fuel Filter | 1 |
| - | 8M0078614 | 扳手 动力转向缸端盖专用 | WRENCH Power Steering Cylinder End Cap Spanner | 1 |
| - | 8M0105203 | 工具 平衡缸端盖 | TOOL TRIM CYLINDER END CAP | 1 |
| - | 8M0182653 | 工具-驱动对正 | TOOL Drive Alignment | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0100167 | 顶盖总成 水星版 带贴纸无马力标识 | TOP COWL ASSEMBLY Mercury, Decaled without Horsepower | 1 |
| 1 | 8M0100170 | 顶罩总成-冷聚变色 不带马力标识贴纸 | TOP COWL ASSEMBLY Cold Fusion, Decaled without Horsepower | 1 |
| 1 | 8M0100171 | 顶罩总成-暖聚变色 不带马力标识贴纸 | TOP COWL ASSEMBLY Warm Fusion, Decaled without Horsepower | 1 |
| 1 | 8M0119291 | 顶罩总成-珍珠聚变色 不带马力标识贴纸 | TOP COWL ASSEMBLY Pearl Fusion, Decaled without Horsepower | 1 |
| 1 | 8M0100180 | 顶盖总成 水手版 带贴纸无马力标识 | TOP COWL ASSEMBLY Mariner Decaled without Horsepower | 1 |
| 1 | 8M0100220 | 水星顶罩总成(无标识) | TOP COWL ASSEMBLY Mercury, Non-Decaled | 1 |
| 1 | 8M0100221 | 顶盖总成 冷聚变版 无贴纸 | TOP COWL ASSEMBLY Cold Fusion, Non-Decaled | 1 |
| 1 | 8M0100222 | 顶盖总成 暖聚变版 无贴纸 | TOP COWL ASSEMBLY Warm Fusion, Non-Decaled | 1 |
| 1 | 8M0119289 | 顶盖总成 珍珠聚变版 无贴纸 | TOP COWL ASSEMBLY Pearl Fusion, Non-Decaled | 1 |
| 1 | 8M0100223 | 顶部罩盖总成水手版无贴花 | TOP COWL ASSEMBLY Mariner, Non-Decaled | 1 |
| 2 | 885354T01 | 空气导流帽-水星黑色款 | CAP, Air Dam Mercury, Black | 1 |
| 2 | 8M0024870 | 贴纸 水星Verado | DECAL Mercury Verado | 1 |
| 2 | 8M0090474 | 盖板 风挡-冷聚变版 | CAP, Air Dam Cold Fusion | 1 |
| 2 | 8M0090475 | 盖板 风挡-暖聚变版 | CAP, Air Dam Warm Fusion | 1 |
| 2 | 8M0119293 | 盖板 风挡-珍珠聚变版 | CAP, Air Dam Pearl Fusion | 1 |
| 2 | 895838T01 | 空气导流帽-水星型 | CAP Air Dam - Mariner | 1 |
| 3 | 888971 | 前锁扣槽 | FRONT LATCH RECEIVER | 1 |
| 4 | 8M0043229 | 密封件 | SEAL | 1 |
| 5 | 8M0080461 | 锁扣拉索 | CABLE Latch | 1 |
| 6 | 888959 | 铰链销 | PIN Hinge | 1 |
| 7 | 888956 | 手控锁杆 | LATCH Hand Lever | 1 |
| 8 | 895373 | 弹簧 | SPRING | 1 |
| 9 | 888955 | 锁扣连杆 | LINK Latch Connecting | 1 |
| 10 | 26953 | 开口销 | COTTER PIN | 2 |
| 11 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 12 | 888952 | 联动臂 | LINKAGE ARM | 2 |
| 13 | 888953 | 弹簧 | SPRING | 2 |
| 14 | 822417 | 销 | PIN | 2 |
| 15 | 897678020 | 螺丝 (M4 x 20mm) | SCREW (M4 x 20mm) | 6 |
| 16 | 8M0033614 | 贴花 左舷, 水星 | APPLIQUE Port, Mercury | 1 |
| 16 | 8M0088807 | 饰板 左舷-冷聚变版 | APPLIQUE Port, Cold Fusion | 1 |
| 16 | 8M0088808 | 饰板 左舷-暖聚变版 | APPLIQUE Port, Warm Fusion | 1 |
| 16 | 8M0117520 | 饰板 左舷-珍珠聚变版 | APPLIQUE Port, Pearl Fusion | 1 |
| 16 | 8M0033604 | 饰板 左舷-水手版 | APPLIQUE Port, Mariner | 1 |
| 17 | 8M0033615 | 贴花 右舷, 水星 | APPLIQUE Starboard, Mercury | 1 |
| 17 | 8M0088809 | 饰板 右舷-冷聚变版 | APPLIQUE Starboard, Cold Fusion | 1 |
| 17 | 8M0088810 | 饰板 右舷-暖聚变版 | APPLIQUE Starboard, Warm Fusion | 1 |
| 17 | 8M0117518 | 饰板 右舷-珍珠聚变版 | APPLIQUE Starboard, Pearl Fusion | 1 |
| 17 | 8M0033603 | 饰板 右舷-水手版 | APPLIQUE Starboard, Mariner | 1 |
| 18 | 88552512 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 mm) Stainless Steel | 2 |
| 19 | 8M4501639 | 隔音毯套装 | SOUND BLANKET KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0103311 | 前安装支架总成 | BRACKET ASSEMBLY Front Mount | 1 |
| 1 | NSS | 不单独销售 支架 | NOT SOLD SEPARATE Bracket | 1 |
| 2 | 892417 | 衬套 | BUSHING | 2 |
| 3 | 8M0047763 | 隔套 | SPACER | 1 |
| 4 | 8M0047949 | 换档轴 | SHIFT SHAFT | 1 |
| 5 | 889727001 | 曲柄摇臂 | BELL CRANK | 1 |
| 6 | 25319 | 销钉(.125 x 0.75英寸) | PIN (.125 x 0.75 Inches) | 1 |
| 7 | 833155 | 护孔环 | GROMMET | 2 |
| 8 | 85999 | 衬套 | BUSHING | 1 |
| 9 | 8M0048114 | 换挡执行器 | SHIFT ACTUATOR | 1 |
| 10 | 8855091 | 螺钉 | SCREW | 1 |
| 11 | 885512 | 开口销 | COTTER PIN | 2 |
| 12 | 885511003 | 垫圈 | WASHER | 2 |
| 13 | 895770 | 枢轴销 | Pin Pivot | 1 |
| 14 | 895811155 | 螺钉(M10×155) | SCREW (M10 x 155) | 2 |
| 15 | 88510940 | 螺钉(M14) | SCREW (M14) | 4 |
| 16 | 8M0045046 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 2 |
| 17 | 97896 | 衬套 | BUSHING | 2 |
| 18 | 885505 | 换挡轴连杆 | LINK Shift Shaft | 1 |
| 19 | 8M0048178 | 换挡轴(长型) | SHAFT Shift (Long) | 1 |
| 19 | 8M0048179 | 换挡轴 (加长型) | SHAFT Shift (X-Long) | 1 |
| 19 | 8M0048180 | 换挡轴 (超长型) | SHAFT Shift (XX-Long) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 886638A01 | 油水分离器套件 | WATER SEPERATOR KIT | 1 |
| 1 | 8M0022130 | 燃油水分分离器套件 | SEPERATOR KIT Fuel and Water | 1 |
| 1 | 8M0109360 | 分离器套件 | SEPARATOR KIT | 1 |
| 2 | 886638 | 燃油滤清器滤芯 | ELEMENT Fuel Filter | 1 |
| 2 | 8M0146206 | 1英寸滤芯 | ELEMENT 1 IN | 1 |
| 3 | 8M0021043 | 传感器总成 燃油和水 | SENSOR ASSEMBLY Fuel and Water | 1 |
| 3 | 8M0214989 | 燃油含水传感器 | SENSOR WIF | 1 |
| 4 | 8M0021044 | 滤杯 | BOWL | 1 |
| 4 | 8M0214990 | 滤清器杯体 | FILTER BOWL | 1 |
| 5 | 34982 | 连接器 | CONNECTOR | 2 |
| 6 | 73379 | 塞(.250-18) | PLUG (.250-18) | 1 |
| 6 | 8M0180564 | 塞(.250-18) | PLUG (.250-18) | 1 |
| 7 | 8M0042697 | 燃油滤清器传感器延长线束（144英寸）水位传感器 | HARNESS Fuel Filter Sensor Extension (144 in) Water Sensor | 1 |
| 8 | 8M0044043 | 软管总成 | HOSE ASSEMBLY | 1 |
| 9 | 855697 | 卡箍 | CLAMP | 3 |
| 9 | 8M0204696 | 卡箍 | CLAMP | 3 |
| - | 8M0105263 | WIF传感器延长线束-36英寸 | HARNESS WIF Sensor Extension - 36 Inches | 1 |
| - | 8M0105264 | WIF传感器延长线束-72英寸 | HARNESS WIF Sensor Extension - 72 Inches | 1 |
