水星 Mercury 225 HP Verado 6 CYL 1B517434 THRU 2B144122 - 爆炸图零件明细

四冲程电喷 EFI · USA - Cat.# 90-896280008 · 共 50 个部位 · 2407 条零件

1附件 2下适配板 3适配板管路布置 4适配板管路布置 CCT 5发电机/皮带张紧器安装座 6CCT索具套件 7增压冷却器/进气歧管（一代）端盖不可维修 8增压冷却器/进气歧管（二代）端盖可维修 9增压冷却器/进气歧管管路布置 10外罩锁扣装置 11曲轴、活塞及连杆 12气缸体 13气缸盖与凸轮轴 14驱动轴壳体 15电气箱组件 16燃油供给模块 17齿轮箱，驱动轴，5.44鱼雷型，序列号1B980360及以上 18齿轮箱，驱动轴，5.44鱼雷型，序列号1B980359及以下 19齿轮箱，螺旋桨轴-反向旋转，5.44鱼雷型 20齿轮箱，螺旋桨轴-正向旋转，5.44鱼雷型 21齿轮箱驱动轴,4.80鱼雷型 22齿轮箱螺旋桨轴-反向旋转，4.80鱼雷型 2B026816及以下 23齿轮箱螺旋桨轴-反向旋转，4.80鱼雷型 2B026817及以上 24齿轮箱螺旋桨轴-正向旋转，4.80鱼雷型 2B026816及以下 25齿轮箱螺旋桨轴-正向旋转，4.80鱼雷型 2B026817及以上 26接地线套件 899712A01 27进气系统组件 28进气组件 CCT 29润滑图表 30防腐电极套件 31安装支架 32机油泵/上适配板 33左舷气缸体组件 34动力头衬垫组件 35动力升降倾斜组件 36动力升降/转向油缸 37动力转向泵套件(8M0080200/8M0080201)38后罩 39后罩 CCT 40维修/支撑材料 41右气缸体/油冷器(1B830815及以下)42右气缸体/油冷器(1B830816及以上)43启动电机 44标准转向舵套件(892557A02, 892380A02, 892558A02)45增压器 46工具 47顶罩 48顶罩 CCT 49上部换挡组件 50水分分离滤清器套件 886638A01

图 1附件 Accessories

零件编号	中文名称	英文名称	数量
892440A03	动力转向泵套件(12英尺)	PUMP KIT Power Steering (12 Feet)	1
8M0131262	动力转向泵套件(12英尺)	PUMP KIT Power Steering (12 Feet)	1
892440A04	动力转向泵套件(24英尺)	PUMP KIT Power Steering (24 Feet)	1
8M0131263	动力转向泵套件(24英尺)	PUMP KIT Power Steering (24 Feet)	1

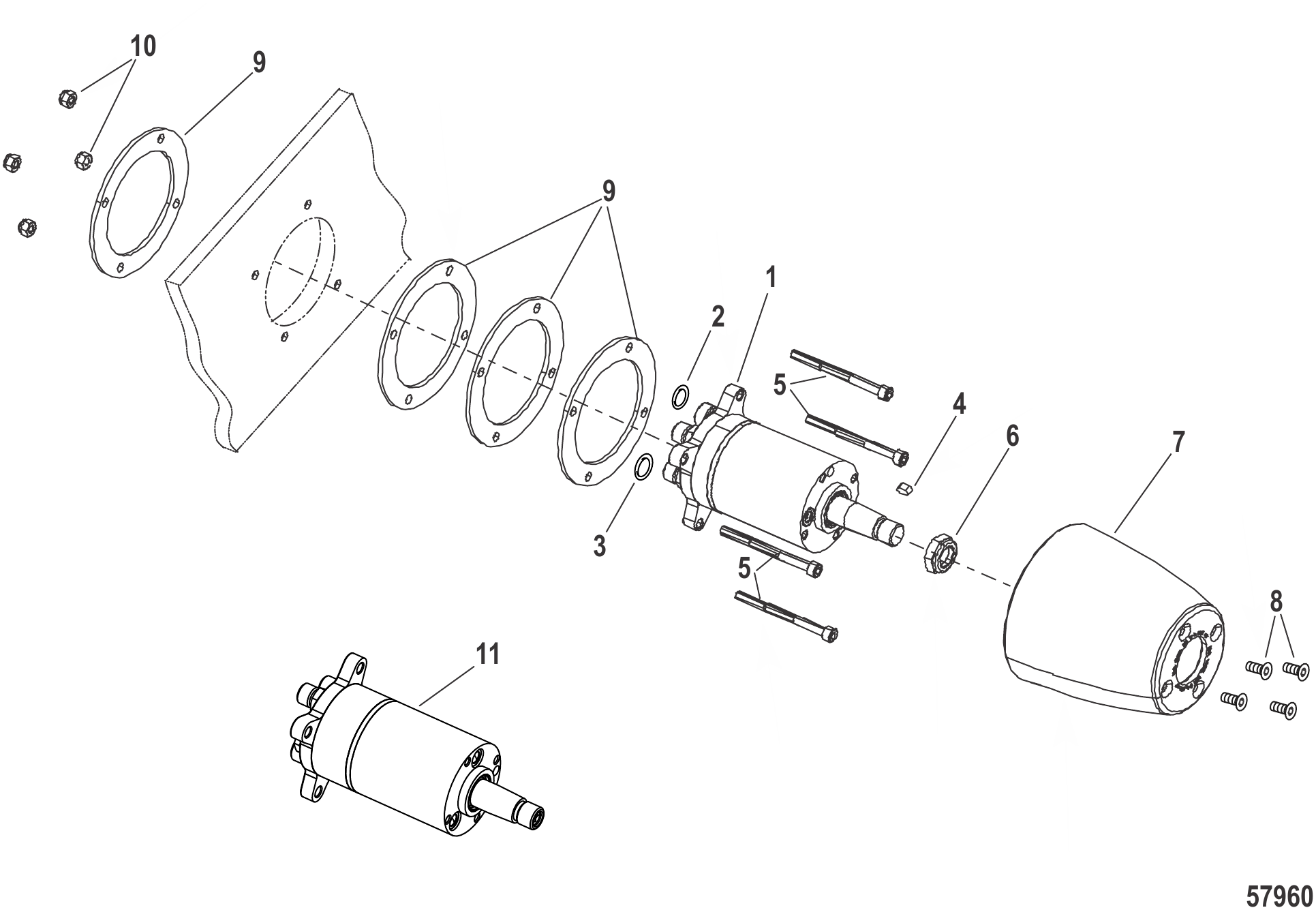

892380A01	标准转向舵机套件(40cc)	STEERING HELM KIT Standard (40 cc)	1
8M0240080	标准舵机套件40CM	HELM KIT-STD 40CM	1
892557A01	标准转向舵机套件(32cc)	STEERING HELM KIT Standard (32 cc)	1
8M0240079	标准舵机套件32CM	HELM KIT-STD 32CM	1
892558A01	标准转向舵机套件(50cc)	STEERING HELM KIT Standard (50 cc)	1
8M0240081	标准舵机套件50CM	HELM KIT-STD 50CM	1
893395A01	嵌入式安装板 40厘米 3	PLATE Flush Mount 40 CM 3	1
875207	三通接头	TEE Fitting	1

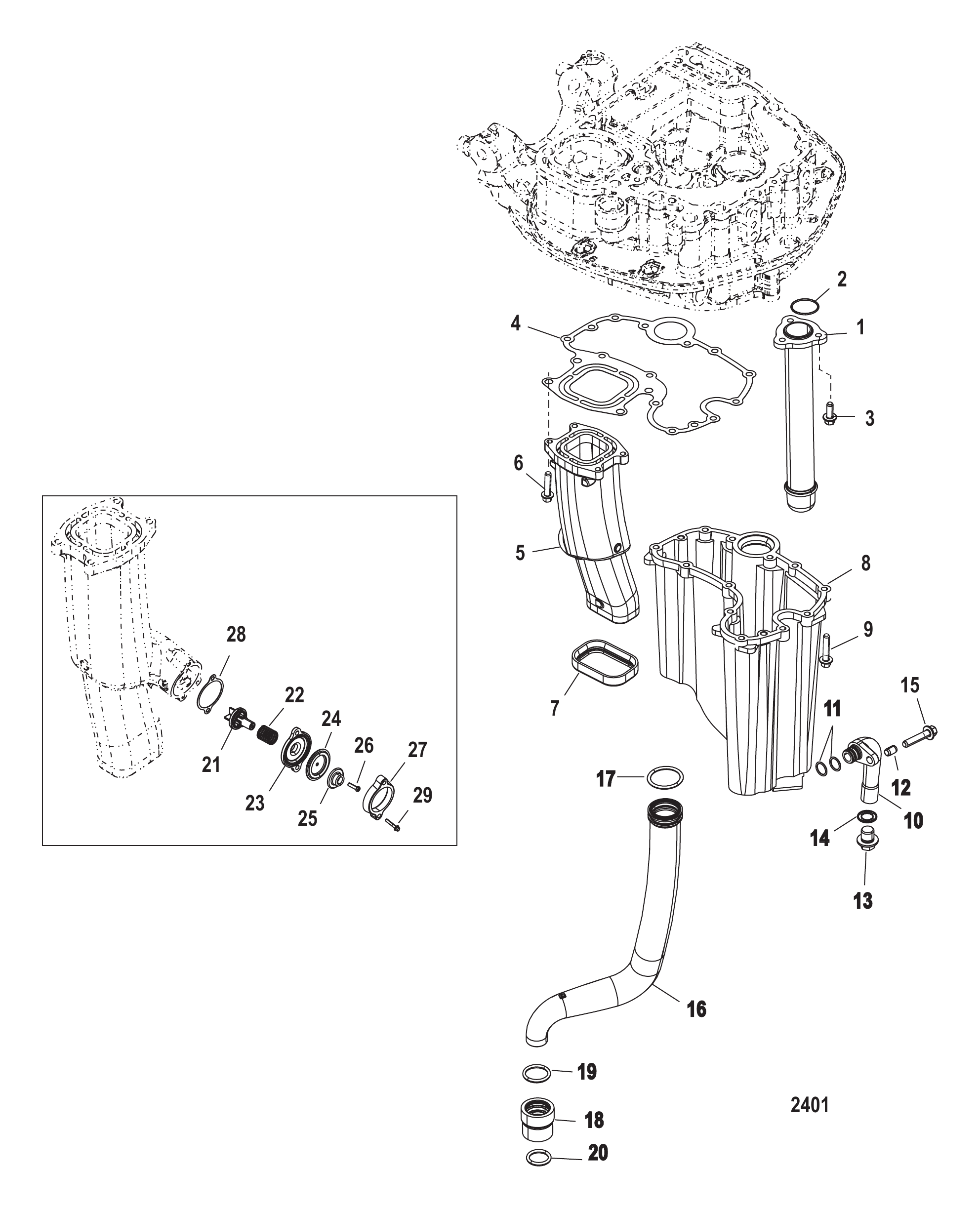

图 2下适配板 Adapter Plate-Lower

REF	零件编号	中文名称	英文名称	数量
1	887623T03	机油收集器总成	PICKUP ASSEMBLY Oil	1
2	846594	O型圈 (1.239 x .070) 黑色	O-RING (1.239 x .070) Black	1
2	8M0092943	O型圈橙色	O-RING Orange	1
3	88552525	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	3
3	8M0103807	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	3
4	889618001	衬垫油底壳	GASKET Oil Sump	1
5	880626T01	排气管总成	TUBE ASSEMBLY Exhaust	1
6	88552635	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
6	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
7	880629	排气管密封件	SEAL Exhaust Tube	1
8	880639T	油底壳总成	SUMP ASSEMBLY Oil	1
9	88552530	螺丝(M6×30毫米)不锈钢	SCREW (M6 x 30 mm) Stainless Steel	12
9	8M0103808	螺丝(M6×30毫米)不锈钢	SCREW (M6 x 30 mm) Stainless Steel	12
10	887753A01	排油管总成	TUBE ASSEMBLY Oil Drain Oil Drain	1
10	887753A02	排油管总成	TUBE ASSEMBLY Oil Drain	1
10	888513A01	排油管	TUBE Oil Drain	1
10	8M0082193	排油管总成	TUBE ASSEMBLY Oil Drain	1
11	892446	O型圈(14×1.78毫米)	O-RING (14 X 1.78 MM)	2
12	892228	定位销	PIN Dowel	1
13	888592004	放油塞总成	PLUG ASSEMBLY Oil Drain	1
13	888592005	放油塞总成	PLUG ASSEMBLY Oil Drain	1
13	888592005	放油塞总成	PLUG ASSEMBLY Oil Drain	1
14	888593	放油螺塞密封件	SEAL Drain Plug	1
14	8M0188614	放油螺塞密封件	SEAL Drain Plug	1
15	88552530	螺丝(M6×30毫米)不锈钢	SCREW (M6 x 30 mm) Stainless Steel	1
15	8M0103808	螺丝(M6×30毫米)不锈钢	SCREW (M6 x 30 mm) Stainless Steel	1
16	885541A01	水管总成 (20.00英寸)	TUBE ASSEMBLY Water (20.00 Inch)	1
16	885541A02	水管总成 (25.00英寸)	TUBE ASSEMBLY Water (25.00 Inch)	1
16	885541A03	水管总成 (30.00英寸)	TUBE ASSEMBLY Water (30.00 Inch)	1
17	892445	O型圈	O-RING	1
18	887987A1	联轴器	COUPLING	1
18	8M0214983	联轴器总成	COUPLING ASSY	1
19	90196	O型圈 (.921 x .139)	O-RING (.921 x .139)	1
19	8M0204673	O型圈 .921 x .139	O-Ring .921 x .139	1
20	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
20	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
21	888913A01	提升阀总成	POPPET ASSEMBLY	1
21	8M0114707	提升阀总成	POPPET VALVE ASSY	1
22	64878	弹簧(黑色)	SPRING (Black)	1
23	893385001	固定座	RETAINER	1
24	648771	隔膜	DIAPHRAGM	1
25	889706	垫圈	WASHER	1
26	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
27	893384001	提升阀盖	COVER Poppet	1
28	889561	提升阀垫片	GASKET Poppet	1
29	88552535	不锈钢螺钉(M6×35mm)	SCREW (M6 x 35 mm) Stainless Steel	2
-	880552A05	动力头衬垫套件	GASKET SET Powerhead	1
-	880552A07	动力头衬垫套件	GASKET SET Powerhead	1
-	895247A05	动力头总成	POWERHEAD ASSEMBLY	1
-	895247A06	动力头总成	POWERHEAD ASSEMBLY	1

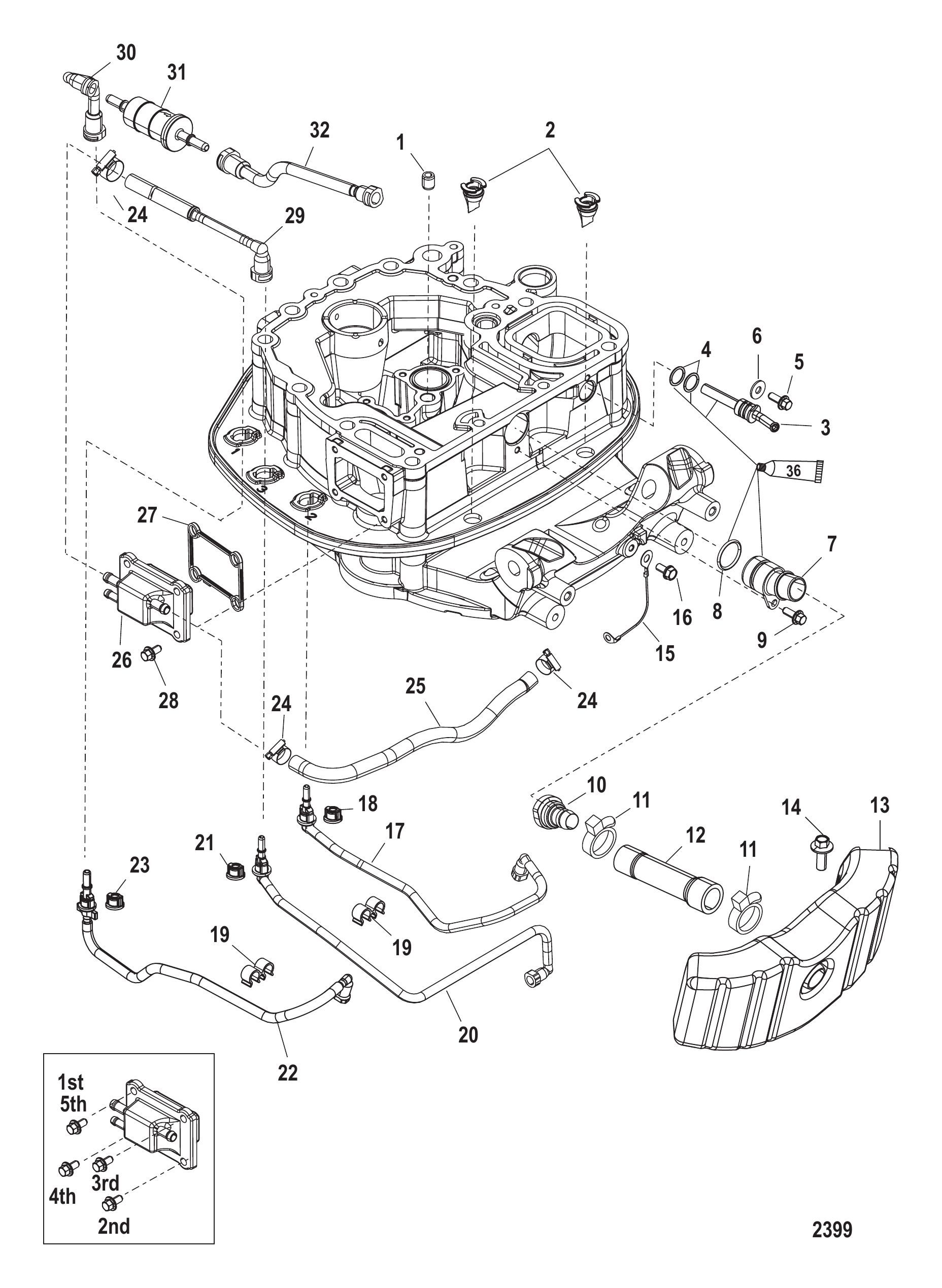

图 3适配板管路布置 Adapter Plate Hose Routings

REF	零件编号	中文名称	英文名称	数量
1	884474001	定位销(12 mm)	PIN Dowel (12 mm) (12MM)	1
2	888819002	排水罩	DRAIN Cowl	2
3	888461A01	配件套件	FITTING KIT	1
4	892446	O型圈(14×1.78毫米)	O-RING (14 X 1.78 MM)	2
5	88552512	不锈钢螺钉 (M6 x 12 mm)	SCREW (M6 x 12 mm) Stainless Steel	1
5	8M0103804	不锈钢螺钉 (M6 x 12 mm)	SCREW (M6 x 12 MM) Stainless Steel	1
6	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
6	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
7	889792A01	怠速排气接头套件	FITTING KIT Idle Exhaust	1
8	889828	O型圈 0.924×0.103	O-RING (.924 x .103)	1
9	88552512	不锈钢螺钉 (M6 x 12 mm)	SCREW (M6 x 12 mm) Stainless Steel	1
9	8M0103804	不锈钢螺钉 (M6 x 12 mm)	SCREW (M6 x 12 MM) Stainless Steel	1
10	889846	接头	FITTING	1
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
12	888981001	怠速排气软管	HOSE Idle Exhaust	1
13	892384T	排气集气室	PLENUM Exhaust	1
14	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	2
15	88238A21	拉线总成	CABLE ASSEMBLY	1
16	40011126	不锈钢螺丝(M6 x 13)	SCREW (M6 x 13) Stainless Steel	1
17	884548	歧管参考软管-下部	HOSE Manifold Reference-Lower	1
17	8M0087120	软管	HOSE	1
18	884546	护孔环	GROMMET	1
19	888523001	卡扣	CLIP	2
20	884547	进水软管-下部	HOSE Water In-Lower	1
20	8M0087106	软管	HOSE	1
21	884546	护孔环	GROMMET	1
22	892241	FSM输出软管	HOSE FSM-Out	1
22	8M0087116	软管	HOSE	1
23	884546	护孔环	GROMMET	1
24	815504104	蜗杆卡箍	CLAMP Worm Gear	3
25	830757130	管材 (.312) (70.00英寸整卷) 裁切至21英寸	TUBING (.312) (70.00 Inches Bulk) Cut to 21 Inches	1
25	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
26	892562T01	歧管壳体	HOUSING Manifold	1
27	892117	密封件	SEAL	1
28	88552516	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	4
28	8M0103805	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	4
29	887756	进水软管-上部	HOSE Water In-Upper	1
30	887757	高压过滤器软管(前)	HOSE Hi-Pressure Filter (PRE)	1
30	8M0203762	燃油管路总成	FUEL LINE ASSY	1
31	879885T	燃油滤清器	FILTER Fuel	1
31	879885Q	燃油管路滤清器	FILTER Fuel In-Line	1
32	887758	高压过滤器至燃油轨软管(后)	HOSE Hi-Pressure Filter-To Fuel Rail (POST)	1
32	8M0203763	燃油管	FUEL LINE	1
-	880552A05	动力头衬垫套件	GASKET SET Powerhead	1
-	880552A07	动力头衬垫套件	GASKET SET Powerhead	1
-	895247A05	动力头总成	POWERHEAD ASSEMBLY	1
-	895247A06	动力头总成	POWERHEAD ASSEMBLY	1

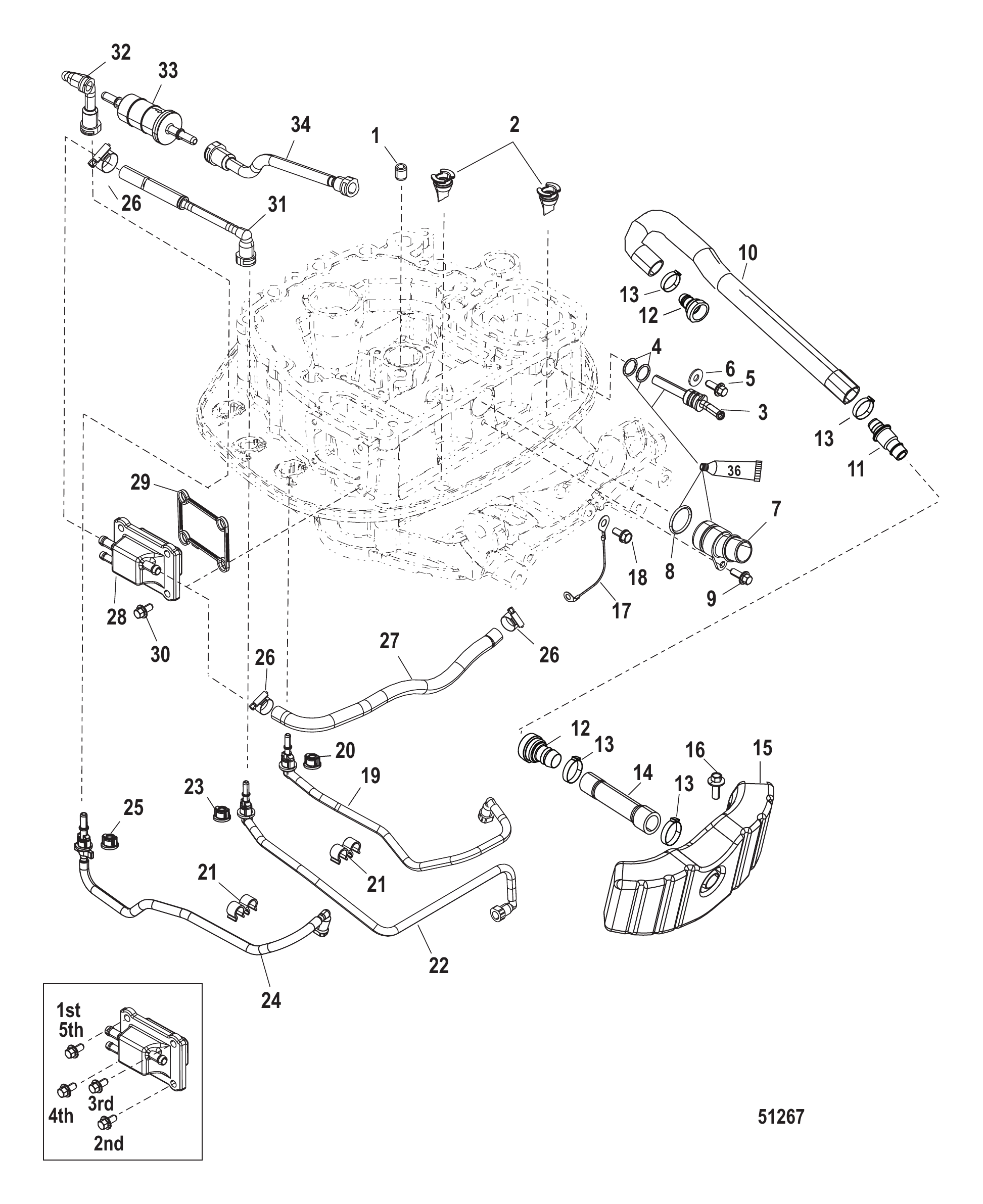

图 4适配板管路布置 CCT Adapter Plate Hose Routings CCT

REF	零件编号	中文名称	英文名称	数量
1	884474001	定位销 (12毫米)	PIN Dowel (12 mm)	1
2	888819002	排水罩	DRAIN Cowl	2
3	888461A01	配件套件	FITTING KIT	1
4	892446	O型圈(14×1.78毫米)	O-RING (14 X 1.78 MM)	2
5	88552512	不锈钢螺钉 (M6 x 12 mm)	SCREW (M6 x 12 mm) Stainless Steel	1
5	8M0103804	不锈钢螺钉 (M6 x 12 mm)	SCREW (M6 x 12 MM) Stainless Steel	1
6	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
6	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
7	889792A01	怠速排气接头套件	FITTING KIT Idle Exhaust	1
8	889828	O型圈 0.924×0.103	O-RING (.924 x .103)	1
9	88552512	不锈钢螺钉 (M6 x 12 mm)	SCREW (M6 x 12 mm) Stainless Steel	1
9	8M0103804	不锈钢螺钉 (M6 x 12 mm)	SCREW (M6 x 12 MM) Stainless Steel	1
10	8M0074946	怠速泄压软管	HOSE Idle Relief	1
11	8M0074533	7/8快速断开接头	FITTING 7/8 Quick disconnect	1
12	889846	接头	FITTING	1
13	8M6001924	卡箍	CLAMP	2
14	888981001	怠速排气软管	HOSE Idle Exhaust	1
15	892384T	远程排气集气室	PLENUM Exhaust Remotely Located	1
16	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	2
17	88238A21	拉线总成	CABLE ASSEMBLY	1
18	40011126	不锈钢螺丝(M6 x 13)	SCREW (M6 x 13) Stainless Steel	1
19	8M0012199	歧管参考软管-下部	HOSE Manifold Reference-Lower	1
19	8M0087120	软管	HOSE	1
20	884546	护孔环	GROMMET	1
21	888523001	卡扣	CLIP	2
22	8M0012198	进水软管-下部	HOSE Water In-Lower	1
22	8M0087106	软管	HOSE	1
23	884546	护孔环	GROMMET	1
24	8M0043794	燃油供应模块输出软管	HOSE Fuel Supply Module-Out	1
24	8M0087116	软管	HOSE	1
25	884546	护孔环	GROMMET	1
26	815504104	蜗杆卡箍	CLAMP Worm Gear	3
27	830757130	管材 (.312) (70.00英寸整卷) 裁切至21英寸	TUBING (.312) (70.00 Inches Bulk) Cut to 21 Inches	1
27	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
28	892562T01	歧管壳体	HOUSING Manifold	1
29	892117	密封件	SEAL	1
30	88552516	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	4
30	8M0103805	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	4
31	887756	进水软管-上部	HOSE Water In-Upper	1
32	8M0043789	高压过滤器软管	HOSE Hi-Pressure Filter	1
32	8M0203762	燃油管路总成	FUEL LINE ASSY	1
33	879885T	燃油滤清器	FILTER Fuel	1
33	879885Q	燃油管路滤清器	FILTER Fuel In-Line	1
34	8M0043790	高压滤清器至燃油轨软管	HOSE Hi-Pressure Filter To Fuel Rail	1
34	8M0203763	燃油管	FUEL LINE	1
-	880552A06	动力头衬垫套件	GASKET SET Powerhead	1
-	880552A07	动力头衬垫套件	GASKET SET Powerhead	1
-	895247A07	动力头总成	POWERHEAD ASSEMBLY	1
-	8M0162888	翻新动力头总成(带附件)	POWERHEAD ASSEMBLY Reman Dressed	1

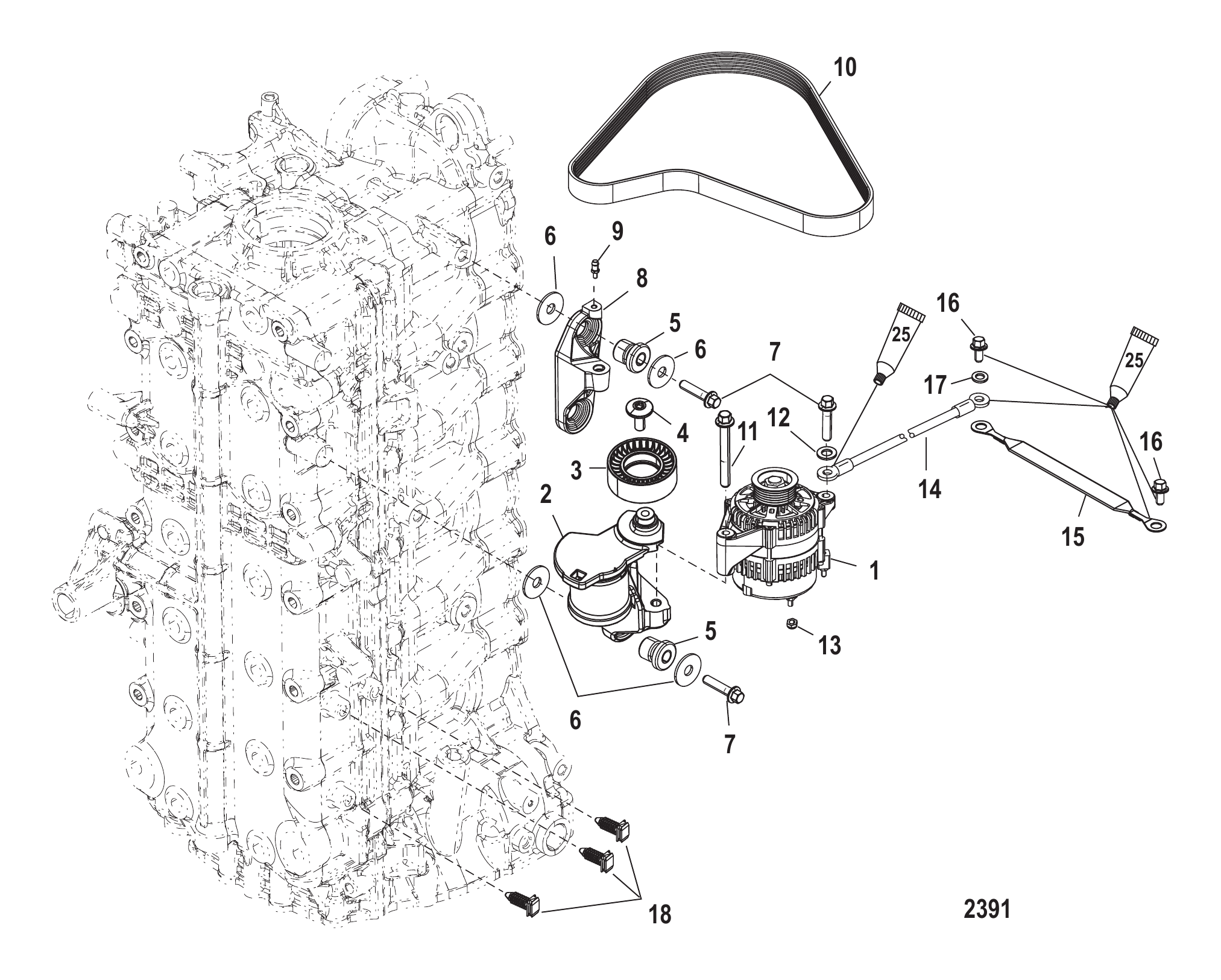

图 5发电机/皮带张紧器安装座 Alternator/Belt Tensioner Mounting

REF	零件编号	中文名称	英文名称	数量
1	892940T	70安培发电机	ALTERNATOR 70 Ampere	1
1	892940T02	交流发电机	ALTERNATOR	1
2	885349T05	皮带张紧器	BELT TENSIONER	1
2	8M0101707	皮带张紧器	BELT TENSIONER	1
3	885349500	滑轮	PULLEY	1
3	8M6003035	滑轮	PULLEY	1
4	885349501	螺钉	SCREW	1
5	855729	支架	MOUNT	4
6	855725	垫圈	WASHER	8
7	88552745	螺丝(M10 x 45)	SCREW (M10 x 45)	5
7	8M0103823	六角法兰螺钉(M10×45)	SCREW (M10 x 45 Hex Flange)	5
8	88535303S	支架	BRACKET	1
8	8M0219204	支架	BRACKET	1
9	888517	销	PIN	1
10	880566014	驱动皮带	BELT Drive	1
10	8M0232583	蛇形皮带	BELT SERPENTINE	1
11	88552785	螺钉(M10×85)	SCREW (M10 x 85)	1
11	8M0103824	螺钉	SCREW	1
12	4002319	垫圈	WASHER	1
13	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
14	856583A09	拉线总成	CABLE ASSEMBLY	1
14	856583A12	拉线总成	CABLE ASSEMBLY	1
15	858414A04	铜编织电缆总成	CABLE ASSEMBLY Brass Braided	1
16	88552516	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	2
16	8M0103805	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	2
17	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
17	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
18	828991	卡扣	CLIP	3
18	828991T	卡扣	CLIP	3

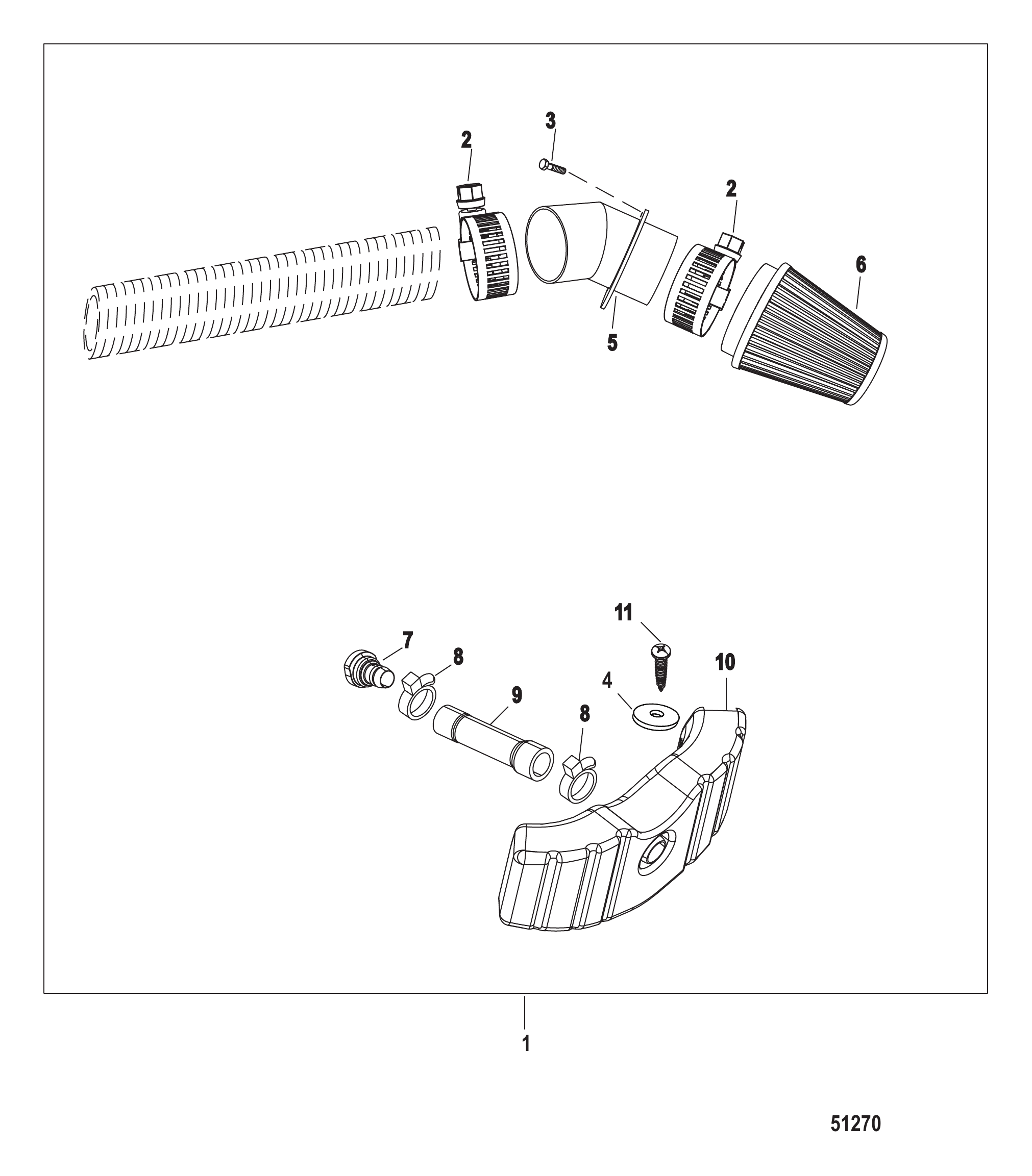

图 6CCT索具套件 CCT Rigging Kit

REF	零件编号	中文名称	英文名称	数量
1	8M0070600	CCT索具套件	RIGGING KIT CCT	1
2	815504216	蜗轮卡箍(1.56直径)	CLAMP Worm Gear (1.56 Diameter)	4
3	79968	螺丝(#12-11 x .750)	SCREW (#12-11 x .750)	3
4	42118	垫圈	WASHER	2
5	NSS	通气管(不单独销售)	NOT SOLD SEPARATE Snorkel	1
6	8M0042287	滤清器	FILTER	1
7	889846	接头	FITTING	1
8	815504272	蜗杆卡箍	CLAMP Worm Gear	2
9	8M0070576	怠速泄压软管	HOSE Idle Relief	1
9	8M0075715	软管	HOSE	1
10	8M0074780	排气集气室	PLENUM Exhaust	1
11	884543	螺钉(#12 x 1.25)	SCREW (#12 x 1.25)	2
11	8M0214982	木螺钉 #12 x 1.25	SCREW Wood, #12 x 1.25	2

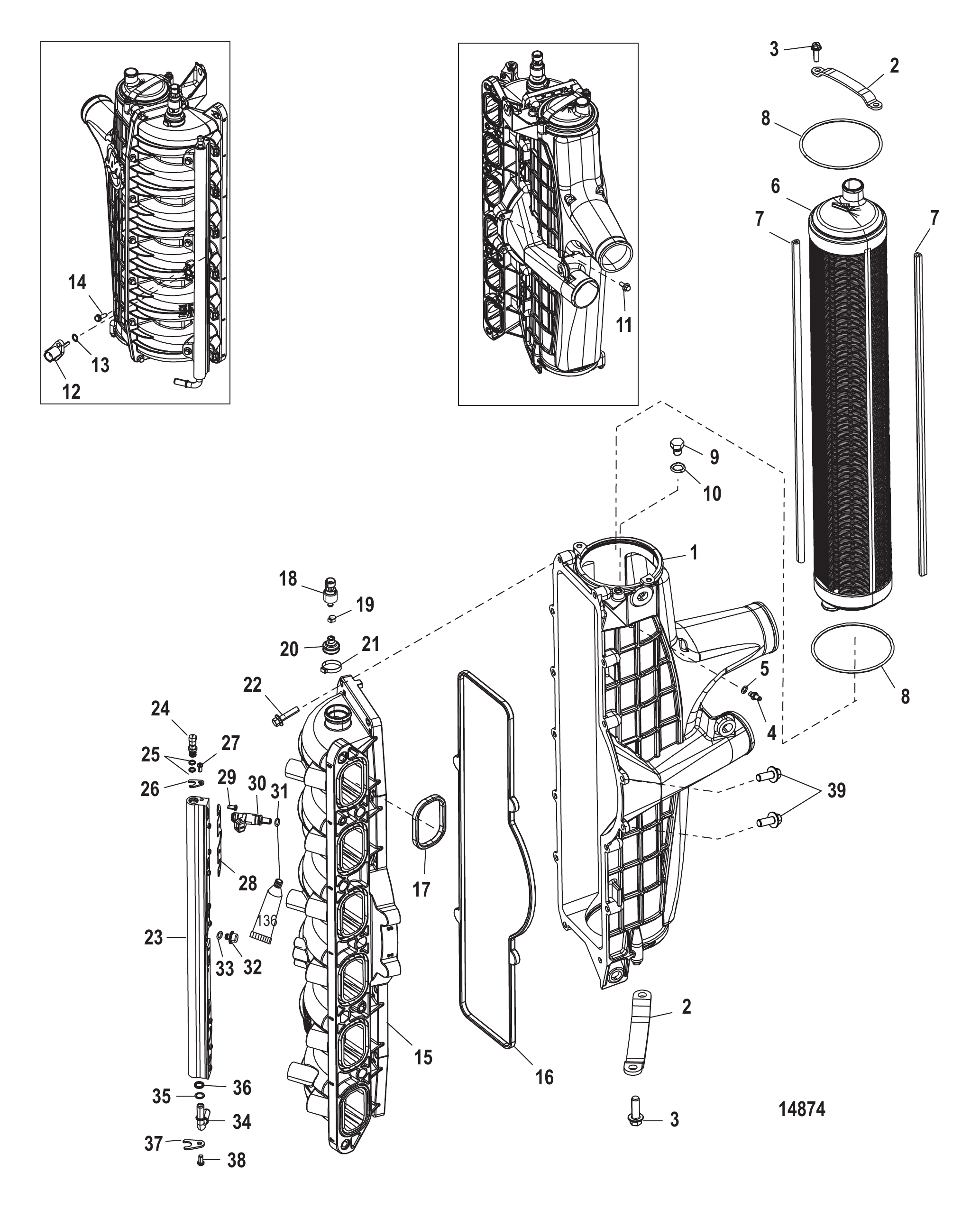

图 7增压冷却器/进气歧管（一代）端盖不可维修 Charge Cooler/Intake Manifold (Gen I) End Cap Not Serviced

REF	零件编号	中文名称	英文名称	数量
-	880608T07	集成式空气燃油模块总成	MODULE ASSEMBLY Intergrated Air Fuel	1
1	880587A03	中冷器总成	CAC ASSEMBLY	1
1	8M0132388	中冷器总成	CAC ASSEMBLY	1
2	895032	绑带	STRAP	2
3	895336	螺钉(M6x18)	SCREW (M6 x 18)	4
3	8M0041014	螺钉(M6x18)	SCREW (M6 x 18)	4
4	895033	接头	FITTING	1
4	8M0039993	接头	FITTING	1
5	NSS	不单独销售 O型圈（895031套件部件）	NOT SOLD SEPARATE O-Ring (Part of 895031 Kit)	1
6	NSS	非单独销售堆叠组件	NOT SOLD SEPARATE Stack Assembly	1
7	NSS	不单独销售密封件	NOT SOLD SEPARATE Seal	1
8	NSS	不单独销售 O型圈（895031套件部件）	NOT SOLD SEPARATE O-Ring (Part of 895031 Kit)	2
9	895034	接头	FITTING	1
9	8M0048079	8毫米塞	PLUG 8MM	1
10	NSS	不单独销售 O型圈（895031套件部件）	NOT SOLD SEPARATE O-Ring (Part of 895031 Kit)	1
11	NSS		NOT SOLD SEPARATE Plate	1
12	891663001	温度传感器	SENSOR Temperature	1
13	892317001	O型圈	O-RING	1
14	895054	螺丝(M4×16毫米)	SCREW (M4 x 16 mm)	2
15	880582T05	进气歧管总成	MANIFOLD ASSEMBLY Intake	1
15	8M0041479	进气歧管总成	MANIFOLD ASSEMBLY Intake	1
16	895019	密封件	SEAL	1
17	895020	密封件	SEAL	6
18	885548002	传感器	SENSOR	1
18	8M0234766	压力传感器	SENSOR PRESSURE	1
19	888988015	卡箍(15.7毫米进气压力传感器至护套)	CLAMP (15.7 mm) Map Sensor to Boot	1
19	8M0214911	卡箍@5	CLAMP @5	1
20	892952500	护套	BOOT	1
21	888988001	卡箍(36.1毫米)	CLAMP (36.1 mm)	1
21	8M0204719	卡箍 36.1毫米	CLAMP 36.1 MM	1
22	895052	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	13
22	8M0103807	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	13
23	895022A01	燃油轨套件	FUEL RAIL KIT	1
23	8M0041080	燃油导轨总成	FUEL RAIL ASSEMBLY	1
24	895028A01	施拉德阀	VALVE Schrader	1
25	895056	O型圈	O-RING	2
26	895026	支架	BRACKET	1
27	895051	螺钉 (M5 x 10)	SCREW (M5 x 10)	1
28	895024	支架	BRACKET	3
29	895051	螺钉 (M5 x 10)	SCREW (M5 x 10)	12
30	8M0006027	燃油喷油器	INJECTOR Fuel	6
30	8M0222278	燃油喷射器	FUEL INJECTOR	6
31	851889	O型圈	O-RING	12
32	895025	减震器	DAMPER	1
33	851889	O型圈	O-RING	1
34	895029A01	燃油进管套件	TUBE KIT Fuel Inlet	1
35	895055	垫圈	WASHER	1
36	895057	O型圈	O-RING	1
37	895027	支架	BRACKET	1
38	895051	螺钉 (M5 x 10)	SCREW (M5 x 10)	1
39	895053	螺丝(M6x15)	SCREW (M6 x 15)	2

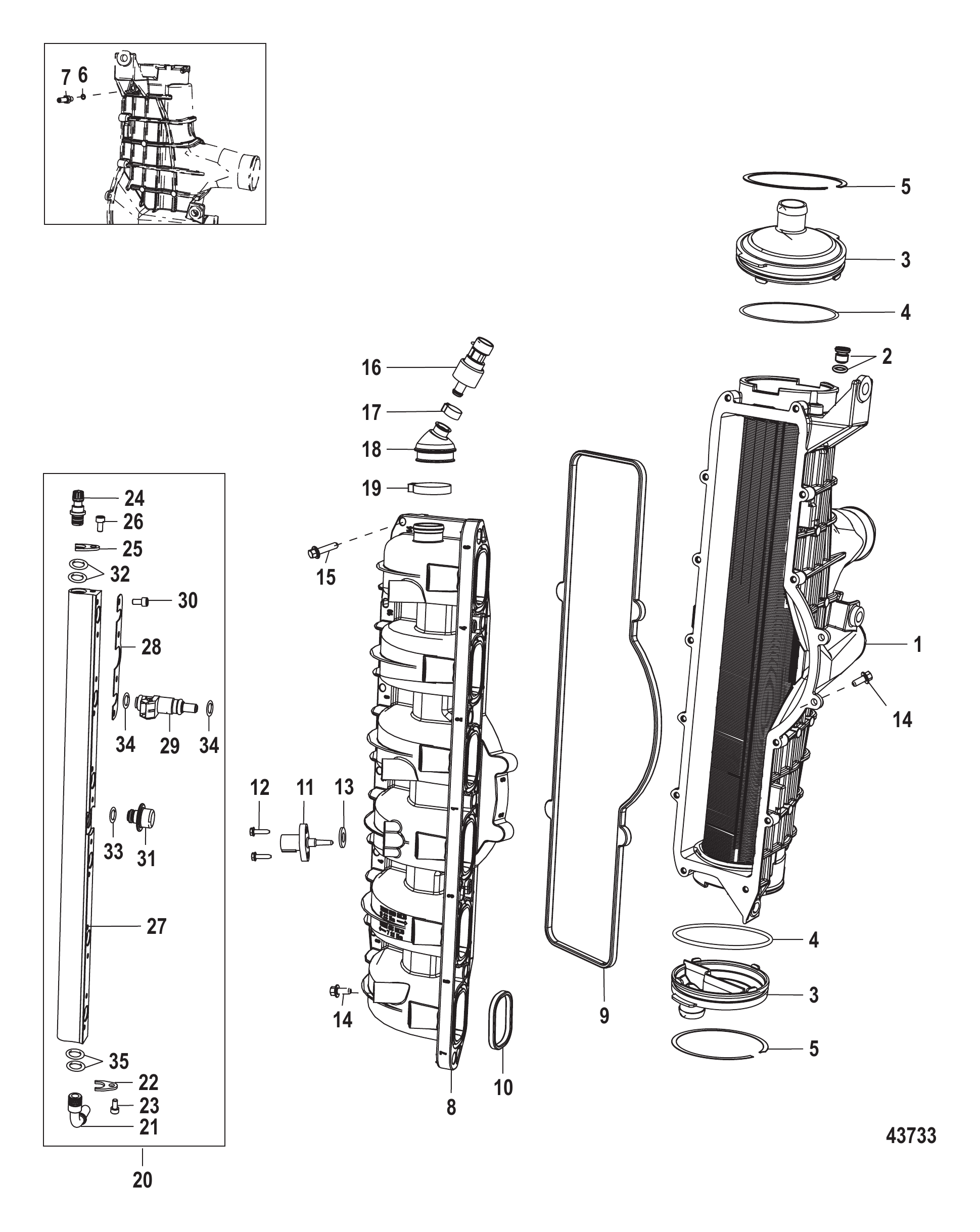

图 8增压冷却器/进气歧管（二代）端盖可维修 Charge Cooler/Intake Manifold (Gen II) End Cap Serviced

REF	零件编号	中文名称	英文名称	数量
-	8M0053763	集成空气燃油模块总成	MODULE ASSEMBLY Integrated Air Fuel	1
-	8M0185613	IAFM	IAFM	1
-	8M0092408	集成空气燃油模块总成	MODULE ASSEMBLY Integrated Air Fuel	1
-	8M0185613	IAFM	IAFM	1
1	8M0046692	中冷器总成	CAC ASSEMBLY	1
1	8M0132388	中冷器总成	CAC ASSEMBLY	1
2	8M0039519	零泄漏螺塞（M8×1.0）	PLUG Zero Leak (M8 x 1.0)	1
2	8M0048079	8毫米塞	PLUG 8MM	1
3	8M0046698	端盖总成	END CAP ASSEMBLY	2
4	8M0039516	O型圈	O-RING	1
5	8M0039464	挡圈	RING Retaining	1
6	8M0040116	O型圈	O-RING	1
7	8M0039993	接头	FITTING	1
8	8M0041479	进气歧管总成	MANIFOLD ASSEMBLY Intake	1
8	8M0083678	进气歧管总成	MANIFOLD ASSEMBLY Intake	1
9	895019	歧管至CAC密封件	SEAL Manifold to CAC	1
10	895020	歧管头部密封件	SEAL Manifold Head	6
11	891663001	温度传感器	SENSOR Temperature	1
12	895054	螺丝(M4×16毫米)	SCREW (M4 x 16 mm)	2
13	892317001	O型圈	O-RING	1
14	88552516	螺钉（M6×16毫米）不锈钢燃油轨至歧管	SCREW (M6 x 16 mm) Stainless Steel Fuel Rail to Manifold	3
14	8M0103805	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	3
14	88552516	螺钉（M6×16毫米）不锈钢CAC至歧管	SCREW (M6 x 16 mm) Stainless Steel CAC to Manifold	2
14	8M0103805	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	2
15	88552525	螺钉（M6×25毫米）不锈钢歧管至CAC	SCREW (M6 x 25 mm) Stainless Steel Manifold to CAC	13
15	8M0103807	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	13
16	8M0010248	传感器压力	SENSOR Pressure	1
16	8M0234766	压力传感器	SENSOR PRESSURE	1
17	888988015	卡箍 (15.7 mm)	CLAMP (15.7 mm)	1
17	8M0214911	卡箍@5	CLAMP @5	1
18	8M0041053	MAP传感器护套	BOOT MAP Sensor	1
19	888988001	卡箍(36.1毫米)	CLAMP (36.1 mm)	1
19	8M0204719	卡箍 36.1毫米	CLAMP 36.1 MM	1
20	8M0041080	燃油导轨总成	FUEL RAIL ASSEMBLY	1
20	8M0185166	燃油导轨总成	FUEL RAIL ASSY	1
21	8M0047054	燃油进管套件	TUBE KIT Fuel Inlet	1
22	8M0041097	固定支架	BRACKET Retaining	1
23	8M0041100	螺钉 (M5 x 10)	SCREW (M5 x 10)	1
24	8M0047053	施拉德阀维修包	VALVE KIT Shrader	1
25	8M0041097	固定支架	BRACKET Retaining	1
26	8M0041100	螺钉 (M5 x 10)	SCREW (M5 x 10)	1
27	NSS	燃油轨不单独销售	NOT SOLD SEPARATE FUEL RAIL	1
28	8M0041096	喷油器安装支架	BRACKET Fuel Injector Mounting	3
29	8M0041571	燃油喷油器总成	INJECTOR ASSEMBLY Fuel	6
29	8M0222278	燃油喷射器	FUEL INJECTOR	6
30	8M0041100	螺钉 (M5 x 10)	SCREW (M5 x 10)	12
31	8M0041101	燃油轨减震器	DAMPER Fuel Rail	1
-	8M0132737	O型圈套件	O-RING KIT	1
32	NSS	不单独销售 O型圈（施拉德阀用）	NOT SOLD SEPARATE O-RING, Shrader Valve	2
33	851889	减震器O型圈	O-RING Damper	1
34	851889	喷油器O型圈	O-RING Fuel Injector	6
35	NSS	O型圈（管用）不单独销售	NOT SOLD SEPARATE O-RING, Tube	2

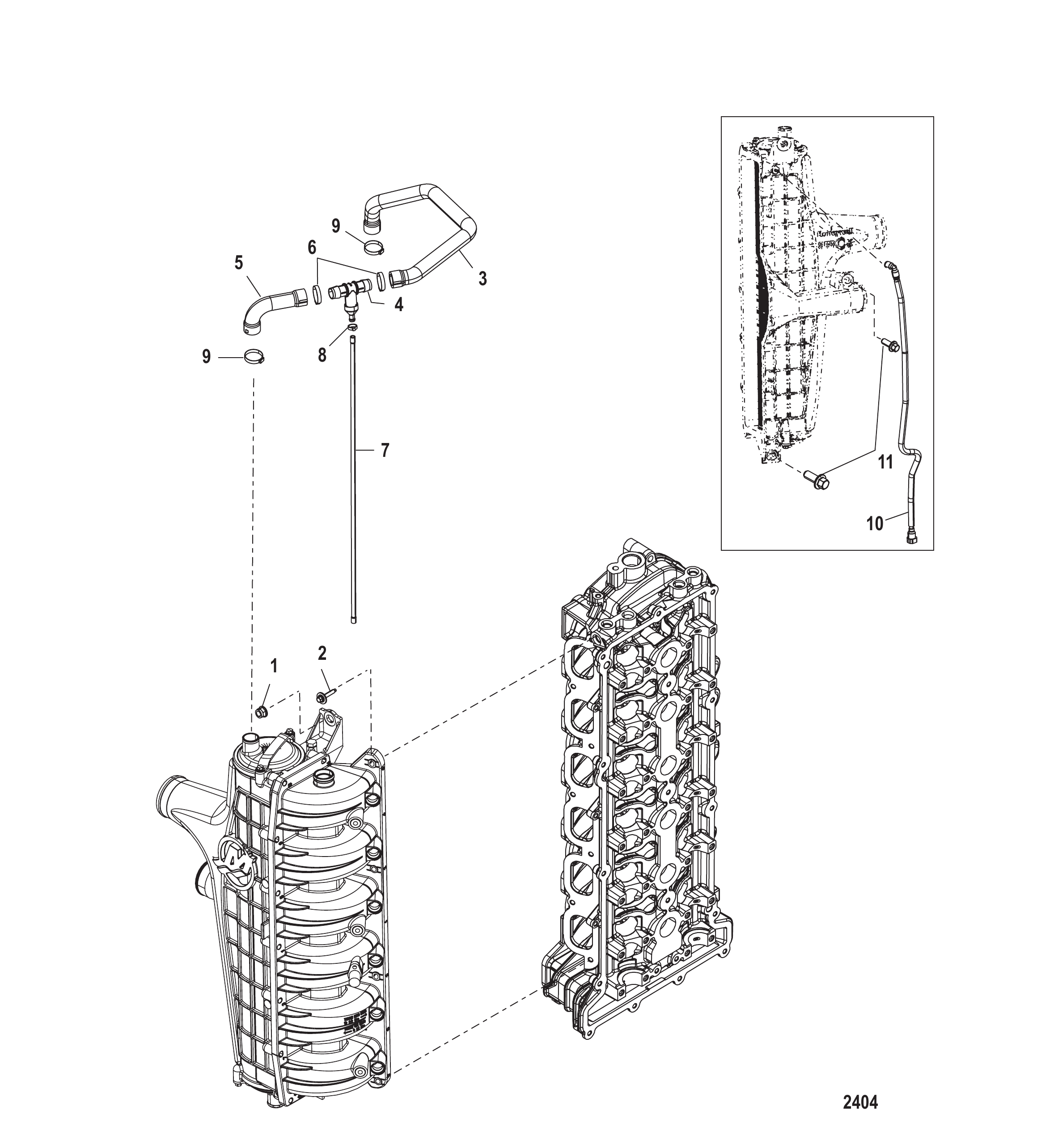

图 9增压冷却器/进气歧管管路布置 Charge Cooler/Intake Manifold Hose Routings

REF	零件编号	中文名称	英文名称	数量
1	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	1
2	892487001	螺钉	SCREW	7
2	8M0048051	不锈钢螺钉(M6x30)	SCREW (M6 x 30) Stainless Steel	7
-	NSS	不单独出售-软管总成	NOT SOLD SEPARATE Hose Assembly	1
3	889593001	软管	HOSE	1
4	889633A02	冲洗接头总成	FITTING ASSEMBLY Flushing	1
4	8M0188433	冲洗接头总成	FITTING ASY-FLUSH	1
4	889633A03	冲洗接头总成	FITTING ASSEMBLY Flushing	1
4	8M0188433	冲洗接头总成	FITTING ASY-FLUSH	1
5	889592001	软管	HOSE	1
6	888988008	卡箍(34.6毫米)	CLAMP (34.6 MM)	2
6	8M0187145	卡箍	CLAMP	2
7	892967	软管	HOSE	1
8	850181	捆扎带(11.750英寸)(11-1/2英寸)	TIE STRAP (11.750 Inches) (11-1/2 IN.)	1
9	888988008	卡箍(34.6毫米)	CLAMP (34.6 MM)	2
9	8M0187145	卡箍	CLAMP	2
10	880529	增压歧管参考软管-上部	HOSE Boost Manifold Reference-Upper	1
10	8M0203767	软管歧管	HOSE MANIFOLD	1
11	88552730	螺钉 (M10 x 30)	SCREW (M10 x 30)	2
11	8M0103821	螺钉	SCREW	2

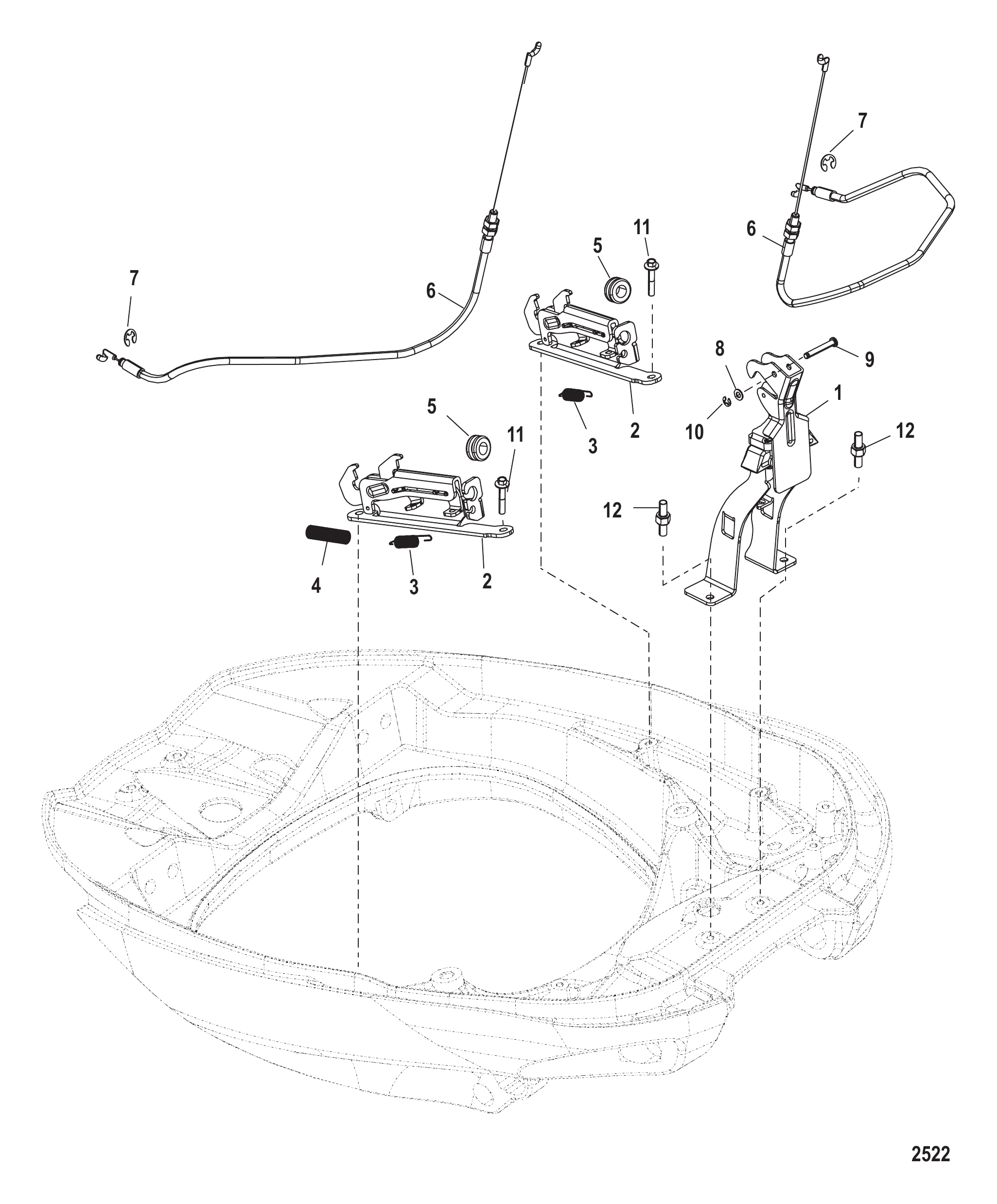

图 10外罩锁扣装置 Cowl Latching

REF	零件编号	中文名称	英文名称	数量
-	892062T02	前侧锁扣总成	LATCH ASSEMBLY Front and Side	1
-	8M0100547	前侧锁扣总成	LATCH ASSEMBLY Front and Side	1
1	888976T01	支架	BRACKET	1
2	888974A02	侧锁扣总成	SIDE LATCH ASSEMBLY	2
3	888996	弹簧	SPRING	4
4	896124	套筒	SLEEVE	4
5	828249	护孔环	GROMMET	2
6	889694	电缆	CABLE	2
6	8M0080491	电缆	CABLE	2
7	27290	挡圈	RING Retaining	2
8	30164	垫圈(0.192x0.375x0.0312)不锈钢	WASHER (.192 x .375 x .0312) Stainless Steel	1
9	893380	U型销	PIN Clevis	1
10	61319	E型卡环	E RING	1
11	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	4
12	889627	螺柱	STUD	2
12	8M0099404	螺柱	STUD	2

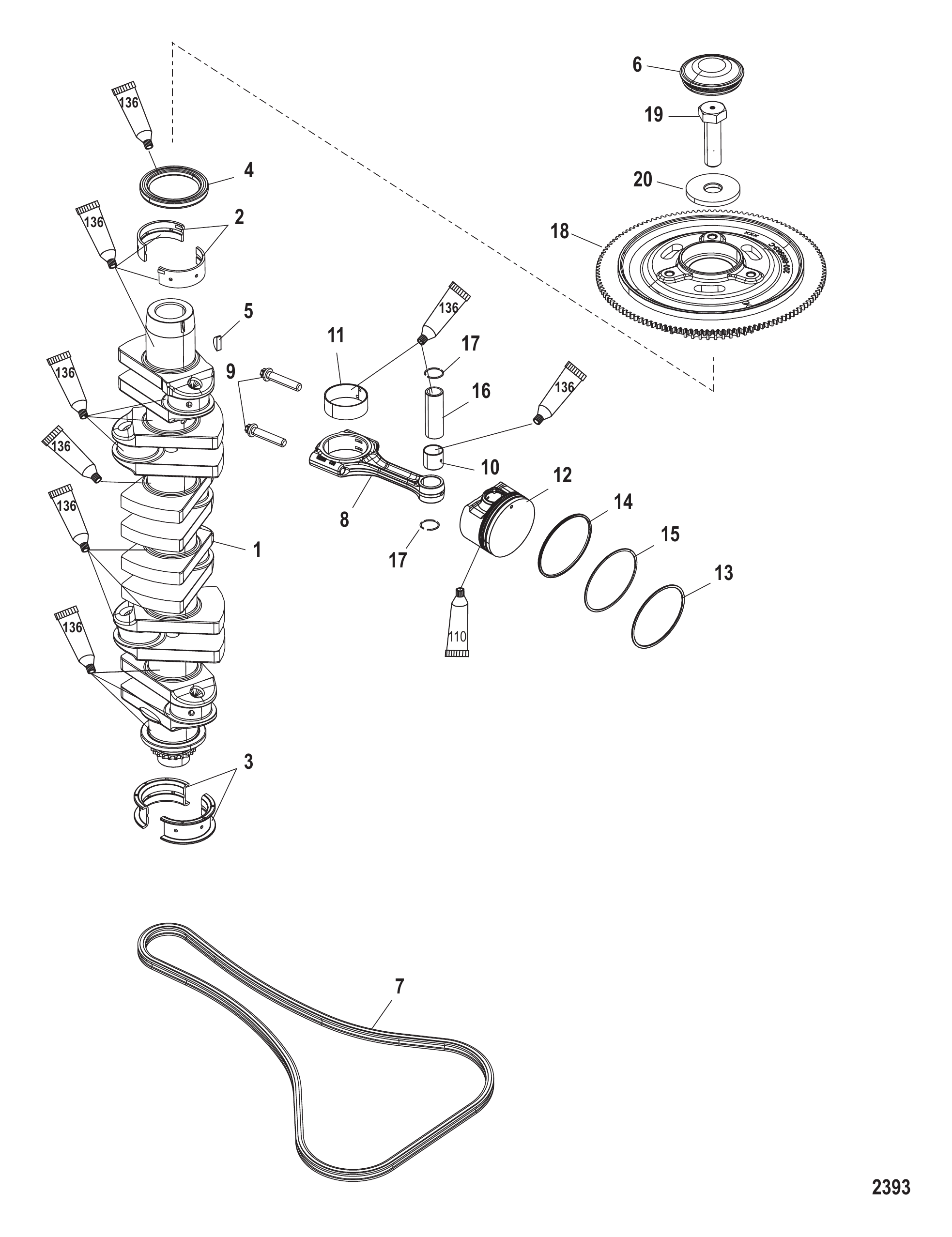

图 11曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	891644A04	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	895715T01	轴承绿色-上曲轴	BEARING Green-Upper Crankshaft	12/AR
2	897498T01	主轴承 - 绿色	BEARING Main - Green	12/AR
2	895715T02	轴承海军蓝-上曲轴	BEARING Navy Blue-Upper Crankshaft	12/AR
2	897498T02	主轴承 - 海军蓝	BEARING Main - Navy Blue	12/AR
2	895715T03	轴承白色-上曲轴	BEARING White-Upper Crankshaft	12/AR
2	897498T03	主轴承 - 白色	BEARING Main - White	12/AR
2	895715T04	轴承橙色-上曲轴	BEARING Orange-Upper Crankshaft	12/AR
2	897498T04	主轴承 - 橙色	BEARING Main - Orange	12/AR
3	895716T01	推力轴承-绿色-下曲轴	BEARING Thrust-Green-Lower Crankshaft	2/AR
3	8M0117003	轴承	BEARING	2/AR
3	895716T02	推力轴承-海军蓝-下曲轴	BEARING Thrust-Navy Blue-Lower Crankshaft	2/AR
3	892309T02	推力轴承 - 海军蓝	BEARING Thrust - Navy Blue	2/AR
3	895716T03	推力轴承-白色-下曲轴	BEARING Thrust-White-Lower Crankshaft	2/AR
3	892309T03	推力轴承 - 白色	BEARING Thrust - White	2/AR
3	895716T04	推力轴承-橙色-下曲轴	BEARING Thrust-Orange-Lower Crankshaft	2/AR
3	8M0117004	轴承	BEARING	2/AR
4	8805251	油封(主轴承顶部)	SEAL Top Main Bearing	1
4	8M0032912	密封件	SEAL	1
5	91800	半圆键	KEY Woodruff	1
6	885348	飞轮螺栓盖	CAP Flywheel Bolt	1
7	880556	链条	CHAIN	1
7	897797A02	张紧/链条套件	TENSION/CHAIN KT	1
8	881210T02	连杆总成	CONNECTING ROD ASSEMBLY	6
8	8M0103285	连杆总成	CONNECTING ROD ASSEMBLY	6
9	884441	螺栓	BOLT	12
10	881211	衬套	BUSHING	6
11	892005A01	连杆轴承-蓝色	BEARING Connecting Rod - Blue	12/AR
11	892005A02	连杆轴承-白色	BEARING Connecting Rod - White	12/AR
11	892005A03	连杆轴承-橙色	BEARING Connecting Rod - Orange	12/AR
12	896092T01	活塞总成	PISTON ASSEMBLY	6
12	897737T01	活塞总成	PISTON ASSEMBLY	6
13	881180A01	活塞环组	RING SET Piston	1
13	881180A02	活塞环组	RING SET Piston	1
14	NSS	活塞环-油环(不单独销售)	NOT SOLD SEPARATE Piston Ring-Oil	6
15	NSS	活塞环-第二道(不单独销售)	NOT SOLD SEPARATE Piston Ring-2nd	6
16	NSS	活塞销（不单独销售）	NOT SOLD SEPARATE Piston Pin	6
17	881184	卡簧	CIRCLIP	12
18	888983T02	飞轮	FLYWHEEL	1
18	888983T03	飞轮总成	FLYWHEEL ASSEMBLY	1
19	880515	螺栓(M20×68)	BOLT (M20 x 68)	1
19	8M0147042	螺栓	BOLT	1
20	880517	垫圈	WASHER	1
20	8M0090010	垫圈	WASHER	1
-	880552A05	动力头衬垫套件	GASKET SET Powerhead	1
-	880552A07	动力头衬垫套件	GASKET SET Powerhead	1
-	895247A05	动力头总成	POWERHEAD ASSEMBLY	1
-	895247A06	动力头总成	POWERHEAD ASSEMBLY	1

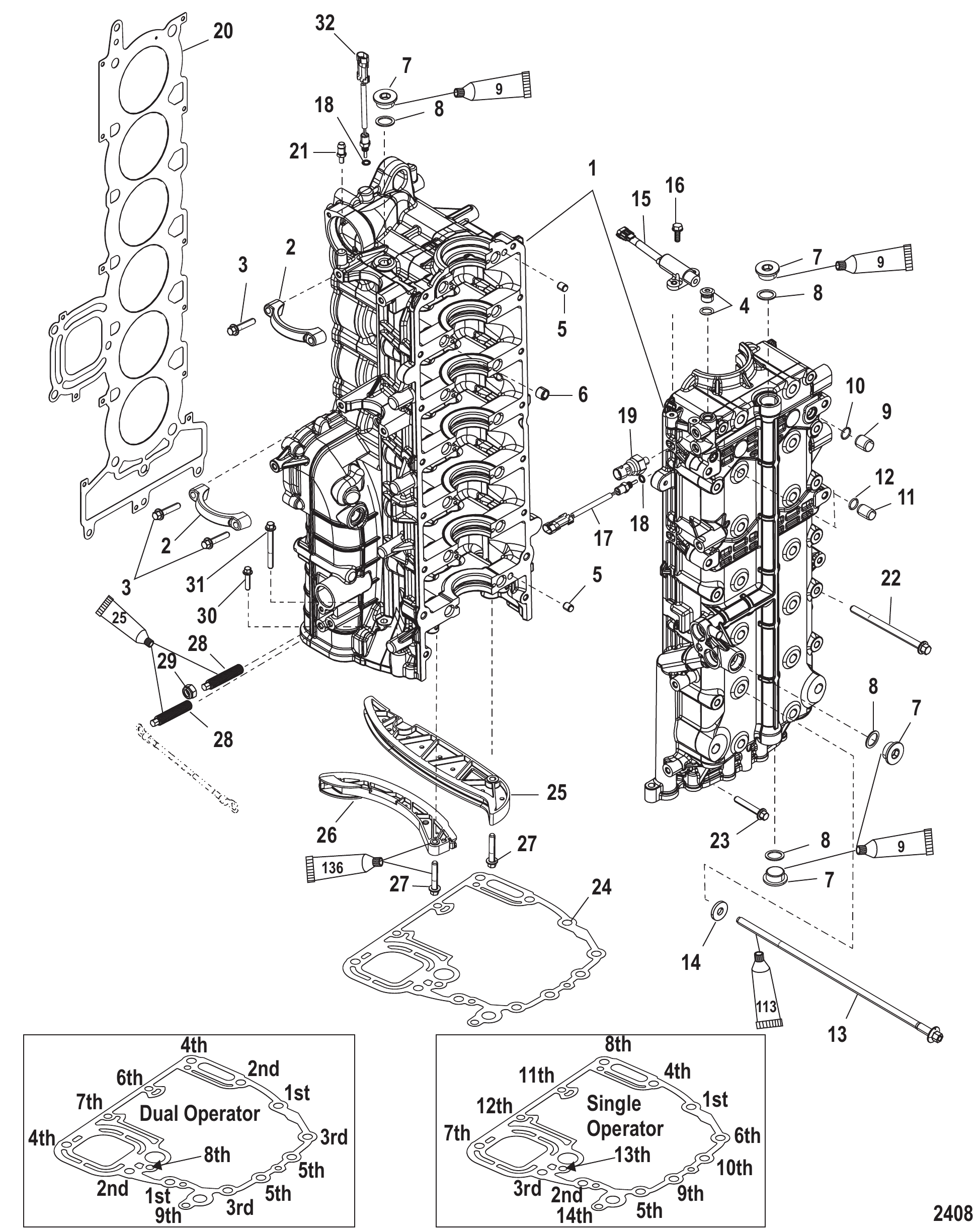

图 12气缸体 Cylinder Block

REF	零件编号	中文名称	英文名称	数量
1	880506A08	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	880506A11	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
2	8569662	起动机安装支架	BRACKET Mounting-Starter Motor	2
2	8M0111325	盖板	COVER	2
3	88552640	螺钉 (M8 x 40)	SCREW (M8 x 40)	4
3	8M0103815	螺钉	SCREW	4
4	889767	堵头（12毫米）	PLUG (12 mm)	1
5	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
6	893392001	减震器	DAMPER	14
7	881855001	堵头	PLUG	4
8	881856001	垫圈	WASHER	4
9	880524	定位销（14毫米）	PIN Dowel (14 MM)	1
10	884409	O型圈	O-RING	1
11	884424	定位销(11毫米)	PIN Dowel (11 mm)	1
12	884423	O型圈	O-RING	1
13	896923	螺钉（M10×342）	SCREW (M10 x 342)	14
13	8M4501000	螺钉（M10×342）	SCREW (M10 X 342)	14
14	892573001	垫圈	WASHER	14
15	8283582	传感器	SENSOR	1
15	8M0082988	曲轴位置传感器	SENSOR Crankshaft Position	1
16	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	2
17	885342001	传感器总成	SENSOR ASSEMBLY	1
17	8M0148668	传感器总成	SENSOR ASSEMBLY	1
18	888814	O型圈(0.351 x 0.072)	O-RING (.351 x .072)	2
18	896699	O型圈（1.78毫米 x 0.08毫米）	O-RING (1.78 mm x .08 mm)	2
19	889659002	机油压力传感器	SENSOR Oil Pressure	1
19	8M0142688	压力传感器(机油/水)	SENSOR Pressure (Oil/Water)	1
20	880552007	衬垫缸盖	GASKET Head	1
20	8M0033476	衬垫缸盖	GASKET Head	1
21	888517	销	PIN	1
22	895810115	螺钉(M8×115)	SCREW (M8 x 115)	12
22	8M0193831	螺丝@2	SCREW @2	12
23	895810050	螺钉(M8 x 50)	SCREW (M8 x 50)	2
23	8M0193659	螺钉	SCREW	2
24	880624003	缸体至适配器衬垫	GASKET Block to Adapter	1
25	880559	固定导套	GUIDE Fixed	1
26	880557	活动导板	GUIDE Moveable	1
27	892456045	螺钉	SCREW	2
28	888849002	螺柱	STUD	2
28	8M0022160	双头螺柱（M8×43）	STUD (M8 x 43)	2
29	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
30	88552635	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	1
30	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	1
31	88552675	螺钉 (M8 x 75)	SCREW (M8 x 75)	1
31	8M0103818	螺丝 (M8x75)	SCREW (M8 X 75)	1
32	885342001	传感器总成	SENSOR ASSEMBLY	1
32	8M0148668	传感器总成	SENSOR ASSEMBLY	1
-	880552A05	动力头衬垫套件	GASKET SET Powerhead	1
-	880552A07	动力头衬垫套件	GASKET SET Powerhead	1
-	895247A05	动力头总成	POWERHEAD ASSEMBLY	1
-	895247A06	动力头总成	POWERHEAD ASSEMBLY	1

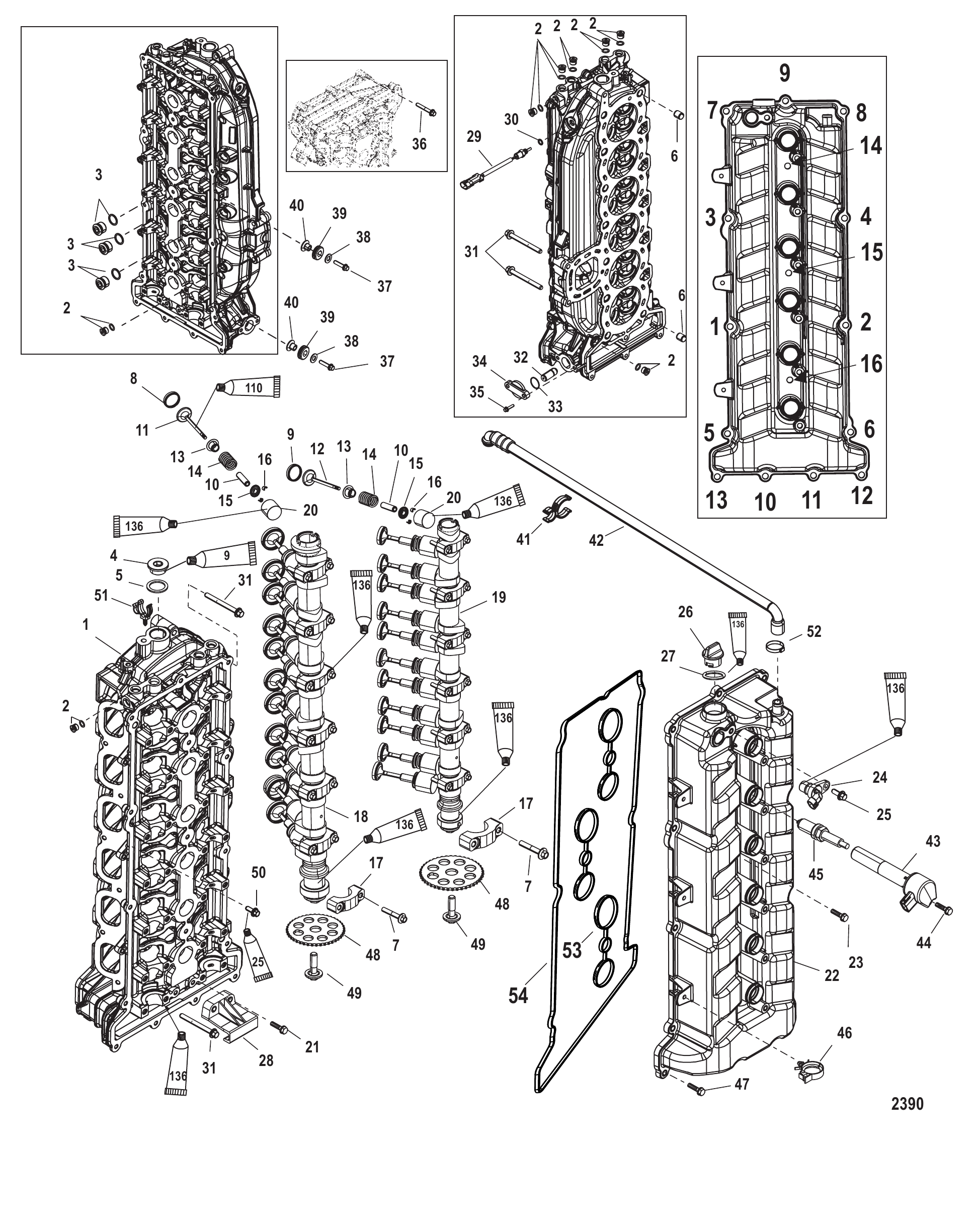

图 13气缸盖与凸轮轴 Cylinder Head and Camshaft

REF	零件编号	中文名称	英文名称	数量
-	880536A10	气缸盖总成完整件	CYLINDER HEAD ASSEMBLY Complete	1
1	880536A08	气缸盖总成	CYLINDER HEAD ASSEMBLY	1
1	8M0152336	气缸盖底座	CYLINDER HEAD BAS	1
2	889767	堵头（12毫米）	PLUG (12 mm)	8
3	891953	堵头（18毫米）	PLUG (18 mm)	3
4	881855001	堵头	PLUG	1
4	896951	堵头（24毫米）	PLUG (24 mm)	1
5	881856001	垫圈	WASHER	1
6	880524	定位销（14毫米）	PIN Dowel (14 MM)	2
7	892454035	螺栓（M6×36）	BOLT (M6 x 36)	28
7	8M0163131	M6螺钉	SCREW M6	28
8	880533	进气门座	SEAT Intake Valve	12
9	880535	排气门座	SEAT Exhaust Valve	12
9	8M0089477	排气门座	SEAT Exhaust Seat	12
10	880537	进排气门导管	GUIDE Intake Exhaust Valve Intake and Exhaust Valves	24
11	880539T	进气阀	VALVE Intake	12
11	898907	进气阀	VALVE Intake	12
12	880540T	排气阀	VALVE Exhaust	12
12	898908	排气阀	VALVE Exhaust	12
13	884410	密封阀与弹簧座	SEAL Valve and Spring Seat	24
13	8M0214986	密封件	SEAL	24
14	895815	进排气门弹簧	SPRING Intake and Exhaust Valve	24
14	8M0011503	弹簧	SPRING	24
15	880542A1	气门锁夹总成	RETAINER ASSEMBLY Valves	24
15	8M0908500	气门锁夹总成	RETAINER ASSEMBLY Valves	24
16	880543	键	KEY	48
17	NSS		NOT SOLD SEPARATE CAP	14
18	892112T02	进气凸轮轴	CAMSHAFT Intake	1
19	892113T02	排气凸轮轴	CAMSHAFT Exhaust	1
19	892113T04	排气凸轮轴	CAMSHAFT Exhaust	1
20	8805481	挺柱	TAPPET	24/AR
20	899912001	挺柱（2.996）	TAPPET (2.996)	24/AR
20	8805482	挺柱	TAPPET	24/AR
20	899912002	挺柱（3.021）	TAPPET (3.021)	24/AR
20	8805483	挺柱	TAPPET	24/AR
20	899912003	挺柱（3.046）	TAPPET (3.046)	24/AR
20	8805484	挺柱	TAPPET	24/AR
20	899912004	挺柱（3.071）	TAPPET (3.071)	24/AR
20	8805485	挺柱	TAPPET	24/AR
20	899912005	挺柱（3.096）	TAPPET (3.096)	24/AR
20	8805486	挺柱	TAPPET	24/AR
20	899912006	挺柱（3.118）	TAPPET (3.118)	24/AR
20	8805487	挺柱	TAPPET	24/AR
20	899912007	挺柱（3.138）	TAPPET (3.138)	24/AR
20	8805488	挺柱	TAPPET	24/AR
20	899912008	挺柱（3.158）	TAPPET (3.158)	24/AR
20	8805489	挺柱	TAPPET	24/AR
20	899912009	挺柱（3.178）	TAPPET (3.178)	24/AR
20	88054810	挺柱	TAPPET	24/AR
20	899912010	挺柱（3.198）	TAPPET (3.198)	24/AR
20	88054811	挺柱	TAPPET	24/AR
20	899912011	挺柱（3.218）	TAPPET (3.218)	24/AR
20	88054812	挺柱	TAPPET	24/AR
20	899912012	挺柱（3.238）	TAPPET (3.238)	24/AR
20	88054813	挺柱	TAPPET	24/AR
20	899912013	挺柱（3.258）	TAPPET (3.258)	24/AR
20	88054814	挺柱	TAPPET	24/AR
20	899912014	挺柱（3.278）	TAPPET (3.278)	24/AR
20	88054815	挺柱	TAPPET	24/AR
20	899912015	挺柱（3.298）	TAPPET (3.298)	24/AR
20	88054816	挺柱	TAPPET	24/AR
20	899912016	挺柱（3.318）	TAPPET (3.318)	24/AR
20	88054817	挺柱	TAPPET	24/AR
20	899912017	挺柱（3.338）	TAPPET (3.338)	24/AR
20	88054818	挺柱	TAPPET	24/AR
20	899912018	挺柱（3.358）	TAPPET (3.358)	24/AR
20	88054819	挺柱	TAPPET	24/AR
20	899912019	挺柱（3.378）	TAPPET (3.378)	24/AR
20	88054820	挺柱	TAPPET	24/AR
20	899912020	挺柱（3.398）	TAPPET (3.398)	24/AR
20	88054821	挺柱	TAPPET	24/AR
20	899912021	挺柱（3.418）	TAPPET (3.418)	24/AR
20	88054822	挺柱	TAPPET	24/AR
20	899912022	挺柱（3.438）	TAPPET (3.438)	24/AR
20	88054823	挺柱	TAPPET	24/AR
20	899912023	挺柱（3.458）	TAPPET (3.458)	24/AR
20	88054824	挺柱	TAPPET	24/AR
20	899912024	挺柱（3.478）	TAPPET (3.478)	24/AR
20	88054825	挺柱	TAPPET	24/AR
20	88054826	挺柱	TAPPET	24/AR
20	88054827	挺柱	TAPPET	24/AR
20	899912027	挺柱（3.538）	TAPPET (3.538)	24/AR
20	88054828	挺柱	TAPPET	24/AR
20	899912028	挺柱（3.558）	TAPPET (3.558)	24/AR
20	88054829	挺柱	TAPPET	24/AR
20	899912029	挺柱（3.578）	TAPPET (3.578)	24/AR
20	88054830	挺柱	TAPPET	24/AR
20	88054831	挺柱	TAPPET	24/AR
20	899912031	挺杆 (3.621)	TAPPET (3.621)	24/AR
20	88054832	挺柱	TAPPET	24/AR
20	88054833	挺柱	TAPPET	24/AR
20	899912033	挺杆 (3.671)	TAPPET (3.671)	24/AR
20	88054834	挺柱	TAPPET	24/AR
20	899912034	挺杆 (3.696)	TAPPET (3.696)	24/AR
20	88054835	挺柱	TAPPET	24/AR
21	892454030	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
22	892596T03	凸轮轴盖	COVER Camshaft	1
22	892596T04	凸轮盖总成	COVER ASSEMBLY Cam	1
23	88552525	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	3
23	8M0103807	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	3
24	880609	传感器总成	SENSOR ASSEMBLY	1
24	8M0233140	传感器	SENSOR	1
25	88552516	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	1
25	8M0103805	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	1
26	859578A1	油塞总成	PLUG ASSEMBLY Oil	1
26	8M0240831	油塞	OIL PLUG	1
27	90196	O型圈 (.921 x .139)	O-RING (.921 x .139)	1
27	8M0204673	O型圈 .921 x .139	O-Ring .921 x .139	1
28	880558	短导杆	GUIDE Short	1
29	885342001	传感器总成	SENSOR ASSEMBLY	1
29	8M0148668	传感器总成	SENSOR ASSEMBLY	1
30	888814	O型圈(0.351 x 0.072)	O-RING (.351 x .072)	1
30	896699	O型圈（1.78毫米 x 0.08毫米）	O-RING (1.78 mm x .08 mm)	1
31	88552660	螺钉 (M8 x 60)	SCREW (M8 x 60)	4
31	8M0103817	螺钉 (M8 x 60)	SCREW (M8 x 60)	4
32	884404A1	张紧器总成	TENSIONER ASSEMBLY	1
32	897797A02	张紧/链条套件	TENSION/CHAIN KT	1
33	880631001	O型圈橙色	O-RING Orange	1
33	8M0237361	O型圈	O-RING	1
34	893338	张紧器端盖	END CAP Tensioner	1
34	8M0064752	凸轮张紧器端盖	END CAP Cam Tensioner	1
35	88552525	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	2
35	8M0103807	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	2
36	88552540	螺钉(M6x40毫米)不锈钢	SCREW (M6 x 40 mm) Stainless Steel	3
36	8M0103809	螺钉(M6x40毫米)不锈钢	SCREW (M6 x 40 mm) Stainless Steel	3
37	88552635	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	2
37	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	2
38	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	2
39	833155	护孔环	GROMMET	2
40	8502341	衬套	BUSHING	2
41	892833	卡扣	CLIP	1
42	889591A03	呼吸软管	BREATHER HOSE	1
43	880615T01	线圈总成	COIL ASSEMBLY	6
44	88552525	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	6
44	8M0103807	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	6
45	889680001	火花塞 NGK-ILFR6G	SPARK PLUG NGK-ILFR6G	6
45	889246Q39	NGK-ILFR6GE火花塞	SPARK PLUG NGK-ILFR6GE	6
46	858954	卡箍(0.625英寸)	CLIP (.625)	3
47	88552525	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	13
47	8M0103807	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	13
48	880550	凸轮驱动链轮	SPROCKET Cam Drive	2
48	8M0241408	凸轮链轮	SPROCKET CAM	2
49	884403	螺钉 (M12 x 40)	SCREW (M12 x 40)	2
49	8M0237436	螺钉	SCREW	2
50	88552512	不锈钢螺钉 (M6 x 12 mm)	SCREW (M6 x 12 mm) Stainless Steel	3
50	8M0103804	不锈钢螺钉 (M6 x 12 mm)	SCREW (M6 x 12 MM) Stainless Steel	3
51	889746	卡扣	CLIP	1
52	888988019	卡箍 (22.6 mm)	CLAMP (22.6 mm)	1
53	892584	密封件	SEAL	1
54	892585	密封件	SEAL	1
-	880552A05	动力头衬垫套件	GASKET SET Powerhead	1
-	895247A05	动力头总成	POWERHEAD ASSEMBLY	1

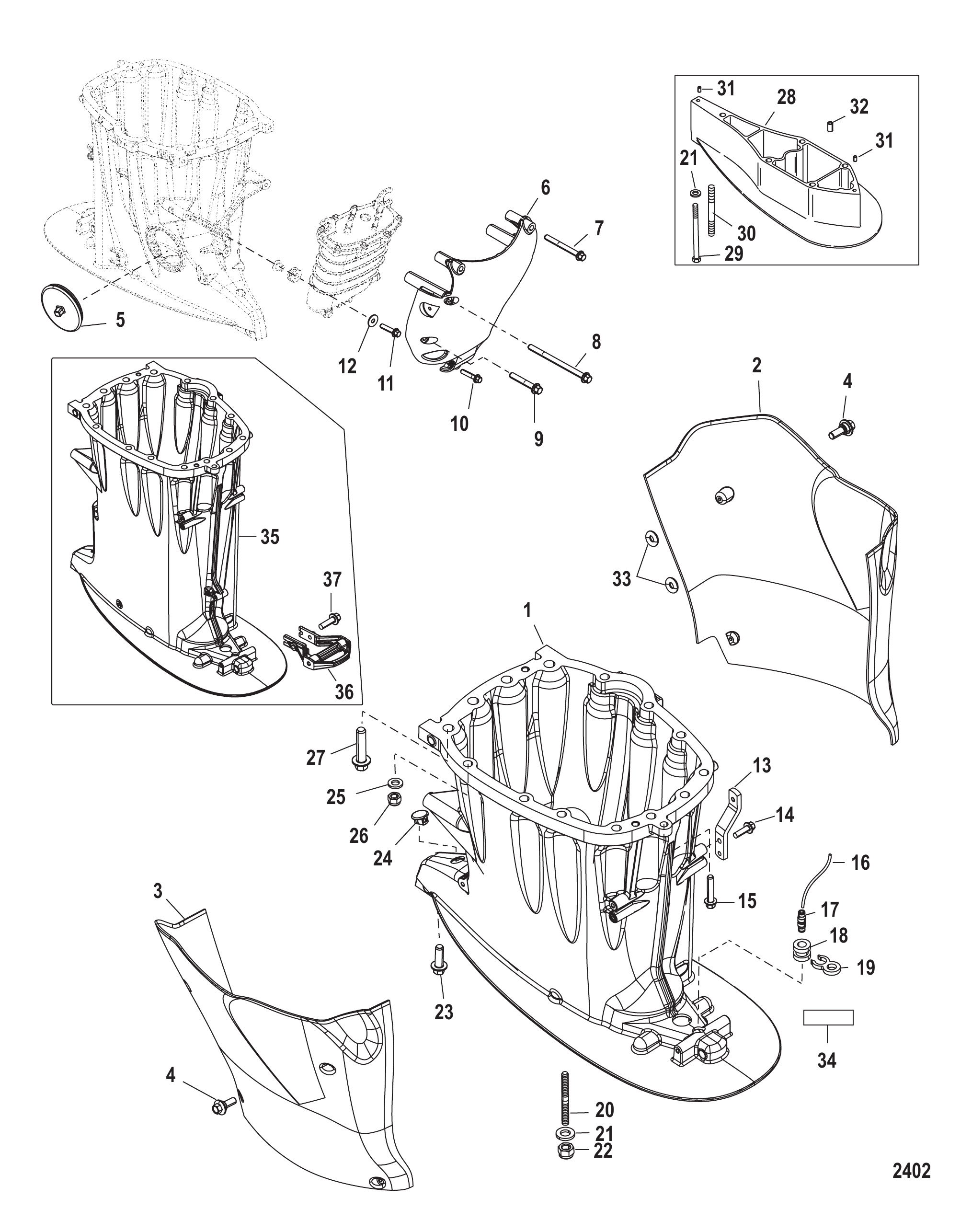

图 14驱动轴壳体 Driveshaft Housing

REF	零件编号	中文名称	英文名称	数量
1	880646T01	驱动轴壳体-黑色	HOUSING Driveshaft, Black	1
1	8M0113286	DSH BLACK L	DSH BLACK L	1
2	885366T01	下部护套总成-左舷	CHAP ASSEMBLY Lower-Port	1
2	885365T03	加长护套总成-左右舷-黑色	CHAP ASSEMBLY Long - Port and Starboard, Black	1
2	885364T01	下部护套总成-左舷	CHAP ASSEMBLY Lower-Port	1
2	885363T04	超长/特超长护套总成-左右舷	CHAP ASSEMBLY X-Long/XX-Long - Port and Starboard	1
3	885365T01	下部护套总成-右舷	CHAP ASSEMBLY Lower-Starboard	1
3	885365T03	加长护套总成-左右舷-黑色	CHAP ASSEMBLY Long - Port and Starboard, Black	1
3	885363T01	下部护套总成-右舷	CHAP ASSEMBLY Lower-Starboard	1
3	885363T04	超长/特超长护套总成-左右舷	CHAP ASSEMBLY X-Long/XX-Long - Port and Starboard	1
4	892073	螺钉	SCREW	4
4	8M0230980	螺丝 (M6x14) 六角法兰B型	SCREW (M6 x 14) Hex Flange B	4
5	889568001	护孔环	GROMMET	1
6	889656T	蒸汽分离器罩	SHROUD Vapor Separator	1
6	889656T01	护罩	SHROUD	1
7	88552675	螺钉 (M8 x 75)	SCREW (M8 x 75)	2
7	8M0103818	螺丝 (M8x75)	SCREW (M8 X 75)	2
8	885526120	螺丝 (M8x120)	SCREW (M8 x 120)	2
8	8M0103812	螺钉	SCREW	2
9	88552650	螺钉(M8 x 50)	SCREW (M8 x 50)	2
9	8M0103816	螺丝 M8x50 六角法兰	SCREW M8 x 50 HEX FLG	2
10	88552640	螺钉 (M8 x 40)	SCREW (M8 x 40)	1
10	8M0103815	螺钉	SCREW	1
11	88552635	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
11	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
12	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	3
13	897784A01	上部护套支架套件	BRACKET KIT Upper Chap	2
14	88552520	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	2
14	8M0103806	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	2
15	88552630	螺钉 (M8 x 30)	SCREW (M8 x 30)	1
15	8M0103813	螺钉 (M8 x 30)	SCREW (M8 x 30)	1
16	85944975	管材 (72英寸整卷) 裁切至26英寸	TUBING (72.00 Inches Bulk) Cut to 26 Inches	1
17	859448	接头	FITTING	1
17	859448T	接头	FITTING	1
18	821555001	护孔环	GROMMET	1
18	8M0153609	护孔环	GROMMET	1
19	889831	固定座	RETAINER	1
20	856983	双头螺柱(M12 x 52)	STUD (M12 x 52)	4
20	8M0008031	双头螺柱(M12 x 1.75 x 52)	STUD (M12 x 1.75 x 52)	4
21	856982	垫圈(0.5×0.81×0.09英寸)不锈钢	WASHER (.500 x .810 x .090) Stainless Steel	4 or 5
22	857008	螺母(M12×1.75)	NUT (M12 x 1.75)	4
22	896895	螺母(M12)	NUT (M12)	4
23	88552835	螺钉(M12×35毫米)	SCREW (M12 x 35 MM)	1
23	8M0102995	螺丝 (M12)	SCREW (M12)	1
24	824928001	橡胶塞	PLUG Rubber	1
25	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	10
25	8M0214963	垫圈	WASHER	10
26	884412	螺母	NUT	10
27	88552845	螺丝 (M12x45)	SCREW (M12 x 45)	4
27	8M0103825	螺丝@2	SCREW @2	4
28	880647T	隔套	SPACER	1
28	8M0105088	传动轴壳体加长隔套（黑色）	SPACER Driveshaft Housing X-Long, Black	1
29	857137	螺钉 (M12 X 160)	SCREW (M12 x 160)	1
30	857009	双头螺柱（M12×179）	STUD (M12 x 179)	4
30	8M0008047	双头螺柱（M12×179）	STUD (M12 x 179)	4
31	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
32	855623	衬套	BUSHING	1
33	896251	O型圈	O-RING	2
33	898033	卡扣	CLIP	2
34	NSS	非单独销售贴纸-放油口	NOT SOLD SEPARATE Decal-Oil Drain	1
35	880648T01	驱动轴壳体-黑色	HOUSING Driveshaft, Black	1
35	8M0113287	驱动轴壳体黑色加长型	DSH BLACK XL	1
36	891966006	外罩支架	BRACKET Cowl	2
37	88552520	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	2
37	8M0103806	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	2
-	895247A05	动力头总成	POWERHEAD ASSEMBLY	1
-	895247A06	动力头总成	POWERHEAD ASSEMBLY	1

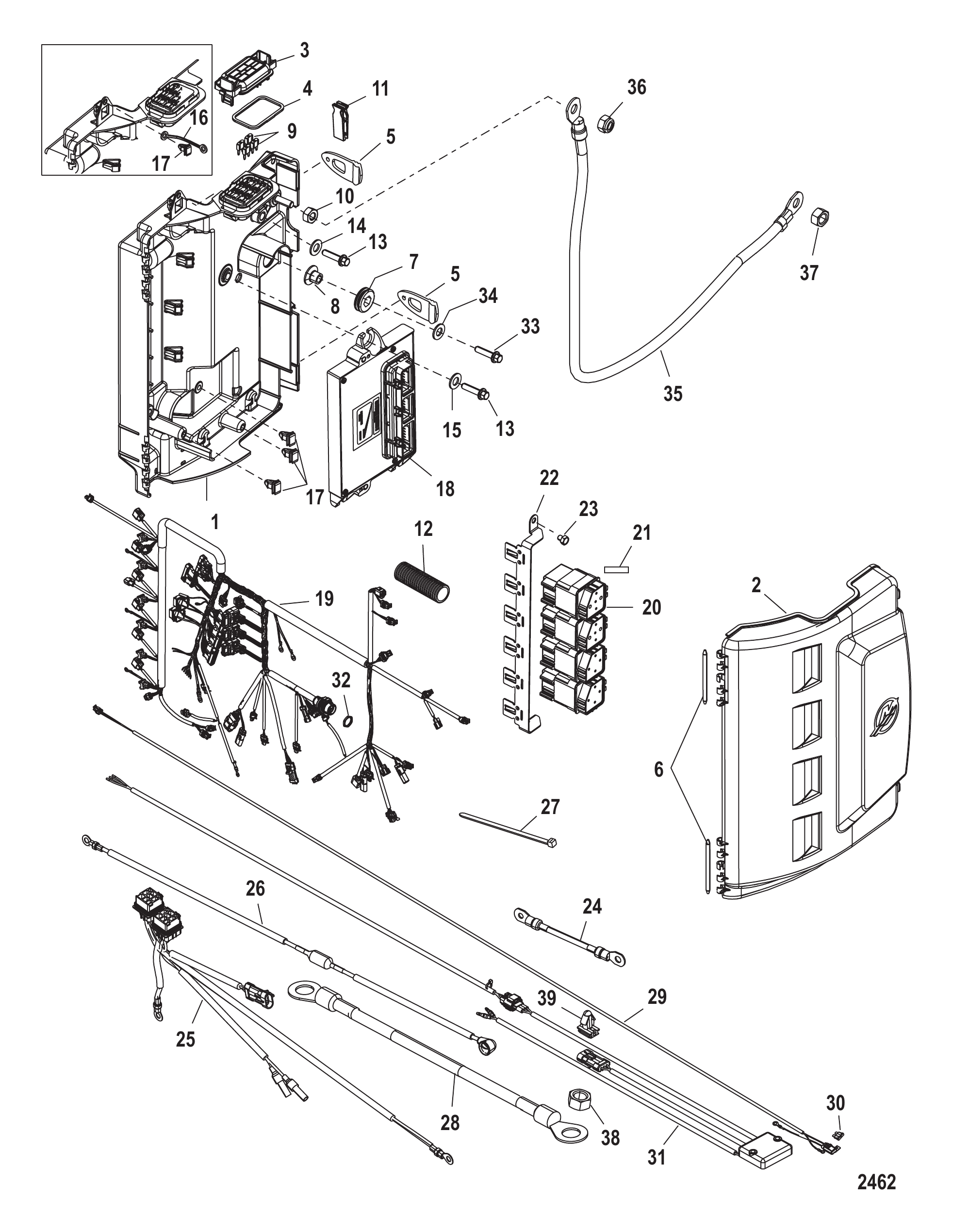

图 15电气箱组件 Electrical Box Components

REF	零件编号	中文名称	英文名称	数量
-	NSS	不单独销售电气箱总成	NOT SOLD SEPARATE Electrical Box-Complete	1
-	NSS	不单独销售电气箱	NOT SOLD SEPARATE Electrical Box	1
1	885560T01	电气箱底座	BASE Electricl box	1
1	885560T03	电气箱底座	BASE Electrical Box	1
2	885561T	保险丝盒盖	COVER Fuse Box	1
3	888491	盖板	COVER	1
3	8M0167280	保险丝盖	FUSE COVER	1
4	885583	密封件	SEAL	1
5	889531	绑带	STRAP	2
6	885584	铰链销	PIN Hinge	2
7	833155	护孔环	GROMMET	1
8	8502341	衬套	BUSHING	1
9	83296920	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	7
9	832969T20	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	7
10	400213	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
11	895099	保险丝拔取器	EXTRACTOR Fuse	1
12	828547753	导管（内径0.750英寸×3英尺散装）	CONDUIT (.750 Inside Diameter x 3.00 Feet Bulk)	1
13	40011146	螺钉（M8×13不锈钢）	SCREW (M8 x 13) Stainless Steel	2
14	843108	垫圈（.330 x .560 x .060）不锈钢	WASHER (.330 x .560 x .060) Stainless Steel	1
15	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	1
16	892244	盖板固定带	STRAP Cover	1
17	892448	卡扣	CLIP	5
18	88555802T	推进控制模块PCM	PCM Propulsion Control Module	1
18	89790717T	PCM控制模块	PCM	1
18	88555803T	推进控制模块PCM	PCM Propulsion Control Module	1
18	89790718T	PCM控制模块	PCM	1
18	88555814T	推进控制模块PCM	PCM Propulsion Control Module	1
18	89790719T	PCM控制模块	PCM	1
18	88555815T	推进控制模块PCM	PCM Propulsion Control Module	1
18	89790720T	PCM控制模块	PCM	1
19	880616T04	发动机线束总成	HARNESS ASSEMBLY Engine	1
-	NSS	不单独销售继电器支架总成	NOT SOLD SEPARATE Relay Bracket Assembly	1
20	882751A04	继电器总成	RELAY ASSEMBLY	4
21	NSS	标贴(不单独销售)	NOT SOLD SEPARATE Decal	4
22	889532	支架	BRACKET	1
23	40007103	螺钉 (M5 x 6)	SCREW (M5 x 6)	2
24	93388A17	线缆总成(8.50英寸)	CABLE ASSEMBLY (8.50 Inches)	1
25	819514A20	升降线束总成	HARNESS ASSEMBLY Trim	1
25	879345T34	升降线束总成	HARNESS ASSEMBLY Trim	1
26	892137A01	保险丝线束总成	HARNESS ASSEMBLY Fuse	1
26	892137A02	线束总成	HARNESS ASSY	1
27	850181	捆扎带(11.750英寸)	TIE STRAP (11.750 Inches)	6
27	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
28	88439A26	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
29	888416A1	线束总成 CHI电源	HARNESS ASSEMBLY CHI Power	1
29	8M0113732	DTS清洁电源线束总成(14英尺)	HARNESS ASSEMBLY DTS, Clean Power, 14 Feet	1
30	862646	褐色保险丝-5安培	FUSE Tan - 5 Ampere	1
31	883459A1	线束总成-电子油门船用适配器	HARNESS ASSEMBLY DBW Boat Adaptor	1
31	883459T01	线束适配器	HARNESS-ADAPTOR	1
32	889664	螺母(1.500-18)尼龙黑	NUT (1.500-18) Black Nylon	1
33	88552635	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	1
33	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	1
34	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	1
35	88439A25	电缆总成蓄电池-正极	CABLE ASSEMBLY Battery - Positive	1
36	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	5
37	86226	螺母(.375-16 蓄电池正极电缆)	NUT (.375-16) Battery Cable-Positive	1
37	8M0204671	螺母	NUT	1
38	68292	螺母(.312-18 蓄电池负极电缆)	NUT (.312-18) Battery Cable-Negative	1
38	8M0204668	螺母(.312-18)	NUT (.312-18)	1
39	879962	卡扣	CLIP	1

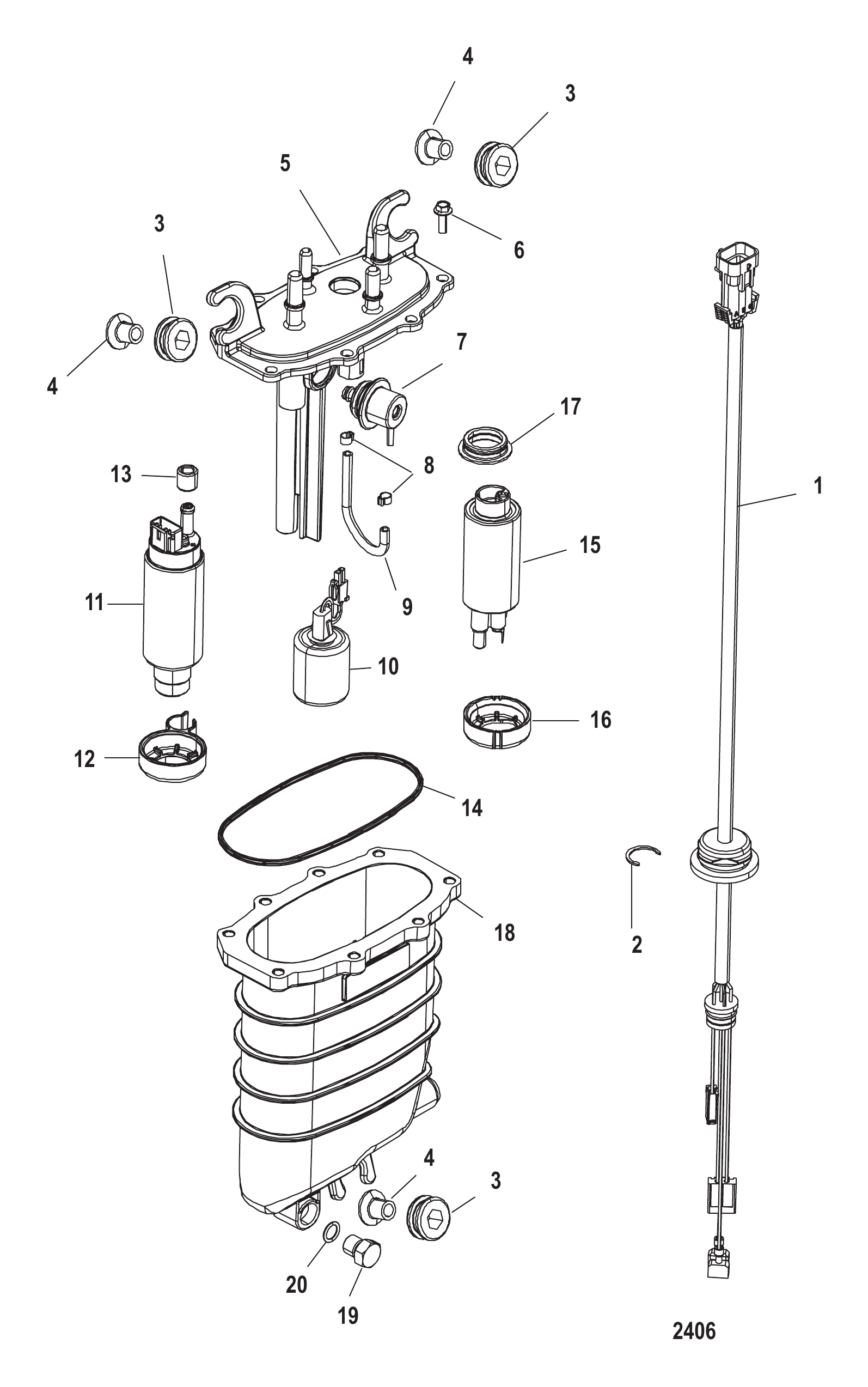

图 16燃油供给模块 Fuel Supply Module

REF	零件编号	中文名称	英文名称	数量
-	880596T02	燃油供应模块	MODULE Fuel Supply	1
-	8M0130899	燃油供应模块	FUEL SUPPLY MOD	1
1	880596514	线束总成	HARNESS ASSEMBLY	1
1	8M0130900	线束总成	HARNESS ASSY	1
2	880596515	卡扣	CLIP	1
3	855362001	护孔环	GROMMET	3
4	855364	衬套	BUSHING	3
5	880596T50	盖板套件	COVER KIT	1
6	880596513	螺钉	SCREW	8
7	880596503	带O型圈的调节器	REGULATOR With O-Rings	1
8	880596512	卡箍	CLAMP	2
9	880596511	软管	HOSE	1
9	880596A05	软管套件	HOSE KIT	1
10	880596504	浮子	FLOAT	1
10	8M6000359	浮子	FLOAT	1
11	880596T55	燃油泵总成-高压	PUMP ASSEMBLY Fuel - High Pressure	1
12	880596506	密封件	SEAL	1
13	880596507	密封件	SEAL	1
14	880596502	密封件	SEAL	1
15	880596T58	燃油提升泵套件	PUMP KIT Fuel - Lift	1
16	880596509	隔离器	ISOLATOR	1
17	880596510	密封件	SEAL	1
18	880596T51	壳体总成	HOUSING ASSEMBLY	1
18	880596501	壳体	HOUSING	1
19	880596516	堵头	PLUG	1
20	880596517	O型圈	O-RING	1
-	880596A01	密封修理包	REPAIR KIT Seal	1

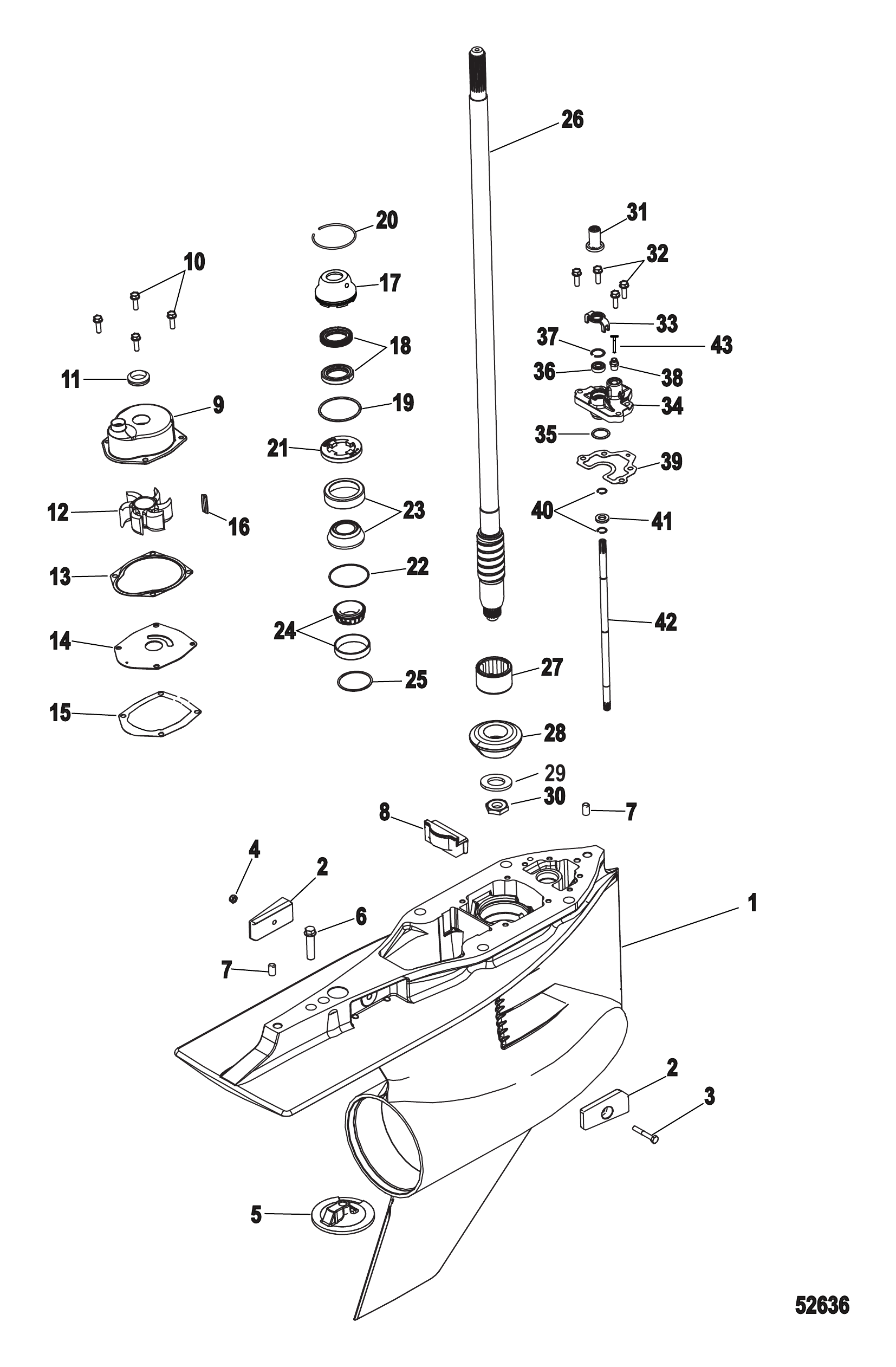

图 17齿轮箱，驱动轴，5.44鱼雷型，序列号1B980360及以上 Gear Housing, Driveshaft, 5.44 Torpedo, SN 1B980360 and Up

REF	零件编号	中文名称	英文名称	数量
-	8M0078246	齿轮箱总成(黑色标准长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Standard Long)(1.85:1)	1
-	8M0089983	齿轮箱总成(银色标准长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Standard Long)(1.85:1)	1
-	8M0228059	GC-L6 S 1.85 L	GC-L6 S 1.85 L	1
-	8M0078247	齿轮箱总成(黑色标准加长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Standard X-Long)(1.85:1)	1
-	8M0236284	GC VER 1.85 B XL	GC VER 1.85 B XL	1
-	8M0089985	齿轮箱总成(银色标准加长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Standard X-Long)(1.85:1)	1
-	8M0236237	GC-L6 S 1.85 XL	GC-L6 S 1.85 XL	1
-	8M0078249	齿轮箱总成(黑色标准超长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Standard XX-Long)(1.85:1)	1
-	8M0236286	GC VER 1.85 XXL	GC VER 1.85 XXL	1
-	8M0089987	齿轮箱总成(银色标准超长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Standard XX-Long)(1.85:1)	1
-	8M0117243	GC-L6 S 1.85 XXL	GC-L6 S 1.85 XXL	1
-	8M0078251	齿轮箱总成(黑色反转向长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Counter Rotation-Long)(1.85:1)	1
-	8M0117257	GC VER 1.85 CL	GC VER 1.85 CL	1
-	8M0089984	齿轮箱总成(银色反转向长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Counter Rotation-Long)(1.85:1)	1
-	8M0228060	GC-L6 S 1.85 CL	GC-L6 S 1.85 CL	1
-	8M0078248	齿轮箱总成(黑色反转向加长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Counter Rotation X-Long)(1.85:1)	1
-	8M0236285	GC VER 1.85 CXL	GC VER 1.85 CXL	1
-	8M0089986	齿轮箱总成(银色反转向加长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Counter Rotation X-Long)(1.85:1)	1
-	8M0228062	GC-L6 S 1.85 CXL	GC-L6 S 1.85 CXL	1
-	8M0078250	齿轮箱总成(黑色反转向超长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Counter Rotation XX-Long)(1.85:1)	1
-	8M0236287	GC VER 1.85 CXXL	GC VER 1.85 CXXL	1
-	8M0089988	齿轮箱总成(银色反转向超长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Counter Rotation XX-Long)(1.85:1)	1
-	8M0117244	GC-L6 S 1.85 CXXL	GC-L6 S 1.85 CXXL	1
-	8M0078252	齿轮箱总成(标准长型)(速比1.75:1)	GEAR HOUSING ASSEMBLY Complete (Standard Long)(1.75:1)	1
-	8M0078253	齿轮箱总成(标准加长型)(速比1.75:1)	GEAR HOUSING ASSEMBLY Complete (Standard X-Long)(1.75:1)	1
-	8M0102481	银色齿轮箱总成	GEAR HOUSING ASSEMBLY Complete, Silver	1
-	8M0078255	齿轮箱总成(标准超长型)(速比1.75:1)	GEAR HOUSING ASSEMBLY Complete (Standard XX-Long)(1.75:1)	1
-	8M0102482	银色齿轮箱总成	GEAR HOUSING ASSEMBLY Complete, Silver	1
-	8M0078257	齿轮箱总成(反转向长型)(速比1.75:1)	GEAR HOUSING ASSEMBLY Complete (Counter Rotation-Long)(1.75:1)	1
-	8M0102483	银色齿轮箱总成	GEAR HOUSING ASSEMBLY Complete, Silver	1
-	8M0078254	齿轮箱总成(反转向加长型)(速比1.75:1)	GEAR HOUSING ASSEMBLY Complete (Counter Rotation X-Long)(1.75:1)	1
-	8M0102484	银色齿轮箱总成	GEAR HOUSING ASSEMBLY Complete, Silver	1
-	8M0078256	齿轮箱总成(反转向超长型)(速比1.75:1)	GEAR HOUSING ASSEMBLY Complete (Counter Rotation XX-Long)(1.75:1)	1
-	8M0102485	银色齿轮箱总成	GEAR HOUSING ASSEMBLY Complete, Silver	1
1	8M0053108	基础型黑色齿轮箱总成	GEAR HOUSING ASSEMBLY Basic, Black	1
1	8M0117258	GC BASIC BLACK	GC BASIC BLACK	1
1	8M0053107	齿轮箱总成基础款银色	GEAR HOUSING ASSEMBLY Basic, Silver	1
1	8M0228048	GC - BASIC	GC - BASIC	1
2	826134Q	阳极块	ANODE	2
3	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
4	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
5	76214Q5	阳极套件	ANODE KIT	1
6	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
6	8M0204686	螺钉	SCREW	1
7	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
8	8M0010459	填充块	FILLER BLOCK	1
9	817275A1	水泵壳体套件	HOUSING KIT Water Pump	1
10	1993720	螺钉 (M6 x 20)	SCREW (M6 x 20)	4
10	8M0204706	螺丝M6x20六角	SCREW M6 x 20 Hex	4
-	8M0057717	叶轮维修套件	IMPELLER REPAIR KIT	1
-	8M0100526	水泵叶轮维修套件	REPAIR KIT Water Impeller	1
11	8M2014338	端面密封	SEAL Face	1
11	8M0142851	V型面密封环	V RING Face Seal	1
12	43026Q02	叶轮	IMPELLER	1
13	8172771	水泵上垫片	GASKET Water Pump, Upper	1
14	8172761	面板	FACEPLATE	1
14	8M0204709	面板	FACEPLATE	1
15	8M0050720	衬垫	GASKET	1
15	8M0142616	衬垫面板至齿轮箱	GASKET Face Plate to Gearcase	1
16	8M0032833	键	KEY	1
16	8M0204723	键	KEY	1
17	8M0046297	油封载体总成	OIL SEAL CARRIER ASSEMBLY	1
18	NSS		NOT SOLD SEPARATE SEAL	2
19	896523	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
19	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
20	880719	挡圈	RING Retaining	1
21	8245191	固定座	RETAINER	1
22	8M0053110	垫片组	SHIM SET	1
22	8M0063267	垫片组	SHIM SET	1
23	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
23	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
24	48939A2	圆锥滚子轴承	BEARING Taper Roller	1
24	8M0146553	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
25	38657A1	垫片组	SHIM ASSEMBLY	1
25	8M0063268	垫片组	SHIM SET	1
26	8M0053106	驱动轴	DRIVESHAFT	1
26	8M0149608	长型驱动轴总成	DRIVESHAFT ASSEMBLY Long	1
26	8M0053105	驱动轴	DRIVESHAFT	1
26	8M0141337	驱动轴总成 X加长型	DRIVESHAFT ASSEMBLY X-Long	1
26	8M0103304	驱动轴(超长型)	SHAFT Drive, XX-Long	1
26	8M0141338	驱动轴总成(超长型)	DRIVESHAFT ASSEMBLY XX-Long	1
27	8M0045676	滚柱轴承	BEARING Roller	1
28	8M0078259	齿轮组13/24(速比1.85:1)前进档与小齿轮	GEAR SET 13/24(1.85:1) Forward and Pinion	1
28	8M0078258	标准转向齿轮组(前进档/小齿轮)(速比1.75)(12/21)前进档与小齿轮	GEAR SET Standard Rotation, Forward/Pinion, 1.75 Ratio (12/21) Forward and Pinion	1
28	8M0053119	齿轮组13/24(速比1.85:1)前进档与小齿轮	GEAR SET 13/24 (1.85:1) Forward and Pinion	1
28	8M0053120	反转向齿轮组(前进档/小齿轮)(速比1.75)(12/21)前进档与小齿轮	GEAR SET Counter Rotation, Forward/Pinion, 1.75 Ratio (12/21) Forward and Pinion	1
29	8M0062703	小齿轮螺母垫圈	WASHER Pinon nut	1
30	8M0046636	小齿轮螺母	NUT Pinion	1
31	43585	联轴器	COUPLING	1
32	1993720	螺钉 (M6 x 20)	SCREW (M6 x 20)	1
32	8M0204706	螺丝M6x20六角	SCREW M6 x 20 Hex	1
33	8M0050809	索环组件	GROMMET ASSEMBLY	1
34	8M0047129	盖总成	COVER ASSEMBLY	1
35	896522	O型圈(799×.103)	O-RING (799 x .103)	1
36	8164641	油封	SEAL Oil	1
36	8M0246145	油封	OIL SEAL	1
37	8M0046563	挡圈	RING Retaining	1
38	881866	接头	FITTING	1
39	880729	衬垫	GASKET	1
40	29641	E型卡环	E RING	2
41	8M0050602	磁铁	MAGNET	1
42	8M0046104	换档轴	SHIFT SHAFT	1
43	859732	堵头	PLUG	1
-	8M0235174	标贴齿轮箱 1.75:1	DECAL Gearcase, 1.75:1	1
-	8M0065064	齿轮箱密封套件	SEAL KIT Gearcase	1
-	8M0078858	水泵维修套件(完整)	WATER PUMP REPAIR KIT Complete	1
-	8M0065072	水泵维修套件(上部)	WATER PUMP REPAIR KIT Upper	1

图 18齿轮箱，驱动轴，5.44鱼雷型，序列号1B980359及以下 Gear Housing, Driveshaft, 5.44 Torpedo SN 1B980359 and Below

REF	零件编号	中文名称	英文名称	数量
-	8M0049863	齿轮箱总成(黑色长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Long)(1.85:1)	1
-	8M0049864	齿轮箱总成(黑色加长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (X-Long)(1.85:1)	1
-	8M0236284	GC VER 1.85 B XL	GC VER 1.85 B XL	1
-	8M0049866	齿轮箱总成(黑色超长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (XX-Long)(1.85:1)	1
-	8M0236286	GC VER 1.85 XXL	GC VER 1.85 XXL	1
-	8M0049868	齿轮箱总成完整, 黑色 (C型长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (C-Long)(1.85:1)	1
-	8M0117257	GC VER 1.85 CL	GC VER 1.85 CL	1
-	8M0049865	齿轮箱总成完整, 黑色 (CX型长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (CX-Long)(1.85:1)	1
-	8M0236285	GC VER 1.85 CXL	GC VER 1.85 CXL	1
-	8M0049867	齿轮箱总成完整, 黑色 (CXX型长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (CXX-Long)(1.85:1)	1
-	8M0236287	GC VER 1.85 CXXL	GC VER 1.85 CXXL	1
-	8M0049869	齿轮箱总成完整 (长型)(1.75:1)	GEAR HOUSING ASSEMBLY Complete (Long)(1.75:1)	1
-	8M0078252	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0049870	齿轮箱总成完整 (加长型)(1.75:1)	GEAR HOUSING ASSEMBLY Complete (X-Long)(1.75:1)	1
-	8M0078253	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0049872	齿轮箱总成完整 (XX型长轴)(1.75:1)	GEAR HOUSING ASSEMBLY Complete (XX-Long)(1.75:1)	1
-	8M0078255	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0049874	齿轮箱总成完整 (C型长轴)(1.75:1)	GEAR HOUSING ASSEMBLY Complete (C-Long)(1.75:1)	1
-	8M0078257	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0049871	齿轮箱总成完整 (CX型长轴)(1.75:1)	GEAR HOUSING ASSEMBLY Complete (CX-Long)(1.75:1)	1
-	8M0078254	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0049873	齿轮箱总成完整 (CXX型长轴)(1.75:1)	GEAR HOUSING ASSEMBLY Complete (CXX-Long)(1.75:1)	1
-	8M0078256	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	8M0053108	基础型黑色齿轮箱总成	GEAR HOUSING ASSEMBLY Basic, Black	1
1	8M0117258	GC BASIC BLACK	GC BASIC BLACK	1
1	8M0053107	齿轮箱总成基础款银色	GEAR HOUSING ASSEMBLY Basic, Silver	1
1	8M0228048	GC - BASIC	GC - BASIC	1
2	826134Q	阳极块	ANODE	2
3	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
4	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
5	76214Q5	阳极套件	ANODE KIT	1
6	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
6	8M0204686	螺钉	SCREW	1
7	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
8	8M0010459	填充块	FILLER BLOCK	1
9	817275A1	水泵壳体套件	HOUSING KIT Water Pump	1
10	1993720	螺钉 (M6 x 20)	SCREW (M6 x 20)	4
10	8M0204706	螺丝M6x20六角	SCREW M6 x 20 Hex	4
-	8M0057717	叶轮维修套件	IMPELLER REPAIR KIT	1
-	8M0100526	水泵叶轮维修套件	REPAIR KIT Water Impeller	1
11	8M2014338	端面密封	SEAL Face	1
11	8M0142851	V型面密封环	V RING Face Seal	1
12	43026Q02	叶轮	IMPELLER	1
13	8172771	水泵上垫片	GASKET Water Pump, Upper	1
14	8172761	面板	FACEPLATE	1
14	8M0204709	面板	FACEPLATE	1
15	8M0050720	衬垫	GASKET	1
15	8M0142616	衬垫面板至齿轮箱	GASKET Face Plate to Gearcase	1
16	8M0032833	键	KEY	1
16	8M0204723	键	KEY	1
17	8M0046297	油封载体总成	OIL SEAL CARRIER ASSEMBLY	1
18	NSS		NOT SOLD SEPARATE SEAL	2
19	896523	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
19	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
20	880719	挡圈	RING Retaining	1
21	8245191	固定座	RETAINER	1
22	8M0053110	垫片组	SHIM SET	1
22	8M0063267	垫片组	SHIM SET	1
23	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
23	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
24	48939A2	圆锥滚子轴承	BEARING Taper Roller	1
24	8M0146553	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
25	38657A1	垫片组	SHIM ASSEMBLY	1
25	8M0063268	垫片组	SHIM SET	1
26	8M0053106	驱动轴	DRIVESHAFT	1
26	8M0149608	长型驱动轴总成	DRIVESHAFT ASSEMBLY Long	1
26	8M0053105	驱动轴	DRIVESHAFT	1
26	8M0141337	驱动轴总成 X加长型	DRIVESHAFT ASSEMBLY X-Long	1
26	8M0053104	驱动轴	DRIVESHAFT	1
26	8M0141338	驱动轴总成(超长型)	DRIVESHAFT ASSEMBLY XX-Long	1
27	8M0045676	滚柱轴承	BEARING Roller	1
28	8M0053118	齿轮组13/24(速比1.85:1)前进档与小齿轮	GEAR SET 13/24 (1.85:1) Forward and Pinion	1
28	8M0078259	齿轮组 13/24齿(1.85:1)	GEAR SET 13/24(1.85:1)	1
28	8M0053117	齿轮组 12/21齿(1.75:1) 前进与小齿轮	GEAR SET 12/21(1.75:1) Forward and Pinion	1
28	8M0078258	齿轮组（标准转向，前进/小齿轮，1.75速比 12/21）	GEAR SET Standard Rotation, Forward/Pinion, 1.75 Ratio (12/21)	1
28	8M0053119	齿轮组13/24(速比1.85:1)前进档与小齿轮	GEAR SET 13/24 (1.85:1) Forward and Pinion	1
28	8M0053120	反转向齿轮组(前进档/小齿轮)(速比1.75)(12/21)前进档与小齿轮	GEAR SET Counter Rotation, Forward/Pinion, 1.75 Ratio (12/21) Forward and Pinion	1
29	8M0046636	螺母	NUT	1
30	43585	联轴器	COUPLING	1
31	1993720	螺钉 (M6 x 20)	SCREW (M6 x 20)	1
31	8M0204706	螺丝M6x20六角	SCREW M6 x 20 Hex	1
32	8M0050809	索环组件	GROMMET ASSEMBLY	1
33	8M0047129	盖总成	COVER ASSEMBLY	1
34	896522	O型圈(799×.103)	O-RING (799 x .103)	1
35	8164641	油封	SEAL Oil	1
35	8M0246145	油封	OIL SEAL	1
36	8M0046563	挡圈	RING Retaining	1
37	881866	接头	FITTING	1
38	880729	衬垫	GASKET	1
39	29641	E型卡环	E RING	2
40	8M0050602	磁铁	MAGNET	1
41	8M0046104	换档轴	SHIFT SHAFT	1
42	859732	堵头	PLUG	1
-	8M0235174	标贴齿轮箱 1.75:1	DECAL Gearcase, 1.75:1	1
-	8M0065064	齿轮箱密封套件	SEAL KIT Gearcase	1
-	8M0078858	水泵维修套件(完整)	WATER PUMP REPAIR KIT Complete	1
-	8M0065072	水泵维修套件(上部)	WATER PUMP REPAIR KIT Upper	1

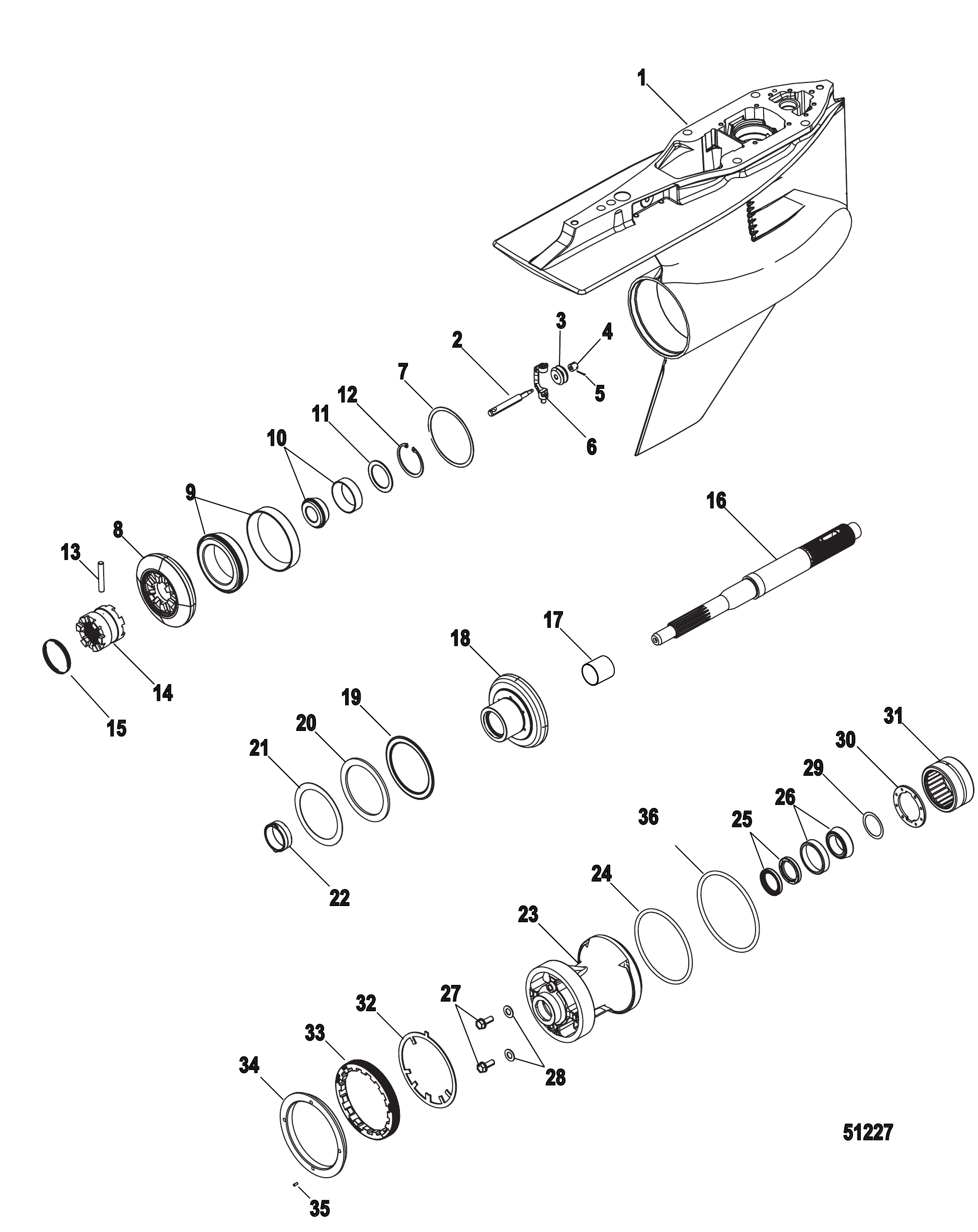

图 19齿轮箱，螺旋桨轴-反向旋转，5.44鱼雷型 Gear Housing, Prop Shaft-Counter Rotation, 5.44 Torpedo

REF	零件编号	中文名称	英文名称	数量
-	8M0049868	齿轮箱总成(黑色长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Long)(1.85:1)	1
-	8M0089984	齿轮箱总成完整, 银色 (长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Long)(1.85:1)	1
-	8M0228060	GC-L6 S 1.85 CL	GC-L6 S 1.85 CL	1
-	8M0049865	齿轮箱总成(黑色加长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (X-Long)(1.85:1)	1
-	8M0236285	GC VER 1.85 CXL	GC VER 1.85 CXL	1
-	8M0089986	齿轮箱总成完整, 银色 (X型长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (X-Long)(1.85:1)	1
-	8M0228062	GC-L6 S 1.85 CXL	GC-L6 S 1.85 CXL	1
-	8M0049867	齿轮箱总成(黑色超长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (XX-Long)(1.85:1)	1
-	8M0236287	GC VER 1.85 CXXL	GC VER 1.85 CXXL	1
-	8M0089988	齿轮箱总成完整, 银色 (XX型长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (XX-Long)(1.85:1)	1
-	8M0117244	GC-L6 S 1.85 CXXL	GC-L6 S 1.85 CXXL	1
-	8M0049874	齿轮箱总成完整 (长型)(1.75:1)	GEAR HOUSING ASSEMBLY Complete (Long)(1.75:1)	1
-	8M0078257	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0049871	齿轮箱总成完整 (加长型)(1.75:1)	GEAR HOUSING ASSEMBLY Complete (X-Long)(1.75:1)	1
-	8M0078254	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0049873	齿轮箱总成完整 (XX型长轴)(1.75:1)	GEAR HOUSING ASSEMBLY Complete (XX-Long)(1.75:1)	1
-	8M0078256	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	8M0053108	基础型黑色齿轮箱总成	GEAR HOUSING ASSEMBLY Basic, Black	1
1	8M0117258	GC BASIC BLACK	GC BASIC BLACK	1
1	8M0053107	齿轮箱总成基础款银色	GEAR HOUSING ASSEMBLY Basic, Silver	1
1	8M0228048	GC - BASIC	GC - BASIC	1
2	8M0053114	阀芯总成	SPOOL ASSEMBLY	1
2	8M0235941	换挡轴套总成	SPOOL ASSY SHIFT	1
3	NSS		NOT SOLD SEPARATE SPOOL	1
4	NSS		NOT SOLD SEPARATE SLEEVE	1
5	469501	开口销	COTTER PIN	1
6	8M0046215	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
6	8M0220880	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
7	884328A01	垫片组	SHIM SET	1
7	8M0063270	垫片组	SHIM SET	1
8	8M0053122	倒档齿轮套件	GEAR KIT Reverse	1
8	8M0053121	倒挡齿轮总成	GEAR ASSEMBLY Reverse Reverse	1
8	8M0146676	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
9	884323T01	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	8M0142836	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
10	884325T01	圆锥滚子轴承组件	BEARING ASSEMBLY Roller-Tappered	1
10	8M0142835	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
11	892805	止推垫片	THRUST WASHER	1
11	8M0053823	止推垫圈(内径1.50×外径2.046)	WASHER Thrust, (1.50 ID x 2.046 OD)	1
12	8M0051043	挡圈	RING Retaining	1
13	8M0045493	十字销	PIN Cross	1
14	8M0053113	离合器	CLUTCH	1
15	8M0050575	十字弹簧	SPRING Cross	1
16	8M0053112	螺旋桨轴 1英寸	PROPELLER SHAFT 1 Inch	1
16	8M0073657	螺旋桨轴 1英寸	PROPELLER SHAFT 1 Inch	1
16	8M0073657	螺旋桨轴 1英寸	PROPELLER SHAFT 1 Inch	1
16	8M0142968	螺旋桨轴	SHAFT Propeller	1
16	8M0053111	螺旋桨轴 1.25英寸	PROPELLER SHAFT 1.25 Inch	1
16	8M0073667	螺旋桨轴 1.25英寸	PROPELLER SHAFT 1.25 Inch	1
16	8M0073667	螺旋桨轴 1.25英寸	PROPELLER SHAFT 1.25 Inch	1
16	8M0142764	螺旋桨轴	SHAFT Propeller	1
17	8M0064306	止推隔套	SPACER Thrust	A/R
18	8M0053119	齿轮组 13/24齿 (1.85:1) 前进挡	GEAR SET 13/24 (1.85:1) Forward	1
18	8M0053120	齿轮组反转, 前进/小齿轮, 1.75速比 (12/21齿) 前进挡	GEAR SET Counter Rotation, Forward/Pinion, 1.75 Ratio (12/21) Forward	1
19	8M0050692	轴承	BEARING	1
20	8M0050688	垫圈	WASHER	1
21	8M0053116	垫片组	SHIM SET	A/R
22	8M0053183	前进齿轮适配器	ADAPTER Foward Gear	1
23	8M0053115	托架总成	CARRIER ASSEMBLY	1
23	8M0097323	轴承座总成	CARRIER ASSEMBLY Bearing	1
24	8M0000190	O型圈(4.475x0.210英寸)	O-RING (4.475 x .210)	1
25	888483	油封	SEAL Oil	2
25	8M0204700	油封	SEAL Oil	2
26	884330T01	圆锥轴承组件	BEARING ASSEMBLY Taper	1
26	8M0148319	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper Cup/Cone	1
27	8M0046727	螺钉	SCREW	2
27	8M0071653	特殊螺钉0.375-16 UNC	SCREW Special, .375-16 UNC	2
28	830749	密封件	SEAL	2
28	8M0204693	放油螺塞密封件	SEAL Drain Plug	2
29	8M0076745	垫片组	SHIM SET	1
29	8M0050423	垫片 .020	WASHER .020	A/R
29	8M0050424	垫片 .022	WASHER .022	A/R
29	8M0050425	垫片 .024	WASHER .024	A/R
29	8M0050427	垫片 .026	WASHER .026	A/R
29	8M0050428	垫片 .028	WASHER .028	A/R
29	8M0050429	垫片 .030	WASHER .030	A/R
29	8M0050430	垫片 .032	WASHER .032	A/R
29	8M0050431	垫片 .034	WASHER .034	A/R
29	8M0050432	垫片 .036	WASHER .036	A/R
29	8M0050433	垫片 0.038	WASHER .038	A/R
29	8M0050434	垫片 0.040	WASHER .040	A/R
29	8M0050435	垫片 0.042	WASHER .042	A/R
29	8M0050436	垫片 0.044	WASHER .044	A/R
29	8M0050437	垫片 0.046	WASHER .046	A/R
29	8M0050438	垫片 0.048	WASHER .048	A/R
29	8M0050439	垫片 0.050	WASHER .050	A/R
30	8M0050662	挡圈	RETAINING RING	1
30	8M0056639	挡圈	RING Retainer	1
31	8M0050704	滚针轴承	BEARING Needle	1
32	8M0045434	锁紧垫圈	TAB WASHER	1
32	8M0108527	锁紧垫片	WASHER Tab	1
33	8M0001491	固定螺母	NUT Retainer	1
33	8M0162798	轴承座固定环	RETAINER Bearing Carrier	1
34	8M0050726	盖板套件	COVER KIT	1
34	8M0180308	盖板套件	COVER KIT	1
34	8M0050821	平齐式盖板套件, 标准型	COVER KIT Flush, Standard	1
34	8M0180306	鱼雷形盖	COVER Torpedo	1
35	8M0036819	紧定螺钉(10-32)	SET SCREW (10-32)	1
36	8M0046569	止推环	RING Thrust	1
36	8M0161546	推力环	THRUST RING	1

图 20齿轮箱，螺旋桨轴-正向旋转，5.44鱼雷型 Gear Housing, Prop Shaft-Standard Rotation, 5.44 Torpedo

REF	零件编号	中文名称	英文名称	数量
-	8M0049863	齿轮箱总成(黑色长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (Long)(1.85:1)	1
-	8M0089983	齿轮箱总成完整, 银色 (长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (Long)(1.85:1)	1
-	8M0228059	GC-L6 S 1.85 L	GC-L6 S 1.85 L	1
-	8M0049864	齿轮箱总成(黑色加长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (X-Long)(1.85:1)	1
-	8M0236284	GC VER 1.85 B XL	GC VER 1.85 B XL	1
-	8M0089985	齿轮箱总成完整, 银色 (X型长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (X-Long)(1.85:1)	1
-	8M0236237	GC-L6 S 1.85 XL	GC-L6 S 1.85 XL	1
-	8M0049866	齿轮箱总成(黑色超长型)(速比1.85:1)	GEAR HOUSING ASSEMBLY Complete, Black (XX-Long)(1.85:1)	1
-	8M0236286	GC VER 1.85 XXL	GC VER 1.85 XXL	1
-	8M0089987	齿轮箱总成完整, 银色 (XX型长轴)(1.85:1)	GEAR HOUSING ASSEMBLY Complete, Silver (XX-Long)(1.85:1)	1
-	8M0117243	GC-L6 S 1.85 XXL	GC-L6 S 1.85 XXL	1
-	8M0049869	齿轮箱总成完整 (长型)(1.75:1)	GEAR HOUSING ASSEMBLY Complete (Long)(1.75:1)	1
-	8M0078252	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0049870	齿轮箱总成完整 (加长型)(1.75:1)	GEAR HOUSING ASSEMBLY Complete (X-Long)(1.75:1)	1
-	8M0078253	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0049872	齿轮箱总成完整 (XX型长轴)(1.75:1)	GEAR HOUSING ASSEMBLY Complete (XX-Long)(1.75:1)	1
-	8M0078255	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	8M0053108	基础型黑色齿轮箱总成	GEAR HOUSING ASSEMBLY Basic, Black	1
1	8M0117258	GC BASIC BLACK	GC BASIC BLACK	1
1	8M0053107	齿轮箱总成基础款银色	GEAR HOUSING ASSEMBLY Basic, Silver	1
1	8M0228048	GC - BASIC	GC - BASIC	1
2	8M0053114	阀芯总成	SPOOL ASSEMBLY	1
2	8M0235941	换挡轴套总成	SPOOL ASSY SHIFT	1
3	NSS		NOT SOLD SEPARATE SPOOL	1
4	NSS		NOT SOLD SEPARATE SLEEVE	1
5	469501	开口销	COTTER PIN	1
6	8M0046215	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
6	8M0220880	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
7	884328A01	垫片组	SHIM SET	1
7	8M0063270	垫片组	SHIM SET	1
8	8M0053118	齿轮组 13/24齿 (1.85:1) 前进挡	GEAR SET 13/24 (1.85:1) Forward	1
8	8M0078259	齿轮组 13/24齿(1.85:1)	GEAR SET 13/24(1.85:1)	1
8	8M0053117	齿轮组 12/21齿(1.75:1) 前进挡	GEAR SET 12/21(1.75:1) Forward	1
8	8M0078258	齿轮组（标准转向，前进/小齿轮，1.75速比 12/21）	GEAR SET Standard Rotation, Forward/Pinion, 1.75 Ratio (12/21)	1
9	884323T01	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	8M0142836	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
10	884325T01	圆锥滚子轴承组件	BEARING ASSEMBLY Roller-Tappered	1
10	8M0142835	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
11	892805	止推垫片	THRUST WASHER	1
11	8M0053823	止推垫圈(内径1.50×外径2.046)	WASHER Thrust, (1.50 ID x 2.046 OD)	1
12	8M0051043	挡圈	RING Retaining	1
13	8M0045493	十字销	PIN Cross	1
14	8M0053113	离合器	CLUTCH	1
15	8M0050575	十字弹簧	SPRING Cross	1
16	8M0053112	螺旋桨轴 1英寸 (1B921719及以下)	PROPELLER SHAFT 1 Inch (1B921719 and below)	1
16	8M0073657	螺旋桨轴 1英寸	PROPELLER SHAFT 1 Inch	1
16	8M0073657	螺旋桨轴 1英寸 (1B921720及以上)	PROPELLER SHAFT 1 Inch (1B921720 and above)	1
16	8M0142968	螺旋桨轴	SHAFT Propeller	1
16	8M0053111	螺旋桨轴 1.25英寸 (1B921719及以下)	PROPELLER SHAFT 1.25 Inch (1B921719 and below)	1
16	8M0073667	螺旋桨轴 1.25英寸	PROPELLER SHAFT 1.25 Inch	1
16	8M0073667	螺旋桨轴 1.25英寸 (1B9217120及以上)	PROPELLER SHAFT 1.25 Inch (1B9217120 and above)	1
16	8M0142764	螺旋桨轴	SHAFT Propeller	1
17	8M0064306	止推隔套	SPACER Thrust	A/R
18	8M0053123	倒档齿轮套件	GEAR KIT Reverse	1
18	8M0053124	倒挡齿轮套件	GEAR KIT Reverse Reverse	1
19	8M0050692	轴承	BEARING	1
20	8M0050688	垫圈	WASHER	1
21	8M0053116	垫片组	SHIM SET	A/R
22	8M0053183	前进齿轮适配器	ADAPTER Foward Gear	1
23	8M0053115	托架总成	CARRIER ASSEMBLY	1
23	8M0097323	轴承座总成	CARRIER ASSEMBLY Bearing	1
24	8M0000190	O型圈(4.475x0.210英寸)	O-RING (4.475 x .210)	1
25	888483	油封	SEAL Oil	2
25	8M0204700	油封	SEAL Oil	2
26	884330T01	圆锥轴承组件	BEARING ASSEMBLY Taper	1
26	8M0148319	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper Cup/Cone	1
27	8M0046727	螺钉	SCREW	2
27	8M0071653	特殊螺钉0.375-16 UNC	SCREW Special, .375-16 UNC	2
28	830749	密封件	SEAL	2
28	8M0204693	放油螺塞密封件	SEAL Drain Plug	2
29	8M0076745	垫片组	SHIM SET	1
29	8M0050423	垫片 .020	WASHER .020	A/R
29	8M0050424	垫片 .022	WASHER .022	A/R
29	8M0050425	垫片 .024	WASHER .024	A/R
29	8M0050427	垫片 .026	WASHER .026	A/R
29	8M0050428	垫片 .028	WASHER .028	A/R
29	8M0050429	垫片 .030	WASHER .030	A/R
29	8M0050430	垫片 .032	WASHER .032	A/R
29	8M0050431	垫片 .034	WASHER .034	A/R
29	8M0050432	垫片 .036	WASHER .036	A/R
29	8M0050433	垫片 0.038	WASHER .038	A/R
29	8M0050434	垫片 0.040	WASHER .040	A/R
29	8M0050435	垫片 0.042	WASHER .042	A/R
29	8M0050436	垫片 0.044	WASHER .044	A/R
29	8M0050437	垫片 0.046	WASHER .046	A/R
29	8M0050438	垫片 0.048	WASHER .048	A/R
29	8M0050439	垫片 0.050	WASHER .050	A/R
30	8M0050662	挡圈	RETAINING RING	1
30	8M0056639	挡圈	RING Retainer	1
31	8M0050704	滚针轴承	BEARING Needle	1
32	8M0045434	锁紧垫圈	TAB WASHER	1
32	8M0108527	锁紧垫片	WASHER Tab	1
33	8M0001491	固定螺母	NUT Retainer	1
33	8M0162798	轴承座固定环	RETAINER Bearing Carrier	1
34	8M0050726	盖板套件	COVER KIT	1
34	8M0180308	盖板套件	COVER KIT	1
34	8M0050821	平齐式盖板套件, 标准型	COVER KIT Flush, Standard	1
34	8M0180306	鱼雷形盖	COVER Torpedo	1
35	8M0036819	紧定螺钉(10-32)	SET SCREW (10-32)	1
36	8M0046569	止推环	RING Thrust	1
36	8M0161546	推力环	THRUST RING	1
-	8M0235174	标贴齿轮箱 1.75:1	DECAL Gearcase, 1.75:1	1

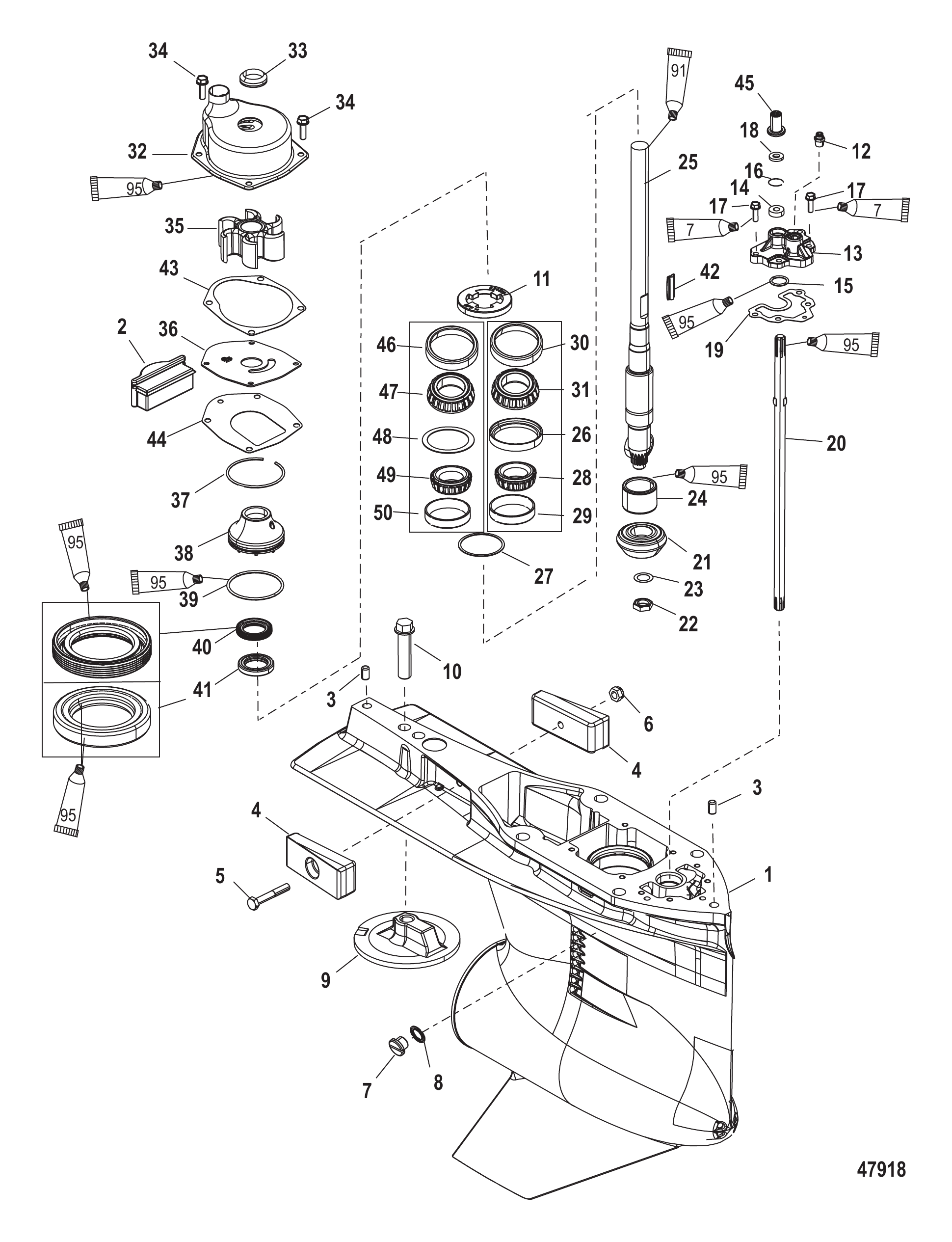

图 21齿轮箱驱动轴,4.80鱼雷型 Gear Housing Driveshaft, 4.80 Torpedo

REF	零件编号	中文名称	英文名称	数量
-	880686T13	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236255	GC L6 4S L	GC L6 4S L	1
-	880686T14	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236256	GC L6 4S XL	GC L6 4S XL	1
-	880686T16	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236259	GC L6 4S XXL	GC L6 4S XXL	1
-	880686T15	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236258	GC L6 4S CXL	GC L6 4S CXL	1
-	880686T17	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236260	GC L6 4S CXXL	GC L6 4S CXXL	1
-	880686T54	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236264	GC L6 1.75 L	GC L6 1.75 L	1
-	880686T55	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236265	GC L6 1.75 XL	GC L6 1.75 XL	1
-	880686T56	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236266	GC L6 1.75 XXL	GC L6 1.75 XXL	1
-	880686T57	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236267	GC L6 1.75 CXL	GC L6 1.75 CXL	1
-	880686T58	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236269	GC L6 1.75 CXL	GC L6 1.75 CXL	1
-	880686T59	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236270	GC L6 1.75 CXXL	GC L6 1.75 CXXL	1
1	880687T01		GEAR HOUSING ASSEMBLY Basic Used with 5/16 Inch Shift Crank	1
1	8M0056631	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	8M0046215	曲柄换挡1/4枢轴销配1/4英寸换挡曲柄	CRANK, Shifter 1/4 Pivot Pin Used with 1/4 Inch Shift Crank	1
1	8M0220880	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
2	821526001	填充块	FILLER BLOCK	1
2	8M0010459	填充块	FILLER BLOCK	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	826134Q	阳极块	ANODE	2
5	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
6	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
7	79953A04	塞组件(.375-16×.250)	PLUG ASSEMBLY (.375-16 x .250)	1
8	830749	密封件	SEAL	1
8	8M0204693	放油螺塞密封件	SEAL Drain Plug	1
9	76214T5	阳极套件	ANODE KIT	1
9	76214Q5	阳极套件	ANODE KIT	1
10	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
10	8M0204686	螺钉	SCREW	1
11	8245191	固定座	RETAINER	1
12	881866	接头	FITTING	1
13	880703A1	盖总成	COVER ASSEMBLY	1
13	8M0047129	盖总成	COVER ASSEMBLY	1
13	8M0047129	盖总成	COVER ASSEMBLY	1
14	8164641	油封	SEAL Oil	1
14	8M0246145	油封	OIL SEAL	1
15	896522	O型圈(799×.103)	O-RING (799 x .103)	1
16	8M0046563	挡圈	RING Retaining	1
17	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	4
17	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	4
18	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
19	880729	衬垫	GASKET	1
20	824145	换档轴	SHIFT SHAFT	1
21	NSS	不单独销售小齿轮13齿	NOT SOLD SEPARATE Pinion Gear 13 Teeth	1
22	35921	螺母(0.625-18)	NUT (.625-18)	1
23	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
24	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
25	888572	驱动轴	DRIVESHAFT	1
25	888573	驱动轴	DRIVESHAFT	1
25	888574	驱动轴	DRIVESHAFT	1
26	884327A02	垫片/轴承组件	SHIM/BEARING ASSEMBLY	1
27	38657A1	垫片组	SHIM ASSEMBLY	AR
27	8M0063268	垫片组	SHIM SET	AR
28	NSS	不单独销售滚子轴承组件	NOT SOLD SEPARATE Roller Bearing Assembly	1
29	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
30	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
31	NSS	不单独销售滚子轴承组件	NOT SOLD SEPARATE Roller Bearing Assembly	1
32	817275A09	水泵壳体-总成	HOUSING Water Pump-Complete	1
33	861415A1	密封套件	SEAL KIT	1
34	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	4
34	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	4
35	43026T2	叶轮	IMPELLER	1
36	8172761	面板	FACEPLATE	1
36	8M0204709	面板	FACEPLATE	1
37	880719	挡圈	RING Retaining	1
38	8M0007131	油封座组件	CARRIER ASSEMBLY Oil Seal	1
39	896523	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
39	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
40	NSS	不单独销售油封	NOT SOLD SEPARATE Oil Seal	1
41	NSS	不单独销售油封	NOT SOLD SEPARATE Oil Seal	1
42	8M0032833	键	KEY	1
42	8M0204723	键	KEY	1
43	8172771	水泵上垫片	GASKET Water Pump, Upper	1
44	430331	衬垫	GASKET	1
45	43585	联轴器	COUPLING	1
46	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
46	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
47	NSS	不单独销售滚柱轴承	NOT SOLD SEPARATE Roller Bearing	1
48	8M0053110	垫片组	SHIM SET	1
48	8M0063267	垫片组	SHIM SET	1
49	48939A2	圆锥滚子轴承	BEARING Taper Roller	1
49	8M0146553	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
50	NSS		NOT SOLD SEPARATE CUP	1
-	830749A01	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	43026Q06	水泵叶轮维修套件	REPAIR KIT Water Pump Impeller	1
-	8M0100526	水泵叶轮维修套件	REPAIR KIT Water Impeller	1
-	817275A08	水泵上修包	REPAIR KIT Water Pump-Upper	1

图 22齿轮箱螺旋桨轴-反向旋转，4.80鱼雷型 2B026816及以下 Gear Housing PropShaft-Counter Rotation,4.80 Torpedo 2B026816 and Below

REF	零件编号	中文名称	英文名称	数量
-	880686T15	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236258	GC L6 4S CXL	GC L6 4S CXL	1
-	880686T17	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236260	GC L6 4S CXXL	GC L6 4S CXXL	1
-	880686T57	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236267	GC L6 1.75 CXL	GC L6 1.75 CXL	1
-	880686T58	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236269	GC L6 1.75 CXL	GC L6 1.75 CXL	1
-	880686T59	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236270	GC L6 1.75 CXXL	GC L6 1.75 CXXL	1
1	880687T01	齿轮箱总成基础型配5/16英寸换挡曲柄	GEAR HOUSING ASSEMBLY Basic Used With 5/16 Inch Shift Crank	1
1	8M0056631	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	8M0056631	齿轮箱总成基础型配1/4英寸换挡曲柄	GEAR HOUSING ASSEMBLY Basic Used With 1/4 Inch Shift Crank	1
2	NSS	不单独销售塞	NOT SOLD SEPARATE Plug	1
3	896847A01	换挡曲柄5/16枢轴销	CRANK, Shifter 5/16 Pivot Pin	1
3	8M0046215	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
3	8M0220880	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
4	19755T7	阀芯总成	SPOOL ASSEMBLY	1
4	8M0235940	阀芯总成	SPOOL ASSY	1
5	NSS	不单独销售线轴	NOT SOLD SEPARATE Spool	1
6	469501	开口销	COTTER PIN	1
7	NSS	不单独销售调节套筒	NOT SOLD SEPARATE Sleeve Adjusting	1
8	892809A02	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
8	880723A02	倒挡齿轮	GEAR Reverse	1
9	884323T01	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	8M0142836	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
10	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
11	23721	挡圈	RING Retaining	1
11	8M0051043	挡圈	RING Retaining	1
12	892805	止推垫片	THRUST WASHER	1
12	8M0053823	止推垫圈(内径1.50×外径2.046)	WASHER Thrust, (1.50 ID x 2.046 OD)	1
13	884325T01	圆锥滚子轴承组件	BEARING ASSEMBLY Roller-Tappered	1
13	8M0142835	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
14	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
15	884328A01	垫片组	SHIM SET	AR
15	8M0063270	垫片组	SHIM SET	AR
16	30893	弹簧	SPRING	1
17	880714T	离合器	CLUTCH	1
18	30632	十字销	PIN Cross	1
18	8M0100263	十字销	PIN Cross	1
19	828356	定位销	PIN Detent	1
20	888530	螺旋桨轴	PROPELLER SHAFT	1
21	880720A02	前进/小齿轮组	GEAR SET Forward/Pinion	1
21	8M0119540	前进齿轮套件	GEAR KIT-FORWARD	1
21	880720A03	齿轮套件前进/小齿轮	GEAR KIT Forward/Pinion	1
21	8M0119539	齿轮总成	GEAR ASSEMBLY	1
22	880699	推力环	THRUST RING	1
23	815480	推力轴承	BEARING Thrust	1
24	880696A10	轴承座总成	CARRIER ASSEMBLY Bearing	1
25	896524	O型圈(3.850×.210)	O-RING (3.850 x .210)	1
25	8M0142840	O型圈(3.85×0.210)	O-RING (3.85 x 0.210)	1
26	814653T	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
27	880728	轴承适配器	ADAPTER Bearing	1
27	8M0148384	前进齿轮轴承适配器	ADAPTER Bearing Forward Gear	1
28	47397A1	垫片组	SHIM SET	AR
29	891936A01	垫片组	SHIM SET	AR
30	884330T01	圆锥轴承组件	BEARING ASSEMBLY Taper	1
30	8M0148319	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper Cup/Cone	1
31	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
32	896600	油封	SEAL Oil	1
32	8M0204700	油封	SEAL Oil	1
33	888483	油封	SEAL Oil	1
33	8M0204700	油封	SEAL Oil	1
34	880717A01	螺丝/密封套件	SCREW/SEAL KIT	1
35	830749	密封件	SEAL	1
35	8M0204693	放油螺塞密封件	SEAL Drain Plug	1
36	892818	适配器	ADAPTER	1
36	8M0053183	前进齿轮适配器	ADAPTER Foward Gear	1
37	891919001	止推隔套	SPACER Thrust	1
38	880697	键槽垫圈	KEYED WASHER	1
39	79448	固定座	RETAINER	1
39	8M2011027	固定座	RETAINER	1
40	NSS	不单独销售-反向旋转标识	NOT SOLD SEPARATE Decal-Counter Rotation	1
-	830749A01	齿轮箱密封套件	SEAL KIT Gear Housing	1

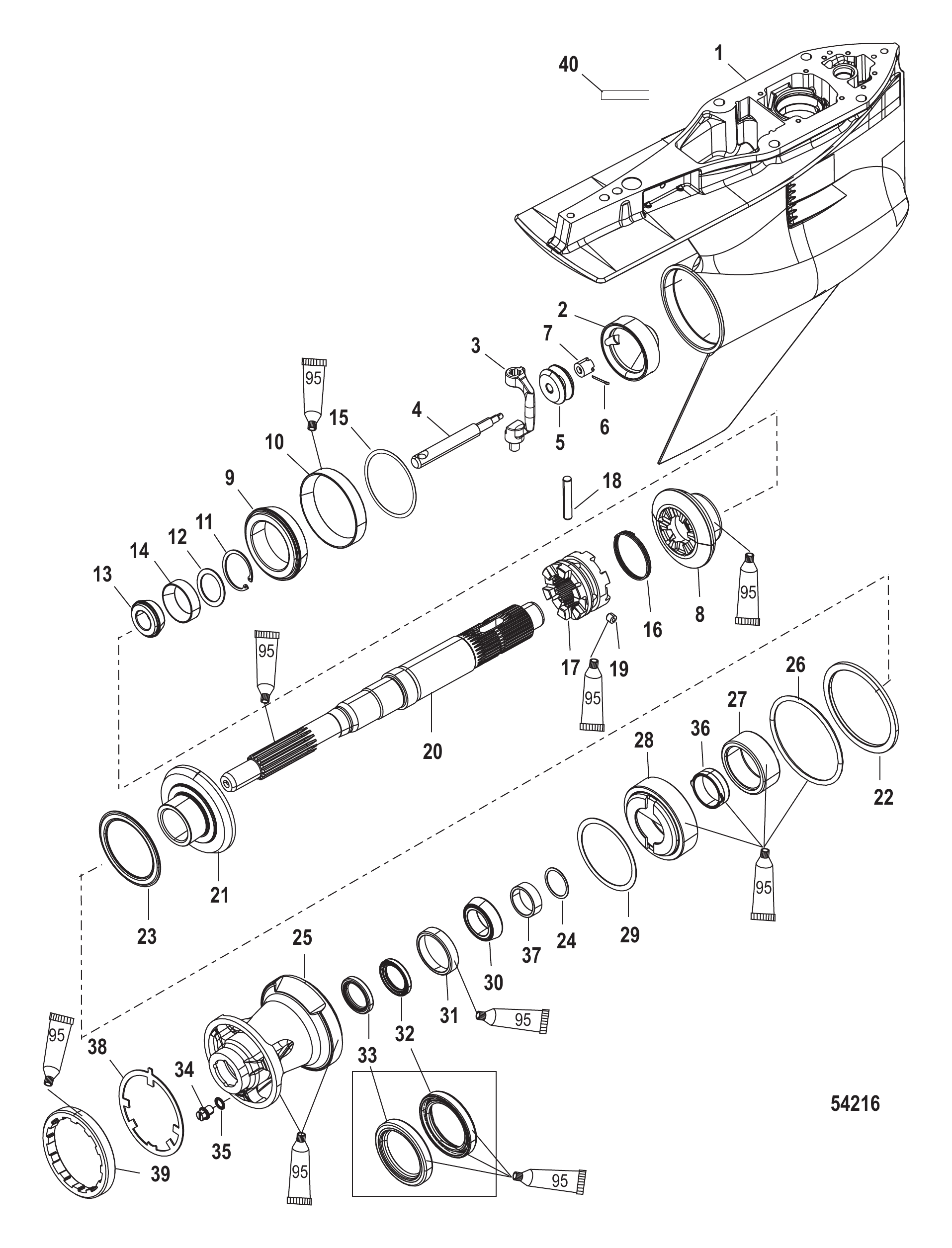

图 23齿轮箱螺旋桨轴-反向旋转，4.80鱼雷型 2B026817及以上 Gear Housing Prop Shaft-Counter Rotation, 4.80 Torpedo 2B026817 and Up

REF	零件编号	中文名称	英文名称	数量
-	880686T15	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236258	GC L6 4S CXL	GC L6 4S CXL	1
-	880686T17	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236260	GC L6 4S CXXL	GC L6 4S CXXL	1
-	880686T57	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236267	GC L6 1.75 CXL	GC L6 1.75 CXL	1
-	880686T58	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236269	GC L6 1.75 CXL	GC L6 1.75 CXL	1
-	880686T59	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236270	GC L6 1.75 CXXL	GC L6 1.75 CXXL	1
1	8M0056631	齿轮箱总成基础款配1/4英寸换挡曲柄 (1B853028及以上)	GEAR HOUSING ASSEMBLY Basic Used with 1/4 inch Shift Crank (1B853028 and above)	1
2	NSS	不单独销售塞	NOT SOLD SEPARATE Plug	1
3	8M0046215	曲柄, 换挡器 1/4英寸枢轴销 (1B853028及以上)	CRANK, Shifter 1/4 Pivot Pin (1B853028 and above)	1
3	8M0220880	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
4	19755T7	阀芯总成	SPOOL ASSEMBLY	1
4	8M0235940	阀芯总成	SPOOL ASSY	1
5	NSS	不单独销售线轴	NOT SOLD SEPARATE Spool	1
6	469501	开口销	COTTER PIN	1
7	NSS	不单独销售调节套筒	NOT SOLD SEPARATE Sleeve Adjusting	1
8	892809A02	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
8	880723A02	倒挡齿轮	GEAR Reverse	1
9	884323T01	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	8M0142836	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
10	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
11	23721	挡圈	RING Retaining	1
11	8M0051043	挡圈	RING Retaining	1
12	892805	止推垫片	THRUST WASHER	1
12	8M0053823	止推垫圈(内径1.50×外径2.046)	WASHER Thrust, (1.50 ID x 2.046 OD)	1
13	884325T01	圆锥滚子轴承组件	BEARING ASSEMBLY Roller-Tappered	1
13	8M0142835	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
14	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
15	884328A01	垫片组	SHIM SET	AR
15	8M0063270	垫片组	SHIM SET	AR
16	30893	弹簧	SPRING	1
17	880714T	离合器	CLUTCH	1
18	30632	十字销	PIN Cross	1
18	8M0100263	十字销	PIN Cross	1
19	828356	定位销	PIN Detent	1
20	8M0069774	螺旋桨轴	PROPELLER SHAFT	1
20	8M0140446	螺旋桨轴	PROPELLER SHAFT	1
21	880720A02	前进/小齿轮组	GEAR SET Forward/Pinion	1
21	8M0119540	前进齿轮套件	GEAR KIT-FORWARD	1
21	880720A03	齿轮套件前进/小齿轮	GEAR KIT Forward/Pinion	1
21	8M0119539	齿轮总成	GEAR ASSEMBLY	1
22	880699	推力环	THRUST RING	1
23	815480	推力轴承	BEARING Thrust	1
24	8M0076745	垫片组	SHIM SET	1
24	8M0050423	垫片 .020	WASHER .020	AR
24	8M0050424	垫片 .022	WASHER .022	AR
24	8M0050425	垫片 .024	WASHER .024	AR
24	8M0050427	垫片 .026	WASHER .026	AR
24	8M0050428	垫片 .028	WASHER .028	AR
24	8M0050429	垫片 .030	WASHER .030	AR
24	8M0050430	垫片 .032	WASHER .032	AR
24	8M0050431	垫片 .034	WASHER .034	AR
24	8M0050432	垫片 .036	WASHER .036	AR
24	8M0050433	垫片 0.038	WASHER .038	AR
24	8M0050434	垫片 0.040	WASHER .040	AR
24	8M0050435	垫片 0.042	WASHER .042	AR
24	8M0050436	垫片 0.044	WASHER .044	AR
24	8M0050437	垫片 0.046	WASHER .046	AR
24	8M0050438	垫片 0.048	WASHER .048	AR
24	8M0050439	垫片 0.050	WASHER .050	AR
25	8M0086846	轴承座总成	CARRIER ASSEMBLY Bearing	1
26	896524	O型圈(3.850×.210)	O-RING (3.850 x .210)	1
26	8M0142840	O型圈(3.85×0.210)	O-RING (3.85 x 0.210)	1
27	814653T	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
28	880728	轴承适配器	ADAPTER Bearing	1
28	8M0148384	前进齿轮轴承适配器	ADAPTER Bearing Forward Gear	1
29	47397A1	垫片组	SHIM SET	AR
30	884330T01	圆锥轴承组件	BEARING ASSEMBLY Taper	1
30	8M0148319	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper Cup/Cone	1
31	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
32	896600	油封	SEAL Oil	1
32	8M0204700	油封	SEAL Oil	1
33	888483	油封	SEAL Oil	1
33	8M0204700	油封	SEAL Oil	1
34	880717A01	螺钉/密封套件 .38英寸长	SCREW/SEAL KIT .38 Inch Long	1
34	8M0077071	螺钉/密封套件 .75英寸长	SCREW/SEAL KIT .75 Inch Long	1
35	830749	密封件	SEAL	1
35	8M0204693	放油螺塞密封件	SEAL Drain Plug	1
36	8M0053183	前进齿轮适配器	ADAPTER Foward Gear	1
37	8M0064306	止推隔套	SPACER Thrust	1
38	880697	键槽垫圈	KEYED WASHER	1
39	8M2011027	固定座	RETAINER	1
39	8M2000347	固定座	RETAINER	1
40	NSS	不单独销售-反向旋转标识	NOT SOLD SEPARATE Decal-Counter Rotation	1
-	830749A01	齿轮箱密封套件	SEAL KIT Gear Housing	1

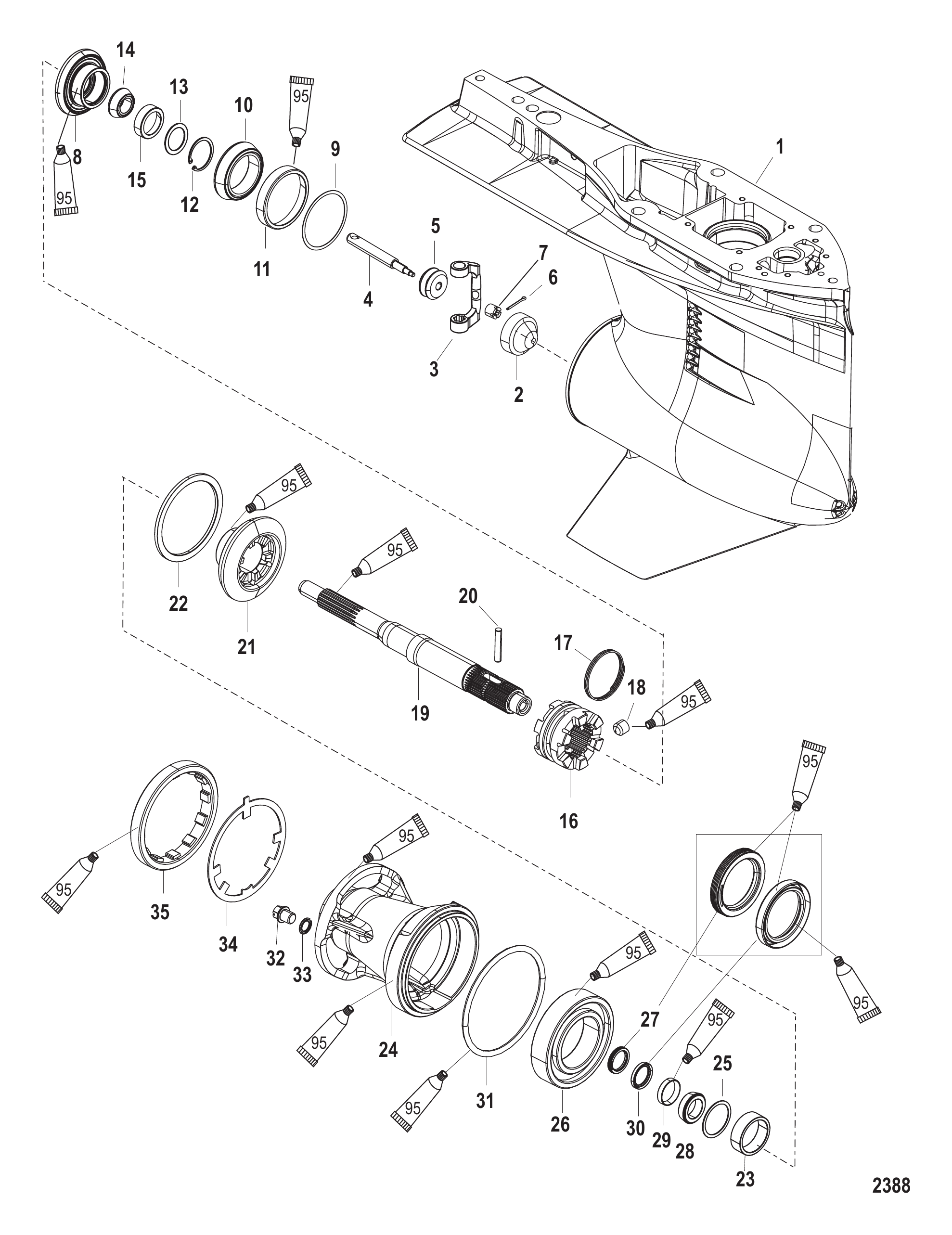

图 24齿轮箱螺旋桨轴-正向旋转，4.80鱼雷型 2B026816及以下 Gear Housing Prop Shaft-Standard Rotation, 4.80 Torpedo 2B026816 and Below

REF	零件编号	中文名称	英文名称	数量
-	880686T13	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236255	GC L6 4S L	GC L6 4S L	1
-	880686T14	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236256	GC L6 4S XL	GC L6 4S XL	1
-	880686T16	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236259	GC L6 4S XXL	GC L6 4S XXL	1
-	880686T54	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236264	GC L6 1.75 L	GC L6 1.75 L	1
-	880686T55	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236265	GC L6 1.75 XL	GC L6 1.75 XL	1
-	880686T56	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236266	GC L6 1.75 XXL	GC L6 1.75 XXL	1
1	880687T01	齿轮箱总成基础型配5/16英寸换挡曲柄	GEAR HOUSING ASSEMBLY Basic Used With 5/16 Inch Shift Crank	1
1	8M0056631	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	8M0056631	齿轮箱总成基础型配1/4英寸换挡曲柄	GEAR HOUSING ASSEMBLY Basic Used With 1/4 Inch Shift Crank	1
2	NSS	不单独销售塞	NOT SOLD SEPARATE Plug	1
3	896847A01	换挡曲柄5/16枢轴销	CRANK, Shifter 5/16 Pivot Pin	1
3	8M0046215	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
3	8M0220880	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
4	19755T7	阀芯总成	SPOOL ASSEMBLY	1
4	8M0235940	阀芯总成	SPOOL ASSY	1
5	NSS	不单独销售线轴	NOT SOLD SEPARATE Spool	1
6	469501	开口销	COTTER PIN	1
7	NSS	不单独销售调节套筒	NOT SOLD SEPARATE Sleeve Adjusting	1
8	892595A05	前进/小齿轮组	GEAR SET Forward/Pinion	1
8	892595A04	前进/小齿轮组	GEAR SET Forward/Pinion	1
9	884328A01	垫片组	SHIM SET	AR
9	8M0063270	垫片组	SHIM SET	AR
10	884323T01	滚柱轴承总成	BEARING ASSEMBLY Roller	1
10	8M0142836	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
11	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
12	23721	挡圈	RING Retaining	1
12	8M0051043	挡圈	RING Retaining	1
13	892805	止推垫片	THRUST WASHER	1
13	8M0053823	止推垫圈(内径1.50×外径2.046)	WASHER Thrust, (1.50 ID x 2.046 OD)	1
14	884325T01	圆锥滚子轴承组件	BEARING ASSEMBLY Roller-Tappered	1
14	8M0142835	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
15	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
16	880714T	离合器	CLUTCH	1
17	30893	弹簧	SPRING	1
18	828356	定位销	PIN Detent	1
19	888530	螺旋桨轴	PROPELLER SHAFT	1
20	8M0020941	十字销	PIN Cross	1
20	8M0100263	十字销	PIN Cross	1
21	880695A01	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
21	8M0142891	倒挡齿轮24齿	GEAR Reverse, 24T	1
21	880707A01	倒挡齿轮	GEAR Reverse	1
21	8M0118363	倒车齿轮 21齿	GEAR Reverse, 21T	1
22	880699	推力环	THRUST RING	1
23	891919001	止推隔套	SPACER Thrust	1
24	880696A08	轴承座总成	CARRIER ASSEMBLY Bearing	1
25	891936A01	垫片组	SHIM SET	AR
26	884329T	滚珠轴承	BEARING Ball	1
26	8M0142873	滚珠轴承	BEARING Ball	1
27	888483	油封	SEAL Oil	1
27	8M0204700	油封	SEAL Oil	1
28	884330T01	圆锥轴承组件	BEARING ASSEMBLY Taper	1
28	8M0148319	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper Cup/Cone	1
29	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
30	888483	油封	SEAL Oil	1
30	8M0204700	油封	SEAL Oil	1
31	896524	O型圈(3.850×.210)	O-RING (3.850 x .210)	1
31	8M0142840	O型圈(3.85×0.210)	O-RING (3.85 x 0.210)	1
32	880717A01	螺丝/密封套件	SCREW/SEAL KIT	1
33	830749	密封件	SEAL	1
33	8M0204693	放油螺塞密封件	SEAL Drain Plug	1
34	880697	键槽垫圈	KEYED WASHER	1
35	79448	固定座	RETAINER	1
35	8M2011027	固定座	RETAINER	1
-	8M0235174	标贴齿轮箱 1.75:1	DECAL Gearcase, 1.75:1	1
-	830749A01	齿轮箱密封套件	SEAL KIT Gear Housing	1

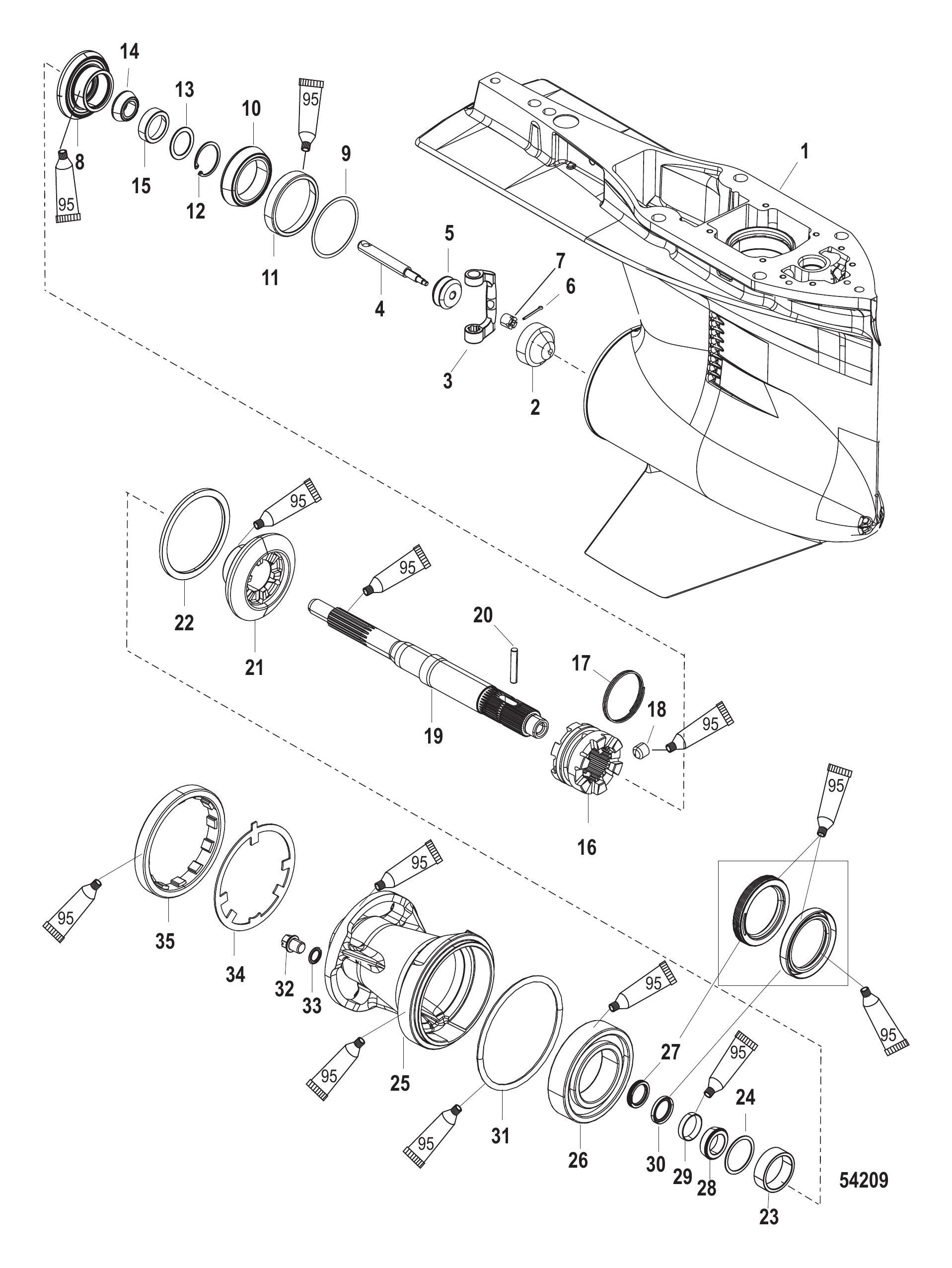

图 25齿轮箱螺旋桨轴-正向旋转，4.80鱼雷型 2B026817及以上 Gear Housing Prop Shaft-Standard Rotation, 4.80 Torpedo 2B026817 and Up

REF	零件编号	中文名称	英文名称	数量
-	880686T13	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236255	GC L6 4S L	GC L6 4S L	1
-	880686T14	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236256	GC L6 4S XL	GC L6 4S XL	1
-	880686T16	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236259	GC L6 4S XXL	GC L6 4S XXL	1
-	880686T54	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236264	GC L6 1.75 L	GC L6 1.75 L	1
-	880686T55	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236265	GC L6 1.75 XL	GC L6 1.75 XL	1
-	880686T56	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236266	GC L6 1.75 XXL	GC L6 1.75 XXL	1
1	8M0056631		GEAR HOUSING ASSEMBLY Basic Used With 1/4 Inch Shift Crank (1B853028 and above)	1
2	NSS	不单独销售塞	NOT SOLD SEPARATE Plug	1
3	8M0046215	曲柄, 换挡器 1/4英寸枢轴销 (1B853028及以上)	CRANK, Shifter 1/4 Pivot Pin (1B853028 and above)	1
3	8M0220880	曲柄，换挡器1/4枢轴销	CRANK, Shifter 1/4 Pivot Pin	1
4	19755T7	阀芯总成	SPOOL ASSEMBLY	1
4	8M0235940	阀芯总成	SPOOL ASSY	1
5	NSS	不单独销售线轴	NOT SOLD SEPARATE Spool	1
6	469501	开口销	COTTER PIN	1
7	NSS	不单独销售调节套筒	NOT SOLD SEPARATE Sleeve Adjusting	1
8	892595A05	前进/小齿轮组	GEAR SET Forward/Pinion	1
8	892595A04	前进/小齿轮组	GEAR SET Forward/Pinion	1
9	884328A01	垫片组	SHIM SET	AR
9	8M0063270	垫片组	SHIM SET	AR
10	884323T01	滚柱轴承总成	BEARING ASSEMBLY Roller	1
10	8M0142836	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
11	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
12	23721	挡圈	RING Retaining	1
12	8M0051043	挡圈	RING Retaining	1
13	892805	止推垫片	THRUST WASHER	1
13	8M0053823	止推垫圈(内径1.50×外径2.046)	WASHER Thrust, (1.50 ID x 2.046 OD)	1
14	884325T01	圆锥滚子轴承组件	BEARING ASSEMBLY Roller-Tappered	1
14	8M0142835	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
15	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
16	880714T	离合器	CLUTCH	1
17	30893	弹簧	SPRING	1
18	828356	定位销	PIN Detent	1
19	8M0069774	螺旋桨轴	PROPELLER SHAFT	1
19	8M0140446	螺旋桨轴	PROPELLER SHAFT	1
20	8M0020941	十字销	PIN Cross	1
20	8M0100263	十字销	PIN Cross	1
21	880695A01	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
21	8M0142891	倒挡齿轮24齿	GEAR Reverse, 24T	1
21	880707A01	倒挡齿轮	GEAR Reverse	1
21	8M0118363	倒车齿轮 21齿	GEAR Reverse, 21T	1
22	880699	推力环	THRUST RING	1
23	8M0064306	止推隔套	SPACER Thrust	1
24	8M0076745	垫片组	SHIM SET	1
24	8M0050423	垫片 .020	WASHER .020	AR
24	8M0050424	垫片 .022	WASHER .022	AR
24	8M0050425	垫片 .024	WASHER .024	AR
24	8M0050427	垫片 .026	WASHER .026	AR
24	8M0050428	垫片 .028	WASHER .028	AR
24	8M0050429	垫片 .030	WASHER .030	AR
24	8M0050430	垫片 .032	WASHER .032	AR
24	8M0050431	垫片 .034	WASHER .034	AR
24	8M0050432	垫片 .036	WASHER .036	AR
24	8M0050433	垫片 0.038	WASHER .038	AR
24	8M0050434	垫片 0.040	WASHER .040	AR
24	8M0050435	垫片 0.042	WASHER .042	AR
24	8M0050436	垫片 0.044	WASHER .044	AR
24	8M0050437	垫片 0.046	WASHER .046	AR
24	8M0050438	垫片 0.048	WASHER .048	AR
24	8M0050439	垫片 0.050	WASHER .050	AR
25	8M0083392	轴承座总成	CARRIER ASSEMBLY Bearing	1
26	884329T	滚珠轴承	BEARING Ball	1
26	8M0142873	滚珠轴承	BEARING Ball	1
27	888483	油封	SEAL Oil	1
27	8M0204700	油封	SEAL Oil	1
28	884330T01	圆锥轴承组件	BEARING ASSEMBLY Taper	1
28	8M0148319	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper Cup/Cone	1
29	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
30	888483	油封	SEAL Oil	1
30	8M0204700	油封	SEAL Oil	1
31	896524	O型圈(3.850×.210)	O-RING (3.850 x .210)	1
31	8M0142840	O型圈(3.85×0.210)	O-RING (3.85 x 0.210)	1
32	880717A01	螺钉/密封套件 .38英寸长	SCREW/SEAL KIT .38 Inch Long	1
32	8M0077071	螺钉/密封套件 .75英寸长	SCREW/SEAL KIT .75 Inch Long	1
33	830749	密封件	SEAL	1
33	8M0204693	放油螺塞密封件	SEAL Drain Plug	1
34	880697	键槽垫圈	KEYED WASHER	1
35	79448	固定座	RETAINER	1
35	8M2011027	固定座	RETAINER	1
-	8M0235174	标贴齿轮箱 1.75:1	DECAL Gearcase, 1.75:1	1
-	830749A01	齿轮箱密封套件	SEAL KIT Gear Housing	1

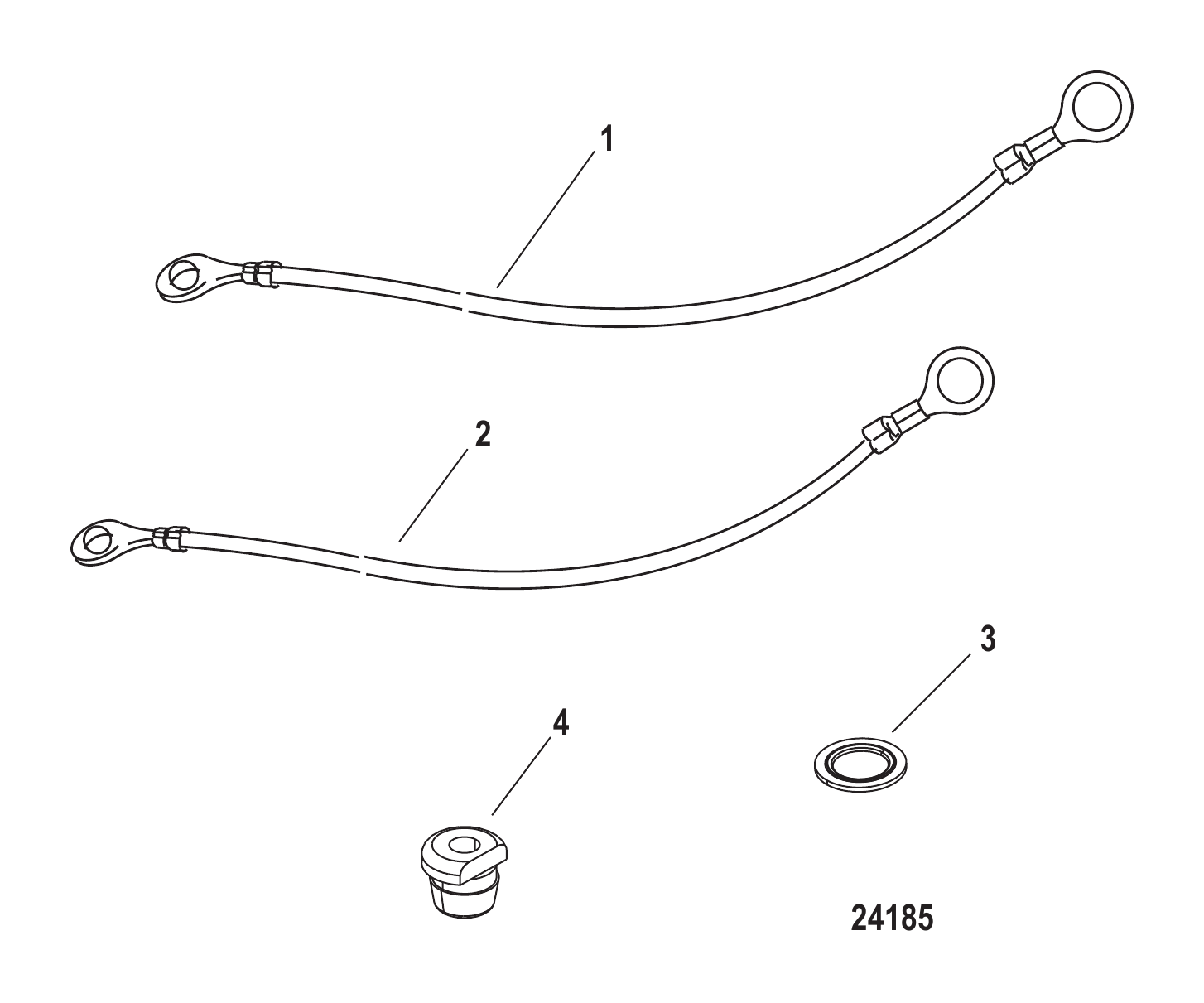

图 26接地线套件 899712A01 Ground Cable Kit (899712A01)

REF	零件编号	中文名称	英文名称	数量
-	899712A01	连续性电缆套件	CABLE KIT Continuity	1
1	88238T23	拉线总成	CABLE ASSEMBLY	1
2	88238T24	拉线总成	CABLE ASSEMBLY	1
3	885112	垫圈	WASHER	1
3	8M0217559	垫圈	WASHER	1
4	12602002	护孔环	GROMMET	1

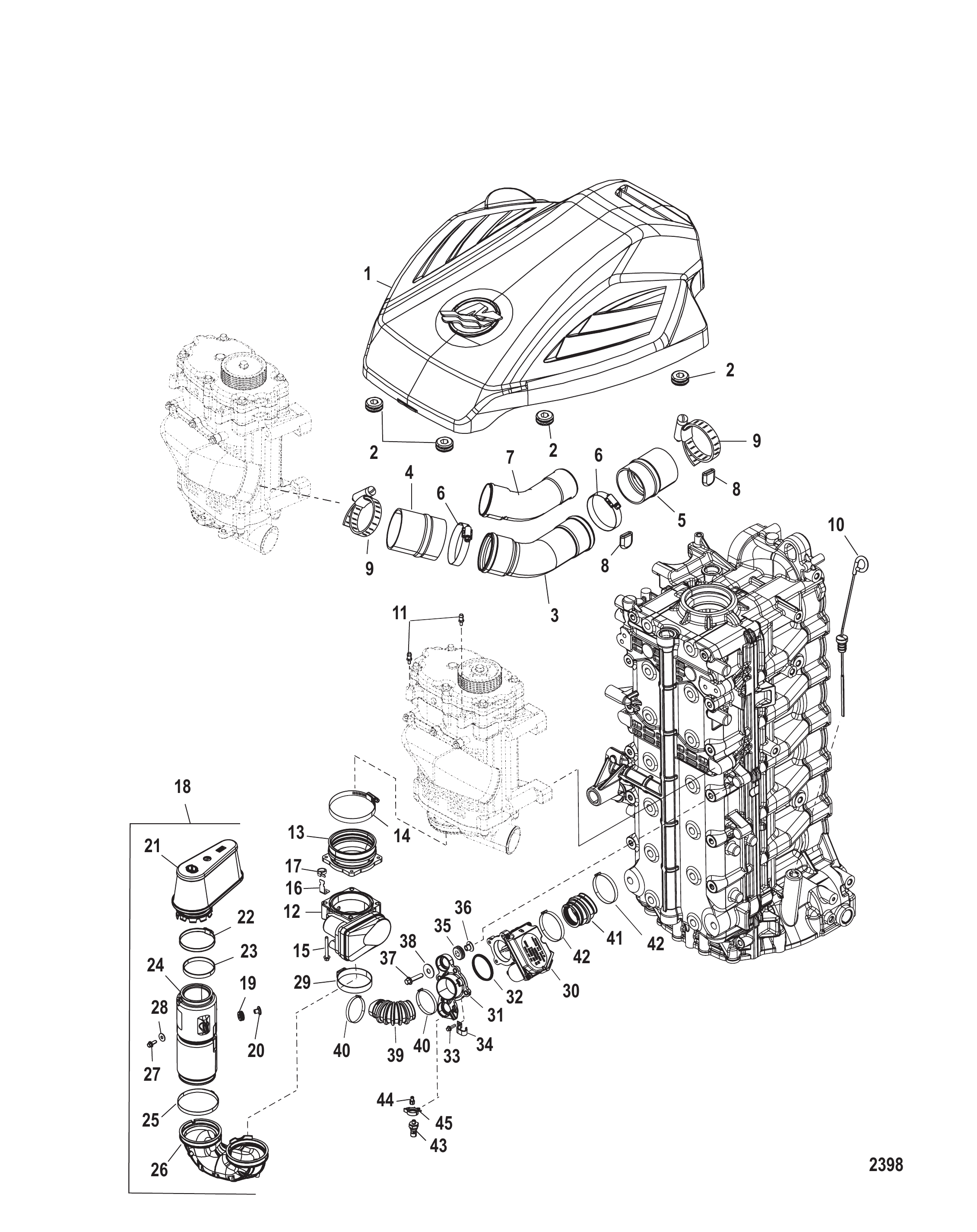

图 27进气系统组件 Induction Components

REF	零件编号	中文名称	英文名称	数量
1	887936T02	飞轮盖	COVER Flywheel	1
1	887936T04	飞轮盖	COVER Flywheel	1
1	887936T04	飞轮盖	COVER Flywheel	1
2	834985	护孔环	GROMMET	4
2	8M0190980	护孔环	GROMMET	4
3	893307A01	出管总成	TUBE OUTLET ASSEMBLY	1
3	8M0035481	热风管总成	TUBE ASSEMBLY Hot Air Duct	1
4	893389	软管(内径65)	HOSE (65 Inside Diameter)	1
4	8M0035481	热风管总成	TUBE ASSEMBLY Hot Air Duct	1
5	893390	软管(内径60)	HOSE (60 Inside Diameter)	1
5	8M0035481	热风管总成	TUBE ASSEMBLY Hot Air Duct	1
6	893342	卡箍	CLAMP	2
7	893391	软管套管	HOSE SLEEVE	1
7	8M0035481	热风管总成	TUBE ASSEMBLY Hot Air Duct	1
8	8079923	软管夹端盖	COVER Hose Clamp End	2
8	8M0074364	软管夹盖	COVER Hose Clamp	2
9	893342	卡箍	CLAMP	2
10	893382	量油尺	DIPSTICK	1
10	898022	机油尺	DIPSTICK Oil	1
11	888517	销	PIN	2
12	888991T02	电子节气门控制总成	CONTROL ASSEMBLY Throttle - Electronic	1
12	8M0113515	节气门控制器	THROTTLE CONTROL	1
13	880576T04	隔离器	ISOLATOR	1
13	8M0113513	ETC隔离器	ISOLATOR-ETC	1
14	815504256	蜗杆卡箍	CLAMP Worm Gear	1
15	88552550	不锈钢螺钉 (M6 x 50 mm)	SCREW (M6 x 50 mm) Stainless Steel	4
16	884353	支架	BRACKET	2
17	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
18	892383T04	进气总成	INTAKE ASSEMBLY Air	1
18	892383T06	进气总成	INTAKE ASSEMBLY Air	1
19	8349851	护孔环	GROMMET	1
20	856954	衬套	BUSHING	1
21	893318T01	空气滤清器	FILTER Air	1
21	893318T02	空气滤清器	FILTER Air	1
22	895842	卡箍	CLAMP	1
23	893317	衬垫	GASKET	1
24	892383001	谐振器	RESONATOR	1
24	8M0007183	谐振器	RESONATOR	1
25	888988016	卡箍（96.5毫米）	CLAMP (96.5 mm)	1
26	893314001	橡胶护套	BOOT Rubber	1
26	893314002	进气管	DUCT Inlet	1
27	88552525	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	1
27	8M0103807	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	1
28	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	1
29	888988016	卡箍（96.5毫米）	CLAMP (96.5 mm)	1
30	884408T05	增压阀总成	BOOST VALVE ASSEMBLY	1
30	884408A08	电动增压控制阀套件	VALVE KIT Control - Electric Boost	1
31	887939006	增压阀安装支架	BRACKET Boost Valve Mounting	1
31	887939007	增压阀安装板	PLATE Boost Valve Mounting	1
32	892079	O型圈	O-RING	1
33	88552520	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	4
33	8M0103806	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	4
34	65292	J型卡扣	J CLIP	1
34	8M0024808	J型夹	J-CLIP	1
35	833155	护孔环	GROMMET	2
36	8502341	衬套	BUSHING	2
37	88552635	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	2
37	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	2
38	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	2
39	887937006	前部软管	HOSE Front	1
40	888988002	卡箍(57.5 mm)前EBC	CLAMP (57.5 mm) Front EBC	2
41	887938002	后管	TUBE Rear	1
41	887938003	后管	TUBE Rear	1
42	888988004	卡箍(62.0 mm)后EBC	CLAMP (62.0 mm) Rear EBC	2
43	881879A16	皮托管传感器总成	SENSOR ASSEMBLY Pitot	1
43	881879T25	皮托管传感器总成	SENSOR ASSEMBLY Pitot	1
44	892403	接头	FITTING	1
44	8M0207782	直通接头	FITTING Straight	1
45	883066	夹子 (.865)	CLIP (.865)	1

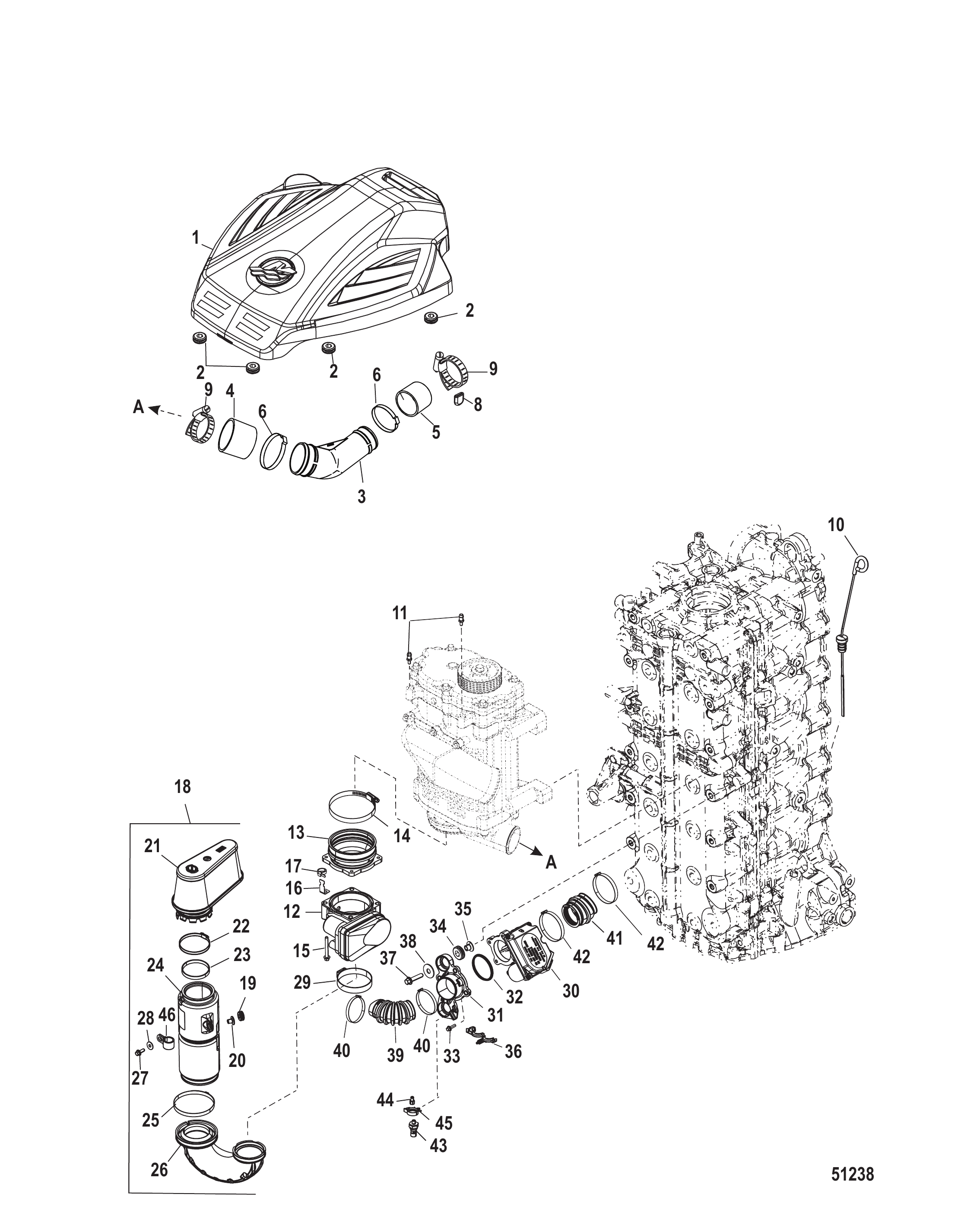

图 28进气组件 CCT Induction Components CCT

REF	零件编号	中文名称	英文名称	数量
1	8M0071814	飞轮盖	COVER Flywheel	1
2	834985	护孔环	GROMMET	4
2	8M0190980	护孔环	GROMMET	4
3	8M0035481	热风管总成	TUBE ASSEMBLY Hot Air Duct	1
4	896259	软管	HOSE	1
5	896271	软管	HOSE	1
6	893342	卡箍	CLAMP	2
7	893391	软管套管	HOSE SLEEVE	1
7	8M0035481	热风管总成	TUBE ASSEMBLY Hot Air Duct	1
8	8079923	软管夹端盖	COVER Hose Clamp End	2
8	8M0074364	软管夹盖	COVER Hose Clamp	2
9	893342	卡箍	CLAMP	2
10	898022	机油尺	DIPSTICK Oil	1
11	888517	销	PIN	2
12	888991T04	电子节气门控制总成	CONTROL ASSEMBLY Throttle - Electronic	1
12	8M0113515	节气门控制器	THROTTLE CONTROL	1
13	880576005	隔离器	ISOLATOR	1
13	8M0113513	ETC隔离器	ISOLATOR-ETC	1
14	815504256	蜗杆卡箍	CLAMP Worm Gear	1
15	88552550	不锈钢螺钉 (M6 x 50 mm)	SCREW (M6 x 50 mm) Stainless Steel	4
16	884353	支架	BRACKET	2
17	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
18	892383T06	进气总成	INTAKE ASSEMBLY Air	1
19	8349851	护孔环	GROMMET	1
20	856954	衬套	BUSHING	1
21	893318T02	空气滤清器	FILTER Air	1
22	895842	卡箍	CLAMP	1
23	893317	衬垫	GASKET	1
24	892383001	谐振器	RESONATOR	1
24	8M0007183	谐振器	RESONATOR	1
25	888988027	卡箍	CLAMP	1
26	893314002	进气管	DUCT Inlet	1
27	88552525	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	1
27	8M0103807	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	1
28	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	1
29	888988016	卡箍（96.5毫米）	CLAMP (96.5 mm)	1
30	884408A07	电动增压控制阀套件	VALVE KIT Control - Electric Boost	1
30	884408A08	电动增压控制阀套件	VALVE KIT Control - Electric Boost	1
31	887939007	增压阀安装板	PLATE Boost Valve Mounting	1
32	892079	O型圈	O-RING	1
33	88552520	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	4
33	8M0103806	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	4
34	833155	护孔环	GROMMET	2
35	8502341	衬套	BUSHING	2
36	859376	卡扣	CLIP	1
37	88552635	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	2
37	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	2
38	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	2
39	887937006	前部软管	HOSE Front	1
40	888988002	卡箍(57.5毫米前电子增压控制)	CLAMP (57.5 mm) Front Electronic Boost Control	2
41	887938003	后管	TUBE Rear	1
42	888988004	卡箍(62.0毫米后电子增压控制)	CLAMP (62.0 mm) Rear Electronic Boost Control	2
43	881879A16	皮托管传感器总成	SENSOR ASSEMBLY Pitot	1
43	881879T25	皮托管传感器总成	SENSOR ASSEMBLY Pitot	1
44	892403	接头	FITTING	1
44	8M0207782	直通接头	FITTING Straight	1
45	883066	夹子 (.865)	CLIP (.865)	1
46	8589781	燃油软管卡箍（适用处使用）	CLIP Fuel Hose (Use where Applicable)	1

图 29润滑图表 Lube Chart

REF	零件编号	中文名称	英文名称	数量
-	NOPART	无零件清单	NO PARTS LIST	1

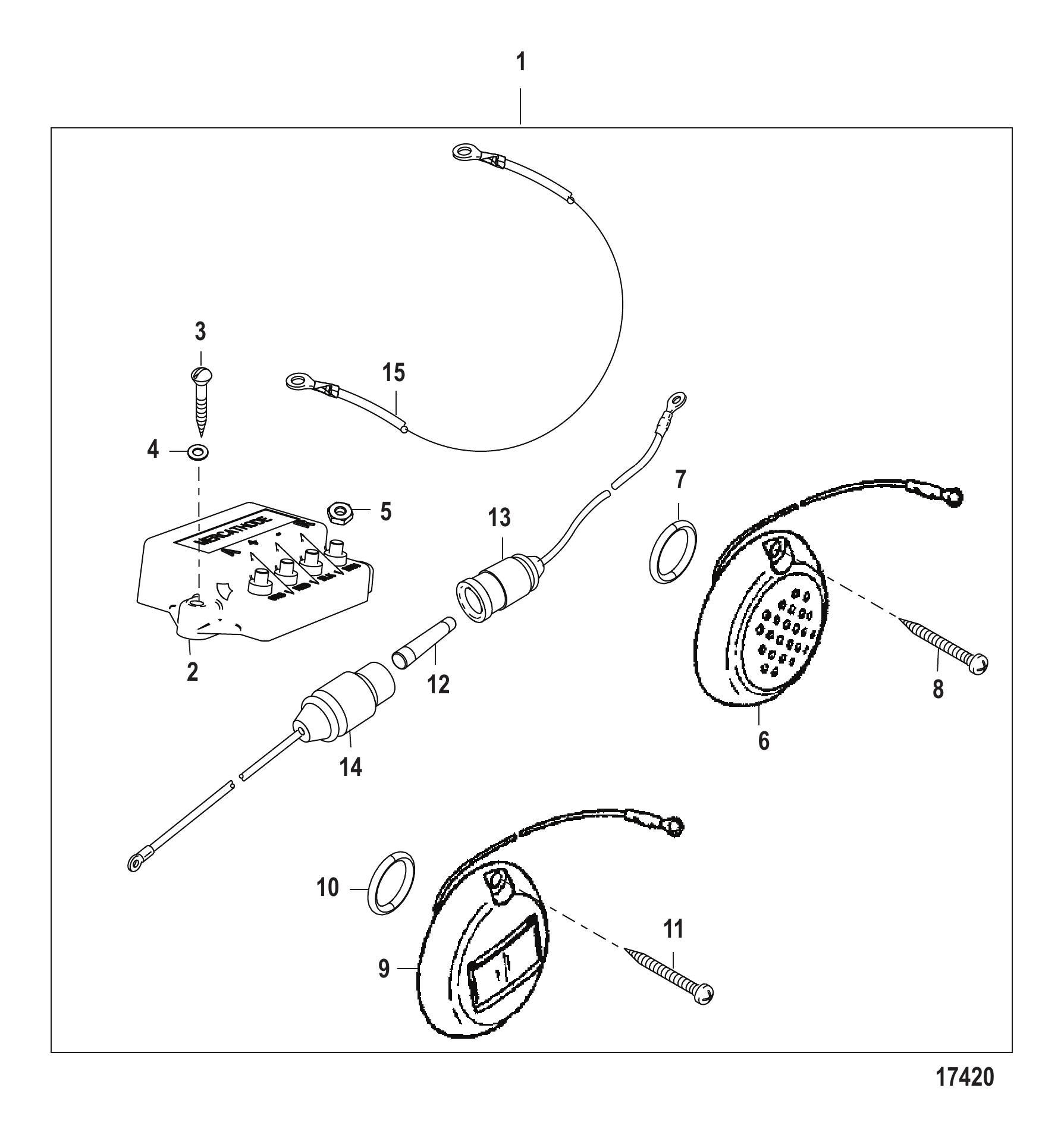

图 30防腐电极套件 Mercathode Kit

REF	零件编号	中文名称	英文名称	数量
1	88334A2	防腐电极套件	MERCATHODE KIT	1
2	42600A09	防腐电极总成	MERCATHODE ASSEMBLY	1
3	22793	螺丝(#9-14x0.875)	SCREW (#9-14 x .875)	2
4	30164	垫圈(0.192x0.375x0.0312)不锈钢	WASHER (.192 x .375 x .0312) Stainless Steel	2
5	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	4
6	72958A5	电极总成	ELECTRODE ASSEMBLY	1
7	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
7	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
8	87698	螺丝(#10-16 x 1.250)不锈钢	SCREW (#10-16 x 1.250) Stainless Steel	2
9	72957A5	阳极总成	ANODE ASSEMBLY	1
9	8M0181304	阳极总成	ANODE ASSY	1
10	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
10	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
11	87698	螺丝(#10-16 x 1.250)不锈钢	SCREW (#10-16 x 1.250) Stainless Steel	2
12	79091	保险丝20安培	FUSE 20 Ampere	1
12	8M0207796	保险丝20安培	FUSE 20 AMP	1
13	95084A10	电缆总成(5.00英寸)红色	CABLE ASSEMBLY (5.00 Inches) Red	1
13	8M0207788	拉线总成	CABLE ASSEMBLY	1
14	95084A13	电缆总成(64.00英寸)	CABLE ASSEMBLY (64.00 Inches)	1
15	79138A8	电缆总成(72.00英寸)黑色	CABLE ASSEMBLY (72.00 Inches) Black	1

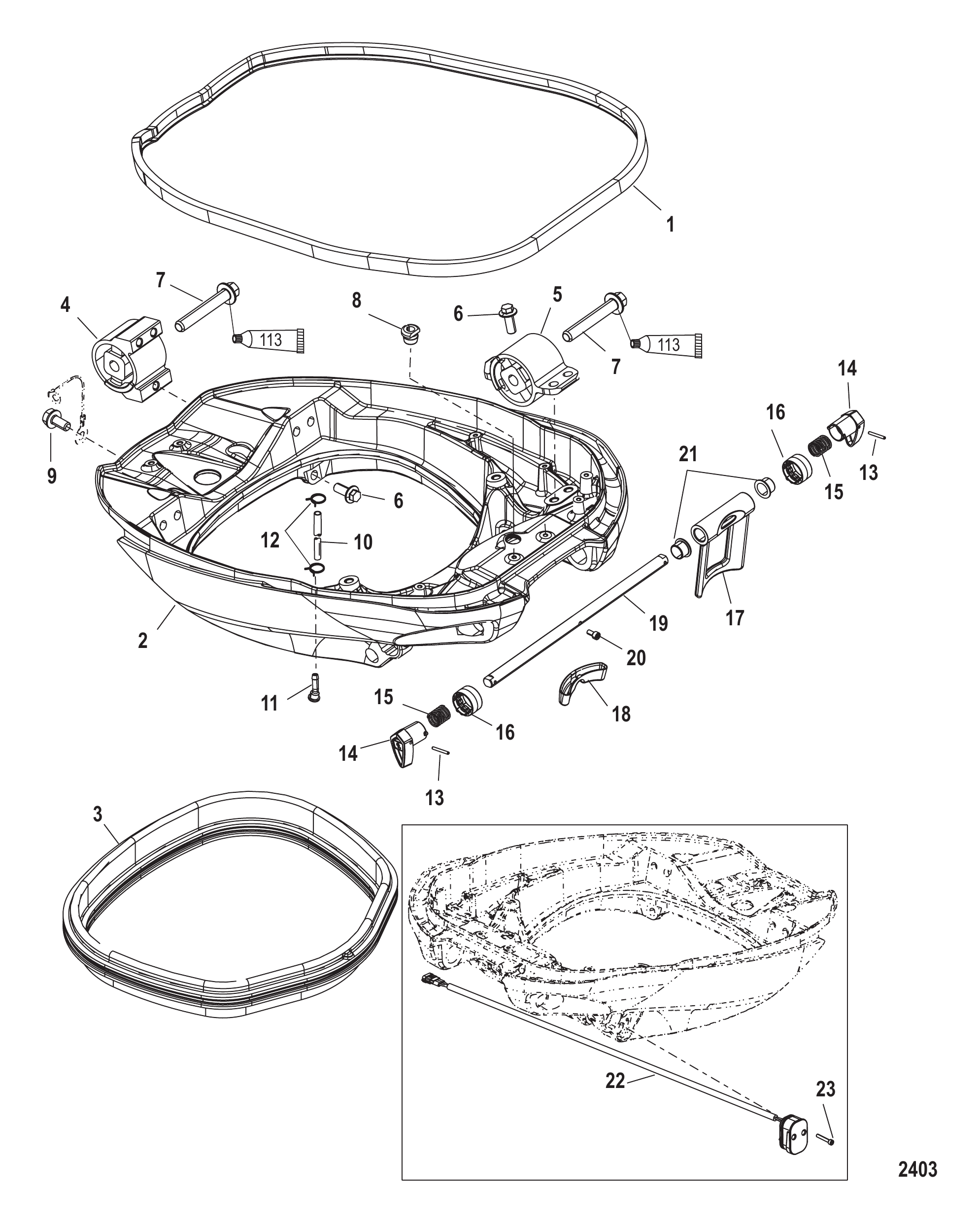

图 31安装支架 Mount Cradle

REF	零件编号	中文名称	英文名称	数量
1	885546002	密封件	SEAL	1
1	8M0109275	密封环	RING - SEAL	1
2	884887T04	安装支架	MOUNT CRADLE	1
2	884887T07	支架安装总成	CRADLE ASSEMBLY Mount	1
3	884888003	密封件	SEAL	1
3	8M0060014	密封件	SEAL	1
4	888538T	后安装座	MOUNT Rear	2
4	8M0103708	后安装座	MOUNT Rear	2
5	888535T	前安装座	MOUNT Front	2
5	8M0103365	前安装座	MOUNT Front	2
6	889745030	螺钉（M12×30）	SCREW (M12 x 30)	12
7	88509890	螺钉（M16×90）	SCREW (M16 x 90)	4
7	8M0103832	螺钉	SCREW	4
8	19565002	护孔环	GROMMET	1
9	40011126	不锈钢螺丝(M6 x 13)	SCREW (M6 x 13) Stainless Steel	1
10	830756109	软管（57英寸散装裁至35英寸）	HOSE (57.00 Inches Bulk) Cut to 35 Inches	1
10	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
11	895797	示踪管接头	FITTING Telltale	1
11	895797001	接头	FITTING	1
12	895851	卡箍(8英寸)	CLAMP (8.00 Inches)	2
13	73194	滚销(0.125 x 1.12)(1/8 x 1.12)	PIN Roll (.125 x 1.12) (1/8 x 1.12)	2
14	880649002	倾斜锁杆	LEVER Tilt Lock	2
15	47968	弹簧	SPRING	2
16	889540002	倾斜锁定离合器	TILT Lock Clutch	2
16	889540A03	离合器套件	CLUTCH KIT	2
17	880651002	倾斜锁止支架	BRACKET Tilt Lock	1
17	8M0109693	倾斜锁止支架	BRACKET Tilt Lock	1
18	889539	倾斜锁止垫	PAD Tilt Lock	1
18	889539001	垫	PAD	1
18	889539001	倾斜锁止垫	PAD Tilt Lock	1
18	8M0076907	倾斜锁止垫	PAD Tilt Lock	1
19	880650002	倾斜锁定轴	SHAFT Tilt Lock	1
19	880650003	倾斜锁定轴	SHAFT Tilt Lock	1
19	880650003	倾斜锁定轴	SHAFT Tilt Lock	1
20	889546	螺钉 (M5 x 10)	SCREW (M5 x 10)	1
21	8806641	轴承（0.625英寸）	BEARING (.625 Inch)	2
22	888590	传感器	SENSOR	1
22	888590002	升降位置传感器	SENSOR Trim Position	1
23	889547	螺丝(M5 x 30)	SCREW (M5 x 30)	2

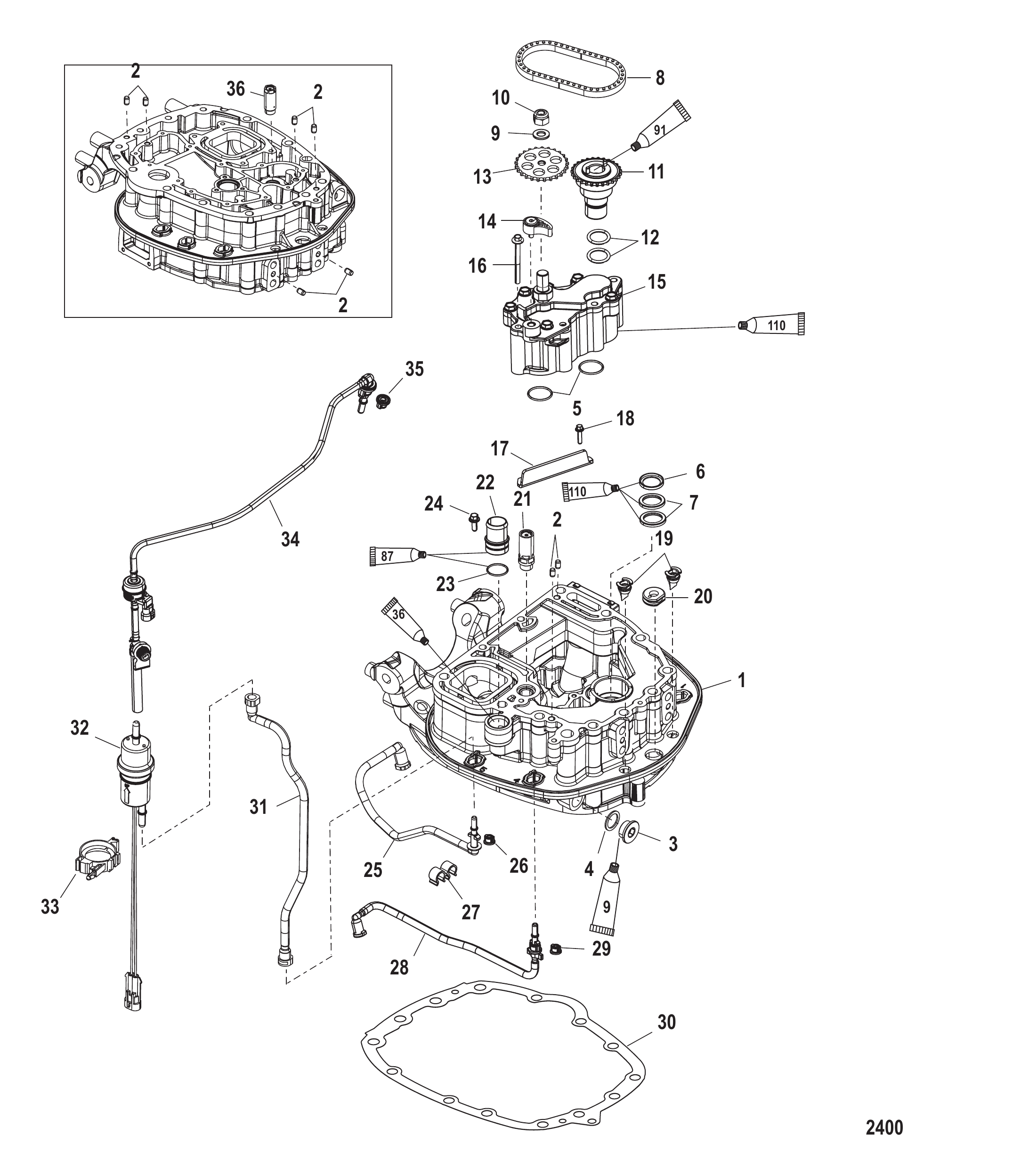

图 32机油泵/上适配板 Oil Pump/Adaptor Plate-Upper

REF	零件编号	中文名称	英文名称	数量
1	892126A01	适配板套件	ADAPTER PLATE KIT	1
1	892126A03	适配板套件	ADAPTER PLATE KIT	1
2	892228	定位销	PIN Dowel	8
3	881855001	堵头	PLUG	1
4	881856001	垫圈	WASHER	1
5	887930	O型圈	O-RING	2
6	884461	油封	SEAL Oil	1
6	8M0033928	油封	SEAL Oil	1
7	884462	水封	SEAL Water	2
8	884457	油泵驱动链条	CHAIN Oil Pump Drive	1
8	8M6002692	油泵驱动链条	CHAIN Oil Pump Drive	1
9	892491	垫圈	WASHER	1
10	892165	螺母	NUT	1
11	884458T06	油泵驱动轴	DRIVESHAFT Oil Pump Oil Pump	1
11	8M0217265	机油泵	OIL PUMP	1
12	895791	O型圈	O-RING	2
12	8M0034912	O型圈 3.78×21.32	O-RING 3.78 X 21.32	2
13	884456	从动链轮	SPROCKET Driven	1
14	884418A1	油泵驱动张紧器总成	TENSIONER ASSEMBLY Oil Pump Drive	1
15	884446T04	油泵总成	PUMP ASSEMBLY Oil	1
16	892455065	螺钉	SCREW	5
17	892335	导油板	DEFLECTOR Oil	1
17	892335001	导油板	DEFLECTOR Oil	1
18	88552516	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	2
18	8M0103805	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	2
19	888819002	排水罩	DRAIN Cowl	2
20	888163	护孔环	GROMMET	1
21	884477A01	止回阀总成	CHECK VALVE ASSEMBLY	1
21	8M0062064	止回阀总成	CHECK VALVE ASSY.	1
22	885516004	泄放接头	FITTING Dump	1
22	8M0092321	EDP黑色接头	FITTING EDP Black	1
23	846594	O型圈 (1.239 x .070) 黑色	O-RING (1.239 x .070) Black	1
23	8M0092943	O型圈橙色	O-RING Orange	1
24	88552512	不锈钢螺钉 (M6 x 12 mm)	SCREW (M6 x 12 mm) Stainless Steel	1
24	8M0103804	不锈钢螺钉 (M6 x 12 mm)	SCREW (M6 x 12 MM) Stainless Steel	1
25	884549	下部通风软管	HOSE Vent-Lower	1
25	8M0087108	软管	HOSE	1
26	884546	护孔环	GROMMET	1
27	888523001	卡扣	CLIP	1
28	892240	燃油进油管至燃油供应模块	HOSE Fuel into Fuel Supply Module	1
28	8M0087118	软管	HOSE	1
29	884546	护孔环	GROMMET	1
30	889617001	衬垫	GASKET	1
31	8877551	燃油通风软管	HOSE Fuel-Vent	1
31	8M0225335	燃油通风软管	HOSE FUEL VENT	1
32	884545T	通风罐	VENT CANISTER	1
32	8M0175814	通气罐总成	CANISTER-VENT ASY	1
32	884545T02	通风罐总成	VENT CANISTER ASSEMBLY	1
32	8M0175814	通气罐总成	CANISTER-VENT ASY	1
33	853947	卡扣	CLIP	1
34	895775A01	燃油管路净化阀总成	VALVE ASSEMBLY Fuel Line Purge	1
34	8M0126303	净化通气总成	PURGE VENT ASSY	1
35	884546	护孔环	GROMMET	1
36	884422A07	油泵泄压阀	PRESSURE RELIEF VALVE Oil Pump	1
-	880552A05	动力头衬垫套件	GASKET SET Powerhead	1
-	880552A07	动力头衬垫套件	GASKET SET Powerhead	1
-	895247A05	动力头总成	POWERHEAD ASSEMBLY	1
-	895247A06	动力头总成	POWERHEAD ASSEMBLY	1

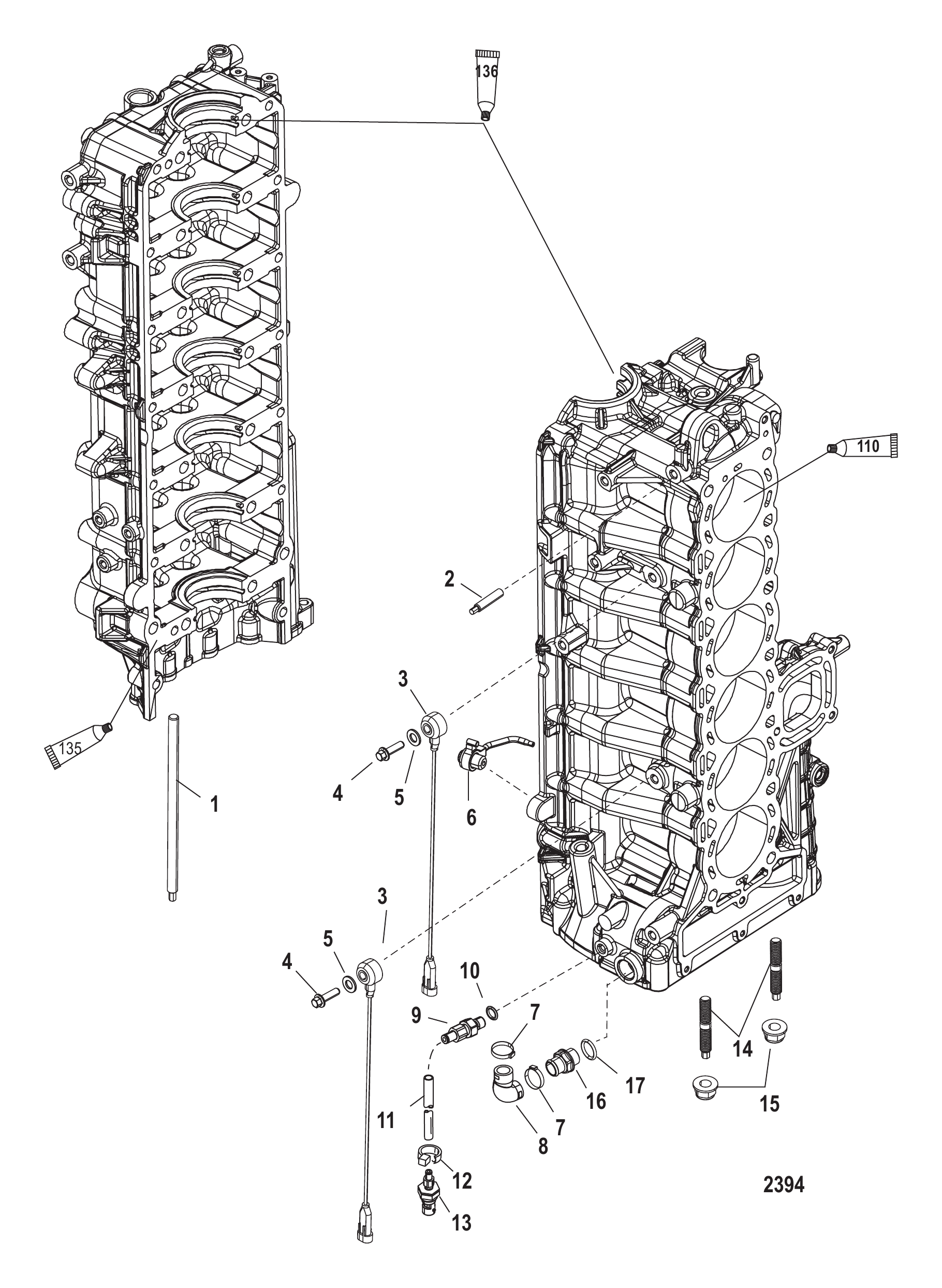

图 33左舷气缸体组件 Port Cylinder Block Components

REF	零件编号	中文名称	英文名称	数量
1	880668	螺柱	STUD	10
1	8M0022158	双头螺柱(M10x205)	STUD (M10 x 205)	10
2	888997001	螺柱	STUD	1
2	8M0022162	双头螺栓(M10×60)	STUD (M10 x 60)	1
3	878187	爆震传感器总成	SENSOR ASSEMBLY Knock	2
3	8M6003194	爆震传感器总成	SENSOR ASSEMBLY Knock	2
4	892086035	螺钉(M10 x 35)	SCREW (M10 x 35)	2
5	4002319	垫圈	WASHER	2
6	884268A1	机油喷嘴总成	JET ASSEMBLY Oil	6
7	888988008	卡箍(34.6毫米)	CLAMP (34.6 MM)	2
7	8M0187145	卡箍	CLAMP	2
8	885544002	软管	HOSE	1
9	896094A01	接头总成	FITTING ASSEMBLY	1
10	888814	O型圈(0.351 x 0.072)	O-RING (.351 x .072)	1
10	896699	O型圈（1.78毫米 x 0.08毫米）	O-RING (1.78 mm x .08 mm)	1
11	85978571	水管(散装52英寸)-接水压传感器-裁切至21.5英寸	TUBING (52.00 Inches Bulk) To Water Pressure Sensor - Cut to 21.5 Inches	1
11	85978571	水管(52.00英寸散装)至水压传感器-裁切至29英寸	TUBING (52.00 Inches Bulk) To Water Pressure Sensor - Cut to 29 Inches	1
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
13	881879A19	水压传感器总成	SENSOR ASSEMBLY Water Pressure	1
13	881879T26	传感器压力	SENSOR Pressure	1
13	881879A20	水压传感器总成	SENSOR ASSEMBLY Pressure Water Pressure	1
13	881879T26	传感器压力	SENSOR Pressure	1
14	888849001	双头螺栓(M8x49)	STUD (M8 x 49)	2
14	8M0000274	双头螺栓(M8x44)	STUD (M8 x 44)	2
15	826365	螺母 (M8)	NUT (M8)	2
16	885517A04	接头总成	FITTING ASSEMBLY	1
16	885517A05	接头总成	FITTING ASSEMBLY	1
16	885517A05	接头总成	FITTING ASSEMBLY	1
17	892077	O型圈	O-RING	1
-	880552A05	动力头衬垫套件	GASKET SET Powerhead	1
-	880552A07	动力头衬垫套件	GASKET SET Powerhead	1
-	895247A05	动力头总成	POWERHEAD ASSEMBLY	1
-	895247A06	动力头总成	POWERHEAD ASSEMBLY	1

图 34动力头衬垫组件 Powerhead Gasket Set Components

零件编号	中文名称	英文名称	数量
62701	接头总成O型圈	O-RING Fitting Assembly	2
90196	O型圈(.921 x .139)油塞总成	O-RING (.921 x .139) Oil Plug Assembly	1
8M0204673	O型圈 .921 x .139	O-Ring .921 x .139	1
846594	O型圈 (1.239 x .070) 黑色适配板排放接头	O-RING (1.239 x .070) Black Adaptor Plate Dump Fitting	1
8M0092943	O型圈橙色	O-RING Orange	1
846594	O型圈 (1.239 x .070) 黑色机油吸油管	O-RING (1.239 x .070) Black Oil Pickup	1
8M0092943	O型圈橙色	O-RING Orange	1
8805251	油封(主轴承顶部)	SEAL Top Main Bearing	1
8M0032912	密封件	SEAL	1
880552007	气缸盖与缸体衬垫	GASKET Cylinder Head to Block	1
8M0033476	衬垫缸盖	GASKET Head	1
880624003	衬垫缸体至适配器	GASKET Block to Adaptor	1
880629	排气管密封件	SEAL Exhaust Tube	1
880631001	O型圈橙色张紧器盖	O-RING Orange Tensioner Cap	1
8M0237361	O型圈	O-RING	1
884409	O型圈缸体机油定位销	O-RING Block Oil Dowel	1
884423	O型圈缸体机油定位销	O-RING Block Oil Dowel	1
884461	油封适配板	SEAL Oil Adaptor Plate	1
8M0033928	油封	SEAL Oil	1
884462	水封适配板	SEAL Water Adaptor Plate-Water	2
887930	O型圈适配板	O-RING Adaptor Plate	2
888593	油封排油管塞	SEAL Oil Drain Tube Plug	1
8M0188614	放油螺塞密封件	SEAL Drain Plug	1
889617001	适配板垫片	GASKET Adaptor Plate	1
889618001	衬垫油底壳	GASKET Oil Sump	1
892077	O型圈缸体接头总成	O-RING Block Fitting Assembly
892117	密封件歧管壳体	SEAL Manifold Housing	1
892445	O型圈水管	O-RING Water Tube	1
892446	O型圈 (14 X 1.78 MM) 适配板接头	O-RING (14 X 1.78 MM) Adaptor Plate Fitting	1
895791	O型圈机油泵驱动轴	O-RING Oil Pump Driveshaft	2
8M0034912	O型圈 3.78×21.32	O-RING 3.78 X 21.32	2

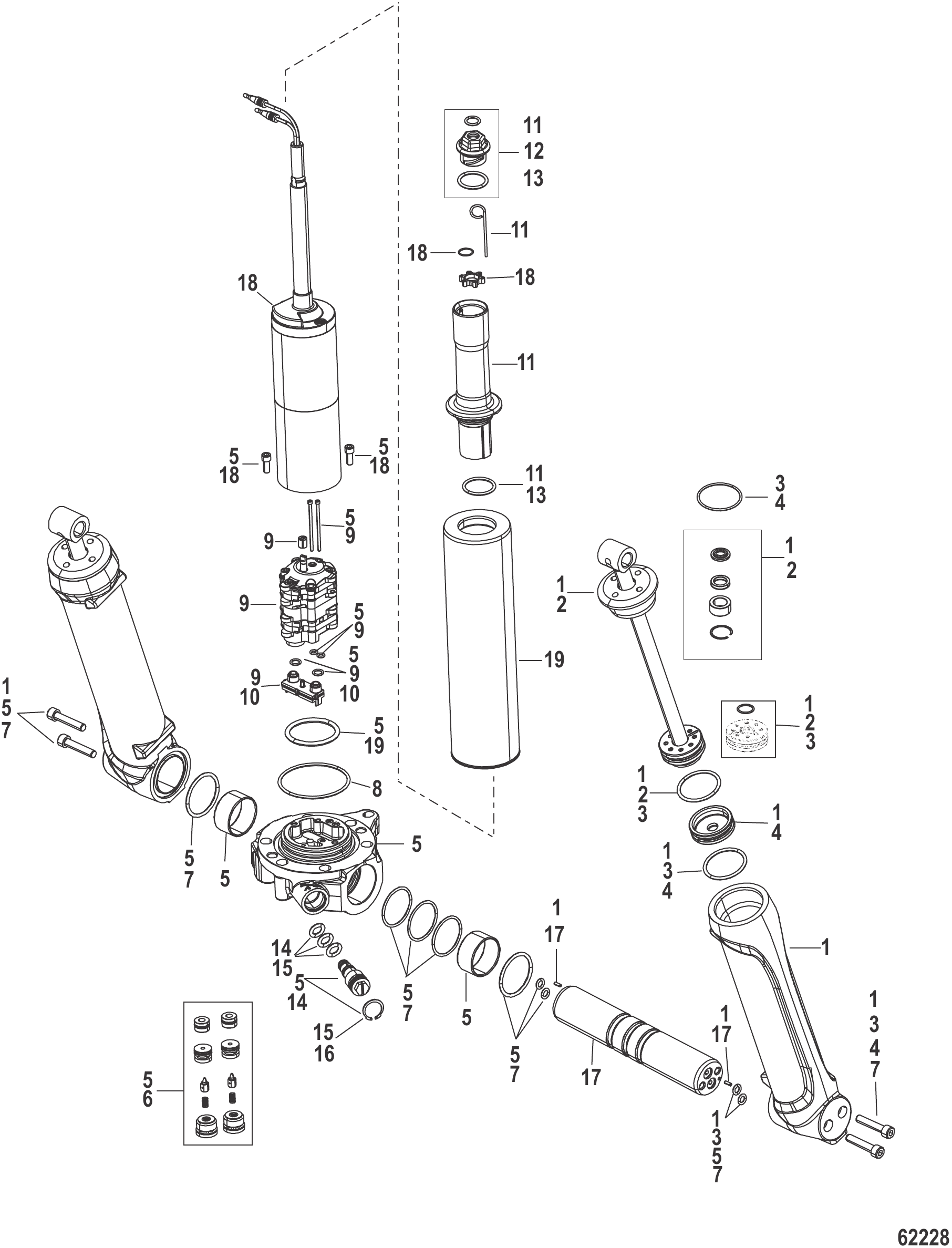

图 35动力升降倾斜组件 Power Trim Components

REF	零件编号	中文名称	英文名称	数量
1	896156A01	配平油缸套件	TRIM CYLINDER KIT	1
2	896157A01	升降杆套件	TRIM ROD KIT	1
2	8M0118299	升降杆套件	TRIM ROD KIT	1
3	896158A01	O型圈套件	O-RING KIT	1
4	896159A01	活塞套件	PISTON KIT	1
5	896166A01	配平歧管套件	MANIFOLD KIT Trim	1
6	896165A01	配平止回套件PO型	CHECK KIT Trim PO	1
7	896160A01	O型圈套件	O-RING KIT	1
8	8M0010183	O型圈	O-RING	1
8	8M0204938	O型圈	O-RING	1
9	896163A01	配平泵套件	PUMP KIT Trim	1
10	896164A01	配平过滤器套件	TRIM FILTER KIT	1
11	896162A01	配平颈套件	TRIM NECK KIT	1
12	895854A01	O型圈套件	O-RING KIT	1
13	893419	盖套件	CAP KIT	1
14	893420A01	手动释放套件	MANUAL RELEASE KIT	1
14	8M0224397	手动释放套件	MANUAL RELEASE KIT	1
15	8M0224410	O型圈套件	ORING KIT	1
16	8M0184377	卡环	SNAP RING	1
17	893408A01	配平销套件	PIN KIT Trim	1
18	896161A01	配平电机套件	TRIM MOTOR KIT	1
18	896161A02	配平电机套件	TRIM MOTOR KIT	1
18	896161A02	配平电机套件	TRIM MOTOR KIT	1
19	896167A01	储液罐套件	RESERVOIR KIT	1

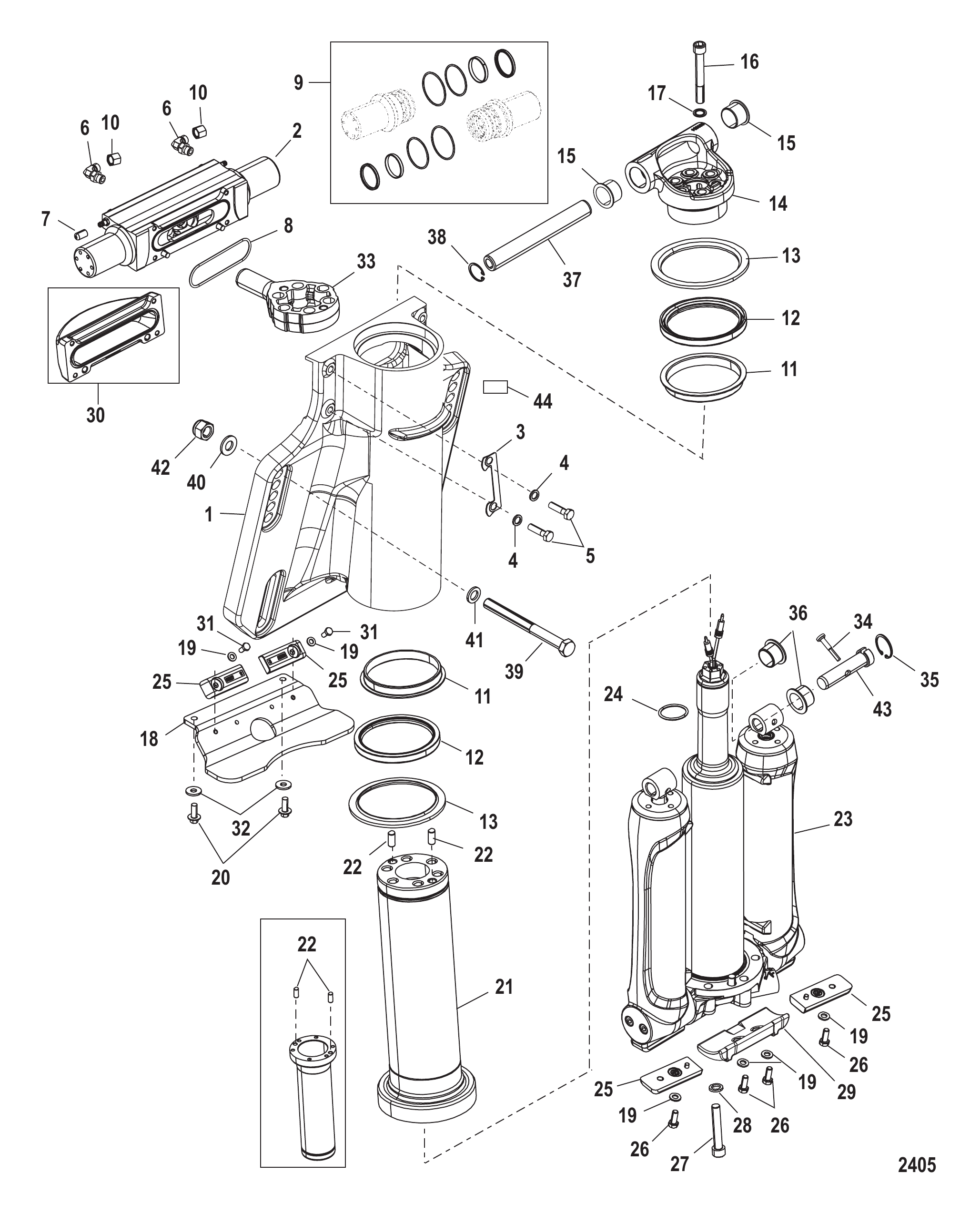

图 36动力升降/转向油缸 Power Trim/Steering Cylinder

REF	零件编号	中文名称	英文名称	数量
-	NSS	艉板总成(不单独销售)	NOT SOLD SEPARATE Transom Assembly	1
1	880652T	基座	PEDESTAL	1
1	880652T02	基座	PEDESTAL	1
2	896500A01	转向油缸套件	STEERING CYLINDER KIT	1
2	8M0118141	转向油缸	STEERING CYLINDER	1
3	893409	固定座	RETAINER	2
3	8M0168425	固定座	RETAINER	2
4	895853	垫圈	WASHER	4
5	88509530	螺钉 (M8 x 30)	SCREW (M8 x 30)	4
6	889552	-6 ORB转-6 ORFS接头(90度)	FITTING -6 ORB to -6 ORFS (90 Degree)	1
7	889550	乙烯基放气帽	CAP Bleeder - Vinyl	2
8	880667	密封件	SEAL	1
8	8M0155530	基座密封件	SEAL Pedestal	1
9	896173A01	转向油缸密封件套件	SEAL KIT Steering Cylinder	1
9	8M0045604	转向油缸密封件套件	SEAL KIT Steering Cylinder	1
10	892524	接头	FITTING	2
11	8806621	轴承	BEARING	2
11	8M0217557	轴承	BEARING	2
12	880661	密封件	SEAL	2
12	8M0217558	密封件	SEAL	2
13	8806561	轴承	BEARING	2
13	8M0217560	推力轴承	BEARING Thrust	2
14	880654T02	转向头	HEAD Steering	1
14	880654T03	转向头	HEAD Steering	1
15	8806551	轴承(1.25英寸)	BEARING (1.25 Inch)	2
16	885094105	螺钉(M14x105)	SCREW (M14 x 105)	6
17	885112	垫圈	WASHER	6
17	8M0217559	垫圈	WASHER	6
18	896120T	导流板(银色)	PLATE Deflector (Silver)	1
18	8M0045157	导流板(黑色)	PLATE Deflector (Black)	1
19	889545	垫圈	WASHER	6
19	8M0161430	平垫圈	WASHER Flat	6
20	4010720	螺钉(M8 x 20)	SCREW (M8 x 20)	2
21	880660T01	转向管	TUBE Steering	1
21	8M0220571	转向管	TUBE-STEERING	1
22	885111	定位销(0.375x0.875英寸)	PIN Dowel (.375 x .875)	6/8
23	880658T	动力升降总成	POWER TRIM ASSEMBLY	1
23	880658T03	动力升降总成	POWER TRIM ASSEMBLY	1
24	895854	O型圈	O-RING	1
24	8M0217562	O型圈	O-RING	1
25	893404	阳极块	ANODE	4
25	8M0220986	配平阳极	ANODE Trim	4
26	889543016	螺栓	BOLT	4
27	88510450	螺钉	SCREW	6
28	889549	垫圈	WASHER	6
29	880653	阳极块	ANODE	1
29	8M0220987	配平歧管阳极	ANODE Trim Manifold	1
30	893405T	盖板	COVER	1
30	8M0217564	转向臂盖	COVER Steering Arm	1
31	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
32	72397	垫圈	WASHER	2
33	880665T01	转向臂	ARM Steering	1
34	821539	三叶销	PIN Trilobe	2
35	895304	挡圈	RING Retaining	2
36	8806641	轴承（0.625英寸）	BEARING (.625 Inch)	4
37	895390	倾斜销	TILT PIN	1
37	8M0228705	倾斜销	TILT PIN	1
38	885100	挡圈	RING Retaining	1
38	8M0038931	挡圈	RING Retaining	1
39	67755003	螺钉 (0.500-20 x 5.500)	SCREW (.500-20 x 5.500)	4
39	8M0038370	螺钉(0.500-20x5.50英寸)	SCREW (.500-20 x 5.50)	4
40	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
40	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
41	895062	垫圈	WASHER	4
41	8M0204704	垫圈	WASHER	4
42	82671117	螺母(.500-20)	NUT (.500-20)	4
43	884889002	销	PIN	2
43	8M0146467	销	PIN	2
44	NSS	不单独销售-序列号覆膜标贴	NOT SOLD SEPARATE Decal-Serial Overlaminate	1

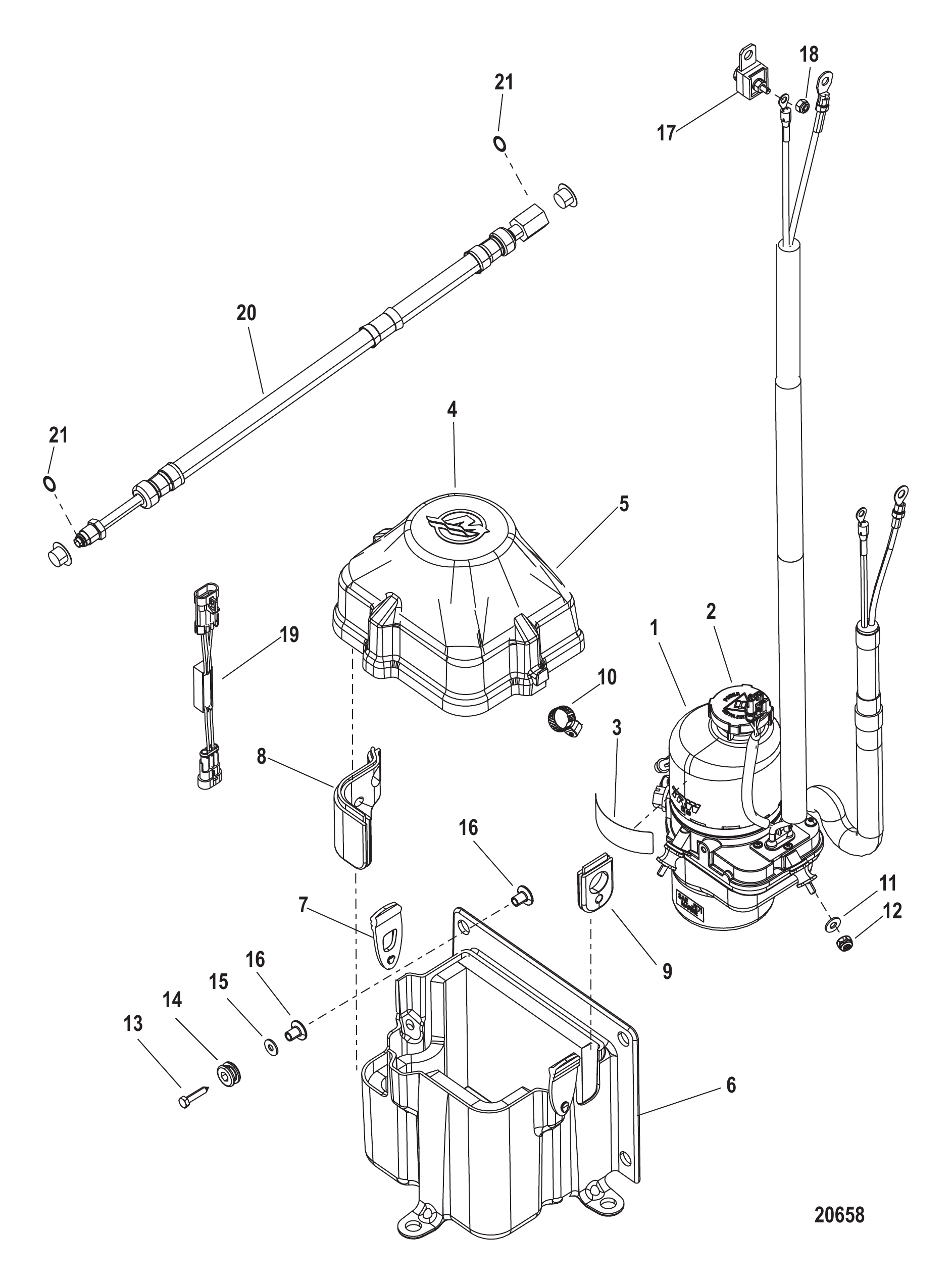

图 37动力转向泵套件(8M0080200/8M0080201) Pump Kit-Power Steering (8M0080200/8M0080201)

REF	零件编号	中文名称	英文名称	数量
-	8M0080200	动力转向泵套件(12英尺)	PUMP KIT Power Steering (12 Feet)	1
-	8M0080201	动力转向泵套件(24英尺)	PUMP KIT Power Steering (24 Feet)	1
-	8M0131263	动力转向泵套件(24英尺)	PUMP KIT Power Steering (24 Feet)	1
1	NSS	不单独销售泵	NOT SOLD SEPARATE PUMP	1
2	892485003	泵盖	CAP Pump	1
3	NSS	不单独销售油液类型标贴	NOT SOLD SEPARATE DECAL, Fluid Type	1
4	893364A05	动力转向泵完整外壳总成	ENCLOSURE ASSEMBLY Complete-Power Steering Pump	1
-	893365A03	动力转向泵上/下盖总成	COVER ASSEMBLY Top/Bottom, Power Steering Pump	1
5	893365T02	动力转向泵上外壳总成	ENCLOSURE ASSEMBLY Top, Power Steering Pump	1
6	8M0080707	动力转向泵下外壳总成	ENCLOSURE ASSEMBLY Bottom-Power Steering Pump	1
7	889531	绑带	STRAP	2
8	893368001	护孔环	GROMMET	1
9	893369	护孔环	GROMMET	1
10	815504105	蜗轮卡箍(11-18毫米)	CLAMP Worm Gear (11-18 mm)	1
10	8M0188618	蜗轮卡箍(11-18毫米)	CLAMP Worm Gear (11-18 mm)	1
11	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	3
11	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	3
12	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	3
13	895378	螺钉 (M6)	SCREW (M6)	4
14	895319	护孔环	GROMMET	4
15	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	4
15	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	4
16	895320F1	衬套	BUSHING	4
17	79023T92	90安培保险丝总成	FUSE ASSEMBLY 90 Ampere	1
18	20184	螺母（1/4-28X7/32）	NUT (1/4-28X7/32)	1
18	8M0207775	螺母 @5	NUT @5	1
19	8M0026568	信号驱动器线束总成	HARNESS ASSEMBLY Signal Driver	1
20	897643A01	减震软管套件	HOSE KIT Dampening	1
21	89879	O型圈（0.301×0.064英寸）	O-RING (.301 x .064)	2

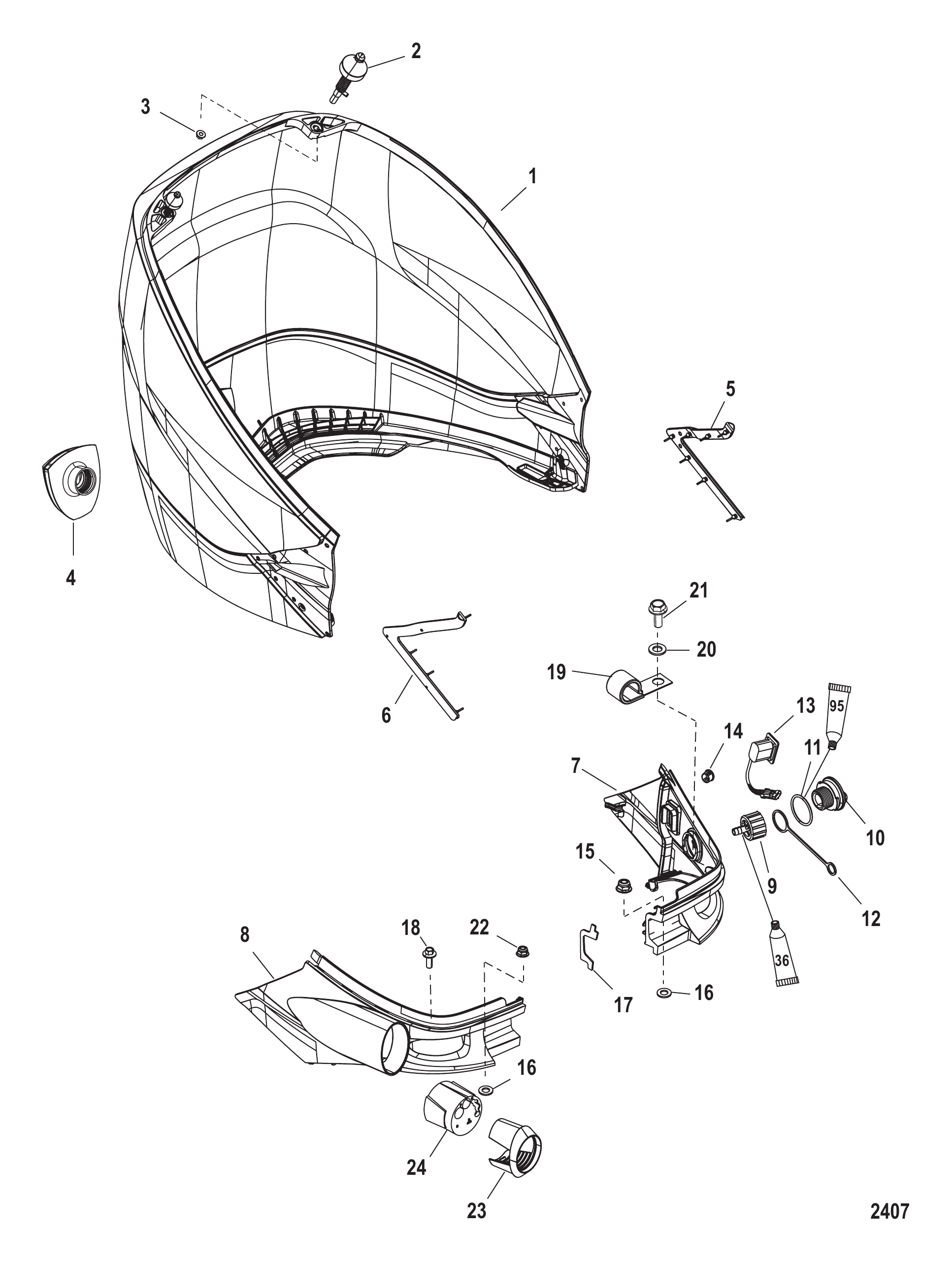

图 38后罩 Rear Cowl

REF	零件编号	中文名称	英文名称	数量
1	885358T01	后罩	COWL Rear	1
1	885358A03	后罩套件	REAR COWL KIT	1
1	885358A03	后罩升级套件(替代100-885358T01s)	REAR COWL KIT Up-Grade Kit (Replaces 100-885358T01s	1
1	885358A04	罩壳套件	COWLING KIT	1
1	885358T02	后罩	COWL Rear	1
1	8M0100175	后罩总成黑色无标贴	REAR COWL ASSEMBLY Black Non-Decaled	1
2	888961A01	销总成	PIN ASSEMBLY	2
3	892233	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
4	885360	怠速泄压阀	IDLE RELIEF	1
5	893343	左舷密封件	SEAL Port	1
5	893343001	左舷密封件	SEAL Port	1
6	893344	右舷密封件	SEAL Starboard	1
6	893344001	右舷密封件	SEAL Starboard	1
7	885356T	进气口-前罩-左舷	INTAKE Air - Front Cowl - Port	1
7	885356T02	左舷进气口	INTAKE Air - Port	1
7	885356T03	ORD 885357T04	ORD 885357T04	1
8	885357T	进气口-前罩-右舷	INTAKE Air - Front Cowl - Starboard	1
8	885357T02	右舷进气口	INTAKE Air - Starboard	1
8	885357T03	ORD 885357T04	ORD 885357T04	1
9	885361A01	接头总成冲洗	FITTING ASSEMBLY Flush	1
10	888958001	嵌入式端口塞	PLUG Flush Port	1
10	8M0215105	嵌入式塞	PLUG Flush	1
11	888957	O型圈	O-RING	1
12	889823001	嵌入式系绳插头	TETHER Flush Plug	1
12	8M0224266	嵌入式插槽密封件	SEAL Flush Plug Pocket	1
13	8569901	升降倾斜开关	SWITCH Trim	1
13	8M0235191	升降倾斜开关	SWITCH Trim	1
14	858768	堵头	PLUG
15	892233	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
16	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	2
16	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	2
17	892315	衬垫	GASKET	1
18	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	1
19	858951A01	卡箍套件	CLAMP KIT	1
20	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
20	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
21	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	1
22	892233	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
23	895316	适配器	ADAPTER	1
23	8M0214997	适配器	ADAPTOR	1
24	895317	护孔环	GROMMET	1
24	8M0214987	护孔环	GROMMET	1

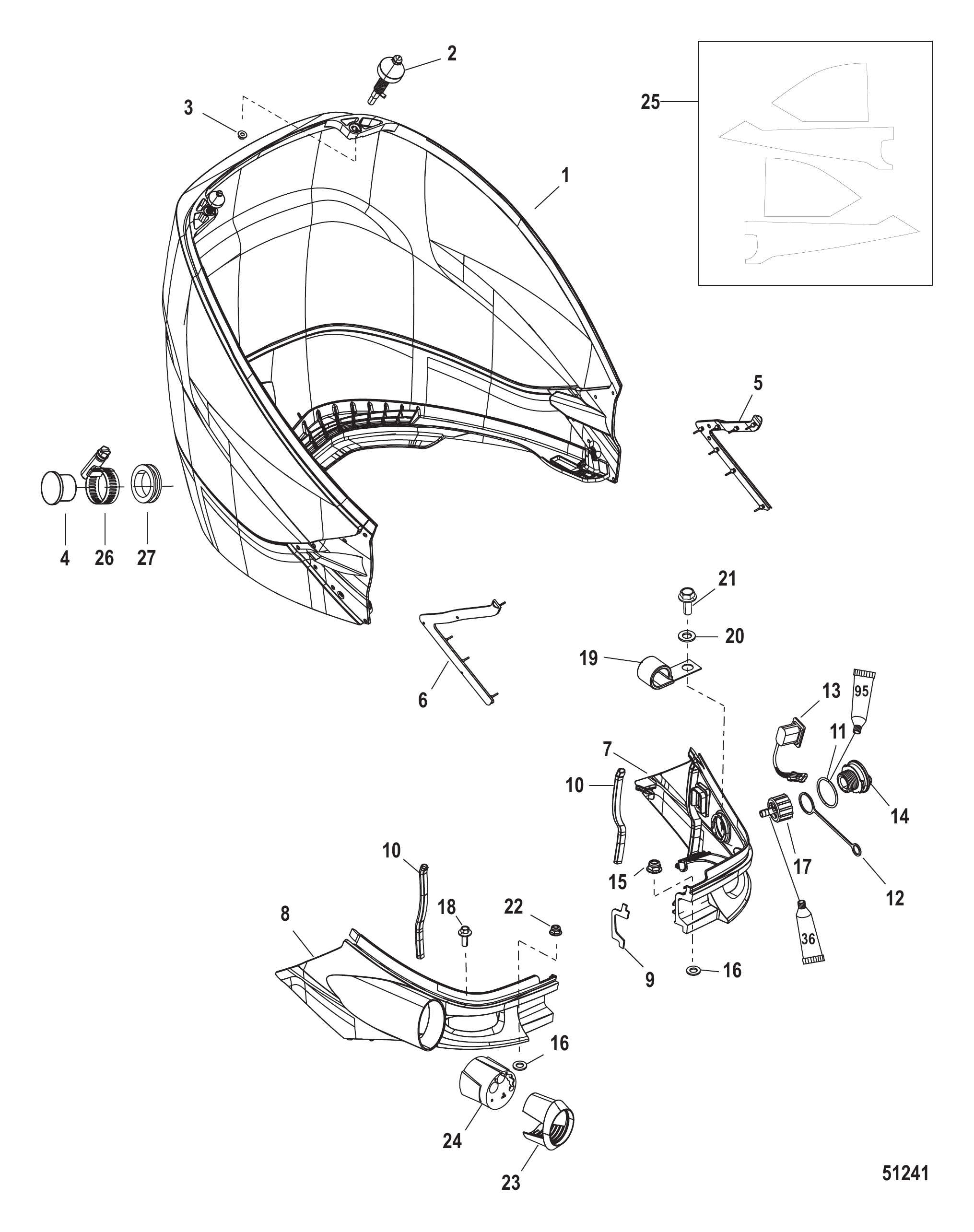

图 39后罩 CCT Rear Cowl CCT

REF	零件编号	中文名称	英文名称	数量
1	NSS	不单独销售需订购顶盖总成	NOT SOLD SEPARATE Order Top Cowl Assy	1
2	888961A01	销总成	PIN ASSEMBLY	2
3	892233	螺母(M6)不锈钢	NUT (M6) Stainless Steel	4
4	885360	怠速泄压阀	IDLE RELIEF	1
5	893343001	左舷密封件	SEAL Port	1
6	893344001	右舷密封件	SEAL Starboard	1
7	8M0074311	前盖	FRONT COWL	1
8	NSS	不单独销售需订购8M0074311总成	NOT SOLD SEPARATE Order 8M0074311 Assy	1
9	892315	衬垫	GASKET	1
10	897125	密封件	SEAL	2
10	8M0043266	密封件	SEAL	2
11	888957	O型圈	O-RING	1
12	889823001	嵌入式系绳插头	TETHER Flush Plug	1
12	8M0224266	嵌入式插槽密封件	SEAL Flush Plug Pocket	1
13	896620001	升降倾斜开关	SWITCH Trim	1
13	8M0235191	升降倾斜开关	SWITCH Trim	1
14	888958001	左舷冲洗口堵头	PLUG Flush Port Flush	1
14	8M0215105	嵌入式塞	PLUG Flush	1
15	892233	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
16	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	2
16	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	2
17	885361A01	接头总成冲洗	FITTING ASSEMBLY Flush	1
18	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	1
19	858951A01	卡箍套件	CLAMP KIT	1
20	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
20	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
21	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	1
22	892233	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
23	895316	适配器	ADAPTER	1
23	8M0214997	适配器	ADAPTOR	1
24	897169	护孔环	GROMMET	1
24	8M0214987	护孔环	GROMMET	1
25	8M4501634	隔音毯套件(885358T04组件)	SOUND BLANKET KIT Component of 885358T04	1
26	8M6001459	卡箍 (45.5)	CLAMP (45.5)	1
27	8M6001460	堵头	PLUG	1
28	814191	护孔环	GROMMET	1

图 40维修/支撑材料 Service/Support Material

REF	零件编号	中文名称	英文名称	数量
-	896280005	零件手册200/225/250/275四冲程Verado	PARTS MANUAL 200/225/250/275 4-Stroke Verado	1
-	10237050	用户手册	OWNERS MANUAL	1
-	10237051	用户手册	OWNERS MANUAL	1
-	10237051	用户手册	OWNERS MANUAL	1
-	896579T00	维修手册	SERVICE MANUAL	1
-	8M0082470	MNL-SERV 200-300V	MNL-SERV 200-300V	1
-	10238051	安装手册	INSTALLATION MANUAL	1
-	895282A05	EPA标签信息贴花	DECAL EPA Label Information	1

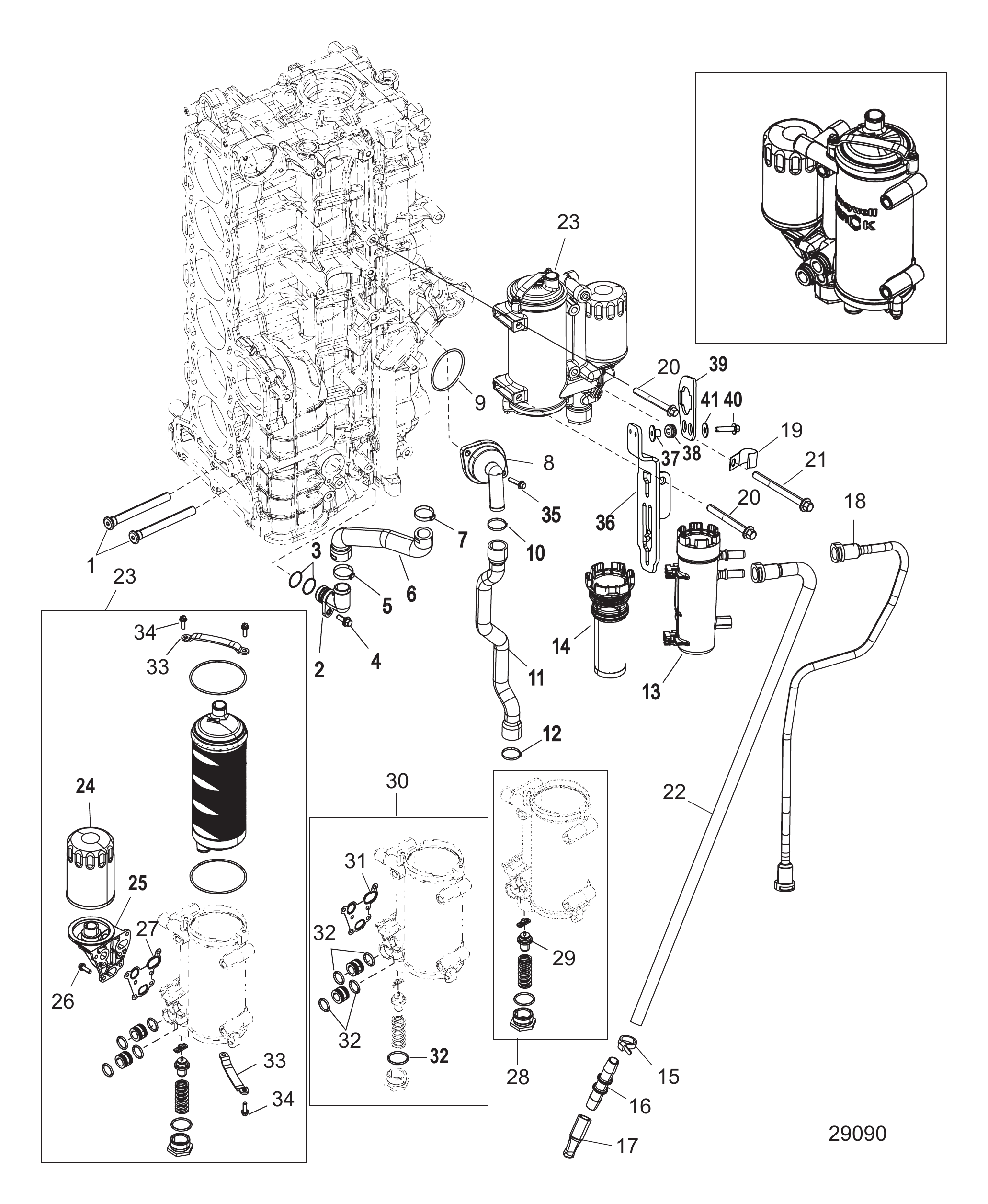

图 41右气缸体/油冷器(1B830815及以下) Starboard Cylinder Block/Oil Cooler (1B830815 and Below)

REF	零件编号	中文名称	英文名称	数量
1	892404A05	导水板总成	DEFLECTOR ASSEMBLY Water	2
2	885518A02	接头总成	FITTING ASSEMBLY	1
3	62701	O型圈	O-RING	2
4	88552516	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	1
4	8M0103805	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	1
5	888988011	卡箍(38.1毫米)	CLAMP (38.1 MM)	1
6	888930003	软管	HOSE	1
7	888988008	卡箍(34.6毫米)	CLAMP (34.6 MM)	1
7	8M0187145	卡箍	CLAMP	1
8	892864T04	节温器总成	THERMOSTAT ASSEMBLY	1
8	8M0174561	节温器总成	THERMOSTAT ASSY	1
9	8M0005958	O型圈	O-RING	1
10	888988001	卡箍(36.1毫米)	CLAMP (36.1 mm)	1
10	8M0204719	卡箍 36.1毫米	CLAMP 36.1 MM	1
11	892865	节温器软管	HOSE Thermostat	1
12	888988007	卡箍(42.5毫米)	CLAMP (42.5 mm)	1
13	892242T	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
13	8M0062950	滤清器总成	FILTER ASSEMBLY	1
14	8M0020349	滤清器燃油滤芯	FILTER Fuel, Element	1
14	8M0122423	水星燃油滤清器	FUEL FILTER Quicksilver	1
15	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
16	892356	连接器	CONNECTOR	1
17	863156	拉手片	GRAB TAB	1
18	8M0008224	燃油至升压泵软管	HOSE Fuel to Lift Pump	1
18	8M0087107	软管	HOSE	1
18	8M0042628	燃油至升压泵软管	HOSE Fuel to Lift Pump	1
18	8M0087107	软管	HOSE	1
19	78945	J型卡箍	J CLAMP	1
20	88552785	螺钉(M10×85)	SCREW (M10 x 85)	3
20	8M0103824	螺钉	SCREW	3
21	885527105	螺钉(M10x105)	SCREW (M10 x 105)	1
21	8M0103820	螺钉(M10x105)	SCREW (M10 x 105)	1
22	880597	燃油入口软管	HOSE Fuel Inlet	1
22	8M0043788	31.5英寸软管	HOSE 31.5 Inch	1
22	8M0043788	31.5英寸燃油入口软管	HOSE 31.5 Inch Fuel Inlet	1
22	8M0045343	燃油进口软管总成,32.5英寸	HOSE ASSMEBLY Fuel Inlet, 32.5 Inch	1
22	8M0046557	燃油进口软管总成（8.2英寸）	HOSE ASSMEBLY Fuel Inlet, 8.2 Inch	1
23	880640T11	集成式机油模块-总成	MODULE Intergrated Oil - Complete	1
23	8M0132390	机油冷却模块	OIL COOLER MODULE	1
24	877769K01	机油滤清器(水星品牌)	FILTER Oil (Mercury Branded)	1
24	877769Q01	机油滤清器(快银品牌)	FILTER Oil (Quicksilver Branded)	1
25	880640A05	集成式机油模块壳体总成	HOUSING ASSEMBLY Intergrated Oil Module	1
25	8M0046694	壳体总成	HOUSING ASSEMBLY	1
26	895336	螺钉(M6x18)	SCREW (M6 x 18)	6
26	8M0041014	螺钉(M6x18)	SCREW (M6 x 18)	6
27	880640500	衬垫	GASKET	1
27	8M0034568	衬垫	GASKET	1
28	880640A06	节温器/导套套件	THERMOSTAT/GUIDE KIT	1
29	880640508	节温器	THERMOSTAT	1
30	892801T53	大修套件	OVERHAUL KIT	1
31	880640500	衬垫	GASKET	1
31	8M0034568	衬垫	GASKET	1
32	880640A09	O型圈套件	O-RING KIT	1
32	8M0071635	O型圈套件	O-RING KIT	1
33	895032	绑带	STRAP	2
34	895336	螺钉(M6x18)	SCREW (M6 x 18)	4
34	8M0041014	螺钉(M6x18)	SCREW (M6 x 18)	4
35	88552525	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	2
35	8M0103807	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	2
36	8M0007906	支架	BRACKET	1
37	822003	衬套	BUSHING	2
38	834985	护孔环	GROMMET	2
38	8M0190980	护孔环	GROMMET	2
39	8M0007908	支架	BRACKET	1
40	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
41	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	2
-	895247A07	动力头总成	POWERHEAD ASSEMBLY	1

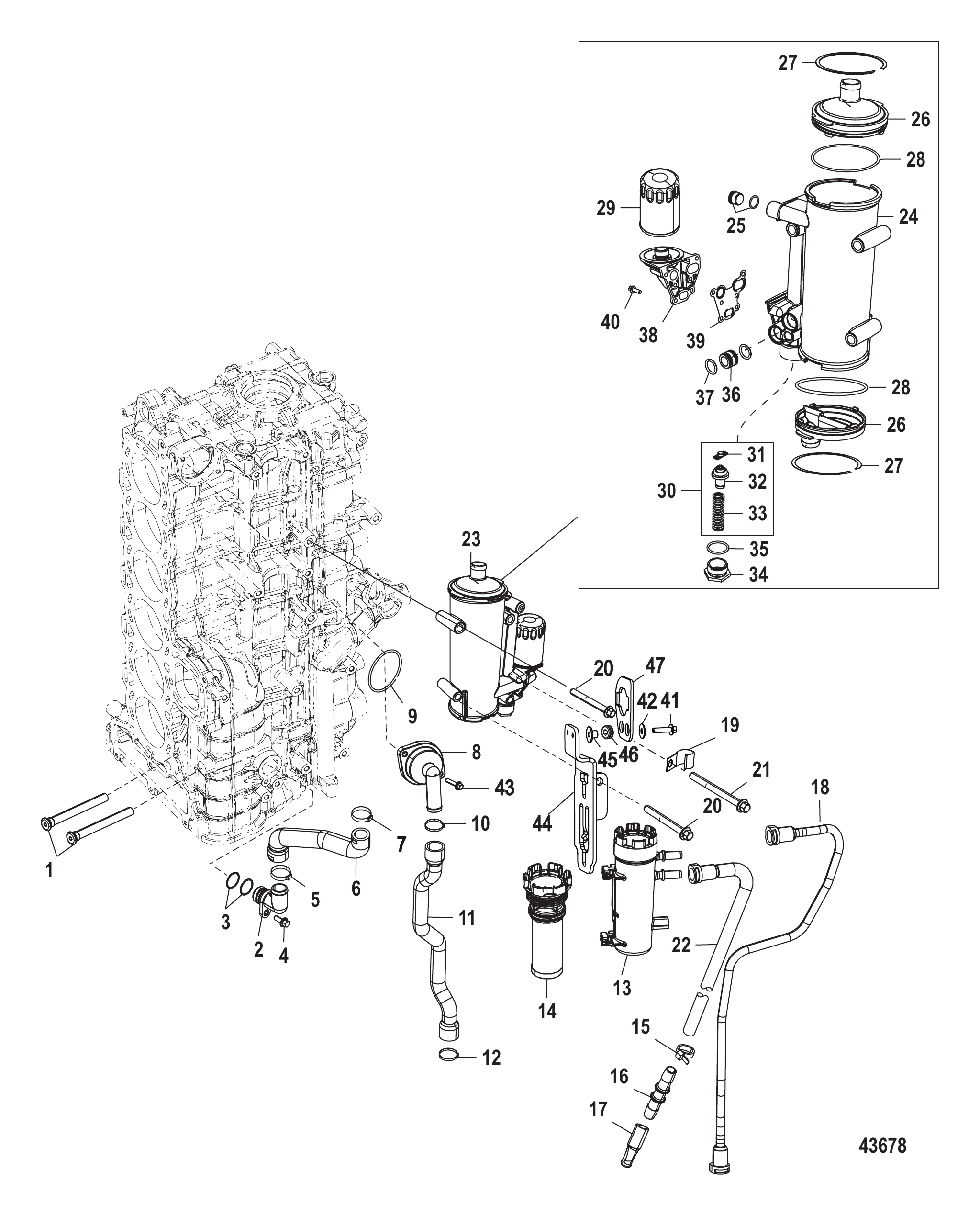

图 42右气缸体/油冷器(1B830816及以上) Starboard Cylinder Block/Oil Cooler (1B830816 and Above)

REF	零件编号	中文名称	英文名称	数量
1	892404A05	导水板总成	DEFLECTOR ASSEMBLY Water	2
2	885518A02	接头总成	FITTING ASSEMBLY	1
3	62701	O型圈	O-RING	2
4	88552516	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	1
4	8M0103805	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	1
5	888988011	卡箍(38.1毫米)	CLAMP (38.1 MM)	1
6	888930003	软管	HOSE	1
7	888988008	卡箍(34.6毫米)	CLAMP (34.6 MM)	1
7	8M0187145	卡箍	CLAMP	1
8	892864T04	节温器总成	THERMOSTAT ASSEMBLY	1
8	8M0174561	节温器总成	THERMOSTAT ASSY	1
9	8M0005958	O型圈	O-RING	1
10	888988001	卡箍(36.1毫米)	CLAMP (36.1 mm)	1
10	8M0204719	卡箍 36.1毫米	CLAMP 36.1 MM	1
11	892865	节温器软管	HOSE Thermostat	1
12	888988007	卡箍(42.5毫米)	CLAMP (42.5 mm)	1
13	892242T	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
13	8M0062950	滤清器总成	FILTER ASSEMBLY	1
14	8M0020349	滤清器燃油滤芯	FILTER Fuel, Element	1
14	8M0122423	水星燃油滤清器	FUEL FILTER Quicksilver	1
15	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
16	892356	连接器	CONNECTOR	1
17	863156	拉手片	GRAB TAB	1
18	8M0042628	燃油至升压泵软管	HOSE Fuel to Lift Pump	1
18	8M0087107	软管	HOSE	1
19	78945	J型卡箍	J CLAMP	1
20	88552785	螺钉(M10×85)	SCREW (M10 x 85)	3
20	8M0103824	螺钉	SCREW	3
21	885527105	螺钉(M10x105)	SCREW (M10 x 105)	1
21	8M0103820	螺钉(M10x105)	SCREW (M10 x 105)	1
22	8M0046557	燃油进口软管总成（8.2英寸）	HOSE ASSMEBLY Fuel Inlet, 8.2 Inch	1
23	8M0046690	集成式机油模块总成	MODULE Integrated Oil, Complete	1
23	8M0132390	机油冷却模块	OIL COOLER MODULE	1
24	NSS	机油冷却器壳体不单独销售	NOT SOLD SEPARATE OIL COOLER HOUSING	1
25	891953	堵头（18毫米）	PLUG (18 mm)	2
26	8M0046698	端盖总成	END CAP ASSEMBLY	2
27	8M0039464	挡圈	RING Retaining	1
28	8M0039516	O型圈	O-RING	1
29	877769K01	机油滤清器(水星品牌)	FILTER Oil (Mercury Branded)	1
30	8M0046693	节温器总成	THERMOSTAT ASSEMBLY	1
31	NSS		NOT SOLD SEPARATE Thermostat Stop	1
32	8M0041064	节温器	THERMOSTAT	1
32	8M0046693	节温器总成	THERMOSTAT ASSEMBLY	1
33	NSS		NOT SOLD SEPARATE SPRING	1
34	8M0046697	堵头	PLUG	1
35	NSS		NOT SOLD SEPARATE O-RING	1
36	8M0046696	适配器组件	ADAPTER ASSEMBLY	1
37	8M0188540	O型圈	O-RING	4
38	8M0046694	壳体总成	HOUSING ASSEMBLY	1
39	8M0034568	衬垫	GASKET	1
40	8M0041014	螺钉(M6x18)	SCREW (M6 x 18)	2
40	88552516	螺丝 (M6 x 16毫米) 不锈钢	SCREW (M6 x 16 mm) Stainless Steel	2
41	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
42	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	2
43	88552525	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	2
43	8M0103807	不锈钢螺钉 (M6 x 25毫米)	SCREW (M6 x 25 mm) Stainless Steel	2
44	8M0007906	支架	BRACKET	1
45	822003	衬套	BUSHING	2
46	834985	护孔环	GROMMET	2
46	8M0190980	护孔环	GROMMET	2
47	8M0007908	支架	BRACKET	1
-	880552A07	动力头衬垫套件	GASKET SET Powerhead	1
-	895247A07	动力头总成	POWERHEAD ASSEMBLY	1
-	8M0162888	翻新动力头总成(带附件)	POWERHEAD ASSEMBLY Reman Dressed	1

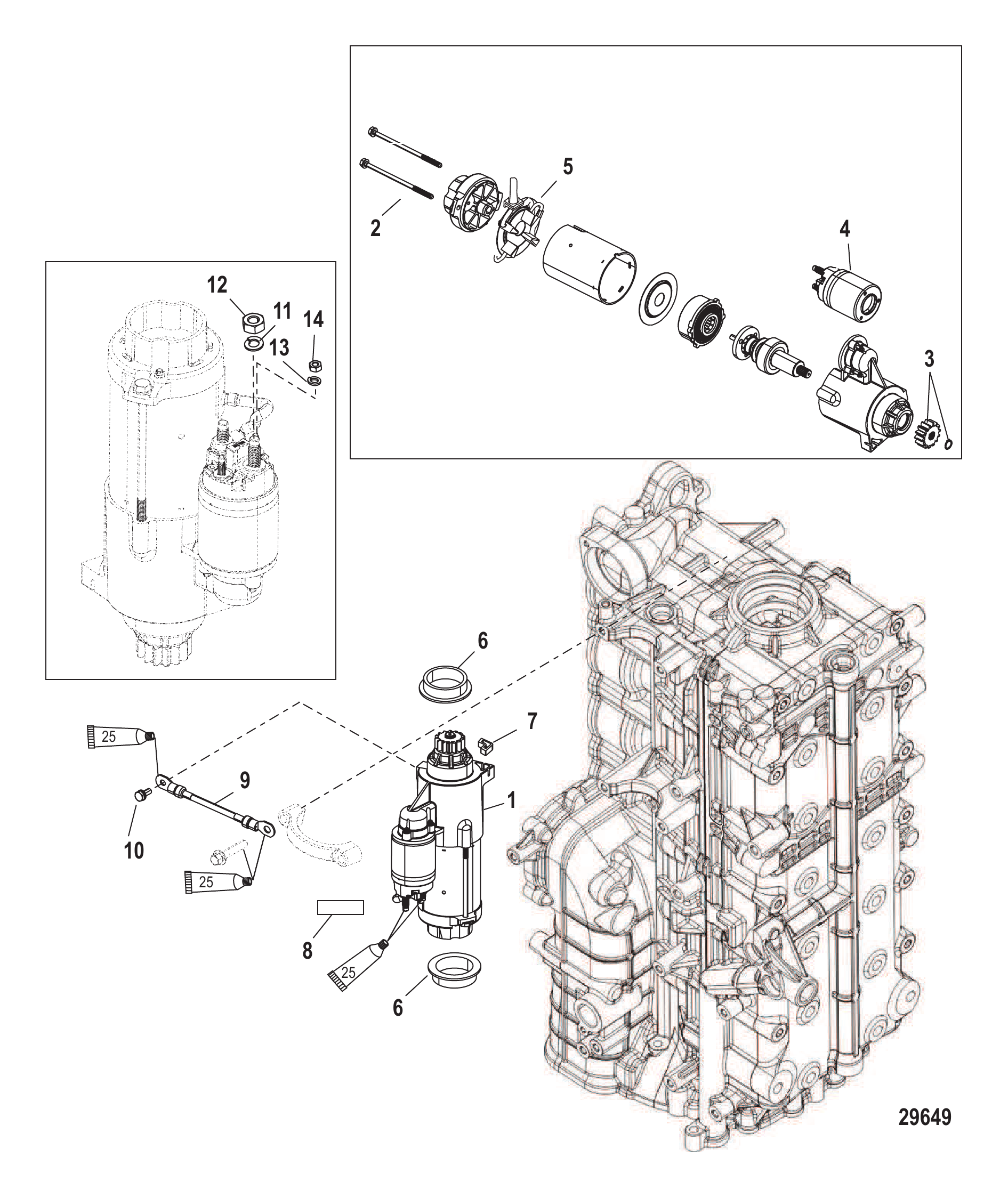

图 43启动电机 Starter Motor

REF	零件编号	中文名称	英文名称	数量
-	NSS	起动机总成(不单独销售)	NOT SOLD SEPARATE Starter Motor Assembly	1
1	892339T01	启动电机总成	STARTER MOTOR ASSEMBLY	1
2	NSS	螺钉组(不单独销售)	NOT SOLD SEPARATE Screws	2
3	880805A1	齿轮套件	GEAR KIT	1
4	809463A1	电磁阀组件	SOLENOID KIT	1
5	8M0065258	电刷组	BRUSH SET	1
6	8M0034918	轴环	COLLAR	2
7	8M0043276	停机开关	STOP	1
8	NSS	高压警告贴纸(不单独销售)	NOT SOLD SEPARATE Decal-Waring-High Voltage	1
9	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
10	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
11	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
12	400213	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
13	400255	锁紧垫圈(M5)	LOCKWASHER (M5)	1
14	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1

图 44标准转向舵套件(892557A02, 892380A02, 892558A02) Steering Helm Kit-Standard (892557A02, 892380A02, 892558A02)

REF	零件编号	中文名称	英文名称	数量
-	892557A02	标准转向舵机套件(32cc)	STEERING HELM KIT Standard (32 cc)	1
-	892380A02	标准转向舵机套件(40cc)	STEERING HELM KIT Standard (40 cc)	1
-	8M0240080	标准舵机套件40CM	HELM KIT-STD 40CM	1
-	892558A02	标准转向舵机套件(50cc)	STEERING HELM KIT Standard (50 cc)	1
-	8M0240081	标准舵机套件50CM	HELM KIT-STD 50CM	1
1	892557T01	标准舵机(32立方厘米)	HELM Standard (32 cc)	1
1	8M0137438	标准舵机(32立方厘米)	HELM Standard (32 cm3)	1
1	892380T01	舵机标准型(40毫升)	HELM Standard (40 cc)	1
1	8M0137444	舵机标准型(40立方厘米)	HELM Standard (40 cm3)	1
1	892558T01	舵机标准型(50毫升)	HELM Standard (50 cc)	1
1	8M0137448	舵机标准型(50立方厘米)	HELM Standard (50 cm3)	1
2	627021	O型圈(.301 x .070)	O-RING (.301 x .070)	2
3	8M6001491	O型圈(.364×.070)	O-RING (.364 x .070)	2
3	8M0047399	O型圈-6 ORFS型	O-RING -6 ORFS	2
4	893394	带锁片键(6.35毫米)	KEY With Lock Tab (6.35 mm)	1
5	4008875	螺钉(M6×75)	SCREW (M6 x 75)	4
5	4008850	螺钉(M6 x 50)	SCREW (M6 x 50)	4
6	826709121	螺母(.625-18)不锈钢	NUT (.625-18) Stainless Steel	1
7	892328T	舵机盖	COVER Helm	1
8	896842	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
9	892327	舵机背板	PLATE Helm Backing	4
9	892327	舵机背板	PLATE Helm Backing	3
9	892327	舵机背板	PLATE Helm Backing	2
10	401196	螺母 (M6)	NUT (M6)	4

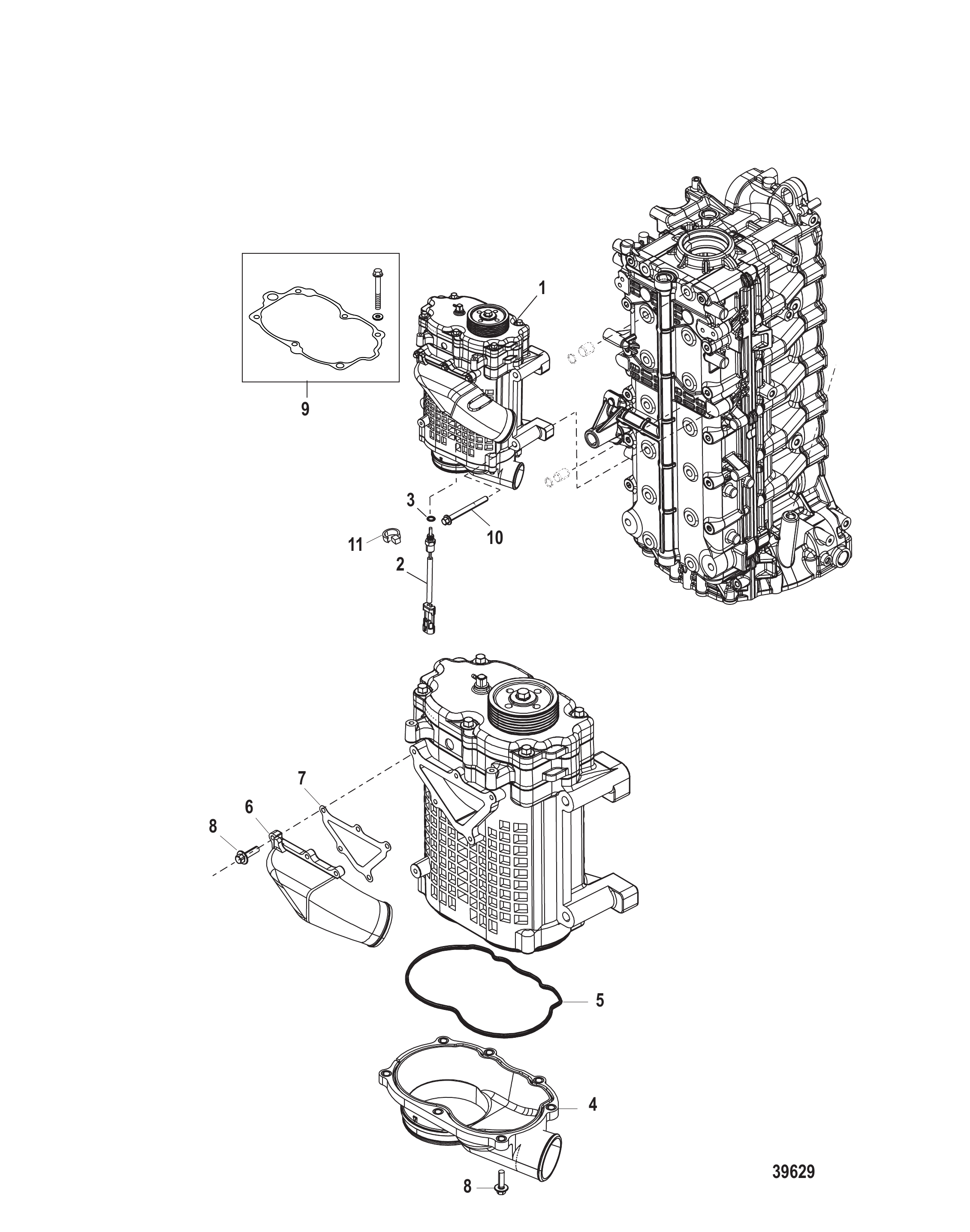

图 45增压器 SuperCharger

REF	零件编号	中文名称	英文名称	数量
1	898096A02	机械增压器套件	SUPERCHARGER KIT	1
2	885342001	传感器总成	SENSOR ASSEMBLY	1
2	8M0148668	传感器总成	SENSOR ASSEMBLY	1
3	888814	O型圈(0.351 x 0.072)	O-RING (.351 x .072)	1
3	896699	O型圈（1.78毫米 x 0.08毫米）	O-RING (1.78 mm x .08 mm)	1
4	888947A05	进气导管套件	DUCT KIT Inlet	1
5	888947501	衬垫	GASKET	1
6	888947A04	出口导管套件	OUTLET DUCT KIT	1
6	8M0060303	机械增压器套件	SUPERCHARGER KIT	1
7	888947504	衬垫	GASKET	1
8	888947502	螺栓	BOLT	9
9	847803A02	衬套/垫片套件	BUSHING/GASKET KIT	1
10	885527105	螺钉(M10x105)	SCREW (M10 x 105)	4
10	8M0103820	螺钉(M10x105)	SCREW (M10 x 105)	4
11	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	1

图 46工具 Tools

零件编号	中文名称	英文名称	数量
895277001	扳手工具(75毫米x30)带槽	TOOL Wrench (75 mm x 30) Flute	1
889277Q03	扳手	WRENCH	1
809905001	扭矩转换扳手	WRENCH Torque Adapter	1
822778004	动力调整适配器工具	TOOL Adaptor Fitting-Power Trim	1
895343T01	飞轮拉拔器工具	TOOL Flywheel Puller	1
895343T02	飞轮拉拔器工具	TOOL Flywheel Puller	1
896504A01	舷外机吊装机构工具	TOOL ASSEMBLY OB Lifting Mech	1
889675A01	14针分流器工具	TOOL Shunt 14-Pin	1

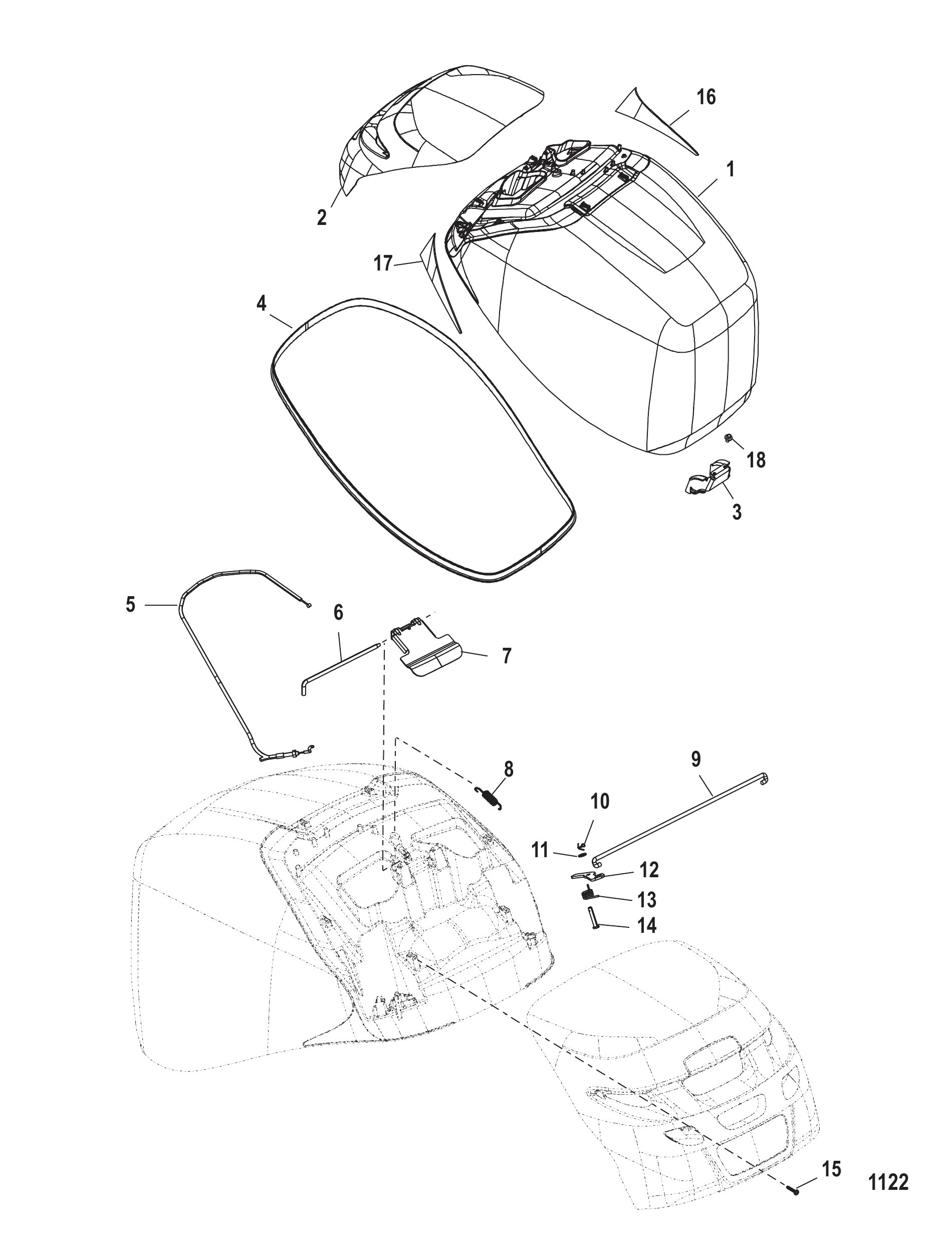

图 47顶罩 Top Cowl

REF	零件编号	中文名称	英文名称	数量
1	885355T03	顶盖总成	TOP COWL ASSEMBLY	1
1	8M0049999	ORD 100-8M0063711	ORD 100-8M0063711	1
1	885355T02	顶盖总成	TOP COWL ASSEMBLY	1
1	8M0050000	顶罩-水星型	COWL-TOP MARINER	1
2	885354T	空气导流帽	CAP Air Dam	1
2	885354T01	空气导流帽-水星黑色款	CAP, Air Dam Mercury, Black	1
2	895838T	空气导流帽	CAP Air Dam	1
2	895838T01	空气导流帽-水星型	CAP Air Dam - Mariner	1
3	888971	前锁扣槽	FRONT LATCH RECEIVER	1
4	885545	上罩壳密封件	SEAL Top Cowl	1
4	8M0111178	密封件	SEAL	1
5	888951	电缆	CABLE	1
5	8M0080461	锁扣拉索	CABLE Latch	1
6	888959	铰链销	PIN Hinge	1
7	888956	手控锁杆	LATCH Hand Lever	1
8	895373	弹簧	SPRING	1
9	888955	锁扣连杆	LINK Latch Connecting	1
10	26953	开口销	COTTER PIN	2
11	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
12	888952	联动臂	LINKAGE ARM	2
13	888953	弹簧	SPRING	2
14	822417	销	PIN	2
15	888950020	螺钉(M4x20毫米)(M4x1.75)	SCREW (M4 x 20 mm) (M4 x 1.75)	6
16	888970	左舷饰板	APPLIQUE Port	1
16	888970A01	饰板套件	APPLIQUE KIT	1
16	895839	左舷饰板	APPLIQUE Port	1
16	895839A01	饰板套件	APPLIQUE KIT	1
17	888969	右舷饰板	APPLIQUE Starboard	1
17	895840	右舷饰板	APPLIQUE Starboard	1
18	4010610	不锈钢螺钉(M6x10)	SCREW (M6 x 10) Stainless Steel	2
-	892564A05	贴花套件	DECAL SET	1
-	859271A05	贴花套件	DECAL SET	1
-	895252A05	贴花套件	DECAL SET	1
-	895253A05	贴花套件	DECAL SET	1
-	892571A05	贴花套件	DECAL SET	1
-	892571A07	贴花套件(水星200)	DECAL SET (Mariner 200)	1
-	892871A05	贴花套件	DECAL SET	1
-	892871A07	贴花套件(水星225)	DECAL SET (Mariner 225)	1
-	895254A05	贴花套件	DECAL SET	1
-	895254A07	贴花套件(水星250)	DECAL SET (Mariner 250)	1
-	895255A05	贴花套件	DECAL SET	1
-	895255A07	贴花套件(水星275)	DECAL SET (Mariner 275)	1

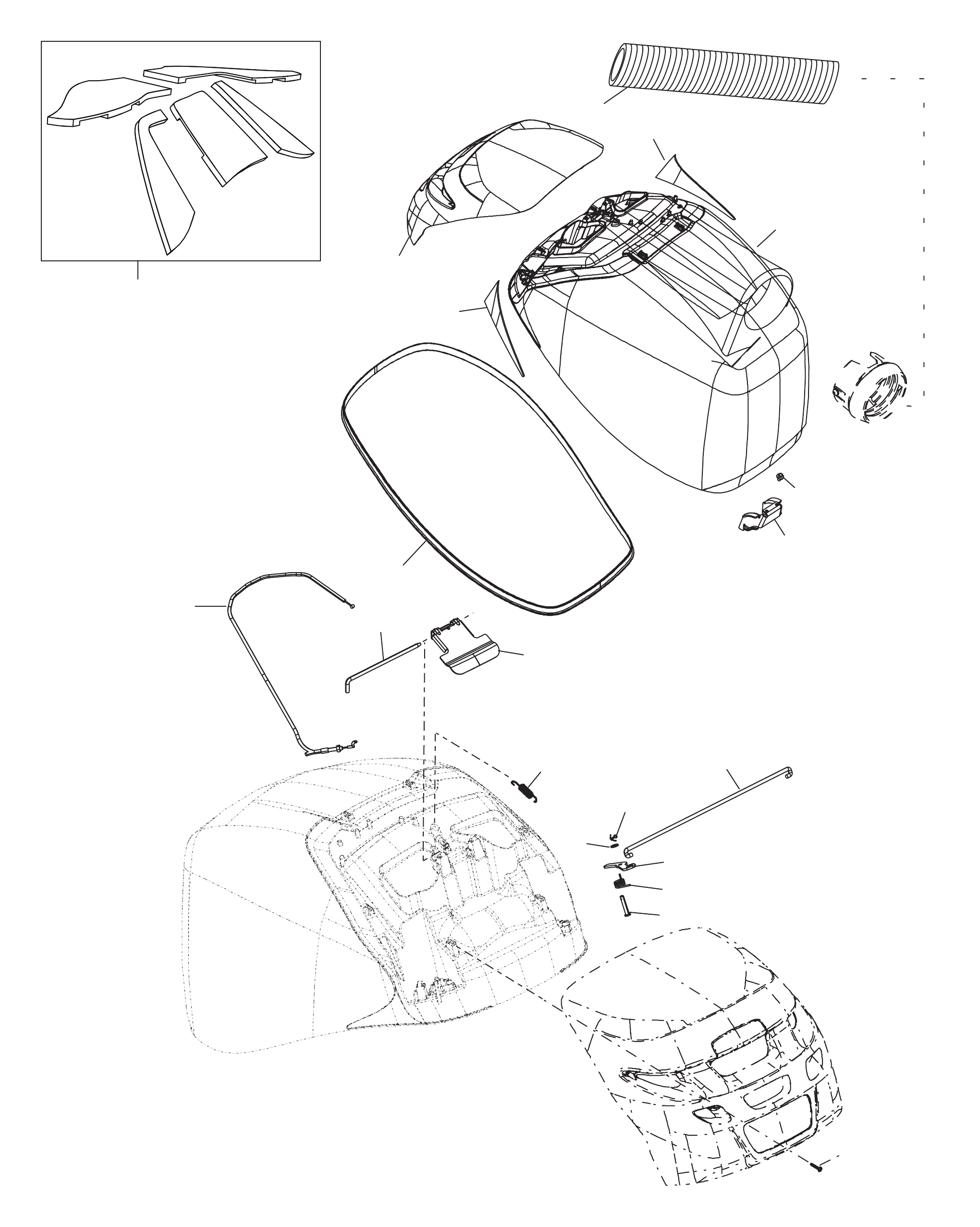

图 48顶罩 CCT Top Cowl CCT

REF	零件编号	中文名称	英文名称	数量
1	8M0074520	顶盖总成 CCT	TOP COWL ASSEMBLY CCT	1
2	NSS	不单独销售风挡盖	NOT SOLD SEPARATE Air Dam Cap	1
3	888971	前锁扣槽	FRONT LATCH RECEIVER	1
4	NSS	不单独销售密封件	NOT SOLD SEPARATE Seal	1
5	888951	电缆	CABLE	1
5	8M0080461	锁扣拉索	CABLE Latch	1
6	888959	铰链销	PIN Hinge	1
7	888956	手控锁杆	LATCH Hand Lever	1
8	895373	弹簧	SPRING	1
9	888955	锁扣连杆	LINK Latch Connecting	1
10	26953	开口销	COTTER PIN	2
11	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
12	888952	联动臂	LINKAGE ARM	2
13	888953	弹簧	SPRING	2
14	822417	销	PIN	2
15	NSS	不单独销售 (#8-15 x 1.25)	NOT SOLD SEPARATE (#8-15 x 1.25)	4
16	8M0025654	贴花左舷 (水星)(黑色)	APPLIQUE Port (Mercury)(Black)	1
16	8M0033614	贴花左舷, 水星	APPLIQUE Port, Mercury	1
17	8M0025680	贴花右舷 (水星)(黑色)	APPLIQUE Starboard (Mercury)(Black)	1
17	8M0033615	贴花右舷, 水星	APPLIQUE Starboard, Mercury	1
18	88552512	不锈钢螺钉 (M6 x 12 mm)	SCREW (M6 x 12 mm) Stainless Steel	2
18	8M0103804	不锈钢螺钉 (M6 x 12 mm)	SCREW (M6 x 12 MM) Stainless Steel	2
19	889824A01	隔音毯套件需裁剪	SOUND BLANKET KIT Cut to fit	1
19	8M4501639	隔音毯套装	SOUND BLANKET KIT	1
20	8M0072385	衬垫	GASKET	1
21	8M0064952	适配器索具	ADAPTER Rigging	1
22	8M0068924	软管 4英寸	HOSE 4 Inch	1
-	8M0024870	贴纸水星Verado	DECAL Mercury Verado	1
-	8M0043703	M标志贴纸66mm黑色	DECAL M-Icon, 66 MM, Black	1
-	NSS	不单独销售通用贴纸套装	NOT SOLD SEPARATE Generic Decal Set	1

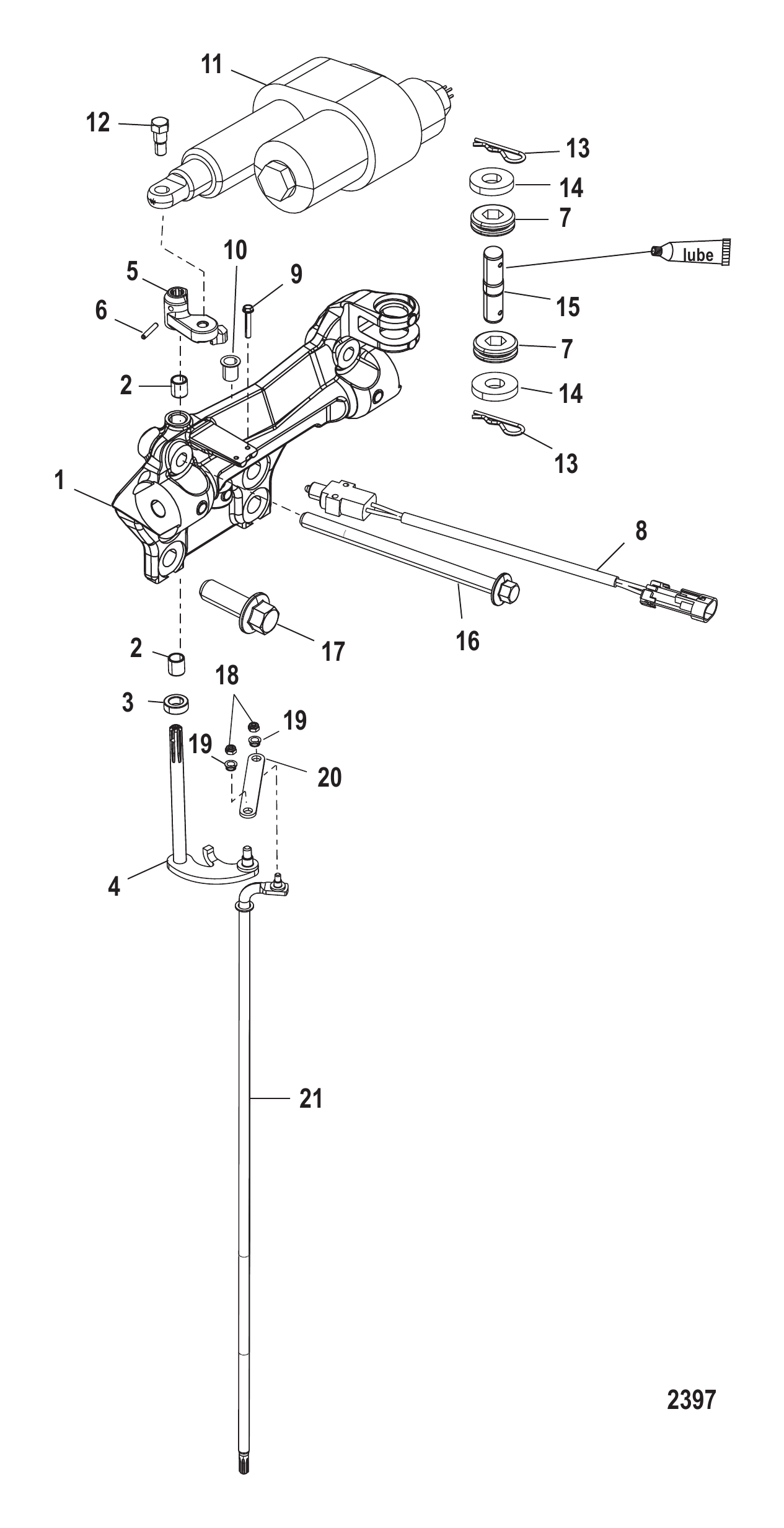

图 49上部换挡组件 Upper Shift Components

REF	零件编号	中文名称	英文名称	数量
-	888994T03	前安装支架总成	BRACKET ASSEMBLY Front Mount	1
-	888994T04	前安装支架总成	BRACKET ASSEMBLY Front Mount	1
1	NSS	不单独销售支架	NOT SOLD SEPARATE Bracket	1
2	892417	衬套	BUSHING	2
3	892049	隔套	SPACER	1
3	8M0047763	隔套	SPACER	1
4	885506001	换档轴	SHIFT SHAFT	1
4	8M0026131	换挡轴	SHAFT-SHIFT	1
5	889727001	曲柄摇臂	BELL CRANK	1
6	25319	销钉(.125 x 0.75英寸)	PIN (.125 x 0.75 Inches)	1
7	833155	护孔环	GROMMET	2
8	889514A01	开关	SWITCH	1
8	8M0207794	开关	SWITCH	1
9	88075020	螺丝(M3 x 20)	SCREW (M3 x 20)	2
10	85999	衬套	BUSHING	1
11	8M0048114	换挡执行器	SHIFT ACTUATOR	1
11	8M0124413	换挡执行器	SHIFT ACTUATOR	1
12	8855091	螺钉	SCREW	1
13	885512	开口销	COTTER PIN	2
14	885511003	垫圈	WASHER	2
15	895770	枢轴销	Pin Pivot	1
16	895811155	螺钉(M10×155)	SCREW (M10 x 155)	2
16	8M0207826	螺钉	SCREW	2
17	88510940	螺钉(M14)	SCREW (M14)	4
17	8M0103802	螺钉	SCREW	4
18	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
19	97896	衬套	BUSHING	2
20	885505	连接杆	LINK	1
21	888987001	换挡轴(长型)	SHAFT Shift (Long)	1
21	8M0181378	上部换挡轴	SHAFT SHIFT UPPER	1
21	888987002	换挡轴（加长型）	SHIFT SHAFT (X-Long)	1
21	8M0183223	换挡轴上段	SHIFT SHAFT UPPER	1
21	888987003	换挡轴（超长型）	SHIFT SHAFT (XX-Long)	1
21	8M0180097	超长换挡轴	SHAFT SHIFT XXL	1

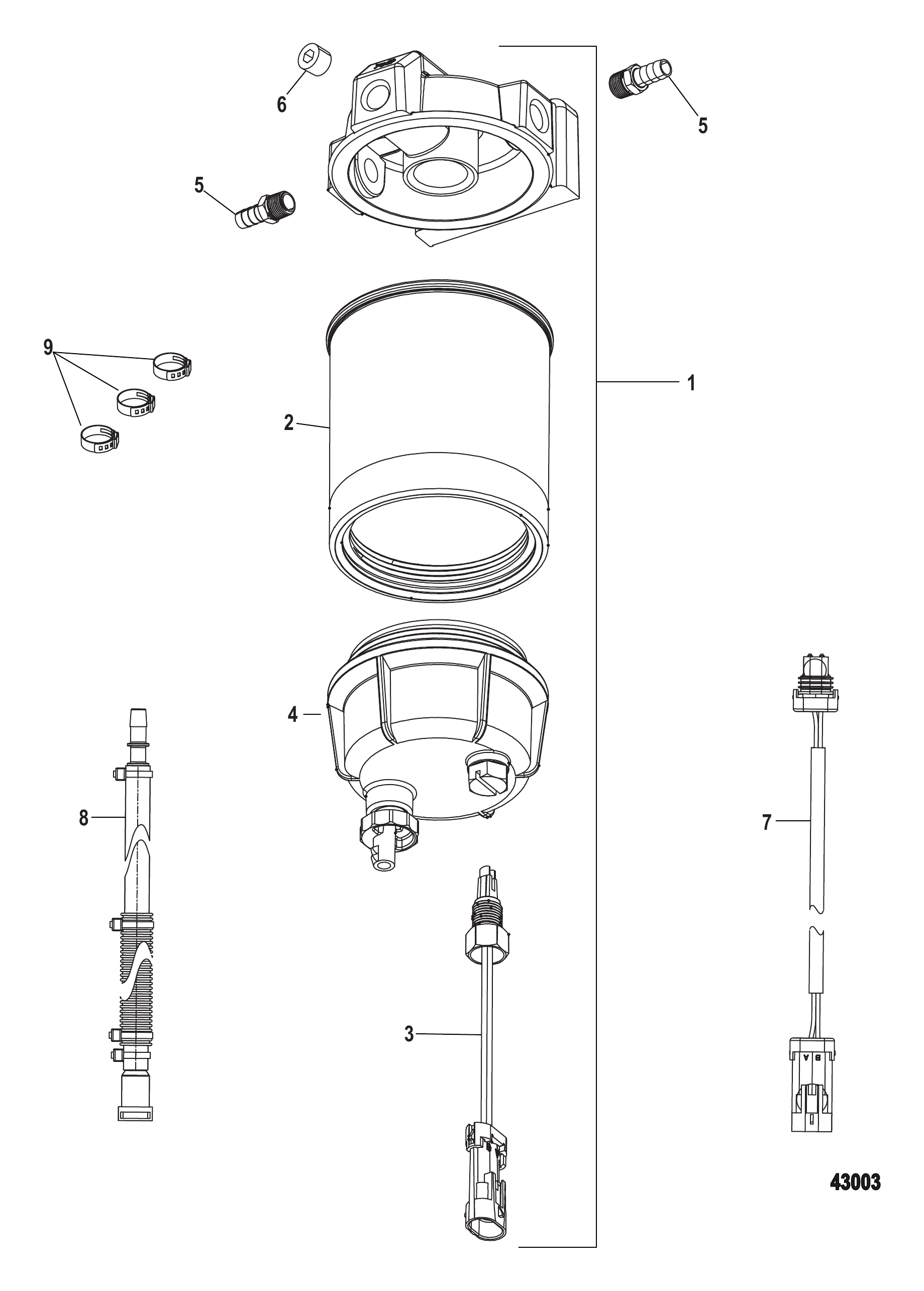

图 50水分分离滤清器套件 886638A01 Water Separator Filter Kit 886638A01

REF	零件编号	中文名称	英文名称	数量
-	886638A01	油水分离器套件	WATER SEPERATOR KIT	1
1	8M0022130	燃油水分分离器套件	SEPERATOR KIT Fuel and Water	1
1	8M0109360	分离器套件	SEPARATOR KIT	1
2	886638	燃油滤清器滤芯	ELEMENT Fuel Filter	1
2	8M0146206	1英寸滤芯	ELEMENT 1 IN	1
3	8M0021043	传感器总成燃油和水	SENSOR ASSEMBLY Fuel and Water	1
3	8M0214989	燃油含水传感器	SENSOR WIF	1
4	8M0021044	滤杯	BOWL	1
4	8M0214990	滤清器杯体	FILTER BOWL	1
5	34982	连接器	CONNECTOR	2
6	73379	塞(.250-18)	PLUG (.250-18)	1
6	8M0180564	塞(.250-18)	PLUG (.250-18)	1
7	8M0042697	燃油滤清器传感器延长线束（144英寸）水位传感器	HARNESS Fuel Filter Sensor Extension (144 in) Water Sensor	1
8	8M0044043	软管总成	HOSE ASSEMBLY	1
9	855697	卡箍	CLAMP	3
9	8M0204696	卡箍	CLAMP	3
-	8M0105263	WIF传感器延长线束-36英寸	HARNESS WIF Sensor Extension - 36 Inches	1
-	8M0105264	WIF传感器延长线束-72英寸	HARNESS WIF Sensor Extension - 72 Inches	1
