四冲程 电喷 EFI · USA - Cat.# 90-896280006 · 共 32 个部位 · 1382 条零件
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 892486K08 | 模拟转换套件 | CONVERSION KIT Analog | 1 |
| - | 889611K02 | 附件电源线束套件(30英尺) | HARNESS KIT Accessory Power (30 Feet) | 1 |
| - | 899785K04 | 附件电源线束总成(30英尺) | HARNESS ASSEMBLY Accessory Power (30 Feet) | 1 |
| - | 88334A2 | 防腐电极套件 | MERCATHODE KIT | 1 |
| - | 8M0180081 | 防腐电极套件 | MERCATHODE KIT | 1 |
| - | 825191A03 | 索具软管套件 | HOSE KIT Rigging | 1 |
| - | 880717A01 | 齿轮箱螺丝/密封套件 | SCREW/SEAL KIT Gearcase | 1 |
| - | 88439A50 | 电池电缆组 | CABLE SET Battery | 1 |
| - | 8M0210761 | 电池电缆组(12英尺) | CABLE SET (12 ft) Battery | 1 |
| - | 44357Q2 | 冲洗附件 | FLUSHING ATTACHMENT | 1 |
| - | 44357T2 | 冲洗附件 | FLUSHING ATTACHMENT | 1 |
| - | 881150Q1 | 双进水口冲洗套件 | FLUSH KIT Dual Water Pick Up | 1 |
| - | 881150K1 | 双进水口冲洗密封套件 | SEAL KIT Flush - Dual Water Pickup | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

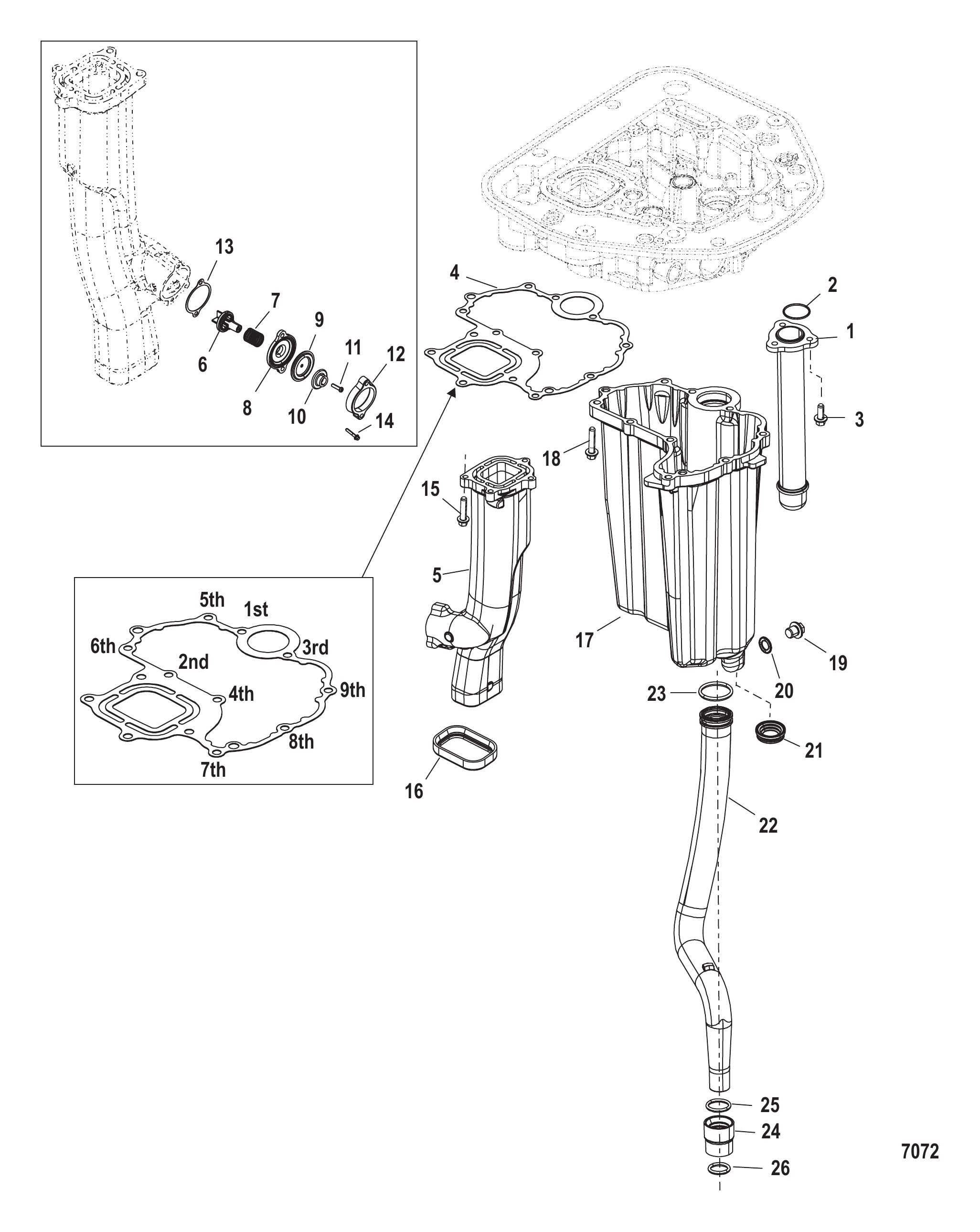

| 1 | 896241 | 吸油管 | TUBE Oil Pickup | 1 |
| 2 | 38780 | O型圈 | O-RING | 1 |
| 3 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 3 |
| 3 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 3 |
| 4 | 895822 | 衬垫 油底壳 | GASKET Oil Sump | 1 |
| 5 | 895825T01 | 排气管总成 | TUBE ASSEMBLY Exhaust | 1 |
| 6 | 888913A01 | 提升阀总成 | POPPET ASSEMBLY | 1 |
| 6 | 8M0114707 | 提升阀总成 | POPPET VALVE ASSY | 1 |
| 7 | 64878 | 弹簧(黑色) | SPRING (Black) | 1 |
| 8 | 893385001 | 固定座 | RETAINER | 1 |
| 9 | 648771 | 隔膜 | DIAPHRAGM | 1 |
| 10 | 889706 | 垫圈 | WASHER | 1 |
| 11 | 69570 | 螺钉(#10-16 x .750) | SCREW (#10-16 x .750) | 1 |
| 12 | 893384001 | 提升阀盖 | COVER Poppet | 1 |
| 13 | 889561 | 提升阀垫片 | GASKET Poppet | 1 |
| 14 | 88552535 | 不锈钢螺钉(M6×35mm) | SCREW (M6 x 35 mm) Stainless Steel | 2 |
| 15 | 88552635 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 4 |
| 15 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 4 |
| 16 | 880629 | 排气管密封件 | SEAL Exhaust Tube | 1 |
| 17 | 895821T | 油底壳总成 | SUMP ASSEMBLY Oil | 1 |
| 18 | 88552530 | 螺丝(M6×30毫米)不锈钢 | SCREW (M6 x 30 mm) Stainless Steel | 9 |
| 18 | 8M0103808 | 螺丝(M6×30毫米)不锈钢 | SCREW (M6 x 30 mm) Stainless Steel | 9 |
| 19 | 888592005 | 放油塞总成 | PLUG ASSEMBLY Oil Drain | 1 |
| 20 | 888593 | 密封件 | SEAL | 1 |
| 20 | 8M0188614 | 放油螺塞密封件 | SEAL Drain Plug | 1 |
| 21 | 896242 | 密封件 | SEAL | 1 |
| 22 | 896107A01 | 水管总成 | TUBE ASSEMBLY Water | 1 |
| 22 | 896107A02 | 水管总成 | TUBE ASSEMBLY Water | 1 |
| 23 | 892445 | O型圈 | O-RING | 1 |
| 24 | 887987A1 | 联轴器 | COUPLING | 1 |
| 24 | 8M0214983 | 联轴器总成 | COUPLING ASSY | 1 |
| 25 | 90196 | O型圈 (.921 x .139) | O-RING (.921 x .139) | 1 |
| 25 | 8M0204673 | O型圈 .921 x .139 | O-Ring .921 x .139 | 1 |
| 26 | 21836 | O型圈(.796 x .139) | O-RING (.796 x .139) | 1 |
| 26 | 8M0204645 | O型圈(.796 x .139) | O-RING (.796 x .139) | 1 |
| - | 896142A06 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 896142A07 | 衬垫套件 | GASKET SET | 1 |
| - | 896499A06 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 896499A07 | 长缸体总成 | LONG BLOCK ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 896222 | 燃油管 | HOSE Fuel | 1 |
| 2 | 884546 | 护孔环 | GROMMET | 1 |
| 3 | 896227 | 软管 | HOSE | 1 |
| 3 | 8M0087082 | 软管 | HOSE | 1 |
| 4 | 884546 | 护孔环 | GROMMET | 1 |
| 5 | 896647 | 燃油管 | HOSE Fuel | 1 |
| 5 | 8M0087074 | 软管 | HOSE | 1 |
| 6 | 884546 | 护孔环 | GROMMET | 1 |
| 7 | 888523001 | 卡扣 | CLIP | 5 |
| 8 | 896240 | 燃油管 | HOSE Fuel | 1 |
| 8 | 8M0087084 | 软管 | HOSE | 1 |
| 9 | 884546 | 护孔环 | GROMMET | 1 |
| 10 | 896225 | 水管 | HOSE Water | 1 |
| 10 | 8M0087071 | 软管 | HOSE | 1 |
| 11 | 896226 | 至中冷器软管 | HOSE To CAC | 1 |
| 11 | 8M0087088 | 软管 | HOSE | 1 |
| 12 | 896223 | 燃油管 | HOSE Fuel | 1 |
| 12 | 8M0087068 | 软管 | HOSE | 1 |
| 13 | 879885T | 燃油滤清器 | FILTER Fuel | 1 |
| 13 | 879885Q | 燃油管路滤清器 | FILTER Fuel In-Line | 1 |
| 14 | 896224 | 燃油至油轨软管 | HOSE Fuel To Fuel Rail | 1 |
| 14 | 8M0087089 | 软管 | HOSE | 1 |
| 15 | 896646 | 软管 | HOSE | 1 |
| 15 | 8M0087073 | 软管 | HOSE | 1 |
| 16 | 884545A02 | 碳罐总成 | CANISTER ASSEMBLY | |
| 16 | 8M0175814 | 通气罐总成 | CANISTER-VENT ASY | |
| 17 | 897434 | 护孔环 | GROMMET | 1 |
| 18 | 896693A05 | 净化通风总成 | VENT ASSEMBLY Purge | 1 |
| 18 | 8M0126939 | 净化通风口 | VENT - PURGE | 1 |
| 19 | 897452 | 护孔环 | GROMMET | 1 |
| 20 | 815504104 | 蜗杆卡箍 | CLAMP Worm Gear | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 892940T | 70安培发电机 | ALTERNATOR 70 Ampere | 1 |
| 2 | 885349T05 | 皮带张紧器 | BELT TENSIONER | 1 |
| 2 | 8M0101707 | 皮带张紧器 | BELT TENSIONER | 1 |
| 3 | 885349500 | 滑轮 | PULLEY | 1 |
| 3 | 8M6003035 | 滑轮 | PULLEY | 1 |
| 4 | 885349501 | 螺钉 | SCREW | 1 |
| 5 | 855729 | 支架 | MOUNT | 4 |
| 6 | 845998 | 垫圈(0.406×1.250×0.089) | WASHER (.406 x 1.250 x .089) | 8 |
| 7 | 88552745 | 螺丝(M10 x 45) | SCREW (M10 x 45) | 5 |
| 7 | 8M0103823 | 六角法兰螺钉(M10×45) | SCREW (M10 x 45 Hex Flange) | 5 |
| 8 | 88535303S | 发电机支架 | BRACKET Alternator | 1 |
| 8 | 8M0219204 | 支架 | BRACKET | 1 |
| 9 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 9 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 10 | 880566014 | 驱动皮带 | BELT Drive | 1 |
| 10 | 8M0232583 | 蛇形皮带 | BELT SERPENTINE | 1 |
| 11 | 88552785 | 螺钉(M10×85) | SCREW (M10 x 85) | 1 |
| 11 | 8M0103824 | 螺钉 | SCREW | 1 |
| 12 | 4002319 | 垫圈 | WASHER | 1 |
| 13 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 14 | 856583A09 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 14 | 856583A12 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 15 | 858414A04 | 铜编织电缆总成 | CABLE ASSEMBLY Brass Braided | 1 |
| 16 | 88552516 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 2 |
| 16 | 8M0103805 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

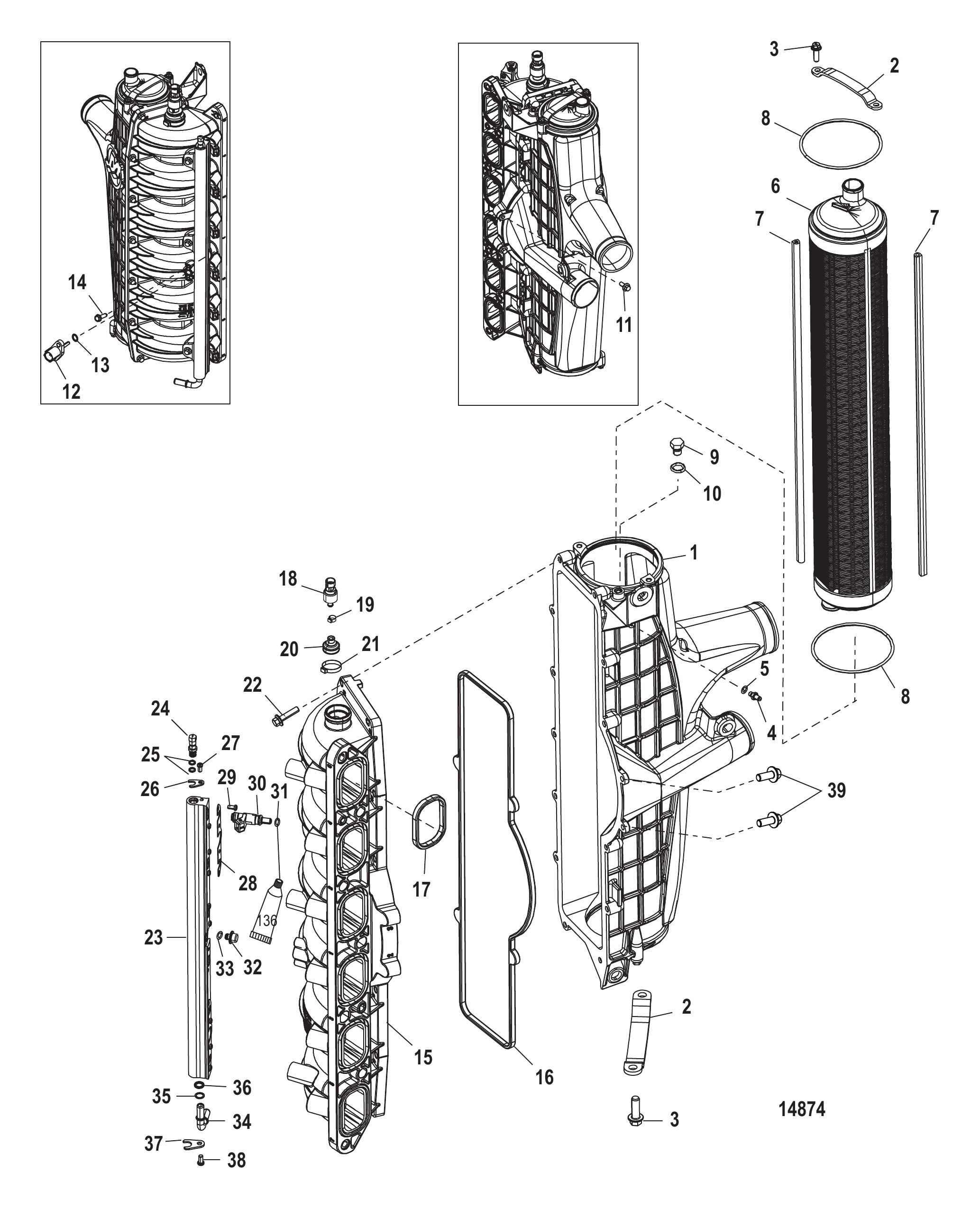

| - | 880608T06 | 集成空气/燃油模块总成 | MODULE ASSEMBLY Intergrated Air/Fuel | 1 |
| - | 880608T07 | 集成式空气燃油模块总成 | MODULE ASSEMBLY Intergrated Air Fuel | 1 |
| - | 8M0185613 | IAFM | IAFM | 1 |
| 1 | 880587A03 | 中冷器总成 | CAC ASSEMBLY | 1 |
| 1 | 8M0132388 | 中冷器总成 | CAC ASSEMBLY | 1 |
| 2 | 895032 | 绑带 | STRAP | 2 |
| 3 | 895336 | 螺钉(M6x18) | SCREW (M6 x 18) | 4 |
| 3 | 8M0041014 | 螺钉(M6x18) | SCREW (M6 x 18) | 4 |
| 4 | 895033 | 接头 | FITTING | 1 |
| 4 | 8M0039993 | 接头 | FITTING | 1 |
| 5 | NSS | 不单独销售 O型圈（895031套件部件） | NOT SOLD SEPARATE O-Ring (Part of 895031 Kit) | 1 |
| 6 | 895030A01 | 堆叠组件 | STACK ASSEMBLY | 1 |
| 7 | 895031 | 密封件 | SEAL | 2 |
| 8 | NSS | 不单独销售 O型圈（895031套件部件） | NOT SOLD SEPARATE O-Ring (Part of 895031 Kit) | 2 |
| 9 | 895034 | 接头 | FITTING | 1 |
| 9 | 8M0048079 | 8毫米塞 | PLUG 8MM | 1 |
| 10 | NSS | 不单独销售 O型圈（895031套件部件） | NOT SOLD SEPARATE O-Ring (Part of 895031 Kit) | 1 |
| 11 | 895035 | 安装板 | PLATE | 1 |
| 12 | 891663001 | 温度传感器 | SENSOR Temperature | 1 |
| 13 | 892317001 | O型圈 | O-RING | 1 |
| 14 | 895054 | 螺丝(M4×16毫米) | SCREW (M4 x 16 mm) | 2 |
| 15 | 880582T05 | 进气歧管总成 | MANIFOLD ASSEMBLY Intake | 1 |
| 15 | 8M0041479 | 进气歧管总成 | MANIFOLD ASSEMBLY Intake | 1 |
| 16 | 895019 | 密封件 | SEAL | 1 |
| 17 | 895020 | 密封件 | SEAL | 6 |
| 18 | 885548002 | 传感器 | SENSOR | 1 |
| 18 | 8M0234766 | 压力传感器 | SENSOR PRESSURE | 1 |
| 19 | 888988015 | 卡箍(15.7毫米 进气压力传感器至护套) | CLAMP (15.7 mm) Map Sensor to Boot | 1 |
| 19 | 8M0214911 | 卡箍@5 | CLAMP @5 | 1 |
| 20 | 895021 | 护套 | BOOT | 1 |
| 20 | 892952500 | 护套 | BOOT | 1 |
| 21 | 888988001 | 卡箍(36.1毫米) | CLAMP (36.1 mm) | 1 |
| 21 | 8M0204719 | 卡箍 36.1毫米 | CLAMP 36.1 MM | 1 |
| 22 | 895052 | 螺丝(M6 x 25毫米) | SCREW (M6 x 25 mm) | 13 |
| 22 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 13 |
| 23 | 895022A01 | 燃油轨套件 | FUEL RAIL KIT | 1 |
| 23 | 8M0041080 | 燃油导轨总成 | FUEL RAIL ASSEMBLY | 1 |
| 24 | 895028A01 | 施拉德阀 | VALVE Schrader | 1 |
| 25 | 895056 | O型圈 | O-RING | 2 |
| 26 | 895026 | 支架 | BRACKET | 1 |
| 27 | 895051 | 螺钉 (M5 x 10) | SCREW (M5 x 10) | 1 |
| 28 | 895024 | 支架 | BRACKET | 3 |
| 29 | 895051 | 螺钉 (M5 x 10) | SCREW (M5 x 10) | 12 |
| 30 | 892811T01 | 燃油喷油器 | INJECTOR Fuel | 6 |
| 30 | 892811T02 | 燃油喷油器 | INJECTOR Fuel | 6 |
| 30 | 8M0006027 | 燃油喷油器 | INJECTOR Fuel | 6 |
| 30 | 8M0222278 | 燃油喷射器 | FUEL INJECTOR | 6 |
| 31 | 851889 | O型圈 | O-RING | 12 |
| 32 | 895025 | 减震器 | DAMPER | 1 |
| 33 | 851889 | O型圈 | O-RING | 1 |
| 34 | 895029A01 | 燃油进管套件 | TUBE KIT Fuel Inlet | 1 |
| 35 | 895055 | 垫圈 | WASHER | 1 |
| 36 | 895057 | O型圈 | O-RING | 1 |
| 37 | 895027 | 支架 | BRACKET | 1 |
| 38 | 895051 | 螺钉 (M5 x 10) | SCREW (M5 x 10) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

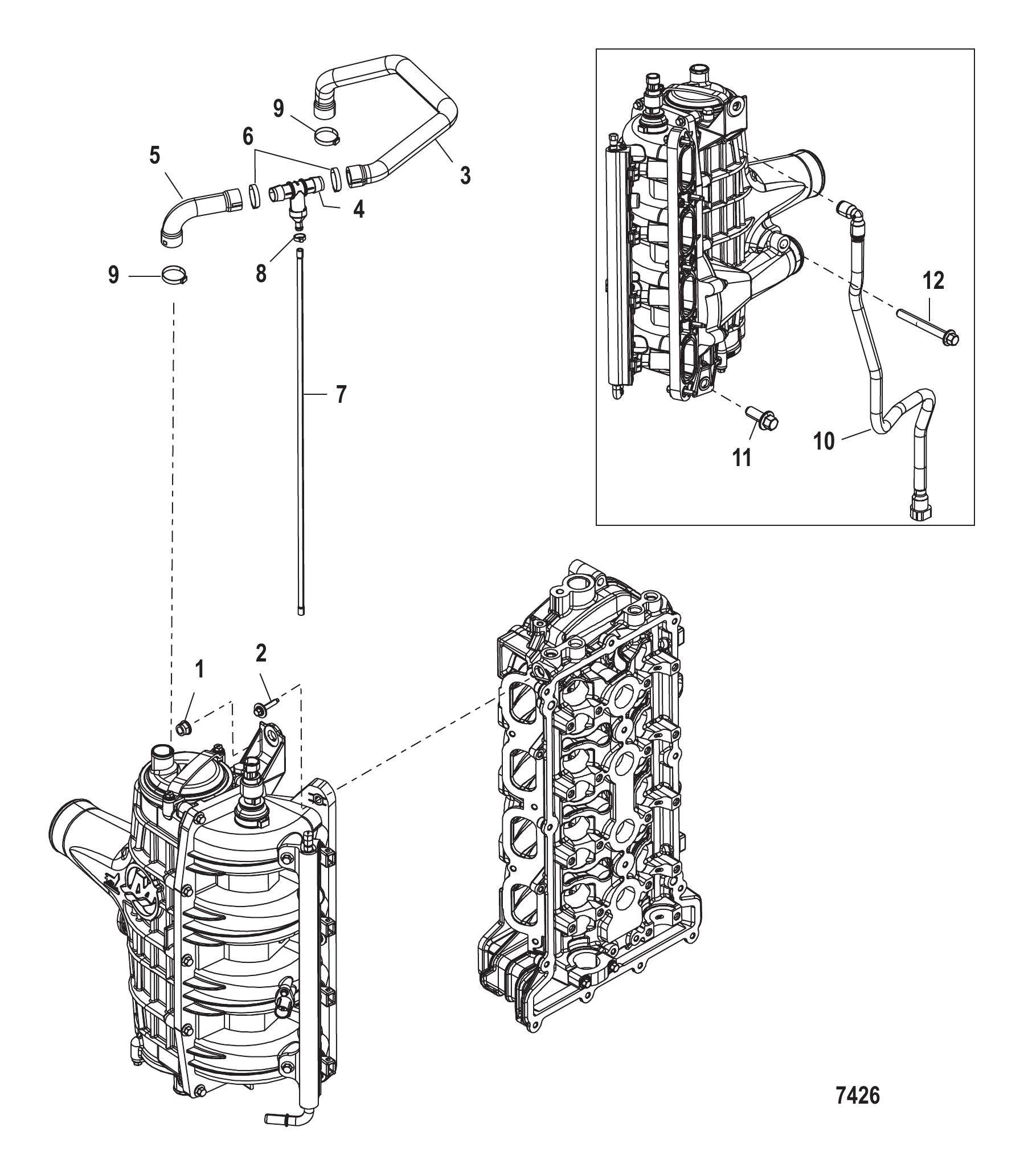

| 1 | 826292 | 螺母(M10)黄铜/镀镍 | NUT (M10) Brass/Nickel Plated | 1 |
| 2 | 892487001 | 螺钉 | SCREW | 5 |
| 2 | 8M0048051 | 不锈钢螺钉(M6x30) | SCREW (M6 x 30) Stainless Steel | 5 |
| - | NSS | 软管总成(不单独销售) | NOT SOLD SEPARATE Hose Assembly-Complete | 1 |
| 3 | 896255 | 软管 | HOSE | 1 |
| 4 | 889633A04 | 冲洗接头总成 | FITTING ASSEMBLY Flushing | 1 |
| 4 | 8M0188433 | 冲洗接头总成 | FITTING ASY-FLUSH | 1 |
| 5 | 889592001 | 软管 | HOSE | 1 |
| 6 | 888988008 | 卡箍(34.6毫米) | CLAMP (34.6 MM) | 2 |
| 6 | 8M0187145 | 卡箍 | CLAMP | 2 |
| 7 | 896257 | 软管 | HOSE | 1 |
| 8 | 850181 | 捆扎带(11.750英寸) | TIE STRAP (11.750 Inches) | 1 |
| 9 | 888988008 | 卡箍(34.6毫米) | CLAMP (34.6 MM) | 2 |
| 9 | 8M0187145 | 卡箍 | CLAMP | 2 |
| 10 | 896226 | 上歧管参考软管 | HOSE Manifold Reference-Upper | 1 |
| 10 | 8M0087088 | 软管 | HOSE | 1 |
| 11 | 88552730 | 螺钉 (M10 x 30) | SCREW (M10 x 30) | 1 |
| 11 | 8M0103821 | 螺钉 | SCREW | 1 |
| 12 | 88552765 | 螺丝(M10x65) | SCREW (M10 x 65) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

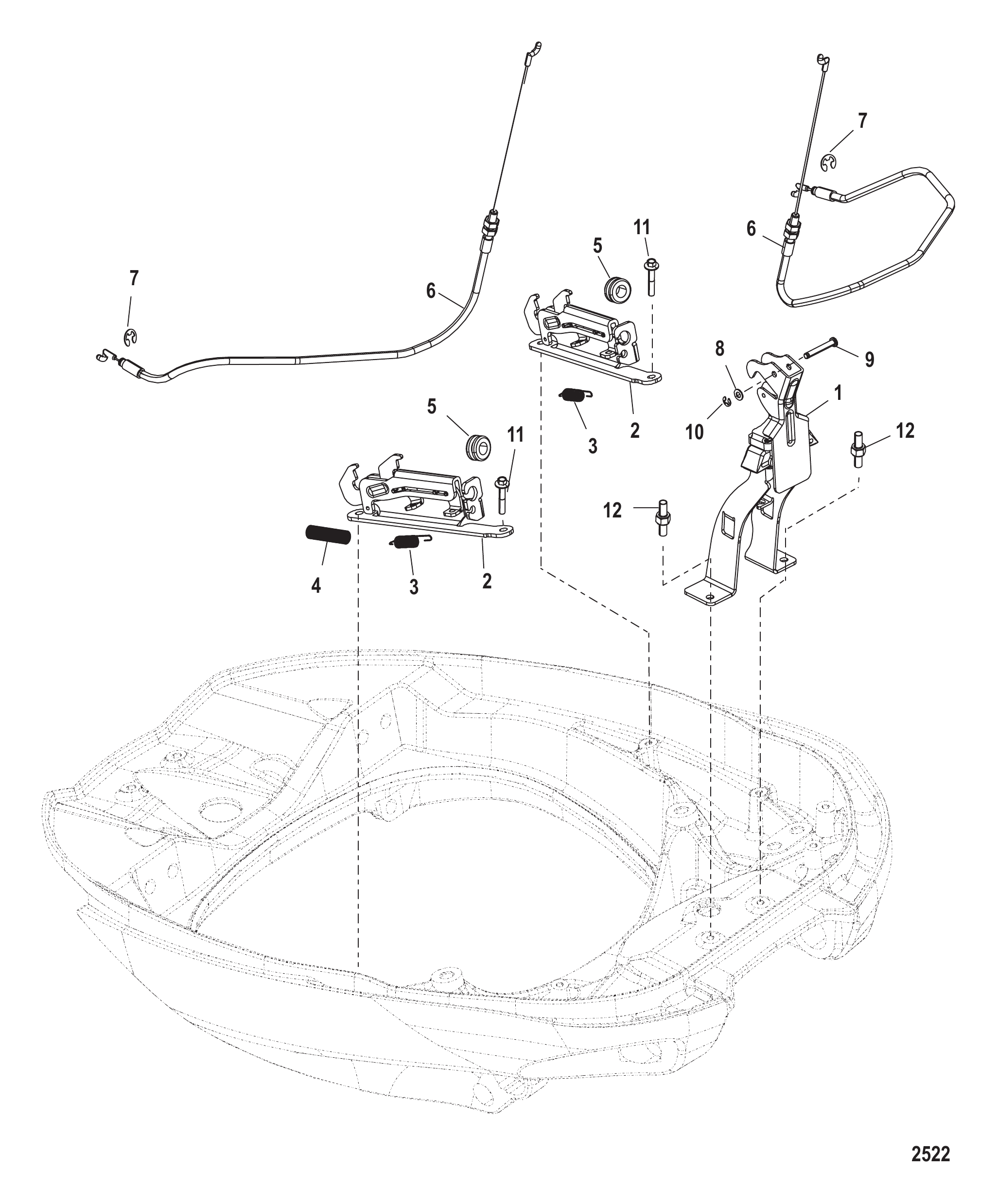

| - | 892062T02 | 前侧锁扣总成 | LATCH ASSEMBLY Front and Side | 1 |
| 1 | 888976T01 | 支架 | BRACKET | 1 |
| 2 | 888974A02 | 侧锁扣总成 | SIDE LATCH ASSEMBLY | 2 |
| 3 | 888996 | 弹簧 | SPRING | 4 |
| 4 | 896124 | 套筒 | SLEEVE | 4 |
| 5 | 828249 | 护孔环 | GROMMET | 2 |
| 6 | 889694 | 电缆 | CABLE | 2 |
| 6 | 8M0080491 | 电缆 | CABLE | 2 |
| 7 | 27290 | 挡圈 | RING Retaining | 2 |
| 8 | 30164 | 垫圈(0.192x0.375x0.0312)不锈钢 | WASHER (.192 x .375 x .0312) Stainless Steel | 1 |
| 9 | 893380 | U型销 | PIN Clevis | 1 |
| 10 | 61319 | E型卡环 | E RING | 1 |
| 11 | 4006731 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 4 |
| 12 | 889627 | 螺柱 | STUD | 2 |
| 12 | 8M0099404 | 螺柱 | STUD | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

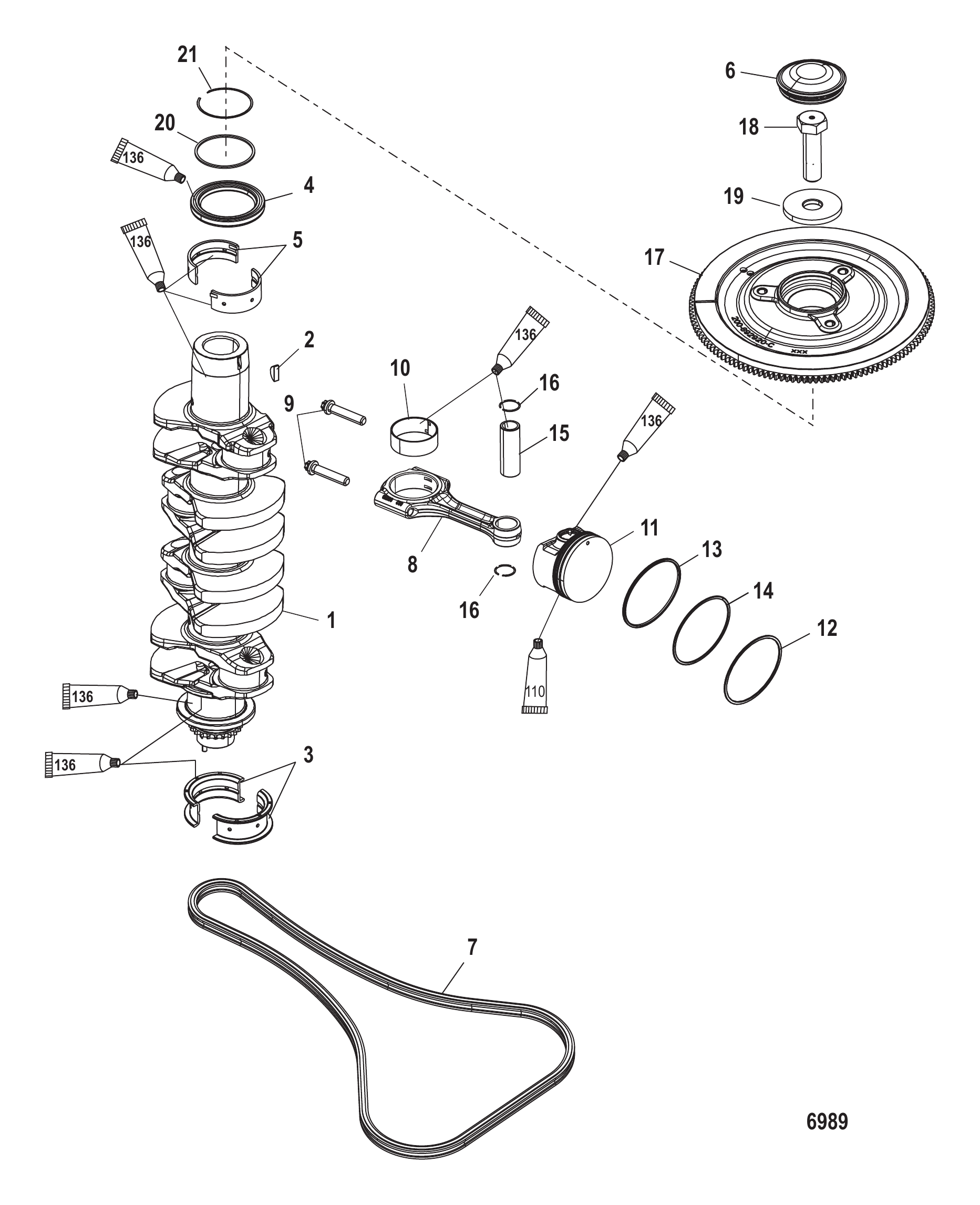

| 1 | 880514A02 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 2 | 91800 | 半圆键 | KEY Woodruff | 1 |
| 3 | 892309T01 | 推力轴承-绿色(曲轴下端) | BEARING Thrust - Green Crankshaft-Lower | 2/AR |
| 3 | 8M0117003 | 轴承 | BEARING | 2/AR |
| 3 | 892309T02 | 推力轴承-海军蓝(曲轴下端) | BEARING Thrust - Navy Blue Crankshaft-Lower | 2/AR |
| 3 | 8M0117001 | 轴承 | BEARING | 2/AR |
| 3 | 892309T03 | 推力轴承-白色(曲轴下端) | BEARING Thrust - White Crankshaft-Lower | 2/AR |
| 3 | 8M0117002 | 轴承 | BEARING | 2/AR |
| 3 | 892309T04 | 推力轴承-橙色(曲轴下端) | BEARING Thrust - Orange Crankshaft-Lower | 2/AR |
| 3 | 8M0117004 | 轴承 | BEARING | 2/AR |
| 4 | 8805251 | 油封(主轴承顶部) | SEAL Top Main Bearing | 1 |
| 4 | 8M0032912 | 密封件 | SEAL | 1 |
| 5 | 897498T01 | 主轴承-绿色(曲轴上端) | BEARING Main - Green Crankshaft-Upper | 8 |
| 5 | 897498T02 | 主轴承-海军蓝(曲轴上端) | BEARING Main - Navy Blue Crankshaft-Upper | 8 |
| 5 | 897498T03 | 主轴承-白色(曲轴上端) | BEARING Main - White Crankshaft-Upper | 8 |
| 5 | 897498T04 | 主轴承-橙色(曲轴上端) | BEARING Main - Orange Crankshaft-Upper | 8 |
| 6 | 885348 | 飞轮螺栓盖 | CAP Flywheel Bolt | 1 |
| 7 | 897796 | 链条(凸轮轴驱动滚子链) | CHAIN Roller Cam Drive | 1 |
| 7 | 8M0103398 | 链条(凸轮轴驱动滚子链) | CHAIN Roller Cam Drive | 1 |
| 8 | 881210T02 | 连杆总成 | CONNECTING ROD ASSEMBLY | 4 |
| 8 | 8M0103285 | 连杆总成 | CONNECTING ROD ASSEMBLY | 4 |
| 9 | 884441 | 螺栓 | BOLT | 8 |
| 10 | 892005A01 | 连杆轴承-蓝色 | BEARING Connecting Rod - Blue | 8 |
| 10 | 892005A02 | 连杆轴承-白色 | BEARING Connecting Rod - White | 8 |
| 10 | 892005A03 | 连杆轴承-橙色 | BEARING Connecting Rod - Orange | 8 |
| 11 | 897737T01 | 活塞总成 | PISTON ASSEMBLY | 4 |
| 11 | 897737A04 | 活塞/喷油嘴套件 | PISTON/OILJET KIT | 4 |
| 12 | 881180A02 | 活塞环组 | RING SET Piston | 4 |
| 13 | NSS | 油环（不单独销售） | NOT SOLD SEPARATE Oil Ring | 4 |
| 14 | NSS | 第二道活塞环(不单独销售) | NOT SOLD SEPARATE Piston Ring-Second | 4 |
| 15 | NSS | 活塞销（不单独销售） | NOT SOLD SEPARATE Piston Pin | 4 |
| 16 | 881184 | 卡簧 | CIRCLIP | 8 |
| 17 | 892920T03 | 飞轮总成 | FLYWHEEL ASSEMBLY | 1 |
| 18 | 880515 | 螺栓(M20×68) | BOLT (M20 x 68) | 1 |
| 18 | 8M0147042 | 螺栓 | BOLT | 1 |
| 19 | 880517 | 垫圈 | WASHER | 1 |
| 19 | 8M0090010 | 垫圈 | WASHER | 1 |
| 20 | 896883 | 隔套 | SPACER | 1 |
| 21 | 896882 | 挡圈 | RING Retaining | 1 |
| - | 896142A06 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 896142A07 | 衬垫套件 | GASKET SET | 1 |
| - | 896499A06 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 896499A07 | 长缸体总成 | LONG BLOCK ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

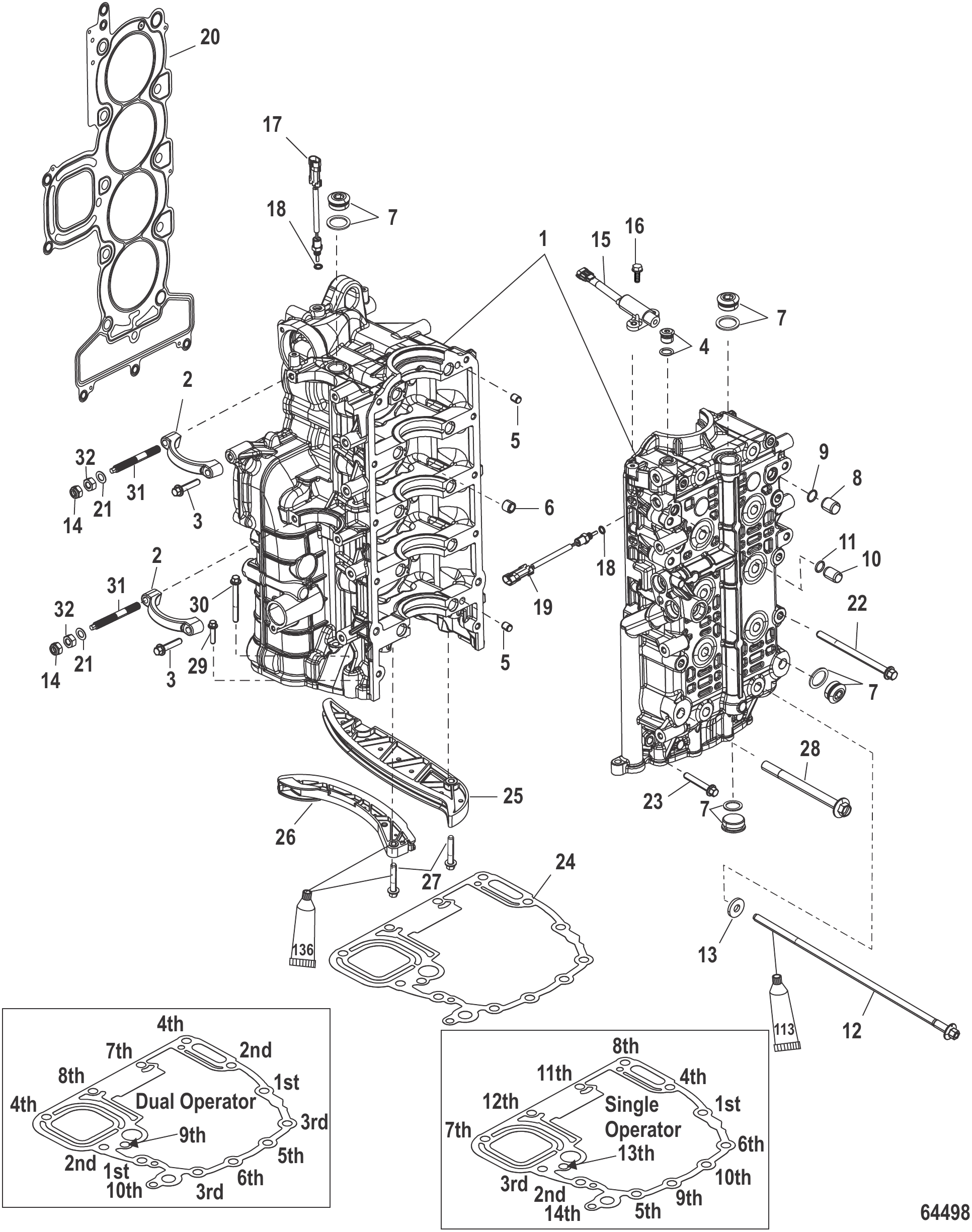

| 1 | 880504A09 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 2 | 8569662 | 起动机安装支架 | BRACKET Mounting-Starter Motor | 2 |
| 2 | 8M0111325 | 盖板 | COVER | 2 |
| 3 | 88552640 | 螺钉 (M8 x 40) | SCREW (M8 x 40) | 4 |
| 3 | 8M0103815 | 螺钉 | SCREW | 4 |
| 4 | 889767 | 堵头（12毫米） | PLUG (12 mm) | 2 |
| 5 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 2 |
| 6 | 893392001 | 减震器 | DAMPER | 10 |
| 7 | 896951 | 堵头（24毫米） | PLUG (24 mm) | 4 |
| 8 | 880524 | 定位销（14毫米） | PIN Dowel (14 MM) | 1 |
| 9 | 884409 | O型圈 | O-RING | 1 |
| 10 | 884424 | 定位销(11毫米) | PIN Dowel (11 mm) | 1 |
| 11 | 884423 | O型圈 | O-RING | 1 |
| 12 | 896923 | 螺钉（M10×342） | SCREW (M10 x 342) | 10 |
| 12 | 8M4501000 | 螺钉（M10×342） | SCREW (M10 X 342) | 10 |
| 13 | 892573001 | 垫圈 | WASHER | 10 |
| 14 | 401388 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 2 |
| 15 | 8283582 | 传感器 | SENSOR | 1 |
| 15 | 8M0082988 | 曲轴位置传感器 | SENSOR Crankshaft Position | 1 |
| 16 | 40011107 | 不锈钢螺钉(M5x16) | SCREW (M5 x 16) Stainless Steel | 2 |
| 17 | 885342001 | 传感器总成 | SENSOR ASSEMBLY | 1 |
| 17 | 8M0148668 | 传感器总成 | SENSOR ASSEMBLY | 1 |
| 18 | 888814 | O型圈(0.351 x 0.072) | O-RING (.351 x .072) | 2 |
| 18 | 896699 | O型圈（1.78毫米 x 0.08毫米） | O-RING (1.78 mm x .08 mm) | 2 |
| 19 | 885342001 | 传感器总成 | SENSOR ASSEMBLY | 1 |
| 19 | 8M0148668 | 传感器总成 | SENSOR ASSEMBLY | 1 |
| 20 | 896277006 | 衬垫 缸盖 | GASKET Head | 1 |
| 20 | 8M0024565 | 衬垫 | GASKET | 1 |
| 21 | 36001 | 垫圈 | WASHER | 2 |
| 22 | 895810115 | 螺钉(M8×115) | SCREW (M8 x 115) | 8 |
| 22 | 8M0193831 | 螺丝@2 | SCREW @2 | 8 |
| 23 | 895810050 | 螺钉(M8 x 50) | SCREW (M8 x 50) | 2 |
| 23 | 8M0193659 | 螺钉 | SCREW | 2 |
| 24 | 896142 | 缸体至适配器衬垫 | GASKET Block to Adapter | 1 |
| 25 | 880559 | 固定导套 | GUIDE Fixed | 1 |
| 26 | 880557 | 活动导板 | GUIDE Moveable | 1 |
| 27 | 892456045 | 螺钉 | SCREW | 2 |
| 28 | 892086120 | 螺钉（M10×120） | SCREW (M10 x 120) | 2 |
| 28 | 8M0103829 | 螺钉 | SCREW | 2 |
| 29 | 88552635 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 1 |
| 29 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 1 |
| 30 | 88552675 | 螺钉 (M8 x 75) | SCREW (M8 x 75) | 1 |
| 30 | 8M0103818 | 螺丝 (M8x75) | SCREW (M8 X 75) | 1 |
| 31 | 888849003 | 双头螺柱(M8×1.5) | STUD (M8 x 1.5) | 2 |
| 31 | 8M0022161 | 双头螺柱(M8×71.5) | STUD (M8 x 71.5) | 2 |
| 32 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 2 |
| - | 896142A06 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 896142A07 | 衬垫套件 | GASKET SET | 1 |
| - | 896499A06 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 896499A07 | 长缸体总成 | LONG BLOCK ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 880534A08 | 气缸盖总成 完整件 | CYLINDER HEAD ASSEMBLY Complete | 1 |
| 1 | 880534A06 | 气缸盖总成 | CYLINDER HEAD ASSEMBLY | 1 |
| 1 | 8M0110154 | 气缸盖总成 | CYLINDER HEAD ASY | 1 |
| 2 | 889767 | 堵头（12毫米） | PLUG (12 mm) | 8 |
| 3 | 891953 | 堵头（18毫米） | PLUG (18 mm) | 1 |
| 4 | 896951 | 堵头（24毫米） | PLUG (24 mm) | 1 |
| 5 | 896576 | 堵头（10毫米） | PLUG (10 mm) | 1 |
| 5 | 8M0087446 | 堵头（10毫米） | PLUG (10 mm) | 1 |
| 6 | 880524 | 定位销（14毫米） | PIN Dowel (14 MM) | 2 |
| 7 | 892454035 | 螺栓（M6×36） | BOLT (M6 x 36) | 20 |
| 7 | 8M0163131 | M6螺钉 | SCREW M6 | 20 |
| 8 | 880533 | 进气门座 | SEAT Intake Valve | 8 |
| 9 | 880535 | 排气门座 | SEAT Exhaust Valve | 8 |
| 9 | 8M0089477 | 排气门座 | SEAT Exhaust Seat | 8 |
| 10 | 880537 | 进排气门导管 | GUIDE Intake Exhaust Valve Intake and Exhaust Valves | 16 |
| 11 | 897629 | 进气阀 | VALVE Intake | 8 |
| 11 | 898907 | 进气阀 | VALVE Intake | 8 |
| 12 | 897630 | 排气阀 | VALVE Exhaust | 8 |
| 12 | 898908 | 排气阀 | VALVE Exhaust | 8 |
| 13 | 896880 | 气门油封 | SEAL Valve | 16 |
| 13 | 8M0214986 | 密封件 | SEAL | 16 |
| 14 | 895815 | 进排气门弹簧 | SPRING Intake and Exhaust Valve | 16 |
| 14 | 8M0011503 | 弹簧 | SPRING | 16 |
| 15 | 880542A1 | 气门锁夹总成 | RETAINER ASSEMBLY Valves | 16 |
| 15 | 8M0908500 | 气门锁夹总成 | RETAINER ASSEMBLY Valves | 16 |
| 16 | 880543 | 键 | KEY | 32 |
| 17 | NSS | NOT SOLD SEPARATE CAP | 10 | |
| 18 | 892861T02 | 进气凸轮轴总成 | CAMSHAFT ASSEMBLY Intake | 1 |
| 18 | 898397A04 | 进气凸轮轴总成 | CAMSHAFT INTK ASY | 1 |
| 19 | 892862T02 | 排气凸轮轴总成 | CAMSHAFT ASSEMBLY Exhaust | 1 |
| 19 | 892862T03 | 凸轮轴总成 | CAMSHAFT ASSY | 1 |
| 20 | 8805481 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912001 | 挺柱（2.996） | TAPPET (2.996) | 16/AR |
| 20 | 8805482 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912002 | 挺柱（3.021） | TAPPET (3.021) | 16/AR |
| 20 | 8805483 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912003 | 挺柱（3.046） | TAPPET (3.046) | 16/AR |
| 20 | 8805484 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912004 | 挺柱（3.071） | TAPPET (3.071) | 16/AR |
| 20 | 8805485 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912005 | 挺柱（3.096） | TAPPET (3.096) | 16/AR |
| 20 | 8805486 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912006 | 挺柱（3.118） | TAPPET (3.118) | 16/AR |
| 20 | 8805487 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912007 | 挺柱（3.138） | TAPPET (3.138) | 16/AR |
| 20 | 8805488 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912008 | 挺柱（3.158） | TAPPET (3.158) | 16/AR |
| 20 | 8805489 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912009 | 挺柱（3.178） | TAPPET (3.178) | 16/AR |
| 20 | 88054810 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912010 | 挺柱（3.198） | TAPPET (3.198) | 16/AR |
| 20 | 88054811 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912011 | 挺柱（3.218） | TAPPET (3.218) | 16/AR |
| 20 | 88054812 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912012 | 挺柱（3.238） | TAPPET (3.238) | 16/AR |
| 20 | 88054813 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912013 | 挺柱（3.258） | TAPPET (3.258) | 16/AR |
| 20 | 88054814 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912014 | 挺柱（3.278） | TAPPET (3.278) | 16/AR |
| 20 | 88054815 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912015 | 挺柱（3.298） | TAPPET (3.298) | 16/AR |
| 20 | 88054816 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912016 | 挺柱（3.318） | TAPPET (3.318) | 16/AR |
| 20 | 88054817 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912017 | 挺柱（3.338） | TAPPET (3.338) | 16/AR |
| 20 | 88054818 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912018 | 挺柱（3.358） | TAPPET (3.358) | 16/AR |
| 20 | 88054819 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912019 | 挺柱（3.378） | TAPPET (3.378) | 16/AR |
| 20 | 88054820 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912020 | 挺柱（3.398） | TAPPET (3.398) | 16/AR |
| 20 | 88054821 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912021 | 挺柱（3.418） | TAPPET (3.418) | 16/AR |
| 20 | 88054822 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912022 | 挺柱（3.438） | TAPPET (3.438) | 16/AR |
| 20 | 88054823 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912023 | 挺柱（3.458） | TAPPET (3.458) | 16/AR |
| 20 | 88054824 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912024 | 挺柱（3.478） | TAPPET (3.478) | 16/AR |
| 20 | 88054825 | 挺柱 | TAPPET | 16/AR |
| 20 | 88054826 | 挺柱 | TAPPET | 16/AR |
| 20 | 88054827 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912027 | 挺柱（3.538） | TAPPET (3.538) | 16/AR |
| 20 | 88054828 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912028 | 挺柱（3.558） | TAPPET (3.558) | 16/AR |
| 20 | 88054829 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912029 | 挺柱（3.578） | TAPPET (3.578) | 16/AR |
| 20 | 88054830 | 挺柱 | TAPPET | 16/AR |
| 20 | 88054831 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912031 | 挺杆 (3.621) | TAPPET (3.621) | 16/AR |
| 20 | 88054832 | 挺柱 | TAPPET | 16/AR |
| 20 | 88054833 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912033 | 挺杆 (3.671) | TAPPET (3.671) | 16/AR |
| 20 | 88054834 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912034 | 挺杆 (3.696) | TAPPET (3.696) | 16/AR |
| 20 | 88054835 | 挺柱 | TAPPET | 16/AR |
| 21 | 892454030 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 2 |
| 22 | 880553T02 | 凸轮盖总成 | COVER ASSEMBLY Cam | 1 |
| 22 | 880553A07 | 凸轮盖总成 | COVER ASSEMBLY Cam | 1 |
| 23 | 892584 | 密封件 | SEAL | 2 |
| 24 | 892893 | 密封件 | SEAL | 1 |
| 25 | 897637001 | 线圈板 | PLATE Coil | 1 |
| 25 | 8M0010625 | 线圈板 | PLATE Coil | 1 |
| 26 | 859578A1 | 油塞总成 | PLUG ASSEMBLY Oil | 1 |
| 26 | 8M0240831 | 油塞 | OIL PLUG | 1 |
| 27 | 90196 | O型圈 (.921 x .139) | O-RING (.921 x .139) | 1 |
| 27 | 8M0204673 | O型圈 .921 x .139 | O-Ring .921 x .139 | 1 |
| 28 | 880558 | 短导杆 | GUIDE Short | 1 |
| 29 | 850181 | 捆扎带(11.750英寸) | TIE STRAP (11.750 Inches) | 1 |
| 30 | 850181 | 捆扎带(11.750英寸) | TIE STRAP (11.750 Inches) | 2 |
| 31 | 88552660 | 螺钉 (M8 x 60) | SCREW (M8 x 60) | 4 |
| 31 | 8M0103817 | 螺钉 (M8 x 60) | SCREW (M8 x 60) | 4 |
| 32 | 897797A01 | 张紧器总成 | TENSIONER ASSEMBLY | 1 |
| 32 | 898463A01 | 张紧器总成 | TENSIONER ASSEMBLY | 1 |
| 33 | 880631001 | O型圈 橙色 (也属于完整气缸盖部件) | O-RING Orange (Also part of Complete Cylinder Head) | 1 |
| 33 | 8M0237361 | O型圈 | O-RING | 1 |
| 34 | 893338 | 张紧器端盖 | END CAP Tensioner | 1 |
| 34 | 8M0064752 | 凸轮张紧器端盖 | END CAP Cam Tensioner | 1 |
| 35 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| 35 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| 36 | 88552540 | 螺钉(M6x40毫米)不锈钢 | SCREW (M6 x 40 mm) Stainless Steel | 3 |
| 36 | 8M0103809 | 螺钉(M6x40毫米)不锈钢 | SCREW (M6 x 40 mm) Stainless Steel | 3 |
| 37 | 892833 | 卡扣 | CLIP | 1 |
| 38 | 892812A03 | 通气软管总成 | HOSE ASSEMBLY Breather | 1 |
| 39 | 880615T01 | 线圈总成 | COIL ASSEMBLY | 4 |
| 40 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 4 |
| 40 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 4 |
| 41 | 889680001 | 火花塞 NGK-ILFR6G | SPARK PLUG NGK-ILFR6G | 4 |
| 41 | 889246Q39 | NGK-ILFR6GE火花塞 | SPARK PLUG NGK-ILFR6GE | 4 |
| 42 | 858954 | 卡箍(0.625英寸) | CLIP (.625) | 2 |
| 43 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 13 |
| 43 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 13 |
| 44 | 880550 | 凸轮驱动链轮 | SPROCKET Cam Drive | 2 |
| 44 | 8M0241408 | 凸轮链轮 | SPROCKET CAM | 2 |
| 45 | 884403 | 左旋螺钉(M12×40) | SCREW (M12 x 40) (Left Hand) | 2 |
| 45 | 8M0237436 | 螺钉 | SCREW | 2 |
| 46 | 88552512 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 mm) Stainless Steel | 2 |
| 46 | 8M0103804 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 MM) Stainless Steel | 2 |
| 47 | 889746001 | 卡扣 | CLIP | 1 |
| 48 | 888988019 | 卡箍 (22.6 mm) | CLAMP (22.6 mm) | 1 |
| 49 | 88552512 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 mm) Stainless Steel | 2 |
| 49 | 8M0103804 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 MM) Stainless Steel | 2 |
| 50 | 880609 | 传感器总成 | SENSOR ASSEMBLY | 1 |
| 50 | 8M0233140 | 传感器 | SENSOR | 1 |
| 51 | 88552516 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 1 |
| 51 | 8M0103805 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 1 |
| - | 896142A06 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 896499A06 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |

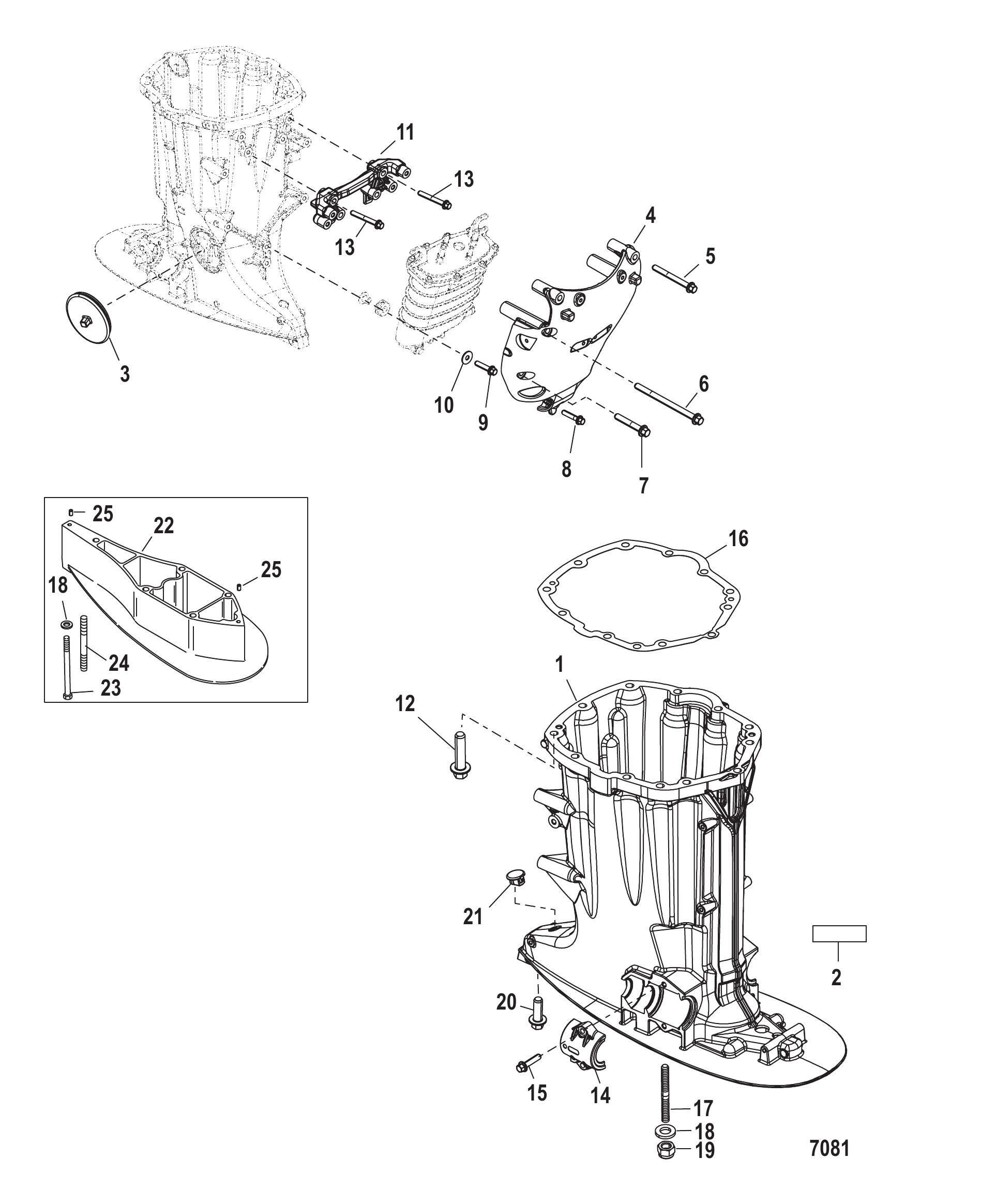

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 895305T01 | 驱动轴壳体 | HOUSING Driveshaft | 1 |
| 2 | NSS | 非单独销售贴纸-放油口 | NOT SOLD SEPARATE Decal-Oil Drain | 1 |
| 3 | 889568001 | 护孔环 | GROMMET | 1 |
| 4 | 889656T01 | 护罩 | SHROUD | 1 |
| 5 | 88552675 | 螺钉 (M8 x 75) | SCREW (M8 x 75) | 2 |
| 5 | 8M0103818 | 螺丝 (M8x75) | SCREW (M8 X 75) | 2 |
| 6 | 885526120 | 螺丝 (M8x120) | SCREW (M8 x 120) | 2 |
| 6 | 8M0103812 | 螺钉 | SCREW | 2 |
| 7 | 88552650 | 螺钉(M8 x 50) | SCREW (M8 x 50) | 2 |
| 7 | 8M0103816 | 螺丝 M8x50 六角法兰 | SCREW M8 x 50 HEX FLG | 2 |
| 8 | 88552640 | 螺钉 (M8 x 40) | SCREW (M8 x 40) | 1 |
| 8 | 8M0103815 | 螺钉 | SCREW | 1 |
| 9 | 88552635 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 3 |
| 9 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 3 |
| 10 | 817274 | 垫圈(0.344×1.00×0.063)不锈钢 | WASHER (.344 x 1.00 x .063) Stainless Steel | 3 |
| 11 | 896210004 | 支架 | BRACKET | 1 |
| 11 | 896210T | 支架 | BRACKET | 1 |
| 12 | 88552740 | 螺钉(M10×40) | SCREW (M10 x 40) | 5 |
| 12 | 8M0103822 | 螺钉 | SCREW | 5 |
| 13 | 88552650 | 螺钉(M8 x 50) | SCREW (M8 x 50) | 4 |
| 13 | 8M0103816 | 螺丝 M8x50 六角法兰 | SCREW M8 x 50 HEX FLG | 4 |
| 14 | 896095C01 | 下支座夹箍 | CLAMP Lower Mount | 2 |
| 15 | 88552635 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 4 |
| 15 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 4 |
| 16 | 895827 | 衬垫 | GASKET | 1 |
| 17 | 856983 | 双头螺柱(M12 x 52) | STUD (M12 x 52) | 4 |
| 17 | 8M0008031 | 双头螺柱(M12 x 1.75 x 52) | STUD (M12 x 1.75 x 52) | 4 |
| 18 | 856982 | 垫圈(0.5×0.81×0.09英寸)不锈钢 | WASHER (.500 x .810 x .090) Stainless Steel | 4 or 5 |
| 19 | 896895 | 螺母(M12) | NUT (M12) | 4 |
| 20 | 88552835 | 螺钉(M12×35毫米) | SCREW (M12 x 35 MM) | 1 |
| 20 | 8M0102995 | 螺丝 (M12) | SCREW (M12) | 1 |
| 21 | 824928001 | 橡胶塞 适用处使用 | PLUG Rubber Use where Applicable | 1 |
| 22 | 880647T | 隔套 | SPACER | 1 |
| 22 | 8M0105088 | 传动轴壳体加长隔套（黑色） | SPACER Driveshaft Housing X-Long, Black | 1 |
| 22 | 880647T03 | 隔套 | SPACER | 1 |
| 23 | 857137 | 螺钉 (M12 X 160) | SCREW (M12 x 160) | 1 |
| 24 | 857009 | 双头螺柱（M12×179） | STUD (M12 x 179) | 4 |
| 24 | 8M0008047 | 双头螺柱（M12×179） | STUD (M12 x 179) | 4 |
| 25 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 2 |
| - | 896499A06 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 896499A07 | 长缸体总成 | LONG BLOCK ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

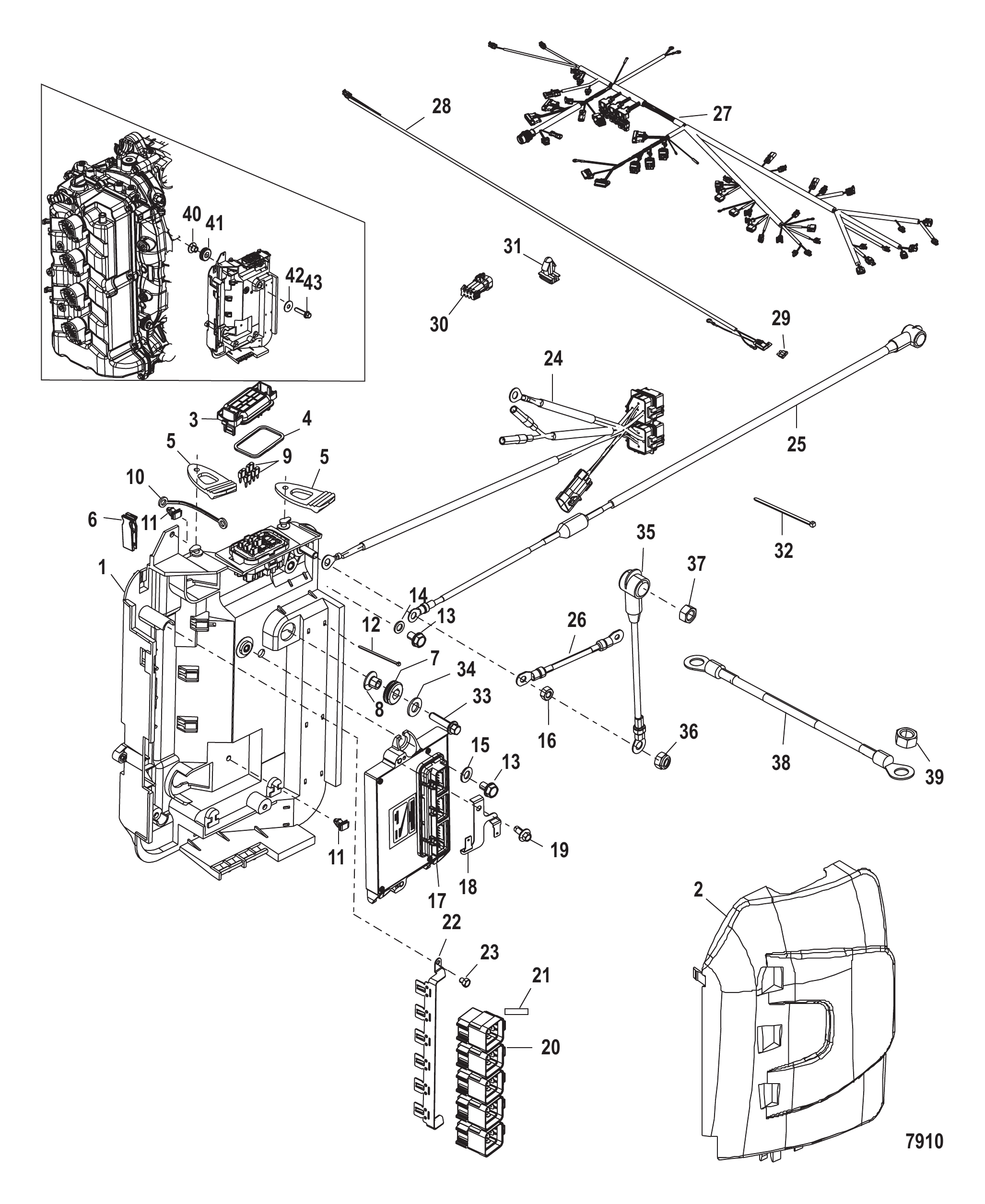

| - | NSS | 电气盒总成(不单独销售) | NOT SOLD SEPARATE Electrical Box Assembly-Complete | 1 |
| - | NSS | 电气盒总成(不单独销售) | NOT SOLD SEPARATE Electrical Box Assembly | 1 |
| 1 | 896230T01 | 电气盒总成 | BOX ASSEMBLY Electrical | 1 |
| 1 | 896230T02 | 底座 | BASE | 1 |
| 2 | NSS | 盖板(不单独销售) | NOT SOLD SEPARATE Cover | 1 |
| 3 | 888491 | 盖板 | COVER | 1 |
| 3 | 8M0167280 | 保险丝盖 | FUSE COVER | 1 |
| 4 | 885583 | 密封件 | SEAL | 1 |
| 5 | 889531 | 绑带 | STRAP | 2 |
| 6 | 895099 | 保险丝拔取器 | EXTRACTOR Fuse | 1 |
| 7 | 833155 | 护孔环 | GROMMET | 1 |
| 8 | 8502341 | 衬套 | BUSHING | 1 |
| 9 | 83296920 | 迷你保险丝-黄色-20安 | FUSE Mini - Yellow - 20 Ampere | 7 |
| 9 | 832969T20 | 迷你保险丝-黄色-20安 | FUSE Mini - Yellow - 20 Ampere | 7 |
| 10 | 892244 | 盖板固定带 | STRAP Cover | 1 |
| 11 | 892448 | 卡扣 | CLIP | 2 |
| 12 | 850181 | 捆扎带(11.750英寸) | TIE STRAP (11.750 Inches) | 8 |
| 13 | 40011145 | 螺钉（M8 X 10）不锈钢 | SCREW (M8 x 10) Stainless Steel | 2 |
| 14 | 843108 | 垫圈（.330 x .560 x .060）不锈钢 | WASHER (.330 x .560 x .060) Stainless Steel | 1 |
| 15 | 817274 | 垫圈(0.344×1.00×0.063)不锈钢 | WASHER (.344 x 1.00 x .063) Stainless Steel | 1 |
| 16 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 1 |
| 17 | 88555824T | 推进控制模块PCM | PCM Propulsion Control Module | 1 |
| 17 | 89790729T | PCM控制模块 | PCM | 1 |
| 17 | 88555858T | 推进控制模块PCM | PCM Propulsion Control Module | 1 |
| 17 | 89790729T | PCM控制模块 | PCM | 1 |
| 17 | 88555827T | 推进控制模块PCM | PCM Propulsion Control Module | 1 |
| 17 | 89790730T | PCM控制模块 | PCM | 1 |
| 17 | 88555837T | 推进控制模块PCM | PCM Propulsion Control Module | 1 |
| 17 | 89790731T | PCM控制模块 | PCM | 1 |
| 17 | 88555859T | 推进控制模块PCM | PCM Propulsion Control Module | 1 |
| 17 | 89790731T | PCM控制模块 | PCM | 1 |
| 17 | 88555828T | 推进控制模块PCM | PCM Propulsion Control Module | 1 |
| 17 | 89790732T | PCM控制模块 | PCM | 1 |
| 17 | 88555838T | 推进控制模块PCM | PCM Propulsion Control Module | 1 |
| 17 | 89790733T | PCM控制模块 | PCM | 1 |
| 17 | 88555860T | 推进控制模块PCM | PCM Propulsion Control Module | 1 |
| 17 | 89790733T | PCM控制模块 | PCM | 1 |
| 18 | 891520001 | 卡扣 | CLIP | 1 |
| 19 | 82129114 | 螺钉 (M6 x 14) | SCREW (M6 x 14) | 1 |
| - | NSS | 继电器支架总成(不单独销售) | NOT SOLD SEPARATE Relay Bracket Assembly-Complete | 1 |
| 20 | 882751A04 | 继电器总成 | RELAY ASSEMBLY | 5 |
| 21 | NSS | 微调继电器标识贴(不单独销售) | NOT SOLD SEPARATE Decal-Trim Relay | 5 |
| 22 | 889532 | 支架 | BRACKET | 1 |
| 23 | 40007103 | 螺钉 (M5 x 6) | SCREW (M5 x 6) | 2 |
| 24 | 819514A23 | 升降线束总成 | HARNESS ASSEMBLY Trim | 1 |
| 25 | 892137T03 | 保险丝线束总成 | HARNESS ASSEMBLY Fuse | 1 |
| 26 | 93388A19 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 27 | 892579T12 | 发动机线束总成 | HARNESS ASSEMBLY Engine | 1 |
| 27 | 8M0132704 | 发动机线束总成 | HARNESS ASSY-ENG | 1 |
| 28 | 888416T03 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 28 | 8M0113732 | DTS清洁电源线束总成(14英尺) | HARNESS ASSEMBLY DTS, Clean Power, 14 Feet | 1 |
| 29 | 862646 | 褐色保险丝-5安培 | FUSE Tan - 5 Ampere | 1 |
| 30 | 877613A02 | 防水插头总成6针 | CONNECTOR ASSEMBLY Weather Cap 6 Pin | 1 |
| 31 | 879962 | 卡扣 | CLIP | 1 |
| 32 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 33 | 88552635 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 1 |
| 33 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 1 |
| 34 | 817274 | 垫圈(0.344×1.00×0.063)不锈钢 | WASHER (.344 x 1.00 x .063) Stainless Steel | 1 |
| 35 | 88439A25 | 电缆总成 蓄电池-正极 | CABLE ASSEMBLY Battery - Positive | 1 |
| 36 | 401388 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 2 |
| 37 | 86226 | 螺母(.375-16 蓄电池正极电缆) | NUT (.375-16) Battery Cable-Positive | 1 |
| 37 | 8M0204671 | 螺母 | NUT | 1 |
| 38 | 88439A26 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 39 | 68292 | 螺母(.312-18 蓄电池负极电缆) | NUT (.312-18) Battery Cable-Negative | 1 |
| 39 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 1 |
| 40 | 8502341 | 衬套 | BUSHING | 2 |
| 41 | 833155 | 护孔环 | GROMMET | 2 |
| 42 | 817274 | 垫圈(0.344×1.00×0.063)不锈钢 | WASHER (.344 x 1.00 x .063) Stainless Steel | 2 |
| 43 | 88552635 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 2 |
| 43 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 2 |
| - | 896499A06 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 896499A07 | 长缸体总成 | LONG BLOCK ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

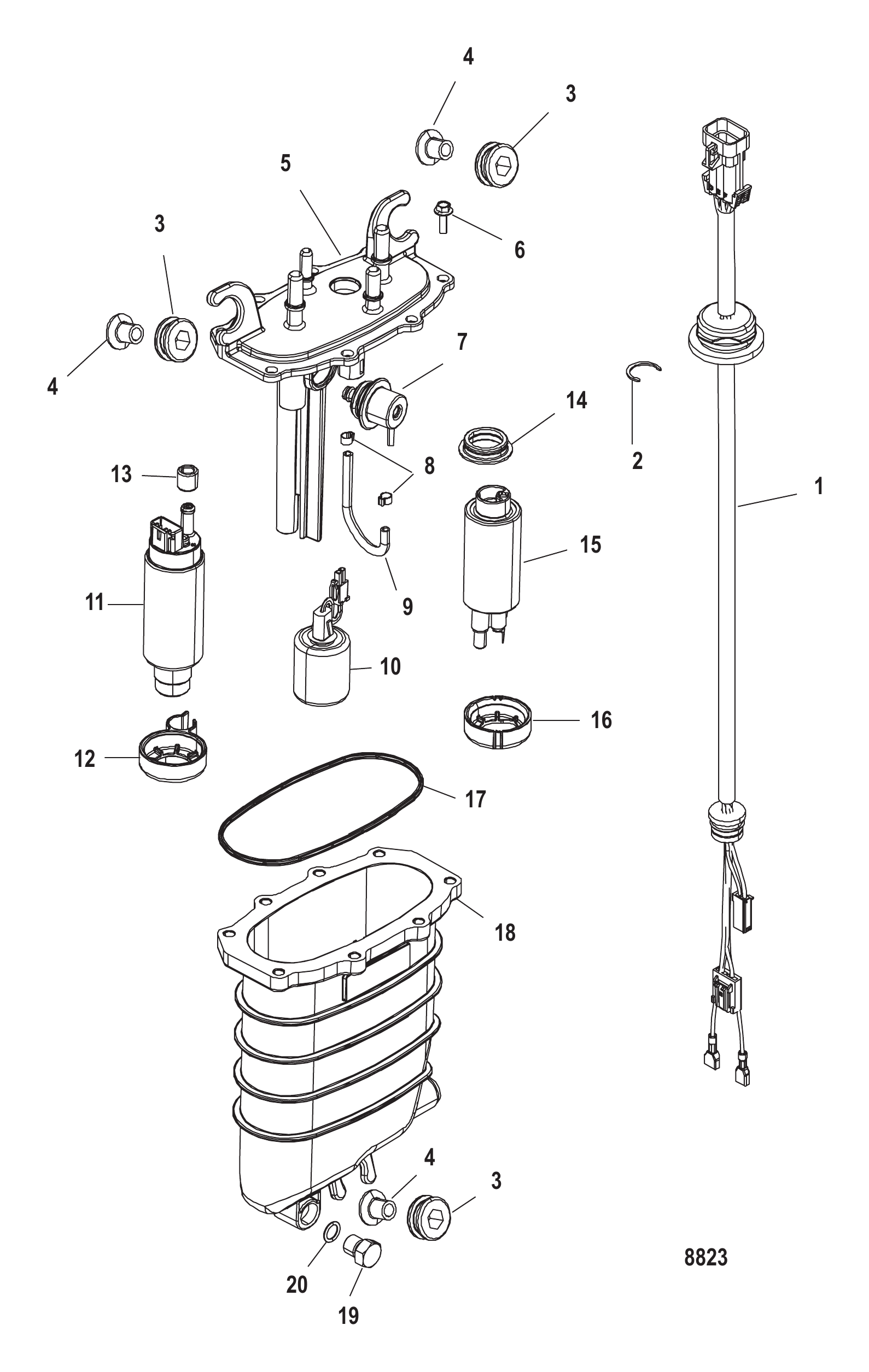

| 1 | 880596T05 | 燃油供应模块 | MODULE Fuel Supply | 1 |
| 1 | 880596521 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 1 | 889613A03 | 燃油模块线束 | HARNESS-FUEL MOD | 1 |
| 2 | 880596515 | 卡扣 | CLIP | 1 |
| 3 | 855362001 | 护孔环 | GROMMET | 3 |
| 4 | 855364 | 衬套 | BUSHING | 3 |
| 5 | 880596T50 | 盖板套件 | COVER KIT | 1 |
| 6 | 880596513 | 螺钉 | SCREW | 8 |
| 7 | 880596503 | 带O型圈的调节器 | REGULATOR With O-Rings | 1 |
| 8 | 880596512 | 卡箍 | CLAMP | 2 |
| 9 | 880596511 | 软管 | HOSE | 1 |
| 9 | 880596A05 | 软管套件 | HOSE KIT | 1 |
| 10 | 880596522 | 浮子 | FLOAT | 1 |
| 10 | 8M6000359 | 浮子 | FLOAT | 1 |
| 11 | 880596T55 | 燃油泵总成-高压 | PUMP ASSEMBLY Fuel - High Pressure | 1 |
| 12 | 880596506 | 密封件 | SEAL | 1 |
| 13 | 880596507 | 密封件 | SEAL | 1 |
| 14 | 880596510 | 密封件 | SEAL | 1 |
| 15 | 880596T58 | 燃油提升泵套件 | PUMP KIT Fuel - Lift | 1 |
| 16 | 880596509 | 隔离器 | ISOLATOR | 1 |
| 17 | 880596502 | 密封件 | SEAL | 1 |
| 18 | 880596T51 | 壳体总成 | HOUSING ASSEMBLY | 1 |
| 18 | 880596501 | 壳体 | HOUSING | 1 |
| 19 | 880596516 | 堵头 | PLUG | 1 |
| 20 | 880596517 | O型圈 | O-RING | 1 |
| - | 880596A01 | 密封修理包 | REPAIR KIT Seal | 1 |
| - | 889283A01 | 燃油灌注工具包 | TOOL KIT Fuel Priming | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

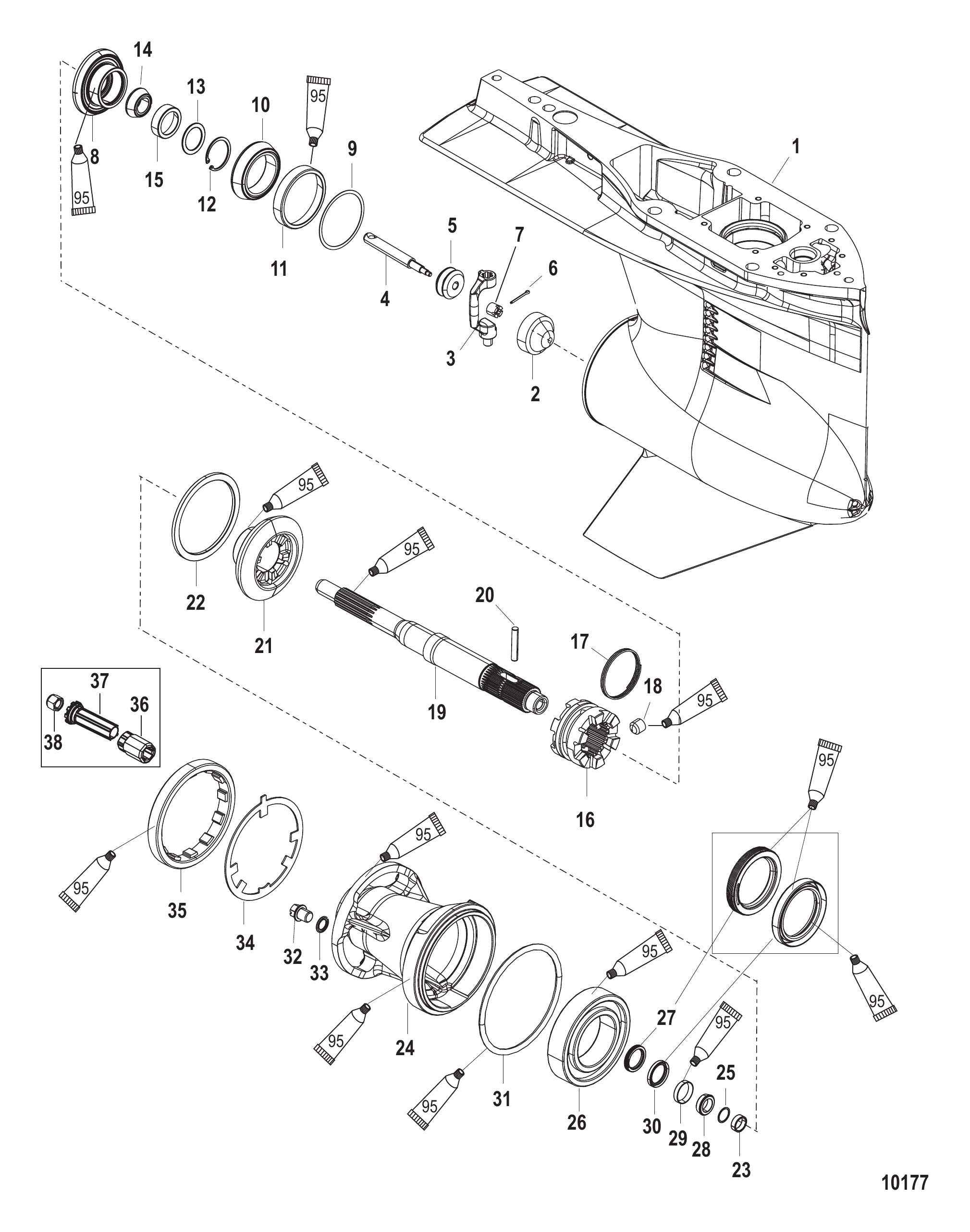

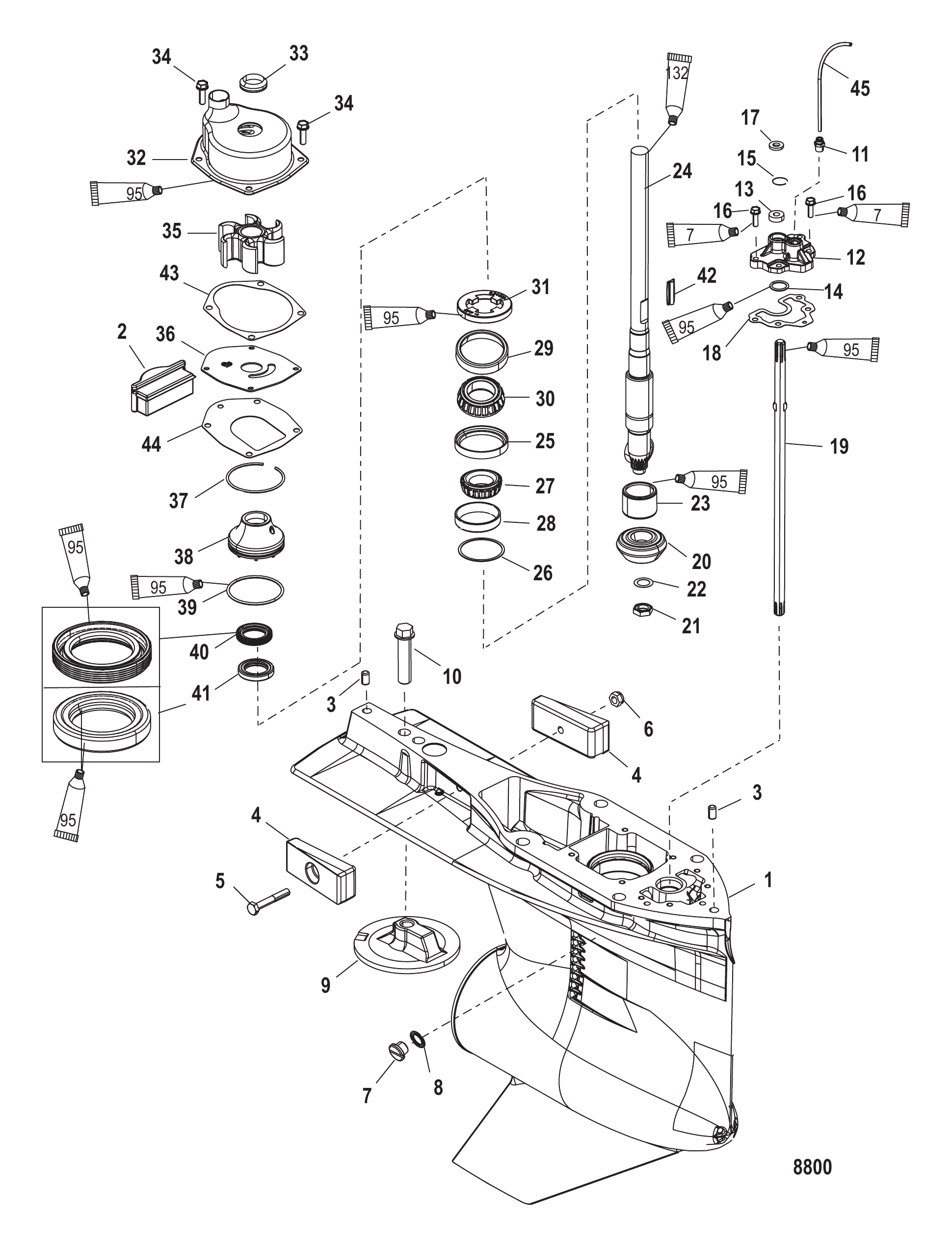

| - | 880686T23 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 880686T24 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236262 | GC L4 4S XL | GC L4 4S XL | 1 |
| - | 880686T28 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 880686T25 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236263 | GC L4 4S CXL | GC L4 4S CXL | 1 |
| 1 | 880687T01 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 1 | 8M0056631 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 2 | 821526001 | 填充块 | FILLER BLOCK | 1 |
| 3 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 2 |
| 4 | 826134Q | 阳极块 | ANODE | 1 |
| 5 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 1 |
| 6 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 7 | 79953A04 | 塞组件(.375-16×.250) | PLUG ASSEMBLY (.375-16 x .250) | 1 |
| 8 | 830749 | 密封件 | SEAL | 1 |
| 8 | 8M0204693 | 放油螺塞密封件 | SEAL Drain Plug | 1 |
| 9 | 76214T5 | 阳极套件 | ANODE KIT | 1 |
| 9 | 76214Q5 | 阳极套件 | ANODE KIT | 1 |
| 10 | 806327 | 螺钉(.437-14 x 1.750) | SCREW (.437-14 x 1.750) | 1 |
| 10 | 8M0204686 | 螺钉 | SCREW | 1 |
| 11 | 881866 | 接头 | FITTING | 1 |
| 12 | 880703A1 | 盖总成 | COVER ASSEMBLY | 1 |
| 12 | 8M0047129 | 盖总成 | COVER ASSEMBLY | 1 |
| 13 | 8164641 | 油封 | SEAL Oil | 1 |
| 13 | 8M0246145 | 油封 | OIL SEAL | 1 |
| 14 | 896522 | O型圈(799×.103) | O-RING (799 x .103) | 1 |
| 15 | 8M0046563 | 挡圈 | RING Retaining | 1 |
| 16 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 4 |
| 16 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 4 |
| 17 | 77674 | 垫圈(.35 x .75 x .12) | WASHER (.35 x .75 x .12) | 1 |
| 18 | 880729 | 衬垫 | GASKET | 1 |
| 19 | 824145 | 换档轴 | SHIFT SHAFT | 1 |
| 20 | NSS | 小齿轮(不单独销售) | NOT SOLD SEPARATE Pinion Gear | 1 |
| 21 | 35921 | 螺母(0.625-18) | NUT (.625-18) | |
| 22 | 92721 | 垫圈(.965×0.630) | WASHER (.965 x .630) | 1 |
| 23 | 42647A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 24 | 895835 | 驱动轴 | DRIVESHAFT | 1 |
| 24 | 895836 | 驱动轴 | DRIVESHAFT | 1 |
| 25 | 884327A02 | 垫片/轴承组件 | SHIM/BEARING ASSEMBLY | 1 |
| 26 | 38657A1 | 垫片组 | SHIM ASSEMBLY | AR |
| 26 | 8M0063268 | 垫片组 | SHIM SET | AR |
| 27 | NSS | 不单独销售 滚子轴承组件 | NOT SOLD SEPARATE Roller Bearing Assembly | 1 |
| 28 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 29 | NSS | 不单独销售 滚子轴承组件 | NOT SOLD SEPARATE Roller Bearing Assembly | 1 |
| 30 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 31 | 8245191 | 固定座 | RETAINER | 1 |
| 32 | 817275A09 | 水泵壳体-总成 | HOUSING Water Pump-Complete | 1 |
| 33 | 861415A1 | 密封套件 | SEAL KIT | 1 |
| 34 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 4 |
| 34 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 4 |
| 35 | 43026T2 | 叶轮 | IMPELLER | 1 |
| 36 | 8172761 | 面板 | FACEPLATE | 1 |
| 36 | 8M0204709 | 面板 | FACEPLATE | 1 |
| 37 | 880719 | 挡圈 | RING Retaining | 1 |
| 38 | 888909A1 | 油封座组件 | CARRIER ASSEMBLY Oil Seal | 1 |
| 38 | 8M0007131 | 油封座组件 | CARRIER ASSEMBLY Oil Seal | 1 |
| 39 | 896523 | O型圈(2.175 x 0.103) | O-RING (2.175 x .103) | 1 |
| 39 | 8M0142854 | O型圈(2.175 x 0.103) | O-RING (2.175 x .103) | 1 |
| 40 | NSS | 不单独销售 油封 | NOT SOLD SEPARATE Oil Seal | 1 |
| 41 | NSS | 不单独销售 油封 | NOT SOLD SEPARATE Oil Seal | 1 |
| 42 | 43037 | 键 | KEY | 1 |
| 42 | 8M0204723 | 键 | KEY | 1 |
| 43 | 8172771 | 水泵上垫片 | GASKET Water Pump, Upper | 1 |
| 44 | 430331 | 衬垫 | GASKET | 1 |
| 45 | 85944975 | 管材(72英寸散装)(截断至7英寸) | TUBING (72.00 Inches Bulk) (Cut to 7 Inches) | 1 |
| 45 | 85944975 | 管材（72.00英寸整卷）（裁切至12英寸） | TUBING (72.00 Inches Bulk) (Cut to 12 Inches) | 1 |
| - | 830749A01 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| - | 43026Q06 | 水泵叶轮维修套件 | REPAIR KIT Water Pump Impeller | 1 |
| - | 8M0100526 | 水泵叶轮维修套件 | REPAIR KIT Water Impeller | 1 |
| - | 817275A08 | 水泵上修包 | REPAIR KIT Water Pump-Upper | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 880686T28 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 880686T25 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236263 | GC L4 4S CXL | GC L4 4S CXL | 1 |
| 1 | 880687T01 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 1 | 8M0056631 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 2 | NSS | 不单独销售 塞 | NOT SOLD SEPARATE Plug | 1 |
| 3 | 892075 | 换挡曲柄 | CRANK Shifter | 1 |

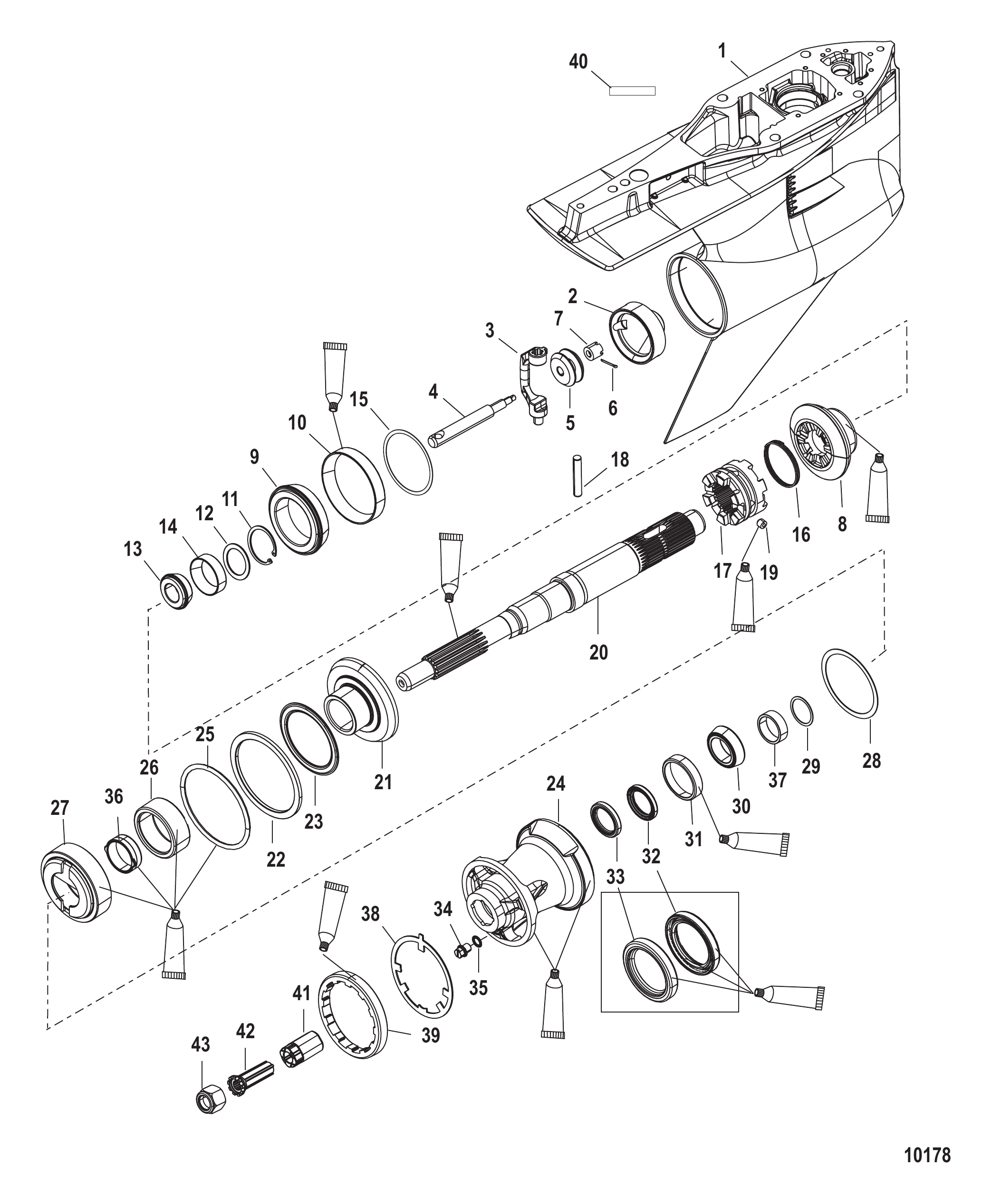

| 3 | 896847A01 | 换挡曲柄5/16枢轴销 | CRANK, Shifter 5/16 Pivot Pin | 1 |
| 4 | 19755T7 | 阀芯总成 | SPOOL ASSEMBLY | 1 |
| 4 | 8M0235940 | 阀芯总成 | SPOOL ASSY | 1 |
| 5 | NSS | 不单独销售线轴 | NOT SOLD SEPARATE Spool | 1 |
| 6 | 469501 | 开口销 | COTTER PIN | 1 |
| 7 | NSS | 不单独销售 调节套筒 | NOT SOLD SEPARATE Sleeve Adjusting | 1 |
| 8 | 884337A02 | 倒车齿轮总成 | GEAR ASSEMBLY Reverse | 1 |
| 9 | 884323T01 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 9 | 8M0142836 | 圆锥滚子轴承(外圈/内圈) | BEARING Roller Taper (Cup/Cone) | 1 |
| 10 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 11 | 23721 | 挡圈 | RING Retaining | 1 |
| 11 | 8M0051043 | 挡圈 | RING Retaining | 1 |
| 12 | 892805 | 止推垫片 | THRUST WASHER | 1 |
| 12 | 8M0053823 | 止推垫圈(内径1.50×外径2.046) | WASHER Thrust, (1.50 ID x 2.046 OD) | 1 |
| 13 | 884325T01 | 圆锥滚子轴承组件 | BEARING ASSEMBLY Roller-Tappered | 1 |
| 13 | 8M0142835 | 圆锥滚子轴承(外圈/内圈) | BEARING Roller Taper (Cup/Cone) | 1 |
| 14 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 15 | 884328A01 | 垫片组 | SHIM SET | AR |
| 15 | 8M0063270 | 垫片组 | SHIM SET | AR |
| 16 | 30893 | 弹簧 | SPRING | 1 |
| 17 | 880714T | 离合器 | CLUTCH | 1 |
| 18 | 30632 | 十字销 | PIN Cross | 1 |
| 18 | 8M0100263 | 十字销 | PIN Cross | 1 |
| 19 | 828356 | 定位销 | PIN Detent | 1 |
| 20 | 888530 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 21 | 884335A01 | GEAR SET Forward/Pinion, Counter Rotation, 1.92 Ratio (13/25) | 1 | |
| 21 | 884335A02 | ORD 43-884335A03 | ORD 43-884335A03 | 1 |
| 22 | 880699 | 推力环 | THRUST RING | 1 |
| 23 | 815480 | 推力轴承 | BEARING Thrust | 1 |
| 24 | 880696A10 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 25 | 896524 | O型圈(3.850×.210) | O-RING (3.850 x .210) | 1 |
| 25 | 8M0142840 | O型圈(3.85×0.210) | O-RING (3.85 x 0.210) | 1 |
| 26 | 814653T | 滚针轴承总成 | BEARING ASSEMBLY Needle Rollers | 1 |
| 27 | 880728 | 轴承适配器 | ADAPTER Bearing | 1 |
| 27 | 8M0148384 | 前进齿轮轴承适配器 | ADAPTER Bearing Forward Gear | 1 |
| 28 | 47397A1 | 垫片组 | SHIM SET | AR |
| 29 | 891936A01 | 垫片组 | SHIM SET | AR |
| 30 | 884330T01 | 圆锥轴承组件 | BEARING ASSEMBLY Taper | 1 |
| 30 | 8M0148319 | 圆锥滚子轴承(外圈/内圈) | BEARING Roller Taper Cup/Cone | 1 |
| 31 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 32 | 896600 | 油封 | SEAL Oil | 1 |
| 32 | 8M0204700 | 油封 | SEAL Oil | 1 |
| 33 | 888483 | 油封 | SEAL Oil | 1 |
| 33 | 8M0204700 | 油封 | SEAL Oil | 1 |
| 34 | 880717A01 | 螺丝/密封套件 | SCREW/SEAL KIT | 1 |
| 35 | 830749 | 密封件 | SEAL | 1 |
| 35 | 8M0204693 | 放油螺塞密封件 | SEAL Drain Plug | 1 |
| 36 | 892818 | 适配器 | ADAPTER | 1 |
| 36 | 8M0053183 | 前进齿轮适配器 | ADAPTER Foward Gear | 1 |
| 37 | 891919001 | 止推隔套 | SPACER Thrust | 1 |
| 38 | 880697 | 键槽垫圈 | KEYED WASHER | 1 |
| 39 | 79448 | 固定座 | RETAINER | 1 |
| 39 | 8M2011027 | 固定座 | RETAINER | 1 |
| 40 | NSS | 不单独销售-反向旋转标识 | NOT SOLD SEPARATE Decal-Counter Rotation | 1 |
| 41 | 896233A01 | 驱动套总成 | DRIVE SLEEVE ASSEMBLY | 1 |
| 42 | 878584Q1 | 适配器 | ADAPTER | 1 |
| 42 | 8M0061986 | 适配器套件 | ADAPTER KIT | 1 |
| 43 | 52707T1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| 43 | 52707Q1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| - | 830749A01 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 880686T23 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 880686T24 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8M0236262 | GC L4 4S XL | GC L4 4S XL | 1 |
| 1 | 880687T01 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 1 | 8M0056631 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 2 | NSS | 不单独销售 塞 | NOT SOLD SEPARATE Plug | 1 |
| 3 | 892075 | 换挡曲柄 | CRANK Shifter | 1 |
| 3 | 896847A01 | 换挡曲柄5/16枢轴销 | CRANK, Shifter 5/16 Pivot Pin | 1 |
| 4 | 19755T7 | 阀芯总成 | SPOOL ASSEMBLY | 1 |
| 4 | 8M0235940 | 阀芯总成 | SPOOL ASSY | 1 |
| 5 | NSS | 不单独销售线轴 | NOT SOLD SEPARATE Spool | 1 |
| 6 | 469501 | 开口销 | COTTER PIN | 1 |
| 7 | NSS | 不单独销售 调节套筒 | NOT SOLD SEPARATE Sleeve Adjusting | 1 |
| 8 | 880709A02 | 齿轮组-前进/小齿轮标准转向2.08速比(12/25) | GEAR SET Forward/Pinion, Standard Rotation, 2.08 Ratio (12/25) | 1 |
| 8 | 880709A03 | 齿轮组-前进/小齿轮标准转向2.08(12/25) | GEAR SET Forward/Pinion, Standard Rotation 2.08 (12/25) | 1 |
| 9 | 884328A01 | 垫片组 | SHIM SET | AR |
| 9 | 8M0063270 | 垫片组 | SHIM SET | AR |
| 10 | 884323T01 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 10 | 8M0142836 | 圆锥滚子轴承(外圈/内圈) | BEARING Roller Taper (Cup/Cone) | 1 |
| 11 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 12 | 23721 | 挡圈 | RING Retaining | 1 |
| 12 | 8M0051043 | 挡圈 | RING Retaining | 1 |
| 13 | 892805 | 止推垫片 | THRUST WASHER | 1 |
| 13 | 8M0053823 | 止推垫圈(内径1.50×外径2.046) | WASHER Thrust, (1.50 ID x 2.046 OD) | 1 |
| 14 | 884325T01 | 圆锥滚子轴承组件 | BEARING ASSEMBLY Roller-Tappered | 1 |
| 14 | 8M0142835 | 圆锥滚子轴承(外圈/内圈) | BEARING Roller Taper (Cup/Cone) | 1 |
| 15 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 16 | 880714T | 离合器 | CLUTCH | 1 |
| 17 | 30893 | 弹簧 | SPRING | 1 |
| 18 | 828356 | 定位销 | PIN Detent | 1 |
| 19 | 888530 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 20 | 30632 | 十字销 | PIN Cross | 1 |
| 20 | 8M0100263 | 十字销 | PIN Cross | 1 |
| 21 | 880710A02 | 倒车齿轮总成 | GEAR ASSEMBLY Reverse | 1 |
| 21 | 8M0119541 | 倒车齿轮总成 | GEAR ASSEMBLY Reverse | 1 |
| 22 | 880699 | 推力环 | THRUST RING | 1 |
| 23 | 891919001 | 止推隔套 | SPACER Thrust | 1 |
| 24 | 880696A08 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 25 | 891936A01 | 垫片组 | SHIM SET | AR |
| 26 | 884329T | 滚珠轴承 | BEARING Ball | 1 |
| 26 | 8M0142873 | 滚珠轴承 | BEARING Ball | 1 |
| 27 | 888483 | 油封 | SEAL Oil | 1 |
| 27 | 8M0204700 | 油封 | SEAL Oil | 1 |
| 28 | 884330T01 | 圆锥轴承组件 | BEARING ASSEMBLY Taper | 1 |
| 28 | 8M0148319 | 圆锥滚子轴承(外圈/内圈) | BEARING Roller Taper Cup/Cone | 1 |
| 29 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 30 | 896600 | 油封 | SEAL Oil | 1 |
| 30 | 8M0204700 | 油封 | SEAL Oil | 1 |
| 31 | 896524 | O型圈(3.850×.210) | O-RING (3.850 x .210) | 1 |
| 31 | 8M0142840 | O型圈(3.85×0.210) | O-RING (3.85 x 0.210) | 1 |
| 32 | 880717A01 | 螺丝/密封套件 | SCREW/SEAL KIT | 1 |
| 33 | 830749 | 密封件 | SEAL | 1 |
| 33 | 8M0204693 | 放油螺塞密封件 | SEAL Drain Plug | 1 |
| 34 | 880697 | 键槽垫圈 | KEYED WASHER | 1 |
| 35 | 79448 | 固定座 | RETAINER | 1 |
| 35 | 8M2011027 | 固定座 | RETAINER | 1 |
| 36 | 896233A01 | 驱动套总成 | DRIVE SLEEVE ASSEMBLY | 1 |
| 37 | 878584Q1 | 适配器 | ADAPTER | 1 |
| 37 | 8M0061986 | 适配器套件 | ADAPTER KIT | 1 |
| 38 | 52707T1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| 38 | 52707Q1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| - | 830749A01 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

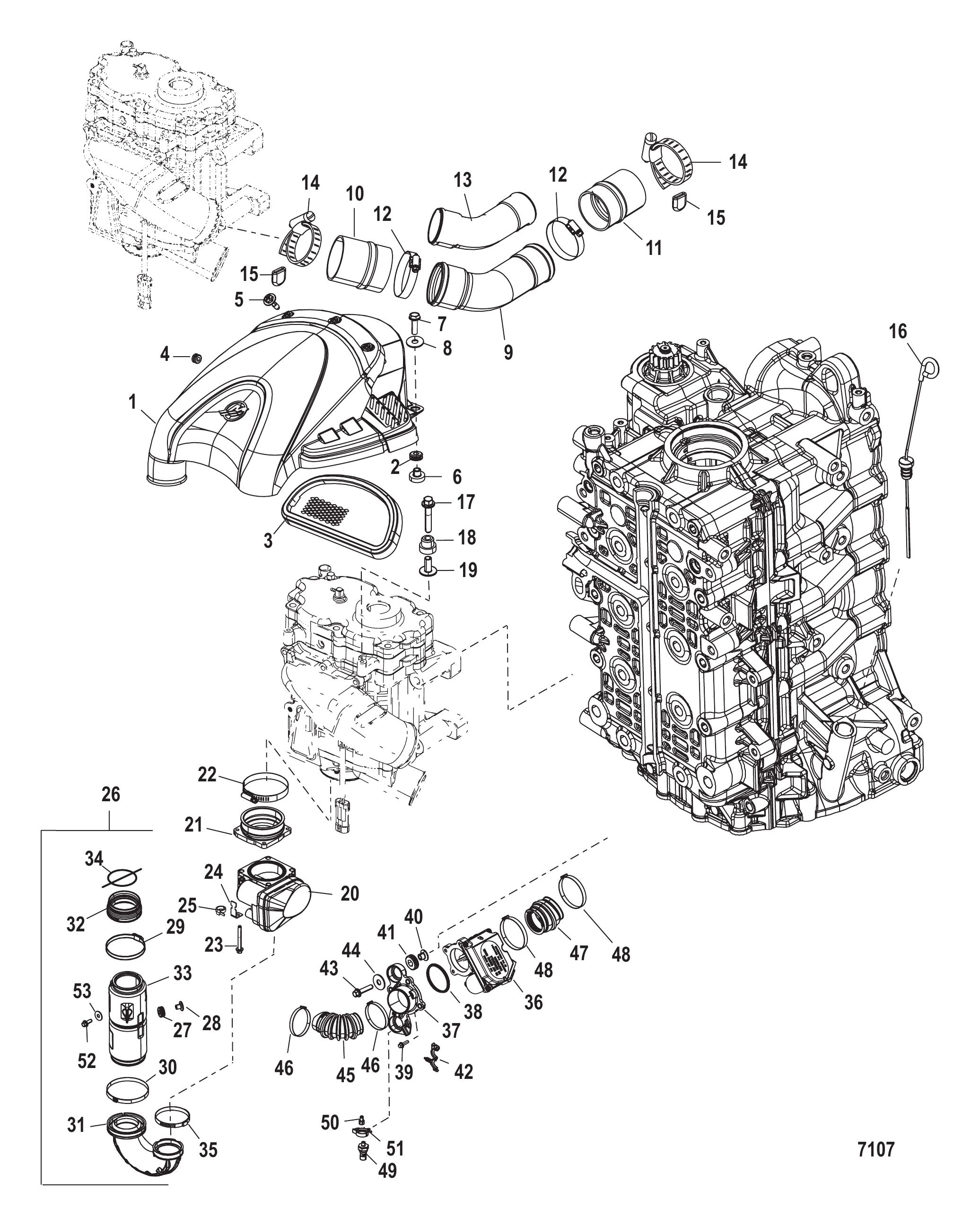

| 1 | 896246T02 | 上进气总成 | INTAKE ASSEMBLY Upper | 1 |
| 2 | 8349851 | 护孔环 | GROMMET | 2 |
| 3 | 896247 | 滤清器 | FILTER | 1 |
| 4 | 20116 | 燃油通风软管衬套 | GROMMET Fuel Vent Hose | 1 |
| 5 | 897703 | 螺钉 | SCREW | 3 |
| 6 | 826618 | 衬套 | BUSHING | 2 |
| 7 | 40011129 | 不锈钢螺钉(M6x25) | SCREW (M6 x 25) Stainless Steel | 2 |
| 8 | 65567 | 不锈钢垫圈(0.265x0.750x0.048) | WASHER (.265 x .750 x .048) Stainless Steel | 2 |
| 9 | 893307A01 | 出管总成 | TUBE OUTLET ASSEMBLY | 1 |
| 9 | 8M0035481 | 热风管总成 | TUBE ASSEMBLY Hot Air Duct | 1 |
| 10 | 893389 | 软管(内径65) | HOSE (65 Inside Diameter) | 1 |
| 10 | 8M0035481 | 热风管总成 | TUBE ASSEMBLY Hot Air Duct | 1 |
| 11 | 893390 | 软管(内径60) | HOSE (60 Inside Diameter) | 1 |
| 11 | 8M0035481 | 热风管总成 | TUBE ASSEMBLY Hot Air Duct | 1 |
| 12 | 893342 | 卡箍 | CLAMP | 2 |
| 13 | 893391 | 软管套管 | HOSE SLEEVE | 1 |
| 13 | 8M0035481 | 热风管总成 | TUBE ASSEMBLY Hot Air Duct | 1 |
| 14 | 893342 | 卡箍 | CLAMP | 2 |
| 15 | 8079923 | 软管夹端盖 | COVER Hose Clamp End | 2 |
| 15 | 8M0074364 | 软管夹盖 | COVER Hose Clamp | 2 |
| 16 | 898022 | 机油尺 | DIPSTICK Oil | 1 |
| 17 | 88552530 | 螺丝(M6×30毫米)不锈钢 | SCREW (M6 x 30 mm) Stainless Steel | 1 |
| 17 | 8M0103808 | 螺丝(M6×30毫米)不锈钢 | SCREW (M6 x 30 mm) Stainless Steel | 1 |
| 18 | 813644002 | 护孔环 | GROMMET | 1 |
| 19 | 898445 | 衬套 | BUSHING | 1 |
| 20 | 892949T02 | 电子节气门控制总成 | CONTROL ASSEMBLY Throttle - Electronic | 1 |
| 21 | 892950T02 | 隔离器 | ISOLATOR | 1 |
| 22 | 815504244 | 蜗杆卡箍 | CLAMP Worm Gear | 1 |
| 23 | 88552550 | 不锈钢螺钉 (M6 x 50 mm) | SCREW (M6 x 50 mm) Stainless Steel | 4 |
| 24 | 884353 | 支架 | BRACKET | 2 |
| 25 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 26 | 892383T51 | 下进气总成 | INTAKE ASSEMBLY Lower | 1 |
| 27 | 8349851 | 护孔环 | GROMMET | 1 |
| 28 | 856954 | 衬套 | BUSHING | 1 |
| 29 | 888988026 | 卡箍 | CLAMP | 1 |
| 30 | 888988027 | 卡箍 | CLAMP | 1 |
| 31 | 896245001 | 进气管 | DUCT Inlet | 1 |
| 31 | 892383T51 | 下进气总成 | INTAKE ASSEMBLY Lower | 1 |
| 32 | 896244 | 联轴器 | COUPLER | 1 |
| 33 | NSS | 谐振器(不单独销售) | NOT SOLD SEPARATE Resonator | 1 |
| 34 | 896532 | 弹簧 | SPRING | 1 |
| 35 | 889691 | 欧梯克卡箍 | CLAMP Oetiker | 1 |
| 36 | 884408A07 | 电动增压控制阀套件 | VALVE KIT Control - Electric Boost | 1 |
| 36 | 884408A08 | 电动增压控制阀套件 | VALVE KIT Control - Electric Boost | 1 |
| 37 | 887939007 | 增压阀安装板 | PLATE Boost Valve Mounting | 1 |
| 38 | 892079 | O型圈 | O-RING | 1 |
| 39 | 88552520 | 螺钉(M6 x 20毫米)不锈钢 | SCREW (M6 x 20 mm) Stainless Steel | 4 |
| 39 | 8M0103806 | 螺钉(M6 x 20毫米)不锈钢 | SCREW (M6 x 20 mm) Stainless Steel | 4 |
| 40 | 8502341 | 衬套 | BUSHING | 2 |
| 41 | 833155 | 护孔环 | GROMMET | 2 |
| 42 | 859376 | 卡扣 | CLIP | 1 |
| 43 | 88552635 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 2 |
| 43 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 2 |
| 44 | 817274 | 垫圈(0.344×1.00×0.063)不锈钢 | WASHER (.344 x 1.00 x .063) Stainless Steel | 2 |
| 45 | 892947 | 软管 | HOSE | 1 |
| 45 | 892947001 | 软管 | HOSE | 1 |
| 46 | 888988002 | 卡箍(57.5毫米 前电子增压控制) | CLAMP (57.5 mm) Front Electronic Boost Control | 2 |
| 47 | 887938003 | 后管 | TUBE Rear | 1 |
| 48 | 888988004 | 卡箍(62.0毫米 后电子增压控制) | CLAMP (62.0 mm) Rear Electronic Boost Control | 2 |
| 49 | 881879A16 | 皮托管传感器总成 | SENSOR ASSEMBLY Pitot | 1 |
| 49 | 881879T25 | 皮托管传感器总成 | SENSOR ASSEMBLY Pitot | 1 |
| 50 | 892403 | 接头 | FITTING | 1 |
| 50 | 8M0207782 | 直通接头 | FITTING Straight | 1 |
| 51 | 883066 | 夹子 (.865) | CLIP (.865) | 1 |
| 52 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 1 |
| 52 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 1 |
| 53 | 65567 | 不锈钢垫圈(0.265x0.750x0.048) | WASHER (.265 x .750 x .048) Stainless Steel | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | NOPART | 无零件清单 | NO PARTS LIST | 0 |

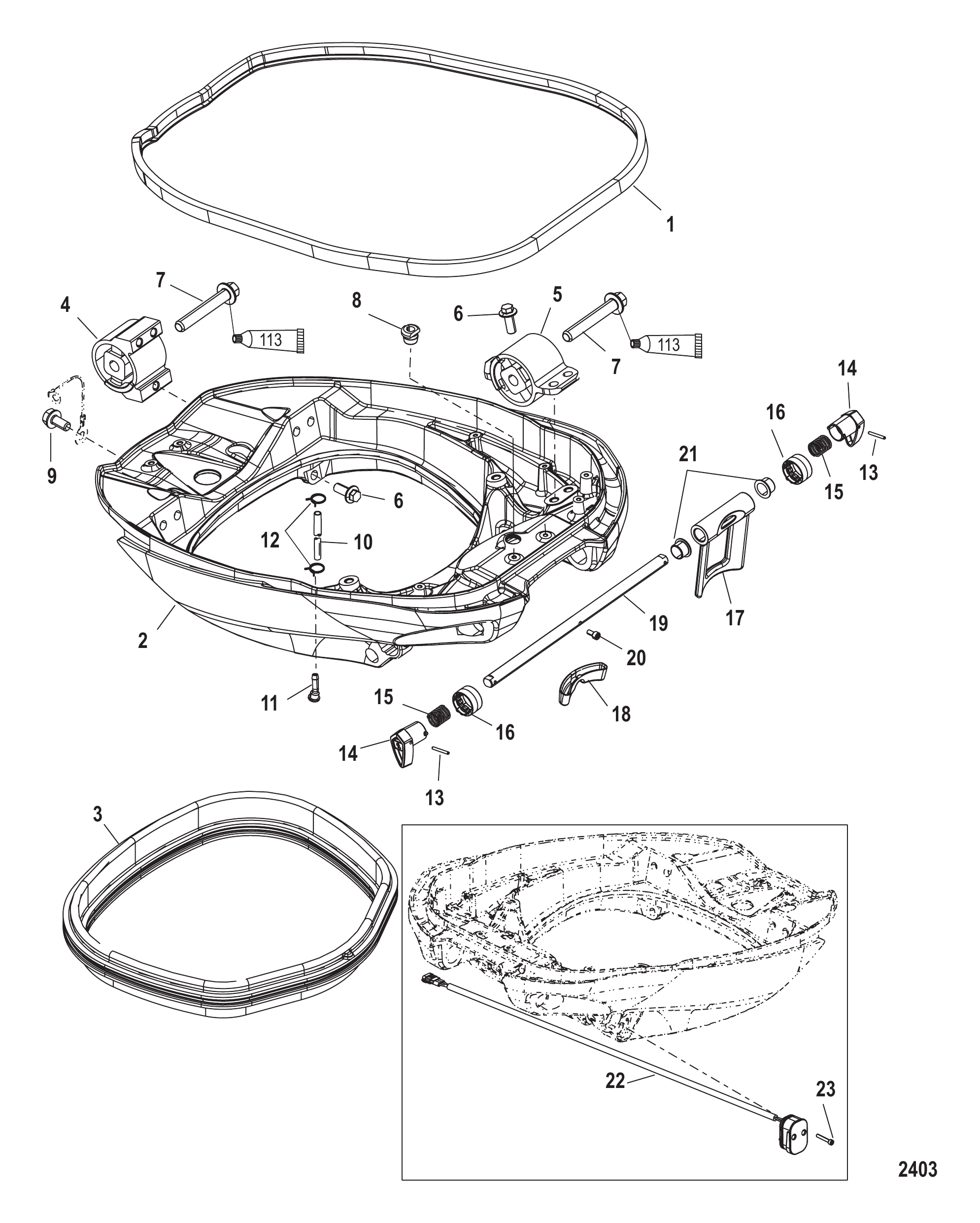

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 885546002 | 密封件 | SEAL | 1 |
| 2 | 884887T04 | 安装支架 | MOUNT CRADLE | 1 |
| 2 | 884887T07 | 支架安装总成 | CRADLE ASSEMBLY Mount | 1 |
| 3 | 884888003 | 密封件 | SEAL | 1 |
| 3 | 8M0060014 | 密封件 | SEAL | 1 |
| 4 | 888538T | 后安装座 | MOUNT Rear | 2 |
| 4 | 8M0103708 | 后安装座 | MOUNT Rear | 2 |
| 5 | 888535T | 前安装座 | MOUNT Front | 2 |
| 5 | 8M0103365 | 前安装座 | MOUNT Front | 2 |
| 6 | 889745030 | 螺钉（M12×30） | SCREW (M12 x 30) | 12 |
| 7 | 896531090 | 螺钉（M16×90） | SCREW (M16 x 90) | 4 |
| 7 | 8M0103832 | 螺钉 | SCREW | 4 |
| 8 | 19565002 | 护孔环 | GROMMET | 1 |
| 9 | 40011126 | 不锈钢螺丝(M6 x 13) | SCREW (M6 x 13) Stainless Steel | 1 |
| 10 | 830756109 | 软管（57英寸散装裁至35英寸） | HOSE (57.00 Inches Bulk) Cut to 35 Inches | 1 |
| 10 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 11 | 895797 | 示踪管接头 | FITTING Telltale | 1 |
| 11 | 895797001 | 接头 | FITTING | 1 |
| 12 | 895851 | 卡箍(8英寸) | CLAMP (8.00 Inches) | 2 |
| 13 | 73194 | 滚销(.125 x 1.12) | PIN Roll (.125 x 1.12) | 2 |
| 14 | 880649002 | 倾斜锁杆 | LEVER Tilt Lock | 2 |
| 15 | 47968 | 弹簧 | SPRING | 2 |
| 16 | 889540A03 | 离合器套件 | CLUTCH KIT | 1 |
| 17 | 880651002 | 倾斜锁止支架 | BRACKET Tilt Lock | 1 |
| 17 | 8M0109693 | 倾斜锁止支架 | BRACKET Tilt Lock | 1 |
| 18 | 889539001 | 倾斜锁止垫 | PAD Tilt Lock | 1 |
| 18 | 8M0076907 | 倾斜锁止垫 | PAD Tilt Lock | 1 |
| 19 | 880650003 | 倾斜锁定轴 | SHAFT Tilt Lock | 1 |
| 20 | 889546 | 螺钉 (M5 x 10) | SCREW (M5 x 10) | 1 |
| 21 | 8806641 | 轴承（0.625英寸） | BEARING (.625 Inch) | 2 |
| 22 | 888590002 | 升降位置传感器 | SENSOR Trim Position | 1 |
| 23 | 889547 | 螺丝(M5 x 30) | SCREW (M5 x 30) | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 896689A01 | 适配板总成 | ADAPTER PLATE ASSEMBLY | 1 |
| 2 | 892228 | 定位销 | PIN Dowel | 6 |
| 3 | 896951 | 堵头（24毫米） | PLUG (24 mm) | 1 |
| 4 | 897134 | O型圈(1.051x1.070)(进口) | O-RING (1.051 x 1.070) (Inlet) | 1 |
| 5 | 897135 | O型圈(0.864x0.070)(出口) | O-RING (.864 x .070) (Outlet) | 1 |
| 6 | 884461 | 油封 | SEAL Oil | 1 |
| 6 | 8M0033928 | 油封 | SEAL Oil | 1 |
| 7 | 884462 | 水封 | SEAL Water | 2 |
| 8 | 897964 | 螺钉 (M6) | SCREW (M6) | 4 |
| 9 | 892894T04 | 油泵总成 | PUMP ASSEMBLY Oil | 1 |
| 10 | 88552545 | 不锈钢螺钉(M6×45mm) | SCREW (M6 x 45 mm) Stainless Steel | 4 |
| 10 | 8M0103810 | 不锈钢螺钉(M6×45mm) | SCREW (M6 x 45 MM) Stainless Steel | 4 |
| 11 | 892335001 | 导油板 | DEFLECTOR Oil | Opt |
| 12 | 88552516 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | Opt |
| 12 | 8M0103805 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | Opt |
| 13 | 884477A01 | 止回阀总成 | CHECK VALVE ASSEMBLY | 1 |
| 13 | 8M0062064 | 止回阀总成 | CHECK VALVE ASSY. | 1 |
| 14 | 888819002 | 排水罩 | DRAIN Cowl | 3 |
| 15 | 896934A02 | 泄流接头总成 | FITTING ASSEMBLY Dump | 1 |
| 16 | 26317 | O型圈(1.109x0.139) | O-RING (1.109 x .139) | 2 |
| 17 | 88552516 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 1 |
| 17 | 8M0103805 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 1 |
| 18 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 1 |
| 18 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 1 |
| 19 | 896547001 | 接头 | FITTING | 1 |
| 20 | 88552512 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 mm) Stainless Steel | 1 |
| 20 | 8M0103804 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 MM) Stainless Steel | 1 |
| 21 | 896671 | 护孔环 | GROMMET | 4 |
| 22 | 896670001 | 衬套 | BUSHING | 4 |
| 22 | 8M8023048 | 衬套 | BUSHING | 4 |
| 23 | 830757130 | 管材(0.312)(70英寸整卷)(裁切至21英寸) | TUBING (.312) (70.00 Inches Bulk) (Cut to 21 Inches) | 1 |
| 23 | 8M0108349 | 软管 (70英寸散装) | HOSE (70 Inches Bulk) | 1 |
| 24 | 815504104 | 蜗杆卡箍 | CLAMP Worm Gear | 2 |
| 25 | 892562T01 | 歧管壳体 | HOUSING Manifold | 1 |
| 26 | 892117 | 密封件 | SEAL | 1 |
| 27 | 88552516 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 4 |
| 27 | 8M0103805 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 4 |
| 28 | 897433 | 护孔环 | GROMMET | 1 |
| 28 | 897433001 | 护孔环 | GROMMET | 1 |
| 29 | 896864001 | 适配板密封件 | SEAL Adaptor Plate | 1 |
| 30 | 892446 | O型圈(14×1.78毫米) | O-RING (14 X 1.78 MM) | 2 |
| 31 | 88552535 | 不锈钢螺钉(M6×35mm) | SCREW (M6 x 35 mm) Stainless Steel | 1 |
| - | 896142A06 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 896142A07 | 衬垫套件 | GASKET SET | 1 |
| - | 896499A06 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 896499A07 | 长缸体总成 | LONG BLOCK ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 896148 | 双头螺栓(M10x175) | STUD (M10 x 175) | 6 |
| 2 | 888997001 | 螺柱 | STUD | 1 |
| 2 | 8M0022162 | 双头螺栓(M10×60) | STUD (M10 x 60) | 1 |
| 3 | 878187 | 爆震传感器总成 | SENSOR ASSEMBLY Knock | 1 |
| 3 | 8M6003194 | 爆震传感器总成 | SENSOR ASSEMBLY Knock | 1 |
| 4 | 892086035 | 螺钉(M10 x 35) | SCREW (M10 x 35) | 1 |
| 5 | 4002319 | 垫圈 | WASHER | 1 |
| 6 | 884268A1 | 机油喷嘴总成 | JET ASSEMBLY Oil | 4 |
| 7 | 888988008 | 卡箍(34.6毫米) | CLAMP (34.6 MM) | 2 |
| 7 | 8M0187145 | 卡箍 | CLAMP | 2 |
| 8 | 885544002 | 软管 | HOSE | 1 |
| 9 | 896094A01 | 接头总成 | FITTING ASSEMBLY | 1 |
| 10 | 888814 | O型圈(0.351 x 0.072) | O-RING (.351 x .072) | 1 |
| 10 | 896699 | O型圈（1.78毫米 x 0.08毫米） | O-RING (1.78 mm x .08 mm) | 1 |
| 11 | 85978571 | 管材(52英寸整卷 至水压传感器)(裁切至23.5英寸) | TUBING (52.00 Inches Bulk) To Water Pressure Sensor (Cut to 23.5 Inches) | 1 |
| 12 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 13 | 881879A20 | 水压传感器总成 | SENSOR ASSEMBLY Pressure Water | |
| 13 | 881879T26 | 传感器 压力 | SENSOR Pressure | |
| 14 | 892403 | 接头 | FITTING | 1 |
| 14 | 8M0207782 | 直通接头 | FITTING Straight | 1 |
| 15 | 883066 | 夹子 (.865) | CLIP (.865) | 1 |
| 16 | 897598 | 双头螺栓(M8x49) | STUD (M8 x 49) | 2 |
| 16 | 8M0000274 | 双头螺栓(M8x44) | STUD (M8 x 44) | 2 |
| 17 | 826365 | 螺母 (M8) | NUT (M8) | 4 |
| 18 | 885517A05 | 接头总成 | FITTING ASSEMBLY | 1 |
| 19 | 892077 | O型圈 | O-RING | 1 |
| 20 | 896268 | 双头螺栓(M10x54) | STUD (M10 x 54) | 2 |
| 20 | 8M0022166 | 双头螺栓(M10x57) | STUD (M10 x 57) | 2 |
| 21 | 897599 | 双头螺柱（M8×55） | STUD (M8 x 55) | 2 |
| 21 | 8M0000275 | 螺柱 | STUD | 2 |
| 22 | 826292 | 螺母(M10)黄铜/镀镍 | NUT (M10) Brass/Nickel Plated | 2 |
| 23 | 856774 | 垫圈(0.406×0.750×0.105)不锈钢 | WASHER (.406 x .750 x .105) Stainless Steel | 6 |
| 23 | 8M0214963 | 垫圈 | WASHER | 6 |
| 24 | 884412 | 螺母 | NUT | 6 |
| 25 | 828991 | 卡扣 | CLIP | 1 |
| 25 | 828991T | 卡扣 | CLIP | 1 |
| - | 896142A06 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 896142A07 | 衬垫套件 | GASKET SET | 1 |
| - | 896499A06 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 896499A07 | 长缸体总成 | LONG BLOCK ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 896142A06 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 892077 | 接头总成O型圈 | O-RING Fitting Assembly | 1 |
| - | 62701 | 接头总成O型圈 | O-RING Fitting Assembly | 2 |
| - | 884409 | O型圈-气缸体定位销 | O-RING Cylinder Block Dowl Pin | 1 |
| - | 884423 | O型圈-气缸体定位销 | O-RING Cylinder Block Dowl Pin | 1 |
| - | 896277006 | 衬垫 气缸盖至缸体 | GASKET Head Cylinder Head to Block | 1 |
| - | 8M0024565 | 衬垫 | GASKET | 1 |
| - | 896142 | 衬垫 缸体至适配器 | GASKET Block to Adaptor | 1 |
| - | 90196 | O型圈(.921 x .139)油塞总成 | O-RING (.921 x .139) Oil Plug Assembly | 1 |
| - | 8M0204673 | O型圈 .921 x .139 | O-Ring .921 x .139 | 1 |
| - | 880631001 | O型圈-橙色张紧器端盖 | O-RING Orange Tensioner End Cap | 1 |
| - | 8M0237361 | O型圈 | O-RING | 1 |
| - | 8805251 | 油封(主轴承顶部) | SEAL Top Main Bearing | 1 |
| - | 8M0032912 | 密封件 | SEAL | 1 |
| - | 897134 | O型圈(1.051x1.070)-适配板出口 | O-RING (1.051 x 1.070) Adaptor Plate-Oultet | 1 |
| - | 897135 | O型圈(0.864x0.070)-适配板入口 | O-RING (.864 x .070) Adaptor Plate-Inlet | 1 |
| - | 884461 | 油封 适配板 | SEAL Oil Adaptor Plate | 1 |
| - | 8M0033928 | 油封 | SEAL Oil | 1 |
| - | 884462 | 水密封-适配板 | SEAL Water Water-Adaptor Plate | 2 |
| - | 26317 | O型圈(1.109x0.139)-排放接头 | O-RING (1.109 x .139) Dump Fitting | 2 |
| - | 38780 | O型圈-机油吸油管 | O-RING Oil Pick-Up Tube | 1 |
| - | 895822 | 衬垫 油底壳 | GASKET Oil Sump | 1 |
| - | 889561 | 提升阀垫片 | GASKET Poppet | 1 |
| - | 880629 | 排气管密封件 | SEAL Exhaust Tube | 1 |
| - | 888593 | 油底壳塞密封 | SEAL Oil Sump Plug | 1 |
| - | 8M0188614 | 放油螺塞密封件 | SEAL Drain Plug | 1 |
| - | 892445 | O型圈 水管 | O-RING Water Tube | 1 |
| - | 90196 | O型圈(0.921x0.139-水管接头 | O-RING (.921 x .139) Water Tube Coupling | 1 |
| - | 8M0204673 | O型圈 .921 x .139 | O-Ring .921 x .139 | 1 |
| - | 21836 | O型圈(0.796x0.139)-水管接头 | O-RING (.796 x .139) Water Tube Coupling | 1 |
| - | 8M0204645 | O型圈(.796 x .139) | O-RING (.796 x .139) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 896156A01 | 配平油缸套件 | TRIM CYLINDER KIT | 1 |
| 2 | 896157A01 | 升降杆套件 | TRIM ROD KIT | 1 |
| 2 | 8M0118299 | 升降杆套件 | TRIM ROD KIT | 1 |
| 3 | 896158A01 | O型圈套件 | O-RING KIT | 1 |
| 4 | 896159A01 | 活塞套件 | PISTON KIT | 1 |
| 5 | 896166A01 | 配平歧管套件 | MANIFOLD KIT Trim | 1 |
| 6 | 896165A01 | 配平止回套件PO型 | CHECK KIT Trim PO | 1 |
| 7 | 896160A01 | O型圈套件 | O-RING KIT | 1 |
| 8 | 8M0010183 | O型圈 | O-RING | 1 |
| 8 | 8M0204938 | O型圈 | O-RING | 1 |
| 9 | 896163A01 | 配平泵套件 | PUMP KIT Trim | 1 |
| 10 | 896164A01 | 配平过滤器套件 | TRIM FILTER KIT | 1 |
| 11 | 896162A01 | 配平颈套件 | TRIM NECK KIT | 1 |
| 12 | 895854A01 | O型圈套件 | O-RING KIT | 1 |
| 13 | 893419 | 盖套件 | CAP KIT | 1 |
| 14 | 893420A01 | 手动释放套件 | MANUAL RELEASE KIT | 1 |
| 14 | 8M0224397 | 手动释放套件 | MANUAL RELEASE KIT | 1 |
| 15 | 8M0224410 | O型圈套件 | ORING KIT | 1 |
| 16 | 8M0184377 | 卡环 | SNAP RING | 1 |
| 17 | 893408A01 | 配平销套件 | PIN KIT Trim | 1 |
| 18 | 896161A01 | 配平电机套件 | TRIM MOTOR KIT | 1 |
| 18 | 896161A02 | 配平电机套件 | TRIM MOTOR KIT | 1 |
| 18 | 896161A02 | 配平电机套件 | TRIM MOTOR KIT | 1 |
| 19 | 896167A01 | 储液罐套件 | RESERVOIR KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | NSS | 艉板总成(不单独销售) | NOT SOLD SEPARATE Transom Assembly | 1 |
| 1 | 880652T | 基座 | PEDESTAL | 1 |
| 1 | 880652T02 | 基座 | PEDESTAL | 1 |
| 2 | 896500A01 | 转向油缸套件 | STEERING CYLINDER KIT | 1 |
| 2 | 8M0118141 | 转向油缸 | STEERING CYLINDER | 1 |
| 3 | 893409 | 固定座 | RETAINER | 2 |
| 3 | 8M0168425 | 固定座 | RETAINER | 2 |
| 4 | 895853 | 垫圈 | WASHER | 4 |
| 5 | 88509530 | 螺钉 (M8 x 30) | SCREW (M8 x 30) | 4 |
| 6 | 889552 | -6 ORB转-6 ORFS接头(90度) | FITTING -6 ORB to -6 ORFS (90 Degree) | 1 |
| 7 | 889550 | 乙烯基放气帽 | CAP Bleeder - Vinyl | 2 |
| 8 | 880667 | 密封件 | SEAL | 1 |
| 8 | 8M0155530 | 基座密封件 | SEAL Pedestal | 1 |
| 9 | 896173A01 | 转向油缸密封件套件 | SEAL KIT Steering Cylinder | 1 |
| 9 | 8M0045604 | 转向油缸密封件套件 | SEAL KIT Steering Cylinder | 1 |
| 10 | 892524 | 接头 | FITTING | 2 |
| 11 | 8806621 | 轴承 | BEARING | 2 |
| 11 | 8M0217557 | 轴承 | BEARING | 2 |
| 12 | 880661 | 密封件 | SEAL | 2 |
| 12 | 8M0217558 | 密封件 | SEAL | 2 |
| 13 | 8806561 | 轴承 | BEARING | 2 |
| 13 | 8M0217560 | 推力轴承 | BEARING Thrust | 2 |
| 14 | 880654T02 | 转向头 | HEAD Steering | 1 |
| 14 | 880654T03 | 转向头 | HEAD Steering | 1 |
| 15 | 8806551 | 轴承(1.25英寸) | BEARING (1.25 Inch) | 2 |
| 16 | 885094105 | 螺钉(M14x105) | SCREW (M14 x 105) | 6 |
| 17 | 885112 | 垫圈 | WASHER | 6 |
| 17 | 8M0217559 | 垫圈 | WASHER | 6 |
| 18 | 896120T | 导流板(银色) | PLATE Deflector (Silver) | 1 |
| 18 | 8M0045157 | 导流板(黑色) | PLATE Deflector (Black) | 1 |
| 19 | 889545 | 垫圈 | WASHER | 6 |
| 19 | 8M0161430 | 平垫圈 | WASHER Flat | 6 |
| 20 | 4010720 | 螺钉(M8 x 20) | SCREW (M8 x 20) | 2 |
| 21 | 880660T01 | 转向管 | TUBE Steering | 1 |
| 21 | 8M0220571 | 转向管 | TUBE-STEERING | 1 |
| 22 | 885111 | 定位销(0.375x0.875英寸) | PIN Dowel (.375 x .875) | 6/8 |
| 23 | 880658T | 动力升降总成 | POWER TRIM ASSEMBLY | 1 |
| 23 | 880658T03 | 动力升降总成 | POWER TRIM ASSEMBLY | 1 |
| 23 | 880658T01 | 动力升降总成 | POWER TRIM ASSEMBLY | 1 |
| 23 | 880658T03 | 动力升降总成 | POWER TRIM ASSEMBLY | 1 |
| 24 | 895854 | O型圈 | O-RING | 1 |
| 24 | 8M0217562 | O型圈 | O-RING | 1 |
| 25 | 893404 | 阳极块 | ANODE | 4 |
| 25 | 8M0220986 | 配平阳极 | ANODE Trim | 4 |
| 26 | 889543016 | 螺栓 | BOLT | 4 |
| 27 | 88510450 | 螺钉 | SCREW | 6 |
| 28 | 889549 | 垫圈 | WASHER | 6 |
| 29 | 880653 | 阳极块 | ANODE | 1 |
| 29 | 8M0220987 | 配平歧管阳极 | ANODE Trim Manifold | 1 |
| 30 | 893405T | 盖板 | COVER | 1 |
| 30 | 8M0217564 | 转向臂盖 | COVER Steering Arm | 1 |
| 31 | 4000327 | 螺钉 (M6 x 14) | SCREW (M6 x 14) | 2 |
| 32 | 72397 | 垫圈 | WASHER | 2 |
| 33 | 880665T01 | 转向臂 | ARM Steering | 1 |
| 34 | 821539 | 三叶销 | PIN Trilobe | 2 |
| 35 | 895304 | 挡圈 | RING Retaining | 2 |
| 36 | 8806641 | 轴承（0.625英寸） | BEARING (.625 Inch) | 4 |
| 37 | 895390 | 倾斜销 | TILT PIN | 1 |
| 37 | 8M0228705 | 倾斜销 | TILT PIN | 1 |
| 38 | 885100 | 挡圈 | RING Retaining | 1 |
| 38 | 8M0038931 | 挡圈 | RING Retaining | 1 |
| 39 | 67755003 | 螺钉 (0.500-20 x 5.500) | SCREW (.500-20 x 5.500) | 4 |
| 39 | 8M0038370 | 螺钉(0.500-20x5.50英寸) | SCREW (.500-20 x 5.50) | 4 |
| 40 | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 40 | 8M0204648 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 41 | 895062 | 垫圈 | WASHER | 4 |
| 41 | 8M0204704 | 垫圈 | WASHER | 4 |
| 42 | 82671117 | 螺母(.500-20) | NUT (.500-20) | 4 |
| 43 | 884889002 | 销 | PIN | 2 |
| 43 | 8M0146467 | 销 | PIN | 2 |
| 44 | NSS | 不单独销售-序列号覆膜标贴 | NOT SOLD SEPARATE Decal-Serial Overlaminate | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | NSS | 油底壳总成(不单独销售) | NOT SOLD SEPARATE Pan Assembly-Complete | 1 |
| 1 | 895846T02 | 油底壳总成(左舷) | PAN ASSEMBLY Port | 1 |
| 1 | 895846A04 | 油底壳总成(左舷) | PAN ASSEMBLY Port | 1 |
| 2 | 896671 | 护孔环 | GROMMET | 1 |
| 3 | 896865 | 前油封 | SEAL Front | 1 |
| 3 | 8M0043277 | 密封件 | SEAL | 1 |
| 4 | 888950020 | 螺丝(M4×20毫米) | SCREW (M4 x 20 mm) | 1 |
| 5 | 898408 | 隔套 | SPACER | 1 |
| 6 | 898354 | 棘爪 | PAWL | 1 |
| 7 | 898353 | 弹簧 | SPRING | 1 |
| 8 | 888819002 | 排水罩 | DRAIN Cowl | 1 |
| 9 | 895847T02 | 油底壳总成(右舷) | PAN ASSEMBLY Starboard | 1 |
| 9 | 895847A05 | 油底壳总成(右舷) | PAN ASSEMBLY Starboard | 1 |
| 10 | 896671 | 护孔环 | GROMMET | 1 |
| 11 | 896974 | 后油封 | SEAL Back | 1 |
| 11 | 8M0043278 | 密封件 | SEAL | 1 |
| 12 | 888819002 | 排水罩 | DRAIN Cowl | 1 |
| 13 | 897203 | 堵头 | PLUG | 1 |
| 14 | NSS | 锁扣总成(不单独销售) | NOT SOLD SEPARATE Latch Assembly-Complete | 1 |
| 15 | 888448A02 | 检修面板总成 | PANEL ASSEMBLY Access | 1 |
| 15 | 888448A03 | 检修面板总成 | PANEL ASSEMBLY Access | 1 |
| 16 | 896927 | 密封件 | SEAL | 1 |
| 17 | 896928A01 | 轨道锁杆总成 | LEVER ASSEMBLY Rail Latch | 1 |
| 18 | 896933 | 片簧 | SPRING Leaf | 1 |
| 19 | 88552514 | 不锈钢螺钉(M6×14mm) | SCREW (M6 x 14 mm) Stainless Steel | 1 |
| 20 | 896932 | 杠杆销 | PIN Lever | 1 |
| 21 | 898476 | 锁扣按钮 | BUTTON Latch | 1 |
| 22 | 895797 | 接头 | FITTING | 1 |
| 22 | 895797001 | 接头 | FITTING | 1 |
| 23 | 830756109 | 软管(散装57英寸)(裁切至21英寸) | HOSE (57.00 Inches Bulk) (Cut to 21 Inches) | 1 |
| 23 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 24 | 895851 | 卡箍(8英寸) | CLAMP (8.00 Inches) | 2 |
| 25 | 896620001 | 升降倾斜开关 | SWITCH Trim | 1 |
| 25 | 8M0235191 | 升降倾斜开关 | SWITCH Trim | 1 |
| 26 | 897964 | 螺钉 (M6) | SCREW (M6) | 2 |
| 27 | 896670001 | 衬套 | BUSHING | 2 |
| 27 | 8M8023048 | 衬套 | BUSHING | 2 |
| 28 | 892073002 | 台阶螺丝 (M6) | SHOULDER SCREW (M6) | 6 |
| 28 | 8M0230980 | 螺丝 (M6x14) 六角法兰B型 | SCREW (M6 x 14) Hex Flange B | 6 |
| 29 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 4 |
| 30 | 897657055 | 螺钉 (M6 x 55) | SCREW (M6 x 55) | 1 |
| 31 | 897657025 | 螺丝(M6 x 25毫米) | SCREW (M6 x 25 mm) | 1 |
| 32 | 892427 | 隔套 | SPACER | 1 |
| 33 | 885361A01 | 接头总成 冲洗 | FITTING ASSEMBLY Flush | 1 |
| 34 | 888958001 | 嵌入式端口塞 | PLUG Flush Port | 1 |
| 34 | 8M0215105 | 嵌入式塞 | PLUG Flush | 1 |
| 35 | 888957 | O型圈 | O-RING | 1 |
| 36 | 889823001 | 嵌入式系绳插头 | TETHER Flush Plug | 1 |
| 36 | 8M0224266 | 嵌入式插槽密封件 | SEAL Flush Plug Pocket | 1 |
| 37 | 896925 | 排气集气室 | PLENUM Exhaust | 1 |
| 37 | 896925A01 | 排气集气室套件 | PLENUM KIT Exhaust | 1 |
| 37 | 896925A01 | 排气集气室套件 | PLENUM KIT Exhaust | 1 |
| 38 | 892073002 | 台阶螺丝 (M6) | SHOULDER SCREW (M6) | 2 |
| 38 | 8M0230980 | 螺丝 (M6x14) 六角法兰B型 | SCREW (M6 x 14) Hex Flange B | 2 |
| 38 | 4010620 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 2 |
| 39 | 889828 | O型圈 0.924×0.103 | O-RING (.924 x .103) | 1 |
| 40 | 896618A02 | 后盖总成 | COVER ASSEMBLY Rear | 1 |
| 41 | 896924 | 怠速排气套 | BOOT Idle Exhaust | 1 |
| - | NSS | 挡板总成(左右舷)(不单独销售) | NOT SOLD SEPARATE Chap Assembly (Starboard and Port) | 1 |
| 42 | 896054T01 | 挡板总成(左舷) | CHAP ASSEMBLY Port | 1 |
| 42 | 897593T02 | 挡板总成(左右舷) | CHAP ASSEMBLY Starboard and Port | 1 |
| 43 | 897204 | 右舷隔音毯 | SOUND BLANKET Starboard | 1 |
| 44 | 896055T01 | 挡板总成(右舷) | CHAP ASSEMBLY Starboard | 1 |
| 44 | 897593T02 | 挡板总成(左右舷) | CHAP ASSEMBLY Starboard and Port | 1 |
| 45 | 897205 | 左舷隔音毯 | SOUND BLANKET Port | 1 |
| 46 | 892073002 | 台阶螺丝 (M6) | SHOULDER SCREW (M6) | 12 |
| 46 | 8M0230980 | 螺丝 (M6x14) 六角法兰B型 | SCREW (M6 x 14) Hex Flange B | 12 |
| 47 | 8M0005773 | 螺钉(M6x14)带肩六角凸缘不锈钢 | SCREW (M6 x 14) Shoulder HEX FLG SS | 2 |
| 48 | 897169 | 护孔环 | GROMMET | 1 |
| 48 | 8M0214987 | 护孔环 | GROMMET | 1 |
| 49 | 895316 | 适配器 | ADAPTER | 1 |
| 49 | 8M0214997 | 适配器 | ADAPTOR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 898164006 | 零件手册 135/150/175 四冲程 | PARTS MANUAL 135/150/175 4-Stroke | 1 |
| - | 10249060 | 用户手册 | OWNERS MANUAL | 1 |
| - | 10249061 | 用户手册 | MANUAL-OWNERS | 1 |
| - | 10249J60 | 用户手册(西班牙语) | OWNERS MANUAL Spanish | 1 |
| - | 10249D60 | 用户手册(法语) | OWNERS MANUAL French | 1 |
| - | 10250060 | 安装手册 | INSTALLATION MANUAL | 1 |
| - | 10250061 | 安装手册 | MANUAL-INSTALL | 1 |
| - | 897928T00 | 维修手册套装 | SERVICE MANUAL SET | 1 |
| - | 897928T01 | 维修手册 | MANUAL-SERVICE | 1 |
| - | 895269001 | 产品指南 | PRODUCT GUIDE | 1 |
| - | 895269002 | 产品指南 | GUIDE-PRODUCT | 1 |
| - | 898165A06 | EPA标签信息贴花 | DECAL EPA Label Information | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 892404A05 | 导水板总成 | DEFLECTOR ASSEMBLY Water | 2 |
| 2 | 885518A02 | 接头总成 | FITTING ASSEMBLY | 1 |
| 3 | 62701 | O型圈 | O-RING | 2 |
| 4 | 88552516 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 1 |
| 4 | 8M0103805 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 1 |
| 5 | 888988011 | 卡箍(38.1毫米) | CLAMP (38.1 MM) | 1 |
| 6 | 888930003 | 软管 | HOSE | 1 |
| 7 | 888988008 | 卡箍(34.6毫米) | CLAMP (34.6 MM) | 1 |
| 7 | 8M0187145 | 卡箍 | CLAMP | 1 |
| 8 | 892864T04 | 节温器总成 | THERMOSTAT ASSEMBLY | 1 |
| 8 | 8M0174561 | 节温器总成 | THERMOSTAT ASSY | 1 |
| 9 | 892864500 | O型圈 | O-RING | 1 |
| 9 | 8M0005958 | O型圈 | O-RING | 1 |
| 10 | 888988001 | 卡箍(36.1毫米) | CLAMP (36.1 mm) | 1 |
| 10 | 8M0204719 | 卡箍 36.1毫米 | CLAMP 36.1 MM | 1 |
| 11 | 896059001 | 节温器软管 | HOSE Thermostat | 1 |
| 12 | 888988007 | 卡箍(42.5毫米) | CLAMP (42.5 mm) | 1 |
| 13 | 892242T | 燃油滤清器总成 | FILTER ASSEMBLY Fuel | 1 |
| 13 | 8M0062950 | 滤清器总成 | FILTER ASSEMBLY | 1 |
| 14 | 884380T | 燃油滤清器 | FILTER Fuel | 1 |
| 14 | 8M0122423 | 水星燃油滤清器 | FUEL FILTER Quicksilver | 1 |
| 15 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 16 | 892356 | 连接器 | CONNECTOR | 1 |
| 17 | 863156 | 拉手片 | GRAB TAB | 1 |
| 18 | 896239 | 燃油至升压泵软管 | HOSE Fuel to Lift Pump | 1 |
| 18 | 8M0087061 | 软管 | HOSE | 1 |
| 19 | 892147A01 | 支架总成 | BRACKET ASSEMBLY | 1 |
| 20 | 897126 | 支架 | BRACKET | 1 |
| 21 | 822003 | 衬套 | BUSHING | 2 |
| 22 | 834985 | 护孔环 | GROMMET | 2 |
| 22 | 8M0190980 | 护孔环 | GROMMET | 2 |
| 23 | 65567 | 不锈钢垫圈(0.265x0.750x0.048) | WASHER (.265 x .750 x .048) Stainless Steel | 2 |
| 24 | 82129125 | 螺丝(M6 x 25毫米) | SCREW (M6 x 25 mm) | 2 |
| 25 | 88552785 | 螺钉(M10×85) | SCREW (M10 x 85) | 3 |
| 25 | 8M0103824 | 螺钉 | SCREW | 3 |
| 26 | 885527105 | 螺钉(M10x105) | SCREW (M10 x 105) | 1 |
| 26 | 8M0103820 | 螺钉(M10x105) | SCREW (M10 x 105) | 1 |
| 27 | 880597A01 | 燃油进口软管总成 | HOSE ASSEMBLY Fuel Inlet | 1 |
| 27 | 8M0045343 | 燃油进口软管总成,32.5英寸 | HOSE ASSMEBLY Fuel Inlet, 32.5 Inch | 1 |
| 28 | 892801T01 | 机油冷却器总成 | COOLER ASSEMBLY Oil | 1 |
| 28 | 8M0132389 | 机油冷却模块 | OIL COOLER MODULE | 1 |
| 29 | 896546T | 机油滤清器 | FILTER Oil | 1 |
| 29 | 877767K01 | 机油滤清器 | FILTER Oil | 1 |
| 30 | 892801A50 | 集成式机油模块壳体总成 | HOUSING ASSEMBLY Intergrated Oil Module | 1 |
| 30 | 880640A05 | 集成式机油模块壳体总成 | HOUSING ASSEMBLY Intergrated Oil Module | 1 |
| 31 | 895336 | 螺钉(M6x18) | SCREW (M6 x 18) | 6 |
| 31 | 8M0041014 | 螺钉(M6x18) | SCREW (M6 x 18) | 6 |
| 32 | 880640500 | 衬垫 | GASKET | 1 |
| 32 | 8M0034568 | 衬垫 | GASKET | 1 |
| 33 | 880640A06 | 节温器/导套套件 | THERMOSTAT/GUIDE KIT | 1 |
| 34 | 880640508 | 节温器 | THERMOSTAT | 1 |
| 35 | 892801T51 | 大修套件 | OVERHAUL KIT | 1 |
| 35 | 892801T53 | 大修套件 | OVERHAUL KIT | 1 |
| 36 | 880640500 | 衬垫 | GASKET | 1 |
| 36 | 8M0034568 | 衬垫 | GASKET | 1 |
| 37 | 880640A09 | O型圈套件 | O-RING KIT | 1 |
| 38 | 895032 | 绑带 | STRAP | 2 |
| 39 | 895336 | 螺钉(M6x18) | SCREW (M6 x 18) | 4 |
| 40 | 897559 | 卡扣 | CLIP | 1 |
| 41 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | NSS | 起动机总成(不单独销售) | NOT SOLD SEPARATE Starter Motor Assembly | 1 |
| 1 | 892339T | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 1 | 892339T01 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 2 | NSS | 不单独销售 | NOT SOLD SEPARATE | 2 |
| 3 | 880805A1 | 齿轮套件 | GEAR KIT | 1 |
| 4 | 809463A1 | 电磁阀组件 | SOLENOID KIT | 1 |
| 5 | 56703 | 轴环 | COLLAR | 2 |
| 5 | 8M0034918 | 轴环 | COLLAR | 2 |
| 6 | 879845 | 停机开关 | STOP | 1 |
| 6 | 8M0043276 | 停机开关 | STOP | 1 |
| 7 | NSS | 高压警告贴纸(不单独销售) | NOT SOLD SEPARATE Decal-Waring-High Voltage | 1 |
| 8 | 93388A1 | 电缆总成(6.00英寸)黑色 | CABLE ASSEMBLY (6.00 Inches) Black | 1 |
| 9 | 69035 | 螺丝与锁紧垫圈(.250-20 x .625)不锈钢 | SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel | 1 |
| 10 | 26993 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 1 |
| 10 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 1 |
| 11 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 1 |
| 12 | 400255 | 锁紧垫圈(M5) | LOCKWASHER (M5) | 1 |
| 13 | 400211 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 1 |
| 14 | 889666A01 | 电缆支架 | BRACKET Electrical Cable | 1 |
| 15 | 8502341 | 衬套 | BUSHING | 1 |
| 16 | 833155 | 护孔环 | GROMMET | 1 |
| 17 | 879962 | 卡扣 | CLIP | 1 |
| 18 | 88552635 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 1 |
| 18 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 1 |
| 19 | 817274 | 垫圈(0.344×1.00×0.063)不锈钢 | WASHER (.344 x 1.00 x .063) Stainless Steel | 1 |
| 20 | 8502341 | 衬套 | BUSHING | 2 |
| 21 | 88552635 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 2 |
| 21 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 2 |
| 22 | 817274 | 垫圈(0.344×1.00×0.063)不锈钢 | WASHER (.344 x 1.00 x .063) Stainless Steel | 2 |
| 23 | 833155 | 护孔环 | GROMMET | 2 |
| - | 895247A06 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 895247R06 | RM L6 GEN1 VERADO | RM L6 GEN1 VERADO | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 892807T03 | 机械增压器 | SUPERCHARGER | 1 |
| 1 | 892807T03 | 机械增压器 | SUPERCHARGER | 1 |
| 1 | 8M0104460 | 机械增压器L4SC | SUPERCHARGER L4SC | 1 |
| 1 | 898094T01 | 机械增压器 | SUPER CHARGER | 1 |
| 1 | 8M0104460 | 机械增压器L4SC | SUPERCHARGER L4SC | 1 |
| 2 | 889659002 | 机油压力传感器 | SENSOR Oil Pressure | 1 |
| 2 | 8M0142688 | 压力传感器(机油/水) | SENSOR Pressure (Oil/Water) | 1 |
| 3 | 888947A04 | 出口导管套件 | OUTLET DUCT KIT | 1 |
| 3 | 8M0060303 | 机械增压器套件 | SUPERCHARGER KIT | 1 |
| 4 | 888947504 | 衬垫 | GASKET | 1 |
| 5 | 888947502 | 螺栓 | BOLT | 9 |
| 6 | 885342001 | 传感器总成 | SENSOR ASSEMBLY | 1 |
| 6 | 8M0148668 | 传感器总成 | SENSOR ASSEMBLY | 1 |
| 7 | 888814 | O型圈(0.351 x 0.072) | O-RING (.351 x .072) | 1 |
| 7 | 896699 | O型圈（1.78毫米 x 0.08毫米） | O-RING (1.78 mm x .08 mm) | 1 |
| 8 | 888947A05 | 进气导管套件 | DUCT KIT Inlet | 1 |
| 9 | 888947501 | 衬垫 | GASKET | 1 |
| 10 | 847803A02 | 衬套/垫片套件 | BUSHING/GASKET KIT | 1 |
| - | 888947A10 | 机械增压器端盖套件 | END CAP KIT Supercharger | 1 |
| - | 8M0045222 | 机械增压器端盖套件 | END CAP KIT Supercharger | 1 |
| 11 | 885527105 | 螺钉(M10x105) | SCREW (M10 x 105) | 4 |
| 11 | 8M0103820 | 螺钉(M10x105) | SCREW (M10 x 105) | 4 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 826525A1 | 转向舵机注油套件 | FILLER KIT Steering Helm | 1 |
| 2 | 823686A2 | 数字诊断测试仪 | DIGITAL DIAGNOSTIC TESTER | 1 |
| 3 | 52344 | 飞轮固定器工具(齿型) | FLYWHEEL HOLDER TOOL Teeth Type | 1 |
| 4 | 895343T02 | 飞轮拉拔器工具 | TOOL Flywheel Puller | 1 |
| - | 895346 | 螺栓 | BOLT | 1 |
| 5 | 892647A01 | DMT万用表套件 | MULTI-METER KIT DMT | 1 |
| 6 | 892647A01 | DMT万用表套件 | MULTI-METER KIT DMT | 1 |
| 7 | 880118A04 | DDT诊断模块 | DDT CARTRIDGE | 1 |
| 8 | 881204003 | 技术手册 数字终端参考 | TECHNICAL MANUAL Digital Terminal Reference | 1 |
| 9 | 822560A13 | 诊断测试仪线束组件 | HARNESS ASSEMBLY Diagnostic Tester | 1 |
| 10 | 825003A1 | DDT诊断线束总成 | CABLE ASSEMBLY DDT | 1 |
| 11 | 803146A04 | 卡箍工具套件 | CLAMP TOOL KIT | 1 |
| 12 | 881834A1 | 仪表 | GAUGE | 1 |
| 13 | 892651A01 | 数字压力表 | PRESSURE METER Digital | 1 |
| 14 | 90265A5 | 曲轴箱机油泵总成 | PUMP ASSEMBLY Crankcase Oil | 1 |
| 15 | NA | 不可用 不随此型号销售 | NOT AVAILABLE Not Sold With This Model | 1 |
| 16 | 98234A2 | 钻孔夹具套件-艉板 | DRILL FIXTURE KIT Transom | 1 |
| 17 | 888462A1 | 拉线组件 | PULLER ASSEMBLY Cable | 1 |
| 18 | 809494A1 | 气门弹簧压缩工具 | COMPRESSOR TOOL Valve Spring | 1 |
| 19 | 822778A2 | 压力上升套件 | UP PRESSURE KIT | 1 |
| 19 | 822778A3 | 下压力套件 | DOWN PRESSURE KIT | 1 |
| 20 | 52915A6 | 测试仪表套件 | TEST GAUGE KIT | 1 |
| 21 | 44487T1 | 调整杆导向器拆卸工具 | REMOVER TOOL Trim Rod Guide | 1 |
| 22 | 74951 | 扳手 | SPANNER WRENCH | 1 |
| 23 | 44486A1 | 调整杆拆卸工具 | REMOVAL TOOL Trim Rod | 1 |
| - | 881833A03 | 气油压力表套件 | GAUGE KIT Air/Fuel Pressure | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 895844T01 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 1 | 895844T02 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 1 | 8M0113901 | 顶盖总成 | COWL ASSY - TOP | 1 |
| 2 | 895845T | 空气导流帽 | CAP Air Dam | 1 |
| 2 | 895845T01 | 空气导流帽 | CAP Air Dam | 1 |
| 3 | 888950020 | 螺丝(M4×20毫米) | SCREW (M4 x 20 mm) | 4 |
| 4 | 896959 | 挂钩 | HOOK | 1 |
| 5 | 897444001 | 支撑托架 | BRACKET Support | 1 |
| 5 | 897444002 | 支撑托架 | BRACKET Support | 1 |
| 6 | 82130014 | 螺钉 (M6 x 14) | SCREW (M6 x 14) | 2 |
| 7 | 897437T01 | 前锁扣组件 | LATCH ASSEMBLY Front | 1 |
| 7 | 897437T02 | 前锁扣组件 | LATCH ASSEMBLY Front | 1 |
| 8 | 897440 | 弹簧 | SPRING | 1 |
| 8 | 8M0109644 | 弹簧 | SPRING | 1 |
| 9 | 897441 | U型销 | PIN Clevis | 1 |
| 10 | 27290 | 挡圈 | RING Retaining | 1 |
| 11 | 82130014 | 螺钉 (M6 x 14) | SCREW (M6 x 14) | 4 |
| 12 | 896997 | 密封件 | SEAL | 1 |
| 12 | 896997001 | 密封件(2425.75毫米) | SEAL (2425.75 mm) | 1 |
| 13 | 897431A01 | 隔音毯套装 | SOUND BLANKET KIT | 1 |
| 13 | 8M4501659 | 隔音毯套装 | SOUND BLANKET KIT | 1 |
| - | 892565A06 | 标贴套装 (通用) | DECAL SET (Generic) | 1 |
| - | 8M0102449 | 维修贴花套装 | DECAL SET-SERVICE | 1 |
| - | 892870A06 | 标贴套装 (通用) | DECAL SET (Generic) | 1 |
| - | 892565A02 | 左右舷标贴套装 | DECAL SET Port And Starboard | 1 |
| - | 8M0024863 | 贴花 | DECAL | 1 |
| - | 892870A01 | 左右舷标贴套装 | DECAL SET Port And Starboard | 1 |
| - | 8M0024865 | 后标贴 | DECAL Rear | 1 |
| - | 8M0034095 | ORD 8M0110604 | ORD 8M0110604 | 1 |
| - | 892870003 | 后标贴 | DECAL Rear | 1 |
| - | 8M0024866 | 后标贴 | DECAL Rear | 1 |
| - | 8M0034096 | 后标贴 | DECAL Rear | 1 |
| - | 892870004 | 后标贴 | DECAL Rear | 1 |
| - | 8M0024867 | 后标贴 | DECAL Rear | 1 |
| - | 8M0034097 | 后标贴 | DECAL Rear | 1 |
| - | 892870005 | 后标贴 | DECAL Rear | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 888994T03 | 前安装支架总成 | BRACKET ASSEMBLY Front Mount | 1 |
| 1 | NSS | 不单独销售 支架 | NOT SOLD SEPARATE Bracket | 1 |
| 2 | 892417 | 衬套 | BUSHING | 2 |
| 3 | 892049 | 隔套 | SPACER | 1 |
| 3 | 8M0047763 | 隔套 | SPACER | 1 |
| 4 | 885506001 | 换档轴 | SHIFT SHAFT | 1 |
| 4 | 8M0026131 | 换挡轴 | SHAFT-SHIFT | 1 |
| 5 | 889727001 | 曲柄摇臂 | BELL CRANK | 1 |
| 6 | 25319 | 销钉(.125 x 0.75英寸) | PIN (.125 x 0.75 Inches) | 1 |
| 7 | 833155 | 护孔环 | GROMMET | 2 |
| 8 | 889514A01 | 开关 | SWITCH | 1 |
| 8 | 8M0207794 | 开关 | SWITCH | 1 |
| 9 | 88075020 | 螺丝(M3 x 20) | SCREW (M3 x 20) | 2 |
| 10 | 85999 | 衬套 | BUSHING | 1 |
| 11 | 8M0048114 | 换挡执行器 | SHIFT ACTUATOR | 1 |
| 11 | 8M0124413 | 换挡执行器 | SHIFT ACTUATOR | 1 |
| 12 | 8855091 | 螺钉 | SCREW | 1 |
| 13 | 885512 | 开口销 | COTTER PIN | 2 |
| 14 | 885511003 | 垫圈 | WASHER | 2 |
| 15 | 895770 | 枢轴销 | Pin Pivot | 1 |
| 16 | 895811155 | 螺钉(M10×155) | SCREW (M10 x 155) | 2 |
| 16 | 8M0207826 | 螺钉 | SCREW | 2 |
| 17 | 88510940 | 螺钉(M14) | SCREW (M14) | 4 |
| 17 | 8M0103802 | 螺钉 | SCREW | 4 |
| 18 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 2 |
| 19 | 97896 | 衬套 | BUSHING | 2 |
| 20 | 885505 | 换挡轴连杆 | LINK Shift Shaft | 1 |
| 21 | 888987001 | 换挡轴(长型) | SHAFT Shift (Long) | 1 |
| 21 | 8M0181378 | 上部换挡轴 | SHAFT SHIFT UPPER | 1 |
| 21 | 888987002 | 换挡轴（加长型） | SHIFT SHAFT (X-Long) | 1 |
| 21 | 8M0183223 | 换挡轴上段 | SHIFT SHAFT UPPER | 1 |
| 21 | 888987003 | 换挡轴（超长型） | SHIFT SHAFT (XX-Long) | 1 |
| 21 | 8M0180097 | 超长换挡轴 | SHAFT SHIFT XXL | 1 |
