水星 Mercury 135 HP EFI 2B131942 & Up - 爆炸图零件明细

四冲程 电喷 EFI · Cat.# 90-8M0060852 · 共 58 个部位 · 1995 条零件

1附件2水星配件贴花3适配板4冷却系统5曲轴、活塞及连杆6气缸体7气缸盖与凸轮轴8气缸盖与凸轮轴盖9顶罩贴花10驱动轴壳体11驱动轴壳体-XL型号-2B753570及以上12驱动轴壳体延长套件SeaPro（3B111734及以下）13标准驱动轴壳体延长套件14双缆连接套件15电气系统16排气系统17排气歧管18飞轮与盖19燃油供给模块组件 8M0057676 - 2B458410及以下20燃油供给模块组件 8M0132733 - 2B458411和3B68156421燃油供给模块组件 8M0235171 - 3B681565及以上22燃油供给系统软管及模块23齿轮箱壳体（驱动轴，逆时针旋转2.08速比）SEAPRO 3B111735及以上24齿轮箱壳体（驱动轴，顺时针旋转2.08速比）SEAPRO 3B111735及以上25齿轮箱壳体（驱动轴，顺/逆时针旋转1.92速比）26齿轮箱壳体（螺旋桨轴，逆时针旋转1.92速比）2B172248及以下27齿轮箱壳体（螺旋桨轴，逆时针旋转1.92速比）2B172249至2B20552128齿轮箱壳体（螺旋桨轴，逆时针旋转1.92速比）2B205522及以上29齿轮箱壳体（螺旋桨轴，逆时针旋转1.92速比）SEAPRO 3B111734及以下30齿轮箱壳体（螺旋桨轴，逆时针旋转2.08速比）SEAPRO 3B111735及以上31齿轮箱壳体（螺旋桨轴，顺时针旋转1.92速比）离合器标记8M004576032齿轮箱壳体（螺旋桨轴，顺时针旋转1.92速比）离合器标记8M007324933齿轮箱壳体（螺旋桨轴，顺时针旋转1.92速比）SEAPRO 3B111735及以上34齿轮箱壳体（螺旋桨轴，顺时针旋转2.08速比）SEAPRO 3B111734及以下35点火系统36集成式空燃模块37集成式空燃模块组件38喷水泵39喷水泵组件40底罩41维护套件42油底壳43动力配平总成44动力升降总成组件-2B752836及以下45动力升降总成组件-2B752837及以上46SC1000转速表套件（艉板与舵机安装）47维修/支持手册48换挡连杆49垫片组 8M007674550启动马达/机油滤清器/传感器（标号8M0074530）51启动马达/机油滤清器/传感器（标号8M0079328）52旋转支架与转轴（非SeaPro）53旋转支架与转轴（SeaPro）54工具55顶罩56艉板支架57无水分离传感器的燃油滤清器套件-SeaPro58带WIF传感器的水分离燃油滤清器套件
图 1附件 Accessories
附件 Accessories
REF零件编号中文名称英文名称数量
-12092A19传动轴延长套件 - 5英寸/128毫米EXTENSION KIT Driveshaft - 5 Inch /128 mm1
-899699A0175/90/115 EFI四冲程图解集DIAGRAM SET 75/90/115 EFI 4-Stroke1
-858566A03冲洗套件(海岸型)FLUSH KIT Coastal1
-816366A50转向手柄套件STEERING HANDLE KIT1
-816366A52转向手柄套件HANDLE KIT Steering1

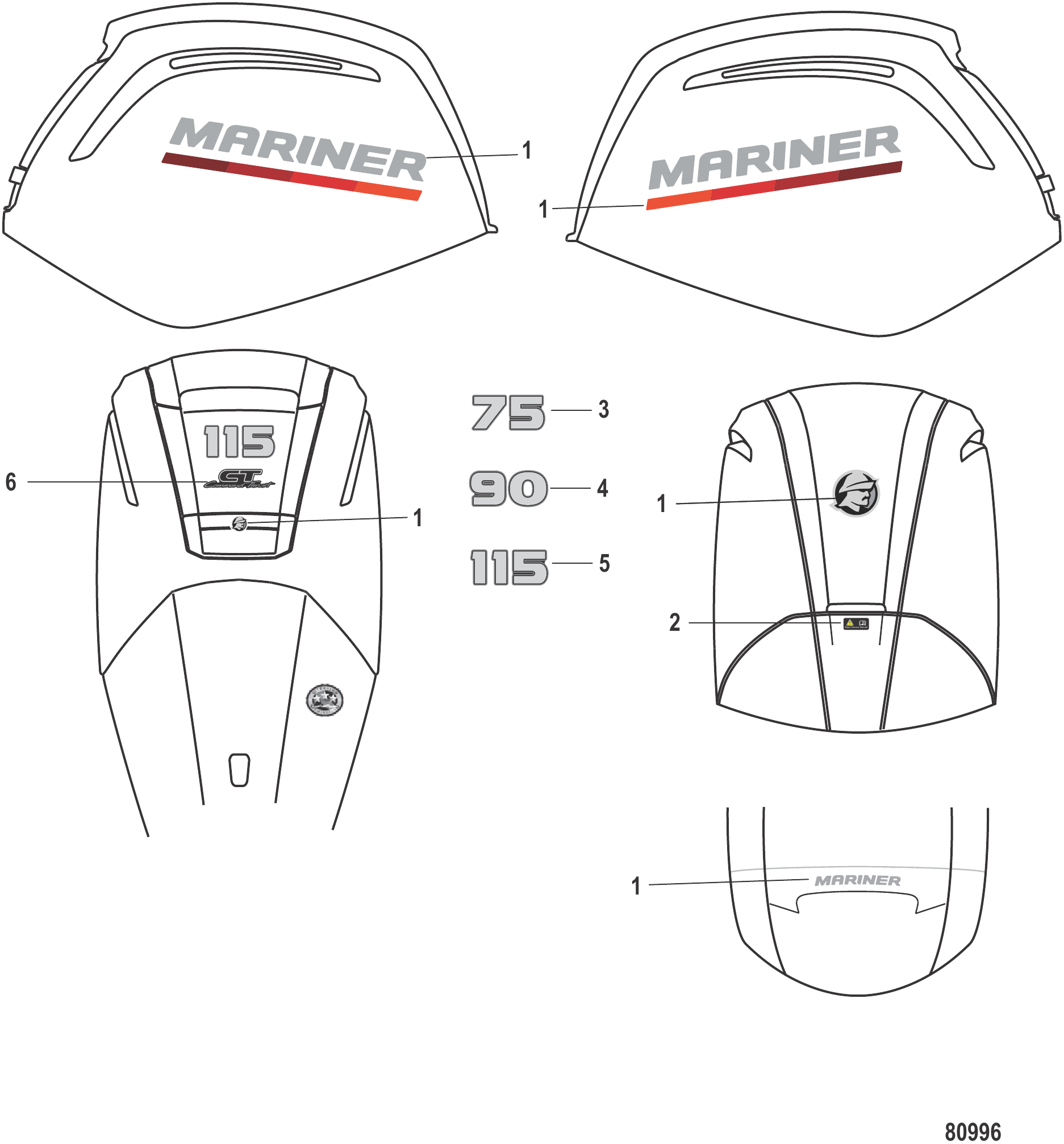

图 2水星配件贴花 Accessories Decals Mariner
水星配件贴花 Accessories Decals Mariner
REF零件编号中文名称英文名称数量
18M0242343水星75-115四冲程贴花套装DECAL SET Mariner 75-115 4S1
28M0056643阅读手册贴花DECAL Read Manual1
38M008023375马力尾部贴花DECAL Rear, 75 HP1
48M008023590马力尾部贴花DECAL Rear, 90 HP1
58M0080237115马力尾部贴花DECAL Rear, 115 HP1
68M0088310指令推力贴花DECAL Command Thrust1

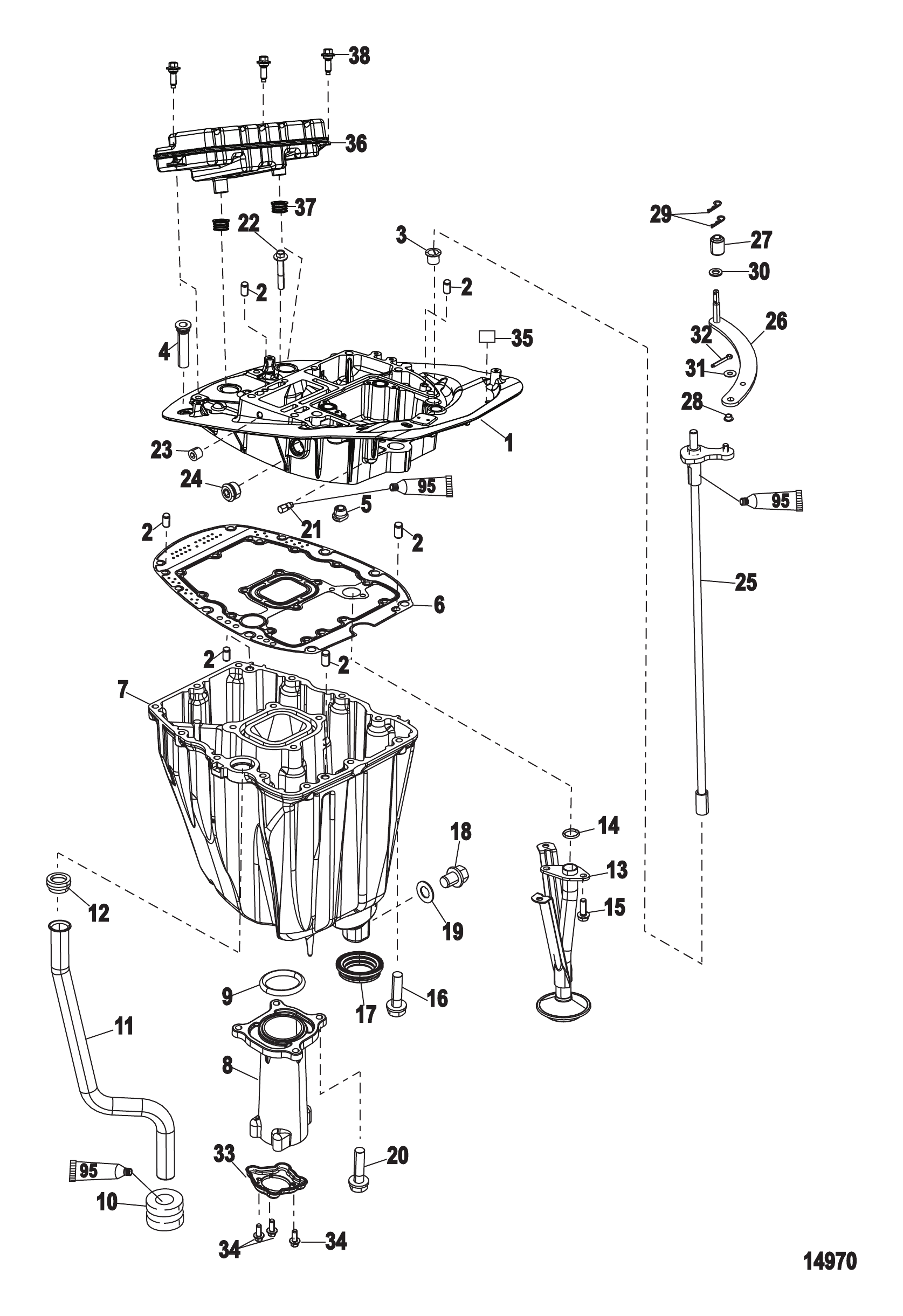

图 3适配板 Adapter Plate
适配板 Adapter Plate
REF零件编号中文名称英文名称数量
1881912T02适配板总成ADAPTER PLATE ASSEMBLY1
223784定位销PIN Dowel6
327132衬套BUSHING1
4817519A2排水单向阀总成CHECK VALVE ASSEMBLY Drain2
519565002护孔环GROMMET1
68M0005405适配板衬垫GASKET Adapter Plate1
7858572T01油底壳SUMP Oil1
8898468A01排气管套件TUBE KIT Exhaust1
9881295O型圈O-RING1
1089417004护孔环GROMMET1
11858575006水管TUBE Water1
118M0026130水管TUBE Water1
118M0026130水管TUBE Water1
11858575005水管TUBE Water1
118M0026129水管TUBE Water1
118M0026129水管TUBE Water1
12814080001上密封件SEAL Upper1
13858571T机油吸油管TUBE Oil Pick Up1
14859082O型圈O-RING1
1540011128不锈钢螺钉(M6x20)SCREW (M6 x 20) Stainless Steel4
158M0204741六角带垫大帽螺钉(M6x1.0x20)SCREW (M6 x 1.0 x 20) Hex Wash HD4
168248327螺钉 (M6 x 30)SCREW (M6 x 30)12
168M0214957螺钉SCREW12
17858573密封件SEAL1
178M0039073密封件SEAL1
188288181放油塞PLUG Drain1
19828816衬垫GASKET1
198M0204692衬垫@5GASKET @51
2082483213螺钉(M6 x 60)SCREW (M6 x 60)4
21888823001换挡定位装置总成SHIFT DETENT ASSEMBLY1
22898442螺钉(M8 x 50)SCREW (M8 x 50)4
23479452堵头PLUG1
248M0048148堵头PLUG1
25888835A1换档轴SHIFT SHAFT1
26888840换挡连杆SHIFT LINK1
27888917滚轮ROLLER1
28891658衬套BUSHING1
2982053M发夹销PIN Hair2
30888832垫圈WASHER1
3169056垫圈(.255 x .620 x .030) 不锈钢WASHER (.255 x .620 x .030) Stainless Steel1
3226953开口销COTTER PIN1
33898844排气管密封件(随排气管提供)SEAL Exhaust Tube Included with Exhaust Tube1
3488552516螺丝 (M6 x 16毫米) 不锈钢SCREW (M6 x 16 mm) Stainless Steel3
348M0103805螺丝 (M6 x 16毫米) 不锈钢SCREW (M6 x 16 mm) Stainless Steel3
3548323堵头PLUG1
36898103T91排气集气室PLENUM Exhaust1
378M0001457集气室密封件SEAL Plenum2
38892073002台阶螺丝 (M6)SHOULDER SCREW (M6)3
388M0230980螺丝 (M6x14) 六角法兰B型SCREW (M6 x 14) Hex Flange B3
-897534A07动力头衬垫套件GASKET SET Powerhead1
-897148A09长缸体总成 75/80/90/100LONG BLOCK ASSEMBLY 75/80/90/1001
-8M8033014PH L4NA 4SPH L4NA 4S1
-897148A08长缸体总成 115LONG BLOCK ASSEMBLY 1151

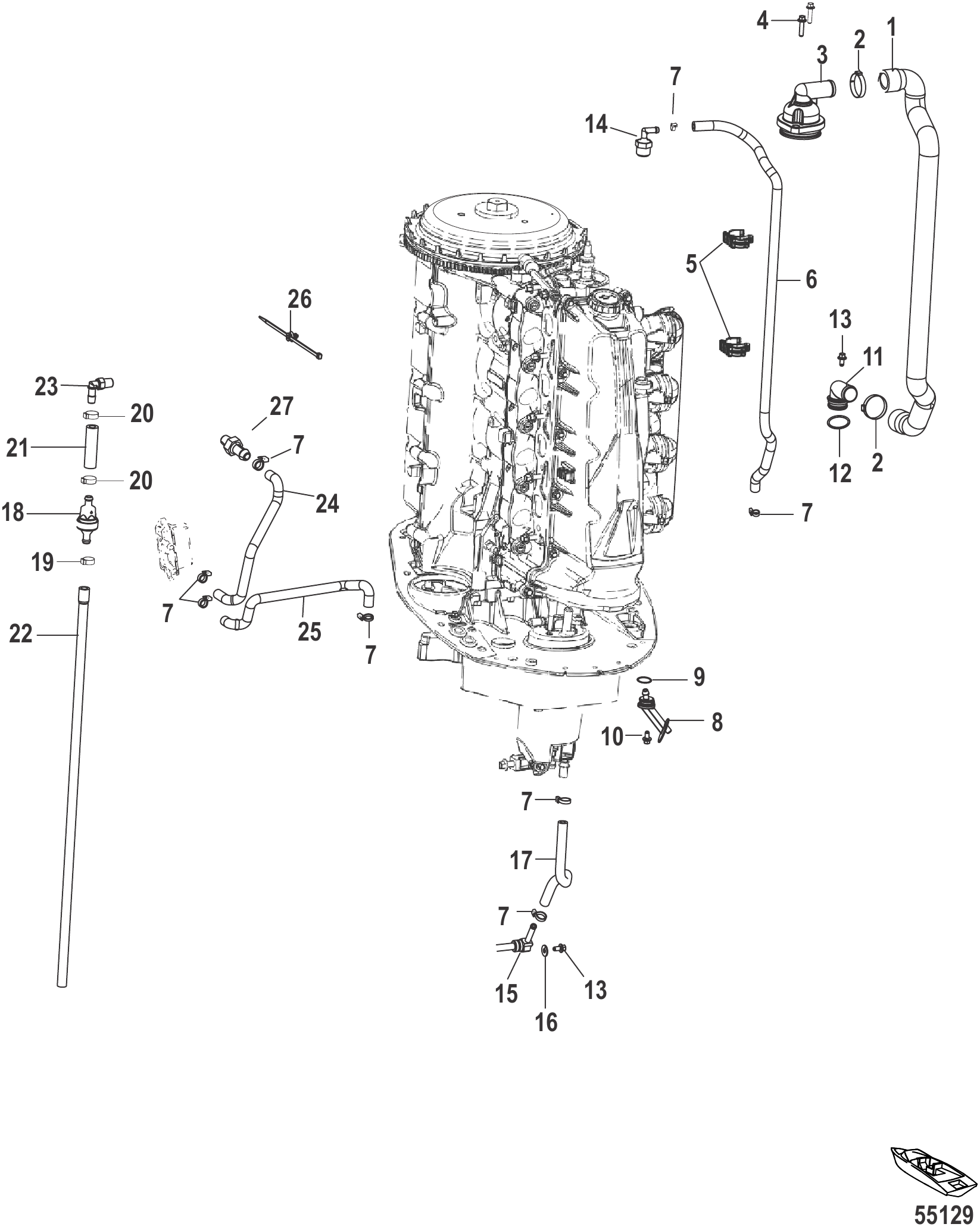

图 4冷却系统 Cooling
冷却系统 Cooling
REF零件编号中文名称英文名称数量
18M0055699软管HOSE1
2888988001卡箍(36.1毫米)CLAMP (36.1 mm)AR
28M0204719卡箍 36.1毫米CLAMP 36.1 MMAR
38M0090819节温器总成THERMOSTAT ASSEMBLY1
488552525不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel3
48M0103807不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel3
58M0061994卡扣CLIP2
68M0055698软管HOSE1
7816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
88M0055215示流器TELLTALE1
938101O型圈 0.674×0.103O-RING (.674 x .103)1
108M0012661螺丝 M6×14 六角法兰不锈钢SCREW M6 x 14 HEX FLG SS1
118M0057408接头FITTING1
1229845O型圈 0.924×0.103O-RING (.924 x .103)1
128M0204650O型圈O-RING1
1388552512不锈钢螺钉 (M6 x 12 mm)SCREW (M6 x 12 mm) Stainless Steel1
138M0103804不锈钢螺钉 (M6 x 12 mm)SCREW (M6 x 12 MM) Stainless Steel1
148M0061328卡扣式滤网STRAINER Snap Fit1
158M0050013排气冷却接头FITTING Exhaust Cooling1
164002316垫圈(6.60 X 17.0 X 1.5不锈钢)WASHER (6.60 X 17.0 X 1.5SS)1
168M0214930垫圈6.60 x 17.0 x 1.5WASHER 6.60 x 17.0 x 1.51
178M0045298喷雾软管HOSE Sprayer1
188M0035700冲洗系统软管总成HOSE ASSEMBLY FLUSH SYSTEM1
188M0102825软管HOSE1
19855697卡箍CLAMPAR
198M0204696卡箍CLAMPAR
20888988022卡箍CLAMPAR
218M0057620冲洗软管HOSE Flush1
228M0057599管材（内径8×外径14×840毫米）TUBING (8 ID X 14 OD X 840 MM)1
238M0075779接头FITTING1
248M0056685软管HOSE1
258M0056483软管HOSE1
26899145绑带夹CLIP Tie StrapAR
27291112接头FITTING1

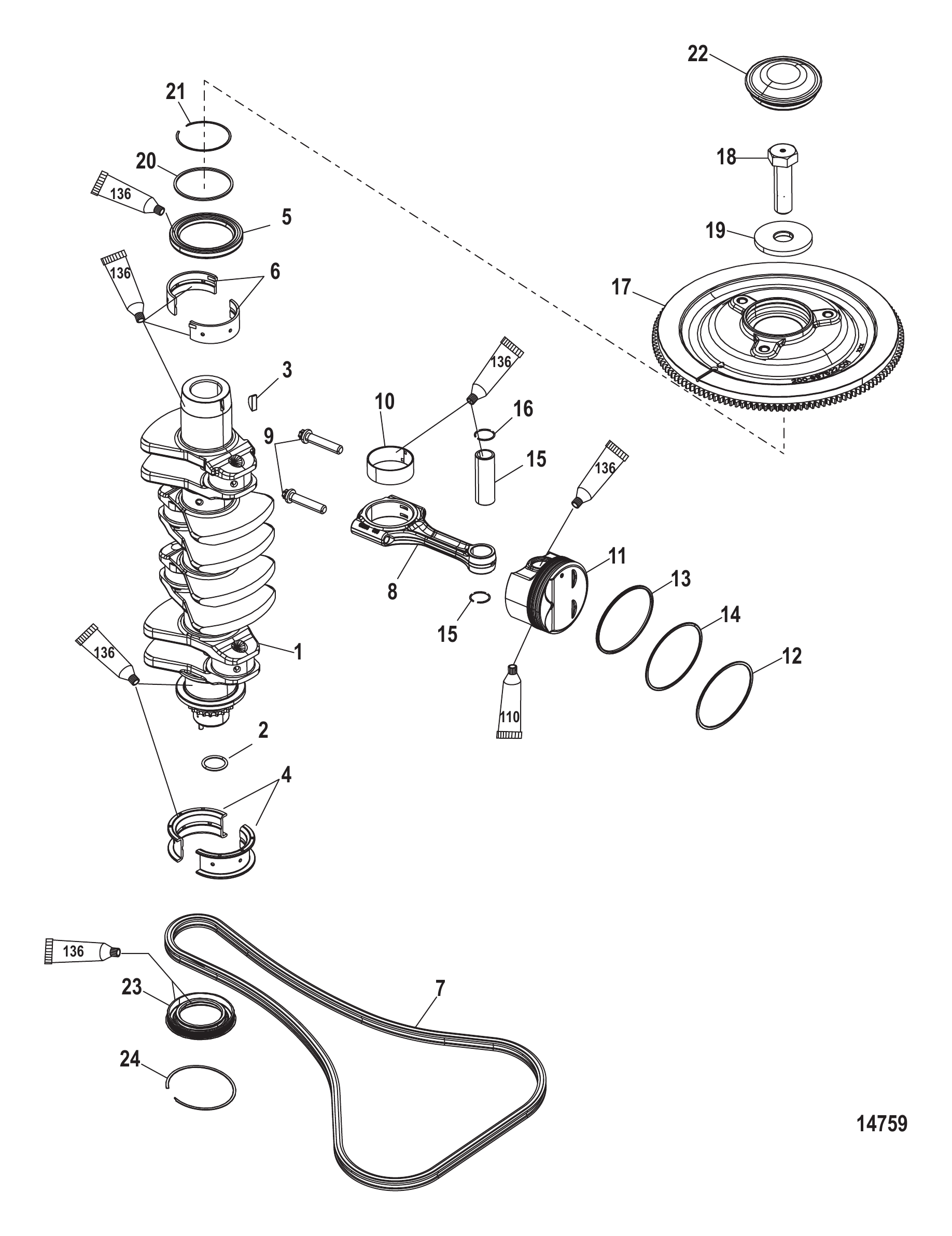

图 5曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods
曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods
REF零件编号中文名称英文名称数量
1898051A04曲轴总成CRANKSHAFT ASSEMBLY1
2889993001O型圈O-ring1
391800半圆键KEY Woodruff1
4892309T01推力轴承-绿色(曲轴下端)BEARING Thrust - Green Crankshaft-Lower2/AR
48M0117003轴承BEARING2/AR
4892309T02推力轴承-海军蓝(曲轴下端)BEARING Thrust - Navy Blue Crankshaft-Lower2/AR
48M0117001轴承BEARING2/AR
4892309T03推力轴承-白色(曲轴下端)BEARING Thrust - White Crankshaft-Lower2/AR
48M0117002轴承BEARING2/AR
4892309T04推力轴承-橙色(曲轴下端)BEARING Thrust - Orange Crankshaft-Lower2/AR
48M0117004轴承BEARING2/AR
58805251油封(主轴承顶部)SEAL Top Main Bearing1
58M0032912密封件SEAL1
6897498T01主轴承-绿色(曲轴上端)BEARING Main - Green Crankshaft-Upper4
6897498T02主轴承-海军蓝(曲轴上端)BEARING Main - Navy Blue Crankshaft-Upper4
6897498T03主轴承-白色(曲轴上端)BEARING Main - White Crankshaft-Upper4
6897498T04主轴承-橙色(曲轴上端)BEARING Main - Orange Crankshaft-Upper4
7897796链条(凸轮轴驱动滚子链)CHAIN Roller Cam Drive1
78M0103398链条(凸轮轴驱动滚子链)CHAIN Roller Cam Drive1
8881210T02连杆总成CONNECTING ROD ASSEMBLY4
88M0103285连杆总成CONNECTING ROD ASSEMBLY4
9884441螺栓BOLT8
10892005A01连杆轴承-蓝色BEARING Connecting Rod - Blue4
10892005A02连杆轴承-白色BEARING Connecting Rod - White4
10892005A03连杆轴承-橙色BEARING Connecting Rod - Orange4
11898472T01活塞总成(标准)PISTON ASSEMBLY (Standard)4
12881180A03活塞环套件(标准)RING SET Piston (Standard)4
12881180A02活塞环组RING SET Piston4
13NSS油环（不单独销售）NOT SOLD SEPARATE Oil Ring4
14NSS第二道活塞环(不单独销售)NOT SOLD SEPARATE Piston Ring-Second4
15NSS活塞销（不单独销售）NOT SOLD SEPARATE Piston Pin4
16881184卡簧CIRCLIP8
17897522T04飞轮总成FLYWHEEL ASSEMBLY1
18880515螺栓(M20×68)BOLT (M20 x 68)1
188M0147042螺栓BOLT1
198M0062178垫圈 66 X 21 X 6.35 MMWASHER 66 X 21 X 6.35 MM1
198M0090010垫圈WASHER1
20896883隔套SPACER1
21896882挡圈RING Retaining1
22885348盖帽CAP1
23897540油封SEAL Oil1
24897785挡圈RING Retaining1
-897534A07动力头衬垫套件GASKET SET Powerhead1
-897148A09长缸体总成 75/80/90/100LONG BLOCK ASSEMBLY 75/80/90/1001
-8M8033014PH L4NA 4SPH L4NA 4S1
-897148A08长缸体总成 115LONG BLOCK ASSEMBLY 1151

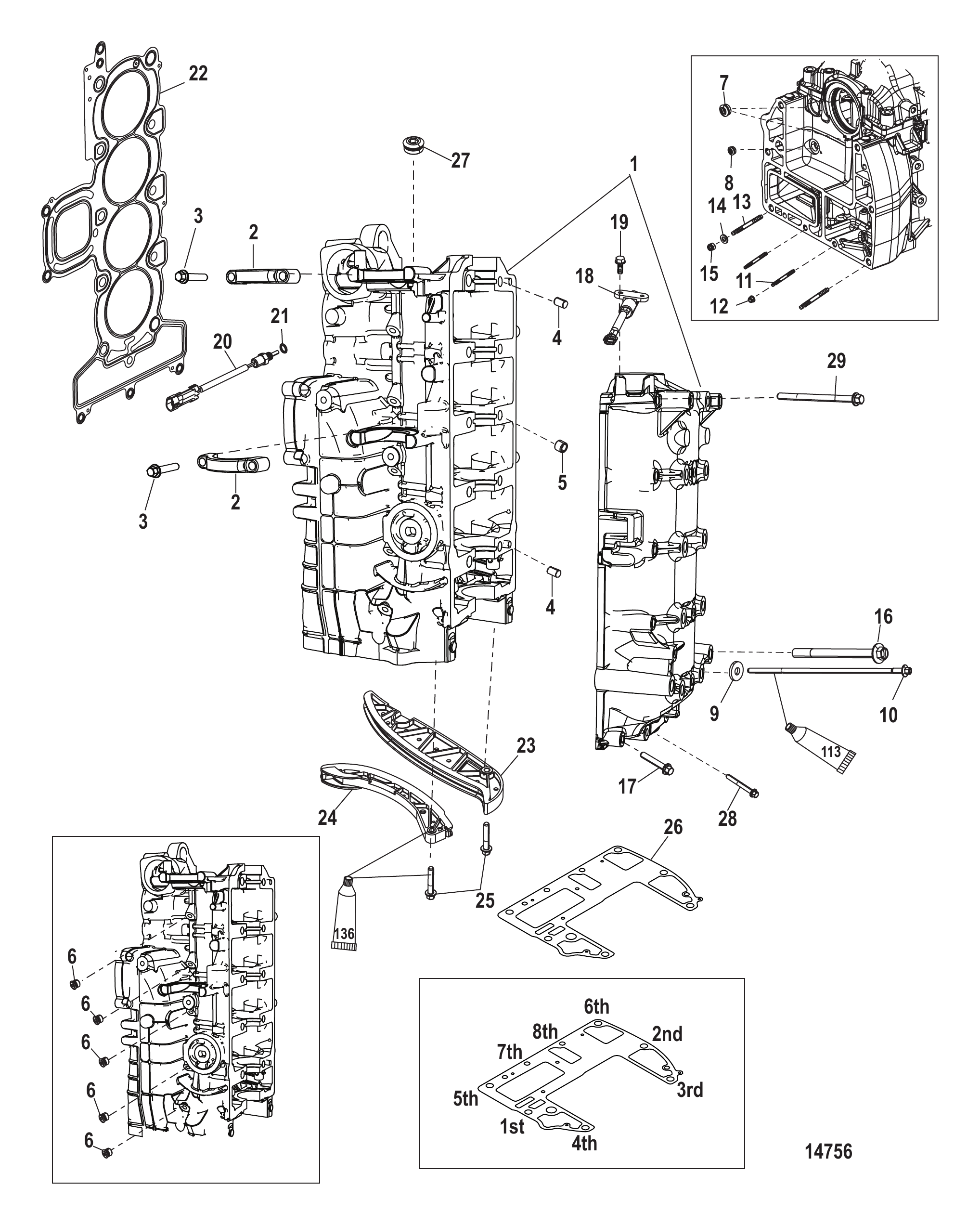

图 6气缸体 Cylinder Block
气缸体 Cylinder Block
REF零件编号中文名称英文名称数量
1880504A12气缸体总成CYLINDER BLOCK ASSEMBLY1
28M0007889支架BRACKET2
388552640螺钉（M8×40）注：长缸体套装中不再包含SCREW (M8 x 40) NOTE:No Longer included with Longblock4
38M0103815螺钉SCREW4
443044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
5893392001减震器DAMPER10
68M0047994堵头（12毫米）PLUG (12 MM)5
68M0087448堵头×2PLUG @25
7896951堵头（24毫米）PLUG (24 mm)2
88M0010474堵头（14毫米）PLUG (14 mm)1
88M0087449堵头（14毫米）PLUG (14 mm)1
9892573001垫圈WASHER10
10896923螺钉（M10×342）SCREW (M10 x 342)10
108M4501000螺钉（M10×342）SCREW (M10 X 342)10
11897599双头螺柱（M8×55）STUD (M8 x 55)2
118M0000275螺柱STUD2
12826365螺母 (M8)NUT (M8)2
13897677双头螺柱（M10×1.5）STUD (M10 x 1.5)6
138M0010471双头螺柱×2STUD @26
14856774垫圈(0.406×0.750×0.105)不锈钢WASHER (.406 x .750 x .105) Stainless Steel6
148M0214963垫圈WASHER6
15884412螺母NUT6
16892086120螺钉（M10×120）SCREW (M10 x 120)2
168M0103829螺钉SCREW2
17895810050螺钉(M8 x 50)SCREW (M8 x 50)2
178M0193659螺钉SCREW2
188283582传感器SENSOR1
188M0082988曲轴位置传感器SENSOR Crankshaft Position1
1940011106不锈钢螺钉(M5x13)SCREW (M5 x 13) Stainless Steel2
20885342002传感器总成SENSOR ASSEMBLY1
208M0148668传感器总成SENSOR ASSEMBLY1
21896699O型圈（1.78毫米 x 0.08毫米）O-RING (1.78 mm x .08 mm)1
22896277006衬垫 缸盖GASKET Head1
228M0024565衬垫GASKET1
228M0024565衬垫GASKET1
23880559固定导套GUIDE Fixed1
24880557活动导板GUIDE Moveable1
25892456045螺钉SCREW2
26897534缸体至适配器衬垫GASKET Block to Adapter1
268M0024563衬垫GASKET1
268M0024563缸体至适配器衬垫GASKET Block to Adapter1
27891953堵头（18毫米）PLUG (18 mm)1
28895810070螺钉(M8 x 70)SCREW (M8 x 70)2
29895810090螺钉（M8×90）SCREW (M8 x 90)8
-897534A07动力头衬垫套件GASKET SET Powerhead1
-897148A09长缸体总成 75/80/90/100LONG BLOCK ASSEMBLY 75/80/90/1001
-8M8033014PH L4NA 4SPH L4NA 4S1
-897148A08长缸体总成 115LONG BLOCK ASSEMBLY 1151

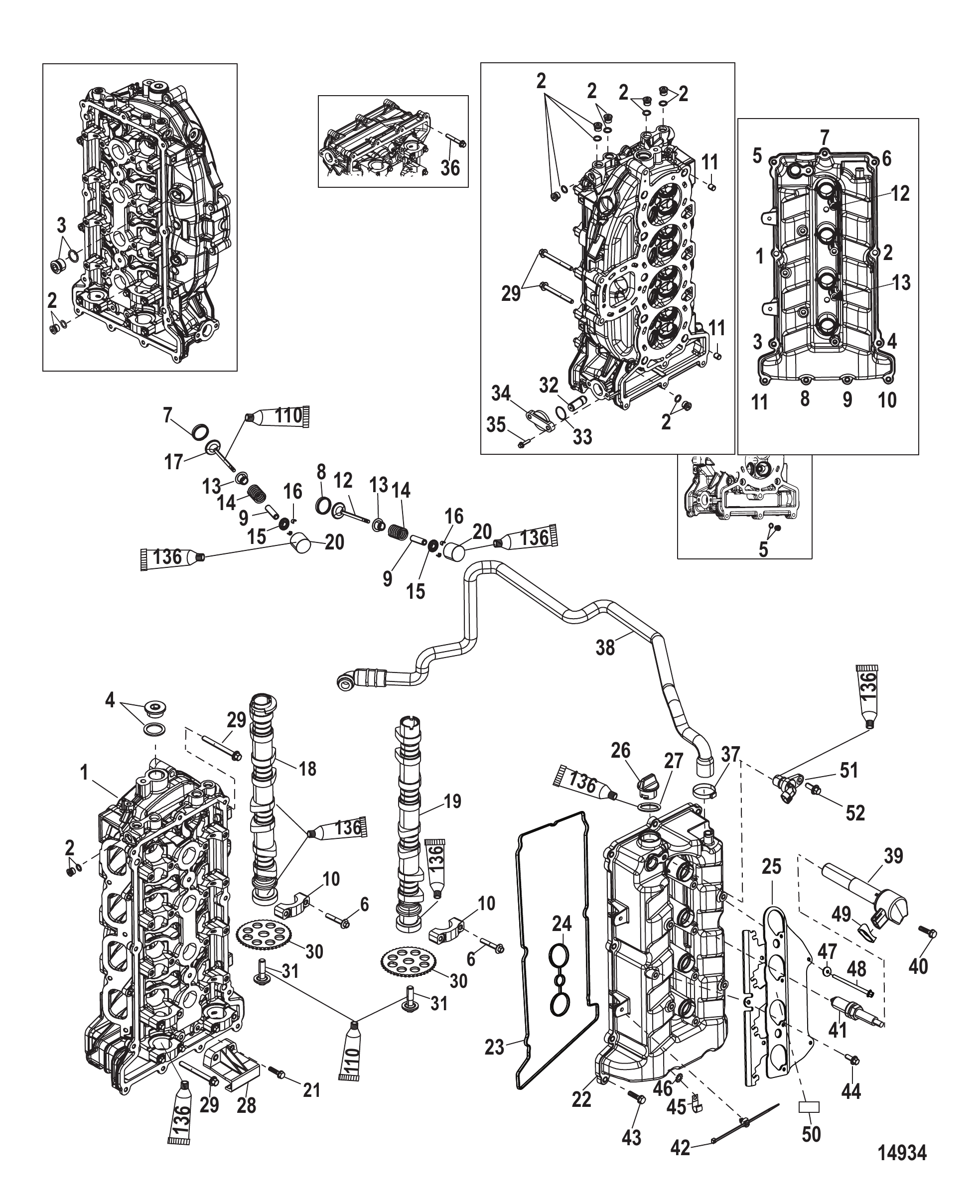

图 7气缸盖与凸轮轴 Cylinder Head and Camshaft
气缸盖与凸轮轴 Cylinder Head and Camshaft
REF零件编号中文名称英文名称数量
1897954A03气缸盖总成CYLINDER HEAD ASSEMBLY1
2889767堵头（12毫米）PLUG (12 mm)8
3891953堵头（18毫米）PLUG (18 mm)1
4896951堵头（24毫米）PLUG (24 mm)1
5896576堵头（10毫米）PLUG (10 mm)1
58M0087446堵头（10毫米）PLUG (10 mm)1
6892454035螺栓（M6×36）BOLT (M6 x 36)20
68M0163131M6螺钉SCREW M620
7880533进气门座SEAT Intake Valve8
8880535排气门座SEAT Exhaust Valve8
88M0089477排气门座SEAT Exhaust Seat8
9880537进排气门导管GUIDE Intake Exhaust Valve Intake and Exhaust Valves16
10NSSNOT SOLD SEPARATE CAP10
11880524定位销（14毫米）PIN Dowel (14 MM)2
12897630排气阀VALVE Exhaust8
12898908排气阀VALVE Exhaust8
12898908排气阀VALVE Exhaust8
13896880气门油封SEAL Valve16
138M0214986密封件SEAL16
14895815进排气门弹簧SPRING Intake and Exhaust Valve16
148M0011503弹簧SPRING16
15880542A1气门锁夹总成RETAINER ASSEMBLY Valves16
158M0908500气门锁夹总成RETAINER ASSEMBLY Valves16
16880543键KEY32
17897629进气阀VALVE Intake8
17898907进气阀VALVE Intake8
17898907进气阀VALVE Intake8
18898397A03进气凸轮轴总成CAMSHAFT ASSEMBLY Intake1
18898397A04进气凸轮轴总成CAMSHAFT INTK ASY1
18898397A02进气凸轮轴总成CAMSHAFT ASSEMBLY Intake1
19898077A02排气凸轮轴总成CAMSHAFT ASSEMBLY Exhaust1
208805481挺柱TAPPET16/AR
20899912001挺柱（2.996）TAPPET (2.996)16/AR
208805482挺柱TAPPET16/AR
20899912002挺柱（3.021）TAPPET (3.021)16/AR
208805483挺柱TAPPET16/AR
20899912003挺柱（3.046）TAPPET (3.046)16/AR
208805484挺柱TAPPET16/AR
20899912004挺柱（3.071）TAPPET (3.071)16/AR
208805485挺柱TAPPET16/AR
20899912005挺柱（3.096）TAPPET (3.096)16/AR
208805486挺柱TAPPET16/AR
20899912006挺柱（3.118）TAPPET (3.118)16/AR
208805487挺柱TAPPET16/AR
20899912007挺柱（3.138）TAPPET (3.138)16/AR
208805488挺柱TAPPET16/AR
20899912008挺柱（3.158）TAPPET (3.158)16/AR
208805489挺柱TAPPET16/AR
20899912009挺柱（3.178）TAPPET (3.178)16/AR
2088054810挺柱TAPPET16/AR
20899912010挺柱（3.198）TAPPET (3.198)16/AR
2088054811挺柱TAPPET16/AR
20899912011挺柱（3.218）TAPPET (3.218)16/AR
2088054812挺柱TAPPET16/AR
20899912012挺柱（3.238）TAPPET (3.238)16/AR
2088054813挺柱TAPPET16/AR
20899912013挺柱（3.258）TAPPET (3.258)16/AR
2088054814挺柱TAPPET16/AR
20899912014挺柱（3.278）TAPPET (3.278)16/AR
2088054815挺柱TAPPET16/AR
20899912015挺柱（3.298）TAPPET (3.298)16/AR
2088054816挺柱TAPPET16/AR
20899912016挺柱（3.318）TAPPET (3.318)16/AR
2088054817挺柱TAPPET16/AR
20899912017挺柱（3.338）TAPPET (3.338)16/AR
2088054818挺柱TAPPET16/AR
20899912018挺柱（3.358）TAPPET (3.358)16/AR
2088054819挺柱TAPPET16/AR
20899912019挺柱（3.378）TAPPET (3.378)16/AR
2088054820挺柱TAPPET16/AR
20899912020挺柱（3.398）TAPPET (3.398)16/AR
2088054821挺柱TAPPET16/AR
20899912021挺柱（3.418）TAPPET (3.418)16/AR
2088054822挺柱TAPPET16/AR
20899912022挺柱（3.438）TAPPET (3.438)16/AR
2088054823挺柱TAPPET16/AR
20899912023挺柱（3.458）TAPPET (3.458)16/AR
2088054824挺柱TAPPET16/AR
20899912024挺柱（3.478）TAPPET (3.478)16/AR
2088054825挺柱TAPPET16/AR
2088054826挺柱TAPPET16/AR
2088054827挺柱TAPPET16/AR
20899912027挺柱（3.538）TAPPET (3.538)16/AR
2088054828挺柱TAPPET16/AR
20899912028挺柱（3.558）TAPPET (3.558)16/AR
2088054829挺柱TAPPET16/AR
20899912029挺柱（3.578）TAPPET (3.578)16/AR
2088054830挺柱TAPPET16/AR
2088054831挺柱TAPPET16/AR
20899912031挺杆 (3.621)TAPPET (3.621)16/AR
2088054832挺柱TAPPET16/AR
2088054833挺柱TAPPET16/AR
20899912033挺杆 (3.671)TAPPET (3.671)16/AR
2088054834挺柱TAPPET16/AR
20899912034挺杆 (3.696)TAPPET (3.696)16/AR
2088054835挺柱TAPPET16/AR
21892454030螺钉 (M6 x 30)SCREW (M6 x 30)2
22880553T02凸轮盖总成COVER ASSEMBLY Cam1
22880553A07凸轮盖总成COVER ASSEMBLY Cam1
22880553T02凸轮盖总成COVER ASSEMBLY Cam1
22880553A07凸轮盖总成COVER ASSEMBLY Cam1
22880553T05凸轮盖总成COVER ASSEMBLY Cam1
22880553T06凸轮盖COVER Cam1
22880553T05凸轮盖总成COVER ASSEMBLY Cam1
22880553T06凸轮盖COVER Cam1
22880553A07凸轮盖总成COVER ASSEMBLY Cam1
-880553T06凸轮盖COVER Cam1
23892893密封件SEAL1
24892584密封件SEAL2
258M0008370线圈板总成PLATE ASSEMBLY Coil1
258M0008370线圈板总成PLATE ASSEMBLY Coil1
258M0010552线圈板总成PLATE ASSEMBLY Coil1
258M0010552线圈板总成PLATE ASSEMBLY Coil1
26859578A1油塞总成PLUG ASSEMBLY Oil1
268M0240831油塞OIL PLUG1
2790196O型圈 (.921 x .139)O-RING (.921 x .139)1
278M0204673O型圈 .921 x .139O-Ring .921 x .1391
28880558短导杆GUIDE Short1
2988552660螺钉 (M8 x 60)SCREW (M8 x 60)4
298M0103817螺钉 (M8 x 60)SCREW (M8 x 60)4
30880550凸轮驱动链轮SPROCKET Cam Drive2
308M0241408凸轮链轮SPROCKET CAM2
31884403螺钉 (M12 x 40)SCREW (M12 x 40)2
318M0237436螺钉SCREW2
32897797A01张紧器总成TENSIONER ASSEMBLY1
32898463A01张紧器总成TENSIONER ASSEMBLY1
33880631001O型圈 橙色O-RING Orange1
338M0237361O型圈O-RING1
34893338张紧器端盖END CAP Tensioner1
348M0064752凸轮张紧器端盖END CAP Cam Tensioner1
3588552525不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel2
358M0103807不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel2
3688552540螺钉(M6x40毫米)不锈钢SCREW (M6 x 40 mm) Stainless Steel3
368M0103809螺钉(M6x40毫米)不锈钢SCREW (M6 x 40 mm) Stainless Steel3
37888988019卡箍 (22.6 mm)CLAMP (22.6 mm)1
38897673A01通气软管总成HOSE ASSEMBLY Breather1
39880615T01线圈总成COIL ASSEMBLY4
4088552525不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel4
408M0103807不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel4
41898829001火花塞 (NGK# LFR4A-E)SPARK PLUG (NGK# LFR4A-E)4
418M0157328火花塞 (NGK# LFR4A-E)SPARK PLUG (NGK# LFR4A-E)4
42899145绑带夹CLIP Tie Strap2
4388552525不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel11 or 13
438M0103807不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel11 or 13
4488552512不锈钢螺钉 (M6 x 12 mm)SCREW (M6 x 12 mm) Stainless Steel3
448M0103804不锈钢螺钉 (M6 x 12 mm)SCREW (M6 x 12 MM) Stainless Steel3
4555098J型卡扣J CLIP1
458M0024808J型夹J-CLIP1
4693702垫圈(.250外齿星形)WASHER (.250 External Star)1
478M0008232垫圈WASHER2
488M0008535螺丝(M6 x 90)SCREW (M6 x 90)2
488M0008535螺丝(M6 x 90)SCREW (M6 x 90)2
4888552585不锈钢螺钉 (M6 x 85 mm)SCREW (M6 x 85 mm) Stainless Steel2
4888552585不锈钢螺钉 (M6 x 85 mm)SCREW (M6 x 85 mm) Stainless Steel2
498M0008642防转橡胶环RING Rubber Anti-Rotation4
498M0119617环形衬套@4RING-GROMMET@44
508M0008936线圈螺钉扭矩标贴DECAL Coil Screw Torque1
51880609传感器总成SENSOR ASSEMBLY1
5288552516螺丝 (M6 x 16毫米) 不锈钢SCREW (M6 x 16 mm) Stainless Steel1
-897534A07动力头衬垫套件GASKET SET Powerhead1
-897148A09长缸体总成 75/80/90/100LONG BLOCK ASSEMBLY 75/80/90/1001
-897148A08长缸体总成 115LONG BLOCK ASSEMBLY 1151

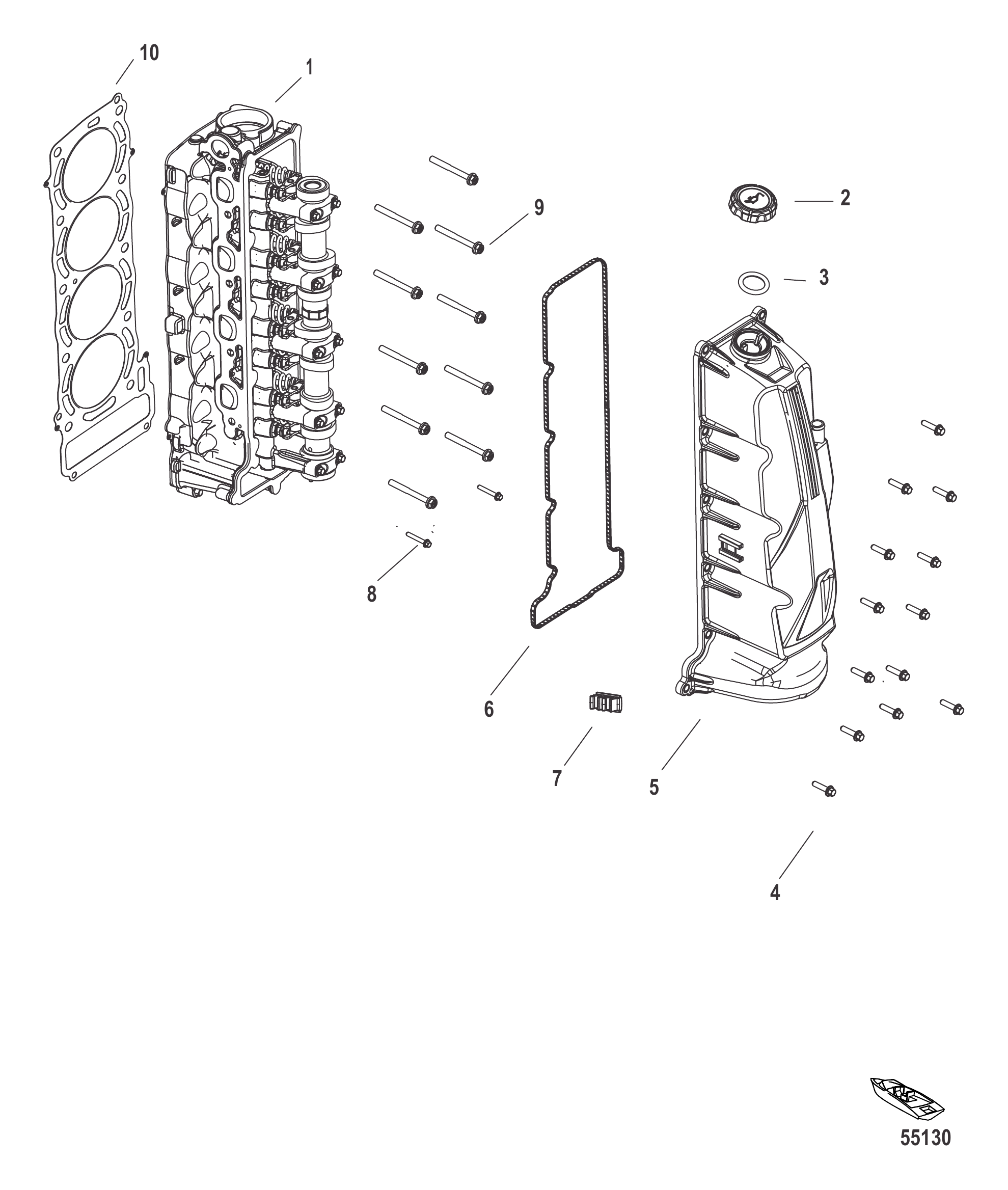

图 8气缸盖与凸轮轴盖 Cylinder Head and Camshaft Cover
气缸盖与凸轮轴盖 Cylinder Head and Camshaft Cover
REF零件编号中文名称英文名称数量
18M0094683气缸盖总成CYLINDER HEAD ASSEMBLY1
18M0190640气缸盖CYLINDER HEAD1
18M0098627气缸盖总成CYLINDER HEAD ASSEMBLY1
18M0190640气缸盖CYLINDER HEAD1
18M0091290气缸盖总成CYLINDER HEAD ASSEMBLY1
18M0190641气缸盖CYLINDER HEAD1
18M0098628气缸盖总成CYLINDER HEAD ASSEMBLY1
18M0190641气缸盖CYLINDER HEAD1
18M0121260气缸盖总成CYLINDER HEAD ASSEMBLY1
18M0190641气缸盖CYLINDER HEAD1
28M0065093加油口盖CAP Oil Fill1
38M0043174O型圈O-RING1
488552525不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel13
48M0103807不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel13
58M0088067凸轮轴盖总成CAMSHAFT COVER ASSEMBLY1
68M0069479凸轮轴盖密封件SEAL Camshaft Cover1
78M0071081线夹CLIP -WIRE1
888552540螺钉(M6x40毫米)不锈钢SCREW (M6 x 40 mm) Stainless Steel2
88M0103809螺钉(M6x40毫米)不锈钢SCREW (M6 x 40 mm) Stainless Steel2
98M0082895螺丝 M10×1.5×95 六角头SCREW (M10 X 1.5 X 95) HX HD10
108M0090776气缸盖衬垫GASKET Cylinder Head1

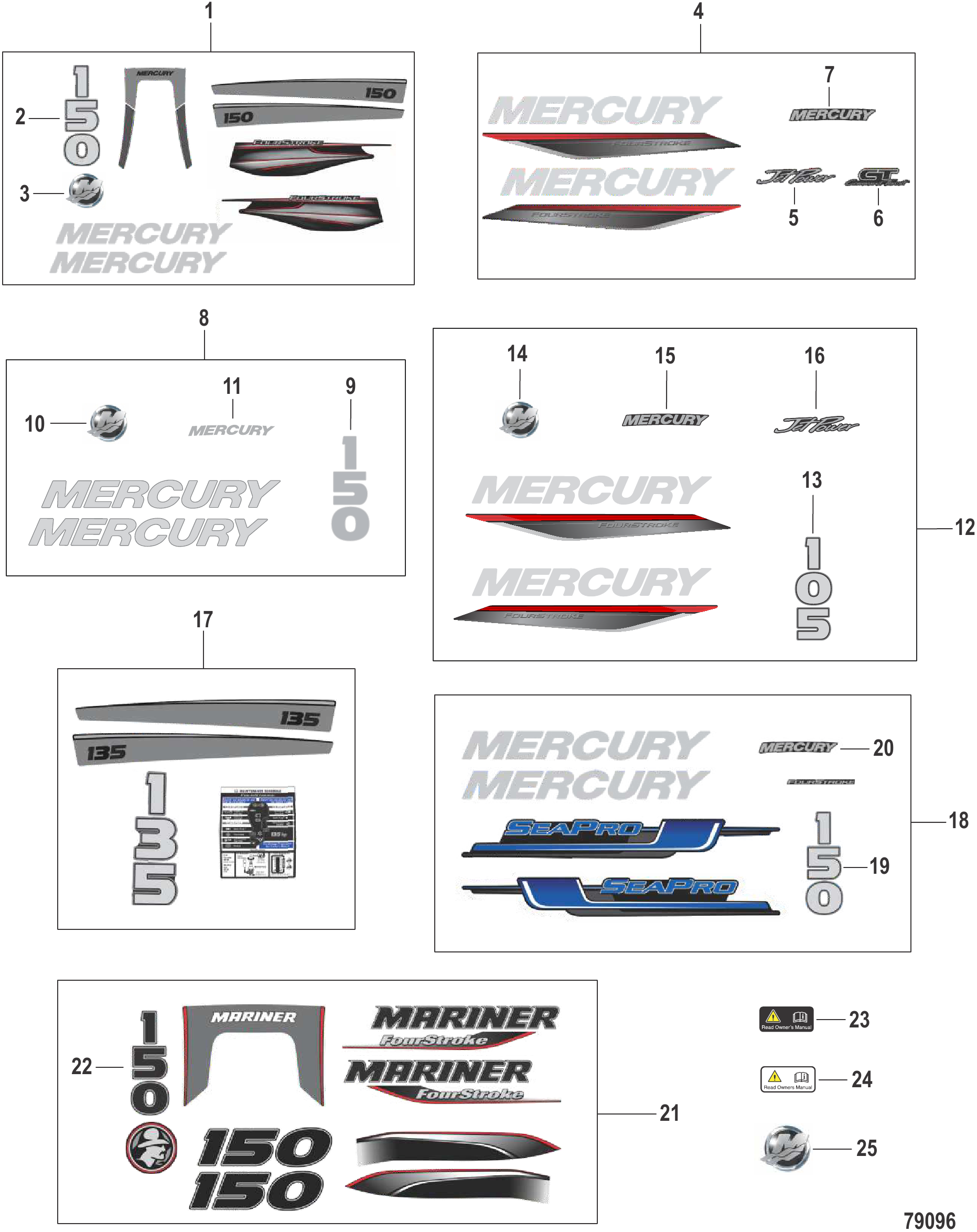

图 9顶罩贴花 Decals Top Cowl
顶罩贴花 Decals Top Cowl
REF零件编号中文名称英文名称数量
18M0057762水星贴花套装DECAL SET Mercury1
28M0153658贴纸-尾部150马力DECAL Rear 150 HP1
38M0043705贴纸-M标志60毫米黑色DECAL M-Icon, 60 mm Black1
48M0156748贴纸套装 Mercury 65-150马力 4冲程DECAL SET Mercury 65-150 HP 4S1
58M0063354喷泵驱动贴纸DECAL Jet Drive1
68M0088310指令推力贴花DECAL Command Thrust1
78M0159890贴纸 Lenz MercuryDECAL Lenz Mercury1
88M0231197贴纸套装-150马力银色DECAL SET 150 HP, Silver1
98M0230776贴纸-尾部150马力银色DECAL Rear 150 HP, Silver1
108M0043705贴纸-M标志60毫米黑色DECAL M-Icon, 60 mm Black1
118M0159890贴纸 Lenz MercuryDECAL Lenz Mercury1
128M0230775贴纸套装-喷泵版DECAL SET Jet1
138M0230774贴纸-尾部105马力喷泵版DECAL Rear 105 HP, Jet1
148M0043705贴纸-M标志60毫米黑色DECAL M-Icon, 60 mm Black1
158M0159890贴纸 Lenz MercuryDECAL Lenz Mercury1
168M0073701贴纸-喷泵动力DECAL Jet Power1
178M0059744贴纸套装-135马力四冲程DECAL SET 135HP 4S1
188M0098615贴纸套装-SeaPro 150马力DECAL SET SeaPro 150HP1
198M0153658贴纸-尾部150马力DECAL Rear 150 HP1
208M0159890贴纸 Lenz MercuryDECAL Lenz Mercury1
218M0057719Mariner贴纸套装DECAL SET Mariner1
228M0153760贴纸-尾部150马力水手版DECAL Rear 150 HP, Mariner1
238M0056643阅读手册贴花DECAL Read Manual1
248M0231196贴纸-阅读手册透明版DECAL Read Manual, Clear1
258M0043701M标志39mm小号M-ICON 39MM - Small1
图 10驱动轴壳体 Driveshaft Housing

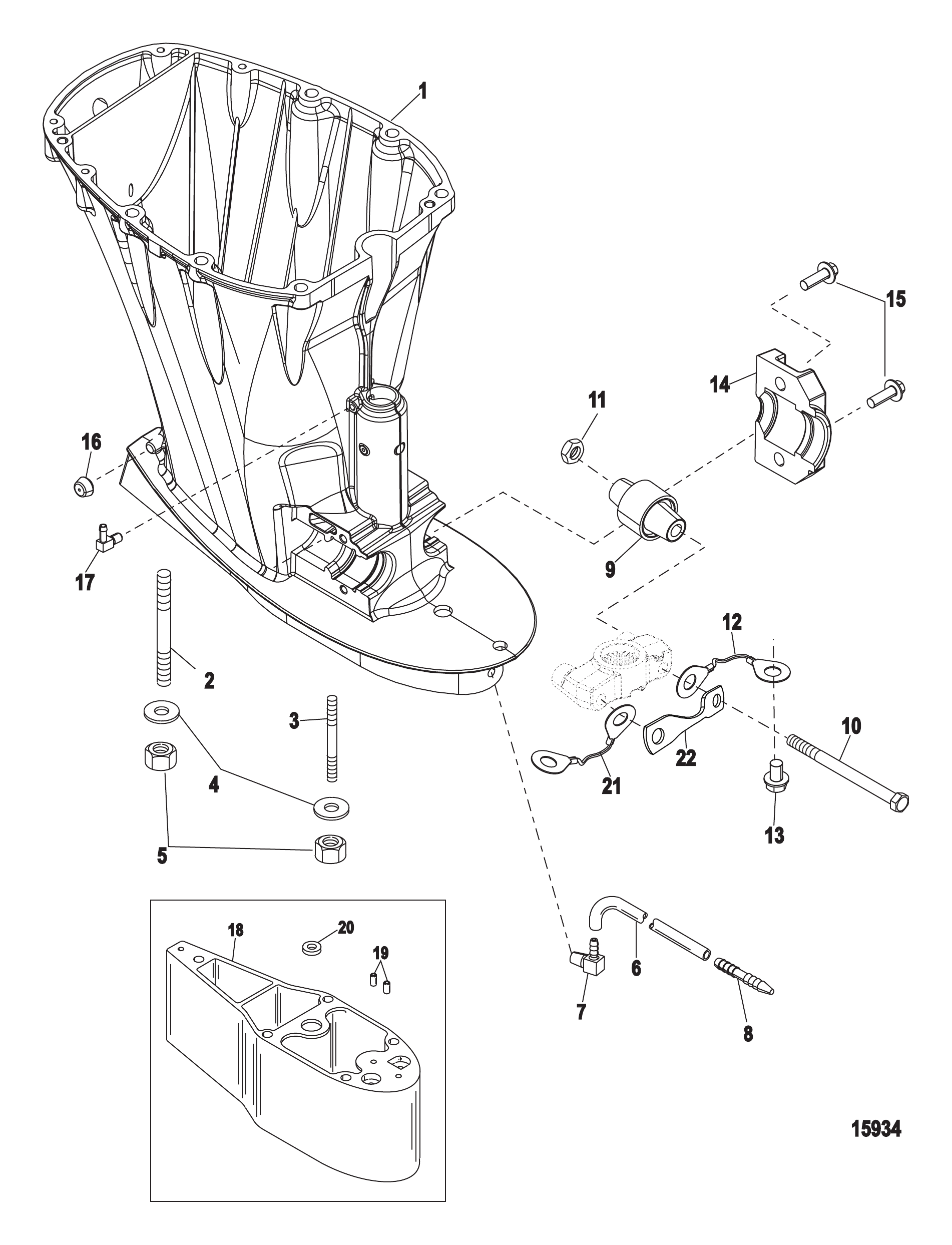

驱动轴壳体 Driveshaft Housing
REF零件编号中文名称英文名称数量
1858576T04驱动轴壳体HOUSING Driveshaft1
2903501双头螺柱(M10×100)STUD (M10 x 100)1
29035015双头螺柱(M10×227)STUD (M10 x 227)1
39035012双头螺柱(M10×63)STUD (M10 x 63)4
39035016双头螺柱(M10×190)STUD (M10 x 190)4
38M0034462双头螺柱(M10×190)STUD (M10 x 190)4
4856774垫圈(0.406×0.750×0.105)不锈钢WASHER (.406 x .750 x .105) Stainless Steel5
48M0214963垫圈WASHER5
540140螺母(M10)NUT (M10)5
685822A15速度计传感器总成PICKUP ASSEMBLY Speedometer1
743335190度接头-带防振密封CONNECTOR 90 Degree - With Vibraseal1
885822直通接头CONNECTOR Straight1
885822T直通接头CONNECTOR Straight1
9898801支架MOUNT2
10897925螺丝(M12 x 145)SCREW (M12 x 145)2
11897926尼龙嵌件螺母(M12)NUT (M12), Nylon Insert2
1288238A10接地电缆总成至旋转支架CABLE ASSEMBLY Ground To Swivel Bracket1
1341508螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel1
14858916T卡箍CLAMP2
15889833025螺钉 (M8 x 25 毫米)SCREW (M8 x 25 MM)4
16858745盖帽CAP4
168M0142713支撑盖帽CAP Chap Support4
17855622弯头接头FITTING Elbow1
1812092A3隔套套件SPACER KIT1
1943043定位销-带孔(0.375×0.625)PIN Dowel - With Hole (.375 x .625)1
198M0084244定位销 0.375x0.620PIN Dowel, .375 x .6201
1943044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)1
20813745隔套SPACER1
2188238T22拉线总成CABLE ASSEMBLY1
228M0009134连续性接地带(下轭架)STRAP Continuity, Lower Yoke1
图 11驱动轴壳体-XL型号-2B753570及以上 Driveshaft Housing - XL Models -2B753570 and Up

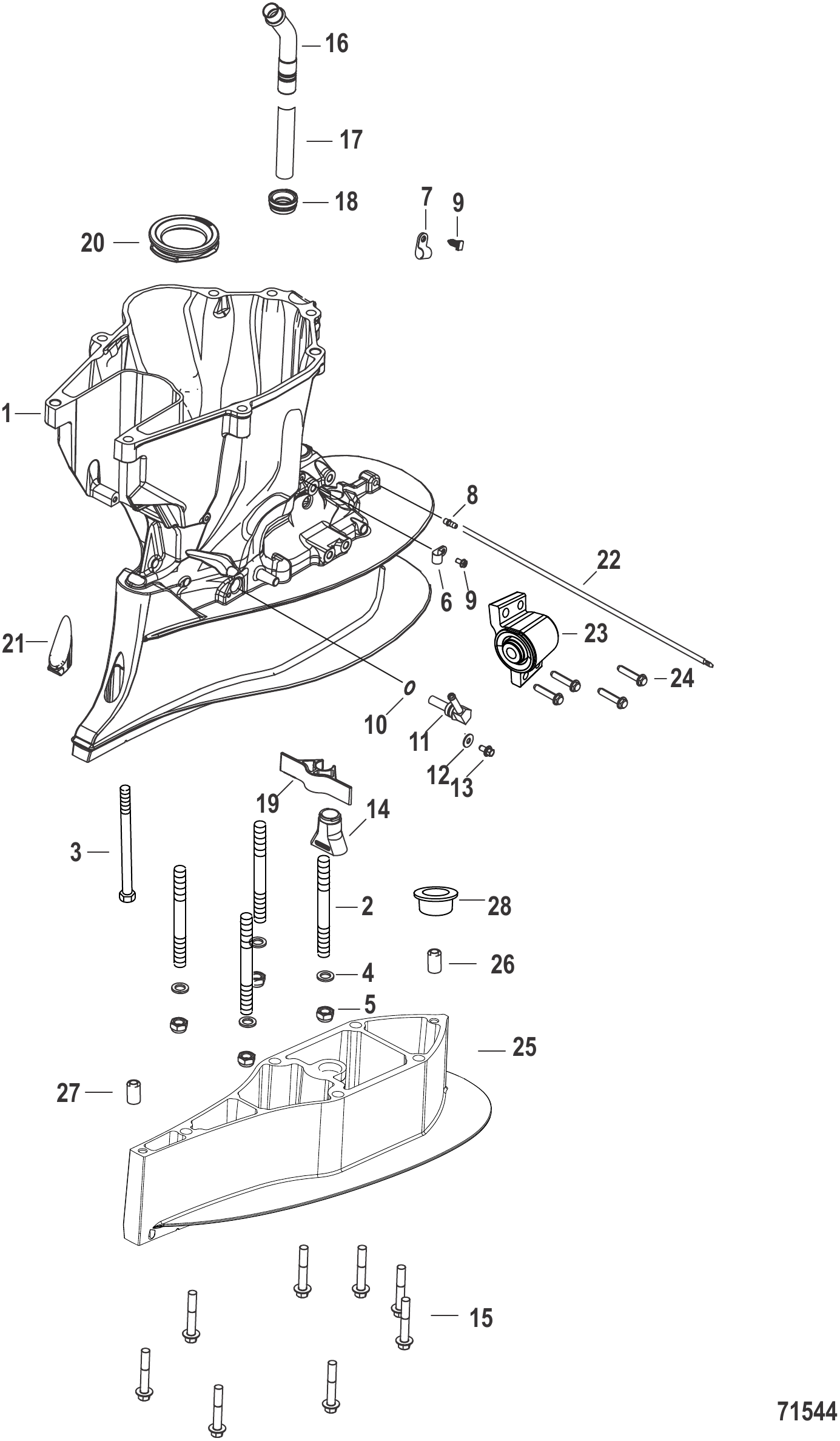

驱动轴壳体-XL型号-2B753570及以上 Driveshaft Housing - XL Models -2B753570 and Up
REF零件编号中文名称英文名称数量
18M0063489驱动轴壳体-长型DRIVESHAFT HOUSING Long1
28M0008047双头螺柱（M12×179）STUD (M12 x 179)4
3857137螺钉 (M12 X 160)SCREW (M12 x 160)1
4856982垫圈(0.5×0.81×0.09英寸)不锈钢WASHER (.500 x .810 x .090) Stainless Steel5
5896895螺母(M12)NUT (M12)4
68M0051768线缆夹-0.375英寸CLAMP Cable .3751
724836卡扣CLIP1
88M0062365直通接头FITTING Straight1
98M0037204尼龙压入螺钉 (.25-20 x .50)SCREW Nylon, Push-In (.25-20 x .50)2
10892446O型圈(14×1.78毫米)O-RING (14 X 1.78 MM)1
118M0050013排气冷却接头FITTING Exhaust Cooling1
124002316垫圈(6.60 X 17.0 X 1.5不锈钢)WASHER (6.60 X 17.0 X 1.5SS)1
128M0214930垫圈6.60 x 17.0 x 1.5WASHER 6.60 x 17.0 x 1.51
138M0103804不锈钢螺钉 (M6 x 12 mm)SCREW (M6 x 12 MM) Stainless Steel1
148M0143836换挡轴衬套BUSHING Shift Shaft1
158M0069690螺丝(M10×1.5×60)SCREW (M10 X 1.5 X 60)8
168M0050520水管-加长型TUBE Water, X-Long1
178M0050570水管隔套-加长型TUBE Water Spacer, X-long1
178M0029215水管WATER TUBE1
188M0035476衬套 水管GROMMET Water Tube1
198M0042271水管导向器GUIDE Water Tube1
208M0033182排气管密封件SEAL Exhaust Pipe1
218M0053658堵头-长型后驱动轴壳体PLUG Long, Rear Driveshaft Housing1
228M0057706速度计软管组件HOSE ASSEMBLY Speedometer1
238M0057725下减震座总成LOWER MOUNT ASSEMBLY2
248M0069689螺钉(M10×1.5×40)六角法兰SCREW (M10x1.5x40) Hex Flange8
258M0105088传动轴壳体加长隔套（黑色）SPACER Driveshaft Housing X-Long, Black1
258M0146468隔套-驱动轴壳体超长型银色SPACER Driveshaft Housing X-Long, Silver1
2643044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)1
278M0084244定位销 0.375x0.620PIN Dowel, .375 x .6201
288M0061394衬套BUSHING1
288M0029215水管WATER TUBE1

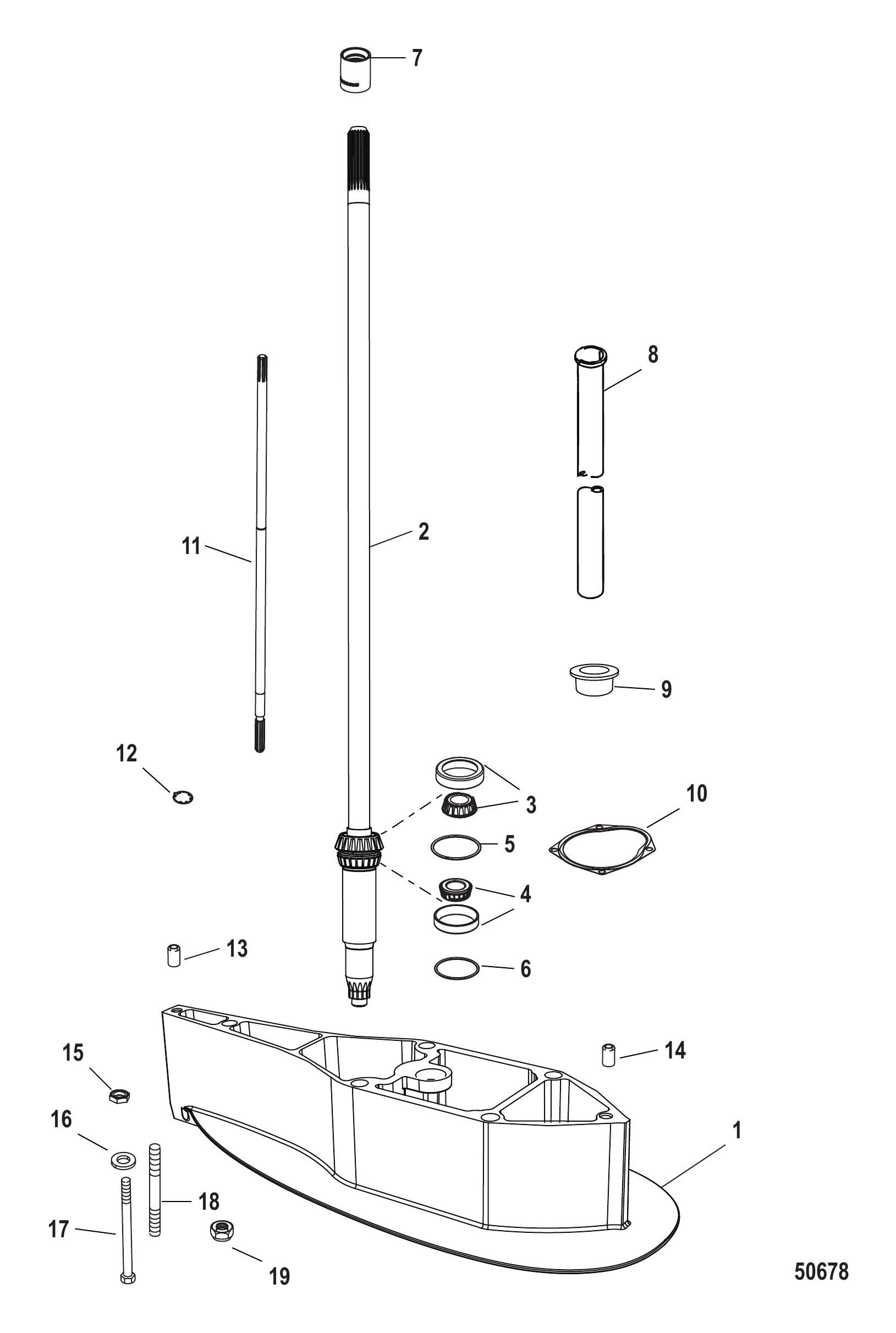

图 12驱动轴壳体延长套件SeaPro（3B111734及以下） Driveshaft Housing Extension Kit SeaPro (3B111734 and Below)
驱动轴壳体延长套件SeaPro（3B111734及以下） Driveshaft Housing Extension Kit SeaPro (3B111734 and Below)
REF零件编号中文名称英文名称数量
-8M0060269延长套件-驱动轴壳体L转XLEXTENSION KIT, Driveshaft Housing Convert L to XL1
18M0071622间隔套 驱动轴壳体SPACER Driveshaft Housing1
18M0105088传动轴壳体加长隔套（黑色）SPACER Driveshaft Housing X-Long, Black1
28M0063505加长驱动轴DRIVESHAFT X-Long1
333138A1圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
477420A1滚柱轴承总成BEARING ASSEMBLY Roller1
48M0166756轴承总成BEARING ASSEMBLY1
58M0053110垫片组SHIM SET1
58M0063267垫片组SHIM SET1
68M0063268垫片组SHIM SET1
78M0036238联轴器 水泵COUPLING Water Pump1
78M0214995联轴器 水泵COUPLING Water Pump1
88M0050570水管隔套-加长型TUBE Water Spacer, X-long1
88M0029215水管WATER TUBE1
98M0061394衬套BUSHING1
98M0029215水管WATER TUBE1
108172771水泵上垫片GASKET Water Pump, Upper1
118M0031504换挡轴 加长型SHIFT SHAFT X-Long1
118M0140439换挡轴-XLSHIFT SHAFT-XL1
128M0030784垫圈 带键WASHER Keyed1
1343044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)1
1443043定位销-带孔(0.375×0.625)PIN Dowel - With Hole (.375 x .625)1
148M0084244定位销 0.375x0.620PIN Dowel, .375 x .6201
15896895螺母(M12)NUT (M12)4
16856982垫圈(0.5×0.81×0.09英寸)不锈钢WASHER (.500 x .810 x .090) Stainless Steel5
17857137螺钉 (M12 X 160)SCREW (M12 x 160)1
188M0008047双头螺柱（M12×179）STUD (M12 x 179)4
1935921螺母(0.625-18)NUT (.625-18)1
图 13标准驱动轴壳体延长套件 Driveshaft Housing Extension Kit Standard
标准驱动轴壳体延长套件 Driveshaft Housing Extension Kit Standard
REF零件编号中文名称英文名称数量
-8M0060269延长套件-驱动轴壳体L转XLEXTENSION KIT, Driveshaft Housing Convert L to XL1
18M0071622间隔套 驱动轴壳体SPACER Driveshaft Housing1
18M0105088传动轴壳体加长隔套（黑色）SPACER Driveshaft Housing X-Long, Black1
28M0063505加长驱动轴DRIVESHAFT X-Long1
333138A1圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
477420A1滚柱轴承总成BEARING ASSEMBLY Roller1
48M0166756轴承总成BEARING ASSEMBLY1
58M0053110垫片组SHIM SET1
58M0063267垫片组SHIM SET1
68M0063268垫片组SHIM SET1
78M0036238联轴器 水泵COUPLING Water Pump1
78M0214995联轴器 水泵COUPLING Water Pump1
88M0050570水管隔套-加长型TUBE Water Spacer, X-long1
88M0029215水管WATER TUBE1
98M0061394衬套BUSHING1
98M0029215水管WATER TUBE1
108172771水泵上垫片GASKET Water Pump, Upper1
118M0031504换挡轴 加长型SHIFT SHAFT X-Long1
118M0140439换挡轴-XLSHIFT SHAFT-XL1
128M0030784垫圈 带键WASHER Keyed1
1343044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)1
1443043定位销-带孔(0.375×0.625)PIN Dowel - With Hole (.375 x .625)1
148M0084244定位销 0.375x0.620PIN Dowel, .375 x .6201
15896895螺母(M12)NUT (M12)4
16856982垫圈(0.5×0.81×0.09英寸)不锈钢WASHER (.500 x .810 x .090) Stainless Steel5
17857137螺钉 (M12 X 160)SCREW (M12 x 160)1
188M0008047双头螺柱（M12×179）STUD (M12 x 179)4
1935921螺母(0.625-18)NUT (.625-18)1
图 14双缆连接套件 Dual Cable Attaching Kit
双缆连接套件 Dual Cable Attaching Kit
REF零件编号中文名称英文名称数量
-92876A8转向安装套件ATTACHING KIT Steering1
141055A1支架总成BRACKET ASSEMBLY1
2715651转向拉索套管TUBE Steering Cable1
348462O型圈 (.614 x .070)O-RING (.614 x .070)1
4821203锁紧垫圈LOCKWASHER2
58M0041651螺母 (.875-14)NUT (.875-14)2
638601螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250)4
778968内锁紧垫圈 (.250)LOCKWASHER Internal (.250)4
8850791T联轴器COUPLER1
973732螺钉 (.375-24 x 1.120)SCREW (.375-24 x 1.120)2
1037828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel2
118M0042636黄铜螺母 (.375-24)NUT (.375-24) Brass3
118M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass3

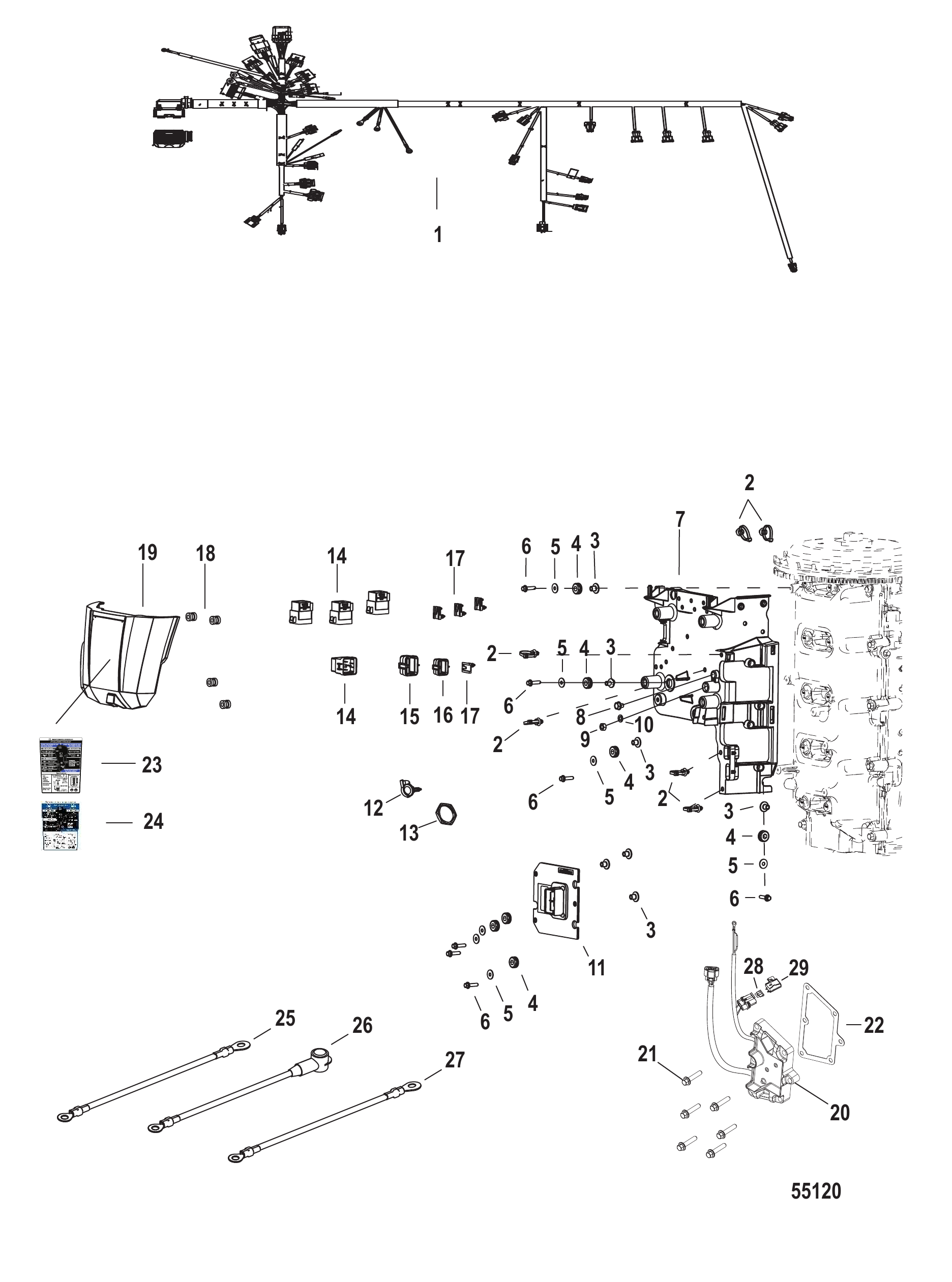

图 15电气系统 Electrical
电气系统 Electrical
REF零件编号中文名称英文名称数量
18M0088060主线束WIRING HARNESS - MAIN1
2899145绑带夹CLIP Tie Strap6
3856954衬套BUSHING7
4834985护孔环GROMMET7
48M0190980护孔环GROMMET7
565567不锈钢垫圈(0.265x0.750x0.048)WASHER (.265 x .750 x .048) Stainless Steel7
688552525不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel7
68M0103807不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel7
78M0092349电气板PLATE - ELECTRICAL1
840011145螺钉（M8 X 10）不锈钢SCREW (M8 x 10) Stainless Steel1
9400213不锈钢螺母 (M8)NUT (M8) Stainless Steel1
1026993锁紧垫圈 (.312)LOCKWASHER (.312)1
108M0204647锁紧垫圈 (.312)LOCKWASHER (.312)1
118M0116532ECM 65HP 四冲程喷泵ECM 65HP 4S Jet1
118M0168135ECM-65HP FS JETECM-65HP FS JET1
118M0088061ECM 75HP 四冲程ECM 75HP 4S1
118M0168130ECM-75HP FSECM-75HP FS1
118M0098622ECM 75HP 四冲程 SeaProECM 75HP 4S SeaPro1
118M0168127ECM-75HP FS SEAPRECM-75HP FS SEAPR1
118M0098515ECM 80HP 四冲程ECM 80HP 4S1
118M0168131ECM-80HP FSECM-80HP FS1
118M0116533ECM 80HP 四冲程喷泵ECM 80HP 4S Jet1
118M0168136ECM-80HP FS JETECM-80HP FS JET1
118M0088062ECM 90HP 四冲程ECM 90HP 4S1
118M0168132ECM-90HP FSECM-90HP FS1
118M0098623ECM 90HP 四冲程 SeaProECM 90HP 4S SeaPro1
118M0168128ECM-90HP FS SEAPRECM-90HP FS SEAPR1
118M0098517ECM 100HP 四冲程ECM 100HP 4S1
118M0168133ECM-100HP FSECM-100HP FS1
118M0088063ECM 115HP 四冲程ECM 115HP 4S1
118M0168134ECM-115HP FSECM-115HP FS1
118M0098624ECM 115HP 四冲程 SeaProECM 115HP 4S SeaPro1
118M0168129ECM-115HP FS SEAPECM-115HP FS SEAP1
12858954卡箍(0.625英寸)CLIP (.625)1
13889664螺母(1.500-18)尼龙黑NUT (1.500-18) Black Nylon1
14882751继电器RELAY4
148M0219830继电器RELAY4
158M0047885保险丝盖(含备件)FUSE COVER With Spares1
16858754保险丝盖COVER Fuse1
178M6001733继电器双钉卡扣CLIP - RELAY, DOUBLE NAIL4
18821555001护孔环GROMMET4
188M0153609护孔环GROMMET4
198M0072821电气板盖COVER Electrical Plate1
198M0163127电气盖COVER ELECTRIC1
198M0100266电气板盖COVER, Electrical Plate1
198M0163128电气盖COVER ELECTRICAL1
208M0088351电压调节器VOLTAGE REGULATOR1
208M0133642电压调节器VOLTAGE REGULATOR1
2188552530螺丝(M6×30毫米)不锈钢SCREW (M6 x 30 mm) Stainless Steel6
218M0103808螺丝(M6×30毫米)不锈钢SCREW (M6 x 30 mm) Stainless Steel6
228M0072790电压调节器衬垫GASKET Voltage Regulator1
238M0098218维护周期标贴DECAL Maintenance Schedule1
248M0094686维护周期标贴DECAL Maintenance Schedule1
258M2100378启动线束HARNESS Starter1
2688439A35电缆总成 蓄电池-正极CABLE ASSEMBLY Battery - Positive1
2788439A26蓄电池负极电缆总成CABLE ASSEMBLY Battery - Negative1
288M600192340安保险丝FUSE 40 AMP1
29828054保险丝盖COVER Fuse1

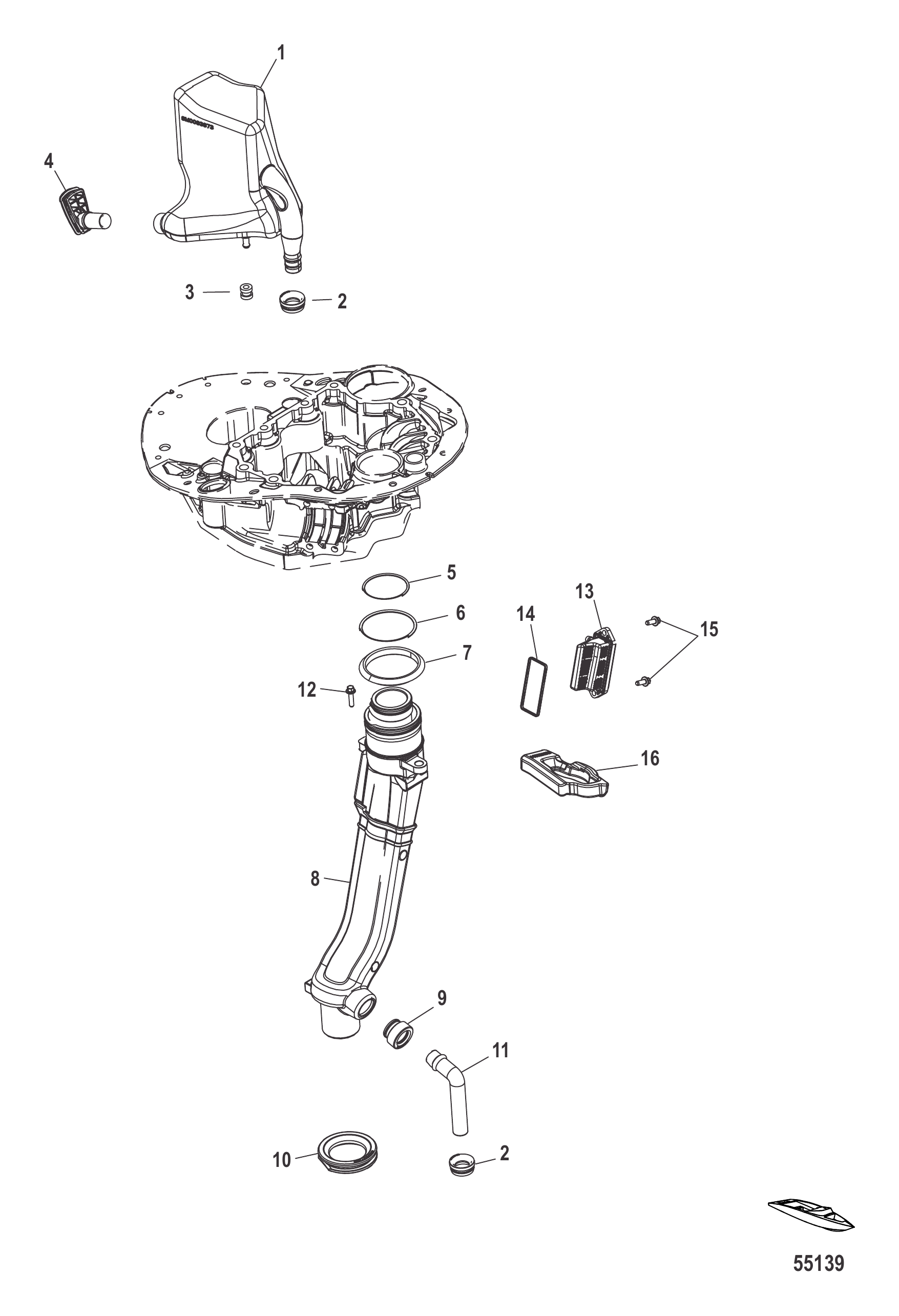

图 16排气系统 Exhaust
排气系统 Exhaust
REF零件编号中文名称英文名称数量
18M0088068消音器 怠速泄压MUFFLER Idle Relief1
28M0035476衬套 水管GROMMET Water Tube2
3821555001护孔环GROMMET1
38M0153609护孔环GROMMET1
48M0085666护孔环GROMMET1
58M0053512O型圈O-RING1
638106O型圈O-RING1
78M0056686密封件SEAL1
78M0240953密封件 排气管SEAL EXH PIPE1
88M0091529排气管EXHAUST PIPE1
88M0119778排气管EXHAUST PIPE1
98M0034043衬套 水管GROMMET Water Tube1
108M0057218护孔环GROMMET1
118M0060404水管 长型TUBE Water, Long1
1288552525不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel1
128M0103807不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel1
138M0060392滤网总成STRAINER ASSEMBLY1
138M0094282滤网总成STRAINER ASSEMBLY1
148M0043365密封件 滤网SEAL Strainer1
148M0142720密封件SEAL1
1588552516螺丝 (M6 x 16毫米) 不锈钢SCREW (M6 x 16 mm) Stainless Steel2
158M0103805螺丝 (M6 x 16毫米) 不锈钢SCREW (M6 x 16 mm) Stainless Steel2
168M0056684密封件SEAL1

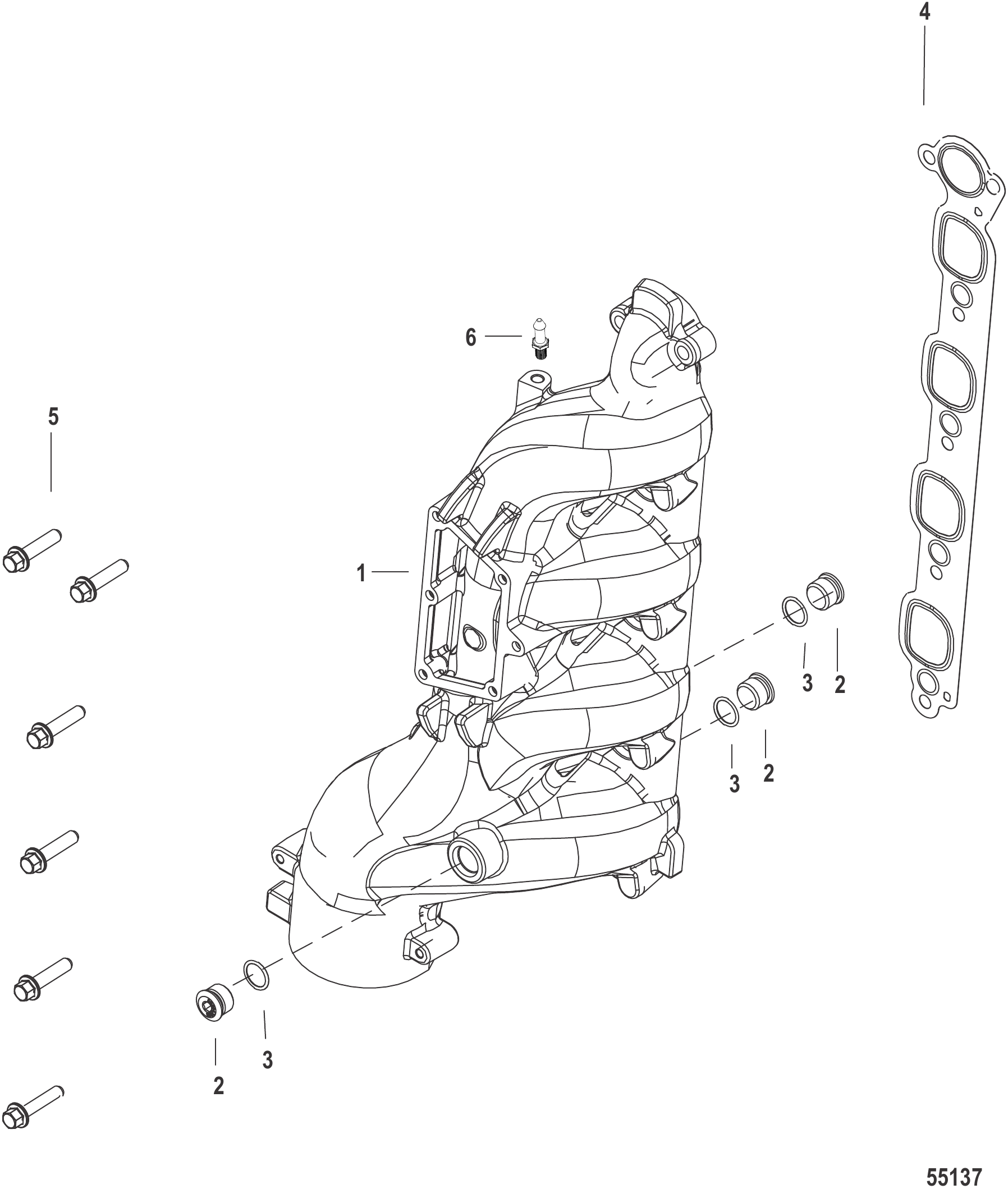

图 17排气歧管 Exhaust Manifold
排气歧管 Exhaust Manifold
REF零件编号中文名称英文名称数量
18M0090823排气歧管总成EXHAUST MANIFOLD ASSEMBLY1
28M0047995塞子 (18毫米)PLUG (18 MM)3
28M0087451堵头（18毫米）PLUG (18 mm)3
3NSSNOT SOLD SEPARATE O-RING3
48M0090822衬垫GASKET1
588552635螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)6
58M0103814螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)6
68M0062044销 安装PIN Mounting1

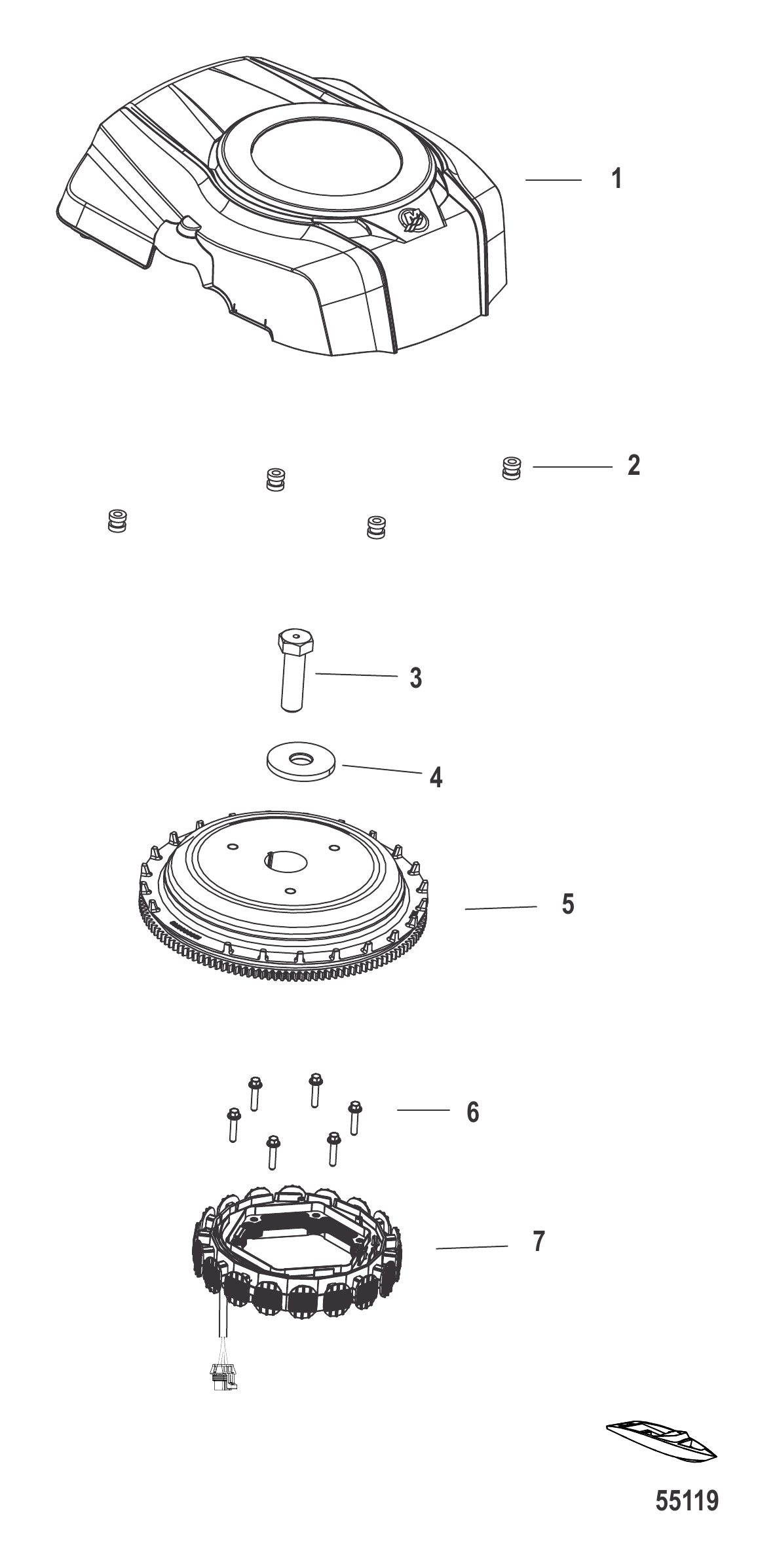

图 18飞轮与盖 Flywheel and Cover
飞轮与盖 Flywheel and Cover
REF零件编号中文名称英文名称数量
18M0088058飞轮盖FLYWHEEL COVER1
2821555001护孔环GROMMET4
28M0153609护孔环GROMMET4
3880515螺栓(M20×68)BOLT (M20 x 68)1
38M0147042螺栓BOLT1
48M0071547垫圈 (66 X 21 X 6.35毫米)WASHER (66 X 21 X 6.35 MM)1
48M0090010垫圈WASHER1
58M0090795飞轮总成FLYWHEEL ASSEMBLY1
58M0141336飞轮总成FLYWHEEL ASSEMBLY1
688552530螺丝(M6×30毫米)不锈钢SCREW (M6 x 30 mm) Stainless Steel6
68M0103808螺丝(M6×30毫米)不锈钢SCREW (M6 x 30 mm) Stainless Steel6
78M0088059定子总成 完整STATOR ASSEMBLY Complete1

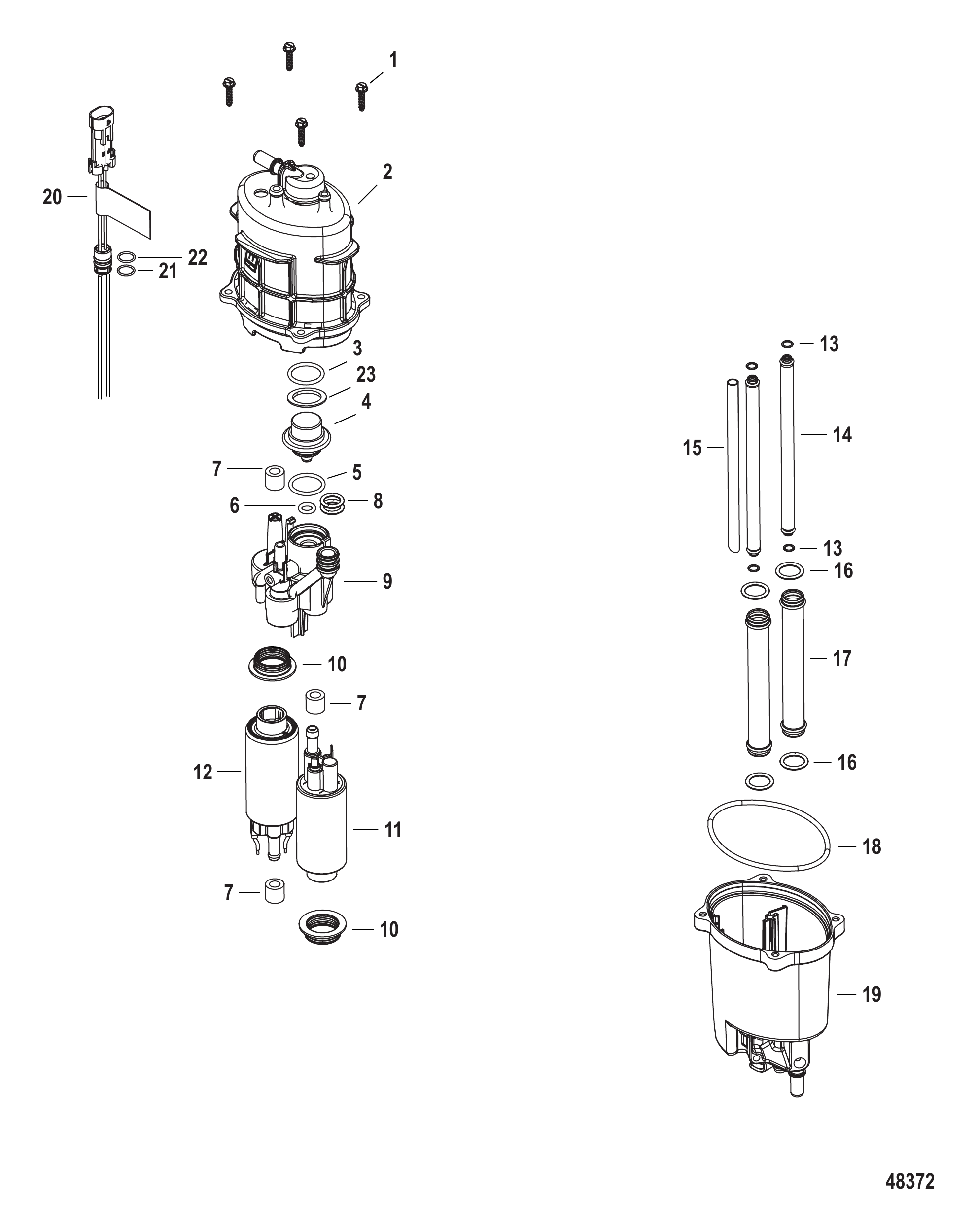

图 19燃油供给模块组件 8M0057676 - 2B458410及以下 Fuel Supply Module Components 8M0057676 - 2B458410 and Below
燃油供给模块组件 8M0057676 - 2B458410及以下 Fuel Supply Module Components 8M0057676 - 2B458410 and Below
REF零件编号中文名称英文名称数量
-8M0057676燃油供应模块 双泵FUEL SUPPLY MODULE Dual Pump1
18M0053756螺钉 Plastite W/ HX WSR HDSCREW Plastite W/ HX WSR HD4
28M0053726燃油供应模块 上壳体FSM TOP HOUSING1
28M0158344燃油供应模块 上壳体FSM TOP HOUSING1
3NSSO型圈(不单独销售)NOT SOLD SEPARATE O-Ring1
48M0053749调节器总成REGULATOR ASSEMBLY1
48M0242586调节器总成REGULATOR ASSEMBLY1
5NSSO型圈(不单独销售)NOT SOLD SEPARATE O-Ring1
6NSSO型圈(不单独销售)NOT SOLD SEPARATE O-Ring1
7NSS不单独销售 密封件NOT SOLD SEPARATE Seal3
8NSSO型圈(不单独销售)NOT SOLD SEPARATE O-Ring2
98M0053727燃油供应模块 盖FSM CAP1
10NSS不单独销售 密封件NOT SOLD SEPARATE Seal2
118M0062771泵总成 低压PUMP ASSY Low Pressure1
128M0062770泵总成 高压PUMP ASSY High Pressure1
13NSSO型圈(不单独销售)NOT SOLD SEPARATE O-Ring4
148M0053735油管 燃油TUBE Fuel2
148M0119250管TUBE2
158M0053755油管 吸油TUBE Suction1
16NSSO型圈(不单独销售)NOT SOLD SEPARATE O-Ring4
178M0053734水管TUBE Water2
178M0120073管TUBE2
18NSS不单独销售 密封件NOT SOLD SEPARATE Seal1
198M0053725燃油供应模块 下壳体FSM BOTTOM HOUSING1
198M0132733燃油供应模块 双泵FUEL SUPPLY MODULE Dual Pump1
208M6001398线束总成ELECTRICAL HARNESS ASSEMBLY1
208M6004776线束总成HARNESS ASSEMBLY1
21NSSO型圈(不单独销售)NOT SOLD SEPARATE O-Ring1
22NSSO型圈(不单独销售)NOT SOLD SEPARATE O-Ring1
23NSSNOT SOLD SEPARATE Spacer1
-8M0057679燃油供应模块 密封件套装FSM SEAL KIT1

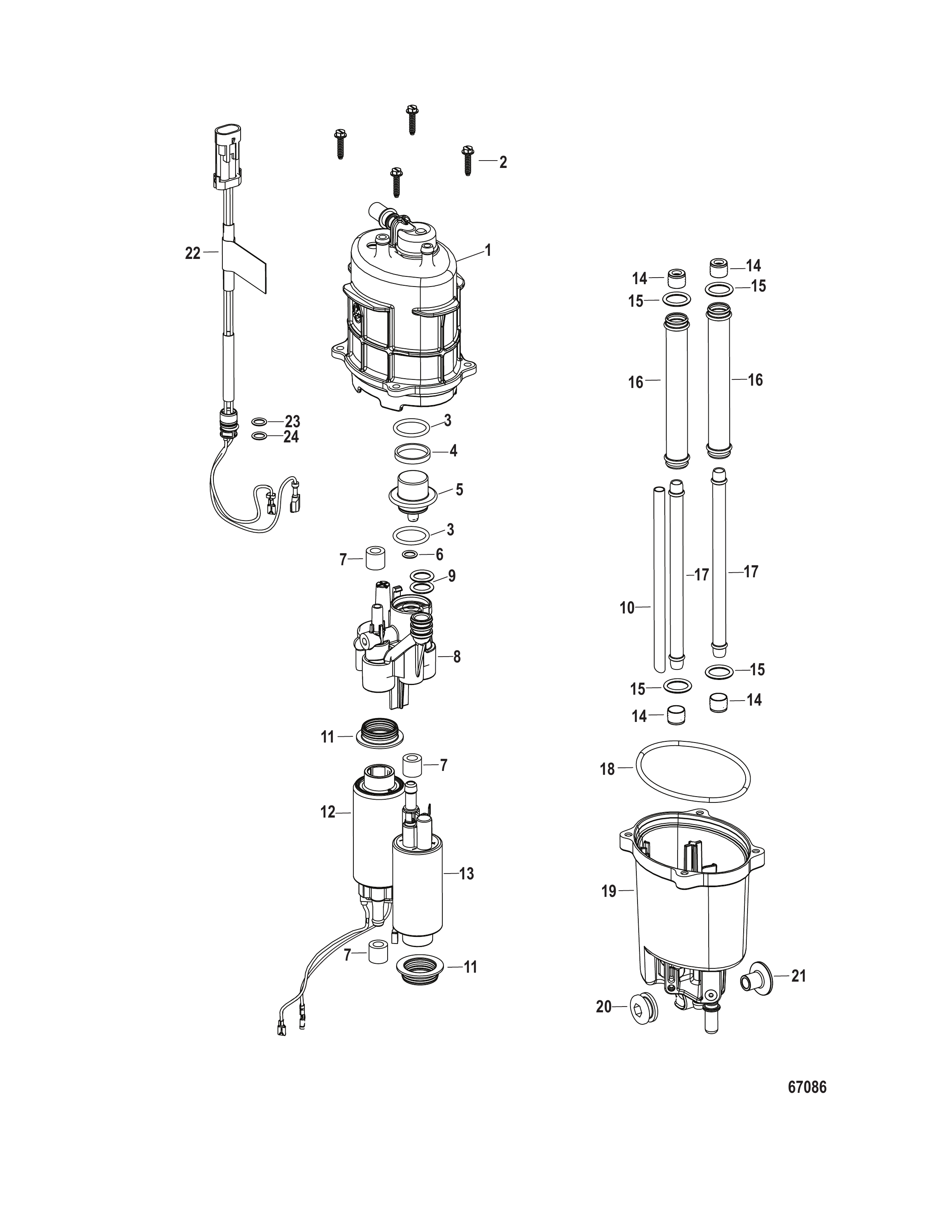

图 20燃油供给模块组件 8M0132733 - 2B458411和3B681564 Fuel Supply Module Components 8M0132733 - 2B458411 and 3B681564
燃油供给模块组件 8M0132733 - 2B458411和3B681564 Fuel Supply Module Components 8M0132733 - 2B458411 and 3B681564
REF零件编号中文名称英文名称数量
-8M0132733燃油供应模块 双泵FUEL SUPPLY MODULE Dual Pump1
18M0053726燃油供应模块 上壳体FSM TOP HOUSING1
18M0158344燃油供应模块 上壳体FSM TOP HOUSING1
28M0053756螺钉 Plastite W/ HX WSR HDSCREW Plastite W/ HX WSR HD4
3NSSO型圈(不单独销售)NOT SOLD SEPARATE O-Ring2
4NSSNOT SOLD SEPARATE Spacer1
58M0053749调节器总成REGULATOR ASSEMBLY1
58M0242586调节器总成REGULATOR ASSEMBLY1
6NSSO型圈(不单独销售)NOT SOLD SEPARATE O-Ring1
7NSS不单独销售 密封件NOT SOLD SEPARATE Seal3
88M0053727燃油供应模块 盖FSM CAP1
9NSSO型圈(不单独销售)NOT SOLD SEPARATE O-Ring2
108M0053755油管 吸油TUBE Suction1
11NSS不单独销售 密封件NOT SOLD SEPARATE Seal2
128M0062770泵总成 高压PUMP ASSY High Pressure1
138M0062771泵总成 低压PUMP ASSY Low Pressure1
14NSS不单独销售 密封件NOT SOLD SEPARATE Seal4
15NSSO型圈(不单独销售)NOT SOLD SEPARATE O-Ring4
168M0120073水管TUBE Water2
178M0130873油管 燃油TUBE Fuel2
18NSS不单独销售 密封件NOT SOLD SEPARATE Seal1
198M0130878燃油供应模块 下壳体FSM BOTTOM HOUSING1
198M0158426燃油供应模块 下壳体FSM BOTTOM HOUSING1
20895319护孔环GROMMET1
21856954衬套BUSHING1
228M6004776线束总成HARNESS ASSEMBLY1
23NSSO型圈(不单独销售)NOT SOLD SEPARATE O-Ring1
24NSSO型圈(不单独销售)NOT SOLD SEPARATE O-Ring1
-8M0133370燃油供应模块 密封件套装FSM SEAL KIT1

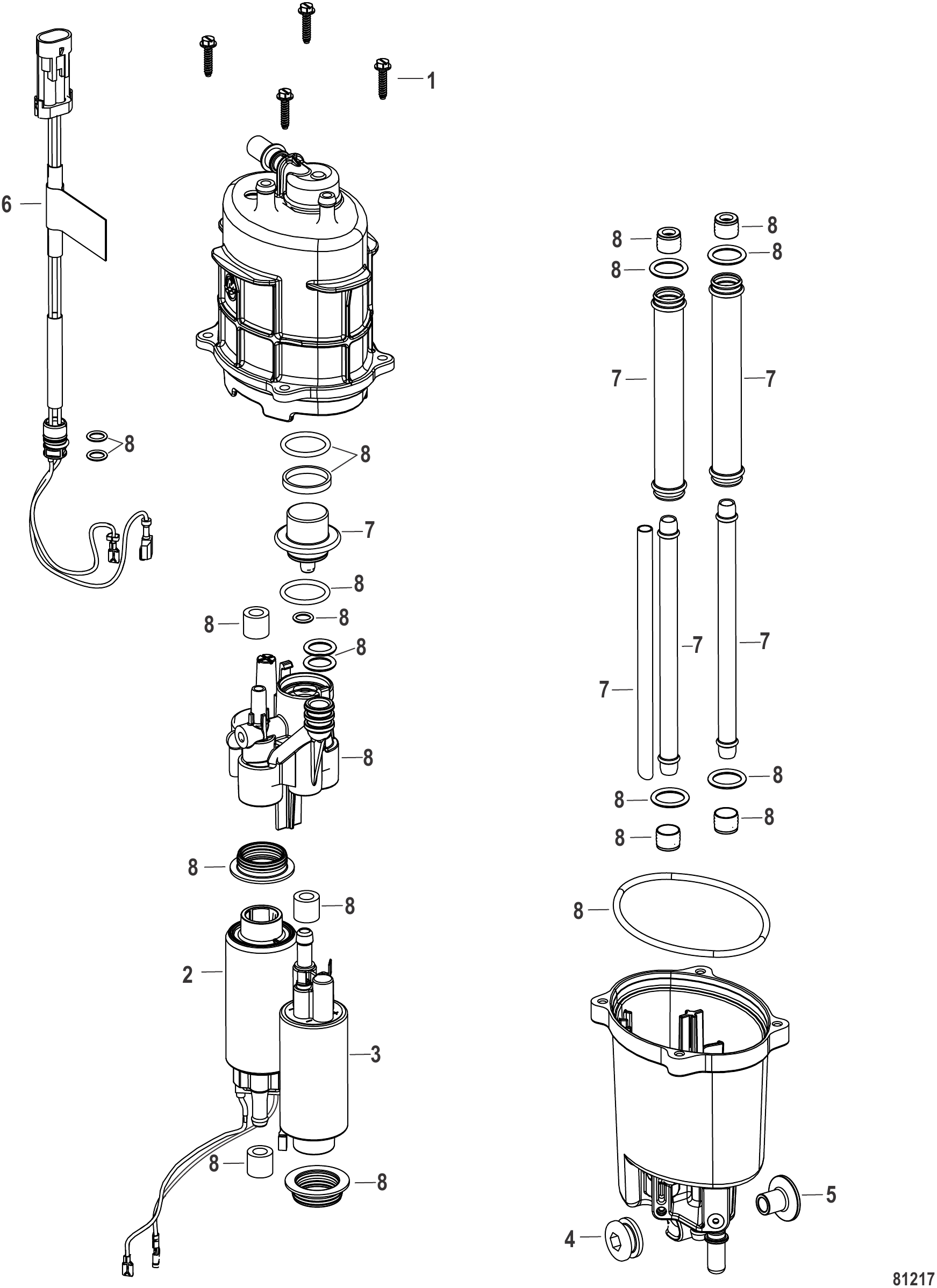

图 21燃油供给模块组件 8M0235171 - 3B681565及以上 Fuel Supply Module Components 8M0235171 - 3B681565 and Up
燃油供给模块组件 8M0235171 - 3B681565及以上 Fuel Supply Module Components 8M0235171 - 3B681565 and Up
REF零件编号中文名称英文名称数量
-8M0235171燃油供应模块 双泵FUEL SUPPLY MODULE Dual Pump1
18M0053756螺钉 Plastite W/ HX WSR HDSCREW Plastite W/ HX WSR HD4
28M0245916泵总成 高压PUMP ASSEMBLY High Pressure1
38M0245917泵总成 低压PUMP ASSEMBLY Low Pressure1
4895319护孔环GROMMET1
5856954衬套BUSHING1
6NSS不单独出售 线束, 穿线NOT SOLD SEPARATE Harness, Pass Thru1
78M0245915燃油供应模块 维修套装FSM REPAIR KIT1
88M0133370燃油供应模块 密封件套装FSM SEAL KIT1

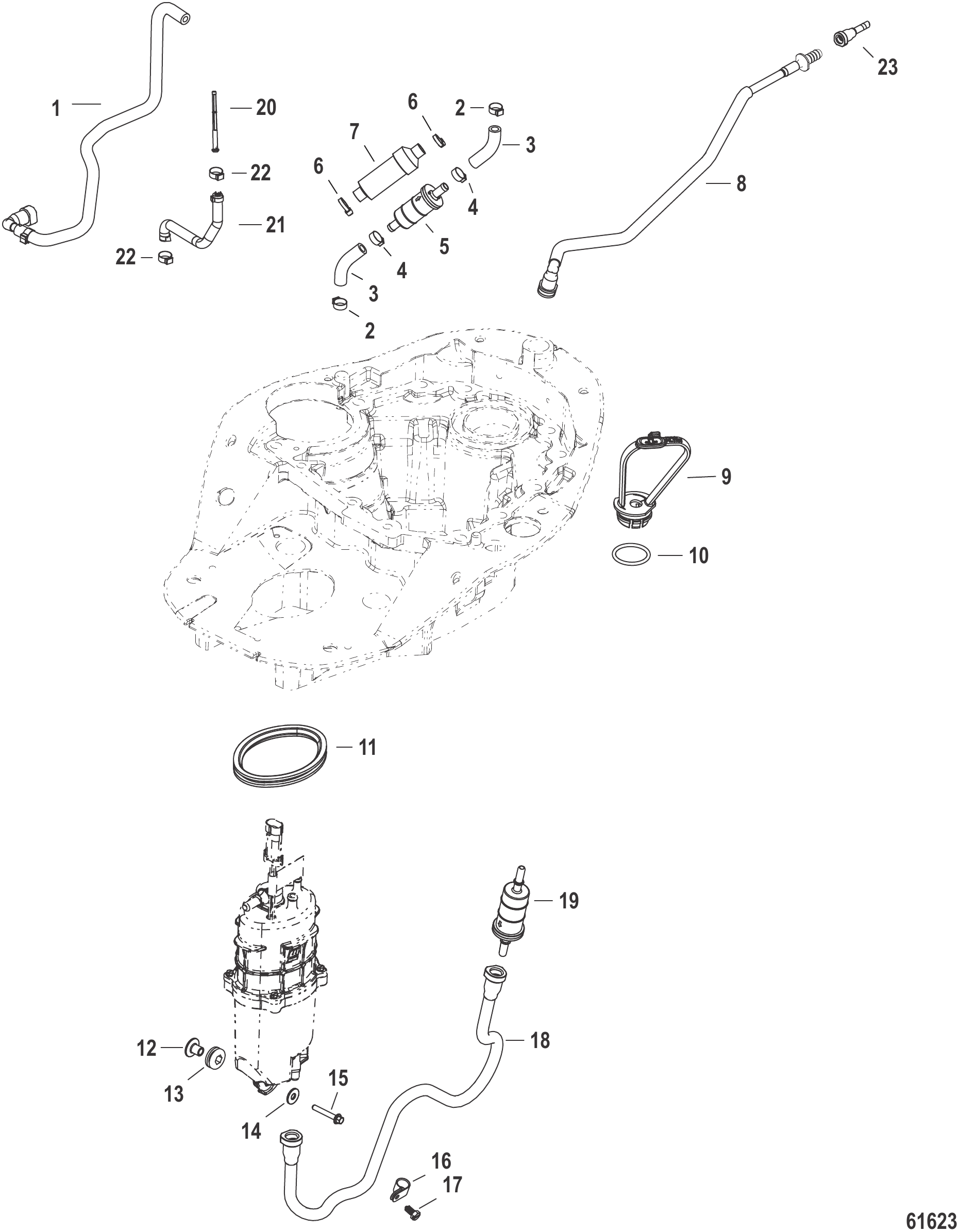

图 22燃油供给系统软管及模块 Fuel Supply System hoses and module
燃油供给系统软管及模块 Fuel Supply System hoses and module
REF零件编号中文名称英文名称数量
18M0034897歧管参考软管HOSE Manifold Ref1
2888988028卡箍 (16.2 mm)CLAMP (16.2 mm)2
28M0204696卡箍CLAMP2
38M0028121FSM至油轨软管HOSE FSM to Rail2
38M0095536FSM至燃油轨软管HOSE FSM to Fuel Rail2
38M0154660燃油滤清器套件FUEL FILTER KIT2
4888988028卡箍 (16.2 mm)CLAMP (16.2 mm)2
48M0204696卡箍CLAMP2
58M0057677燃油滤清器-直列式FUEL FILTER Inline1
58M0154660燃油滤清器套件FUEL FILTER KIT1
6816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
78M0059106静态套筒-直径19.05SLEEVE Static, Dia 19.051
78M0154660燃油滤清器套件FUEL FILTER KIT1
88M0028125燃油软管-进口至滤清器HOSE Fuel- Inlet to Filter1
88M0203766软管总成HOSE ASSY1
98M0057680燃油滤清器固定座RETAINER Fuel Filter1
108M0240822O型圈(0.921×0.139英寸)O RING (.921 x .139)1
118M0037209燃油供给模块固定衬套GROMMET FSM Retainer1
12856954衬套BUSHING1
13834985护孔环GROMMET1
138M0190980护孔环GROMMET1
1465567不锈钢垫圈(0.265x0.750x0.048)WASHER (.265 x .750 x .048) Stainless Steel1
1588552525不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel1
158M0103807不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel1
168M0037098软管卡箍CLIP Hose1
168M0224396卡箍 软管CLIP HOSE1
178M0037204尼龙压入螺钉 (.25-20 x .50)SCREW Nylon, Push-In (.25-20 x .50)1
188M0028127燃油软管-滤清器至FSMHOSE Fuel- Filter to FSM1
188M0203764软管总成HOSE ASSY1
19879885Q燃油管路滤清器FILTER Fuel In-Line1
-8M0154660燃油滤清器套件FUEL FILTER KIT1
208M0090809燃油轨滤网SCREEN Fuel Rail1
218M0095536FSM至燃油轨软管HOSE FSM to Fuel Rail1
22855697卡箍CLAMP2
228M0204696卡箍CLAMP2
238M6002065接头 10毫米FITTING 10MM1
图 23齿轮箱壳体（驱动轴，逆时针旋转2.08速比）SEAPRO 3B111735及以上 Gear Housing, Driveshaft, Counter Rotation (2.08 Ratio) SEAPRO 3B111735 and Up

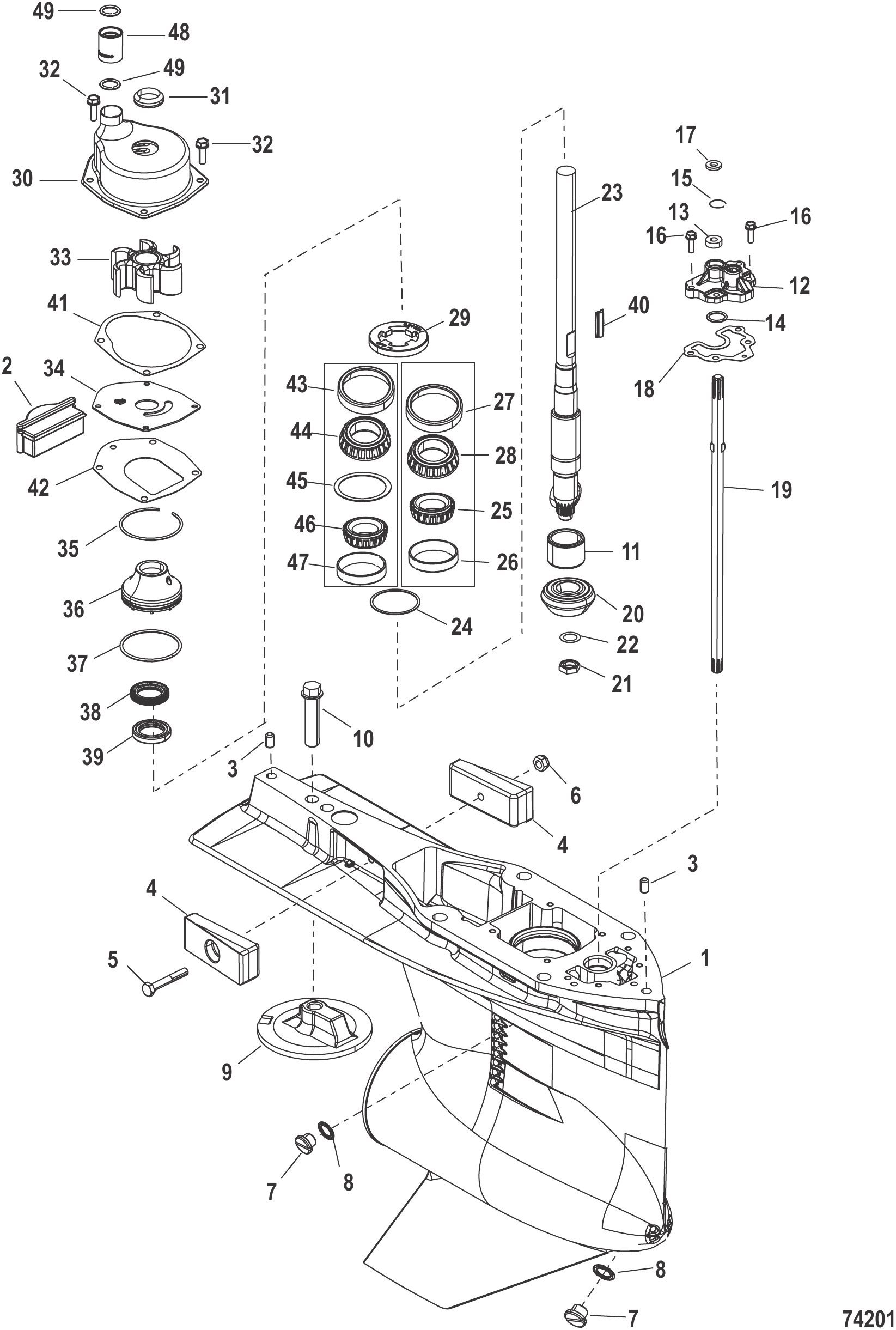

齿轮箱壳体（驱动轴，逆时针旋转2.08速比）SEAPRO 3B111735及以上 Gear Housing, Driveshaft, Counter Rotation (2.08 Ratio) SEAPRO 3B111735 and Up
REF零件编号中文名称英文名称数量
-8M0187303齿轮箱总成-完整CXL型2.04:1GEAR HOUSING ASSEMBLY Complete, CXL, 2.04:11
-8M0236155GC 150 CXL SEAPROGC 150 CXL SEAPRO1
18M0190046齿轮箱 基本型GEARCASE Basic1
28M0010459填充块FILLER BLOCK1
38M0084244定位销 0.375x0.620PIN Dowel, .375 x .6202
4826134Q阳极块ANODE1
54000333螺钉(M6 x 40)SCREW (M6 x 40)1
6401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
779953A04塞组件(.375-16×.250)PLUG ASSEMBLY (.375-16 x .250)2
8830749密封件SEAL2
88M0204693放油螺塞密封件SEAL Drain Plug2
976214T5阳极套件ANODE KITAR
976214A6阳极套件ANODE KITAR
976214Q5阳极套件ANODE KITAR
10806327螺钉(.437-14 x 1.750)SCREW (.437-14 x 1.750)1
108M0204686螺钉SCREW1
1142647A1滚柱轴承总成BEARING ASSEMBLY Roller1
128M0144416盖总成COVER ASSEMBLY1
138164641油封SEAL Oil1
138M0246145油封OIL SEAL1
14896522O型圈(799×.103)O-RING (799 x .103)1
158M0046563挡圈RING Retaining1
168M0144417螺钉(M6 x 16)SCREW (M6 x 16)4
1777674垫圈(.35 x .75 x .12)WASHER (.35 x .75 x .12)1
188M0144418衬垫GASKET1
198M0144415换挡轴 加长型SHIFT SHAFT X-Long1
-8M0065268齿轮组-前进/小齿轮反转向1.92速比(13/25)GEAR SET Forward/Pinion, Counter Rotation, 1.92 Ration (13/25)1
20NSS小齿轮(不单独销售)NOT SOLD SEPARATE Pinion1
2135921螺母(0.625-18)NUT (.625-18)1
2292721垫圈(.965×0.630)WASHER (.965 x .630)1
238M0144411驱动轴-XL型DRIVESHAFT XL1
248M0063268垫片组SHIM SETAR
25NSS不单独销售 滚子轴承组件NOT SOLD SEPARATE Roller Bearing Assembly1
26NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
27NSS不单独销售 滚子轴承组件NOT SOLD SEPARATE Roller Bearing Assembly1
28NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
298245191固定座RETAINER1
30817275A09水泵壳体-总成HOUSING Water Pump-Complete1
31861415A1密封套件SEAL KIT1
3240011128不锈钢螺钉(M6x20)SCREW (M6 x 20) Stainless Steel4
328M0204741六角带垫大帽螺钉(M6x1.0x20)SCREW (M6 x 1.0 x 20) Hex Wash HD4
3343026T2叶轮IMPELLER1
348172761面板FACEPLATE1
348M0204709面板FACEPLATE1
35880719挡圈RING Retaining1
368M0007131油封座组件CARRIER ASSEMBLY Oil Seal1
37896523O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
378M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
38NSS不单独销售 油封NOT SOLD SEPARATE Oil Seal1
39NSS不单独销售 油封NOT SOLD SEPARATE Oil Seal1
408M0032833键KEY1
408M0204723键KEY1
418172771水泵上垫片GASKET Water Pump, Upper1
428M0142616衬垫 面板至齿轮箱GASKET Face Plate to Gearcase1
4336387A1轴承总成(滚子/外圈)BEARING ASSEMBLY Roller/Cup1
438M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
44NSSNOT SOLD SEPARATE CUP1
458M0063267垫片组SHIM SETAR
4648939A2圆锥滚子轴承BEARING Taper Roller1
468M0146553杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
47NSSNOT SOLD SEPARATE CUP1
488M0036238联轴器 水泵COUPLING Water Pump1
488M0214995联轴器 水泵COUPLING Water Pump1
4921836O型圈(.796 x .139)O-RING (.796 x .139)2
498M0204645O型圈(.796 x .139)O-RING (.796 x .139)2
-830749A01齿轮箱密封套件SEAL KIT Gear Housing1
-43026Q06水泵叶轮维修套件REPAIR KIT Water Pump Impeller1
-8M0100526水泵叶轮维修套件REPAIR KIT Water Impeller1
-817275A08水泵上修包REPAIR KIT Water Pump-Upper1
图 24齿轮箱壳体（驱动轴，顺时针旋转2.08速比）SEAPRO 3B111735及以上 Gear Housing, Driveshaft, Standard Rotation (2.08 Ratio) SEAPRO 3B111735 and Up
齿轮箱壳体（驱动轴，顺时针旋转2.08速比）SEAPRO 3B111735及以上 Gear Housing, Driveshaft, Standard Rotation (2.08 Ratio) SEAPRO 3B111735 and Up
REF零件编号中文名称英文名称数量
-8M0187301齿轮箱总成-完整L型2.08:1GEAR HOUSING ASSEMBLY Complete, L, 2.08:11
-8M0187302齿轮箱总成-完整超长型2.08:1GEAR HOUSING ASSEMBLY Complete, X-Long, 2.08:11
-8M0236153GC 150 XL SEAPROGC 150 XL SEAPRO1
18M0190046齿轮箱 基本型GEARCASE Basic1
28M0010459填充块FILLER BLOCK1
38M0084244定位销 0.375x0.620PIN Dowel, .375 x .6202
4826134Q阳极块ANODE1
54000333螺钉(M6 x 40)SCREW (M6 x 40)1
6401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
779953A04塞组件(.375-16×.250)PLUG ASSEMBLY (.375-16 x .250)2
8830749密封件SEAL2
88M0204693放油螺塞密封件SEAL Drain Plug2
976214T5阳极套件ANODE KIT1
976214A6阳极套件ANODE KIT1
976214Q5阳极套件ANODE KIT1
10806327螺钉(.437-14 x 1.750)SCREW (.437-14 x 1.750)1
108M0204686螺钉SCREW1
1142647A1滚柱轴承总成BEARING ASSEMBLY Roller1
128M0144416盖总成COVER ASSEMBLY1
138164641油封SEAL Oil1
138M0246145油封OIL SEAL1
14896522O型圈(799×.103)O-RING (799 x .103)1
158M0046563挡圈RING Retaining1
168M0144417螺钉(M6 x 16)SCREW (M6 x 16)4
1777674垫圈(.35 x .75 x .12)WASHER (.35 x .75 x .12)1
188M0144418衬垫GASKET1
198M0144414换挡轴(长型)SHIFT SHAFT Long1
198M0144415换挡轴 加长型SHIFT SHAFT X-Long1
-880709A02齿轮组-前进/小齿轮标准转向2.08速比(12/25)GEAR SET Forward/Pinion, Standard Rotation, 2.08 Ratio (12/25)1
-880709A03齿轮组-前进/小齿轮标准转向2.08(12/25)GEAR SET Forward/Pinion, Standard Rotation 2.08 (12/25)1
20NSS小齿轮(不单独销售)NOT SOLD SEPARATE Pinion1
2135921螺母(0.625-18)NUT (.625-18)1
2292721垫圈(.965×0.630)WASHER (.965 x .630)1
238M0144407长驱动轴DRIVESHAFT Long1
238M0144411驱动轴-XL型DRIVESHAFT XL1
248M0063267垫片组SHIM SET1
258M0063268垫片组SHIM SETAR
2648939A2圆锥滚子轴承BEARING Taper Roller1
268M0146553杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
27NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
2836387A1轴承总成(滚子/外圈)BEARING ASSEMBLY Roller/Cup1
288M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
29NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
308245191固定座RETAINER1
31817275A09水泵壳体-总成HOUSING Water Pump-Complete1
32861415A1密封套件SEAL KIT1
338M4503518螺钉(M6×1.0×20)SCREW (M6 X 1.0 X 20)4
338M0204741六角带垫大帽螺钉(M6x1.0x20)SCREW (M6 x 1.0 x 20) Hex Wash HD4
3443026T2叶轮IMPELLER1
358172761面板FACEPLATE1
358M0204709面板FACEPLATE1
36880719挡圈RING Retaining1
378M0007131油封座组件CARRIER ASSEMBLY Oil Seal1
38896523O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
388M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
39NSS不单独销售 油封NOT SOLD SEPARATE Oil Seal1
40NSS不单独销售 油封NOT SOLD SEPARATE Oil Seal1
418M0032833键KEY1
418M0204723键KEY1
428172771水泵上垫片GASKET Water Pump, Upper1
438M0112903橡胶模压钢衬垫GASKET Rubber Molded Steel1
438M0142616衬垫 面板至齿轮箱GASKET Face Plate to Gearcase1
448M0036238联轴器 水泵COUPLING Water Pump1
448M0214995联轴器 水泵COUPLING Water Pump1
4521836O型圈(.796 x .139)O-RING (.796 x .139)2
458M0204645O型圈(.796 x .139)O-RING (.796 x .139)2
-8M0146719齿轮箱密封套件SEAL KIT Gear Housing1
-8M0100526水泵叶轮维修套件REPAIR KIT Water Impeller1
-817275A08水泵上修包REPAIR KIT Water Pump-Upper1

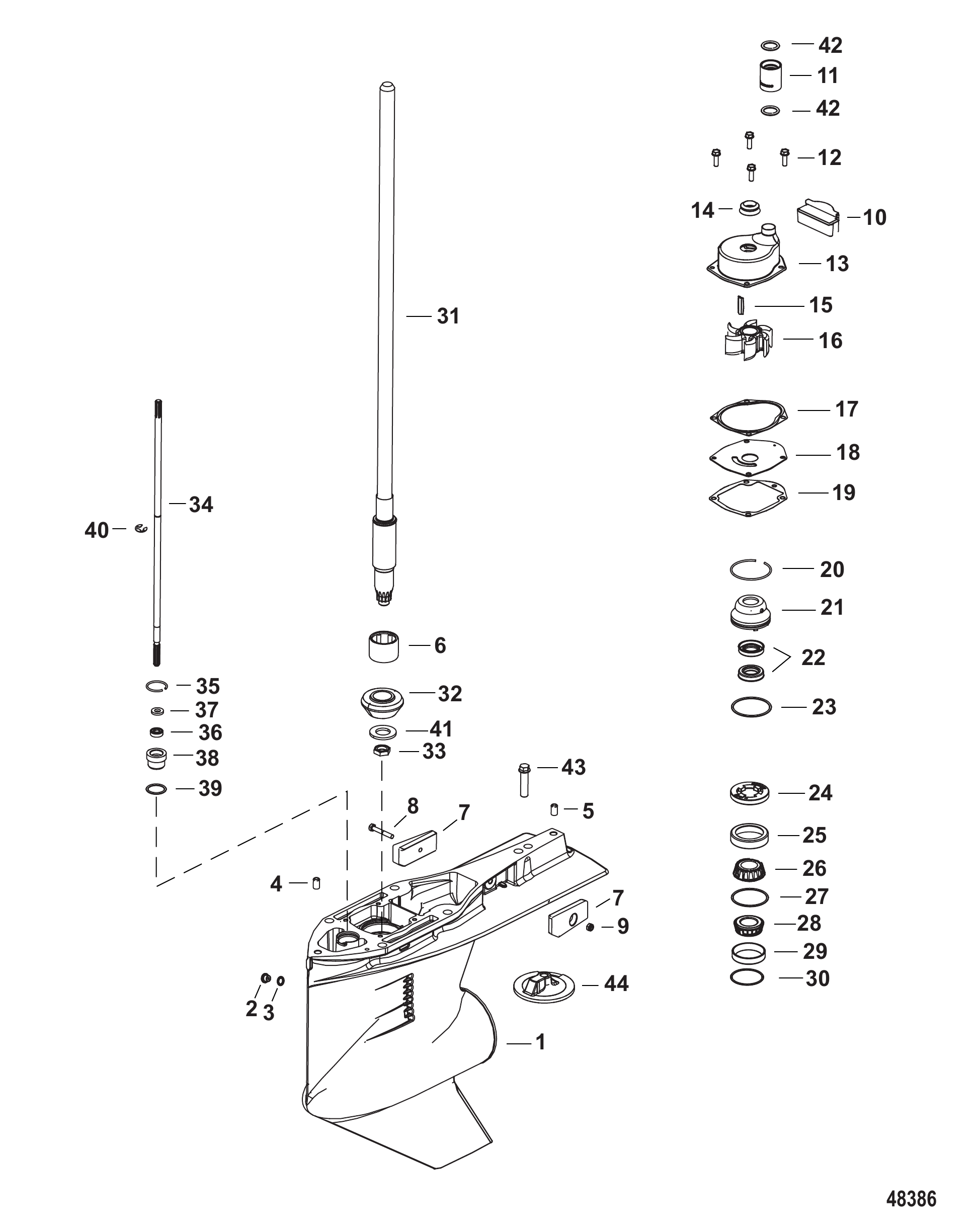

图 25齿轮箱壳体（驱动轴，顺/逆时针旋转1.92速比） Gear Housing, Driveshaft Standard/Counter Rotation (1.92 Ratio)
齿轮箱壳体（驱动轴，顺/逆时针旋转1.92速比） Gear Housing, Driveshaft Standard/Counter Rotation (1.92 Ratio)
REF零件编号中文名称英文名称数量
-8M0057746齿轮箱总成 完整 长型GEAR HOUSING ASSEMBLY Complete, Long1
-8M0099218齿轮箱总成 完整 长型GEAR HOUSING ASSEMBLY Complete, Long1
-8M0099218齿轮箱总成 完整 长型GEAR HOUSING ASSEMBLY Complete, Long1
-8M0230763齿轮箱总成 完整 长型GEAR HOUSING ASSEMBLY Complete, Long1
-8M0099909齿轮箱总成 完整 长型GEAR HOUSING ASSEMBLY Complete, Long1
-8M0061028齿轮箱总成（完整加长版）GEAR HOUSING ASSEMBLY Complete, X-Long1
-8M0099221齿轮箱总成（完整加长版）GEAR HOUSING ASSEMBLY Complete, X-Long1
-8M0099221齿轮箱总成（完整加长版）GEAR HOUSING ASSEMBLY Complete, X-Long1
-8M0230764齿轮箱总成（完整加长版）GEAR HOUSING ASSEMBLY Complete, X-Long1
-8M0099910齿轮箱总成（完整加长版）GEAR HOUSING ASSEMBLY Complete, X-Long1
-8M0061029齿轮箱总成(完整), CXL型GEAR HOUSING ASSEMBLY Complete, CXL1
-8M0107156齿轮箱总成(完整), CXL型GEAR HOUSING ASSEMBLY Complete, CXL1
-8M0107156齿轮箱总成(完整), CXL型GEAR HOUSING ASSEMBLY Complete, CXL1
-8M0230765齿轮箱总成(完整), CXL型GEAR HOUSING ASSEMBLY Complete, CXL1
-8M0099914齿轮箱总成(完整), CXL型GEAR HOUSING ASSEMBLY Complete, CXL1
18M0057747基本齿轮箱GEAR HOUSING Basic1
18M0231097基本齿轮箱GEAR HOUSING Basic1
18M0099907基本齿轮箱GEAR HOUSING Basic1
279953A04塞组件(.375-16×.250)PLUG ASSEMBLY (.375-16 x .250)1
3830749密封件SEAL1
38M0204693放油螺塞密封件SEAL Drain Plug1
443043定位销-带孔(0.375×0.625)PIN Dowel - With Hole (.375 x .625)1
48M0084244定位销 0.375x0.620PIN Dowel, .375 x .6201
543044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)1
642647A1滚柱轴承总成BEARING ASSEMBLY Roller1
7826134Q阳极块ANODE2
84000333螺钉(M6 x 40)SCREW (M6 x 40)1
9401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
108M0010459填充块FILLER BLOCK1
118M0036238联轴器 水泵COUPLING Water Pump1
118M0214995联轴器 水泵COUPLING Water Pump1
121993720螺钉 (M6 x 20)SCREW (M6 x 20)4
128M0204706螺丝M6x20六角SCREW M6 x 20 Hex4
13817275A10水泵壳体套件HOUSING KIT Water Pump1
148M2014338端面密封SEAL Face1
148M0142851V型面密封环V RING Face Seal1
-8M0057717叶轮维修套件IMPELLER REPAIR KIT1
-8M0100526水泵叶轮维修套件REPAIR KIT Water Impeller1
158M0032833键KEY1
158M0204723键KEY1
1643026T2叶轮IMPELLER1
178172771水泵上垫片GASKET Water Pump, Upper1
188172761面板FACEPLATE1
188M0204709面板FACEPLATE1
198M0050720衬垫GASKET1
198M0142616衬垫 面板至齿轮箱GASKET Face Plate to Gearcase1
20880719挡圈RING Retaining1
218M0057748油封载体总成OIL SEAL CARRIER ASSEMBLY1
2289238油封SEAL Oil2
23896523O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
238M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
24853651固定座RETAINER1
2533138A1圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
26NSS不单独销售NOT SOLD SEPARATE1
278M0053110垫片组SHIM SET1
278M0063267垫片组SHIM SET1
2877420A1滚柱轴承总成BEARING ASSEMBLY Roller1
288M0166756轴承总成BEARING ASSEMBLY1
29NSS不单独销售NOT SOLD SEPARATE1
3038657A1垫片组SHIM ASSEMBLY1
308M0063268垫片组SHIM SET1
318M0063505加长驱动轴DRIVESHAFT X-Long1
318M0063503长驱动轴DRIVESHAFT Long1
-8M0057741前进/小齿轮组(标准旋转, 1.92速比 13/25)GEAR SET Forward/Pinion, Standard Rotation, 1.92 Ratio (13/25)1
-8M0096703齿轮组GEAR SET1
-8M0096704前进/小齿轮组(标准旋转, 1.92速比 13/25)GEAR SET Forward/Pinion, Standard Rotation, 1.92 Ratio (13/25)1
-8M0065268齿轮组-前进/小齿轮反转向1.92速比(13/25)GEAR SET Forward/Pinion, Counter Rotation, 1.92 Ration (13/25)1
-8M0107833前进/小齿轮组(反向旋转, 1.92速比 13/25)GEAR SET Forward/PInion, Counter Rotation, 1.92 Ratio (13/25)1
32NSS小齿轮(不单独销售)NOT SOLD SEPARATE Pinion1
3335921螺母(0.625-18)NUT (.625-18)1
348M0031504换挡轴 加长型SHIFT SHAFT X-Long1
348M0140439换挡轴-XLSHIFT SHAFT-XL1
348M0031503换挡轴(长型)SHIFT SHAFT Long1
358M0029306挡圈RING Retaining1
368164641油封SEAL Oil1
368M0246145油封OIL SEAL1
3777674垫圈(.35 x .75 x .12)WASHER (.35 x .75 x .12)1
38813696A2衬套总成BUSHING ASSEMBLY1
3945258O型圈 (.987 x .103)O-RING (.987 x .103)1
4029641E型卡环E RING1
4192721垫圈(.965×0.630)WASHER (.965 x .630)1
4221836O型圈(.796 x .139)O-RING (.796 x .139)2
428M0204645O型圈(.796 x .139)O-RING (.796 x .139)2
43806327螺钉(.437-14 x 1.750)SCREW (.437-14 x 1.750)1
438M0204686螺钉SCREW1
4476214Q5阳极套件ANODE KIT1
-8M0057715水泵维修包(全套)COMPLETE WATER PUMP REPAIR KIT1
-8M0094529水泵维修包(全套)COMPLETE WATER PUMP REPAIR KIT1
-8M0057716齿轮箱密封套件GEARCASE SEAL KIT1
-8M0061040水泵上修包REPAIR KIT Water Pump-Upper1
-8M0060147尾鳍SKEG1

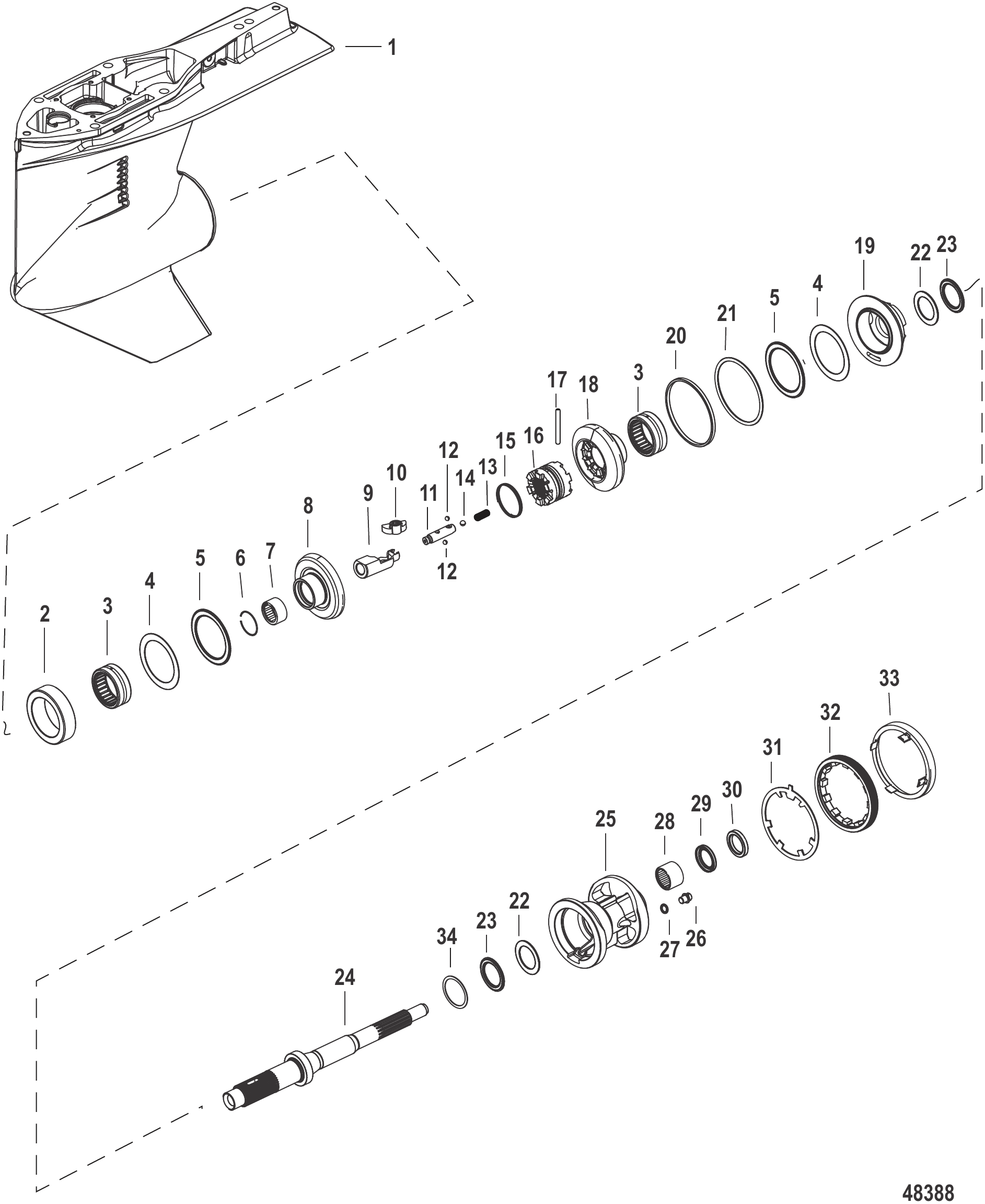

图 26齿轮箱壳体（螺旋桨轴，逆时针旋转1.92速比）2B172248及以下 Gear Housing, Propeller Shaft, Counter Rotation (1.92 Ratio) 2B172248 and Below
齿轮箱壳体（螺旋桨轴，逆时针旋转1.92速比）2B172248及以下 Gear Housing, Propeller Shaft, Counter Rotation (1.92 Ratio) 2B172248 and Below
REF零件编号中文名称英文名称数量
-8M0061029齿轮箱总成(完整), CXL型GEAR HOUSING ASSEMBLY Complete, CXL1
18M0057747基本齿轮箱GEAR HOUSING Basic1
28M0031508倒挡齿轮适配器ADAPTER Reverse Gear1
3814653001滚针轴承总成BEARING ASSEMBLY Needle Rollers2
3814653T滚针轴承总成BEARING ASSEMBLY Needle Rollers2
4815481止推垫片THRUST WASHER2
5815480推力轴承BEARING Thrust2
68M0031506挡圈RING Retaining1
68M0071554挡圈RING Retaining1
78M0057742滚针轴承BEARING Needle1
88M0065074倒挡齿轮(25齿, 反向旋转)GEAR Reverse, 25T, Counter Rotation1
98M0031291凸轮从动件FOLLOWER, CAM1
98M0105207左舷换挡凸轮套件SHIFT CAM KIT LH1
108M0031224换档凸轮CAM Shift1
118M0057749离合器作动杆ROD Clutch Actuator1
128M0054823球轴承(0.2500英寸直径) 已停产-无需更换BALL BEARING .2500 dia NLA - No Longer Required1
138M0058020压缩弹簧(外径0.305英寸) 已停产-无需更换SPRING Compression .305 OD NLA - No Longer Required1
148M0054824球轴承(0.3125英寸直径) 已停产-无需更换BALL BEARING .3125 dia NLA - No Longer Required1
158M0047945固定弹簧SPRING Retaining1
16NSS不单独销售NOT SOLD SEPARATE1
178M0045759十字销PIN Cross1
188M0065268齿轮组-前进/小齿轮反转向1.92速比(13/25)GEAR SET Forward/Pinion, Counter Rotation, 1.92 Ration (13/25)1
198M0031509前进齿轮轴承适配器BEARING ADAPTER Forward Gear1
208M0038346垫片5.316SHIM 5.316AR
208M0038347垫片5.366SHIM 5.366AR
208M0038348垫片5.416SHIM 5.416AR
208M0038349垫片5.466SHIM 5.466AR
208M0038350垫片5.516SHIM 5.516AR
208M0038351垫片5.566SHIM 5.566AR
208M0038352垫片5.616SHIM 5.616AR
208M0038353垫片5.666SHIM 5.666AR
208M0038354垫片5.716SHIM 5.716AR
208M0038355垫片5.766SHIM 5.766AR
208M0038356垫片5.816SHIM 5.816AR
218M0030845O型圈3.975×0.210O-RING 3.975X.2101
2218448止推垫片THRUST WASHER2
2315842推力轴承BEARING Thrust2
248M0061835螺旋桨轴(反向旋转)PROPELLER SHAFT Counter Rotation1
248M0073789左舷螺旋桨轴SHAFT-PROP LH1
258M0031510轴承座(反向旋转)BEARING CARRIER Counter Rotation1
26880717A01螺钉/密封套件 .38英寸长SCREW/SEAL KIT .38 Inch Long1
268M0077071螺钉/密封套件 .75英寸长SCREW/SEAL KIT .75 Inch Long1
27830749密封件SEAL1
278M0204693放油螺塞密封件SEAL Drain Plug1
2830956T滚针轴承BEARING Needle1
2914077油封SEAL Oil1
3076868密封件SEAL1
308M0248882油封@5SEAL-OIL @51
318M0030784垫圈 带键WASHER Keyed1
328M0030785轴承座固定环RETAINER Bearing Carrier1
328M0168885轴承固定座RETAINER BEARING1
338M0054695螺旋桨孔衬套SLEEVE Propeller Bore1
338M0187255套管@5SLEEVE @51
348M0076745垫片组SHIM SET1

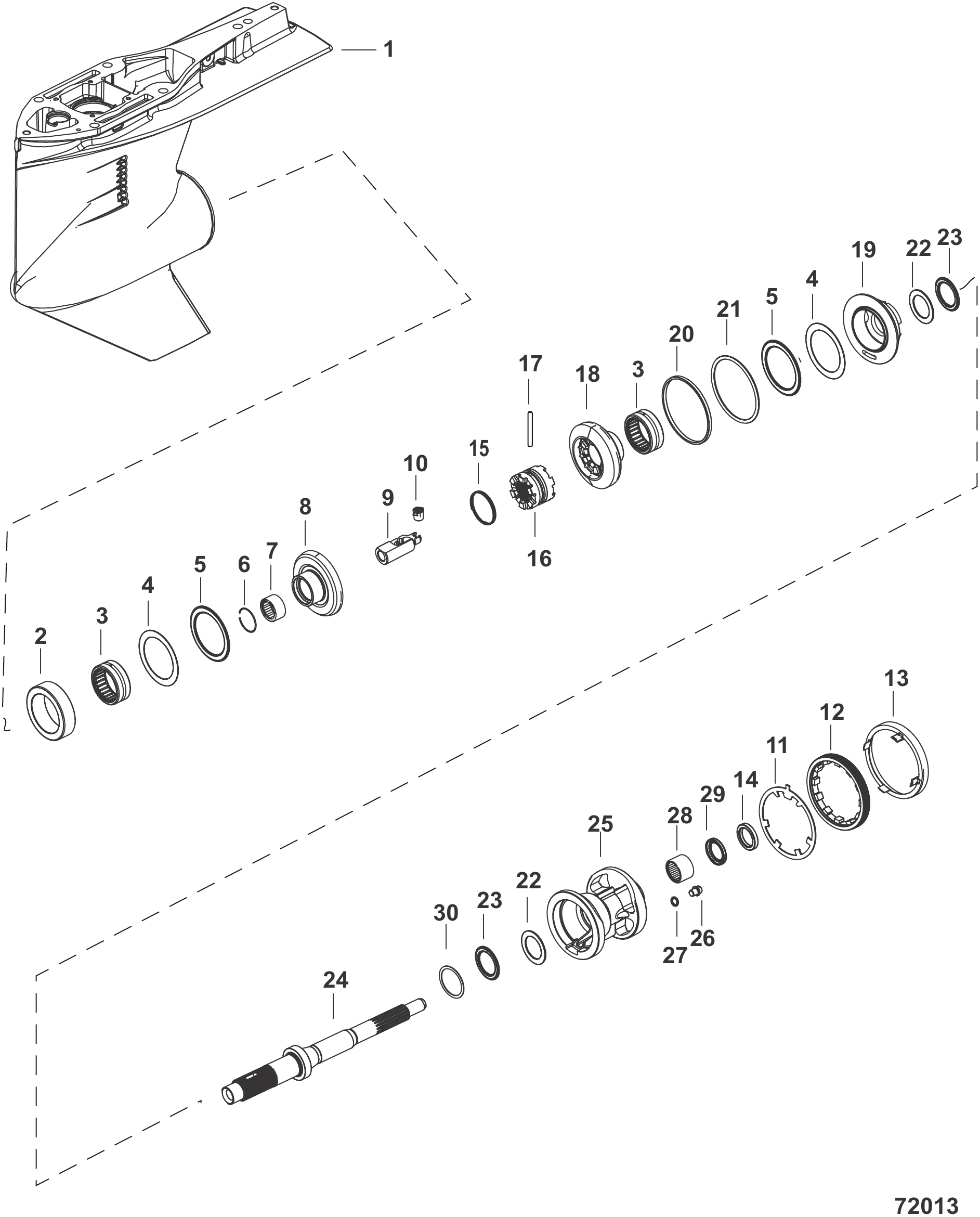

图 27齿轮箱壳体（螺旋桨轴，逆时针旋转1.92速比）2B172249至2B205521 Gear Housing, Propeller Shaft, Counter Rotation (1.92 Ratio) 2B172249 thru 2B205521
齿轮箱壳体（螺旋桨轴，逆时针旋转1.92速比）2B172249至2B205521 Gear Housing, Propeller Shaft, Counter Rotation (1.92 Ratio) 2B172249 thru 2B205521
REF零件编号中文名称英文名称数量
-8M0061029齿轮箱总成(完整), CXL型GEAR HOUSING ASSEMBLY Complete, CXL1
18M0057747基本齿轮箱GEAR HOUSING Basic1
28M0031508倒挡齿轮适配器ADAPTER Reverse Gear1
3814653001滚针轴承总成BEARING ASSEMBLY Needle Rollers2
3814653T滚针轴承总成BEARING ASSEMBLY Needle Rollers2
4815481止推垫片THRUST WASHER2
5815480推力轴承BEARING Thrust2
68M0031506挡圈RING Retaining1
68M0071554挡圈RING Retaining1
78M0057742滚针轴承BEARING Needle1
88M0065074倒挡齿轮(25齿, 反向旋转)GEAR Reverse, 25T, Counter Rotation1
98M0031018凸轮随动件(反向旋转)FOLLOWER Cam, Counter Rotation1
108M0077490换档凸轮CAM Shift1
118M0030784垫圈 带键WASHER Keyed1
128M0030785轴承座固定环RETAINER Bearing Carrier1
128M0168885轴承固定座RETAINER BEARING1
138M0054695螺旋桨孔衬套SLEEVE Propeller Bore1
138M0187255套管@5SLEEVE @51
1476868密封件SEAL1
148M0248882油封@5SEAL-OIL @51
158M0047945固定弹簧SPRING Retaining1
16NSS离合器(不单独销售)NOT SOLD SEPARATE Clutch1
178M0045759十字销PIN Cross1
188M0065268齿轮组-前进/小齿轮反转向1.92速比(13/25)GEAR SET Forward/Pinion, Counter Rotation, 1.92 Ration (13/25)1
198M0031509前进齿轮轴承适配器BEARING ADAPTER Forward Gear1
208M0038346垫片5.316SHIM 5.316AR
208M0038347垫片5.366SHIM 5.366AR
208M0038348垫片5.416SHIM 5.416AR
208M0038349垫片5.466SHIM 5.466AR
208M0038350垫片5.516SHIM 5.516AR
208M0038351垫片5.566SHIM 5.566AR
208M0038352垫片5.616SHIM 5.616AR
208M0038353垫片5.666SHIM 5.666AR
208M0038354垫片5.716SHIM 5.716AR
208M0038355垫片5.766SHIM 5.766AR
208M0038356垫片5.816SHIM 5.816AR
218M0030845O型圈3.975×0.210O-RING 3.975X.2101
2218448止推垫片THRUST WASHER2
2315842推力轴承BEARING Thrust2
248M0061835螺旋桨轴(反向旋转)PROPELLER SHAFT Counter Rotation1
248M0073789左舷螺旋桨轴SHAFT-PROP LH1
258M0031510轴承座(反向旋转)BEARING CARRIER Counter Rotation1
26880717A01螺钉/密封套件 .38英寸长SCREW/SEAL KIT .38 Inch Long1
268M0077071螺钉/密封套件 .75英寸长SCREW/SEAL KIT .75 Inch Long1
27830749密封件SEAL1
278M0204693放油螺塞密封件SEAL Drain Plug1
2830956T滚针轴承BEARING Needle1
2914077油封SEAL Oil1
308M0076745垫片组SHIM SET1
图 28齿轮箱壳体（螺旋桨轴，逆时针旋转1.92速比）2B205522及以上 Gear Housing, Propeller Shaft, Counter Rotation (1.92 Ratio) 2B205522 and Up
齿轮箱壳体（螺旋桨轴，逆时针旋转1.92速比）2B205522及以上 Gear Housing, Propeller Shaft, Counter Rotation (1.92 Ratio) 2B205522 and Up
REF零件编号中文名称英文名称数量
-8M0107156齿轮箱总成(完整), CXL型GEAR HOUSING ASSEMBLY Complete, CXL1
18M0057747基本齿轮箱GEAR HOUSING Basic1
28M0107834倒挡齿轮套件(25齿)GEAR KIT Reverse 25T1
38M0094502内卡环RING Internal Retaining1
48M0064432止推垫圈WASHER Thrust1
58M0094499圆锥滚子轴承组BEARING SET Taper Roller1
6NSS不单独销售NOT SOLD SEPARATE1
7815480推力轴承BEARING Thrust1
8815481止推垫片THRUST WASHER1
98M0094497滚针轴承BEARING Needle Roller1
108M0064369倒车齿轮轴承适配器BEARING ADAPTER Reverse Gear1
118M0031018凸轮随动件(反向旋转)FOLLOWER Cam, Counter Rotation1
128M0077490换档凸轮CAM Shift1
138M0057749离合器作动杆ROD Clutch Actuator1
148M0094479滑动离合器(6爪)CLUTCH Sliding, 6 Jaw1
158M0047945固定弹簧SPRING Retaining1
168M0045759十字销PIN Cross1
178M0107833前进/小齿轮组(反向旋转, 1.92速比 13/25)GEAR SET Forward/PInion, Counter Rotation, 1.92 Ratio (13/25)1
188M0094485圆锥滚子轴承组TAPERED ROLLER BEARING SET2
19NSS不单独销售NOT SOLD SEPARATE2
208M0094486前进齿轮轴承适配器ADAPTER Bearing, Forward Gear1
218M0064177止推垫圈WASHER Thrust1
228M0094488锁紧螺母LOCK NUT1
228M0064178锁紧螺母LOCK NUT1
238M0066130半圆头定位螺钉组SCREW- HALF DOG POINT SET1
238M0233826半圆头定位螺钉组SCREW-HALF DOG POINT SET1
248M0094490垫片组SHIM SET1
248M0239650垫片组SHIM SET1
258M0088079螺旋桨轴(反向旋转)PROPELLER SHAFT Counter Rotation1
268M0030845O型圈3.975×0.210O-RING 3.975X.2101
27884330T01圆锥轴承组件BEARING ASSEMBLY Taper1
278M0148319圆锥滚子轴承(外圈/内圈)BEARING Roller Taper Cup/Cone1
28NSS不单独销售NOT SOLD SEPARATE1
298M0094495轴承座(反向旋转)BEARING CARRIER Counter Rotation1
308M0064306止推隔套SPACER Thrust1
31888483油封SEAL Oil2
318M0204700油封SEAL Oil2
328M0071653特殊螺钉0.375-16 UNCSCREW Special, .375-16 UNC1
33830749密封件SEAL1
338M0204693放油螺塞密封件SEAL Drain Plug1
348M0030784垫圈 带键WASHER Keyed1
358M0054695螺旋桨孔衬套SLEEVE Propeller Bore1
358M0187255套管@5SLEEVE @51
368M0030785轴承座固定环RETAINER Bearing Carrier1
368M0168885轴承固定座RETAINER BEARING1
378M0076745垫片组SHIM SET1
图 29齿轮箱壳体（螺旋桨轴，逆时针旋转1.92速比）SEAPRO 3B111734及以下 Gear Housing, Propeller Shaft, Counter Rotation (1.92 Ratio) SEAPRO 3B111734 and Down
齿轮箱壳体（螺旋桨轴，逆时针旋转1.92速比）SEAPRO 3B111734及以下 Gear Housing, Propeller Shaft, Counter Rotation (1.92 Ratio) SEAPRO 3B111734 and Down
REF零件编号中文名称英文名称数量
-8M0099914齿轮箱总成(完整), CXL型GEAR HOUSING ASSEMBLY Complete, CXL1
18M0099907基本齿轮箱GEAR HOUSING Basic1
28M0107834倒挡齿轮套件(25齿)GEAR KIT Reverse 25T1
38M0094502内卡环RING Internal Retaining1
48M0064432止推垫圈WASHER Thrust1
58M0094499圆锥滚子轴承组BEARING SET Taper Roller1
6NSS轴承锥体(不单独销售)NOT SOLD SEPARATE CONE, Bearing1
7815480推力轴承BEARING Thrust1
8815481止推垫片THRUST WASHER1
98M0094497滚针轴承BEARING Needle Roller1
108M0064369倒车齿轮轴承适配器BEARING ADAPTER Reverse Gear1
118M0031018凸轮随动件(反向旋转)FOLLOWER Cam, Counter Rotation1
128M0077490换档凸轮CAM Shift1
138M0057749离合器操纵杆(设计1型)ROD Clutch Actuator Design 11
148M0094479滑动离合器(6爪)CLUTCH Sliding, 6 Jaw1
158M0047945固定弹簧SPRING Retaining1
168M0045759十字销PIN Cross1
178M0107833前进/小齿轮组(反向旋转, 1.92速比 13/25)GEAR SET Forward/PInion, Counter Rotation, 1.92 Ratio (13/25)1
188M0094485圆锥滚子轴承组TAPERED ROLLER BEARING SET2
19NSS轴承杯(不单独销售)NOT SOLD SEPARATE CUP, Bearing2
208M0094486前进齿轮轴承适配器ADAPTER Bearing, Forward Gear1
218M0064177止推垫圈WASHER Thrust1
228M0094488锁紧螺母LOCK NUT1
228M0064178锁紧螺母LOCK NUT1
238M0066130半圆头定位螺钉组SCREW- HALF DOG POINT SET1
238M0233826半圆头定位螺钉组SCREW-HALF DOG POINT SET1
248M0094490垫片组SHIM SET1
248M0239650垫片组SHIM SET1
258M0088079螺旋桨轴(反向旋转)PROPELLER SHAFT Counter Rotation1
268M0030845O型圈3.975×0.210O-RING 3.975X.2101
27884330T01圆锥轴承组件BEARING ASSEMBLY Taper1
278M0148319圆锥滚子轴承(外圈/内圈)BEARING Roller Taper Cup/Cone1
28NSS轴承锥体(不单独销售)NOT SOLD SEPARATE CONE, Bearing1
298M0094495轴承座(反向旋转)BEARING CARRIER Counter Rotation1
308M0064306止推隔套SPACER Thrust1
31888483油封SEAL Oil2
318M0204700油封SEAL Oil2
328M0071653特殊螺钉0.375-16 UNCSCREW Special, .375-16 UNC1
33830749密封件SEAL1
338M0204693放油螺塞密封件SEAL Drain Plug1
348M0030784垫圈 带键WASHER Keyed1
358M0054695螺旋桨孔衬套SLEEVE Propeller Bore1
358M0187255套管@5SLEEVE @51
368M0030785轴承座固定环RETAINER Bearing Carrier1
368M0168885轴承固定座RETAINER BEARING1
3767892002磁性螺钉SCREW Magnetic1
38830749密封件SEAL1
388M0204693放油螺塞密封件SEAL Drain Plug1
398M0120367双作用换挡执行器套件(设计2型)ACTUATOR KIT Double Acting Shift Design 21
408M0102962离合器作动杆ROD CLUTCH ACTUATOR1
418M0029113十字销PIN Cross1
428M0096707压缩弹簧SPRING Compression2
438M0084245弹簧定位销PIN Spring Locator1
448M0076745垫片组SHIM SET1
图 30齿轮箱壳体（螺旋桨轴，逆时针旋转2.08速比）SEAPRO 3B111735及以上 Gear Housing, Propeller Shaft, Counter Rotation (2.08 Ratio) SEAPRO 3B111735 and UP
齿轮箱壳体（螺旋桨轴，逆时针旋转2.08速比）SEAPRO 3B111735及以上 Gear Housing, Propeller Shaft, Counter Rotation (2.08 Ratio) SEAPRO 3B111735 and UP
REF零件编号中文名称英文名称数量
-8M0187303齿轮箱总成-完整CXL型2.04:1GEAR HOUSING ASSEMBLY Complete, CXL, 2.04:11
-8M0236155GC 150 CXL SEAPROGC 150 CXL SEAPRO1
18M0190046齿轮箱 基本型GEARCASE Basic1
2NSS不单独销售 塞NOT SOLD SEPARATE Plug1
38M0046215曲柄，换挡器1/4枢轴销CRANK, Shifter 1/4 Pivot Pin1
38M0220880曲柄，换挡器1/4枢轴销CRANK, Shifter 1/4 Pivot Pin1
419755T7阀芯总成SPOOL ASSEMBLY1
48M0235940阀芯总成SPOOL ASSY1
5NSS不单独销售线轴NOT SOLD SEPARATE Spool1
6469501开口销COTTER PIN1
7NSS不单独销售 调节套筒NOT SOLD SEPARATE Sleeve Adjusting1
8884337A02倒车齿轮总成GEAR ASSEMBLY Reverse1
9884323T01滚柱轴承总成BEARING ASSEMBLY Roller1
98M0142836圆锥滚子轴承(外圈/内圈)BEARING Roller Taper (Cup/Cone)1
10NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
1123721挡圈RING Retaining1
118M0051043挡圈RING Retaining1
12892805止推垫片THRUST WASHER1
128M0053823止推垫圈(内径1.50×外径2.046)WASHER Thrust, (1.50 ID x 2.046 OD)1
13884325T01圆锥滚子轴承组件BEARING ASSEMBLY Roller-Tappered1
138M0142835圆锥滚子轴承(外圈/内圈)BEARING Roller Taper (Cup/Cone)1
14NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
15884328A01垫片组SHIM SET1
158M0063270垫片组SHIM SET1
1630893弹簧SPRING1
17880714T离合器CLUTCH1
1830632十字销PIN Cross1
188M0100263十字销PIN Cross1
19828356定位销PIN Detent1
208M0069774螺旋桨轴PROPELLER SHAFT1
208M0140446螺旋桨轴PROPELLER SHAFT1
21884335A01GEAR SET Forward/Pinion, Counter Rotation, 1.92 Ratio (13/25)1
21884335A02ORD 43-884335A03ORD 43-884335A031
22880699推力环THRUST RING1
23815480推力轴承BEARING Thrust1
248M0076745垫片组SHIM SET1
258M0086846轴承座总成CARRIER ASSEMBLY Bearing1
26896524O型圈(3.850×.210)O-RING (3.850 x .210)1
268M0142840O型圈(3.85×0.210)O-RING (3.85 x 0.210)1
27814653T滚针轴承总成BEARING ASSEMBLY Needle Rollers1
28880728轴承适配器ADAPTER Bearing1
288M0148384前进齿轮轴承适配器ADAPTER Bearing Forward Gear1
2947397A1垫片组SHIM SET1
30884330T01圆锥轴承组件BEARING ASSEMBLY Taper1
308M0148319圆锥滚子轴承(外圈/内圈)BEARING Roller Taper Cup/Cone1
31NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
32896600油封SEAL Oil1
328M0204700油封SEAL Oil1
33888483油封SEAL Oil1
338M0204700油封SEAL Oil1
34880717A01螺丝/密封套件SCREW/SEAL KIT1
35830749密封件SEAL1
358M0204693放油螺塞密封件SEAL Drain Plug1
36892818适配器ADAPTER1
368M0053183前进齿轮适配器ADAPTER Foward Gear1
378M0064306止推隔套SPACER Thrust1
38880697键槽垫圈KEYED WASHER1
3979448固定座RETAINER1
398M2011027固定座RETAINER1
40NSS不单独销售-反向旋转标识NOT SOLD SEPARATE Decal-Counter Rotation1
41896233A01驱动套总成DRIVE SLEEVE ASSEMBLY1
42878584Q1适配器ADAPTER1
428M0061986适配器套件ADAPTER KIT1
4352707T1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
4352707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
-830749A01齿轮箱密封套件SEAL KIT Gear Housing1
图 31齿轮箱壳体（螺旋桨轴，顺时针旋转1.92速比）离合器标记8M0045760 Gear Housing, Propeller Shaft, Standard Rotation (1.92 Ratio) Clutch Stamp 8M0045760
齿轮箱壳体（螺旋桨轴，顺时针旋转1.92速比）离合器标记8M0045760 Gear Housing, Propeller Shaft, Standard Rotation (1.92 Ratio) Clutch Stamp 8M0045760
REF零件编号中文名称英文名称数量
-8M0057746齿轮箱总成 完整 长型GEAR HOUSING ASSEMBLY Complete, Long1
-8M0061028齿轮箱总成（完整加长版）GEAR HOUSING ASSEMBLY Complete, X-Long1
-8M0099221齿轮箱总成（完整加长版）GEAR HOUSING ASSEMBLY Complete, X-Long1
18M0057747基本齿轮箱GEAR HOUSING Basic1
28M0057741前进/小齿轮组(标准旋转, 1.92速比 13/25)GEAR SET Forward/Pinion, Standard Rotation, 1.92 Ratio (13/25)1
28M0096703齿轮组GEAR SET1
38M0057742滚针轴承BEARING Needle1
48M0031506挡圈RING Retaining1
48M0071554挡圈RING Retaining1
58M0057724圆锥滚子轴承总成BEARING ASSY Roller, Taper1
58M0237367轴承总成BEARING ASSY1
6NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
747397A1垫片组SHIM SET1
88M0032320凸轮从动件(右舷)FOLLOWER Cam, Right Hand1
88M0105206右舷换挡凸轮套件SHIFT CAM KIT RH1
98M0031224换档凸轮CAM Shift1
108M0057749离合器作动杆ROD Clutch Actuator1
118M0054823球轴承(0.2500英寸直径) 已停产-无需更换BALL BEARING .2500 dia NLA - No Longer Required2
128M0058020压缩弹簧(外径0.305英寸) 已停产-无需更换SPRING Compression .305 OD NLA - No Longer Required1
138M0054824球轴承(0.3125英寸直径) 已停产-无需更换BALL BEARING .3125 dia NLA - No Longer Required1
148M0047945固定弹簧SPRING Retaining1
158M0045760滑动离合器(6爪)CLUTCH Sliding, 6 Jaw1
158M0096703齿轮组GEAR SET1
168M0045759十字销PIN Cross1
178M0057750螺旋桨轴(右舷)SHAFT Propeller, Right Hand1
178M0088077螺旋桨轴(右旋)SHAFT Propeller (RH)1
18824108隔套SPACER1
198M0061763倒车齿轮总成GEAR ASSEMBLY Reverse1
2088957T滚珠轴承BEARING Ball1
218M0030779推力环THRUST RING1
228M0030845O型圈3.975×0.210O-RING 3.975X.2101
238M0030856轴承座套筒SPOOL Bearing Carrier1
238M0219208轴承座套筒SPOOL-BRNG CRRIER1
2430956T滚针轴承BEARING Needle1
25880717A01螺钉/密封套件 .38英寸长SCREW/SEAL KIT .38 Inch Long1
258M0077071螺钉/密封套件 .75英寸长SCREW/SEAL KIT .75 Inch Long1
26830749密封件SEAL1
268M0204693放油螺塞密封件SEAL Drain Plug1
2714077油封SEAL Oil1
2876868密封件SEAL1
288M0248882油封@5SEAL-OIL @51
2812224渔线切割密封件SEAL Fish Line Cutting1
298M0030784垫圈 带键WASHER Keyed1
308M0030785轴承座固定环RETAINER Bearing Carrier1
308M0168885轴承固定座RETAINER BEARING1
318M0054695螺旋桨孔衬套SLEEVE Propeller Bore1
318M0187255套管@5SLEEVE @51
图 32齿轮箱壳体（螺旋桨轴，顺时针旋转1.92速比）离合器标记8M0073249 Gear Housing, Propeller Shaft, Standard Rotation (1.92 Ratio) Clutch Stamp 8M0073249
齿轮箱壳体（螺旋桨轴，顺时针旋转1.92速比）离合器标记8M0073249 Gear Housing, Propeller Shaft, Standard Rotation (1.92 Ratio) Clutch Stamp 8M0073249
REF零件编号中文名称英文名称数量
-8M0099218齿轮箱总成 完整 长型GEAR HOUSING ASSEMBLY Complete, Long1
-8M0099221齿轮箱总成（完整加长版）GEAR HOUSING ASSEMBLY Complete, X-Long1
18M0057747基本齿轮箱GEAR HOUSING Basic1
28M0096704前进/小齿轮组(标准旋转, 1.92速比 13/25)GEAR SET Forward/Pinion, Standard Rotation, 1.92 Ratio (13/25)1
38M0057742滚针轴承BEARING Needle1
48M0031506挡圈RING Retaining1
48M0071554挡圈RING Retaining1
58M0057724圆锥滚子轴承总成BEARING ASSY Roller, Taper1
58M0237367轴承总成BEARING ASSY1
6NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
747397A1垫片组SHIM SET1
88M0057749离合器作动杆ROD Clutch Actuator1
98M0032320凸轮从动件(右舷)FOLLOWER Cam, Right Hand1
98M0105206右舷换挡凸轮套件SHIFT CAM KIT RH1
98M0072550凸轮随动件(右旋)FOLLOWER Cam, (RH)1
108M0031224Desmonic换挡凸轮CAM Shift Desmonic1
108M0077490换挡凸轮摇臂CAM Shift Bellcrank1
118M0094479滑动离合器(6爪)CLUTCH Sliding, 6 Jaw1
128M0045759十字销PIN Cross1
138M0047945固定弹簧SPRING Retaining1
148M0057750螺旋桨轴(右舷)SHAFT Propeller, Right Hand1
148M0088077螺旋桨轴(右旋)SHAFT Propeller (RH)1
158M0096705倒车齿轮总成GEAR ASSEMBLY Reverse1
1688957T滚珠轴承BEARING Ball1
178M0030779推力环THRUST RING1
188M0030845O型圈3.975×0.210O-RING 3.975X.2101
198M0030856轴承座套筒SPOOL Bearing Carrier1
198M0219208轴承座套筒SPOOL-BRNG CRRIER1
2030956T滚针轴承BEARING Needle1
21880717A01螺钉/密封套件 .38英寸长SCREW/SEAL KIT .38 Inch Long1
218M0077071螺钉/密封套件 .75英寸长SCREW/SEAL KIT .75 Inch Long1
22830749密封件SEAL1
228M0204693放油螺塞密封件SEAL Drain Plug1
2314077油封SEAL Oil1
2476868密封件SEAL1
248M0248882油封@5SEAL-OIL @51
2412224渔线切割密封件SEAL Fish Line Cutting1
258M0030784垫圈 带键WASHER Keyed1
268M0030785轴承座固定环RETAINER Bearing Carrier1
268M0168885轴承固定座RETAINER BEARING1
278M0054695螺旋桨孔衬套SLEEVE Propeller Bore1
278M0187255套管@5SLEEVE @51
28824108隔套SPACER1
图 33齿轮箱壳体（螺旋桨轴，顺时针旋转1.92速比）SEAPRO 3B111735及以上 Gear Housing, Propeller Shaft, Standard Rotation (1.92 Ratio) SEAPRO 3B111735 and Up
齿轮箱壳体（螺旋桨轴，顺时针旋转1.92速比）SEAPRO 3B111735及以上 Gear Housing, Propeller Shaft, Standard Rotation (1.92 Ratio) SEAPRO 3B111735 and Up
REF零件编号中文名称英文名称数量
-8M0187301齿轮箱总成-完整L型2.08:1GEAR HOUSING ASSEMBLY Complete, L, 2.08:11
-8M0187302齿轮箱总成-完整超长型2.08:1GEAR HOUSING ASSEMBLY Complete, X-Long, 2.08:11
-8M0236153GC 150 XL SEAPROGC 150 XL SEAPRO1
18M0190046齿轮箱 基本型GEARCASE Basic1
2NSS不单独销售 塞NOT SOLD SEPARATE Plug1
38M0046215曲柄，换挡器1/4枢轴销CRANK, Shifter 1/4 Pivot Pin1
38M0220880曲柄，换挡器1/4枢轴销CRANK, Shifter 1/4 Pivot Pin1
419755T7阀芯总成SPOOL ASSEMBLY1
48M0235940阀芯总成SPOOL ASSY1
5NSS不单独销售线轴NOT SOLD SEPARATE Spool1
6469501开口销COTTER PIN1
7NSS不单独销售 调节套筒NOT SOLD SEPARATE Sleeve Adjusting1
8880709A03齿轮组-前进/小齿轮标准转向2.08(12/25)GEAR SET Forward/Pinion, Standard Rotation 2.08 (12/25)1
98M0063270垫片组SHIM SETAR
10884323T01滚柱轴承总成BEARING ASSEMBLY Roller1
108M0142836圆锥滚子轴承(外圈/内圈)BEARING Roller Taper (Cup/Cone)1
11NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
128M0051043挡圈RING Retaining1
138M0053823止推垫圈(内径1.50×外径2.046)WASHER Thrust, (1.50 ID x 2.046 OD)1
14884325T01圆锥滚子轴承组件BEARING ASSEMBLY Roller-Tappered1
148M0142835圆锥滚子轴承(外圈/内圈)BEARING Roller Taper (Cup/Cone)1
15NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
16880714T离合器CLUTCH1
1730893弹簧SPRING1
18828356定位销PIN Detent1
198M0140446螺旋桨轴PROPELLER SHAFT1
208M0100263十字销PIN Cross1
218M0119541倒车齿轮总成GEAR ASSEMBLY Reverse1
22880699推力环THRUST RING1
238M0064306止推隔套SPACER Thrust1
248M0076745垫片组SHIM SET1
258M0083392轴承座总成CARRIER ASSEMBLY Bearing1
268M0142873滚珠轴承BEARING Ball1
27888483油封SEAL Oil1
278M0204700油封SEAL Oil1
28884330T01圆锥轴承组件BEARING ASSEMBLY Taper1
288M0148319圆锥滚子轴承(外圈/内圈)BEARING Roller Taper Cup/Cone1
29NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
30888483油封SEAL Oil1
308M0204700油封SEAL Oil1
31896524O型圈(3.850×.210)O-RING (3.850 x .210)1
318M0142840O型圈(3.85×0.210)O-RING (3.85 x 0.210)1
32880717A01螺丝/密封套件SCREW/SEAL KIT1
33830749密封件SEAL1
338M0204693放油螺塞密封件SEAL Drain Plug1
34880697键槽垫圈KEYED WASHER1
358M2000347固定座RETAINER1
358M0168577轴承座固定环RETAINER Bearing Carrier1
-8M0146719齿轮箱密封套件SEAL KIT Gear Housing1
图 34齿轮箱壳体（螺旋桨轴，顺时针旋转2.08速比）SEAPRO 3B111734及以下 Gear Housing, Propeller Shaft, Standard Rotation (2.08 Ratio) SEAPRO 3B111734 and Below
齿轮箱壳体（螺旋桨轴，顺时针旋转2.08速比）SEAPRO 3B111734及以下 Gear Housing, Propeller Shaft, Standard Rotation (2.08 Ratio) SEAPRO 3B111734 and Below
REF零件编号中文名称英文名称数量
-8M0099909齿轮箱总成 完整 长型GEAR HOUSING ASSEMBLY Complete, Long1
-8M0099910齿轮箱总成（完整加长版）GEAR HOUSING ASSEMBLY Complete, X-Long1
18M0099907基本齿轮箱GEAR HOUSING Basic1
28M0096704前进/小齿轮组(标准旋转, 1.92速比 13/25)GEAR SET Forward/Pinion, Standard Rotation, 1.92 Ratio (13/25)1
38M0057742滚针轴承BEARING Needle1
48M0031506挡圈RING Retaining1
48M0071554挡圈RING Retaining1
58M0057724圆锥滚子轴承总成BEARING ASSY Roller, Taper1
58M0237367轴承总成BEARING ASSY1
6NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
747397A1垫片组SHIM SET1
88M0057749离合器操纵杆(设计1型)ROD Clutch Actuator Design 11
98M0072550凸轮随动件(右旋)FOLLOWER Cam, (RH)1
108M0077490换挡凸轮摇臂CAM Shift Bellcrank1
118M0094479滑动离合器(6爪)CLUTCH Sliding, 6 Jaw1
128M0045759十字销PIN Cross1
138M0047945固定弹簧SPRING Retaining1
148M0057750螺旋桨轴(右舷)SHAFT Propeller, Right Hand1
148M0088077螺旋桨轴(右旋)SHAFT Propeller (RH)1
158M0096705倒车齿轮总成GEAR ASSEMBLY Reverse1
168M0030779推力环THRUST RING1
1788957T滚珠轴承BEARING Ball1
188M0030845O型圈3.975×0.210O-RING 3.975X.2101
198M0030856轴承座套筒SPOOL Bearing Carrier1
198M0219208轴承座套筒SPOOL-BRNG CRRIER1
2030956T滚针轴承BEARING Needle1
21880717A01螺钉/密封套件 .38英寸长SCREW/SEAL KIT .38 Inch Long1
218M0077071螺钉/密封套件 .75英寸长SCREW/SEAL KIT .75 Inch Long1
22830749密封件SEAL1
228M0204693放油螺塞密封件SEAL Drain Plug1
2314077油封SEAL Oil1
2476868密封件SEAL1
248M0248882油封@5SEAL-OIL @51
2412224渔线切割密封件SEAL Fish Line Cutting1
258M0030784垫圈 带键WASHER Keyed1
268M0030785轴承座固定环RETAINER Bearing Carrier1
268M0168885轴承固定座RETAINER BEARING1
278M0054695螺旋桨孔衬套SLEEVE Propeller Bore1
278M0187255套管@5SLEEVE @51
2867892002磁性螺钉SCREW Magnetic1
29830749密封件SEAL1
298M0204693放油螺塞密封件SEAL Drain Plug1
308M0120367双作用换挡执行器套件(设计2型)ACTUATOR KIT Double Acting Shift Design 21
318M0102962离合器作动杆ROD CLUTCH ACTUATOR1
328M0029113十字销PIN Cross1
338M0096707压缩弹簧SPRING Compression2
348M0084245弹簧定位销PIN Spring Locator1
35824108隔套SPACER1
图 35点火系统 Ignition
点火系统 Ignition
REF零件编号中文名称英文名称数量
18M0044991双输出点火线圈IGNITION COIL Ignition Dual Output2
288552525不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel4
28M0103807不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel4
38M0088014火花塞线束SPARK PLUG Wire Set1
48M0057936火花塞NGK ZFR5FSPARK PLUG NGK ZFR5F4
48M0204728火花塞NGK ZFR5FSPARK PLUG NGK ZFR5F4
58M0077655线圈盖COVER, COIL1
58M0163125线圈盖COVER COIL1
68M0060350高压线托盘TRAY High Tension Lead1
788552514不锈钢螺钉(M6×14mm)SCREW (M6 x 14 mm) Stainless Steel2
图 36集成式空燃模块 Integrated Air Fuel Module
集成式空燃模块 Integrated Air Fuel Module
REF零件编号中文名称英文名称数量
1892952T04进气流量测量总成IAFM ASSEMBLY1
1892952T06进气流量测量总成IAFM ASSEMBLY1
-8M6002790进气歧管MANIFOLD Intake1
288552550不锈钢螺钉 (M6 x 50 mm)SCREW (M6 x 50 mm) Stainless Steel2
34002316垫圈(6.60 X 17.0 X 1.5不锈钢)WASHER (6.60 X 17.0 X 1.5SS)2
38M0214930垫圈6.60 x 17.0 x 1.5WASHER 6.60 x 17.0 x 1.52
48M0048051不锈钢螺钉(M6x30)SCREW (M6 x 30) Stainless Steel5
5897646001通气罐支架BRACKET Vent Canister1
6884545A02通气罐总成CANISTER ASSEMBLY Vent1
68M0175814通气罐总成CANISTER-VENT ASY1
7897434护孔环GROMMET1
88M0001824净化通气总成PURGE VENT ASSEMBLY1
88M0126307净化通气总成PURGE VENT ASSY1
9897575T01空气滤清器FILTER Air1
98M0082911空气滤清器FILTER - AIR1
108M0006918限流板RESTRICTOR PLATE1
108M0032134限流板RESTRICTOR PLATE1
108M0032134限流板RESTRICTOR PLATE1
11897559卡扣CLIP1
12897445501螺丝(M6×20毫米)SCREW (M6 x 20 MM)1
13816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
1435462垫圈(.2656 x .625 x .0625)不锈钢WASHER (.2656 x .625 x .0625) Stainless Steel5
图 37集成式空燃模块组件 Integrated Air Fuel Module Components
集成式空燃模块组件 Integrated Air Fuel Module Components
REF零件编号中文名称英文名称数量
187775610螺钉(M4×10)SCREW (M4 X 10)1
28M0060503进气压力传感器支架BRACKET Map Sensor1
3854445MAP传感器SENSOR MAP1
38M0237529MAP传感器SENSOR MAP1
4897445501螺丝(M6×20毫米)SCREW (M6 x 20 MM)6
58M0088066节气门体总成THROTTLE BODY ASSEMBLY1
6881070T位置传感器SENSOR Position1
68M0125617位置传感器SENSOR Position1
78M0063490螺钉(M4×0.7×16mm)SCREW (M4 X .7 X 16 MM)2
88M0088065进气歧管总成INTAKE MANIFOLD ASSEMBLY1
98M0061361衬垫GASKET1
108M0061362衬垫GASKET4
118M0059235节气门连杆总成LINK Throttle Assembly1
128M0060385六角法兰头螺钉(M6×1×37)SCREW (M6 X 1 X 37) Hex Flg HD10
13897526T怠速空气控制阀IAC VALVE1
138M0188118怠速空气传感器SENSOR IDLE AIR C1
148M0077848节气门随动杆总成LEVER ASSEMBLY Throttle Follower1
158M0077229旋转衬套BUSHING Swivel1
168M0071815节气门杠杆台阶螺栓BOLT Shoulder, Throttle Lever2
17825677压入式螺母PUSH NUT1
18822459固定座RETAINER1
19898093波形垫圈WASHER Wave2
20897937垫圈WASHER2
218M0068644节气门凸轮总成THROTTLE CAM ASSEMBLY1
218M0243636节气门凸轮CAM-THROTTLE1
22897936垫圈WASHER2
23897535005节流凸轮回位弹簧SPRING Throttle Cam Return1
24891663001温度传感器SENSOR Temperature1
25895054螺丝(M4×16毫米)SCREW (M4 x 16 mm)2
268M0090814怠速控制阀壳体HOUSING IACV1
27834985护孔环GROMMET2
278M0190980护孔环GROMMET2
288M0057601怠速控制阀软管HOSE IACV1
29855228卡箍CLAMP2
308M0062044销 安装PIN Mounting1
图 38喷水泵 Jet Pump
喷水泵 Jet Pump
REF零件编号中文名称英文名称数量
-8M0230771喷泵总成JET PUMP ASSEMBLY1
18M0231567适配板ADAPTER PLATE1
28M0204929定位销(0.375×0.875英寸)PIN (0.375 x 0.875) Dowel2
38M0084627定位销(0.1875×0.5英寸)PIN (0.1875 x 0.5) Dowel2
48M0236653联轴器COUPLER1
58M0204645O型圈(.796 x .139)O-RING (.796 x .139)1
6827490润滑油管HOSE Lube1
7801410电缆支架BRACKET Cable Support1
860411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)1
982670910不锈钢螺母(.312-18)NUT (.312-18) Stainless Steel1
1028635不锈钢螺丝(.250-20 x .620)SCREW (.250-20 x .620) Stainless Steel4
11879652003垫圈WASHER6
128267098螺母 (.250-20) 不锈钢NUT (.250-20) Stainless Steel2
138M0231569叶轮(7.375英寸)IMPELLER (7.375)1
148M0231570叶轮T型半圆键(1/2)KEY (1/2 Round) Impeller Tee1
15801404875叶轮垫片SHIM Impeller7
16801403875锁紧垫圈TAB WASHER1
178271901螺母NUT1
18855771衬套LINER1
1982670910不锈钢螺母(.312-18)NUT (.312-18) Stainless Steel6
20806327螺钉(.437-14 x 1.750)SCREW (.437-14 x 1.750)1
208M0204686螺钉SCREW1
218M0102995螺丝 (M12)SCREW (M12)1
228M0231568驱动轴总成DRIVESHAFT ASSEMBLY1
238271891套筒SLEEVE1
248796522止推垫片THRUST WASHER1
258796531滚珠轴承BEARING Ball2
2653166锁紧垫圈 (.312)LOCKWASHER (.312)4
2735888不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel3
28889246A72阳极套件ANODE KIT1
-8M0190470EXTREME润滑脂QS型(14盎司)EXTREME GREASE QS, 14 oz1
-8M02401992-4-C润滑剂@10LUBE 2-4-C @101
图 39喷水泵组件 Jet Waterpump Components
喷水泵组件 Jet Waterpump Components
REF零件编号中文名称英文名称数量
1NSS不单独销售NOT SOLD SEPARATE1
28M0204645O型圈(.796 x .139)O-RING (.796 x .139)3
38M0214995联轴器 水泵COUPLING Water Pump1
4NSS不单独销售NOT SOLD SEPARATE1
58M0142851V型面密封环V RING Face Seal1
68M0204741六角带垫大帽螺钉(M6x1.0x20)SCREW (M6 x 1.0 x 20) Hex Wash HD4
78M0204723键KEY1
843026T2叶轮IMPELLER1
98172771水泵上垫片GASKET Water Pump, Upper1
108M0204709面板FACEPLATE1
118M0142616衬垫 面板至齿轮箱GASKET Face Plate to Gearcase1
图 40底罩 Lower Cowl
底罩 Lower Cowl
REF零件编号中文名称英文名称数量
18M0088280左右下罩总成(无标牌)LOWER COWL ASSEMBLY Port and Starboard ( NON DECALED )1
28M0022324螺丝(M6 x 25毫米)SCREW (M6 x 25 mm)11
28M0230977螺钉 (M6 x 25 MM)SCREW (M6 x 25 MM)11
38M0032848开关固定座RETAINER Switch1
48M0037225圆形微调开关面板TRIM SWITCH Round Bezel1
48M0235190圆形微调开关面板TRIM SWITCH Round Bezel1
5889823001嵌入式系绳插头TETHER Flush Plug1
58M0224266嵌入式插槽密封件SEAL Flush Plug Pocket1
6885361A01接头总成 冲洗FITTING ASSEMBLY Flush1
78M0047301嵌入式插槽密封件SEAL Flush Plug Pocket1
78M0219168嵌入式系绳插头TETHER Flush Plug1
8888958001嵌入式端口塞PLUG Flush Port1
88M0215105嵌入式塞PLUG Flush1
98M0088281前下罩总成LOWER COWL ASSEMBLY Front1
108M0073002六角法兰螺钉(M6×20)SCREW (M6 X 20), Hex Flg4
118M0055211顶罩锁扣固定座RETAINER - LATCH Top Cowl1
12892073002台阶螺丝 (M6)SHOULDER SCREW (M6)2
128M0230980螺丝 (M6x14) 六角法兰B型SCREW (M6 x 14) Hex Flange B2
138M0055216右舷上支架盖COVER Upper Mount Starboard1
148M0055214左舷上支架盖COVER Upper Mount, Port1
154002316垫圈(6.60 X 17.0 X 1.5不锈钢)WASHER (6.60 X 17.0 X 1.5SS)2
158M0214930垫圈6.60 x 17.0 x 1.5WASHER 6.60 x 17.0 x 1.52
1688552525不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel2
168M0103807不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel2
178M0055154锁扣总成STRIKER ASSEMBLY1
1888552545不锈钢螺钉(M6×45mm)SCREW (M6 x 45 mm) Stainless Steel1
188M0103810不锈钢螺钉(M6×45mm)SCREW (M6 x 45 MM) Stainless Steel1
198M0055202防水安装板PLATE Ingress Mounting1
208M0047718螺钉(M5×8mm)SCREW (M5 X 8MM)3
218M0073102线束护圈-配平传感器GROMMET Trim Sensor Wires1
228M0055208防水护圈GROMMET Ingress1
238M0055209软管转接器ADAPTER Rigging Hose1
248M0075736六角法兰螺钉(M6×50)SCREW (M6 X 50) Hex Flg1
248M0230970螺钉SCREW1
258M0075735六角法兰螺钉(M6×30)SCREW (M6 X 30) Hex Flg2
268M0071078六角法兰螺钉(M6×85)SCREW (M6 X 85) Hex Flg1
268M0230974六角法兰螺钉M6×85SCREW M6 x 85 HEX FLG1
278M0030817六角法兰螺钉(M6×70)SCREW (M6 X 70) Hex Flg1
278M0230978螺钉SCREW1
288M0074531阳极螺塞PLUG Anode Screw1
图 41维护套件 Maintenance Kits
维护套件 Maintenance Kits
REF零件编号中文名称英文名称数量
-8M0097856保养套件75-115马力四冲程(100小时)SERVICE KIT 75-115 HP 4S (100 Hour)1
-877761K01机油滤清器(水星品牌)FILTER Oil Mercury Branded1
-879885Q燃油管路滤清器FILTER Fuel In-Line1
-828816衬垫GASKET1
-8M0204692衬垫@5GASKET @51
-830749密封件SEAL2
-8M0204693放油螺塞密封件SEAL Drain Plug2
-8M0097857保养套件75-115马力四冲程(300小时)SERVICE KIT 75-115HP 4S (300 Hour)1
-877761K01机油滤清器(水星品牌)FILTER Oil Mercury Branded1
-879885Q燃油管路滤清器FILTER Fuel In-Line1
-855697卡箍CLAMP1
-8M0204696卡箍CLAMP1
-828816衬垫GASKET1
-830749密封件SEAL2
-8M0157328火花塞 (NGK# LFR4A-E)SPARK PLUG (NGK# LFR4A-E)4
-892864T06节温器及壳体总成THERMOSTAT AND HOUSING ASSEMBLY Thermostat1
-8M0090819节温器总成THERMOSTAT ASSEMBLY1
-8M0100527水泵维修套件REPAIR KIT Water Pump1
-897574Q01皮带BELT1
-818298T1阳极套件ANODE KIT1
-826134T阳极块ANODE2
图 42油底壳 Oil Sump
油底壳 Oil Sump
REF零件编号中文名称英文名称数量
1821327定位销PIN Dowel2
28M0078540衬垫GASKET1
38M0091528油底壳OIL SUMP1
488552540螺钉(M6x40毫米)不锈钢SCREW (M6 x 40 mm) Stainless Steel10
48M0103809螺钉(M6x40毫米)不锈钢SCREW (M6 x 40 mm) Stainless Steel10
58M0064964油塞总成OIL PLUG ASSEMBLY1
58M0112869油塞总成OIL PLUG ASSEMBLY1
685045O型圈(.551 x .070)O-RING (.551 x .070)1
762706O型圈(0.426×0.070)O-RING (.426 x .070)1
88M0036228O型圈(8.1x1.6)O-RING (8.1 X 1.6)1
98M0068703护孔环GROMMET1
图 43动力配平总成 Power Trim Assembly
动力配平总成 Power Trim Assembly
REF零件编号中文名称英文名称数量
18M0090335动力调整装置总成(标准)POWER TRIM ASSEMBLY Standard1
28M0094357减震杆销PIN Shock Rod1
28M0161312连杆销眼总成PIN ROD EYE ASSEMBLY1
3821539三叶销PIN Trilobe2
4818898锚销PIN Anchor1
-8M0100502动力升降总成POWER TRIM ASSEMBLY1
-8M0171823动力调整总成POWER TRIM ASSY1
图 44动力升降总成组件-2B752836及以下 Power Trim Assembly Components - 2B752836 and Below
动力升降总成组件-2B752836及以下 Power Trim Assembly Components - 2B752836 and Below
REF零件编号中文名称英文名称数量
18M0060140动力升降装置电机套件TRIM ASSEMBLY MOTOR KIT1
2NSSO型圈(不单独销售, 部件号8M0057770组件)NOT SOLD SEPARATE O-ring, Component of 8M00577701
382494830螺钉 (M6 x 30)SCREW (M6 x 30)2
4400256锁紧垫圈 (M6)LOCKWASHER (M6)2
58782451驱动轴DRIVESHAFT1
68M0060127动力升降装置泵套件TRIM ASSEMBLY PUMP KIT1
7NSS螺丝(不单独销售)NOT SOLD SEPARATE Screw2
8NSSNOT SOLD SEPARATE O-ring2
9NSSNOT SOLD SEPARATE O-ring2
10NSS不单独销售衬套NOT SOLD SEPARATE Bushing1
118M0060126动力升降装置止回阀套件TRIM ASSEMBLY PO CHECK KIT1
128M0060143动力升降装置滤清器套件TRIM ASSEMBLY FILTER KIT1
138M0060128安全阀套件RELIEF VALVE KIT1
148M0060141手动释放套件MANUAL RELEASE KIT1
15811613塞子总成PLUG ASSEMBLY1
16NSS不单独销售NOT SOLD SEPARATE1
178M0060146记忆活塞套件MEMORY PISTON KIT1
18NSSNOT SOLD SEPARATE O-ring, Component of 8M00601421
198M0060145减震杆总成SHOCK ROD ASSEMBLY1
20NSSNOT SOLD SEPARATE O-ring,Component of 8M00601422
218M0050058螺钉5/16-24 X .5SCREW 5/16-24 X .51
218M0177279螺钉(5/16-24×0.5英寸)SCREW 5/16-24 x .51
-8M0060142升降油缸修理包TRIM CYL REBUILD KIT1
-8M0057770升降油缸密封件总成TRIM CYLINDER SEAL KIT Complete1
-8M0127334提升阀密封套件POPPET SEAL KIT1
图 45动力升降总成组件-2B752837及以上 Power Trim Assembly Components - 2B752837 and Up
动力升降总成组件-2B752837及以上 Power Trim Assembly Components - 2B752837 and Up
REF零件编号中文名称英文名称数量
18M0168227电机套件MOTOR KIT1
28M0168234泵套件PUMP KIT1
38M0168231压力检查套件PO CHECK KIT1
48M0168230滤清器套件FILTER KIT1
58M0168236安全阀套件RELIEF VALVE KIT1
68M0168228手动释放套件MANUAL RELEASE KIT1
68M0225371手动释放套件MANUAL RELEASE KIT1
78M0174135储液罐塞总成PLUG RESERVOIR ASSEMBLY1
8NSS不单独销售NOT SOLD SEPARATE1
98M0168238记忆活塞套件MEMORY PISTON KIT1
108M0168235减震杆套件SHOCK ROD KIT1
118M0050058螺钉5/16-24 X .5SCREW 5/16-24 X .51
118M0177279螺钉(5/16-24×0.5英寸)SCREW 5/16-24 x .51
128M0168229升降油缸修理包TRIM CYLINDER REBUILD KIT1
138M0168225密封套件SEAL KIT1
148M0168240联轴器套件COUPLER KIT1
图 46SC1000转速表套件（艉板与舵机安装） SC1000 Tachometer Kit Transom and Helm Mount
SC1000转速表套件（艉板与舵机安装） SC1000 Tachometer Kit Transom and Helm Mount
REF零件编号中文名称英文名称数量
18M0104733转速表套件-艉板安装型TACHOMETER KIT Transom Mount1
18M0095036转速表套件-艉板安装型TACHOMETER KIT Transom Mount1
28M210045210针数据延长线束HARNESS Data Extension 10 Pin1
38M0099412仪表外壳GAUGE HOUSING1
4NSS转速表7K-黑色(不单独销售)NOT SOLD SEPARATE TACHOMETER 7K - Black1
58590741仪表边框(85mm)黑色BEZEL (85 mm) Black1
58M0214969黑色边框BEZEL-BLACK1
6895054螺丝(M4×16毫米)SCREW (M4 x 16 mm)2
714742螺丝(.250-20 x 1.25)SCREW (.250-20 x 1.25)4
857807不锈钢螺钉(#10-16 x 0.750)SCREW (#10-16 x .750) Stainless Steel8
969205C形垫圈C WASHER8
98M0084613C形垫圈C-WASHER8
1022875卡扣CLIP8
1169355扎带(5.50英寸)TIE STRAP (5.50 Inches)1
118M0214940扎带TIE STRAP1
128M0097226转速表套件 舵机安装TACHOMETER KIT Helm Mount1
-8M0095037转速表套件7K-舵机安装(黑色)TACHOMETER KIT 7 K -Helm Mount (Black)1
138M0055044转速表线束V6.0HARNESS Tachometer, V 6.01
14NSS转速表7K-黑色(不单独销售)NOT SOLD SEPARATE TACHOMETER 7K - Black1
158590741仪表边框(85mm)黑色BEZEL (85 mm) Black1
158M0214969黑色边框BEZEL-BLACK1
图 47维修/支持手册 Service/Support Manual
维修/支持手册 Service/Support Manual
REF零件编号中文名称英文名称数量
-8M0060852零件手册(150匹四冲程/105匹喷泵)PARTS MANUAL 150 4-Stroke, 105 Jet1
-8M0062182操作手册(150匹电喷四冲程)OPERATION MANUAL 150 EFI 4-Stroke1
-8M0231628操作手册150PSXMANUAL-OP 150PSX1
-8M0095296操作手册(150匹四冲程SeaPro)OPERATION MANUAL 150 4-Stroke SeaPro1
-8M0133889操作手册OPERATION MANUAL1
-8M0230528操作手册(105匹喷泵)OPERATION MANUAL 105 Jet1
-8M0060785维修手册SERVICE MANUAL1
-8M0168224维修手册SERVICE MANUAL1
-8M0061498短缸体总成SHORT BLOCK ASSEMBLY1
-8M0122812短缸体总成SHORT BLOCK ASSEMBLY1
图 48换挡连杆 Shift Linkage
换挡连杆 Shift Linkage
REF零件编号中文名称英文名称数量
18M0058458换挡连杆支架总成BRACKET ASSEMBLY Shift Link1
2899044闩锁LATCH1
388552525不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel3
38M0103807不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel3
48M0050560垫圈WASHER1
58M0031453滚轮ROLLER1
627290挡圈RING Retaining1
78M0076452固定座总成RETAINER ASSEMBLY1
78M0150203固定座总成RETAINER ASSEMBLY1
88M0181784换挡位置传感器SENSOR Shift Position1
94001186六角垫圈头不锈钢螺钉(M4×13)SCREW (M4 X 13) Hex Wash HD SS1
108M0075152换挡连杆LINK Shift1
118M0058943传感器摇臂LEVER Sensor1
12401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
1335462垫圈(.2656 x .625 x .0625)不锈钢WASHER (.2656 x .625 x .0625) Stainless Steel1
148M0035249法兰衬套(内径6.452mm)BUSHING (6.452 MM ID) Flanged1
148M0237472衬套BUSHING1
158M0060213换挡轴总成SHIFT SHAFT ASSEMBLY1
158M0199744换挡轴总成SHIFT SHAFT ASSY1
168M0063632法兰衬套BUSHING Flanged1
17888823001换挡定位装置总成SHIFT DETENT ASSEMBLY1
188M0104795间隔垫片-换挡支架(仅限喷泵舷外机)SPACER, SHIFT BRACKET Jet Outboards Only1
198M0071176控制电缆锁扣LATCH Control Cable1
图 49垫片组 8M0076745 Shim Set 8M0076745
垫片组 8M0076745 Shim Set 8M0076745
REF零件编号中文名称英文名称数量
-8M0076745垫片组SHIM SET1
-8M0050423垫片 .020WASHER .0201
-8M0050424垫片 .022WASHER .0221
-8M0050425垫片 .024WASHER .0241
-8M0050427垫片 .026WASHER .0261
-8M0050428垫片 .028WASHER .0281
-8M0050429垫片 .030WASHER .0301
-8M0050430垫片 .032WASHER .0321
-8M0050431垫片 .034WASHER .0341
-8M0050432垫片 .036WASHER .0361
-8M0050433垫片 0.038WASHER .0381
-8M0050434垫片 0.040WASHER .0401
-8M0050435垫片 0.042WASHER .0421
-8M0050436垫片 0.044WASHER .0441
-8M0050437垫片 0.046WASHER .0461
-8M0050438垫片 0.048WASHER .0481
-8M0050439垫片 0.050WASHER .0501
图 50启动马达/机油滤清器/传感器（标号8M0074530） Starter Motor/Oil Filter/Sensors Starter Labeled 8M0074530
启动马达/机油滤清器/传感器（标号8M0074530） Starter Motor/Oil Filter/Sensors Starter Labeled 8M0074530
REF零件编号中文名称英文名称数量
1877761K01机油滤清器(水星品牌)FILTER Oil Mercury Branded1
28M0039451机油滤清器排油托盘TRAY Oil Filter Drain1
38M0049906油盘螺塞PLUG Oil Tray1
38M0143229滴油盘塞PLUG Drip Tray1
440011106不锈钢螺钉(M5x13)SCREW (M5 x 13) Stainless Steel2
58283582曲轴位置传感器SENSOR Crank position1
58M0082988曲轴位置传感器SENSOR Crankshaft Position1
6885342002水温传感器总成SENSOR ASSEMBLY Block water temp1
68M0148668传感器总成SENSOR ASSEMBLY1
78M0062119螺丝(M8×80)SCREW (M8 X 80)2
78M0188530螺钉 M8 X 80 六角凸缘头SCREW M8 X 80 HEX FLG HD2
888552645螺钉（M8X45）SCREW (M8X45)1
943430垫圈WASHER3
108M0070367启动机管状支架8mm(8M0096343组件)MOUNT - TUBULAR 8MM Component of Starter 8M00963436
108M0154659管状支架 8MMMOUNT TUBULAR 8 mm6
118M0096343启动机隔离支架(喷漆)STARTER Isolation Mount - Painted1
118M0187292起动机STARTER1
128M0070369垫圈(内径8.3×外径11.8)(8M0096343组件)SPACER (8.3 I.D. X 11.8 O.D.) Component of Starter 8M00963432
1340011126不锈钢螺丝(M6 x 13)SCREW (M6 x 13) Stainless Steel1
1481893420螺钉(M8 x 20)SCREW (M8 x 20)1
158M6000634机油压力传感器PRESSURE SENSOR Oil1
158M0142688压力传感器(机油/水)SENSOR Pressure (Oil/Water)1
168M0056666起动机接地带GROUND STRAP Starter1
178M0012661螺丝 M6×14 六角法兰不锈钢SCREW M6 x 14 HEX FLG SS2
18897672接头FITTING1
188M0073011接头FITTING1
198M0070368垫圈(内径8.3×外径11.8)(8M0096343组件)SPACER (8.3 I.D. X 11.8 O.D.) Component of Starter 8M00963431
图 51启动马达/机油滤清器/传感器（标号8M0079328） Starter Motor/Oil Filter/Sensors Starter Labeled 8M0079328
启动马达/机油滤清器/传感器（标号8M0079328） Starter Motor/Oil Filter/Sensors Starter Labeled 8M0079328
REF零件编号中文名称英文名称数量
1877761K01机油滤清器(水星品牌)FILTER Oil Mercury Branded1
28M0039451机油滤清器排油托盘TRAY Oil Filter Drain1
38M0049906油盘螺塞PLUG Oil Tray1
38M0143229滴油盘塞PLUG Drip Tray1
440011106不锈钢螺钉(M5x13)SCREW (M5 x 13) Stainless Steel2
58283582曲轴位置传感器SENSOR Crank position1
58M0082988曲轴位置传感器SENSOR Crankshaft Position1
6885342002水温传感器总成SENSOR ASSEMBLY Block water temp1
68M0148668传感器总成SENSOR ASSEMBLY1
78M0062119螺丝(M8×80)SCREW (M8 X 80)2
78M0188530螺钉 M8 X 80 六角凸缘头SCREW M8 X 80 HEX FLG HD2
888552645螺钉（M8X45）SCREW (M8X45)1
943430垫圈WASHER3
108M0070367管状支架 8MMMOUNT - TUBULAR 8MM6
108M0154659管状支架 8MMMOUNT TUBULAR 8 mm6
118M0061073启动机隔离支架(喷漆)STARTER Isolation Mount - Painted1
118M00802748M0096343ORDER 8M00963431
128M0070369垫圈（内径8.3 X 外径11.8）SPACER (8.3 I.D. X 11.8 O.D.)2
1340011126不锈钢螺丝(M6 x 13)SCREW (M6 x 13) Stainless Steel2
1481893420螺钉(M8 x 20)SCREW (M8 x 20)1
158M6000634机油压力传感器PRESSURE SENSOR Oil1
158M0142688压力传感器(机油/水)SENSOR Pressure (Oil/Water)1
168M0056666起动机接地带GROUND STRAP Starter1
178M0012661螺丝 M6×14 六角法兰不锈钢SCREW M6 x 14 HEX FLG SS2
18897672接头FITTING1
188M0073011接头FITTING1
198M0070368垫圈（内径8.3 X 外径11.8）SPACER (8.3 I.D. X 11.8 O.D.)1
图 52旋转支架与转轴（非SeaPro） Swivel Bracket and Swivel Pin Non SeaPro
旋转支架与转轴（非SeaPro） Swivel Bracket and Swivel Pin Non SeaPro
REF零件编号中文名称英文名称数量
18M0045781六角法兰螺丝M14×2.0-115SCREW M14x2.0-115 HX FLG HD2
28M0052629上减震座缓冲垫圈WASHER Upper Mount Snubber2
28M0065195六角法兰螺丝(M14×2×115)SCREW (M14x2x115) Hex Flange2
28M0240824螺钉SCREW2
38M0047986六角法兰螺丝(M10×1.5×40)SCREW (M10X1.5X40) Hex Flange6
38M0069689螺钉(M10×1.5×40)六角法兰SCREW (M10x1.5x40) Hex Flange6
38M0069689螺钉(M10×1.5×40)六角法兰SCREW (M10x1.5x40) Hex Flange6
48M0057723上部支架MOUNT Upper2
48M0143228上支架MOUNT UPPER2
4NSS重型支架(不单独销售)NOT SOLD SEPARATE Extreme Duty Mounts1
58M0057743转向管总成STEERING TUBE ASSEMBLY1
58M0133457黑色转向管总成STEERING TUBE ASSEMBLY Black1
6896602螺母(M14)NUT (M14)2
7847401螺丝(#10-24×0.380)SCREW (#10-24 x .380)1
824836卡扣CLIP1
98M0056607C形垫圈C-WASHER1
98M0084612C形垫圈C-WASHER1
108M0052523配平传感器总成TRIM SENSOR ASSEMBLY1
108M0076463配平传感器总成TRIM SENSOR ASSEMBLY1
1189302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)2
12852368螺钉（#10-24 X 0.750）SCREW (#10-24 x .750)2
138M0057751旋转支架总成SWIVEL BRACKET ASSEMBLY1
138M0220953旋转支架总成SWIVEL BRAKT ASSY1
138M0230756旋转支架总成SWIVEL BRACKET ASSEMBLY1
148M0059091倾斜销轴承(内径26.38×长42)BEARING Tilt pin 26.38IDX42LG2
1574036润滑脂接头FITTING Grease1
158M0169589润滑脂接头FITTING Grease1
168M0034861旋转管枢轴衬套BUSHING Swivel Tube Pivot2
168M0220988旋转管枢轴衬套BUSHING Swivel Tube Pivot2
178M0034870旋转管密封件SEAL Swivel Tube2
18816432止推垫片THRUST WASHER2
194000325螺丝(M6 x 8)SCREW (M6 x 8)1
208M0057726下轭架YOKE Bottom1
21825190垫圈WASHER2
228M0045787六角法兰螺丝M14×2.0×155SCREW M14X2.00 X 155 HEX FLG HD2
228M0069492六角法兰螺栓(M14×2×155)BOLT (M14x2x155) Hex Flange2
228M0069492六角法兰螺栓(M14×2×155)BOLT (M14x2x155) Hex Flange2
238M0057725下减震座总成LOWER MOUNT ASSEMBLY2
23NSS重型下部支架(不单独销售)NOT SOLD SEPARATE Extreme Duty Lower Mounts2
248M0052453下部支架缓冲垫圈WASHER Lower Mount Snubber2
248M0219210垫圈WASHER2
258M0045788下部支架缓冲垫圈(内径14.4)WASHER Lower Mount Snubber 14.4ID2
258M0069499垫圈WASHER2
258M0069499垫圈WASHER2
268M0062747拉线总成CABLE ASSEMBLY1
27896602螺母(M14)NUT (M14)2
284000326螺钉（M6 x 12）SCREW (M6 x 12)1
298M0050046拉线总成CABLE ASSEMBLY1
3029245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
308M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
318M0049816配平导线护套RETAINER Trim Lead1
328M0032692法兰轴颈轴承FLANGED JOURNAL BEARING2
328M0081024剖分式轴颈轴承SPLIT JOURNAL BEARING2
328M0081024剖分式轴颈轴承SPLIT JOURNAL BEARING2
3367684挡圈RING Retaining1
348M0047986六角法兰螺丝(M10×1.5×40)SCREW (M10X1.5X40) Hex Flange8
348M0069689螺钉(M10×1.5×40)六角法兰SCREW (M10x1.5x40) Hex Flange8
348M0069689螺钉(M10×1.5×40)六角法兰SCREW (M10x1.5x40) Hex Flange8
354010610不锈钢螺钉(M6x10)SCREW (M6 x 10) Stainless Steel1
3692876A12连杆总成LINK ROD ASSEMBLY1
37849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)1
388M0042636黄铜螺母 (.375-24)NUT (.375-24) Brass2
388M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass2
3937828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel2
-8M0081029重型支架套件KIT Extreme Duty Mount1
图 53旋转支架与转轴（SeaPro） Swivel Bracket and Swivel Pin SeaPro
旋转支架与转轴（SeaPro） Swivel Bracket and Swivel Pin SeaPro
REF零件编号中文名称英文名称数量
18M0065195六角法兰螺丝(M14×2×115)SCREW (M14x2x115) Hex Flange2
28M0052629上减震座缓冲垫圈WASHER Upper Mount Snubber2
38M0096222上部支架垫圈WASHER UPPER MOUNT2
48M0047986六角法兰螺丝(M10×1.5×40)SCREW (M10X1.5X40) Hex Flange6
48M0069689螺钉(M10×1.5×40)六角法兰SCREW (M10x1.5x40) Hex Flange6
58M0096244上减震座MOUNTS - UPPER2
58M0111054上减震座MOUNTS - UPPER2
68M0057743转向管总成STEERING TUBE ASSEMBLY1
68M0133457黑色转向管总成STEERING TUBE ASSEMBLY Black1
7896602螺母(M14)NUT (M14)2
8847401螺丝(#10-24×0.380)SCREW (#10-24 x .380)1
924836卡扣CLIP1
108M0056607C形垫圈C-WASHER1
108M0084612C形垫圈C-WASHER1
118M0052523配平传感器总成TRIM SENSOR ASSEMBLY1
118M0076463配平传感器总成TRIM SENSOR ASSEMBLY1
1289302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)2
13852368螺钉（#10-24 X 0.750）SCREW (#10-24 x .750)2
148M0057751旋转支架总成SWIVEL BRACKET ASSEMBLY1
148M0220953旋转支架总成SWIVEL BRAKT ASSY1
158M0059091倾斜销轴承(内径26.38×长42)BEARING Tilt pin 26.38IDX42LG2
1674036润滑脂接头FITTING Grease1
168M0169589润滑脂接头FITTING Grease1
178M0034861旋转管枢轴衬套BUSHING Swivel Tube Pivot2
178M0220988旋转管枢轴衬套BUSHING Swivel Tube Pivot2
188M0034870旋转管密封件SEAL Swivel Tube2
19816432止推垫片THRUST WASHER2
204000325螺丝(M6 x 8)SCREW (M6 x 8)1
218M0057726下轭架YOKE Bottom1
22825190垫圈WASHER2
238M0045787六角法兰螺丝M14×2.0×155SCREW M14X2.00 X 155 HEX FLG HD2
238M0069492六角法兰螺栓(M14×2×155)BOLT (M14x2x155) Hex Flange2
248M0057725下减震座总成LOWER MOUNT ASSEMBLY2
258M0052453下部支架缓冲垫圈WASHER Lower Mount Snubber2
258M0219210垫圈WASHER2
268M0045788下部支架缓冲垫圈(内径14.4)WASHER Lower Mount Snubber 14.4ID Lower Mount Snubber2
268M0069499垫圈WASHER2
278M0062747拉线总成CABLE ASSEMBLY1
28896602螺母(M14)NUT (M14)2
294000326螺钉（M6 x 12）SCREW (M6 x 12)1
308M0050046拉线总成CABLE ASSEMBLY1
3129245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
318M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
328M0049816配平导线护套RETAINER Trim Lead1
338M0081024剖分式轴颈轴承SPLIT JOURNAL BEARING2
3467684挡圈RING Retaining1
358M0047986六角法兰螺丝(M10×1.5×40)SCREW (M10X1.5X40) Hex Flange8
358M0069689螺钉(M10×1.5×40)六角法兰SCREW (M10x1.5x40) Hex Flange8
364010610不锈钢螺钉(M6x10)SCREW (M6 x 10) Stainless Steel1
3792876A12连杆总成LINK ROD ASSEMBLY1
38849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)1
398M0042636黄铜螺母 (.375-24)NUT (.375-24) Brass2
398M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass2
4037828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel2
图 54工具 Tools
工具 Tools
REF零件编号中文名称英文名称数量
0881824001工具-故障指示灯TOOL Malfunction Indicator Lamp1
0881824002工具-定子线圈测试线束(6针)TOOL Stator Coil Test Harness (6-Pin)1
0881824004测试线束总成HARNESS ASSEMBLY Test1
0881824003工具-燃油压力表适配器TOOL Fuel Pressure Gauge Adapter1
08M0075272仪表适配器GAUGE ADAPTOR1
图 55顶罩 Top Cowl
顶罩 Top Cowl
REF零件编号中文名称英文名称数量
18M0087994顶部罩盖总成带水星贴花TOP COWL ASSEMBLY Mercury Decaled1
18M0159539顶部罩盖总成带水星贴花TOP COWL ASSEMBLY Mercury Decaled1
18M0159539顶部罩盖总成带水星贴花TOP COWL ASSEMBLY Mercury Decaled1
18M0090833顶部罩盖总成水手版无贴花TOP COWL ASSEMBLY Mariner, Non-Decaled1
18M0091789顶部罩盖总成黑色无贴花TOP COWL ASSEMBLY Black, Non-Decaled1
18M0087995顶部罩盖总成灰色带贴花TOP COWL ASSEMBLY Gray, Decaled1
18M0096296顶部罩盖总成水星SeaPro版带贴花无马力标识TOP COWL ASSEMBLY Mercury, SeaPro Decaled without Horsepower1
28M0055166顶部罩盖前锁钩HOOK Top Cowl Latch Front1
388552512不锈钢螺钉 (M6 x 12 mm)SCREW (M6 x 12 mm) Stainless Steel4
38M0103804不锈钢螺钉 (M6 x 12 mm)SCREW (M6 x 12 MM) Stainless Steel4
44002316垫圈(6.60 X 17.0 X 1.5不锈钢)WASHER (6.60 X 17.0 X 1.5SS)6
48M0214930垫圈6.60 x 17.0 x 1.5WASHER 6.60 x 17.0 x 1.56
58M0075859弹簧槽销PIN - SPRING, Slotted1
68M0055191锁柄HANDLE, LATCH1
68M0088853锁柄HANDLE, LATCH1
78M0055189后锁连杆LINK - LATCH Rear1
88M0056980后锁密封SEAL Rear Latch1
98M0075694卡扣夹CLIP - SNAP1
108M0055186锁扣组件LATCH ASSEMBLY1
1188552525不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel2
118M0103807不锈钢螺钉 (M6 x 25毫米)SCREW (M6 x 25 mm) Stainless Steel2
128M0006054固定座RETAINER1
138M0087850上罩壳密封件SEAL Top Cowl1
图 56艉板支架 Transom Bracket
艉板支架 Transom Bracket
REF零件编号中文名称英文名称数量
1828334T02艉板支架总成 - 右舷BRACKET ASSEMBLY Transom - Starboard1
2828333T07艉板支架总成-左舷BRACKET ASSEMBLY Transom - Port1
28M0045064艉板支架套件TRANSOM BRK KIT1
398727润滑脂加注口接头FITTING Grease Port1
38M0169588润滑脂接头FITTING Grease1
4826125A1倾斜管TILT TUBE1
5826135尼龙锁紧螺母(1.00-14)NUT Lock (1.00-14) Nylon Insert1
645711O型圈 内径0.612英寸×宽0.103英寸O-Ring .612 IN I.D. x .103 IN Width1
788750波浪垫圈(1.62 x 1.05)WASHER Wave (1.62 x 1.05) Wave2
8826164螺母 (.875-14)NUT (.875-14)1
88M0231351锁紧螺母NUT Lock1
9677551螺钉(.500-20×4.500)SCREW (.500-20 x 4.500)4
98M0149747螺钉SCREW4
1054012垫圈(0.530×0.870×0.105不锈钢)WASHER (.530 x .870 x .105) Stainless Steel4
108M0204665垫圈(0.530×0.880×0.104 630不锈钢)WASHER (.530 x .880 x .104) 630 Stainless Steel4
1128421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
118M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
1282671117螺母(.500-20)NUT (.500-20)4
13830899张力弹簧SPRING Tension1
14821176T02倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
148M0109798倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
1565830尼龙衬套NYLINER2
16830900压缩弹簧SPRING Compression1
1799633旋钮KNOB1
1899615槽销PIN Groove1
1999617左舷艉板支架附带销PIN Included with Port Transom Bracket1
19893709销PIN1
20818771T1锚支架BRACKET Anchor1
208M0086406锚支架BRACKET Anchor1
21858771螺钉 (M10 x 30)SCREW (M10 x 30)6
224002319垫圈WASHER6
2340114螺母(M10 x 1.5)NUT (M10 x 1.5)1
248182981阳极块ANODE1
24818298Q1阳极套件ANODE KIT1
254000330螺钉(M6x25)SCREW (M6 x 25)2
258M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
2629245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
268M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
2722740卡扣CLIP2
2869205C形垫圈C WASHER1
288M0084613C形垫圈C-WASHER1
29878609螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
30NSS不单独销售-序列号覆膜标贴NOT SOLD SEPARATE Decal-Serial Overlaminate1
318M0043059警告标贴DECAL Warning1
图 57无水分离传感器的燃油滤清器套件-SeaPro Water Separating Fuel Filter Kit Without WIF Sensor-SeaPro
无水分离传感器的燃油滤清器套件-SeaPro Water Separating Fuel Filter Kit Without WIF Sensor-SeaPro
REF零件编号中文名称英文名称数量
-8M0097838燃油滤清器套件FUEL FILTER KIT1
18M0095674燃油滤清器底座总成BASE ASSEMBLY Fuel Filter1
2NSS燃油滤清器总成(不单独销售)NOT SOLD SEPARATE Fuel Filter Assembly1
336373六角堵头（.375-18）-钢制PLUG (.375-18) Hex - Steel2
38M0204657堵头PLUG2
48M0086290倒钩接头CONNECTOR Barb2
48M0204732倒钩接头CONNECTOR Barb2
5815504105蜗轮卡箍(11-18毫米)CLAMP Worm Gear (11-18 mm)2
58M0188618蜗轮卡箍(11-18毫米)CLAMP Worm Gear (11-18 mm)2
图 58带WIF传感器的水分离燃油滤清器套件 Water Separating Fuel Filter Kit With WIF Sensor
带WIF传感器的水分离燃油滤清器套件 Water Separating Fuel Filter Kit With WIF Sensor
REF零件编号中文名称英文名称数量
-8M0109543燃油滤清器套件-远程油水分离型FUEL FILTER KIT Remote Water Seperating1
18M0095674燃油滤清器底座总成BASE ASSEMBLY Fuel Filter1
2809096油水分离式燃油滤清器总成FILTER Fuel-Water Separating Fuel Filter Assembly1
28M0116793燃油滤清器套件FUEL FILTER KIT1
38M0021044滤杯BOWL1
38M0214990滤清器杯体FILTER BOWL1
48M0103095油水分离滤清器(11/16-16螺纹)FILTER Fuel-Water Separating (11/16-16 Thread)1
48M0146203滤芯(11/16英寸)ELEMENT 11/16 IN1
536373六角堵头（.375-18）-钢制PLUG (.375-18) Hex - Steel2
58M0204657堵头PLUG2
68M0086290倒钩接头CONNECTOR Barb2
68M0204732倒钩接头CONNECTOR Barb2
7855697卡箍CLAMP2
78M0204696卡箍CLAMP2
88M0021043传感器总成 燃油和水SENSOR ASSEMBLY Fuel and Water1
88M0214989燃油含水传感器SENSOR WIF1
98M0060420线束(6针)HARNESS 6 Pin1
108M0060421线束转接器HARNESS Adapter1
