四冲程 电喷 EFI · USA - Cat.# 90-881838006 · 共 142 个部位 · 5289 条零件

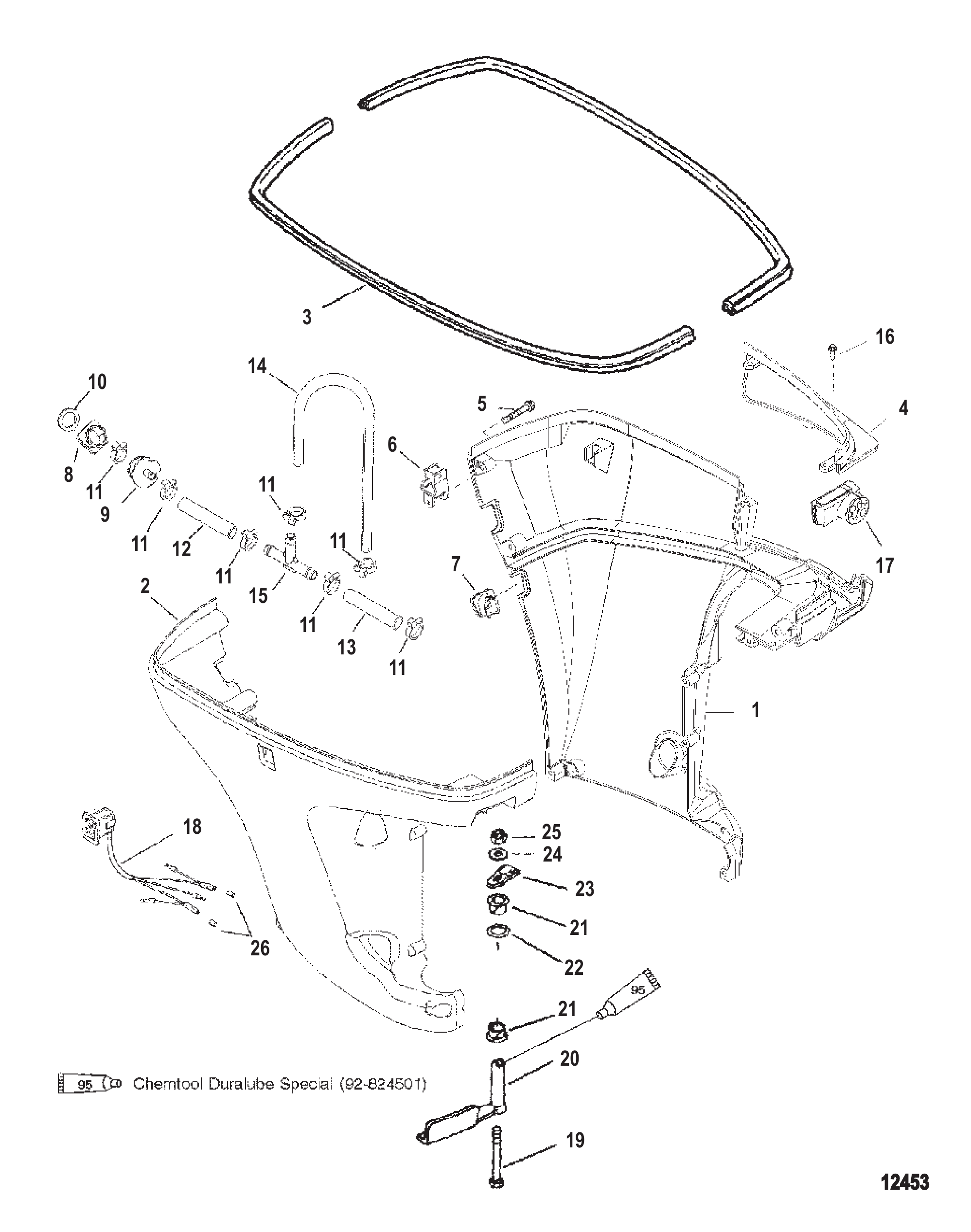

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

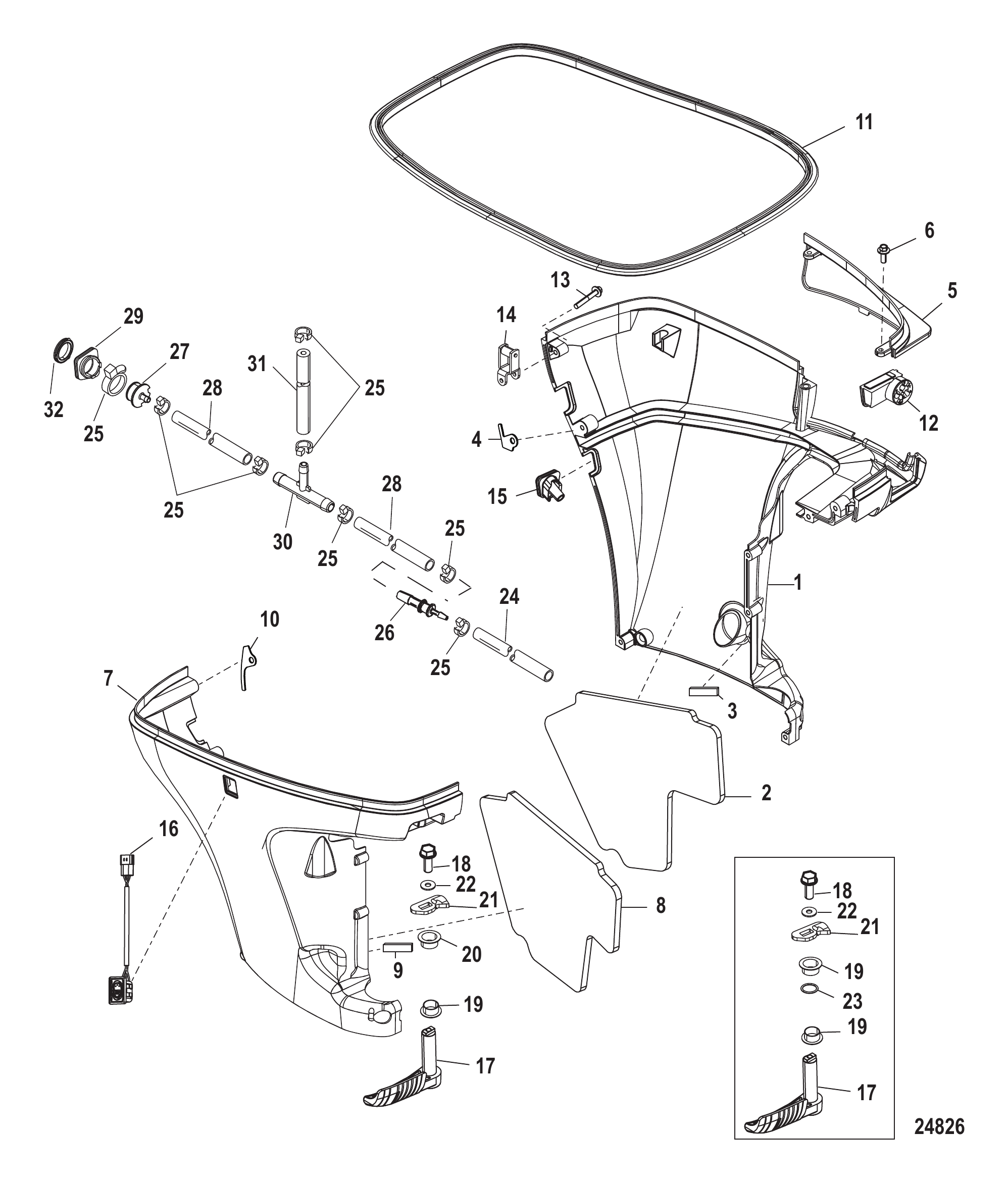

| 1 | 878587A02 | 左舷下罩总成 | BOTTOM COWL ASSEMBLY Port | 1 |
| 2 | 898490 | 左舷隔音毯 | SOUND BLANKET Port | 1 |
| 3 | 828706 | 缓冲垫 | BUMPER | 1 |
| 3 | 8M0043364 | 缓冲垫 | BUMPER | 1 |
| 4 | 8M0001077 | 泡沫衬垫(含于下罩内) | GASKET Foam Included in bottom cowls. | 1 |
| 5 | 897658T | 嵌件 | INSERT | 1 |
| 6 | 892073002 | 台阶螺丝 (M6) | SHOULDER SCREW (M6) | 2 |
| 6 | 8M0230980 | 螺丝 (M6x14) 六角法兰B型 | SCREW (M6 x 14) Hex Flange B | 2 |
| 7 | 858743A04 | 右舷下罩总成 | BOTTOM COWL ASSEMBLY Starboard | 1 |
| 7 | 8M0107318 | 机罩-底部 右舷 | COWL-BOTTOM, STBD | 1 |
| 8 | 898491 | 右舷隔音毯 | SOUND BLANKET Starboard | 1 |
| 9 | 828706 | 缓冲垫 | BUMPER | 1 |
| 9 | 8M0043364 | 缓冲垫 | BUMPER | 1 |
| 10 | 8M0000540 | 泡沫衬垫(含于下罩内) | GASKET Foam Included in bottom cowls. | 1 |
| 11 | 8M0000413 | 罩盖密封条(41英寸) | SEAL Cowl (41.00 Inches) | 1 |
| 11 | 8M0111278 | 密封件 | SEAL | 1 |
| 12 | 889724 | 护孔环 | GROMMET | 1 |
| 13 | 82130040 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 8 |
| 14 | 831209 | 固定座 | RETAINER | 1 |
| 15 | 898805 | 怠速排气套 | BOOT Idle Exhaust | 1 |
| 16 | 896620001 | 升降倾斜开关 | SWITCH Trim | 1 |
| 16 | 8M0235191 | 升降倾斜开关 | SWITCH Trim | 1 |

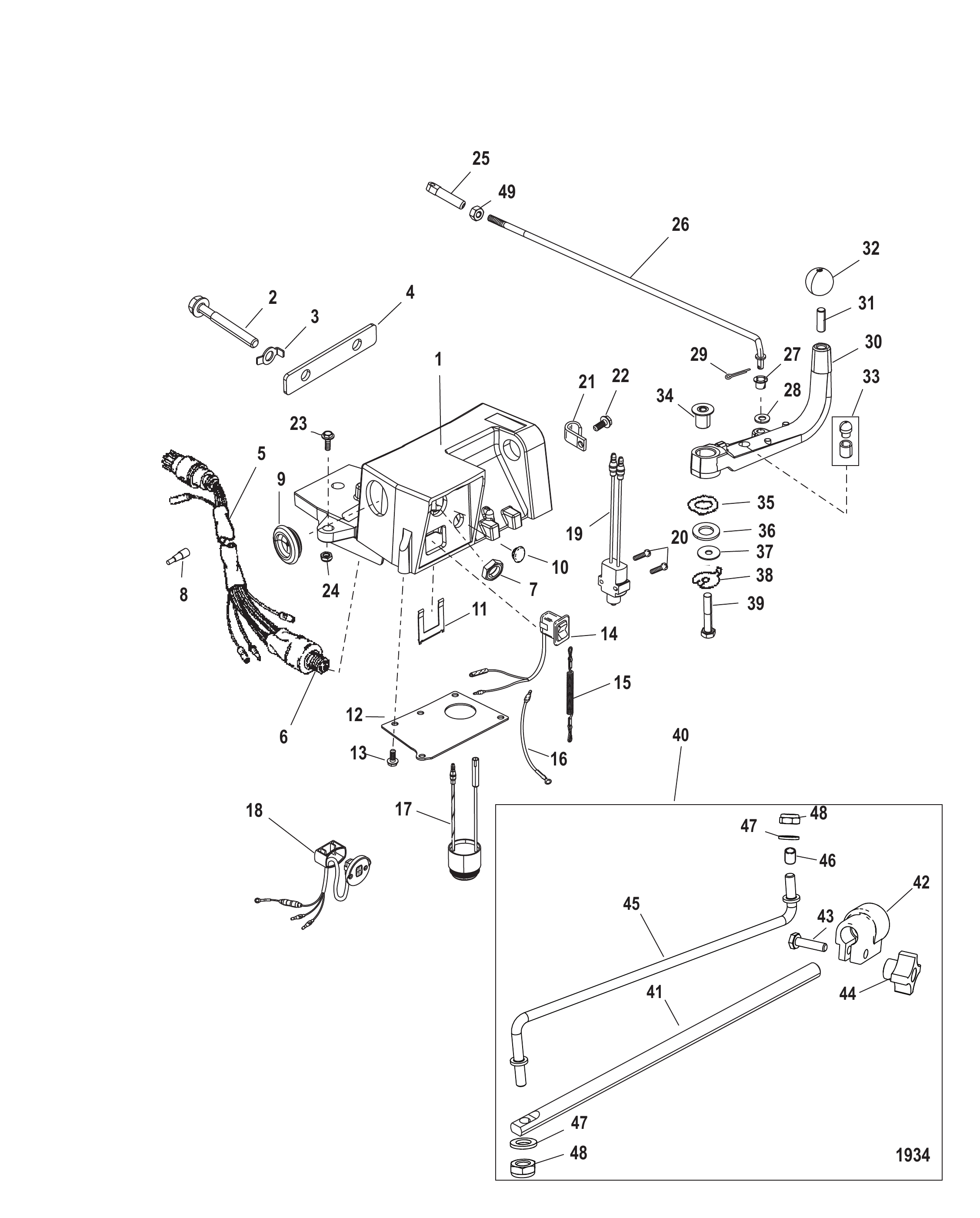

| 17 | 889740A02 | 手柄套件 | HANDLE KIT | 1 |
| 18 | 88552516 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 1 |
| 18 | 8M0103805 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 1 |
| 19 | 33589 | 衬套 | BUSHING | 2 |
| 19 | 33589 | 衬套 | BUSHING | 1 |
| 20 | 8M0001595 | 黑色衬套 | BUSHING Black | 1 |
| 21 | 8219423 | 棘爪 | PAWL | 1 |
| 22 | 69057 | 垫片(.281 x .734 x .063) | WASHER (.281 x .734 x .063) | 1 |
| 23 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 1 |
| 24 | 9912688 | 管材 (36.00英寸散装) | TUBING (36.00 Inches Bulk) | 1 |
| 25 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 8 |
| 26 | 898029 | 异径接头 | FITTING Reducer | 1 |
| 27 | 827948 | 接头 | FITTING | 1 |
| 28 | 8M0047428 | 软管(内径0.25英寸，57英寸散装) | HOSE (.25 inch ID, 57.00 Inches Bulk) | 2 |
| 28 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 2 |
| 29 | 8M0039078 | 护孔环 | GROMMET | 1 |
| 30 | 817518 | 三通 | TEE | 1 |
| 31 | 881535 | 软管(32.00英寸) | HOSE (32.00 Inches) | 1 |
| 32 | 855576 | 垫圈 | WASHER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

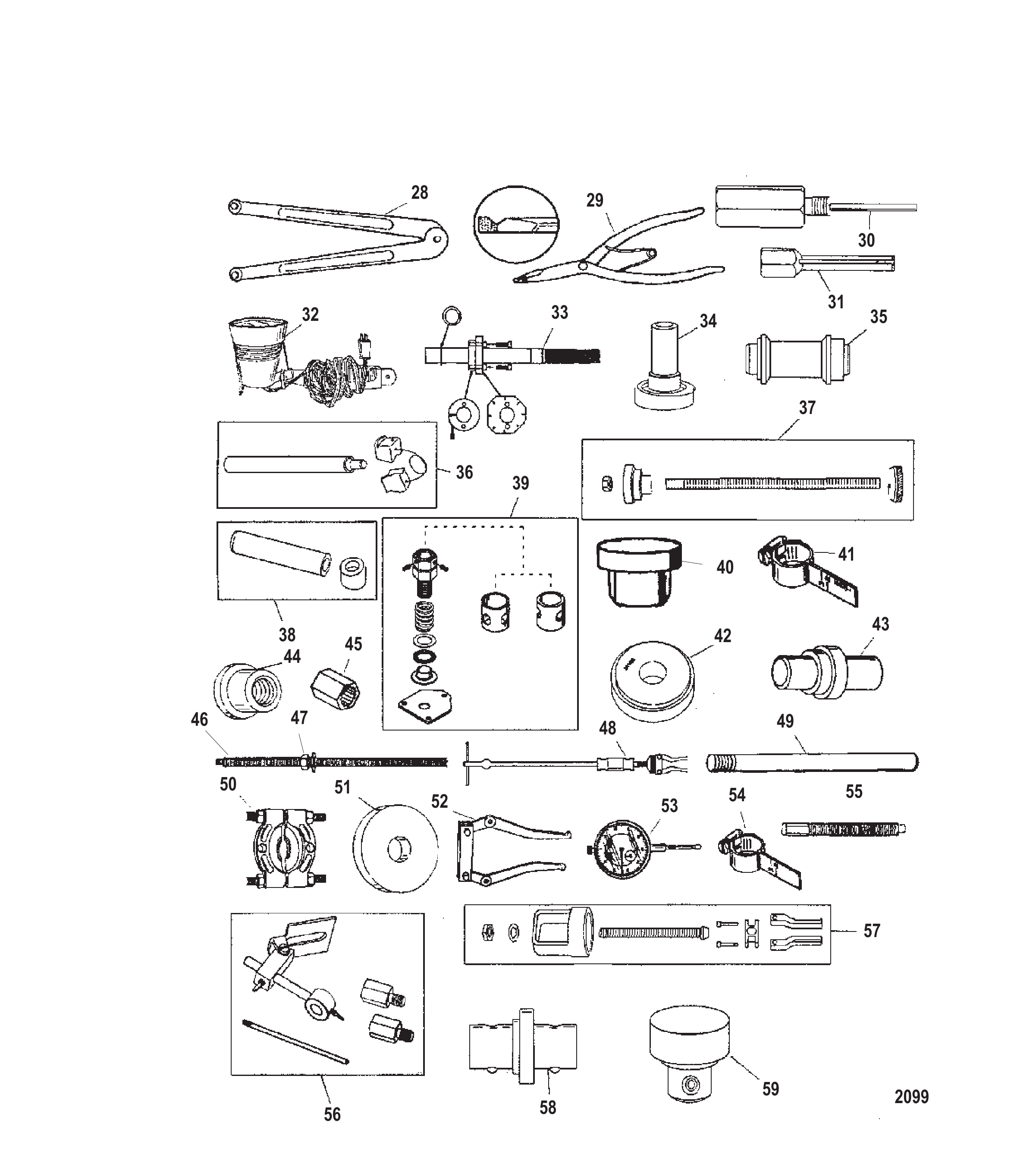

| 28 | 74951 | 扳手 | SPANNER WRENCH | 1 |
| 29 | NSS | 非单独销售锁环钳 | NOT SOLD SEPARATE Lock Ring Pliers | 1 |
| 30 | NSS | 非单独销售膨胀杆 | NOT SOLD SEPARATE Expanding Rod | 1 |
| 31 | NSS | 非单独销售夹头 | NOT SOLD SEPARATE Collet | 1 |
| 32 | 63209 | 加热灯 | HEAT LAMP | 1 |
| 33 | 12349A2 | 小齿轮定位工具 | LOCATION TOOL Pinion | 1 |
| 33 | 12349A05 | 小齿轮定位工具 | TOOL Pinion Locating | 1 |
| 34 | 13945 | 轴承安装工具 | INSTALLATION TOOL Bearing | 1 |
| 35 | 13949 | 油封安装工具 | DRIVER TOOL Oil Seal | 1 |
| 36 | 14308T1 | 轴承座圈工具 | RACE TOOL Bearing | 1 |
| 36 | 14308T02 | 轴承座圈驱动器 | BEARING RACE DRIVER | 1 |
| 37 | 14309T1 | 轴承安装工具 | INSTALLATION TOOL Bearing | 1 |
| 37 | 14309T02 | 轴承安装工具 | INSTALLATION TOOL Bearing | 1 |
| 38 | 14310T1 | 耐磨套驱动器 | WEAR SLEEVE DRIVER | 1 |
| 39 | 14311A2 | 轴承预紧工具 | PRE LOAD TOOL Bearing | 1 |
| 39 | 14311A04 | 预紧力工具 | TOOL Preload | 1 |
| 40 | 15755T | 滚针轴承驱动器 | NEEDLE BEARING DRIVER | 1 |
| 41 | 196601 | 背隙测量仪 | INDICATOR TOOL Backlash | 1 |
| 42 | 31106T | 轴承安装心轴杯 | MANDREL Bearing Driver Cup | 1 |
| 43 | 31108T | 油封驱动器 | DRIVER Oil Seal | 1 |
| 44 | 36569T | 驱动头工具 | DRIVE HEAD TOOL | 1 |
| 45 | 804776A1 | 传动轴固定工具 | HOLDING TOOL Driveshaft | 1 |
| 46 | 31229 | 轴 | SHAFT | 1 |
| 47 | 24156 | 螺母(0.625-18) | NUT (.625-18) | 1 |
| 48 | 34569A1 | 滑动锤拉拔器总成 | PULLER ASSEMBLY Slide Hammer | 1 |
| 49 | 37323 | 滚针轴承导杆工具 | DRIVER ROD TOOL Needle Bearings | 1 |
| 50 | 37241 | 通用拉拔板 | PULLER PLATE Universal | 1 |
| 51 | 37350T | 导向心轴 | PILOT MANDREL | 1 |
| 52 | 46086A1 | 拉拔器爪头总成 | PULLER JAW ASSEMBLY | 1 |
| 53 | 58222A1 | 百分表工具 | DIAL INDICATOR TOOL | 1 |
| 54 | 78473 | 背隙测量仪 | INDICATOR TOOL Backlash | 1 |
| 54 | 8M0053505 | 背隙指示工具 | TOOL Indicator, Backlash | 1 |
| 55 | 85716 | 拉拔螺栓工具-轴承座 | PULLER BOLT TOOL Bearing Carrier | 1 |
| 56 | 83155 | 千分表转接套件 | ADAPTER KIT Dial Indicator | 1 |
| 56 | 8M0237356 | 适配器套件 | ADAPTER KIT | 1 |
| 57 | 83165T | 拉拔器总成 | PULLER ASSEMBLY | 1 |
| 58 | 856875A1 | 轴承安装工具 | INSTALLATION TOOL Bearing | 1 |
| 59 | 877321A1 | 轴承安装工具 | INSTALLATION TOOL Bearing | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

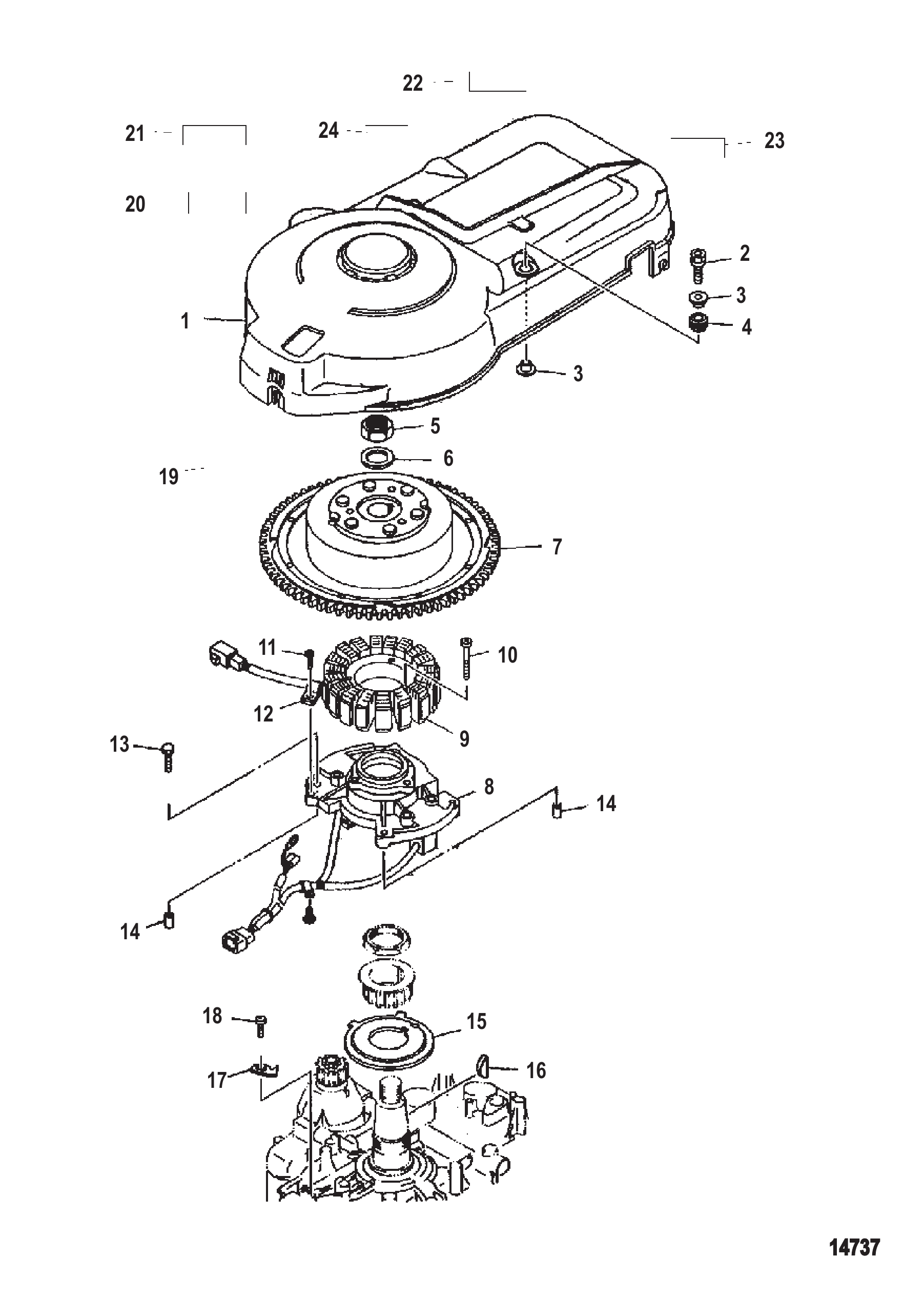

| 1 | 881343T1 | 飞轮盖 | FLYWHEEL COVER | 1 |
| 2 | 804348 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 2 |
| 3 | 825665 | 轴环 | COLLAR | 4 |
| 4 | 11416M | 护孔环 | GROMMET | 2 |
| 4 | 11416T | 护孔环 | GROMMET | 2 |
| 5 | 804265 | 六角螺母(36毫米) | NUT Hex (36 mm) | 1 |
| 5 | 804265A1 | 六角螺母/垫片套件(36毫米) | NUT/WASHER KIT Hex (36 mm) | 1 |
| 5 | 804265A1 | 六角螺母/垫片套件(36毫米) | NUT/WASHER KIT Hex (36 mm) | 1 |
| 6 | 8042641 | 平板垫圈 | WASHER Plate | 1 |
| 6 | 804264 | 垫圈 | WASHER | 1 |
| 6 | 804265A1 | 六角螺母/垫片套件(36毫米) | NUT/WASHER KIT Hex (36 mm) | 1 |
| 7 | 881335T | 飞轮 | FLYWHEEL | 1 |
| - | 881336T1 | 定子套件 | STATOR KIT | 1 |
| 8 | 881337T | 脉冲线圈 | COIL Pulser | 1 |
| 9 | 881336T2 | 定子 | STATOR | 1 |
| 10 | 881338 | 螺丝(M6×28) | SCREW (M6 x 28) | 3 |
| 11 | 881339 | 螺钉(M4 x 8) | SCREW (M4 x 8) | 1 |
| 11 | 881339002 | 螺钉 | SCREW | 1 |
| 12 | 881340 | 卡箍 | CLAMP | 1 |
| 13 | 804603 | 螺栓 (M6 x 30) | BOLT (M6 x 30) | 4 |
| 14 | 825010 | 定位销 | PIN Dowel | 2 |
| 15 | 881341 | 转子 | ROTOR | 1 |
| 16 | 881342 | 键 | KEY | 1 |
| 17 | 804266 | 正时板 | TIMING PLATE | 1 |
| 17 | 804266001 | 正时板 | PLATE Timing | 1 |
| 18 | 804267 | 螺钉 | SCREW | 1 |
| 19 | NSS | 非单独销售标贴-空挡警告 | NOT SOLD SEPARATE Decal, Warning Neutral | 1 |
| 20 | NSS | 非单独销售标贴-飞轮旋转警告 | NOT SOLD SEPARATE Decal, Warning Spinning Flywheel | 1 |
| 21 | NSS | 非单独销售标贴-维修指引 | NOT SOLD SEPARATE Decal, Servicing Referral | 1 |
| 22 | NSS | 非单独销售标贴-机油阀门 | NOT SOLD SEPARATE Decal, Engine Oil, Valve | 1 |
| 23 | NSS | 非单独销售标贴-紧急启动 | NOT SOLD SEPARATE Decal, Emergency Starting | 1 |
| 24 | 881839A01 | EPA标签信息贴花 | DECAL EPA Label Information | 1 |
| 24 | 881839A02 | EPA标签信息贴花 | Decal EPA Label Information | 1 |
| 24 | 881839A03 | EPA标签信息贴花 | DECAL EPA Label Information | 1 |
| - | 881421T01 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

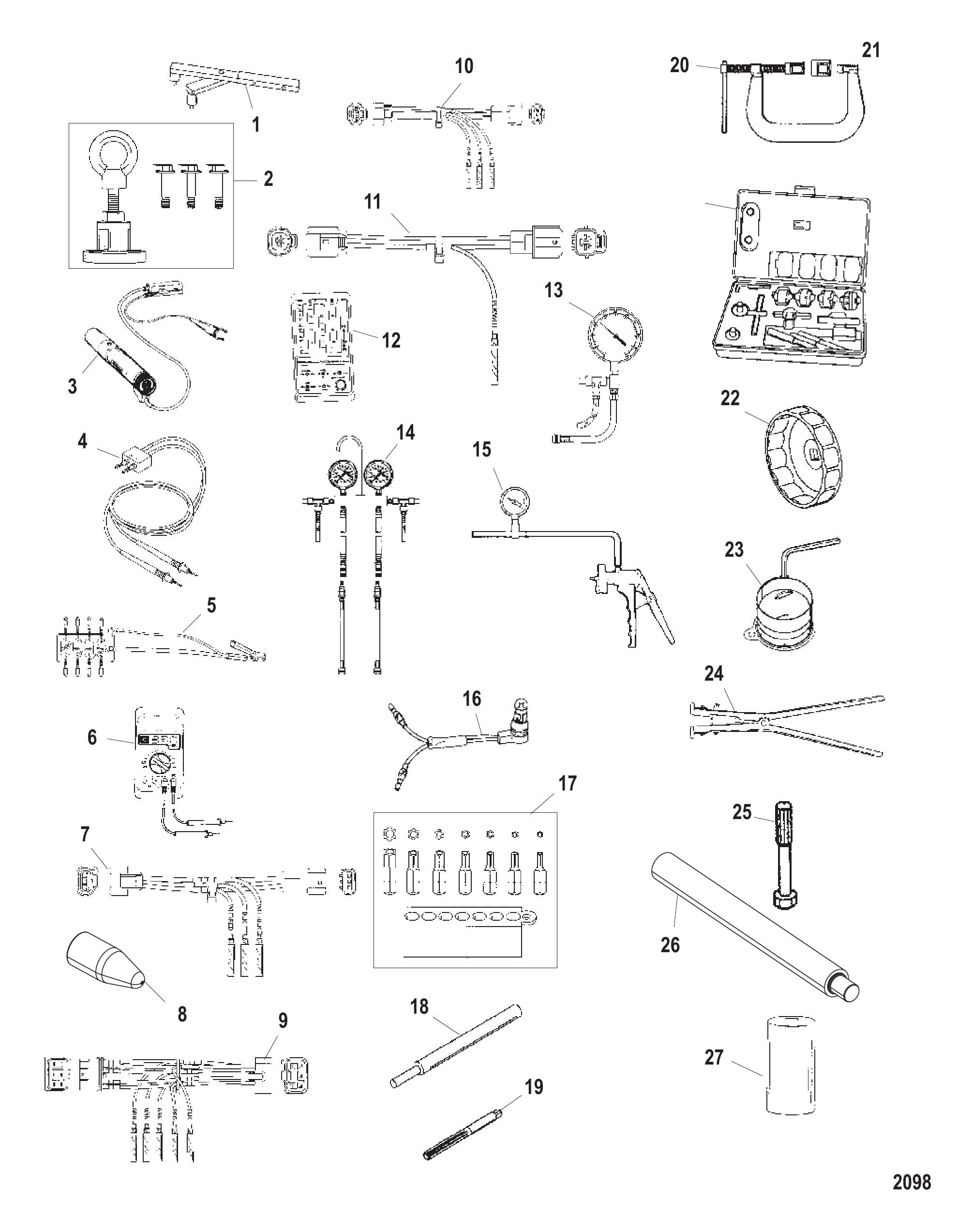

| 1 | 83163M | 飞轮固定工具 | HOLDER TOOL Flywheel | 1 |
| 1 | 8M0161873 | 固定工具 | HOLDER TOOL | 1 |
| 2 | 83164M | 飞轮拉拔器 | FLYWHEEL PULLER | 1 |
| 2 | 8M0227579 | 飞轮拉拔器 | FLYWHEEL PULLER | 1 |
| 3 | 99379 | 正时灯 | TIMING LIGHT | 1 |
| 4 | 890451 | 直流电压适配工具 | ADAPTER TOOL Direct Voltage | 1 |
| 5 | 850439T1 | 八腔测试仪 | TESTER Eight Chamber | 1 |
| 6 | 854009A3 | 转速多功能表DMT 2000数字式 | TACH MULTI METER DMT 2000 Digital | 1 |
| 6 | 892647A01 | DMT万用表套件 | MULTI-METER KIT DMT | 1 |
| 7 | 881825 | 曲轴位置传感器测试线束总成 | HARNESS ASSEMBLY Crank Position Sensor Test | 1 |
| 8 | 875216 | 电刷固定工具 | HOLDER TOOL Brush | 1 |
| 9 | 881824 | 定子线圈测试线束总成 | HARNESS ASSEMBLY Stator Coil Test | 1 |
| 9 | 881824004 | 测试线束总成 | HARNESS ASSEMBLY Test | 1 |
| 10 | 881827 | 节气门位置测试线束总成 | HARNESS ASSEMBLY Throttle Position Test | 1 |
| 11 | 881826 | 点火线圈测试线束总成 | HARNESS ASSEMBLY Ignition Coil Test | 1 |
| 12 | 8098712 | 化油器真空调校工具 | VACUUMMATE TOOL Carburetor Tuner | 1 |
| 13 | 881833A2 | 空气/燃油压力表 | GAUGE Air/Fuel Pressure | 1 |
| 13 | 881833A03 | 气油压力表套件 | GAUGE KIT Air/Fuel Pressure | 1 |
| 14 | 881834A1 | 仪表 | GAUGE | 1 |
| 15 | NSS | 非单独销售真空表 | NOT SOLD SEPARATE Migh VAC Vacuum Gage | 1 |
| 16 | 99056A1 | 故障指示灯 | MALFUNCTION INDICATOR LAMP | 1 |
| 17 | 881828 | 星形头工具套件 | STARBIT TOOL KIT | 1 |
| 18 | 804774 | 气门导管拆装工具 | REMOVER/INSTALLER TOOL Valve Guide | 1 |
| 18 | 804774001 | 气门导管工具 | TOOL-VALVE GUIDE | 1 |
| 19 | 804775 | 气门导管铰刀工具 | REAMER TOOL Valve Guide | 1 |
| 20 | 809494A1 | 气门弹簧压缩工具 | COMPRESSOR TOOL Valve Spring | 1 |
| 21 | NSS | 不单独销售 气门座铰刀套件 | NOT SOLD SEPARATE Valve Seat Cutter Kit | 1 |
| 22 | 802653Q1 | 机油滤清器扳手 | WRENCH Oil Filter | 1 |
| 22 | 802653Q02 | 机油滤清器扳手 | WRENCH Oil Filter | 1 |
| 23 | FT2997 | 活塞环压缩工具 | COMPRESSOR TOOL Piston Ring | 1 |
| 24 | 24697 | 活塞环扩张工具 | EXPANDER TOOL Piston Ring | 1 |
| 25 | 804770A1 | 曲轴固定工具 | HOLDER TOOL Crankshaft | 1 |
| 26 | 875215A1 | 传动轴衬套安装工具 | INSTALLER TOOL Driveshaft Bushing | 1 |
| 27 | 881847T | 套筒(76mm深) | SOCKET (76 mm Deep) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

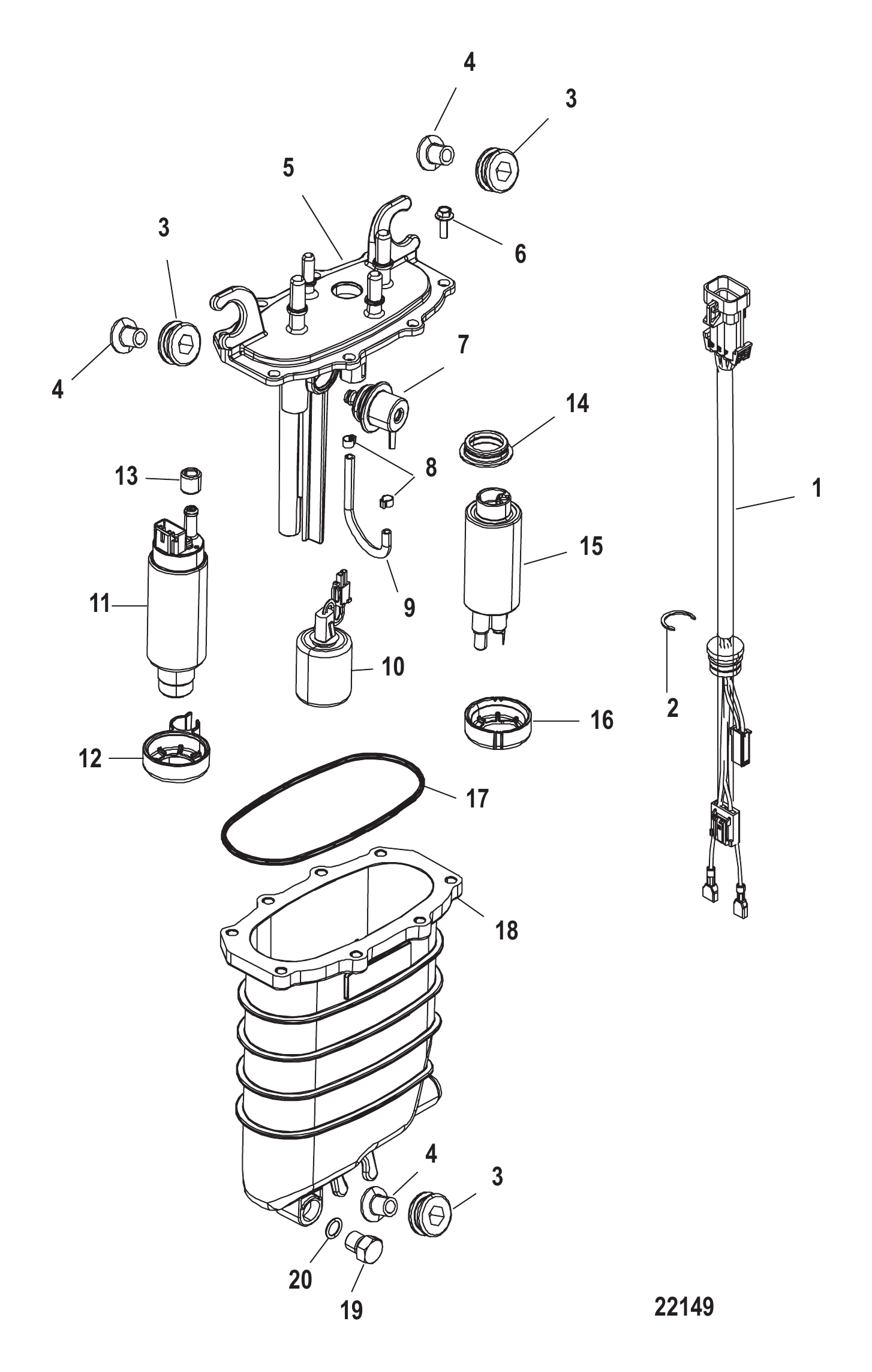

| - | 880133T08 | 燃油供应模块 | MODULE Fuel Supply | 1 |
| - | 8M0130897 | 燃油供应模块 | FUEL SUPPLY MOD | 1 |
| 1 | 880596526 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 1 | 8M0130898 | 线束总成 | HARNESS ASSY | 1 |
| 2 | 880596515 | 卡扣 | CLIP | 1 |
| 3 | 855362001 | 护孔环 | GROMMET | 3 |
| 4 | 855364 | 衬套 | BUSHING | 3 |
| 5 | 880596T50 | 盖板套件 | COVER KIT | 1 |
| 6 | 880596513 | 螺钉 | SCREW | 8 |
| 7 | 880596503 | 带O型圈的调节器 | REGULATOR With O-Rings | 1 |
| 8 | 880596512 | 卡箍 | CLAMP | 2 |
| 9 | 880596511 | 软管 | HOSE | 1 |
| 9 | 880596A05 | 软管套件 | HOSE KIT | 1 |
| 10 | 880596524 | 浮子 | FLOAT | 1 |
| 10 | 8M6000359 | 浮子 | FLOAT | 1 |
| 11 | 880596T55 | 燃油泵总成-高压 | PUMP ASSEMBLY Fuel - High Pressure | 1 |
| 12 | 880596506 | 密封件 | SEAL | 1 |
| 13 | 880596507 | 密封件 | SEAL | 1 |
| 14 | 880596510 | 密封件 | SEAL | 1 |
| 15 | 880596T58 | 燃油提升泵套件 | PUMP KIT Fuel - Lift | 1 |
| 16 | 880596509 | 隔离器 | ISOLATOR | 1 |
| 17 | 880596502 | 密封件 | SEAL | 1 |
| 18 | 880596T53 | 壳体总成 | HOUSING ASSEMBLY | 1 |
| 18 | 880596523 | 壳体总成 | HOUSING ASSY | 1 |
| 19 | 880596516 | 堵头 | PLUG | 1 |
| 20 | 880596517 | O型圈 | O-RING | 1 |
| - | 880596A01 | 密封修理包 | REPAIR KIT Seal | 1 |
| - | 889283A01 | 燃油灌注工具包 | TOOL KIT Fuel Priming | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 887767K03 | 启停开关套件 - 三路 | SWITCH KIT Start/Stop - Triple | 1 |
| - | 8M0117133 | 仪表板安装启停开关面板-三引擎 | START/STOP SWITCH PAD Dash Mount - Triple | 1 |
| - | 852400 | 冲洗接头 | FLUSH COUPLING | 1 |
| - | 44357Q2 | 冲洗附件 | FLUSHING ATTACHMENT | 1 |
| - | 881150Q1 | 双进水口冲洗套件 | FLUSH KIT Dual Water Pick Up | 1 |
| - | 825191A03 | 索具软管套件 | HOSE KIT Rigging | 1 |
| - | 889223K34 | 转速表/速度表套件 | TACHOMETER / SPEEDOMETER KIT | 1 |
| - | 8M0063203 | KT-TACH/SPD 80GRY | KT-TACH/SPD 80GRY | 1 |
| - | 889223K32 | 转速表/速度表套件 | TACHOMETER / SPEEDOMETER KIT | 1 |

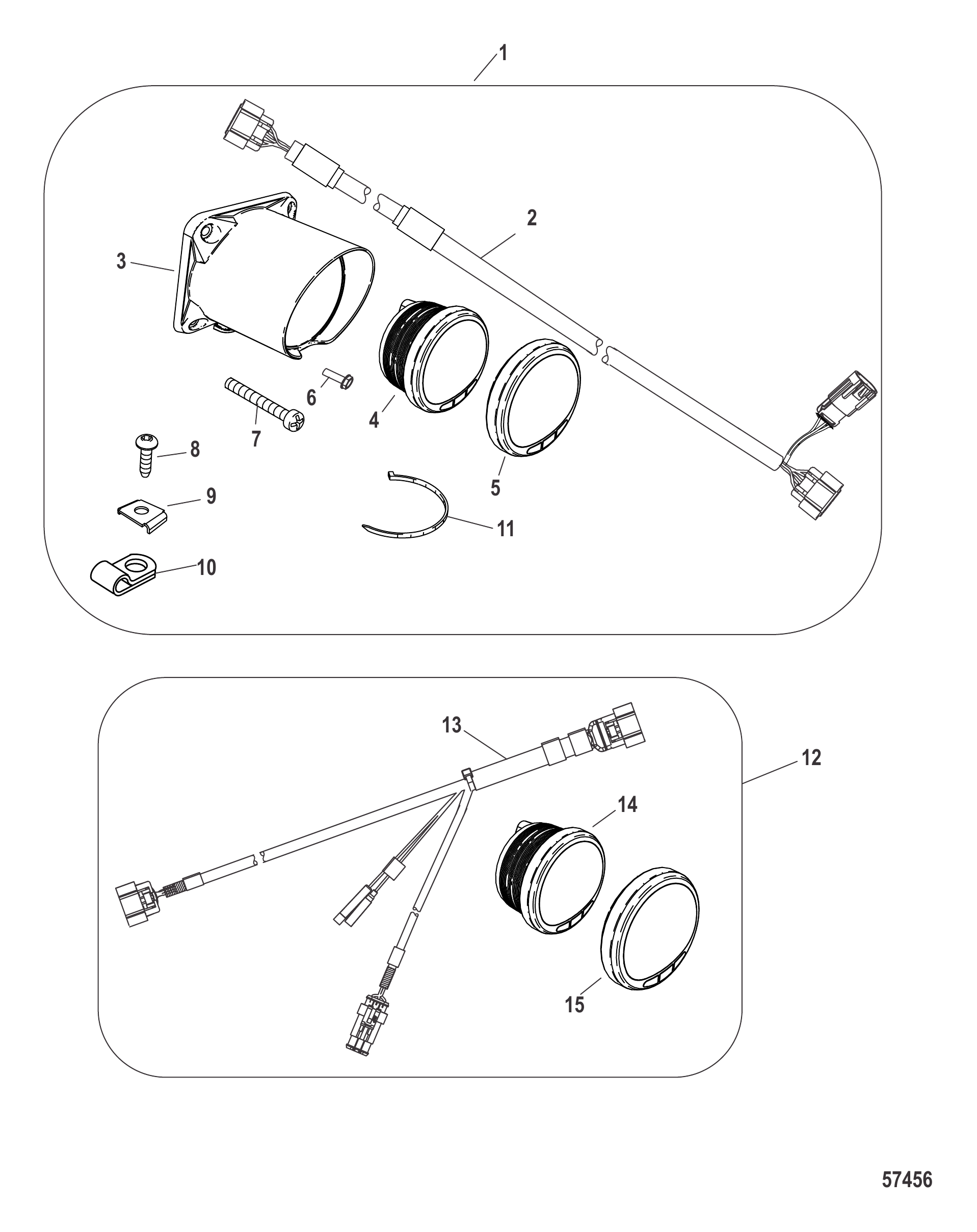

| - | 889222K23 | 转速表套件 0-7000转 灰色表盘 | TACHOMETER KIT 0-7000 RPM Gray Face | 1 |
| - | 8M6001270 | 转速表套件-7K灰色 | TACH KIT-7K GRAY | 1 |
| - | 889222K22 | 转速表套件0-7000转-白色表盘 | TACHOMETER KIT 0-7000 RPM White Face | 1 |
| - | 41729A3 | 软管延长套件 | HOSE EXTENSION KIT | 1 |
| - | 877561A2 | 适配器线束总成 | HARNESS ASSEMBLY Adapter | 1 |
| - | 821180A6 | 调整传感器总成 | SENDER ASSEMBLY Trim | 1 |
| - | 8M0074846 | ORDER 8M0098273 | ORDER 8M0098273 | 1 |
| - | 887979A2 | 倾斜限位开关套件 | SWITCH KIT Tilt Limit | 1 |

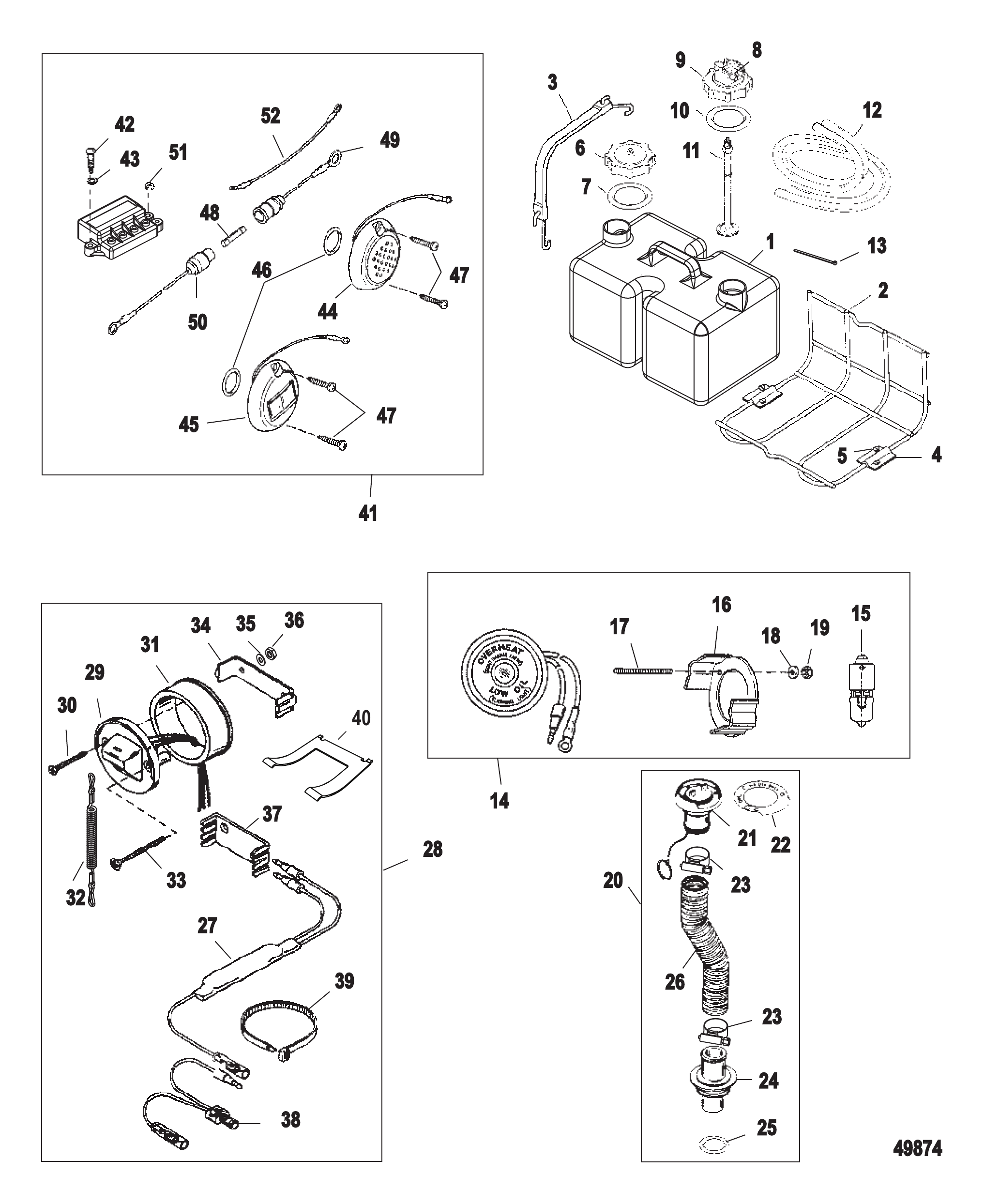

| 1 | 8742A22 | 遥控机油箱总成 | TANK ASSEMBLY Remote Oil | 1 |
| 1 | 8742A21 | 遥控机油箱总成 | TANK ASSEMBLY Remote Oil | 1 |
| 2 | 12335A1 | 支架套件 | BRACKET KIT | 1 |
| 3 | 12323A1 | 绳索/挂钩套件 | CORD/HOOK KIT | 1 |
| 4 | 12320 | 支架 | BRACKET | 2 |
| 5 | 79968 | 螺丝(#12-11 x .750) | SCREW (#12-11 x .750) | 4 |
| 6 | 43298A2 | 盖总成 | CAP ASSEMBLY | 1 |
| 7 | 11332 | O型圈(2.225 x .210) | O-RING (2.225 x .210) | 1 |
| 8 | 816190A4 | 机油收集器总成(无传感器) | OIL PICK UP ASSEMBLY Without Sender | 1 |
| 8 | 816190A5 | 带传感器的吸油总成 | OIL PICK UP ASSEMBLY With Sender | 1 |
| 9 | 43298A2 | 盖总成 | CAP ASSEMBLY | 1 |
| 10 | 11332 | O型圈(2.225 x .210) | O-RING (2.225 x .210) | 1 |
| 11 | 99802 | 管 | TUBE | 12 |
| 12 | 99439 | 软管(114.00英寸) | HOSE (114.00 Inches) | 1 |
| 13 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 5 |
| 14 | 17334A2 | 视觉警告系统 | VISUAL WARNING SYSTEM | 1 |
| 15 | 17429 | 灯 | LAMP | 1 |
| 16 | 76424 | 支架 | BRACKET | 1 |
| 17 | 55422 | 双头螺柱 (#10-32 x 2.00) | STUD (#10-32 x 2.00) | 2 |
| 18 | 24676 | 垫圈 (.200 x .440 x .032) | WASHER (.200 x .440 x .032) | 2 |
| 19 | 68219 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 2 |
| 20 | 15969A09 | 甲板加油套件 | DECK FILL KIT Oil | 1 |
| 21 | 15969A13 | 甲板加油套件 | DECK FILL KIT Oil | 1 |
| 22 | 15966 | 安装板 | PLATE | 1 |
| 23 | 815504228 | 蜗杆卡箍 | CLAMP Worm Gear | 2 |
| 23 | 8M0232395 | 软管卡箍 | CLAMP HOSE | 2 |
| 24 | 15967 | 加油口适配器 | ADAPTER Oil Filler | 1 |
| 25 | 11332 | O型圈(2.225 x .210) | O-RING (2.225 x .210) | 1 |
| 26 | 850719 | 软管(100.00英尺整卷) | HOSE (100.00 Feet Bulk) | AR |
| 27 | 812497A2 | 二极管总成 | DIODE ASSEMBLY | 1 |
| 27 | 898289A72 | 双拉绳二极管套件 | DIODE KIT-LANYARD Dual | 1 |
| 28 | 19674Q2 | 开关/拉绳套件 | SWITCH/LANYARD KIT | 1 |
| 29 | NSS | 不单独销售 | NOT SOLD SEPARATE | 1 |
| 30 | 18303 | 螺钉 (.190-16 x 1.750) 不锈钢 | SCREW (.190-16 x 1.750) Stainless Steel | 2 |
| 31 | 813679 | 适配器 | ADAPTER | 1 |
| 32 | 15920Q54 | 拉绳总成 | LANYARD ASSEMBLY | 1 |
| 33 | 32866 | 螺钉 (#10-32 x 2.00) 不锈钢 | SCREW (#10-32 x 2.00) Stainless Steel | 2 |
| 34 | 18321 | 安装夹 | CLAMP Mounting | 1 |
| 35 | 24676 | 垫圈 (.200 x .440 x .032) | WASHER (.200 x .440 x .032) | 2 |
| 36 | 68219 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 4 |
| 37 | 79146 | 固定座 | RETAINER | 1 |
| 38 | 11149A2 | 线缆总成 (6.00英寸) | CABLE ASSEMBLY (6.00 Inches) | 1 |
| 39 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 40 | 8M0032846 | 黄铜开关固定座 | RETAINER Brass Switch | 1 |
| 41 | 88334A2 | 防腐电极套件 | MERCATHODE KIT | 1 |
| 41 | 8M0180081 | 防腐电极套件 | MERCATHODE KIT | 1 |
| 42 | 22793 | 螺丝(#9-14x0.875) | SCREW (#9-14 x .875) | 2 |
| 43 | 30164 | 垫圈(0.192x0.375x0.0312)不锈钢 | WASHER (.192 x .375 x .0312) Stainless Steel | 2 |
| 44 | 72958A5 | 电极总成 | ELECTRODE ASSEMBLY | 1 |
| 45 | 72957A5 | 阳极总成 | ANODE ASSEMBLY | 1 |
| 45 | 8M0181304 | 阳极总成 | ANODE ASSY | 1 |
| 46 | 21836 | O型圈(.796 x .139) | O-RING (.796 x .139) | 2 |
| 46 | 8M0204645 | O型圈(.796 x .139) | O-RING (.796 x .139) | 2 |
| 47 | 87698 | 螺丝(#10-16 x 1.250)不锈钢 | SCREW (#10-16 x 1.250) Stainless Steel | 4 |
| 48 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 48 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 49 | 95084A10 | 电缆总成(5.00英寸)红色 | CABLE ASSEMBLY (5.00 Inches) Red | 1 |
| 49 | 8M0207788 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 50 | 95084A13 | 电缆总成(64.00英寸) | CABLE ASSEMBLY (64.00 Inches) | 1 |
| 51 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 4 |
| 52 | 79138A8 | 电缆总成(72.00英寸)黑色 | CABLE ASSEMBLY (72.00 Inches) Black | 1 |

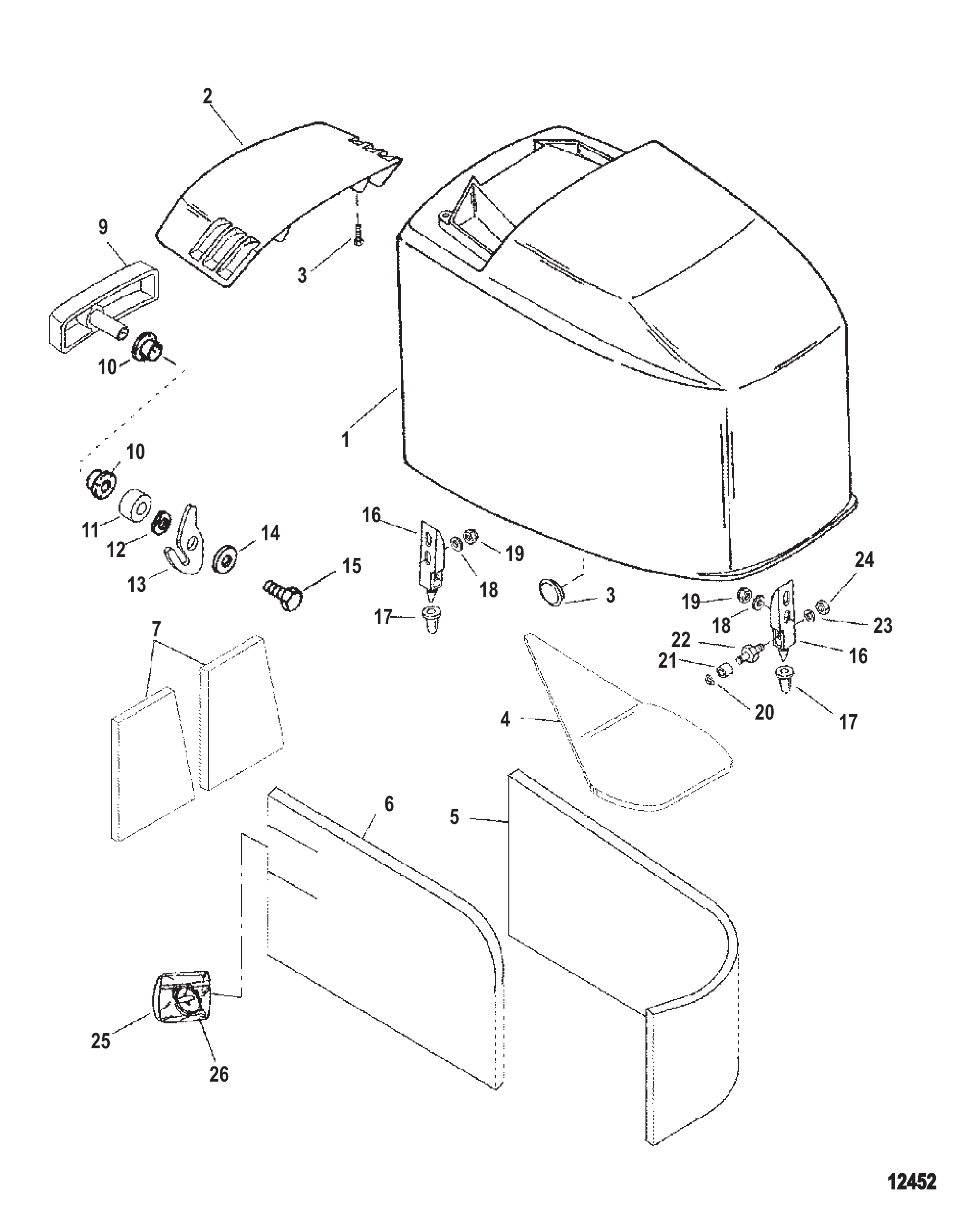

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

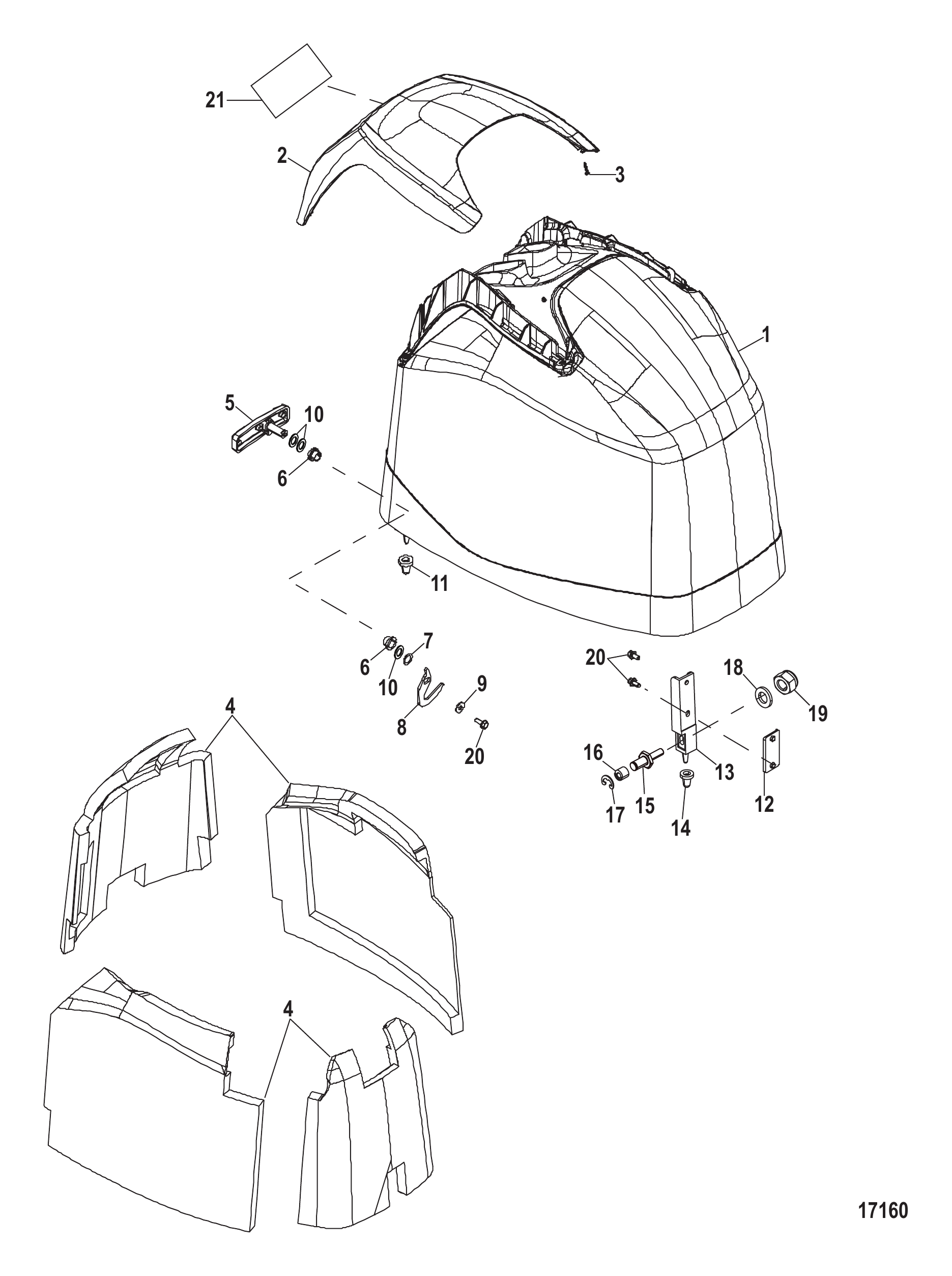

| 1 | 827328T9 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 1 | 827328T10 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 2 | 821256T1 | 黑色进气口 | INLET Air - Black | 1 |
| 2 | 821256T03 | 进气口 | INLET Air | 1 |
| 2 | 821256T2 | 银色进气口 | INLET Air - Silver | 1 |
| 3 | 82130016 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 4 |
| 4 | 859356A1 | 隔音毯套装 | SOUND BLANKET KIT | 1 |
| 4 | 859356A02 | 隔音毯套装 | SOUND BLANKET KIT | 1 |
| 5 | NSS | 不单独销售 隔音毯 | NOT SOLD SEPARATE Sound Blanket | 1 |
| 6 | NSS | 不单独销售 隔音毯 | NOT SOLD SEPARATE Sound Blanket | 1 |
| 7 | NSS | 不单独销售 隔音毯 | NOT SOLD SEPARATE Sound Blanket | 2 |
| 8 | 823865 | 盖塞 | CAP PLUG | 2 |
| 9 | 831207T10 | 手柄 | HANDLE | 1 |
| 9 | 831207A16 | 罩盖锁手柄套件 | HANDLE KIT Cowl Latch | 1 |
| 10 | 812707 | 衬套 | BUSHING | 2 |
| 11 | 831214 | 隔套 | SPACER | 1 |
| 12 | 12134 | 波形垫圈 | WASHER Wave | 1 |
| 13 | F481777 | 凸轮锁轴 | CAM Latch Shaft | 1 |
| 13 | 8M0001081 | 凸轮 | CAM | 1 |
| 14 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 1 |
| 14 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 1 |
| 15 | 1993716 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 1 |
| 16 | 821249M2 | 前支架 | BRACKET Front | 3 |
| 16 | 8M0036792 | 支架 | BRACKET | 3 |
| 17 | 815477 | 缓冲器锁扣 | BUMPER Latch | 3 |
| 18 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 6 |
| 18 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 6 |
| 19 | 401366 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 6 |
| 20 | 8237951 | 挡圈 | RING Retaining | 1 |
| 21 | 815263 | 滚轮 | ROLLER | 1 |
| 21 | 8M0207770 | 滚轮@3 | ROLLER @3 | 1 |
| 22 | 8155381 | 滚动销 | PIN Roll | 1 |
| 23 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 23 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 24 | 401366 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 25 | 47341A11 | 手动启动绳柄套件 | ROPE AND HANDLE KIT Manual Starting | 1 |
| 26 | 12066Q9 | 绳索 | ROPE | 1 |
| 26 | 12066Q10 | 启动绳@2 | ROPE-STARTER@2 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

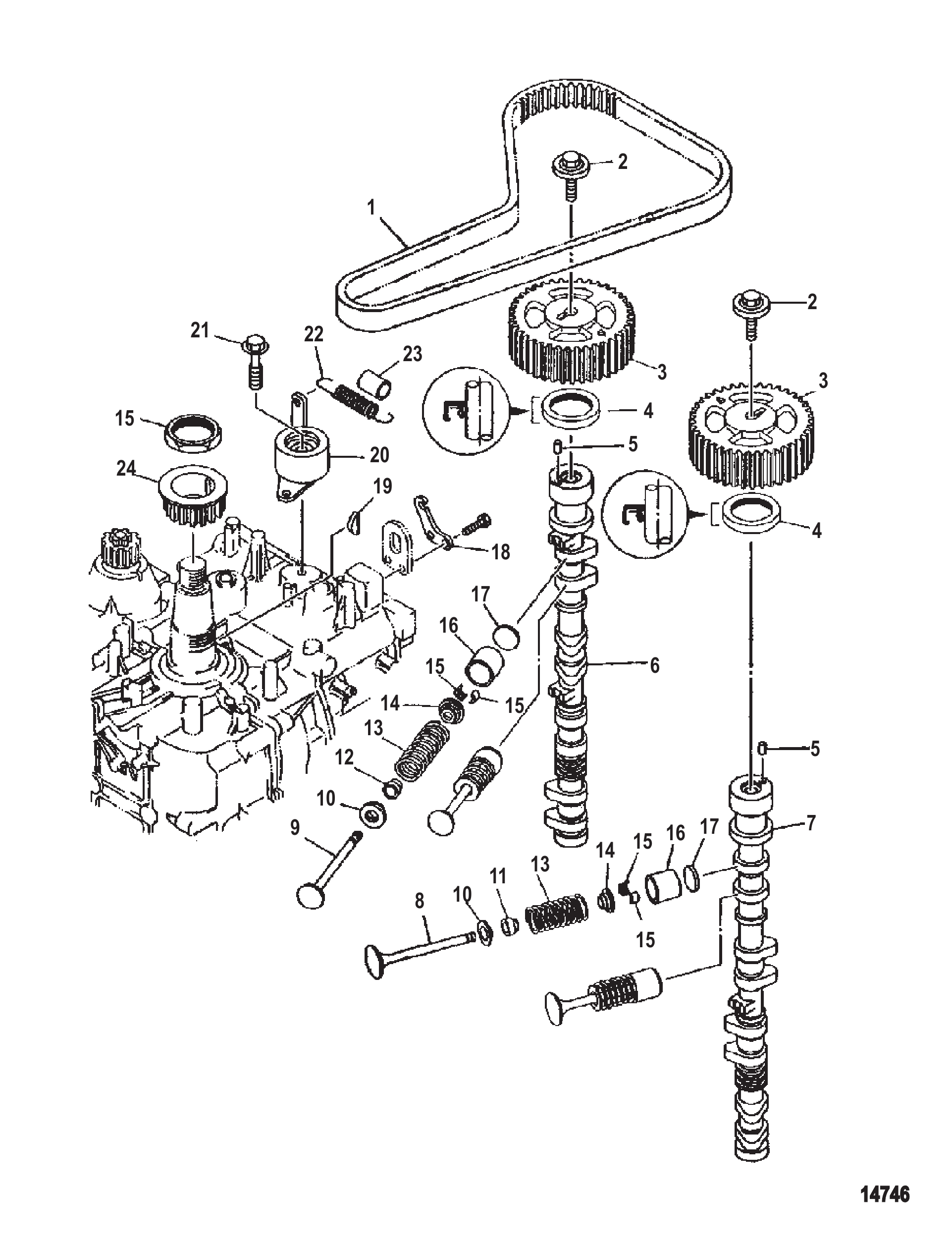

| 1 | 804145 | V型皮带 | V BELT | 1 |
| 2 | 804143 | 螺栓 M10×35 | BOLT (M10 x 35) | 2 |
| 2 | 804143001 | 螺栓 | BOLT | 2 |
| 3 | 804142T | 从动齿轮 | GEAR Driven | 2 |
| 4 | 804144 | 油封 | SEAL Oil | 2 |
| 4 | 804144001 | 油封 | SEAL-OIL | 2 |
| 5 | 804141 | 定位销 | PIN Dowel | 2 |
| 6 | 804140T | 凸轮轴 | CAMSHAFT | 1 |
| 6 | 8M0057172 | 凸轮轴 | CAMSHAFT | 1 |
| 7 | 804139T | 凸轮轴 | CAMSHAFT | 1 |
| 8 | 804128T | 进气阀 | VALVE Intake | 8 |
| 9 | 804129T | 排气阀 | VALVE Exhaust | 8 |
| 10 | 804130 | 阀座 | SEAT | 16 |
| 11 | 804136 | 密封件 | SEAL | 8 |
| 12 | 804137 | 密封件 | SEAL | 8 |
| 13 | 804131 | 气门弹簧 | SPRING Valve | 16 |
| 14 | 804132 | 固定座 | RETAINER | 16 |
| 15 | 804135 | 开口销阀 | COTTER VALVE | 32 |
| 16 | 804138T | 气门挺杆 | LIFTER Valve | 16 |
| 17 | 8046071 | 垫片 | SHIM | AR |
| 17 | 8046072 | 垫片 | SHIM | AR |
| 17 | 8046073 | 垫片 | SHIM | AR |
| 17 | 8046074 | 垫片 | SHIM | AR |
| 17 | 8046075 | 垫片 | SHIM | AR |
| 17 | 8046076 | 垫片 | SHIM | AR |
| 17 | 8046077 | 垫片 | SHIM | AR |
| 17 | 8046078 | 垫片 | SHIM | AR |
| 17 | 8046079 | 垫片 | SHIM | AR |
| 17 | 80460710 | 垫片 | SHIM | AR |
| 17 | 80460711 | 垫片 | SHIM | AR |
| 17 | 80460712 | 垫片 | SHIM | AR |
| 17 | 80460713 | 垫片 | SHIM | AR |
| 17 | 80460714 | 垫片 | SHIM | AR |
| 17 | 80460715 | 垫片 | SHIM | AR |
| 17 | 80460716 | 垫片 | SHIM | AR |
| 17 | 80460717 | 垫片 | SHIM | AR |
| 17 | 804608 | 垫片 | SHIM | AR |
| 17 | 80460810 | 垫片 | SHIM | AR |
| 17 | 80460820 | 垫片 | SHIM | AR |
| 17 | 80460830 | 垫片 | SHIM | AR |
| 17 | 80460840 | 调整垫 | PAD Adjusting | AR |
| 17 | 80460850 | 垫片 | SHIM | AR |
| 17 | 80460860 | 垫片 | SHIM | AR |
| 17 | 80460870 | 垫片 | SHIM | AR |
| 17 | 80460880 | 垫片 | SHIM | AR |
| 18 | 804149 | 阀板 | PLATE Valve | 1 |
| 19 | 804153 | 键 | KEY | 1 |
| 20 | 804146 | 张紧器 | TENSIONER | 1 |
| 21 | 804150 | 螺栓 M10×45 | BOLT (M10 x 45) | 1 |
| 22 | 804147 | 弹簧 | SPRING | 1 |
| 23 | 804148 | 软管 | HOSE | 1 |
| 24 | 804151T | 驱动齿轮 | GEAR Drive | 1 |
| 25 | 881314 | 螺母 M40 | NUT (M40) | 1 |
| 25 | 881314003 | 螺母 | NUT | 1 |
| - | 858732T01 | 衬垫套件 | GASKET SET | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |

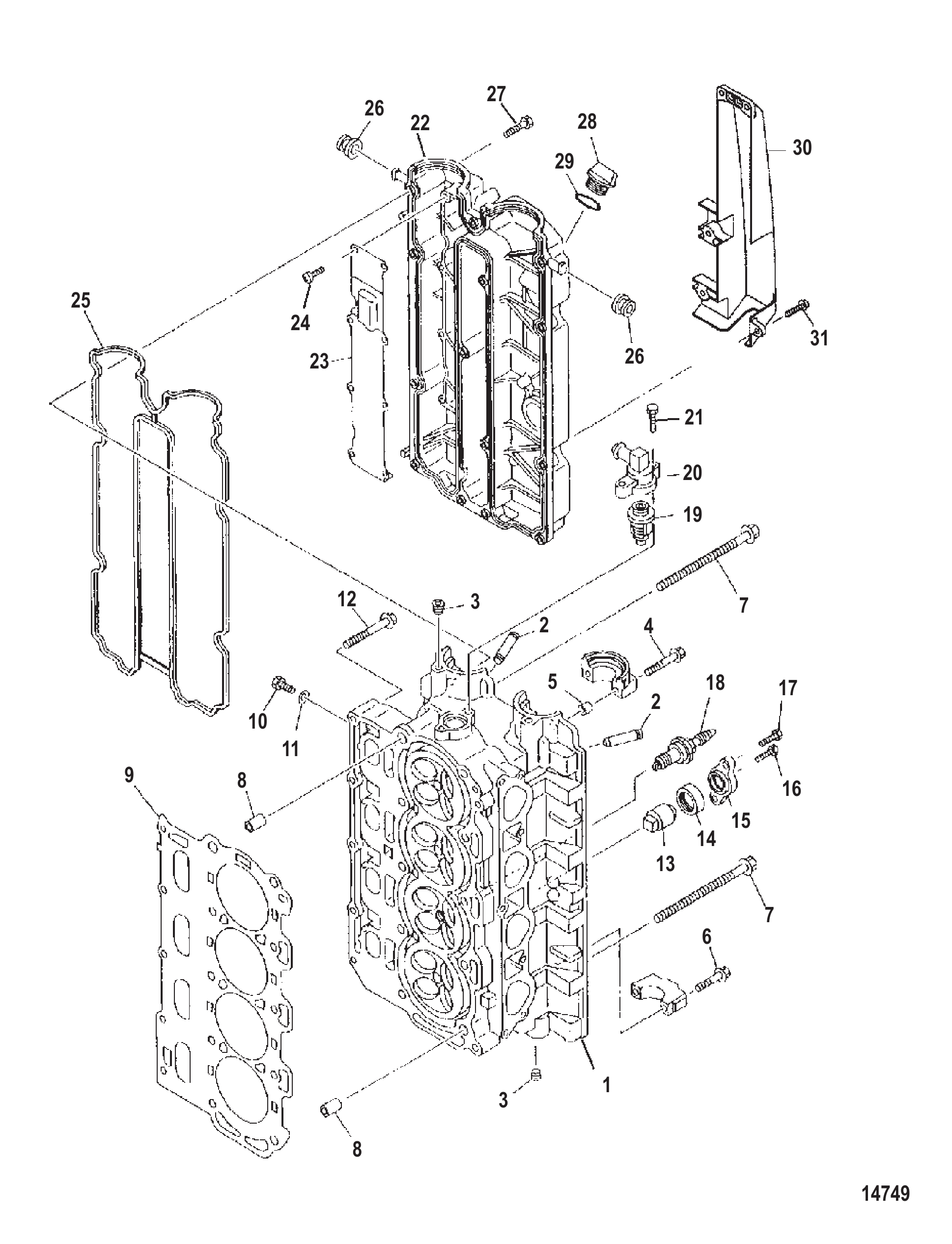

| - | 881310T1 | 气缸盖总成 | CYLINDER HEAD ASSEMBLY | 1 |
| - | 881310T09 | 气缸盖 | HEAD-CYLINDER | 1 |
| - | 881421T01 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 887767K03 | 启停开关套件 - 三路 | SWITCH KIT Start/Stop - Triple | 1 |
| - | 8M0117133 | 仪表板安装启停开关面板-三引擎 | START/STOP SWITCH PAD Dash Mount - Triple | 1 |

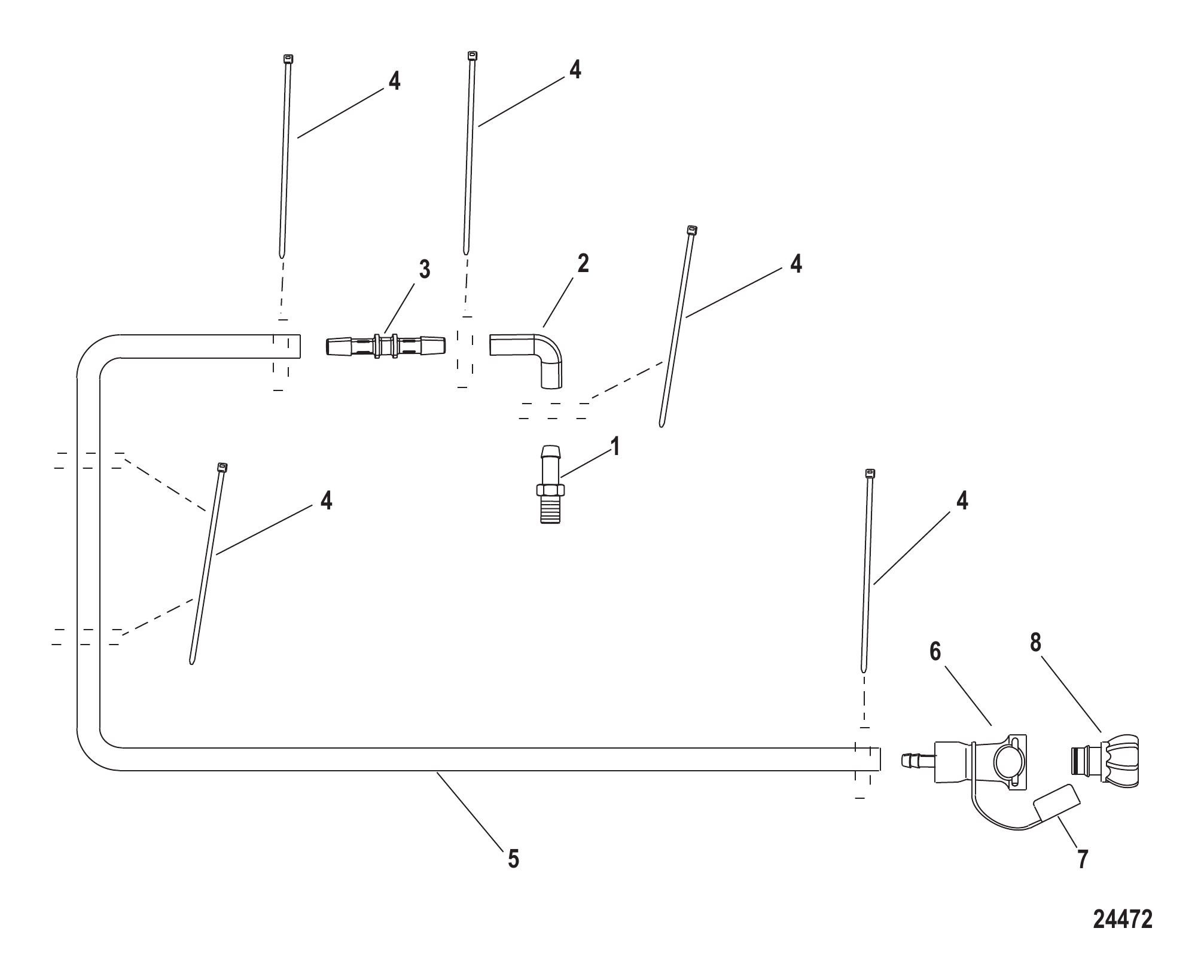

| - | 852400 | 冲洗接头 | FLUSH COUPLING | 1 |
| - | 44357Q2 | 冲洗附件 | FLUSHING ATTACHMENT | 1 |
| - | 881150Q1 | 双进水口冲洗套件 | FLUSH KIT Dual Water Pick Up | 1 |
| - | 825191A03 | 索具软管套件 | HOSE KIT Rigging | 1 |
| - | 889223K34 | 转速表/速度表套件 | TACHOMETER / SPEEDOMETER KIT | 1 |
| - | 8M0063203 | KT-TACH/SPD 80GRY | KT-TACH/SPD 80GRY | 1 |
| - | 889223K32 | 转速表/速度表套件 | TACHOMETER / SPEEDOMETER KIT | 1 |
| - | 889222K23 | 转速表套件 0-7000转 灰色表盘 | TACHOMETER KIT 0-7000 RPM Gray Face | 1 |
| - | 8M6001270 | 转速表套件-7K灰色 | TACH KIT-7K GRAY | 1 |
| - | 889222K22 | 转速表套件0-7000转-白色表盘 | TACHOMETER KIT 0-7000 RPM White Face | 1 |
| - | 41729A3 | 软管延长套件 | HOSE EXTENSION KIT | 1 |
| - | 877561A2 | 适配器线束总成 | HARNESS ASSEMBLY Adapter | 1 |
| - | 821180A6 | 调整传感器总成 | SENDER ASSEMBLY Trim | 1 |
| - | 8M0074846 | ORDER 8M0098273 | ORDER 8M0098273 | 1 |
| - | 887979A2 | 倾斜限位开关套件 | SWITCH KIT Tilt Limit | 1 |
| 1 | 8742A22 | 遥控机油箱总成 | TANK ASSEMBLY Remote Oil | 1 |
| 1 | 8742A21 | 遥控机油箱总成 | TANK ASSEMBLY Remote Oil | 1 |
| 2 | 12335A1 | 支架套件 | BRACKET KIT | 1 |
| 3 | 12323A1 | 绳索/挂钩套件 | CORD/HOOK KIT | 1 |
| 4 | 12320 | 支架 | BRACKET | 2 |
| 5 | 79968 | 螺丝(#12-11 x .750) | SCREW (#12-11 x .750) | 4 |
| 6 | 43298A2 | 盖总成 | CAP ASSEMBLY | 1 |
| 7 | 11332 | O型圈(2.225 x .210) | O-RING (2.225 x .210) | 1 |
| 8 | 816190A4 | 机油收集器总成(无传感器) | OIL PICK UP ASSEMBLY Without Sender | 1 |
| 8 | 816190A5 | 带传感器的吸油总成 | OIL PICK UP ASSEMBLY With Sender | 1 |
| 9 | 43298A2 | 盖总成 | CAP ASSEMBLY | 1 |
| 10 | 11332 | O型圈(2.225 x .210) | O-RING (2.225 x .210) | 1 |
| 11 | 99802 | 管 | TUBE | 12 |
| 12 | 99439 | 软管(114.00英寸) | HOSE (114.00 Inches) | 1 |
| 13 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 5 |
| 14 | 17334A2 | 视觉警告系统 | VISUAL WARNING SYSTEM | 1 |
| 15 | 17429 | 灯 | LAMP | 1 |
| 16 | 76424 | 支架 | BRACKET | 1 |
| 17 | 55422 | 双头螺柱 (#10-32 x 2.00) | STUD (#10-32 x 2.00) | 2 |
| 18 | 24676 | 垫圈 (.200 x .440 x .032) | WASHER (.200 x .440 x .032) | 2 |
| 19 | 68219 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 2 |
| 20 | 15969A09 | 甲板加油套件 | DECK FILL KIT Oil | 1 |
| 21 | 15969A13 | 甲板加油套件 | DECK FILL KIT Oil | 1 |
| 22 | 15966 | 安装板 | PLATE | 1 |
| 23 | 815504228 | 蜗杆卡箍 | CLAMP Worm Gear | 2 |
| 23 | 8M0232395 | 软管卡箍 | CLAMP HOSE | 2 |
| 24 | 15967 | 加油口适配器 | ADAPTER Oil Filler | 1 |
| 25 | 11332 | O型圈(2.225 x .210) | O-RING (2.225 x .210) | 1 |
| 26 | 850719 | 软管(100.00英尺整卷) | HOSE (100.00 Feet Bulk) | AR |
| 27 | 812497A2 | 二极管总成 | DIODE ASSEMBLY | 1 |
| 27 | 898289A72 | 双拉绳二极管套件 | DIODE KIT-LANYARD Dual | 1 |
| 28 | 19674Q2 | 开关/拉绳套件 | SWITCH/LANYARD KIT | 1 |
| 29 | NSS | 不单独销售 | NOT SOLD SEPARATE | 1 |
| 30 | 18303 | 螺钉 (.190-16 x 1.750) 不锈钢 | SCREW (.190-16 x 1.750) Stainless Steel | 2 |
| 31 | 813679 | 适配器 | ADAPTER | 1 |
| 32 | 15920Q54 | 拉绳总成 | LANYARD ASSEMBLY | 1 |
| 33 | 32866 | 螺钉 (#10-32 x 2.00) 不锈钢 | SCREW (#10-32 x 2.00) Stainless Steel | 2 |
| 34 | 18321 | 安装夹 | CLAMP Mounting | 1 |
| 35 | 24676 | 垫圈 (.200 x .440 x .032) | WASHER (.200 x .440 x .032) | 2 |
| 36 | 68219 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 4 |
| 37 | 79146 | 固定座 | RETAINER | 1 |
| 38 | 11149A2 | 线缆总成 (6.00英寸) | CABLE ASSEMBLY (6.00 Inches) | 1 |
| 39 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 40 | 8M0032846 | 黄铜开关固定座 | RETAINER Brass Switch | 1 |
| 41 | 88334A2 | 防腐电极套件 | MERCATHODE KIT | 1 |
| 41 | 8M0180081 | 防腐电极套件 | MERCATHODE KIT | 1 |
| 42 | 22793 | 螺丝(#9-14x0.875) | SCREW (#9-14 x .875) | 2 |
| 43 | 30164 | 垫圈(0.192x0.375x0.0312)不锈钢 | WASHER (.192 x .375 x .0312) Stainless Steel | 2 |
| 44 | 72958A5 | 电极总成 | ELECTRODE ASSEMBLY | 1 |
| 45 | 72957A5 | 阳极总成 | ANODE ASSEMBLY | 1 |
| 45 | 8M0181304 | 阳极总成 | ANODE ASSY | 1 |
| 46 | 21836 | O型圈(.796 x .139) | O-RING (.796 x .139) | 2 |
| 46 | 8M0204645 | O型圈(.796 x .139) | O-RING (.796 x .139) | 2 |
| 47 | 87698 | 螺丝(#10-16 x 1.250)不锈钢 | SCREW (#10-16 x 1.250) Stainless Steel | 4 |
| 48 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 48 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 49 | 95084A10 | 电缆总成(5.00英寸)红色 | CABLE ASSEMBLY (5.00 Inches) Red | 1 |
| 49 | 8M0207788 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 50 | 95084A13 | 电缆总成(64.00英寸) | CABLE ASSEMBLY (64.00 Inches) | 1 |
| 51 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 4 |
| 52 | 79138A8 | 电缆总成(72.00英寸)黑色 | CABLE ASSEMBLY (72.00 Inches) Black | 1 |

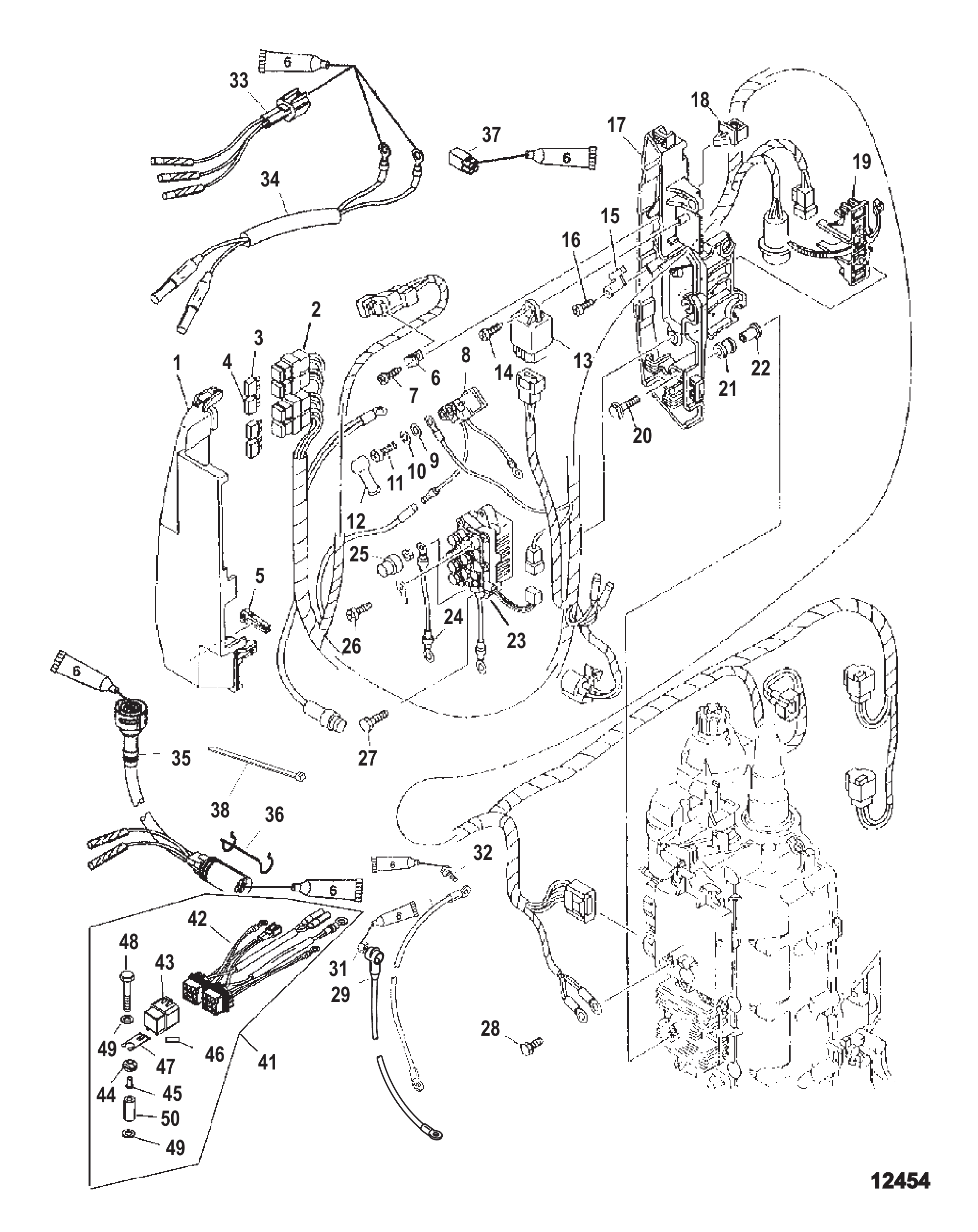

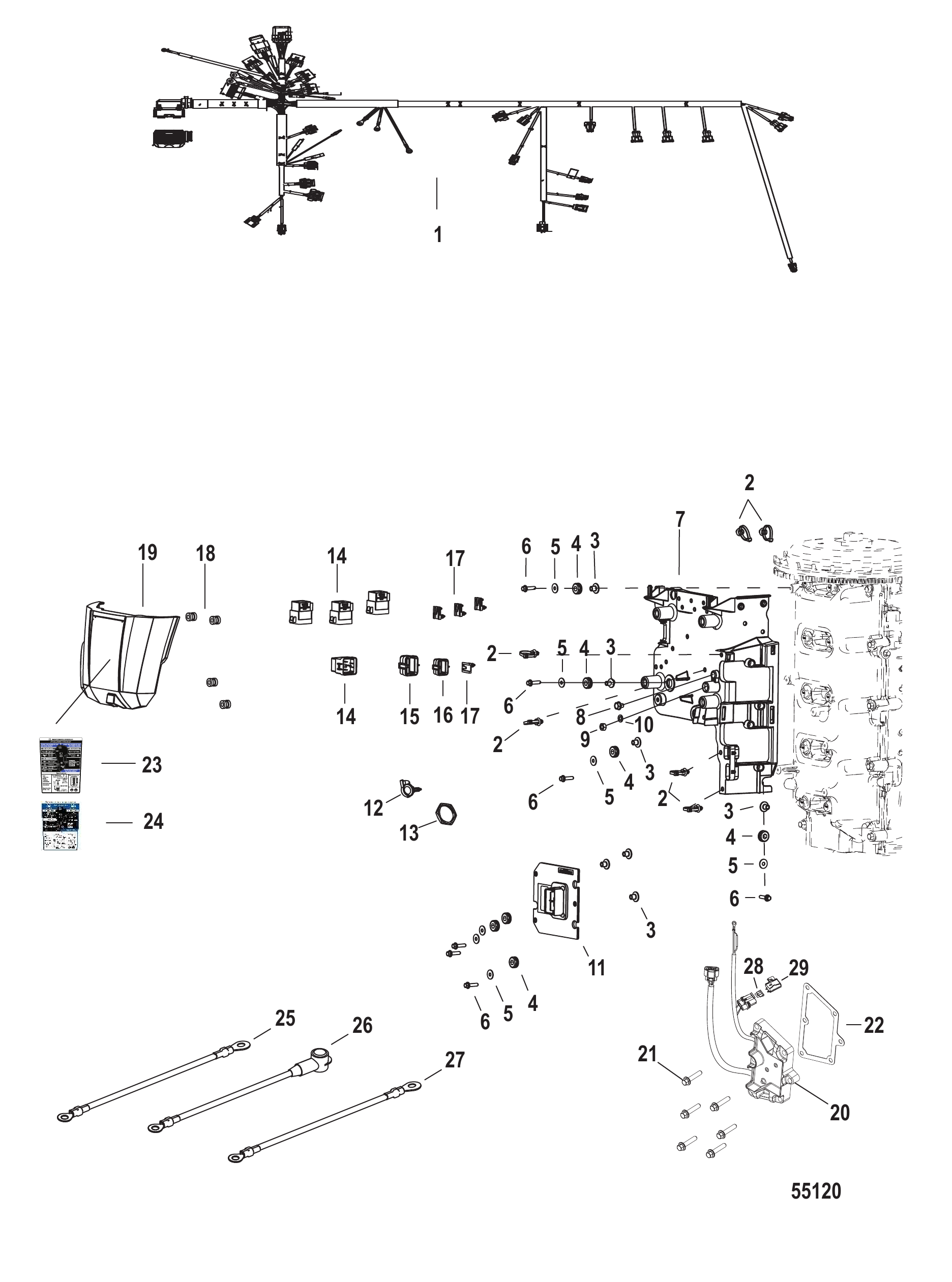

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0088060 | 主线束 | WIRING HARNESS - MAIN | 1 |
| 2 | 899145 | 绑带夹 | CLIP Tie Strap | 6 |
| 3 | 856954 | 衬套 | BUSHING | 7 |
| 4 | 834985 | 护孔环 | GROMMET | 7 |
| 4 | 8M0190980 | 护孔环 | GROMMET | 7 |
| 5 | 65567 | 不锈钢垫圈(0.265x0.750x0.048) | WASHER (.265 x .750 x .048) Stainless Steel | 7 |
| 6 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 7 |
| 6 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 7 |
| 7 | 8M0092349 | 电气板 | PLATE - ELECTRICAL | 1 |
| 8 | 40011145 | 螺钉（M8 X 10）不锈钢 | SCREW (M8 x 10) Stainless Steel | 1 |
| 9 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 1 |
| 10 | 26993 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 1 |
| 10 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 1 |
| 11 | 8M0116532 | ECM 65HP 四冲程喷泵 | ECM 65HP 4S Jet | 1 |
| 11 | 8M0168135 | ECM-65HP FS JET | ECM-65HP FS JET | 1 |
| 11 | 8M0088061 | ECM 75HP 四冲程 | ECM 75HP 4S | 1 |
| 11 | 8M0168130 | ECM-75HP FS | ECM-75HP FS | 1 |
| 11 | 8M0098622 | ECM 75HP 四冲程 SeaPro | ECM 75HP 4S SeaPro | 1 |
| 11 | 8M0168127 | ECM-75HP FS SEAPR | ECM-75HP FS SEAPR | 1 |
| 11 | 8M0098515 | ECM 80HP 四冲程 | ECM 80HP 4S | 1 |
| 11 | 8M0168131 | ECM-80HP FS | ECM-80HP FS | 1 |
| 11 | 8M0116533 | ECM 80HP 四冲程喷泵 | ECM 80HP 4S Jet | 1 |
| 11 | 8M0168136 | ECM-80HP FS JET | ECM-80HP FS JET | 1 |
| 11 | 8M0088062 | ECM 90HP 四冲程 | ECM 90HP 4S | 1 |
| 11 | 8M0168132 | ECM-90HP FS | ECM-90HP FS | 1 |
| 11 | 8M0098623 | ECM 90HP 四冲程 SeaPro | ECM 90HP 4S SeaPro | 1 |
| 11 | 8M0168128 | ECM-90HP FS SEAPR | ECM-90HP FS SEAPR | 1 |
| 11 | 8M0098517 | ECM 100HP 四冲程 | ECM 100HP 4S | 1 |
| 11 | 8M0168133 | ECM-100HP FS | ECM-100HP FS | 1 |
| 11 | 8M0088063 | ECM 115HP 四冲程 | ECM 115HP 4S | 1 |
| 11 | 8M0168134 | ECM-115HP FS | ECM-115HP FS | 1 |
| 11 | 8M0098624 | ECM 115HP 四冲程 SeaPro | ECM 115HP 4S SeaPro | 1 |
| 11 | 8M0168129 | ECM-115HP FS SEAP | ECM-115HP FS SEAP | 1 |
| 12 | 858954 | 卡箍(0.625英寸) | CLIP (.625) | 1 |
| 13 | 889664 | 螺母(1.500-18)尼龙黑 | NUT (1.500-18) Black Nylon | 1 |
| 14 | 882751 | 继电器 | RELAY | 4 |
| 14 | 8M0219830 | 继电器 | RELAY | 4 |
| 15 | 8M0047885 | 保险丝盖(含备件) | FUSE COVER With Spares | 1 |
| 16 | 858754 | 保险丝盖 | COVER Fuse | 1 |
| 17 | 8M6001733 | 继电器双钉卡扣 | CLIP - RELAY, DOUBLE NAIL | 4 |
| 18 | 821555001 | 护孔环 | GROMMET | 4 |
| 18 | 8M0153609 | 护孔环 | GROMMET | 4 |
| 19 | 8M0072821 | 电气板盖 | COVER Electrical Plate | 1 |
| 19 | 8M0163127 | 电气盖 | COVER ELECTRIC | 1 |
| 19 | 8M0100266 | 电气板盖 | COVER, Electrical Plate | 1 |
| 19 | 8M0163128 | 电气盖 | COVER ELECTRICAL | 1 |
| 20 | 8M0088351 | 电压调节器 | VOLTAGE REGULATOR | 1 |
| 20 | 8M0133642 | 电压调节器 | VOLTAGE REGULATOR | 1 |
| 21 | 88552530 | 螺丝(M6×30毫米)不锈钢 | SCREW (M6 x 30 mm) Stainless Steel | 6 |
| 21 | 8M0103808 | 螺丝(M6×30毫米)不锈钢 | SCREW (M6 x 30 mm) Stainless Steel | 6 |
| 22 | 8M0072790 | 电压调节器衬垫 | GASKET Voltage Regulator | 1 |
| 23 | 8M0098218 | 维护周期标贴 | DECAL Maintenance Schedule | 1 |
| 24 | 8M0094686 | 维护周期标贴 | DECAL Maintenance Schedule | 1 |
| 25 | 8M2100378 | 启动线束 | HARNESS Starter | 1 |
| 26 | 88439A35 | 电缆总成 蓄电池-正极 | CABLE ASSEMBLY Battery - Positive | 1 |
| 27 | 88439A26 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 28 | 8M6001923 | 40安保险丝 | FUSE 40 AMP | 1 |
| 29 | 828054 | 保险丝盖 | COVER Fuse | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

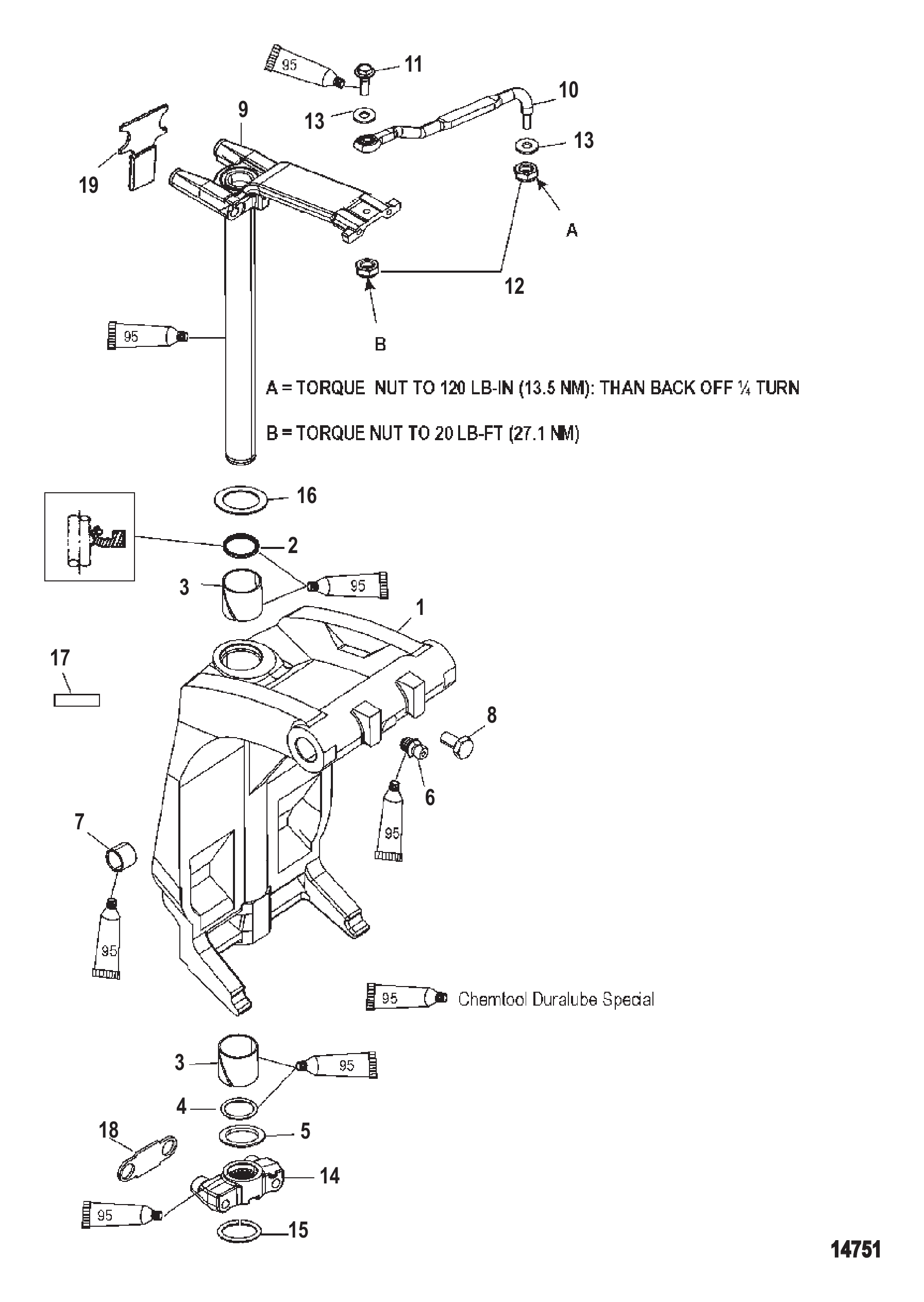

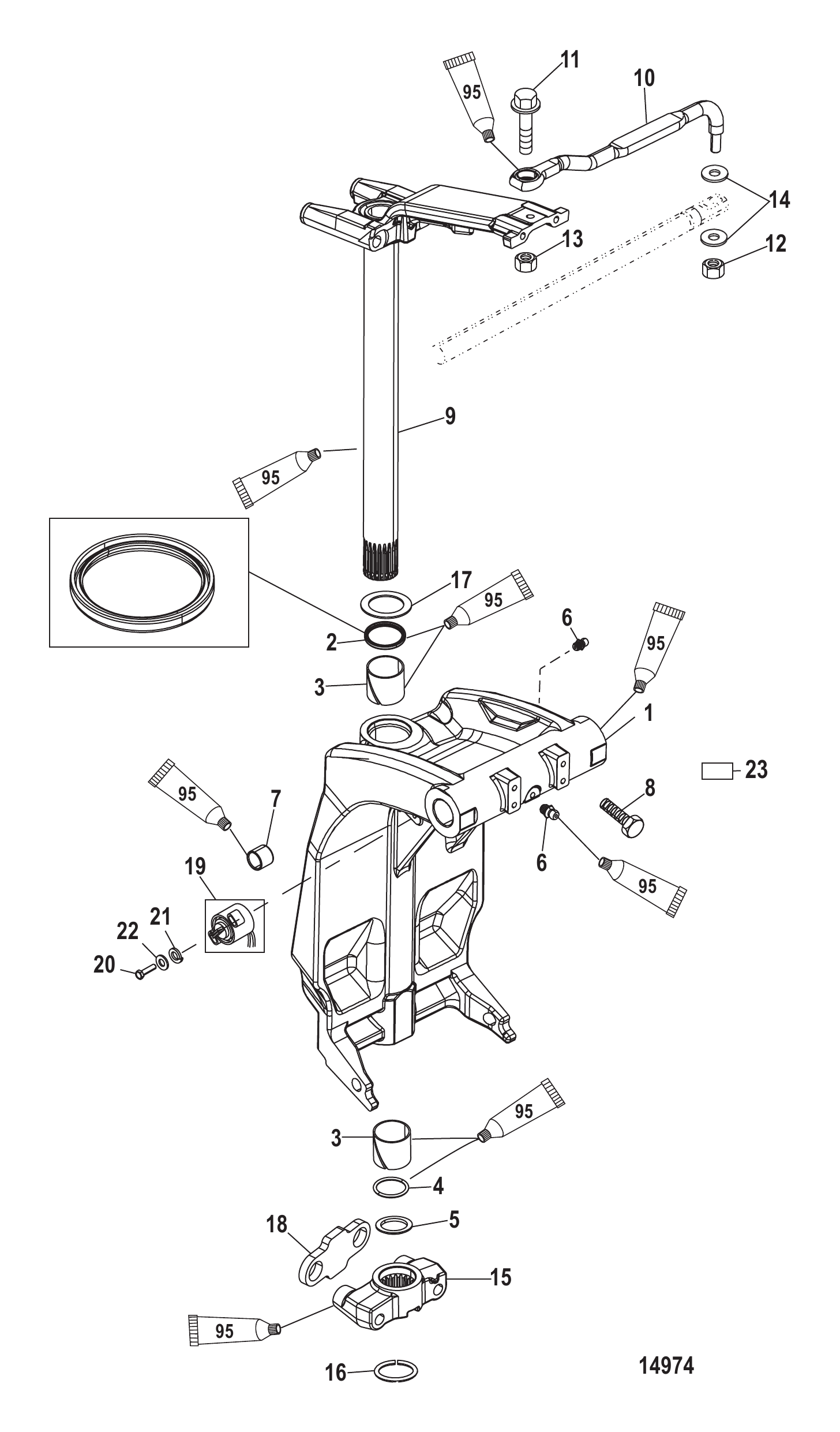

| 1 | 818904T1 | 旋转支架 | SWIVEL BRACKET | 1 |
| 2 | 87735 | 下油封 | SEAL Oil Lower | 1 |
| 3 | 818764 | 衬套 | BUSHING | 2 |
| 4 | 33504 | O型圈 | O-RING | 1 |
| 4 | 8M0214926 | O型圈 @10 | O RING @10 | 1 |
| 5 | 816039 | 隔套 | SPACER | 1 |
| 6 | 74036 | 润滑脂接头 | FITTING Grease | 2 |
| 6 | 8M0169589 | 润滑脂接头 | FITTING Grease | 2 |
| 7 | 821207 | 衬套 | BUSHING | 2 |
| 8 | 64014 | 螺钉(.250-28x.500) | SCREW (.250-28 x .500) | 2 |
| 9 | 99661A26 | 旋转销总成 | SWIVEL PIN ASSEMBLY | 1 |
| 9 | 99661A35 | 旋转销总成 | SWIVEL PIN ASSEMBLY | 1 |
| 10 | 92876A10 | 连杆总成 | LINK ROD ASSEMBLY | 1 |
| 10 | 92876A12 | 连杆总成 | LINK ROD ASSEMBLY | 1 |
| 11 | 849838 | 螺钉(.375-24 x 1.250) | SCREW (.375-24 x 1.250) | 1 |
| 12 | 826709113 | 不锈钢螺母 (.375-24) | NUT (.375-24) Stainless Steel | 2 |
| 12 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 2 |
| 13 | 37828 | 不锈钢垫圈 (.390 x .625 x .062) | WASHER (.390 x .625 x .062) Stainless Steel | 2 |
| 14 | 42961A1 | 底部轭架总成 | YOKE ASSEMBLY Bottom | 1 |
| 14 | 42961A06 | 底部轭架总成 | YOKE ASSEMBLY Bottom | 1 |
| 15 | 67684 | 挡圈 | RING Retaining | 1 |
| 16 | 816432 | 止推垫片 | THRUST WASHER | 1 |
| 17 | NSS | 不单独销售 贴纸, 序列号覆膜 | NOT SOLD SEPARATE Decal, Serial Overlaminate | 1 |
| 18 | 11288 | 下轭缓冲垫 | BUMPER Bottom Yoke | 1 |
| 18 | 11288001 | 下轭缓冲垫 | BUMPER Bottom Yoke | 1 |
| 19 | 88882 | 上轭缓冲垫 | BUMPER Top Yoke | 1 |

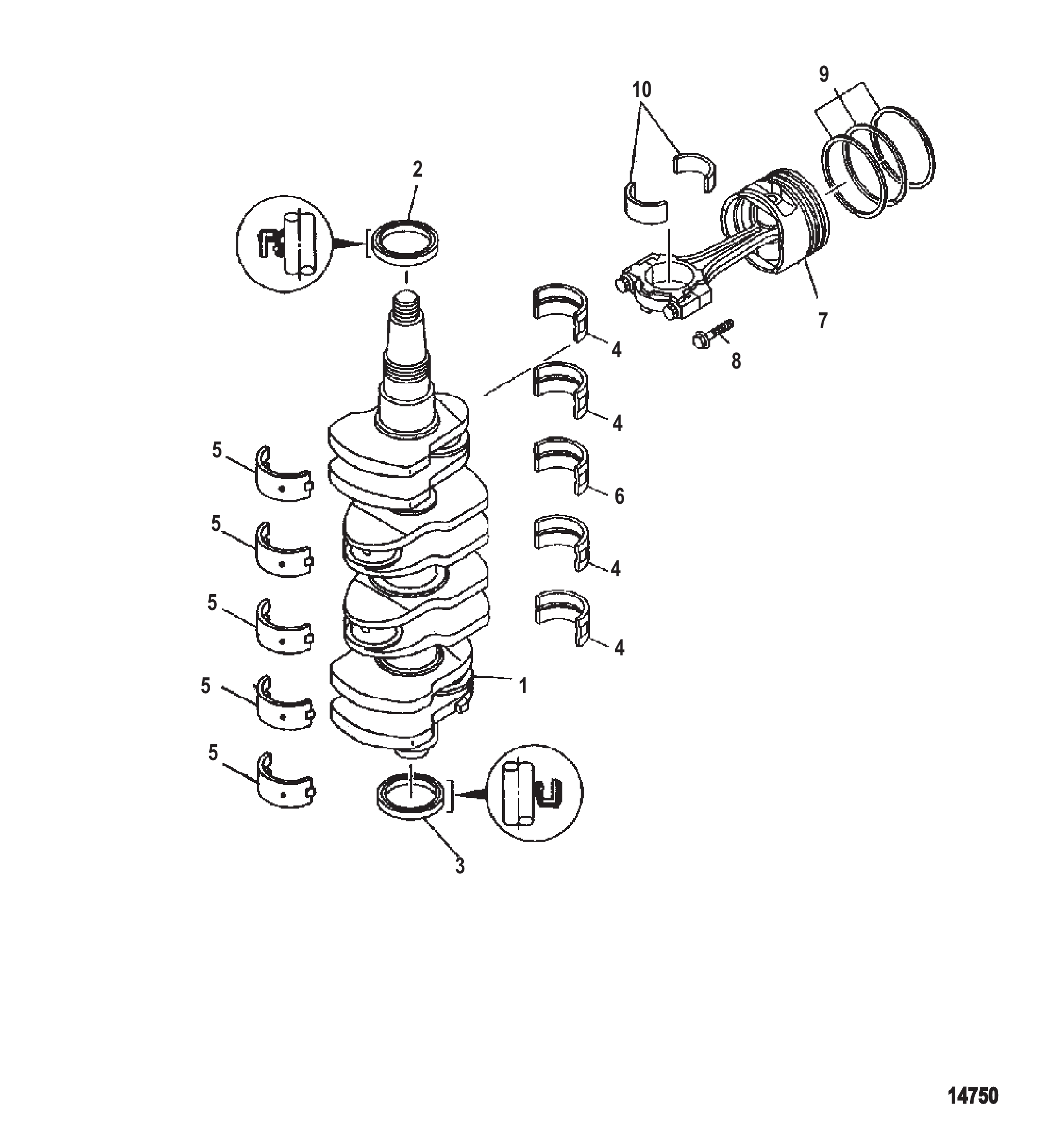

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

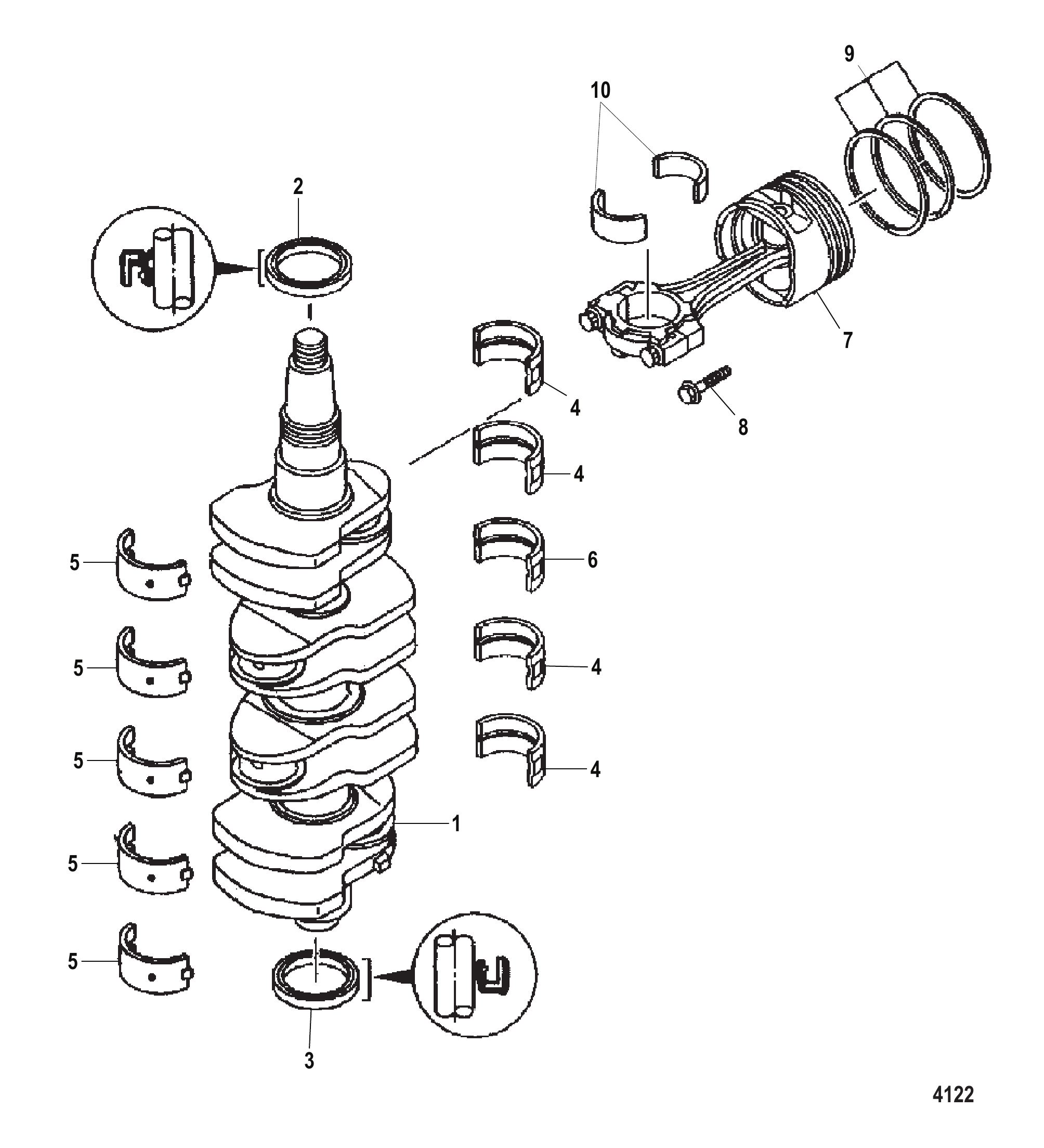

| 1 | 880894T | 曲轴 | CRANKSHAFT | 1 |
| 2 | 8040992 | 油封 | SEAL Oil | 1 |
| 3 | 8041002 | 油封 | SEAL Oil | 1 |
| 4 | 804101T | 轴承 | BEARING | 4 |
| 4 | 804101T10 | 轴承 | BEARING | 4 |
| 4 | 804101T20 | 轴承 | BEARING | 4 |
| 5 | 804102T | 轴承 | BEARING | 5 |
| 5 | 804102T10 | 轴承 | BEARING | 5 |
| 5 | 804102T20 | 轴承 | BEARING | 5 |
| 5 | 804102T30 | 轴承 | BEARING | 5 |
| 6 | 804103T | 轴承 | BEARING | 1 |
| 6 | 804103T10 | 轴承 | BEARING | 1 |
| 6 | 804103T20 | 轴承 | BEARING | 1 |
| 7 | 880895T1 | 活塞总成 | PISTON ASSEMBLY | 4 |
| 7 | 880895A14 | 活塞/连杆总成 | PISTON/CONN ROD | 4 |
| 7 | 880895T10 | 活塞总成 | PISTON ASSEMBLY | AR |
| 7 | 880895A16 | 活塞/连杆总成 | PISTON/CONN ROD | AR |
| 8 | 880896 | 螺栓(M8 x 38) | BOLT (M8 x 38) | 8 |
| 9 | 880897T1 | 活塞环组 | RING SET Piston | 4 |
| 9 | 880897T02 | 活塞环组 | RING SET Piston | 4 |
| 9 | 880898T1 | 活塞环组 | RING SET Piston | AR |
| 9 | 880898T02 | 活塞环组 | RING SET Piston | AR |
| 10 | 880899T | 轴承 | BEARING | 8 |
| 10 | 880899T10 | 轴承 | BEARING | 8 |
| 10 | 880899T20 | 轴承 | BEARING | 8 |
| 10 | 880899T30 | 轴承 | BEARING | 8 |
| - | 881421T01 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |

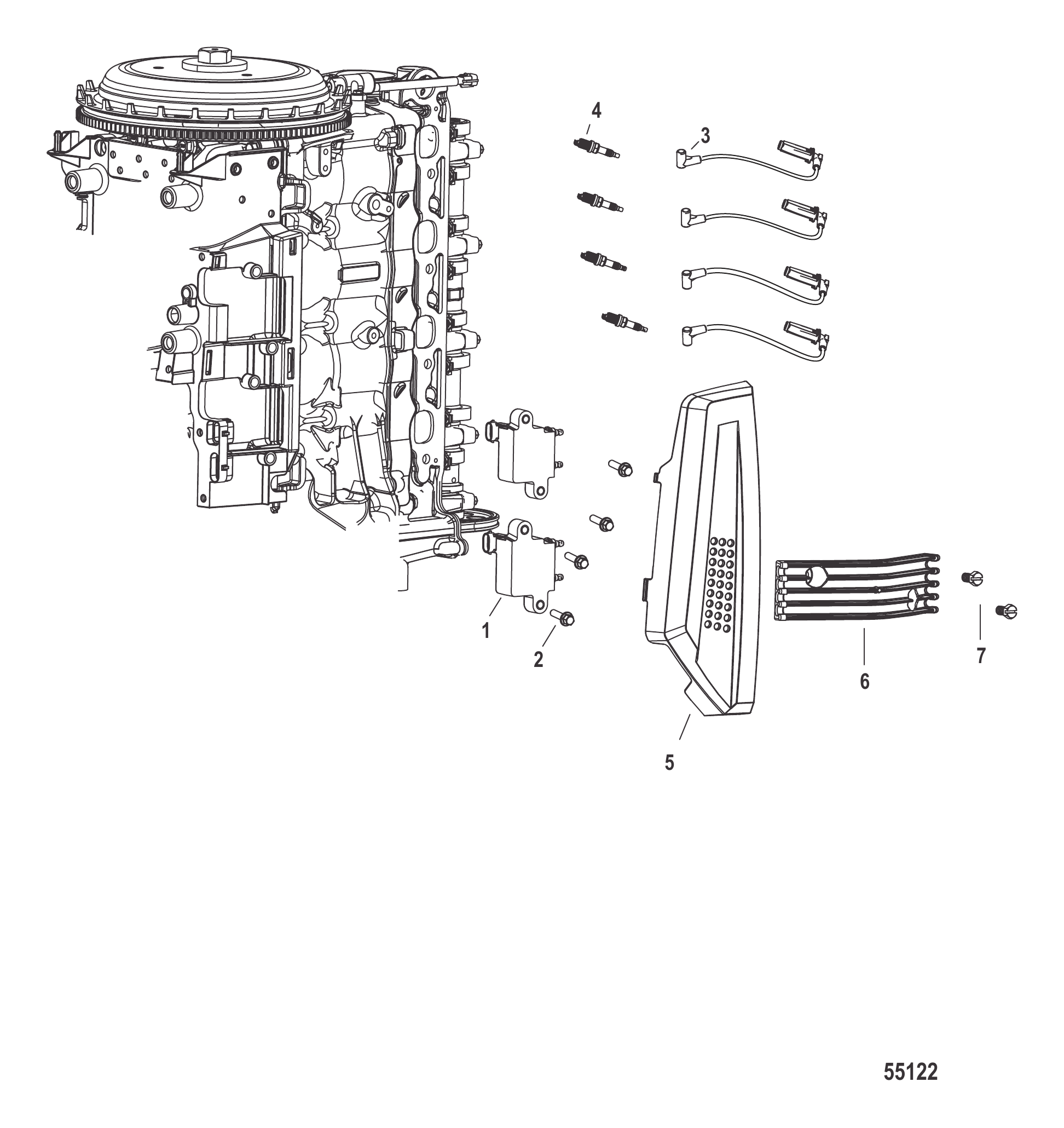

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0044991 | 双输出点火线圈 | IGNITION COIL Ignition Dual Output | 2 |
| 2 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 4 |
| 2 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 4 |
| 3 | 8M0088014 | 火花塞线束 | SPARK PLUG Wire Set | 1 |
| 4 | 8M0057936 | 火花塞NGK ZFR5F | SPARK PLUG NGK ZFR5F | 4 |
| 4 | 8M0204728 | 火花塞NGK ZFR5F | SPARK PLUG NGK ZFR5F | 4 |
| 5 | 8M0077655 | 线圈盖 | COVER, COIL | 1 |
| 5 | 8M0163125 | 线圈盖 | COVER COIL | 1 |
| 6 | 8M0060350 | 高压线托盘 | TRAY High Tension Lead | 1 |
| 7 | 88552514 | 不锈钢螺钉(M6×14mm) | SCREW (M6 x 14 mm) Stainless Steel | 2 |

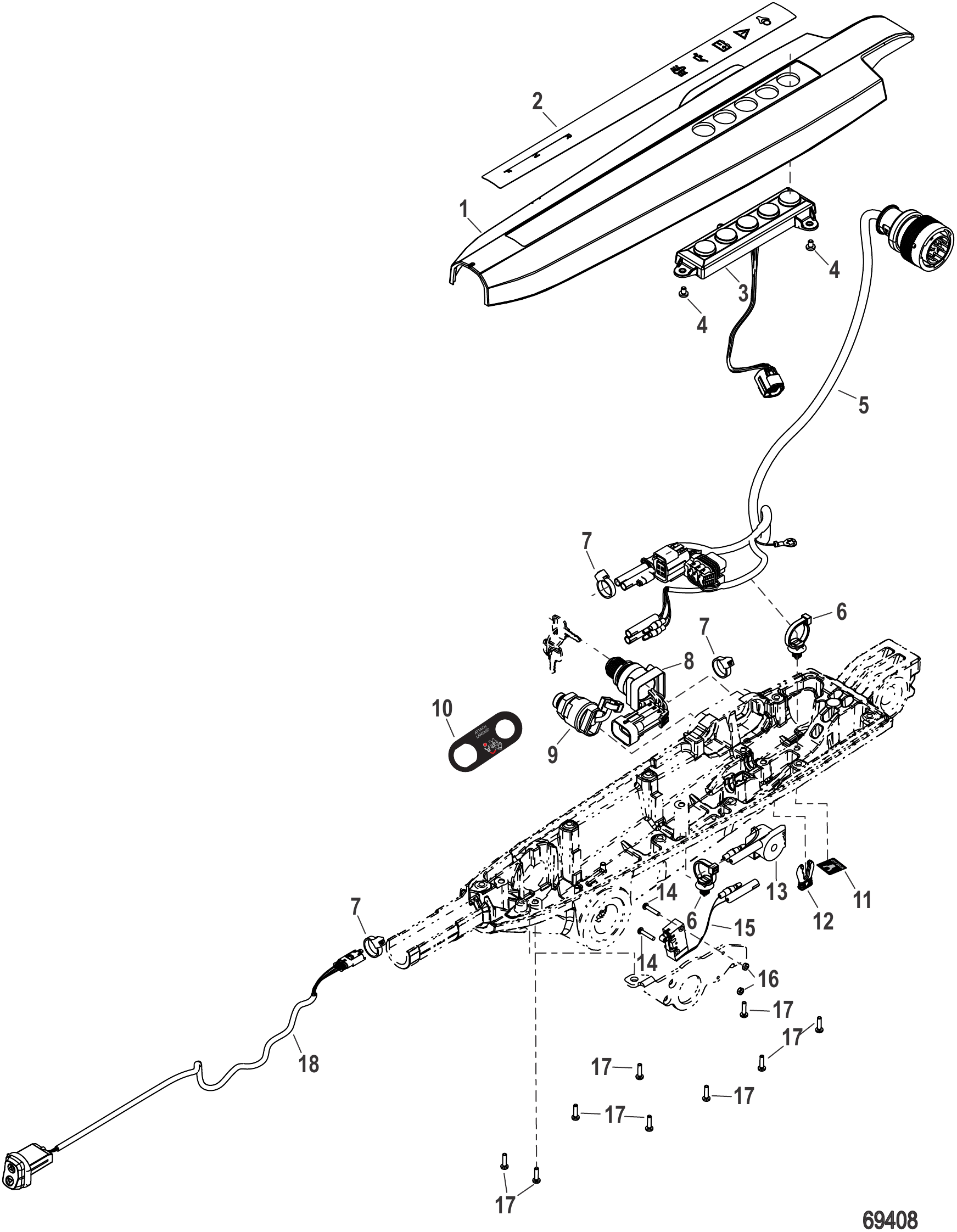

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0161144 | 舵柄手柄罩(SeaPro版) | COVER Tiller Handle (SeaPro) | 1 |
| 2 | 8M0161140 | 舵柄贴纸 | DECAL Tiller Handle | 1 |
| 3 | 8M0161363 | 显示器-无缓速控制 | DISPLAY No Troll Control | 1 |
| 4 | 8M0161141 | 螺钉M4×0.7×6.0 | SCREW M4x0.7x6.0 | 6 |
| 5 | 8M0161121 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 6 | 8M0161118 | 线缆扎带扣 | CLIP Cable Tie | 2 |
| 7 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 3 |
| 8 | 897716K01 | 点火开关套件(3位)含钥匙 | SWITCH KIT Ignition (3 Position) With Keys | 1 |
| 9 | 8M0161120 | 安全开关拉绳总成 | SWITCH LANYARD ASSEMBLY | 1 |
| 10 | 8M0161296 | 拉绳贴纸 | DECAL Attach Lanyard | 1 |
| 11 | 8M0161295 | 备用夹贴纸 | DECAL Spare Clip | 1 |
| 12 | 8M0138447 | 备用拉绳叉夹 | CLIP Lanyard Fork, Spare | 1 |
| 13 | 8M0144930 | 音响报警器总成 | ALARM ASSEMBLY Audio Warning | 1 |
| 13 | 8M0210763 | 报警器 | ALARM | 1 |
| 14 | 8M0034874 | 螺丝(M3 x 0.5) | SCREW (M3 x 0.5) | 2 |
| 15 | 8M0161116 | 空档开关 | NEUTRAL SWITCH | 1 |
| 16 | 8M0034875 | 螺母(M3 x 0.5六角) | NUT (M3 x 0.5 Hex) | 2 |
| 17 | 4001987 | 螺钉(M4×16) | SCREW (M4 x 16) | 9 |
| 18 | 8M0161119 | 微调开关总成 | TRIM SWITCH ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

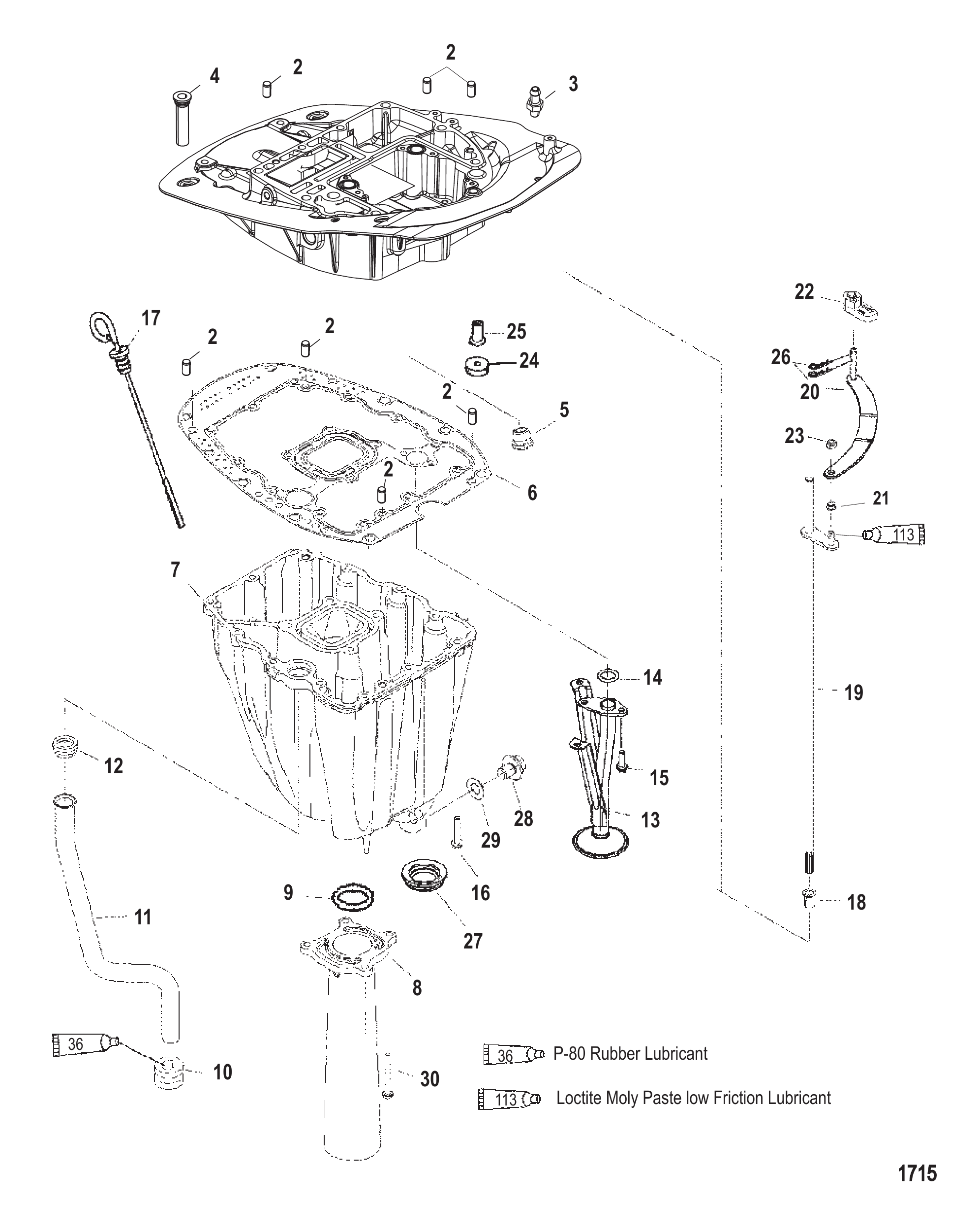

| 1 | 858582T | 适配板总成 | ADAPTER PLATE ASSEMBLY | 1 |
| 2 | 23784 | 定位销 | PIN Dowel | 7 |
| 3 | 880090 | 接头 | FITTING | 1 |
| 4 | 817519A2 | 排水单向阀总成 | CHECK VALVE ASSEMBLY Drain | 2 |
| 5 | 126021 | 护孔环 | GROMMET | 1 |
| 5 | 12602002 | 护孔环 | GROMMET | 1 |
| 6 | 8585831 | 衬垫 | GASKET | 1 |
| 7 | 858572T | 油底壳 | SUMP Oil | 1 |
| 7 | 858572T01 | 油底壳 | SUMP Oil | 1 |
| 8 | 858584A1 | 排气管总成 | TUBE ASSEMBLY Exhaust | 1 |
| 9 | 881295 | O型圈 | O-RING | 1 |
| 10 | 894171 | 护孔环 | GROMMET | 1 |
| 10 | 89417004 | 护孔环 | GROMMET | 1 |
| 11 | 858575 | 水管 | TUBE Water | 1 |
| 11 | 8M0026130 | 水管 | TUBE Water | 1 |
| 11 | 8585751 | 水管 | TUBE Water | 1 |
| 11 | 8M0026129 | 水管 | TUBE Water | 1 |
| 12 | 814080 | 上密封件 | SEAL Upper | 1 |
| 12 | 814080001 | 密封件 | SEAL | 1 |
| 13 | 858571T | 机油吸油管 | TUBE Oil Pick Up | 1 |
| 14 | 859082 | O型圈 | O-RING | 1 |
| 15 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 4 |
| 15 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 4 |
| 16 | 8248327 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 12 |
| 16 | 8M0214957 | 螺钉 | SCREW | 12 |
| 17 | 8596021 | 量油尺 | DIPSTICK | 1 |
| 18 | 48237 | 衬套 | BUSHING | 1 |
| 19 | 858577A2 | 换档轴 | SHIFT SHAFT | 1 |
| 19 | 858577A3 | 换档杆总成 | LEVER ASSY-SHIFT | 1 |
| 20 | 859177A3 | 换挡连杆 | SHIFT LINK | 1 |
| 21 | NSS | 不单独销售衬套 | NOT SOLD SEPARATE Bushing | 1 |
| 22 | 879997 | 换档滑块 | SHIFT SLIDER | 1 |
| 23 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 24 | 813745 | 隔套 | SPACER | 1 |
| 24 | 11289 | 隔套 | SPACER | 1 |
| 25 | 43585 | 联轴器 | COUPLING | 1 |
| 26 | 859746 | 开口销 | COTTER PIN | 2 |
| 27 | 858573 | 密封件 | SEAL | 1 |
| 27 | 8M0039073 | 密封件 | SEAL | 1 |
| 28 | 8288181 | 放油塞 | PLUG Drain | 1 |
| 29 | 828816 | 衬垫 | GASKET | 1 |
| 29 | 8M0204692 | 衬垫@5 | GASKET @5 | 1 |
| 30 | 82483213 | 螺钉(M6 x 60) | SCREW (M6 x 60) | 4 |

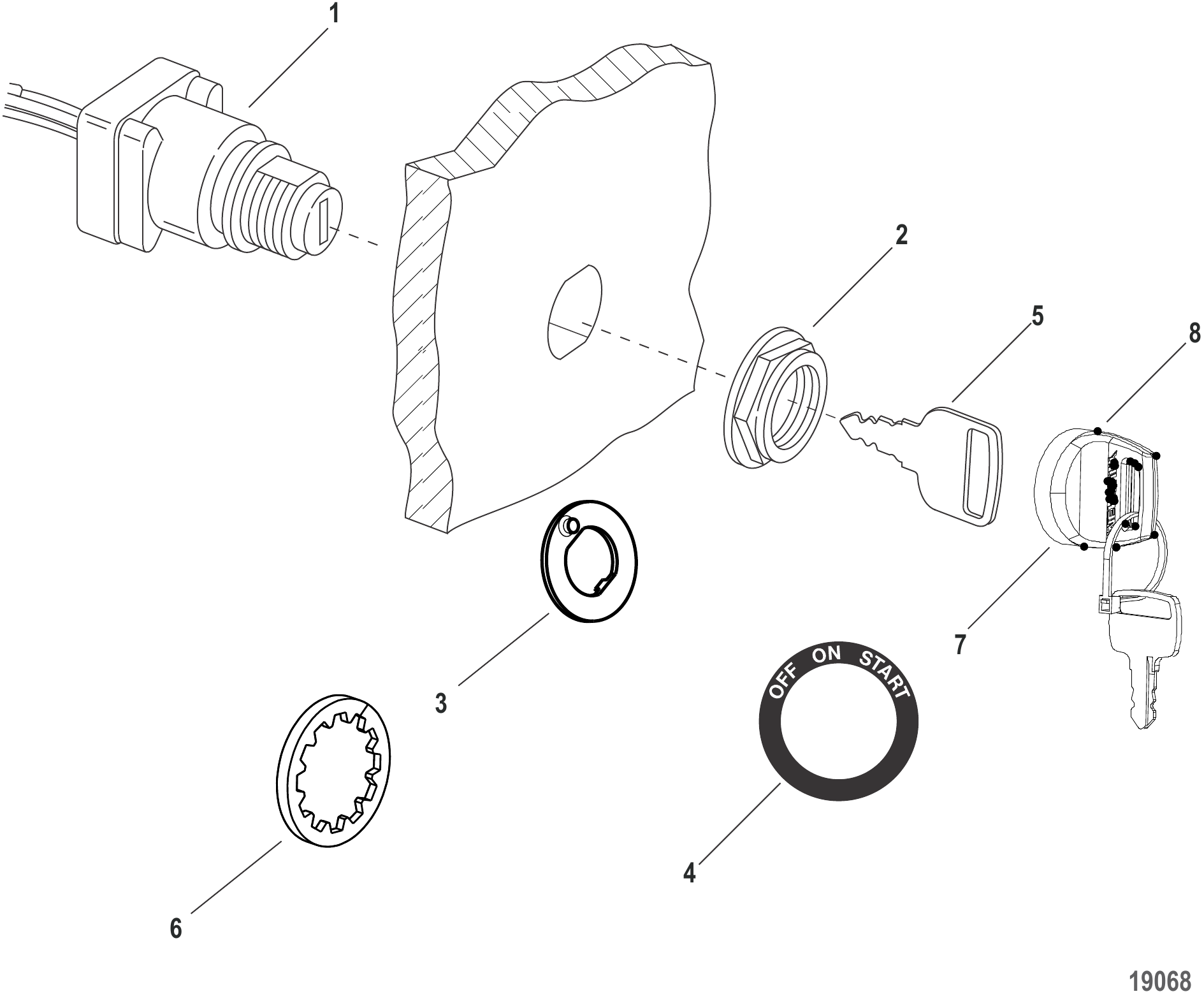

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 0 | 894911 | 点火钥匙(1A) | KEY Ignition (1A) | 1 |
| 0 | 894912 | 点火钥匙(1B) | KEY Ignition (1B) | 1 |
| 0 | 894913 | 点火钥匙(1C) | KEY Ignition (1C) | 1 |
| 0 | 894914 | 点火钥匙(1D) | KEY Ignition (1D) | 1 |
| 0 | 894915 | 点火钥匙(1E) | KEY Ignition (1E) | 1 |
| 0 | 894916 | 点火钥匙(1F) | KEY Ignition (1F) | 1 |
| 0 | 894917 | 点火钥匙(2A) | KEY Ignition (2A) | 1 |
| 0 | 894918 | 点火钥匙(2B) | KEY Ignition (2B) | 1 |
| 0 | 894919 | 点火钥匙(2C) | KEY Ignition (2C) | 1 |
| 0 | 8949110 | 点火钥匙(2D) | KEY Ignition (2D) | 1 |
| 0 | 8949111 | 点火钥匙(2E) | KEY Ignition (2E) | 1 |
| 0 | 8949112 | 点火钥匙(2F) | KEY Ignition (2F) | 1 |

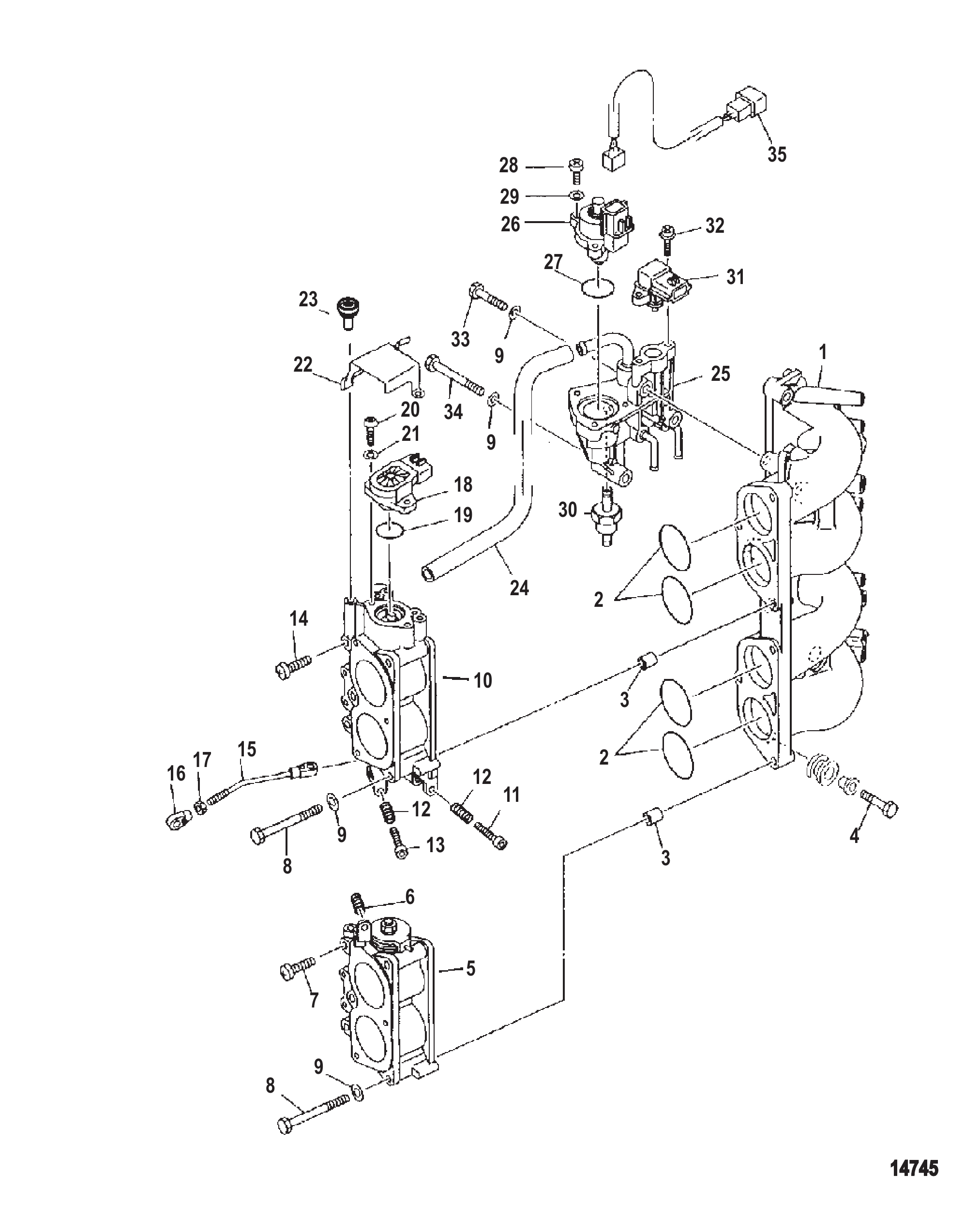

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

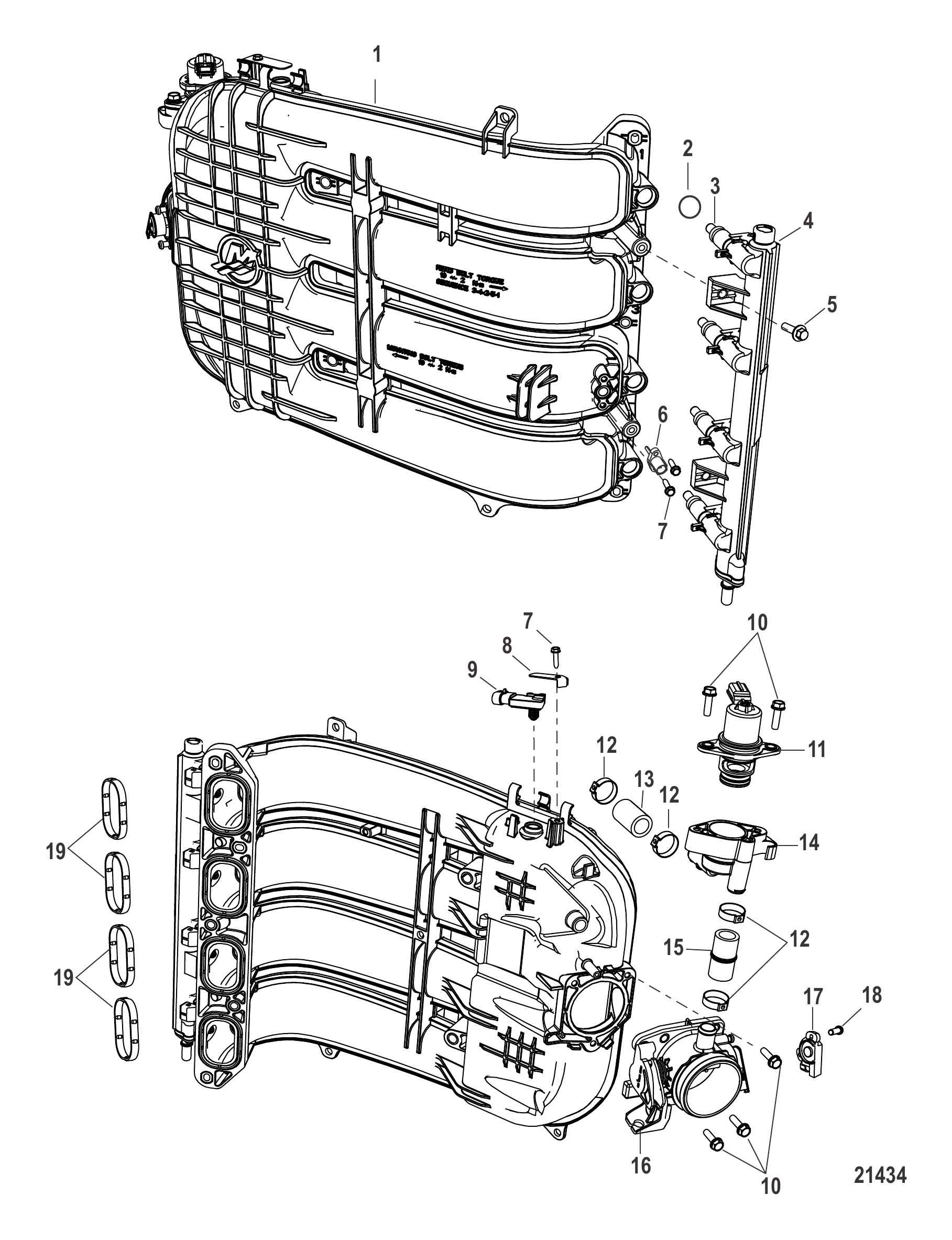

| - | 892952T04 | 进气流量测量总成 | IAFM ASSEMBLY | 1 |
| - | 892952T06 | 进气流量测量总成 | IAFM ASSEMBLY | 1 |
| - | 892952T06 | 进气流量测量总成 | IAFM ASSEMBLY | 1 |
| 1 | 8M6002790 | 进气歧管 | MANIFOLD Intake | 1 |
| 2 | 851889 | O型圈 | O-RING | 8 |
| 3 | 8M0006027 | 燃油喷油器 | INJECTOR Fuel | 4 |
| 3 | 8M0222278 | 燃油喷射器 | FUEL INJECTOR | 4 |
| 4 | 898103T97 | 燃油导轨总成 | FUEL RAIL ASSEMBLY | 1 |
| 5 | 897445502 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 2 |
| 6 | 891663001 | 温度传感器 | SENSOR Temperature | 1 |
| 7 | 895054 | 螺丝(M4×16毫米) | SCREW (M4 x 16 mm) | 3 |
| 8 | 897445503 | 固定支架 | BRACKET Retaining | 1 |
| 9 | 854445 | MAP传感器 | SENSOR MAP | 1 |
| 9 | 8M0237529 | MAP传感器 | SENSOR MAP | 1 |
| 10 | 897445501 | 螺丝(M6×20毫米) | SCREW (M6 x 20 MM) | 5 |
| 11 | 897526T | 怠速空气控制阀 | IAC VALVE | 1 |
| 11 | 8M0188118 | 怠速空气传感器 | SENSOR IDLE AIR C | 1 |
| 12 | 8M0005933 | 卡箍 | CLAMP | 4 |
| 12 | 8M0236717 | 卡箍 | CLAMP | 4 |
| 13 | 8M0005528 | 怠速空气排放软管 | HOSE Idle Air Discharge | 1 |
| 14 | 8M0005529 | 歧管壳体 | HOUSING Manifold | 1 |
| 15 | 8M0005527 | 怠速空气供给软管 | HOSE Idle Air Feed | 1 |
| 16 | 898103T98 | 节气门体总成 | THROTTLE BODY ASSEMBLY | 1 |
| 17 | 881070T | 位置传感器 | SENSOR Position | 1 |
| 17 | 8M0125617 | 位置传感器 | SENSOR Position | 1 |
| 18 | 8M0009542 | 螺丝套件(M5×17)含2颗螺丝 | SCREW KIT (M5 x 17) Contains 2 Screws | 1 |
| 19 | 897445505 | 密封件(4件装) | SEAL Bulk Pack of 4 seals. | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | NSS | 不单独销售-电气板总成(完整) | NOT SOLD SEPARATE Electrical Plate Assembly-Complete | 1 |
| 1 | 897619T01 | 电气板 | PLATE Electrical | 1 |
| 2 | 856954 | 衬套 | BUSHING | 2 |
| 3 | 834985 | 护孔环 | GROMMET | 2 |
| 3 | 8M0190980 | 护孔环 | GROMMET | 2 |
| 4 | 879962 | 卡扣 | CLIP | 4 |
| 5 | 893768T | 安装板 | PLATE | 1 |
| 6 | 82129114 | 螺钉 (M6 x 14) | SCREW (M6 x 14) | 2 |
| 7 | 82129125 | 螺丝(M6 x 25毫米) | SCREW (M6 x 25 mm) | 2 |
| 8 | 8M0010250 | 支架 | BRACKET | 1 |
| 9 | 825096T01 | 启动电磁阀 | SOLENOID Starter | 1 |
| 9 | 8M0098898 | 继电器 | RELAY | 1 |
| 10 | 859172 | 卡箍 | CLAMP | 1 |
| 11 | 892579T14 | 发动机线束总成 | HARNESS ASSEMBLY Engine | 1 |
| - | 83296915 | 迷你保险丝-蓝色-15安培 | FUSE Mini - Blue - 15 Ampere | 1 |
| - | 832969T15 | 迷你保险丝-蓝色-15安培 | FUSE Mini - Blue - 15 Ampere | 1 |
| - | 8329692 | 迷你保险丝-灰色-2安培 | FUSE Mini - Gray - 2 Ampere | 1 |
| - | 8M0207797 | 迷你保险丝-灰色-2安培 | FUSE Mini - Gray - 2 Ampere | 1 |
| - | 83296920 | 迷你保险丝-黄色-20安 | FUSE Mini - Yellow - 20 Ampere | 4 |
| - | 832969T20 | 迷你保险丝-黄色-20安 | FUSE Mini - Yellow - 20 Ampere | 4 |
| - | 8329695 | 迷你保险丝-棕色-5安培 | FUSE Mini - Tan - 5 Ampere | 1 |
| - | 832969T05 | 迷你保险丝-棕色-5安培 | FUSE Mini - Tan - 5 Ampere | 1 |
| - | 858754 | 保险丝盖 | COVER Fuse | 2 |
| 12 | 26993 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 1 |
| 12 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 1 |
| 13 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 2 |
| 14 | 880787 | 黄色绝缘护套 | BOOT Insulator - Yellow | 1 |
| 15 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | AR |
| 15 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 16 | 819514T27 | 升降线束总成 | HARNESS ASSEMBLY Trim | 1 |
| 17 | 93388T22 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 18 | 899145 | 绑带夹 | CLIP Tie Strap | 2 |
| 19 | 898454 | 卡扣 (19 mm) | CLIP (19 mm) | 1 |
| 20 | 882751 | 继电器 | RELAY | 3 |
| 20 | 8M0219830 | 继电器 | RELAY | 3 |
| 21 | 865205 | 卡扣 | CLIP | 3 |
| 22 | 875302A1 | 带电螺柱总成 | HOT STUD ASSEMBLY | 1 |
| 23 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 1 |
| 24 | 93388T20 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 25 | 878231T05 | 保险丝线束总成 | HARNESS ASSEMBLY Fuse | 1 |
| 26 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 1 |
| 27 | 88439A46 | 电缆总成 蓄电池-正极 | CABLE ASSEMBLY Battery - Positive | 1 |
| 28 | 85172 | 垫圈 | WASHER | 1 |
| 29 | NSS | 电池标签(不单独销售) | NOT SOLD SEPARATE Tag-Battery | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

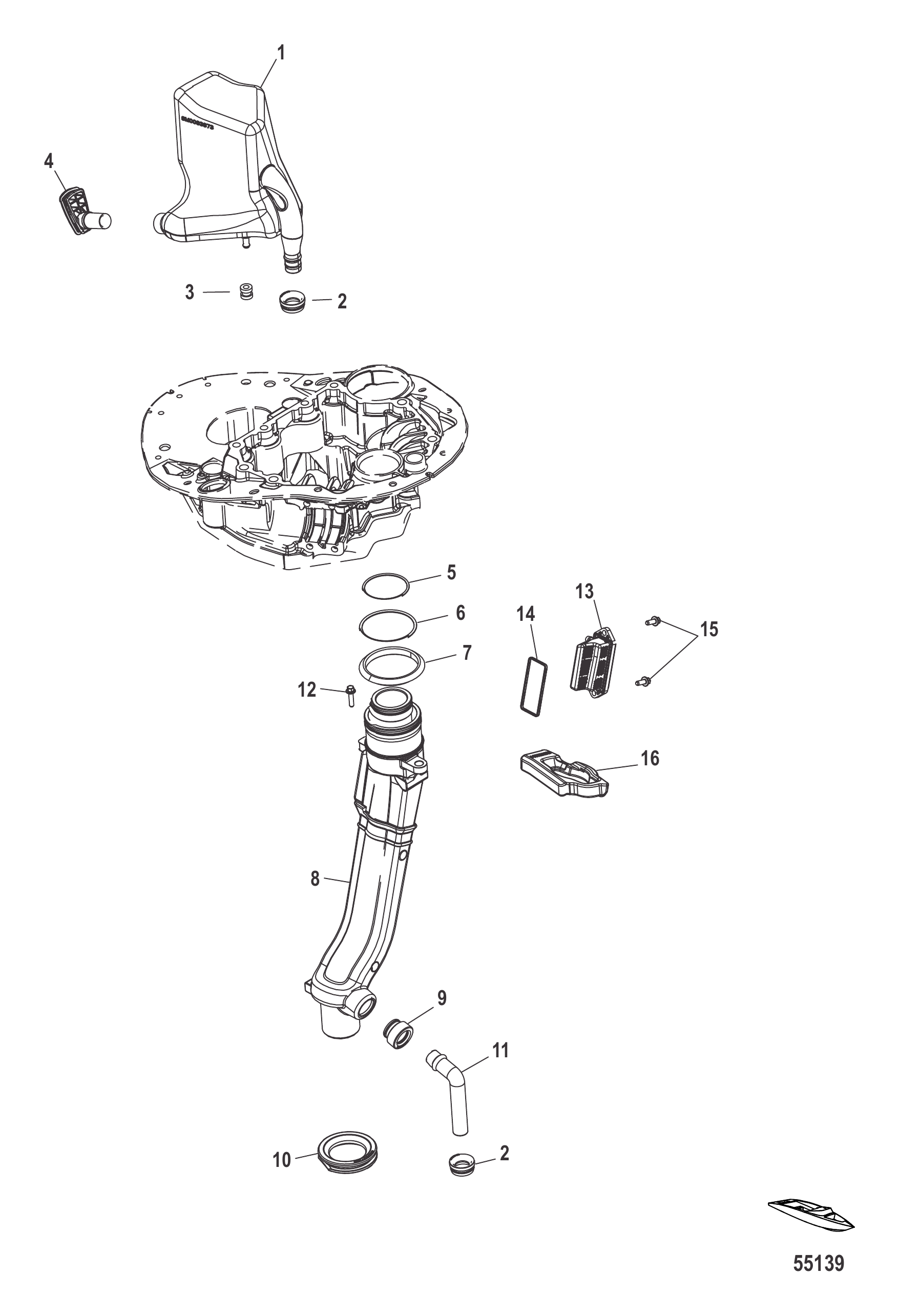

| 1 | 8M0088068 | 消音器 怠速泄压 | MUFFLER Idle Relief | 1 |
| 2 | 8M0035476 | 衬套 水管 | GROMMET Water Tube | 2 |
| 3 | 821555001 | 护孔环 | GROMMET | 1 |
| 3 | 8M0153609 | 护孔环 | GROMMET | 1 |
| 4 | 8M0085666 | 护孔环 | GROMMET | 1 |
| 5 | 8M0053512 | O型圈 | O-RING | 1 |
| 6 | 38106 | O型圈 | O-RING | 1 |
| 7 | 8M0056686 | 密封件 | SEAL | 1 |
| 7 | 8M0240953 | 密封件 排气管 | SEAL EXH PIPE | 1 |
| 8 | 8M0091529 | 排气管 | EXHAUST PIPE | 1 |
| 8 | 8M0119778 | 排气管 | EXHAUST PIPE | 1 |
| 9 | 8M0034043 | 衬套 水管 | GROMMET Water Tube | 1 |
| 10 | 8M0057218 | 护孔环 | GROMMET | 1 |
| 11 | 8M0060404 | 水管 长型 | TUBE Water, Long | 1 |
| 12 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 1 |
| 12 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 1 |
| 13 | 8M0060392 | 滤网总成 | STRAINER ASSEMBLY | 1 |
| 13 | 8M0094282 | 滤网总成 | STRAINER ASSEMBLY | 1 |
| 14 | 8M0043365 | 密封件 滤网 | SEAL Strainer | 1 |
| 14 | 8M0142720 | 密封件 | SEAL | 1 |
| 15 | 88552516 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 2 |
| 15 | 8M0103805 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 2 |
| 16 | 8M0056684 | 密封件 | SEAL | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

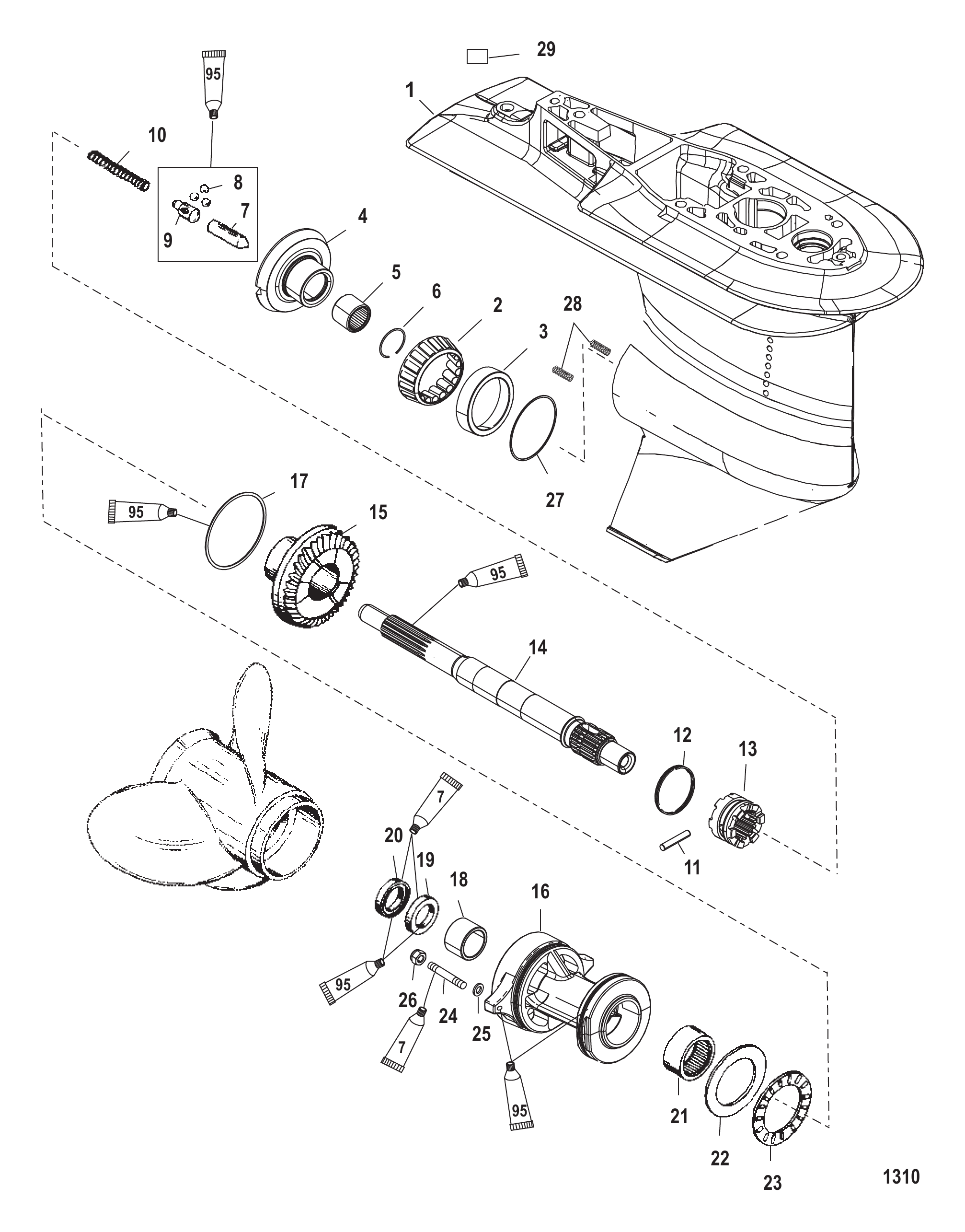

| - | 9011J2 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 9011J4 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| 1 | 9011G59 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 2 | 30894A1 | 圆锥轴承组 | BEARING SET Cup And Cone | 1 |
| 3 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 4 | 881260A3 | 前进齿轮-29齿 | GEAR Forward - 29 Teeth | 1 |
| 5 | 30895T | 滚针轴承 | BEARING Needle | 1 |
| 6 | 856823 | 挡圈 | RING Retaining | 1 |
| 7 | 850315A1 | 凸轮从动件套件 | FOLLOWER KIT Cam | 1 |
| 8 | 44530 | 钢球 | BALL | 3 |
| 9 | NSS | 滑动件(不单独销售) | NOT SOLD SEPARATE Slide | 1 |
| 10 | 850327 | 弹簧 | SPRING | 1 |
| 11 | 850048T | 离合器 | CLUTCH | 1 |
| 12 | 30632 | 十字销 | PIN Cross | 1 |
| 12 | 8M0100263 | 十字销 | PIN Cross | 1 |
| 13 | 30893 | 弹簧 | SPRING | 1 |
| 14 | 850308 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 14 | 8M0140445 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 15 | 850036T | 倒车齿轮-29齿 | GEAR Reverse - 29 Teeth | 1 |
| 16 | 12596T2 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 16 | 8M0168901 | 轴承座总成 | CARRIER ASSY. | 1 |
| 17 | 97386 | O型圈 (3.609 x .139) | O-RING (3.609 x .139) | 1 |
| 17 | 8M0214974 | O型圈 | O RING | 1 |
| 18 | 30956T | 滚针轴承 | BEARING Needle | 1 |
| 19 | 70080 | 内部油封 | SEAL Oil Inner | 1 |
| 19 | 8M0205728 | 密封件 | SEAL | 1 |
| 20 | 70081 | 外油封 | SEAL Oil Outer | 1 |
| 20 | 8M0205729 | 密封件 | SEAL | 1 |
| 21 | 12578T | 滚柱轴承 | BEARING Roller | 1 |
| 22 | 12577 | 止推垫片 | THRUST WASHER | 1 |
| 23 | 12576 | 推力轴承 | BEARING Thrust | 1 |
| 24 | 429172 | 双头螺柱(M8×48) | STUD (M8 x 48) | 2 |
| 24 | 8M0034456 | 双头螺柱(M8×1.25×48) | STUD (M8 X 1.25 X 48) | 2 |
| 25 | 855941 | 垫圈(.323 x .590 x .112)不锈钢 | WASHER (.323 x .590 x .112) Stainless Steel | 2 |
| 26 | 401378 | 螺母 (M8) | NUT (M8) | 2 |
| 27 | 44491A1 | 垫片组 | SHIM SET | 1 |
| 27 | 8M0063266 | 垫片组 | SHIM SET | 1 |
| 28 | 8227731 | 螺纹嵌件 | INSERT Threaded | 2 |
| 29 | NSS | 非单独销售标识贴-齿轮箱小齿轮凹痕 | NOT SOLD SEPARATE Decal, Gear Housing Pinion Indentation | 1 |
| - | 43035A4 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| - | 803496T2 | 轴承/油封套件（不含前轴承） | BEARING/SEAL KIT Without Forward Bearing | 1 |
| - | 803489T1 | 离合器/凸轮维修包 | REPAIR KIT Clutch/Cam | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

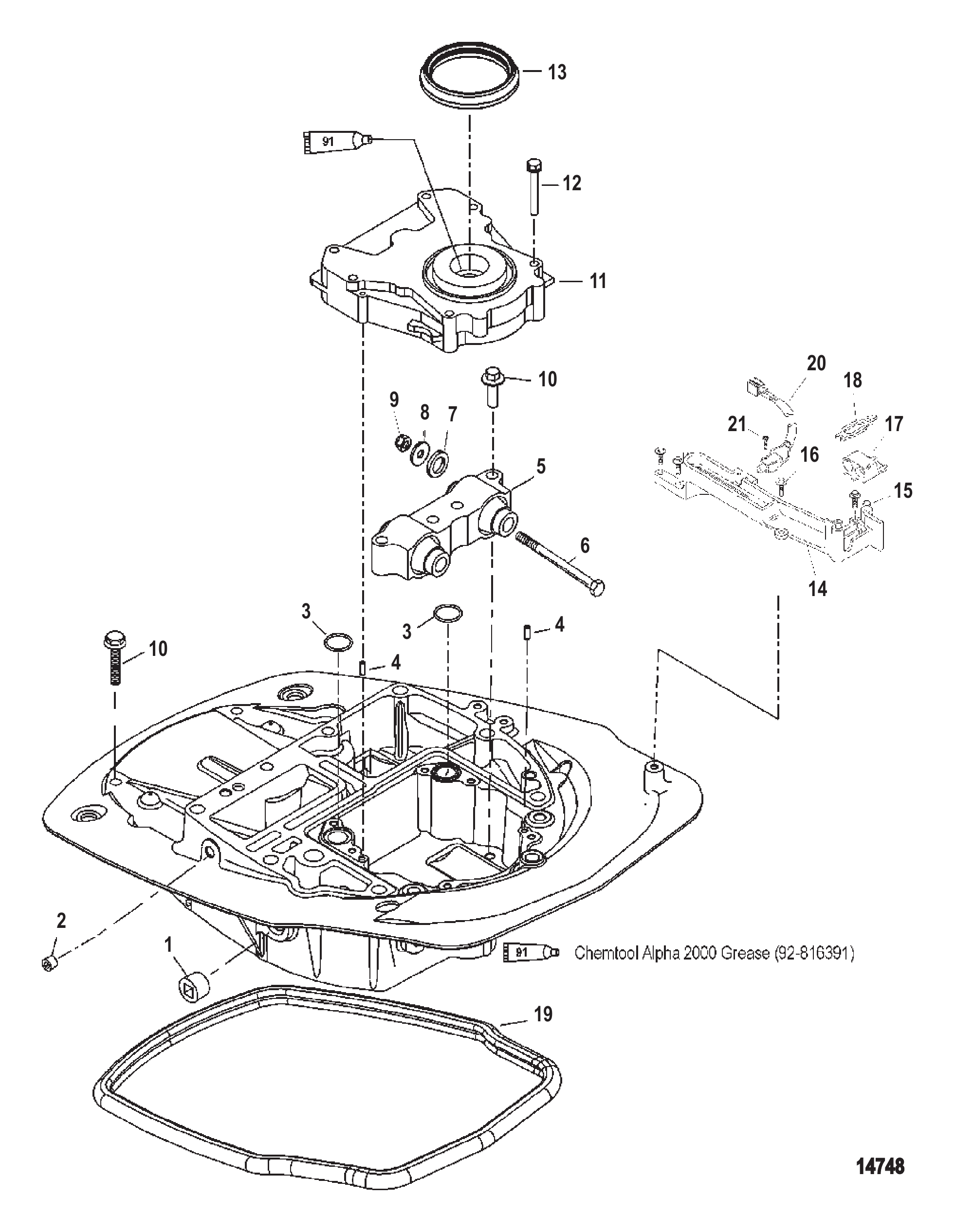

| 1 | 384073 | 管塞(.500-14) | PLUG Pipe (.500-14) | 1 |
| 2 | 479452 | 堵头 | PLUG | 1 |
| 3 | 858581 | O型圈 | O-RING | 2 |
| 3 | 62705001 | O型圈 | O-RING | 2 |
| 4 | 858580 | 定位销 | PIN Dowel | 2 |
| 4 | 41275M | 定位销 | PIN Dowel | 2 |
| 5 | 881900T | 支架 | MOUNT | 1 |
| 5 | 881900T03 | 支架 | MOUNT | 1 |
| 6 | 42974 | 螺栓(M12×175) | BOLT (M12 x 175) | 2 |
| 6 | 8M0238139 | 螺钉 | SCREW | 2 |
| 7 | 934161 | 氯丁橡胶垫圈 | WASHER Neoprene | 2 |
| 7 | 32834 | 垫圈(0.9375x1.750x0.172) | WASHER (.9375 x 1.750 x .172) | 2 |
| 8 | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 2 |
| 8 | 8M0204648 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 2 |
| 9 | 859129 | 螺母(M12) | NUT (M12) | 2 |
| 9 | 896963 | 螺母(M12) | NUT (M12) | 2 |
| 10 | 4010750 | 螺钉(M8 x 50) | SCREW (M8 x 50) | 8 |
| 11 | 858579T3 | 油泵 | PUMP Oil | 1 |
| 12 | 858719 | 螺栓(M6 x 45) | BOLT (M6 x 45) | 6 |
| 12 | 8M0052670 | 螺钉 | SCREW | 6 |
| 13 | 804349 | 密封件 | SEAL | 1 |
| 14 | 878562T2 | 换挡连杆支架 | BRACKET Shift Linkage | 1 |
| 14 | 878562T8 | 支架 | BRACKET | 1 |
| 15 | 42975 | 传动螺钉 | DRIVE SCREW | 2 |
| 16 | 82130020 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 3 |
| 17 | 878560 | 杯套 | CUP | 1 |
| 18 | 98889 | 闩锁 | LATCH | 1 |
| 19 | 8238053 | 密封件 | SEAL | 1 |
| 19 | 8M0043168 | 密封件 | SEAL | 1 |
| 20 | 879996A1 | 开关 | SWITCH | 1 |
| 20 | 8M0052930 | 开关总成 | SWITCH ASSEMBLY | 1 |
| 21 | 88075020 | 螺丝(M3 x 20) | SCREW (M3 x 20) | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

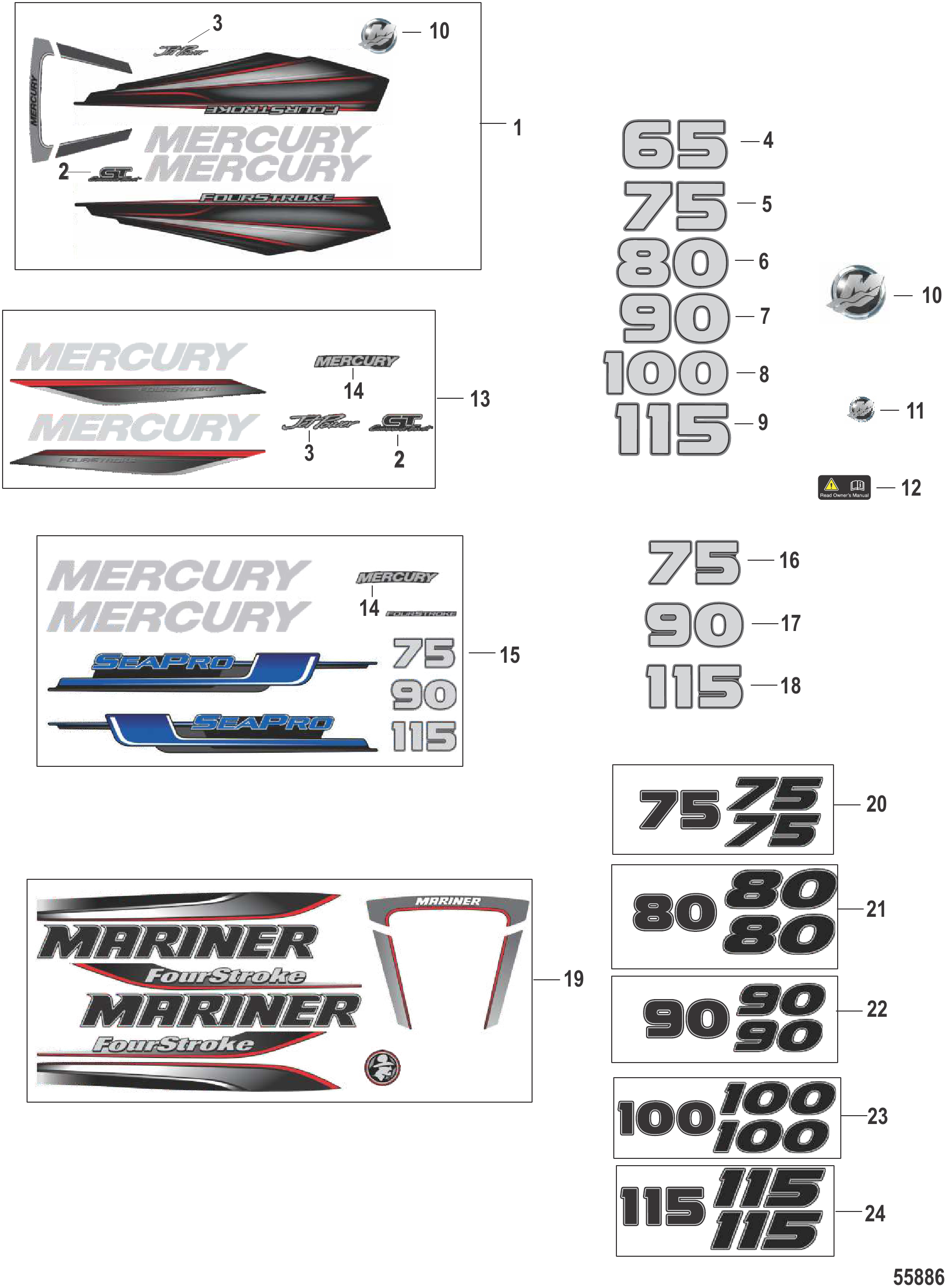

| 1 | 8M0088056 | 贴标套件-水星 | DECAL SET - MERCURY | 1 |
| 1 | 8M0156748 | 贴纸套装 Mercury 65-150马力 4冲程 | DECAL SET Mercury 65-150 HP 4S | 1 |
| 2 | 8M0088310 | 贴纸 指挥推进 MERCURY | DECAL Command Thrust MERCURY | 1 |
| 3 | 8M0073701 | 贴纸 喷射动力 MERCURY | DECAL Jet Power MERCURY | 1 |
| 4 | 8M0080470 | 贴纸 尾部, 65马力 MERCURY | DECAL Rear, 65 HP MERCURY | 1 |
| 5 | 8M0080233 | 贴纸 尾部, 75马力 MERCURY | DECAL Rear, 75 HP MERCURY | 1 |
| 6 | 8M0080234 | 贴纸 尾部, 80马力 MERCURY | DECAL Rear, 80 HP MERCURY | 1 |
| 7 | 8M0080235 | 贴纸 尾部, 90马力 MERCURY | DECAL Rear, 90 HP MERCURY | 1 |
| 8 | 8M0080236 | 贴纸 尾部, 100马力 MERCURY | DECAL Rear, 100 HP MERCURY | 1 |
| 9 | 8M0080237 | 贴纸 尾部, 115马力 MERCURY | DECAL Rear, 115 HP MERCURY | 1 |
| 10 | 8M0043705 | 贴纸 M标志, 60毫米黑色罩-前部, MERCURY | DECAL M-Icon, 60 mm Black Cowl-Front, MERCURY | 1 |
| 11 | 8M0080152 | 贴纸 M标志, 29毫米把手-后部, MERCURY | DECAL M-ICON, 29 mm Handle-Rear, MERCURY | 1 |
| 12 | 8M0056643 | 阅读手册贴花 | DECAL Read Manual | 1 |
| 13 | 8M0156748 | 贴纸套装 Mercury 65-150马力 4冲程 | DECAL SET Mercury 65-150 HP 4S | 1 |
| 14 | 8M0159890 | 贴纸 Lenz Mercury | DECAL Lenz Mercury | 1 |
| 15 | 8M0098614 | SeaPro系列贴花套装 | DECAL SET SeaPro | 1 |
| 16 | 8M0080233 | 75马力尾部贴花 | DECAL Rear, 75 HP | 1 |
| 17 | 8M0080235 | 90马力尾部贴花 | DECAL Rear, 90 HP | 1 |
| 18 | 8M0080237 | 115马力尾部贴花 | DECAL Rear, 115 HP | 1 |

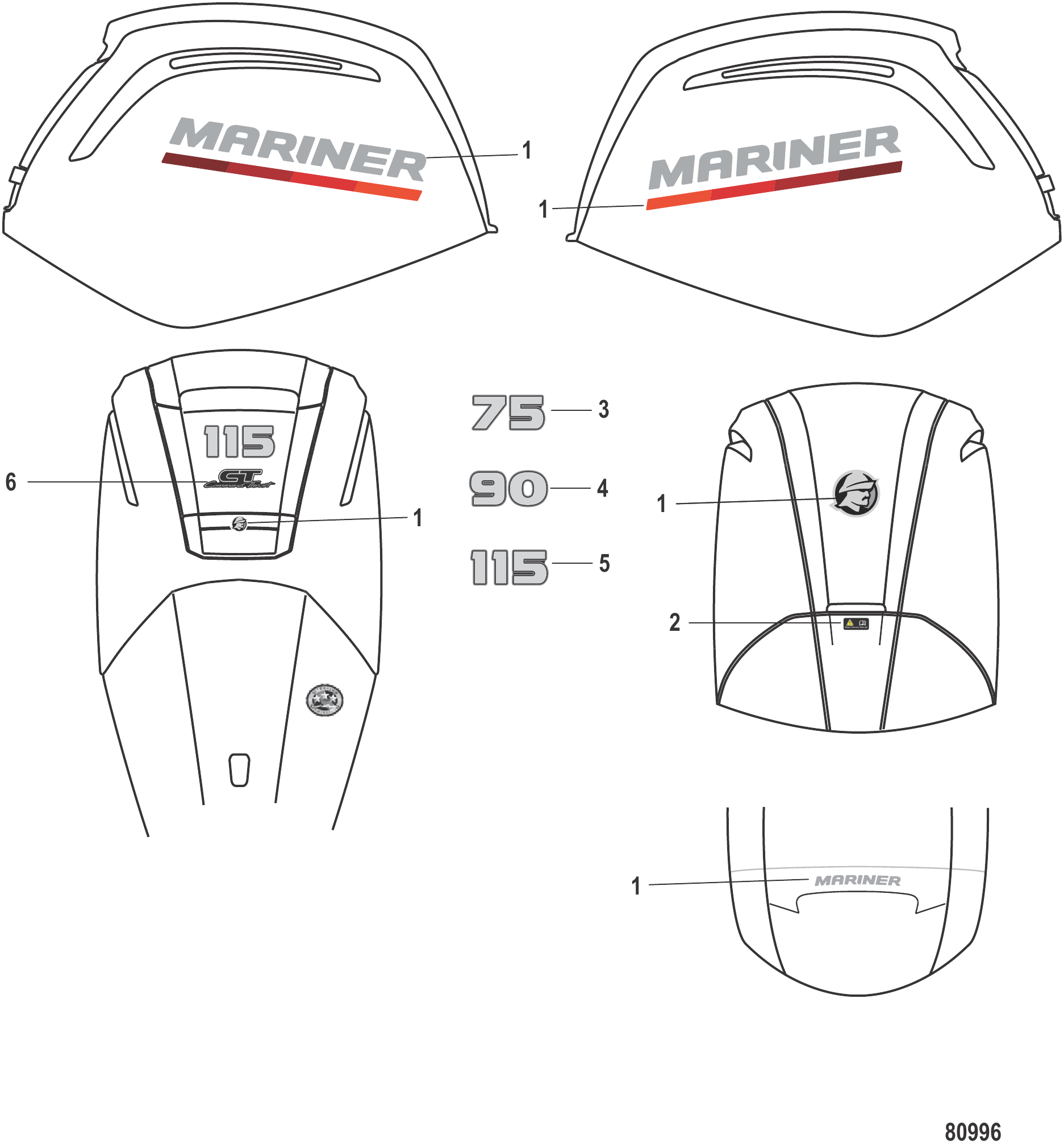

| 19 | 8M0088057 | 贴花套装 水手 | DECAL SET MARINER | 1 |
| 20 | 8M0088334 | 贴纸套装 左舷右舷及尾部, 75马力 MARINER | DECAL SET Port Starboard and Rear, 75 HP MARINER | 1 |
| 21 | 8M0088335 | 贴纸套装 左舷右舷及尾部, 80马力 MARINER | DECAL SET Port Starboard and Rear, 80 HP MARINER | 1 |
| 22 | 8M0088336 | 贴纸套装 左舷右舷及尾部, 90马力 MARINER | DECAL SET Port Starboard and Rear, 90 HP MARINER | 1 |
| 23 | 8M0088337 | 贴纸套装 左舷右舷及尾部, 100马力 MARINER | DECAL SET Port Starboard and Rear, 100 HP MARINER | 1 |
| 24 | 8M0088338 | 贴纸套装 左舷右舷及尾部, 115马力 MARINER | DECAL SET Port Starboard and Rear, 115 HP MARINER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

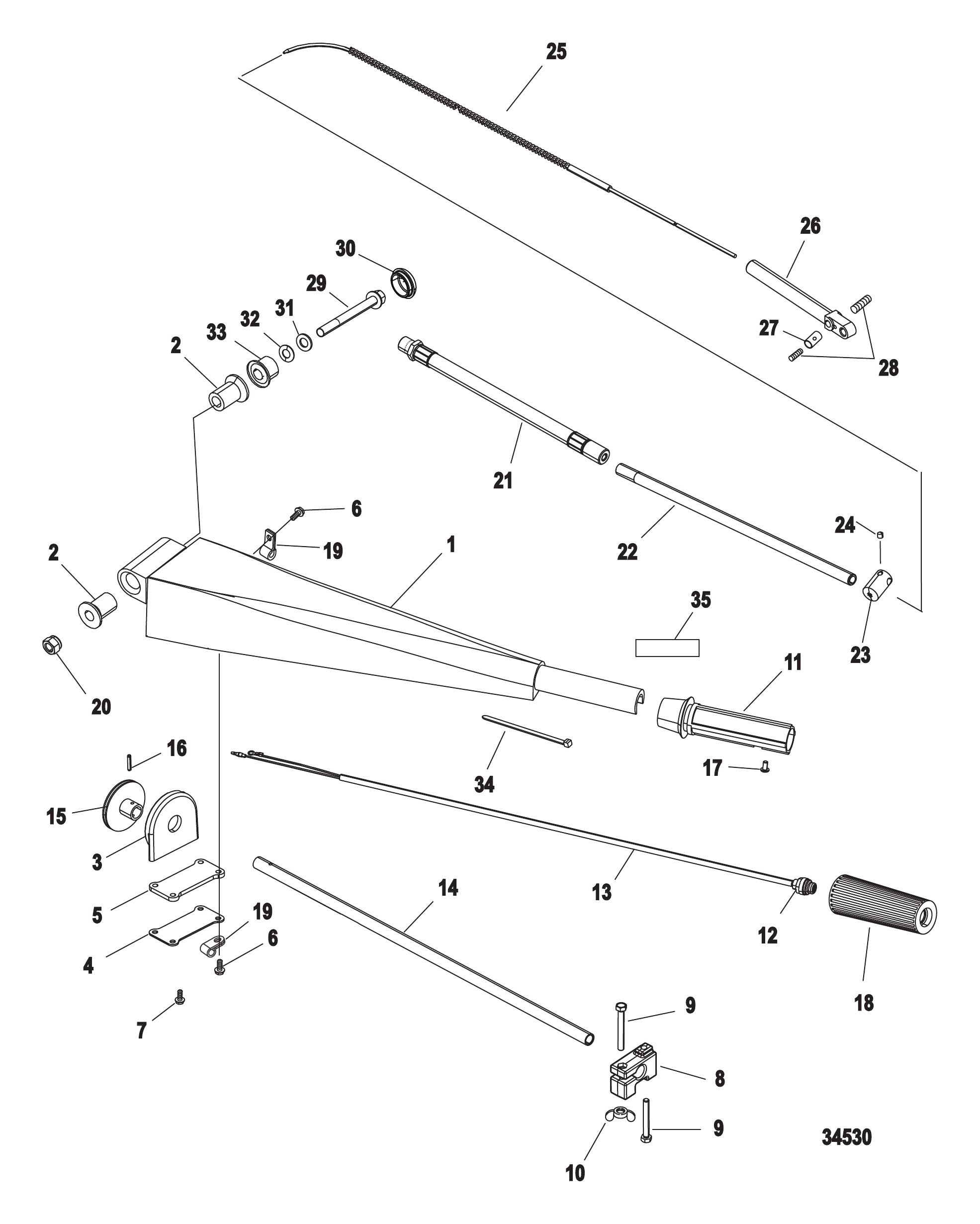

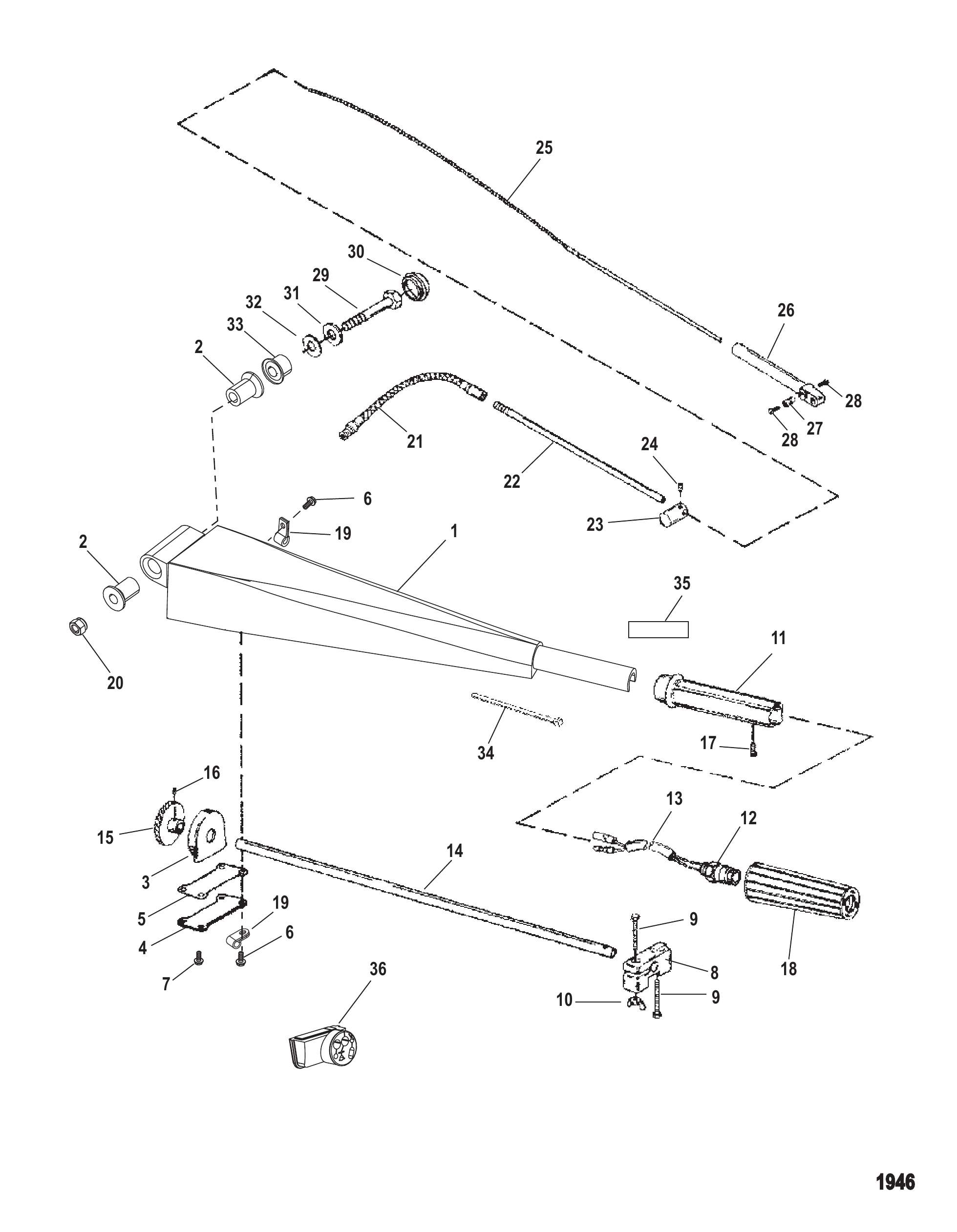

| - | 816366A31 | 转向手柄套件 | STEERING HANDLE KIT | 1 |
| - | 816366A42 | 转向手柄套件 | STEERING HANDLE KIT | 1 |
| - | 816366A32 | 转向手柄套件 | STEERING HANDLE KIT | 1 |
| 1 | 816366T08 | 手柄支架 | HANDLE Bracket | 1 |
| 1 | 816366T10 | 手柄支架 | HANDLE Bracket | 1 |
| 2 | 881261 | 螺钉（.313-24 x 3.50） | SCREW (.313-24 x 3.50) | 2 |
| 3 | 42981 | 锁紧垫圈 | TAB WASHER | 2 |
| 4 | 822263 | 隔套 | SPACER | 1 |
| 5 | 12649A4 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 6 | 88107A5 | 钥匙开关套件（含钥匙） | SWITCH KIT Key With Keys | 1 |
| 7 | 879755 | 特殊螺母-黑色尼龙 | NUT Special - Black Nylon | 1 |
| 8 | 13541 | 公插头 | PLUG Male | 1 |
| 9 | 121051 | 护孔环 | GROMMET | 1 |
| 10 | 12014 | 堵头 | PLUG | 1 |
| 10 | 889730 | 堵头 | PLUG | 1 |
| 11 | 120441 | 黄铜固定座 | RETAINER Brass | 1 |
| 11 | 8M0032846 | 黄铜固定座 | RETAINER Brass | 1 |
| 12 | 8158041 | 盖板 | COVER | 1 |
| 13 | 878608 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 5 |
| 14 | 11083A4 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 15 | 15920Q54 | 拉绳总成 | LANYARD ASSEMBLY | 1 |
| 16 | 11149A3 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 17 | 889528T01 | 喇叭总成 | HORN ASSEMBLY | 1 |
| 18 | 18286A19 | 配平开关套件(25英尺) | SWITCH KIT Trim (25.00 Feet) Trim | 1 |
| 19 | 813960A3 | 开关 | SWITCH | 1 |
| 19 | 8M0052927 | 开关总成 | SWITCH ASSY | 1 |
| 20 | 12110 | 螺丝 (#6-32 x .750) | SCREW (#6-32 x .750) | 2 |
| 21 | 648551 | 卡箍 | CLAMP | 1 |
| 22 | 878608 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 1 |
| 23 | 849838 | 螺钉(.375-24 x 1.250) | SCREW (.375-24 x 1.250) | 1 |
| 24 | 826709113 | 不锈钢螺母 (.375-24) | NUT (.375-24) Stainless Steel | 1 |
| 24 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 1 |
| 25 | 48419 | 拉杆端头 | ROD END | 1 |
| 25 | 48419T | 杆端-2.16英寸 | ROD END-2.16 IN | 1 |
| 25 | 48419001 | 拉杆端头 | ROD END | 1 |
| 25 | 48419T01 | 杆端接头（2.66英寸） | ROD END (2.66 Inches) | 1 |
| 26 | 495637 | 换挡杆 | ROD Shift | 1 |
| 27 | 26856 | 衬套 | BUSHING | 1 |
| 28 | 35950 | 垫圈 (.273 x .437 x .031) 不锈钢 | WASHER (.273 x .437 x .031) Stainless Steel | 1 |
| 29 | 25191 | 开口销 | COTTER PIN Cotter | 1 |
| 30 | 8163677 | 换挡杆 | LEVER Shift | 1 |
| 31 | 58152 | 双头螺柱(0.375-24×1.125) | STUD (.375-24 x 1.125) | 1 |
| 31 | 8M0034452 | 螺柱 | STUD | 1 |
| 32 | 98530 | 旋钮 | KNOB | 1 |
| 33 | 12016A2 | 定位弹簧套件 | DETENT/SPRING KIT | 1 |
| 34 | 8159831 | 衬套 | BUSHING | 1 |
| 35 | 823970 | 垫圈 | WASHER | 1 |
| 36 | 824610 | 塑料垫圈 | WASHER Plastic | 1 |
| 37 | 814803 | 垫圈 | WASHER | 1 |
| 38 | 8158051 | 锁紧垫圈 | TAB WASHER | 1 |
| 39 | 4000357 | 螺钉 (M8 x 45) | SCREW (M8 x 45) | 1 |
| 40 | 52148A08 | 副驾驶总成 | CO PILOT ASSEMBLY | 1 |
| 41 | 52148002 | 导向杆（15英寸） | PILOT ROD (15.00 Inches) | 1 |
| 42 | 52155A1 | 螺母总成 | NUT ASSEMBLY | 1 |
| 42 | 8M0103848 | 螺母总成 | NUT ASSEMBLY | 1 |
| 43 | 36137 | 螺钉(.250-28 x 1.00) | SCREW (.250-28 x 1.00) | 1 |
| 44 | 821621 | 叉形旋钮 | KNOB Prong | 1 |
| 45 | 873491 | 连杆 | ROD Link | 1 |
| 46 | 26841 | 衬套 | BUSHING | 1 |
| 47 | 70132 | 垫圈(0.323×0.563×0.063)不锈钢 | WASHER (.323 x .563 x .063) Stainless Steel | 2 |
| 47 | 8M0042642 | 垫圈(.323 x .562 x .063) | WASHER (.323 x .562 x .063) | 2 |
| 48 | 826709111 | 螺母(.312-24)不锈钢 | NUT (.312-24) Stainless Steel | 2 |
| 49 | 64015 | 螺母 (.250-20) | NUT (.250-20) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 881436T | 进气消音器 | SILENCER Intake | 1 |
| 2 | 880882T | 温度传感器 | THERMOSENSOR | 1 |
| 3 | 881437 | O型圈 | O-RING | 4 |
| 4 | 804165 | 螺栓(M6 x 16) | BOLT (M6 x 16) | 6 |
| 5 | 881816 | 螺栓(M8×20) | BOLT (M8 x 20) | 2 |
| 6 | 881439 | 支架 | BRACKET | 1 |
| 7 | 881434 | 支架 | BRACKET | 2 |
| 7 | 8M0059034 | 支架 | BRACKET | 2 |
| 8 | 881435 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 8 |
| 9 | 881010T | 进气消音器 | INDUCTION SILENCER | 1 |
| 9 | 892849 | 进气消音器 | INDUCTION SILENCER | 1 |
| 10 | 881269 | 支架 | BRACKET | 1 |
| 11 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 1 |
| 11 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 1 |
| 12 | 804160 | 销 | PIN | 2 |
| 13 | 881433 | 衬垫 | GASKET | 1 |
| 14 | 804162 | 通气管 | BREATHER PIPE | 1 |
| 15 | 804163 | 卡箍 | CLAMP | 2 |
| 16 | 804602 | 螺栓(M6 x 12) | BOLT (M6 x 12) | 2 |
| 17 | 804089 | 卡扣 | CLIP | 1 |
| 18 | 879650 | 卡箍 | CLAMP | 1 |
| 18 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | 1 |
| 19 | 881438 | 螺栓(M6×105) | BOLT (M6 x 105) | 2 |
| 20 | 881431 | 螺栓(M8x40) | BOLT (M8 x 40) | 5 |
| 21 | 881822 | 滤网 | SCREEN | 1 |
| - | 858732T01 | 衬垫套件 | GASKET SET | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 881421T01 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 880886T | 歧管 | MANIFOLD | 1 |
| 2 | 881513 | O型圈 | O-RING | 4 |
| 3 | 881512 | 定位销 | PIN Dowel | 4 |
| 4 | 881507 | 螺栓(M6x25) | BOLT (M6 x 25) | 3 |
| 5 | 881441T2 | 节气门体总成 | THROTTLE BODY ASSEMBLY | 1 |
| 5 | 881441T4 | 节气门体总成 | THROTTLE BODY ASSEMBLY | 1 |
| 5 | 881441T4 | 节气门体总成 | THROTTLE BODY ASSEMBLY | 1 |
| 6 | 881444 | 弹簧 | SPRING | 1 |
| 7 | 881445 | 螺钉 | SCREW | 2 |
| 8 | 881510 | 螺栓(M8×70) | BOLT (M8 x 70) | 6 |
| 9 | 881508 | 垫圈 | WASHER | 9 |
| 10 | 881441T1 | 节气门体总成 | THROTTLE BODY ASSEMBLY | 1 |
| 10 | 881441T3 | 节气门体总成 | THROTTLE BODY ASSEMBLY | 1 |
| 10 | 881441T3 | 节气门体总成 | THROTTLE BODY ASSEMBLY | 1 |
| 11 | 881442 | 螺钉 | SCREW | 1 |
| 12 | 881444 | 弹簧 | SPRING | 2 |
| 13 | 881443 | 螺钉 | SCREW | 1 |
| 14 | 881445 | 螺钉 | SCREW | 2 |
| 15 | 881514 | 连杆接头 | LINK JOINT | 1 |
| 16 | 881515 | 连杆接头 | LINK JOINT | 1 |
| 17 | 83763M | 螺母 | NUT | 1 |
| 18 | 880884T | 节气门传感器 | SENSOR Throttle | 1 |
| 19 | 881504 | O型圈 | O-RING | 1 |
| 20 | 881502 | 螺钉 | SCREW | 2 |
| 20 | 881502002 | 螺钉 | SCREW | 2 |
| 21 | 881450 | 垫圈 | WASHER | 2 |
| 22 | 881516 | 支架 | BRACKET | 1 |
| 23 | 881971A1 | 螺钉 | SCREW | 3 |
| 24 | 879194021 | 软管 | HOSE | 1 |
| - | 880883T1 | 控制阀总成 | CONTROL VALVE ASSEMBLY | 1 |
| 25 | 881446T | 本体 | BODY | 1 |
| 26 | 881447T | 控制阀 | CONTROL VALVE | 1 |
| 27 | 881448 | O型圈 | O-RING | 1 |
| 28 | 881449 | 螺钉(M4 x 12) | SCREW (M4 x 12) | 3 |
| 28 | 881449002 | 螺钉 | SCREW | 3 |
| 29 | 881450 | 垫圈 | WASHER | 3 |
| 30 | 881501T | 滤清器 | FILTER | 1 |
| 31 | 880885T | 传感器 压力 | SENSOR Pressure | 1 |
| 32 | 881509 | 螺丝(M5 x 15) | SCREW (M5 x 15) | 2 |
| 33 | 881505 | 螺栓(M6×24) | BOLT (M6 x 24) | 1 |
| 34 | 881506 | 螺栓(M6×60) | BOLT (M6 x 60) | 2 |
| 35 | 881517T1 | 线束总成 | HARNESS ASSEMBLY | 1 |
| - | 881440T1 | 进气总成 | INTAKE ASSEMBLY | 1 |
| - | 881440T04 | 进气总成 | INTAKE ASSEMBLY | 1 |
| - | 881440T2 | 进气总成 | INTAKE ASSEMBLY | 1 |
| - | 881440T04 | 进气总成 | INTAKE ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0161096 | 带倾斜锁的后支架总成 | BRACKET Rear Assembly with Tilt Lock | 1 |
| 2 | 8M0161104 | 螺丝(M4 x 0.7 x 12)平头内六角 | SCREW (M4 x 0.7 x 12), SOC FLAT HD | 2 |
| 3 | 8M0161103 | 倾斜杆 | LEVER Tilt | 2 |
| 4 | 8M0161099 | 轴承衬套 | BUSHING Bearing | 2 |
| 5 | 8M0161683 | 倾斜凹槽凸轮 | DENT CAM Tilt | 1 |
| 6 | 8M0161684 | 锁紧片 | LOCKING TAB | 1 |
| 7 | 8M0161687 | 槽销 | GROOVED PIN | 1 |
| 8 | 8M0161686 | 倾斜轴 | TILT SHAFT | 1 |
| 9 | 8M0161685 | 压缩弹簧 | SPRING Compression | 1 |
| 10 | 826292 | 螺母(M10)黄铜/镀镍 | NUT (M10) Brass/Nickel Plated | 1 |
| 11 | 8M0136052 | 螺钉 | SCREW | 1 |
| 11 | 8M0157385 | 螺钉 | SCREW | 1 |
| 12 | 8M0136057 | 盖形螺母 | NUT Cap | 1 |
| 13 | 40140 | 螺母(M10) | NUT (M10) | 1 |
| 14 | 4002319 | 垫圈 | WASHER | 2 |
| 15 | 8M0161098 | 趾部夹 | CLAMP Toe | 1 |
| 15 | 8M0224370 | 趾部夹 | CLAMP Toe | 1 |
| 16 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 1 |
| 17 | 8M0161147 | 下支架 | LOWER BRACKET | 1 |
| 17 | 8M0224368 | 下支架 | BRACKET Lower | 1 |
| 18 | 8M0136054 | 螺栓 | BOLT | 1 |
| 19 | 8M0136060 | E型卡环 | E RING | 1 |
| 20 | 12024 | 垫圈(0.402 x 0.787 x 0.039 贝氏) | WASHER (.402 x .787 x .039 Bellevi) | 1 |
| 21 | 8M0161101 | 螺丝M10 X 1.5六角头不锈钢 | SCREW M10 X 1.5 HEX HD S.S | 1 |
| 22 | 8M0161102 | 调节螺丝 | SCREW Adjustment | 1 |
| 22 | 8M0153724 | 螺钉 | SCREW | 1 |
| 23 | 8M0051399 | 止动器 | STOPPER | 1 |
| 23 | 8M0245322 | 止动器 | STOPPER | 1 |
| 24 | 8M0161100 | 衬套 | BUSHING | 2 |
| 25 | 8M0031370 | 衬套 | BUSHING | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 9011G67 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 9011G72 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 9011J4 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 9011G59 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 2 | 30894A1 | 圆锥轴承组 | BEARING SET Cup And Cone | 1 |
| 3 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 4 | 859473A4 | 前进齿轮总成(29齿) | GEAR ASSEMBLY Forward (29 Teeth) | 1 |
| 4 | 881260A5 | 小齿轮/前进齿轮总成 | GEAR ASSEMBLY Pinion/Forward | 1 |
| 5 | 30895T | 滚针轴承 | BEARING Needle | 1 |
| 6 | 856823 | 挡圈 | RING Retaining | 1 |
| 7 | 850315A1 | 凸轮从动件套件 | FOLLOWER KIT Cam | 1 |
| 8 | 44530 | 钢球 | BALL | 3 |
| 9 | NSS | 滑动件(不单独销售) | NOT SOLD SEPARATE Slide | 1 |
| 10 | 850327 | 弹簧 | SPRING | 1 |
| 11 | 850048T | 离合器 | CLUTCH | 1 |
| 12 | 30632 | 十字销 | PIN Cross | 1 |
| 12 | 8M0100263 | 十字销 | PIN Cross | 1 |
| 13 | 30893 | 弹簧 | SPRING | 1 |
| 14 | 850308 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 14 | 8M0140445 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 15 | 850036T | 倒车齿轮-29齿 | GEAR Reverse - 29 Teeth | 1 |
| 16 | 12596T2 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 16 | 8M0168901 | 轴承座总成 | CARRIER ASSY. | 1 |
| 17 | 97386 | O型圈 (3.609 x .139) | O-RING (3.609 x .139) | 1 |
| 17 | 8M0214974 | O型圈 | O RING | 1 |
| 18 | 30956T | 滚针轴承 | BEARING Needle | 1 |
| 19 | 70080 | 内部油封 | SEAL Oil Inner | 1 |
| 19 | 8M0205728 | 密封件 | SEAL | 1 |
| 20 | 70081 | 外油封 | SEAL Oil Outer | 1 |
| 20 | 8M0205729 | 密封件 | SEAL | 1 |
| 21 | 12578T | 滚柱轴承 | BEARING Roller | 1 |
| 22 | 12577 | 止推垫片 | THRUST WASHER | 1 |
| 23 | 12576 | 推力轴承 | BEARING Thrust | 1 |
| 24 | 429172 | 双头螺柱(M8×48) | STUD (M8 x 48) | 2 |
| 24 | 8M0034456 | 双头螺柱(M8×1.25×48) | STUD (M8 X 1.25 X 48) | 2 |
| 25 | 855941 | 垫圈(.323 x .590 x .112)不锈钢 | WASHER (.323 x .590 x .112) Stainless Steel | 2 |
| 26 | 401378 | 螺母 (M8) | NUT (M8) | 2 |
| 27 | 44491A1 | 垫片组 | SHIM SET | 1 |
| 27 | 8M0063266 | 垫片组 | SHIM SET | 1 |
| 28 | 8227731 | 螺纹嵌件 | INSERT Threaded | 2 |
| 29 | NSS | 非单独销售标识贴-齿轮箱识别 | NOT SOLD SEPARATE Decal, Gear Housing Identification | 1 |
| - | 43035A4 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| - | 803496T1 | 轴承密封套件(不含前轴承) | BEARING AND SEAL KIT Without Forward Bearing | 1 |
| - | 803496T2 | 轴承/油封套件（不含前轴承） | BEARING/SEAL KIT Without Forward Bearing | 1 |
| - | 803489T1 | 离合器/凸轮维修包 | REPAIR KIT Clutch/Cam | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 816366A52 | 转向手柄套件 | HANDLE KIT Steering | |
| 1 | 816366T10 | 手柄支架 | HANDLE Bracket | 1 |
| 2 | 881261 | 螺钉（.313-24 x 3.50） | SCREW (.313-24 x 3.50) | 2 |
| 3 | 42981 | 锁紧垫圈 | TAB WASHER | 2 |
| 4 | 822263 | 隔套 | SPACER | 1 |
| 5 | 12649T11 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 6 | 88107A5 | 钥匙开关套件 | SWITCH KIT Key | 1 |
| 7 | 879755 | 特殊螺母-黑色尼龙 | NUT Special - Black Nylon | 1 |
| 8 | 13541 | 公插头 | PLUG Male | 1 |
| 9 | 121051 | 护孔环 | GROMMET | 1 |
| 10 | 889730 | 堵头 | PLUG | 1 |
| 11 | 120441 | 黄铜固定座 | RETAINER Brass | 1 |
| 11 | 8M0032846 | 黄铜固定座 | RETAINER Brass | 1 |
| 12 | 8158041 | 盖板 | COVER | 1 |
| 13 | 878608 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 5 |
| 14 | 11083A4 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 15 | 15920Q54 | 拉绳总成 | LANYARD ASSEMBLY | 1 |
| 15 | 15920T54 | 拉绳总成 | LANYARD ASSEMBLY | 1 |
| 16 | 11149A3 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 17 | 889528T01 | 喇叭总成 | HORN ASSEMBLY | 1 |
| 18 | 18286A46 | 配平开关套件(25英尺) | SWITCH KIT Trim (25 ft.) | 1 |
| 19 | 8M0033667 | 开关 | SWITCH | 1 |
| 19 | 8M0052941 | 开关 | SWITCH | 1 |
| 20 | 12110 | 螺丝 (#6-32 x .750) | SCREW (#6-32 x .750) | 2 |
| 21 | 648551 | 卡箍 | CLAMP | 2 |
| 22 | 878608 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 1 |
| 23 | 849838 | 螺钉(.375-24 x 1.250) | SCREW (.375-24 x 1.250) | 1 |
| 24 | 826709113 | 不锈钢螺母 (.375-24) | NUT (.375-24) Stainless Steel | 1 |
| 24 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 1 |
| 25 | 48419001 | 拉杆端头 | ROD END | 1 |
| 25 | 48419T01 | 杆端接头（2.66英寸） | ROD END (2.66 Inches) | 1 |
| 26 | 495637 | 换挡杆 | ROD Shift | 1 |
| 27 | 26856 | 衬套 | BUSHING | 1 |
| 28 | 35950 | 垫圈 (.273 x .437 x .031) 不锈钢 | WASHER (.273 x .437 x .031) Stainless Steel | 1 |
| 29 | 25191 | 开口销 | COTTER PIN | 1 |
| 30 | 8M0033001 | 杠杆 | LEVER | 1 |
| 31 | 58152 | 双头螺柱(0.375-24×1.125) | STUD (.375-24 x 1.125) | 1 |
| 31 | 8M0034452 | 螺柱 | STUD | 1 |
| 32 | 98530 | 旋钮 | KNOB | 1 |
| 33 | 12016A2 | 定位弹簧套件 | DETENT/SPRING KIT | 1 |
| 34 | 8159831 | 衬套 | BUSHING | 1 |
| 35 | 823970 | 垫圈 | WASHER | 1 |
| 36 | 824610 | 塑料垫圈 | WASHER Plastic | 1 |
| 37 | 814803 | 垫圈 | WASHER | 1 |
| 38 | 8158051 | 锁紧垫圈 | TAB WASHER | 1 |
| 39 | 4000357 | 螺钉 (M8 x 45) | SCREW (M8 x 45) | 1 |
| 40 | 52148A08 | 副驾驶总成 | CO PILOT ASSEMBLY | 1 |
| 41 | 52148002 | 导向杆（15英寸） | PILOT ROD (15.00 Inches) | 1 |
| 42 | 52155A1 | 螺母总成 | NUT ASSEMBLY | 1 |
| 42 | 8M0103848 | 螺母总成 | NUT ASSEMBLY | 1 |
| 43 | 36137 | 螺钉(.250-28 x 1.00) | SCREW (.250-28 x 1.00) | 1 |
| 44 | 77674 | 垫圈(.35 x .75 x .12) | WASHER (.35 x .75 x .12) | 1 |
| 45 | 821621 | 叉形旋钮 | KNOB Prong | 1 |
| 46 | 873491 | 杆 | ROD | 1 |
| 47 | 26841 | 衬套 | BUSHING | 1 |
| 48 | 70132 | 垫圈(0.323×0.563×0.063)不锈钢 | WASHER (.323 x .563 x .063) Stainless Steel | 2 |
| 48 | 8M0042642 | 垫圈(.323 x .562 x .063) | WASHER (.323 x .562 x .063) | 2 |
| 49 | 826709111 | 螺母(.312-24)不锈钢 | NUT (.312-24) Stainless Steel | 2 |
| 49 | 64015 | 螺母 (.250-20) | NUT (.250-20) | 1 |
| - | 894911 | 点火钥匙(1A) | KEY Ignition (1A) | 1 |
| - | 894912 | 点火钥匙(1B) | KEY Ignition (1B) | 1 |
| - | 894913 | 点火钥匙(1C) | KEY Ignition (1C) | 1 |
| - | 894914 | 点火钥匙(1D) | KEY Ignition (1D) | 1 |
| - | 894915 | 点火钥匙(1E) | KEY Ignition (1E) | 1 |
| - | 894916 | 点火钥匙(1F) | KEY Ignition (1F) | 1 |
| - | 894917 | 点火钥匙(2A) | KEY Ignition (2A) | 1 |
| - | 894918 | 点火钥匙(2B) | KEY Ignition (2B) | 1 |
| - | 894919 | 点火钥匙(2C) | KEY Ignition (2C) | 1 |
| - | 8949110 | 点火钥匙(2D) | KEY Ignition (2D) | 1 |
| - | 8949111 | 点火钥匙(2E) | KEY Ignition (2E) | 1 |
| - | 8949112 | 点火钥匙(2F) | KEY Ignition (2F) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 816366A52 | 转向手柄套件 | HANDLE KIT Steering | 1 |
| 1 | 12020A3 | 转向臂手柄总成 | HANDLE ASSEMBLY Steering Arm | 1 |
| NS | 74036 | 润滑脂接头 | FITTING Grease | 1 |
| NS | 8M0169589 | 润滑脂接头 | FITTING Grease | 1 |
| 2 | 429922 | 衬套 | BUSHING | 2 |
| 2 | 42992T02 | 衬套 | BUSHING | 2 |
| 3 | 48414 | 壳体 | HOUSING | 1 |
| 4 | 48519 | 安装板 | PLATE | 1 |
| 5 | 48518 | 衬垫 | GASKET | 1 |
| 6 | 878609 | 螺钉 (#10-16 x .600) | SCREW (#10-16 x .600) | 2 |
| 7 | 878608 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 3 |
| 8 | 889729 | 卡箍 | CLAMP | 1 |
| 9 | 40007112 | 螺钉(M5 x 40) | SCREW (M5 x 40) | 2 |
| 10 | 816874 | 蝶形螺母 (#10-32) | WING NUT (#10-32) | 1 |
| 11 | 823609A15 | 停机开关套件-油门手柄 | SWITCH KIT Stop - Throttle Handle | 1 |
| 12 | 823609A5 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 12 | 8M0104612 | 开关总成 | SWITCH ASSY | 1 |
| 13 | NSS | 绝缘件(不单独销售) | NOT SOLD SEPARATE Insulator | 1 |
| 14 | 12018A4 | 油门拉线管总成 | TUBE ASSEMBLY Throttle | 1 |
| 15 | NSS | 驱动轮(不单独销售) | NOT SOLD SEPARATE Drive Wheel | 1 |
| 16 | NSS | 弹性销(不单独销售) | NOT SOLD SEPARATE Roll Pin | 1 |
| 17 | 62568 | 螺钉（#10-16 x 0.375） | SCREW (#10-16 x .375) | 1 |
| 18 | 99589003 | 握把 | GRIP | 1 |
| 18 | 8M0221732 | 外握把 | GRIP OUTER | 1 |
| 19 | 648552 | 卡扣 | CLIP | 2 |
| 20 | 40140 | 螺母(M10) | NUT (M10) | 1 |
| 21 | 8885241 | 导管 (9.03 英寸) | CONDUIT (9.03 Inches) | 1 |
| 22 | 89566T07 | 导管 | GUIDE Tube | 1 |
| 23 | 89578 | 节流阀执行筒 | BARREL Throttle Acutator | 1 |
| 24 | 824081 | 紧定螺钉(#10-32) | SET SCREW (#10-32) | 1 |
| 25 | 12019T05 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 26 | 43433 | 电缆导向器 | GUIDE Cable | 1 |
| 26 | 8M0204660 | 导套 | GUIDE | 1 |
| 27 | 20007 | 电缆端锚 | ANCHOR Cable End | 1 |
| 28 | 20518 | 紧定螺钉(#8-32) | SET SCREW (#8-32) | 2 |
| 28 | 8M0204644 | 螺钉组 | SCREW SET | 2 |
| 29 | 823567105 | 螺丝(M10 x 105)六角法兰-不锈钢 | SCREW (M10 x 105) Hex Flange - Stainless Steel | 1 |
| 30 | 48416 | 盖帽 | CAP | 1 |
| 31 | 4002319 | 垫圈 | WASHER | 1 |
| 32 | 12024 | 垫圈(0.402 x 0.787 x 0.039 贝氏) | WASHER (.402 x .787 x .039 Bellevi) | 1 |
| 33 | 146011 | 隔套 | SPACER | 1 |
| 34 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 35 | NSS | 节气门标识贴(不单独销售) | NOT SOLD SEPARATE Decal-Throttle | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0132733 | 燃油供应模块 双泵 | FUEL SUPPLY MODULE Dual Pump | 1 |
| - | 8M0235171 | 燃油供应模块 双泵 | FUEL SUPPLY MODULE Dual Pump | 1 |
| 1 | 8M0053726 | 燃油供应模块 上壳体 | FSM TOP HOUSING | 1 |
| 1 | 8M0158344 | 燃油供应模块 上壳体 | FSM TOP HOUSING | 1 |
| 2 | 8M0053756 | 螺钉 Plastite W/ HX WSR HD | SCREW Plastite W/ HX WSR HD | 4 |
| 3 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 2 |
| 4 | NSS | NOT SOLD SEPARATE Spacer | 1 | |
| 5 | 8M0053749 | 调节器总成 | REGULATOR ASSEMBLY | 1 |
| 5 | 8M0242586 | 调节器总成 | REGULATOR ASSEMBLY | 1 |
| 6 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 1 |
| 7 | NSS | 不单独销售 密封件 | NOT SOLD SEPARATE Seal | 3 |
| 8 | 8M0053727 | 燃油供应模块 盖 | FSM CAP | 1 |
| 9 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 2 |
| 10 | 8M0053755 | 油管 吸油 | TUBE Suction | 1 |
| 11 | NSS | 不单独销售 密封件 | NOT SOLD SEPARATE Seal | 2 |
| 12 | 8M0062770 | 泵总成 高压 | PUMP ASSY High Pressure | 1 |
| 13 | 8M0062771 | 泵总成 低压 | PUMP ASSY Low Pressure | 1 |
| 14 | NSS | 不单独销售 密封件 | NOT SOLD SEPARATE Seal | 4 |
| 15 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 4 |
| 16 | 8M0120073 | 水管 | TUBE Water | 2 |
| 17 | 8M0130873 | 油管 燃油 | TUBE Fuel | 2 |
| 18 | NSS | 不单独销售 密封件 | NOT SOLD SEPARATE Seal | 1 |
| 19 | 8M0130878 | 燃油供应模块 下壳体 | FSM BOTTOM HOUSING | 1 |
| 19 | 8M0158426 | 燃油供应模块 下壳体 | FSM BOTTOM HOUSING | 1 |
| 20 | 895319 | 护孔环 | GROMMET | 1 |
| 21 | 856954 | 衬套 | BUSHING | 1 |
| 22 | 8M6004776 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 23 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 1 |
| 24 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 1 |
| - | 8M0133370 | 燃油供应模块 密封件套装 | FSM SEAL KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 0 | 88183801 | 零件手册-115EFI(四冲程) | PARTS MANUAL 115 EFI (4-Stroke) Parts Manual | 1 |
| 0 | 881980 | 维修手册 | SERVICE MANUAL | 1 |
| 0 | 881980R03 | SM O/B 115 EFI 4S | SM O/B 115 EFI 4S | 1 |
| 0 | 10225030 | 用户手册 | OWNERS MANUAL | 1 |
| 0 | 858610A31 | 燃油软管总成 | HOSE ASSEMBLY Fuel | 1 |
| 0 | 8M0038610 | 带注油球的燃油软管总成(9英尺) | HOSE ASSEMBLY Fuel (9 Feet) With Primer Bulb | 1 |
| 0 | 880177 | 组合扳手工具(10毫米) | SCRENCH TOOL (10 mm) | 1 |
| 0 | 881828 | 星形头工具套件 | STARBIT TOOL KIT | 1 |
| 0 | 881649A01 | 贴花套件 | DECAL SET | 1 |
| 0 | 881649A05 | 贴花套件 | DECAL SET | 1 |
| 0 | 881840A01 | 贴花套件 | DECAL SET | 1 |
| 0 | 881840A03 | 贴花套件 | DECAL SET | 1 |
| 0 | 881840A03 | 贴花套件 | DECAL SET | 1 |
| 0 | 881840A05 | 贴花套件 | DECAL SET | 1 |
| 0 | 881650A01 | 贴花套件 | DECAL SET | 1 |
| 0 | 881650A03 | 贴花套件 | DECAL SET | 1 |
| 0 | 881650A03 | 贴花套件 | DECAL SET | 1 |
| 0 | 881702A01 | 贴花套件 | DECAL SET | 1 |
| 0 | 881839A01 | EPA标签信息贴花 | DECAL EPA Label Information | 1 |
| 0 | 881839A02 | EPA标签信息贴花 | Decal EPA Label Information | 1 |
| 0 | 881839A03 | EPA标签信息贴花 | DECAL EPA Label Information | 1 |
| 0 | 816834A1 | 转速表 | TACHOMETER | 1 |
| 0 | 816932A1 | 温度表 | TEMPERATURE GAUGE | 1 |
| 0 | 86306 | 适配器 | ADAPTER | 1 |
| 0 | 86306A01 | 适配器 | ADAPTER | 1 |
| 0 | 817054A3 | 水压表总成 | GAUGE ASSEMBLY Water Pressure | 1 |
| 0 | 821400A2 | 动力升降倾斜传感器套件 | SENDER KIT Power Trim | 1 |
| 0 | 8M0074845 | ORD 8M0098264 | ORD 8M0098264 | 1 |
| 0 | 92876A8 | 转向安装套件 | ATTACHING KIT Steering | 1 |
| 0 | 92876A9 | 双机延长套件 | EXTENSION KIT Dual Engine | 1 |
| 0 | 883040A1 | 转速表模块套件 | TACH MODULE KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 880890T1 | 燃油泵 | PUMP Fuel | 1 |
| 2 | NSS | 不单独销售本体 | NOT SOLD SEPARATE Body | 1 |
| 3 | 881544 | 弹簧 | SPRING | 1 |
| 4 | 881545 | 柱塞 | PLUNGER | 1 |
| 5 | 881546 | 弹簧 | SPRING | 1 |
| 6 | 881547 | 隔膜 | DIAPHRAGM | 1 |
| 7 | 881548 | 销 | PIN | 1 |
| 8 | NSS | 不单独销售本体 | NOT SOLD SEPARATE Body | 1 |
| 9 | NSS | 膜片(不单独销售) | NOT SOLD SEPARATE Diaphragm | 1 |
| 10 | NSS | 不单独销售本体 | NOT SOLD SEPARATE Body | 1 |
| 11 | 881550 | 螺钉 | SCREW | 3 |
| 12 | 881333 | 螺母 | NUT | 3 |
| 13 | 804255 | O型圈 | O-RING | 1 |
| 13 | 8M0050719 | O型圈 | O-RING | 1 |
| 14 | 879650 | 卡箍 | CLAMP | 2 |
| 14 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | 2 |
| 15 | 804256 | 螺栓 (M6 x 30) | BOLT (M6 x 30) | 2 |
| 16 | 881543 | 软管 | HOSE | 1 |
| 16 | 881543002 | 油管 | TUBING | 1 |
| 17 | 881542 | 支架 | BRACKET | 1 |
| 18 | 8527768 | 螺栓(M6 x 16) | BOLT (M6 x 16) | 1 |
| 18 | 811188T | 螺栓 | BOLT | 1 |
| 19 | 8528161 | 螺母 | NUT | 1 |
| 19 | 82382M | 螺母 | NUT | 1 |
| 20 | 881538T1 | 滤清器总成 | FILTER ASSEMBLY | 1 |
| 20 | 881538T02 | 燃油滤清器总成 | FILTER ASSY-FUEL | 1 |
| 21 | 881540 | 滤芯1.75英寸 | ELEMENT 1.75 Inches | 1 |
| 21 | 8M0168897 | 燃油滤清器 | FUEL FILTER | 1 |
| 21 | 8M0101436 | 滤芯1.50英寸 | ELEMENT 1.50 Inches | 1 |
| 21 | 8M0117705 | 燃油滤清器 | FILTER-FUEL | 1 |
| 22 | 826966M | O型圈 | O-RING | 1 |
| 22 | 826966T | O型圈 | O RING | 1 |
| 23 | 881541 | 浮子 | FLOAT | 1 |
| 24 | 881539 | 杯套 | CUP | 1 |
| 24 | 8M0101437 | 杯套 | CUP | 1 |
| 24 | 8M0137185 | 燃油杯 | CUP FUEL | 1 |
| 25 | 879650 | 卡箍 | CLAMP | 2 |
| 25 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | 2 |
| 26 | 804260 | 支架 | BRACKET | 1 |
| 27 | 804112 | 螺栓(M7 x 48) | BOLT (M7 x 48) | 2 |
| 28 | 804113 | 定位销 | PIN Dowel | 2 |
| 29 | 84292M | 垫圈 | WASHER | 2 |
| 30 | 804257 | 燃油转换杆 | LEVER Fuel Change | 1 |
| 31 | 881334 | 轴 | SHAFT | 1 |
| 32 | 804259 | 销 | PIN | 2 |
| 32 | 82738M | 滚销 | PIN-ROLL | 2 |
| 33 | 830757130 | 管材(.312)(70英寸整卷)裁切至55英寸长度 | TUBING (.312) (70.00 Inches Bulk) Cut to 55.00 Inch Length. | 1 |
| 33 | 8M0108349 | 软管 (70英寸散装) | HOSE (70 Inches Bulk) | 1 |
| 34 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 35 | 822769 | 连接器 | CONNECTOR | 1 |
| 36 | NSS | 盖帽(不单独销售) | NOT SOLD SEPARATE Cap | 1 |
| 37 | 828547T1 | 导管(.500内径 x 3英尺整卷) | CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk) | 1 |
| - | 858732T01 | 衬垫套件 | GASKET SET | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 881310T1 | 气缸盖总成 | CYLINDER HEAD ASSEMBLY | 1 |
| - | 881310T09 | 气缸盖 | HEAD-CYLINDER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0097856 | 保养套件75-115马力四冲程(100小时) | SERVICE KIT 75-115 HP 4S (100 Hour) | 1 |
| - | 877761K01 | 机油滤清器(水星品牌) | FILTER Oil Mercury Branded | 1 |
| - | 879885Q | 燃油管路滤清器 | FILTER Fuel In-Line | 1 |
| - | 828816 | 衬垫 | GASKET | 1 |
| - | 8M0204692 | 衬垫@5 | GASKET @5 | 1 |
| - | 830749 | 密封件 | SEAL | 2 |
| - | 8M0204693 | 放油螺塞密封件 | SEAL Drain Plug | 2 |
| - | 8M0097857 | 保养套件75-115马力四冲程(300小时) | SERVICE KIT 75-115HP 4S (300 Hour) | 1 |
| - | 877761K01 | 机油滤清器(水星品牌) | FILTER Oil Mercury Branded | 1 |
| - | 879885Q | 燃油管路滤清器 | FILTER Fuel In-Line | 1 |
| - | 855697 | 卡箍 | CLAMP | 1 |
| - | 8M0204696 | 卡箍 | CLAMP | 1 |
| - | 828816 | 衬垫 | GASKET | 1 |
| - | 830749 | 密封件 | SEAL | 2 |
| - | 8M0157328 | 火花塞 (NGK# LFR4A-E) | SPARK PLUG (NGK# LFR4A-E) | 4 |
| - | 892864T06 | 节温器及壳体总成 | THERMOSTAT AND HOUSING ASSEMBLY Thermostat | 1 |
| - | 8M0090819 | 节温器总成 | THERMOSTAT ASSEMBLY | 1 |
| - | 8M0100527 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| - | 897574Q01 | 皮带 | BELT | 1 |
| - | 818298T1 | 阳极套件 | ANODE KIT | 1 |
| - | 826134T | 阳极块 | ANODE | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0088073 | 齿轮箱总成CT长型 | GEARCASE Complete CT Long | 1 |
| - | 8M0088075 | 齿轮箱总成CT加长型 | GEARCASE Complete CT X-Long | 1 |
| - | 8M0099915 | 齿轮箱总成CT L型 | GEARCASE Complete CT L | 1 |
| - | 8M0099916 | 齿轮箱总成CT XL型 | GEARCASE Complete CT XL | 1 |
| 1 | 8M0057747 | 基本齿轮箱 | GEAR HOUSING Basic | 1 |
| 1 | 8M0099907 | 基本齿轮箱 | GEAR HOUSING Basic | 1 |
| 2 | 8M0094474 | 齿轮组标准旋转(前进/小齿轮2.38速比13/31) | GEAR SET Standard Rotation, Forward/Pinion 2.38 Ratio (13/31) | 1 |
| 3 | 8M0057742 | 滚针轴承 | BEARING Needle | 1 |
| 4 | 8M0029306 | 挡圈 | RING Retaining | 1 |
| 5 | 8M0057724 | 圆锥滚子轴承总成 | BEARING ASSY Roller, Taper | 1 |
| 5 | 8M0237367 | 轴承总成 | BEARING ASSY | 1 |
| 6 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 7 | 8M0063269 | 垫片组 | SHIM SET | 1 |
| 8 | 8M0057749 | 离合器操纵杆(设计1型) | ROD Clutch Actuator Design 1 | 1 |
| 9 | 8M0072550 | 凸轮随动件(右旋) | FOLLOWER Cam, (RH) | 1 |
| 10 | 8M0077490 | 换档凸轮 | CAM Shift | 1 |
| 11 | 8M0094479 | 滑动离合器(6爪) | CLUTCH Sliding, 6 Jaw | 1 |
| 12 | 8M0045759 | 十字销 | PIN Cross | 1 |
| 13 | 8M0047945 | 固定弹簧 | SPRING Retaining | 1 |
| 14 | 8M0088077 | 螺旋桨轴(右旋) | SHAFT Propeller (RH) | 1 |
| 15 | 8M0094481 | 倒车齿轮31齿 | GEAR Reverse 31T | 1 |
| 16 | 860081 | 轴承 | BEARING | 1 |
| 16 | 88957T | 滚珠轴承 | BEARING Ball | 1 |
| 17 | 8M0030779 | 推力环 | THRUST RING | 1 |
| 18 | 8M0030845 | O型圈3.975×0.210 | O-RING 3.975X.210 | 1 |
| 19 | 8M0030856 | 轴承座套筒 | SPOOL Bearing Carrier | 1 |
| 19 | 8M0219208 | 轴承座套筒 | SPOOL-BRNG CRRIER | 1 |
| 19 | 8M0098463 | 轴承座套筒 | SPOOL Bearing Carrier | 1 |
| 19 | 8M0219208 | 轴承座套筒 | SPOOL-BRNG CRRIER | 1 |
| 20 | 30956T | 滚针轴承 | BEARING Needle | 1 |
| 21 | 8M0071653 | 特殊螺钉0.375-16 UNC | SCREW Special, .375-16 UNC | 1 |
| 22 | 830749 | 密封件 | SEAL | 1 |
| 22 | 8M0204693 | 放油螺塞密封件 | SEAL Drain Plug | 1 |
| 23 | 14077 | 油封 | SEAL Oil | 1 |
| 24 | 76868 | 密封件 | SEAL | 1 |
| 24 | 8M0248882 | 油封@5 | SEAL-OIL @5 | 1 |
| 24 | 12224 | 渔线切割密封件 | SEAL Fish Line Cutting | 1 |
| 25 | 8M0030784 | 垫圈 带键 | WASHER Keyed | 1 |
| 26 | 8M0030785 | 轴承座固定环 | RETAINER Bearing Carrier | 1 |
| 26 | 8M0168885 | 轴承固定座 | RETAINER BEARING | 1 |
| 27 | 8M0054695 | 螺旋桨孔衬套 | SLEEVE Propeller Bore | 1 |
| 27 | 8M0187255 | 套管@5 | SLEEVE @5 | 1 |
| 28 | 8M0120367 | 双作用换挡执行器套件(设计2型) | ACTUATOR KIT Double Acting Shift Design 2 | 1 |
| 29 | 8M0102962 | 离合器作动杆 | ROD CLUTCH ACTUATOR | 1 |
| 30 | 8M0029113 | 十字销 | PIN Cross | 1 |
| 31 | 8M0096707 | 压缩弹簧 | SPRING Compression | 2 |
| 32 | 8M0084245 | 弹簧定位销 | PIN Spring Locator | 1 |
| 33 | 824108 | 隔套 | SPACER | 1 |
| - | 8M0060147 | 尾鳍 | SKEG | 1 |
| - | 8M0088081 | 齿轮箱密封套件 | GEARCASE SEAL KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0161094 | 舵柄底盘 | CHASSIS Tiller | 1 |
| 2 | 8M0161107 | 换挡手柄盖 | COVER Shift Handle | 1 |
| 3 | 8M0161106 | 螺钉 | SCREW | 1 |
| 4 | 4002319 | 垫圈 | WASHER | 1 |
| 5 | 8M0161105 | 换挡手柄总成 | SHIFT HANDLE ASSEMBLY | 1 |
| 6 | 8M0161110 | 法兰衬套 | FLANGE BUSHING | 1 |
| 7 | 8M0161126 | 油门管 | THROTTLE TUBE | 1 |
| - | 8M0166001 | 握把总成 | GRIP ASSEMBLY | 1 |
| 8 | NSS | 内握把不单独销售 | NOT SOLD SEPARATE INNER GRIP | 1 |
| 9 | NSS | 外握把不单独销售 | NOT SOLD SEPARATE OUTER GRIP | 1 |
| 10 | 8M0161124 | 动力微调开关面板 | BEZEL Power Trim Switch | 1 |
| 10 | 8M0161145 | 无动力微调开关面板 | BEZEL No Power Trim Switch | 1 |
| 11 | 8M0161104 | 螺丝(M4 x 0.7 x 12)平头内六角 | SCREW (M4 x 0.7 x 12), SOC FLAT HD | 2 |
| 12 | 8M0161109 | 换挡安装支架 | BRACKET Shift Mounting | 1 |
| 13 | 8M0161113 | 螺丝M6X1.0X10 | SCREW M6X1.0X10 | 7 |
| 14 | 8M0085515 | 螺丝(#8 - 32 x .375) | SCREW (#8 - 32 x .375) | 2 |
| 15 | 8M0161111 | 法兰衬套 | FLANGE BUSHING | 2 |
| 16 | 8M0161108 | 换挡杆 | SHIFT LEVER | 1 |
| 17 | NSS | 螺柱不单独销售 | NOT SOLD SEPARATE STUD | 1 |
| 18 | 8M0161114 | 定位器总成 | DETENT ASSEMBLY | 1 |
| 19 | NSS | NOT SOLD SEPARATE SPRING | 1 | |
| 20 | NSS | NOT SOLD SEPARATE GUIDE | 1 | |
| 21 | NSS | NOT SOLD SEPARATE ROLLER | 1 | |
| 22 | 26811 | 开口销 | COTTER PIN | 3 |
| 23 | 8M0161131 | 摩擦夹 | FRICTION CLAMP | 1 |
| 24 | 8M0161112 | 换挡安装支架 | BRACKET Shift Mounting | 1 |
| 25 | 8M0161137 | 摩擦旋钮 | FRICTION KNOB | 1 |
| 26 | 8M0161138 | 油门摩擦贴纸 | DECAL Throttle Friction | 1 |
| 27 | 8M0161136 | 开口销 | COTTER PIN | 1 |
| 28 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 1 |
| 28 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 1 |
| 29 | 29641 | E型卡环 | E RING | 1 |
| 30 | 8M0161258 | 小齿轮 | PINION | 2 |
| 31 | 8M0161139 | 油门齿轮总成 | THROTTLE GEAR ASSEMBLY | 1 |
| 32 | 8M0161125 | 卡箍 | CLAMP | 1 |
| 33 | 8M0161130 | 油门支架 | THROTTLE BRACKET | 1 |
| 34 | 8M0161128 | U型销 | PIN Clevis | 1 |
| 35 | 8M0161115 | 线束支架 | BRACKET HARNESS | 1 |
| 36 | 8M0161134 | 垫圈 | WASHER | 2 |
| 37 | 8M0161135 | 螺丝M4x16 | SCREW M4x16 | 2 |
| 38 | 8M0161133 | 衬套 | BUSHING | 2 |
| 39 | 8M0161132 | 枕形支撑 | PILLOW SUPPORT | 1 |
| 40 | 8M0161127 | 开口销 | PIN Split Lock | 1 |
| 41 | 8M0161129 | 油门轴 | THROTTLE SHAFT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 87775610 | 螺钉(M4×10) | SCREW (M4 X 10) | 1 |
| 2 | 8M0060503 | 进气压力传感器支架 | BRACKET Map Sensor | 1 |
| 3 | 854445 | MAP传感器 | SENSOR MAP | 1 |
| 3 | 8M0237529 | MAP传感器 | SENSOR MAP | 1 |
| 4 | 897445501 | 螺丝(M6×20毫米) | SCREW (M6 x 20 MM) | 6 |
| 5 | 8M0088066 | 节气门体总成 | THROTTLE BODY ASSEMBLY | 1 |
| 6 | 881070T | 位置传感器 | SENSOR Position | 1 |
| 6 | 8M0125617 | 位置传感器 | SENSOR Position | 1 |
| 7 | 8M0063490 | 螺钉(M4×0.7×16mm) | SCREW (M4 X .7 X 16 MM) | 2 |
| 8 | 8M0088065 | 进气歧管总成 | INTAKE MANIFOLD ASSEMBLY | 1 |
| 9 | 8M0061361 | 衬垫 | GASKET | 1 |
| 10 | 8M0061362 | 衬垫 | GASKET | 4 |
| 11 | 8M0059235 | 节气门连杆总成 | LINK Throttle Assembly | 1 |
| 12 | 8M0060385 | 六角法兰头螺钉(M6×1×37) | SCREW (M6 X 1 X 37) Hex Flg HD | 10 |
| 13 | 897526T | 怠速空气控制阀 | IAC VALVE | 1 |
| 13 | 8M0188118 | 怠速空气传感器 | SENSOR IDLE AIR C | 1 |
| 14 | 8M0077848 | 节气门随动杆总成 | LEVER ASSEMBLY Throttle Follower | 1 |
| 15 | 8M0077229 | 旋转衬套 | BUSHING Swivel | 1 |
| 16 | 8M0071815 | 节气门杠杆台阶螺栓 | BOLT Shoulder, Throttle Lever | 2 |
| 17 | 825677 | 压入式螺母 | PUSH NUT | 1 |
| 18 | 822459 | 固定座 | RETAINER | 1 |
| 19 | 898093 | 波形垫圈 | WASHER Wave | 2 |
| 20 | 897937 | 垫圈 | WASHER | 2 |
| 21 | 8M0068644 | 节气门凸轮总成 | THROTTLE CAM ASSEMBLY | 1 |
| 21 | 8M0243636 | 节气门凸轮 | CAM-THROTTLE | 1 |
| 22 | 897936 | 垫圈 | WASHER | 2 |
| 23 | 897535005 | 节流凸轮回位弹簧 | SPRING Throttle Cam Return | 1 |
| 24 | 891663001 | 温度传感器 | SENSOR Temperature | 1 |
| 25 | 895054 | 螺丝(M4×16毫米) | SCREW (M4 x 16 mm) | 2 |
| 26 | 8M0090814 | 怠速控制阀壳体 | HOUSING IACV | 1 |
| 27 | 834985 | 护孔环 | GROMMET | 2 |
| 27 | 8M0190980 | 护孔环 | GROMMET | 2 |
| 28 | 8M0057601 | 怠速控制阀软管 | HOSE IACV | 1 |
| 29 | 855228 | 卡箍 | CLAMP | 2 |
| 30 | 8M0062044 | 销 安装 | PIN Mounting | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0088280 | 左右下罩总成(无标牌) | LOWER COWL ASSEMBLY Port and Starboard ( NON DECALED ) | 1 |
| 1 | 8M0135963 | CHAP总成 | CHAP ASSEMBLY | 1 |
| 2 | 8M0022324 | 螺丝(M6 x 25毫米) | SCREW (M6 x 25 mm) | 11 |
| 2 | 8M0230977 | 螺钉 (M6 x 25 MM) | SCREW (M6 x 25 MM) | 11 |
| 3 | 8M0032848 | 开关固定座 | RETAINER Switch | 1 |
| 4 | 8M0037225 | 圆形微调开关面板 | TRIM SWITCH Round Bezel | 1 |
| 4 | 8M0235190 | 圆形微调开关面板 | TRIM SWITCH Round Bezel | 1 |
| 5 | 889823001 | 嵌入式系绳插头 | TETHER Flush Plug | 1 |
| 5 | 8M0224266 | 嵌入式插槽密封件 | SEAL Flush Plug Pocket | 1 |
| 6 | 885361A01 | 接头总成 冲洗 | FITTING ASSEMBLY Flush | 1 |
| 7 | 8M0047301 | 嵌入式插槽密封件 | SEAL Flush Plug Pocket | 1 |
| 7 | 8M0219168 | 嵌入式系绳插头 | TETHER Flush Plug | 1 |
| 8 | 888958001 | 嵌入式端口塞 | PLUG Flush Port | 1 |
| 8 | 8M0215105 | 嵌入式塞 | PLUG Flush | 1 |
| 9 | 8M0088281 | 前下罩总成 | LOWER COWL ASSEMBLY Front | 1 |
| 10 | 8M0073002 | 六角法兰螺钉(M6×20) | SCREW (M6 X 20), Hex Flg | 4 |
| 11 | 8M0055211 | 顶罩锁扣固定座 | RETAINER - LATCH Top Cowl | 1 |
| 12 | 892073002 | 台阶螺丝 (M6) | SHOULDER SCREW (M6) | 2 |
| 12 | 8M0230980 | 螺丝 (M6x14) 六角法兰B型 | SCREW (M6 x 14) Hex Flange B | 2 |
| 13 | 8M0055216 | 右舷上支架盖 | COVER Upper Mount Starboard | 1 |
| 14 | 8M0055214 | 左舷上支架盖 | COVER Upper Mount, Port | 1 |
| 15 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 2 |
| 15 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 2 |
| 16 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| 16 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| 17 | 8M0055154 | 锁扣总成 | STRIKER ASSEMBLY | 1 |
| 18 | 88552545 | 不锈钢螺钉(M6×45mm) | SCREW (M6 x 45 mm) Stainless Steel | 1 |
| 18 | 8M0103810 | 不锈钢螺钉(M6×45mm) | SCREW (M6 x 45 MM) Stainless Steel | 1 |
| 19 | 8M0055202 | 防水安装板 | PLATE Ingress Mounting | 1 |
| 20 | 8M0047718 | 螺钉(M5×8mm) | SCREW (M5 X 8MM) | 3 |
| 21 | 8M0073102 | 线束护圈-配平传感器 | GROMMET Trim Sensor Wires | 1 |
| 22 | 8M0055208 | 防水护圈 | GROMMET Ingress | 1 |
| 23 | 8M0055209 | 软管转接器 | ADAPTER Rigging Hose | 1 |
| 24 | 8M0075736 | 六角法兰螺钉(M6×50) | SCREW (M6 X 50) Hex Flg | 1 |
| 24 | 8M0230970 | 螺钉 | SCREW | 1 |
| 25 | 8M0075735 | 六角法兰螺钉(M6×30) | SCREW (M6 X 30) Hex Flg | 2 |
| 26 | 8M0071078 | 六角法兰螺钉(M6×85) | SCREW (M6 X 85) Hex Flg | 1 |
| 26 | 8M0230974 | 六角法兰螺钉M6×85 | SCREW M6 x 85 HEX FLG | 1 |
| 27 | 8M0030817 | 六角法兰螺钉(M6×70) | SCREW (M6 X 70) Hex Flg | 1 |
| 27 | 8M0230978 | 螺钉 | SCREW | 1 |
| 28 | 8M0074531 | 阳极螺塞 | PLUG Anode Screw | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 880891T11 | 发动机控制单元ECU | ECU Engine Control Unit | 1 |
| 1 | 880891T14 | 发动机控制单元ECU | ECU Engine Control Unit | 1 |
| 1 | 880891T1 | 发动机控制总成 | CONTROL ASSEMBLY Engine | 1 |
| 1 | 880891T14 | 发动机控制单元ECU | ECU Engine Control Unit | 1 |
| 2 | 804270 | 螺栓(M6×28) | BOLT (M6 x 28) | 4 |
| 3 | 881304 | 护孔环 | GROMMET | 4 |
| 4 | 82851M | 衬套 | BUSHING | 4 |
| 4 | 804344003 | 轴环 | COLLAR | 4 |
| 5 | 881346T | 整流器/调节器总成 | RECTIFIER/REGULATOR ASSEMBLY | 1 |
| 6 | 853536 | 螺栓(M6x25) | BOLT (M6 x 25) | 2 |
| 7 | 804604 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 1 |
| 8 | 880893T10 | 点火线圈 | COIL Ignition | 1 |
| 8 | 8M0123821 | 点火线圈 | IGNITION COIL | 1 |
| 9 | 880892T | 点火线圈 | COIL Ignition | 1 |
| 9 | 8M0121257 | 点火线圈 | IGNITION COIL | 1 |
| 10 | 881345 | 安装板 | PLATE | 2 |
| 11 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 2 |
| 12 | 853536 | 螺栓(M6x25) | BOLT (M6 x 25) | 4 |
| 13 | 804276 | 卡箍 | CLAMP | 2 |
| 14 | 804277 | 卡箍 | CLAMP | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 881310T2 | 气缸盖总成 | CYLINDER HEAD ASSEMBLY | 1 |
| 1 | 881310T08 | 气缸盖总成基础款 | CYLINDER HEAD ASSEMBLY Basic | 1 |
| 2 | 804110 | 导向销 | PIN Guide | 16 |
| 3 | 804111 | 堵头 | PLUG | 4 |
| 4 | 804112 | 螺栓(M7 x 48) | BOLT (M7 x 48) | 4 |
| 5 | 804113 | 定位销 | PIN Dowel | 4 |
| 6 | 804114 | 螺栓(M7×37) | BOLT (M7 x 37) | 16 |
| 7 | 881311 | 螺栓(M10×145) | BOLT (M10 x 145) | 10 |
| 8 | 804116 | 轴环 | COLLAR | 2 |
| 8 | 8M0070515 | 定位销 | DOWEL PIN | 2 |
| 9 | 8041151 | 衬垫 | GASKET | 1 |
| 10 | 83124714 | 螺栓 | BOLT | 4 |
| 11 | 831246 | 密封垫圈 | WASHER Sealing | 4 |
| 12 | 881312 | 螺栓(M8×55) | BOLT (M8 x 55) | 5 |
| 13 | NSS | 阳极 (不单独销售) | NOT SOLD SEPARATE Anode | 2 |
| 14 | 804086 | 护孔环 | GROMMET | 2 |
| 15 | 804085 | 盖板 | COVER | 2 |
| 15 | 804085A01 | 罩盖/阳极套件 | COVER/ANODE KIT | 2 |
| 16 | 8524741 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 2 |
| 17 | 827207 | 螺栓 (M8 x 25) | BOLT (M8 x 25) | 4 |
| 18 | 881284 | 火花塞 | SPARK PLUG | 4 |
| 18 | 881284Q | PG LFR6A-11 @10 | PG LFR6A-11 @10 | 4 |
| 19 | 881429 | 节温器 | THERMOSTAT | 1 |
| 19 | 8M6013864 | 节温器 | THERMOSTAT | 1 |
| 20 | 881430 | 节温器盖 | COVER Thermostat | 1 |
| 20 | 8041271 | 节温器盖 | THERMOSTAT COVER | 1 |
| 21 | 8248326 | 螺丝(M6 x 25毫米) | SCREW (M6 x 25 mm) | 2 |
| 22 | 881313T1 | 盖板套件 | COVER KIT | 1 |
| 23 | 804119 | 通气盖 | COVER Breather | 1 |
| 24 | 804120 | 螺钉(M4 x 8) | SCREW (M4 x 8) | 8 |
| 25 | 804123 | 衬垫 | GASKET | 1 |
| 26 | 855690 | 护孔环 | GROMMET | 2 |
| 27 | 858530 | 螺栓 (M6 x 30) | BOLT (M6 x 30) | 14 |
| 28 | 859578A1 | 油塞总成 | PLUG ASSEMBLY Oil | 1 |
| 28 | 8M0240831 | 油塞 | OIL PLUG | 1 |
| 29 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 1 |
| 30 | 858752 | 盖板 | COVER | 1 |
| 30 | 858752001 | 盖板 | COVER | 1 |
| 31 | 1993716 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 5 |
| - | 858732T01 | 衬垫套件 | GASKET SET | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 881310T1 | 气缸盖总成 | CYLINDER HEAD ASSEMBLY | 1 |
| - | 881310T09 | 气缸盖 | HEAD-CYLINDER | 1 |
| - | 881421T01 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0094683 | 气缸盖总成 | CYLINDER HEAD ASSEMBLY | 1 |
| 1 | 8M0190640 | 气缸盖 | CYLINDER HEAD | 1 |
| 1 | 8M0098627 | 气缸盖总成 | CYLINDER HEAD ASSEMBLY | 1 |
| 1 | 8M0190640 | 气缸盖 | CYLINDER HEAD | 1 |
| 1 | 8M0091290 | 气缸盖总成 | CYLINDER HEAD ASSEMBLY | 1 |
| 1 | 8M0190641 | 气缸盖 | CYLINDER HEAD | 1 |
| 1 | 8M0098628 | 气缸盖总成 | CYLINDER HEAD ASSEMBLY | 1 |
| 1 | 8M0190641 | 气缸盖 | CYLINDER HEAD | 1 |
| 1 | 8M0121260 | 气缸盖总成 | CYLINDER HEAD ASSEMBLY | 1 |
| 1 | 8M0190641 | 气缸盖 | CYLINDER HEAD | 1 |
| 2 | 8M0065093 | 加油口盖 | CAP Oil Fill | 1 |
| 3 | 8M0043174 | O型圈 | O-RING | 1 |
| 4 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 13 |
| 4 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 13 |
| 5 | 8M0088067 | 凸轮轴盖总成 | CAMSHAFT COVER ASSEMBLY | 1 |
| 6 | 8M0069479 | 凸轮轴盖密封件 | SEAL Camshaft Cover | 1 |
| 7 | 8M0071081 | 线夹 | CLIP -WIRE | 1 |
| 8 | 88552540 | 螺钉(M6x40毫米)不锈钢 | SCREW (M6 x 40 mm) Stainless Steel | 2 |
| 8 | 8M0103809 | 螺钉(M6x40毫米)不锈钢 | SCREW (M6 x 40 mm) Stainless Steel | 2 |
| 9 | 8M0082895 | 螺丝 M10×1.5×95 六角头 | SCREW (M10 X 1.5 X 95) HX HD | 10 |
| 10 | 8M0090776 | 气缸盖衬垫 | GASKET Cylinder Head | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 888845T06 | 齿轮箱总成-长型-2.07:1 | GEAR HOUSING ASSEMBLY Complete - Long - 2.07:1 | 1 |
| - | 888845T07 | 齿轮箱总成-加长型-2.07:1 | GEAR HOUSING ASSEMBLY Complete - X-Long - 2.07:1 | 1 |
| - | 888845T08 | 齿轮箱总成-长型-2.33:1 | GEAR HOUSING ASSEMBLY Complete - Long - 2.33:1 | 1 |
| - | 888845T09 | 齿轮箱总成-加长型-2.33:1 | GEAR HOUSING ASSEMBLY Complete - X-Long - 2.33:1 | 1 |
| 1 | 888845T | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 2 | 43043 | 定位销-带孔(0.375x0.625)前部 | PIN Dowel - With Hole (.375 x .625) Front | 1 |
| 2 | 8M0084244 | 定位销 0.375x0.620 | PIN Dowel, .375 x .620 | 1 |
| 3 | 43046 | 注油管 | TUBE Oiler | 1 |
| 4 | 79953Q2 | 排水螺钉套件(.375-16 x .250) | SCREW KIT (.375-16 x .250) Drain | 3 |
| 4 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 3 |
| 5 | 191833 | 密封件 | SEAL | 3 |
| 5 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 3 |
| 6 | 43044 | 定位销-无孔(0.375x0.625)后部 | PIN Dowel - Without Hole (.375 x .625) Rear | 1 |
| 7 | 31640T5 | 平衡鳍板 | TRIM TAB | 1 |
| 7 | 8M0236553 | 平衡鳍板 | TRIM TAB | 1 |
| 8 | 825427 | 不锈钢螺钉(0.437-14x1.250) | SCREW (.437-14 x 1.250) Stainless Steel | 1 |
| 9 | 451761 | 垫圈(.453 x .812 x .105)黑色氧化 | WASHER (.453 x .812 x .105) Black Oxide | 1 |
| 10 | 43040T1 | 托架总成 | CARRIER ASSEMBLY | 1 |
| 11 | NSS | 滚针轴承(不单独销售) | NOT SOLD SEPARATE Needle Bearing | 1 |
| 12 | 826134Q | 阳极块 | ANODE | 2 |
| 13 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 14 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 1 |
| 15 | NSS | 小齿轮(不单独销售)-前进齿轮套件部件 | NOT SOLD SEPARATE Pinion Gear - Part of Forward Gear Kits | 1 |
| 16 | 35921 | 螺母(0.625-18) | NUT (.625-18) | 1 |
| 17 | 883047A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 18 | 44492A1 | 垫片组 | SHIM SET | 1 |
| 18 | 8M0063265 | 垫片组 | SHIM SET | 1 |
| 19 | 897679T01 | 长型驱动轴总成 | DRIVESHAFT ASSEMBLY Long | 1 |
| 19 | 897680T01 | 驱动轴总成 X加长型 | DRIVESHAFT ASSEMBLY X-Long | 1 |
| 20 | 42461A1 | 套筒/环套件 | SLEEVE/RING KIT | 1 |
| 21 | NSS | 密封环(不单独销售) | NOT SOLD SEPARATE Seal Ring | 1 |
| 22 | 43055A4 | 水泵盖总成 | COVER ASSEMBLY Water Pump | 1 |
| 22 | 8M0113262 | 水泵盖总成 | COVER ASSEMBLY Water Pump | 1 |
| 23 | 430331 | 衬垫 | GASKET | 1 |
| 24 | 430472 | 衬垫 | GASKET | 1 |
| 24 | 8M0214931 | 衬垫 | GASKET | 1 |
| 25 | 43035 | 上部油封 | SEAL Oil Upper | 1 |
| 25 | 8M0245495 | 油封 | OIL SEAL | 1 |
| 26 | 43036 | 下油封 | SEAL Oil Lower | 1 |
| 27 | 8172771 | 水泵上垫片 | GASKET Water Pump, Upper | 1 |
| 28 | 817275A2 | 水泵上壳体套件 | HOUSING KIT Upper Water Pump | 1 |
| 29 | 8172761 | 面板 | FACEPLATE | 1 |
| 29 | 8M0204709 | 面板 | FACEPLATE | 1 |
| 30 | 82684430 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 4 |
| 31 | 430232 | 密封件 | SEAL | 1 |
| 32 | 43037 | 键 | KEY | 1 |
| 32 | 8M0204723 | 键 | KEY | 1 |
| 33 | 43026T2 | 叶轮 | IMPELLER | 1 |
| 34 | 82684425 | 螺钉(M6x25) | SCREW (M6 x 25) | 6 |
| 35 | 861415 | 端面密封 | SEAL Face | 1 |
| 35 | 816575A2 | 密封套件 | SEAL KIT | 1 |
| 36 | 884563A00 | 换挡轴总成 | SHIFT SHAFT ASSEMBLY | 1 |
| 36 | 884565A00 | 换挡轴总成 | SHIFT SHAFT ASSEMBLY | 1 |
| 37 | 29641 | E型卡环 | E RING | 1 |
| 38 | 43052A4 | 衬套总成 | BUSHING ASSEMBLY | 1 |
| 39 | 457101 | O型圈(1.424x0.103) | O-RING (1.424 x .103) | 1 |
| 39 | 8M0204681 | 特殊O型圈1.424x0.103 | O-RING 1.424 x .103, Special | 1 |
| 40 | 8164641 | 油封 | SEAL Oil | 1 |
| 40 | 8M0246145 | 油封 | OIL SEAL | 1 |
| 41 | 82684425 | 螺钉(M6x25) | SCREW (M6 x 25) | 2 |
| 42 | 891637 | 衬套 | BUSHING | 1 |
| - | 43035A4 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| - | 43024A7 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| - | 8M0113799 | 水泵修理包 | REPAIR KIT-W/P | 1 |
| - | 43026Q06 | 水泵叶轮维修套件 | REPAIR KIT Water Pump Impeller | 1 |
| - | 8M0100526 | 水泵叶轮维修套件 | REPAIR KIT Water Impeller | 1 |
| - | 881260A3 | 前进齿轮-29齿 | GEAR Forward - 29 Teeth | 1 |
| - | 882813A3 | 前进齿轮与小齿轮套件(28齿) | GEAR KIT Forward And Pinion 28 Teeth | 1 |
| - | 803496T2 | 轴承/油封套件 | BEARING/SEAL KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 12092A19 | 传动轴延长套件 - 5英寸/128毫米 | EXTENSION KIT Driveshaft - 5 Inch /128 mm | 1 |
| 1 | 12092A3 | 隔套套件 | SPACER KIT | 1 |
| 2 | 43043 | 定位销-带孔(0.375×0.625) | PIN Dowel - With Hole (.375 x .625) | 1 |
| 2 | 8M0084244 | 定位销 0.375x0.620 | PIN Dowel, .375 x .620 | 1 |
| 3 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 1 |
| 4 | 903503 | 双头螺柱(M10×190) | STUD (M10 x 190) | 4 |
| 5 | 903502 | 双头螺柱(M10×227) | STUD (M10 x 227) | 1 |
| 6 | 856774 | 垫圈(0.406×0.750×0.105)不锈钢 | WASHER (.406 x .750 x .105) Stainless Steel | 5 |
| 6 | 8M0214963 | 垫圈 | WASHER | 5 |
| 7 | 40140 | 螺母(M10) | NUT (M10) | 5 |
| 8 | 97386 | O型圈 (3.609 x .139) | O-RING (3.609 x .139) | 1 |
| 8 | 8M0214974 | O型圈 | O RING | 1 |
| 9 | 830749 | 密封件 | SEAL | 3 |
| 9 | 8M0204693 | 放油螺塞密封件 | SEAL Drain Plug | 3 |
| 10 | 8289371 | 水管 | TUBE Water | 1 |
| 10 | 8M4501430 | 水管 | TUBE Water | 1 |
| 11 | 430232 | 密封件 | SEAL | 2 |
| 12 | 8172771 | 水泵上垫片 | GASKET Water Pump, Upper | 1 |
| 13 | 430331 | 衬垫 | GASKET | 1 |
| 14 | 430472 | 衬垫 | GASKET | 1 |
| 14 | 8M0214931 | 衬垫 | GASKET | 1 |
| 15 | 897680T01 | 驱动轴总成 X加长型 | DRIVESHAFT ASSEMBLY X-Long | 1 |
| 16 | 884565A00 | 换挡轴总成 | SHIFT SHAFT ASSEMBLY | 1 |
| 17 | 29641 | E型卡环 | E RING | 1 |
| 18 | 457101 | O型圈(1.424x0.103) | O-RING (1.424 x .103) | 1 |
| 18 | 8M0204681 | 特殊O型圈1.424x0.103 | O-RING 1.424 x .103, Special | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 897763T01 | 节气门支架总成 | BRACKET ASSEMBLY Throttle | 1 |
| 1 | 897763T03 | 节气门支架总成 | BRACKET ASSEMBLY Throttle | 1 |
| 1 | 897763T01 | 节气门支架总成 | BRACKET ASSEMBLY Throttle | 1 |
| 1 | 897763T03 | 节气门支架总成 | BRACKET ASSEMBLY Throttle | 1 |
| 1 | 897763T03 | 节气门支架总成 | BRACKET ASSEMBLY Throttle | 1 |
| 1 | 897763T03 | 节气门支架总成 | BRACKET ASSEMBLY Throttle | 1 |
| 2 | 42975 | 传动螺钉 | DRIVE SCREW | 2 |
| 3 | 824015 | 筒形保持杯 | CUP Barrel Retainer | 1 |
| 4 | 898048T | 控制电缆锁扣 | LATCH Control Cable | 1 |
| 5 | 897765T01 | 节气门随动杆总成 | LEVER ASSEMBLY Throttle Follower | 1 |
| 6 | 897936 | 垫圈 | WASHER | 2 |
| 7 | 897937 | 垫圈 | WASHER | 2 |
| 8 | 898093 | 波形垫圈 | WASHER Wave | 2 |
| 9 | 897935 | 隔套 | SPACER | 2 |
| 10 | 88552530 | 螺丝(M6×30毫米)不锈钢 | SCREW (M6 x 30 mm) Stainless Steel | 2 |
| 10 | 8M0103808 | 螺丝(M6×30毫米)不锈钢 | SCREW (M6 x 30 mm) Stainless Steel | 2 |
| 11 | 8M0008288 | 节气门杠杆总成 | LEVER ASSEMBLY Throttle | 1 |
| 12 | 8M0001157 | 蝴蝶夹销 | PIN Bow Tie Clip | 1 |
| 13 | 897535005 | 节流凸轮回位弹簧 | SPRING Throttle Cam Return | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0082988 | 曲轴位置传感器 | SENSOR Crankshaft Position | 1 |
| 2 | 40011106 | 不锈钢螺钉(M5x13) | SCREW (M5 x 13) Stainless Steel | 2 |
| 3 | 8M0090816 | 集油盘 | TRAY - OIL DRIP | 1 |
| 4 | 8M0049906 | 油盘螺塞 | PLUG Oil Tray | 1 |
| 4 | 8M0143229 | 滴油盘塞 | PLUG Drip Tray | 1 |
| 5 | 8M0012661 | 螺丝 M6×14 六角法兰不锈钢 | SCREW M6 x 14 HEX FLG SS | 2 |
| 6 | 8M0071039 | 机油滤清器接头 | FITTING - OIL FILTER | 1 |
| 7 | 8M0162829 | 机油滤清器 | FILTER Oil | 1 |
| 7 | 8M0065103 | 机油滤清器 | FILTER Oil | 1 |
| 7 | 8M0162830 | 机油滤清器 | FILTER OIL | 1 |
| 8 | 8M6000634 | 压力传感器 | PRESSURE SENSOR | 1 |
| 8 | 8M0142688 | 压力传感器(机油/水) | SENSOR Pressure (Oil/Water) | 1 |
| 9 | 8M0088064 | 启动马达 | STARTER MOTOR | 1 |
| 9 | 8M0166297 | 启动器总成 | STARTER ASSY | 1 |
| 10 | 8M0070367 | 管状支架 8MM | MOUNT - TUBULAR 8MM | 6 |
| 10 | 8M0154659 | 管状支架 8MM | MOUNT TUBULAR 8 mm | 6 |
| 11 | 8M0070369 | 垫圈（内径8.3 X 外径11.8） | SPACER (8.3 I.D. X 11.8 O.D.) | 2 |
| 12 | 8M0070368 | 垫圈（内径8.3 X 外径11.8） | SPACER (8.3 I.D. X 11.8 O.D.) | 1 |
| 13 | 43430 | 垫圈 | WASHER | 3 |
| 14 | 8M0071509 | 六角法兰螺栓(M8×80) | BOLT (M8 X 80) HEX FLG | 2 |
| 14 | 8M0188530 | 螺钉 M8 X 80 六角凸缘头 | SCREW M8 X 80 HEX FLG HD | 2 |
| 15 | 88552645 | 螺钉（M8X45） | SCREW (M8X45) | 1 |
| 16 | 40011148 | 螺钉(M8 x 20) | SCREW (M8 x 20) | 1 |
| 16 | 8M0214929 | 螺钉(M8 x 20) | SCREW (M8 x 20) | 1 |
| 17 | 40011126 | 不锈钢螺丝(M6 x 13) | SCREW (M6 x 13) Stainless Steel | 1 |
| 18 | 400255 | 锁紧垫圈(M5) | LOCKWASHER (M5) | 1 |
| 19 | 400211 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 1 |
| 20 | 401388 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 1 |
| 21 | 885342002 | 传感器总成 | SENSOR ASSEMBLY | 1 |
| 21 | 8M0148668 | 传感器总成 | SENSOR ASSEMBLY | 1 |
| 22 | 8M0056666 | 起动机接地带 | GROUND STRAP Starter | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0088072 | 齿轮箱总成 长型 | GEARCASE Complete Long | 1 |
| - | 8M0088074 | 齿轮箱总成 加长型 | GEARCASE Complete X-Long | 1 |
| 1 | 8M0091538 | 齿轮箱 基本型 | GEARCASE Basic | 1 |
| 2 | 79953A04 | 塞组件(.375-16×.250) | PLUG ASSEMBLY (.375-16 x .250) | 1 |
| 3 | 830749 | 密封件 | SEAL | 1 |
| 3 | 8M0204693 | 放油螺塞密封件 | SEAL Drain Plug | 1 |
| 4 | 8M0084244 | 定位销 0.375x0.620 | PIN Dowel, .375 x .620 | 1 |
| 5 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 1 |
| 6 | 826134Q | 阳极块 | ANODE | 2 |
| 7 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 1 |
| 8 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 9 | 806327 | 螺钉(.437-14 x 1.750) | SCREW (.437-14 x 1.750) | 1 |
| 9 | 8M0204686 | 螺钉 | SCREW | 1 |
| 10 | 8M0091534 | 平衡鳍板 | TRIM TAB | 1 |
| 10 | 8M0231857 | 平衡鳍板 | TRIM TAB | 1 |
| 11 | 8M0069658 | 换挡轴 下部, 长型 | SHIFT SHAFT Lower, Long | 1 |
| 11 | 8M0053078 | 换挡轴 下部, 加长型 | SHIFT SHAFT Lower, X-Long | 1 |
| 12 | 29641 | E型卡环 | E RING | 1 |
| 13 | 8M0029306 | 挡圈 | RING Retaining | 1 |
| 14 | 77674 | 垫圈(.35 x .75 x .12) | WASHER (.35 x .75 x .12) | 1 |
| 15 | 8164641 | 油封 | SEAL Oil | 1 |
| 15 | 8M0246145 | 油封 | OIL SEAL | 1 |
| 16 | 813696A2 | 衬套总成 | BUSHING ASSEMBLY | 1 |
| 17 | 45258 | O型圈 (.987 x .103) | O-RING (.987 x .103) | 1 |
| 18 | 8M0090831 | 长驱动轴 | DRIVESHAFT Long | 1 |
| 18 | 8M0094341 | 加长驱动轴 | DRIVESHAFT X-Long | 1 |
| 19 | 8M0036238 | 联轴器 水泵 | COUPLING Water Pump | 1 |
| 19 | 8M0214995 | 联轴器 水泵 | COUPLING Water Pump | 1 |
| 20 | 21836 | O型圈(.796 x .139) | O-RING (.796 x .139) | 2 |
| 20 | 8M0204645 | O型圈(.796 x .139) | O-RING (.796 x .139) | 2 |
| 21 | 1993720 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 4 |
| 21 | 8M0204706 | 螺丝M6x20六角 | SCREW M6 x 20 Hex | 4 |
| 22 | 8M2014338 | 端面密封 | SEAL Face | 1 |
| 22 | 8M0142851 | V型面密封环 | V RING Face Seal | 1 |
| 23 | 8M0010459 | 填充块 | FILLER BLOCK | 1 |
| 24 | 817275A1 | 水泵壳体套件 | HOUSING KIT Water Pump | 1 |
| 25 | 8M0032833 | 键 | KEY | 1 |
| 25 | 8M0204723 | 键 | KEY | 1 |
| 26 | 43026T2 | 叶轮 | IMPELLER | 1 |
| 27 | 8172771 | 水泵上垫片 | GASKET Water Pump, Upper | 1 |
| 28 | 8172761 | 面板 | FACEPLATE | 1 |
| 28 | 8M0204709 | 面板 | FACEPLATE | 1 |
| 29 | 8M0050720 | 衬垫 | GASKET | 1 |
| 29 | 8M0142616 | 衬垫 面板至齿轮箱 | GASKET Face Plate to Gearcase | 1 |
| 30 | 880719 | 挡圈 | RING Retaining | 1 |
| 31 | 8M0057748 | 油封载体总成 | OIL SEAL CARRIER ASSEMBLY | 1 |
| 32 | 89238 | 油封 | SEAL Oil | 2 |
| 33 | 896523 | O型圈(2.175 x 0.103) | O-RING (2.175 x .103) | 1 |
| 33 | 8M0142854 | O型圈(2.175 x 0.103) | O-RING (2.175 x .103) | 1 |
| 34 | 853651 | 固定座 | RETAINER | 1 |
| 35 | 33138A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 36 | NSS | 锥体(不单独销售) | NOT SOLD SEPARATE Cone | 1 |
| 37 | 8M0063267 | 垫片组 | SHIM SET | 1 |
| 38 | 77420A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 38 | 8M0166756 | 轴承总成 | BEARING ASSEMBLY | 1 |
| 39 | 8M0063268 | 垫片组 | SHIM SET | 1 |
| 40 | 8M0090828 | 滚针轴承 | BEARING Needle Roller | 1 |
| - | 8M0094470 | 齿轮组标准旋转(前进/小齿轮2.07速比14/29) | GEAR SET Stanard Rotation, Forward/Pinion 2.07 Ratio (14/29) | 1 |
| 41 | NSS | 小齿轮(不单独销售) | NOT SOLD SEPARATE Pinion | 1 |
| 42 | 92721 | 垫圈(.965×0.630) | WASHER (.965 x .630) | 1 |
| 43 | 8M0071654 | 螺母 (.625-18 HX) | NUT (.625-18 HX) | 1 |
| - | 8M0090442 | 尾鳍 | SKEG | 1 |
| - | 8M0094529 | 水泵维修包(全套) | COMPLETE WATER PUMP REPAIR KIT | 1 |
| - | 8M0094530 | 水泵叶轮维修套件 | REPAIR KIT Water Pump Impeller | 1 |
| - | 8M0100526 | 水泵叶轮维修套件 | REPAIR KIT Water Impeller | 1 |
| - | 8M0088080 | 齿轮箱密封套件 | GEARCASE SEAL KIT | 1 |
| - | 8M0061040 | 水泵上修包 | REPAIR KIT Water Pump-Upper | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 817275A08 | 水泵上修包 | REPAIR KIT Water Pump-Upper | 1 |
| 1 | 817275A1 | 水泵壳体套件 | HOUSING KIT Water Pump | 1 |
| 2 | 8M4503518 | 螺钉(M6×1.0×20) | SCREW (M6 X 1.0 X 20) | 4 |
| 2 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 4 |
| 3 | 8M0025709 | 水泵叶轮 | IMPELLER Water Pump | 1 |
| 3 | 43026T2 | 叶轮 | IMPELLER | 1 |
| 4 | 8172771 | 水泵上垫片 | GASKET Water Pump, Upper | 1 |
| 5 | 8172761 | 面板 | FACEPLATE | 1 |
| 5 | 8M0204709 | 面板 | FACEPLATE | 1 |
| 6 | 430331 | 衬垫 | GASKET | 1 |
| 7 | 8M0032833 | 键 | KEY | 1 |
| 7 | 8M0204723 | 键 | KEY | 1 |
| 8 | 8M2014338 | 端面密封 | SEAL Face | 1 |
| 8 | 8M0142851 | V型面密封环 | V RING Face Seal | 1 |
| - | 8M0112712 | 喷射泵套件 | JET PUMP KIT | 1 |
| - | 8M0091607 | 喷泵总成 | JET PUMP ASSEMBLY | 1 |
| - | 8M0112712 | 喷射泵套件 | JET PUMP KIT | 1 |
| - | 8M0104795 | 换挡支架垫片 | SPACER, SHIFT BRACKET | 1 |
| - | 8M0082528 | 第二代油门换挡拉线-5英尺 | THROTTLE AND SHIFT CABLE GEN2 - 5 ft. | 1 |
| - | 806327 | 螺钉(.437-14 x 1.750) | SCREW (.437-14 x 1.750) | 1 |
| - | 8M0204686 | 螺钉 | SCREW | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 9011G67 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 9011G72 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 9011J4 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 9011G59 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 2 | 43043 | 定位销-带孔(0.375x0.625)前部 | PIN Dowel - With Hole (.375 x .625) Front | 1 |
| 2 | 8M0084244 | 定位销 0.375x0.620 | PIN Dowel, .375 x .620 | 1 |
| 3 | 43046 | 注油管 | TUBE Oiler | 1 |
| 4 | 79953Q2 | 排水螺钉套件(.375-16 x .250) | SCREW KIT (.375-16 x .250) Drain | 3 |
| 4 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 3 |
| 5 | 191832 | 垫圈 | WASHER | 3 |
| 5 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 3 |
| 6 | 43044 | 定位销-无孔(0.375x0.625)后部 | PIN Dowel - Without Hole (.375 x .625) Rear | 1 |
| 7 | 31640T5 | 平衡鳍板 | TRIM TAB | 1 |
| 7 | 8M0236553 | 平衡鳍板 | TRIM TAB | 1 |
| 8 | 825427 | 不锈钢螺钉(0.437-14x1.250) | SCREW (.437-14 x 1.250) Stainless Steel | 1 |
| 9 | 451761 | 垫圈(.453 x .812 x .105)黑色氧化 | WASHER (.453 x .812 x .105) Black Oxide | 1 |
| 10 | 43040T1 | 托架总成 | CARRIER ASSEMBLY | 1 |
| 11 | NSS | 滚针轴承(不单独销售) | NOT SOLD SEPARATE Needle Bearing | 1 |
| 12 | 826134Q | 阳极块 | ANODE | 2 |
| 13 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 14 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 1 |
| 15 | 19672T | 小齿轮(14齿) | GEAR Pinion (14 Teeth) | 1 |
| 15 | 881260A5 | 小齿轮/前进齿轮总成 | GEAR ASSEMBLY Pinion/Forward | 1 |
| 16 | 35921 | 螺母(0.625-18) | NUT (.625-18) | 1 |
| 17 | 850307 | 换挡凸轮控制 | CAM Shift Control | 1 |
| 18 | 42677A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 18 | 883047A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 19 | 44492A1 | 垫片组 | SHIM SET | 1 |
| 19 | 8M0063265 | 垫片组 | SHIM SET | 1 |
| 20 | 858765T1 | 驱动轴总成 | DRIVESHAFT ASSEMBLY | 1 |
| 20 | 878575T1 | 驱动轴总成 | DRIVESHAFT ASSEMBLY | 1 |
| 21 | 42461A1 | 套筒/环套件 | SLEEVE/RING KIT | 1 |
| 22 | NSS | 密封环(不单独销售) | NOT SOLD SEPARATE Seal Ring | 1 |
| 23 | 43055A4 | 水泵盖总成 | COVER ASSEMBLY Water Pump | 1 |
| 23 | 8M0113262 | 水泵盖总成 | COVER ASSEMBLY Water Pump | 1 |
| 24 | 430331 | 衬垫 | GASKET | 1 |
| 25 | 430472 | 衬垫 | GASKET | 1 |
| 25 | 8M0214931 | 衬垫 | GASKET | 1 |
| 26 | 43035 | 上部油封 | SEAL Oil Upper | 1 |
| 26 | 8M0245495 | 油封 | OIL SEAL | 1 |
| 27 | 43036 | 下油封 | SEAL Oil Lower | 1 |
| 28 | 8172771 | 水泵上垫片 | GASKET Water Pump, Upper | 1 |
| 29 | 817275A2 | 水泵上壳体套件 | HOUSING KIT Upper Water Pump | 1 |
| 30 | 8172761 | 面板 | FACEPLATE | 1 |
| 30 | 8M0204709 | 面板 | FACEPLATE | 1 |
| 31 | 82684430 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 4 |
| 32 | 430232 | 密封件 | SEAL | 1 |
| 33 | 43037 | 键 | KEY | 1 |
| 33 | 8M0204723 | 键 | KEY | 1 |
| 34 | 43026T2 | 叶轮 | IMPELLER | 1 |
| 35 | 82684425 | 螺钉(M6x25) | SCREW (M6 x 25) | 6 |
| 36 | 853906A1 | 换挡轴总成 | SHIFT SHAFT ASSEMBLY | 1 |
| 36 | 853908A1 | 换挡轴总成 | SHIFT SHAFT ASSEMBLY | 1 |
| 37 | 29641 | E型卡环 | E RING | 1 |
| 38 | 43052A4 | 衬套总成 | BUSHING ASSEMBLY | 1 |
| 39 | 45710 | O型圈(1.424x0.103) | O-RING (1.424 x .103) | 1 |
| 39 | 8M0204681 | 特殊O型圈1.424x0.103 | O-RING 1.424 x .103, Special | 1 |
| 40 | 8164641 | 油封 | SEAL Oil | 1 |
| 40 | 8M0246145 | 油封 | OIL SEAL | 1 |
| 41 | 82684425 | 螺钉(M6x25) | SCREW (M6 x 25) | 2 |
| 42 | 816575 | 端面密封 | FACE SEAL | 1 |
| 42 | 861415 | 端面密封 | SEAL Face | 1 |
| - | 43035A4 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| - | 43024A7 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| - | 8M0113799 | 水泵修理包 | REPAIR KIT-W/P | 1 |
| - | 803496T1 | 轴承与油封套件(不含前进轴承) | BEARING AND SEAL KIT (Without Forward Bearing) | 1 |
| - | 803496T2 | 轴承/密封件套件(不含前轴承) | BEARING/SEAL KIT (Without Forward Bearing) | 1 |
| - | 803489T1 | 离合器/凸轮维修包 | REPAIR KIT Clutch/Cam | 1 |
| - | 43026T11 | 水泵叶轮维修套件 | REPAIR KIT Water Pump Impeller | 1 |
| - | 8M0100526 | 水泵叶轮维修套件 | REPAIR KIT Water Impeller | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 880894T | 曲轴 | CRANKSHAFT | 1 |
| 2 | 8040992 | 油封 | SEAL Oil | 1 |
| 3 | 8041002 | 油封 | SEAL Oil | 1 |
| 4 | 804101T | 轴承 | BEARING | 4 |
| 4 | 804101T10 | 轴承 | BEARING | 4 |
| 4 | 804101T20 | 轴承 | BEARING | 4 |
| 5 | 804102T | 轴承 | BEARING | 5 |
| 5 | 804102T10 | 轴承 | BEARING | 5 |
| 5 | 804102T20 | 轴承 | BEARING | 5 |
| 5 | 804102T30 | 轴承 | BEARING | 5 |
| 6 | 804103T | 轴承 | BEARING | 1 |
| 6 | 804103T10 | 轴承 | BEARING | 1 |
| 6 | 804103T20 | 轴承 | BEARING | 1 |
| 7 | 880895T1 | 活塞总成 | PISTON ASSEMBLY | 4 |
| 7 | 880895A14 | 活塞/连杆总成 | PISTON/CONN ROD | 4 |
| 7 | 880895T10 | 活塞总成 | PISTON ASSEMBLY | AR |
| 7 | 880895A16 | 活塞/连杆总成 | PISTON/CONN ROD | AR |
| 8 | 880896 | 螺栓(M8 x 38) | BOLT (M8 x 38) | 8 |
| 9 | 880897T1 | 活塞环组 | RING SET Piston | 4 |
| 9 | 880897T02 | 活塞环组 | RING SET Piston | 4 |
| 9 | 880898T1 | 活塞环组 | RING SET Piston | AR |
| 9 | 880898T02 | 活塞环组 | RING SET Piston | AR |
| 10 | 880899T | 轴承 | BEARING | 8 |
| 10 | 880899T10 | 轴承 | BEARING | 8 |
| 10 | 880899T20 | 轴承 | BEARING | 8 |
| 10 | 880899T30 | 轴承 | BEARING | 8 |
| - | 881421T01 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0102751 | 齿轮箱总成CT CL型 | GEARCASE Complete, CT CL | 1 |
| - | 8M0088076 | 齿轮箱总成CT CXL型 | GEARCASE Complete CT CXL | 1 |
| - | 8M0099917 | 齿轮箱总成CT CXL型 | GEARCASE Complete, CT CXL | 1 |
| 1 | 8M0057747 | 基本齿轮箱 | GEAR HOUSING Basic | 1 |
| 1 | 8M0099907 | 基本齿轮箱 | GEAR HOUSING Basic | 1 |
| 2 | 8M0094500 | 倒车齿轮31齿 | GEAR Reverse 31T | 1 |
| 2 | 8M0108312 | 倒车齿轮套件 | GEAR KIT-REVERSE | 1 |
| 3 | 8M0094502 | 内卡环 | RING Internal Retaining | 1 |
| 4 | 8M0064432 | 止推垫圈 | WASHER Thrust | 1 |
| 5 | 8M0094499 | 圆锥滚子轴承组 | BEARING SET Taper Roller | 1 |
| 6 | NSS | 不单独销售 | NOT SOLD SEPARATE | 1 |
| 7 | 815480 | 推力轴承 | BEARING Thrust | 1 |
| 8 | 815481 | 止推垫片 | THRUST WASHER | 1 |
| 9 | 8M0094497 | 滚针轴承 | BEARING Needle Roller | 1 |
| 10 | 8M0064369 | 倒车齿轮轴承适配器 | BEARING ADAPTER Reverse Gear | 1 |
| 11 | 8M0031018 | 凸轮随动件(反向旋转) | FOLLOWER Cam, Counter Rotation | 1 |
| 12 | 8M0077490 | 换档凸轮 | CAM Shift | 1 |
| 13 | 8M0057749 | 离合器操纵杆(设计1型) | ROD Clutch Actuator Design 1 | 1 |
| 14 | 8M0094479 | 滑动离合器(6爪) | CLUTCH Sliding, 6 Jaw | 1 |
| 15 | 8M0047945 | 固定弹簧 | SPRING Retaining | 1 |
| 16 | 8M0045759 | 十字销 | PIN Cross | 1 |
| 17 | 8M0094483 | 齿轮组反向旋转(前进/小齿轮2.38速比13/31) | GEAR SET Counter Rotation, Forward/Pinion 2.38 Ratio (13/31) | 1 |
| 18 | 8M0094485 | 圆锥滚子轴承组 | TAPERED ROLLER BEARING SET | 2 |
| 19 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 2 |
| 20 | 8M0094486 | 前进齿轮轴承适配器 | ADAPTER Bearing, Forward Gear | 1 |
| 21 | 8M0064177 | 止推垫圈 | WASHER Thrust | 1 |
| 22 | 8M0094488 | 锁紧螺母 | LOCK NUT | 1 |
| 22 | 8M0064178 | 锁紧螺母 | LOCK NUT | 1 |
| 23 | 8M0066130 | 半圆头定位螺钉组 | SCREW- HALF DOG POINT SET | 1 |
| 23 | 8M0233826 | 半圆头定位螺钉组 | SCREW-HALF DOG POINT SET | 1 |
| 24 | 8M0094490 | 垫片组 | SHIM SET | 1 |
| 24 | 8M0239650 | 垫片组 | SHIM SET | 1 |
| 25 | 8M0088079 | 螺旋桨轴(反向旋转) | PROPELLER SHAFT Counter Rotation | 1 |
| 26 | 8M0030845 | O型圈3.975×0.210 | O-RING 3.975X.210 | 1 |
| 27 | 884330T01 | 圆锥轴承组件 | BEARING ASSEMBLY Taper | 1 |
| 27 | 8M0148319 | 圆锥滚子轴承(外圈/内圈) | BEARING Roller Taper Cup/Cone | 1 |
| 28 | NSS | 锥体(不单独销售) | NOT SOLD SEPARATE Cone | 1 |
| 29 | 8M0094495 | 轴承座(反向旋转) | BEARING CARRIER Counter Rotation | 1 |
| 30 | 8M0064306 | 止推隔套 | SPACER Thrust | 1 |
| 31 | 888483 | 油封 | SEAL Oil | 2 |
| 31 | 8M0204700 | 油封 | SEAL Oil | 2 |
| 32 | 8M0071653 | 特殊螺钉0.375-16 UNC | SCREW Special, .375-16 UNC | 1 |
| 33 | 830749 | 密封件 | SEAL | 1 |
| 33 | 8M0204693 | 放油螺塞密封件 | SEAL Drain Plug | 1 |
| 34 | 8M0030784 | 垫圈 带键 | WASHER Keyed | 1 |
| 35 | 8M0054695 | 螺旋桨孔衬套 | SLEEVE Propeller Bore | 1 |
| 35 | 8M0187255 | 套管@5 | SLEEVE @5 | 1 |
| 36 | 8M0030785 | 轴承座固定环 | RETAINER Bearing Carrier | 1 |
| 36 | 8M0168885 | 轴承固定座 | RETAINER BEARING | 1 |
| 37 | 8M0120367 | 双作用换挡执行器套件(设计2型) | ACTUATOR KIT Double Acting Shift Design 2 | 1 |
| 38 | 8M0102962 | 离合器作动杆 | ROD CLUTCH ACTUATOR | 1 |
| 39 | 8M0029113 | 十字销 | PIN Cross | 1 |
| 40 | 8M0096707 | 压缩弹簧 | SPRING Compression | 2 |
| 41 | 8M0084245 | 弹簧定位销 | PIN Spring Locator | 1 |
| 42 | 8M0076745 | 垫片组 | SHIM SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 899341T02 | 顶罩总成（水星款） | TOP COWL ASSEMBLY Mariner | 1 |
| 1 | 8M0075361 | 顶盖总成 Mariner 无贴花 | TOP COWL ASSEMBLY Mariner, Without decals | 1 |
| 1 | 8M0074089 | 顶罩总成(水星款) | TOP COWL ASSEMBLY Mercury | 1 |
| 1 | 8M0075360 | 顶盖总成 Mercury 无贴花 | TOP COWL ASSEMBLY Mercury, Without decals | 1 |
| 1 | 8M0075360 | 顶盖总成 Mercury 无贴花 | TOP COWL ASSEMBLY Mercury, Without decals | 1 |
| 1 | 8M0075361 | 顶盖总成 Mariner 无贴花 | TOP COWL ASSEMBLY Mariner, Without decals | 1 |
| 2 | 897529T | 空气挡板盖(水星) | CAP Air Dam - Mercury | 1 |
| 2 | 897529T01 | 空气导流帽-水星型 | CAP Air Dam - Mariner | 1 |
| 3 | 888950020 | 螺丝(M4×20毫米) | SCREW (M4 x 20 mm) | 4 |
| 4 | 8M0000346 | 隔音罩总成 | SOUND BLANKET ASSEMBLY | 1 |
| 5 | 831207A16 | 罩盖锁手柄套件 | HANDLE KIT Cowl Latch | 1 |
| 6 | 812707 | 衬套 | BUSHING | 2 |
| 7 | 12134 | 波形垫圈 | WASHER Wave | 1 |
| 8 | 8M0001081 | 凸轮 | CAM | 1 |
| 9 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 1 |
| 9 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 1 |
| 10 | 19605 | 垫圈(.520 x .850 x .060) 尼龙-黑色 | WASHER (.520 x .850 x .060) Nylon - Black | 3 |
| 10 | 8M0042643 | 垫圈(.520 x .850 x .060) 尼龙 黑色 | WASHER (.520 x .850 x .060) Nylon, Black | 3 |
| 11 | 815477 | 缓冲器锁扣 | BUMPER Latch | 2 |
| 12 | 897975 | 背板 | PLATE Backing | 1 |
| 13 | 821249M2 | 前支架 | BRACKET Front | 1 |
| 13 | 8M0036792 | 支架 | BRACKET | 1 |
| 14 | 815477 | 缓冲器锁扣 | BUMPER Latch | 1 |
| 15 | 8155381 | 滚动销 | PIN Roll | 1 |
| 16 | 815263 | 滚轮 | ROLLER | 1 |
| 16 | 8M0207770 | 滚轮@3 | ROLLER @3 | 1 |
| 17 | 8237951 | 挡圈 | RING Retaining | 1 |
| 18 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 18 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 19 | 401366 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 20 | 88552512 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 mm) Stainless Steel | 3 |
| 20 | 8M0103804 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 MM) Stainless Steel | 3 |
| 21 | NSS | 不单独销售 | NOT SOLD SEPARATE | 1 |
| - | 8M0074090 | 80/100贴花套件 | DECAL SET 80/100 | 1 |
| - | 8M0107468 | 服务套件贴纸 | DECAL-SERVICE KIT | 1 |
| - | 8M0063366 | 马力贴花(80) | DECAL Horsepower (80) | 1 |
| - | 8M0114993 | 服务套件贴纸 | DECAL-SERVICE KIT | 1 |
| - | 8M0063368 | 马力贴花(100) | DECAL Horsepower (100) | 1 |
| - | 8M0114993 | 服务套件贴纸 | DECAL-SERVICE KIT | 1 |
| - | 8M0074092 | 75/90/115贴花套件 | DECAL SET 75/90/115 | 1 |
| - | 8M0107468 | 服务套件贴纸 | DECAL-SERVICE KIT | 1 |
| - | 8M0063365 | 马力贴花(75) | DECAL Horsepower (75) | 1 |
| - | 8M0063367 | 马力贴花(90) | DECAL Horsepower (90) | 1 |
| - | 8M0114993 | 服务套件贴纸 | DECAL-SERVICE KIT | 1 |
| - | 8M0063369 | 马力贴花(115) | DECAL Horsepower (115) | 1 |
| - | 8M0114993 | 服务套件贴纸 | DECAL-SERVICE KIT | 1 |
| - | 898822001 | 水手75全包围贴花 | DECAL Wrap Mariner 75 | 1 |
| - | 898822002 | 水手80全包围贴花 | DECAL Wrap Mariner 80 | 1 |
| - | 898822003 | 水手90全包围贴花 | DECAL Wrap Mariner 90 | 1 |
| - | 898822004 | 水手100全包围贴花 | DECAL Wrap Mariner 100 | 1 |
| - | 898822005 | 水手115全包围贴花 | DECAL Wrap Mariner 115 | 1 |
| - | 8M0043706 | 贴标 M-图标 60mm 黑色 | DECAL M-Icon, 60mm Black | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0097838 | 燃油滤清器套件 | FUEL FILTER KIT | 1 |
| 1 | 8M0095674 | 燃油滤清器底座总成 | BASE ASSEMBLY Fuel Filter | 1 |
| 2 | 8M0116793 | 燃油滤清器套件 | FUEL FILTER KIT | 1 |
| 3 | 8M0021044 | 滤杯 | BOWL | 1 |
| 3 | 8M0214990 | 滤清器杯体 | FILTER BOWL | 1 |
| 4 | 8M0103095 | 油水分离滤清器(11/16-16螺纹) | FILTER Fuel-Water Separating (11/16-16 Thread) | 1 |
| 4 | 8M0146203 | 滤芯(11/16英寸) | ELEMENT 11/16 IN | 1 |
| 5 | 36373 | 六角堵头（.375-18）-钢制 | PLUG (.375-18) Hex - Steel | 2 |
| 5 | 8M0204657 | 堵头 | PLUG | 2 |
| 6 | 8M0086290 | 倒钩接头 | CONNECTOR Barb | 2 |
| 6 | 8M0204732 | 倒钩接头 | CONNECTOR Barb | 2 |
| 7 | 815504105 | 蜗轮卡箍(11-18毫米) | CLAMP Worm Gear (11-18 mm) | 2 |
| 7 | 8M0188618 | 蜗轮卡箍(11-18毫米) | CLAMP Worm Gear (11-18 mm) | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 880894T | 曲轴 | CRANKSHAFT | 1 |
| 2 | 8040992 | 油封 | SEAL Oil | 1 |
| 3 | 8041002 | 油封 | SEAL Oil | 1 |
| 4 | 804101T | 轴承 | BEARING | 4 |
| 4 | 804101T10 | 轴承 | BEARING | 4 |
| 4 | 804101T20 | 轴承 | BEARING | 4 |
| 5 | 804102T | 轴承 | BEARING | 5 |
| 5 | 804102T10 | 轴承 | BEARING | 5 |
| 5 | 804102T20 | 轴承 | BEARING | 5 |
| 5 | 804102T30 | 轴承 | BEARING | 5 |
| 6 | 804103T | 轴承 | BEARING | 1 |
| 6 | 804103T10 | 轴承 | BEARING | 1 |
| 6 | 804103T20 | 轴承 | BEARING | 1 |
| 7 | 880895T1 | 活塞总成 | PISTON ASSEMBLY | 4 |
| 7 | 880895A14 | 活塞/连杆总成 | PISTON/CONN ROD | 4 |
| 7 | 880895T10 | 活塞总成 | PISTON ASSEMBLY | AR |
| 7 | 880895A16 | 活塞/连杆总成 | PISTON/CONN ROD | AR |
| 8 | 880896 | 螺栓(M8 x 38) | BOLT (M8 x 38) | 8 |
| 9 | 880897T1 | 活塞环组 | RING SET Piston | 4 |
| 9 | 880897T02 | 活塞环组 | RING SET Piston | 4 |
| 9 | 880898T1 | 活塞环组 | RING SET Piston | AR |
| 9 | 880898T02 | 活塞环组 | RING SET Piston | AR |
| 10 | 880899T | 轴承 | BEARING | 8 |
| 10 | 880899T10 | 轴承 | BEARING | 8 |
| 10 | 880899T20 | 轴承 | BEARING | 8 |
| 10 | 880899T30 | 轴承 | BEARING | 8 |
| - | 881421T01 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8348084 | 滤网 | STRAINER | 1 |
| 2 | 897775 | 滤清器至燃油供应模块软管 | HOSE Block Strainer to Fuel Supply Module | 1 |
| 2 | 8M0040122 | 软管 | HOSE | 1 |
| 2 | 8M0040122 | 滤清器至燃油供应模块软管 | HOSE Block Strainer to Fuel Supply Module | 1 |
| 3 | 897795A01 | 燃油供应模块出口软管总成 | HOSE ASSEMBLY Fuel Supply Module Outlet | 1 |
| 4 | 897649001 | 燃油供应模块至高压燃油滤清器软管 | HOSE Fuel Supply Module to High Pressure Fuel Filter | 1 |
| 4 | 8M0072517 | 软管 | HOSE | 1 |
| 4 | 8M0012211 | 燃油供应模块至高压燃油滤清器软管 | HOSE Fuel Supply Module to High Pressure Fuel Filter | 1 |
| 4 | 8M0072517 | 软管 | HOSE | 1 |
| 4 | 8M0043800 | 燃油供应模块至高压燃油滤清器软管 | HOSE Fuel Supply Module to High Pressure Fuel Filter | 1 |
| 4 | 8M0072517 | 软管 | HOSE | 1 |
| 5 | 879885T | 燃油滤清器 | FILTER Fuel | 2 |
| 5 | 879885Q | 燃油管路滤清器 | FILTER Fuel In-Line | 2 |
| 6 | 8M0008617 | 滤清器至油轨软管 | HOSE Filter to Rail | 1 |
| 6 | 8M0072519 | 软管 | HOSE | 1 |
| 6 | 8M0043801 | 滤清器至油轨软管 | HOSE Filter to Rail | 1 |
| 6 | 8M0072519 | 软管 | HOSE | 1 |
| 7 | 830756109 | 软管(散装57.00英寸)裁切至8.25英寸 | HOSE (57.00 Inches Bulk) Cut to 8.25 Inches | 1 |
| 7 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 8 | 897654002 | 燃油供应模块至通气罐软管 | HOSE Fuel Supply Module to Vent Cannister | 1 |
| 8 | 8M0072516 | 软管 | HOSE | 1 |
| 8 | 8M0012212 | 燃油供应模块至通气罐软管 | HOSE Fuel Supply Module to Vent Cannister | 1 |
| 8 | 8M0072516 | 软管 | HOSE | 1 |
| 9 | 888988015 | 卡箍 (15.7 mm) | CLAMP (15.7 mm) | 3 |
| 9 | 8M0214911 | 卡箍@5 | CLAMP @5 | 3 |
| 10 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 11 | 859251 | 护孔环 | GROMMET | 1 |
| 11 | 8M0039078 | 护孔环 | GROMMET | 1 |
| 12 | 888523001 | 卡扣 | CLIP | 1 |
| 13 | 8M0000915 | 滤清器至燃油供应模块软管 | HOSE Filter to Fuel Supply Module | 1 |
| 13 | 8M0072518 | 软管 | HOSE | 1 |
| 13 | 8M0012213 | 滤清器至燃油供应模块软管 | HOSE Filter to Fuel Supply Module | 1 |
| 13 | 8M0072518 | 软管 | HOSE | 1 |
| 13 | 8M0043799 | 滤清器至燃油供应模块软管 | HOSE Filter to Fuel Supply Module | 1 |
| 13 | 8M0072518 | 软管 | HOSE | 1 |
| 14 | 8M0000914 | 燃油入口软管 | HOSE Fuel Inlet | 1 |
| 14 | 8M0043798 | 软管 | HOSE | 1 |
| 14 | 8M0043798 | 燃油入口软管 | HOSE Fuel Inlet | 1 |
| 15 | NSS | 盖帽(不单独销售) | NOT SOLD SEPARATE Cap | 1 |
| 16 | 814634 | 卡箍 | CLAMP | 3 |
| 17 | 8M0007865 | 尼龙管 | TUBE Nylon | 1 |
| 18 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 2 |
| 19 | 888988028 | 卡箍 (16.2 mm) | CLAMP (16.2 mm) | 1 |
| 19 | 8M0204696 | 卡箍 | CLAMP | 1 |
| - | 897148A09 | 长缸体总成 75/80/90/100 | LONG BLOCK ASSEMBLY 75/80/90/100 | 1 |
| - | 8M8033014 | PH L4NA 4S | PH L4NA 4S | 1 |
| - | 897148A08 | 长缸体总成 115 | LONG BLOCK ASSEMBLY 115 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 898447T01 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| - | 8M0171818 | 动力调整总成 | POWER TRIM ASSY | 1 |
| 1 | 8M0005542 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 1 | 8M0171821 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 2 | 809872A2 | O型圈维修包 | O-RING KIT Rebuild | 1 |
| 2 | 8M0171819 | O型圈套件 | O-RING KIT | 1 |
| 3 | 810776A1 | 记忆活塞总成 | PISTON ASSEMBLY Memory | 1 |
| 3 | 8M0171822 | 记忆活塞套件 | MEMORY PISTON KIT | 1 |
| 4 | 811669A1 | 气缸总成 | CYLINDER ASSEMBLY | 1 |
| 4 | 893916A01 | 气缸总成 | CYLINDER ASSEMBLY | 1 |
| 5 | 809873A1 | 配平限位阀套件 | VALVE KIT Trim Limit | 1 |
| 5 | 893905A02 | 阀套件 | VALVE KIT | 1 |
| 6 | 809874A1 | 泵总成 | PUMP ASSEMBLY | 1 |
| 6 | 893906A02 | 泵总成 | PUMP ASSEMBLY | 1 |
| 7 | 809885A2 | 电机套件 | MOTOR KIT | 1 |
| 7 | 893907A02 | 电机套件 | MOTOR KIT | 1 |
| 8 | 8134351 | 储液罐塞 | PLUG Reservoir | 1 |
| 9 | 813442A2 | 手动释放总成 | MANUAL RELEASE ASSEMBLY | 1 |
| 9 | 893929A01 | 安全阀套件 | VALVE KIT Relief | 1 |
| 10 | 809875A1 | 歧管套件 | MANIFOLD KIT | 1 |
| 10 | 893909A02 | 歧管套件 | MANIFOLD KIT | 1 |
| 11 | 809876A1 | 电机螺钉套件 | SCREW KIT Motor | 1 |
| 12 | 88238A18 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 13 | 809877A1 | 驱动轴/密封套件 | DRIVESHAFT/SEAL KIT | 1 |
| 14 | 809878A1 | 滤清器套件 | FILTER KIT | 1 |
| 14 | 893912A02 | 滤清器套件 | FILTER KIT | 1 |
| 15 | 809879A1 | 提升阀套件 | POPPET KIT | 1 |
| 15 | 893913A02 | 提升阀套件 | POPPET KIT | 1 |
| - | 809880A1 | 完整配平O型圈套件 | O-RING KIT Complete Trim | 1 |
| - | 893914A02 | O型圈套件 | O-RING KIT | 1 |
| 16 | 821539 | 三叶销 | PIN Trilobe | 2 |
| 17 | 818898 | 锚销 | PIN Anchor | 1 |
| 18 | 99625002 | 轴 | SHAFT | 1 |
| - | 8M0127334 | 提升阀密封套件 | POPPET SEAL KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 897755T | 交流发电机 | ALTERNATOR | 1 |
| 1 | 8M6013463 | 交流发电机 | ALTERNATOR | 1 |
| 2 | 897568T01 | 支架 | BRACKET | 1 |
| 3 | 82130145 | 螺丝(M10 x 45) | SCREW (M10 x 45) | 3 |
| 4 | 845998 | 垫圈(0.406×1.250×0.089) | WASHER (.406 x 1.250 x .089) | 6 |
| 5 | 899019 | 支架 | MOUNT | 3 |
| 6 | 897574001 | 皮带 | BELT | 1 |
| 6 | 897574Q01 | 皮带 | BELT | 1 |
| 7 | 82446155 | 螺钉(M10×55) | SCREW (M10 x 55) | 2 |
| 8 | 4002319 | 垫圈 | WASHER | 1 |
| 9 | 826292 | 螺母(M10)黄铜/镀镍 | NUT (M10) Brass/Nickel Plated | 1 |
| 10 | 897559153 | 卡扣(15.3毫米) | CLIP (15.3 mm) | 1 |
| 11 | 856583T12 | 接地线总成 | CABLE ASSEBMLY Ground | 1 |
| 12 | 8M0007202 | 锁紧垫圈适用处使用 | TAB WASHER Use where Applicable | 1 |
| 13 | 88552516 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 1 |
| 13 | 8M0103805 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 1 |
| 14 | 897447002 | 机油压力传感器 | SENSOR Oil Pressure | 1 |
| 14 | 8M0142688 | 压力传感器(机油/水) | SENSOR Pressure (Oil/Water) | 1 |
| 15 | 8M0001051 | 量油尺 | DIPSTICK | 1 |
| 16 | 892864T06 | 节温器及壳体总成 | THERMOSTAT AND HOUSING ASSEMBLY Thermostat | 1 |
| 16 | 8M0090819 | 节温器总成 | THERMOSTAT ASSEMBLY | 1 |
| 17 | 8M0005958 | O型圈 | O-RING | 1 |
| 18 | 888988001 | 卡箍(36.1毫米) | CLAMP (36.1 mm) | 1 |
| 18 | 8M0204719 | 卡箍 36.1毫米 | CLAMP 36.1 MM | 1 |
| 19 | 897668 | 节温器泄流软管 | HOSE Thermostat Dump | 1 |
| 20 | 850896 | 卡箍 (28.6) | CLAMP (28.6) | 1 |
| 21 | 897670A01 | 泄流接头总成 | FITTING ASSEMBLY Dump | 1 |
| 22 | 88552516 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 1 |
| 22 | 8M0103805 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 1 |
| 23 | 877761K01 | 机油滤清器(水星品牌) | FILTER Oil Mercury Branded | 1 |
| 23 | 877761Q01 | 机油滤清器(快银品牌) | FILTER Oil Quicksilver Branded | 1 |
| 24 | 897672 | 机油滤清器接头 | FITTING Oil Filter | 1 |
| 24 | 8M0073011 | 接头 | FITTING | 1 |
| 25 | 897126A01 | 支架总成 | BRACKET ASSEMBLY | 1 |
| 26 | 834985 | 护孔环 | GROMMET | 2 |
| 26 | 8M0190980 | 护孔环 | GROMMET | 2 |
| 27 | 822003 | 衬套 | BUSHING | 2 |
| 28 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| 28 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| 29 | 858779 | 垫圈（0.265×0.750×0.048） | WASHER (.265 x .750 x .048) | 2 |
| 30 | 897559 | 卡扣 | CLIP | 1 |
| 31 | 897642T01 | 飞轮盖 | COVER Flywheel | 1 |
| 32 | 821555001 | 护孔环 | GROMMET | 3 |
| 32 | 8M0153609 | 护孔环 | GROMMET | 3 |
| 33 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 34 | 897757 | 销 | PIN | 1 |
| 35 | 897674 | 堵头(M10×1.5) | PLUG (M10 x 1.5) | 1 |
| 35 | 8M0087447 | 堵头(10毫米) | PLUG (10MM) | 1 |
| 36 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| 36 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| 37 | 821555001 | 护孔环 | GROMMET | 1 |
| 37 | 8M0153609 | 护孔环 | GROMMET | 1 |
| - | 897534A07 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 897148A09 | 长缸体总成 75/80/90/100 | LONG BLOCK ASSEMBLY 75/80/90/100 | 1 |
| - | 8M8033014 | PH L4NA 4S | PH L4NA 4S | 1 |
| - | 897148A08 | 长缸体总成 115 | LONG BLOCK ASSEMBLY 115 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 858566A03 | 冲洗套件(海岸型) | FLUSH KIT Coastal | 1 |
| 1 | 898452 | 接头 | FITTING | 1 |
| 2 | 897795 | 软管 | HOSE | 1 |
| 3 | 858955 | 连接器 | CONNECTOR | 1 |
| 4 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 7 |
| 5 | 830757130 | 管材 (.312) (70.00英寸散装) | TUBING (.312) (70.00 Inches Bulk) | 1 |
| 5 | 8M0108349 | 软管 (70英寸散装) | HOSE (70 Inches Bulk) | 1 |
| 6 | 857176 | 联轴器主体 | COUPLING BODY | 1 |
| 7 | 858240 | 系绳盖 | CAP Tethered | 1 |
| 8 | 857175 | 联轴器插芯 | COUPLING INSERT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0076745 | 垫片组 | SHIM SET | 1 |
| - | 8M0050423 | 垫片 .020 | WASHER .020 | 1 |
| - | 8M0050424 | 垫片 .022 | WASHER .022 | 1 |
| - | 8M0050425 | 垫片 .024 | WASHER .024 | 1 |
| - | 8M0050427 | 垫片 .026 | WASHER .026 | 1 |
| - | 8M0050428 | 垫片 .028 | WASHER .028 | 1 |
| - | 8M0050429 | 垫片 .030 | WASHER .030 | 1 |
| - | 8M0050430 | 垫片 .032 | WASHER .032 | 1 |
| - | 8M0050431 | 垫片 .034 | WASHER .034 | 1 |
| - | 8M0050432 | 垫片 .036 | WASHER .036 | 1 |
| - | 8M0050433 | 垫片 0.038 | WASHER .038 | 1 |
| - | 8M0050434 | 垫片 0.040 | WASHER .040 | 1 |
| - | 8M0050435 | 垫片 0.042 | WASHER .042 | 1 |
| - | 8M0050436 | 垫片 0.044 | WASHER .044 | 1 |
| - | 8M0050437 | 垫片 0.046 | WASHER .046 | 1 |
| - | 8M0050438 | 垫片 0.048 | WASHER .048 | 1 |
| - | 8M0050439 | 垫片 0.050 | WASHER .050 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 887767K03 | 启停开关套件 - 三路 | SWITCH KIT Start/Stop - Triple | 1 |
| - | 8M0117133 | 仪表板安装启停开关面板-三引擎 | START/STOP SWITCH PAD Dash Mount - Triple | 1 |
| - | 852400 | 冲洗接头 | FLUSH COUPLING | 1 |
| - | 44357Q2 | 冲洗附件 | FLUSHING ATTACHMENT | 1 |
| - | 881150Q1 | 双进水口冲洗套件 | FLUSH KIT Dual Water Pick Up | 1 |
| - | 825191A03 | 索具软管套件 | HOSE KIT Rigging | 1 |
| - | 889223K34 | 转速表/速度表套件 | TACHOMETER / SPEEDOMETER KIT | 1 |
| - | 8M0063203 | KT-TACH/SPD 80GRY | KT-TACH/SPD 80GRY | 1 |
| - | 889223K32 | 转速表/速度表套件 | TACHOMETER / SPEEDOMETER KIT | 1 |
| - | 889222K23 | 转速表套件 0-7000转 灰色表盘 | TACHOMETER KIT 0-7000 RPM Gray Face | 1 |
| - | 8M6001270 | 转速表套件-7K灰色 | TACH KIT-7K GRAY | 1 |
| - | 889222K22 | 转速表套件0-7000转-白色表盘 | TACHOMETER KIT 0-7000 RPM White Face | 1 |
| - | 41729A3 | 软管延长套件 | HOSE EXTENSION KIT | 1 |
| - | 877561A2 | 适配器线束总成 | HARNESS ASSEMBLY Adapter | 1 |
| - | 821180A6 | 调整传感器总成 | SENDER ASSEMBLY Trim | 1 |
| - | 8M0074846 | ORDER 8M0098273 | ORDER 8M0098273 | 1 |
| - | 887979A2 | 倾斜限位开关套件 | SWITCH KIT Tilt Limit | 1 |
| 1 | 8742A22 | 遥控机油箱总成 | TANK ASSEMBLY Remote Oil | 1 |
| 1 | 8742A21 | 遥控机油箱总成 | TANK ASSEMBLY Remote Oil | 1 |
| 2 | 12335A1 | 支架套件 | BRACKET KIT | 1 |
| 3 | 12323A1 | 绳索/挂钩套件 | CORD/HOOK KIT | 1 |
| 4 | 12320 | 支架 | BRACKET | 2 |
| 5 | 79968 | 螺丝(#12-11 x .750) | SCREW (#12-11 x .750) | 4 |
| 6 | 43298A2 | 盖总成 | CAP ASSEMBLY | 1 |
| 7 | 11332 | O型圈(2.225 x .210) | O-RING (2.225 x .210) | 1 |
| 8 | 816190A4 | 机油收集器总成(无传感器) | OIL PICK UP ASSEMBLY Without Sender | 1 |
| 8 | 816190A5 | 带传感器的吸油总成 | OIL PICK UP ASSEMBLY With Sender | 1 |
| 9 | 43298A2 | 盖总成 | CAP ASSEMBLY | 1 |
| 10 | 11332 | O型圈(2.225 x .210) | O-RING (2.225 x .210) | 1 |
| 11 | 99802 | 管 | TUBE | 12 |
| 12 | 99439 | 软管(114.00英寸) | HOSE (114.00 Inches) | 1 |
| 13 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 5 |
| 14 | 17334A2 | 视觉警告系统 | VISUAL WARNING SYSTEM | 1 |
| 15 | 17429 | 灯 | LAMP | 1 |
| 16 | 76424 | 支架 | BRACKET | 1 |
| 17 | 55422 | 双头螺柱 (#10-32 x 2.00) | STUD (#10-32 x 2.00) | 2 |
| 18 | 24676 | 垫圈 (.200 x .440 x .032) | WASHER (.200 x .440 x .032) | 2 |
| 19 | 68219 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 2 |
| 20 | 15969A09 | 甲板加油套件 | DECK FILL KIT Oil | 1 |
| 21 | 15969A13 | 甲板加油套件 | DECK FILL KIT Oil | 1 |
| 22 | 15966 | 安装板 | PLATE | 1 |
| 23 | 815504228 | 蜗杆卡箍 | CLAMP Worm Gear | 2 |
| 23 | 8M0232395 | 软管卡箍 | CLAMP HOSE | 2 |
| 24 | 15967 | 加油口适配器 | ADAPTER Oil Filler | 1 |
| 25 | 11332 | O型圈(2.225 x .210) | O-RING (2.225 x .210) | 1 |
| 26 | 850719 | 软管(100.00英尺整卷) | HOSE (100.00 Feet Bulk) | AR |
| 27 | 812497A2 | 二极管总成 | DIODE ASSEMBLY | 1 |
| 27 | 898289A72 | 双拉绳二极管套件 | DIODE KIT-LANYARD Dual | 1 |
| 28 | 19674Q2 | 开关/拉绳套件 | SWITCH/LANYARD KIT | 1 |
| 29 | NSS | 不单独销售 | NOT SOLD SEPARATE | 1 |
| 30 | 18303 | 螺钉 (.190-16 x 1.750) 不锈钢 | SCREW (.190-16 x 1.750) Stainless Steel | 2 |
| 31 | 813679 | 适配器 | ADAPTER | 1 |
| 32 | 15920Q54 | 拉绳总成 | LANYARD ASSEMBLY | 1 |
| 33 | 32866 | 螺钉 (#10-32 x 2.00) 不锈钢 | SCREW (#10-32 x 2.00) Stainless Steel | 2 |
| 34 | 18321 | 安装夹 | CLAMP Mounting | 1 |
| 35 | 24676 | 垫圈 (.200 x .440 x .032) | WASHER (.200 x .440 x .032) | 2 |
| 36 | 68219 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 4 |
| 37 | 79146 | 固定座 | RETAINER | 1 |
| 38 | 11149A2 | 线缆总成 (6.00英寸) | CABLE ASSEMBLY (6.00 Inches) | 1 |
| 39 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 40 | 8M0032846 | 黄铜开关固定座 | RETAINER Brass Switch | 1 |
| 41 | 88334A2 | 防腐电极套件 | MERCATHODE KIT | 1 |
| 41 | 8M0180081 | 防腐电极套件 | MERCATHODE KIT | 1 |
| 42 | 22793 | 螺丝(#9-14x0.875) | SCREW (#9-14 x .875) | 2 |
| 43 | 30164 | 垫圈(0.192x0.375x0.0312)不锈钢 | WASHER (.192 x .375 x .0312) Stainless Steel | 2 |
| 44 | 72958A5 | 电极总成 | ELECTRODE ASSEMBLY | 1 |
| 45 | 72957A5 | 阳极总成 | ANODE ASSEMBLY | 1 |
| 45 | 8M0181304 | 阳极总成 | ANODE ASSY | 1 |
| 46 | 21836 | O型圈(.796 x .139) | O-RING (.796 x .139) | 2 |
| 46 | 8M0204645 | O型圈(.796 x .139) | O-RING (.796 x .139) | 2 |
| 47 | 87698 | 螺丝(#10-16 x 1.250)不锈钢 | SCREW (#10-16 x 1.250) Stainless Steel | 4 |
| 48 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 48 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 49 | 95084A10 | 电缆总成(5.00英寸)红色 | CABLE ASSEMBLY (5.00 Inches) Red | 1 |
| 49 | 8M0207788 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 50 | 95084A13 | 电缆总成(64.00英寸) | CABLE ASSEMBLY (64.00 Inches) | 1 |
| 51 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 4 |
| 52 | 79138A8 | 电缆总成(72.00英寸)黑色 | CABLE ASSEMBLY (72.00 Inches) Black | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 897954A03 | 气缸盖总成 | CYLINDER HEAD ASSEMBLY | 1 |
| 1 | 8M0110154 | 气缸盖总成 | CYLINDER HEAD ASY | 1 |
| 2 | 889767 | 堵头（12毫米） | PLUG (12 mm) | 8 |
| 3 | 891953 | 堵头（18毫米） | PLUG (18 mm) | 1 |
| 4 | 896951 | 堵头（24毫米） | PLUG (24 mm) | 1 |
| 5 | 896576 | 堵头（10毫米） | PLUG (10 mm) | 1 |
| 5 | 8M0087446 | 堵头（10毫米） | PLUG (10 mm) | 1 |
| 6 | 892454035 | 螺栓（M6×36） | BOLT (M6 x 36) | 20 |
| 6 | 8M0163131 | M6螺钉 | SCREW M6 | 20 |
| 7 | 880533 | 进气门座 | SEAT Intake Valve | 8 |
| 8 | 880535 | 排气门座 | SEAT Exhaust Valve | 8 |
| 8 | 8M0089477 | 排气门座 | SEAT Exhaust Seat | 8 |
| 9 | 880537 | 进排气门导管 | GUIDE Intake Exhaust Valve Intake and Exhaust Valves | 16 |
| 10 | NSS | NOT SOLD SEPARATE CAP | 10 | |
| 11 | 880524 | 定位销（14毫米） | PIN Dowel (14 MM) | 2 |
| 12 | 897630 | 排气阀 | VALVE Exhaust | 8 |
| 12 | 898908 | 排气阀 | VALVE Exhaust | 8 |
| 12 | 898908 | 排气阀 | VALVE Exhaust | 8 |
| 13 | 896880 | 气门油封 | SEAL Valve | 16 |
| 13 | 8M0214986 | 密封件 | SEAL | 16 |
| 14 | 895815 | 进排气门弹簧 | SPRING Intake and Exhaust Valve | 16 |
| 14 | 8M0011503 | 弹簧 | SPRING | 16 |
| 15 | 880542A1 | 气门锁夹总成 | RETAINER ASSEMBLY Valves | 16 |
| 15 | 8M0908500 | 气门锁夹总成 | RETAINER ASSEMBLY Valves | 16 |
| 16 | 880543 | 键 | KEY | 32 |
| 17 | 897629 | 进气阀 | VALVE Intake | 8 |
| 17 | 898907 | 进气阀 | VALVE Intake | 8 |
| 17 | 898907 | 进气阀 | VALVE Intake | 8 |
| 18 | 898397A03 | 进气凸轮轴总成 | CAMSHAFT ASSEMBLY Intake | 1 |
| 18 | 898397A04 | 进气凸轮轴总成 | CAMSHAFT INTK ASY | 1 |
| 18 | 898397A02 | 进气凸轮轴总成 | CAMSHAFT ASSEMBLY Intake | 1 |
| 19 | 898077A02 | 排气凸轮轴总成 | CAMSHAFT ASSEMBLY Exhaust | 1 |
| 20 | 8805481 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912001 | 挺柱（2.996） | TAPPET (2.996) | 16/AR |
| 20 | 8805482 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912002 | 挺柱（3.021） | TAPPET (3.021) | 16/AR |
| 20 | 8805483 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912003 | 挺柱（3.046） | TAPPET (3.046) | 16/AR |
| 20 | 8805484 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912004 | 挺柱（3.071） | TAPPET (3.071) | 16/AR |
| 20 | 8805485 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912005 | 挺柱（3.096） | TAPPET (3.096) | 16/AR |
| 20 | 8805486 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912006 | 挺柱（3.118） | TAPPET (3.118) | 16/AR |
| 20 | 8805487 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912007 | 挺柱（3.138） | TAPPET (3.138) | 16/AR |
| 20 | 8805488 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912008 | 挺柱（3.158） | TAPPET (3.158) | 16/AR |
| 20 | 8805489 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912009 | 挺柱（3.178） | TAPPET (3.178) | 16/AR |
| 20 | 88054810 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912010 | 挺柱（3.198） | TAPPET (3.198) | 16/AR |
| 20 | 88054811 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912011 | 挺柱（3.218） | TAPPET (3.218) | 16/AR |
| 20 | 88054812 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912012 | 挺柱（3.238） | TAPPET (3.238) | 16/AR |
| 20 | 88054813 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912013 | 挺柱（3.258） | TAPPET (3.258) | 16/AR |
| 20 | 88054814 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912014 | 挺柱（3.278） | TAPPET (3.278) | 16/AR |
| 20 | 88054815 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912015 | 挺柱（3.298） | TAPPET (3.298) | 16/AR |
| 20 | 88054816 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912016 | 挺柱（3.318） | TAPPET (3.318) | 16/AR |
| 20 | 88054817 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912017 | 挺柱（3.338） | TAPPET (3.338) | 16/AR |
| 20 | 88054818 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912018 | 挺柱（3.358） | TAPPET (3.358) | 16/AR |
| 20 | 88054819 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912019 | 挺柱（3.378） | TAPPET (3.378) | 16/AR |
| 20 | 88054820 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912020 | 挺柱（3.398） | TAPPET (3.398) | 16/AR |
| 20 | 88054821 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912021 | 挺柱（3.418） | TAPPET (3.418) | 16/AR |
| 20 | 88054822 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912022 | 挺柱（3.438） | TAPPET (3.438) | 16/AR |
| 20 | 88054823 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912023 | 挺柱（3.458） | TAPPET (3.458) | 16/AR |
| 20 | 88054824 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912024 | 挺柱（3.478） | TAPPET (3.478) | 16/AR |
| 20 | 88054825 | 挺柱 | TAPPET | 16/AR |
| 20 | 88054826 | 挺柱 | TAPPET | 16/AR |
| 20 | 88054827 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912027 | 挺柱（3.538） | TAPPET (3.538) | 16/AR |
| 20 | 88054828 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912028 | 挺柱（3.558） | TAPPET (3.558) | 16/AR |
| 20 | 88054829 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912029 | 挺柱（3.578） | TAPPET (3.578) | 16/AR |
| 20 | 88054830 | 挺柱 | TAPPET | 16/AR |
| 20 | 88054831 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912031 | 挺杆 (3.621) | TAPPET (3.621) | 16/AR |
| 20 | 88054832 | 挺柱 | TAPPET | 16/AR |
| 20 | 88054833 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912033 | 挺杆 (3.671) | TAPPET (3.671) | 16/AR |
| 20 | 88054834 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912034 | 挺杆 (3.696) | TAPPET (3.696) | 16/AR |
| 20 | 88054835 | 挺柱 | TAPPET | 16/AR |
| 21 | 892454030 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 2 |
| 22 | 880553T02 | 凸轮盖总成 | COVER ASSEMBLY Cam | 1 |
| 22 | 880553A07 | 凸轮盖总成 | COVER ASSEMBLY Cam | 1 |
| 22 | 880553T02 | 凸轮盖总成 | COVER ASSEMBLY Cam | 1 |
| 22 | 880553A07 | 凸轮盖总成 | COVER ASSEMBLY Cam | 1 |
| 22 | 880553T05 | 凸轮盖总成 | COVER ASSEMBLY Cam | 1 |
| 22 | 880553T06 | 凸轮盖 | COVER Cam | 1 |
| 22 | 880553T05 | 凸轮盖总成 | COVER ASSEMBLY Cam | 1 |
| 22 | 880553T06 | 凸轮盖 | COVER Cam | 1 |
| 22 | 880553A07 | 凸轮盖总成 | COVER ASSEMBLY Cam | 1 |
| - | 880553T06 | 凸轮盖 | COVER Cam | 1 |
| 23 | 892893 | 密封件 | SEAL | 1 |
| 24 | 892584 | 密封件 | SEAL | 2 |
| 25 | 8M0008370 | 线圈板总成 | PLATE ASSEMBLY Coil | 1 |
| 25 | 8M0008370 | 线圈板总成 | PLATE ASSEMBLY Coil | 1 |
| 25 | 8M0010552 | 线圈板总成 | PLATE ASSEMBLY Coil | 1 |
| 25 | 8M0010552 | 线圈板总成 | PLATE ASSEMBLY Coil | 1 |
| 26 | 859578A1 | 油塞总成 | PLUG ASSEMBLY Oil | 1 |
| 26 | 8M0240831 | 油塞 | OIL PLUG | 1 |
| 27 | 90196 | O型圈 (.921 x .139) | O-RING (.921 x .139) | 1 |
| 27 | 8M0204673 | O型圈 .921 x .139 | O-Ring .921 x .139 | 1 |
| 28 | 880558 | 短导杆 | GUIDE Short | 1 |
| 29 | 88552660 | 螺钉 (M8 x 60) | SCREW (M8 x 60) | 4 |
| 29 | 8M0103817 | 螺钉 (M8 x 60) | SCREW (M8 x 60) | 4 |
| 30 | 880550 | 凸轮驱动链轮 | SPROCKET Cam Drive | 2 |
| 30 | 8M0241408 | 凸轮链轮 | SPROCKET CAM | 2 |
| 31 | 884403 | 螺钉 (M12 x 40) | SCREW (M12 x 40) | 2 |
| 31 | 8M0237436 | 螺钉 | SCREW | 2 |
| 32 | 897797A01 | 张紧器总成 | TENSIONER ASSEMBLY | 1 |
| 32 | 898463A01 | 张紧器总成 | TENSIONER ASSEMBLY | 1 |
| 33 | 880631001 | O型圈 橙色 | O-RING Orange | 1 |
| 33 | 8M0237361 | O型圈 | O-RING | 1 |
| 34 | 893338 | 张紧器端盖 | END CAP Tensioner | 1 |
| 34 | 8M0064752 | 凸轮张紧器端盖 | END CAP Cam Tensioner | 1 |
| 35 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| 35 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| 36 | 88552540 | 螺钉(M6x40毫米)不锈钢 | SCREW (M6 x 40 mm) Stainless Steel | 3 |
| 36 | 8M0103809 | 螺钉(M6x40毫米)不锈钢 | SCREW (M6 x 40 mm) Stainless Steel | 3 |
| 37 | 888988019 | 卡箍 (22.6 mm) | CLAMP (22.6 mm) | 1 |
| 38 | 897673A01 | 通气软管总成 | HOSE ASSEMBLY Breather | 1 |
| 39 | 880615T01 | 线圈总成 | COIL ASSEMBLY | 4 |
| 40 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 4 |
| 40 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 4 |
| 41 | 898829001 | 火花塞 (NGK# LFR4A-E) | SPARK PLUG (NGK# LFR4A-E) | 4 |
| 41 | 8M0157328 | 火花塞 (NGK# LFR4A-E) | SPARK PLUG (NGK# LFR4A-E) | 4 |
| 42 | 899145 | 绑带夹 | CLIP Tie Strap | 2 |
| 43 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 11 or 13 |
| 43 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 11 or 13 |
| 44 | 88552512 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 mm) Stainless Steel | 3 |
| 44 | 8M0103804 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 MM) Stainless Steel | 3 |
| 45 | 55098 | J型卡扣 | J CLIP | 1 |
| 45 | 8M0024808 | J型夹 | J-CLIP | 1 |
| 46 | 93702 | 垫圈(.250外齿星形) | WASHER (.250 External Star) | 1 |
| 47 | 8M0008232 | 垫圈 | WASHER | 2 |
| 48 | 8M0008535 | 螺丝(M6 x 90) | SCREW (M6 x 90) | 2 |
| 48 | 8M0008535 | 螺丝(M6 x 90) | SCREW (M6 x 90) | 2 |
| 48 | 88552585 | 不锈钢螺钉 (M6 x 85 mm) | SCREW (M6 x 85 mm) Stainless Steel | 2 |
| 48 | 88552585 | 不锈钢螺钉 (M6 x 85 mm) | SCREW (M6 x 85 mm) Stainless Steel | 2 |
| 49 | 8M0008642 | 防转橡胶环 | RING Rubber Anti-Rotation | 4 |
| 49 | 8M0119617 | 环形衬套@4 | RING-GROMMET@4 | 4 |
| 50 | 8M0008936 | 线圈螺钉扭矩标贴 | DECAL Coil Screw Torque | 1 |
| 51 | 880609 | 传感器总成 | SENSOR ASSEMBLY | 1 |
| 52 | 88552516 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 1 |
| - | 897534A07 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 897148A09 | 长缸体总成 75/80/90/100 | LONG BLOCK ASSEMBLY 75/80/90/100 | 1 |
| - | 897148A08 | 长缸体总成 115 | LONG BLOCK ASSEMBLY 115 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 899341T01 | 顶罩总成(水星款) | TOP COWL ASSEMBLY Mercury | 1 |
| 1 | 8M0050004 | ORD 100-8M0075360 | ORD 100-8M0075360 | 1 |
| 1 | 899341T02 | 顶罩总成（水星款） | TOP COWL ASSEMBLY Mariner | 1 |
| 1 | 8M0075361 | 顶盖总成 Mariner 无贴花 | TOP COWL ASSEMBLY Mariner, Without decals | 1 |
| 1 | 8M0075360 | 顶盖总成 Mercury 无贴花 | TOP COWL ASSEMBLY Mercury, Without decals | 1 |
| 1 | 8M0075361 | 顶盖总成 Mariner 无贴花 | TOP COWL ASSEMBLY Mariner, Without decals | 1 |
| 2 | 897529T | 空气挡板盖(水星) | CAP Air Dam - Mercury | 1 |
| 2 | 897529T01 | 空气导流帽-水星型 | CAP Air Dam - Mariner | 1 |
| 3 | 888950020 | 螺丝(M4×20毫米) | SCREW (M4 x 20 mm) | 4 |
| 4 | 8M0000346 | 隔音罩总成 | SOUND BLANKET ASSEMBLY | 1 |
| 5 | 831207T10 | 手柄 | HANDLE | 1 |
| 5 | 831207A16 | 罩盖锁手柄套件 | HANDLE KIT Cowl Latch | 1 |
| 5 | 831207A16 | 罩盖锁手柄套件 | HANDLE KIT Cowl Latch | 1 |
| 6 | 812707 | 衬套 | BUSHING | 2 |
| 7 | 12134 | 波形垫圈 | WASHER Wave | 1 |
| 8 | 8M0001081 | 凸轮 | CAM | 1 |
| 9 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 1 |
| 9 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 1 |
| 10 | 19605 | 垫圈(.520 x .850 x .060) 尼龙-黑色 | WASHER (.520 x .850 x .060) Nylon - Black | 3 |
| 10 | 8M0042643 | 垫圈(.520 x .850 x .060) 尼龙 黑色 | WASHER (.520 x .850 x .060) Nylon, Black | 3 |
| 11 | 815477 | 缓冲器锁扣 | BUMPER Latch | 2 |
| 12 | 897975 | 背板 | PLATE Backing | 1 |
| 13 | 821249M2 | 前支架 | BRACKET Front | 1 |
| 13 | 8M0036792 | 支架 | BRACKET | 1 |
| 14 | 815477 | 缓冲器锁扣 | BUMPER Latch | 1 |
| 15 | 8155381 | 滚动销 | PIN Roll | 1 |
| 16 | 815263 | 滚轮 | ROLLER | 1 |
| 16 | 8M0207770 | 滚轮@3 | ROLLER @3 | 1 |
| 17 | 8237951 | 挡圈 | RING Retaining | 1 |
| 18 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 18 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 19 | 401366 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 20 | 88552512 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 mm) Stainless Steel | 3 |
| 20 | 8M0103804 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 MM) Stainless Steel | 3 |
| 21 | 897924A01 | 后透镜及图案贴花总成 | DECAL Back Lenz and Graphic Assembly | 1 |
| 21 | 8M0022127 | ORD 8M0114993 | ORD 8M0114993 | 1 |
| - | 889246A01 | 水星75贴花套件 | DECAL SET Mercury 75 | 1 |
| - | 8M0063408 | ORD 37-8M0114993 | ORD 37-8M0114993 | 1 |
| - | 8M0061175 | 马力贴花(75) | DECAL Horsepower (75) | 1 |
| - | 8M0115000 | 服务套件贴纸 | DECAL-SERVICE KIT | 1 |
| - | 889246A02 | 水星80贴花套件 | DECAL SET Mercury 80 | 1 |
| - | 8M0114993 | 服务套件贴纸 | DECAL-SERVICE KIT | 1 |
| - | 8M0061176 | 马力贴花(80) | DECAL Horsepower (80) | 1 |
| - | 889246A03 | 水星90贴花套件 | DECAL SET Mercury 90 | 1 |
| - | 8M0063408 | ORD 37-8M0114993 | ORD 37-8M0114993 | 1 |
| - | 8M0061177 | 马力贴花(90) | DECAL Horsepower (90) | 1 |
| - | 8M0115000 | 服务套件贴纸 | DECAL-SERVICE KIT | 1 |
| - | 8M0114993 | 服务套件贴纸 | DECAL-SERVICE KIT | 1 |
| - | 889246A04 | 水星100贴花套件 | DECAL SET Mercury 100 | 1 |
| - | 8M0063419 | ORD 37-8M0114993 | ORD 37-8M0114993 | 1 |
| - | 8M0061178 | 马力贴花(100) | DECAL Horsepower (100) | 1 |
| - | 889246A05 | 水星115贴花套件 | DECAL SET Mercury 115 | 1 |
| - | 8M0063408 | ORD 37-8M0114993 | ORD 37-8M0114993 | 1 |
| - | 8M0061180 | 马力贴花115 | DECAL Horsepower 115 | 1 |
| - | 8M0115000 | 服务套件贴纸 | DECAL-SERVICE KIT | 1 |
| - | 898822001 | 水手75全包围贴花 | DECAL Wrap Mariner 75 | 1 |
| - | 898822002 | 水手80全包围贴花 | DECAL Wrap Mariner 80 | 1 |
| - | 898822003 | 水手90全包围贴花 | DECAL Wrap Mariner 90 | 1 |
| - | 898822004 | 水手100全包围贴花 | DECAL Wrap Mariner 100 | 1 |
| - | 898822005 | 水手115全包围贴花 | DECAL Wrap Mariner 115 | 1 |
| - | 8592712 | M图标贴花 | DECAL M Icon | 1 |
| - | 8M0133054 | 贴花 | DECAL | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 880894T | 曲轴 | CRANKSHAFT | 1 |
| 2 | 8040992 | 油封 | SEAL Oil | 1 |
| 3 | 8041002 | 油封 | SEAL Oil | 1 |
| 4 | 804101T | 轴承 | BEARING | 4 |
| 4 | 804101T10 | 轴承 | BEARING | 4 |
| 4 | 804101T20 | 轴承 | BEARING | 4 |
| 5 | 804102T | 轴承 | BEARING | 5 |
| 5 | 804102T10 | 轴承 | BEARING | 5 |
| 5 | 804102T20 | 轴承 | BEARING | 5 |
| 5 | 804102T30 | 轴承 | BEARING | 5 |
| 6 | 804103T | 轴承 | BEARING | 1 |
| 6 | 804103T10 | 轴承 | BEARING | 1 |
| 6 | 804103T20 | 轴承 | BEARING | 1 |
| 7 | 880895T1 | 活塞总成 | PISTON ASSEMBLY | 4 |
| 7 | 880895A14 | 活塞/连杆总成 | PISTON/CONN ROD | 4 |
| 7 | 880895T10 | 活塞总成 | PISTON ASSEMBLY | AR |
| 7 | 880895A16 | 活塞/连杆总成 | PISTON/CONN ROD | AR |
| 8 | 880896 | 螺栓(M8 x 38) | BOLT (M8 x 38) | 8 |
| 9 | 880897T1 | 活塞环组 | RING SET Piston | 4 |
| 9 | 880897T02 | 活塞环组 | RING SET Piston | 4 |
| 9 | 880898T1 | 活塞环组 | RING SET Piston | AR |
| 9 | 880898T02 | 活塞环组 | RING SET Piston | AR |
| 10 | 880899T | 轴承 | BEARING | 8 |
| 10 | 880899T10 | 轴承 | BEARING | 8 |
| 10 | 880899T20 | 轴承 | BEARING | 8 |
| 10 | 880899T30 | 轴承 | BEARING | 8 |
| - | 881421T01 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0090823 | 排气歧管总成 | EXHAUST MANIFOLD ASSEMBLY | 1 |
| 1 | 8M0164310 | 排气歧管 | MANIFOLD EXHAUST | 1 |
| 2 | 8M0047995 | 塞子 (18毫米) | PLUG (18 MM) | 3 |
| 2 | 8M0087451 | 堵头（18毫米） | PLUG (18 mm) | 3 |
| 3 | NSS | NOT SOLD SEPARATE O-RING | 3 | |
| 4 | 8M0090822 | 衬垫 | GASKET | 1 |
| 5 | 88552635 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 6 |
| 5 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 6 |
| 6 | 8M0062044 | 销 安装 | PIN Mounting | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 821327 | 定位销 | PIN Dowel | 2 |
| 2 | 8M0078540 | 衬垫 | GASKET | 1 |
| 3 | 8M0091528 | 油底壳 | OIL SUMP | 1 |
| 4 | 88552540 | 螺钉(M6x40毫米)不锈钢 | SCREW (M6 x 40 mm) Stainless Steel | 10 |
| 4 | 8M0103809 | 螺钉(M6x40毫米)不锈钢 | SCREW (M6 x 40 mm) Stainless Steel | 10 |
| 5 | 8M0064964 | 油塞总成 | OIL PLUG ASSEMBLY | 1 |
| 5 | 8M0112869 | 油塞总成 | OIL PLUG ASSEMBLY | 1 |
| 6 | 85045 | O型圈(.551 x .070) | O-RING (.551 x .070) | 1 |
| 7 | 62706 | O型圈(0.426×0.070) | O-RING (.426 x .070) | 1 |
| 8 | 8M0036228 | O型圈(8.1x1.6) | O-RING (8.1 X 1.6) | 1 |
| 9 | 8M0068703 | 护孔环 | GROMMET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 887767K03 | 启停开关套件 - 三路 | SWITCH KIT Start/Stop - Triple | 1 |
| - | 8M0117133 | 仪表板安装启停开关面板-三引擎 | START/STOP SWITCH PAD Dash Mount - Triple | 1 |
| - | 852400 | 冲洗接头 | FLUSH COUPLING | 1 |
| - | 44357Q2 | 冲洗附件 | FLUSHING ATTACHMENT | 1 |
| - | 881150Q1 | 双进水口冲洗套件 | FLUSH KIT Dual Water Pick Up | 1 |
| - | 825191A03 | 索具软管套件 | HOSE KIT Rigging | 1 |
| - | 889223K34 | 转速表/速度表套件 | TACHOMETER / SPEEDOMETER KIT | 1 |
| - | 8M0063203 | KT-TACH/SPD 80GRY | KT-TACH/SPD 80GRY | 1 |
| - | 889223K32 | 转速表/速度表套件 | TACHOMETER / SPEEDOMETER KIT | 1 |
| - | 889222K23 | 转速表套件 0-7000转 灰色表盘 | TACHOMETER KIT 0-7000 RPM Gray Face | 1 |
| - | 8M6001270 | 转速表套件-7K灰色 | TACH KIT-7K GRAY | 1 |
| - | 889222K22 | 转速表套件0-7000转-白色表盘 | TACHOMETER KIT 0-7000 RPM White Face | 1 |
| - | 41729A3 | 软管延长套件 | HOSE EXTENSION KIT | 1 |
| - | 877561A2 | 适配器线束总成 | HARNESS ASSEMBLY Adapter | 1 |
| - | 821180A6 | 调整传感器总成 | SENDER ASSEMBLY Trim | 1 |
| - | 8M0074846 | ORDER 8M0098273 | ORDER 8M0098273 | 1 |
| - | 887979A2 | 倾斜限位开关套件 | SWITCH KIT Tilt Limit | 1 |
| 1 | 8742A22 | 遥控机油箱总成 | TANK ASSEMBLY Remote Oil | 1 |
| 1 | 8742A21 | 遥控机油箱总成 | TANK ASSEMBLY Remote Oil | 1 |
| 2 | 12335A1 | 支架套件 | BRACKET KIT | 1 |
| 3 | 12323A1 | 绳索/挂钩套件 | CORD/HOOK KIT | 1 |
| 4 | 12320 | 支架 | BRACKET | 2 |
| 5 | 79968 | 螺丝(#12-11 x .750) | SCREW (#12-11 x .750) | 4 |
| 6 | 43298A2 | 盖总成 | CAP ASSEMBLY | 1 |
| 7 | 11332 | O型圈(2.225 x .210) | O-RING (2.225 x .210) | 1 |
| 8 | 816190A4 | 机油收集器总成(无传感器) | OIL PICK UP ASSEMBLY Without Sender | 1 |
| 8 | 816190A5 | 带传感器的吸油总成 | OIL PICK UP ASSEMBLY With Sender | 1 |
| 9 | 43298A2 | 盖总成 | CAP ASSEMBLY | 1 |
| 10 | 11332 | O型圈(2.225 x .210) | O-RING (2.225 x .210) | 1 |
| 11 | 99802 | 管 | TUBE | 12 |
| 12 | 99439 | 软管(114.00英寸) | HOSE (114.00 Inches) | 1 |
| 13 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 5 |
| 14 | 17334A2 | 视觉警告系统 | VISUAL WARNING SYSTEM | 1 |
| 15 | 17429 | 灯 | LAMP | 1 |
| 16 | 76424 | 支架 | BRACKET | 1 |
| 17 | 55422 | 双头螺柱 (#10-32 x 2.00) | STUD (#10-32 x 2.00) | 2 |
| 18 | 24676 | 垫圈 (.200 x .440 x .032) | WASHER (.200 x .440 x .032) | 2 |
| 19 | 68219 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 2 |
| 20 | 15969A09 | 甲板加油套件 | DECK FILL KIT Oil | 1 |
| 21 | 15969A13 | 甲板加油套件 | DECK FILL KIT Oil | 1 |
| 22 | 15966 | 安装板 | PLATE | 1 |
| 23 | 815504228 | 蜗杆卡箍 | CLAMP Worm Gear | 2 |
| 23 | 8M0232395 | 软管卡箍 | CLAMP HOSE | 2 |
| 24 | 15967 | 加油口适配器 | ADAPTER Oil Filler | 1 |
| 25 | 11332 | O型圈(2.225 x .210) | O-RING (2.225 x .210) | 1 |
| 26 | 850719 | 软管(100.00英尺整卷) | HOSE (100.00 Feet Bulk) | AR |
| 27 | 812497A2 | 二极管总成 | DIODE ASSEMBLY | 1 |
| 27 | 898289A72 | 双拉绳二极管套件 | DIODE KIT-LANYARD Dual | 1 |
| 28 | 19674Q2 | 开关/拉绳套件 | SWITCH/LANYARD KIT | 1 |
| 29 | NSS | 不单独销售 | NOT SOLD SEPARATE | 1 |
| 30 | 18303 | 螺钉 (.190-16 x 1.750) 不锈钢 | SCREW (.190-16 x 1.750) Stainless Steel | 2 |
| 31 | 813679 | 适配器 | ADAPTER | 1 |
| 32 | 15920Q54 | 拉绳总成 | LANYARD ASSEMBLY | 1 |
| 33 | 32866 | 螺钉 (#10-32 x 2.00) 不锈钢 | SCREW (#10-32 x 2.00) Stainless Steel | 2 |
| 34 | 18321 | 安装夹 | CLAMP Mounting | 1 |
| 35 | 24676 | 垫圈 (.200 x .440 x .032) | WASHER (.200 x .440 x .032) | 2 |
| 36 | 68219 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 4 |
| 37 | 79146 | 固定座 | RETAINER | 1 |
| 38 | 11149A2 | 线缆总成 (6.00英寸) | CABLE ASSEMBLY (6.00 Inches) | 1 |
| 39 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 40 | 8M0032846 | 黄铜开关固定座 | RETAINER Brass Switch | 1 |
| 41 | 88334A2 | 防腐电极套件 | MERCATHODE KIT | 1 |
| 41 | 8M0180081 | 防腐电极套件 | MERCATHODE KIT | 1 |
| 42 | 22793 | 螺丝(#9-14x0.875) | SCREW (#9-14 x .875) | 2 |
| 43 | 30164 | 垫圈(0.192x0.375x0.0312)不锈钢 | WASHER (.192 x .375 x .0312) Stainless Steel | 2 |
| 44 | 72958A5 | 电极总成 | ELECTRODE ASSEMBLY | 1 |
| 45 | 72957A5 | 阳极总成 | ANODE ASSEMBLY | 1 |
| 45 | 8M0181304 | 阳极总成 | ANODE ASSY | 1 |
| 46 | 21836 | O型圈(.796 x .139) | O-RING (.796 x .139) | 2 |
| 46 | 8M0204645 | O型圈(.796 x .139) | O-RING (.796 x .139) | 2 |
| 47 | 87698 | 螺丝(#10-16 x 1.250)不锈钢 | SCREW (#10-16 x 1.250) Stainless Steel | 4 |
| 48 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 48 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 49 | 95084A10 | 电缆总成(5.00英寸)红色 | CABLE ASSEMBLY (5.00 Inches) Red | 1 |
| 49 | 8M0207788 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 50 | 95084A13 | 电缆总成(64.00英寸) | CABLE ASSEMBLY (64.00 Inches) | 1 |
| 51 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 4 |
| 52 | 79138A8 | 电缆总成(72.00英寸)黑色 | CABLE ASSEMBLY (72.00 Inches) Black | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0058458 | 换挡连杆支架总成 | BRACKET ASSEMBLY Shift Link | 1 |
| 2 | 899044 | 闩锁 | LATCH | 1 |
| 3 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 3 |
| 3 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 3 |
| 4 | 8M0050560 | 垫圈 | WASHER | 1 |
| 5 | 8M0031453 | 滚轮 | ROLLER | 1 |
| 6 | 27290 | 挡圈 | RING Retaining | 1 |
| 7 | 8M0076452 | 固定座总成 | RETAINER ASSEMBLY | 1 |
| 7 | 8M0150203 | 固定座总成 | RETAINER ASSEMBLY | 1 |
| 8 | 8M0181784 | 换挡位置传感器 | SENSOR Shift Position | 1 |
| 9 | 4001186 | 六角垫圈头不锈钢螺钉(M4×13) | SCREW (M4 X 13) Hex Wash HD SS | 1 |
| 10 | 8M0075152 | 换挡连杆 | LINK Shift | 1 |
| 11 | 8M0058943 | 传感器摇臂 | LEVER Sensor | 1 |
| 12 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 13 | 35462 | 垫圈(.2656 x .625 x .0625)不锈钢 | WASHER (.2656 x .625 x .0625) Stainless Steel | 1 |
| 14 | 8M0035249 | 法兰衬套(内径6.452mm) | BUSHING (6.452 MM ID) Flanged | 1 |
| 14 | 8M0237472 | 衬套 | BUSHING | 1 |
| 15 | 8M0060213 | 换挡轴总成 | SHIFT SHAFT ASSEMBLY | 1 |
| 15 | 8M0199744 | 换挡轴总成 | SHIFT SHAFT ASSY | 1 |
| 16 | 8M0063632 | 法兰衬套 | BUSHING Flanged | 1 |
| 17 | 888823001 | 换挡定位装置总成 | SHIFT DETENT ASSEMBLY | 1 |
| 18 | 8M0104795 | 间隔垫片-换挡支架(仅限喷泵舷外机) | SPACER, SHIFT BRACKET Jet Outboards Only | 1 |
| 19 | 8M0071176 | 控制电缆锁扣 | LATCH Control Cable | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | NSS | 不单独销售-电气板总成(完整) | NOT SOLD SEPARATE Electrical Plate Assembly-Complete | 1 |
| 1 | 897619T01 | 电气板 | PLATE Electrical | 1 |
| 2 | 856954 | 衬套 | BUSHING | 2 |
| 3 | 834985 | 护孔环 | GROMMET | 2 |
| 3 | 8M0190980 | 护孔环 | GROMMET | 2 |
| 4 | 879962 | 卡扣 | CLIP | 4 |
| 5 | 817109A2 | 电磁阀总成(#10-32/.3125-18端子) | SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals) | 1 |
| 6 | 822179 | 护孔环 | GROMMET | 2 |
| 7 | 82129125 | 螺丝(M6 x 25毫米) | SCREW (M6 x 25 mm) | 4 |
| 8 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 9 | 813938 | 盖形螺母(#10-32) | CAP NUT (#10-32) | 2 |
| 10 | 859172 | 卡箍 | CLAMP | 1 |
| 11 | 892579T13 | 发动机线束总成 | HARNESS ASSEMBLY Engine | 1 |
| - | 83296915 | 迷你保险丝-蓝色-15安培 | FUSE Mini - Blue - 15 Ampere | 1 |
| - | 832969T15 | 迷你保险丝-蓝色-15安培 | FUSE Mini - Blue - 15 Ampere | 1 |
| - | 8329692 | 迷你保险丝-灰色-2安培 | FUSE Mini - Gray - 2 Ampere | 1 |
| - | 8M0207797 | 迷你保险丝-灰色-2安培 | FUSE Mini - Gray - 2 Ampere | 1 |
| - | 83296920 | 迷你保险丝-黄色-20安 | FUSE Mini - Yellow - 20 Ampere | 4 |
| - | 832969T20 | 迷你保险丝-黄色-20安 | FUSE Mini - Yellow - 20 Ampere | 4 |
| - | 8329695 | 迷你保险丝-棕色-5安培 | FUSE Mini - Tan - 5 Ampere | 1 |
| - | 832969T05 | 迷你保险丝-棕色-5安培 | FUSE Mini - Tan - 5 Ampere | 1 |
| - | 858754 | 保险丝盖 | COVER Fuse | 2 |
| 12 | 26993 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 12 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 13 | 68292 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 13 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 14 | 880787 | 黄色绝缘护套 | BOOT Insulator - Yellow | 1 |
| 15 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 15 | 69355 | 扎带(5.50英寸) | TIE STRAP (5.50 Inches) | AR |
| 15 | 8M0214940 | 扎带 | TIE STRAP | AR |
| 16 | 819514T24 | 升降线束总成 | HARNESS ASSEMBLY Trim | 1 |
| 17 | 93388T21 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 18 | 899145 | 绑带夹 | CLIP Tie Strap | 2 |
| 19 | 898454 | 卡扣 (19 mm) | CLIP (19 mm) | 1 |
| 20 | 882751 | 继电器 | RELAY | 3 |
| 20 | 8M0219830 | 继电器 | RELAY | 3 |
| 21 | 865205 | 卡扣 | CLIP | 3 |
| 22 | 875302A1 | 带电螺柱总成 | HOT STUD ASSEMBLY | 1 |
| 23 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 1 |
| 24 | 93388T20 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 25 | 878231T05 | 保险丝线束总成 | HARNESS ASSEMBLY Fuse | 1 |
| 26 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 1 |
| 27 | 88439A46 | 电缆总成 蓄电池-正极 | CABLE ASSEMBLY Battery - Positive | 1 |
| 28 | 85172 | 垫圈 | WASHER | 1 |
| 29 | NSS | 电池标签(不单独销售) | NOT SOLD SEPARATE Tag-Battery | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 879345T77 | 起动机总成(完整) | STARTER MOTOR ASSEMBLY Complete | 1 |
| 2 | 898890T01 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 3 | 400255 | 锁紧垫圈(M5) | LOCKWASHER (M5) | 1 |
| 4 | 400211 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 1 |
| 5 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 1 |
| 6 | 26993 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 1 |
| 6 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 1 |
| 7 | 93388A1 | 电缆总成(6.00英寸)黑色 | CABLE ASSEMBLY (6.00 Inches) Black | 1 |
| 7 | 93388A8 | 黑色电缆总成(12.5英寸) | CABLE ASSEMBLY (12.5 Inchs) Black | 1 |
| 8 | 400255 | 锁紧垫圈(M5) | LOCKWASHER (M5) | 1 |
| 9 | 69034 | 螺钉带锁紧垫圈(.312-18 x 1.00) | SCREW AND LOCKWASHER (.312-18 x 1.00) | 1 |
| 9 | 30225 | 螺钉带锁紧垫圈(.312-18 x 1.00) | SCREW WITH LOCKWASHER (.312-18 x 1.00) | 1 |
| 10 | 8M0047039 | 隔套 | SPACER | 4 |
| 11 | 8M0047038 | 支架 | MOUNT | 8 |
| 11 | 8M0073891 | 支架 | MOUNT | 8 |
| 12 | 88552645 | 螺钉（M8X45） | SCREW (M8X45) | 4 |
| 13 | 814634 | 卡箍 | CLAMP | 1 |
| 14 | 43430 | 垫圈 | WASHER | 4 |
| 15 | 8M0037204 | 尼龙压入螺钉 (.25-20 x .50) | SCREW Nylon, Push-In (.25-20 x .50) | 2 |
| 16 | 8M0040205 | 卡箍 | CLAMP | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 828334F1 | 艉板支架 | BRACKET Transom | 1 |
| 1 | 828334T02 | 艉板支架总成 - 右舷 | BRACKET ASSEMBLY Transom - Starboard | 1 |
| 2 | 828333A3 | 艉板支架总成 | BRACKET ASSEMBLY Transom | 1 |
| 2 | 828333T07 | 艉板支架总成-左舷 | BRACKET ASSEMBLY Transom - Port | 1 |
| 3 | 98727 | 润滑脂接头 | FITTING Grease | 1 |
| 3 | 8M0169588 | 润滑脂接头 | FITTING Grease | 1 |
| 4 | 99170A2 | 倾斜管套件 | TUBE KIT Tilt | 1 |
| 4 | 826125A1 | 倾斜管 | TILT TUBE | 1 |
| 4 | 826125A1 | 倾斜管 | TILT TUBE | 1 |
| 5 | 859133 | 螺母(1.00-14) | NUT (1.00-14) | 1 |
| 5 | 82671327 | 螺母(1.0-14) | NUT (1.0-14) | 1 |
| 5 | 826135 | 尼龙锁紧螺母(1.00-14) | NUT Lock (1.00-14) Nylon Insert | 1 |
| 6 | 45711 | O型圈 (.612 x .103) | O-RING (.612 x .103) | 1 |
| 7 | 88750 | 波浪垫圈 (1.62 x 1.05) | WASHER Wave (1.62 x 1.05) | 2 |
| 8 | 858869 | 螺母 (.875-14) | NUT (.875-14) | 1 |
| 8 | 826164 | 螺母 (.875-14) | NUT (.875-14) | 1 |
| 8 | 8M0231351 | 锁紧螺母 | NUT Lock | 1 |
| 9 | 677551 | 螺钉(.500-20×4.500) | SCREW (.500-20 x 4.500) | 4 |
| 9 | 8M0149747 | 螺钉 | SCREW | 4 |
| 10 | 54012 | 垫圈(0.530×0.870×0.105不锈钢) | WASHER (.530 x .870 x .105) Stainless Steel | 4 |
| 10 | 8M0204665 | 垫圈(0.530×0.880×0.104 630不锈钢) | WASHER (.530 x .880 x .104) 630 Stainless Steel | 4 |
| 11 | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 11 | 8M0204648 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 12 | 82671117 | 螺母(.500-20) | NUT (.500-20) | 4 |
| 13 | 830899 | 张力弹簧 | SPRING Tension | 1 |
| 14 | 821176T1 | 倾斜锁定杆总成 | LEVER ASSEMBLY Tilt Lock | 1 |
| 14 | 8M0109798 | 倾斜锁定杆总成 | LEVER ASSEMBLY Tilt Lock | 1 |
| 15 | 65830 | 尼龙衬套 | NYLINER | 2 |
| 16 | 830900 | 压缩弹簧 | SPRING Compression | 1 |
| 17 | 99633 | 旋钮 | KNOB | 1 |
| 18 | 99615 | 槽销 | PIN Groove | 1 |
| 19 | 99617 | 销 | PIN | 1 |
| 19 | 893709 | 销 | PIN | 1 |
| 20 | 818771T1 | 锚支架 | BRACKET Anchor | 1 |
| 20 | 8M0086406 | 锚支架 | BRACKET Anchor | 1 |
| 21 | 858771 | 螺钉 (M10 x 30) | SCREW (M10 x 30) | 6 |
| 22 | 4002319 | 垫圈 | WASHER | 6 |
| 23 | 40114 | 螺母(M10 x 1.5) | NUT (M10 x 1.5) | 1 |
| 24 | 818298Q1 | 阳极套件 | ANODE KIT | 1 |
| 25 | 4000330 | 螺钉(M6x25) | SCREW (M6 x 25) | 2 |
| 25 | 8M0204707 | 不锈钢六角大帽螺钉(M6x25) | SCREW M6 x 25 HX HD CAP SS | 2 |
| 26 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 26 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0055699 | 软管 | HOSE | 1 |
| 2 | 888988001 | 卡箍(36.1毫米) | CLAMP (36.1 mm) | AR |
| 2 | 8M0204719 | 卡箍 36.1毫米 | CLAMP 36.1 MM | AR |
| 3 | 8M0090819 | 节温器总成 | THERMOSTAT ASSEMBLY | 1 |
| 4 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 3 |
| 4 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 3 |
| 5 | 8M0061994 | 卡扣 | CLIP | 2 |
| 6 | 8M0055698 | 软管 | HOSE | 1 |
| 7 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 8 | 8M0055215 | 示流器 | TELLTALE | 1 |
| 9 | 38101 | O型圈 0.674×0.103 | O-RING (.674 x .103) | 1 |
| 10 | 8M0012661 | 螺丝 M6×14 六角法兰不锈钢 | SCREW M6 x 14 HEX FLG SS | 1 |
| 11 | 8M0057408 | 接头 | FITTING | 1 |
| 12 | 29845 | O型圈 0.924×0.103 | O-RING (.924 x .103) | 1 |
| 12 | 8M0204650 | O型圈 | O-RING | 1 |
| 13 | 88552512 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 mm) Stainless Steel | 1 |
| 13 | 8M0103804 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 MM) Stainless Steel | 1 |
| 14 | 8M0061328 | 卡扣式滤网 | STRAINER Snap Fit | 1 |
| 15 | 8M0050013 | 排气冷却接头 | FITTING Exhaust Cooling | 1 |
| 16 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 1 |
| 16 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 1 |
| 17 | 8M0045298 | 喷雾软管 | HOSE Sprayer | 1 |
| 18 | 8M0035700 | 冲洗系统软管总成 | HOSE ASSEMBLY FLUSH SYSTEM | 1 |
| 18 | 8M0102825 | 软管 | HOSE | 1 |
| 19 | 855697 | 卡箍 | CLAMP | AR |
| 19 | 8M0204696 | 卡箍 | CLAMP | AR |
| 20 | 888988022 | 卡箍 | CLAMP | AR |
| 21 | 8M0057620 | 冲洗软管 | HOSE Flush | 1 |
| 22 | 8M0057599 | 管材（内径8×外径14×840毫米） | TUBING (8 ID X 14 OD X 840 MM) | 1 |
| 23 | 8M0075779 | 接头 | FITTING | 1 |
| 24 | 8M0056685 | 软管 | HOSE | 1 |
| 25 | 8M0056483 | 软管 | HOSE | 1 |
| 26 | 899145 | 绑带夹 | CLIP Tie Strap | AR |
| 27 | 291112 | 接头 | FITTING | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 804145 | V型皮带 | V BELT | 1 |
| 2 | 804143 | 螺栓 M10×35 | BOLT (M10 x 35) | 2 |
| 2 | 804143001 | 螺栓 | BOLT | 2 |
| 3 | 804142T | 从动齿轮 | GEAR Driven | 2 |
| 4 | 804144 | 油封 | SEAL Oil | 2 |
| 4 | 804144001 | 油封 | SEAL-OIL | 2 |
| 5 | 804141 | 定位销 | PIN Dowel | 2 |
| 6 | 804140T | 凸轮轴 | CAMSHAFT | 1 |
| 6 | 8M0057172 | 凸轮轴 | CAMSHAFT | 1 |
| 7 | 804139T | 凸轮轴 | CAMSHAFT | 1 |
| 8 | 804128T | 进气阀 | VALVE Intake | 8 |
| 9 | 804129T | 排气阀 | VALVE Exhaust | 8 |
| 10 | 804130 | 阀座 | SEAT | 16 |
| 11 | 804136 | 密封件 | SEAL | 8 |
| 12 | 804137 | 密封件 | SEAL | 8 |
| 13 | 804131 | 气门弹簧 | SPRING Valve | 16 |
| 14 | 804132 | 固定座 | RETAINER | 16 |
| 15 | 804135 | 开口销阀 | COTTER VALVE | 32 |
| 16 | 804138T | 气门挺杆 | LIFTER Valve | 16 |
| 17 | 8046071 | 垫片 | SHIM | AR |
| 17 | 8046072 | 垫片 | SHIM | AR |
| 17 | 8046073 | 垫片 | SHIM | AR |
| 17 | 8046074 | 垫片 | SHIM | AR |
| 17 | 8046075 | 垫片 | SHIM | AR |
| 17 | 8046076 | 垫片 | SHIM | AR |
| 17 | 8046077 | 垫片 | SHIM | AR |
| 17 | 8046078 | 垫片 | SHIM | AR |
| 17 | 8046079 | 垫片 | SHIM | AR |
| 17 | 80460710 | 垫片 | SHIM | AR |
| 17 | 80460711 | 垫片 | SHIM | AR |
| 17 | 80460712 | 垫片 | SHIM | AR |
| 17 | 80460713 | 垫片 | SHIM | AR |
| 17 | 80460714 | 垫片 | SHIM | AR |
| 17 | 80460715 | 垫片 | SHIM | AR |
| 17 | 80460716 | 垫片 | SHIM | AR |
| 17 | 80460717 | 垫片 | SHIM | AR |
| 17 | 804608 | 垫片 | SHIM | AR |
| 17 | 80460810 | 垫片 | SHIM | AR |
| 17 | 80460820 | 垫片 | SHIM | AR |
| 17 | 80460830 | 垫片 | SHIM | AR |
| 17 | 80460840 | 调整垫 | PAD Adjusting | AR |
| 17 | 80460850 | 垫片 | SHIM | AR |
| 17 | 80460860 | 垫片 | SHIM | AR |
| 17 | 80460870 | 垫片 | SHIM | AR |
| 17 | 80460880 | 垫片 | SHIM | AR |
| 18 | 804149 | 阀板 | PLATE Valve | 1 |
| 19 | 804153 | 键 | KEY | 1 |
| 20 | 804146 | 张紧器 | TENSIONER | 1 |
| 21 | 804150 | 螺栓 M10×45 | BOLT (M10 x 45) | 1 |
| 22 | 804147 | 弹簧 | SPRING | 1 |
| 23 | 804148 | 软管 | HOSE | 1 |
| 24 | 804151T | 驱动齿轮 | GEAR Drive | 1 |
| 25 | 881314 | 螺母 M40 | NUT (M40) | 1 |
| 25 | 881314003 | 螺母 | NUT | 1 |
| - | 858732T01 | 衬垫套件 | GASKET SET | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 881310T1 | 气缸盖总成 | CYLINDER HEAD ASSEMBLY | 1 |
| - | 881310T09 | 气缸盖 | HEAD-CYLINDER | 1 |
| - | 881421T01 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 880888T | 燃油压力调节器 | REGULATOR Fuel Pressure | 1 |
| 1 | 880888T02 | 燃油压力调节器 | REGULATOR Fuel Pressure | 1 |
| 2 | 881524 | 螺钉（M6 x 12） | SCREW (M6 x 12) | 2 |
| 3 | 881525 | 锁紧垫圈 | LOCKWASHER | 2 |
| 4 | 881531 | 卡扣 | CLIP | 4 |
| 5 | 881528 | 软管 | HOSE | 1 |
| 6 | 881509 | 螺丝(M5 x 15) | SCREW (M5 x 15) | 2 |
| 7 | 881530 | 卡扣 | CLIP | 2 |
| 8 | 84088M | 螺丝 (M6 x 10) | SCREW (M6 x 10) | 4 |
| 9 | 827610 | 衬垫 | GASKET | 4 |
| 10 | 888260 | 轴环 | COLLAR | 3 |
| 11 | 881527T | 冷却器 | COOLER | 1 |
| 11 | 881527T01 | 冷却器 | COOLER | 1 |
| 12 | 881507 | 螺栓(M6x25) | BOLT (M6 x 25) | 2 |
| 13 | 881533 | 垫圈 | WASHER | 3 |
| 14 | 69355 | 扎带(5.50英寸) | TIE STRAP (5.50 Inches) | 2 |
| 14 | 8M0214940 | 扎带 | TIE STRAP | 2 |
| 15 | 881536 | 软管 | HOSE | 1 |
| 16 | 881529 | 软管 | HOSE | 1 |
| 17 | 879650 | 卡箍 | CLAMP | 1 |
| 17 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | 1 |
| 18 | 881518T | 输送管 | DELIVERY PIPE | 1 |
| 19 | 880887T1 | 喷油器 | INJECTOR | 4 |
| 20 | 885183A1 | O型圈套件 | O-RING KIT | 1 |
| 21 | 881520 | 盖帽 | CAP | 1 |
| 22 | 881534 | 螺栓(M6 x 10) | BOLT (M6 x 10) | 1 |
| 23 | 881532 | 螺栓(M8×45) | BOLT (M8 x 45) | 2 |
| 24 | 881508 | 垫圈 | WASHER | 2 |
| 25 | 881526 | 轴环 | COLLAR | 2 |
| 26 | 881521T | 管接头 | NIPPLE | 1 |
| 27 | 881522 | O型圈 | O-RING | 1 |
| - | 858732T01 | 衬垫套件 | GASKET SET | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 881440T1 | 进气总成 | INTAKE ASSEMBLY | 1 |
| - | 881440T04 | 进气总成 | INTAKE ASSEMBLY | 1 |
| - | 881440T2 | 进气总成 | INTAKE ASSEMBLY | 1 |
| - | 881440T04 | 进气总成 | INTAKE ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 888845T06 | 齿轮箱总成-长型-2.07:1 | GEAR HOUSING ASSEMBLY Complete - Long - 2.07:1 | 1 |
| - | 888845T07 | 齿轮箱总成-加长型-2.07:1 | GEAR HOUSING ASSEMBLY Complete - X-Long - 2.07:1 | 1 |
| - | 888845T08 | 齿轮箱总成-长型-2.33:1 | GEAR HOUSING ASSEMBLY Complete - Long - 2.33:1 | 1 |
| - | 888845T09 | 齿轮箱总成-加长型-2.33:1 | GEAR HOUSING ASSEMBLY Complete - X-Long - 2.33:1 | 1 |
| 1 | 888845T | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 2 | 8227731 | 螺纹嵌件 | INSERT Threaded | 2 |
| 3 | 888807 | 凸轮从动件总成 | FOLLOWER ASSEMBLY Cam | 1 |
| 4 | 19917 | 换档凸轮 | CAM Shift | 1 |
| 4 | 8M4504018 | 换档凸轮 | CAM SHIFT | 1 |
| 5 | 888806 | 离合器作动杆 | ROD Clutch Actuator | 1 |
| 6 | 78905 | 十字销 | PIN Cross | 1 |
| 6 | 8M0084243 | 十字销 | PIN Cross | 1 |
| 7 | 78906 | 弹簧定位销 | PIN Spring Locator | 1 |
| 7 | 8M0084245 | 弹簧定位销 | PIN Spring Locator | 1 |
| 8 | 79910 | 弹簧 | SPRING | 1 |
| 9 | 78910 | 垫圈 | WASHER | 1 |
| 10 | 44491A1 | 垫片组 | SHIM SET | 1 |
| 10 | 8M0063266 | 垫片组 | SHIM SET | 1 |
| 11 | 30894A1 | 圆锥轴承组 | BEARING SET Cup And Cone | 1 |
| 12 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 13 | 881260A3 | 前进齿轮-29齿 | GEAR Forward - 29 Teeth | 1 |
| 13 | 882813A3 | 前进齿轮与小齿轮套件(28齿) | GEAR KIT Forward And Pinion 28 Teeth | 1 |
| 14 | 30895T | 滚针轴承 | BEARING Needle | 1 |
| 15 | 856823 | 挡圈 | RING Retaining | 1 |
| 16 | 888805T | 离合器 | CLUTCH | 1 |
| 17 | 888804 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 17 | 8M0140444 | 螺旋桨轴 | SHAFT Propeller | 1 |
| 18 | 30893 | 弹簧 | SPRING | 1 |
| 19 | 889991T | 倒车齿轮(29齿) | GEAR Reverse (29 Teeth) | 1 |
| 19 | 889990T | 倒挡齿轮 | GEAR Reverse | 1 |
| 20 | 12596T2 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 20 | 8M0168901 | 轴承座总成 | CARRIER ASSY. | 1 |
| 21 | 97386 | O型圈 (3.609 x .139) | O-RING (3.609 x .139) | 1 |
| 21 | 8M0214974 | O型圈 | O RING | 1 |
| 22 | 30956T | 滚针轴承 | BEARING Needle | 1 |
| 23 | 70080 | 内部油封 | SEAL Oil Inner | 1 |
| 23 | 8M0205728 | 密封件 | SEAL | 1 |
| 24 | 70081 | 外油封 | SEAL Oil Outer | 1 |
| 24 | 8M0205729 | 密封件 | SEAL | 1 |
| 25 | 12578T | 滚柱轴承 | BEARING Roller | 1 |
| 26 | 12577 | 止推垫片 | THRUST WASHER | 1 |
| 27 | 12576 | 推力轴承 | BEARING Thrust | 1 |
| 28 | 429172 | 双头螺柱(M8×48) | STUD (M8 x 48) | 2 |
| 28 | 8M0034456 | 双头螺柱(M8×1.25×48) | STUD (M8 X 1.25 X 48) | 2 |
| 29 | 855941 | 垫圈(.323 x .590 x .112)不锈钢 | WASHER (.323 x .590 x .112) Stainless Steel | 2 |
| 30 | 401378 | 螺母 (M8) | NUT (M8) | 2 |
| 31 | NSS | 不单独销售贴纸-齿轮箱小齿轮标识 | NOT SOLD SEPARATE Decal-Gearcase Pinion Identification | 1 |
| - | 43035A4 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| - | 881260A3 | 前进齿轮-29齿 | GEAR Forward - 29 Teeth | 1 |
| - | 882813A3 | 前进齿轮与小齿轮套件(28齿) | GEAR KIT Forward And Pinion 28 Teeth | 1 |
| - | 803496T2 | 轴承/油封套件 | BEARING/SEAL KIT | 1 |
| - | 888805A00 | 离合器与凸轮从动件维修套件 | REPAIR KIT Clutch And Cam Follower | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0090809 | 燃油轨滤网 | SCREEN Fuel Rail | 1 |
| 2 | 855697 | 卡箍 | CLAMP | AR |
| 2 | 8M0204696 | 卡箍 | CLAMP | AR |
| 3 | 8M0079868 | 软管 | HOSE | 1 |
| 3 | 8M0237471 | 软管 燃油供应模块至导轨 | HOSE FSM TO RAIL | 1 |
| 4 | 8M0060614 | 软管 | HOSE | 1 |
| 4 | 8M0203774 | 软管 歧管 | HOSE MANIFOLD | 1 |
| 5 | 8M0073119 | 软管 | HOSE | 1 |
| 5 | 8M0203770 | 软管总成 | HOSE ASSY | 1 |
| 6 | 879885Q | 燃油管路滤清器 | FILTER Fuel In-Line | 1 |
| 7 | 8M0063572 | 软管 | HOSE | 1 |
| 8 | 8M0061494 | 软管 | HOSE | 1 |
| 8 | 8M0203769 | 软管总成 | HOSE ASSY | 1 |
| 9 | 8M0037098 | 软管卡箍 | CLIP Hose | 2 |
| 9 | 8M0224396 | 卡箍 软管 | CLIP HOSE | 2 |
| 10 | 8M0037204 | 尼龙压入螺钉 (.25-20 x .50) | SCREW Nylon, Push-In (.25-20 x .50) | 2 |
| 11 | 8M0037209 | 燃油供给模块固定衬套 | GROMMET FSM Retainer | 1 |
| 12 | 8M0057676 | 燃油供应模块 双泵 | FUEL SUPPLY MODULE Dual Pump | 1 |
| 12 | 8M0235171 | 燃油供应模块 双泵 | FUEL SUPPLY MODULE Dual Pump | 1 |
| 13 | 834985 | 护孔环 | GROMMET | 1 |
| 13 | 8M0190980 | 护孔环 | GROMMET | 1 |
| 14 | 856954 | 衬套 | BUSHING | 1 |
| 15 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 1 |
| 15 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 1 |
| 16 | 65567 | 不锈钢垫圈(0.265x0.750x0.048) | WASHER (.265 x .750 x .048) Stainless Steel | 1 |
| 17 | 8M6002064 | 接头 8毫米 | FITTING 8MM | 1 |
| 17 | 8M6002065 | 接头 10毫米 | FITTING 10MM | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 52148A08 | 副驾驶总成 | CO PILOT ASSEMBLY | 1 |
| 1 | 52148002 | 导向杆（15英寸） | PILOT ROD (15.00 Inches) | 1 |
| 2 | 826709111 | 螺母(.312-24)不锈钢 | NUT (.312-24) Stainless Steel | 2 |
| 3 | 8M0042642 | 垫圈(.323 x .562 x .063) | WASHER (.323 x .562 x .063) | 2 |
| 4 | 26841 | 衬套 | BUSHING | 2 |
| 5 | 873491 | 杆 | ROD | 1 |
| 6 | 8M0103848 | 螺母总成 | NUT ASSEMBLY | 1 |
| 7 | 821621 | 叉形旋钮 | KNOB Prong | 1 |
| 8 | 77674 | 垫圈(.35 x .75 x .12) | WASHER (.35 x .75 x .12) | 1 |
| 9 | 56500 | 螺丝(.250-28 x 1.250) | SCREW (.250-28 x 1.250) | 1 |
| 10 | 875273138 | 螺钉(0.375-24×1.38) | SCREW (.375-24 x 1.38) | 1 |
| 10 | 8M0214980 | 螺丝3/8-24 x 1.38六角头 | SCREW 3/8-24 x 1.38 HEX HD | 1 |
| 11 | 8M0042636 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 1 |
| 11 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 1 |
| 12 | 8M0161159 | 锁紧垫圈 | TAB WASHER | 1 |
| 13 | 8M0161158 | 锁紧垫圈 | TAB WASHER | 1 |
| 14 | 8M0161157 | 螺钉 | SCREW | 2 |
| 15 | 8M0124369 | 拉绳总成54英寸 | LANYARD ASSEMBLY 54 in | 1 |
| 15 | 8M0164892 | 拉绳总成54英寸 | LANYARD ASSEMBLY 54 Inches | 1 |
| 16 | 8M0161150 | 换挡油门线套件75-115马力 | SHIFT AND THROTTLE CABLE KIT 75-115 HP | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0088073 | 齿轮箱总成CT长型 | GEARCASE Complete CT Long | 1 |
| - | 8M0099915 | 齿轮箱总成CT L型 | GEARCASE Complete CT L | 1 |
| - | 8M0102751 | 齿轮箱总成CT CL型 | GEARCASE Complete, CT CL | 1 |
| - | 8M0088075 | 齿轮箱总成CT加长型 | GEARCASE Complete CT X-Long | 1 |
| - | 8M0099916 | 齿轮箱总成CT XL型 | GEARCASE Complete CT XL | 1 |
| - | 8M0088076 | 齿轮箱总成CT CXL型 | GEARCASE Complete CT CXL | 1 |
| - | 8M0099917 | 齿轮箱总成CT CXL型 | GEARCASE Complete, CT CXL | 1 |
| 1 | 8M0057747 | 基本齿轮箱 | GEAR HOUSING Basic | 1 |
| 1 | 8M0099907 | 基本齿轮箱 | GEAR HOUSING Basic | 1 |
| 2 | 79953A04 | 塞组件(.375-16×.250) | PLUG ASSEMBLY (.375-16 x .250) | 1 |
| 3 | 830749 | 密封件 | SEAL | 1 |
| 3 | 8M0204693 | 放油螺塞密封件 | SEAL Drain Plug | 1 |
| 4 | 8M0084244 | 定位销 0.375x0.620 | PIN Dowel, .375 x .620 | 1 |
| 5 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 1 |
| 6 | 826134Q | 阳极块 | ANODE | 2 |
| 7 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 1 |
| 8 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 9 | 806327 | 螺钉(.437-14 x 1.750) | SCREW (.437-14 x 1.750) | 1 |
| 9 | 8M0204686 | 螺钉 | SCREW | 1 |
| 10 | 76214Q5 | 阳极套件 | ANODE KIT | 1 |
| 11 | 8M0031504 | 换挡轴 加长型 | SHIFT SHAFT X-Long | 1 |
| 11 | 8M0140439 | 换挡轴-XL | SHIFT SHAFT-XL | 1 |
| 11 | 8M0031503 | 换挡轴(长型) | SHIFT SHAFT Long | 1 |
| 12 | 29641 | E型卡环 | E RING | 1 |
| 13 | 8M0029306 | 挡圈 | RING Retaining | 1 |
| 14 | 77674 | 垫圈(.35 x .75 x .12) | WASHER (.35 x .75 x .12) | 1 |
| 15 | 8164641 | 油封 | SEAL Oil | 1 |
| 15 | 8M0246145 | 油封 | OIL SEAL | 1 |
| 16 | 813696A2 | 衬套总成 | BUSHING ASSEMBLY | 1 |
| 17 | 45258 | O型圈 (.987 x .103) | O-RING (.987 x .103) | 1 |
| 18 | 8M0094476 | 长驱动轴 | DRIVESHAFT Long | 1 |
| 18 | 8M0094340 | 加长驱动轴 | DRIVESHAFT X-Long | 1 |
| 19 | 8M0036238 | 联轴器 水泵 | COUPLING Water Pump | 1 |
| 19 | 8M0214995 | 联轴器 水泵 | COUPLING Water Pump | 1 |
| 20 | 21836 | O型圈(.796 x .139) | O-RING (.796 x .139) | 2 |
| 20 | 8M0204645 | O型圈(.796 x .139) | O-RING (.796 x .139) | 2 |
| 21 | 1993720 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 4 |
| 21 | 8M0204706 | 螺丝M6x20六角 | SCREW M6 x 20 Hex | 4 |
| 22 | 8M2014338 | 端面密封 | SEAL Face | 1 |
| 22 | 8M0142851 | V型面密封环 | V RING Face Seal | 1 |
| 23 | 8M0010459 | 填充块 | FILLER BLOCK | 1 |
| 24 | 817275A1 | 水泵壳体套件 | HOUSING KIT Water Pump | 1 |
| 25 | 8M0032833 | 键 | KEY | 1 |
| 25 | 8M0204723 | 键 | KEY | 1 |
| 26 | 43026T2 | 叶轮 | IMPELLER | 1 |
| 27 | 8172771 | 水泵上垫片 | GASKET Water Pump, Upper | 1 |
| 28 | 8172761 | 面板 | FACEPLATE | 1 |
| 28 | 8M0204709 | 面板 | FACEPLATE | 1 |
| 29 | 8M0050720 | 衬垫 | GASKET | 1 |
| 29 | 8M0142616 | 衬垫 面板至齿轮箱 | GASKET Face Plate to Gearcase | 1 |
| 30 | 880719 | 挡圈 | RING Retaining | 1 |
| 31 | 8M0057748 | 油封载体总成 | OIL SEAL CARRIER ASSEMBLY | 1 |
| 32 | 89238 | 油封 | SEAL Oil | 2 |
| 33 | 896523 | O型圈(2.175 x 0.103) | O-RING (2.175 x .103) | 1 |
| 33 | 8M0142854 | O型圈(2.175 x 0.103) | O-RING (2.175 x .103) | 1 |
| 34 | 853651 | 固定座 | RETAINER | 1 |
| 35 | 33138A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 36 | NSS | 锥体(不单独销售) | NOT SOLD SEPARATE Cone | 1 |
| 37 | 8M0063267 | 垫片组 | SHIM SET | 1 |
| 38 | 77420A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 38 | 8M0166756 | 轴承总成 | BEARING ASSEMBLY | 1 |
| 39 | 8M0063268 | 垫片组 | SHIM SET | 1 |
| 40 | 42647A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| - | 8M0094474 | 齿轮组标准旋转(前进/小齿轮2.38速比13/31) | GEAR SET Standard Rotation, Forward/Pinion 2.38 Ratio (13/31) | 1 |
| - | 8M0094483 | 齿轮组反向旋转(前进/小齿轮2.38速比13/31) | GEAR SET Counter Rotation, Forward/Pinion 2.38 Ratio (13/31) | 1 |
| 41 | NSS | 小齿轮(不单独销售) | NOT SOLD SEPARATE Pinion | 1 |
| 42 | 8M0064033 | 特殊垫片0.865×0.635 | WASHER .865 X .635 SPECIAL | 1 |
| 43 | 87364 | 螺母 | NUT | 1 |
| - | 8M0094529 | 水泵维修包(全套) | COMPLETE WATER PUMP REPAIR KIT | 1 |
| - | 8M0094530 | 水泵叶轮维修套件 | REPAIR KIT Water Pump Impeller | 1 |
| - | 8M0100526 | 水泵叶轮维修套件 | REPAIR KIT Water Impeller | 1 |
| - | 8M0088081 | 齿轮箱密封套件 | GEARCASE SEAL KIT | 1 |
| - | 8M0061040 | 水泵上修包 | REPAIR KIT Water Pump-Upper | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0088072 | 齿轮箱总成 长型 | GEARCASE Complete Long | 1 |
| - | 8M0088074 | 齿轮箱总成 加长型 | GEARCASE Complete X-Long | 1 |
| 1 | 8M0091538 | 齿轮箱 基本型 | GEARCASE Basic | 1 |
| 1 | 8M0099907 | 基本齿轮箱 | GEAR HOUSING Basic | 1 |
| 2 | 8M0094470 | 齿轮组标准旋转(前进/小齿轮2.07速比14/29) | GEAR SET Stanard Rotation, Forward/Pinion 2.07 Ratio (14/29) | 1 |
| 3 | 8M0057742 | 滚针轴承 | BEARING Needle | 1 |
| 4 | 8M0071554 | 挡圈 | RING Retaining | 1 |
| 5 | 8M0094472 | 圆锥滚子轴承组 | TAPERED ROLLER BEARING, SET | 1 |
| 6 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 7 | 8M0063266 | 垫片组 | SHIM SET | 1 |
| 8 | 8M0057749 | 离合器作动杆 | ROD Clutch Actuator | 1 |
| 9 | 8M0072550 | 凸轮随动件(右旋) | FOLLOWER Cam, (RH) | 1 |
| 10 | 8M0077490 | 换档凸轮 | CAM Shift | 1 |
| 11 | 8M0065168 | 滑动离合器 | CLUTCH Sliding | 1 |
| 12 | 8M0065417 | 十字销 | PIN Cross | 1 |
| 13 | 30893 | 弹簧 | SPRING | 1 |
| 14 | 8M0088077 | 螺旋桨轴(右旋) | SHAFT Propeller (RH) | 1 |
| 15 | 8M0090832 | 倒车齿轮29齿 | GEAR Reverse 29T | 1 |
| 16 | 8M0065430 | 滚珠轴承 | BEARING Ball | 1 |
| 16 | 8M0203752 | 球轴承 | BEARING BALL | 1 |
| 17 | 8M0053099 | 推力环 | THRUST RING | 1 |
| 18 | 8M0065566 | O型圈 | O-RING | 1 |
| 19 | 8M0065046 | 轴承座套筒 | SPOOL Bearing Carrier | 1 |
| 19 | 8M0219207 | 线轴-轴承座 | SPOOL-BNG CARRIER | 1 |
| 20 | 30956T | 滚针轴承 | BEARING Needle | 1 |
| 21 | 8M0077071 | 螺丝/密封套件 | SCREW/SEAL KIT | 1 |
| 22 | 830749 | 密封件 | SEAL | 1 |
| 22 | 8M0204693 | 放油螺塞密封件 | SEAL Drain Plug | 1 |
| 23 | 14077 | 油封 | SEAL Oil | 1 |
| 24 | 76868 | 密封件 | SEAL | 1 |
| 24 | 8M0248882 | 油封@5 | SEAL-OIL @5 | 1 |
| 24 | 12224 | 渔线切割密封件 | SEAL Fish Line Cutting | 1 |
| 25 | 8M0032502 | 垫圈 带键 | WASHER Keyed | 1 |
| 26 | 8M0069653 | 轴承座固定环 | BEARING CARRIER Retainer | 1 |
| 26 | 8M0185683 | 轴承固定座 | RETAINER BEARING | 1 |
| 27 | 8M0070256 | 螺旋桨孔衬套 | SLEEVE Prop Bore | 1 |
| 27 | 8M0214998 | 螺旋桨轴套 | SLEEVE-PROP BORE | 1 |
| - | 8M0090442 | 尾鳍 | SKEG | 1 |
| - | 8M0088080 | 齿轮箱密封套件 | GEARCASE SEAL KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | NOPART | 无零件清单 | NO PARTS LIST | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 858576T2 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 2 | 903501 | 双头螺柱(M10×100) | STUD (M10 x 100) | 1 |
| 2 | 9035015 | 双头螺柱(M10×227) | STUD (M10 x 227) | 1 |
| 3 | 9035012 | 双头螺柱(M10×63) | STUD (M10 x 63) | 4 |
| 3 | 9035016 | 双头螺柱(M10×190) | STUD (M10 x 190) | 4 |
| 3 | 8M0034462 | 双头螺柱(M10×190) | STUD (M10 x 190) | 4 |
| 4 | 856774 | 垫圈(0.406×0.750×0.105)不锈钢 | WASHER (.406 x .750 x .105) Stainless Steel | 5 |
| 4 | 8M0214963 | 垫圈 | WASHER | 5 |
| 5 | 40140 | 螺母(M10) | NUT (M10) | 5 |
| 6 | 85822A13 | 速度计传感器总成 | PICK UP ASSEMBLY Speedometer | 1 |
| 7 | 43335 | 90度接头(.125-27)尼龙 | CONNECTOR 90 Degree (.125-27) Nylon | 1 |
| 7 | 433351 | 90度接头-带防振密封 | CONNECTOR 90 Degree - With Vibraseal | 1 |
| 8 | 85822 | 直通接头 | CONNECTOR Straight | 1 |
| 8 | 85822T | 直通接头 | CONNECTOR Straight | 1 |
| 9 | 44343T1 | 支架 | MOUNT | 2 |
| 10 | 42973 | 螺栓(M12×154) | BOLT (M12 x 154) | 2 |
| 10 | 898835001 | 螺钉(M12 x 154) | SCREW (M12 x 154) | 2 |
| 11 | 30119 | 垫圈(外径0.875英寸) | WASHER (.875 Inch Outside Diameter) | 2 |
| 12 | 43528 | 螺母(M12) | NUT (M12) | 2 |
| 12 | 8M0204662 | 螺母 | NUT | 2 |
| 13 | 88238A10 | 接地线总成 | CABLE ASSEMBLY Ground | 2 |
| 14 | 41508 | 螺钉(0.250-20×0.500)不锈钢 | SCREW (.250-20 x .500) Stainless Steel | 1 |
| 15 | 858916T | 卡箍 | CLAMP | 2 |
| 16 | 4010725 | 螺钉 (M8 x 25) | SCREW (M8 x 25) | 4 |
| 17 | 858745 | 盖帽 | CAP | 4 |
| 17 | 8M0142713 | 支撑盖帽 | CAP Chap Support | 4 |
| 18 | 859550 | 衬套 | BUSHING | 1 |
| 19 | 24873 | 定位销 | PIN Alignment | 1 |
| 20 | 855622 | 接头 | FITTING | 1 |
| 21 | 12092A3 | 隔套套件 | SPACER KIT | 1 |
| 22 | 43043 | 定位销-带孔(0.375×0.625) | PIN Dowel - With Hole (.375 x .625) | 1 |
| 22 | 8M0084244 | 定位销 0.375x0.620 | PIN Dowel, .375 x .620 | 1 |
| 22 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0104733 | 转速表套件-艉板安装型 | TACHOMETER KIT Transom Mount | 1 |
| 1 | 8M0095036 | 转速表套件-艉板安装型 | TACHOMETER KIT Transom Mount | 1 |
| 2 | 8M2100452 | 10针数据延长线束 | HARNESS Data Extension 10 Pin | 1 |
| 3 | 8M0099412 | 仪表外壳 | GAUGE HOUSING | 1 |
| 4 | NSS | 转速表7K-黑色(不单独销售) | NOT SOLD SEPARATE TACHOMETER 7K - Black | 1 |
| 5 | 8590741 | 仪表边框(85mm)黑色 | BEZEL (85 mm) Black | 1 |
| 5 | 8M0214969 | 黑色边框 | BEZEL-BLACK | 1 |
| 6 | 895054 | 螺丝(M4×16毫米) | SCREW (M4 x 16 mm) | 2 |
| 7 | 14742 | 螺丝(.250-20 x 1.25) | SCREW (.250-20 x 1.25) | 4 |
| 8 | 57807 | 不锈钢螺钉(#10-16 x 0.750) | SCREW (#10-16 x .750) Stainless Steel | 8 |
| 9 | 69205 | C形垫圈 | C WASHER | 8 |
| 9 | 8M0084613 | C形垫圈 | C-WASHER | 8 |
| 10 | 22875 | 卡扣 | CLIP | 8 |
| 11 | 69355 | 扎带(5.50英寸) | TIE STRAP (5.50 Inches) | 1 |
| 11 | 8M0214940 | 扎带 | TIE STRAP | 1 |
| 12 | 8M0097226 | 转速表套件 舵机安装 | TACHOMETER KIT Helm Mount | 1 |
| - | 8M0095037 | 转速表套件7K-舵机安装(黑色) | TACHOMETER KIT 7 K -Helm Mount (Black) | 1 |
| 13 | 8M0055044 | 转速表线束V6.0 | HARNESS Tachometer, V 6.0 | 1 |
| 14 | NSS | 转速表7K-黑色(不单独销售) | NOT SOLD SEPARATE TACHOMETER 7K - Black | 1 |
| 15 | 8590741 | 仪表边框(85mm)黑色 | BEZEL (85 mm) Black | 1 |
| 15 | 8M0214969 | 黑色边框 | BEZEL-BLACK | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 804145 | V型皮带 | V BELT | 1 |
| 2 | 804143 | 螺栓 M10×35 | BOLT (M10 x 35) | 2 |
| 2 | 804143001 | 螺栓 | BOLT | 2 |
| 3 | 804142T | 从动齿轮 | GEAR Driven | 2 |
| 4 | 804144 | 油封 | SEAL Oil | 2 |
| 4 | 804144001 | 油封 | SEAL-OIL | 2 |
| 5 | 804141 | 定位销 | PIN Dowel | 2 |
| 6 | 804140T | 凸轮轴 | CAMSHAFT | 1 |
| 6 | 8M0057172 | 凸轮轴 | CAMSHAFT | 1 |
| 7 | 804139T | 凸轮轴 | CAMSHAFT | 1 |
| 8 | 804128T | 进气阀 | VALVE Intake | 8 |
| 9 | 804129T | 排气阀 | VALVE Exhaust | 8 |
| 10 | 804130 | 阀座 | SEAT | 16 |
| 11 | 804136 | 密封件 | SEAL | 8 |
| 12 | 804137 | 密封件 | SEAL | 8 |
| 13 | 804131 | 气门弹簧 | SPRING Valve | 16 |
| 14 | 804132 | 固定座 | RETAINER | 16 |
| 15 | 804135 | 开口销阀 | COTTER VALVE | 32 |
| 16 | 804138T | 气门挺杆 | LIFTER Valve | 16 |
| 17 | 8046071 | 垫片 | SHIM | AR |
| 17 | 8046072 | 垫片 | SHIM | AR |
| 17 | 8046073 | 垫片 | SHIM | AR |
| 17 | 8046074 | 垫片 | SHIM | AR |
| 17 | 8046075 | 垫片 | SHIM | AR |
| 17 | 8046076 | 垫片 | SHIM | AR |
| 17 | 8046077 | 垫片 | SHIM | AR |
| 17 | 8046078 | 垫片 | SHIM | AR |
| 17 | 8046079 | 垫片 | SHIM | AR |
| 17 | 80460710 | 垫片 | SHIM | AR |
| 17 | 80460711 | 垫片 | SHIM | AR |
| 17 | 80460712 | 垫片 | SHIM | AR |
| 17 | 80460713 | 垫片 | SHIM | AR |
| 17 | 80460714 | 垫片 | SHIM | AR |
| 17 | 80460715 | 垫片 | SHIM | AR |
| 17 | 80460716 | 垫片 | SHIM | AR |
| 17 | 80460717 | 垫片 | SHIM | AR |
| 17 | 804608 | 垫片 | SHIM | AR |
| 17 | 80460810 | 垫片 | SHIM | AR |
| 17 | 80460820 | 垫片 | SHIM | AR |
| 17 | 80460830 | 垫片 | SHIM | AR |
| 17 | 80460840 | 调整垫 | PAD Adjusting | AR |
| 17 | 80460850 | 垫片 | SHIM | AR |
| 17 | 80460860 | 垫片 | SHIM | AR |
| 17 | 80460870 | 垫片 | SHIM | AR |
| 17 | 80460880 | 垫片 | SHIM | AR |
| 18 | 804149 | 阀板 | PLATE Valve | 1 |
| 19 | 804153 | 键 | KEY | 1 |
| 20 | 804146 | 张紧器 | TENSIONER | 1 |
| 21 | 804150 | 螺栓 M10×45 | BOLT (M10 x 45) | 1 |
| 22 | 804147 | 弹簧 | SPRING | 1 |
| 23 | 804148 | 软管 | HOSE | 1 |
| 24 | 804151T | 驱动齿轮 | GEAR Drive | 1 |
| 25 | 881314 | 螺母 M40 | NUT (M40) | 1 |
| 25 | 881314003 | 螺母 | NUT | 1 |
| - | 858732T01 | 衬垫套件 | GASKET SET | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 881310T1 | 气缸盖总成 | CYLINDER HEAD ASSEMBLY | 1 |
| - | 881310T09 | 气缸盖 | HEAD-CYLINDER | 1 |
| - | 881421T01 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0092061 | 延长套件 | EXTENSION KIT | 1 |
| - | 8M0105090 | 传动轴壳体延长套件 | EXTENSION KIT Driveshaft Housing | 1 |
| 1 | 8M0071622 | 间隔套 驱动轴壳体 | SPACER Driveshaft Housing | 1 |
| 1 | 8M0105088 | 传动轴壳体加长隔套（黑色） | SPACER Driveshaft Housing X-Long, Black | 1 |
| 2 | 8M0094340 | 加长驱动轴 | DRIVESHAFT X-Long | 1 |
| 3 | 33138A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 4 | 77420A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 4 | 8M0166756 | 轴承总成 | BEARING ASSEMBLY | 1 |
| 5 | 8M0063267 | 垫片组 | SHIM SET | 1 |
| 6 | 8M0063268 | 垫片组 | SHIM SET | 1 |
| 7 | 8M0029215 | 水管 | WATER TUBE | 1 |
| 8 | 8M0008047 | 双头螺柱（M12×179） | STUD (M12 x 179) | 4 |
| 9 | 87364 | 螺母 | NUT | 1 |
| 10 | 866233001 | 面板 | FACEPLATE | 1 |
| 11 | 8M0031504 | 换挡轴 加长型 | SHIFT SHAFT X-Long | 1 |
| 11 | 8M0140439 | 换挡轴-XL | SHIFT SHAFT-XL | 1 |
| 12 | 8M0030784 | 垫圈 带键 | WASHER Keyed | 1 |
| 13 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 1 |
| 14 | 8M0084244 | 定位销 0.375x0.620 | PIN Dowel, .375 x .620 | 1 |
| 15 | 896895 | 螺母(M12) | NUT (M12) | 4 |
| 16 | 856982 | 垫圈(0.5×0.81×0.09英寸)不锈钢 | WASHER (.500 x .810 x .090) Stainless Steel | 5 |
| 17 | 857137 | 螺钉 (M12 X 160) | SCREW (M12 x 160) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 816366A31 | 转向手柄套件 | STEERING HANDLE KIT | 1 |
| - | 816366A42 | 转向手柄套件 | STEERING HANDLE KIT | 1 |
| - | 816366A32 | 转向手柄套件 | STEERING HANDLE KIT | 1 |
| 1 | 12020A3 | 转向臂手柄总成 | HANDLE ASSEMBLY Steering Arm | 1 |
| NS | 74036 | 润滑脂接头 | FITTING Grease | 1 |
| NS | 8M0169589 | 润滑脂接头 | FITTING Grease | 1 |
| 2 | 429922 | 衬套 | BUSHING | 2 |
| 2 | 42992T02 | 衬套 | BUSHING | 2 |
| 3 | 48414 | 壳体 | HOUSING | 1 |
| 4 | 48519 | 安装板 | PLATE | 1 |
| 5 | 48518 | 衬垫 | GASKET | 1 |
| 6 | 878609 | 螺钉 (#10-16 x .600) | SCREW (#10-16 x .600) | 2 |
| 7 | 878608 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 3 |
| 8 | 12013 | 卡箍 | CLAMP | 1 |
| 8 | 889729 | 卡箍 | CLAMP | 1 |
| 9 | 40007112 | 螺钉(M5 x 40) | SCREW (M5 x 40) | 2 |
| 10 | 816874 | 蝶形螺母 (#10-32) | WING NUT (#10-32) Wing | 1 |
| 11 | 823609A15 | 停机开关套件-油门手柄 | SWITCH KIT Stop - Throttle Handle | 1 |
| 12 | 823609A5 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 12 | 8M0104612 | 开关总成 | SWITCH ASSY | 1 |
| 13 | NSS | 绝缘件(不单独销售) | NOT SOLD SEPARATE Insulator | 1 |
| 14 | 12018A4 | 油门拉线管总成 | TUBE ASSEMBLY Throttle | 1 |
| 15 | NSS | 驱动轮(不单独销售) | NOT SOLD SEPARATE Drive Wheel | 1 |
| 16 | NSS | 弹性销(不单独销售) | NOT SOLD SEPARATE Roll Pin | 1 |
| 17 | 62568 | 螺钉（#10-16 x 0.375） | SCREW (#10-16 x .375) | 1 |
| 18 | 99589 | 握把 | GRIP | 1 |
| 18 | 8M0221732 | 外握把 | GRIP OUTER | 1 |
| 19 | 648552 | 卡扣 | CLIP | 2 |
| 20 | 40140 | 螺母(M10) | NUT (M10) | 1 |
| 21 | 8885241 | 导管 (9.03 英寸) | CONDUIT (9.03 Inches) | 1 |
| 22 | 895665 | 导向管 | GUIDE TUBE | 1 |
| 23 | 89578 | 节流阀执行器筒 | BARREL Throttle Actuator | 1 |
| 24 | 824081 | 紧定螺钉(#10-32) | SET SCREW (#10-32) | 1 |
| 25 | 12019003 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 26 | 43433 | 电缆导向器 | GUIDE Cable | 1 |
| 26 | 8M0204660 | 导套 | GUIDE | 1 |
| 27 | 20007 | 电缆端锚 | ANCHOR Cable End | 1 |
| 28 | 20518 | 紧定螺钉(#8-32) | SET SCREW (#8-32) | 2 |
| 28 | 8M0204644 | 螺钉组 | SCREW SET | 2 |
| 29 | 823567105 | 螺丝(M10 x 105)六角法兰-不锈钢 | SCREW (M10 x 105) Hex Flange - Stainless Steel | 1 |
| 30 | 48416 | 盖帽 | CAP | 1 |
| 31 | 4002319 | 垫圈 | WASHER | 1 |
| 32 | 12024 | 垫圈(0.402 x 0.787 x 0.039 贝氏) | WASHER (.402 x .787 x .039 Bellevi) | 1 |
| 33 | 146011 | 隔套 | SPACER | 1 |
| 34 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 35 | NSS | 不单独出售 节流阀贴花 | NOT SOLD SEPARATE Decal, Throttle | 1 |
| 36 | 889724 | 软管电缆护圈 | GROMMET Hose Cable | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 880133T08 | 燃油供应模块 | MODULE Fuel Supply | 1 |
| 1 | 8M0130897 | 燃油供应模块 | FUEL SUPPLY MOD | 1 |
| 2 | 897567T | 燃油供应模块支架 | BRACKET Fuel Supply Module | 1 |
| 3 | 88552635 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 3 |
| 3 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 3 |
| 4 | 817274 | 垫圈(0.344×1.00×0.063)不锈钢 | WASHER (.344 x 1.00 x .063) Stainless Steel | 3 |
| 5 | 88552635 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 3 |
| 5 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 3 |
| 6 | 899145 | 绑带夹 | CLIP Tie Strap | 2 |
| 7 | 897763T01 | 节气门支架总成 | BRACKET ASSEMBLY Throttle | 1 |
| 7 | 897763T03 | 节气门支架总成 | BRACKET ASSEMBLY Throttle | 1 |
| 7 | 897763T01 | 节气门支架总成 | BRACKET ASSEMBLY Throttle | 1 |
| 7 | 897763T03 | 节气门支架总成 | BRACKET ASSEMBLY Throttle | 1 |
| 7 | 897763T03 | 节气门支架总成 | BRACKET ASSEMBLY Throttle | 1 |
| 7 | 897763T03 | 节气门支架总成 | BRACKET ASSEMBLY Throttle | 1 |
| 8 | 88552620 | 螺钉(M8 x 20) | SCREW (M8 x 20) | 3 |
| 9 | 897559 | 卡扣 | CLIP | 1 |
| 10 | 8M0005986 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 11 | 35459 | 垫圈 | WASHER | 1 |
| 12 | 210711 | 开口销 | COTTER PIN | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 881315T1 | 蒸汽分离器 | VAPOR SEPERATOR | 1 |
| - | 881315T05 | 蒸汽分离器 | VAPOR SEPERATOR | 1 |
| - | 881315T2 | 蒸汽分离器 | VAPOR SEPERATOR | 1 |
| - | 881315T05 | 蒸汽分离器 | VAPOR SEPERATOR | 1 |
| 1 | 881316T1 | 盖板 | COVER | 1 |
| 1 | 881316T2 | 盖板 | COVER | 1 |
| 1 | 881316T2 | 盖板 | COVER | 1 |
| 2 | 881318 | O型圈 | O-RING | 1 |
| 3 | 881329 | 针阀套件 | NEEDLE VALVE KIT | 1 |
| 4 | NSS | 阀座(不单独销售) | NOT SOLD SEPARATE Seat | 1 |
| 5 | 881320 | 浮子 | FLOAT | 1 |
| 6 | 881321 | 浮子销 | PIN Float | 1 |
| 7 | 881319T | 本体 | BODY | 1 |
| 8 | 881327 | 安装板 | PLATE | 1 |
| 9 | 8813261 | 螺丝(M3 x 8) | SCREW (M3 x 8) | 1 |
| 10 | 881326 | 螺钉(M4×16) | SCREW (M4 x 16) | 7 |
| 11 | 881325 | 衬垫 | GASKET | 1 |
| 12 | 881322 | 减震器 | DAMPER | 1 |
| 12 | 881322002 | 减震器 | DAMPER | 1 |
| 13 | 880889T | 燃油泵 | PUMP Fuel | 1 |
| 13 | 8M0123823 | ORD 8M6010289 | ORD 8M6010289 | 1 |
| 14 | 881323T | 滤清器 | FILTER | 1 |
| 15 | 881324 | 盖板 | COVER | 1 |
| 16 | 8813262 | 放油螺钉 | SCREW Drain | 1 |
| 17 | 881328 | 衬垫 | GASKET | 1 |
| 18 | 881330A1 | 软管套件 | HOSE KIT | 1 |
| 18 | 881330A02 | 软管套件 | HOSE KIT | 1 |
| 19 | 881331 | 卡扣 | CLIP | 2 |
| 20 | 881559 | 卡扣 | CLIP | 5 |
| 21 | 881565 | 软管 | HOSE | 1 |
| 22 | 881560 | 软管 | HOSE | 2 |
| 23 | 881558 | 三通 | TEE | 5 |
| 23 | 8815581 | 三通 | TEE | 5 |
| 23 | 8815581 | 三通 | TEE | 5 |
| 24 | 881554 | 软管 | HOSE | 1 |
| 25 | 881554 | 软管 | HOSE | 1 |
| 26 | 881554 | 软管 | HOSE | 1 |
| 27 | 881554 | 软管 | HOSE | 6 |
| 28 | 881555 | 软管 | HOSE | 1 |
| 29 | 881557 | 软管 | HOSE | 1 |
| 30 | 881556 | 软管 | HOSE | 1 |
| 31 | 8813221 | 减震器 | DAMPER | 3 |
| 32 | 881332 | 轴环 | COLLAR | 6 |
| - | 881440T1 | 进气总成 | INTAKE ASSEMBLY | 1 |
| - | 881440T04 | 进气总成 | INTAKE ASSEMBLY | 1 |
| - | 881440T2 | 进气总成 | INTAKE ASSEMBLY | 1 |
| - | 881440T04 | 进气总成 | INTAKE ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 892952T04 | 进气流量测量总成 | IAFM ASSEMBLY | 1 |
| 1 | 892952T06 | 进气流量测量总成 | IAFM ASSEMBLY | 1 |
| 1 | 892952T06 | 进气流量测量总成 | IAFM ASSEMBLY | 1 |
| - | 8M6002790 | 进气歧管 | MANIFOLD Intake | 1 |
| 2 | 88552550 | 不锈钢螺钉 (M6 x 50 mm) | SCREW (M6 x 50 mm) Stainless Steel | 2 |
| 3 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 2 |
| 3 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 2 |
| 4 | 8M0048051 | 不锈钢螺钉(M6x30) | SCREW (M6 x 30) Stainless Steel | 5 |
| 5 | 897646001 | 通气罐支架 | BRACKET Vent Canister | 1 |
| 6 | 884545A02 | 通气罐总成 | CANISTER ASSEMBLY Vent | 1 |
| 6 | 8M0175814 | 通气罐总成 | CANISTER-VENT ASY | 1 |
| 7 | 897434 | 护孔环 | GROMMET | 1 |
| 8 | 8M0001824 | 净化通气总成 | PURGE VENT ASSEMBLY | 1 |
| 8 | 8M0126307 | 净化通气总成 | PURGE VENT ASSY | 1 |
| 9 | 897575T01 | 空气滤清器 | FILTER Air | 1 |
| 9 | 8M0082911 | 空气滤清器 | FILTER - AIR | 1 |
| 10 | 8M0006918 | 限流板 | RESTRICTOR PLATE | 1 |
| 10 | 8M0032134 | 限流板 | RESTRICTOR PLATE | 1 |
| 10 | 8M0032134 | 限流板 | RESTRICTOR PLATE | 1 |
| 11 | 897559 | 卡扣 | CLIP | 1 |
| 12 | 897445501 | 螺丝(M6×20毫米) | SCREW (M6 x 20 MM) | 1 |
| 13 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 14 | 35462 | 垫圈(.2656 x .625 x .0625)不锈钢 | WASHER (.2656 x .625 x .0625) Stainless Steel | 5 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 881422T1 | 气缸体 | CYLINDER BLOCK | 1 |
| 1 | 881422T05 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 2 | 82364M | 定位销 | PIN Dowel | 10 |
| 3 | 8587321 | 衬垫 | GASKET | 1 |
| 3 | 858732002 | 气缸体衬垫 | GASKET Cylinder Block | 1 |
| 4 | 881423 | 螺栓(M8×55) | BOLT (M8 x 55) | 10 |
| 4 | 8M0101617 | 螺栓 | BOLT | 10 |
| 5 | 804072 | 螺栓 (M10 x 135) | BOLT (M10 x 135) | 10 |
| 6 | 855690 | 护孔环 | GROMMET | 1 |
| 7 | 804073 | 吊环 | LIFTING EYE | 2 |
| 8 | 8257021 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 4 |
| 9 | 825953 | 塞子 (M14 x 12) | PLUG (M14 x 12) | 1 |
| 10 | 81990M | 衬垫 | GASKET | 1 |
| 11 | 822626Q2 | 机油滤清器 | FILTER Oil | 1 |
| 11 | 8M0162830 | 机油滤清器 | FILTER OIL | 1 |
| 12 | 804097 | 螺栓 | BOLT | 1 |
| 13 | 881424T | 外排气罩 | COVER Outer Exhaust | 1 |
| 13 | 881424T02 | 排气盖 | COVER-EXHAUST | 1 |
| 14 | 804076 | 衬垫 | GASKET | 1 |
| 14 | 804076003 | 衬垫 | GASKET | 1 |
| 15 | 881427 | 螺栓 (M6 x 30) | BOLT (M6 x 30) | 18 |
| 16 | 881425 | 螺钉 | SCREW | 1 |
| 17 | 881426 | 衬垫 | GASKET | 1 |
| 18 | NSS | 阳极 (不单独销售) | NOT SOLD SEPARATE Anode | 1 |
| 19 | 804086 | 护孔环 | GROMMET | 1 |
| 20 | 804085 | 盖板 | COVER | 1 |
| 20 | 804085A01 | 罩盖/阳极套件 | COVER/ANODE KIT | 1 |
| 21 | 8524741 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 1 |
| 22 | 827207 | 螺栓 (M8 x 25) | BOLT (M8 x 25) | 2 |
| 23 | 804082 | 护孔环 | GROMMET | 1 |
| 24 | 804080 | 压力控制阀 | VALVE Pressure Control | 1 |
| 24 | 804080001 | 阀门 | VALVE | 1 |
| 25 | 804081 | 弹簧 | SPRING | 1 |
| 26 | 804084 | 衬垫 | GASKET | 1 |
| 27 | 804083 | 盖板 | COVER | 1 |
| 27 | 804083001 | 盖板 | COVER | 1 |
| 28 | 881428 | 螺栓(M6 x 16) | BOLT (M6 x 16) | 3 |
| 29 | 804089 | 卡扣 | CLIP | 1 |
| 30 | 804088 | 软管 | HOSE | 1 |
| 31 | 879650 | 卡箍 | CLAMP | 1 |
| 31 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | 1 |
| 32 | 8587331 | 螺柱 | STUD | 6 |
| 33 | 856774 | 垫圈(0.406×0.750×0.105)不锈钢 | WASHER (.406 x .750 x .105) Stainless Steel | 6 |
| 33 | 8M0214963 | 垫圈 | WASHER | 6 |
| 34 | 40140 | 螺母(M10) | NUT (M10) | 6 |
| 35 | 81893435 | 螺钉(M8×35) | SCREW (M8 x 35) | 2 |
| 35 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 2 |
| 36 | 881600 | 橡胶盖 | CAP Rubber | 1 |
| - | 858732T01 | 衬垫套件 | GASKET SET | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 881421T01 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 881363T | 盖板 | COVER | 1 |
| 1 | 881363A01 | 盖/支架套件 | COVER/BRACKET KIT | 1 |
| 2 | 881364T2 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 2 | 881364T04 | 线束 | HARNESS | 1 |
| 2 | 881364T1 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 2 | 881364T04 | 线束 | HARNESS | 1 |
| 3 | 804291 | 保险丝20安培 | FUSE 20 Ampere | 4 |
| 3 | 832969T20 | 迷你保险丝-黄色-20安 | FUSE Mini - Yellow - 20 Ampere | 4 |
| 4 | 80429110 | 30安保险丝 | FUSE 30 Ampere | 4 |
| 4 | 8M0057159 | 30A保险丝 | FUSE-30A | 4 |
| 0 | 891824010 | 保险丝盖 | COVER Fuse | 4 |
| 0 | 891824020 | 保险丝盖 | COVER Fuse | 4 |
| 5 | 804289 | 保险丝拔取器 | PULLER Fuse | 1 |
| 6 | 881362 | 支架 | BRACKET | 1 |
| 7 | 8813511 | 螺钉 | SCREW | 1 |
| 8 | 881352T | 继电器 | RELAY | 1 |
| 8 | 8M0098898 | 继电器 | RELAY | 1 |
| 9 | 82214M | 垫圈 | WASHER | 2 |
| 10 | 881355 | 锁紧垫圈 | LOCKWASHER | 2 |
| 10 | 82212M | 锁紧垫圈 | LOCKWASHER | 2 |
| 11 | 881354 | 螺钉 | SCREW | 2 |
| 11 | 96671M | 螺钉 | SCREW | 2 |
| 12 | 804284 | 护套 | BOOT | 2 |
| 12 | 804284001 | 护套 | BOOT | 2 |
| 13 | 881350T | 继电器 | RELAY | 1 |
| 14 | 881351 | 螺钉 | SCREW | 1 |
| 15 | 881353 | 卡箍 | CLAMP | 1 |
| 16 | 8813511 | 螺钉 | SCREW | 1 |
| 17 | 881359T | 支架 | BRACKET | 1 |
| 17 | 881363A01 | 盖/支架套件 | COVER/BRACKET KIT | 1 |
| 18 | 881361 | 卡箍 | CLAMP | 1 |
| 19 | 881360 | 卡箍 | CLAMP | 1 |
| 20 | 804270 | 螺栓(M6×28) | BOLT (M6 x 28) | 5 |
| 21 | 881304 | 护孔环 | GROMMET | 5 |
| 22 | 82851M | 衬套 | BUSHING | 5 |
| 22 | 804344003 | 轴环 | COLLAR | 5 |
| 23 | 881356T1 | 继电器总成 | RELAY ASSEMBLY | 1 |
| 23 | 882751A3 | 升降继电器套件 | RELAY KIT Trim | 1 |
| 24 | 881357 | 引线 | LEAD WIRE | 1 |
| 25 | 881358 | 盖帽 | CAP | 1 |
| 26 | 8248324 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 2 |
| 27 | 825702 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 2 |
| 27 | 8257021 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 2 |
| 28 | 804604 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 1 |
| 29 | 88439A33 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 30 | 88439A10 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Negative - Battery | 1 |
| 31 | 401388 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 1 |
| 32 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 1 |
| 32 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 1 |
| 33 | 858723T1 | 适配器/升降线束总成 | HARNESS ASSEMBLY Adapter/Trim | 1 |
| 34 | 858914T1 | 升降马达适配器线束总成 | HARNESS ASSEMBLY Trim Motor Adaptor | 1 |
| 35 | 858740T4 | 遥控适配器线束总成 | HARNESS ASSEMBLY Adapter Assembly Remote | 1 |
| 36 | 92753 | 固定座 | RETAINER | 1 |
| 37 | 859249T1 | 连接器 | CONNECTOR | 1 |
| 38 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 39 | 8272822 | 高压警告标贴 | DECAL Warning High Voltage | 1 |
| 40 | 881865 | 挂档启动警示标贴 | DECAL Caution-Start in Gear Start in Gear | 1 |
| 41 | 828151A2 | 升降继电器套件 | TRIM RELAY KIT | 1 |
| 41 | 882751A3 | 升降继电器套件 | RELAY KIT Trim | 1 |
| 42 | 826802A24 | 升降线束总成 | HARNESS ASSEMBLY Trim | 1 |
| 43 | 828151A1 | 继电器总成 | RELAY ASSEMBLY | 2 |
| 43 | 8M0207773 | 调整继电器总成 | RELAY ASSEMBLY Trim | 2 |
| 44 | 818967 | 护孔环 | GROMMET | 1 |
| 44 | 8M0207785 | 护孔环 | GROMMET | 1 |
| 45 | 818968 | 衬套 | BUSHING | 1 |
| 45 | 8M0214955 | 衬套 | BUSHING | 1 |
| 46 | NSS | 标贴(不单独销售) | NOT SOLD SEPARATE Decal | 1 |
| 47 | 828102 | 支架 | BRACKET | 1 |
| 47 | 8M0207771 | 安装支架 | BRACKET Mounting | 1 |
| 48 | 824868 | 螺钉(M6×75) | SCREW (M6 x 75) | 1 |
| 49 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 2 |
| 49 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 2 |
| 50 | 823807 | 衬套 | BUSHING | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 881368T1 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| - | 881368T2 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| - | 881368T2 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 1 | 804314T | 定子 | STATOR | 1 |
| 2 | 804313T | 电枢 | ARMATURE | 1 |
| 3 | 881369T1 | 电刷支架总成 | HOLDER ASSEMBLY Brush | 1 |
| 4 | 804316 | 电刷组 | BRUSH SET | 1 |
| 5 | 804317 | 弹簧 | SPRING | 4 |
| 6 | 881370T | 支架 | BRACKET | 1 |
| 7 | 804337 | 螺钉(M4×16) | SCREW (M4 x 16) | 2 |
| 8 | 804335 | 贯穿螺栓(M6×120) | THRU BOLT (M6 x 120) | 2 |
| 9 | 804321T1 | 齿轮套件 | GEAR KIT | 1 |
| 10 | 804322 | 离合器 | CLUTCH | 1 |
| 11 | 804330 | 垫圈套件 | WASHER KIT | 1 |
| 12 | 804324 | 支架 | BRACKET | 1 |
| 13 | 804326 | 齿圈 | RING GEAR | 1 |
| 14 | 804327 | 衬垫 | GASKET | 1 |
| 15 | 804325 | 轴承 | BEARING | 1 |
| 16 | 804323 | 小齿轮轴 | SHAFT Pinion | 1 |
| 17 | 804329 | 惰轮 | IDLER GEAR | 3 |
| 17 | 804329001 | 惰轮 | GEAR Idler | 3 |
| 18 | 804328 | 支架 | BRACKET | 1 |
| 19 | 804331T | 盖板 | COVER | 1 |
| 20 | 804336 | 螺栓(M6×52) | BOLT (M6 x 52) | 2 |
| 21 | 804319 | 小齿轮 | PINION | 1 |
| 22 | 804320 | 小齿轮止动组 | STOP SET Pinion | 1 |
| 23 | 804332 | 杠杆套件 | LEVER KIT | 1 |
| 24 | 804334 | 盖板 | COVER | 1 |
| 25 | 881371T | 启动继电器 | RELAY Starter | 1 |
| 25 | 881371T1 | 启动继电器 | RELAY Starter | 1 |
| 25 | 881371T1 | 启动继电器 | RELAY Starter | 1 |
| 26 | 804605 | 螺栓(M8×45) | BOLT (M8 x 45) | 3 |
| 27 | 881373 | 接线端子 | TERMINAL | 1 |
| 28 | 881377 | 锁紧垫圈 | LOCKWASHER | 1 |
| 29 | 82382M | 螺母 | NUT | 1 |
| 30 | 881372 | 螺母 | NUT | 1 |
| 31 | 881374 | 盖板 | COVER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 9011J2 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 9011J4 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| 1 | 9011G59 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 2 | 43043 | 定位销-带孔(0.375x0.625)前部 | PIN Dowel - With Hole (.375 x .625) Front | 1 |
| 2 | 8M0084244 | 定位销 0.375x0.620 | PIN Dowel, .375 x .620 | 1 |
| 3 | 43046 | 注油管 | TUBE Oiler | 1 |
| 4 | 79953Q2 | 排水螺钉套件(.375-16 x .250) | SCREW KIT (.375-16 x .250) Drain | 3 |
| 4 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 3 |
| 5 | 191832 | 垫圈 | WASHER | 3 |
| 5 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 3 |
| 6 | 43044 | 定位销-无孔(0.375x0.625)后部 | PIN Dowel - Without Hole (.375 x .625) Rear | 1 |
| 7 | 31640T5 | 平衡鳍板 | TRIM TAB | 1 |
| 7 | 8M0236553 | 平衡鳍板 | TRIM TAB | 1 |
| 8 | 825427 | 不锈钢螺钉(0.437-14x1.250) | SCREW (.437-14 x 1.250) Stainless Steel | 1 |
| 9 | 451761 | 垫圈(.453 x .812 x .105)黑色氧化 | WASHER (.453 x .812 x .105) Black Oxide | 1 |
| 10 | 43040T1 | 托架总成 | CARRIER ASSEMBLY | 1 |
| 11 | NSS | 非单独销售滚针轴承 | NOT SOLD SEPARATE Neeedle Bearing | 1 |
| 12 | 826134Q | 阳极块 | ANODE | 2 |
| 13 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 14 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 1 |
| 15 | NSS | 非单独销售小齿轮(14齿) | NOT SOLD SEPARATE Pinion Gear, (14 Teeth) | 1 |
| 16 | 35921 | 螺母(0.625-18) | NUT (.625-18) | 1 |
| 17 | 850307 | 换挡凸轮控制 | CAM Shift Control | 1 |
| 18 | 883047A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 19 | 44492A1 | 垫片组 | SHIM SET | 1 |
| 19 | 8M0063265 | 垫片组 | SHIM SET | 1 |
| 20 | 858765T1 | 驱动轴总成 | DRIVESHAFT ASSEMBLY | 1 |
| 20 | 878575T1 | 驱动轴总成 | DRIVESHAFT ASSEMBLY | 1 |
| 21 | 42461A1 | 套筒/环套件 | SLEEVE/RING KIT | 1 |
| 22 | NSS | 密封环(不单独销售) | NOT SOLD SEPARATE Seal Ring | 1 |
| 23 | 43055A4 | 水泵盖总成 | COVER ASSEMBLY Water Pump | 1 |
| 23 | 8M0113262 | 水泵盖总成 | COVER ASSEMBLY Water Pump | 1 |
| 24 | 430331 | 衬垫 | GASKET | 1 |
| 25 | 430472 | 衬垫 | GASKET | 1 |
| 25 | 8M0214931 | 衬垫 | GASKET | 1 |
| 26 | 43035 | 上部油封 | SEAL Oil Upper | 1 |
| 26 | 8M0245495 | 油封 | OIL SEAL | 1 |
| 27 | 43036 | 下油封 | SEAL Oil Lower | 1 |
| 28 | 8172771 | 水泵上垫片 | GASKET Water Pump, Upper | 1 |
| 29 | 817275A2 | 水泵上壳体套件 | HOUSING KIT Upper Water Pump | 1 |
| 30 | 8172761 | 面板 | FACEPLATE | 1 |
| 30 | 8M0204709 | 面板 | FACEPLATE | 1 |
| 31 | 82684430 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 4 |
| 32 | 430232 | 密封件 | SEAL | 1 |
| 33 | 43037 | 键 | KEY | 1 |
| 33 | 8M0204723 | 键 | KEY | 1 |
| 34 | 43026T2 | 叶轮 | IMPELLER | 1 |
| 35 | 82684425 | 螺钉(M6x25) | SCREW (M6 x 25) | 6 |
| 36 | 853906A1 | 换挡轴总成 | SHIFT SHAFT ASSEMBLY | 1 |
| 36 | 853908A1 | 换挡轴总成 | SHIFT SHAFT ASSEMBLY | 1 |
| 37 | 29641 | E型卡环 | E RING | 1 |
| 38 | 43052A4 | 衬套总成 | BUSHING ASSEMBLY | 1 |
| 39 | 457101 | O型圈(1.424x0.103) | O-RING (1.424 x .103) | 1 |
| 39 | 8M0204681 | 特殊O型圈1.424x0.103 | O-RING 1.424 x .103, Special | 1 |
| 40 | 8164641 | 油封 | SEAL Oil | 1 |
| 40 | 8M0246145 | 油封 | OIL SEAL | 1 |
| 41 | 82684425 | 螺钉(M6x25) | SCREW (M6 x 25) | 2 |
| 42 | 816575 | 端面密封 | FACE SEAL | 1 |
| 42 | 861415 | 端面密封 | SEAL Face | 1 |
| - | 43035A4 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| - | 43024A7 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| - | 8M0113799 | 水泵修理包 | REPAIR KIT-W/P | 1 |
| - | 803496T2 | 轴承/油封套件（不含前轴承） | BEARING/SEAL KIT Without Forward Bearing | 1 |
| - | 803489T1 | 离合器/凸轮维修包 | REPAIR KIT Clutch/Cam | 1 |
| - | 43026T11 | 水泵叶轮维修套件 | REPAIR KIT Water Pump Impeller | 1 |
| - | 8M0100526 | 水泵叶轮维修套件 | REPAIR KIT Water Impeller | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0088058 | 飞轮盖 | FLYWHEEL COVER | 1 |
| 1 | 8M0163126 | 飞轮盖 | FLYWHEEL COVER | 1 |
| 2 | 821555001 | 护孔环 | GROMMET | 4 |
| 2 | 8M0153609 | 护孔环 | GROMMET | 4 |
| 3 | 880515 | 螺栓(M20×68) | BOLT (M20 x 68) | 1 |
| 3 | 8M0147042 | 螺栓 | BOLT | 1 |
| 4 | 8M0071547 | 垫圈 (66 X 21 X 6.35毫米) | WASHER (66 X 21 X 6.35 MM) | 1 |
| 4 | 8M0090010 | 垫圈 | WASHER | 1 |
| 5 | 8M0090795 | 飞轮总成 | FLYWHEEL ASSEMBLY | 1 |
| 5 | 8M0141336 | 飞轮总成 | FLYWHEEL ASSEMBLY | 1 |
| 6 | 88552530 | 螺丝(M6×30毫米)不锈钢 | SCREW (M6 x 30 mm) Stainless Steel | 6 |
| 6 | 8M0103808 | 螺丝(M6×30毫米)不锈钢 | SCREW (M6 x 30 mm) Stainless Steel | 6 |
| 7 | 8M0088059 | 定子总成 完整 | STATOR ASSEMBLY Complete | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 897716K01 | 点火开关套件(3位)含钥匙 | SWITCH KIT Ignition (3 Position) With Keys | 1 |
| 2 | 897716001 | 塑料钥匙开关螺母 | NUT Plastic-Key Switch | 1 |
| - | 899203A01 | 标牌/垫片套件 | DECAL/WASHER KIT | 1 |
| - | 899203A01 | 标牌/垫片套件 | DECAL/WASHER KIT | 2 |
| 3 | 8M0233647 | 防转垫片 | WASHER Anti-Rotation | 1 |
| 4 | 899203 | 启停开关标牌 | DECAL On/Off/Start | 1 |
| 5 | 897716451 | 点火钥匙套装(451)带水星标志 | KEY SET Ignition (451) with Mercury Logo | AR |
| 5 | 897716457 | 点火钥匙套装(457)带水星标志 | KEY SET Ignition (457) with Mercury Logo | AR |
| 5 | 897716460 | 点火钥匙套装(460)带水星标志 | KEY SET Ignition (460) with Mercury Logo | AR |
| 5 | 897716461 | 点火钥匙套装(461)带水星标志 | KEY SET Ignition (461) with Mercury Logo | AR |
| 5 | 897716462 | 点火钥匙套装(462)带水星标志 | KEY SET Ignition (462) with Mercury Logo | AR |
| 5 | 897716463 | 点火钥匙套装(463)带水星标志 | KEY SET Ignition (463) with Mercury Logo | AR |
| 5 | 897716821 | 点火钥匙套装(821)带水星标志 | KEY SET Ignition (821) with Mercury Logo | AR |
| 5 | 897716827 | 点火钥匙套装(827)带水星标志 | KEY SET Ignition (827) with Mercury Logo | AR |
| 5 | 897716830 | 点火钥匙套装(830)带水星标志 | KEY SET Ignition (830) with Mercury Logo | AR |
| 5 | 897716831 | 点火钥匙套装(831)带水星标志 | KEY SET Ignition (831) with Mercury Logo | AR |
| 5 | 897716832 | 点火钥匙套装(832)带水星标志 | KEY SET Ignition (832) with Mercury Logo | AR |
| 5 | 897716833 | 点火钥匙套装(833)带水星标志 | KEY SET Ignition (833) with Mercury Logo | AR |
| 5 | 897716841 | 点火钥匙套装(841)带水星标志 | KEY SET Ignition (841) with Mercury Logo | AR |
| 5 | 897716847 | 点火钥匙套装(847)带水星标志 | KEY SET Ignition (847) with Mercury Logo | AR |
| 5 | 897716850 | 点火钥匙套装(850)带水星标志 | KEY SET Ignition (850) with Mercury Logo | AR |
| 5 | 897716851 | 点火钥匙套装(851)带水星标志 | KEY SET Ignition (851) with Mercury Logo | AR |
| 5 | 897716852 | 点火钥匙套装(852)带水星标志 | KEY SET Ignition (852) with Mercury Logo | AR |
| 5 | 897716853 | 点火钥匙套装(853)带水星标志 | KEY SET Ignition (853) with Mercury Logo | AR |
| 6 | 76629 | 内齿锁紧垫片(0.750) | LOCKWASHER Internal Tooth (.750) | 1 |
| 6 | 8M0207779 | 锁紧垫圈 | LOCKWASHER | 1 |
| 7 | 8M0189945 | 钥匙盖总成 | KEYS CAP ASSEMBLY | 1 |
| 8 | 8M0161143 | 钥匙盖 | CAP Key | 1 |
| - | 879305A01 | 三档钥匙开关壳体套件 | Housing Kit 3-Position Keyswitch Housing | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0089943 | 歧管套件 | MANIFOLD KIT | 1 |
| 2 | 893929A01 | 安全阀套件 | VALVE KIT Relief | 1 |
| 3 | 8M0089945 | 阀套件 | VALVE KIT | 1 |
| 4 | 8M0090404 | 配平限位阀套件 | VALVE KIT Trim Limit | 1 |
| 5 | 833063 | O型圈 | O-RING | 2 |
| 6 | 8M0055260 | 定位销 | DOWEL PINS | 3 |
| 7 | 811613 | 塞子总成 | PLUG ASSEMBLY | 1 |
| 8 | 833047 | 螺钉(0.250-20×2.250) | SCREW (.250-20 x 2.250) | 2 |
| 9 | 8M0089941 | 气缸总成 | CYLINDER ASSEMBLY | 1 |
| 10 | 88238A13 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 10 | 8M0207768 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 11 | 8M6002690 | 螺钉 | SCREW | 1 |
| 11 | 62568 | 螺钉（#10-16 x 0.375） | SCREW (#10-16 x .375) | 1 |
| 12 | 810776A1 | 记忆活塞总成 | PISTON ASSEMBLY Memory | 1 |
| 12 | 8M0171822 | 记忆活塞套件 | MEMORY PISTON KIT | 1 |
| 12 | 8M0100509 | 记忆活塞总成 | PISTON ASSEMBLY Memory | 1 |
| 12 | 8M0171825 | 记忆活塞套件 | MEMORY PISTON KIT | 1 |
| 13 | 893902A01 | O型圈套件 | O-RING KIT | 1 |
| 13 | 8M0171819 | O型圈套件 | O-RING KIT | 1 |
| 14 | 8M0089942 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 14 | 8M0171821 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 14 | 8M0139007 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 14 | 8M0171824 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 15 | 8M0089946 | 螺钉套件(完整调整) | SCREW KIT Complete Trim | 1 |
| 16 | 8M0089940 | 电机套件 | MOTOR KIT | 1 |
| 16 | 8M0142591 | 电机套件 | MOTOR KIT | 1 |
| 17 | 8M0090403 | 驱动联轴器 | COUPLING Drive | 1 |
| 18 | 8M0089944 | 泵总成 | PUMP ASSEMBLY | 1 |
| - | 8M0089947 | O型圈套件(动力调整) | O-RING KIT Power Trim | 1 |
| - | 8M0171820 | O型圈套件 | O-RING KIT | 1 |
| - | 8M0127334 | 提升阀密封套件 | POPPET SEAL KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 818904T1 | 旋转支架 | SWIVEL BRACKET | 1 |
| 1 | 8M0220957 | 旋转支架总成 | SWIVEL BRKT ASSY | 1 |
| 2 | 87735 | 下油封 | SEAL Oil Lower | 1 |
| 3 | 818764 | 衬套 | BUSHING | 2 |
| 4 | 33504 | O型圈 | O-RING | 1 |
| 4 | 8M0214926 | O型圈 @10 | O RING @10 | 1 |
| 5 | 816039 | 隔套 | SPACER | 1 |
| 6 | 74036 | 润滑脂接头 | FITTING Grease | 2 |
| 6 | 8M0169589 | 润滑脂接头 | FITTING Grease | 2 |
| 7 | 821207 | 衬套 | BUSHING | 2 |
| 8 | 64014 | 螺钉(.250-28x.500) | SCREW (.250-28 x .500) | 2 |
| 9 | 99661A26 | 旋转销总成 | SWIVEL PIN ASSEMBLY | 1 |
| 9 | 99661A35 | 旋转销总成 | SWIVEL PIN ASSEMBLY | 1 |
| 10 | 92876A10 | 连杆总成 | LINK ROD ASSEMBLY | 1 |
| 10 | 92876A12 | 连杆总成 | LINK ROD ASSEMBLY | 1 |
| 11 | 849838 | 螺钉(.375-24 x 1.250) | SCREW (.375-24 x 1.250) | 1 |
| 12 | 826709113 | 不锈钢螺母 (.375-24) | NUT (.375-24) Stainless Steel | 2 |
| 12 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 2 |
| 13 | 37828 | 不锈钢垫圈 (.390 x .625 x .062) | WASHER (.390 x .625 x .062) Stainless Steel | 2 |
| 14 | 42961A1 | 底部轭架总成 | YOKE ASSEMBLY Bottom | 1 |
| 14 | 42961A06 | 底部轭架总成 | YOKE ASSEMBLY Bottom | 1 |
| 15 | 67684 | 挡圈 | RING Retaining | 1 |
| 16 | 816432 | 止推垫片 | THRUST WASHER | 1 |
| 17 | NSS | 不单独销售 贴纸, 序列号覆膜 | NOT SOLD SEPARATE Decal, Serial Overlaminate | 1 |
| 18 | 11288 | 下轭缓冲垫 | BUMPER Bottom Yoke | 1 |
| 18 | 11288001 | 下轭缓冲垫 | BUMPER Bottom Yoke | 1 |
| 19 | 88882 | 上轭缓冲垫 | BUMPER Top Yoke | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 830250T3 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| - | 8M0171818 | 动力调整总成 | POWER TRIM ASSY | 1 |
| 1 | 811666A1 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 1 | 8M0171821 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 2 | 809872A2 | O型圈维修包 | O-RING KIT Rebuild | 1 |
| 2 | 8M0171819 | O型圈套件 | O-RING KIT | 1 |
| 3 | 810776A1 | 记忆活塞总成 | PISTON ASSEMBLY Memory | 1 |
| 3 | 8M0171822 | 记忆活塞套件 | MEMORY PISTON KIT | 1 |
| 4 | 811669A1 | 气缸总成 | CYLINDER ASSEMBLY | 1 |
| 4 | 893916A01 | 气缸总成 | CYLINDER ASSEMBLY | 1 |
| 5 | 809873A1 | 配平限位阀套件 | VALVE KIT Trim Limit | 1 |
| 5 | 893905A02 | 阀套件 | VALVE KIT | 1 |
| 6 | 809874A1 | 泵总成 | PUMP ASSEMBLY | 1 |
| 6 | 893906A02 | 泵总成 | PUMP ASSEMBLY | 1 |
| 7 | 809885A2 | 电机套件 | MOTOR KIT | 1 |
| 7 | 893907A02 | 电机套件 | MOTOR KIT | 1 |
| 8 | 8134351 | 堵头 | PLUG | 1 |
| 9 | 813442A2 | 手动释放总成 | MANUAL RELEASE ASSEMBLY | 1 |
| 9 | 893929A01 | 安全阀套件 | VALVE KIT Relief | 1 |
| 10 | 809875A1 | 歧管套件 | MANIFOLD KIT | 1 |
| 10 | 893909A02 | 歧管套件 | MANIFOLD KIT | 1 |
| 11 | 809876A1 | 电机螺钉套件 | SCREW KIT Motor | 1 |
| 12 | 88238A18 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 13 | 809877A1 | 驱动轴/密封套件 | DRIVESHAFT/SEAL KIT | 1 |
| 14 | 809878A1 | 滤清器套件 | FILTER KIT | 1 |
| 14 | 893912A02 | 滤清器套件 | FILTER KIT | 1 |
| 15 | 809879A1 | 提升阀套件 | POPPET KIT | 1 |
| 15 | 893913A02 | 提升阀套件 | POPPET KIT | 1 |
| - | 809880A1 | 完整配平O型圈套件 | O-RING KIT Complete Trim | 1 |
| - | 893914A02 | O型圈套件 | O-RING KIT | 1 |
| 16 | 821539 | 三叶销 | PIN Trilobe | 2 |
| 17 | 818898 | 锚销 | PIN Anchor | 1 |
| 18 | 996251 | 轴 | SHAFT | 1 |
| 18 | 99625002 | 轴 | SHAFT | 1 |
| 19 | 22740 | 卡扣 | CLIP | 2 |
| 20 | 878609 | 螺钉 (#10-16 x .600) | SCREW (#10-16 x .600) | 1 |
| 21 | 69205 | C形垫圈 | C WASHER | 1 |
| 21 | 8M0084613 | C形垫圈 | C-WASHER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0235171 | 燃油供应模块 双泵 | FUEL SUPPLY MODULE Dual Pump | 1 |
| 1 | 8M0053756 | 螺钉 Plastite W/ HX WSR HD | SCREW Plastite W/ HX WSR HD | 4 |
| 2 | 8M0245916 | 泵总成 高压 | PUMP ASSEMBLY High Pressure | 1 |
| 3 | 8M0245917 | 泵总成 低压 | PUMP ASSEMBLY Low Pressure | 1 |
| 4 | 895319 | 护孔环 | GROMMET | 1 |
| 5 | 856954 | 衬套 | BUSHING | 1 |
| 6 | NSS | 不单独出售 线束, 穿线 | NOT SOLD SEPARATE Harness, Pass Thru | 1 |
| 7 | 8M0245915 | 燃油供应模块 维修套装 | FSM REPAIR KIT | 1 |
| 8 | 8M0133370 | 燃油供应模块 密封件套装 | FSM SEAL KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 897525T03 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| - | 897525T05 | 起动机总成(完整) | STARTER MOTOR ASSEMBLY Complete | 1 |
| - | 897525T05 | 起动机总成(完整) | STARTER MOTOR ASSEMBLY Complete | 1 |
| - | 879150A85 | 启动电机套件 | STARTER MOTOR KIT | 1 |
| 1 | 8M0001391 | 启动电机轴套 | COLLAR Starter Motor | 2 |
| 1 | 8M0034918 | 轴环 | COLLAR | 2 |
| 2 | 93388A1 | 电缆总成(6.00英寸)黑色 | CABLE ASSEMBLY (6.00 Inches) Black | 1 |
| 3 | 69035 | 螺丝与锁紧垫圈(.250-20 x .625)不锈钢 | SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel | 1 |
| 4 | 8M0007871 | 橡胶止挡 | STOP Rubber | 1 |
| 5 | 898890T01 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 6 | 400255 | 锁紧垫圈(M5) | LOCKWASHER (M5) | 1 |
| 7 | 400211 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 1 |
| 8 | 8272822 | 警告标贴 | DECAL Warning | 1 |
| 9 | 898103T94 | 卡箍 | CLAMP | 1 |
| 9 | 879150A85 | 启动电机套件 | STARTER MOTOR KIT | 1 |
| 10 | 898103T95 | 卡箍 | CLAMP | 1 |
| 10 | 879150A85 | 启动电机套件 | STARTER MOTOR KIT | 1 |
| 11 | 8M0008081 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 2 |
| 12 | 8M0008110 | 盖形螺母 | NUT Acorn | 1 |
| 13 | 8M0008112 | 垫片(外径8毫米×187毫米) | WASHER (8 mm Outside Diameter x 187 mm) | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0109543 | 燃油滤清器套件-远程油水分离型 | FUEL FILTER KIT Remote Water Seperating | 1 |
| 1 | 8M0095674 | 燃油滤清器底座总成 | BASE ASSEMBLY Fuel Filter | 1 |
| 2 | 809096 | 油水分离式燃油滤清器总成 | FILTER Fuel-Water Separating Fuel Filter Assembly | 1 |
| 2 | 8M0116793 | 燃油滤清器套件 | FUEL FILTER KIT | 1 |
| 3 | 8M0021044 | 滤杯 | BOWL | 1 |
| 3 | 8M0214990 | 滤清器杯体 | FILTER BOWL | 1 |
| 4 | 8M0103095 | 油水分离滤清器(11/16-16螺纹) | FILTER Fuel-Water Separating (11/16-16 Thread) | 1 |
| 4 | 8M0146203 | 滤芯(11/16英寸) | ELEMENT 11/16 IN | 1 |
| 5 | 36373 | 六角堵头（.375-18）-钢制 | PLUG (.375-18) Hex - Steel | 2 |
| 5 | 8M0204657 | 堵头 | PLUG | 2 |
| 6 | 8M0086290 | 倒钩接头 | CONNECTOR Barb | 2 |
| 6 | 8M0204732 | 倒钩接头 | CONNECTOR Barb | 2 |
| 7 | 855697 | 卡箍 | CLAMP | 2 |
| 7 | 8M0204696 | 卡箍 | CLAMP | 2 |
| 8 | 8M0021043 | 传感器总成 燃油和水 | SENSOR ASSEMBLY Fuel and Water | 1 |
| 8 | 8M0214989 | 燃油含水传感器 | SENSOR WIF | 1 |
| 9 | 8M0060420 | 线束(6针) | HARNESS 6 Pin | 1 |
| 10 | 8M0060421 | 线束转接器 | HARNESS Adapter | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 804295T | 温度传感器 | THERMOSENSOR | 1 |
| 2 | 804296 | 固定座 | RETAINER | 1 |
| 3 | 8527768 | 螺栓(M6 x 16) | BOLT (M6 x 16) | 2 |
| 3 | 811188T | 螺栓 | BOLT | 2 |
| 4 | 8042971 | 衬垫 | GASKET | 1 |
| 5 | 83577M | 卡箍 | CLAMP | 1 |
| 6 | 84088M | 螺丝 (M6 x 10) | SCREW (M6 x 10) | 1 |
| 7 | 881366 | 安装板 | PLATE | 1 |
| 8 | 804602 | 螺栓(M6 x 12) | BOLT (M6 x 12) | 1 |
| 9 | 8042941 | 安装板 | PLATE | 1 |
| 10 | 8527768 | 螺栓(M6 x 16) | BOLT (M6 x 16) | 2 |
| 10 | 811188T | 螺栓 | BOLT | 2 |
| 11 | 881365T1 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 11 | 881364T05 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 12 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 6 |
| 13 | 879650 | 卡箍 | CLAMP | 1 |
| 13 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | 1 |
| 14 | 8043071 | 油压开关 | SWITCH Oil Pressure | 1 |
| 15 | 881367A1 | 引线 | LEAD WIRE | 1 |
| 16 | 804604 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 1 |
| - | 858732T01 | 衬垫套件 | GASKET SET | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 881421T01 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0057676 | 燃油供应模块 双泵 | FUEL SUPPLY MODULE Dual Pump | 1 |
| - | 8M0235171 | 燃油供应模块 双泵 | FUEL SUPPLY MODULE Dual Pump | 1 |
| 1 | 8M0053756 | 螺钉 Plastite W/ HX WSR HD | SCREW Plastite W/ HX WSR HD | 4 |
| 2 | 8M0053726 | 燃油供应模块 上壳体 | FSM TOP HOUSING | 1 |
| 2 | 8M0158344 | 燃油供应模块 上壳体 | FSM TOP HOUSING | 1 |
| 3 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 1 |
| 4 | 8M0053749 | 调节器总成 | REGULATOR ASSEMBLY | 1 |
| 4 | 8M0242586 | 调节器总成 | REGULATOR ASSEMBLY | 1 |
| 5 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 1 |
| 6 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 1 |
| 7 | NSS | 不单独销售 密封件 | NOT SOLD SEPARATE Seal | 3 |
| 8 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 2 |
| 9 | 8M0053727 | 燃油供应模块 盖 | FSM CAP | 1 |
| 10 | NSS | 不单独销售 密封件 | NOT SOLD SEPARATE Seal | 2 |
| 11 | 8M0062771 | 泵总成 低压 | PUMP ASSY Low Pressure | 1 |
| 12 | 8M0062770 | 泵总成 高压 | PUMP ASSY High Pressure | 1 |
| 13 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 4 |
| 14 | 8M0053735 | 油管 燃油 | TUBE Fuel | 2 |
| 14 | 8M0119250 | 管 | TUBE | 2 |
| 15 | 8M0053755 | 油管 吸油 | TUBE Suction | 1 |
| 16 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 4 |
| 17 | 8M0053734 | 水管 | TUBE Water | 2 |
| 17 | 8M0120073 | 管 | TUBE | 2 |
| 18 | NSS | 不单独销售 密封件 | NOT SOLD SEPARATE Seal | 1 |
| 19 | 8M0053725 | 燃油供应模块 下壳体 | FSM BOTTOM HOUSING | 1 |
| 19 | 8M0132733 | 燃油供应模块 双泵 | FUEL SUPPLY MODULE Dual Pump | 1 |
| 20 | 8M6001398 | 线束总成 | ELECTRICAL HARNESS ASSEMBLY | 1 |
| 20 | 8M6004776 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 21 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 1 |
| 22 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 1 |
| 23 | NSS | NOT SOLD SEPARATE Spacer | 1 | |
| - | 8M0057679 | 燃油供应模块 密封件套装 | FSM SEAL KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0089943 | 歧管套件 | MANIFOLD KIT | 1 |
| 2 | 893929A01 | 安全阀套件 | VALVE KIT Relief | 1 |
| 3 | 8M0089945 | 阀套件 | VALVE KIT | 1 |
| 4 | 8M0090404 | 配平限位阀套件 | VALVE KIT Trim Limit | 1 |
| 5 | 833063 | O型圈 | O-RING | 2 |
| 6 | 8M0055260 | 定位销 | DOWEL PINS | 3 |
| 7 | 811613 | 塞子总成 | PLUG ASSEMBLY | 1 |
| 8 | 833047 | 螺钉(0.250-20×2.250) | SCREW (.250-20 x 2.250) | 2 |
| 9 | 8M0089941 | 气缸总成 | CYLINDER ASSEMBLY | 1 |
| 10 | 88238A13 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 10 | 8M0207768 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 11 | 8M6002690 | 螺钉 | SCREW | 1 |
| 11 | 62568 | 螺钉（#10-16 x 0.375） | SCREW (#10-16 x .375) | 1 |
| 12 | 810776A1 | 记忆活塞总成 | PISTON ASSEMBLY Memory | 1 |
| 12 | 8M0171822 | 记忆活塞套件 | MEMORY PISTON KIT | 1 |
| 13 | 893902A01 | O型圈套件 | O-RING KIT | 1 |
| 13 | 8M0171819 | O型圈套件 | O-RING KIT | 1 |
| 14 | 8M0089942 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 14 | 8M0171821 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 15 | 8M0089946 | 螺钉套件(完整调整) | SCREW KIT Complete Trim | 1 |
| 16 | 8M0089940 | 电机套件 | MOTOR KIT | 1 |
| 16 | 8M0142591 | 电机套件 | MOTOR KIT | 1 |
| 17 | 8M0090403 | 驱动联轴器 | COUPLING Drive | 1 |
| 18 | 8M0089944 | 泵总成 | PUMP ASSEMBLY | 1 |
| - | 8M0089947 | O型圈套件(动力调整) | O-RING KIT Power Trim | 1 |
| - | 8M0171820 | O型圈套件 | O-RING KIT | 1 |
| - | 8M0127334 | 提升阀密封套件 | POPPET SEAL KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 880894T | 曲轴 | CRANKSHAFT | 1 |
| 2 | 8040992 | 油封 | SEAL Oil | 1 |
| 3 | 8041002 | 油封 | SEAL Oil | 1 |
| 4 | 804101T | 轴承 | BEARING | 4 |
| 4 | 804101T10 | 轴承 | BEARING | 4 |
| 4 | 804101T20 | 轴承 | BEARING | 4 |
| 5 | 804102T | 轴承 | BEARING | 5 |
| 5 | 804102T10 | 轴承 | BEARING | 5 |
| 5 | 804102T20 | 轴承 | BEARING | 5 |
| 5 | 804102T30 | 轴承 | BEARING | 5 |
| 6 | 804103T | 轴承 | BEARING | 1 |
| 6 | 804103T10 | 轴承 | BEARING | 1 |
| 6 | 804103T20 | 轴承 | BEARING | 1 |
| 7 | 880895T1 | 活塞总成 | PISTON ASSEMBLY | 4 |
| 7 | 880895A14 | 活塞/连杆总成 | PISTON/CONN ROD | 4 |
| 7 | 880895T10 | 活塞总成 | PISTON ASSEMBLY | AR |
| 7 | 880895A16 | 活塞/连杆总成 | PISTON/CONN ROD | AR |
| 8 | 880896 | 螺栓(M8 x 38) | BOLT (M8 x 38) | 8 |
| 9 | 880897T1 | 活塞环组 | RING SET Piston | 4 |
| 9 | 880897T02 | 活塞环组 | RING SET Piston | 4 |
| 9 | 880898T1 | 活塞环组 | RING SET Piston | AR |
| 9 | 880898T02 | 活塞环组 | RING SET Piston | AR |
| 10 | 880899T | 轴承 | BEARING | 8 |
| 10 | 880899T10 | 轴承 | BEARING | 8 |
| 10 | 880899T20 | 轴承 | BEARING | 8 |
| 10 | 880899T30 | 轴承 | BEARING | 8 |
| - | 881421T01 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0092054 | 延长套件 | EXTENSION KIT | 1 |
| - | 8M0105089 | 传动轴壳体延长套件 | EXTENSION KIT Driveshaft Housing | 1 |
| 1 | 8M0071622 | 间隔套 驱动轴壳体 | SPACER Driveshaft Housing | 1 |
| 1 | 8M0105088 | 传动轴壳体加长隔套（黑色） | SPACER Driveshaft Housing X-Long, Black | 1 |
| 2 | 8M0094341 | 加长驱动轴 | DRIVESHAFT X-Long | 1 |
| 3 | 33138A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 4 | 77420A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 4 | 8M0166756 | 轴承总成 | BEARING ASSEMBLY | 1 |
| 5 | 8M0063267 | 垫片组 | SHIM SET | 1 |
| 6 | 8M0063268 | 垫片组 | SHIM SET | 1 |
| 7 | 8M0029215 | 水管 | WATER TUBE | 1 |
| 8 | 8M0008047 | 双头螺柱（M12×179） | STUD (M12 x 179) | 4 |
| 9 | 8M0071654 | 螺母 (.625-18 HX) | NUT (.625-18 HX) | 1 |
| 10 | 866233001 | 面板 | FACEPLATE | 1 |
| 11 | 8M0053078 | 换挡轴 下部, 加长型 | SHIFT SHAFT Lower, X-Long | 1 |
| 12 | 8M0030784 | 垫圈 带键 | WASHER Keyed | 1 |
| 13 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 1 |
| 14 | 8M0084244 | 定位销 0.375x0.620 | PIN Dowel, .375 x .620 | 1 |
| 15 | 896895 | 螺母(M12) | NUT (M12) | 4 |
| 16 | 856982 | 垫圈(0.5×0.81×0.09英寸)不锈钢 | WASHER (.500 x .810 x .090) Stainless Steel | 5 |
| 17 | 857137 | 螺钉 (M12 X 160) | SCREW (M12 x 160) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 898032A03 | 旋转支架总成 | SWIVEL BRACKET ASSEMBLY | 1 |
| 1 | 8M0220957 | 旋转支架总成 | SWIVEL BRKT ASSY | 1 |
| 2 | 87735 | 下油封 | SEAL Oil Lower | 1 |
| 3 | 818764 | 衬套 | BUSHING | 2 |
| 4 | 33504 | O型圈 | O-RING | 1 |
| 4 | 8M0214926 | O型圈 @10 | O RING @10 | 1 |
| 5 | 816039 | 隔套 | SPACER | 1 |
| 6 | 74036 | 润滑脂接头 | FITTING Grease | 2 |
| 6 | 8M0169589 | 润滑脂接头 | FITTING Grease | 2 |
| 7 | 821207 | 衬套 | BUSHING | 2 |
| 8 | 64014 | 螺钉(.250-28x.500) | SCREW (.250-28 x .500) | 2 |
| 9 | 99661A35 | 旋转销总成 | SWIVEL PIN ASSEMBLY | 1 |
| 10 | 92876A12 | 连杆总成 | LINK ROD ASSEMBLY | 1 |
| 11 | 849838 | 螺钉(.375-24 x 1.250) | SCREW (.375-24 x 1.250) | 1 |
| 12 | 8M0042636 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 1 |
| 12 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 1 |
| 13 | 826709113 | 不锈钢螺母 (.375-24) | NUT (.375-24) Stainless Steel | 1 |
| 13 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 1 |
| 14 | 37828 | 不锈钢垫圈 (.390 x .625 x .062) | WASHER (.390 x .625 x .062) Stainless Steel | 2 |
| 15 | 42961A06 | 底部轭架总成 | YOKE ASSEMBLY Bottom | 1 |
| 16 | 67684 | 挡圈 | RING Retaining | 1 |
| 17 | 816432 | 止推垫片(含旋转支架) | THRUST WASHER Included with Swivel Bracket | 1 |
| 18 | 11288001 | 下轭缓冲垫 | BUMPER Bottom Yoke | 1 |
| 19 | 821400A2 | 动力升降倾斜传感器套件 | SENDER KIT Power Trim | 1 |
| 19 | 8M0074845 | ORD 8M0098264 | ORD 8M0098264 | 1 |
| 20 | 852368 | 螺钉（#10-24 X 0.750） | SCREW (#10-24 x .750) | 2 |
| 21 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 2 |
| 22 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| - | NSS | 不单独销售-序列号覆膜标贴 | NOT SOLD SEPARATE Decal-Serial Overlaminate | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 878587A1 | 下罩总成 | BOTTOM COWL ASSEMBLY | 1 |
| 1 | 8M0107315 | 底部罩盖-左舷 | COWL-BOTTOM, PORT | 1 |
| 2 | 858743A2 | 下罩总成 | BOTTOM COWL ASSEMBLY | 1 |
| 2 | 8M0113913 | 右舷下罩B | COWL-LOWER STBD B | 1 |
| 3 | 8253181 | 罩盖密封条(41英寸) | SEAL Cowl (41.00 Inches) | 2 |
| 3 | 8M0109217 | 罩盖密封条 | SEAL-COWL | 2 |
| 4 | 878547T | 嵌件 | INSERT | 1 |
| 5 | 82130040 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 8 |
| 6 | 831209 | 固定座 | RETAINER | 1 |
| 7 | 858742 | 怠速排气套 | BOOT Idle Exhaust | 1 |
| 8 | 859251 | 护孔环 | GROMMET | 1 |
| 8 | 8M0039078 | 护孔环 | GROMMET | 1 |
| 9 | 827948 | 接头 | FITTING | 1 |
| 10 | 855576 | 垫圈 | WASHER | 1 |
| 11 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 6 |
| 12 | 830756109 | 软管(57英寸整卷)(裁切至5英寸长度) | HOSE (57.00 Inches Bulk) (Cut To 5.00 Inch Length) | 1 |
| 12 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 13 | 881535 | 软管(32.00英寸) | HOSE (32.00 Inches) | 1 |
| 14 | 9912688 | 管材(36.00英寸散装)(26.00英寸) | TUBING (36.00 Inches Bulk) (26.00 Inch) | 1 |
| 15 | 817518 | 三通 | TEE | 1 |
| 16 | 82130020 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 2 |
| 17 | 8587411 | 护孔环 | GROMMET | 1 |
| 17 | 889724 | 护孔环 | GROMMET | 1 |
| 18 | 856990 | 开关总成 | SWITCH ASSEMBLY | 1 |
| 18 | 8M0235192 | 微调开关 | SWITCH TRIM | 1 |
| 19 | 824868 | 螺钉(M6×75) | SCREW (M6 x 75) | 1 |
| 20 | 821253F1 | 前手柄黑色 | FRONT HANDLE Black | 1 |
| 20 | 889740A02 | 手柄套件 | HANDLE KIT | 1 |
| 21 | 33589 | 衬套 | BUSHING | 2 |
| 22 | 48462 | O型圈 (.614 x .070) | O-RING (.614 x .070) | 1 |
| 23 | 8219423 | 棘爪 | PAWL | 1 |
| 24 | 69057 | 垫片(.281 x .734 x .063) | WASHER (.281 x .734 x .063) | 1 |
| 25 | 401366 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 26 | 13541 | 公插头 | PLUG Male | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 880894T | 曲轴 | CRANKSHAFT | 1 |
| 2 | 8040992 | 油封 | SEAL Oil | 1 |
| 3 | 8041002 | 油封 | SEAL Oil | 1 |
| 4 | 804101T | 轴承 | BEARING | 4 |
| 4 | 804101T10 | 轴承 | BEARING | 4 |
| 4 | 804101T20 | 轴承 | BEARING | 4 |
| 5 | 804102T | 轴承 | BEARING | 5 |
| 5 | 804102T10 | 轴承 | BEARING | 5 |
| 5 | 804102T20 | 轴承 | BEARING | 5 |
| 5 | 804102T30 | 轴承 | BEARING | 5 |
| 6 | 804103T | 轴承 | BEARING | 1 |
| 6 | 804103T10 | 轴承 | BEARING | 1 |
| 6 | 804103T20 | 轴承 | BEARING | 1 |
| 7 | 880895A05 | 活塞总成 | PISTON ASSEMBLY | 4 |
| 7 | 880895A14 | 活塞/连杆总成 | PISTON/CONN ROD | 4 |
| 7 | 880895A12 | 活塞总成 | PISTON ASSEMBLY | AR |
| 7 | 880895A16 | 活塞/连杆总成 | PISTON/CONN ROD | AR |
| 8 | 880896 | 螺栓(M8 x 38) | BOLT (M8 x 38) | 8 |
| 9 | 880897T02 | 活塞环组 | RING SET Piston | 4 |
| 9 | 880898T02 | 活塞环组 | RING SET Piston | AR |
| 10 | 880899T | 轴承 | BEARING | 8 |
| 10 | 880899T10 | 轴承 | BEARING | 8 |
| 10 | 880899T20 | 轴承 | BEARING | 8 |
| 10 | 880899T30 | 轴承 | BEARING | 8 |
| - | 858732A06 | 衬垫套件 | GASKET SET | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 881422T1 | 气缸体 | CYLINDER BLOCK | 1 |
| 1 | 881422T05 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 2 | 82364M | 定位销 | PIN Dowel | 10 |
| 3 | 8587321 | 衬垫 | GASKET | 1 |
| 3 | 858732002 | 气缸体衬垫 | GASKET Cylinder Block | 1 |
| 4 | 881423 | 螺栓(M8×55) | BOLT (M8 x 55) | 10 |
| 4 | 8M0101617 | 螺栓 | BOLT | 10 |
| 5 | 804072 | 螺栓 (M10 x 135) | BOLT (M10 x 135) | 10 |
| 6 | 855690 | 护孔环 | GROMMET | 1 |
| 7 | 804073 | 吊环 | LIFTING EYE | 2 |
| 8 | 8257021 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 4 |
| 9 | 825953 | 塞子 (M14 x 12) | PLUG (M14 x 12) | 1 |
| 10 | 81990M | 衬垫 | GASKET | 1 |
| 11 | 822626Q2 | 机油滤清器 | FILTER Oil | 1 |
| 11 | 8M0162830 | 机油滤清器 | FILTER OIL | 1 |
| 12 | 804097 | 螺栓 | BOLT | 1 |
| 13 | 881424T | 外排气罩 | COVER Outer Exhaust | 1 |
| 13 | 881424T02 | 排气盖 | COVER-EXHAUST | 1 |
| 14 | 804076 | 衬垫 | GASKET | 1 |
| 14 | 804076003 | 衬垫 | GASKET | 1 |
| 15 | 881427 | 螺栓 (M6 x 30) | BOLT (M6 x 30) | 18 |
| 16 | 881425 | 螺钉 | SCREW | 1 |
| 17 | 881426 | 衬垫 | GASKET | 1 |
| 18 | NSS | 阳极 (不单独销售) | NOT SOLD SEPARATE Anode | 1 |
| 19 | 804086 | 护孔环 | GROMMET | 1 |
| 20 | 804085 | 盖板 | COVER | 1 |
| 20 | 804085A01 | 罩盖/阳极套件 | COVER/ANODE KIT | 1 |
| 21 | 8524741 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 1 |
| 22 | 827207 | 螺栓 (M8 x 25) | BOLT (M8 x 25) | 2 |
| 23 | 804082 | 护孔环 | GROMMET | 1 |
| 24 | 804080 | 压力控制阀 | VALVE Pressure Control | 1 |
| 24 | 804080001 | 阀门 | VALVE | 1 |
| 25 | 804081 | 弹簧 | SPRING | 1 |
| 26 | 804084 | 衬垫 | GASKET | 1 |
| 27 | 804083 | 盖板 | COVER | 1 |
| 27 | 804083001 | 盖板 | COVER | 1 |
| 28 | 881428 | 螺栓(M6 x 16) | BOLT (M6 x 16) | 3 |
| 29 | 804089 | 卡扣 | CLIP | 1 |
| 30 | 804088 | 软管 | HOSE | 1 |
| 31 | 879650 | 卡箍 | CLAMP | 1 |
| 31 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | 1 |
| 32 | 8587331 | 螺柱 | STUD | 6 |
| 33 | 856774 | 垫圈(0.406×0.750×0.105)不锈钢 | WASHER (.406 x .750 x .105) Stainless Steel | 6 |
| 33 | 8M0214963 | 垫圈 | WASHER | 6 |
| 34 | 40140 | 螺母(M10) | NUT (M10) | 6 |
| 35 | 81893435 | 螺钉(M8×35) | SCREW (M8 x 35) | 2 |
| 35 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 2 |
| 36 | 881600 | 橡胶盖 | CAP Rubber | 1 |
| - | 858732T01 | 衬垫套件 | GASKET SET | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 881421T01 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 881310T2 | 气缸盖总成 | CYLINDER HEAD ASSEMBLY | 1 |
| 1 | 881310T08 | 气缸盖总成基础款 | CYLINDER HEAD ASSEMBLY Basic | 1 |
| 2 | 804110 | 导向销 | PIN Guide | 16 |
| 3 | 804111 | 堵头 | PLUG | 4 |
| 4 | 804112 | 螺栓(M7 x 48) | BOLT (M7 x 48) | 4 |
| 5 | 804113 | 定位销 | PIN Dowel | 4 |
| 6 | 804114 | 螺栓(M7×37) | BOLT (M7 x 37) | 16 |
| 7 | 881311 | 螺栓(M10×145) | BOLT (M10 x 145) | 10 |
| 8 | 804116 | 轴环 | COLLAR | 2 |
| 8 | 8M0070515 | 定位销 | DOWEL PIN | 2 |
| 9 | 8041151 | 衬垫 | GASKET | 1 |
| 10 | 83124714 | 螺栓 | BOLT | 4 |
| 11 | 831246 | 密封垫圈 | WASHER Sealing | 4 |
| 12 | 881312 | 螺栓(M8×55) | BOLT (M8 x 55) | 5 |
| 13 | NSS | 阳极 (不单独销售) | NOT SOLD SEPARATE Anode | 2 |
| 14 | 804086 | 护孔环 | GROMMET | 2 |
| 15 | 804085 | 盖板 | COVER | 2 |
| 15 | 804085A01 | 罩盖/阳极套件 | COVER/ANODE KIT | 2 |
| 16 | 8524741 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 2 |
| 17 | 827207 | 螺栓 (M8 x 25) | BOLT (M8 x 25) | 4 |
| 18 | 881284 | 火花塞 | SPARK PLUG | 4 |
| 18 | 881284Q | PG LFR6A-11 @10 | PG LFR6A-11 @10 | 4 |
| 19 | 881429 | 节温器 | THERMOSTAT | 1 |
| 19 | 8M6013864 | 节温器 | THERMOSTAT | 1 |
| 20 | 881430 | 节温器盖 | COVER Thermostat | 1 |
| 20 | 8041271 | 节温器盖 | THERMOSTAT COVER | 1 |
| 21 | 8248326 | 螺丝(M6 x 25毫米) | SCREW (M6 x 25 mm) | 2 |
| 22 | 881313T1 | 盖板套件 | COVER KIT | 1 |
| 23 | 804119 | 通气盖 | COVER Breather | 1 |
| 24 | 804120 | 螺钉(M4 x 8) | SCREW (M4 x 8) | 8 |
| 25 | 804123 | 衬垫 | GASKET | 1 |
| 26 | 855690 | 护孔环 | GROMMET | 2 |
| 27 | 858530 | 螺栓 (M6 x 30) | BOLT (M6 x 30) | 14 |
| 28 | 859578A1 | 油塞总成 | PLUG ASSEMBLY Oil | 1 |
| 28 | 8M0240831 | 油塞 | OIL PLUG | 1 |
| 29 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 1 |
| 30 | 858752 | 盖板 | COVER | 1 |
| 30 | 858752001 | 盖板 | COVER | 1 |
| 31 | 1993716 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 5 |
| - | 858732T01 | 衬垫套件 | GASKET SET | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 881310T1 | 气缸盖总成 | CYLINDER HEAD ASSEMBLY | 1 |
| - | 881310T09 | 气缸盖 | HEAD-CYLINDER | 1 |
| - | 881421T01 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 858576T03 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 1 | 858576T2 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 2 | 903501 | 双头螺柱(M10×100) | STUD (M10 x 100) | 1 |
| 2 | 9035015 | 双头螺柱(M10×227) | STUD (M10 x 227) | 1 |
| 3 | 9035012 | 双头螺柱(M10×63) | STUD (M10 x 63) | 4 |
| 3 | 9035016 | 双头螺柱(M10×190) | STUD (M10 x 190) | 4 |
| 3 | 8M0034462 | 双头螺柱(M10×190) | STUD (M10 x 190) | 4 |
| 4 | 856774 | 垫圈(0.406×0.750×0.105)不锈钢 | WASHER (.406 x .750 x .105) Stainless Steel | 5 |
| 4 | 8M0214963 | 垫圈 | WASHER | 5 |
| 5 | 40140 | 螺母(M10) | NUT (M10) | 5 |
| 6 | 85822A15 | 速度计传感器总成 | PICKUP ASSEMBLY Speedometer | 1 |
| 7 | 43335 | 90度接头(.125-27)尼龙 | CONNECTOR 90 Degree (.125-27) Nylon | 1 |
| 7 | 433351 | 90度接头-带防振密封 | CONNECTOR 90 Degree - With Vibraseal | 1 |
| 8 | 85822 | 直通接头 | CONNECTOR Straight | 1 |
| 8 | 85822T | 直通接头 | CONNECTOR Straight | 1 |
| 9 | 44343T1 | 支架 | MOUNT | 2 |
| 10 | 42973 | 螺栓(M12×154) | BOLT (M12 x 154) | 2 |
| 10 | 898835001 | 螺钉(M12 x 154) | SCREW (M12 x 154) | 2 |
| 11 | 30119 | 垫圈(外径0.875英寸) | WASHER (.875 Inch Outside Diameter) | 2 |
| 12 | 43528 | 螺母(M12) | NUT (M12) | 2 |
| 12 | 8M0204662 | 螺母 | NUT | 2 |
| 13 | 88238A10 | 接地线总成 | CABLE ASSEMBLY Ground | 2 |
| 14 | 41508 | 螺钉(0.250-20×0.500)不锈钢 | SCREW (.250-20 x .500) Stainless Steel | 1 |
| 15 | 858916T | 卡箍 | CLAMP | 2 |
| 16 | 4010725 | 螺钉 (M8 x 25) | SCREW (M8 x 25) | 4 |
| 17 | 858745 | 盖帽 | CAP | 4 |
| 17 | 8M0142713 | 支撑盖帽 | CAP Chap Support | 4 |
| 18 | 859550 | 衬套 | BUSHING | 1 |
| 19 | 24873 | 定位销 | PIN Alignment | 1 |
| 20 | 855622 | 接头 | FITTING | 1 |
| 21 | 12092A3 | 隔套套件 | SPACER KIT | 1 |
| 22 | 43043 | 定位销-带孔(0.375×0.625) | PIN Dowel - With Hole (.375 x .625) | 1 |
| 22 | 8M0084244 | 定位销 0.375x0.620 | PIN Dowel, .375 x .620 | 1 |
| 22 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 1 |
| 23 | 813745 | 隔套 | SPACER | 1 |
| 24 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 881363T | 盖板 | COVER | 1 |
| 1 | 881363A01 | 盖/支架套件 | COVER/BRACKET KIT | 1 |
| 2 | 881364T2 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 2 | 881364T04 | 线束 | HARNESS | 1 |
| 2 | 881364T1 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 2 | 881364T04 | 线束 | HARNESS | 1 |
| 3 | 804291 | 保险丝20安培 | FUSE 20 Ampere | 4 |
| 3 | 832969T20 | 迷你保险丝-黄色-20安 | FUSE Mini - Yellow - 20 Ampere | 4 |
| 4 | 80429110 | 30安保险丝 | FUSE 30 Ampere | 4 |
| 4 | 8M0057159 | 30A保险丝 | FUSE-30A | 4 |
| 0 | 891824010 | 保险丝盖 | COVER Fuse | 4 |
| 0 | 891824020 | 保险丝盖 | COVER Fuse | 4 |
| 5 | 804289 | 保险丝拔取器 | PULLER Fuse | 1 |
| 6 | 881362 | 支架 | BRACKET | 1 |
| 7 | 8813511 | 螺钉 | SCREW | 1 |
| 8 | 881352T | 继电器 | RELAY | 1 |
| 8 | 8M0098898 | 继电器 | RELAY | 1 |
| 9 | 82214M | 垫圈 | WASHER | 2 |
| 10 | 881355 | 锁紧垫圈 | LOCKWASHER | 2 |
| 10 | 82212M | 锁紧垫圈 | LOCKWASHER | 2 |
| 11 | 881354 | 螺钉 | SCREW | 2 |
| 11 | 96671M | 螺钉 | SCREW | 2 |
| 12 | 804284 | 护套 | BOOT | 2 |
| 12 | 804284001 | 护套 | BOOT | 2 |
| 13 | 881350T | 继电器 | RELAY | 1 |
| 14 | 881351 | 螺钉 | SCREW | 1 |
| 15 | 881353 | 卡箍 | CLAMP | 1 |
| 16 | 8813511 | 螺钉 | SCREW | 1 |
| 17 | 881359T | 支架 | BRACKET | 1 |
| 17 | 881363A01 | 盖/支架套件 | COVER/BRACKET KIT | 1 |
| 18 | 881361 | 卡箍 | CLAMP | 1 |
| 19 | 881360 | 卡箍 | CLAMP | 1 |
| 20 | 804270 | 螺栓(M6×28) | BOLT (M6 x 28) | 5 |
| 21 | 881304 | 护孔环 | GROMMET | 5 |
| 22 | 82851M | 衬套 | BUSHING | 5 |
| 22 | 804344003 | 轴环 | COLLAR | 5 |
| 23 | 881356T1 | 继电器总成 | RELAY ASSEMBLY | 1 |
| 23 | 882751A3 | 升降继电器套件 | RELAY KIT Trim | 1 |
| 24 | 881357 | 引线 | LEAD WIRE | 1 |
| 25 | 881358 | 盖帽 | CAP | 1 |
| 26 | 8248324 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 2 |
| 27 | 825702 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 2 |
| 27 | 8257021 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 2 |
| 28 | 804604 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 1 |
| 29 | 88439A33 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 30 | 88439A10 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Negative - Battery | 1 |
| 31 | 401388 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 1 |
| 32 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 1 |
| 32 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 1 |
| 33 | 858723T1 | 适配器/升降线束总成 | HARNESS ASSEMBLY Adapter/Trim | 1 |
| 34 | 858914T1 | 升降马达适配器线束总成 | HARNESS ASSEMBLY Trim Motor Adaptor | 1 |
| 35 | 858740T4 | 遥控适配器线束总成 | HARNESS ASSEMBLY Adapter Assembly Remote | 1 |
| 36 | 92753 | 固定座 | RETAINER | 1 |
| 37 | 859249T1 | 连接器 | CONNECTOR | 1 |
| 38 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 39 | 8272822 | 高压警告标贴 | DECAL Warning High Voltage | 1 |
| 40 | 881865 | 挂档启动警示标贴 | DECAL Caution-Start in Gear Start in Gear | 1 |
| 41 | 828151A2 | 升降继电器套件 | TRIM RELAY KIT | 1 |
| 41 | 882751A3 | 升降继电器套件 | RELAY KIT Trim | 1 |
| 42 | 826802A24 | 升降线束总成 | HARNESS ASSEMBLY Trim | 1 |
| 43 | 828151A1 | 继电器总成 | RELAY ASSEMBLY | 2 |
| 43 | 8M0207773 | 调整继电器总成 | RELAY ASSEMBLY Trim | 2 |
| 44 | 818967 | 护孔环 | GROMMET | 1 |
| 44 | 8M0207785 | 护孔环 | GROMMET | 1 |
| 45 | 818968 | 衬套 | BUSHING | 1 |
| 45 | 8M0214955 | 衬套 | BUSHING | 1 |
| 46 | NSS | 标贴(不单独销售) | NOT SOLD SEPARATE Decal | 1 |
| 47 | 828102 | 支架 | BRACKET | 1 |
| 47 | 8M0207771 | 安装支架 | BRACKET Mounting | 1 |
| 48 | 824868 | 螺钉(M6×75) | SCREW (M6 x 75) | 1 |
| 49 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 2 |
| 49 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 2 |
| 50 | 823807 | 衬套 | BUSHING | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 858582T | 适配板总成 | ADAPTER PLATE ASSEMBLY | 1 |
| 2 | 23784 | 定位销 | PIN Dowel | 7 |
| 3 | 880090 | 接头 | FITTING | 1 |
| 4 | 817519A2 | 排水单向阀总成 | CHECK VALVE ASSEMBLY Drain | 2 |
| 5 | 126021 | 护孔环 | GROMMET | 1 |
| 5 | 12602002 | 护孔环 | GROMMET | 1 |
| 6 | 8585831 | 衬垫 | GASKET | 1 |
| 7 | 858572T | 油底壳 | SUMP Oil | 1 |
| 7 | 858572T01 | 油底壳 | SUMP Oil | 1 |
| 8 | 858584A1 | 排气管总成 | TUBE ASSEMBLY Exhaust | 1 |
| 9 | 881295 | O型圈 | O-RING | 1 |
| 10 | 894171 | 护孔环 | GROMMET | 1 |
| 10 | 89417004 | 护孔环 | GROMMET | 1 |
| 11 | 858575 | 水管 | TUBE Water | 1 |
| 11 | 8M0026130 | 水管 | TUBE Water | 1 |
| 11 | 8585751 | 水管 | TUBE Water | 1 |
| 11 | 8M0026129 | 水管 | TUBE Water | 1 |
| 12 | 814080 | 上密封件 | SEAL Upper | 1 |
| 12 | 814080001 | 密封件 | SEAL | 1 |
| 13 | 858571T | 机油吸油管 | TUBE Oil Pick Up | 1 |
| 14 | 859082 | O型圈 | O-RING | 1 |
| 15 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 4 |
| 15 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 4 |
| 16 | 8248327 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 12 |
| 16 | 8M0214957 | 螺钉 | SCREW | 12 |
| 17 | 8596021 | 量油尺 | DIPSTICK | 1 |
| 18 | 48237 | 衬套 | BUSHING | 1 |
| 19 | 858577A2 | 换档轴 | SHIFT SHAFT | 1 |
| 19 | 858577A3 | 换档杆总成 | LEVER ASSY-SHIFT | 1 |
| 20 | 859177A3 | 换挡连杆 | SHIFT LINK | 1 |
| 21 | NSS | 不单独销售衬套 | NOT SOLD SEPARATE Bushing | 1 |
| 22 | 879997 | 换档滑块 | SHIFT SLIDER | 1 |
| 23 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 24 | 813745 | 隔套 | SPACER | 1 |
| 24 | 11289 | 隔套 | SPACER | 1 |
| 25 | 43585 | 联轴器 | COUPLING | 1 |
| 26 | 859746 | 开口销 | COTTER PIN | 2 |
| 27 | 858573 | 密封件 | SEAL | 1 |
| 27 | 8M0039073 | 密封件 | SEAL | 1 |
| 28 | 8288181 | 放油塞 | PLUG Drain | 1 |
| 29 | 828816 | 衬垫 | GASKET | 1 |
| 29 | 8M0204692 | 衬垫@5 | GASKET @5 | 1 |
| 30 | 82483213 | 螺钉(M6 x 60) | SCREW (M6 x 60) | 4 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 881343T1 | 飞轮盖 | FLYWHEEL COVER | 1 |
| 2 | 804348 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 2 |
| 3 | 825665 | 轴环 | COLLAR | 4 |
| 4 | 11416M | 护孔环 | GROMMET | 2 |
| 4 | 11416T | 护孔环 | GROMMET | 2 |
| 5 | 804265 | 六角螺母(36毫米) | NUT Hex (36 mm) | 1 |
| 5 | 804265A1 | 六角螺母/垫片套件(36毫米) | NUT/WASHER KIT Hex (36 mm) | 1 |
| 5 | 804265A1 | 六角螺母/垫片套件(36毫米) | NUT/WASHER KIT Hex (36 mm) | 1 |
| 6 | 8042641 | 平板垫圈 | WASHER Plate | 1 |
| 6 | 804264 | 垫圈 | WASHER | 1 |
| 6 | 804265A1 | 六角螺母/垫片套件(36毫米) | NUT/WASHER KIT Hex (36 mm) | 1 |
| 7 | 881335T | 飞轮 | FLYWHEEL | 1 |
| - | 881336T1 | 定子套件 | STATOR KIT | 1 |
| 8 | 881337T | 脉冲线圈 | COIL Pulser | 1 |
| 9 | 881336T2 | 定子 | STATOR | 1 |
| 10 | 881338 | 螺丝(M6×28) | SCREW (M6 x 28) | 3 |
| 11 | 881339 | 螺钉(M4 x 8) | SCREW (M4 x 8) | 1 |
| 11 | 881339002 | 螺钉 | SCREW | 1 |
| 12 | 881340 | 卡箍 | CLAMP | 1 |
| 13 | 804603 | 螺栓 (M6 x 30) | BOLT (M6 x 30) | 4 |
| 14 | 825010 | 定位销 | PIN Dowel | 2 |
| 15 | 881341 | 转子 | ROTOR | 1 |
| 16 | 881342 | 键 | KEY | 1 |
| 17 | 804266 | 正时板 | TIMING PLATE | 1 |
| 17 | 804266001 | 正时板 | PLATE Timing | 1 |
| 18 | 804267 | 螺钉 | SCREW | 1 |
| 19 | NSS | 非单独销售标贴-空挡警告 | NOT SOLD SEPARATE Decal, Warning Neutral | 1 |
| 20 | NSS | 非单独销售标贴-飞轮旋转警告 | NOT SOLD SEPARATE Decal, Warning Spinning Flywheel | 1 |
| 21 | NSS | 非单独销售标贴-维修指引 | NOT SOLD SEPARATE Decal, Servicing Referral | 1 |
| 22 | NSS | 非单独销售标贴-机油阀门 | NOT SOLD SEPARATE Decal, Engine Oil, Valve | 1 |
| 23 | NSS | 非单独销售标贴-紧急启动 | NOT SOLD SEPARATE Decal, Emergency Starting | 1 |
| 24 | 881839A01 | EPA标签信息贴花 | DECAL EPA Label Information | 1 |
| 24 | 881839A02 | EPA标签信息贴花 | Decal EPA Label Information | 1 |
| 24 | 881839A03 | EPA标签信息贴花 | DECAL EPA Label Information | 1 |
| - | 881421T01 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 880888T | 燃油压力调节器 | REGULATOR Fuel Pressure | 1 |
| 1 | 880888T02 | 燃油压力调节器 | REGULATOR Fuel Pressure | 1 |
| 2 | 881524 | 螺钉（M6 x 12） | SCREW (M6 x 12) | 2 |
| 3 | 881525 | 锁紧垫圈 | LOCKWASHER | 2 |
| 4 | 881531 | 卡扣 | CLIP | 4 |
| 5 | 881528 | 软管 | HOSE | 1 |
| 6 | 881509 | 螺丝(M5 x 15) | SCREW (M5 x 15) | 2 |
| 7 | 881530 | 卡扣 | CLIP | 2 |
| 8 | 84088M | 螺丝 (M6 x 10) | SCREW (M6 x 10) | 4 |
| 9 | 827610 | 衬垫 | GASKET | 4 |
| 10 | 888260 | 轴环 | COLLAR | 3 |
| 11 | 881527T | 冷却器 | COOLER | 1 |
| 11 | 881527T01 | 冷却器 | COOLER | 1 |
| 12 | 881507 | 螺栓(M6x25) | BOLT (M6 x 25) | 2 |
| 13 | 881533 | 垫圈 | WASHER | 3 |
| 14 | 69355 | 扎带(5.50英寸) | TIE STRAP (5.50 Inches) | 2 |
| 14 | 8M0214940 | 扎带 | TIE STRAP | 2 |
| 15 | 881536 | 软管 | HOSE | 1 |
| 16 | 881529 | 软管 | HOSE | 1 |
| 17 | 879650 | 卡箍 | CLAMP | 1 |
| 17 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | 1 |
| 18 | 881518T | 输送管 | DELIVERY PIPE | 1 |
| 19 | 880887T1 | 喷油器 | INJECTOR | 4 |
| 20 | 885183A1 | O型圈套件 | O-RING KIT | 1 |
| 21 | 881520 | 盖帽 | CAP | 1 |
| 22 | 881534 | 螺栓(M6 x 10) | BOLT (M6 x 10) | 1 |
| 23 | 881532 | 螺栓(M8×45) | BOLT (M8 x 45) | 2 |
| 24 | 881508 | 垫圈 | WASHER | 2 |
| 25 | 881526 | 轴环 | COLLAR | 2 |
| 26 | 881521T | 管接头 | NIPPLE | 1 |
| 27 | 881522 | O型圈 | O-RING | 1 |
| - | 858732T01 | 衬垫套件 | GASKET SET | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 881440T1 | 进气总成 | INTAKE ASSEMBLY | 1 |
| - | 881440T04 | 进气总成 | INTAKE ASSEMBLY | 1 |
| - | 881440T2 | 进气总成 | INTAKE ASSEMBLY | 1 |
| - | 881440T04 | 进气总成 | INTAKE ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 881315T1 | 蒸汽分离器 | VAPOR SEPERATOR | 1 |
| - | 881315T05 | 蒸汽分离器 | VAPOR SEPERATOR | 1 |
| - | 881315T2 | 蒸汽分离器 | VAPOR SEPERATOR | 1 |
| - | 881315T05 | 蒸汽分离器 | VAPOR SEPERATOR | 1 |
| 1 | 881316T1 | 盖板 | COVER | 1 |
| 1 | 881316T2 | 盖板 | COVER | 1 |
| 1 | 881316T2 | 盖板 | COVER | 1 |
| 2 | 881318 | O型圈 | O-RING | 1 |
| 3 | 881329 | 针阀套件 | NEEDLE VALVE KIT | 1 |
| 4 | NSS | 阀座(不单独销售) | NOT SOLD SEPARATE Seat | 1 |
| 5 | 881320 | 浮子 | FLOAT | 1 |
| 6 | 881321 | 浮子销 | PIN Float | 1 |
| 7 | 881319T | 本体 | BODY | 1 |
| 8 | 881327 | 安装板 | PLATE | 1 |
| 9 | 8813261 | 螺丝(M3 x 8) | SCREW (M3 x 8) | 1 |
| 10 | 881326 | 螺钉(M4×16) | SCREW (M4 x 16) | 7 |
| 11 | 881325 | 衬垫 | GASKET | 1 |
| 12 | 881322 | 减震器 | DAMPER | 1 |
| 12 | 881322002 | 减震器 | DAMPER | 1 |
| 13 | 880889T | 燃油泵 | PUMP Fuel | 1 |
| 13 | 8M0123823 | ORD 8M6010289 | ORD 8M6010289 | 1 |
| 14 | 881323T | 滤清器 | FILTER | 1 |
| 15 | 881324 | 盖板 | COVER | 1 |
| 16 | 8813262 | 放油螺钉 | SCREW Drain | 1 |
| 17 | 881328 | 衬垫 | GASKET | 1 |
| 18 | 881330A1 | 软管套件 | HOSE KIT | 1 |
| 18 | 881330A02 | 软管套件 | HOSE KIT | 1 |
| 19 | 881331 | 卡扣 | CLIP | 2 |
| 20 | 881559 | 卡扣 | CLIP | 5 |
| 21 | 881565 | 软管 | HOSE | 1 |
| 22 | 881560 | 软管 | HOSE | 2 |
| 23 | 881558 | 三通 | TEE | 5 |
| 23 | 8815581 | 三通 | TEE | 5 |
| 23 | 8815581 | 三通 | TEE | 5 |
| 24 | 881554 | 软管 | HOSE | 1 |
| 25 | 881554 | 软管 | HOSE | 1 |
| 26 | 881554 | 软管 | HOSE | 1 |
| 27 | 881554 | 软管 | HOSE | 6 |
| 28 | 881555 | 软管 | HOSE | 1 |
| 29 | 881557 | 软管 | HOSE | 1 |
| 30 | 881556 | 软管 | HOSE | 1 |
| 31 | 8813221 | 减震器 | DAMPER | 3 |
| 32 | 881332 | 轴环 | COLLAR | 6 |
| - | 881440T1 | 进气总成 | INTAKE ASSEMBLY | 1 |
| - | 881440T04 | 进气总成 | INTAKE ASSEMBLY | 1 |
| - | 881440T2 | 进气总成 | INTAKE ASSEMBLY | 1 |
| - | 881440T04 | 进气总成 | INTAKE ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 880890T1 | 燃油泵 | PUMP Fuel | 1 |
| 2 | NSS | 不单独销售本体 | NOT SOLD SEPARATE Body | 1 |
| 3 | 881544 | 弹簧 | SPRING | 1 |
| 4 | 881545 | 柱塞 | PLUNGER | 1 |
| 5 | 881546 | 弹簧 | SPRING | 1 |
| 6 | 881547 | 隔膜 | DIAPHRAGM | 1 |
| 7 | 881548 | 销 | PIN | 1 |
| 8 | NSS | 不单独销售本体 | NOT SOLD SEPARATE Body | 1 |
| 9 | NSS | 膜片(不单独销售) | NOT SOLD SEPARATE Diaphragm | 1 |
| 10 | NSS | 不单独销售本体 | NOT SOLD SEPARATE Body | 1 |
| 11 | 881550 | 螺钉 | SCREW | 3 |
| 12 | 881333 | 螺母 | NUT | 3 |
| 13 | 804255 | O型圈 | O-RING | 1 |
| 13 | 8M0050719 | O型圈 | O-RING | 1 |
| 14 | 879650 | 卡箍 | CLAMP | 2 |
| 14 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | 2 |
| 15 | 804256 | 螺栓 (M6 x 30) | BOLT (M6 x 30) | 2 |
| 16 | 881543 | 软管 | HOSE | 1 |
| 16 | 881543002 | 油管 | TUBING | 1 |
| 17 | 881542 | 支架 | BRACKET | 1 |
| 18 | 8527768 | 螺栓(M6 x 16) | BOLT (M6 x 16) | 1 |
| 18 | 811188T | 螺栓 | BOLT | 1 |
| 19 | 8528161 | 螺母 | NUT | 1 |
| 19 | 82382M | 螺母 | NUT | 1 |
| 20 | 881538T1 | 滤清器总成 | FILTER ASSEMBLY | 1 |
| 20 | 881538T02 | 燃油滤清器总成 | FILTER ASSY-FUEL | 1 |
| 21 | 881540 | 滤芯1.75英寸 | ELEMENT 1.75 Inches | 1 |
| 21 | 8M0168897 | 燃油滤清器 | FUEL FILTER | 1 |
| 21 | 8M0101436 | 滤芯1.50英寸 | ELEMENT 1.50 Inches | 1 |
| 21 | 8M0117705 | 燃油滤清器 | FILTER-FUEL | 1 |
| 22 | 826966M | O型圈 | O-RING | 1 |
| 22 | 826966T | O型圈 | O RING | 1 |
| 23 | 881541 | 浮子 | FLOAT | 1 |
| 24 | 881539 | 杯套 | CUP | 1 |
| 24 | 8M0101437 | 杯套 | CUP | 1 |
| 24 | 8M0137185 | 燃油杯 | CUP FUEL | 1 |
| 25 | 879650 | 卡箍 | CLAMP | 2 |
| 25 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | 2 |
| 26 | 804260 | 支架 | BRACKET | 1 |
| 27 | 804112 | 螺栓(M7 x 48) | BOLT (M7 x 48) | 2 |
| 28 | 804113 | 定位销 | PIN Dowel | 2 |
| 29 | 84292M | 垫圈 | WASHER | 2 |
| 30 | 804257 | 燃油转换杆 | LEVER Fuel Change | 1 |
| 31 | 881334 | 轴 | SHAFT | 1 |
| 32 | 804259 | 销 | PIN | 2 |
| 32 | 82738M | 滚销 | PIN-ROLL | 2 |
| 33 | 830757130 | 管材(.312)(70英寸整卷)裁切至55英寸长度 | TUBING (.312) (70.00 Inches Bulk) Cut to 55.00 Inch Length. | 1 |
| 33 | 8M0108349 | 软管 (70英寸散装) | HOSE (70 Inches Bulk) | 1 |
| 34 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 35 | 822769 | 连接器 | CONNECTOR | 1 |
| 36 | NSS | 盖帽(不单独销售) | NOT SOLD SEPARATE Cap | 1 |
| 37 | 828547T1 | 导管(.500内径 x 3英尺整卷) | CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk) | 1 |
| - | 858732T01 | 衬垫套件 | GASKET SET | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 881310T1 | 气缸盖总成 | CYLINDER HEAD ASSEMBLY | 1 |
| - | 881310T09 | 气缸盖 | HEAD-CYLINDER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 888845T01 | 齿轮箱总成 (完整) (鱼雷体直径4.25英寸/107.95毫米) | GEAR HOUSING ASSEMBLY Complete (4.25 Inch/107.95 mm Torpedo Diameter) (COMPLETE) | 1 |
| - | 888845T02 | 齿轮箱总成 (完整) (鱼雷体直径4.25英寸/107.95毫米) | GEAR HOUSING ASSEMBLY Complete (4.25 Inch/107.95 mm Torpedo Diameter) (COMPLETE) | 1 |
| 1 | 888845T | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 2 | 43043 | 定位销-带孔(.375 x .625)(前) | PIN Dowel - With Hole (.375 x .625) (FRONT) | 1 |
| 2 | 8M0084244 | 定位销 0.375x0.620 | PIN Dowel, .375 x .620 | 1 |
| 3 | 43046 | 注油管 | TUBE Oiler | 1 |
| 4 | 79953Q2 | 排水螺钉套件(.375-16 x .250) | SCREW KIT (.375-16 x .250) Drain | 3 |
| 4 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 3 |
| 5 | 191833 | 密封件 | SEAL | 3 |
| 5 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 3 |
| 6 | 43044 | 定位销-无孔(.375 x .625)(后) | PIN Dowel - Without Hole (.375 x .625) (REAR) | 1 |
| 7 | 31640T5 | 平衡鳍板 | TRIM TAB | 1 |
| 7 | 8M0236553 | 平衡鳍板 | TRIM TAB | 1 |
| 8 | 825427 | 不锈钢螺钉(0.437-14x1.250) | SCREW (.437-14 x 1.250) Stainless Steel | 1 |
| 9 | 451761 | 垫圈(.453 x .812 x .105)黑色氧化 | WASHER (.453 x .812 x .105) Black Oxide | 1 |
| 10 | 43040T1 | 托架总成 | CARRIER ASSEMBLY | 1 |
| 11 | NSS | 滚针轴承(不单独销售) | NOT SOLD SEPARATE Needle Bearing | 1 |
| 12 | 826134Q | 阳极块 | ANODE | 2 |
| 13 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 14 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 1 |
| 15 | NSS | NOT SOLD SEPARATE Pinion Gear (14 TEETH) | 1 | |
| 16 | 35921 | 螺母(0.625-18) | NUT (.625-18) | 1 |
| 17 | 883047A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 18 | 44492A1 | 垫片组 | SHIM SET | 1 |
| 18 | 8M0063265 | 垫片组 | SHIM SET | 1 |
| 19 | 858765T1 | 驱动轴总成 | DRIVESHAFT ASSEMBLY | 1 |
| 19 | 878575T1 | 驱动轴总成 | DRIVESHAFT ASSEMBLY | 1 |
| 20 | 42461A1 | 套筒/环套件 | SLEEVE/RING KIT | 1 |
| 21 | NSS | 密封环(不单独销售) | NOT SOLD SEPARATE Seal Ring | 1 |
| 22 | 43055A4 | 水泵盖总成 | COVER ASSEMBLY Water Pump | 1 |
| 22 | 8M0113262 | 水泵盖总成 | COVER ASSEMBLY Water Pump | 1 |
| 23 | 430331 | 衬垫 | GASKET | 1 |
| 24 | 430472 | 衬垫 | GASKET | 1 |
| 24 | 8M0214931 | 衬垫 | GASKET | 1 |
| 25 | 43035 | 油封(上) | SEAL Oil (UPPER) | 1 |
| 25 | 8M0245495 | 油封 | OIL SEAL | 1 |
| 26 | 43036 | 油封(下) | SEAL Oil (LOWER) | 1 |
| 27 | 8172771 | 水泵上垫片 | GASKET Water Pump, Upper | 1 |
| 28 | 817275A2 | 水泵上壳体套件 | HOUSING KIT Upper Water Pump | 1 |
| 29 | 8172761 | 面板 | FACEPLATE | 1 |
| 29 | 8M0204709 | 面板 | FACEPLATE | 1 |
| 30 | 82684430 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 4 |
| 31 | 430232 | 密封件 | SEAL | 1 |
| 32 | 43037 | 键 | KEY | 1 |
| 32 | 8M0204723 | 键 | KEY | 1 |
| 33 | 43026T2 | 叶轮 | IMPELLER | 1 |
| 34 | 82684425 | 螺钉(M6x25) | SCREW (M6 x 25) | 6 |
| 35 | 816575 | 端面密封 | FACE SEAL | 1 |
| 35 | 861415 | 端面密封 | SEAL Face | 1 |
| 36 | 884563A00 | 换挡轴总成 | SHIFT SHAFT ASSEMBLY | 1 |
| 36 | 884565A00 | 换挡轴总成 | SHIFT SHAFT ASSEMBLY | 1 |
| 37 | 29641 | E型卡环 | E RING | 1 |
| 38 | 43052A4 | 衬套总成 | BUSHING ASSEMBLY | 1 |
| 39 | 457101 | O型圈(1.424x0.103) | O-RING (1.424 x .103) | 1 |
| 39 | 8M0204681 | 特殊O型圈1.424x0.103 | O-RING 1.424 x .103, Special | 1 |
| 40 | 8164641 | 油封 | SEAL Oil | 1 |
| 40 | 8M0246145 | 油封 | OIL SEAL | 1 |
| 41 | 82684425 | 螺钉(M6x25) | SCREW (M6 x 25) | 2 |
| 42 | 891637 | 衬套 | BUSHING | 1 |
| - | 43035A4 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| - | 43024A7 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| - | 8M0113799 | 水泵修理包 | REPAIR KIT-W/P | 1 |
| - | 803496T2 | 轴承/油封套件 | BEARING/SEAL KIT | 1 |
| - | 888805A00 | 离合器与凸轮从动件维修套件 | REPAIR KIT Clutch And Cam Follower | 1 |
| - | 43026T11 | 水泵叶轮维修套件 | REPAIR KIT Water Pump Impeller | 1 |
| - | 8M0100526 | 水泵叶轮维修套件 | REPAIR KIT Water Impeller | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 0 | 888845T01 | 齿轮箱总成 (完整) (鱼雷体直径4.25英寸/107.95毫米) | GEAR HOUSING ASSEMBLY Complete (4.25 Inch/107.95 mm Torpedo Diameter) (COMPLETE) | 1 |
| 0 | 888845T02 | 齿轮箱总成 (完整) (鱼雷体直径4.25英寸/107.95毫米) | GEAR HOUSING ASSEMBLY Complete (4.25 Inch/107.95 mm Torpedo Diameter) (COMPLETE) | 1 |
| 1 | 888845T | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 2 | 8227731 | 螺纹嵌件 | INSERT Threaded | 2 |
| 3 | 888807 | 凸轮从动件总成 | FOLLOWER ASSEMBLY Cam | 1 |
| 4 | 892250 | 换挡凸轮 | SHIFT CAM | 1 |
| 4 | 8M4504018 | 换档凸轮 | CAM SHIFT | 1 |
| 4 | 75771 | 换挡凸轮 | SHIFT CAM | 1 |
| 4 | 8M4504018 | 换档凸轮 | CAM SHIFT | 1 |
| 5 | 888806 | 离合器作动杆 | ROD Clutch Actuator | 1 |
| 6 | 78905 | 十字销 | PIN Cross | 1 |
| 6 | 8M0084243 | 十字销 | PIN Cross | 1 |
| 7 | 78906 | 弹簧定位销 | PIN Spring Locator | 1 |
| 7 | 8M0084245 | 弹簧定位销 | PIN Spring Locator | 1 |
| 8 | 79910 | 弹簧 | SPRING | 1 |
| 9 | 78910 | 垫圈 | WASHER | 1 |
| 10 | 44491A1 | 垫片组 | SHIM SET | 1 |
| 10 | 8M0063266 | 垫片组 | SHIM SET | 1 |
| 11 | 30894A1 | 圆锥轴承组 | BEARING SET Cup And Cone | 1 |
| 12 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 13 | 881260A3 | 前进齿轮 - 29齿 | GEAR Forward - 29 Teeth (29 TEETH) | 1 |
| 14 | 30895T | 滚针轴承 | BEARING Needle | 1 |
| 15 | 856823 | 挡圈 | RING Retaining | 1 |
| 16 | 888805T | 离合器 | CLUTCH | 1 |
| 17 | 888804 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 17 | 8M0140444 | 螺旋桨轴 | SHAFT Propeller | 1 |
| 18 | 30893 | 弹簧 | SPRING | 1 |
| 19 | 889991T | 倒车齿轮 (29齿) | GEAR Reverse (29 Teeth) (29 TEETH) | 1 |
| 20 | 12596T2 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 20 | 8M0168901 | 轴承座总成 | CARRIER ASSY. | 1 |
| 21 | 97386 | O型圈 (3.609 x .139) | O-RING (3.609 x .139) | 1 |
| 21 | 8M0214974 | O型圈 | O RING | 1 |
| 22 | 30956T | 滚针轴承 | BEARING Needle | 1 |
| 23 | 70080 | 油封(内) | SEAL Oil (INNER) | 1 |
| 23 | 8M0205728 | 密封件 | SEAL | 1 |
| 24 | 70081 | 油封(外) | SEAL Oil (OUTER) | 1 |
| 24 | 8M0205729 | 密封件 | SEAL | 1 |
| 25 | 12578T | 滚柱轴承 | BEARING Roller | 1 |
| 26 | 12577 | 止推垫片 | THRUST WASHER | 1 |
| 27 | 12576 | 推力轴承 | BEARING Thrust | 1 |
| 28 | 429172 | 双头螺柱(M8×48) | STUD (M8 x 48) | 2 |
| 28 | 8M0034456 | 双头螺柱(M8×1.25×48) | STUD (M8 X 1.25 X 48) | 2 |
| 29 | 855941 | 垫圈(.323 x .590 x .112)不锈钢 | WASHER (.323 x .590 x .112) Stainless Steel | 2 |
| 30 | 401378 | 螺母 (M8) | NUT (M8) | 2 |
| 31 | NSS | 不单独销售 小齿轮标识贴纸 | NOT SOLD SEPARATE Decal-G/H Pinion Ident. | 1 |
| - | 43035A4 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| - | 803496T2 | 轴承/油封套件 | BEARING/SEAL KIT | 1 |
| - | 888805A00 | 离合器与凸轮从动件维修套件 | REPAIR KIT Clutch And Cam Follower | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 880891T11 | 发动机控制单元ECU | ECU Engine Control Unit | 1 |
| 1 | 880891T14 | 发动机控制单元ECU | ECU Engine Control Unit | 1 |
| 1 | 880891T1 | 发动机控制总成 | CONTROL ASSEMBLY Engine | 1 |
| 1 | 880891T14 | 发动机控制单元ECU | ECU Engine Control Unit | 1 |
| 2 | 804270 | 螺栓(M6×28) | BOLT (M6 x 28) | 4 |
| 3 | 881304 | 护孔环 | GROMMET | 4 |
| 4 | 82851M | 衬套 | BUSHING | 4 |
| 4 | 804344003 | 轴环 | COLLAR | 4 |
| 5 | 881346T | 整流器/调节器总成 | RECTIFIER/REGULATOR ASSEMBLY | 1 |
| 6 | 853536 | 螺栓(M6x25) | BOLT (M6 x 25) | 2 |
| 7 | 804604 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 1 |
| 8 | 880893T10 | 点火线圈 | COIL Ignition | 1 |
| 8 | 8M0123821 | 点火线圈 | IGNITION COIL | 1 |
| 9 | 880892T | 点火线圈 | COIL Ignition | 1 |
| 9 | 8M0121257 | 点火线圈 | IGNITION COIL | 1 |
| 10 | 881345 | 安装板 | PLATE | 2 |
| 11 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 2 |
| 12 | 853536 | 螺栓(M6x25) | BOLT (M6 x 25) | 4 |
| 13 | 804276 | 卡箍 | CLAMP | 2 |
| 14 | 804277 | 卡箍 | CLAMP | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 880886T | 歧管 | MANIFOLD | 1 |
| 2 | 881513 | O型圈 | O-RING | 4 |
| 3 | 881512 | 定位销 | PIN Dowel | 4 |
| 4 | 881507 | 螺栓(M6x25) | BOLT (M6 x 25) | 3 |
| 5 | 881441T2 | 节气门体总成 | THROTTLE BODY ASSEMBLY | 1 |
| 5 | 881441T4 | 节气门体总成 | THROTTLE BODY ASSEMBLY | 1 |
| 5 | 881441T4 | 节气门体总成 | THROTTLE BODY ASSEMBLY | 1 |
| 6 | 881444 | 弹簧 | SPRING | 1 |
| 7 | 881445 | 螺钉 | SCREW | 2 |
| 8 | 881510 | 螺栓(M8×70) | BOLT (M8 x 70) | 6 |
| 9 | 881508 | 垫圈 | WASHER | 9 |
| 10 | 881441T1 | 节气门体总成 | THROTTLE BODY ASSEMBLY | 1 |
| 10 | 881441T3 | 节气门体总成 | THROTTLE BODY ASSEMBLY | 1 |
| 10 | 881441T3 | 节气门体总成 | THROTTLE BODY ASSEMBLY | 1 |
| 11 | 881442 | 螺钉 | SCREW | 1 |
| 12 | 881444 | 弹簧 | SPRING | 2 |
| 13 | 881443 | 螺钉 | SCREW | 1 |
| 14 | 881445 | 螺钉 | SCREW | 2 |
| 15 | 881514 | 连杆接头 | LINK JOINT | 1 |
| 16 | 881515 | 连杆接头 | LINK JOINT | 1 |
| 17 | 83763M | 螺母 | NUT | 1 |
| 18 | 880884T | 节气门传感器 | SENSOR Throttle | 1 |
| 19 | 881504 | O型圈 | O-RING | 1 |
| 20 | 881502 | 螺钉 | SCREW | 2 |
| 20 | 881502002 | 螺钉 | SCREW | 2 |
| 21 | 881450 | 垫圈 | WASHER | 2 |
| 22 | 881516 | 支架 | BRACKET | 1 |
| 23 | 881971A1 | 螺钉 | SCREW | 3 |
| 24 | 879194021 | 软管 | HOSE | 1 |
| - | 880883T1 | 控制阀总成 | CONTROL VALVE ASSEMBLY | 1 |
| 25 | 881446T | 本体 | BODY | 1 |
| 26 | 881447T | 控制阀 | CONTROL VALVE | 1 |
| 27 | 881448 | O型圈 | O-RING | 1 |
| 28 | 881449 | 螺钉(M4 x 12) | SCREW (M4 x 12) | 3 |
| 28 | 881449002 | 螺钉 | SCREW | 3 |
| 29 | 881450 | 垫圈 | WASHER | 3 |
| 30 | 881501T | 滤清器 | FILTER | 1 |
| 31 | 880885T | 传感器 压力 | SENSOR Pressure | 1 |
| 32 | 881509 | 螺丝(M5 x 15) | SCREW (M5 x 15) | 2 |
| 33 | 881505 | 螺栓(M6×24) | BOLT (M6 x 24) | 1 |
| 34 | 881506 | 螺栓(M6×60) | BOLT (M6 x 60) | 2 |
| 35 | 881517T1 | 线束总成 | HARNESS ASSEMBLY | 1 |
| - | 881440T1 | 进气总成 | INTAKE ASSEMBLY | 1 |
| - | 881440T04 | 进气总成 | INTAKE ASSEMBLY | 1 |
| - | 881440T2 | 进气总成 | INTAKE ASSEMBLY | 1 |
| - | 881440T04 | 进气总成 | INTAKE ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 804145 | V型皮带 | V BELT | 1 |
| 2 | 804143 | 螺栓 M10×35 | BOLT (M10 x 35) | 2 |
| 2 | 804143001 | 螺栓 | BOLT | 2 |
| 3 | 804142T | 从动齿轮 | GEAR Driven | 2 |
| 4 | 804144 | 油封 | SEAL Oil | 2 |
| 4 | 804144001 | 油封 | SEAL-OIL | 2 |
| 5 | 804141 | 定位销 | PIN Dowel | 2 |
| 6 | 804140T | 凸轮轴 | CAMSHAFT | 1 |
| 6 | 8M0057172 | 凸轮轴 | CAMSHAFT | 1 |
| 7 | 804139T | 凸轮轴 | CAMSHAFT | 1 |
| 8 | 804128T | 进气阀 | VALVE Intake | 8 |
| 9 | 804129T | 排气阀 | VALVE Exhaust | 8 |
| 10 | 804130 | 阀座 | SEAT | 16 |
| 11 | 804136 | 密封件 | SEAL | 8 |
| 12 | 804137 | 密封件 | SEAL | 8 |
| 13 | 804131 | 气门弹簧 | SPRING Valve | 16 |
| 14 | 804132 | 固定座 | RETAINER | 16 |
| 15 | 804135 | 开口销阀 | COTTER VALVE | 32 |
| 16 | 804138T | 气门挺杆 | LIFTER Valve | 16 |
| 17 | 8046071 | 垫片 | SHIM | AR |
| 17 | 8046072 | 垫片 | SHIM | AR |
| 17 | 8046073 | 垫片 | SHIM | AR |
| 17 | 8046074 | 垫片 | SHIM | AR |
| 17 | 8046075 | 垫片 | SHIM | AR |
| 17 | 8046076 | 垫片 | SHIM | AR |
| 17 | 8046077 | 垫片 | SHIM | AR |
| 17 | 8046078 | 垫片 | SHIM | AR |
| 17 | 8046079 | 垫片 | SHIM | AR |
| 17 | 80460710 | 垫片 | SHIM | AR |
| 17 | 80460711 | 垫片 | SHIM | AR |
| 17 | 80460712 | 垫片 | SHIM | AR |
| 17 | 80460713 | 垫片 | SHIM | AR |
| 17 | 80460714 | 垫片 | SHIM | AR |
| 17 | 80460715 | 垫片 | SHIM | AR |
| 17 | 80460716 | 垫片 | SHIM | AR |
| 17 | 80460717 | 垫片 | SHIM | AR |
| 17 | 804608 | 垫片 | SHIM | AR |
| 17 | 80460810 | 垫片 | SHIM | AR |
| 17 | 80460820 | 垫片 | SHIM | AR |
| 17 | 80460830 | 垫片 | SHIM | AR |
| 17 | 80460840 | 调整垫 | PAD Adjusting | AR |
| 17 | 80460850 | 垫片 | SHIM | AR |
| 17 | 80460860 | 垫片 | SHIM | AR |
| 17 | 80460870 | 垫片 | SHIM | AR |
| 17 | 80460880 | 垫片 | SHIM | AR |
| 18 | 804149 | 阀板 | PLATE Valve | 1 |
| 19 | 804153 | 键 | KEY | 1 |
| 20 | 804146 | 张紧器 | TENSIONER | 1 |
| 21 | 804150 | 螺栓 M10×45 | BOLT (M10 x 45) | 1 |
| 22 | 804147 | 弹簧 | SPRING | 1 |
| 23 | 804148 | 软管 | HOSE | 1 |
| 24 | 804151T | 驱动齿轮 | GEAR Drive | 1 |
| 25 | 881314 | 螺母 M40 | NUT (M40) | 1 |
| 25 | 881314003 | 螺母 | NUT | 1 |
| - | 858732T01 | 衬垫套件 | GASKET SET | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 881310T1 | 气缸盖总成 | CYLINDER HEAD ASSEMBLY | 1 |
| - | 881310T09 | 气缸盖 | HEAD-CYLINDER | 1 |
| - | 881421T01 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 881436T | 进气消音器 | SILENCER Intake | 1 |
| 2 | 880882T | 温度传感器 | THERMOSENSOR | 1 |
| 3 | 881437 | O型圈 | O-RING | 4 |
| 4 | 804165 | 螺栓(M6 x 16) | BOLT (M6 x 16) | 6 |
| 5 | 881816 | 螺栓(M8×20) | BOLT (M8 x 20) | 2 |
| 6 | 881439 | 支架 | BRACKET | 1 |
| 7 | 881434 | 支架 | BRACKET | 2 |
| 7 | 8M0059034 | 支架 | BRACKET | 2 |
| 8 | 881435 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 8 |
| 9 | 881010T | 进气消音器 | INDUCTION SILENCER | 1 |
| 9 | 892849 | 进气消音器 | INDUCTION SILENCER | 1 |
| 10 | 881269 | 支架 | BRACKET | 1 |
| 11 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 1 |
| 11 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 1 |
| 12 | 804160 | 销 | PIN | 2 |
| 13 | 881433 | 衬垫 | GASKET | 1 |
| 14 | 804162 | 通气管 | BREATHER PIPE | 1 |
| 15 | 804163 | 卡箍 | CLAMP | 2 |
| 16 | 804602 | 螺栓(M6 x 12) | BOLT (M6 x 12) | 2 |
| 17 | 804089 | 卡扣 | CLIP | 1 |
| 18 | 879650 | 卡箍 | CLAMP | 1 |
| 18 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | 1 |
| 19 | 881438 | 螺栓(M6×105) | BOLT (M6 x 105) | 2 |
| 20 | 881431 | 螺栓(M8x40) | BOLT (M8 x 40) | 5 |
| 21 | 881822 | 滤网 | SCREEN | 1 |
| - | 858732T01 | 衬垫套件 | GASKET SET | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 881421T01 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T02 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 384073 | 管塞(.500-14) | PLUG Pipe (.500-14) | 1 |
| 2 | 479452 | 堵头 | PLUG | 1 |
| 3 | 858581 | O型圈 | O-RING | 2 |
| 3 | 62705001 | O型圈 | O-RING | 2 |
| 4 | 858580 | 定位销 | PIN Dowel | 2 |
| 4 | 41275M | 定位销 | PIN Dowel | 2 |
| 5 | 881900T | 支架 | MOUNT | 1 |
| 5 | 881900T03 | 支架 | MOUNT | 1 |
| 6 | 42974 | 螺栓(M12×175) | BOLT (M12 x 175) | 2 |
| 6 | 8M0238139 | 螺钉 | SCREW | 2 |
| 7 | 934161 | 氯丁橡胶垫圈 | WASHER Neoprene | 2 |
| 7 | 32834 | 垫圈(0.9375x1.750x0.172) | WASHER (.9375 x 1.750 x .172) | 2 |
| 8 | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 2 |
| 8 | 8M0204648 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 2 |
| 9 | 859129 | 螺母(M12) | NUT (M12) | 2 |
| 9 | 896963 | 螺母(M12) | NUT (M12) | 2 |
| 10 | 4010750 | 螺钉(M8 x 50) | SCREW (M8 x 50) | 8 |
| 11 | 858579T3 | 油泵 | PUMP Oil | 1 |
| 12 | 858719 | 螺栓(M6 x 45) | BOLT (M6 x 45) | 6 |
| 12 | 8M0052670 | 螺钉 | SCREW | 6 |
| 13 | 804349 | 密封件 | SEAL | 1 |
| 14 | 878562T2 | 换挡连杆支架 | BRACKET Shift Linkage | 1 |
| 14 | 878562T8 | 支架 | BRACKET | 1 |
| 15 | 42975 | 传动螺钉 | DRIVE SCREW | 2 |
| 16 | 82130020 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 3 |
| 17 | 878560 | 杯套 | CUP | 1 |
| 18 | 98889 | 闩锁 | LATCH | 1 |
| 19 | 8238053 | 密封件 | SEAL | 1 |
| 19 | 8M0043168 | 密封件 | SEAL | 1 |
| 20 | 879996A1 | 开关 | SWITCH | 1 |
| 20 | 8M0052930 | 开关总成 | SWITCH ASSEMBLY | 1 |
| 21 | 88075020 | 螺丝(M3 x 20) | SCREW (M3 x 20) | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 858732T02 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| 0 | 8042971 | 温度传感器衬垫 | GASKET Thermosensor | 1 |
| 0 | 804255 | 燃油泵O型圈 | O-RING Fuel Pump | 1 |
| 0 | 8M0050719 | O型圈 | O-RING | 1 |
| 0 | 827610 | 进气歧管垫片 | GASKET Intake Manifold | 4 |
| 0 | 804144 | 凸轮轴油封 | SEAL Oil Camshaft | 2 |
| 0 | 804144001 | 油封 | SEAL-OIL | 2 |
| 0 | 881437 | 进气消声器O型圈 | O-RING Intake Silencer | 4 |
| 0 | 881433 | 进气歧管垫片 | GASKET Intake Manifold | 1 |
| 0 | 8587321 | 气缸体衬垫 | GASKET Cylinder Block | 1 |
| 0 | 858732002 | 气缸体衬垫 | GASKET Cylinder Block | 1 |
| 0 | 81990M | 气缸体衬垫 | GASKET Cylinder Block | 1 |
| 0 | 804076 | 排气盖衬垫 | GASKET Exhaust Cover | 1 |
| 0 | 804076003 | 衬垫 | GASKET | 1 |
| 0 | 881426 | 螺塞衬垫 | GASKET Screw Plug | 1 |
| 0 | 804084 | 压力控制阀盖衬垫 | GASKET Pressure Control Valve Cover | 1 |
| 0 | 8041151 | 气缸盖衬垫 | GASKET Cylinder Head | 1 |
| 0 | 804123 | 气缸盖罩衬垫 | GASKET Cylinder Head Cover | 1 |
| 0 | 8040992 | 油封 曲轴-顶部 | SEAL Oil Crankshaft-Top | 1 |
| 0 | 8041002 | 油封 曲轴-底部 | SEAL Oil Crankshaft-Bottom | 1 |
| 0 | 881513 | 进气歧管O型圈 | O-RING Intake Manifold | 4 |
| 0 | 831246 | 气缸头密封垫圈 | WASHER Sealing Cylinder Head | 4 |
| 0 | 825492 | 燃油泵O型圈 | O-RING Fuel Pump | 1 |
| 0 | 8M0052669 | O型圈 | O-RING | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 830250T3 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| - | 8M0171818 | 动力调整总成 | POWER TRIM ASSY | 1 |
| 1 | 811666A1 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 1 | 8M0171821 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 2 | 809872A2 | O型圈维修包 | O-RING KIT Rebuild | 1 |
| 2 | 8M0171819 | O型圈套件 | O-RING KIT | 1 |
| 3 | 810776A1 | 记忆活塞总成 | PISTON ASSEMBLY Memory | 1 |
| 3 | 8M0171822 | 记忆活塞套件 | MEMORY PISTON KIT | 1 |
| 4 | 811669A1 | 气缸总成 | CYLINDER ASSEMBLY | 1 |
| 4 | 893916A01 | 气缸总成 | CYLINDER ASSEMBLY | 1 |
| 5 | 809873A1 | 配平限位阀套件 | VALVE KIT Trim Limit | 1 |
| 5 | 893905A02 | 阀套件 | VALVE KIT | 1 |
| 6 | 809874A1 | 泵总成 | PUMP ASSEMBLY | 1 |
| 6 | 893906A02 | 泵总成 | PUMP ASSEMBLY | 1 |
| 7 | 809885A2 | 电机套件 | MOTOR KIT | 1 |
| 7 | 893907A02 | 电机套件 | MOTOR KIT | 1 |
| 8 | 8134351 | 堵头 | PLUG | 1 |
| 9 | 813442A2 | 手动释放总成 | MANUAL RELEASE ASSEMBLY | 1 |
| 9 | 893929A01 | 安全阀套件 | VALVE KIT Relief | 1 |
| 10 | 809875A1 | 歧管套件 | MANIFOLD KIT | 1 |
| 10 | 893909A02 | 歧管套件 | MANIFOLD KIT | 1 |
| 11 | 809876A1 | 电机螺钉套件 | SCREW KIT Motor | 1 |
| 12 | 88238A18 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 13 | 809877A1 | 驱动轴/密封套件 | DRIVESHAFT/SEAL KIT | 1 |
| 14 | 809878A1 | 滤清器套件 | FILTER KIT | 1 |
| 14 | 893912A02 | 滤清器套件 | FILTER KIT | 1 |
| 15 | 809879A1 | 提升阀套件 | POPPET KIT | 1 |
| 15 | 893913A02 | 提升阀套件 | POPPET KIT | 1 |
| - | 809880A1 | 完整配平O型圈套件 | O-RING KIT Complete Trim | 1 |
| - | 893914A02 | O型圈套件 | O-RING KIT | 1 |
| 16 | 821539 | 三叶销 | PIN Trilobe | 2 |
| 17 | 818898 | 锚销 | PIN Anchor | 1 |
| 18 | 996251 | 轴 | SHAFT | 1 |
| 18 | 99625002 | 轴 | SHAFT | 1 |
| 19 | 22740 | 卡扣 | CLIP | 2 |
| 20 | 878609 | 螺钉 (#10-16 x .600) | SCREW (#10-16 x .600) | 1 |
| 21 | 69205 | C形垫圈 | C WASHER | 1 |
| 21 | 8M0084613 | C形垫圈 | C-WASHER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 804295T | 温度传感器 | THERMOSENSOR | 1 |
| 2 | 804296 | 固定座 | RETAINER | 1 |
| 3 | 811188M | 螺栓(M6 x 16) | BOLT (M6 x 16) | 2 |
| 3 | 811188T | 螺栓 | BOLT | 2 |
| 4 | 8042971 | 衬垫 | GASKET | 1 |
| 5 | 83577M | 卡箍 | CLAMP | 1 |
| 6 | 84088M | 螺丝 (M6 x 10) | SCREW (M6 x 10) | 1 |
| 7 | 881366003 | 支架 | BRACKET | 1 |
| 8 | 804602 | 螺栓(M6 x 12) | BOLT (M6 x 12) | 1 |
| 9 | 881366002 | 安装板 | PLATE | 1 |
| 10 | 804602 | 螺栓(M6 x 12) | BOLT (M6 x 12) | 1 |
| 11 | 8042941 | 安装板 | PLATE | 1 |
| 12 | 811188M | 螺栓(M6 x 16) | BOLT (M6 x 16) | 2 |
| 12 | 811188T | 螺栓 | BOLT | 2 |
| 13 | 881364T05 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 14 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 15 | 8043071 | 油压开关 | SWITCH Oil Pressure | 1 |
| 16 | 881367A1 | 引线 | LEAD WIRE | 1 |
| 17 | 804604 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 1 |
| 18 | 804260001 | 支架 | BRACKET | 1 |
| 19 | 97687M | 护孔环 | GROMMET | 1 |
| 20 | 84368M | 螺栓 | BOLT | 1 |
| 21 | 82214M | 垫圈 | WASHER | 1 |
| - | 858732A06 | 衬垫套件 | GASKET SET | 1 |
| - | 881421T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 0 | 88183801 | 零件手册-115EFI(四冲程) | PARTS MANUAL 115 EFI (4-Stroke) Parts Manual | 1 |
| 0 | 881980 | 维修手册 | SERVICE MANUAL | 1 |
| 0 | 881980R03 | SM O/B 115 EFI 4S | SM O/B 115 EFI 4S | 1 |
| 0 | 10225030 | 用户手册 | OWNERS MANUAL | 1 |
| 0 | 858610A31 | 燃油软管总成 | HOSE ASSEMBLY Fuel | 1 |
| 0 | 8M0038610 | 带注油球的燃油软管总成(9英尺) | HOSE ASSEMBLY Fuel (9 Feet) With Primer Bulb | 1 |
| 0 | 880177 | 组合扳手工具(10毫米) | SCRENCH TOOL (10 mm) | 1 |
| 0 | 881828 | 星形头工具套件 | STARBIT TOOL KIT | 1 |
| 0 | 881649A01 | 贴花套件 | DECAL SET | 1 |
| 0 | 881649A05 | 贴花套件 | DECAL SET | 1 |
| 0 | 881840A01 | 贴花套件 | DECAL SET | 1 |
| 0 | 881840A03 | 贴花套件 | DECAL SET | 1 |
| 0 | 881840A03 | 贴花套件 | DECAL SET | 1 |
| 0 | 881840A05 | 贴花套件 | DECAL SET | 1 |
| 0 | 881650A01 | 贴花套件 | DECAL SET | 1 |
| 0 | 881650A03 | 贴花套件 | DECAL SET | 1 |
| 0 | 881650A03 | 贴花套件 | DECAL SET | 1 |
| 0 | 881702A01 | 贴花套件 | DECAL SET | 1 |
| 0 | 881839A01 | EPA标签信息贴花 | DECAL EPA Label Information | 1 |
| 0 | 881839A02 | EPA标签信息贴花 | Decal EPA Label Information | 1 |
| 0 | 881839A03 | EPA标签信息贴花 | DECAL EPA Label Information | 1 |
| 0 | 816834A1 | 转速表 | TACHOMETER | 1 |
| 0 | 816932A1 | 温度表 | TEMPERATURE GAUGE | 1 |
| 0 | 86306 | 适配器 | ADAPTER | 1 |
| 0 | 86306A01 | 适配器 | ADAPTER | 1 |
| 0 | 817054A3 | 水压表总成 | GAUGE ASSEMBLY Water Pressure | 1 |
| 0 | 821400A2 | 动力升降倾斜传感器套件 | SENDER KIT Power Trim | 1 |
| 0 | 8M0074845 | ORD 8M0098264 | ORD 8M0098264 | 1 |
| 0 | 92876A8 | 转向安装套件 | ATTACHING KIT Steering | 1 |
| 0 | 92876A9 | 双机延长套件 | EXTENSION KIT Dual Engine | 1 |
| 0 | 883040A1 | 转速表模块套件 | TACH MODULE KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 881368T1 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| - | 881368T2 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| - | 881368T2 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 1 | 804314T | 定子 | STATOR | 1 |
| 2 | 804313T | 电枢 | ARMATURE | 1 |
| 3 | 881369T1 | 电刷支架总成 | HOLDER ASSEMBLY Brush | 1 |
| 4 | 804316 | 电刷组 | BRUSH SET | 1 |
| 5 | 804317 | 弹簧 | SPRING | 4 |
| 6 | 881370T | 支架 | BRACKET | 1 |
| 7 | 804337 | 螺钉(M4×16) | SCREW (M4 x 16) | 2 |
| 8 | 804335 | 贯穿螺栓(M6×120) | THRU BOLT (M6 x 120) | 2 |
| 9 | 804321T1 | 齿轮套件 | GEAR KIT | 1 |
| 10 | 804322 | 离合器 | CLUTCH | 1 |
| 11 | 804330 | 垫圈套件 | WASHER KIT | 1 |
| 12 | 804324 | 支架 | BRACKET | 1 |
| 13 | 804326 | 齿圈 | RING GEAR | 1 |
| 14 | 804327 | 衬垫 | GASKET | 1 |
| 15 | 804325 | 轴承 | BEARING | 1 |
| 16 | 804323 | 小齿轮轴 | SHAFT Pinion | 1 |
| 17 | 804329 | 惰轮 | IDLER GEAR | 3 |
| 17 | 804329001 | 惰轮 | GEAR Idler | 3 |
| 18 | 804328 | 支架 | BRACKET | 1 |
| 19 | 804331T | 盖板 | COVER | 1 |
| 20 | 804336 | 螺栓(M6×52) | BOLT (M6 x 52) | 2 |
| 21 | 804319 | 小齿轮 | PINION | 1 |
| 22 | 804320 | 小齿轮止动组 | STOP SET Pinion | 1 |
| 23 | 804332 | 杠杆套件 | LEVER KIT | 1 |
| 24 | 804334 | 盖板 | COVER | 1 |
| 25 | 881371T | 启动继电器 | RELAY Starter | 1 |
| 25 | 881371T1 | 启动继电器 | RELAY Starter | 1 |
| 25 | 881371T1 | 启动继电器 | RELAY Starter | 1 |
| 26 | 804605 | 螺栓(M8×45) | BOLT (M8 x 45) | 3 |
| 27 | 881373 | 接线端子 | TERMINAL | 1 |
| 28 | 881377 | 锁紧垫圈 | LOCKWASHER | 1 |
| 29 | 82382M | 螺母 | NUT | 1 |
| 30 | 881372 | 螺母 | NUT | 1 |
| 31 | 881374 | 盖板 | COVER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 816366A31 | 转向手柄套件 | STEERING HANDLE KIT | 1 |
| - | 816366A42 | 转向手柄套件 | STEERING HANDLE KIT | 1 |
| - | 816366A32 | 转向手柄套件 | STEERING HANDLE KIT | 1 |
| 1 | 12020A3 | 转向臂手柄总成 | HANDLE ASSEMBLY Steering Arm | 1 |
| NS | 74036 | 润滑脂接头 | FITTING Grease | 1 |
| NS | 8M0169589 | 润滑脂接头 | FITTING Grease | 1 |
| 2 | 429922 | 衬套 | BUSHING | 2 |
| 2 | 42992T02 | 衬套 | BUSHING | 2 |
| 3 | 48414 | 壳体 | HOUSING | 1 |
| 4 | 48519 | 安装板 | PLATE | 1 |
| 5 | 48518 | 衬垫 | GASKET | 1 |
| 6 | 878609 | 螺钉 (#10-16 x .600) | SCREW (#10-16 x .600) | 2 |
| 7 | 878608 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 3 |
| 8 | 12013 | 卡箍 | CLAMP | 1 |
| 8 | 889729 | 卡箍 | CLAMP | 1 |
| 9 | 40007112 | 螺钉(M5 x 40) | SCREW (M5 x 40) | 2 |
| 10 | 816874 | 蝶形螺母 (#10-32) | WING NUT (#10-32) Wing | 1 |
| 11 | 823609A15 | 停机开关套件-油门手柄 | SWITCH KIT Stop - Throttle Handle | 1 |
| 12 | 823609A5 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 12 | 8M0104612 | 开关总成 | SWITCH ASSY | 1 |
| 13 | NSS | 绝缘件(不单独销售) | NOT SOLD SEPARATE Insulator | 1 |
| 14 | 12018A4 | 油门拉线管总成 | TUBE ASSEMBLY Throttle | 1 |
| 15 | NSS | 驱动轮(不单独销售) | NOT SOLD SEPARATE Drive Wheel | 1 |
| 16 | NSS | 弹性销(不单独销售) | NOT SOLD SEPARATE Roll Pin | 1 |
| 17 | 62568 | 螺钉（#10-16 x 0.375） | SCREW (#10-16 x .375) | 1 |
| 18 | 99589 | 握把 | GRIP | 1 |
| 18 | 8M0221732 | 外握把 | GRIP OUTER | 1 |
| 19 | 648552 | 卡扣 | CLIP | 2 |
| 20 | 40140 | 螺母(M10) | NUT (M10) | 1 |
| 21 | 8885241 | 导管 (9.03 英寸) | CONDUIT (9.03 Inches) | 1 |
| 22 | 895665 | 导向管 | GUIDE TUBE | 1 |
| 23 | 89578 | 节流阀执行器筒 | BARREL Throttle Actuator | 1 |
| 24 | 824081 | 紧定螺钉(#10-32) | SET SCREW (#10-32) | 1 |
| 25 | 12019003 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 26 | 43433 | 电缆导向器 | GUIDE Cable | 1 |
| 26 | 8M0204660 | 导套 | GUIDE | 1 |
| 27 | 20007 | 电缆端锚 | ANCHOR Cable End | 1 |
| 28 | 20518 | 紧定螺钉(#8-32) | SET SCREW (#8-32) | 2 |
| 28 | 8M0204644 | 螺钉组 | SCREW SET | 2 |
| 29 | 823567105 | 螺丝(M10 x 105)六角法兰-不锈钢 | SCREW (M10 x 105) Hex Flange - Stainless Steel | 1 |
| 30 | 48416 | 盖帽 | CAP | 1 |
| 31 | 4002319 | 垫圈 | WASHER | 1 |
| 32 | 12024 | 垫圈(0.402 x 0.787 x 0.039 贝氏) | WASHER (.402 x .787 x .039 Bellevi) | 1 |
| 33 | 146011 | 隔套 | SPACER | 1 |
| 34 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 35 | NSS | 不单独出售 节流阀贴花 | NOT SOLD SEPARATE Decal, Throttle | 1 |
| 36 | 889724 | 软管电缆护圈 | GROMMET Hose Cable | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 816366A31 | 转向手柄套件 | STEERING HANDLE KIT | 1 |
| - | 816366A42 | 转向手柄套件 | STEERING HANDLE KIT | 1 |
| - | 816366A32 | 转向手柄套件 | STEERING HANDLE KIT | 1 |
| 1 | 816366T08 | 手柄支架 | HANDLE Bracket | 1 |
| 1 | 816366T10 | 手柄支架 | HANDLE Bracket | 1 |
| 2 | 881261 | 螺钉（.313-24 x 3.50） | SCREW (.313-24 x 3.50) | 2 |
| 3 | 42981 | 锁紧垫圈 | TAB WASHER | 2 |
| 4 | 822263 | 隔套 | SPACER | 1 |
| 5 | 12649A4 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 6 | 88107A5 | 钥匙开关套件（含钥匙） | SWITCH KIT Key With Keys | 1 |
| 7 | 879755 | 特殊螺母-黑色尼龙 | NUT Special - Black Nylon | 1 |
| 8 | 13541 | 公插头 | PLUG Male | 1 |
| 9 | 121051 | 护孔环 | GROMMET | 1 |
| 10 | 12014 | 堵头 | PLUG | 1 |
| 10 | 889730 | 堵头 | PLUG | 1 |
| 11 | 120441 | 黄铜固定座 | RETAINER Brass | 1 |
| 11 | 8M0032846 | 黄铜固定座 | RETAINER Brass | 1 |
| 12 | 8158041 | 盖板 | COVER | 1 |
| 13 | 878608 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 5 |
| 14 | 11083A4 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 15 | 15920Q54 | 拉绳总成 | LANYARD ASSEMBLY | 1 |
| 16 | 11149A3 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 17 | 889528T01 | 喇叭总成 | HORN ASSEMBLY | 1 |
| 18 | 18286A19 | 配平开关套件(25英尺) | SWITCH KIT Trim (25.00 Feet) Trim | 1 |
| 19 | 813960A3 | 开关 | SWITCH | 1 |
| 19 | 8M0052927 | 开关总成 | SWITCH ASSY | 1 |
| 20 | 12110 | 螺丝 (#6-32 x .750) | SCREW (#6-32 x .750) | 2 |
| 21 | 648551 | 卡箍 | CLAMP | 1 |
| 22 | 878608 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 1 |
| 23 | 849838 | 螺钉(.375-24 x 1.250) | SCREW (.375-24 x 1.250) | 1 |
| 24 | 826709113 | 不锈钢螺母 (.375-24) | NUT (.375-24) Stainless Steel | 1 |
| 24 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 1 |
| 25 | 48419 | 拉杆端头 | ROD END | 1 |
| 25 | 48419T | 杆端-2.16英寸 | ROD END-2.16 IN | 1 |
| 25 | 48419001 | 拉杆端头 | ROD END | 1 |
| 25 | 48419T01 | 杆端接头（2.66英寸） | ROD END (2.66 Inches) | 1 |
| 26 | 495637 | 换挡杆 | ROD Shift | 1 |
| 27 | 26856 | 衬套 | BUSHING | 1 |
| 28 | 35950 | 垫圈 (.273 x .437 x .031) 不锈钢 | WASHER (.273 x .437 x .031) Stainless Steel | 1 |
| 29 | 25191 | 开口销 | COTTER PIN Cotter | 1 |
| 30 | 8163677 | 换挡杆 | LEVER Shift | 1 |
| 31 | 58152 | 双头螺柱(0.375-24×1.125) | STUD (.375-24 x 1.125) | 1 |
| 31 | 8M0034452 | 螺柱 | STUD | 1 |
| 32 | 98530 | 旋钮 | KNOB | 1 |
| 33 | 12016A2 | 定位弹簧套件 | DETENT/SPRING KIT | 1 |
| 34 | 8159831 | 衬套 | BUSHING | 1 |
| 35 | 823970 | 垫圈 | WASHER | 1 |
| 36 | 824610 | 塑料垫圈 | WASHER Plastic | 1 |
| 37 | 814803 | 垫圈 | WASHER | 1 |
| 38 | 8158051 | 锁紧垫圈 | TAB WASHER | 1 |
| 39 | 4000357 | 螺钉 (M8 x 45) | SCREW (M8 x 45) | 1 |
| 40 | 52148A08 | 副驾驶总成 | CO PILOT ASSEMBLY | 1 |
| 41 | 52148002 | 导向杆（15英寸） | PILOT ROD (15.00 Inches) | 1 |
| 42 | 52155A1 | 螺母总成 | NUT ASSEMBLY | 1 |
| 42 | 8M0103848 | 螺母总成 | NUT ASSEMBLY | 1 |
| 43 | 36137 | 螺钉(.250-28 x 1.00) | SCREW (.250-28 x 1.00) | 1 |
| 44 | 821621 | 叉形旋钮 | KNOB Prong | 1 |
| 45 | 873491 | 连杆 | ROD Link | 1 |
| 46 | 26841 | 衬套 | BUSHING | 1 |
| 47 | 70132 | 垫圈(0.323×0.563×0.063)不锈钢 | WASHER (.323 x .563 x .063) Stainless Steel | 2 |
| 47 | 8M0042642 | 垫圈(.323 x .562 x .063) | WASHER (.323 x .562 x .063) | 2 |
| 48 | 826709111 | 螺母(.312-24)不锈钢 | NUT (.312-24) Stainless Steel | 2 |
| 49 | 64015 | 螺母 (.250-20) | NUT (.250-20) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 818904T1 | 旋转支架 | SWIVEL BRACKET | 1 |
| 1 | 8M0220957 | 旋转支架总成 | SWIVEL BRKT ASSY | 1 |
| 2 | 87735 | 下油封 | SEAL Oil Lower | 1 |
| 3 | 818764 | 衬套 | BUSHING | 2 |
| 4 | 33504 | O型圈 | O-RING | 1 |
| 4 | 8M0214926 | O型圈 @10 | O RING @10 | 1 |
| 5 | 816039 | 隔套 | SPACER | 1 |
| 6 | 74036 | 润滑脂接头 | FITTING Grease | 2 |
| 6 | 8M0169589 | 润滑脂接头 | FITTING Grease | 2 |
| 7 | 821207 | 衬套 | BUSHING | 2 |
| 8 | 64014 | 螺钉(.250-28x.500) | SCREW (.250-28 x .500) | 2 |
| 9 | 99661A26 | 旋转销总成 | SWIVEL PIN ASSEMBLY | 1 |
| 9 | 99661A35 | 旋转销总成 | SWIVEL PIN ASSEMBLY | 1 |
| 10 | 92876A10 | 连杆总成 | LINK ROD ASSEMBLY | 1 |
| 10 | 92876A12 | 连杆总成 | LINK ROD ASSEMBLY | 1 |
| 11 | 849838 | 螺钉(.375-24 x 1.250) | SCREW (.375-24 x 1.250) | 1 |
| 12 | 826709113 | 不锈钢螺母 (.375-24) | NUT (.375-24) Stainless Steel | 2 |
| 12 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 2 |
| 13 | 37828 | 不锈钢垫圈 (.390 x .625 x .062) | WASHER (.390 x .625 x .062) Stainless Steel | 2 |
| 14 | 42961A1 | 底部轭架总成 | YOKE ASSEMBLY Bottom | 1 |
| 14 | 42961A06 | 底部轭架总成 | YOKE ASSEMBLY Bottom | 1 |
| 15 | 67684 | 挡圈 | RING Retaining | 1 |
| 16 | 816432 | 止推垫片 | THRUST WASHER | 1 |
| 17 | NSS | 不单独销售 贴纸, 序列号覆膜 | NOT SOLD SEPARATE Decal, Serial Overlaminate | 1 |
| 18 | 11288 | 下轭缓冲垫 | BUMPER Bottom Yoke | 1 |
| 18 | 11288001 | 下轭缓冲垫 | BUMPER Bottom Yoke | 1 |
| 19 | 88882 | 上轭缓冲垫 | BUMPER Top Yoke | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 83163M | 飞轮固定工具 | HOLDER TOOL Flywheel | 1 |
| 1 | 8M0161873 | 固定工具 | HOLDER TOOL | 1 |
| 2 | 83164M | 飞轮拉拔器 | FLYWHEEL PULLER | 1 |
| 2 | 8M0227579 | 飞轮拉拔器 | FLYWHEEL PULLER | 1 |
| 3 | 99379 | 正时灯 | TIMING LIGHT | 1 |
| 4 | 890451 | 直流电压适配工具 | ADAPTER TOOL Direct Voltage | 1 |
| 5 | 850439T1 | 八腔测试仪 | TESTER Eight Chamber | 1 |
| 6 | 854009A3 | 转速多功能表DMT 2000数字式 | TACH MULTI METER DMT 2000 Digital | 1 |
| 6 | 892647A01 | DMT万用表套件 | MULTI-METER KIT DMT | 1 |
| 7 | 881825 | 曲轴位置传感器测试线束总成 | HARNESS ASSEMBLY Crank Position Sensor Test | 1 |
| 8 | 875216 | 电刷固定工具 | HOLDER TOOL Brush | 1 |
| 9 | 881824 | 定子线圈测试线束总成 | HARNESS ASSEMBLY Stator Coil Test | 1 |
| 9 | 881824004 | 测试线束总成 | HARNESS ASSEMBLY Test | 1 |
| 10 | 881827 | 节气门位置测试线束总成 | HARNESS ASSEMBLY Throttle Position Test | 1 |
| 11 | 881826 | 点火线圈测试线束总成 | HARNESS ASSEMBLY Ignition Coil Test | 1 |
| 12 | 8098712 | 化油器真空调校工具 | VACUUMMATE TOOL Carburetor Tuner | 1 |
| 13 | 881833A2 | 空气/燃油压力表 | GAUGE Air/Fuel Pressure | 1 |
| 13 | 881833A03 | 气油压力表套件 | GAUGE KIT Air/Fuel Pressure | 1 |
| 14 | 881834A1 | 仪表 | GAUGE | 1 |
| 15 | NSS | 非单独销售真空表 | NOT SOLD SEPARATE Migh VAC Vacuum Gage | 1 |
| 16 | 99056A1 | 故障指示灯 | MALFUNCTION INDICATOR LAMP | 1 |
| 17 | 881828 | 星形头工具套件 | STARBIT TOOL KIT | 1 |
| 18 | 804774 | 气门导管拆装工具 | REMOVER/INSTALLER TOOL Valve Guide | 1 |
| 18 | 804774001 | 气门导管工具 | TOOL-VALVE GUIDE | 1 |
| 19 | 804775 | 气门导管铰刀工具 | REAMER TOOL Valve Guide | 1 |
| 20 | 809494A1 | 气门弹簧压缩工具 | COMPRESSOR TOOL Valve Spring | 1 |
| 21 | NSS | 不单独销售 气门座铰刀套件 | NOT SOLD SEPARATE Valve Seat Cutter Kit | 1 |
| 22 | 802653Q1 | 机油滤清器扳手 | WRENCH Oil Filter | 1 |
| 22 | 802653Q02 | 机油滤清器扳手 | WRENCH Oil Filter | 1 |
| 23 | FT2997 | 活塞环压缩工具 | COMPRESSOR TOOL Piston Ring | 1 |
| 24 | 24697 | 活塞环扩张工具 | EXPANDER TOOL Piston Ring | 1 |
| 25 | 804770A1 | 曲轴固定工具 | HOLDER TOOL Crankshaft | 1 |
| 26 | 875215A1 | 传动轴衬套安装工具 | INSTALLER TOOL Driveshaft Bushing | 1 |
| 27 | 881847T | 套筒(76mm深) | SOCKET (76 mm Deep) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 28 | 74951 | 扳手 | SPANNER WRENCH | 1 |
| 29 | NSS | 非单独销售锁环钳 | NOT SOLD SEPARATE Lock Ring Pliers | 1 |
| 30 | NSS | 非单独销售膨胀杆 | NOT SOLD SEPARATE Expanding Rod | 1 |
| 31 | NSS | 非单独销售夹头 | NOT SOLD SEPARATE Collet | 1 |
| 32 | 63209 | 加热灯 | HEAT LAMP | 1 |
| 33 | 12349A2 | 小齿轮定位工具 | LOCATION TOOL Pinion | 1 |
| 33 | 12349A05 | 小齿轮定位工具 | TOOL Pinion Locating | 1 |
| 34 | 13945 | 轴承安装工具 | INSTALLATION TOOL Bearing | 1 |
| 35 | 13949 | 油封安装工具 | DRIVER TOOL Oil Seal | 1 |
| 36 | 14308T1 | 轴承座圈工具 | RACE TOOL Bearing | 1 |
| 36 | 14308T02 | 轴承座圈驱动器 | BEARING RACE DRIVER | 1 |
| 37 | 14309T1 | 轴承安装工具 | INSTALLATION TOOL Bearing | 1 |
| 37 | 14309T02 | 轴承安装工具 | INSTALLATION TOOL Bearing | 1 |
| 38 | 14310T1 | 耐磨套驱动器 | WEAR SLEEVE DRIVER | 1 |
| 39 | 14311A2 | 轴承预紧工具 | PRE LOAD TOOL Bearing | 1 |
| 39 | 14311A04 | 预紧力工具 | TOOL Preload | 1 |
| 40 | 15755T | 滚针轴承驱动器 | NEEDLE BEARING DRIVER | 1 |
| 41 | 196601 | 背隙测量仪 | INDICATOR TOOL Backlash | 1 |
| 42 | 31106T | 轴承安装心轴杯 | MANDREL Bearing Driver Cup | 1 |
| 43 | 31108T | 油封驱动器 | DRIVER Oil Seal | 1 |
| 44 | 36569T | 驱动头工具 | DRIVE HEAD TOOL | 1 |
| 45 | 804776A1 | 传动轴固定工具 | HOLDING TOOL Driveshaft | 1 |
| 46 | 31229 | 轴 | SHAFT | 1 |
| 47 | 24156 | 螺母(0.625-18) | NUT (.625-18) | 1 |
| 48 | 34569A1 | 滑动锤拉拔器总成 | PULLER ASSEMBLY Slide Hammer | 1 |
| 49 | 37323 | 滚针轴承导杆工具 | DRIVER ROD TOOL Needle Bearings | 1 |
| 50 | 37241 | 通用拉拔板 | PULLER PLATE Universal | 1 |
| 51 | 37350T | 导向心轴 | PILOT MANDREL | 1 |
| 52 | 46086A1 | 拉拔器爪头总成 | PULLER JAW ASSEMBLY | 1 |
| 53 | 58222A1 | 百分表工具 | DIAL INDICATOR TOOL | 1 |
| 54 | 78473 | 背隙测量仪 | INDICATOR TOOL Backlash | 1 |
| 54 | 8M0053505 | 背隙指示工具 | TOOL Indicator, Backlash | 1 |
| 55 | 85716 | 拉拔螺栓工具-轴承座 | PULLER BOLT TOOL Bearing Carrier | 1 |
| 56 | 83155 | 千分表转接套件 | ADAPTER KIT Dial Indicator | 1 |
| 56 | 8M0237356 | 适配器套件 | ADAPTER KIT | 1 |
| 57 | 83165T | 拉拔器总成 | PULLER ASSEMBLY | 1 |
| 58 | 856875A1 | 轴承安装工具 | INSTALLATION TOOL Bearing | 1 |
| 59 | 877321A1 | 轴承安装工具 | INSTALLATION TOOL Bearing | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 827328T9 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 1 | 827328T10 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 2 | 821256T1 | 黑色进气口 | INLET Air - Black | 1 |
| 2 | 821256T03 | 进气口 | INLET Air | 1 |
| 2 | 821256T2 | 银色进气口 | INLET Air - Silver | 1 |
| 3 | 82130016 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 4 |
| 4 | 859356A1 | 隔音毯套装 | SOUND BLANKET KIT | 1 |
| 4 | 859356A02 | 隔音毯套装 | SOUND BLANKET KIT | 1 |
| 5 | NSS | 不单独销售 隔音毯 | NOT SOLD SEPARATE Sound Blanket | 1 |
| 6 | NSS | 不单独销售 隔音毯 | NOT SOLD SEPARATE Sound Blanket | 1 |
| 7 | NSS | 不单独销售 隔音毯 | NOT SOLD SEPARATE Sound Blanket | 2 |
| 8 | 823865 | 盖塞 | CAP PLUG | 2 |
| 9 | 831207T10 | 手柄 | HANDLE | 1 |
| 9 | 831207A16 | 罩盖锁手柄套件 | HANDLE KIT Cowl Latch | 1 |
| 10 | 812707 | 衬套 | BUSHING | 2 |
| 11 | 831214 | 隔套 | SPACER | 1 |
| 12 | 12134 | 波形垫圈 | WASHER Wave | 1 |
| 13 | F481777 | 凸轮锁轴 | CAM Latch Shaft | 1 |
| 13 | 8M0001081 | 凸轮 | CAM | 1 |
| 14 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 1 |
| 14 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 1 |
| 15 | 1993716 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 1 |
| 16 | 821249M2 | 前支架 | BRACKET Front | 3 |
| 16 | 8M0036792 | 支架 | BRACKET | 3 |
| 17 | 815477 | 缓冲器锁扣 | BUMPER Latch | 3 |
| 18 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 6 |
| 18 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 6 |
| 19 | 401366 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 6 |
| 20 | 8237951 | 挡圈 | RING Retaining | 1 |
| 21 | 815263 | 滚轮 | ROLLER | 1 |
| 21 | 8M0207770 | 滚轮@3 | ROLLER @3 | 1 |
| 22 | 8155381 | 滚动销 | PIN Roll | 1 |
| 23 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 23 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 24 | 401366 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 25 | 47341A11 | 手动启动绳柄套件 | ROPE AND HANDLE KIT Manual Starting | 1 |
| 26 | 12066Q9 | 绳索 | ROPE | 1 |
| 26 | 12066Q10 | 启动绳@2 | ROPE-STARTER@2 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 828334F1 | 艉板支架 | BRACKET Transom | 1 |
| 1 | 828334T02 | 艉板支架总成 - 右舷 | BRACKET ASSEMBLY Transom - Starboard | 1 |
| 2 | 828333A3 | 艉板支架总成 | BRACKET ASSEMBLY Transom | 1 |
| 2 | 828333T07 | 艉板支架总成-左舷 | BRACKET ASSEMBLY Transom - Port | 1 |
| 3 | 98727 | 润滑脂接头 | FITTING Grease | 1 |
| 3 | 8M0169588 | 润滑脂接头 | FITTING Grease | 1 |
| 4 | 99170A2 | 倾斜管套件 | TUBE KIT Tilt | 1 |
| 4 | 826125A1 | 倾斜管 | TILT TUBE | 1 |
| 4 | 826125A1 | 倾斜管 | TILT TUBE | 1 |
| 5 | 859133 | 螺母(1.00-14) | NUT (1.00-14) | 1 |
| 5 | 82671327 | 螺母(1.0-14) | NUT (1.0-14) | 1 |
| 5 | 826135 | 尼龙锁紧螺母(1.00-14) | NUT Lock (1.00-14) Nylon Insert | 1 |
| 6 | 45711 | O型圈 (.612 x .103) | O-RING (.612 x .103) | 1 |
| 7 | 88750 | 波浪垫圈 (1.62 x 1.05) | WASHER Wave (1.62 x 1.05) | 2 |
| 8 | 858869 | 螺母 (.875-14) | NUT (.875-14) | 1 |
| 8 | 826164 | 螺母 (.875-14) | NUT (.875-14) | 1 |
| 8 | 8M0231351 | 锁紧螺母 | NUT Lock | 1 |
| 9 | 677551 | 螺钉(.500-20×4.500) | SCREW (.500-20 x 4.500) | 4 |
| 9 | 8M0149747 | 螺钉 | SCREW | 4 |
| 10 | 54012 | 垫圈(0.530×0.870×0.105不锈钢) | WASHER (.530 x .870 x .105) Stainless Steel | 4 |
| 10 | 8M0204665 | 垫圈(0.530×0.880×0.104 630不锈钢) | WASHER (.530 x .880 x .104) 630 Stainless Steel | 4 |
| 11 | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 11 | 8M0204648 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 12 | 82671117 | 螺母(.500-20) | NUT (.500-20) | 4 |
| 13 | 830899 | 张力弹簧 | SPRING Tension | 1 |
| 14 | 821176T1 | 倾斜锁定杆总成 | LEVER ASSEMBLY Tilt Lock | 1 |
| 14 | 8M0109798 | 倾斜锁定杆总成 | LEVER ASSEMBLY Tilt Lock | 1 |
| 15 | 65830 | 尼龙衬套 | NYLINER | 2 |
| 16 | 830900 | 压缩弹簧 | SPRING Compression | 1 |
| 17 | 99633 | 旋钮 | KNOB | 1 |
| 18 | 99615 | 槽销 | PIN Groove | 1 |
| 19 | 99617 | 销 | PIN | 1 |
| 19 | 893709 | 销 | PIN | 1 |
| 20 | 818771T1 | 锚支架 | BRACKET Anchor | 1 |
| 20 | 8M0086406 | 锚支架 | BRACKET Anchor | 1 |
| 21 | 858771 | 螺钉 (M10 x 30) | SCREW (M10 x 30) | 6 |
| 22 | 4002319 | 垫圈 | WASHER | 6 |
| 23 | 40114 | 螺母(M10 x 1.5) | NUT (M10 x 1.5) | 1 |
| 24 | 818298Q1 | 阳极套件 | ANODE KIT | 1 |
| 25 | 4000330 | 螺钉(M6x25) | SCREW (M6 x 25) | 2 |
| 25 | 8M0204707 | 不锈钢六角大帽螺钉(M6x25) | SCREW M6 x 25 HX HD CAP SS | 2 |
| 26 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 26 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
