四冲程 电喷 EFI · Cat.# 90-8M0087973 · 共 50 个部位 · 1529 条零件

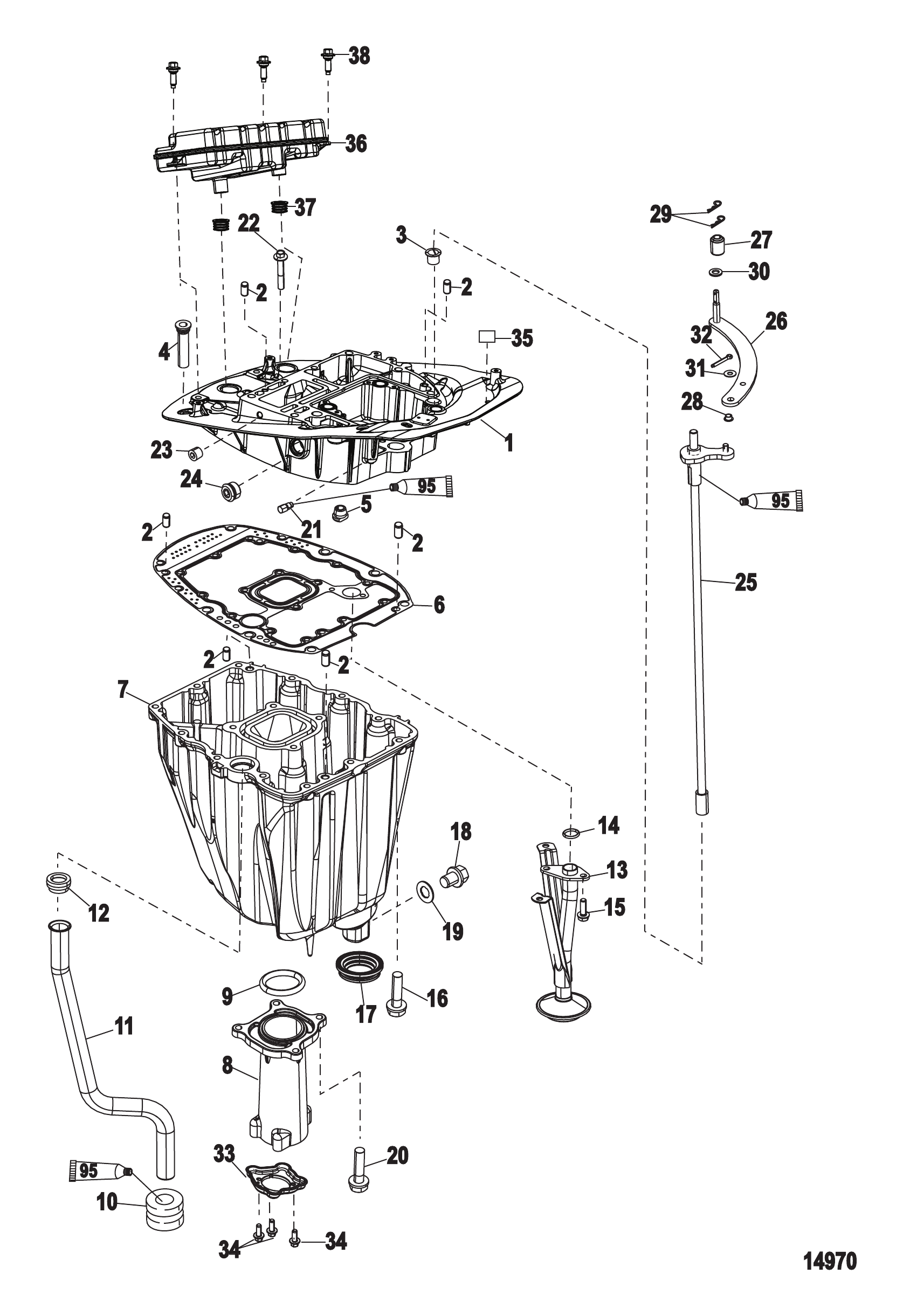

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 881912T02 | 适配板总成 | ADAPTER PLATE ASSEMBLY | 1 |
| 2 | 23784 | 定位销 | PIN Dowel | 6 |
| 3 | 27132 | 衬套 | BUSHING | 1 |
| 4 | 817519A2 | 排水单向阀总成 | CHECK VALVE ASSEMBLY Drain | 2 |
| 5 | 19565002 | 护孔环 | GROMMET | 1 |
| 6 | 8M0005405 | 适配板衬垫 | GASKET Adapter Plate | 1 |
| 7 | 858572T01 | 油底壳 | SUMP Oil | 1 |
| 8 | 898468A01 | 排气管套件 | TUBE KIT Exhaust | 1 |
| 9 | 881295 | O型圈 | O-RING | 1 |
| 10 | 89417004 | 护孔环 | GROMMET | 1 |
| 11 | 858575006 | 水管 | TUBE Water | 1 |
| 11 | 8M0026130 | 水管 | TUBE Water | 1 |
| 11 | 8M0026130 | 水管 | TUBE Water | 1 |
| 11 | 858575005 | 水管 | TUBE Water | 1 |
| 11 | 8M0026129 | 水管 | TUBE Water | 1 |
| 11 | 8M0026129 | 水管 | TUBE Water | 1 |
| 12 | 814080001 | 上密封件 | SEAL Upper | 1 |
| 13 | 858571T | 机油吸油管 | TUBE Oil Pick Up | 1 |
| 14 | 859082 | O型圈 | O-RING | 1 |
| 15 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 4 |
| 15 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 4 |
| 16 | 8248327 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 12 |
| 16 | 8M0214957 | 螺钉 | SCREW | 12 |
| 17 | 858573 | 密封件 | SEAL | 1 |
| 17 | 8M0039073 | 密封件 | SEAL | 1 |
| 18 | 8288181 | 放油塞 | PLUG Drain | 1 |
| 19 | 828816 | 衬垫 | GASKET | 1 |
| 19 | 8M0204692 | 衬垫@5 | GASKET @5 | 1 |
| 20 | 82483213 | 螺钉(M6 x 60) | SCREW (M6 x 60) | 4 |
| 21 | 888823001 | 换挡定位装置总成 | SHIFT DETENT ASSEMBLY | 1 |
| 22 | 898442 | 螺钉(M8 x 50) | SCREW (M8 x 50) | 4 |
| 23 | 479452 | 堵头 | PLUG | 1 |
| 24 | 8M0048148 | 堵头 | PLUG | 1 |
| 25 | 888835A1 | 换档轴 | SHIFT SHAFT | 1 |
| 26 | 888840 | 换挡连杆 | SHIFT LINK | 1 |
| 27 | 888917 | 滚轮 | ROLLER | 1 |
| 28 | 891658 | 衬套 | BUSHING | 1 |
| 29 | 82053M | 发夹销 | PIN Hair | 2 |
| 30 | 888832 | 垫圈 | WASHER | 1 |
| 31 | 69056 | 垫圈(.255 x .620 x .030) 不锈钢 | WASHER (.255 x .620 x .030) Stainless Steel | 1 |
| 32 | 26953 | 开口销 | COTTER PIN | 1 |
| 33 | 898844 | 排气管密封件(随排气管提供) | SEAL Exhaust Tube Included with Exhaust Tube | 1 |
| 34 | 88552516 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 3 |
| 34 | 8M0103805 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 3 |
| 35 | 48323 | 堵头 | PLUG | 1 |
| 36 | 898103T91 | 排气集气室 | PLENUM Exhaust | 1 |
| 37 | 8M0001457 | 集气室密封件 | SEAL Plenum | 2 |
| 38 | 892073002 | 台阶螺丝 (M6) | SHOULDER SCREW (M6) | 3 |
| 38 | 8M0230980 | 螺丝 (M6x14) 六角法兰B型 | SCREW (M6 x 14) Hex Flange B | 3 |
| - | 897534A07 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 897148A09 | 长缸体总成 75/80/90/100 | LONG BLOCK ASSEMBLY 75/80/90/100 | 1 |
| - | 8M8033014 | PH L4NA 4S | PH L4NA 4S | 1 |
| - | 897148A08 | 长缸体总成 115 | LONG BLOCK ASSEMBLY 115 | 1 |

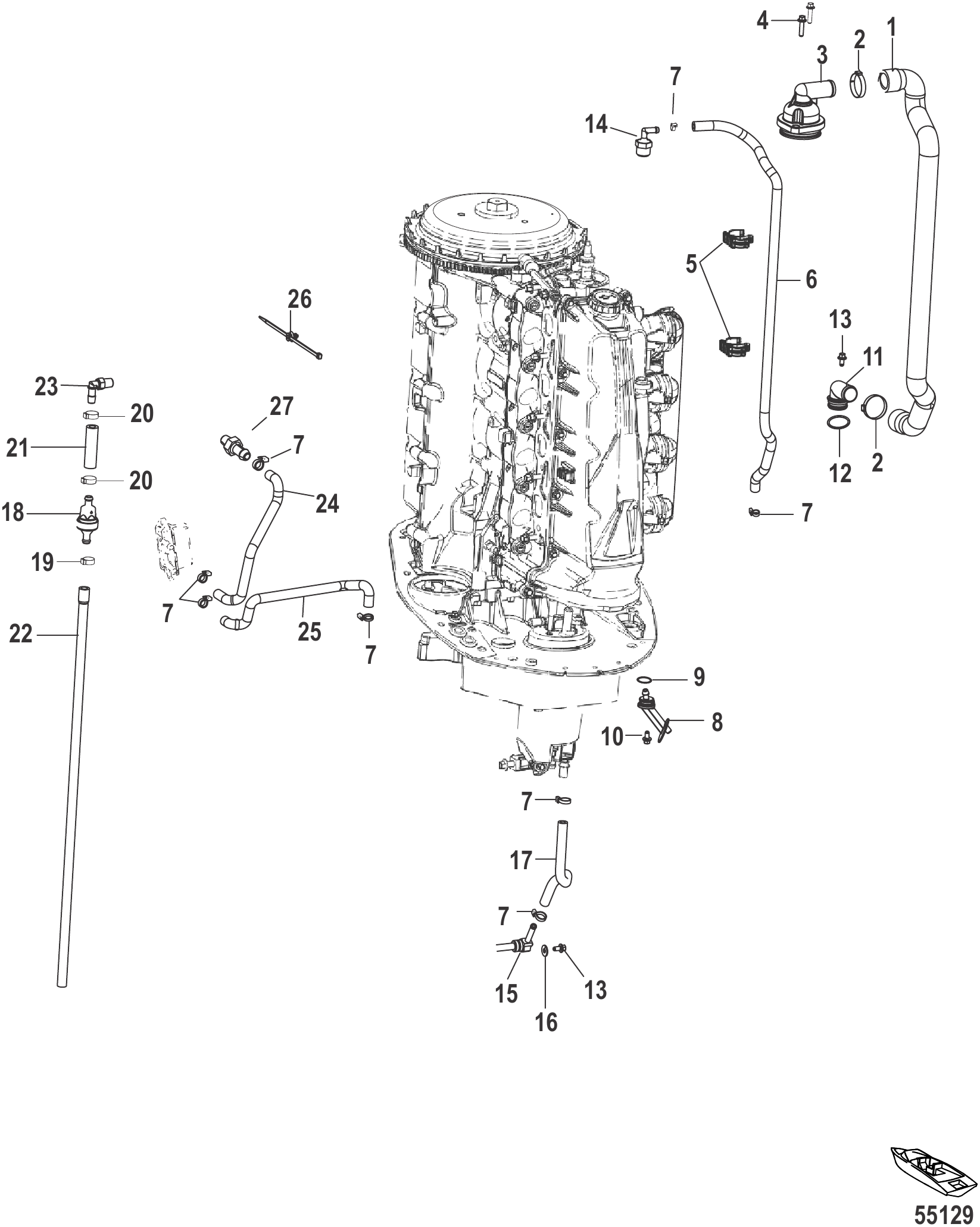

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0055699 | 软管 | HOSE | 1 |
| 2 | 888988001 | 卡箍(36.1毫米) | CLAMP (36.1 mm) | AR |
| 2 | 8M0204719 | 卡箍 36.1毫米 | CLAMP 36.1 MM | AR |
| 3 | 8M0090819 | 节温器总成 | THERMOSTAT ASSEMBLY | 1 |
| 4 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 3 |
| 4 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 3 |
| 5 | 8M0061994 | 卡扣 | CLIP | 2 |
| 6 | 8M0055698 | 软管 | HOSE | 1 |
| 7 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 8 | 8M0055215 | 示流器 | TELLTALE | 1 |
| 9 | 38101 | O型圈 0.674×0.103 | O-RING (.674 x .103) | 1 |
| 10 | 8M0012661 | 螺丝 M6×14 六角法兰不锈钢 | SCREW M6 x 14 HEX FLG SS | 1 |
| 11 | 8M0057408 | 接头 | FITTING | 1 |
| 12 | 29845 | O型圈 0.924×0.103 | O-RING (.924 x .103) | 1 |
| 12 | 8M0204650 | O型圈 | O-RING | 1 |
| 13 | 88552512 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 mm) Stainless Steel | 1 |
| 13 | 8M0103804 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 MM) Stainless Steel | 1 |
| 14 | 8M0061328 | 卡扣式滤网 | STRAINER Snap Fit | 1 |
| 15 | 8M0050013 | 排气冷却接头 | FITTING Exhaust Cooling | 1 |
| 16 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 1 |
| 16 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 1 |
| 17 | 8M0045298 | 喷雾软管 | HOSE Sprayer | 1 |
| 18 | 8M0035700 | 冲洗系统软管总成 | HOSE ASSEMBLY FLUSH SYSTEM | 1 |
| 18 | 8M0102825 | 软管 | HOSE | 1 |
| 19 | 855697 | 卡箍 | CLAMP | AR |
| 19 | 8M0204696 | 卡箍 | CLAMP | AR |
| 20 | 888988022 | 卡箍 | CLAMP | AR |
| 21 | 8M0057620 | 冲洗软管 | HOSE Flush | 1 |
| 22 | 8M0057599 | 管材（内径8×外径14×840毫米） | TUBING (8 ID X 14 OD X 840 MM) | 1 |
| 23 | 8M0075779 | 接头 | FITTING | 1 |
| 24 | 8M0056685 | 软管 | HOSE | 1 |
| 25 | 8M0056483 | 软管 | HOSE | 1 |
| 26 | 899145 | 绑带夹 | CLIP Tie Strap | AR |
| 27 | 291112 | 接头 | FITTING | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

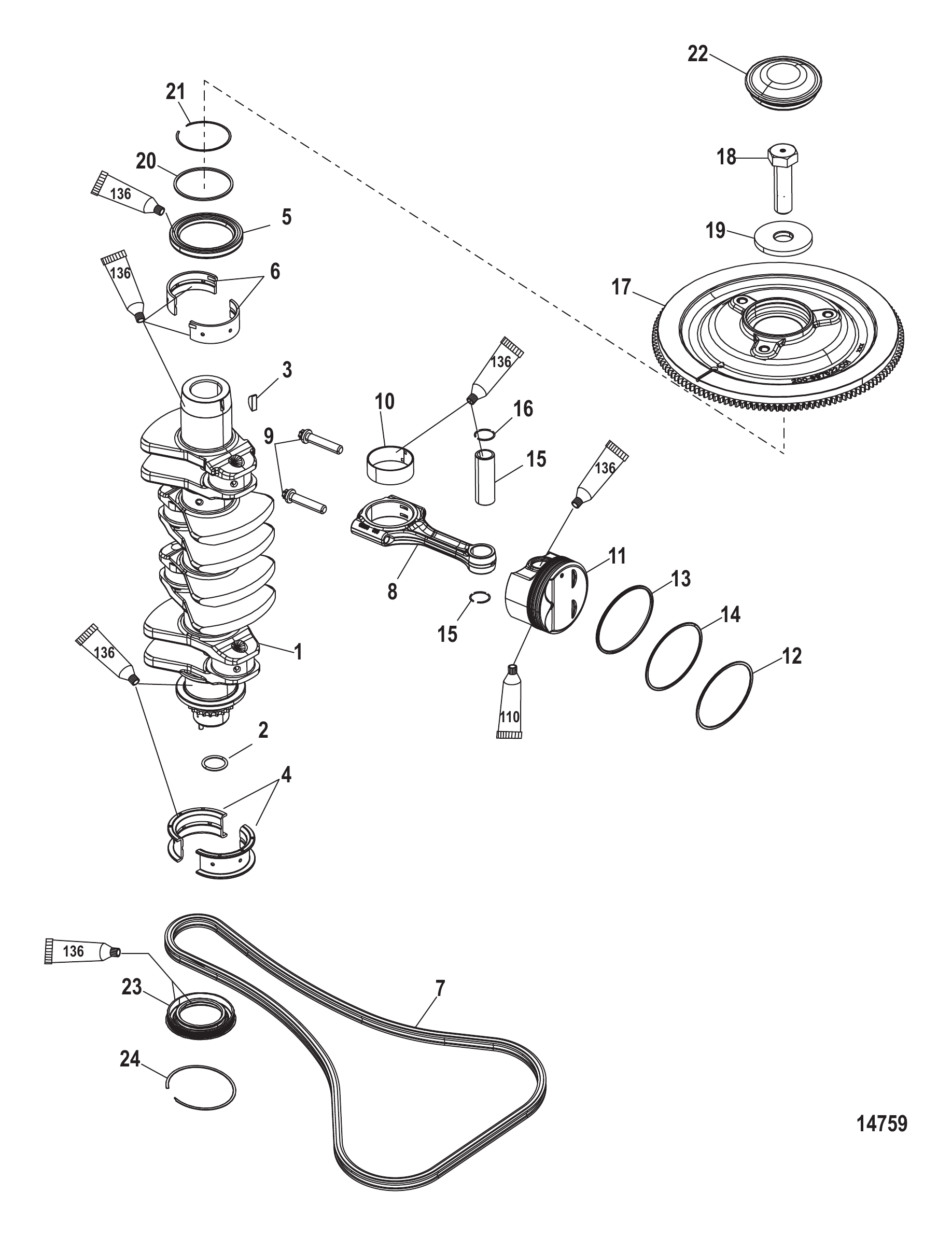

| 1 | 898051A04 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 2 | 889993001 | O型圈 | O-ring | 1 |
| 3 | 91800 | 半圆键 | KEY Woodruff | 1 |
| 4 | 892309T01 | 推力轴承-绿色(曲轴下端) | BEARING Thrust - Green Crankshaft-Lower | 2/AR |
| 4 | 8M0117003 | 轴承 | BEARING | 2/AR |
| 4 | 892309T02 | 推力轴承-海军蓝(曲轴下端) | BEARING Thrust - Navy Blue Crankshaft-Lower | 2/AR |
| 4 | 8M0117001 | 轴承 | BEARING | 2/AR |
| 4 | 892309T03 | 推力轴承-白色(曲轴下端) | BEARING Thrust - White Crankshaft-Lower | 2/AR |
| 4 | 8M0117002 | 轴承 | BEARING | 2/AR |
| 4 | 892309T04 | 推力轴承-橙色(曲轴下端) | BEARING Thrust - Orange Crankshaft-Lower | 2/AR |
| 4 | 8M0117004 | 轴承 | BEARING | 2/AR |
| 5 | 8805251 | 油封(主轴承顶部) | SEAL Top Main Bearing | 1 |
| 5 | 8M0032912 | 密封件 | SEAL | 1 |
| 6 | 897498T01 | 主轴承-绿色(曲轴上端) | BEARING Main - Green Crankshaft-Upper | 4 |
| 6 | 897498T02 | 主轴承-海军蓝(曲轴上端) | BEARING Main - Navy Blue Crankshaft-Upper | 4 |
| 6 | 897498T03 | 主轴承-白色(曲轴上端) | BEARING Main - White Crankshaft-Upper | 4 |
| 6 | 897498T04 | 主轴承-橙色(曲轴上端) | BEARING Main - Orange Crankshaft-Upper | 4 |
| 7 | 897796 | 链条(凸轮轴驱动滚子链) | CHAIN Roller Cam Drive | 1 |
| 7 | 8M0103398 | 链条(凸轮轴驱动滚子链) | CHAIN Roller Cam Drive | 1 |
| 8 | 881210T02 | 连杆总成 | CONNECTING ROD ASSEMBLY | 4 |
| 8 | 8M0103285 | 连杆总成 | CONNECTING ROD ASSEMBLY | 4 |
| 9 | 884441 | 螺栓 | BOLT | 8 |
| 10 | 892005A01 | 连杆轴承-蓝色 | BEARING Connecting Rod - Blue | 4 |
| 10 | 892005A02 | 连杆轴承-白色 | BEARING Connecting Rod - White | 4 |
| 10 | 892005A03 | 连杆轴承-橙色 | BEARING Connecting Rod - Orange | 4 |
| 11 | 898472T01 | 活塞总成(标准) | PISTON ASSEMBLY (Standard) | 4 |
| 12 | 881180A03 | 活塞环套件(标准) | RING SET Piston (Standard) | 4 |
| 12 | 881180A02 | 活塞环组 | RING SET Piston | 4 |
| 13 | NSS | 油环（不单独销售） | NOT SOLD SEPARATE Oil Ring | 4 |
| 14 | NSS | 第二道活塞环(不单独销售) | NOT SOLD SEPARATE Piston Ring-Second | 4 |
| 15 | NSS | 活塞销（不单独销售） | NOT SOLD SEPARATE Piston Pin | 4 |
| 16 | 881184 | 卡簧 | CIRCLIP | 8 |
| 17 | 897522T04 | 飞轮总成 | FLYWHEEL ASSEMBLY | 1 |
| 18 | 880515 | 螺栓(M20×68) | BOLT (M20 x 68) | 1 |
| 18 | 8M0147042 | 螺栓 | BOLT | 1 |
| 19 | 8M0062178 | 垫圈 66 X 21 X 6.35 MM | WASHER 66 X 21 X 6.35 MM | 1 |
| 19 | 8M0090010 | 垫圈 | WASHER | 1 |
| 20 | 896883 | 隔套 | SPACER | 1 |
| 21 | 896882 | 挡圈 | RING Retaining | 1 |
| 22 | 885348 | 盖帽 | CAP | 1 |
| 23 | 897540 | 油封 | SEAL Oil | 1 |
| 24 | 897785 | 挡圈 | RING Retaining | 1 |
| - | 897534A07 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 897148A09 | 长缸体总成 75/80/90/100 | LONG BLOCK ASSEMBLY 75/80/90/100 | 1 |
| - | 8M8033014 | PH L4NA 4S | PH L4NA 4S | 1 |
| - | 897148A08 | 长缸体总成 115 | LONG BLOCK ASSEMBLY 115 | 1 |

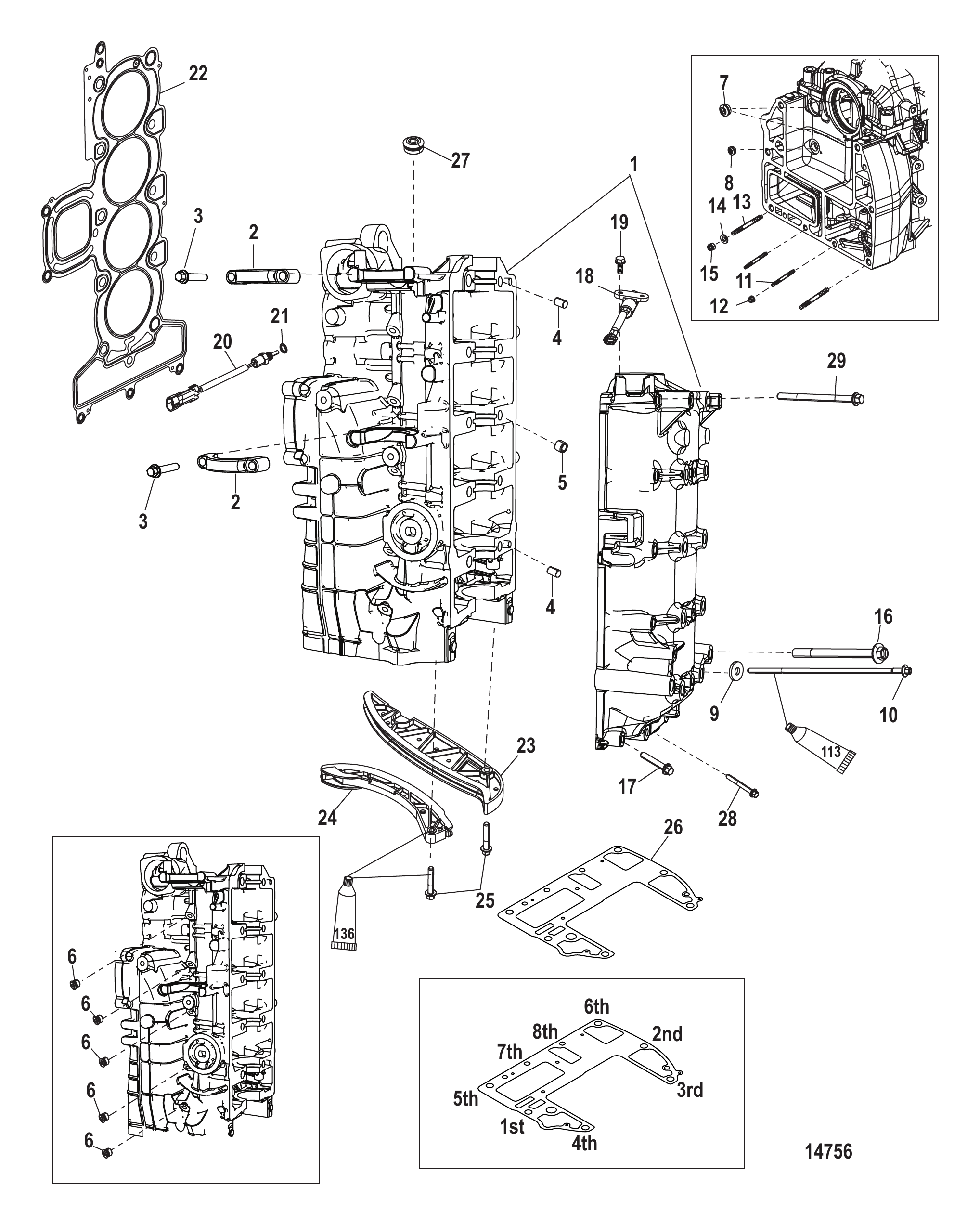

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 880504A12 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 2 | 8M0007889 | 支架 | BRACKET | 2 |
| 3 | 88552640 | 螺钉（M8×40）注：长缸体套装中不再包含 | SCREW (M8 x 40) NOTE:No Longer included with Longblock | 4 |
| 3 | 8M0103815 | 螺钉 | SCREW | 4 |
| 4 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 2 |
| 5 | 893392001 | 减震器 | DAMPER | 10 |
| 6 | 8M0047994 | 堵头（12毫米） | PLUG (12 MM) | 5 |
| 6 | 8M0087448 | 堵头×2 | PLUG @2 | 5 |
| 7 | 896951 | 堵头（24毫米） | PLUG (24 mm) | 2 |
| 8 | 8M0010474 | 堵头（14毫米） | PLUG (14 mm) | 1 |
| 8 | 8M0087449 | 堵头（14毫米） | PLUG (14 mm) | 1 |
| 9 | 892573001 | 垫圈 | WASHER | 10 |
| 10 | 896923 | 螺钉（M10×342） | SCREW (M10 x 342) | 10 |
| 10 | 8M4501000 | 螺钉（M10×342） | SCREW (M10 X 342) | 10 |
| 11 | 897599 | 双头螺柱（M8×55） | STUD (M8 x 55) | 2 |
| 11 | 8M0000275 | 螺柱 | STUD | 2 |
| 12 | 826365 | 螺母 (M8) | NUT (M8) | 2 |
| 13 | 897677 | 双头螺柱（M10×1.5） | STUD (M10 x 1.5) | 6 |
| 13 | 8M0010471 | 双头螺柱×2 | STUD @2 | 6 |
| 14 | 856774 | 垫圈(0.406×0.750×0.105)不锈钢 | WASHER (.406 x .750 x .105) Stainless Steel | 6 |
| 14 | 8M0214963 | 垫圈 | WASHER | 6 |
| 15 | 884412 | 螺母 | NUT | 6 |
| 16 | 892086120 | 螺钉（M10×120） | SCREW (M10 x 120) | 2 |
| 16 | 8M0103829 | 螺钉 | SCREW | 2 |
| 17 | 895810050 | 螺钉(M8 x 50) | SCREW (M8 x 50) | 2 |
| 17 | 8M0193659 | 螺钉 | SCREW | 2 |
| 18 | 8283582 | 传感器 | SENSOR | 1 |
| 18 | 8M0082988 | 曲轴位置传感器 | SENSOR Crankshaft Position | 1 |
| 19 | 40011106 | 不锈钢螺钉(M5x13) | SCREW (M5 x 13) Stainless Steel | 2 |
| 20 | 885342002 | 传感器总成 | SENSOR ASSEMBLY | 1 |
| 20 | 8M0148668 | 传感器总成 | SENSOR ASSEMBLY | 1 |
| 21 | 896699 | O型圈（1.78毫米 x 0.08毫米） | O-RING (1.78 mm x .08 mm) | 1 |
| 22 | 896277006 | 衬垫 缸盖 | GASKET Head | 1 |
| 22 | 8M0024565 | 衬垫 | GASKET | 1 |
| 22 | 8M0024565 | 衬垫 | GASKET | 1 |
| 23 | 880559 | 固定导套 | GUIDE Fixed | 1 |
| 24 | 880557 | 活动导板 | GUIDE Moveable | 1 |
| 25 | 892456045 | 螺钉 | SCREW | 2 |
| 26 | 897534 | 缸体至适配器衬垫 | GASKET Block to Adapter | 1 |
| 26 | 8M0024563 | 衬垫 | GASKET | 1 |
| 26 | 8M0024563 | 缸体至适配器衬垫 | GASKET Block to Adapter | 1 |
| 27 | 891953 | 堵头（18毫米） | PLUG (18 mm) | 1 |
| 28 | 895810070 | 螺钉(M8 x 70) | SCREW (M8 x 70) | 2 |
| 29 | 895810090 | 螺钉（M8×90） | SCREW (M8 x 90) | 8 |
| - | 897534A07 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 897148A09 | 长缸体总成 75/80/90/100 | LONG BLOCK ASSEMBLY 75/80/90/100 | 1 |
| - | 8M8033014 | PH L4NA 4S | PH L4NA 4S | 1 |
| - | 897148A08 | 长缸体总成 115 | LONG BLOCK ASSEMBLY 115 | 1 |

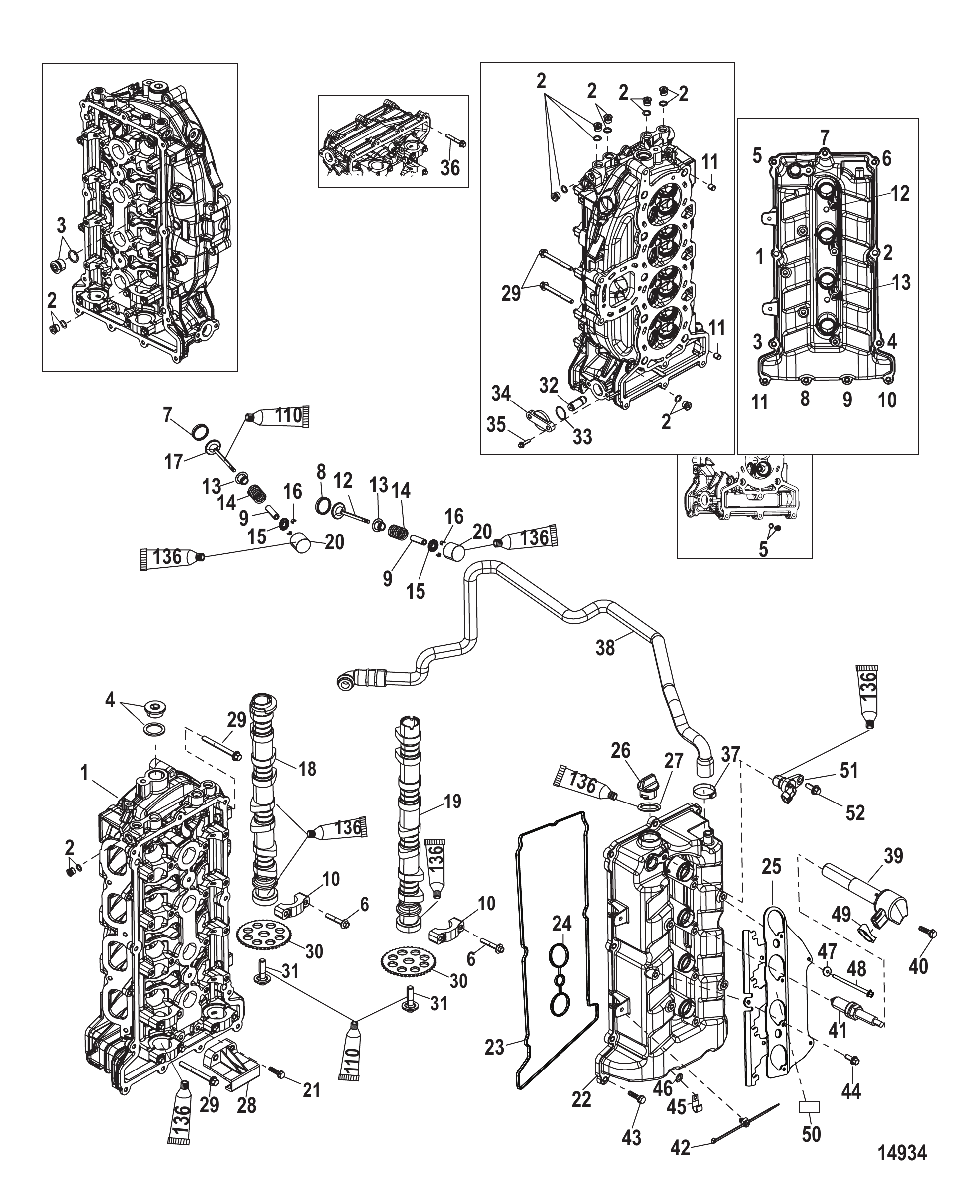

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 897954A03 | 气缸盖总成 | CYLINDER HEAD ASSEMBLY | 1 |
| 2 | 889767 | 堵头（12毫米） | PLUG (12 mm) | 8 |
| 3 | 891953 | 堵头（18毫米） | PLUG (18 mm) | 1 |
| 4 | 896951 | 堵头（24毫米） | PLUG (24 mm) | 1 |
| 5 | 896576 | 堵头（10毫米） | PLUG (10 mm) | 1 |
| 5 | 8M0087446 | 堵头（10毫米） | PLUG (10 mm) | 1 |
| 6 | 892454035 | 螺栓（M6×36） | BOLT (M6 x 36) | 20 |
| 6 | 8M0163131 | M6螺钉 | SCREW M6 | 20 |
| 7 | 880533 | 进气门座 | SEAT Intake Valve | 8 |
| 8 | 880535 | 排气门座 | SEAT Exhaust Valve | 8 |
| 8 | 8M0089477 | 排气门座 | SEAT Exhaust Seat | 8 |
| 9 | 880537 | 进排气门导管 | GUIDE Intake Exhaust Valve Intake and Exhaust Valves | 16 |
| 10 | NSS | NOT SOLD SEPARATE CAP | 10 | |
| 11 | 880524 | 定位销（14毫米） | PIN Dowel (14 MM) | 2 |
| 12 | 897630 | 排气阀 | VALVE Exhaust | 8 |
| 12 | 898908 | 排气阀 | VALVE Exhaust | 8 |
| 12 | 898908 | 排气阀 | VALVE Exhaust | 8 |
| 13 | 896880 | 气门油封 | SEAL Valve | 16 |
| 13 | 8M0214986 | 密封件 | SEAL | 16 |
| 14 | 895815 | 进排气门弹簧 | SPRING Intake and Exhaust Valve | 16 |
| 14 | 8M0011503 | 弹簧 | SPRING | 16 |
| 15 | 880542A1 | 气门锁夹总成 | RETAINER ASSEMBLY Valves | 16 |
| 15 | 8M0908500 | 气门锁夹总成 | RETAINER ASSEMBLY Valves | 16 |
| 16 | 880543 | 键 | KEY | 32 |
| 17 | 897629 | 进气阀 | VALVE Intake | 8 |
| 17 | 898907 | 进气阀 | VALVE Intake | 8 |
| 17 | 898907 | 进气阀 | VALVE Intake | 8 |
| 18 | 898397A03 | 进气凸轮轴总成 | CAMSHAFT ASSEMBLY Intake | 1 |
| 18 | 898397A04 | 进气凸轮轴总成 | CAMSHAFT INTK ASY | 1 |
| 18 | 898397A02 | 进气凸轮轴总成 | CAMSHAFT ASSEMBLY Intake | 1 |
| 19 | 898077A02 | 排气凸轮轴总成 | CAMSHAFT ASSEMBLY Exhaust | 1 |
| 20 | 8805481 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912001 | 挺柱（2.996） | TAPPET (2.996) | 16/AR |
| 20 | 8805482 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912002 | 挺柱（3.021） | TAPPET (3.021) | 16/AR |
| 20 | 8805483 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912003 | 挺柱（3.046） | TAPPET (3.046) | 16/AR |
| 20 | 8805484 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912004 | 挺柱（3.071） | TAPPET (3.071) | 16/AR |
| 20 | 8805485 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912005 | 挺柱（3.096） | TAPPET (3.096) | 16/AR |
| 20 | 8805486 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912006 | 挺柱（3.118） | TAPPET (3.118) | 16/AR |
| 20 | 8805487 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912007 | 挺柱（3.138） | TAPPET (3.138) | 16/AR |
| 20 | 8805488 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912008 | 挺柱（3.158） | TAPPET (3.158) | 16/AR |
| 20 | 8805489 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912009 | 挺柱（3.178） | TAPPET (3.178) | 16/AR |
| 20 | 88054810 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912010 | 挺柱（3.198） | TAPPET (3.198) | 16/AR |
| 20 | 88054811 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912011 | 挺柱（3.218） | TAPPET (3.218) | 16/AR |
| 20 | 88054812 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912012 | 挺柱（3.238） | TAPPET (3.238) | 16/AR |
| 20 | 88054813 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912013 | 挺柱（3.258） | TAPPET (3.258) | 16/AR |
| 20 | 88054814 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912014 | 挺柱（3.278） | TAPPET (3.278) | 16/AR |
| 20 | 88054815 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912015 | 挺柱（3.298） | TAPPET (3.298) | 16/AR |
| 20 | 88054816 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912016 | 挺柱（3.318） | TAPPET (3.318) | 16/AR |
| 20 | 88054817 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912017 | 挺柱（3.338） | TAPPET (3.338) | 16/AR |
| 20 | 88054818 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912018 | 挺柱（3.358） | TAPPET (3.358) | 16/AR |
| 20 | 88054819 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912019 | 挺柱（3.378） | TAPPET (3.378) | 16/AR |
| 20 | 88054820 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912020 | 挺柱（3.398） | TAPPET (3.398) | 16/AR |
| 20 | 88054821 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912021 | 挺柱（3.418） | TAPPET (3.418) | 16/AR |
| 20 | 88054822 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912022 | 挺柱（3.438） | TAPPET (3.438) | 16/AR |
| 20 | 88054823 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912023 | 挺柱（3.458） | TAPPET (3.458) | 16/AR |
| 20 | 88054824 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912024 | 挺柱（3.478） | TAPPET (3.478) | 16/AR |
| 20 | 88054825 | 挺柱 | TAPPET | 16/AR |
| 20 | 88054826 | 挺柱 | TAPPET | 16/AR |
| 20 | 88054827 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912027 | 挺柱（3.538） | TAPPET (3.538) | 16/AR |
| 20 | 88054828 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912028 | 挺柱（3.558） | TAPPET (3.558) | 16/AR |
| 20 | 88054829 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912029 | 挺柱（3.578） | TAPPET (3.578) | 16/AR |
| 20 | 88054830 | 挺柱 | TAPPET | 16/AR |
| 20 | 88054831 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912031 | 挺杆 (3.621) | TAPPET (3.621) | 16/AR |
| 20 | 88054832 | 挺柱 | TAPPET | 16/AR |
| 20 | 88054833 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912033 | 挺杆 (3.671) | TAPPET (3.671) | 16/AR |
| 20 | 88054834 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912034 | 挺杆 (3.696) | TAPPET (3.696) | 16/AR |
| 20 | 88054835 | 挺柱 | TAPPET | 16/AR |
| 21 | 892454030 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 2 |
| 22 | 880553T02 | 凸轮盖总成 | COVER ASSEMBLY Cam | 1 |
| 22 | 880553A07 | 凸轮盖总成 | COVER ASSEMBLY Cam | 1 |
| 22 | 880553T02 | 凸轮盖总成 | COVER ASSEMBLY Cam | 1 |
| 22 | 880553A07 | 凸轮盖总成 | COVER ASSEMBLY Cam | 1 |
| 22 | 880553T05 | 凸轮盖总成 | COVER ASSEMBLY Cam | 1 |
| 22 | 880553T06 | 凸轮盖 | COVER Cam | 1 |
| 22 | 880553T05 | 凸轮盖总成 | COVER ASSEMBLY Cam | 1 |
| 22 | 880553T06 | 凸轮盖 | COVER Cam | 1 |
| 22 | 880553A07 | 凸轮盖总成 | COVER ASSEMBLY Cam | 1 |
| - | 880553T06 | 凸轮盖 | COVER Cam | 1 |
| 23 | 892893 | 密封件 | SEAL | 1 |
| 24 | 892584 | 密封件 | SEAL | 2 |
| 25 | 8M0008370 | 线圈板总成 | PLATE ASSEMBLY Coil | 1 |
| 25 | 8M0008370 | 线圈板总成 | PLATE ASSEMBLY Coil | 1 |
| 25 | 8M0010552 | 线圈板总成 | PLATE ASSEMBLY Coil | 1 |
| 25 | 8M0010552 | 线圈板总成 | PLATE ASSEMBLY Coil | 1 |
| 26 | 859578A1 | 油塞总成 | PLUG ASSEMBLY Oil | 1 |
| 26 | 8M0240831 | 油塞 | OIL PLUG | 1 |
| 27 | 90196 | O型圈 (.921 x .139) | O-RING (.921 x .139) | 1 |
| 27 | 8M0204673 | O型圈 .921 x .139 | O-Ring .921 x .139 | 1 |
| 28 | 880558 | 短导杆 | GUIDE Short | 1 |
| 29 | 88552660 | 螺钉 (M8 x 60) | SCREW (M8 x 60) | 4 |
| 29 | 8M0103817 | 螺钉 (M8 x 60) | SCREW (M8 x 60) | 4 |
| 30 | 880550 | 凸轮驱动链轮 | SPROCKET Cam Drive | 2 |
| 30 | 8M0241408 | 凸轮链轮 | SPROCKET CAM | 2 |
| 31 | 884403 | 螺钉 (M12 x 40) | SCREW (M12 x 40) | 2 |
| 31 | 8M0237436 | 螺钉 | SCREW | 2 |
| 32 | 897797A01 | 张紧器总成 | TENSIONER ASSEMBLY | 1 |
| 32 | 898463A01 | 张紧器总成 | TENSIONER ASSEMBLY | 1 |
| 33 | 880631001 | O型圈 橙色 | O-RING Orange | 1 |
| 33 | 8M0237361 | O型圈 | O-RING | 1 |
| 34 | 893338 | 张紧器端盖 | END CAP Tensioner | 1 |
| 34 | 8M0064752 | 凸轮张紧器端盖 | END CAP Cam Tensioner | 1 |
| 35 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| 35 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| 36 | 88552540 | 螺钉(M6x40毫米)不锈钢 | SCREW (M6 x 40 mm) Stainless Steel | 3 |
| 36 | 8M0103809 | 螺钉(M6x40毫米)不锈钢 | SCREW (M6 x 40 mm) Stainless Steel | 3 |
| 37 | 888988019 | 卡箍 (22.6 mm) | CLAMP (22.6 mm) | 1 |
| 38 | 897673A01 | 通气软管总成 | HOSE ASSEMBLY Breather | 1 |

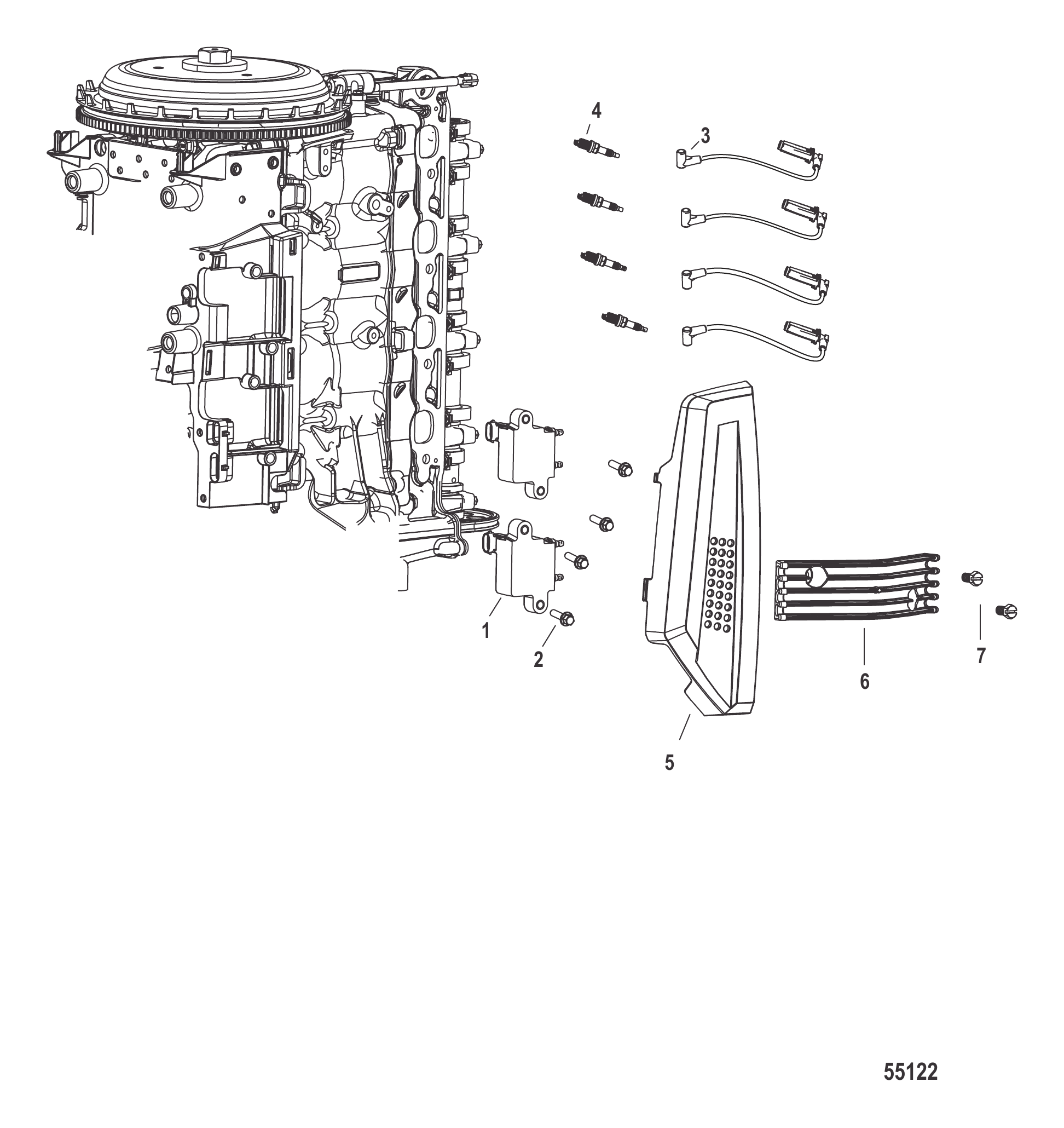

| 39 | 880615T01 | 线圈总成 | COIL ASSEMBLY | 4 |
| 40 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 4 |
| 40 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 4 |
| 41 | 898829001 | 火花塞 (NGK# LFR4A-E) | SPARK PLUG (NGK# LFR4A-E) | 4 |
| 41 | 8M0157328 | 火花塞 (NGK# LFR4A-E) | SPARK PLUG (NGK# LFR4A-E) | 4 |
| 42 | 899145 | 绑带夹 | CLIP Tie Strap | 2 |
| 43 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 11 or 13 |
| 43 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 11 or 13 |
| 44 | 88552512 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 mm) Stainless Steel | 3 |
| 44 | 8M0103804 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 MM) Stainless Steel | 3 |
| 45 | 55098 | J型卡扣 | J CLIP | 1 |
| 45 | 8M0024808 | J型夹 | J-CLIP | 1 |
| 46 | 93702 | 垫圈(.250外齿星形) | WASHER (.250 External Star) | 1 |
| 47 | 8M0008232 | 垫圈 | WASHER | 2 |
| 48 | 8M0008535 | 螺丝(M6 x 90) | SCREW (M6 x 90) | 2 |
| 48 | 8M0008535 | 螺丝(M6 x 90) | SCREW (M6 x 90) | 2 |
| 48 | 88552585 | 不锈钢螺钉 (M6 x 85 mm) | SCREW (M6 x 85 mm) Stainless Steel | 2 |
| 48 | 88552585 | 不锈钢螺钉 (M6 x 85 mm) | SCREW (M6 x 85 mm) Stainless Steel | 2 |
| 49 | 8M0008642 | 防转橡胶环 | RING Rubber Anti-Rotation | 4 |
| 49 | 8M0119617 | 环形衬套@4 | RING-GROMMET@4 | 4 |
| 50 | 8M0008936 | 线圈螺钉扭矩标贴 | DECAL Coil Screw Torque | 1 |
| 51 | 880609 | 传感器总成 | SENSOR ASSEMBLY | 1 |
| 52 | 88552516 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 1 |
| - | 897534A07 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 897148A09 | 长缸体总成 75/80/90/100 | LONG BLOCK ASSEMBLY 75/80/90/100 | 1 |
| - | 897148A08 | 长缸体总成 115 | LONG BLOCK ASSEMBLY 115 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0094683 | 气缸盖总成 | CYLINDER HEAD ASSEMBLY | 1 |
| 1 | 8M0190640 | 气缸盖 | CYLINDER HEAD | 1 |
| 1 | 8M0098627 | 气缸盖总成 | CYLINDER HEAD ASSEMBLY | 1 |
| 1 | 8M0190640 | 气缸盖 | CYLINDER HEAD | 1 |
| 1 | 8M0091290 | 气缸盖总成 | CYLINDER HEAD ASSEMBLY | 1 |
| 1 | 8M0190641 | 气缸盖 | CYLINDER HEAD | 1 |
| 1 | 8M0098628 | 气缸盖总成 | CYLINDER HEAD ASSEMBLY | 1 |
| 1 | 8M0190641 | 气缸盖 | CYLINDER HEAD | 1 |
| 1 | 8M0121260 | 气缸盖总成 | CYLINDER HEAD ASSEMBLY | 1 |
| 1 | 8M0190641 | 气缸盖 | CYLINDER HEAD | 1 |
| 2 | 8M0065093 | 加油口盖 | CAP Oil Fill | 1 |
| 3 | 8M0043174 | O型圈 | O-RING | 1 |
| 4 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 13 |
| 4 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 13 |
| 5 | 8M0088067 | 凸轮轴盖总成 | CAMSHAFT COVER ASSEMBLY | 1 |
| 6 | 8M0069479 | 凸轮轴盖密封件 | SEAL Camshaft Cover | 1 |
| 7 | 8M0071081 | 线夹 | CLIP -WIRE | 1 |
| 8 | 88552540 | 螺钉(M6x40毫米)不锈钢 | SCREW (M6 x 40 mm) Stainless Steel | 2 |
| 8 | 8M0103809 | 螺钉(M6x40毫米)不锈钢 | SCREW (M6 x 40 mm) Stainless Steel | 2 |
| 9 | 8M0082895 | 螺丝 M10×1.5×95 六角头 | SCREW (M10 X 1.5 X 95) HX HD | 10 |
| 10 | 8M0090776 | 气缸盖衬垫 | GASKET Cylinder Head | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

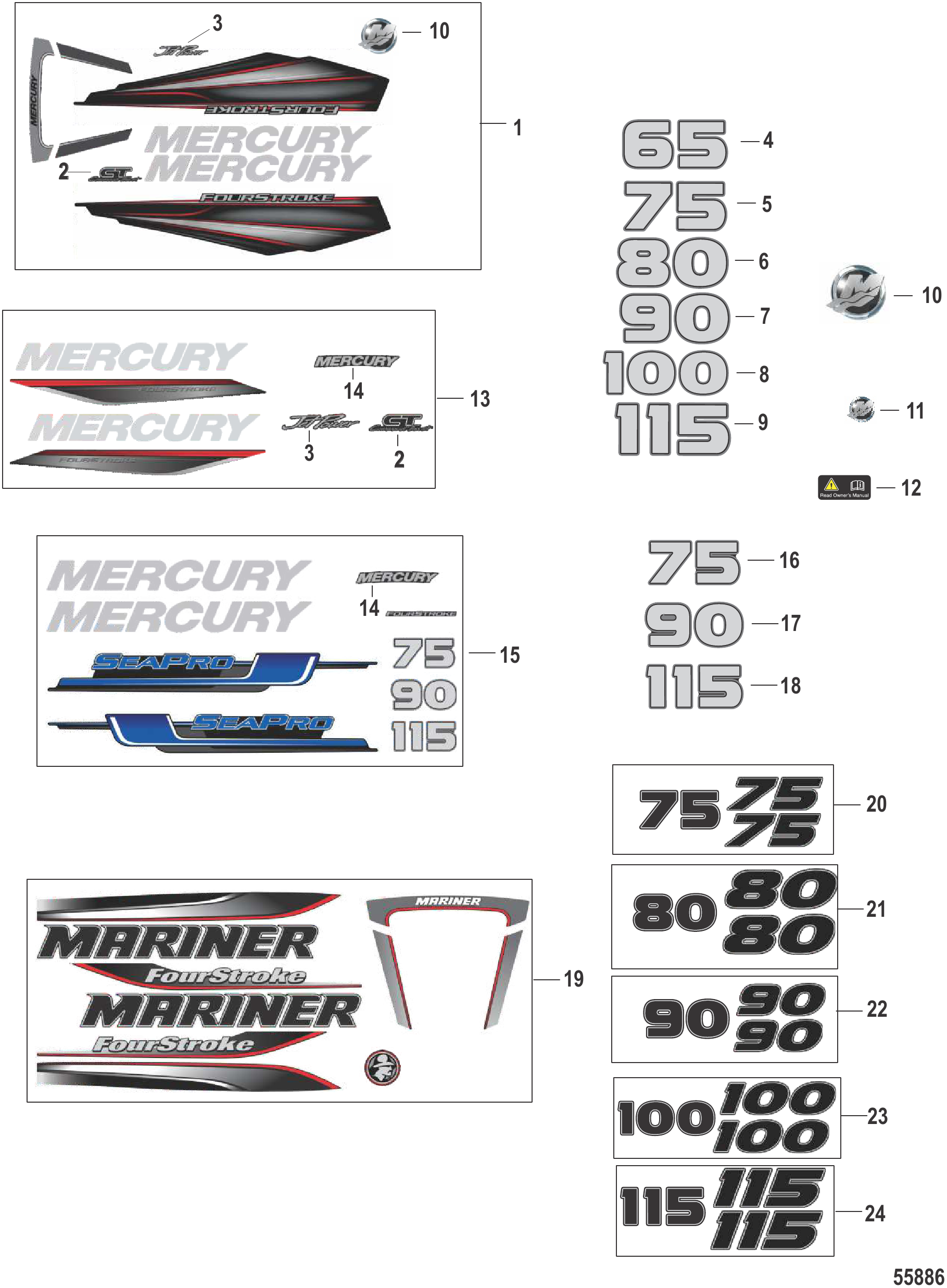

| 1 | 8M0088056 | 贴标套件-水星 | DECAL SET - MERCURY | 1 |
| 2 | 8M0088310 | 贴纸 指挥推进 MERCURY | DECAL Command Thrust MERCURY | 1 |
| 3 | 8M0073701 | 贴纸 喷射动力 MERCURY | DECAL Jet Power MERCURY | 1 |
| 4 | 8M0080470 | 贴纸 尾部, 65马力 MERCURY | DECAL Rear, 65 HP MERCURY | 1 |
| 5 | 8M0080233 | 贴纸 尾部, 75马力 MERCURY | DECAL Rear, 75 HP MERCURY | 1 |
| 6 | 8M0080234 | 贴纸 尾部, 80马力 MERCURY | DECAL Rear, 80 HP MERCURY | 1 |
| 7 | 8M0080235 | 贴纸 尾部, 90马力 MERCURY | DECAL Rear, 90 HP MERCURY | 1 |
| 8 | 8M0080236 | 贴纸 尾部, 100马力 MERCURY | DECAL Rear, 100 HP MERCURY | 1 |
| 9 | 8M0080237 | 贴纸 尾部, 115马力 MERCURY | DECAL Rear, 115 HP MERCURY | 1 |
| 10 | 8M0043705 | 贴纸 M标志, 60毫米黑色罩-前部, MERCURY | DECAL M-Icon, 60 mm Black Cowl-Front, MERCURY | 1 |
| 11 | 8M0080152 | 贴纸 M标志, 29毫米把手-后部, MERCURY | DECAL M-ICON, 29 mm Handle-Rear, MERCURY | 1 |
| 12 | 8M0056643 | 阅读手册贴花 | DECAL Read Manual | 1 |
| 13 | 8M0156748 | 贴纸套装 Mercury 65-150马力 4冲程 | DECAL SET Mercury 65-150 HP 4S | 1 |
| 14 | 8M0159890 | 贴纸 Lenz Mercury | DECAL Lenz Mercury | 1 |
| 15 | 8M0098614 | SeaPro系列贴花套装 | DECAL SET SeaPro | 1 |
| 16 | 8M0080233 | 75马力尾部贴花 | DECAL Rear, 75 HP | 1 |
| 17 | 8M0080235 | 90马力尾部贴花 | DECAL Rear, 90 HP | 1 |
| 18 | 8M0080237 | 115马力尾部贴花 | DECAL Rear, 115 HP | 1 |
| 19 | 8M0088057 | 贴花套装 水手 | DECAL SET MARINER | 1 |
| 20 | 8M0088334 | 贴纸套装 左舷右舷及尾部, 75马力 MARINER | DECAL SET Port Starboard and Rear, 75 HP MARINER | 1 |
| 21 | 8M0088335 | 贴纸套装 左舷右舷及尾部, 80马力 MARINER | DECAL SET Port Starboard and Rear, 80 HP MARINER | 1 |
| 22 | 8M0088336 | 贴纸套装 左舷右舷及尾部, 90马力 MARINER | DECAL SET Port Starboard and Rear, 90 HP MARINER | 1 |
| 23 | 8M0088337 | 贴纸套装 左舷右舷及尾部, 100马力 MARINER | DECAL SET Port Starboard and Rear, 100 HP MARINER | 1 |
| 24 | 8M0088338 | 贴纸套装 左舷右舷及尾部, 115马力 MARINER | DECAL SET Port Starboard and Rear, 115 HP MARINER | 1 |

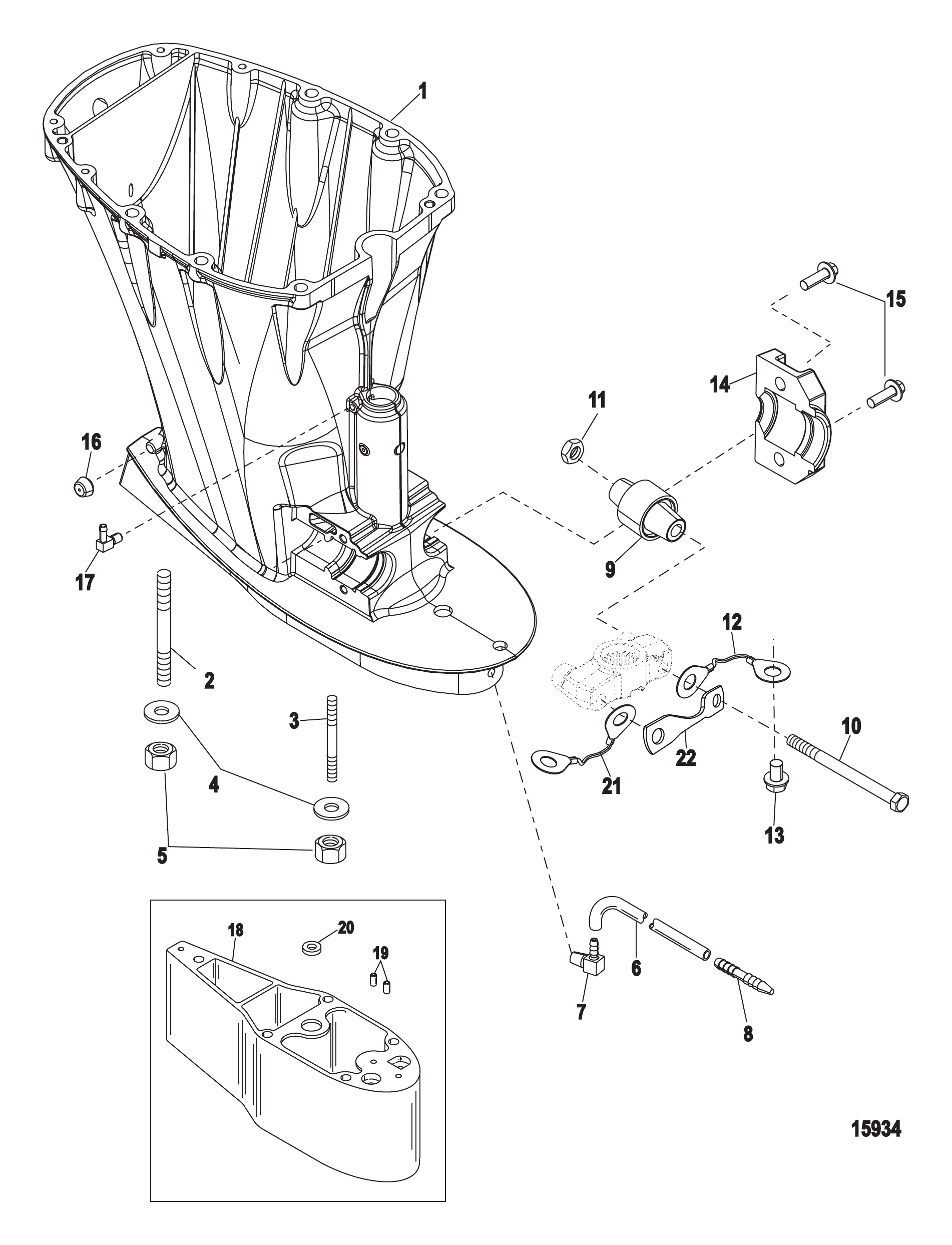

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 858576T04 | 驱动轴壳体 | HOUSING Driveshaft | 1 |
| 2 | 903501 | 双头螺柱(M10×100) | STUD (M10 x 100) | 1 |
| 2 | 9035015 | 双头螺柱(M10×227) | STUD (M10 x 227) | 1 |
| 3 | 9035012 | 双头螺柱(M10×63) | STUD (M10 x 63) | 4 |
| 3 | 9035016 | 双头螺柱(M10×190) | STUD (M10 x 190) | 4 |
| 3 | 8M0034462 | 双头螺柱(M10×190) | STUD (M10 x 190) | 4 |
| 4 | 856774 | 垫圈(0.406×0.750×0.105)不锈钢 | WASHER (.406 x .750 x .105) Stainless Steel | 5 |
| 4 | 8M0214963 | 垫圈 | WASHER | 5 |
| 5 | 40140 | 螺母(M10) | NUT (M10) | 5 |
| 6 | 85822A15 | 速度计传感器总成 | PICKUP ASSEMBLY Speedometer | 1 |
| 7 | 433351 | 90度接头-带防振密封 | CONNECTOR 90 Degree - With Vibraseal | 1 |
| 8 | 85822 | 直通接头 | CONNECTOR Straight | 1 |
| 8 | 85822T | 直通接头 | CONNECTOR Straight | 1 |
| 9 | 898801 | 支架 | MOUNT | 2 |
| 10 | 897925 | 螺丝(M12 x 145) | SCREW (M12 x 145) | 2 |
| 11 | 897926 | 尼龙嵌件螺母(M12) | NUT (M12), Nylon Insert | 2 |
| 12 | 88238A10 | 接地电缆总成至旋转支架 | CABLE ASSEMBLY Ground To Swivel Bracket | 1 |
| 13 | 41508 | 螺钉(0.250-20×0.500)不锈钢 | SCREW (.250-20 x .500) Stainless Steel | 1 |
| 14 | 858916T | 卡箍 | CLAMP | 2 |
| 15 | 889833025 | 螺钉 (M8 x 25 毫米) | SCREW (M8 x 25 MM) | 4 |
| 16 | 858745 | 盖帽 | CAP | 4 |
| 16 | 8M0142713 | 支撑盖帽 | CAP Chap Support | 4 |
| 17 | 855622 | 弯头接头 | FITTING Elbow | 1 |
| 18 | 12092A3 | 隔套套件 | SPACER KIT | 1 |
| 19 | 43043 | 定位销-带孔(0.375×0.625) | PIN Dowel - With Hole (.375 x .625) | 1 |
| 19 | 8M0084244 | 定位销 0.375x0.620 | PIN Dowel, .375 x .620 | 1 |
| 19 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 1 |
| 20 | 813745 | 隔套 | SPACER | 1 |
| 21 | 88238T22 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 22 | 8M0009134 | 连续性接地带(下轭架) | STRAP Continuity, Lower Yoke | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

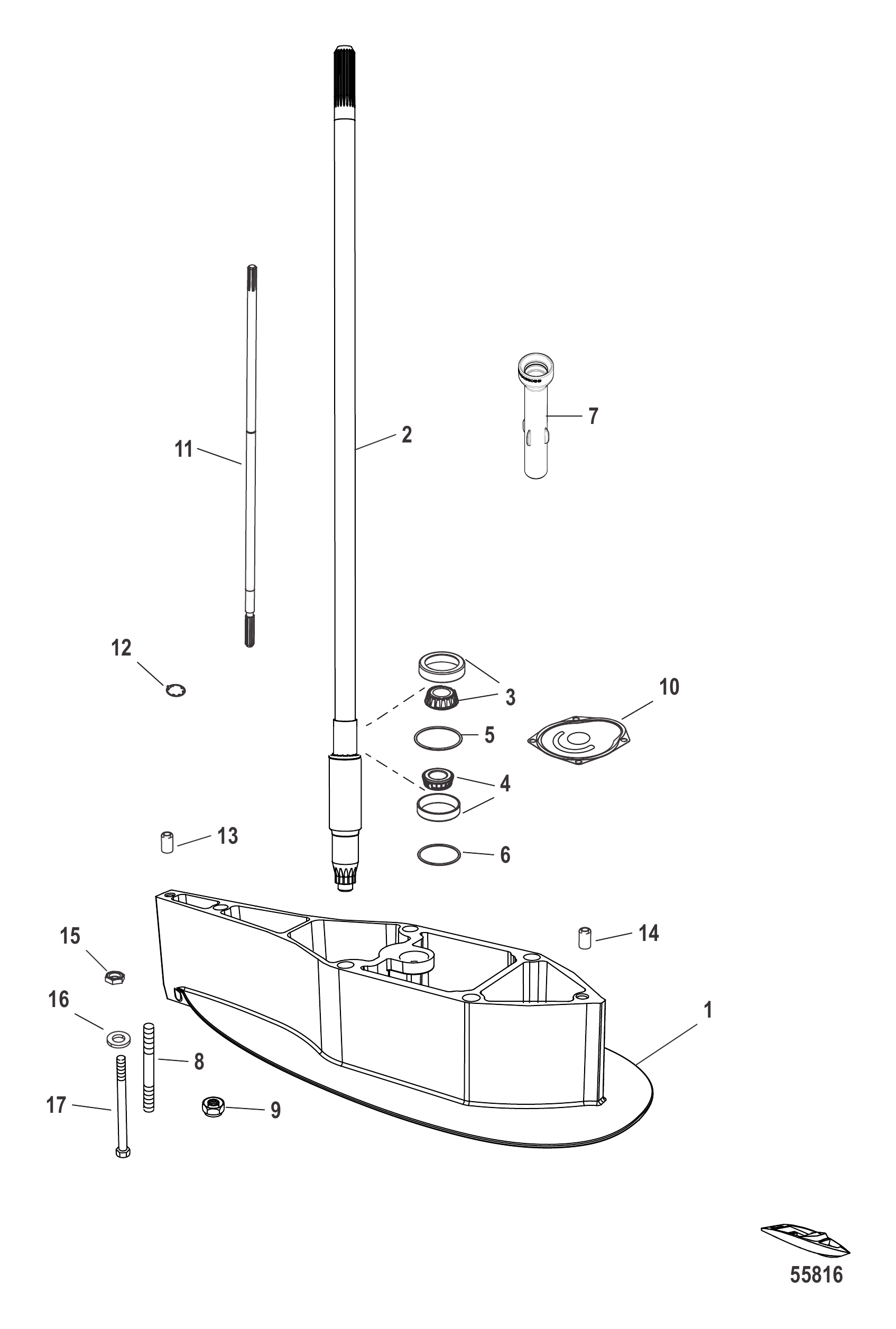

| - | 8M0092061 | 延长套件 | EXTENSION KIT | 1 |
| 1 | 8M0071622 | 间隔套 驱动轴壳体 | SPACER Driveshaft Housing | 1 |
| 1 | 8M0105088 | 传动轴壳体加长隔套（黑色） | SPACER Driveshaft Housing X-Long, Black | 1 |
| 2 | 8M0094340 | 加长驱动轴 | DRIVESHAFT X-Long | 1 |
| 3 | 33138A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 4 | 77420A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 4 | 8M0166756 | 轴承总成 | BEARING ASSEMBLY | 1 |
| 5 | 8M0063267 | 垫片组 | SHIM SET | 1 |
| 6 | 8M0063268 | 垫片组 | SHIM SET | 1 |
| 7 | 8M0029215 | 水管 | WATER TUBE | 1 |
| 8 | 8M0008047 | 双头螺柱（M12×179） | STUD (M12 x 179) | 4 |
| 9 | 87364 | 螺母 | NUT | 1 |
| 10 | 866233001 | 面板 | FACEPLATE | 1 |
| 11 | 8M0031504 | 换挡轴 加长型 | SHIFT SHAFT X-Long | 1 |
| 11 | 8M0140439 | 换挡轴-XL | SHIFT SHAFT-XL | 1 |
| 12 | 8M0030784 | 垫圈 带键 | WASHER Keyed | 1 |
| 13 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 1 |
| 14 | 8M0084244 | 定位销 0.375x0.620 | PIN Dowel, .375 x .620 | 1 |
| 15 | 896895 | 螺母(M12) | NUT (M12) | 4 |
| 16 | 856982 | 垫圈(0.5×0.81×0.09英寸)不锈钢 | WASHER (.500 x .810 x .090) Stainless Steel | 5 |
| 17 | 857137 | 螺钉 (M12 X 160) | SCREW (M12 x 160) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0092054 | 延长套件 | EXTENSION KIT | 1 |
| 1 | 8M0071622 | 间隔套 驱动轴壳体 | SPACER Driveshaft Housing | 1 |
| 1 | 8M0105088 | 传动轴壳体加长隔套（黑色） | SPACER Driveshaft Housing X-Long, Black | 1 |
| 2 | 8M0094341 | 加长驱动轴 | DRIVESHAFT X-Long | 1 |
| 3 | 33138A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 4 | 77420A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 4 | 8M0166756 | 轴承总成 | BEARING ASSEMBLY | 1 |
| 5 | 8M0063267 | 垫片组 | SHIM SET | 1 |
| 6 | 8M0063268 | 垫片组 | SHIM SET | 1 |
| 7 | 8M0029215 | 水管 | WATER TUBE | 1 |
| 8 | 8M0008047 | 双头螺柱（M12×179） | STUD (M12 x 179) | 4 |
| 9 | 8M0071654 | 螺母 (.625-18 HX) | NUT (.625-18 HX) | 1 |
| 10 | 866233001 | 面板 | FACEPLATE | 1 |
| 11 | 8M0053078 | 换挡轴 下部, 加长型 | SHIFT SHAFT Lower, X-Long | 1 |
| 12 | 8M0030784 | 垫圈 带键 | WASHER Keyed | 1 |
| 13 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 1 |
| 14 | 8M0084244 | 定位销 0.375x0.620 | PIN Dowel, .375 x .620 | 1 |
| 15 | 896895 | 螺母(M12) | NUT (M12) | 4 |
| 16 | 856982 | 垫圈(0.5×0.81×0.09英寸)不锈钢 | WASHER (.500 x .810 x .090) Stainless Steel | 5 |
| 17 | 857137 | 螺钉 (M12 X 160) | SCREW (M12 x 160) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

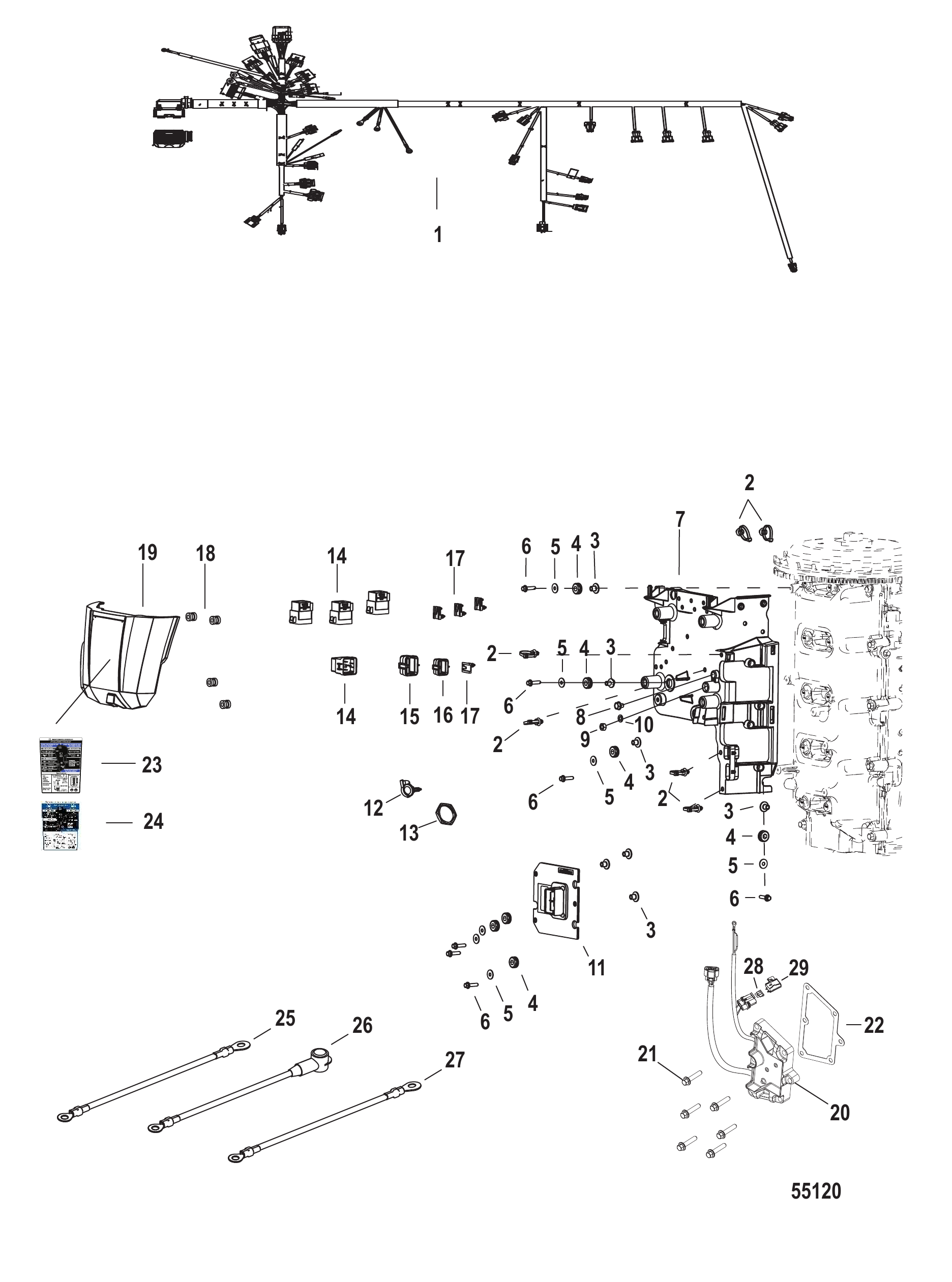

| 1 | 8M0088060 | 主线束 | WIRING HARNESS - MAIN | 1 |
| 2 | 899145 | 绑带夹 | CLIP Tie Strap | 6 |
| 3 | 856954 | 衬套 | BUSHING | 7 |
| 4 | 834985 | 护孔环 | GROMMET | 7 |
| 4 | 8M0190980 | 护孔环 | GROMMET | 7 |
| 5 | 65567 | 不锈钢垫圈(0.265x0.750x0.048) | WASHER (.265 x .750 x .048) Stainless Steel | 7 |
| 6 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 7 |
| 6 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 7 |
| 7 | 8M0092349 | 电气板 | PLATE - ELECTRICAL | 1 |
| 8 | 40011145 | 螺钉（M8 X 10）不锈钢 | SCREW (M8 x 10) Stainless Steel | 1 |
| 9 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 1 |
| 10 | 26993 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 1 |
| 10 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 1 |
| 11 | 8M0116532 | ECM 65HP 四冲程喷泵 | ECM 65HP 4S Jet | 1 |
| 11 | 8M0168135 | ECM-65HP FS JET | ECM-65HP FS JET | 1 |
| 11 | 8M0088061 | ECM 75HP 四冲程 | ECM 75HP 4S | 1 |
| 11 | 8M0168130 | ECM-75HP FS | ECM-75HP FS | 1 |
| 11 | 8M0098622 | ECM 75HP 四冲程 SeaPro | ECM 75HP 4S SeaPro | 1 |
| 11 | 8M0168127 | ECM-75HP FS SEAPR | ECM-75HP FS SEAPR | 1 |
| 11 | 8M0098515 | ECM 80HP 四冲程 | ECM 80HP 4S | 1 |
| 11 | 8M0168131 | ECM-80HP FS | ECM-80HP FS | 1 |
| 11 | 8M0116533 | ECM 80HP 四冲程喷泵 | ECM 80HP 4S Jet | 1 |
| 11 | 8M0168136 | ECM-80HP FS JET | ECM-80HP FS JET | 1 |
| 11 | 8M0088062 | ECM 90HP 四冲程 | ECM 90HP 4S | 1 |
| 11 | 8M0168132 | ECM-90HP FS | ECM-90HP FS | 1 |
| 11 | 8M0098623 | ECM 90HP 四冲程 SeaPro | ECM 90HP 4S SeaPro | 1 |
| 11 | 8M0168128 | ECM-90HP FS SEAPR | ECM-90HP FS SEAPR | 1 |
| 11 | 8M0098517 | ECM 100HP 四冲程 | ECM 100HP 4S | 1 |
| 11 | 8M0168133 | ECM-100HP FS | ECM-100HP FS | 1 |
| 11 | 8M0088063 | ECM 115HP 四冲程 | ECM 115HP 4S | 1 |
| 11 | 8M0168134 | ECM-115HP FS | ECM-115HP FS | 1 |
| 11 | 8M0098624 | ECM 115HP 四冲程 SeaPro | ECM 115HP 4S SeaPro | 1 |
| 11 | 8M0168129 | ECM-115HP FS SEAP | ECM-115HP FS SEAP | 1 |
| 12 | 858954 | 卡箍(0.625英寸) | CLIP (.625) | 1 |
| 13 | 889664 | 螺母(1.500-18)尼龙黑 | NUT (1.500-18) Black Nylon | 1 |
| 14 | 882751 | 继电器 | RELAY | 4 |
| 14 | 8M0219830 | 继电器 | RELAY | 4 |
| 15 | 8M0047885 | 保险丝盖(含备件) | FUSE COVER With Spares | 1 |
| 16 | 858754 | 保险丝盖 | COVER Fuse | 1 |
| 17 | 8M6001733 | 继电器双钉卡扣 | CLIP - RELAY, DOUBLE NAIL | 4 |
| 18 | 821555001 | 护孔环 | GROMMET | 4 |
| 18 | 8M0153609 | 护孔环 | GROMMET | 4 |
| 19 | 8M0072821 | 电气板盖 | COVER Electrical Plate | 1 |
| 19 | 8M0163127 | 电气盖 | COVER ELECTRIC | 1 |
| 19 | 8M0100266 | 电气板盖 | COVER, Electrical Plate | 1 |
| 19 | 8M0163128 | 电气盖 | COVER ELECTRICAL | 1 |
| 20 | 8M0088351 | 电压调节器 | VOLTAGE REGULATOR | 1 |
| 20 | 8M0133642 | 电压调节器 | VOLTAGE REGULATOR | 1 |
| 21 | 88552530 | 螺丝(M6×30毫米)不锈钢 | SCREW (M6 x 30 mm) Stainless Steel | 6 |
| 21 | 8M0103808 | 螺丝(M6×30毫米)不锈钢 | SCREW (M6 x 30 mm) Stainless Steel | 6 |
| 22 | 8M0072790 | 电压调节器衬垫 | GASKET Voltage Regulator | 1 |
| 23 | 8M0098218 | 维护周期标贴 | DECAL Maintenance Schedule | 1 |
| 24 | 8M0094686 | 维护周期标贴 | DECAL Maintenance Schedule | 1 |
| 25 | 8M2100378 | 启动线束 | HARNESS Starter | 1 |
| 26 | 88439A35 | 电缆总成 蓄电池-正极 | CABLE ASSEMBLY Battery - Positive | 1 |
| 27 | 88439A26 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 28 | 8M6001923 | 40安保险丝 | FUSE 40 AMP | 1 |
| 29 | 828054 | 保险丝盖 | COVER Fuse | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

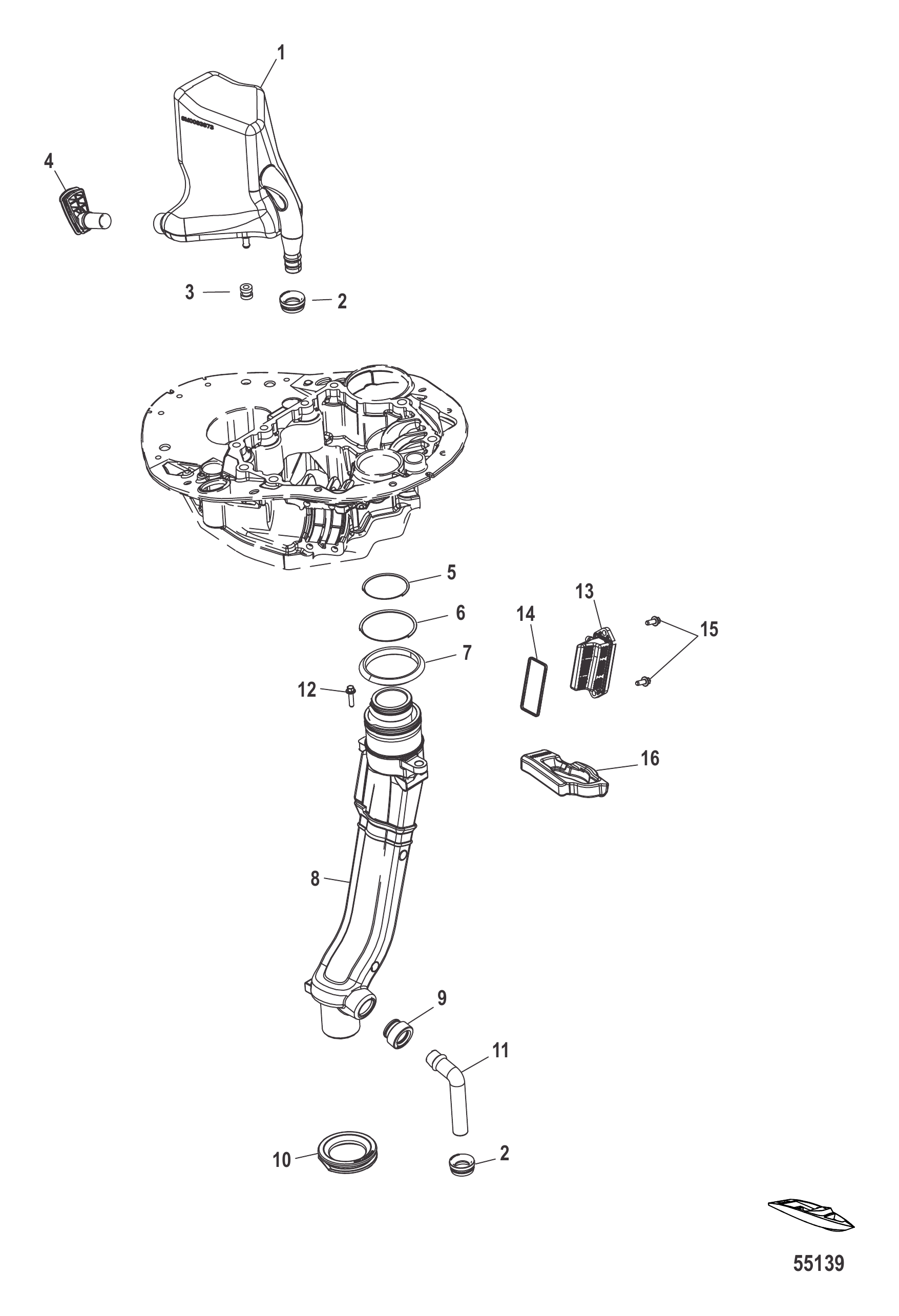

| 1 | 8M0088068 | 消音器 怠速泄压 | MUFFLER Idle Relief | 1 |
| 2 | 8M0035476 | 衬套 水管 | GROMMET Water Tube | 2 |
| 3 | 821555001 | 护孔环 | GROMMET | 1 |
| 3 | 8M0153609 | 护孔环 | GROMMET | 1 |
| 4 | 8M0085666 | 护孔环 | GROMMET | 1 |
| 5 | 8M0053512 | O型圈 | O-RING | 1 |
| 6 | 38106 | O型圈 | O-RING | 1 |
| 7 | 8M0056686 | 密封件 | SEAL | 1 |
| 7 | 8M0240953 | 密封件 排气管 | SEAL EXH PIPE | 1 |
| 8 | 8M0091529 | 排气管 | EXHAUST PIPE | 1 |
| 8 | 8M0119778 | 排气管 | EXHAUST PIPE | 1 |
| 9 | 8M0034043 | 衬套 水管 | GROMMET Water Tube | 1 |
| 10 | 8M0057218 | 护孔环 | GROMMET | 1 |
| 11 | 8M0060404 | 水管 长型 | TUBE Water, Long | 1 |
| 12 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 1 |
| 12 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 1 |
| 13 | 8M0060392 | 滤网总成 | STRAINER ASSEMBLY | 1 |
| 13 | 8M0094282 | 滤网总成 | STRAINER ASSEMBLY | 1 |
| 14 | 8M0043365 | 密封件 滤网 | SEAL Strainer | 1 |
| 14 | 8M0142720 | 密封件 | SEAL | 1 |
| 15 | 88552516 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 2 |
| 15 | 8M0103805 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 2 |
| 16 | 8M0056684 | 密封件 | SEAL | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0088058 | 飞轮盖 | FLYWHEEL COVER | 1 |
| 2 | 821555001 | 护孔环 | GROMMET | 4 |
| 2 | 8M0153609 | 护孔环 | GROMMET | 4 |
| 3 | 880515 | 螺栓(M20×68) | BOLT (M20 x 68) | 1 |
| 3 | 8M0147042 | 螺栓 | BOLT | 1 |
| 4 | 8M0071547 | 垫圈 (66 X 21 X 6.35毫米) | WASHER (66 X 21 X 6.35 MM) | 1 |
| 4 | 8M0090010 | 垫圈 | WASHER | 1 |
| 5 | 8M0090795 | 飞轮总成 | FLYWHEEL ASSEMBLY | 1 |
| 5 | 8M0141336 | 飞轮总成 | FLYWHEEL ASSEMBLY | 1 |
| 6 | 88552530 | 螺丝(M6×30毫米)不锈钢 | SCREW (M6 x 30 mm) Stainless Steel | 6 |
| 6 | 8M0103808 | 螺丝(M6×30毫米)不锈钢 | SCREW (M6 x 30 mm) Stainless Steel | 6 |
| 7 | 8M0088059 | 定子总成 完整 | STATOR ASSEMBLY Complete | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

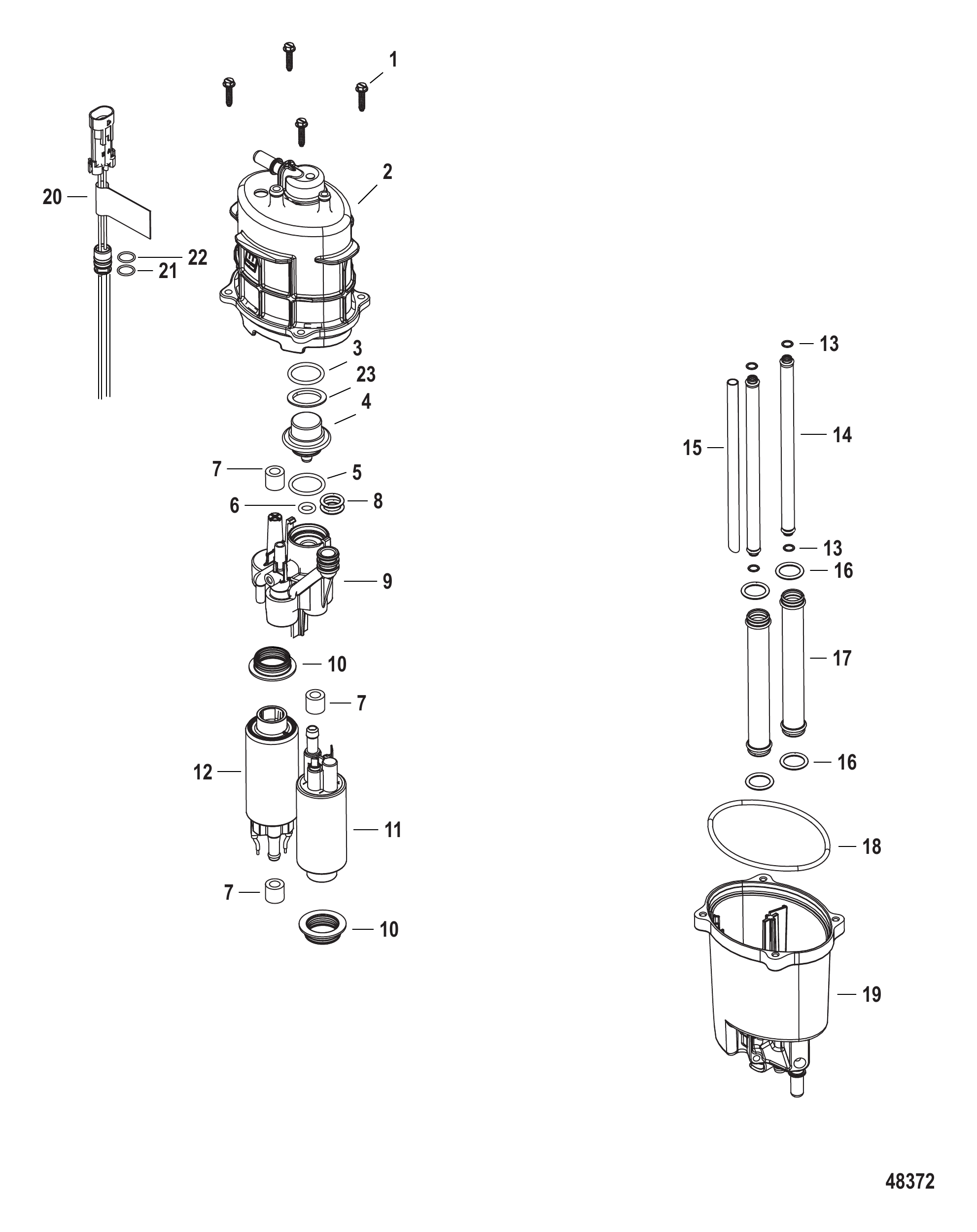

| - | 8M0057676 | 燃油供应模块 双泵 | FUEL SUPPLY MODULE Dual Pump | 1 |
| 1 | 8M0053756 | 螺钉 Plastite W/ HX WSR HD | SCREW Plastite W/ HX WSR HD | 4 |
| 2 | 8M0053726 | 燃油供应模块 上壳体 | FSM TOP HOUSING | 1 |
| 2 | 8M0158344 | 燃油供应模块 上壳体 | FSM TOP HOUSING | 1 |
| 3 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 1 |
| 4 | 8M0053749 | 调节器总成 | REGULATOR ASSEMBLY | 1 |
| 4 | 8M0242586 | 调节器总成 | REGULATOR ASSEMBLY | 1 |
| 5 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 1 |
| 6 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 1 |
| 7 | NSS | 不单独销售 密封件 | NOT SOLD SEPARATE Seal | 3 |
| 8 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 2 |
| 9 | 8M0053727 | 燃油供应模块 盖 | FSM CAP | 1 |
| 10 | NSS | 不单独销售 密封件 | NOT SOLD SEPARATE Seal | 2 |
| 11 | 8M0062771 | 泵总成 低压 | PUMP ASSY Low Pressure | 1 |
| 12 | 8M0062770 | 泵总成 高压 | PUMP ASSY High Pressure | 1 |
| 13 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 4 |
| 14 | 8M0053735 | 油管 燃油 | TUBE Fuel | 2 |
| 14 | 8M0119250 | 管 | TUBE | 2 |
| 15 | 8M0053755 | 油管 吸油 | TUBE Suction | 1 |
| 16 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 4 |
| 17 | 8M0053734 | 水管 | TUBE Water | 2 |
| 17 | 8M0120073 | 管 | TUBE | 2 |
| 18 | NSS | 不单独销售 密封件 | NOT SOLD SEPARATE Seal | 1 |
| 19 | 8M0053725 | 燃油供应模块 下壳体 | FSM BOTTOM HOUSING | 1 |
| 19 | 8M0132733 | 燃油供应模块 双泵 | FUEL SUPPLY MODULE Dual Pump | 1 |
| 20 | 8M6001398 | 线束总成 | ELECTRICAL HARNESS ASSEMBLY | 1 |
| 20 | 8M6004776 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 21 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 1 |
| 22 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 1 |
| 23 | NSS | NOT SOLD SEPARATE Spacer | 1 | |
| - | 8M0057679 | 燃油供应模块 密封件套装 | FSM SEAL KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

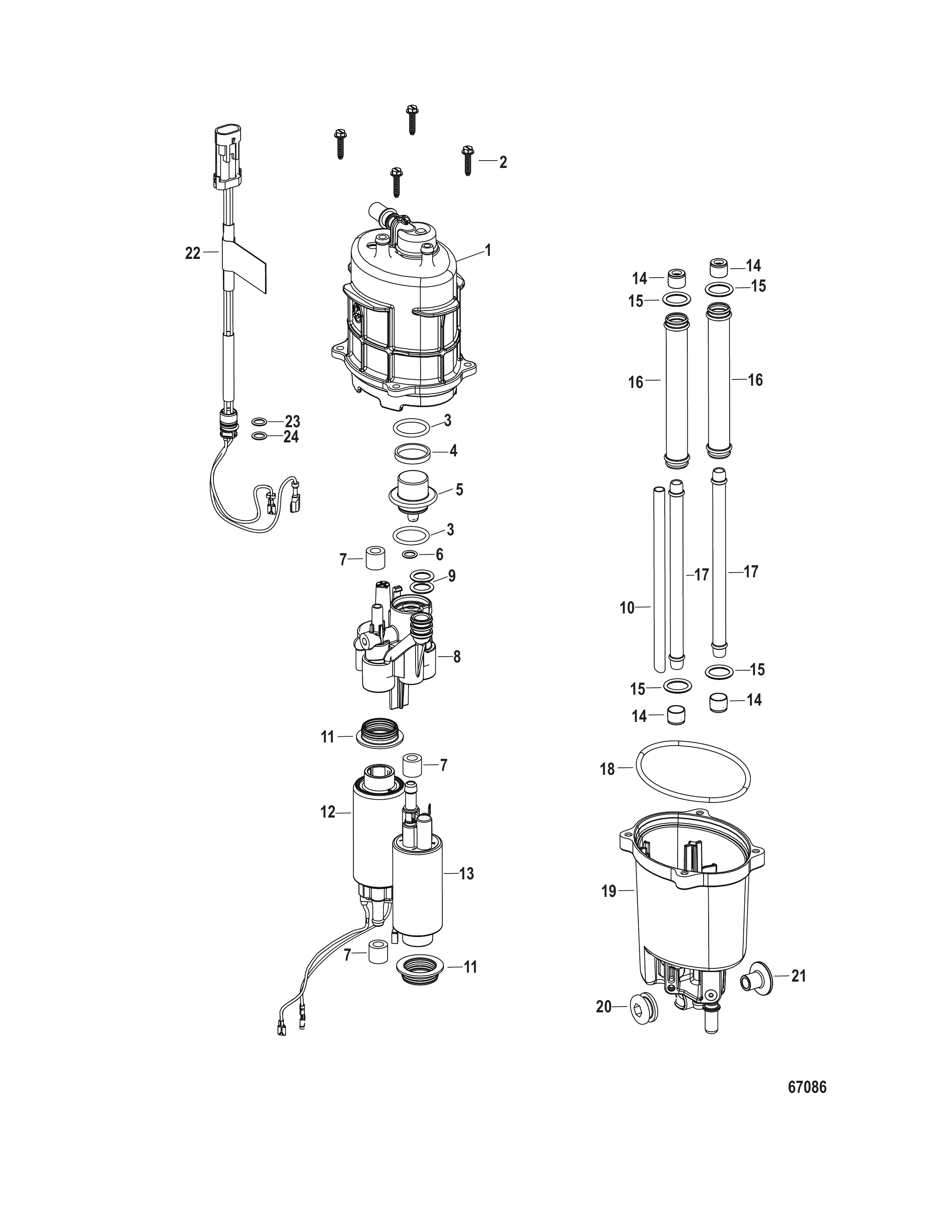

| - | 8M0132733 | 燃油供应模块 双泵 | FUEL SUPPLY MODULE Dual Pump | 1 |
| 1 | 8M0053726 | 燃油供应模块 上壳体 | FSM TOP HOUSING | 1 |
| 1 | 8M0158344 | 燃油供应模块 上壳体 | FSM TOP HOUSING | 1 |
| 2 | 8M0053756 | 螺钉 Plastite W/ HX WSR HD | SCREW Plastite W/ HX WSR HD | 4 |
| 3 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 2 |
| 4 | NSS | NOT SOLD SEPARATE Spacer | 1 | |
| 5 | 8M0053749 | 调节器总成 | REGULATOR ASSEMBLY | 1 |
| 5 | 8M0242586 | 调节器总成 | REGULATOR ASSEMBLY | 1 |
| 6 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 1 |
| 7 | NSS | 不单独销售 密封件 | NOT SOLD SEPARATE Seal | 3 |
| 8 | 8M0053727 | 燃油供应模块 盖 | FSM CAP | 1 |
| 9 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 2 |
| 10 | 8M0053755 | 油管 吸油 | TUBE Suction | 1 |
| 11 | NSS | 不单独销售 密封件 | NOT SOLD SEPARATE Seal | 2 |
| 12 | 8M0062770 | 泵总成 高压 | PUMP ASSY High Pressure | 1 |
| 13 | 8M0062771 | 泵总成 低压 | PUMP ASSY Low Pressure | 1 |
| 14 | NSS | 不单独销售 密封件 | NOT SOLD SEPARATE Seal | 4 |
| 15 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 4 |
| 16 | 8M0120073 | 水管 | TUBE Water | 2 |
| 17 | 8M0130873 | 油管 燃油 | TUBE Fuel | 2 |
| 18 | NSS | 不单独销售 密封件 | NOT SOLD SEPARATE Seal | 1 |
| 19 | 8M0130878 | 燃油供应模块 下壳体 | FSM BOTTOM HOUSING | 1 |
| 19 | 8M0158426 | 燃油供应模块 下壳体 | FSM BOTTOM HOUSING | 1 |
| 20 | 895319 | 护孔环 | GROMMET | 1 |
| 21 | 856954 | 衬套 | BUSHING | 1 |
| 22 | 8M6004776 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 23 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 1 |
| 24 | NSS | O型圈(不单独销售) | NOT SOLD SEPARATE O-Ring | 1 |
| - | 8M0133370 | 燃油供应模块 密封件套装 | FSM SEAL KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

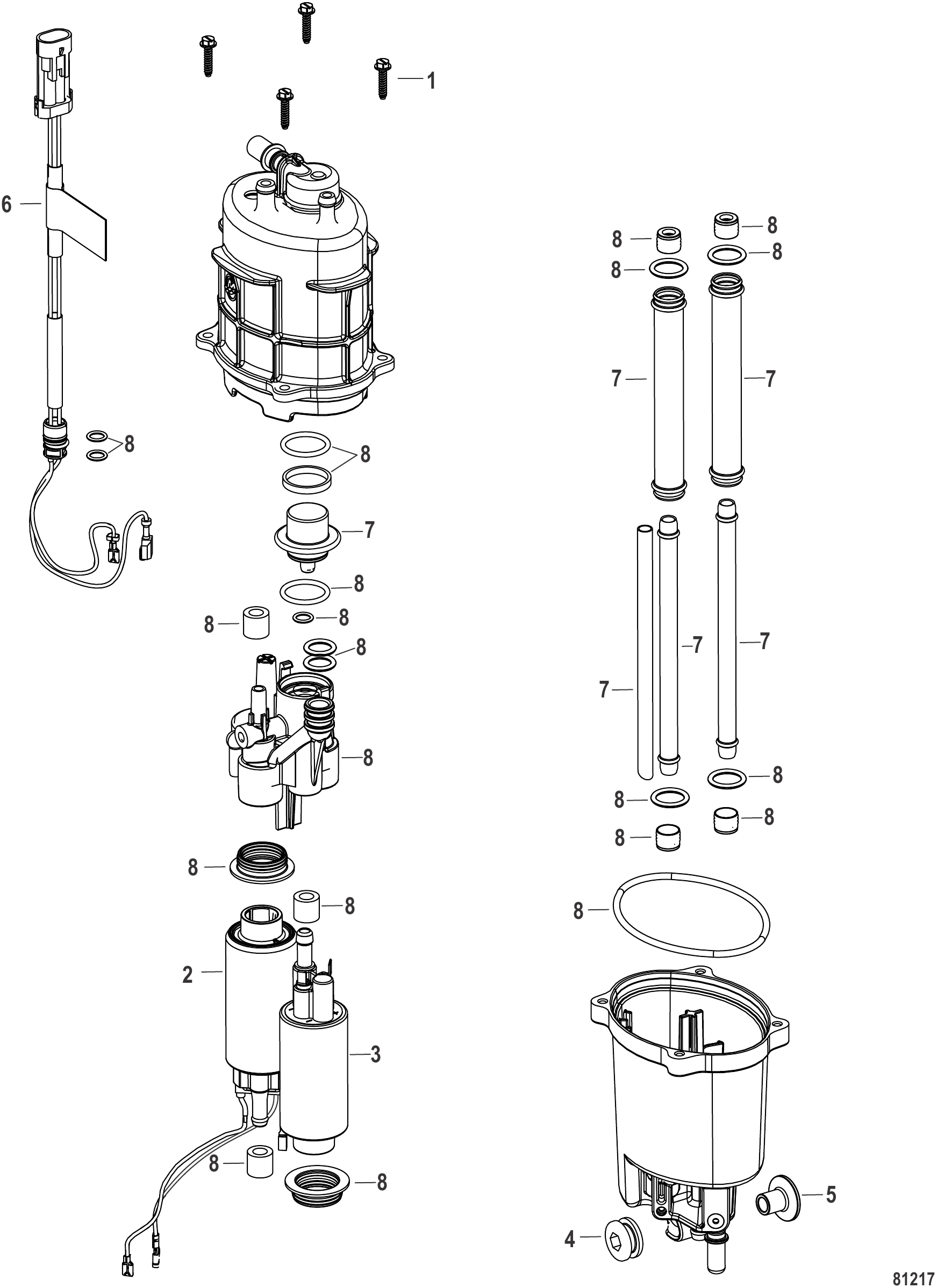

| - | 8M0235171 | 燃油供应模块 双泵 | FUEL SUPPLY MODULE Dual Pump | 1 |
| 1 | 8M0053756 | 螺钉 Plastite W/ HX WSR HD | SCREW Plastite W/ HX WSR HD | 4 |
| 2 | 8M0245916 | 泵总成 高压 | PUMP ASSEMBLY High Pressure | 1 |
| 3 | 8M0245917 | 泵总成 低压 | PUMP ASSEMBLY Low Pressure | 1 |
| 4 | 895319 | 护孔环 | GROMMET | 1 |
| 5 | 856954 | 衬套 | BUSHING | 1 |
| 6 | NSS | 不单独出售 线束, 穿线 | NOT SOLD SEPARATE Harness, Pass Thru | 1 |
| 7 | 8M0245915 | 燃油供应模块 维修套装 | FSM REPAIR KIT | 1 |
| 8 | 8M0133370 | 燃油供应模块 密封件套装 | FSM SEAL KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

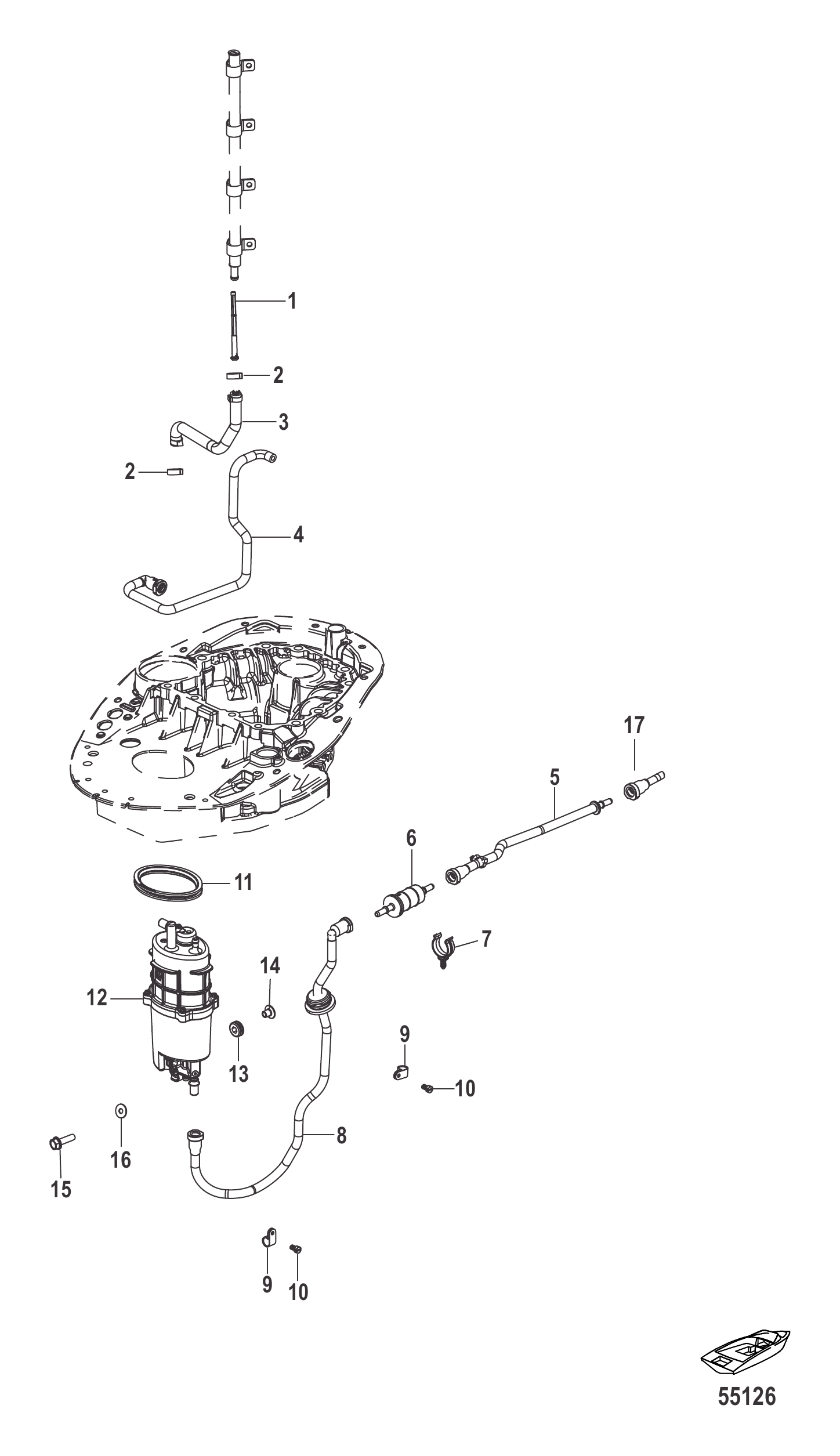

| 1 | 8M0090809 | 燃油轨滤网 | SCREEN Fuel Rail | 1 |
| 2 | 855697 | 卡箍 | CLAMP | AR |
| 2 | 8M0204696 | 卡箍 | CLAMP | AR |
| 3 | 8M0079868 | 软管 | HOSE | 1 |
| 3 | 8M0237471 | 软管 燃油供应模块至导轨 | HOSE FSM TO RAIL | 1 |
| 4 | 8M0060614 | 软管 | HOSE | 1 |
| 4 | 8M0203774 | 软管 歧管 | HOSE MANIFOLD | 1 |
| 5 | 8M0073119 | 软管 | HOSE | 1 |
| 5 | 8M0203770 | 软管总成 | HOSE ASSY | 1 |
| 6 | 879885Q | 燃油管路滤清器 | FILTER Fuel In-Line | 1 |
| 7 | 8M0063572 | 软管 | HOSE | 1 |
| 8 | 8M0061494 | 软管 | HOSE | 1 |
| 8 | 8M0203769 | 软管总成 | HOSE ASSY | 1 |
| 9 | 8M0037098 | 软管卡箍 | CLIP Hose | 2 |
| 9 | 8M0224396 | 卡箍 软管 | CLIP HOSE | 2 |
| 10 | 8M0037204 | 尼龙压入螺钉 (.25-20 x .50) | SCREW Nylon, Push-In (.25-20 x .50) | 2 |
| 11 | 8M0037209 | 燃油供给模块固定衬套 | GROMMET FSM Retainer | 1 |
| 12 | 8M0057676 | 燃油供应模块 双泵 | FUEL SUPPLY MODULE Dual Pump | 1 |
| 12 | 8M0235171 | 燃油供应模块 双泵 | FUEL SUPPLY MODULE Dual Pump | 1 |
| 13 | 834985 | 护孔环 | GROMMET | 1 |
| 13 | 8M0190980 | 护孔环 | GROMMET | 1 |
| 14 | 856954 | 衬套 | BUSHING | 1 |
| 15 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 1 |
| 15 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 1 |
| 16 | 65567 | 不锈钢垫圈(0.265x0.750x0.048) | WASHER (.265 x .750 x .048) Stainless Steel | 1 |
| 17 | 8M6002064 | 接头 8毫米 | FITTING 8MM | 1 |
| 17 | 8M6002065 | 接头 10毫米 | FITTING 10MM | 1 |

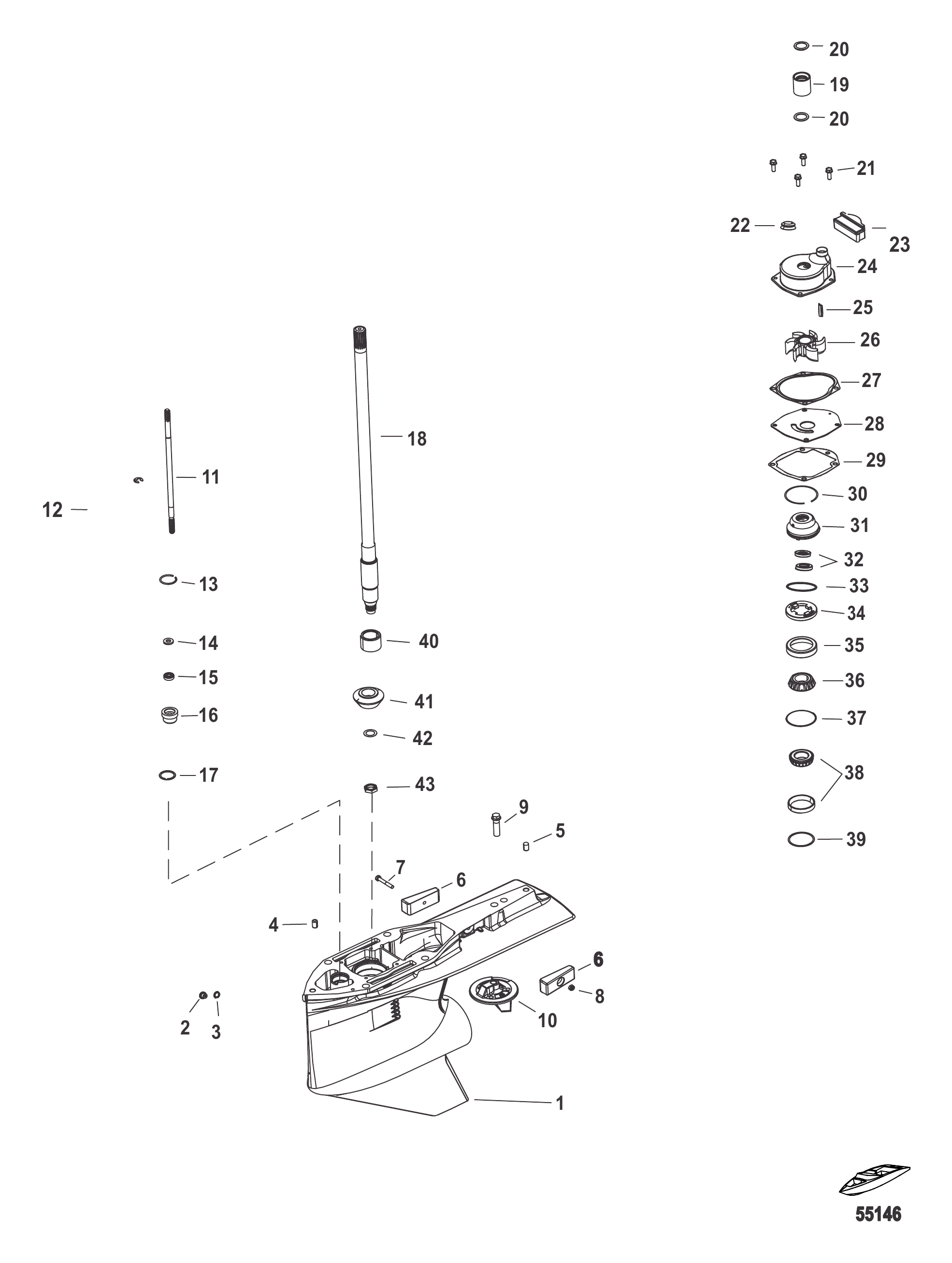

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0088072 | 齿轮箱总成 长型 | GEARCASE Complete Long | 1 |
| - | 8M0088074 | 齿轮箱总成 加长型 | GEARCASE Complete X-Long | 1 |
| 1 | 8M0091538 | 齿轮箱 基本型 | GEARCASE Basic | 1 |
| 2 | 79953A04 | 塞组件(.375-16×.250) | PLUG ASSEMBLY (.375-16 x .250) | 1 |
| 3 | 830749 | 密封件 | SEAL | 1 |
| 3 | 8M0204693 | 放油螺塞密封件 | SEAL Drain Plug | 1 |
| 4 | 8M0084244 | 定位销 0.375x0.620 | PIN Dowel, .375 x .620 | 1 |
| 5 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 1 |
| 6 | 826134Q | 阳极块 | ANODE | 2 |
| 7 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 1 |
| 8 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 9 | 806327 | 螺钉(.437-14 x 1.750) | SCREW (.437-14 x 1.750) | 1 |
| 9 | 8M0204686 | 螺钉 | SCREW | 1 |
| 10 | 8M0091534 | 平衡鳍板 | TRIM TAB | 1 |
| 10 | 8M0231857 | 平衡鳍板 | TRIM TAB | 1 |
| 11 | 8M0069658 | 换挡轴 下部, 长型 | SHIFT SHAFT Lower, Long | 1 |
| 11 | 8M0053078 | 换挡轴 下部, 加长型 | SHIFT SHAFT Lower, X-Long | 1 |
| 12 | 29641 | E型卡环 | E RING | 1 |
| 13 | 8M0029306 | 挡圈 | RING Retaining | 1 |
| 14 | 77674 | 垫圈(.35 x .75 x .12) | WASHER (.35 x .75 x .12) | 1 |
| 15 | 8164641 | 油封 | SEAL Oil | 1 |
| 15 | 8M0246145 | 油封 | OIL SEAL | 1 |
| 16 | 813696A2 | 衬套总成 | BUSHING ASSEMBLY | 1 |
| 17 | 45258 | O型圈 (.987 x .103) | O-RING (.987 x .103) | 1 |
| 18 | 8M0090831 | 长驱动轴 | DRIVESHAFT Long | 1 |
| 18 | 8M0094341 | 加长驱动轴 | DRIVESHAFT X-Long | 1 |
| 19 | 8M0036238 | 联轴器 水泵 | COUPLING Water Pump | 1 |
| 19 | 8M0214995 | 联轴器 水泵 | COUPLING Water Pump | 1 |
| 20 | 21836 | O型圈(.796 x .139) | O-RING (.796 x .139) | 2 |
| 20 | 8M0204645 | O型圈(.796 x .139) | O-RING (.796 x .139) | 2 |
| 21 | 1993720 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 4 |
| 21 | 8M0204706 | 螺丝M6x20六角 | SCREW M6 x 20 Hex | 4 |
| 22 | 8M2014338 | 端面密封 | SEAL Face | 1 |
| 22 | 8M0142851 | V型面密封环 | V RING Face Seal | 1 |
| 23 | 8M0010459 | 填充块 | FILLER BLOCK | 1 |
| 24 | 817275A1 | 水泵壳体套件 | HOUSING KIT Water Pump | 1 |
| 25 | 8M0032833 | 键 | KEY | 1 |
| 25 | 8M0204723 | 键 | KEY | 1 |
| 26 | 43026T2 | 叶轮 | IMPELLER | 1 |
| 27 | 8172771 | 水泵上垫片 | GASKET Water Pump, Upper | 1 |
| 28 | 8172761 | 面板 | FACEPLATE | 1 |
| 28 | 8M0204709 | 面板 | FACEPLATE | 1 |
| 29 | 8M0050720 | 衬垫 | GASKET | 1 |
| 29 | 8M0142616 | 衬垫 面板至齿轮箱 | GASKET Face Plate to Gearcase | 1 |
| 30 | 880719 | 挡圈 | RING Retaining | 1 |
| 31 | 8M0057748 | 油封载体总成 | OIL SEAL CARRIER ASSEMBLY | 1 |
| 32 | 89238 | 油封 | SEAL Oil | 2 |
| 33 | 896523 | O型圈(2.175 x 0.103) | O-RING (2.175 x .103) | 1 |
| 33 | 8M0142854 | O型圈(2.175 x 0.103) | O-RING (2.175 x .103) | 1 |
| 34 | 853651 | 固定座 | RETAINER | 1 |
| 35 | 33138A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 36 | NSS | 锥体(不单独销售) | NOT SOLD SEPARATE Cone | 1 |
| 37 | 8M0063267 | 垫片组 | SHIM SET | 1 |
| 38 | 77420A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 38 | 8M0166756 | 轴承总成 | BEARING ASSEMBLY | 1 |
| 39 | 8M0063268 | 垫片组 | SHIM SET | 1 |
| 40 | 8M0090828 | 滚针轴承 | BEARING Needle Roller | 1 |
| - | 8M0094470 | 齿轮组标准旋转(前进/小齿轮2.07速比14/29) | GEAR SET Stanard Rotation, Forward/Pinion 2.07 Ratio (14/29) | 1 |
| 41 | NSS | 小齿轮(不单独销售) | NOT SOLD SEPARATE Pinion | 1 |
| 42 | 92721 | 垫圈(.965×0.630) | WASHER (.965 x .630) | 1 |
| 43 | 8M0071654 | 螺母 (.625-18 HX) | NUT (.625-18 HX) | 1 |
| - | 8M0090442 | 尾鳍 | SKEG | 1 |
| - | 8M0094529 | 水泵维修包(全套) | COMPLETE WATER PUMP REPAIR KIT | 1 |
| - | 8M0094530 | 水泵叶轮维修套件 | REPAIR KIT Water Pump Impeller | 1 |
| - | 8M0100526 | 水泵叶轮维修套件 | REPAIR KIT Water Impeller | 1 |
| - | 8M0088080 | 齿轮箱密封套件 | GEARCASE SEAL KIT | 1 |
| - | 8M0061040 | 水泵上修包 | REPAIR KIT Water Pump-Upper | 1 |

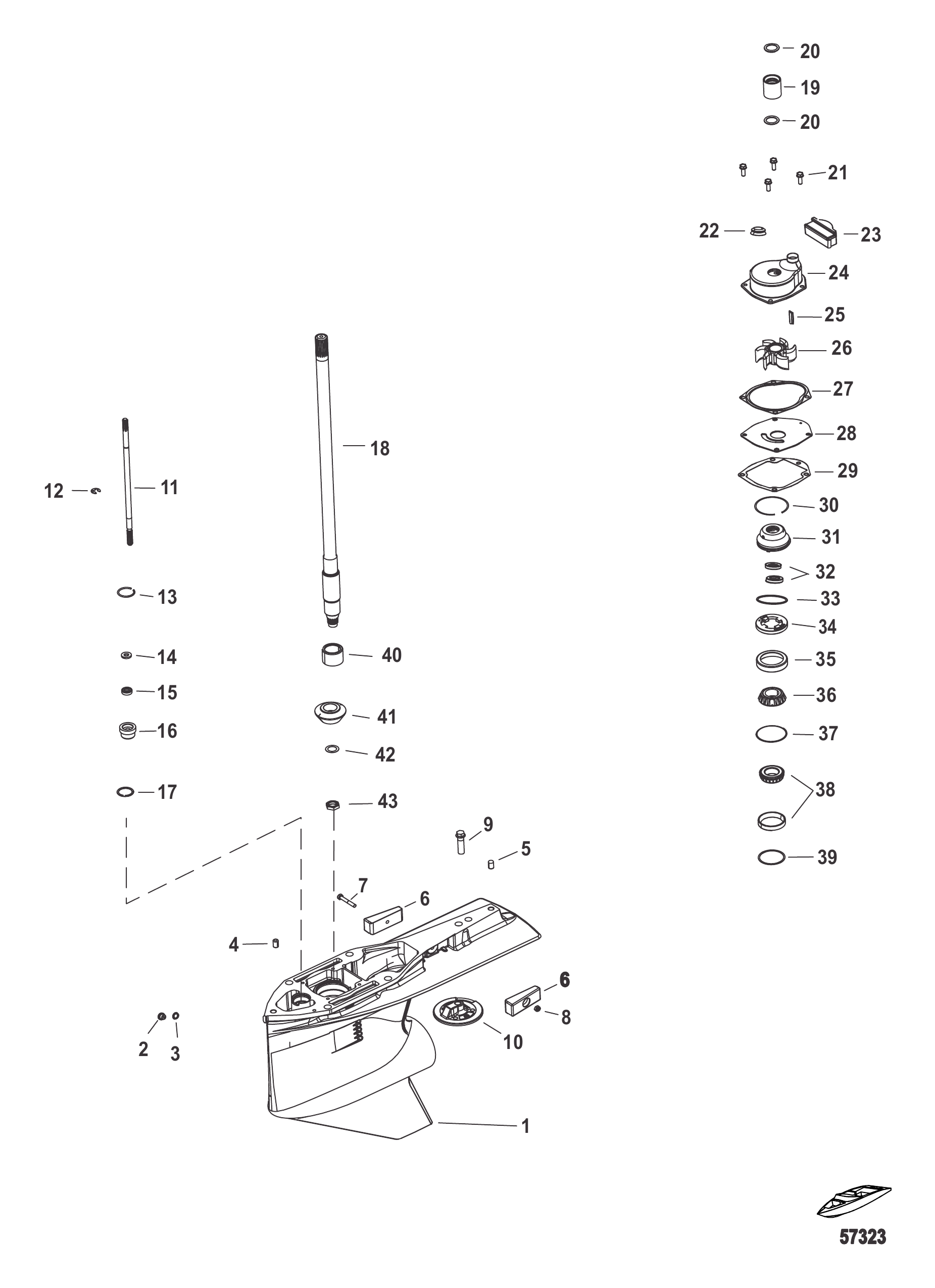

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0088073 | 齿轮箱总成CT长型 | GEARCASE Complete CT Long | 1 |
| - | 8M0099915 | 齿轮箱总成CT L型 | GEARCASE Complete CT L | 1 |
| - | 8M0102751 | 齿轮箱总成CT CL型 | GEARCASE Complete, CT CL | 1 |
| - | 8M0088075 | 齿轮箱总成CT加长型 | GEARCASE Complete CT X-Long | 1 |
| - | 8M0099916 | 齿轮箱总成CT XL型 | GEARCASE Complete CT XL | 1 |
| - | 8M0088076 | 齿轮箱总成CT CXL型 | GEARCASE Complete CT CXL | 1 |
| - | 8M0099917 | 齿轮箱总成CT CXL型 | GEARCASE Complete, CT CXL | 1 |
| 1 | 8M0057747 | 基本齿轮箱 | GEAR HOUSING Basic | 1 |
| 1 | 8M0099907 | 基本齿轮箱 | GEAR HOUSING Basic | 1 |
| 2 | 79953A04 | 塞组件(.375-16×.250) | PLUG ASSEMBLY (.375-16 x .250) | 1 |
| 3 | 830749 | 密封件 | SEAL | 1 |
| 3 | 8M0204693 | 放油螺塞密封件 | SEAL Drain Plug | 1 |
| 4 | 8M0084244 | 定位销 0.375x0.620 | PIN Dowel, .375 x .620 | 1 |
| 5 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 1 |
| 6 | 826134Q | 阳极块 | ANODE | 2 |
| 7 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 1 |
| 8 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 9 | 806327 | 螺钉(.437-14 x 1.750) | SCREW (.437-14 x 1.750) | 1 |
| 9 | 8M0204686 | 螺钉 | SCREW | 1 |
| 10 | 76214Q5 | 阳极套件 | ANODE KIT | 1 |
| 11 | 8M0031504 | 换挡轴 加长型 | SHIFT SHAFT X-Long | 1 |
| 11 | 8M0140439 | 换挡轴-XL | SHIFT SHAFT-XL | 1 |
| 11 | 8M0031503 | 换挡轴(长型) | SHIFT SHAFT Long | 1 |
| 12 | 29641 | E型卡环 | E RING | 1 |
| 13 | 8M0029306 | 挡圈 | RING Retaining | 1 |
| 14 | 77674 | 垫圈(.35 x .75 x .12) | WASHER (.35 x .75 x .12) | 1 |
| 15 | 8164641 | 油封 | SEAL Oil | 1 |
| 15 | 8M0246145 | 油封 | OIL SEAL | 1 |
| 16 | 813696A2 | 衬套总成 | BUSHING ASSEMBLY | 1 |
| 17 | 45258 | O型圈 (.987 x .103) | O-RING (.987 x .103) | 1 |
| 18 | 8M0094476 | 长驱动轴 | DRIVESHAFT Long | 1 |
| 18 | 8M0094340 | 加长驱动轴 | DRIVESHAFT X-Long | 1 |
| 19 | 8M0036238 | 联轴器 水泵 | COUPLING Water Pump | 1 |
| 19 | 8M0214995 | 联轴器 水泵 | COUPLING Water Pump | 1 |
| 20 | 21836 | O型圈(.796 x .139) | O-RING (.796 x .139) | 2 |
| 20 | 8M0204645 | O型圈(.796 x .139) | O-RING (.796 x .139) | 2 |
| 21 | 1993720 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 4 |
| 21 | 8M0204706 | 螺丝M6x20六角 | SCREW M6 x 20 Hex | 4 |
| 22 | 8M2014338 | 端面密封 | SEAL Face | 1 |
| 22 | 8M0142851 | V型面密封环 | V RING Face Seal | 1 |
| 23 | 8M0010459 | 填充块 | FILLER BLOCK | 1 |
| 24 | 817275A1 | 水泵壳体套件 | HOUSING KIT Water Pump | 1 |
| 25 | 8M0032833 | 键 | KEY | 1 |
| 25 | 8M0204723 | 键 | KEY | 1 |
| 26 | 43026T2 | 叶轮 | IMPELLER | 1 |
| 27 | 8172771 | 水泵上垫片 | GASKET Water Pump, Upper | 1 |
| 28 | 8172761 | 面板 | FACEPLATE | 1 |
| 28 | 8M0204709 | 面板 | FACEPLATE | 1 |
| 29 | 8M0050720 | 衬垫 | GASKET | 1 |
| 29 | 8M0142616 | 衬垫 面板至齿轮箱 | GASKET Face Plate to Gearcase | 1 |
| 30 | 880719 | 挡圈 | RING Retaining | 1 |
| 31 | 8M0057748 | 油封载体总成 | OIL SEAL CARRIER ASSEMBLY | 1 |
| 32 | 89238 | 油封 | SEAL Oil | 2 |
| 33 | 896523 | O型圈(2.175 x 0.103) | O-RING (2.175 x .103) | 1 |
| 33 | 8M0142854 | O型圈(2.175 x 0.103) | O-RING (2.175 x .103) | 1 |
| 34 | 853651 | 固定座 | RETAINER | 1 |
| 35 | 33138A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 36 | NSS | 锥体(不单独销售) | NOT SOLD SEPARATE Cone | 1 |
| 37 | 8M0063267 | 垫片组 | SHIM SET | 1 |
| 38 | 77420A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 38 | 8M0166756 | 轴承总成 | BEARING ASSEMBLY | 1 |
| 39 | 8M0063268 | 垫片组 | SHIM SET | 1 |
| 40 | 42647A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| - | 8M0094474 | 齿轮组标准旋转(前进/小齿轮2.38速比13/31) | GEAR SET Standard Rotation, Forward/Pinion 2.38 Ratio (13/31) | 1 |
| - | 8M0094483 | 齿轮组反向旋转(前进/小齿轮2.38速比13/31) | GEAR SET Counter Rotation, Forward/Pinion 2.38 Ratio (13/31) | 1 |
| 41 | NSS | 小齿轮(不单独销售) | NOT SOLD SEPARATE Pinion | 1 |
| 42 | 8M0064033 | 特殊垫片0.865×0.635 | WASHER .865 X .635 SPECIAL | 1 |
| 43 | 87364 | 螺母 | NUT | 1 |
| - | 8M0094529 | 水泵维修包(全套) | COMPLETE WATER PUMP REPAIR KIT | 1 |
| - | 8M0094530 | 水泵叶轮维修套件 | REPAIR KIT Water Pump Impeller | 1 |
| - | 8M0100526 | 水泵叶轮维修套件 | REPAIR KIT Water Impeller | 1 |
| - | 8M0088081 | 齿轮箱密封套件 | GEARCASE SEAL KIT | 1 |
| - | 8M0061040 | 水泵上修包 | REPAIR KIT Water Pump-Upper | 1 |

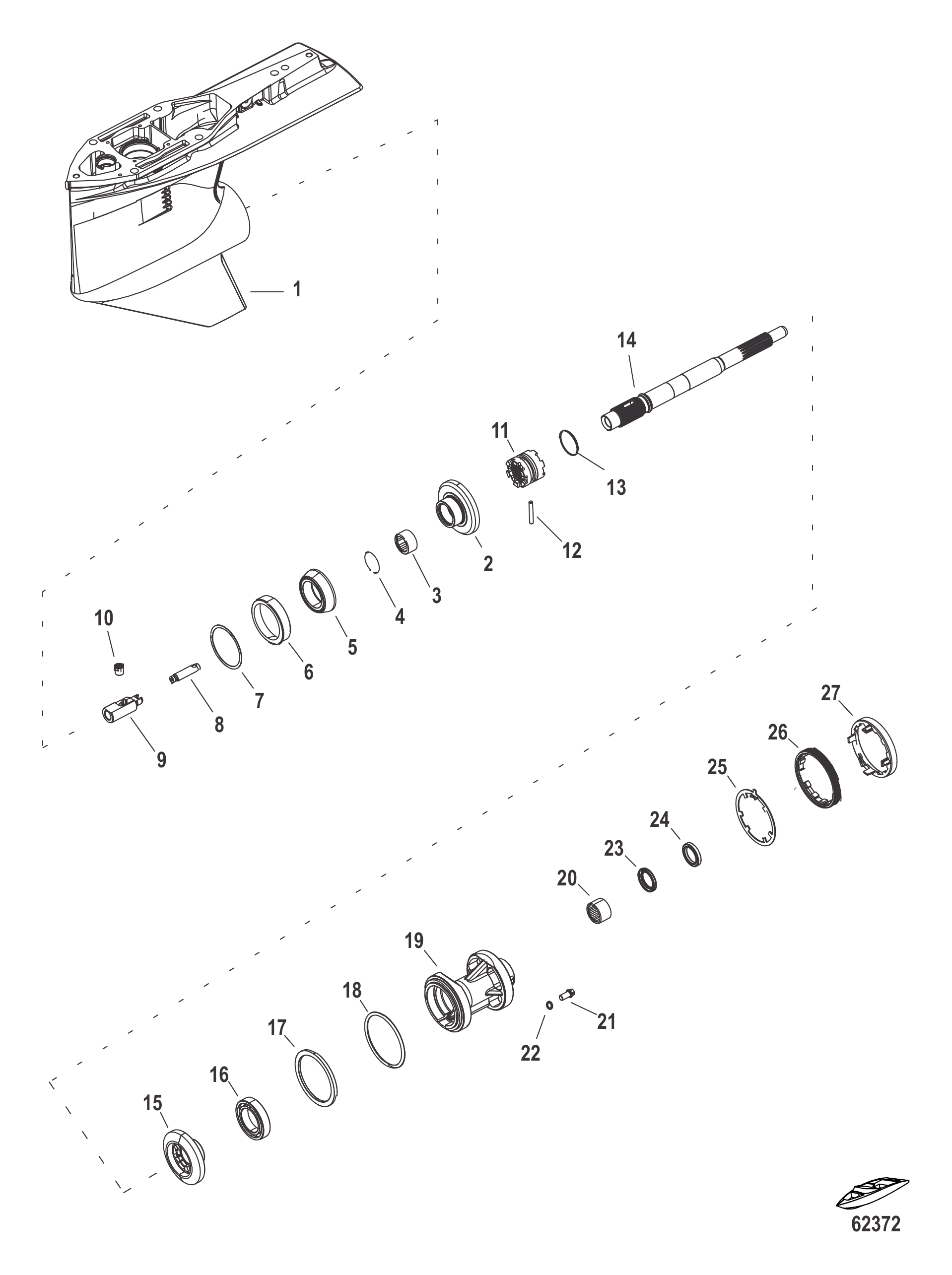

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0088072 | 齿轮箱总成 长型 | GEARCASE Complete Long | 1 |
| - | 8M0088074 | 齿轮箱总成 加长型 | GEARCASE Complete X-Long | 1 |
| 1 | 8M0091538 | 齿轮箱 基本型 | GEARCASE Basic | 1 |
| 1 | 8M0099907 | 基本齿轮箱 | GEAR HOUSING Basic | 1 |
| 2 | 8M0094470 | 齿轮组标准旋转(前进/小齿轮2.07速比14/29) | GEAR SET Stanard Rotation, Forward/Pinion 2.07 Ratio (14/29) | 1 |
| 3 | 8M0057742 | 滚针轴承 | BEARING Needle | 1 |
| 4 | 8M0071554 | 挡圈 | RING Retaining | 1 |
| 5 | 8M0094472 | 圆锥滚子轴承组 | TAPERED ROLLER BEARING, SET | 1 |
| 6 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 7 | 8M0063266 | 垫片组 | SHIM SET | 1 |
| 8 | 8M0057749 | 离合器作动杆 | ROD Clutch Actuator | 1 |
| 9 | 8M0072550 | 凸轮随动件(右旋) | FOLLOWER Cam, (RH) | 1 |
| 10 | 8M0077490 | 换档凸轮 | CAM Shift | 1 |
| 11 | 8M0065168 | 滑动离合器 | CLUTCH Sliding | 1 |
| 12 | 8M0065417 | 十字销 | PIN Cross | 1 |
| 13 | 30893 | 弹簧 | SPRING | 1 |
| 14 | 8M0088077 | 螺旋桨轴(右旋) | SHAFT Propeller (RH) | 1 |
| 15 | 8M0090832 | 倒车齿轮29齿 | GEAR Reverse 29T | 1 |
| 16 | 8M0065430 | 滚珠轴承 | BEARING Ball | 1 |
| 16 | 8M0203752 | 球轴承 | BEARING BALL | 1 |
| 17 | 8M0053099 | 推力环 | THRUST RING | 1 |
| 18 | 8M0065566 | O型圈 | O-RING | 1 |
| 19 | 8M0065046 | 轴承座套筒 | SPOOL Bearing Carrier | 1 |
| 19 | 8M0219207 | 线轴-轴承座 | SPOOL-BNG CARRIER | 1 |
| 20 | 30956T | 滚针轴承 | BEARING Needle | 1 |
| 21 | 8M0077071 | 螺丝/密封套件 | SCREW/SEAL KIT | 1 |
| 22 | 830749 | 密封件 | SEAL | 1 |
| 22 | 8M0204693 | 放油螺塞密封件 | SEAL Drain Plug | 1 |
| 23 | 14077 | 油封 | SEAL Oil | 1 |
| 24 | 76868 | 密封件 | SEAL | 1 |
| 24 | 8M0248882 | 油封@5 | SEAL-OIL @5 | 1 |
| 24 | 12224 | 渔线切割密封件 | SEAL Fish Line Cutting | 1 |
| 25 | 8M0032502 | 垫圈 带键 | WASHER Keyed | 1 |
| 26 | 8M0069653 | 轴承座固定环 | BEARING CARRIER Retainer | 1 |
| 26 | 8M0185683 | 轴承固定座 | RETAINER BEARING | 1 |
| 27 | 8M0070256 | 螺旋桨孔衬套 | SLEEVE Prop Bore | 1 |
| 27 | 8M0214998 | 螺旋桨轴套 | SLEEVE-PROP BORE | 1 |
| - | 8M0090442 | 尾鳍 | SKEG | 1 |
| - | 8M0088080 | 齿轮箱密封套件 | GEARCASE SEAL KIT | 1 |

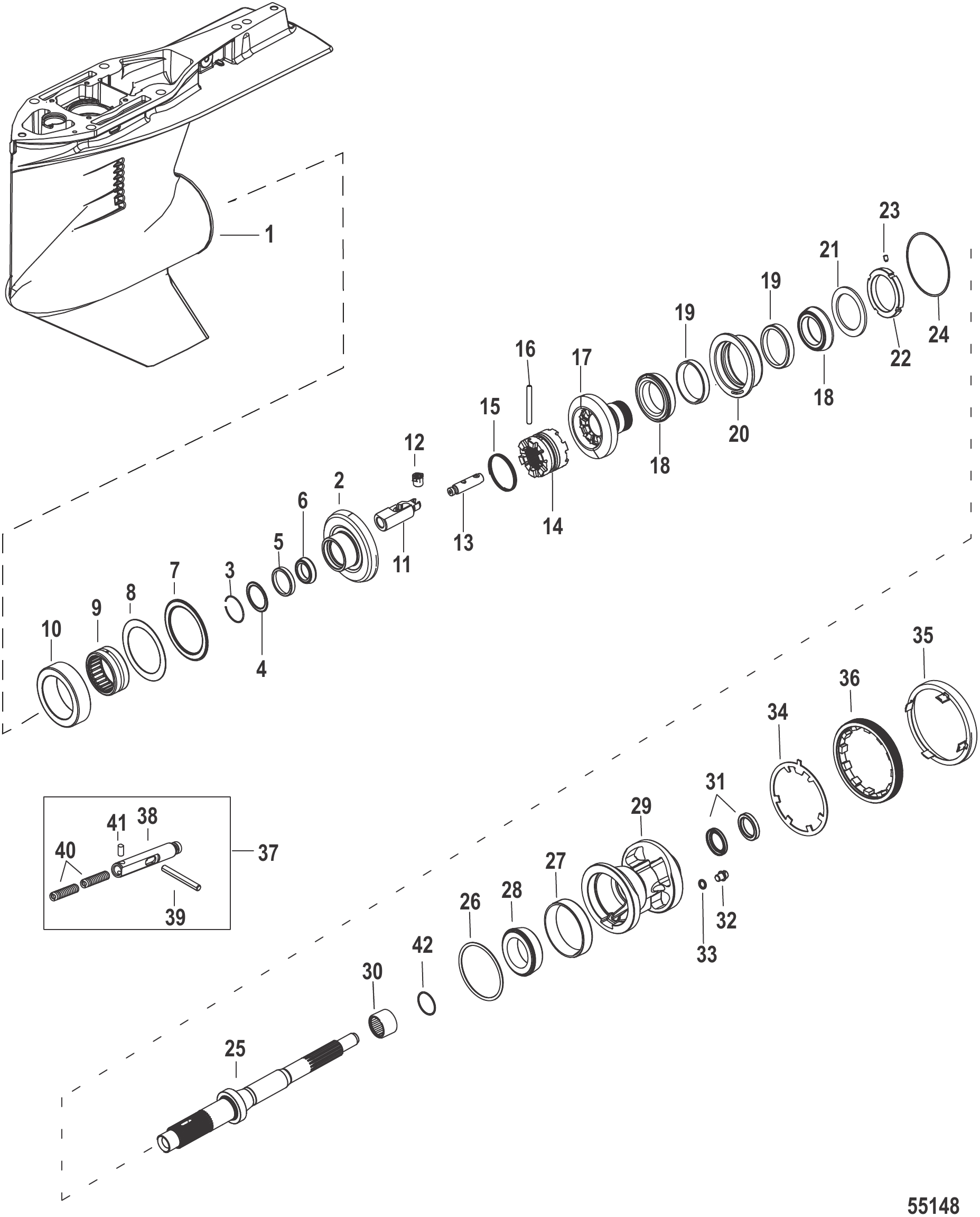

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0102751 | 齿轮箱总成CT CL型 | GEARCASE Complete, CT CL | 1 |
| - | 8M0088076 | 齿轮箱总成CT CXL型 | GEARCASE Complete CT CXL | 1 |
| - | 8M0099917 | 齿轮箱总成CT CXL型 | GEARCASE Complete, CT CXL | 1 |
| 1 | 8M0057747 | 基本齿轮箱 | GEAR HOUSING Basic | 1 |
| 1 | 8M0099907 | 基本齿轮箱 | GEAR HOUSING Basic | 1 |
| 2 | 8M0094500 | 倒车齿轮31齿 | GEAR Reverse 31T | 1 |
| 2 | 8M0108312 | 倒车齿轮套件 | GEAR KIT-REVERSE | 1 |
| 3 | 8M0094502 | 内卡环 | RING Internal Retaining | 1 |
| 4 | 8M0064432 | 止推垫圈 | WASHER Thrust | 1 |
| 5 | 8M0094499 | 圆锥滚子轴承组 | BEARING SET Taper Roller | 1 |
| 6 | NSS | 不单独销售 | NOT SOLD SEPARATE | 1 |
| 7 | 815480 | 推力轴承 | BEARING Thrust | 1 |
| 8 | 815481 | 止推垫片 | THRUST WASHER | 1 |
| 9 | 8M0094497 | 滚针轴承 | BEARING Needle Roller | 1 |
| 10 | 8M0064369 | 倒车齿轮轴承适配器 | BEARING ADAPTER Reverse Gear | 1 |
| 11 | 8M0031018 | 凸轮随动件(反向旋转) | FOLLOWER Cam, Counter Rotation | 1 |
| 12 | 8M0077490 | 换档凸轮 | CAM Shift | 1 |
| 13 | 8M0057749 | 离合器操纵杆(设计1型) | ROD Clutch Actuator Design 1 | 1 |
| 14 | 8M0094479 | 滑动离合器(6爪) | CLUTCH Sliding, 6 Jaw | 1 |
| 15 | 8M0047945 | 固定弹簧 | SPRING Retaining | 1 |
| 16 | 8M0045759 | 十字销 | PIN Cross | 1 |
| 17 | 8M0094483 | 齿轮组反向旋转(前进/小齿轮2.38速比13/31) | GEAR SET Counter Rotation, Forward/Pinion 2.38 Ratio (13/31) | 1 |
| 18 | 8M0094485 | 圆锥滚子轴承组 | TAPERED ROLLER BEARING SET | 2 |
| 19 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 2 |
| 20 | 8M0094486 | 前进齿轮轴承适配器 | ADAPTER Bearing, Forward Gear | 1 |
| 21 | 8M0064177 | 止推垫圈 | WASHER Thrust | 1 |
| 22 | 8M0094488 | 锁紧螺母 | LOCK NUT | 1 |
| 22 | 8M0064178 | 锁紧螺母 | LOCK NUT | 1 |
| 23 | 8M0066130 | 半圆头定位螺钉组 | SCREW- HALF DOG POINT SET | 1 |
| 23 | 8M0233826 | 半圆头定位螺钉组 | SCREW-HALF DOG POINT SET | 1 |
| 24 | 8M0094490 | 垫片组 | SHIM SET | 1 |
| 24 | 8M0239650 | 垫片组 | SHIM SET | 1 |
| 25 | 8M0088079 | 螺旋桨轴(反向旋转) | PROPELLER SHAFT Counter Rotation | 1 |
| 26 | 8M0030845 | O型圈3.975×0.210 | O-RING 3.975X.210 | 1 |
| 27 | 884330T01 | 圆锥轴承组件 | BEARING ASSEMBLY Taper | 1 |
| 27 | 8M0148319 | 圆锥滚子轴承(外圈/内圈) | BEARING Roller Taper Cup/Cone | 1 |
| 28 | NSS | 锥体(不单独销售) | NOT SOLD SEPARATE Cone | 1 |
| 29 | 8M0094495 | 轴承座(反向旋转) | BEARING CARRIER Counter Rotation | 1 |
| 30 | 8M0064306 | 止推隔套 | SPACER Thrust | 1 |
| 31 | 888483 | 油封 | SEAL Oil | 2 |
| 31 | 8M0204700 | 油封 | SEAL Oil | 2 |
| 32 | 8M0071653 | 特殊螺钉0.375-16 UNC | SCREW Special, .375-16 UNC | 1 |
| 33 | 830749 | 密封件 | SEAL | 1 |
| 33 | 8M0204693 | 放油螺塞密封件 | SEAL Drain Plug | 1 |
| 34 | 8M0030784 | 垫圈 带键 | WASHER Keyed | 1 |
| 35 | 8M0054695 | 螺旋桨孔衬套 | SLEEVE Propeller Bore | 1 |
| 35 | 8M0187255 | 套管@5 | SLEEVE @5 | 1 |
| 36 | 8M0030785 | 轴承座固定环 | RETAINER Bearing Carrier | 1 |
| 36 | 8M0168885 | 轴承固定座 | RETAINER BEARING | 1 |
| 37 | 8M0120367 | 双作用换挡执行器套件(设计2型) | ACTUATOR KIT Double Acting Shift Design 2 | 1 |
| 38 | 8M0102962 | 离合器作动杆 | ROD CLUTCH ACTUATOR | 1 |
| 39 | 8M0029113 | 十字销 | PIN Cross | 1 |
| 40 | 8M0096707 | 压缩弹簧 | SPRING Compression | 2 |
| 41 | 8M0084245 | 弹簧定位销 | PIN Spring Locator | 1 |
| 42 | 8M0076745 | 垫片组 | SHIM SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0088073 | 齿轮箱总成CT长型 | GEARCASE Complete CT Long | 1 |
| - | 8M0088075 | 齿轮箱总成CT加长型 | GEARCASE Complete CT X-Long | 1 |
| - | 8M0099915 | 齿轮箱总成CT L型 | GEARCASE Complete CT L | 1 |
| - | 8M0099916 | 齿轮箱总成CT XL型 | GEARCASE Complete CT XL | 1 |
| 1 | 8M0057747 | 基本齿轮箱 | GEAR HOUSING Basic | 1 |
| 1 | 8M0099907 | 基本齿轮箱 | GEAR HOUSING Basic | 1 |
| 2 | 8M0094474 | 齿轮组标准旋转(前进/小齿轮2.38速比13/31) | GEAR SET Standard Rotation, Forward/Pinion 2.38 Ratio (13/31) | 1 |
| 3 | 8M0057742 | 滚针轴承 | BEARING Needle | 1 |
| 4 | 8M0029306 | 挡圈 | RING Retaining | 1 |
| 5 | 8M0057724 | 圆锥滚子轴承总成 | BEARING ASSY Roller, Taper | 1 |
| 5 | 8M0237367 | 轴承总成 | BEARING ASSY | 1 |
| 6 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 7 | 8M0063269 | 垫片组 | SHIM SET | 1 |
| 8 | 8M0057749 | 离合器操纵杆(设计1型) | ROD Clutch Actuator Design 1 | 1 |
| 9 | 8M0072550 | 凸轮随动件(右旋) | FOLLOWER Cam, (RH) | 1 |
| 10 | 8M0077490 | 换档凸轮 | CAM Shift | 1 |
| 11 | 8M0094479 | 滑动离合器(6爪) | CLUTCH Sliding, 6 Jaw | 1 |
| 12 | 8M0045759 | 十字销 | PIN Cross | 1 |
| 13 | 8M0047945 | 固定弹簧 | SPRING Retaining | 1 |
| 14 | 8M0088077 | 螺旋桨轴(右旋) | SHAFT Propeller (RH) | 1 |
| 15 | 8M0094481 | 倒车齿轮31齿 | GEAR Reverse 31T | 1 |
| 16 | 860081 | 轴承 | BEARING | 1 |
| 16 | 88957T | 滚珠轴承 | BEARING Ball | 1 |
| 17 | 8M0030779 | 推力环 | THRUST RING | 1 |
| 18 | 8M0030845 | O型圈3.975×0.210 | O-RING 3.975X.210 | 1 |
| 19 | 8M0030856 | 轴承座套筒 | SPOOL Bearing Carrier | 1 |
| 19 | 8M0219208 | 轴承座套筒 | SPOOL-BRNG CRRIER | 1 |
| 19 | 8M0098463 | 轴承座套筒 | SPOOL Bearing Carrier | 1 |
| 19 | 8M0219208 | 轴承座套筒 | SPOOL-BRNG CRRIER | 1 |
| 20 | 30956T | 滚针轴承 | BEARING Needle | 1 |
| 21 | 8M0071653 | 特殊螺钉0.375-16 UNC | SCREW Special, .375-16 UNC | 1 |
| 22 | 830749 | 密封件 | SEAL | 1 |
| 22 | 8M0204693 | 放油螺塞密封件 | SEAL Drain Plug | 1 |
| 23 | 14077 | 油封 | SEAL Oil | 1 |
| 24 | 76868 | 密封件 | SEAL | 1 |
| 24 | 8M0248882 | 油封@5 | SEAL-OIL @5 | 1 |
| 24 | 12224 | 渔线切割密封件 | SEAL Fish Line Cutting | 1 |
| 25 | 8M0030784 | 垫圈 带键 | WASHER Keyed | 1 |
| 26 | 8M0030785 | 轴承座固定环 | RETAINER Bearing Carrier | 1 |
| 26 | 8M0168885 | 轴承固定座 | RETAINER BEARING | 1 |
| 27 | 8M0054695 | 螺旋桨孔衬套 | SLEEVE Propeller Bore | 1 |
| 27 | 8M0187255 | 套管@5 | SLEEVE @5 | 1 |
| 28 | 8M0120367 | 双作用换挡执行器套件(设计2型) | ACTUATOR KIT Double Acting Shift Design 2 | 1 |
| 29 | 8M0102962 | 离合器作动杆 | ROD CLUTCH ACTUATOR | 1 |
| 30 | 8M0029113 | 十字销 | PIN Cross | 1 |
| 31 | 8M0096707 | 压缩弹簧 | SPRING Compression | 2 |
| 32 | 8M0084245 | 弹簧定位销 | PIN Spring Locator | 1 |
| 33 | 824108 | 隔套 | SPACER | 1 |
| - | 8M0060147 | 尾鳍 | SKEG | 1 |
| - | 8M0088081 | 齿轮箱密封套件 | GEARCASE SEAL KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0044991 | 双输出点火线圈 | IGNITION COIL Ignition Dual Output | 2 |
| 2 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 4 |
| 2 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 4 |
| 3 | 8M0088014 | 火花塞线束 | SPARK PLUG Wire Set | 1 |
| 4 | 8M0057936 | 火花塞NGK ZFR5F | SPARK PLUG NGK ZFR5F | 4 |
| 4 | 8M0204728 | 火花塞NGK ZFR5F | SPARK PLUG NGK ZFR5F | 4 |
| 5 | 8M0077655 | 线圈盖 | COVER, COIL | 1 |
| 5 | 8M0163125 | 线圈盖 | COVER COIL | 1 |
| 6 | 8M0060350 | 高压线托盘 | TRAY High Tension Lead | 1 |
| 7 | 88552514 | 不锈钢螺钉(M6×14mm) | SCREW (M6 x 14 mm) Stainless Steel | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 892952T04 | 进气流量测量总成 | IAFM ASSEMBLY | 1 |
| 1 | 892952T06 | 进气流量测量总成 | IAFM ASSEMBLY | 1 |
| - | 8M6002790 | 进气歧管 | MANIFOLD Intake | 1 |
| 2 | 88552550 | 不锈钢螺钉 (M6 x 50 mm) | SCREW (M6 x 50 mm) Stainless Steel | 2 |
| 3 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 2 |
| 3 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 2 |
| 4 | 8M0048051 | 不锈钢螺钉(M6x30) | SCREW (M6 x 30) Stainless Steel | 5 |
| 5 | 897646001 | 通气罐支架 | BRACKET Vent Canister | 1 |
| 6 | 884545A02 | 通气罐总成 | CANISTER ASSEMBLY Vent | 1 |
| 6 | 8M0175814 | 通气罐总成 | CANISTER-VENT ASY | 1 |
| 7 | 897434 | 护孔环 | GROMMET | 1 |
| 8 | 8M0001824 | 净化通气总成 | PURGE VENT ASSEMBLY | 1 |
| 8 | 8M0126307 | 净化通气总成 | PURGE VENT ASSY | 1 |
| 9 | 897575T01 | 空气滤清器 | FILTER Air | 1 |
| 9 | 8M0082911 | 空气滤清器 | FILTER - AIR | 1 |
| 10 | 8M0006918 | 限流板 | RESTRICTOR PLATE | 1 |
| 10 | 8M0032134 | 限流板 | RESTRICTOR PLATE | 1 |
| 10 | 8M0032134 | 限流板 | RESTRICTOR PLATE | 1 |
| 11 | 897559 | 卡扣 | CLIP | 1 |
| 12 | 897445501 | 螺丝(M6×20毫米) | SCREW (M6 x 20 MM) | 1 |
| 13 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 14 | 35462 | 垫圈(.2656 x .625 x .0625)不锈钢 | WASHER (.2656 x .625 x .0625) Stainless Steel | 5 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 87775610 | 螺钉(M4×10) | SCREW (M4 X 10) | 1 |
| 2 | 8M0060503 | 进气压力传感器支架 | BRACKET Map Sensor | 1 |
| 3 | 854445 | MAP传感器 | SENSOR MAP | 1 |
| 3 | 8M0237529 | MAP传感器 | SENSOR MAP | 1 |
| 4 | 897445501 | 螺丝(M6×20毫米) | SCREW (M6 x 20 MM) | 6 |
| 5 | 8M0088066 | 节气门体总成 | THROTTLE BODY ASSEMBLY | 1 |
| 6 | 881070T | 位置传感器 | SENSOR Position | 1 |
| 6 | 8M0125617 | 位置传感器 | SENSOR Position | 1 |
| 7 | 8M0063490 | 螺钉(M4×0.7×16mm) | SCREW (M4 X .7 X 16 MM) | 2 |
| 8 | 8M0088065 | 进气歧管总成 | INTAKE MANIFOLD ASSEMBLY | 1 |
| 9 | 8M0061361 | 衬垫 | GASKET | 1 |
| 10 | 8M0061362 | 衬垫 | GASKET | 4 |
| 11 | 8M0059235 | 节气门连杆总成 | LINK Throttle Assembly | 1 |
| 12 | 8M0060385 | 六角法兰头螺钉(M6×1×37) | SCREW (M6 X 1 X 37) Hex Flg HD | 10 |
| 13 | 897526T | 怠速空气控制阀 | IAC VALVE | 1 |
| 13 | 8M0188118 | 怠速空气传感器 | SENSOR IDLE AIR C | 1 |
| 14 | 8M0077848 | 节气门随动杆总成 | LEVER ASSEMBLY Throttle Follower | 1 |
| 15 | 8M0077229 | 旋转衬套 | BUSHING Swivel | 1 |
| 16 | 8M0071815 | 节气门杠杆台阶螺栓 | BOLT Shoulder, Throttle Lever | 2 |
| 17 | 825677 | 压入式螺母 | PUSH NUT | 1 |
| 18 | 822459 | 固定座 | RETAINER | 1 |
| 19 | 898093 | 波形垫圈 | WASHER Wave | 2 |
| 20 | 897937 | 垫圈 | WASHER | 2 |
| 21 | 8M0068644 | 节气门凸轮总成 | THROTTLE CAM ASSEMBLY | 1 |
| 21 | 8M0243636 | 节气门凸轮 | CAM-THROTTLE | 1 |
| 22 | 897936 | 垫圈 | WASHER | 2 |
| 23 | 897535005 | 节流凸轮回位弹簧 | SPRING Throttle Cam Return | 1 |
| 24 | 891663001 | 温度传感器 | SENSOR Temperature | 1 |
| 25 | 895054 | 螺丝(M4×16毫米) | SCREW (M4 x 16 mm) | 2 |
| 26 | 8M0090814 | 怠速控制阀壳体 | HOUSING IACV | 1 |
| 27 | 834985 | 护孔环 | GROMMET | 2 |
| 27 | 8M0190980 | 护孔环 | GROMMET | 2 |
| 28 | 8M0057601 | 怠速控制阀软管 | HOSE IACV | 1 |
| 29 | 855228 | 卡箍 | CLAMP | 2 |
| 30 | 8M0062044 | 销 安装 | PIN Mounting | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 817275A08 | 水泵上修包 | REPAIR KIT Water Pump-Upper | 1 |
| 1 | 817275A1 | 水泵壳体套件 | HOUSING KIT Water Pump | 1 |
| 2 | 8M4503518 | 螺钉(M6×1.0×20) | SCREW (M6 X 1.0 X 20) | 4 |
| 2 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 4 |
| 3 | 8M0025709 | 水泵叶轮 | IMPELLER Water Pump | 1 |
| 3 | 43026T2 | 叶轮 | IMPELLER | 1 |
| 4 | 8172771 | 水泵上垫片 | GASKET Water Pump, Upper | 1 |
| 5 | 8172761 | 面板 | FACEPLATE | 1 |
| 5 | 8M0204709 | 面板 | FACEPLATE | 1 |
| 6 | 430331 | 衬垫 | GASKET | 1 |
| 7 | 8M0032833 | 键 | KEY | 1 |
| 7 | 8M0204723 | 键 | KEY | 1 |
| 8 | 8M2014338 | 端面密封 | SEAL Face | 1 |
| 8 | 8M0142851 | V型面密封环 | V RING Face Seal | 1 |
| - | 8M0112712 | 喷射泵套件 | JET PUMP KIT | 1 |
| - | 8M0091607 | 喷泵总成 | JET PUMP ASSEMBLY | 1 |
| - | 8M0112712 | 喷射泵套件 | JET PUMP KIT | 1 |
| - | 8M0104795 | 换挡支架垫片 | SPACER, SHIFT BRACKET | 1 |
| - | 8M0082528 | 第二代油门换挡拉线-5英尺 | THROTTLE AND SHIFT CABLE GEN2 - 5 ft. | 1 |
| - | 806327 | 螺钉(.437-14 x 1.750) | SCREW (.437-14 x 1.750) | 1 |
| - | 8M0204686 | 螺钉 | SCREW | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 897716K01 | 点火开关套件(3位)含钥匙 | SWITCH KIT Ignition (3 Position) With Keys | 1 |
| 2 | 897716001 | 塑料钥匙开关螺母 | NUT Plastic-Key Switch | 1 |
| - | 899203A01 | 标牌/垫片套件 | DECAL/WASHER KIT | 1 |
| - | 899203A01 | 标牌/垫片套件 | DECAL/WASHER KIT | 2 |
| 3 | 8M0233647 | 防转垫片 | WASHER Anti-Rotation | 1 |
| 4 | 899203 | 启停开关标牌 | DECAL On/Off/Start | 1 |
| 5 | 897716451 | 点火钥匙套装(451)带水星标志 | KEY SET Ignition (451) with Mercury Logo | AR |
| 5 | 897716457 | 点火钥匙套装(457)带水星标志 | KEY SET Ignition (457) with Mercury Logo | AR |
| 5 | 897716460 | 点火钥匙套装(460)带水星标志 | KEY SET Ignition (460) with Mercury Logo | AR |
| 5 | 897716461 | 点火钥匙套装(461)带水星标志 | KEY SET Ignition (461) with Mercury Logo | AR |
| 5 | 897716462 | 点火钥匙套装(462)带水星标志 | KEY SET Ignition (462) with Mercury Logo | AR |
| 5 | 897716463 | 点火钥匙套装(463)带水星标志 | KEY SET Ignition (463) with Mercury Logo | AR |
| 5 | 897716821 | 点火钥匙套装(821)带水星标志 | KEY SET Ignition (821) with Mercury Logo | AR |
| 5 | 897716827 | 点火钥匙套装(827)带水星标志 | KEY SET Ignition (827) with Mercury Logo | AR |
| 5 | 897716830 | 点火钥匙套装(830)带水星标志 | KEY SET Ignition (830) with Mercury Logo | AR |
| 5 | 897716831 | 点火钥匙套装(831)带水星标志 | KEY SET Ignition (831) with Mercury Logo | AR |
| 5 | 897716832 | 点火钥匙套装(832)带水星标志 | KEY SET Ignition (832) with Mercury Logo | AR |
| 5 | 897716833 | 点火钥匙套装(833)带水星标志 | KEY SET Ignition (833) with Mercury Logo | AR |
| 5 | 897716841 | 点火钥匙套装(841)带水星标志 | KEY SET Ignition (841) with Mercury Logo | AR |
| 5 | 897716847 | 点火钥匙套装(847)带水星标志 | KEY SET Ignition (847) with Mercury Logo | AR |
| 5 | 897716850 | 点火钥匙套装(850)带水星标志 | KEY SET Ignition (850) with Mercury Logo | AR |
| 5 | 897716851 | 点火钥匙套装(851)带水星标志 | KEY SET Ignition (851) with Mercury Logo | AR |
| 5 | 897716852 | 点火钥匙套装(852)带水星标志 | KEY SET Ignition (852) with Mercury Logo | AR |
| 5 | 897716853 | 点火钥匙套装(853)带水星标志 | KEY SET Ignition (853) with Mercury Logo | AR |
| 6 | 76629 | 内齿锁紧垫片(0.750) | LOCKWASHER Internal Tooth (.750) | 1 |
| 6 | 8M0207779 | 锁紧垫圈 | LOCKWASHER | 1 |
| 7 | 8M0189945 | 钥匙盖总成 | KEYS CAP ASSEMBLY | 1 |
| 8 | 8M0161143 | 钥匙盖 | CAP Key | 1 |
| - | 879305A01 | 三档钥匙开关壳体套件 | Housing Kit 3-Position Keyswitch Housing | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0088280 | 左右下罩总成(无标牌) | LOWER COWL ASSEMBLY Port and Starboard ( NON DECALED ) | 1 |
| 2 | 8M0022324 | 螺丝(M6 x 25毫米) | SCREW (M6 x 25 mm) | 11 |
| 2 | 8M0230977 | 螺钉 (M6 x 25 MM) | SCREW (M6 x 25 MM) | 11 |
| 3 | 8M0032848 | 开关固定座 | RETAINER Switch | 1 |
| 4 | 8M0037225 | 圆形微调开关面板 | TRIM SWITCH Round Bezel | 1 |
| 4 | 8M0235190 | 圆形微调开关面板 | TRIM SWITCH Round Bezel | 1 |
| 5 | 889823001 | 嵌入式系绳插头 | TETHER Flush Plug | 1 |
| 5 | 8M0224266 | 嵌入式插槽密封件 | SEAL Flush Plug Pocket | 1 |
| 6 | 885361A01 | 接头总成 冲洗 | FITTING ASSEMBLY Flush | 1 |
| 7 | 8M0047301 | 嵌入式插槽密封件 | SEAL Flush Plug Pocket | 1 |
| 7 | 8M0219168 | 嵌入式系绳插头 | TETHER Flush Plug | 1 |
| 8 | 888958001 | 嵌入式端口塞 | PLUG Flush Port | 1 |
| 8 | 8M0215105 | 嵌入式塞 | PLUG Flush | 1 |
| 9 | 8M0088281 | 前下罩总成 | LOWER COWL ASSEMBLY Front | 1 |
| 10 | 8M0073002 | 六角法兰螺钉(M6×20) | SCREW (M6 X 20), Hex Flg | 4 |
| 11 | 8M0055211 | 顶罩锁扣固定座 | RETAINER - LATCH Top Cowl | 1 |
| 12 | 892073002 | 台阶螺丝 (M6) | SHOULDER SCREW (M6) | 2 |
| 12 | 8M0230980 | 螺丝 (M6x14) 六角法兰B型 | SCREW (M6 x 14) Hex Flange B | 2 |
| 13 | 8M0055216 | 右舷上支架盖 | COVER Upper Mount Starboard | 1 |
| 14 | 8M0055214 | 左舷上支架盖 | COVER Upper Mount, Port | 1 |
| 15 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 2 |
| 15 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 2 |
| 16 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| 16 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| 17 | 8M0055154 | 锁扣总成 | STRIKER ASSEMBLY | 1 |
| 18 | 88552545 | 不锈钢螺钉(M6×45mm) | SCREW (M6 x 45 mm) Stainless Steel | 1 |
| 18 | 8M0103810 | 不锈钢螺钉(M6×45mm) | SCREW (M6 x 45 MM) Stainless Steel | 1 |
| 19 | 8M0055202 | 防水安装板 | PLATE Ingress Mounting | 1 |
| 20 | 8M0047718 | 螺钉(M5×8mm) | SCREW (M5 X 8MM) | 3 |
| 21 | 8M0073102 | 线束护圈-配平传感器 | GROMMET Trim Sensor Wires | 1 |
| 22 | 8M0055208 | 防水护圈 | GROMMET Ingress | 1 |
| 23 | 8M0055209 | 软管转接器 | ADAPTER Rigging Hose | 1 |
| 24 | 8M0075736 | 六角法兰螺钉(M6×50) | SCREW (M6 X 50) Hex Flg | 1 |
| 24 | 8M0230970 | 螺钉 | SCREW | 1 |
| 25 | 8M0075735 | 六角法兰螺钉(M6×30) | SCREW (M6 X 30) Hex Flg | 2 |
| 26 | 8M0071078 | 六角法兰螺钉(M6×85) | SCREW (M6 X 85) Hex Flg | 1 |
| 26 | 8M0230974 | 六角法兰螺钉M6×85 | SCREW M6 x 85 HEX FLG | 1 |
| 27 | 8M0030817 | 六角法兰螺钉(M6×70) | SCREW (M6 X 70) Hex Flg | 1 |
| 27 | 8M0230978 | 螺钉 | SCREW | 1 |
| 28 | 8M0074531 | 阳极螺塞 | PLUG Anode Screw | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0097856 | 保养套件75-115马力四冲程(100小时) | SERVICE KIT 75-115 HP 4S (100 Hour) | 1 |
| - | 877761K01 | 机油滤清器(水星品牌) | FILTER Oil Mercury Branded | 1 |
| - | 879885Q | 燃油管路滤清器 | FILTER Fuel In-Line | 1 |
| - | 828816 | 衬垫 | GASKET | 1 |
| - | 8M0204692 | 衬垫@5 | GASKET @5 | 1 |
| - | 830749 | 密封件 | SEAL | 2 |
| - | 8M0204693 | 放油螺塞密封件 | SEAL Drain Plug | 2 |
| - | 8M0097857 | 保养套件75-115马力四冲程(300小时) | SERVICE KIT 75-115HP 4S (300 Hour) | 1 |
| - | 877761K01 | 机油滤清器(水星品牌) | FILTER Oil Mercury Branded | 1 |
| - | 879885Q | 燃油管路滤清器 | FILTER Fuel In-Line | 1 |
| - | 855697 | 卡箍 | CLAMP | 1 |
| - | 8M0204696 | 卡箍 | CLAMP | 1 |
| - | 828816 | 衬垫 | GASKET | 1 |
| - | 830749 | 密封件 | SEAL | 2 |
| - | 8M0157328 | 火花塞 (NGK# LFR4A-E) | SPARK PLUG (NGK# LFR4A-E) | 4 |
| - | 892864T06 | 节温器及壳体总成 | THERMOSTAT AND HOUSING ASSEMBLY Thermostat | 1 |
| - | 8M0090819 | 节温器总成 | THERMOSTAT ASSEMBLY | 1 |
| - | 8M0100527 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| - | 897574Q01 | 皮带 | BELT | 1 |
| - | 818298T1 | 阳极套件 | ANODE KIT | 1 |
| - | 826134T | 阳极块 | ANODE | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 821327 | 定位销 | PIN Dowel | 2 |
| 2 | 8M0078540 | 衬垫 | GASKET | 1 |
| 3 | 8M0091528 | 油底壳 | OIL SUMP | 1 |
| 4 | 88552540 | 螺钉(M6x40毫米)不锈钢 | SCREW (M6 x 40 mm) Stainless Steel | 10 |
| 4 | 8M0103809 | 螺钉(M6x40毫米)不锈钢 | SCREW (M6 x 40 mm) Stainless Steel | 10 |
| 5 | 8M0064964 | 油塞总成 | OIL PLUG ASSEMBLY | 1 |
| 5 | 8M0112869 | 油塞总成 | OIL PLUG ASSEMBLY | 1 |
| 6 | 85045 | O型圈(.551 x .070) | O-RING (.551 x .070) | 1 |
| 7 | 62706 | O型圈(0.426×0.070) | O-RING (.426 x .070) | 1 |
| 8 | 8M0036228 | O型圈(8.1x1.6) | O-RING (8.1 X 1.6) | 1 |
| 9 | 8M0068703 | 护孔环 | GROMMET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0089943 | 歧管套件 | MANIFOLD KIT | 1 |
| 2 | 893929A01 | 安全阀套件 | VALVE KIT Relief | 1 |
| 3 | 8M0089945 | 阀套件 | VALVE KIT | 1 |
| 4 | 8M0090404 | 配平限位阀套件 | VALVE KIT Trim Limit | 1 |
| 5 | 833063 | O型圈 | O-RING | 2 |
| 6 | 8M0055260 | 定位销 | DOWEL PINS | 3 |
| 7 | 811613 | 塞子总成 | PLUG ASSEMBLY | 1 |
| 8 | 833047 | 螺钉(0.250-20×2.250) | SCREW (.250-20 x 2.250) | 2 |
| 9 | 8M0089941 | 气缸总成 | CYLINDER ASSEMBLY | 1 |
| 10 | 88238A13 | 接地线总成 | CABLE ASSEMBLY Ground | 1 |
| 10 | 8M0207768 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 11 | 8M6002690 | 螺钉 | SCREW | 1 |
| 11 | 62568 | 螺钉（#10-16 x 0.375） | SCREW (#10-16 x .375) | 1 |
| 12 | 810776A1 | 记忆活塞总成 | PISTON ASSEMBLY Memory | 1 |
| 12 | 8M0171822 | 记忆活塞套件 | MEMORY PISTON KIT | 1 |
| 12 | 8M0100509 | 记忆活塞总成 | PISTON ASSEMBLY Memory | 1 |
| 12 | 8M0171825 | 记忆活塞套件 | MEMORY PISTON KIT | 1 |
| 13 | 893902A01 | O型圈套件 | O-RING KIT | 1 |
| 13 | 8M0171819 | O型圈套件 | O-RING KIT | 1 |
| 14 | 8M0089942 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 14 | 8M0171821 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 14 | 8M0139007 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 14 | 8M0171824 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 15 | 8M0089946 | 螺钉套件(完整调整) | SCREW KIT Complete Trim | 1 |
| 16 | 8M0089940 | 电机套件 | MOTOR KIT | 1 |
| 16 | 8M0142591 | 电机套件 | MOTOR KIT | 1 |
| 17 | 8M0090403 | 驱动联轴器 | COUPLING Drive | 1 |
| 18 | 8M0089944 | 泵总成 | PUMP ASSEMBLY | 1 |
| - | 8M0089947 | O型圈套件(动力调整) | O-RING KIT Power Trim | 1 |
| - | 8M0171820 | O型圈套件 | O-RING KIT | 1 |
| - | 8M0127334 | 提升阀密封套件 | POPPET SEAL KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 898101362 | 75/80/90/100/115 EFI四冲程零件手册 | PARTS MANUAL 75/80/90/100/115 EFI 4-Stroke | 1 |
| - | 899185A01 | 75/90/115 EFI四冲程维修手册和图解集 | SERVICE MANUAL AND DIAGRAM SET 75/90/115 EFI 4-Stroke | 1 |
| - | 899185 | 75/90/115 EFI四冲程L4 NA维修手册(英文) | SERVICE MANUAL 75/90/115 EFI 4-Stroke L4 NA, English | 1 |
| - | 8M0085380 | SM O/B 75-115 L4 | SM O/B 75-115 L4 | 1 |
| - | 899699A01 | 75/90/115 EFI四冲程图解集 | DIAGRAM SET 75/90/115 EFI 4-Stroke | 1 |
| - | 835450074 | 舷外机维修手册索引 | INDEX Outboard Sevice Manual | 1 |
| - | 8M0239139 | INDEX-OB SERV MNL | INDEX-OB SERV MNL | 1 |
| - | 10254070 | EFI L4NA用户手册(英文) | OWNERS MANUAL EFI L4NA, English | 1 |
| - | 10254080 | 75/90/115 EFI L4NA操作手册(英文) | OPERATION MANUAL 75/90/115 EFI L4NA, English | 1 |
| - | 10254081 | 操作员手册 | MANUAL-OPERATOR | 1 |
| - | 10254090 | 75/90/115四冲程操作手册 | OPERATION MANUAL 75/90/115 4-Stroke | 1 |
| - | 8M0087582 | 操作手册 | OPERATION MANUAL | 1 |
| - | 10254V80 | 80/100/115 EFI L4NA操作手册(比利时欧盟) | OPERATION MANUAL 80/100/115 EFI L4NA, Belgium EU | 1 |
| - | 8M0084953 | 安装手册 | INSTALLATION MANUAL | 1 |
| - | 879147A07 | EPA标签信息贴花 | DECAL EPA Label Information | 1 |
| - | 804670A08 | EPA标签信息贴花 | DECAL EPA Label Information | 1 |
| - | NSS | 贴纸-EPA(2009年起)(不单独销售) | NOT SOLD SEPARATE DECAL, EPA (2009 & Up) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0058458 | 换挡连杆支架总成 | BRACKET ASSEMBLY Shift Link | 1 |
| 2 | 899044 | 闩锁 | LATCH | 1 |
| 3 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 3 |
| 3 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 3 |
| 4 | 8M0050560 | 垫圈 | WASHER | 1 |
| 5 | 8M0031453 | 滚轮 | ROLLER | 1 |
| 6 | 27290 | 挡圈 | RING Retaining | 1 |
| 7 | 8M0076452 | 固定座总成 | RETAINER ASSEMBLY | 1 |
| 7 | 8M0150203 | 固定座总成 | RETAINER ASSEMBLY | 1 |
| 8 | 8M0181784 | 换挡位置传感器 | SENSOR Shift Position | 1 |
| 9 | 4001186 | 六角垫圈头不锈钢螺钉(M4×13) | SCREW (M4 X 13) Hex Wash HD SS | 1 |
| 10 | 8M0075152 | 换挡连杆 | LINK Shift | 1 |
| 11 | 8M0058943 | 传感器摇臂 | LEVER Sensor | 1 |
| 12 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 13 | 35462 | 垫圈(.2656 x .625 x .0625)不锈钢 | WASHER (.2656 x .625 x .0625) Stainless Steel | 1 |
| 14 | 8M0035249 | 法兰衬套(内径6.452mm) | BUSHING (6.452 MM ID) Flanged | 1 |
| 14 | 8M0237472 | 衬套 | BUSHING | 1 |
| 15 | 8M0060213 | 换挡轴总成 | SHIFT SHAFT ASSEMBLY | 1 |
| 15 | 8M0199744 | 换挡轴总成 | SHIFT SHAFT ASSY | 1 |
| 16 | 8M0063632 | 法兰衬套 | BUSHING Flanged | 1 |
| 17 | 888823001 | 换挡定位装置总成 | SHIFT DETENT ASSEMBLY | 1 |
| 18 | 8M0104795 | 间隔垫片-换挡支架(仅限喷泵舷外机) | SPACER, SHIFT BRACKET Jet Outboards Only | 1 |
| 19 | 8M0071176 | 控制电缆锁扣 | LATCH Control Cable | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0076745 | 垫片组 | SHIM SET | 1 |
| - | 8M0050423 | 垫片 .020 | WASHER .020 | 1 |
| - | 8M0050424 | 垫片 .022 | WASHER .022 | 1 |
| - | 8M0050425 | 垫片 .024 | WASHER .024 | 1 |
| - | 8M0050427 | 垫片 .026 | WASHER .026 | 1 |
| - | 8M0050428 | 垫片 .028 | WASHER .028 | 1 |
| - | 8M0050429 | 垫片 .030 | WASHER .030 | 1 |
| - | 8M0050430 | 垫片 .032 | WASHER .032 | 1 |
| - | 8M0050431 | 垫片 .034 | WASHER .034 | 1 |
| - | 8M0050432 | 垫片 .036 | WASHER .036 | 1 |
| - | 8M0050433 | 垫片 0.038 | WASHER .038 | 1 |
| - | 8M0050434 | 垫片 0.040 | WASHER .040 | 1 |
| - | 8M0050435 | 垫片 0.042 | WASHER .042 | 1 |
| - | 8M0050436 | 垫片 0.044 | WASHER .044 | 1 |
| - | 8M0050437 | 垫片 0.046 | WASHER .046 | 1 |
| - | 8M0050438 | 垫片 0.048 | WASHER .048 | 1 |
| - | 8M0050439 | 垫片 0.050 | WASHER .050 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0082988 | 曲轴位置传感器 | SENSOR Crankshaft Position | 1 |
| 2 | 40011106 | 不锈钢螺钉(M5x13) | SCREW (M5 x 13) Stainless Steel | 2 |
| 3 | 8M0090816 | 集油盘 | TRAY - OIL DRIP | 1 |
| 4 | 8M0049906 | 油盘螺塞 | PLUG Oil Tray | 1 |
| 4 | 8M0143229 | 滴油盘塞 | PLUG Drip Tray | 1 |
| 5 | 8M0012661 | 螺丝 M6×14 六角法兰不锈钢 | SCREW M6 x 14 HEX FLG SS | 2 |
| 6 | 8M0071039 | 机油滤清器接头 | FITTING - OIL FILTER | 1 |
| 7 | 8M0162829 | 机油滤清器 | FILTER Oil | 1 |
| 7 | 8M0065103 | 机油滤清器 | FILTER Oil | 1 |
| 7 | 8M0162830 | 机油滤清器 | FILTER OIL | 1 |
| 8 | 8M6000634 | 压力传感器 | PRESSURE SENSOR | 1 |
| 8 | 8M0142688 | 压力传感器(机油/水) | SENSOR Pressure (Oil/Water) | 1 |
| 9 | 8M0088064 | 启动马达 | STARTER MOTOR | 1 |
| 9 | 8M0166297 | 启动器总成 | STARTER ASSY | 1 |
| 10 | 8M0070367 | 管状支架 8MM | MOUNT - TUBULAR 8MM | 6 |
| 10 | 8M0154659 | 管状支架 8MM | MOUNT TUBULAR 8 mm | 6 |
| 11 | 8M0070369 | 垫圈（内径8.3 X 外径11.8） | SPACER (8.3 I.D. X 11.8 O.D.) | 2 |
| 12 | 8M0070368 | 垫圈（内径8.3 X 外径11.8） | SPACER (8.3 I.D. X 11.8 O.D.) | 1 |
| 13 | 43430 | 垫圈 | WASHER | 3 |
| 14 | 8M0071509 | 六角法兰螺栓(M8×80) | BOLT (M8 X 80) HEX FLG | 2 |
| 14 | 8M0188530 | 螺钉 M8 X 80 六角凸缘头 | SCREW M8 X 80 HEX FLG HD | 2 |
| 15 | 88552645 | 螺钉（M8X45） | SCREW (M8X45) | 1 |
| 16 | 40011148 | 螺钉(M8 x 20) | SCREW (M8 x 20) | 1 |
| 16 | 8M0214929 | 螺钉(M8 x 20) | SCREW (M8 x 20) | 1 |
| 17 | 40011126 | 不锈钢螺丝(M6 x 13) | SCREW (M6 x 13) Stainless Steel | 1 |
| 18 | 400255 | 锁紧垫圈(M5) | LOCKWASHER (M5) | 1 |
| 19 | 400211 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 1 |
| 20 | 401388 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 1 |
| 21 | 885342002 | 传感器总成 | SENSOR ASSEMBLY | 1 |
| 21 | 8M0148668 | 传感器总成 | SENSOR ASSEMBLY | 1 |
| 22 | 8M0056666 | 起动机接地带 | GROUND STRAP Starter | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 898032A03 | 旋转支架总成 | SWIVEL BRACKET ASSEMBLY | 1 |
| 2 | 87735 | 下油封 | SEAL Oil Lower | 1 |
| 3 | 818764 | 衬套 | BUSHING | 2 |
| 4 | 33504 | O型圈 | O-RING | 1 |
| 4 | 8M0214926 | O型圈 @10 | O RING @10 | 1 |
| 5 | 816039 | 隔套 | SPACER | 1 |
| 6 | 74036 | 润滑脂接头 | FITTING Grease | 2 |
| 6 | 8M0169589 | 润滑脂接头 | FITTING Grease | 2 |
| 7 | 821207 | 衬套 | BUSHING | 2 |
| 8 | 64014 | 螺钉(.250-28x.500) | SCREW (.250-28 x .500) | 2 |
| 9 | 99661A35 | 旋转销总成 | SWIVEL PIN ASSEMBLY | 1 |
| 10 | 92876A12 | 连杆总成 | LINK ROD ASSEMBLY | 1 |
| 11 | 849838 | 螺钉(.375-24 x 1.250) | SCREW (.375-24 x 1.250) | 1 |
| 12 | 8M0042636 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 1 |
| 12 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 1 |
| 13 | 826709113 | 不锈钢螺母 (.375-24) | NUT (.375-24) Stainless Steel | 1 |
| 13 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 1 |
| 14 | 37828 | 不锈钢垫圈 (.390 x .625 x .062) | WASHER (.390 x .625 x .062) Stainless Steel | 2 |
| 15 | 42961A06 | 底部轭架总成 | YOKE ASSEMBLY Bottom | 1 |
| 16 | 67684 | 挡圈 | RING Retaining | 1 |
| 17 | 816432 | 止推垫片(含旋转支架) | THRUST WASHER Included with Swivel Bracket | 1 |
| 18 | 11288001 | 下轭缓冲垫 | BUMPER Bottom Yoke | 1 |
| 19 | 821400A2 | 动力升降倾斜传感器套件 | SENDER KIT Power Trim | 1 |
| 19 | 8M0074845 | ORD 8M0098264 | ORD 8M0098264 | 1 |
| 20 | 852368 | 螺钉（#10-24 X 0.750） | SCREW (#10-24 x .750) | 2 |
| 21 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 2 |
| 22 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| - | NSS | 不单独销售-序列号覆膜标贴 | NOT SOLD SEPARATE Decal-Serial Overlaminate | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0104733 | 转速表套件-艉板安装型 | TACHOMETER KIT Transom Mount | 1 |
| 1 | 8M0095036 | 转速表套件-艉板安装型 | TACHOMETER KIT Transom Mount | 1 |
| 2 | 8M2100452 | 10针数据延长线束 | HARNESS Data Extension 10 Pin | 1 |
| 3 | 8M0099412 | 仪表外壳 | GAUGE HOUSING | 1 |
| 4 | NSS | 转速表7K-黑色(不单独销售) | NOT SOLD SEPARATE TACHOMETER 7K - Black | 1 |
| 5 | 8590741 | 仪表边框(85mm)黑色 | BEZEL (85 mm) Black | 1 |
| 5 | 8M0214969 | 黑色边框 | BEZEL-BLACK | 1 |
| 6 | 895054 | 螺丝(M4×16毫米) | SCREW (M4 x 16 mm) | 2 |
| 7 | 14742 | 螺丝(.250-20 x 1.25) | SCREW (.250-20 x 1.25) | 4 |
| 8 | 57807 | 不锈钢螺钉(#10-16 x 0.750) | SCREW (#10-16 x .750) Stainless Steel | 8 |
| 9 | 69205 | C形垫圈 | C WASHER | 8 |
| 9 | 8M0084613 | C形垫圈 | C-WASHER | 8 |
| 10 | 22875 | 卡扣 | CLIP | 8 |
| 11 | 69355 | 扎带(5.50英寸) | TIE STRAP (5.50 Inches) | 1 |
| 11 | 8M0214940 | 扎带 | TIE STRAP | 1 |
| 12 | 8M0097226 | 转速表套件 舵机安装 | TACHOMETER KIT Helm Mount | 1 |
| - | 8M0095037 | 转速表套件7K-舵机安装(黑色) | TACHOMETER KIT 7 K -Helm Mount (Black) | 1 |
| 13 | 8M0055044 | 转速表线束V6.0 | HARNESS Tachometer, V 6.0 | 1 |
| 14 | NSS | 转速表7K-黑色(不单独销售) | NOT SOLD SEPARATE TACHOMETER 7K - Black | 1 |
| 15 | 8590741 | 仪表边框(85mm)黑色 | BEZEL (85 mm) Black | 1 |
| 15 | 8M0214969 | 黑色边框 | BEZEL-BLACK | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0161144 | 舵柄手柄罩(SeaPro版) | COVER Tiller Handle (SeaPro) | 1 |
| 2 | 8M0161140 | 舵柄贴纸 | DECAL Tiller Handle | 1 |
| 3 | 8M0161363 | 显示器-无缓速控制 | DISPLAY No Troll Control | 1 |
| 4 | 8M0161141 | 螺钉M4×0.7×6.0 | SCREW M4x0.7x6.0 | 6 |
| 5 | 8M0161121 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 6 | 8M0161118 | 线缆扎带扣 | CLIP Cable Tie | 2 |
| 7 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 3 |
| 8 | 897716K01 | 点火开关套件(3位)含钥匙 | SWITCH KIT Ignition (3 Position) With Keys | 1 |
| 9 | 8M0161120 | 安全开关拉绳总成 | SWITCH LANYARD ASSEMBLY | 1 |
| 10 | 8M0161296 | 拉绳贴纸 | DECAL Attach Lanyard | 1 |
| 11 | 8M0161295 | 备用夹贴纸 | DECAL Spare Clip | 1 |
| 12 | 8M0138447 | 备用拉绳叉夹 | CLIP Lanyard Fork, Spare | 1 |
| 13 | 8M0144930 | 音响报警器总成 | ALARM ASSEMBLY Audio Warning | 1 |
| 13 | 8M0210763 | 报警器 | ALARM | 1 |
| 14 | 8M0034874 | 螺丝(M3 x 0.5) | SCREW (M3 x 0.5) | 2 |
| 15 | 8M0161116 | 空档开关 | NEUTRAL SWITCH | 1 |
| 16 | 8M0034875 | 螺母(M3 x 0.5六角) | NUT (M3 x 0.5 Hex) | 2 |
| 17 | 4001987 | 螺钉(M4×16) | SCREW (M4 x 16) | 9 |
| 18 | 8M0161119 | 微调开关总成 | TRIM SWITCH ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 52148A08 | 副驾驶总成 | CO PILOT ASSEMBLY | 1 |
| 1 | 52148002 | 导向杆（15英寸） | PILOT ROD (15.00 Inches) | 1 |
| 2 | 826709111 | 螺母(.312-24)不锈钢 | NUT (.312-24) Stainless Steel | 2 |
| 3 | 8M0042642 | 垫圈(.323 x .562 x .063) | WASHER (.323 x .562 x .063) | 2 |
| 4 | 26841 | 衬套 | BUSHING | 2 |
| 5 | 873491 | 杆 | ROD | 1 |
| 6 | 8M0103848 | 螺母总成 | NUT ASSEMBLY | 1 |
| 7 | 821621 | 叉形旋钮 | KNOB Prong | 1 |
| 8 | 77674 | 垫圈(.35 x .75 x .12) | WASHER (.35 x .75 x .12) | 1 |
| 9 | 56500 | 螺丝(.250-28 x 1.250) | SCREW (.250-28 x 1.250) | 1 |
| 10 | 875273138 | 螺钉(0.375-24×1.38) | SCREW (.375-24 x 1.38) | 1 |
| 10 | 8M0214980 | 螺丝3/8-24 x 1.38六角头 | SCREW 3/8-24 x 1.38 HEX HD | 1 |
| 11 | 8M0042636 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 1 |
| 11 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 1 |
| 12 | 8M0161159 | 锁紧垫圈 | TAB WASHER | 1 |
| 13 | 8M0161158 | 锁紧垫圈 | TAB WASHER | 1 |
| 14 | 8M0161157 | 螺钉 | SCREW | 2 |
| 15 | 8M0124369 | 拉绳总成54英寸 | LANYARD ASSEMBLY 54 in | 1 |
| 15 | 8M0164892 | 拉绳总成54英寸 | LANYARD ASSEMBLY 54 Inches | 1 |
| 16 | 8M0161150 | 换挡油门线套件75-115马力 | SHIFT AND THROTTLE CABLE KIT 75-115 HP | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0161096 | 带倾斜锁的后支架总成 | BRACKET Rear Assembly with Tilt Lock | 1 |
| 2 | 8M0161104 | 螺丝(M4 x 0.7 x 12)平头内六角 | SCREW (M4 x 0.7 x 12), SOC FLAT HD | 2 |
| 3 | 8M0161103 | 倾斜杆 | LEVER Tilt | 2 |
| 4 | 8M0161099 | 轴承衬套 | BUSHING Bearing | 2 |
| 5 | 8M0161683 | 倾斜凹槽凸轮 | DENT CAM Tilt | 1 |
| 6 | 8M0161684 | 锁紧片 | LOCKING TAB | 1 |
| 7 | 8M0161687 | 槽销 | GROOVED PIN | 1 |
| 8 | 8M0161686 | 倾斜轴 | TILT SHAFT | 1 |
| 9 | 8M0161685 | 压缩弹簧 | SPRING Compression | 1 |
| 10 | 826292 | 螺母(M10)黄铜/镀镍 | NUT (M10) Brass/Nickel Plated | 1 |
| 11 | 8M0136052 | 螺钉 | SCREW | 1 |
| 11 | 8M0157385 | 螺钉 | SCREW | 1 |
| 12 | 8M0136057 | 盖形螺母 | NUT Cap | 1 |
| 13 | 40140 | 螺母(M10) | NUT (M10) | 1 |
| 14 | 4002319 | 垫圈 | WASHER | 2 |
| 15 | 8M0161098 | 趾部夹 | CLAMP Toe | 1 |
| 15 | 8M0224370 | 趾部夹 | CLAMP Toe | 1 |
| 16 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 1 |
| 17 | 8M0161147 | 下支架 | LOWER BRACKET | 1 |
| 17 | 8M0224368 | 下支架 | BRACKET Lower | 1 |
| 18 | 8M0136054 | 螺栓 | BOLT | 1 |
| 19 | 8M0136060 | E型卡环 | E RING | 1 |
| 20 | 12024 | 垫圈(0.402 x 0.787 x 0.039 贝氏) | WASHER (.402 x .787 x .039 Bellevi) | 1 |
| 21 | 8M0161101 | 螺丝M10 X 1.5六角头不锈钢 | SCREW M10 X 1.5 HEX HD S.S | 1 |
| 22 | 8M0161102 | 调节螺丝 | SCREW Adjustment | 1 |
| 22 | 8M0153724 | 螺钉 | SCREW | 1 |
| 23 | 8M0051399 | 止动器 | STOPPER | 1 |
| 23 | 8M0245322 | 止动器 | STOPPER | 1 |
| 24 | 8M0161100 | 衬套 | BUSHING | 2 |
| 25 | 8M0031370 | 衬套 | BUSHING | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0161094 | 舵柄底盘 | CHASSIS Tiller | 1 |
| 2 | 8M0161107 | 换挡手柄盖 | COVER Shift Handle | 1 |
| 3 | 8M0161106 | 螺钉 | SCREW | 1 |
| 4 | 4002319 | 垫圈 | WASHER | 1 |
| 5 | 8M0161105 | 换挡手柄总成 | SHIFT HANDLE ASSEMBLY | 1 |
| 6 | 8M0161110 | 法兰衬套 | FLANGE BUSHING | 1 |
| 7 | 8M0161126 | 油门管 | THROTTLE TUBE | 1 |
| - | 8M0166001 | 握把总成 | GRIP ASSEMBLY | 1 |
| 8 | NSS | 内握把不单独销售 | NOT SOLD SEPARATE INNER GRIP | 1 |
| 9 | NSS | 外握把不单独销售 | NOT SOLD SEPARATE OUTER GRIP | 1 |
| 10 | 8M0161124 | 动力微调开关面板 | BEZEL Power Trim Switch | 1 |
| 10 | 8M0161145 | 无动力微调开关面板 | BEZEL No Power Trim Switch | 1 |
| 11 | 8M0161104 | 螺丝(M4 x 0.7 x 12)平头内六角 | SCREW (M4 x 0.7 x 12), SOC FLAT HD | 2 |
| 12 | 8M0161109 | 换挡安装支架 | BRACKET Shift Mounting | 1 |
| 13 | 8M0161113 | 螺丝M6X1.0X10 | SCREW M6X1.0X10 | 7 |
| 14 | 8M0085515 | 螺丝(#8 - 32 x .375) | SCREW (#8 - 32 x .375) | 2 |
| 15 | 8M0161111 | 法兰衬套 | FLANGE BUSHING | 2 |
| 16 | 8M0161108 | 换挡杆 | SHIFT LEVER | 1 |
| 17 | NSS | 螺柱不单独销售 | NOT SOLD SEPARATE STUD | 1 |
| 18 | 8M0161114 | 定位器总成 | DETENT ASSEMBLY | 1 |
| 19 | NSS | NOT SOLD SEPARATE SPRING | 1 | |
| 20 | NSS | NOT SOLD SEPARATE GUIDE | 1 | |
| 21 | NSS | NOT SOLD SEPARATE ROLLER | 1 | |
| 22 | 26811 | 开口销 | COTTER PIN | 3 |
| 23 | 8M0161131 | 摩擦夹 | FRICTION CLAMP | 1 |
| 24 | 8M0161112 | 换挡安装支架 | BRACKET Shift Mounting | 1 |
| 25 | 8M0161137 | 摩擦旋钮 | FRICTION KNOB | 1 |
| 26 | 8M0161138 | 油门摩擦贴纸 | DECAL Throttle Friction | 1 |
| 27 | 8M0161136 | 开口销 | COTTER PIN | 1 |
| 28 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 1 |
| 28 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 1 |
| 29 | 29641 | E型卡环 | E RING | 1 |
| 30 | 8M0161258 | 小齿轮 | PINION | 2 |
| 31 | 8M0161139 | 油门齿轮总成 | THROTTLE GEAR ASSEMBLY | 1 |
| 32 | 8M0161125 | 卡箍 | CLAMP | 1 |
| 33 | 8M0161130 | 油门支架 | THROTTLE BRACKET | 1 |
| 34 | 8M0161128 | U型销 | PIN Clevis | 1 |
| 35 | 8M0161115 | 线束支架 | BRACKET HARNESS | 1 |
| 36 | 8M0161134 | 垫圈 | WASHER | 2 |
| 37 | 8M0161135 | 螺丝M4x16 | SCREW M4x16 | 2 |
| 38 | 8M0161133 | 衬套 | BUSHING | 2 |
| 39 | 8M0161132 | 枕形支撑 | PILLOW SUPPORT | 1 |
| 40 | 8M0161127 | 开口销 | PIN Split Lock | 1 |
| 41 | 8M0161129 | 油门轴 | THROTTLE SHAFT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0087994 | 顶部罩盖总成带水星贴花 | TOP COWL ASSEMBLY Mercury Decaled | 1 |
| 1 | 8M0159539 | 顶部罩盖总成带水星贴花 | TOP COWL ASSEMBLY Mercury Decaled | 1 |
| 1 | 8M0159539 | 顶部罩盖总成带水星贴花 | TOP COWL ASSEMBLY Mercury Decaled | 1 |
| 1 | 8M0090833 | 顶部罩盖总成水手版无贴花 | TOP COWL ASSEMBLY Mariner, Non-Decaled | 1 |
| 1 | 8M0091789 | 顶部罩盖总成黑色无贴花 | TOP COWL ASSEMBLY Black, Non-Decaled | 1 |
| 1 | 8M0087995 | 顶部罩盖总成灰色带贴花 | TOP COWL ASSEMBLY Gray, Decaled | 1 |
| 1 | 8M0096296 | 顶部罩盖总成水星SeaPro版带贴花无马力标识 | TOP COWL ASSEMBLY Mercury, SeaPro Decaled without Horsepower | 1 |
| 2 | 8M0055166 | 顶部罩盖前锁钩 | HOOK Top Cowl Latch Front | 1 |
| 3 | 88552512 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 mm) Stainless Steel | 4 |
| 3 | 8M0103804 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 MM) Stainless Steel | 4 |
| 4 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 6 |
| 4 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 6 |
| 5 | 8M0075859 | 弹簧槽销 | PIN - SPRING, Slotted | 1 |
| 6 | 8M0055191 | 锁柄 | HANDLE, LATCH | 1 |
| 6 | 8M0088853 | 锁柄 | HANDLE, LATCH | 1 |
| 7 | 8M0055189 | 后锁连杆 | LINK - LATCH Rear | 1 |
| 8 | 8M0056980 | 后锁密封 | SEAL Rear Latch | 1 |
| 9 | 8M0075694 | 卡扣夹 | CLIP - SNAP | 1 |
| 10 | 8M0055186 | 锁扣组件 | LATCH ASSEMBLY | 1 |
| 11 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| 11 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| 12 | 8M0006054 | 固定座 | RETAINER | 1 |
| 13 | 8M0087850 | 上罩壳密封件 | SEAL Top Cowl | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 828334T02 | 艉板支架总成 - 右舷 | BRACKET ASSEMBLY Transom - Starboard | 1 |
| 2 | 828333T07 | 艉板支架总成-左舷 | BRACKET ASSEMBLY Transom - Port | 1 |
| 2 | 8M0045064 | 艉板支架套件 | TRANSOM BRK KIT | 1 |
| 3 | 98727 | 润滑脂加注口接头 | FITTING Grease Port | 1 |
| 3 | 8M0169588 | 润滑脂接头 | FITTING Grease | 1 |
| 4 | 826125A1 | 倾斜管 | TILT TUBE | 1 |
| 5 | 826135 | 尼龙锁紧螺母(1.00-14) | NUT Lock (1.00-14) Nylon Insert | 1 |
| 6 | 45711 | O型圈 内径0.612英寸×宽0.103英寸 | O-Ring .612 IN I.D. x .103 IN Width | 1 |
| 7 | 88750 | 波浪垫圈(1.62 x 1.05) | WASHER Wave (1.62 x 1.05) Wave | 2 |
| 8 | 826164 | 螺母 (.875-14) | NUT (.875-14) | 1 |
| 8 | 8M0231351 | 锁紧螺母 | NUT Lock | 1 |
| 9 | 677551 | 螺钉(.500-20×4.500) | SCREW (.500-20 x 4.500) | 4 |
| 9 | 8M0149747 | 螺钉 | SCREW | 4 |
| 10 | 54012 | 垫圈(0.530×0.870×0.105不锈钢) | WASHER (.530 x .870 x .105) Stainless Steel | 4 |
| 10 | 8M0204665 | 垫圈(0.530×0.880×0.104 630不锈钢) | WASHER (.530 x .880 x .104) 630 Stainless Steel | 4 |
| 11 | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 11 | 8M0204648 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 12 | 82671117 | 螺母(.500-20) | NUT (.500-20) | 4 |
| 13 | 830899 | 张力弹簧 | SPRING Tension | 1 |
| 14 | 821176T02 | 倾斜锁定杆总成 | LEVER ASSEMBLY Tilt Lock | 1 |
| 14 | 8M0109798 | 倾斜锁定杆总成 | LEVER ASSEMBLY Tilt Lock | 1 |
| 15 | 65830 | 尼龙衬套 | NYLINER | 2 |
| 16 | 830900 | 压缩弹簧 | SPRING Compression | 1 |
| 17 | 99633 | 旋钮 | KNOB | 1 |
| 18 | 99615 | 槽销 | PIN Groove | 1 |
| 19 | 99617 | 左舷艉板支架附带销 | PIN Included with Port Transom Bracket | 1 |
| 19 | 893709 | 销 | PIN | 1 |
| 20 | 818771T1 | 锚支架 | BRACKET Anchor | 1 |
| 20 | 8M0086406 | 锚支架 | BRACKET Anchor | 1 |
| 21 | 858771 | 螺钉 (M10 x 30) | SCREW (M10 x 30) | 6 |
| 22 | 4002319 | 垫圈 | WASHER | 6 |
| 23 | 40114 | 螺母(M10 x 1.5) | NUT (M10 x 1.5) | 1 |
| 24 | 8182981 | 阳极块 | ANODE | 1 |
| 24 | 818298Q1 | 阳极套件 | ANODE KIT | 1 |
| 25 | 4000330 | 螺钉(M6x25) | SCREW (M6 x 25) | 2 |
| 25 | 8M0204707 | 不锈钢六角大帽螺钉(M6x25) | SCREW M6 x 25 HX HD CAP SS | 2 |
| 26 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 26 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 27 | 22740 | 卡扣 | CLIP | 2 |
| 28 | 69205 | C形垫圈 | C WASHER | 1 |
| 28 | 8M0084613 | C形垫圈 | C-WASHER | 1 |
| 29 | 878609 | 螺钉 (#10-16 x .600) | SCREW (#10-16 x .600) | 1 |
| 30 | NSS | 不单独销售-序列号覆膜标贴 | NOT SOLD SEPARATE Decal-Serial Overlaminate | 1 |
| 31 | 8M0043059 | 警告标贴 | DECAL Warning | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0109543 | 燃油滤清器套件-远程油水分离型 | FUEL FILTER KIT Remote Water Seperating | 1 |
| 1 | 8M0095674 | 燃油滤清器底座总成 | BASE ASSEMBLY Fuel Filter | 1 |
| 2 | 809096 | 油水分离式燃油滤清器总成 | FILTER Fuel-Water Separating Fuel Filter Assembly | 1 |
| 2 | 8M0116793 | 燃油滤清器套件 | FUEL FILTER KIT | 1 |
| 3 | 8M0021044 | 滤杯 | BOWL | 1 |
| 3 | 8M0214990 | 滤清器杯体 | FILTER BOWL | 1 |
| 4 | 8M0103095 | 油水分离滤清器(11/16-16螺纹) | FILTER Fuel-Water Separating (11/16-16 Thread) | 1 |
| 4 | 8M0146203 | 滤芯(11/16英寸) | ELEMENT 11/16 IN | 1 |
| 5 | 36373 | 六角堵头（.375-18）-钢制 | PLUG (.375-18) Hex - Steel | 2 |
| 5 | 8M0204657 | 堵头 | PLUG | 2 |
| 6 | 8M0086290 | 倒钩接头 | CONNECTOR Barb | 2 |
| 6 | 8M0204732 | 倒钩接头 | CONNECTOR Barb | 2 |
| 7 | 855697 | 卡箍 | CLAMP | 2 |
| 7 | 8M0204696 | 卡箍 | CLAMP | 2 |
| 8 | 8M0021043 | 传感器总成 燃油和水 | SENSOR ASSEMBLY Fuel and Water | 1 |
| 8 | 8M0214989 | 燃油含水传感器 | SENSOR WIF | 1 |
| 9 | 8M0060420 | 线束(6针) | HARNESS 6 Pin | 1 |
| 10 | 8M0060421 | 线束转接器 | HARNESS Adapter | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0097838 | 燃油滤清器套件 | FUEL FILTER KIT | 1 |
| 1 | 8M0095674 | 燃油滤清器底座总成 | BASE ASSEMBLY Fuel Filter | 1 |
| 2 | 8M0116793 | 燃油滤清器套件 | FUEL FILTER KIT | 1 |
| 3 | 8M0021044 | 滤杯 | BOWL | 1 |
| 3 | 8M0214990 | 滤清器杯体 | FILTER BOWL | 1 |
| 4 | 8M0103095 | 油水分离滤清器(11/16-16螺纹) | FILTER Fuel-Water Separating (11/16-16 Thread) | 1 |
| 4 | 8M0146203 | 滤芯(11/16英寸) | ELEMENT 11/16 IN | 1 |
| 5 | 36373 | 六角堵头（.375-18）-钢制 | PLUG (.375-18) Hex - Steel | 2 |
| 5 | 8M0204657 | 堵头 | PLUG | 2 |
| 6 | 8M0086290 | 倒钩接头 | CONNECTOR Barb | 2 |
| 6 | 8M0204732 | 倒钩接头 | CONNECTOR Barb | 2 |
| 7 | 815504105 | 蜗轮卡箍(11-18毫米) | CLAMP Worm Gear (11-18 mm) | 2 |
| 7 | 8M0188618 | 蜗轮卡箍(11-18毫米) | CLAMP Worm Gear (11-18 mm) | 2 |
