四冲程 电喷 EFI · USA - Cat.# 90-898101362 · 共 38 个部位 · 1387 条零件
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 0 | 858610A31 | 燃油软管总成 | HOSE ASSEMBLY Fuel | 1 |
| 0 | 859675A1 | 转速表(0-8000转)黑面蓝刻度黑边框 | TACHOMETER (0-8000 RPM) Black Face, Blue Graduation, Black Bezel | 1 |
| 0 | 895283A06 | 转速表套件(0-8000转)黑面蓝刻度黑边框 | TACHOMETER KIT (0-8000 RPM) Black Face, Blue Graduations, Black Bezel | 1 |
| 0 | 859688A1 | 水压表套件(2-30PSI)黑面蓝刻度黑边框 | GAUGE KIT Water Pressure (2-30 PSI) Black Face, Blue Graduation, Black Bezel | 1 |
| 0 | 895288A03 | 水压表套件(2-30PSI)黑面蓝刻度黑边框 | GAUGE KIT Water Pressure (2-30 PSI) Black Face, Blue Graduations, Black Bezel | 1 |
| 0 | 86306A01 | 适配器 | ADAPTER | 1 |
| 0 | 821400A2 | 动力升降倾斜传感器套件 | SENDER KIT Power Trim | 1 |
| 0 | 8M0074845 | ORD 8M0098264 | ORD 8M0098264 | 1 |
| 0 | 92876A8 | 转向安装套件 | ATTACHING KIT Steering | 1 |
| 0 | 92876A9 | 双机延长套件 | EXTENSION KIT Dual Engine | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

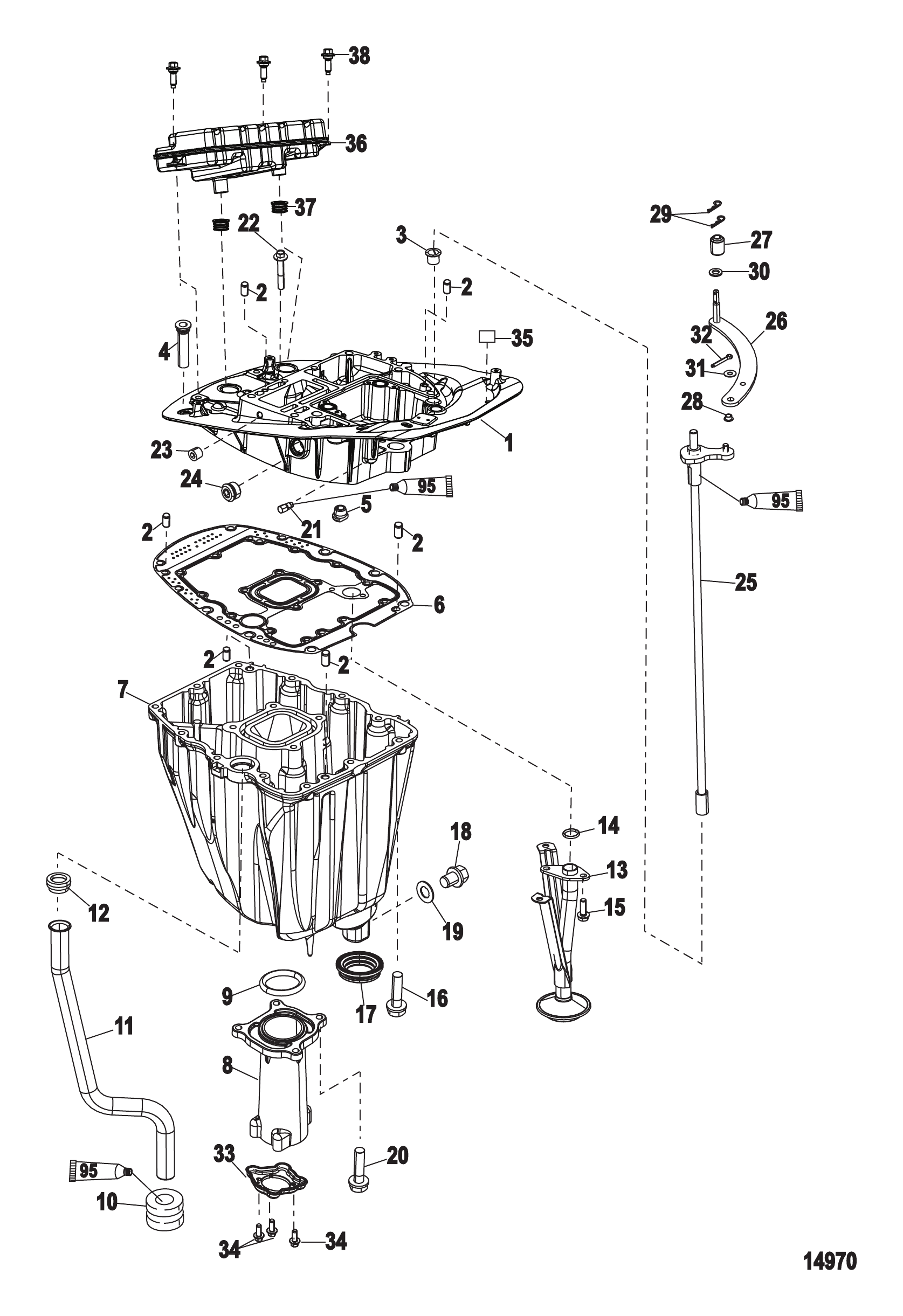

| 1 | 881912T02 | 适配板总成 | ADAPTER PLATE ASSEMBLY | 1 |
| 2 | 23784 | 定位销 | PIN Dowel | 6 |
| 3 | 27132 | 衬套 | BUSHING | 1 |
| 4 | 817519A2 | 排水单向阀总成 | CHECK VALVE ASSEMBLY Drain | 2 |
| 5 | 19565002 | 护孔环 | GROMMET | 1 |
| 6 | 8M0005405 | 适配板衬垫 | GASKET Adapter Plate | 1 |
| 7 | 858572T01 | 油底壳 | SUMP Oil | 1 |
| 8 | 898468A01 | 排气管套件 | TUBE KIT Exhaust | 1 |
| 9 | 881295 | O型圈 | O-RING | 1 |
| 10 | 89417004 | 护孔环 | GROMMET | 1 |
| 11 | 858575006 | 水管 | TUBE Water | 1 |
| 11 | 8M0026130 | 水管 | TUBE Water | 1 |
| 11 | 8M0026130 | 水管 | TUBE Water | 1 |
| 11 | 858575005 | 水管 | TUBE Water | 1 |
| 11 | 8M0026129 | 水管 | TUBE Water | 1 |
| 11 | 8M0026129 | 水管 | TUBE Water | 1 |
| 12 | 814080001 | 上密封件 | SEAL Upper | 1 |
| 13 | 858571T | 机油吸油管 | TUBE Oil Pick Up | 1 |
| 14 | 859082 | O型圈 | O-RING | 1 |
| 15 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 4 |
| 15 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 4 |
| 16 | 8248327 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 12 |
| 16 | 8M0214957 | 螺钉 | SCREW | 12 |
| 17 | 858573 | 密封件 | SEAL | 1 |
| 17 | 8M0039073 | 密封件 | SEAL | 1 |
| 18 | 8288181 | 放油塞 | PLUG Drain | 1 |
| 19 | 828816 | 衬垫 | GASKET | 1 |
| 19 | 8M0204692 | 衬垫@5 | GASKET @5 | 1 |
| 20 | 82483213 | 螺钉(M6 x 60) | SCREW (M6 x 60) | 4 |
| 21 | 888823001 | 换挡定位装置总成 | SHIFT DETENT ASSEMBLY | 1 |
| 22 | 898442 | 螺钉(M8 x 50) | SCREW (M8 x 50) | 4 |
| 23 | 479452 | 堵头 | PLUG | 1 |
| 24 | 8M0048148 | 堵头 | PLUG | 1 |
| 25 | 888835A1 | 换档轴 | SHIFT SHAFT | 1 |
| 26 | 888840 | 换挡连杆 | SHIFT LINK | 1 |
| 27 | 888917 | 滚轮 | ROLLER | 1 |
| 28 | 891658 | 衬套 | BUSHING | 1 |
| 29 | 82053M | 发夹销 | PIN Hair | 2 |
| 30 | 888832 | 垫圈 | WASHER | 1 |
| 31 | 69056 | 垫圈(.255 x .620 x .030) 不锈钢 | WASHER (.255 x .620 x .030) Stainless Steel | 1 |
| 32 | 26953 | 开口销 | COTTER PIN | 1 |
| 33 | 898844 | 排气管密封件(随排气管提供) | SEAL Exhaust Tube Included with Exhaust Tube | 1 |
| 34 | 88552516 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 3 |
| 34 | 8M0103805 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 3 |
| 35 | 48323 | 堵头 | PLUG | 1 |
| 36 | 898103T91 | 排气集气室 | PLENUM Exhaust | 1 |
| 37 | 8M0001457 | 集气室密封件 | SEAL Plenum | 2 |
| 38 | 892073002 | 台阶螺丝 (M6) | SHOULDER SCREW (M6) | 3 |
| 38 | 8M0230980 | 螺丝 (M6x14) 六角法兰B型 | SCREW (M6 x 14) Hex Flange B | 3 |
| - | 897534A07 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 897148A09 | 长缸体总成 75/80/90/100 | LONG BLOCK ASSEMBLY 75/80/90/100 | 1 |
| - | 8M8033014 | PH L4NA 4S | PH L4NA 4S | 1 |
| - | 897148A08 | 长缸体总成 115 | LONG BLOCK ASSEMBLY 115 | 1 |

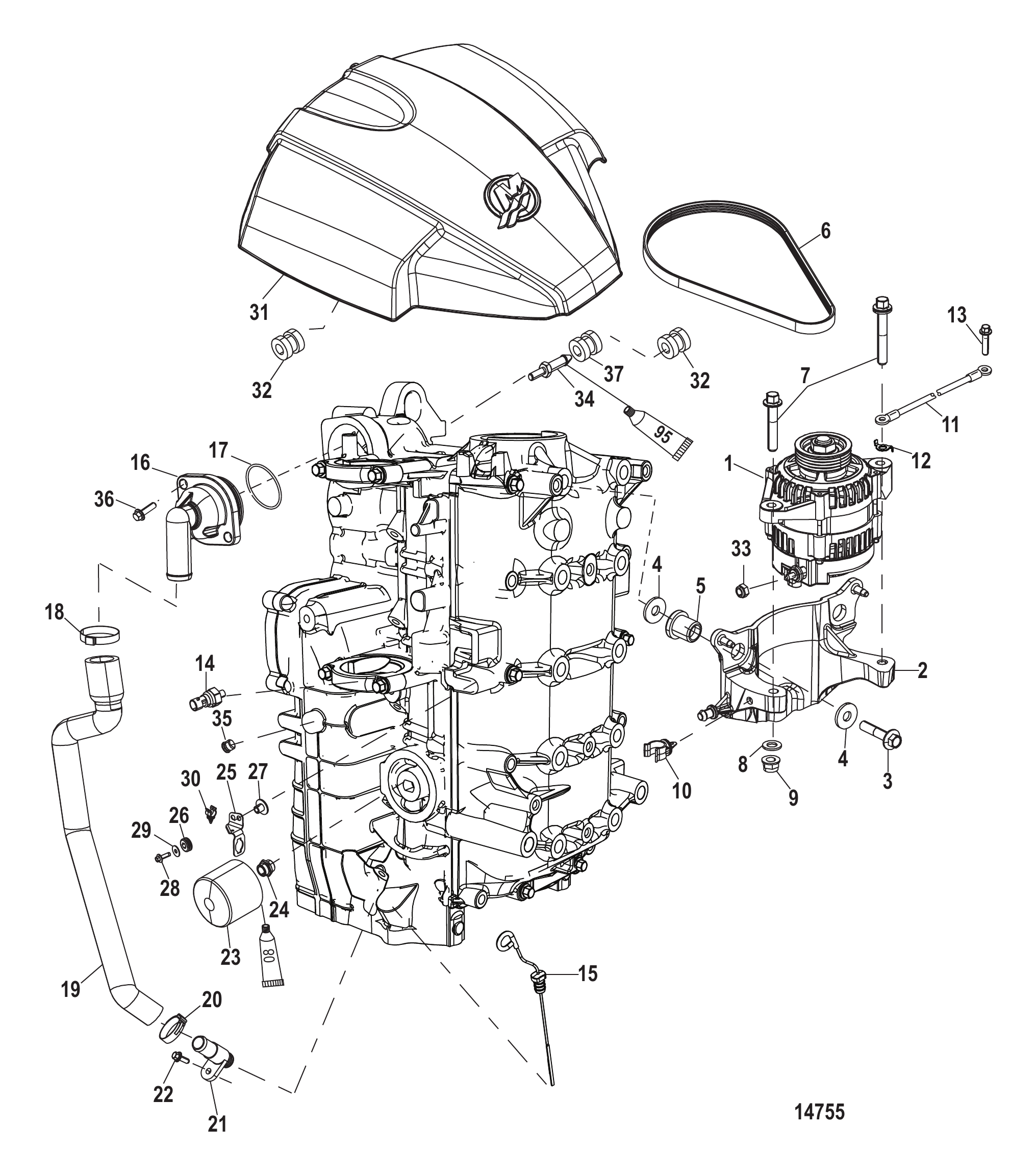

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 897755T | 交流发电机 | ALTERNATOR | 1 |
| 2 | 897568T01 | 支架 | BRACKET | 1 |
| 3 | 82130145 | 螺丝(M10 x 45) | SCREW (M10 x 45) | 3 |
| 4 | 845998 | 垫圈(0.406×1.250×0.089) | WASHER (.406 x 1.250 x .089) | 6 |
| 5 | 899019 | 支架 | MOUNT | 3 |
| 6 | 897574001 | 皮带 | BELT | 1 |
| 6 | 897574Q01 | 皮带 | BELT | 1 |
| 7 | 82446155 | 螺钉(M10×55) | SCREW (M10 x 55) | 2 |
| 8 | 4002319 | 垫圈 | WASHER | 1 |
| 9 | 826292 | 螺母(M10)黄铜/镀镍 | NUT (M10) Brass/Nickel Plated | 1 |
| 10 | 897559153 | 卡扣(15.3毫米) | CLIP (15.3 mm) | 1 |
| 11 | 856583T12 | 接地线总成 | CABLE ASSEBMLY Ground | 1 |
| 12 | 8M0007202 | 锁紧垫圈适用处使用 | TAB WASHER Use where Applicable | 1 |
| 13 | 88552516 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 1 |
| 13 | 8M0103805 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 1 |
| 14 | 897447002 | 机油压力传感器 | SENSOR Oil Pressure | 1 |
| 14 | 8M0142688 | 压力传感器(机油/水) | SENSOR Pressure (Oil/Water) | 1 |
| 15 | 8M0001051 | 量油尺 | DIPSTICK | 1 |
| 16 | 892864T06 | 节温器及壳体总成 | THERMOSTAT AND HOUSING ASSEMBLY Thermostat | 1 |
| 16 | 8M0090819 | 节温器总成 | THERMOSTAT ASSEMBLY | 1 |
| 17 | 8M0005958 | O型圈 | O-RING | 1 |
| 18 | 888988001 | 卡箍(36.1毫米) | CLAMP (36.1 mm) | 1 |
| 18 | 8M0204719 | 卡箍 36.1毫米 | CLAMP 36.1 MM | 1 |
| 19 | 897668 | 节温器泄流软管 | HOSE Thermostat Dump | 1 |
| 20 | 850896 | 卡箍 (28.6) | CLAMP (28.6) | 1 |
| 21 | 897670A01 | 泄流接头总成 | FITTING ASSEMBLY Dump | 1 |
| 22 | 88552516 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 1 |
| 22 | 8M0103805 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 1 |
| 23 | 877761K01 | 机油滤清器(水星品牌) | FILTER Oil Mercury Branded | 1 |
| 23 | 877761Q01 | 机油滤清器(快银品牌) | FILTER Oil Quicksilver Branded | 1 |
| 24 | 897672 | 机油滤清器接头 | FITTING Oil Filter | 1 |
| 24 | 8M0073011 | 接头 | FITTING | 1 |
| 25 | 897126A01 | 支架总成 | BRACKET ASSEMBLY | 1 |
| 26 | 834985 | 护孔环 | GROMMET | 2 |
| 26 | 8M0190980 | 护孔环 | GROMMET | 2 |
| 27 | 822003 | 衬套 | BUSHING | 2 |
| 28 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| 28 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| 29 | 858779 | 垫圈（0.265×0.750×0.048） | WASHER (.265 x .750 x .048) | 2 |
| 30 | 897559 | 卡扣 | CLIP | 1 |
| 31 | 897642T01 | 飞轮盖 | COVER Flywheel | 1 |
| 32 | 821555001 | 护孔环 | GROMMET | 3 |
| 32 | 8M0153609 | 护孔环 | GROMMET | 3 |
| 33 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 34 | 897757 | 销 | PIN | 1 |
| 35 | 897674 | 堵头(M10×1.5) | PLUG (M10 x 1.5) | 1 |
| 35 | 8M0087447 | 堵头(10毫米) | PLUG (10MM) | 1 |
| 36 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| 36 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| 37 | 821555001 | 护孔环 | GROMMET | 1 |
| 37 | 8M0153609 | 护孔环 | GROMMET | 1 |
| - | 897534A07 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 897148A09 | 长缸体总成 75/80/90/100 | LONG BLOCK ASSEMBLY 75/80/90/100 | 1 |
| - | 8M8033014 | PH L4NA 4S | PH L4NA 4S | 1 |
| - | 897148A08 | 长缸体总成 115 | LONG BLOCK ASSEMBLY 115 | 1 |

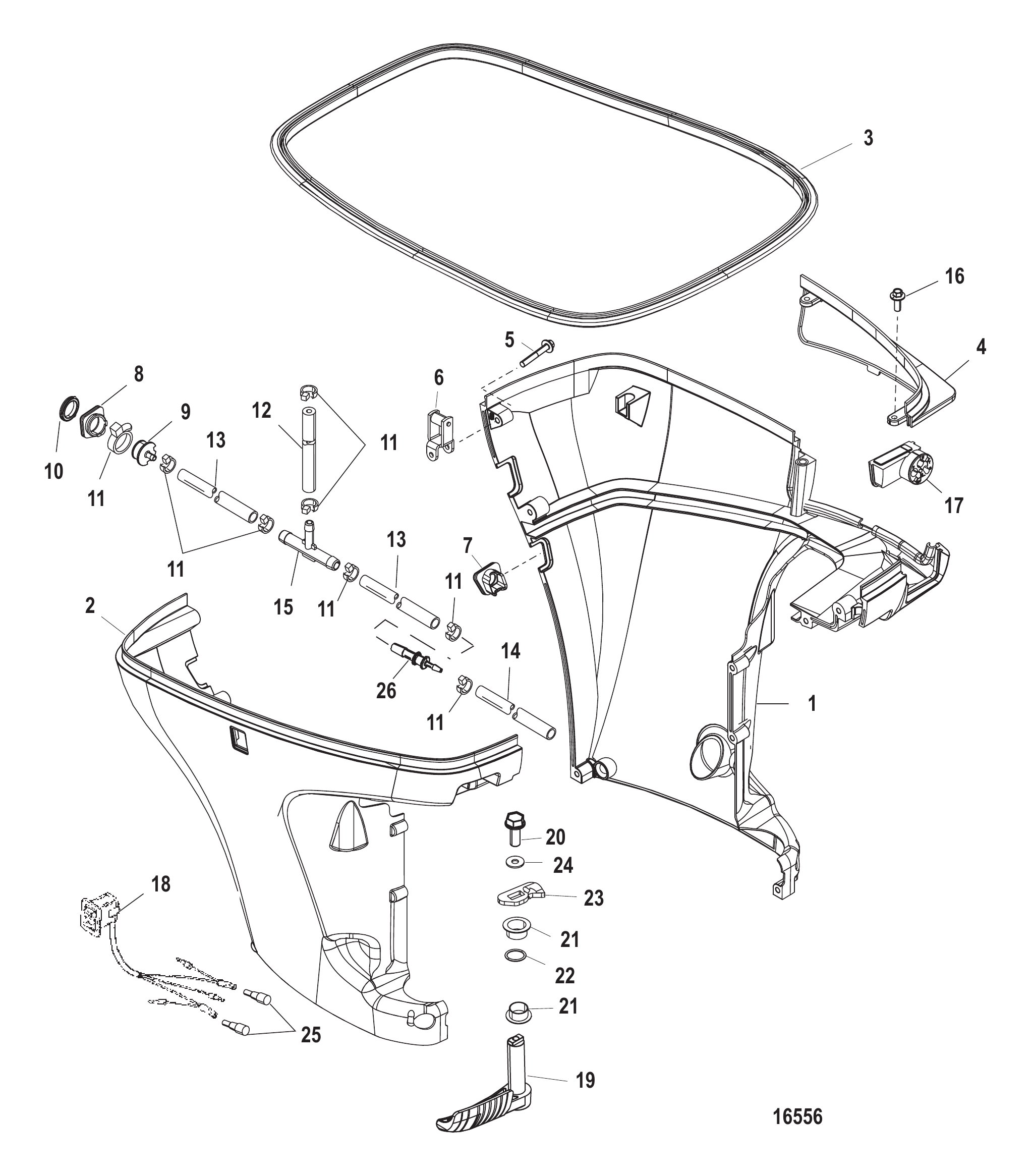

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 878587A1 | 下罩总成(左舷) | BOTTOM COWL ASSEMBLY (Port) | 1 |
| 2 | 858743A2 | 下罩总成(右舷) | BOTTOM COWL ASSEMBLY (Starboard) | 1 |
| 2 | 8M0113913 | 右舷下罩B | COWL-LOWER STBD B | 1 |
| 3 | 8253181 | 罩盖密封条(41英寸) | SEAL Cowl (41.00 Inches) | 2 |
| 3 | 8M0109217 | 罩盖密封条 | SEAL-COWL | 2 |
| 4 | 878547T | 嵌件 | INSERT | 1 |
| 5 | 82130040 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 8 |
| 6 | 831209 | 固定座 | RETAINER | 1 |
| 7 | 858742 | 怠速排气套 | BOOT Idle Exhaust | 1 |
| 8 | 859251 | 护孔环 | GROMMET | 1 |
| 8 | 8M0039078 | 护孔环 | GROMMET | 1 |
| 9 | 827948 | 接头 | FITTING | 1 |
| 10 | 855576 | 垫圈 | WASHER | 1 |
| 11 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 6 |
| 12 | 881535 | 软管(32.00英寸) | HOSE (32.00 Inches) | 1 |
| 13 | 830756109 | 软管(57.00英寸整料)(裁切至5英寸) | HOSE (57.00 Inches Bulk) (Cut to 5 Inches) | 2 |
| 13 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 2 |
| 14 | 9912688 | 管材（36英寸整卷）（裁切至21英寸） | TUBING (36.00 Inches Bulk) (Cut to 21 Inches) | 1 |
| 15 | 817518 | 三通 | TEE | 1 |
| 16 | 82130020 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 2 |
| 17 | 889724 | 护孔环 | GROMMET | 1 |
| 18 | 896620 | 开关总成 | SWITCH ASSEMBLY | 1 |
| 18 | 8M0235192 | 微调开关 | SWITCH TRIM | 1 |
| 19 | 889740A02 | 手柄套件 | HANDLE KIT | 1 |
| 20 | 1993716 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 1 |
| 21 | 33589 | 衬套 | BUSHING | 2 |
| 22 | 48462 | O型圈 (.614 x .070) | O-RING (.614 x .070) | 1 |
| 23 | 8219423 | 棘爪 | PAWL | 1 |
| 24 | 69057 | 垫片(.281 x .734 x .063) | WASHER (.281 x .734 x .063) | 1 |
| 25 | 13541 | 公插头 | PLUG Male | 2 |
| 26 | 898029 | 异径接头 | FITTING Reducer | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

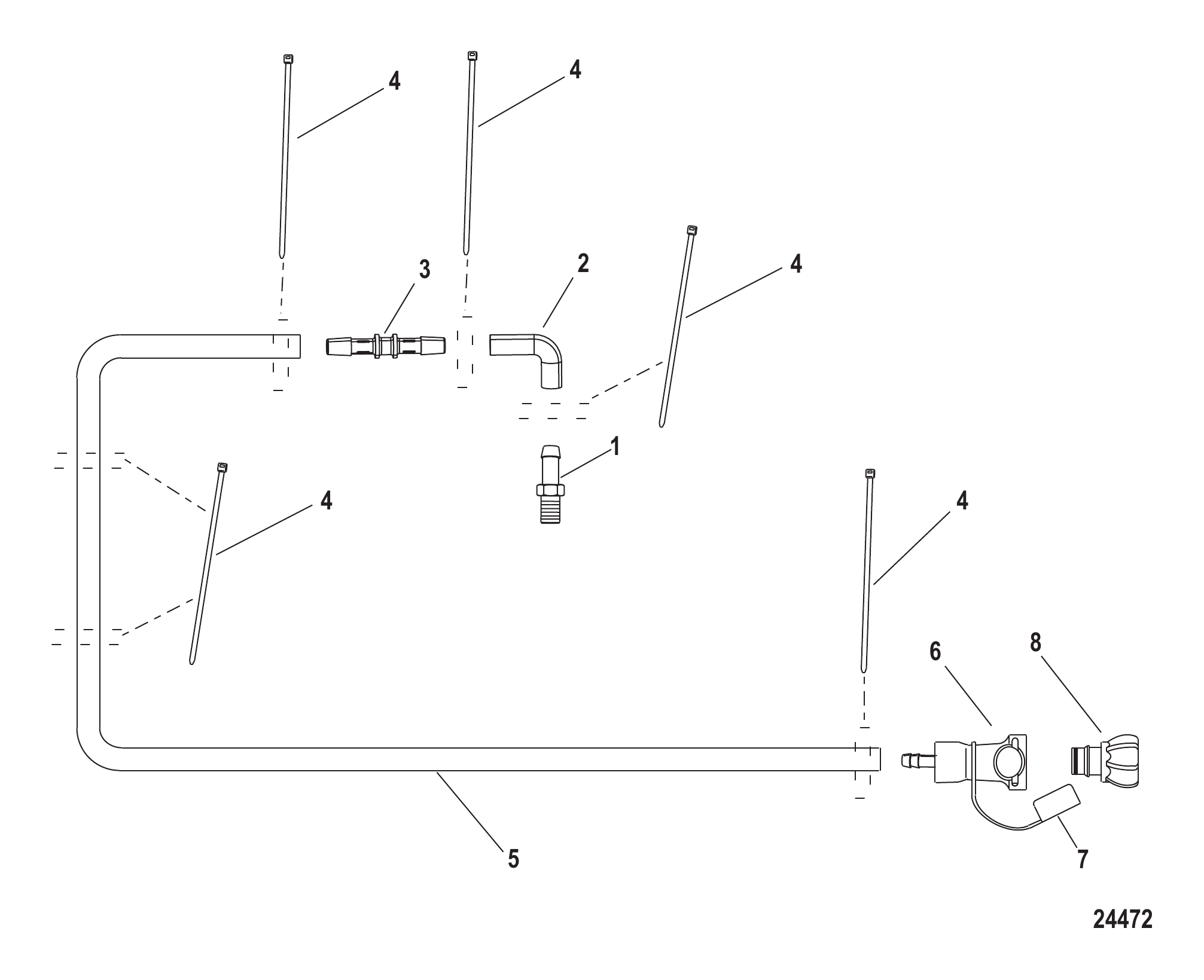

| - | 858566A03 | 冲洗套件(海岸型) | FLUSH KIT Coastal | 1 |
| 1 | 898452 | 接头 | FITTING | 1 |
| 2 | 897795 | 软管 | HOSE | 1 |
| 3 | 858955 | 连接器 | CONNECTOR | 1 |
| 4 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 7 |
| 5 | 830757130 | 管材 (.312) (70.00英寸散装) | TUBING (.312) (70.00 Inches Bulk) | 1 |
| 5 | 8M0108349 | 软管 (70英寸散装) | HOSE (70 Inches Bulk) | 1 |
| 6 | 857176 | 联轴器主体 | COUPLING BODY | 1 |
| 7 | 858240 | 系绳盖 | CAP Tethered | 1 |
| 8 | 857175 | 联轴器插芯 | COUPLING INSERT | 1 |

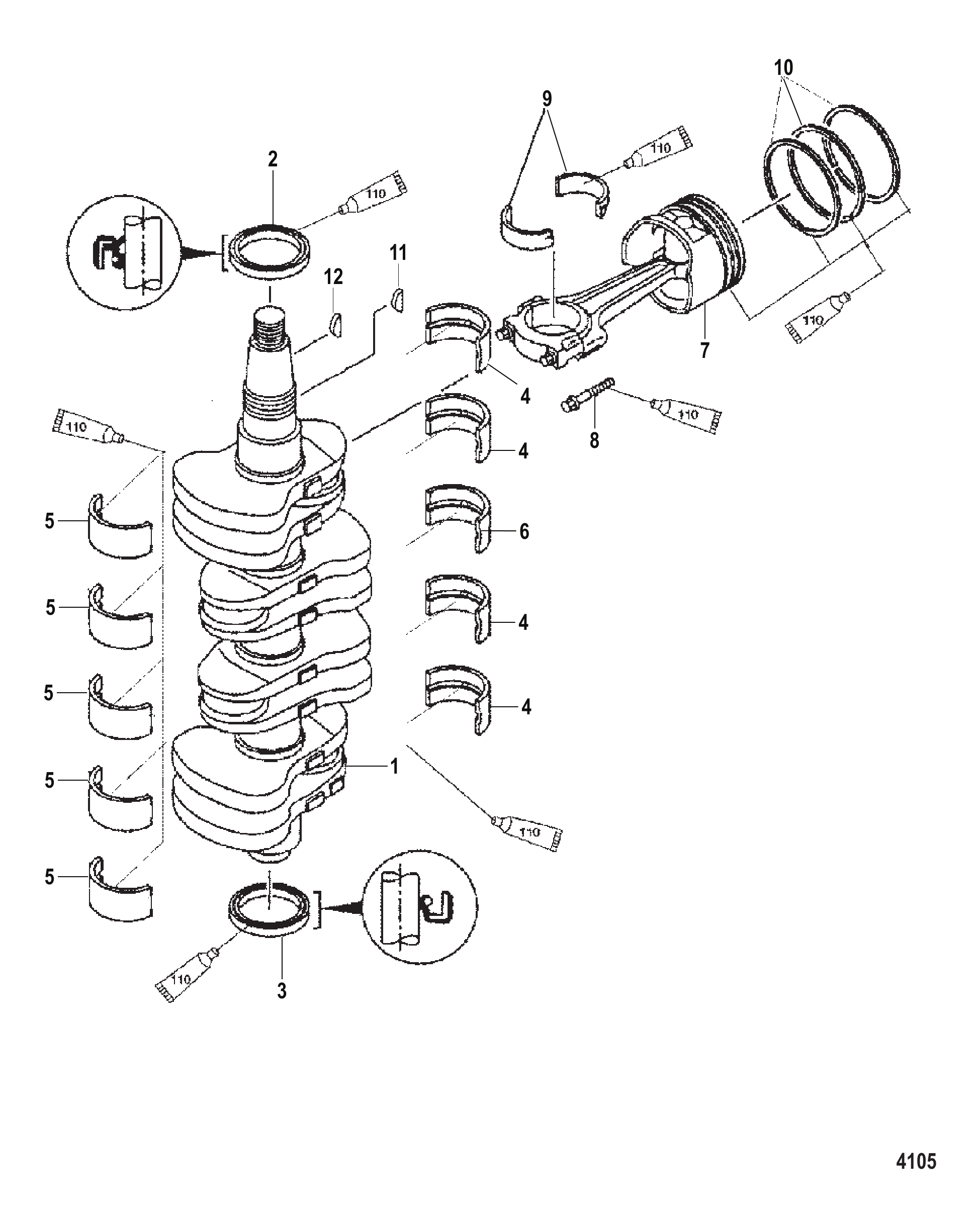

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 880894T01 | 曲轴 | CRANKSHAFT | 1 |
| 2 | 804099003 | 油封 | SEAL Oil | 1 |
| 3 | 804100003 | 油封 | SEAL Oil | 1 |
| 4 | 804101T | 轴承 | BEARING | 4 |
| 4 | 804101T10 | 轴承 | BEARING | 4 |
| 4 | 804101T20 | 轴承 | BEARING | 4 |
| 5 | 804102T | 轴承 | BEARING | 5 |
| 5 | 804102T10 | 轴承 | BEARING | 5 |
| 5 | 804102T20 | 轴承 | BEARING | 5 |
| 5 | 804102T30 | 轴承 | BEARING | 5 |
| 6 | 804103T | 轴承 | BEARING | 1 |
| 6 | 804103T10 | 轴承 | BEARING | 1 |
| 6 | 804103T20 | 轴承 | BEARING | 1 |
| 7 | 880895T02 | 活塞总成 | PISTON ASSEMBLY | 4 |
| 7 | 880895T03 | 活塞总成 | PISTON ASSEMBLY | AR |
| 8 | 804105 | 螺栓 | BOLT | 2 |
| 9 | 804106T01 | 轴承 | BEARING | 8 |
| 9 | 804106T11 | 轴承 | BEARING | 8 |
| 9 | 804106T21 | 轴承 | BEARING | 8 |
| 9 | 804106T31 | 轴承 | BEARING | 8 |
| 10 | 880897T02 | 活塞环组 | RING SET Piston | 1 |
| 10 | 880898T02 | 活塞环组 | RING SET Piston | AR |
| 11 | 804153 | 键 | KEY | 1 |
| 12 | 8261001 | 键 | KEY | 1 |
| - | 858732A03 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 881421T05 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 8M0094898 | P/H 75-90 4S | P/H 75-90 4S | 1 |

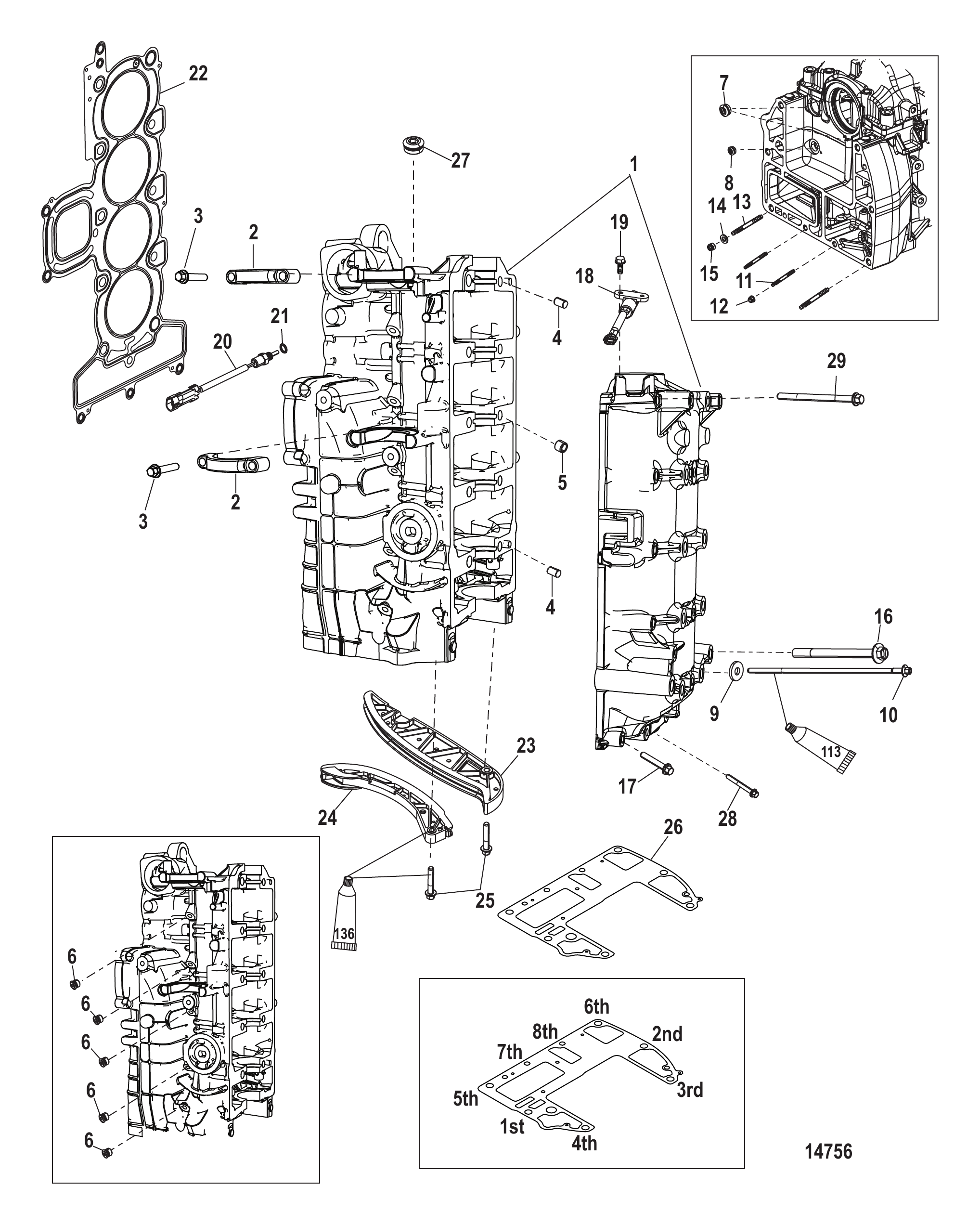

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 880504A12 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 2 | 8M0007889 | 支架 | BRACKET | 2 |
| 3 | 88552640 | 螺钉（M8×40）注：长缸体套装中不再包含 | SCREW (M8 x 40) NOTE:No Longer included with Longblock | 4 |
| 3 | 8M0103815 | 螺钉 | SCREW | 4 |
| 4 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 2 |
| 5 | 893392001 | 减震器 | DAMPER | 10 |
| 6 | 8M0047994 | 堵头（12毫米） | PLUG (12 MM) | 5 |
| 6 | 8M0087448 | 堵头×2 | PLUG @2 | 5 |
| 7 | 896951 | 堵头（24毫米） | PLUG (24 mm) | 2 |
| 8 | 8M0010474 | 堵头（14毫米） | PLUG (14 mm) | 1 |
| 8 | 8M0087449 | 堵头（14毫米） | PLUG (14 mm) | 1 |
| 9 | 892573001 | 垫圈 | WASHER | 10 |
| 10 | 896923 | 螺钉（M10×342） | SCREW (M10 x 342) | 10 |
| 10 | 8M4501000 | 螺钉（M10×342） | SCREW (M10 X 342) | 10 |
| 11 | 897599 | 双头螺柱（M8×55） | STUD (M8 x 55) | 2 |
| 11 | 8M0000275 | 螺柱 | STUD | 2 |
| 12 | 826365 | 螺母 (M8) | NUT (M8) | 2 |
| 13 | 897677 | 双头螺柱（M10×1.5） | STUD (M10 x 1.5) | 6 |
| 13 | 8M0010471 | 双头螺柱×2 | STUD @2 | 6 |
| 14 | 856774 | 垫圈(0.406×0.750×0.105)不锈钢 | WASHER (.406 x .750 x .105) Stainless Steel | 6 |
| 14 | 8M0214963 | 垫圈 | WASHER | 6 |
| 15 | 884412 | 螺母 | NUT | 6 |
| 16 | 892086120 | 螺钉（M10×120） | SCREW (M10 x 120) | 2 |
| 16 | 8M0103829 | 螺钉 | SCREW | 2 |
| 17 | 895810050 | 螺钉(M8 x 50) | SCREW (M8 x 50) | 2 |
| 17 | 8M0193659 | 螺钉 | SCREW | 2 |
| 18 | 8283582 | 传感器 | SENSOR | 1 |
| 18 | 8M0082988 | 曲轴位置传感器 | SENSOR Crankshaft Position | 1 |
| 19 | 40011106 | 不锈钢螺钉(M5x13) | SCREW (M5 x 13) Stainless Steel | 2 |
| 20 | 885342002 | 传感器总成 | SENSOR ASSEMBLY | 1 |
| 20 | 8M0148668 | 传感器总成 | SENSOR ASSEMBLY | 1 |
| 21 | 896699 | O型圈（1.78毫米 x 0.08毫米） | O-RING (1.78 mm x .08 mm) | 1 |
| 22 | 896277006 | 衬垫 缸盖 | GASKET Head | 1 |
| 22 | 8M0024565 | 衬垫 | GASKET | 1 |
| 22 | 8M0024565 | 衬垫 | GASKET | 1 |
| 23 | 880559 | 固定导套 | GUIDE Fixed | 1 |
| 24 | 880557 | 活动导板 | GUIDE Moveable | 1 |
| 25 | 892456045 | 螺钉 | SCREW | 2 |
| 26 | 897534 | 缸体至适配器衬垫 | GASKET Block to Adapter | 1 |
| 26 | 8M0024563 | 衬垫 | GASKET | 1 |
| 26 | 8M0024563 | 缸体至适配器衬垫 | GASKET Block to Adapter | 1 |
| 27 | 891953 | 堵头（18毫米） | PLUG (18 mm) | 1 |
| 28 | 895810070 | 螺钉(M8 x 70) | SCREW (M8 x 70) | 2 |
| 29 | 895810090 | 螺钉（M8×90） | SCREW (M8 x 90) | 8 |
| - | 897534A07 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 897148A09 | 长缸体总成 75/80/90/100 | LONG BLOCK ASSEMBLY 75/80/90/100 | 1 |
| - | 8M8033014 | PH L4NA 4S | PH L4NA 4S | 1 |
| - | 897148A08 | 长缸体总成 115 | LONG BLOCK ASSEMBLY 115 | 1 |

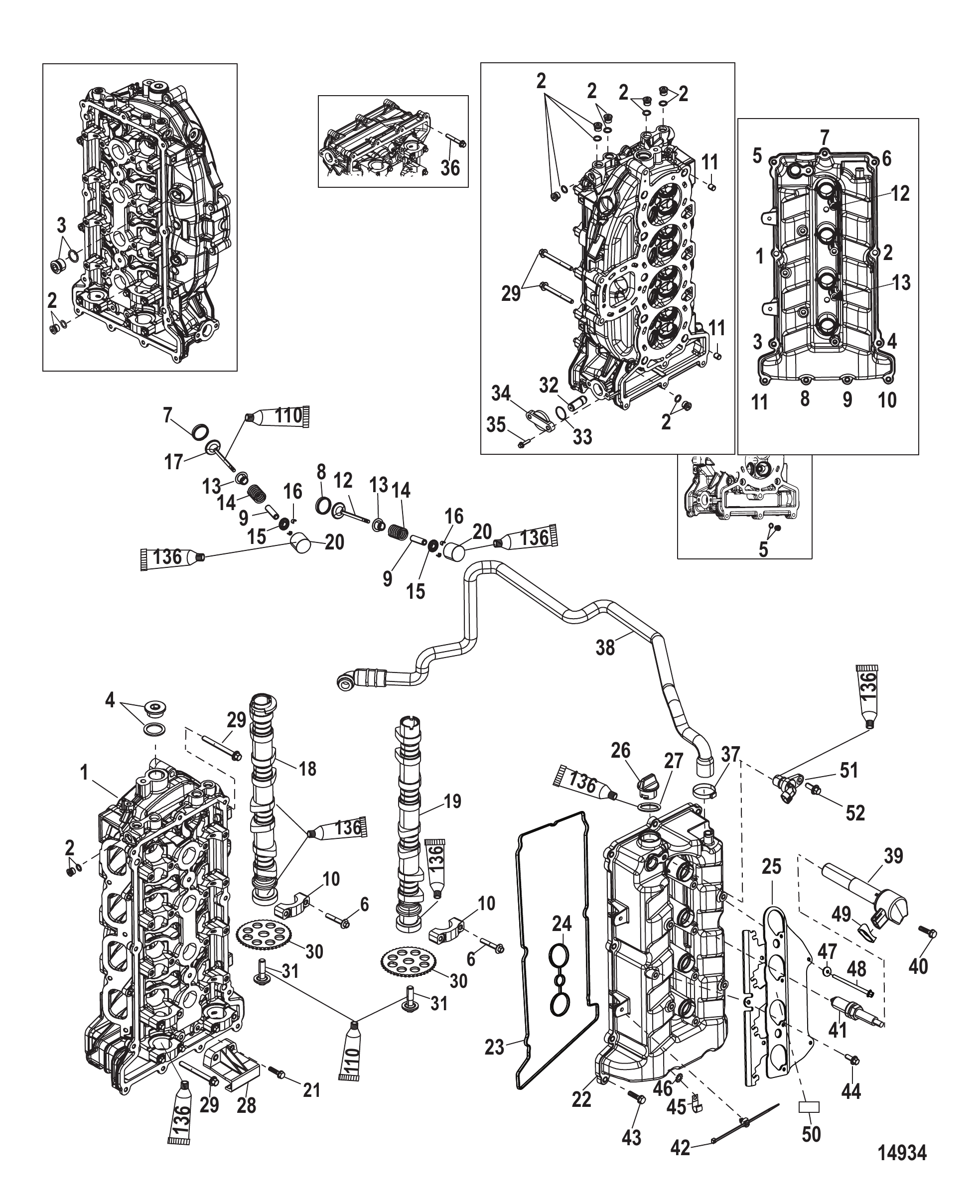

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 897954A03 | 气缸盖总成 | CYLINDER HEAD ASSEMBLY | 1 |
| 2 | 889767 | 堵头（12毫米） | PLUG (12 mm) | 8 |
| 3 | 891953 | 堵头（18毫米） | PLUG (18 mm) | 1 |
| 4 | 896951 | 堵头（24毫米） | PLUG (24 mm) | 1 |
| 5 | 896576 | 堵头（10毫米） | PLUG (10 mm) | 1 |
| 5 | 8M0087446 | 堵头（10毫米） | PLUG (10 mm) | 1 |
| 6 | 892454035 | 螺栓（M6×36） | BOLT (M6 x 36) | 20 |
| 6 | 8M0163131 | M6螺钉 | SCREW M6 | 20 |
| 7 | 880533 | 进气门座 | SEAT Intake Valve | 8 |
| 8 | 880535 | 排气门座 | SEAT Exhaust Valve | 8 |
| 8 | 8M0089477 | 排气门座 | SEAT Exhaust Seat | 8 |
| 9 | 880537 | 进排气门导管 | GUIDE Intake Exhaust Valve Intake and Exhaust Valves | 16 |
| 10 | NSS | NOT SOLD SEPARATE CAP | 10 | |
| 11 | 880524 | 定位销（14毫米） | PIN Dowel (14 MM) | 2 |
| 12 | 897630 | 排气阀 | VALVE Exhaust | 8 |
| 12 | 898908 | 排气阀 | VALVE Exhaust | 8 |
| 12 | 898908 | 排气阀 | VALVE Exhaust | 8 |
| 13 | 896880 | 气门油封 | SEAL Valve | 16 |
| 13 | 8M0214986 | 密封件 | SEAL | 16 |
| 14 | 895815 | 进排气门弹簧 | SPRING Intake and Exhaust Valve | 16 |
| 14 | 8M0011503 | 弹簧 | SPRING | 16 |
| 15 | 880542A1 | 气门锁夹总成 | RETAINER ASSEMBLY Valves | 16 |
| 15 | 8M0908500 | 气门锁夹总成 | RETAINER ASSEMBLY Valves | 16 |
| 16 | 880543 | 键 | KEY | 32 |
| 17 | 897629 | 进气阀 | VALVE Intake | 8 |
| 17 | 898907 | 进气阀 | VALVE Intake | 8 |
| 17 | 898907 | 进气阀 | VALVE Intake | 8 |
| 18 | 898397A03 | 进气凸轮轴总成 | CAMSHAFT ASSEMBLY Intake | 1 |
| 18 | 898397A04 | 进气凸轮轴总成 | CAMSHAFT INTK ASY | 1 |
| 18 | 898397A02 | 进气凸轮轴总成 | CAMSHAFT ASSEMBLY Intake | 1 |
| 19 | 898077A02 | 排气凸轮轴总成 | CAMSHAFT ASSEMBLY Exhaust | 1 |
| 20 | 8805481 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912001 | 挺柱（2.996） | TAPPET (2.996) | 16/AR |
| 20 | 8805482 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912002 | 挺柱（3.021） | TAPPET (3.021) | 16/AR |
| 20 | 8805483 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912003 | 挺柱（3.046） | TAPPET (3.046) | 16/AR |
| 20 | 8805484 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912004 | 挺柱（3.071） | TAPPET (3.071) | 16/AR |
| 20 | 8805485 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912005 | 挺柱（3.096） | TAPPET (3.096) | 16/AR |
| 20 | 8805486 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912006 | 挺柱（3.118） | TAPPET (3.118) | 16/AR |
| 20 | 8805487 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912007 | 挺柱（3.138） | TAPPET (3.138) | 16/AR |
| 20 | 8805488 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912008 | 挺柱（3.158） | TAPPET (3.158) | 16/AR |
| 20 | 8805489 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912009 | 挺柱（3.178） | TAPPET (3.178) | 16/AR |
| 20 | 88054810 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912010 | 挺柱（3.198） | TAPPET (3.198) | 16/AR |
| 20 | 88054811 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912011 | 挺柱（3.218） | TAPPET (3.218) | 16/AR |
| 20 | 88054812 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912012 | 挺柱（3.238） | TAPPET (3.238) | 16/AR |
| 20 | 88054813 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912013 | 挺柱（3.258） | TAPPET (3.258) | 16/AR |
| 20 | 88054814 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912014 | 挺柱（3.278） | TAPPET (3.278) | 16/AR |
| 20 | 88054815 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912015 | 挺柱（3.298） | TAPPET (3.298) | 16/AR |
| 20 | 88054816 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912016 | 挺柱（3.318） | TAPPET (3.318) | 16/AR |
| 20 | 88054817 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912017 | 挺柱（3.338） | TAPPET (3.338) | 16/AR |
| 20 | 88054818 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912018 | 挺柱（3.358） | TAPPET (3.358) | 16/AR |
| 20 | 88054819 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912019 | 挺柱（3.378） | TAPPET (3.378) | 16/AR |
| 20 | 88054820 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912020 | 挺柱（3.398） | TAPPET (3.398) | 16/AR |
| 20 | 88054821 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912021 | 挺柱（3.418） | TAPPET (3.418) | 16/AR |
| 20 | 88054822 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912022 | 挺柱（3.438） | TAPPET (3.438) | 16/AR |
| 20 | 88054823 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912023 | 挺柱（3.458） | TAPPET (3.458) | 16/AR |
| 20 | 88054824 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912024 | 挺柱（3.478） | TAPPET (3.478) | 16/AR |
| 20 | 88054825 | 挺柱 | TAPPET | 16/AR |
| 20 | 88054826 | 挺柱 | TAPPET | 16/AR |
| 20 | 88054827 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912027 | 挺柱（3.538） | TAPPET (3.538) | 16/AR |
| 20 | 88054828 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912028 | 挺柱（3.558） | TAPPET (3.558) | 16/AR |
| 20 | 88054829 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912029 | 挺柱（3.578） | TAPPET (3.578) | 16/AR |
| 20 | 88054830 | 挺柱 | TAPPET | 16/AR |
| 20 | 88054831 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912031 | 挺杆 (3.621) | TAPPET (3.621) | 16/AR |
| 20 | 88054832 | 挺柱 | TAPPET | 16/AR |
| 20 | 88054833 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912033 | 挺杆 (3.671) | TAPPET (3.671) | 16/AR |
| 20 | 88054834 | 挺柱 | TAPPET | 16/AR |
| 20 | 899912034 | 挺杆 (3.696) | TAPPET (3.696) | 16/AR |
| 20 | 88054835 | 挺柱 | TAPPET | 16/AR |
| 21 | 892454030 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 2 |
| 22 | 880553T02 | 凸轮盖总成 | COVER ASSEMBLY Cam | 1 |
| 22 | 880553A07 | 凸轮盖总成 | COVER ASSEMBLY Cam | 1 |
| 22 | 880553T02 | 凸轮盖总成 | COVER ASSEMBLY Cam | 1 |
| 22 | 880553A07 | 凸轮盖总成 | COVER ASSEMBLY Cam | 1 |
| 22 | 880553T05 | 凸轮盖总成 | COVER ASSEMBLY Cam | 1 |
| 22 | 880553T06 | 凸轮盖 | COVER Cam | 1 |
| 22 | 880553T05 | 凸轮盖总成 | COVER ASSEMBLY Cam | 1 |
| 22 | 880553T06 | 凸轮盖 | COVER Cam | 1 |
| 22 | 880553A07 | 凸轮盖总成 | COVER ASSEMBLY Cam | 1 |
| - | 880553T06 | 凸轮盖 | COVER Cam | 1 |
| 23 | 892893 | 密封件 | SEAL | 1 |
| 24 | 892584 | 密封件 | SEAL | 2 |
| 25 | 8M0008370 | 线圈板总成 | PLATE ASSEMBLY Coil | 1 |
| 25 | 8M0008370 | 线圈板总成 | PLATE ASSEMBLY Coil | 1 |
| 25 | 8M0010552 | 线圈板总成 | PLATE ASSEMBLY Coil | 1 |
| 25 | 8M0010552 | 线圈板总成 | PLATE ASSEMBLY Coil | 1 |
| 26 | 859578A1 | 油塞总成 | PLUG ASSEMBLY Oil | 1 |
| 26 | 8M0240831 | 油塞 | OIL PLUG | 1 |
| 27 | 90196 | O型圈 (.921 x .139) | O-RING (.921 x .139) | 1 |
| 27 | 8M0204673 | O型圈 .921 x .139 | O-Ring .921 x .139 | 1 |
| 28 | 880558 | 短导杆 | GUIDE Short | 1 |
| 29 | 88552660 | 螺钉 (M8 x 60) | SCREW (M8 x 60) | 4 |
| 29 | 8M0103817 | 螺钉 (M8 x 60) | SCREW (M8 x 60) | 4 |
| 30 | 880550 | 凸轮驱动链轮 | SPROCKET Cam Drive | 2 |
| 30 | 8M0241408 | 凸轮链轮 | SPROCKET CAM | 2 |
| 31 | 884403 | 螺钉 (M12 x 40) | SCREW (M12 x 40) | 2 |
| 31 | 8M0237436 | 螺钉 | SCREW | 2 |
| 32 | 897797A01 | 张紧器总成 | TENSIONER ASSEMBLY | 1 |
| 32 | 898463A01 | 张紧器总成 | TENSIONER ASSEMBLY | 1 |
| 33 | 880631001 | O型圈 橙色 | O-RING Orange | 1 |
| 33 | 8M0237361 | O型圈 | O-RING | 1 |
| 34 | 893338 | 张紧器端盖 | END CAP Tensioner | 1 |
| 34 | 8M0064752 | 凸轮张紧器端盖 | END CAP Cam Tensioner | 1 |
| 35 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| 35 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| 36 | 88552540 | 螺钉(M6x40毫米)不锈钢 | SCREW (M6 x 40 mm) Stainless Steel | 3 |
| 36 | 8M0103809 | 螺钉(M6x40毫米)不锈钢 | SCREW (M6 x 40 mm) Stainless Steel | 3 |
| 37 | 888988019 | 卡箍 (22.6 mm) | CLAMP (22.6 mm) | 1 |
| 38 | 897673A01 | 通气软管总成 | HOSE ASSEMBLY Breather | 1 |
| 39 | 880615T01 | 线圈总成 | COIL ASSEMBLY | 4 |
| 40 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 4 |
| 40 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 4 |
| 41 | 898829001 | 火花塞 (NGK# LFR4A-E) | SPARK PLUG (NGK# LFR4A-E) | 4 |
| 41 | 8M0157328 | 火花塞 (NGK# LFR4A-E) | SPARK PLUG (NGK# LFR4A-E) | 4 |
| 42 | 899145 | 绑带夹 | CLIP Tie Strap | 2 |
| 43 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 11 or 13 |
| 43 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 11 or 13 |
| 44 | 88552512 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 mm) Stainless Steel | 3 |
| 44 | 8M0103804 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 MM) Stainless Steel | 3 |
| 45 | 55098 | J型卡扣 | J CLIP | 1 |
| 45 | 8M0024808 | J型夹 | J-CLIP | 1 |
| 46 | 93702 | 垫圈(.250外齿星形) | WASHER (.250 External Star) | 1 |
| 47 | 8M0008232 | 垫圈 | WASHER | 2 |
| 48 | 8M0008535 | 螺丝(M6 x 90) | SCREW (M6 x 90) | 2 |
| 48 | 8M0008535 | 螺丝(M6 x 90) | SCREW (M6 x 90) | 2 |
| 48 | 88552585 | 不锈钢螺钉 (M6 x 85 mm) | SCREW (M6 x 85 mm) Stainless Steel | 2 |
| 48 | 88552585 | 不锈钢螺钉 (M6 x 85 mm) | SCREW (M6 x 85 mm) Stainless Steel | 2 |
| 49 | 8M0008642 | 防转橡胶环 | RING Rubber Anti-Rotation | 4 |
| 49 | 8M0119617 | 环形衬套@4 | RING-GROMMET@4 | 4 |
| 50 | 8M0008936 | 线圈螺钉扭矩标贴 | DECAL Coil Screw Torque | 1 |
| 51 | 880609 | 传感器总成 | SENSOR ASSEMBLY | 1 |
| 52 | 88552516 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 1 |
| - | 897534A07 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 897148A09 | 长缸体总成 75/80/90/100 | LONG BLOCK ASSEMBLY 75/80/90/100 | 1 |
| - | 897148A08 | 长缸体总成 115 | LONG BLOCK ASSEMBLY 115 | 1 |

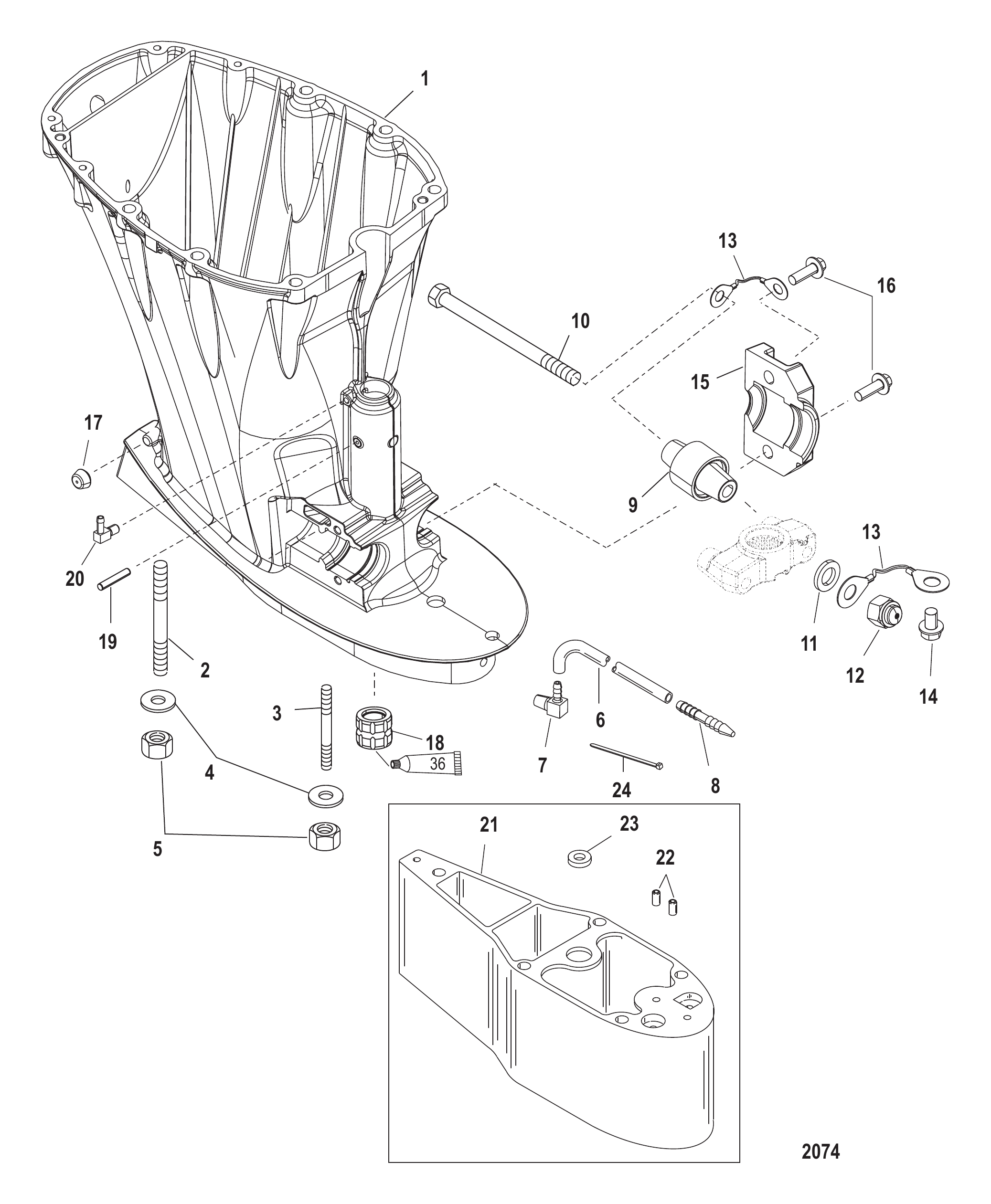

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 858576T03 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 2 | 903501 | 双头螺柱(M10×100) | STUD (M10 x 100) | 1 |
| 2 | 9035015 | 双头螺柱(M10×227) | STUD (M10 x 227) | 1 |
| 3 | 9035012 | 双头螺柱(M10×63) | STUD (M10 x 63) | 4 |
| 3 | 9035016 | 双头螺柱(M10×190) | STUD (M10 x 190) | 4 |
| 3 | 8M0034462 | 双头螺柱(M10×190) | STUD (M10 x 190) | 4 |
| 4 | 856774 | 垫圈(0.406×0.750×0.105)不锈钢 | WASHER (.406 x .750 x .105) Stainless Steel | 5 |
| 4 | 8M0214963 | 垫圈 | WASHER | 5 |
| 5 | 40140 | 螺母(M10) | NUT (M10) | 5 |
| 6 | 85822A15 | 速度计传感器总成 | PICKUP ASSEMBLY Speedometer | 1 |
| 7 | 433351 | 90度接头-带防振密封 | CONNECTOR 90 Degree - With Vibraseal | 1 |
| 8 | 85822 | 直通接头 | CONNECTOR Straight | 1 |
| 8 | 85822T | 直通接头 | CONNECTOR Straight | 1 |
| 9 | 44343T1 | 支架 | MOUNT | 2 |
| 10 | 42973 | 螺栓(M12×154) | BOLT (M12 x 154) | 2 |
| 10 | 898835001 | 螺钉(M12 x 154) | SCREW (M12 x 154) | 2 |
| 11 | 30119 | 垫圈(外径0.875英寸) | WASHER (.875 Inch Outside Diameter) | 2 |
| 12 | 43528 | 螺母(M12) | NUT (M12) | 2 |
| 12 | 8M0204662 | 螺母 | NUT | 2 |
| 13 | 88238A10 | 接地电缆总成至旋转支架 | CABLE ASSEMBLY Ground To Swivel Bracket | 2 |
| 14 | 41508 | 螺钉(0.250-20×0.500)不锈钢 | SCREW (.250-20 x .500) Stainless Steel | 1 |
| 15 | 858916T | 卡箍 | CLAMP | 2 |
| 16 | 889833025 | 螺钉 (M8 x 25 毫米) | SCREW (M8 x 25 MM) | 4 |
| 17 | 858745 | 盖帽 | CAP | 4 |
| 17 | 8M0142713 | 支撑盖帽 | CAP Chap Support | 4 |
| 18 | 859550 | 衬套 | BUSHING | 1 |
| 19 | 24873 | 定位销 | PIN Alignment | 1 |
| 20 | 855622 | 接头 | FITTING | 1 |
| 21 | 12092A3 | 隔套套件 | SPACER KIT | 1 |
| 22 | 43043 | 定位销-带孔(0.375×0.625) | PIN Dowel - With Hole (.375 x .625) | 1 |
| 22 | 8M0084244 | 定位销 0.375x0.620 | PIN Dowel, .375 x .620 | 1 |
| 22 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 1 |
| 23 | 813745 | 隔套 | SPACER | 1 |
| 24 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 2 |

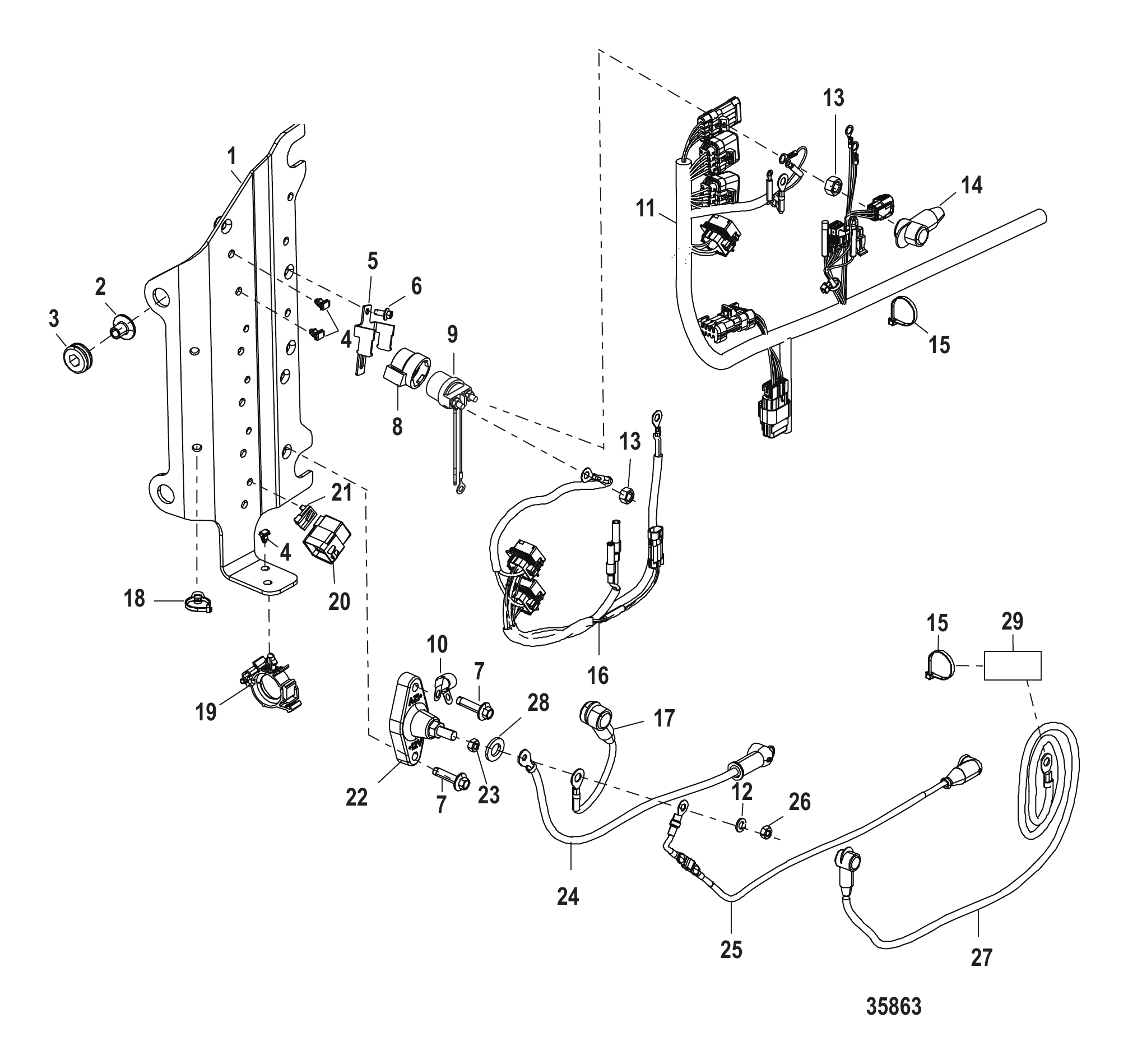

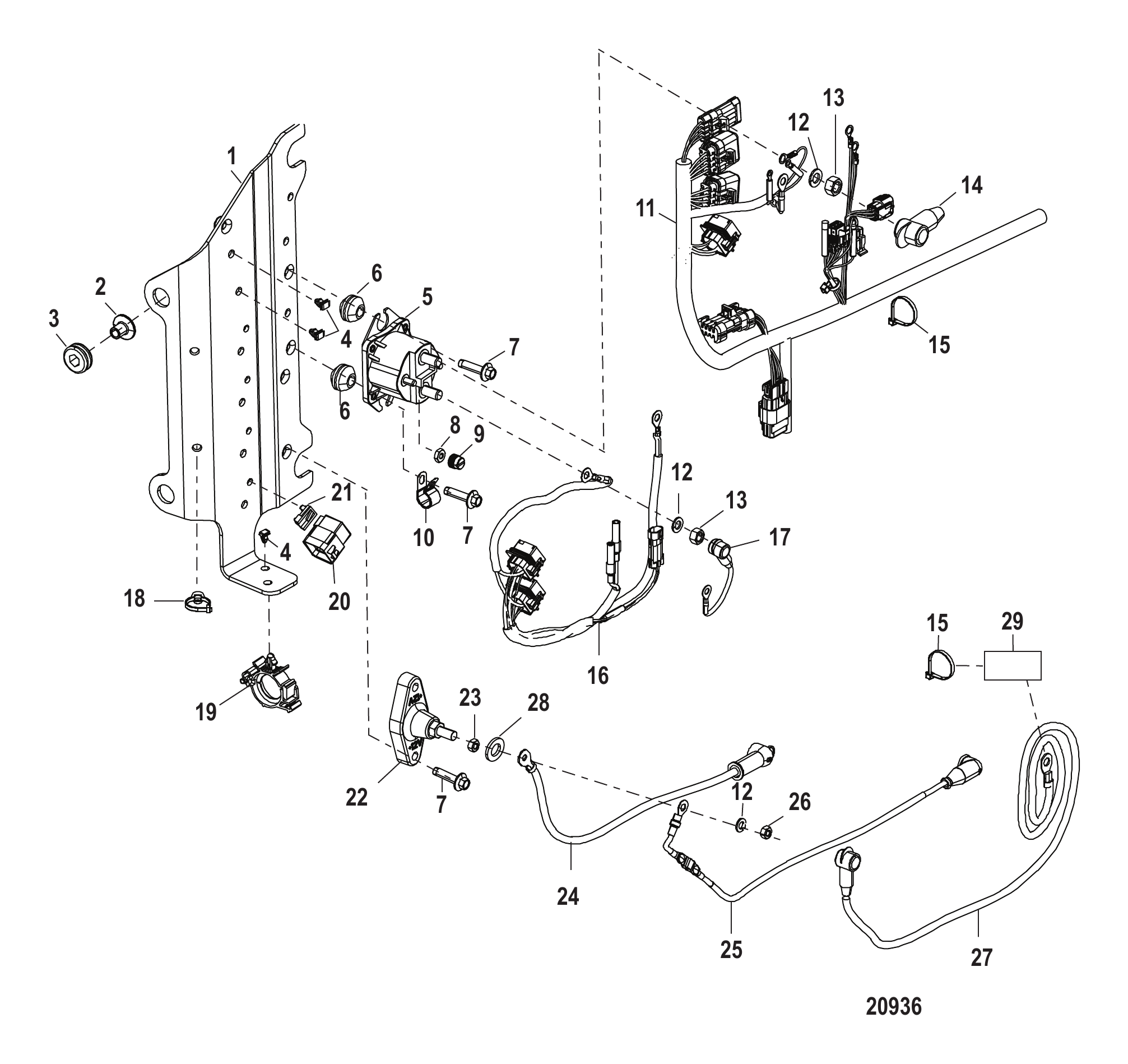

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | NSS | 电气板总成-完整(不单独销售) | NOT SOLD SEPARATE Electricl Plate Assembly-Complete | 1 |
| 2 | 8502341 | 衬套 | BUSHING | 2 |
| 3 | 833155 | 护孔环 | GROMMET | 2 |
| 4 | 817274 | 垫圈(0.344×1.00×0.063)不锈钢 | WASHER (.344 x 1.00 x .063) Stainless Steel | 2 |
| 5 | 88552635 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 2 |
| 5 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 2 |
| 6 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| 6 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| 7 | 65567 | 不锈钢垫圈(0.265x0.750x0.048) | WASHER (.265 x .750 x .048) Stainless Steel | 2 |

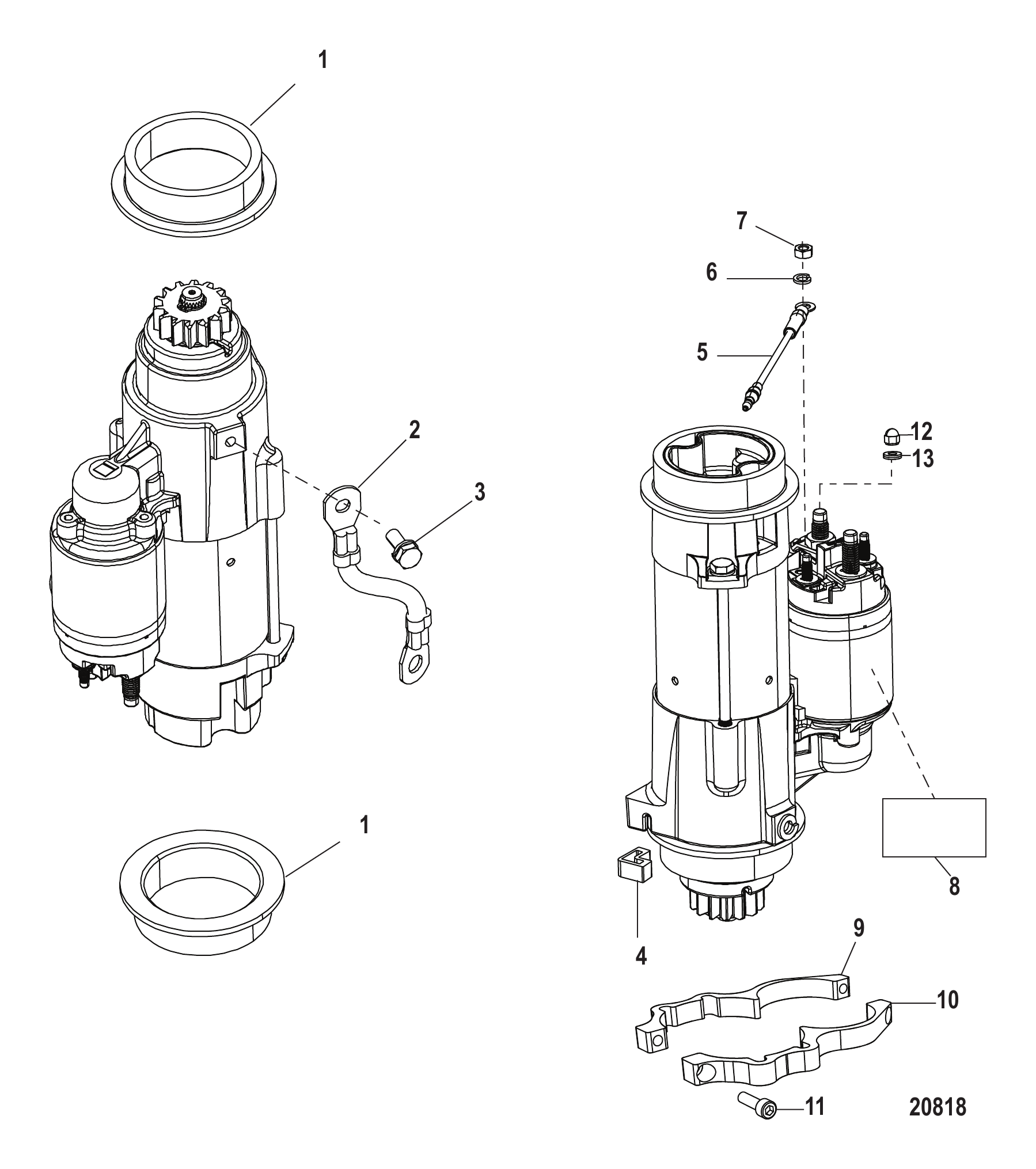

| 8 | 897525T03 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 8 | 897525T05 | 起动机总成(完整) | STARTER MOTOR ASSEMBLY Complete | 1 |
| 8 | 897525T05 | 起动机总成(完整) | STARTER MOTOR ASSEMBLY Complete | 1 |
| 8 | 879150A85 | 启动电机套件 | STARTER MOTOR KIT | 1 |
| 8 | 879345T77 | 起动机总成(完整) | STARTER MOTOR ASSEMBLY Complete | 1 |
| 9 | 89772707T | 发动机控制模块(ECM) - 75 | ECM Engine Control Module - 75 | 1 |
| 9 | 8M0083202 | 发动机控制模块 | ECM | 1 |
| 9 | 89772713T | 发动机控制模块(ECM) - 75 | ECM Engine Control Module - 75 | 1 |
| 9 | 8M0083202 | 发动机控制模块 | ECM | 1 |
| 9 | 89772719T | 发动机控制模块(ECM) - 75 | ECM Engine Control Module - 75 | 1 |
| 9 | 8M0083208 | 发动机控制模块 | ECM | 1 |
| 9 | 89772710T | 发动机控制模块(ECM) - 80 | ECM Engine Control Module - 80 | 1 |
| 9 | 8M0083203 | 发动机控制模块 | ECM | 1 |
| 9 | 89772714T | 发动机控制模块(ECM) - 80 | ECM Engine Control Module - 80 | 1 |
| 9 | 8M0083203 | 发动机控制模块 | ECM | 1 |
| 9 | 89772722T | 发动机控制模块(ECM) - 80 EU | ECM Engine Control Module - 80 EU | 1 |
| 9 | 8M0083211 | 发动机控制模块 | ECM | 1 |
| 9 | 89772708T | 发动机控制模块(ECM) - 90 | ECM Engine Control Module - 90 | 1 |
| 9 | 8M0083204 | 发动机控制模块 | ECM | 1 |
| 9 | 89772715T | 发动机控制模块(ECM) - 90 | ECM Engine Control Module - 90 | 1 |
| 9 | 8M0083204 | 发动机控制模块 | ECM | 1 |
| 9 | 89772720T | 发动机控制模块(ECM) - 90 | ECM Engine Control Module - 90 | 1 |
| 9 | 8M0083209 | 发动机控制模块 | ECM | 1 |
| 9 | 89772711T | 发动机控制模块(ECM) - 100 | ECM Engine Control Module - 100 | 1 |
| 9 | 8M0083205 | 发动机控制模块 | ECM | 1 |
| 9 | 89772716T | 发动机控制模块(ECM) - 100 | ECM Engine Control Module - 100 | 1 |
| 9 | 8M0083205 | 发动机控制模块 | ECM | 1 |
| 9 | 89772723T | 发动机控制模块(ECM) - 100 EU | ECM Engine Control Module - 100 EU | 1 |
| 9 | 8M0083212 | 发动机控制模块 | ECM | 1 |
| 9 | 89772709T | 发动机控制模块(ECM) - 115 | ECM Engine Control Module - 115 | 1 |
| 9 | 8M0083206 | 发动机控制模块 | ECM | 1 |
| 9 | 89772717T | 发动机控制模块(ECM) - 115 | ECM Engine Control Module - 115 | 1 |
| 9 | 8M0083206 | 发动机控制模块 | ECM | 1 |
| 9 | 89772721T | 发动机控制模块(ECM) - 115 | ECM Engine Control Module - 115 | 1 |
| 9 | 8M0083210 | 发动机控制模块 | ECM | 1 |
| 9 | 89772712T | 发动机控制模块(ECM) - 115 EU | ECM Engine Control Module - 115 EU | 1 |
| 9 | 8M0083207 | 发动机控制模块 | ECM | 1 |
| 9 | 89772718T | 发动机控制模块(ECM) - 115 EU | ECM Engine Control Module - 115 EU | 1 |
| 9 | 8M0083207 | 发动机控制模块 | ECM | 1 |
| 9 | 89772724T | 发动机控制模块(ECM) - 115 EU | ECM Engine Control Module - 115 EU | 1 |
| 9 | 8M0083213 | 发动机控制模块 | ECM | 1 |
| 10 | 88552525 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| 10 | 8M0103807 | 不锈钢螺钉 (M6 x 25毫米) | SCREW (M6 x 25 mm) Stainless Steel | 2 |
| 11 | 65567 | 不锈钢垫圈(0.265x0.750x0.048) | WASHER (.265 x .750 x .048) Stainless Steel | 2 |
| 12 | 834985 | 护孔环 | GROMMET | 3 |
| 12 | 8M0190980 | 护孔环 | GROMMET | 3 |
| 13 | 856954 | 衬套 | BUSHING | 2 |
| 14 | 858953 | 支架 | BRACKET | 2 |
| 15 | 858414A04 | 黄铜电缆总成 | CABLE ASSEMBLY Brass | 1 |
| 16 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 16 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 17 | 88552516 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 1 |
| 17 | 8M0103805 | 螺丝 (M6 x 16毫米) 不锈钢 | SCREW (M6 x 16 mm) Stainless Steel | 1 |
| 18 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 1 |
| 19 | 26993 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 1 |
| 19 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 1 |
| 20 | 897757 | 销 | PIN | 2 |
| 21 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 7 |
| 22 | 88439A26 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 23 | 88552612 | 螺钉（M8×12） | SCREW (M8 x 12) | 2 |
| 24 | 891520001 | 卡扣 | CLIP | 1 |
| - | 897148A09 | 长缸体总成 75/80/90/100 | LONG BLOCK ASSEMBLY 75/80/90/100 | 1 |
| - | 8M8033014 | PH L4NA 4S | PH L4NA 4S | 1 |
| - | 897148A08 | 长缸体总成 115 | LONG BLOCK ASSEMBLY 115 | 1 |

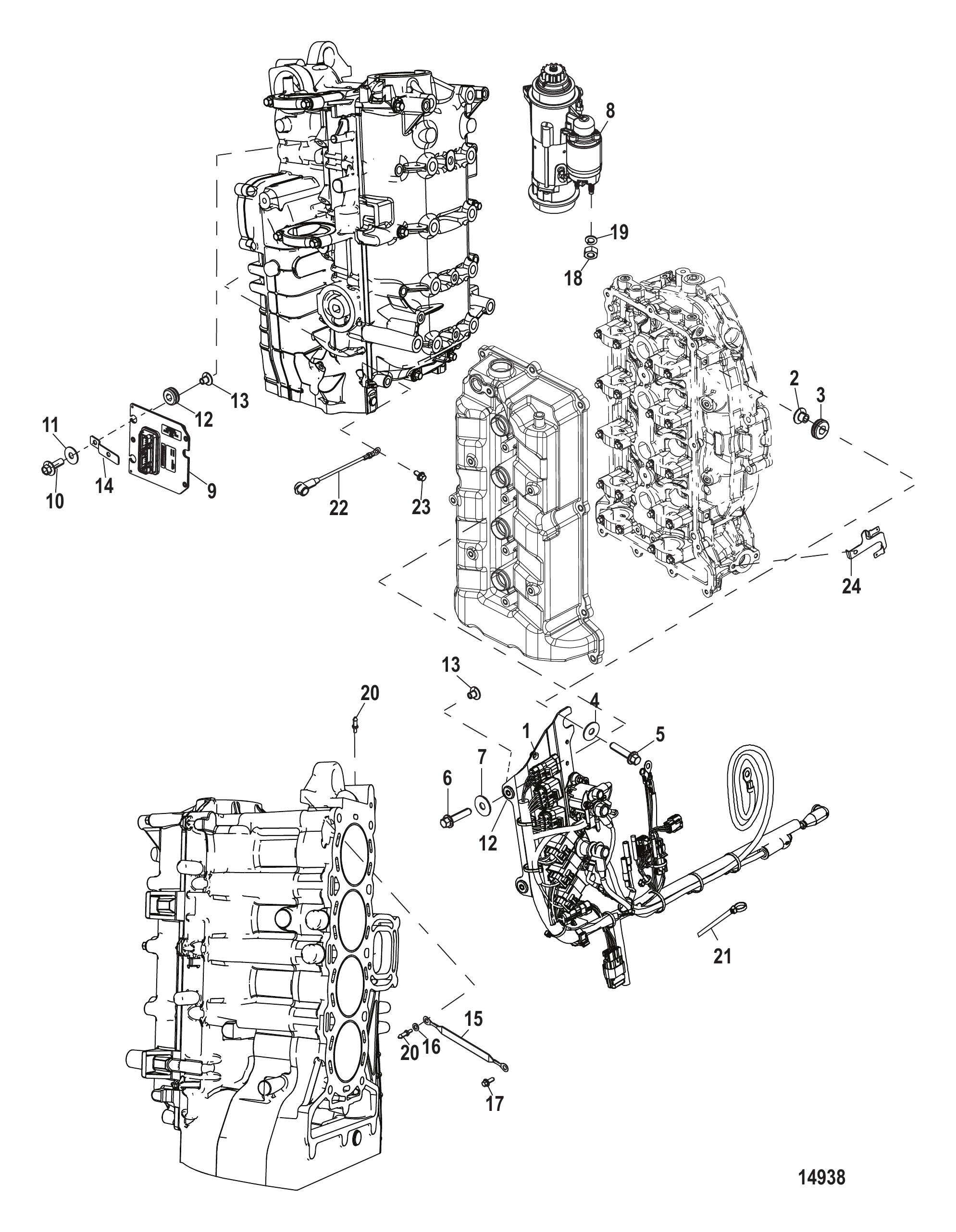

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | NSS | 不单独销售-电气板总成(完整) | NOT SOLD SEPARATE Electrical Plate Assembly-Complete | 1 |
| 1 | 897619T01 | 电气板 | PLATE Electrical | 1 |
| 2 | 856954 | 衬套 | BUSHING | 2 |
| 3 | 834985 | 护孔环 | GROMMET | 2 |
| 3 | 8M0190980 | 护孔环 | GROMMET | 2 |
| 4 | 879962 | 卡扣 | CLIP | 4 |
| 5 | 893768T | 安装板 | PLATE | 1 |
| 6 | 82129114 | 螺钉 (M6 x 14) | SCREW (M6 x 14) | 2 |
| 7 | 82129125 | 螺丝(M6 x 25毫米) | SCREW (M6 x 25 mm) | 2 |
| 8 | 8M0010250 | 支架 | BRACKET | 1 |
| 9 | 825096T01 | 启动电磁阀 | SOLENOID Starter | 1 |
| 9 | 8M0098898 | 继电器 | RELAY | 1 |
| 10 | 859172 | 卡箍 | CLAMP | 1 |
| 11 | 892579T14 | 发动机线束总成 | HARNESS ASSEMBLY Engine | 1 |
| - | 83296915 | 迷你保险丝-蓝色-15安培 | FUSE Mini - Blue - 15 Ampere | 1 |
| - | 832969T15 | 迷你保险丝-蓝色-15安培 | FUSE Mini - Blue - 15 Ampere | 1 |
| - | 8329692 | 迷你保险丝-灰色-2安培 | FUSE Mini - Gray - 2 Ampere | 1 |
| - | 8M0207797 | 迷你保险丝-灰色-2安培 | FUSE Mini - Gray - 2 Ampere | 1 |
| - | 83296920 | 迷你保险丝-黄色-20安 | FUSE Mini - Yellow - 20 Ampere | 4 |
| - | 832969T20 | 迷你保险丝-黄色-20安 | FUSE Mini - Yellow - 20 Ampere | 4 |
| - | 8329695 | 迷你保险丝-棕色-5安培 | FUSE Mini - Tan - 5 Ampere | 1 |
| - | 832969T05 | 迷你保险丝-棕色-5安培 | FUSE Mini - Tan - 5 Ampere | 1 |
| - | 858754 | 保险丝盖 | COVER Fuse | 2 |
| 12 | 26993 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 1 |
| 12 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 1 |
| 13 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 2 |
| 14 | 880787 | 黄色绝缘护套 | BOOT Insulator - Yellow | 1 |
| 15 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | AR |
| 15 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 16 | 819514T27 | 升降线束总成 | HARNESS ASSEMBLY Trim | 1 |
| 17 | 93388T22 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 18 | 899145 | 绑带夹 | CLIP Tie Strap | 2 |
| 19 | 898454 | 卡扣 (19 mm) | CLIP (19 mm) | 1 |
| 20 | 882751 | 继电器 | RELAY | 3 |
| 20 | 8M0219830 | 继电器 | RELAY | 3 |
| 21 | 865205 | 卡扣 | CLIP | 3 |
| 22 | 875302A1 | 带电螺柱总成 | HOT STUD ASSEMBLY | 1 |
| 23 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 1 |
| 24 | 93388T20 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 25 | 878231T05 | 保险丝线束总成 | HARNESS ASSEMBLY Fuse | 1 |
| 26 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 1 |
| 27 | 88439A46 | 电缆总成 蓄电池-正极 | CABLE ASSEMBLY Battery - Positive | 1 |
| 28 | 85172 | 垫圈 | WASHER | 1 |
| 29 | NSS | 电池标签(不单独销售) | NOT SOLD SEPARATE Tag-Battery | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | NSS | 不单独销售-电气板总成(完整) | NOT SOLD SEPARATE Electrical Plate Assembly-Complete | 1 |
| 1 | 897619T01 | 电气板 | PLATE Electrical | 1 |
| 2 | 856954 | 衬套 | BUSHING | 2 |
| 3 | 834985 | 护孔环 | GROMMET | 2 |
| 3 | 8M0190980 | 护孔环 | GROMMET | 2 |
| 4 | 879962 | 卡扣 | CLIP | 4 |
| 5 | 817109A2 | 电磁阀总成(#10-32/.3125-18端子) | SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals) | 1 |
| 6 | 822179 | 护孔环 | GROMMET | 2 |
| 7 | 82129125 | 螺丝(M6 x 25毫米) | SCREW (M6 x 25 mm) | 4 |
| 8 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 9 | 813938 | 盖形螺母(#10-32) | CAP NUT (#10-32) | 2 |
| 10 | 859172 | 卡箍 | CLAMP | 1 |
| 11 | 892579T13 | 发动机线束总成 | HARNESS ASSEMBLY Engine | 1 |
| - | 83296915 | 迷你保险丝-蓝色-15安培 | FUSE Mini - Blue - 15 Ampere | 1 |
| - | 832969T15 | 迷你保险丝-蓝色-15安培 | FUSE Mini - Blue - 15 Ampere | 1 |
| - | 8329692 | 迷你保险丝-灰色-2安培 | FUSE Mini - Gray - 2 Ampere | 1 |
| - | 8M0207797 | 迷你保险丝-灰色-2安培 | FUSE Mini - Gray - 2 Ampere | 1 |
| - | 83296920 | 迷你保险丝-黄色-20安 | FUSE Mini - Yellow - 20 Ampere | 4 |
| - | 832969T20 | 迷你保险丝-黄色-20安 | FUSE Mini - Yellow - 20 Ampere | 4 |
| - | 8329695 | 迷你保险丝-棕色-5安培 | FUSE Mini - Tan - 5 Ampere | 1 |
| - | 832969T05 | 迷你保险丝-棕色-5安培 | FUSE Mini - Tan - 5 Ampere | 1 |
| - | 858754 | 保险丝盖 | COVER Fuse | 2 |
| 12 | 26993 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 12 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 13 | 68292 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 13 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 14 | 880787 | 黄色绝缘护套 | BOOT Insulator - Yellow | 1 |
| 15 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 15 | 69355 | 扎带(5.50英寸) | TIE STRAP (5.50 Inches) | AR |
| 15 | 8M0214940 | 扎带 | TIE STRAP | AR |
| 16 | 819514T24 | 升降线束总成 | HARNESS ASSEMBLY Trim | 1 |
| 17 | 93388T21 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 18 | 899145 | 绑带夹 | CLIP Tie Strap | 2 |
| 19 | 898454 | 卡扣 (19 mm) | CLIP (19 mm) | 1 |
| 20 | 882751 | 继电器 | RELAY | 3 |
| 20 | 8M0219830 | 继电器 | RELAY | 3 |
| 21 | 865205 | 卡扣 | CLIP | 3 |
| 22 | 875302A1 | 带电螺柱总成 | HOT STUD ASSEMBLY | 1 |
| 23 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 1 |
| 24 | 93388T20 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 25 | 878231T05 | 保险丝线束总成 | HARNESS ASSEMBLY Fuse | 1 |
| 26 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 1 |
| 27 | 88439A46 | 电缆总成 蓄电池-正极 | CABLE ASSEMBLY Battery - Positive | 1 |
| 28 | 85172 | 垫圈 | WASHER | 1 |
| 29 | NSS | 电池标签(不单独销售) | NOT SOLD SEPARATE Tag-Battery | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

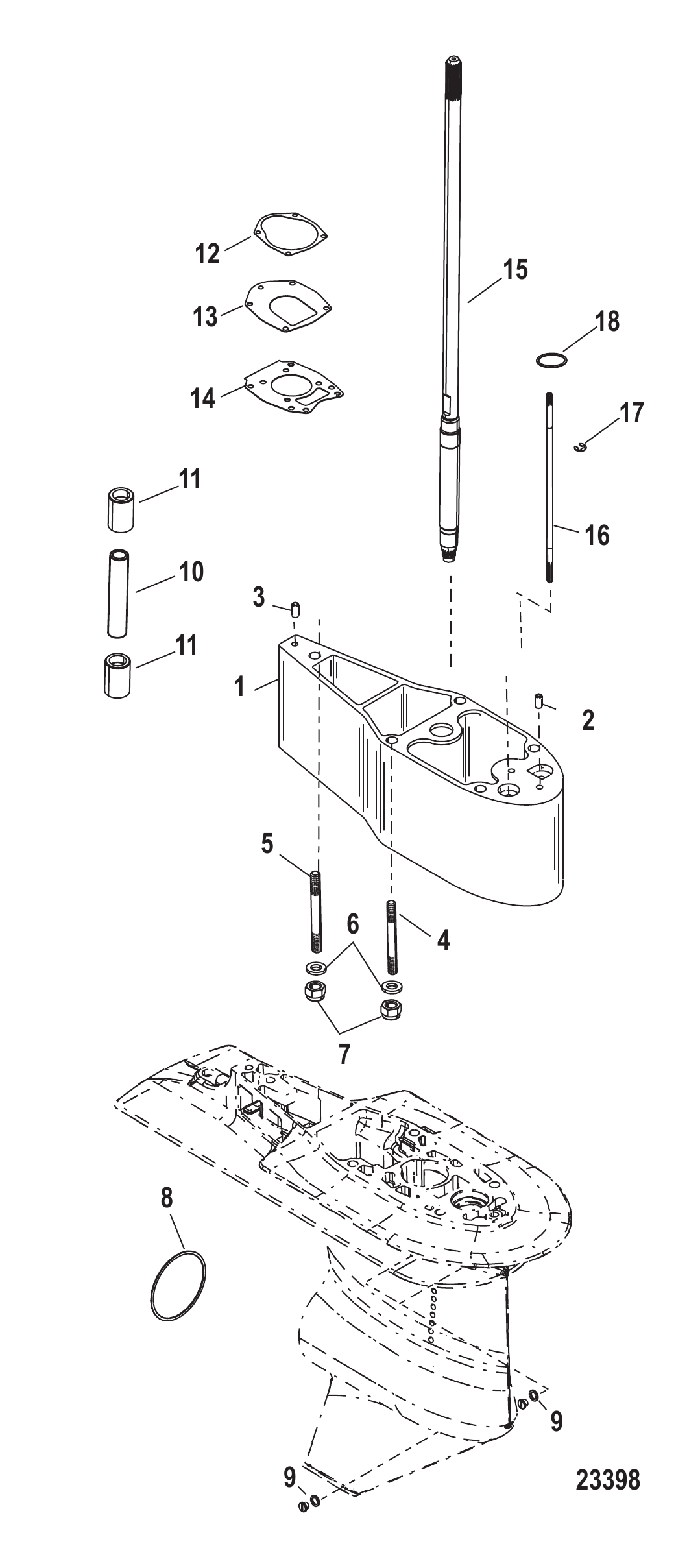

| - | 12092A19 | 传动轴延长套件 - 5英寸/128毫米 | EXTENSION KIT Driveshaft - 5 Inch /128 mm | 1 |
| 1 | 12092A3 | 隔套套件 | SPACER KIT | 1 |
| 2 | 43043 | 定位销-带孔(0.375×0.625) | PIN Dowel - With Hole (.375 x .625) | 1 |
| 2 | 8M0084244 | 定位销 0.375x0.620 | PIN Dowel, .375 x .620 | 1 |
| 3 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 1 |
| 4 | 903503 | 双头螺柱(M10×190) | STUD (M10 x 190) | 4 |
| 5 | 903502 | 双头螺柱(M10×227) | STUD (M10 x 227) | 1 |
| 6 | 856774 | 垫圈(0.406×0.750×0.105)不锈钢 | WASHER (.406 x .750 x .105) Stainless Steel | 5 |
| 6 | 8M0214963 | 垫圈 | WASHER | 5 |
| 7 | 40140 | 螺母(M10) | NUT (M10) | 5 |
| 8 | 97386 | O型圈 (3.609 x .139) | O-RING (3.609 x .139) | 1 |
| 8 | 8M0214974 | O型圈 | O RING | 1 |
| 9 | 830749 | 密封件 | SEAL | 3 |
| 9 | 8M0204693 | 放油螺塞密封件 | SEAL Drain Plug | 3 |
| 10 | 8289371 | 水管 | TUBE Water | 1 |
| 10 | 8M4501430 | 水管 | TUBE Water | 1 |
| 11 | 430232 | 密封件 | SEAL | 2 |
| 12 | 8172771 | 水泵上垫片 | GASKET Water Pump, Upper | 1 |
| 13 | 430331 | 衬垫 | GASKET | 1 |
| 14 | 430472 | 衬垫 | GASKET | 1 |
| 14 | 8M0214931 | 衬垫 | GASKET | 1 |
| 15 | 897680T01 | 驱动轴总成 X加长型 | DRIVESHAFT ASSEMBLY X-Long | 1 |
| 16 | 884565A00 | 换挡轴总成 | SHIFT SHAFT ASSEMBLY | 1 |
| 17 | 29641 | E型卡环 | E RING | 1 |
| 18 | 457101 | O型圈(1.424x0.103) | O-RING (1.424 x .103) | 1 |
| 18 | 8M0204681 | 特殊O型圈1.424x0.103 | O-RING 1.424 x .103, Special | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

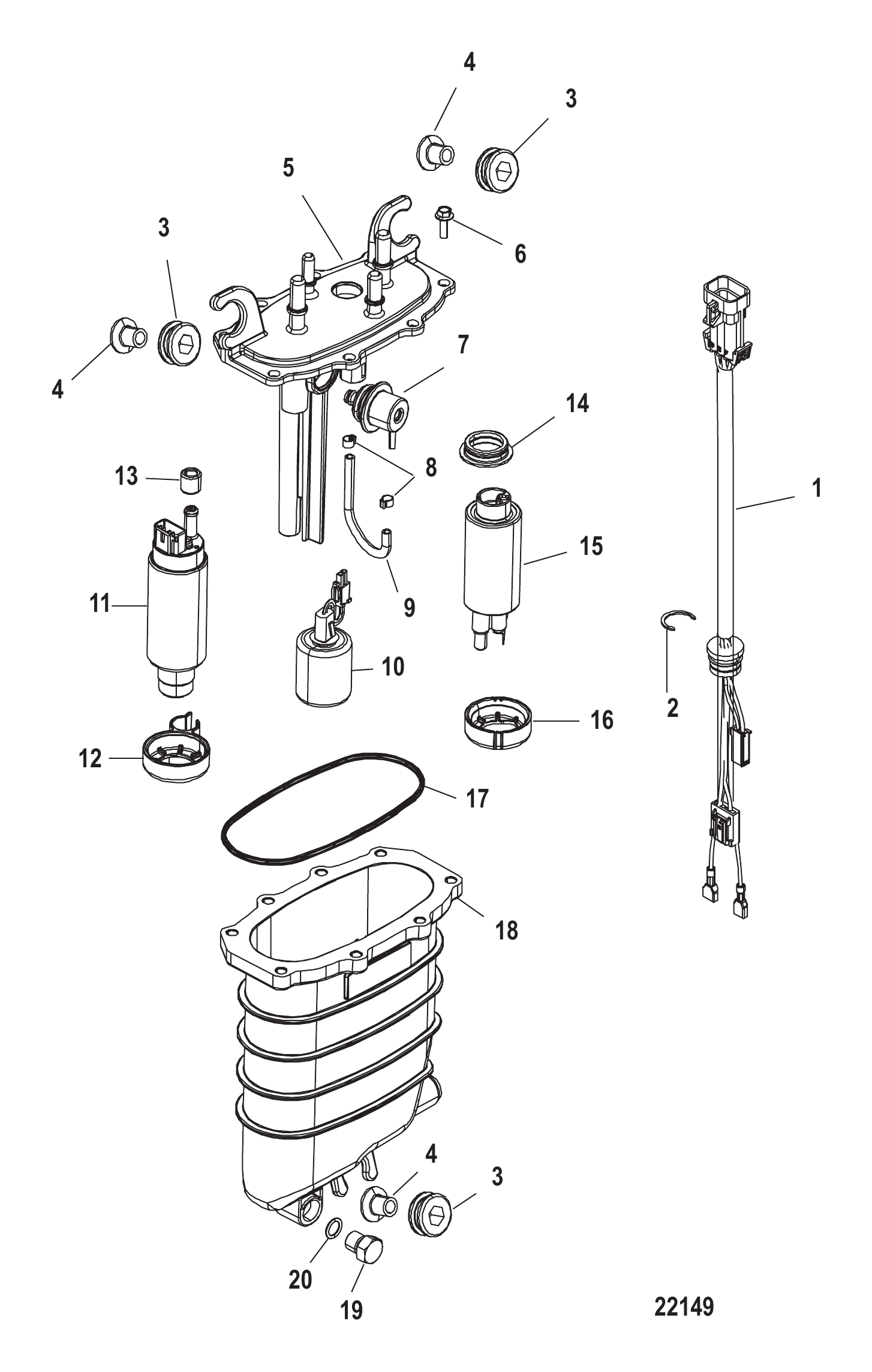

| - | 880133T08 | 燃油供应模块 | MODULE Fuel Supply | 1 |
| 1 | 880596526 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 1 | 8M0130898 | 线束总成 | HARNESS ASSY | 1 |
| 2 | 880596515 | 卡扣 | CLIP | 1 |
| 3 | 855362001 | 护孔环 | GROMMET | 3 |
| 4 | 855364 | 衬套 | BUSHING | 3 |
| 5 | 880596T50 | 盖板套件 | COVER KIT | 1 |
| 6 | 880596513 | 螺钉 | SCREW | 8 |
| 7 | 880596503 | 带O型圈的调节器 | REGULATOR With O-Rings | 1 |
| 8 | 880596512 | 卡箍 | CLAMP | 2 |
| 9 | 880596511 | 软管 | HOSE | 1 |
| 9 | 880596A05 | 软管套件 | HOSE KIT | 1 |
| 10 | 880596524 | 浮子 | FLOAT | 1 |
| 10 | 8M6000359 | 浮子 | FLOAT | 1 |
| 11 | 880596T55 | 燃油泵总成-高压 | PUMP ASSEMBLY Fuel - High Pressure | 1 |
| 12 | 880596506 | 密封件 | SEAL | 1 |
| 13 | 880596507 | 密封件 | SEAL | 1 |
| 14 | 880596510 | 密封件 | SEAL | 1 |
| 15 | 880596T58 | 燃油提升泵套件 | PUMP KIT Fuel - Lift | 1 |
| 16 | 880596509 | 隔离器 | ISOLATOR | 1 |
| 17 | 880596502 | 密封件 | SEAL | 1 |
| 18 | 880596T53 | 壳体总成 | HOUSING ASSEMBLY | 1 |
| 18 | 880596523 | 壳体总成 | HOUSING ASSY | 1 |
| 19 | 880596516 | 堵头 | PLUG | 1 |
| 20 | 880596517 | O型圈 | O-RING | 1 |
| - | 880596A01 | 密封修理包 | REPAIR KIT Seal | 1 |
| - | 889283A01 | 燃油灌注工具包 | TOOL KIT Fuel Priming | 1 |

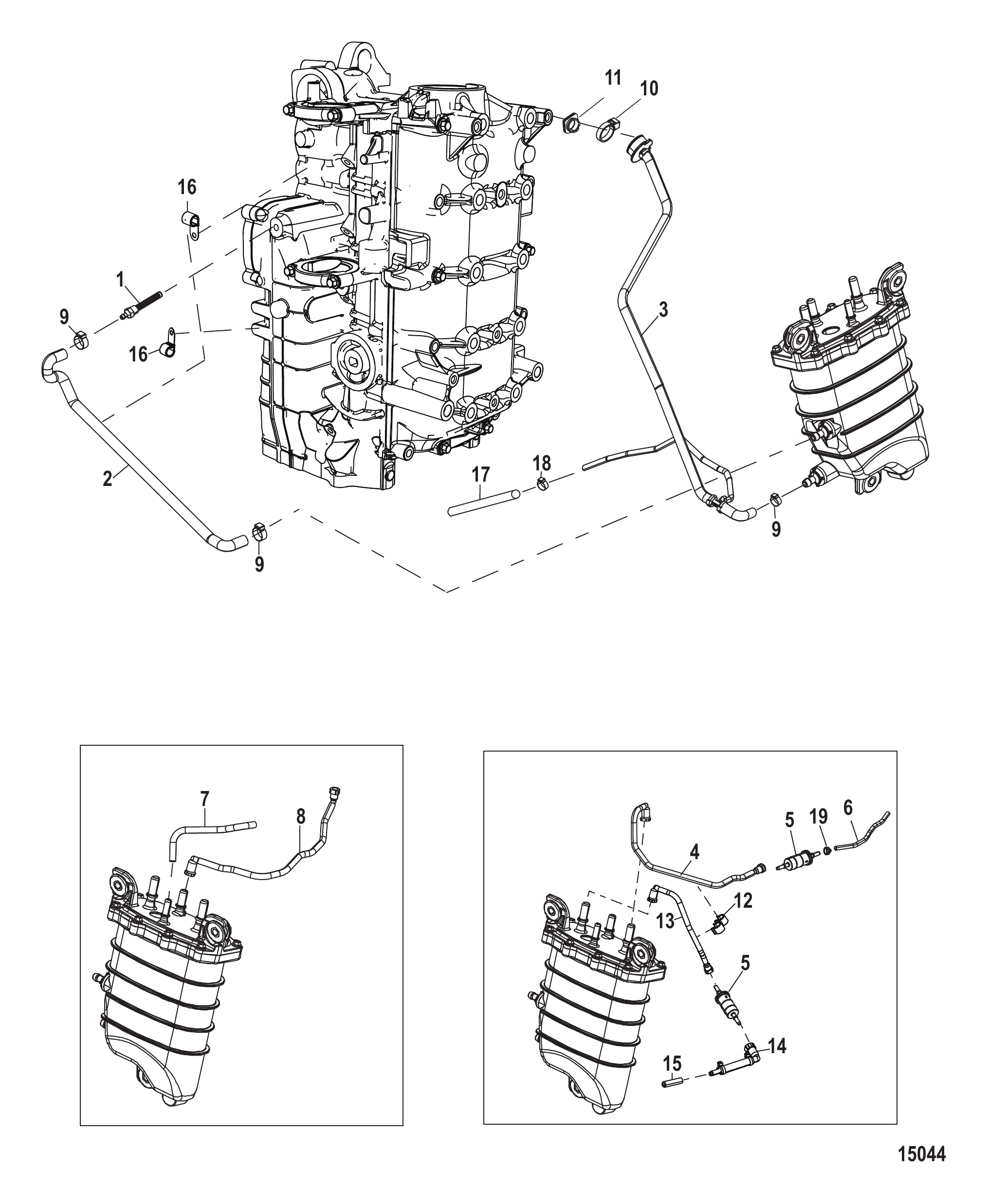

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8348084 | 滤网 | STRAINER | 1 |
| 2 | 897775 | 滤清器至燃油供应模块软管 | HOSE Block Strainer to Fuel Supply Module | 1 |
| 2 | 8M0040122 | 软管 | HOSE | 1 |
| 2 | 8M0040122 | 滤清器至燃油供应模块软管 | HOSE Block Strainer to Fuel Supply Module | 1 |
| 3 | 897795A01 | 燃油供应模块出口软管总成 | HOSE ASSEMBLY Fuel Supply Module Outlet | 1 |
| 4 | 897649001 | 燃油供应模块至高压燃油滤清器软管 | HOSE Fuel Supply Module to High Pressure Fuel Filter | 1 |
| 4 | 8M0072517 | 软管 | HOSE | 1 |
| 4 | 8M0012211 | 燃油供应模块至高压燃油滤清器软管 | HOSE Fuel Supply Module to High Pressure Fuel Filter | 1 |
| 4 | 8M0072517 | 软管 | HOSE | 1 |
| 4 | 8M0043800 | 燃油供应模块至高压燃油滤清器软管 | HOSE Fuel Supply Module to High Pressure Fuel Filter | 1 |
| 4 | 8M0072517 | 软管 | HOSE | 1 |
| 5 | 879885T | 燃油滤清器 | FILTER Fuel | 2 |
| 5 | 879885Q | 燃油管路滤清器 | FILTER Fuel In-Line | 2 |
| 6 | 8M0008617 | 滤清器至油轨软管 | HOSE Filter to Rail | 1 |
| 6 | 8M0072519 | 软管 | HOSE | 1 |
| 6 | 8M0043801 | 滤清器至油轨软管 | HOSE Filter to Rail | 1 |
| 6 | 8M0072519 | 软管 | HOSE | 1 |
| 7 | 830756109 | 软管(散装57.00英寸)裁切至8.25英寸 | HOSE (57.00 Inches Bulk) Cut to 8.25 Inches | 1 |
| 7 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 8 | 897654002 | 燃油供应模块至通气罐软管 | HOSE Fuel Supply Module to Vent Cannister | 1 |
| 8 | 8M0072516 | 软管 | HOSE | 1 |
| 8 | 8M0012212 | 燃油供应模块至通气罐软管 | HOSE Fuel Supply Module to Vent Cannister | 1 |
| 8 | 8M0072516 | 软管 | HOSE | 1 |
| 9 | 888988015 | 卡箍 (15.7 mm) | CLAMP (15.7 mm) | 3 |
| 9 | 8M0214911 | 卡箍@5 | CLAMP @5 | 3 |
| 10 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 11 | 859251 | 护孔环 | GROMMET | 1 |
| 11 | 8M0039078 | 护孔环 | GROMMET | 1 |
| 12 | 888523001 | 卡扣 | CLIP | 1 |
| 13 | 8M0000915 | 滤清器至燃油供应模块软管 | HOSE Filter to Fuel Supply Module | 1 |
| 13 | 8M0072518 | 软管 | HOSE | 1 |
| 13 | 8M0012213 | 滤清器至燃油供应模块软管 | HOSE Filter to Fuel Supply Module | 1 |
| 13 | 8M0072518 | 软管 | HOSE | 1 |
| 13 | 8M0043799 | 滤清器至燃油供应模块软管 | HOSE Filter to Fuel Supply Module | 1 |
| 13 | 8M0072518 | 软管 | HOSE | 1 |
| 14 | 8M0000914 | 燃油入口软管 | HOSE Fuel Inlet | 1 |
| 14 | 8M0043798 | 软管 | HOSE | 1 |
| 14 | 8M0043798 | 燃油入口软管 | HOSE Fuel Inlet | 1 |
| 15 | NSS | 盖帽(不单独销售) | NOT SOLD SEPARATE Cap | 1 |
| 16 | 814634 | 卡箍 | CLAMP | 3 |
| 17 | 8M0007865 | 尼龙管 | TUBE Nylon | 1 |
| 18 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 2 |
| 19 | 888988028 | 卡箍 (16.2 mm) | CLAMP (16.2 mm) | 1 |
| 19 | 8M0204696 | 卡箍 | CLAMP | 1 |
| - | 897148A09 | 长缸体总成 75/80/90/100 | LONG BLOCK ASSEMBLY 75/80/90/100 | 1 |
| - | 8M8033014 | PH L4NA 4S | PH L4NA 4S | 1 |
| - | 897148A08 | 长缸体总成 115 | LONG BLOCK ASSEMBLY 115 | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

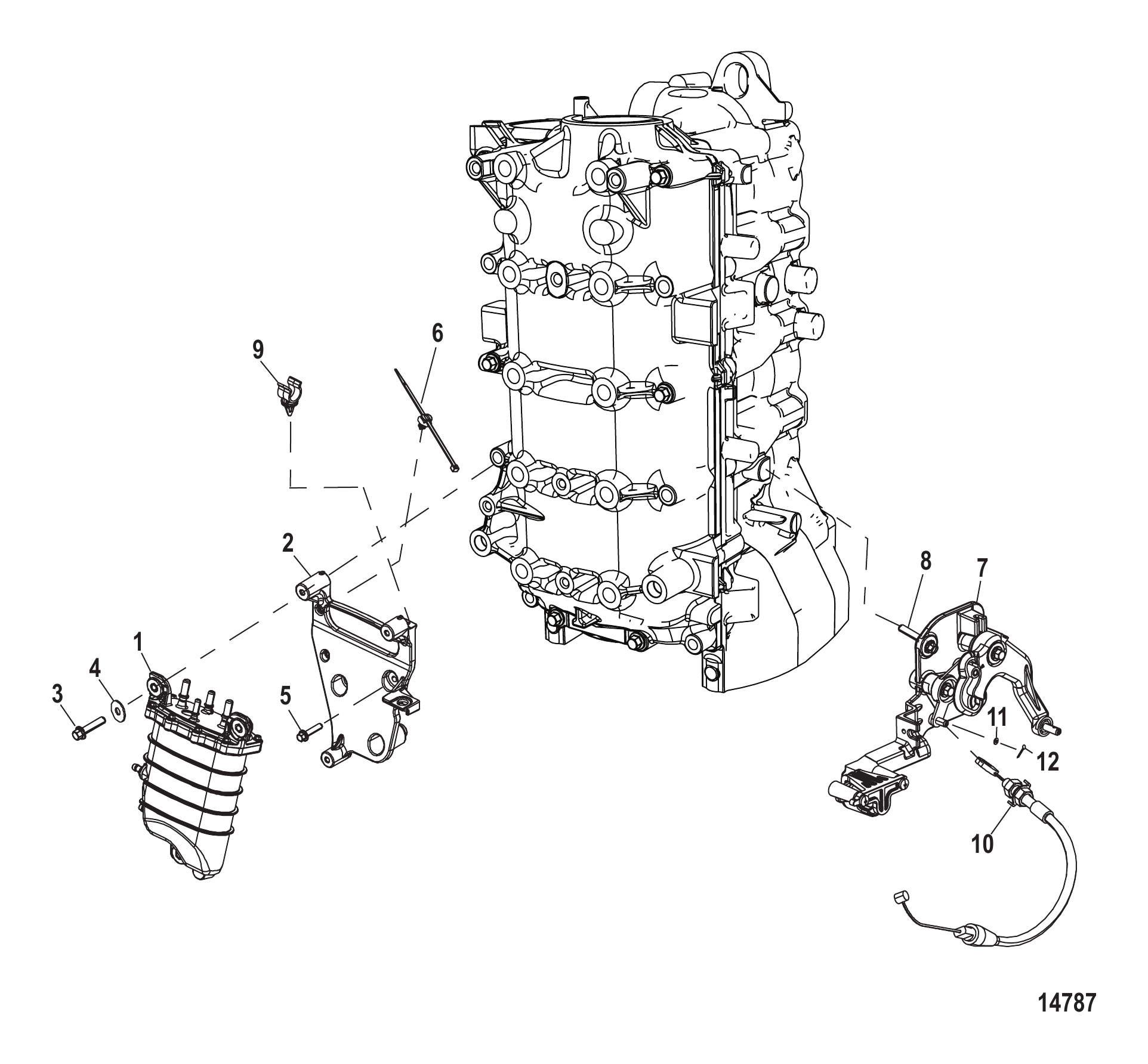

| 1 | 880133T08 | 燃油供应模块 | MODULE Fuel Supply | 1 |
| 1 | 8M0130897 | 燃油供应模块 | FUEL SUPPLY MOD | 1 |
| 2 | 897567T | 燃油供应模块支架 | BRACKET Fuel Supply Module | 1 |
| 3 | 88552635 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 3 |
| 3 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 3 |
| 4 | 817274 | 垫圈(0.344×1.00×0.063)不锈钢 | WASHER (.344 x 1.00 x .063) Stainless Steel | 3 |
| 5 | 88552635 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 3 |
| 5 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 3 |
| 6 | 899145 | 绑带夹 | CLIP Tie Strap | 2 |

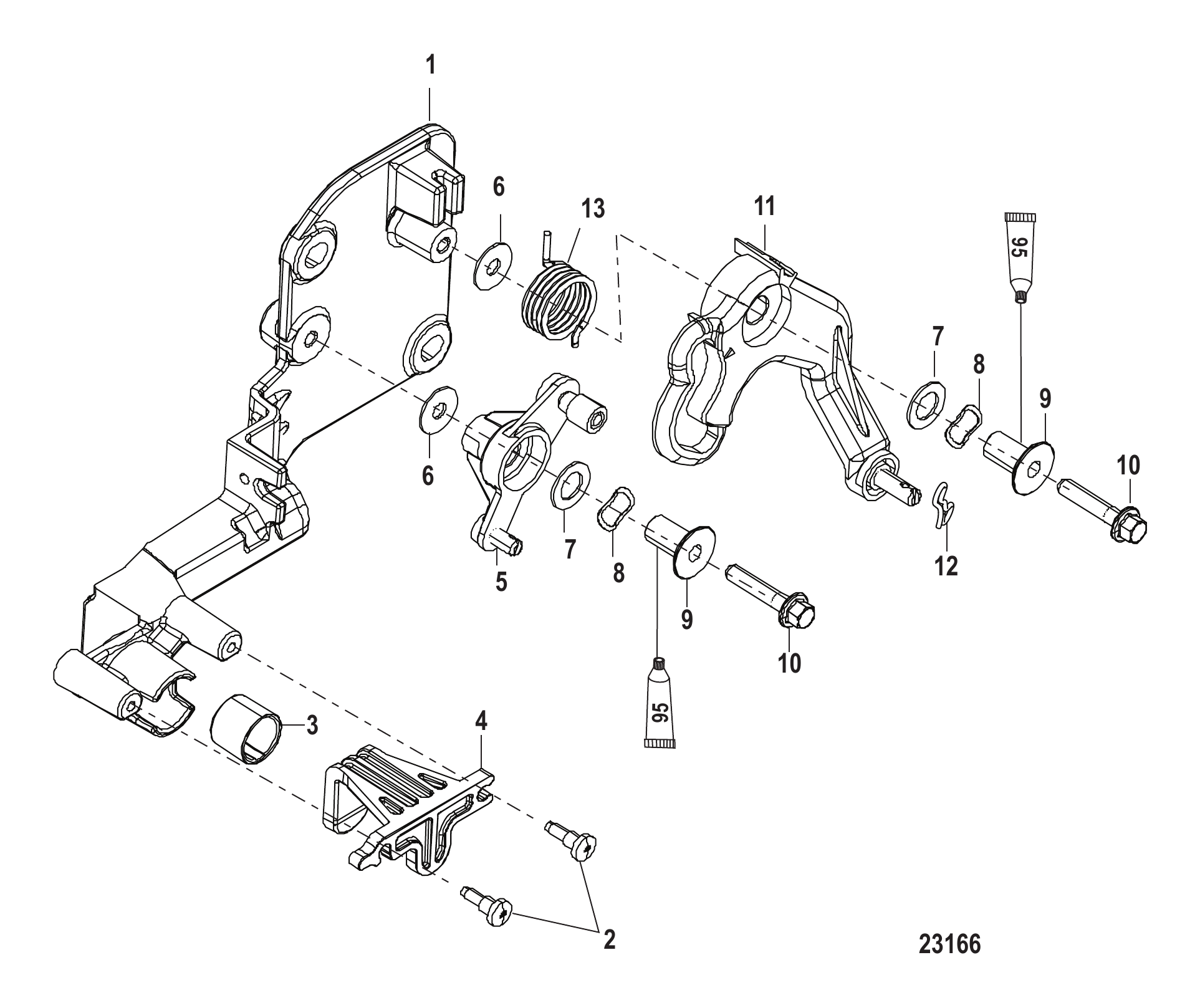

| 7 | 897763T01 | 节气门支架总成 | BRACKET ASSEMBLY Throttle | 1 |
| 7 | 897763T03 | 节气门支架总成 | BRACKET ASSEMBLY Throttle | 1 |
| 7 | 897763T01 | 节气门支架总成 | BRACKET ASSEMBLY Throttle | 1 |
| 7 | 897763T03 | 节气门支架总成 | BRACKET ASSEMBLY Throttle | 1 |
| 7 | 897763T03 | 节气门支架总成 | BRACKET ASSEMBLY Throttle | 1 |
| 7 | 897763T03 | 节气门支架总成 | BRACKET ASSEMBLY Throttle | 1 |
| 8 | 88552620 | 螺钉(M8 x 20) | SCREW (M8 x 20) | 3 |
| 9 | 897559 | 卡扣 | CLIP | 1 |
| 10 | 8M0005986 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 11 | 35459 | 垫圈 | WASHER | 1 |
| 12 | 210711 | 开口销 | COTTER PIN | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 888845T06 | 齿轮箱总成-长型-2.07:1 | GEAR HOUSING ASSEMBLY Complete - Long - 2.07:1 | 1 |
| - | 888845T07 | 齿轮箱总成-加长型-2.07:1 | GEAR HOUSING ASSEMBLY Complete - X-Long - 2.07:1 | 1 |
| - | 888845T08 | 齿轮箱总成-长型-2.33:1 | GEAR HOUSING ASSEMBLY Complete - Long - 2.33:1 | 1 |
| - | 888845T09 | 齿轮箱总成-加长型-2.33:1 | GEAR HOUSING ASSEMBLY Complete - X-Long - 2.33:1 | 1 |
| 1 | 888845T | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 2 | 43043 | 定位销-带孔(0.375x0.625)前部 | PIN Dowel - With Hole (.375 x .625) Front | 1 |
| 2 | 8M0084244 | 定位销 0.375x0.620 | PIN Dowel, .375 x .620 | 1 |
| 3 | 43046 | 注油管 | TUBE Oiler | 1 |
| 4 | 79953Q2 | 排水螺钉套件(.375-16 x .250) | SCREW KIT (.375-16 x .250) Drain | 3 |
| 4 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 3 |
| 5 | 191833 | 密封件 | SEAL | 3 |
| 5 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 3 |
| 6 | 43044 | 定位销-无孔(0.375x0.625)后部 | PIN Dowel - Without Hole (.375 x .625) Rear | 1 |
| 7 | 31640T5 | 平衡鳍板 | TRIM TAB | 1 |
| 7 | 8M0236553 | 平衡鳍板 | TRIM TAB | 1 |
| 8 | 825427 | 不锈钢螺钉(0.437-14x1.250) | SCREW (.437-14 x 1.250) Stainless Steel | 1 |
| 9 | 451761 | 垫圈(.453 x .812 x .105)黑色氧化 | WASHER (.453 x .812 x .105) Black Oxide | 1 |
| 10 | 43040T1 | 托架总成 | CARRIER ASSEMBLY | 1 |
| 11 | NSS | 滚针轴承(不单独销售) | NOT SOLD SEPARATE Needle Bearing | 1 |
| 12 | 826134Q | 阳极块 | ANODE | 2 |
| 13 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 14 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 1 |
| 15 | NSS | 小齿轮(不单独销售)-前进齿轮套件部件 | NOT SOLD SEPARATE Pinion Gear - Part of Forward Gear Kits | 1 |
| 16 | 35921 | 螺母(0.625-18) | NUT (.625-18) | 1 |
| 17 | 883047A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 18 | 44492A1 | 垫片组 | SHIM SET | 1 |
| 18 | 8M0063265 | 垫片组 | SHIM SET | 1 |
| 19 | 897679T01 | 长型驱动轴总成 | DRIVESHAFT ASSEMBLY Long | 1 |
| 19 | 897680T01 | 驱动轴总成 X加长型 | DRIVESHAFT ASSEMBLY X-Long | 1 |
| 20 | 42461A1 | 套筒/环套件 | SLEEVE/RING KIT | 1 |
| 21 | NSS | 密封环(不单独销售) | NOT SOLD SEPARATE Seal Ring | 1 |
| 22 | 43055A4 | 水泵盖总成 | COVER ASSEMBLY Water Pump | 1 |
| 22 | 8M0113262 | 水泵盖总成 | COVER ASSEMBLY Water Pump | 1 |
| 23 | 430331 | 衬垫 | GASKET | 1 |
| 24 | 430472 | 衬垫 | GASKET | 1 |
| 24 | 8M0214931 | 衬垫 | GASKET | 1 |
| 25 | 43035 | 上部油封 | SEAL Oil Upper | 1 |
| 25 | 8M0245495 | 油封 | OIL SEAL | 1 |
| 26 | 43036 | 下油封 | SEAL Oil Lower | 1 |
| 27 | 8172771 | 水泵上垫片 | GASKET Water Pump, Upper | 1 |
| 28 | 817275A2 | 水泵上壳体套件 | HOUSING KIT Upper Water Pump | 1 |
| 29 | 8172761 | 面板 | FACEPLATE | 1 |
| 29 | 8M0204709 | 面板 | FACEPLATE | 1 |
| 30 | 82684430 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 4 |
| 31 | 430232 | 密封件 | SEAL | 1 |
| 32 | 43037 | 键 | KEY | 1 |
| 32 | 8M0204723 | 键 | KEY | 1 |
| 33 | 43026T2 | 叶轮 | IMPELLER | 1 |
| 34 | 82684425 | 螺钉(M6x25) | SCREW (M6 x 25) | 6 |
| 35 | 861415 | 端面密封 | SEAL Face | 1 |
| 35 | 816575A2 | 密封套件 | SEAL KIT | 1 |
| 36 | 884563A00 | 换挡轴总成 | SHIFT SHAFT ASSEMBLY | 1 |
| 36 | 884565A00 | 换挡轴总成 | SHIFT SHAFT ASSEMBLY | 1 |
| 37 | 29641 | E型卡环 | E RING | 1 |
| 38 | 43052A4 | 衬套总成 | BUSHING ASSEMBLY | 1 |
| 39 | 457101 | O型圈(1.424x0.103) | O-RING (1.424 x .103) | 1 |
| 39 | 8M0204681 | 特殊O型圈1.424x0.103 | O-RING 1.424 x .103, Special | 1 |
| 40 | 8164641 | 油封 | SEAL Oil | 1 |
| 40 | 8M0246145 | 油封 | OIL SEAL | 1 |
| 41 | 82684425 | 螺钉(M6x25) | SCREW (M6 x 25) | 2 |
| 42 | 891637 | 衬套 | BUSHING | 1 |
| - | 43035A4 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| - | 43024A7 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| - | 8M0113799 | 水泵修理包 | REPAIR KIT-W/P | 1 |
| - | 43026Q06 | 水泵叶轮维修套件 | REPAIR KIT Water Pump Impeller | 1 |
| - | 8M0100526 | 水泵叶轮维修套件 | REPAIR KIT Water Impeller | 1 |
| - | 881260A3 | 前进齿轮-29齿 | GEAR Forward - 29 Teeth | 1 |
| - | 882813A3 | 前进齿轮与小齿轮套件(28齿) | GEAR KIT Forward And Pinion 28 Teeth | 1 |
| - | 803496T2 | 轴承/油封套件 | BEARING/SEAL KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

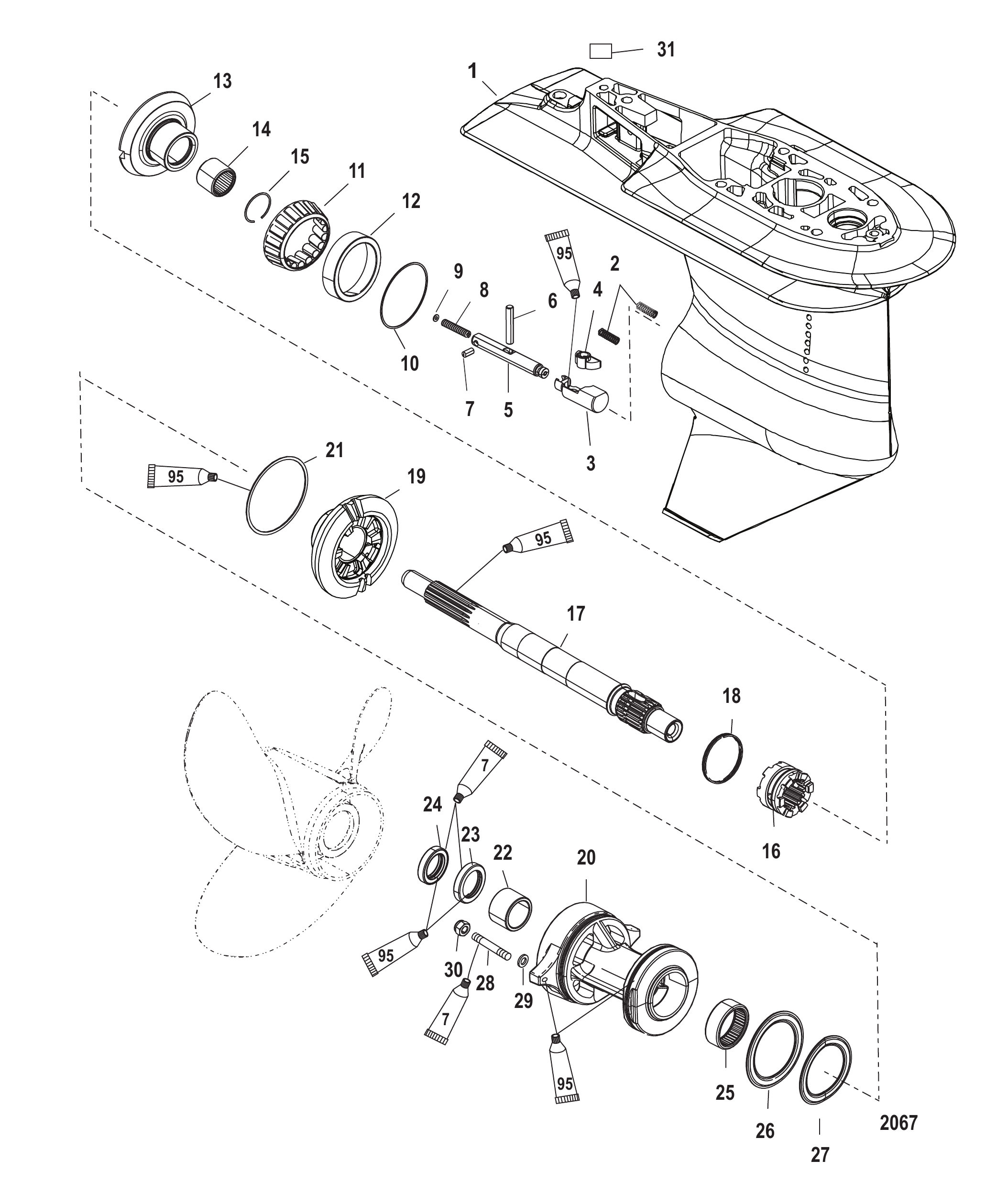

| - | 888845T06 | 齿轮箱总成-长型-2.07:1 | GEAR HOUSING ASSEMBLY Complete - Long - 2.07:1 | 1 |
| - | 888845T07 | 齿轮箱总成-加长型-2.07:1 | GEAR HOUSING ASSEMBLY Complete - X-Long - 2.07:1 | 1 |
| - | 888845T08 | 齿轮箱总成-长型-2.33:1 | GEAR HOUSING ASSEMBLY Complete - Long - 2.33:1 | 1 |
| - | 888845T09 | 齿轮箱总成-加长型-2.33:1 | GEAR HOUSING ASSEMBLY Complete - X-Long - 2.33:1 | 1 |
| 1 | 888845T | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 2 | 8227731 | 螺纹嵌件 | INSERT Threaded | 2 |
| 3 | 888807 | 凸轮从动件总成 | FOLLOWER ASSEMBLY Cam | 1 |
| 4 | 19917 | 换档凸轮 | CAM Shift | 1 |
| 4 | 8M4504018 | 换档凸轮 | CAM SHIFT | 1 |
| 5 | 888806 | 离合器作动杆 | ROD Clutch Actuator | 1 |
| 6 | 78905 | 十字销 | PIN Cross | 1 |
| 6 | 8M0084243 | 十字销 | PIN Cross | 1 |
| 7 | 78906 | 弹簧定位销 | PIN Spring Locator | 1 |
| 7 | 8M0084245 | 弹簧定位销 | PIN Spring Locator | 1 |
| 8 | 79910 | 弹簧 | SPRING | 1 |
| 9 | 78910 | 垫圈 | WASHER | 1 |
| 10 | 44491A1 | 垫片组 | SHIM SET | 1 |
| 10 | 8M0063266 | 垫片组 | SHIM SET | 1 |
| 11 | 30894A1 | 圆锥轴承组 | BEARING SET Cup And Cone | 1 |
| 12 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 13 | 881260A3 | 前进齿轮-29齿 | GEAR Forward - 29 Teeth | 1 |
| 13 | 882813A3 | 前进齿轮与小齿轮套件(28齿) | GEAR KIT Forward And Pinion 28 Teeth | 1 |
| 14 | 30895T | 滚针轴承 | BEARING Needle | 1 |
| 15 | 856823 | 挡圈 | RING Retaining | 1 |
| 16 | 888805T | 离合器 | CLUTCH | 1 |
| 17 | 888804 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 17 | 8M0140444 | 螺旋桨轴 | SHAFT Propeller | 1 |
| 18 | 30893 | 弹簧 | SPRING | 1 |
| 19 | 889991T | 倒车齿轮(29齿) | GEAR Reverse (29 Teeth) | 1 |
| 19 | 889990T | 倒挡齿轮 | GEAR Reverse | 1 |
| 20 | 12596T2 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 20 | 8M0168901 | 轴承座总成 | CARRIER ASSY. | 1 |
| 21 | 97386 | O型圈 (3.609 x .139) | O-RING (3.609 x .139) | 1 |
| 21 | 8M0214974 | O型圈 | O RING | 1 |
| 22 | 30956T | 滚针轴承 | BEARING Needle | 1 |
| 23 | 70080 | 内部油封 | SEAL Oil Inner | 1 |
| 23 | 8M0205728 | 密封件 | SEAL | 1 |
| 24 | 70081 | 外油封 | SEAL Oil Outer | 1 |
| 24 | 8M0205729 | 密封件 | SEAL | 1 |
| 25 | 12578T | 滚柱轴承 | BEARING Roller | 1 |
| 26 | 12577 | 止推垫片 | THRUST WASHER | 1 |
| 27 | 12576 | 推力轴承 | BEARING Thrust | 1 |
| 28 | 429172 | 双头螺柱(M8×48) | STUD (M8 x 48) | 2 |
| 28 | 8M0034456 | 双头螺柱(M8×1.25×48) | STUD (M8 X 1.25 X 48) | 2 |
| 29 | 855941 | 垫圈(.323 x .590 x .112)不锈钢 | WASHER (.323 x .590 x .112) Stainless Steel | 2 |
| 30 | 401378 | 螺母 (M8) | NUT (M8) | 2 |
| 31 | NSS | 不单独销售贴纸-齿轮箱小齿轮标识 | NOT SOLD SEPARATE Decal-Gearcase Pinion Identification | 1 |
| - | 43035A4 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| - | 881260A3 | 前进齿轮-29齿 | GEAR Forward - 29 Teeth | 1 |
| - | 882813A3 | 前进齿轮与小齿轮套件(28齿) | GEAR KIT Forward And Pinion 28 Teeth | 1 |
| - | 803496T2 | 轴承/油封套件 | BEARING/SEAL KIT | 1 |
| - | 888805A00 | 离合器与凸轮从动件维修套件 | REPAIR KIT Clutch And Cam Follower | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

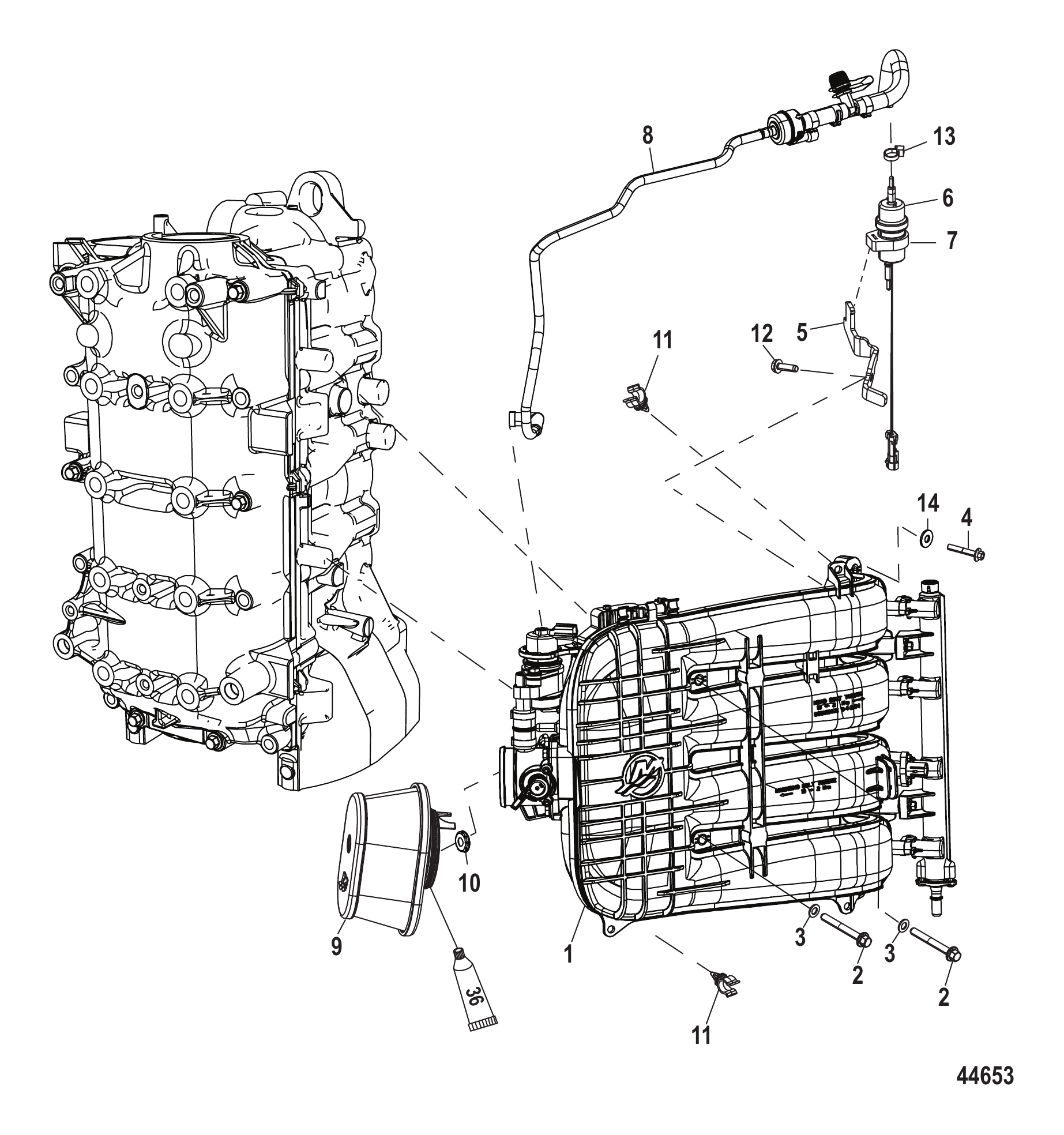

| 1 | 892952T04 | 进气流量测量总成 | IAFM ASSEMBLY | 1 |
| 1 | 892952T06 | 进气流量测量总成 | IAFM ASSEMBLY | 1 |
| - | 8M6002790 | 进气歧管 | MANIFOLD Intake | 1 |
| 2 | 88552550 | 不锈钢螺钉 (M6 x 50 mm) | SCREW (M6 x 50 mm) Stainless Steel | 2 |
| 3 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 2 |
| 3 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 2 |
| 4 | 8M0048051 | 不锈钢螺钉(M6x30) | SCREW (M6 x 30) Stainless Steel | 5 |
| 5 | 897646001 | 通气罐支架 | BRACKET Vent Canister | 1 |
| 6 | 884545A02 | 通气罐总成 | CANISTER ASSEMBLY Vent | 1 |
| 6 | 8M0175814 | 通气罐总成 | CANISTER-VENT ASY | 1 |
| 7 | 897434 | 护孔环 | GROMMET | 1 |
| 8 | 8M0001824 | 净化通气总成 | PURGE VENT ASSEMBLY | 1 |
| 8 | 8M0126307 | 净化通气总成 | PURGE VENT ASSY | 1 |
| 9 | 897575T01 | 空气滤清器 | FILTER Air | 1 |
| 9 | 8M0082911 | 空气滤清器 | FILTER - AIR | 1 |
| 10 | 8M0006918 | 限流板 | RESTRICTOR PLATE | 1 |
| 10 | 8M0032134 | 限流板 | RESTRICTOR PLATE | 1 |
| 10 | 8M0032134 | 限流板 | RESTRICTOR PLATE | 1 |
| 11 | 897559 | 卡扣 | CLIP | 1 |
| 12 | 897445501 | 螺丝(M6×20毫米) | SCREW (M6 x 20 MM) | 1 |
| 13 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 14 | 35462 | 垫圈(.2656 x .625 x .0625)不锈钢 | WASHER (.2656 x .625 x .0625) Stainless Steel | 5 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

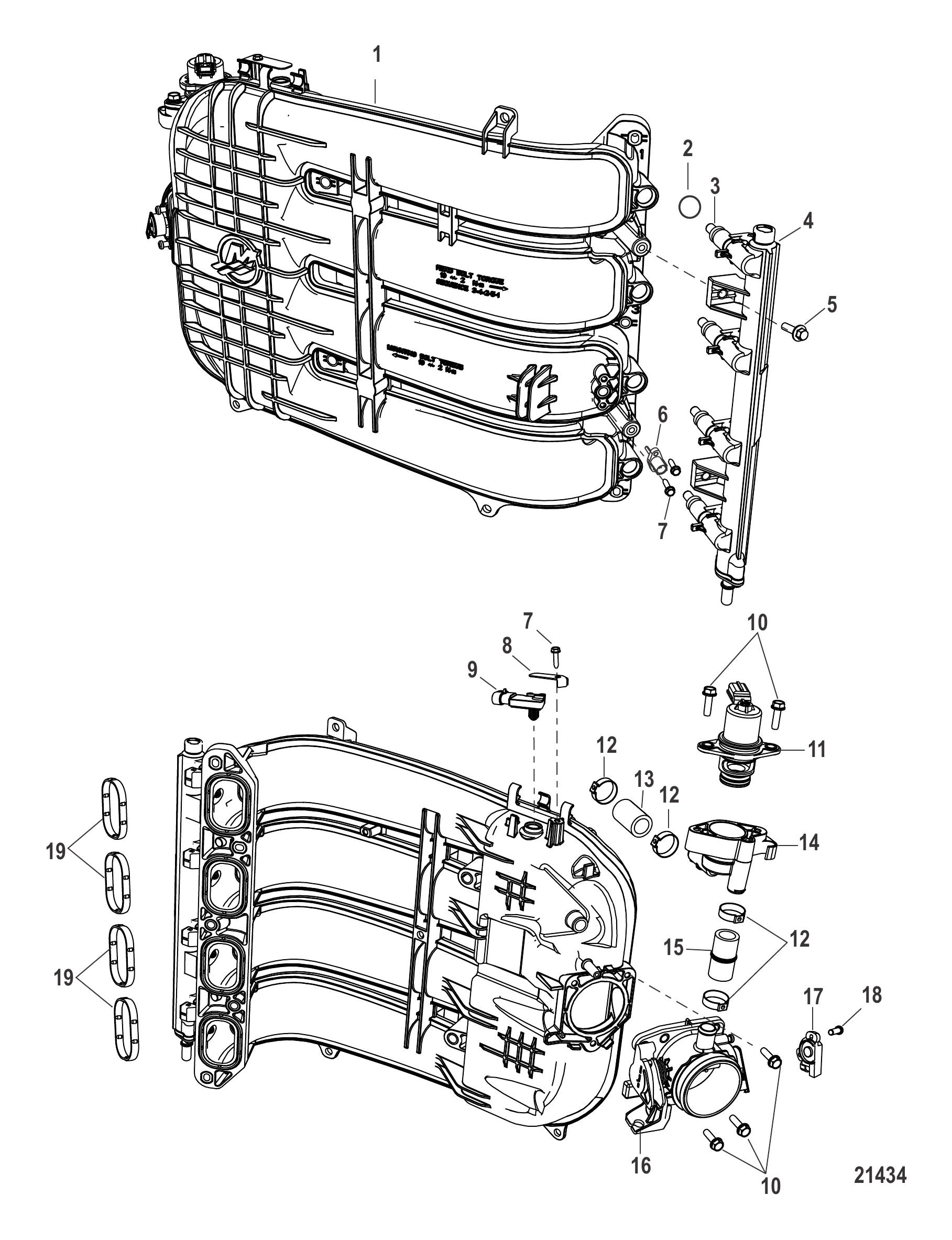

| - | 892952T04 | 进气流量测量总成 | IAFM ASSEMBLY | 1 |
| - | 892952T06 | 进气流量测量总成 | IAFM ASSEMBLY | 1 |
| 1 | 8M6002790 | 进气歧管 | MANIFOLD Intake | 1 |
| 2 | 851889 | O型圈 | O-RING | 8 |
| 3 | 8M0006027 | 燃油喷油器 | INJECTOR Fuel | 4 |
| 3 | 8M0222278 | 燃油喷射器 | FUEL INJECTOR | 4 |
| 4 | 898103T97 | 燃油导轨总成 | FUEL RAIL ASSEMBLY | 1 |
| 5 | 897445502 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 2 |
| 6 | 891663001 | 温度传感器 | SENSOR Temperature | 1 |
| 7 | 895054 | 螺丝(M4×16毫米) | SCREW (M4 x 16 mm) | 3 |
| 8 | 897445503 | 固定支架 | BRACKET Retaining | 1 |
| 9 | 854445 | MAP传感器 | SENSOR MAP | 1 |
| 9 | 8M0237529 | MAP传感器 | SENSOR MAP | 1 |
| 10 | 897445501 | 螺丝(M6×20毫米) | SCREW (M6 x 20 MM) | 5 |
| 11 | 897526T | 怠速空气控制阀 | IAC VALVE | 1 |
| 11 | 8M0188118 | 怠速空气传感器 | SENSOR IDLE AIR C | 1 |
| 12 | 8M0005933 | 卡箍 | CLAMP | 4 |
| 12 | 8M0236717 | 卡箍 | CLAMP | 4 |
| 13 | 8M0005528 | 怠速空气排放软管 | HOSE Idle Air Discharge | 1 |
| 14 | 8M0005529 | 歧管壳体 | HOUSING Manifold | 1 |
| 15 | 8M0005527 | 怠速空气供给软管 | HOSE Idle Air Feed | 1 |
| 16 | 898103T98 | 节气门体总成 | THROTTLE BODY ASSEMBLY | 1 |
| 17 | 881070T | 位置传感器 | SENSOR Position | 1 |
| 17 | 8M0125617 | 位置传感器 | SENSOR Position | 1 |
| 18 | 8M0009542 | 螺丝套件(M5×17)含2颗螺丝 | SCREW KIT (M5 x 17) Contains 2 Screws | 1 |
| 19 | 897445505 | 密封件(4件装) | SEAL Bulk Pack of 4 seals. | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | NOPART | 无零件清单 | NO PARTS LIST | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0097856 | 保养套件75-115马力四冲程(100小时) | SERVICE KIT 75-115 HP 4S (100 Hour) | 1 |
| - | 877761K01 | 机油滤清器(水星品牌) | FILTER Oil Mercury Branded | 1 |
| - | 879885Q | 燃油管路滤清器 | FILTER Fuel In-Line | 1 |
| - | 828816 | 衬垫 | GASKET | 1 |
| - | 8M0204692 | 衬垫@5 | GASKET @5 | 1 |
| - | 830749 | 密封件 | SEAL | 2 |
| - | 8M0204693 | 放油螺塞密封件 | SEAL Drain Plug | 2 |
| - | 8M0097857 | 保养套件75-115马力四冲程(300小时) | SERVICE KIT 75-115HP 4S (300 Hour) | 1 |
| - | 877761K01 | 机油滤清器(水星品牌) | FILTER Oil Mercury Branded | 1 |
| - | 879885Q | 燃油管路滤清器 | FILTER Fuel In-Line | 1 |
| - | 855697 | 卡箍 | CLAMP | 1 |
| - | 8M0204696 | 卡箍 | CLAMP | 1 |
| - | 828816 | 衬垫 | GASKET | 1 |
| - | 830749 | 密封件 | SEAL | 2 |
| - | 8M0157328 | 火花塞 (NGK# LFR4A-E) | SPARK PLUG (NGK# LFR4A-E) | 4 |
| - | 892864T06 | 节温器及壳体总成 | THERMOSTAT AND HOUSING ASSEMBLY Thermostat | 1 |
| - | 8M0090819 | 节温器总成 | THERMOSTAT ASSEMBLY | 1 |
| - | 8M0100527 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| - | 897574Q01 | 皮带 | BELT | 1 |
| - | 818298T1 | 阳极套件 | ANODE KIT | 1 |
| - | 826134T | 阳极块 | ANODE | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 62705001 | O型圈 | O-RING | 2 |
| 2 | 41275M | 定位销 | PIN Dowel | 2 |
| 3 | 881900T03 | 支架 | MOUNT | 1 |
| 4 | 42974 | 螺栓(M12×175) | BOLT (M12 x 175) | 2 |
| 4 | 8M0238139 | 螺钉 | SCREW | 2 |
| 5 | 934161 | 氯丁橡胶垫圈 | WASHER Neoprene | 2 |
| 5 | 32834 | 垫圈(0.9375x1.750x0.172) | WASHER (.9375 x 1.750 x .172) | 2 |
| 6 | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 2 |
| 6 | 8M0204648 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 2 |
| 7 | 859129 | 螺母(M12) | NUT (M12) | 2 |
| 7 | 896963 | 螺母(M12) | NUT (M12) | 2 |
| 8 | 898442 | 螺钉(M8 x 50) | SCREW (M8 x 50) | 4 |
| 9 | 858579T3 | 油泵 | PUMP Oil | 1 |
| 10 | 858719 | 螺栓(M6 x 45) | BOLT (M6 x 45) | 6 |
| 10 | 8M0052670 | 螺钉 | SCREW | 6 |
| 11 | 804349 | 密封件 | SEAL | 1 |
| 12 | 896843T01 | 换挡连杆支架 | BRACKET Shift Link | 1 |
| 13 | 42975 | 传动螺钉 | DRIVE SCREW | 2 |
| 14 | 82130020 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 3 |
| 15 | 896844 | 控制电缆锁扣 | LATCH Control Cable | 1 |
| 16 | 824015 | 筒形保持杯(小) | CUP Barrel Retainer Barrel Retainer (Small) | 2 |
| 17 | 879996A2 | 开关 | SWITCH | 1 |
| 18 | 88075020 | 螺丝(M3 x 20) | SCREW (M3 x 20) | 2 |
| 19 | 8842563 | 密封件 | SEAL | 1 |
| 19 | 8M0043168 | 密封件 | SEAL | 1 |
| 20 | 23784 | 定位销 | PIN Dowel | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 858732A03 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 8042971 | 温度传感器衬垫 | GASKET Thermosensor | 1 |
| - | 804255 | 燃油泵O型圈 | O-RING Fuel Pump | 1 |
| - | 8M0050719 | O型圈 | O-RING | 1 |
| - | 804144 | 凸轮轴油封 | SEAL Oil Camshaft | 2 |
| - | 804144001 | 油封 | SEAL-OIL | 2 |
| - | 858732002 | 气缸体衬垫 | GASKET Cylinder Block | 1 |
| - | 804076 | 排气盖衬垫 | GASKET Exhaust Cover | 1 |
| - | 804076003 | 衬垫 | GASKET | 1 |
| - | 881426 | 螺塞衬垫 | GASKET Screw Plug | 1 |
| - | 804084 | 压力控制阀盖衬垫 | GASKET Pressure Control Valve Cover | 1 |
| - | 8041151 | 气缸盖衬垫 | GASKET Cylinder Head | 1 |
| - | 804123001 | 气缸盖罩衬垫 | GASKET Cylinder Head Cover | 1 |
| - | 90196 | O型圈(0.921×0.139)油塞 | O-RING (.921 x .139) Oil Plug | 1 |
| - | 8M0204673 | O型圈 .921 x .139 | O-Ring .921 x .139 | 1 |
| - | 804099003 | 曲轴上油封 | SEAL Oil Crankshaft-Upper | 1 |
| - | 804100003 | 曲轴下油封 | SEAL Oil Crankshaft-Lower | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8M0089943 | 歧管套件 | MANIFOLD KIT | 1 |
| 2 | 893929A01 | 安全阀套件 | VALVE KIT Relief | 1 |
| 3 | 8M0089945 | 阀套件 | VALVE KIT | 1 |
| 4 | 8M0090404 | 配平限位阀套件 | VALVE KIT Trim Limit | 1 |
| 5 | 833063 | O型圈 | O-RING | 2 |
| 6 | 8M0055260 | 定位销 | DOWEL PINS | 3 |
| 7 | 811613 | 塞子总成 | PLUG ASSEMBLY | 1 |
| 8 | 833047 | 螺钉(0.250-20×2.250) | SCREW (.250-20 x 2.250) | 2 |
| 9 | 8M0089941 | 气缸总成 | CYLINDER ASSEMBLY | 1 |
| 10 | 88238A13 | 接地线总成 | CABLE ASSEMBLY Ground | 1 |
| 10 | 8M0207768 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 11 | 8M6002690 | 螺钉 | SCREW | 1 |
| 11 | 62568 | 螺钉（#10-16 x 0.375） | SCREW (#10-16 x .375) | 1 |
| 12 | 810776A1 | 记忆活塞总成 | PISTON ASSEMBLY Memory | 1 |
| 12 | 8M0171822 | 记忆活塞套件 | MEMORY PISTON KIT | 1 |
| 13 | 893902A01 | O型圈套件 | O-RING KIT | 1 |
| 13 | 8M0171819 | O型圈套件 | O-RING KIT | 1 |
| 14 | 8M0089942 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 14 | 8M0171821 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 15 | 8M0089946 | 螺钉套件(完整调整) | SCREW KIT Complete Trim | 1 |
| 16 | 8M0089940 | 电机套件 | MOTOR KIT | 1 |
| 16 | 8M0142591 | 电机套件 | MOTOR KIT | 1 |
| 17 | 8M0090403 | 驱动联轴器 | COUPLING Drive | 1 |
| 18 | 8M0089944 | 泵总成 | PUMP ASSEMBLY | 1 |
| - | 8M0089947 | O型圈套件(动力调整) | O-RING KIT Power Trim | 1 |
| - | 8M0171820 | O型圈套件 | O-RING KIT | 1 |
| - | 8M0127334 | 提升阀密封套件 | POPPET SEAL KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 898447T01 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 1 | 8M0005542 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 1 | 8M0171821 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 2 | 809872A2 | O型圈维修包 | O-RING KIT Rebuild | 1 |
| 2 | 8M0171819 | O型圈套件 | O-RING KIT | 1 |
| 3 | 810776A1 | 记忆活塞总成 | PISTON ASSEMBLY Memory | 1 |
| 3 | 8M0171822 | 记忆活塞套件 | MEMORY PISTON KIT | 1 |
| 4 | 811669A1 | 气缸总成 | CYLINDER ASSEMBLY | 1 |
| 4 | 893916A01 | 气缸总成 | CYLINDER ASSEMBLY | 1 |
| 5 | 809873A1 | 配平限位阀套件 | VALVE KIT Trim Limit | 1 |
| 5 | 893905A02 | 阀套件 | VALVE KIT | 1 |
| 6 | 809874A1 | 泵总成 | PUMP ASSEMBLY | 1 |
| 6 | 893906A02 | 泵总成 | PUMP ASSEMBLY | 1 |
| 7 | 809885A2 | 电机套件 | MOTOR KIT | 1 |
| 7 | 893907A02 | 电机套件 | MOTOR KIT | 1 |
| 8 | 8134351 | 储液罐塞 | PLUG Reservoir | 1 |
| 9 | 813442A2 | 手动释放总成 | MANUAL RELEASE ASSEMBLY | 1 |
| 9 | 893929A01 | 安全阀套件 | VALVE KIT Relief | 1 |
| 10 | 809875A1 | 歧管套件 | MANIFOLD KIT | 1 |
| 10 | 893909A02 | 歧管套件 | MANIFOLD KIT | 1 |
| 11 | 809876A1 | 电机螺钉套件 | SCREW KIT Motor | 1 |
| 12 | 88238A18 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 13 | 809877A1 | 驱动轴/密封套件 | DRIVESHAFT/SEAL KIT | 1 |
| 14 | 809878A1 | 滤清器套件 | FILTER KIT | 1 |
| 14 | 893912A02 | 滤清器套件 | FILTER KIT | 1 |
| 15 | 809879A1 | 提升阀套件 | POPPET KIT | 1 |
| 15 | 893913A02 | 提升阀套件 | POPPET KIT | 1 |
| - | 809880A1 | 完整配平O型圈套件 | O-RING KIT Complete Trim | 1 |
| - | 893914A02 | O型圈套件 | O-RING KIT | 1 |
| 16 | 821539 | 三叶销 | PIN Trilobe | 2 |
| 17 | 818898 | 锚销 | PIN Anchor | 1 |
| 18 | 99625002 | 轴 | SHAFT | 1 |
| - | 8M0127334 | 提升阀密封套件 | POPPET SEAL KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 898112006 | 零件手册75/80/90/100电喷四冲程 | PARTS MANUAL 75/80/90/100 EFI 4-Stroke | 1 |
| - | 10247060 | 用户手册 | OWNERS MANUAL | 1 |
| - | 10247J60 | 用户手册(西班牙语) | OWNERS MANUAL Spanish | 1 |
| - | 10247D60 | 用户手册(法语) | OWNERS MANUAL French | 1 |
| - | 10248050 | 安装手册 | INSTALLATION MANUAL | 1 |
| - | 897725 | 维修手册 | SERVICE MANUAL | 1 |
| - | 898113A05 | EPA标签信息贴花 | DECAL EPA Label Information | 1 |
| - | 898113A06 | EPA标签信息贴花 | DECAL EPA Label Information | 1 |
| - | 858610A31 | 燃油软管总成 | HOSE ASSEMBLY Fuel | 1 |
| - | 8M0038610 | 带注油球的燃油软管总成(9英尺) | HOSE ASSEMBLY Fuel (9 Feet) With Primer Bulb | 1 |
| - | 802835A1 | 10W30舷外机四冲程机油(4升) | OIL 10W30 OB 4-Stroke (4 Liter) | 1 |
| - | 8M0078626 | 10W30 GL-3机油 | OIL 10W30 GL@3 | 1 |
| - | 883723K01 | FC-W合成四冲程机油4升(水星) | OIL FC-W Synthetic 4-Stroke, 4 Liter, Mercury | 1 |
| - | 8M0078630 | 四冲程合成机油MPP(1加仑) | 4-CYCLE OIL, SYN MPP, 1 Gallon | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 897525T03 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| - | 897525T05 | 起动机总成(完整) | STARTER MOTOR ASSEMBLY Complete | 1 |
| - | 879150A85 | 启动电机套件 | STARTER MOTOR KIT | 1 |
| 1 | 8M0001391 | 启动电机轴套 | COLLAR Starter Motor | 2 |
| 1 | 8M0034918 | 轴环 | COLLAR | 2 |
| 2 | 93388A1 | 电缆总成(6.00英寸)黑色 | CABLE ASSEMBLY (6.00 Inches) Black | 1 |
| 3 | 69035 | 螺丝与锁紧垫圈(.250-20 x .625)不锈钢 | SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel | 1 |
| 4 | 8M0007871 | 橡胶止挡 | STOP Rubber | 1 |
| 5 | 898890T01 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 6 | 400255 | 锁紧垫圈(M5) | LOCKWASHER (M5) | 1 |
| 7 | 400211 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 1 |
| 8 | 8272822 | 警告标贴 | DECAL Warning | 1 |
| 9 | 898103T94 | 卡箍 | CLAMP | 1 |
| 9 | 879150A85 | 启动电机套件 | STARTER MOTOR KIT | 1 |
| 10 | 898103T95 | 卡箍 | CLAMP | 1 |
| 10 | 879150A85 | 启动电机套件 | STARTER MOTOR KIT | 1 |
| 11 | 8M0008081 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 2 |
| 12 | 8M0008110 | 盖形螺母 | NUT Acorn | 1 |
| 13 | 8M0008112 | 垫片(外径8毫米×187毫米) | WASHER (8 mm Outside Diameter x 187 mm) | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 879345T77 | 起动机总成(完整) | STARTER MOTOR ASSEMBLY Complete | 1 |
| 2 | 898890T01 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 3 | 400255 | 锁紧垫圈(M5) | LOCKWASHER (M5) | 1 |
| 4 | 400211 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 1 |
| 5 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 1 |
| 6 | 26993 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 1 |
| 6 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 1 |
| 7 | 93388A1 | 电缆总成(6.00英寸)黑色 | CABLE ASSEMBLY (6.00 Inches) Black | 1 |
| 7 | 93388A8 | 黑色电缆总成(12.5英寸) | CABLE ASSEMBLY (12.5 Inchs) Black | 1 |
| 8 | 400255 | 锁紧垫圈(M5) | LOCKWASHER (M5) | 1 |
| 9 | 69034 | 螺钉带锁紧垫圈(.312-18 x 1.00) | SCREW AND LOCKWASHER (.312-18 x 1.00) | 1 |
| 9 | 30225 | 螺钉带锁紧垫圈(.312-18 x 1.00) | SCREW WITH LOCKWASHER (.312-18 x 1.00) | 1 |
| 10 | 8M0047039 | 隔套 | SPACER | 4 |
| 11 | 8M0047038 | 支架 | MOUNT | 8 |
| 11 | 8M0073891 | 支架 | MOUNT | 8 |
| 12 | 88552645 | 螺钉（M8X45） | SCREW (M8X45) | 4 |
| 13 | 814634 | 卡箍 | CLAMP | 1 |
| 14 | 43430 | 垫圈 | WASHER | 4 |
| 15 | 8M0037204 | 尼龙压入螺钉 (.25-20 x .50) | SCREW Nylon, Push-In (.25-20 x .50) | 2 |
| 16 | 8M0040205 | 卡箍 | CLAMP | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 816366A52 | 转向手柄套件 | HANDLE KIT Steering | 1 |
| 1 | 12020A3 | 转向臂手柄总成 | HANDLE ASSEMBLY Steering Arm | 1 |
| NS | 74036 | 润滑脂接头 | FITTING Grease | 1 |
| NS | 8M0169589 | 润滑脂接头 | FITTING Grease | 1 |
| 2 | 429922 | 衬套 | BUSHING | 2 |
| 2 | 42992T02 | 衬套 | BUSHING | 2 |
| 3 | 48414 | 壳体 | HOUSING | 1 |
| 4 | 48519 | 安装板 | PLATE | 1 |
| 5 | 48518 | 衬垫 | GASKET | 1 |
| 6 | 878609 | 螺钉 (#10-16 x .600) | SCREW (#10-16 x .600) | 2 |
| 7 | 878608 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 3 |
| 8 | 889729 | 卡箍 | CLAMP | 1 |
| 9 | 40007112 | 螺钉(M5 x 40) | SCREW (M5 x 40) | 2 |
| 10 | 816874 | 蝶形螺母 (#10-32) | WING NUT (#10-32) | 1 |
| 11 | 823609A15 | 停机开关套件-油门手柄 | SWITCH KIT Stop - Throttle Handle | 1 |
| 12 | 823609A5 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 12 | 8M0104612 | 开关总成 | SWITCH ASSY | 1 |
| 13 | NSS | 绝缘件(不单独销售) | NOT SOLD SEPARATE Insulator | 1 |
| 14 | 12018A4 | 油门拉线管总成 | TUBE ASSEMBLY Throttle | 1 |
| 15 | NSS | 驱动轮(不单独销售) | NOT SOLD SEPARATE Drive Wheel | 1 |
| 16 | NSS | 弹性销(不单独销售) | NOT SOLD SEPARATE Roll Pin | 1 |
| 17 | 62568 | 螺钉（#10-16 x 0.375） | SCREW (#10-16 x .375) | 1 |
| 18 | 99589003 | 握把 | GRIP | 1 |
| 18 | 8M0221732 | 外握把 | GRIP OUTER | 1 |
| 19 | 648552 | 卡扣 | CLIP | 2 |
| 20 | 40140 | 螺母(M10) | NUT (M10) | 1 |
| 21 | 8885241 | 导管 (9.03 英寸) | CONDUIT (9.03 Inches) | 1 |
| 22 | 89566T07 | 导管 | GUIDE Tube | 1 |
| 23 | 89578 | 节流阀执行筒 | BARREL Throttle Acutator | 1 |
| 24 | 824081 | 紧定螺钉(#10-32) | SET SCREW (#10-32) | 1 |
| 25 | 12019T05 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 26 | 43433 | 电缆导向器 | GUIDE Cable | 1 |
| 26 | 8M0204660 | 导套 | GUIDE | 1 |
| 27 | 20007 | 电缆端锚 | ANCHOR Cable End | 1 |
| 28 | 20518 | 紧定螺钉(#8-32) | SET SCREW (#8-32) | 2 |
| 28 | 8M0204644 | 螺钉组 | SCREW SET | 2 |
| 29 | 823567105 | 螺丝(M10 x 105)六角法兰-不锈钢 | SCREW (M10 x 105) Hex Flange - Stainless Steel | 1 |
| 30 | 48416 | 盖帽 | CAP | 1 |
| 31 | 4002319 | 垫圈 | WASHER | 1 |
| 32 | 12024 | 垫圈(0.402 x 0.787 x 0.039 贝氏) | WASHER (.402 x .787 x .039 Bellevi) | 1 |
| 33 | 146011 | 隔套 | SPACER | 1 |
| 34 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 35 | NSS | 节气门标识贴(不单独销售) | NOT SOLD SEPARATE Decal-Throttle | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 816366A52 | 转向手柄套件 | HANDLE KIT Steering | |
| 1 | 816366T10 | 手柄支架 | HANDLE Bracket | 1 |
| 2 | 881261 | 螺钉（.313-24 x 3.50） | SCREW (.313-24 x 3.50) | 2 |
| 3 | 42981 | 锁紧垫圈 | TAB WASHER | 2 |
| 4 | 822263 | 隔套 | SPACER | 1 |
| 5 | 12649T11 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 6 | 88107A5 | 钥匙开关套件 | SWITCH KIT Key | 1 |
| 7 | 879755 | 特殊螺母-黑色尼龙 | NUT Special - Black Nylon | 1 |
| 8 | 13541 | 公插头 | PLUG Male | 1 |
| 9 | 121051 | 护孔环 | GROMMET | 1 |
| 10 | 889730 | 堵头 | PLUG | 1 |
| 11 | 120441 | 黄铜固定座 | RETAINER Brass | 1 |
| 11 | 8M0032846 | 黄铜固定座 | RETAINER Brass | 1 |
| 12 | 8158041 | 盖板 | COVER | 1 |
| 13 | 878608 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 5 |
| 14 | 11083A4 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 15 | 15920Q54 | 拉绳总成 | LANYARD ASSEMBLY | 1 |
| 15 | 15920T54 | 拉绳总成 | LANYARD ASSEMBLY | 1 |
| 16 | 11149A3 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 17 | 889528T01 | 喇叭总成 | HORN ASSEMBLY | 1 |
| 18 | 18286A46 | 配平开关套件(25英尺) | SWITCH KIT Trim (25 ft.) | 1 |
| 19 | 8M0033667 | 开关 | SWITCH | 1 |
| 19 | 8M0052941 | 开关 | SWITCH | 1 |
| 20 | 12110 | 螺丝 (#6-32 x .750) | SCREW (#6-32 x .750) | 2 |
| 21 | 648551 | 卡箍 | CLAMP | 2 |
| 22 | 878608 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 1 |
| 23 | 849838 | 螺钉(.375-24 x 1.250) | SCREW (.375-24 x 1.250) | 1 |
| 24 | 826709113 | 不锈钢螺母 (.375-24) | NUT (.375-24) Stainless Steel | 1 |
| 24 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 1 |
| 25 | 48419001 | 拉杆端头 | ROD END | 1 |
| 25 | 48419T01 | 杆端接头（2.66英寸） | ROD END (2.66 Inches) | 1 |
| 26 | 495637 | 换挡杆 | ROD Shift | 1 |
| 27 | 26856 | 衬套 | BUSHING | 1 |
| 28 | 35950 | 垫圈 (.273 x .437 x .031) 不锈钢 | WASHER (.273 x .437 x .031) Stainless Steel | 1 |
| 29 | 25191 | 开口销 | COTTER PIN | 1 |
| 30 | 8M0033001 | 杠杆 | LEVER | 1 |
| 31 | 58152 | 双头螺柱(0.375-24×1.125) | STUD (.375-24 x 1.125) | 1 |
| 31 | 8M0034452 | 螺柱 | STUD | 1 |
| 32 | 98530 | 旋钮 | KNOB | 1 |
| 33 | 12016A2 | 定位弹簧套件 | DETENT/SPRING KIT | 1 |
| 34 | 8159831 | 衬套 | BUSHING | 1 |
| 35 | 823970 | 垫圈 | WASHER | 1 |
| 36 | 824610 | 塑料垫圈 | WASHER Plastic | 1 |
| 37 | 814803 | 垫圈 | WASHER | 1 |
| 38 | 8158051 | 锁紧垫圈 | TAB WASHER | 1 |
| 39 | 4000357 | 螺钉 (M8 x 45) | SCREW (M8 x 45) | 1 |
| 40 | 52148A08 | 副驾驶总成 | CO PILOT ASSEMBLY | 1 |
| 41 | 52148002 | 导向杆（15英寸） | PILOT ROD (15.00 Inches) | 1 |
| 42 | 52155A1 | 螺母总成 | NUT ASSEMBLY | 1 |
| 42 | 8M0103848 | 螺母总成 | NUT ASSEMBLY | 1 |
| 43 | 36137 | 螺钉(.250-28 x 1.00) | SCREW (.250-28 x 1.00) | 1 |
| 44 | 77674 | 垫圈(.35 x .75 x .12) | WASHER (.35 x .75 x .12) | 1 |
| 45 | 821621 | 叉形旋钮 | KNOB Prong | 1 |
| 46 | 873491 | 杆 | ROD | 1 |
| 47 | 26841 | 衬套 | BUSHING | 1 |
| 48 | 70132 | 垫圈(0.323×0.563×0.063)不锈钢 | WASHER (.323 x .563 x .063) Stainless Steel | 2 |
| 48 | 8M0042642 | 垫圈(.323 x .562 x .063) | WASHER (.323 x .562 x .063) | 2 |
| 49 | 826709111 | 螺母(.312-24)不锈钢 | NUT (.312-24) Stainless Steel | 2 |
| 49 | 64015 | 螺母 (.250-20) | NUT (.250-20) | 1 |
| - | 894911 | 点火钥匙(1A) | KEY Ignition (1A) | 1 |
| - | 894912 | 点火钥匙(1B) | KEY Ignition (1B) | 1 |
| - | 894913 | 点火钥匙(1C) | KEY Ignition (1C) | 1 |
| - | 894914 | 点火钥匙(1D) | KEY Ignition (1D) | 1 |
| - | 894915 | 点火钥匙(1E) | KEY Ignition (1E) | 1 |
| - | 894916 | 点火钥匙(1F) | KEY Ignition (1F) | 1 |
| - | 894917 | 点火钥匙(2A) | KEY Ignition (2A) | 1 |
| - | 894918 | 点火钥匙(2B) | KEY Ignition (2B) | 1 |
| - | 894919 | 点火钥匙(2C) | KEY Ignition (2C) | 1 |
| - | 8949110 | 点火钥匙(2D) | KEY Ignition (2D) | 1 |
| - | 8949111 | 点火钥匙(2E) | KEY Ignition (2E) | 1 |
| - | 8949112 | 点火钥匙(2F) | KEY Ignition (2F) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 898032A03 | 旋转支架总成 | SWIVEL BRACKET ASSEMBLY | 1 |
| 2 | 87735 | 下油封 | SEAL Oil Lower | 1 |
| 3 | 818764 | 衬套 | BUSHING | 2 |
| 4 | 33504 | O型圈 | O-RING | 1 |
| 4 | 8M0214926 | O型圈 @10 | O RING @10 | 1 |
| 5 | 816039 | 隔套 | SPACER | 1 |
| 6 | 74036 | 润滑脂接头 | FITTING Grease | 2 |
| 6 | 8M0169589 | 润滑脂接头 | FITTING Grease | 2 |
| 7 | 821207 | 衬套 | BUSHING | 2 |
| 8 | 64014 | 螺钉(.250-28x.500) | SCREW (.250-28 x .500) | 2 |
| 9 | 99661A35 | 旋转销总成 | SWIVEL PIN ASSEMBLY | 1 |
| 10 | 92876A12 | 连杆总成 | LINK ROD ASSEMBLY | 1 |
| 11 | 849838 | 螺钉(.375-24 x 1.250) | SCREW (.375-24 x 1.250) | 1 |
| 12 | 8M0042636 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 1 |
| 12 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 1 |
| 13 | 826709113 | 不锈钢螺母 (.375-24) | NUT (.375-24) Stainless Steel | 1 |
| 13 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 1 |
| 14 | 37828 | 不锈钢垫圈 (.390 x .625 x .062) | WASHER (.390 x .625 x .062) Stainless Steel | 2 |
| 15 | 42961A06 | 底部轭架总成 | YOKE ASSEMBLY Bottom | 1 |
| 16 | 67684 | 挡圈 | RING Retaining | 1 |
| 17 | 816432 | 止推垫片(含旋转支架) | THRUST WASHER Included with Swivel Bracket | 1 |
| 18 | 11288001 | 下轭缓冲垫 | BUMPER Bottom Yoke | 1 |
| 19 | 821400A2 | 动力升降倾斜传感器套件 | SENDER KIT Power Trim | 1 |
| 19 | 8M0074845 | ORD 8M0098264 | ORD 8M0098264 | 1 |
| 20 | 852368 | 螺钉（#10-24 X 0.750） | SCREW (#10-24 x .750) | 2 |
| 21 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 2 |
| 22 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| - | NSS | 不单独销售-序列号覆膜标贴 | NOT SOLD SEPARATE Decal-Serial Overlaminate | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 897763T01 | 节气门支架总成 | BRACKET ASSEMBLY Throttle | 1 |
| 1 | 897763T01 | 节气门支架总成 | BRACKET ASSEMBLY Throttle | 1 |
| 1 | 897763T03 | 节气门支架总成 | BRACKET ASSEMBLY Throttle | 1 |
| 1 | 897763T03 | 节气门支架总成 | BRACKET ASSEMBLY Throttle | 1 |
| 1 | 897763T03 | 节气门支架总成 | BRACKET ASSEMBLY Throttle | 1 |
| 2 | 42975 | 传动螺钉 | DRIVE SCREW | 2 |
| 3 | 824015 | 筒形保持杯 | CUP Barrel Retainer | 1 |
| 4 | 898048T | 控制电缆锁扣 | LATCH Control Cable | 1 |
| 5 | 897765T01 | 节气门随动杆总成 | LEVER ASSEMBLY Throttle Follower | 1 |
| 6 | 897936 | 垫圈 | WASHER | 2 |
| 7 | 897937 | 垫圈 | WASHER | 2 |
| 8 | 898093 | 波形垫圈 | WASHER Wave | 2 |
| 9 | 897935 | 隔套 | SPACER | 2 |
| 10 | 88552530 | 螺丝(M6×30毫米)不锈钢 | SCREW (M6 x 30 mm) Stainless Steel | 2 |
| 10 | 8M0103808 | 螺丝(M6×30毫米)不锈钢 | SCREW (M6 x 30 mm) Stainless Steel | 2 |
| 11 | 8M0008288 | 节气门杠杆总成 | LEVER ASSEMBLY Throttle | 1 |
| 12 | 8M0001157 | 蝴蝶夹销 | PIN Bow Tie Clip | 1 |
| 13 | 897535005 | 节流凸轮回位弹簧 | SPRING Throttle Cam Return | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 899341T01 | 顶罩总成(水星款) | TOP COWL ASSEMBLY Mercury | 1 |
| 1 | 899341T02 | 顶罩总成（水星款） | TOP COWL ASSEMBLY Mariner | 1 |
| 1 | 8M0075361 | 顶盖总成 Mariner 无贴花 | TOP COWL ASSEMBLY Mariner, Without decals | 1 |
| 1 | 8M0075360 | 顶盖总成 Mercury 无贴花 | TOP COWL ASSEMBLY Mercury, Without decals | 1 |
| 1 | 8M0075361 | 顶盖总成 Mariner 无贴花 | TOP COWL ASSEMBLY Mariner, Without decals | 1 |
| 2 | 897529T | 空气挡板盖(水星) | CAP Air Dam - Mercury | 1 |
| 2 | 897529T01 | 空气导流帽-水星型 | CAP Air Dam - Mariner | 1 |
| 3 | 888950020 | 螺丝(M4×20毫米) | SCREW (M4 x 20 mm) | 4 |
| 4 | 8M0000346 | 隔音罩总成 | SOUND BLANKET ASSEMBLY | 1 |
| 5 | 831207T10 | 手柄 | HANDLE | 1 |
| 5 | 831207A16 | 罩盖锁手柄套件 | HANDLE KIT Cowl Latch | 1 |
| 5 | 831207A16 | 罩盖锁手柄套件 | HANDLE KIT Cowl Latch | 1 |
| 6 | 812707 | 衬套 | BUSHING | 2 |
| 7 | 12134 | 波形垫圈 | WASHER Wave | 1 |
| 8 | 8M0001081 | 凸轮 | CAM | 1 |
| 9 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 1 |
| 9 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 1 |
| 10 | 19605 | 垫圈(.520 x .850 x .060) 尼龙-黑色 | WASHER (.520 x .850 x .060) Nylon - Black | 3 |
| 10 | 8M0042643 | 垫圈(.520 x .850 x .060) 尼龙 黑色 | WASHER (.520 x .850 x .060) Nylon, Black | 3 |
| 11 | 815477 | 缓冲器锁扣 | BUMPER Latch | 2 |
| 12 | 897975 | 背板 | PLATE Backing | 1 |
| 13 | 821249M2 | 前支架 | BRACKET Front | 1 |
| 13 | 8M0036792 | 支架 | BRACKET | 1 |
| 14 | 815477 | 缓冲器锁扣 | BUMPER Latch | 1 |
| 15 | 8155381 | 滚动销 | PIN Roll | 1 |
| 16 | 815263 | 滚轮 | ROLLER | 1 |
| 16 | 8M0207770 | 滚轮@3 | ROLLER @3 | 1 |
| 17 | 8237951 | 挡圈 | RING Retaining | 1 |
| 18 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 18 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 19 | 401366 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 20 | 88552512 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 mm) Stainless Steel | 3 |
| 20 | 8M0103804 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 MM) Stainless Steel | 3 |
| 21 | 897924A01 | 后透镜及图案贴花总成 | DECAL Back Lenz and Graphic Assembly | 1 |
| 21 | 8M0022127 | ORD 8M0114993 | ORD 8M0114993 | 1 |
| - | 889246A01 | 水星75贴花套件 | DECAL SET Mercury 75 | 1 |
| - | 8M0063408 | ORD 37-8M0114993 | ORD 37-8M0114993 | 1 |
| - | 8M0061175 | 马力贴花(75) | DECAL Horsepower (75) | 1 |
| - | 8M0115000 | 服务套件贴纸 | DECAL-SERVICE KIT | 1 |
| - | 889246A02 | 水星80贴花套件 | DECAL SET Mercury 80 | 1 |
| - | 8M0114993 | 服务套件贴纸 | DECAL-SERVICE KIT | 1 |
| - | 8M0061176 | 马力贴花(80) | DECAL Horsepower (80) | 1 |
| - | 889246A03 | 水星90贴花套件 | DECAL SET Mercury 90 | 1 |
| - | 8M0063408 | ORD 37-8M0114993 | ORD 37-8M0114993 | 1 |
| - | 8M0061177 | 马力贴花(90) | DECAL Horsepower (90) | 1 |
| - | 8M0115000 | 服务套件贴纸 | DECAL-SERVICE KIT | 1 |
| - | 8M0114993 | 服务套件贴纸 | DECAL-SERVICE KIT | 1 |
| - | 889246A04 | 水星100贴花套件 | DECAL SET Mercury 100 | 1 |
| - | 8M0063419 | ORD 37-8M0114993 | ORD 37-8M0114993 | 1 |
| - | 8M0061178 | 马力贴花(100) | DECAL Horsepower (100) | 1 |
| - | 889246A05 | 水星115贴花套件 | DECAL SET Mercury 115 | 1 |
| - | 8M0063408 | ORD 37-8M0114993 | ORD 37-8M0114993 | 1 |
| - | 8M0061180 | 马力贴花115 | DECAL Horsepower 115 | 1 |
| - | 8M0115000 | 服务套件贴纸 | DECAL-SERVICE KIT | 1 |
| - | 898822001 | 水手75全包围贴花 | DECAL Wrap Mariner 75 | 1 |
| - | 898822002 | 水手80全包围贴花 | DECAL Wrap Mariner 80 | 1 |
| - | 898822003 | 水手90全包围贴花 | DECAL Wrap Mariner 90 | 1 |
| - | 898822004 | 水手100全包围贴花 | DECAL Wrap Mariner 100 | 1 |
| - | 898822005 | 水手115全包围贴花 | DECAL Wrap Mariner 115 | 1 |
| - | 8592712 | M图标贴花 | DECAL M Icon | 1 |
| - | 8M0133054 | 贴花 | DECAL | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 899341T02 | 顶罩总成（水星款） | TOP COWL ASSEMBLY Mariner | 1 |
| 1 | 8M0074089 | 顶罩总成(水星款) | TOP COWL ASSEMBLY Mercury | 1 |
| 1 | 8M0075360 | 顶盖总成 Mercury 无贴花 | TOP COWL ASSEMBLY Mercury, Without decals | 1 |
| 1 | 8M0075360 | 顶盖总成 Mercury 无贴花 | TOP COWL ASSEMBLY Mercury, Without decals | 1 |
| 1 | 8M0075361 | 顶盖总成 Mariner 无贴花 | TOP COWL ASSEMBLY Mariner, Without decals | 1 |
| 2 | 897529T | 空气挡板盖(水星) | CAP Air Dam - Mercury | 1 |
| 2 | 897529T01 | 空气导流帽-水星型 | CAP Air Dam - Mariner | 1 |
| 3 | 888950020 | 螺丝(M4×20毫米) | SCREW (M4 x 20 mm) | 4 |
| 4 | 8M0000346 | 隔音罩总成 | SOUND BLANKET ASSEMBLY | 1 |
| 5 | 831207A16 | 罩盖锁手柄套件 | HANDLE KIT Cowl Latch | 1 |
| 6 | 812707 | 衬套 | BUSHING | 2 |
| 7 | 12134 | 波形垫圈 | WASHER Wave | 1 |
| 8 | 8M0001081 | 凸轮 | CAM | 1 |
| 9 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 1 |
| 9 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 1 |
| 10 | 19605 | 垫圈(.520 x .850 x .060) 尼龙-黑色 | WASHER (.520 x .850 x .060) Nylon - Black | 3 |
| 10 | 8M0042643 | 垫圈(.520 x .850 x .060) 尼龙 黑色 | WASHER (.520 x .850 x .060) Nylon, Black | 3 |
| 11 | 815477 | 缓冲器锁扣 | BUMPER Latch | 2 |
| 12 | 897975 | 背板 | PLATE Backing | 1 |
| 13 | 821249M2 | 前支架 | BRACKET Front | 1 |
| 13 | 8M0036792 | 支架 | BRACKET | 1 |
| 14 | 815477 | 缓冲器锁扣 | BUMPER Latch | 1 |
| 15 | 8155381 | 滚动销 | PIN Roll | 1 |
| 16 | 815263 | 滚轮 | ROLLER | 1 |
| 16 | 8M0207770 | 滚轮@3 | ROLLER @3 | 1 |
| 17 | 8237951 | 挡圈 | RING Retaining | 1 |
| 18 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 18 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 19 | 401366 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 20 | 88552512 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 mm) Stainless Steel | 3 |
| 20 | 8M0103804 | 不锈钢螺钉 (M6 x 12 mm) | SCREW (M6 x 12 MM) Stainless Steel | 3 |
| 21 | NSS | 不单独销售 | NOT SOLD SEPARATE | 1 |
| - | 8M0074090 | 80/100贴花套件 | DECAL SET 80/100 | 1 |
| - | 8M0107468 | 服务套件贴纸 | DECAL-SERVICE KIT | 1 |
| - | 8M0063366 | 马力贴花(80) | DECAL Horsepower (80) | 1 |
| - | 8M0114993 | 服务套件贴纸 | DECAL-SERVICE KIT | 1 |
| - | 8M0063368 | 马力贴花(100) | DECAL Horsepower (100) | 1 |
| - | 8M0114993 | 服务套件贴纸 | DECAL-SERVICE KIT | 1 |
| - | 8M0074092 | 75/90/115贴花套件 | DECAL SET 75/90/115 | 1 |
| - | 8M0107468 | 服务套件贴纸 | DECAL-SERVICE KIT | 1 |
| - | 8M0063365 | 马力贴花(75) | DECAL Horsepower (75) | 1 |
| - | 8M0063367 | 马力贴花(90) | DECAL Horsepower (90) | 1 |
| - | 8M0114993 | 服务套件贴纸 | DECAL-SERVICE KIT | 1 |
| - | 8M0063369 | 马力贴花(115) | DECAL Horsepower (115) | 1 |
| - | 8M0114993 | 服务套件贴纸 | DECAL-SERVICE KIT | 1 |
| - | 898822001 | 水手75全包围贴花 | DECAL Wrap Mariner 75 | 1 |
| - | 898822002 | 水手80全包围贴花 | DECAL Wrap Mariner 80 | 1 |
| - | 898822003 | 水手90全包围贴花 | DECAL Wrap Mariner 90 | 1 |
| - | 898822004 | 水手100全包围贴花 | DECAL Wrap Mariner 100 | 1 |
| - | 898822005 | 水手115全包围贴花 | DECAL Wrap Mariner 115 | 1 |
| - | 8M0043706 | 贴标 M-图标 60mm 黑色 | DECAL M-Icon, 60mm Black | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 828334F1 | 艉板支架(右舷) | BRACKET Transom (Starboard) | 1 |
| 2 | 828333A3 | 艉板支架总成(左舷) | BRACKET ASSEMBLY Transom (Port) | 1 |
| 2 | 828333T07 | 艉板支架总成-左舷 | BRACKET ASSEMBLY Transom - Port | 1 |
| 3 | 98727 | FITTING Grease (Port) | 1 | |
| 3 | 8M0169588 | 润滑脂接头 | FITTING Grease | 1 |
| 4 | 99170A2 | 倾斜管套件 | TUBE KIT Tilt | 1 |
| 4 | 826125A1 | 倾斜管 | TILT TUBE | 1 |
| 4 | 826125A1 | 倾斜管 | TILT TUBE | 1 |
| 5 | 859133 | 螺母(1.00-14) | NUT (1.00-14) | 1 |
| 5 | 82671327 | 螺母(1.0-14) | NUT (1.0-14) | 1 |
| 5 | 826135 | 尼龙锁紧螺母(1.00-14) | NUT Lock (1.00-14) Nylon Insert | 1 |
| 6 | 45711 | O型圈 内径0.612英寸×宽0.103英寸 | O-Ring .612 IN I.D. x .103 IN Width | 1 |
| 7 | 88750 | 波浪垫圈 (1.62 x 1.05) | WASHER Wave (1.62 x 1.05) | 2 |
| 8 | 858869 | 螺母 (.875-14) | NUT (.875-14) | 1 |
| 8 | 826164 | 螺母 (.875-14) | NUT (.875-14) | 1 |
| 8 | 8M0231351 | 锁紧螺母 | NUT Lock | 1 |
| 9 | 677551 | 螺钉(.500-20×4.500) | SCREW (.500-20 x 4.500) | 4 |
| 9 | 8M0149747 | 螺钉 | SCREW | 4 |
| 10 | 54012 | 垫圈(0.530×0.870×0.105不锈钢) | WASHER (.530 x .870 x .105) Stainless Steel | 4 |
| 10 | 8M0204665 | 垫圈(0.530×0.880×0.104 630不锈钢) | WASHER (.530 x .880 x .104) 630 Stainless Steel | 4 |
| 11 | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 11 | 8M0204648 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 12 | 82671117 | 螺母(.500-20) | NUT (.500-20) | 4 |
| 13 | 830899 | 张力弹簧 | SPRING Tension | 1 |
| 14 | 821176T1 | 倾斜锁定杆总成 | LEVER ASSEMBLY Tilt Lock | 1 |
| 14 | 8M0109798 | 倾斜锁定杆总成 | LEVER ASSEMBLY Tilt Lock | 1 |
| 15 | 65830 | 尼龙衬套 | NYLINER | 2 |
| 16 | 830900 | 压缩弹簧 | SPRING Compression | 1 |
| 17 | 99633 | 旋钮 | KNOB | 1 |
| 18 | 99615 | 槽销 | PIN Groove | 1 |
| 19 | 99617 | 销钉（随参考编号2附带） | PIN (Also included with Reference #2) | 1 |
| 19 | 893709 | 销 | PIN | 1 |
| 20 | 818771T1 | 锚支架 | BRACKET Anchor | 1 |
| 20 | 8M0086406 | 锚支架 | BRACKET Anchor | 1 |
| 21 | 858771 | 螺钉 (M10 x 30) | SCREW (M10 x 30) | 6 |
| 22 | 4002319 | 垫圈 | WASHER | 6 |
| 23 | 40114 | 螺母(M10 x 1.5) | NUT (M10 x 1.5) | 1 |
| 24 | 818298Q1 | 阳极套件 | ANODE KIT | 1 |
| 25 | 4000330 | 螺钉(M6x25) | SCREW (M6 x 25) | 2 |
| 25 | 8M0204707 | 不锈钢六角大帽螺钉(M6x25) | SCREW M6 x 25 HX HD CAP SS | 2 |
| 26 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 26 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 27 | 22740 | 卡扣 | CLIP | 2 |
| 28 | 69205 | C形垫圈 | C WASHER | 1 |
| 28 | 8M0084613 | C形垫圈 | C-WASHER | 1 |
| 29 | 878609 | 螺钉 (#10-16 x .600) | SCREW (#10-16 x .600) | 1 |
