四冲程 化油器 · Belgium - Cat.# 90-80273898 · 共 28 个部位 · 1036 条零件
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 828038A1 | 充电套件 电池整流器 | CHARGING KIT Battery Rectifier | A/R |
| - | 831257A1 | 副驾驶套件 | CO-PILOT KIT | A/R |
| - | 828003A1 | 电启动改装套件 | CONVERSION KIT Electric Start | A/R |
| - | 828032A1 | 延长套件 | EXTENSION KIT | A/R |
| - | 828032A2 | 延长套件 | EXTENSION KIT | A/R |
| - | 12612A2 | 冲洗附件 | FLUSHING ATTACHMENT | A/R |
| - | 12612Q2 | 冲洗附件 | FLUSHING ATTACHMENT | A/R |
| - | 827927A8 | 燃油管路总成(8英尺) | LINE ASSEMBLY Fuel (8 Feet) | A/R |
| - | 877680Q8 | 燃油软管总成(8英尺) | HOSE ASSEMBLY Fuel (8 Feet) | A/R |
| - | 827927A12 | 燃油管路总成(12英尺) | LINE ASSEMBLY Fuel (12 Feet) | A/R |
| - | 877680Q12 | 燃油软管总成(12英尺) | HOSE ASSEMBLY Fuel (12 Feet) | A/R |
| - | 17146A8 | 燃油管路总成(8英尺) | LINE ASSEMBLY Fuel (8 Feet) | A/R |
| - | 877681Q8 | 燃油软管总成(8英尺) | HOSE ASSEMBLY Fuel (8 Feet) | A/R |
| - | 17146A12 | 燃油管路总成(12英尺) | LINE ASSEMBLY Fuel (12 Feet) | A/R |
| - | 877681Q12 | 燃油软管总成(12英尺) | HOSE ASSEMBLY Fuel (12 Feet) | A/R |
| - | 822379A12 | 燃油管路总成(12英尺) | LINE ASSEMBLY Fuel (12 Feet) | A/R |
| - | 877683Q12 | 燃油软管总成(12英尺) | HOSE ASSEMBLY Fuel (12 Feet) | A/R |
| - | 84125M | 电压调节器总成 | REGULATOR ASSEMBLY Voltage | A/R |
| - | 84125T | 电压调节器 | REGULATOR Voltage | A/R |
| - | 14171A2 | 电机锁 | MOTOR LOCK | A/R |
| - | 14171Q2 | 电机锁 | MOTOR LOCK | A/R |
| - | 828000A12 | 机油箱 | OIL Case | A/R |
| - | 802833Q1 | 机油 | OIL | A/R |
| - | 96086 | 火花塞扳手/螺丝刀 | WRENCH/SCREWDRIVER Spark Plug | A/R |
| - | 8M0026088 | 火花塞扳手 | PLUG WRENCH | A/R |
| - | 828020A1 | 遥控器安装套件 | ATTACHING KIT Remote Control | A/R |
| - | 828022A2 | 线束总成 遥控装置 | HARNESS ASSEMBLY Remote Control | A/R |
| - | 831259A1 | 转换套件 | CONVERSION KIT | A/R |
| - | 828030A3 | 舵柄套件 | TILLER HANDLE KIT | A/R |
| - | 828030A4 | 舵柄套件 | TILL HANDLE KIT | A/R |
| - | 828004A1 | 舵柄转换套件 | CONVERSION KIT Tiller Handle | A/R |

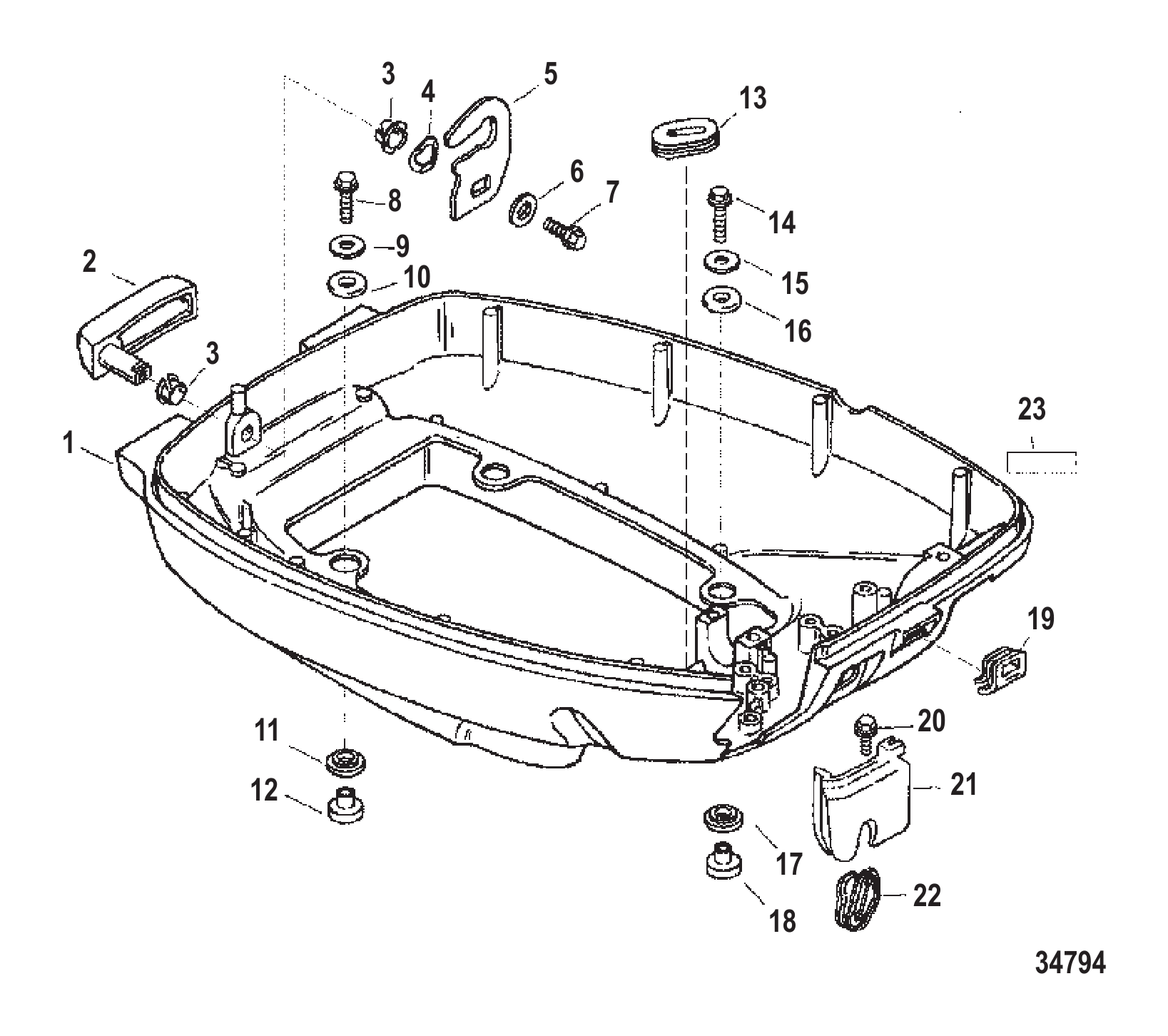

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 825780F1 | 下机罩 | BOTTOM COWL | 1 |
| 2 | 825782F1 | 罩壳锁杆 | LEVER Cowl Latch | 1 |
| 3 | 812707 | 衬套 | BUSHING | 2 |
| 4 | 12134 | 波形垫圈 | WASHER Wave | 1 |
| 5 | 825783 | 锁钩 | LATCH HOOK | 1 |
| 5 | 893766 | 锁钩 | HOOK Latch | 1 |
| 6 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 1 |
| 6 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 1 |
| 7 | 4010616 | 螺钉 (M6 x 16) 不锈钢 | SCREW (M6 x 16) Stainless Steel | 1 |
| 7 | 4006731 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 1 |
| 8 | 40011131 | 螺钉(M6 x 35) 不锈钢 | SCREW (M6 x 35) Stainless Steel | 2 |
| 9 | 69057 | 垫片(.281 x .734 x .063) | WASHER (.281 x .734 x .063) | 2 |
| 10 | 828129 | 护孔环 | GROMMET | 2 |
| 11 | 828129 | 护孔环 | GROMMET | 2 |
| 12 | 826618 | 衬套 | BUSHING | 2 |
| 13 | 826849 | 护孔环 | GROMMET | 1 |
| 14 | 40011129 | 不锈钢螺钉(M6x25) | SCREW (M6 x 25) Stainless Steel | 2 |
| 15 | 69057 | 垫片(.281 x .734 x .063) | WASHER (.281 x .734 x .063) | 2 |
| 16 | 828129 | 护孔环 | GROMMET | 2 |
| 17 | 828129 | 护孔环 | GROMMET | 2 |
| 18 | 826618 | 衬套 | BUSHING | 2 |
| 19 | 857002 | 盖板 | COVER | 1 |
| 20 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 1 |
| 20 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 1 |
| 21 | 825569 | 盖板 | COVER | 1 |
| 22 | 825784 | 护孔环 | GROMMET | 1 |
| 23 | NSS | 贴花-无铅燃油不单独销售 | NOT SOLD SEPARATE Decal-Unleaded Fuel | 1 |

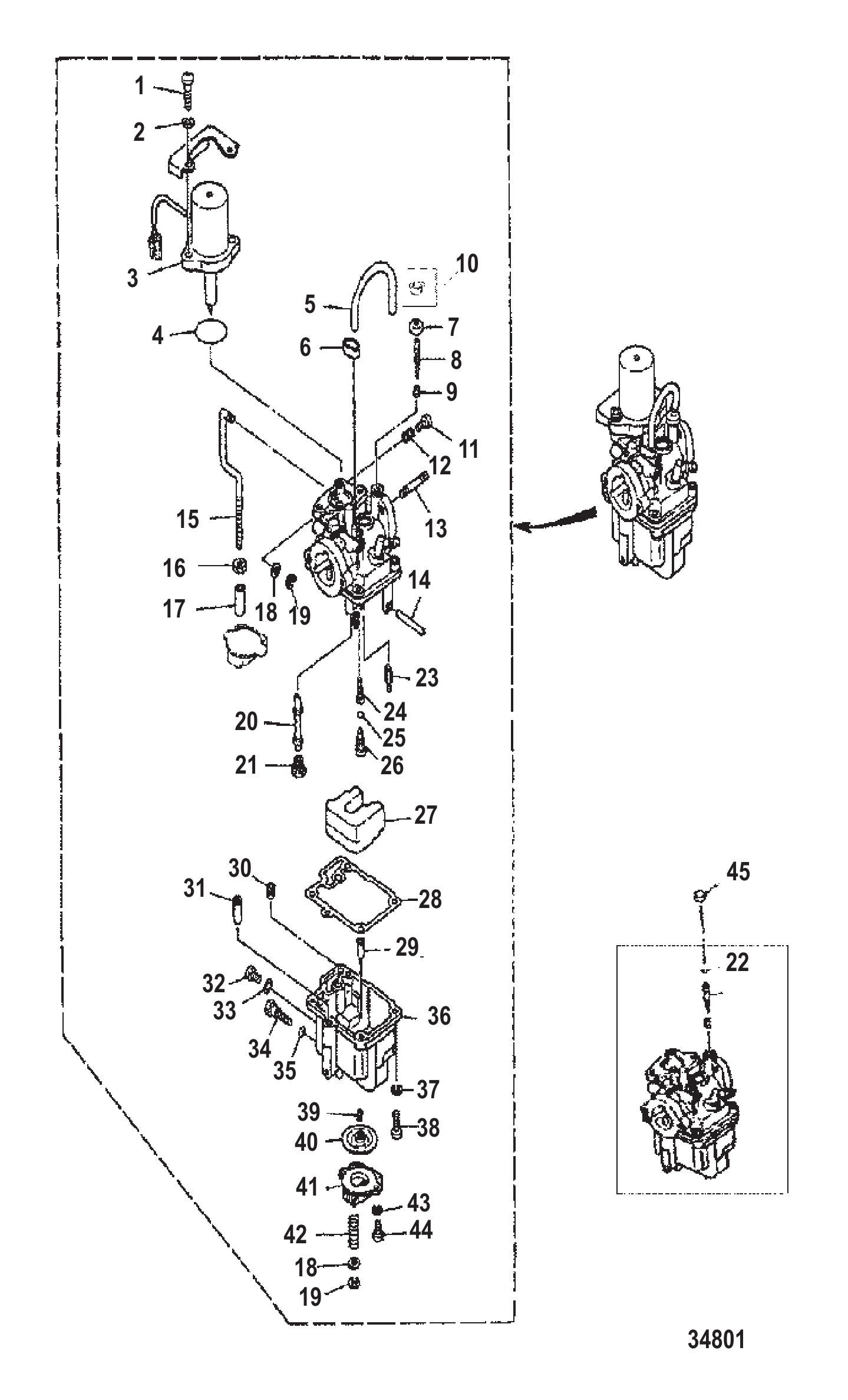

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 827973A1 | 化油器 | CARBURETOR | 1 |
| 1 | 82980M | 螺钉 | SCREW | 2 |
| 2 | 82212M | 锁紧垫圈 | LOCKWASHER | 2 |
| 3 | 827473M | 化油器启动器总成 | PRIMER ASSEMBLY Carburetor | 1 |
| 3 | 827473T | 启动器总成 | STARTER ASSY | 1 |
| 4 | 827472M | O型圈 | O-RING | 1 |
| 4 | 827472T | O型圈 | O RING | 1 |
| 5 | 827471M | 管道 | PIPE | 1 |
| 6 | 827482M | 卡箍 | CLAMP | 1 |
| 7 | 827468M | 密封件 | SEAL | 1 |
| 8 | 809125M | 空气调节螺钉 | SCREW Air Adjusting | 1 |
| 9 | 80437M | 弹簧 | SPRING | 1 |
| 10 | 855237 | 堵头 | PLUG | 1 |
| 11 | 826931M | 螺钉 | SCREW | 1 |
| 12 | 82596M | 导向调节弹簧 | SPRING Pilot Adjusting | 1 |
| 13 | 825522 | 螺柱 | STUD | 2 |
| 14 | 80451M | 浮子销 | PIN Float | 1 |
| 15 | 809127M | 加速泵杆 | ROD Accelerator Pump | 1 |
| 16 | 82537M | 螺母 | NUT | 1 |
| 17 | 827486M | 阻风门轴 | SHAFT Choke | 1 |
| 18 | 827488M | 垫圈 | WASHER | 2 |
| 19 | 827489M | 卡扣 | CLIP | 2 |
| 20 | 809123M | 主喷管 | MAIN NOZZLE | 1 |
| 21 | 82625M | 主量孔 | MAIN JET | 1 |
| 22 | 809124M | O型圈 | O-RING | 1 |
| 23 | 14182M | 阀门 | VALVE | 1 |
| 24 | 827465M | 导向喷口 | JET Pilot | 1 |
| 25 | 80960M | 衬垫 | GASKET | 1 |
| 26 | 827466M | 主喷嘴塞 | PLUG Main Nozzle | 1 |
| 27 | 827470M | 浮子 | FLOAT | 1 |
| 28 | 827463M | 浮子室衬垫 | GASKET Float Chamber | 1 |
| 29 | 827474M | 滤清器 | FILTER | 1 |
| 30 | 827475M | 启动喷口 | JET Starting | 1 |
| 31 | 827483M | 阻风门阀 | VALVE Choke | 1 |
| 32 | 827480M | 螺钉 | SCREW | 1 |
| 33 | 827481M | 衬垫 | GASKET | 1 |
| 34 | 827477M | 放油螺钉 | SCREW Drain | 1 |
| 35 | 827476M | O型圈 | O-RING | 1 |
| 36 | 827464M | 浮子室 | FLOAT BOWL | 1 |
| 37 | 82206M | 锁紧垫圈 | LOCKWASHER | 4 |
| 38 | 91738M | 螺钉 | SCREW | 4 |
| 39 | 827479M | 弹簧 | SPRING | 1 |
| 40 | 827478M | 隔膜 | DIAPHRAGM | 1 |
| 41 | 809126M | 盖板 | COVER | 1 |
| 42 | 827487M | 弹簧 | SPRING | 1 |
| 43 | 82206M | 锁紧垫圈 | LOCKWASHER | 2 |
| 44 | 83509M | 螺钉（M4×10） | SCREW (M4 x 10) | 2 |
| 45 | 827737 | 橡胶密封件 | SEAL Rubber | 1 |
| - | 828099 | 节气门止动块 | STOP Throttle | 1 |
| - | 821285 | 压入式螺母 | PUSH NUT | 1 |
| - | 827493M | 化油器维修套件 | REPAIR KIT Carburetor | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

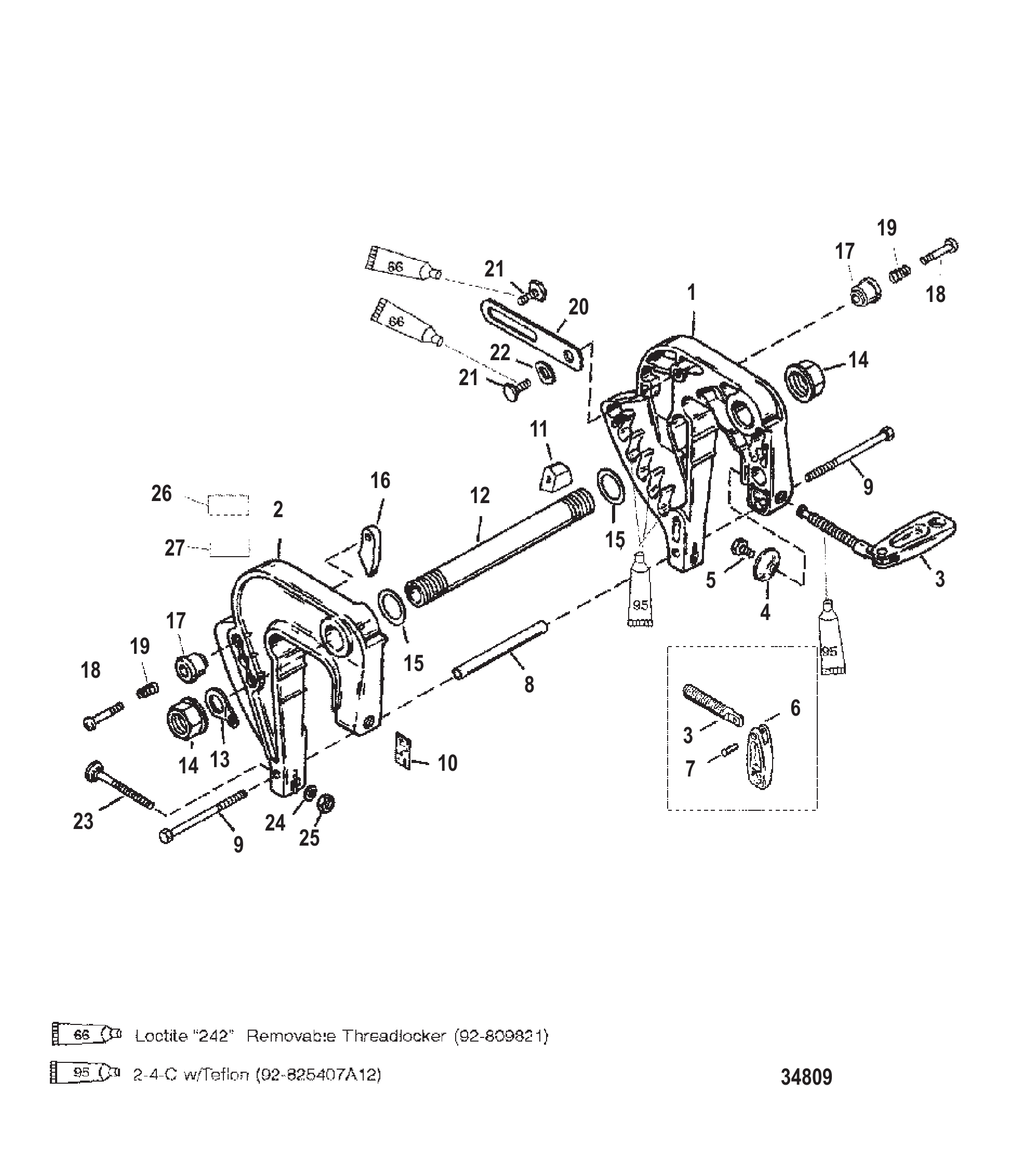

| 1 | 8894A8 | 夹具支架总成 | CLAMP BRACKET ASSEMBLY | 1 |
| 2 | 8892A6 | 夹具支架总成 | CLAMP BRACKET ASSEMBLY | 1 |
| 3 | 92767A3 | 蝶形螺丝总成 (16 mm) | THUMB SCREW ASSEMBLY (16 mm) | 2 |
| 4 | 73719 | 垫圈 | WASHER | 2 |
| 4 | 818884 | 垫圈 | WASHER | 2 |
| 5 | 768042 | 六角凸肩螺钉 | SHOULDER SCREW Hex | 2 |
| 6 | NSS | 不单独销售手柄 | NOT SOLD SEPARATE Handle | 2 |
| 7 | NSS | 不单独销售铆钉 | NOT SOLD SEPARATE Rivet | 2 |
| 8 | 818539 | 隔套 | SPACER | 1 |
| 8 | 8M0084719 | 隔套 | SPACER | 1 |
| 9 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 2 |
| 10 | 12869 | 倾斜位置标贴 | DECAL Tilt Position | 1 |
| 11 | 814427 | 梭子 | SHUTTLE | 1 |
| 12 | 42078 | 倾斜管 | TILT TUBE | 1 |
| 13 | 30954 | 卡扣 | CLIP | 1 |
| 13 | 8M0085928 | 卡扣 | CLIP | 1 |
| 14 | 93164 | 螺母 (0.875) | NUT (.875) | 2 |
| 15 | 71421 | 尼龙垫圈 | WASHER Nylon | 2 |
| 16 | 42390A1 | 倾斜回位杆总成 | LEVER ASSEMBLY Tilt Return | 1 |
| 17 | NSS | 旋钮不单独销售 | NOT SOLD SEPARATE Knob | 2 |
| 18 | NSS | 螺丝(不单独销售) | NOT SOLD SEPARATE Screw | 2 |
| 19 | NSS | 弹簧(不单独销售) | NOT SOLD SEPARATE Spring | 2 |
| 20 | 90901 | 左舷绑带 | STRAP Port Side | 1 |
| 21 | 42498 | 螺钉 (M6 x 1.0) | SCREW (M6 x 1.0) | 2 |
| 22 | 31030 | 波形垫圈 | WAVE WASHER | 1 |
| 23 | 43216 | 螺栓 (0.250-20 x 3.50) | BOLT (.250-20 x 3.50) | 2 |
| 24 | 67983 | 垫圈 | WASHER | 2 |
| 25 | 13855 | 螺母 (.250-20) | NUT (.250-20) | 2 |
| 25 | 8267118 | 螺母 (.250-20) | NUT (.250-20) | 2 |
| 26 | NSS | 非单独销售贴花-倾斜锁 | NOT SOLD SEPARATE Decal-Tilt Lock | 1 |
| 27 | NSS | 倾斜限制贴花不单独销售 | NOT SOLD SEPARATE Decal-Tilt Limit | 1 |

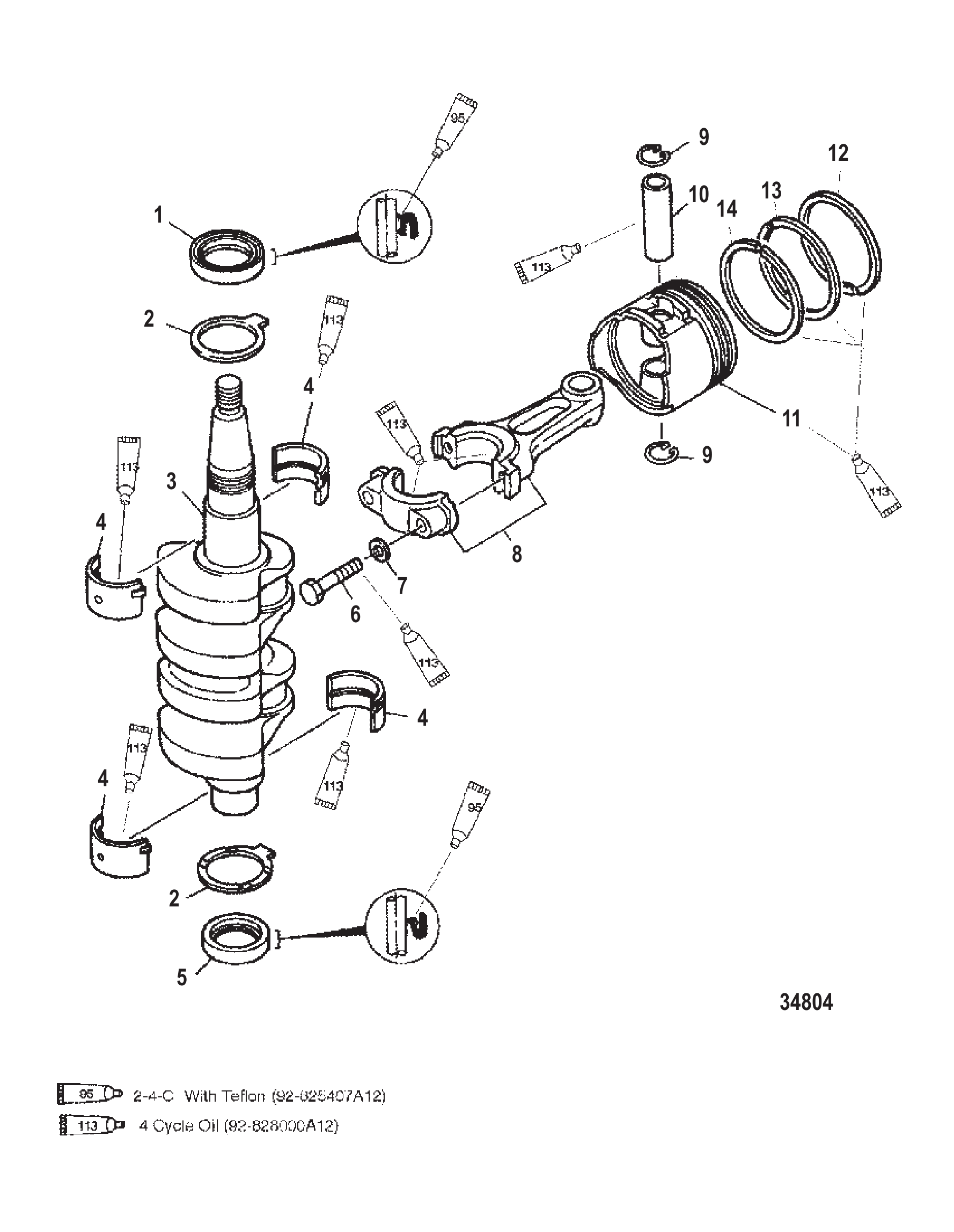

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 825704 | 油封 | SEAL Oil | 1 |
| 2 | 825710 | 推力轴承 | BEARING Thrust | 2 |
| 3 | 825703 | 曲轴 | CRANKSHAFT | 1 |
| 4 | 825706 | 主轴承 (棕色) | BEARING Main (Brown) | AR |
| 4 | 825706T | 轴承 @2 | BEARING @2 | AR |
| 4 | 82570610 | 主轴承 (黑色) | BEARING Main (Black) | AR |
| 4 | 825706T10 | 轴承 @2 | BEARING @2 | AR |
| 4 | 82570620 | 主轴承 (蓝色) | BEARING Main (Blue) | AR |
| 4 | 825706T20 | 轴承 @2 | BEARING @2 | AR |
| 5 | 825705 | 油封 | SEAL Oil | 1 |
| 6 | 825708 | 螺栓 | BOLT | 4 |
| 7 | 825709 | 垫圈 | WASHER | 4 |
| 8 | 825707A2 | 连杆 | CONNECTING ROD | 2 |
| 9 | 82343M | 卡扣 | CLIP | 4 |
| 10 | 825713 | 活塞销 | PIN Piston | 2 |
| 11 | 825711 | 活塞 | PISTON | 2 |
| 11 | 825711T | 活塞-标准 | PISTON-STD | 2 |
| 11 | 8257112 | 活塞 | PISTON | AR |
| 11 | 8257111 | 活塞 | PISTON | AR |
| 11 | 825711T1 | 活塞 加大尺寸 | PISTON O/S | AR |
| 12 | 8257121 | 活塞环 | RING Piston | 2 |
| 12 | 825712T1 | 标准活塞环 | RING PISTON STD | 2 |
| 12 | 8257123 | 活塞环 | RING Piston | AR |
| 12 | 8257122 | 活塞环 | RING Piston | AR |
| 12 | 825712T2 | 加大活塞环 | RING PISTON O/S | AR |
| 13 | NSS | 活塞环(不单独销售) | NOT SOLD SEPARATE Piston Ring | 2 |
| 14 | NSS | 油环（不单独销售） | NOT SOLD SEPARATE Oil Ring | 2 |
| - | 822775A7 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 822775T7 | PH 9.9 | PH 9.9 | 1 |
| - | 825847A95 | 衬垫套件 | GASKET SET | 1 |

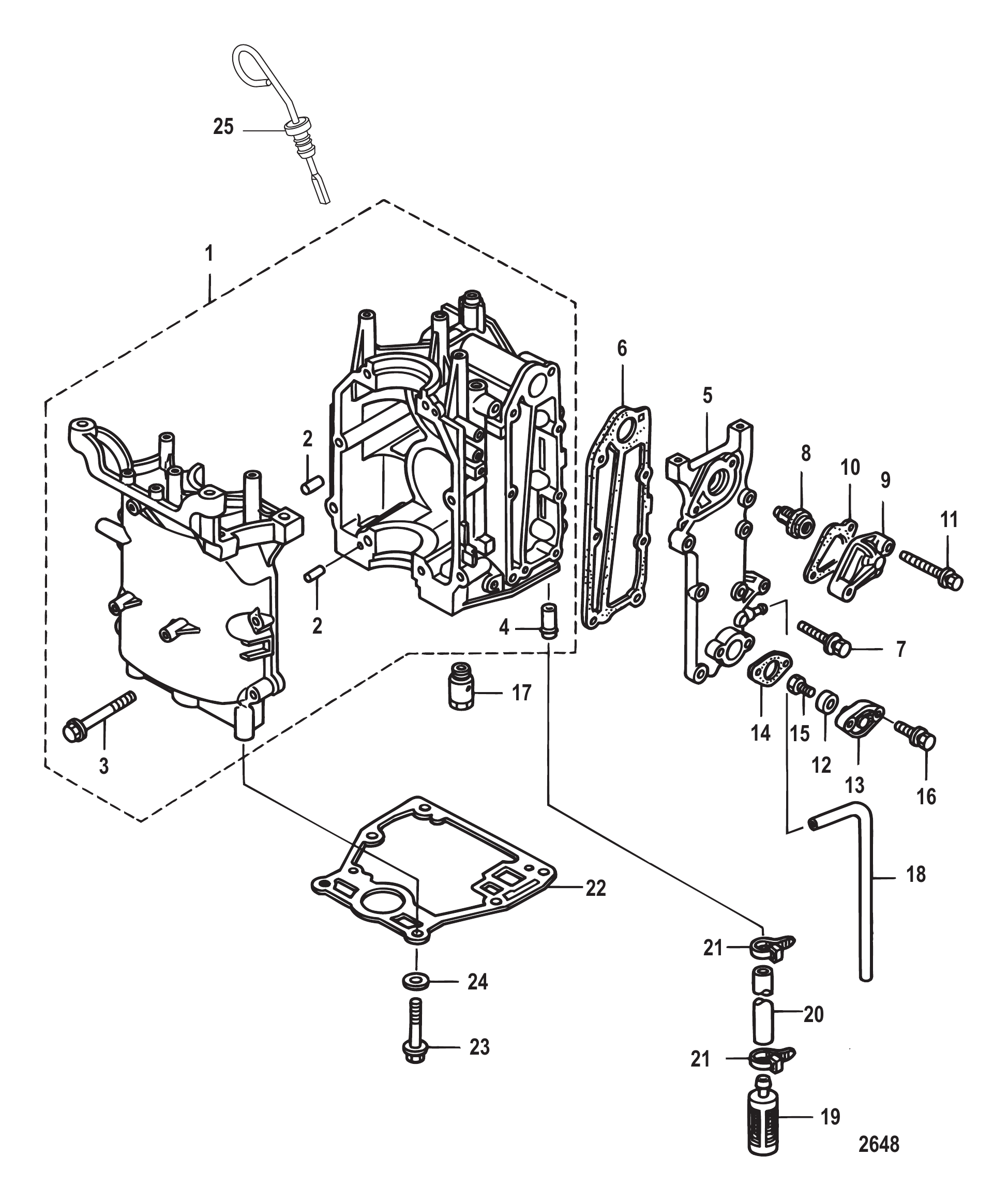

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 815013T06 | 气缸体 | CYLINDER BLOCK | 1 |
| 2 | 16119 | 定位销 | PIN Dowel | 2 |
| 3 | 855677001 | 螺栓 | BOLT | 8 |
| 3 | 855677005 | 螺栓 | BOLT | 8 |
| 4 | 822644001 | 接头管 | FITTING Nipple | 1 |
| 5 | 834953001 | 排气罩 | COVER Exhaust | 1 |
| 6 | 834952001 | 排气盖衬垫 | GASKET Exhaust Cover | 1 |
| 7 | 825702002 | 不锈钢螺栓 | BOLT Stainless Steel | 5 |
| 7 | 823042 | 螺栓 | BOLT | 5 |
| 8 | 855676002 | 60度节温器 | THERMOSTAT 60 Degrees | 1 |
| 8 | 8M0119207 | 60度节温器 | THERMOSTAT 60 Degrees | 1 |
| 8 | 855676005 | 71度节温器 | THERMOSTAT 71 Degrees | 1 |
| 8 | 8M0119207 | 60度节温器 | THERMOSTAT 60 Degrees | 1 |
| 9 | 8537052 | 节温器盖 | CAP Thermostat Thermostat | 1 |
| 10 | 853702005 | 节温器盖衬垫 | GASKET Thermostat Cap | 1 |
| 10 | 8M0214960 | 衬垫 | GASKET | 1 |
| 11 | 82304222 | 不锈钢螺栓 | BOLT Stainless Steel | 2 |
| 11 | 8M0102279 | 螺栓 | BOLT | 2 |
| 12 | 823912 | 阳极块 | ANODE | 1 |
| 13 | 895151 | 阳极塞 | PLUG Anode | 1 |
| 13 | 895151001 | 阳极块 | ANODE | 1 |
| 14 | 895150 | 衬垫 | GASKET | 1 |
| 14 | 895150001 | 衬垫 | GASKET | 1 |
| 15 | 823042037 | 螺栓 | BOLT | 1 |
| 15 | 16832 | 螺栓(M6 x 16) | BOLT (M6 x 16) | 1 |
| 15 | 823042037 | 螺栓 | BOLT | 1 |
| 15 | 16832 | 螺栓(M6 x 16) | BOLT (M6 x 16) | 1 |
| 15 | 16832 | 螺栓(M6 x 16) | BOLT (M6 x 16) | 1 |
| 15 | 16832 | 螺栓(M6 x 16) | BOLT (M6 x 16) | 1 |
| 16 | 82304233 | 螺栓 | BOLT | 2 |
| 16 | 167051 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 2 |
| 16 | 82304233 | 螺栓 | BOLT | 2 |
| 16 | 167051 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 2 |
| 16 | 167051 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 2 |
| 16 | 167051 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 2 |
| 17 | 803535002 | 柱塞 | PLUNGER | 1 |
| 17 | 898101142 | 柱塞 | PLUNGER | 1 |
| 17 | 803535002 | 柱塞 | PLUNGER | 1 |
| 17 | 898101142 | 柱塞 | PLUNGER | 1 |
| 17 | 803535003 | 柱塞 | PLUNGER | 1 |
| 17 | 898101142 | 柱塞 | PLUNGER | 1 |
| 17 | 803535003 | 柱塞 | PLUNGER | 1 |
| 17 | 898101142 | 柱塞 | PLUNGER | 1 |
| 18 | 851848003 | 软管(330毫米) | HOSE (330 mm) | 1 |
| 18 | 879194470 | 软管 | HOSE | 1 |
| 19 | 895152 | 机油滤网总成 | STRAINER ASSEMBLY Oil | 1 |
| 19 | 895152002 | 机油滤网总成 | STRAINER ASSEMBLY Oil | 1 |
| 19 | 895152 | 机油滤网总成 | STRAINER ASSEMBLY Oil | 1 |
| 19 | 895152002 | 机油滤网总成 | STRAINER ASSEMBLY Oil | 1 |
| 19 | 895152002 | 机油滤网总成 | STRAINER ASSEMBLY Oil | 1 |
| 19 | 895152002 | 机油滤网总成 | STRAINER ASSEMBLY Oil | 1 |
| 20 | 895153 | 软管(120毫米) | HOSE (120 mm) | 1 |
| 20 | 8M0057115 | 软管 | HOSE | 1 |
| 21 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 2 |
| 22 | 835427003 | 底座衬垫 | GASKET Base | 1 |
| 22 | 8M0229930 | 衬垫 | GASKET | 1 |
| 23 | 895140001 | 螺栓 | BOLT | 6 |
| 23 | 898103228 | 螺栓 | BOLT | 6 |
| 24 | 895106001 | 垫圈 | WASHER | 6 |
| 24 | 16192 | 垫圈 | WASHER | 6 |
| 25 | 803512001 | 量油尺 | DIPSTICK | 1 |
| - | 835427A04 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 895188T04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 8M0145937 | 长缸体总成 | LONG BLOCK | 1 |
| - | 895188T06 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 8M0145937 | 长缸体总成 | LONG BLOCK | 1 |
| - | 8M0046065 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 8M0145937 | 长缸体总成 | LONG BLOCK | 1 |

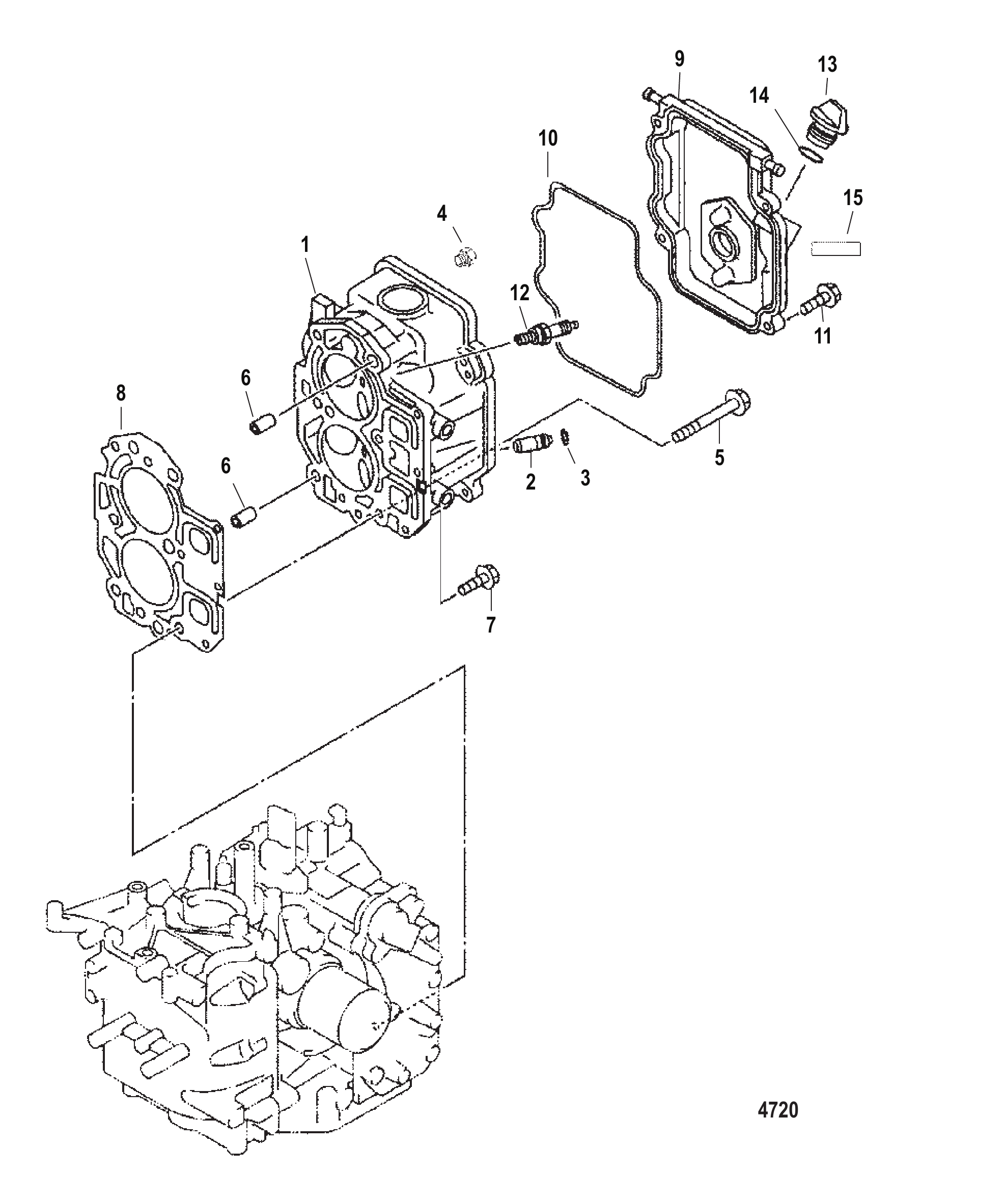

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 835430A1 | 气缸盖总成 | CYLINDER HEAD ASSEMBLY | 1 |
| 2 | 850835 | 进气导板 | GUIDE Intake | 4 |
| 3 | 825038 | 卡簧 | CIRCLIP | 4 |
| 4 | 822644 | 管塞 | PIPE PLUG | 3 |
| 5 | 855677 | 螺栓(M8 x 78) | BOLT (M8 x 78) | 6 |
| 6 | 825689 | 定位销 | PIN Dowel | 2 |
| 7 | 82500925 | 螺钉(M6x25) | SCREW (M6 x 25) | 3 |
| 7 | 893745025 | 螺钉(M6x25) | SCREW (M6 x 25) | 3 |
| 8 | 850836 | 衬垫 | GASKET | 1 |
| 8 | 8M0052705 | 衬垫 | GASKET | 1 |
| 9 | 834954 | 盖板 | COVER | 1 |
| 10 | 850837 | 密封件 | SEAL | 1 |
| 11 | 825702 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 4 |
| 11 | 8257021 | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 4 |
| 12 | 827858 | 火花塞 NGK-DPR6EA-9 | SPARK PLUG NGK-DPR6EA-9 | 2 |
| 12 | 827858Q | PG DPR6EA-9 @10 | PG DPR6EA-9 @10 | 2 |
| 13 | 825490 | 堵头 | PLUG | 1 |
| 13 | 8M0240831 | 油塞 | OIL PLUG | 1 |
| 14 | 825492 | O型圈 | O-RING | 1 |
| 14 | 8M0052669 | O型圈 | O-RING | 1 |
| 15 | NSS | NOT SOLD SEPARATE Decal-Recomm. Eng. Oil/Valve Cle. | 1 | |
| - | 802733A98 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 835427A98 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 835427A00 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

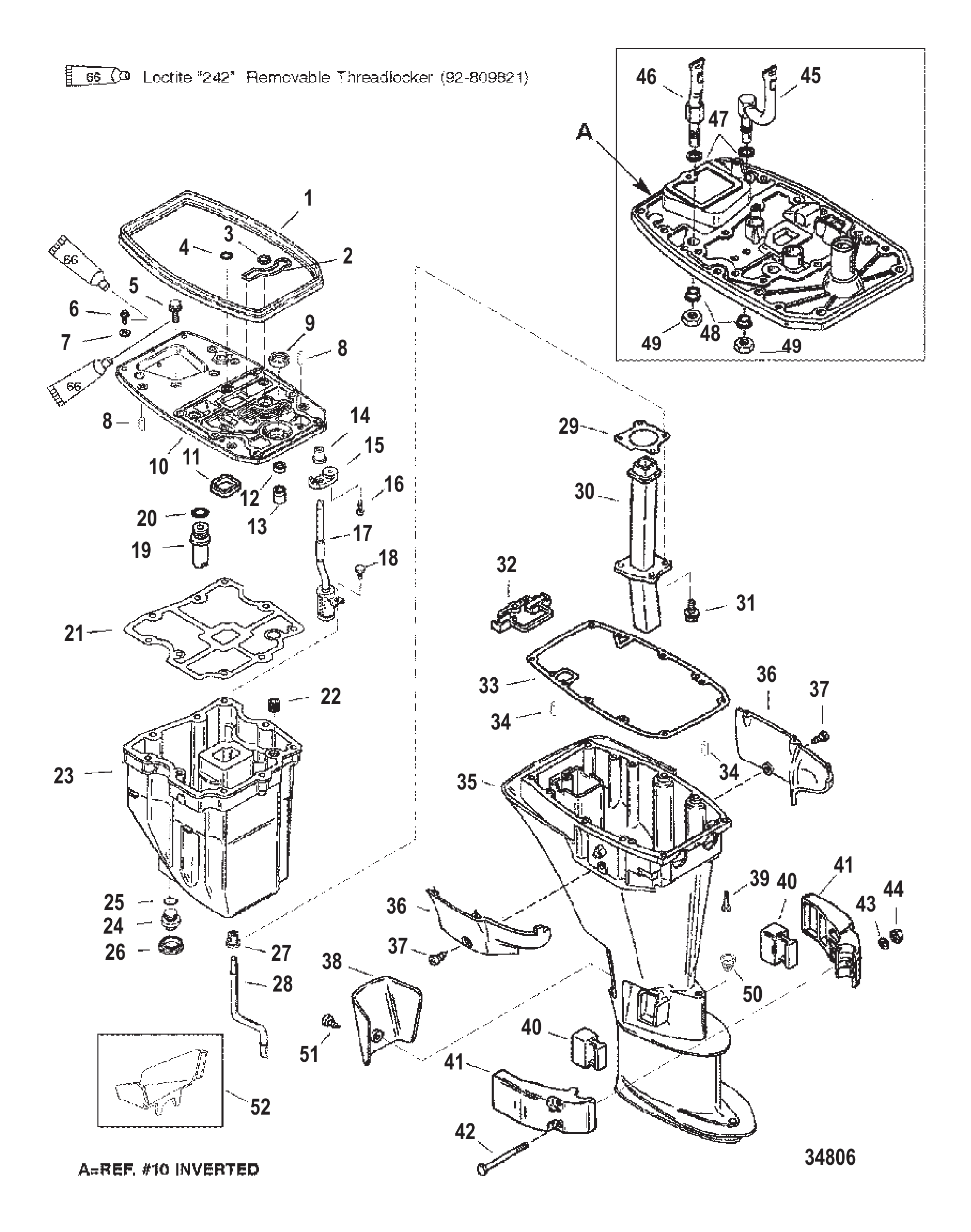

| 1 | 825807 | 橡胶密封件 | SEAL Rubber | 1 |
| 2 | 825806 | 密封件 | SEAL | 1 |
| 3 | 825805 | 减震器 | DAMPER | 1 |
| 4 | 825804 | O型圈 | O-RING | 1 |
| 5 | 825773 | 螺栓 | BOLT | 9 |
| 6 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 2 |
| 6 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 2 |
| 7 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 7 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 8 | 82364M | 定位销 | PIN Dowel | 2 |
| 9 | 827406 | 油封 | SEAL Oil | 1 |
| 10 | 825574A2 | 排气导板总成 | GUIDE ASSEMBLY Exhaust | 1 |
| 11 | 825771 | 密封件 | SEAL | 1 |
| 12 | 85023 | 油封 | SEAL Oil | 2 |
| 13 | 827395 | 密封壳体 | HOUSING Seal | 1 |
| 14 | 825580 | 密封件 | SEAL | 1 |
| 15 | 825581 | 导套 | GUIDE | 1 |
| 16 | 825582 | 螺钉 | SCREW | 1 |
| 17 | 825766 | 滤网 | STRAINER | 1 |
| 18 | 825767 | 螺栓 | BOLT | 1 |
| 19 | 825578A1 | 安全阀总成 | RELIEF VALVE ASSEMBLY | 1 |
| 20 | 825579 | O型圈 | O-RING | 1 |
| 21 | 8257741 | 油底壳衬垫 | GASKET Oil Pan | 1 |
| 22 | 825765 | 密封件 | SEAL | 1 |
| 23 | 825764 | 油底壳 | PAN Oil | 1 |
| 24 | 825769 | 放油塞 | PLUG Drain | 1 |
| 25 | 825770 | O型圈 | O-RING | 1 |
| 26 | 825768 | 减震器 | DAMPER | 1 |
| 27 | 827241 | 密封件 | SEAL | 1 |
| 28 | 825775 | 水管 | TUBE Water | 1 |
| 28 | 826035 | 水管 | TUBE Water | 1 |
| 29 | 8258281 | 衬垫 | GASKET | 1 |
| 30 | 825772 | 排气歧管 | MANIFOLD Exhaust | 1 |
| 30 | 825772T | 排气歧管 | MANIFOLD-EXH. | 1 |
| 31 | 825773 | 螺栓 | BOLT | 4 |
| 32 | 825777 | 盖板 | COVER | 1 |
| 33 | 8257781 | 衬垫 | GASKET | 1 |
| 34 | 82364M | 定位销 | PIN Dowel | 2 |
| 35 | 825538F1 | 壳体总成 | HOUSING ASSEMBLY | 1 |
| 35 | 825835F1 | 壳体总成 | HOUSING ASSEMBLY | 1 |
| 36 | 825796F1 | 盖板 | COVER | 1 |
| 36 | 825797F1 | 盖板 | COVER | 1 |
| 37 | 4007841 | 自攻螺丝 | SCREW Self-Tapping | 2 |
| 38 | 825798F1 | 放油盖 | COVER Oil Drain | 1 |
| 39 | 830106 | 螺钉 (M8 x 40) | SCREW (M8 x 40) | 6 |
| 40 | 421892 | 支架 | MOUNT | 2 |
| 40 | 8M0039074 | 支架 | MOUNT | 2 |
| 41 | 42374F6 | 安装盖 | COVER Mount | 2 |
| 42 | 4009238 | 螺丝(M6 x 80) | SCREW (M6 x 80) | 2 |
| 43 | 400256 | 锁紧垫圈 (M6) | LOCKWASHER (M6) | 2 |
| 44 | 400212 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 2 |
| 45 | 826682 | 管道 | PIPE | 1 |
| 46 | 825575 | 管道 | PIPE | 1 |
| 47 | 84273M | 垫圈 | WASHER | 2 |
| 48 | 827336 | 衬套 | BUSHING | 2 |
| 49 | 84282M | 螺母 | NUT | 2 |
| 50 | 827947 | 密封件 | SEAL | 1 |
| 51 | 40056105 | 螺钉 (M5 x 10) | SCREW (M5 x 10) | 1 |
| 52 | 828364 | 放油漏斗 | FUNNEL Oil Drain | 1 |
| - | 825847A95 | 衬垫套件 | GASKET SET | 1 |

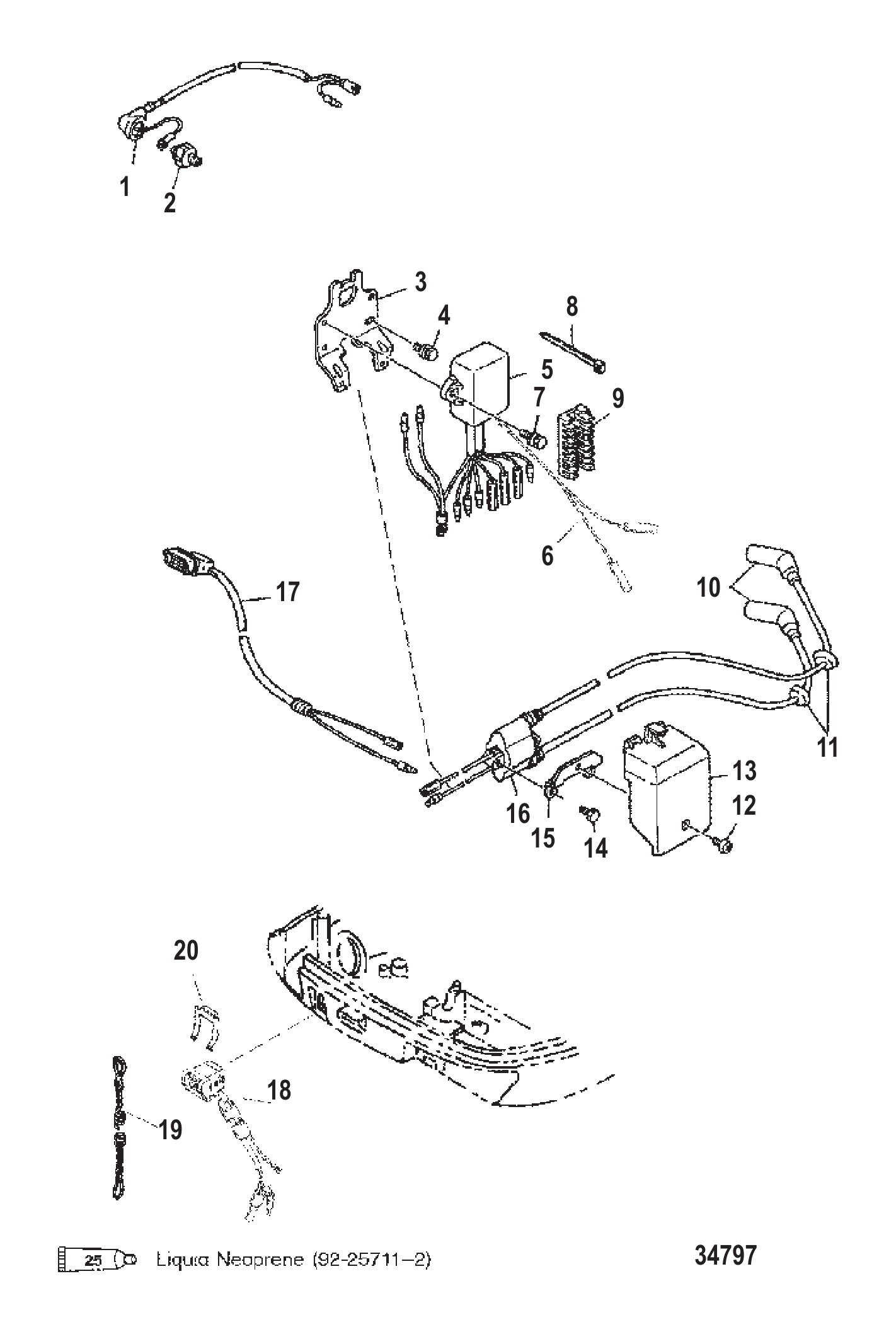

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 825679 | 电线 | WIRE | 1 |
| 2 | 825678 | 油压开关 | SWITCH Oil Pressure | 1 |
| 3 | 825671 | 支架 | BRACKET | 1 |
| 4 | 84058M | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 2 |
| 5 | 825667 | CDI单元 | CDI UNIT | 1 |
| 5 | 825667T | CDI单元 | CDI UNIT | 1 |
| 6 | 824912A6 | 手动拉索总成 | CABLE ASSEMBLY Manual | 1 |
| 7 | 84058M | 螺栓 (M6 x 20) | BOLT (M6 x 20) | 2 |
| 8 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 8 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 9 | 825674 | 卡箍 | CLAMP | 1 |
| 10 | 825102A1 | 高压线 | HIGH TENSION LEAD | 2 |
| 11 | 82069M | 护孔环 | GROMMET | 2 |
| 12 | 825502 | 螺钉 | SCREW | 1 |
| 13 | 825673 | 盖板 | COVER | 1 |
| 14 | 825501 | 螺栓(M6x25) | BOLT (M6 x 25) | 2 |
| 14 | 8248326 | 螺丝(M6 x 25毫米) | SCREW (M6 x 25 mm) | 2 |
| 15 | 825672 | 安装板 | PLATE | 1 |
| 16 | 825668 | 点火线圈总成(含引线和护套) | COIL ASSEMBLY Ignition (Includes Leads and Boots) | 1 |
| 16 | 825668T | 点火线圈总成 | COIL ASSY-IGN | 1 |
| 17 | 825656 | 手动指示灯 | PILOT LIGHT Manual | 1 |
| 18 | 11083A30 | 开关总成 | SWITCH ASSEMBLY | 1 |
| 19 | 15920A54 | 拉绳总成 | LANYARD ASSEMBLY | 1 |
| 19 | 15920Q54 | 拉绳总成 | LANYARD ASSEMBLY | 1 |
| 20 | 120441 | 黄铜固定座 | RETAINER Brass | 1 |
| 20 | 8M0032846 | 黄铜固定座 | RETAINER Brass | 1 |
| - | 822775A7 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 822775T7 | PH 9.9 | PH 9.9 | 1 |

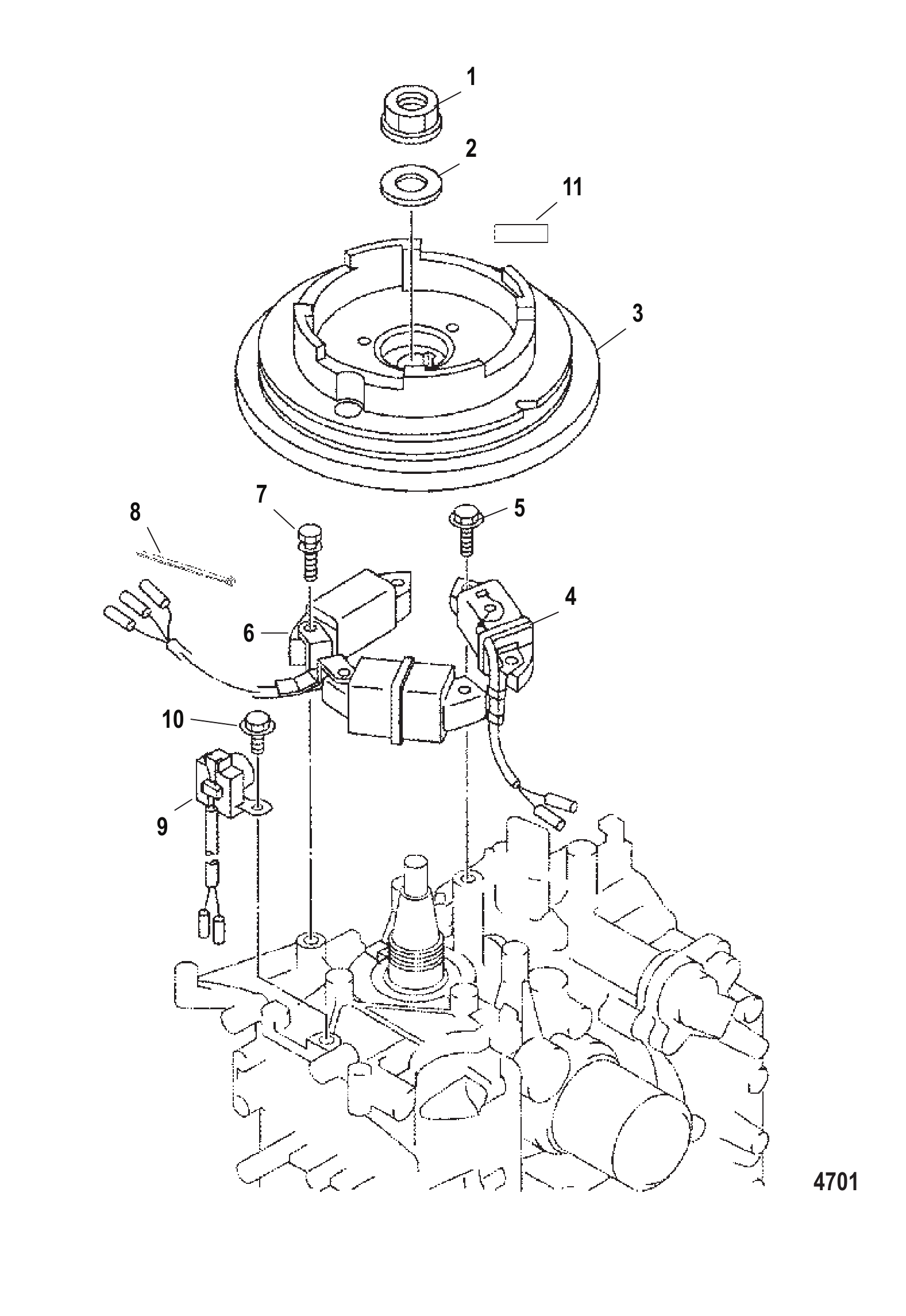

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 96650M | 螺母(M16) | NUT (M16) | 1 |
| 2 | 96651M | 垫圈 | WASHER | 1 |
| 3 | 856031 | 飞轮 | FLYWHEEL | 1 |
| 3 | 835397 | 飞轮 | FLYWHEEL | 1 |
| 4 | 835399T | 充电线圈 | COIL Charging | 1 |
| 5 | 853536 | 螺栓(M6x25) | BOLT (M6 x 25) | 2 |
| 6 | 835387 | 照明线圈 | COIL Lighting | 1 |
| 6 | 855944 | 照明线圈 | COIL Lighting | 1 |
| 7 | 858530 | 螺栓 (M6 x 30) | BOLT (M6 x 30) | 4 |
| 7 | 853531 | 螺栓(M6x40) | BOLT (M6 x 40) | 4 |
| 8 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 9 | 835395 | 脉冲发生器 | PULSER | 1 |
| 10 | 8527768 | 螺栓(M6 x 16) | BOLT (M6 x 16) | 2 |
| 10 | 811188T | 螺栓 | BOLT | 2 |
| 11 | NSS | 不单独销售标贴-空挡警告 | NOT SOLD SEPARATE Decal-Warning Neutral | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

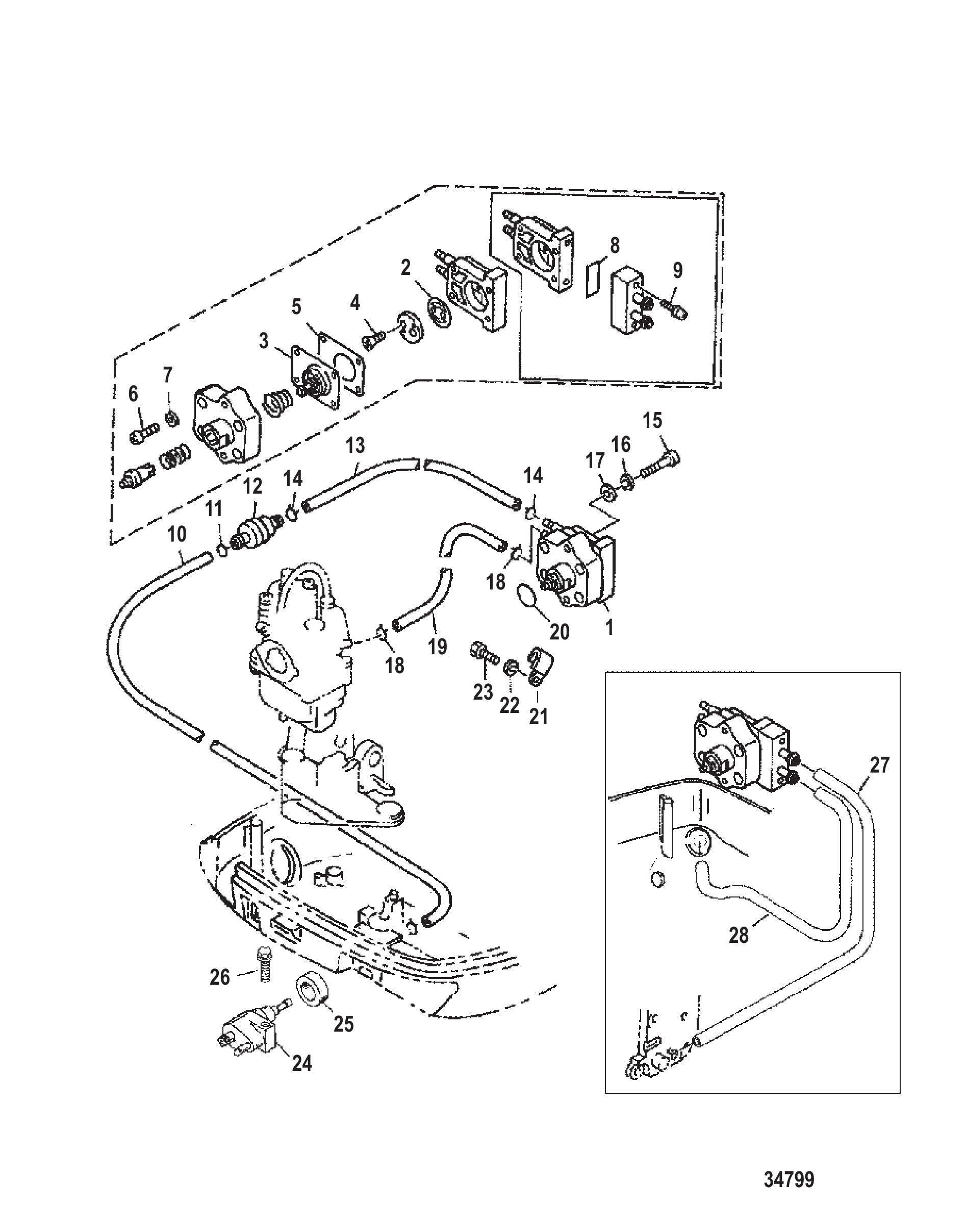

| 1 | 827742 | 燃油泵 | PUMP Fuel | 1 |
| 2 | 827441M | 止回阀 | CHECK VALVE | 1 |
| 3 | 827442M | 隔膜 | DIAPHRAGM | 1 |
| 4 | 827443M | 螺钉 | SCREW | 2 |
| 5 | 809129M | 隔膜 | DIAPHRAGM | 1 |
| 6 | 814463M | 怠速螺钉 | SCREW Idle Speed | 4 |
| 6 | 83509M | 螺钉（M4×10） | SCREW (M4 x 10) | 4 |
| 7 | 82847M | 垫圈 | WASHER | 4 |
| 8 | 809130M | 密封件 | SEAL | 1 |
| 9 | 80954M | 螺钉 | SCREW | 2 |
| 10 | 9912878 | 软管(0.187英寸)(26.00英寸散装)裁至21英寸 | HOSE (.187) (26.00 Inches Bulk) Cut to 21 Inches | 1 |
| 11 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 11 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 12 | 80365M | 滤清器 | FILTER | 1 |
| 13 | 825632 | 软管 | HOSE | 1 |
| 14 | 82047M | 卡箍 | CLAMP | 2 |
| 15 | 40019130 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 2 |
| 16 | 400256 | 锁紧垫圈 (M6) | LOCKWASHER (M6) | 2 |
| 17 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 17 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 18 | 82047M | 卡箍 | CLAMP | 2 |
| 19 | 82012M | 软管 | HOSE | 1 |
| 20 | 825478 | O型圈 | O-RING | 1 |
| 21 | 54457 | J型卡扣 | J CLIP | 1 |
| 22 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 22 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 23 | 4000326 | 螺钉（M6 x 12） | SCREW (M6 x 12) | 1 |
| 24 | 15781A5 | 燃油接头(黄铜) | CONNECTOR Fuel - Brass | 1 |
| 24 | 8M0182334 | 燃油接头 | CONNECTOR FUEL | 1 |
| 25 | 18202 | 护孔环 | GROMMET | 1 |
| 26 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 1 |
| 26 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 1 |
| 27 | 9912878 | 软管(0.187英寸)(26.00英寸散装)裁至10英寸 | HOSE (.187) (26.00 Inches Bulk) Cut to 10 Inches | 1 |
| 28 | 830756109 | 软管(57.00英寸散装)裁至10英寸 | HOSE (57.00 Inches Bulk) Cut to 10 Inches | 1 |
| 28 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

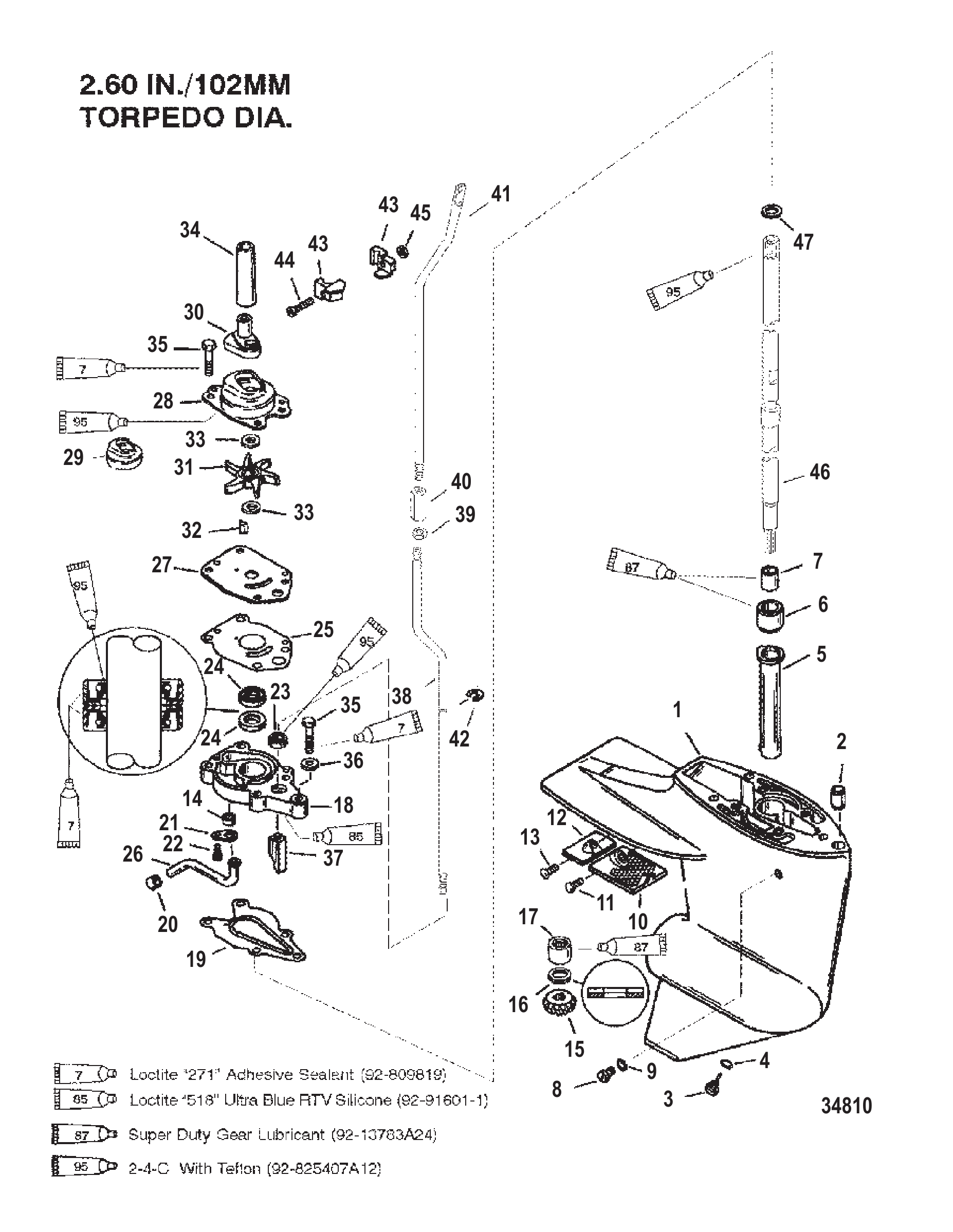

| - | 8833A25 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8833A27 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8833T27 | 齿轮长壳体-黑色 | GEAR HSG-LONG-BLK | 1 |
| 1 | 8833A17 | 齿轮箱总成基础型-黑色 | GEAR HOUSING ASSEMBLY Basic-Black | 1 |
| 1 | 8M0083312 | GC BASIC9.9/15 4S | GC BASIC9.9/15 4S | 1 |
| 2 | 12009 | 衬套 (0.31 x 0.45 x 0.50) | BUSHING (.31 x .45 x .50) | 1 |
| 3 | 67892A1 | 磁吸式注油/放油塞套件 | FITTING KIT Magnetic, Plug Fill/Drain | 1 |
| 3 | 8M0058389 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 4 | 19183 | 纤维垫圈 | WASHER Fiber | 1 |
| 4 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 1 |
| 5 | 822244A1 | 衬套总成 | SLEEVE ASSEMBLY | 1 |
| 6 | 823944 | 套筒 | SLEEVE | 1 |
| 7 | 823943 | 衬套 | BUSHING | 1 |
| 8 | 79953A2 | 螺丝套件(.375-16 x .250) | SCREW KIT (.375-16 x .250) | 1 |
| 8 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 9 | 19183 | 纤维垫圈 | WASHER Fiber | 1 |
| 9 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 1 |
| 10 | 421991 | 滤网 | SCREEN | 1 |
| 11 | 13954 | 螺丝(0.250-14x0.88) | SCREW (.250-14 x .88) | 1 |
| 12 | 42121A2 | 阳极总成 | ANODE ASSEMBLY | 1 |
| 12 | 42121Q02 | 铝阳极@2 | ANODE(ALUM) @2 | 1 |
| 13 | 13954 | 螺丝(0.250-14x0.88) | SCREW (.250-14 x .88) | 1 |
| 14 | 42133 | 密封件 | SEAL | 1 |
| 15 | 8219251 | 小齿轮-13-26齿(13齿) | GEAR Pinion - 13-26 13 Teeth | 1 |
| 16 | 41369 | 垫圈 | WASHER | 1 |
| 17 | 22756 | 滚柱轴承 | BEARING Roller | 1 |
| 18 | 42040A5 | 水泵底座总成 | BASE ASSEMBLY Water Pump | 1 |
| 18 | 42040T5 | 水泵底座总成 | BASE ASSEMBLY Water Pump | 1 |
| 19 | 192042 | 衬垫 | GASKET | 1 |
| 19 | 192043 | 衬垫 | GASKET | 1 |
| 20 | 33613 | 密封件 | SEAL | 1 |
| 21 | 42375 | 固定座 | RETAINER | 1 |
| 22 | 48408 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 1 |
| 23 | 822236 | 四角密封环 | QUAD RING | 1 |
| 24 | 413651 | 油封 | SEAL Oil | 2 |
| 25 | 19202 | 水泵板衬垫 | GASKET Water Pump Plate | 1 |
| 25 | 19202001 | 衬垫 | GASKET | 1 |
| 26 | 42185A1 | 水管总成 | TUBE ASSEMBLY Water | 1 |
| 27 | 42200 | 面板 | FACE PLATE | 1 |
| 28 | 42089A2 | 盖总成 | COVER ASSEMBLY | 1 |
| 29 | NSS | 不单独销售嵌件 | NOT SOLD SEPARATE Insert | 1 |
| 30 | 421021 | 密封件 | SEAL | 1 |
| 31 | 420382 | 叶轮 | IMPELLER | 1 |
| 31 | 42038Q02 | 叶轮 | IMPELLER | 1 |
| 32 | 42376A2 | 键总成 | KEY ASSEMBLY | 1 |
| 32 | 8M0173458 | 叶轮键 | KEY IMPELLER | 1 |
| 33 | 16448 | 垫圈 | WASHER | 2 |
| 34 | 444671 | 导套 | GUIDE | 1 |
| 35 | 82684430 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 5 |
| 36 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 36 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 37 | 42039 | 凸轮 | CAM | 1 |
| 38 | 825536 | 换档轴 | SHIFT SHAFT | 1 |
| 38 | 826873 | 换档轴 | SHIFT SHAFT | 1 |
| 39 | 400212 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 40 | 822419 | 联轴器 | COUPLER | 1 |
| 41 | 826875 | 上换挡轴 | SHIFT SHAFT Upper | 1 |
| 42 | 42389 | E型卡环 | E RING | 1 |
| 43 | 42126 | 导套 | GUIDE | 2 |
| 43 | 8M0036770 | 导套 | GUIDE | 2 |
| 44 | 40011109 | 螺钉 (M5 x 25) 不锈钢 | SCREW (M5 x 25) Stainless Steel | 1 |
| 45 | 400633 | 螺母 (M5) | NUT (M5) | 1 |
| 45 | 401385 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 1 |
| 46 | 825537 | 驱动轴 | DRIVESHAFT | 1 |
| 46 | 825843 | 驱动轴 | DRIVESHAFT | 1 |
| 47 | 822248 | 止推垫片 | THRUST WASHER | 1 |
| - | 41365A3 | 密封套件 | SEAL KIT | 1 |
| - | 42089A5 | 水泵套件 | PUMP KIT Water | 1 |
| - | 825847A95 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

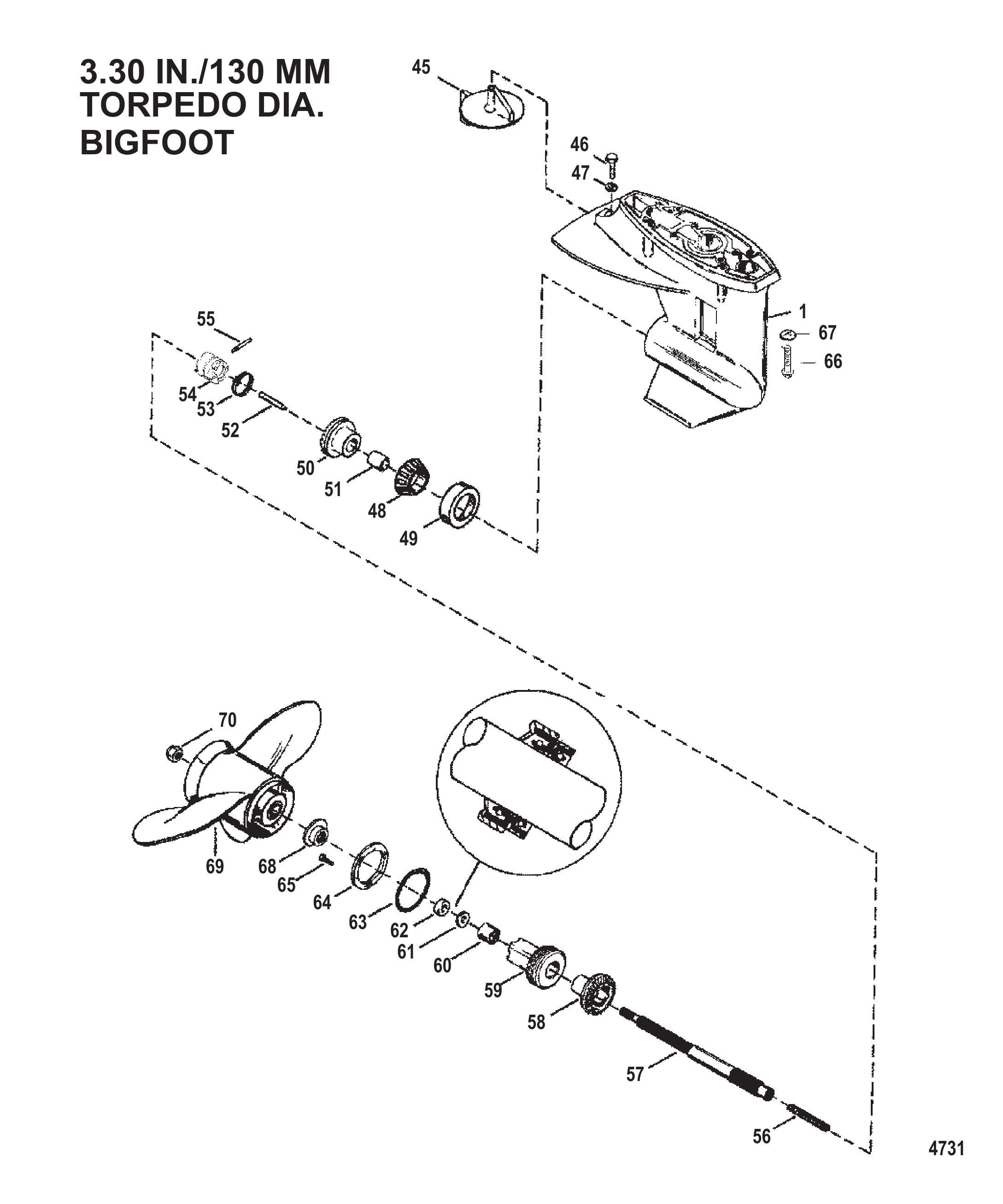

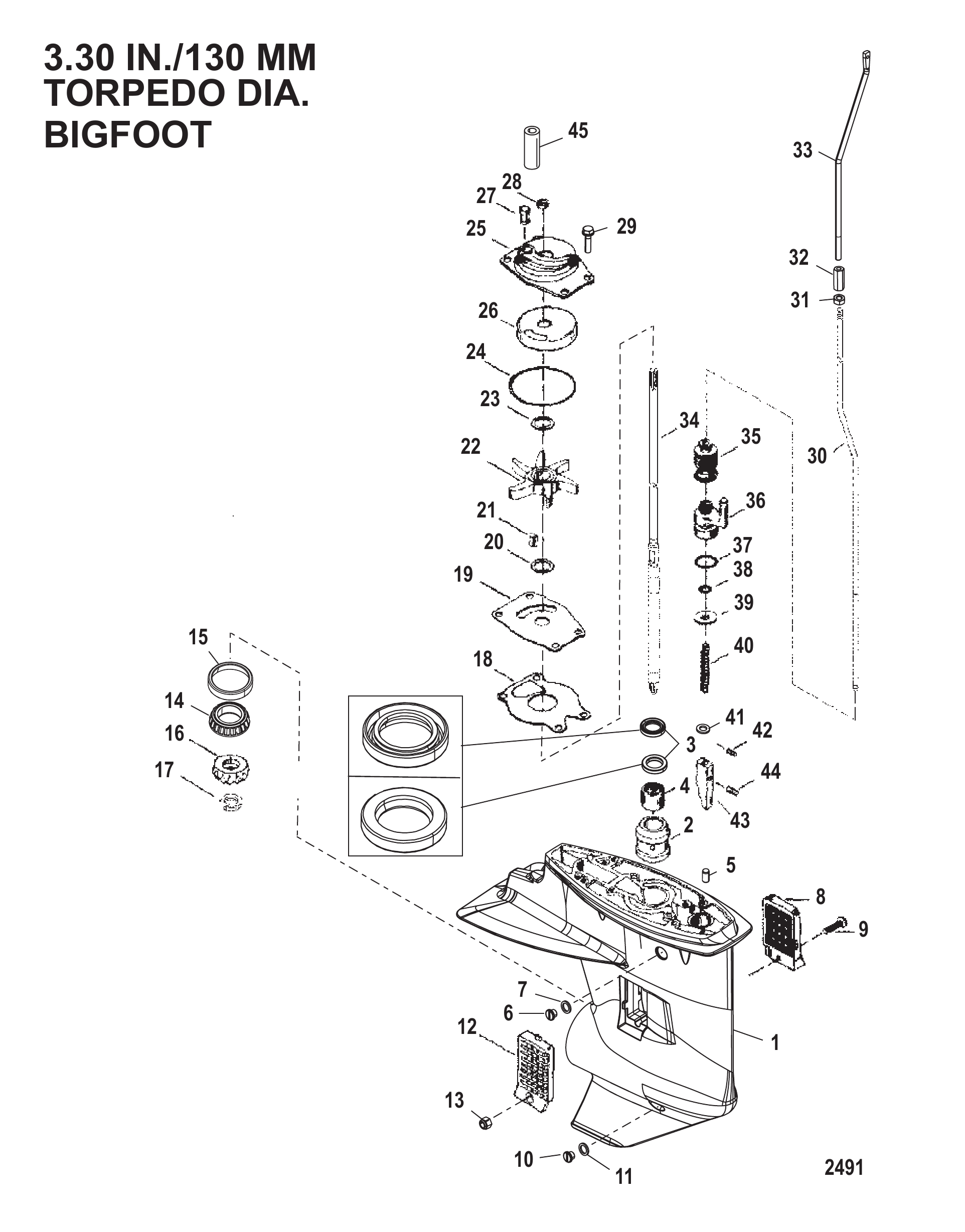

| - | 8669A33 | 齿轮箱总成-黑色 | GEAR HOUSING ASSEMBLY Complete-Black | 1 |
| - | 8669A34 | 齿轮箱总成-灰色 | GEAR HOUSING ASSEMBLY Complete-Gray | 1 |
| - | 8669T33 | 齿轮箱总成(3.30英寸/130mm鱼雷直径) | GEAR HOUSING ASSEMBLY Complete (3.30 Inch/130 mm Torpedo Diameter) | 1 |
| 1 | 8669A21 | 齿轮箱总成基础型-黑色 | GEAR HOUSING ASSEMBLY Basic-Black | 1 |
| 1 | 8M0083538 | GC BASIC 25 2S | GC BASIC 25 2S | 1 |
| 1 | 8669A22 | 齿轮箱总成基础型-灰色 | GEAR HOUSING ASSEMBLY Basic-Gray | 1 |
| 1 | 8669A21 | 齿轮箱总成基础型-黑色 | GEAR HOUSING ASSEMBLY Basic-Black | 1 |
| 2 | NSS | 不单独销售套筒 | NOT SOLD SEPARATE Sleeve | 1 |
| 3 | 99325 | 密封件 | SEAL | 2 |
| 4 | 41326 | 滚柱轴承 | BEARING Roller | 1 |
| 5 | 85500 | 定位销(.187 x .530) | PIN Dowel (.187 x .530) | 2 |
| 5 | 8M0084726 | 定位销 | PIN Dowel | 2 |
| 6 | 79953A2 | 螺丝套件(.375-16 x .250) | SCREW KIT (.375-16 x .250) | 1 |
| 6 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 7 | 19183 | 纤维垫圈 | WASHER Fiber | 1 |
| 7 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 1 |
| 8 | 41133 | 进水口滤网 | SCREEN Water Inlet Port | 1 |
| 9 | 40031112 | 螺钉(M5 x 40) | SCREW (M5 x 40) | 1 |
| 10 | 67892A1 | 磁吸式注油/放油塞套件 | FITTING KIT Magnetic, Plug Fill/Drain | 1 |
| 10 | 8M0058389 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 11 | 19183 | 纤维垫圈 | WASHER Fiber | 1 |
| 11 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 1 |
| 12 | 41134 | 滤网 | SCREEN | 1 |
| 13 | 400263 | 螺母 (M5) | NUT (M5) | 1 |
| 14 | 98294A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 15 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 16 | 854498 | 小齿轮-12-29齿 | GEAR Pinion - 12-29 | 1 |
| 17 | 828490 | 螺母 | NUT | 1 |
| 18 | 993261 | 衬垫 | GASKET | 1 |
| 19 | 85083 | 面板 | FACE PLATE | 1 |
| 20 | 8M0027721 | 垫圈 | WASHER | 1 |
| 20 | 8M0204722 | 垫圈 | WASHER | 1 |
| 21 | 85119 | 键 | KEY | 1 |
| 21 | 8M0214993 | 键@5 | KEY @5 | 1 |
| 22 | 850893 | 叶轮 | IMPELLER | 1 |
| 22 | 8M0204712 | 叶轮 | IMPELLER | 1 |
| 23 | 8M0027721 | 垫圈 | WASHER | 1 |
| 23 | 8M0204722 | 垫圈 | WASHER | 1 |
| 24 | 69202 | O型圈 | O-RING | 1 |
| 25 | 99157A1 | 水泵总成 | PUMP ASSEMBLY Water | 1 |
| 25 | 99157A02 | 水泵总成 | PUMP ASSEMBLY Water | 1 |
| 26 | NSS | 不单独销售嵌件 | NOT SOLD SEPARATE Insert | 1 |
| 27 | 85090 | 密封件 | SEAL | 1 |
| 27 | 85090001 | 密封件 | SEAL | 1 |
| 28 | 86203 | O型圈 | O-RING | 1 |
| 29 | 8248324 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 4 |
| 30 | 854503 | 换档轴 | SHIFT SHAFT | 1 |
| 31 | 400212 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 32 | 822419 | 联轴器 | COUPLER | 1 |
| 33 | 8529941 | 换挡轴(上部) | SHIFT SHAFT (UPPER) | 1 |
| 34 | 854501 | 驱动轴 | DRIVESHAFT | 1 |
| 35 | 85552 | 护套 | BOOT | 1 |
| 35 | 85552001 | 护套 | BOOT | 1 |
| 36 | 93878 | 固定座 | RETAINER | 1 |
| 37 | 35276 | O型圈(.734 x .139) | O-RING (.734 x .139) | 1 |
| 38 | 85594 | O型圈(.239 x .174) | O-RING (.239 x .174) | 1 |
| 39 | 85091 | 垫圈 | WASHER | 1 |
| 40 | 93007 | 弹簧 | SPRING | 1 |
| 41 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 41 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 42 | 85593 | 销(.078 x .437) | PIN (.078 x .437) | 1 |
| 43 | 85562A2 | 换挡凸轮 | SHIFT CAM | 1 |
| 44 | 85096 | 驱动销 | PIN Drive | 1 |
| 45 | 29804T | 套筒 | SLEEVE | 1 |
| - | 85090A2 | 密封套件 | SEAL KIT | 1 |
| - | 99157A2 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| - | 99157T2 | 水泵套件 | PUMP KIT Water | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

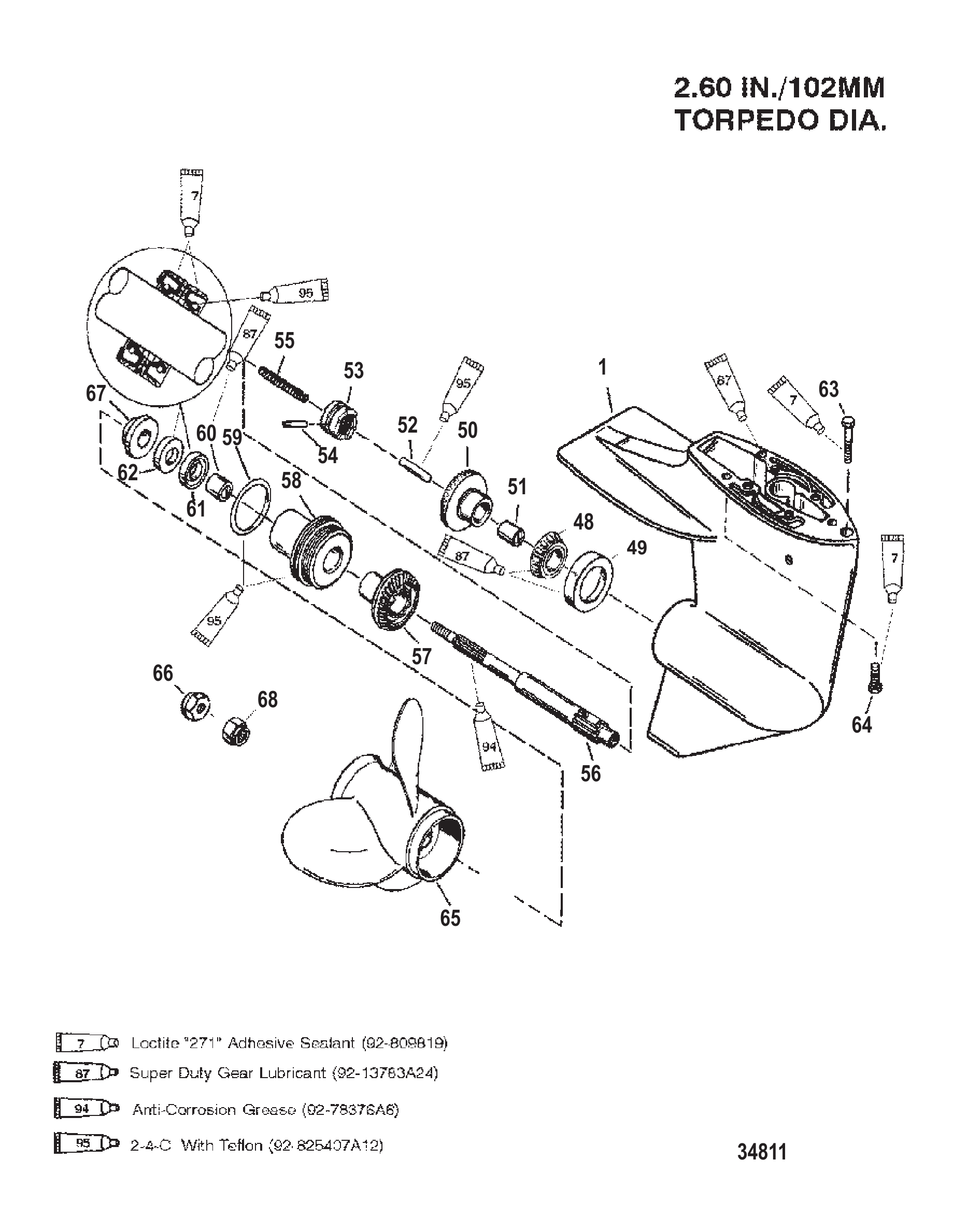

| - | 8833A25 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8833A27 | 齿轮箱总成(完整) | GEAR HOUSING ASSEMBLY Complete | 1 |
| - | 8833T27 | 齿轮长壳体-黑色 | GEAR HSG-LONG-BLK | 1 |
| 1 | 8833A17 | 齿轮箱总成基础型-黑色 | GEAR HOUSING ASSEMBLY Basic-Black | 1 |
| 1 | 8M0083312 | GC BASIC9.9/15 4S | GC BASIC9.9/15 4S | 1 |
| 48 | 821321A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 49 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 50 | 821924A1 | 前进齿轮总成26齿 | GEAR ASSEMBLY Forward 26 Teeth | 1 |
| 51 | 41367 | 衬套 | BUSHING | 1 |
| 52 | 813139 | 凸轮从动件 | FOLLOWER Cam | 1 |
| 53 | 821930A1 | 离合器总成 | CLUTCH ASSEMBLY | 1 |
| 54 | 823951 | 十字销 | PIN Cross | 1 |
| 55 | 42204 | 弹簧 | SPRING | 1 |
| 56 | 821929 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 57 | 8219261 | 倒档齿轮-13/26 | GEAR Reverse - 13/26 | 1 |
| 57 | 821926T1 | 倒档齿轮-13/26 | GEAR Reverse - 13/26 | 1 |
| 58 | 42144A3 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 58 | 42144T3 | 轴承座 | CARRIER Bearing | 1 |
| 59 | 33145 | O型圈(1.984x0.139) | O-RING (1.984 x .139) | 1 |
| 59 | 8M0214923 | O型圈(1.98x1.39) | O-RING (1.98 x 1.39) | 1 |
| 60 | 821927 | 衬套 | BUSHING | 1 |
| 61 | 99325 | 密封件 | SEAL | 1 |
| 62 | 821928 | 油封 | SEAL Oil | 1 |
| 63 | 82407110 | 螺钉(M8 x 50) | SCREW (M8 x 50) | 1 |
| 64 | 8240717 | 螺钉 (M8 x 30) | SCREW (M8 x 30) | 2 |
| 65 | 828152A12 | 黑色MAX螺旋桨9.3x7右旋铝3叶 | BLACK MAX PROPELLER 9.3 X 7 RH AL 3 BL | 1 |
| 66 | 13914 | 螺母(M10) | NUT (M10) | 1 |
| 66 | 40140 | 螺母(M10) | NUT (M10) | 1 |
| 67 | 8219321 | 推力毂 | THRUST HUB | 1 |
| 68 | 420911 | 隔套 | SPACER | 1 |
| - | 41365A3 | 密封套件 | SEAL KIT | 1 |
| - | 825847A95 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8669T33 | 齿轮箱总成(3.30英寸/130mm鱼雷直径) | GEAR HOUSING ASSEMBLY Complete (3.30 Inch/130 mm Torpedo Diameter) | 1 |
| - | 8669A46 | 齿轮箱总成(3.30英寸/130mm鱼雷直径) | GEAR HOUSING ASSEMBLY Complete (3.30 Inch/130 mm Torpedo Diameter) | 1 |
| - | 8M0084519 | GC 8/9.9/15 4S LG | GC 8/9.9/15 4S LG | 1 |
| 1 | 8669A21 | 齿轮箱总成基础型-黑色 | GEAR HOUSING ASSEMBLY Basic-Black | 1 |
| 1 | 8M0083538 | GC BASIC 25 2S | GC BASIC 25 2S | 1 |
| 45 | 98432Q6 | 平衡鳍板 | TRIM TAB | 1 |
| 46 | 4000354 | 螺钉 (M8 x 30) | SCREW (M8 x 30) | 1 |
| 47 | 70132 | 垫圈(0.323×0.563×0.063)不锈钢 | WASHER (.323 x .563 x .063) Stainless Steel | 1 |
| 47 | 8M0042642 | 垫圈(.323 x .562 x .063) | WASHER (.323 x .562 x .063) | 1 |
| 48 | 99328A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 48 | 8M0103470 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 49 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 50 | 854496A1 | 前进齿轮总成-12/29齿 | GEAR ASSEMBLY Forward - 12/29 | 1 |
| 51 | 85557 | 衬套 | BUSHING | 1 |
| 52 | 85094 | 凸轮从动件 | FOLLOWER Cam | 1 |
| 53 | 38114 | 弹簧 | SPRING | 1 |
| 54 | 41040T1 | 离合器 | CLUTCH | 1 |
| 55 | 85093 | 销 | PIN | 1 |
| 55 | 8M0020999 | 十字销 | PIN CROSS | 1 |
| 56 | 88680 | 弹簧 | SPRING | 1 |
| 57 | 8166231 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 58 | 854497T | 倒挡齿轮-12/29齿 | GEAR Reverse - 12/29 | 1 |
| 59 | 99906T1 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 60 | 21739 | 滚柱轴承 | BEARING Roller | 1 |
| 61 | 41132 | 内部油封 | SEAL Oil Inner | 1 |
| 62 | 41131 | 外油封 | SEAL Oil Outer | 1 |
| 62 | 8M0245761 | 油封 | SEAL OIL | 1 |
| 63 | 85549 | O型圈 | O-RING | 1 |
| 64 | 87293 | 安装板 | PLATE | 1 |
| 65 | 90883 | 螺钉(M5×16) | SCREW (M5 x 16) | 3 |
| 66 | 87810178 | 螺钉(M10 x 35) | SCREW (M10 x 35) | 4 |
| 67 | 43328 | 垫圈 | WASHER | 4 |
| 68 | 858498 | 推力毂总成 | THRUST HUB ASSEMBLY | 1 |
| 69 | 19636A10 | BLACK MAX螺旋桨 | BLACK MAX PROPELLER | 1 |
| 70 | 88228 | 螺旋桨螺母 | PROP NUT | 1 |
| - | 85090A2 | 密封套件 | SEAL KIT | 1 |

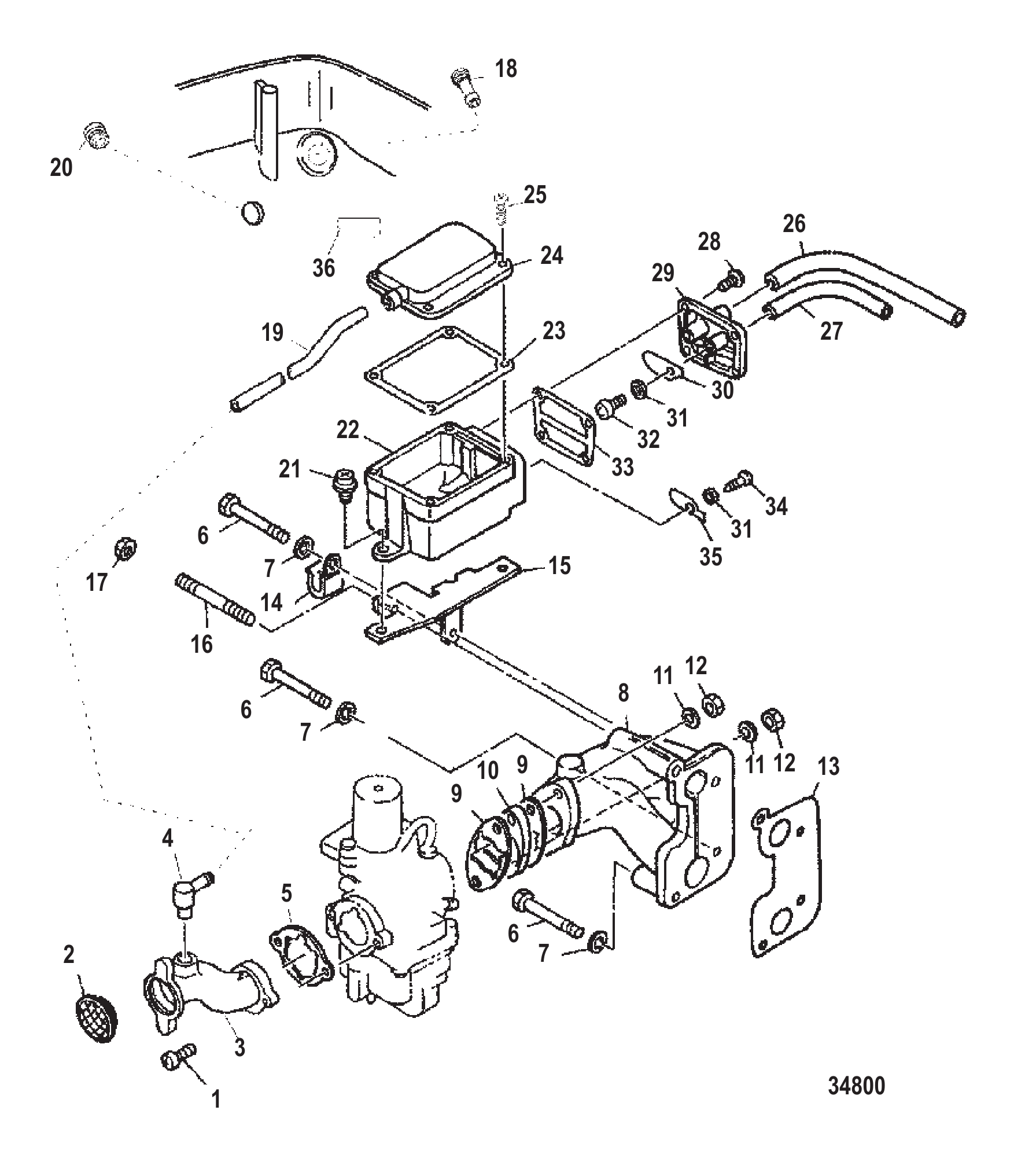

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 826679 | 螺钉 | SCREW | 2 |
| 2 | 825588 | 百叶窗 | LOUVER | 1 |
| 3 | 827739 | 漏斗 | FUNNEL | 1 |
| 4 | 825486 | 通气管 | PIPE Breather | 1 |
| 5 | 825589 | 衬垫 | GASKET | 1 |
| 6 | 4000334 | 螺钉（M6 x 45） | SCREW (M6 x 45) | 3 |
| 7 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 3 |
| 7 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 3 |
| 8 | 825584 | 歧管 | MANIFOLD | 1 |
| 9 | 825586 | 歧管垫片 | GASKET Manifold | 2 |
| 10 | 825587 | 歧管垫片 | GASKET Manifold | 1 |
| 11 | 82214M | 垫圈 | WASHER | 2 |
| 12 | 82390M | 螺母 (M6) | NUT (M6) | 2 |
| 13 | 825585 | 歧管垫片 | GASKET Manifold | 1 |
| 14 | 28700 | 卡箍 | CLAMP | 1 |
| 15 | 825600 | 导向支架 | HOLDER Guide | 1 |
| 16 | 827317 | 螺柱 | STUD | 1 |
| 17 | 400212 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 18 | 813613 | 接头 | FITTING | 1 |
| 19 | 827734 | 通气管 | PIPE Breather | 1 |
| 20 | 824473 | 堵头 | PLUG | 1 |
| 21 | 825511 | 螺钉 | SCREW | 2 |
| 22 | 825590 | 机油分离器 | SEPARATOR Oil | 1 |
| 23 | 825592 | 油封座垫片 | GASKET Oil Seal Housing | 1 |
| 24 | 825591 | 机油分离器 | SEPARATOR Oil | 1 |
| 25 | 84272M | 螺钉 | SCREW | 4 |
| 26 | 825598 | 软管 | HOSE | 1 |
| 27 | 825632 | 软管 | HOSE | 1 |
| 28 | 84272M | 螺钉 | SCREW | 4 |
| 29 | 825593 | 通气阀 | BREATHER | 1 |
| 30 | 825594 | 通气阀 | BREATHER | 1 |
| 31 | 82847M | 垫圈 | WASHER | 2 |
| 32 | 825515 | 螺钉 | SCREW | 1 |
| 33 | 825596 | 通气阀垫片 | GASKET Breather | 1 |
| 34 | 84272M | 螺钉 | SCREW | 1 |
| 35 | 825595 | 通气阀 | BREATHER | 1 |
| 36 | 8272822 | 高压警告标贴 | DECAL Warning High Voltage | 1 |
| - | 825847A95 | 衬垫套件 | GASKET SET | 1 |

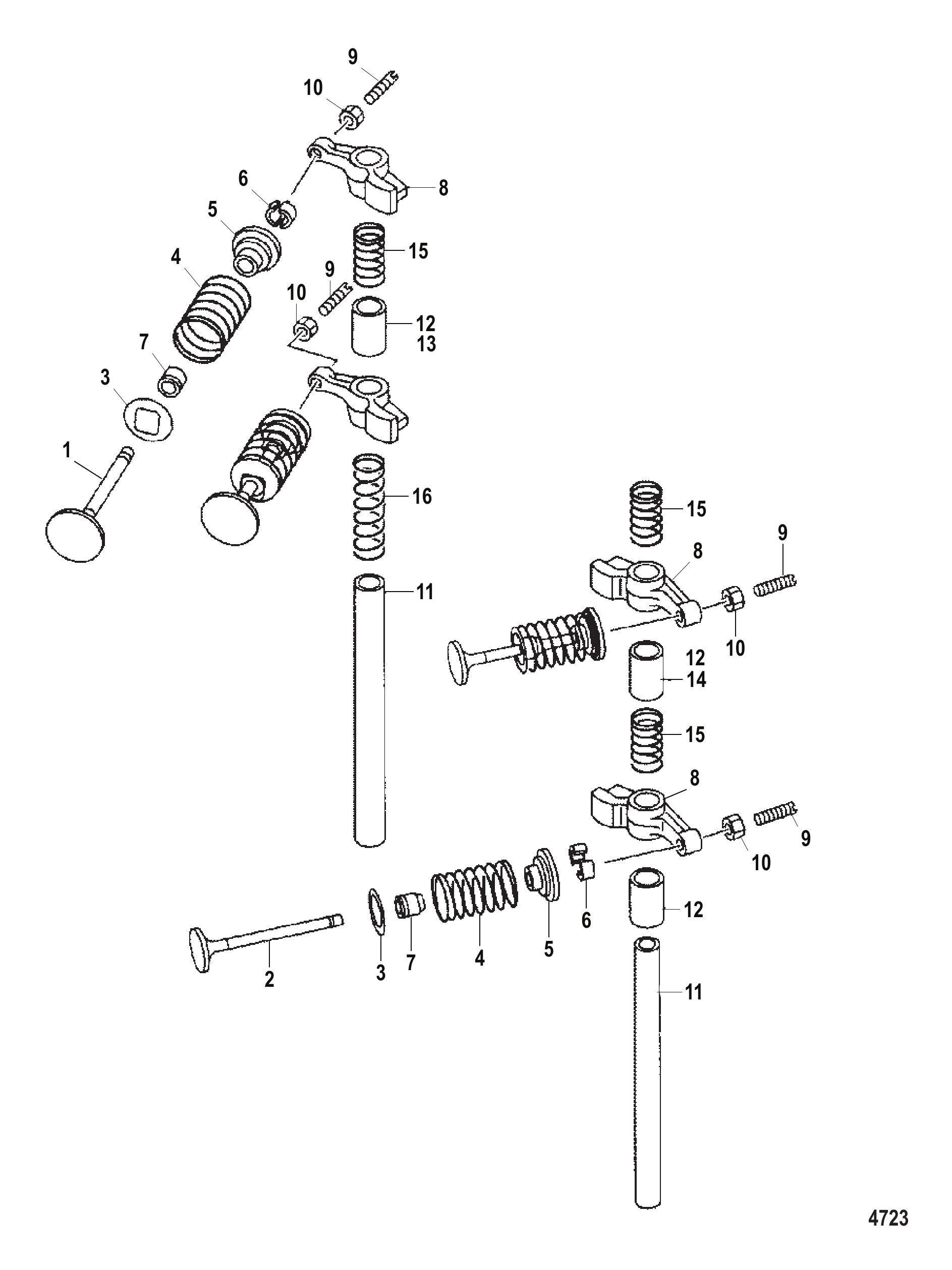

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 850838T | 进气阀 | VALVE Intake | 2 |
| 2 | 850839T | 排气阀 | VALVE Exhaust | 2 |
| 3 | 855959 | 气门弹簧座 | SEAT Valve Spring | 4 |
| 4 | 850840 | 气门弹簧 | SPRING Valve | 4 |
| 5 | 822650 | 固定座 | RETAINER | 4 |
| 5 | 893553 | 固定座 | RETAINER | 4 |
| 6 | 822651 | 键 | KEY | 8 |
| 6 | 893554 | 键 | KEY | 8 |
| 7 | 822647 | 气门杆油封 | SEAL Valve Stem | 4 |
| 8 | 850841A1 | 摇臂总成 | ROCKER ARM ASSEMBLY | 4 |
| 9 | 825046 | 螺钉 | SCREW | 4 |
| 9 | 825045A2 | 摇臂 | ROCKER ARM | 4 |
| 10 | 826150 | 螺母 | NUT | 4 |
| 11 | 850842 | 摇臂轴 | SHAFT Rocker | 2 |
| 12 | 825451 | 轴环 | COLLAR | 3 |
| 12 | 825451 | 轴环 | COLLAR | 1 |
| 13 | 880135 | 轴环 | COLLAR | 1 |
| 14 | 880134 | 轴环 | COLLAR | 1 |
| 15 | 825452 | 弹簧 | SPRING | 3 |
| 16 | 825453 | 弹簧 | SPRING | 1 |
| - | 802733A98 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 802733A98 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 879783A01 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 835427A00 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |

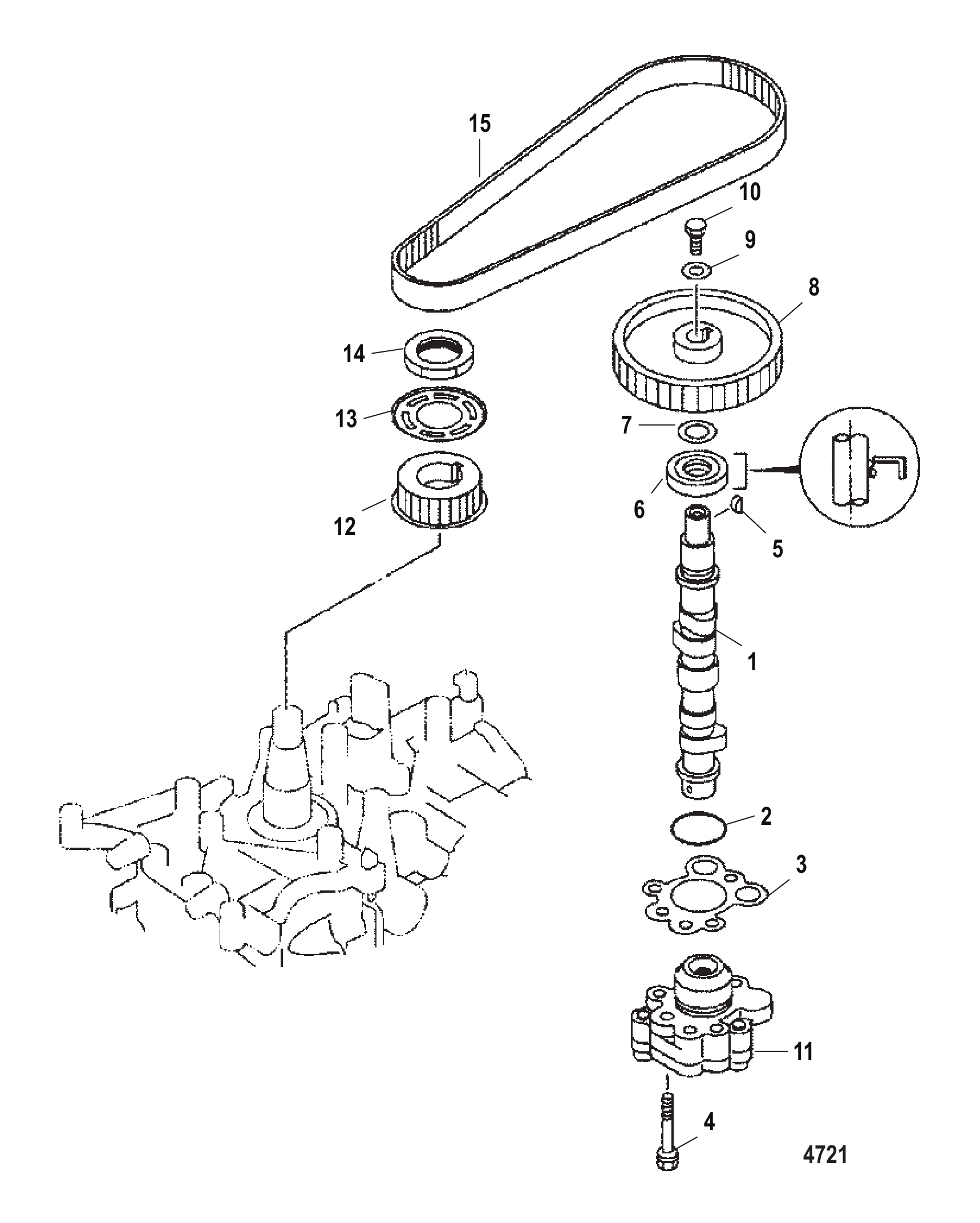

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 834956 | 凸轮轴 | CAMSHAFT | 1 |
| 1 | 834956004 | 凸轮轴 | CAMSHAFT | 1 |
| 1 | 834956 | 凸轮轴 | CAMSHAFT | 1 |
| 1 | 880136A1 | 凸轮轴 | CAMSHAFT | 1 |
| 1 | 880136A02 | 凸轮轴 | CAMSHAFT | 1 |
| 2 | 825462 | O型圈 | O-RING | 1 |
| 3 | 853523 | 衬垫 | GASKET | 1 |
| 4 | 850879 | 螺栓(M6×35) | BOLT (M6 x 35) | 3 |
| 5 | 84403M | 键 | KEY | 1 |
| 5 | 8M0084803 | 键@2 | KEY @2 | 1 |
| 6 | 825455 | 油封 | SEAL Oil | 1 |
| 7 | 82710M | 垫圈 | WASHER | 1 |
| 8 | 834973T | 从动齿轮 | GEAR Driven | 1 |
| 9 | 825498 | 垫圈 | WASHER | 1 |
| 10 | 896534 | 螺栓 | BOLT | 1 |
| 10 | 826957M | 螺栓 | BOLT | 1 |
| 11 | 834967T2 | 油泵总成 | PUMP ASSEMBLY Oil | 1 |
| 11 | 834967A1 | 油泵总成 | PUMP ASSEMBLY Oil | 1 |
| 12 | 834955 | 驱动齿轮 | GEAR Drive | 1 |
| 12 | 8M0063224 | 驱动齿轮 | GEAR-DRIVE | 1 |
| 13 | 850843 | 垫圈 | WASHER | 1 |
| 14 | 855679 | 螺母(M28) | NUT (M28) | 1 |
| 15 | 835392 | 正时皮带 | TIMING BELT | 1 |
| 15 | 835392Q | 正时皮带 | TIMING BELT | 1 |
| 15 | 835392Q | 正时皮带 | TIMING BELT | 1 |
| - | 802733A98 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 802733A98 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 879783A01 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 835427A00 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

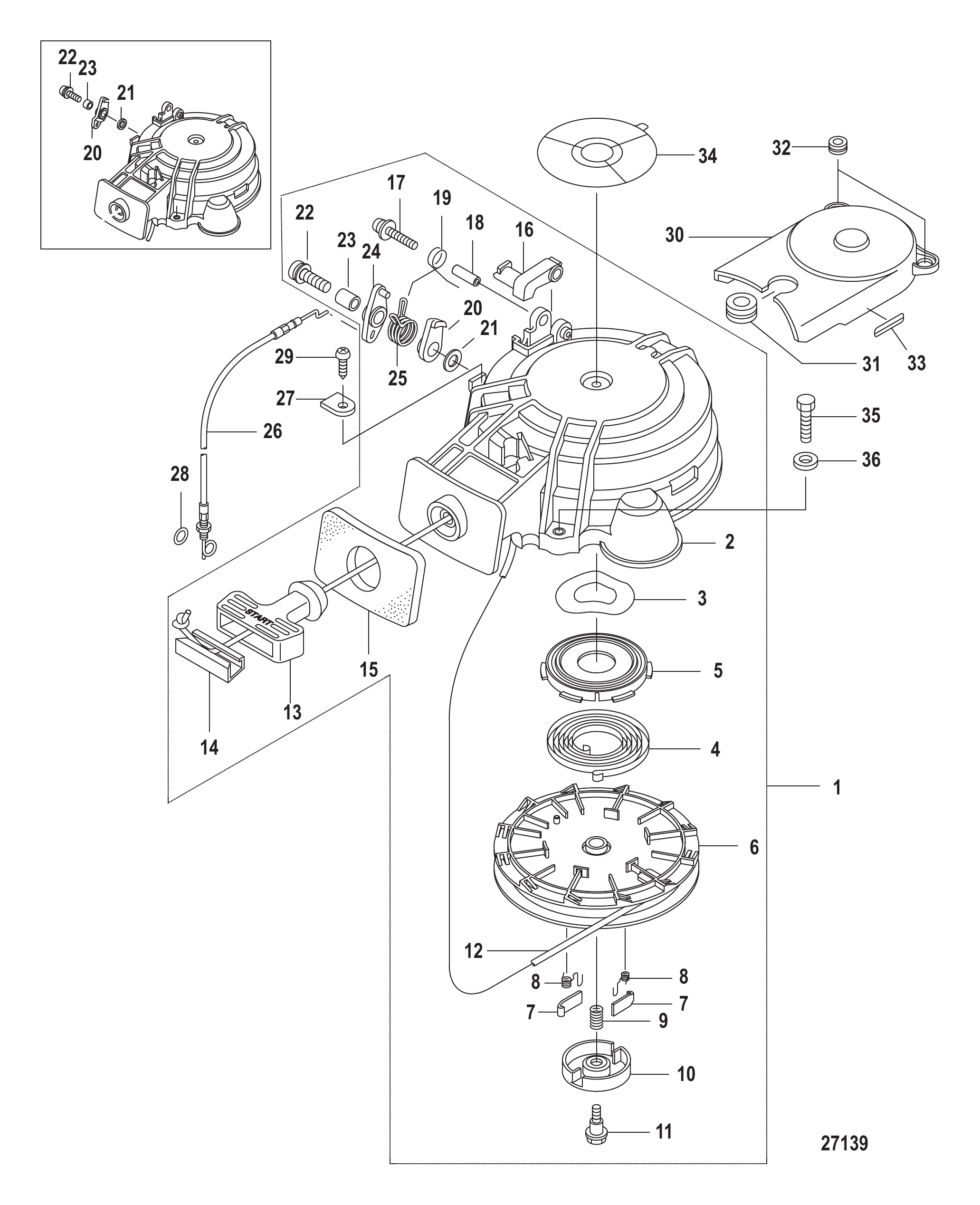

| 1 | 803716T04 | 手拉启动器总成 | STARTER ASSEMBLY Recoil | 1 |
| 1 | 803716T04 | 手拉启动器总成 | STARTER ASSEMBLY Recoil | 1 |
| 1 | 803716T07 | 手拉启动器总成 | STARTER ASSEMBLY Recoil | 1 |
| 1 | 803716T06 | 手拉启动器总成 | STARTER ASSEMBLY Recoil | 1 |
| 1 | 803716T07 | 手拉启动器总成 | STARTER ASSEMBLY Recoil | 1 |
| 1 | 803716T06 | 手拉启动器总成 | STARTER ASSEMBLY Recoil | 1 |
| 1 | 803716T07 | 手拉启动器总成 | STARTER ASSEMBLY Recoil | 1 |
| 1 | 803716T07 | 手拉启动器总成 | STARTER ASSEMBLY Recoil | 1 |
| 1 | 8M0138720 | 反冲启动器 | RECOIL STARTER | 1 |
| 1 | 803716T07 | 手拉启动器总成 | STARTER ASSEMBLY Recoil | 1 |
| 2 | 803716T03 | 启动器壳体 | HOUSING Starter | 1 |
| 2 | 803716T05 | 启动器壳体 | HOUSING Starter | 1 |
| 2 | 803716T03 | 启动器壳体 | HOUSING Starter | 1 |
| 2 | 803716T05 | 启动器壳体 | HOUSING Starter | 1 |
| 2 | 803716T05 | 启动器壳体 | HOUSING Starter | 1 |
| 2 | 803716T05 | 启动器壳体 | HOUSING Starter | 1 |
| 3 | 895128 | 波形垫圈 | WAVE WASHER | 1 |
| 4 | 804024T07 | 启动弹簧 | SPRING Starter | 1 |
| 5 | 895129 | 启动弹簧壳体 | HOUSING Starter Spring | 1 |
| 6 | 803717001 | 卷轴 | REEL | 1 |
| 7 | 812635002 | 棘轮 | RATCHET | 2 |
| 8 | 812634003 | 回位弹簧 | SPRING Return | 2 |
| 9 | 812636001 | 弹簧 | SPRING | 1 |
| 10 | 812638001 | 摩擦片 | FRICTION PLATE | 1 |
| 11 | 812637001 | 螺栓 | BOLT | 1 |
| 12 | 850057002 | 启动绳 | ROPE Starter | 1 |
| 12 | 8M0110704 | 绳索 | ROPE | 1 |
| 13 | 812640002 | 启动绳手柄 | HANDLE Starter Rope | 1 |
| 14 | 853755001 | 拉绳锚点 | ROPE ANCHOR | 1 |
| 14 | 8M0084137 | 拉绳锚点 | ROPE ANCHOR | 1 |
| 15 | 803720001 | 启动器密封件 | SEAL Starter | 1 |
| 15 | 8M0138706 | 启动器密封件 | SEAL Starter | 1 |
| 15 | 8M0138706 | 启动器密封件 | SEAL Starter | 1 |
| 16 | 804031001 | 启动器联锁装置 | INTERLOCK Starter | 1 |
| 17 | 8555449 | 螺钉总成 | SCREW ASSEMBLY | 1 |
| 18 | 895130 | 轴环 | COLLAR | 1 |
| 19 | 812645007 | 启动联锁弹簧 | SPRING Starter Interock | 1 |
| 20 | 803721002 | 启动联锁凸轮 | CAM Starter Interlock | 1 |
| 20 | 895131A06 | 联锁线缆套件 | CABLE KIT-INTERLK | 1 |
| 20 | 803721002 | 启动联锁凸轮 | CAM Starter Interlock | 1 |
| 20 | 895131A06 | 联锁线缆套件 | CABLE KIT-INTERLK | 1 |
| 20 | 803721003 | 启动联锁凸轮 | CAM Starter Interlock | 1 |
| 20 | 803721003 | 启动联锁凸轮 | CAM Starter Interlock | 1 |
| 21 | 895106 | 不锈钢垫圈 | WASHER Stainless Steel | 1 |
| 21 | 16826 | 不锈钢垫圈 | WASHER Stainless Steel | 1 |
| 22 | 855544 | 螺钉总成 | SCREW ASSEMBLY | 1 |
| 22 | 855544 | 螺钉总成 | SCREW ASSEMBLY | 1 |
| 22 | 855544021 | 螺钉 (M6 x 25 MM) | SCREW (M6 x 25 MM) | 1 |
| 22 | 855544021 | 螺钉 (M6 x 25 MM) | SCREW (M6 x 25 MM) | 1 |
| 23 | 855545001 | 轴环 | COLLAR | 1 |
| 23 | 855545001 | 轴环 | COLLAR | 1 |
| 23 | 855545002 | 轴环 | COLLAR | 1 |
| 23 | 855545004 | 轴环 | COLLAR | 1 |
| 23 | 855545002 | 轴环 | COLLAR | 1 |
| 23 | 855545004 | 轴环 | COLLAR | 1 |
| 24 | 898101627 | 启动器锁定杆 | LEVER Starter Lock | 1 |
| 24 | 898101627 | 启动器锁定杆 | LEVER Starter Lock | 1 |
| 25 | 898101628 | 弹簧 | SPRING | 1 |
| 25 | 898101628 | 弹簧 | SPRING | 1 |
| 26 | 895131A01 | 启动联锁线缆总成 | CABLE ASSEMBLY Starter Interlock | 1 |
| 26 | 895131A06 | 联锁线缆套件 | CABLE KIT-INTERLK | 1 |
| 27 | 803762 | 卡箍 | CLAMP | 1 |
| 28 | 895132 | 黑色O型圈 | O-RING Black | 1 |
| 28 | 8M0085099 | O型圈 | ORING | 1 |
| 29 | 16257003 | 不锈钢自攻螺钉 | SCREW Tapping - Stainless Steel | 1 |
| 30 | 895133 | 盖板 | COVER | 1 |
| 31 | 881305001 | 橡胶护圈 | GROMMET Rubber | 1 |
| 32 | 881305002 | 护孔环 | GROMMET | 2 |
| 33 | NSS | 火花塞电阻标签不单独销售 | NOT SOLD SEPARATE Decal-Resistance Spark Plug | 1 |
| 34 | NSS | 不单独销售 贴花-警示 | NOT SOLD SEPARATE Decal-Caution | 1 |
| 35 | 823042039 | 螺栓 | BOLT | 3 |
| 35 | 8M0204707 | 不锈钢六角大帽螺钉(M6x25) | SCREW M6 x 25 HX HD CAP SS | 3 |
| 36 | 895118002 | 垫圈 | WASHER | 3 |
| 36 | 953921 | 不锈钢垫圈 | WASHER Stainless Steel | 3 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

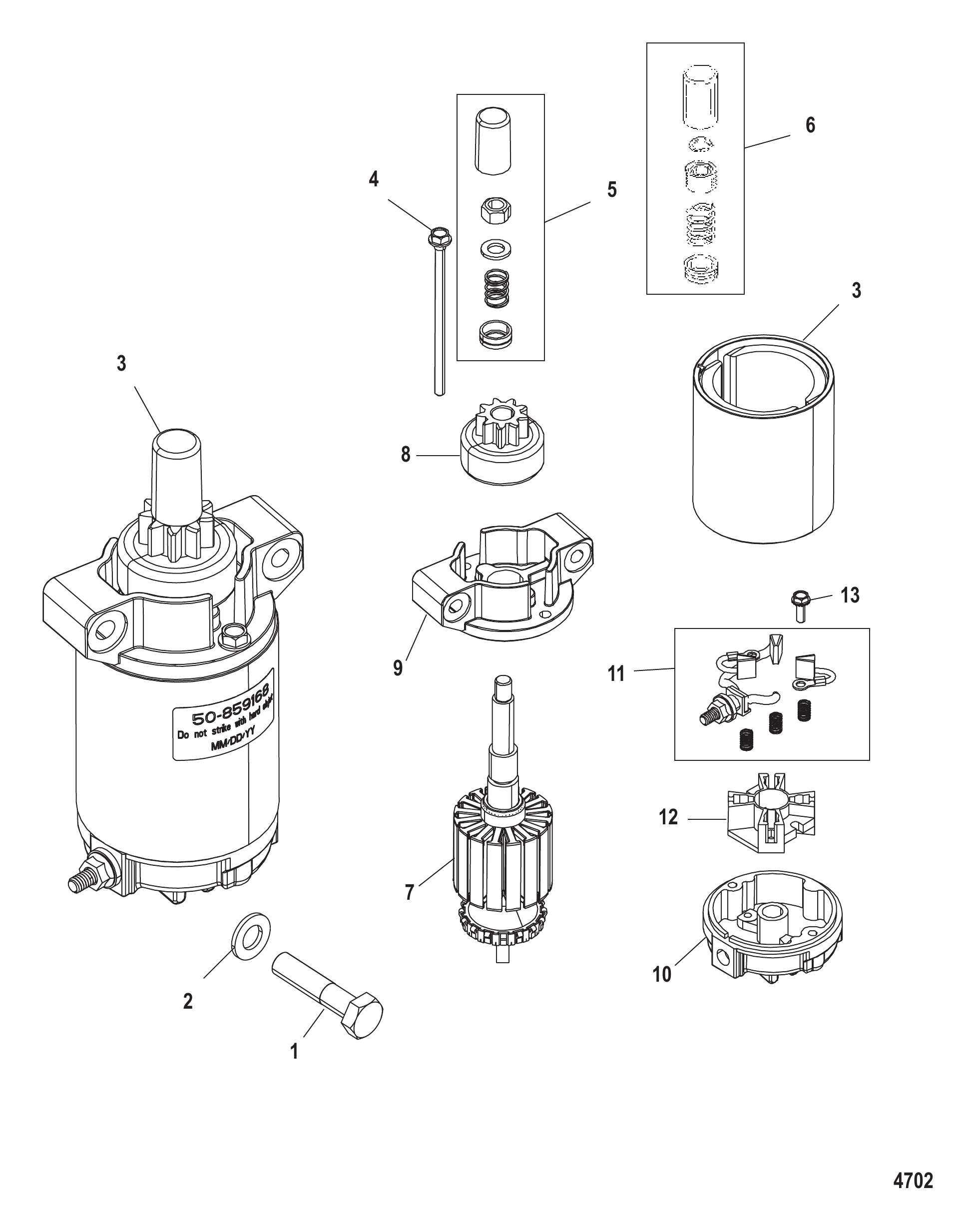

| 1 | 4000357 | 螺钉 (M8 x 45) | SCREW (M8 x 45) | 3 |
| 2 | 4002317 | 垫圈 (8.90 X 17.0 X 1.9SS) | WASHER (8.90 X 17.0 X 1.9SS) | 1 |
| 3 | 859168T | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 3 | 852570T | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 3 | 859168T | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 4 | 965662 | 贯穿螺栓 | THRU BOLT | 2 |
| 5 | 906433 | 驱动套件 | DRIVE KIT | 1 |
| 5 | 891752 | 驱动套件 | DRIVE KIT | 1 |
| 6 | 906432 | 驱动套件 | DRIVE KIT | 1 |
| 7 | 8236383 | 电枢 | ARMATURE | 1 |
| 7 | 8236385 | 电枢 | ARMATURE | 1 |
| 8 | 68575T2 | 小齿轮 | PINION | 1 |
| 9 | 8236391 | 驱动端盖 | DRIVE CAP | 1 |
| 10 | 8119012 | 换向器端盖 | CAP Commutator | 1 |
| 11 | 75384 | 电刷/弹簧套件 | BRUSH/SPRING KIT | 1 |
| 11 | 898265016 | 电刷/弹簧套件 | BRUSH/SPRING KIT | 1 |
| 12 | 61787 | 支架 | HOLDER | 1 |
| 12 | 898265014 | 电刷支架 | HOLDER-BRUSH | 1 |
| 13 | F15158 | 螺钉 | SCREW | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

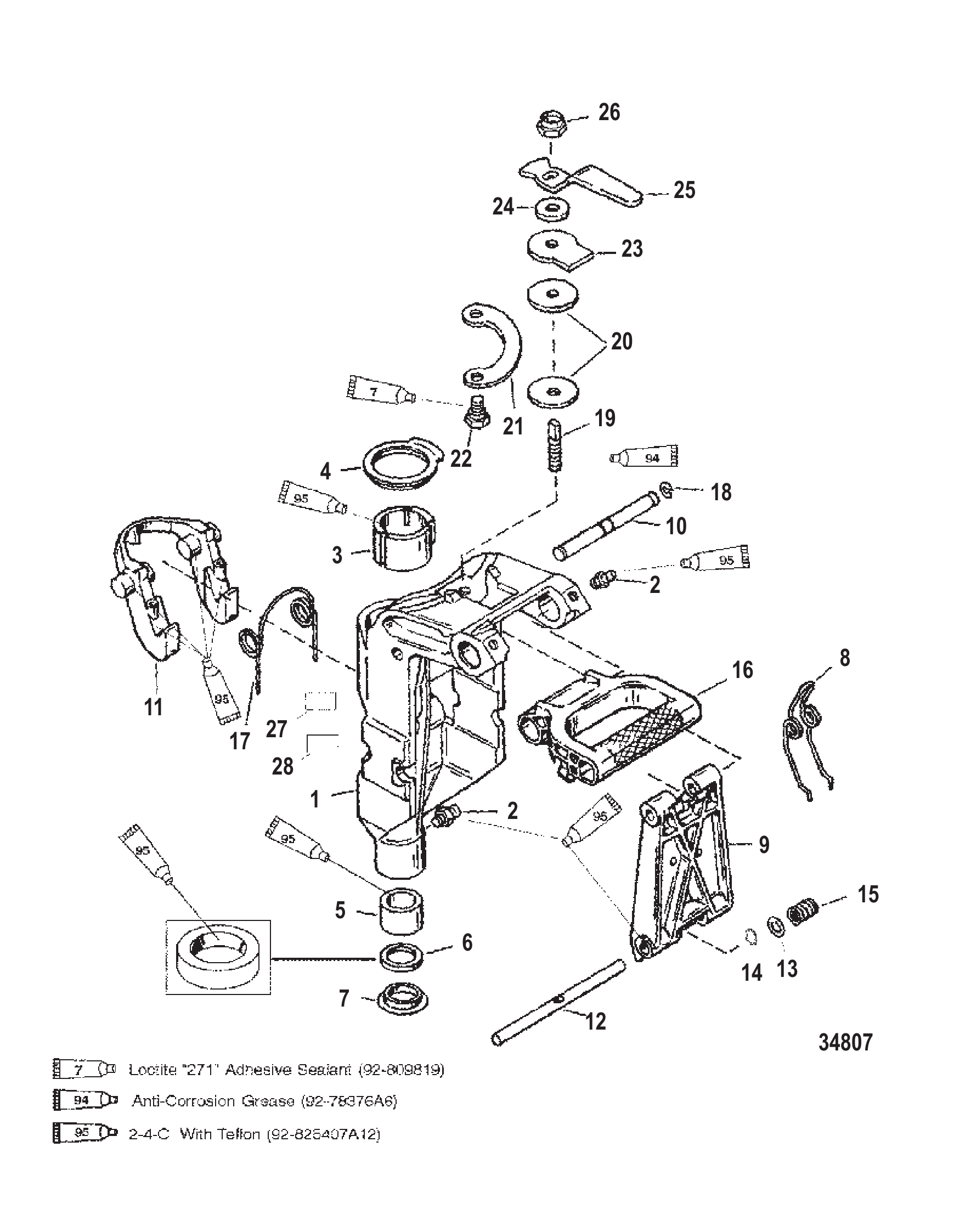

| 1 | 8831A8 | 旋转支架总成 | SWIVEL BRACKET ASSEMBLY | 1 |
| 2 | 74036 | 润滑脂接头 | FITTING Grease | 4 |
| 2 | 8M0169589 | 润滑脂接头 | FITTING Grease | 4 |
| 3 | 421402 | 轴承 | BEARING | 1 |
| 4 | 420801 | 推力轴承-上 | BEARING Thrust - Upper | 1 |
| 4 | 42080T01 | 轴承 | BEARING | 1 |
| 5 | 42139 | 衬套 | BUSHING | 1 |
| 6 | 42077 | 密封件 | SEAL | 1 |
| 7 | 42373 | 止推垫片 | THRUST WASHER | 1 |
| 8 | 421301 | 弹簧 | SPRING | 1 |
| 9 | 420824 | 支架 | BRACKET | 1 |
| 9 | 42082T04 | 支架 | BRACKET | 1 |
| 10 | 420811 | 销 | PIN | 1 |
| 11 | 421411 | 倒挡锁钩 | HOOK Reverse Lock | 1 |
| 11 | 8M0075731 | 倒挡钩 | HOOK Reverse | 1 |
| 12 | 830741A1 | 枢轴销总成 | PIN ASSEMBLY Pivot | 1 |
| 13 | 8M0027716 | 垫圈 (0.390 x 0.600 x 0.032) 不锈钢 | WASHER (.390 x .600 x .032) Stainless Steel | 1 |
| 14 | 832720 | 挡圈 | RING Retaining | 1 |
| 15 | 42128 | 弹簧 | SPRING | 1 |
| 16 | 42085F4 | 提手 | CARRYING HANDLE | 1 |
| 16 | 420852 | 手柄-黑色 | HANDLE-BLACK | 1 |
| 17 | 42127 | 弹簧 | SPRING | 1 |
| 18 | 13194 | 挡圈 | RING Retaining | 2 |
| 19 | 821961 | 杆 | ROD | 1 |
| 20 | 8165621 | 圆盘 | DISC | 2 |
| 21 | 821958A1 | 板组件套件 | PLATE KIT | 1 |
| 22 | 40011126 | 不锈钢螺丝(M6 x 13) | SCREW (M6 x 13) Stainless Steel | 2 |
| 23 | 821957 | 制动板 | BRAKE PLATE | 1 |
| 24 | 29330 | 垫圈 | WASHER | 1 |
| 25 | 821959 | 手柄 | HANDLE | 1 |
| 26 | 34863 | 螺母 (.375-24) | NUT (.375-24) | 1 |
| 26 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 1 |
| 27 | 8237011 | 副驾驶贴花 | DECAL Co-Pilot | 1 |
| 28 | NSS | 不单独销售-序列号覆膜标贴 | NOT SOLD SEPARATE Decal-Serial Overlaminate | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

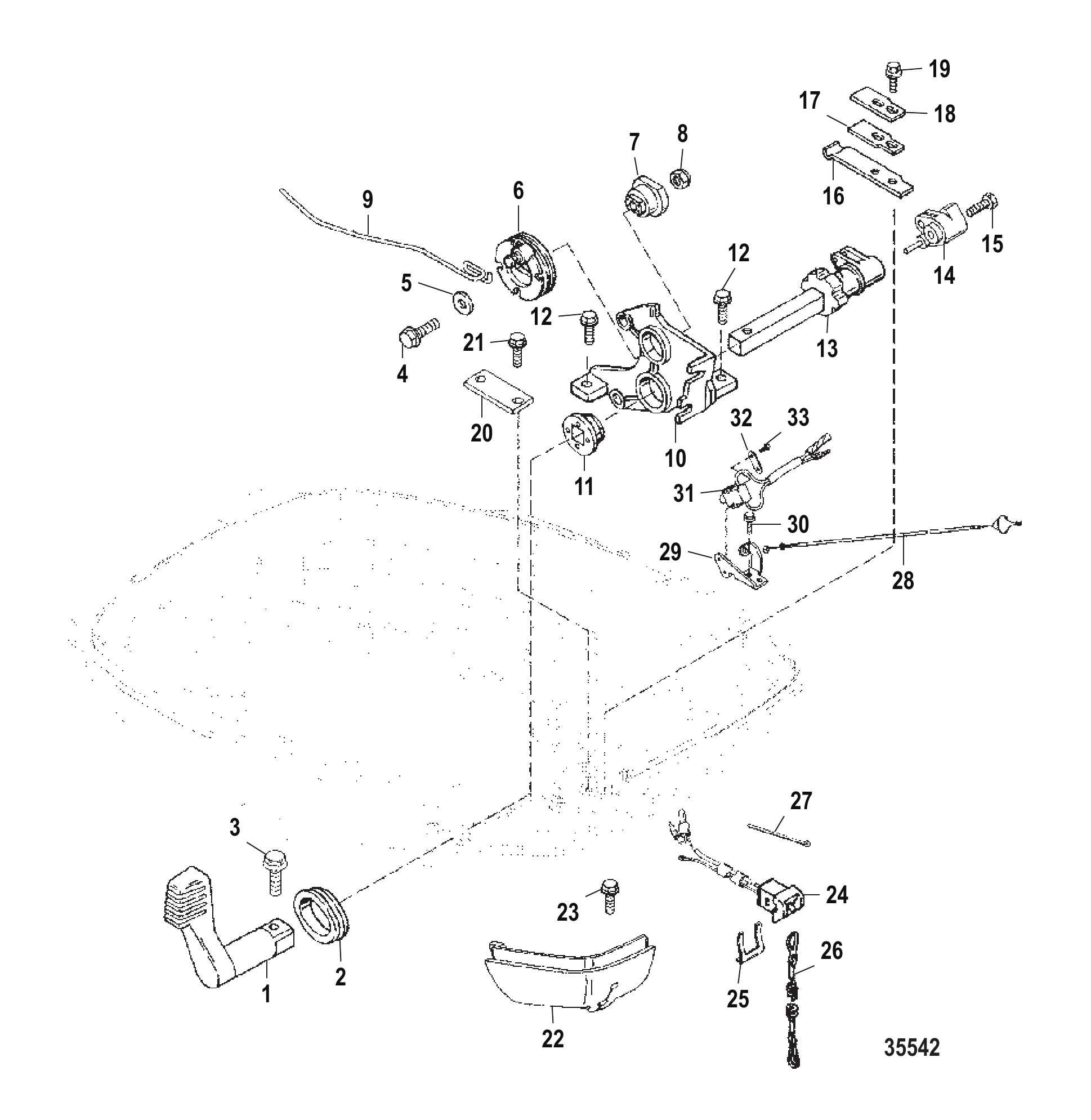

| 1 | 825792 | 手柄 | HANDLE | 1 |
| 2 | 825781 | 护孔环 | GROMMET | 1 |
| 3 | 82239312 | 螺钉(M5 x 12) | SCREW (M5 x 12) | 1 |
| 4 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 1 |
| 4 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 1 |
| 5 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 1 |
| 5 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 1 |
| 6 | 825787A2 | 皮带轮总成 | PULLEY ASSEMBLY | 1 |
| 7 | 825788 | 衬套 | BUSHING | 1 |
| 8 | 400264 | 螺母 (M6) | NUT (M6) | 1 |
| 8 | 401366 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 9 | 8508711 | 连接杆 | LINK | 1 |
| 9 | 882818 | 油门连杆 | LINK Throttle | 1 |
| 10 | 8257863 | 平台 | PLATFORM | 1 |
| 11 | 825789 | 衬套 | BUSHING | 1 |
| 12 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 2 |
| 12 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 2 |
| 13 | 852494A2 | 水平换挡轴总成 | SHIFT SHAFT ASSEMBLY Horizontal | 1 |
| 13 | 852494A6 | 水平换挡轴总成 | SHIFT SHAFT ASSEMBLY Horizontal | 1 |
| 13 | 852494A1 | 水平换挡轴总成 | SHIFT SHAFT ASSEMBLY Horizontal | 1 |
| 13 | 852494A5 | 水平换挡轴总成 | SHIFT SHAFT ASSEMBLY Horizontal | 1 |
| 14 | 855609 | 联锁杆 | LEVER Interlock | 1 |
| 14 | 826063 | 联锁杆 | LEVER Interlock | 1 |
| 15 | 40011111 | 不锈钢螺钉(M5 x 35) | SCREW (M5 x 35) Stainless Steel | 1 |
| 16 | 824992 | 定位弹簧 | SPRING Detent | 1 |
| 17 | 824993 | 背衬弹簧 | SPRING Backing | 1 |
| 18 | 824994 | 板簧 | SPRING Plate | 1 |
| 19 | 82239312 | 螺钉(M5 x 12) | SCREW (M5 x 12) | 2 |
| 20 | 8280471 | 绑带 | STRAP | 1 |
| 21 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 2 |
| 21 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 2 |
| 22 | 852489 | 盖板 | COVER | 1 |
| 22 | 855743 | 盖板 | COVER | 1 |
| 23 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 2 |
| 23 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 2 |
| 24 | 11083A30 | 开关总成 | SWITCH ASSEMBLY | 1 |
| 25 | 120441 | 黄铜固定座 | RETAINER Brass | 1 |
| 25 | 8M0032846 | 黄铜固定座 | RETAINER Brass | 1 |
| 26 | 15920A54 | 拉绳总成 | LANYARD ASSEMBLY | 1 |
| 26 | 15920Q54 | 拉绳总成 | LANYARD ASSEMBLY | 1 |
| 27 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 3 |
| 27 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 3 |
| 28 | 852472 | 电线 | WIRE | 1 |
| 29 | 855888F | 支架 | BRACKET | 1 |
| 30 | 82239312 | 螺钉(M5 x 12) | SCREW (M5 x 12) | 1 |
| 31 | 813960A5 | 开关总成 | SWITCH ASSEMBLY | 1 |
| 31 | 8M0052929 | 开关总成 | SWITCH ASSEMBLY | 1 |
| 32 | 824923 | 安装板 | PLATE | 1 |
| 33 | 82470620 | 螺钉 (M3.5 x 20) | SCREW (M3.5 x 20) | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

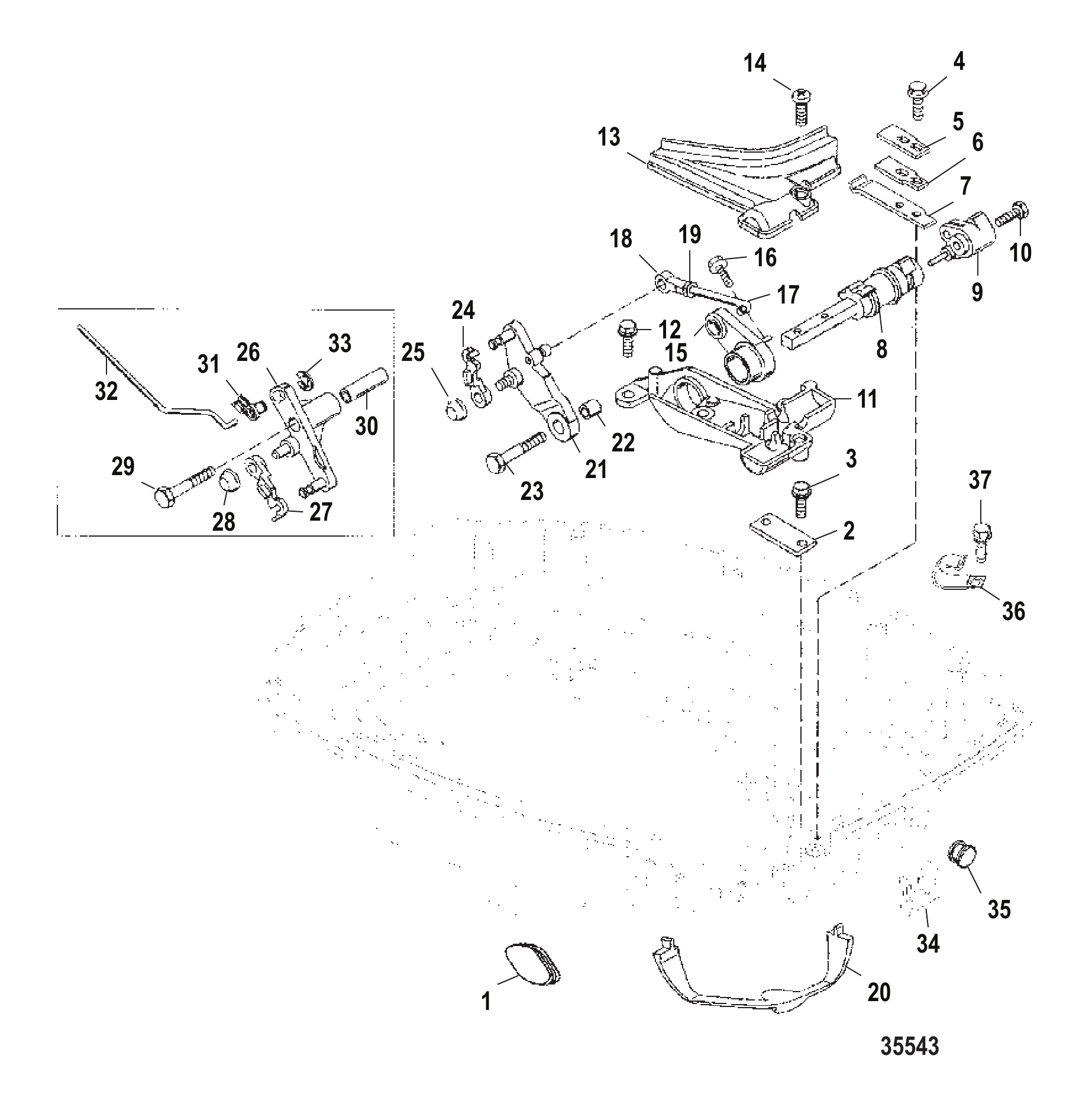

| 1 | 826037 | 堵头 | PLUG | 1 |
| 2 | 8280471 | 绑带 | STRAP | 1 |
| 3 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 2 |
| 3 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 2 |
| 4 | 82239312 | 螺钉(M5 x 12) | SCREW (M5 x 12) | 2 |
| 5 | 824994 | 板簧 | SPRING Plate | 1 |
| 6 | 824993 | 背衬弹簧 | SPRING Backing | 1 |
| 7 | 824992 | 定位弹簧 | SPRING Detent | 1 |
| 8 | 852494A2 | 水平换挡轴总成 | SHIFT SHAFT ASSEMBLY Horizontal | 1 |
| 8 | 852494A6 | 水平换挡轴总成 | SHIFT SHAFT ASSEMBLY Horizontal | 1 |
| 8 | 852494A1 | 水平换挡轴总成 | SHIFT SHAFT ASSEMBLY Horizontal | 1 |
| 8 | 852494A5 | 水平换挡轴总成 | SHIFT SHAFT ASSEMBLY Horizontal | 1 |
| 9 | 855609 | 联锁杆 | LEVER Interlock | 1 |
| 9 | 826063 | 联锁杆 | LEVER Interlock | 1 |
| 10 | 40011111 | 不锈钢螺钉(M5 x 35) | SCREW (M5 x 35) Stainless Steel | 1 |
| 11 | 835415F | 遥控平台 | REMOTE CONTROL PLATFORM | 1 |
| 12 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 3 |
| 12 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 3 |
| 13 | 852498 | 盖板 | COVER | 1 |
| 14 | 832047 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 1 |
| 15 | 852496 | 换挡轴杆 | LEVER Shift Shaft | 1 |
| 15 | 8524961 | 换挡轴杆 | LEVER Shift Shaft | 1 |
| 16 | 82239312 | 螺钉(M5 x 12) | SCREW (M5 x 12) | 1 |
| 17 | 852497A1 | 换挡连杆总成 | SHIFT LINK ASSEMBLY | 1 |
| 17 | 852497A2 | 换挡连杆总成 | SHIFT LINK ASSEMBLY | 1 |
| 18 | 817428 | 插座 | SOCKET | 1 |
| 19 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 1 |
| 20 | 8354191 | 密封件 | SEAL | 1 |
| 21 | 850856 | 换挡杆 | LEVER Shift | 1 |
| 22 | 91912 | 衬套 | BUSHING | 1 |
| 23 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 1 |
| 23 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 1 |
| 24 | 822459 | 固定座 | RETAINER | 1 |
| 25 | 825677 | 压入式螺母 | PUSH NUT | 1 |
| 26 | 850857 | 油门杆 | LEVER Throttle | 1 |
| 27 | 822459 | 固定座 | RETAINER | 1 |
| 28 | 825677 | 压入式螺母 | PUSH NUT | 1 |
| 29 | 82129145 | 螺钉（M6 x 45） | SCREW (M6 x 45) | 1 |
| 30 | 855765 | 衬套 | BUSHING | 1 |
| 31 | 828049 | 滑块 | SLIDE | 1 |
| 32 | 835420 | 油门连杆 | LINK Throttle | 1 |
| 32 | 882817 | 油门连杆 | LINK Throttle | 1 |
| 33 | 8237951 | 挡圈 | RING Retaining | 1 |
| 34 | 828114 | 护孔环 | GROMMET | 1 |
| 35 | 855937 | 堵头 | PLUG | 1 |
| 36 | 28700 | 卡箍 | CLAMP | 1 |
| 37 | 82239312 | 螺钉(M5 x 12) | SCREW (M5 x 12) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

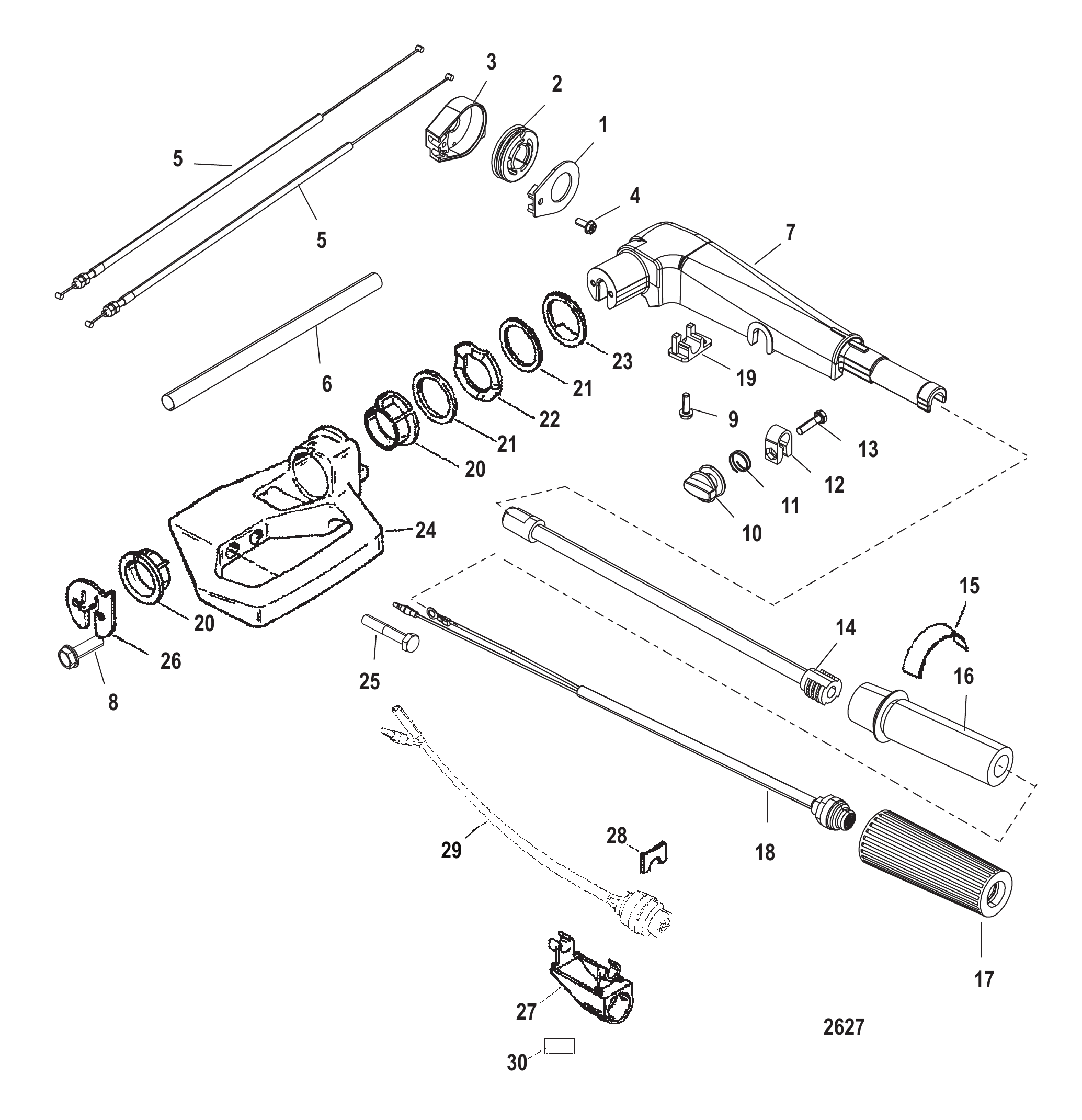

| - | 821468T65 | 舵柄总成 | TILLER HANDLE ASSEMBLY | 1 |
| 1 | 822148A3 | 盖板套件 | COVER KIT | 1 |
| 2 | 822150 | 滑轮 | PULLEY | 1 |
| 3 | NSS | 不单独销售本体 | NOT SOLD SEPARATE Body | 1 |
| 4 | 878608 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 1 |
| 5 | 432429 | 节气门拉索 | CABLE Throttle | 2 |
| 5 | 43242T09 | 节气门拉索 | CABLE-THROTTLE | 2 |
| 6 | 9600910 | 套筒 | SLEEVE | 1 |
| 7 | 821468A66 | 转向手柄臂总成 | ARM ASSEMBLY Steering Handle | 1 |
| 8 | 40011107 | 不锈钢螺钉(M5x16) | SCREW (M5 x 16) Stainless Steel | 2 |
| 9 | 40011107 | 不锈钢螺钉(M5x16) | SCREW (M5 x 16) Stainless Steel | 1 |
| 10 | 821972 | 节气门旋钮 | KNOB Throttle | 1 |
| 10 | 821972T | 节气门旋钮 | KNOB Throttle | 1 |
| 11 | 96203 | 弹簧 | SPRING | 1 |
| 12 | 821971 | 节气门锁 | LOCK Throttle | 1 |
| 12 | 892995 | 节气门锁 | LOCK Throttle | 1 |
| 13 | 4000330 | 螺钉(M6x25) | SCREW (M6 x 25) | 1 |
| 13 | 8M0204707 | 不锈钢六角大帽螺钉(M6x25) | SCREW M6 x 25 HX HD CAP SS | 1 |
| 14 | 821463A1 | 舵柄管 | TILLER TUBE | 1 |
| 14 | 821463T01 | 舵柄管 | TUBE-TILLER | 1 |
| 15 | 8242003 | 贴花 | DECAL | 1 |
| 16 | 821465 | 节气门手柄 | HANDLE Throttle | 1 |
| 17 | 99589 | 握把 | GRIP | 1 |
| 17 | 8M0221732 | 外握把 | GRIP OUTER | 1 |
| 18 | 823609A9 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 18 | 8M0104613 | 开关总成 | SWITCH ASSY | 1 |
| 19 | 822441 | 固定座 | RETAINER | 1 |
| 20 | 823939 | 衬套 | BUSHING | 2 |
| 21 | 822145 | 垫圈 | WASHER | 2 |
| 22 | 826792 | 波形垫圈 | WAVE WASHER | 1 |
| 23 | 822146 | 垫圈 | WASHER | 1 |
| 24 | 822841F1 | 转向臂支架 | BRACKET Steering Arm | 1 |
| 25 | 4000384 | 螺钉(M10×80) | SCREW (M10 x 80) | 2 |
| 26 | 826648 | 安装板 | PLATE | 1 |
| 27 | 8239172 | 壳体 | HOUSING | 1 |
| 27 | 889734 | 开关壳体 | HOUSING Switch | 1 |
| 27 | 889734 | 开关壳体 | HOUSING Switch | 1 |
| 28 | 824918 | 卡扣 | CLIP | 1 |
| 29 | 823609A8 | 开关总成 | SWITCH ASSEMBLY | 1 |
| 30 | 855262 | 启动贴花 | DECAL Start | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | NSS | 机油滤清器扳手不单独销售 (本地获取) | NOT SOLD SEPARATE Oil Filter Wrench (Obtain Locally) | 1 |
| 2 | 83164M | 飞轮拉拔器 | FLYWHEEL PULLER | 1 |
| 2 | 8M0227579 | 飞轮拉拔器 | FLYWHEEL PULLER | 1 |
| 3 | 83163M | 飞轮固定工具 | HOLDER TOOL Flywheel | 1 |
| 3 | 8M0161873 | 固定工具 | HOLDER TOOL | 1 |
| 4 | FT2997 | 活塞环压缩工具 | COMPRESSOR TOOL Piston Ring | 1 |
| 6 | 809494A1 | 气门弹簧压缩工具 | COMPRESSOR TOOL Valve Spring | 1 |
| 7 | 809495A1 | 气门导管拆卸工具 | REMOVER TOOL Valve Guide | 1 |
| 7 | 809495001 | 气门导管工具 | TOOL Valve Guide | 1 |
| 8 | 809496A1 | 气门导管衬套安装工具 | INSTALLER TOOL Valve Guide Bushing | 1 |
| 9 | 809497A1 | 气门导管铰刀工具 | REAMER TOOL Valve Guide | 1 |
| 10 | NSS | 气门座切割套件不单独销售 (本地获取) | NOT SOLD SEPARATE Valve Seat Cutter Kit (Obtain Locally) | 1 |
| 11 | 828999 | 扳手 | WRENCH | 1 |
| 12 | 37241 | 通用拉拔板 | PULLER PLATE Universal | 1 |
| 13 | 83165T | 拉拔器总成 | PULLER ASSEMBLY | 1 |
| 14 | 34569A1 | 滑动锤拉拔器总成 | PULLER ASSEMBLY Slide Hammer | 1 |
| 15 | 13664 | 轴承座安装工具, 6/15马力 | INSTALLER TOOL Bearing Carrier, 6/15 Hp | 1 |
| 15 | 938431 | 轴承座安装工具 | INSTALLER TOOL Bearing Carrier | 1 |
| 15 | 93843T1 | 轴承座安装工具 | INSTALLER TOOL Bearing Carrier | 1 |
| 16 | 824788A1 | 轴承拆卸工具 | REMOVAL TOOL Bearing | 1 |
| 17 | 824790A1 | 驱动轴衬套安装工具 | INSTALLATION TOOL Driveshaft Bushing | 1 |
| 18 | 13658T | 心轴 | MANDREL | 1 |
| 19 | 824787 | 衬套拆卸工具 | REMOVAL TOOL Bushing | 1 |
| 20 | 824785T1 | 衬套和密封安装工具 | INSTALLER TOOL Bushing And Seal | 1 |
| 21 | 29310 | 安装板 | PLATE | 1 |
| 22 | NSS | 膨胀杆不单独销售 (Snap-On #CG40-4) | NOT SOLD SEPARATE Expanding Rod (Snap-On #CG40-4) | 1 |
| 23 | NSS | 夹头 (爪)(Snap-On #CG40A6) 不单独销售 | NOT SOLD SEPARATE Collet (Jaws)(Snap-On #CG40A6) | 1 |
| 24 | FT8950 | 测试套件 | TESTER KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 854654A3 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 1 | 854654A4 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 1 | 854654T4 | 顶罩-银色 | COWL-TOP-SILVER | 1 |
| 2 | 8224261 | 后支架 | BRACKET Rear | 1 |
| 2 | 8M0038412 | 外罩支架 | BRACKET-COWL | 1 |
| 3 | 8231871 | 螺钉(M4×14.5) | SCREW (M4 x 14.5) | 3 |
| 4 | 26995 | 防松垫圈(#8不锈钢) | LOCKWASHER (#8) Stainless Steel | 3 |
| 5 | 8237515 | 螺母(M4) | NUT (M4) | 3 |
| 6 | 18173 | 锁扣滚轮支架总成 | BRACKET ASSEMBLY Latch Roller | 1 |
| 6 | 893763 | 滚轮锁扣支架 | BRACKET Roller Latch | 1 |
| 7 | 4006731 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 2 |
| 8 | 8237515 | 螺母(M4) | NUT (M4) | 2 |
| 9 | 26995 | 防松垫圈(#8不锈钢) | LOCKWASHER (#8) Stainless Steel | 2 |
| 10 | 826649 | 闩锁 | LATCH | 1 |
| 11 | 827702 | 盖板 | COVER | 1 |
| 11 | 827702T | 盖板 | COVER | 1 |
| 12 | 8231871 | 螺钉(M4×14.5) | SCREW (M4 x 14.5) | 2 |
| 13 | 8282371 | 罩盖密封件 | SEAL Cowl | 1 |
| 13 | 8M0043391 | 罩盖密封条 | SEAL-COWL | 1 |
| 14 | 825567A1 | 侧隔音毯 | SOUND BLANKET Side | 2 |
| 15 | NSS | 顶部隔音毯不单独销售 | NOT SOLD SEPARATE Sound Blacket-Top | 1 |
| 16 | 47341A11 | 手动启动绳柄套件 | ROPE AND HANDLE KIT Manual Starting | 1 |
| 17 | 8258271 | 支架 | SUPPORT | 1 |
| 18 | 40011128 | 不锈钢螺钉(M6x20) | SCREW (M6 x 20) Stainless Steel | 3 |
| 18 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 3 |
| 19 | 82129114 | 螺钉 (M6 x 14) | SCREW (M6 x 14) | 1 |
| 20 | 827501 | 支架 | BRACKET | 1 |
| 21 | 40011126 | 不锈钢螺丝(M6 x 13) | SCREW (M6 x 13) Stainless Steel | 1 |
| 22 | 825655A5 | 手柄托 | HANDLE REST | 1 |
| 23 | 8500534 | 贴花 | DECAL | 1 |
| 24 | 8249952 | 密封件 | SEAL | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 17334A4 | 灯架板总成 | PLATE ASSEMBLY Lamp Mounting | 1 |
| 2 | 17429 | 灯 | LAMP | 1 |
| 3 | 76424 | 支架 | BRACKET | 1 |
| 4 | 55422 | 双头螺柱 (#10-32 x 2.00) | STUD (#10-32 x 2.00) | 2 |
| 5 | 24676 | 垫圈 (.200 x .440 x .032) | WASHER (.200 x .440 x .032) | 2 |
| 6 | 68219 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 2 |
| 7 | 45915 | 端子排 | TERMINAL BLOCK | 1 |
| 8 | 16324 | 螺丝 (#8 x .625) | SCREW (#8 x .625) | 1 |
| 9 | 878607 | 螺钉（#10-16 x 0.375） | SCREW (#10-16 x .375) | 1 |
| 10 | 11149A3 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 11 | 623594 | 绝缘体(2英寸) | INSULATOR (2.00 Inch) | 1 |
| 12 | 24231 | 螺钉 (#10-32 x 0.250) | SCREW (#10-32 x .250) | 1 |
| 13 | 27164 | 螺母与锁紧垫圈 (#10-32) | NUT AND LOCKWASHER (#10-32) | 1 |
