水星 Mercury V-220 Laser 1B516994 THRU 2B091896 - 爆炸图零件明细

两冲程 电喷 EFI · USA - Cat.# 90-15380 · 共 26 个部位 · 1101 条零件

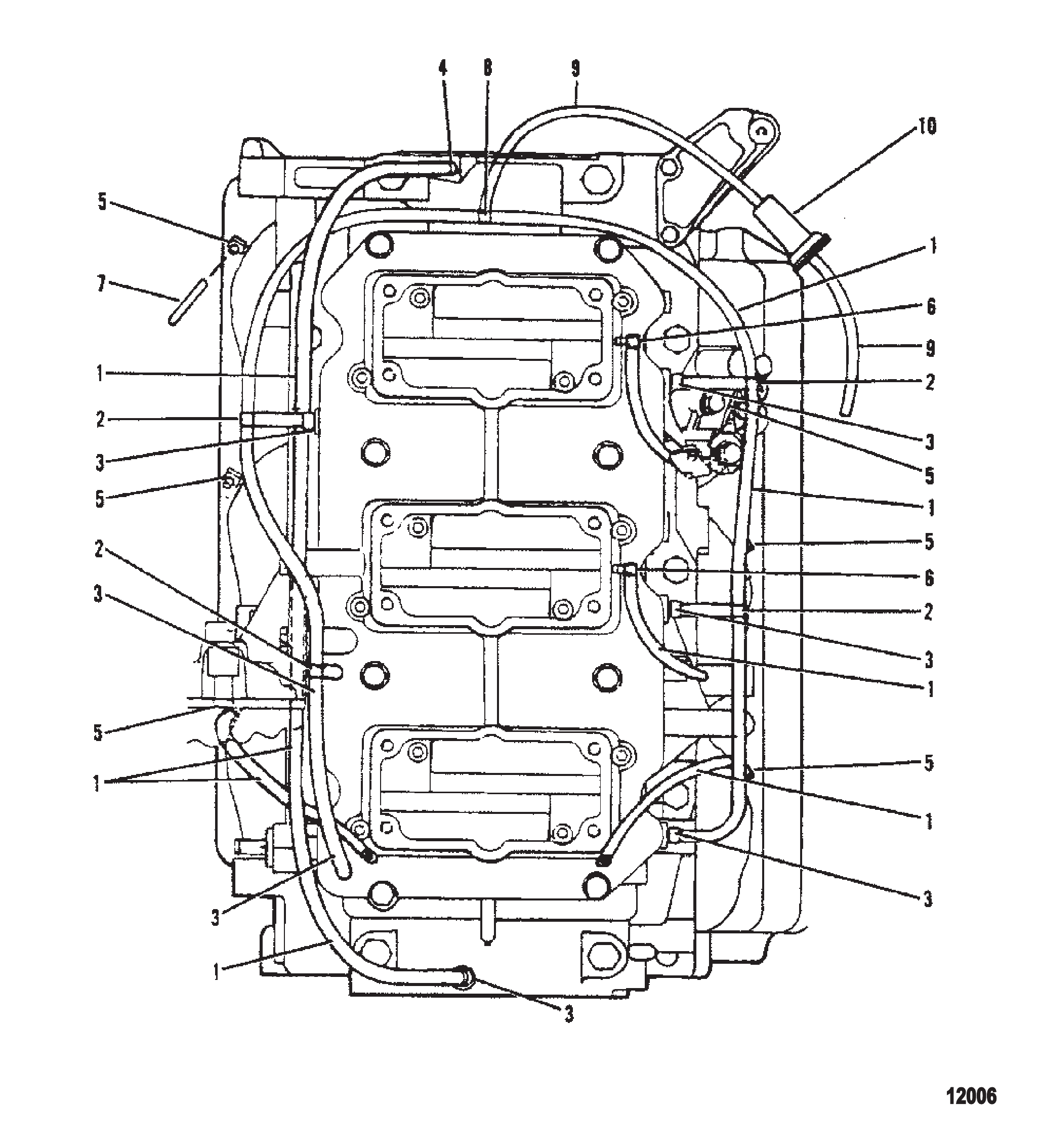

图 1泄放系统（新设计） BLEED SYSTEM NEW DESIGN

REF	零件编号	中文名称	英文名称	数量
1	99130122	泄放管(20.00英尺散装)	TUBING (20.00 Feet Bulk) BLEED	1
2	59169	接头	FITTING	4
2	59169003	三通接头	FITTING Tee	4
3	42698	止回阀 (压入式 - 13/16"长)	CHECK VALVE (PRESS-IN - 13/16" LONG)	7
3	426982	止回阀	CHECK VALVE	7
4	42623	止回阀 (压入式 - 11/16"长)	CHECK VALVE (PRESS-IN - 11/16" LONG)	1
4	426233	止回阀	CHECK VALVE	1
5	15133	压入式接头	FITTING (PRESS-IN)	6
6	56759	压入式倒钩接头	FITTING Barbed (PRESS-IN)	4
7	15026	黄色弯头盖	CAP ELBOW (YELLOW)	4
8	18205	三通	TEE	1
9	9912688	管材 (36.00英寸散装)	TUBING (36.00 Inches Bulk)	1
10	18206	滤清器	FILTER	1
10	8M0207786	滤清器	FILTER	1

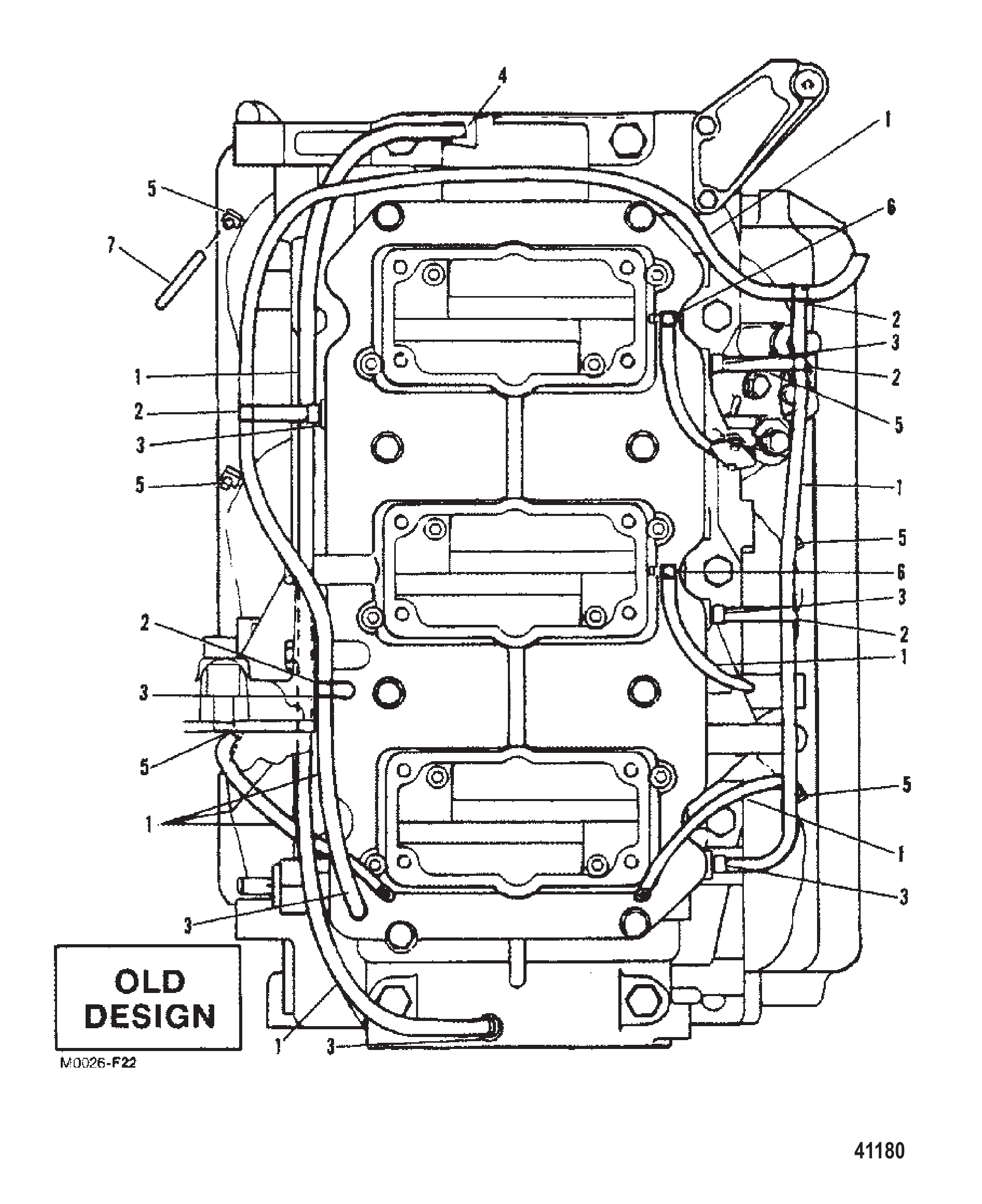

图 2泄放系统（旧设计） BLEED SYSTEM OLD DESIGN

REF	零件编号	中文名称	英文名称	数量
1	99130122	泄放管(20.00英尺散装)	TUBING (20.00 Feet Bulk) BLEED	1
2	59169	接头	FITTING	5
2	59169003	三通接头	FITTING Tee	5
3	42698	止回阀 (压入式 - 13/16"长)	CHECK VALVE (PRESS-IN - 13/16" LONG)	7
3	426982	止回阀	CHECK VALVE	7
4	42623	止回阀 (压入式 - 11/16"长)	CHECK VALVE (PRESS-IN - 11/16" LONG)	1
4	426233	止回阀	CHECK VALVE	1
5	15133	压入式接头	FITTING (PRESS-IN)	6
6	56759	压入式倒钩接头	FITTING Barbed (PRESS-IN)	4
7	15026	黄色弯头盖	CAP ELBOW (YELLOW)	4

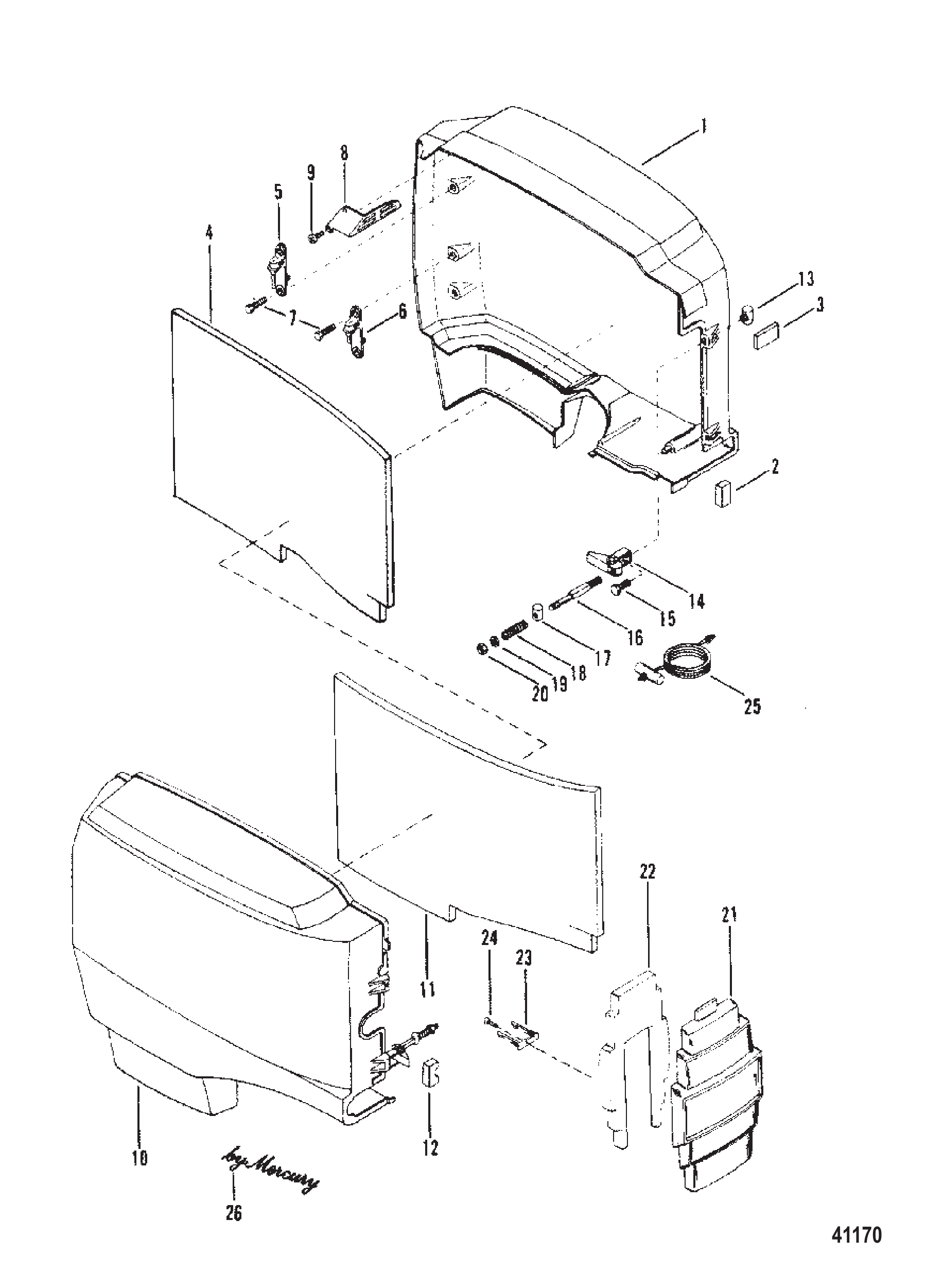

图 3罩壳与前盖 COWLS AND FRONT COVER

REF	零件编号	中文名称	英文名称	数量
1	7620A4	左舷顶盖总成	TOP COWL ASSEMBLY PORT	1
1	7620A22	左舷顶盖总成	TOP COWL ASSEMBLY PORT	1
2	67260	控制电缆密封件	SEAL CONTROL CABLE	1
3	67258	罩垫总成至前盖	PAD COWL ASSEMBLY TO FRONT COVER	1
4	88227	隔音毯-罩	BLANKET SOUND - COWL	1
5	87987	罩壳安装支架-上部	BRACKET COWL ATTACHING - UPPER	2
5	879871	支架	BRACKET	2
6	87985	罩壳安装支架-下部	BRACKET COWL ATTACHING - LOWER	2
6	879851	支架	BRACKET	2
7	37562	不锈钢螺钉(.312-18 x 1.00)	SCREW (.312-18 x 1.00) Stainless Steel	8
8	68049	进气口护罩-罩壳	SHIELD INLET - COWL	1
8	68048	进气口护罩-罩壳	SHIELD INLET - COWL	1
9	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	4
10	7619A1	顶罩总成(右舷)	TOP COWL ASSEMBLY STARBOARD	1
10	7619A5	顶罩总成(右舷)	TOP COWL ASSEMBLY STARBOARD	1
11	88227	隔音毯-罩	BLANKET SOUND - COWL	1
12	67260	线束密封件	SEAL HARNESS	1
13	62628	保持筒-罩锁扣	BARREL RETAINING - COWL LATCH	2
14	46785A5	罩壳锁扣总成	LATCH ASSEMBLY Cowl	2
15	31312	螺丝(#10-32 x 0.875)筒至罩锁扣	SCREW (#10-32 x 0.875) BARREL TO COWL LATCH	2
16	15222	调节杆-罩锁扣	BAR ADJUSTING - COWL LATCH	2
17	62629	罩锁扣保持筒	BARREL RETAINING COWL LATCH	2
18	62624	罩壳锁扣弹簧	SPRING COWL LATCH	2
19	30164	垫圈(.192 x .375 x .0312)不锈钢弹簧至调节杆	WASHER (.192 x .375 x .0312) Stainless Steel SPRING TO ADJUSTING BAR	2
20	45812	螺母（#10-32）不锈钢弹簧至调节杆	NUT (#10-32) Stainless Steel SPRING TO ADJUSTING BAR	2
20	859124	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
21	7532A2	前罩总成	COVER ASSEMBLY Cowl - Front	1
21	7532A23	前罩总成	COVER ASSEMBLY Cowl - Front	1
22	67615	隔音毯-前罩盖	BLANKET SOUND - COWL FRONT COVER	1
23	87907	前罩盖挂钩	HOOK COWL FRONT COVER	1
24	70332	螺丝(#10-16 x .500)挂钩至前罩盖	SCREW (#10-16 x .500) HOOK TO COWL FRONT COVER	1
24	95700	螺钉(#10-16 x .50)	SCREW (#10-16 x .50)	1
25	47341A1	手动/应急启动绳和手柄套件 (用于手动启动)	ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING)	1
25	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
26	15132	徽标（3英寸）	EMBLEM (3")	1
26	151321	徽标（6英寸）	EMBLEM (6")	2

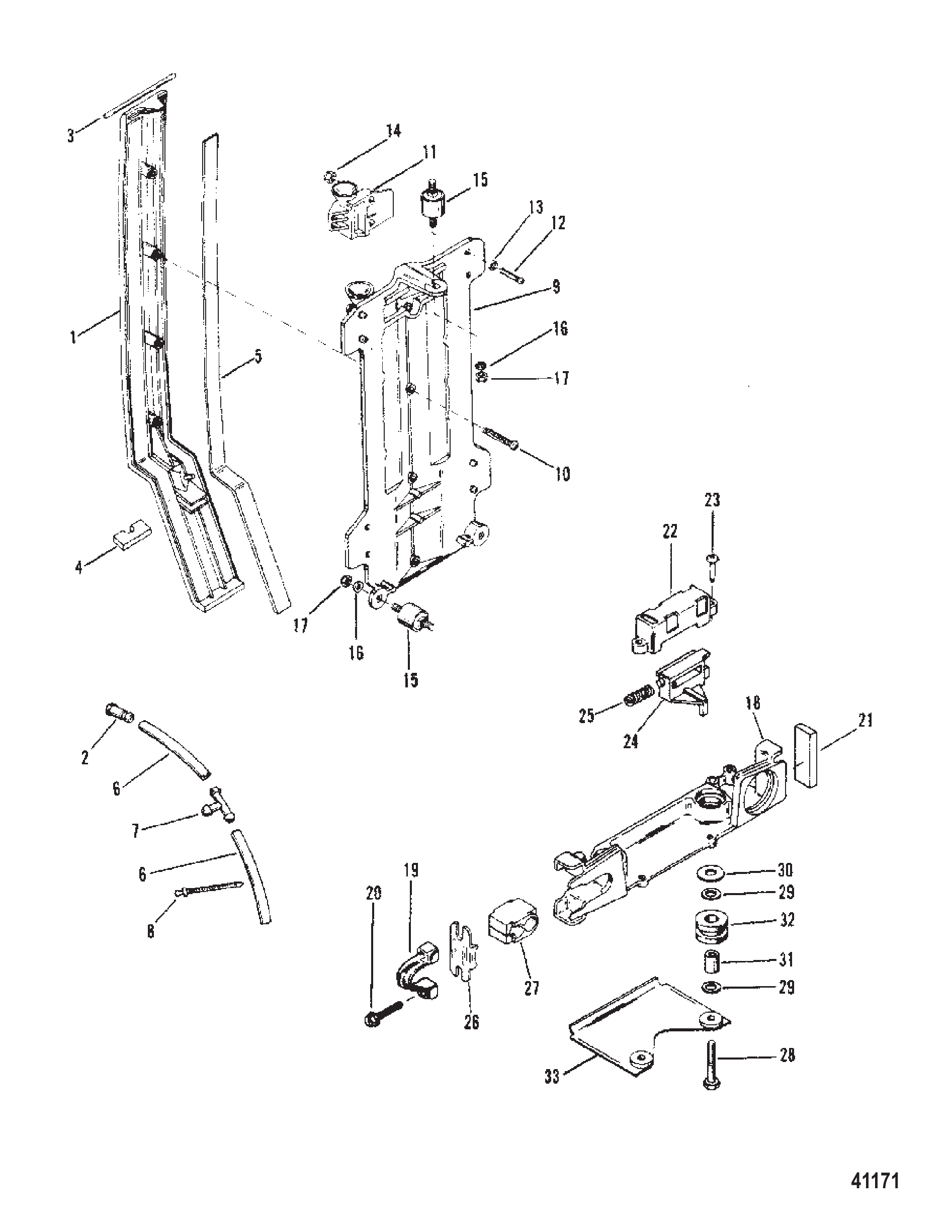

图 4外罩安装支架 COWL MOUNTING BRACKET

REF	零件编号	中文名称	英文名称	数量
1	76258A2	后罩支架	BRACKET REAR COWL	1
1	76258A3	后罩支架	BRACKET REAR COWL	1
2	76256	示流喷嘴	NOZZLE TELL TALE	1
3	67984	后罩支架密封垫	SEAL REAR COWL BRACKET TO COWL	1
4	67228	后罩支架密封垫	SEAL REAR COWL BRACKET TO COWL	1
5	67999	后罩支架密封垫	SEAL REAR COWL BRACKET TO COWL	2
6	99127109	管线（57英寸散装）示流管（4英寸）	LINE (57.00 Inches Bulk) TELL TALE (4")	2
6	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	2
7	90824	指示器软管三通	TEE TELL TALE HOSE	1
7	90824001	三通接头	TEE FITTING	1
8	73498	指示软管卡箍	CLAMP TELL TALE HOSE	AR
8	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
9	86386A1	罩壳支撑支架总成	BRACKET ASSEMBLY COWL SUPPORT	1
10	66687	螺钉 (#10-32 x 1.50) 后罩支架	SCREW (#10-32 x 1.50) REAR COWL BRACKET	4
11	85651	罩壳铰链壳体	HOUSING COWL HINGE	2
11	85650	罩壳铰链壳体	HOUSING COWL HINGE	2
12	64278	螺钉 (0.250-28 x 1.00) 罩壳铰链壳体	SCREW (.250-28 x 1.00) COWL HINGE HOUSING	8
13	20583	罩壳铰链壳体螺钉垫圈	WASHER COWL HINGE HOUSING SCREW	8
14	35888	螺母 (0.250-28) 不锈钢罩壳铰链壳体螺钉	NUT (.250-28) Stainless Steel COWL HINGE HOUSING SCREW	8
15	90435	罩壳安装支架座	MOUNT COWL MOUNTING BRACKET	3
16	29245	垫圈 (0.281 x 0.500 x 0.060) 不锈钢罩壳安装支架座	WASHER (.281 x .500 x .060) Stainless Steel COWL MOUNTING BRACKET MOUNT	6
16	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
17	35888	螺母 (0.250-28) 不锈钢罩壳安装支架座	NUT (.250-28) Stainless Steel COWL MOUNTING BRACKET MOUNT	6
18	99424	罩壳安装支架（下部）	BRACKET COWLING MOUNTING (LOWER)	1
19	99447T	拉线固定器	RETAINER CABLE	1
19	99447	固定座	RETAINER	1
20	22411	电缆固定器螺钉（.190-24 x 1.00）	SCREW (.190-24 x 1.00) CABLE RETAINER	2
20	68918	螺丝（#10-24 x 1.00）	SCREW (#10-24 x 1.00)	2
21	67260	控制线密封套	SEAL CONTROL CABLES	1
22	67241	罩壳锁扣壳体	HOUSING COWL LATCH	1
23	92051	螺钉 (10-16 x 0.75) 罩壳锁扣壳体	SCREW (10-16 x .75) COWL LATCH HOUSING	2
24	87608	盖锁扣	LATCH Cowl	1
25	60295	罩壳锁扣弹簧	SPRING COWL LATCH	1
26	88622	电缆固定板	PLATE CABLE RETAINER	1
27	99391	油管固定器	RETAINER OIL LINES	1
28	69093	螺钉（.250-20 x 1.50）下部支架	SCREW (.250-20 x 1.50) LOWER BRACKET	2
29	20346	下部支架螺钉垫圈（小）	WASHER LOWER BRACKET SCREW (SMALL)	4
29	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	4
30	57427	下部支架螺钉垫圈（大）	WASHER LOWER BRACKET SCREW (LARGE)	2
30	35280	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
31	88180	下部支架衬套	BUSHING LOWER BRACKET GROMMET	2
32	88033	下部支架护孔环	GROMMET LOWER BRACKET	2
33	13719T	挡板	PLATE RETAINING	1

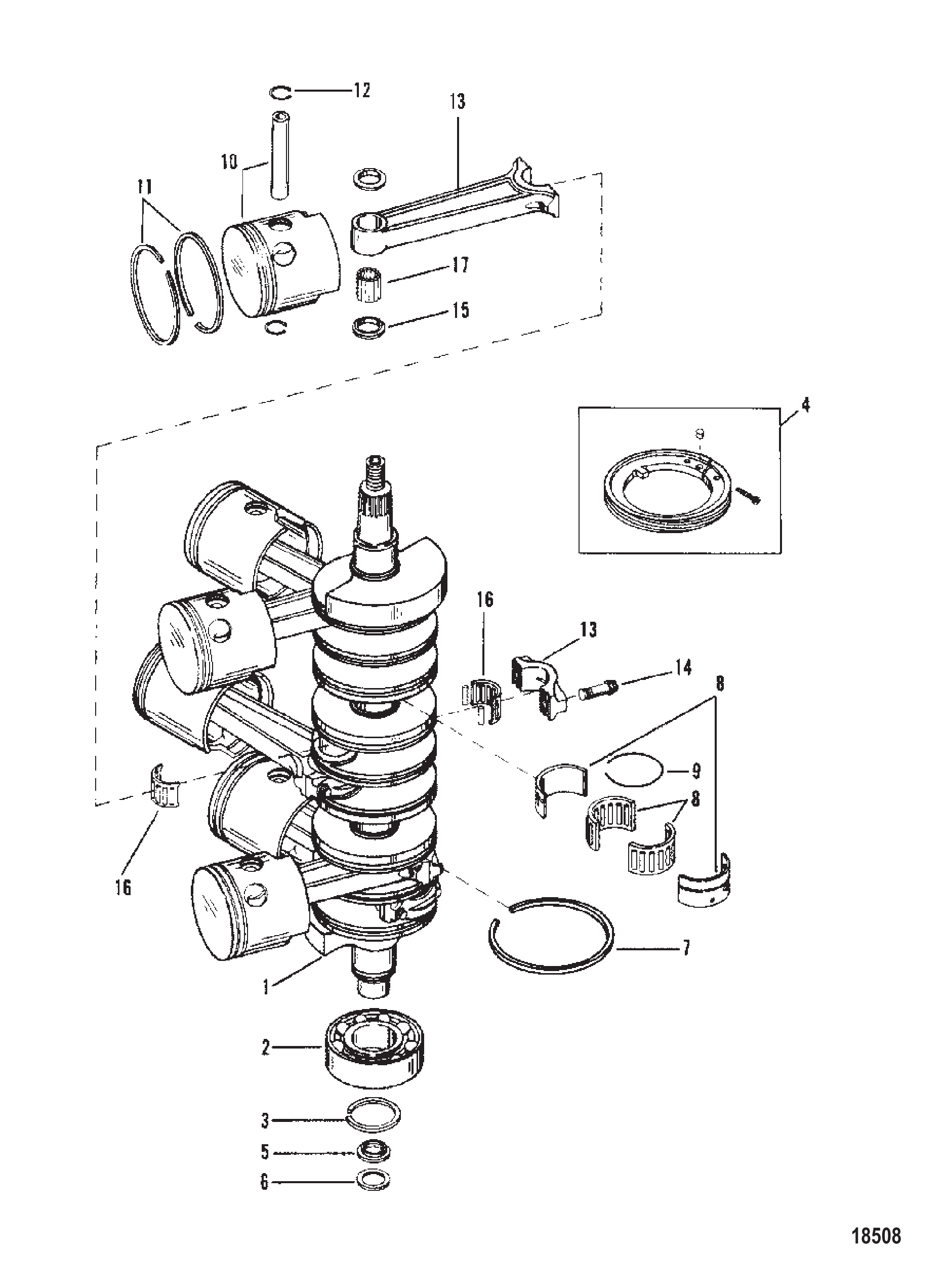

图 5曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS

REF	零件编号	中文名称	英文名称	数量
1	8745A5	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	67923	曲轴下球轴承	BEARING Ball CRANKSHAFT (LOWER)	1
2	67923T	滚珠轴承	BEARING Ball	1
3	67446	球轴承挡圈	RING BALL BEARING	1
4	99727A1	驱动齿轮	GEAR Drive	1
5	54196A6	密封载体总成	CARRIER ASSEMBLY SEAL	1
6	65800	填料载体	PACKING CARRIER	1
7	67377	密封环（曲轴，0.124厚）	RING Sealing CRANKSHAFT (.124 THICK)	AR
7	67377T	密封环	RING Sealing	AR
7	78633	曲轴密封环(.139厚度)	RING SEALING - CRANKSHAFT (.139 THICK)	AR
8	93495	曲轴滚柱轴承	BEARING Roller CRANKSHAFT	2
8	93495T	滚柱轴承	BEARING Roller	2
9	67444	滚柱轴承挡圈	RING Retaining ROLLER BEARING	2
10	8666A3	活塞总成	PISTON ASSEMBLY	3
10	8666T41	活塞总成	PISTON ASSEMBLY	3
10	8667A3	活塞总成	PISTON ASSEMBLY	3
10	8667T41	活塞总成	PISTON ASSEMBLY	3
11	78996A12	活塞环总成	RING ASSEMBLY Piston	1
11	813011A12	活塞环组	RING SET Piston	1
12	52035		RING Lock PISTON	12
12	857196	锁紧环	LOCK RING	12
13	8119A4	连杆总成	CONNECTING ROD ASSEMBLY	6
13	8119A6	连杆套件	CONN ROD KIT	6
14	93886	螺钉(0.312-28×0.875)连杆	SCREW (.312-28 x .875) CONNECTING ROD	12
15	47247	定位针垫圈	WASHER NEEDLE LOCATING	12
15	8M0032839	垫片@5	WASHER @5	12
16	67526A2	滚子轴承总成曲轴端	BEARING ASSEMBLY Roller CRANKSHAFT END	6
16	8M0234886	轴承保持架	CAGE BEARING	6
17	67483	活塞端滚针轴承	BEARING Needle PISTON END	174
-	14697A87	衬垫套件	GASKET SET	1

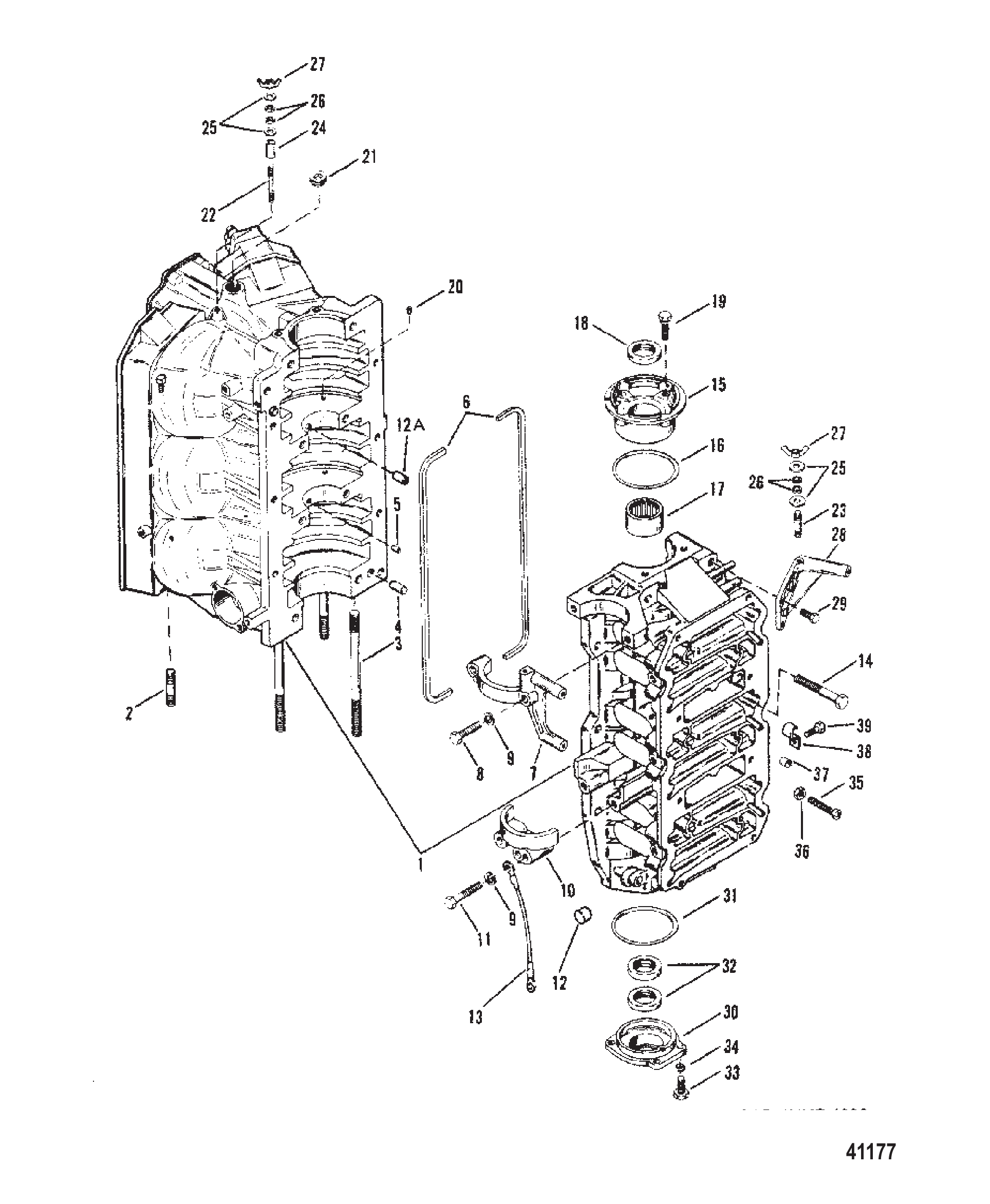

图 6气缸体与端盖 CYLINDER BLOCK AND END CAPS

REF	零件编号	中文名称	英文名称	数量
1	8712A29	气缸体	CYLINDER BLOCK	1
1	8712A41	气缸体	CYLINDER BLOCK	1
1	8712T41	气缸体	CYLINDER BLOCK	1
2	76175	动力头螺柱(1-7/8英寸)	STUD POWERHEAD (1-7/8")	6
3	67065	动力头螺柱(5-1/2英寸)	STUD POWERHEAD (5-1/2")	2
3	670654	螺柱(.375-16/.375-24 x 5.620)	STUD (.375-16/.375-24 x 5.620)	2
3	78438	动力头螺柱(6-3/4英寸)	STUD POWERHEAD (6-3/4")	2
3	8M0034454	螺柱(.375-16/.375-24 x 6.87)	STUD (.375-16/.375-24 x 6.87)	2
4	20033	定位销	PIN Dowel LOCATING	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	气缸体销(轴承座圈)	PIN CYLINDER BLOCK (BEARING RACE)	2
5	8M0036405	销	PIN	2
6	11338	密封垫片	GASKET SEALING	2
7	42249	启动马达上盖	COVER STARTER MOTOR (UPPER)	1
7	8M0088723	启动器支架	BRACKET-STARTER	1
8	73657	盖至曲轴箱螺钉(.312-18 x 1.50)	SCREW (.312-18 x 1.50) COVER TO CRANKCASE	2
9	26993	启动马达盖螺钉锁紧垫圈(0.312)	LOCKWASHER (.312) STARTER MOTOR COVER SCREW	4
9	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
10	76867	启动电机盖(下部)	COVER STARTER MOTOR (LOWER)	1
11	77065	盖至曲轴箱螺钉(.312-18 x 2)	SCREW (.312-18 x 2) COVER TO CRANKCASE	2
11	815549	螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00)	2
12	88801	杯形塞	PLUG CUPPED	2
12A	99448	衬套	BUSHING	1
13	88807A20	线束总成盖	CABLE ASSEMBLY COVER	1
14	66717	螺钉(.375-16 x 3.250)	SCREW (.375-16 x 3.250)	8
14	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	6
15	8454A2	上端盖总成	END CAP ASSEMBLY UPPER	1
15	8454T2	端盖总成	END CAP ASSY	1
16	54029	端盖O型圈(2.800 x .103)	O-RING (2.800 x .103) END CAP	1
17	93496	端盖滚柱轴承	BEARING Roller END CAP	1
17	93496T	轴承	BEARING	1
18	41953	端盖密封件	SEAL END CAP	1
19	69034	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW AND LOCKWASHER (.312-18 x 1.00)	4
19	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	4
20	24220	螺钉（0.190-24×0.190）	SCREW (.190-24 x .190)	2
21	38407	气缸体水套螺塞(.500-14)	PLUG (.500-14) CYLINDER BLOCK (WATER JACKET)	1
22	15094	双头螺柱(.190-32 x 1.870)	STUD (.190-32 x 1.870)	1
23	15093	双头螺柱(#10-32 x 1.00)	STUD (#10-32 x 1.00)	2
23	8M0034435	螺柱	STUD	2
24	67269	飞轮盖螺柱隔套	SPACER FLYWHEEL COVER STUD	1
25	492211	飞轮盖螺柱垫圈	WASHER FLYWHEEL COVER STUD	6
25	8M0204663	垫片@5	WASHER @5	6
26	72761	飞轮盖螺柱不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel FLYWHEEL COVER STUD	6
27	73651	飞轮盖螺柱螺母	NUT FLYWHEEL COVER STUD	3
27	816874	蝶形螺母 (#10-32)	WING NUT (#10-32)	3
28	42248	飞轮罩支架	BRACKET FLYWHEEL COVER	1
28	422482	支架	BRACKET	1
29	49668	支架至曲轴箱螺钉(.250-20 x .750)	SCREW (.250-20 x .750) BRACKET TO CRANKCASE	2
30	7809A1	下端盖总成	END CAP ASSEMBLY LOWER	1
30	7809T1	端盖总成	END CAP ASSEMBLY	1
31	62700	端盖O型圈(3.237 x .103)	O-RING (3.237 x .103) END CAP	1
32	41953	端盖密封件	SEAL END CAP	2
33	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
34	26992	下端盖螺钉不锈钢锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel LOWER END CAP SCREW	4
35	64022	调节螺钉(.250-20 x 2.125)-气缸体	SCREW (.250-20 x 2.125) ADJUSTING - CYLINDER BLOCK	1
36	64015	锁紧螺母(.250-20)-调节螺钉	NUT (.250-20) JAM - ADJUSTING SCREW	1
37	26852	尼龙调节螺丝帽	CAP Nylon ADJUSTING SCREW	1
38	16793	卡箍	CLAMP	1
39	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
-	15379A88	动力头总成	POWERHEAD ASSMEBLY	1
-	15379T88	船用动力头	POWERHEAD MARINE	1
-	14697A87	衬垫套件	GASKET SET	1

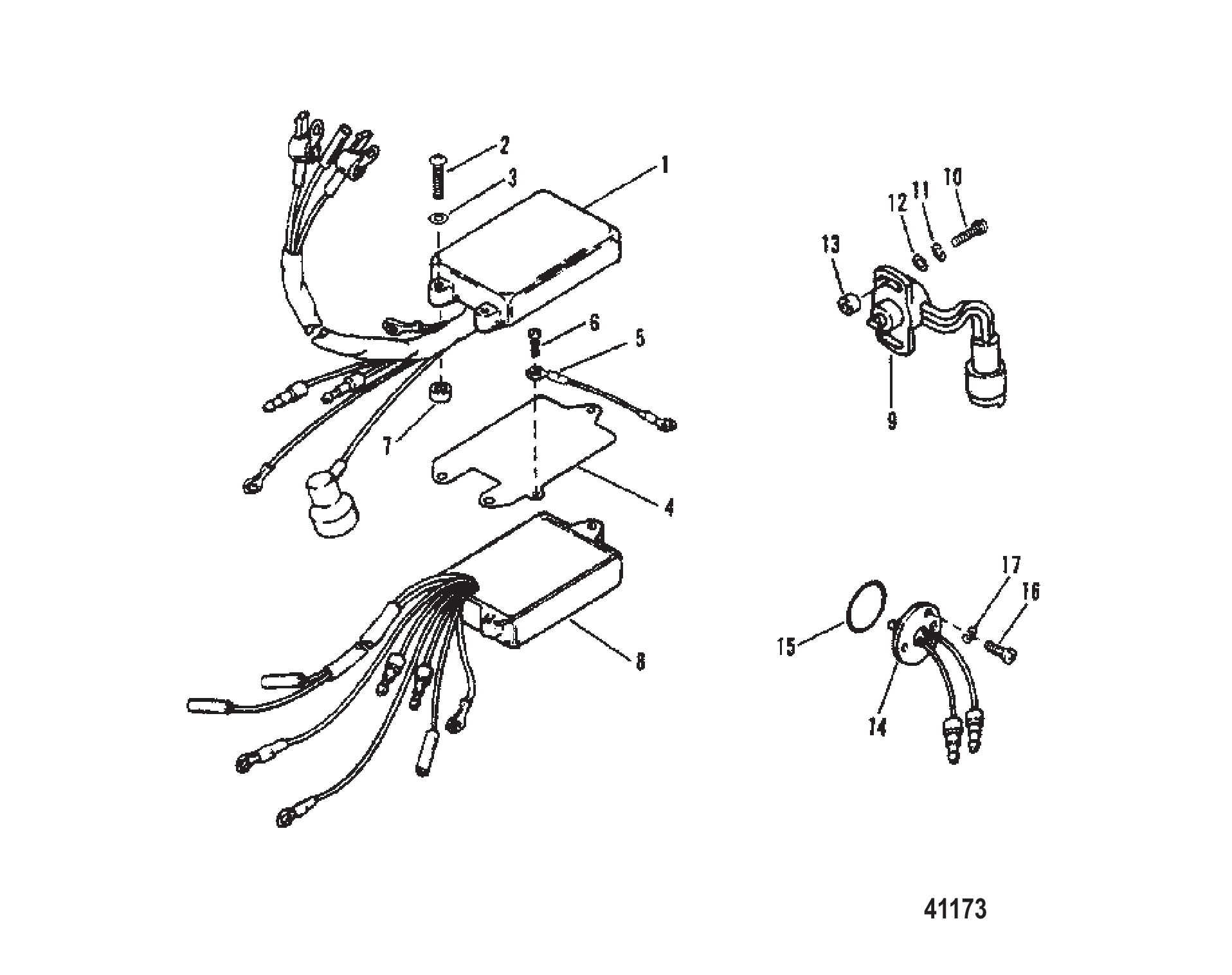

图 7爆震控制器/温度传感器 DETONATION CONTROLLER/TEMPERATURE SENSOR

REF	零件编号	中文名称	英文名称	数量
1	14856A3	爆震控制器总成	CONTROLLER ASSEMBLY Detonation	1
2	88447		SCREW (.190-32 x 1.62) DETONATION CONTROLLER	3
3	38833		WASHER DETONATION CONTROLLER SCREW	3
4	13381	安装板	PLATE	1
5	60466A20	拉线总成	CABLE ASSEMBLY	1
5	88807A10	拉线总成	CABLE ASSEMBLY	1
6	62568		SCREW (#10-16 x .375) CABLE TO PLATE	1
7	94304	隔套	SPACER	3
8	41470A12	喷油警告模块总成	MODULE ASSEMBLY Oil Injection Warning	1
8	41470A25	喷油警告模块总成	MODULE ASSEMBLY Oil Injection Warning	1
9	14851T	节气门位置指示器	INDICATOR THROTTLE POSITION	1
9	14851T03	指示器	INDICATOR	1
10	15150		SCREW (#8-32 x .625) INDICATOR	2
11	26995		LOCKWASHER (#8) Stainless Steel INDICATOR SCREW	2
12	46101	指示器螺钉垫圈	WASHER INDICATOR SCREW	2
12	30164	垫圈(0.192x0.375x0.0312)不锈钢	WASHER (.192 x .375 x .0312) Stainless Steel	2
13	15885	套筒	SLEEVE	1
14	13221A1	温度传感器总成	SENSOR ASSEMBLY Temperature	1
14	13221T01	温度传感器	SENSOR TEMP	1
15	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
16	57583	螺钉(#8-32×0.375)温度传感器	SCREW (#8-32 x .375) TEMPERATURE SENSOR	3
16	57583T	螺丝#8-32×3/8	SCREW #8-32x3/8	3
17	26995	锁紧垫圈(#8)不锈钢温度传感器螺钉	LOCKWASHER (#8) Stainless Steel TEMPERATURE SENSOR SCREW	3
-	14697A87	衬垫套件	GASKET SET	1

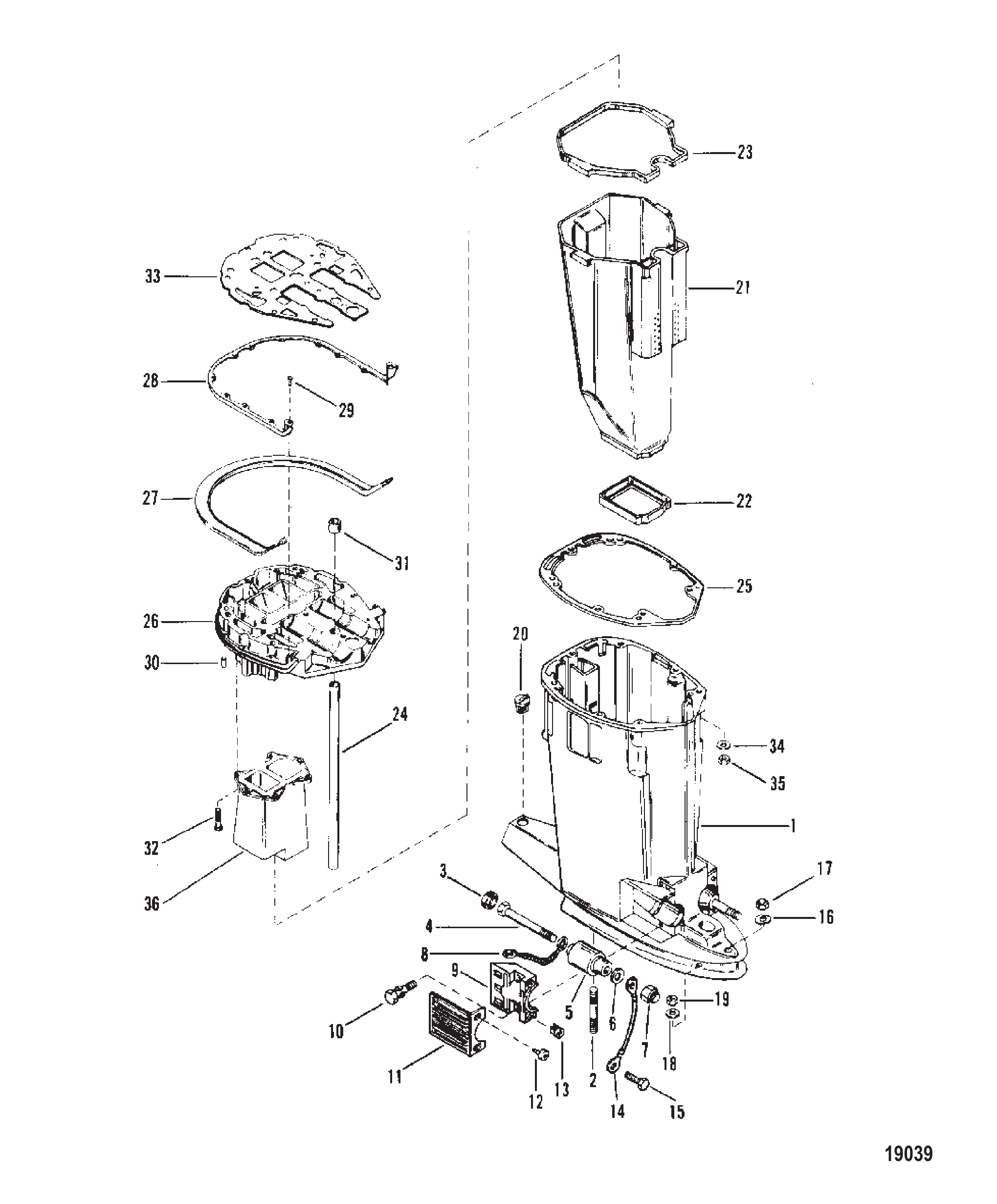

图 8驱动轴壳体与排气管 DRIVESHAFT HOUSING AND EXHAUST TUBE

REF	零件编号	中文名称	英文名称	数量
1	8343A7	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8343A8	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	56295	双头螺柱(.437 x 2.69)	STUD (.437 x 2.69)	2
2	74732	螺柱	STUD	2
3	25067	下安装座螺钉缓冲垫	BUMPER LOWER MOUNT SCREW	2
4	63474	下安装座螺钉(.500-20 x 6.00)	SCREW (.500-20 x 6.00) LOWER MOUNT	2
4	898831	螺钉(.500-20 x 6.220)	SCREW (.500-20 x 6.220)	2
5	78249	支架	MOUNT	2
5	77327	支架	MOUNT	2
6	49339	下部安装螺钉垫圈(.8125)	WASHER (.8125) LOWER MOUNT SCREW	2
7	25096	下安装螺丝螺母	NUT LOWER MOUNT SCREW	2
8	88238A1	接地线总成	CABLE ASSEMBLY Ground	1
8	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
9	67076	下安装夹	CLAMP LOWER MOUNT	2
9	8M0036782	卡箍	CLAMP	2
10	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
11	67077	下安装夹盖	COVER LOWER MOUNT CLAMP	2
11	8M4500752	盖板	COVER	2
12	88417	盖固定螺钉(#12-24 x .620)	SCREW (#12-24 x .620) COVER ATTACHING	4
13	35521	盖至夹具螺钉尼龙螺母	NUT NYLON - COVER TO CLAMP SCREW	4
14	88238A2	接地线总成	CABLE ASSEMBLY Ground	1
14	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
15	41508	螺丝(.250-20 x .500)不锈钢接地线	SCREW (.250-20 x .500) Stainless Steel GROUND WIRE	1
16	73862	齿轮箱壳体螺柱垫圈	WASHER GEAR HOUSING STUD	1
17	29489	齿轮箱壳体螺柱盖形螺母	NUT GEAR HOUSING STUD (CAP)	1
18	45176	齿轮箱壳体螺柱不锈钢垫圈(.453 x .812 x .105)	WASHER (.453 x .812 x .105) Stainless Steel GEAR HOUSING STUD	2
19	34933	齿轮箱壳体螺柱不锈钢螺母(.437-20)	NUT (.437-20) Stainless Steel GEAR HOUSING STUD	2
19	8M0204653	螺母	NUT	2
20	64649	驱动轴壳体塞	PLUG DRIVESHAFT HOUSING	1
21	89743	排气管	TUBE Exhaust	1
22	66350	排气管下密封件	SEAL EXHAUST TUBE - LOWER	1
22	66350001	密封件	SEAL	1
23	86027	排气管上密封件	SEAL EXHAUST TUBE - UPPER	1
24	67295	水管	TUBE Water	1
24	8M0042788	长型水管	TUBE-WATER-LONG	1
24	74729	水管	TUBE WATER	1
24	8M0042790	水管	TUBE-WATER	1
25	99173	驱动轴壳体至板衬垫	GASKET DRIVESHAFT HOUSING TO PLATE	1
25	991734	衬垫	GASKET	1
26	41945A6	驱动轴壳体板总成	PLATE ASSEMBLY DRIVESHAFT HOUSING	1
27	707482	支架密封条	SEAL BRACKET	1
28	68011	密封件固定支架	BRACKET SEAL RETAINING	1
29	48408	支架至板件螺钉(#10-16 x .500)	SCREW (#10-16 x .500) BRACKET TO PLATE	12
30	20033	定位销	PIN Dowel LOCATING	2
30	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
31	38970	水管密封件	SEAL WATER TUBE	1
32	90192	螺钉 (.250-20 x .750) 不锈钢 扩散器至板	SCREW (.250-20 x .750) Stainless Steel DIFFUSER TO PLATE	6
33	99177	驱动轴箱板至排气板衬垫	GASKET DRIVESHAFT HOUSING PLATE TO EXHAUST PLATE	1
33	991772	衬垫	GASKET	1
34	25970	动力头螺柱垫圈	WASHER POWER HEAD STUD	10
34	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	10
35	69254	动力头螺柱螺母	NUT POWER HEAD STUD	10
36	41941	扩散器 排气	DIFFUSER EXHAUST	1
36	41941T	排气扩散器	DIFFUSER Exhaust	1
--	78148A1	隔套总成（加长）	SPACER ASSEMBLY (X LONG)	1
--	20033	定位销-隔套（加长）	PIN Dowel LOCATING - SPACER (X LONG)	2
--	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
-	14697A87	衬垫套件	GASKET SET	1

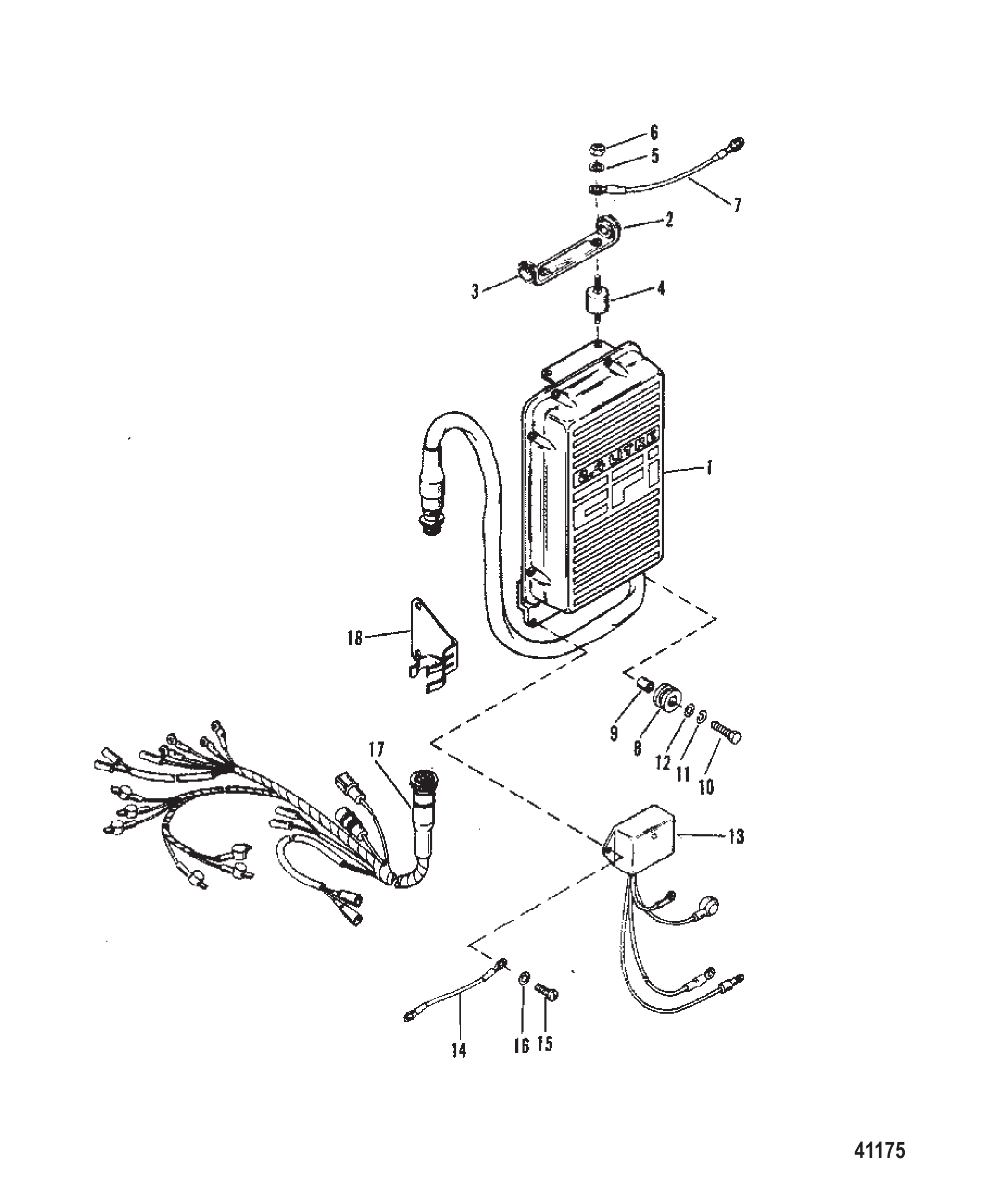

图 9电控单元总成 E.C.U. ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	14632A2	发动机控制单元ECU	ECU Engine Control Unit	1
2	67245T	机罩支架（上部）	BRACKET COWL MOUNTING (UPPER)	1
3	67272	罩壳安装支架衬套	GROMMET COWL MOUNTING BRACKET	2
4	90435	罩壳安装支架座	MOUNT COWL MOUNTING BRACKET	2
5	21249	安装垫圈	WASHER MOUNT ATTACHING	4
6	20361	安装螺母(0.250-28)	NUT (.250-28) MOUNT ATTACHING	4
6	8267089	螺母(.250-28)	NUT (.250-28)	4
7	88807A19	拉线总成	CABLE ASSEMBLY	1
8	14637	护孔环	GROMMET	1
9	14636	衬套	BUSHING	1
10	28667	螺钉 (0.250-20 x 1.00) 不锈钢	SCREW (.250-20 x 1.00) Stainless Steel	1
11	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
12	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	1
13	13202A2	水位传感器模块总成	MODULE ASSEMBLY Water Sensor	1
14	88807A18	线缆总成(黑色)	CABLE ASSEMBLY (BLACK)	1
15	37571	水位传感器模块螺钉(0.190-32×0.500)	SCREW (.190-32 x .500) WATER SENSOR MODULE	2
16	89302	水位传感器模块螺钉垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040) WATER SENSOR MODULE SCREW	2
17	98866A9	ECU与喷油器线束总成	HARNESS ASSEMBLY E.C.U. AND INJECTORS	1
17	98866A14	线束总成	HARNESS ASSEMBLY	1
18	14695	卡扣	CLIP	1

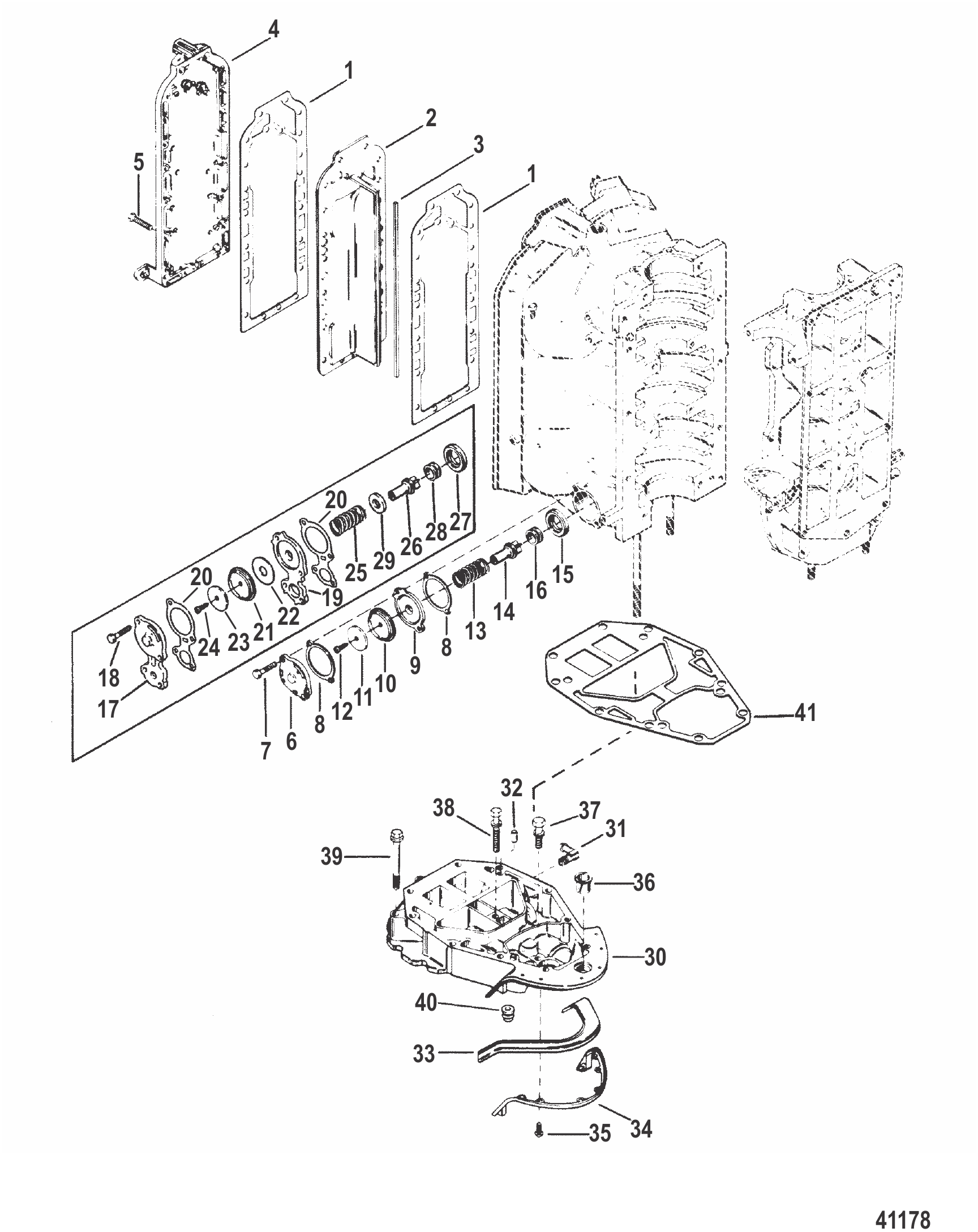

图 10排气歧管与排气板 EXHAUST MANIFOLD AND EXHAUST PLATE

REF	零件编号	中文名称	英文名称	数量
1	90484	分隔板衬垫	GASKET DIVIDER PLATE	2
2	99169	分隔板	DIVIDER PLATE	1
2	99169A1	安装板	PLATE	1
3	69668	分隔板密封件	SEAL DIVIDER PLATE	1
3	814754	密封件(12.50英寸)	SEAL (12.50 Inches)	1
4	95067	排气歧管盖	COVER EXHAUST MANIFOLD	1
5	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	21
6	65663A1	安全阀盖	COVER RELIEF VALVE	1
6	8M0237835	罩盖总成	COVER ASSY	1
7	38837	螺钉(.312-18×1.12)	SCREW (.312-18 x 1.12)	2
8	88907	安全阀板衬垫	GASKET RELIEF VALVE PLATE	2
8	88907003	衬垫	GASKET	2
9	65664A1		PLATE ASSEMBLY RELIEF VALVE	1
10	64877	隔膜	DIAPHRAGM	1
10	648771	隔膜	DIAPHRAGM	1
11	76451	膜片螺钉垫片	WASHER DIAPHRAGM SCREW	1
12	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
13	64878	提升阀黑色压缩弹簧	SPRING (Black) COMPRESSION POPPET VALVE	1
14	86596	提升阀	POPPET VALVE VALVE	1
15	65848	提升阀座	CARRIER POPPET VALVE	1
16	64872	提升阀衬套	GROMMET POPPET VALVE	1
17	14462A1	安全阀盖	COVER RELIEF VALVE	1
18	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
19	16497A1	安全阀板	PLATE RELIEF VALVE	1
20	78690	安全阀板衬垫	GASKET RELIEF VALVE PLATE	2
20	78690002	衬垫	GASKET	2
21	14479	隔膜	DIAPHRAGM	1
21	144791	隔膜	DIAPHRAGM	1
22	16496	导水板	DEFLECTOR Water	1
23	76451	膜片螺钉垫片	WASHER DIAPHRAGM SCREW	1
24	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
25	64878	提升阀黑色压缩弹簧	SPRING (Black) COMPRESSION POPPET VALVE	1
26	14480	提升阀	POPPET VALVE	1
27	65848	提升阀座	CARRIER POPPET VALVE	1
28	64872	提升阀衬套	GROMMET POPPET VALVE	1
29	85303	提升阀弹簧垫片	WASHER POPPET SPRING	1
30	41944A2	排气板总成	PLATE ASSEMBLY EXHAUST	1
30	41944A5	隔板总成	PLATE ASSEMBLY	1
31	99664	排气板弯头	ELBOW EXHAUST PLATE	1
31	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
32	20033	排气板定位销	PIN Dowel LOCATING - EXHAUST PLATE	2
32	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
33	707482	排气板密封	SEAL EXHUAST PLATE	1
34	68010	密封件固定支架	BRACKET SEAL RETAINING	1
34	680101	支架	BRACKET	1
35	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	8
36	27132	排气板衬套	BUSHING EXHUAST PLATE	1
37	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
38	68783	螺钉(.312-18×2.50)	SCREW (.312-18 x 2.50)	1
39	66725	螺钉(.375-16×3.50)	SCREW (.375-16 x 3.50)	3
39	898833	螺钉(.375-16 x 3.500)	SCREW (.375-16 x 3.500)	3
40	12602	排气板衬套	GROMMET EXHAUST PLATE	1
40	12602002	护孔环	GROMMET	1
41	99176	排气板衬垫	GASKET EXHAUST PLATE	1
41	991764	衬垫	GASKET	1
-	14697A87	衬垫套件	GASKET SET	1

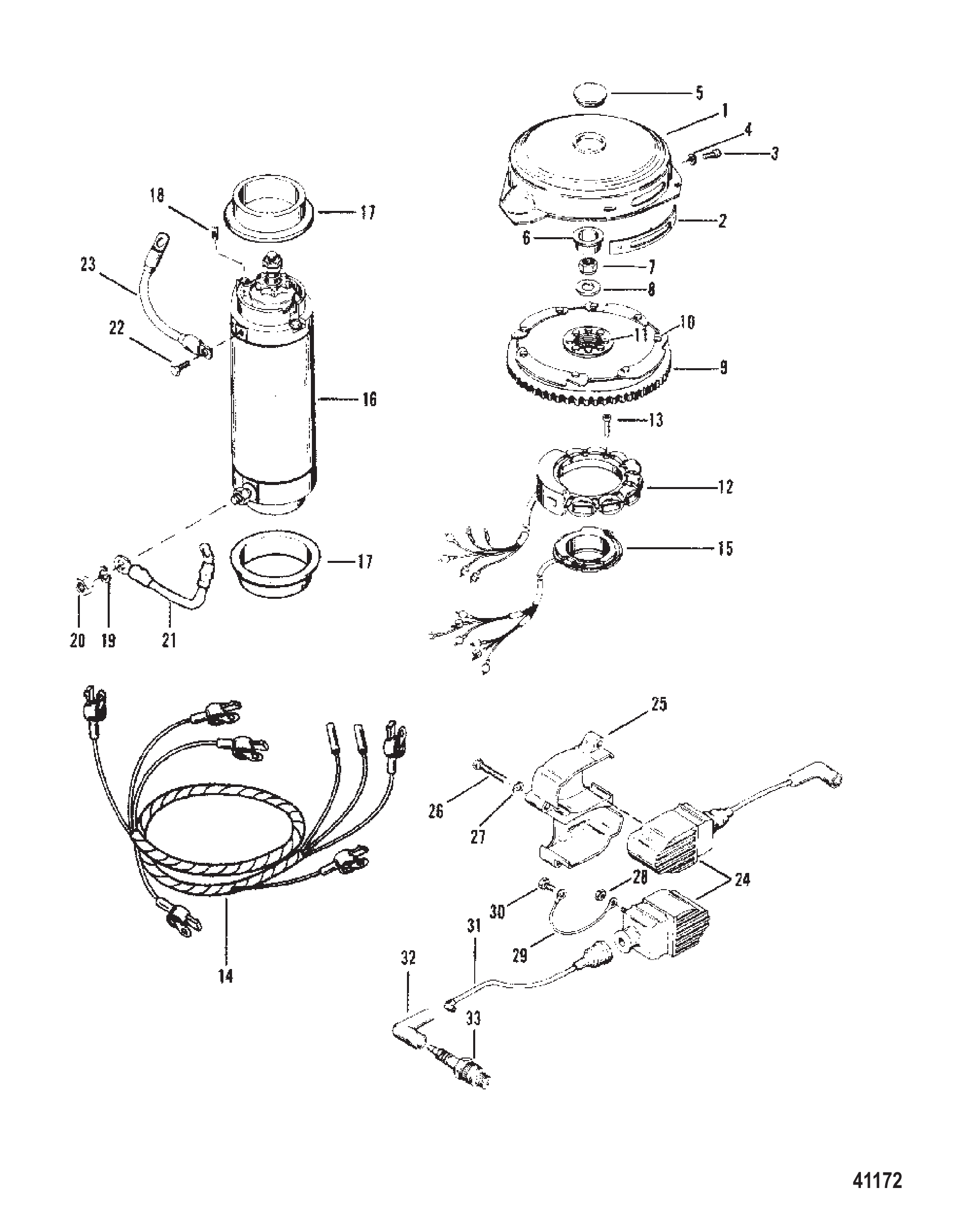

图 11飞轮、启动电机与点火线圈 FLYWHEEL, STARTER MOTOR AND IGNITION COILS

REF	零件编号	中文名称	英文名称	数量
1	79918A1	飞轮盖套件	COVER KIT FLYWHEEL	1
2	79022	正时标记	MARKER TIMING	1
3	37572	螺钉 (.190-32 x .380)	SCREW (.190-32 x .380)	2
4	72761	垫圈(0.203x0.562x0.060)不锈钢正时标记螺钉	WASHER (.203 x .562 x .060) Stainless Steel TIMING MARKER SCREW	2
5	89219	飞轮盖塞	PLUG FLYWHEEL COVER	1
5	89219001	堵头	PLUG	1
6	45907	飞轮黄色塞	PLUG Yellow FLYWHEEL	1
7	52901	螺母(.625-18)飞轮	NUT (.625-18) FLYWHEEL	1
8	68229	垫圈(0.641x1.250x0.190)飞轮	WASHER (.641 x 1.250 x .190) FLYWHEEL	1
8	33001	垫圈	WASHER	1
9	7555A17	飞轮	FLYWHEEL	1
9	859238A9	飞轮套件	FLYWHEEL KIT	1
10	32417	螺钉(.250-28 x .625)飞轮板	SCREW (.250-28 x .625) FLYWHEEL PLATE	8
11	68997	螺钉(.312-24 x .750)飞轮毂	SCREW (.312-24 x .750) FLYWHEEL HUB	8
12	5454A35	定子	STATOR	1
13	76566	定子螺钉(#10-24 x 1.00)	SCREW (#10-24 x 1.00) STATOR	4
13	19926100	螺丝（#10-24 x 1.00）	SCREW (#10-24 x 1.00)	4
14	69739A3	线圈至开关盒线束总成	HARNESS ASSEMBLY COIL TO SWITCH BOX	1
15	96455A11	触发板总成	TRIGGER PLATE ASSEMBLY	1
16	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
16	893893	启动马达	STARTER MOTOR	1
17	56703	启动电机轴环	COLLAR STARTER MOTOR	2
17	8M0034918	轴环	COLLAR	2
18	68042	橡胶止挡	STOP Rubber	2
18	8M0043376	停机开关	STOP	2
19	26992	锁紧垫圈(.250) 不锈钢 起动机接线端	LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL	1
20	20890	螺母(.250-20) 起动机接线端	NUT (.250-20) STARTER MOTOR TERMINAL	1
21	93388A2	电磁阀至启动电机黑色电缆总成	CABLE ASSEMBLY Black SOLENOID TO STARTER MOTOR	1
21	93388A14	线缆总成(黄/黑)	CABLE ASSEMBLY Yellow/Black	1
22	69035	螺钉和锁紧垫圈 (.250-20 x .625) 不锈钢 电缆至启动马达	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel CABLE TO STARTER MOTOR	1
23	93388A1	电缆总成(6.00英寸)黑色板至启动马达	CABLE ASSEMBLY (6.00 Inches) Black PLATE TO STARTER MOTOR	1
24	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	6
24	8M0230859	点火线圈总成	COIL IGNITION ASY	6
25	67614	点火线圈盖	COVER IGNITION COIL	3
26	88447	点火线圈盖螺钉(.190-32 x 1.62)	SCREW (.190-32 x 1.62) IGNITION COIL COVER	12
27	30164		WASHER (.192 x .375 x .0312) Stainless Steel COIL COVER SCREW	12
28	45076	螺母(#10-32)黄铜点火线圈端子	NUT (#10-32) Brass IGNITION COIL TERMINAL	12
29	88807A6	点火线圈黑色电缆总成(3.50英寸)	CABLE ASSEMBLY (3.50 Inches) Black IGNITION COIL	6
30	68513	接地带不锈钢螺钉(#10-32 x .375)	SCREW (#10-32 x .375) Stainless Steel GROUND STRAP	6
31	99215A25	高压导线总成	LEAD ASSEMBLY HIGH TENSION	6
31	813715A1	引线	LEAD WIRE	6
32	63709A1	高压电缆护套/端子套件	BOOT/TERMINAL KIT HIGH TENSION CABLE	6
33	136862	火花塞	SPARK PLUG	6
33	13686Q	NGK BU8H @10	NGK BU8H @10	6
33	14103568	火花塞	SPARK PLUG	6
33	896329885	SP #L6VC @4	SP #L6VC @4	6

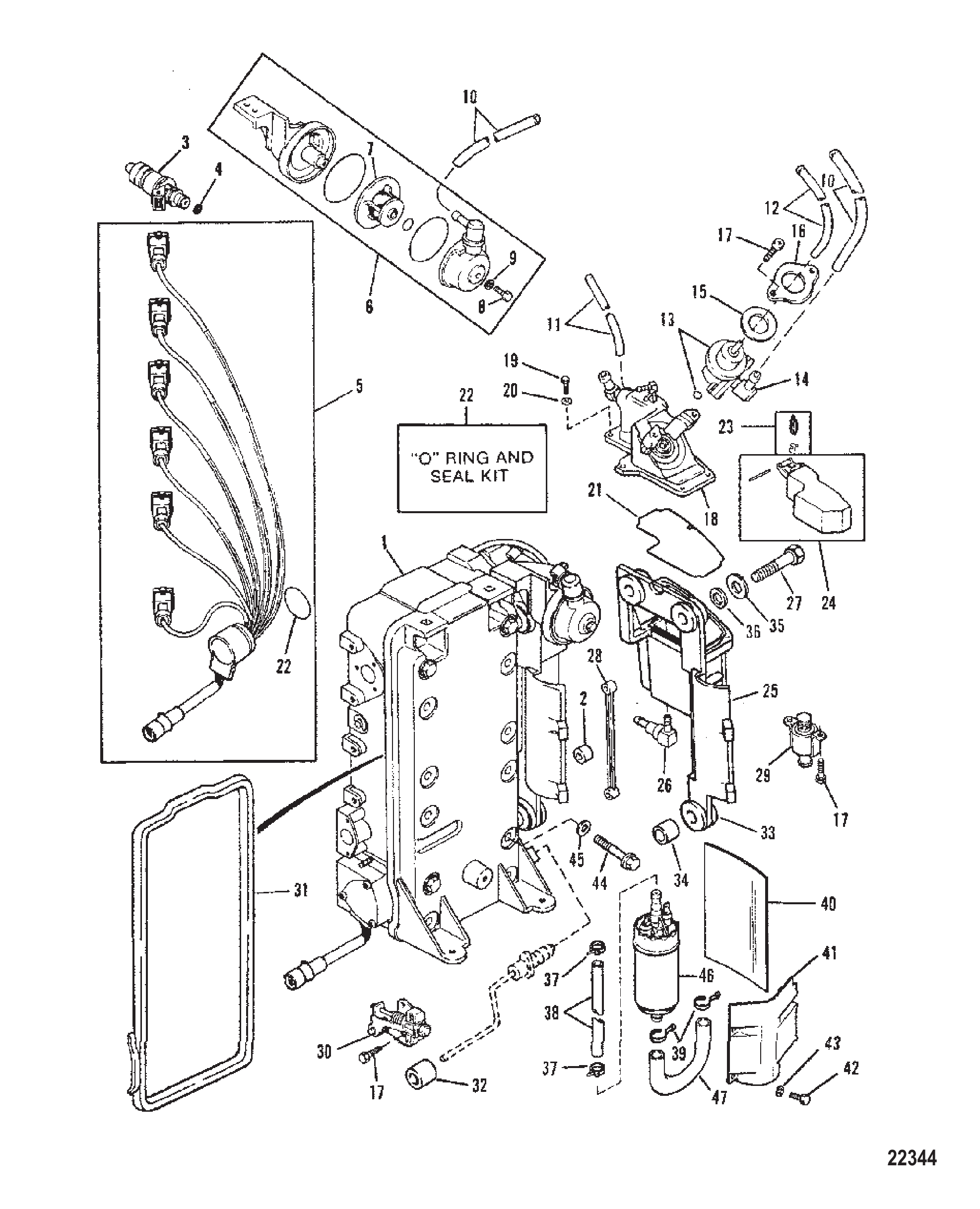

图 12燃油管理系统 FUEL MANAGEMENT SYSTEM

REF	零件编号	中文名称	英文名称	数量
1	14817A2	燃油管理系统总成	MANAGEMENT ASSEMBLY Fuel	1
2	67748	滚轮凸轮	ROLLER CAM	1
3	18715	燃油喷油器	INJECTOR Fuel	6
3	18715T	喷油器总成	INJECTOR ASSEMBLY	6
4	17422	喷油器滤清器	FILTER INJECTOR	1
5	15443	线束套件	HARNESS KIT	1
6	15442	燃油滤清器套件	FILTER KIT Fuel	1
7	15028	燃油滤清器	FILTER Fuel	1
7	150282	燃油滤清器	FILTER Fuel	1
8	400034		SCREW (M5 x 14) FILTER COVER	1
9	400255		LOCKWASHER (M5) COVER SCREW	1
10	1350377	软管(1/2"外径)	HOSE (1/2" O.D.)	1
10	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	1
11	9912688	管材(36.00英寸散装)(1/8"内径)	TUBING (36.00 Inches Bulk) (1/8" I.D.)	1
12	99130122	管材(20.00英尺散装)(3/32"内径)	TUBING (20.00 Feet Bulk) (3/32" I.D.)	1
12	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
13	15027		REGULATOR PRESSURE	1
14	814233	弯头套件	ELBOW KIT	1
15	18791		GASKET PRESSURE REGULATOR	1
16	814012		PLATE PRESSURE REGULATOR	1
17	814076	螺钉	SCREW	AR
18	814010	盖板套件	COVER KIT	1
19	4001987	分离器盖螺钉(M4 x 16)	SCREW (M4 x 16) COVER TO SEPARATOR	6
20	26995		LOCKWASHER (#8) Stainless Steel COVER SCREW	6
21	18790	蒸汽分离器密封件	SEAL VAPOR SEPARATOR	1
22	15029	O型圈及密封套件	O-RING AND SEAL KIT	1
23	15446	浮子阀套件	VALVE KIT Float	1
24	15445	浮子套件	FLOAT KIT	1
25	814011	阀体套件	BODY KIT	1
26	42481	止回阀	CHECK VALVE	1
26	424811	阀门	VALVE	1
27	4000332	螺钉（M6 x 35）分离器至燃油管理	SCREW (M6 x 35) SEPARATOR TO FUEL MANAGEMENT	3
28	15444	连接杆	LINK	1
29	18241	止回阀	CHECK VALVE	1
30	18348	切断阀	VALVE Shut Off	1
31	18792		SEAL INJECTOR MANIFOLD	1
32	19275	隔套	SPACER	1
33	88033	护孔环	GROMMET	3
34	814913	隔套	SPACER	3
35	57427	大垫圈	WASHER (LARGE)	3
35	35280	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	3
36	20346	垫圈(小)	WASHER (SMALL)	3
36	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	3
37	13791		CLAMP (15.7) HOSE	1
37	8M0214911	卡箍@5	CLAMP @5	1
38	1350377	软管（1-3/4英寸）	HOSE (1-3/4 IN.)	1
38	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	1
39	90077	扎带	TIE STRAP	AR
39	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
40	14639		BLANKET FUEL PUMP	1
41	14640T	燃油泵盖	COVER FUEL PUMP	1
42	32228	螺钉（#10-32 X 0.625）	SCREW (#10-32 x .625)	4
43	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	4
44	90088	螺钉(.250-20x4)	SCREW (.250-20 x 4)	12
44	845674	螺钉(.250-20x4.00)	SCREW (.250-20 x 4.00)	12
45	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	12
45	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	12
46	14307T	燃油泵	PUMP Fuel	1
46	14307T01	燃油泵	FUEL PUMP	1
47	14633	软管	HOSE	1
47	146332	软管	HOSE	1

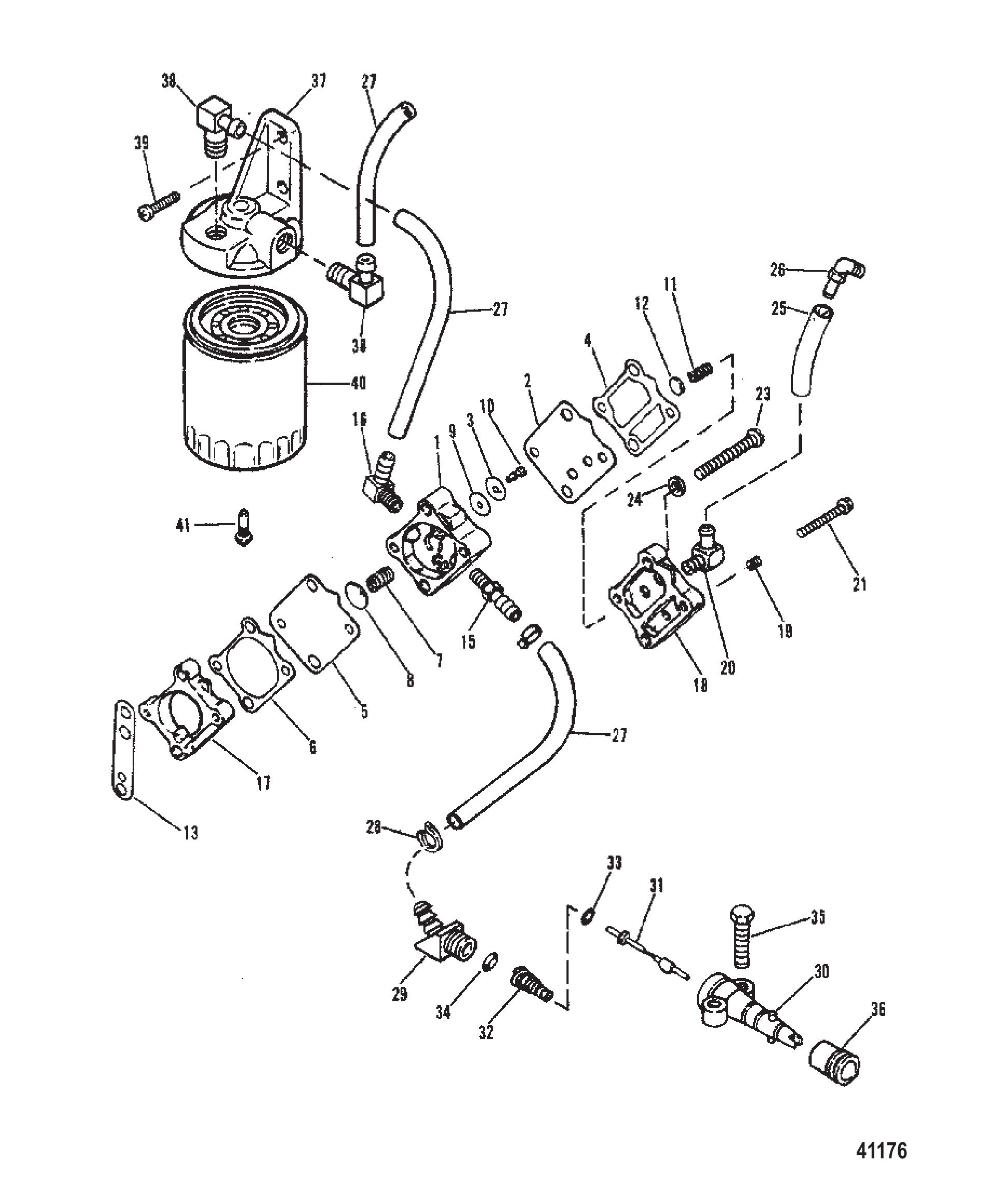

图 13燃油泵和燃油滤清器 FUEL PUMP AND FUEL FILTER

REF	零件编号	中文名称	英文名称	数量
1	15930A15	燃油泵套件	PUMP KIT Fuel	1
2	42990A3	膜片组件	DIAPHRAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE CHECK VALVE, RUBBER	2
4	NSS		NOT SOLD SEPARATE GASKET, BOOST	1
5	NSS		NOT SOLD SEPARATE DIAPHRAGM	2
6	NSS		NOT SOLD SEPARATE GASKET, PULSE	1
7	NSS		NOT SOLD SEPARATE SPRING	1
8	NSS		NOT SOLD SEPARATE CAP	1
9	NSS		NOT SOLD SEPARATE CHECK VALVE	2
10	NSS		NOT SOLD SEPARATE RETAINER	2
11	NSS		NOT SOLD SEPARATE SPRING	1
12	NSS		NOT SOLD SEPARATE CAP	1
13	98769	底座衬垫	GASKET BASE	1
13	8M0204705	衬垫@2	GASKET @2	1
15	16604	直通接头(0.125-27)燃油泵	FITTING Straight (.125-27) FUEL PUMP	1
16	14868	燃油泵弯头接头	FITTING FUEL PUMP (ELBOW)	1
17	144303	燃油泵底座	BASE FUEL PUMP	1
18	98775A3	燃油泵板	PLATE FUEL PUMP	1
18	987752	安装板	PLATE	1
19	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
20	15979	接头	FITTING	1
21	16452	燃油泵螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) FUEL PUMP	2
23	4000310	燃油泵至曲轴箱螺钉(M5 x 40)	SCREW (M5 x 40) FUEL PUMP TO CRANKCASE	2
24	4002314	燃油泵螺钉垫圈	WASHER FUEL PUMP SCREW	2
25	9072925	脉冲软管	HOSE PULSE	1
26	99751	脉冲软管黄铜接头(.0625-27)	FITTING (.0625-27) Brass PULSE HOSE	1
26	997511	弯头	ELBOW	1
27	1350377	软管	HOSE	3
27	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	3
28	73498	燃油管卡箍	CLAMP FUEL TUBING	AR
28	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
29	14866	燃油管路至适配器弯头	ELBOW FUEL LINE TO ADAPTOR	1
30	30186	止回转接器总成	ADAPTER CHECK UNIT	1
31	30187	适配器阀杆止回单元	STEM CHECK UNIT ADAPTOR	1
31	30185Q3	油箱端快速断开总成-卡口式	QUICK DISCONNECT ASSEMBLY Tank End - Bayonet Style	1
32	30189	适配器阀杆弹簧	SPRING ADAPTOR STEM	1
33	20415	适配器阀杆O型圈	O-RING ADAPTOR STEM	1
33	16524	燃油接头O型圈	O-RING Fuel Connector	1
34	30188	适配器垫片	WASHER ADAPTOR	1
35	69067	适配器至下罩螺钉(.250-20 x 1.375)	SCREW (.250-20 x 1.375) ADAPTOR TO BOTTOM COWL	1
36	92037	燃油连接器密封件	SEAL FUEL CONNECTOR	1
37	13170T	燃油滤清器底座	BASE FUEL FILTER	1
37	13170A3	底座	BASE	1
38	13607	底座接头	FITTING BASE	2
38	136071	弯头	ELBOW	2
39	28668		SCREW (.250-20 x .875) Stainless Steel FUEL FILTER BASE	2
40	18458A1	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
40	18458Q3	燃油滤清器	FILTER-FUEL	1
41	14570		PROBE WATER SENSING	1
-	14697A87	衬垫套件	GASKET SET	1

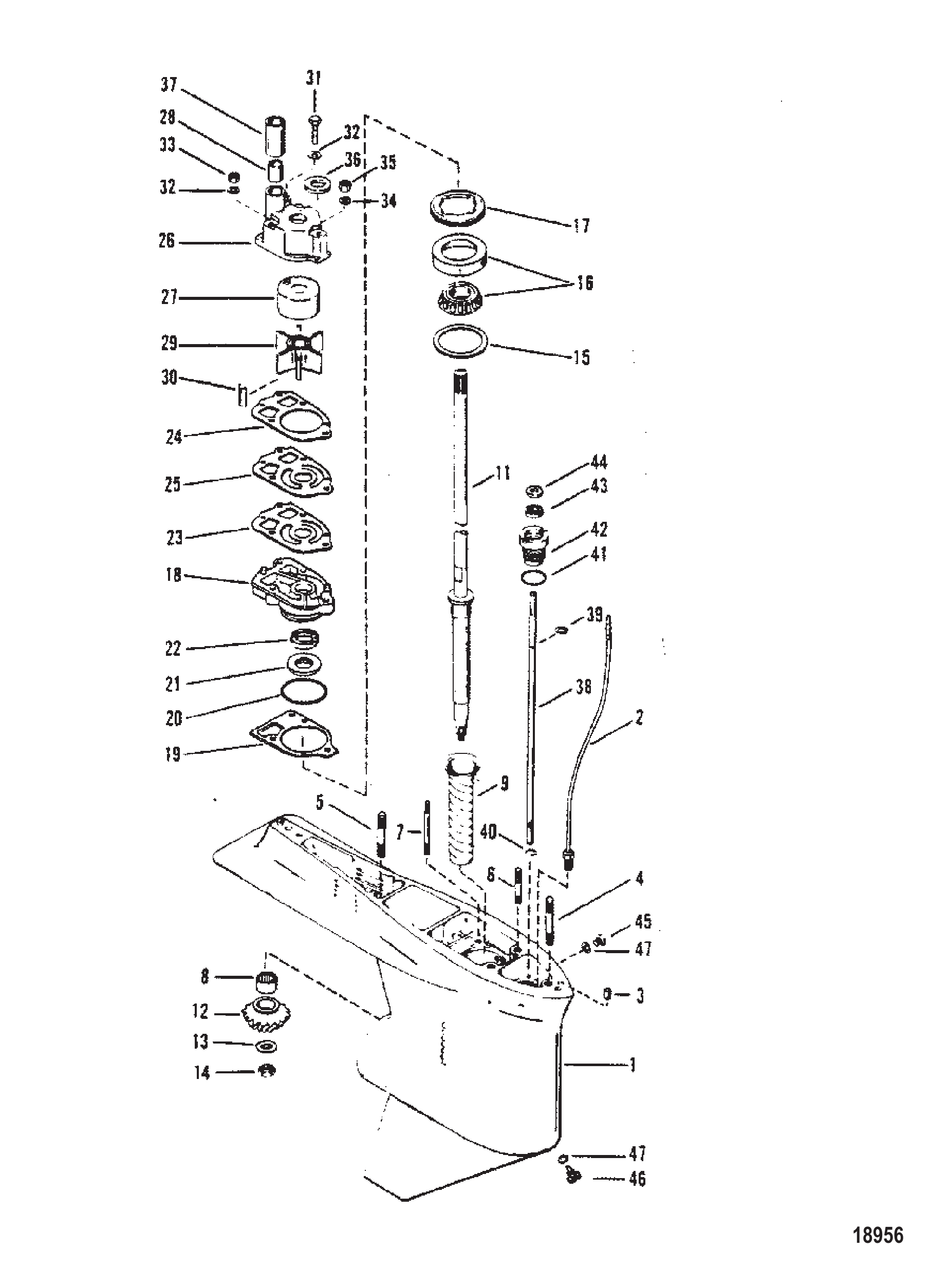

图 14齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)

REF	零件编号	中文名称	英文名称	数量
-	9148A8	齿轮箱总成 标准旋转 1.87:1 减速比 (长型) (黑色)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (LONG) (BLACK)	1
-	9148A9	齿轮箱总成 标准旋转1.87:1速比(加长型)(黑色)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (X-LONG) (BLACK)	1
-	9148T85	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A10	齿轮箱总成 标准旋转1.87:1速比(长型)(灰色)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (LONG) (GRAY)	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A13	齿轮箱总成 标准旋转1.87:1速比(加长型)(灰色)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (X-LONG) (GRAY)	1
-	9148T91	ORD 1647-9148T85	ORD 1647-9148T85	1
1	9148A11	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A12	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
2	85822A1		CONNECTOR ASSEMBLY SPEEDOMETER	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	20033	定位销 齿轮箱定位	PIN Dowel GEAR HOUSING LOCATING	2
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	78638	齿轮箱螺柱(0.438×3.12)	STUD (.438 x 3.12) GEAR HOUSING	1
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
4	78639	齿轮箱双头螺柱 (9英寸)	STUD GEAR HOUSING (9")	1
5	57920	双头螺栓(.44 x 2.06)齿轮箱	STUD (.44 x 2.06) GEAR HOUSING	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	74730	齿轮箱双头螺柱 (7-1/16英寸)	STUD GEAR HOUSING (7-1/16")	2
6	56297	双头螺栓(.312 x 3.38)水泵	STUD (.312 x 3.38) WATER PUMP	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28 x 3.125)水泵	STUD (.250-20/.250-28 x 3.125) WATER PUMP	2
7	306671	螺柱	STUD	2
8	42647A1	传动轴滚柱轴承总成	BEARING ASSEMBLY Roller DRIVESHAFT	1
9	43998	润滑套筒	SLEEVE LUBRICATION	1
11	44000	驱动轴	DRIVESHAFT	1
11	897624T	长驱动轴	DRIVESHAFT Long	1
11	44209	驱动轴	DRIVESHAFT	1
11	897625T	加长驱动轴	DRIVESHAFT X-Long	1
12	N.S.S.		Not Sold Separate PINION GEAR (PART OF 43-44104A2)	1
13	92721	垫圈(.965 x .630)小齿轮	WASHER (.965 x .630) PINION GEAR	1
14	35921	小齿轮至传动轴螺母(0.625-18)	NUT (.625-18) PINION GEAR TO DRIVESHAFT	1
15	42637A1	滚柱轴承至齿轮箱垫片组	SHIM SET ROLLER BEARING TO GEAR HOUSING	AR
15	8M0063267	垫片组	SHIM SET	AR
16	36387A1	传动轴滚柱/杯形轴承总成	BEARING ASSEMBLY Roller/Cup DRIVESHAFT	1
16	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
17	42633	传动轴轴承螺母	NUT DRIVESHAFT BEARING	1
17	8245191	固定座	RETAINER	1
18	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
19	42631	水泵至齿轮箱衬垫	GASKET WATER PUMP TO GEAR HSG	1
19	8M0204678	衬垫	GASKET	1
20	90011	O型圈(2.175×0.175)水泵	O-RING (2.175 x .175) WATER PUMP	1
20	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
20	38099	O型圈水泵(内径2.109)	O-RING WATER PUMP (2.109 I.D.)	1
21	89238	水泵油封	SEAL Oil WATER PUMP	1
22	16977	水泵油封	SEAL Oil WATER PUMP	1
23	85608	水泵下衬垫	GASKET LOWER - WATER PUMP	1
23	8M0090319	衬垫@5	GASKET @5	1
24	85609	水泵上衬垫	GASKET UPPER - WATER PUMP	1
24	858524	衬垫	GASKET	1
25	32435	水泵面板	FACE PLATE WATER PUMP	1
25	8M0204677	面板	PLATE-FACE	1
26	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
27	48752	水泵体嵌件	INSERT WATER PUMP BODY	1
27	48752T	嵌件	INSERT	1
28	38970	橡胶密封圈-进水管	SEAL RUBBER - WATER INLET TUBE	1
29	89984	水泵叶轮	IMPELLER WATER PUMP	1
29	89984T4	叶轮	IMPELLER	1
30	56654	叶轮驱动键	KEY IMPELLER DRIVE	1
30	8M0214992	键@5	KEY @5	1
31	96411	螺钉(#14-8×2.25)水泵	SCREW (#14-8 x 2.25) WATER PUMP	1
31	8M0215009	螺钉	SCREW	1
32	29245	垫圈(0.281×0.500×0.060)不锈钢水泵螺钉与螺柱	WASHER (.281 x .500 x .060) Stainless Steel WATER PUMP SCREW AND STUD	2
32	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
33	13438	螺母(0.250-28)水泵螺柱	NUT (.250-28) WATER PUMP STUD	2
33	8267119	螺母(.250-28)	NUT (.250-28)	2
34	36001	水泵螺柱垫圈	WASHER WATER PUMP STUD	1
35	13436	水泵螺柱螺母	NUT WATER PUMP STUD	1
36	30271	橡胶环（驱动轴）	RING Rubber (DRIVESHAFT)	1
36	8M0214918	环@5	RING @5	1
37	29804	进水管导向套	SLEEVE GUIDE - WATER INLET TUBE	1
37	29804T	套筒	SLEEVE	1
38	78902	换挡轴（下部）	SHAFT SHIFT (LOWER)	1
38	789022	换档轴	SHIFT SHAFT	1
39	29641	E型挡圈-换挡轴	E RING RETAINING - SHIFT SHAFT	1
40	78907	挡圈	RING Retaining	1
41	25439		O-RING (.862 x .103) SHIFT SHAFT BUSHING	1
42	77631A2	换挡轴衬套总成	BUSHING ASSEMBLY SHIFT SHAFT	1
43	76384	换挡轴衬套油封	SEAL Oil SHIFT SHAFT BUSHING	1
43	8M0246145	油封	OIL SEAL	1
44	77674		WASHER (.35 x .75 x .12) RUBBER - SHIFT SHAFT BUSHING	1
45	79953		SCREW (.375-16 x .250) GREASE FILLER	1
45	79953Q04	放油螺钉套件	SCREW KIT Drain	1
46	67892		SCREW Magnetic DRAIN	1
46	8M0058389	放油螺钉套件	SCREW KIT Drain	1
47	20260	润滑脂加注与排放螺钉垫圈	WASHER GREASE FILLER AND DRAIN SCREW	2
47	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
-	42579A4	水泵修理包	REBUILD KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1
-	14697A87	衬垫套件	GASKET SET	1

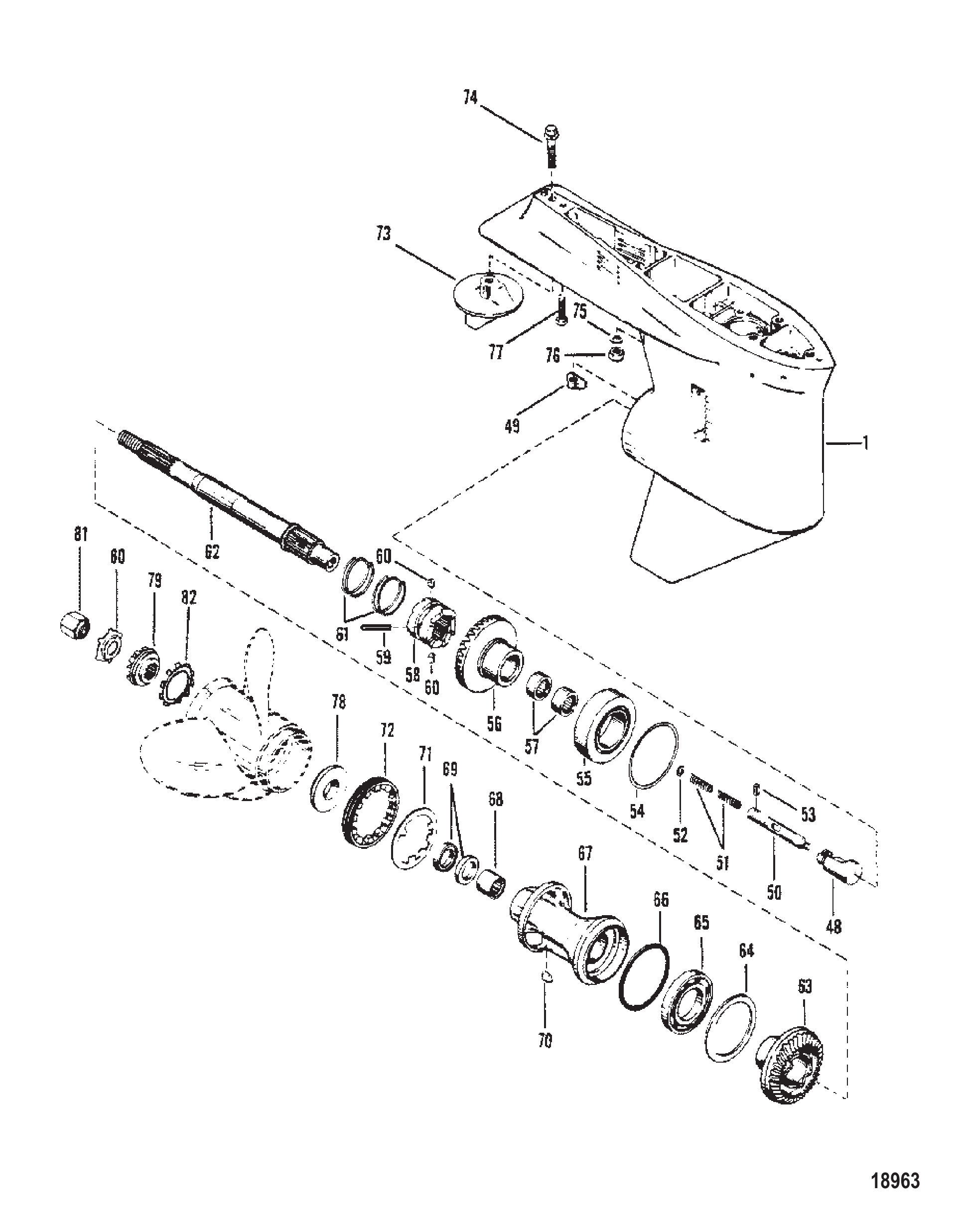

图 15齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)

REF	零件编号	中文名称	英文名称	数量
-	9148A8	齿轮箱总成 标准旋转 1.87:1 减速比 (长型) (黑色)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (LONG) (BLACK)	1
-	9148A9	齿轮箱总成 标准旋转1.87:1速比(加长型)(黑色)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (X-LONG) (BLACK)	1
-	9148T85	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A10	齿轮箱总成 标准旋转1.87:1速比(长型)(灰色)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (LONG) (GRAY)	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A13	齿轮箱总成 标准旋转1.87:1速比(加长型)(灰色)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (X-LONG) (GRAY)	1
-	9148T91	ORD 1647-9148T85	ORD 1647-9148T85	1
1	9148A11	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A12	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
48	78956	换挡凸轮	SHIFT CAM	1
48	789562	换挡凸轮	SHIFT CAM	1
49	89594A1	凸轮从动件总成	FOLLOWER ASSEMBLY CAM	1
50	79911	离合器作动杆	ROD CLUTCH ACTUATOR	1
50	79911A1	杆	ROD	1
51	79910	压缩弹簧	SPRING COMPRESSION	2
52	78910	压缩弹簧垫圈	WASHER COMPRESSION SPRING	1
53	78906		PIN SPRING LOCATOR	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	47397A1	轴承外圈垫片组(.002-3-5-10)	SHIM SET BEARING OUTER RACE (.002-3-5-10)	AR
55	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
56	44104A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
56	44104T2	齿轮组	GEAR SET	1
57	43999	滚子轴承(外径1.308)	BEARING Roller (1.308 O.D.)	2
57	73363	滚子轴承(外径1.313)	BEARING Roller (1.313 O.D.)	2
57	73363T	轴承	BEARING	2
58	78959	棘轮滑动离合器	RATCHET SLIDING CLUTCH	1
58	823174T	ORD 8M0100493	ORD 8M0100493	1
59	78905	棘轮到螺旋桨轴十字销	PIN Cross RATCHET TO PROPELLER SHAFT	1
59	8M0084243	十字销	PIN Cross	1
60	78909	棘轮定位销	PIN Detent RATCHET	2
61	78962	十字销固定弹簧	SPRING RETAINING - CROSS PIN	2
62	94148	螺旋桨轴	PROPELLER SHAFT	1
63	N.S.S.	不单独出售 倒车齿轮(属于43-44104A2部件)	Not Sold Separate REVERSE GEAR (PART OF 43-44104A2)	1
64	68100	止推环 - 轴承座至齿轮箱	RING THRUST - BEARING CARRIER TO GEAR HOUSING	1
64	681001	止推环	RING Thrust	1
65	88957A1	倒档齿轮滚珠轴承	BEARING Ball REVERSE GEAR	1
65	88957T	滚珠轴承	BEARING Ball	1
66	31534	轴承座O型圈	O-RING BEARING CARRIER	1
66	8M0214920	O型圈	O RING	1
67	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	30956	滚针轴承-轴承座	BEARING Needle BEARING CARRIER	1
68	30956T	滚针轴承	BEARING Needle	1
69	76868	轴承座密封	SEAL BEARING CARRIER	2
69	8M0248882	油封@5	SEAL-OIL @5	2
70	30281		KEY LOCATING - BEARING CARRIER	1
71	79447	齿轮箱盖锁紧垫圈	TAB WASHER GEAR HOUSING COVER	1
72	79448	齿轮箱固定座	RETAINER GEAR HOUSING	1
72	8M2011027	固定座	RETAINER	1
73	31640A1		TRIM TAB ASSEMBLY GEAR HOUSING	1
73	31640Q4	平衡鳍板	TRIM TAB	1
74	66024		SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING	1
75	45176	不锈钢垫圈(.453 x .812 x .105) 驱动轴壳体螺柱用	WASHER (.453 x .812 x .105) Stainless Steel DRIVESHAFT HOUSING STUDS	2
76	34933	不锈钢螺母(.437-20) 驱动轴壳体螺柱用	NUT (.437-20) Stainless Steel DRIVESHAFT HOUSING STUDS	2
76	8M0204653	螺母	NUT	2
77	65210	螺钉(.375-16 x 1.00)齿轮箱	SCREW (.375-16 x 1.00) GEAR HOUSING	1
77	74727	螺钉(0.375-16x6.00)齿轮箱	SCREW (.375-16 x 6.00) GEAR HOUSING	1
78	13171	推力毂	THRUST HUB	1
78	835467Q01	止推垫片套件	THRUST WASHER KIT	1
79	31211A2	螺旋桨螺母花键垫圈	WASHER Splined PROPELLER NUT	1
79	31211Q03	垫圈总成	WASHER ASSEMBLY	1
80	31210	螺旋桨螺母锁紧垫圈	TAB WASHER PROPELLER NUT	1
80	816629Q	锁紧垫圈	TAB WASHER	1
81	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
81	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
82	423511	螺旋桨轴齿形锁紧垫圈	LOCKWASHER Toothed PROPELLER SHAFT	1
-	89238A2	密封套件	SEAL KIT	1
-	14697A87	衬垫套件	GASKET SET	1

图 16杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES

REF	零件编号	中文名称	英文名称	数量
-	15380	零件手册 220马力 (V6发动机)	PARTS MANUAL 220 H.P. (V-6)	1
--	976583	维修手册	SERVICE MANUAL	1
--	14697A87	衬垫套件	GASKET SET	1
-	15168A88	贴花套装 (黑色)	DECAL SET (BLACK)	1
-	13492872	用户指南(黑色)	OWNERS GUIDE (BLACK)	1
-	15241A87	贴花套装 (灰色)	DECAL SET (GRAY)	1
-	14879872	安装手册 (灰色)	INSTALLATION MANUAL (GRAY)	1

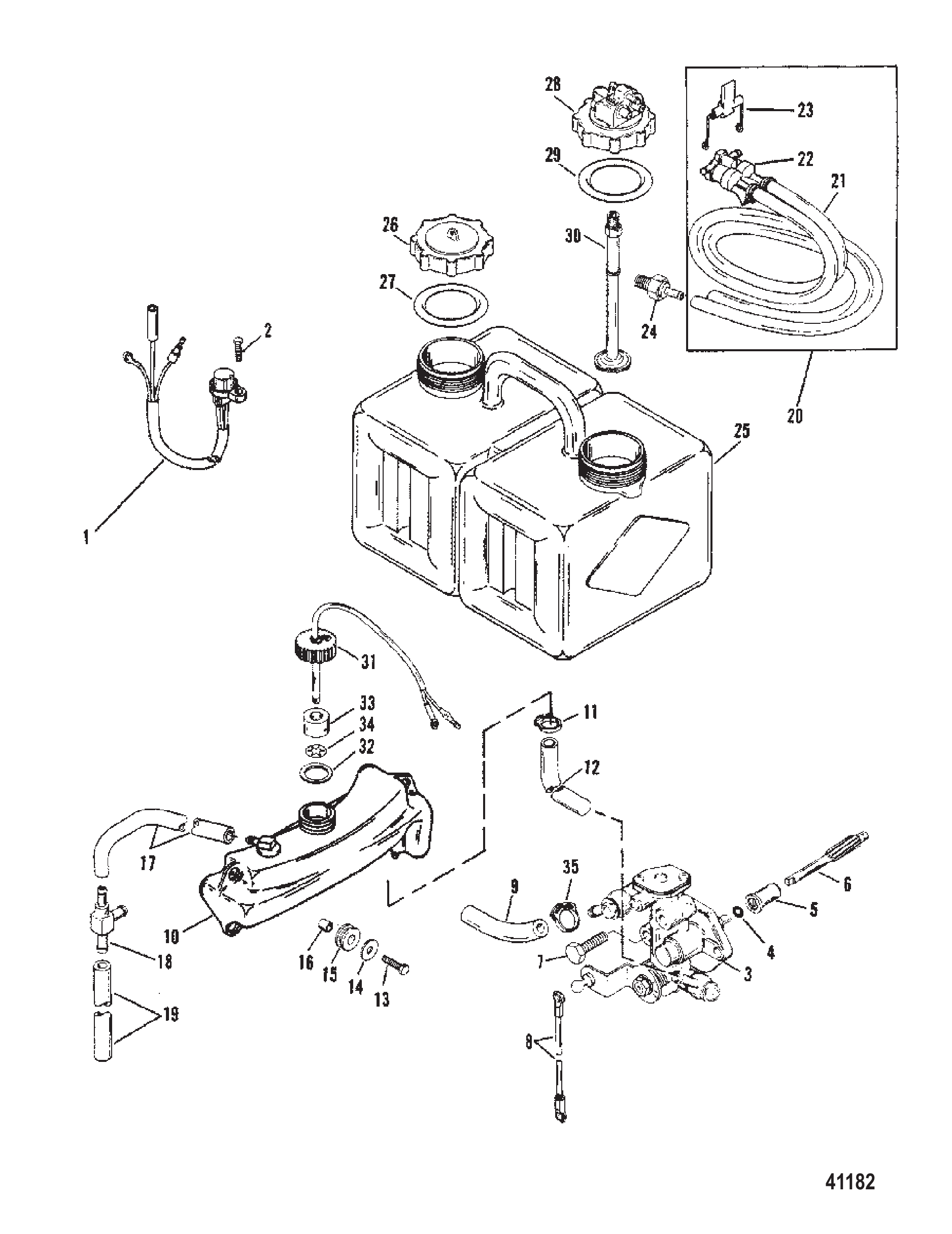

图 17喷油组件 OIL INJECTION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	12430A1	传感器总成	SENSOR ASSEMBLY	1
2	48409	螺钉(#10-16 x .625)不锈钢传感器固定	SCREW (#10-16 x .625) Stainless Steel SENSOR ATTACHING	1
3	41033	油泵	PUMP Oil	1
3	815699T	油泵总成	PUMP ASSEMBLY Oil	1
4	11379	油泵O型圈	O-RING OIL PUMP	1
5	41429A1	驱动齿轮轴承总成	BEARING ASSEMBLY DRIVE GEAR	1
5	41429A2	轴承总成	BEARING ASSEMBLY	1
6	12726	从动齿轮	GEAR Driven	1
6	14563	从动齿轮	GEAR Driven	1
7	32228	油泵至曲轴箱螺钉 (#10-32 x .625)	SCREW (#10-32 x .625) OIL PUMP TO CRANKCASE	1
7	41507	油泵至曲轴箱螺钉 (#10-32 x 1.120)	SCREW (#10-32 x 1.120) OIL PUMP TO CRANKCASE	1
8	9625512	节气门连杆至油泵	LINK THROTTLE LEVER TO OIL PUMP	1
8	1938512	连杆总成	LINK ASSEMBLY	1
9	4301619	油泵油管	TUBING OIL PUMP	1
9	82381335	油管(15.00英寸 散装)	TUBING (15.00 Inches Bulk)	1
10	99443T	油箱	RESERVOIR Oil	1
10	994436	储液罐	RESERVOIR	1
11	415823	油管卡箍(大)	CLAMP OIL HOSE (LARGE)	2
12	4301736	油箱至油泵油管 (5-1/4")	TUBING OIL RESERVOIR TO OIL PUMP (5-1/4")	1
12	82381455	油管（25.00英寸散装）	TUBING (25.00 Inches Bulk)	1
13	69020	油箱固定螺钉 (#10-32 x .875)	SCREW (#10-32 x .875) OIL RESERVOIR ATTACHING	3
13	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
14	42118	油箱螺钉垫圈	WASHER OIL RESERVOIR SCREW	6
15	42117	油箱螺钉衬套	GROMMET OIL RESERVOIR SCREW	3
16	42116	油箱螺钉轴套	BUSHING OIL RESERVOIR SCREW	3
17	99127109	油管(57.00英寸散装)	LINE (57.00 Inches Bulk) OIL	1
17	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
18	42425	油管三通	TEE OIL TUBING	1
19	9072925	油管(6-3/4")	HOSE OIL (6-3/4")	1
20	NSS	壳体总成不单独销售	NOT SOLD SEPARATE HOUSING ASSEMBLY	1
21	99439	软管(114.00英寸)	HOSE (114.00 Inches)	1
22	12540A3	壳体	HOUSING	1
23	12242A1	闩锁	LATCH	1
24	43278	止回阀接头（曲轴箱）	FITTING CHECK VALVE (CRANKCASE)	1
24	8781051	止回阀	CHECK VALVE	1
25	87421	油箱	TANK	1
26	43298A2	油箱盖总成	CAP ASSEMBLY OIL TANK	1
27	11332	O型圈(2.225 x .210)盖	O-RING (2.225 x .210) CAP	1
28	43295A5	壳体总成适配器	HOUSING ASSEMBLY Adaptor	1
28	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
29	11332	O型圈(2.225 x .210)适配器壳体	O-RING (2.225 x .210) ADAPTOR HOUSING	1
30	99802	吸油管	TUBE OIL PICK-UP	1
31	43300A1	油箱盖总成	CAP ASSEMBLY OIL RESERVOIR	1
31	43300A9	盖总成	CAP ASSEMBLY	1
32	43307	油箱盖衬垫	GASKET RESERVOIR CAP	1
32	43307T	衬垫	GASKET	1
33	99022A1	浮子总成	FLOAT ASSEMBLY	1
33	8M0187298	浮子总成	FLOAT ASSY	1
34	99265	压入式螺母	PUSH NUT	1
35	415821	油管卡箍(小)	CLAMP OIL HOSE (SMALL)	2

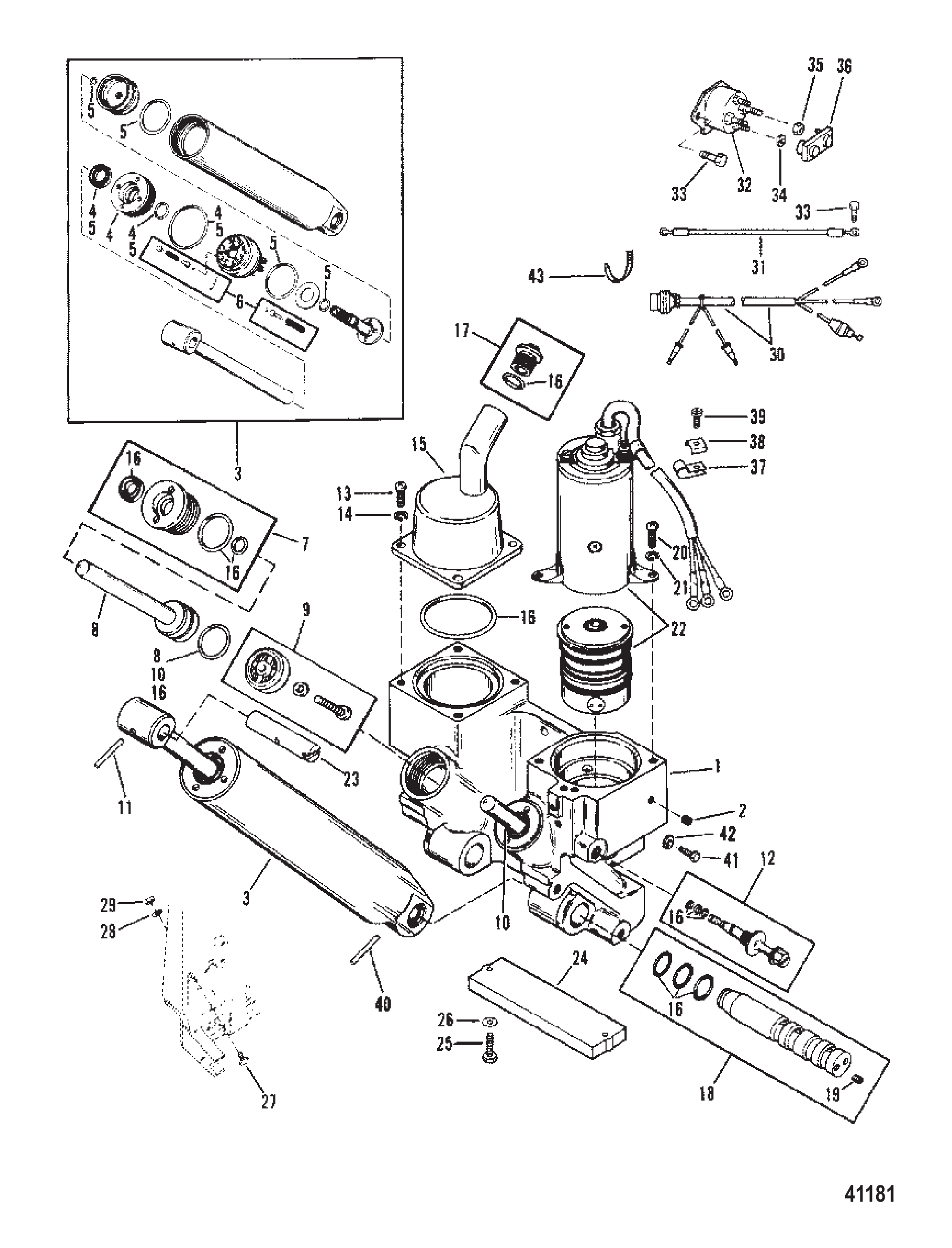

图 18动力升降组件 POWER TRIM COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	99659A21	歧管总成	MANIFOLD ASSEMBLY	1
1	99659A22	歧管总成	MANIFOLD ASSEMBLY	1
2	99616	管塞歧管	PIPE PLUG MANIFOLD	11
2	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	11
3	41493A7	升降油缸总成	TRIM CYLINDER ASSEMBLY	1
3	41493A4	升降油缸总成	TRIM CYLINDER ASSEMBLY	1
3	41493A7	升降油缸总成	TRIM CYLINDER ASSEMBLY	1
4	41492A1	导向器总成	GUIDE ASSEMBLY	1
5	41478A1	维修套件	REPAIR KIT	1
6	41482A2	止回阀套件	CHECK VALVE KIT	1
7	99638A1	导向总成装饰杆	GUIDE ASSEMBLY TRIM ROD	2
7	8M0021648	端盖总成	END CAP ASSEMBLY	2
8	43397A6		PISTON/ROD ASSEMBLY Power Trim PORT	1
8	878413A1	活塞总成	PISTON ASSEMBLY	1
9	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
10	43398A3		PISTON/ROD ASSEMBLY Power Trim STARBOARD	1
10	878414T01	活塞总成	PISTON ASSEMBLY	1
11	13794	沟槽销-升降油缸(上)	PIN Groove TRIM CYLINDER (UPPER)	1
11	821539	三叶销	PIN Trilobe	1
12	99660A1	阀门总成	VALVE ASSEMBLY	1
13	4000327	螺钉(M6x14)-盖板	SCREW (M6 x 14) COVER	4
14	43450	盖板螺丝垫圈	WASHER COVER SCREW	4
14	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
15	99642	歧管盖	COVER MANIFOLD	1
16	48462A2	O型圈套件	O-RING KIT	1
16	48462A4	O型圈套件	O RING KIT	1
17	99609A1	塞子总成	PLUG ASSEMBLY	1
18	99641A1	轴总成	SHAFT ASSEMBLY	1
18	99641A02	轴总成	SHAFT ASSY	1
19	99616	轴管塞	PIPE PLUG SHAFT	2
19	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
20	4008820	螺钉(M6x20)-泵与马达	SCREW (M6 x 20) PUMP AND MOTOR	2
21	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
22	99186T	泵与电机总成	PUMP AND MOTOR	1
22	826729A10	ORD 8M0143217	ORD 8M0143217	1
23	99625		SHAFT UPPER	1
23	99625002	轴	SHAFT	1
24	43396A1	阳极总成	ANODE ASSEMBLY	1
24	818298Q1	阳极套件	ANODE KIT	1
25	4000332	螺钉(M6x35)-阳极	SCREW (M6 x 35) ANODE	2
26	29245	垫圈(0.281x0.500x0.060)-不锈钢阳极螺钉	WASHER (.281 x .500 x .060) Stainless Steel ANODE SCREW	2
26	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
27	996301	撞板-升降轴	STRIKER PLATE TRIM SHAFT	2
27	8M0045383	冲击板	STRIKER PLATE	2
28	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
29	46335	螺母 (.375-24)	NUT (.375-24)	23
30	99695A1	线束总成-动力升降控制	HARNESS ASSEMBLY Control POWER TRIM	1
30	17201A2	电缆总成(17英寸)-动力升降	CABLE ASSEMBLY (17.00 Inches) POWER TRIM	1
31	79138A12	拉线总成	CABLE ASSEMBLY	1
31	88807A21	拉线总成	CABLE ASSEMBLY	1
31	88807A16	黑色电缆总成(4.00英寸)	CABLE ASSEMBLY (4.00 Inches) Black	1
31	88807A8	黑色电缆总成 (3.50 英寸)	CABLE ASSEMBLY (3.50 Inches) Black	2
32	96158	启动电磁阀	SOLENOID Starter	2
32	8M0185622	电磁阀	SOLENOID	2
33	41508	螺钉(0.250-20x0.500)-不锈钢启动电磁阀	SCREW (.250-20 x .500) Stainless Steel STARTER SOLENOID	4
34	45076	螺母 (#10-32) 黄铜电磁阀端子	NUT (#10-32) Brass SOLENOID TERMINAL	4
35	94330	螺母 (.250-20) 黄铜电磁阀端子	NUT (.250-20) Brass SOLENOID TERMINAL	4
36	97861	绝缘体-启动电磁阀	INSULATOR STARTER SOLENOID	2
37	22875		CLIP PUMP WIRE	2
38	69205	C形垫圈线夹螺钉	C WASHER CLIP SCREW	2
38	8M0084613	C形垫圈	C-WASHER	2
39	69079	螺钉(#10-16x0.440)-夹子到艉板支架	SCREW (#10-16 x .440) CLIP TO TRANSOM BRACKET	2
40	44431	沟槽销-升降油缸(下)	PIN Groove TRIM CYLINDER (LOWER)	1
40	878267	销	PIN	1
41	4000377		SCREW (M10 x 30) MANIFOLD	6
42	400258	锁紧垫圈(M10)-不锈钢歧管螺钉	LOCKWASHER (M10) Stainless Steel MANIFOLD SCREW	6
43	47483	J型线夹	J CLIP WIRE	1

图 19动力升降泵 POWER TRIM PUMP

REF	零件编号	中文名称	英文名称	数量
-	99186T	泵与电机总成	PUMP AND MOTOR	1
1	12659	机架与磁场套件	FRAME AND FIELD KIT	1
1	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
2	12665	电刷弹簧套件	SPRING KIT Brush	1
3	13506	电刷卡套件	BRUSH CARD KIT	1
3	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
4	12662	泵与端架套件	PUMP AND END FRAME KIT	1
4	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
5	12663	泵密封套件	SEAL KIT Pump	1
5	126631	泵密封套件	SEAL KIT Pump	1
6	12660	端架套件	END FRAME KIT	1
6	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
7	12661	电枢套件	ARMATURE KIT	1
7	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
8	12664	贯穿螺栓套件	THRU BOLT KIT	1

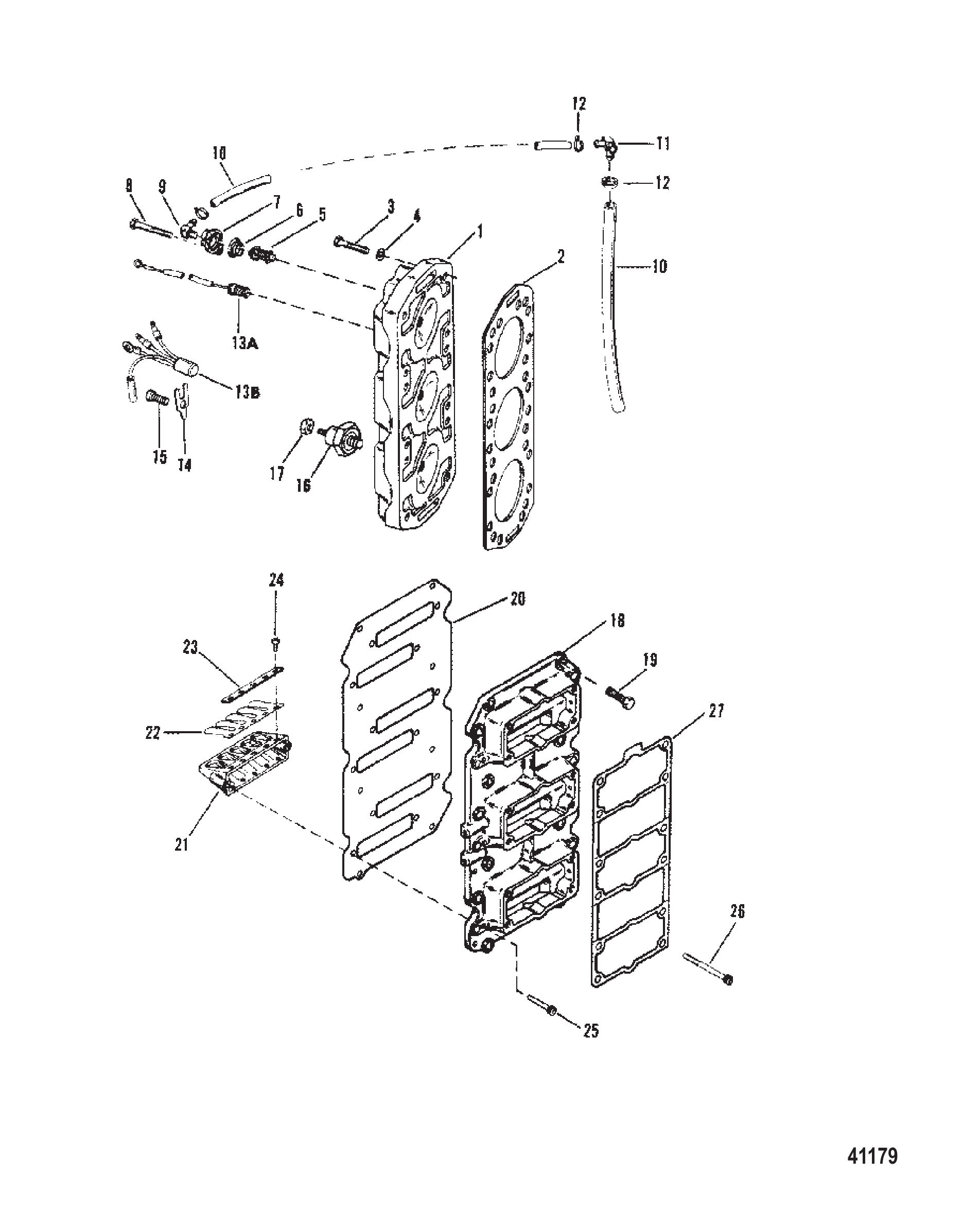

图 20簧片阀组与气缸盖 REED BLOCK AND CYLINDER HEAD

REF	零件编号	中文名称	英文名称	数量
1	13619A1	气缸盖总成	CYLINDER HEAD ASSEMBLY	2
1	15221A1	气缸盖总成	CYLINDER HEAD ASSEMBLY	1
1	15221A5	气缸盖总成	CYLINDER HEAD ASSEMBLY	1
2	41246	气缸盖衬垫	GASKET CYLINDER HEAD	2
2	41247T01	衬垫	GASKET	2
3	98534	气缸盖螺钉 (.375-16 x 2.30)	SCREW (.375-16 x 2.30) CYLINDER HEAD	23
3	13450	螺钉 (0.375-16 x 2.30) 气缸盖（专用）	SCREW (.375-16 x 2.30) CYLINDER HEAD (SPECIAL)	1
4	25909	气缸盖螺钉垫圈 (.406 x .812 x .065)	WASHER (.406 x .812 x .065) CYLINDER HEAD SCREW	24
5	75692	节温器	THERMOSTAT	2
6	62386	节温器衬垫	GASKET THERMOSTAT	2
6	8M0204714	衬垫@4	GASKET @4	2
7	90390A1	节温器盖套件	COVER KIT THERMOSTAT	2
8	35386	节温器盖螺钉 (.312-18 x 1.00)	SCREW (.312-18 x 1.00) THERMOSTAT COVER	4
9	68727	90度黄铜弯头接头 (.250-18)（水管用）	FITTING (.250-18) 90 Degree - Brass ELBOW - WATER HOSES	1
9	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
10	7765377	水管 (24.500英寸散装) 配水用	HOSE (24.500 Inches Bulk) WATER DISTIBUTION	2
10	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	2
11	68728	节温器盖至水管接头	FITTING THERMOSTAT COVER TO WATER HOSES	1
12	73498	水管卡箍	CLAMP WATER HOSES	4
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
13A	97465	温度传感器（右舷）	SENDER Temperature (STARBOARD)	1
13B	13536A6	温度传感器总成（左舷）	SENSOR ASSEMBLY Temperature (PORT)	1
14	13715	传感器固定座	RETAINER SENSOR AND SENDER	2
14	137151	固定座	RETAINER	2
15	98257	螺钉 (0.312-18 x 0.500) 固定座	SCREW (.312-18 x .500) RETAINER	2
16	13192	爆震传感器	SENSOR Detonation	1
16	825164A1	爆震传感器总成	SENSOR ASSEMBLY Detonation	1
17	45076	螺母 (#10-32) 黄铜爆震传感器	NUT (#10-32) Brass DETONATION SENSOR	1
18	14593T	适配板	ADAPTER PLATE	1
18	14593A4	适配板总成	ADAPTER PLATE ASSEMBLY	1
19	28668	螺钉 (0.250-20 x 0.875) 不锈钢适配板	SCREW (.250-20 x .875) Stainless Steel ADAPTOR PLATE	8
20	14697	适配板垫片	GASKET ADAPTOR PLATE	1
20	146971	衬垫	GASKET	1
21	75953	簧片阀组	REED BLOCK	6
22	75362A1	簧片组件	REED ASSEMBLY	6
23	96183	簧片夹	CLAMP Reed	12
23	961832	簧片夹	CLAMP Reed	12
24	14783	螺钉 (#8-32 x 0.187) 簧片至簧片座	SCREW (#8-32 x .187) REEDS TO REED BLOCK	60
24	823588	螺钉 (#8-32 x .250)	SCREW (#8-32 x .250)	60
25	21558	螺钉 (.250-20 x .75) 簧片块固定	SCREW (.250-20 x .75) REED BLOCK ATTACHING	6
25	92160	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	6
26	90197	螺钉 (.250-20 x 1.125) 簧片块固定	SCREW (.250-20 x 1.125) REED BLOCK ATTACHING	6
27	16737	适配板垫片	GASKET ADAPTOR PLATE	1
-	14697A87	衬垫套件	GASKET SET	1

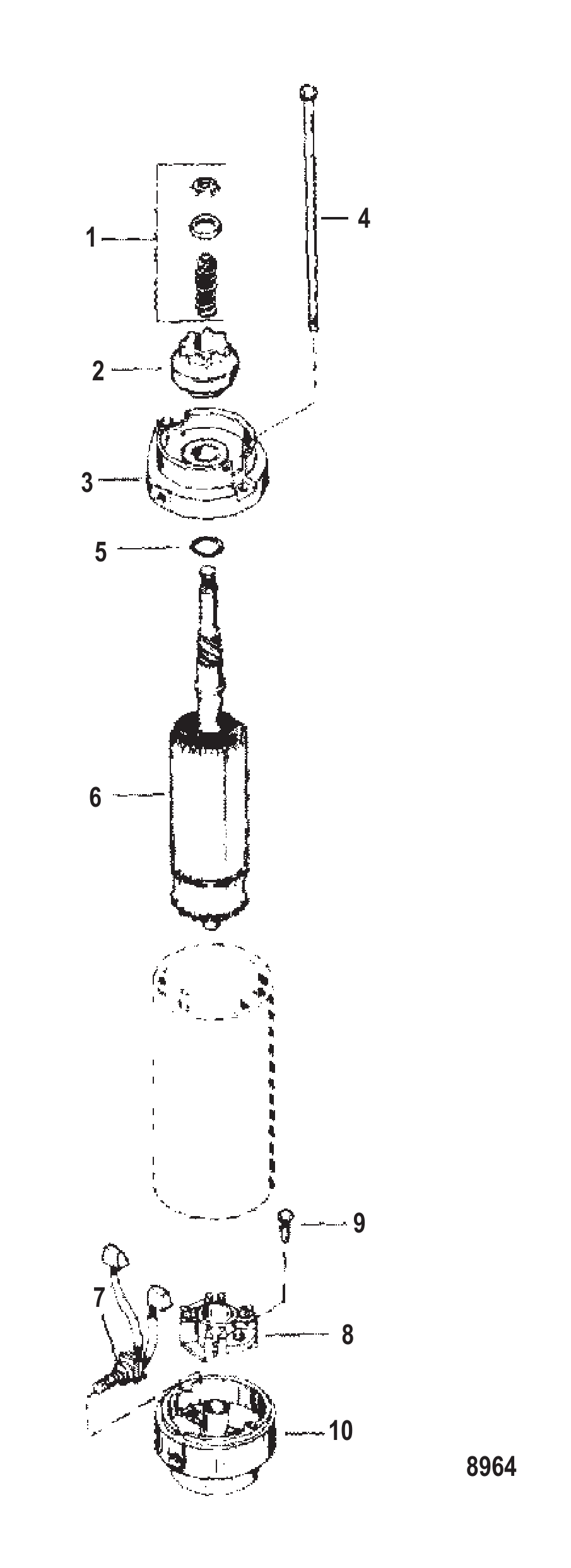

图 21启动电机 Starter Motor

REF	零件编号	中文名称	英文名称	数量
-	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	90645	驱动套件	DRIVE KIT	1
2	75661	驱动小齿轮总成	PINION ASSEMBLY Drive	1
2	13310T1	小齿轮总成	PINION ASSEMBLY	1
3	75660	安装板	PLATE	1
4	74968	螺栓	BOLT	2
5	NSS		NOT SOLD SEPARATE Washer (AMERICAN BOSCH #WA3122)	1
6	79216	电枢	ARMATURE	1
7	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
7	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	61787	支架	HOLDER	2
8	898265014	电刷支架	HOLDER-BRUSH	2
9	NSS		NOT SOLD SEPARATE Screw (AMERICAN BOSCH #02441-22-SC-30SM)	2
10	15386	端盖	END CAP	1
10	15386001	端盖	END CAP	1

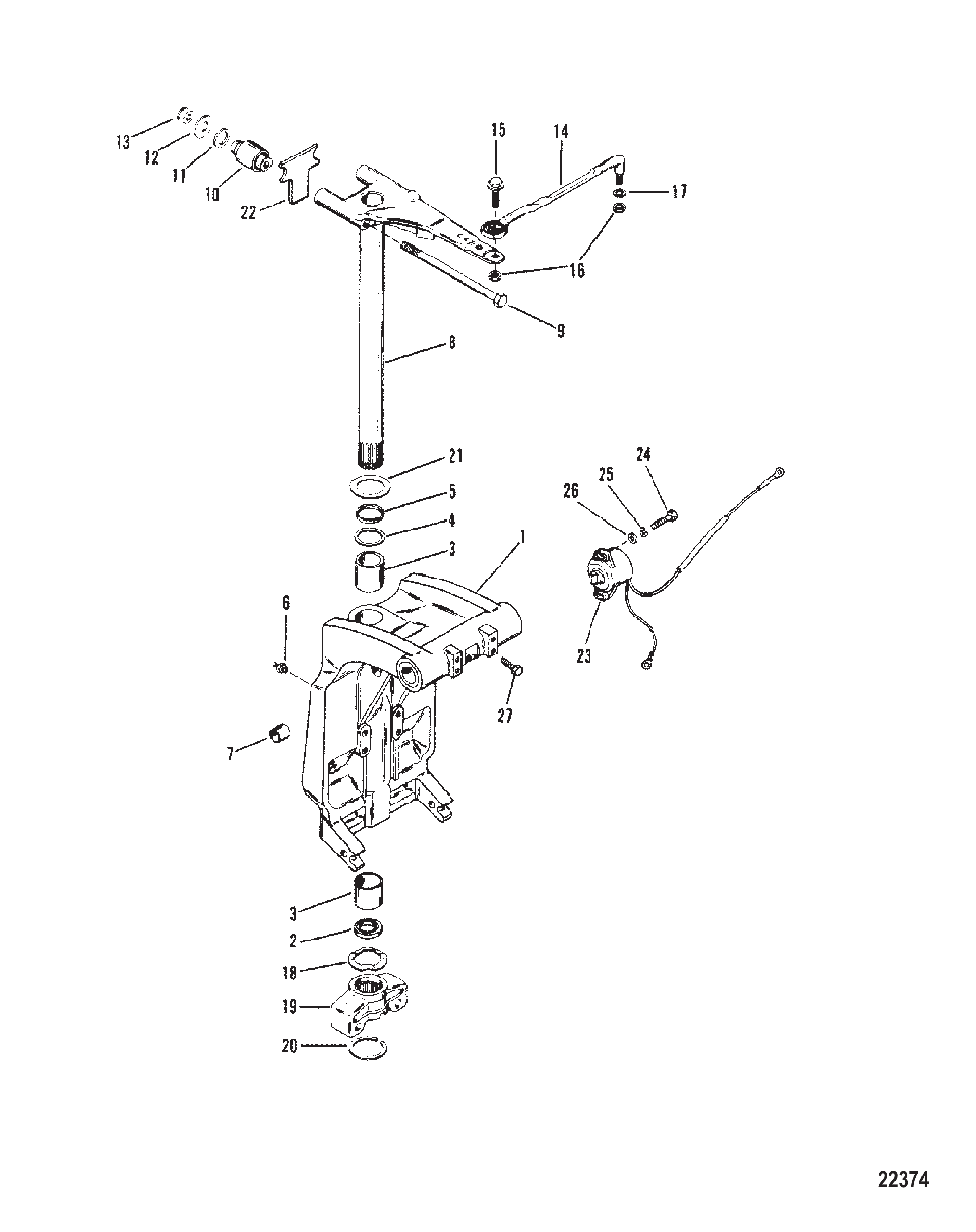

图 22旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM

REF	零件编号	中文名称	英文名称	数量
1	8710A4	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8710A13	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8710T21	灰色旋转支架总成	SWIVEL BRACKET ASSEMBLY Gray	1
2	87735		SEAL Oil SWIVEL BRACKET (LOWER)	1
3	67669		BUSHING SWIVEL BRACKET (LOWER AND UPPER)	2
3	818764	衬套	BUSHING	2
4	33466	旋转支架O型圈(上部)	O-RING SWIVEL BRACKET (UPPER)	1
5	67668	旋转支架垫片(上部)	SPACER SWIVEL BRACKET (UPPER)	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	99608	转轴支架衬套	BUSHING SWIVEL BRACKET	2
7	821207	衬套	BUSHING	2
8	67706A18	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
8	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
8	67706A17	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
8	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
9	78689	螺钉(0.437-20×7.50)转向臂至上支架	SCREW (.437-20 x 7.50) STEERING ARM TO UPPER MOUNT	2
9	8M0176309	螺钉	SCREW	2
10	78687	橡胶安装座-上部	MOUNT RUBBER - UPPER	2
10	78687T	支架	MOUNT	2
11	66921	上支座螺栓垫圈	WASHER UPPER MOUNT BOLT	2
12	78688	上支座螺栓垫圈	WASHER UPPER MOUNT BOLT	2
13	34933	螺母（0.437-20）不锈钢上部安装螺栓	NUT (.437-20) Stainless Steel UPPER MOUNT BOLT	2
13	8M0204653	螺母	NUT	2
14	92876A1	转向连杆总成	LINK ASSEMBLY Steering	1
14	92876A12	连杆总成	LINK ROD ASSEMBLY	1
15	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	1
15	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
16	34863		NUT (.375-24) STEERING LINK SCREW	2
16	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
17	34931		WASHER (.406 x .734 x .063) Stainless Steel STEERING LINK TO STEERING ARM	2
18	78854		WAVE WASHER BOTTOM YOKE	1
19	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
19	878182T	轭架底部-不锈钢	YOKE Bottom - Stainless Steel	1
19	86580A2	底部轭架总成	YOKE ASSEMBLY Bottom	1
19	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
20	67684	卡环-底部轭架	RING Retaining BOTTOM YOKE	1
21	67670		WASHER THRUST - SWIVEL BRACKET	1
22	88882	上轭缓冲垫	BUMPER Top Yoke	1
23	95164A9	调整传感器总成	SENDER ASSEMBLY Trim	1
23	8M0074846	ORDER 8M0098273	ORDER 8M0098273	1
24	56682	螺丝(#10-24x.750)配平传感器	SCREW (#10-24 x .750) TRIM SENDER	2
24	852368	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
25	26996	配平传感器螺钉不锈钢锁紧垫圈(#10)	LOCKWASHER (#10) Stainless Steel TRIM SENDER SCREW	2
26	89302		WASHER (.203 x .406 x .040) TRIM SENDER SCREW	2
27	64014		SCREW (.250-28 x .500) SWIVEL BRACKET	2
-	14697A87	衬垫套件	GASKET SET	1

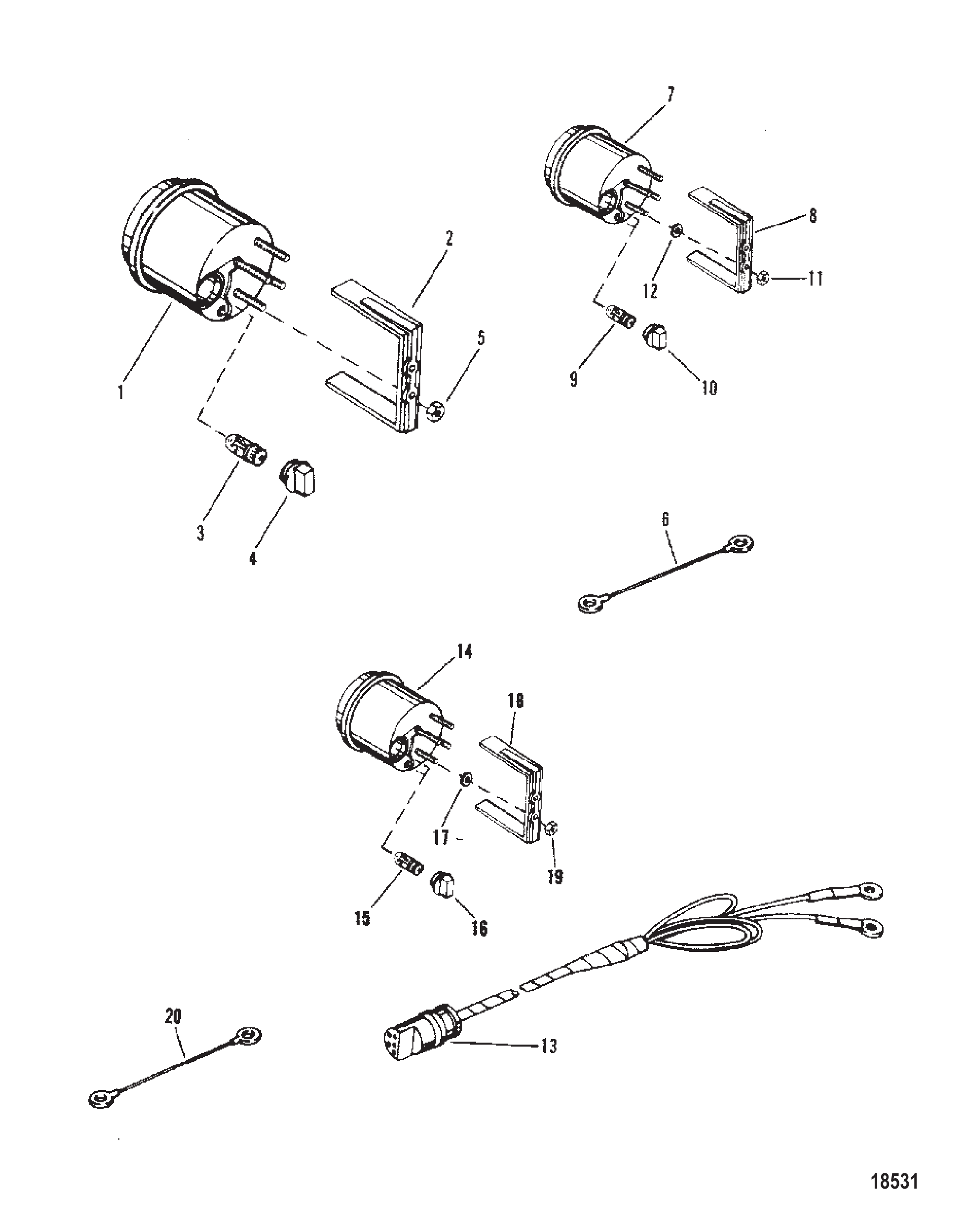

图 23转速表、配平表、温度表 TACHOMETER, TRIM GAUGE, TEMPERATURE GAUGE

REF	零件编号	中文名称	英文名称	数量
1	15112A1	转速表	TACHOMETER	1
2	79101	安装支架	BRACKET MOUNTING	1
2	79101T	支架	BRACKET	1
3	72729	楔形底座灯泡(14V - 1.9W)	LIGHT BULB Wedge Base (14V - 1.9W)	1
4	79888	灯泡插座	SOCKET Light Bulb	1
5	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	5
6	86322A7	电缆总成(1.50英尺)黑色 微调表	CABLE ASSEMBLY (1.50 Feet) Black TRIM GAUGE	1
6	86323A5	电缆总成(1.50英尺)紫色 微调表	CABLE ASSEMBLY (1.50 Feet) Purple TRIM GAUGE	1
7	15113A4	配平表	TRIM GAUGE	1
7	895292Q41	动力升降倾斜指示器 黑面橙白刻度黑边框	GAUGE Power Trim Indicator, Black Face, Orange/White Graduations, Black Bezel	1
8	79480	安装支架-微调表	BRACKET MOUNTING - TRIM GAUGE	1
9	72729	灯泡 楔形底座(14V-1.9W)微调表	LIGHT BULB Wedge Base (14V - 1.9W) TRIM GAUGE	1
10	79888	灯泡插座 微调表	SOCKET Light Bulb TRIM GAUGE	1
11	26419	螺母 (#8-32) 黄铜配平表端子	NUT (#8-32) Brass TRIM GAGUE TERMINAL	5
12	26995	锁紧垫圈(#8)不锈钢 微调表端子	LOCKWASHER (#8) Stainless Steel TRIM GAUGE TERMINAL	4
13	86396A8	转速表线束总成(5.00英尺)	HARNESS ASSEMBLY Tachometer (5.00 Feet)	1
14	15166A1	温度表	TEMPERATURE GAUGE	1
14	895287Q41	水温表套件(100-240℉)黑面橙白刻度黑框	WATER TEMPERATURE GAUGE KIT (100-240 F) Black Face, Orange/White Graduations, Black Bezel	1
15	72729	楔形底座灯泡(14V - 1.9W)	LIGHT BULB Wedge Base (14V - 1.9W)	1
16	79888	灯泡插座	SOCKET Light Bulb	1
17	26427	垫圈	WASHER	2
18	79480	支架	BRACKET	1
19	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	5
20	86323A2	电缆总成(2英尺)紫色	CABLE ASSEMBLY (2.00 Feet) Purple	1
20	61600A16	电缆总成(17英寸)黑色	CABLE ASSEMBLY (17.00 Inches) Black	1
20	88032A3	电缆总成(23.00英尺)棕褐色/蓝色	CABLE ASSEMBLY (23.00 Feet) Tan/Blue	1
20	88824A4	电缆总成(45英寸)棕褐色	CABLE ASSEMBLY (45.00 Inches) Tan	1

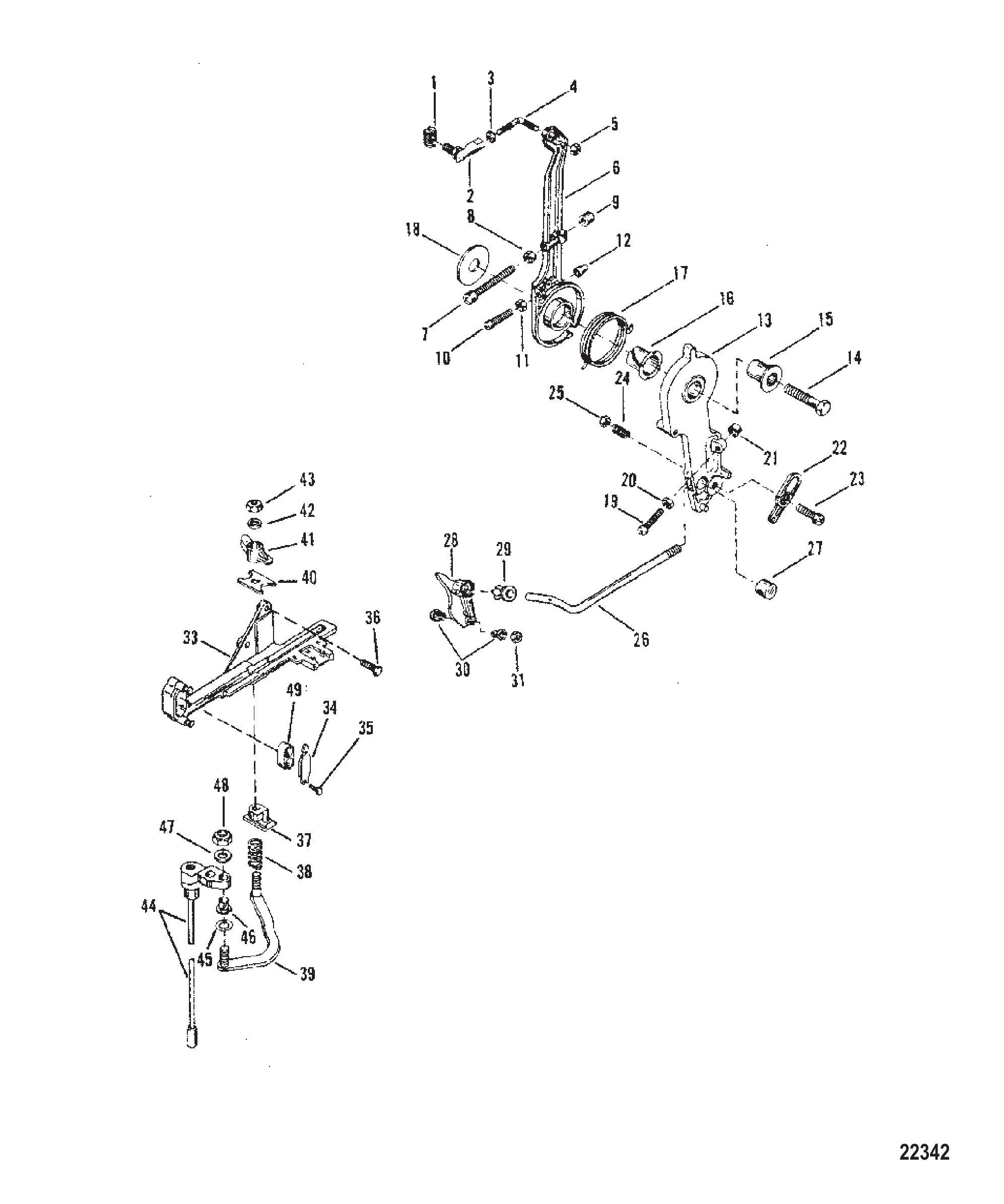

图 24油门杆与换挡轴 THROTTLE LEVER AND SHIFT SHAFT

REF	零件编号	中文名称	英文名称	数量
1	74897		PIVOT TRIGGER PLATE	1
2	62459	球头总成触发板	BALL JOINT ASSEMBLY TRIGGER PLATE	1
2	62459T	球头节总成	BALL JOINT ASSY	1
3	45076	螺母(#10-32)黄铜连杆	NUT (#10-32) Brass LINK ROD	1
4	76035	触发板连杆	ROD TRIGGER PLATE	1
5	46438	螺母(#10-32)球头	NUT (#10-32) BALL JOINT	1
6	41094A3	点火提前杆总成	LEVER ASSEMBLY SPARK ADVANCE	1
7	64022	螺丝(.250-20x2.125)点火提前杆-止动	SCREW (.250-20 x 2.125) SPARK ADVANCE LEVER - STOP	1
8	64015	螺母(.250-20)点火提前止动螺丝	NUT (.250-20) SPARK ADVANCE STOP SCREW	1
9	26852	尼龙帽点火提前杆止动螺丝	CAP Nylon SPARK ADVANCE LEVER STOP SCREW	1
10	13627	螺钉 (.190-32 x 1.250)	SCREW (.190-32 x 1.250)	1
11	68219	螺母(#10-32)不锈钢点火提前杆止动螺丝	NUT (#10-32) Stainless Steel SPARK ADVANCE LEVER STOP SCREW	1
12	48039	点火提前杆止动螺丝帽	CAP SPARK ADVANCE LEVER STOP SCREW	1
13	41095T	油门控制杆	LEVER THROTTLE CONTROL	1
13	410952	杠杆	LEVER	1
14	55337	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
14	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
15	55164	油门杠杆衬套	BUSHING THROTTLE LEVER	1
16	55171	点火提前杆衬套	BUSHING SPARK ADVANCE LEVER	1
17	68784	节气门与点火提前杆弹簧	SPRING THROTTLE AND SPARK ADVANCE LEVER	1
18	68410	点火提前杆垫片	WASHER SPARK ADVANCE LEVER	1
18	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	1
19	64022	螺丝(.250-20x2.125)节气门杆-止动	SCREW (.250-20 x 2.125) THROTTLE LEVER - STOP	1
20	64015	螺母(.250-20)节气门杆止动螺丝	NUT (.250-20) THROTTLE LEVER STOP SCREW	1
21	26852	尼龙帽节气门杆止动螺丝	CAP Nylon THROTTLE LEVER STOP SCREW	1
22	39483	锁扣拉线	LATCH CABLE	1
23	22486	螺丝(.250-28x.880)拉线锁扣至节气门杆	SCREW (.250-28 x .880) CABLE LATCH TO THROTTLE LEVER	1
23	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
24	20099	拉线锁扣至节气门杆弹簧	SPRING CABLE LATCH TO THROTTLE LEVER	1
25	20586	螺母(.250-28)拉线锁扣螺丝	NUT (.250-28) CABLE LATCH SCREW	1
25	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
26	14634	节气门控制杆	ROD THROTTLE CONTROL	1
27	14638	节气门控制杆套筒	BARREL THROTTLE CONTROL ROD	1
28	146351	节气门凸轮	CAM Throttle	1
29	93248	衬套	BUSHING	1
29	8M0215006	旋转衬套	BUSHING Swivel	1
30	26856	节气门凸轮衬套	BUSHING THROTTLE CAM	2
31	36069	节气门凸轮螺柱螺母	NUT THROTTLE CAM STUD	1
32	41050	节气门复位弹簧	SPRING THROTTLE RETURN	1
33	92032A2	控制线缆锚定支架	BRACKET ANCHOR - CONTROL CABLES	1
33	814283A2	支架总成	BRACKET ASSEMBLY	1
34	98889	控制线缆锁扣	LATCH CONTROL CABLE	1
35	42975	闩锁传动螺钉	DRIVE SCREW LATCH	2
36	53167	螺丝(.312-18x.880)锚定支架固定	SCREW (.312-18 x .880) ANCHOR BRACKET ATTACHING	3
36	53167T	螺钉 0.312-18X 0.88	SCREW .312-18X .88	3
37	37896	连杆导向块	GUIDE BLOCK LINK ROD	1
38	20099	连杆至导向块弹簧	SPRING LINK ROD TO GUIDE BLOCK	1
39	67073A1	连杆总成	LINK ROD ASSEMBLY	1
40	52100	连杆耐磨板	WEAR PLATE LINK ROD	1
41	38279	控制线缆闩锁紧固件	LATCH CONTROL CABLE FASTENING	1
41	8M0036768	闩锁	LATCH	1
42	35462	垫圈(.2656x.625x.0625)不锈钢锁扣	WASHER (.2656 x .625 x .0625) Stainless Steel LATCH	1
43	36069	连杆螺母	NUT LINK ROD	1
44	79932A7	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
44	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
44	79932A8	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
44	79932A17	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
45	29720	连杆波形垫圈	WAVE WASHER LINK ROD	1
46	26600	尼龙衬套-连杆	BUSHING NYLON - LINK ROD	1
47	35462	垫圈(.2656 x .625 x .0625)不锈钢连杆	WASHER (.2656 x .625 x .0625) Stainless Steel LINK ROD	1
48	36069	连杆至换挡轴螺母	NUT LINK ROD TO SHIFT SHAFT	1
49	39519	杯形套筒固定器-锚杆	CUP BARREL RETAINER - ANCHOR BAR	1

图 25艉板支架 TRANSOM BRACKETS

REF	零件编号	中文名称	英文名称	数量
1	8718A1	艉板支架总成	BRACKET ASSEMBLY Transom	1
1	8718A2	艉板支架总成	BRACKET ASSEMBLY Transom	1
1	8718F8	艉板支架	BRACKET Transom	1
2	8716A1	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	8716A8	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	8716A2	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	8716A9	艉板支架总成	BRACKET ASSEMBLY Transom	1
3	98727	润滑配件左舷艉板支架	FITTING Grease PORT TRANSOM BRACKET	1
3	8M0169588	润滑脂接头	FITTING Grease	1
5	99170A1	倾斜管	TILT TUBE	1
5	99170A2	倾斜管套件	TUBE KIT Tilt	1
6	90068T	倾斜管螺母（1英寸-14牙）	NUT TILT TUBE (1"-14)	1
6	859133	螺母(1.00-14)	NUT (1.00-14)	1
6	90068T6	倾斜管螺母（1英寸-14牙）	NUT TILT TUBE (1"-14)	1
6	859133	螺母(1.00-14)	NUT (1.00-14)	1
7	45711		O-RING (.612 x .103) TILT TUBE	1
8	88750	波形垫圈(1.62 x 1.05)倾斜管	WASHER Wave (1.62 x 1.05) TILT TUBE	2
9	56041	螺母(.875-14)倾斜管	NUT (.875-14) TILT TUBE	1
9	858869	螺母 (.875-14)	NUT (.875-14)	1
10	677551	螺钉(.500-20 x 4.500)艉板支架至艉板	SCREW (.500-20 x 4.500) TRANSOM BRACKET TO TRANSOM	4
10	8M0149747	螺钉	SCREW	4
11	28421	垫圈(1.5 x 3.05 x 0.13)不锈钢艉板支架螺栓	WASHER (1.5 x 3.05 x 0.13) Stainless Steel TRANSOM BRACKET BOLT	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	8M0027784	艉板支架螺栓螺母	NUT TRANSOM BRACKET BOLT	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	99629A2	倾斜锁杆总成	LEVER ASSEMBLY TILT LOCK	1
13	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	99611	倾斜杆波形垫圈	WAVE WASHER TILT LEVER	1
15	65830	倾斜杆尼龙衬套	NYLINER TILT LEVER	2
16	99633	倾斜锁杆旋钮	KNOB TILT LOCK LEVER	1
17	99615	槽销	PIN Groove	1
18	99622	弹簧	SPRING	1
19	99604	槽销	PIN Groove	1
20	96930A1	倾斜锁螺栓总成	BOLT ASSEMBLY TILT LOCK	1
21	23161	螺栓螺母（3/8英寸-24牙）	NUT (.375-24) BOLT	1
-	14697A87	衬垫套件	GASKET SET	1

图 26线束、启动继电器与整流器 WIRING HARNESS, STARTER SOLENOID AND RECTIFIER

REF	零件编号	中文名称	英文名称	数量
1	43429	点火板	PLATE IGNITION	1
2	7778A6	开关盒总成	SWITCHBOX ASSEMBLY	2
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	螺钉(#12-24x2.00)	SCREW (#12-24 x 2.00)	2
4	94453	开关盒螺钉衬套	BUSHING SWITCH BOX SCREW	2
5	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	8
6	60871A10	线束总成-开关盒	WIRE ASSEMBLY SWITCH BOX	2
7	62568	螺丝(#10-16 x 0.375)导线固定	SCREW (#10-16 x .375) WIRE ATTACHING	2
8	87926	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	1
9	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
10	69092	点火板螺钉(1.25)	SCREW (1.25) IGNITION PLATE	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈(.312)点火板螺钉	LOCKWASHER (.312) IGNITION PLATE SCREW	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈 点火板螺钉	WASHER IGNITION PLATE SCREW	6
13	67264	垫圈(橡胶)	WASHER (Rubber)	6
14	67268	衬套 点火板螺钉	BUSHING IGNITION PLATE SCREW	3
15	62351A1	整流器	RECTIFIER	1
15	8M0058226	整流器	RECTIFIER	1
16	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
17	45076	螺母(#10-32)黄铜整流器端子	NUT (#10-32) Brass RECTIFIER TERMINALS	3
18	33386A3	开关总成	SWITCH ASSEMLBY	1
19	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	1
20	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
21	42813	螺钉 (#10-32 X .380) 导线固定	SCREW (#10-32 X .380) LEAD ATTACHING	1
22	88439A14	电缆总成 蓄电池-正极	CABLE ASSEMBLY Battery - Positive	1
22	88439A2	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
23	96220A6	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
24	79091	保险丝20安培	FUSE 20 Ampere	1
24	8M0207796	保险丝20安培	FUSE 20 AMP	1
25	73498	线束与电缆夹	CLAMP HARNESS AND CABLES	AR
25	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
26	15857	启动电磁阀	SOLENOID Starter	1
26	853654A1	电磁阀	SOLENOID	1
27	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
28	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
29	65999A2	电缆总成 黑色 上部安装	CABLE ASSEMBLY Black UPPER MOUNT	1
30	45076	螺母(#10-32)黄铜 电磁阀端子	NUT (#10-32) Brass SOLENOID TERMINALS	2
31	53166	锁紧垫圈（.312）电磁阀端子	LOCKWASHER (.312) SOLENOID TERMINALS	2
32	68292	螺母（.312-18）电磁阀端子	NUT (.312-18) SOLENOID TERMINALS	2
32	8M0204668	螺母(.312-18)	NUT (.312-18)	2
33	97861	电磁阀绝缘体	INSULATOR SOLENOID	1
34	48409	螺钉(#10-16 x .625)不锈钢 电压调节器	SCREW (#10-16 x .625) Stainless Steel VOLTAGE REGULATOR	2
35	13397A1	线束总成	HARNESS ASSEMBLY	1
36	45076	螺母(#10-32)黄铜 电压调节器	NUT (#10-32) Brass VOLTAGE REGULATOR	2
37	88825A7	电压调节器	VOLTAGE REGUALTOR	1
38	45915	端子排	TERMINAL BLOCK	2
39	48408	螺丝(#10-16 x .500)端子排	SCREW (#10-16 x .500) TERMINAL BLOCK	4
40	88808A20	电缆总成（红色）	CABLE ASSEMBLY (RED)	1
41	87076A6	怠速控制总成	IDLE SPEED CONTROL ASSEMBLY	1
41	87076A10	怠速控制器	IDLE SPEED CONTROL	1
42	69020	螺丝(#10-32 x .875)怠速控制	SCREW (#10-32 x .875) IDLE SPEED CONTROL	3
42	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
43	38833	怠速控制垫圈	WASHER IDLE SPEED CONTROL	3
44	134731	保险丝座	HOLDER Fuse	1
