水星 Mercury V-200XRI 0D082000 THRU 0G303045 - 爆炸图零件明细

两冲程电喷 EFI · USA - Cat.# 90-81741892 · 共 100 个部位 · 4692 条零件

1泄压系统 2下罩 3曲轴（连杆锻件号644-818141）4曲轴（连杆锻件号636-8118）5曲轴活塞与连杆 6气缸体与端盖 7气缸体与端盖 8爆震控制器/温度传感器 9爆震控制器/温度传感器 10驱动轴壳体与排气管 11驱动轴壳与排气管 12双机延伸套件 13电控单元总成 14电子控制单元总成 15排气歧管与排气板 16排气歧管与排气板 17飞轮/启动电机 18飞轮/启动马达 19燃油管理系统 20燃油管理系统(分解图)21燃油管理系统 22燃油泵和燃油滤清器 23燃油泵和燃油滤清器 24齿轮箱（驱动轴）（1.87:1）25齿轮箱（螺旋桨轴）（1.87:1）26齿轮箱图表 27齿轮箱驱动轴-2:1减速比 28齿轮箱螺旋桨轴-2:1减速比 29齿轮箱驱动轴-1.87:1减速比 4.75英寸直径 30齿轮箱（驱动轴）（2.0:1）31齿轮箱螺旋桨轴1.78:1减速比 4.25英寸直径 32齿轮箱驱动轴-1.78:1减速比 4.25英寸直径 33齿轮箱螺旋桨轴-1.87:1减速比 4.75英寸直径 34齿轮箱驱动轴-反旋转 35齿轮箱（螺旋桨轴）（2.0:1）36齿轮箱螺旋桨轴-反旋转 37点火线圈/电压调节器 38点火线圈/电压调节器 39仪表装置 40机油喷射组件 41喷油组件 42动力升降组件 43动力升降倾斜电机 44动力升降泵 45动力升降组件金属马达壳 46动力升降组件（塑料马达壳体）47动力升降组件 8M0231193 48簧片阀组与气缸盖 49簧片阀组与气缸盖 50维修/支撑材料 51启动电机 52启动电机总成 53转向连接套件 54旋转支架与转向臂 55旋转支架与转向臂 56油门杆与换挡轴 57油门杆与换挡轴 58顶罩和前护板 59上罩与前护板 60艉板支架 61线束/启动继电器 62线束/启动电磁阀 63泄放系统 64下罩 65曲轴活塞与连杆 66气缸体与端盖 67爆震控制器/温度传感器 68驱动轴壳与排气管 69双机延伸套件 70电子控制单元总成 71排气歧管与排气板 72飞轮/启动电机 73燃油管理系统 74燃油管理系统(分解图)75燃油泵和燃油滤清器 76齿轮箱图表 77齿轮箱驱动轴-1.87:1减速比 4.75英寸直径 78齿轮箱驱动轴-1.78:1减速比 4.25英寸直径 79齿轮箱驱动轴-2:1减速比 80齿轮箱驱动轴-反旋转 81齿轮箱螺旋桨轴-1.87:1减速比 4.75英寸直径 82齿轮箱螺旋桨轴-2:1减速比 83齿轮箱螺旋桨轴-反旋转 84齿轮箱螺旋桨轴1.78:1减速比 4.25英寸直径 85点火线圈/电压调节器 86仪表装置 87机油喷射组件 88动力升降组件 8M0231193 89动力升降组件金属马达壳 90动力升降组件（塑料马达壳体）91动力升降倾斜电机 92簧片阀组与气缸盖 93维修/支撑材料 94启动电机 95转向连接套件 96旋转支架与转向臂 97油门杆与换挡轴 98顶罩和前护板 99艉板支架 100线束/启动继电器

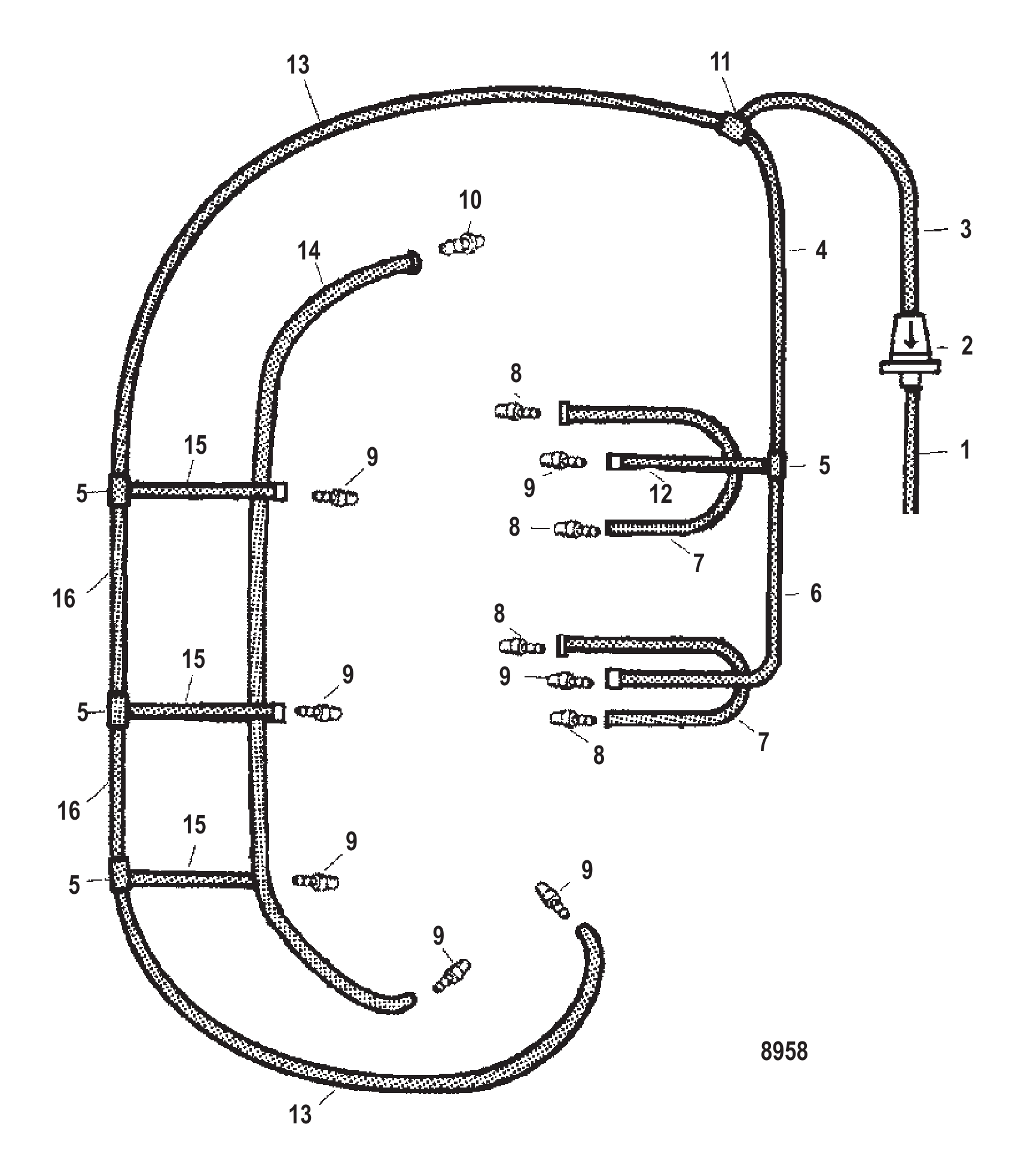

图 1泄压系统 BLEED SYSTEM

REF	零件编号	中文名称	英文名称	数量
1	9912688	管材(36.00英寸散装)(裁切至3-1/4英寸)	TUBING (36.00 Inches Bulk) (Cut to 3-1/4 IN.)	1
2	18206	滤清器	FILTER	1
2	8M0207786	滤清器	FILTER	1
3	9912688	管材(36.00英寸散装)(裁切至7-1/4英寸)	TUBING (36.00 Inches Bulk) (Cut to 7-1/4 IN.)	1
4	99130122	管材(20.00英尺散装)(裁切至3-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 3-1/2 IN.)	1
4	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
5	59169	接头	FITTING	4
5	59169003	三通接头	FITTING Tee	4
6	99130122	管材(20英尺整卷)(裁切至5-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 5-1/2 IN.)	1
6	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
7	99130122	管材(20.00英尺散装)(裁切至9英寸)	TUBING (20.00 Feet Bulk) (Cut to 9 IN.)	2
7	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
8	56759	压入式倒钩接头	FITTING Barbed (PRESS-IN)	4
9	426981	止回阀(压入式-13/16长)	CHECK VALVE (PRESS-IN - 13/16 LONG)	7
9	426982	止回阀	CHECK VALVE	7
10	426231	止回阀(压入式-11/16长)	CHECK VALVE (PRESS-IN - 11/16 LONG)	1
10	426233	止回阀	CHECK VALVE	1
11	18205	三通	TEE	1
12	99130122	管材(20.00英尺散装)(裁切至1-1/4英寸)	TUBING (20.00 Feet Bulk) (Cut to 1-1/4 IN.)	1
12	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
13	99130122	管材(20.00英尺散装)(裁切至9英寸)	TUBING (20.00 Feet Bulk) (Cut to 9 IN.)	2
13	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
14	99130122	管材(20.00英尺散装)(裁切至19英寸)	TUBING (20.00 Feet Bulk) (Cut to 19 IN.)	1
14	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
15	99130122	管材(20.00英尺散装)(裁切至1英寸)	TUBING (20.00 Feet Bulk) (Cut to 1 IN.)	3
15	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	3
16	99130122	管材(20英尺整卷)(裁切为4-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 4-1/2 IN.)	2
16	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
-	823434A97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

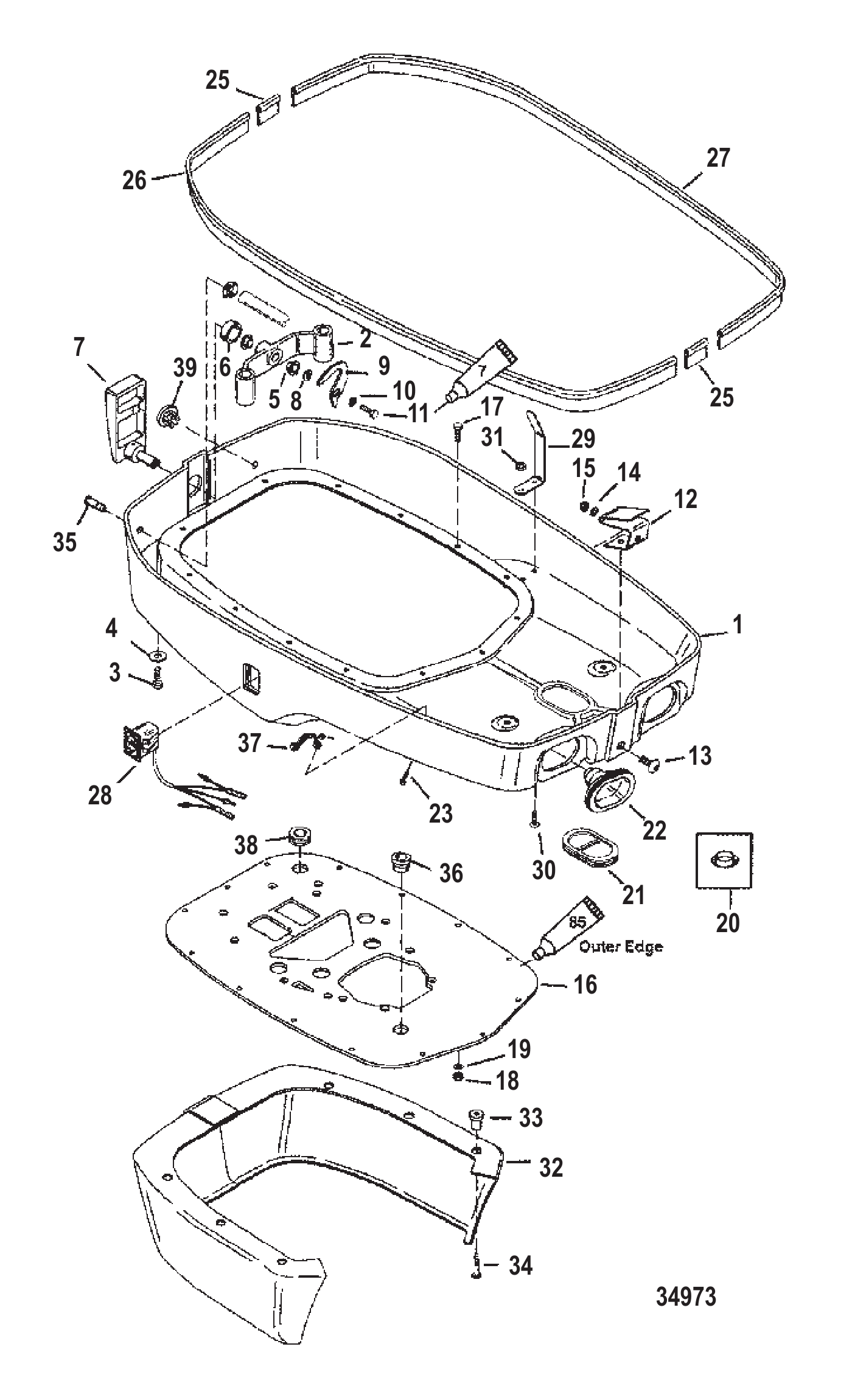

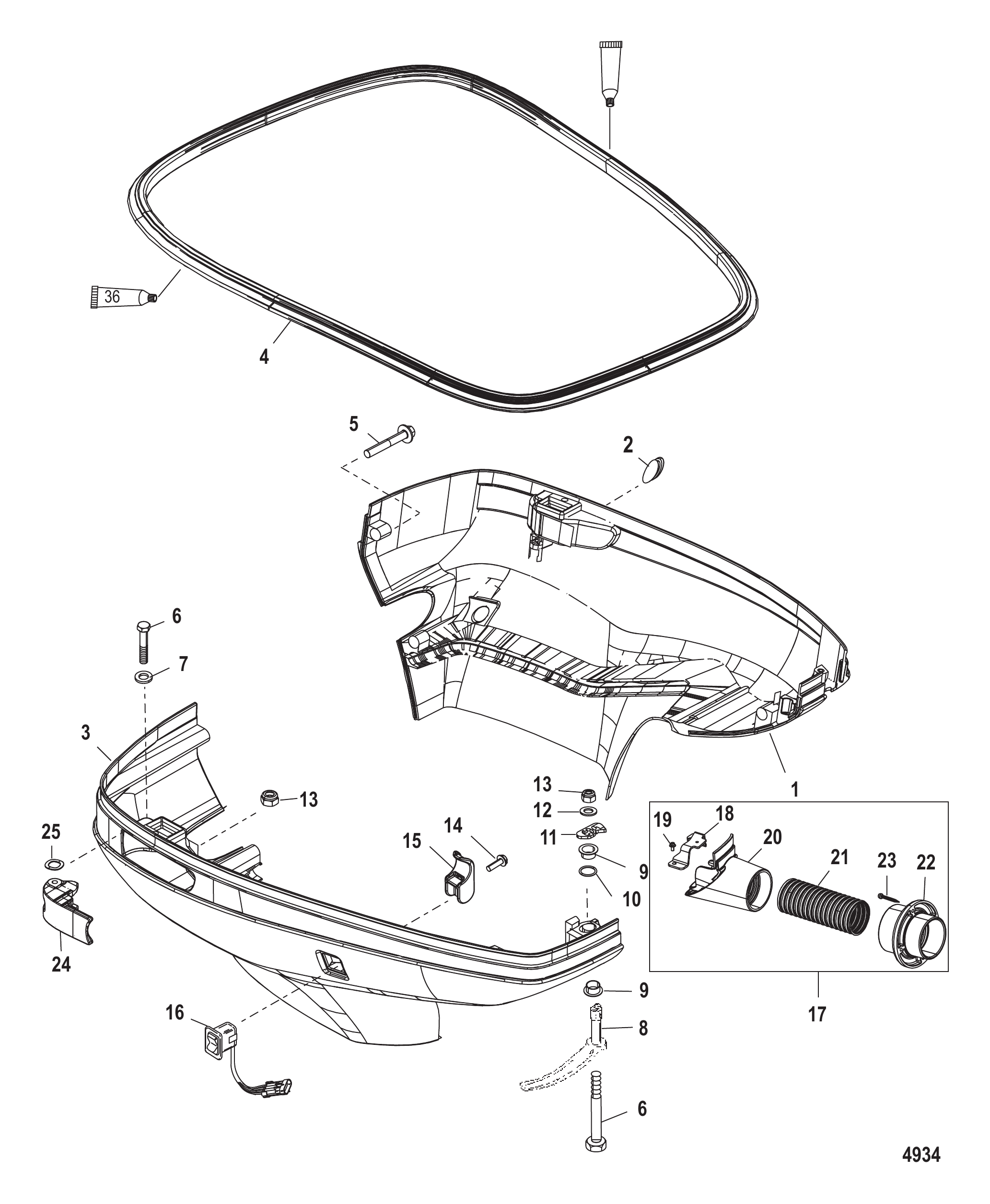

图 2下罩 Bottom Cowl

REF	零件编号	中文名称	英文名称	数量
1	828044A1	下罩壳(黑色)	BOTTOM COWL Black	1
1	828044A2	下罩壳总成(灰色)	BOTTOM COWL ASSEMBLY Gray	1
1	828044A1	下罩壳(黑色)	BOTTOM COWL Black	1
2	828045A1	下罩壳(黑色)	BOTTOM COWL Black	1
2	828045A2	下罩壳总成(灰色)	BOTTOM COWL ASSEMBLY Gray	1
3	8253181	罩盖密封条(41英寸)	SEAL Cowl (41.00 Inches)	2
3	8M0109217	罩盖密封条	SEAL-COWL	2
4	822024	卡箍	CLAMP	1
5	822023	卡箍	CLAMP	1
6	92799	螺钉(#10-16x1.12)	SCREW (#10-16 x 1.12)	2
7	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	4
8	831209	固定座	RETAINER	1
9	821908	堵头	PLUG	1
10	821915	垫圈	WASHER	1
11	821963	止回阀	CHECK VALVE	1
11	8219631	止回阀	CHECK VALVE	1
12	30641	O型圈(0.299x0.103)	O-RING (.299 x .103)	1
13	821952	接头	FITTING	1
14	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
14	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
15	827332	软管	HOSE	1
16	F698772	蜗杆卡箍	CLAMP Worm Gear	1
17	815504212	蜗杆卡箍	CLAMP Worm Gear	1
18	60522	气缸体弯头(45度)	ELBOW Cylinder Block (45 DEGREES)	1
15	8320782	软管	HOSE	1
15	8M0039077	成型软管	HOSE-MOLDED	1
17	815504212	蜗杆卡箍	CLAMP Worm Gear	2
18	832076	气缸体弯头	ELBOW Cylinder Block	1
18	8320761	止回阀接头	FITTING Check Valve	1
19	821904	示流器接头	FITTING Tell-Tale	1
19	8M0077650	示流器接头	FITTING Tell-Tale	1
20	830756109	软管(57英寸整卷)(裁切至8英寸)	HOSE (57.00 Inches Bulk) (Cut to 8 IN.)	1
20	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
21	828216	怠速排气套	IDLE EXHAUST BOOT Exhaust	1
21	889847	怠速排气套	BOOT Idle Exhaust	1
22	817519A1	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	2
23	8124431	固定座	RETAINER	1
23	8M0032848	开关固定座	RETAINER Switch	1
24	850691	开关	SWITCH	1
24	8M0235192	微调开关	SWITCH TRIM	1
25	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
26	821253F1	前手柄黑色	FRONT HANDLE Black	1
26	889740A02	手柄套件	HANDLE KIT	1
26	821253F2	前手柄	FRONT HANDLE	1
26	889740A02	手柄套件	HANDLE KIT	1
27	335891	衬套	BUSHING	2
28	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
29	8219423	棘爪	PAWL	1
30	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	1
31	401196	螺母 (M6)	NUT (M6)	1
32	8214281	螺钉(#10-16x0.625)	SCREW (#10-16 x .625)	1
33	822873	卡扣	CLIP	1

图 3曲轴（连杆锻件号644-818141） CRANKSHAFT (Conn. Rod Forging # is 644-818141)

REF	零件编号	中文名称	英文名称	数量
1	9536A4	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	67923	球轴承(下部)	BEARING Ball (LOWER)	1
2	67923T	滚珠轴承	BEARING Ball	1
3	67446	环	RING	1
4	14513A2	驱动齿轮段套件	GEAR SEGMENT KIT Drive	1
4	14513A09	驱动齿轮段套件	GEAR SEGMENT KIT Drive	1
5	813073	螺钉(#6-32 x .620)内六角头	SCREW (#6-32 x .620) Socket Head	2
6	813134	螺母(#6-32)专用	NUT (#6-32) Special	2
7	16756A1	滚柱轴承总成	BEARING ASSEMBLY Roller	2
7	16756A6	轴承套件	BEARING KIT	2
8	54196A6	托架总成	CARRIER ASSEMBLY	1
9	65800	填料	PACKING	1
10	67377	密封环(厚度0.124)	RING Sealing (.124 THICK)	7
10	67377T	密封环	RING Sealing	7
11	9738A7	活塞总成(右舷-标准)	PISTON ASSEMBLY (STARBOARD - STANDARD)	3
11	9738T9	活塞总成标准型	PISTON ASSEMBLY Standard	3
11	9738A8	活塞总成(右舷-加大0.015)	PISTON ASSEMBLY (STARBOARD - .015 O.S.)	AR
11	9738T10	活塞总成0.015加大	PISTON ASSEMBLY .015 Oversize	AR
11	9737A7	活塞总成(左舷-标准)	PISTON ASSEMBLY (PORT - STANDARD)	3
11	9737T9	活塞总成标准型	PISTON ASSEMBLY Standard	3
11	9737A8	活塞总成(左舷-加大0.015)	PISTON ASSEMBLY (PORT - .015 O.S.)	AR
11	9737A10	活塞总成0.015加大	PISTON ASSEMBLY .015 Oversize	AR
12	815515A12	活塞环组(标准)	RING SET Piston (STANDARD)	1
12	815268A4	活塞环组(.015加大)	RING SET Piston (.015 O.S.)	AR
13	52035		RING Lock PISTON	12
13	857196	锁紧环	LOCK RING	12
14	818141A2	连杆套件	CONNECTING ROD KIT	6
14	818141A13	连杆总成	CONNECTING ROD ASSEMBLY	6
15	763491	螺钉(0.312-24×0.875)连杆	SCREW (.312-24 x .875) CONNECTING ROD	12
16	812876	定位针垫圈	WASHER NEEDLE LOCATING	12
16	8M0012298	止推垫片	THRUST WASHER	12
17	674831	活塞端滚针轴承	BEARING Needle PISTON END	174
17	8M0204691	滚针轴承@200	BRG-NEEDLE @200	174
18	17514A1	轴承套件	BEARING KIT	6
18	8M0234886	轴承保持架	CAGE BEARING	6
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

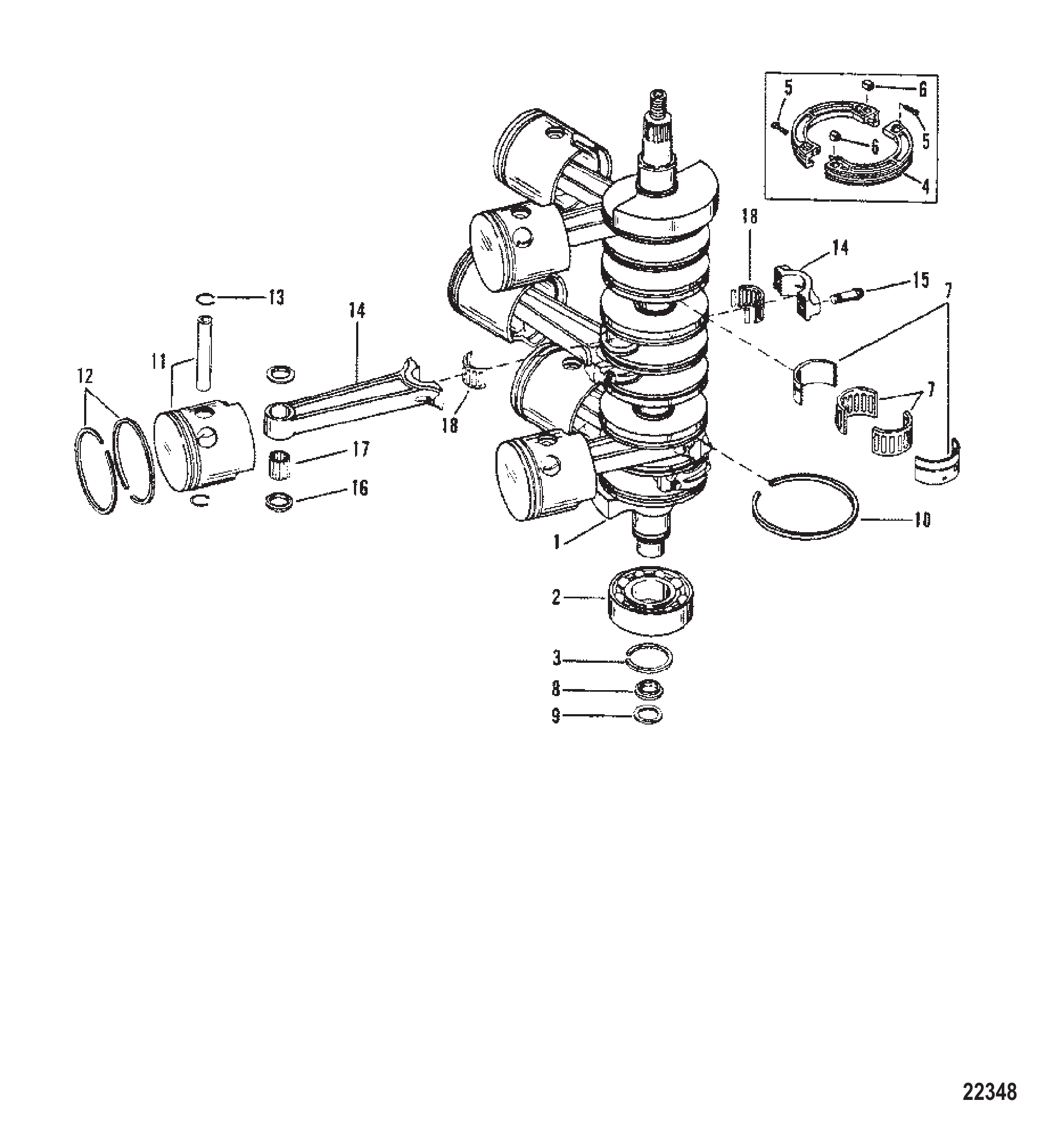

图 4曲轴（连杆锻件号636-8118） CRANKSHAFT (Conn Rod Forging # is 636-8118)

REF	零件编号	中文名称	英文名称	数量
1	9536A4	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	67923	球轴承(下部)	BEARING Ball (LOWER)	1
2	67923T	滚珠轴承	BEARING Ball	1
3	67446	环	RING	1
4	14513A2	驱动齿轮段套件	GEAR SEGMENT KIT Drive	1
4	14513A09	驱动齿轮段套件	GEAR SEGMENT KIT Drive	1
5	813073	螺钉(#6-32 x .620)内六角头	SCREW (#6-32 x .620) Socket Head	2
6	813134	螺母(#6-32)专用	NUT (#6-32) Special	2
7	16756A1	滚柱轴承总成	BEARING ASSEMBLY Roller	2
7	16756A6	轴承套件	BEARING KIT	2
8	54196A6	托架总成	CARRIER ASSEMBLY	1
9	65800	填料	PACKING	1
10	67377	密封环(厚度0.124)	RING Sealing SEALING (.124 THICK)	7 OR 8
10	67377T	密封环	RING Sealing	7 OR 8
11	8666A22	活塞总成(右舷-标准)(175)	PISTON ASSEMBLY (STARBOARD - STANDARD) (175)	3
11	8666T42	活塞总成-右舷-标准	PIST.ASY.STBD.STD	3
11	8666A36	活塞总成(右舷-加大0.015)(175)	PISTON ASSEMBLY Starboard (STARBOARD - .015 O.S.) (175)	AR
11	8666A43	活塞总成-右舷-0.015	PIST.ASY STBD.015	AR
11	8667A22	活塞总成(左舷-标准)(175)	PISTON ASSEMBLY (PORT - STANDARD) (175)	3
11	8667T42	活塞总成-左舷-标准	PIST.ASY.PORT.STD	3
11	8667A36	活塞总成(左舷-加大0.015)(175)	PISTON ASSEMBLY Port (PORT - .015 O.S.) (175)	AR
11	8667A43	活塞总成-左舷-0.015	PIST.ASY PORT.015	AR
12	18487A12	活塞环组(标准)(175)	RING SET Piston (STANDARD) (175)	1
12	815267A4	活塞环组(加大0.015)(175)	RING SET Piston (.015 O.S.) (175)	AR
11	9738A2	活塞总成(右舷-标准)(200)	PISTON ASSEMBLY (STARBOARD - STANDARD) (200)	3
11	9738T4	活塞-右舷-标准	PISTON-STBD-STD	3
11	9738A3	活塞总成(右舷-加大0.015)(200)	PISTON ASSEMBLY (STARBOARD - .015 O.S.) (200)	AR
11	9738A5	活塞-右舷-0.015	PISTON-STBD-.015	AR
11	9737A2	活塞总成(左舷-标准)(200)	PISTON ASSEMBLY (PORT - STANDARD) (200)	3
11	9737T4	活塞-左舷-标准	PISTON-PORT-STD	3
11	9737A3	活塞总成(左舷-加大0.015)(200)	PISTON ASSEMBLY (PORT - .015 O.S.) (200)	AR
11	9737A5	活塞-左舷-0.015	PISTON-PORT-.015	AR
12	815515A12	活塞环组(标准)(200)	RING SET Piston (STANDARD) (200)	1
12	815268A4	活塞环组(加大0.015)(200)	RING SET Piston (.015 O.S.) (200)	AR
13	52035	锁环	RING Lock	12
13	857196	锁紧环	LOCK RING	12
14	8119A5	连杆总成	CONNECTING ROD ASSEMBLY	6
14	8119A6	连杆套件	CONN ROD KIT	6
15	93886	螺钉(.312-28x.875)	SCREW (.312-28 x .875)	12
16	47247	垫圈	WASHER	12
16	8M0032839	垫片@5	WASHER @5	12
17	67483	滚针轴承	BEARING Needle	174
18	17514A1	轴承套件	BEARING KIT	6
18	8M0234886	轴承保持架	CAGE BEARING	6
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

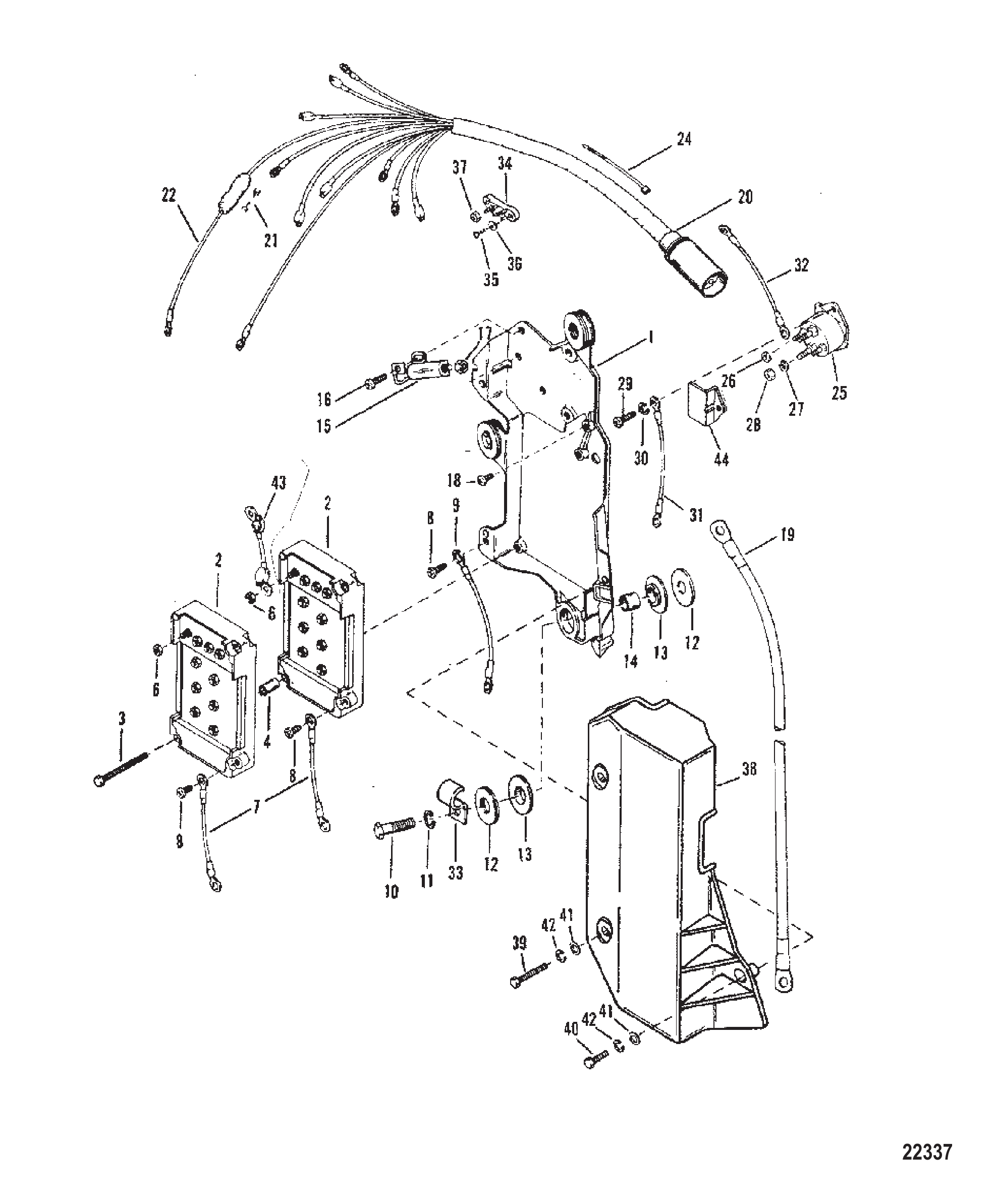

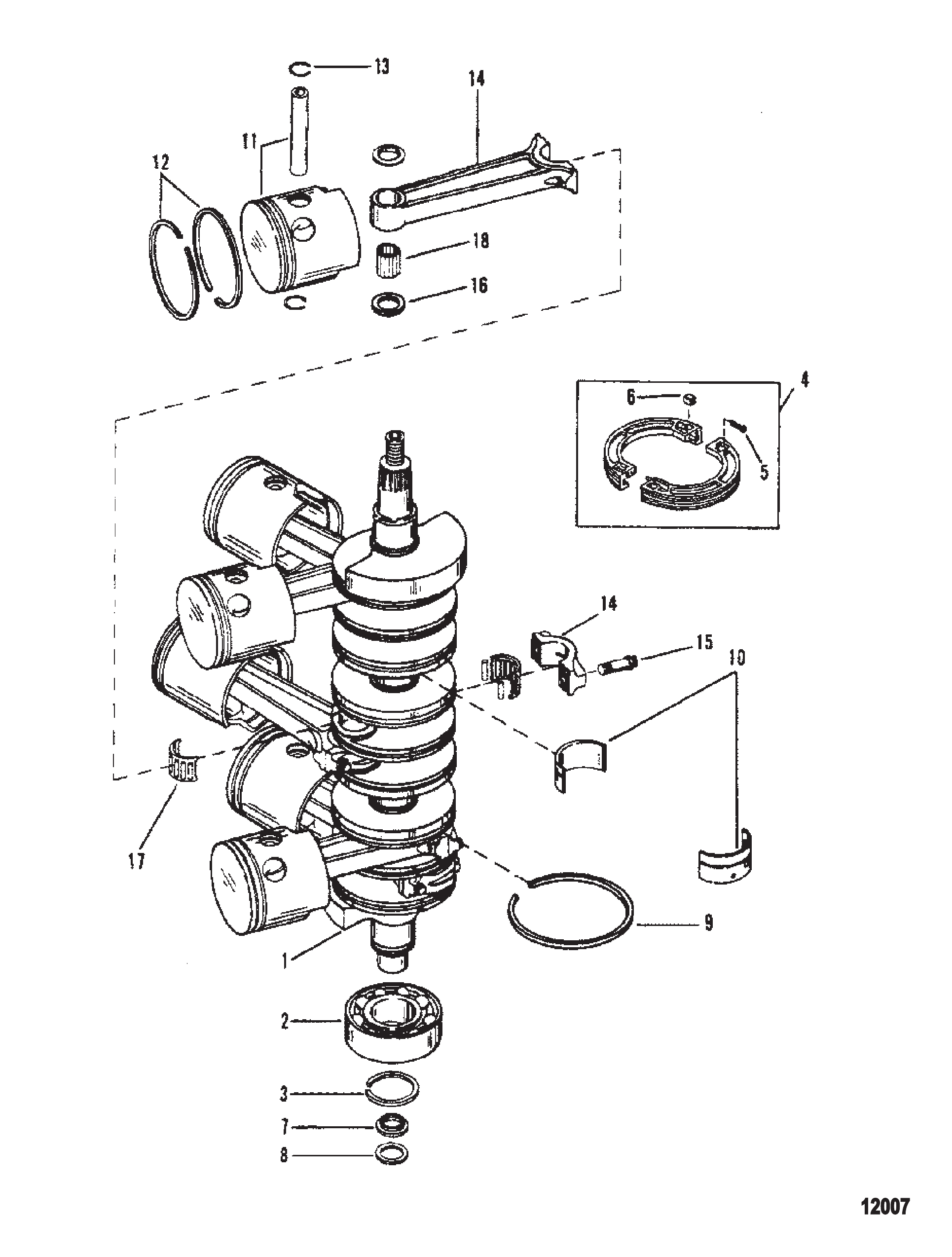

图 5曲轴活塞与连杆 Crankshaft Pistons And Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	434291	点火板点火	IGNITION PLATE IGNITION	1
2	7778A9	开关盒总成	SWITCHBOX ASSEMBLY	2
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	开关盒螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) SWITCH BOX	2
4	94453	开关盒螺钉衬套	BUSHING SWITCH BOX SCREW	2
6	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	20
7	60871A10	线束总成-开关盒	WIRE ASSEMBLY SWITCH BOX	2
8	62568	螺丝(#10-16 x 0.375)导线固定	SCREW (#10-16 x .375) WIRE ATTACHING	3
9	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
10	69092	点火板螺钉(1.25)	SCREW (1.25) IGNITION PLATE	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈(.312)点火板螺钉	LOCKWASHER (.312) IGNITION PLATE SCREW	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈点火板螺钉	WASHER IGNITION PLATE SCREW	6
13	67264	橡胶垫圈点火板螺钉	WASHER (Rubber) IGNITION PLATE SCREW	6
14	67268	衬套点火板螺钉	BUSHING IGNITION PLATE SCREW	3
15	33386A3	开关总成	SWITCH ASSEMLBY	1
16	38055	水银开关螺钉(.190-32 x .620)	SCREW (.190-32 x .620) MERCURY SWITCH	1
17	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
18	87926	螺钉(#10-32 x .500)导线固定	SCREW (#10-32 x .500) LEAD ATTACHING	1
19	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
19	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
20	96220A12	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
21	79091	保险丝20安培	FUSE 20 Ampere	1
21	8M0207796	保险丝20安培	FUSE 20 AMP	1
22	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
24	816311	捆扎带(8英寸)线束和电缆	TIE STRAP (8.00 Inches) HARNESS AND CABLES	AR
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	68258A4	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
25	853654A1	电磁阀	SOLENOID	1
26	45076	螺母(#10-32)黄铜电磁阀端子	NUT (#10-32) Brass SOLENOID TERMINALS	2
27	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
28	68292	螺母（.312-18）电磁阀端子	NUT (.312-18) SOLENOID TERMINALS	2
28	8M0204668	螺母(.312-18)	NUT (.312-18)	2
29	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
30	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
31	65999A2	电缆总成黑色上部安装	CABLE ASSEMBLY Black UPPER MOUNT	1
32	88528A2	线缆总成(6英寸-红/白)	CABLE ASSEMBLY (6" - RED/WHITE)	1
32	91865A1	线束总成(3"-白/黑-175)	CABLE ASSEMBLY (3" - WHITE/BLACK - 175)	1
33	47483	J型卡扣	J CLIP	3
34	194372	端子排	TERMINAL BLOCK	1
35	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
36	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
37	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
38	814422T	点火板盖	COVER IGNITION PLATE	1
39	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	2
40	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
40	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
41	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
42	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	3
43	62310A2	线束总成(175)	CABLE ASSEMBLY (175)	1
44	78866	绝缘体	INSULATOR	1

图 6气缸体与端盖 Cylinder Block And End Caps

REF	零件编号	中文名称	英文名称	数量
1	434291	点火板点火	IGNITION PLATE IGNITION	1
2	7778A9	开关盒总成	SWITCHBOX ASSEMBLY	2
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	开关盒螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) SWITCH BOX	2
4	94453	开关盒螺钉衬套	BUSHING SWITCH BOX SCREW	2
6	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	20
7	60871A10	线束总成-开关盒	WIRE ASSEMBLY SWITCH BOX	2
8	62568	螺丝(#10-16 x 0.375)导线固定	SCREW (#10-16 x .375) WIRE ATTACHING	3
9	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
10	69092	点火板螺钉(1.25)	SCREW (1.25) IGNITION PLATE	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈(.312)点火板螺钉	LOCKWASHER (.312) IGNITION PLATE SCREW	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈点火板螺钉	WASHER IGNITION PLATE SCREW	6
13	67264	橡胶垫圈点火板螺钉	WASHER (Rubber) IGNITION PLATE SCREW	6
14	67268	衬套点火板螺钉	BUSHING IGNITION PLATE SCREW	3
15	33386A3	开关总成	SWITCH ASSEMLBY	1
16	38055	水银开关螺钉(.190-32 x .620)	SCREW (.190-32 x .620) MERCURY SWITCH	1
17	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
18	87926	螺钉(#10-32 x .500)导线固定	SCREW (#10-32 x .500) LEAD ATTACHING	1
19	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
19	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
20	96220A12	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
21	79091	保险丝20安培	FUSE 20 Ampere	1
21	8M0207796	保险丝20安培	FUSE 20 AMP	1
22	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
24	816311	捆扎带(8英寸)线束和电缆	TIE STRAP (8.00 Inches) HARNESS AND CABLES	AR
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	68258A4	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
25	853654A1	电磁阀	SOLENOID	1
26	45076	螺母(#10-32)黄铜电磁阀端子	NUT (#10-32) Brass SOLENOID TERMINALS	2
27	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
28	68292	螺母（.312-18）电磁阀端子	NUT (.312-18) SOLENOID TERMINALS	2
28	8M0204668	螺母(.312-18)	NUT (.312-18)	2
29	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
30	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
31	65999A2	电缆总成黑色上部安装	CABLE ASSEMBLY Black UPPER MOUNT	1
32	88528A2	线缆总成(6英寸-红/白)	CABLE ASSEMBLY (6" - RED/WHITE)	1
32	91865A1	线束总成(3"-白/黑-175)	CABLE ASSEMBLY (3" - WHITE/BLACK - 175)	1
33	47483	J型卡扣	J CLIP	3
34	194372	端子排	TERMINAL BLOCK	1
35	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
36	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
37	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
38	814422T	点火板盖	COVER IGNITION PLATE	1
39	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	2
40	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
40	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
41	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
42	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	3
43	62310A2	线束总成(175)	CABLE ASSEMBLY (175)	1
44	78866	绝缘体	INSULATOR	1

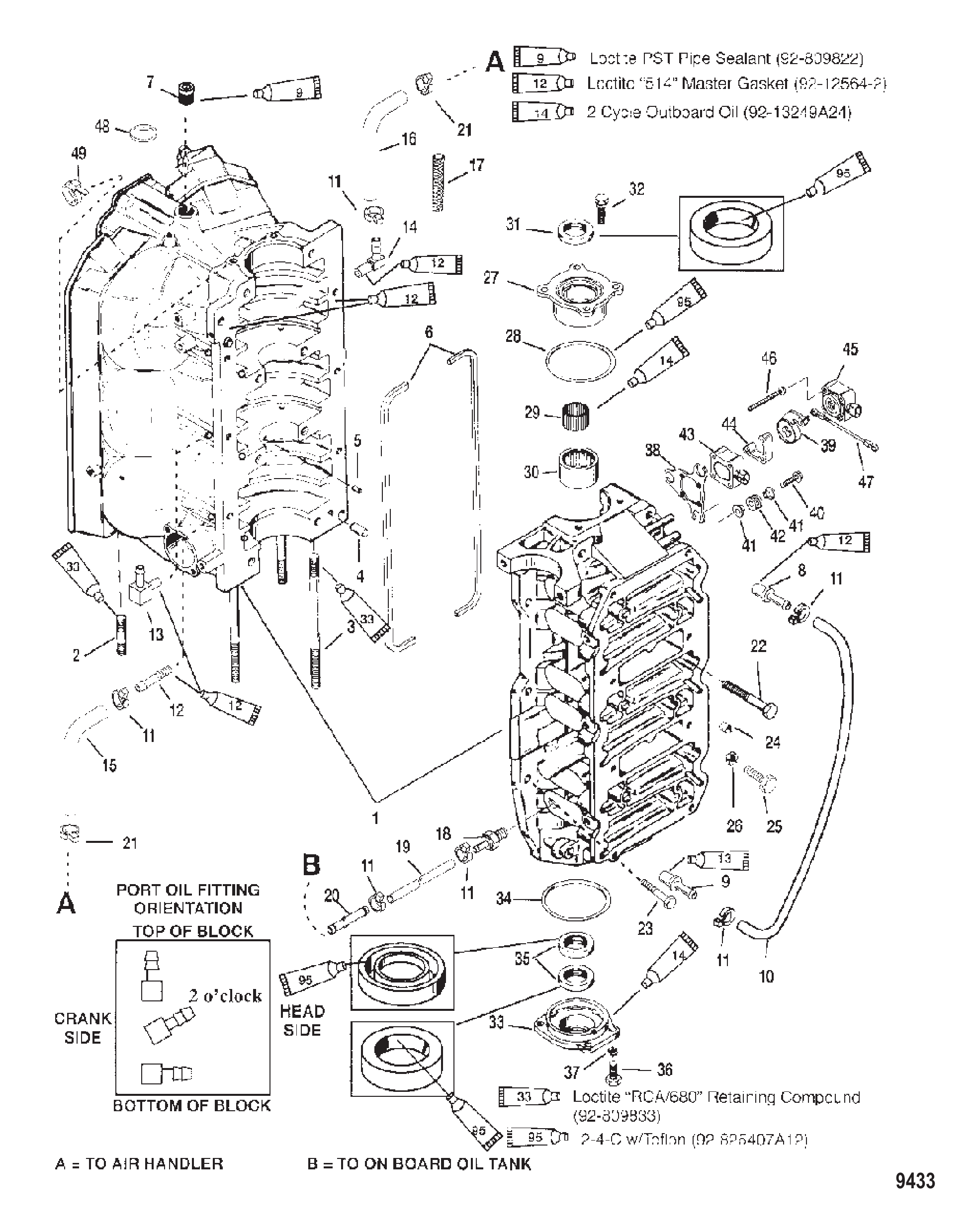

图 7气缸体与端盖 CYLINDER BLOCK AND END CAPS

REF	零件编号	中文名称	英文名称	数量
1	828340A5	气缸体	CYLINDER BLOCK	1
2	8181383	动力头螺柱（1-3/4英寸）	STUD Powerhead (1-3/4 IN.)	6
2	8M0034455	螺柱1.750	STUD 1.750	6
3	670653	双头螺柱（0.375×5.620英寸，5-1/2英寸）	STUD (.375 x 5.620) (5-1/2 IN.)	2
3	670654	螺柱(.375-16/.375-24 x 5.620)	STUD (.375-16/.375-24 x 5.620)	2
3	784384	双头螺栓(.375 x 6.870)(6-3/4英寸)	STUD (.375 x 6.870) (6-3/4 IN.)	2
3	8M0034454	螺柱(.375-16/.375-24 x 6.87)	STUD (.375-16/.375-24 x 6.87)	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	销(轴承座圈)	PIN (BEARING RACE)	2
5	8M0036405	销	PIN	2
6	11338	衬垫	GASKET	2
7	384071	接头(1/2-14)	FITTING (1/2-14) (1/2-14)	1
8	426231	止回阀	CHECK VALVE	1
8	426233	止回阀	CHECK VALVE	1
9	426981	止回阀	CHECK VALVE	1
9	426982	止回阀	CHECK VALVE	1
10	99130122	管材(20英尺整卷)(裁切为19英寸)	TUBING (20.00 Feet Bulk) (Cut to 19 Inches)	1
10	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
11	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	10
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	10
12	852760	直通接头	FITTING (STRAIGHT)	2
13	855622	弯头接头	FITTING (ELBOW)	1
14	8267611	弯头	ELBOW (ELBOW)	3
15	85583445	管材(16英寸)	TUBING (16 IN.)	2
15	85583464	管材 (34.00英寸整卷)	TUBING (34.00 Inches Bulk)	2
15	85583445	管材(20英寸)	TUBING (20 IN.)	1
15	85583464	管材 (34.00英寸整卷)	TUBING (34.00 Inches Bulk)	1
16	85606064	管材(36.00英寸整料)(24-1/2英寸)	TUBING (36.00 Inches Bulk) (24-1/2 IN.)	3
16	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	3
17	828547753	导管(.750内径x3.00英尺整料)(裁切至7英寸)	CONDUIT (.750 Inside Diameter x 3.00 Feet Bulk) (Cut to 7 Inches)	1
18	432781	止回阀	CHECK VALVE	1
18	8781051	止回阀	CHECK VALVE	1
19	830756109	软管(57.00英寸整料)(裁切至11-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 11-1/2 Inches)	1
19	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
20	822769	连接器	CONNECTOR	1
21	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	6
22	66717	螺钉(.375-16 x 3.250)	SCREW (.375-16 x 3.250)	8
23	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	6
24	26852	尼龙帽	CAP Nylon	1
25	856832	螺丝 (.250-20 x 1.750)	SCREW (.250-20 x 1.750)	1
26	64015	螺母 (.250-20)	NUT (.250-20)	1
27	832760A1	上端盖总成	END CAP ASSEMBLY Upper	1
27	832760T1	端盖总成	END CAP ASSEMBLY	1
28	54029	O型圈(2.800 x .103)	O-RING (2.800 x .103)	1
29	16756A4	轴承套件	BEARING KIT	1
30	NSS	不单独销售轴承座圈	NOT SOLD SEPARATE Bearing Race	1
31	41953	密封件	SEAL	1
32	69034	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW AND LOCKWASHER (.312-18 x 1.00)	4
32	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	4
33	7809A1	端盖总成	END CAP ASSEMBLY	1
33	7809T1	端盖总成	END CAP ASSEMBLY	1
34	62700	O型圈(3.237 x .103)	O-RING (3.237 x .103)	1
35	41953	密封件	SEAL	2
36	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
37	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
38	853882	支架	BRACKET	1
38	8538821	节气门位置指示器安装支架	BRACKET Throttle Position Indicator Mount	1
39	8519371	节气门位置指示器杠杆	LEVER Throttle Position Indicator	1
40	82130025	螺钉(M6x25)	SCREW (M6 x 25)	3
41	8318701	衬套	BUSHING	6
42	834985	护孔环	GROMMET	3
42	8M0190980	护孔环	GROMMET	3
43	8M6005905	节气门位置指示器(内侧)	INDICATOR Throttle Position (Inside)	1
44	850882	隔套	SPACER	1
45	8329522	节气门位置指示器(外侧)	INDICATOR Throttle Position (Outside)	1
45	8M6005166	TPI	TPI	1
46	850828	螺钉(#10-32 X 2-3/4英寸)	SCREW (#10-32 X 2-3/4 IN.)	3
47	1938541	油门连杆	LINK Throttle	1
47	8M0084738	连杆总成	LINK ASSY	1
48	NSS	不单独销售序列号塞	NOT SOLD SEPARATE Plug-Serial Number	1
49	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
49	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
-	814754A98	衬垫套件	GASKET SET	1
-	8M0046714	衬垫套件	GASKET SET	1
-	854008A98	动力头总成	POWERHEAD ASSEMBLY	1
-	804545T99	动力头总成	POWERHEAD ASSEMBLY	1

图 8爆震控制器/温度传感器 Detonation Controller/Temperature Sensor

REF	零件编号	中文名称	英文名称	数量
1	434291	点火板点火	IGNITION PLATE IGNITION	1
2	7778A9	开关盒总成	SWITCHBOX ASSEMBLY	2
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	开关盒螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) SWITCH BOX	2
4	94453	开关盒螺钉衬套	BUSHING SWITCH BOX SCREW	2
6	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	20
7	60871A10	线束总成-开关盒	WIRE ASSEMBLY SWITCH BOX	2
8	62568	螺丝(#10-16 x 0.375)导线固定	SCREW (#10-16 x .375) WIRE ATTACHING	3
9	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
10	69092	点火板螺钉(1.25)	SCREW (1.25) IGNITION PLATE	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈(.312)点火板螺钉	LOCKWASHER (.312) IGNITION PLATE SCREW	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈点火板螺钉	WASHER IGNITION PLATE SCREW	6
13	67264	橡胶垫圈点火板螺钉	WASHER (Rubber) IGNITION PLATE SCREW	6
14	67268	衬套点火板螺钉	BUSHING IGNITION PLATE SCREW	3
15	33386A3	开关总成	SWITCH ASSEMLBY	1
16	38055	水银开关螺钉(.190-32 x .620)	SCREW (.190-32 x .620) MERCURY SWITCH	1
17	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
18	87926	螺钉(#10-32 x .500)导线固定	SCREW (#10-32 x .500) LEAD ATTACHING	1
19	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
19	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
20	96220A12	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
21	79091	保险丝20安培	FUSE 20 Ampere	1
21	8M0207796	保险丝20安培	FUSE 20 AMP	1
22	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
24	816311	捆扎带(8英寸)线束和电缆	TIE STRAP (8.00 Inches) HARNESS AND CABLES	AR
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	68258A4	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
25	853654A1	电磁阀	SOLENOID	1
26	45076	螺母(#10-32)黄铜电磁阀端子	NUT (#10-32) Brass SOLENOID TERMINALS	2
27	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
28	68292	螺母（.312-18）电磁阀端子	NUT (.312-18) SOLENOID TERMINALS	2
28	8M0204668	螺母(.312-18)	NUT (.312-18)	2
29	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
30	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
31	65999A2	电缆总成黑色上部安装	CABLE ASSEMBLY Black UPPER MOUNT	1
32	88528A2	线缆总成(6英寸-红/白)	CABLE ASSEMBLY (6" - RED/WHITE)	1
32	91865A1	线束总成(3"-白/黑-175)	CABLE ASSEMBLY (3" - WHITE/BLACK - 175)	1
33	47483	J型卡扣	J CLIP	3
34	194372	端子排	TERMINAL BLOCK	1
35	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
36	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
37	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
38	814422T	点火板盖	COVER IGNITION PLATE	1
39	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	2
40	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
40	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
41	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
42	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	3
43	62310A2	线束总成(175)	CABLE ASSEMBLY (175)	1
44	78866	绝缘体	INSULATOR	1

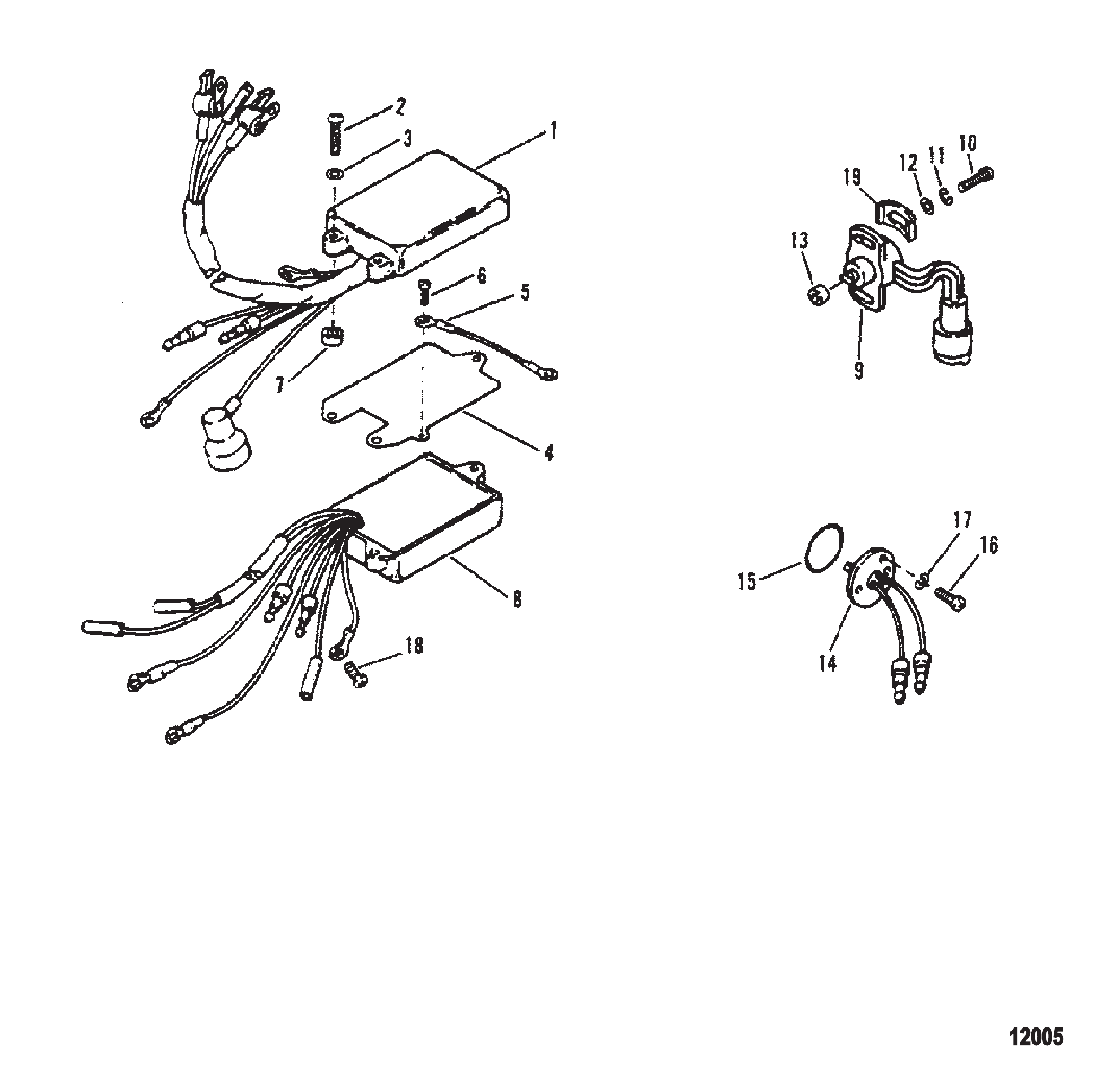

图 9爆震控制器/温度传感器 DETONATION CONTROLLER/TEMPERATURE SENSOR

REF	零件编号	中文名称	英文名称	数量
1	826800A8	爆震控制器总成	CONTROLLER ASSEMBLY Detonation	1
2	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	3
3	38833	垫圈	WASHER	3
4	13381	安装板	PLATE	1
5	88807A10	拉线总成	CABLE ASSEMBLY	1
6	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
7	94304	隔套	SPACER	3
8	41470A25	喷油警告模块总成	MODULE ASSEMBLY Oil Injection Warning	1
9	14851	油门位置指示器	INDICATOR Throttle Position	1
9	14851T03	指示器	INDICATOR	1
10	15150	螺钉(#8-32 x 0.625英寸)	SCREW (#8-32 x .625)	2
11	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	2
12	30164	垫圈(0.192x0.375x0.0312)不锈钢	WASHER (.192 x .375 x .0312) Stainless Steel	2
13	15885	套筒	SLEEVE	1
14	813501	安装板	PLATE	2
15	13221A1	温度传感器总成	SENSOR ASSEMBLY Temperature	1
15	13221T01	温度传感器	SENSOR TEMP	1
16	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
17	57583	螺丝（#8-32×0.375）	SCREW (#8-32 x .375)	3
17	57583T	螺丝#8-32×3/8	SCREW #8-32x3/8	3
18	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	3
-	815791A92	发动机垫片组	GASKET SET Engine	1

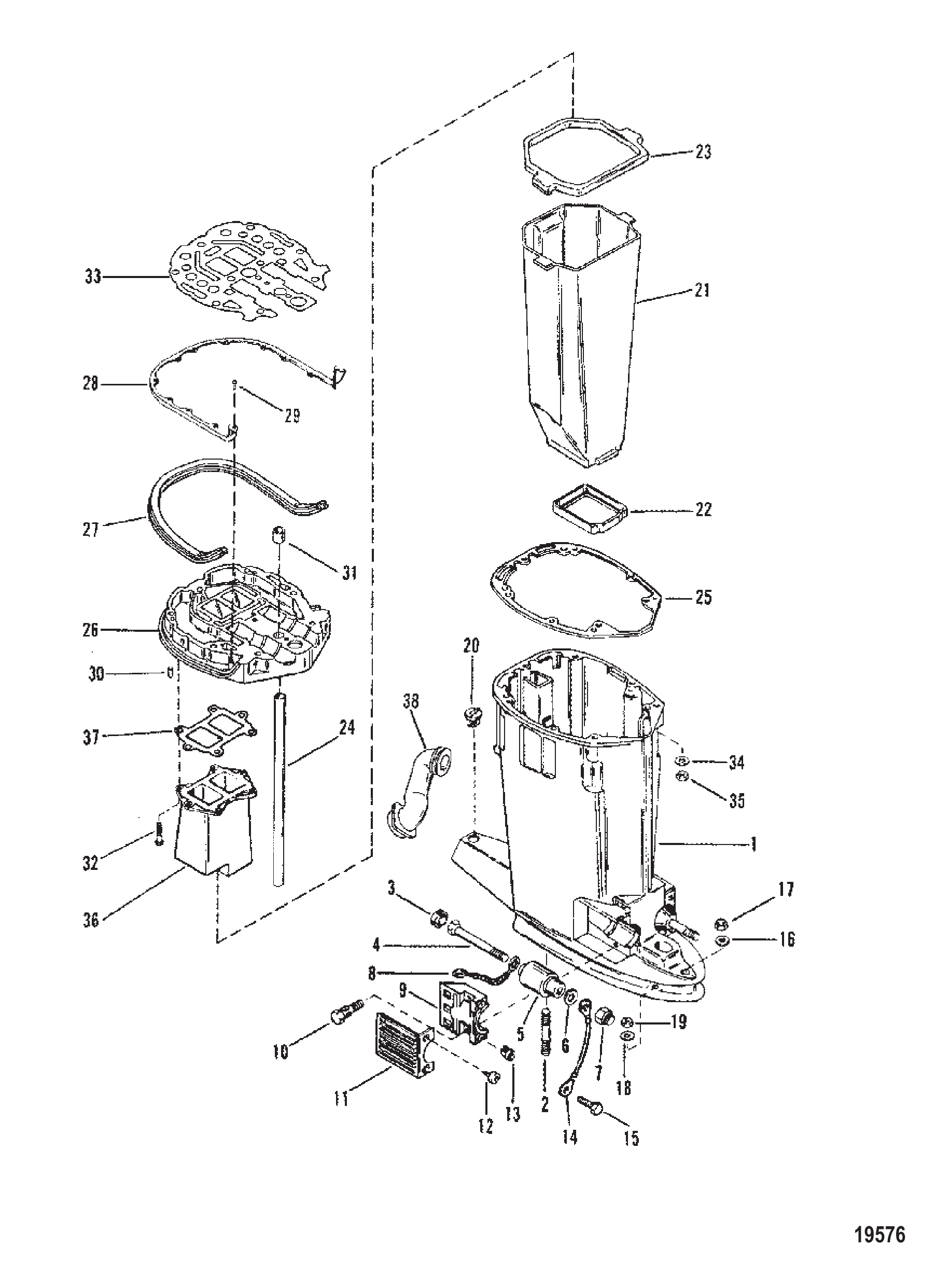

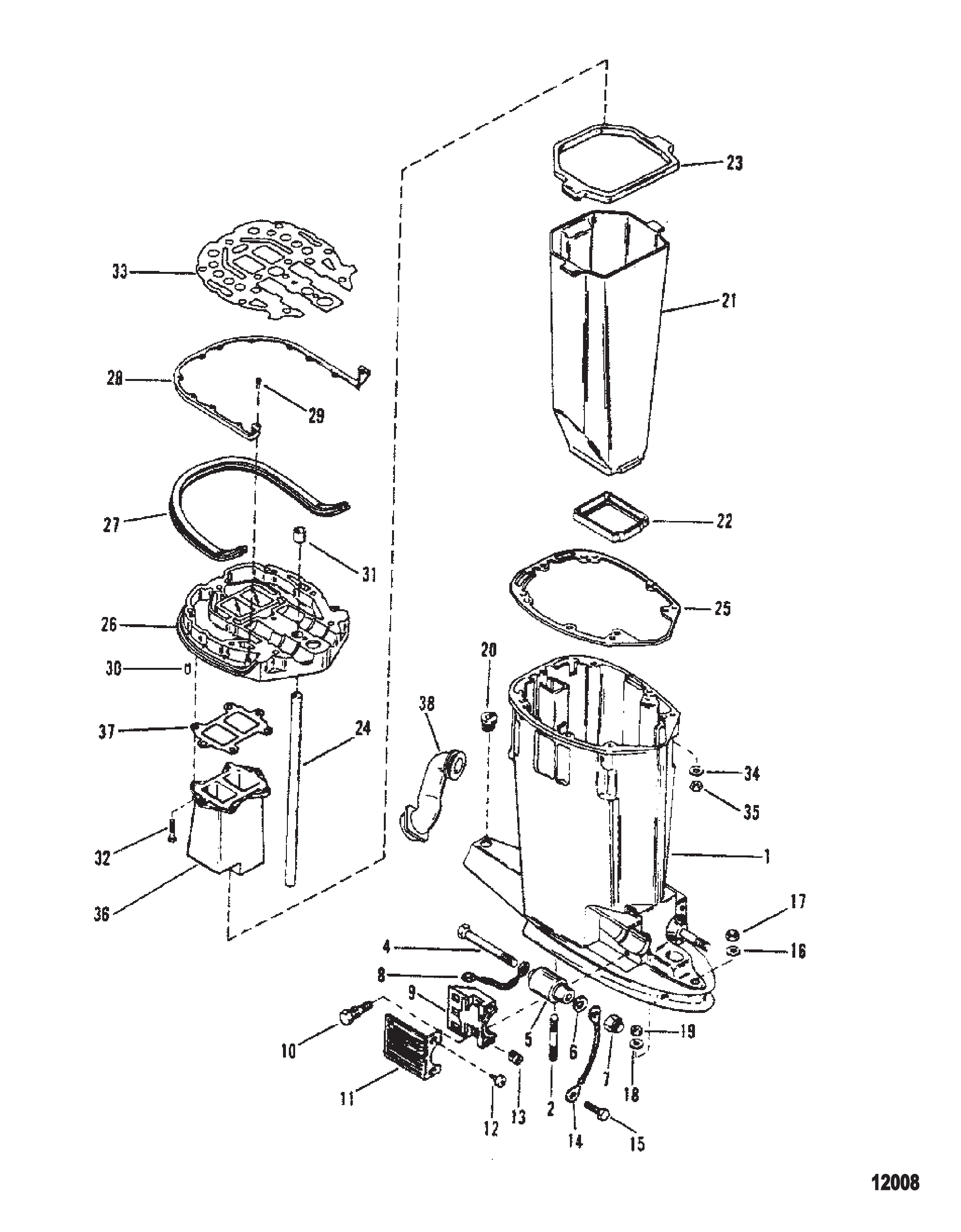

图 10驱动轴壳体与排气管 DRIVESHAFT HOUSING AND EXHAUST TUBE

REF	零件编号	中文名称	英文名称	数量
1	8343A10	传动轴壳体总成(黑色)	HOUSING ASSEMBLY Driveshaft (BLACK)	1
1	8343A11	传动轴壳体总成(灰色)	HOUSING ASSEMBLY Driveshaft (GRAY)	1
1	8343T11	ORD 1590-8343T10	ORD 1590-8343T10	1
2	56295	驱动轴壳体/齿轮箱壳体双头螺柱(.437 x 2.69)	STUD (.437 x 2.69) DRIVE SHAFT HSG./GEAR HSG.	2
3	25067	下安装座螺钉缓冲垫	BUMPER LOWER MOUNT SCREW	2
4	63474	下安装座螺钉(.500-20 x 6.00)	SCREW (.500-20 x 6.00) LOWER MOUNT	2
4	898831	螺钉(.500-20 x 6.220)	SCREW (.500-20 x 6.220)	2
5	78249	下支架	MOUNT LOWER	2
5	77327	支架	MOUNT	2
6	49339	下部安装螺钉垫圈(.8125)	WASHER (.8125) LOWER MOUNT SCREW	2
7	25096	下安装螺丝螺母	NUT LOWER MOUNT SCREW	2
8	88238A1	接地线总成	CABLE ASSEMBLY Ground	1
8	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
9	67076	下安装夹	CLAMP LOWER MOUNT	2
9	8M0036782	卡箍	CLAMP	2
10	66727	下安装座夹具固定螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250) LOWER MOUNT CLAMP ATTACHING	4
11	67077T	黑色下安装夹盖(黑色)	COVER Black LOWER MOUNT CLAMP (BLACK)	2
11	8M4500752	盖板	COVER	2
11	67077T6	下安装座夹具盖(灰色)	COVER LOWER MOUNT CLAMP (GRAY)	2
11	67077F1	灰色盖板	COVER Gray	2
12	88417	盖固定螺钉(#12-24 x .620)	SCREW (#12-24 x .620) COVER ATTACHING	4
13	35521	盖至夹具螺钉尼龙螺母	NUT NYLON - COVER TO CLAMP SCREW	4
14	88238A1	接地线总成	CABLE ASSEMBLY Ground	1
14	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
15	41508	螺丝(.250-20 x .500)不锈钢接地线	SCREW (.250-20 x .500) Stainless Steel GROUND WIRE	1
16	48926	齿轮箱壳体螺柱垫圈	WASHER GEAR HOUSING STUD	1
17	29489	齿轮箱壳体螺柱盖形螺母	NUT GEAR HOUSING STUD (CAP)	1
18	45176	齿轮箱壳体螺柱不锈钢垫圈(.453 x .812 x .105)	WASHER (.453 x .812 x .105) Stainless Steel GEAR HOUSING STUD	2
19	34933	齿轮箱壳体螺柱不锈钢螺母(.437-20)	NUT (.437-20) Stainless Steel GEAR HOUSING STUD	2
19	8M0204653	螺母	NUT	2
20	64649	驱动轴壳体塞	PLUG DRIVE SHAFT HOUSING	1
21	18276	排气管	TUBE Exhaust	1
21	18276T	排气管	EXHAUST TUBE	1
22	66350	排气管密封件 (下部)	SEAL EXHAUST TUBE (LOWER)	1
22	66350001	密封件	SEAL	1
23	177261	排气管密封件 (上部)	SEAL EXHAUST TUBE (UPPER)	1
23	8M0039076	密封件	SEAL	1
24	67295	水管 WATER	TUBE Water WATER	1
24	8M0042788	长型水管	TUBE-WATER-LONG	1
25	991732	驱动轴壳体至板衬垫	GASKET DRIVE SHAFT HOUSING TO PLATE	1
25	991734	衬垫	GASKET	1
26	18233A2	驱动轴壳体板总成	PLATE ASSEMBLY DRIVE SHAFT HOUSING	1
26	18233A20	传动轴壳体板总成	PLATE ASSEMBLY Driveshaft Housing	1
27	8147012	支架密封条	SEAL BRACKET	1
27	8M0043165	密封件-27.00英寸	SEAL-27.00 INCH	1
28	68011	密封件固定支架	BRACKET SEAL RETAINING	1
29	812832	支架至板件螺钉(#10-16 x .500)	SCREW (#10-16 x .500) BRACKET TO PLATE	12
29	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
30	20033	定位销	PIN Dowel LOCATING	2
30	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
31	38970	水管密封件	SEAL WATER TUBE	1
32	90192	延伸件至板不锈钢螺钉(.250-20 x .750)	SCREW (.250-20 x .750) Stainless Steel EXTENSION TO PLATE	6
33	183071	驱动轴箱板衬垫	GASKET DRIVE SHAFT HOUSING PLATE	1
33	183076	衬垫	GASKET	1
34	25970	动力头螺柱垫圈	WASHER POWER HEAD STUD	4
34	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	4
35	69254	动力头螺柱螺母	NUT POWER HEAD STUD	4
36	17303	扩散器（175）	DIFFUSER (175)	1
36	17303T1	排气延长管	EXH. EXTENSION	1
36	41942T	排气延长管（200）	EXTENSION Exhaust (200)	1
36	879288T71	排气管延长段	EXTENSION Exhaust	1
37	78246	排气延长管衬垫	GASKET EXHAUST EXTENSION	1
37	782461	衬垫	GASKET	1
38	814618	怠速排气套	BOOT IDLE EXHAUST	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 11驱动轴壳与排气管 Drive Shaft Housing And Exhaust Tube

REF	零件编号	中文名称	英文名称	数量
1	434291	点火板点火	IGNITION PLATE IGNITION	1
2	7778A9	开关盒总成	SWITCHBOX ASSEMBLY	2
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	开关盒螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) SWITCH BOX	2
4	94453	开关盒螺钉衬套	BUSHING SWITCH BOX SCREW	2
6	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	20
7	60871A10	线束总成-开关盒	WIRE ASSEMBLY SWITCH BOX	2
8	62568	螺丝(#10-16 x 0.375)导线固定	SCREW (#10-16 x .375) WIRE ATTACHING	3
9	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
10	69092	点火板螺钉(1.25)	SCREW (1.25) IGNITION PLATE	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈(.312)点火板螺钉	LOCKWASHER (.312) IGNITION PLATE SCREW	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈点火板螺钉	WASHER IGNITION PLATE SCREW	6
13	67264	橡胶垫圈点火板螺钉	WASHER (Rubber) IGNITION PLATE SCREW	6
14	67268	衬套点火板螺钉	BUSHING IGNITION PLATE SCREW	3
15	33386A3	开关总成	SWITCH ASSEMLBY	1
16	38055	水银开关螺钉(.190-32 x .620)	SCREW (.190-32 x .620) MERCURY SWITCH	1
17	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
18	87926	螺钉(#10-32 x .500)导线固定	SCREW (#10-32 x .500) LEAD ATTACHING	1
19	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
19	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
20	96220A12	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
21	79091	保险丝20安培	FUSE 20 Ampere	1
21	8M0207796	保险丝20安培	FUSE 20 AMP	1
22	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
24	816311	捆扎带(8英寸)线束和电缆	TIE STRAP (8.00 Inches) HARNESS AND CABLES	AR
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	68258A4	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
25	853654A1	电磁阀	SOLENOID	1
26	45076	螺母(#10-32)黄铜电磁阀端子	NUT (#10-32) Brass SOLENOID TERMINALS	2
27	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
28	68292	螺母（.312-18）电磁阀端子	NUT (.312-18) SOLENOID TERMINALS	2
28	8M0204668	螺母(.312-18)	NUT (.312-18)	2
29	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
30	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
31	65999A2	电缆总成黑色上部安装	CABLE ASSEMBLY Black UPPER MOUNT	1
32	88528A2	线缆总成(6英寸-红/白)	CABLE ASSEMBLY (6" - RED/WHITE)	1
32	91865A1	线束总成(3"-白/黑-175)	CABLE ASSEMBLY (3" - WHITE/BLACK - 175)	1
33	47483	J型卡扣	J CLIP	3
34	194372	端子排	TERMINAL BLOCK	1
35	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
36	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
37	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
38	814422T	点火板盖	COVER IGNITION PLATE	1
39	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	2
40	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
40	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
41	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
42	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	3
43	62310A2	线束总成(175)	CABLE ASSEMBLY (175)	1
44	78866	绝缘体	INSULATOR	1

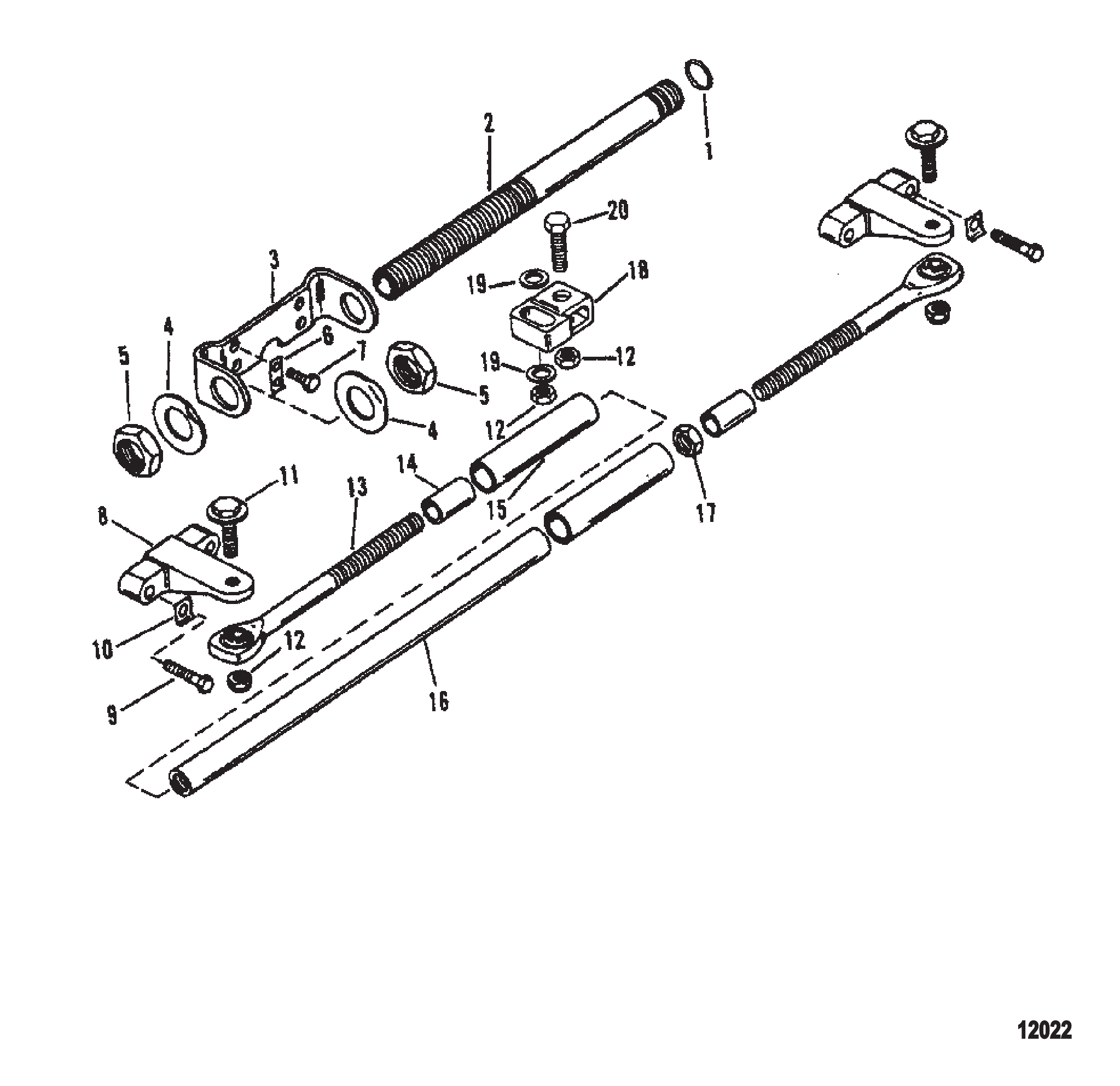

图 12双机延伸套件 Dual Engine Extension Kit

REF	零件编号	中文名称	英文名称	数量
1	434291	点火板点火	IGNITION PLATE IGNITION	1
2	7778A9	开关盒总成	SWITCHBOX ASSEMBLY	2
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	开关盒螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) SWITCH BOX	2
4	94453	开关盒螺钉衬套	BUSHING SWITCH BOX SCREW	2
6	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	20
7	60871A10	线束总成-开关盒	WIRE ASSEMBLY SWITCH BOX	2
8	62568	螺丝(#10-16 x 0.375)导线固定	SCREW (#10-16 x .375) WIRE ATTACHING	3
9	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
10	69092	点火板螺钉(1.25)	SCREW (1.25) IGNITION PLATE	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈(.312)点火板螺钉	LOCKWASHER (.312) IGNITION PLATE SCREW	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈点火板螺钉	WASHER IGNITION PLATE SCREW	6
13	67264	橡胶垫圈点火板螺钉	WASHER (Rubber) IGNITION PLATE SCREW	6
14	67268	衬套点火板螺钉	BUSHING IGNITION PLATE SCREW	3
15	33386A3	开关总成	SWITCH ASSEMLBY	1
16	38055	水银开关螺钉(.190-32 x .620)	SCREW (.190-32 x .620) MERCURY SWITCH	1
17	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
18	87926	螺钉(#10-32 x .500)导线固定	SCREW (#10-32 x .500) LEAD ATTACHING	1
19	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
19	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
20	96220A12	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
21	79091	保险丝20安培	FUSE 20 Ampere	1
21	8M0207796	保险丝20安培	FUSE 20 AMP	1
22	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
24	816311	捆扎带(8英寸)线束和电缆	TIE STRAP (8.00 Inches) HARNESS AND CABLES	AR
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	68258A4	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
25	853654A1	电磁阀	SOLENOID	1
26	45076	螺母(#10-32)黄铜电磁阀端子	NUT (#10-32) Brass SOLENOID TERMINALS	2
27	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
28	68292	螺母（.312-18）电磁阀端子	NUT (.312-18) SOLENOID TERMINALS	2
28	8M0204668	螺母(.312-18)	NUT (.312-18)	2
29	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
30	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
31	65999A2	电缆总成黑色上部安装	CABLE ASSEMBLY Black UPPER MOUNT	1
32	88528A2	线缆总成(6英寸-红/白)	CABLE ASSEMBLY (6" - RED/WHITE)	1
32	91865A1	线束总成(3"-白/黑-175)	CABLE ASSEMBLY (3" - WHITE/BLACK - 175)	1
33	47483	J型卡扣	J CLIP	3
34	194372	端子排	TERMINAL BLOCK	1
35	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
36	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
37	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
38	814422T	点火板盖	COVER IGNITION PLATE	1
39	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	2
40	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
40	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
41	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
42	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	3
43	62310A2	线束总成(175)	CABLE ASSEMBLY (175)	1
44	78866	绝缘体	INSULATOR	1

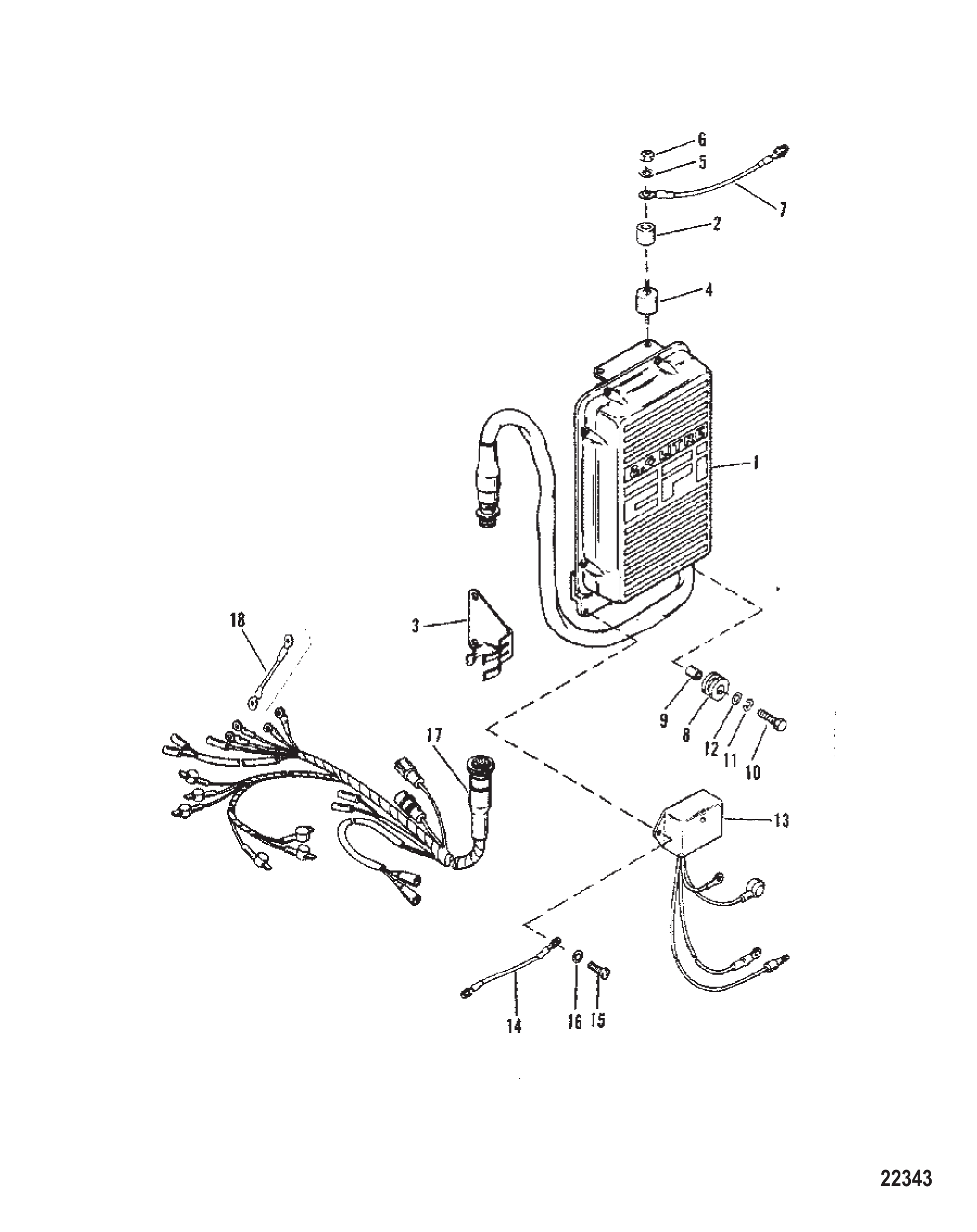

图 13电控单元总成 E.C.U. ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	14632A15	发动机控制单元ECU(175)	ECU Engine Control Unit (175)	1
1	14632A13	发动机控制单元ECU(200)	ECU Engine Control Unit (200)	1
1	824003T16	电控单元	ECU	1
2	34948	隔套	SPACER	2
3	146951	卡扣	CLIP	1
4	90435	罩壳安装支架座	MOUNT COWL MOUNTING BRACKET	2
5	21249	安装垫圈	WASHER MOUNT ATTACHING	4
6	20361	安装螺母(0.250-28)	NUT (.250-28) MOUNT ATTACHING	4
6	8267089	螺母(.250-28)	NUT (.250-28)	4
7	88807A19	拉线总成	CABLE ASSEMBLY	1
8	14637	护孔环	GROMMET	1
9	14636	衬套	BUSHING	1
10	28667	螺钉 (0.250-20 x 1.00) 不锈钢	SCREW (.250-20 x 1.00) Stainless Steel	1
11	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
12	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	1
13	13202A2	水位传感器模块总成	MODULE ASSEMBLY Water Sensor	1
14	88807A18	线缆总成(黑色)	CABLE ASSEMBLY (BLACK)	1
15	37571	水位传感器模块螺钉(0.190-32×0.500)	SCREW (.190-32 x .500) WATER SENSOR MODULE	2
16	89302	水位传感器模块螺钉垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040) WATER SENSOR MODULE SCREW	2
17	98866A14	ECU与喷油器线束总成	HARNESS ASSEMBLY E.C.U. AND INJECTORS	1
18	87895A4	线束总成(175)	CABLE ASSEMBLY (175)	1

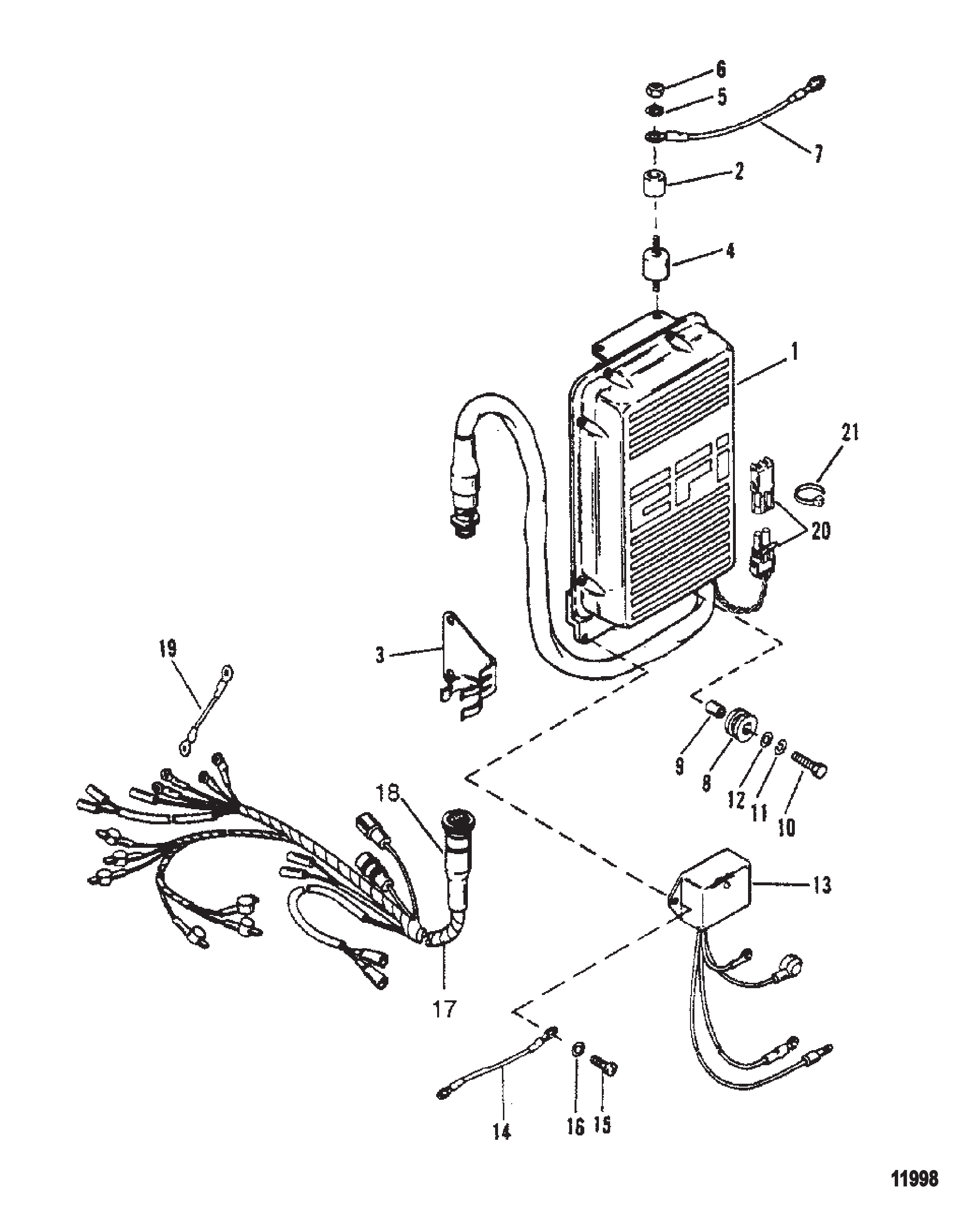

图 14电子控制单元总成 Electronic Control Unit Assembly

REF	零件编号	中文名称	英文名称	数量
1	434291	点火板点火	IGNITION PLATE IGNITION	1
2	7778A9	开关盒总成	SWITCHBOX ASSEMBLY	2
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	开关盒螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) SWITCH BOX	2
4	94453	开关盒螺钉衬套	BUSHING SWITCH BOX SCREW	2
6	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	20
7	60871A10	线束总成-开关盒	WIRE ASSEMBLY SWITCH BOX	2
8	62568	螺丝(#10-16 x 0.375)导线固定	SCREW (#10-16 x .375) WIRE ATTACHING	3
9	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
10	69092	点火板螺钉(1.25)	SCREW (1.25) IGNITION PLATE	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈(.312)点火板螺钉	LOCKWASHER (.312) IGNITION PLATE SCREW	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈点火板螺钉	WASHER IGNITION PLATE SCREW	6
13	67264	橡胶垫圈点火板螺钉	WASHER (Rubber) IGNITION PLATE SCREW	6
14	67268	衬套点火板螺钉	BUSHING IGNITION PLATE SCREW	3
15	33386A3	开关总成	SWITCH ASSEMLBY	1
16	38055	水银开关螺钉(.190-32 x .620)	SCREW (.190-32 x .620) MERCURY SWITCH	1
17	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
18	87926	螺钉(#10-32 x .500)导线固定	SCREW (#10-32 x .500) LEAD ATTACHING	1
19	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
19	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
20	96220A12	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
21	79091	保险丝20安培	FUSE 20 Ampere	1
21	8M0207796	保险丝20安培	FUSE 20 AMP	1
22	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
24	816311	捆扎带(8英寸)线束和电缆	TIE STRAP (8.00 Inches) HARNESS AND CABLES	AR
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	68258A4	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
25	853654A1	电磁阀	SOLENOID	1
26	45076	螺母(#10-32)黄铜电磁阀端子	NUT (#10-32) Brass SOLENOID TERMINALS	2
27	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
28	68292	螺母（.312-18）电磁阀端子	NUT (.312-18) SOLENOID TERMINALS	2
28	8M0204668	螺母(.312-18)	NUT (.312-18)	2
29	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
30	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
31	65999A2	电缆总成黑色上部安装	CABLE ASSEMBLY Black UPPER MOUNT	1
32	88528A2	线缆总成(6英寸-红/白)	CABLE ASSEMBLY (6" - RED/WHITE)	1
32	91865A1	线束总成(3"-白/黑-175)	CABLE ASSEMBLY (3" - WHITE/BLACK - 175)	1
33	47483	J型卡扣	J CLIP	3
34	194372	端子排	TERMINAL BLOCK	1
35	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
36	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
37	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
38	814422T	点火板盖	COVER IGNITION PLATE	1
39	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	2
40	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
40	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
41	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
42	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	3
43	62310A2	线束总成(175)	CABLE ASSEMBLY (175)	1
44	78866	绝缘体	INSULATOR	1

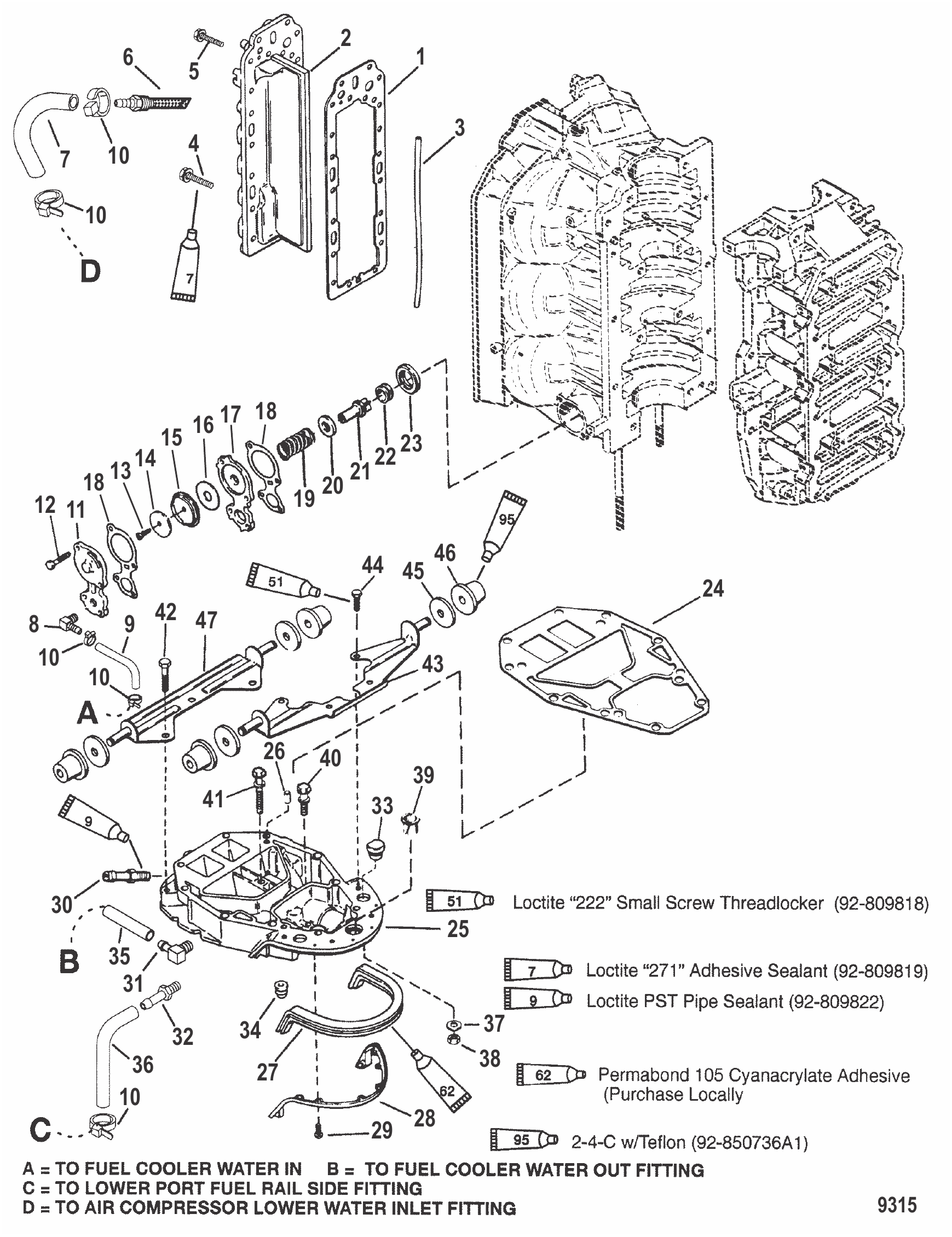

图 15排气歧管与排气板 Exhaust Manifold And Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	434291	点火板点火	IGNITION PLATE IGNITION	1
2	7778A9	开关盒总成	SWITCHBOX ASSEMBLY	2
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	开关盒螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) SWITCH BOX	2
4	94453	开关盒螺钉衬套	BUSHING SWITCH BOX SCREW	2
6	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	20
7	60871A10	线束总成-开关盒	WIRE ASSEMBLY SWITCH BOX	2
8	62568	螺丝(#10-16 x 0.375)导线固定	SCREW (#10-16 x .375) WIRE ATTACHING	3
9	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
10	69092	点火板螺钉(1.25)	SCREW (1.25) IGNITION PLATE	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈(.312)点火板螺钉	LOCKWASHER (.312) IGNITION PLATE SCREW	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈点火板螺钉	WASHER IGNITION PLATE SCREW	6
13	67264	橡胶垫圈点火板螺钉	WASHER (Rubber) IGNITION PLATE SCREW	6
14	67268	衬套点火板螺钉	BUSHING IGNITION PLATE SCREW	3
15	33386A3	开关总成	SWITCH ASSEMLBY	1
16	38055	水银开关螺钉(.190-32 x .620)	SCREW (.190-32 x .620) MERCURY SWITCH	1
17	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
18	87926	螺钉(#10-32 x .500)导线固定	SCREW (#10-32 x .500) LEAD ATTACHING	1
19	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
19	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
20	96220A12	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
21	79091	保险丝20安培	FUSE 20 Ampere	1
21	8M0207796	保险丝20安培	FUSE 20 AMP	1
22	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
24	816311	捆扎带(8英寸)线束和电缆	TIE STRAP (8.00 Inches) HARNESS AND CABLES	AR
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	68258A4	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
25	853654A1	电磁阀	SOLENOID	1
26	45076	螺母(#10-32)黄铜电磁阀端子	NUT (#10-32) Brass SOLENOID TERMINALS	2
27	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
28	68292	螺母（.312-18）电磁阀端子	NUT (.312-18) SOLENOID TERMINALS	2
28	8M0204668	螺母(.312-18)	NUT (.312-18)	2
29	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
30	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
31	65999A2	电缆总成黑色上部安装	CABLE ASSEMBLY Black UPPER MOUNT	1
32	88528A2	线缆总成(6英寸-红/白)	CABLE ASSEMBLY (6" - RED/WHITE)	1
32	91865A1	线束总成(3"-白/黑-175)	CABLE ASSEMBLY (3" - WHITE/BLACK - 175)	1
33	47483	J型卡扣	J CLIP	3
34	194372	端子排	TERMINAL BLOCK	1
35	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
36	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
37	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
38	814422T	点火板盖	COVER IGNITION PLATE	1
39	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	2
40	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
40	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
41	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
42	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	3
43	62310A2	线束总成(175)	CABLE ASSEMBLY (175)	1
44	78866	绝缘体	INSULATOR	1

图 16排气歧管与排气板 EXHAUST MANIFOLD AND EXHAUST PLATE

REF	零件编号	中文名称	英文名称	数量
1	190503	衬垫	GASKET	1
2	8283431	排气隔板	PLATE Exhaust Divider	1
2	828343T3	排气隔板	PLATE Exhaust Divider	1
3	814754	密封件(12.50英寸)	SEAL (12.50 Inches)	1
4	826356	螺钉带垫圈(.312-18 x 1.500)	SCREW AND WASHER (.312-18 x 1.500)	17
4	8263561	螺钉带垫圈(.312-18 x 1.500)	SCREW AND WASHER (.312-18 x 1.500)	17
5	855288	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	2
5	881190	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	2
6	8348082	滤网	STRAINER	1
7	83075780	管材(28.00英寸整料)(裁切至4-1/2英寸)	TUBING (28.00 Inches Bulk) (Cut to 4-1/2 Inches)	1
7	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
8	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
9	77653112	软管(59.00英寸整料)(21-1/2英寸)	HOSE (59.00 Inches Bulk) (21-1/2 IN.)	1
9	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
10	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	5
10	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	5
11	68729	盖板	COVER	1
11	8M0039767	盖板	COVER	1
12	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
13	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
14	76451	垫圈	WASHER	1
15	14479	隔膜	DIAPHRAGM	1
15	144791	隔膜	DIAPHRAGM	1
16	16496	导水板	DEFLECTOR Water	1
17	16497A1	安装板	PLATE	1
18	78690	衬垫	GASKET	2
18	78690002	衬垫	GASKET	2
19	64878	弹簧(黑色)	SPRING (Black)	1
20	85303	垫圈	WASHER	1
21	14480	提动阀	POPPET	1
22	64872	护孔环	GROMMET	1
23	65848	托架	CARRIER	1
24	991763	衬垫	GASKET	1
24	991764	衬垫	GASKET	1
25	850814A1	排气板总成	PLATE ASSEMBLY Exhaust	1
25	850814T1	排气板总成	PLATE ASSEMBLY Exhaust	1
26	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
27	8147011	密封件	SEAL	1
27	8M0043164	密封件	SEAL	1
28	680101	支架	BRACKET	1
29	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	8
29	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	8
30	89772	连接器(.125-27)(直通)(背部)	CONNECTOR (.125-27) (STRAIGHT)(BACK)	1
31	629101	90度弯头(.125-27)(右舷顶部孔)	FITTING Elbow - 90 Degree (.125-27) (STARBOARD-TOP HOLE)	1
32	89772	连接器(.125-27)(直通)(右舷底部孔)	CONNECTOR (.125-27) (STRAIGHT)(STARBOARD-BOTTOM HOLE)	1
33	19564	护孔环	GROMMET	1
33	8M0179867	护孔环	GROMMET	1
34	19565	护孔环	GROMMET	1
34	19565002	护孔环	GROMMET	1
35	77653112	软管(59.00英寸整料)(25英寸)	HOSE (59.00 Inches Bulk) (25 IN.)	1
35	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
36	852759	软管	HOSE	1
37	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	4
38	69254	螺母	NUT	6
39	27132	衬套	BUSHING	1
40	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
41	68783	螺钉(.312-18×2.50)	SCREW (.312-18 x 2.50)	1
42	66725	螺钉(.375-16×3.50)	SCREW (.375-16 x 3.50)	3
42	898833	螺钉(.375-16 x 3.500)	SCREW (.375-16 x 3.500)	3
43	812905A5	前支架总成	BRACKET ASSEMBLY Front	1
43	812905T	前支架	BRACKET Front	1
44	8055571	螺钉(0.3125-18×0.50)	SCREW (.3125-18 x .50)	4
45	187031	垫圈	WASHER	4
46	18778	护孔环	GROMMET	4
46	18778001	护孔环	GROMMET	4
47	18578A8	支架总成(后部)	BRACKET ASSEMBLY Rear	1
47	18578T09	支架总成(后部)	BRACKET ASSEMBLY Rear	1
-	814754A98	衬垫套件	GASKET SET	1
-	8M0046714	衬垫套件	GASKET SET	1
-	854008A98	动力头总成	POWERHEAD ASSEMBLY	1
-	804545T99	动力头总成	POWERHEAD ASSEMBLY	1

图 17飞轮/启动电机 Flywheel/Starter Motor

REF	零件编号	中文名称	英文名称	数量
1	434291	点火板点火	IGNITION PLATE IGNITION	1
2	7778A9	开关盒总成	SWITCHBOX ASSEMBLY	2
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	开关盒螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) SWITCH BOX	2
4	94453	开关盒螺钉衬套	BUSHING SWITCH BOX SCREW	2
6	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	20
7	60871A10	线束总成-开关盒	WIRE ASSEMBLY SWITCH BOX	2
8	62568	螺丝(#10-16 x 0.375)导线固定	SCREW (#10-16 x .375) WIRE ATTACHING	3
9	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
10	69092	点火板螺钉(1.25)	SCREW (1.25) IGNITION PLATE	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈(.312)点火板螺钉	LOCKWASHER (.312) IGNITION PLATE SCREW	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈点火板螺钉	WASHER IGNITION PLATE SCREW	6
13	67264	橡胶垫圈点火板螺钉	WASHER (Rubber) IGNITION PLATE SCREW	6
14	67268	衬套点火板螺钉	BUSHING IGNITION PLATE SCREW	3
15	33386A3	开关总成	SWITCH ASSEMLBY	1
16	38055	水银开关螺钉(.190-32 x .620)	SCREW (.190-32 x .620) MERCURY SWITCH	1
17	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
18	87926	螺钉(#10-32 x .500)导线固定	SCREW (#10-32 x .500) LEAD ATTACHING	1
19	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
19	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
20	96220A12	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
21	79091	保险丝20安培	FUSE 20 Ampere	1
21	8M0207796	保险丝20安培	FUSE 20 AMP	1
22	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
24	816311	捆扎带(8英寸)线束和电缆	TIE STRAP (8.00 Inches) HARNESS AND CABLES	AR
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	68258A4	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
25	853654A1	电磁阀	SOLENOID	1
26	45076	螺母(#10-32)黄铜电磁阀端子	NUT (#10-32) Brass SOLENOID TERMINALS	2
27	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
28	68292	螺母（.312-18）电磁阀端子	NUT (.312-18) SOLENOID TERMINALS	2
28	8M0204668	螺母(.312-18)	NUT (.312-18)	2
29	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
30	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
31	65999A2	电缆总成黑色上部安装	CABLE ASSEMBLY Black UPPER MOUNT	1
32	88528A2	线缆总成(6英寸-红/白)	CABLE ASSEMBLY (6" - RED/WHITE)	1
32	91865A1	线束总成(3"-白/黑-175)	CABLE ASSEMBLY (3" - WHITE/BLACK - 175)	1
33	47483	J型卡扣	J CLIP	3
34	194372	端子排	TERMINAL BLOCK	1
35	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
36	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
37	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
38	814422T	点火板盖	COVER IGNITION PLATE	1
39	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	2
40	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
40	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
41	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
42	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	3
43	62310A2	线束总成(175)	CABLE ASSEMBLY (175)	1
44	78866	绝缘体	INSULATOR	1

图 18飞轮/启动马达 FLYWHEEL/STARTER MOTOR

REF	零件编号	中文名称	英文名称	数量
1	18896A1	盖板套件	COVER KIT	1
2	79022	标记	MARKER	1
3	37572	螺钉 (.190-32 x .380)	SCREW (.190-32 x .380)	2
4	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	2
5	89219	塞（适用时使用）	PLUG (USE WHERE APPLICABLE)	1
5	89219001	堵头	PLUG	1
6	45907	黄色塞	PLUG Yellow	1
7	52901	螺母(0.625-18)	NUT (.625-18)	1
8	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
8	33001	垫圈	WASHER	1
9	817632A12	飞轮	FLYWHEEL	1
9	859238T16	飞轮总成	FLYWHEEL ASY	1
10	9610A19	定子	STATOR	1
11	90045	螺钉(#10-32×1.375)	SCREW (#10-32 x 1.375)	4
12	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	4
13	96455A9	触发板总成	PLATE ASSEMBLY Trigger	1
14	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
14	893893	启动马达	STARTER MOTOR	1
15	56703	轴环	COLLAR	2
15	8M0034918	轴环	COLLAR	2
16	68042	橡胶止挡	STOP Rubber	2
16	8M0043376	停机开关	STOP	2
17	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
18	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
19	93388A7	线缆总成(黑色)	CABLE ASSEMBLY (BLACK)	1
19	93388A14	线缆总成(黄/黑)	CABLE ASSEMBLY Yellow/Black	1
20	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
21	20890	螺母 (.250-20)	NUT (.250-20)	1

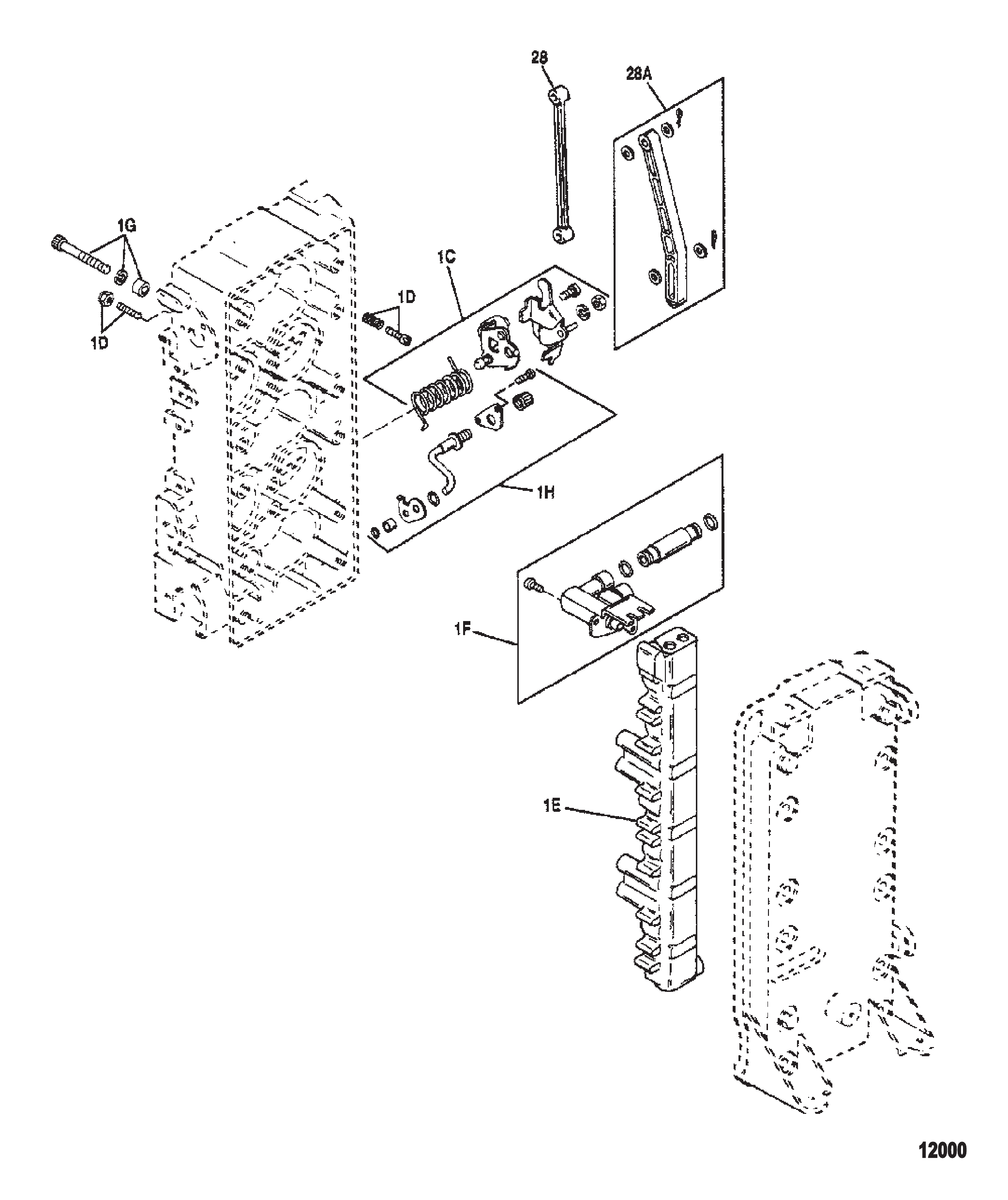

图 19燃油管理系统 Fuel Management System

REF	零件编号	中文名称	英文名称	数量
1	434291	点火板点火	IGNITION PLATE IGNITION	1
2	7778A9	开关盒总成	SWITCHBOX ASSEMBLY	2
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	开关盒螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) SWITCH BOX	2
4	94453	开关盒螺钉衬套	BUSHING SWITCH BOX SCREW	2
6	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	20
7	60871A10	线束总成-开关盒	WIRE ASSEMBLY SWITCH BOX	2
8	62568	螺丝(#10-16 x 0.375)导线固定	SCREW (#10-16 x .375) WIRE ATTACHING	3
9	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
10	69092	点火板螺钉(1.25)	SCREW (1.25) IGNITION PLATE	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈(.312)点火板螺钉	LOCKWASHER (.312) IGNITION PLATE SCREW	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈点火板螺钉	WASHER IGNITION PLATE SCREW	6
13	67264	橡胶垫圈点火板螺钉	WASHER (Rubber) IGNITION PLATE SCREW	6
14	67268	衬套点火板螺钉	BUSHING IGNITION PLATE SCREW	3
15	33386A3	开关总成	SWITCH ASSEMLBY	1
16	38055	水银开关螺钉(.190-32 x .620)	SCREW (.190-32 x .620) MERCURY SWITCH	1
17	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
18	87926	螺钉(#10-32 x .500)导线固定	SCREW (#10-32 x .500) LEAD ATTACHING	1
19	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
19	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
20	96220A12	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
21	79091	保险丝20安培	FUSE 20 Ampere	1
21	8M0207796	保险丝20安培	FUSE 20 AMP	1
22	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
24	816311	捆扎带(8英寸)线束和电缆	TIE STRAP (8.00 Inches) HARNESS AND CABLES	AR
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	68258A4	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
25	853654A1	电磁阀	SOLENOID	1
26	45076	螺母(#10-32)黄铜电磁阀端子	NUT (#10-32) Brass SOLENOID TERMINALS	2
27	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
28	68292	螺母（.312-18）电磁阀端子	NUT (.312-18) SOLENOID TERMINALS	2
28	8M0204668	螺母(.312-18)	NUT (.312-18)	2
29	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
30	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
31	65999A2	电缆总成黑色上部安装	CABLE ASSEMBLY Black UPPER MOUNT	1
32	88528A2	线缆总成(6英寸-红/白)	CABLE ASSEMBLY (6" - RED/WHITE)	1
32	91865A1	线束总成(3"-白/黑-175)	CABLE ASSEMBLY (3" - WHITE/BLACK - 175)	1
33	47483	J型卡扣	J CLIP	3
34	194372	端子排	TERMINAL BLOCK	1
35	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
36	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
37	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
38	814422T	点火板盖	COVER IGNITION PLATE	1
39	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	2
40	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
40	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
41	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
42	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	3
43	62310A2	线束总成(175)	CABLE ASSEMBLY (175)	1
44	78866	绝缘体	INSULATOR	1

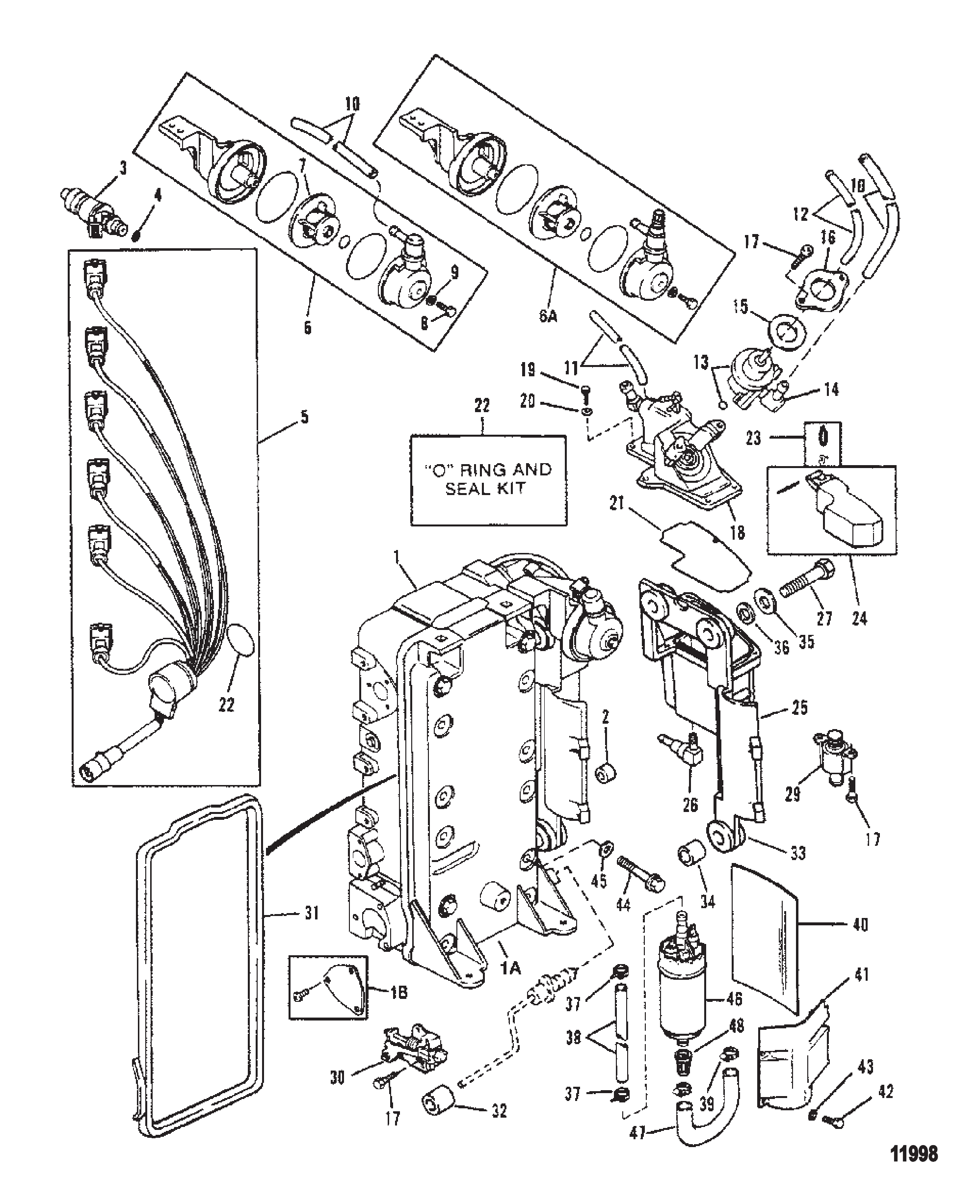

图 20燃油管理系统(分解图) Fuel Management System (Breakdown)

REF	零件编号	中文名称	英文名称	数量
1	9912688	管材(36.00英寸散装)(裁切至3-1/4英寸)	TUBING (36.00 Inches Bulk) (Cut to 3-1/4 IN.)	1
2	18206	滤清器	FILTER	1
2	8M0207786	滤清器	FILTER	1
3	9912688	管材(36.00英寸散装)(裁切至7-1/4英寸)	TUBING (36.00 Inches Bulk) (Cut to 7-1/4 IN.)	1
4	99130122	管材(20.00英尺散装)(裁切至3-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 3-1/2 IN.)	1
4	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
5	59169	接头	FITTING	4
5	59169003	三通接头	FITTING Tee	4
6	99130122	管材(20英尺整卷)(裁切至5-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 5-1/2 IN.)	1
6	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
7	99130122	管材(20.00英尺散装)(裁切至9英寸)	TUBING (20.00 Feet Bulk) (Cut to 9 IN.)	2
7	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
8	56759	压入式倒钩接头	FITTING Barbed (PRESS-IN)	4
9	426981	止回阀(压入式-13/16长)	CHECK VALVE (PRESS-IN - 13/16 LONG)	7
9	426982	止回阀	CHECK VALVE	7
10	426231	止回阀(压入式-11/16长)	CHECK VALVE (PRESS-IN - 11/16 LONG)	1
10	426233	止回阀	CHECK VALVE	1
11	18205	三通	TEE	1
12	99130122	管材(20.00英尺散装)(裁切至1-1/4英寸)	TUBING (20.00 Feet Bulk) (Cut to 1-1/4 IN.)	1
12	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
13	99130122	管材(20.00英尺散装)(裁切至9英寸)	TUBING (20.00 Feet Bulk) (Cut to 9 IN.)	2
13	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
14	99130122	管材(20.00英尺散装)(裁切至19英寸)	TUBING (20.00 Feet Bulk) (Cut to 19 IN.)	1
14	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
15	99130122	管材(20.00英尺散装)(裁切至1英寸)	TUBING (20.00 Feet Bulk) (Cut to 1 IN.)	3
15	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	3
16	99130122	管材(20英尺整卷)(裁切为4-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 4-1/2 IN.)	2
16	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
-	823434A97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

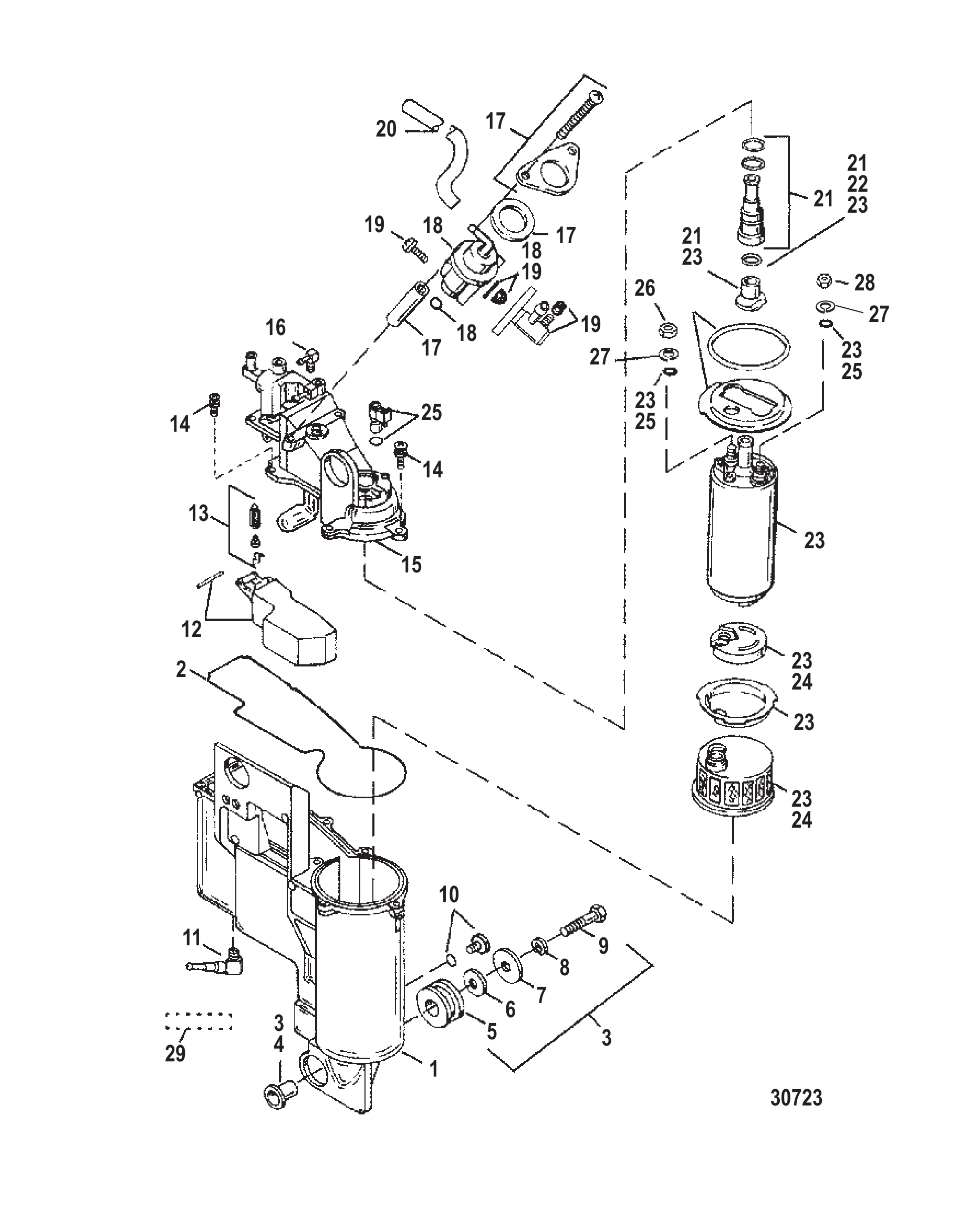

图 21燃油管理系统 FUEL MANAGEMENT SYSTEM

REF	零件编号	中文名称	英文名称	数量
-	14817A23	燃油管理系统总成	MANAGEMENT ASSEMBLY Fuel	1
1	8276922	盖板	COVER	1
2	15443	线束套件	HARNESS KIT	1
3	18792	密封件	SEAL	1
4	15029	O型圈及密封套件	O-RING AND SEAL KIT	1
5	8276992	燃油导轨	FUEL RAIL	1
5	827699T2	燃油导轨	FUEL RAIL	1
6	18715	燃油喷油器	INJECTOR Fuel	6
6	18715T	喷油器总成	INJECTOR ASSEMBLY	6
7	17422	滤清器	FILTER	1
8	827696	固定套件	RETAINER KIT	1
9	8276933	节气门体	THROTTLE BODY	1
10	8090572	接头套件	JOINT KIT	1
11	8276891	连杆套件	LINK KIT	1
12	827697	连杆杠杆套件	LEVER KIT Link	1
13	827698	螺钉套件	SCREW KIT	1
14	8276981	螺钉套件	SCREW KIT	1
15	8090851	弯头套件	ELBOW KIT	1
16	814233A1	施拉德阀套件	SCHRADER VALVE KIT	1
16	814233A02	阀套件	VALVE KIT	1
17	8142332	FMA接头套件	FMA JOINT KIT	1
18	8276942	软管套件	HOSE KIT	1
18	827694A01	软管套件-燃油	HOSE KIT-FUEL	1
19	67748	滚轮	ROLLER	1
20	90088	螺钉(.250-20x4)	SCREW (.250-20 x 4)	12
20	845674	螺钉(.250-20x4.00)	SCREW (.250-20 x 4.00)	12
21	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	10
21	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	10

图 22燃油泵和燃油滤清器 Fuel Pump And Fuel Filter

REF	零件编号	中文名称	英文名称	数量
1	434291	点火板点火	IGNITION PLATE IGNITION	1
2	7778A9	开关盒总成	SWITCHBOX ASSEMBLY	2
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	开关盒螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) SWITCH BOX	2
4	94453	开关盒螺钉衬套	BUSHING SWITCH BOX SCREW	2
6	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	20
7	60871A10	线束总成-开关盒	WIRE ASSEMBLY SWITCH BOX	2
8	62568	螺丝(#10-16 x 0.375)导线固定	SCREW (#10-16 x .375) WIRE ATTACHING	3
9	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
10	69092	点火板螺钉(1.25)	SCREW (1.25) IGNITION PLATE	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈(.312)点火板螺钉	LOCKWASHER (.312) IGNITION PLATE SCREW	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈点火板螺钉	WASHER IGNITION PLATE SCREW	6
13	67264	橡胶垫圈点火板螺钉	WASHER (Rubber) IGNITION PLATE SCREW	6
14	67268	衬套点火板螺钉	BUSHING IGNITION PLATE SCREW	3
15	33386A3	开关总成	SWITCH ASSEMLBY	1
16	38055	水银开关螺钉(.190-32 x .620)	SCREW (.190-32 x .620) MERCURY SWITCH	1
17	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
18	87926	螺钉(#10-32 x .500)导线固定	SCREW (#10-32 x .500) LEAD ATTACHING	1
19	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
19	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
20	96220A12	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
21	79091	保险丝20安培	FUSE 20 Ampere	1
21	8M0207796	保险丝20安培	FUSE 20 AMP	1
22	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
24	816311	捆扎带(8英寸)线束和电缆	TIE STRAP (8.00 Inches) HARNESS AND CABLES	AR
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	68258A4	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
25	853654A1	电磁阀	SOLENOID	1
26	45076	螺母(#10-32)黄铜电磁阀端子	NUT (#10-32) Brass SOLENOID TERMINALS	2
27	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
28	68292	螺母（.312-18）电磁阀端子	NUT (.312-18) SOLENOID TERMINALS	2
28	8M0204668	螺母(.312-18)	NUT (.312-18)	2
29	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
30	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
31	65999A2	电缆总成黑色上部安装	CABLE ASSEMBLY Black UPPER MOUNT	1
32	88528A2	线缆总成(6英寸-红/白)	CABLE ASSEMBLY (6" - RED/WHITE)	1
32	91865A1	线束总成(3"-白/黑-175)	CABLE ASSEMBLY (3" - WHITE/BLACK - 175)	1
33	47483	J型卡扣	J CLIP	3
34	194372	端子排	TERMINAL BLOCK	1
35	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
36	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
37	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
38	814422T	点火板盖	COVER IGNITION PLATE	1
39	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	2
40	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
40	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
41	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
42	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	3
43	62310A2	线束总成(175)	CABLE ASSEMBLY (175)	1
44	78866	绝缘体	INSULATOR	1

图 23燃油泵和燃油滤清器 FUEL PUMP AND FUEL FILTER

REF	零件编号	中文名称	英文名称	数量
1	15930A15	燃油泵套件	PUMP KIT Fuel	1
2	42990A6	膜片组件	DIAPHRAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve-Rubber	2
4	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
5	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
6	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
10	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
12	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
13	987691	底座衬垫	GASKET BASE	1
13	8M0204705	衬垫@2	GASKET @2	1
14	14868	燃油泵弯头接头	FITTING FUEL PUMP (ELBOW)	1
15	16604	直通接头(0.125-27)燃油泵	FITTING Straight (.125-27) FUEL PUMP	1
16	9912976	油管	TUBING	1
16	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
17	144303	燃油泵底座	BASE FUEL PUMP	1
18	98775A3	燃油泵板	PLATE FUEL PUMP	1
18	987752	安装板	PLATE	1
19	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
20	15979	接头	FITTING	1
21	16452	燃油泵螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) FUEL PUMP	2
22	4000310	燃油泵至曲轴箱螺钉(M5 x 40)	SCREW (M5 x 40) FUEL PUMP TO CRANKCASE	2
23	4002314	燃油泵螺钉垫圈	WASHER FUEL PUMP SCREW	2
24	9072925	脉冲软管	HOSE PULSE	1
25	99751	接头(0.0625-27)黄铜脉冲软管(90度)	FITTING (.0625-27) Brass PULSE HOSE (90 Degree)	1
25	997511	弯头	ELBOW	1
26	1350382	管材(30英寸散装)	TUBING (30.00 Inches Bulk)	2
26	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	2
27	816311		TIE STRAP (8.00 Inches) FUEL TUBING	AR
27	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
28	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
28	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
29	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
30	812782	密封件	SEAL	1
31	813657	支架	BRACKET	1
31	13170A3	底座	BASE	1
32	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
33	28668		SCREW (.250-20 x .875) Stainless Steel FUEL FILTER BASE	2
34	13170A1	燃油滤清器底座	BASE FUEL FILTER	1
34	13170A3	底座	BASE	1
35	13607	底座接头	FITTING BASE	2
35	136071	弯头	ELBOW	2
36	18458A1	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
36	18458Q3	燃油滤清器	FILTER-FUEL	1
37	14570		PROBE WATER SENSING	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

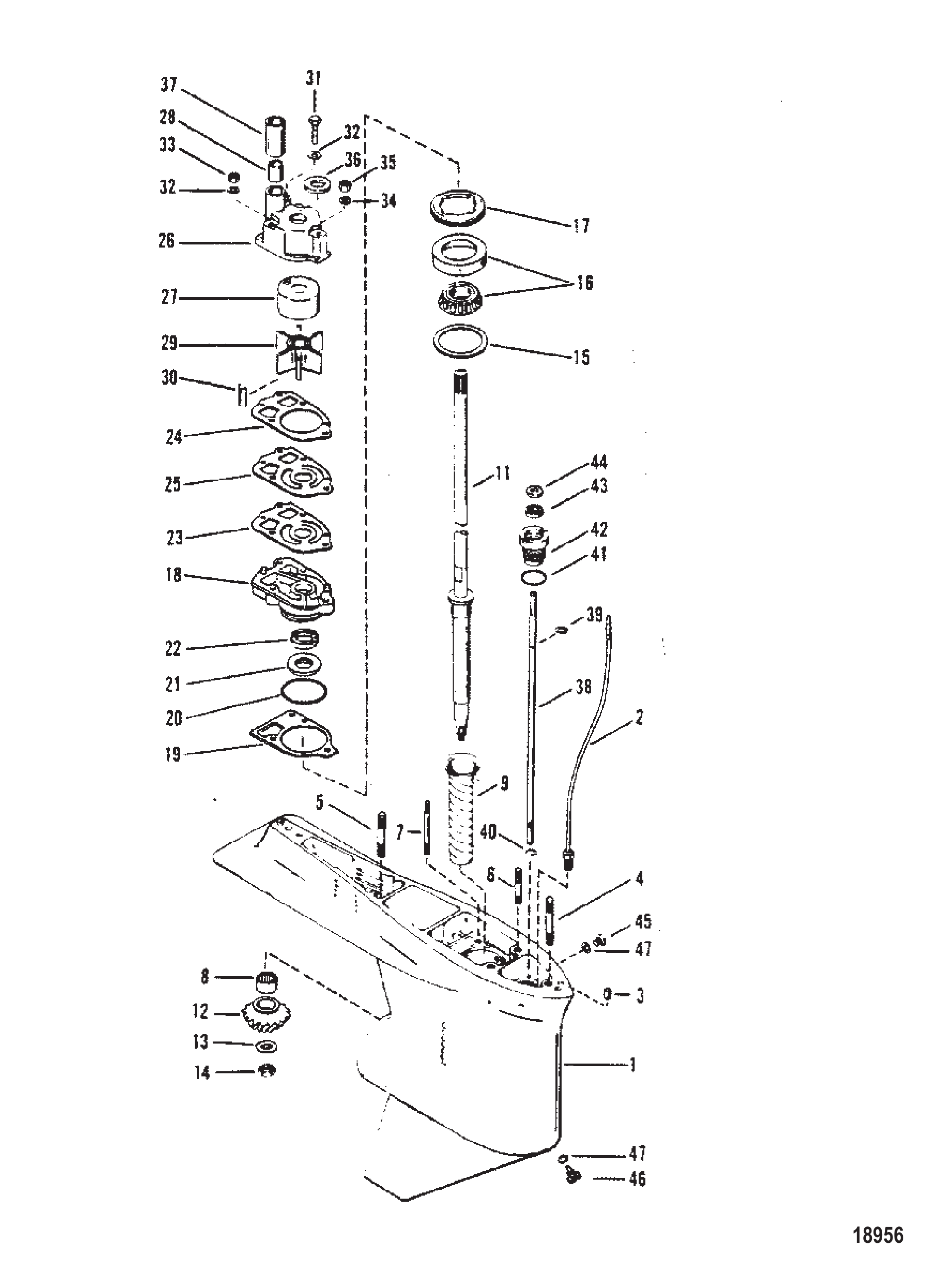

图 24齿轮箱（驱动轴）（1.87:1） GEAR HOUSING (DRIVESHAFT)(1.87:1)

REF	零件编号	中文名称	英文名称	数量
-	9148A8	齿轮箱总成(标准转向1.87:1速比)(黑色)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (BLACK)	1
-	9148A10	齿轮箱总成(标准转向1.87:1速比)(灰色)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (GRAY)	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
1	9148A11	齿轮箱总成(基础款-黑色)	GEAR HOUSING ASSEMBLY (BASIC - BLACK)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A12	齿轮箱总成(基础款-灰色)	GEAR HOUSING ASSEMBLY (BASIC - GRAY)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
2	85822A1	连接器总成	CONNECTOR ASSEMBLY	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	20033	定位销	PIN Dowel	2
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	78638	双头螺柱(.438 x 3.12)	STUD (.438 x 3.12)	1
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
5	57920	双头螺柱(.44 x 2.06)	STUD (.44 x 2.06)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	306671	螺柱	STUD	2
8	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	43998	润滑套筒	SLEEVE LUBRICATION	1
11	440001	驱动轴	DRIVESHAFT	1
11	897624T	长驱动轴	DRIVESHAFT Long	1
12	N.S.S.	小齿轮(不单独销售)(43-44104A2组件)	Not Sold Separate Pinion Gear (PART OF 43-44104A2)	1
13	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
14	35921	螺母(0.625-18)	NUT (.625-18)	1
15	42637A1	垫片组	SHIM SET	AR
15	8M0063267	垫片组	SHIM SET	AR
16	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
16	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
17	42633	螺母	NUT	1
17	8245191	固定座	RETAINER	1
18	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
19	426311	衬垫	GASKET	1
19	8M0204678	衬垫	GASKET	1
20	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
20	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
21	89238	油封	SEAL Oil	1
22	16977	油封	SEAL Oil	1
23	856081	衬垫(下部)	GASKET (LOWER)	1
23	8M0090319	衬垫@5	GASKET @5	1
24	856091	衬垫(上部)	GASKET (UPPER)	1
24	858524	衬垫	GASKET	1
25	32435	面板	FACE PLATE	1
25	8M0204677	面板	PLATE-FACE	1
26	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
27	48752	嵌件	INSERT	1
27	48752T	嵌件	INSERT	1
28	38970	密封件	SEAL	1
29	89984	叶轮	IMPELLER	1
29	89984T4	叶轮	IMPELLER	1
30	56654	键	KEY	1
30	8M0214992	键@5	KEY @5	1
31	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
31	8M0215009	螺钉	SCREW	1
32	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
33	13438	螺母(.250-28)	NUT (.250-28)	2
33	8267119	螺母(.250-28)	NUT (.250-28)	2
34	36001	垫圈	WASHER	1
35	13436	螺母	NUT	1
36	30271	橡胶环(传动轴用)(旧款)	RING Rubber RUBBER (DRIVE SHAFT) (OLD DESIGN)	1
36	8M0214918	环@5	RING @5	1
37	29804	套筒	SLEEVE	1
37	29804T	套筒	SLEEVE	1
38	78902	下换挡轴	SHAFT SHIFT LOWER	1
38	789022	换档轴	SHIFT SHAFT	1
39	29641	E型卡环	E RING	1
40	78907	挡圈（旧设计）	RING Retaining (OLD DESIGN)	1
41	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
42	77631A2	衬套总成	BUSHING ASSEMBLY	1
43	816464	油封	SEAL Oil	1
43	8M0246145	油封	OIL SEAL	1
44	77674	橡胶垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12) RUBBER	1
45	79953		SCREW (.375-16 x .250) GREASE FILLER	1
45	79953Q04	放油螺钉套件	SCREW KIT Drain	1
46	67892		SCREW Magnetic DRAIN	1
46	8M0058389	放油螺钉套件	SCREW KIT Drain	1
47	19183	纤维垫圈	WASHER Fiber	2
47	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
-	42579A4	水泵修理包	REBUILD KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

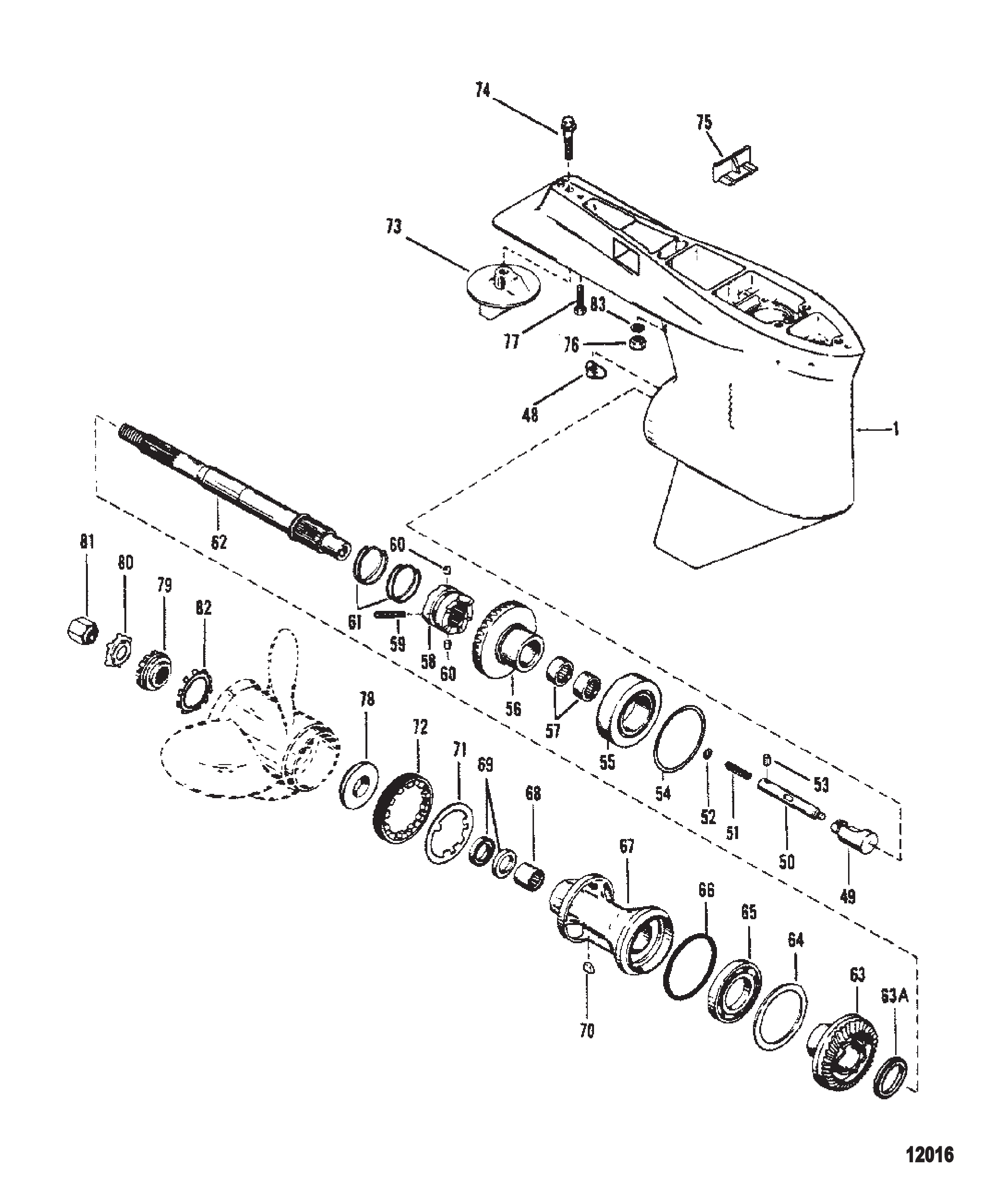

图 25齿轮箱（螺旋桨轴）（1.87:1） GEAR HOUSING (PROPELLER SHAFT)(1.87:1)

REF	零件编号	中文名称	英文名称	数量
-	9148A8	齿轮箱总成(标准转向1.87:1速比)(黑色)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (BLACK)	1
-	9148A10	齿轮箱总成(标准转向1.87:1速比)(灰色)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (GRAY)	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
1	9148A11	齿轮箱总成(基础款-黑色)	GEAR HOUSING ASSEMBLY (BASIC - BLACK)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A12	齿轮箱总成(基础款-灰色)	GEAR HOUSING ASSEMBLY (BASIC - GRAY)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
48	78956	换挡凸轮	SHIFT CAM	1
48	789562	换挡凸轮	SHIFT CAM	1
49	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
50	816520	杆	ROD	1
50	79911A1	杆	ROD	1
51	79910	弹簧	SPRING	2
52	78910	垫圈	WASHER	AR
53	78906	销	PIN	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	47397A1	垫片组(.002-3-5-10)	SHIM SET (.002-3-5-10)	AR
55	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
56	44104A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
56	44104T2	齿轮组	GEAR SET	1
57	73363	滚柱轴承(5/8")	BEARING Roller (5/8")	2
57	73363T	轴承	BEARING	2
57	549281	滚柱轴承(1")	BEARING Roller (1")	1
58	78959	棘轮	RATCHET	1
58	823174T	ORD 8M0100493	ORD 8M0100493	1
59	78905	十字销	PIN Cross	1
59	8M0084243	十字销	PIN Cross	1
60	78909	定位销	PIN Detent	2
61	78962	弹簧	SPRING	2
62	94148	螺旋桨轴	PROPELLER SHAFT	1
63	N.S.S.		Not Sold Separate Reverse Gear (PART OF 43-44104A2)	1
64	681001	止推环	RING Thrust	1
65	88957A1	滚珠轴承	BEARING Ball	1
65	88957T	滚珠轴承	BEARING Ball	1
66	31534	O型圈	O-RING	1
66	8M0214920	O型圈	O RING	1
67	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	30956	滚针轴承	BEARING Needle	1
68	30956T	滚针轴承	BEARING Needle	1
69	76868	密封件	SEAL	2
69	8M0248882	油封@5	SEAL-OIL @5	2
70	30281	键	KEY	1
71	79447	锁紧垫圈	TAB WASHER	1
72	79448	固定座	RETAINER	1
72	8M2011027	固定座	RETAINER	1
73	31640A1	平衡板总成	TRIM TAB ASSEMBLY	1
73	31640Q4	平衡鳍板	TRIM TAB	1
74	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
75	67891	填充块	FILLER BLOCK	1
75	8M0039169	填充块	FILLER BLOCK	1
76	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
76	8M0204653	螺母	NUT	2
77	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
78	13171	推力毂	THRUST HUB	1
78	835467Q01	止推垫片套件	THRUST WASHER KIT	1
79	31211A2	花键垫圈	WASHER Splined	1
79	31211Q03	垫圈总成	WASHER ASSEMBLY	1
80	816629	锁紧垫圈	TAB WASHER	1
80	816629Q	锁紧垫圈	TAB WASHER	1
81	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
81	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
82	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
83	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
-	89238A2	密封套件	SEAL KIT	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 26齿轮箱图表 Gear Housing Chart

REF	零件编号	中文名称	英文名称	数量
1	434291	点火板点火	IGNITION PLATE IGNITION	1
2	7778A9	开关盒总成	SWITCHBOX ASSEMBLY	2
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	开关盒螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) SWITCH BOX	2
4	94453	开关盒螺钉衬套	BUSHING SWITCH BOX SCREW	2
6	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	20
7	60871A10	线束总成-开关盒	WIRE ASSEMBLY SWITCH BOX	2
8	62568	螺丝(#10-16 x 0.375)导线固定	SCREW (#10-16 x .375) WIRE ATTACHING	3
9	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
10	69092	点火板螺钉(1.25)	SCREW (1.25) IGNITION PLATE	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈(.312)点火板螺钉	LOCKWASHER (.312) IGNITION PLATE SCREW	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈点火板螺钉	WASHER IGNITION PLATE SCREW	6
13	67264	橡胶垫圈点火板螺钉	WASHER (Rubber) IGNITION PLATE SCREW	6
14	67268	衬套点火板螺钉	BUSHING IGNITION PLATE SCREW	3
15	33386A3	开关总成	SWITCH ASSEMLBY	1
16	38055	水银开关螺钉(.190-32 x .620)	SCREW (.190-32 x .620) MERCURY SWITCH	1
17	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
18	87926	螺钉(#10-32 x .500)导线固定	SCREW (#10-32 x .500) LEAD ATTACHING	1
19	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
19	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
20	96220A12	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
21	79091	保险丝20安培	FUSE 20 Ampere	1
21	8M0207796	保险丝20安培	FUSE 20 AMP	1
22	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
24	816311	捆扎带(8英寸)线束和电缆	TIE STRAP (8.00 Inches) HARNESS AND CABLES	AR
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	68258A4	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
25	853654A1	电磁阀	SOLENOID	1
26	45076	螺母(#10-32)黄铜电磁阀端子	NUT (#10-32) Brass SOLENOID TERMINALS	2
27	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
28	68292	螺母（.312-18）电磁阀端子	NUT (.312-18) SOLENOID TERMINALS	2
28	8M0204668	螺母(.312-18)	NUT (.312-18)	2
29	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
30	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
31	65999A2	电缆总成黑色上部安装	CABLE ASSEMBLY Black UPPER MOUNT	1
32	88528A2	线缆总成(6英寸-红/白)	CABLE ASSEMBLY (6" - RED/WHITE)	1
32	91865A1	线束总成(3"-白/黑-175)	CABLE ASSEMBLY (3" - WHITE/BLACK - 175)	1
33	47483	J型卡扣	J CLIP	3
34	194372	端子排	TERMINAL BLOCK	1
35	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
36	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
37	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
38	814422T	点火板盖	COVER IGNITION PLATE	1
39	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	2
40	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
40	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
41	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
42	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	3
43	62310A2	线束总成(175)	CABLE ASSEMBLY (175)	1
44	78866	绝缘体	INSULATOR	1

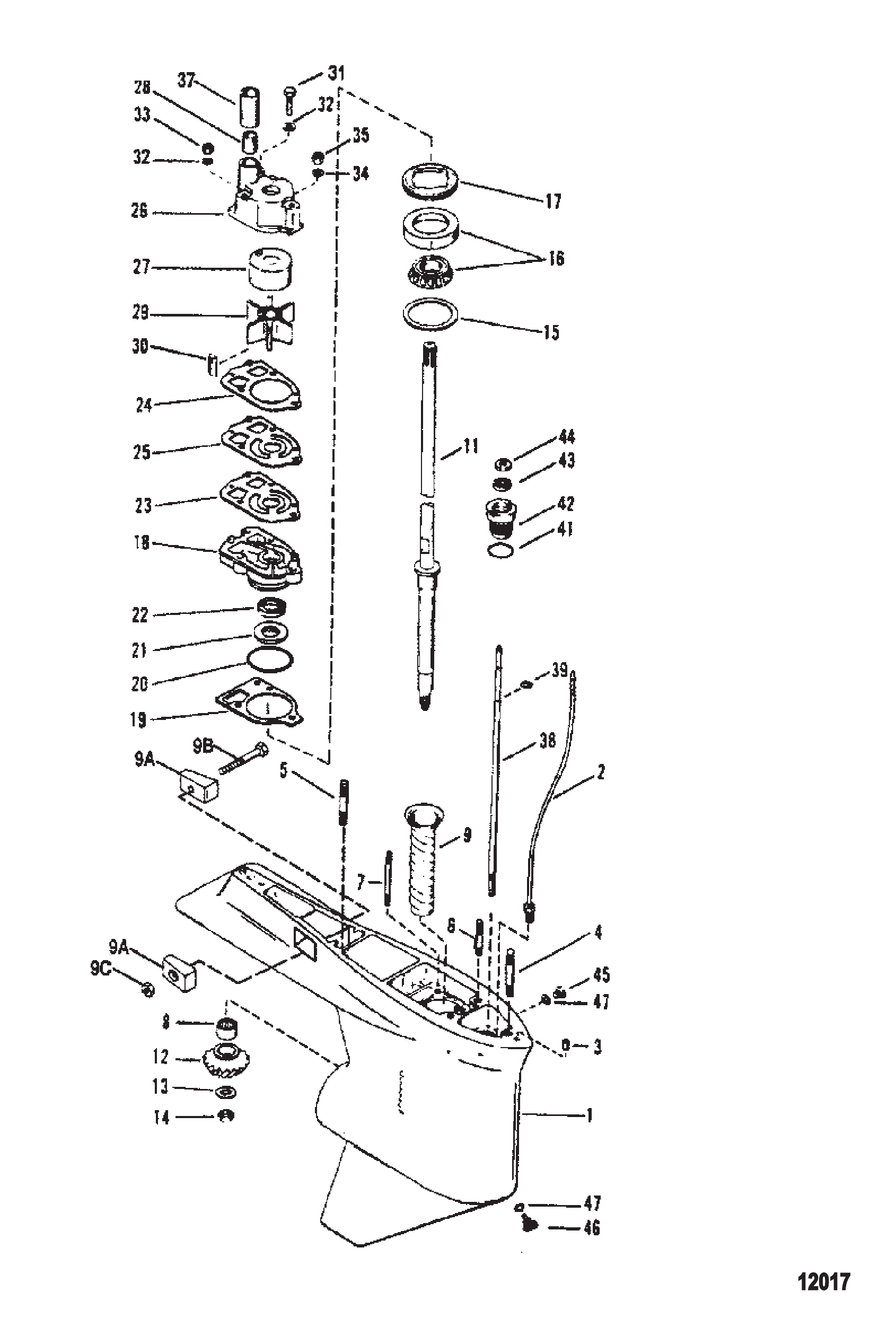

图 27齿轮箱驱动轴-2:1减速比 Gear Housing Driveshaft - 2:1 Gear Ratio

REF	零件编号	中文名称	英文名称	数量
1	434291	点火板点火	IGNITION PLATE IGNITION	1
2	7778A9	开关盒总成	SWITCHBOX ASSEMBLY	2
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	开关盒螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) SWITCH BOX	2
4	94453	开关盒螺钉衬套	BUSHING SWITCH BOX SCREW	2
6	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	20
7	60871A10	线束总成-开关盒	WIRE ASSEMBLY SWITCH BOX	2
8	62568	螺丝(#10-16 x 0.375)导线固定	SCREW (#10-16 x .375) WIRE ATTACHING	3
9	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
10	69092	点火板螺钉(1.25)	SCREW (1.25) IGNITION PLATE	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈(.312)点火板螺钉	LOCKWASHER (.312) IGNITION PLATE SCREW	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈点火板螺钉	WASHER IGNITION PLATE SCREW	6
13	67264	橡胶垫圈点火板螺钉	WASHER (Rubber) IGNITION PLATE SCREW	6
14	67268	衬套点火板螺钉	BUSHING IGNITION PLATE SCREW	3
15	33386A3	开关总成	SWITCH ASSEMLBY	1
16	38055	水银开关螺钉(.190-32 x .620)	SCREW (.190-32 x .620) MERCURY SWITCH	1
17	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
18	87926	螺钉(#10-32 x .500)导线固定	SCREW (#10-32 x .500) LEAD ATTACHING	1
19	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
19	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
20	96220A12	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
21	79091	保险丝20安培	FUSE 20 Ampere	1
21	8M0207796	保险丝20安培	FUSE 20 AMP	1
22	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
24	816311	捆扎带(8英寸)线束和电缆	TIE STRAP (8.00 Inches) HARNESS AND CABLES	AR
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	68258A4	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
25	853654A1	电磁阀	SOLENOID	1
26	45076	螺母(#10-32)黄铜电磁阀端子	NUT (#10-32) Brass SOLENOID TERMINALS	2
27	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
28	68292	螺母（.312-18）电磁阀端子	NUT (.312-18) SOLENOID TERMINALS	2
28	8M0204668	螺母(.312-18)	NUT (.312-18)	2
29	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
30	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
31	65999A2	电缆总成黑色上部安装	CABLE ASSEMBLY Black UPPER MOUNT	1
32	88528A2	线缆总成(6英寸-红/白)	CABLE ASSEMBLY (6" - RED/WHITE)	1
32	91865A1	线束总成(3"-白/黑-175)	CABLE ASSEMBLY (3" - WHITE/BLACK - 175)	1
33	47483	J型卡扣	J CLIP	3
34	194372	端子排	TERMINAL BLOCK	1
35	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
36	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
37	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
38	814422T	点火板盖	COVER IGNITION PLATE	1
39	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	2
40	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
40	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
41	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
42	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	3
43	62310A2	线束总成(175)	CABLE ASSEMBLY (175)	1
44	78866	绝缘体	INSULATOR	1

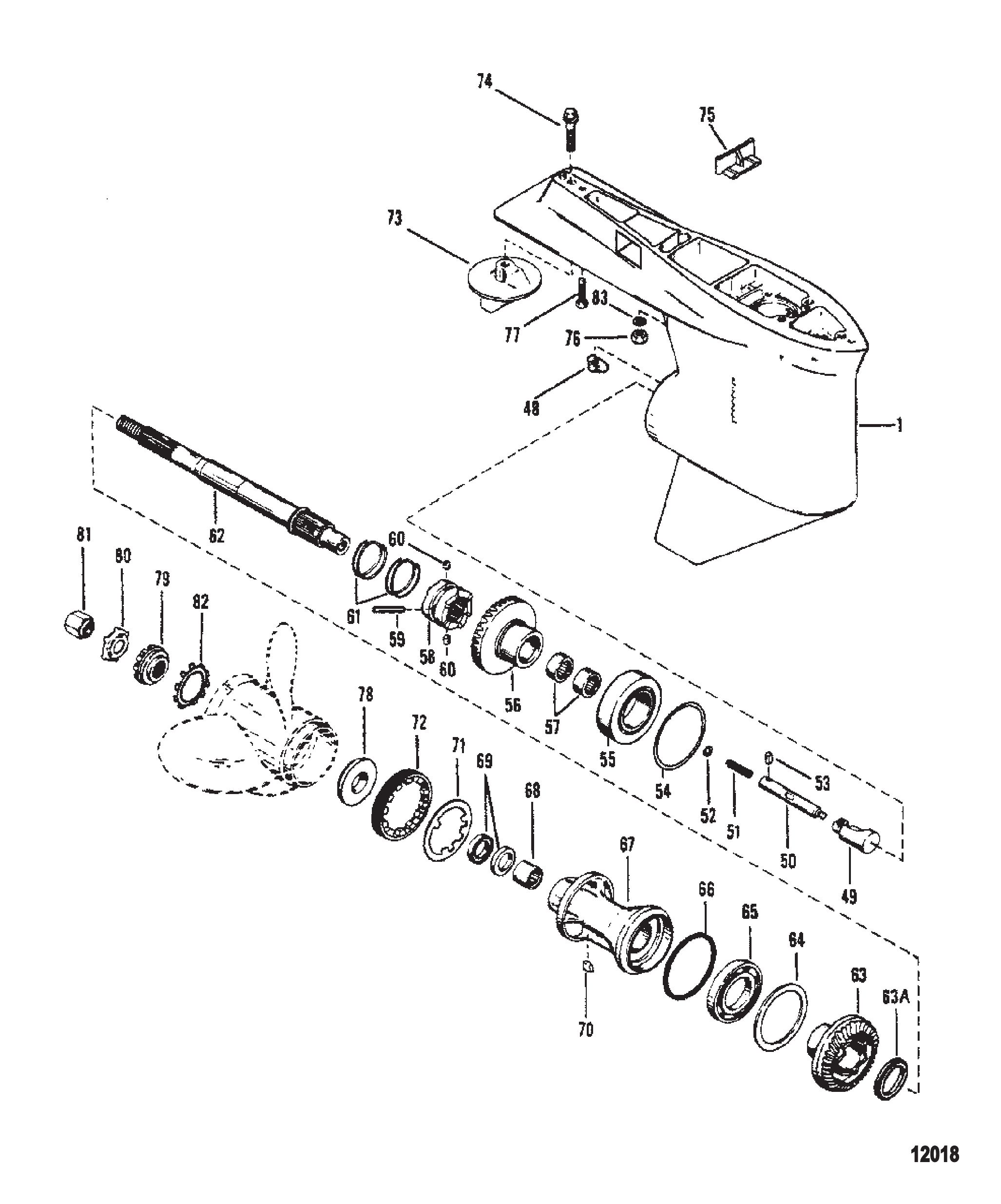

图 28齿轮箱螺旋桨轴-2:1减速比 Gear Housing Propshaft - 2:1 Gear Ratio

REF	零件编号	中文名称	英文名称	数量
1	434291	点火板点火	IGNITION PLATE IGNITION	1
2	7778A9	开关盒总成	SWITCHBOX ASSEMBLY	2
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	开关盒螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) SWITCH BOX	2
4	94453	开关盒螺钉衬套	BUSHING SWITCH BOX SCREW	2
6	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	20
7	60871A10	线束总成-开关盒	WIRE ASSEMBLY SWITCH BOX	2
8	62568	螺丝(#10-16 x 0.375)导线固定	SCREW (#10-16 x .375) WIRE ATTACHING	3
9	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
10	69092	点火板螺钉(1.25)	SCREW (1.25) IGNITION PLATE	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈(.312)点火板螺钉	LOCKWASHER (.312) IGNITION PLATE SCREW	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈点火板螺钉	WASHER IGNITION PLATE SCREW	6
13	67264	橡胶垫圈点火板螺钉	WASHER (Rubber) IGNITION PLATE SCREW	6
14	67268	衬套点火板螺钉	BUSHING IGNITION PLATE SCREW	3
15	33386A3	开关总成	SWITCH ASSEMLBY	1
16	38055	水银开关螺钉(.190-32 x .620)	SCREW (.190-32 x .620) MERCURY SWITCH	1
17	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
18	87926	螺钉(#10-32 x .500)导线固定	SCREW (#10-32 x .500) LEAD ATTACHING	1
19	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
19	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
20	96220A12	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
21	79091	保险丝20安培	FUSE 20 Ampere	1
21	8M0207796	保险丝20安培	FUSE 20 AMP	1
22	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
24	816311	捆扎带(8英寸)线束和电缆	TIE STRAP (8.00 Inches) HARNESS AND CABLES	AR
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	68258A4	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
25	853654A1	电磁阀	SOLENOID	1
26	45076	螺母(#10-32)黄铜电磁阀端子	NUT (#10-32) Brass SOLENOID TERMINALS	2
27	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
28	68292	螺母（.312-18）电磁阀端子	NUT (.312-18) SOLENOID TERMINALS	2
28	8M0204668	螺母(.312-18)	NUT (.312-18)	2
29	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
30	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
31	65999A2	电缆总成黑色上部安装	CABLE ASSEMBLY Black UPPER MOUNT	1
32	88528A2	线缆总成(6英寸-红/白)	CABLE ASSEMBLY (6" - RED/WHITE)	1
32	91865A1	线束总成(3"-白/黑-175)	CABLE ASSEMBLY (3" - WHITE/BLACK - 175)	1
33	47483	J型卡扣	J CLIP	3
34	194372	端子排	TERMINAL BLOCK	1
35	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
36	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
37	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
38	814422T	点火板盖	COVER IGNITION PLATE	1
39	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	2
40	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
40	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
41	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
42	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	3
43	62310A2	线束总成(175)	CABLE ASSEMBLY (175)	1
44	78866	绝缘体	INSULATOR	1

图 29齿轮箱驱动轴-1.87:1减速比 4.75英寸直径 Gear Housing Driveshaft-1.87:1 Gear Ratio 4.75 Inch Dia

REF	零件编号	中文名称	英文名称	数量
1	9912688	管材(36.00英寸散装)(裁切至3-1/4英寸)	TUBING (36.00 Inches Bulk) (Cut to 3-1/4 IN.)	1
2	18206	滤清器	FILTER	1
2	8M0207786	滤清器	FILTER	1
3	9912688	管材(36.00英寸散装)(裁切至7-1/4英寸)	TUBING (36.00 Inches Bulk) (Cut to 7-1/4 IN.)	1
4	99130122	管材(20.00英尺散装)(裁切至3-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 3-1/2 IN.)	1
4	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
5	59169	接头	FITTING	4
5	59169003	三通接头	FITTING Tee	4
6	99130122	管材(20英尺整卷)(裁切至5-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 5-1/2 IN.)	1
6	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
7	99130122	管材(20.00英尺散装)(裁切至9英寸)	TUBING (20.00 Feet Bulk) (Cut to 9 IN.)	2
7	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
8	56759	压入式倒钩接头	FITTING Barbed (PRESS-IN)	4
9	426981	止回阀(压入式-13/16长)	CHECK VALVE (PRESS-IN - 13/16 LONG)	7
9	426982	止回阀	CHECK VALVE	7
10	426231	止回阀(压入式-11/16长)	CHECK VALVE (PRESS-IN - 11/16 LONG)	1
10	426233	止回阀	CHECK VALVE	1
11	18205	三通	TEE	1
12	99130122	管材(20.00英尺散装)(裁切至1-1/4英寸)	TUBING (20.00 Feet Bulk) (Cut to 1-1/4 IN.)	1
12	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
13	99130122	管材(20.00英尺散装)(裁切至9英寸)	TUBING (20.00 Feet Bulk) (Cut to 9 IN.)	2
13	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
14	99130122	管材(20.00英尺散装)(裁切至19英寸)	TUBING (20.00 Feet Bulk) (Cut to 19 IN.)	1
14	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
15	99130122	管材(20.00英尺散装)(裁切至1英寸)	TUBING (20.00 Feet Bulk) (Cut to 1 IN.)	3
15	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	3
16	99130122	管材(20英尺整卷)(裁切为4-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 4-1/2 IN.)	2
16	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
-	823434A97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 30齿轮箱（驱动轴）（2.0:1） GEAR HOUSING (DRIVESHAFT)(2.0:1)

REF	零件编号	中文名称	英文名称	数量
-	9148A20	齿轮箱总成-标准转向2:1速比	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio	1
1	9148A12	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
2	85822A1	连接器总成	CONNECTOR ASSEMBLY	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	20033	定位销	PIN Dowel	2
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	78638	双头螺栓(.438×3.12)(长型)	STUD (.438 x 3.12) (LONG)	1
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
4	18978	双头螺栓(.438×3.69)(加长型)	STUD (.438 x 3.69) (X-LONG)	1
4	8M0034464	螺柱	STUD	1
5	57920	双头螺柱(.44 x 2.06)	STUD (.44 x 2.06)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	306671	螺柱	STUD	2
8	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	43998	套筒	SLEEVE	1
11	440001	驱动轴(长型)	DRIVESHAFT (LONG)	1
11	897624T	长驱动轴	DRIVESHAFT Long	1
11	442091	驱动轴(加长型)	DRIVESHAFT (X-LONG)	1
11	897625T	加长驱动轴	DRIVESHAFT X-Long	1
12	N.S.S.	不单独出售小齿轮(43-44102A2部件)	Not Sold Separate Pinion Gear (PART OF 43-44102A2)	1
13	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
14	35921	螺母(0.625-18)	NUT (.625-18)	1
15	42637A1	垫片组	SHIM SET	AR
15	8M0063267	垫片组	SHIM SET	AR
16	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
16	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
17	42633	螺母	NUT	1
17	8245191	固定座	RETAINER	1
18	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
19	426311	衬垫	GASKET	1
19	8M0204678	衬垫	GASKET	1
20	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
20	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
21	89238	油封	SEAL Oil	1
22	16977	油封	SEAL Oil	1
23	856081	下部衬垫	GASKET LOWER	1
23	8M0090319	衬垫@5	GASKET @5	1
24	856091	上衬垫	GASKET UPPER	1
24	858524	衬垫	GASKET	1
25	32435	面板	FACE PLATE	1
25	8M0204677	面板	PLATE-FACE	1
26	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
27	48752	嵌件	INSERT	1
27	48752T	嵌件	INSERT	1
28	38970	橡胶密封件	SEAL RUBBER	1
29	89984	叶轮	IMPELLER	1
29	89984T4	叶轮	IMPELLER	1
30	56654	键	KEY	1
30	8M0214992	键@5	KEY @5	1
31	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
31	8M0215009	螺钉	SCREW	1
32	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
33	13438	螺母(.250-28)	NUT (.250-28)	2
33	8267119	螺母(.250-28)	NUT (.250-28)	2
34	36001	垫圈	WASHER	1
35	13436	螺母	NUT	1
36	30271	橡胶环(旧款)	RING Rubber (OLD DESIGN)	1
36	8M0214918	环@5	RING @5	1
37	29804	套筒	SLEEVE	1
37	29804T	套筒	SLEEVE	1
38	78902	下轴	SHAFT LOWER	1
38	789022	换档轴	SHIFT SHAFT	1
39	29641	E型卡环	E RING	1
40	78907	挡圈（旧设计）	RING Retaining (OLD DESIGN)	1
41	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
42	77631A2	衬套总成	BUSHING ASSEMBLY	1
43	816464	油封	SEAL Oil	1
43	8M0246145	油封	OIL SEAL	1
44	77674	橡胶垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12) RUBBER	1
45	79953		SCREW (.375-16 x .250) GREASE FILLER	1
45	79953Q04	放油螺钉套件	SCREW KIT Drain	1
46	67892		SCREW Magnetic DRAIN	1
46	8M0058389	放油螺钉套件	SCREW KIT Drain	1
47	19183	纤维垫圈	WASHER Fiber	2
47	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
-	42579A4	水泵修理包	REBUILD KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 31齿轮箱螺旋桨轴1.78:1减速比 4.25英寸直径 Gear Housing Propshaft 1.78:1 Gear Ratio 4.25 Inch Dia

REF	零件编号	中文名称	英文名称	数量
1	9912688	管材(36.00英寸散装)(裁切至3-1/4英寸)	TUBING (36.00 Inches Bulk) (Cut to 3-1/4 IN.)	1
2	18206	滤清器	FILTER	1
2	8M0207786	滤清器	FILTER	1
3	9912688	管材(36.00英寸散装)(裁切至7-1/4英寸)	TUBING (36.00 Inches Bulk) (Cut to 7-1/4 IN.)	1
4	99130122	管材(20.00英尺散装)(裁切至3-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 3-1/2 IN.)	1
4	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
5	59169	接头	FITTING	4
5	59169003	三通接头	FITTING Tee	4
6	99130122	管材(20英尺整卷)(裁切至5-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 5-1/2 IN.)	1
6	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
7	99130122	管材(20.00英尺散装)(裁切至9英寸)	TUBING (20.00 Feet Bulk) (Cut to 9 IN.)	2
7	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
8	56759	压入式倒钩接头	FITTING Barbed (PRESS-IN)	4
9	426981	止回阀(压入式-13/16长)	CHECK VALVE (PRESS-IN - 13/16 LONG)	7
9	426982	止回阀	CHECK VALVE	7
10	426231	止回阀(压入式-11/16长)	CHECK VALVE (PRESS-IN - 11/16 LONG)	1
10	426233	止回阀	CHECK VALVE	1
11	18205	三通	TEE	1
12	99130122	管材(20.00英尺散装)(裁切至1-1/4英寸)	TUBING (20.00 Feet Bulk) (Cut to 1-1/4 IN.)	1
12	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
13	99130122	管材(20.00英尺散装)(裁切至9英寸)	TUBING (20.00 Feet Bulk) (Cut to 9 IN.)	2
13	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
14	99130122	管材(20.00英尺散装)(裁切至19英寸)	TUBING (20.00 Feet Bulk) (Cut to 19 IN.)	1
14	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
15	99130122	管材(20.00英尺散装)(裁切至1英寸)	TUBING (20.00 Feet Bulk) (Cut to 1 IN.)	3
15	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	3
16	99130122	管材(20英尺整卷)(裁切为4-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 4-1/2 IN.)	2
16	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
-	823434A97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 32齿轮箱驱动轴-1.78:1减速比 4.25英寸直径 Gear Housing Driveshaft-178:1 Gear Ratio 4.25 Inch Dia

REF	零件编号	中文名称	英文名称	数量
1	9912688	管材(36.00英寸散装)(裁切至3-1/4英寸)	TUBING (36.00 Inches Bulk) (Cut to 3-1/4 IN.)	1
2	18206	滤清器	FILTER	1
2	8M0207786	滤清器	FILTER	1
3	9912688	管材(36.00英寸散装)(裁切至7-1/4英寸)	TUBING (36.00 Inches Bulk) (Cut to 7-1/4 IN.)	1
4	99130122	管材(20.00英尺散装)(裁切至3-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 3-1/2 IN.)	1
4	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
5	59169	接头	FITTING	4
5	59169003	三通接头	FITTING Tee	4
6	99130122	管材(20英尺整卷)(裁切至5-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 5-1/2 IN.)	1
6	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
7	99130122	管材(20.00英尺散装)(裁切至9英寸)	TUBING (20.00 Feet Bulk) (Cut to 9 IN.)	2
7	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
8	56759	压入式倒钩接头	FITTING Barbed (PRESS-IN)	4
9	426981	止回阀(压入式-13/16长)	CHECK VALVE (PRESS-IN - 13/16 LONG)	7
9	426982	止回阀	CHECK VALVE	7
10	426231	止回阀(压入式-11/16长)	CHECK VALVE (PRESS-IN - 11/16 LONG)	1
10	426233	止回阀	CHECK VALVE	1
11	18205	三通	TEE	1
12	99130122	管材(20.00英尺散装)(裁切至1-1/4英寸)	TUBING (20.00 Feet Bulk) (Cut to 1-1/4 IN.)	1
12	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
13	99130122	管材(20.00英尺散装)(裁切至9英寸)	TUBING (20.00 Feet Bulk) (Cut to 9 IN.)	2
13	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
14	99130122	管材(20.00英尺散装)(裁切至19英寸)	TUBING (20.00 Feet Bulk) (Cut to 19 IN.)	1
14	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
15	99130122	管材(20.00英尺散装)(裁切至1英寸)	TUBING (20.00 Feet Bulk) (Cut to 1 IN.)	3
15	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	3
16	99130122	管材(20英尺整卷)(裁切为4-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 4-1/2 IN.)	2
16	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
-	823434A97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 33齿轮箱螺旋桨轴-1.87:1减速比 4.75英寸直径 Gear Housing Propshaft-1.87:1 Gear Ratio 4.75 Inch Dia

REF	零件编号	中文名称	英文名称	数量
1	9912688	管材(36.00英寸散装)(裁切至3-1/4英寸)	TUBING (36.00 Inches Bulk) (Cut to 3-1/4 IN.)	1
2	18206	滤清器	FILTER	1
2	8M0207786	滤清器	FILTER	1
3	9912688	管材(36.00英寸散装)(裁切至7-1/4英寸)	TUBING (36.00 Inches Bulk) (Cut to 7-1/4 IN.)	1
4	99130122	管材(20.00英尺散装)(裁切至3-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 3-1/2 IN.)	1
4	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
5	59169	接头	FITTING	4
5	59169003	三通接头	FITTING Tee	4
6	99130122	管材(20英尺整卷)(裁切至5-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 5-1/2 IN.)	1
6	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
7	99130122	管材(20.00英尺散装)(裁切至9英寸)	TUBING (20.00 Feet Bulk) (Cut to 9 IN.)	2
7	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
8	56759	压入式倒钩接头	FITTING Barbed (PRESS-IN)	4
9	426981	止回阀(压入式-13/16长)	CHECK VALVE (PRESS-IN - 13/16 LONG)	7
9	426982	止回阀	CHECK VALVE	7
10	426231	止回阀(压入式-11/16长)	CHECK VALVE (PRESS-IN - 11/16 LONG)	1
10	426233	止回阀	CHECK VALVE	1
11	18205	三通	TEE	1
12	99130122	管材(20.00英尺散装)(裁切至1-1/4英寸)	TUBING (20.00 Feet Bulk) (Cut to 1-1/4 IN.)	1
12	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
13	99130122	管材(20.00英尺散装)(裁切至9英寸)	TUBING (20.00 Feet Bulk) (Cut to 9 IN.)	2
13	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
14	99130122	管材(20.00英尺散装)(裁切至19英寸)	TUBING (20.00 Feet Bulk) (Cut to 19 IN.)	1
14	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
15	99130122	管材(20.00英尺散装)(裁切至1英寸)	TUBING (20.00 Feet Bulk) (Cut to 1 IN.)	3
15	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	3
16	99130122	管材(20英尺整卷)(裁切为4-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 4-1/2 IN.)	2
16	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
-	823434A97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

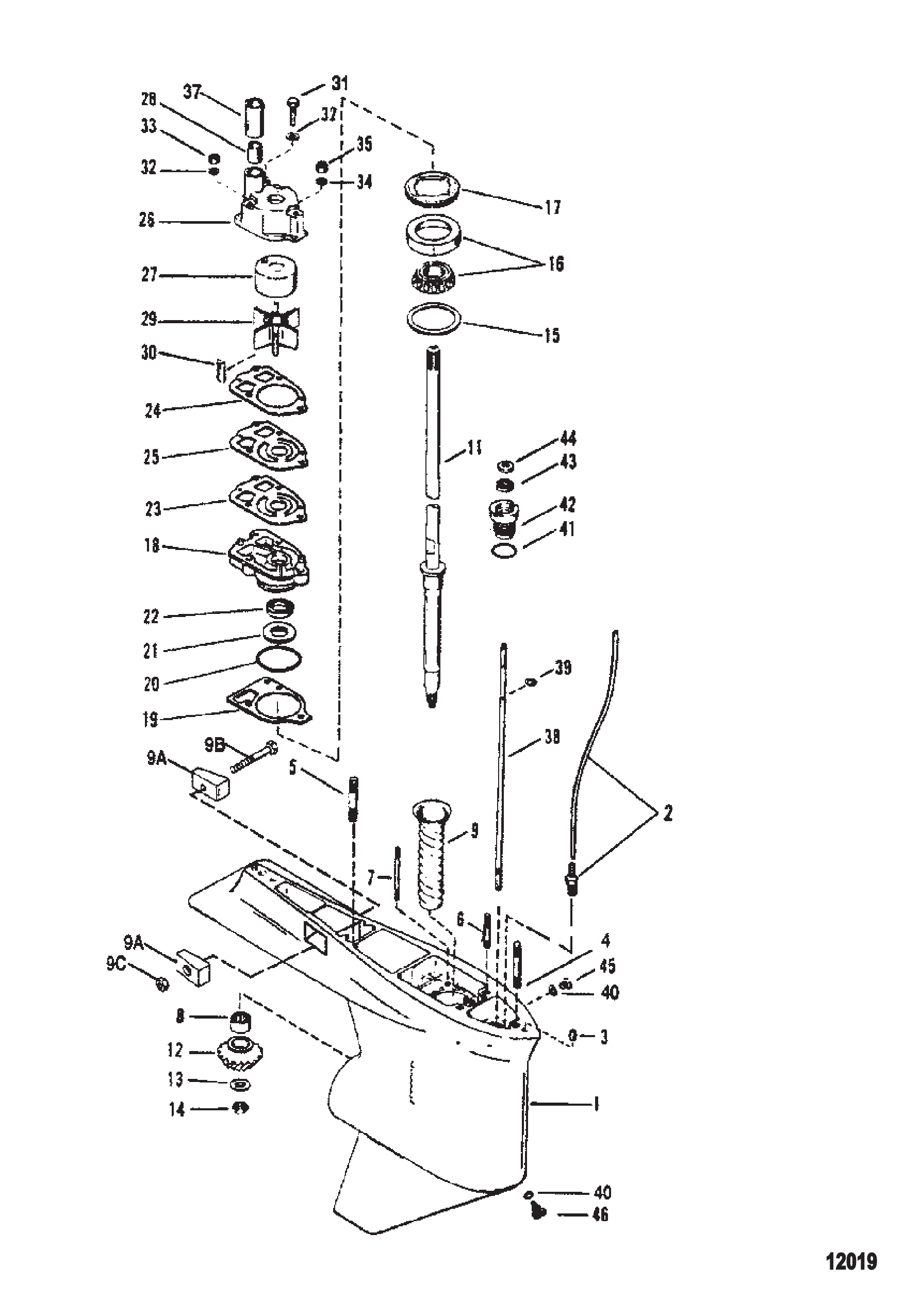

图 34齿轮箱驱动轴-反旋转 Gear Housing Driveshaft - Counter Rotation

REF	零件编号	中文名称	英文名称	数量
1	9912688	管材(36.00英寸散装)(裁切至3-1/4英寸)	TUBING (36.00 Inches Bulk) (Cut to 3-1/4 IN.)	1
2	18206	滤清器	FILTER	1
2	8M0207786	滤清器	FILTER	1
3	9912688	管材(36.00英寸散装)(裁切至7-1/4英寸)	TUBING (36.00 Inches Bulk) (Cut to 7-1/4 IN.)	1
4	99130122	管材(20.00英尺散装)(裁切至3-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 3-1/2 IN.)	1
4	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
5	59169	接头	FITTING	4
5	59169003	三通接头	FITTING Tee	4
6	99130122	管材(20英尺整卷)(裁切至5-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 5-1/2 IN.)	1
6	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
7	99130122	管材(20.00英尺散装)(裁切至9英寸)	TUBING (20.00 Feet Bulk) (Cut to 9 IN.)	2
7	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
8	56759	压入式倒钩接头	FITTING Barbed (PRESS-IN)	4
9	426981	止回阀(压入式-13/16长)	CHECK VALVE (PRESS-IN - 13/16 LONG)	7
9	426982	止回阀	CHECK VALVE	7
10	426231	止回阀(压入式-11/16长)	CHECK VALVE (PRESS-IN - 11/16 LONG)	1
10	426233	止回阀	CHECK VALVE	1
11	18205	三通	TEE	1
12	99130122	管材(20.00英尺散装)(裁切至1-1/4英寸)	TUBING (20.00 Feet Bulk) (Cut to 1-1/4 IN.)	1
12	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
13	99130122	管材(20.00英尺散装)(裁切至9英寸)	TUBING (20.00 Feet Bulk) (Cut to 9 IN.)	2
13	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
14	99130122	管材(20.00英尺散装)(裁切至19英寸)	TUBING (20.00 Feet Bulk) (Cut to 19 IN.)	1
14	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
15	99130122	管材(20.00英尺散装)(裁切至1英寸)	TUBING (20.00 Feet Bulk) (Cut to 1 IN.)	3
15	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	3
16	99130122	管材(20英尺整卷)(裁切为4-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 4-1/2 IN.)	2
16	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
-	823434A97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 35齿轮箱（螺旋桨轴）（2.0:1） GEAR HOUSING (PROPELLER SHAFT)(2.0:1)

REF	零件编号	中文名称	英文名称	数量
-	9148A20	齿轮箱总成(标准转向2:1速比)(完整)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (Complete)	1
1	9148A12	齿轮箱总成(基础型)	GEAR HOUSING ASSEMBLY (Basic)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
48	78956	换挡凸轮	SHIFT CAM	1
48	789562	换挡凸轮	SHIFT CAM	1
49	89594A1	凸轮从动件总成	FOLLOWER ASSEMBLY CAM	1
50	816520	离合器作动杆	ROD CLUTCH ACTUATOR	1
50	79911A1	杆	ROD	1
51	79910	压缩弹簧	SPRING COMPRESSION	2
52	78910	压缩弹簧垫圈	WASHER COMPRESSION SPRING	AR
53	78906		PIN SPRING LOCATOR	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	47397A1	轴承外圈垫片组(.002-3-5-10)	SHIM SET BEARING OUTER RACE (.002-3-5-10)	AR
55	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
56	44102A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
57	73363	滚柱轴承(5/8")	BEARING Roller (5/8")	2
57	73363T	轴承	BEARING	2
57	549281	滚柱轴承(1")	BEARING Roller (1")	1
58	78959	棘轮滑动离合器	RATCHET SLIDING CLUTCH	1
58	823174T	ORD 8M0100493	ORD 8M0100493	1
59	78905	棘轮到螺旋桨轴十字销	PIN Cross RATCHET TO PROPELLER SHAFT	1
59	8M0084243	十字销	PIN Cross	1
60	78909	棘轮定位销	PIN Detent RATCHET	2
61	78962	十字销固定弹簧	SPRING RETAINING-CROSS PIN	2
62	94148	螺旋桨轴	PROPELLER SHAFT	1
63	N.S.S.	倒车齿轮不单独销售(43-44102A2部件)	Not Sold Separate Reverse Gear (PART OF 43-44102A2)	1
64	681001	推力环-轴承座	RING Thrust THRUST - BEARING CARRIER	1
65	88957A1	倒车档滚珠轴承	BEARING Ball BALL - REVERSE GEAR	1
65	88957T	滚珠轴承	BEARING Ball	1
66	31534	轴承座O型圈	O-RING BEARING CARRIER	1
66	8M0214920	O型圈	O RING	1
67	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	30956	滚针轴承-轴承座	BEARING Needle BEARING CARRIER	1
68	30956T	滚针轴承	BEARING Needle	1
69	76868	轴承座密封	SEAL BEARING CARRIER	2
69	8M0248882	油封@5	SEAL-OIL @5	2
70	30281		KEY LOCATING - BEARING CARRIER	1
71	79447	齿轮箱盖锁紧垫圈	TAB WASHER GEAR HOUSING COVER	1
72	79448	齿轮箱固定座	RETAINER GEAR HOUSING	1
72	8M2011027	固定座	RETAINER	1
73	31640Q4	调整片齿轮箱	TRIM TAB GEAR HOUSING	1
74	66024		SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING	1
75	67891	填充块	FILLER BLOCK	1
75	8M0039169	填充块	FILLER BLOCK	1
76	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
76	8M0204653	螺母	NUT	2
77	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
77	74727	螺钉(.375-16 x 6.00)	SCREW (.375-16 x 6.00)	1
78	13171	推力毂	THRUST HUB	1
78	835467Q01	止推垫片套件	THRUST WASHER KIT	1
79	31211A2	花键垫圈	WASHER Splined	1
79	31211Q03	垫圈总成	WASHER ASSEMBLY	1
80	816629	锁紧垫圈	TAB WASHER	1
80	816629Q	锁紧垫圈	TAB WASHER	1
81	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
81	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
82	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
83	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
-	89238A2	密封套件	SEAL KIT	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 36齿轮箱螺旋桨轴-反旋转 Gear Housing Propshaft - Counter Rotation

REF	零件编号	中文名称	英文名称	数量
1	9912688	管材(36.00英寸散装)(裁切至3-1/4英寸)	TUBING (36.00 Inches Bulk) (Cut to 3-1/4 IN.)	1
2	18206	滤清器	FILTER	1
2	8M0207786	滤清器	FILTER	1
3	9912688	管材(36.00英寸散装)(裁切至7-1/4英寸)	TUBING (36.00 Inches Bulk) (Cut to 7-1/4 IN.)	1
4	99130122	管材(20.00英尺散装)(裁切至3-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 3-1/2 IN.)	1
4	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
5	59169	接头	FITTING	4
5	59169003	三通接头	FITTING Tee	4
6	99130122	管材(20英尺整卷)(裁切至5-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 5-1/2 IN.)	1
6	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
7	99130122	管材(20.00英尺散装)(裁切至9英寸)	TUBING (20.00 Feet Bulk) (Cut to 9 IN.)	2
7	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
8	56759	压入式倒钩接头	FITTING Barbed (PRESS-IN)	4
9	426981	止回阀(压入式-13/16长)	CHECK VALVE (PRESS-IN - 13/16 LONG)	7
9	426982	止回阀	CHECK VALVE	7
10	426231	止回阀(压入式-11/16长)	CHECK VALVE (PRESS-IN - 11/16 LONG)	1
10	426233	止回阀	CHECK VALVE	1
11	18205	三通	TEE	1
12	99130122	管材(20.00英尺散装)(裁切至1-1/4英寸)	TUBING (20.00 Feet Bulk) (Cut to 1-1/4 IN.)	1
12	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
13	99130122	管材(20.00英尺散装)(裁切至9英寸)	TUBING (20.00 Feet Bulk) (Cut to 9 IN.)	2
13	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
14	99130122	管材(20.00英尺散装)(裁切至19英寸)	TUBING (20.00 Feet Bulk) (Cut to 19 IN.)	1
14	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
15	99130122	管材(20.00英尺散装)(裁切至1英寸)	TUBING (20.00 Feet Bulk) (Cut to 1 IN.)	3
15	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	3
16	99130122	管材(20英尺整卷)(裁切为4-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 4-1/2 IN.)	2
16	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
-	823434A97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 37点火线圈/电压调节器 Ignition Coil/Voltage Regulator

REF	零件编号	中文名称	英文名称	数量
1	434291	点火板点火	IGNITION PLATE IGNITION	1
2	7778A9	开关盒总成	SWITCHBOX ASSEMBLY	2
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	开关盒螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) SWITCH BOX	2
4	94453	开关盒螺钉衬套	BUSHING SWITCH BOX SCREW	2
6	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	20
7	60871A10	线束总成-开关盒	WIRE ASSEMBLY SWITCH BOX	2
8	62568	螺丝(#10-16 x 0.375)导线固定	SCREW (#10-16 x .375) WIRE ATTACHING	3
9	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
10	69092	点火板螺钉(1.25)	SCREW (1.25) IGNITION PLATE	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈(.312)点火板螺钉	LOCKWASHER (.312) IGNITION PLATE SCREW	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈点火板螺钉	WASHER IGNITION PLATE SCREW	6
13	67264	橡胶垫圈点火板螺钉	WASHER (Rubber) IGNITION PLATE SCREW	6
14	67268	衬套点火板螺钉	BUSHING IGNITION PLATE SCREW	3
15	33386A3	开关总成	SWITCH ASSEMLBY	1
16	38055	水银开关螺钉(.190-32 x .620)	SCREW (.190-32 x .620) MERCURY SWITCH	1
17	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
18	87926	螺钉(#10-32 x .500)导线固定	SCREW (#10-32 x .500) LEAD ATTACHING	1
19	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
19	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
20	96220A12	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
21	79091	保险丝20安培	FUSE 20 Ampere	1
21	8M0207796	保险丝20安培	FUSE 20 AMP	1
22	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
24	816311	捆扎带(8英寸)线束和电缆	TIE STRAP (8.00 Inches) HARNESS AND CABLES	AR
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	68258A4	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
25	853654A1	电磁阀	SOLENOID	1
26	45076	螺母(#10-32)黄铜电磁阀端子	NUT (#10-32) Brass SOLENOID TERMINALS	2
27	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
28	68292	螺母（.312-18）电磁阀端子	NUT (.312-18) SOLENOID TERMINALS	2
28	8M0204668	螺母(.312-18)	NUT (.312-18)	2
29	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
30	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
31	65999A2	电缆总成黑色上部安装	CABLE ASSEMBLY Black UPPER MOUNT	1
32	88528A2	线缆总成(6英寸-红/白)	CABLE ASSEMBLY (6" - RED/WHITE)	1
32	91865A1	线束总成(3"-白/黑-175)	CABLE ASSEMBLY (3" - WHITE/BLACK - 175)	1
33	47483	J型卡扣	J CLIP	3
34	194372	端子排	TERMINAL BLOCK	1
35	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
36	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
37	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
38	814422T	点火板盖	COVER IGNITION PLATE	1
39	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	2
40	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
40	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
41	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
42	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	3
43	62310A2	线束总成(175)	CABLE ASSEMBLY (175)	1
44	78866	绝缘体	INSULATOR	1

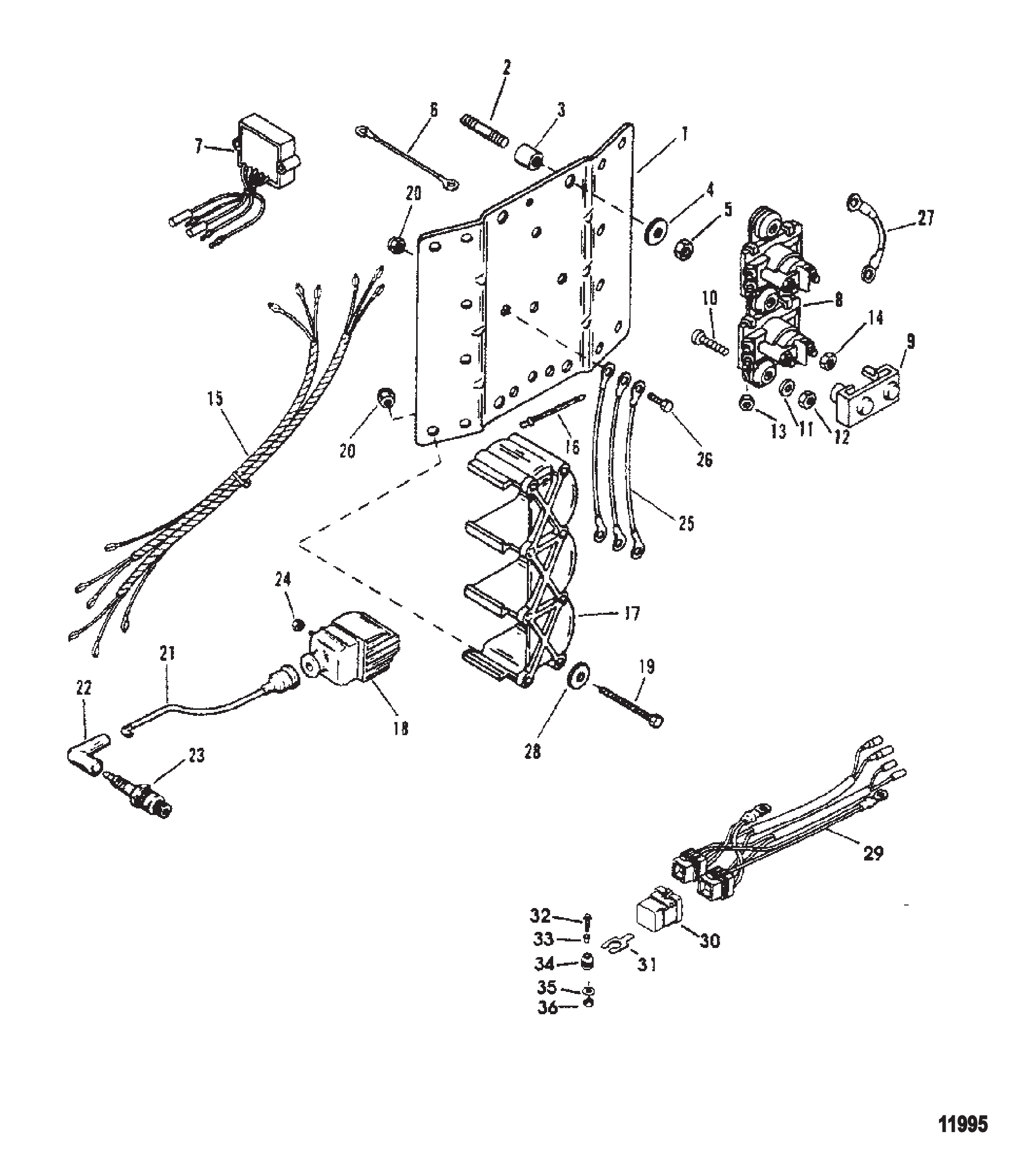

图 38点火线圈/电压调节器 IGNITION COIL/VOLTAGE REGULATOR

REF	零件编号	中文名称	英文名称	数量
1	195872	安装板	MOUNTING PLATE	1
2	33778	螺柱	STUD	4
3	19661	衬套	BUSHING	4
4	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
5	13438	螺母(.250-28)	NUT (.250-28)	4
5	8267119	螺母(.250-28)	NUT (.250-28)	4
6	88807A35	拉线总成	CABLE ASSEMBLY	1
7	854515	电压调节器	REGULATOR Voltage	2
7	8M0084173	电压调节器	VOLTAGE REGULATOR	2
8	69739A7	线束总成	HARNESS ASSEMBLY	1
9	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
10	43542	盖板	COVER	2
11	90048	螺钉 (#10-32 x 2.125)	SCREW (#10-32 x 2.125)	12
12	89302	垫圈(0.203 x 0.406 x 0.040)(适用处使用)	WASHER (.203 x .406 x .040) (USE WHERE APPLICABLE)	12
13	90078	螺母 (#10-32)	NUT (#10-32)	14
14	88807A13	拉线总成	CABLE ASSEMBLY	6
15	69022	螺钉 (#10-32 x .500) 不锈钢	SCREW (#10-32 x .500) Stainless Steel	2
16	832757A4	线圈套件	COIL KIT	6
16	8M0230859	点火线圈总成	COIL IGNITION ASY	6
17	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	12
18	813706A55	高压线总成	CABLE ASSEMBLY High Tension	1
18	813715A9	点火线缆套件	CABLE KIT Ignition	1
19	63709A1	护套/端子套件	BOOT/TERMINAL KIT	6
20	136862	火花塞（NGK #BU8H）	SPARK PLUG (NGK #BU8H)	6
20	13686Q	NGK BU8H @10	NGK BU8H @10	6
20	14103568	火花塞(NGK #BUZ8H-加拿大/比利时)	SPARK PLUG (NGK #BUZ8H - CANADA/BELGIUM)	6
20	896329885	SP #L6VC @4	SP #L6VC @4	6
21	826802A4	线束总成	HARNESS ASSEMBLY	1
22	828151A1	继电器总成	RELAY ASSEMBLY	2
22	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
23	828102	支架	BRACKET	2
23	8M0207771	安装支架	BRACKET Mounting	2
24	818968	衬套	BUSHING	2
24	8M0214955	衬套	BUSHING	2
25	818967	护孔环	GROMMET	2
25	8M0207785	护孔环	GROMMET	2
26	35950	垫圈 (.273 x .437 x .031) 不锈钢	WASHER (.273 x .437 x .031) Stainless Steel	2
27	13855A1	螺母/螺钉套件	NUT/SCREW KIT	2
28	NSS		NOT SOLD SEPARATE SCREW	2

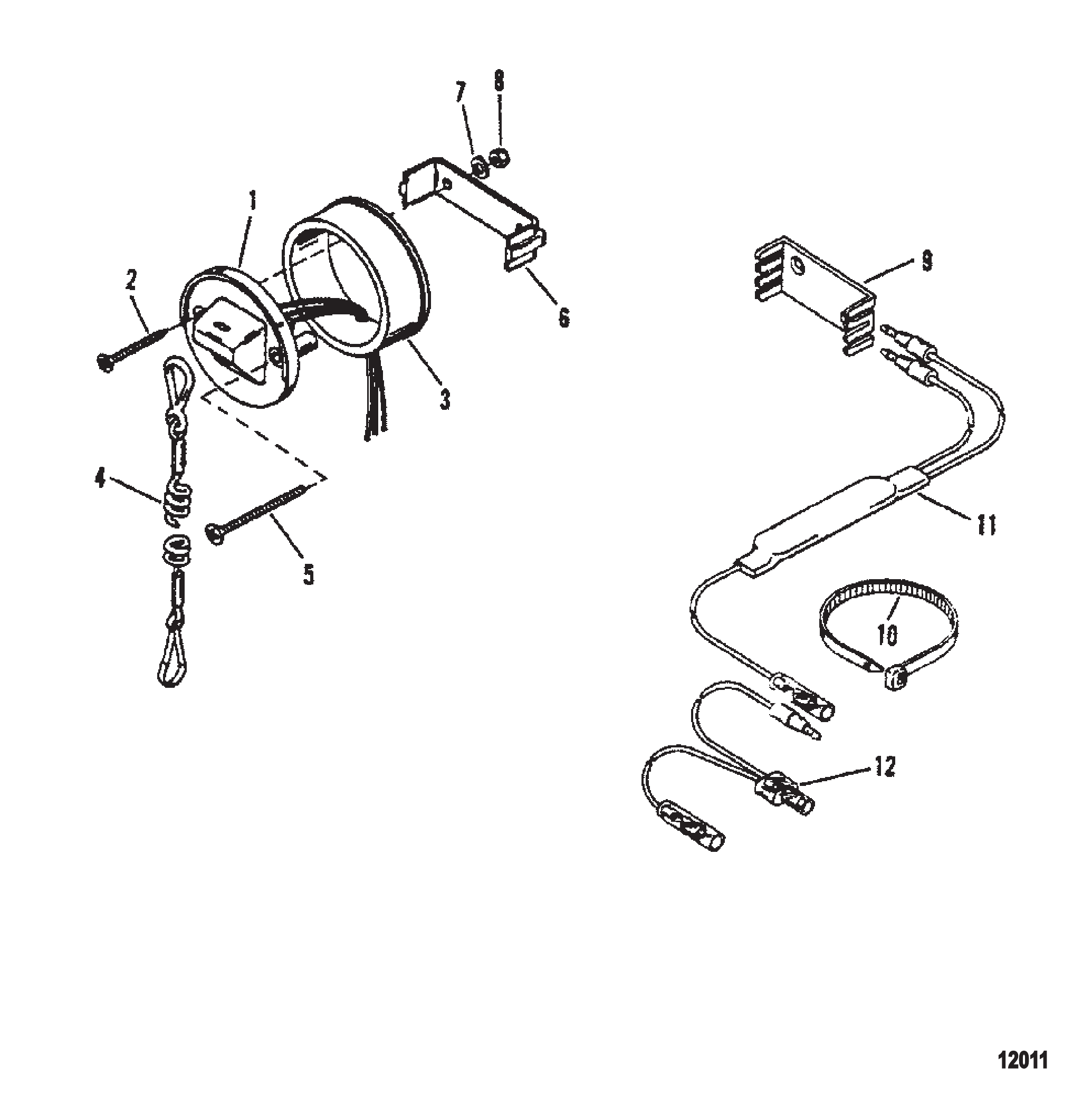

图 39仪表装置 Instrumentation

REF	零件编号	中文名称	英文名称	数量
1	434291	点火板点火	IGNITION PLATE IGNITION	1
2	7778A9	开关盒总成	SWITCHBOX ASSEMBLY	2
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	开关盒螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) SWITCH BOX	2
4	94453	开关盒螺钉衬套	BUSHING SWITCH BOX SCREW	2
6	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	20
7	60871A10	线束总成-开关盒	WIRE ASSEMBLY SWITCH BOX	2
8	62568	螺丝(#10-16 x 0.375)导线固定	SCREW (#10-16 x .375) WIRE ATTACHING	3
9	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
10	69092	点火板螺钉(1.25)	SCREW (1.25) IGNITION PLATE	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈(.312)点火板螺钉	LOCKWASHER (.312) IGNITION PLATE SCREW	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈点火板螺钉	WASHER IGNITION PLATE SCREW	6
13	67264	橡胶垫圈点火板螺钉	WASHER (Rubber) IGNITION PLATE SCREW	6
14	67268	衬套点火板螺钉	BUSHING IGNITION PLATE SCREW	3
15	33386A3	开关总成	SWITCH ASSEMLBY	1
16	38055	水银开关螺钉(.190-32 x .620)	SCREW (.190-32 x .620) MERCURY SWITCH	1
17	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
18	87926	螺钉(#10-32 x .500)导线固定	SCREW (#10-32 x .500) LEAD ATTACHING	1
19	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
19	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
20	96220A12	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
21	79091	保险丝20安培	FUSE 20 Ampere	1
21	8M0207796	保险丝20安培	FUSE 20 AMP	1
22	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
24	816311	捆扎带(8英寸)线束和电缆	TIE STRAP (8.00 Inches) HARNESS AND CABLES	AR
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	68258A4	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
25	853654A1	电磁阀	SOLENOID	1
26	45076	螺母(#10-32)黄铜电磁阀端子	NUT (#10-32) Brass SOLENOID TERMINALS	2
27	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
28	68292	螺母（.312-18）电磁阀端子	NUT (.312-18) SOLENOID TERMINALS	2
28	8M0204668	螺母(.312-18)	NUT (.312-18)	2
29	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
30	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
31	65999A2	电缆总成黑色上部安装	CABLE ASSEMBLY Black UPPER MOUNT	1
32	88528A2	线缆总成(6英寸-红/白)	CABLE ASSEMBLY (6" - RED/WHITE)	1
32	91865A1	线束总成(3"-白/黑-175)	CABLE ASSEMBLY (3" - WHITE/BLACK - 175)	1
33	47483	J型卡扣	J CLIP	3
34	194372	端子排	TERMINAL BLOCK	1
35	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
36	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
37	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
38	814422T	点火板盖	COVER IGNITION PLATE	1
39	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	2
40	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
40	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
41	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
42	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	3
43	62310A2	线束总成(175)	CABLE ASSEMBLY (175)	1
44	78866	绝缘体	INSULATOR	1

图 40机油喷射组件 Oil Injection Components

REF	零件编号	中文名称	英文名称	数量
1	434291	点火板点火	IGNITION PLATE IGNITION	1
2	7778A9	开关盒总成	SWITCHBOX ASSEMBLY	2
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	开关盒螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) SWITCH BOX	2
4	94453	开关盒螺钉衬套	BUSHING SWITCH BOX SCREW	2
6	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	20
7	60871A10	线束总成-开关盒	WIRE ASSEMBLY SWITCH BOX	2
8	62568	螺丝(#10-16 x 0.375)导线固定	SCREW (#10-16 x .375) WIRE ATTACHING	3
9	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
10	69092	点火板螺钉(1.25)	SCREW (1.25) IGNITION PLATE	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈(.312)点火板螺钉	LOCKWASHER (.312) IGNITION PLATE SCREW	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈点火板螺钉	WASHER IGNITION PLATE SCREW	6
13	67264	橡胶垫圈点火板螺钉	WASHER (Rubber) IGNITION PLATE SCREW	6
14	67268	衬套点火板螺钉	BUSHING IGNITION PLATE SCREW	3
15	33386A3	开关总成	SWITCH ASSEMLBY	1
16	38055	水银开关螺钉(.190-32 x .620)	SCREW (.190-32 x .620) MERCURY SWITCH	1
17	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
18	87926	螺钉(#10-32 x .500)导线固定	SCREW (#10-32 x .500) LEAD ATTACHING	1
19	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
19	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
20	96220A12	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
21	79091	保险丝20安培	FUSE 20 Ampere	1
21	8M0207796	保险丝20安培	FUSE 20 AMP	1
22	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
24	816311	捆扎带(8英寸)线束和电缆	TIE STRAP (8.00 Inches) HARNESS AND CABLES	AR
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	68258A4	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
25	853654A1	电磁阀	SOLENOID	1
26	45076	螺母(#10-32)黄铜电磁阀端子	NUT (#10-32) Brass SOLENOID TERMINALS	2
27	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
28	68292	螺母（.312-18）电磁阀端子	NUT (.312-18) SOLENOID TERMINALS	2
28	8M0204668	螺母(.312-18)	NUT (.312-18)	2
29	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
30	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
31	65999A2	电缆总成黑色上部安装	CABLE ASSEMBLY Black UPPER MOUNT	1
32	88528A2	线缆总成(6英寸-红/白)	CABLE ASSEMBLY (6" - RED/WHITE)	1
32	91865A1	线束总成(3"-白/黑-175)	CABLE ASSEMBLY (3" - WHITE/BLACK - 175)	1
33	47483	J型卡扣	J CLIP	3
34	194372	端子排	TERMINAL BLOCK	1
35	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
36	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
37	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
38	814422T	点火板盖	COVER IGNITION PLATE	1
39	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	2
40	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
40	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
41	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
42	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	3
43	62310A2	线束总成(175)	CABLE ASSEMBLY (175)	1
44	78866	绝缘体	INSULATOR	1

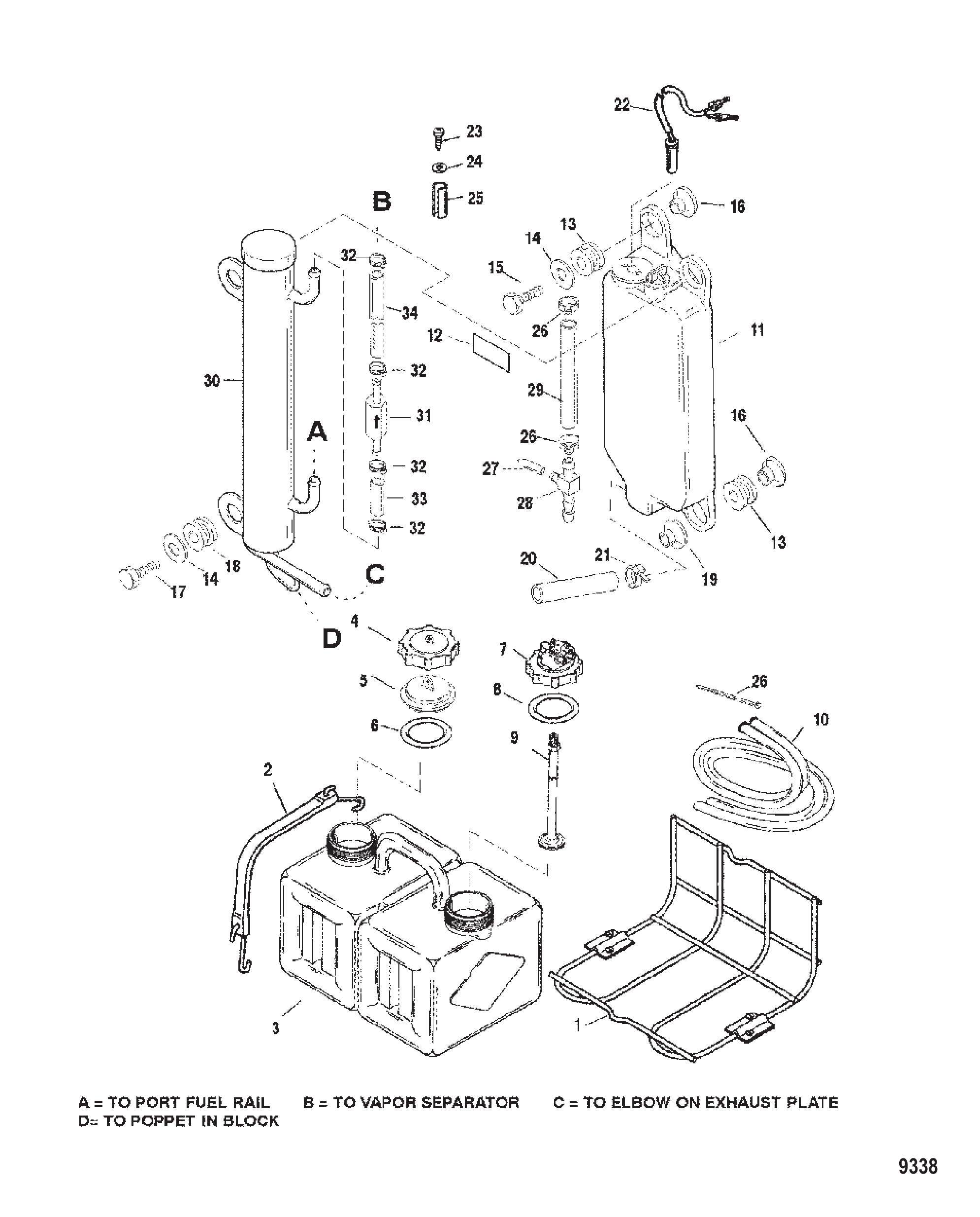

图 41喷油组件 OIL INJECTION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	12335A1	支架套件	BRACKET KIT	1
2	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1
3	87421	油箱	TANK	1
4	43298A2	盖总成	CAP ASSEMBLY	1
5	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
6	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
7	816190A3	外壳总成适配器	HOUSING ASSEMBLY Adapter	1
7	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
8	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
9	99802	管	TUBE	1
10	99439	软管(114.00英寸)	HOSE (114.00 Inches)	1
11	833069A3	油箱总成	RESERVOIR ASSEMBLY Oil	1
11	8M0062954	储油罐	RESERVOIR, OIL	1
12	NSS	不单独销售标签-储液罐	NOT SOLD SEPARATE Decal-Reservoir	1
13	855362	护孔环	GROMMET	3
13	855362001	护孔环	GROMMET	3
14	49436	垫圈	WASHER	3
15	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
16	855364	衬套	BUSHING	3
17	69267	螺钉 (.312-18 x 1.750)	SCREW (.312-18 x 1.750)	2
18	833155	护孔环	GROMMET	2
19	8502341	衬套	BUSHING	2
20	82381455	管材(25英寸整卷)(裁切为20英寸)	TUBING (25.00 Inches Bulk) (Cut to 20 Inches)	1
21	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
21	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
22	12886A8	开关	SWITCH	1
23	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
24	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
25	8260841	隔套	SPACER	1
26	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	7
26	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	7
27	NSS	不单独销售塞	NOT SOLD SEPARATE Plug	1
28	424254	接头	FITTING	1
28	8M0207780	接头	FITTING	1
29	830756109	软管(57.00英寸散装)(裁切至6英寸)	HOSE (57.00 Inches Bulk) (Cut to 6 Inches)	1
29	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
30	855785	燃油冷却器	COOLER Fuel	1
30	855785A1	燃油冷却器总成	COOLER ASSEMBLY Fuel	1
31	855761	止回阀	CHECK VALVE	1
31	8557611	止回阀	CHECK VALVE	1
32	13791	卡箍(15.7)	CLAMP (15.7)	4
32	8M0214911	卡箍@5	CLAMP @5	4
33	85682239	管材(17英寸整卷)(裁切为3英寸)	TUBING (17.00 Inches Bulk) (Cut to 3 Inches)	1
34	856822A3	软管(带绝缘套管)(30英寸)	HOSE (W/INSULATING SLEEVE) (30 IN.)	1

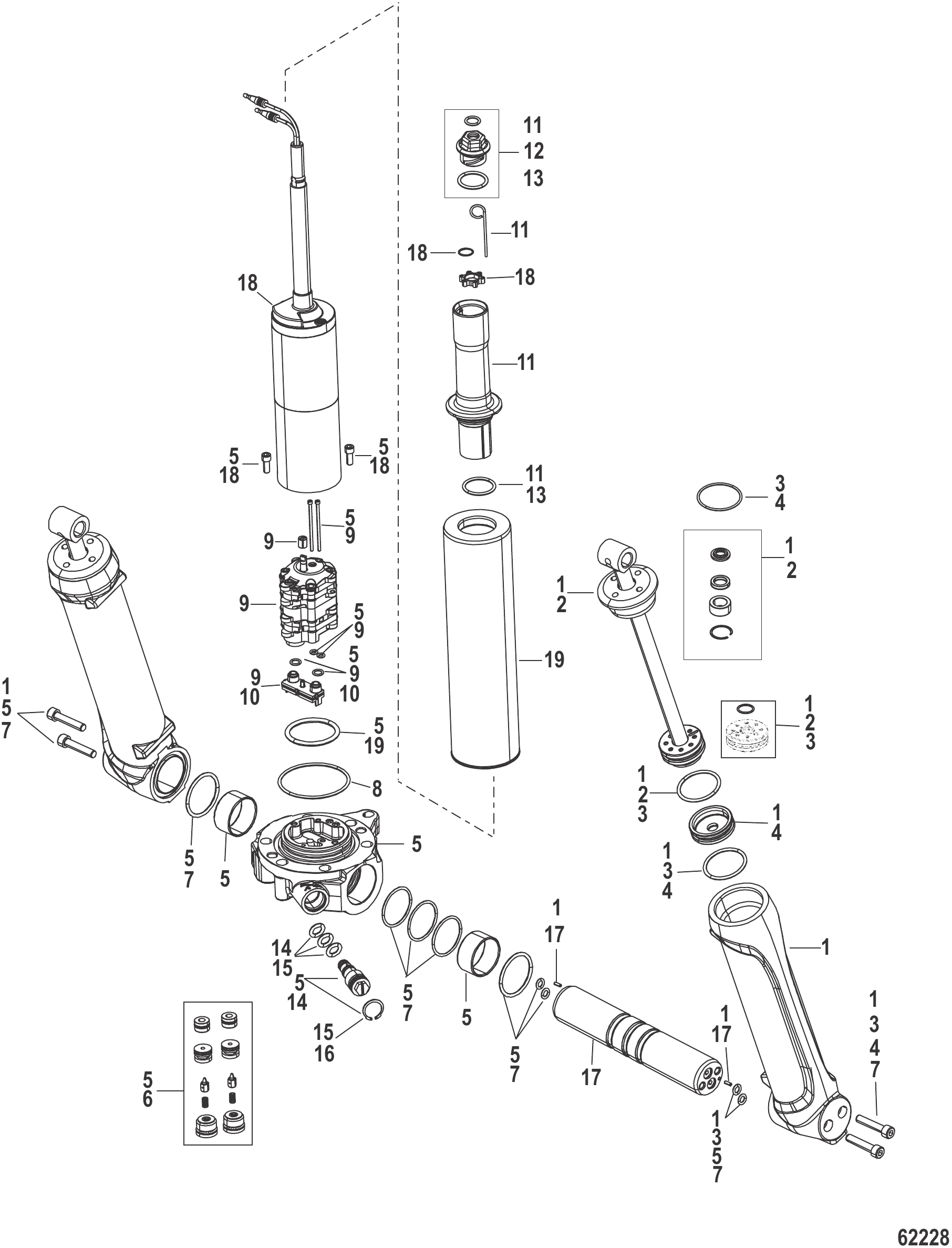

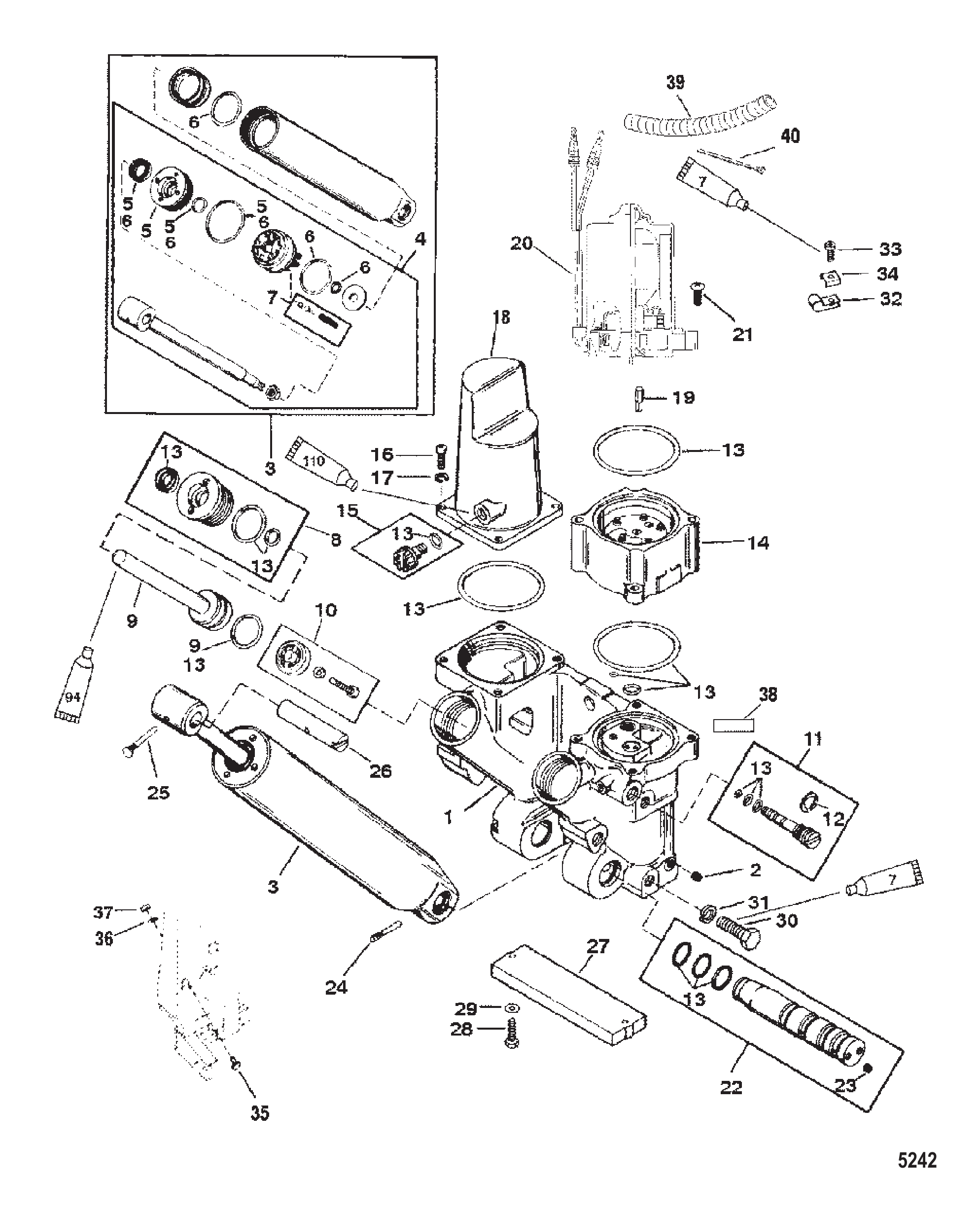

图 42动力升降组件 POWER TRIM COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	896156A01	配平油缸套件	TRIM CYLINDER KIT	1
2	896157A01	升降杆套件	TRIM ROD KIT	1
2	8M0118299	升降杆套件	TRIM ROD KIT	1
3	896158A01	O型圈套件	O-RING KIT	1
4	896159A01	活塞套件	PISTON KIT	1
5	896166A01	配平歧管套件	MANIFOLD KIT Trim	1
6	896165A01	配平止回套件PO型	CHECK KIT Trim PO	1
7	896160A01	O型圈套件	O-RING KIT	1
8	8M0010183	O型圈	O-RING	1
8	8M0204938	O型圈	O-RING	1
9	896163A01	配平泵套件	PUMP KIT Trim	1
10	896164A01	配平过滤器套件	TRIM FILTER KIT	1
11	896162A01	配平颈套件	TRIM NECK KIT	1
12	895854A01	O型圈套件	O-RING KIT	1
13	893419	盖套件	CAP KIT	1
14	893420A01	手动释放套件	MANUAL RELEASE KIT	1
14	8M0224397	手动释放套件	MANUAL RELEASE KIT	1
15	8M0224410	O型圈套件	ORING KIT	1
16	8M0184377	卡环	SNAP RING	1
17	893408A01	配平销套件	PIN KIT Trim	1
18	896161A01	配平电机套件	TRIM MOTOR KIT	1
18	896161A02	配平电机套件	TRIM MOTOR KIT	1
18	896161A02	配平电机套件	TRIM MOTOR KIT	1
19	896167A01	储液罐套件	RESERVOIR KIT	1

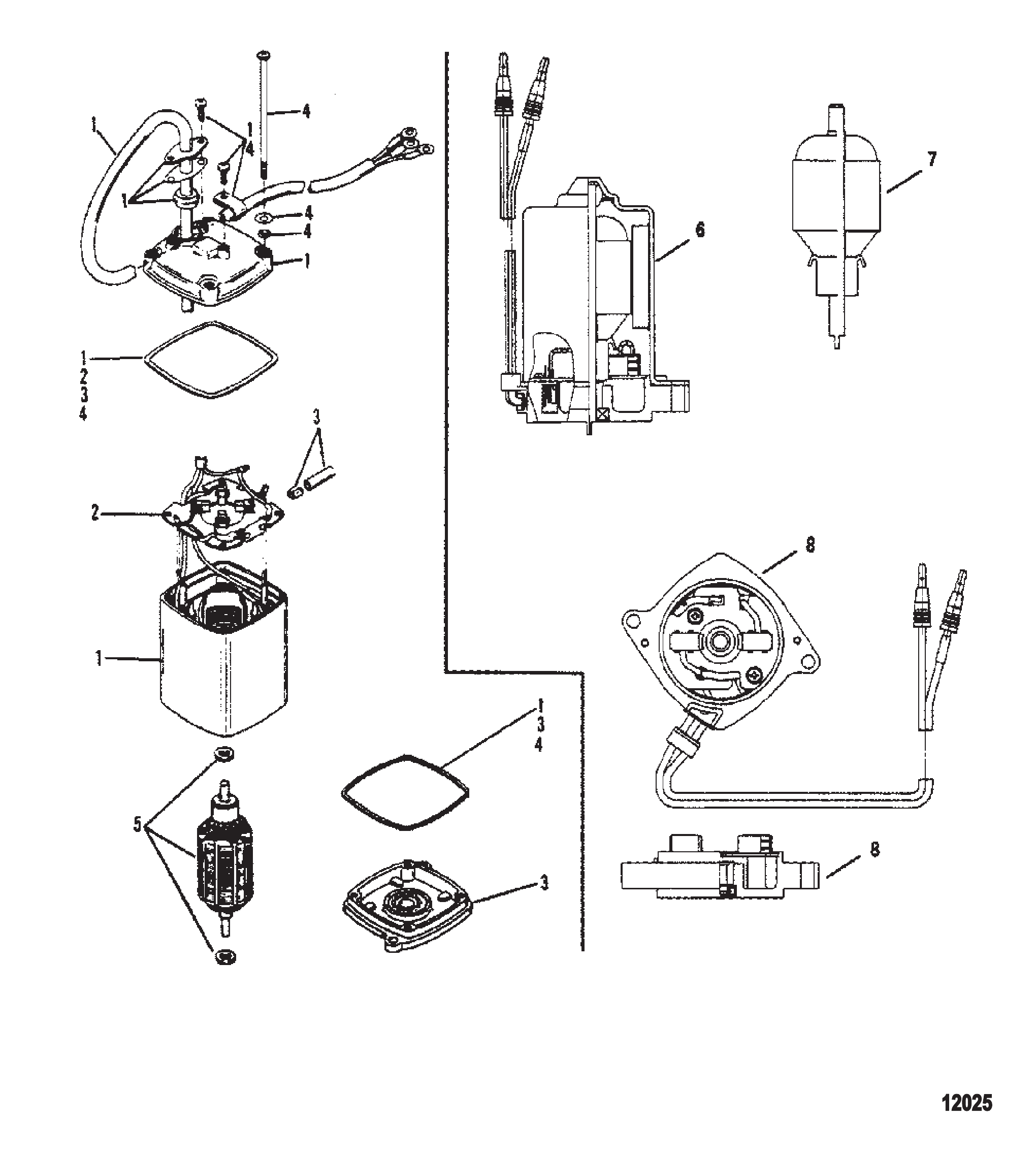

图 43动力升降倾斜电机 Power Trim Motor

REF	零件编号	中文名称	英文名称	数量
1	434291	点火板点火	IGNITION PLATE IGNITION	1
2	7778A9	开关盒总成	SWITCHBOX ASSEMBLY	2
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	开关盒螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) SWITCH BOX	2
4	94453	开关盒螺钉衬套	BUSHING SWITCH BOX SCREW	2
6	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	20
7	60871A10	线束总成-开关盒	WIRE ASSEMBLY SWITCH BOX	2
8	62568	螺丝(#10-16 x 0.375)导线固定	SCREW (#10-16 x .375) WIRE ATTACHING	3
9	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
10	69092	点火板螺钉(1.25)	SCREW (1.25) IGNITION PLATE	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈(.312)点火板螺钉	LOCKWASHER (.312) IGNITION PLATE SCREW	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈点火板螺钉	WASHER IGNITION PLATE SCREW	6
13	67264	橡胶垫圈点火板螺钉	WASHER (Rubber) IGNITION PLATE SCREW	6
14	67268	衬套点火板螺钉	BUSHING IGNITION PLATE SCREW	3
15	33386A3	开关总成	SWITCH ASSEMLBY	1
16	38055	水银开关螺钉(.190-32 x .620)	SCREW (.190-32 x .620) MERCURY SWITCH	1
17	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
18	87926	螺钉(#10-32 x .500)导线固定	SCREW (#10-32 x .500) LEAD ATTACHING	1
19	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
19	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
20	96220A12	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
21	79091	保险丝20安培	FUSE 20 Ampere	1
21	8M0207796	保险丝20安培	FUSE 20 AMP	1
22	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
24	816311	捆扎带(8英寸)线束和电缆	TIE STRAP (8.00 Inches) HARNESS AND CABLES	AR
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	68258A4	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
25	853654A1	电磁阀	SOLENOID	1
26	45076	螺母(#10-32)黄铜电磁阀端子	NUT (#10-32) Brass SOLENOID TERMINALS	2
27	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
28	68292	螺母（.312-18）电磁阀端子	NUT (.312-18) SOLENOID TERMINALS	2
28	8M0204668	螺母(.312-18)	NUT (.312-18)	2
29	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
30	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
31	65999A2	电缆总成黑色上部安装	CABLE ASSEMBLY Black UPPER MOUNT	1
32	88528A2	线缆总成(6英寸-红/白)	CABLE ASSEMBLY (6" - RED/WHITE)	1
32	91865A1	线束总成(3"-白/黑-175)	CABLE ASSEMBLY (3" - WHITE/BLACK - 175)	1
33	47483	J型卡扣	J CLIP	3
34	194372	端子排	TERMINAL BLOCK	1
35	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
36	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
37	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
38	814422T	点火板盖	COVER IGNITION PLATE	1
39	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	2
40	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
40	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
41	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
42	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	3
43	62310A2	线束总成(175)	CABLE ASSEMBLY (175)	1
44	78866	绝缘体	INSULATOR	1

图 44动力升降泵 POWER TRIM PUMP

REF	零件编号	中文名称	英文名称	数量
-	99186T	泵与电机总成	PUMP AND MOTOR	1
1	12659	机架与磁场套件	FRAME AND FIELD KIT	1
1	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
2	12665	电刷弹簧套件	SPRING KIT Brush	1
3	13506	电刷卡套件	BRUSH CARD KIT	1
3	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
4	12662	泵与端架套件	PUMP AND END FRAME KIT	1
4	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
5	126631	泵密封套件	SEAL KIT Pump	1
6	12660	端架套件	END FRAME KIT	1
6	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
7	12661	电枢套件	ARMATURE KIT	1
7	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
8	12664	贯穿螺栓套件	THRU BOLT KIT	1

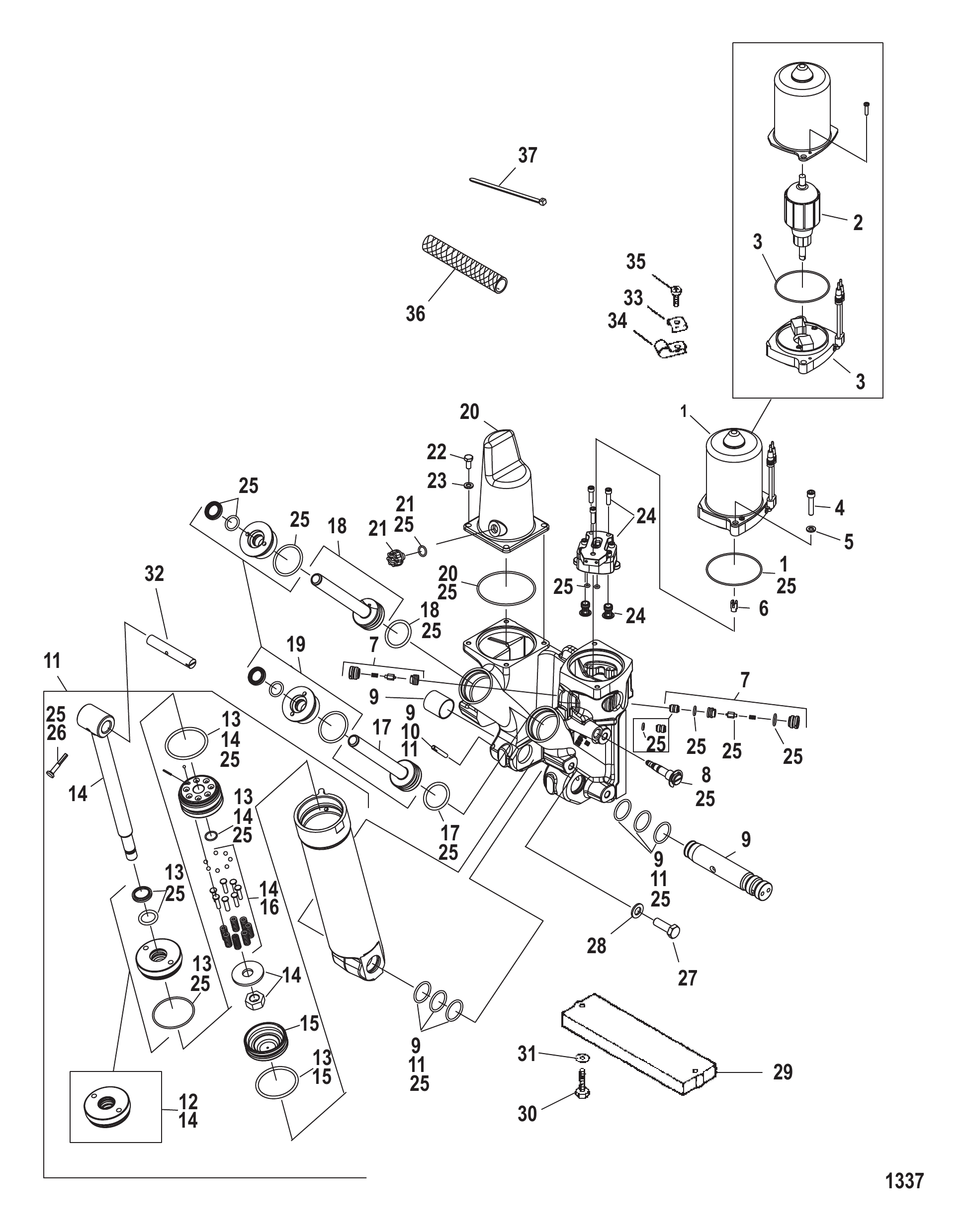

图 45动力升降组件金属马达壳 Power Trim Components Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	826729A2	升降倾斜总成	TRIM AND TILT ASSEMBLY	1
1	811604F	歧管总成	MANIFOLD ASSEMBLY	1
2	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	9
3	823552F	气缸总成	CYLINDER ASSEMBLY	1
3	880952A03	ORD 8M0078330	ORD 8M0078330	1
4	823553	配平活塞杆套件	ROD KIT Trim Piston	1
4	823553T	升降活塞杆	ROD Trim Piston	1
5	811606	导向套件	GUIDE KIT	1
5	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
6	811607A1	维修套件	REPAIR KIT	1
7	811610A1	止回阀套件	CHECK VALVE KIT	1
7	823553T	升降活塞杆	ROD Trim Piston	1
8	99638A1	导向器总成	GUIDE ASSEMBLY	2
8	8M0021648	端盖总成	END CAP ASSEMBLY	2
9	43397A6	动力升降倾斜装置活塞/杆总成	PISTON/ROD ASSEMBLY Power Trim	1
9	878413A1	活塞总成	PISTON ASSEMBLY	1
9	43398A3	动力升降倾斜装置活塞/杆总成	PISTON/ROD ASSEMBLY Power Trim	1
9	878414T01	活塞总成	PISTON ASSEMBLY	1
10	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
11	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
11	893929A01	安全阀套件	VALVE KIT Relief	1
12	812844	E型卡环	E RING	1
12	815949001	E形环	E-RING	1
13	811612A2	O型圈套件	O-RING KIT	1
13	811612A3	O型圈套件	O-RING KIT	1
14	811617F	泵	PUMP	1
14	811617T1	泵	PUMP	1
15	811613	塞子总成	PLUG ASSEMBLY	1
16	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
17	43450	垫圈	WASHER	4
17	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
18	811611	盖板	COVER	1
19	828710	驱动接头	DRIVE JOINT	1
20	828708	电机总成	MOTOR ASSEMBLY	1
20	878265A4	配平电机	TRIM MOTOR	1
21	828709	螺钉 (长)	SCREW (LONG)	2
21	881768A1	螺钉/垫圈套件	SCREW/WASHER KIT	2
21	811616	螺钉 (短)	SCREW (SHORT)	2
22	811614	轴总成	SHAFT ASSEMBLY	1
22	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
23	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
24	44431	槽销	PIN Groove	1
24	878267	销	PIN	1
25	821539	三叶销	PIN Trilobe	1
26	996251	轴	SHAFT	1
26	99625002	轴	SHAFT	1
27	818298A1	阳极套件	ANODE KIT	1
27	818298Q1	阳极套件	ANODE KIT	1
28	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
28	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
29	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
29	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
30	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
31	4002319	垫圈	WASHER	6
32	26550	卡箍	CLAMP	2
33	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
33	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
34	69205	C形垫圈	C WASHER	1
34	8M0084613	C形垫圈	C-WASHER	1
35	996301	冲击板	STRIKER PLATE	2
35	8M0045383	冲击板	STRIKER PLATE	2
36	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
37	46335	螺母 (.375-24)	NUT (.375-24)	2
38	435301	警示贴纸-动力微调	DECAL Caution-Power Trim	1
39	828547353	导管 (.350内径 x 3.00英尺散装)	CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk)	1
40	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
40	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

图 46动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	8M0168222	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0142591	电机套件	MOTOR KIT	1
2	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
3	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
4	8M0090403	驱动联轴器	COUPLING Drive	1
5	8M0142996	压力检查套件	PO CHECK KIT	1
6	8M0060141	手动释放套件	MANUAL RELEASE KIT	1
7	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
8	878267	销	PIN	1
9	8M0142998	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
9	8M0168220	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
10	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
11	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
12	8M0142592	升降杆套件左舷	TRIM ROD KIT Port	1
13	8M0143001	活塞总成	PISTON ASSEMBLY	1
14	8M0143003	端盖总成	END CAP ASSEMBLY	1
15	878264A1	储液罐套件	RESERVOIR KIT	1
16	811613	塞子总成	PLUG ASSEMBLY	1
17	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
18	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
19	8M0143004	泵套件	PUMP KIT	1
20	8M0148385	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
21	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
22	4002319	垫圈	WASHER	6
23	8M0094889	销	PIN	1
23	8M0161312	连杆销眼总成	PIN ROD EYE ASSEMBLY	1
24	8M0143005	减震杆套件	SHOCK ROD KIT	1
24	8M0168219	减震杆套件	SHOCK ROD KIT	1

图 47动力升降组件 8M0231193 Power Trim Components 8M0231193

REF	零件编号	中文名称	英文名称	数量
-	8M0231193	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0225363	电机套件	MOTOR KIT	1
2	8M0225369	阀套件	VALVE KIT	1
3	8M0225371	手动释放套件	MANUAL RELEASE KIT	1
4	8M0245633	倾斜油缸套件	TILT CYLINDER KIT	1
5	8M0225370	枢轴销套件	PIVOT PIN KIT	1
6	8M0244575	减震杆套件	SHOCK ROD KIT	1
7	8M0244425	销杆眼套件	PIN ROD EYE KIT	1
8	8M0232231	螺钉螺母套件	SCREW NUT KIT	1
9	8M0225373	记忆活塞套件	MEMORY PISTON KIT	1
10	8M0225368	储液罐套件	RESERVOIR KIT	1
11	8M0174135	储液罐塞总成	PLUG RESERVOIR ASSEMBLY	1
12	8M0237525	泵套件	PUMP KIT	1
13	8M0225367	升降杆套件	TRIM ROD KIT	1
14	8M0242846	升降杆套件	TRIM ROD KIT	1
15	8M0225372	重建套件	REBUILD KIT	1

图 48簧片阀组与气缸盖 Reed Block And Cylinder Head

REF	零件编号	中文名称	英文名称	数量
1	434291	点火板点火	IGNITION PLATE IGNITION	1
2	7778A9	开关盒总成	SWITCHBOX ASSEMBLY	2
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	开关盒螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) SWITCH BOX	2
4	94453	开关盒螺钉衬套	BUSHING SWITCH BOX SCREW	2
6	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	20
7	60871A10	线束总成-开关盒	WIRE ASSEMBLY SWITCH BOX	2
8	62568	螺丝(#10-16 x 0.375)导线固定	SCREW (#10-16 x .375) WIRE ATTACHING	3
9	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
10	69092	点火板螺钉(1.25)	SCREW (1.25) IGNITION PLATE	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈(.312)点火板螺钉	LOCKWASHER (.312) IGNITION PLATE SCREW	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈点火板螺钉	WASHER IGNITION PLATE SCREW	6
13	67264	橡胶垫圈点火板螺钉	WASHER (Rubber) IGNITION PLATE SCREW	6
14	67268	衬套点火板螺钉	BUSHING IGNITION PLATE SCREW	3
15	33386A3	开关总成	SWITCH ASSEMLBY	1
16	38055	水银开关螺钉(.190-32 x .620)	SCREW (.190-32 x .620) MERCURY SWITCH	1
17	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
18	87926	螺钉(#10-32 x .500)导线固定	SCREW (#10-32 x .500) LEAD ATTACHING	1
19	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
19	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
20	96220A12	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
21	79091	保险丝20安培	FUSE 20 Ampere	1
21	8M0207796	保险丝20安培	FUSE 20 AMP	1
22	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
24	816311	捆扎带(8英寸)线束和电缆	TIE STRAP (8.00 Inches) HARNESS AND CABLES	AR
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	68258A4	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
25	853654A1	电磁阀	SOLENOID	1
26	45076	螺母(#10-32)黄铜电磁阀端子	NUT (#10-32) Brass SOLENOID TERMINALS	2
27	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
28	68292	螺母（.312-18）电磁阀端子	NUT (.312-18) SOLENOID TERMINALS	2
28	8M0204668	螺母(.312-18)	NUT (.312-18)	2
29	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
30	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
31	65999A2	电缆总成黑色上部安装	CABLE ASSEMBLY Black UPPER MOUNT	1
32	88528A2	线缆总成(6英寸-红/白)	CABLE ASSEMBLY (6" - RED/WHITE)	1
32	91865A1	线束总成(3"-白/黑-175)	CABLE ASSEMBLY (3" - WHITE/BLACK - 175)	1
33	47483	J型卡扣	J CLIP	3
34	194372	端子排	TERMINAL BLOCK	1
35	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
36	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
37	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
38	814422T	点火板盖	COVER IGNITION PLATE	1
39	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	2
40	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
40	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
41	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
42	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	3
43	62310A2	线束总成(175)	CABLE ASSEMBLY (175)	1
44	78866	绝缘体	INSULATOR	1

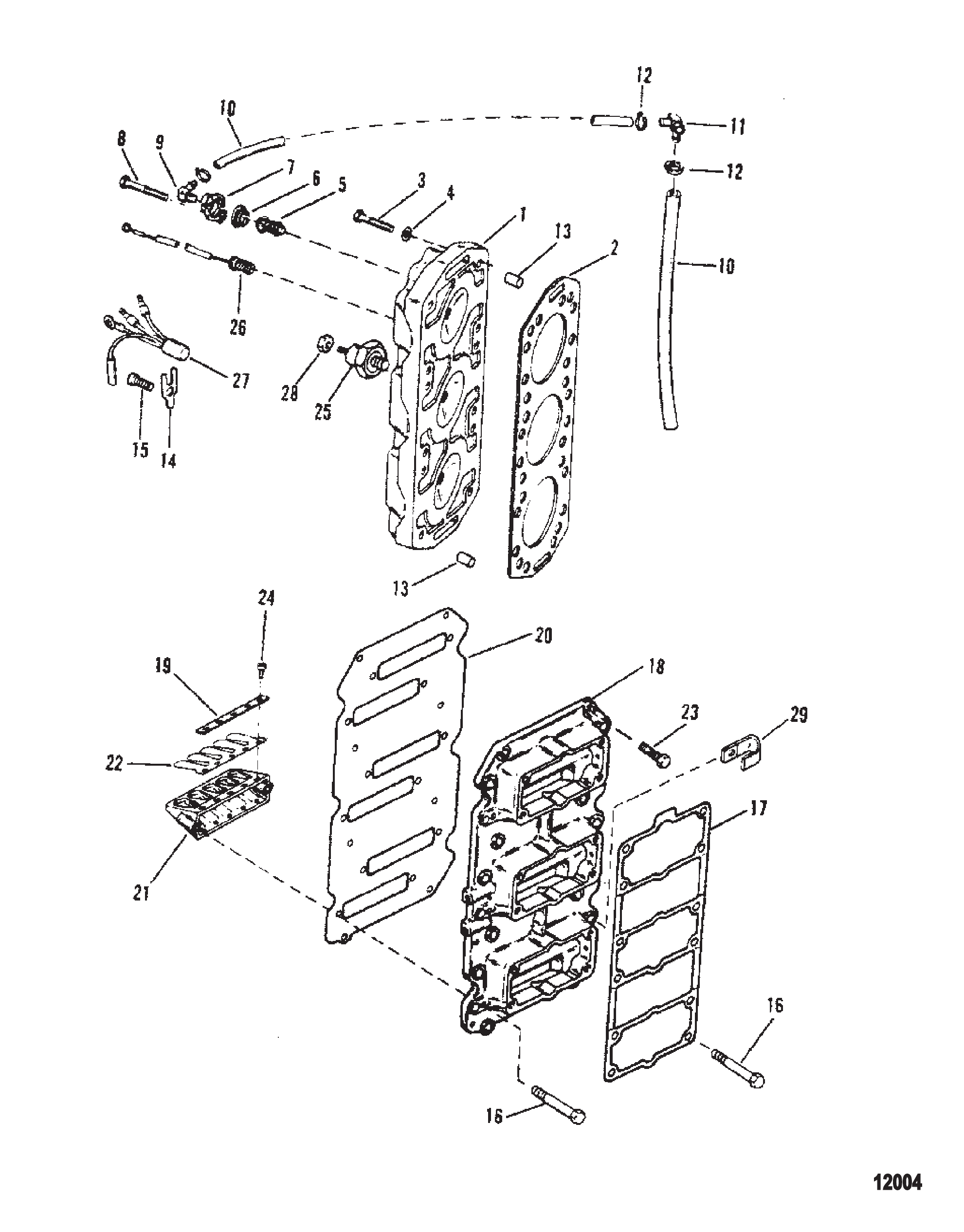

图 49簧片阀组与气缸盖 REED BLOCK AND CYLINDER HEAD

REF	零件编号	中文名称	英文名称	数量
1	18488F1	气缸盖	CYLINDER HEAD	2
2	8228441	衬垫	GASKET	2
2	822844T05	衬垫	GASKET	2
3	98534	螺钉 (.375-16 x 2.30)	SCREW (.375-16 x 2.30)	23
3	827426	螺钉	SCREW	1
4	63779	定位销 (.250 x .625)	PIN Dowel (.250 x .625)	4
5	62386	衬垫	GASKET	2
5	8M0204714	衬垫@4	GASKET @4	2
6	90390A1	盖板套件	COVER KIT	2
7	75692	节温器	THERMOSTAT	2
8	35386	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	4
9	68727	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
9	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
10	77653112	软管(59.00英寸散装)(裁切至12-3/4英寸)	HOSE (59.00 Inches Bulk) (Cut to 12-3/4 IN.)	1
10	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
11	68728	接头	FITTING	1
12	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
13	77653112	软管(59.00英寸散装)(裁切至11-1/2英寸)	HOSE (59.00 Inches Bulk) (Cut to 11-1/2 IN.)	1
13	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
14	77653112	软管(59.00英寸散装)(裁切至7-1/2英寸)	HOSE (59.00 Inches Bulk) (Cut to 7-1/2 IN.)	1
14	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
15	97465		SENDER Temperature (Starboard)	1
16	815914	三通接头	T-FITTING	1
17	13536A6		SENSOR ASSEMBLY Temperature (Port)	1
18	137151	固定座	RETAINER	2
19	98257	螺钉 (.312-18 x .500)	SCREW (.312-18 x .500)	2
20	826858	爆震传感器(200)	SENSOR Knock (200)	1
21	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	1
22	17735A2	适配板总成	ADAPTER PLATE ASSEMBLY	1
23	28668	螺钉 (.250-20 x .875) 不锈钢	SCREW (.250-20 x .875) Stainless Steel	8
24	146972	衬垫	GASKET	1
25	116453	簧片阀组	REED BLOCK	6
25	855952T3	簧片阀总成	REED BLOCK ASSEMBLY	6
26	55098	J型卡扣	J CLIP	1
26	8M0024808	J型夹	J-CLIP	1
27	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	6
28	90197	螺丝（.250-20 x 1.125）	SCREW (.250-20 x 1.125)	6
29	167371	衬垫	GASKET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	823434A97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 50维修/支撑材料 Service/Support Material

REF	零件编号	中文名称	英文名称	数量
-	81741890	零件手册175 XRI/175 MAGNUM 200 XRI(电喷)	PARTS MANUAL 175 XRI /175 MAGNUM 200 XRI (EFI)	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	812563A90	贴花套装(175/200-黑色)	DECAL SET (175/200 - BLACK)	1
-	812563A93	贴花套件	DECAL SET	1
-	813033A91	贴花套装(175-灰色)	DECAL SET (175 - GRAY)	1
-	813033A93	贴花套件	DECAL SET	1
-	13492912	用户指南(黑色)	OWNERS GUIDE (BLACK)	1
-	19592911	用户指南(灰色)	OWNERS GUIDE (GRAY)	1

图 51启动电机 Starter Motor

REF	零件编号	中文名称	英文名称	数量
1	434291	点火板点火	IGNITION PLATE IGNITION	1
2	7778A9	开关盒总成	SWITCHBOX ASSEMBLY	2
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	开关盒螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) SWITCH BOX	2
4	94453	开关盒螺钉衬套	BUSHING SWITCH BOX SCREW	2
6	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	20
7	60871A10	线束总成-开关盒	WIRE ASSEMBLY SWITCH BOX	2
8	62568	螺丝(#10-16 x 0.375)导线固定	SCREW (#10-16 x .375) WIRE ATTACHING	3
9	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
10	69092	点火板螺钉(1.25)	SCREW (1.25) IGNITION PLATE	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈(.312)点火板螺钉	LOCKWASHER (.312) IGNITION PLATE SCREW	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈点火板螺钉	WASHER IGNITION PLATE SCREW	6
13	67264	橡胶垫圈点火板螺钉	WASHER (Rubber) IGNITION PLATE SCREW	6
14	67268	衬套点火板螺钉	BUSHING IGNITION PLATE SCREW	3
15	33386A3	开关总成	SWITCH ASSEMLBY	1
16	38055	水银开关螺钉(.190-32 x .620)	SCREW (.190-32 x .620) MERCURY SWITCH	1
17	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
18	87926	螺钉(#10-32 x .500)导线固定	SCREW (#10-32 x .500) LEAD ATTACHING	1
19	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
19	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
20	96220A12	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
21	79091	保险丝20安培	FUSE 20 Ampere	1
21	8M0207796	保险丝20安培	FUSE 20 AMP	1
22	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
24	816311	捆扎带(8英寸)线束和电缆	TIE STRAP (8.00 Inches) HARNESS AND CABLES	AR
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	68258A4	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
25	853654A1	电磁阀	SOLENOID	1
26	45076	螺母(#10-32)黄铜电磁阀端子	NUT (#10-32) Brass SOLENOID TERMINALS	2
27	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
28	68292	螺母（.312-18）电磁阀端子	NUT (.312-18) SOLENOID TERMINALS	2
28	8M0204668	螺母(.312-18)	NUT (.312-18)	2
29	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
30	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
31	65999A2	电缆总成黑色上部安装	CABLE ASSEMBLY Black UPPER MOUNT	1
32	88528A2	线缆总成(6英寸-红/白)	CABLE ASSEMBLY (6" - RED/WHITE)	1
32	91865A1	线束总成(3"-白/黑-175)	CABLE ASSEMBLY (3" - WHITE/BLACK - 175)	1
33	47483	J型卡扣	J CLIP	3
34	194372	端子排	TERMINAL BLOCK	1
35	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
36	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
37	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
38	814422T	点火板盖	COVER IGNITION PLATE	1
39	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	2
40	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
40	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
41	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
42	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	3
43	62310A2	线束总成(175)	CABLE ASSEMBLY (175)	1
44	78866	绝缘体	INSULATOR	1

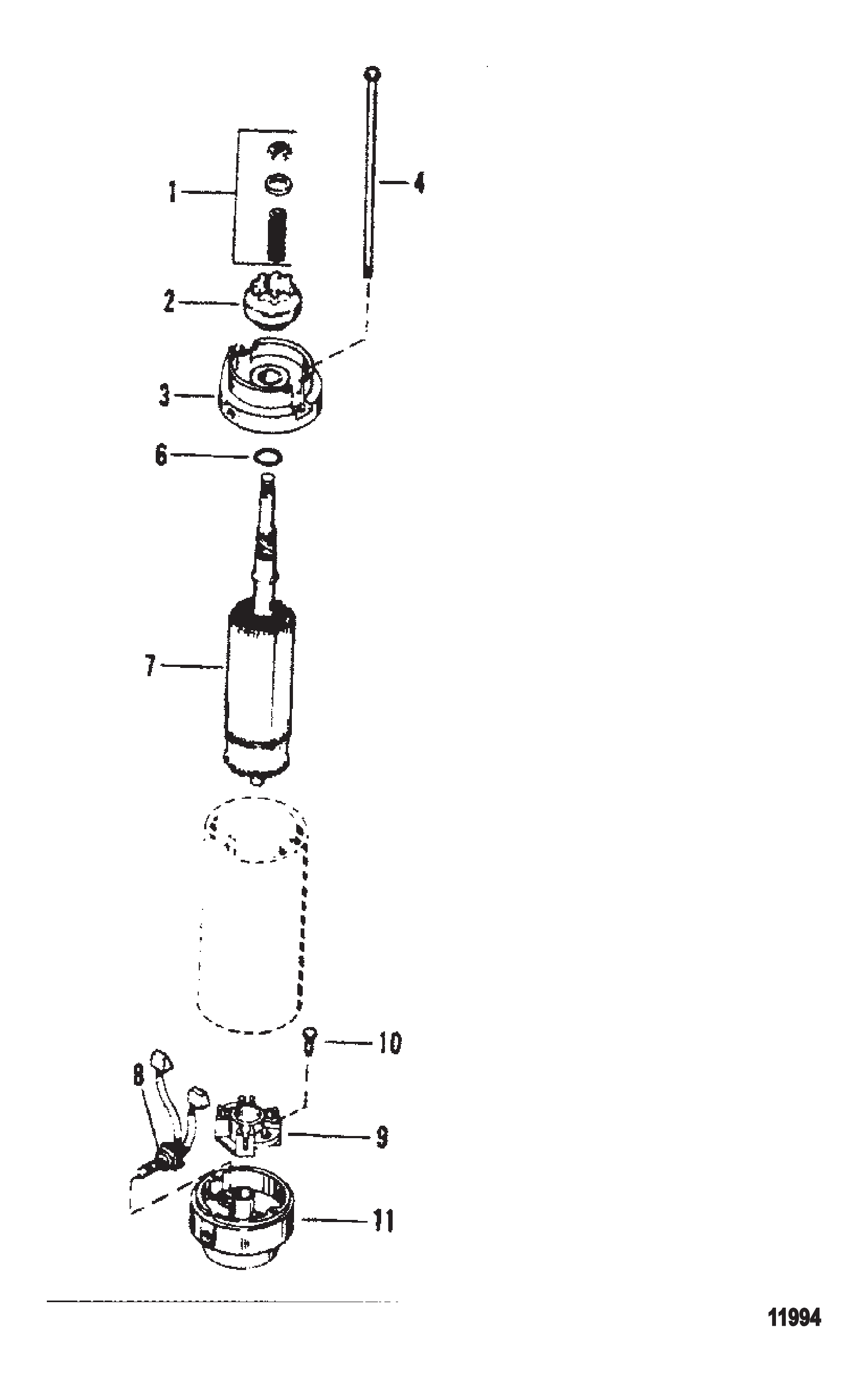

图 52启动电机总成 STARTER MOTOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
-	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	90645	驱动套件	DRIVE KIT	1
2	75661	驱动小齿轮总成	PINION ASSEMBLY Drive	1
2	13310T1	小齿轮总成	PINION ASSEMBLY	1
3	75660	驱动端板	PLATE DRIVE END	1
4	74968	贯穿螺栓	BOLT THRU	2
6	N.S.S.	不单独出售垫圈	Not Sold Separate Washer	1
7	79216	电枢	ARMATURE	1
8	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
9	61787	电刷架	HOLDER BRUSH	2
9	898265014	电刷支架	HOLDER-BRUSH	2
10	N.S.S.	不单独出售螺钉	Not Sold Separate Screw	2
11	15386	换向器端盖	END CAP COMMUTATOR	1
11	15386001	端盖	END CAP	1

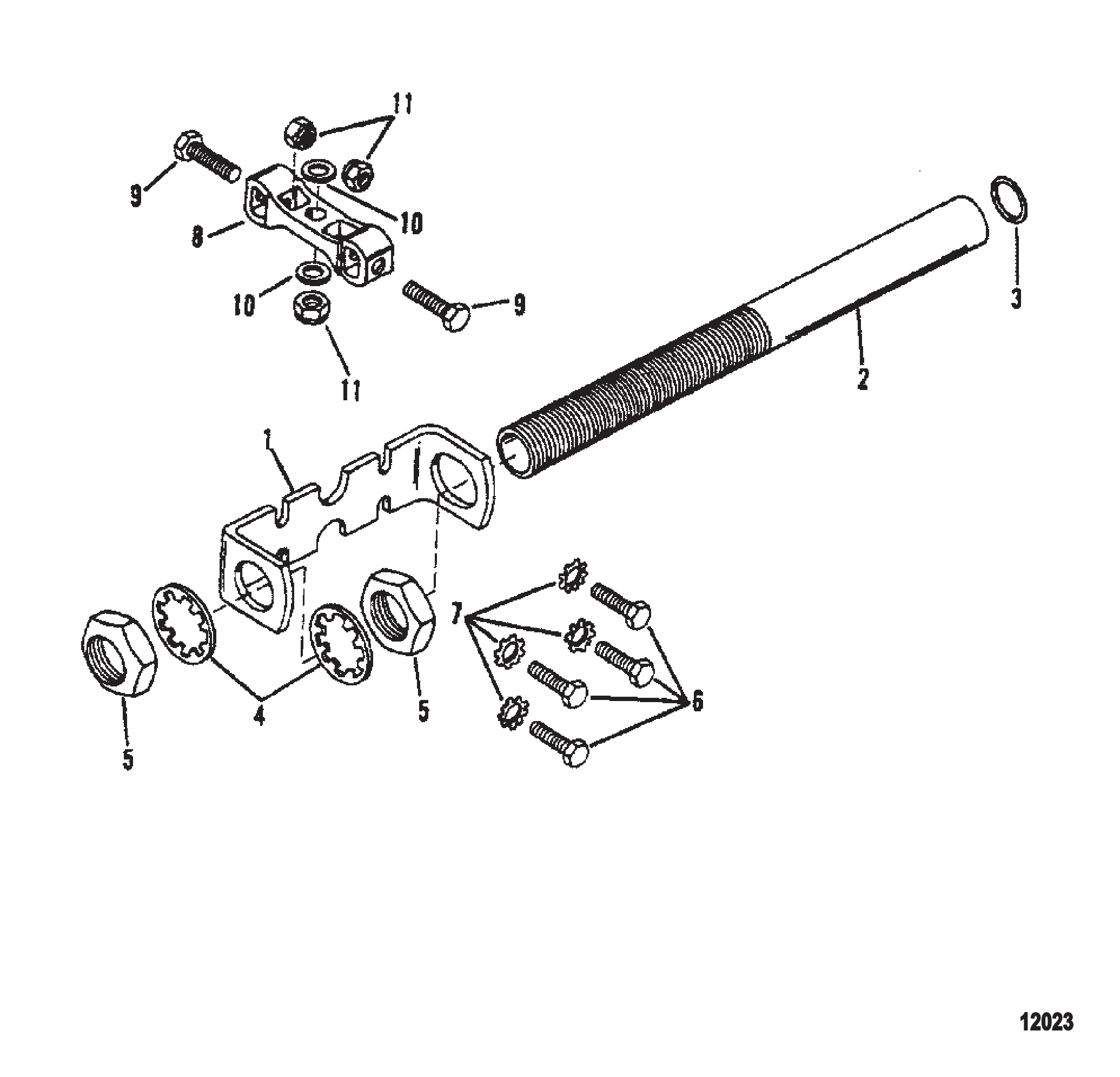

图 53转向连接套件 Steering Attaching Kit

REF	零件编号	中文名称	英文名称	数量
1	434291	点火板点火	IGNITION PLATE IGNITION	1
2	7778A9	开关盒总成	SWITCHBOX ASSEMBLY	2
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	开关盒螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) SWITCH BOX	2
4	94453	开关盒螺钉衬套	BUSHING SWITCH BOX SCREW	2
6	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	20
7	60871A10	线束总成-开关盒	WIRE ASSEMBLY SWITCH BOX	2
8	62568	螺丝(#10-16 x 0.375)导线固定	SCREW (#10-16 x .375) WIRE ATTACHING	3
9	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
10	69092	点火板螺钉(1.25)	SCREW (1.25) IGNITION PLATE	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈(.312)点火板螺钉	LOCKWASHER (.312) IGNITION PLATE SCREW	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈点火板螺钉	WASHER IGNITION PLATE SCREW	6
13	67264	橡胶垫圈点火板螺钉	WASHER (Rubber) IGNITION PLATE SCREW	6
14	67268	衬套点火板螺钉	BUSHING IGNITION PLATE SCREW	3
15	33386A3	开关总成	SWITCH ASSEMLBY	1
16	38055	水银开关螺钉(.190-32 x .620)	SCREW (.190-32 x .620) MERCURY SWITCH	1
17	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
18	87926	螺钉(#10-32 x .500)导线固定	SCREW (#10-32 x .500) LEAD ATTACHING	1
19	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
19	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
20	96220A12	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
21	79091	保险丝20安培	FUSE 20 Ampere	1
21	8M0207796	保险丝20安培	FUSE 20 AMP	1
22	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
24	816311	捆扎带(8英寸)线束和电缆	TIE STRAP (8.00 Inches) HARNESS AND CABLES	AR
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	68258A4	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
25	853654A1	电磁阀	SOLENOID	1
26	45076	螺母(#10-32)黄铜电磁阀端子	NUT (#10-32) Brass SOLENOID TERMINALS	2
27	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
28	68292	螺母（.312-18）电磁阀端子	NUT (.312-18) SOLENOID TERMINALS	2
28	8M0204668	螺母(.312-18)	NUT (.312-18)	2
29	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
30	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
31	65999A2	电缆总成黑色上部安装	CABLE ASSEMBLY Black UPPER MOUNT	1
32	88528A2	线缆总成(6英寸-红/白)	CABLE ASSEMBLY (6" - RED/WHITE)	1
32	91865A1	线束总成(3"-白/黑-175)	CABLE ASSEMBLY (3" - WHITE/BLACK - 175)	1
33	47483	J型卡扣	J CLIP	3
34	194372	端子排	TERMINAL BLOCK	1
35	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
36	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
37	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
38	814422T	点火板盖	COVER IGNITION PLATE	1
39	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	2
40	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
40	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
41	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
42	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	3
43	62310A2	线束总成(175)	CABLE ASSEMBLY (175)	1
44	78866	绝缘体	INSULATOR	1

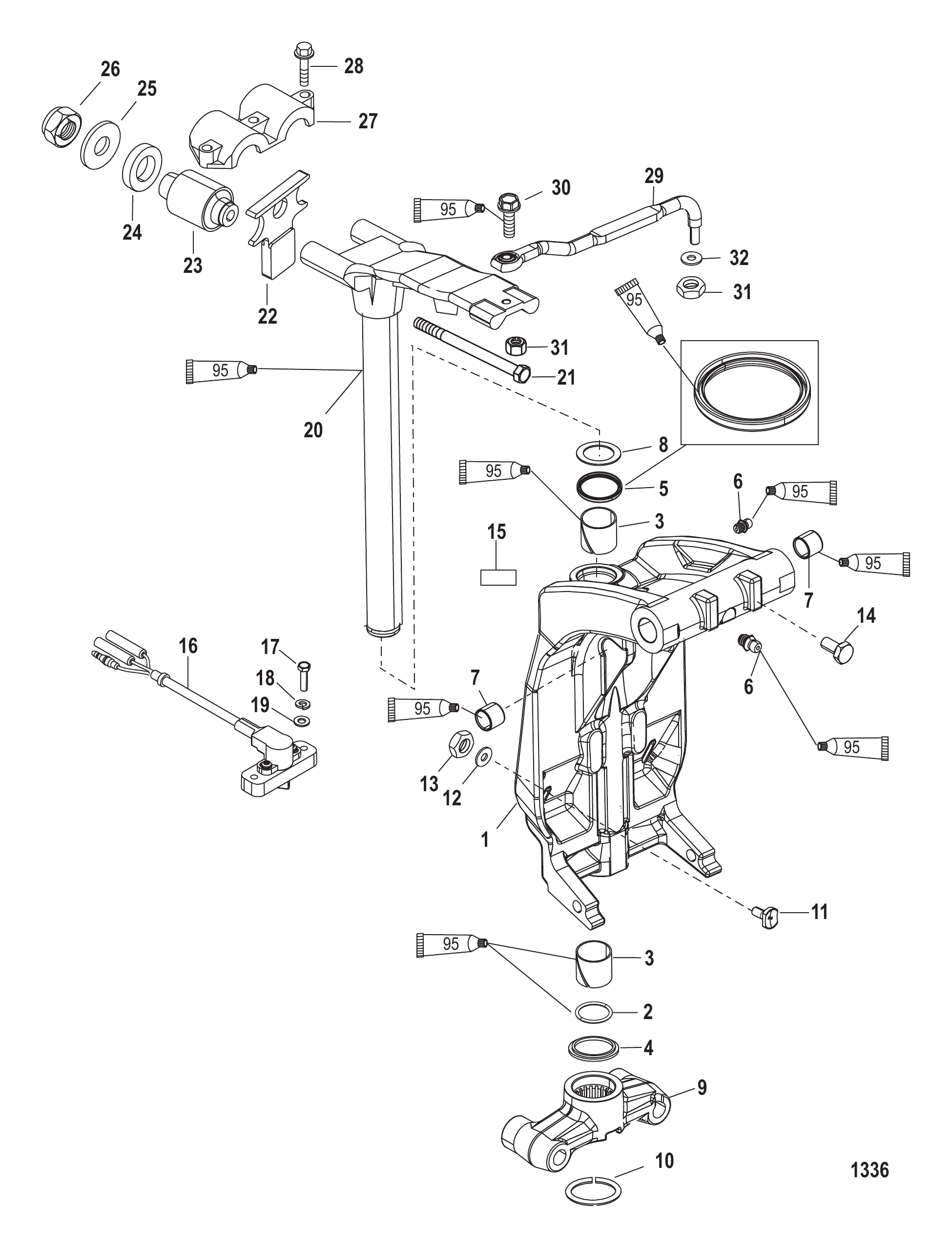

图 54旋转支架与转向臂 Swivel Bracket And Steering Arm

REF	零件编号	中文名称	英文名称	数量
1	434291	点火板点火	IGNITION PLATE IGNITION	1
2	7778A9	开关盒总成	SWITCHBOX ASSEMBLY	2
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	开关盒螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) SWITCH BOX	2
4	94453	开关盒螺钉衬套	BUSHING SWITCH BOX SCREW	2
6	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	20
7	60871A10	线束总成-开关盒	WIRE ASSEMBLY SWITCH BOX	2
8	62568	螺丝(#10-16 x 0.375)导线固定	SCREW (#10-16 x .375) WIRE ATTACHING	3
9	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
10	69092	点火板螺钉(1.25)	SCREW (1.25) IGNITION PLATE	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈(.312)点火板螺钉	LOCKWASHER (.312) IGNITION PLATE SCREW	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈点火板螺钉	WASHER IGNITION PLATE SCREW	6
13	67264	橡胶垫圈点火板螺钉	WASHER (Rubber) IGNITION PLATE SCREW	6
14	67268	衬套点火板螺钉	BUSHING IGNITION PLATE SCREW	3
15	33386A3	开关总成	SWITCH ASSEMLBY	1
16	38055	水银开关螺钉(.190-32 x .620)	SCREW (.190-32 x .620) MERCURY SWITCH	1
17	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
18	87926	螺钉(#10-32 x .500)导线固定	SCREW (#10-32 x .500) LEAD ATTACHING	1
19	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
19	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
20	96220A12	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
21	79091	保险丝20安培	FUSE 20 Ampere	1
21	8M0207796	保险丝20安培	FUSE 20 AMP	1
22	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
24	816311	捆扎带(8英寸)线束和电缆	TIE STRAP (8.00 Inches) HARNESS AND CABLES	AR
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	68258A4	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
25	853654A1	电磁阀	SOLENOID	1
26	45076	螺母(#10-32)黄铜电磁阀端子	NUT (#10-32) Brass SOLENOID TERMINALS	2
27	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
28	68292	螺母（.312-18）电磁阀端子	NUT (.312-18) SOLENOID TERMINALS	2
28	8M0204668	螺母(.312-18)	NUT (.312-18)	2
29	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
30	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
31	65999A2	电缆总成黑色上部安装	CABLE ASSEMBLY Black UPPER MOUNT	1
32	88528A2	线缆总成(6英寸-红/白)	CABLE ASSEMBLY (6" - RED/WHITE)	1
32	91865A1	线束总成(3"-白/黑-175)	CABLE ASSEMBLY (3" - WHITE/BLACK - 175)	1
33	47483	J型卡扣	J CLIP	3
34	194372	端子排	TERMINAL BLOCK	1
35	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
36	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
37	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
38	814422T	点火板盖	COVER IGNITION PLATE	1
39	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	2
40	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
40	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
41	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
42	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	3
43	62310A2	线束总成(175)	CABLE ASSEMBLY (175)	1
44	78866	绝缘体	INSULATOR	1

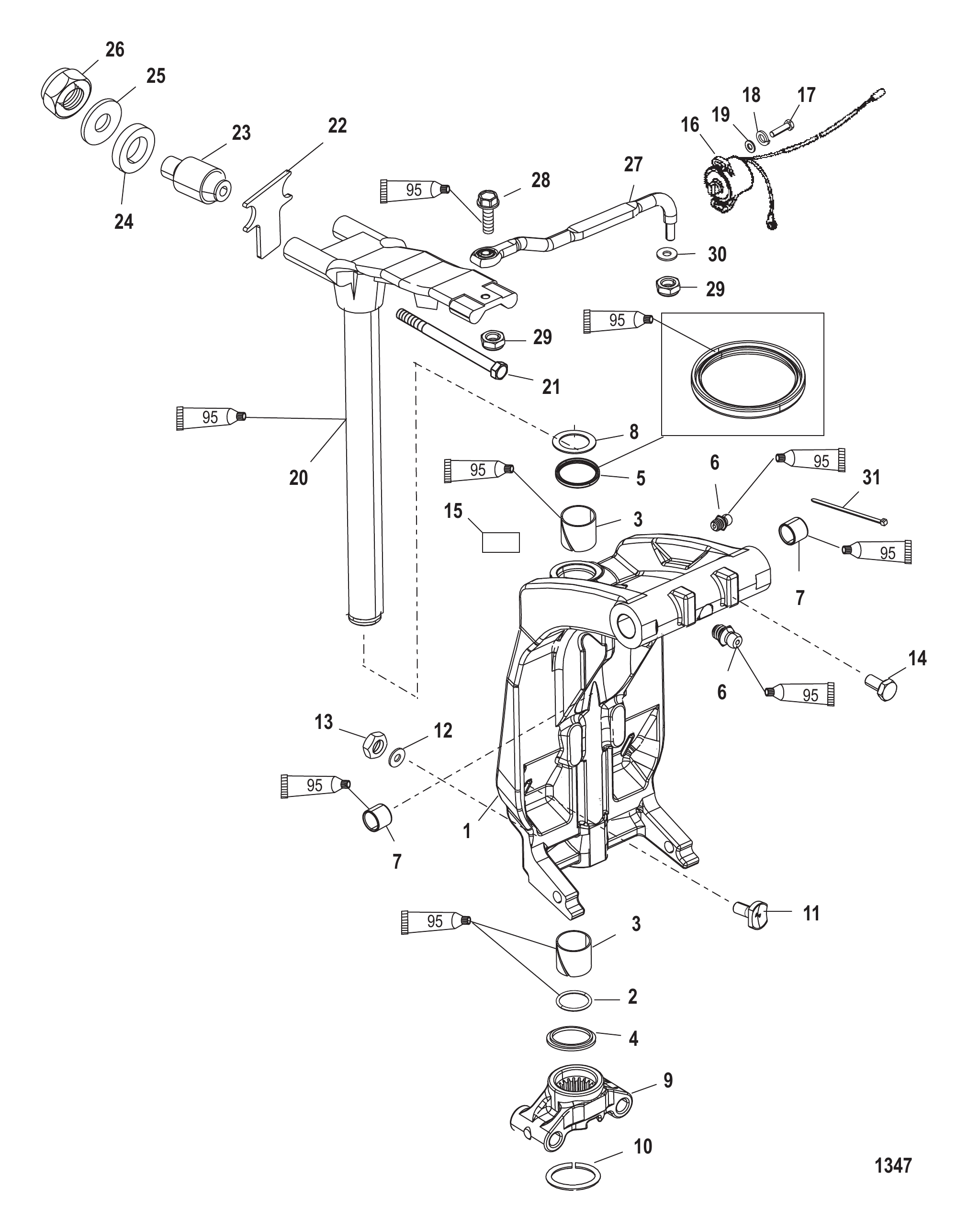

图 55旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM

REF	零件编号	中文名称	英文名称	数量
1	8710A20	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8710A21	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8710T21	灰色旋转支架总成	SWIVEL BRACKET ASSEMBLY Gray	1
2	33504	O型圈	O-RING	1
2	8M0214926	O型圈 @10	O RING @10	1
3	818764	衬套	BUSHING	2
4	816039	隔套	SPACER	1
5	87735	油封(下)	SEAL Oil (LOWER)	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	816432	止推垫片	THRUST WASHER	1
9	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
9	878182T	轭架底部-不锈钢	YOKE Bottom - Stainless Steel	1
9	86580A2	底部轭架总成	YOKE ASSEMBLY Bottom	1
9	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
10	67684	挡圈	RING Retaining	1
11	996301	冲击板	STRIKER PLATE	2
11	8M0045383	冲击板	STRIKER PLATE	2
12	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
13	46335	螺母 (.375-24)	NUT (.375-24)	2
14	64014	螺钉(0.250-28x0.500)(1/4-28x1/2英寸)	SCREW (.250-28 x .500) (1/4-28 X 1/2 IN.)	2
15	NSS	不单独销售-序列号覆膜标贴	NOT SOLD SEPARATE Decal-Serial Overlaminate	1
16	821180A6	调整传感器总成	SENDER ASSEMBLY Trim	1
16	8M0074846	ORDER 8M0098273	ORDER 8M0098273	1
17	852368	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
18	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
19	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
20	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
20	826432A2	转向臂旋转销总成-不锈钢	SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel	1
20	67706A56	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
20	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
21	78689	螺钉(0.437-20x7.50)(7/16-20x7-1/2英寸)	SCREW (.437-20 x 7.50) (7/16-20 X 7-1/2 IN.)	2
21	8M0176309	螺钉	SCREW	2
22	888821	缓冲垫	BUMPER	1
22	8M0000516	上轭缓冲垫	BUMPER Top Yoke	1
23	77326	支架	MOUNT	2
24	66921	垫圈	WASHER	2
25	814432	垫圈	WASHER	2
25	78688	垫圈	WASHER	2
26	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
26	8M0204653	螺母	NUT	2
27	92876A1	转向连杆总成	LINK ASSEMBLY Steering	1
27	92876A12	连杆总成	LINK ROD ASSEMBLY	1
28	14000	螺钉(0.375-24x1.25)(3/8-24x1-1/4英寸)	SCREW (.375-24 x 1.25) (3/8-24 X 1-1/4 IN.)	1
28	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
29	34863	螺母 (.375-24)	NUT (.375-24)	2
29	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
30	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
31	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
31	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

图 56油门杆与换挡轴 Throttle Lever And Shift Shaft

REF	零件编号	中文名称	英文名称	数量
1	434291	点火板点火	IGNITION PLATE IGNITION	1
2	7778A9	开关盒总成	SWITCHBOX ASSEMBLY	2
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	开关盒螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) SWITCH BOX	2
4	94453	开关盒螺钉衬套	BUSHING SWITCH BOX SCREW	2
6	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	20
7	60871A10	线束总成-开关盒	WIRE ASSEMBLY SWITCH BOX	2
8	62568	螺丝(#10-16 x 0.375)导线固定	SCREW (#10-16 x .375) WIRE ATTACHING	3
9	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
10	69092	点火板螺钉(1.25)	SCREW (1.25) IGNITION PLATE	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈(.312)点火板螺钉	LOCKWASHER (.312) IGNITION PLATE SCREW	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈点火板螺钉	WASHER IGNITION PLATE SCREW	6
13	67264	橡胶垫圈点火板螺钉	WASHER (Rubber) IGNITION PLATE SCREW	6
14	67268	衬套点火板螺钉	BUSHING IGNITION PLATE SCREW	3
15	33386A3	开关总成	SWITCH ASSEMLBY	1
16	38055	水银开关螺钉(.190-32 x .620)	SCREW (.190-32 x .620) MERCURY SWITCH	1
17	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
18	87926	螺钉(#10-32 x .500)导线固定	SCREW (#10-32 x .500) LEAD ATTACHING	1
19	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
19	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
20	96220A12	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
21	79091	保险丝20安培	FUSE 20 Ampere	1
21	8M0207796	保险丝20安培	FUSE 20 AMP	1
22	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
24	816311	捆扎带(8英寸)线束和电缆	TIE STRAP (8.00 Inches) HARNESS AND CABLES	AR
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	68258A4	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
25	853654A1	电磁阀	SOLENOID	1
26	45076	螺母(#10-32)黄铜电磁阀端子	NUT (#10-32) Brass SOLENOID TERMINALS	2
27	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
28	68292	螺母（.312-18）电磁阀端子	NUT (.312-18) SOLENOID TERMINALS	2
28	8M0204668	螺母(.312-18)	NUT (.312-18)	2
29	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
30	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
31	65999A2	电缆总成黑色上部安装	CABLE ASSEMBLY Black UPPER MOUNT	1
32	88528A2	线缆总成(6英寸-红/白)	CABLE ASSEMBLY (6" - RED/WHITE)	1
32	91865A1	线束总成(3"-白/黑-175)	CABLE ASSEMBLY (3" - WHITE/BLACK - 175)	1
33	47483	J型卡扣	J CLIP	3
34	194372	端子排	TERMINAL BLOCK	1
35	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
36	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
37	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
38	814422T	点火板盖	COVER IGNITION PLATE	1
39	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	2
40	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
40	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
41	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
42	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	3
43	62310A2	线束总成(175)	CABLE ASSEMBLY (175)	1
44	78866	绝缘体	INSULATOR	1

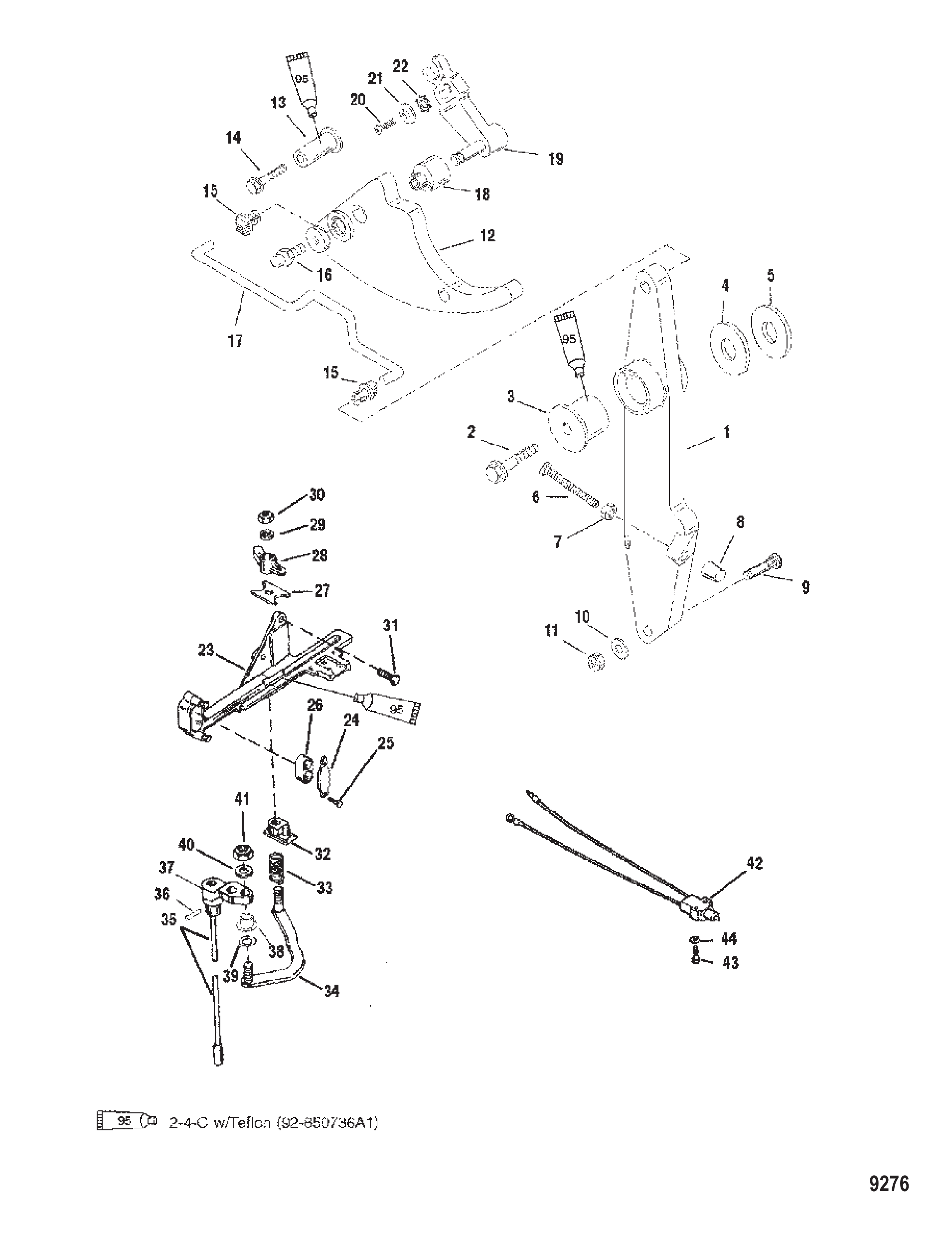

图 57油门杆与换挡轴 THROTTLE LEVER AND SHIFT SHAFT

REF	零件编号	中文名称	英文名称	数量
1	850389	杠杆	LEVER	1
2	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
3	55164	衬套	BUSHING	1
4	74759	垫圈(0.391x0.880x0.125)不锈钢	WASHER (.391 x .880 x .125) Stainless Steel	1
5	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	1
6	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
7	64015	螺母 (.250-20)	NUT (.250-20)	1
8	26852	尼龙帽	CAP Nylon	1
9	42927	嵌件	INSERT	1
10	35459	垫圈	WASHER	1
11	8268336	螺母 (M6)	NUT (M6)	1
11	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
12	8503931	凸轮	CAM	1
12	856221A1	凸轮套件	CAM KIT	1
13	852970	衬套	BUSHING	1
14	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	1
15	932481	衬套	BUSHING	2
15	8M0215006	旋转衬套	BUSHING Swivel	2
16	8235694	螺纹球头	BALL Threaded	1
17	850815	连接杆	LINK	1
17	8508152	杆	ROD	1
18	67748	滚轮	ROLLER	1
19	850286	油门滚轮	ROLLER Throttle	1
19	8502861	杠杆	LEVER	1
20	40056107	螺钉(M5×16)	SCREW (M5 x 16)	1
21	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	1
22	69432	外锁紧垫圈(#10)	LOCKWASHER External (#10)	1
23	8142831	锚支架	BRACKET Anchor	1
23	814283T6	锚支架总成	BRACKET ASSEMBLY Anchor	1
24	98889	闩锁	LATCH	1
25	42975	传动螺钉	DRIVE SCREW	2
26	39519	杯套	CUP	1
27	52100	耐磨板	WEAR PLATE	1
28	38279	闩锁	LATCH	1
28	8M0036768	闩锁	LATCH	1
29	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
30	35045	螺母(.250-28)	NUT (.250-28)	1
30	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
31	28782	螺钉(.312-18 x .880)不锈钢	SCREW (.312-18 x .880) Stainless Steel	3
32	814284	导向块	GUIDE BLOCK	1
33	20099	弹簧	SPRING	1
34	67073A1	连杆总成	LINK ROD ASSEMBLY	1
35	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
35	79932A17	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
36	NSS	弹性销(不单独销售)	NOT SOLD SEPARATE Roll Pin	1
37	NSS	不单独销售-换挡轴上杆	NOT SOLD SEPARATE Shift Shaft Lever-Upper	1
38	26856	衬套	BUSHING	1
39	29720	波形垫圈	WAVE WASHER	1
40	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
41	35045	螺母(.250-28)	NUT (.250-28)	1
41	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
42	814281A2	开关	SWITCH	1
42	8M0052931	开关	SWITCH	1
43	77478	螺钉 (#6-32 x .875)	SCREW (#6-32 x .875)	2
44	27882	垫圈	WASHER	2

图 58顶罩和前护板 Top Cowl And Front Shield

REF	零件编号	中文名称	英文名称	数量
1	434291	点火板点火	IGNITION PLATE IGNITION	1
2	7778A9	开关盒总成	SWITCHBOX ASSEMBLY	2
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	开关盒螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) SWITCH BOX	2
4	94453	开关盒螺钉衬套	BUSHING SWITCH BOX SCREW	2
6	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	20
7	60871A10	线束总成-开关盒	WIRE ASSEMBLY SWITCH BOX	2
8	62568	螺丝(#10-16 x 0.375)导线固定	SCREW (#10-16 x .375) WIRE ATTACHING	3
9	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
10	69092	点火板螺钉(1.25)	SCREW (1.25) IGNITION PLATE	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈(.312)点火板螺钉	LOCKWASHER (.312) IGNITION PLATE SCREW	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈点火板螺钉	WASHER IGNITION PLATE SCREW	6
13	67264	橡胶垫圈点火板螺钉	WASHER (Rubber) IGNITION PLATE SCREW	6
14	67268	衬套点火板螺钉	BUSHING IGNITION PLATE SCREW	3
15	33386A3	开关总成	SWITCH ASSEMLBY	1
16	38055	水银开关螺钉(.190-32 x .620)	SCREW (.190-32 x .620) MERCURY SWITCH	1
17	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
18	87926	螺钉(#10-32 x .500)导线固定	SCREW (#10-32 x .500) LEAD ATTACHING	1
19	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
19	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
20	96220A12	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
21	79091	保险丝20安培	FUSE 20 Ampere	1
21	8M0207796	保险丝20安培	FUSE 20 AMP	1
22	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
24	816311	捆扎带(8英寸)线束和电缆	TIE STRAP (8.00 Inches) HARNESS AND CABLES	AR
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	68258A4	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
25	853654A1	电磁阀	SOLENOID	1
26	45076	螺母(#10-32)黄铜电磁阀端子	NUT (#10-32) Brass SOLENOID TERMINALS	2
27	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
28	68292	螺母（.312-18）电磁阀端子	NUT (.312-18) SOLENOID TERMINALS	2
28	8M0204668	螺母(.312-18)	NUT (.312-18)	2
29	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
30	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
31	65999A2	电缆总成黑色上部安装	CABLE ASSEMBLY Black UPPER MOUNT	1
32	88528A2	线缆总成(6英寸-红/白)	CABLE ASSEMBLY (6" - RED/WHITE)	1
32	91865A1	线束总成(3"-白/黑-175)	CABLE ASSEMBLY (3" - WHITE/BLACK - 175)	1
33	47483	J型卡扣	J CLIP	3
34	194372	端子排	TERMINAL BLOCK	1
35	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
36	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
37	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
38	814422T	点火板盖	COVER IGNITION PLATE	1
39	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	2
40	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
40	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
41	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
42	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	3
43	62310A2	线束总成(175)	CABLE ASSEMBLY (175)	1
44	78866	绝缘体	INSULATOR	1

图 59上罩与前护板 TOP COWL AND FRONT SHIELD

REF	零件编号	中文名称	英文名称	数量
1	9742A92	顶盖总成 (黑色)(无贴花)	TOP COWL ASSEMBLY (BLACK)(Without Decals)	1
1	9742A93	顶罩总成(灰色)(无贴花)	TOP COWL ASSEMBLY (GRAY)(Without Decals)	1
1	9743T10	顶罩	TOP COWL	1
2	812784	密封件	SEAL	1
3	815478	密封件	SEAL	1
4	815225	隔音垫(侧)	SOUND BLANKET (SIDE)	2
5	815226	隔音垫(顶)	SOUND BLANKET (TOP)	1
4/5	815225A1	隔音毯套装	SOUND BLANKET KIT	1
6	815227	前隔音垫	SOUND BLANKET FRONT	1
7	47341A1	手动/应急启动绳柄套件	ROPE AND HANDLE KIT Manual/Emergency Start	1
7	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
8	815848	螺母 (.312)	NUT (.312)	2
9	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
9	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2
10	184741	后支架	BRACKET REAR	2
11	18506	护孔环	GROMMET	3
11	18506001	护孔环	GROMMET	3
12	28636	螺钉(.250-20 x .750) 后支架	SCREW (.250-20 x .750) REAR BRACKET	4
13	816992	螺钉	SCREW	8
14	813096	挂钩	HOOK	2
14	813096A2	挂钩套件	HOOK KIT	2
15	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	2
16	813074	滚轮	ROLLER	2
16	8M0207770	滚轮@3	ROLLER @3	2
17	13194	挡圈	RING Retaining	2
18	56720	垫圈(0.330×0.750×0.060)不锈钢	WASHER (.330 x .750 x .060) Stainless Steel	4
19	187021	定位器	LOCATOR	1
20	18173	锁扣滚轮支架总成	BRACKET ASSEMBLY Latch Roller	1
20	893763	滚轮锁扣支架	BRACKET Roller Latch	1
21	813552	垫片(旧款)	SPACER (OLD DESIGN)	1
21	813076A2	手柄套件	HANDLE KIT	1
21A	816838	隔套	SPACER	1
22	31984	螺钉(0.312-18×1.375)	SCREW (.312-18 x 1.375)	2
22	69267	螺钉 (.312-18 x 1.750)	SCREW (.312-18 x 1.750)	2
23	18755A1	前护罩总成 (黑色)(无贴花)	FRONT SHIELD ASSEMBLY (BLACK)(Without Decals)	1
23	18755A2	前护罩总成 (灰色)(无贴花)	FRONT SHIELD ASSEMBLY (GRAY)(Without Decals)	1
25	77137	螺钉 (.190-16 x .620)	SCREW (.190-16 x .620)	4
26	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	4
26	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	4
27	36001	垫圈	WASHER	2

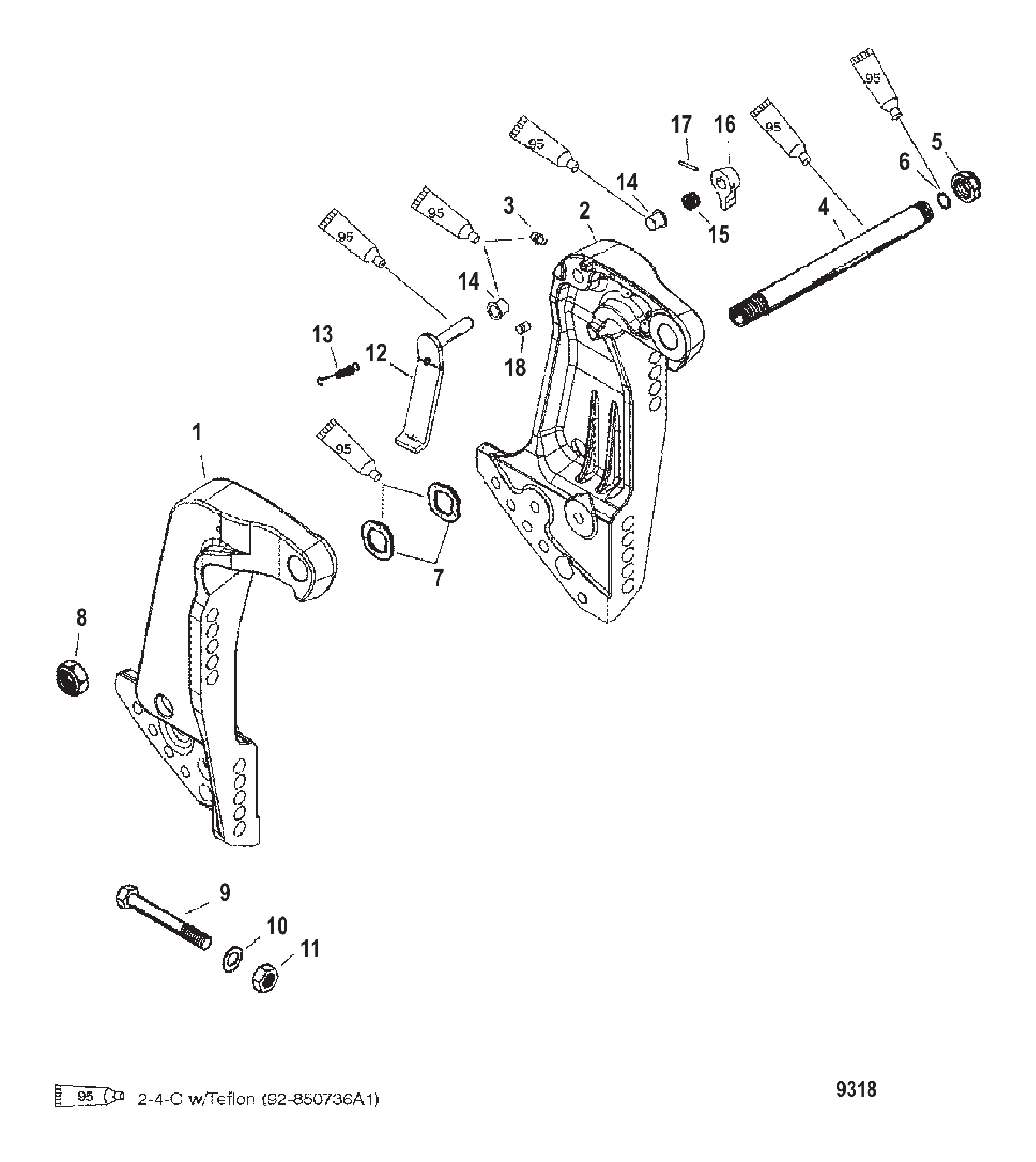

图 60艉板支架 Transom Brackets

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
10	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0027784	螺母	NUT	4
11	82671117	螺母(.500-20)	NUT (.500-20)	4
12	99629A2	杠杆总成	LEVER ASSEMBLY	1
12	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	830899	张力弹簧	SPRING Tension	1
14	65830	尼龙衬套	NYLINER	2
15	830900	压缩弹簧	SPRING Compression	1
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99617	销	PIN	1
18	893709	销	PIN	1

图 61线束/启动继电器 Wiring Harness/Starter Solenoid

REF	零件编号	中文名称	英文名称	数量
1	434291	点火板点火	IGNITION PLATE IGNITION	1
2	7778A9	开关盒总成	SWITCHBOX ASSEMBLY	2
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	开关盒螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) SWITCH BOX	2
4	94453	开关盒螺钉衬套	BUSHING SWITCH BOX SCREW	2
6	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	20
7	60871A10	线束总成-开关盒	WIRE ASSEMBLY SWITCH BOX	2
8	62568	螺丝(#10-16 x 0.375)导线固定	SCREW (#10-16 x .375) WIRE ATTACHING	3
9	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
10	69092	点火板螺钉(1.25)	SCREW (1.25) IGNITION PLATE	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈(.312)点火板螺钉	LOCKWASHER (.312) IGNITION PLATE SCREW	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈点火板螺钉	WASHER IGNITION PLATE SCREW	6
13	67264	橡胶垫圈点火板螺钉	WASHER (Rubber) IGNITION PLATE SCREW	6
14	67268	衬套点火板螺钉	BUSHING IGNITION PLATE SCREW	3
15	33386A3	开关总成	SWITCH ASSEMLBY	1
16	38055	水银开关螺钉(.190-32 x .620)	SCREW (.190-32 x .620) MERCURY SWITCH	1
17	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
18	87926	螺钉(#10-32 x .500)导线固定	SCREW (#10-32 x .500) LEAD ATTACHING	1
19	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
19	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
20	96220A12	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
21	79091	保险丝20安培	FUSE 20 Ampere	1
21	8M0207796	保险丝20安培	FUSE 20 AMP	1
22	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
24	816311	捆扎带(8英寸)线束和电缆	TIE STRAP (8.00 Inches) HARNESS AND CABLES	AR
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	68258A4	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
25	853654A1	电磁阀	SOLENOID	1
26	45076	螺母(#10-32)黄铜电磁阀端子	NUT (#10-32) Brass SOLENOID TERMINALS	2
27	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
28	68292	螺母（.312-18）电磁阀端子	NUT (.312-18) SOLENOID TERMINALS	2
28	8M0204668	螺母(.312-18)	NUT (.312-18)	2
29	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
30	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
31	65999A2	电缆总成黑色上部安装	CABLE ASSEMBLY Black UPPER MOUNT	1
32	88528A2	线缆总成(6英寸-红/白)	CABLE ASSEMBLY (6" - RED/WHITE)	1
32	91865A1	线束总成(3"-白/黑-175)	CABLE ASSEMBLY (3" - WHITE/BLACK - 175)	1
33	47483	J型卡扣	J CLIP	3
34	194372	端子排	TERMINAL BLOCK	1
35	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
36	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
37	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
38	814422T	点火板盖	COVER IGNITION PLATE	1
39	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	2
40	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
40	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
41	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
42	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	3
43	62310A2	线束总成(175)	CABLE ASSEMBLY (175)	1
44	78866	绝缘体	INSULATOR	1

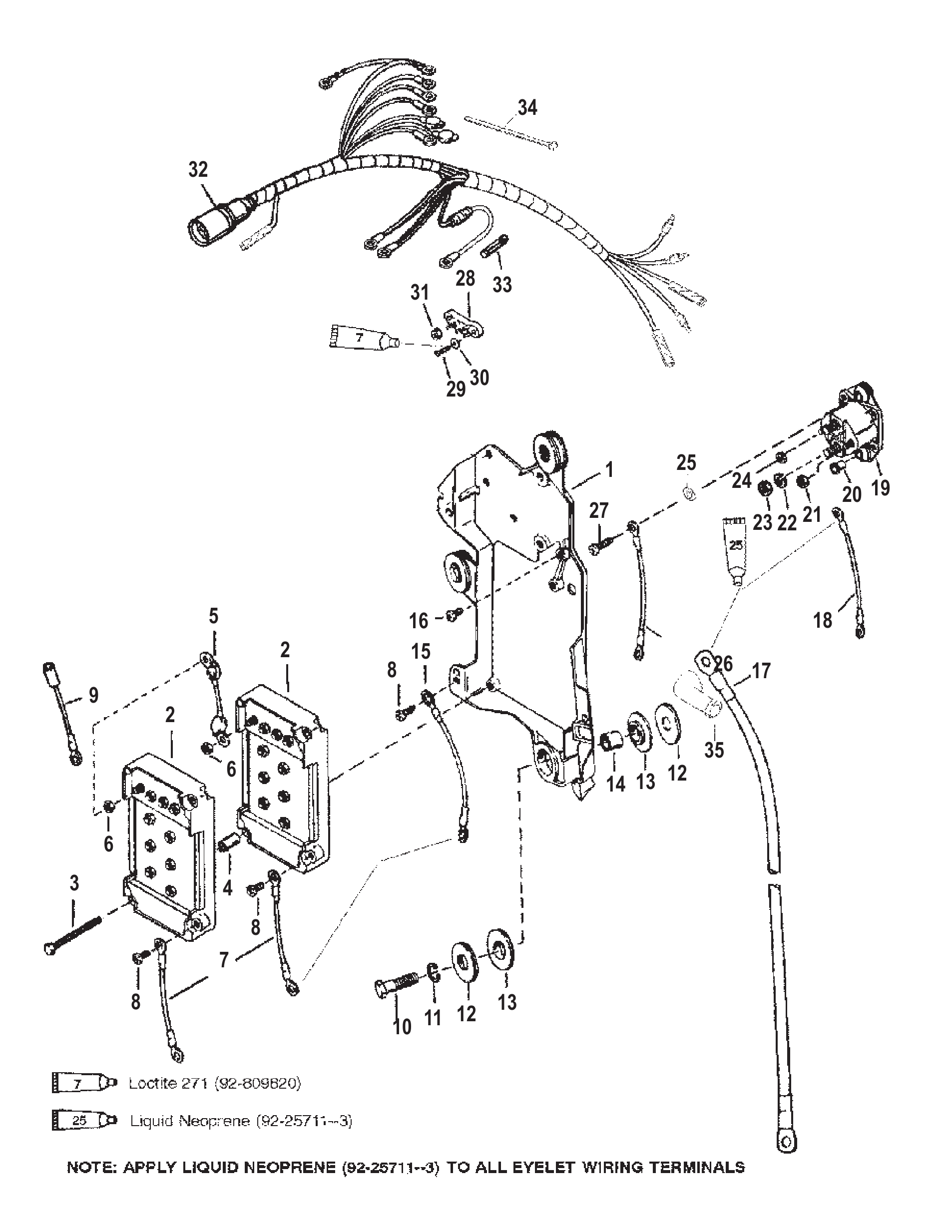

图 62线束/启动电磁阀 WIRING HARNESS/STARTER SOLENOID

REF	零件编号	中文名称	英文名称	数量
1	826730A4	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
2	79091	保险丝20安培	FUSE 20 Ampere	1
2	8M0207796	保险丝20安培	FUSE 20 AMP	1
3	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
3	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
4	194372	端子排	TERMINAL BLOCK	1
5	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
6	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
7	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
8	814634	卡箍	CLAMP	1
9	434292	点火板	IGNITION PLATE	1
10	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
11	13669	螺钉(#12-24x2.00)	SCREW (#12-24 x 2.00)	2
12	94453	衬套	BUSHING	2
13	62310A2	拉线总成	CABLE ASSEMBLY	1
14	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	20
15	91865A1	电缆总成(3英寸-白/黑)	CABLE ASSEMBLY (3 IN. - WHITE/BLACK)	1
15	88528A2	电缆总成(6英寸-红/白)	CABLE ASSEMBLY (6 IN. - RED/WHITE)	1
16	60871A10	线束总成	WIRE ASSEMBLY	2
17	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	2
17	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2
18	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
19	87926	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	1
20	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
21	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
21	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
22	36042	垫圈	WASHER	6
23	67264	垫圈(橡胶)	WASHER (Rubber)	6
24	67268	衬套	BUSHING	3
25	88439A23	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
25	88439A34	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
25	88439A24	蓄电池负极电缆总成	CABLE ASSEMBLY Negative - Battery	1
26	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	2
26	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
27	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
28	65999A2	线缆总成(黑色)	CABLE ASSEMBLY Black	1
29	78866	绝缘体	INSULATOR	1
30	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	4
31	817109A2	电磁阀总成(#10-32/.3125-18端子)	SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)	1
32	818968	衬套	BUSHING	2
32	8M0214955	衬套	BUSHING	2
33	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
34	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
35	68292	螺母(.312-18)	NUT (.312-18)	2
35	8M0204668	螺母(.312-18)	NUT (.312-18)	2

图 63泄放系统 Bleed System

REF	零件编号	中文名称	英文名称	数量
1	99130122	泄放管(20.00英尺散装)	TUBING (20.00 Feet Bulk) BLEED	1
2	59169	接头	FITTING	4
2	59169003	三通接头	FITTING Tee	4
3	42698	止回阀 (压入式 - 13/16"长)	CHECK VALVE (PRESS-IN - 13/16" LONG)	7
3	426982	止回阀	CHECK VALVE	7
4	42623	止回阀 (压入式 - 11/16"长)	CHECK VALVE (PRESS-IN - 11/16" LONG)	1
4	426233	止回阀	CHECK VALVE	1
5	15133	压入式接头	FITTING (PRESS-IN)	6
6	56759	倒钩接头	FITTING Barbed	4
7	15026	黄色弯头盖	CAP ELBOW (YELLOW)	4
8	18205	三通	TEE	1
9	9912688	管材 (36.00英寸散装)	TUBING (36.00 Inches Bulk)	1
10	18206	滤清器	FILTER	1
10	8M0207786	滤清器	FILTER	1

图 64下罩 Bottom Cowl

REF	零件编号	中文名称	英文名称	数量
1	850302A1	下罩盖（左舷）	BOTTOM COWL Port	1
1	850302A07	下罩盖（左舷）	BOTTOM COWL Port	1
1	8M0107324	下罩盖（左舷）	BOTTOM COWL Port	1
2	854367001	堵头	PLUG	1
3	850301A1	下罩盖（右舷）	BOTTOM COWL Starboard	1
3	850301A07	下罩盖（右舷）	BOTTOM COWL Starboard	1
3	850301A07	下罩盖（右舷）	BOTTOM COWL Starboard	1
3	8M0107323	下罩盖（右舷）	BOTTOM COWL Starboard	1
4	844155001	罩盖密封件	SEAL Cowl	1
4	8M0043268	罩盖密封条	SEAL-COWL	1
5	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	4
6	824868	螺钉(M6×75)	SCREW (M6 x 75)	3
7	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
7	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
8	850684F1	前手柄	FRONT HANDLE	1
8	8M0053903	前手柄	FRONT HANDLE	1
9	335891	衬套	BUSHING	2
10	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
11	8219423	棘爪	PAWL	1
12	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	1
13	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	3
14	8214281	螺钉(#10-16x0.625)	SCREW (#10-16 x .625)	1
15	822873	卡扣	CLIP	1
16	8569901	升降倾斜开关	SWITCH Trim	1
16	8M0235191	升降倾斜开关	SWITCH Trim	1
16	896620001	升降倾斜开关	SWITCH Trim	1
16	8M0235191	升降倾斜开关	SWITCH Trim	1
17	842756T01	索具套件	RIGGING KIT	1
18	842744002	支架	BRACKET	1
19	82130012	螺钉（M6 x 12）	SCREW (M6 x 12)	3
20	843185T02	联轴器	COUPLER	1
21	842756T05	软管	HOSE	1
21	842756005	软管	HOSE	1
22	843174T02	索具联轴器	COUPLER Rigging	1
22	843174002	联轴器	COUPLER	1
23	47994	螺钉 (#10 x 1.50)	SCREW (#10 x 1.50)	4
24	852361T1	机罩手柄	HANDLE Cowl	2
24	850682A06	支架和手柄套件	BRACKET AND HANDLE KIT	2
25	29402	波形垫圈	WAVE WASHER	2

图 65曲轴活塞与连杆 Crankshaft Pistons And Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	9536A4	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	67923	下滚珠轴承	BEARING Ball Lower	1
2	67923T	滚珠轴承	BEARING Ball	1
3	67446	环	RING	1
4	14513A2	驱动齿轮段套件	GEAR SEGMENT KIT Drive	1
4	14513A09	驱动齿轮段套件	GEAR SEGMENT KIT Drive	1
5	813073	螺钉(#6-32 x .620)内六角头	SCREW (#6-32 x .620) Socket Head	2
6	813134	螺母(#6-32)专用	NUT (#6-32) Special	2
7	54196A6	托架总成	CARRIER ASSEMBLY	1
8	65800	填料	PACKING	1
9	67377		RING Sealing Sealing - Crankshaft	7
9	67377T	密封环	RING Sealing	7
10	16756A6	曲轴轴承套件	BEARING KIT Crankshaft	2
11	9738A7	右舷活塞总成 - 标准	PISTON ASSEMBLY Starboard - Standard	AR
11	9738T9	活塞总成标准型	PISTON ASSEMBLY Standard	AR
11	9738A8	右舷活塞总成（0.015加大）	PISTON ASSEMBLY Starboard (.015 O.S.)	AR
11	9738T10	活塞总成0.015加大	PISTON ASSEMBLY .015 Oversize	AR
11	9737A7	左舷活塞总成 - 标准	PISTON ASSEMBLY Port - Standard	3
11	9737T9	活塞总成标准型	PISTON ASSEMBLY Standard	3
11	9737A8	活塞总成-左舷(0.015加大)	PISTON ASSEMBLY Port (.015 O.S.)	AR
11	9737A10	活塞总成0.015加大	PISTON ASSEMBLY .015 Oversize	AR
12	815515A12	活塞环套装标准型（1.50毫米）	RING SET Piston Standard (1.50 MM)	1
12	815268A4	活塞环套装（0.015加大，1.50毫米）	RING SET Piston (.015 O.S.) (1.50 MM)	AR
13	52035	锁环	RING Lock	12
13	857196	锁紧环	LOCK RING	12
11	9738A9	右舷标准活塞总成	PISTON ASSEMBLY Standard Starboard - Standard	3
11	9738T9	活塞总成标准型	PISTON ASSEMBLY Standard	3
11	9738A10	右舷活塞总成（0.015加大）	PISTON ASSEMBLY .015 Oversize Starboard (.015 O.S.)	AR
11	9738T10	活塞总成0.015加大	PISTON ASSEMBLY .015 Oversize	AR
11	9737A9	左舷标准活塞总成	PISTON ASSEMBLY Standard Port Standard	3
11	9737T9	活塞总成标准型	PISTON ASSEMBLY Standard	3
11	9737A10	左舷活塞总成（0.015加大）	PISTON ASSEMBLY .015 Oversize Port (.015 O.S.)	AR
12	822321A12	活塞环套件标准型（2毫米）	RING KIT Piston - Standard Standard (2MM)	1
12	822321A1	活塞环套件-0.015加大(0.015加大)(2毫米)	RING KIT Piston - .015 Oversize (.015 O.S.) (2MM)	2
13	52035	锁环	RING Lock	12
13	857196	锁紧环	LOCK RING	12
14	818141A2	连杆套件	CONNECTING ROD KIT	6
14	818141A13	连杆总成	CONNECTING ROD ASSEMBLY	6
15	763491		SCREW (.312-24 x .875) Connecting Rod	12
16	812876	针阀定位垫圈	WASHER Needle Locating	12
16	8M0012298	止推垫片	THRUST WASHER	12
17	17514A2	轴承套件	BEARING KIT	6
17	8M0234886	轴承保持架	CAGE BEARING	6
18	822553	活塞端滚针轴承	BEARING Needle Piston End	174
18	8M0204691	滚针轴承@200	BRG-NEEDLE @200	174
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 66气缸体与端盖 Cylinder Block And End Caps

REF	零件编号	中文名称	英文名称	数量
1	9764A12	气缸体(175)	CYLINDER BLOCK (175)	1
1	9763A6	气缸体(200)	CYLINDER BLOCK (200)	1
1	9763T6	气缸体	CYLINDER BLOCK	1
2	818138	动力头螺柱(1-3/4")	STUD POWERHEAD (1-3/4")	2
2	8M0034455	螺柱1.750	STUD 1.750	2
2	76175	动力头螺柱(1-7/8英寸)	STUD POWERHEAD (1-7/8")	4 OR 6
3	67065	动力头螺柱(5-1/2英寸)	STUD POWERHEAD (5-1/2")	2
3	670654	螺柱(.375-16/.375-24 x 5.620)	STUD (.375-16/.375-24 x 5.620)	2
3	78438	动力头螺柱(6-3/4英寸)	STUD POWERHEAD (6-3/4")	2
3	8M0034454	螺柱(.375-16/.375-24 x 6.87)	STUD (.375-16/.375-24 x 6.87)	2
4	20033	定位销	PIN Dowel LOCATING	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	销(轴承座圈)	PIN (BEARING RACE)	2
5	8M0036405	销	PIN	2
6	11338	密封垫片	GASKET SEALING	2
7	42249	启动马达上盖	COVER STARTER MOTOR (UPPER)	1
7	8M0088723	启动器支架	BRACKET-STARTER	1
8	73657	盖至曲轴箱螺钉(.312-18 x 1.50)	SCREW (.312-18 x 1.50) COVER TO CRANKCASE	2
9	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
9	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
10	76867	启动电机盖(下部)	COVER STARTER MOTOR (LOWER)	1
11	77065	盖至曲轴箱螺钉(.312-18 x 2)	SCREW (.312-18 x 2) COVER TO CRANKCASE	2
11	815549	螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00)	2
12	99448	衬套	BUSHING	1
13	88807A20	线束总成盖	CABLE ASSEMBLY COVER	1
14	66717	螺钉(.375-16 x 3.250)	SCREW (.375-16 x 3.250)	8
14	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	6
15	9642A1	上端盖总成	END CAP ASSEMBLY Upper	1
15	858521T1	端盖总成	END CAP ASSEMBLY	1
16	54029	端盖O型圈(2.800 x .103)	O-RING (2.800 x .103) END CAP	1
17	16756A2	滚子轴承端盖总成	BEARING ASSEMBLY Roller END CAP	1
17	16756A4	轴承套件	BEARING KIT	1
18	41953	端盖密封件	SEAL END CAP	1
19	69034	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW AND LOCKWASHER (.312-18 x 1.00)	4
19	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	4
20	63153	J型卡扣	J CLIP	1
22	15094	双头螺柱(.190-32 x 1.870)	STUD (.190-32 x 1.870)	1
23	15093	飞轮盖至支架双头螺柱(#10-32 x 1.00)	STUD (#10-32 x 1.00) FLYWHEEL COVER TO BRACKET	2
23	8M0034435	螺柱	STUD	2
24	67269	飞轮盖螺柱隔套	SPACER FLYWHEEL COVER STUD	1
25	492211	飞轮盖螺柱垫圈	WASHER FLYWHEEL COVER STUD	6
25	8M0204663	垫片@5	WASHER @5	6
26	72761	飞轮盖螺柱不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel FLYWHEEL COVER STUD	3
27	816874	蝶形螺母(#10-32)飞轮盖螺柱	WING NUT (#10-32) FLYWHEEL COVER STUD	3
28	42248	飞轮罩支架	BRACKET FLYWHEEL COVER	1
28	422482	支架	BRACKET	1
29	49668	支架至曲轴箱螺钉(.250-20 x .750)	SCREW (.250-20 x .750) BRACKET TO CRANKCASE	2
30	7809A1	下端盖总成	END CAP ASSEMBLY LOWER	1
30	7809T1	端盖总成	END CAP ASSEMBLY	1
31	62700	端盖O型圈(3.237 x .103)	O-RING (3.237 x .103) END CAP	1
32	41953	端盖密封件	SEAL END CAP	2
33	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
34	26992	下端盖螺钉不锈钢锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel LOWER END CAP SCREW	4
35	64022	调节螺钉(.250-20 x 2.125)-气缸体	SCREW (.250-20 x 2.125) ADJUSTING - CYLINDER BLOCK	1
36	64015	锁紧螺母(.250-20)-调节螺钉	NUT (.250-20) JAM - ADJUSTING SCREW	1
37	26852	调节螺钉尼龙帽	CAP Nylon NYLON - ADJUSTING SCREW	1
38	87076A6	怠速控制总成(200)	IDLE SPEED CONTROL ASSEMBLY (200)	1
38	87076A10	怠速控制器	IDLE SPEED CONTROL	1
39	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
39	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
40	38833	垫圈	WASHER	3
41	93772A5	模块(175)	MODULE (175)	1
41	93772A11	提前角模块	ADVANCE MODULE	1
42	16793	卡箍(175)	CLAMP (175)	1
43	73286	螺钉(0.250-20×0.500)不锈钢(175)	SCREW (.250-20 x .500) Stainless Steel (175)	1
-	812817A90	动力头总成(完整)(175)	POWERHEAD ASSEMBLY COMPLETE (175)	1
-	812817T90	船用动力头	POWERHEAD MARINE	1
-	812827A90	动力头总成(完整)(200)	POWERHEAD ASSEMBLY COMPLETE (200)	1
-	812827T91	船用动力头	POWERHEAD MARINE	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 67爆震控制器/温度传感器 Detonation Controller/Temperature Sensor

REF	零件编号	中文名称	英文名称	数量
1	14856A3	爆震控制器总成(200)	CONTROLLER ASSEMBLY Detonation (200)	1
2	88447	螺钉(0.190-32×1.62)爆震控制器(200)	SCREW (.190-32 x 1.62) DETONATION CONTROLLER (200)	3
3	38833	爆震控制器螺钉垫圈(200)	WASHER DETONATION CONTROLLER SCREW (200)	3
4	13381	板(200)	PLATE (200)	1
5	60466A20	电缆总成(200)	CABLE ASSEMBLY (200)	1
5	88807A10	拉线总成	CABLE ASSEMBLY	1
6	62568	螺钉(#10-16×0.375)电缆至板(200)	SCREW (#10-16 x .375) CABLE TO PLATE (200)	1
7	94304	垫片(200)	SPACER (200)	3
8	41470A12	喷油警告模块总成	MODULE ASSEMBLY Oil Injection Warning	1
8	41470A25	喷油警告模块总成	MODULE ASSEMBLY Oil Injection Warning	1
9	14851T	节气门位置指示器	INDICATOR THROTTLE POSITION	1
9	14851T03	指示器	INDICATOR	1
10	15150		SCREW (#8-32 x .625) INDICATOR	2
11	26995		LOCKWASHER (#8) Stainless Steel INDICATOR SCREW	2
12	46101	指示器螺钉垫圈	WASHER INDICATOR SCREW	2
12	30164	垫圈(0.192x0.375x0.0312)不锈钢	WASHER (.192 x .375 x .0312) Stainless Steel	2
13	15885	套筒	SLEEVE	1
14	13221A1	温度传感器总成	SENSOR ASSEMBLY Temperature	1
14	13221T01	温度传感器	SENSOR TEMP	1
15	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
16	57583	螺钉(#8-32×0.375)温度传感器	SCREW (#8-32 x .375) TEMPERATURE SENSOR	3
16	57583T	螺丝#8-32×3/8	SCREW #8-32x3/8	3
17	26995	锁紧垫圈(#8)不锈钢温度传感器螺钉	LOCKWASHER (#8) Stainless Steel TEMPERATURE SENSOR SCREW	3
18	42813	螺钉（#10-32 X 0.380）	SCREW (#10-32 X .380)	1
19	813501	安装板	PLATE	2
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 68驱动轴壳与排气管 Drive Shaft Housing And Exhaust Tube

REF	零件编号	中文名称	英文名称	数量
1	8343A10	黑色传动轴壳体总成	HOUSING ASSEMBLY Driveshaft Black	1
1	8343A11	灰色传动轴壳体总成	HOUSING ASSEMBLY Driveshaft Gray	1
1	8343T11	ORD 1590-8343T10	ORD 1590-8343T10	1
1	8343A12	Tracker驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft Tracker	1
1	8343T12	D型轴套-追踪者	D SHAFT HSG-TRACK	1
1	813563A1	黑色传动轴壳体总成	HOUSING ASSEMBLY Driveshaft Black	1
1	813563T1	传动轴壳体-黑色-加长型	HOUSING Driveshaft - Black - X-Long	1
1	813563A2	灰色传动轴壳体总成	HOUSING ASSEMBLY Driveshaft Gray	1
1	813563T2	ORD 3503-813563T1	ORD 3503-813563T1	1
2	56295	双头螺柱(.437 x 2.69)	STUD (.437 x 2.69)	2
4	63474	螺钉(.500-20 x 6.00)	SCREW (.500-20 x 6.00)	2
4	898831	螺钉(.500-20 x 6.220)	SCREW (.500-20 x 6.220)	2
5	78249	无标识支架	MOUNT No Markings	2
5	77327	支架	MOUNT	2
5	77327	Tracker支架（白点标识）	MOUNT Tracker - White Dot	2
6	49339	垫圈(.8125)	WASHER (.8125)	2
7	28040	螺母(.500-20)	NUT (.500-20)	2
7	898832	螺母(.500-20)	NUT (.500-20)	2
8	88238A1	接地线总成	CABLE ASSEMBLY Ground	1
8	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
9	67076	卡箍	CLAMP	2
9	8M0036782	卡箍	CLAMP	2
10	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
11	67077T	黑色盖板	COVER Black Black	2
11	8M4500752	盖板	COVER	2
11	67077T6	灰色盖板	COVER Gray	2
11	67077F1	灰色盖板	COVER Gray	2
11	67077F2	Tracker盖板	COVER Tracker	2
11	8M4500752	盖板	COVER	2
12	88417	螺钉(#12-24×0.620)	SCREW (#12-24 x .620)	4
13	35521	螺母	NUT	4
14	88238A1	接地线总成	CABLE ASSEMBLY Ground	1
14	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
15	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
16	48926	垫圈	WASHER	1
17	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	1
17	8M0204653	螺母	NUT	1
18	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
19	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
19	8M0204653	螺母	NUT	2
20	64649	堵头	PLUG	1
21	18276	排气管	TUBE Exhaust	1
21	18276T	排气管	EXHAUST TUBE	1
22	66350	下部密封件	SEAL Lower	1
22	66350001	密封件	SEAL	1
23	177261	上密封件	SEAL Upper	1
23	8M0039076	密封件	SEAL	1
24	67295	喷水管	TUBE Water Jet	1
24	8M0042788	长型水管	TUBE-WATER-LONG	1
24	74729	管	TUBE	1
24	8M0042790	水管	TUBE-WATER	1
25	991732	衬垫	GASKET	1
25	991734	衬垫	GASKET	1
26	18233A3	隔板总成	PLATE ASSEMBLY	1
26	18233A20	传动轴壳体板总成	PLATE ASSEMBLY Driveshaft Housing	1
27	8147012	密封件	SEAL	1
27	8M0043165	密封件-27.00英寸	SEAL-27.00 INCH	1
28	68011	支架	BRACKET	1
29	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
29	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
30	20033	定位销	PIN Dowel	2
30	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
31	38970	密封件	SEAL	1
32	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	6
33	183071	衬垫	GASKET	1
33	183076	衬垫	GASKET	1
34	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	4
35	69254	螺母	NUT	4
36	812834	排气延长管(13.50英寸)	EXTENSION Exhaust (13.50")	1
36	812834A2	排气延长总成	EXTENSION ASSEMBLY Exhaust	1
36	41942F3	排气延长管(7.50英寸)	EXTENSION Exhaust (7.50")	1
36	879288T71	排气管延长段	EXTENSION Exhaust	1
37	78246	衬垫	GASKET	1
37	782461	衬垫	GASKET	1
38	814618	护套	BOOT	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 69双机延伸套件 Dual Engine Extension Kit

REF	零件编号	中文名称	英文名称	数量
-	92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
1	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
2	71565A2		TUBE ASSEMBLY Cable Guide	1
3	41055	支架	MOUNT	1
4	42100	锁紧垫圈	TAB WASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	88404	锁紧垫圈	TAB WASHER	2
7	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
8	17729A1	支架	BRACKET	2
9	62055	螺钉(.312-24 x 1.250)	SCREW (.312-24 x 1.250)	4
10	17728	锁紧垫圈	TAB WASHER	4
11	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	4
11	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	4
12	34863	螺母 (.375-24)	NUT (.375-24)	6
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	6
13	979331	转向眼环	STEERING EYE	2
13	8M0026167	转向眼环	STEERING EYE	2
14	23651	衬套(1.625)	SLEEVE (1.625)	2
15	97931	管材(4.00英寸)	TUBING (4.00 Inches)	2
16	8149513	联轴器(15.00英寸)	COUPLER (15.00 Inches)	1
16	8M0026098	联轴器15英寸	COUPLER 15 In.	1
17	42099	螺母(.562-18)	NUT (.562-18)	1
18	821169	联轴器	COUPLING	1
19	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	2
20	94319	螺钉(.375-24 x 1.5)	SCREW (.375-24 x 1.5)	1

图 70电子控制单元总成 Electronic Control Unit Assembly

REF	零件编号	中文名称	英文名称	数量
1	8240034	发动机控制单元ECU(150)	ECU Engine Control Unit (150)	1
1	8240032	发动机控制单元ECU(175)	ECU Engine Control Unit (175)	1
1	824003T02	电控单元	ECU	1
1	8240031	发动机控制单元ECU(200)	ECU Engine Control Unit (200)	1
1	824003T01	电控单元	ECU	1
2	34948	隔套	SPACER	2
3	146951	卡扣	CLIP	1
4	90435		MOUNT Cowl Mounting Bracket	2
5	21249	垫圈	WASHER	4
6	20361	螺母(.250-28)	NUT (.250-28)	4
6	8267089	螺母(.250-28)	NUT (.250-28)	4
7	88807A19	拉线总成	CABLE ASSEMBLY	1
8	14637	护孔环	GROMMET	1
9	14636	衬套	BUSHING	1
10	28667	螺钉 (0.250-20 x 1.00) 不锈钢	SCREW (.250-20 x 1.00) Stainless Steel	1
11	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
12	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	1
13	13202A2	水位传感器模块总成	MODULE ASSEMBLY Water Sensor	1
14	88807A18	线缆总成(黑色)	CABLE ASSEMBLY Black	1
15	37571	螺钉(.190-32 x 0.500)	SCREW (.190-32 x .500)	2
16	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
17	98866A14	电控单元与喷油器线束总成	HARNESS ASSEMBLY Electronic Control Unit And Injectors	1
18	190491	连接环	COUPLE RING	1
19	87895A4	线缆总成(150/175)	CABLE ASSEMBLY (150/175)	1
20	808720	腔体塞	CAVITY PLUG	1
20	832948A1	2针公头连接器总成	CONNECTOR ASSEMBLY 2 POS Male	1
21	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	21
21	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	21

图 71排气歧管与排气板 Exhaust Manifold And Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	190361	分隔板	DIVIDER PLATE	1
2	19050	分隔板衬垫	GASKET DIVIDER PLATE	1
2	190503	衬垫	GASKET	1
3	814754		SEAL (12.50 Inches) DIVIDER PLATE	1
4	814634	卡箍	CLAMP	4
5	31984	螺钉(.312-18 x 1.375)分隔板	SCREW (.312-18 x 1.375) DIVIDER PLATE	3
5	53167	螺钉(.312-18 x .880)分隔板	SCREW (.312-18 x .880) DIVIDER PLATE	17
5	53167T	螺钉 0.312-18X 0.88	SCREW .312-18X .88	17
6	194373	端子排	TERMINAL BLOCK	1
7	90192	螺钉(.250-20 x .750)不锈钢接线板	SCREW (.250-20 x .750) Stainless Steel TERMINAL BLOCK	2
8	68729	安全阀盖	COVER RELIEF VALVE	1
8	8M0039767	盖板	COVER	1
9	45076	端子排黄铜螺母(#10-32)	NUT (#10-32) Brass TERMINAL BLOCK	3
10	813938	盖螺母（#10-32）接线板	CAP NUT (#10-32) TERMINAL BLOCK	3
11	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
12	78690	安全阀板衬垫	GASKET RELIEF VALVE PLATE	2
12	78690002	衬垫	GASKET	2
13	69570	膜片至板件螺钉(#10-16 x .750)	SCREW (#10-16 x .750) DIAPHRAGM TO PLATE	1
14	76451	膜片螺钉垫片	WASHER DIAPHRAGM SCREW	1
15	14479	隔膜	DIAPHRAGM	1
15	144791	隔膜	DIAPHRAGM	1
16	16496	导水板	DEFLECTOR Water	1
17	16497A1	安全阀板	PLATE RELIEF VALVE	1
18	64878	提升阀黑色压缩弹簧	SPRING (Black) COMPRESSION POPPET VALVE	1
19	85303	提升阀弹簧垫片	WASHER POPPET SPRING	1
20	14480	提升阀	POPPET VALVE	1
21	64872	提升阀衬套	GROMMET POPPET VALVE	1
22	65848	提升阀座	CARRIER POPPET VALVE	1
23	991763	排气板衬垫	GASKET EXHAUST PLATE	1
23	991764	衬垫	GASKET	1
24	18260A2	排气板总成	PLATE ASSEMBLY Exhaust EXHAUST	1
24	18260T2	排气板总成	PLATE ASSEMBLY Exhaust	1
26	20033	排气板定位销	PIN Dowel LOCATING - EXHAUST PLATE	2
26	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
27	8147011	排气板密封件	SEAL EXHAUST PLATE	1
27	8M0043164	密封件	SEAL	1
28	680101	密封件固定支架	BRACKET SEAL RETAINING	1
29	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	8
29	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	8
30	89772	连接器(.125-27)(直型)	CONNECTOR (.125-27) (STRAIGHT)	1
32	12602	护孔环	GROMMET	1
32	12602002	护孔环	GROMMET	1
33	19564	护孔环	GROMMET	1
33	8M0179867	护孔环	GROMMET	1
34	27132	排气板衬套	BUSHING EXHAUST PLATE	1
35	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
36	68783	螺钉(.312-18×2.50)	SCREW (.312-18 x 2.50)	1
37	66725	螺钉(.375-16×3.50)	SCREW (.375-16 x 3.50)	3
37	898833	螺钉(.375-16 x 3.500)	SCREW (.375-16 x 3.500)	3
38	812905A3	前支架总成	BRACKET ASSEMBLY FRONT	1
38	812905T	前支架	BRACKET Front	1
39	90285	前支架螺钉(.312-18 x .625)	SCREW (.312-18 x .625) FRONT BRACKET	4
40	187031	垫圈	WASHER	4
41	18778	护孔环	GROMMET	4
41	18778001	护孔环	GROMMET	4
42	18578A4	后支架总成	BRACKET ASSEMBLY Rear REAR	1
42	18578T09	支架总成(后部)	BRACKET ASSEMBLY Rear	1
43	814430	管接头(.500-14)	FITTING (.500-14)	1
43	8144301	接头	FITTING	1
44	92007	90度弯头(0.250-18)	FITTING (.250-18) (90 Degree)	1
44	920071	90度弯头	FITTING (90 Degree)	1
45	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	1
45	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
46	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
46	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
47	25970	动力头螺柱垫圈	WASHER POWERHEAD STUD	6
47	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	6
48	69254	动力头螺柱螺母	NUT POWERHEAD STUD	6
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 72飞轮/启动电机 Flywheel/Starter Motor

REF	零件编号	中文名称	英文名称	数量
1	18896A1	飞轮盖套件	COVER KIT FLYWHEEL	1
2	79022	正时标记	MARKER TIMING	1
3	37572	螺钉(0.190-32x0.380)正时标记	SCREW (.190-32 x .380) TIMING MARKER	2
4	72761	垫圈(0.203x0.562x0.060)不锈钢正时标记螺钉	WASHER (.203 x .562 x .060) Stainless Steel TIMING MARKER SCREW	2
5	89219	飞轮盖塞	PLUG FLYWHEEL COVER	1
5	89219001	堵头	PLUG	1
6	45907	飞轮黄色塞	PLUG Yellow FLYWHEEL	1
7	52901	螺母(.625-18)飞轮	NUT (.625-18) FLYWHEEL	1
8	68229	垫圈(0.641x1.250x0.190)飞轮	WASHER (.641 x 1.250 x .190) FLYWHEEL	1
8	33001	垫圈	WASHER	1
9	9841A7	飞轮(旧款)	FLYWHEEL (OLD DESIGN)	1
9	859238T16	飞轮总成	FLYWHEEL ASY	1
10	32417	飞轮板螺钉(0.250-28×0.625)(旧款)	SCREW (.250-28 x .625) FLYWHEEL PLATE (OLD DESIGN)	8
11	68997	飞轮毂螺钉(0.312-24×0.750)(旧款)	SCREW (.312-24 x .750) FLYWHEEL HUB (OLD DESIGN)	8
12	9610A5	定子	STATOR	1
13	90045	螺钉(#10-32 x 1.375)定子	SCREW (#10-32 x 1.375) STATOR	4
14	26996	锁紧垫圈(#10)不锈钢定子螺钉	LOCKWASHER (#10) Stainless Steel STATOR SCREW	4
15	96455A9	触发板总成	PLATE ASSEMBLY Trigger	1
16	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
17	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
17	893893	启动马达	STARTER MOTOR	1
18	56703	启动电机轴环	COLLAR STARTER MOTOR	2
18	8M0034918	轴环	COLLAR	2
19	68042	启动电机橡胶止动块	STOP Rubber RUBBER - STARTER MOTOR	2
19	8M0043376	停机开关	STOP	2
20	26992	锁紧垫圈(.250) 不锈钢起动机接线端	LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL	1
21	20890	螺母(.250-20) 起动机接线端	NUT (.250-20) STARTER MOTOR TERMINAL	1
22	93388A2	线缆总成(黑色)	CABLE ASSEMBLY Black	1
22	93388A14	线缆总成(黄/黑)	CABLE ASSEMBLY Yellow/Black	1
23	69035	螺钉和锁紧垫圈 (.250-20 x .625) 不锈钢电缆至启动马达	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel CABLE TO STARTER MOTOR	1
24	817632A2	飞轮(新款)	FLYWHEEL (NEW DESIGN)	1
24	859238T16	飞轮总成	FLYWHEEL ASY	1

图 73燃油管理系统 Fuel Management System

REF	零件编号	中文名称	英文名称	数量
1	14817A11	燃油管理系统总成	MANAGEMENT ASSEMBLY Fuel	1
2	67748	滚轮凸轮	ROLLER CAM	1
3	18715	燃油喷油器	INJECTOR Fuel	6
3	18715T	喷油器总成	INJECTOR ASSEMBLY	6
4	17422	喷油器滤清器	FILTER INJECTOR	1
5	15443	线束套件	HARNESS KIT	1
6	15442	燃油滤清器套件	FILTER KIT Fuel	1
7	150282	燃油滤清器	FILTER Fuel	1
8	400034		SCREW (M5 x 14) FILTER COVER	1
9	400255		LOCKWASHER (M5) COVER SCREW	1
10	1350377	软管(1/2"外径)	HOSE (1/2" O.D.)	1
10	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	1
11	9912688	管材(36.00英寸散装)(1/8"内径)	TUBING (36.00 Inches Bulk) (1/8" I.D.)	1
12	99130122	管材(20.00英尺散装)(3/32"内径)	TUBING (20.00 Feet Bulk) (3/32" I.D.)	1
12	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
13	15027		REGULATOR PRESSURE	1
14	814233	弯头套件	ELBOW KIT	1
15	18791		GASKET PRESSURE REGULATOR	1
16	814012		PLATE PRESSURE REGULATOR	1
17	814076	螺钉	SCREW	AR
18	814010	盖板套件	COVER KIT	1
19	4001987	分离器盖螺钉(M4 x 16)	SCREW (M4 x 16) COVER TO SEPARATOR	6
20	26995		LOCKWASHER (#8) Stainless Steel COVER SCREW	6
21	18790	蒸汽分离器密封件	SEAL VAPOR SEPARATOR	1
22	15029	O型圈及密封套件	O-RING AND SEAL KIT	1
23	15446	浮子阀套件	VALVE KIT Float	1
24	15445	浮子套件	FLOAT KIT	1
25	814011	阀体套件	BODY KIT	1
26	42481	止回阀	CHECK VALVE	1
26	424811	阀门	VALVE	1
27	4000332		SCREW (M6 x 35) SEPARATOR	3
28	15444	连接杆	LINK	1
29	18241	止回阀	CHECK VALVE	1
30	814077	切断阀	VALVE Shut-Off	1
31	18792		SEAL INJECTOR MANIFOLD	1
32	19275	隔套	SPACER	3
34	814913	隔套	SPACER	3
35	35280	垫圈（0.255 x 0.620 x 0.030）不锈钢（大号）	WASHER (.255 x .620 x .030) Stainless Steel (LARGE)	3
36	20346	垫圈(小)	WASHER (SMALL)	3
36	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	3
37	13791		CLAMP (15.7) HOSE	2
37	8M0214911	卡箍@5	CLAMP @5	2
38	1350377	软管(1-3/4")	HOSE (1-3/4")	1
38	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	1
39	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
39	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
40	14639		BLANKET FUEL PUMP	1
41	14640T	燃油泵盖	COVER FUEL PUMP	1
42	32228	螺钉（#10-32 X 0.625）	SCREW (#10-32 x .625)	4
43	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	4
44	90088	螺钉(.250-20x4)	SCREW (.250-20 x 4)	12
44	845674	螺钉(.250-20x4.00)	SCREW (.250-20 x 4.00)	12
45	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	12
45	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	12
46	14307T	燃油泵	PUMP Fuel	1
46	14307T01	燃油泵	FUEL PUMP	1
47	14633	软管	HOSE	1
47	146332	软管	HOSE	1

图 74燃油管理系统(分解图) Fuel Management System (Breakdown)

REF	零件编号	中文名称	英文名称	数量
-	14817A19	燃油管理系统总成	MANAGEMENT ASSEMBLY Fuel	1
1	827693	节气门体	THROTTLE BODY	1
1A	827692	盖板	COVER	1
1B	827696	固定套件	RETAINER KIT	1
2	67748	滚轮凸轮	ROLLER CAM	1
3	18715	燃油喷油器	INJECTOR Fuel	6
3	18715T	喷油器总成	INJECTOR ASSEMBLY	6
4	17422	喷油器滤清器	FILTER INJECTOR	1
5	15443	线束套件	HARNESS KIT	1
6	15442	燃油滤清器套件	FILTER KIT Fuel	1
6A	154421	燃油滤清器套件	FILTER KIT Fuel	1
6A	154422	燃油滤清器套件	FILTER KIT Fuel	1
7	150282	燃油滤清器	FILTER Fuel	1
8	400034	滤清器盖螺钉(M5x14)	SCREW (M5 x 14) Filter Cover	1
9	400255	盖板螺钉防松垫圈(M5)	LOCKWASHER (M5) Cover Screw	1
10	1350382	管材(30英寸整卷)(外径0.5英寸)	TUBING (30.00 Inches Bulk) (.50" O.D.)	1
10	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	1
11	9912688	管材(36英寸整卷)(内径0.125英寸)	TUBING (36.00 Inches Bulk) (.125" I.D.)	1
12	99130122	管材(20英尺整卷)(内径0.0937英寸)	TUBING (20.00 Feet Bulk) (.0937" I.D.)	1
12	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
13	15027	压力调节器	REGULATOR Pressure	1
14	814233	弯头套件	ELBOW KIT	1
15	18791	压力调节器垫片	GASKET Pressure Regulator	1
16	814012	压力调节器板	PLATE Pressure Regulator	1
17	814076	螺钉	SCREW	AR
18	814010	盖板套件	COVER KIT	1
19	4001987	盖板至分离器螺钉(M4x16)	SCREW (M4 x 16) Cover To Seperator	6
20	26995	不锈钢盖板螺钉防松垫圈(#8)	LOCKWASHER (#8) Stainless Steel Cover Screw	6
21	18790	蒸汽分离器密封件	SEAL Vapor Seperator	1
22	15029	O型圈及密封套件	O-RING AND SEAL KIT	1
23	15446	浮子阀套件	VALVE KIT Float	1
24	15445	浮子套件	FLOAT KIT	1
25	814011	阀体套件	BODY KIT	1
26	42481	止回阀	CHECK VALVE	1
26	424811	阀门	VALVE	1
27	4000332	分离器螺钉(M6x35)	SCREW (M6 x 35) Separator	3
29	18241	止回阀	CHECK VALVE	1
30	814077	切断阀	VALVE Shut-Off	1
31	18792	喷油器歧管密封	SEAL Injector Manifold	1
32	19275	隔套	SPACER	3
34	814913	隔套	SPACER	3
35	35280	不锈钢大垫圈(0.255x0.620x0.030)	WASHER (.255 x .620 x .030) Stainless Steel Large	3
36	69057	小垫圈(0.281x0.734x0.063)	WASHER (.281 x .734 x .063) Small	3
37	13791	软管卡箍(15.7)	CLAMP (15.7) Hose	2
37	8M0214911	卡箍@5	CLAMP @5	2
38	1350382	管材(30英寸整卷)(裁切为1.75英寸)	TUBING (30.00 Inches Bulk) (Cut to 1.75 Inch Length)	1
38	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	1
39	F698772	蜗杆卡箍	CLAMP Worm Gear	2
40	14639	燃油泵隔热罩	BLANKET Fuel Pump	1
41	14640T	燃油泵盖	COVER Fuel Pump	1
42	32228	螺钉（#10-32 X 0.625）	SCREW (#10-32 x .625)	4
43	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	4
44	90088	螺钉(.250-20x4)	SCREW (.250-20 x 4)	12
44	845674	螺钉(.250-20x4.00)	SCREW (.250-20 x 4.00)	12
45	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	10
45	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	10
46	14307A1	燃油泵总成	PUMP ASSEMBLY Fuel	1
46	14307T01	燃油泵	FUEL PUMP	1
47	146332	软管	HOSE	1
48	823501	燃油滤清器	FILTER Fuel	1
48	885188	滤清器	FILTER	1

图 75燃油泵和燃油滤清器 Fuel Pump And Fuel Filter

REF	零件编号	中文名称	英文名称	数量
1	15930A15	燃油泵套件	PUMP KIT Fuel	1
2	42990A6	膜片组件	DIAPHRAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve-Rubber	2
4	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
5	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
6	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
10	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
12	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
13	987691	底座衬垫	GASKET BASE	1
13	8M0204705	衬垫@2	GASKET @2	1
14	14868	燃油泵弯头接头	FITTING FUEL PUMP (ELBOW)	1
15	16604	直通接头(0.125-27)燃油泵	FITTING Straight (.125-27) FUEL PUMP	1
16	9912976	油管	TUBING	1
16	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
17	144303	燃油泵底座	BASE FUEL PUMP	1
18	98775A3	燃油泵板	PLATE FUEL PUMP	1
18	987752	安装板	PLATE	1
19	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
20	15979	接头	FITTING	1
21	16452	燃油泵螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) FUEL PUMP	2
22	4000310	燃油泵至曲轴箱螺钉(M5 x 40)	SCREW (M5 x 40) FUEL PUMP TO CRANKCASE	2
23	4002314	燃油泵螺钉垫圈	WASHER FUEL PUMP SCREW	2
24	9072925	脉冲软管	HOSE PULSE	1
25	99751	接头(0.0625-27)黄铜脉冲软管(90度)	FITTING (.0625-27) Brass PULSE HOSE (90 Degree)	1
25	997511	弯头	ELBOW	1
26	1350382	管材(30英寸散装)	TUBING (30.00 Inches Bulk)	2
26	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	2
27	816311		TIE STRAP (8.00 Inches) FUEL TUBING	AR
27	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
28	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
28	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
29	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
30	812782	密封件	SEAL	1
31	813657	支架	BRACKET	1
31	13170A3	底座	BASE	1
32	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
33	28668		SCREW (.250-20 x .875) Stainless Steel FUEL FILTER BASE	2
34	13170A1	燃油滤清器底座	BASE FUEL FILTER	1
34	13170A3	底座	BASE	1
35	13607	底座接头	FITTING BASE	2
35	136071	弯头	ELBOW	2
36	18458A1	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
36	18458Q3	燃油滤清器	FILTER-FUEL	1
37	14570		PROBE WATER SENSING	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 76齿轮箱图表 Gear Housing Chart

REF	零件编号	中文名称	英文名称	数量
-	814247A3	齿轮箱总成1.78:1速比-黑色	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Black	1
-	814247T3	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	814247A4	齿轮箱总成 1.78:1 减速比 - 灰色	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Gray	1
-	814247T4	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	9148A8	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A9	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T85	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A10	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A13	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T91	ORD 1647-9148T85	ORD 1647-9148T85	1
-	9148A45	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A18	齿轮箱总成-标准转向2:1速比	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio	1
-	9148T81	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A20	齿轮箱总成-标准转向2:1速比	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio	1
-	9148T87	ORD 1647-9148T81	ORD 1647-9148T81	1
-	9148A30	齿轮箱总成反向旋转	GEAR HOUSING ASSEMBLY Counter Rotation	1
-	9148T86	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A31	齿轮箱总成反向旋转	GEAR HOUSING ASSEMBLY Counter Rotation	1
-	9148T92	ORD 1647-9148T86	ORD 1647-9148T86	1
-	9148A65	齿轮箱总成-标准转向2:1速比	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio	1
-	9148T81	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A67	齿轮箱总成-标准转向2:1速比	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio	1
-	9148T82	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A66	齿轮箱总成-标准转向2:1速比	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio	1
-	9148T87	ORD 1647-9148T81	ORD 1647-9148T81	1
-	9148A68	齿轮箱总成-标准转向2:1速比	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio	1
-	9148T88	ORD 1647-9148T82	ORD 1647-9148T82	1
-	9148A69	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A72	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T85	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A70	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A73	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T91	ORD 1647-9148T85	ORD 1647-9148T85	1
-	9148A71	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A76	齿轮箱总成反向旋转	GEAR HOUSING ASSEMBLY Counter Rotation	1
-	9148T86	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A77	齿轮箱总成反向旋转	GEAR HOUSING ASSEMBLY Counter Rotation	1
-	9148T92	ORD 1647-9148T86	ORD 1647-9148T86	1

图 77齿轮箱驱动轴-1.87:1减速比 4.75英寸直径 Gear Housing Driveshaft-1.87:1 Gear Ratio 4.75 Inch Dia

REF	零件编号	中文名称	英文名称	数量
1	9148A11	齿轮箱总成（基础黑色）	GEAR HOUSING ASSEMBLY Basic Black	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A12	齿轮箱总成（基础灰色）	GEAR HOUSING ASSEMBLY Basic Gray	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A46	齿轮箱总成（基础追踪型）	GEAR HOUSING ASSEMBLY Basic Tracker	1
1	9148T49	齿轮箱壳体-TR型	GEAR HSG-BASIC-TR	1
1	9148A47	齿轮箱总成（基础黑色）	GEAR HOUSING ASSEMBLY Basic Black	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A48	齿轮箱总成（基础灰色）	GEAR HOUSING ASSEMBLY Basic Gray	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A49	齿轮箱总成（基础追踪型）	GEAR HOUSING ASSEMBLY Basic Tracker	1
1	9148T49	齿轮箱壳体-TR型	GEAR HSG-BASIC-TR	1
2	85822A10	连接器总成（适用时使用）	CONNECTOR ASSEMBLY Use Where Applicable	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	78638	螺柱（.438 x 3.12）长型	STUD (.438 x 3.12) Long	1
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
4	18978	螺柱（.438 x 3.69）加长型	STUD (.438 x 3.69) X-Long	1
4	8M0034464	螺柱	STUD	1
5	57920	双头螺柱(.44 x 2.06)	STUD (.44 x 2.06)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	306671	螺柱	STUD	2
8	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	43998	衬套（旧设计）	SLEEVE Old Design	1
9A	826134	阳极块	ANODE	2
9A	826134Q	阳极块	ANODE	2
9B	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
9C	400634	螺母 (M6)	NUT (M6)	1
9C	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
11	440001	长驱动轴	DRIVESHAFT Long	1
11	897624T	长驱动轴	DRIVESHAFT Long	1
11	442091	驱动轴（超长型）	DRIVESHAFT Extra Long	1
11	897625T	加长驱动轴	DRIVESHAFT X-Long	1
12	NSS	小齿轮（不单独销售，属于43-44104A2或43-44104A8）	NOT SOLD SEPARATE Pinion Gear (Part Of 43- 44104A 2 Or 43- 44104A 8)	1
13	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
14	826375	螺母(0.625-18)	NUT (.625-18)	1
14	35921	螺母(0.625-18)	NUT (.625-18)	1
15	42637A1	垫片组	SHIM SET	AR
15	8M0063267	垫片组	SHIM SET	AR
16	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
16	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
17	824519	固定座	RETAINER	1
17	8245191	固定座	RETAINER	1
18	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
19	426311	衬垫	GASKET	1
19	8M0204678	衬垫	GASKET	1
20	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
20	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
21	89238	油封	SEAL Oil	1
22	16977	油封	SEAL Oil	1
23	856081	下衬垫	GASKET Lower	1
23	8M0090319	衬垫@5	GASKET @5	1
24	856091	上衬垫	GASKET Upper	1
24	858524	衬垫	GASKET	1
25	32435	面板	FACE PLATE	1
25	8M0204677	面板	PLATE-FACE	1
26	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
27	48752	嵌件	INSERT	1
27	48752T	嵌件	INSERT	1
28	38970	密封件	SEAL	1
29	899841	叶轮	IMPELLER	1
29	89984T3	叶轮	IMPELLER	1
30	56654	键	KEY	1
30	8M0214992	键@5	KEY @5	1
31	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
31	8M0215009	螺钉	SCREW	1
32	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
33	13438	螺母(.250-28)	NUT (.250-28)	2
33	8267119	螺母(.250-28)	NUT (.250-28)	2
34	36001	垫圈	WASHER	1
35	13436	螺母	NUT	1
37	29804	套筒	SLEEVE	1
37	29804T	套筒	SLEEVE	1
38	789022	换挡轴（无E型环时使用）	SHIFT SHAFT Use With Out E-Ring	1
38	78902	轴（带E型环时使用）	SHAFT Use With E-Ring	1
38	789022	换档轴	SHIFT SHAFT	1
39	29641	E型卡环	E RING	1
41	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
42	77631A2	衬套总成	BUSHING ASSEMBLY	1
43	8164641	油封	SEAL Oil	1
43	8M0246145	油封	OIL SEAL	1
44	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
45	79953	螺钉(.375-16 x .250)润滑脂加注口	SCREW (.375-16 x .250) Grease Filler	1
45	79953Q04	放油螺钉套件	SCREW KIT Drain	1
46	67892	磁性放油螺钉	SCREW Magnetic Drain	1
46	8M0058389	放油螺钉套件	SCREW KIT Drain	1
47	19183	纤维垫圈	WASHER Fiber	2
47	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1

图 78齿轮箱驱动轴-1.78:1减速比 4.25英寸直径 Gear Housing Driveshaft-178:1 Gear Ratio 4.25 Inch Dia

REF	零件编号	中文名称	英文名称	数量
1	814247A1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic - Black	1
1	814247A2	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic - Gray	1
1	814247T2	ORD 1674-814247T1	ORD 1674-814247T1	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
2A	43998	衬套（旧设计）	SLEEVE Old Design	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	78638	双头螺柱(.438 x 3.12)	STUD (.438 x 3.12)	1
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
5	57920	双头螺柱(.44 x 2.06)	STUD (.44 x 2.06)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	306671	螺柱	STUD	2
8	35934A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	79953	润滑脂加注螺丝（.375-16 x .250）	SCREW (.375-16 x .250) Greese Filler	1
9	79953Q04	放油螺钉套件	SCREW KIT Drain	1
10	67892	磁性放油螺钉	SCREW Magnetic Drain	1
10	8M0058389	放油螺钉套件	SCREW KIT Drain	1
11	815168	驱动轴	DRIVESHAFT	1
12	N.S.S.	小齿轮（不单独销售，属于43-16279A2）	Not Sold Separate Pinion Gear (Part Of 43- 16279A 2)	1
13	19183	纤维垫圈	WASHER Fiber	2
13	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
14	826375	螺母(0.625-18)	NUT (.625-18)	1
14	35921	螺母(0.625-18)	NUT (.625-18)	1
15	42637A1	垫片组	SHIM SET	AR
15	8M0063267	垫片组	SHIM SET	AR
16	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
16	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
17	824519	固定座	RETAINER	1
17	8245191	固定座	RETAINER	1
18	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
19	426311	衬垫	GASKET	1
19	8M0204678	衬垫	GASKET	1
20	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
20	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
21	89238	油封	SEAL Oil	1
22	16977	油封	SEAL Oil	1
23	856081	下衬垫	GASKET Lower	1
23	8M0090319	衬垫@5	GASKET @5	1
24	856091	上衬垫	GASKET Upper	1
24	858524	衬垫	GASKET	1
25	32435	面板	FACE PLATE	1
25	8M0204677	面板	PLATE-FACE	1
26	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
27	48752	嵌件	INSERT	1
27	48752T	嵌件	INSERT	1
28	38970	橡胶密封件	SEAL Rubber	1
29	899841	叶轮	IMPELLER	1
29	89984T3	叶轮	IMPELLER	1
30	56654	键	KEY	1
30	8M0214992	键@5	KEY @5	1
31	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
31	8M0215009	螺钉	SCREW	1
32	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
33	13438	螺母(.250-28)	NUT (.250-28)	2
33	8267119	螺母(.250-28)	NUT (.250-28)	2
34	36001	垫圈	WASHER	1
35	13436	螺母	NUT	1
37	29804	套筒	SLEEVE	1
37	29804T	套筒	SLEEVE	1
38	8152641	换档轴	SHIFT SHAFT	1
38	815264	换档轴	SHIFT SHAFT	1
38	8152641	换档轴	SHIFT SHAFT	1
39	29641	E型卡环	E RING	1
40	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
41	77631A2	衬套总成	BUSHING ASSEMBLY	1
42	8164641	油封	SEAL Oil	1
42	8M0246145	油封	OIL SEAL	1
43	77674	橡胶垫圈(.35 x .75 x .12)换挡轴衬套	WASHER (.35 x .75 x .12) Rubber - Shift Shaft Bushing	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1

图 79齿轮箱驱动轴-2:1减速比 Gear Housing Driveshaft - 2:1 Gear Ratio

REF	零件编号	中文名称	英文名称	数量
1	9148A11	齿轮箱总成（基础灰色）	GEAR HOUSING ASSEMBLY Basic Gray	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A12	齿轮箱总成（基础灰色）	GEAR HOUSING ASSEMBLY Basic Gray	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A47	齿轮箱总成（基础黑色）	GEAR HOUSING ASSEMBLY Basic Black	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A48	齿轮箱总成（基础灰色）	GEAR HOUSING ASSEMBLY Basic Gray	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
2	85822A10	连接器总成（适用时使用）	CONNECTOR ASSEMBLY Use Where Applicable	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	78638	螺柱（.438 x 3.12）长型	STUD (.438 x 3.12) Long	1
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
4	18978	螺柱（.438 x 3.69）加长型	STUD (.438 x 3.69) X-Long	1
4	8M0034464	螺柱	STUD	1
5	57920	双头螺柱(.44 x 2.06)	STUD (.44 x 2.06)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	306671	螺柱	STUD	2
8	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	43998	衬套（旧设计）	SLEEVE Old Design	1
9A	826134	阳极块	ANODE	2
9A	826134Q	阳极块	ANODE	2
9B	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
9C	400634	螺母 (M6)	NUT (M6)	1
9C	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
11	440001	长驱动轴	DRIVESHAFT Long	1
11	897624T	长驱动轴	DRIVESHAFT Long	1
11	442091	加长驱动轴	DRIVESHAFT X-Long	1
11	897625T	加长驱动轴	DRIVESHAFT X-Long	1
12	N.S.S.	小齿轮（不单独销售，属于43-44102A2或43-44102A7）	Not Sold Separate Pinion Gear (Part Of 43- 44102A 2 Or 43- 44102A 7)	1
13	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
14	826375	螺母(0.625-18)	NUT (.625-18)	1
14	35921	螺母(0.625-18)	NUT (.625-18)	1
15	42637A1	垫片组	SHIM SET	AR
15	8M0063267	垫片组	SHIM SET	AR
16	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
16	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
17	824519	固定座	RETAINER	1
17	8245191	固定座	RETAINER	1
18	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
19	426311	衬垫	GASKET	1
19	8M0204678	衬垫	GASKET	1
20	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
20	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
21	89238	油封	SEAL Oil	1
22	16977	油封	SEAL Oil	1
23	856081	下衬垫	GASKET Lower	1
23	8M0090319	衬垫@5	GASKET @5	1
24	856091	上衬垫	GASKET Upper	1
24	858524	衬垫	GASKET	1
25	32435	面板	FACE PLATE	1
25	8M0204677	面板	PLATE-FACE	1
26	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
27	48752	嵌件	INSERT	1
27	48752T	嵌件	INSERT	1
28	38970	橡胶密封件	SEAL Rubber	1
29	899841	叶轮	IMPELLER	1
29	89984T3	叶轮	IMPELLER	1
30	56654	键	KEY	1
30	8M0214992	键@5	KEY @5	1
31	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
31	8M0215009	螺钉	SCREW	1
32	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
33	13438	螺母(.250-28)	NUT (.250-28)	2
33	8267119	螺母(.250-28)	NUT (.250-28)	2
34	36001	垫圈	WASHER	1
35	13436	螺母	NUT	1
37	29804	套筒	SLEEVE	1
37	29804T	套筒	SLEEVE	1
38	789022	换档轴	SHIFT SHAFT	1
38	78902	轴	SHAFT	1
38	789022	换档轴	SHIFT SHAFT	1
39	29641	E型卡环	E RING	1
41	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
42	77631A2	衬套总成	BUSHING ASSEMBLY	1
43	8164641	油封	SEAL Oil	1
43	8M0246145	油封	OIL SEAL	1
44	77674		WASHER (.35 x .75 x .12) Rubber	1
45	79953	螺钉(.375-16 x .250)润滑脂加注口	SCREW (.375-16 x .250) Grease Filler	1
45	79953Q04	放油螺钉套件	SCREW KIT Drain	1
46	67892	磁性放油螺钉	SCREW Magnetic Drain	1
46	8M0058389	放油螺钉套件	SCREW KIT Drain	1
47	19183	纤维垫圈	WASHER Fiber	2
47	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1

图 80齿轮箱驱动轴-反旋转 Gear Housing Driveshaft - Counter Rotation

REF	零件编号	中文名称	英文名称	数量
1	9148A11	齿轮箱总成（基础黑色）	GEAR HOUSING ASSEMBLY Basic Black	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A12	齿轮箱总成（基础灰色）	GEAR HOUSING ASSEMBLY Basic Gray	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A47	齿轮箱总成（基础灰色）	GEAR HOUSING ASSEMBLY Basic Gray	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A48	齿轮箱总成（基础灰色）	GEAR HOUSING ASSEMBLY Basic Gray	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
2	85822A10	连接器总成（适用时使用）	CONNECTOR ASSEMBLY Use Where Applicable	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	18978	双头螺栓(.438×3.69)	STUD (.438 x 3.69)	1
4	8M0034464	螺柱	STUD	1
5	57920	双头螺柱(.44 x 2.06)	STUD (.44 x 2.06)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	306671	螺柱	STUD	2
8	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	43998	衬套（旧设计）	SLEEVE Old Design	1
9A	826134	阳极块	ANODE	2
9A	826134Q	阳极块	ANODE	2
9B	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
9C	400634	螺母 (M6)	NUT (M6)	1
9C	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
11	442091	驱动轴	DRIVESHAFT	1
11	897625T	加长驱动轴	DRIVESHAFT X-Long	1
12	N.S.S.	小齿轮（不单独销售，属于43-18475A1）	Not Sold Separate Pinion Gear (Part Of 43- 18475A 1)	1
13	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
14	826375	螺母(0.625-18)	NUT (.625-18)	1
14	35921	螺母(0.625-18)	NUT (.625-18)	1
15	42637A1	垫片组	SHIM SET	AR
15	8M0063267	垫片组	SHIM SET	AR
16	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
16	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
17	824519	固定座	RETAINER	1
17	8245191	固定座	RETAINER	1
18	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
19	426311	衬垫	GASKET	1
19	8M0204678	衬垫	GASKET	1
20	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
20	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
21	89238	油封	SEAL Oil	1
22	16977	油封	SEAL Oil	1
23	856081	下衬垫	GASKET Lower	1
23	8M0090319	衬垫@5	GASKET @5	1
24	856091	上衬垫	GASKET Upper	1
24	858524	衬垫	GASKET	1
25	32435	面板	FACE PLATE	1
25	8M0204677	面板	PLATE-FACE	1
26	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
27	48752	嵌件	INSERT	1
27	48752T	嵌件	INSERT	1
28	38970	密封件	SEAL	1
29	899841	叶轮	IMPELLER	1
29	89984T3	叶轮	IMPELLER	1
30	56654	键	KEY	1
30	8M0214992	键@5	KEY @5	1
31	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
31	8M0215009	螺钉	SCREW	1
32	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
33	13438	螺母(.250-28)	NUT (.250-28)	2
33	8267119	螺母(.250-28)	NUT (.250-28)	2
34	36001	垫圈	WASHER	1
35	13436	螺母	NUT	1
37	29804	套筒	SLEEVE	1
37	29804T	套筒	SLEEVE	1
38	789022	换档轴	SHIFT SHAFT	1
38	78902	轴	SHAFT	1
38	789022	换档轴	SHIFT SHAFT	1
39	29641	E型卡环	E RING	1
40	19183	纤维垫圈	WASHER Fiber	2
40	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
41	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
42	77631A2	衬套总成	BUSHING ASSEMBLY	1
43	8164641	油封	SEAL Oil	1
43	8M0246145	油封	OIL SEAL	1
44	77674		WASHER (.35 x .75 x .12) Rubber	1
45	79953	螺钉(0.375-16x0.250)	SCREW (.375-16 x .250)	1
45	79953Q04	放油螺钉套件	SCREW KIT Drain	1
46	67892	磁性螺钉	SCREW Magnetic	1
46	8M0058389	放油螺钉套件	SCREW KIT Drain	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1

图 81齿轮箱螺旋桨轴-1.87:1减速比 4.75英寸直径 Gear Housing Propshaft-1.87:1 Gear Ratio 4.75 Inch Dia

REF	零件编号	中文名称	英文名称	数量
1	9148A11	齿轮箱总成（基础黑色）	GEAR HOUSING ASSEMBLY Basic Black	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A12	齿轮箱总成（基础灰色）	GEAR HOUSING ASSEMBLY Basic Gray	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A46	齿轮箱总成（基础追踪型）	GEAR HOUSING ASSEMBLY Basic Tracker	1
1	9148T49	齿轮箱壳体-TR型	GEAR HSG-BASIC-TR	1
1	9148A47	齿轮箱总成（基础黑色）	GEAR HOUSING ASSEMBLY Basic Black	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A48	齿轮箱总成（基础灰色）	GEAR HOUSING ASSEMBLY Basic Gray	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A49	齿轮箱总成（基础追踪型）	GEAR HOUSING ASSEMBLY Basic Tracker	1
1	9148T49	齿轮箱壳体-TR型	GEAR HSG-BASIC-TR	1
48	78956	换挡凸轮	SHIFT CAM	1
48	789562	换挡凸轮	SHIFT CAM	1
49	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
50	79911A1	杆	ROD	1
51	79910	弹簧	SPRING	1
52	78910	垫圈	WASHER	AR
53	78906	销	PIN	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	47397A1	垫片组	SHIM SET	AR
55	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
56	44104A2	前进齿轮总成（含倒挡齿轮）	GEAR ASSEMBLY Forward (Includes Reverse Gear)	1
56	44104T2	齿轮组	GEAR SET	1
56	44104A8	齿轮组（不含倒挡齿轮）	GEAR SET (Does Not Include Reverse Gear)	1
57	549281	滚柱轴承	BEARING Roller	1
58	823174	离合器	CLUTCH	1
58	823174T	ORD 8M0100493	ORD 8M0100493	1
59	78905	十字销	PIN Cross	1
59	8M0084243	十字销	PIN Cross	1
60	78909	定位销	PIN Detent	2
61	78962	弹簧	SPRING	2
62	94148	螺旋桨轴	PROPELLER SHAFT	1
63	N.S.S	不单独销售（属于43-44104A2）	NOT SOLD SEPARATE (Part Of 43- 44104A 2)	1
63	824986A2	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
63A	824108	隔套	SPACER	1
64	681001	止推环	RING Thrust	1
65	88957A1	滚珠轴承	BEARING Ball	1
65	88957T	滚珠轴承	BEARING Ball	1
66	31534	O型圈	O-RING	1
66	8M0214920	O型圈	O RING	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	89238A2	密封套件	SEAL KIT	1
67	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	30956	滚针轴承	BEARING Needle	1
68	30956T	滚针轴承	BEARING Needle	1
69	76868	密封件	SEAL	2
69	8M0248882	油封@5	SEAL-OIL @5	2
70	30281	键	KEY	1
71	79447	锁紧垫圈	TAB WASHER	1
72	79448	固定座	RETAINER	1
72	8M2011027	固定座	RETAINER	1
73	316404	平衡片（用于无阳极齿轮箱）	TRIM TAB (Use With Gear Housing With Out Anodes)	1
73	31640Q4	平衡鳍板	TRIM TAB	1
73	316405	平衡片（用于带阳极齿轮箱）	TRIM TAB (Use With Gear Housing With Anodes)	1
73	8M0236553	平衡鳍板	TRIM TAB	1
74	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
74	8M0204686	螺钉	SCREW	1
75	67891	填充块	FILLER BLOCK	1
75	8M0039169	填充块	FILLER BLOCK	1
76	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
76	8M0204653	螺母	NUT	2
77	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
78	13171	推力毂	THRUST HUB	1
78	835467Q01	止推垫片套件	THRUST WASHER KIT	1
79	31211A2	花键垫圈	WASHER Splined	1
79	31211Q03	垫圈总成	WASHER ASSEMBLY	1
80	816629	锁紧垫圈	TAB WASHER	1
80	816629Q	锁紧垫圈	TAB WASHER	1
81	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
81	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
82	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
83	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
-	89238A2	密封套件	SEAL KIT	1

图 82齿轮箱螺旋桨轴-2:1减速比 Gear Housing Propshaft - 2:1 Gear Ratio

REF	零件编号	中文名称	英文名称	数量
1	9148A11	齿轮箱总成（基础黑色）	GEAR HOUSING ASSEMBLY Basic Black	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A12	齿轮箱总成（基础灰色）	GEAR HOUSING ASSEMBLY Basic Gray	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A47	齿轮箱总成（基础灰色）	GEAR HOUSING ASSEMBLY Basic Gray	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A48	齿轮箱总成（基础灰色）	GEAR HOUSING ASSEMBLY Basic Gray	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
48	78956	换挡凸轮	SHIFT CAM	1
48	789562	换挡凸轮	SHIFT CAM	1
49	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
50	79911A1	杆	ROD	1
51	79910	弹簧	SPRING	1
52	78910	垫圈	WASHER	AR
53	78906	销	PIN	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	47397A1	垫片组(.002-3-5-10)	SHIM SET (.002-3-5-10)	AR
55	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
56	44102A2	前进齿轮总成（含倒挡齿轮）	GEAR ASSEMBLY Forward Includes Reverse Gear	1
56	44102A7	齿轮组（不含倒挡齿轮）	GEAR SET Does Not Include Reverse Gear	1
56	16294A2		GEAR SET High Altitude - 2.3:1 Gear Ratio	1
56	16294A5	齿轮组	GEAR SET	1
57	549281	滚柱轴承	BEARING Roller	1
58	823174	离合器	CLUTCH	1
58	823174T	ORD 8M0100493	ORD 8M0100493	1
59	78905	十字销	PIN Cross	1
59	8M0084243	十字销	PIN Cross	1
60	78909	定位销	PIN Detent	2
61	78962	弹簧	SPRING	2
62	94148	螺旋桨轴	PROPELLER SHAFT	1
63	N.S.S.	齿轮（不单独销售，属于43-44102A2）	Not Sold Separate Gear (Part Of 43- 44102A 2)	1
63	824987A2	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
63A	824108	隔套	SPACER	1
64	681001	止推环	RING Thrust	1
65	88957A1	滚珠轴承	BEARING Ball	1
65	88957T	滚珠轴承	BEARING Ball	1
66	31534	O型圈	O-RING	1
66	8M0214920	O型圈	O RING	1
67	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	30956	滚针轴承	BEARING Needle	1
68	30956T	滚针轴承	BEARING Needle	1
69	76868	密封件	SEAL	2
69	8M0248882	油封@5	SEAL-OIL @5	2
70	30281	键	KEY	1
71	79447	锁紧垫圈	TAB WASHER	1
72	79448	固定座	RETAINER	1
72	8M2011027	固定座	RETAINER	1
73	316404	平衡鳍板	TRIM TAB	1
73	31640Q4	平衡鳍板	TRIM TAB	1
73	316405	平衡鳍板	TRIM TAB	1
73	8M0236553	平衡鳍板	TRIM TAB	1
74	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
74	8M0204686	螺钉	SCREW	1
75	67891	填充块	FILLER BLOCK	1
75	8M0039169	填充块	FILLER BLOCK	1
76	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
76	8M0204653	螺母	NUT	2
77	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
78	13171	推力毂	THRUST HUB	1
78	835467Q01	止推垫片套件	THRUST WASHER KIT	1
79	31211A2	花键垫圈	WASHER Splined	1
79	31211Q03	垫圈总成	WASHER ASSEMBLY	1
80	816629	锁紧垫圈	TAB WASHER	1
80	816629Q	锁紧垫圈	TAB WASHER	1
81	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
81	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
82	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
83	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	89238A2	密封套件	SEAL KIT	1

图 83齿轮箱螺旋桨轴-反旋转 Gear Housing Propshaft - Counter Rotation

REF	零件编号	中文名称	英文名称	数量
1	9148A11	齿轮箱总成（基础黑色）	GEAR HOUSING ASSEMBLY Basic Black	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A12	齿轮箱总成（基础灰色）	GEAR HOUSING ASSEMBLY Basic Gray	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A47	齿轮箱总成（基础灰色）	GEAR HOUSING ASSEMBLY Basic Gray	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A48	齿轮箱总成（基础灰色）	GEAR HOUSING ASSEMBLY Basic Gray	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
47	78956	换挡凸轮	SHIFT CAM	1
47	789562	换挡凸轮	SHIFT CAM	1
48	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
49	799111	杆	ROD	1
49	79911A1	杆	ROD	1
50	79910	弹簧	SPRING	2
51	78910	垫圈	WASHER	AR
52	78906	销	PIN	1
52	8M0084245	弹簧定位销	PIN Spring Locator	1
53	14469	轴承杯	CUP Bearing	1
53	14469T	轴承杯	CUP Bearing	1
54	88957A1	滚珠轴承	BEARING Ball	1
54	88957T	滚珠轴承	BEARING Ball	1
55	N.S.S.	倒挡齿轮（不单独销售，属于43-18475A1）	Not Sold Separate Reverse Gear (Part Of 43- 18475A 1)	1
56	15844	滚柱轴承总成	BEARING ASSEMBLY Roller	1
57	78909	定位销	PIN Detent	2
58	823174	离合器	CLUTCH	1
58	823174T	ORD 8M0100493	ORD 8M0100493	1
59	78905	十字销	PIN Cross	1
59	8M0084243	十字销	PIN Cross	1
60	78962	弹簧	SPRING	2
61	18475A1	前进齿轮总成	GEAR ASSEMBLY Forward	1
61	18475T1	齿轮组	GEAR SET	1
62	176151	调整垫片(.125)	SPACER SHIM (.125)	AR
62	176152	调整垫片(.127)	SPACER SHIM (.127)	AR
62	176153	调整垫片(.129)	SPACER SHIM (.129)	AR
62	176154	调整垫片(.131)	SPACER SHIM (.131)	AR
62	176155	调整垫片(.133)	SPACER SHIM (.133)	AR
62	176156	调整垫片(.135)	SPACER SHIM (.135)	AR
62	176157	调整垫片(.137)	SPACER SHIM (.137)	AR
62	176158	调整垫片(.139)	SPACER SHIM (.139)	AR
62	176159	调整垫片(.141)	SPACER SHIM (.141)	AR
62	1761510	调整垫片(.143)	SPACER SHIM (.143)	AR
62	1761511	调整垫片(.145)	SPACER SHIM (.145)	AR
62	1761512	调整垫片(.147)	SPACER SHIM (.147)	AR
62	1761513	调整垫片(.149)	SPACER SHIM (.149)	AR
63	15841	滚柱轴承	BEARING Roller	1
64	17616	推力环	THRUST RING	1
65	31534	O型圈	O-RING	1
65	8M0214920	O型圈	O RING	1
66	18447A2	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
66	18447T2	适配器总成	ADAPTOR ASSEMBLY	1
67	15843	滚柱轴承	BEARING Roller	1
67	15843T	滚针轴承	BEARING Needle	1
68	18448	止推垫片	THRUST WASHER	2
69	15842	推力轴承	BEARING Thrust	2
70	18446	螺旋桨轴	PROPELLER SHAFT	1
71	818896A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
71	818896T2	轴承座	BEARING CARRIER	1
72	30956	滚针轴承	BEARING Needle	2
72	30956T	滚针轴承	BEARING Needle	2
73	76868	密封件	SEAL	1
73	8M0248882	油封@5	SEAL-OIL @5	1
73A	76868	密封件	SEAL	1
73A	8M0248882	油封@5	SEAL-OIL @5	1
74	183231	锁紧垫圈	TAB WASHER	1
75	79448	固定座	RETAINER	1
75	8M2011027	固定座	RETAINER	1
76	30281	键	KEY	1
77	316404	平衡鳍板	TRIM TAB	1
77	31640Q4	平衡鳍板	TRIM TAB	1
77	316405	平衡鳍板	TRIM TAB	1
77	8M0236553	平衡鳍板	TRIM TAB	1
78	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
78	8M0204686	螺钉	SCREW	1
79	67891	填充块	FILLER BLOCK	1
79	8M0039169	填充块	FILLER BLOCK	1
80	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
81	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
81	8M0204653	螺母	NUT	2
82	13171	推力毂	THRUST HUB	1
82	835467Q01	止推垫片套件	THRUST WASHER KIT	1
83	31211A2	花键垫圈	WASHER Splined	1
83	31211Q03	垫圈总成	WASHER ASSEMBLY	1
84	816629	锁紧垫圈	TAB WASHER	1
84	816629Q	锁紧垫圈	TAB WASHER	1
85	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
85	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
86	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
87	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	89238A2	密封套件	SEAL KIT	1

图 84齿轮箱螺旋桨轴1.78:1减速比 4.25英寸直径 Gear Housing Propshaft 1.78:1 Gear Ratio 4.25 Inch Dia

REF	零件编号	中文名称	英文名称	数量
1	814247A1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic - Black	1
1	814247A2	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic - Gray	1
1	814247T2	ORD 1674-814247T1	ORD 1674-814247T1	1
44	76039	换挡凸轮控制	CAM Shift Control	1
44	760394	换挡凸轮控制	CAM Shift Control	1
45	12239A1	凸轮从动件套件	FOLLOWER KIT Cam	1
45	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
46	30622	弹簧	SPRING	1
47	44491A1	垫片组	SHIM SET	AR
47	8M0063266	垫片组	SHIM SET	AR
48	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
49	16279A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
50	30895	滚针轴承	BEARING Needle	1
50	30895T	滚针轴承	BEARING Needle	1
51	822539	离合器	CLUTCH	1
51	822539T	离合器	CLUTCH	1
52	30632	十字销	PIN Cross	1
52	8M0100263	十字销	PIN Cross	1
53	30893	弹簧	SPRING	1
54	12238T	螺旋桨轴	PROPELLER SHAFT	1
55	N.S.S.	倒挡齿轮（不单独销售，属于43-16279A2）	Not Sold Separate Reverse Gear (Part Of 43- 16279A 2)	1
56	76358	止推垫片	THRUST WASHER	1
57	29976	O型圈	O-RING	1
58	41529A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
58	41529T2	托架总成	CARRIER ASSY	1
59	98727	润滑脂接头	FITTING Grease	2
59	8M0169588	润滑脂接头	FITTING Grease	2
60	30956	滚针轴承	BEARING Needle	1
60	30956T	滚针轴承	BEARING Needle	1
61	76868	密封件	SEAL	2
61	8M0248882	油封@5	SEAL-OIL @5	2
62	30281	键	KEY	1
63	52700	锁紧垫圈	TAB WASHER	1
64	52699	盖板	COVER	1
65	67891	填充块	FILLER BLOCK	1
65	8M0039169	填充块	FILLER BLOCK	1
66	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
68	816629	锁紧垫圈	TAB WASHER	1
68	816629Q	锁紧垫圈	TAB WASHER	1
69	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
69	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
70	316404	平衡鳍板	TRIM TAB	1
70	31640Q4	平衡鳍板	TRIM TAB	1
71	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
71	8M0204686	螺钉	SCREW	1
72	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
73	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
73	8M0204653	螺母	NUT	2
74	13191A1	止推垫片	THRUST WASHER	1
74	13191Q01	止推垫片	THRUST WASHER	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	89238A2	密封套件	SEAL KIT	1

图 85点火线圈/电压调节器 Ignition Coil/Voltage Regulator

REF	零件编号	中文名称	英文名称	数量
1	195871	安装板	PLATE MOUNTING	1
2	99263	电压调节器螺钉	SCREW VOLTAGE REGULATOR	4
3	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
4	19661A1	隔套	SPACER	4
5	18736A15	电压调节器总成	REGULATOR ASSEMBLY Voltage	1
5	18736A21	调节器总成	REGULATOR ASSY	1
6	18717	密封件	SEAL	1
7	96158	启动电磁阀	SOLENOID Starter	2
7	8M0185622	电磁阀	SOLENOID	2
7	818864	电磁阀(灰白色)	SOLENOID (OFF WHITE)	2
7	8M0185144	启动电磁阀	SOLENOID START	2
8	31716	螺丝(0.250-20 x 0.620) 启动电磁阀	SCREW (.250-20 x .620) STARTER SOLENOID	3
9	88807A6	黑色电缆总成 (3.50 英寸)	CABLE ASSEMBLY (3.50 Inches) Black	1
10	56374	电磁阀螺钉螺母(.250-20)	NUT (.250-20) SOLENOID SCREW	3
10	8267098	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	3
11	26419	螺母(#8-32)-黄铜电磁阀端子	NUT (#8-32) Brass SOLENOID TERMINAL	4
12	94330	螺母 (.250-20) 黄铜电磁阀端子	NUT (.250-20) Brass SOLENOID TERMINAL	4
13	69739A7	线束总成(#2,4和6)	HARNESS ASSEMBLY (#2, 4 AND 6)	1
14	87379A14	线束总成(2.750英寸)(红色)	WIRE ASSEMBLY (2.750 Inches) (RED)	1
14	88807A8	黑色电缆总成 (3.50 英寸)	CABLE ASSEMBLY (3.50 Inches) Black	2
15	88807A29	电缆总成(9英寸-黑色)	CABLE ASSEMBLY (9" - BLACK)	1
16	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
16	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
17	43542	点火线圈盖	COVER IGNITION COIL	2
18	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	6
18	8M0230859	点火线圈总成	COIL IGNITION ASY	6
19	90048	点火线圈盖螺钉(#10-32 x 2.125)	SCREW (#10-32 x 2.125) IGNITION COIL COVER	12
20	90078	盖板螺钉/接地线螺母(#10-32)	NUT (#10-32) COVER SCREW/GROUND WIRE	14
21	813715A9	高压点火线束套件	CABLE KIT Ignition HIGH TENSION	1
22	63709A1	高压电缆护套/端子套件	BOOT/TERMINAL KIT HIGH TENSION CABLE	6
23	136862	火花塞（NGK #BU8H）	SPARK PLUG (NGK #BU8H)	6
23	13686Q	NGK BU8H @10	NGK BU8H @10	6
24	45076	螺母(#10-32)黄铜点火线圈端子	NUT (#10-32) Brass IGNITION COIL TERMINAL	12
25	88807A13	线束总成 (5-1/2" - BLACK)	CABLE ASSEMBLY (5-1/2" - BLACK)	6
26	69022		SCREW (#10-32 x .500) Stainless Steel GROUNDING WIRE	2
27	814423T	线圈板盖	COVER COIL PLATE	1
28	814343	盖板螺钉(#10-32×2.380)	SCREW (#10-32 x 2.380) COVER	4
29	97861	绝缘体	INSULATOR	2

图 86仪表装置 Instrumentation

REF	零件编号	中文名称	英文名称	数量
1	19674A1	拉绳开关总成	SWITCH ASSEMBLY Lanyard	1
2	18303	螺钉 (.190-16 x 1.750) 不锈钢	SCREW (.190-16 x 1.750) Stainless Steel	2
3	813679	适配器	ADAPTER	1
4	15920A54	拉绳总成	LANYARD ASSEMBLY	1
4	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
5	32866	螺钉 (#10-32 x 2.00) 不锈钢	SCREW (#10-32 x 2.00) Stainless Steel	2
6	18321	安装夹	CLAMP Mounting	1
7	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	2
8	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4
9	79146	固定座	RETAINER	3
10	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
10	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
11	812497A2	二极管总成	DIODE ASSEMBLY	1
11	898289A72	双拉绳二极管套件	DIODE KIT-LANYARD Dual	1
12	11149A2	线缆总成 (6.00英寸)	CABLE ASSEMBLY (6.00 Inches)	1

图 87机油喷射组件 Oil Injection Components

REF	零件编号	中文名称	英文名称	数量
1	12430A4	传感器总成	SENSOR ASSEMBLY	1
2	48409	螺钉(#10-16 x .625)不锈钢传感器固定	SCREW (#10-16 x .625) Stainless Steel SENSOR ATTACHING	1
3	815698	机油泵(175)	PUMP Oil (175)	1
3	815698T	油泵	PUMP Oil	1
3	815699	油泵总成(200)	PUMP ASSEMBLY Oil (200)	1
3	815699T	油泵总成	PUMP ASSEMBLY Oil	1
4	11379	油泵O型圈	O-RING OIL PUMP	1
5	41429A2	驱动齿轮轴承总成	BEARING ASSEMBLY DRIVE GEAR	1
6	14563	从动齿轮	GEAR Driven	1
7	32228	油泵至曲轴箱螺钉 (#10-32 x .625)	SCREW (#10-32 x .625) OIL PUMP TO CRANKCASE	1
7	41507	油泵至曲轴箱螺钉 (#10-32 x 1.120)	SCREW (#10-32 x 1.120) OIL PUMP TO CRANKCASE	1
8	1938512	油门连杆至油泵总成	LINK ASSEMBLY THROTTLE LEVER TO OIL PUMP	1
9	4301625	机油泵用管材(8英寸)	TUBING (8.00 Inches) OIL PUMP	1
9	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	1
10	99443T	油箱	RESERVOIR Oil	1
10	994436	储液罐	RESERVOIR	1
11	415823		CLAMP OIL HOSE	2
12	4301736	油箱至油泵油管	TUBING OIL RESERVOIR TO OIL PUMP	1
12	82381455	油管（25.00英寸散装）	TUBING (25.00 Inches Bulk)	1
13	69020	油箱固定螺钉 (#10-32 x .875)	SCREW (#10-32 x .875) OIL RESERVOIR ATTACHING	3
13	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
14	42118	油箱螺钉垫圈	WASHER OIL RESERVOIR SCREW	6
15	42117	油箱螺钉衬套	GROMMET OIL RESERVOIR SCREW	3
16	42116	油箱螺钉轴套	BUSHING OIL RESERVOIR SCREW	3
17	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	1
17	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
18	42425	油管三通	TEE OIL TUBING	1
19	9072925	油管(6-3/4")	HOSE OIL (6-3/4")	1
20	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
20	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
21	99439	油管(114.00英寸)	HOSE (114.00 Inches) OIL	1
22	415824	卡箍	CLAMP	2
24	43278	止回阀接头（曲轴箱）	FITTING CHECK VALVE (CRANKCASE)	1
24	8781051	止回阀	CHECK VALVE	1
25	87421	油箱	TANK	1
26	43298A2	油箱盖总成	CAP ASSEMBLY OIL TANK	1
27	11332	O型圈(2.225 x .210)盖	O-RING (2.225 x .210) CAP	1
28	816190A3	外壳总成适配器	HOUSING ASSEMBLY Adapter	1
28	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
29	11332	O型圈(2.225 x .210)适配器壳体	O-RING (2.225 x .210) ADAPTOR HOUSING	1
30	99802	吸油管	TUBE OIL PICK-UP	1
31	43300A9	油箱盖总成	CAP ASSEMBLY OIL RESERVOIR	1
32	43307	油箱盖衬垫	GASKET RESERVOIR CAP	1
32	43307T	衬垫	GASKET	1
33	99022A1	浮子总成	FLOAT ASSEMBLY	1
33	8M0187298	浮子总成	FLOAT ASSY	1
34	99265	压入式螺母	PUSH NUT	1

图 88动力升降组件 8M0231193 Power Trim Components 8M0231193

REF	零件编号	中文名称	英文名称	数量
-	8M0231193	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0225363	电机套件	MOTOR KIT	1
2	8M0225369	阀套件	VALVE KIT	1
3	8M0225371	手动释放套件	MANUAL RELEASE KIT	1
4	8M0245633	倾斜油缸套件	TILT CYLINDER KIT	1
5	8M0225370	枢轴销套件	PIVOT PIN KIT	1
6	8M0244575	减震杆套件	SHOCK ROD KIT	1
7	8M0244425	销杆眼套件	PIN ROD EYE KIT	1
8	8M0232231	螺钉螺母套件	SCREW NUT KIT	1
9	8M0225373	记忆活塞套件	MEMORY PISTON KIT	1
10	8M0225368	储液罐套件	RESERVOIR KIT	1
11	8M0174135	储液罐塞总成	PLUG RESERVOIR ASSEMBLY	1
12	8M0237525	泵套件	PUMP KIT	1
13	8M0225367	升降杆套件	TRIM ROD KIT	1
14	8M0242846	升降杆套件	TRIM ROD KIT	1
15	8M0225372	重建套件	REBUILD KIT	1

图 89动力升降组件金属马达壳 Power Trim Components Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	855998A3	动力升降倾斜装置总成	POWER TRIM Complete	1
-	855998A11	动力调整套件	POWER TRIM KIT	1
-	855998A05	完整动力升降总成	POWER TRIM ASSEMBLY Complete	1
-	855998A11	动力调整套件	POWER TRIM KIT	1
1	878265A4	配平电机	TRIM MOTOR	1
1	8M0031551	配平电机	TRIM MOTOR	1
2	NSS	电枢(不单独销售)	NOT SOLD SEPARATE Armature	1
3	NSS	端架(不单独销售)	NOT SOLD SEPARATE End Frame	1
4	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
5	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
6	8782451	驱动轴	DRIVESHAFT	1
7	878410A1	压力检查套件	PO CHECK KIT	1
8	813442A2	手动释放总成 (含参考号#26)	MANUAL RELEASE ASSEMBLY (Includes Reference #26)	1
8	893929A01	安全阀套件	VALVE KIT Relief	1
9	878241A02	轴套件	SHAFT KIT	1
9	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
10	878267	销	PIN	1
11	878235A1	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
11	878235A03	倾斜油缸套件	CYLINDER KIT Tilt	1
11	878235A02	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
11	878235A03	倾斜油缸套件	CYLINDER KIT Tilt	1
12	878239A1	导向套件 (含参考号#26)	GUIDE KIT (Includes Reference #26)	1
12	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
13	878409A1	O型圈套件 (含参考号#26)	O-RING KIT (Includes Reference #26)	1
13	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
14	878412A1	减震杆套件 (含参考号#26)	SHOCK ROD KIT (Includes Reference #26)	1
14	8M0168219	减震杆套件	SHOCK ROD KIT	1
15	878242A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
15	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
16	878406A1	止回阀修理包 (含参考号#26)	REPAIR KIT Check Valve (Includes Reference #26)	1
16	878406A02	止回阀修理包	REPAIR KIT Check Valve	1
17	878414A1	活塞总成	PISTON ASSEMBLY	1
17	878414T01	活塞总成	PISTON ASSEMBLY	1
18	878413A1	活塞总成	PISTON ASSEMBLY	1
19	878243A1	导向器总成	GUIDE ASSEMBLY	2
19	8M0021648	端盖总成	END CAP ASSEMBLY	2
20	878264A1	储液罐套件	RESERVOIR KIT	1
21	811613	塞子总成	PLUG ASSEMBLY	1
22	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
23	43450	垫圈	WASHER	4
23	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
24	892251A01	泵套件	PUMP KIT	1
25	878408A1	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
26	821539	三叶销	PIN Trilobe	1
27	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
28	4002319	垫圈	WASHER	6
29	818298Q1	阳极套件	ANODE KIT	1
30	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
30	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
31	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
31	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	99625002	轴	SHAFT	1
33	69205	C形垫圈	C WASHER	1
33	8M0084613	C形垫圈	C-WASHER	1
34	22875	卡扣	CLIP	2
35	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	2
36	828547353	导管(内径0.350x3英尺散装)(裁切至12英寸)	CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk) (Cut to 12 Inches)	1
37	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

图 90动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	8M0168222	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0142591	电机套件	MOTOR KIT	1
2	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
3	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
4	8M0090403	驱动联轴器	COUPLING Drive	1
5	8M0142996	压力检查套件	PO CHECK KIT	1
6	8M0060141	手动释放套件	MANUAL RELEASE KIT	1
7	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
8	878267	销	PIN	1
9	8M0142998	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
9	8M0168220	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
10	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
11	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
12	8M0142592	升降杆套件左舷	TRIM ROD KIT Port	1
13	8M0143001	活塞总成	PISTON ASSEMBLY	1
14	8M0143003	端盖总成	END CAP ASSEMBLY	1
15	878264A1	储液罐套件	RESERVOIR KIT	1
16	811613	塞子总成	PLUG ASSEMBLY	1
17	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
18	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
19	8M0143004	泵套件	PUMP KIT	1
20	8M0148385	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
21	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
22	4002319	垫圈	WASHER	6
23	8M0094889	销	PIN	1
23	8M0161312	连杆销眼总成	PIN ROD EYE ASSEMBLY	1
24	8M0143005	减震杆套件	SHOCK ROD KIT	1
24	8M0168219	减震杆套件	SHOCK ROD KIT	1

图 91动力升降倾斜电机 Power Trim Motor

REF	零件编号	中文名称	英文名称	数量
-	811628	配平电机	TRIM MOTOR	1
-	828708	电机总成	MOTOR ASSEMBLY	1
-	878265A4	配平电机	TRIM MOTOR	1
1	811624	机架与磁场套件	FRAME AND FIELD KIT	1
2	811625	电刷卡套件	BRUSH CARD KIT	1
3	811623	端架套件	END FRAME KIT	1
4	811626	密封套件	SEAL KIT	1
5	811627	电枢套件	ARMATURE KIT	1
5	811628	配平电机	TRIM MOTOR	1
6	828714A1	电刷与密封套件	BRUSH AND SEAL KIT	1
7	828713A1	电枢套件	ARMATURE KIT	1
7	828713T1	电枢套件	ARMATURE KIT	1
8	828715A1	端盖总成	END FRAME Complete	1

图 92簧片阀组与气缸盖 Reed Block And Cylinder Head

REF	零件编号	中文名称	英文名称	数量
1	187893	气缸盖(175)	CYLINDER HEAD (175)	2
1	184883	气缸盖(200)	CYLINDER HEAD (200)	2
1	18488F2	气缸盖总成	CYLINDER HEAD ASSEMBLY	2
2	187861	衬垫(175)	GASKET (175)	2
2	18786T	衬垫	GASKET	2
2	184721	衬垫(200)	GASKET (200)	2
2	822844T05	衬垫	GASKET	2
3	98534	气缸盖螺钉 (.375-16 x 2.30)	SCREW (.375-16 x 2.30) CYLINDER HEAD	23
3	13450	螺钉(.375-16 x 2.30)(专用-200)	SCREW (.375-16 x 2.30) (SPECIAL - 200)	1
4	25909	气缸盖螺钉垫圈 (.406 x .812 x .065)	WASHER (.406 x .812 x .065) CYLINDER HEAD SCREW	24
5	75692	节温器	THERMOSTAT	2
6	62386	节温器衬垫	GASKET THERMOSTAT	2
6	8M0204714	衬垫@4	GASKET @4	2
7	90390A1	节温器盖套件	COVER KIT THERMOSTAT	2
8	35386	节温器盖螺钉 (.312-18 x 1.00)	SCREW (.312-18 x 1.00) THERMOSTAT COVER	4
9	68727	90度黄铜弯头接头 (.250-18)（水管用）	FITTING (.250-18) 90 Degree - Brass ELBOW - WATER HOSES	1
9	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
10	7765377	配水软管（散装24.500英寸）	HOSE (24.500 Inches Bulk) WATER DISTRIBUTION	2
10	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	2
11	68728	节温器盖接头	FITTING THERMOSTAT COVER	1
12	816311	水管束带(8.00英寸)	TIE STRAP (8.00 Inches) WATER HOSES	4
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
13	63779	定位销 (.250 x .625)	PIN Dowel (.250 x .625)	4
14	13715	传感器固定座	RETAINER SENSOR AND SENDER	2
14	137151	固定座	RETAINER	2
15	98257	螺钉 (0.312-18 x 0.500) 固定座	SCREW (.312-18 x .500) RETAINER	2
16	92160	不锈钢螺钉(.250-20 x .750)(175)	SCREW (.250-20 x .750) Stainless Steel (175)	6
16	90197	螺钉(.250-20 x 1.125)(175)	SCREW (.250-20 x 1.125) (175)	6
16	28668	不锈钢簧片块固定螺钉(.250-20 x .875)(200)	SCREW (.250-20 x .875) Stainless Steel REED BLOCK ATTACHING (200)	12
17	167371	适配板垫片	GASKET ADAPTOR PLATE	1
18	17735A2	适配板总成(175)	ADAPTER PLATE ASSEMBLY (175)	1
18	12124A3	板总成(200)	PLATE ASSEMBLY (200)	1
19	961832	簧片夹(175)	CLAMP Reed (175)	12
19	903911	簧片夹(200)	CLAMP Reed (200)	12
20	146972	衬垫(175)	GASKET (175)	1
20	813859	衬垫(200)	GASKET (200)	1
20	883775	衬垫	GASKET	1
21	75953	簧片块(175)	REED BLOCK (175)	6
21	87692	簧片块(200)	REED BLOCK (200)	6
22	75362A1	簧片总成(175)	REED ASSEMBLY (175)	6
22	19719A1	簧片总成(200)	REED ASSEMBLY (200)	6
23	28668	螺钉 (0.250-20 x 0.875) 不锈钢适配板	SCREW (.250-20 x .875) Stainless Steel ADAPTOR PLATE	8
24	14783	螺钉 (#8-32 x 0.187) 簧片至簧片座	SCREW (#8-32 x .187) REEDS TO REED BLOCK	84
24	823588	螺钉 (#8-32 x .250)	SCREW (#8-32 x .250)	84
25	13192	爆震传感器(200)	SENSOR Detonation (200)	1
25	825164A1	爆震传感器总成	SENSOR ASSEMBLY Detonation	1
26	97465	温度传感器（右舷）	SENDER Temperature (STARBOARD)	1
27	13536A6	温度传感器总成（左舷）	SENSOR ASSEMBLY Temperature (PORT)	1
28	45076	黄铜螺母(#10-32)(200)	NUT (#10-32) Brass (200)	1
29	55098	J型卡扣(200)	J CLIP (200)	1
29	8M0024808	J型夹	J-CLIP	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 93维修/支撑材料 Service/Support Material

REF	零件编号	中文名称	英文名称	数量
-	896328005	零件手册 225 PRO XS (3.0L) DFI	PARTS MANUAL 225 PRO XS (3.0L) DFI	1
-	841916	维修手册	SERVICE MANUAL	1
-	841916R01	维修手册	SERVICE MANUAL	1
-	841915050	用户手册	OWNERS MANUAL	1
-	841915051	用户手册	MANUAL-OWNERS	1
-	841915060	用户手册	OWNERS MANUAL	1
-	841914050	安装手册	INSTALLATION MANUAL	1
-	841914051	安装手册	MANUAL-INSTALL	1
-	841914060	安装手册	INSTALLATION MANUAL	1
-	898246A05	EPA标签信息贴花	DECAL EPA Label Information	1
-	898246A06	EPA标签信息贴花	DECAL EPA Label Information	1

图 94启动电机 Starter Motor

REF	零件编号	中文名称	英文名称	数量
1	892339T	启动电机总成	STARTER MOTOR ASSEMBLY	1
2	803005	贯穿螺栓	THRU BOLT	2
3	880805A1	齿轮套件	GEAR KIT	1
4	809463A1	电磁阀组件	SOLENOID KIT	1
5	8M0065258	电刷组	BRUSH SET	1
6	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
7	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
8	NSS	高压警告贴纸 (不单独销售)	NOT SOLD SEPARATE Decal-Warning-High Voltage	1
9	400255	锁紧垫圈(M5)	LOCKWASHER (M5)	1
10	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
11	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
12	400213	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
13	56703	轴环	COLLAR	2
13	8M0034918	轴环	COLLAR	2
14	879845	停机开关	STOP	1
14	8M0043276	停机开关	STOP	1

图 95转向连接套件 Steering Attaching Kit

REF	零件编号	中文名称	英文名称	数量
-	92876A8	转向单装配套件	ATTACHING KIT Steering Single	1
1	41055A1	支架总成	BRACKET ASSEMBLY	1
2	71565A2	管总成	TUBE ASSEMBLY	1
3	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
4	821203	锁紧垫圈	LOCKWASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
7	93702	垫圈(.250外齿星形)	WASHER (.250 External Star)	4
8	88319	联轴器	COUPLING	1
8	850791T	联轴器	COUPLER	1
9	73732	螺钉 (.375-24 x 1.120)	SCREW (.375-24 x 1.120)	2
10	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	2
11	34863	螺母 (.375-24)	NUT (.375-24)	3
11	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	3

图 96旋转支架与转向臂 Swivel Bracket And Steering Arm

REF	零件编号	中文名称	英文名称	数量
1	8710T20	黑色旋转支架总成	SWIVEL BRACKET ASSEMBLY Black	1
2	33504	O型圈	O-RING	1
2	8M0214926	O型圈 @10	O RING @10	1
3	818764	衬套	BUSHING	2
4	816039	隔套	SPACER	1
5	87735	油封(下)	SEAL Oil (LOWER)	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	816432	止推垫片	THRUST WASHER	1
9	814084F1	下轭架	YOKE Bottom	1
9	8M0219200	黑色下轭架	YOKE-BOTTOM-BLACK	1
9	826364F1	下轭架	YOKE Bottom	1
9	826364T	下轭架	YOKE Bottom	1
10	67684	挡圈	RING Retaining	1
11	996301	冲击板	STRIKER PLATE	2
11	8M0045383	冲击板	STRIKER PLATE	2
12	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
13	46335	螺母 (.375-24)	NUT (.375-24)	2
14	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
15	NSS	不单独销售-序列号覆膜标贴	NOT SOLD SEPARATE Decal-Serial Overlaminate	1
16	859187A1	调整传感器总成	SENDER ASSEMBLY Trim	1
17	852368	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
18	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
19	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
20	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
20	826432A2	转向臂旋转销总成-不锈钢	SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel	1
20	826432A2	转向臂旋转销总成-不锈钢	SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel	1
20	8M0132731	旋转销总成	SWIVEL PIN ASSY	1
21	816386	螺钉(M12×190)	SCREW (M12 x 190)	2
21	8M0141069	螺钉	SCREW	2
22	824998001	缓冲垫	BUMPER	1
23	8163851	上部支架	MOUNT Upper	2
24	8154371	垫圈	WASHER	2
25	815436	垫圈	WASHER	2
26	896963	螺母(M12)	NUT (M12)	2
27	813769	卡箍	CLAMP	1
27	8M0036783	卡箍	CLAMP	1
28	81893435	螺钉(M8×35)	SCREW (M8 x 35)	3
28	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
29	92876A10	连杆总成	LINK ROD ASSEMBLY	1
29	92876A12	连杆总成	LINK ROD ASSEMBLY	1
30	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
31	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
31	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
32	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2

图 97油门杆与换挡轴 Throttle Lever And Shift Shaft

REF	零件编号	中文名称	英文名称	数量
1	74897		PIVOT TRIGGER PLATE	1
2	62459	球头总成触发板	BALL JOINT ASSEMBLY TRIGGER PLATE	1
2	62459T	球头节总成	BALL JOINT ASSY	1
3	45076	螺母(#10-32)黄铜连杆	NUT (#10-32) Brass LINK ROD	1
4	76035	触发板连杆	ROD TRIGGER PLATE	1
5	46438	球头螺母(#10-32)	NUT (#10-32) BALLJOINT	1
6	41094A3	点火提前杆总成	LEVER ASSEMBLY SPARK ADVANCE	1
7	64022	螺丝(.250-20x2.125)点火提前杆-止动	SCREW (.250-20 x 2.125) SPARK ADVANCE LEVER - STOP	1
8	64015	螺母(.250-20)点火提前止动螺丝	NUT (.250-20) SPARK ADVANCE STOP SCREW	1
9	26852	尼龙帽点火提前杆止动螺丝	CAP Nylon SPARK ADVANCE LEVER STOP SCREW	1
10	13627	螺钉 (.190-32 x 1.250)	SCREW (.190-32 x 1.250)	1
11	68219	螺母(#10-32)不锈钢点火提前杆止动螺丝	NUT (#10-32) Stainless Steel SPARK ADVANCE LEVER STOP SCREW	1
12	48039	点火提前杆止动螺丝帽	CAP SPARK ADVANCE LEVER STOP SCREW	1
13	41095T	油门控制杆	LEVER THROTTLE CONTROL	1
13	410952	杠杆	LEVER	1
14	55337	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
14	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
15	55164	油门杠杆衬套	BUSHING THROTTLE LEVER	1
16	55171	点火提前杆衬套	BUSHING SPARK ADVANCE LEVER	1
17	55162	弹簧	SPRING	1
18	46765	垫圈(0.390 x 1.50 x 0.120) 点火提前杆	WASHER (.390 x 1.50 x .120) SPARK ADVANCE LEVER	1
19	64022	螺丝(.250-20x2.125)节气门杆-止动	SCREW (.250-20 x 2.125) THROTTLE LEVER - STOP	1
20	64015	螺母(.250-20)节气门杆止动螺丝	NUT (.250-20) THROTTLE LEVER STOP SCREW	1
21	26852	尼龙帽节气门杆止动螺丝	CAP Nylon THROTTLE LEVER STOP SCREW	1
22	39483	锁扣拉线	LATCH CABLE	1
23	22486	螺丝(.250-28x.880)拉线锁扣至节气门杆	SCREW (.250-28 x .880) CABLE LATCH TO THROTTLE LEVER	1
23	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
24	20099	拉线锁扣至节气门杆弹簧	SPRING CABLE LATCH TO THROTTLE LEVER	1
25	35045	螺母(.250-28)拉线锁扣螺丝	NUT (.250-28) CABLE LATCH SCREW	1
25	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
26	14634	节气门控制杆	ROD THROTTLE CONTROL	1
27	14638	节气门控制杆套筒	BARREL THROTTLE CONTROL ROD	1
28	8142391	凸轮	CAM	1
28	8142392	节气门凸轮	THROTTLE CAM	1
29	93248	衬套	BUSHING	1
29	8M0215006	旋转衬套	BUSHING Swivel	1
30	26856	节气门凸轮衬套	BUSHING THROTTLE CAM	2
31	35045	螺母（0.250-28）节气门凸轮螺柱	NUT (.250-28) THROTTLE CAM STUD	1
31	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
33	814283A1	控制线缆锚定支架	BRACKET ANCHOR - CONTROL CABLES	1
33	814283A2	支架总成	BRACKET ASSEMBLY	1
34	98889	控制线缆锁扣	LATCH CONTROL CABLE	1
35	42975	闩锁传动螺钉	DRIVE SCREW LATCH	2
36	53167	螺丝(.312-18x.880)锚定支架固定	SCREW (.312-18 x .880) ANCHOR BRACKET ATTACHING	3
36	53167T	螺钉 0.312-18X 0.88	SCREW .312-18X .88	3
37	814284	连杆导向块	GUIDE BLOCK LINK ROD	1
38	20099	连杆至导向块弹簧	SPRING LINK ROD TO GUIDE BLOCK	1
39	67073A1	连杆总成	LINK ROD ASSEMBLY	1
40	52100	连杆耐磨板	WEAR PLATE LINK ROD	1
41	38279	闩锁	LATCH	1
41	8M0036768	闩锁	LATCH	1
42	35462	垫圈(.2656x.625x.0625)不锈钢锁扣	WASHER (.2656 x .625 x .0625) Stainless Steel LATCH	1
43	35045	螺母（0.250-28）连杆	NUT (.250-28) LINK ROD	1
43	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
44	79932A11	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
44	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
45	29720	连杆波形垫圈	WAVE WASHER LINK ROD	1
46	26600	尼龙衬套-连杆	BUSHING NYLON - LINK ROD	1
47	35462	垫圈(.2656 x .625 x .0625)不锈钢连杆	WASHER (.2656 x .625 x .0625) Stainless Steel LINK ROD	1
48	35045	螺母（0.250-28）连杆至换挡轴	NUT (.250-28) LINK ROD TO SHIFT SHAFT	1
48	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
49	39519	杯形套筒固定器-锚杆	CUP BARREL RETAINER - ANCHOR BAR	1

图 98顶罩和前护板 Top Cowl And Front Shield

REF	零件编号	中文名称	英文名称	数量
1	9742A92	顶盖总成 (黑色)(无贴花)	TOP COWL ASSEMBLY (BLACK)(Without Decals)	1
1	9742A93	顶罩总成(灰色)(无贴花)	TOP COWL ASSEMBLY (GRAY)(Without Decals)	1
1	9743T10	顶罩	TOP COWL	1
2	812784	密封件	SEAL	1
3	815478	密封件	SEAL	1
4	815225	隔音垫(侧)	SOUND BLANKET (SIDE)	2
5	815226	隔音垫(顶)	SOUND BLANKET (TOP)	1
4/5	815225A1	隔音毯套装	SOUND BLANKET KIT	1
6	815227	前隔音垫	SOUND BLANKET FRONT	1
7	47341A1	手动/应急启动绳柄套件	ROPE AND HANDLE KIT Manual/Emergency Start	1
7	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
8	815848	螺母 (.312)	NUT (.312)	2
9	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
9	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2
10	184741	后支架	BRACKET REAR	2
11	18506	护孔环	GROMMET	3
11	18506001	护孔环	GROMMET	3
12	28636	螺钉(.250-20 x .750) 后支架	SCREW (.250-20 x .750) REAR BRACKET	4
13	816992	螺钉	SCREW	8
14	813096	挂钩	HOOK	2
14	813096A2	挂钩套件	HOOK KIT	2
15	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	2
16	813074	滚轮	ROLLER	2
16	8M0207770	滚轮@3	ROLLER @3	2
17	13194	挡圈	RING Retaining	2
18	56720	垫圈(0.330×0.750×0.060)不锈钢	WASHER (.330 x .750 x .060) Stainless Steel	4
19	187021	定位器	LOCATOR	1
20	18173	锁扣滚轮支架总成	BRACKET ASSEMBLY Latch Roller	1
20	893763	滚轮锁扣支架	BRACKET Roller Latch	1
21	813552	垫片(旧款)	SPACER (OLD DESIGN)	1
21	813076A2	手柄套件	HANDLE KIT	1
21A	816838	隔套	SPACER	1
22	31984	螺钉(0.312-18×1.375)	SCREW (.312-18 x 1.375)	2
22	69267	螺钉 (.312-18 x 1.750)	SCREW (.312-18 x 1.750)	2
23	18755A1	前护罩总成 (黑色)(无贴花)	FRONT SHIELD ASSEMBLY (BLACK)(Without Decals)	1
23	18755A2	前护罩总成 (灰色)(无贴花)	FRONT SHIELD ASSEMBLY (GRAY)(Without Decals)	1
25	77137	螺钉 (.190-16 x .620)	SCREW (.190-16 x .620)	4
26	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	4
26	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	4
27	36001	垫圈	WASHER	2

图 99艉板支架 Transom Brackets

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂接头(左舷)	FITTING Grease (PORT)	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	54012	垫圈(0.530×0.870×0.105不锈钢)	WASHER (.530 x .870 x .105) Stainless Steel	4
10	8M0204665	垫圈(0.530×0.880×0.104 630不锈钢)	WASHER (.530 x .880 x .104) 630 Stainless Steel	4
11	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	99629T2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	830899	张力弹簧	SPRING Tension	1
15	65830	尼龙衬套	NYLINER	2
16	830900	压缩弹簧	SPRING Compression	1
17	99633	旋钮	KNOB	1
18	99615	槽销	PIN Groove	1
19	99617	销	PIN	1
19	893709	销	PIN	1

图 100线束/启动继电器 Wiring Harness/Starter Solenoid

REF	零件编号	中文名称	英文名称	数量
1	434291	点火板点火	IGNITION PLATE IGNITION	1
2	7778A9	开关盒总成	SWITCHBOX ASSEMBLY	2
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	开关盒螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) SWITCH BOX	2
4	94453	开关盒螺钉衬套	BUSHING SWITCH BOX SCREW	2
6	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	20
7	60871A10	线束总成-开关盒	WIRE ASSEMBLY SWITCH BOX	2
8	62568	螺丝(#10-16 x 0.375)导线固定	SCREW (#10-16 x .375) WIRE ATTACHING	3
9	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
10	69092	点火板螺钉(1.25)	SCREW (1.25) IGNITION PLATE	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈(.312)点火板螺钉	LOCKWASHER (.312) IGNITION PLATE SCREW	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈点火板螺钉	WASHER IGNITION PLATE SCREW	6
13	67264	橡胶垫圈点火板螺钉	WASHER (Rubber) IGNITION PLATE SCREW	6
14	67268	衬套点火板螺钉	BUSHING IGNITION PLATE SCREW	3
15	33386A3	开关总成	SWITCH ASSEMLBY	1
16	38055	水银开关螺钉(.190-32 x .620)	SCREW (.190-32 x .620) MERCURY SWITCH	1
17	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
18	87926	螺钉(#10-32 x .500)导线固定	SCREW (#10-32 x .500) LEAD ATTACHING	1
19	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
19	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
20	96220A12	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
21	79091	保险丝20安培	FUSE 20 Ampere	1
21	8M0207796	保险丝20安培	FUSE 20 AMP	1
22	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
24	816311	捆扎带(8英寸)线束和电缆	TIE STRAP (8.00 Inches) HARNESS AND CABLES	AR
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	68258A4	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
25	853654A1	电磁阀	SOLENOID	1
26	45076	螺母(#10-32)黄铜电磁阀端子	NUT (#10-32) Brass SOLENOID TERMINALS	2
27	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
28	68292	螺母（.312-18）电磁阀端子	NUT (.312-18) SOLENOID TERMINALS	2
28	8M0204668	螺母(.312-18)	NUT (.312-18)	2
29	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
30	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
31	65999A2	电缆总成黑色上部安装	CABLE ASSEMBLY Black UPPER MOUNT	1
32	88528A2	线缆总成(6英寸-红/白)	CABLE ASSEMBLY (6" - RED/WHITE)	1
32	91865A1	线束总成(3"-白/黑-175)	CABLE ASSEMBLY (3" - WHITE/BLACK - 175)	1
33	47483	J型卡扣	J CLIP	3
34	194372	端子排	TERMINAL BLOCK	1
35	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
36	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
37	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
38	814422T	点火板盖	COVER IGNITION PLATE	1
39	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	2
40	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
40	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
41	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
42	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	3
43	62310A2	线束总成(175)	CABLE ASSEMBLY (175)	1
44	78866	绝缘体	INSULATOR	1
