两冲程 电喷 EFI · USA - Cat.# 90-81741890 · 共 90 个部位 · 4165 条零件

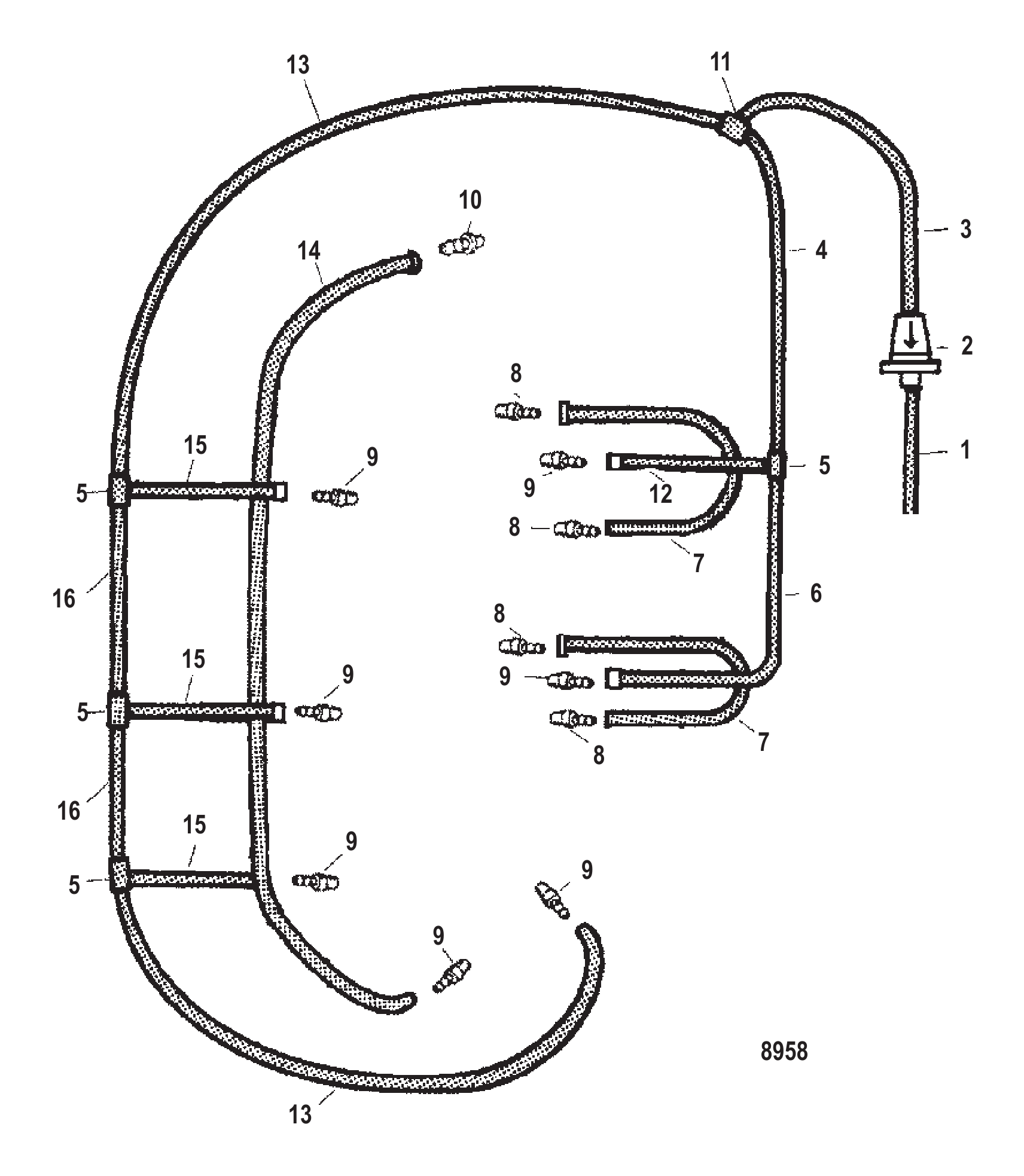

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 99130122 | 泄放管(20.00英尺散装) | TUBING (20.00 Feet Bulk) BLEED | 1 |
| 2 | 59169 | 接头 | FITTING | 4 |
| 2 | 59169003 | 三通接头 | FITTING Tee | 4 |
| 3 | 42698 | 止回阀 (压入式 - 13/16"长) | CHECK VALVE (PRESS-IN - 13/16" LONG) | 7 |
| 3 | 426982 | 止回阀 | CHECK VALVE | 7 |
| 4 | 42623 | 止回阀 (压入式 - 11/16"长) | CHECK VALVE (PRESS-IN - 11/16" LONG) | 1 |
| 4 | 426233 | 止回阀 | CHECK VALVE | 1 |
| 5 | 15133 | 压入式接头 | FITTING (PRESS-IN) | 6 |
| 6 | 56759 | 倒钩接头 | FITTING Barbed | 4 |
| 7 | 15026 | 黄色弯头盖 | CAP ELBOW (YELLOW) | 4 |
| 8 | 18205 | 三通 | TEE | 1 |
| 9 | 9912688 | 管材 (36.00英寸散装) | TUBING (36.00 Inches Bulk) | 1 |
| 10 | 18206 | 滤清器 | FILTER | 1 |
| 10 | 8M0207786 | 滤清器 | FILTER | 1 |

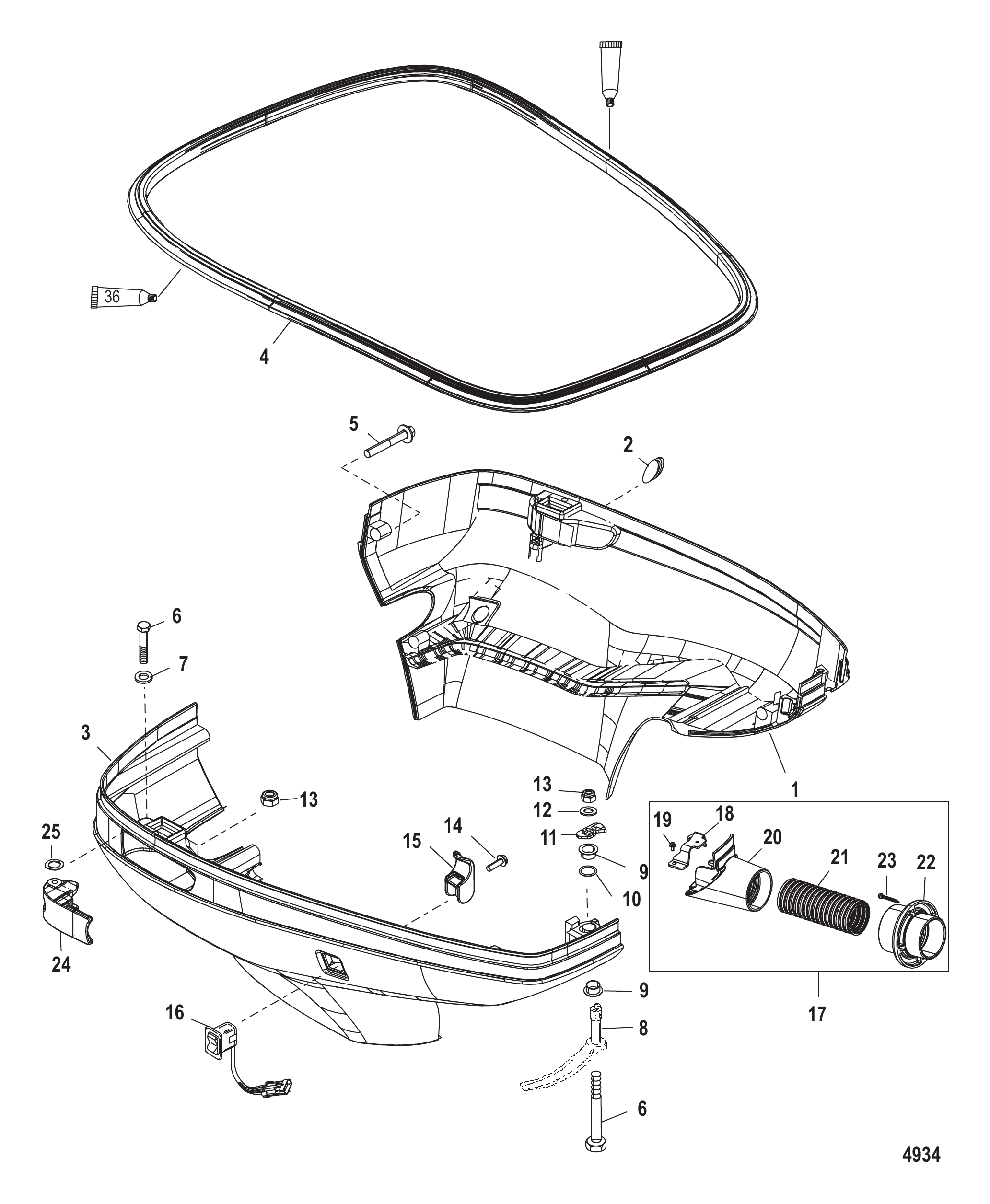

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 850302A1 | 下罩盖（左舷） | BOTTOM COWL Port | 1 |
| 1 | 850302A07 | 下罩盖（左舷） | BOTTOM COWL Port | 1 |
| 1 | 8M0107324 | 下罩盖（左舷） | BOTTOM COWL Port | 1 |
| 2 | 854367001 | 堵头 | PLUG | 1 |
| 3 | 850301A1 | 下罩盖（右舷） | BOTTOM COWL Starboard | 1 |
| 3 | 850301A07 | 下罩盖（右舷） | BOTTOM COWL Starboard | 1 |
| 3 | 850301A07 | 下罩盖（右舷） | BOTTOM COWL Starboard | 1 |
| 3 | 8M0107323 | 下罩盖（右舷） | BOTTOM COWL Starboard | 1 |
| 4 | 844155001 | 罩盖密封件 | SEAL Cowl | 1 |
| 4 | 8M0043268 | 罩盖密封条 | SEAL-COWL | 1 |
| 5 | 82130040 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 4 |
| 6 | 824868 | 螺钉(M6×75) | SCREW (M6 x 75) | 3 |
| 7 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 7 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 8 | 850684F1 | 前手柄 | FRONT HANDLE | 1 |
| 8 | 8M0053903 | 前手柄 | FRONT HANDLE | 1 |
| 9 | 335891 | 衬套 | BUSHING | 2 |
| 10 | 48462 | O型圈 (.614 x .070) | O-RING (.614 x .070) | 1 |
| 11 | 8219423 | 棘爪 | PAWL | 1 |
| 12 | 69057 | 垫片(.281 x .734 x .063) | WASHER (.281 x .734 x .063) | 1 |
| 13 | 401366 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 3 |
| 14 | 8214281 | 螺钉(#10-16x0.625) | SCREW (#10-16 x .625) | 1 |
| 15 | 822873 | 卡扣 | CLIP | 1 |
| 16 | 8569901 | 升降倾斜开关 | SWITCH Trim | 1 |
| 16 | 8M0235191 | 升降倾斜开关 | SWITCH Trim | 1 |
| 16 | 896620001 | 升降倾斜开关 | SWITCH Trim | 1 |
| 16 | 8M0235191 | 升降倾斜开关 | SWITCH Trim | 1 |
| 17 | 842756T01 | 索具套件 | RIGGING KIT | 1 |
| 18 | 842744002 | 支架 | BRACKET | 1 |
| 19 | 82130012 | 螺钉（M6 x 12） | SCREW (M6 x 12) | 3 |
| 20 | 843185T02 | 联轴器 | COUPLER | 1 |
| 21 | 842756T05 | 软管 | HOSE | 1 |
| 21 | 842756005 | 软管 | HOSE | 1 |
| 22 | 843174T02 | 索具联轴器 | COUPLER Rigging | 1 |
| 22 | 843174002 | 联轴器 | COUPLER | 1 |
| 23 | 47994 | 螺钉 (#10 x 1.50) | SCREW (#10 x 1.50) | 4 |
| 24 | 852361T1 | 机罩手柄 | HANDLE Cowl | 2 |
| 24 | 850682A06 | 支架和手柄套件 | BRACKET AND HANDLE KIT | 2 |
| 25 | 29402 | 波形垫圈 | WAVE WASHER | 2 |

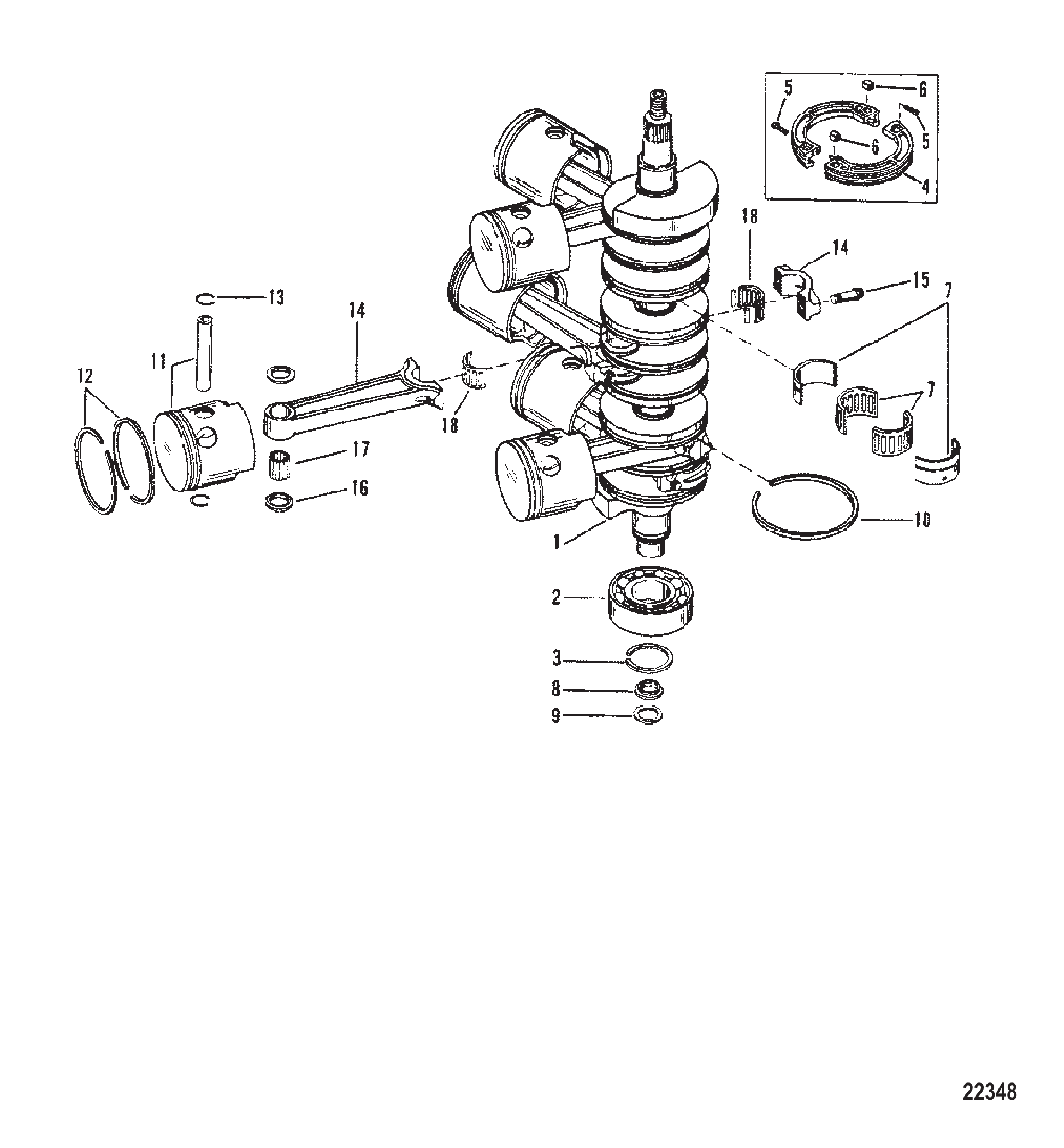

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9536A4 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 2 | 67923 | 球轴承(下部) | BEARING Ball (LOWER) | 1 |
| 2 | 67923T | 滚珠轴承 | BEARING Ball | 1 |
| 3 | 67446 | 环 | RING | 1 |
| 4 | 14513A2 | 驱动齿轮段套件 | GEAR SEGMENT KIT Drive | 1 |
| 4 | 14513A09 | 驱动齿轮段套件 | GEAR SEGMENT KIT Drive | 1 |
| 5 | 813073 | 螺钉(#6-32 x .620)内六角头 | SCREW (#6-32 x .620) Socket Head | 2 |
| 6 | 813134 | 螺母(#6-32)专用 | NUT (#6-32) Special | 2 |
| 7 | 16756A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 2 |
| 7 | 16756A6 | 轴承套件 | BEARING KIT | 2 |
| 8 | 54196A6 | 托架总成 | CARRIER ASSEMBLY | 1 |
| 9 | 65800 | 填料 | PACKING | 1 |
| 10 | 67377 | 密封环(厚度0.124) | RING Sealing (.124 THICK) | 7 |
| 10 | 67377T | 密封环 | RING Sealing | 7 |
| 11 | 9738A7 | 活塞总成(右舷-标准) | PISTON ASSEMBLY (STARBOARD - STANDARD) | 3 |
| 11 | 9738T9 | 活塞总成标准型 | PISTON ASSEMBLY Standard | 3 |
| 11 | 9738A8 | 活塞总成(右舷-加大0.015) | PISTON ASSEMBLY (STARBOARD - .015 O.S.) | AR |
| 11 | 9738T10 | 活塞总成0.015加大 | PISTON ASSEMBLY .015 Oversize | AR |
| 11 | 9737A7 | 活塞总成(左舷-标准) | PISTON ASSEMBLY (PORT - STANDARD) | 3 |
| 11 | 9737T9 | 活塞总成标准型 | PISTON ASSEMBLY Standard | 3 |
| 11 | 9737A8 | 活塞总成(左舷-加大0.015) | PISTON ASSEMBLY (PORT - .015 O.S.) | AR |
| 11 | 9737A10 | 活塞总成0.015加大 | PISTON ASSEMBLY .015 Oversize | AR |
| 12 | 815515A12 | 活塞环组(标准) | RING SET Piston (STANDARD) | 1 |
| 12 | 815268A4 | 活塞环组(.015加大) | RING SET Piston (.015 O.S.) | AR |
| 13 | 52035 | RING Lock PISTON | 12 | |
| 13 | 857196 | 锁紧环 | LOCK RING | 12 |
| 14 | 818141A2 | 连杆套件 | CONNECTING ROD KIT | 6 |
| 14 | 818141A13 | 连杆总成 | CONNECTING ROD ASSEMBLY | 6 |
| 15 | 763491 | 螺钉(0.312-24×0.875)连杆 | SCREW (.312-24 x .875) CONNECTING ROD | 12 |
| 16 | 812876 | 定位针垫圈 | WASHER NEEDLE LOCATING | 12 |
| 16 | 8M0012298 | 止推垫片 | THRUST WASHER | 12 |
| 17 | 674831 | 活塞端滚针轴承 | BEARING Needle PISTON END | 174 |
| 17 | 8M0204691 | 滚针轴承@200 | BRG-NEEDLE @200 | 174 |
| 18 | 17514A1 | 轴承套件 | BEARING KIT | 6 |
| 18 | 8M0234886 | 轴承保持架 | CAGE BEARING | 6 |
| - | 815810A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 815809A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9536A4 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 2 | 67923 | 球轴承(下部) | BEARING Ball (LOWER) | 1 |
| 2 | 67923T | 滚珠轴承 | BEARING Ball | 1 |
| 3 | 67446 | 环 | RING | 1 |
| 4 | 14513A2 | 驱动齿轮段套件 | GEAR SEGMENT KIT Drive | 1 |
| 4 | 14513A09 | 驱动齿轮段套件 | GEAR SEGMENT KIT Drive | 1 |
| 5 | 813073 | 螺钉(#6-32 x .620)内六角头 | SCREW (#6-32 x .620) Socket Head | 2 |
| 6 | 813134 | 螺母(#6-32)专用 | NUT (#6-32) Special | 2 |
| 7 | 16756A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 2 |
| 7 | 16756A6 | 轴承套件 | BEARING KIT | 2 |
| 8 | 54196A6 | 托架总成 | CARRIER ASSEMBLY | 1 |
| 9 | 65800 | 填料 | PACKING | 1 |
| 10 | 67377 | 密封环(厚度0.124) | RING Sealing SEALING (.124 THICK) | 7 OR 8 |
| 10 | 67377T | 密封环 | RING Sealing | 7 OR 8 |
| 11 | 8666A22 | 活塞总成(右舷-标准)(175) | PISTON ASSEMBLY (STARBOARD - STANDARD) (175) | 3 |
| 11 | 8666T42 | 活塞总成-右舷-标准 | PIST.ASY.STBD.STD | 3 |
| 11 | 8666A36 | 活塞总成(右舷-加大0.015)(175) | PISTON ASSEMBLY Starboard (STARBOARD - .015 O.S.) (175) | AR |
| 11 | 8666A43 | 活塞总成-右舷-0.015 | PIST.ASY STBD.015 | AR |
| 11 | 8667A22 | 活塞总成(左舷-标准)(175) | PISTON ASSEMBLY (PORT - STANDARD) (175) | 3 |
| 11 | 8667T42 | 活塞总成-左舷-标准 | PIST.ASY.PORT.STD | 3 |
| 11 | 8667A36 | 活塞总成(左舷-加大0.015)(175) | PISTON ASSEMBLY Port (PORT - .015 O.S.) (175) | AR |
| 11 | 8667A43 | 活塞总成-左舷-0.015 | PIST.ASY PORT.015 | AR |
| 12 | 18487A12 | 活塞环组(标准)(175) | RING SET Piston (STANDARD) (175) | 1 |
| 12 | 815267A4 | 活塞环组(加大0.015)(175) | RING SET Piston (.015 O.S.) (175) | AR |
| 11 | 9738A2 | 活塞总成(右舷-标准)(200) | PISTON ASSEMBLY (STARBOARD - STANDARD) (200) | 3 |
| 11 | 9738T4 | 活塞-右舷-标准 | PISTON-STBD-STD | 3 |
| 11 | 9738A3 | 活塞总成(右舷-加大0.015)(200) | PISTON ASSEMBLY (STARBOARD - .015 O.S.) (200) | AR |
| 11 | 9738A5 | 活塞-右舷-0.015 | PISTON-STBD-.015 | AR |
| 11 | 9737A2 | 活塞总成(左舷-标准)(200) | PISTON ASSEMBLY (PORT - STANDARD) (200) | 3 |
| 11 | 9737T4 | 活塞-左舷-标准 | PISTON-PORT-STD | 3 |
| 11 | 9737A3 | 活塞总成(左舷-加大0.015)(200) | PISTON ASSEMBLY (PORT - .015 O.S.) (200) | AR |
| 11 | 9737A5 | 活塞-左舷-0.015 | PISTON-PORT-.015 | AR |
| 12 | 815515A12 | 活塞环组(标准)(200) | RING SET Piston (STANDARD) (200) | 1 |
| 12 | 815268A4 | 活塞环组(加大0.015)(200) | RING SET Piston (.015 O.S.) (200) | AR |
| 13 | 52035 | 锁环 | RING Lock | 12 |
| 13 | 857196 | 锁紧环 | LOCK RING | 12 |
| 14 | 8119A5 | 连杆总成 | CONNECTING ROD ASSEMBLY | 6 |
| 14 | 8119A6 | 连杆套件 | CONN ROD KIT | 6 |
| 15 | 93886 | 螺钉(.312-28x.875) | SCREW (.312-28 x .875) | 12 |
| 16 | 47247 | 垫圈 | WASHER | 12 |
| 16 | 8M0032839 | 垫片@5 | WASHER @5 | 12 |
| 17 | 67483 | 滚针轴承 | BEARING Needle | 174 |
| 18 | 17514A1 | 轴承套件 | BEARING KIT | 6 |
| 18 | 8M0234886 | 轴承保持架 | CAGE BEARING | 6 |
| - | 815810A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 815809A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |

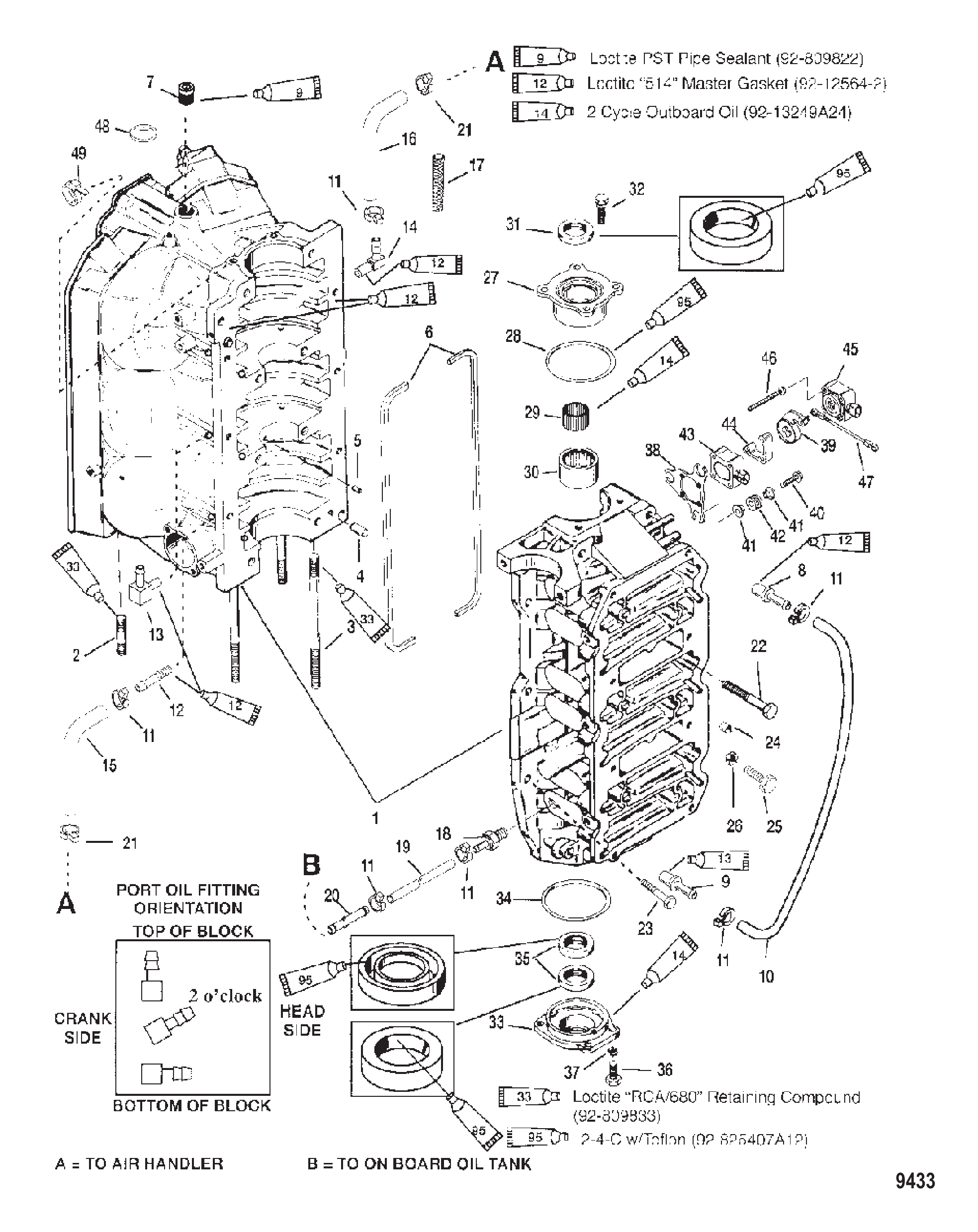

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9764A12 | 气缸体(175) | CYLINDER BLOCK (175) | 1 |
| 1 | 9763A6 | 气缸体(200) | CYLINDER BLOCK (200) | 1 |
| 1 | 9763T6 | 气缸体 | CYLINDER BLOCK | 1 |
| 2 | 818138 | 动力头螺柱(1-3/4") | STUD POWERHEAD (1-3/4") | 2 |
| 2 | 8M0034455 | 螺柱1.750 | STUD 1.750 | 2 |
| 2 | 76175 | 动力头螺柱(1-7/8英寸) | STUD POWERHEAD (1-7/8") | 4 OR 6 |
| 3 | 67065 | 动力头螺柱(5-1/2英寸) | STUD POWERHEAD (5-1/2") | 2 |
| 3 | 670654 | 螺柱(.375-16/.375-24 x 5.620) | STUD (.375-16/.375-24 x 5.620) | 2 |
| 3 | 78438 | 动力头螺柱(6-3/4英寸) | STUD POWERHEAD (6-3/4") | 2 |
| 3 | 8M0034454 | 螺柱(.375-16/.375-24 x 6.87) | STUD (.375-16/.375-24 x 6.87) | 2 |
| 4 | 20033 | 定位销 | PIN Dowel LOCATING | 2 |
| 4 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 2 |
| 5 | 67296 | 销(轴承座圈) | PIN (BEARING RACE) | 2 |
| 5 | 8M0036405 | 销 | PIN | 2 |
| 6 | 11338 | 密封垫片 | GASKET SEALING | 2 |
| 7 | 42249 | 启动马达上盖 | COVER STARTER MOTOR (UPPER) | 1 |
| 7 | 8M0088723 | 启动器支架 | BRACKET-STARTER | 1 |
| 8 | 73657 | 盖至曲轴箱螺钉(.312-18 x 1.50) | SCREW (.312-18 x 1.50) COVER TO CRANKCASE | 2 |
| 9 | 26993 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 4 |
| 9 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 4 |
| 10 | 76867 | 启动电机盖(下部) | COVER STARTER MOTOR (LOWER) | 1 |
| 11 | 77065 | 盖至曲轴箱螺钉(.312-18 x 2) | SCREW (.312-18 x 2) COVER TO CRANKCASE | 2 |
| 11 | 815549 | 螺钉(.312-18 x 2.00) | SCREW (.312-18 x 2.00) | 2 |
| 12 | 99448 | 衬套 | BUSHING | 1 |
| 13 | 88807A20 | 线束总成盖 | CABLE ASSEMBLY COVER | 1 |
| 14 | 66717 | 螺钉(.375-16 x 3.250) | SCREW (.375-16 x 3.250) | 8 |
| 14 | 74824 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 6 |
| 15 | 9642A1 | 上端盖总成 | END CAP ASSEMBLY Upper | 1 |
| 15 | 858521T1 | 端盖总成 | END CAP ASSEMBLY | 1 |
| 16 | 54029 | 端盖O型圈(2.800 x .103) | O-RING (2.800 x .103) END CAP | 1 |
| 17 | 16756A2 | 滚子轴承端盖总成 | BEARING ASSEMBLY Roller END CAP | 1 |
| 17 | 16756A4 | 轴承套件 | BEARING KIT | 1 |
| 18 | 41953 | 端盖密封件 | SEAL END CAP | 1 |
| 19 | 69034 | 螺钉带锁紧垫圈(.312-18 x 1.00) | SCREW AND LOCKWASHER (.312-18 x 1.00) | 4 |
| 19 | 30225 | 螺钉带锁紧垫圈(.312-18 x 1.00) | SCREW WITH LOCKWASHER (.312-18 x 1.00) | 4 |
| 20 | 63153 | J型卡扣 | J CLIP | 1 |
| 22 | 15094 | 双头螺柱(.190-32 x 1.870) | STUD (.190-32 x 1.870) | 1 |
| 23 | 15093 | 飞轮盖至支架双头螺柱(#10-32 x 1.00) | STUD (#10-32 x 1.00) FLYWHEEL COVER TO BRACKET | 2 |
| 23 | 8M0034435 | 螺柱 | STUD | 2 |
| 24 | 67269 | 飞轮盖螺柱隔套 | SPACER FLYWHEEL COVER STUD | 1 |
| 25 | 492211 | 飞轮盖螺柱垫圈 | WASHER FLYWHEEL COVER STUD | 6 |
| 25 | 8M0204663 | 垫片@5 | WASHER @5 | 6 |
| 26 | 72761 | 飞轮盖螺柱不锈钢垫圈(.203 x .562 x .060) | WASHER (.203 x .562 x .060) Stainless Steel FLYWHEEL COVER STUD | 3 |
| 27 | 816874 | 蝶形螺母(#10-32)飞轮盖螺柱 | WING NUT (#10-32) FLYWHEEL COVER STUD | 3 |
| 28 | 42248 | 飞轮罩支架 | BRACKET FLYWHEEL COVER | 1 |
| 28 | 422482 | 支架 | BRACKET | 1 |
| 29 | 49668 | 支架至曲轴箱螺钉(.250-20 x .750) | SCREW (.250-20 x .750) BRACKET TO CRANKCASE | 2 |
| 30 | 7809A1 | 下端盖总成 | END CAP ASSEMBLY LOWER | 1 |
| 30 | 7809T1 | 端盖总成 | END CAP ASSEMBLY | 1 |
| 31 | 62700 | 端盖O型圈(3.237 x .103) | O-RING (3.237 x .103) END CAP | 1 |
| 32 | 41953 | 端盖密封件 | SEAL END CAP | 2 |
| 33 | 28636 | 螺钉(.250-20 x .750) | SCREW (.250-20 x .750) | 4 |
| 34 | 26992 | 下端盖螺钉不锈钢锁紧垫圈(.250) | LOCKWASHER (.250) Stainless Steel LOWER END CAP SCREW | 4 |
| 35 | 64022 | 调节螺钉(.250-20 x 2.125)-气缸体 | SCREW (.250-20 x 2.125) ADJUSTING - CYLINDER BLOCK | 1 |
| 36 | 64015 | 锁紧螺母(.250-20)-调节螺钉 | NUT (.250-20) JAM - ADJUSTING SCREW | 1 |
| 37 | 26852 | 调节螺钉尼龙帽 | CAP Nylon NYLON - ADJUSTING SCREW | 1 |
| 38 | 87076A6 | 怠速控制总成(200) | IDLE SPEED CONTROL ASSEMBLY (200) | 1 |
| 38 | 87076A10 | 怠速控制器 | IDLE SPEED CONTROL | 1 |
| 39 | 69020 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 3 |
| 39 | 690201 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 3 |
| 40 | 38833 | 垫圈 | WASHER | 3 |
| 41 | 93772A5 | 模块(175) | MODULE (175) | 1 |
| 41 | 93772A11 | 提前角模块 | ADVANCE MODULE | 1 |
| 42 | 16793 | 卡箍(175) | CLAMP (175) | 1 |
| 43 | 73286 | 螺钉(0.250-20×0.500)不锈钢(175) | SCREW (.250-20 x .500) Stainless Steel (175) | 1 |
| - | 812817A90 | 动力头总成(完整)(175) | POWERHEAD ASSEMBLY COMPLETE (175) | 1 |
| - | 812817T90 | 船用动力头 | POWERHEAD MARINE | 1 |
| - | 812827A90 | 动力头总成(完整)(200) | POWERHEAD ASSEMBLY COMPLETE (200) | 1 |
| - | 812827T91 | 船用动力头 | POWERHEAD MARINE | 1 |
| - | 815810A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 815809A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

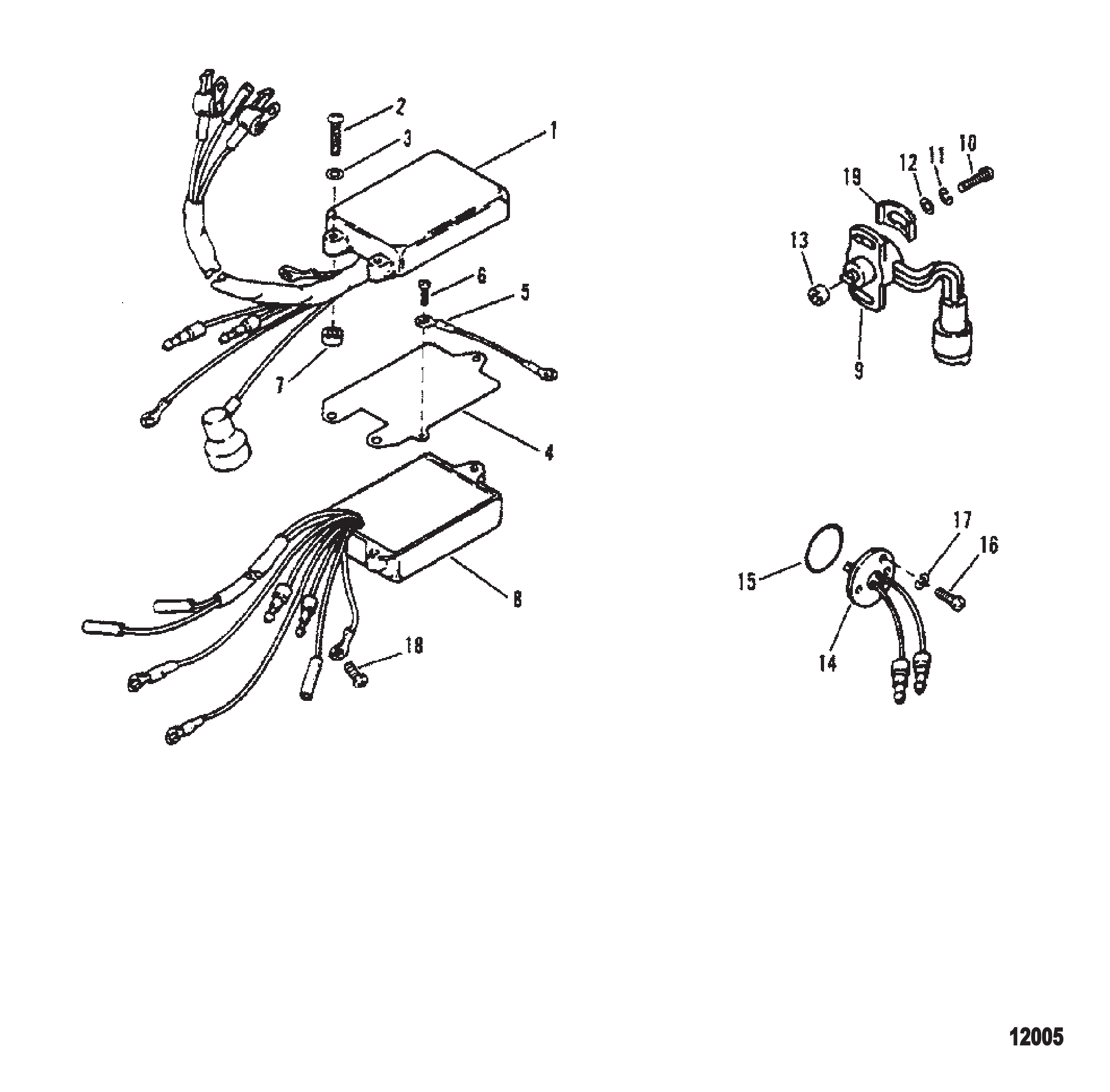

| 1 | 14856A3 | 爆震控制器总成(200) | CONTROLLER ASSEMBLY Detonation (200) | 1 |
| 2 | 88447 | 螺钉(0.190-32×1.62)爆震控制器(200) | SCREW (.190-32 x 1.62) DETONATION CONTROLLER (200) | 3 |
| 3 | 38833 | 爆震控制器螺钉垫圈(200) | WASHER DETONATION CONTROLLER SCREW (200) | 3 |
| 4 | 13381 | 板(200) | PLATE (200) | 1 |
| 5 | 60466A20 | 电缆总成(200) | CABLE ASSEMBLY (200) | 1 |
| 5 | 88807A10 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 6 | 62568 | 螺钉(#10-16×0.375)电缆至板(200) | SCREW (#10-16 x .375) CABLE TO PLATE (200) | 1 |
| 7 | 94304 | 垫片(200) | SPACER (200) | 3 |
| 8 | 41470A12 | 喷油警告模块总成 | MODULE ASSEMBLY Oil Injection Warning | 1 |
| 8 | 41470A25 | 喷油警告模块总成 | MODULE ASSEMBLY Oil Injection Warning | 1 |
| 9 | 14851T | 节气门位置指示器 | INDICATOR THROTTLE POSITION | 1 |
| 9 | 14851T03 | 指示器 | INDICATOR | 1 |
| 10 | 15150 | SCREW (#8-32 x .625) INDICATOR | 2 | |
| 11 | 26995 | LOCKWASHER (#8) Stainless Steel INDICATOR SCREW | 2 | |
| 12 | 46101 | 指示器螺钉垫圈 | WASHER INDICATOR SCREW | 2 |
| 12 | 30164 | 垫圈(0.192x0.375x0.0312)不锈钢 | WASHER (.192 x .375 x .0312) Stainless Steel | 2 |
| 13 | 15885 | 套筒 | SLEEVE | 1 |
| 14 | 13221A1 | 温度传感器总成 | SENSOR ASSEMBLY Temperature | 1 |
| 14 | 13221T01 | 温度传感器 | SENSOR TEMP | 1 |
| 15 | 45711 | O型圈 (.612 x .103) | O-RING (.612 x .103) | 1 |
| 16 | 57583 | 螺钉(#8-32×0.375)温度传感器 | SCREW (#8-32 x .375) TEMPERATURE SENSOR | 3 |
| 16 | 57583T | 螺丝#8-32×3/8 | SCREW #8-32x3/8 | 3 |
| 17 | 26995 | 锁紧垫圈(#8)不锈钢温度传感器螺钉 | LOCKWASHER (#8) Stainless Steel TEMPERATURE SENSOR SCREW | 3 |
| 18 | 42813 | 螺钉（#10-32 X 0.380） | SCREW (#10-32 X .380) | 1 |
| 19 | 813501 | 安装板 | PLATE | 2 |
| - | 815810A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 815809A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

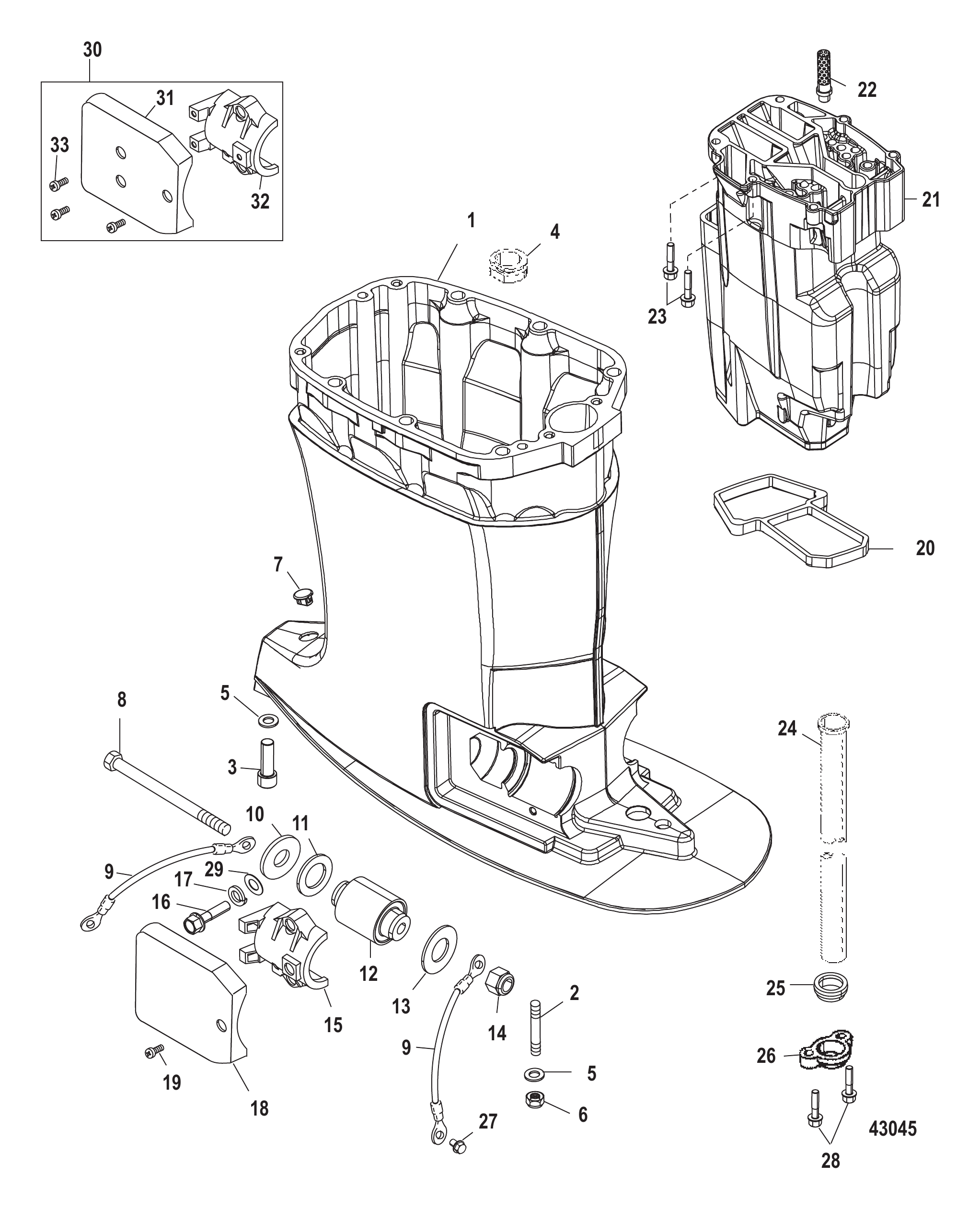

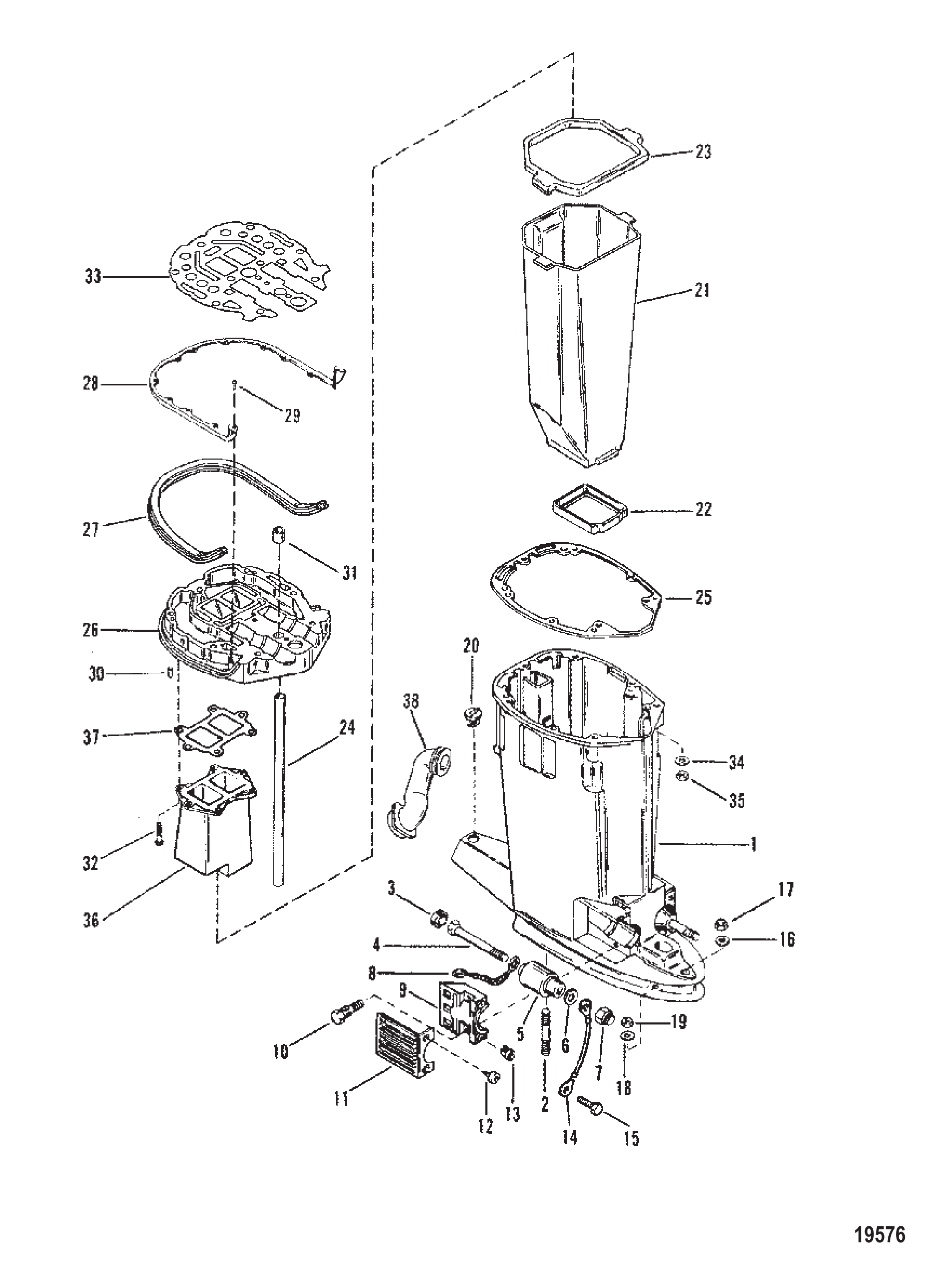

| 1 | 832937A06 | 传动轴壳体总成-加长型 | HOUSING ASSEMBLY Driveshaft - Long | 1 |
| 1 | 832938A06 | 传动轴壳体总成-超长/特超长型 | HOUSING ASSEMBLY Driveshaft - X/XX-Long | 1 |
| 2 | 8M0008031 | 双头螺柱(M12 x 1.75 x 52) | STUD (M12 x 1.75 x 52) | 4 |
| 3 | 88552835 | 螺栓(M12x35毫米)外六角 | SCREW (M12 x 35 MM) External Hex | 1 |
| 3 | 8M0102995 | 螺丝 (M12) | SCREW (M12) | 1 |
| 3 | 892860 | 螺栓(M12x35)内六角 | SCREW (M12 x 35) Internal Hex | 1 |
| 4 | 8331231 | 护孔环 | GROMMET | 1 |
| 5 | 856982 | 垫圈(0.5×0.81×0.09英寸)不锈钢 | WASHER (.500 x .810 x .090) Stainless Steel | 5 |
| 6 | 896895 | 螺母(M12) | NUT (M12) | 4 |
| 7 | 64649 | 堵头 | PLUG | 1 |
| 8 | 898834 | 螺栓（M14×178） | BOLT (M14 x 178) | 2 |
| 9 | 88238A10 | 接地线总成 | CABLE ASSEMBLY Ground | 2 |
| 10 | 815432 | 垫圈(.562 x 2.00 x .125) | WASHER (.562 x 2.00 x .125) | 2 |
| 11 | 8154331 | 垫圈（1.25×2.00×0.19） | WASHER (1.25 x 2.00 x .19) | 2 |
| 12 | 8137711 | 支架 | MOUNT | 2 |
| 12 | 840361T | 支架 | MOUNT | 2 |
| 12 | 8M0055931 | 支架 | MOUNT | 2 |
| 13 | 825190 | 垫圈 | WASHER | 2 |
| 14 | 896602 | 螺母(M14) | NUT (M14) | 2 |
| 15 | 8186442 | 卡箍(耗尽时订购Design II套件879150A90) | CLAMP When Depleted Order Design II Kit 879150A90 | 2 |
| 15 | 879150A90 | 下支架盖套件 | COVER KIT Lower Mount | 2 |
| 16 | 8M0033179 | 螺钉 (M8 x 40) | SCREW (M8 x 40) | 4 |
| 16 | 8M0084475 | 螺钉 (M8 x 40) | SCREW (M8 x 40) | 4 |
| 17 | 72521 | 内齿锁紧垫圈 | LOCKWASHER Internal Tooth | 1 |
| 18 | 8M0001136 | 下支架盖(耗尽时订购Design II套件879150A90) | COVER Lower Mount When Depleted Order Design II Kit 879150A90 | 2 |
| 18 | 879150A90 | 下支架盖套件 | COVER KIT Lower Mount | 2 |
| 19 | 69079 | 螺钉 (#10-16 x .440) | SCREW (#10-16 x .440) | 2 |
| 20 | 8329321 | 密封件 | SEAL | 1 |
| 21 | 833116A19 | 排气管总成 | TUBE ASSEMBLY Exhaust | 1 |
| 21 | 8M0075819 | 排气管总成 | TUBE ASSEMBLY Exhaust | 1 |
| 22 | 8524052 | 滤网 | STRAINER | 1 |
| 22 | 8M0026113 | 滤网 | STRAINER | 1 |
| 22 | 8M0026113 | 滤网 | STRAINER | 1 |
| 23 | 81893435 | 螺钉(M8×35) | SCREW (M8 x 35) | 6 |
| 23 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 6 |
| 24 | 8329417 | 水管 | TUBE Water | 1 |
| 24 | 8M0042785 | 水管 | TUBE-WATER | 1 |
| 24 | 8329418 | 水管 | TUBE Water | 1 |
| 24 | 8M0042786 | 水管 | TUBE Water | 1 |
| 25 | 832940001 | 密封件 | SEAL | 1 |
| 26 | 8329391 | 卡箍 | CLAMP | 1 |
| 27 | 41508 | 螺钉(0.250-20×0.500)不锈钢 | SCREW (.250-20 x .500) Stainless Steel | 1 |
| 28 | 81893435 | 螺钉(M8×35) | SCREW (M8 x 35) | 2 |
| 28 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 2 |
| 28 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 2 |
| 29 | 847541 | 垫圈 | WASHER | 4 |
| 30 | 879150A90 | 下支架盖套件 | COVER KIT Lower Mount | 2 |
| 31 | 8M4501006 | 下支架盖 | COVER Lower Mount | 2 |
| 31 | 8M0148785 | 盖板 | COVER | 2 |
| 32 | 8M4501003 | 卡箍 | CLAMP | 2 |
| 33 | 69079 | 螺钉 (#10-16 x .440) | SCREW (#10-16 x .440) | 6 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

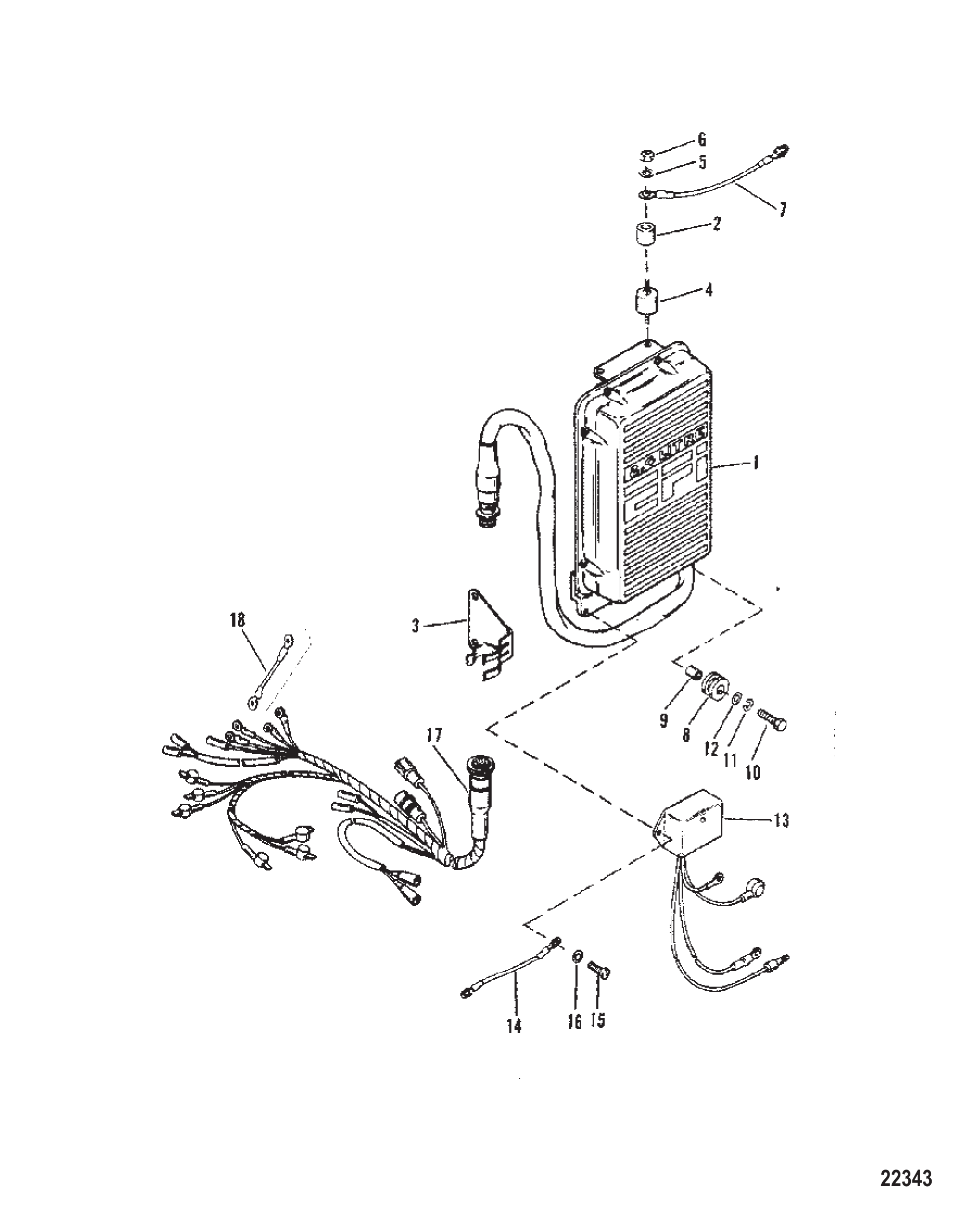

| 1 | 14632A15 | 发动机控制单元ECU(175) | ECU Engine Control Unit (175) | 1 |
| 1 | 14632A13 | 发动机控制单元ECU(200) | ECU Engine Control Unit (200) | 1 |
| 1 | 824003T16 | 电控单元 | ECU | 1 |
| 2 | 34948 | 隔套 | SPACER | 2 |
| 3 | 146951 | 卡扣 | CLIP | 1 |
| 4 | 90435 | 罩壳安装支架座 | MOUNT COWL MOUNTING BRACKET | 2 |
| 5 | 21249 | 安装垫圈 | WASHER MOUNT ATTACHING | 4 |
| 6 | 20361 | 安装螺母(0.250-28) | NUT (.250-28) MOUNT ATTACHING | 4 |
| 6 | 8267089 | 螺母(.250-28) | NUT (.250-28) | 4 |
| 7 | 88807A19 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 8 | 14637 | 护孔环 | GROMMET | 1 |
| 9 | 14636 | 衬套 | BUSHING | 1 |
| 10 | 28667 | 螺钉 (0.250-20 x 1.00) 不锈钢 | SCREW (.250-20 x 1.00) Stainless Steel | 1 |
| 11 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 1 |
| 12 | 65567 | 不锈钢垫圈(0.265x0.750x0.048) | WASHER (.265 x .750 x .048) Stainless Steel | 1 |
| 13 | 13202A2 | 水位传感器模块总成 | MODULE ASSEMBLY Water Sensor | 1 |
| 14 | 88807A18 | 线缆总成(黑色) | CABLE ASSEMBLY (BLACK) | 1 |
| 15 | 37571 | 水位传感器模块螺钉(0.190-32×0.500) | SCREW (.190-32 x .500) WATER SENSOR MODULE | 2 |
| 16 | 89302 | 水位传感器模块螺钉垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) WATER SENSOR MODULE SCREW | 2 |
| 17 | 98866A14 | ECU与喷油器线束总成 | HARNESS ASSEMBLY E.C.U. AND INJECTORS | 1 |
| 18 | 87895A4 | 线束总成(175) | CABLE ASSEMBLY (175) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

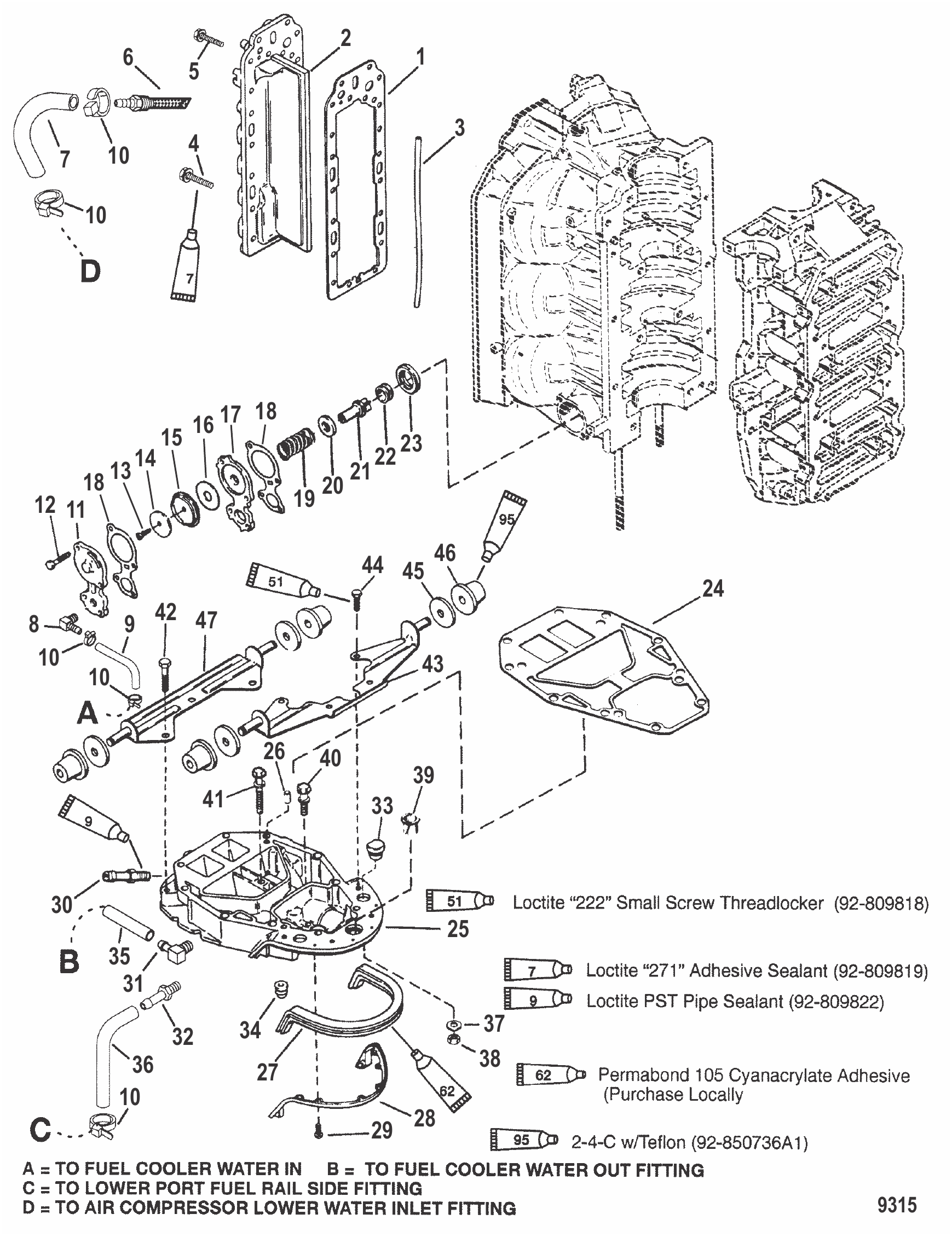

| 1 | 190361 | 分隔板 | DIVIDER PLATE | 1 |
| 2 | 19050 | 分隔板衬垫 | GASKET DIVIDER PLATE | 1 |
| 2 | 190503 | 衬垫 | GASKET | 1 |
| 3 | 814754 | SEAL (12.50 Inches) DIVIDER PLATE | 1 | |
| 4 | 814634 | 卡箍 | CLAMP | 4 |
| 5 | 31984 | 螺钉(.312-18 x 1.375)分隔板 | SCREW (.312-18 x 1.375) DIVIDER PLATE | 3 |
| 5 | 53167 | 螺钉(.312-18 x .880)分隔板 | SCREW (.312-18 x .880) DIVIDER PLATE | 17 |
| 5 | 53167T | 螺钉 0.312-18X 0.88 | SCREW .312-18X .88 | 17 |
| 6 | 194373 | 端子排 | TERMINAL BLOCK | 1 |
| 7 | 90192 | 螺钉(.250-20 x .750)不锈钢接线板 | SCREW (.250-20 x .750) Stainless Steel TERMINAL BLOCK | 2 |
| 8 | 68729 | 安全阀盖 | COVER RELIEF VALVE | 1 |
| 8 | 8M0039767 | 盖板 | COVER | 1 |
| 9 | 45076 | 端子排黄铜螺母(#10-32) | NUT (#10-32) Brass TERMINAL BLOCK | 3 |
| 10 | 813938 | 盖螺母（#10-32）接线板 | CAP NUT (#10-32) TERMINAL BLOCK | 3 |
| 11 | 74824 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 4 |
| 12 | 78690 | 安全阀板衬垫 | GASKET RELIEF VALVE PLATE | 2 |
| 12 | 78690002 | 衬垫 | GASKET | 2 |
| 13 | 69570 | 膜片至板件螺钉(#10-16 x .750) | SCREW (#10-16 x .750) DIAPHRAGM TO PLATE | 1 |
| 14 | 76451 | 膜片螺钉垫片 | WASHER DIAPHRAGM SCREW | 1 |
| 15 | 14479 | 隔膜 | DIAPHRAGM | 1 |
| 15 | 144791 | 隔膜 | DIAPHRAGM | 1 |
| 16 | 16496 | 导水板 | DEFLECTOR Water | 1 |
| 17 | 16497A1 | 安全阀板 | PLATE RELIEF VALVE | 1 |
| 18 | 64878 | 提升阀黑色压缩弹簧 | SPRING (Black) COMPRESSION POPPET VALVE | 1 |
| 19 | 85303 | 提升阀弹簧垫片 | WASHER POPPET SPRING | 1 |
| 20 | 14480 | 提升阀 | POPPET VALVE | 1 |
| 21 | 64872 | 提升阀衬套 | GROMMET POPPET VALVE | 1 |
| 22 | 65848 | 提升阀座 | CARRIER POPPET VALVE | 1 |
| 23 | 991763 | 排气板衬垫 | GASKET EXHAUST PLATE | 1 |
| 23 | 991764 | 衬垫 | GASKET | 1 |
| 24 | 18260A2 | 排气板总成 | PLATE ASSEMBLY Exhaust EXHAUST | 1 |
| 24 | 18260T2 | 排气板总成 | PLATE ASSEMBLY Exhaust | 1 |
| 26 | 20033 | 排气板定位销 | PIN Dowel LOCATING - EXHAUST PLATE | 2 |
| 26 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 2 |
| 27 | 8147011 | 排气板密封件 | SEAL EXHAUST PLATE | 1 |
| 27 | 8M0043164 | 密封件 | SEAL | 1 |
| 28 | 680101 | 密封件固定支架 | BRACKET SEAL RETAINING | 1 |
| 29 | 812832 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 8 |
| 29 | 878608 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 8 |
| 30 | 89772 | 连接器(.125-27)(直型) | CONNECTOR (.125-27) (STRAIGHT) | 1 |
| 32 | 12602 | 护孔环 | GROMMET | 1 |
| 32 | 12602002 | 护孔环 | GROMMET | 1 |
| 33 | 19564 | 护孔环 | GROMMET | 1 |
| 33 | 8M0179867 | 护孔环 | GROMMET | 1 |
| 34 | 27132 | 排气板衬套 | BUSHING EXHAUST PLATE | 1 |
| 35 | 66727 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 1 |
| 36 | 68783 | 螺钉(.312-18×2.50) | SCREW (.312-18 x 2.50) | 1 |
| 37 | 66725 | 螺钉(.375-16×3.50) | SCREW (.375-16 x 3.50) | 3 |
| 37 | 898833 | 螺钉(.375-16 x 3.500) | SCREW (.375-16 x 3.500) | 3 |
| 38 | 812905A3 | 前支架总成 | BRACKET ASSEMBLY FRONT | 1 |
| 38 | 812905T | 前支架 | BRACKET Front | 1 |
| 39 | 90285 | 前支架螺钉(.312-18 x .625) | SCREW (.312-18 x .625) FRONT BRACKET | 4 |
| 40 | 187031 | 垫圈 | WASHER | 4 |
| 41 | 18778 | 护孔环 | GROMMET | 4 |
| 41 | 18778001 | 护孔环 | GROMMET | 4 |
| 42 | 18578A4 | 后支架总成 | BRACKET ASSEMBLY Rear REAR | 1 |
| 42 | 18578T09 | 支架总成(后部) | BRACKET ASSEMBLY Rear | 1 |
| 43 | 814430 | 管接头(.500-14) | FITTING (.500-14) | 1 |
| 43 | 8144301 | 接头 | FITTING | 1 |
| 44 | 92007 | 90度弯头(0.250-18) | FITTING (.250-18) (90 Degree) | 1 |
| 44 | 920071 | 90度弯头 | FITTING (90 Degree) | 1 |
| 45 | 99127109 | 管路(57.00英寸 散装) | LINE (57.00 Inches Bulk) | 1 |
| 45 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 46 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 2 |
| 46 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 2 |
| 47 | 25970 | 动力头螺柱垫圈 | WASHER POWERHEAD STUD | 6 |
| 47 | 20553 | 垫圈(.406 x .734 x .063) | WASHER (.406 x .734 x .063) | 6 |
| 48 | 69254 | 动力头螺柱螺母 | NUT POWERHEAD STUD | 6 |
| - | 815810A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 815809A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

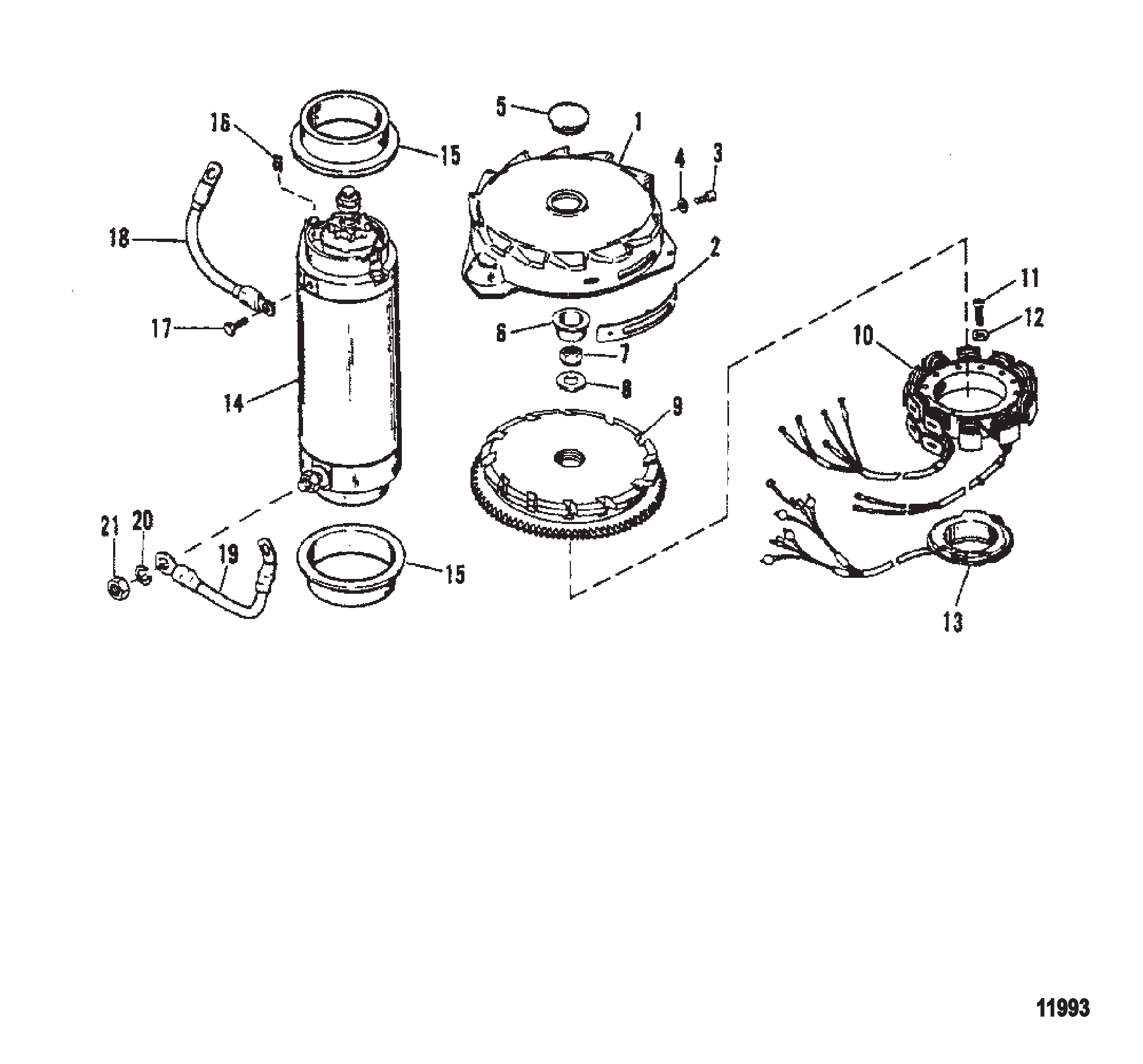

| 1 | 18896A1 | 飞轮盖套件 | COVER KIT FLYWHEEL | 1 |
| 2 | 79022 | 正时标记 | MARKER TIMING | 1 |
| 3 | 37572 | 螺钉(0.190-32x0.380)正时标记 | SCREW (.190-32 x .380) TIMING MARKER | 2 |
| 4 | 72761 | 垫圈(0.203x0.562x0.060)不锈钢正时标记螺钉 | WASHER (.203 x .562 x .060) Stainless Steel TIMING MARKER SCREW | 2 |
| 5 | 89219 | 飞轮盖塞 | PLUG FLYWHEEL COVER | 1 |
| 5 | 89219001 | 堵头 | PLUG | 1 |
| 6 | 45907 | 飞轮黄色塞 | PLUG Yellow FLYWHEEL | 1 |
| 7 | 52901 | 螺母(.625-18)飞轮 | NUT (.625-18) FLYWHEEL | 1 |
| 8 | 68229 | 垫圈(0.641x1.250x0.190)飞轮 | WASHER (.641 x 1.250 x .190) FLYWHEEL | 1 |
| 8 | 33001 | 垫圈 | WASHER | 1 |
| 9 | 9841A7 | 飞轮(旧款) | FLYWHEEL (OLD DESIGN) | 1 |
| 9 | 859238T16 | 飞轮总成 | FLYWHEEL ASY | 1 |
| 10 | 32417 | 飞轮板螺钉(0.250-28×0.625)(旧款) | SCREW (.250-28 x .625) FLYWHEEL PLATE (OLD DESIGN) | 8 |
| 11 | 68997 | 飞轮毂螺钉(0.312-24×0.750)(旧款) | SCREW (.312-24 x .750) FLYWHEEL HUB (OLD DESIGN) | 8 |
| 12 | 9610A5 | 定子 | STATOR | 1 |
| 13 | 90045 | 螺钉(#10-32 x 1.375)定子 | SCREW (#10-32 x 1.375) STATOR | 4 |
| 14 | 26996 | 锁紧垫圈(#10)不锈钢定子螺钉 | LOCKWASHER (#10) Stainless Steel STATOR SCREW | 4 |
| 15 | 96455A9 | 触发板总成 | PLATE ASSEMBLY Trigger | 1 |
| 16 | 93388A1 | 电缆总成(6.00英寸)黑色 | CABLE ASSEMBLY (6.00 Inches) Black | 1 |
| 17 | 79472 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 17 | 893893 | 启动马达 | STARTER MOTOR | 1 |
| 18 | 56703 | 启动电机轴环 | COLLAR STARTER MOTOR | 2 |
| 18 | 8M0034918 | 轴环 | COLLAR | 2 |
| 19 | 68042 | 启动电机橡胶止动块 | STOP Rubber RUBBER - STARTER MOTOR | 2 |
| 19 | 8M0043376 | 停机开关 | STOP | 2 |
| 20 | 26992 | 锁紧垫圈(.250) 不锈钢 起动机接线端 | LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL | 1 |
| 21 | 20890 | 螺母(.250-20) 起动机接线端 | NUT (.250-20) STARTER MOTOR TERMINAL | 1 |
| 22 | 93388A2 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 22 | 93388A14 | 线缆总成(黄/黑) | CABLE ASSEMBLY Yellow/Black | 1 |
| 23 | 69035 | 螺钉和锁紧垫圈 (.250-20 x .625) 不锈钢 电缆至启动马达 | SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel CABLE TO STARTER MOTOR | 1 |
| 24 | 817632A2 | 飞轮(新款) | FLYWHEEL (NEW DESIGN) | 1 |
| 24 | 859238T16 | 飞轮总成 | FLYWHEEL ASY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 14817A11 | 燃油管理系统总成 | MANAGEMENT ASSEMBLY Fuel | 1 |
| 2 | 67748 | 滚轮凸轮 | ROLLER CAM | 1 |
| 3 | 18715 | 燃油喷油器 | INJECTOR Fuel | 6 |
| 3 | 18715T | 喷油器总成 | INJECTOR ASSEMBLY | 6 |
| 4 | 17422 | 喷油器滤清器 | FILTER INJECTOR | 1 |
| 5 | 15443 | 线束套件 | HARNESS KIT | 1 |
| 6 | 15442 | 燃油滤清器套件 | FILTER KIT Fuel | 1 |
| 7 | 150282 | 燃油滤清器 | FILTER Fuel | 1 |
| 8 | 400034 | SCREW (M5 x 14) FILTER COVER | 1 | |
| 9 | 400255 | LOCKWASHER (M5) COVER SCREW | 1 | |
| 10 | 1350377 | 软管(1/2"外径) | HOSE (1/2" O.D.) | 1 |
| 10 | 1350385 | 管材(33英寸整卷) | TUBING (33.00 Inches Bulk) | 1 |
| 11 | 9912688 | 管材(36.00英寸散装)(1/8"内径) | TUBING (36.00 Inches Bulk) (1/8" I.D.) | 1 |
| 12 | 99130122 | 管材(20.00英尺散装)(3/32"内径) | TUBING (20.00 Feet Bulk) (3/32" I.D.) | 1 |
| 12 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 13 | 15027 | REGULATOR PRESSURE | 1 | |
| 14 | 814233 | 弯头套件 | ELBOW KIT | 1 |
| 15 | 18791 | GASKET PRESSURE REGULATOR | 1 | |
| 16 | 814012 | PLATE PRESSURE REGULATOR | 1 | |
| 17 | 814076 | 螺钉 | SCREW | AR |
| 18 | 814010 | 盖板套件 | COVER KIT | 1 |
| 19 | 4001987 | 分离器盖螺钉(M4 x 16) | SCREW (M4 x 16) COVER TO SEPARATOR | 6 |
| 20 | 26995 | LOCKWASHER (#8) Stainless Steel COVER SCREW | 6 | |
| 21 | 18790 | 蒸汽分离器密封件 | SEAL VAPOR SEPARATOR | 1 |
| 22 | 15029 | O型圈及密封套件 | O-RING AND SEAL KIT | 1 |
| 23 | 15446 | 浮子阀套件 | VALVE KIT Float | 1 |
| 24 | 15445 | 浮子套件 | FLOAT KIT | 1 |
| 25 | 814011 | 阀体套件 | BODY KIT | 1 |
| 26 | 42481 | 止回阀 | CHECK VALVE | 1 |
| 26 | 424811 | 阀门 | VALVE | 1 |
| 27 | 4000332 | SCREW (M6 x 35) SEPARATOR | 3 | |
| 28 | 15444 | 连接杆 | LINK | 1 |
| 29 | 18241 | 止回阀 | CHECK VALVE | 1 |
| 30 | 814077 | 切断阀 | VALVE Shut-Off | 1 |
| 31 | 18792 | SEAL INJECTOR MANIFOLD | 1 | |
| 32 | 19275 | 隔套 | SPACER | 3 |
| 34 | 814913 | 隔套 | SPACER | 3 |
| 35 | 35280 | 垫圈（0.255 x 0.620 x 0.030）不锈钢（大号） | WASHER (.255 x .620 x .030) Stainless Steel (LARGE) | 3 |
| 36 | 20346 | 垫圈(小) | WASHER (SMALL) | 3 |
| 36 | 69057 | 垫片(.281 x .734 x .063) | WASHER (.281 x .734 x .063) | 3 |
| 37 | 13791 | CLAMP (15.7) HOSE | 2 | |
| 37 | 8M0214911 | 卡箍@5 | CLAMP @5 | 2 |
| 38 | 1350377 | 软管(1-3/4") | HOSE (1-3/4") | 1 |
| 38 | 1350385 | 管材(33英寸整卷) | TUBING (33.00 Inches Bulk) | 1 |
| 39 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 39 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 40 | 14639 | BLANKET FUEL PUMP | 1 | |
| 41 | 14640T | 燃油泵盖 | COVER FUEL PUMP | 1 |
| 42 | 32228 | 螺钉（#10-32 X 0.625） | SCREW (#10-32 x .625) | 4 |
| 43 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 4 |
| 44 | 90088 | 螺钉(.250-20x4) | SCREW (.250-20 x 4) | 12 |
| 44 | 845674 | 螺钉(.250-20x4.00) | SCREW (.250-20 x 4.00) | 12 |
| 45 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 12 |
| 45 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 12 |
| 46 | 14307T | 燃油泵 | PUMP Fuel | 1 |
| 46 | 14307T01 | 燃油泵 | FUEL PUMP | 1 |
| 47 | 14633 | 软管 | HOSE | 1 |
| 47 | 146332 | 软管 | HOSE | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 15930A15 | 燃油泵套件 | PUMP KIT Fuel | 1 |
| 2 | 42990A6 | 膜片组件 | DIAPHRAGM KIT | 1 |
| 2 | 857005A1 | 膜片组件 | DIAPHRAGM KIT | 1 |
| 3 | NSS | 橡胶止回阀(不单独销售) | NOT SOLD SEPARATE Check Valve-Rubber | 2 |
| 4 | NSS | 增压垫片(不单独销售) | NOT SOLD SEPARATE Gasket-Boost | 1 |
| 5 | NSS | 膜片(不单独销售) | NOT SOLD SEPARATE Diaphragm | 2 |
| 6 | NSS | 脉冲垫片(不单独销售) | NOT SOLD SEPARATE Gasket-Pulse | 1 |
| 7 | NSS | 弹簧(不单独销售) | NOT SOLD SEPARATE Spring | 1 |
| 8 | NSS | 盖帽(不单独销售) | NOT SOLD SEPARATE Cap | 1 |
| 9 | NSS | 止回阀(不单独销售) | NOT SOLD SEPARATE Check Valve | 2 |
| 10 | NSS | 固定座(不单独销售) | NOT SOLD SEPARATE Retainer | 2 |
| 11 | NSS | 弹簧(不单独销售) | NOT SOLD SEPARATE Spring | 1 |
| 12 | NSS | 盖帽(不单独销售) | NOT SOLD SEPARATE Cap | 1 |
| 13 | 987691 | 底座衬垫 | GASKET BASE | 1 |
| 13 | 8M0204705 | 衬垫@2 | GASKET @2 | 1 |
| 14 | 14868 | 燃油泵弯头接头 | FITTING FUEL PUMP (ELBOW) | 1 |
| 15 | 16604 | 直通接头(0.125-27)燃油泵 | FITTING Straight (.125-27) FUEL PUMP | 1 |
| 16 | 9912976 | 油管 | TUBING | 1 |
| 16 | 8M0108349 | 软管 (70英寸散装) | HOSE (70 Inches Bulk) | 1 |
| 17 | 144303 | 燃油泵底座 | BASE FUEL PUMP | 1 |
| 18 | 98775A3 | 燃油泵板 | PLATE FUEL PUMP | 1 |
| 18 | 987752 | 安装板 | PLATE | 1 |
| 19 | 56800 | 管塞 (.0625-27) | PLUG Pipe (.0625-27) | 1 |
| 20 | 15979 | 接头 | FITTING | 1 |
| 21 | 16452 | 燃油泵螺钉(#12-24 x 2.00) | SCREW (#12-24 x 2.00) FUEL PUMP | 2 |
| 22 | 4000310 | 燃油泵至曲轴箱螺钉(M5 x 40) | SCREW (M5 x 40) FUEL PUMP TO CRANKCASE | 2 |
| 23 | 4002314 | 燃油泵螺钉垫圈 | WASHER FUEL PUMP SCREW | 2 |
| 24 | 9072925 | 脉冲软管 | HOSE PULSE | 1 |
| 25 | 99751 | 接头(0.0625-27)黄铜脉冲软管(90度) | FITTING (.0625-27) Brass PULSE HOSE (90 Degree) | 1 |
| 25 | 997511 | 弯头 | ELBOW | 1 |
| 26 | 1350382 | 管材(30英寸散装) | TUBING (30.00 Inches Bulk) | 2 |
| 26 | 1350385 | 管材(33英寸整卷) | TUBING (33.00 Inches Bulk) | 2 |
| 27 | 816311 | TIE STRAP (8.00 Inches) FUEL TUBING | AR | |
| 27 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 28 | 816856A3 | 燃油接头总成-塑料 | CONNECTOR ASSEMBLY Fuel - Plastic | 1 |
| 28 | 816856Q3 | 燃油接头总成 | CONNECTOR ASSEMBLY Fuel | 1 |
| 29 | 69067 | 螺钉(.250-20×1.375) | SCREW (.250-20 x 1.375) | 1 |
| 30 | 812782 | 密封件 | SEAL | 1 |
| 31 | 813657 | 支架 | BRACKET | 1 |
| 31 | 13170A3 | 底座 | BASE | 1 |
| 32 | 69067 | 螺钉(.250-20×1.375) | SCREW (.250-20 x 1.375) | 1 |
| 33 | 28668 | SCREW (.250-20 x .875) Stainless Steel FUEL FILTER BASE | 2 | |
| 34 | 13170A1 | 燃油滤清器底座 | BASE FUEL FILTER | 1 |
| 34 | 13170A3 | 底座 | BASE | 1 |
| 35 | 13607 | 底座接头 | FITTING BASE | 2 |
| 35 | 136071 | 弯头 | ELBOW | 2 |
| 36 | 18458A1 | 燃油滤清器总成 | FILTER ASSEMBLY Fuel | 1 |
| 36 | 18458Q3 | 燃油滤清器 | FILTER-FUEL | 1 |
| 37 | 14570 | PROBE WATER SENSING | 1 | |
| - | 815810A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 815809A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

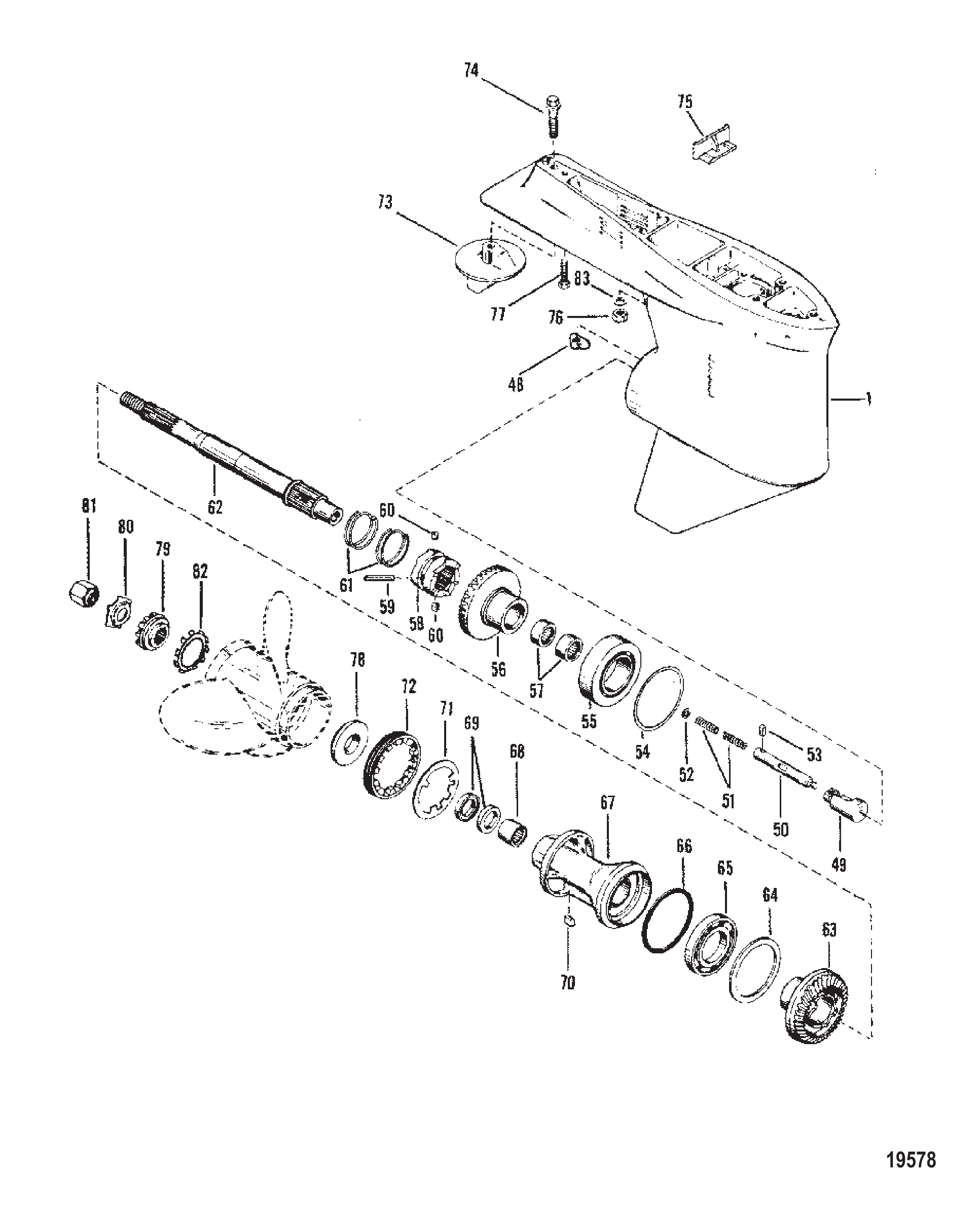

| - | 9148A8 | 齿轮箱总成(标准转向1.87:1速比)(黑色) | GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (BLACK) | 1 |
| - | 9148A10 | 齿轮箱总成(标准转向1.87:1速比)(灰色) | GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (GRAY) | 1 |
| - | 9148T84 | 齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米) | GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter) | 1 |
| 1 | 9148A11 | 齿轮箱总成(基础款-黑色) | GEAR HOUSING ASSEMBLY (BASIC - BLACK) | 1 |
| 1 | 9148T47 | 齿轮箱-基础型-黑 | GEAR HSG-BASIC-BL | 1 |
| 1 | 9148A12 | 齿轮箱总成(基础款-灰色) | GEAR HOUSING ASSEMBLY (BASIC - GRAY) | 1 |
| 1 | 9148T47 | 齿轮箱-基础型-黑 | GEAR HSG-BASIC-BL | 1 |
| 2 | 85822A1 | 连接器总成 | CONNECTOR ASSEMBLY | 1 |
| 2 | 85822A10 | 连接器总成 | CONNECTOR ASSEMBLY | 1 |
| 3 | 20033 | 定位销 | PIN Dowel | 2 |
| 3 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 2 |
| 4 | 78638 | 双头螺柱(.438 x 3.12) | STUD (.438 x 3.12) | 1 |
| 4 | 786382 | 螺柱(.437-14/.437-20 x 3.120) | STUD (.437-14/.437-20 x 3.120) | 1 |
| 5 | 57920 | 双头螺柱(.44 x 2.06) | STUD (.44 x 2.06) | 2 |
| 5 | 8M0133358 | 双头螺栓(.437-14/.437-20×2.060) | STUD (.437-14/.437-20 x 2.060) | 2 |
| 6 | 56297 | 双头螺栓(.312×3.38) | STUD (.312 x 3.38) | 1 |
| 6 | 8M0034463 | 螺柱(.312-24 x 3.38) | STUD (.312-24 x 3.38) | 1 |
| 7 | 30667 | 双头螺栓(.250-20/.250-28×3.125) | STUD (.250-20/.250-28 x 3.125) | 2 |
| 7 | 306671 | 螺柱 | STUD | 2 |
| 8 | 42647A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 9 | 43998 | 润滑套筒 | SLEEVE LUBRICATION | 1 |
| 11 | 440001 | 驱动轴 | DRIVESHAFT | 1 |
| 11 | 897624T | 长驱动轴 | DRIVESHAFT Long | 1 |
| 12 | N.S.S. | 小齿轮(不单独销售)(43-44104A2组件) | Not Sold Separate Pinion Gear (PART OF 43-44104A2) | 1 |
| 13 | 92721 | 垫圈(.965×0.630) | WASHER (.965 x .630) | 1 |
| 14 | 35921 | 螺母(0.625-18) | NUT (.625-18) | 1 |
| 15 | 42637A1 | 垫片组 | SHIM SET | AR |
| 15 | 8M0063267 | 垫片组 | SHIM SET | AR |
| 16 | 36387A1 | 轴承总成(滚子/外圈) | BEARING ASSEMBLY Roller/Cup | 1 |
| 16 | 8M0146566 | 杯/锥轴承总成 | BEARING ASSEMBLY Cup/Cone | 1 |
| 17 | 42633 | 螺母 | NUT | 1 |
| 17 | 8245191 | 固定座 | RETAINER | 1 |
| 18 | 42579A3 | 水泵底座总成 | BASE ASSEMBLY Water Pump | 1 |
| 18 | 8M0077147 | 带水泵底座总成 | BASE ASSY-W/P | 1 |
| 19 | 426311 | 衬垫 | GASKET | 1 |
| 19 | 8M0204678 | 衬垫 | GASKET | 1 |
| 20 | 90011 | O型圈(2.175 x 0.175) | O-RING (2.175 x .175) | 1 |
| 20 | 8M0142854 | O型圈(2.175 x 0.103) | O-RING (2.175 x .103) | 1 |
| 21 | 89238 | 油封 | SEAL Oil | 1 |
| 22 | 16977 | 油封 | SEAL Oil | 1 |
| 23 | 856081 | 衬垫(下部) | GASKET (LOWER) | 1 |
| 23 | 8M0090319 | 衬垫@5 | GASKET @5 | 1 |
| 24 | 856091 | 衬垫(上部) | GASKET (UPPER) | 1 |
| 24 | 858524 | 衬垫 | GASKET | 1 |
| 25 | 32435 | 面板 | FACE PLATE | 1 |
| 25 | 8M0204677 | 面板 | PLATE-FACE | 1 |
| 26 | 96148A1 | 水泵壳体总成 | BODY ASSEMBLY Water Pump | 1 |
| 26 | 96148T1 | 水泵壳体总成 | BODY ASSEMBLY Water Pump | 1 |
| 27 | 48752 | 嵌件 | INSERT | 1 |
| 27 | 48752T | 嵌件 | INSERT | 1 |
| 28 | 38970 | 密封件 | SEAL | 1 |
| 29 | 89984 | 叶轮 | IMPELLER | 1 |
| 29 | 89984T4 | 叶轮 | IMPELLER | 1 |
| 30 | 56654 | 键 | KEY | 1 |
| 30 | 8M0214992 | 键@5 | KEY @5 | 1 |
| 31 | 96411 | 螺钉(#14-8×2.25) | SCREW (#14-8 x 2.25) | 1 |
| 31 | 8M0215009 | 螺钉 | SCREW | 1 |
| 32 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 32 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 33 | 13438 | 螺母(.250-28) | NUT (.250-28) | 2 |
| 33 | 8267119 | 螺母(.250-28) | NUT (.250-28) | 2 |
| 34 | 36001 | 垫圈 | WASHER | 1 |
| 35 | 13436 | 螺母 | NUT | 1 |
| 36 | 30271 | 橡胶环(传动轴用)(旧款) | RING Rubber RUBBER (DRIVE SHAFT) (OLD DESIGN) | 1 |
| 36 | 8M0214918 | 环@5 | RING @5 | 1 |
| 37 | 29804 | 套筒 | SLEEVE | 1 |
| 37 | 29804T | 套筒 | SLEEVE | 1 |
| 38 | 78902 | 下换挡轴 | SHAFT SHIFT LOWER | 1 |
| 38 | 789022 | 换档轴 | SHIFT SHAFT | 1 |
| 39 | 29641 | E型卡环 | E RING | 1 |
| 40 | 78907 | 挡圈（旧设计） | RING Retaining (OLD DESIGN) | 1 |
| 41 | 25439 | O型圈(.862×0.103) | O-RING (.862 x .103) | 1 |
| 42 | 77631A2 | 衬套总成 | BUSHING ASSEMBLY | 1 |
| 43 | 816464 | 油封 | SEAL Oil | 1 |
| 43 | 8M0246145 | 油封 | OIL SEAL | 1 |
| 44 | 77674 | 橡胶垫圈(.35 x .75 x .12) | WASHER (.35 x .75 x .12) RUBBER | 1 |
| 45 | 79953 | SCREW (.375-16 x .250) GREASE FILLER | 1 | |
| 45 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 46 | 67892 | SCREW Magnetic DRAIN | 1 | |
| 46 | 8M0058389 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 47 | 19183 | 纤维垫圈 | WASHER Fiber | 2 |
| 47 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 2 |
| - | 42579A4 | 水泵修理包 | REBUILD KIT Water Pump | 1 |
| - | 96148A8 | 水泵维修套件 | WATER PUMP REPAIR KIT | 1 |
| - | 89238A2 | 密封套件 | SEAL KIT | 1 |
| - | 815810A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 815809A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 9148A20 | 齿轮箱总成-标准转向2:1速比 | GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio | 1 |
| 1 | 9148A12 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 9148T47 | 齿轮箱-基础型-黑 | GEAR HSG-BASIC-BL | 1 |
| 2 | 85822A1 | 连接器总成 | CONNECTOR ASSEMBLY | 1 |
| 2 | 85822A10 | 连接器总成 | CONNECTOR ASSEMBLY | 1 |
| 3 | 20033 | 定位销 | PIN Dowel | 2 |
| 3 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 2 |
| 4 | 78638 | 双头螺栓(.438×3.12)(长型) | STUD (.438 x 3.12) (LONG) | 1 |
| 4 | 786382 | 螺柱(.437-14/.437-20 x 3.120) | STUD (.437-14/.437-20 x 3.120) | 1 |
| 4 | 18978 | 双头螺栓(.438×3.69)(加长型) | STUD (.438 x 3.69) (X-LONG) | 1 |
| 4 | 8M0034464 | 螺柱 | STUD | 1 |
| 5 | 57920 | 双头螺柱(.44 x 2.06) | STUD (.44 x 2.06) | 2 |
| 5 | 8M0133358 | 双头螺栓(.437-14/.437-20×2.060) | STUD (.437-14/.437-20 x 2.060) | 2 |
| 6 | 56297 | 双头螺栓(.312×3.38) | STUD (.312 x 3.38) | 1 |
| 6 | 8M0034463 | 螺柱(.312-24 x 3.38) | STUD (.312-24 x 3.38) | 1 |
| 7 | 30667 | 双头螺栓(.250-20/.250-28×3.125) | STUD (.250-20/.250-28 x 3.125) | 2 |
| 7 | 306671 | 螺柱 | STUD | 2 |
| 8 | 42647A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 9 | 43998 | 套筒 | SLEEVE | 1 |
| 11 | 440001 | 驱动轴(长型) | DRIVESHAFT (LONG) | 1 |
| 11 | 897624T | 长驱动轴 | DRIVESHAFT Long | 1 |
| 11 | 442091 | 驱动轴(加长型) | DRIVESHAFT (X-LONG) | 1 |
| 11 | 897625T | 加长驱动轴 | DRIVESHAFT X-Long | 1 |
| 12 | N.S.S. | 不单独出售小齿轮(43-44102A2部件) | Not Sold Separate Pinion Gear (PART OF 43-44102A2) | 1 |
| 13 | 92721 | 垫圈(.965×0.630) | WASHER (.965 x .630) | 1 |
| 14 | 35921 | 螺母(0.625-18) | NUT (.625-18) | 1 |
| 15 | 42637A1 | 垫片组 | SHIM SET | AR |
| 15 | 8M0063267 | 垫片组 | SHIM SET | AR |
| 16 | 36387A1 | 轴承总成(滚子/外圈) | BEARING ASSEMBLY Roller/Cup | 1 |
| 16 | 8M0146566 | 杯/锥轴承总成 | BEARING ASSEMBLY Cup/Cone | 1 |
| 17 | 42633 | 螺母 | NUT | 1 |
| 17 | 8245191 | 固定座 | RETAINER | 1 |
| 18 | 42579A3 | 水泵底座总成 | BASE ASSEMBLY Water Pump | 1 |
| 18 | 8M0077147 | 带水泵底座总成 | BASE ASSY-W/P | 1 |
| 19 | 426311 | 衬垫 | GASKET | 1 |
| 19 | 8M0204678 | 衬垫 | GASKET | 1 |
| 20 | 90011 | O型圈(2.175 x 0.175) | O-RING (2.175 x .175) | 1 |
| 20 | 8M0142854 | O型圈(2.175 x 0.103) | O-RING (2.175 x .103) | 1 |
| 21 | 89238 | 油封 | SEAL Oil | 1 |
| 22 | 16977 | 油封 | SEAL Oil | 1 |
| 23 | 856081 | 下部衬垫 | GASKET LOWER | 1 |
| 23 | 8M0090319 | 衬垫@5 | GASKET @5 | 1 |
| 24 | 856091 | 上衬垫 | GASKET UPPER | 1 |
| 24 | 858524 | 衬垫 | GASKET | 1 |
| 25 | 32435 | 面板 | FACE PLATE | 1 |
| 25 | 8M0204677 | 面板 | PLATE-FACE | 1 |
| 26 | 96148A1 | 水泵壳体总成 | BODY ASSEMBLY Water Pump | 1 |
| 26 | 96148T1 | 水泵壳体总成 | BODY ASSEMBLY Water Pump | 1 |
| 27 | 48752 | 嵌件 | INSERT | 1 |
| 27 | 48752T | 嵌件 | INSERT | 1 |
| 28 | 38970 | 橡胶密封件 | SEAL RUBBER | 1 |
| 29 | 89984 | 叶轮 | IMPELLER | 1 |
| 29 | 89984T4 | 叶轮 | IMPELLER | 1 |
| 30 | 56654 | 键 | KEY | 1 |
| 30 | 8M0214992 | 键@5 | KEY @5 | 1 |
| 31 | 96411 | 螺钉(#14-8×2.25) | SCREW (#14-8 x 2.25) | 1 |
| 31 | 8M0215009 | 螺钉 | SCREW | 1 |
| 32 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 32 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 33 | 13438 | 螺母(.250-28) | NUT (.250-28) | 2 |
| 33 | 8267119 | 螺母(.250-28) | NUT (.250-28) | 2 |
| 34 | 36001 | 垫圈 | WASHER | 1 |
| 35 | 13436 | 螺母 | NUT | 1 |
| 36 | 30271 | 橡胶环(旧款) | RING Rubber (OLD DESIGN) | 1 |
| 36 | 8M0214918 | 环@5 | RING @5 | 1 |
| 37 | 29804 | 套筒 | SLEEVE | 1 |
| 37 | 29804T | 套筒 | SLEEVE | 1 |
| 38 | 78902 | 下轴 | SHAFT LOWER | 1 |
| 38 | 789022 | 换档轴 | SHIFT SHAFT | 1 |
| 39 | 29641 | E型卡环 | E RING | 1 |
| 40 | 78907 | 挡圈（旧设计） | RING Retaining (OLD DESIGN) | 1 |
| 41 | 25439 | O型圈(.862×0.103) | O-RING (.862 x .103) | 1 |
| 42 | 77631A2 | 衬套总成 | BUSHING ASSEMBLY | 1 |
| 43 | 816464 | 油封 | SEAL Oil | 1 |
| 43 | 8M0246145 | 油封 | OIL SEAL | 1 |
| 44 | 77674 | 橡胶垫圈(.35 x .75 x .12) | WASHER (.35 x .75 x .12) RUBBER | 1 |
| 45 | 79953 | SCREW (.375-16 x .250) GREASE FILLER | 1 | |
| 45 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 46 | 67892 | SCREW Magnetic DRAIN | 1 | |
| 46 | 8M0058389 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 47 | 19183 | 纤维垫圈 | WASHER Fiber | 2 |
| 47 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 2 |
| - | 42579A4 | 水泵修理包 | REBUILD KIT Water Pump | 1 |
| - | 96148A8 | 水泵维修套件 | WATER PUMP REPAIR KIT | 1 |
| - | 89238A2 | 密封套件 | SEAL KIT | 1 |
| - | 815810A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 815809A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 9148A8 | 齿轮箱总成(标准转向1.87:1速比)(黑色) | GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (BLACK) | 1 |
| - | 9148A10 | 齿轮箱总成(标准转向1.87:1速比)(灰色) | GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (GRAY) | 1 |
| - | 9148T84 | 齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米) | GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter) | 1 |
| 1 | 9148A11 | 齿轮箱总成(基础款-黑色) | GEAR HOUSING ASSEMBLY (BASIC - BLACK) | 1 |
| 1 | 9148T47 | 齿轮箱-基础型-黑 | GEAR HSG-BASIC-BL | 1 |
| 1 | 9148A12 | 齿轮箱总成(基础款-灰色) | GEAR HOUSING ASSEMBLY (BASIC - GRAY) | 1 |
| 1 | 9148T47 | 齿轮箱-基础型-黑 | GEAR HSG-BASIC-BL | 1 |
| 48 | 78956 | 换挡凸轮 | SHIFT CAM | 1 |
| 48 | 789562 | 换挡凸轮 | SHIFT CAM | 1 |
| 49 | 89594A1 | 从动件总成 | FOLLOWER ASSEMBLY | 1 |
| 50 | 816520 | 杆 | ROD | 1 |
| 50 | 79911A1 | 杆 | ROD | 1 |
| 51 | 79910 | 弹簧 | SPRING | 2 |
| 52 | 78910 | 垫圈 | WASHER | AR |
| 53 | 78906 | 销 | PIN | 1 |
| 53 | 8M0084245 | 弹簧定位销 | PIN Spring Locator | 1 |
| 54 | 47397A1 | 垫片组(.002-3-5-10) | SHIM SET (.002-3-5-10) | AR |
| 55 | 78172A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 56 | 44104A2 | 前进齿轮总成 | GEAR ASSEMBLY Forward | 1 |
| 56 | 44104T2 | 齿轮组 | GEAR SET | 1 |
| 57 | 73363 | 滚柱轴承(5/8") | BEARING Roller (5/8") | 2 |
| 57 | 73363T | 轴承 | BEARING | 2 |
| 57 | 549281 | 滚柱轴承(1") | BEARING Roller (1") | 1 |
| 58 | 78959 | 棘轮 | RATCHET | 1 |
| 58 | 823174T | ORD 8M0100493 | ORD 8M0100493 | 1 |
| 59 | 78905 | 十字销 | PIN Cross | 1 |
| 59 | 8M0084243 | 十字销 | PIN Cross | 1 |
| 60 | 78909 | 定位销 | PIN Detent | 2 |
| 61 | 78962 | 弹簧 | SPRING | 2 |
| 62 | 94148 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 63 | N.S.S. | Not Sold Separate Reverse Gear (PART OF 43-44104A2) | 1 | |
| 64 | 681001 | 止推环 | RING Thrust | 1 |
| 65 | 88957A1 | 滚珠轴承 | BEARING Ball | 1 |
| 65 | 88957T | 滚珠轴承 | BEARING Ball | 1 |
| 66 | 31534 | O型圈 | O-RING | 1 |
| 66 | 8M0214920 | O型圈 | O RING | 1 |
| 67 | 43567A1 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 67 | 43567T1 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 68 | 30956 | 滚针轴承 | BEARING Needle | 1 |
| 68 | 30956T | 滚针轴承 | BEARING Needle | 1 |
| 69 | 76868 | 密封件 | SEAL | 2 |
| 69 | 8M0248882 | 油封@5 | SEAL-OIL @5 | 2 |
| 70 | 30281 | 键 | KEY | 1 |
| 71 | 79447 | 锁紧垫圈 | TAB WASHER | 1 |
| 72 | 79448 | 固定座 | RETAINER | 1 |
| 72 | 8M2011027 | 固定座 | RETAINER | 1 |
| 73 | 31640A1 | 平衡板总成 | TRIM TAB ASSEMBLY | 1 |
| 73 | 31640Q4 | 平衡鳍板 | TRIM TAB | 1 |
| 74 | 66024 | 螺钉(.437-14 x 1.75) | SCREW (.437-14 x 1.75) | 1 |
| 75 | 67891 | 填充块 | FILLER BLOCK | 1 |
| 75 | 8M0039169 | 填充块 | FILLER BLOCK | 1 |
| 76 | 34933 | 螺母(.437-20)不锈钢 | NUT (.437-20) Stainless Steel | 2 |
| 76 | 8M0204653 | 螺母 | NUT | 2 |
| 77 | 65210 | 螺钉(.375-16 x 1.00) | SCREW (.375-16 x 1.00) | 1 |
| 78 | 13171 | 推力毂 | THRUST HUB | 1 |
| 78 | 835467Q01 | 止推垫片套件 | THRUST WASHER KIT | 1 |
| 79 | 31211A2 | 花键垫圈 | WASHER Splined | 1 |
| 79 | 31211Q03 | 垫圈总成 | WASHER ASSEMBLY | 1 |
| 80 | 816629 | 锁紧垫圈 | TAB WASHER | 1 |
| 80 | 816629Q | 锁紧垫圈 | TAB WASHER | 1 |
| 81 | 52707A1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| 81 | 52707Q1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| 82 | 423511 | 齿形锁紧垫圈 | LOCKWASHER Toothed | 1 |
| 83 | 45176 | 垫圈(.453 x .812 x .105)不锈钢 | WASHER (.453 x .812 x .105) Stainless Steel | 2 |
| - | 89238A2 | 密封套件 | SEAL KIT | 1 |
| - | 815810A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 815809A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 9148A20 | 齿轮箱总成(标准转向2:1速比)(完整) | GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (Complete) | 1 |
| 1 | 9148A12 | 齿轮箱总成(基础型) | GEAR HOUSING ASSEMBLY (Basic) | 1 |
| 1 | 9148T47 | 齿轮箱-基础型-黑 | GEAR HSG-BASIC-BL | 1 |
| 48 | 78956 | 换挡凸轮 | SHIFT CAM | 1 |
| 48 | 789562 | 换挡凸轮 | SHIFT CAM | 1 |
| 49 | 89594A1 | 凸轮从动件总成 | FOLLOWER ASSEMBLY CAM | 1 |
| 50 | 816520 | 离合器作动杆 | ROD CLUTCH ACTUATOR | 1 |
| 50 | 79911A1 | 杆 | ROD | 1 |
| 51 | 79910 | 压缩弹簧 | SPRING COMPRESSION | 2 |
| 52 | 78910 | 压缩弹簧垫圈 | WASHER COMPRESSION SPRING | AR |
| 53 | 78906 | PIN SPRING LOCATOR | 1 | |
| 53 | 8M0084245 | 弹簧定位销 | PIN Spring Locator | 1 |
| 54 | 47397A1 | 轴承外圈垫片组(.002-3-5-10) | SHIM SET BEARING OUTER RACE (.002-3-5-10) | AR |
| 55 | 78172A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 56 | 44102A2 | 前进齿轮总成 | GEAR ASSEMBLY Forward | 1 |
| 57 | 73363 | 滚柱轴承(5/8") | BEARING Roller (5/8") | 2 |
| 57 | 73363T | 轴承 | BEARING | 2 |
| 57 | 549281 | 滚柱轴承(1") | BEARING Roller (1") | 1 |
| 58 | 78959 | 棘轮滑动离合器 | RATCHET SLIDING CLUTCH | 1 |
| 58 | 823174T | ORD 8M0100493 | ORD 8M0100493 | 1 |
| 59 | 78905 | 棘轮到螺旋桨轴十字销 | PIN Cross RATCHET TO PROPELLER SHAFT | 1 |
| 59 | 8M0084243 | 十字销 | PIN Cross | 1 |
| 60 | 78909 | 棘轮定位销 | PIN Detent RATCHET | 2 |
| 61 | 78962 | 十字销固定弹簧 | SPRING RETAINING-CROSS PIN | 2 |
| 62 | 94148 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 63 | N.S.S. | 倒车齿轮不单独销售(43-44102A2部件) | Not Sold Separate Reverse Gear (PART OF 43-44102A2) | 1 |
| 64 | 681001 | 推力环-轴承座 | RING Thrust THRUST - BEARING CARRIER | 1 |
| 65 | 88957A1 | 倒车档滚珠轴承 | BEARING Ball BALL - REVERSE GEAR | 1 |
| 65 | 88957T | 滚珠轴承 | BEARING Ball | 1 |
| 66 | 31534 | 轴承座O型圈 | O-RING BEARING CARRIER | 1 |
| 66 | 8M0214920 | O型圈 | O RING | 1 |
| 67 | 43567A1 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 67 | 43567T1 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 68 | 30956 | 滚针轴承-轴承座 | BEARING Needle BEARING CARRIER | 1 |
| 68 | 30956T | 滚针轴承 | BEARING Needle | 1 |
| 69 | 76868 | 轴承座密封 | SEAL BEARING CARRIER | 2 |
| 69 | 8M0248882 | 油封@5 | SEAL-OIL @5 | 2 |
| 70 | 30281 | KEY LOCATING - BEARING CARRIER | 1 | |
| 71 | 79447 | 齿轮箱盖锁紧垫圈 | TAB WASHER GEAR HOUSING COVER | 1 |
| 72 | 79448 | 齿轮箱固定座 | RETAINER GEAR HOUSING | 1 |
| 72 | 8M2011027 | 固定座 | RETAINER | 1 |
| 73 | 31640Q4 | 调整片齿轮箱 | TRIM TAB GEAR HOUSING | 1 |
| 74 | 66024 | SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING | 1 | |
| 75 | 67891 | 填充块 | FILLER BLOCK | 1 |
| 75 | 8M0039169 | 填充块 | FILLER BLOCK | 1 |
| 76 | 34933 | 螺母(.437-20)不锈钢 | NUT (.437-20) Stainless Steel | 2 |
| 76 | 8M0204653 | 螺母 | NUT | 2 |
| 77 | 65210 | 螺钉(.375-16 x 1.00) | SCREW (.375-16 x 1.00) | 1 |
| 77 | 74727 | 螺钉(.375-16 x 6.00) | SCREW (.375-16 x 6.00) | 1 |
| 78 | 13171 | 推力毂 | THRUST HUB | 1 |
| 78 | 835467Q01 | 止推垫片套件 | THRUST WASHER KIT | 1 |
| 79 | 31211A2 | 花键垫圈 | WASHER Splined | 1 |
| 79 | 31211Q03 | 垫圈总成 | WASHER ASSEMBLY | 1 |
| 80 | 816629 | 锁紧垫圈 | TAB WASHER | 1 |
| 80 | 816629Q | 锁紧垫圈 | TAB WASHER | 1 |
| 81 | 52707A1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| 81 | 52707Q1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| 82 | 423511 | 齿形锁紧垫圈 | LOCKWASHER Toothed | 1 |
| 83 | 45176 | 垫圈(.453 x .812 x .105)不锈钢 | WASHER (.453 x .812 x .105) Stainless Steel | 2 |
| - | 89238A2 | 密封套件 | SEAL KIT | 1 |
| - | 815810A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 815809A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |

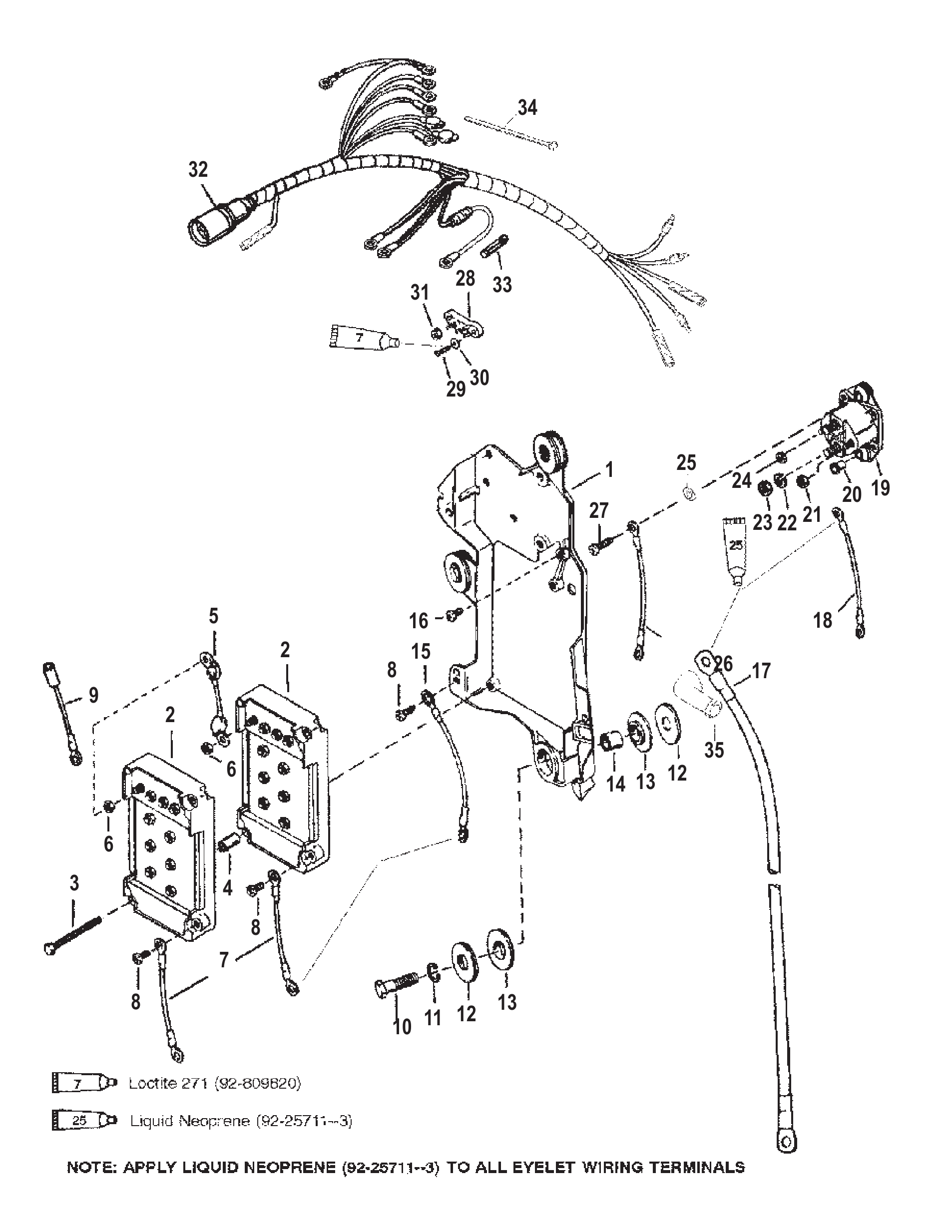

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 195871 | 安装板 | PLATE MOUNTING | 1 |
| 2 | 99263 | 电压调节器螺钉 | SCREW VOLTAGE REGULATOR | 4 |
| 3 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 4 |
| 4 | 19661A1 | 隔套 | SPACER | 4 |
| 5 | 18736A15 | 电压调节器总成 | REGULATOR ASSEMBLY Voltage | 1 |
| 5 | 18736A21 | 调节器总成 | REGULATOR ASSY | 1 |
| 6 | 18717 | 密封件 | SEAL | 1 |
| 7 | 96158 | 启动电磁阀 | SOLENOID Starter | 2 |
| 7 | 8M0185622 | 电磁阀 | SOLENOID | 2 |
| 7 | 818864 | 电磁阀(灰白色) | SOLENOID (OFF WHITE) | 2 |
| 7 | 8M0185144 | 启动电磁阀 | SOLENOID START | 2 |
| 8 | 31716 | 螺丝(0.250-20 x 0.620) 启动电磁阀 | SCREW (.250-20 x .620) STARTER SOLENOID | 3 |
| 9 | 88807A6 | 黑色电缆总成 (3.50 英寸) | CABLE ASSEMBLY (3.50 Inches) Black | 1 |
| 10 | 56374 | 电磁阀螺钉螺母(.250-20) | NUT (.250-20) SOLENOID SCREW | 3 |
| 10 | 8267098 | 螺母 (.250-20) 不锈钢 | NUT (.250-20) Stainless Steel | 3 |
| 11 | 26419 | 螺母(#8-32)-黄铜电磁阀端子 | NUT (#8-32) Brass SOLENOID TERMINAL | 4 |
| 12 | 94330 | 螺母 (.250-20) 黄铜电磁阀端子 | NUT (.250-20) Brass SOLENOID TERMINAL | 4 |
| 13 | 69739A7 | 线束总成(#2,4和6) | HARNESS ASSEMBLY (#2, 4 AND 6) | 1 |
| 14 | 87379A14 | 线束总成(2.750英寸)(红色) | WIRE ASSEMBLY (2.750 Inches) (RED) | 1 |
| 14 | 88807A8 | 黑色电缆总成 (3.50 英寸) | CABLE ASSEMBLY (3.50 Inches) Black | 2 |
| 15 | 88807A29 | 电缆总成(9英寸-黑色) | CABLE ASSEMBLY (9" - BLACK) | 1 |
| 16 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 16 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 17 | 43542 | 点火线圈盖 | COVER IGNITION COIL | 2 |
| 18 | 7370A13 | 点火线圈总成 | COIL ASSEMBLY Ignition | 6 |
| 18 | 8M0230859 | 点火线圈总成 | COIL IGNITION ASY | 6 |
| 19 | 90048 | 点火线圈盖螺钉(#10-32 x 2.125) | SCREW (#10-32 x 2.125) IGNITION COIL COVER | 12 |
| 20 | 90078 | 盖板螺钉/接地线螺母(#10-32) | NUT (#10-32) COVER SCREW/GROUND WIRE | 14 |
| 21 | 813715A9 | 高压点火线束套件 | CABLE KIT Ignition HIGH TENSION | 1 |
| 22 | 63709A1 | 高压电缆护套/端子套件 | BOOT/TERMINAL KIT HIGH TENSION CABLE | 6 |
| 23 | 136862 | 火花塞（NGK #BU8H） | SPARK PLUG (NGK #BU8H) | 6 |
| 23 | 13686Q | NGK BU8H @10 | NGK BU8H @10 | 6 |
| 24 | 45076 | 螺母(#10-32)黄铜点火线圈端子 | NUT (#10-32) Brass IGNITION COIL TERMINAL | 12 |
| 25 | 88807A13 | 线束总成 (5-1/2" - BLACK) | CABLE ASSEMBLY (5-1/2" - BLACK) | 6 |
| 26 | 69022 | SCREW (#10-32 x .500) Stainless Steel GROUNDING WIRE | 2 | |
| 27 | 814423T | 线圈板盖 | COVER COIL PLATE | 1 |
| 28 | 814343 | 盖板螺钉(#10-32×2.380) | SCREW (#10-32 x 2.380) COVER | 4 |
| 29 | 97861 | 绝缘体 | INSULATOR | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 12430A4 | 传感器总成 | SENSOR ASSEMBLY | 1 |
| 2 | 48409 | 螺钉(#10-16 x .625)不锈钢传感器固定 | SCREW (#10-16 x .625) Stainless Steel SENSOR ATTACHING | 1 |
| 3 | 815698 | 机油泵(175) | PUMP Oil (175) | 1 |
| 3 | 815698T | 油泵 | PUMP Oil | 1 |
| 3 | 815699 | 油泵总成(200) | PUMP ASSEMBLY Oil (200) | 1 |
| 3 | 815699T | 油泵总成 | PUMP ASSEMBLY Oil | 1 |
| 4 | 11379 | 油泵O型圈 | O-RING OIL PUMP | 1 |
| 5 | 41429A2 | 驱动齿轮轴承总成 | BEARING ASSEMBLY DRIVE GEAR | 1 |
| 6 | 14563 | 从动齿轮 | GEAR Driven | 1 |
| 7 | 32228 | 油泵至曲轴箱螺钉 (#10-32 x .625) | SCREW (#10-32 x .625) OIL PUMP TO CRANKCASE | 1 |
| 7 | 41507 | 油泵至曲轴箱螺钉 (#10-32 x 1.120) | SCREW (#10-32 x 1.120) OIL PUMP TO CRANKCASE | 1 |
| 8 | 1938512 | 油门连杆至油泵总成 | LINK ASSEMBLY THROTTLE LEVER TO OIL PUMP | 1 |
| 9 | 4301625 | 机油泵用管材(8英寸) | TUBING (8.00 Inches) OIL PUMP | 1 |
| 9 | 82381335 | 油管(15.00英寸 散装) | TUBING (15.00 Inches Bulk) | 1 |
| 10 | 99443T | 油箱 | RESERVOIR Oil | 1 |
| 10 | 994436 | 储液罐 | RESERVOIR | 1 |
| 11 | 415823 | CLAMP OIL HOSE | 2 | |
| 12 | 4301736 | 油箱至油泵油管 | TUBING OIL RESERVOIR TO OIL PUMP | 1 |
| 12 | 82381455 | 油管（25.00英寸散装） | TUBING (25.00 Inches Bulk) | 1 |
| 13 | 69020 | 油箱固定螺钉 (#10-32 x .875) | SCREW (#10-32 x .875) OIL RESERVOIR ATTACHING | 3 |
| 13 | 690201 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 3 |
| 14 | 42118 | 油箱螺钉垫圈 | WASHER OIL RESERVOIR SCREW | 6 |
| 15 | 42117 | 油箱螺钉衬套 | GROMMET OIL RESERVOIR SCREW | 3 |
| 16 | 42116 | 油箱螺钉轴套 | BUSHING OIL RESERVOIR SCREW | 3 |
| 17 | 99127109 | 管路(57.00英寸 散装) | LINE (57.00 Inches Bulk) | 1 |
| 17 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 18 | 42425 | 油管三通 | TEE OIL TUBING | 1 |
| 19 | 9072925 | 油管(6-3/4") | HOSE OIL (6-3/4") | 1 |
| 20 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 20 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 21 | 99439 | 油管(114.00英寸) | HOSE (114.00 Inches) OIL | 1 |
| 22 | 415824 | 卡箍 | CLAMP | 2 |
| 24 | 43278 | 止回阀接头（曲轴箱） | FITTING CHECK VALVE (CRANKCASE) | 1 |
| 24 | 8781051 | 止回阀 | CHECK VALVE | 1 |
| 25 | 87421 | 油箱 | TANK | 1 |
| 26 | 43298A2 | 油箱盖总成 | CAP ASSEMBLY OIL TANK | 1 |
| 27 | 11332 | O型圈(2.225 x .210)盖 | O-RING (2.225 x .210) CAP | 1 |
| 28 | 816190A3 | 外壳总成适配器 | HOUSING ASSEMBLY Adapter | 1 |
| 28 | 816190A4 | 机油收集器总成(无传感器) | OIL PICK UP ASSEMBLY Without Sender | 1 |
| 29 | 11332 | O型圈(2.225 x .210)适配器壳体 | O-RING (2.225 x .210) ADAPTOR HOUSING | 1 |
| 30 | 99802 | 吸油管 | TUBE OIL PICK-UP | 1 |
| 31 | 43300A9 | 油箱盖总成 | CAP ASSEMBLY OIL RESERVOIR | 1 |
| 32 | 43307 | 油箱盖衬垫 | GASKET RESERVOIR CAP | 1 |
| 32 | 43307T | 衬垫 | GASKET | 1 |
| 33 | 99022A1 | 浮子总成 | FLOAT ASSEMBLY | 1 |
| 33 | 8M0187298 | 浮子总成 | FLOAT ASSY | 1 |
| 34 | 99265 | 压入式螺母 | PUSH NUT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 99659A21 | 歧管总成 (黑色) | MANIFOLD ASSEMBLY (BLACK) | 1 |
| 1 | 99659A22 | 歧管总成 (灰色) | MANIFOLD ASSEMBLY (GRAY) | 1 |
| 2 | 99616 | 管塞歧管 | PIPE PLUG MANIFOLD | 11 |
| 2 | 56800 | 管塞 (.0625-27) | PLUG Pipe (.0625-27) | 11 |
| 3 | 41493A7 | 配平油缸总成 (黑色) | TRIM CYLINDER ASSEMBLY (BLACK) | 1 |
| 3 | 41493A4 | 配平油缸总成 (灰色) | TRIM CYLINDER ASSEMBLY (GRAY) | 1 |
| 3 | 41493A7 | 升降油缸总成 | TRIM CYLINDER ASSEMBLY | 1 |
| 3A | 811600 | 导向套件 | GUIDE KIT | 1 |
| 4 | 41492A1 | 导向器总成 | GUIDE ASSEMBLY | 1 |
| 5 | 41478A1 | 维修套件 | REPAIR KIT | 1 |
| 6 | 41482A2 | 止回阀套件 | CHECK VALVE KIT | 1 |
| 7 | 99638A1 | 导向总成装饰杆 | GUIDE ASSEMBLY TRIM ROD | 2 |
| 7 | 8M0021648 | 端盖总成 | END CAP ASSEMBLY | 2 |
| 8 | 43397A6 | 动力升降活塞/杆总成 (左舷) | PISTON/ROD ASSEMBLY Power Trim (PORT) | 1 |
| 8 | 878413A1 | 活塞总成 | PISTON ASSEMBLY | 1 |
| 9 | 12184A1 | 升降过滤器总成 | TRIM FILTER ASSEMBLY | 1 |
| 10 | 43398A3 | 动力升降活塞/杆总成 (右舷) | PISTON/ROD ASSEMBLY Power Trim (STARBOARD) | 1 |
| 10 | 878414T01 | 活塞总成 | PISTON ASSEMBLY | 1 |
| 11 | 13794 | 沟槽销-升降油缸(上) | PIN Groove TRIM CYLINDER (UPPER) | 1 |
| 11 | 821539 | 三叶销 | PIN Trilobe | 1 |
| 12 | 812843A1 | 阀门总成 | VALVE ASSEMBLY | 1 |
| 12 | 893929A01 | 安全阀套件 | VALVE KIT Relief | 1 |
| 12A | 812844 | E型卡环 | E RING | 1 |
| 12A | 815949001 | E形环 | E-RING | 1 |
| 13 | 4000327 | 螺钉(M6x14)-盖板 | SCREW (M6 x 14) COVER | 4 |
| 14 | 43450 | 盖板螺丝垫圈 | WASHER COVER SCREW | 4 |
| 14 | 4002315 | 垫圈(6.60x12.5x1.5mm-不锈钢) | WASHER (6.60 X 12.5 X 1.5 mm -SS) | 4 |
| 15 | 99642 | 歧管盖 | COVER MANIFOLD | 1 |
| 16 | 48462A2 | O型圈套件 | O-RING KIT | 1 |
| 16 | 48462A4 | O型圈套件 | O RING KIT | 1 |
| 17 | 99609A1 | 塞子总成 | PLUG ASSEMBLY | 1 |
| 18 | 99641A1 | 轴总成 | SHAFT ASSEMBLY | 1 |
| 18 | 99641A02 | 轴总成 | SHAFT ASSY | 1 |
| 19 | 99616 | 轴管塞 | PIPE PLUG SHAFT | 2 |
| 19 | 56800 | 管塞 (.0625-27) | PLUG Pipe (.0625-27) | 2 |
| 20 | 4008820 | 螺钉(M6x20)-泵与马达 | SCREW (M6 x 20) PUMP AND MOTOR | 2 |
| 21 | 400256 | 锁紧垫圈 (M6) | LOCKWASHER (M6) | 2 |
| 22 | 99186T | 泵与电机总成 | PUMP AND MOTOR | 1 |
| 22 | 826729A10 | ORD 8M0143217 | ORD 8M0143217 | 1 |
| 23 | 99625 | SHAFT UPPER | 1 | |
| 23 | 99625002 | 轴 | SHAFT | 1 |
| 24 | 43396A2 | 阳极总成 | ANODE ASSEMBLY | 1 |
| 24 | 818298Q1 | 阳极套件 | ANODE KIT | 1 |
| 25 | 4000330 | 螺钉(M6 x 25)阳极 | SCREW (M6 x 25) ANODE | 2 |
| 25 | 8M0204707 | 不锈钢六角大帽螺钉(M6x25) | SCREW M6 x 25 HX HD CAP SS | 2 |
| 26 | 29245 | 垫圈(0.281x0.500x0.060)-不锈钢阳极螺钉 | WASHER (.281 x .500 x .060) Stainless Steel ANODE SCREW | 2 |
| 26 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 27 | 996301 | 撞板-升降轴 | STRIKER PLATE TRIM SHAFT | 2 |
| 27 | 8M0045383 | 冲击板 | STRIKER PLATE | 2 |
| 28 | 58643 | 锁紧垫圈 (.375) | LOCKWASHER (.375) | 2 |
| 29 | 46335 | 螺母 (.375-24) | NUT (.375-24) | 2 |
| 30 | 814609A1 | 线束总成-动力升降控制 | HARNESS ASSEMBLY Control POWER TRIM | 1 |
| 31 | 88808A22 | 线缆总成(6-7/8英寸-红色) | CABLE ASSEMBLY (6-7/8" - RED) | 1 |
| 32 | 22875 | CLIP PUMP WIRE | 2 | |
| 33 | 69205 | C形垫圈线夹螺钉 | C WASHER CLIP SCREW | 2 |
| 33 | 8M0084613 | C形垫圈 | C-WASHER | 2 |
| 34 | 69079 | 螺钉(#10-16x0.440)-夹子到艉板支架 | SCREW (#10-16 x .440) CLIP TO TRANSOM BRACKET | 2 |
| 35 | 44431 | 沟槽销-升降油缸(下) | PIN Groove TRIM CYLINDER (LOWER) | 1 |
| 35 | 878267 | 销 | PIN | 1 |
| 36 | 4000377 | SCREW (M10 x 30) MANIFOLD | 6 | |
| 37 | 400258 | 锁紧垫圈(M10)-不锈钢歧管螺钉 | LOCKWASHER (M10) Stainless Steel MANIFOLD SCREW | 6 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 99186T | 泵与电机总成 | PUMP AND MOTOR | 1 |
| 1 | 12659 | 机架与磁场套件 | FRAME AND FIELD KIT | 1 |
| 1 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 2 | 12665 | 电刷弹簧套件 | SPRING KIT Brush | 1 |
| 3 | 13506 | 电刷卡套件 | BRUSH CARD KIT | 1 |
| 3 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 4 | 12662 | 泵与端架套件 | PUMP AND END FRAME KIT | 1 |
| 4 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 5 | 126631 | 泵密封套件 | SEAL KIT Pump | 1 |
| 6 | 12660 | 端架套件 | END FRAME KIT | 1 |
| 6 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 7 | 12661 | 电枢套件 | ARMATURE KIT | 1 |
| 7 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 8 | 12664 | 贯穿螺栓套件 | THRU BOLT KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 187893 | 气缸盖(175) | CYLINDER HEAD (175) | 2 |
| 1 | 184883 | 气缸盖(200) | CYLINDER HEAD (200) | 2 |
| 1 | 18488F2 | 气缸盖总成 | CYLINDER HEAD ASSEMBLY | 2 |
| 2 | 187861 | 衬垫(175) | GASKET (175) | 2 |
| 2 | 18786T | 衬垫 | GASKET | 2 |
| 2 | 184721 | 衬垫(200) | GASKET (200) | 2 |
| 2 | 822844T05 | 衬垫 | GASKET | 2 |
| 3 | 98534 | 气缸盖螺钉 (.375-16 x 2.30) | SCREW (.375-16 x 2.30) CYLINDER HEAD | 23 |
| 3 | 13450 | 螺钉(.375-16 x 2.30)(专用-200) | SCREW (.375-16 x 2.30) (SPECIAL - 200) | 1 |
| 4 | 25909 | 气缸盖螺钉垫圈 (.406 x .812 x .065) | WASHER (.406 x .812 x .065) CYLINDER HEAD SCREW | 24 |
| 5 | 75692 | 节温器 | THERMOSTAT | 2 |
| 6 | 62386 | 节温器衬垫 | GASKET THERMOSTAT | 2 |
| 6 | 8M0204714 | 衬垫@4 | GASKET @4 | 2 |
| 7 | 90390A1 | 节温器盖套件 | COVER KIT THERMOSTAT | 2 |
| 8 | 35386 | 节温器盖螺钉 (.312-18 x 1.00) | SCREW (.312-18 x 1.00) THERMOSTAT COVER | 4 |
| 9 | 68727 | 90度黄铜弯头接头 (.250-18)（水管用） | FITTING (.250-18) 90 Degree - Brass ELBOW - WATER HOSES | 1 |
| 9 | 687271 | 90度弯头 (.250-18) - 黄铜 | FITTING (.250-18) 90 Degree - Brass | 1 |
| 10 | 7765377 | 配水软管（散装24.500英寸） | HOSE (24.500 Inches Bulk) WATER DISTRIBUTION | 2 |
| 10 | 77653101 | 软管（散装48.00英寸） | HOSE (48.00 Inches Bulk) | 2 |
| 11 | 68728 | 节温器盖接头 | FITTING THERMOSTAT COVER | 1 |
| 12 | 816311 | 水管束带(8.00英寸) | TIE STRAP (8.00 Inches) WATER HOSES | 4 |
| 12 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 4 |
| 13 | 63779 | 定位销 (.250 x .625) | PIN Dowel (.250 x .625) | 4 |
| 14 | 13715 | 传感器固定座 | RETAINER SENSOR AND SENDER | 2 |
| 14 | 137151 | 固定座 | RETAINER | 2 |
| 15 | 98257 | 螺钉 (0.312-18 x 0.500) 固定座 | SCREW (.312-18 x .500) RETAINER | 2 |
| 16 | 92160 | 不锈钢螺钉(.250-20 x .750)(175) | SCREW (.250-20 x .750) Stainless Steel (175) | 6 |
| 16 | 90197 | 螺钉(.250-20 x 1.125)(175) | SCREW (.250-20 x 1.125) (175) | 6 |
| 16 | 28668 | 不锈钢簧片块固定螺钉(.250-20 x .875)(200) | SCREW (.250-20 x .875) Stainless Steel REED BLOCK ATTACHING (200) | 12 |
| 17 | 167371 | 适配板垫片 | GASKET ADAPTOR PLATE | 1 |
| 18 | 17735A2 | 适配板总成(175) | ADAPTER PLATE ASSEMBLY (175) | 1 |
| 18 | 12124A3 | 板总成(200) | PLATE ASSEMBLY (200) | 1 |
| 19 | 961832 | 簧片夹(175) | CLAMP Reed (175) | 12 |
| 19 | 903911 | 簧片夹(200) | CLAMP Reed (200) | 12 |
| 20 | 146972 | 衬垫(175) | GASKET (175) | 1 |
| 20 | 813859 | 衬垫(200) | GASKET (200) | 1 |
| 20 | 883775 | 衬垫 | GASKET | 1 |
| 21 | 75953 | 簧片块(175) | REED BLOCK (175) | 6 |
| 21 | 87692 | 簧片块(200) | REED BLOCK (200) | 6 |
| 22 | 75362A1 | 簧片总成(175) | REED ASSEMBLY (175) | 6 |
| 22 | 19719A1 | 簧片总成(200) | REED ASSEMBLY (200) | 6 |
| 23 | 28668 | 螺钉 (0.250-20 x 0.875) 不锈钢适配板 | SCREW (.250-20 x .875) Stainless Steel ADAPTOR PLATE | 8 |
| 24 | 14783 | 螺钉 (#8-32 x 0.187) 簧片至簧片座 | SCREW (#8-32 x .187) REEDS TO REED BLOCK | 84 |
| 24 | 823588 | 螺钉 (#8-32 x .250) | SCREW (#8-32 x .250) | 84 |
| 25 | 13192 | 爆震传感器(200) | SENSOR Detonation (200) | 1 |
| 25 | 825164A1 | 爆震传感器总成 | SENSOR ASSEMBLY Detonation | 1 |
| 26 | 97465 | 温度传感器（右舷） | SENDER Temperature (STARBOARD) | 1 |
| 27 | 13536A6 | 温度传感器总成（左舷） | SENSOR ASSEMBLY Temperature (PORT) | 1 |
| 28 | 45076 | 黄铜螺母(#10-32)(200) | NUT (#10-32) Brass (200) | 1 |
| 29 | 55098 | J型卡扣(200) | J CLIP (200) | 1 |
| 29 | 8M0024808 | J型夹 | J-CLIP | 1 |
| - | 815810A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 815809A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 896328005 | 零件手册 225 PRO XS (3.0L) DFI | PARTS MANUAL 225 PRO XS (3.0L) DFI | 1 |
| - | 841916 | 维修手册 | SERVICE MANUAL | 1 |
| - | 841916R01 | 维修手册 | SERVICE MANUAL | 1 |
| - | 841915050 | 用户手册 | OWNERS MANUAL | 1 |
| - | 841915051 | 用户手册 | MANUAL-OWNERS | 1 |
| - | 841915060 | 用户手册 | OWNERS MANUAL | 1 |
| - | 841914050 | 安装手册 | INSTALLATION MANUAL | 1 |
| - | 841914051 | 安装手册 | MANUAL-INSTALL | 1 |
| - | 841914060 | 安装手册 | INSTALLATION MANUAL | 1 |
| - | 898246A05 | EPA标签信息贴花 | DECAL EPA Label Information | 1 |
| - | 898246A06 | EPA标签信息贴花 | DECAL EPA Label Information | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 79472 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 1 | 90645 | 驱动套件 | DRIVE KIT | 1 |
| 2 | 75661 | 驱动小齿轮总成 | PINION ASSEMBLY Drive | 1 |
| 2 | 13310T1 | 小齿轮总成 | PINION ASSEMBLY | 1 |
| 3 | 75660 | 驱动端板 | PLATE DRIVE END | 1 |
| 4 | 74968 | 贯穿螺栓 | BOLT THRU | 2 |
| 6 | N.S.S. | 不单独出售垫圈 | Not Sold Separate Washer | 1 |
| 7 | 79216 | 电枢 | ARMATURE | 1 |
| 8 | 75384 | 电刷/弹簧套件 | BRUSH/SPRING KIT | 1 |
| 8 | 898265016 | 电刷/弹簧套件 | BRUSH/SPRING KIT | 1 |
| 9 | 61787 | 电刷架 | HOLDER BRUSH | 2 |
| 9 | 898265014 | 电刷支架 | HOLDER-BRUSH | 2 |
| 10 | N.S.S. | 不单独出售螺钉 | Not Sold Separate Screw | 2 |
| 11 | 15386 | 换向器端盖 | END CAP COMMUTATOR | 1 |
| 11 | 15386001 | 端盖 | END CAP | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8710T20 | 黑色旋转支架总成 | SWIVEL BRACKET ASSEMBLY Black | 1 |
| 2 | 33504 | O型圈 | O-RING | 1 |
| 2 | 8M0214926 | O型圈 @10 | O RING @10 | 1 |
| 3 | 818764 | 衬套 | BUSHING | 2 |
| 4 | 816039 | 隔套 | SPACER | 1 |
| 5 | 87735 | 油封(下) | SEAL Oil (LOWER) | 1 |
| 6 | 74036 | 润滑脂接头 | FITTING Grease | 2 |
| 6 | 8M0169589 | 润滑脂接头 | FITTING Grease | 2 |
| 7 | 821207 | 衬套 | BUSHING | 2 |
| 8 | 816432 | 止推垫片 | THRUST WASHER | 1 |
| 9 | 814084F1 | 下轭架 | YOKE Bottom | 1 |
| 9 | 8M0219200 | 黑色下轭架 | YOKE-BOTTOM-BLACK | 1 |
| 9 | 826364F1 | 下轭架 | YOKE Bottom | 1 |
| 9 | 826364T | 下轭架 | YOKE Bottom | 1 |
| 10 | 67684 | 挡圈 | RING Retaining | 1 |
| 11 | 996301 | 冲击板 | STRIKER PLATE | 2 |
| 11 | 8M0045383 | 冲击板 | STRIKER PLATE | 2 |
| 12 | 58643 | 锁紧垫圈 (.375) | LOCKWASHER (.375) | 2 |
| 13 | 46335 | 螺母 (.375-24) | NUT (.375-24) | 2 |
| 14 | 64014 | 螺钉(.250-28x.500) | SCREW (.250-28 x .500) | 2 |
| 15 | NSS | 不单独销售-序列号覆膜标贴 | NOT SOLD SEPARATE Decal-Serial Overlaminate | 1 |
| 16 | 859187A1 | 调整传感器总成 | SENDER ASSEMBLY Trim | 1 |
| 17 | 852368 | 螺钉（#10-24 X 0.750） | SCREW (#10-24 x .750) | 2 |
| 18 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 2 |
| 19 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 20 | 67706A55 | 转向臂转销总成 | SWIVEL PIN ASSEMBLY Steering Arm | 1 |
| 20 | 826432A2 | 转向臂旋转销总成-不锈钢 | SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel | 1 |
| 20 | 826432A2 | 转向臂旋转销总成-不锈钢 | SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel | 1 |
| 20 | 8M0132731 | 旋转销总成 | SWIVEL PIN ASSY | 1 |
| 21 | 816386 | 螺钉(M12×190) | SCREW (M12 x 190) | 2 |
| 21 | 8M0141069 | 螺钉 | SCREW | 2 |
| 22 | 824998001 | 缓冲垫 | BUMPER | 1 |
| 23 | 8163851 | 上部支架 | MOUNT Upper | 2 |
| 24 | 8154371 | 垫圈 | WASHER | 2 |
| 25 | 815436 | 垫圈 | WASHER | 2 |
| 26 | 896963 | 螺母(M12) | NUT (M12) | 2 |
| 27 | 813769 | 卡箍 | CLAMP | 1 |
| 27 | 8M0036783 | 卡箍 | CLAMP | 1 |
| 28 | 81893435 | 螺钉(M8×35) | SCREW (M8 x 35) | 3 |
| 28 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 3 |
| 29 | 92876A10 | 连杆总成 | LINK ROD ASSEMBLY | 1 |
| 29 | 92876A12 | 连杆总成 | LINK ROD ASSEMBLY | 1 |
| 30 | 849838 | 螺钉(.375-24 x 1.250) | SCREW (.375-24 x 1.250) | 1 |
| 31 | 826709113 | 不锈钢螺母 (.375-24) | NUT (.375-24) Stainless Steel | 2 |
| 31 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 2 |
| 32 | 37828 | 不锈钢垫圈 (.390 x .625 x .062) | WASHER (.390 x .625 x .062) Stainless Steel | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 74897 | PIVOT TRIGGER PLATE | 1 | |
| 2 | 62459 | 球头总成触发板 | BALL JOINT ASSEMBLY TRIGGER PLATE | 1 |
| 2 | 62459T | 球头节总成 | BALL JOINT ASSY | 1 |
| 3 | 45076 | 螺母(#10-32)黄铜连杆 | NUT (#10-32) Brass LINK ROD | 1 |
| 4 | 76035 | 触发板连杆 | ROD TRIGGER PLATE | 1 |
| 5 | 46438 | 球头螺母(#10-32) | NUT (#10-32) BALLJOINT | 1 |
| 6 | 41094A3 | 点火提前杆总成 | LEVER ASSEMBLY SPARK ADVANCE | 1 |
| 7 | 64022 | 螺丝(.250-20x2.125)点火提前杆-止动 | SCREW (.250-20 x 2.125) SPARK ADVANCE LEVER - STOP | 1 |
| 8 | 64015 | 螺母(.250-20)点火提前止动螺丝 | NUT (.250-20) SPARK ADVANCE STOP SCREW | 1 |
| 9 | 26852 | 尼龙帽点火提前杆止动螺丝 | CAP Nylon SPARK ADVANCE LEVER STOP SCREW | 1 |
| 10 | 13627 | 螺钉 (.190-32 x 1.250) | SCREW (.190-32 x 1.250) | 1 |
| 11 | 68219 | 螺母(#10-32)不锈钢点火提前杆止动螺丝 | NUT (#10-32) Stainless Steel SPARK ADVANCE LEVER STOP SCREW | 1 |
| 12 | 48039 | 点火提前杆止动螺丝帽 | CAP SPARK ADVANCE LEVER STOP SCREW | 1 |
| 13 | 41095T | 油门控制杆 | LEVER THROTTLE CONTROL | 1 |
| 13 | 410952 | 杠杆 | LEVER | 1 |
| 14 | 55337 | 螺钉 (.375-16 x 1.75) | SCREW (.375-16 x 1.75) | 1 |
| 14 | 818165 | 螺钉 (.375-16 x 1.75) | SCREW (.375-16 x 1.75) | 1 |
| 15 | 55164 | 油门杠杆衬套 | BUSHING THROTTLE LEVER | 1 |
| 16 | 55171 | 点火提前杆衬套 | BUSHING SPARK ADVANCE LEVER | 1 |
| 17 | 55162 | 弹簧 | SPRING | 1 |
| 18 | 46765 | 垫圈(0.390 x 1.50 x 0.120) 点火提前杆 | WASHER (.390 x 1.50 x .120) SPARK ADVANCE LEVER | 1 |
| 19 | 64022 | 螺丝(.250-20x2.125)节气门杆-止动 | SCREW (.250-20 x 2.125) THROTTLE LEVER - STOP | 1 |
| 20 | 64015 | 螺母(.250-20)节气门杆止动螺丝 | NUT (.250-20) THROTTLE LEVER STOP SCREW | 1 |
| 21 | 26852 | 尼龙帽节气门杆止动螺丝 | CAP Nylon THROTTLE LEVER STOP SCREW | 1 |
| 22 | 39483 | 锁扣拉线 | LATCH CABLE | 1 |
| 23 | 22486 | 螺丝(.250-28x.880)拉线锁扣至节气门杆 | SCREW (.250-28 x .880) CABLE LATCH TO THROTTLE LEVER | 1 |
| 23 | 69026 | 螺钉 (.250-28 x .880) | SCREW (.250-28 x .880) | 1 |
| 24 | 20099 | 拉线锁扣至节气门杆弹簧 | SPRING CABLE LATCH TO THROTTLE LEVER | 1 |
| 25 | 35045 | 螺母(.250-28)拉线锁扣螺丝 | NUT (.250-28) CABLE LATCH SCREW | 1 |
| 25 | 826709109 | 不锈钢螺母(.250-28) | NUT (.250-28) Stainless Steel | 1 |
| 26 | 14634 | 节气门控制杆 | ROD THROTTLE CONTROL | 1 |
| 27 | 14638 | 节气门控制杆套筒 | BARREL THROTTLE CONTROL ROD | 1 |
| 28 | 8142391 | 凸轮 | CAM | 1 |
| 28 | 8142392 | 节气门凸轮 | THROTTLE CAM | 1 |
| 29 | 93248 | 衬套 | BUSHING | 1 |
| 29 | 8M0215006 | 旋转衬套 | BUSHING Swivel | 1 |
| 30 | 26856 | 节气门凸轮衬套 | BUSHING THROTTLE CAM | 2 |
| 31 | 35045 | 螺母（0.250-28）节气门凸轮螺柱 | NUT (.250-28) THROTTLE CAM STUD | 1 |
| 31 | 826709109 | 不锈钢螺母(.250-28) | NUT (.250-28) Stainless Steel | 1 |
| 33 | 814283A1 | 控制线缆锚定支架 | BRACKET ANCHOR - CONTROL CABLES | 1 |
| 33 | 814283A2 | 支架总成 | BRACKET ASSEMBLY | 1 |
| 34 | 98889 | 控制线缆锁扣 | LATCH CONTROL CABLE | 1 |
| 35 | 42975 | 闩锁传动螺钉 | DRIVE SCREW LATCH | 2 |
| 36 | 53167 | 螺丝(.312-18x.880)锚定支架固定 | SCREW (.312-18 x .880) ANCHOR BRACKET ATTACHING | 3 |
| 36 | 53167T | 螺钉 0.312-18X 0.88 | SCREW .312-18X .88 | 3 |
| 37 | 814284 | 连杆导向块 | GUIDE BLOCK LINK ROD | 1 |
| 38 | 20099 | 连杆至导向块弹簧 | SPRING LINK ROD TO GUIDE BLOCK | 1 |
| 39 | 67073A1 | 连杆总成 | LINK ROD ASSEMBLY | 1 |
| 40 | 52100 | 连杆耐磨板 | WEAR PLATE LINK ROD | 1 |
| 41 | 38279 | 闩锁 | LATCH | 1 |
| 41 | 8M0036768 | 闩锁 | LATCH | 1 |
| 42 | 35462 | 垫圈(.2656x.625x.0625)不锈钢锁扣 | WASHER (.2656 x .625 x .0625) Stainless Steel LATCH | 1 |
| 43 | 35045 | 螺母（0.250-28）连杆 | NUT (.250-28) LINK ROD | 1 |
| 43 | 826709109 | 不锈钢螺母(.250-28) | NUT (.250-28) Stainless Steel | 1 |
| 44 | 79932A11 | 换挡轴总成 | SHIFT SHAFT ASSEMBLY | 1 |
| 44 | 79932A16 | 换挡轴总成 | SHIFT SHAFT ASSEMBLY | 1 |
| 45 | 29720 | 连杆波形垫圈 | WAVE WASHER LINK ROD | 1 |
| 46 | 26600 | 尼龙衬套-连杆 | BUSHING NYLON - LINK ROD | 1 |
| 47 | 35462 | 垫圈(.2656 x .625 x .0625)不锈钢连杆 | WASHER (.2656 x .625 x .0625) Stainless Steel LINK ROD | 1 |
| 48 | 35045 | 螺母（0.250-28）连杆至换挡轴 | NUT (.250-28) LINK ROD TO SHIFT SHAFT | 1 |
| 48 | 826709109 | 不锈钢螺母(.250-28) | NUT (.250-28) Stainless Steel | 1 |
| 49 | 39519 | 杯形套筒固定器-锚杆 | CUP BARREL RETAINER - ANCHOR BAR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9742A92 | 顶盖总成 (黑色)(无贴花) | TOP COWL ASSEMBLY (BLACK)(Without Decals) | 1 |
| 1 | 9742A93 | 顶罩总成(灰色)(无贴花) | TOP COWL ASSEMBLY (GRAY)(Without Decals) | 1 |
| 1 | 9743T10 | 顶罩 | TOP COWL | 1 |
| 2 | 812784 | 密封件 | SEAL | 1 |
| 3 | 815478 | 密封件 | SEAL | 1 |
| 4 | 815225 | 隔音垫(侧) | SOUND BLANKET (SIDE) | 2 |
| 5 | 815226 | 隔音垫(顶) | SOUND BLANKET (TOP) | 1 |
| 4/5 | 815225A1 | 隔音毯套装 | SOUND BLANKET KIT | 1 |
| 6 | 815227 | 前隔音垫 | SOUND BLANKET FRONT | 1 |
| 7 | 47341A1 | 手动/应急启动绳柄套件 | ROPE AND HANDLE KIT Manual/Emergency Start | 1 |
| 7 | 47341A11 | 手动启动绳柄套件 | ROPE AND HANDLE KIT Manual Starting | 1 |
| 8 | 815848 | 螺母 (.312) | NUT (.312) | 2 |
| 9 | 70132 | 垫圈(0.323×0.563×0.063)不锈钢 | WASHER (.323 x .563 x .063) Stainless Steel | 2 |
| 9 | 8M0042642 | 垫圈(.323 x .562 x .063) | WASHER (.323 x .562 x .063) | 2 |
| 10 | 184741 | 后支架 | BRACKET REAR | 2 |
| 11 | 18506 | 护孔环 | GROMMET | 3 |
| 11 | 18506001 | 护孔环 | GROMMET | 3 |
| 12 | 28636 | 螺钉(.250-20 x .750) 后支架 | SCREW (.250-20 x .750) REAR BRACKET | 4 |
| 13 | 816992 | 螺钉 | SCREW | 8 |
| 14 | 813096 | 挂钩 | HOOK | 2 |
| 14 | 813096A2 | 挂钩套件 | HOOK KIT | 2 |
| 15 | 73286 | 螺钉(0.250-20×0.500)不锈钢 | SCREW (.250-20 x .500) Stainless Steel | 2 |
| 16 | 813074 | 滚轮 | ROLLER | 2 |
| 16 | 8M0207770 | 滚轮@3 | ROLLER @3 | 2 |
| 17 | 13194 | 挡圈 | RING Retaining | 2 |
| 18 | 56720 | 垫圈(0.330×0.750×0.060)不锈钢 | WASHER (.330 x .750 x .060) Stainless Steel | 4 |
| 19 | 187021 | 定位器 | LOCATOR | 1 |
| 20 | 18173 | 锁扣滚轮支架总成 | BRACKET ASSEMBLY Latch Roller | 1 |
| 20 | 893763 | 滚轮锁扣支架 | BRACKET Roller Latch | 1 |
| 21 | 813552 | 垫片(旧款) | SPACER (OLD DESIGN) | 1 |
| 21 | 813076A2 | 手柄套件 | HANDLE KIT | 1 |
| 21A | 816838 | 隔套 | SPACER | 1 |
| 22 | 31984 | 螺钉(0.312-18×1.375) | SCREW (.312-18 x 1.375) | 2 |
| 22 | 69267 | 螺钉 (.312-18 x 1.750) | SCREW (.312-18 x 1.750) | 2 |
| 23 | 18755A1 | 前护罩总成 (黑色)(无贴花) | FRONT SHIELD ASSEMBLY (BLACK)(Without Decals) | 1 |
| 23 | 18755A2 | 前护罩总成 (灰色)(无贴花) | FRONT SHIELD ASSEMBLY (GRAY)(Without Decals) | 1 |
| 25 | 77137 | 螺钉 (.190-16 x .620) | SCREW (.190-16 x .620) | 4 |
| 26 | 56681 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 4 |
| 26 | 8M0204666 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 4 |
| 27 | 36001 | 垫圈 | WASHER | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 828334T03 | 艉板支架总成-右舷 | BRACKET ASSEMBLY Transom-Starboard | 1 |
| 2 | 828333T08 | 艉板支架总成-左舷 | BRACKET ASSEMBLY Transom-Port | 1 |
| 3 | 98727 | 润滑脂接头(左舷) | FITTING Grease (PORT) | 1 |
| 3 | 8M0169588 | 润滑脂接头 | FITTING Grease | 1 |
| 4 | 826125A1 | 倾斜管 | TILT TUBE | 1 |
| 5 | 826135 | 尼龙锁紧螺母(1.00-14) | NUT Lock (1.00-14) Nylon Insert | 1 |
| 6 | 45711 | O型圈 (.612 x .103) | O-RING (.612 x .103) | 1 |
| 7 | 88750 | 波浪垫圈 (1.62 x 1.05) | WASHER Wave (1.62 x 1.05) | 2 |
| 8 | 826164 | 螺母 (.875-14) | NUT (.875-14) | 1 |
| 8 | 8M0231351 | 锁紧螺母 | NUT Lock | 1 |
| 9 | 677551 | 螺钉(.500-20×4.500) | SCREW (.500-20 x 4.500) | 4 |
| 9 | 8M0149747 | 螺钉 | SCREW | 4 |
| 10 | 54012 | 垫圈(0.530×0.870×0.105不锈钢) | WASHER (.530 x .870 x .105) Stainless Steel | 4 |
| 10 | 8M0204665 | 垫圈(0.530×0.880×0.104 630不锈钢) | WASHER (.530 x .880 x .104) 630 Stainless Steel | 4 |
| 11 | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 11 | 8M0204648 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 12 | 82671117 | 螺母(.500-20) | NUT (.500-20) | 4 |
| 13 | 99629T2 | 倾斜锁定杆总成 | LEVER ASSEMBLY Tilt Lock | 1 |
| 13 | 8M0115104 | 倾斜锁定杆总成 | LEVER ASSEMBLY Tilt Lock | 1 |
| 14 | 830899 | 张力弹簧 | SPRING Tension | 1 |
| 15 | 65830 | 尼龙衬套 | NYLINER | 2 |
| 16 | 830900 | 压缩弹簧 | SPRING Compression | 1 |
| 17 | 99633 | 旋钮 | KNOB | 1 |
| 18 | 99615 | 槽销 | PIN Groove | 1 |
| 19 | 99617 | 销 | PIN | 1 |
| 19 | 893709 | 销 | PIN | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 434291 | 点火板 点火 | IGNITION PLATE IGNITION | 1 |
| 2 | 7778A9 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 2 | 7778A12 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 3 | 13669 | 开关盒螺钉(#12-24 x 2.00) | SCREW (#12-24 x 2.00) SWITCH BOX | 2 |
| 4 | 94453 | 开关盒螺钉衬套 | BUSHING SWITCH BOX SCREW | 2 |
| 6 | 45076 | 螺母(#10-32)黄铜开关盒端子 | NUT (#10-32) Brass SWITCH BOX TERMINAL | 20 |
| 7 | 60871A10 | 线束总成-开关盒 | WIRE ASSEMBLY SWITCH BOX | 2 |
| 8 | 62568 | 螺丝(#10-16 x 0.375)导线固定 | SCREW (#10-16 x .375) WIRE ATTACHING | 3 |
| 9 | 65999A3 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 10 | 69092 | 点火板螺钉(1.25) | SCREW (1.25) IGNITION PLATE | 3 |
| 10 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 3 |
| 11 | 26993 | 锁紧垫圈(.312)点火板螺钉 | LOCKWASHER (.312) IGNITION PLATE SCREW | 3 |
| 11 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 12 | 36042 | 垫圈 点火板螺钉 | WASHER IGNITION PLATE SCREW | 6 |
| 13 | 67264 | 橡胶垫圈 点火板螺钉 | WASHER (Rubber) IGNITION PLATE SCREW | 6 |
| 14 | 67268 | 衬套 点火板螺钉 | BUSHING IGNITION PLATE SCREW | 3 |
| 15 | 33386A3 | 开关总成 | SWITCH ASSEMLBY | 1 |
| 16 | 38055 | 水银开关螺钉(.190-32 x .620) | SCREW (.190-32 x .620) MERCURY SWITCH | 1 |
| 17 | 45076 | 螺母 (#10-32) 黄铜水银开关端子 | NUT (#10-32) Brass MERCURY SWITCH TERMINAL | 1 |
| 18 | 87926 | 螺钉(#10-32 x .500)导线固定 | SCREW (#10-32 x .500) LEAD ATTACHING | 1 |
| 19 | 88439A3 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 19 | 88439A4 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 20 | 96220A12 | 发动机线束总成 | HARNESS ASSEMBLY ENGINE | 1 |
| 21 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 21 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 22 | 95084A2 | 电缆总成-保险丝 | CABLE ASSEMBLY FUSE | 1 |
| 24 | 816311 | 捆扎带(8英寸)线束和电缆 | TIE STRAP (8.00 Inches) HARNESS AND CABLES | AR |
| 24 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 25 | 68258A4 | 启动电磁阀总成 | SOLENOID ASSEMBLY Starter | 1 |
| 25 | 853654A1 | 电磁阀 | SOLENOID | 1 |
| 26 | 45076 | 螺母(#10-32)黄铜 电磁阀端子 | NUT (#10-32) Brass SOLENOID TERMINALS | 2 |
| 27 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 28 | 68292 | 螺母（.312-18）电磁阀端子 | NUT (.312-18) SOLENOID TERMINALS | 2 |
| 28 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 29 | 31716 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 2 |
| 30 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 31 | 65999A2 | 电缆总成 黑色 上部安装 | CABLE ASSEMBLY Black UPPER MOUNT | 1 |
| 32 | 88528A2 | 线缆总成(6英寸-红/白) | CABLE ASSEMBLY (6" - RED/WHITE) | 1 |
| 32 | 91865A1 | 线束总成(3"-白/黑-175) | CABLE ASSEMBLY (3" - WHITE/BLACK - 175) | 1 |
| 33 | 47483 | J型卡扣 | J CLIP | 3 |
| 34 | 194372 | 端子排 | TERMINAL BLOCK | 1 |
| 35 | 38055 | 螺钉(0.190-32x0.620) | SCREW (.190-32 x .620) | 2 |
| 36 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 37 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 38 | 814422T | 点火板盖 | COVER IGNITION PLATE | 1 |
| 39 | 88447 | 螺钉 (.190-32 x 1.62) | SCREW (.190-32 x 1.62) | 2 |
| 40 | 69020 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 40 | 690201 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 41 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 3 |
| 42 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 3 |
| 43 | 62310A2 | 线束总成(175) | CABLE ASSEMBLY (175) | 1 |
| 44 | 78866 | 绝缘体 | INSULATOR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9912688 | 管材(36.00英寸散装)(裁切至3-1/4英寸) | TUBING (36.00 Inches Bulk) (Cut to 3-1/4 IN.) | 1 |
| 2 | 18206 | 滤清器 | FILTER | 1 |
| 2 | 8M0207786 | 滤清器 | FILTER | 1 |
| 3 | 9912688 | 管材(36.00英寸散装)(裁切至7-1/4英寸) | TUBING (36.00 Inches Bulk) (Cut to 7-1/4 IN.) | 1 |
| 4 | 99130122 | 管材(20.00英尺散装)(裁切至3-1/2英寸) | TUBING (20.00 Feet Bulk) (Cut to 3-1/2 IN.) | 1 |
| 4 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 5 | 59169 | 接头 | FITTING | 4 |
| 5 | 59169003 | 三通接头 | FITTING Tee | 4 |
| 6 | 99130122 | 管材(20英尺整卷)(裁切至5-1/2英寸) | TUBING (20.00 Feet Bulk) (Cut to 5-1/2 IN.) | 1 |
| 6 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 7 | 99130122 | 管材(20.00英尺散装)(裁切至9英寸) | TUBING (20.00 Feet Bulk) (Cut to 9 IN.) | 2 |
| 7 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 2 |
| 8 | 56759 | 压入式倒钩接头 | FITTING Barbed (PRESS-IN) | 4 |
| 9 | 426981 | 止回阀(压入式-13/16长) | CHECK VALVE (PRESS-IN - 13/16 LONG) | 7 |
| 9 | 426982 | 止回阀 | CHECK VALVE | 7 |
| 10 | 426231 | 止回阀(压入式-11/16长) | CHECK VALVE (PRESS-IN - 11/16 LONG) | 1 |
| 10 | 426233 | 止回阀 | CHECK VALVE | 1 |
| 11 | 18205 | 三通 | TEE | 1 |
| 12 | 99130122 | 管材(20.00英尺散装)(裁切至1-1/4英寸) | TUBING (20.00 Feet Bulk) (Cut to 1-1/4 IN.) | 1 |
| 12 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 13 | 99130122 | 管材(20.00英尺散装)(裁切至9英寸) | TUBING (20.00 Feet Bulk) (Cut to 9 IN.) | 2 |
| 13 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 2 |
| 14 | 99130122 | 管材(20.00英尺散装)(裁切至19英寸) | TUBING (20.00 Feet Bulk) (Cut to 19 IN.) | 1 |
| 14 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 15 | 99130122 | 管材(20.00英尺散装)(裁切至1英寸) | TUBING (20.00 Feet Bulk) (Cut to 1 IN.) | 3 |
| 15 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 3 |
| 16 | 99130122 | 管材(20英尺整卷)(裁切为4-1/2英寸) | TUBING (20.00 Feet Bulk) (Cut to 4-1/2 IN.) | 2 |
| 16 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 2 |
| - | 823434A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 823434T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 812817A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 812817T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 813043A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 813043T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 828044A1 | 下罩壳(黑色) | BOTTOM COWL Black | 1 |
| 1 | 828044A2 | 下罩壳总成(灰色) | BOTTOM COWL ASSEMBLY Gray | 1 |
| 1 | 828044A1 | 下罩壳(黑色) | BOTTOM COWL Black | 1 |
| 2 | 828045A1 | 下罩壳(黑色) | BOTTOM COWL Black | 1 |
| 2 | 828045A2 | 下罩壳总成(灰色) | BOTTOM COWL ASSEMBLY Gray | 1 |
| 3 | 8253181 | 罩盖密封条(41英寸) | SEAL Cowl (41.00 Inches) | 2 |
| 3 | 8M0109217 | 罩盖密封条 | SEAL-COWL | 2 |
| 4 | 822024 | 卡箍 | CLAMP | 1 |
| 5 | 822023 | 卡箍 | CLAMP | 1 |
| 6 | 92799 | 螺钉(#10-16x1.12) | SCREW (#10-16 x 1.12) | 2 |
| 7 | 82130040 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 4 |
| 8 | 831209 | 固定座 | RETAINER | 1 |
| 9 | 821908 | 堵头 | PLUG | 1 |
| 10 | 821915 | 垫圈 | WASHER | 1 |
| 11 | 821963 | 止回阀 | CHECK VALVE | 1 |
| 11 | 8219631 | 止回阀 | CHECK VALVE | 1 |
| 12 | 30641 | O型圈(0.299x0.103) | O-RING (.299 x .103) | 1 |
| 13 | 821952 | 接头 | FITTING | 1 |
| 14 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 14 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 15 | 827332 | 软管 | HOSE | 1 |
| 16 | F698772 | 蜗杆卡箍 | CLAMP Worm Gear | 1 |
| 17 | 815504212 | 蜗杆卡箍 | CLAMP Worm Gear | 1 |
| 18 | 60522 | 气缸体弯头(45度) | ELBOW Cylinder Block (45 DEGREES) | 1 |
| 15 | 8320782 | 软管 | HOSE | 1 |
| 15 | 8M0039077 | 成型软管 | HOSE-MOLDED | 1 |
| 17 | 815504212 | 蜗杆卡箍 | CLAMP Worm Gear | 2 |
| 18 | 832076 | 气缸体弯头 | ELBOW Cylinder Block | 1 |
| 18 | 8320761 | 止回阀接头 | FITTING Check Valve | 1 |
| 19 | 821904 | 示流器接头 | FITTING Tell-Tale | 1 |
| 19 | 8M0077650 | 示流器接头 | FITTING Tell-Tale | 1 |
| 20 | 830756109 | 软管(57英寸整卷)(裁切至8英寸) | HOSE (57.00 Inches Bulk) (Cut to 8 IN.) | 1 |
| 20 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 21 | 828216 | 怠速排气套 | IDLE EXHAUST BOOT Exhaust | 1 |
| 21 | 889847 | 怠速排气套 | BOOT Idle Exhaust | 1 |
| 22 | 817519A1 | 排水单向阀总成 | CHECK VALVE ASSEMBLY Drain | 2 |
| 23 | 8124431 | 固定座 | RETAINER | 1 |
| 23 | 8M0032848 | 开关固定座 | RETAINER Switch | 1 |
| 24 | 850691 | 开关 | SWITCH | 1 |
| 24 | 8M0235192 | 微调开关 | SWITCH TRIM | 1 |
| 25 | 824868 | 螺钉(M6×75) | SCREW (M6 x 75) | 1 |
| 26 | 821253F1 | 前手柄黑色 | FRONT HANDLE Black | 1 |
| 26 | 889740A02 | 手柄套件 | HANDLE KIT | 1 |
| 26 | 821253F2 | 前手柄 | FRONT HANDLE | 1 |
| 26 | 889740A02 | 手柄套件 | HANDLE KIT | 1 |
| 27 | 335891 | 衬套 | BUSHING | 2 |
| 28 | 48462 | O型圈 (.614 x .070) | O-RING (.614 x .070) | 1 |
| 29 | 8219423 | 棘爪 | PAWL | 1 |
| 30 | 69057 | 垫片(.281 x .734 x .063) | WASHER (.281 x .734 x .063) | 1 |
| 31 | 401196 | 螺母 (M6) | NUT (M6) | 1 |
| 32 | 8214281 | 螺钉(#10-16x0.625) | SCREW (#10-16 x .625) | 1 |
| 33 | 822873 | 卡扣 | CLIP | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9536A4 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 2 | 67923 | 球轴承(下部) | BEARING Ball (LOWER) | 1 |
| 2 | 67923T | 滚珠轴承 | BEARING Ball | 1 |
| 3 | 67446 | 环 | RING | 1 |
| 4 | 14513A2 | 驱动齿轮段套件 | GEAR SEGMENT KIT Drive | 1 |
| 4 | 14513A09 | 驱动齿轮段套件 | GEAR SEGMENT KIT Drive | 1 |
| 5 | 813073 | 螺钉(#6-32 x .620)内六角头 | SCREW (#6-32 x .620) Socket Head | 2 |
| 6 | 813134 | 螺母(#6-32)专用 | NUT (#6-32) Special | 2 |
| 7 | 16756A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 2 |
| 7 | 16756A6 | 轴承套件 | BEARING KIT | 2 |
| 8 | 54196A6 | 托架总成 | CARRIER ASSEMBLY | 1 |
| 9 | 65800 | 填料 | PACKING | 1 |
| 10 | 67377 | 密封环(厚度0.124) | RING Sealing (.124 THICK) | 7 |
| 10 | 67377T | 密封环 | RING Sealing | 7 |
| 11 | 9738A7 | 活塞总成(右舷-标准) | PISTON ASSEMBLY (STARBOARD - STANDARD) | 3 |
| 11 | 9738T9 | 活塞总成标准型 | PISTON ASSEMBLY Standard | 3 |
| 11 | 9738A8 | 活塞总成(右舷-加大0.015) | PISTON ASSEMBLY (STARBOARD - .015 O.S.) | AR |
| 11 | 9738T10 | 活塞总成0.015加大 | PISTON ASSEMBLY .015 Oversize | AR |
| 11 | 9737A7 | 活塞总成(左舷-标准) | PISTON ASSEMBLY (PORT - STANDARD) | 3 |
| 11 | 9737T9 | 活塞总成标准型 | PISTON ASSEMBLY Standard | 3 |
| 11 | 9737A8 | 活塞总成(左舷-加大0.015) | PISTON ASSEMBLY (PORT - .015 O.S.) | AR |
| 11 | 9737A10 | 活塞总成0.015加大 | PISTON ASSEMBLY .015 Oversize | AR |
| 12 | 815515A12 | 活塞环组(标准) | RING SET Piston (STANDARD) | 1 |
| 12 | 815268A4 | 活塞环组(.015加大) | RING SET Piston (.015 O.S.) | AR |
| 13 | 52035 | RING Lock PISTON | 12 | |
| 13 | 857196 | 锁紧环 | LOCK RING | 12 |
| 14 | 818141A2 | 连杆套件 | CONNECTING ROD KIT | 6 |
| 14 | 818141A13 | 连杆总成 | CONNECTING ROD ASSEMBLY | 6 |
| 15 | 763491 | 螺钉(0.312-24×0.875)连杆 | SCREW (.312-24 x .875) CONNECTING ROD | 12 |
| 16 | 812876 | 定位针垫圈 | WASHER NEEDLE LOCATING | 12 |
| 16 | 8M0012298 | 止推垫片 | THRUST WASHER | 12 |
| 17 | 674831 | 活塞端滚针轴承 | BEARING Needle PISTON END | 174 |
| 17 | 8M0204691 | 滚针轴承@200 | BRG-NEEDLE @200 | 174 |
| 18 | 17514A1 | 轴承套件 | BEARING KIT | 6 |
| 18 | 8M0234886 | 轴承保持架 | CAGE BEARING | 6 |
| - | 815810A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 815809A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9536A4 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 2 | 67923 | 球轴承(下部) | BEARING Ball (LOWER) | 1 |
| 2 | 67923T | 滚珠轴承 | BEARING Ball | 1 |
| 3 | 67446 | 环 | RING | 1 |
| 4 | 14513A2 | 驱动齿轮段套件 | GEAR SEGMENT KIT Drive | 1 |
| 4 | 14513A09 | 驱动齿轮段套件 | GEAR SEGMENT KIT Drive | 1 |
| 5 | 813073 | 螺钉(#6-32 x .620)内六角头 | SCREW (#6-32 x .620) Socket Head | 2 |
| 6 | 813134 | 螺母(#6-32)专用 | NUT (#6-32) Special | 2 |
| 7 | 16756A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 2 |
| 7 | 16756A6 | 轴承套件 | BEARING KIT | 2 |
| 8 | 54196A6 | 托架总成 | CARRIER ASSEMBLY | 1 |
| 9 | 65800 | 填料 | PACKING | 1 |
| 10 | 67377 | 密封环(厚度0.124) | RING Sealing SEALING (.124 THICK) | 7 OR 8 |
| 10 | 67377T | 密封环 | RING Sealing | 7 OR 8 |
| 11 | 8666A22 | 活塞总成(右舷-标准)(175) | PISTON ASSEMBLY (STARBOARD - STANDARD) (175) | 3 |
| 11 | 8666T42 | 活塞总成-右舷-标准 | PIST.ASY.STBD.STD | 3 |
| 11 | 8666A36 | 活塞总成(右舷-加大0.015)(175) | PISTON ASSEMBLY Starboard (STARBOARD - .015 O.S.) (175) | AR |
| 11 | 8666A43 | 活塞总成-右舷-0.015 | PIST.ASY STBD.015 | AR |
| 11 | 8667A22 | 活塞总成(左舷-标准)(175) | PISTON ASSEMBLY (PORT - STANDARD) (175) | 3 |
| 11 | 8667T42 | 活塞总成-左舷-标准 | PIST.ASY.PORT.STD | 3 |
| 11 | 8667A36 | 活塞总成(左舷-加大0.015)(175) | PISTON ASSEMBLY Port (PORT - .015 O.S.) (175) | AR |
| 11 | 8667A43 | 活塞总成-左舷-0.015 | PIST.ASY PORT.015 | AR |
| 12 | 18487A12 | 活塞环组(标准)(175) | RING SET Piston (STANDARD) (175) | 1 |
| 12 | 815267A4 | 活塞环组(加大0.015)(175) | RING SET Piston (.015 O.S.) (175) | AR |
| 11 | 9738A2 | 活塞总成(右舷-标准)(200) | PISTON ASSEMBLY (STARBOARD - STANDARD) (200) | 3 |
| 11 | 9738T4 | 活塞-右舷-标准 | PISTON-STBD-STD | 3 |
| 11 | 9738A3 | 活塞总成(右舷-加大0.015)(200) | PISTON ASSEMBLY (STARBOARD - .015 O.S.) (200) | AR |
| 11 | 9738A5 | 活塞-右舷-0.015 | PISTON-STBD-.015 | AR |
| 11 | 9737A2 | 活塞总成(左舷-标准)(200) | PISTON ASSEMBLY (PORT - STANDARD) (200) | 3 |
| 11 | 9737T4 | 活塞-左舷-标准 | PISTON-PORT-STD | 3 |
| 11 | 9737A3 | 活塞总成(左舷-加大0.015)(200) | PISTON ASSEMBLY (PORT - .015 O.S.) (200) | AR |
| 11 | 9737A5 | 活塞-左舷-0.015 | PISTON-PORT-.015 | AR |
| 12 | 815515A12 | 活塞环组(标准)(200) | RING SET Piston (STANDARD) (200) | 1 |
| 12 | 815268A4 | 活塞环组(加大0.015)(200) | RING SET Piston (.015 O.S.) (200) | AR |
| 13 | 52035 | 锁环 | RING Lock | 12 |
| 13 | 857196 | 锁紧环 | LOCK RING | 12 |
| 14 | 8119A5 | 连杆总成 | CONNECTING ROD ASSEMBLY | 6 |
| 14 | 8119A6 | 连杆套件 | CONN ROD KIT | 6 |
| 15 | 93886 | 螺钉(.312-28x.875) | SCREW (.312-28 x .875) | 12 |
| 16 | 47247 | 垫圈 | WASHER | 12 |
| 16 | 8M0032839 | 垫片@5 | WASHER @5 | 12 |
| 17 | 67483 | 滚针轴承 | BEARING Needle | 174 |
| 18 | 17514A1 | 轴承套件 | BEARING KIT | 6 |
| 18 | 8M0234886 | 轴承保持架 | CAGE BEARING | 6 |
| - | 815810A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 815809A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 434291 | 点火板 点火 | IGNITION PLATE IGNITION | 1 |
| 2 | 7778A9 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 2 | 7778A12 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 3 | 13669 | 开关盒螺钉(#12-24 x 2.00) | SCREW (#12-24 x 2.00) SWITCH BOX | 2 |
| 4 | 94453 | 开关盒螺钉衬套 | BUSHING SWITCH BOX SCREW | 2 |
| 6 | 45076 | 螺母(#10-32)黄铜开关盒端子 | NUT (#10-32) Brass SWITCH BOX TERMINAL | 20 |
| 7 | 60871A10 | 线束总成-开关盒 | WIRE ASSEMBLY SWITCH BOX | 2 |
| 8 | 62568 | 螺丝(#10-16 x 0.375)导线固定 | SCREW (#10-16 x .375) WIRE ATTACHING | 3 |
| 9 | 65999A3 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 10 | 69092 | 点火板螺钉(1.25) | SCREW (1.25) IGNITION PLATE | 3 |
| 10 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 3 |
| 11 | 26993 | 锁紧垫圈(.312)点火板螺钉 | LOCKWASHER (.312) IGNITION PLATE SCREW | 3 |
| 11 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 12 | 36042 | 垫圈 点火板螺钉 | WASHER IGNITION PLATE SCREW | 6 |
| 13 | 67264 | 橡胶垫圈 点火板螺钉 | WASHER (Rubber) IGNITION PLATE SCREW | 6 |
| 14 | 67268 | 衬套 点火板螺钉 | BUSHING IGNITION PLATE SCREW | 3 |
| 15 | 33386A3 | 开关总成 | SWITCH ASSEMLBY | 1 |
| 16 | 38055 | 水银开关螺钉(.190-32 x .620) | SCREW (.190-32 x .620) MERCURY SWITCH | 1 |
| 17 | 45076 | 螺母 (#10-32) 黄铜水银开关端子 | NUT (#10-32) Brass MERCURY SWITCH TERMINAL | 1 |
| 18 | 87926 | 螺钉(#10-32 x .500)导线固定 | SCREW (#10-32 x .500) LEAD ATTACHING | 1 |
| 19 | 88439A3 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 19 | 88439A4 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 20 | 96220A12 | 发动机线束总成 | HARNESS ASSEMBLY ENGINE | 1 |
| 21 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 21 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 22 | 95084A2 | 电缆总成-保险丝 | CABLE ASSEMBLY FUSE | 1 |
| 24 | 816311 | 捆扎带(8英寸)线束和电缆 | TIE STRAP (8.00 Inches) HARNESS AND CABLES | AR |
| 24 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 25 | 68258A4 | 启动电磁阀总成 | SOLENOID ASSEMBLY Starter | 1 |
| 25 | 853654A1 | 电磁阀 | SOLENOID | 1 |
| 26 | 45076 | 螺母(#10-32)黄铜 电磁阀端子 | NUT (#10-32) Brass SOLENOID TERMINALS | 2 |
| 27 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 28 | 68292 | 螺母（.312-18）电磁阀端子 | NUT (.312-18) SOLENOID TERMINALS | 2 |
| 28 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 29 | 31716 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 2 |
| 30 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 31 | 65999A2 | 电缆总成 黑色 上部安装 | CABLE ASSEMBLY Black UPPER MOUNT | 1 |
| 32 | 88528A2 | 线缆总成(6英寸-红/白) | CABLE ASSEMBLY (6" - RED/WHITE) | 1 |
| 32 | 91865A1 | 线束总成(3"-白/黑-175) | CABLE ASSEMBLY (3" - WHITE/BLACK - 175) | 1 |
| 33 | 47483 | J型卡扣 | J CLIP | 3 |
| 34 | 194372 | 端子排 | TERMINAL BLOCK | 1 |
| 35 | 38055 | 螺钉(0.190-32x0.620) | SCREW (.190-32 x .620) | 2 |
| 36 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 37 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 38 | 814422T | 点火板盖 | COVER IGNITION PLATE | 1 |
| 39 | 88447 | 螺钉 (.190-32 x 1.62) | SCREW (.190-32 x 1.62) | 2 |
| 40 | 69020 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 40 | 690201 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 41 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 3 |
| 42 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 3 |
| 43 | 62310A2 | 线束总成(175) | CABLE ASSEMBLY (175) | 1 |
| 44 | 78866 | 绝缘体 | INSULATOR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 434291 | 点火板 点火 | IGNITION PLATE IGNITION | 1 |
| 2 | 7778A9 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 2 | 7778A12 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 3 | 13669 | 开关盒螺钉(#12-24 x 2.00) | SCREW (#12-24 x 2.00) SWITCH BOX | 2 |
| 4 | 94453 | 开关盒螺钉衬套 | BUSHING SWITCH BOX SCREW | 2 |
| 6 | 45076 | 螺母(#10-32)黄铜开关盒端子 | NUT (#10-32) Brass SWITCH BOX TERMINAL | 20 |
| 7 | 60871A10 | 线束总成-开关盒 | WIRE ASSEMBLY SWITCH BOX | 2 |
| 8 | 62568 | 螺丝(#10-16 x 0.375)导线固定 | SCREW (#10-16 x .375) WIRE ATTACHING | 3 |
| 9 | 65999A3 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 10 | 69092 | 点火板螺钉(1.25) | SCREW (1.25) IGNITION PLATE | 3 |
| 10 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 3 |
| 11 | 26993 | 锁紧垫圈(.312)点火板螺钉 | LOCKWASHER (.312) IGNITION PLATE SCREW | 3 |
| 11 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 12 | 36042 | 垫圈 点火板螺钉 | WASHER IGNITION PLATE SCREW | 6 |
| 13 | 67264 | 橡胶垫圈 点火板螺钉 | WASHER (Rubber) IGNITION PLATE SCREW | 6 |
| 14 | 67268 | 衬套 点火板螺钉 | BUSHING IGNITION PLATE SCREW | 3 |
| 15 | 33386A3 | 开关总成 | SWITCH ASSEMLBY | 1 |
| 16 | 38055 | 水银开关螺钉(.190-32 x .620) | SCREW (.190-32 x .620) MERCURY SWITCH | 1 |
| 17 | 45076 | 螺母 (#10-32) 黄铜水银开关端子 | NUT (#10-32) Brass MERCURY SWITCH TERMINAL | 1 |
| 18 | 87926 | 螺钉(#10-32 x .500)导线固定 | SCREW (#10-32 x .500) LEAD ATTACHING | 1 |
| 19 | 88439A3 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 19 | 88439A4 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 20 | 96220A12 | 发动机线束总成 | HARNESS ASSEMBLY ENGINE | 1 |
| 21 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 21 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 22 | 95084A2 | 电缆总成-保险丝 | CABLE ASSEMBLY FUSE | 1 |
| 24 | 816311 | 捆扎带(8英寸)线束和电缆 | TIE STRAP (8.00 Inches) HARNESS AND CABLES | AR |
| 24 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 25 | 68258A4 | 启动电磁阀总成 | SOLENOID ASSEMBLY Starter | 1 |
| 25 | 853654A1 | 电磁阀 | SOLENOID | 1 |
| 26 | 45076 | 螺母(#10-32)黄铜 电磁阀端子 | NUT (#10-32) Brass SOLENOID TERMINALS | 2 |
| 27 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 28 | 68292 | 螺母（.312-18）电磁阀端子 | NUT (.312-18) SOLENOID TERMINALS | 2 |
| 28 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 29 | 31716 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 2 |
| 30 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 31 | 65999A2 | 电缆总成 黑色 上部安装 | CABLE ASSEMBLY Black UPPER MOUNT | 1 |
| 32 | 88528A2 | 线缆总成(6英寸-红/白) | CABLE ASSEMBLY (6" - RED/WHITE) | 1 |
| 32 | 91865A1 | 线束总成(3"-白/黑-175) | CABLE ASSEMBLY (3" - WHITE/BLACK - 175) | 1 |
| 33 | 47483 | J型卡扣 | J CLIP | 3 |
| 34 | 194372 | 端子排 | TERMINAL BLOCK | 1 |
| 35 | 38055 | 螺钉(0.190-32x0.620) | SCREW (.190-32 x .620) | 2 |
| 36 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 37 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 38 | 814422T | 点火板盖 | COVER IGNITION PLATE | 1 |
| 39 | 88447 | 螺钉 (.190-32 x 1.62) | SCREW (.190-32 x 1.62) | 2 |
| 40 | 69020 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 40 | 690201 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 41 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 3 |
| 42 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 3 |
| 43 | 62310A2 | 线束总成(175) | CABLE ASSEMBLY (175) | 1 |
| 44 | 78866 | 绝缘体 | INSULATOR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 828340A5 | 气缸体 | CYLINDER BLOCK | 1 |
| 2 | 8181383 | 动力头螺柱（1-3/4英寸） | STUD Powerhead (1-3/4 IN.) | 6 |
| 2 | 8M0034455 | 螺柱1.750 | STUD 1.750 | 6 |
| 3 | 670653 | 双头螺柱（0.375×5.620英寸，5-1/2英寸） | STUD (.375 x 5.620) (5-1/2 IN.) | 2 |
| 3 | 670654 | 螺柱(.375-16/.375-24 x 5.620) | STUD (.375-16/.375-24 x 5.620) | 2 |
| 3 | 784384 | 双头螺栓(.375 x 6.870)(6-3/4英寸) | STUD (.375 x 6.870) (6-3/4 IN.) | 2 |
| 3 | 8M0034454 | 螺柱(.375-16/.375-24 x 6.87) | STUD (.375-16/.375-24 x 6.87) | 2 |
| 4 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 2 |
| 5 | 67296 | 销(轴承座圈) | PIN (BEARING RACE) | 2 |
| 5 | 8M0036405 | 销 | PIN | 2 |
| 6 | 11338 | 衬垫 | GASKET | 2 |
| 7 | 384071 | 接头(1/2-14) | FITTING (1/2-14) (1/2-14) | 1 |
| 8 | 426231 | 止回阀 | CHECK VALVE | 1 |
| 8 | 426233 | 止回阀 | CHECK VALVE | 1 |
| 9 | 426981 | 止回阀 | CHECK VALVE | 1 |
| 9 | 426982 | 止回阀 | CHECK VALVE | 1 |
| 10 | 99130122 | 管材(20英尺整卷)(裁切为19英寸) | TUBING (20.00 Feet Bulk) (Cut to 19 Inches) | 1 |
| 10 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 11 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 10 |
| 11 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 10 |
| 12 | 852760 | 直通接头 | FITTING (STRAIGHT) | 2 |
| 13 | 855622 | 弯头接头 | FITTING (ELBOW) | 1 |
| 14 | 8267611 | 弯头 | ELBOW (ELBOW) | 3 |
| 15 | 85583445 | 管材(16英寸) | TUBING (16 IN.) | 2 |
| 15 | 85583464 | 管材 (34.00英寸整卷) | TUBING (34.00 Inches Bulk) | 2 |
| 15 | 85583445 | 管材(20英寸) | TUBING (20 IN.) | 1 |
| 15 | 85583464 | 管材 (34.00英寸整卷) | TUBING (34.00 Inches Bulk) | 1 |
| 16 | 85606064 | 管材(36.00英寸整料)(24-1/2英寸) | TUBING (36.00 Inches Bulk) (24-1/2 IN.) | 3 |
| 16 | 8M0054152 | 管材(39.00英寸整卷) | TUBING (39.00 Inches Bulk) | 3 |
| 17 | 828547753 | 导管(.750内径x3.00英尺整料)(裁切至7英寸) | CONDUIT (.750 Inside Diameter x 3.00 Feet Bulk) (Cut to 7 Inches) | 1 |
| 18 | 432781 | 止回阀 | CHECK VALVE | 1 |
| 18 | 8781051 | 止回阀 | CHECK VALVE | 1 |
| 19 | 830756109 | 软管(57.00英寸整料)(裁切至11-1/2英寸) | HOSE (57.00 Inches Bulk) (Cut to 11-1/2 Inches) | 1 |
| 19 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 20 | 822769 | 连接器 | CONNECTOR | 1 |
| 21 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | 6 |
| 22 | 66717 | 螺钉(.375-16 x 3.250) | SCREW (.375-16 x 3.250) | 8 |
| 23 | 74824 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 6 |
| 24 | 26852 | 尼龙帽 | CAP Nylon | 1 |
| 25 | 856832 | 螺丝 (.250-20 x 1.750) | SCREW (.250-20 x 1.750) | 1 |
| 26 | 64015 | 螺母 (.250-20) | NUT (.250-20) | 1 |
| 27 | 832760A1 | 上端盖总成 | END CAP ASSEMBLY Upper | 1 |
| 27 | 832760T1 | 端盖总成 | END CAP ASSEMBLY | 1 |
| 28 | 54029 | O型圈(2.800 x .103) | O-RING (2.800 x .103) | 1 |
| 29 | 16756A4 | 轴承套件 | BEARING KIT | 1 |
| 30 | NSS | 不单独销售 轴承座圈 | NOT SOLD SEPARATE Bearing Race | 1 |
| 31 | 41953 | 密封件 | SEAL | 1 |
| 32 | 69034 | 螺钉带锁紧垫圈(.312-18 x 1.00) | SCREW AND LOCKWASHER (.312-18 x 1.00) | 4 |
| 32 | 30225 | 螺钉带锁紧垫圈(.312-18 x 1.00) | SCREW WITH LOCKWASHER (.312-18 x 1.00) | 4 |
| 33 | 7809A1 | 端盖总成 | END CAP ASSEMBLY | 1 |
| 33 | 7809T1 | 端盖总成 | END CAP ASSEMBLY | 1 |
| 34 | 62700 | O型圈(3.237 x .103) | O-RING (3.237 x .103) | 1 |
| 35 | 41953 | 密封件 | SEAL | 2 |
| 36 | 28636 | 螺钉(.250-20 x .750) | SCREW (.250-20 x .750) | 4 |
| 37 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 4 |
| 38 | 853882 | 支架 | BRACKET | 1 |
| 38 | 8538821 | 节气门位置指示器安装支架 | BRACKET Throttle Position Indicator Mount | 1 |
| 39 | 8519371 | 节气门位置指示器杠杆 | LEVER Throttle Position Indicator | 1 |
| 40 | 82130025 | 螺钉(M6x25) | SCREW (M6 x 25) | 3 |
| 41 | 8318701 | 衬套 | BUSHING | 6 |
| 42 | 834985 | 护孔环 | GROMMET | 3 |
| 42 | 8M0190980 | 护孔环 | GROMMET | 3 |
| 43 | 8M6005905 | 节气门位置指示器(内侧) | INDICATOR Throttle Position (Inside) | 1 |
| 44 | 850882 | 隔套 | SPACER | 1 |
| 45 | 8329522 | 节气门位置指示器(外侧) | INDICATOR Throttle Position (Outside) | 1 |
| 45 | 8M6005166 | TPI | TPI | 1 |
| 46 | 850828 | 螺钉(#10-32 X 2-3/4英寸) | SCREW (#10-32 X 2-3/4 IN.) | 3 |
| 47 | 1938541 | 油门连杆 | LINK Throttle | 1 |
| 47 | 8M0084738 | 连杆总成 | LINK ASSY | 1 |
| 48 | NSS | 不单独销售序列号塞 | NOT SOLD SEPARATE Plug-Serial Number | 1 |
| 49 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 49 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| - | 814754A98 | 衬垫套件 | GASKET SET | 1 |
| - | 8M0046714 | 衬垫套件 | GASKET SET | 1 |
| - | 854008A98 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 804545T99 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 434291 | 点火板 点火 | IGNITION PLATE IGNITION | 1 |
| 2 | 7778A9 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 2 | 7778A12 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 3 | 13669 | 开关盒螺钉(#12-24 x 2.00) | SCREW (#12-24 x 2.00) SWITCH BOX | 2 |
| 4 | 94453 | 开关盒螺钉衬套 | BUSHING SWITCH BOX SCREW | 2 |
| 6 | 45076 | 螺母(#10-32)黄铜开关盒端子 | NUT (#10-32) Brass SWITCH BOX TERMINAL | 20 |
| 7 | 60871A10 | 线束总成-开关盒 | WIRE ASSEMBLY SWITCH BOX | 2 |
| 8 | 62568 | 螺丝(#10-16 x 0.375)导线固定 | SCREW (#10-16 x .375) WIRE ATTACHING | 3 |
| 9 | 65999A3 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 10 | 69092 | 点火板螺钉(1.25) | SCREW (1.25) IGNITION PLATE | 3 |
| 10 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 3 |
| 11 | 26993 | 锁紧垫圈(.312)点火板螺钉 | LOCKWASHER (.312) IGNITION PLATE SCREW | 3 |
| 11 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 12 | 36042 | 垫圈 点火板螺钉 | WASHER IGNITION PLATE SCREW | 6 |
| 13 | 67264 | 橡胶垫圈 点火板螺钉 | WASHER (Rubber) IGNITION PLATE SCREW | 6 |
| 14 | 67268 | 衬套 点火板螺钉 | BUSHING IGNITION PLATE SCREW | 3 |
| 15 | 33386A3 | 开关总成 | SWITCH ASSEMLBY | 1 |
| 16 | 38055 | 水银开关螺钉(.190-32 x .620) | SCREW (.190-32 x .620) MERCURY SWITCH | 1 |
| 17 | 45076 | 螺母 (#10-32) 黄铜水银开关端子 | NUT (#10-32) Brass MERCURY SWITCH TERMINAL | 1 |
| 18 | 87926 | 螺钉(#10-32 x .500)导线固定 | SCREW (#10-32 x .500) LEAD ATTACHING | 1 |
| 19 | 88439A3 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 19 | 88439A4 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 20 | 96220A12 | 发动机线束总成 | HARNESS ASSEMBLY ENGINE | 1 |
| 21 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 21 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 22 | 95084A2 | 电缆总成-保险丝 | CABLE ASSEMBLY FUSE | 1 |
| 24 | 816311 | 捆扎带(8英寸)线束和电缆 | TIE STRAP (8.00 Inches) HARNESS AND CABLES | AR |
| 24 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 25 | 68258A4 | 启动电磁阀总成 | SOLENOID ASSEMBLY Starter | 1 |
| 25 | 853654A1 | 电磁阀 | SOLENOID | 1 |
| 26 | 45076 | 螺母(#10-32)黄铜 电磁阀端子 | NUT (#10-32) Brass SOLENOID TERMINALS | 2 |
| 27 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 28 | 68292 | 螺母（.312-18）电磁阀端子 | NUT (.312-18) SOLENOID TERMINALS | 2 |
| 28 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 29 | 31716 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 2 |
| 30 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 31 | 65999A2 | 电缆总成 黑色 上部安装 | CABLE ASSEMBLY Black UPPER MOUNT | 1 |
| 32 | 88528A2 | 线缆总成(6英寸-红/白) | CABLE ASSEMBLY (6" - RED/WHITE) | 1 |
| 32 | 91865A1 | 线束总成(3"-白/黑-175) | CABLE ASSEMBLY (3" - WHITE/BLACK - 175) | 1 |
| 33 | 47483 | J型卡扣 | J CLIP | 3 |
| 34 | 194372 | 端子排 | TERMINAL BLOCK | 1 |
| 35 | 38055 | 螺钉(0.190-32x0.620) | SCREW (.190-32 x .620) | 2 |
| 36 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 37 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 38 | 814422T | 点火板盖 | COVER IGNITION PLATE | 1 |
| 39 | 88447 | 螺钉 (.190-32 x 1.62) | SCREW (.190-32 x 1.62) | 2 |
| 40 | 69020 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 40 | 690201 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 41 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 3 |
| 42 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 3 |
| 43 | 62310A2 | 线束总成(175) | CABLE ASSEMBLY (175) | 1 |
| 44 | 78866 | 绝缘体 | INSULATOR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 826800A8 | 爆震控制器总成 | CONTROLLER ASSEMBLY Detonation | 1 |
| 2 | 88447 | 螺钉 (.190-32 x 1.62) | SCREW (.190-32 x 1.62) | 3 |
| 3 | 38833 | 垫圈 | WASHER | 3 |
| 4 | 13381 | 安装板 | PLATE | 1 |
| 5 | 88807A10 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 6 | 62568 | 螺钉（#10-16 x 0.375） | SCREW (#10-16 x .375) | 1 |
| 7 | 94304 | 隔套 | SPACER | 3 |
| 8 | 41470A25 | 喷油警告模块总成 | MODULE ASSEMBLY Oil Injection Warning | 1 |
| 9 | 14851 | 油门位置指示器 | INDICATOR Throttle Position | 1 |
| 9 | 14851T03 | 指示器 | INDICATOR | 1 |
| 10 | 15150 | 螺钉(#8-32 x 0.625英寸) | SCREW (#8-32 x .625) | 2 |
| 11 | 26995 | 防松垫圈(#8不锈钢) | LOCKWASHER (#8) Stainless Steel | 2 |
| 12 | 30164 | 垫圈(0.192x0.375x0.0312)不锈钢 | WASHER (.192 x .375 x .0312) Stainless Steel | 2 |
| 13 | 15885 | 套筒 | SLEEVE | 1 |
| 14 | 813501 | 安装板 | PLATE | 2 |
| 15 | 13221A1 | 温度传感器总成 | SENSOR ASSEMBLY Temperature | 1 |
| 15 | 13221T01 | 温度传感器 | SENSOR TEMP | 1 |
| 16 | 45711 | O型圈 (.612 x .103) | O-RING (.612 x .103) | 1 |
| 17 | 57583 | 螺丝（#8-32×0.375） | SCREW (#8-32 x .375) | 3 |
| 17 | 57583T | 螺丝#8-32×3/8 | SCREW #8-32x3/8 | 3 |
| 18 | 26995 | 防松垫圈(#8不锈钢) | LOCKWASHER (#8) Stainless Steel | 3 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8343A10 | 传动轴壳体总成(黑色) | HOUSING ASSEMBLY Driveshaft (BLACK) | 1 |
| 1 | 8343A11 | 传动轴壳体总成(灰色) | HOUSING ASSEMBLY Driveshaft (GRAY) | 1 |
| 1 | 8343T11 | ORD 1590-8343T10 | ORD 1590-8343T10 | 1 |
| 2 | 56295 | 驱动轴壳体/齿轮箱壳体双头螺柱(.437 x 2.69) | STUD (.437 x 2.69) DRIVE SHAFT HSG./GEAR HSG. | 2 |
| 3 | 25067 | 下安装座螺钉缓冲垫 | BUMPER LOWER MOUNT SCREW | 2 |
| 4 | 63474 | 下安装座螺钉(.500-20 x 6.00) | SCREW (.500-20 x 6.00) LOWER MOUNT | 2 |
| 4 | 898831 | 螺钉(.500-20 x 6.220) | SCREW (.500-20 x 6.220) | 2 |
| 5 | 78249 | 下支架 | MOUNT LOWER | 2 |
| 5 | 77327 | 支架 | MOUNT | 2 |
| 6 | 49339 | 下部安装螺钉垫圈(.8125) | WASHER (.8125) LOWER MOUNT SCREW | 2 |
| 7 | 25096 | 下安装螺丝螺母 | NUT LOWER MOUNT SCREW | 2 |
| 8 | 88238A1 | 接地线总成 | CABLE ASSEMBLY Ground | 1 |
| 8 | 88238A10 | 接地线总成 | CABLE ASSEMBLY Ground | 1 |
| 9 | 67076 | 下安装夹 | CLAMP LOWER MOUNT | 2 |
| 9 | 8M0036782 | 卡箍 | CLAMP | 2 |
| 10 | 66727 | 下安装座夹具固定螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) LOWER MOUNT CLAMP ATTACHING | 4 |
| 11 | 67077T | 黑色下安装夹盖(黑色) | COVER Black LOWER MOUNT CLAMP (BLACK) | 2 |
| 11 | 8M4500752 | 盖板 | COVER | 2 |
| 11 | 67077T6 | 下安装座夹具盖(灰色) | COVER LOWER MOUNT CLAMP (GRAY) | 2 |
| 11 | 67077F1 | 灰色盖板 | COVER Gray | 2 |
| 12 | 88417 | 盖固定螺钉(#12-24 x .620) | SCREW (#12-24 x .620) COVER ATTACHING | 4 |
| 13 | 35521 | 盖至夹具螺钉尼龙螺母 | NUT NYLON - COVER TO CLAMP SCREW | 4 |
| 14 | 88238A1 | 接地线总成 | CABLE ASSEMBLY Ground | 1 |
| 14 | 88238A10 | 接地线总成 | CABLE ASSEMBLY Ground | 1 |
| 15 | 41508 | 螺丝(.250-20 x .500)不锈钢接地线 | SCREW (.250-20 x .500) Stainless Steel GROUND WIRE | 1 |
| 16 | 48926 | 齿轮箱壳体螺柱垫圈 | WASHER GEAR HOUSING STUD | 1 |
| 17 | 29489 | 齿轮箱壳体螺柱盖形螺母 | NUT GEAR HOUSING STUD (CAP) | 1 |
| 18 | 45176 | 齿轮箱壳体螺柱不锈钢垫圈(.453 x .812 x .105) | WASHER (.453 x .812 x .105) Stainless Steel GEAR HOUSING STUD | 2 |
| 19 | 34933 | 齿轮箱壳体螺柱不锈钢螺母(.437-20) | NUT (.437-20) Stainless Steel GEAR HOUSING STUD | 2 |
| 19 | 8M0204653 | 螺母 | NUT | 2 |
| 20 | 64649 | 驱动轴壳体塞 | PLUG DRIVE SHAFT HOUSING | 1 |
| 21 | 18276 | 排气管 | TUBE Exhaust | 1 |
| 21 | 18276T | 排气管 | EXHAUST TUBE | 1 |
| 22 | 66350 | 排气管密封件 (下部) | SEAL EXHAUST TUBE (LOWER) | 1 |
| 22 | 66350001 | 密封件 | SEAL | 1 |
| 23 | 177261 | 排气管密封件 (上部) | SEAL EXHAUST TUBE (UPPER) | 1 |
| 23 | 8M0039076 | 密封件 | SEAL | 1 |
| 24 | 67295 | 水管 WATER | TUBE Water WATER | 1 |
| 24 | 8M0042788 | 长型水管 | TUBE-WATER-LONG | 1 |
| 25 | 991732 | 驱动轴壳体至板衬垫 | GASKET DRIVE SHAFT HOUSING TO PLATE | 1 |
| 25 | 991734 | 衬垫 | GASKET | 1 |
| 26 | 18233A2 | 驱动轴壳体板总成 | PLATE ASSEMBLY DRIVE SHAFT HOUSING | 1 |
| 26 | 18233A20 | 传动轴壳体板总成 | PLATE ASSEMBLY Driveshaft Housing | 1 |
| 27 | 8147012 | 支架密封条 | SEAL BRACKET | 1 |
| 27 | 8M0043165 | 密封件-27.00英寸 | SEAL-27.00 INCH | 1 |
| 28 | 68011 | 密封件固定支架 | BRACKET SEAL RETAINING | 1 |
| 29 | 812832 | 支架至板件螺钉(#10-16 x .500) | SCREW (#10-16 x .500) BRACKET TO PLATE | 12 |
| 29 | 878608 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 12 |
| 30 | 20033 | 定位销 | PIN Dowel LOCATING | 2 |
| 30 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 2 |
| 31 | 38970 | 水管密封件 | SEAL WATER TUBE | 1 |
| 32 | 90192 | 延伸件至板不锈钢螺钉(.250-20 x .750) | SCREW (.250-20 x .750) Stainless Steel EXTENSION TO PLATE | 6 |
| 33 | 183071 | 驱动轴箱板衬垫 | GASKET DRIVE SHAFT HOUSING PLATE | 1 |
| 33 | 183076 | 衬垫 | GASKET | 1 |
| 34 | 25970 | 动力头螺柱垫圈 | WASHER POWER HEAD STUD | 4 |
| 34 | 20553 | 垫圈(.406 x .734 x .063) | WASHER (.406 x .734 x .063) | 4 |
| 35 | 69254 | 动力头螺柱螺母 | NUT POWER HEAD STUD | 4 |
| 36 | 17303 | 扩散器（175） | DIFFUSER (175) | 1 |
| 36 | 17303T1 | 排气延长管 | EXH. EXTENSION | 1 |
| 36 | 41942T | 排气延长管（200） | EXTENSION Exhaust (200) | 1 |
| 36 | 879288T71 | 排气管延长段 | EXTENSION Exhaust | 1 |
| 37 | 78246 | 排气延长管衬垫 | GASKET EXHAUST EXTENSION | 1 |
| 37 | 782461 | 衬垫 | GASKET | 1 |
| 38 | 814618 | 怠速排气套 | BOOT IDLE EXHAUST | 1 |
| - | 815810A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 815809A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 434291 | 点火板 点火 | IGNITION PLATE IGNITION | 1 |
| 2 | 7778A9 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 2 | 7778A12 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 3 | 13669 | 开关盒螺钉(#12-24 x 2.00) | SCREW (#12-24 x 2.00) SWITCH BOX | 2 |
| 4 | 94453 | 开关盒螺钉衬套 | BUSHING SWITCH BOX SCREW | 2 |
| 6 | 45076 | 螺母(#10-32)黄铜开关盒端子 | NUT (#10-32) Brass SWITCH BOX TERMINAL | 20 |
| 7 | 60871A10 | 线束总成-开关盒 | WIRE ASSEMBLY SWITCH BOX | 2 |
| 8 | 62568 | 螺丝(#10-16 x 0.375)导线固定 | SCREW (#10-16 x .375) WIRE ATTACHING | 3 |
| 9 | 65999A3 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 10 | 69092 | 点火板螺钉(1.25) | SCREW (1.25) IGNITION PLATE | 3 |
| 10 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 3 |
| 11 | 26993 | 锁紧垫圈(.312)点火板螺钉 | LOCKWASHER (.312) IGNITION PLATE SCREW | 3 |
| 11 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 12 | 36042 | 垫圈 点火板螺钉 | WASHER IGNITION PLATE SCREW | 6 |
| 13 | 67264 | 橡胶垫圈 点火板螺钉 | WASHER (Rubber) IGNITION PLATE SCREW | 6 |
| 14 | 67268 | 衬套 点火板螺钉 | BUSHING IGNITION PLATE SCREW | 3 |
| 15 | 33386A3 | 开关总成 | SWITCH ASSEMLBY | 1 |
| 16 | 38055 | 水银开关螺钉(.190-32 x .620) | SCREW (.190-32 x .620) MERCURY SWITCH | 1 |
| 17 | 45076 | 螺母 (#10-32) 黄铜水银开关端子 | NUT (#10-32) Brass MERCURY SWITCH TERMINAL | 1 |
| 18 | 87926 | 螺钉(#10-32 x .500)导线固定 | SCREW (#10-32 x .500) LEAD ATTACHING | 1 |
| 19 | 88439A3 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 19 | 88439A4 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 20 | 96220A12 | 发动机线束总成 | HARNESS ASSEMBLY ENGINE | 1 |
| 21 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 21 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 22 | 95084A2 | 电缆总成-保险丝 | CABLE ASSEMBLY FUSE | 1 |
| 24 | 816311 | 捆扎带(8英寸)线束和电缆 | TIE STRAP (8.00 Inches) HARNESS AND CABLES | AR |
| 24 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 25 | 68258A4 | 启动电磁阀总成 | SOLENOID ASSEMBLY Starter | 1 |
| 25 | 853654A1 | 电磁阀 | SOLENOID | 1 |
| 26 | 45076 | 螺母(#10-32)黄铜 电磁阀端子 | NUT (#10-32) Brass SOLENOID TERMINALS | 2 |
| 27 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 28 | 68292 | 螺母（.312-18）电磁阀端子 | NUT (.312-18) SOLENOID TERMINALS | 2 |
| 28 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 29 | 31716 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 2 |
| 30 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 31 | 65999A2 | 电缆总成 黑色 上部安装 | CABLE ASSEMBLY Black UPPER MOUNT | 1 |
| 32 | 88528A2 | 线缆总成(6英寸-红/白) | CABLE ASSEMBLY (6" - RED/WHITE) | 1 |
| 32 | 91865A1 | 线束总成(3"-白/黑-175) | CABLE ASSEMBLY (3" - WHITE/BLACK - 175) | 1 |
| 33 | 47483 | J型卡扣 | J CLIP | 3 |
| 34 | 194372 | 端子排 | TERMINAL BLOCK | 1 |
| 35 | 38055 | 螺钉(0.190-32x0.620) | SCREW (.190-32 x .620) | 2 |
| 36 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 37 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 38 | 814422T | 点火板盖 | COVER IGNITION PLATE | 1 |
| 39 | 88447 | 螺钉 (.190-32 x 1.62) | SCREW (.190-32 x 1.62) | 2 |
| 40 | 69020 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 40 | 690201 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 41 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 3 |
| 42 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 3 |
| 43 | 62310A2 | 线束总成(175) | CABLE ASSEMBLY (175) | 1 |
| 44 | 78866 | 绝缘体 | INSULATOR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 434291 | 点火板 点火 | IGNITION PLATE IGNITION | 1 |
| 2 | 7778A9 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 2 | 7778A12 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 3 | 13669 | 开关盒螺钉(#12-24 x 2.00) | SCREW (#12-24 x 2.00) SWITCH BOX | 2 |
| 4 | 94453 | 开关盒螺钉衬套 | BUSHING SWITCH BOX SCREW | 2 |
| 6 | 45076 | 螺母(#10-32)黄铜开关盒端子 | NUT (#10-32) Brass SWITCH BOX TERMINAL | 20 |
| 7 | 60871A10 | 线束总成-开关盒 | WIRE ASSEMBLY SWITCH BOX | 2 |
| 8 | 62568 | 螺丝(#10-16 x 0.375)导线固定 | SCREW (#10-16 x .375) WIRE ATTACHING | 3 |
| 9 | 65999A3 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 10 | 69092 | 点火板螺钉(1.25) | SCREW (1.25) IGNITION PLATE | 3 |
| 10 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 3 |
| 11 | 26993 | 锁紧垫圈(.312)点火板螺钉 | LOCKWASHER (.312) IGNITION PLATE SCREW | 3 |
| 11 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 12 | 36042 | 垫圈 点火板螺钉 | WASHER IGNITION PLATE SCREW | 6 |
| 13 | 67264 | 橡胶垫圈 点火板螺钉 | WASHER (Rubber) IGNITION PLATE SCREW | 6 |
| 14 | 67268 | 衬套 点火板螺钉 | BUSHING IGNITION PLATE SCREW | 3 |
| 15 | 33386A3 | 开关总成 | SWITCH ASSEMLBY | 1 |
| 16 | 38055 | 水银开关螺钉(.190-32 x .620) | SCREW (.190-32 x .620) MERCURY SWITCH | 1 |
| 17 | 45076 | 螺母 (#10-32) 黄铜水银开关端子 | NUT (#10-32) Brass MERCURY SWITCH TERMINAL | 1 |
| 18 | 87926 | 螺钉(#10-32 x .500)导线固定 | SCREW (#10-32 x .500) LEAD ATTACHING | 1 |
| 19 | 88439A3 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 19 | 88439A4 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 20 | 96220A12 | 发动机线束总成 | HARNESS ASSEMBLY ENGINE | 1 |
| 21 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 21 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 22 | 95084A2 | 电缆总成-保险丝 | CABLE ASSEMBLY FUSE | 1 |
| 24 | 816311 | 捆扎带(8英寸)线束和电缆 | TIE STRAP (8.00 Inches) HARNESS AND CABLES | AR |
| 24 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 25 | 68258A4 | 启动电磁阀总成 | SOLENOID ASSEMBLY Starter | 1 |
| 25 | 853654A1 | 电磁阀 | SOLENOID | 1 |
| 26 | 45076 | 螺母(#10-32)黄铜 电磁阀端子 | NUT (#10-32) Brass SOLENOID TERMINALS | 2 |
| 27 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 28 | 68292 | 螺母（.312-18）电磁阀端子 | NUT (.312-18) SOLENOID TERMINALS | 2 |
| 28 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 29 | 31716 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 2 |
| 30 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 31 | 65999A2 | 电缆总成 黑色 上部安装 | CABLE ASSEMBLY Black UPPER MOUNT | 1 |
| 32 | 88528A2 | 线缆总成(6英寸-红/白) | CABLE ASSEMBLY (6" - RED/WHITE) | 1 |
| 32 | 91865A1 | 线束总成(3"-白/黑-175) | CABLE ASSEMBLY (3" - WHITE/BLACK - 175) | 1 |
| 33 | 47483 | J型卡扣 | J CLIP | 3 |
| 34 | 194372 | 端子排 | TERMINAL BLOCK | 1 |
| 35 | 38055 | 螺钉(0.190-32x0.620) | SCREW (.190-32 x .620) | 2 |
| 36 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 37 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 38 | 814422T | 点火板盖 | COVER IGNITION PLATE | 1 |
| 39 | 88447 | 螺钉 (.190-32 x 1.62) | SCREW (.190-32 x 1.62) | 2 |
| 40 | 69020 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 40 | 690201 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 41 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 3 |
| 42 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 3 |
| 43 | 62310A2 | 线束总成(175) | CABLE ASSEMBLY (175) | 1 |
| 44 | 78866 | 绝缘体 | INSULATOR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 14632A15 | 发动机控制单元ECU(175) | ECU Engine Control Unit (175) | 1 |
| 1 | 14632A13 | 发动机控制单元ECU(200) | ECU Engine Control Unit (200) | 1 |
| 1 | 824003T16 | 电控单元 | ECU | 1 |
| 2 | 34948 | 隔套 | SPACER | 2 |
| 3 | 146951 | 卡扣 | CLIP | 1 |
| 4 | 90435 | 罩壳安装支架座 | MOUNT COWL MOUNTING BRACKET | 2 |
| 5 | 21249 | 安装垫圈 | WASHER MOUNT ATTACHING | 4 |
| 6 | 20361 | 安装螺母(0.250-28) | NUT (.250-28) MOUNT ATTACHING | 4 |
| 6 | 8267089 | 螺母(.250-28) | NUT (.250-28) | 4 |
| 7 | 88807A19 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 8 | 14637 | 护孔环 | GROMMET | 1 |
| 9 | 14636 | 衬套 | BUSHING | 1 |
| 10 | 28667 | 螺钉 (0.250-20 x 1.00) 不锈钢 | SCREW (.250-20 x 1.00) Stainless Steel | 1 |
| 11 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 1 |
| 12 | 65567 | 不锈钢垫圈(0.265x0.750x0.048) | WASHER (.265 x .750 x .048) Stainless Steel | 1 |
| 13 | 13202A2 | 水位传感器模块总成 | MODULE ASSEMBLY Water Sensor | 1 |
| 14 | 88807A18 | 线缆总成(黑色) | CABLE ASSEMBLY (BLACK) | 1 |
| 15 | 37571 | 水位传感器模块螺钉(0.190-32×0.500) | SCREW (.190-32 x .500) WATER SENSOR MODULE | 2 |
| 16 | 89302 | 水位传感器模块螺钉垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) WATER SENSOR MODULE SCREW | 2 |
| 17 | 98866A14 | ECU与喷油器线束总成 | HARNESS ASSEMBLY E.C.U. AND INJECTORS | 1 |
| 18 | 87895A4 | 线束总成(175) | CABLE ASSEMBLY (175) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 434291 | 点火板 点火 | IGNITION PLATE IGNITION | 1 |
| 2 | 7778A9 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 2 | 7778A12 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 3 | 13669 | 开关盒螺钉(#12-24 x 2.00) | SCREW (#12-24 x 2.00) SWITCH BOX | 2 |
| 4 | 94453 | 开关盒螺钉衬套 | BUSHING SWITCH BOX SCREW | 2 |
| 6 | 45076 | 螺母(#10-32)黄铜开关盒端子 | NUT (#10-32) Brass SWITCH BOX TERMINAL | 20 |
| 7 | 60871A10 | 线束总成-开关盒 | WIRE ASSEMBLY SWITCH BOX | 2 |
| 8 | 62568 | 螺丝(#10-16 x 0.375)导线固定 | SCREW (#10-16 x .375) WIRE ATTACHING | 3 |
| 9 | 65999A3 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 10 | 69092 | 点火板螺钉(1.25) | SCREW (1.25) IGNITION PLATE | 3 |
| 10 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 3 |
| 11 | 26993 | 锁紧垫圈(.312)点火板螺钉 | LOCKWASHER (.312) IGNITION PLATE SCREW | 3 |
| 11 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 12 | 36042 | 垫圈 点火板螺钉 | WASHER IGNITION PLATE SCREW | 6 |
| 13 | 67264 | 橡胶垫圈 点火板螺钉 | WASHER (Rubber) IGNITION PLATE SCREW | 6 |
| 14 | 67268 | 衬套 点火板螺钉 | BUSHING IGNITION PLATE SCREW | 3 |
| 15 | 33386A3 | 开关总成 | SWITCH ASSEMLBY | 1 |
| 16 | 38055 | 水银开关螺钉(.190-32 x .620) | SCREW (.190-32 x .620) MERCURY SWITCH | 1 |
| 17 | 45076 | 螺母 (#10-32) 黄铜水银开关端子 | NUT (#10-32) Brass MERCURY SWITCH TERMINAL | 1 |
| 18 | 87926 | 螺钉(#10-32 x .500)导线固定 | SCREW (#10-32 x .500) LEAD ATTACHING | 1 |
| 19 | 88439A3 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 19 | 88439A4 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 20 | 96220A12 | 发动机线束总成 | HARNESS ASSEMBLY ENGINE | 1 |
| 21 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 21 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 22 | 95084A2 | 电缆总成-保险丝 | CABLE ASSEMBLY FUSE | 1 |
| 24 | 816311 | 捆扎带(8英寸)线束和电缆 | TIE STRAP (8.00 Inches) HARNESS AND CABLES | AR |
| 24 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 25 | 68258A4 | 启动电磁阀总成 | SOLENOID ASSEMBLY Starter | 1 |
| 25 | 853654A1 | 电磁阀 | SOLENOID | 1 |
| 26 | 45076 | 螺母(#10-32)黄铜 电磁阀端子 | NUT (#10-32) Brass SOLENOID TERMINALS | 2 |
| 27 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 28 | 68292 | 螺母（.312-18）电磁阀端子 | NUT (.312-18) SOLENOID TERMINALS | 2 |
| 28 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 29 | 31716 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 2 |
| 30 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 31 | 65999A2 | 电缆总成 黑色 上部安装 | CABLE ASSEMBLY Black UPPER MOUNT | 1 |
| 32 | 88528A2 | 线缆总成(6英寸-红/白) | CABLE ASSEMBLY (6" - RED/WHITE) | 1 |
| 32 | 91865A1 | 线束总成(3"-白/黑-175) | CABLE ASSEMBLY (3" - WHITE/BLACK - 175) | 1 |
| 33 | 47483 | J型卡扣 | J CLIP | 3 |
| 34 | 194372 | 端子排 | TERMINAL BLOCK | 1 |
| 35 | 38055 | 螺钉(0.190-32x0.620) | SCREW (.190-32 x .620) | 2 |
| 36 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 37 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 38 | 814422T | 点火板盖 | COVER IGNITION PLATE | 1 |
| 39 | 88447 | 螺钉 (.190-32 x 1.62) | SCREW (.190-32 x 1.62) | 2 |
| 40 | 69020 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 40 | 690201 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 41 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 3 |
| 42 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 3 |
| 43 | 62310A2 | 线束总成(175) | CABLE ASSEMBLY (175) | 1 |
| 44 | 78866 | 绝缘体 | INSULATOR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 434291 | 点火板 点火 | IGNITION PLATE IGNITION | 1 |
| 2 | 7778A9 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 2 | 7778A12 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 3 | 13669 | 开关盒螺钉(#12-24 x 2.00) | SCREW (#12-24 x 2.00) SWITCH BOX | 2 |
| 4 | 94453 | 开关盒螺钉衬套 | BUSHING SWITCH BOX SCREW | 2 |
| 6 | 45076 | 螺母(#10-32)黄铜开关盒端子 | NUT (#10-32) Brass SWITCH BOX TERMINAL | 20 |
| 7 | 60871A10 | 线束总成-开关盒 | WIRE ASSEMBLY SWITCH BOX | 2 |
| 8 | 62568 | 螺丝(#10-16 x 0.375)导线固定 | SCREW (#10-16 x .375) WIRE ATTACHING | 3 |
| 9 | 65999A3 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 10 | 69092 | 点火板螺钉(1.25) | SCREW (1.25) IGNITION PLATE | 3 |
| 10 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 3 |
| 11 | 26993 | 锁紧垫圈(.312)点火板螺钉 | LOCKWASHER (.312) IGNITION PLATE SCREW | 3 |
| 11 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 12 | 36042 | 垫圈 点火板螺钉 | WASHER IGNITION PLATE SCREW | 6 |
| 13 | 67264 | 橡胶垫圈 点火板螺钉 | WASHER (Rubber) IGNITION PLATE SCREW | 6 |
| 14 | 67268 | 衬套 点火板螺钉 | BUSHING IGNITION PLATE SCREW | 3 |
| 15 | 33386A3 | 开关总成 | SWITCH ASSEMLBY | 1 |
| 16 | 38055 | 水银开关螺钉(.190-32 x .620) | SCREW (.190-32 x .620) MERCURY SWITCH | 1 |
| 17 | 45076 | 螺母 (#10-32) 黄铜水银开关端子 | NUT (#10-32) Brass MERCURY SWITCH TERMINAL | 1 |
| 18 | 87926 | 螺钉(#10-32 x .500)导线固定 | SCREW (#10-32 x .500) LEAD ATTACHING | 1 |
| 19 | 88439A3 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 19 | 88439A4 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 20 | 96220A12 | 发动机线束总成 | HARNESS ASSEMBLY ENGINE | 1 |
| 21 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 21 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 22 | 95084A2 | 电缆总成-保险丝 | CABLE ASSEMBLY FUSE | 1 |
| 24 | 816311 | 捆扎带(8英寸)线束和电缆 | TIE STRAP (8.00 Inches) HARNESS AND CABLES | AR |
| 24 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 25 | 68258A4 | 启动电磁阀总成 | SOLENOID ASSEMBLY Starter | 1 |
| 25 | 853654A1 | 电磁阀 | SOLENOID | 1 |
| 26 | 45076 | 螺母(#10-32)黄铜 电磁阀端子 | NUT (#10-32) Brass SOLENOID TERMINALS | 2 |
| 27 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 28 | 68292 | 螺母（.312-18）电磁阀端子 | NUT (.312-18) SOLENOID TERMINALS | 2 |
| 28 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 29 | 31716 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 2 |
| 30 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 31 | 65999A2 | 电缆总成 黑色 上部安装 | CABLE ASSEMBLY Black UPPER MOUNT | 1 |
| 32 | 88528A2 | 线缆总成(6英寸-红/白) | CABLE ASSEMBLY (6" - RED/WHITE) | 1 |
| 32 | 91865A1 | 线束总成(3"-白/黑-175) | CABLE ASSEMBLY (3" - WHITE/BLACK - 175) | 1 |
| 33 | 47483 | J型卡扣 | J CLIP | 3 |
| 34 | 194372 | 端子排 | TERMINAL BLOCK | 1 |
| 35 | 38055 | 螺钉(0.190-32x0.620) | SCREW (.190-32 x .620) | 2 |
| 36 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 37 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 38 | 814422T | 点火板盖 | COVER IGNITION PLATE | 1 |
| 39 | 88447 | 螺钉 (.190-32 x 1.62) | SCREW (.190-32 x 1.62) | 2 |
| 40 | 69020 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 40 | 690201 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 41 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 3 |
| 42 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 3 |
| 43 | 62310A2 | 线束总成(175) | CABLE ASSEMBLY (175) | 1 |
| 44 | 78866 | 绝缘体 | INSULATOR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 190503 | 衬垫 | GASKET | 1 |
| 2 | 8283431 | 排气隔板 | PLATE Exhaust Divider | 1 |
| 2 | 828343T3 | 排气隔板 | PLATE Exhaust Divider | 1 |
| 3 | 814754 | 密封件(12.50英寸) | SEAL (12.50 Inches) | 1 |
| 4 | 826356 | 螺钉带垫圈(.312-18 x 1.500) | SCREW AND WASHER (.312-18 x 1.500) | 17 |
| 4 | 8263561 | 螺钉带垫圈(.312-18 x 1.500) | SCREW AND WASHER (.312-18 x 1.500) | 17 |
| 5 | 855288 | 螺丝(.312-18 x 1.00) | SCREW (.312-18 x 1.00) | 2 |
| 5 | 881190 | 螺丝(.312-18 x 1.00) | SCREW (.312-18 x 1.00) | 2 |
| 6 | 8348082 | 滤网 | STRAINER | 1 |
| 7 | 83075780 | 管材(28.00英寸整料)(裁切至4-1/2英寸) | TUBING (28.00 Inches Bulk) (Cut to 4-1/2 Inches) | 1 |
| 7 | 8M0108349 | 软管 (70英寸散装) | HOSE (70 Inches Bulk) | 1 |
| 8 | 687271 | 90度弯头 (.250-18) - 黄铜 | FITTING (.250-18) 90 Degree - Brass | 1 |
| 9 | 77653112 | 软管(59.00英寸整料)(21-1/2英寸) | HOSE (59.00 Inches Bulk) (21-1/2 IN.) | 1 |
| 9 | 77653101 | 软管（散装48.00英寸） | HOSE (48.00 Inches Bulk) | 1 |
| 10 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 5 |
| 10 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 5 |
| 11 | 68729 | 盖板 | COVER | 1 |
| 11 | 8M0039767 | 盖板 | COVER | 1 |
| 12 | 74824 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 4 |
| 13 | 69570 | 螺钉(#10-16 x .750) | SCREW (#10-16 x .750) | 1 |
| 14 | 76451 | 垫圈 | WASHER | 1 |
| 15 | 14479 | 隔膜 | DIAPHRAGM | 1 |
| 15 | 144791 | 隔膜 | DIAPHRAGM | 1 |
| 16 | 16496 | 导水板 | DEFLECTOR Water | 1 |
| 17 | 16497A1 | 安装板 | PLATE | 1 |
| 18 | 78690 | 衬垫 | GASKET | 2 |
| 18 | 78690002 | 衬垫 | GASKET | 2 |
| 19 | 64878 | 弹簧(黑色) | SPRING (Black) | 1 |
| 20 | 85303 | 垫圈 | WASHER | 1 |
| 21 | 14480 | 提动阀 | POPPET | 1 |
| 22 | 64872 | 护孔环 | GROMMET | 1 |
| 23 | 65848 | 托架 | CARRIER | 1 |
| 24 | 991763 | 衬垫 | GASKET | 1 |
| 24 | 991764 | 衬垫 | GASKET | 1 |
| 25 | 850814A1 | 排气板总成 | PLATE ASSEMBLY Exhaust | 1 |
| 25 | 850814T1 | 排气板总成 | PLATE ASSEMBLY Exhaust | 1 |
| 26 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 2 |
| 27 | 8147011 | 密封件 | SEAL | 1 |
| 27 | 8M0043164 | 密封件 | SEAL | 1 |
| 28 | 680101 | 支架 | BRACKET | 1 |
| 29 | 812832 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 8 |
| 29 | 878608 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 8 |
| 30 | 89772 | 连接器(.125-27)(直通)(背部) | CONNECTOR (.125-27) (STRAIGHT)(BACK) | 1 |
| 31 | 629101 | 90度弯头(.125-27)(右舷顶部孔) | FITTING Elbow - 90 Degree (.125-27) (STARBOARD-TOP HOLE) | 1 |
| 32 | 89772 | 连接器(.125-27)(直通)(右舷底部孔) | CONNECTOR (.125-27) (STRAIGHT)(STARBOARD-BOTTOM HOLE) | 1 |
| 33 | 19564 | 护孔环 | GROMMET | 1 |
| 33 | 8M0179867 | 护孔环 | GROMMET | 1 |
| 34 | 19565 | 护孔环 | GROMMET | 1 |
| 34 | 19565002 | 护孔环 | GROMMET | 1 |
| 35 | 77653112 | 软管(59.00英寸整料)(25英寸) | HOSE (59.00 Inches Bulk) (25 IN.) | 1 |
| 35 | 77653101 | 软管（散装48.00英寸） | HOSE (48.00 Inches Bulk) | 1 |
| 36 | 852759 | 软管 | HOSE | 1 |
| 37 | 20553 | 垫圈(.406 x .734 x .063) | WASHER (.406 x .734 x .063) | 4 |
| 38 | 69254 | 螺母 | NUT | 6 |
| 39 | 27132 | 衬套 | BUSHING | 1 |
| 40 | 66727 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 1 |
| 41 | 68783 | 螺钉(.312-18×2.50) | SCREW (.312-18 x 2.50) | 1 |
| 42 | 66725 | 螺钉(.375-16×3.50) | SCREW (.375-16 x 3.50) | 3 |
| 42 | 898833 | 螺钉(.375-16 x 3.500) | SCREW (.375-16 x 3.500) | 3 |
| 43 | 812905A5 | 前支架总成 | BRACKET ASSEMBLY Front | 1 |
| 43 | 812905T | 前支架 | BRACKET Front | 1 |
| 44 | 8055571 | 螺钉(0.3125-18×0.50) | SCREW (.3125-18 x .50) | 4 |
| 45 | 187031 | 垫圈 | WASHER | 4 |
| 46 | 18778 | 护孔环 | GROMMET | 4 |
| 46 | 18778001 | 护孔环 | GROMMET | 4 |
| 47 | 18578A8 | 支架总成(后部) | BRACKET ASSEMBLY Rear | 1 |
| 47 | 18578T09 | 支架总成(后部) | BRACKET ASSEMBLY Rear | 1 |
| - | 814754A98 | 衬垫套件 | GASKET SET | 1 |
| - | 8M0046714 | 衬垫套件 | GASKET SET | 1 |
| - | 854008A98 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 804545T99 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 434291 | 点火板 点火 | IGNITION PLATE IGNITION | 1 |
| 2 | 7778A9 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 2 | 7778A12 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 3 | 13669 | 开关盒螺钉(#12-24 x 2.00) | SCREW (#12-24 x 2.00) SWITCH BOX | 2 |
| 4 | 94453 | 开关盒螺钉衬套 | BUSHING SWITCH BOX SCREW | 2 |
| 6 | 45076 | 螺母(#10-32)黄铜开关盒端子 | NUT (#10-32) Brass SWITCH BOX TERMINAL | 20 |
| 7 | 60871A10 | 线束总成-开关盒 | WIRE ASSEMBLY SWITCH BOX | 2 |
| 8 | 62568 | 螺丝(#10-16 x 0.375)导线固定 | SCREW (#10-16 x .375) WIRE ATTACHING | 3 |
| 9 | 65999A3 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 10 | 69092 | 点火板螺钉(1.25) | SCREW (1.25) IGNITION PLATE | 3 |
| 10 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 3 |
| 11 | 26993 | 锁紧垫圈(.312)点火板螺钉 | LOCKWASHER (.312) IGNITION PLATE SCREW | 3 |
| 11 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 12 | 36042 | 垫圈 点火板螺钉 | WASHER IGNITION PLATE SCREW | 6 |
| 13 | 67264 | 橡胶垫圈 点火板螺钉 | WASHER (Rubber) IGNITION PLATE SCREW | 6 |
| 14 | 67268 | 衬套 点火板螺钉 | BUSHING IGNITION PLATE SCREW | 3 |
| 15 | 33386A3 | 开关总成 | SWITCH ASSEMLBY | 1 |
| 16 | 38055 | 水银开关螺钉(.190-32 x .620) | SCREW (.190-32 x .620) MERCURY SWITCH | 1 |
| 17 | 45076 | 螺母 (#10-32) 黄铜水银开关端子 | NUT (#10-32) Brass MERCURY SWITCH TERMINAL | 1 |
| 18 | 87926 | 螺钉(#10-32 x .500)导线固定 | SCREW (#10-32 x .500) LEAD ATTACHING | 1 |
| 19 | 88439A3 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 19 | 88439A4 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 20 | 96220A12 | 发动机线束总成 | HARNESS ASSEMBLY ENGINE | 1 |
| 21 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 21 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 22 | 95084A2 | 电缆总成-保险丝 | CABLE ASSEMBLY FUSE | 1 |
| 24 | 816311 | 捆扎带(8英寸)线束和电缆 | TIE STRAP (8.00 Inches) HARNESS AND CABLES | AR |
| 24 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 25 | 68258A4 | 启动电磁阀总成 | SOLENOID ASSEMBLY Starter | 1 |
| 25 | 853654A1 | 电磁阀 | SOLENOID | 1 |
| 26 | 45076 | 螺母(#10-32)黄铜 电磁阀端子 | NUT (#10-32) Brass SOLENOID TERMINALS | 2 |
| 27 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 28 | 68292 | 螺母（.312-18）电磁阀端子 | NUT (.312-18) SOLENOID TERMINALS | 2 |
| 28 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 29 | 31716 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 2 |
| 30 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 31 | 65999A2 | 电缆总成 黑色 上部安装 | CABLE ASSEMBLY Black UPPER MOUNT | 1 |
| 32 | 88528A2 | 线缆总成(6英寸-红/白) | CABLE ASSEMBLY (6" - RED/WHITE) | 1 |
| 32 | 91865A1 | 线束总成(3"-白/黑-175) | CABLE ASSEMBLY (3" - WHITE/BLACK - 175) | 1 |
| 33 | 47483 | J型卡扣 | J CLIP | 3 |
| 34 | 194372 | 端子排 | TERMINAL BLOCK | 1 |
| 35 | 38055 | 螺钉(0.190-32x0.620) | SCREW (.190-32 x .620) | 2 |
| 36 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 37 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 38 | 814422T | 点火板盖 | COVER IGNITION PLATE | 1 |
| 39 | 88447 | 螺钉 (.190-32 x 1.62) | SCREW (.190-32 x 1.62) | 2 |
| 40 | 69020 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 40 | 690201 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 41 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 3 |
| 42 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 3 |
| 43 | 62310A2 | 线束总成(175) | CABLE ASSEMBLY (175) | 1 |
| 44 | 78866 | 绝缘体 | INSULATOR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 18896A1 | 盖板套件 | COVER KIT | 1 |
| 2 | 79022 | 标记 | MARKER | 1 |
| 3 | 37572 | 螺钉 (.190-32 x .380) | SCREW (.190-32 x .380) | 2 |
| 4 | 72761 | 不锈钢垫圈(.203 x .562 x .060) | WASHER (.203 x .562 x .060) Stainless Steel | 2 |
| 5 | 89219 | 塞（适用时使用） | PLUG (USE WHERE APPLICABLE) | 1 |
| 5 | 89219001 | 堵头 | PLUG | 1 |
| 6 | 45907 | 黄色塞 | PLUG Yellow | 1 |
| 7 | 52901 | 螺母(0.625-18) | NUT (.625-18) | 1 |
| 8 | 68229 | 垫圈(.641 x 1.250 x .190) | WASHER (.641 x 1.250 x .190) | 1 |
| 8 | 33001 | 垫圈 | WASHER | 1 |
| 9 | 817632A12 | 飞轮 | FLYWHEEL | 1 |
| 9 | 859238T16 | 飞轮总成 | FLYWHEEL ASY | 1 |
| 10 | 9610A19 | 定子 | STATOR | 1 |
| 11 | 90045 | 螺钉(#10-32×1.375) | SCREW (#10-32 x 1.375) | 4 |
| 12 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 4 |
| 13 | 96455A9 | 触发板总成 | PLATE ASSEMBLY Trigger | 1 |
| 14 | 79472 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 14 | 893893 | 启动马达 | STARTER MOTOR | 1 |
| 15 | 56703 | 轴环 | COLLAR | 2 |
| 15 | 8M0034918 | 轴环 | COLLAR | 2 |
| 16 | 68042 | 橡胶止挡 | STOP Rubber | 2 |
| 16 | 8M0043376 | 停机开关 | STOP | 2 |
| 17 | 69035 | 螺丝与锁紧垫圈(.250-20 x .625)不锈钢 | SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel | 1 |
| 18 | 93388A1 | 电缆总成(6.00英寸)黑色 | CABLE ASSEMBLY (6.00 Inches) Black | 1 |
| 19 | 93388A7 | 线缆总成(黑色) | CABLE ASSEMBLY (BLACK) | 1 |
| 19 | 93388A14 | 线缆总成(黄/黑) | CABLE ASSEMBLY Yellow/Black | 1 |
| 20 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 1 |
| 21 | 20890 | 螺母 (.250-20) | NUT (.250-20) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 434291 | 点火板 点火 | IGNITION PLATE IGNITION | 1 |
| 2 | 7778A9 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 2 | 7778A12 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 3 | 13669 | 开关盒螺钉(#12-24 x 2.00) | SCREW (#12-24 x 2.00) SWITCH BOX | 2 |
| 4 | 94453 | 开关盒螺钉衬套 | BUSHING SWITCH BOX SCREW | 2 |
| 6 | 45076 | 螺母(#10-32)黄铜开关盒端子 | NUT (#10-32) Brass SWITCH BOX TERMINAL | 20 |
| 7 | 60871A10 | 线束总成-开关盒 | WIRE ASSEMBLY SWITCH BOX | 2 |
| 8 | 62568 | 螺丝(#10-16 x 0.375)导线固定 | SCREW (#10-16 x .375) WIRE ATTACHING | 3 |
| 9 | 65999A3 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 10 | 69092 | 点火板螺钉(1.25) | SCREW (1.25) IGNITION PLATE | 3 |
| 10 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 3 |
| 11 | 26993 | 锁紧垫圈(.312)点火板螺钉 | LOCKWASHER (.312) IGNITION PLATE SCREW | 3 |
| 11 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 12 | 36042 | 垫圈 点火板螺钉 | WASHER IGNITION PLATE SCREW | 6 |
| 13 | 67264 | 橡胶垫圈 点火板螺钉 | WASHER (Rubber) IGNITION PLATE SCREW | 6 |
| 14 | 67268 | 衬套 点火板螺钉 | BUSHING IGNITION PLATE SCREW | 3 |
| 15 | 33386A3 | 开关总成 | SWITCH ASSEMLBY | 1 |
| 16 | 38055 | 水银开关螺钉(.190-32 x .620) | SCREW (.190-32 x .620) MERCURY SWITCH | 1 |
| 17 | 45076 | 螺母 (#10-32) 黄铜水银开关端子 | NUT (#10-32) Brass MERCURY SWITCH TERMINAL | 1 |
| 18 | 87926 | 螺钉(#10-32 x .500)导线固定 | SCREW (#10-32 x .500) LEAD ATTACHING | 1 |
| 19 | 88439A3 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 19 | 88439A4 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 20 | 96220A12 | 发动机线束总成 | HARNESS ASSEMBLY ENGINE | 1 |
| 21 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 21 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 22 | 95084A2 | 电缆总成-保险丝 | CABLE ASSEMBLY FUSE | 1 |
| 24 | 816311 | 捆扎带(8英寸)线束和电缆 | TIE STRAP (8.00 Inches) HARNESS AND CABLES | AR |
| 24 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 25 | 68258A4 | 启动电磁阀总成 | SOLENOID ASSEMBLY Starter | 1 |
| 25 | 853654A1 | 电磁阀 | SOLENOID | 1 |
| 26 | 45076 | 螺母(#10-32)黄铜 电磁阀端子 | NUT (#10-32) Brass SOLENOID TERMINALS | 2 |
| 27 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 28 | 68292 | 螺母（.312-18）电磁阀端子 | NUT (.312-18) SOLENOID TERMINALS | 2 |
| 28 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 29 | 31716 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 2 |
| 30 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 31 | 65999A2 | 电缆总成 黑色 上部安装 | CABLE ASSEMBLY Black UPPER MOUNT | 1 |
| 32 | 88528A2 | 线缆总成(6英寸-红/白) | CABLE ASSEMBLY (6" - RED/WHITE) | 1 |
| 32 | 91865A1 | 线束总成(3"-白/黑-175) | CABLE ASSEMBLY (3" - WHITE/BLACK - 175) | 1 |
| 33 | 47483 | J型卡扣 | J CLIP | 3 |
| 34 | 194372 | 端子排 | TERMINAL BLOCK | 1 |
| 35 | 38055 | 螺钉(0.190-32x0.620) | SCREW (.190-32 x .620) | 2 |
| 36 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 37 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 38 | 814422T | 点火板盖 | COVER IGNITION PLATE | 1 |
| 39 | 88447 | 螺钉 (.190-32 x 1.62) | SCREW (.190-32 x 1.62) | 2 |
| 40 | 69020 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 40 | 690201 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 41 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 3 |
| 42 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 3 |
| 43 | 62310A2 | 线束总成(175) | CABLE ASSEMBLY (175) | 1 |
| 44 | 78866 | 绝缘体 | INSULATOR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9912688 | 管材(36.00英寸散装)(裁切至3-1/4英寸) | TUBING (36.00 Inches Bulk) (Cut to 3-1/4 IN.) | 1 |
| 2 | 18206 | 滤清器 | FILTER | 1 |
| 2 | 8M0207786 | 滤清器 | FILTER | 1 |
| 3 | 9912688 | 管材(36.00英寸散装)(裁切至7-1/4英寸) | TUBING (36.00 Inches Bulk) (Cut to 7-1/4 IN.) | 1 |
| 4 | 99130122 | 管材(20.00英尺散装)(裁切至3-1/2英寸) | TUBING (20.00 Feet Bulk) (Cut to 3-1/2 IN.) | 1 |
| 4 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 5 | 59169 | 接头 | FITTING | 4 |
| 5 | 59169003 | 三通接头 | FITTING Tee | 4 |
| 6 | 99130122 | 管材(20英尺整卷)(裁切至5-1/2英寸) | TUBING (20.00 Feet Bulk) (Cut to 5-1/2 IN.) | 1 |
| 6 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 7 | 99130122 | 管材(20.00英尺散装)(裁切至9英寸) | TUBING (20.00 Feet Bulk) (Cut to 9 IN.) | 2 |
| 7 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 2 |
| 8 | 56759 | 压入式倒钩接头 | FITTING Barbed (PRESS-IN) | 4 |
| 9 | 426981 | 止回阀(压入式-13/16长) | CHECK VALVE (PRESS-IN - 13/16 LONG) | 7 |
| 9 | 426982 | 止回阀 | CHECK VALVE | 7 |
| 10 | 426231 | 止回阀(压入式-11/16长) | CHECK VALVE (PRESS-IN - 11/16 LONG) | 1 |
| 10 | 426233 | 止回阀 | CHECK VALVE | 1 |
| 11 | 18205 | 三通 | TEE | 1 |
| 12 | 99130122 | 管材(20.00英尺散装)(裁切至1-1/4英寸) | TUBING (20.00 Feet Bulk) (Cut to 1-1/4 IN.) | 1 |
| 12 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 13 | 99130122 | 管材(20.00英尺散装)(裁切至9英寸) | TUBING (20.00 Feet Bulk) (Cut to 9 IN.) | 2 |
| 13 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 2 |
| 14 | 99130122 | 管材(20.00英尺散装)(裁切至19英寸) | TUBING (20.00 Feet Bulk) (Cut to 19 IN.) | 1 |
| 14 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 15 | 99130122 | 管材(20.00英尺散装)(裁切至1英寸) | TUBING (20.00 Feet Bulk) (Cut to 1 IN.) | 3 |
| 15 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 3 |
| 16 | 99130122 | 管材(20英尺整卷)(裁切为4-1/2英寸) | TUBING (20.00 Feet Bulk) (Cut to 4-1/2 IN.) | 2 |
| 16 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 2 |
| - | 823434A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 823434T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 812817A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 812817T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 813043A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 813043T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 14817A23 | 燃油管理系统总成 | MANAGEMENT ASSEMBLY Fuel | 1 |
| 1 | 8276922 | 盖板 | COVER | 1 |
| 2 | 15443 | 线束套件 | HARNESS KIT | 1 |
| 3 | 18792 | 密封件 | SEAL | 1 |
| 4 | 15029 | O型圈及密封套件 | O-RING AND SEAL KIT | 1 |
| 5 | 8276992 | 燃油导轨 | FUEL RAIL | 1 |
| 5 | 827699T2 | 燃油导轨 | FUEL RAIL | 1 |
| 6 | 18715 | 燃油喷油器 | INJECTOR Fuel | 6 |
| 6 | 18715T | 喷油器总成 | INJECTOR ASSEMBLY | 6 |
| 7 | 17422 | 滤清器 | FILTER | 1 |
| 8 | 827696 | 固定套件 | RETAINER KIT | 1 |
| 9 | 8276933 | 节气门体 | THROTTLE BODY | 1 |
| 10 | 8090572 | 接头套件 | JOINT KIT | 1 |
| 11 | 8276891 | 连杆套件 | LINK KIT | 1 |
| 12 | 827697 | 连杆杠杆套件 | LEVER KIT Link | 1 |
| 13 | 827698 | 螺钉套件 | SCREW KIT | 1 |
| 14 | 8276981 | 螺钉套件 | SCREW KIT | 1 |
| 15 | 8090851 | 弯头套件 | ELBOW KIT | 1 |
| 16 | 814233A1 | 施拉德阀套件 | SCHRADER VALVE KIT | 1 |
| 16 | 814233A02 | 阀套件 | VALVE KIT | 1 |
| 17 | 8142332 | FMA接头套件 | FMA JOINT KIT | 1 |
| 18 | 8276942 | 软管套件 | HOSE KIT | 1 |
| 18 | 827694A01 | 软管套件-燃油 | HOSE KIT-FUEL | 1 |
| 19 | 67748 | 滚轮 | ROLLER | 1 |
| 20 | 90088 | 螺钉(.250-20x4) | SCREW (.250-20 x 4) | 12 |
| 20 | 845674 | 螺钉(.250-20x4.00) | SCREW (.250-20 x 4.00) | 12 |
| 21 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 10 |
| 21 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 10 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 434291 | 点火板 点火 | IGNITION PLATE IGNITION | 1 |
| 2 | 7778A9 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 2 | 7778A12 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 3 | 13669 | 开关盒螺钉(#12-24 x 2.00) | SCREW (#12-24 x 2.00) SWITCH BOX | 2 |
| 4 | 94453 | 开关盒螺钉衬套 | BUSHING SWITCH BOX SCREW | 2 |
| 6 | 45076 | 螺母(#10-32)黄铜开关盒端子 | NUT (#10-32) Brass SWITCH BOX TERMINAL | 20 |
| 7 | 60871A10 | 线束总成-开关盒 | WIRE ASSEMBLY SWITCH BOX | 2 |
| 8 | 62568 | 螺丝(#10-16 x 0.375)导线固定 | SCREW (#10-16 x .375) WIRE ATTACHING | 3 |
| 9 | 65999A3 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 10 | 69092 | 点火板螺钉(1.25) | SCREW (1.25) IGNITION PLATE | 3 |
| 10 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 3 |
| 11 | 26993 | 锁紧垫圈(.312)点火板螺钉 | LOCKWASHER (.312) IGNITION PLATE SCREW | 3 |
| 11 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 12 | 36042 | 垫圈 点火板螺钉 | WASHER IGNITION PLATE SCREW | 6 |
| 13 | 67264 | 橡胶垫圈 点火板螺钉 | WASHER (Rubber) IGNITION PLATE SCREW | 6 |
| 14 | 67268 | 衬套 点火板螺钉 | BUSHING IGNITION PLATE SCREW | 3 |
| 15 | 33386A3 | 开关总成 | SWITCH ASSEMLBY | 1 |
| 16 | 38055 | 水银开关螺钉(.190-32 x .620) | SCREW (.190-32 x .620) MERCURY SWITCH | 1 |
| 17 | 45076 | 螺母 (#10-32) 黄铜水银开关端子 | NUT (#10-32) Brass MERCURY SWITCH TERMINAL | 1 |
| 18 | 87926 | 螺钉(#10-32 x .500)导线固定 | SCREW (#10-32 x .500) LEAD ATTACHING | 1 |
| 19 | 88439A3 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 19 | 88439A4 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 20 | 96220A12 | 发动机线束总成 | HARNESS ASSEMBLY ENGINE | 1 |
| 21 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 21 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 22 | 95084A2 | 电缆总成-保险丝 | CABLE ASSEMBLY FUSE | 1 |
| 24 | 816311 | 捆扎带(8英寸)线束和电缆 | TIE STRAP (8.00 Inches) HARNESS AND CABLES | AR |
| 24 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 25 | 68258A4 | 启动电磁阀总成 | SOLENOID ASSEMBLY Starter | 1 |
| 25 | 853654A1 | 电磁阀 | SOLENOID | 1 |
| 26 | 45076 | 螺母(#10-32)黄铜 电磁阀端子 | NUT (#10-32) Brass SOLENOID TERMINALS | 2 |
| 27 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 28 | 68292 | 螺母（.312-18）电磁阀端子 | NUT (.312-18) SOLENOID TERMINALS | 2 |
| 28 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 29 | 31716 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 2 |
| 30 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 31 | 65999A2 | 电缆总成 黑色 上部安装 | CABLE ASSEMBLY Black UPPER MOUNT | 1 |
| 32 | 88528A2 | 线缆总成(6英寸-红/白) | CABLE ASSEMBLY (6" - RED/WHITE) | 1 |
| 32 | 91865A1 | 线束总成(3"-白/黑-175) | CABLE ASSEMBLY (3" - WHITE/BLACK - 175) | 1 |
| 33 | 47483 | J型卡扣 | J CLIP | 3 |
| 34 | 194372 | 端子排 | TERMINAL BLOCK | 1 |
| 35 | 38055 | 螺钉(0.190-32x0.620) | SCREW (.190-32 x .620) | 2 |
| 36 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 37 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 38 | 814422T | 点火板盖 | COVER IGNITION PLATE | 1 |
| 39 | 88447 | 螺钉 (.190-32 x 1.62) | SCREW (.190-32 x 1.62) | 2 |
| 40 | 69020 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 40 | 690201 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 41 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 3 |
| 42 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 3 |
| 43 | 62310A2 | 线束总成(175) | CABLE ASSEMBLY (175) | 1 |
| 44 | 78866 | 绝缘体 | INSULATOR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 15930A15 | 燃油泵套件 | PUMP KIT Fuel | 1 |
| 2 | 42990A6 | 膜片组件 | DIAPHRAGM KIT | 1 |
| 2 | 857005A1 | 膜片组件 | DIAPHRAGM KIT | 1 |
| 3 | NSS | 橡胶止回阀(不单独销售) | NOT SOLD SEPARATE Check Valve-Rubber | 2 |
| 4 | NSS | 增压垫片(不单独销售) | NOT SOLD SEPARATE Gasket-Boost | 1 |
| 5 | NSS | 膜片(不单独销售) | NOT SOLD SEPARATE Diaphragm | 2 |
| 6 | NSS | 脉冲垫片(不单独销售) | NOT SOLD SEPARATE Gasket-Pulse | 1 |
| 7 | NSS | 弹簧(不单独销售) | NOT SOLD SEPARATE Spring | 1 |
| 8 | NSS | 盖帽(不单独销售) | NOT SOLD SEPARATE Cap | 1 |
| 9 | NSS | 止回阀(不单独销售) | NOT SOLD SEPARATE Check Valve | 2 |
| 10 | NSS | 固定座(不单独销售) | NOT SOLD SEPARATE Retainer | 2 |
| 11 | NSS | 弹簧(不单独销售) | NOT SOLD SEPARATE Spring | 1 |
| 12 | NSS | 盖帽(不单独销售) | NOT SOLD SEPARATE Cap | 1 |
| 13 | 987691 | 底座衬垫 | GASKET BASE | 1 |
| 13 | 8M0204705 | 衬垫@2 | GASKET @2 | 1 |
| 14 | 14868 | 燃油泵弯头接头 | FITTING FUEL PUMP (ELBOW) | 1 |
| 15 | 16604 | 直通接头(0.125-27)燃油泵 | FITTING Straight (.125-27) FUEL PUMP | 1 |
| 16 | 9912976 | 油管 | TUBING | 1 |
| 16 | 8M0108349 | 软管 (70英寸散装) | HOSE (70 Inches Bulk) | 1 |
| 17 | 144303 | 燃油泵底座 | BASE FUEL PUMP | 1 |
| 18 | 98775A3 | 燃油泵板 | PLATE FUEL PUMP | 1 |
| 18 | 987752 | 安装板 | PLATE | 1 |
| 19 | 56800 | 管塞 (.0625-27) | PLUG Pipe (.0625-27) | 1 |
| 20 | 15979 | 接头 | FITTING | 1 |
| 21 | 16452 | 燃油泵螺钉(#12-24 x 2.00) | SCREW (#12-24 x 2.00) FUEL PUMP | 2 |
| 22 | 4000310 | 燃油泵至曲轴箱螺钉(M5 x 40) | SCREW (M5 x 40) FUEL PUMP TO CRANKCASE | 2 |
| 23 | 4002314 | 燃油泵螺钉垫圈 | WASHER FUEL PUMP SCREW | 2 |
| 24 | 9072925 | 脉冲软管 | HOSE PULSE | 1 |
| 25 | 99751 | 接头(0.0625-27)黄铜脉冲软管(90度) | FITTING (.0625-27) Brass PULSE HOSE (90 Degree) | 1 |
| 25 | 997511 | 弯头 | ELBOW | 1 |
| 26 | 1350382 | 管材(30英寸散装) | TUBING (30.00 Inches Bulk) | 2 |
| 26 | 1350385 | 管材(33英寸整卷) | TUBING (33.00 Inches Bulk) | 2 |
| 27 | 816311 | TIE STRAP (8.00 Inches) FUEL TUBING | AR | |
| 27 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 28 | 816856A3 | 燃油接头总成-塑料 | CONNECTOR ASSEMBLY Fuel - Plastic | 1 |
| 28 | 816856Q3 | 燃油接头总成 | CONNECTOR ASSEMBLY Fuel | 1 |
| 29 | 69067 | 螺钉(.250-20×1.375) | SCREW (.250-20 x 1.375) | 1 |
| 30 | 812782 | 密封件 | SEAL | 1 |
| 31 | 813657 | 支架 | BRACKET | 1 |
| 31 | 13170A3 | 底座 | BASE | 1 |
| 32 | 69067 | 螺钉(.250-20×1.375) | SCREW (.250-20 x 1.375) | 1 |
| 33 | 28668 | SCREW (.250-20 x .875) Stainless Steel FUEL FILTER BASE | 2 | |
| 34 | 13170A1 | 燃油滤清器底座 | BASE FUEL FILTER | 1 |
| 34 | 13170A3 | 底座 | BASE | 1 |
| 35 | 13607 | 底座接头 | FITTING BASE | 2 |
| 35 | 136071 | 弯头 | ELBOW | 2 |
| 36 | 18458A1 | 燃油滤清器总成 | FILTER ASSEMBLY Fuel | 1 |
| 36 | 18458Q3 | 燃油滤清器 | FILTER-FUEL | 1 |
| 37 | 14570 | PROBE WATER SENSING | 1 | |
| - | 815810A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 815809A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 9148A8 | 齿轮箱总成(标准转向1.87:1速比)(黑色) | GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (BLACK) | 1 |
| - | 9148A10 | 齿轮箱总成(标准转向1.87:1速比)(灰色) | GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (GRAY) | 1 |
| - | 9148T84 | 齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米) | GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter) | 1 |
| 1 | 9148A11 | 齿轮箱总成(基础款-黑色) | GEAR HOUSING ASSEMBLY (BASIC - BLACK) | 1 |
| 1 | 9148T47 | 齿轮箱-基础型-黑 | GEAR HSG-BASIC-BL | 1 |
| 1 | 9148A12 | 齿轮箱总成(基础款-灰色) | GEAR HOUSING ASSEMBLY (BASIC - GRAY) | 1 |
| 1 | 9148T47 | 齿轮箱-基础型-黑 | GEAR HSG-BASIC-BL | 1 |
| 2 | 85822A1 | 连接器总成 | CONNECTOR ASSEMBLY | 1 |
| 2 | 85822A10 | 连接器总成 | CONNECTOR ASSEMBLY | 1 |
| 3 | 20033 | 定位销 | PIN Dowel | 2 |
| 3 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 2 |
| 4 | 78638 | 双头螺柱(.438 x 3.12) | STUD (.438 x 3.12) | 1 |
| 4 | 786382 | 螺柱(.437-14/.437-20 x 3.120) | STUD (.437-14/.437-20 x 3.120) | 1 |
| 5 | 57920 | 双头螺柱(.44 x 2.06) | STUD (.44 x 2.06) | 2 |
| 5 | 8M0133358 | 双头螺栓(.437-14/.437-20×2.060) | STUD (.437-14/.437-20 x 2.060) | 2 |
| 6 | 56297 | 双头螺栓(.312×3.38) | STUD (.312 x 3.38) | 1 |
| 6 | 8M0034463 | 螺柱(.312-24 x 3.38) | STUD (.312-24 x 3.38) | 1 |
| 7 | 30667 | 双头螺栓(.250-20/.250-28×3.125) | STUD (.250-20/.250-28 x 3.125) | 2 |
| 7 | 306671 | 螺柱 | STUD | 2 |
| 8 | 42647A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 9 | 43998 | 润滑套筒 | SLEEVE LUBRICATION | 1 |
| 11 | 440001 | 驱动轴 | DRIVESHAFT | 1 |
| 11 | 897624T | 长驱动轴 | DRIVESHAFT Long | 1 |
| 12 | N.S.S. | 小齿轮(不单独销售)(43-44104A2组件) | Not Sold Separate Pinion Gear (PART OF 43-44104A2) | 1 |
| 13 | 92721 | 垫圈(.965×0.630) | WASHER (.965 x .630) | 1 |
| 14 | 35921 | 螺母(0.625-18) | NUT (.625-18) | 1 |
| 15 | 42637A1 | 垫片组 | SHIM SET | AR |
| 15 | 8M0063267 | 垫片组 | SHIM SET | AR |
| 16 | 36387A1 | 轴承总成(滚子/外圈) | BEARING ASSEMBLY Roller/Cup | 1 |
| 16 | 8M0146566 | 杯/锥轴承总成 | BEARING ASSEMBLY Cup/Cone | 1 |
| 17 | 42633 | 螺母 | NUT | 1 |
| 17 | 8245191 | 固定座 | RETAINER | 1 |
| 18 | 42579A3 | 水泵底座总成 | BASE ASSEMBLY Water Pump | 1 |
| 18 | 8M0077147 | 带水泵底座总成 | BASE ASSY-W/P | 1 |
| 19 | 426311 | 衬垫 | GASKET | 1 |
| 19 | 8M0204678 | 衬垫 | GASKET | 1 |
| 20 | 90011 | O型圈(2.175 x 0.175) | O-RING (2.175 x .175) | 1 |
| 20 | 8M0142854 | O型圈(2.175 x 0.103) | O-RING (2.175 x .103) | 1 |
| 21 | 89238 | 油封 | SEAL Oil | 1 |
| 22 | 16977 | 油封 | SEAL Oil | 1 |
| 23 | 856081 | 衬垫(下部) | GASKET (LOWER) | 1 |
| 23 | 8M0090319 | 衬垫@5 | GASKET @5 | 1 |
| 24 | 856091 | 衬垫(上部) | GASKET (UPPER) | 1 |
| 24 | 858524 | 衬垫 | GASKET | 1 |
| 25 | 32435 | 面板 | FACE PLATE | 1 |
| 25 | 8M0204677 | 面板 | PLATE-FACE | 1 |
| 26 | 96148A1 | 水泵壳体总成 | BODY ASSEMBLY Water Pump | 1 |
| 26 | 96148T1 | 水泵壳体总成 | BODY ASSEMBLY Water Pump | 1 |
| 27 | 48752 | 嵌件 | INSERT | 1 |
| 27 | 48752T | 嵌件 | INSERT | 1 |
| 28 | 38970 | 密封件 | SEAL | 1 |
| 29 | 89984 | 叶轮 | IMPELLER | 1 |
| 29 | 89984T4 | 叶轮 | IMPELLER | 1 |
| 30 | 56654 | 键 | KEY | 1 |
| 30 | 8M0214992 | 键@5 | KEY @5 | 1 |
| 31 | 96411 | 螺钉(#14-8×2.25) | SCREW (#14-8 x 2.25) | 1 |
| 31 | 8M0215009 | 螺钉 | SCREW | 1 |
| 32 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 32 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 33 | 13438 | 螺母(.250-28) | NUT (.250-28) | 2 |
| 33 | 8267119 | 螺母(.250-28) | NUT (.250-28) | 2 |
| 34 | 36001 | 垫圈 | WASHER | 1 |
| 35 | 13436 | 螺母 | NUT | 1 |
| 36 | 30271 | 橡胶环(传动轴用)(旧款) | RING Rubber RUBBER (DRIVE SHAFT) (OLD DESIGN) | 1 |
| 36 | 8M0214918 | 环@5 | RING @5 | 1 |
| 37 | 29804 | 套筒 | SLEEVE | 1 |
| 37 | 29804T | 套筒 | SLEEVE | 1 |
| 38 | 78902 | 下换挡轴 | SHAFT SHIFT LOWER | 1 |
| 38 | 789022 | 换档轴 | SHIFT SHAFT | 1 |
| 39 | 29641 | E型卡环 | E RING | 1 |
| 40 | 78907 | 挡圈（旧设计） | RING Retaining (OLD DESIGN) | 1 |
| 41 | 25439 | O型圈(.862×0.103) | O-RING (.862 x .103) | 1 |
| 42 | 77631A2 | 衬套总成 | BUSHING ASSEMBLY | 1 |
| 43 | 816464 | 油封 | SEAL Oil | 1 |
| 43 | 8M0246145 | 油封 | OIL SEAL | 1 |
| 44 | 77674 | 橡胶垫圈(.35 x .75 x .12) | WASHER (.35 x .75 x .12) RUBBER | 1 |
| 45 | 79953 | SCREW (.375-16 x .250) GREASE FILLER | 1 | |
| 45 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 46 | 67892 | SCREW Magnetic DRAIN | 1 | |
| 46 | 8M0058389 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 47 | 19183 | 纤维垫圈 | WASHER Fiber | 2 |
| 47 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 2 |
| - | 42579A4 | 水泵修理包 | REBUILD KIT Water Pump | 1 |
| - | 96148A8 | 水泵维修套件 | WATER PUMP REPAIR KIT | 1 |
| - | 89238A2 | 密封套件 | SEAL KIT | 1 |
| - | 815810A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 815809A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 9148A8 | 齿轮箱总成(标准转向1.87:1速比)(黑色) | GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (BLACK) | 1 |
| - | 9148A10 | 齿轮箱总成(标准转向1.87:1速比)(灰色) | GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (GRAY) | 1 |
| - | 9148T84 | 齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米) | GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter) | 1 |
| 1 | 9148A11 | 齿轮箱总成(基础款-黑色) | GEAR HOUSING ASSEMBLY (BASIC - BLACK) | 1 |
| 1 | 9148T47 | 齿轮箱-基础型-黑 | GEAR HSG-BASIC-BL | 1 |
| 1 | 9148A12 | 齿轮箱总成(基础款-灰色) | GEAR HOUSING ASSEMBLY (BASIC - GRAY) | 1 |
| 1 | 9148T47 | 齿轮箱-基础型-黑 | GEAR HSG-BASIC-BL | 1 |
| 48 | 78956 | 换挡凸轮 | SHIFT CAM | 1 |
| 48 | 789562 | 换挡凸轮 | SHIFT CAM | 1 |
| 49 | 89594A1 | 从动件总成 | FOLLOWER ASSEMBLY | 1 |
| 50 | 816520 | 杆 | ROD | 1 |
| 50 | 79911A1 | 杆 | ROD | 1 |
| 51 | 79910 | 弹簧 | SPRING | 2 |
| 52 | 78910 | 垫圈 | WASHER | AR |
| 53 | 78906 | 销 | PIN | 1 |
| 53 | 8M0084245 | 弹簧定位销 | PIN Spring Locator | 1 |
| 54 | 47397A1 | 垫片组(.002-3-5-10) | SHIM SET (.002-3-5-10) | AR |
| 55 | 78172A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 56 | 44104A2 | 前进齿轮总成 | GEAR ASSEMBLY Forward | 1 |
| 56 | 44104T2 | 齿轮组 | GEAR SET | 1 |
| 57 | 73363 | 滚柱轴承(5/8") | BEARING Roller (5/8") | 2 |
| 57 | 73363T | 轴承 | BEARING | 2 |
| 57 | 549281 | 滚柱轴承(1") | BEARING Roller (1") | 1 |
| 58 | 78959 | 棘轮 | RATCHET | 1 |
| 58 | 823174T | ORD 8M0100493 | ORD 8M0100493 | 1 |
| 59 | 78905 | 十字销 | PIN Cross | 1 |
| 59 | 8M0084243 | 十字销 | PIN Cross | 1 |
| 60 | 78909 | 定位销 | PIN Detent | 2 |
| 61 | 78962 | 弹簧 | SPRING | 2 |
| 62 | 94148 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 63 | N.S.S. | Not Sold Separate Reverse Gear (PART OF 43-44104A2) | 1 | |
| 64 | 681001 | 止推环 | RING Thrust | 1 |
| 65 | 88957A1 | 滚珠轴承 | BEARING Ball | 1 |
| 65 | 88957T | 滚珠轴承 | BEARING Ball | 1 |
| 66 | 31534 | O型圈 | O-RING | 1 |
| 66 | 8M0214920 | O型圈 | O RING | 1 |
| 67 | 43567A1 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 67 | 43567T1 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 68 | 30956 | 滚针轴承 | BEARING Needle | 1 |
| 68 | 30956T | 滚针轴承 | BEARING Needle | 1 |
| 69 | 76868 | 密封件 | SEAL | 2 |
| 69 | 8M0248882 | 油封@5 | SEAL-OIL @5 | 2 |
| 70 | 30281 | 键 | KEY | 1 |
| 71 | 79447 | 锁紧垫圈 | TAB WASHER | 1 |
| 72 | 79448 | 固定座 | RETAINER | 1 |
| 72 | 8M2011027 | 固定座 | RETAINER | 1 |
| 73 | 31640A1 | 平衡板总成 | TRIM TAB ASSEMBLY | 1 |
| 73 | 31640Q4 | 平衡鳍板 | TRIM TAB | 1 |
| 74 | 66024 | 螺钉(.437-14 x 1.75) | SCREW (.437-14 x 1.75) | 1 |
| 75 | 67891 | 填充块 | FILLER BLOCK | 1 |
| 75 | 8M0039169 | 填充块 | FILLER BLOCK | 1 |
| 76 | 34933 | 螺母(.437-20)不锈钢 | NUT (.437-20) Stainless Steel | 2 |
| 76 | 8M0204653 | 螺母 | NUT | 2 |
| 77 | 65210 | 螺钉(.375-16 x 1.00) | SCREW (.375-16 x 1.00) | 1 |
| 78 | 13171 | 推力毂 | THRUST HUB | 1 |
| 78 | 835467Q01 | 止推垫片套件 | THRUST WASHER KIT | 1 |
| 79 | 31211A2 | 花键垫圈 | WASHER Splined | 1 |
| 79 | 31211Q03 | 垫圈总成 | WASHER ASSEMBLY | 1 |
| 80 | 816629 | 锁紧垫圈 | TAB WASHER | 1 |
| 80 | 816629Q | 锁紧垫圈 | TAB WASHER | 1 |
| 81 | 52707A1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| 81 | 52707Q1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| 82 | 423511 | 齿形锁紧垫圈 | LOCKWASHER Toothed | 1 |
| 83 | 45176 | 垫圈(.453 x .812 x .105)不锈钢 | WASHER (.453 x .812 x .105) Stainless Steel | 2 |
| - | 89238A2 | 密封套件 | SEAL KIT | 1 |
| - | 815810A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 815809A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 434291 | 点火板 点火 | IGNITION PLATE IGNITION | 1 |
| 2 | 7778A9 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 2 | 7778A12 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 3 | 13669 | 开关盒螺钉(#12-24 x 2.00) | SCREW (#12-24 x 2.00) SWITCH BOX | 2 |
| 4 | 94453 | 开关盒螺钉衬套 | BUSHING SWITCH BOX SCREW | 2 |
| 6 | 45076 | 螺母(#10-32)黄铜开关盒端子 | NUT (#10-32) Brass SWITCH BOX TERMINAL | 20 |
| 7 | 60871A10 | 线束总成-开关盒 | WIRE ASSEMBLY SWITCH BOX | 2 |
| 8 | 62568 | 螺丝(#10-16 x 0.375)导线固定 | SCREW (#10-16 x .375) WIRE ATTACHING | 3 |
| 9 | 65999A3 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 10 | 69092 | 点火板螺钉(1.25) | SCREW (1.25) IGNITION PLATE | 3 |
| 10 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 3 |
| 11 | 26993 | 锁紧垫圈(.312)点火板螺钉 | LOCKWASHER (.312) IGNITION PLATE SCREW | 3 |
| 11 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 12 | 36042 | 垫圈 点火板螺钉 | WASHER IGNITION PLATE SCREW | 6 |
| 13 | 67264 | 橡胶垫圈 点火板螺钉 | WASHER (Rubber) IGNITION PLATE SCREW | 6 |
| 14 | 67268 | 衬套 点火板螺钉 | BUSHING IGNITION PLATE SCREW | 3 |
| 15 | 33386A3 | 开关总成 | SWITCH ASSEMLBY | 1 |
| 16 | 38055 | 水银开关螺钉(.190-32 x .620) | SCREW (.190-32 x .620) MERCURY SWITCH | 1 |
| 17 | 45076 | 螺母 (#10-32) 黄铜水银开关端子 | NUT (#10-32) Brass MERCURY SWITCH TERMINAL | 1 |
| 18 | 87926 | 螺钉(#10-32 x .500)导线固定 | SCREW (#10-32 x .500) LEAD ATTACHING | 1 |
| 19 | 88439A3 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 19 | 88439A4 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 20 | 96220A12 | 发动机线束总成 | HARNESS ASSEMBLY ENGINE | 1 |
| 21 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 21 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 22 | 95084A2 | 电缆总成-保险丝 | CABLE ASSEMBLY FUSE | 1 |
| 24 | 816311 | 捆扎带(8英寸)线束和电缆 | TIE STRAP (8.00 Inches) HARNESS AND CABLES | AR |
| 24 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 25 | 68258A4 | 启动电磁阀总成 | SOLENOID ASSEMBLY Starter | 1 |
| 25 | 853654A1 | 电磁阀 | SOLENOID | 1 |
| 26 | 45076 | 螺母(#10-32)黄铜 电磁阀端子 | NUT (#10-32) Brass SOLENOID TERMINALS | 2 |
| 27 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 28 | 68292 | 螺母（.312-18）电磁阀端子 | NUT (.312-18) SOLENOID TERMINALS | 2 |
| 28 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 29 | 31716 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 2 |
| 30 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 31 | 65999A2 | 电缆总成 黑色 上部安装 | CABLE ASSEMBLY Black UPPER MOUNT | 1 |
| 32 | 88528A2 | 线缆总成(6英寸-红/白) | CABLE ASSEMBLY (6" - RED/WHITE) | 1 |
| 32 | 91865A1 | 线束总成(3"-白/黑-175) | CABLE ASSEMBLY (3" - WHITE/BLACK - 175) | 1 |
| 33 | 47483 | J型卡扣 | J CLIP | 3 |
| 34 | 194372 | 端子排 | TERMINAL BLOCK | 1 |
| 35 | 38055 | 螺钉(0.190-32x0.620) | SCREW (.190-32 x .620) | 2 |
| 36 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 37 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 38 | 814422T | 点火板盖 | COVER IGNITION PLATE | 1 |
| 39 | 88447 | 螺钉 (.190-32 x 1.62) | SCREW (.190-32 x 1.62) | 2 |
| 40 | 69020 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 40 | 690201 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 41 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 3 |
| 42 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 3 |
| 43 | 62310A2 | 线束总成(175) | CABLE ASSEMBLY (175) | 1 |
| 44 | 78866 | 绝缘体 | INSULATOR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 434291 | 点火板 点火 | IGNITION PLATE IGNITION | 1 |
| 2 | 7778A9 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 2 | 7778A12 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 3 | 13669 | 开关盒螺钉(#12-24 x 2.00) | SCREW (#12-24 x 2.00) SWITCH BOX | 2 |
| 4 | 94453 | 开关盒螺钉衬套 | BUSHING SWITCH BOX SCREW | 2 |
| 6 | 45076 | 螺母(#10-32)黄铜开关盒端子 | NUT (#10-32) Brass SWITCH BOX TERMINAL | 20 |
| 7 | 60871A10 | 线束总成-开关盒 | WIRE ASSEMBLY SWITCH BOX | 2 |
| 8 | 62568 | 螺丝(#10-16 x 0.375)导线固定 | SCREW (#10-16 x .375) WIRE ATTACHING | 3 |
| 9 | 65999A3 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 10 | 69092 | 点火板螺钉(1.25) | SCREW (1.25) IGNITION PLATE | 3 |
| 10 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 3 |
| 11 | 26993 | 锁紧垫圈(.312)点火板螺钉 | LOCKWASHER (.312) IGNITION PLATE SCREW | 3 |
| 11 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 12 | 36042 | 垫圈 点火板螺钉 | WASHER IGNITION PLATE SCREW | 6 |
| 13 | 67264 | 橡胶垫圈 点火板螺钉 | WASHER (Rubber) IGNITION PLATE SCREW | 6 |
| 14 | 67268 | 衬套 点火板螺钉 | BUSHING IGNITION PLATE SCREW | 3 |
| 15 | 33386A3 | 开关总成 | SWITCH ASSEMLBY | 1 |
| 16 | 38055 | 水银开关螺钉(.190-32 x .620) | SCREW (.190-32 x .620) MERCURY SWITCH | 1 |
| 17 | 45076 | 螺母 (#10-32) 黄铜水银开关端子 | NUT (#10-32) Brass MERCURY SWITCH TERMINAL | 1 |
| 18 | 87926 | 螺钉(#10-32 x .500)导线固定 | SCREW (#10-32 x .500) LEAD ATTACHING | 1 |
| 19 | 88439A3 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 19 | 88439A4 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 20 | 96220A12 | 发动机线束总成 | HARNESS ASSEMBLY ENGINE | 1 |
| 21 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 21 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 22 | 95084A2 | 电缆总成-保险丝 | CABLE ASSEMBLY FUSE | 1 |
| 24 | 816311 | 捆扎带(8英寸)线束和电缆 | TIE STRAP (8.00 Inches) HARNESS AND CABLES | AR |
| 24 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 25 | 68258A4 | 启动电磁阀总成 | SOLENOID ASSEMBLY Starter | 1 |
| 25 | 853654A1 | 电磁阀 | SOLENOID | 1 |
| 26 | 45076 | 螺母(#10-32)黄铜 电磁阀端子 | NUT (#10-32) Brass SOLENOID TERMINALS | 2 |
| 27 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 28 | 68292 | 螺母（.312-18）电磁阀端子 | NUT (.312-18) SOLENOID TERMINALS | 2 |
| 28 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 29 | 31716 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 2 |
| 30 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 31 | 65999A2 | 电缆总成 黑色 上部安装 | CABLE ASSEMBLY Black UPPER MOUNT | 1 |
| 32 | 88528A2 | 线缆总成(6英寸-红/白) | CABLE ASSEMBLY (6" - RED/WHITE) | 1 |
| 32 | 91865A1 | 线束总成(3"-白/黑-175) | CABLE ASSEMBLY (3" - WHITE/BLACK - 175) | 1 |
| 33 | 47483 | J型卡扣 | J CLIP | 3 |
| 34 | 194372 | 端子排 | TERMINAL BLOCK | 1 |
| 35 | 38055 | 螺钉(0.190-32x0.620) | SCREW (.190-32 x .620) | 2 |
| 36 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 37 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 38 | 814422T | 点火板盖 | COVER IGNITION PLATE | 1 |
| 39 | 88447 | 螺钉 (.190-32 x 1.62) | SCREW (.190-32 x 1.62) | 2 |
| 40 | 69020 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 40 | 690201 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 41 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 3 |
| 42 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 3 |
| 43 | 62310A2 | 线束总成(175) | CABLE ASSEMBLY (175) | 1 |
| 44 | 78866 | 绝缘体 | INSULATOR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 434291 | 点火板 点火 | IGNITION PLATE IGNITION | 1 |
| 2 | 7778A9 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 2 | 7778A12 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 3 | 13669 | 开关盒螺钉(#12-24 x 2.00) | SCREW (#12-24 x 2.00) SWITCH BOX | 2 |
| 4 | 94453 | 开关盒螺钉衬套 | BUSHING SWITCH BOX SCREW | 2 |
| 6 | 45076 | 螺母(#10-32)黄铜开关盒端子 | NUT (#10-32) Brass SWITCH BOX TERMINAL | 20 |
| 7 | 60871A10 | 线束总成-开关盒 | WIRE ASSEMBLY SWITCH BOX | 2 |
| 8 | 62568 | 螺丝(#10-16 x 0.375)导线固定 | SCREW (#10-16 x .375) WIRE ATTACHING | 3 |
| 9 | 65999A3 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 10 | 69092 | 点火板螺钉(1.25) | SCREW (1.25) IGNITION PLATE | 3 |
| 10 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 3 |
| 11 | 26993 | 锁紧垫圈(.312)点火板螺钉 | LOCKWASHER (.312) IGNITION PLATE SCREW | 3 |
| 11 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 12 | 36042 | 垫圈 点火板螺钉 | WASHER IGNITION PLATE SCREW | 6 |
| 13 | 67264 | 橡胶垫圈 点火板螺钉 | WASHER (Rubber) IGNITION PLATE SCREW | 6 |
| 14 | 67268 | 衬套 点火板螺钉 | BUSHING IGNITION PLATE SCREW | 3 |
| 15 | 33386A3 | 开关总成 | SWITCH ASSEMLBY | 1 |
| 16 | 38055 | 水银开关螺钉(.190-32 x .620) | SCREW (.190-32 x .620) MERCURY SWITCH | 1 |
| 17 | 45076 | 螺母 (#10-32) 黄铜水银开关端子 | NUT (#10-32) Brass MERCURY SWITCH TERMINAL | 1 |
| 18 | 87926 | 螺钉(#10-32 x .500)导线固定 | SCREW (#10-32 x .500) LEAD ATTACHING | 1 |
| 19 | 88439A3 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 19 | 88439A4 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 20 | 96220A12 | 发动机线束总成 | HARNESS ASSEMBLY ENGINE | 1 |
| 21 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 21 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 22 | 95084A2 | 电缆总成-保险丝 | CABLE ASSEMBLY FUSE | 1 |
| 24 | 816311 | 捆扎带(8英寸)线束和电缆 | TIE STRAP (8.00 Inches) HARNESS AND CABLES | AR |
| 24 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 25 | 68258A4 | 启动电磁阀总成 | SOLENOID ASSEMBLY Starter | 1 |
| 25 | 853654A1 | 电磁阀 | SOLENOID | 1 |
| 26 | 45076 | 螺母(#10-32)黄铜 电磁阀端子 | NUT (#10-32) Brass SOLENOID TERMINALS | 2 |
| 27 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 28 | 68292 | 螺母（.312-18）电磁阀端子 | NUT (.312-18) SOLENOID TERMINALS | 2 |
| 28 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 29 | 31716 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 2 |
| 30 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 31 | 65999A2 | 电缆总成 黑色 上部安装 | CABLE ASSEMBLY Black UPPER MOUNT | 1 |
| 32 | 88528A2 | 线缆总成(6英寸-红/白) | CABLE ASSEMBLY (6" - RED/WHITE) | 1 |
| 32 | 91865A1 | 线束总成(3"-白/黑-175) | CABLE ASSEMBLY (3" - WHITE/BLACK - 175) | 1 |
| 33 | 47483 | J型卡扣 | J CLIP | 3 |
| 34 | 194372 | 端子排 | TERMINAL BLOCK | 1 |
| 35 | 38055 | 螺钉(0.190-32x0.620) | SCREW (.190-32 x .620) | 2 |
| 36 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 37 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 38 | 814422T | 点火板盖 | COVER IGNITION PLATE | 1 |
| 39 | 88447 | 螺钉 (.190-32 x 1.62) | SCREW (.190-32 x 1.62) | 2 |
| 40 | 69020 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 40 | 690201 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 41 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 3 |
| 42 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 3 |
| 43 | 62310A2 | 线束总成(175) | CABLE ASSEMBLY (175) | 1 |
| 44 | 78866 | 绝缘体 | INSULATOR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9912688 | 管材(36.00英寸散装)(裁切至3-1/4英寸) | TUBING (36.00 Inches Bulk) (Cut to 3-1/4 IN.) | 1 |
| 2 | 18206 | 滤清器 | FILTER | 1 |
| 2 | 8M0207786 | 滤清器 | FILTER | 1 |
| 3 | 9912688 | 管材(36.00英寸散装)(裁切至7-1/4英寸) | TUBING (36.00 Inches Bulk) (Cut to 7-1/4 IN.) | 1 |
| 4 | 99130122 | 管材(20.00英尺散装)(裁切至3-1/2英寸) | TUBING (20.00 Feet Bulk) (Cut to 3-1/2 IN.) | 1 |
| 4 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 5 | 59169 | 接头 | FITTING | 4 |
| 5 | 59169003 | 三通接头 | FITTING Tee | 4 |
| 6 | 99130122 | 管材(20英尺整卷)(裁切至5-1/2英寸) | TUBING (20.00 Feet Bulk) (Cut to 5-1/2 IN.) | 1 |
| 6 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 7 | 99130122 | 管材(20.00英尺散装)(裁切至9英寸) | TUBING (20.00 Feet Bulk) (Cut to 9 IN.) | 2 |
| 7 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 2 |
| 8 | 56759 | 压入式倒钩接头 | FITTING Barbed (PRESS-IN) | 4 |
| 9 | 426981 | 止回阀(压入式-13/16长) | CHECK VALVE (PRESS-IN - 13/16 LONG) | 7 |
| 9 | 426982 | 止回阀 | CHECK VALVE | 7 |
| 10 | 426231 | 止回阀(压入式-11/16长) | CHECK VALVE (PRESS-IN - 11/16 LONG) | 1 |
| 10 | 426233 | 止回阀 | CHECK VALVE | 1 |
| 11 | 18205 | 三通 | TEE | 1 |
| 12 | 99130122 | 管材(20.00英尺散装)(裁切至1-1/4英寸) | TUBING (20.00 Feet Bulk) (Cut to 1-1/4 IN.) | 1 |
| 12 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 13 | 99130122 | 管材(20.00英尺散装)(裁切至9英寸) | TUBING (20.00 Feet Bulk) (Cut to 9 IN.) | 2 |
| 13 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 2 |
| 14 | 99130122 | 管材(20.00英尺散装)(裁切至19英寸) | TUBING (20.00 Feet Bulk) (Cut to 19 IN.) | 1 |
| 14 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 15 | 99130122 | 管材(20.00英尺散装)(裁切至1英寸) | TUBING (20.00 Feet Bulk) (Cut to 1 IN.) | 3 |
| 15 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 3 |
| 16 | 99130122 | 管材(20英尺整卷)(裁切为4-1/2英寸) | TUBING (20.00 Feet Bulk) (Cut to 4-1/2 IN.) | 2 |
| 16 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 2 |
| - | 823434A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 823434T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 812817A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 812817T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 813043A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 813043T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 9148A20 | 齿轮箱总成-标准转向2:1速比 | GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio | 1 |
| 1 | 9148A12 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 9148T47 | 齿轮箱-基础型-黑 | GEAR HSG-BASIC-BL | 1 |
| 2 | 85822A1 | 连接器总成 | CONNECTOR ASSEMBLY | 1 |
| 2 | 85822A10 | 连接器总成 | CONNECTOR ASSEMBLY | 1 |
| 3 | 20033 | 定位销 | PIN Dowel | 2 |
| 3 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 2 |
| 4 | 78638 | 双头螺栓(.438×3.12)(长型) | STUD (.438 x 3.12) (LONG) | 1 |
| 4 | 786382 | 螺柱(.437-14/.437-20 x 3.120) | STUD (.437-14/.437-20 x 3.120) | 1 |
| 4 | 18978 | 双头螺栓(.438×3.69)(加长型) | STUD (.438 x 3.69) (X-LONG) | 1 |
| 4 | 8M0034464 | 螺柱 | STUD | 1 |
| 5 | 57920 | 双头螺柱(.44 x 2.06) | STUD (.44 x 2.06) | 2 |
| 5 | 8M0133358 | 双头螺栓(.437-14/.437-20×2.060) | STUD (.437-14/.437-20 x 2.060) | 2 |
| 6 | 56297 | 双头螺栓(.312×3.38) | STUD (.312 x 3.38) | 1 |
| 6 | 8M0034463 | 螺柱(.312-24 x 3.38) | STUD (.312-24 x 3.38) | 1 |
| 7 | 30667 | 双头螺栓(.250-20/.250-28×3.125) | STUD (.250-20/.250-28 x 3.125) | 2 |
| 7 | 306671 | 螺柱 | STUD | 2 |
| 8 | 42647A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 9 | 43998 | 套筒 | SLEEVE | 1 |
| 11 | 440001 | 驱动轴(长型) | DRIVESHAFT (LONG) | 1 |
| 11 | 897624T | 长驱动轴 | DRIVESHAFT Long | 1 |
| 11 | 442091 | 驱动轴(加长型) | DRIVESHAFT (X-LONG) | 1 |
| 11 | 897625T | 加长驱动轴 | DRIVESHAFT X-Long | 1 |
| 12 | N.S.S. | 不单独出售小齿轮(43-44102A2部件) | Not Sold Separate Pinion Gear (PART OF 43-44102A2) | 1 |
| 13 | 92721 | 垫圈(.965×0.630) | WASHER (.965 x .630) | 1 |
| 14 | 35921 | 螺母(0.625-18) | NUT (.625-18) | 1 |
| 15 | 42637A1 | 垫片组 | SHIM SET | AR |
| 15 | 8M0063267 | 垫片组 | SHIM SET | AR |
| 16 | 36387A1 | 轴承总成(滚子/外圈) | BEARING ASSEMBLY Roller/Cup | 1 |
| 16 | 8M0146566 | 杯/锥轴承总成 | BEARING ASSEMBLY Cup/Cone | 1 |
| 17 | 42633 | 螺母 | NUT | 1 |
| 17 | 8245191 | 固定座 | RETAINER | 1 |
| 18 | 42579A3 | 水泵底座总成 | BASE ASSEMBLY Water Pump | 1 |
| 18 | 8M0077147 | 带水泵底座总成 | BASE ASSY-W/P | 1 |
| 19 | 426311 | 衬垫 | GASKET | 1 |
| 19 | 8M0204678 | 衬垫 | GASKET | 1 |
| 20 | 90011 | O型圈(2.175 x 0.175) | O-RING (2.175 x .175) | 1 |
| 20 | 8M0142854 | O型圈(2.175 x 0.103) | O-RING (2.175 x .103) | 1 |
| 21 | 89238 | 油封 | SEAL Oil | 1 |
| 22 | 16977 | 油封 | SEAL Oil | 1 |
| 23 | 856081 | 下部衬垫 | GASKET LOWER | 1 |
| 23 | 8M0090319 | 衬垫@5 | GASKET @5 | 1 |
| 24 | 856091 | 上衬垫 | GASKET UPPER | 1 |
| 24 | 858524 | 衬垫 | GASKET | 1 |
| 25 | 32435 | 面板 | FACE PLATE | 1 |
| 25 | 8M0204677 | 面板 | PLATE-FACE | 1 |
| 26 | 96148A1 | 水泵壳体总成 | BODY ASSEMBLY Water Pump | 1 |
| 26 | 96148T1 | 水泵壳体总成 | BODY ASSEMBLY Water Pump | 1 |
| 27 | 48752 | 嵌件 | INSERT | 1 |
| 27 | 48752T | 嵌件 | INSERT | 1 |
| 28 | 38970 | 橡胶密封件 | SEAL RUBBER | 1 |
| 29 | 89984 | 叶轮 | IMPELLER | 1 |
| 29 | 89984T4 | 叶轮 | IMPELLER | 1 |
| 30 | 56654 | 键 | KEY | 1 |
| 30 | 8M0214992 | 键@5 | KEY @5 | 1 |
| 31 | 96411 | 螺钉(#14-8×2.25) | SCREW (#14-8 x 2.25) | 1 |
| 31 | 8M0215009 | 螺钉 | SCREW | 1 |
| 32 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 32 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 33 | 13438 | 螺母(.250-28) | NUT (.250-28) | 2 |
| 33 | 8267119 | 螺母(.250-28) | NUT (.250-28) | 2 |
| 34 | 36001 | 垫圈 | WASHER | 1 |
| 35 | 13436 | 螺母 | NUT | 1 |
| 36 | 30271 | 橡胶环(旧款) | RING Rubber (OLD DESIGN) | 1 |
| 36 | 8M0214918 | 环@5 | RING @5 | 1 |
| 37 | 29804 | 套筒 | SLEEVE | 1 |
| 37 | 29804T | 套筒 | SLEEVE | 1 |
| 38 | 78902 | 下轴 | SHAFT LOWER | 1 |
| 38 | 789022 | 换档轴 | SHIFT SHAFT | 1 |
| 39 | 29641 | E型卡环 | E RING | 1 |
| 40 | 78907 | 挡圈（旧设计） | RING Retaining (OLD DESIGN) | 1 |
| 41 | 25439 | O型圈(.862×0.103) | O-RING (.862 x .103) | 1 |
| 42 | 77631A2 | 衬套总成 | BUSHING ASSEMBLY | 1 |
| 43 | 816464 | 油封 | SEAL Oil | 1 |
| 43 | 8M0246145 | 油封 | OIL SEAL | 1 |
| 44 | 77674 | 橡胶垫圈(.35 x .75 x .12) | WASHER (.35 x .75 x .12) RUBBER | 1 |
| 45 | 79953 | SCREW (.375-16 x .250) GREASE FILLER | 1 | |
| 45 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 46 | 67892 | SCREW Magnetic DRAIN | 1 | |
| 46 | 8M0058389 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 47 | 19183 | 纤维垫圈 | WASHER Fiber | 2 |
| 47 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 2 |
| - | 42579A4 | 水泵修理包 | REBUILD KIT Water Pump | 1 |
| - | 96148A8 | 水泵维修套件 | WATER PUMP REPAIR KIT | 1 |
| - | 89238A2 | 密封套件 | SEAL KIT | 1 |
| - | 815810A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 815809A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9912688 | 管材(36.00英寸散装)(裁切至3-1/4英寸) | TUBING (36.00 Inches Bulk) (Cut to 3-1/4 IN.) | 1 |
| 2 | 18206 | 滤清器 | FILTER | 1 |
| 2 | 8M0207786 | 滤清器 | FILTER | 1 |
| 3 | 9912688 | 管材(36.00英寸散装)(裁切至7-1/4英寸) | TUBING (36.00 Inches Bulk) (Cut to 7-1/4 IN.) | 1 |
| 4 | 99130122 | 管材(20.00英尺散装)(裁切至3-1/2英寸) | TUBING (20.00 Feet Bulk) (Cut to 3-1/2 IN.) | 1 |
| 4 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 5 | 59169 | 接头 | FITTING | 4 |
| 5 | 59169003 | 三通接头 | FITTING Tee | 4 |
| 6 | 99130122 | 管材(20英尺整卷)(裁切至5-1/2英寸) | TUBING (20.00 Feet Bulk) (Cut to 5-1/2 IN.) | 1 |
| 6 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 7 | 99130122 | 管材(20.00英尺散装)(裁切至9英寸) | TUBING (20.00 Feet Bulk) (Cut to 9 IN.) | 2 |
| 7 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 2 |
| 8 | 56759 | 压入式倒钩接头 | FITTING Barbed (PRESS-IN) | 4 |
| 9 | 426981 | 止回阀(压入式-13/16长) | CHECK VALVE (PRESS-IN - 13/16 LONG) | 7 |
| 9 | 426982 | 止回阀 | CHECK VALVE | 7 |
| 10 | 426231 | 止回阀(压入式-11/16长) | CHECK VALVE (PRESS-IN - 11/16 LONG) | 1 |
| 10 | 426233 | 止回阀 | CHECK VALVE | 1 |
| 11 | 18205 | 三通 | TEE | 1 |
| 12 | 99130122 | 管材(20.00英尺散装)(裁切至1-1/4英寸) | TUBING (20.00 Feet Bulk) (Cut to 1-1/4 IN.) | 1 |
| 12 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 13 | 99130122 | 管材(20.00英尺散装)(裁切至9英寸) | TUBING (20.00 Feet Bulk) (Cut to 9 IN.) | 2 |
| 13 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 2 |
| 14 | 99130122 | 管材(20.00英尺散装)(裁切至19英寸) | TUBING (20.00 Feet Bulk) (Cut to 19 IN.) | 1 |
| 14 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 15 | 99130122 | 管材(20.00英尺散装)(裁切至1英寸) | TUBING (20.00 Feet Bulk) (Cut to 1 IN.) | 3 |
| 15 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 3 |
| 16 | 99130122 | 管材(20英尺整卷)(裁切为4-1/2英寸) | TUBING (20.00 Feet Bulk) (Cut to 4-1/2 IN.) | 2 |
| 16 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 2 |
| - | 823434A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 823434T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 812817A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 812817T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 813043A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 813043T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9912688 | 管材(36.00英寸散装)(裁切至3-1/4英寸) | TUBING (36.00 Inches Bulk) (Cut to 3-1/4 IN.) | 1 |
| 2 | 18206 | 滤清器 | FILTER | 1 |
| 2 | 8M0207786 | 滤清器 | FILTER | 1 |
| 3 | 9912688 | 管材(36.00英寸散装)(裁切至7-1/4英寸) | TUBING (36.00 Inches Bulk) (Cut to 7-1/4 IN.) | 1 |
| 4 | 99130122 | 管材(20.00英尺散装)(裁切至3-1/2英寸) | TUBING (20.00 Feet Bulk) (Cut to 3-1/2 IN.) | 1 |
| 4 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 5 | 59169 | 接头 | FITTING | 4 |
| 5 | 59169003 | 三通接头 | FITTING Tee | 4 |
| 6 | 99130122 | 管材(20英尺整卷)(裁切至5-1/2英寸) | TUBING (20.00 Feet Bulk) (Cut to 5-1/2 IN.) | 1 |
| 6 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 7 | 99130122 | 管材(20.00英尺散装)(裁切至9英寸) | TUBING (20.00 Feet Bulk) (Cut to 9 IN.) | 2 |
| 7 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 2 |
| 8 | 56759 | 压入式倒钩接头 | FITTING Barbed (PRESS-IN) | 4 |
| 9 | 426981 | 止回阀(压入式-13/16长) | CHECK VALVE (PRESS-IN - 13/16 LONG) | 7 |
| 9 | 426982 | 止回阀 | CHECK VALVE | 7 |
| 10 | 426231 | 止回阀(压入式-11/16长) | CHECK VALVE (PRESS-IN - 11/16 LONG) | 1 |
| 10 | 426233 | 止回阀 | CHECK VALVE | 1 |
| 11 | 18205 | 三通 | TEE | 1 |
| 12 | 99130122 | 管材(20.00英尺散装)(裁切至1-1/4英寸) | TUBING (20.00 Feet Bulk) (Cut to 1-1/4 IN.) | 1 |
| 12 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 13 | 99130122 | 管材(20.00英尺散装)(裁切至9英寸) | TUBING (20.00 Feet Bulk) (Cut to 9 IN.) | 2 |
| 13 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 2 |
| 14 | 99130122 | 管材(20.00英尺散装)(裁切至19英寸) | TUBING (20.00 Feet Bulk) (Cut to 19 IN.) | 1 |
| 14 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 15 | 99130122 | 管材(20.00英尺散装)(裁切至1英寸) | TUBING (20.00 Feet Bulk) (Cut to 1 IN.) | 3 |
| 15 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 3 |
| 16 | 99130122 | 管材(20英尺整卷)(裁切为4-1/2英寸) | TUBING (20.00 Feet Bulk) (Cut to 4-1/2 IN.) | 2 |
| 16 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 2 |
| - | 823434A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 823434T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 812817A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 812817T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 813043A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 813043T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9912688 | 管材(36.00英寸散装)(裁切至3-1/4英寸) | TUBING (36.00 Inches Bulk) (Cut to 3-1/4 IN.) | 1 |
| 2 | 18206 | 滤清器 | FILTER | 1 |
| 2 | 8M0207786 | 滤清器 | FILTER | 1 |
| 3 | 9912688 | 管材(36.00英寸散装)(裁切至7-1/4英寸) | TUBING (36.00 Inches Bulk) (Cut to 7-1/4 IN.) | 1 |
| 4 | 99130122 | 管材(20.00英尺散装)(裁切至3-1/2英寸) | TUBING (20.00 Feet Bulk) (Cut to 3-1/2 IN.) | 1 |
| 4 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 5 | 59169 | 接头 | FITTING | 4 |
| 5 | 59169003 | 三通接头 | FITTING Tee | 4 |
| 6 | 99130122 | 管材(20英尺整卷)(裁切至5-1/2英寸) | TUBING (20.00 Feet Bulk) (Cut to 5-1/2 IN.) | 1 |
| 6 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 7 | 99130122 | 管材(20.00英尺散装)(裁切至9英寸) | TUBING (20.00 Feet Bulk) (Cut to 9 IN.) | 2 |
| 7 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 2 |
| 8 | 56759 | 压入式倒钩接头 | FITTING Barbed (PRESS-IN) | 4 |
| 9 | 426981 | 止回阀(压入式-13/16长) | CHECK VALVE (PRESS-IN - 13/16 LONG) | 7 |
| 9 | 426982 | 止回阀 | CHECK VALVE | 7 |
| 10 | 426231 | 止回阀(压入式-11/16长) | CHECK VALVE (PRESS-IN - 11/16 LONG) | 1 |
| 10 | 426233 | 止回阀 | CHECK VALVE | 1 |
| 11 | 18205 | 三通 | TEE | 1 |
| 12 | 99130122 | 管材(20.00英尺散装)(裁切至1-1/4英寸) | TUBING (20.00 Feet Bulk) (Cut to 1-1/4 IN.) | 1 |
| 12 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 13 | 99130122 | 管材(20.00英尺散装)(裁切至9英寸) | TUBING (20.00 Feet Bulk) (Cut to 9 IN.) | 2 |
| 13 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 2 |
| 14 | 99130122 | 管材(20.00英尺散装)(裁切至19英寸) | TUBING (20.00 Feet Bulk) (Cut to 19 IN.) | 1 |
| 14 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 15 | 99130122 | 管材(20.00英尺散装)(裁切至1英寸) | TUBING (20.00 Feet Bulk) (Cut to 1 IN.) | 3 |
| 15 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 3 |
| 16 | 99130122 | 管材(20英尺整卷)(裁切为4-1/2英寸) | TUBING (20.00 Feet Bulk) (Cut to 4-1/2 IN.) | 2 |
| 16 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 2 |
| - | 823434A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 823434T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 812817A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 812817T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 813043A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 813043T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9912688 | 管材(36.00英寸散装)(裁切至3-1/4英寸) | TUBING (36.00 Inches Bulk) (Cut to 3-1/4 IN.) | 1 |
| 2 | 18206 | 滤清器 | FILTER | 1 |
| 2 | 8M0207786 | 滤清器 | FILTER | 1 |
| 3 | 9912688 | 管材(36.00英寸散装)(裁切至7-1/4英寸) | TUBING (36.00 Inches Bulk) (Cut to 7-1/4 IN.) | 1 |
| 4 | 99130122 | 管材(20.00英尺散装)(裁切至3-1/2英寸) | TUBING (20.00 Feet Bulk) (Cut to 3-1/2 IN.) | 1 |
| 4 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 5 | 59169 | 接头 | FITTING | 4 |
| 5 | 59169003 | 三通接头 | FITTING Tee | 4 |
| 6 | 99130122 | 管材(20英尺整卷)(裁切至5-1/2英寸) | TUBING (20.00 Feet Bulk) (Cut to 5-1/2 IN.) | 1 |
| 6 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 7 | 99130122 | 管材(20.00英尺散装)(裁切至9英寸) | TUBING (20.00 Feet Bulk) (Cut to 9 IN.) | 2 |
| 7 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 2 |
| 8 | 56759 | 压入式倒钩接头 | FITTING Barbed (PRESS-IN) | 4 |
| 9 | 426981 | 止回阀(压入式-13/16长) | CHECK VALVE (PRESS-IN - 13/16 LONG) | 7 |
| 9 | 426982 | 止回阀 | CHECK VALVE | 7 |
| 10 | 426231 | 止回阀(压入式-11/16长) | CHECK VALVE (PRESS-IN - 11/16 LONG) | 1 |
| 10 | 426233 | 止回阀 | CHECK VALVE | 1 |
| 11 | 18205 | 三通 | TEE | 1 |
| 12 | 99130122 | 管材(20.00英尺散装)(裁切至1-1/4英寸) | TUBING (20.00 Feet Bulk) (Cut to 1-1/4 IN.) | 1 |
| 12 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 13 | 99130122 | 管材(20.00英尺散装)(裁切至9英寸) | TUBING (20.00 Feet Bulk) (Cut to 9 IN.) | 2 |
| 13 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 2 |
| 14 | 99130122 | 管材(20.00英尺散装)(裁切至19英寸) | TUBING (20.00 Feet Bulk) (Cut to 19 IN.) | 1 |
| 14 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 15 | 99130122 | 管材(20.00英尺散装)(裁切至1英寸) | TUBING (20.00 Feet Bulk) (Cut to 1 IN.) | 3 |
| 15 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 3 |
| 16 | 99130122 | 管材(20英尺整卷)(裁切为4-1/2英寸) | TUBING (20.00 Feet Bulk) (Cut to 4-1/2 IN.) | 2 |
| 16 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 2 |
| - | 823434A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 823434T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 812817A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 812817T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 813043A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 813043T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 9148A20 | 齿轮箱总成(标准转向2:1速比)(完整) | GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (Complete) | 1 |
| 1 | 9148A12 | 齿轮箱总成(基础型) | GEAR HOUSING ASSEMBLY (Basic) | 1 |
| 1 | 9148T47 | 齿轮箱-基础型-黑 | GEAR HSG-BASIC-BL | 1 |
| 48 | 78956 | 换挡凸轮 | SHIFT CAM | 1 |
| 48 | 789562 | 换挡凸轮 | SHIFT CAM | 1 |
| 49 | 89594A1 | 凸轮从动件总成 | FOLLOWER ASSEMBLY CAM | 1 |
| 50 | 816520 | 离合器作动杆 | ROD CLUTCH ACTUATOR | 1 |
| 50 | 79911A1 | 杆 | ROD | 1 |
| 51 | 79910 | 压缩弹簧 | SPRING COMPRESSION | 2 |
| 52 | 78910 | 压缩弹簧垫圈 | WASHER COMPRESSION SPRING | AR |
| 53 | 78906 | PIN SPRING LOCATOR | 1 | |
| 53 | 8M0084245 | 弹簧定位销 | PIN Spring Locator | 1 |
| 54 | 47397A1 | 轴承外圈垫片组(.002-3-5-10) | SHIM SET BEARING OUTER RACE (.002-3-5-10) | AR |
| 55 | 78172A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 56 | 44102A2 | 前进齿轮总成 | GEAR ASSEMBLY Forward | 1 |
| 57 | 73363 | 滚柱轴承(5/8") | BEARING Roller (5/8") | 2 |
| 57 | 73363T | 轴承 | BEARING | 2 |
| 57 | 549281 | 滚柱轴承(1") | BEARING Roller (1") | 1 |
| 58 | 78959 | 棘轮滑动离合器 | RATCHET SLIDING CLUTCH | 1 |
| 58 | 823174T | ORD 8M0100493 | ORD 8M0100493 | 1 |
| 59 | 78905 | 棘轮到螺旋桨轴十字销 | PIN Cross RATCHET TO PROPELLER SHAFT | 1 |
| 59 | 8M0084243 | 十字销 | PIN Cross | 1 |
| 60 | 78909 | 棘轮定位销 | PIN Detent RATCHET | 2 |
| 61 | 78962 | 十字销固定弹簧 | SPRING RETAINING-CROSS PIN | 2 |
| 62 | 94148 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 63 | N.S.S. | 倒车齿轮不单独销售(43-44102A2部件) | Not Sold Separate Reverse Gear (PART OF 43-44102A2) | 1 |
| 64 | 681001 | 推力环-轴承座 | RING Thrust THRUST - BEARING CARRIER | 1 |
| 65 | 88957A1 | 倒车档滚珠轴承 | BEARING Ball BALL - REVERSE GEAR | 1 |
| 65 | 88957T | 滚珠轴承 | BEARING Ball | 1 |
| 66 | 31534 | 轴承座O型圈 | O-RING BEARING CARRIER | 1 |
| 66 | 8M0214920 | O型圈 | O RING | 1 |
| 67 | 43567A1 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 67 | 43567T1 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 68 | 30956 | 滚针轴承-轴承座 | BEARING Needle BEARING CARRIER | 1 |
| 68 | 30956T | 滚针轴承 | BEARING Needle | 1 |
| 69 | 76868 | 轴承座密封 | SEAL BEARING CARRIER | 2 |
| 69 | 8M0248882 | 油封@5 | SEAL-OIL @5 | 2 |
| 70 | 30281 | KEY LOCATING - BEARING CARRIER | 1 | |
| 71 | 79447 | 齿轮箱盖锁紧垫圈 | TAB WASHER GEAR HOUSING COVER | 1 |
| 72 | 79448 | 齿轮箱固定座 | RETAINER GEAR HOUSING | 1 |
| 72 | 8M2011027 | 固定座 | RETAINER | 1 |
| 73 | 31640Q4 | 调整片齿轮箱 | TRIM TAB GEAR HOUSING | 1 |
| 74 | 66024 | SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING | 1 | |
| 75 | 67891 | 填充块 | FILLER BLOCK | 1 |
| 75 | 8M0039169 | 填充块 | FILLER BLOCK | 1 |
| 76 | 34933 | 螺母(.437-20)不锈钢 | NUT (.437-20) Stainless Steel | 2 |
| 76 | 8M0204653 | 螺母 | NUT | 2 |
| 77 | 65210 | 螺钉(.375-16 x 1.00) | SCREW (.375-16 x 1.00) | 1 |
| 77 | 74727 | 螺钉(.375-16 x 6.00) | SCREW (.375-16 x 6.00) | 1 |
| 78 | 13171 | 推力毂 | THRUST HUB | 1 |
| 78 | 835467Q01 | 止推垫片套件 | THRUST WASHER KIT | 1 |
| 79 | 31211A2 | 花键垫圈 | WASHER Splined | 1 |
| 79 | 31211Q03 | 垫圈总成 | WASHER ASSEMBLY | 1 |
| 80 | 816629 | 锁紧垫圈 | TAB WASHER | 1 |
| 80 | 816629Q | 锁紧垫圈 | TAB WASHER | 1 |
| 81 | 52707A1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| 81 | 52707Q1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| 82 | 423511 | 齿形锁紧垫圈 | LOCKWASHER Toothed | 1 |
| 83 | 45176 | 垫圈(.453 x .812 x .105)不锈钢 | WASHER (.453 x .812 x .105) Stainless Steel | 2 |
| - | 89238A2 | 密封套件 | SEAL KIT | 1 |
| - | 815810A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 815809A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9912688 | 管材(36.00英寸散装)(裁切至3-1/4英寸) | TUBING (36.00 Inches Bulk) (Cut to 3-1/4 IN.) | 1 |
| 2 | 18206 | 滤清器 | FILTER | 1 |
| 2 | 8M0207786 | 滤清器 | FILTER | 1 |
| 3 | 9912688 | 管材(36.00英寸散装)(裁切至7-1/4英寸) | TUBING (36.00 Inches Bulk) (Cut to 7-1/4 IN.) | 1 |
| 4 | 99130122 | 管材(20.00英尺散装)(裁切至3-1/2英寸) | TUBING (20.00 Feet Bulk) (Cut to 3-1/2 IN.) | 1 |
| 4 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 5 | 59169 | 接头 | FITTING | 4 |
| 5 | 59169003 | 三通接头 | FITTING Tee | 4 |
| 6 | 99130122 | 管材(20英尺整卷)(裁切至5-1/2英寸) | TUBING (20.00 Feet Bulk) (Cut to 5-1/2 IN.) | 1 |
| 6 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 7 | 99130122 | 管材(20.00英尺散装)(裁切至9英寸) | TUBING (20.00 Feet Bulk) (Cut to 9 IN.) | 2 |
| 7 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 2 |
| 8 | 56759 | 压入式倒钩接头 | FITTING Barbed (PRESS-IN) | 4 |
| 9 | 426981 | 止回阀(压入式-13/16长) | CHECK VALVE (PRESS-IN - 13/16 LONG) | 7 |
| 9 | 426982 | 止回阀 | CHECK VALVE | 7 |
| 10 | 426231 | 止回阀(压入式-11/16长) | CHECK VALVE (PRESS-IN - 11/16 LONG) | 1 |
| 10 | 426233 | 止回阀 | CHECK VALVE | 1 |
| 11 | 18205 | 三通 | TEE | 1 |
| 12 | 99130122 | 管材(20.00英尺散装)(裁切至1-1/4英寸) | TUBING (20.00 Feet Bulk) (Cut to 1-1/4 IN.) | 1 |
| 12 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 13 | 99130122 | 管材(20.00英尺散装)(裁切至9英寸) | TUBING (20.00 Feet Bulk) (Cut to 9 IN.) | 2 |
| 13 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 2 |
| 14 | 99130122 | 管材(20.00英尺散装)(裁切至19英寸) | TUBING (20.00 Feet Bulk) (Cut to 19 IN.) | 1 |
| 14 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 15 | 99130122 | 管材(20.00英尺散装)(裁切至1英寸) | TUBING (20.00 Feet Bulk) (Cut to 1 IN.) | 3 |
| 15 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 3 |
| 16 | 99130122 | 管材(20英尺整卷)(裁切为4-1/2英寸) | TUBING (20.00 Feet Bulk) (Cut to 4-1/2 IN.) | 2 |
| 16 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 2 |
| - | 823434A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 823434T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 812817A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 812817T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 813043A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 813043T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 434291 | 点火板 点火 | IGNITION PLATE IGNITION | 1 |
| 2 | 7778A9 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 2 | 7778A12 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 3 | 13669 | 开关盒螺钉(#12-24 x 2.00) | SCREW (#12-24 x 2.00) SWITCH BOX | 2 |
| 4 | 94453 | 开关盒螺钉衬套 | BUSHING SWITCH BOX SCREW | 2 |
| 6 | 45076 | 螺母(#10-32)黄铜开关盒端子 | NUT (#10-32) Brass SWITCH BOX TERMINAL | 20 |
| 7 | 60871A10 | 线束总成-开关盒 | WIRE ASSEMBLY SWITCH BOX | 2 |
| 8 | 62568 | 螺丝(#10-16 x 0.375)导线固定 | SCREW (#10-16 x .375) WIRE ATTACHING | 3 |
| 9 | 65999A3 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 10 | 69092 | 点火板螺钉(1.25) | SCREW (1.25) IGNITION PLATE | 3 |
| 10 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 3 |
| 11 | 26993 | 锁紧垫圈(.312)点火板螺钉 | LOCKWASHER (.312) IGNITION PLATE SCREW | 3 |
| 11 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 12 | 36042 | 垫圈 点火板螺钉 | WASHER IGNITION PLATE SCREW | 6 |
| 13 | 67264 | 橡胶垫圈 点火板螺钉 | WASHER (Rubber) IGNITION PLATE SCREW | 6 |
| 14 | 67268 | 衬套 点火板螺钉 | BUSHING IGNITION PLATE SCREW | 3 |
| 15 | 33386A3 | 开关总成 | SWITCH ASSEMLBY | 1 |
| 16 | 38055 | 水银开关螺钉(.190-32 x .620) | SCREW (.190-32 x .620) MERCURY SWITCH | 1 |
| 17 | 45076 | 螺母 (#10-32) 黄铜水银开关端子 | NUT (#10-32) Brass MERCURY SWITCH TERMINAL | 1 |
| 18 | 87926 | 螺钉(#10-32 x .500)导线固定 | SCREW (#10-32 x .500) LEAD ATTACHING | 1 |
| 19 | 88439A3 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 19 | 88439A4 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 20 | 96220A12 | 发动机线束总成 | HARNESS ASSEMBLY ENGINE | 1 |
| 21 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 21 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 22 | 95084A2 | 电缆总成-保险丝 | CABLE ASSEMBLY FUSE | 1 |
| 24 | 816311 | 捆扎带(8英寸)线束和电缆 | TIE STRAP (8.00 Inches) HARNESS AND CABLES | AR |
| 24 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 25 | 68258A4 | 启动电磁阀总成 | SOLENOID ASSEMBLY Starter | 1 |
| 25 | 853654A1 | 电磁阀 | SOLENOID | 1 |
| 26 | 45076 | 螺母(#10-32)黄铜 电磁阀端子 | NUT (#10-32) Brass SOLENOID TERMINALS | 2 |
| 27 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 28 | 68292 | 螺母（.312-18）电磁阀端子 | NUT (.312-18) SOLENOID TERMINALS | 2 |
| 28 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 29 | 31716 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 2 |
| 30 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 31 | 65999A2 | 电缆总成 黑色 上部安装 | CABLE ASSEMBLY Black UPPER MOUNT | 1 |
| 32 | 88528A2 | 线缆总成(6英寸-红/白) | CABLE ASSEMBLY (6" - RED/WHITE) | 1 |
| 32 | 91865A1 | 线束总成(3"-白/黑-175) | CABLE ASSEMBLY (3" - WHITE/BLACK - 175) | 1 |
| 33 | 47483 | J型卡扣 | J CLIP | 3 |
| 34 | 194372 | 端子排 | TERMINAL BLOCK | 1 |
| 35 | 38055 | 螺钉(0.190-32x0.620) | SCREW (.190-32 x .620) | 2 |
| 36 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 37 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 38 | 814422T | 点火板盖 | COVER IGNITION PLATE | 1 |
| 39 | 88447 | 螺钉 (.190-32 x 1.62) | SCREW (.190-32 x 1.62) | 2 |
| 40 | 69020 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 40 | 690201 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 41 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 3 |
| 42 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 3 |
| 43 | 62310A2 | 线束总成(175) | CABLE ASSEMBLY (175) | 1 |
| 44 | 78866 | 绝缘体 | INSULATOR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 195872 | 安装板 | MOUNTING PLATE | 1 |
| 2 | 33778 | 螺柱 | STUD | 4 |
| 3 | 19661 | 衬套 | BUSHING | 4 |
| 4 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 4 |
| 5 | 13438 | 螺母(.250-28) | NUT (.250-28) | 4 |
| 5 | 8267119 | 螺母(.250-28) | NUT (.250-28) | 4 |
| 6 | 88807A35 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 7 | 854515 | 电压调节器 | REGULATOR Voltage | 2 |
| 7 | 8M0084173 | 电压调节器 | VOLTAGE REGULATOR | 2 |
| 8 | 69739A7 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 9 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 9 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 10 | 43542 | 盖板 | COVER | 2 |
| 11 | 90048 | 螺钉 (#10-32 x 2.125) | SCREW (#10-32 x 2.125) | 12 |
| 12 | 89302 | 垫圈(0.203 x 0.406 x 0.040)(适用处使用) | WASHER (.203 x .406 x .040) (USE WHERE APPLICABLE) | 12 |
| 13 | 90078 | 螺母 (#10-32) | NUT (#10-32) | 14 |
| 14 | 88807A13 | 拉线总成 | CABLE ASSEMBLY | 6 |
| 15 | 69022 | 螺钉 (#10-32 x .500) 不锈钢 | SCREW (#10-32 x .500) Stainless Steel | 2 |
| 16 | 832757A4 | 线圈套件 | COIL KIT | 6 |
| 16 | 8M0230859 | 点火线圈总成 | COIL IGNITION ASY | 6 |
| 17 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 12 |
| 18 | 813706A55 | 高压线总成 | CABLE ASSEMBLY High Tension | 1 |
| 18 | 813715A9 | 点火线缆套件 | CABLE KIT Ignition | 1 |
| 19 | 63709A1 | 护套/端子套件 | BOOT/TERMINAL KIT | 6 |
| 20 | 136862 | 火花塞（NGK #BU8H） | SPARK PLUG (NGK #BU8H) | 6 |
| 20 | 13686Q | NGK BU8H @10 | NGK BU8H @10 | 6 |
| 20 | 14103568 | 火花塞(NGK #BUZ8H-加拿大/比利时) | SPARK PLUG (NGK #BUZ8H - CANADA/BELGIUM) | 6 |
| 20 | 896329885 | SP #L6VC @4 | SP #L6VC @4 | 6 |
| 21 | 826802A4 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 22 | 828151A1 | 继电器总成 | RELAY ASSEMBLY | 2 |
| 22 | 8M0207773 | 调整继电器总成 | RELAY ASSEMBLY Trim | 2 |
| 23 | 828102 | 支架 | BRACKET | 2 |
| 23 | 8M0207771 | 安装支架 | BRACKET Mounting | 2 |
| 24 | 818968 | 衬套 | BUSHING | 2 |
| 24 | 8M0214955 | 衬套 | BUSHING | 2 |
| 25 | 818967 | 护孔环 | GROMMET | 2 |
| 25 | 8M0207785 | 护孔环 | GROMMET | 2 |
| 26 | 35950 | 垫圈 (.273 x .437 x .031) 不锈钢 | WASHER (.273 x .437 x .031) Stainless Steel | 2 |
| 27 | 13855A1 | 螺母/螺钉套件 | NUT/SCREW KIT | 2 |
| 28 | NSS | NOT SOLD SEPARATE SCREW | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 434291 | 点火板 点火 | IGNITION PLATE IGNITION | 1 |
| 2 | 7778A9 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 2 | 7778A12 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 3 | 13669 | 开关盒螺钉(#12-24 x 2.00) | SCREW (#12-24 x 2.00) SWITCH BOX | 2 |
| 4 | 94453 | 开关盒螺钉衬套 | BUSHING SWITCH BOX SCREW | 2 |
| 6 | 45076 | 螺母(#10-32)黄铜开关盒端子 | NUT (#10-32) Brass SWITCH BOX TERMINAL | 20 |
| 7 | 60871A10 | 线束总成-开关盒 | WIRE ASSEMBLY SWITCH BOX | 2 |
| 8 | 62568 | 螺丝(#10-16 x 0.375)导线固定 | SCREW (#10-16 x .375) WIRE ATTACHING | 3 |
| 9 | 65999A3 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 10 | 69092 | 点火板螺钉(1.25) | SCREW (1.25) IGNITION PLATE | 3 |
| 10 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 3 |
| 11 | 26993 | 锁紧垫圈(.312)点火板螺钉 | LOCKWASHER (.312) IGNITION PLATE SCREW | 3 |
| 11 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 12 | 36042 | 垫圈 点火板螺钉 | WASHER IGNITION PLATE SCREW | 6 |
| 13 | 67264 | 橡胶垫圈 点火板螺钉 | WASHER (Rubber) IGNITION PLATE SCREW | 6 |
| 14 | 67268 | 衬套 点火板螺钉 | BUSHING IGNITION PLATE SCREW | 3 |
| 15 | 33386A3 | 开关总成 | SWITCH ASSEMLBY | 1 |
| 16 | 38055 | 水银开关螺钉(.190-32 x .620) | SCREW (.190-32 x .620) MERCURY SWITCH | 1 |
| 17 | 45076 | 螺母 (#10-32) 黄铜水银开关端子 | NUT (#10-32) Brass MERCURY SWITCH TERMINAL | 1 |
| 18 | 87926 | 螺钉(#10-32 x .500)导线固定 | SCREW (#10-32 x .500) LEAD ATTACHING | 1 |
| 19 | 88439A3 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 19 | 88439A4 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 20 | 96220A12 | 发动机线束总成 | HARNESS ASSEMBLY ENGINE | 1 |
| 21 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 21 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 22 | 95084A2 | 电缆总成-保险丝 | CABLE ASSEMBLY FUSE | 1 |
| 24 | 816311 | 捆扎带(8英寸)线束和电缆 | TIE STRAP (8.00 Inches) HARNESS AND CABLES | AR |
| 24 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 25 | 68258A4 | 启动电磁阀总成 | SOLENOID ASSEMBLY Starter | 1 |
| 25 | 853654A1 | 电磁阀 | SOLENOID | 1 |
| 26 | 45076 | 螺母(#10-32)黄铜 电磁阀端子 | NUT (#10-32) Brass SOLENOID TERMINALS | 2 |
| 27 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 28 | 68292 | 螺母（.312-18）电磁阀端子 | NUT (.312-18) SOLENOID TERMINALS | 2 |
| 28 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 29 | 31716 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 2 |
| 30 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 31 | 65999A2 | 电缆总成 黑色 上部安装 | CABLE ASSEMBLY Black UPPER MOUNT | 1 |
| 32 | 88528A2 | 线缆总成(6英寸-红/白) | CABLE ASSEMBLY (6" - RED/WHITE) | 1 |
| 32 | 91865A1 | 线束总成(3"-白/黑-175) | CABLE ASSEMBLY (3" - WHITE/BLACK - 175) | 1 |
| 33 | 47483 | J型卡扣 | J CLIP | 3 |
| 34 | 194372 | 端子排 | TERMINAL BLOCK | 1 |
| 35 | 38055 | 螺钉(0.190-32x0.620) | SCREW (.190-32 x .620) | 2 |
| 36 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 37 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 38 | 814422T | 点火板盖 | COVER IGNITION PLATE | 1 |
| 39 | 88447 | 螺钉 (.190-32 x 1.62) | SCREW (.190-32 x 1.62) | 2 |
| 40 | 69020 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 40 | 690201 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 41 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 3 |
| 42 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 3 |
| 43 | 62310A2 | 线束总成(175) | CABLE ASSEMBLY (175) | 1 |
| 44 | 78866 | 绝缘体 | INSULATOR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 434291 | 点火板 点火 | IGNITION PLATE IGNITION | 1 |
| 2 | 7778A9 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 2 | 7778A12 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 3 | 13669 | 开关盒螺钉(#12-24 x 2.00) | SCREW (#12-24 x 2.00) SWITCH BOX | 2 |
| 4 | 94453 | 开关盒螺钉衬套 | BUSHING SWITCH BOX SCREW | 2 |
| 6 | 45076 | 螺母(#10-32)黄铜开关盒端子 | NUT (#10-32) Brass SWITCH BOX TERMINAL | 20 |
| 7 | 60871A10 | 线束总成-开关盒 | WIRE ASSEMBLY SWITCH BOX | 2 |
| 8 | 62568 | 螺丝(#10-16 x 0.375)导线固定 | SCREW (#10-16 x .375) WIRE ATTACHING | 3 |
| 9 | 65999A3 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 10 | 69092 | 点火板螺钉(1.25) | SCREW (1.25) IGNITION PLATE | 3 |
| 10 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 3 |
| 11 | 26993 | 锁紧垫圈(.312)点火板螺钉 | LOCKWASHER (.312) IGNITION PLATE SCREW | 3 |
| 11 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 12 | 36042 | 垫圈 点火板螺钉 | WASHER IGNITION PLATE SCREW | 6 |
| 13 | 67264 | 橡胶垫圈 点火板螺钉 | WASHER (Rubber) IGNITION PLATE SCREW | 6 |
| 14 | 67268 | 衬套 点火板螺钉 | BUSHING IGNITION PLATE SCREW | 3 |
| 15 | 33386A3 | 开关总成 | SWITCH ASSEMLBY | 1 |
| 16 | 38055 | 水银开关螺钉(.190-32 x .620) | SCREW (.190-32 x .620) MERCURY SWITCH | 1 |
| 17 | 45076 | 螺母 (#10-32) 黄铜水银开关端子 | NUT (#10-32) Brass MERCURY SWITCH TERMINAL | 1 |
| 18 | 87926 | 螺钉(#10-32 x .500)导线固定 | SCREW (#10-32 x .500) LEAD ATTACHING | 1 |
| 19 | 88439A3 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 19 | 88439A4 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 20 | 96220A12 | 发动机线束总成 | HARNESS ASSEMBLY ENGINE | 1 |
| 21 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 21 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 22 | 95084A2 | 电缆总成-保险丝 | CABLE ASSEMBLY FUSE | 1 |
| 24 | 816311 | 捆扎带(8英寸)线束和电缆 | TIE STRAP (8.00 Inches) HARNESS AND CABLES | AR |
| 24 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 25 | 68258A4 | 启动电磁阀总成 | SOLENOID ASSEMBLY Starter | 1 |
| 25 | 853654A1 | 电磁阀 | SOLENOID | 1 |
| 26 | 45076 | 螺母(#10-32)黄铜 电磁阀端子 | NUT (#10-32) Brass SOLENOID TERMINALS | 2 |
| 27 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 28 | 68292 | 螺母（.312-18）电磁阀端子 | NUT (.312-18) SOLENOID TERMINALS | 2 |
| 28 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 29 | 31716 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 2 |
| 30 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 31 | 65999A2 | 电缆总成 黑色 上部安装 | CABLE ASSEMBLY Black UPPER MOUNT | 1 |
| 32 | 88528A2 | 线缆总成(6英寸-红/白) | CABLE ASSEMBLY (6" - RED/WHITE) | 1 |
| 32 | 91865A1 | 线束总成(3"-白/黑-175) | CABLE ASSEMBLY (3" - WHITE/BLACK - 175) | 1 |
| 33 | 47483 | J型卡扣 | J CLIP | 3 |
| 34 | 194372 | 端子排 | TERMINAL BLOCK | 1 |
| 35 | 38055 | 螺钉(0.190-32x0.620) | SCREW (.190-32 x .620) | 2 |
| 36 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 37 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 38 | 814422T | 点火板盖 | COVER IGNITION PLATE | 1 |
| 39 | 88447 | 螺钉 (.190-32 x 1.62) | SCREW (.190-32 x 1.62) | 2 |
| 40 | 69020 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 40 | 690201 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 41 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 3 |
| 42 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 3 |
| 43 | 62310A2 | 线束总成(175) | CABLE ASSEMBLY (175) | 1 |
| 44 | 78866 | 绝缘体 | INSULATOR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 12335A1 | 支架套件 | BRACKET KIT | 1 |
| 2 | 12323A1 | 绳索/挂钩套件 | CORD/HOOK KIT | 1 |
| 3 | 87421 | 油箱 | TANK | 1 |
| 4 | 43298A2 | 盖总成 | CAP ASSEMBLY | 1 |
| 5 | NSS | 不单独销售嵌件 | NOT SOLD SEPARATE Insert | 1 |
| 6 | 11332 | O型圈(2.225 x .210) | O-RING (2.225 x .210) | 1 |
| 7 | 816190A3 | 外壳总成适配器 | HOUSING ASSEMBLY Adapter | 1 |
| 7 | 816190A4 | 机油收集器总成(无传感器) | OIL PICK UP ASSEMBLY Without Sender | 1 |
| 8 | 11332 | O型圈(2.225 x .210) | O-RING (2.225 x .210) | 1 |
| 9 | 99802 | 管 | TUBE | 1 |
| 10 | 99439 | 软管(114.00英寸) | HOSE (114.00 Inches) | 1 |
| 11 | 833069A3 | 油箱总成 | RESERVOIR ASSEMBLY Oil | 1 |
| 11 | 8M0062954 | 储油罐 | RESERVOIR, OIL | 1 |
| 12 | NSS | 不单独销售标签-储液罐 | NOT SOLD SEPARATE Decal-Reservoir | 1 |
| 13 | 855362 | 护孔环 | GROMMET | 3 |
| 13 | 855362001 | 护孔环 | GROMMET | 3 |
| 14 | 49436 | 垫圈 | WASHER | 3 |
| 15 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 1 |
| 16 | 855364 | 衬套 | BUSHING | 3 |
| 17 | 69267 | 螺钉 (.312-18 x 1.750) | SCREW (.312-18 x 1.750) | 2 |
| 18 | 833155 | 护孔环 | GROMMET | 2 |
| 19 | 8502341 | 衬套 | BUSHING | 2 |
| 20 | 82381455 | 管材(25英寸整卷)(裁切为20英寸) | TUBING (25.00 Inches Bulk) (Cut to 20 Inches) | 1 |
| 21 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 21 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 22 | 12886A8 | 开关 | SWITCH | 1 |
| 23 | 58376 | 螺钉(.164-18 x .375) | SCREW (.164-18 x .375) | 1 |
| 24 | 72761 | 不锈钢垫圈(.203 x .562 x .060) | WASHER (.203 x .562 x .060) Stainless Steel | 1 |
| 25 | 8260841 | 隔套 | SPACER | 1 |
| 26 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 7 |
| 26 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 7 |
| 27 | NSS | 不单独销售 塞 | NOT SOLD SEPARATE Plug | 1 |
| 28 | 424254 | 接头 | FITTING | 1 |
| 28 | 8M0207780 | 接头 | FITTING | 1 |
| 29 | 830756109 | 软管(57.00英寸散装)(裁切至6英寸) | HOSE (57.00 Inches Bulk) (Cut to 6 Inches) | 1 |
| 29 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 30 | 855785 | 燃油冷却器 | COOLER Fuel | 1 |
| 30 | 855785A1 | 燃油冷却器总成 | COOLER ASSEMBLY Fuel | 1 |
| 31 | 855761 | 止回阀 | CHECK VALVE | 1 |
| 31 | 8557611 | 止回阀 | CHECK VALVE | 1 |
| 32 | 13791 | 卡箍(15.7) | CLAMP (15.7) | 4 |
| 32 | 8M0214911 | 卡箍@5 | CLAMP @5 | 4 |
| 33 | 85682239 | 管材(17英寸整卷)(裁切为3英寸) | TUBING (17.00 Inches Bulk) (Cut to 3 Inches) | 1 |
| 34 | 856822A3 | 软管(带绝缘套管)(30英寸) | HOSE (W/INSULATING SLEEVE) (30 IN.) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 896156A01 | 配平油缸套件 | TRIM CYLINDER KIT | 1 |
| 2 | 896157A01 | 升降杆套件 | TRIM ROD KIT | 1 |
| 2 | 8M0118299 | 升降杆套件 | TRIM ROD KIT | 1 |
| 3 | 896158A01 | O型圈套件 | O-RING KIT | 1 |
| 4 | 896159A01 | 活塞套件 | PISTON KIT | 1 |
| 5 | 896166A01 | 配平歧管套件 | MANIFOLD KIT Trim | 1 |
| 6 | 896165A01 | 配平止回套件PO型 | CHECK KIT Trim PO | 1 |
| 7 | 896160A01 | O型圈套件 | O-RING KIT | 1 |
| 8 | 8M0010183 | O型圈 | O-RING | 1 |
| 8 | 8M0204938 | O型圈 | O-RING | 1 |
| 9 | 896163A01 | 配平泵套件 | PUMP KIT Trim | 1 |
| 10 | 896164A01 | 配平过滤器套件 | TRIM FILTER KIT | 1 |
| 11 | 896162A01 | 配平颈套件 | TRIM NECK KIT | 1 |
| 12 | 895854A01 | O型圈套件 | O-RING KIT | 1 |
| 13 | 893419 | 盖套件 | CAP KIT | 1 |
| 14 | 893420A01 | 手动释放套件 | MANUAL RELEASE KIT | 1 |
| 14 | 8M0224397 | 手动释放套件 | MANUAL RELEASE KIT | 1 |
| 15 | 8M0224410 | O型圈套件 | ORING KIT | 1 |
| 16 | 8M0184377 | 卡环 | SNAP RING | 1 |
| 17 | 893408A01 | 配平销套件 | PIN KIT Trim | 1 |
| 18 | 896161A01 | 配平电机套件 | TRIM MOTOR KIT | 1 |
| 18 | 896161A02 | 配平电机套件 | TRIM MOTOR KIT | 1 |
| 18 | 896161A02 | 配平电机套件 | TRIM MOTOR KIT | 1 |
| 19 | 896167A01 | 储液罐套件 | RESERVOIR KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 434291 | 点火板 点火 | IGNITION PLATE IGNITION | 1 |
| 2 | 7778A9 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 2 | 7778A12 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 3 | 13669 | 开关盒螺钉(#12-24 x 2.00) | SCREW (#12-24 x 2.00) SWITCH BOX | 2 |
| 4 | 94453 | 开关盒螺钉衬套 | BUSHING SWITCH BOX SCREW | 2 |
| 6 | 45076 | 螺母(#10-32)黄铜开关盒端子 | NUT (#10-32) Brass SWITCH BOX TERMINAL | 20 |
| 7 | 60871A10 | 线束总成-开关盒 | WIRE ASSEMBLY SWITCH BOX | 2 |
| 8 | 62568 | 螺丝(#10-16 x 0.375)导线固定 | SCREW (#10-16 x .375) WIRE ATTACHING | 3 |
| 9 | 65999A3 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 10 | 69092 | 点火板螺钉(1.25) | SCREW (1.25) IGNITION PLATE | 3 |
| 10 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 3 |
| 11 | 26993 | 锁紧垫圈(.312)点火板螺钉 | LOCKWASHER (.312) IGNITION PLATE SCREW | 3 |
| 11 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 12 | 36042 | 垫圈 点火板螺钉 | WASHER IGNITION PLATE SCREW | 6 |
| 13 | 67264 | 橡胶垫圈 点火板螺钉 | WASHER (Rubber) IGNITION PLATE SCREW | 6 |
| 14 | 67268 | 衬套 点火板螺钉 | BUSHING IGNITION PLATE SCREW | 3 |
| 15 | 33386A3 | 开关总成 | SWITCH ASSEMLBY | 1 |
| 16 | 38055 | 水银开关螺钉(.190-32 x .620) | SCREW (.190-32 x .620) MERCURY SWITCH | 1 |
| 17 | 45076 | 螺母 (#10-32) 黄铜水银开关端子 | NUT (#10-32) Brass MERCURY SWITCH TERMINAL | 1 |
| 18 | 87926 | 螺钉(#10-32 x .500)导线固定 | SCREW (#10-32 x .500) LEAD ATTACHING | 1 |
| 19 | 88439A3 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 19 | 88439A4 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 20 | 96220A12 | 发动机线束总成 | HARNESS ASSEMBLY ENGINE | 1 |
| 21 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 21 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 22 | 95084A2 | 电缆总成-保险丝 | CABLE ASSEMBLY FUSE | 1 |
| 24 | 816311 | 捆扎带(8英寸)线束和电缆 | TIE STRAP (8.00 Inches) HARNESS AND CABLES | AR |
| 24 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 25 | 68258A4 | 启动电磁阀总成 | SOLENOID ASSEMBLY Starter | 1 |
| 25 | 853654A1 | 电磁阀 | SOLENOID | 1 |
| 26 | 45076 | 螺母(#10-32)黄铜 电磁阀端子 | NUT (#10-32) Brass SOLENOID TERMINALS | 2 |
| 27 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 28 | 68292 | 螺母（.312-18）电磁阀端子 | NUT (.312-18) SOLENOID TERMINALS | 2 |
| 28 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 29 | 31716 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 2 |
| 30 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 31 | 65999A2 | 电缆总成 黑色 上部安装 | CABLE ASSEMBLY Black UPPER MOUNT | 1 |
| 32 | 88528A2 | 线缆总成(6英寸-红/白) | CABLE ASSEMBLY (6" - RED/WHITE) | 1 |
| 32 | 91865A1 | 线束总成(3"-白/黑-175) | CABLE ASSEMBLY (3" - WHITE/BLACK - 175) | 1 |
| 33 | 47483 | J型卡扣 | J CLIP | 3 |
| 34 | 194372 | 端子排 | TERMINAL BLOCK | 1 |
| 35 | 38055 | 螺钉(0.190-32x0.620) | SCREW (.190-32 x .620) | 2 |
| 36 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 37 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 38 | 814422T | 点火板盖 | COVER IGNITION PLATE | 1 |
| 39 | 88447 | 螺钉 (.190-32 x 1.62) | SCREW (.190-32 x 1.62) | 2 |
| 40 | 69020 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 40 | 690201 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 41 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 3 |
| 42 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 3 |
| 43 | 62310A2 | 线束总成(175) | CABLE ASSEMBLY (175) | 1 |
| 44 | 78866 | 绝缘体 | INSULATOR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 99186T | 泵与电机总成 | PUMP AND MOTOR | 1 |
| 1 | 12659 | 机架与磁场套件 | FRAME AND FIELD KIT | 1 |
| 1 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 2 | 12665 | 电刷弹簧套件 | SPRING KIT Brush | 1 |
| 3 | 13506 | 电刷卡套件 | BRUSH CARD KIT | 1 |
| 3 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 4 | 12662 | 泵与端架套件 | PUMP AND END FRAME KIT | 1 |
| 4 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 5 | 126631 | 泵密封套件 | SEAL KIT Pump | 1 |
| 6 | 12660 | 端架套件 | END FRAME KIT | 1 |
| 6 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 7 | 12661 | 电枢套件 | ARMATURE KIT | 1 |
| 7 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 8 | 12664 | 贯穿螺栓套件 | THRU BOLT KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 826729A2 | 升降倾斜总成 | TRIM AND TILT ASSEMBLY | 1 |
| 1 | 811604F | 歧管总成 | MANIFOLD ASSEMBLY | 1 |
| 2 | 56800 | 管塞 (.0625-27) | PLUG Pipe (.0625-27) | 9 |
| 3 | 823552F | 气缸总成 | CYLINDER ASSEMBLY | 1 |
| 3 | 880952A03 | ORD 8M0078330 | ORD 8M0078330 | 1 |
| 4 | 823553 | 配平活塞杆套件 | ROD KIT Trim Piston | 1 |
| 4 | 823553T | 升降活塞杆 | ROD Trim Piston | 1 |
| 5 | 811606 | 导向套件 | GUIDE KIT | 1 |
| 5 | 878239A02 | 倾斜缸端盖套件 | END CAP KIT Tilt Cylinder | 1 |
| 6 | 811607A1 | 维修套件 | REPAIR KIT | 1 |
| 7 | 811610A1 | 止回阀套件 | CHECK VALVE KIT | 1 |
| 7 | 823553T | 升降活塞杆 | ROD Trim Piston | 1 |
| 8 | 99638A1 | 导向器总成 | GUIDE ASSEMBLY | 2 |
| 8 | 8M0021648 | 端盖总成 | END CAP ASSEMBLY | 2 |
| 9 | 43397A6 | 动力升降倾斜装置活塞/杆总成 | PISTON/ROD ASSEMBLY Power Trim | 1 |
| 9 | 878413A1 | 活塞总成 | PISTON ASSEMBLY | 1 |
| 9 | 43398A3 | 动力升降倾斜装置活塞/杆总成 | PISTON/ROD ASSEMBLY Power Trim | 1 |
| 9 | 878414T01 | 活塞总成 | PISTON ASSEMBLY | 1 |
| 10 | 12184A1 | 升降过滤器总成 | TRIM FILTER ASSEMBLY | 1 |
| 11 | 813442A2 | 手动释放总成 | MANUAL RELEASE ASSEMBLY | 1 |
| 11 | 893929A01 | 安全阀套件 | VALVE KIT Relief | 1 |
| 12 | 812844 | E型卡环 | E RING | 1 |
| 12 | 815949001 | E形环 | E-RING | 1 |
| 13 | 811612A2 | O型圈套件 | O-RING KIT | 1 |
| 13 | 811612A3 | O型圈套件 | O-RING KIT | 1 |
| 14 | 811617F | 泵 | PUMP | 1 |
| 14 | 811617T1 | 泵 | PUMP | 1 |
| 15 | 811613 | 塞子总成 | PLUG ASSEMBLY | 1 |
| 16 | 4000327 | 螺钉 (M6 x 14) | SCREW (M6 x 14) | 4 |
| 17 | 43450 | 垫圈 | WASHER | 4 |
| 17 | 4002315 | 垫圈(6.60x12.5x1.5mm-不锈钢) | WASHER (6.60 X 12.5 X 1.5 mm -SS) | 4 |
| 18 | 811611 | 盖板 | COVER | 1 |
| 19 | 828710 | 驱动接头 | DRIVE JOINT | 1 |
| 20 | 828708 | 电机总成 | MOTOR ASSEMBLY | 1 |
| 20 | 878265A4 | 配平电机 | TRIM MOTOR | 1 |
| 21 | 828709 | 螺钉 (长) | SCREW (LONG) | 2 |
| 21 | 881768A1 | 螺钉/垫圈套件 | SCREW/WASHER KIT | 2 |
| 21 | 811616 | 螺钉 (短) | SCREW (SHORT) | 2 |
| 22 | 811614 | 轴总成 | SHAFT ASSEMBLY | 1 |
| 22 | 8M0142997 | 倾斜轴套件 | TILT SHAFT KIT | 1 |
| 23 | 56800 | 管塞 (.0625-27) | PLUG Pipe (.0625-27) | 2 |
| 24 | 44431 | 槽销 | PIN Groove | 1 |
| 24 | 878267 | 销 | PIN | 1 |
| 25 | 821539 | 三叶销 | PIN Trilobe | 1 |
| 26 | 996251 | 轴 | SHAFT | 1 |
| 26 | 99625002 | 轴 | SHAFT | 1 |
| 27 | 818298A1 | 阳极套件 | ANODE KIT | 1 |
| 27 | 818298Q1 | 阳极套件 | ANODE KIT | 1 |
| 28 | 4000330 | 螺钉(M6x25) | SCREW (M6 x 25) | 2 |
| 28 | 8M0204707 | 不锈钢六角大帽螺钉(M6x25) | SCREW M6 x 25 HX HD CAP SS | 2 |
| 29 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 29 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 30 | 4000377 | 螺钉 (M10 x 30) | SCREW (M10 x 30) | 6 |
| 31 | 4002319 | 垫圈 | WASHER | 6 |
| 32 | 26550 | 卡箍 | CLAMP | 2 |
| 33 | 8128321 | 螺钉 (#10-16 x .600) | SCREW (#10-16 x .600) | 1 |
| 33 | 878609 | 螺钉 (#10-16 x .600) | SCREW (#10-16 x .600) | 1 |
| 34 | 69205 | C形垫圈 | C WASHER | 1 |
| 34 | 8M0084613 | C形垫圈 | C-WASHER | 1 |
| 35 | 996301 | 冲击板 | STRIKER PLATE | 2 |
| 35 | 8M0045383 | 冲击板 | STRIKER PLATE | 2 |
| 36 | 58643 | 锁紧垫圈 (.375) | LOCKWASHER (.375) | 2 |
| 37 | 46335 | 螺母 (.375-24) | NUT (.375-24) | 2 |
| 38 | 435301 | 警示贴纸-动力微调 | DECAL Caution-Power Trim | 1 |
| 39 | 828547353 | 导管 (.350内径 x 3.00英尺 散装) | CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk) | 1 |
| 40 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 40 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0168222 | 动力升降总成 | POWER TRIM ASSEMBLY | 1 |
| 1 | 8M0142591 | 电机套件 | MOTOR KIT | 1 |
| 2 | 82494830 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 2 |
| 3 | 400256 | 锁紧垫圈 (M6) | LOCKWASHER (M6) | 2 |
| 4 | 8M0090403 | 驱动联轴器 | COUPLING Drive | 1 |
| 5 | 8M0142996 | 压力检查套件 | PO CHECK KIT | 1 |
| 6 | 8M0060141 | 手动释放套件 | MANUAL RELEASE KIT | 1 |
| 7 | 8M0142997 | 倾斜轴套件 | TILT SHAFT KIT | 1 |
| 8 | 878267 | 销 | PIN | 1 |
| 9 | 8M0142998 | 倾斜油缸总成 | TILT CYLINDER ASSEMBLY | 1 |
| 9 | 8M0168220 | 倾斜油缸总成 | TILT CYLINDER ASSEMBLY | 1 |
| 10 | 8M0142999 | 倾斜油缸O型圈套件 | O RING KIT TILT CYLINDER | 1 |
| 11 | 8M0143000 | 记忆活塞套件 | MEMORY PISTON KIT | 1 |
| 12 | 8M0142592 | 升降杆套件 左舷 | TRIM ROD KIT Port | 1 |
| 13 | 8M0143001 | 活塞总成 | PISTON ASSEMBLY | 1 |
| 14 | 8M0143003 | 端盖总成 | END CAP ASSEMBLY | 1 |
| 15 | 878264A1 | 储液罐套件 | RESERVOIR KIT | 1 |
| 16 | 811613 | 塞子总成 | PLUG ASSEMBLY | 1 |
| 17 | 4000327 | 螺钉 (M6 x 14) | SCREW (M6 x 14) | 4 |
| 18 | 4002315 | 垫圈(6.60x12.5x1.5mm-不锈钢) | WASHER (6.60 X 12.5 X 1.5 mm -SS) | 4 |
| 19 | 8M0143004 | 泵套件 | PUMP KIT | 1 |
| 20 | 8M0148385 | 动力升降倾斜装置维修包 | REPAIR KIT Power Trim | 1 |
| 21 | 858771 | 螺钉 (M10 x 30) | SCREW (M10 x 30) | 6 |
| 22 | 4002319 | 垫圈 | WASHER | 6 |
| 23 | 8M0094889 | 销 | PIN | 1 |
| 23 | 8M0161312 | 连杆销眼总成 | PIN ROD EYE ASSEMBLY | 1 |
| 24 | 8M0143005 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 24 | 8M0168219 | 减震杆套件 | SHOCK ROD KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0231193 | 动力升降总成 | POWER TRIM ASSEMBLY | 1 |
| 1 | 8M0225363 | 电机套件 | MOTOR KIT | 1 |
| 2 | 8M0225369 | 阀套件 | VALVE KIT | 1 |
| 3 | 8M0225371 | 手动释放套件 | MANUAL RELEASE KIT | 1 |
| 4 | 8M0245633 | 倾斜油缸套件 | TILT CYLINDER KIT | 1 |
| 5 | 8M0225370 | 枢轴销套件 | PIVOT PIN KIT | 1 |
| 6 | 8M0244575 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 7 | 8M0244425 | 销杆眼套件 | PIN ROD EYE KIT | 1 |
| 8 | 8M0232231 | 螺钉螺母套件 | SCREW NUT KIT | 1 |
| 9 | 8M0225373 | 记忆活塞套件 | MEMORY PISTON KIT | 1 |
| 10 | 8M0225368 | 储液罐套件 | RESERVOIR KIT | 1 |
| 11 | 8M0174135 | 储液罐塞总成 | PLUG RESERVOIR ASSEMBLY | 1 |
| 12 | 8M0237525 | 泵套件 | PUMP KIT | 1 |
| 13 | 8M0225367 | 升降杆套件 | TRIM ROD KIT | 1 |
| 14 | 8M0242846 | 升降杆套件 | TRIM ROD KIT | 1 |
| 15 | 8M0225372 | 重建套件 | REBUILD KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 434291 | 点火板 点火 | IGNITION PLATE IGNITION | 1 |
| 2 | 7778A9 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 2 | 7778A12 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 3 | 13669 | 开关盒螺钉(#12-24 x 2.00) | SCREW (#12-24 x 2.00) SWITCH BOX | 2 |
| 4 | 94453 | 开关盒螺钉衬套 | BUSHING SWITCH BOX SCREW | 2 |
| 6 | 45076 | 螺母(#10-32)黄铜开关盒端子 | NUT (#10-32) Brass SWITCH BOX TERMINAL | 20 |
| 7 | 60871A10 | 线束总成-开关盒 | WIRE ASSEMBLY SWITCH BOX | 2 |
| 8 | 62568 | 螺丝(#10-16 x 0.375)导线固定 | SCREW (#10-16 x .375) WIRE ATTACHING | 3 |
| 9 | 65999A3 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 10 | 69092 | 点火板螺钉(1.25) | SCREW (1.25) IGNITION PLATE | 3 |
| 10 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 3 |
| 11 | 26993 | 锁紧垫圈(.312)点火板螺钉 | LOCKWASHER (.312) IGNITION PLATE SCREW | 3 |
| 11 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 12 | 36042 | 垫圈 点火板螺钉 | WASHER IGNITION PLATE SCREW | 6 |
| 13 | 67264 | 橡胶垫圈 点火板螺钉 | WASHER (Rubber) IGNITION PLATE SCREW | 6 |
| 14 | 67268 | 衬套 点火板螺钉 | BUSHING IGNITION PLATE SCREW | 3 |
| 15 | 33386A3 | 开关总成 | SWITCH ASSEMLBY | 1 |
| 16 | 38055 | 水银开关螺钉(.190-32 x .620) | SCREW (.190-32 x .620) MERCURY SWITCH | 1 |
| 17 | 45076 | 螺母 (#10-32) 黄铜水银开关端子 | NUT (#10-32) Brass MERCURY SWITCH TERMINAL | 1 |
| 18 | 87926 | 螺钉(#10-32 x .500)导线固定 | SCREW (#10-32 x .500) LEAD ATTACHING | 1 |
| 19 | 88439A3 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 19 | 88439A4 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 20 | 96220A12 | 发动机线束总成 | HARNESS ASSEMBLY ENGINE | 1 |
| 21 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 21 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 22 | 95084A2 | 电缆总成-保险丝 | CABLE ASSEMBLY FUSE | 1 |
| 24 | 816311 | 捆扎带(8英寸)线束和电缆 | TIE STRAP (8.00 Inches) HARNESS AND CABLES | AR |
| 24 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 25 | 68258A4 | 启动电磁阀总成 | SOLENOID ASSEMBLY Starter | 1 |
| 25 | 853654A1 | 电磁阀 | SOLENOID | 1 |
| 26 | 45076 | 螺母(#10-32)黄铜 电磁阀端子 | NUT (#10-32) Brass SOLENOID TERMINALS | 2 |
| 27 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 28 | 68292 | 螺母（.312-18）电磁阀端子 | NUT (.312-18) SOLENOID TERMINALS | 2 |
| 28 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 29 | 31716 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 2 |
| 30 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 31 | 65999A2 | 电缆总成 黑色 上部安装 | CABLE ASSEMBLY Black UPPER MOUNT | 1 |
| 32 | 88528A2 | 线缆总成(6英寸-红/白) | CABLE ASSEMBLY (6" - RED/WHITE) | 1 |
| 32 | 91865A1 | 线束总成(3"-白/黑-175) | CABLE ASSEMBLY (3" - WHITE/BLACK - 175) | 1 |
| 33 | 47483 | J型卡扣 | J CLIP | 3 |
| 34 | 194372 | 端子排 | TERMINAL BLOCK | 1 |
| 35 | 38055 | 螺钉(0.190-32x0.620) | SCREW (.190-32 x .620) | 2 |
| 36 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 37 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 38 | 814422T | 点火板盖 | COVER IGNITION PLATE | 1 |
| 39 | 88447 | 螺钉 (.190-32 x 1.62) | SCREW (.190-32 x 1.62) | 2 |
| 40 | 69020 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 40 | 690201 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 41 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 3 |
| 42 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 3 |
| 43 | 62310A2 | 线束总成(175) | CABLE ASSEMBLY (175) | 1 |
| 44 | 78866 | 绝缘体 | INSULATOR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 18488F1 | 气缸盖 | CYLINDER HEAD | 2 |
| 2 | 8228441 | 衬垫 | GASKET | 2 |
| 2 | 822844T05 | 衬垫 | GASKET | 2 |
| 3 | 98534 | 螺钉 (.375-16 x 2.30) | SCREW (.375-16 x 2.30) | 23 |
| 3 | 827426 | 螺钉 | SCREW | 1 |
| 4 | 63779 | 定位销 (.250 x .625) | PIN Dowel (.250 x .625) | 4 |
| 5 | 62386 | 衬垫 | GASKET | 2 |
| 5 | 8M0204714 | 衬垫@4 | GASKET @4 | 2 |
| 6 | 90390A1 | 盖板套件 | COVER KIT | 2 |
| 7 | 75692 | 节温器 | THERMOSTAT | 2 |
| 8 | 35386 | 螺丝(.312-18 x 1.00) | SCREW (.312-18 x 1.00) | 4 |
| 9 | 68727 | 90度弯头 (.250-18) - 黄铜 | FITTING (.250-18) 90 Degree - Brass | 1 |
| 9 | 687271 | 90度弯头 (.250-18) - 黄铜 | FITTING (.250-18) 90 Degree - Brass | 1 |
| 10 | 77653112 | 软管(59.00英寸散装)(裁切至12-3/4英寸) | HOSE (59.00 Inches Bulk) (Cut to 12-3/4 IN.) | 1 |
| 10 | 77653101 | 软管（散装48.00英寸） | HOSE (48.00 Inches Bulk) | 1 |
| 11 | 68728 | 接头 | FITTING | 1 |
| 12 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 12 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 13 | 77653112 | 软管(59.00英寸散装)(裁切至11-1/2英寸) | HOSE (59.00 Inches Bulk) (Cut to 11-1/2 IN.) | 1 |
| 13 | 77653101 | 软管（散装48.00英寸） | HOSE (48.00 Inches Bulk) | 1 |
| 14 | 77653112 | 软管(59.00英寸散装)(裁切至7-1/2英寸) | HOSE (59.00 Inches Bulk) (Cut to 7-1/2 IN.) | 1 |
| 14 | 77653101 | 软管（散装48.00英寸） | HOSE (48.00 Inches Bulk) | 1 |
| 15 | 97465 | SENDER Temperature (Starboard) | 1 | |
| 16 | 815914 | 三通接头 | T-FITTING | 1 |
| 17 | 13536A6 | SENSOR ASSEMBLY Temperature (Port) | 1 | |
| 18 | 137151 | 固定座 | RETAINER | 2 |
| 19 | 98257 | 螺钉 (.312-18 x .500) | SCREW (.312-18 x .500) | 2 |
| 20 | 826858 | 爆震传感器(200) | SENSOR Knock (200) | 1 |
| 21 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 1 |
| 22 | 17735A2 | 适配板总成 | ADAPTER PLATE ASSEMBLY | 1 |
| 23 | 28668 | 螺钉 (.250-20 x .875) 不锈钢 | SCREW (.250-20 x .875) Stainless Steel | 8 |
| 24 | 146972 | 衬垫 | GASKET | 1 |
| 25 | 116453 | 簧片阀组 | REED BLOCK | 6 |
| 25 | 855952T3 | 簧片阀总成 | REED BLOCK ASSEMBLY | 6 |
| 26 | 55098 | J型卡扣 | J CLIP | 1 |
| 26 | 8M0024808 | J型夹 | J-CLIP | 1 |
| 27 | 55715 | 螺钉(.250-20×0.880) | SCREW (.250-20 x .880) | 6 |
| 28 | 90197 | 螺丝（.250-20 x 1.125） | SCREW (.250-20 x 1.125) | 6 |
| 29 | 167371 | 衬垫 | GASKET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 823434A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 823434T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 812817A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 812817T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 813043A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 813043T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 81741890 | 零件手册175 XRI/175 MAGNUM 200 XRI(电喷) | PARTS MANUAL 175 XRI /175 MAGNUM 200 XRI (EFI) | 1 |
| - | 815810A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 815809A90 | 衬垫套件 | GASKET SET | 1 |
| - | 815791A92 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 812563A90 | 贴花套装(175/200-黑色) | DECAL SET (175/200 - BLACK) | 1 |
| - | 812563A93 | 贴花套件 | DECAL SET | 1 |
| - | 813033A91 | 贴花套装(175-灰色) | DECAL SET (175 - GRAY) | 1 |
| - | 813033A93 | 贴花套件 | DECAL SET | 1 |
| - | 13492912 | 用户指南(黑色) | OWNERS GUIDE (BLACK) | 1 |
| - | 19592911 | 用户指南(灰色) | OWNERS GUIDE (GRAY) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 434291 | 点火板 点火 | IGNITION PLATE IGNITION | 1 |
| 2 | 7778A9 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 2 | 7778A12 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 3 | 13669 | 开关盒螺钉(#12-24 x 2.00) | SCREW (#12-24 x 2.00) SWITCH BOX | 2 |
| 4 | 94453 | 开关盒螺钉衬套 | BUSHING SWITCH BOX SCREW | 2 |
| 6 | 45076 | 螺母(#10-32)黄铜开关盒端子 | NUT (#10-32) Brass SWITCH BOX TERMINAL | 20 |
| 7 | 60871A10 | 线束总成-开关盒 | WIRE ASSEMBLY SWITCH BOX | 2 |
| 8 | 62568 | 螺丝(#10-16 x 0.375)导线固定 | SCREW (#10-16 x .375) WIRE ATTACHING | 3 |
| 9 | 65999A3 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 10 | 69092 | 点火板螺钉(1.25) | SCREW (1.25) IGNITION PLATE | 3 |
| 10 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 3 |
| 11 | 26993 | 锁紧垫圈(.312)点火板螺钉 | LOCKWASHER (.312) IGNITION PLATE SCREW | 3 |
| 11 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 12 | 36042 | 垫圈 点火板螺钉 | WASHER IGNITION PLATE SCREW | 6 |
| 13 | 67264 | 橡胶垫圈 点火板螺钉 | WASHER (Rubber) IGNITION PLATE SCREW | 6 |
| 14 | 67268 | 衬套 点火板螺钉 | BUSHING IGNITION PLATE SCREW | 3 |
| 15 | 33386A3 | 开关总成 | SWITCH ASSEMLBY | 1 |
| 16 | 38055 | 水银开关螺钉(.190-32 x .620) | SCREW (.190-32 x .620) MERCURY SWITCH | 1 |
| 17 | 45076 | 螺母 (#10-32) 黄铜水银开关端子 | NUT (#10-32) Brass MERCURY SWITCH TERMINAL | 1 |
| 18 | 87926 | 螺钉(#10-32 x .500)导线固定 | SCREW (#10-32 x .500) LEAD ATTACHING | 1 |
| 19 | 88439A3 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 19 | 88439A4 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 20 | 96220A12 | 发动机线束总成 | HARNESS ASSEMBLY ENGINE | 1 |
| 21 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 21 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 22 | 95084A2 | 电缆总成-保险丝 | CABLE ASSEMBLY FUSE | 1 |
| 24 | 816311 | 捆扎带(8英寸)线束和电缆 | TIE STRAP (8.00 Inches) HARNESS AND CABLES | AR |
| 24 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 25 | 68258A4 | 启动电磁阀总成 | SOLENOID ASSEMBLY Starter | 1 |
| 25 | 853654A1 | 电磁阀 | SOLENOID | 1 |
| 26 | 45076 | 螺母(#10-32)黄铜 电磁阀端子 | NUT (#10-32) Brass SOLENOID TERMINALS | 2 |
| 27 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 28 | 68292 | 螺母（.312-18）电磁阀端子 | NUT (.312-18) SOLENOID TERMINALS | 2 |
| 28 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 29 | 31716 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 2 |
| 30 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 31 | 65999A2 | 电缆总成 黑色 上部安装 | CABLE ASSEMBLY Black UPPER MOUNT | 1 |
| 32 | 88528A2 | 线缆总成(6英寸-红/白) | CABLE ASSEMBLY (6" - RED/WHITE) | 1 |
| 32 | 91865A1 | 线束总成(3"-白/黑-175) | CABLE ASSEMBLY (3" - WHITE/BLACK - 175) | 1 |
| 33 | 47483 | J型卡扣 | J CLIP | 3 |
| 34 | 194372 | 端子排 | TERMINAL BLOCK | 1 |
| 35 | 38055 | 螺钉(0.190-32x0.620) | SCREW (.190-32 x .620) | 2 |
| 36 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 37 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 38 | 814422T | 点火板盖 | COVER IGNITION PLATE | 1 |
| 39 | 88447 | 螺钉 (.190-32 x 1.62) | SCREW (.190-32 x 1.62) | 2 |
| 40 | 69020 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 40 | 690201 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 41 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 3 |
| 42 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 3 |
| 43 | 62310A2 | 线束总成(175) | CABLE ASSEMBLY (175) | 1 |
| 44 | 78866 | 绝缘体 | INSULATOR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 79472 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 1 | 90645 | 驱动套件 | DRIVE KIT | 1 |
| 2 | 75661 | 驱动小齿轮总成 | PINION ASSEMBLY Drive | 1 |
| 2 | 13310T1 | 小齿轮总成 | PINION ASSEMBLY | 1 |
| 3 | 75660 | 驱动端板 | PLATE DRIVE END | 1 |
| 4 | 74968 | 贯穿螺栓 | BOLT THRU | 2 |
| 6 | N.S.S. | 不单独出售垫圈 | Not Sold Separate Washer | 1 |
| 7 | 79216 | 电枢 | ARMATURE | 1 |
| 8 | 75384 | 电刷/弹簧套件 | BRUSH/SPRING KIT | 1 |
| 8 | 898265016 | 电刷/弹簧套件 | BRUSH/SPRING KIT | 1 |
| 9 | 61787 | 电刷架 | HOLDER BRUSH | 2 |
| 9 | 898265014 | 电刷支架 | HOLDER-BRUSH | 2 |
| 10 | N.S.S. | 不单独出售螺钉 | Not Sold Separate Screw | 2 |
| 11 | 15386 | 换向器端盖 | END CAP COMMUTATOR | 1 |
| 11 | 15386001 | 端盖 | END CAP | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 434291 | 点火板 点火 | IGNITION PLATE IGNITION | 1 |
| 2 | 7778A9 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 2 | 7778A12 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 3 | 13669 | 开关盒螺钉(#12-24 x 2.00) | SCREW (#12-24 x 2.00) SWITCH BOX | 2 |
| 4 | 94453 | 开关盒螺钉衬套 | BUSHING SWITCH BOX SCREW | 2 |
| 6 | 45076 | 螺母(#10-32)黄铜开关盒端子 | NUT (#10-32) Brass SWITCH BOX TERMINAL | 20 |
| 7 | 60871A10 | 线束总成-开关盒 | WIRE ASSEMBLY SWITCH BOX | 2 |
| 8 | 62568 | 螺丝(#10-16 x 0.375)导线固定 | SCREW (#10-16 x .375) WIRE ATTACHING | 3 |
| 9 | 65999A3 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 10 | 69092 | 点火板螺钉(1.25) | SCREW (1.25) IGNITION PLATE | 3 |
| 10 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 3 |
| 11 | 26993 | 锁紧垫圈(.312)点火板螺钉 | LOCKWASHER (.312) IGNITION PLATE SCREW | 3 |
| 11 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 12 | 36042 | 垫圈 点火板螺钉 | WASHER IGNITION PLATE SCREW | 6 |
| 13 | 67264 | 橡胶垫圈 点火板螺钉 | WASHER (Rubber) IGNITION PLATE SCREW | 6 |
| 14 | 67268 | 衬套 点火板螺钉 | BUSHING IGNITION PLATE SCREW | 3 |
| 15 | 33386A3 | 开关总成 | SWITCH ASSEMLBY | 1 |
| 16 | 38055 | 水银开关螺钉(.190-32 x .620) | SCREW (.190-32 x .620) MERCURY SWITCH | 1 |
| 17 | 45076 | 螺母 (#10-32) 黄铜水银开关端子 | NUT (#10-32) Brass MERCURY SWITCH TERMINAL | 1 |
| 18 | 87926 | 螺钉(#10-32 x .500)导线固定 | SCREW (#10-32 x .500) LEAD ATTACHING | 1 |
| 19 | 88439A3 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 19 | 88439A4 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 20 | 96220A12 | 发动机线束总成 | HARNESS ASSEMBLY ENGINE | 1 |
| 21 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 21 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 22 | 95084A2 | 电缆总成-保险丝 | CABLE ASSEMBLY FUSE | 1 |
| 24 | 816311 | 捆扎带(8英寸)线束和电缆 | TIE STRAP (8.00 Inches) HARNESS AND CABLES | AR |
| 24 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 25 | 68258A4 | 启动电磁阀总成 | SOLENOID ASSEMBLY Starter | 1 |
| 25 | 853654A1 | 电磁阀 | SOLENOID | 1 |
| 26 | 45076 | 螺母(#10-32)黄铜 电磁阀端子 | NUT (#10-32) Brass SOLENOID TERMINALS | 2 |
| 27 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 28 | 68292 | 螺母（.312-18）电磁阀端子 | NUT (.312-18) SOLENOID TERMINALS | 2 |
| 28 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 29 | 31716 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 2 |
| 30 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 31 | 65999A2 | 电缆总成 黑色 上部安装 | CABLE ASSEMBLY Black UPPER MOUNT | 1 |
| 32 | 88528A2 | 线缆总成(6英寸-红/白) | CABLE ASSEMBLY (6" - RED/WHITE) | 1 |
| 32 | 91865A1 | 线束总成(3"-白/黑-175) | CABLE ASSEMBLY (3" - WHITE/BLACK - 175) | 1 |
| 33 | 47483 | J型卡扣 | J CLIP | 3 |
| 34 | 194372 | 端子排 | TERMINAL BLOCK | 1 |
| 35 | 38055 | 螺钉(0.190-32x0.620) | SCREW (.190-32 x .620) | 2 |
| 36 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 37 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 38 | 814422T | 点火板盖 | COVER IGNITION PLATE | 1 |
| 39 | 88447 | 螺钉 (.190-32 x 1.62) | SCREW (.190-32 x 1.62) | 2 |
| 40 | 69020 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 40 | 690201 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 41 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 3 |
| 42 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 3 |
| 43 | 62310A2 | 线束总成(175) | CABLE ASSEMBLY (175) | 1 |
| 44 | 78866 | 绝缘体 | INSULATOR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 434291 | 点火板 点火 | IGNITION PLATE IGNITION | 1 |
| 2 | 7778A9 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 2 | 7778A12 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 3 | 13669 | 开关盒螺钉(#12-24 x 2.00) | SCREW (#12-24 x 2.00) SWITCH BOX | 2 |
| 4 | 94453 | 开关盒螺钉衬套 | BUSHING SWITCH BOX SCREW | 2 |
| 6 | 45076 | 螺母(#10-32)黄铜开关盒端子 | NUT (#10-32) Brass SWITCH BOX TERMINAL | 20 |
| 7 | 60871A10 | 线束总成-开关盒 | WIRE ASSEMBLY SWITCH BOX | 2 |
| 8 | 62568 | 螺丝(#10-16 x 0.375)导线固定 | SCREW (#10-16 x .375) WIRE ATTACHING | 3 |
| 9 | 65999A3 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 10 | 69092 | 点火板螺钉(1.25) | SCREW (1.25) IGNITION PLATE | 3 |
| 10 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 3 |
| 11 | 26993 | 锁紧垫圈(.312)点火板螺钉 | LOCKWASHER (.312) IGNITION PLATE SCREW | 3 |
| 11 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 12 | 36042 | 垫圈 点火板螺钉 | WASHER IGNITION PLATE SCREW | 6 |
| 13 | 67264 | 橡胶垫圈 点火板螺钉 | WASHER (Rubber) IGNITION PLATE SCREW | 6 |
| 14 | 67268 | 衬套 点火板螺钉 | BUSHING IGNITION PLATE SCREW | 3 |
| 15 | 33386A3 | 开关总成 | SWITCH ASSEMLBY | 1 |
| 16 | 38055 | 水银开关螺钉(.190-32 x .620) | SCREW (.190-32 x .620) MERCURY SWITCH | 1 |
| 17 | 45076 | 螺母 (#10-32) 黄铜水银开关端子 | NUT (#10-32) Brass MERCURY SWITCH TERMINAL | 1 |
| 18 | 87926 | 螺钉(#10-32 x .500)导线固定 | SCREW (#10-32 x .500) LEAD ATTACHING | 1 |
| 19 | 88439A3 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 19 | 88439A4 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 20 | 96220A12 | 发动机线束总成 | HARNESS ASSEMBLY ENGINE | 1 |
| 21 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 21 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 22 | 95084A2 | 电缆总成-保险丝 | CABLE ASSEMBLY FUSE | 1 |
| 24 | 816311 | 捆扎带(8英寸)线束和电缆 | TIE STRAP (8.00 Inches) HARNESS AND CABLES | AR |
| 24 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 25 | 68258A4 | 启动电磁阀总成 | SOLENOID ASSEMBLY Starter | 1 |
| 25 | 853654A1 | 电磁阀 | SOLENOID | 1 |
| 26 | 45076 | 螺母(#10-32)黄铜 电磁阀端子 | NUT (#10-32) Brass SOLENOID TERMINALS | 2 |
| 27 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 28 | 68292 | 螺母（.312-18）电磁阀端子 | NUT (.312-18) SOLENOID TERMINALS | 2 |
| 28 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 29 | 31716 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 2 |
| 30 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 31 | 65999A2 | 电缆总成 黑色 上部安装 | CABLE ASSEMBLY Black UPPER MOUNT | 1 |
| 32 | 88528A2 | 线缆总成(6英寸-红/白) | CABLE ASSEMBLY (6" - RED/WHITE) | 1 |
| 32 | 91865A1 | 线束总成(3"-白/黑-175) | CABLE ASSEMBLY (3" - WHITE/BLACK - 175) | 1 |
| 33 | 47483 | J型卡扣 | J CLIP | 3 |
| 34 | 194372 | 端子排 | TERMINAL BLOCK | 1 |
| 35 | 38055 | 螺钉(0.190-32x0.620) | SCREW (.190-32 x .620) | 2 |
| 36 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 37 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 38 | 814422T | 点火板盖 | COVER IGNITION PLATE | 1 |
| 39 | 88447 | 螺钉 (.190-32 x 1.62) | SCREW (.190-32 x 1.62) | 2 |
| 40 | 69020 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 40 | 690201 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 41 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 3 |
| 42 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 3 |
| 43 | 62310A2 | 线束总成(175) | CABLE ASSEMBLY (175) | 1 |
| 44 | 78866 | 绝缘体 | INSULATOR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8710A20 | 旋转支架总成 | SWIVEL BRACKET ASSEMBLY | 1 |
| 1 | 8710A21 | 旋转支架总成 | SWIVEL BRACKET ASSEMBLY | 1 |
| 1 | 8710T21 | 灰色旋转支架总成 | SWIVEL BRACKET ASSEMBLY Gray | 1 |
| 2 | 33504 | O型圈 | O-RING | 1 |
| 2 | 8M0214926 | O型圈 @10 | O RING @10 | 1 |
| 3 | 818764 | 衬套 | BUSHING | 2 |
| 4 | 816039 | 隔套 | SPACER | 1 |
| 5 | 87735 | 油封(下) | SEAL Oil (LOWER) | 1 |
| 6 | 74036 | 润滑脂接头 | FITTING Grease | 2 |
| 6 | 8M0169589 | 润滑脂接头 | FITTING Grease | 2 |
| 7 | 821207 | 衬套 | BUSHING | 2 |
| 8 | 816432 | 止推垫片 | THRUST WASHER | 1 |
| 9 | 86580A1 | 底部轭架总成 | YOKE ASSEMBLY Bottom | 1 |
| 9 | 878182T | 轭架底部-不锈钢 | YOKE Bottom - Stainless Steel | 1 |
| 9 | 86580A2 | 底部轭架总成 | YOKE ASSEMBLY Bottom | 1 |
| 9 | 86580A1 | 底部轭架总成 | YOKE ASSEMBLY Bottom | 1 |
| 10 | 67684 | 挡圈 | RING Retaining | 1 |
| 11 | 996301 | 冲击板 | STRIKER PLATE | 2 |
| 11 | 8M0045383 | 冲击板 | STRIKER PLATE | 2 |
| 12 | 58643 | 锁紧垫圈 (.375) | LOCKWASHER (.375) | 2 |
| 13 | 46335 | 螺母 (.375-24) | NUT (.375-24) | 2 |
| 14 | 64014 | 螺钉(0.250-28x0.500)(1/4-28x1/2英寸) | SCREW (.250-28 x .500) (1/4-28 X 1/2 IN.) | 2 |
| 15 | NSS | 不单独销售-序列号覆膜标贴 | NOT SOLD SEPARATE Decal-Serial Overlaminate | 1 |
| 16 | 821180A6 | 调整传感器总成 | SENDER ASSEMBLY Trim | 1 |
| 16 | 8M0074846 | ORDER 8M0098273 | ORDER 8M0098273 | 1 |
| 17 | 852368 | 螺钉（#10-24 X 0.750） | SCREW (#10-24 x .750) | 2 |
| 18 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 2 |
| 19 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 20 | 67706A55 | 转向臂转销总成 | SWIVEL PIN ASSEMBLY Steering Arm | 1 |
| 20 | 826432A2 | 转向臂旋转销总成-不锈钢 | SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel | 1 |
| 20 | 67706A56 | 转向臂转销总成 | SWIVEL PIN ASSEMBLY Steering Arm | 1 |
| 20 | 67706A55 | 转向臂转销总成 | SWIVEL PIN ASSEMBLY Steering Arm | 1 |
| 21 | 78689 | 螺钉(0.437-20x7.50)(7/16-20x7-1/2英寸) | SCREW (.437-20 x 7.50) (7/16-20 X 7-1/2 IN.) | 2 |
| 21 | 8M0176309 | 螺钉 | SCREW | 2 |
| 22 | 888821 | 缓冲垫 | BUMPER | 1 |
| 22 | 8M0000516 | 上轭缓冲垫 | BUMPER Top Yoke | 1 |
| 23 | 77326 | 支架 | MOUNT | 2 |
| 24 | 66921 | 垫圈 | WASHER | 2 |
| 25 | 814432 | 垫圈 | WASHER | 2 |
| 25 | 78688 | 垫圈 | WASHER | 2 |
| 26 | 34933 | 螺母(.437-20)不锈钢 | NUT (.437-20) Stainless Steel | 2 |
| 26 | 8M0204653 | 螺母 | NUT | 2 |
| 27 | 92876A1 | 转向连杆总成 | LINK ASSEMBLY Steering | 1 |
| 27 | 92876A12 | 连杆总成 | LINK ROD ASSEMBLY | 1 |
| 28 | 14000 | 螺钉(0.375-24x1.25)(3/8-24x1-1/4英寸) | SCREW (.375-24 x 1.25) (3/8-24 X 1-1/4 IN.) | 1 |
| 28 | 849838 | 螺钉(.375-24 x 1.250) | SCREW (.375-24 x 1.250) | 1 |
| 29 | 34863 | 螺母 (.375-24) | NUT (.375-24) | 2 |
| 29 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 2 |
| 30 | 37828 | 不锈钢垫圈 (.390 x .625 x .062) | WASHER (.390 x .625 x .062) Stainless Steel | 2 |
| 31 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 31 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 434291 | 点火板 点火 | IGNITION PLATE IGNITION | 1 |
| 2 | 7778A9 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 2 | 7778A12 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 3 | 13669 | 开关盒螺钉(#12-24 x 2.00) | SCREW (#12-24 x 2.00) SWITCH BOX | 2 |
| 4 | 94453 | 开关盒螺钉衬套 | BUSHING SWITCH BOX SCREW | 2 |
| 6 | 45076 | 螺母(#10-32)黄铜开关盒端子 | NUT (#10-32) Brass SWITCH BOX TERMINAL | 20 |
| 7 | 60871A10 | 线束总成-开关盒 | WIRE ASSEMBLY SWITCH BOX | 2 |
| 8 | 62568 | 螺丝(#10-16 x 0.375)导线固定 | SCREW (#10-16 x .375) WIRE ATTACHING | 3 |
| 9 | 65999A3 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 10 | 69092 | 点火板螺钉(1.25) | SCREW (1.25) IGNITION PLATE | 3 |
| 10 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 3 |
| 11 | 26993 | 锁紧垫圈(.312)点火板螺钉 | LOCKWASHER (.312) IGNITION PLATE SCREW | 3 |
| 11 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 12 | 36042 | 垫圈 点火板螺钉 | WASHER IGNITION PLATE SCREW | 6 |
| 13 | 67264 | 橡胶垫圈 点火板螺钉 | WASHER (Rubber) IGNITION PLATE SCREW | 6 |
| 14 | 67268 | 衬套 点火板螺钉 | BUSHING IGNITION PLATE SCREW | 3 |
| 15 | 33386A3 | 开关总成 | SWITCH ASSEMLBY | 1 |
| 16 | 38055 | 水银开关螺钉(.190-32 x .620) | SCREW (.190-32 x .620) MERCURY SWITCH | 1 |
| 17 | 45076 | 螺母 (#10-32) 黄铜水银开关端子 | NUT (#10-32) Brass MERCURY SWITCH TERMINAL | 1 |
| 18 | 87926 | 螺钉(#10-32 x .500)导线固定 | SCREW (#10-32 x .500) LEAD ATTACHING | 1 |
| 19 | 88439A3 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 19 | 88439A4 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 20 | 96220A12 | 发动机线束总成 | HARNESS ASSEMBLY ENGINE | 1 |
| 21 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 21 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 22 | 95084A2 | 电缆总成-保险丝 | CABLE ASSEMBLY FUSE | 1 |
| 24 | 816311 | 捆扎带(8英寸)线束和电缆 | TIE STRAP (8.00 Inches) HARNESS AND CABLES | AR |
| 24 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 25 | 68258A4 | 启动电磁阀总成 | SOLENOID ASSEMBLY Starter | 1 |
| 25 | 853654A1 | 电磁阀 | SOLENOID | 1 |
| 26 | 45076 | 螺母(#10-32)黄铜 电磁阀端子 | NUT (#10-32) Brass SOLENOID TERMINALS | 2 |
| 27 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 28 | 68292 | 螺母（.312-18）电磁阀端子 | NUT (.312-18) SOLENOID TERMINALS | 2 |
| 28 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 29 | 31716 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 2 |
| 30 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 31 | 65999A2 | 电缆总成 黑色 上部安装 | CABLE ASSEMBLY Black UPPER MOUNT | 1 |
| 32 | 88528A2 | 线缆总成(6英寸-红/白) | CABLE ASSEMBLY (6" - RED/WHITE) | 1 |
| 32 | 91865A1 | 线束总成(3"-白/黑-175) | CABLE ASSEMBLY (3" - WHITE/BLACK - 175) | 1 |
| 33 | 47483 | J型卡扣 | J CLIP | 3 |
| 34 | 194372 | 端子排 | TERMINAL BLOCK | 1 |
| 35 | 38055 | 螺钉(0.190-32x0.620) | SCREW (.190-32 x .620) | 2 |
| 36 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 37 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 38 | 814422T | 点火板盖 | COVER IGNITION PLATE | 1 |
| 39 | 88447 | 螺钉 (.190-32 x 1.62) | SCREW (.190-32 x 1.62) | 2 |
| 40 | 69020 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 40 | 690201 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 41 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 3 |
| 42 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 3 |
| 43 | 62310A2 | 线束总成(175) | CABLE ASSEMBLY (175) | 1 |
| 44 | 78866 | 绝缘体 | INSULATOR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 850389 | 杠杆 | LEVER | 1 |
| 2 | 818165 | 螺钉 (.375-16 x 1.75) | SCREW (.375-16 x 1.75) | 1 |
| 3 | 55164 | 衬套 | BUSHING | 1 |
| 4 | 74759 | 垫圈(0.391x0.880x0.125)不锈钢 | WASHER (.391 x .880 x .125) Stainless Steel | 1 |
| 5 | 37828 | 不锈钢垫圈 (.390 x .625 x .062) | WASHER (.390 x .625 x .062) Stainless Steel | 1 |
| 6 | 64022 | 螺钉(.250-20 x 2.125) | SCREW (.250-20 x 2.125) | 1 |
| 7 | 64015 | 螺母 (.250-20) | NUT (.250-20) | 1 |
| 8 | 26852 | 尼龙帽 | CAP Nylon | 1 |
| 9 | 42927 | 嵌件 | INSERT | 1 |
| 10 | 35459 | 垫圈 | WASHER | 1 |
| 11 | 8268336 | 螺母 (M6) | NUT (M6) | 1 |
| 11 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 12 | 8503931 | 凸轮 | CAM | 1 |
| 12 | 856221A1 | 凸轮套件 | CAM KIT | 1 |
| 13 | 852970 | 衬套 | BUSHING | 1 |
| 14 | 82130040 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 1 |
| 15 | 932481 | 衬套 | BUSHING | 2 |
| 15 | 8M0215006 | 旋转衬套 | BUSHING Swivel | 2 |
| 16 | 8235694 | 螺纹球头 | BALL Threaded | 1 |
| 17 | 850815 | 连接杆 | LINK | 1 |
| 17 | 8508152 | 杆 | ROD | 1 |
| 18 | 67748 | 滚轮 | ROLLER | 1 |
| 19 | 850286 | 油门滚轮 | ROLLER Throttle | 1 |
| 19 | 8502861 | 杠杆 | LEVER | 1 |
| 20 | 40056107 | 螺钉(M5×16) | SCREW (M5 x 16) | 1 |
| 21 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 1 |
| 22 | 69432 | 外锁紧垫圈(#10) | LOCKWASHER External (#10) | 1 |
| 23 | 8142831 | 锚支架 | BRACKET Anchor | 1 |
| 23 | 814283T6 | 锚支架总成 | BRACKET ASSEMBLY Anchor | 1 |
| 24 | 98889 | 闩锁 | LATCH | 1 |
| 25 | 42975 | 传动螺钉 | DRIVE SCREW | 2 |
| 26 | 39519 | 杯套 | CUP | 1 |
| 27 | 52100 | 耐磨板 | WEAR PLATE | 1 |
| 28 | 38279 | 闩锁 | LATCH | 1 |
| 28 | 8M0036768 | 闩锁 | LATCH | 1 |
| 29 | 35462 | 垫圈(.2656 x .625 x .0625)不锈钢 | WASHER (.2656 x .625 x .0625) Stainless Steel | 1 |
| 30 | 35045 | 螺母(.250-28) | NUT (.250-28) | 1 |
| 30 | 826709109 | 不锈钢螺母(.250-28) | NUT (.250-28) Stainless Steel | 1 |
| 31 | 28782 | 螺钉(.312-18 x .880)不锈钢 | SCREW (.312-18 x .880) Stainless Steel | 3 |
| 32 | 814284 | 导向块 | GUIDE BLOCK | 1 |
| 33 | 20099 | 弹簧 | SPRING | 1 |
| 34 | 67073A1 | 连杆总成 | LINK ROD ASSEMBLY | 1 |
| 35 | 79932A16 | 换挡轴总成 | SHIFT SHAFT ASSEMBLY | 1 |
| 35 | 79932A17 | 换挡轴总成 | SHIFT SHAFT ASSEMBLY | 1 |
| 36 | NSS | 弹性销(不单独销售) | NOT SOLD SEPARATE Roll Pin | 1 |
| 37 | NSS | 不单独销售-换挡轴上杆 | NOT SOLD SEPARATE Shift Shaft Lever-Upper | 1 |
| 38 | 26856 | 衬套 | BUSHING | 1 |
| 39 | 29720 | 波形垫圈 | WAVE WASHER | 1 |
| 40 | 35462 | 垫圈(.2656 x .625 x .0625)不锈钢 | WASHER (.2656 x .625 x .0625) Stainless Steel | 1 |
| 41 | 35045 | 螺母(.250-28) | NUT (.250-28) | 1 |
| 41 | 826709109 | 不锈钢螺母(.250-28) | NUT (.250-28) Stainless Steel | 1 |
| 42 | 814281A2 | 开关 | SWITCH | 1 |
| 42 | 8M0052931 | 开关 | SWITCH | 1 |
| 43 | 77478 | 螺钉 (#6-32 x .875) | SCREW (#6-32 x .875) | 2 |
| 44 | 27882 | 垫圈 | WASHER | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 434291 | 点火板 点火 | IGNITION PLATE IGNITION | 1 |
| 2 | 7778A9 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 2 | 7778A12 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 3 | 13669 | 开关盒螺钉(#12-24 x 2.00) | SCREW (#12-24 x 2.00) SWITCH BOX | 2 |
| 4 | 94453 | 开关盒螺钉衬套 | BUSHING SWITCH BOX SCREW | 2 |
| 6 | 45076 | 螺母(#10-32)黄铜开关盒端子 | NUT (#10-32) Brass SWITCH BOX TERMINAL | 20 |
| 7 | 60871A10 | 线束总成-开关盒 | WIRE ASSEMBLY SWITCH BOX | 2 |
| 8 | 62568 | 螺丝(#10-16 x 0.375)导线固定 | SCREW (#10-16 x .375) WIRE ATTACHING | 3 |
| 9 | 65999A3 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 10 | 69092 | 点火板螺钉(1.25) | SCREW (1.25) IGNITION PLATE | 3 |
| 10 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 3 |
| 11 | 26993 | 锁紧垫圈(.312)点火板螺钉 | LOCKWASHER (.312) IGNITION PLATE SCREW | 3 |
| 11 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 12 | 36042 | 垫圈 点火板螺钉 | WASHER IGNITION PLATE SCREW | 6 |
| 13 | 67264 | 橡胶垫圈 点火板螺钉 | WASHER (Rubber) IGNITION PLATE SCREW | 6 |
| 14 | 67268 | 衬套 点火板螺钉 | BUSHING IGNITION PLATE SCREW | 3 |
| 15 | 33386A3 | 开关总成 | SWITCH ASSEMLBY | 1 |
| 16 | 38055 | 水银开关螺钉(.190-32 x .620) | SCREW (.190-32 x .620) MERCURY SWITCH | 1 |
| 17 | 45076 | 螺母 (#10-32) 黄铜水银开关端子 | NUT (#10-32) Brass MERCURY SWITCH TERMINAL | 1 |
| 18 | 87926 | 螺钉(#10-32 x .500)导线固定 | SCREW (#10-32 x .500) LEAD ATTACHING | 1 |
| 19 | 88439A3 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 19 | 88439A4 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 20 | 96220A12 | 发动机线束总成 | HARNESS ASSEMBLY ENGINE | 1 |
| 21 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 21 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 22 | 95084A2 | 电缆总成-保险丝 | CABLE ASSEMBLY FUSE | 1 |
| 24 | 816311 | 捆扎带(8英寸)线束和电缆 | TIE STRAP (8.00 Inches) HARNESS AND CABLES | AR |
| 24 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 25 | 68258A4 | 启动电磁阀总成 | SOLENOID ASSEMBLY Starter | 1 |
| 25 | 853654A1 | 电磁阀 | SOLENOID | 1 |
| 26 | 45076 | 螺母(#10-32)黄铜 电磁阀端子 | NUT (#10-32) Brass SOLENOID TERMINALS | 2 |
| 27 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 28 | 68292 | 螺母（.312-18）电磁阀端子 | NUT (.312-18) SOLENOID TERMINALS | 2 |
| 28 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 29 | 31716 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 2 |
| 30 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 31 | 65999A2 | 电缆总成 黑色 上部安装 | CABLE ASSEMBLY Black UPPER MOUNT | 1 |
| 32 | 88528A2 | 线缆总成(6英寸-红/白) | CABLE ASSEMBLY (6" - RED/WHITE) | 1 |
| 32 | 91865A1 | 线束总成(3"-白/黑-175) | CABLE ASSEMBLY (3" - WHITE/BLACK - 175) | 1 |
| 33 | 47483 | J型卡扣 | J CLIP | 3 |
| 34 | 194372 | 端子排 | TERMINAL BLOCK | 1 |
| 35 | 38055 | 螺钉(0.190-32x0.620) | SCREW (.190-32 x .620) | 2 |
| 36 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 37 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 38 | 814422T | 点火板盖 | COVER IGNITION PLATE | 1 |
| 39 | 88447 | 螺钉 (.190-32 x 1.62) | SCREW (.190-32 x 1.62) | 2 |
| 40 | 69020 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 40 | 690201 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 41 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 3 |
| 42 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 3 |
| 43 | 62310A2 | 线束总成(175) | CABLE ASSEMBLY (175) | 1 |
| 44 | 78866 | 绝缘体 | INSULATOR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9742A92 | 顶盖总成 (黑色)(无贴花) | TOP COWL ASSEMBLY (BLACK)(Without Decals) | 1 |
| 1 | 9742A93 | 顶罩总成(灰色)(无贴花) | TOP COWL ASSEMBLY (GRAY)(Without Decals) | 1 |
| 1 | 9743T10 | 顶罩 | TOP COWL | 1 |
| 2 | 812784 | 密封件 | SEAL | 1 |
| 3 | 815478 | 密封件 | SEAL | 1 |
| 4 | 815225 | 隔音垫(侧) | SOUND BLANKET (SIDE) | 2 |
| 5 | 815226 | 隔音垫(顶) | SOUND BLANKET (TOP) | 1 |
| 4/5 | 815225A1 | 隔音毯套装 | SOUND BLANKET KIT | 1 |
| 6 | 815227 | 前隔音垫 | SOUND BLANKET FRONT | 1 |
| 7 | 47341A1 | 手动/应急启动绳柄套件 | ROPE AND HANDLE KIT Manual/Emergency Start | 1 |
| 7 | 47341A11 | 手动启动绳柄套件 | ROPE AND HANDLE KIT Manual Starting | 1 |
| 8 | 815848 | 螺母 (.312) | NUT (.312) | 2 |
| 9 | 70132 | 垫圈(0.323×0.563×0.063)不锈钢 | WASHER (.323 x .563 x .063) Stainless Steel | 2 |
| 9 | 8M0042642 | 垫圈(.323 x .562 x .063) | WASHER (.323 x .562 x .063) | 2 |
| 10 | 184741 | 后支架 | BRACKET REAR | 2 |
| 11 | 18506 | 护孔环 | GROMMET | 3 |
| 11 | 18506001 | 护孔环 | GROMMET | 3 |
| 12 | 28636 | 螺钉(.250-20 x .750) 后支架 | SCREW (.250-20 x .750) REAR BRACKET | 4 |
| 13 | 816992 | 螺钉 | SCREW | 8 |
| 14 | 813096 | 挂钩 | HOOK | 2 |
| 14 | 813096A2 | 挂钩套件 | HOOK KIT | 2 |
| 15 | 73286 | 螺钉(0.250-20×0.500)不锈钢 | SCREW (.250-20 x .500) Stainless Steel | 2 |
| 16 | 813074 | 滚轮 | ROLLER | 2 |
| 16 | 8M0207770 | 滚轮@3 | ROLLER @3 | 2 |
| 17 | 13194 | 挡圈 | RING Retaining | 2 |
| 18 | 56720 | 垫圈(0.330×0.750×0.060)不锈钢 | WASHER (.330 x .750 x .060) Stainless Steel | 4 |
| 19 | 187021 | 定位器 | LOCATOR | 1 |
| 20 | 18173 | 锁扣滚轮支架总成 | BRACKET ASSEMBLY Latch Roller | 1 |
| 20 | 893763 | 滚轮锁扣支架 | BRACKET Roller Latch | 1 |
| 21 | 813552 | 垫片(旧款) | SPACER (OLD DESIGN) | 1 |
| 21 | 813076A2 | 手柄套件 | HANDLE KIT | 1 |
| 21A | 816838 | 隔套 | SPACER | 1 |
| 22 | 31984 | 螺钉(0.312-18×1.375) | SCREW (.312-18 x 1.375) | 2 |
| 22 | 69267 | 螺钉 (.312-18 x 1.750) | SCREW (.312-18 x 1.750) | 2 |
| 23 | 18755A1 | 前护罩总成 (黑色)(无贴花) | FRONT SHIELD ASSEMBLY (BLACK)(Without Decals) | 1 |
| 23 | 18755A2 | 前护罩总成 (灰色)(无贴花) | FRONT SHIELD ASSEMBLY (GRAY)(Without Decals) | 1 |
| 25 | 77137 | 螺钉 (.190-16 x .620) | SCREW (.190-16 x .620) | 4 |
| 26 | 56681 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 4 |
| 26 | 8M0204666 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 4 |
| 27 | 36001 | 垫圈 | WASHER | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 828334T03 | 艉板支架总成-右舷 | BRACKET ASSEMBLY Transom-Starboard | 1 |
| 2 | 828333T08 | 艉板支架总成-左舷 | BRACKET ASSEMBLY Transom-Port | 1 |
| 3 | 98727 | 润滑脂接头 | FITTING Grease | 1 |
| 3 | 8M0169588 | 润滑脂接头 | FITTING Grease | 1 |
| 4 | 826125A1 | 倾斜管 | TILT TUBE | 1 |
| 5 | 826135 | 尼龙锁紧螺母(1.00-14) | NUT Lock (1.00-14) Nylon Insert | 1 |
| 6 | 45711 | O型圈 (.612 x .103) | O-RING (.612 x .103) | 1 |
| 7 | 88750 | 波浪垫圈 (1.62 x 1.05) | WASHER Wave (1.62 x 1.05) | 2 |
| 8 | 826164 | 螺母 (.875-14) | NUT (.875-14) | 1 |
| 8 | 8M0231351 | 锁紧螺母 | NUT Lock | 1 |
| 9 | 677551 | 螺钉(.500-20×4.500) | SCREW (.500-20 x 4.500) | 4 |
| 9 | 8M0149747 | 螺钉 | SCREW | 4 |
| 10 | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 10 | 8M0204648 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 11 | 8M0027784 | 螺母 | NUT | 4 |
| 11 | 82671117 | 螺母(.500-20) | NUT (.500-20) | 4 |
| 12 | 99629A2 | 杠杆总成 | LEVER ASSEMBLY | 1 |
| 12 | 8M0115104 | 倾斜锁定杆总成 | LEVER ASSEMBLY Tilt Lock | 1 |
| 13 | 830899 | 张力弹簧 | SPRING Tension | 1 |
| 14 | 65830 | 尼龙衬套 | NYLINER | 2 |
| 15 | 830900 | 压缩弹簧 | SPRING Compression | 1 |
| 16 | 99633 | 旋钮 | KNOB | 1 |
| 17 | 99615 | 槽销 | PIN Groove | 1 |
| 18 | 99617 | 销 | PIN | 1 |
| 18 | 893709 | 销 | PIN | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 434291 | 点火板 点火 | IGNITION PLATE IGNITION | 1 |
| 2 | 7778A9 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 2 | 7778A12 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 3 | 13669 | 开关盒螺钉(#12-24 x 2.00) | SCREW (#12-24 x 2.00) SWITCH BOX | 2 |
| 4 | 94453 | 开关盒螺钉衬套 | BUSHING SWITCH BOX SCREW | 2 |
| 6 | 45076 | 螺母(#10-32)黄铜开关盒端子 | NUT (#10-32) Brass SWITCH BOX TERMINAL | 20 |
| 7 | 60871A10 | 线束总成-开关盒 | WIRE ASSEMBLY SWITCH BOX | 2 |
| 8 | 62568 | 螺丝(#10-16 x 0.375)导线固定 | SCREW (#10-16 x .375) WIRE ATTACHING | 3 |
| 9 | 65999A3 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 10 | 69092 | 点火板螺钉(1.25) | SCREW (1.25) IGNITION PLATE | 3 |
| 10 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 3 |
| 11 | 26993 | 锁紧垫圈(.312)点火板螺钉 | LOCKWASHER (.312) IGNITION PLATE SCREW | 3 |
| 11 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 12 | 36042 | 垫圈 点火板螺钉 | WASHER IGNITION PLATE SCREW | 6 |
| 13 | 67264 | 橡胶垫圈 点火板螺钉 | WASHER (Rubber) IGNITION PLATE SCREW | 6 |
| 14 | 67268 | 衬套 点火板螺钉 | BUSHING IGNITION PLATE SCREW | 3 |
| 15 | 33386A3 | 开关总成 | SWITCH ASSEMLBY | 1 |
| 16 | 38055 | 水银开关螺钉(.190-32 x .620) | SCREW (.190-32 x .620) MERCURY SWITCH | 1 |
| 17 | 45076 | 螺母 (#10-32) 黄铜水银开关端子 | NUT (#10-32) Brass MERCURY SWITCH TERMINAL | 1 |
| 18 | 87926 | 螺钉(#10-32 x .500)导线固定 | SCREW (#10-32 x .500) LEAD ATTACHING | 1 |
| 19 | 88439A3 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 19 | 88439A4 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 20 | 96220A12 | 发动机线束总成 | HARNESS ASSEMBLY ENGINE | 1 |
| 21 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 21 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 22 | 95084A2 | 电缆总成-保险丝 | CABLE ASSEMBLY FUSE | 1 |
| 24 | 816311 | 捆扎带(8英寸)线束和电缆 | TIE STRAP (8.00 Inches) HARNESS AND CABLES | AR |
| 24 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 25 | 68258A4 | 启动电磁阀总成 | SOLENOID ASSEMBLY Starter | 1 |
| 25 | 853654A1 | 电磁阀 | SOLENOID | 1 |
| 26 | 45076 | 螺母(#10-32)黄铜 电磁阀端子 | NUT (#10-32) Brass SOLENOID TERMINALS | 2 |
| 27 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 28 | 68292 | 螺母（.312-18）电磁阀端子 | NUT (.312-18) SOLENOID TERMINALS | 2 |
| 28 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 29 | 31716 | 螺钉(0.250-20x0.620) | SCREW (.250-20 x .620) | 2 |
| 30 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 31 | 65999A2 | 电缆总成 黑色 上部安装 | CABLE ASSEMBLY Black UPPER MOUNT | 1 |
| 32 | 88528A2 | 线缆总成(6英寸-红/白) | CABLE ASSEMBLY (6" - RED/WHITE) | 1 |
| 32 | 91865A1 | 线束总成(3"-白/黑-175) | CABLE ASSEMBLY (3" - WHITE/BLACK - 175) | 1 |
| 33 | 47483 | J型卡扣 | J CLIP | 3 |
| 34 | 194372 | 端子排 | TERMINAL BLOCK | 1 |
| 35 | 38055 | 螺钉(0.190-32x0.620) | SCREW (.190-32 x .620) | 2 |
| 36 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 37 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 38 | 814422T | 点火板盖 | COVER IGNITION PLATE | 1 |
| 39 | 88447 | 螺钉 (.190-32 x 1.62) | SCREW (.190-32 x 1.62) | 2 |
| 40 | 69020 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 40 | 690201 | 螺钉(#10-32 x .875) | SCREW (#10-32 x .875) | 1 |
| 41 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 3 |
| 42 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 3 |
| 43 | 62310A2 | 线束总成(175) | CABLE ASSEMBLY (175) | 1 |
| 44 | 78866 | 绝缘体 | INSULATOR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 826730A4 | 发动机线束总成 | HARNESS ASSEMBLY Engine Wiring | 1 |
| 2 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 2 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 3 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 3 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 4 | 194372 | 端子排 | TERMINAL BLOCK | 1 |
| 5 | 38055 | 螺钉(0.190-32x0.620) | SCREW (.190-32 x .620) | 2 |
| 6 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 7 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 8 | 814634 | 卡箍 | CLAMP | 1 |
| 9 | 434292 | 点火板 | IGNITION PLATE | 1 |
| 10 | 7778A12 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 11 | 13669 | 螺钉(#12-24x2.00) | SCREW (#12-24 x 2.00) | 2 |
| 12 | 94453 | 衬套 | BUSHING | 2 |
| 13 | 62310A2 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 14 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 20 |
| 15 | 91865A1 | 电缆总成(3英寸-白/黑) | CABLE ASSEMBLY (3 IN. - WHITE/BLACK) | 1 |
| 15 | 88528A2 | 电缆总成(6英寸-红/白) | CABLE ASSEMBLY (6 IN. - RED/WHITE) | 1 |
| 16 | 60871A10 | 线束总成 | WIRE ASSEMBLY | 2 |
| 17 | 817626 | 螺钉(#10-16×0.380) | SCREW (#10-16 x .380) | 2 |
| 17 | 878607 | 螺钉（#10-16 x 0.375） | SCREW (#10-16 x .375) | 2 |
| 18 | 65999A3 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 19 | 87926 | 螺钉(#10-32 x .500) | SCREW (#10-32 x .500) | 1 |
| 20 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 3 |
| 21 | 26993 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 21 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 22 | 36042 | 垫圈 | WASHER | 6 |
| 23 | 67264 | 垫圈(橡胶) | WASHER (Rubber) | 6 |
| 24 | 67268 | 衬套 | BUSHING | 3 |
| 25 | 88439A23 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 25 | 88439A34 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 25 | 88439A24 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Negative - Battery | 1 |
| 26 | 45561 | 螺钉 (.250-20 x 1.12) | SCREW (.250-20 x 1.12) | 2 |
| 26 | 455611 | 螺钉(.250-20 x 1.120) | SCREW (.250-20 x 1.120) | 2 |
| 27 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 28 | 65999A2 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 29 | 78866 | 绝缘体 | INSULATOR | 1 |
| 30 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 4 |
| 31 | 817109A2 | 电磁阀总成(#10-32/.3125-18端子) | SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals) | 1 |
| 32 | 818968 | 衬套 | BUSHING | 2 |
| 32 | 8M0214955 | 衬套 | BUSHING | 2 |
| 33 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 34 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 35 | 68292 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 35 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
