水星 Mercury V-200 0G760300 THRU 0G960499 - 爆炸图零件明细

两冲程电喷 EFI · USA - Cat.# 90-803177 · 共 108 个部位 · 4148 条零件

1泄压系统 2电控单元总成 3齿轮箱(螺旋桨轴)(反向旋转)4动力升降马达（可拆卸泵壳）5齿轮箱对照表 6齿轮箱(螺旋桨轴)7线束/启动电磁阀 8艉板支架 9齿轮箱（螺旋桨轴）（逆时针旋转）（序列号0G438000及以上）10齿轮箱（驱动轴）（逆时针旋转）（序列号0G438000及以上）11齿轮箱（驱动）（逆时针旋转）（序列号0G437999及以下）12艉板支架（序列号0G589999及以下）13旋转支架与转向臂 14驱动轴壳体和排气管 15燃油泵 16齿轮箱（螺旋桨）（逆时针旋转）（序列号0G437999及以下）17双机延伸套件 18油门杆与换挡轴 19专用工具 20杂项 21燃油泵和燃油滤清器 22燃油管理系统（蒸汽分离器）23齿轮箱（螺旋桨轴）（标准旋转）（序列号0G438000及以上）24燃油管理系统 25电磁阀安装座 26气缸体与端盖 27杂项信息 28齿轮箱(螺旋桨轴)(标准旋转)29齿轮箱图表（序列号0G438000及以上）30齿轮箱(驱动轴)(标准/反向旋转)31启动电机 32动力升降组件（塑料马达壳体）33顶罩 34附件 35动力升降组件 36转向连接套件 37杂项零件/附件 38排气歧管与排气板 39齿轮箱（螺旋桨轴）（逆时针旋转）（序列号0G437999及以下）40动力升降组件（金属马达壳体）41艉板支架（序列号0G590000及以上）42泄放系统(左舷)43喷油组件 44仪表装置 45齿轮箱驱动轴 46齿轮箱图表（序列号0G437999及以下）47齿轮箱（驱动轴）（标准旋转）48动力升降组件 8M0231193 49齿轮箱（驱动轴）（标准旋转）（序列号0G438000及以上）50启动电机总成 51簧片阀组与气缸盖 52齿轮箱（驱动轴）（反向旋转）53驱动轴壳体与排气管 54动力升降组件（可拆卸泵壳）金属马达壳体 55点火线圈/电压调节器 56飞轮/启动马达 57下机罩 58CDM安装座 59动力升降组件(铸造泵壳)金属电机壳体 60齿轮箱图表 61启动马达 62动力升降泵 63曲轴、活塞及连杆 64爆震控制器/温度传感器 65上罩与前护板 66齿轮箱（螺旋桨轴）（标准旋转）（序列号0G437999及以下）67燃油管理系统 68维修与支撑材料 69齿轮箱（驱动轴）（标准旋转）（序列号0G437999及以下）70动力升降马达 71泄放系统(右舷)72燃油管理系统（壳体）73艉板支架 74附件 75泄放系统(左舷)76泄放系统(右舷)77下机罩 78曲轴、活塞及连杆 79气缸体与端盖 80爆震控制器/温度传感器 81驱动轴壳体与排气管 82双机延伸套件 83电控单元总成 84排气歧管与排气板 85飞轮/启动马达 86燃油管理系统 87燃油泵 88齿轮箱(驱动轴)(标准/反向旋转)89齿轮箱(螺旋桨轴)(反向旋转)90齿轮箱(螺旋桨轴)(标准旋转)91齿轮箱对照表 92点火线圈/电压调节器 93仪表装置 94杂项信息 95喷油组件 96动力升降组件 8M0231193 97动力升降组件（金属马达壳体）98动力升降组件（塑料马达壳体）99动力升降马达 100簧片阀组与气缸盖 101启动马达 102转向连接套件 103旋转支架与转向臂 104油门杆与换挡轴 105专用工具 106顶罩 107艉板支架 108线束/启动电磁阀

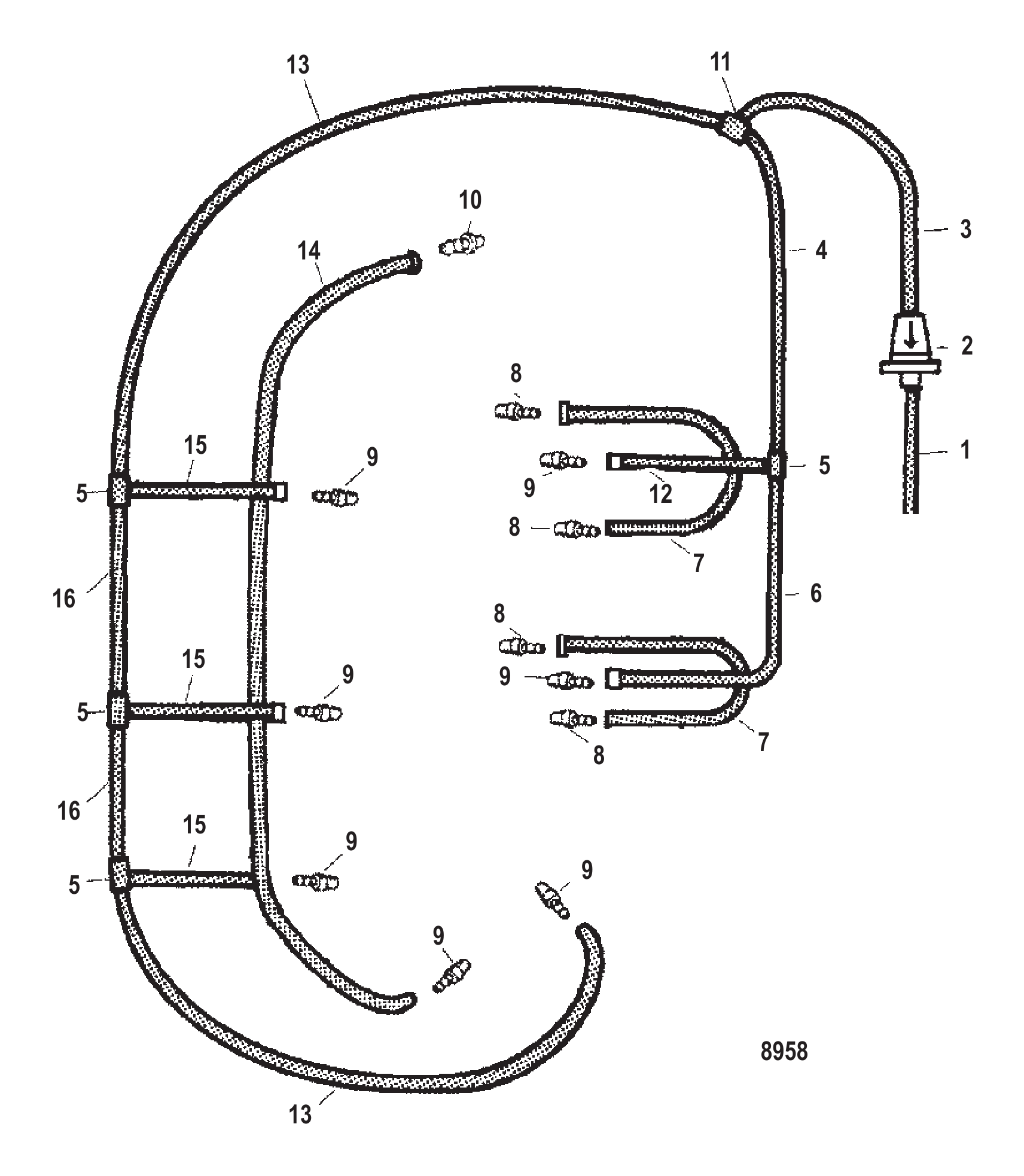

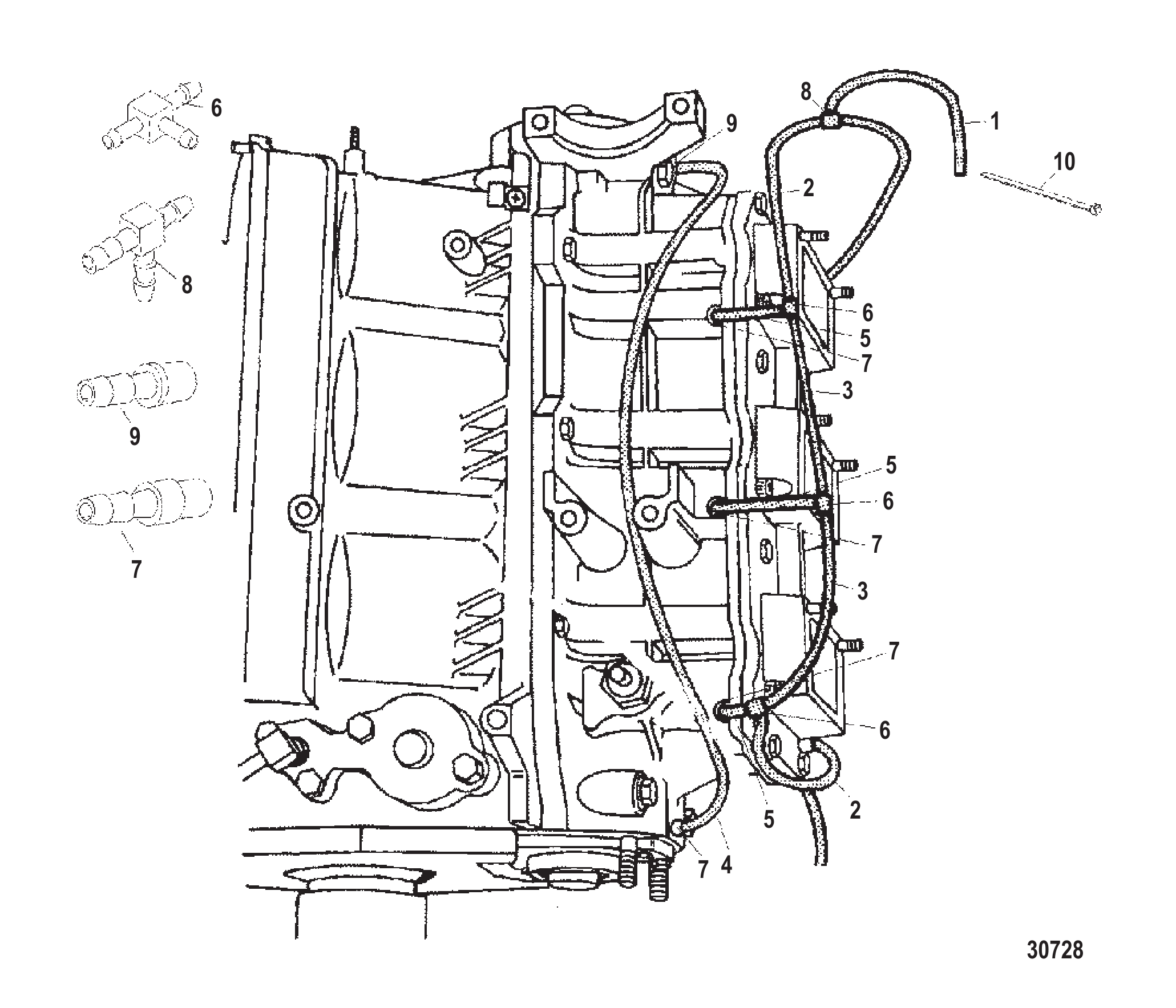

图 1泄压系统 BLEED SYSTEM

REF	零件编号	中文名称	英文名称	数量
1	9912688	管材(36.00英寸散装)(裁切至3-1/4英寸)	TUBING (36.00 Inches Bulk) (Cut to 3-1/4 IN.)	1
2	18206	滤清器	FILTER	1
2	8M0207786	滤清器	FILTER	1
3	9912688	管材(36.00英寸散装)(裁切至7-1/4英寸)	TUBING (36.00 Inches Bulk) (Cut to 7-1/4 IN.)	1
4	99130122	管材(20.00英尺散装)(裁切至3-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 3-1/2 IN.)	1
4	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
5	59169	接头	FITTING	4
5	59169003	三通接头	FITTING Tee	4
6	99130122	管材(20英尺整卷)(裁切至5-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 5-1/2 IN.)	1
6	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
7	99130122	管材(20.00英尺散装)(裁切至9英寸)	TUBING (20.00 Feet Bulk) (Cut to 9 IN.)	2
7	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
8	56759	压入式倒钩接头	FITTING Barbed (PRESS-IN)	4
9	426981	止回阀(压入式-13/16长)	CHECK VALVE (PRESS-IN - 13/16 LONG)	7
9	426982	止回阀	CHECK VALVE	7
10	426231	止回阀(压入式-11/16长)	CHECK VALVE (PRESS-IN - 11/16 LONG)	1
10	426233	止回阀	CHECK VALVE	1
11	18205	三通	TEE	1
12	99130122	管材(20.00英尺散装)(裁切至1-1/4英寸)	TUBING (20.00 Feet Bulk) (Cut to 1-1/4 IN.)	1
12	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
13	99130122	管材(20.00英尺散装)(裁切至9英寸)	TUBING (20.00 Feet Bulk) (Cut to 9 IN.)	2
13	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
14	99130122	管材(20.00英尺散装)(裁切至19英寸)	TUBING (20.00 Feet Bulk) (Cut to 19 IN.)	1
14	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
15	99130122	管材(20.00英尺散装)(裁切至1英寸)	TUBING (20.00 Feet Bulk) (Cut to 1 IN.)	3
15	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	3
16	99130122	管材(20英尺整卷)(裁切为4-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 4-1/2 IN.)	2
16	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
-	823434A97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

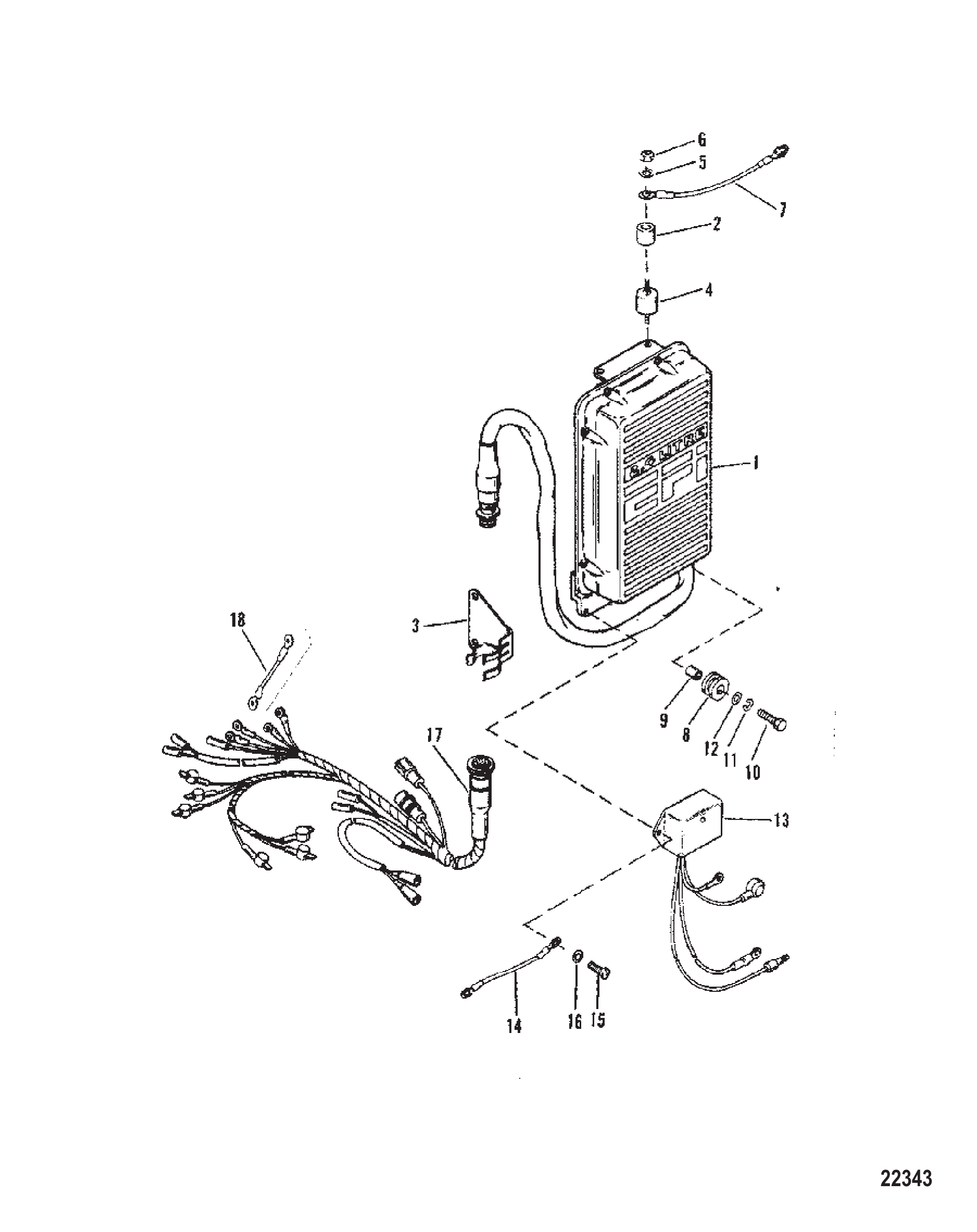

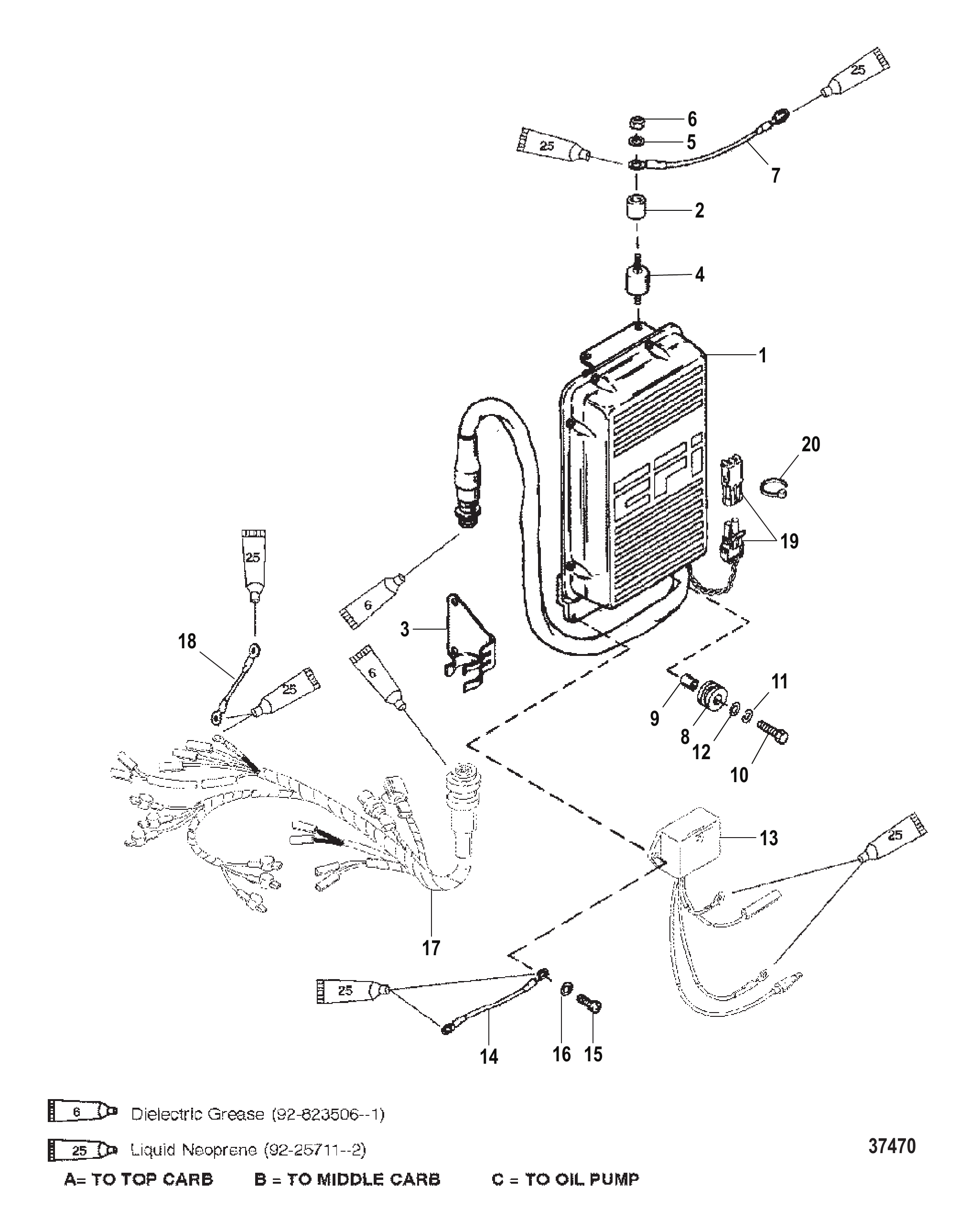

图 2电控单元总成 E.C.U. ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	824003A10	发动机控制单元ECU	ECU Engine Control Unit	1
1	824003A9	发动机控制单元ECU	ECU Engine Control Unit	1
1	824003T25	电控单元	ECU	1
1	824003A8	发动机控制单元ECU	ECU Engine Control Unit	1
1	824003T26	电控单元	ECU	1
2	34948	隔套	SPACER	2
3	146951	卡扣	CLIP	1
4	90435	支架	MOUNT	2
5	21249	垫圈	WASHER	4
6	20361	螺母(.250-28)	NUT (.250-28)	4
6	8267089	螺母(.250-28)	NUT (.250-28)	4
7	88807A19	拉线总成	CABLE ASSEMBLY	1
8	14637	护孔环	GROMMET	1
9	14636	衬套	BUSHING	1
10	28667	螺钉 (0.250-20 x 1.00) 不锈钢	SCREW (.250-20 x 1.00) Stainless Steel	1
11	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
12	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	1
13	13202A4	水位传感器模块总成	MODULE ASSEMBLY Water Sensor	1
14	88807A18	线缆总成(黑色)	CABLE ASSEMBLY (BLACK)	1
15	37571	螺钉(.190-32 x 0.500)	SCREW (.190-32 x .500)	2
16	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
17	98866A25	线束总成 ECU与喷油器	HARNESS ASSEMBLY ECU And Injectors	1
18	87895A4	线缆总成(150/175)	CABLE ASSEMBLY (150/175)	1
19	832948A1	2针公头连接器总成	CONNECTOR ASSEMBLY 2 POS Male	1
20	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
20	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR

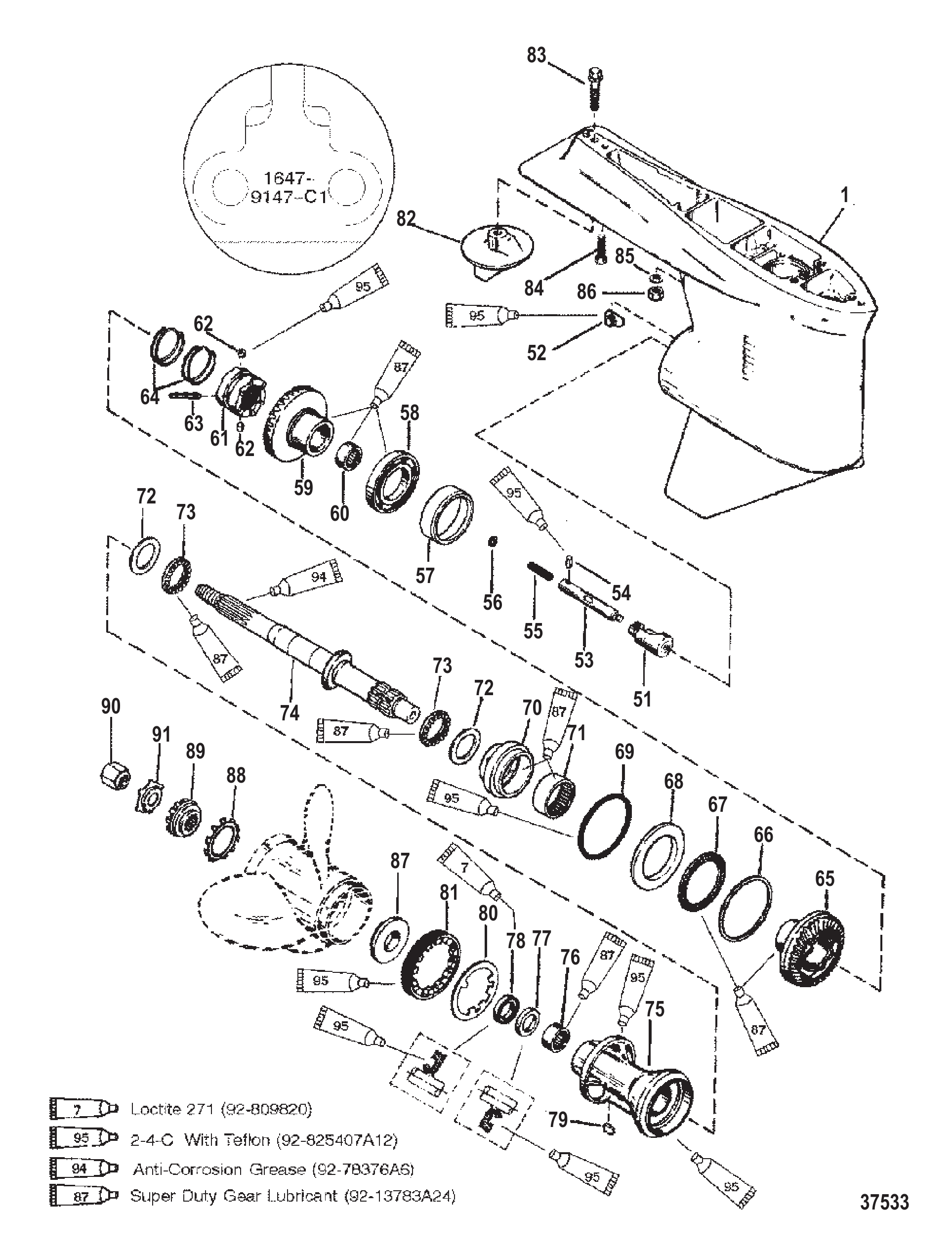

图 3齿轮箱(螺旋桨轴)(反向旋转) GEAR HOUSING (PROP SHAFT)(COUNTER ROTATION)

REF	零件编号	中文名称	英文名称	数量
1	9148T93	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
49	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
50	789562	换挡凸轮	SHIFT CAM	1
51	828287	杆	ROD	1
52	44491A1	垫片组	SHIM SET	AR
52	8M0063266	垫片组	SHIM SET	AR
53	828830A2	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
54	814653	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
54	814653T	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
55	815481	止推垫片	THRUST WASHER	1
56	815480	推力轴承	BEARING Thrust	1
57	828702A2	倒车齿轮总成-15/28齿	GEAR ASSEMBLY Reverse - 15/28	1
58	15844	滚柱轴承总成	BEARING ASSEMBLY Roller	1
59	30893	弹簧	SPRING	1
60	854735T	滑动离合器	CLUTCH Sliding	1
60	859340T	离合器	CLUTCH	1
61	30632	十字销	PIN Cross	1
61	8M0100263	十字销	PIN Cross	1
62	828356	定位销	PIN Detent	1
63	828951	螺旋桨轴	PROPELLER SHAFT	1
64	828701A1	前进齿轮总成-15/28齿	GEAR ASSEMBLY Forward - 15/28	1
65	1761514	垫片(0.206)	SPACER SHIM (.206)	AR
65	1761515	垫片(0.208)	SPACER SHIM (.208)	AR
65	1761516	垫片(0.210)	SPACER SHIM (.210)	AR
65	1761517	垫片(0.212)	SPACER SHIM (.212)	AR
65	1761518	垫片(0.214)	SPACER SHIM (.214)	AR
65	1761519	垫片(0.216)	SPACER SHIM (.216)	AR
65	1761520	垫片(0.218)	SPACER SHIM (.218)	AR
65	1761521	垫片(0.220)	SPACER SHIM (.220)	AR
65	1761522	垫片(0.222)	SPACER SHIM (.222)	AR
65	1761523	垫片(0.224)	SPACER SHIM (.224)	AR
65	1761524	垫片(0.226)	SPACER SHIM (.226)	AR
65	1761525	垫片(0.228)	SPACER SHIM (.228)	AR
65	1761526	垫片(0.230)	SPACER SHIM (.230)	AR
66	815480	推力轴承	BEARING Thrust	1
67	815481	止推垫片	THRUST WASHER	1
68	828831A3	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
69	814653	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
69	814653T	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
70	18448	止推垫片	THRUST WASHER	2
71	15842	推力轴承	BEARING Thrust	2
72	8182911	推力座圈	RACE Thrust	2
73	814605	定位器	KEEPER	2
74	31534	O型圈	O-RING	1
74	8M0214920	O型圈	O RING	1
75	818290A4	轴承座总成	CARRIER ASSEMBLY Bearing	1
76	30956	滚针轴承	BEARING Needle	1
76	30956T	滚针轴承	BEARING Needle	1
77	14077	油封(内侧)	SEAL Oil (INSIDE)	1
78	76868	油封(外侧)	SEAL (OUTSIDE)	1
78	8M0248882	油封@5	SEAL-OIL @5	1
79	183231	锁紧垫圈	TAB WASHER	1
80	30281	键	KEY	1
81	79448	固定座	RETAINER	1
81	8M2011027	固定座	RETAINER	1
82	316405	平衡鳍板	TRIM TAB	1
82	8M0236553	平衡鳍板	TRIM TAB	1
82	76214A5	阳极套件	ANODE KIT	1
82	76214Q5	阳极套件	ANODE KIT	1
83	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
83	8M0204686	螺钉	SCREW	1
84	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
85	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
86	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
86	8M0204653	螺母	NUT	2
-	89238A2	密封套件	SEAL KIT	1

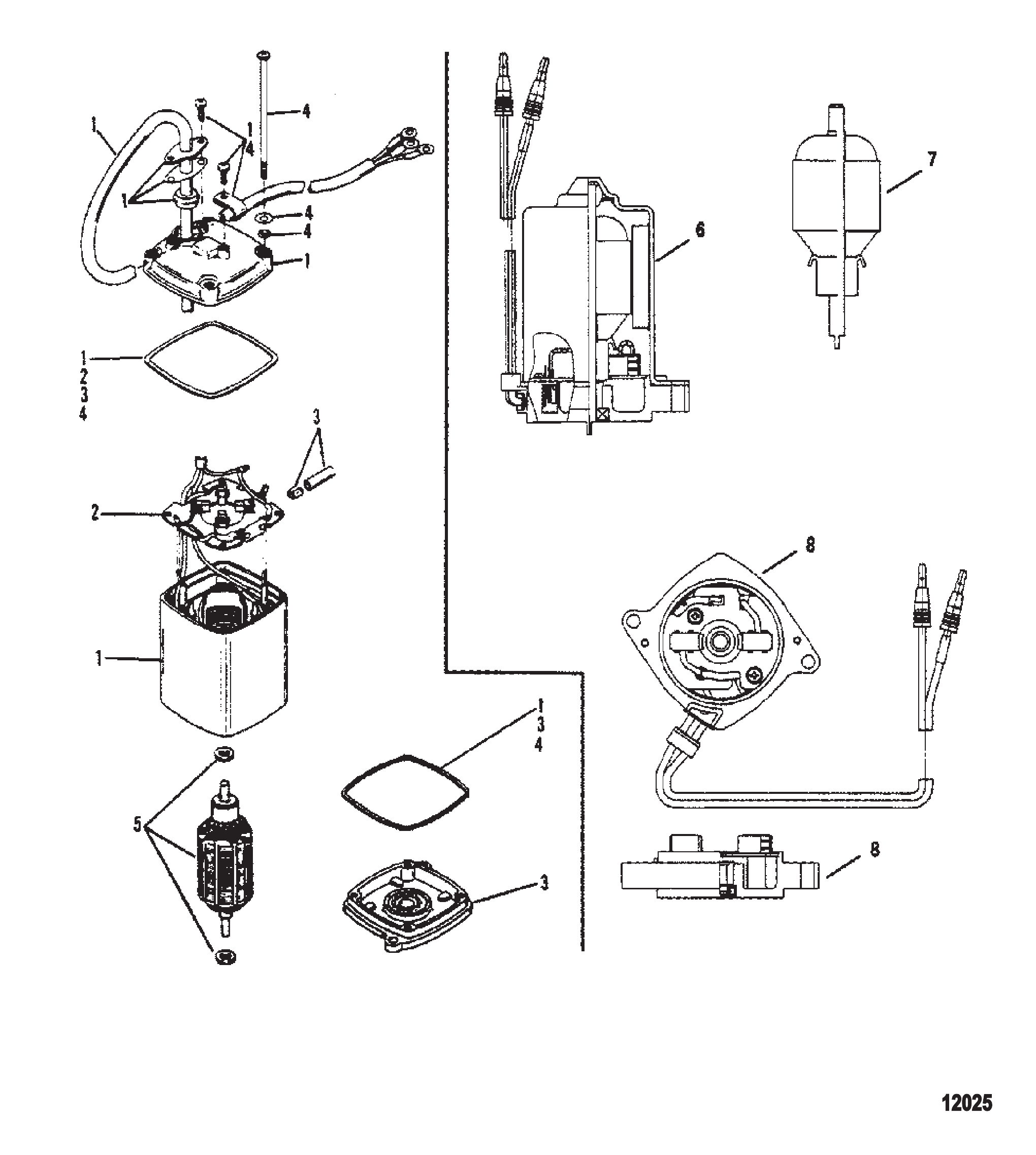

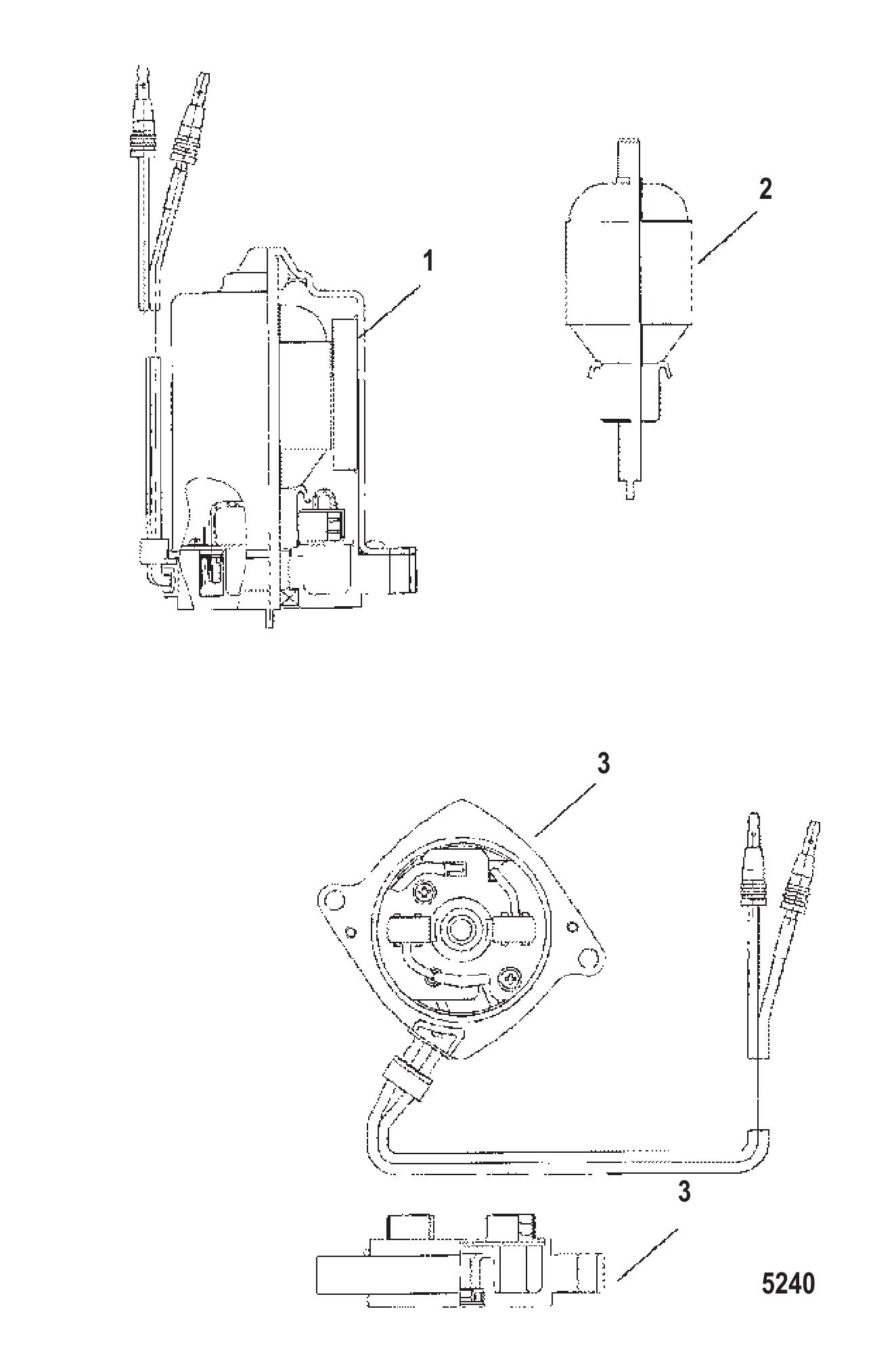

图 4动力升降马达（可拆卸泵壳） POWER TRIM MOTOR (REMOVEABLE PUMP HOUSING)

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
10	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0027784	螺母	NUT	4
11	82671117	螺母(.500-20)	NUT (.500-20)	4
12	99629A2	杠杆总成	LEVER ASSEMBLY	1
12	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	830899	张力弹簧	SPRING Tension	1
14	65830	尼龙衬套	NYLINER	2
15	830900	压缩弹簧	SPRING Compression	1
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99617	销	PIN	1
18	893709	销	PIN	1

图 5齿轮箱对照表 GEAR HOUSING CHART

REF	零件编号	中文名称	英文名称	数量
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T85	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T86	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1

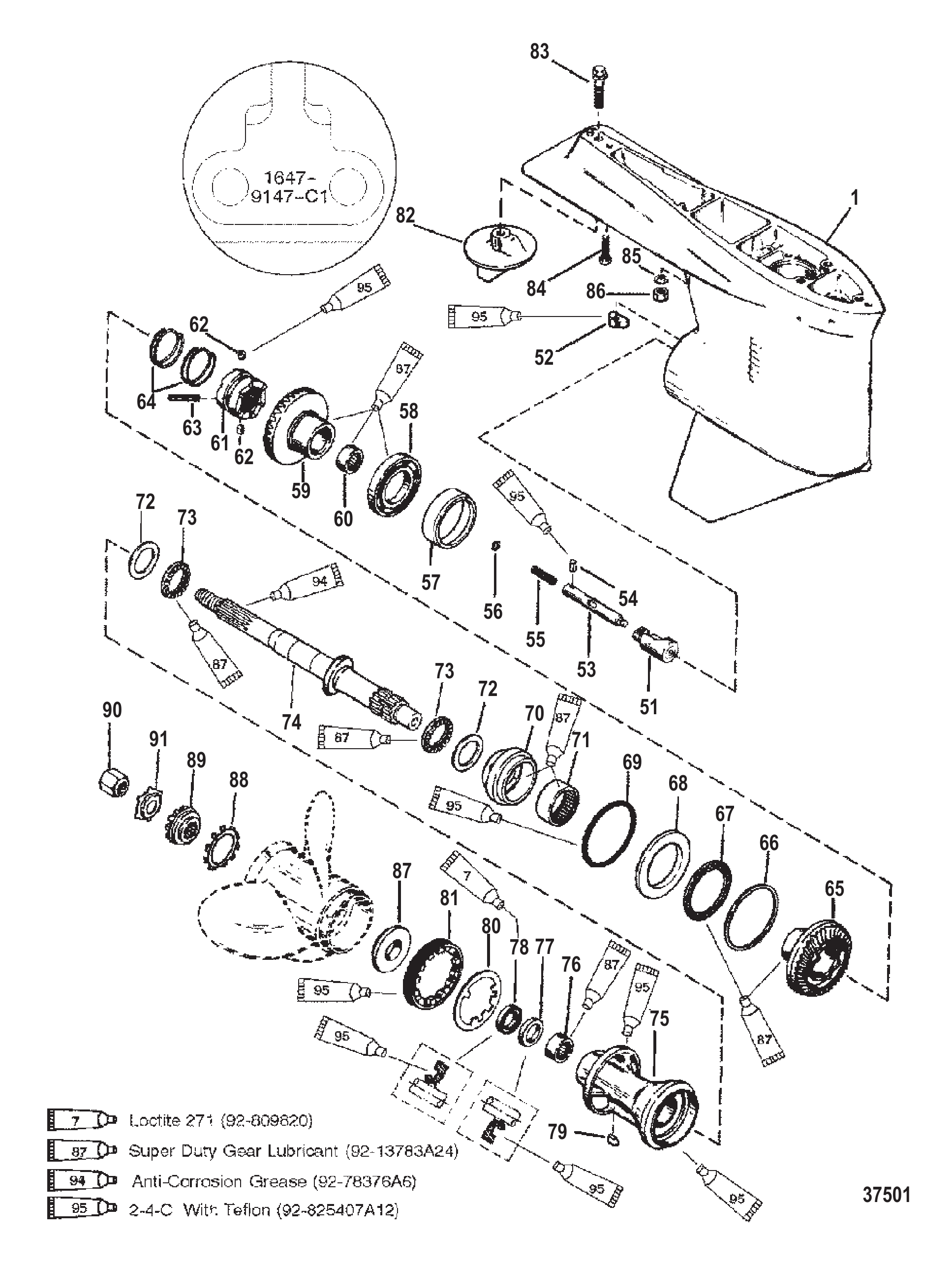

图 6齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)

REF	零件编号	中文名称	英文名称	数量
-	9148A8	齿轮箱总成-标准旋转1.87:1传动比(完整)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (COMPLETE)	1
1	9148A11	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY (BASIC)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
48	78956	换挡凸轮	SHIFT CAM	1
48	789562	换挡凸轮	SHIFT CAM	1
49	89594A1	凸轮从动件总成	FOLLOWER ASSEMBLY CAM	1
50	79911	离合器作动杆	ROD CLUTCH ACTUATOR	1
50	79911A1	杆	ROD	1
51	79910	压缩弹簧	SPRING COMPRESSION	2
52	78910	压缩弹簧垫圈	WASHER COMPRESSION SPRING	1
53	78906		PIN SPRING LOCATOR	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	47397A1	轴承外圈垫片组(.002-3-5-10)	SHIM SET BEARING OUTER RACE (.002-3-5-10)	AR
55	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
56	44104A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
56	44104T2	齿轮组	GEAR SET	1
57	43999	滚子轴承(外径1.308)	BEARING Roller (1.308 O.D.)	2
57	73363	滚子轴承(外径1.313)	BEARING Roller (1.313 O.D.)	2
57	73363T	轴承	BEARING	2
58	78959	棘轮滑动离合器	RATCHET SLIDING CLUTCH	1
58	823174T	ORD 8M0100493	ORD 8M0100493	1
59	78905	棘轮到螺旋桨轴十字销	PIN Cross RATCHET TO PROPELLER SHAFT	1
59	8M0084243	十字销	PIN Cross	1
60	78909	棘轮定位销	PIN Detent RATCHET	2
61	78962	十字销固定弹簧	SPRING RETAINING-CROSS PIN	2
62	94148	螺旋桨轴	PROPELLER SHAFT	1
63	N.S.S.	不单独出售(43-44104A2部件)	Not Sold Separate (PART OF 43-44104A2)	1
64	68100	止推环	RING THRUST	1
64	681001	止推环	RING Thrust	1
65	88957A1	滚珠轴承-倒档齿轮	BEARING Ball BALL-REVERSE GEAR	1
65	88957T	滚珠轴承	BEARING Ball	1
66	31534	轴承座O型圈	O-RING BEARING CARRIER	1
66	8M0214920	O型圈	O RING	1
67	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	30956	滚针轴承-轴承座	BEARING Needle BEARING CARRIER	1
68	30956T	滚针轴承	BEARING Needle	1
69	76868	轴承座密封	SEAL BEARING CARRIER	2
69	8M0248882	油封@5	SEAL-OIL @5	2
70	30281	轴承座定位键	KEY LOCATING-BEARING CARRIER	1
71	79447	齿轮箱盖锁紧垫圈	TAB WASHER GEAR HOUSING COVER	1
72	79448	齿轮箱固定座	RETAINER GEAR HOUSING	1
72	8M2011027	固定座	RETAINER	1
73	31640A1		TRIM TAB ASSEMBLY GEAR HOUSING	1
73	31640Q4	平衡鳍板	TRIM TAB	1
74	66024	螺钉(.437-14 x 1.75)调整片到齿轮箱(1-3/4")	SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING (1-3/4")	1
75	67891	填充块	FILLER BLOCK FILLER BLOCK	1
75	8M0039169	填充块	FILLER BLOCK	1
76	34933	螺母(.437-20)不锈钢驱动轴壳体螺柱	NUT (.437-20) Stainless Steel DRIVE SHAFT HOUSING STUDS	2
76	8M0204653	螺母	NUT	2
77	65210	螺钉(.375-16 x 1.00)齿轮箱	SCREW (.375-16 x 1.00) GEAR HOUSING	1
78	13171	推力毂	THRUST HUB	1
78	835467Q01	止推垫片套件	THRUST WASHER KIT	1
79	31211A2	花键垫圈-螺旋桨螺母	WASHER Splined SPLINED-PROPELLER NUT	1
79	31211Q03	垫圈总成	WASHER ASSEMBLY	1
80	31210	螺旋桨螺母锁紧垫圈	TAB WASHER PROPELLER NUT	1
80	816629Q	锁紧垫圈	TAB WASHER	1
81	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
81	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
82	423511	螺旋桨轴齿形锁紧垫圈	LOCKWASHER Toothed PROPELLER SHAFT	1
83	45176	垫圈(.453 x .812 x .105)不锈钢驱动轴壳体螺柱	WASHER (.453 x .812 x .105) Stainless Steel DRIVE SHAFT HOUSING STUDS	2
-	89238A2	密封套件	SEAL KIT	1
-	14697A87	衬垫套件	GASKET SET

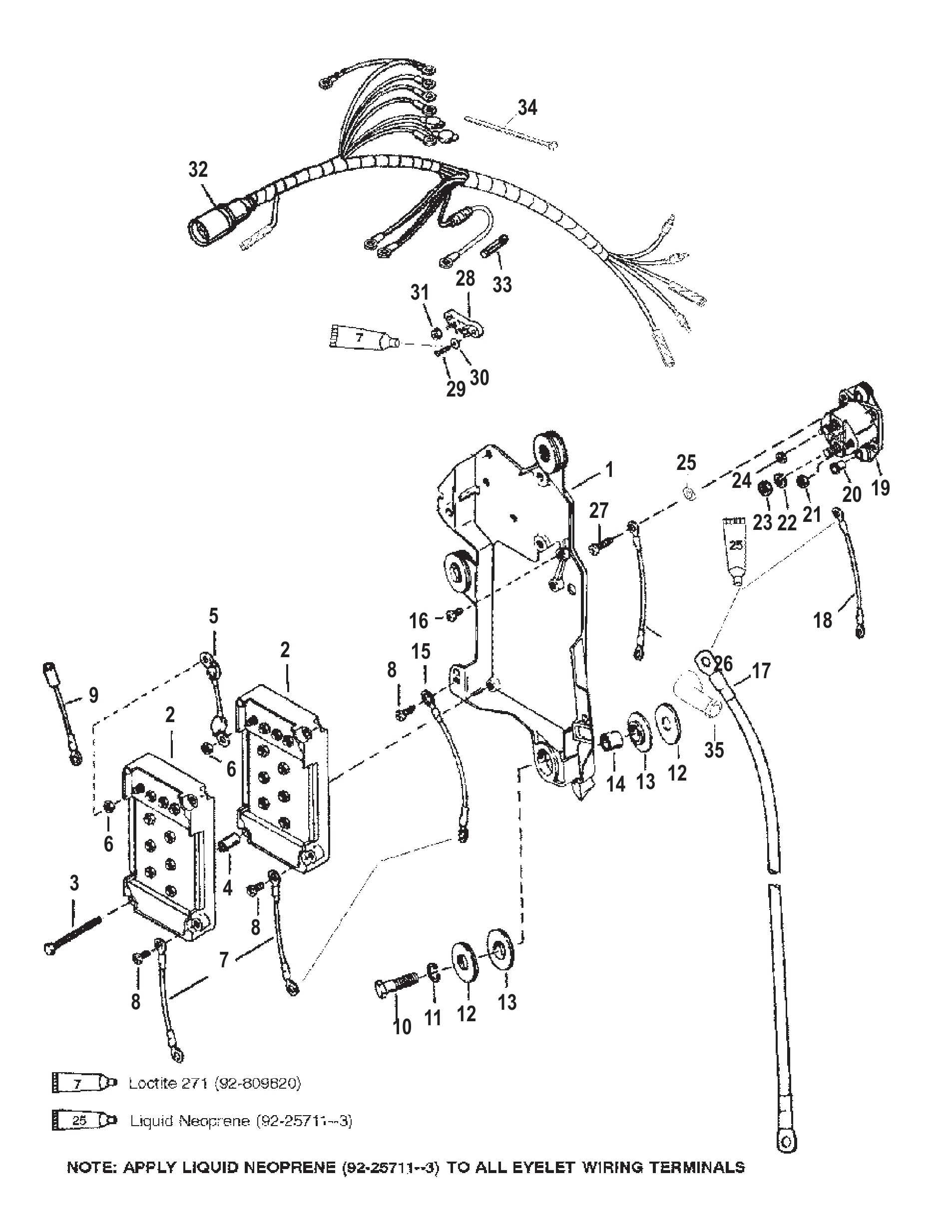

图 7线束/启动电磁阀 WIRING HARNESS/STARTER SOLENOID

REF	零件编号	中文名称	英文名称	数量
1	826730A4	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
2	79091	保险丝20安培	FUSE 20 Ampere	1
2	8M0207796	保险丝20安培	FUSE 20 AMP	1
3	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
3	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
4	194372	端子排	TERMINAL BLOCK	1
5	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
6	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
7	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
8	814634	卡箍	CLAMP	1
9	434292	点火板	IGNITION PLATE	1
10	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
11	13669	螺钉(#12-24x2.00)	SCREW (#12-24 x 2.00)	2
12	94453	衬套	BUSHING	2
13	62310A2	拉线总成	CABLE ASSEMBLY	1
14	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	20
15	91865A1	电缆总成(3英寸-白/黑)	CABLE ASSEMBLY (3 IN. - WHITE/BLACK)	1
15	88528A2	电缆总成(6英寸-红/白)	CABLE ASSEMBLY (6 IN. - RED/WHITE)	1
16	60871A10	线束总成	WIRE ASSEMBLY	2
17	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	2
17	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2
18	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
19	87926	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	1
20	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
21	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
21	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
22	36042	垫圈	WASHER	6
23	67264	垫圈(橡胶)	WASHER (Rubber)	6
24	67268	衬套	BUSHING	3
25	88439A23	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
25	88439A34	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
25	88439A24	蓄电池负极电缆总成	CABLE ASSEMBLY Negative - Battery	1
26	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	2
26	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
27	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
28	65999A2	线缆总成(黑色)	CABLE ASSEMBLY Black	1
29	78866	绝缘体	INSULATOR	1
30	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	4
31	817109A2	电磁阀总成(#10-32/.3125-18端子)	SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)	1
32	818968	衬套	BUSHING	2
32	8M0214955	衬套	BUSHING	2
33	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
34	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
35	68292	螺母(.312-18)	NUT (.312-18)	2
35	8M0204668	螺母(.312-18)	NUT (.312-18)	2

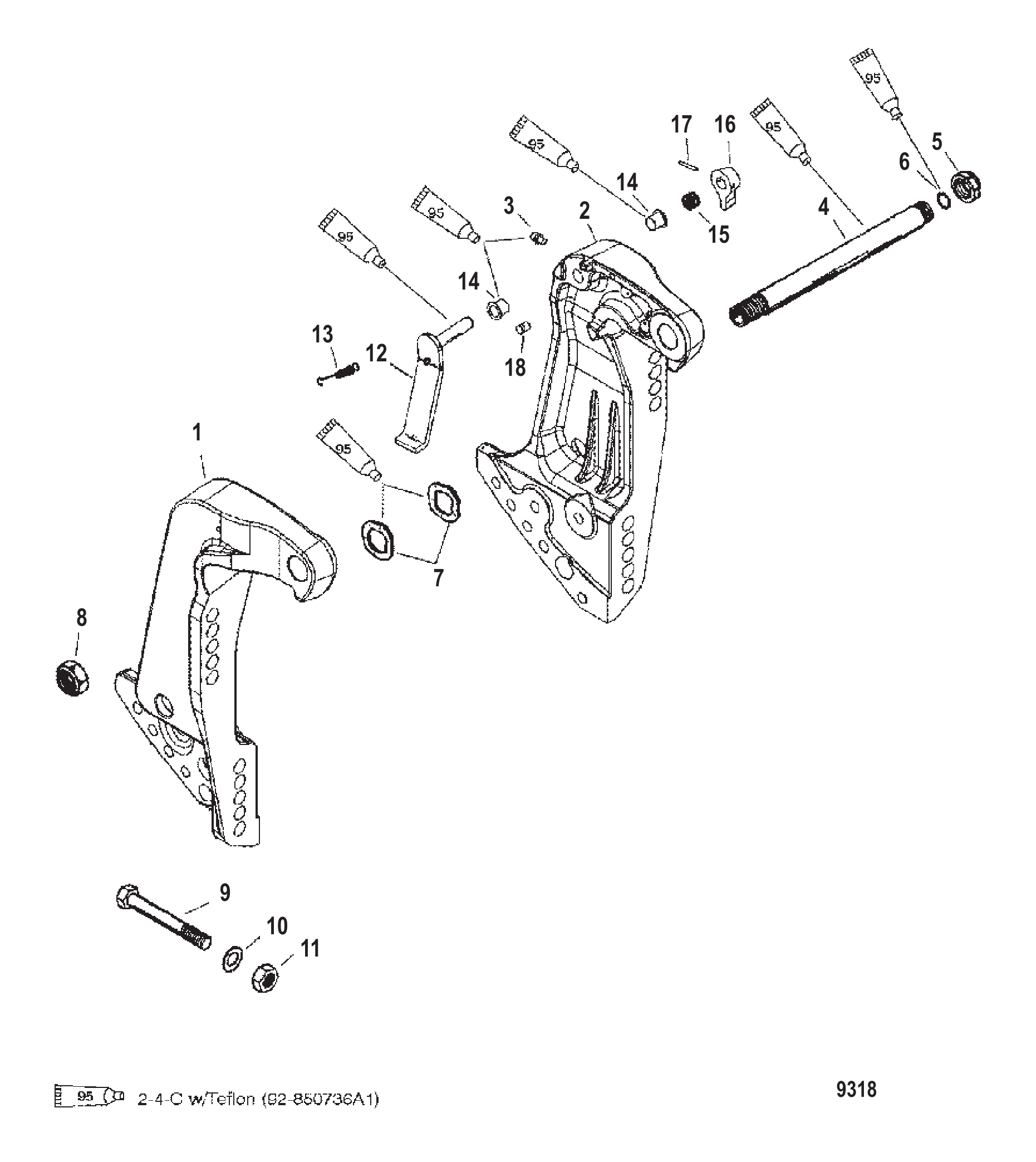

图 8艉板支架 TRANSOM BRACKETS

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
10	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0027784	螺母	NUT	4
11	82671117	螺母(.500-20)	NUT (.500-20)	4
12	99629A2	杠杆总成	LEVER ASSEMBLY	1
12	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	830899	张力弹簧	SPRING Tension	1
14	65830	尼龙衬套	NYLINER	2
15	830900	压缩弹簧	SPRING Compression	1
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99617	销	PIN	1
18	893709	销	PIN	1

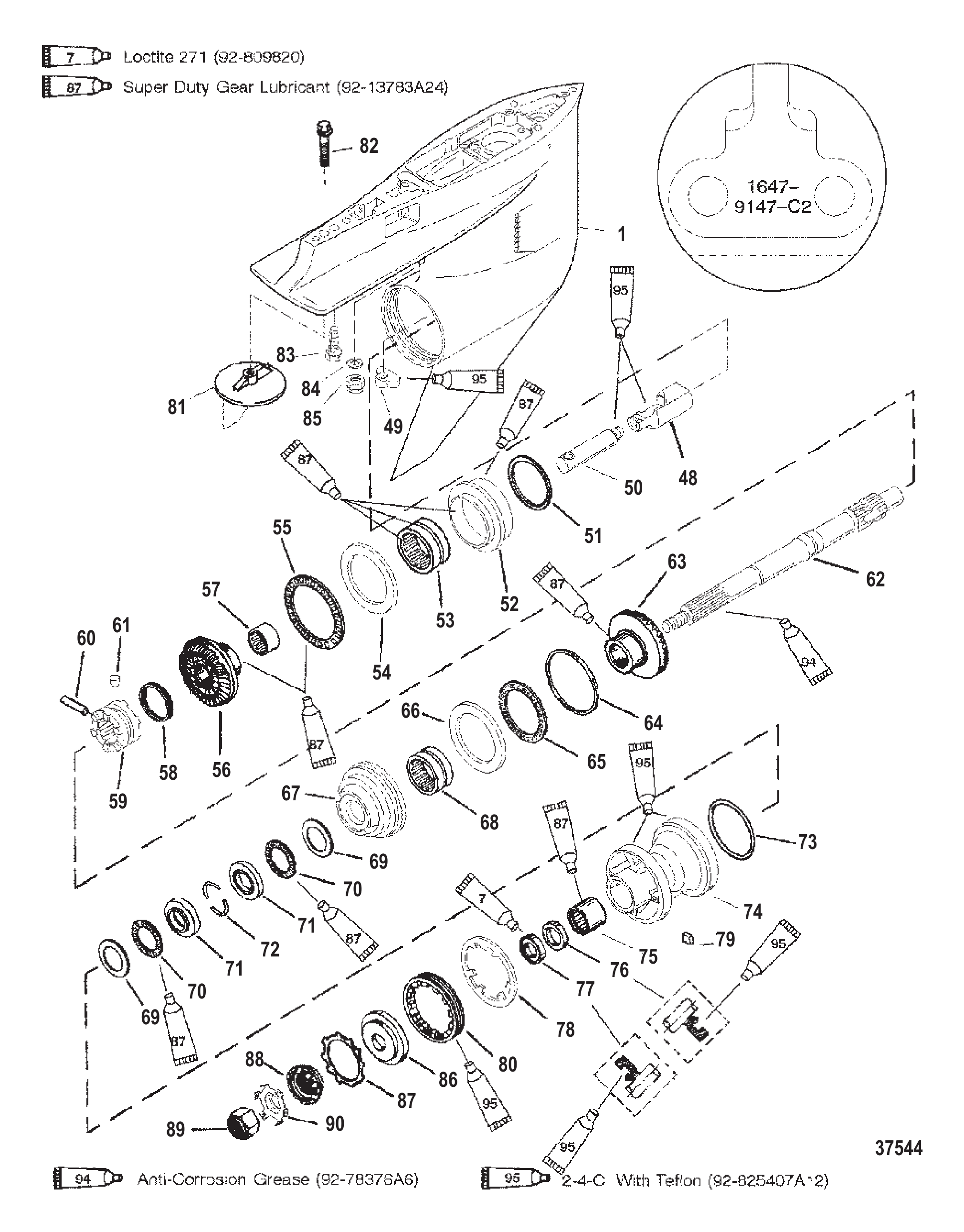

图 9齿轮箱（螺旋桨轴）（逆时针旋转）（序列号0G438000及以上） GEAR HSG (PROP SHAFT)(CNTR ROTATION) (S/N-0G438000, UP)

REF	零件编号	中文名称	英文名称	数量
1	9148A93	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148A94	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148T94	ORD 1647-9148T93	ORD 1647-9148T93	1
48	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
49	789562	换挡凸轮	SHIFT CAM	1
50	828287	杆	ROD	1
51	44491A1	垫片组	SHIM SET	AR
51	8M0063266	垫片组	SHIM SET	AR
52	828830A2	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
53	814653	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
53	814653T	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
54	815481	止推垫片	THRUST WASHER	1
55	815480	推力轴承	BEARING Thrust	1
56	828702A2	倒车齿轮总成-15/28齿	GEAR ASSEMBLY Reverse - 15/28	1
57	15844	滚柱轴承总成	BEARING ASSEMBLY Roller	1
58	30893	弹簧	SPRING	1
59	828288	滑动离合器	SLIDING CLUTCH	1
59	859340T	离合器	CLUTCH	1
60	30632	十字销	PIN Cross	1
60	8M0100263	十字销	PIN Cross	1
61	828356	定位销	PIN Detent	1
62	828951	螺旋桨轴	PROPELLER SHAFT	1
63	828701A1	前进齿轮总成-15/28齿	GEAR ASSEMBLY Forward - 15/28	1
64	1761514	垫片(0.206)	SPACER SHIM (.206)	AR
64	1761515	垫片(0.208)	SPACER SHIM (.208)	AR
64	1761516	垫片(0.210)	SPACER SHIM (.210)	AR
64	1761517	垫片(0.212)	SPACER SHIM (.212)	AR
64	1761518	垫片(0.214)	SPACER SHIM (.214)	AR
64	1761519	垫片(0.216)	SPACER SHIM (.216)	AR
64	1761520	垫片(0.218)	SPACER SHIM (.218)	AR
64	1761521	垫片(0.220)	SPACER SHIM (.220)	AR
64	1761522	垫片(0.222)	SPACER SHIM (.222)	AR
64	1761523	垫片(0.224)	SPACER SHIM (.224)	AR
64	1761524	垫片(0.226)	SPACER SHIM (.226)	AR
64	1761525	垫片(0.228)	SPACER SHIM (.228)	AR
64	1761526	垫片(0.230)	SPACER SHIM (.230)	AR

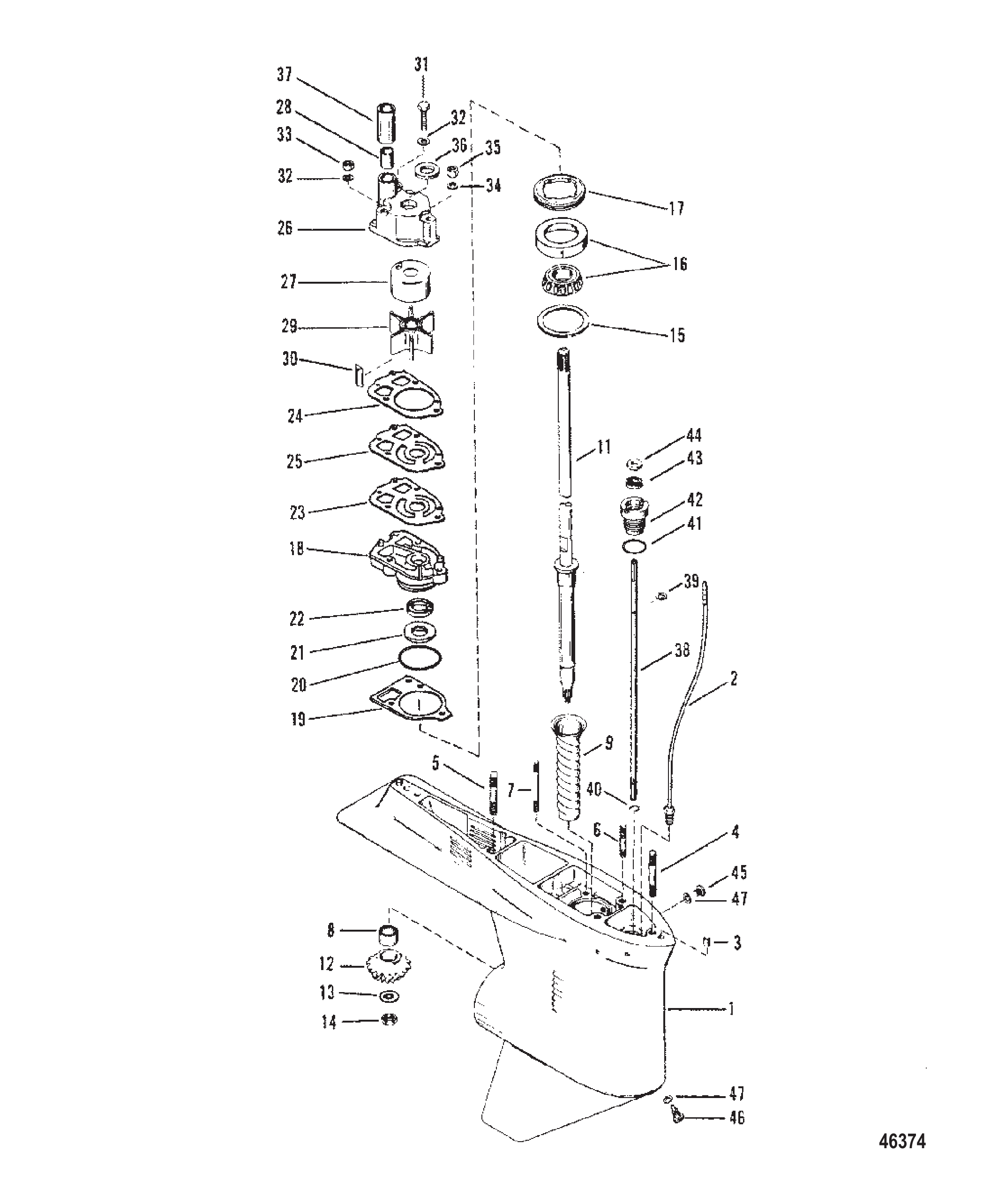

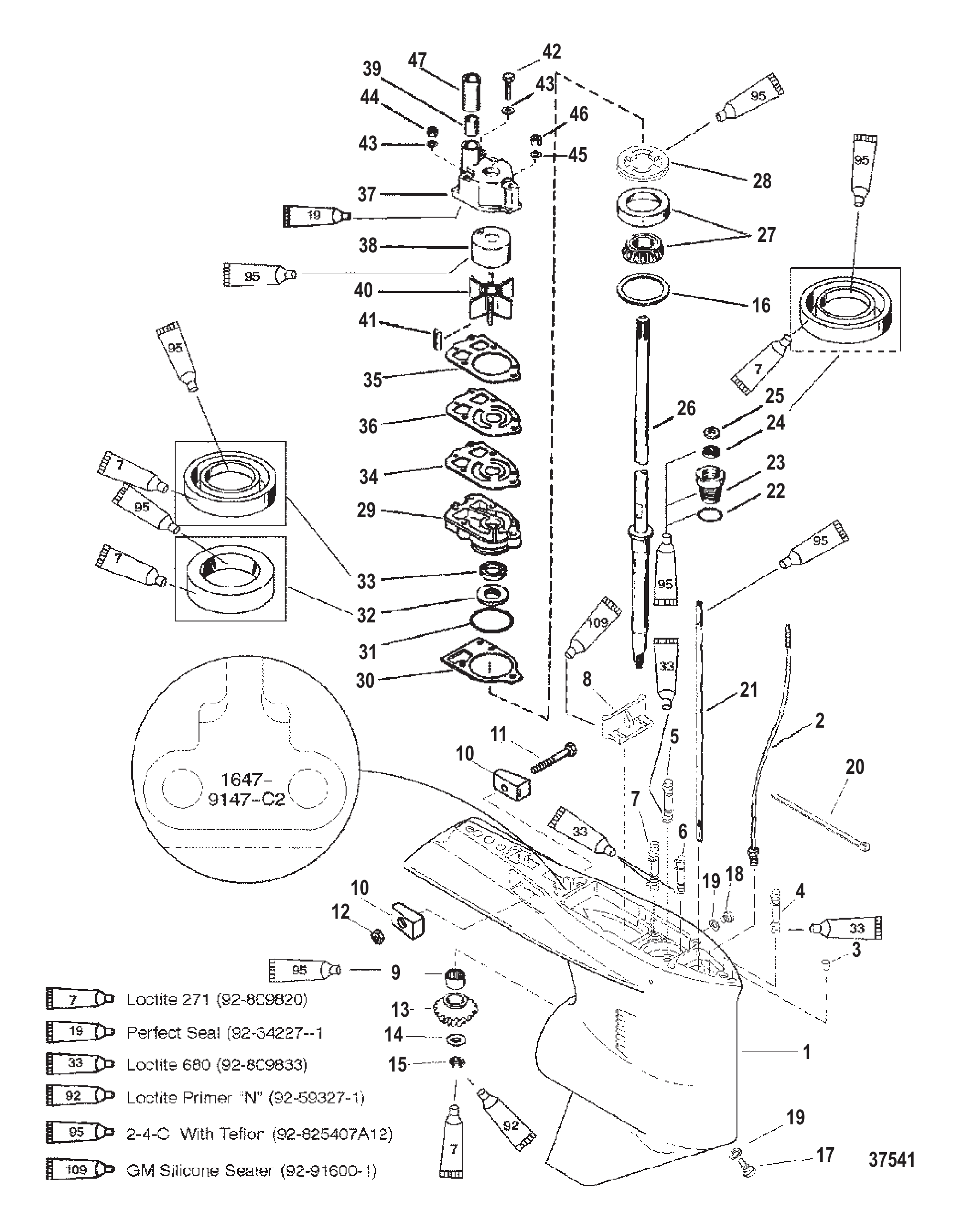

图 10齿轮箱（驱动轴）（逆时针旋转）（序列号0G438000及以上） GEAR HSG (DRIVESHAFT)(CNTR ROTATION) (S/N-0G438000, UP)

REF	零件编号	中文名称	英文名称	数量
1	9148A93	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148A94	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148T94	ORD 1647-9148T93	ORD 1647-9148T93	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	189783	螺柱(0.438×3.82英寸)	STUD (.438 x 3.82 Inches)	1
4	8M0034464	螺柱	STUD	1
5	579203	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	562972	螺柱(0.312-18/0.324-24×3.380)	STUD (.312-18/.324-24 x 3.380)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	306671	螺柱	STUD	2
8	67891	填充块	FILLER BLOCK	1
8	8M0039169	填充块	FILLER BLOCK	1
9	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
10	826134	阳极块	ANODE	2
10	826134Q	阳极块	ANODE	2
11	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
12	8268336	螺母 (M6)	NUT (M6)	1
12	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
13	NSS	不单独出售-小齿轮(属于43-828701A1部件)	NOT SOLD SEPARATE PINION GEAR (PART OF 43-828701A1)	1
14	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
15	35921	螺母(0.625-18)	NUT (.625-18)	1
16	42637A1	垫片组	SHIM SET	AR
16	8M0063267	垫片组	SHIM SET	AR
17	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
17	8M0058389	放油螺钉套件	SCREW KIT Drain	1
18	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	1
18	79953Q04	放油螺钉套件	SCREW KIT Drain	1
19	19183	纤维垫圈	WASHER Fiber	2
19	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
20	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	1
21	789022	换档轴	SHIFT SHAFT	1
22	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
23	77631A2	衬套总成	BUSHING ASSEMBLY	1
24	8164641	油封	SEAL Oil	1
24	8M0246145	油封	OIL SEAL	1
25	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
26	442091	驱动轴	DRIVESHAFT	1
26	897625T	加长驱动轴	DRIVESHAFT X-Long	1
27	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
27	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
28	824519	固定座	RETAINER	1
28	8245191	固定座	RETAINER	1
29	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
29	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
30	426311	衬垫	GASKET	1
30	8M0204678	衬垫	GASKET	1
31	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
31	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
32	89238	油封	SEAL Oil	1
33	16977	油封	SEAL Oil	1
34	856081	衬垫	GASKET	1
34	8M0090319	衬垫@5	GASKET @5	1
35	856091	衬垫	GASKET	1
35	858524	衬垫	GASKET	1
36	32435	面板	FACE PLATE	1
36	8M0204677	面板	PLATE-FACE	1
37	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
37	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
38	48752	嵌件	INSERT	1
38	48752T	嵌件	INSERT	1
39	38970	密封件	SEAL	1
40	899841	叶轮	IMPELLER	1
40	89984T3	叶轮	IMPELLER	1
41	56654	键	KEY	1
41	8M0214992	键@5	KEY @5	1
42	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
42	8M0215009	螺钉	SCREW	1
43	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
43	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
44	13438	螺母(.250-28)	NUT (.250-28)	2
44	8267119	螺母(.250-28)	NUT (.250-28)	2
45	36001	垫圈	WASHER	1
46	13436	螺母	NUT	1
47	29804	套筒	SLEEVE	1
47	29804T	套筒	SLEEVE	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1

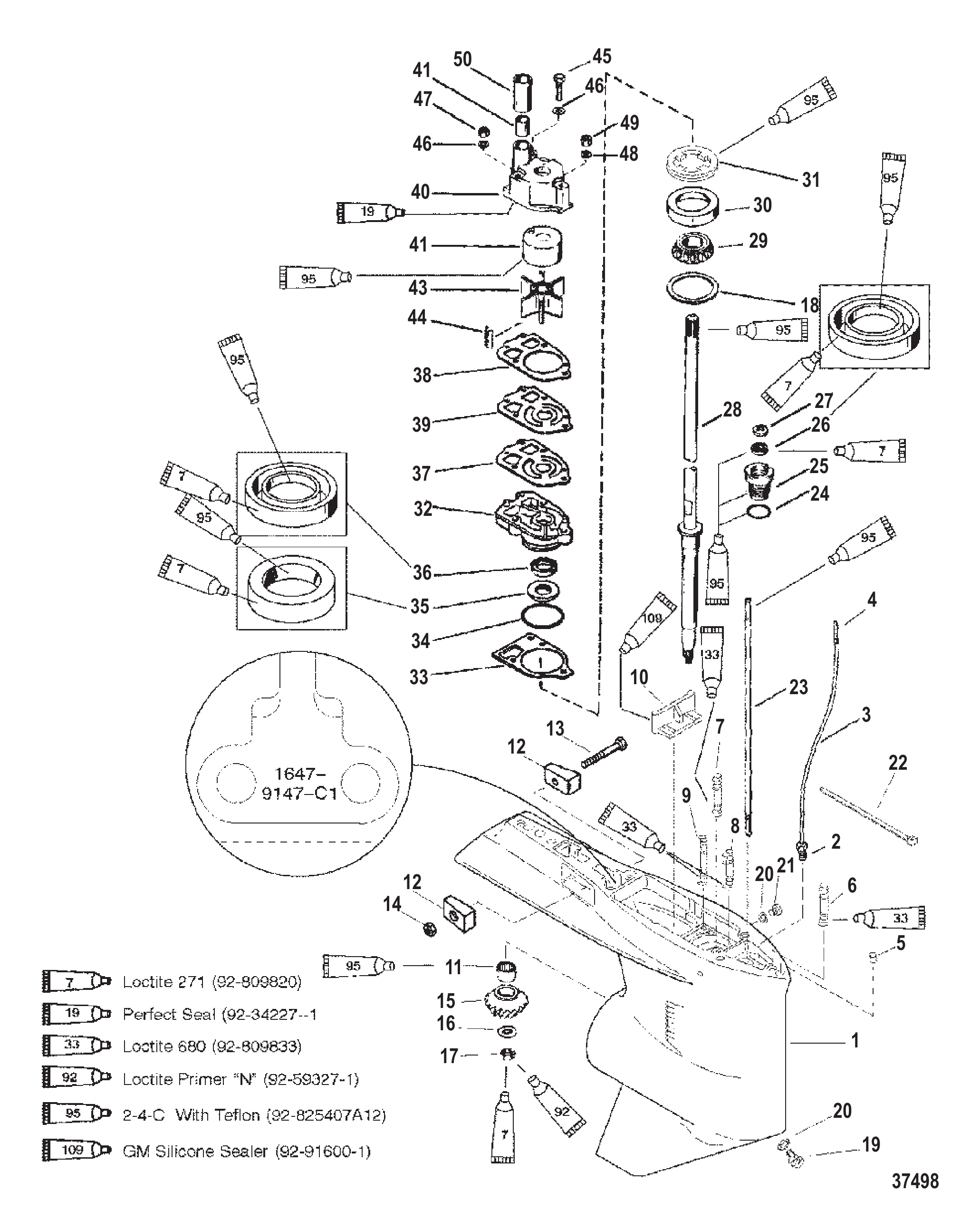

图 11齿轮箱（驱动）（逆时针旋转）（序列号0G437999及以下） GEAR HSG (DRIVE)(CNTR ROTATION) (S/N-0G437999, BELOW)

REF	零件编号	中文名称	英文名称	数量
1	9148A47	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148A48	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	NSS		NOT SOLD SEPARATE TUBING	1
4	NSS		NOT SOLD SEPARATE CONNECTOR	1
5	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
6	189783	螺柱(0.438×3.82英寸)	STUD (.438 x 3.82 Inches)	1
6	8M0034464	螺柱	STUD	1
7	579203	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
7	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
8	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
8	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
9	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
9	306671	螺柱	STUD	2
10	67891	填充块	FILLER BLOCK	1
10	8M0039169	填充块	FILLER BLOCK	1
11	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
12	826134	阳极块	ANODE	2
12	826134Q	阳极块	ANODE	2
13	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
14	8268336	螺母 (M6)	NUT (M6)	1
14	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
15	NSS		NOT SOLD SEPARATE PINION GEAR (PART OF 43-18475A1)	1
16	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
17	35921	螺母(0.625-18)	NUT (.625-18)	1
18	42637A1	垫片组	SHIM SET	AR
18	8M0063267	垫片组	SHIM SET	AR
19	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
19	8M0058389	放油螺钉套件	SCREW KIT Drain	1
20	19183	纤维垫圈	WASHER Fiber	2
20	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
21	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	1
21	79953Q04	放油螺钉套件	SCREW KIT Drain	1
22	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	1
23	789022	换档轴	SHIFT SHAFT	1
24	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
25	77631A2	衬套总成	BUSHING ASSEMBLY	1
26	8164641	油封	SEAL Oil	1
26	8M0246145	油封	OIL SEAL	1
27	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
28	442091	驱动轴	DRIVESHAFT	1
28	897625T	加长驱动轴	DRIVESHAFT X-Long	1
29	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
29	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
30	NSS		NOT SOLD SEPARATE CUP	1
31	824519	固定座	RETAINER	1
31	8245191	固定座	RETAINER	1
32	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
32	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
33	426311	衬垫	GASKET	1
33	8M0204678	衬垫	GASKET	1
34	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
34	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
35	89238	油封	SEAL Oil	1
36	16977	油封	SEAL Oil	1
37	856081	衬垫	GASKET	1
37	8M0090319	衬垫@5	GASKET @5	1
38	856091	衬垫	GASKET	1
38	858524	衬垫	GASKET	1
39	32435	面板	FACE PLATE	1
39	8M0204677	面板	PLATE-FACE	1
40	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
40	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
41	48752	嵌件	INSERT	1
41	48752T	嵌件	INSERT	1
42	38970	密封件	SEAL	1
43	899841	叶轮	IMPELLER	1
43	89984T3	叶轮	IMPELLER	1
44	56654	键	KEY	1
44	8M0214992	键@5	KEY @5	1
45	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
45	8M0215009	螺钉	SCREW	1
46	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
46	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
47	13438	螺母(.250-28)	NUT (.250-28)	2
47	8267119	螺母(.250-28)	NUT (.250-28)	2
48	36001	垫圈	WASHER	1
49	13436	螺母	NUT	1
50	29804	套筒	SLEEVE	1
50	29804T	套筒	SLEEVE	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1

图 12艉板支架（序列号0G589999及以下） TRANSOM BRACKETS (S/N-0G589999 & BELOW)

REF	零件编号	中文名称	英文名称	数量
1	8718F7	艉板支架	BRACKET Transom	1
2	8716A8	艉板支架总成	BRACKET ASSEMBLY Transom	1
1	8718F8	艉板支架	BRACKET Transom	1
2	8716A9	艉板支架总成	BRACKET ASSEMBLY Transom	1
3	98727	润滑脂接头(左舷)	FITTING Grease (PORT)	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	47525	螺母 (.875-14) 底部	NUT (.875-14) Bottom	1
5	826125A1	倾斜管	TILT TUBE	1
6	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
7	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
8	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
9	826164	螺母 (.875-14)	NUT (.875-14)	1
9	8M0231351	锁紧螺母	NUT Lock	1
10	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
10	8M0149747	螺钉	SCREW	4
11	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	8M0027784	螺母	NUT	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	99629A2	杠杆总成	LEVER ASSEMBLY	1
13	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	99611	波形垫圈	WAVE WASHER	1
15	65830	尼龙衬套	NYLINER	2
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99622	弹簧	SPRING	1
19	99604	槽销	PIN Groove	1
20	96930A1	螺栓总成	BOLT ASSEMBLY	1
21	23161	螺母 (.375-24)	NUT (.375-24)	1
22	814207	停机开关	STOP	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

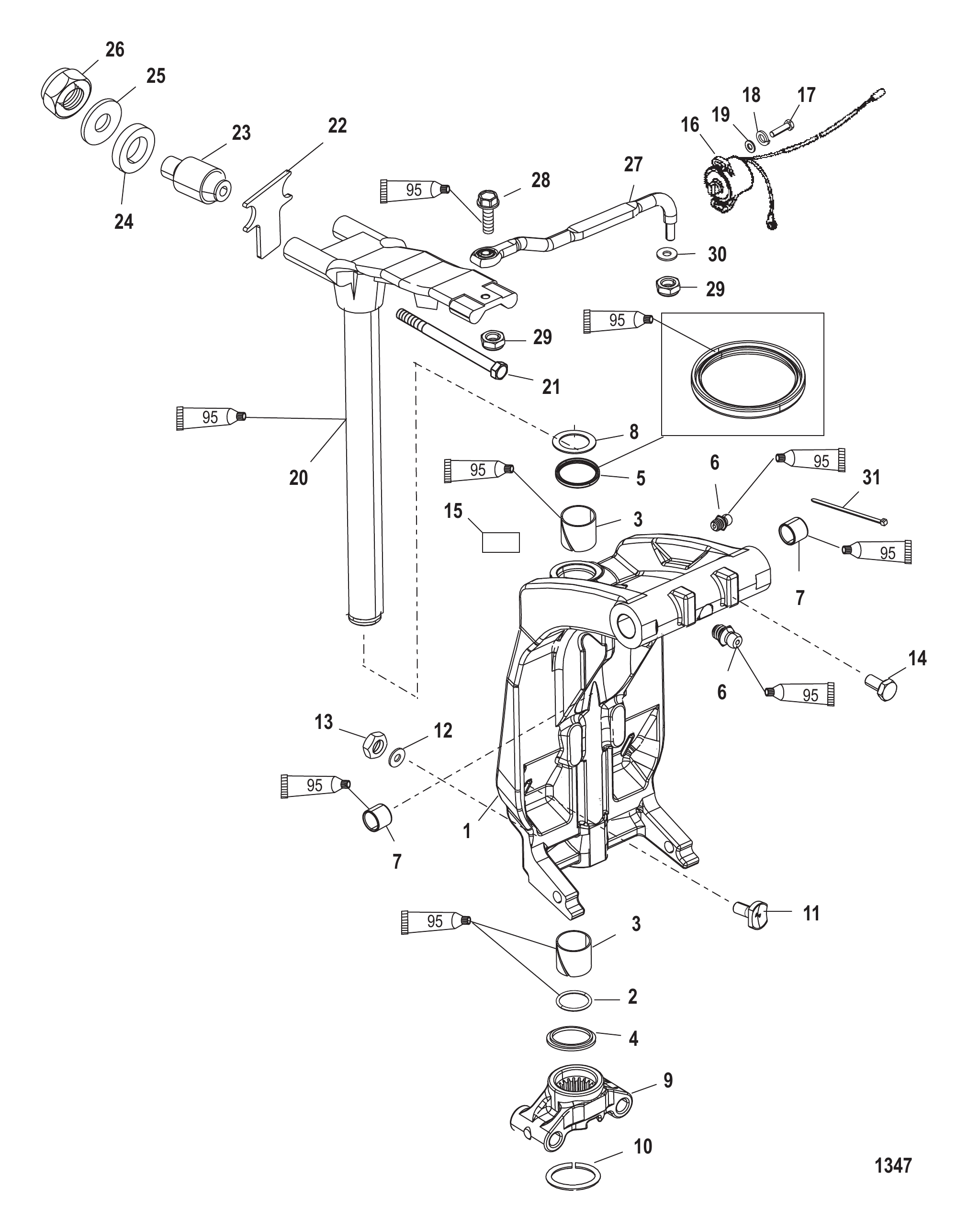

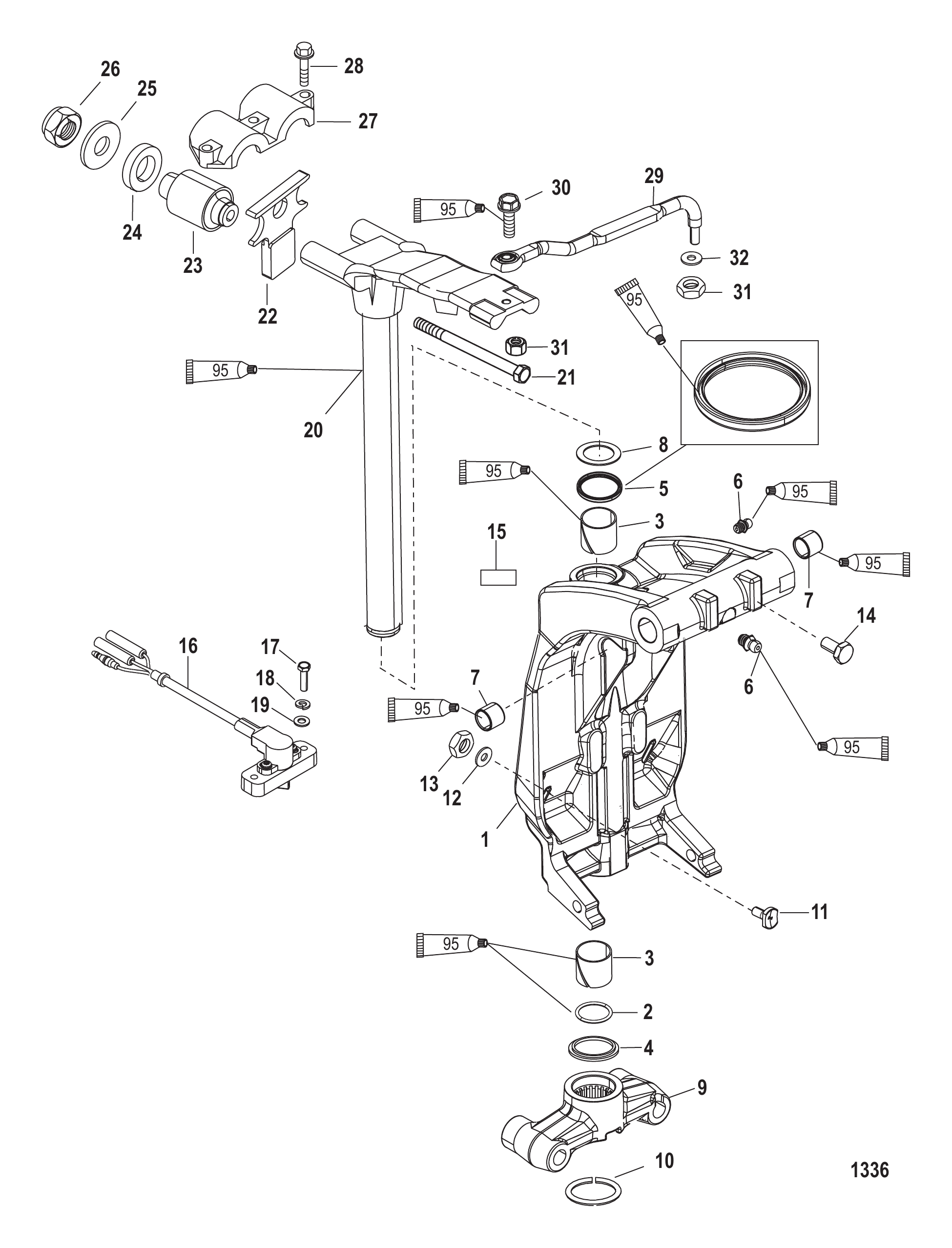

图 13旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM

REF	零件编号	中文名称	英文名称	数量
1	8710A20	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8710A21	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8710T21	灰色旋转支架总成	SWIVEL BRACKET ASSEMBLY Gray	1
2	33504	O型圈	O-RING	1
2	8M0214926	O型圈 @10	O RING @10	1
3	818764	衬套	BUSHING	2
4	816039	隔套	SPACER	1
5	87735	油封(下)	SEAL Oil (LOWER)	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	816432	止推垫片	THRUST WASHER	1
9	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
9	878182T	轭架底部-不锈钢	YOKE Bottom - Stainless Steel	1
9	86580A2	底部轭架总成	YOKE ASSEMBLY Bottom	1
9	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
10	67684	挡圈	RING Retaining	1
11	996301	冲击板	STRIKER PLATE	2
11	8M0045383	冲击板	STRIKER PLATE	2
12	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
13	46335	螺母 (.375-24)	NUT (.375-24)	2
14	64014	螺钉(0.250-28x0.500)(1/4-28x1/2英寸)	SCREW (.250-28 x .500) (1/4-28 X 1/2 IN.)	2
15	NSS	不单独销售-序列号覆膜标贴	NOT SOLD SEPARATE Decal-Serial Overlaminate	1
16	821180A6	调整传感器总成	SENDER ASSEMBLY Trim	1
16	8M0074846	ORDER 8M0098273	ORDER 8M0098273	1
17	852368	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
18	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
19	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
20	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
20	826432A2	转向臂旋转销总成-不锈钢	SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel	1
20	67706A56	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
20	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
21	78689	螺钉(0.437-20x7.50)(7/16-20x7-1/2英寸)	SCREW (.437-20 x 7.50) (7/16-20 X 7-1/2 IN.)	2
21	8M0176309	螺钉	SCREW	2
22	888821	缓冲垫	BUMPER	1
22	8M0000516	上轭缓冲垫	BUMPER Top Yoke	1
23	77326	支架	MOUNT	2
24	66921	垫圈	WASHER	2
25	814432	垫圈	WASHER	2
25	78688	垫圈	WASHER	2
26	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
26	8M0204653	螺母	NUT	2
27	92876A1	转向连杆总成	LINK ASSEMBLY Steering	1
27	92876A12	连杆总成	LINK ROD ASSEMBLY	1
28	14000	螺钉(0.375-24x1.25)(3/8-24x1-1/4英寸)	SCREW (.375-24 x 1.25) (3/8-24 X 1-1/4 IN.)	1
28	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
29	34863	螺母 (.375-24)	NUT (.375-24)	2
29	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
30	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
31	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
31	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

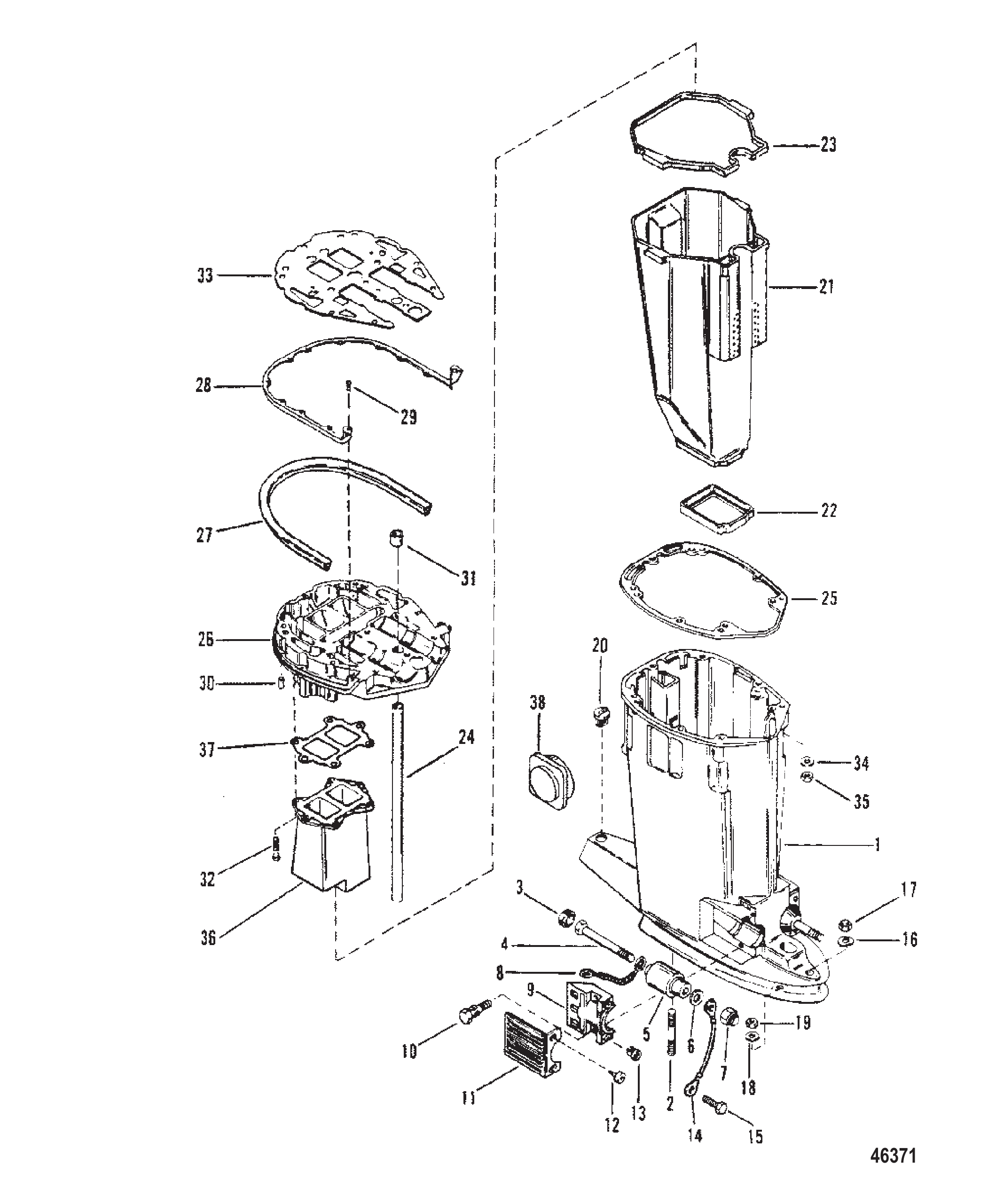

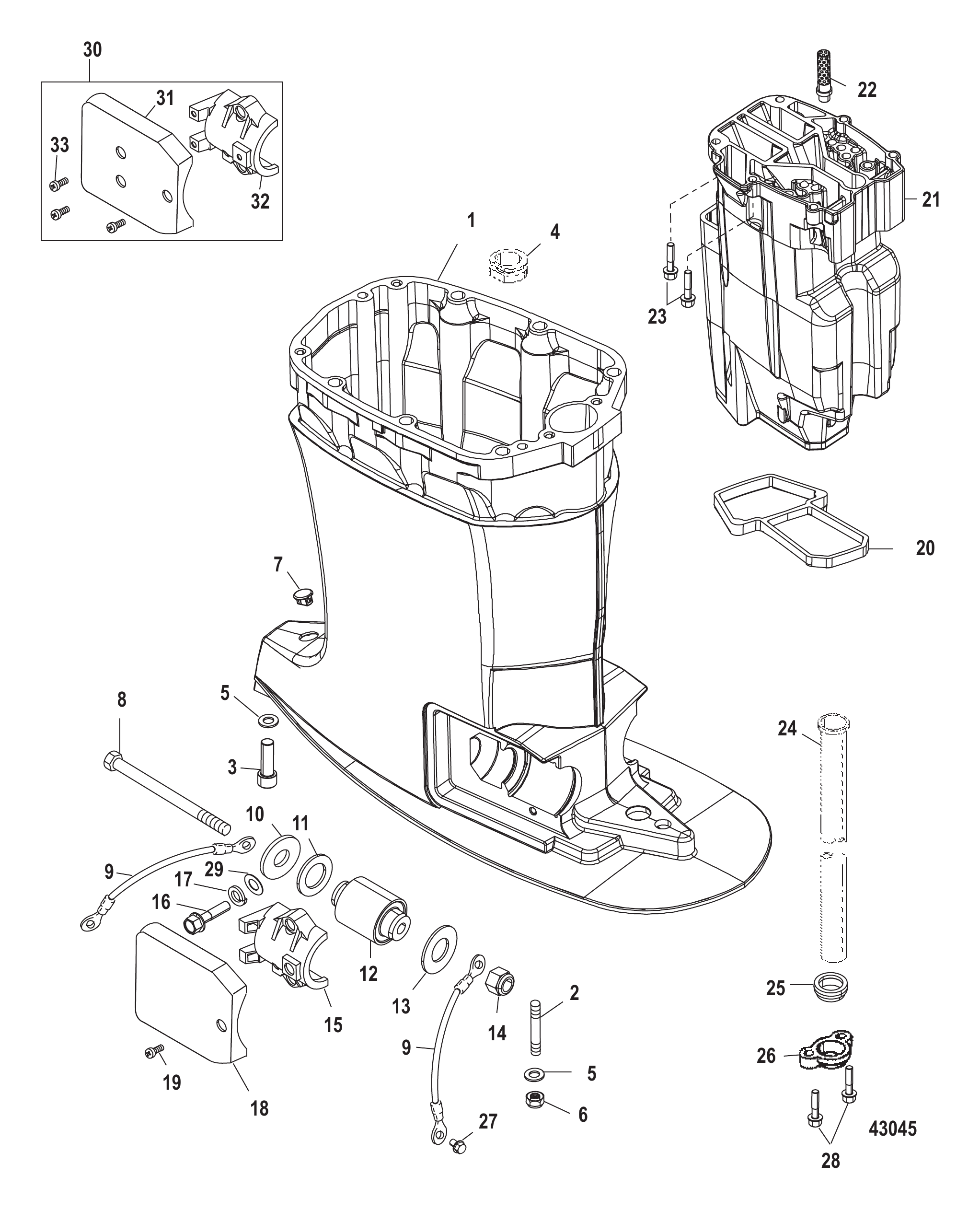

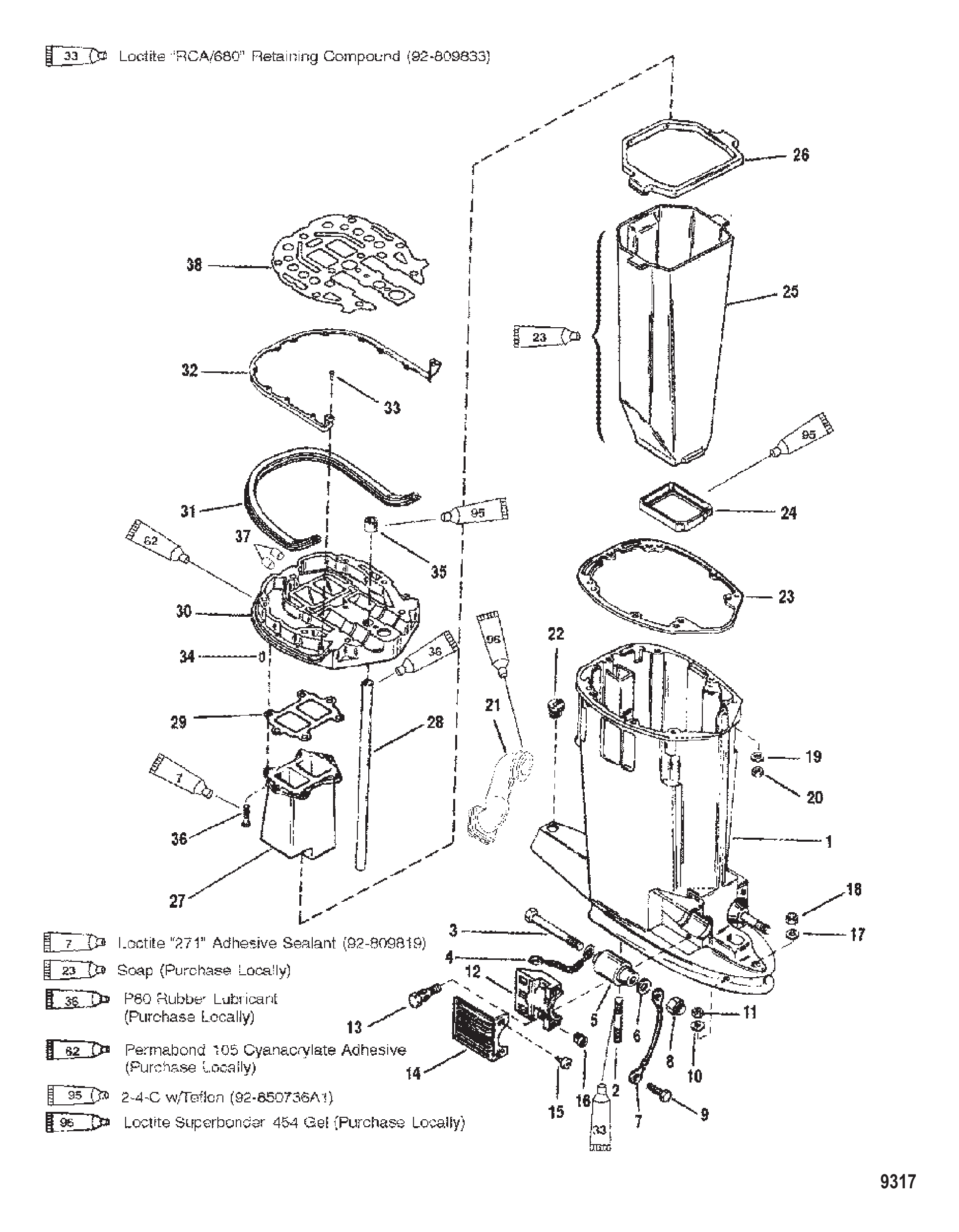

图 14驱动轴壳体和排气管 DRIVE SHAFT HOUSING AND EXHAUST TUBE

REF	零件编号	中文名称	英文名称	数量
1	8343A7	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	56295	驱动轴壳体/齿轮箱壳体双头螺柱(.437 x 2.69)	STUD (.437 x 2.69) DRIVE SHAFT HSG./GEAR HSG.	2
3	25067	下安装座螺钉缓冲垫	BUMPER LOWER MOUNT SCREW	2
4	63474	下安装座螺钉(.500-20 x 6.00)	SCREW (.500-20 x 6.00) LOWER MOUNT	2
4	898831	螺钉(.500-20 x 6.220)	SCREW (.500-20 x 6.220)	2
5	78249	下支架	MOUNT LOWER	2
5	77327	支架	MOUNT	2
6	49339	下部安装螺钉垫圈(.8125)	WASHER (.8125) LOWER MOUNT SCREW	2
7	25096	下安装螺丝螺母	NUT LOWER MOUNT SCREW	2
8	88238A1	接地线总成	CABLE ASSEMBLY Ground	1
8	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
9	67076	下安装夹	CLAMP LOWER MOUNT	2
9	8M0036782	卡箍	CLAMP	2
10	66727	螺钉 (.312-18 x 1.250) 下部支架夹固定 (1-1/4")	SCREW (.312-18 x 1.250) LOWER MOUNT CLAMP ATTACHING (1-1/4")	4
11	67077	下安装夹盖	COVER LOWER MOUNT CLAMP	2
11	8M4500752	盖板	COVER	2
12	88417	螺钉 (#12-24 x .620) 盖固定 (5/8")	SCREW (#12-24 x .620) COVER ATTACHING (5/8")	4
13	35521	螺母尼龙-盖至夹螺钉	NUT NYLON-COVER TO CLAMP SCREW	4
14	88238A2	接地线总成	CABLE ASSEMBLY Ground	1
14	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
15	41508	螺丝(.250-20 x .500)不锈钢接地线	SCREW (.250-20 x .500) Stainless Steel GROUND WIRE	1
16	48926	齿轮箱壳体螺柱垫圈	WASHER GEAR HOUSING STUD	1
17	29489	齿轮箱壳体螺柱盖形螺母	NUT GEAR HOUSING STUD (CAP)	1
18	45176	齿轮箱壳体螺柱不锈钢垫圈(.453 x .812 x .105)	WASHER (.453 x .812 x .105) Stainless Steel GEAR HOUSING STUD	2
19	34933	齿轮箱壳体螺柱不锈钢螺母(.437-20)	NUT (.437-20) Stainless Steel GEAR HOUSING STUD	2
19	8M0204653	螺母	NUT	2
20	64649	驱动轴壳体塞	PLUG DRIVE SHAFT HOUSING	1
21	89743	排气管	TUBE Exhaust	1
22	66350	密封排气管-下部	SEAL EXHAUST TUBE-LOWER	1
22	66350001	密封件	SEAL	1
23	86027	密封排气管-上部	SEAL EXHAUST TUBE-UPPER	1
24	67295	水管 WATER	TUBE Water WATER	1
24	8M0042788	长型水管	TUBE-WATER-LONG	1
25	991731	驱动轴壳体至板衬垫	GASKET DRIVE SHAFT HOUSING TO PLATE	1
25	991734	衬垫	GASKET	1
26	41945A7	驱动轴壳体板总成	PLATE ASSEMBLY DRIVE SHAFT HOUSING	1
27	183982	支架密封条	SEAL BRACKET	1
27	8M0043165	密封件-27.00英寸	SEAL-27.00 INCH	1
28	68011	密封件固定支架	BRACKET SEAL RETAINING	1
29	812832	螺钉 (#10-16 x .500) 支架至板 (1/2")	SCREW (#10-16 x .500) BRACKET TO PLATE (1/2")	12
29	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
30	20033	定位销	PIN Dowel LOCATING	2
30	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
31	38970	水管密封件	SEAL WATER TUBE	1
32	90192	延伸件至板不锈钢螺钉(.250-20 x .750)	SCREW (.250-20 x .750) Stainless Steel EXTENSION TO PLATE	6
33	991771	衬垫	GASKET	1
33	991772	衬垫	GASKET	1
34	25970	动力头螺柱垫圈	WASHER POWER HEAD STUD	4
34	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	4
35	69254	动力头螺柱螺母	NUT POWER HEAD STUD	4
36	41941	扩散器排气	DIFFUSER EXHAUST	1
36	41941T	排气扩散器	DIFFUSER Exhaust	1
37	78246	排气延长管衬垫	GASKET EXHAUST EXTENSION	1
37	782461	衬垫	GASKET	1
38	814630	塞怠速泄压	PLUG IDLE RELIEF	1
-	14697A87	衬垫套件	GASKET SET

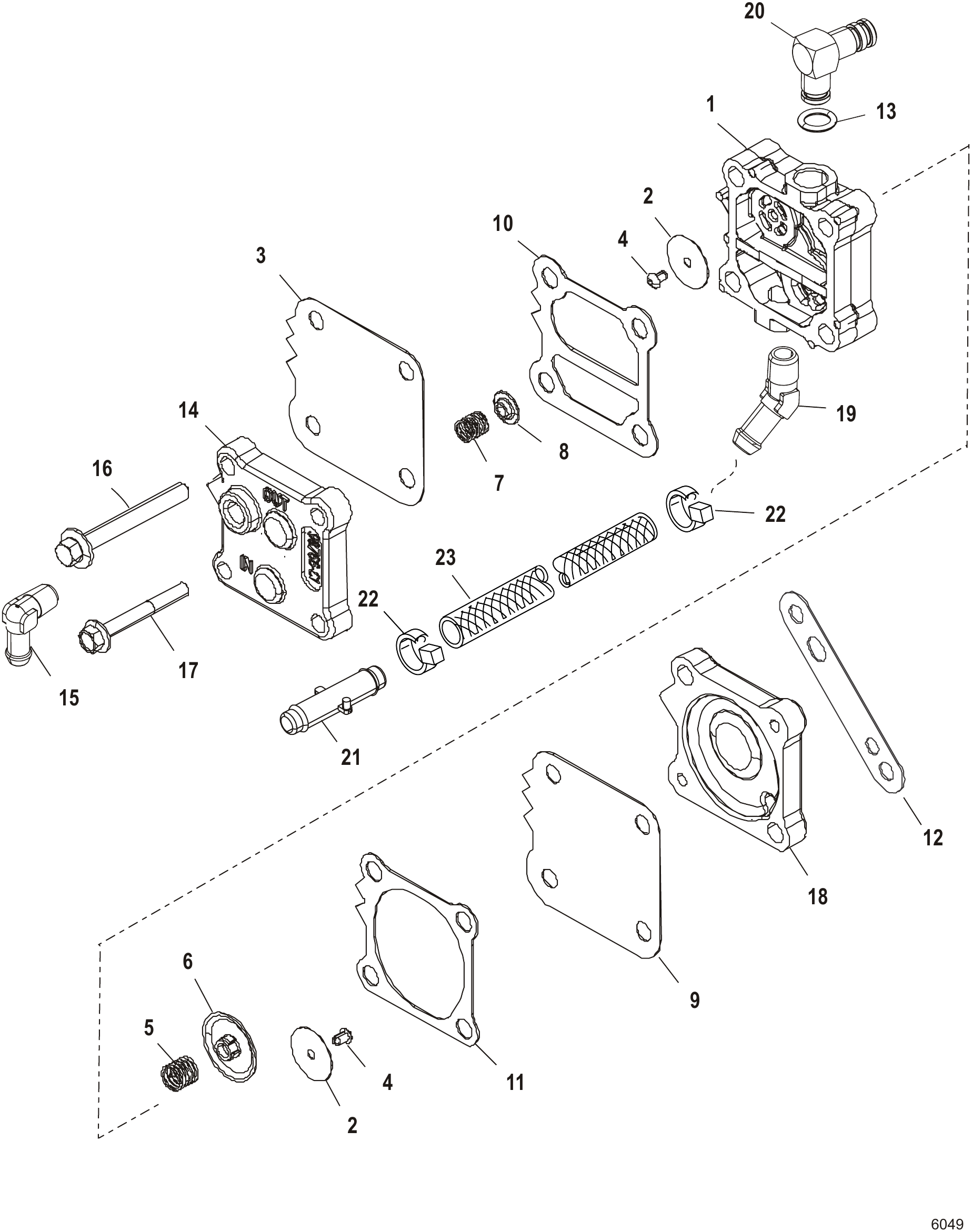

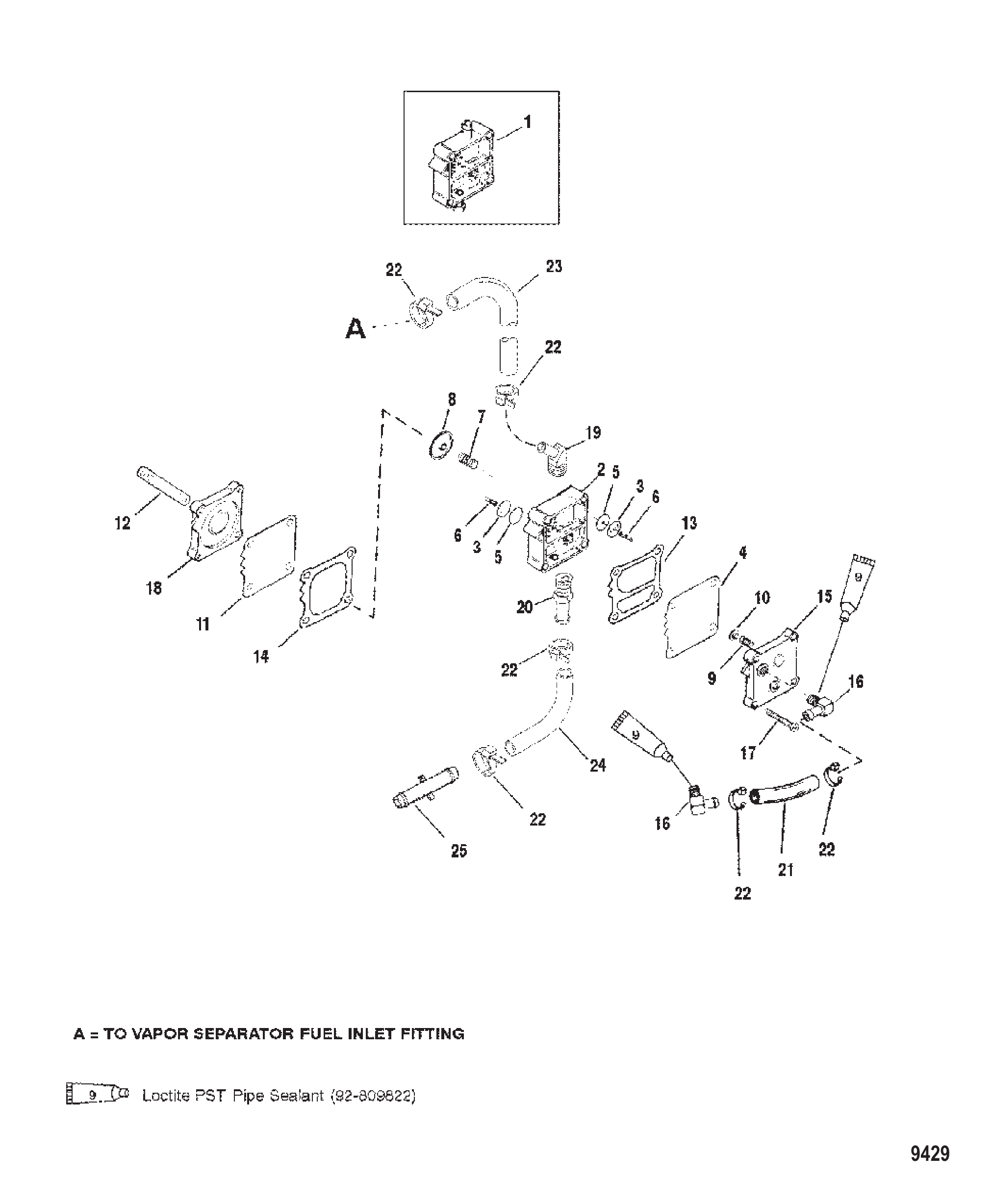

图 15燃油泵 FUEL PUMP

REF	零件编号	中文名称	英文名称	数量
1	NSS	不单独销售燃油泵	NOT SOLD SEPARATE Fuel Pump	1
2	14360A53	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	14360T75	燃油泵总成	PUMP ASSEMBLY Fuel	1
3	42990A10	膜片组件	DIAPHAGM KIT	2
3	857005A1	膜片组件	DIAPHRAGM KIT	2
4	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
5	NSS		NOT SOLD SEPARATE Rubber Check Valve	2
6	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
10	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
11	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
12	987691	衬垫	GASKET	1
12	8M0204705	衬垫@2	GASKET @2	1
13	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
14	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
15	987752	安装板	PLATE	1
16	996641	弯头	ELBOW	2
16	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	2
17	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
17	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2
18	144303	底座	BASE	1
19	78279	弯头（45度）	ELBOW (45 DEGREES)	1
19	8M0207781	弯头	ELBOW	1
20	291111	接头	FITTING	1
20	291112	接头	FITTING	1
21	83075780	管材(28.00英寸散装)	TUBING (28.00 Inches Bulk)	1
21	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
22	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
22	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
23	856822A1	管材(带绝缘套管)(7英寸)	TUBING (W/INSULATING SLEEVE) (7 IN.)	1
23	8M0064784	成型脉冲软管	HOSE,MOLDED,PULSE	1
24	856822A2	软管套管总成(18.00英寸)	HOSE AND SLEEVE ASSEMBLY (18.00 Inches)	1
24	8M0043979	软管套管总成	HOSE AND SLEEVE ASSEMBLY	1
25	822769	连接器	CONNECTOR	1
-	814754A98	衬垫套件	GASKET SET	1
-	8M0046714	衬垫套件	GASKET SET	1
-	854008A98	动力头总成	POWERHEAD ASSEMBLY	1
-	804545T99	动力头总成	POWERHEAD ASSEMBLY	1

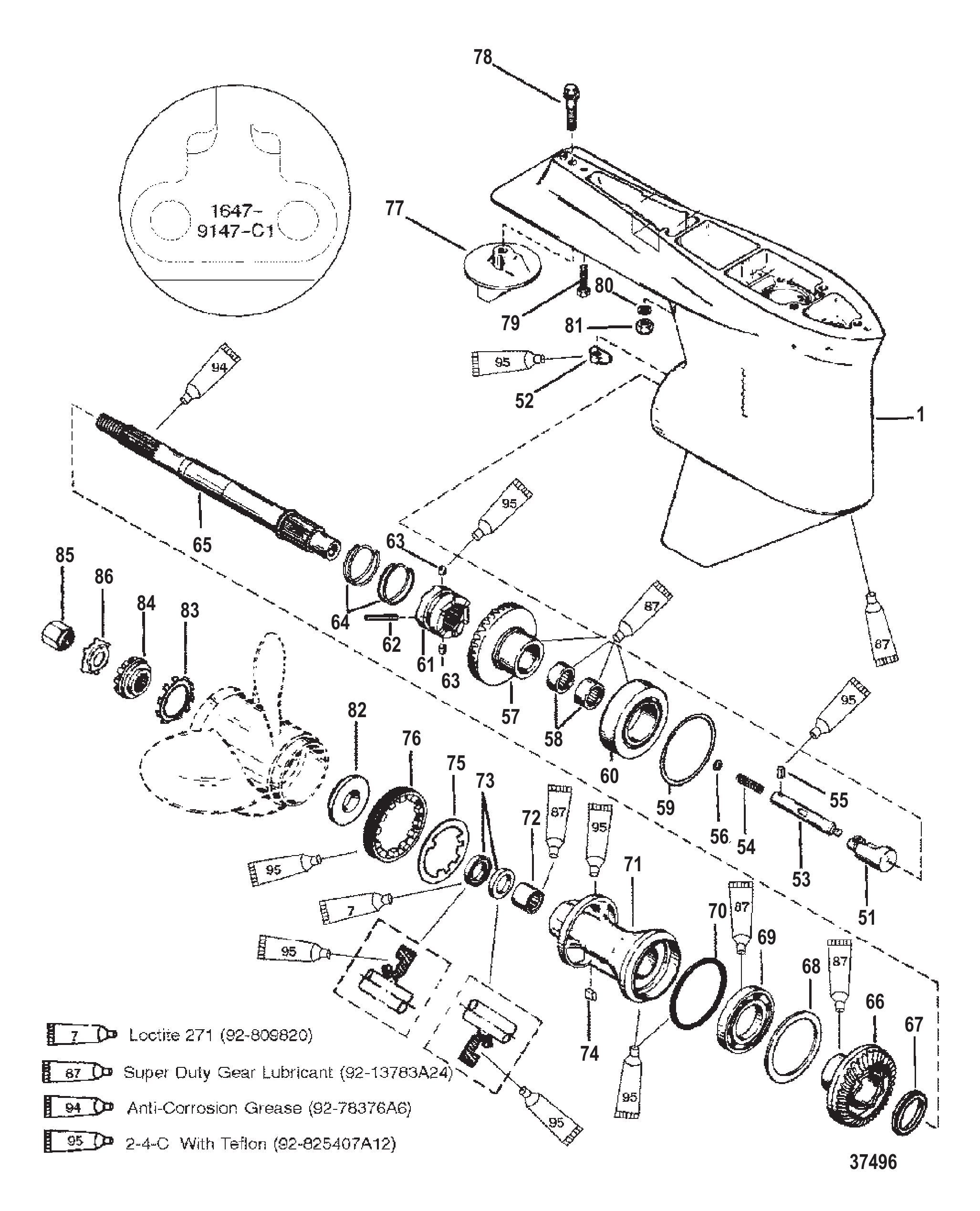

图 16齿轮箱（螺旋桨）（逆时针旋转）（序列号0G437999及以下） GEAR HSG (PROP)(CNTR ROTATION) (S/N-0G437999, BELOW)

REF	零件编号	中文名称	英文名称	数量
1	9148A47	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148A48	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
51	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
52	789562	换挡凸轮	SHIFT CAM	1
53	799111	杆	ROD	1
53	79911A1	杆	ROD	1
54	78906	销	PIN	1
54	8M0084245	弹簧定位销	PIN Spring Locator	1
55	79910	弹簧	SPRING	2
56	78910	垫圈	WASHER	AR
57	14469	轴承杯	CUP Bearing	1
57	14469T	轴承杯	CUP Bearing	1
58	88957	滚珠轴承总成	BEARING ASSEMBLY Ball	1
58	88957T	滚珠轴承	BEARING Ball	1
59	NSS	不单独出售-倒档齿轮(属于43-18475A1部件)	NOT SOLD SEPARATE REVERSE GEAR (PART OF 43-18475A1)	1
60	15844	滚柱轴承总成	BEARING ASSEMBLY Roller	1
61	823174	离合器	CLUTCH	1
61	823174T	ORD 8M0100493	ORD 8M0100493	1
62	78909	定位销	PIN Detent	2
63	78905	十字销	PIN Cross	1
63	8M0084243	十字销	PIN Cross	1
64	78962	弹簧	SPRING	2
65	18475A1	前进齿轮总成	GEAR ASSEMBLY Forward	1
65	18475T1	齿轮组	GEAR SET	1
66	176151	调整垫片(.125)	SPACER SHIM (.125)	AR
66	176152	调整垫片(.127)	SPACER SHIM (.127)	AR
66	176153	调整垫片(.129)	SPACER SHIM (.129)	AR
66	176154	调整垫片(.131)	SPACER SHIM (.131)	AR
66	176155	调整垫片(.133)	SPACER SHIM (.133)	AR
66	176156	调整垫片(.135)	SPACER SHIM (.135)	AR
66	176157	调整垫片(.137)	SPACER SHIM (.137)	AR
66	176158	调整垫片(.139)	SPACER SHIM (.139)	AR
66	176159	调整垫片(.141)	SPACER SHIM (.141)	AR
66	1761510	调整垫片(.143)	SPACER SHIM (.143)	AR
66	1761511	调整垫片(.145)	SPACER SHIM (.145)	AR
66	1761512	调整垫片(.147)	SPACER SHIM (.147)	AR
66	1761513	调整垫片(.149)	SPACER SHIM (.149)	AR

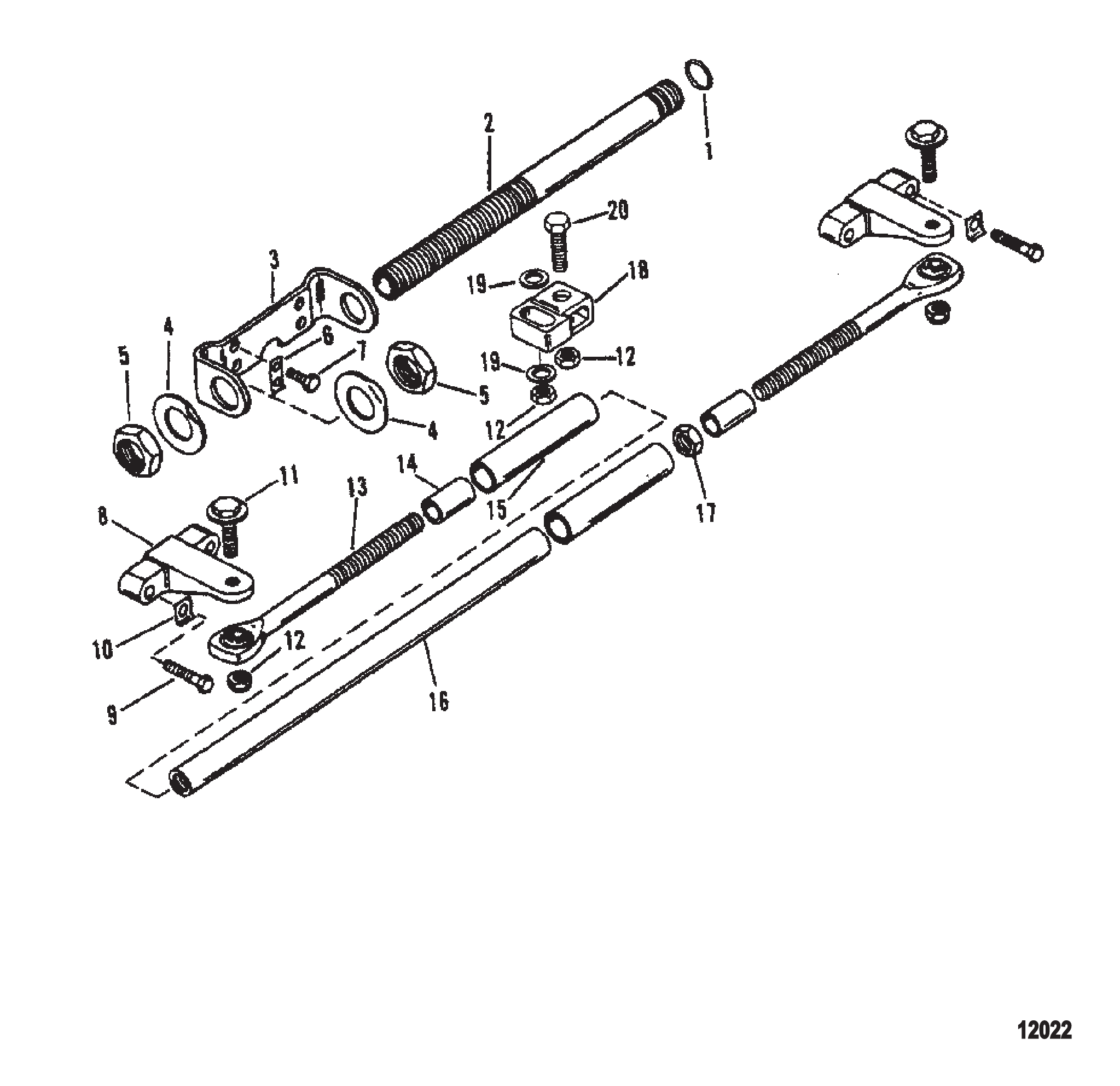

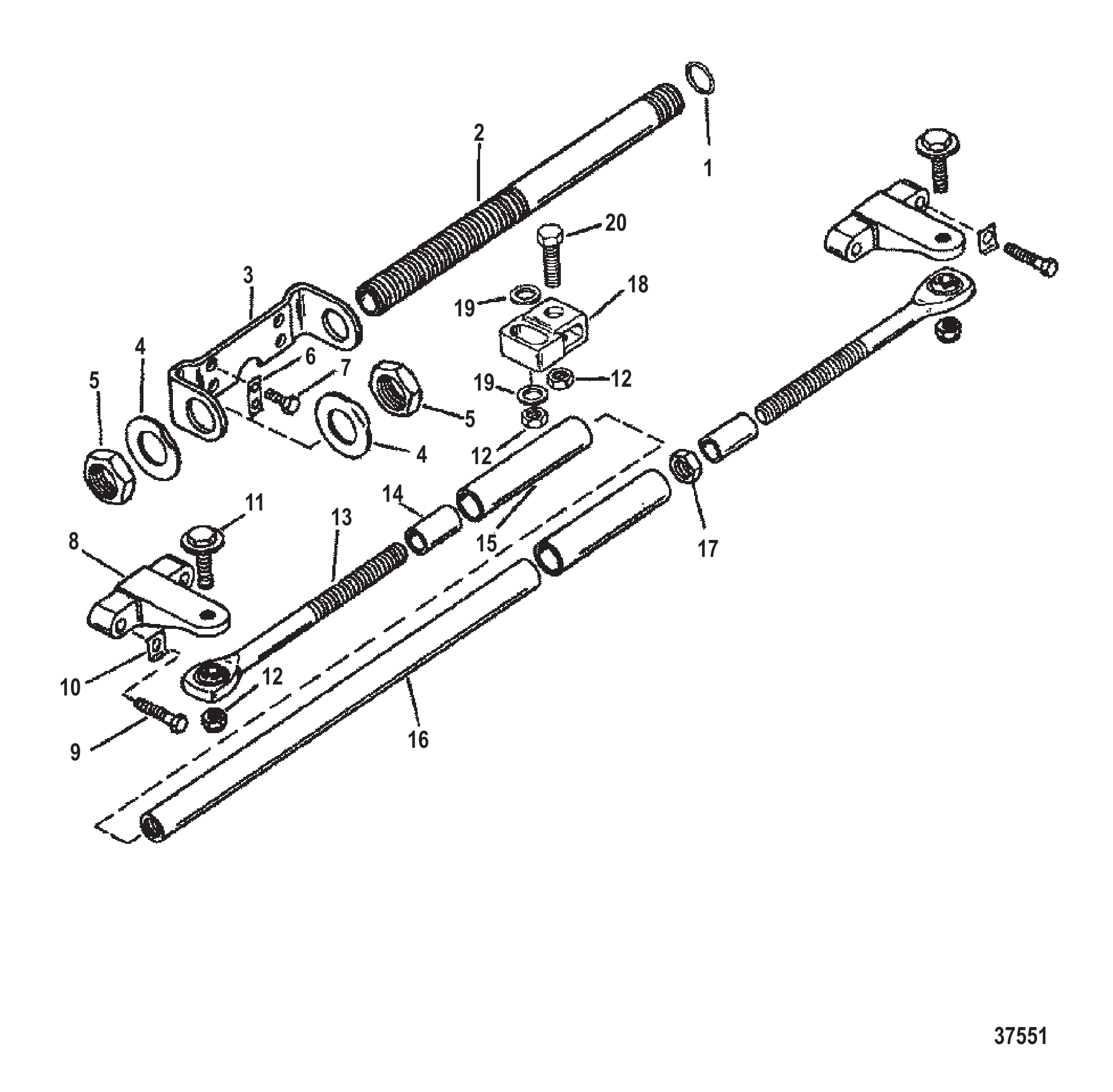

图 17双机延伸套件 DUAL ENGINE EXTENSION KIT

REF	零件编号	中文名称	英文名称	数量
-	92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
1	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
2	71565A2	管总成	TUBE ASSEMBLY	1
3	41055	支架	MOUNT	1
4	42100	锁紧垫圈	TAB WASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	88404	锁紧垫圈	TAB WASHER	2
7	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
8	17729A1	支架	BRACKET	2
9	62055	螺钉(.312-24 x 1.250)	SCREW (.312-24 x 1.250)	4
10	17728	锁紧垫圈	TAB WASHER	4
11	140001	螺钉(0.375-24×1.38)	SCREW (.375-24 x 1.38)	4
12	34863	螺母 (.375-24)	NUT (.375-24)	6
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	6
13	979331	转向眼环	STEERING EYE	2
13	8M0026167	转向眼环	STEERING EYE	2
14	23651	衬套(1.625)	SLEEVE (1.625)	2
15	97931	管材(4.00英寸)	TUBING (4.00 Inches)	2
16	8149513	联轴器(15.00英寸)	COUPLER (15.00 Inches)	1
16	8M0026098	联轴器15英寸	COUPLER 15 In.	1
17	42099	螺母(.562-18)	NUT (.562-18)	1
18	821169	联轴器	COUPLING	1
19	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	2
20	94319	螺钉(.375-24 x 1.5)	SCREW (.375-24 x 1.5)	1

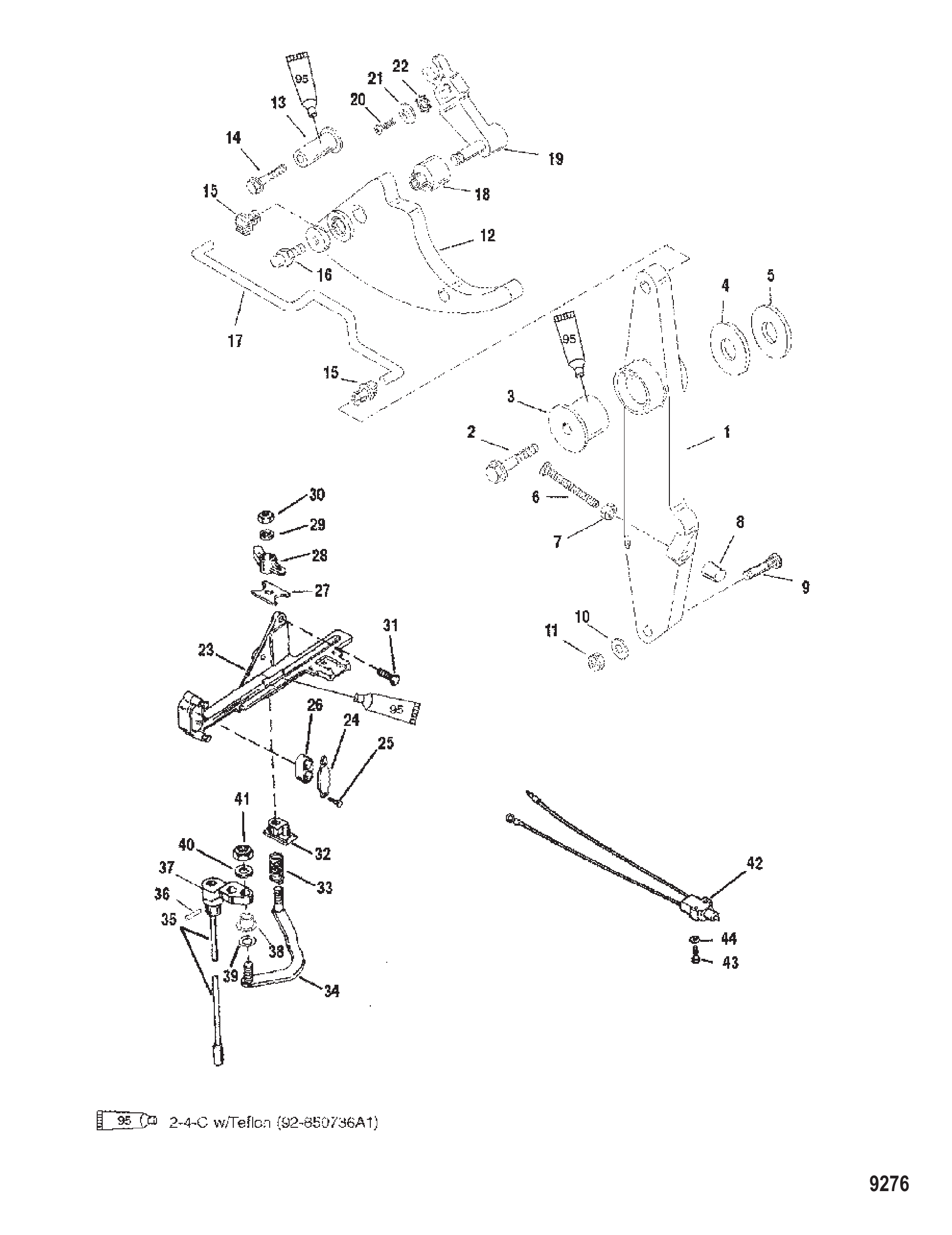

图 18油门杆与换挡轴 THROTTLE LEVER AND SHIFT SHAFT

REF	零件编号	中文名称	英文名称	数量
1	850389	杠杆	LEVER	1
2	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
3	55164	衬套	BUSHING	1
4	74759	垫圈(0.391x0.880x0.125)不锈钢	WASHER (.391 x .880 x .125) Stainless Steel	1
5	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	1
6	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
7	64015	螺母 (.250-20)	NUT (.250-20)	1
8	26852	尼龙帽	CAP Nylon	1
9	42927	嵌件	INSERT	1
10	35459	垫圈	WASHER	1
11	8268336	螺母 (M6)	NUT (M6)	1
11	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
12	8503931	凸轮	CAM	1
12	856221A1	凸轮套件	CAM KIT	1
13	852970	衬套	BUSHING	1
14	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	1
15	932481	衬套	BUSHING	2
15	8M0215006	旋转衬套	BUSHING Swivel	2
16	8235694	螺纹球头	BALL Threaded	1
17	850815	连接杆	LINK	1
17	8508152	杆	ROD	1
18	67748	滚轮	ROLLER	1
19	850286	油门滚轮	ROLLER Throttle	1
19	8502861	杠杆	LEVER	1
20	40056107	螺钉(M5×16)	SCREW (M5 x 16)	1
21	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	1
22	69432	外锁紧垫圈(#10)	LOCKWASHER External (#10)	1
23	8142831	锚支架	BRACKET Anchor	1
23	814283T6	锚支架总成	BRACKET ASSEMBLY Anchor	1
24	98889	闩锁	LATCH	1
25	42975	传动螺钉	DRIVE SCREW	2
26	39519	杯套	CUP	1
27	52100	耐磨板	WEAR PLATE	1
28	38279	闩锁	LATCH	1
28	8M0036768	闩锁	LATCH	1
29	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
30	35045	螺母(.250-28)	NUT (.250-28)	1
30	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
31	28782	螺钉(.312-18 x .880)不锈钢	SCREW (.312-18 x .880) Stainless Steel	3
32	814284	导向块	GUIDE BLOCK	1
33	20099	弹簧	SPRING	1
34	67073A1	连杆总成	LINK ROD ASSEMBLY	1
35	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
35	79932A17	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
36	NSS	弹性销(不单独销售)	NOT SOLD SEPARATE Roll Pin	1
37	NSS	不单独销售-换挡轴上杆	NOT SOLD SEPARATE Shift Shaft Lever-Upper	1
38	26856	衬套	BUSHING	1
39	29720	波形垫圈	WAVE WASHER	1
40	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
41	35045	螺母(.250-28)	NUT (.250-28)	1
41	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
42	814281A2	开关	SWITCH	1
42	8M0052931	开关	SWITCH	1
43	77478	螺钉 (#6-32 x .875)	SCREW (#6-32 x .875)	2
44	27882	垫圈	WASHER	2

图 19专用工具 TOOLS SPECIAL

REF	零件编号	中文名称	英文名称	数量
-	815366A3	电池隔离器套件	ISOLATOR KIT Battery	1
-	58222A1	百分表工具	DIAL INDICATOR TOOL	1
-	89045	适配器	ADAPTER	1
-	890451	直流电压适配工具	ADAPTER TOOL Direct Voltage	1
-	52344	飞轮固定器工具(齿型)	FLYWHEEL HOLDER TOOL Teeth Type	1
-	73687A2	飞轮拉拔器套件	PULLER KIT Flywheel	1
-	849154T1	拉拔器总成	PULLER ASSEMBLY	1
-	99750A1	万用表	MULTI METER	1
-	24161	飞轮拉拔器盖工具	CAP TOOL Flywheel Puller	1
-	52024A1	开关总成	SWITCH ASSEMBLY	1
-	59339	维修用转速表	SERVICE TACHOMETER	1
-	892647A01	DMT万用表套件	MULTI-METER KIT DMT	1
-	850439T1	八腔测试仪	TESTER Eight Chamber	1
-	63998A1	单腔间隙工具	GAP TOOL Single Chamber	1
-	850439	火花测试器	SPARK TESTER	1
-	850439T1	八腔测试仪	TESTER Eight Chamber	1
-	14443A1	测试线束总成	HARNESS ASSEMBLY Test	1
-	99379	正时灯	TIMING LIGHT	1
-	29287	量规工具	GAUGE TOOL	1
-	55919	驱动头	DRIVER HEAD	1
-	52344	飞轮固定器工具(齿型)	FLYWHEEL HOLDER TOOL Teeth Type	1
-	73687A2	飞轮拉拔器套件	PULLER KIT Flywheel	1
-	849154T1	拉拔器总成	PULLER ASSEMBLY	1
-	90455	吊环	LIFTING EYE	1
-	904551	吊环	LIFTING EYE	1
-	77109A3	安装工具套件	INSTALLER KIT	1
-	52952A1	活塞销锁环拆卸工具	REMOVAL TOOL Piston Pin Lock Ring	1
-	52952T1	活塞销锁环拆卸工具	REMOVAL TOOL Piston Pin Lock Ring	1
-	74607A3	活塞销安装套件	INSTALLER KIT Piston Pin	1
-	65494	环压缩工具(2.0升)	COMPRESSOR TOOL Ring (2.0L)	1
-	65494T	环压缩工具	COMPRESSOR TOOL Ring	1
-	818773	活塞环压缩工具(2.5升)	COMPRESSOR TOOL Piston Ring (2.5L)	1
-	818773T	活塞环压缩工具(3.50)	COMPRESSOR TOOL Piston Ring (3.50)	1
-	24697	活塞环扩张工具	EXPANDER TOOL Piston Ring	1
-	30591A1	动力头支架工具	STAND TOOL Powerhead	1
-	30591T1	支架工具	STAND TOOL	1
-	24161	飞轮拉拔器盖工具	CAP TOOL Flywheel Puller	1
-	66274	扭矩扳手(0-150磅英寸)	TORQUE WRENCH (0-150 lb-in)	1
-	37241	通用拉拔板	PULLER PLATE Universal	1
-	112301	对正工具	ALIGNMENT TOOL	1
-	99750A1	万用表	MULTI METER	1
-	52915A6	测试仪表套件	TEST GAUGE KIT	1
-	74951	扳手	SPANNER WRENCH	1
-	63209	加热灯	HEAT LAMP	1
-	44487A1	调整杆导向器拆卸工具	REMOVER TOOL Trim Rod Guide	1
-	44487T1	调整杆导向器拆卸工具	REMOVER TOOL Trim Rod Guide	1
-	44486A1	调整杆拆卸工具	REMOVAL TOOL Trim Rod	1

图 20杂项 MISCELLANEOUS

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
10	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0027784	螺母	NUT	4
11	82671117	螺母(.500-20)	NUT (.500-20)	4
12	99629A2	杠杆总成	LEVER ASSEMBLY	1
12	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	830899	张力弹簧	SPRING Tension	1
14	65830	尼龙衬套	NYLINER	2
15	830900	压缩弹簧	SPRING Compression	1
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99617	销	PIN	1
18	893709	销	PIN	1

图 21燃油泵和燃油滤清器 FUEL PUMP AND FUEL FILTER

REF	零件编号	中文名称	英文名称	数量
1	15930A15	燃油泵套件	PUMP KIT Fuel	1
2	42990A6	膜片组件	DIAPHRAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve-Rubber	2
4	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
5	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
6	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
10	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
12	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
13	987691	底座衬垫	GASKET BASE	1
13	8M0204705	衬垫@2	GASKET @2	1
14	14868	燃油泵弯头接头	FITTING FUEL PUMP (ELBOW)	1
15	16604	直通接头(0.125-27)燃油泵	FITTING Straight (.125-27) FUEL PUMP	1
16	9912976	油管	TUBING	1
16	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
17	144303	燃油泵底座	BASE FUEL PUMP	1
18	98775A3	燃油泵板	PLATE FUEL PUMP	1
18	987752	安装板	PLATE	1
19	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
20	15979	接头	FITTING	1
21	16452	燃油泵螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) FUEL PUMP	2
22	4000310	燃油泵至曲轴箱螺钉(M5 x 40)	SCREW (M5 x 40) FUEL PUMP TO CRANKCASE	2
23	4002314	燃油泵螺钉垫圈	WASHER FUEL PUMP SCREW	2
24	9072925	脉冲软管	HOSE PULSE	1
25	99751	接头(0.0625-27)黄铜脉冲软管(90度)	FITTING (.0625-27) Brass PULSE HOSE (90 Degree)	1
25	997511	弯头	ELBOW	1
26	1350382	管材(30英寸散装)	TUBING (30.00 Inches Bulk)	2
26	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	2
27	816311		TIE STRAP (8.00 Inches) FUEL TUBING	AR
27	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
28	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
28	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
29	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
30	812782	密封件	SEAL	1
31	813657	支架	BRACKET	1
31	13170A3	底座	BASE	1
32	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
33	28668		SCREW (.250-20 x .875) Stainless Steel FUEL FILTER BASE	2
34	13170A1	燃油滤清器底座	BASE FUEL FILTER	1
34	13170A3	底座	BASE	1
35	13607	底座接头	FITTING BASE	2
35	136071	弯头	ELBOW	2
36	18458A1	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
36	18458Q3	燃油滤清器	FILTER-FUEL	1
37	14570		PROBE WATER SENSING	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

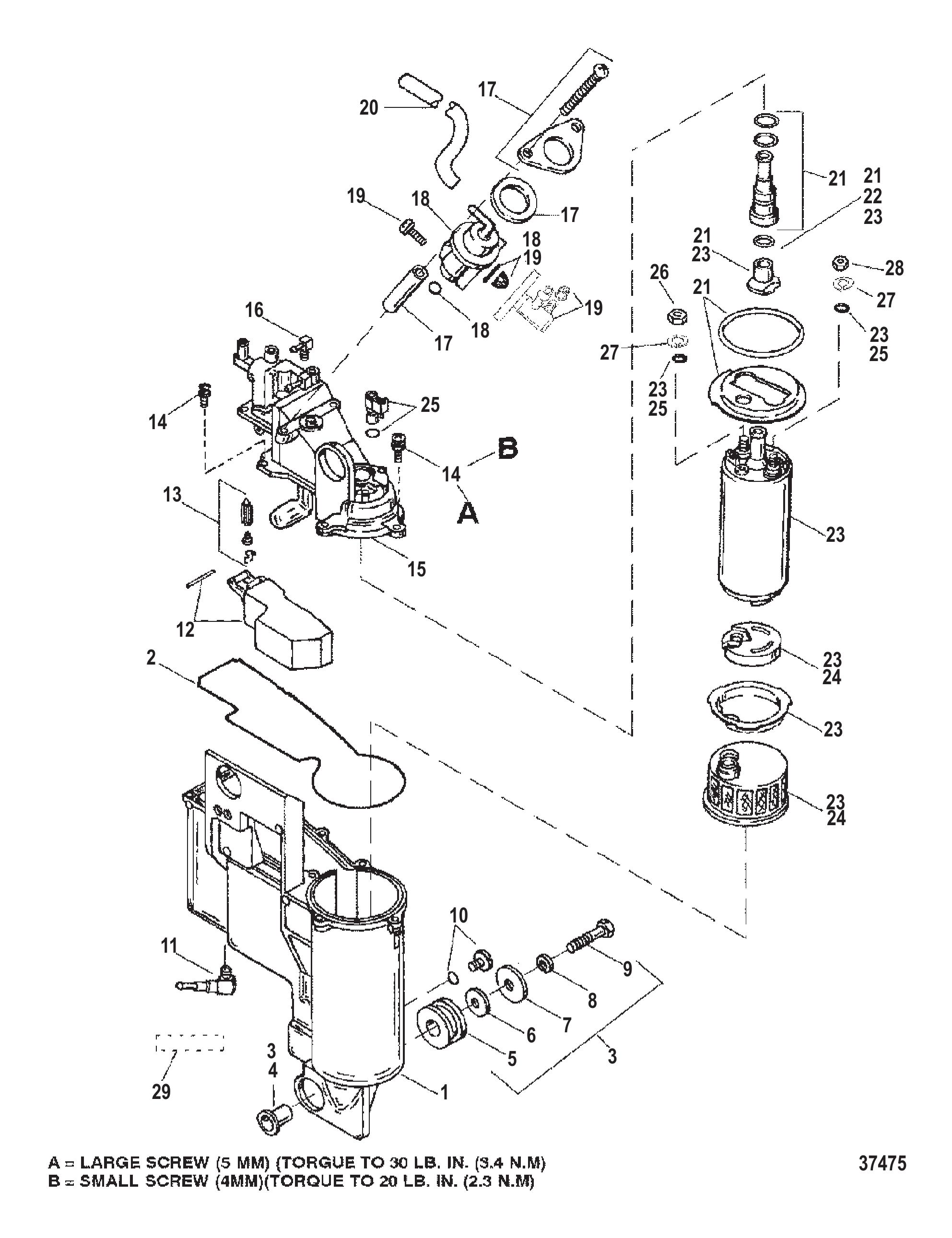

图 22燃油管理系统（蒸汽分离器） FUEL MANAGEMENT SYSTEM (VAPOR SEPARATOR)

REF	零件编号	中文名称	英文名称	数量
-	14817A23	燃油管理系统总成	MANAGEMENT ASSEMBLY Fuel	1
1	8140111	阀体套件	BODY KIT	1
2	809086	O型圈	O-RING	1
3	809092A1	安装螺钉套件	SCREW KIT Mounting	1
4	809078	轴环	COLLAR	1
5	809079	护孔环	GROMMET	3
5	88033	护孔环	GROMMET	3
6	8090622	垫圈	WASHER	3
7	8090621	垫圈	WASHER	3
8	809080	锁紧垫圈	LOCKWASHER	3
8	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	3
9	8090611	螺钉	SCREW	3
10	809091	螺钉套件	SCREW KIT	1
11	424811	阀门	VALVE	1
12	15445	浮子套件	FLOAT KIT	1
13	15446	浮子阀套件	VALVE KIT Float	1
14	8140762	螺钉套件	SCREW KIT	1
15	8140102	盖板套件	COVER KIT	1
16	8090851	弯头套件	ELBOW KIT	1
17	809087	安装套件	ATTACHING KIT	1
18	8140122	燃油压力调节器套件	REGULATOR KIT Fuel Pressure	1
19	814233A1	施拉德阀套件	SCHRADER VALVE KIT	1
19	814233A02	阀套件	VALVE KIT	1
20	8276943	管件套件	TUBING KIT	1
21	809089	燃油泵接头套件	FITTING KIT Fuel Pump	1
22	15029	O型圈及密封套件	O-RING AND SEAL KIT	1
23	8090881	燃油泵套件	PUMP KIT Fuel	1
23	809088T1	燃油泵套件	PUMP KIT Fuel	1
24	8085041	滤清器套件-燃油	STRAINER KIT Fuel	1
24	808504T1	滤网套件	STRAINER KIT	1
25	8090901	连接套件	CONNECTION KIT	1
26	8237515	螺母(M4)	NUT (M4)	1
27	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	2
28	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
29	85557713	EPA标签信息贴花	DECAL EPA Label Information	1
29	855577A13	REF SOB 09-18	REF SOB 09-18	1

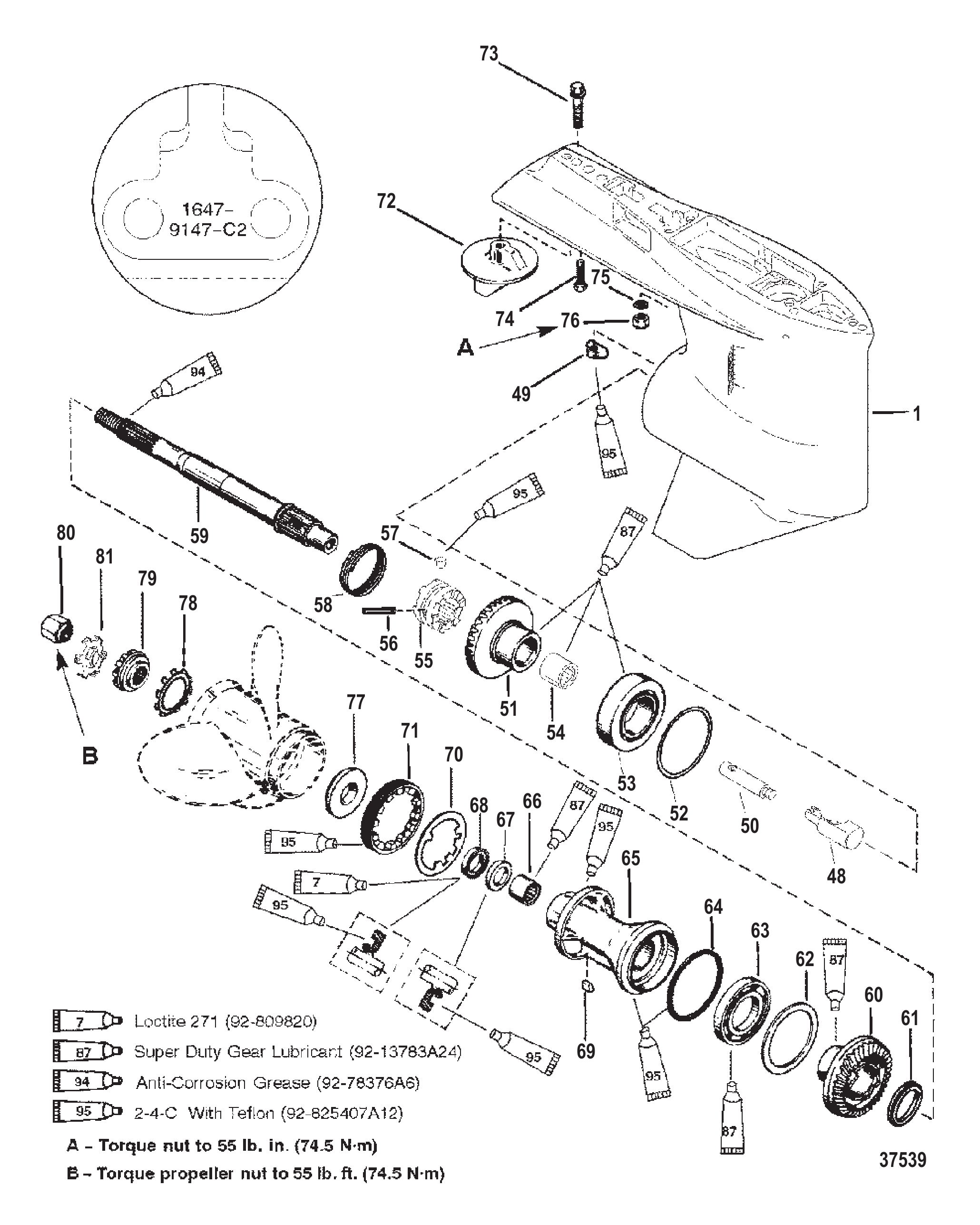

图 23齿轮箱（螺旋桨轴）（标准旋转）（序列号0G438000及以上） GEAR HSG (PROP SHAFT)(STD ROTATION) (S/N-0G438000, UP)

REF	零件编号	中文名称	英文名称	数量
1	9148A93	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148A94	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148T94	ORD 1647-9148T93	ORD 1647-9148T93	1
48	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
49	789562	换挡凸轮	SHIFT CAM	1
50	828287	杆	ROD	1
51	828174A2	齿轮组	GEAR SET	1
51	878613A2	前进齿轮总成 1.87:1 - 15/28齿	GEAR ASSEMBLY Forward 1.87:1 - 15/28	1
52	44491A1	垫片组(0.006-7-9-10-20)	SHIM SET (.006-7-9-10-20)	AR
52	8M0063266	垫片组	SHIM SET	AR
53	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
54	30895	滚针轴承	BEARING Needle	1
54	30895T	滚针轴承	BEARING Needle	1
55	828288	滑动离合器	SLIDING CLUTCH	1
55	859340T	离合器	CLUTCH	1
56	30632	十字销	PIN Cross	1
56	8M0100263	十字销	PIN Cross	1
57	828356	定位销	PIN Detent	1
58	30893	弹簧	SPRING	1
59	94148	螺旋桨轴	PROPELLER SHAFT	1
60	828175A1	倒车齿轮总成-15/28齿	GEAR ASSEMBLY Reverse - 15/28	1
61	824108	隔套	SPACER	1
62	681001	止推环	RING Thrust	1
63	88957	滚珠轴承总成	BEARING ASSEMBLY Ball	1
63	88957T	滚珠轴承	BEARING Ball	1
64	31534	O型圈	O-RING	1
64	8M0214920	O型圈	O RING	1
65	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
65	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
66	30956	滚针轴承	BEARING Needle	1
66	30956T	滚针轴承	BEARING Needle	1
67	14077	油封(内侧)	SEAL Oil (INSIDE)	1
68	76868	油封(外侧)	SEAL (OUTSIDE)	1
68	8M0248882	油封@5	SEAL-OIL @5	1
69	30281	键	KEY	1
70	79447	锁紧垫圈	TAB WASHER	1
71	79448	固定座	RETAINER	1
71	8M2011027	固定座	RETAINER	1
72	316405	平衡鳍板	TRIM TAB	1
72	8M0236553	平衡鳍板	TRIM TAB	1
72	76214A5	阳极套件	ANODE KIT	1
72	76214Q5	阳极套件	ANODE KIT	1
73	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
73	8M0204686	螺钉	SCREW	1
74	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
75	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
76	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
76	8M0204653	螺母	NUT	2
77	8354671	推力毂	THRUST HUB	1
77	835467Q01	止推垫片套件	THRUST WASHER KIT	1
78	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
79	31211A2	花键垫圈	WASHER Splined	1
79	31211Q03	垫圈总成	WASHER ASSEMBLY	1
80	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
80	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
81	816629	锁紧垫圈	TAB WASHER	1
81	816629Q	锁紧垫圈	TAB WASHER	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	89238A2	密封套件	SEAL KIT	1

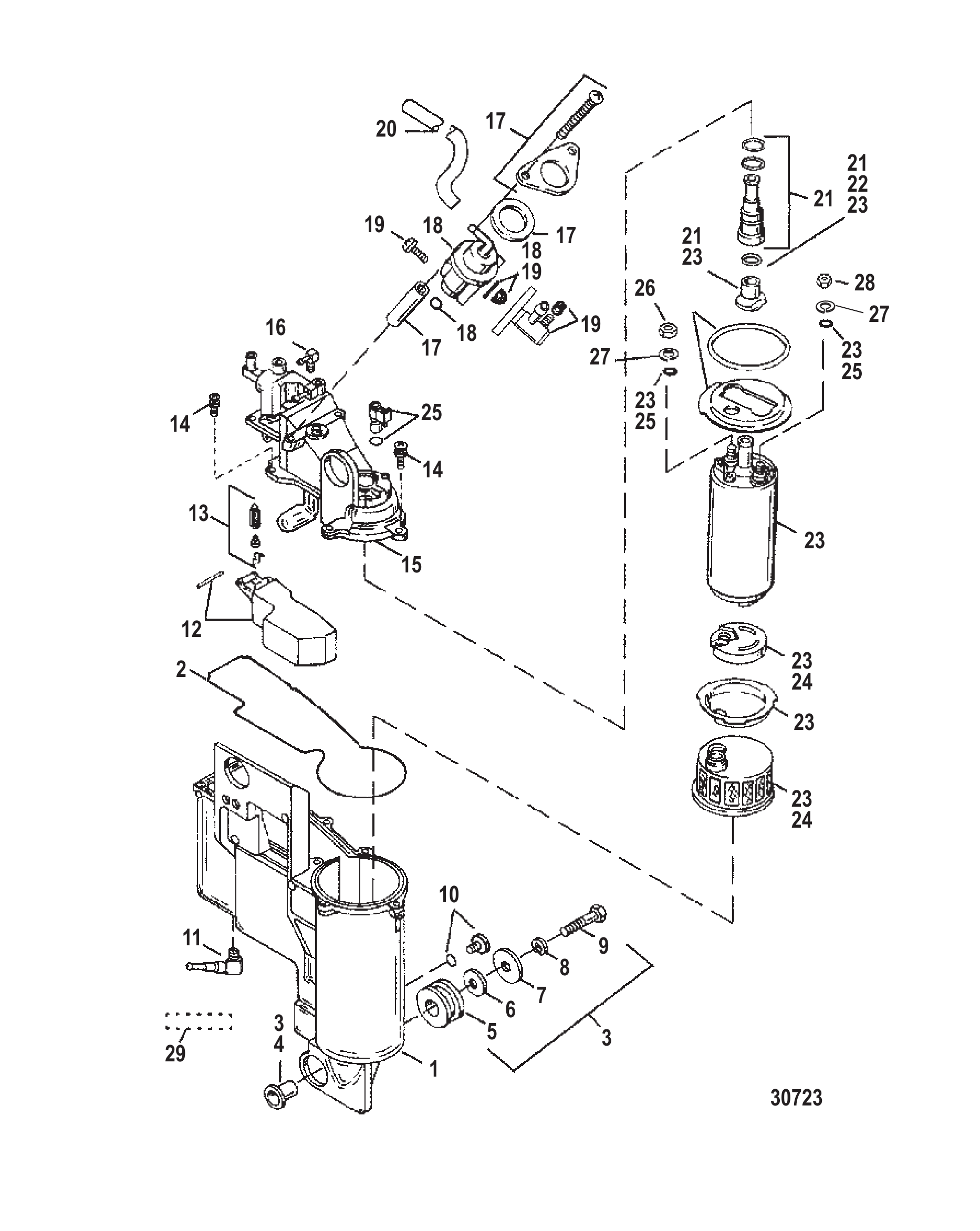

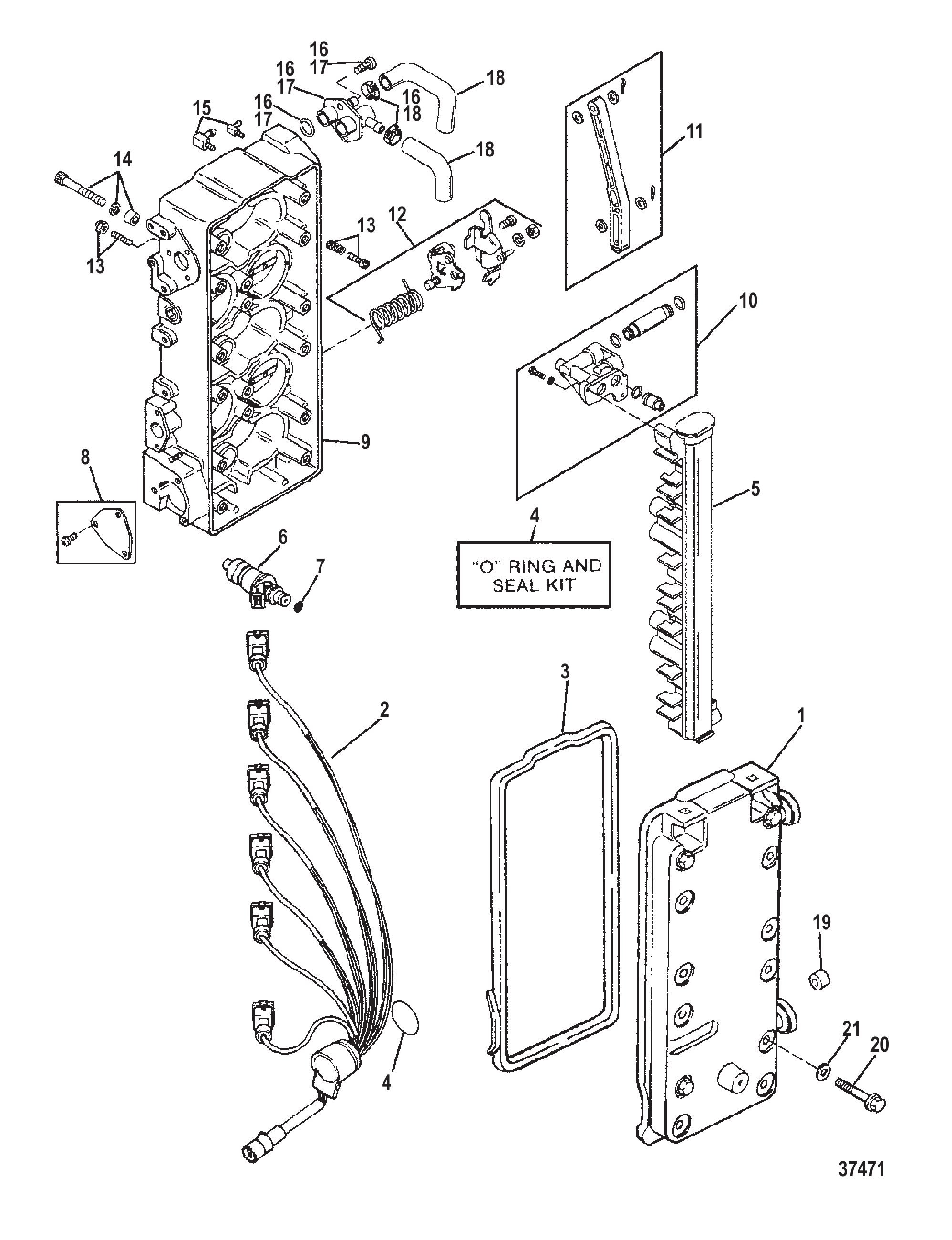

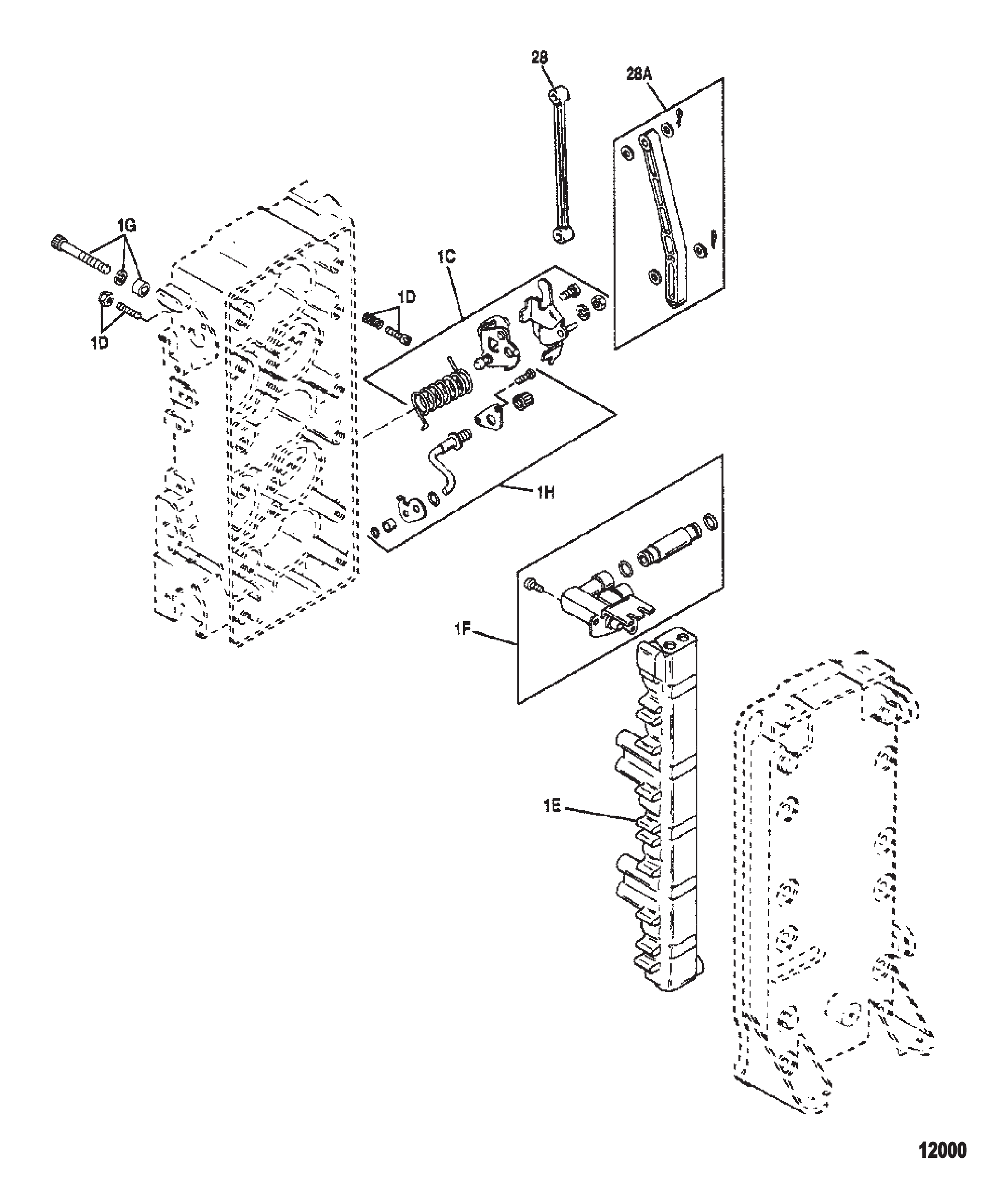

图 24燃油管理系统 Fuel Management System

REF	零件编号	中文名称	英文名称	数量
-	14817A23	燃油管理系统总成	MANAGEMENT ASSEMBLY Fuel	1
1	8276922	盖板	COVER	1
2	15443	线束套件	HARNESS KIT	1
3	18792	密封件	SEAL	1
4	15029	O型圈及密封套件	O-RING AND SEAL KIT	1
5	8276992	燃油导轨	FUEL RAIL	1
5	827699T2	燃油导轨	FUEL RAIL	1
6	18715	燃油喷油器	INJECTOR Fuel	6
6	18715T	喷油器总成	INJECTOR ASSEMBLY	6
7	17422	滤清器	FILTER	1
8	827696	固定套件	RETAINER KIT	1
9	8276933	节气门体	THROTTLE BODY	1
10	8090572	接头套件	JOINT KIT	1
11	8276891	连杆套件	LINK KIT	1
12	827697	连杆杠杆套件	LEVER KIT Link	1
13	827698	螺钉套件	SCREW KIT	1
14	8276981	螺钉套件	SCREW KIT	1
15	8090851	弯头套件	ELBOW KIT	1
16	814233A1	施拉德阀套件	SCHRADER VALVE KIT	1
16	814233A02	阀套件	VALVE KIT	1
17	8142332	FMA接头套件	FMA JOINT KIT	1
18	8276942	软管套件	HOSE KIT	1
18	827694A01	软管套件-燃油	HOSE KIT-FUEL	1
19	67748	滚轮	ROLLER	1
20	90088	螺钉(.250-20x4)	SCREW (.250-20 x 4)	12
20	845674	螺钉(.250-20x4.00)	SCREW (.250-20 x 4.00)	12
21	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	10
21	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	10

图 25电磁阀安装座 SOLENOID MOUNTING

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
10	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0027784	螺母	NUT	4
11	82671117	螺母(.500-20)	NUT (.500-20)	4
12	99629A2	杠杆总成	LEVER ASSEMBLY	1
12	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	830899	张力弹簧	SPRING Tension	1
14	65830	尼龙衬套	NYLINER	2
15	830900	压缩弹簧	SPRING Compression	1
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99617	销	PIN	1
18	893709	销	PIN	1

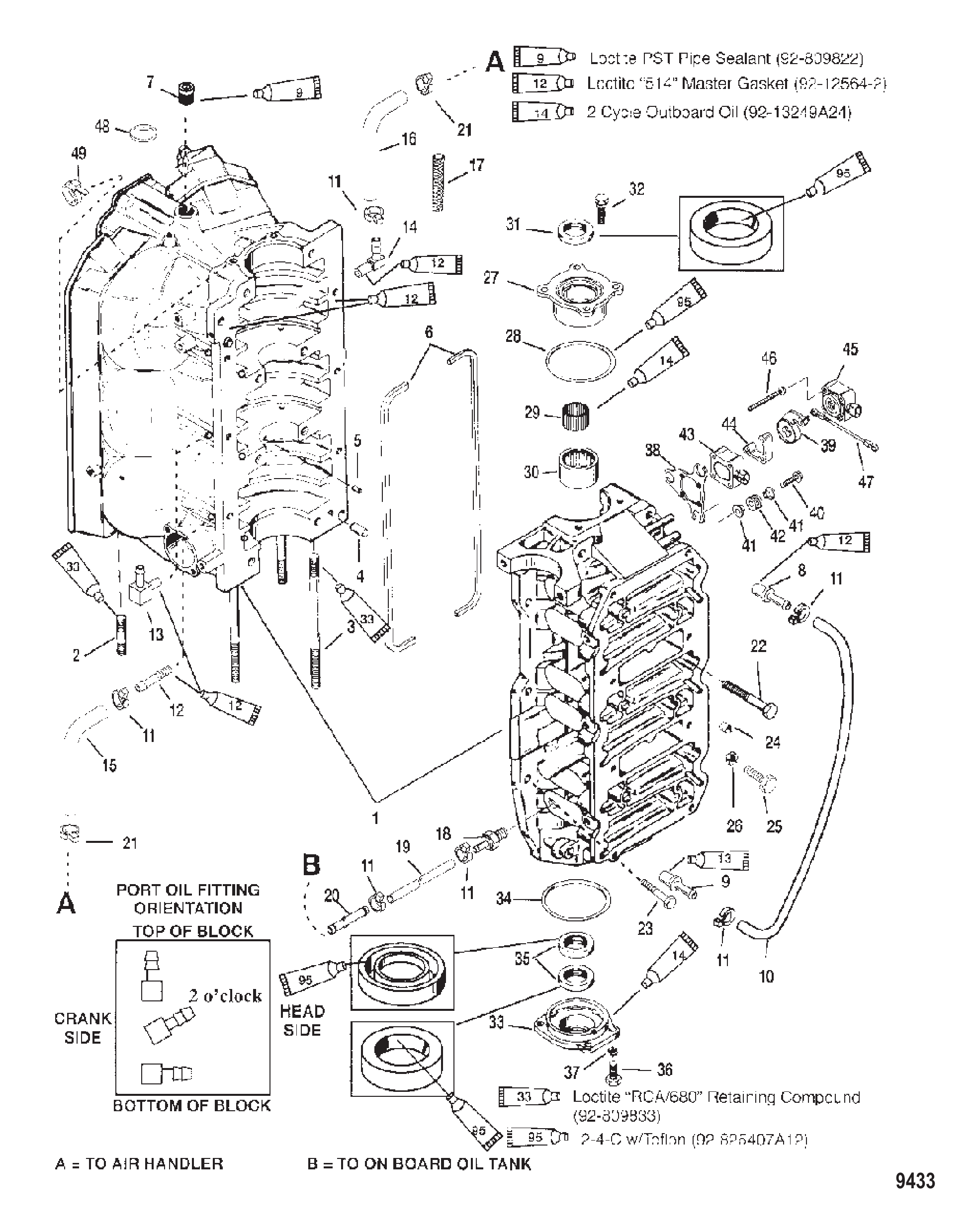

图 26气缸体与端盖 CYLINDER BLOCK AND END CAPS

REF	零件编号	中文名称	英文名称	数量
1	828340A5	气缸体	CYLINDER BLOCK	1
2	8181383	动力头螺柱（1-3/4英寸）	STUD Powerhead (1-3/4 IN.)	6
2	8M0034455	螺柱1.750	STUD 1.750	6
3	670653	双头螺柱（0.375×5.620英寸，5-1/2英寸）	STUD (.375 x 5.620) (5-1/2 IN.)	2
3	670654	螺柱(.375-16/.375-24 x 5.620)	STUD (.375-16/.375-24 x 5.620)	2
3	784384	双头螺栓(.375 x 6.870)(6-3/4英寸)	STUD (.375 x 6.870) (6-3/4 IN.)	2
3	8M0034454	螺柱(.375-16/.375-24 x 6.87)	STUD (.375-16/.375-24 x 6.87)	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	销(轴承座圈)	PIN (BEARING RACE)	2
5	8M0036405	销	PIN	2
6	11338	衬垫	GASKET	2
7	384071	接头(1/2-14)	FITTING (1/2-14) (1/2-14)	1
8	426231	止回阀	CHECK VALVE	1
8	426233	止回阀	CHECK VALVE	1
9	426981	止回阀	CHECK VALVE	1
9	426982	止回阀	CHECK VALVE	1
10	99130122	管材(20英尺整卷)(裁切为19英寸)	TUBING (20.00 Feet Bulk) (Cut to 19 Inches)	1
10	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
11	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	10
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	10
12	852760	直通接头	FITTING (STRAIGHT)	2
13	855622	弯头接头	FITTING (ELBOW)	1
14	8267611	弯头	ELBOW (ELBOW)	3
15	85583445	管材(16英寸)	TUBING (16 IN.)	2
15	85583464	管材 (34.00英寸整卷)	TUBING (34.00 Inches Bulk)	2
15	85583445	管材(20英寸)	TUBING (20 IN.)	1
15	85583464	管材 (34.00英寸整卷)	TUBING (34.00 Inches Bulk)	1
16	85606064	管材(36.00英寸整料)(24-1/2英寸)	TUBING (36.00 Inches Bulk) (24-1/2 IN.)	3
16	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	3
17	828547753	导管(.750内径x3.00英尺整料)(裁切至7英寸)	CONDUIT (.750 Inside Diameter x 3.00 Feet Bulk) (Cut to 7 Inches)	1
18	432781	止回阀	CHECK VALVE	1
18	8781051	止回阀	CHECK VALVE	1
19	830756109	软管(57.00英寸整料)(裁切至11-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 11-1/2 Inches)	1
19	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
20	822769	连接器	CONNECTOR	1
21	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	6
22	66717	螺钉(.375-16 x 3.250)	SCREW (.375-16 x 3.250)	8
23	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	6
24	26852	尼龙帽	CAP Nylon	1
25	856832	螺丝 (.250-20 x 1.750)	SCREW (.250-20 x 1.750)	1
26	64015	螺母 (.250-20)	NUT (.250-20)	1
27	832760A1	上端盖总成	END CAP ASSEMBLY Upper	1
27	832760T1	端盖总成	END CAP ASSEMBLY	1
28	54029	O型圈(2.800 x .103)	O-RING (2.800 x .103)	1
29	16756A4	轴承套件	BEARING KIT	1
30	NSS	不单独销售轴承座圈	NOT SOLD SEPARATE Bearing Race	1
31	41953	密封件	SEAL	1
32	69034	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW AND LOCKWASHER (.312-18 x 1.00)	4
32	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	4
33	7809A1	端盖总成	END CAP ASSEMBLY	1
33	7809T1	端盖总成	END CAP ASSEMBLY	1
34	62700	O型圈(3.237 x .103)	O-RING (3.237 x .103)	1
35	41953	密封件	SEAL	2
36	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
37	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
38	853882	支架	BRACKET	1
38	8538821	节气门位置指示器安装支架	BRACKET Throttle Position Indicator Mount	1
39	8519371	节气门位置指示器杠杆	LEVER Throttle Position Indicator	1
40	82130025	螺钉(M6x25)	SCREW (M6 x 25)	3
41	8318701	衬套	BUSHING	6
42	834985	护孔环	GROMMET	3
42	8M0190980	护孔环	GROMMET	3
43	8M6005905	节气门位置指示器(内侧)	INDICATOR Throttle Position (Inside)	1
44	850882	隔套	SPACER	1
45	8329522	节气门位置指示器(外侧)	INDICATOR Throttle Position (Outside)	1
45	8M6005166	TPI	TPI	1
46	850828	螺钉(#10-32 X 2-3/4英寸)	SCREW (#10-32 X 2-3/4 IN.)	3
47	1938541	油门连杆	LINK Throttle	1
47	8M0084738	连杆总成	LINK ASSY	1
48	NSS	不单独销售序列号塞	NOT SOLD SEPARATE Plug-Serial Number	1
49	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
49	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
-	814754A98	衬垫套件	GASKET SET	1
-	8M0046714	衬垫套件	GASKET SET	1
-	854008A98	动力头总成	POWERHEAD ASSEMBLY	1
-	804545T99	动力头总成	POWERHEAD ASSEMBLY	1

图 27杂项信息 MISCELLANEOUS INFORMATION

零件编号	中文名称	英文名称	数量
803177	零件手册150/175/200 EFI(2.5升)	PARTS MANUAL 150/175/200 EFI (2.5L)	1
10126990	用户手册	OWNERS MANUAL	1
824052R2	维修手册	SERVICE MANUAL	1
824052R3	SM O/B V6 135-225	SM O/B V6 135-225	1
808553A96	贴花套件	DECAL SET	1
808553A00	贴花套件	DECAL SET	1
809689A99	贴花套件	DECAL SET	1
804696A03	贴花套件	DECAL SET	1
808559A96	贴花套件	DECAL SET	1
855418A99	贴花套件	DECAL SET	1
809688A00	贴花套件	DECAL SET	1
808554A96	贴花套件	DECAL SET	1
812563A00	贴花套件	DECAL SET	1
808558A99	贴花套件	DECAL SET	1
808562A03	贴花套件	DECAL SET	1
813033A97	贴花套件	DECAL SET	1
813033A03	贴花套件	DECAL SET	1
809706A97	贴花套件	DECAL SET	1
809706A03	贴花套件	DECAL SET	1
808557A97	贴花套件	DECAL SET	1
808557A01	贴花套件	DECAL SET	1
855419A97	贴花套件	DECAL SET	1
855419A00	贴花套件	DECAL SET	1
808556A97	贴花套件	DECAL SET	1
808556A03	贴花套件	DECAL SET	1
808561A97	贴花套件	DECAL SET	1
808561A03	贴花套件	DECAL SET	1
824911A25	条纹贴纸(25英尺卷-需6英尺)	DECAL Striping (ROLL OF 25 FT. - NEED 6 FT.)	1
808591A96	贴花套件	DECAL SET	1
808680A96	贴花套件	DECAL SET	1
808621A96	贴花套件	DECAL SET	1
808602A96	贴花套件	DECAL SET	1
808652A96	贴花套件	DECAL SET	1
808641A96	贴花套件	DECAL SET	1
85698511	EPA标签信息贴花	DECAL EPA Label Information	1
856985A11	REF SOB 09-18	REF SOB 09-18	1

图 28齿轮箱(螺旋桨轴)(标准旋转) GEAR HOUSING (PROP SHAFT)(STANDARD ROTATION)

REF	零件编号	中文名称	英文名称	数量
1	9148T93	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
49	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
50	789562	换挡凸轮	SHIFT CAM	1
51	828287	杆	ROD	1
52	828174A2	齿轮组	GEAR SET	1
52	878613A2	前进齿轮总成 1.87:1 - 15/28齿	GEAR ASSEMBLY Forward 1.87:1 - 15/28	1
53	44491A1	垫片组(0.006-7-9-10-20)	SHIM SET (.006-7-9-10-20)	AR
53	8M0063266	垫片组	SHIM SET	AR
54	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
55	30895	滚针轴承	BEARING Needle	1
55	30895T	滚针轴承	BEARING Needle	1
56	854735T	滑动离合器	CLUTCH Sliding	1
56	859340T	离合器	CLUTCH	1
57	30632	十字销	PIN Cross	1
57	8M0100263	十字销	PIN Cross	1
58	828356	定位销	PIN Detent	1
59	30893	弹簧	SPRING	1
60	94148	螺旋桨轴	PROPELLER SHAFT	1
61	828175A1	倒车齿轮总成-15/28齿	GEAR ASSEMBLY Reverse - 15/28	1
62	824108	隔套	SPACER	1
63	681001	止推环	RING Thrust	1
64	88957	滚珠轴承总成	BEARING ASSEMBLY Ball	1
64	88957T	滚珠轴承	BEARING Ball	1
65	31534	O型圈	O-RING	1
65	8M0214920	O型圈	O RING	1
66	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
66	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	30956	滚针轴承	BEARING Needle	1
67	30956T	滚针轴承	BEARING Needle	1
68	14077	油封(内侧)	SEAL Oil (INSIDE)	1
69	76868	油封(外侧)	SEAL (OUTSIDE)	1
69	8M0248882	油封@5	SEAL-OIL @5	1
70	30281	键	KEY	1
71	79447	锁紧垫圈	TAB WASHER	1
72	79448	固定座	RETAINER	1
72	8M2011027	固定座	RETAINER	1
73	316405	平衡鳍板	TRIM TAB	1
73	8M0236553	平衡鳍板	TRIM TAB	1
73	76214A5	阳极套件	ANODE KIT	1
73	76214Q5	阳极套件	ANODE KIT	1
74	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
74	8M0204686	螺钉	SCREW	1
75	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
76	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
77	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
77	8M0204653	螺母	NUT	2
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	89238A2	密封套件	SEAL KIT	1

图 29齿轮箱图表（序列号0G438000及以上） GEAR HSG. CHART (S/N-0G438000 & UP)

REF	零件编号	中文名称	英文名称	数量
-	9148A84	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A85	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9148T85	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A90	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A91	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9148T91	ORD 1647-9148T85	ORD 1647-9148T85	1
-	9148A86	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9148T86	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A92	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9148T92	ORD 1647-9148T86	ORD 1647-9148T86	1

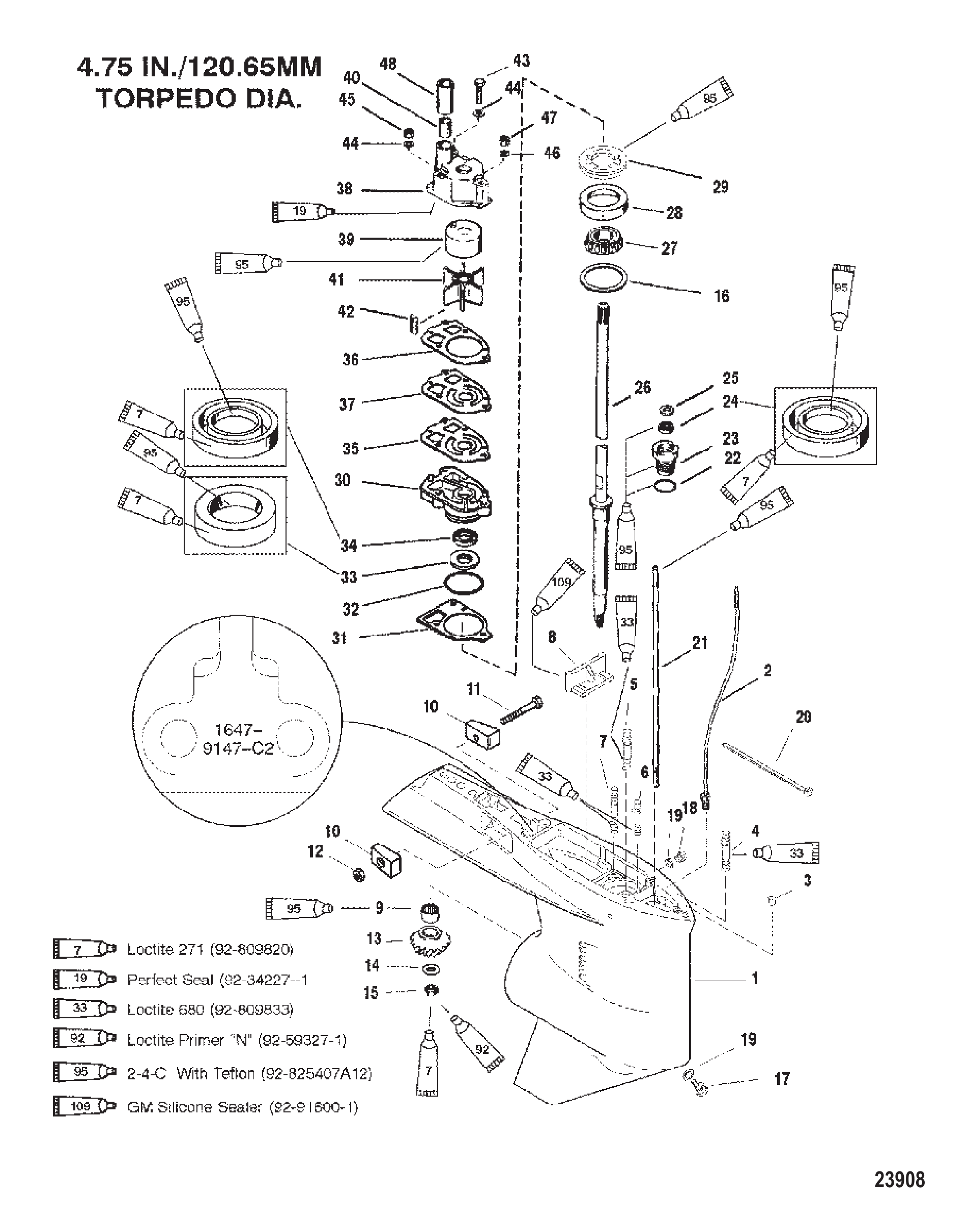

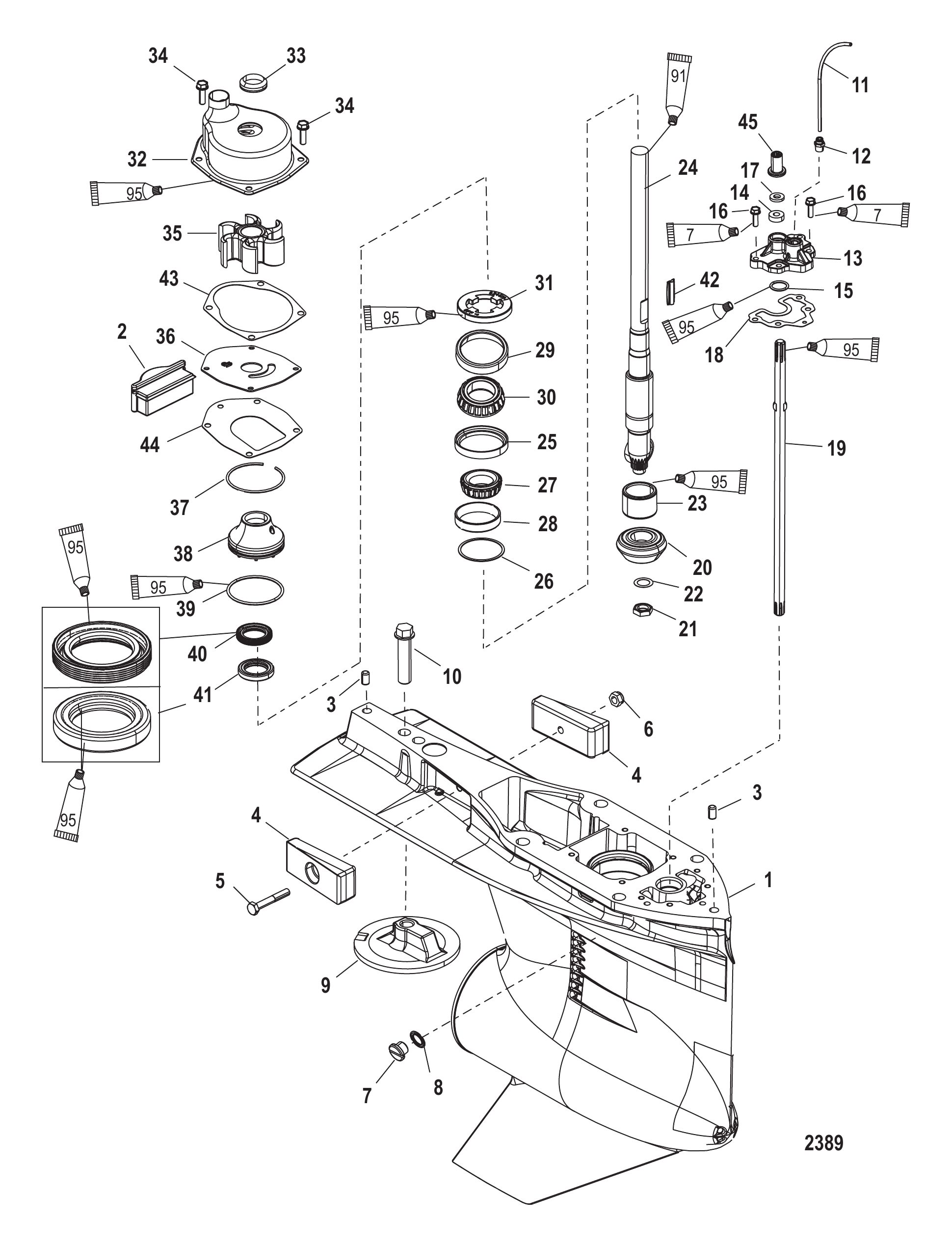

图 30齿轮箱(驱动轴)(标准/反向旋转) GEAR HOUSING (DRIVESHAFT)(STANDARD/COUNTER ROTATION)

REF	零件编号	中文名称	英文名称	数量
0	880686T13	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	880686T14	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	8M0236256	GC L6 4S XL	GC L6 4S XL	1
0	880686T16	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	8M0236259	GC L6 4S XXL	GC L6 4S XXL	1
0	880686T18	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	880686T15	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	8M0236258	GC L6 4S CXL	GC L6 4S CXL	1
0	880686T17	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	8M0236260	GC L6 4S CXXL	GC L6 4S CXXL	1
1	880687T01	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	8M0056631	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	821526001	填充块	FILLER BLOCK	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	826134Q	阳极块	ANODE	1
5	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
6	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
7	79953A04	塞组件(.375-16×.250)	PLUG ASSEMBLY (.375-16 x .250)	1
8	830749	密封件	SEAL	1
8	8M0204693	放油螺塞密封件	SEAL Drain Plug	1
9	76214T5	阳极套件	ANODE KIT	1
9	76214Q5	阳极套件	ANODE KIT	1
10	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
10	8M0204686	螺钉	SCREW	1
11	85944975	管材(72英寸整卷)裁切7英寸(按需使用)	TUBING (72.00 Inches Bulk) Cut to 7 Inches (Use where Applicable)	1
11	85944975	管材(72英寸整卷)裁切12英寸(按需使用)	TUBING (72.00 Inches Bulk) Cut to 12 Inches (Use where Applicable)	1
11	85944975	管材(72英寸整卷)裁切17英寸(按需使用)	TUBING (72.00 Inches Bulk) Cut to 17 Inches (Use where Applicable)	1
12	881866	接头	FITTING	1
13	880703A1	盖总成	COVER ASSEMBLY	1
13	8M0047129	盖总成	COVER ASSEMBLY	1
14	8164641	油封	SEAL Oil	1
14	8M0246145	油封	OIL SEAL	1
15	896522	O型圈(799×.103)	O-RING (799 x .103)	1
16	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	4
16	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	4
17	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
18	880729	衬垫	GASKET	1
19	824145	换档轴	SHIFT SHAFT	1
20	NSS	不单独销售小齿轮13齿	NOT SOLD SEPARATE Pinion Gear 13 Teeth	1
21	35921	螺母(0.625-18)	NUT (.625-18)	1
22	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
23	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
24	888572	驱动轴	DRIVESHAFT	1
24	888573	驱动轴	DRIVESHAFT	1
24	888574	驱动轴	DRIVESHAFT	1
25	884327A02	垫片/轴承组件	SHIM/BEARING ASSEMBLY	1
26	38657A1	垫片组	SHIM ASSEMBLY	AR
26	8M0063268	垫片组	SHIM SET	AR
27	NSS	不单独销售滚子轴承组件	NOT SOLD SEPARATE Roller Bearing Assembly	1
28	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
29	NSS	不单独销售滚子轴承组件	NOT SOLD SEPARATE Roller Bearing Assembly	1
30	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
31	8245191	固定座	RETAINER	1
32	817275A09	水泵壳体-总成	HOUSING Water Pump-Complete	1
33	861415A1	密封套件	SEAL KIT	1
34	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	4
34	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	4
35	43026T2	叶轮	IMPELLER	1
36	8172761	面板	FACEPLATE	1
36	8M0204709	面板	FACEPLATE	1
37	880719	挡圈	RING Retaining	1
38	888909A1	油封座组件	CARRIER ASSEMBLY Oil Seal	1
38	8M0007131	油封座组件	CARRIER ASSEMBLY Oil Seal	1
39	896523	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
39	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
40	NSS	不单独销售油封	NOT SOLD SEPARATE Oil Seal	1
41	NSS	不单独销售油封	NOT SOLD SEPARATE Oil Seal	1
42	43037	键	KEY	1
42	8M0204723	键	KEY	1
43	8172771	水泵上垫片	GASKET Water Pump, Upper	1
44	430331	衬垫	GASKET	1
45	43585	联轴器	COUPLING	1
-	830749A01	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	43026Q06	水泵叶轮维修套件	REPAIR KIT Water Pump Impeller	1
-	8M0100526	水泵叶轮维修套件	REPAIR KIT Water Impeller	1
-	817275A08	水泵上修包	REPAIR KIT Water Pump-Upper	1

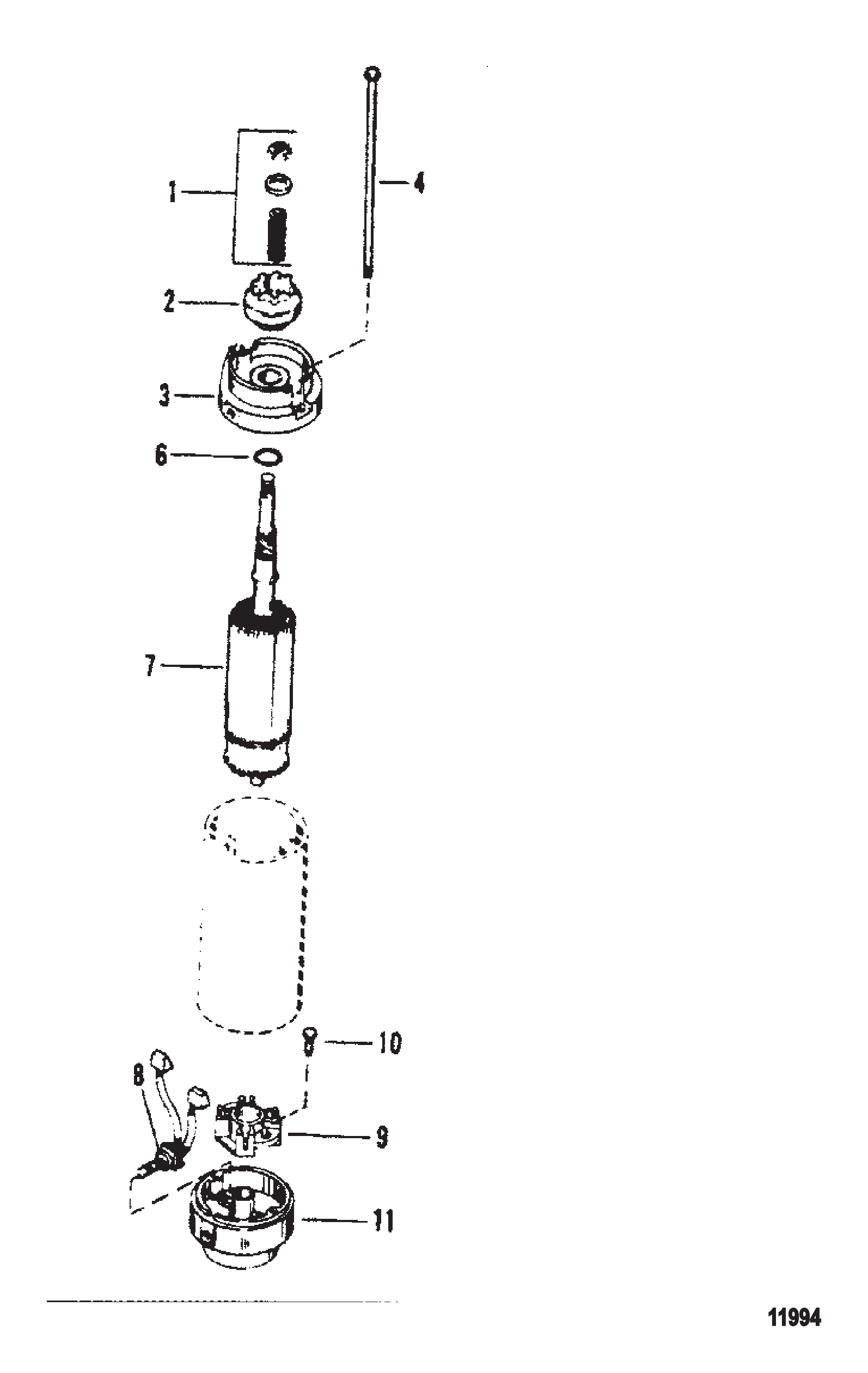

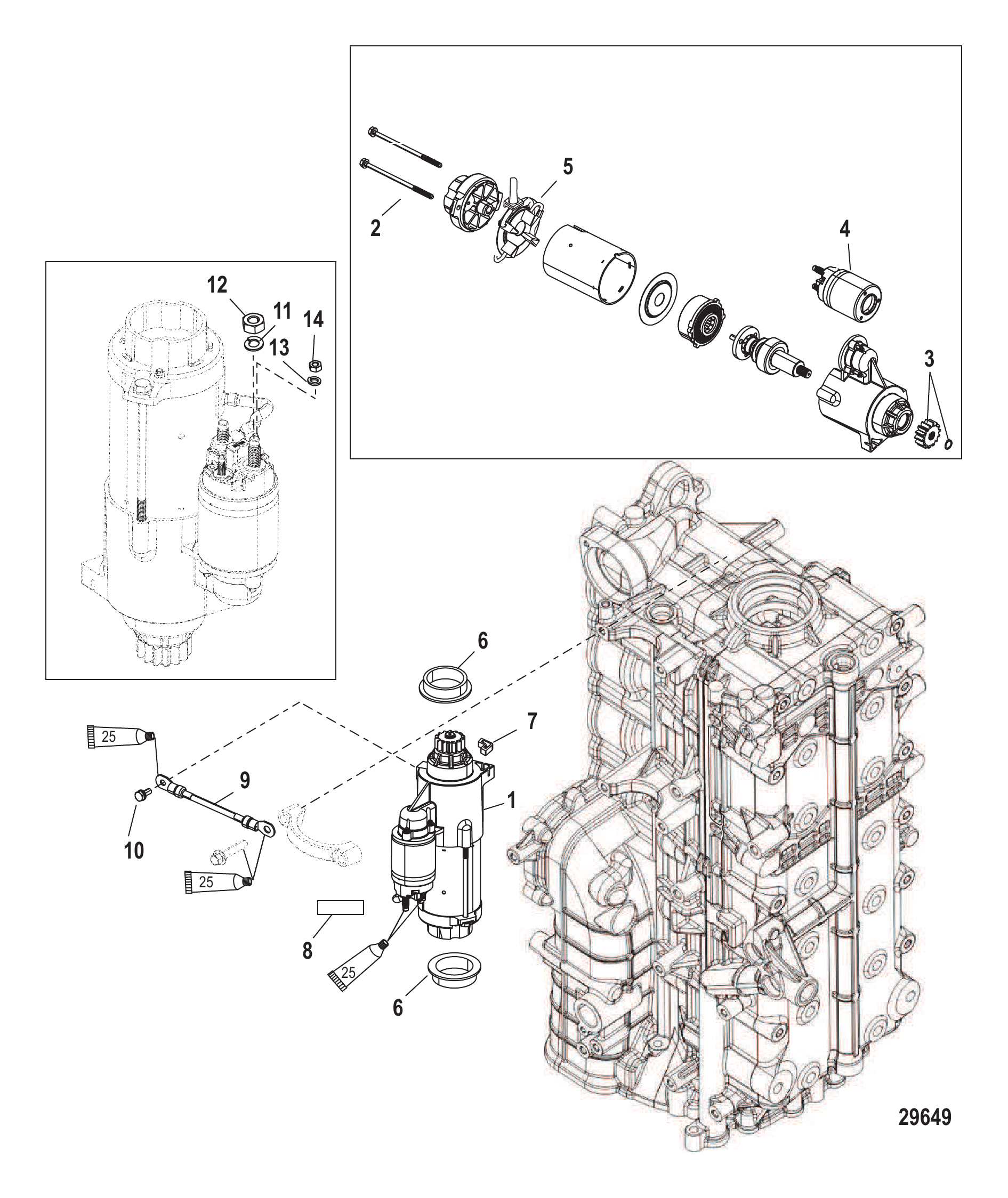

图 31启动电机 Starter Motor

REF	零件编号	中文名称	英文名称	数量
-	NSS	起动机总成(不单独销售)	NOT SOLD SEPARATE Starter Motor Assembly	1
1	892339T01	启动电机总成	STARTER MOTOR ASSEMBLY	1
2	NSS	螺钉组(不单独销售)	NOT SOLD SEPARATE Screws	2
3	880805A1	齿轮套件	GEAR KIT	1
4	809463A1	电磁阀组件	SOLENOID KIT	1
5	8M0065258	电刷组	BRUSH SET	1
6	8M0034918	轴环	COLLAR	2
7	8M0043276	停机开关	STOP	1
8	NSS	高压警告贴纸(不单独销售)	NOT SOLD SEPARATE Decal-Waring-High Voltage	1
9	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
10	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
11	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
12	400213	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
13	400255	锁紧垫圈(M5)	LOCKWASHER (M5)	1
14	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1

图 32动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	8M0168222	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0142591	电机套件	MOTOR KIT	1
2	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
3	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
4	8M0090403	驱动联轴器	COUPLING Drive	1
5	8M0142996	压力检查套件	PO CHECK KIT	1
6	8M0060141	手动释放套件	MANUAL RELEASE KIT	1
7	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
8	878267	销	PIN	1
9	8M0142998	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
9	8M0168220	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
10	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
11	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
12	8M0142592	升降杆套件左舷	TRIM ROD KIT Port	1
13	8M0143001	活塞总成	PISTON ASSEMBLY	1
14	8M0143003	端盖总成	END CAP ASSEMBLY	1
15	878264A1	储液罐套件	RESERVOIR KIT	1
16	811613	塞子总成	PLUG ASSEMBLY	1
17	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
18	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
19	8M0143004	泵套件	PUMP KIT	1
20	8M0148385	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
21	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
22	4002319	垫圈	WASHER	6
23	8M0094889	销	PIN	1
23	8M0161312	连杆销眼总成	PIN ROD EYE ASSEMBLY	1
24	8M0143005	减震杆套件	SHOCK ROD KIT	1
24	8M0168219	减震杆套件	SHOCK ROD KIT	1

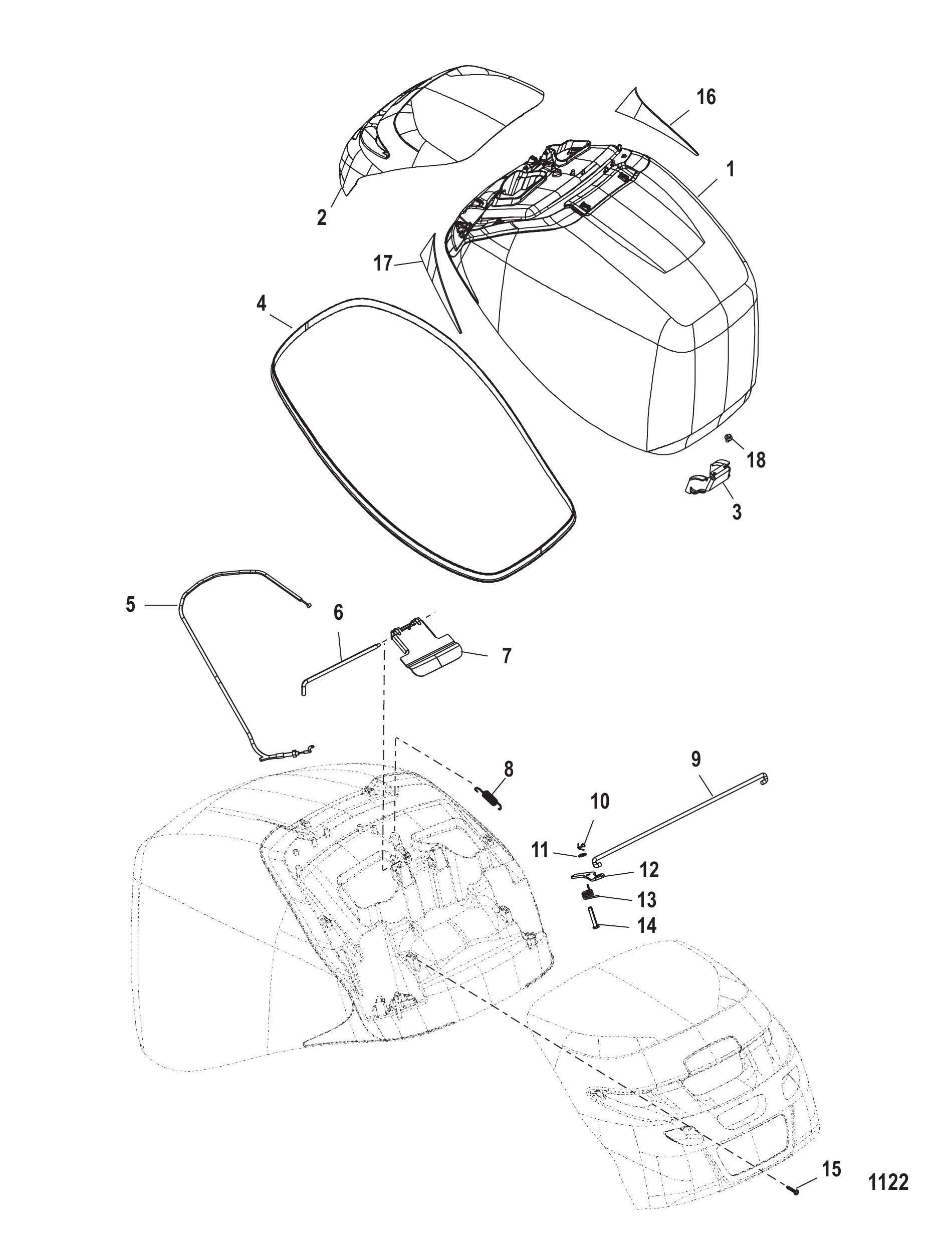

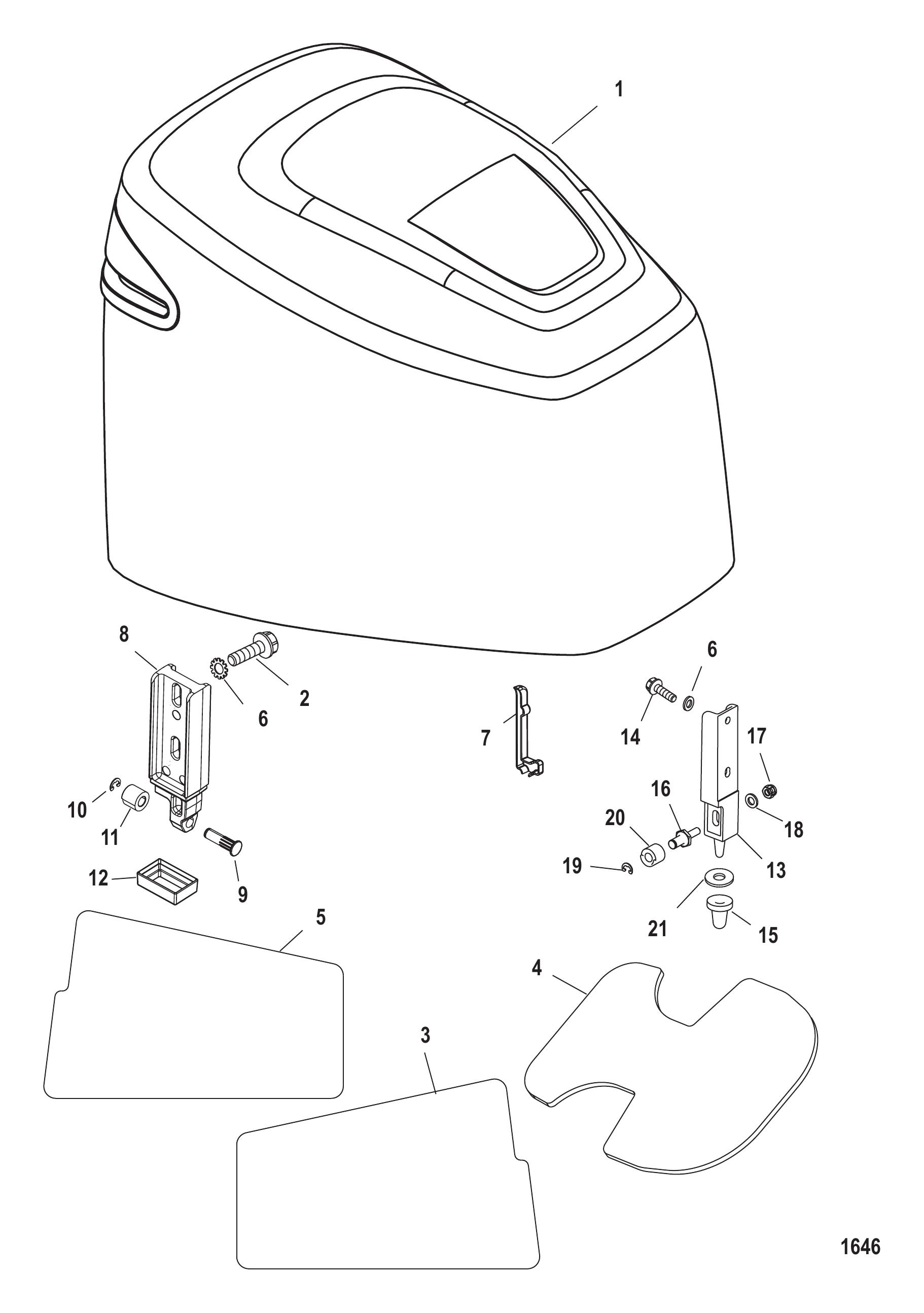

图 33顶罩 TOP COWL

REF	零件编号	中文名称	英文名称	数量
1	885355T03	顶盖总成	TOP COWL ASSEMBLY	1
1	885355T02	顶盖总成	TOP COWL ASSEMBLY	1
1	8M0050000	顶罩-水星型	COWL-TOP MARINER	1
2	885354T	空气导流帽	CAP Air Dam	1
2	885354T01	空气导流帽-水星黑色款	CAP, Air Dam Mercury, Black	1
2	895838T	空气导流帽	CAP Air Dam	1
2	895838T01	空气导流帽-水星型	CAP Air Dam - Mariner	1
3	888971	前锁扣槽	FRONT LATCH RECEIVER	1
4	885545	上罩壳密封件	SEAL Top Cowl	1
4	8M0111178	密封件	SEAL	1
5	888951	电缆	CABLE	1
5	8M0080461	锁扣拉索	CABLE Latch	1
6	888959	铰链销	PIN Hinge	1
7	888956	手控锁杆	LATCH Hand Lever	1
8	895373	弹簧	SPRING	1
9	888955	锁扣连杆	LINK Latch Connecting	1
10	26953	开口销	COTTER PIN	2
11	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
12	888952	联动臂	LINKAGE ARM	2
13	888953	弹簧	SPRING	2
14	822417	销	PIN	2
15	888950020	螺钉(M4x20毫米)(M4x1.75)	SCREW (M4 x 20 mm) (M4 x 1.75)	6
16	888970	左舷饰板(左)	APPLIQUE Port (Port)	1
16	888970A01	饰板套件	APPLIQUE KIT	1
16	895839	左舷饰板(左)	APPLIQUE Port (Port)	1
16	895839A01	饰板套件	APPLIQUE KIT	1
17	888969	右舷饰板(右)	APPLIQUE Starboard (Starboard)	1
17	895840	右舷饰板(右)	APPLIQUE Starboard (Starboard)	1
18	4010610	不锈钢螺钉(M6x10)	SCREW (M6 x 10) Stainless Steel	2
-	892564A05	贴花套件	DECAL SET	1
-	859271A05	贴花套件	DECAL SET	1
-	895252A05	贴花套件	DECAL SET	1
-	895253A05	贴花套件	DECAL SET	1
-	892571A05	贴花套件	DECAL SET	1
-	892571A07	贴花套件(水星200)	DECAL SET (Mariner 200)	1
-	892871A05	贴花套件	DECAL SET	1
-	892871A07	贴花套件(水星225)	DECAL SET (Mariner 225)	1
-	895254A05	贴花套件	DECAL SET	1
-	895254A07	贴花套件(水星250)	DECAL SET (Mariner 250)	1
-	895255A05	贴花套件	DECAL SET	1
-	895255A07	贴花套件(水星275)	DECAL SET (Mariner 275)	1

图 34附件 ACCESSORIES

REF	零件编号	中文名称	英文名称	数量
-	892440A08	动力转向泵套件	PUMP KIT Power Steering Pump Kit	1
-	892440A09	动力转向泵套件	PUMP KIT Power Steering Pump Kit	1
-	8M0131263	动力转向泵套件(24英尺)	PUMP KIT Power Steering (24 Feet)	1
-	892380A02	标准转向舵机套件(40cc)	STEERING HELM KIT Standard (40 cc)	1
-	8M0240080	标准舵机套件40CM	HELM KIT-STD 40CM	1
-	892557A02	标准转向舵机套件(32cc)	STEERING HELM KIT Standard (32 cc)	1
-	8M0240079	标准舵机套件32CM	HELM KIT-STD 32CM	1
-	892558A02	标准转向舵机套件(50cc)	STEERING HELM KIT Standard (50 cc)	1
-	8M0240081	标准舵机套件50CM	HELM KIT-STD 50CM	1
-	892450K01	液压软管套件(1英尺)油缸至舵机	HOSE KIT (1 Foot) Hydraulic, Cylinder to Helm	1
-	897982K01	ORD 32-897982K02	ORD 32-897982K02	1
-	892450K02	液压软管套件(2英尺)油缸至舵机	HOSE KIT (2 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167281	软管套件2FT	HOSE KIT 2FT	1
-	892450K03	液压软管套件(3英尺)油缸至舵机	HOSE KIT (3 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167282	软管套件3FT	HOSE KIT 3 FT	1
-	892450K04	液压软管套件(4英尺)油缸至舵机	HOSE KIT (4 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167283	软管套件4FT	HOSE KIT 4 FT	1
-	892450K05	液压软管套件(5英尺)油缸至舵机	HOSE KIT (5 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167284	软管套件5FT	HOSE KIT 5 FT	1
-	892450K06	液压软管套件(6英尺)油缸至舵机	HOSE KIT (6 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167285	软管套件6FT	HOSE KIT 6 FT	1
-	892450K07	液压软管套件(7英尺)油缸至舵机	HOSE KIT (7 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167286	软管套件7FT	HOSE KIT 7 FT	1
-	892450K08	液压软管套件(8英尺)油缸至舵机	HOSE KIT (8 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167287	软管套件8FT	HOSE KIT 8 FT	1
-	892450K10	液压软管套件(10英尺)油缸至舵机	HOSE KIT (10 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167288	软管套件10FT	HOSE KIT 10 FT	1
-	892450K12	液压软管套件(12英尺)油缸至舵机	HOSE KIT (12 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167289	软管套件12FT	HOSE KIT 12 FT	1
-	892450K14	液压软管套件(14英尺)油缸至舵机	HOSE KIT (14 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167290	软管套件 14英尺	HOSE KIT 14 FT	1
-	892450K16	液压软管套件(16英尺)油缸至舵机	HOSE KIT (16 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167291	软管套件 16英尺	HOSE KIT 16 FT	1
-	892450K18	液压软管套件(18英尺)油缸至舵机	HOSE KIT (18 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167292	软管套件 18英尺	HOSE KIT 18 FT	1
-	892450K22	液压软管套件(22英尺)油缸至舵机	HOSE KIT (22 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167294	软管套件 22英尺	HOSE KIT 22 FT	1
-	892450K24	液压软管套件(24英尺)油缸至舵机	HOSE KIT (24 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167295	软管套件 24英尺	HOSE KIT 24 FT	1
-	892450K26	液压软管套件(26英尺)油缸至舵机	HOSE KIT (26 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167296	软管套件 26英尺	HOSE KIT 26 FT	1
-	892450K30	液压软管套件(30英尺)油缸至舵机	HOSE KIT (30 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167298	软管套件 30英尺	HOSE KIT 30 FT	1
-	892438K02	动力转向软管套件动力模块 (2英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (2 Feet) Hydraulic, Pump to Helm	1
-	8M0150604	泵至舱壁/舵机套件 2英尺	PUMP TO BULKHEAD/HELM KIT 2 Ft	1
-	892438K03	动力转向软管套件动力模块 (3英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (3 Feet) Hydraulic, Pump to Helm	1
-	8M0150605	泵至舱壁/舵机套件 3英尺	PUMP TO BULKHEAD/HELM KIT 3 Ft	1
-	892438K04	动力转向软管套件动力模块 (4英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (4 Feet) Hydraulic, Pump to Helm	1
-	8M0150606	泵至舱壁/舵机套件 4英尺	PUMP TO BULKHEAD/HELM KIT 4 Ft	1
-	892438K05	动力转向软管套件动力模块 (5英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (5 Feet) Hydraulic, Pump to Helm	1
-	8M0150607	泵至舱壁/舵机套件 5英尺	PUMP TO BULKHEAD/HELM KIT 5 Ft	1
-	892438K06	软管套件动力模块 (6英尺) 液压, 泵至舵机	HOSE KIT Power Module (6 Feet) Hydraulic, Pump to Helm	1
-	8M0150608	泵至舱壁/舵机套件 6英尺	PUMP TO BULKHEAD/HELM KIT 6 Ft	1
-	892438K07	软管套件动力模块 (7英尺) 液压, 泵至舵机	HOSE KIT Power Module (7 Feet) Hydraulic, Pump to Helm	1
-	8M0150610	泵至舱壁/舵机套件 7英尺	PUMP TO BULKHEAD/HELM KIT 7 Ft	1
-	892438K08	软管套件动力模块 (8英尺) 液压, 泵至舵机	HOSE KIT Power Module (8 Feet) Hydraulic, Pump to Helm	1
-	8M0150612	泵至舱壁/舵机套件 8英尺	PUMP TO BULKHEAD/HELM KIT 8 Ft	1
-	892438K10	动力转向软管套件动力模块 (10英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (10 Feet) Hydraulic, Pump to Helm	1
-	8M0150613	泵至舱壁/舵机套件 10英尺	PUMP TO BULKHEAD/HELM KIT 10 Ft	1
-	892438K12	动力转向软管套件动力模块 (12英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (12 Feet) Hydraulic, Pump to Helm	1
-	8M0150614	泵至舱壁/舵机套件 12英尺	PUMP TO BULKHEAD/HELM KIT 12 Ft	1
-	892438K14	动力转向软管套件动力模块 (14英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (14 Feet) Hydraulic, Pump to Helm	1
-	8M0150615	泵至舱壁/舵机套件 14英尺	PUMP TO BULKHEAD/HELM KIT 14 Ft	1
-	892438K16	动力转向软管套件动力模块 (16英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (16 Feet) Hydraulic, Pump to Helm	1
-	8M0150616	泵至舱壁/舵机套件 16英尺	PUMP TO BULKHEAD/HELM KIT 16 Ft	1
-	892438K18	动力转向软管套件动力模块 (18英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (18 Feet) Hydraulic, Pump to Helm	1
-	8M0150617	泵至舱壁/舵机套件 18英尺	PUMP TO BULKHEAD/HELM KIT 18 Ft	1
-	892438K20	动力转向软管套件动力模块 (20英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (20 Feet) Hydraulic, Pump to Helm	1
-	8M0150618	泵至舱壁/舵机套件 20英尺	PUMP TO BULKHEAD/HELM KIT 20 ft	1
-	892438K22	动力转向软管套件动力模块 (22英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (22 Feet) Hydraulic, Pump to Helm	1
-	8M0150619	泵至舱壁/舵机套件 22英尺	PUMP TO BULKHEAD/HELM KIT 22 FT	1
-	892438K24	动力转向软管套件动力模块 (24英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (24 Feet) Hydraulic, Pump to Helm	1
-	8M0150620	泵至舱壁/舵机套件 24英尺	PUMP TO BULKHEAD/HELM KIT 24 FT	1
-	892825008	液压软管 (8英尺) 舵机至压力罐	HOSE (8 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825010	液压软管 (10英尺) 舵机至压力罐	HOSE (10 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825012	液压软管 (12英尺) 舵机至压力罐	HOSE (12 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825014	液压软管 (14英尺) 舵机至压力罐	HOSE (14 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825016	液压软管 (16英尺) 舵机至压力罐	HOSE (16 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825018	液压软管 (18英尺) 舵机至压力罐	HOSE (18 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825020	液压软管 (20英尺) 舵机至压力罐	HOSE (20 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825022	液压软管 (22英尺) 舵机至压力罐	HOSE (22 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825024	液压软管 (24英尺) 舵机至压力罐	HOSE (24 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825026	液压软管 (26英尺) 舵机至压力罐	HOSE (26 Feet) Hydraulic, Helm to Pressure Tank	1
-	893395A01	嵌入式安装板	PLATE Flush Mount	1
-	875207	三通接头	TEE Fitting	1
-	892486K08	模拟转换套件	CONVERSION KIT Analog	1
-	889611K02	附件电源线束套件(30英尺)	HARNESS KIT Accessory Power (30 Feet)	1
-	899785K04	附件电源线束总成(30英尺)	HARNESS ASSEMBLY Accessory Power (30 Feet)	1
-	88334A2	防腐电极套件	MERCATHODE KIT	1
-	8M0180081	防腐电极套件	MERCATHODE KIT	1
-	825191A03	索具软管套件	HOSE KIT Rigging	1
-	880717A01	齿轮箱螺丝/密封套件	SCREW/SEAL KIT Gearcase	1
-	88439A50	电池电缆组	CABLE SET Battery	1
-	8M0210761	电池电缆组(12英尺)	CABLE SET (12 ft) Battery	1
-	44357Q2	冲洗附件	FLUSHING ATTACHMENT	1
-	44357T2	冲洗附件	FLUSHING ATTACHMENT	1
-	881150Q1	双进水口冲洗套件	FLUSH KIT Dual Water Pick Up	1
-	881150K1	双进水口冲洗密封套件	SEAL KIT Flush - Dual Water Pickup	1
-	897967100	燃油管路 (100.00英尺)	LINE Fuel (100.00 Feet)	1
-	8M0038563	燃油管路 (100.00英尺)	LINE Fuel (100.00 Feet)	1
-	899712A01	连续性电缆套件	CABLE KIT Continuity	1

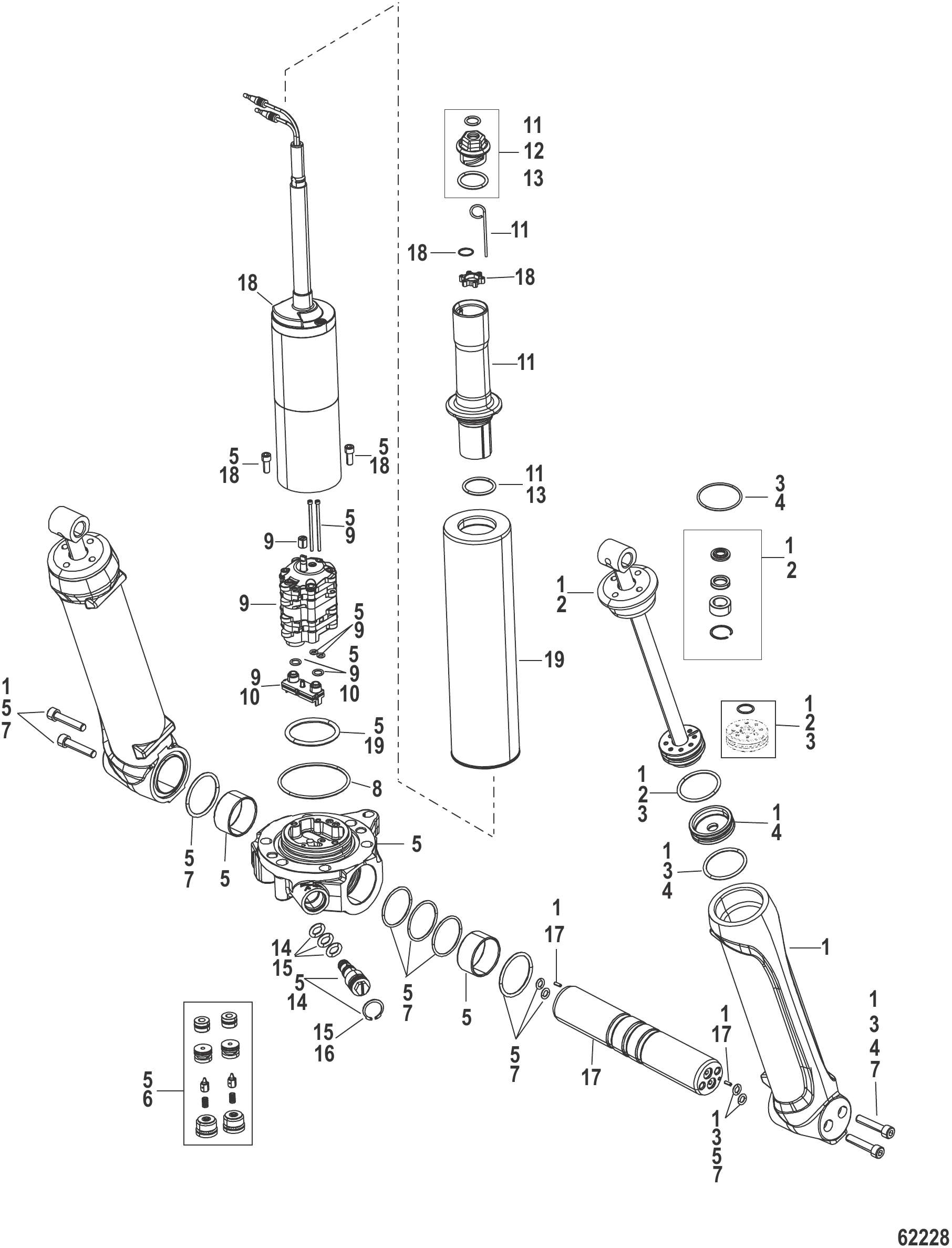

图 35动力升降组件 POWER TRIM COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	896156A01	配平油缸套件	TRIM CYLINDER KIT	1
2	896157A01	升降杆套件	TRIM ROD KIT	1
2	8M0118299	升降杆套件	TRIM ROD KIT	1
3	896158A01	O型圈套件	O-RING KIT	1
4	896159A01	活塞套件	PISTON KIT	1
5	896166A01	配平歧管套件	MANIFOLD KIT Trim	1
6	896165A01	配平止回套件PO型	CHECK KIT Trim PO	1
7	896160A01	O型圈套件	O-RING KIT	1
8	8M0010183	O型圈	O-RING	1
8	8M0204938	O型圈	O-RING	1
9	896163A01	配平泵套件	PUMP KIT Trim	1
10	896164A01	配平过滤器套件	TRIM FILTER KIT	1
11	896162A01	配平颈套件	TRIM NECK KIT	1
12	895854A01	O型圈套件	O-RING KIT	1
13	893419	盖套件	CAP KIT	1
14	893420A01	手动释放套件	MANUAL RELEASE KIT	1
14	8M0224397	手动释放套件	MANUAL RELEASE KIT	1
15	8M0224410	O型圈套件	ORING KIT	1
16	8M0184377	卡环	SNAP RING	1
17	893408A01	配平销套件	PIN KIT Trim	1
18	896161A01	配平电机套件	TRIM MOTOR KIT	1
18	896161A02	配平电机套件	TRIM MOTOR KIT	1
18	896161A02	配平电机套件	TRIM MOTOR KIT	1
19	896167A01	储液罐套件	RESERVOIR KIT	1

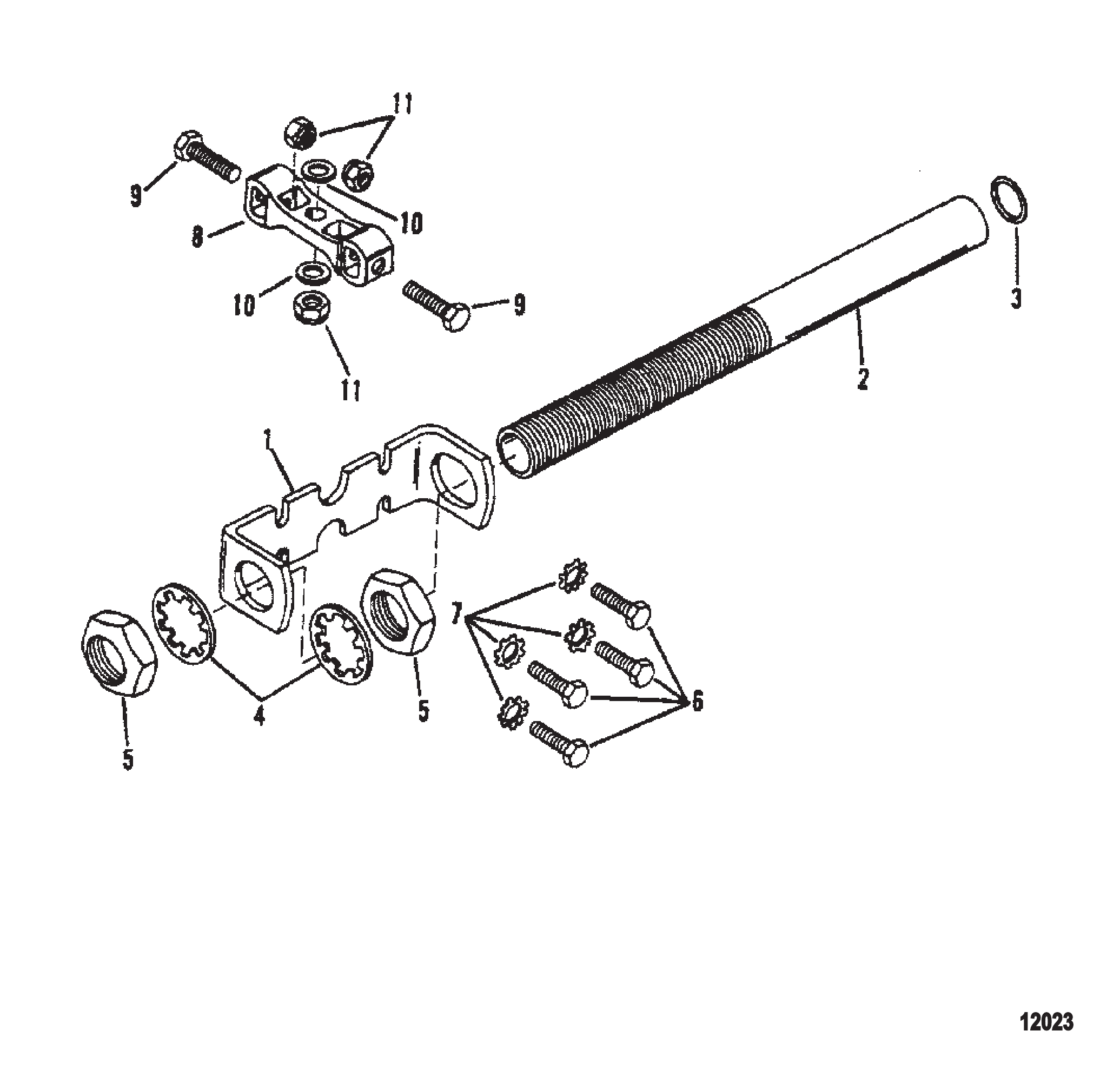

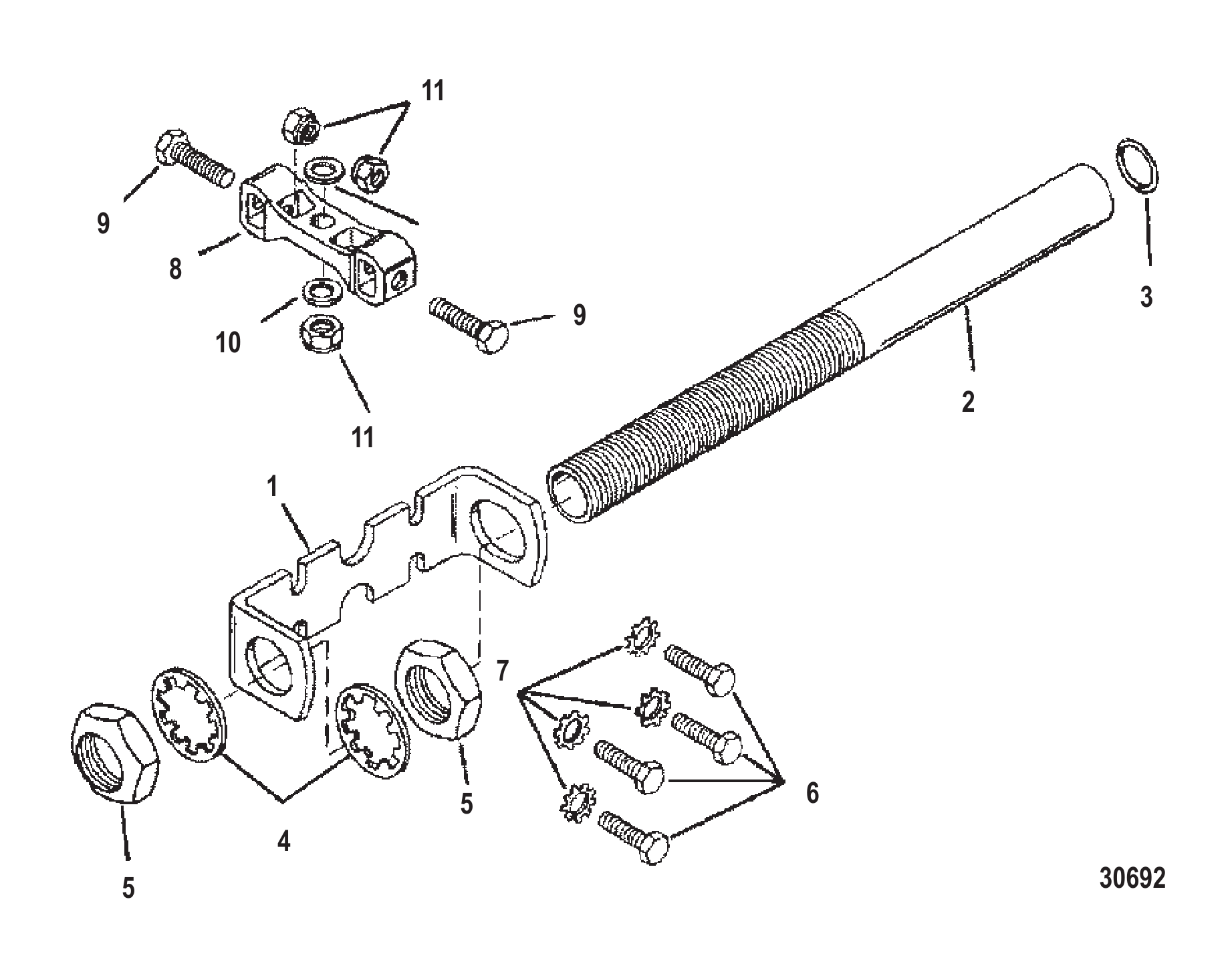

图 36转向连接套件 Steering Attaching Kit

REF	零件编号	中文名称	英文名称	数量
0	92876A8	转向安装套件	ATTACHING KIT Steering	1
1	41055A1	支架总成	BRACKET ASSEMBLY	1
2	71565A2	管总成	TUBE ASSEMBLY	1
3	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
4	821203	锁紧垫圈	LOCKWASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
7	78968	内锁紧垫圈 (.250)	LOCKWASHER Internal (.250)	4
8	850791T	联轴器	COUPLER	1
9	73732	螺钉 (.375-24 x 1.120)	SCREW (.375-24 x 1.120)	2
10	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
11	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	1
11	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1

图 37杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES

REF	零件编号	中文名称	英文名称	数量
-	814201	200 XRI(EFI)(V-6)维修	200 XRI (EFI) (V-6) Service	1
-	8140981	维修手册	SERVICE MANUAL	1
-	8162491	维修手册	SERVICE MANUAL	1
-	14697A87	衬垫套件	GASKET SET	1
-	813032A89	贴花套件	DECAL SET	1
-	814171A89	纪念版贴花套装	DECAL SET (ANNIVERSARY MODEL)	1
-	13492900	用户指南	OWNERS GUIDE	1

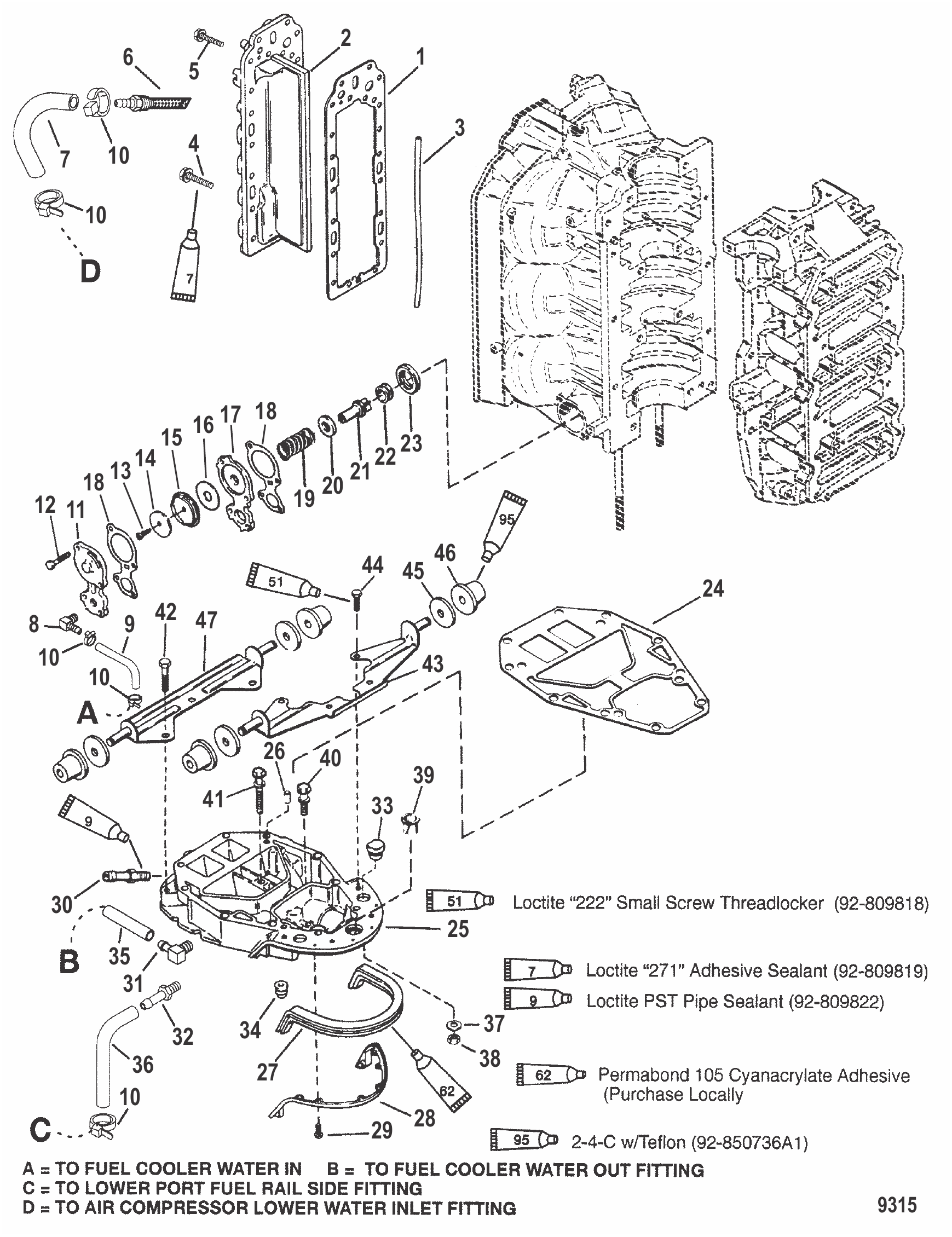

图 38排气歧管与排气板 EXHAUST MANIFOLD AND EXHAUST PLATE

REF	零件编号	中文名称	英文名称	数量
1	190503	衬垫	GASKET	1
2	8283431	排气隔板	PLATE Exhaust Divider	1
2	828343T3	排气隔板	PLATE Exhaust Divider	1
3	814754	密封件(12.50英寸)	SEAL (12.50 Inches)	1
4	826356	螺钉带垫圈(.312-18 x 1.500)	SCREW AND WASHER (.312-18 x 1.500)	17
4	8263561	螺钉带垫圈(.312-18 x 1.500)	SCREW AND WASHER (.312-18 x 1.500)	17
5	855288	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	2
5	881190	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	2
6	8348082	滤网	STRAINER	1
7	83075780	管材(28.00英寸整料)(裁切至4-1/2英寸)	TUBING (28.00 Inches Bulk) (Cut to 4-1/2 Inches)	1
7	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
8	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
9	77653112	软管(59.00英寸整料)(21-1/2英寸)	HOSE (59.00 Inches Bulk) (21-1/2 IN.)	1
9	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
10	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	5
10	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	5
11	68729	盖板	COVER	1
11	8M0039767	盖板	COVER	1
12	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
13	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
14	76451	垫圈	WASHER	1
15	14479	隔膜	DIAPHRAGM	1
15	144791	隔膜	DIAPHRAGM	1
16	16496	导水板	DEFLECTOR Water	1
17	16497A1	安装板	PLATE	1
18	78690	衬垫	GASKET	2
18	78690002	衬垫	GASKET	2
19	64878	弹簧(黑色)	SPRING (Black)	1
20	85303	垫圈	WASHER	1
21	14480	提动阀	POPPET	1
22	64872	护孔环	GROMMET	1
23	65848	托架	CARRIER	1
24	991763	衬垫	GASKET	1
24	991764	衬垫	GASKET	1
25	850814A1	排气板总成	PLATE ASSEMBLY Exhaust	1
25	850814T1	排气板总成	PLATE ASSEMBLY Exhaust	1
26	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
27	8147011	密封件	SEAL	1
27	8M0043164	密封件	SEAL	1
28	680101	支架	BRACKET	1
29	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	8
29	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	8
30	89772	连接器(.125-27)(直通)(背部)	CONNECTOR (.125-27) (STRAIGHT)(BACK)	1
31	629101	90度弯头(.125-27)(右舷顶部孔)	FITTING Elbow - 90 Degree (.125-27) (STARBOARD-TOP HOLE)	1
32	89772	连接器(.125-27)(直通)(右舷底部孔)	CONNECTOR (.125-27) (STRAIGHT)(STARBOARD-BOTTOM HOLE)	1
33	19564	护孔环	GROMMET	1
33	8M0179867	护孔环	GROMMET	1
34	19565	护孔环	GROMMET	1
34	19565002	护孔环	GROMMET	1
35	77653112	软管(59.00英寸整料)(25英寸)	HOSE (59.00 Inches Bulk) (25 IN.)	1
35	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
36	852759	软管	HOSE	1
37	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	4
38	69254	螺母	NUT	6
39	27132	衬套	BUSHING	1
40	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
41	68783	螺钉(.312-18×2.50)	SCREW (.312-18 x 2.50)	1
42	66725	螺钉(.375-16×3.50)	SCREW (.375-16 x 3.50)	3
42	898833	螺钉(.375-16 x 3.500)	SCREW (.375-16 x 3.500)	3
43	812905A5	前支架总成	BRACKET ASSEMBLY Front	1
43	812905T	前支架	BRACKET Front	1
44	8055571	螺钉(0.3125-18×0.50)	SCREW (.3125-18 x .50)	4
45	187031	垫圈	WASHER	4
46	18778	护孔环	GROMMET	4
46	18778001	护孔环	GROMMET	4
47	18578A8	支架总成(后部)	BRACKET ASSEMBLY Rear	1
47	18578T09	支架总成(后部)	BRACKET ASSEMBLY Rear	1
-	814754A98	衬垫套件	GASKET SET	1
-	8M0046714	衬垫套件	GASKET SET	1
-	854008A98	动力头总成	POWERHEAD ASSEMBLY	1
-	804545T99	动力头总成	POWERHEAD ASSEMBLY	1

图 39齿轮箱（螺旋桨轴）（逆时针旋转）（序列号0G437999及以下） GEAR HSG (PROP SHAFT)(CNTR ROTATION) (S/N-0G437999, BELOW)

REF	零件编号	中文名称	英文名称	数量
1	9148A47	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148A48	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
67	15841	滚柱轴承	BEARING Roller	1
68	17616	推力环	THRUST RING	1
69	31534	O型圈	O-RING	1
69	8M0214920	O型圈	O RING	1
70	18447A2	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
70	18447T2	适配器总成	ADAPTOR ASSEMBLY	1
71	15843	滚柱轴承	BEARING Roller	1
71	15843T	滚针轴承	BEARING Needle	1
72	18448	止推垫片	THRUST WASHER	2
73	15842	推力轴承	BEARING Thrust	2
74	18446	螺旋桨轴	PROPELLER SHAFT	1
75	818896A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
75	818896T2	轴承座	BEARING CARRIER	1
76	30956	滚针轴承	BEARING Needle	1
76	30956T	滚针轴承	BEARING Needle	1
77	76868	油封(内部)	SEAL (INSIDE)	1
77	8M0248882	油封@5	SEAL-OIL @5	1
78	76868	油封(外侧)	SEAL (OUTSIDE)	1
78	8M0248882	油封@5	SEAL-OIL @5	1
79	30281	键	KEY	1
80	183231	锁紧垫圈	TAB WASHER	1
81	79448	固定座	RETAINER	1
81	8M2011027	固定座	RETAINER	1
82	316405	平衡鳍板	TRIM TAB	1
82	8M0236553	平衡鳍板	TRIM TAB	1
83	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
83	8M0204686	螺钉	SCREW	1
84	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
85	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
86	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
86	8M0204653	螺母	NUT	2
87	8354671	推力毂	THRUST HUB	1
87	835467Q01	止推垫片套件	THRUST WASHER KIT	1
88	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
89	31211A2	花键垫圈	WASHER Splined	1
89	31211Q03	垫圈总成	WASHER ASSEMBLY	1
90	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
90	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
91	816629	锁紧垫圈	TAB WASHER	1
91	816629Q	锁紧垫圈	TAB WASHER	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	89238A2	密封套件	SEAL KIT	1

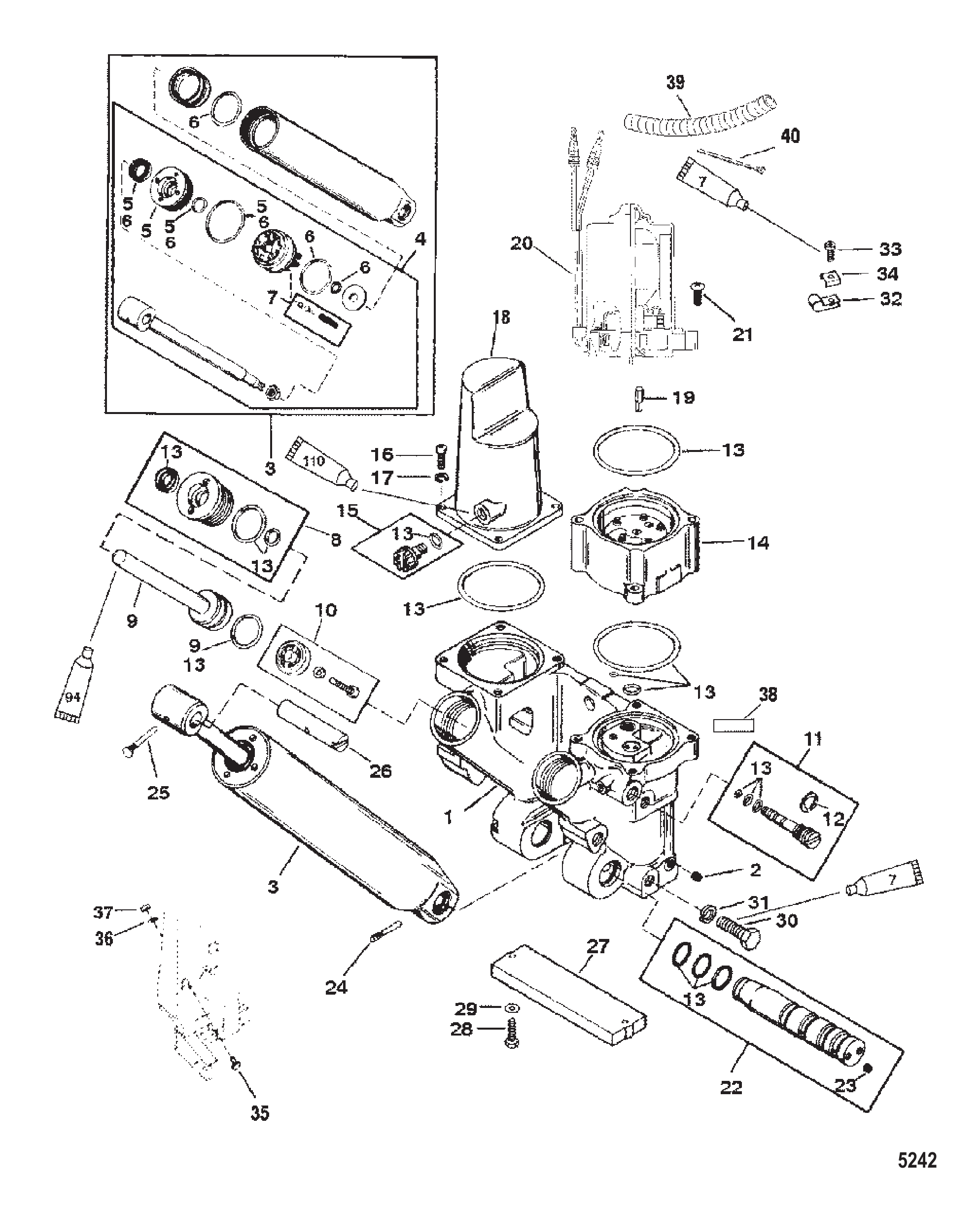

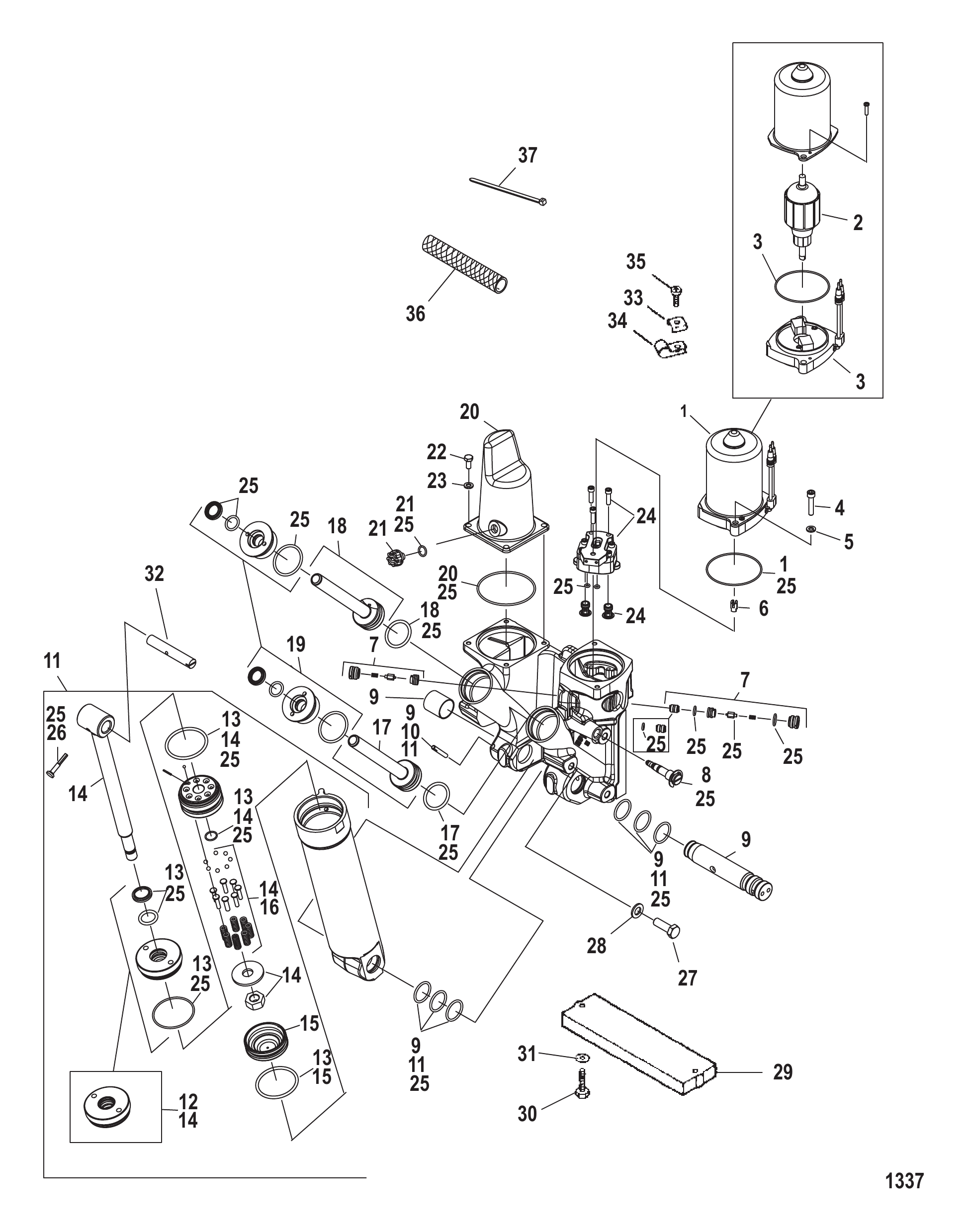

图 40动力升降组件（金属马达壳体） POWER TRIM COMPONENTS Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	826729A2	升降倾斜总成	TRIM AND TILT ASSEMBLY	1
1	811604F	歧管总成	MANIFOLD ASSEMBLY	1
2	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	9
3	823552F	气缸总成	CYLINDER ASSEMBLY	1
3	880952A03	ORD 8M0078330	ORD 8M0078330	1
4	823553	配平活塞杆套件	ROD KIT Trim Piston	1
4	823553T	升降活塞杆	ROD Trim Piston	1
5	811606	导向套件	GUIDE KIT	1
5	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
6	811607A1	维修套件	REPAIR KIT	1
7	811610A1	止回阀套件	CHECK VALVE KIT	1
7	823553T	升降活塞杆	ROD Trim Piston	1
8	99638A1	导向器总成	GUIDE ASSEMBLY	2
8	8M0021648	端盖总成	END CAP ASSEMBLY	2
9	43397A6	动力升降倾斜装置活塞/杆总成	PISTON/ROD ASSEMBLY Power Trim	1
9	878413A1	活塞总成	PISTON ASSEMBLY	1
9	43398A3	动力升降倾斜装置活塞/杆总成	PISTON/ROD ASSEMBLY Power Trim	1
9	878414T01	活塞总成	PISTON ASSEMBLY	1
10	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
11	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
11	893929A01	安全阀套件	VALVE KIT Relief	1
12	812844	E型卡环	E RING	1
12	815949001	E形环	E-RING	1
13	811612A2	O型圈套件	O-RING KIT	1
13	811612A3	O型圈套件	O-RING KIT	1
14	811617F	泵	PUMP	1
14	811617T1	泵	PUMP	1
15	811613	塞子总成	PLUG ASSEMBLY	1
16	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
17	43450	垫圈	WASHER	4
17	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
18	811611	盖板	COVER	1
19	828710	驱动接头	DRIVE JOINT	1
20	828708	电机总成	MOTOR ASSEMBLY	1
20	878265A4	配平电机	TRIM MOTOR	1
21	828709	螺钉 (长)	SCREW (LONG)	2
21	881768A1	螺钉/垫圈套件	SCREW/WASHER KIT	2
21	811616	螺钉 (短)	SCREW (SHORT)	2
22	811614	轴总成	SHAFT ASSEMBLY	1
22	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
23	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
24	44431	槽销	PIN Groove	1
24	878267	销	PIN	1
25	821539	三叶销	PIN Trilobe	1
26	996251	轴	SHAFT	1
26	99625002	轴	SHAFT	1
27	818298A1	阳极套件	ANODE KIT	1
27	818298Q1	阳极套件	ANODE KIT	1
28	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
28	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
29	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
29	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
30	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
31	4002319	垫圈	WASHER	6
32	26550	卡箍	CLAMP	2
33	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
33	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
34	69205	C形垫圈	C WASHER	1
34	8M0084613	C形垫圈	C-WASHER	1
35	996301	冲击板	STRIKER PLATE	2
35	8M0045383	冲击板	STRIKER PLATE	2
36	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
37	46335	螺母 (.375-24)	NUT (.375-24)	2
38	435301	警示贴纸-动力微调	DECAL Caution-Power Trim	1
39	828547353	导管 (.350内径 x 3.00英尺散装)	CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk)	1
40	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
40	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

图 41艉板支架（序列号0G590000及以上） Transom Brackets (S/N-0G590000 & Up)

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂加注口接头	FITTING Grease Port	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
10	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0027784	螺母	NUT	4
11	82671117	螺母(.500-20)	NUT (.500-20)	4
12	99629A2	杠杆总成	LEVER ASSEMBLY	1
12	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	830899	张力弹簧	SPRING Tension	1
14	65830	尼龙衬套	NYLINER	2
15	830900	压缩弹簧	SPRING Compression	1
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99617	销	PIN	1
18	893709	销	PIN	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

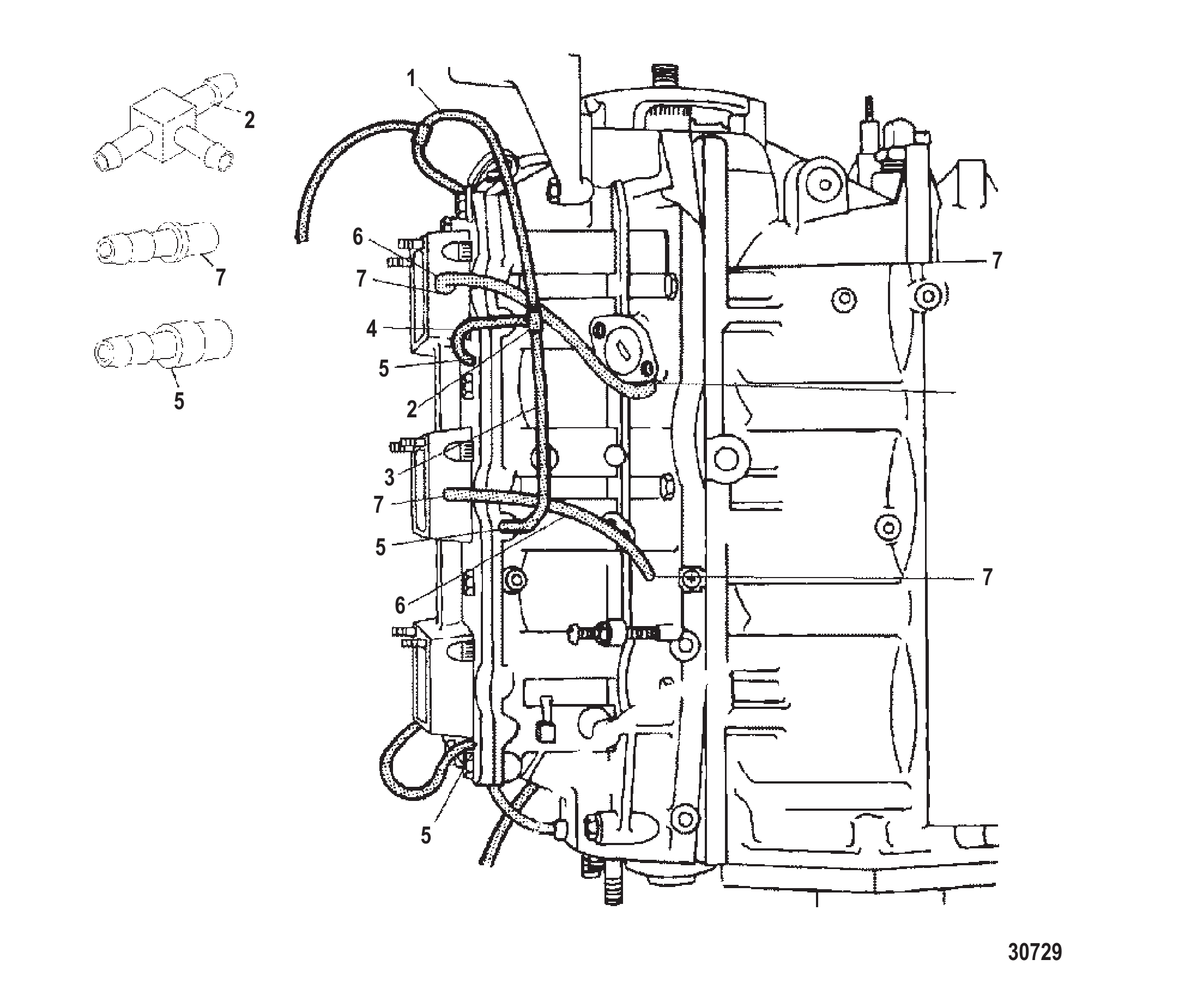

图 42泄放系统(左舷) BLEED SYSTEM (PORT)

REF	零件编号	中文名称	英文名称	数量
1	99130122	管材(20英尺散装)裁切至3-1/2英寸	TUBING (20.00 Feet Bulk) Cut to 3-1/2 Inches	1
2	591692	三通接头	FITTING Tee	1
2	59169003	三通接头	FITTING Tee	1
3	99130122	管材(20英尺散装)裁切至5-1/2英寸	TUBING (20.00 Feet Bulk) Cut to 5-1/2 Inches	1
3	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
4	99130122	管材(20英尺散装)裁切至1-1/4英寸	TUBING (20.00 Feet Bulk) Cut to 1-1/4 Inches	1
4	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
5	426981	止回阀(压入式-13/16长)	CHECK VALVE (PRESS-IN - 13/16 LONG)	3
5	426982	止回阀	CHECK VALVE	3
6	99130122	管材(20英尺散装)裁切至9英寸	TUBING (20.00 Feet Bulk) Cut to 9 Inches	2
6	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
7	56759	压入式倒钩接头	FITTING Barbed (PRESS-IN)	4
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434R97	PH 150 EFI -RM	PH 150 EFI -RM	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817R97	PH 175 -RM	PH 175 -RM	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043R97	PH 200 -RM	PH 200 -RM	1

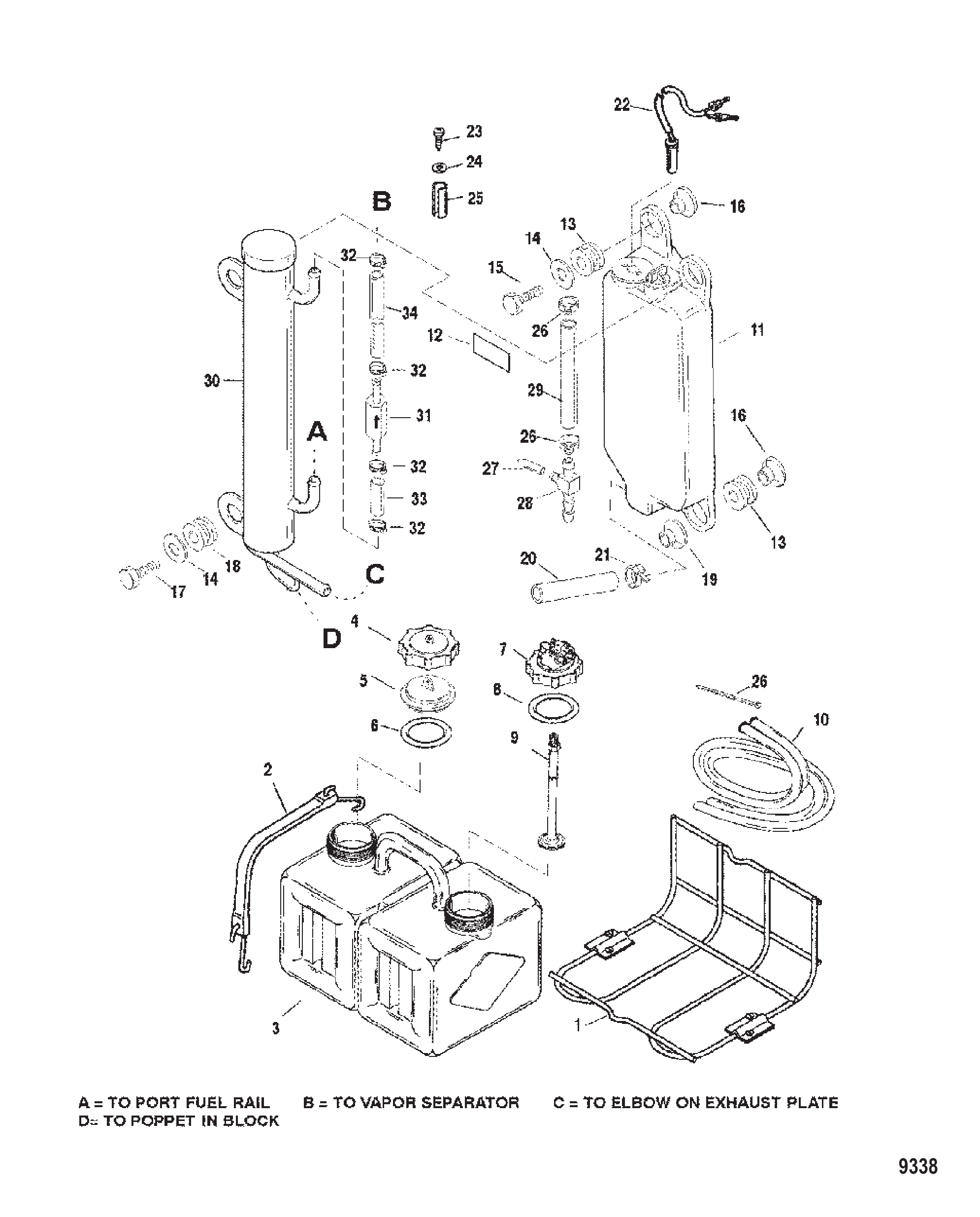

图 43喷油组件 OIL INJECTION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	12335A1	支架套件	BRACKET KIT	1
2	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1
3	87421	油箱	TANK	1
4	43298A2	盖总成	CAP ASSEMBLY	1
5	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
6	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
7	816190A3	外壳总成适配器	HOUSING ASSEMBLY Adapter	1
7	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
8	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
9	99802	管	TUBE	1
10	99439	软管(114.00英寸)	HOSE (114.00 Inches)	1
11	833069A3	油箱总成	RESERVOIR ASSEMBLY Oil	1
11	8M0062954	储油罐	RESERVOIR, OIL	1
12	NSS	不单独销售标签-储液罐	NOT SOLD SEPARATE Decal-Reservoir	1
13	855362	护孔环	GROMMET	3
13	855362001	护孔环	GROMMET	3
14	49436	垫圈	WASHER	3
15	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
16	855364	衬套	BUSHING	3
17	69267	螺钉 (.312-18 x 1.750)	SCREW (.312-18 x 1.750)	2
18	833155	护孔环	GROMMET	2
19	8502341	衬套	BUSHING	2
20	82381455	管材(25英寸整卷)(裁切为20英寸)	TUBING (25.00 Inches Bulk) (Cut to 20 Inches)	1
21	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
21	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
22	12886A8	开关	SWITCH	1
23	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
24	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
25	8260841	隔套	SPACER	1
26	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	7
26	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	7
27	NSS	不单独销售塞	NOT SOLD SEPARATE Plug	1
28	424254	接头	FITTING	1
28	8M0207780	接头	FITTING	1
29	830756109	软管(57.00英寸散装)(裁切至6英寸)	HOSE (57.00 Inches Bulk) (Cut to 6 Inches)	1
29	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
30	855785	燃油冷却器	COOLER Fuel	1
30	855785A1	燃油冷却器总成	COOLER ASSEMBLY Fuel	1
31	855761	止回阀	CHECK VALVE	1
31	8557611	止回阀	CHECK VALVE	1
32	13791	卡箍(15.7)	CLAMP (15.7)	4
32	8M0214911	卡箍@5	CLAMP @5	4
33	85682239	管材(17英寸整卷)(裁切为3英寸)	TUBING (17.00 Inches Bulk) (Cut to 3 Inches)	1
34	856822A3	软管(带绝缘套管)(30英寸)	HOSE (W/INSULATING SLEEVE) (30 IN.)	1

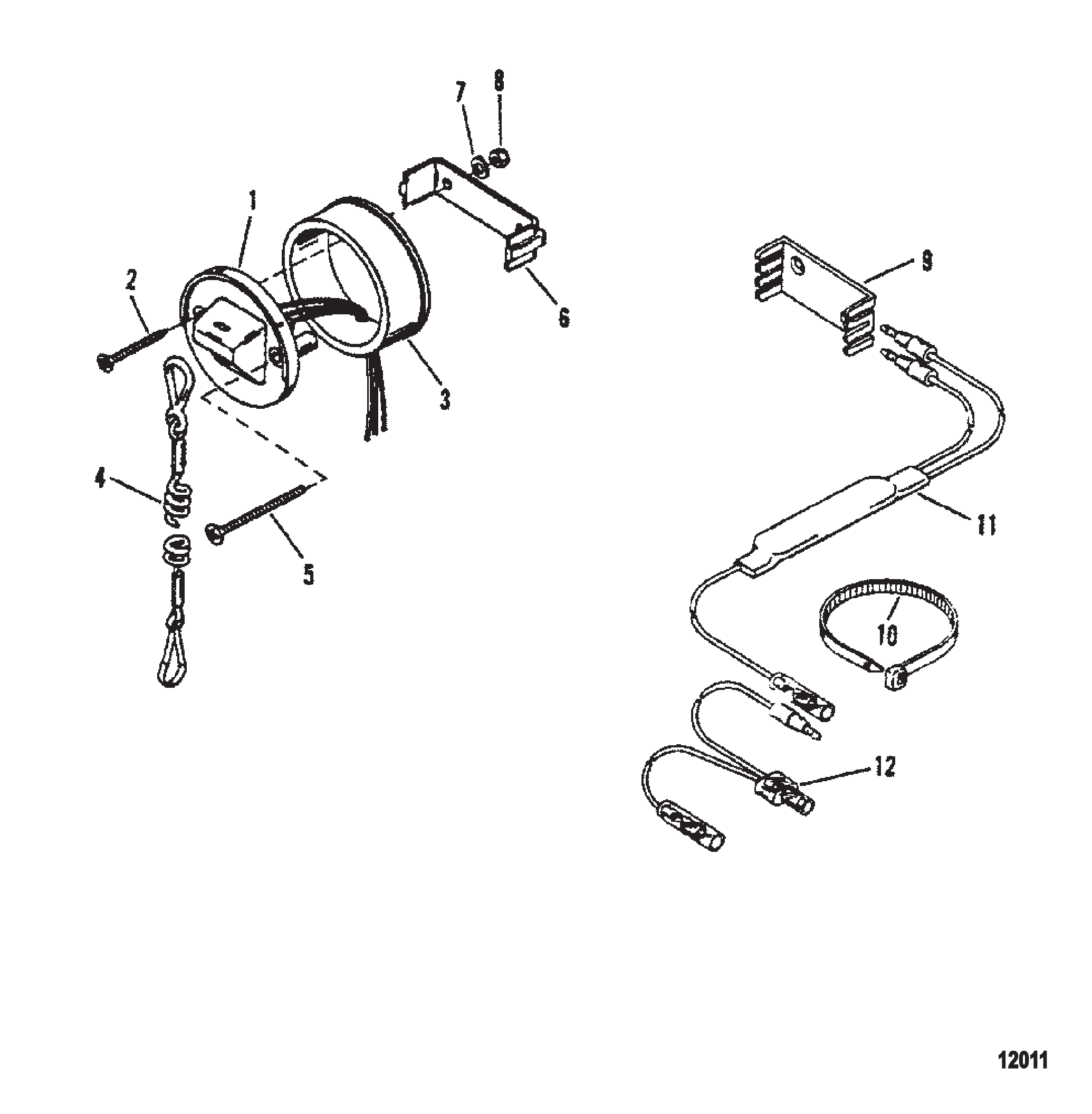

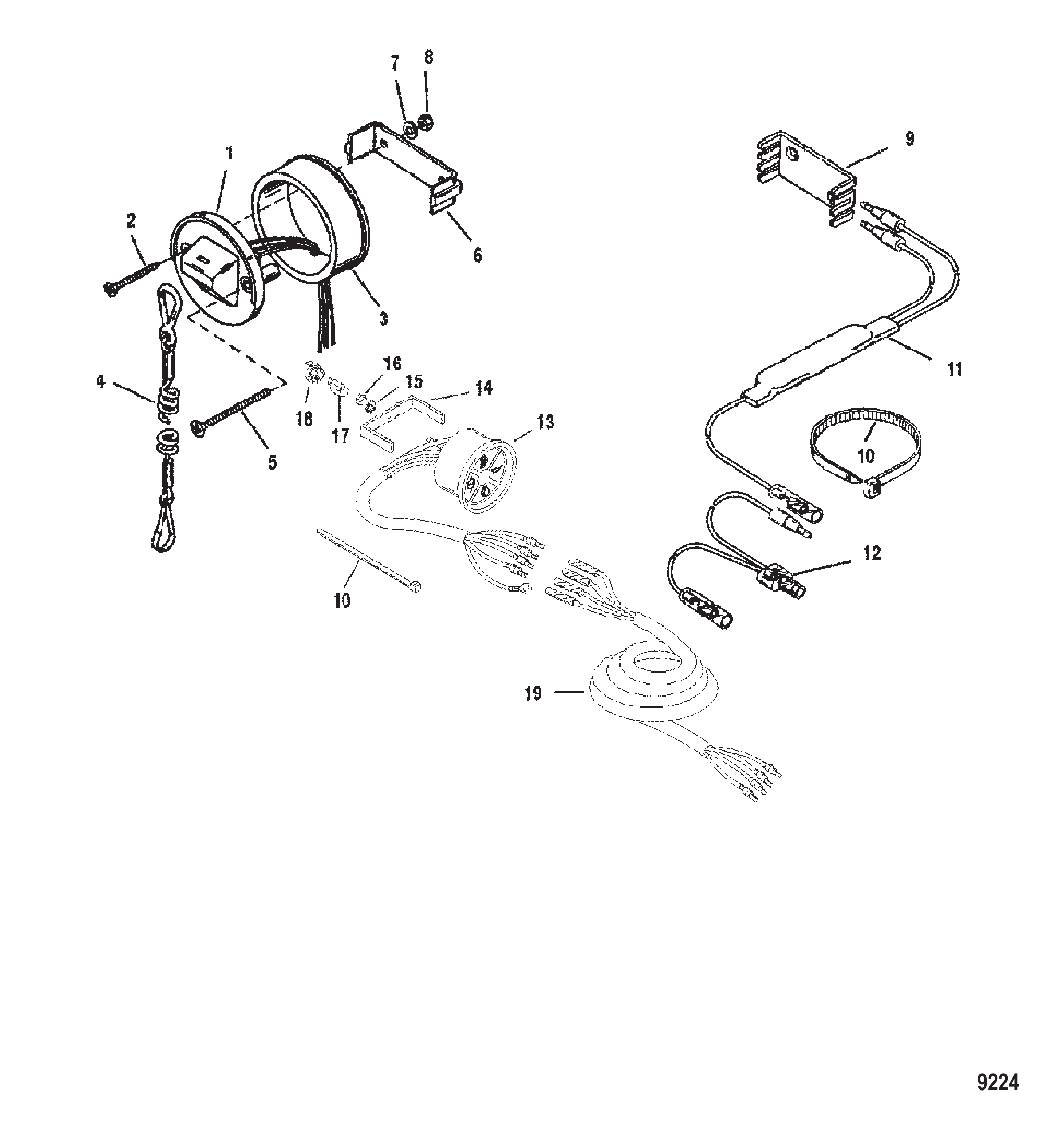

图 44仪表装置 INSTRUMENTATION

REF	零件编号	中文名称	英文名称	数量
1	19674A1	拉绳开关总成	SWITCH ASSEMBLY Lanyard	1
2	18303	螺钉 (.190-16 x 1.750) 不锈钢	SCREW (.190-16 x 1.750) Stainless Steel	2
3	813679	适配器	ADAPTER	1
4	15920A54	拉绳总成	LANYARD ASSEMBLY	1
4	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
5	32866	螺钉 (#10-32 x 2.00) 不锈钢	SCREW (#10-32 x 2.00) Stainless Steel	2
6	18321	安装夹	CLAMP Mounting	1
7	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	2
8	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4
9	79146	固定座	RETAINER	3
10	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	16
10	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	16
11	812497A2	二极管总成	DIODE ASSEMBLY	1
11	898289A72	双拉绳二极管套件	DIODE KIT-LANYARD Dual	1
12	11149A2	线缆总成 (6.00英寸)	CABLE ASSEMBLY (6.00 Inches)	1
13	835360A2	警报仪表套件	WARNING GAUGE KIT	1
13	859699A1	警报仪表套件	GAUGE KIT-WARNING	1
14	850020	卡箍	CLAMP	1
15	825361	星形锁紧垫圈(#8)	LOCKWASHER Star (#8)	1
16	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	2
17	15163	灯	LAMP	4
18	79888	灯泡插座	SOCKET Light Bulb	4
19	835359A1	电缆总成(20.00英尺)	CABLE ASSEMBLY (20.00 Feet)	1

图 45齿轮箱驱动轴 Gear Housing Driveshaft

REF	零件编号	中文名称	英文名称	数量
-	9148A8	齿轮箱总成标准旋转1.87:1齿比完整	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio COMPLETE	1
1	9148A11	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
2	85822A1		CONNECTOR ASSEMBLY SPEEDOMETER	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	20033	定位销齿轮箱定位	PIN Dowel GEAR HOUSING LOCATING	2
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	78638	螺柱（.438 x 3.12）齿轮箱（3-1/8英寸）	STUD (.438 x 3.12) GEAR HOUSING (3-1/8")	1
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
5	57920	螺柱（.44 x 2.06）齿轮箱（2-1/16英寸）	STUD (.44 x 2.06) GEAR HOUSING (2-1/16")	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	56297	螺柱（.312 x 3.38）水泵（3-3/8英寸）	STUD (.312 x 3.38) WATER PUMP (3-3/8")	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	螺柱（.250-20/.250-28 x 3.125）水泵（3-1/8英寸）	STUD (.250-20/.250-28 x 3.125) WATER PUMP (3-1/8")	2
7	306671	螺柱	STUD	2
8	42647A1	轴承总成滚柱驱动轴	BEARING ASSEMBLY Roller DRIVE SHAFT	1
9	43998	润滑套筒	SLEEVE LUBRICATION	1
11	44000	驱动轴	DRIVESHAFT	1
11	897624T	长驱动轴	DRIVESHAFT Long	1
12	N.S.S.	不单独出售(43-44104A2部件)	Not Sold Separate (PART OF 43-44104A2)	1
13	92721	垫圈(.965 x .630)小齿轮	WASHER (.965 x .630) PINION GEAR	1
14	35921	螺母(.625-18)小齿轮至驱动轴	NUT (.625-18) PINION GEAR TO DRIVE SHAFT	1
15	42637A1	垫片组	SHIM SET	AR
15	8M0063267	垫片组	SHIM SET	AR
16	36387A1	轴承总成滚柱/杯形驱动轴	BEARING ASSEMBLY Roller/Cup DRIVE SHAFT	1
16	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
17	42633	驱动轴轴承螺母	NUT DRIVE SHAFT BEARING	1
17	8245191	固定座	RETAINER	1
18	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
19	42631	水泵至齿轮箱衬垫	GASKET WATER PUMP TO GEAR HSG	1
19	8M0204678	衬垫	GASKET	1
20	90011	O型圈(2.175×0.175)水泵	O-RING (2.175 x .175) WATER PUMP	1
20	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
21	89238	水泵油封	SEAL Oil WATER PUMP	1
22	16977	水泵油封	SEAL Oil WATER PUMP	1
23	856081	水泵下衬垫	GASKET LOWER-WATER PUMP	1
23	8M0090319	衬垫@5	GASKET @5	1
24	856091	水泵上衬垫	GASKET UPPER-WATER PUMP	1
24	858524	衬垫	GASKET	1
25	32435	水泵面盖板	FACE PLATE FACE-WATER PUMP	1
25	8M0204677	面板	PLATE-FACE	1
26	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
27	48752	水泵体嵌件	INSERT WATER PUMP BODY	1
27	48752T	嵌件	INSERT	1
28	38970	橡胶密封-进水管	SEAL RUBBER-WATER INLET TUBE	1
29	89984	水泵叶轮	IMPELLER WATER PUMP	1
29	89984T4	叶轮	IMPELLER	1
30	56654	叶轮驱动键	KEY IMPELLER DRIVE	1
30	8M0214992	键@5	KEY @5	1
31	96411	螺钉（#14-8 x 2.25）水泵（2-1/4英寸）	SCREW (#14-8 x 2.25) WATER PUMP (2-1/4")	1
31	8M0215009	螺钉	SCREW	1
32	29245	垫圈(0.281×0.500×0.060)不锈钢水泵螺钉与螺柱	WASHER (.281 x .500 x .060) Stainless Steel WATER PUMP SCREW AND STUD	2
32	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
33	13438	螺母(0.250-28)水泵螺柱	NUT (.250-28) WATER PUMP STUD	2
33	8267119	螺母(.250-28)	NUT (.250-28)	2
34	36001	水泵螺柱垫圈	WASHER WATER PUMP STUD	1
35	13436	水泵螺柱螺母	NUT WATER PUMP STUD	1
36	30271	橡胶环(驱动轴)	RING Rubber RUBBER (DRIVE SHAFT)	1
36	8M0214918	环@5	RING @5	1
37	29804	进水管导向套	SLEEVE GUIDE-WATER INLET TUBE	1
37	29804T	套筒	SLEEVE	1
38	78902	换挡轴（下部）	SHAFT SHIFT (LOWER)	1
38	789022	换档轴	SHIFT SHAFT	1
39	29641	E形挡圈-换挡轴	E RING RETAINING-SHIFT SHAFT	1
40	78907	挡圈	RING Retaining	1
41	25439		O-RING (.862 x .103) SHIFT SHAFT BUSHING	1
42	77631A2	换挡轴衬套总成	BUSHING ASSEMBLY SHIFT SHAFT	1
43	76384	换挡轴衬套油封	SEAL Oil SHIFT SHAFT BUSHING	1
43	8M0246145	油封	OIL SEAL	1
44	77674	垫圈（.35 x .75 x .12）橡胶-换挡轴衬套	WASHER (.35 x .75 x .12) RUBBER-SHIFT SHAFT BUSHING	1
45	79953		SCREW (.375-16 x .250) GREASE FILLER	1
45	79953Q04	放油螺钉套件	SCREW KIT Drain	1
46	67892	磁性放油螺钉	SCREW Magnetic DRAIN ( MAGNETIC)	1
46	8M0058389	放油螺钉套件	SCREW KIT Drain	1
47	19183	纤维垫圈-润滑脂加注与排放螺钉	WASHER Fiber GREASE FILLER AND DRAIN SCREW	2
47	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
-	42579A4	水泵修理包	REBUILD KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1
-	14697A87	衬垫套件	GASKET SET	AR

图 46齿轮箱图表（序列号0G437999及以下） GEAR HOUSING CHART (S/N-0G437999 & BELOW)

REF	零件编号	中文名称	英文名称	数量
-	9148A69	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148A72	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T85	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A70	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A73	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T91	ORD 1647-9148T85	ORD 1647-9148T85	1
-	9148A76	齿轮箱总成反向旋转	GEAR HOUSING ASSEMBLY Counter Rotation	1
-	9148T86	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A77	齿轮箱总成反向旋转	GEAR HOUSING ASSEMBLY Counter Rotation	1
-	9148T92	ORD 1647-9148T86	ORD 1647-9148T86	1

图 47齿轮箱（驱动轴）（标准旋转） GEAR HOUSING (DRIVESHAFT)(STANDARD ROTATION)

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
10	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0027784	螺母	NUT	4
11	82671117	螺母(.500-20)	NUT (.500-20)	4
12	99629A2	杠杆总成	LEVER ASSEMBLY	1
12	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	830899	张力弹簧	SPRING Tension	1
14	65830	尼龙衬套	NYLINER	2
15	830900	压缩弹簧	SPRING Compression	1
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99617	销	PIN	1
18	893709	销	PIN	1

图 48动力升降组件 8M0231193 Power Trim Components 8M0231193

REF	零件编号	中文名称	英文名称	数量
-	8M0231193	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0225363	电机套件	MOTOR KIT	1
2	8M0225369	阀套件	VALVE KIT	1
3	8M0225371	手动释放套件	MANUAL RELEASE KIT	1
4	8M0245633	倾斜油缸套件	TILT CYLINDER KIT	1
5	8M0225370	枢轴销套件	PIVOT PIN KIT	1
6	8M0244575	减震杆套件	SHOCK ROD KIT	1
7	8M0244425	销杆眼套件	PIN ROD EYE KIT	1
8	8M0232231	螺钉螺母套件	SCREW NUT KIT	1
9	8M0225373	记忆活塞套件	MEMORY PISTON KIT	1
10	8M0225368	储液罐套件	RESERVOIR KIT	1
11	8M0174135	储液罐塞总成	PLUG RESERVOIR ASSEMBLY	1
12	8M0237525	泵套件	PUMP KIT	1
13	8M0225367	升降杆套件	TRIM ROD KIT	1
14	8M0242846	升降杆套件	TRIM ROD KIT	1
15	8M0225372	重建套件	REBUILD KIT	1

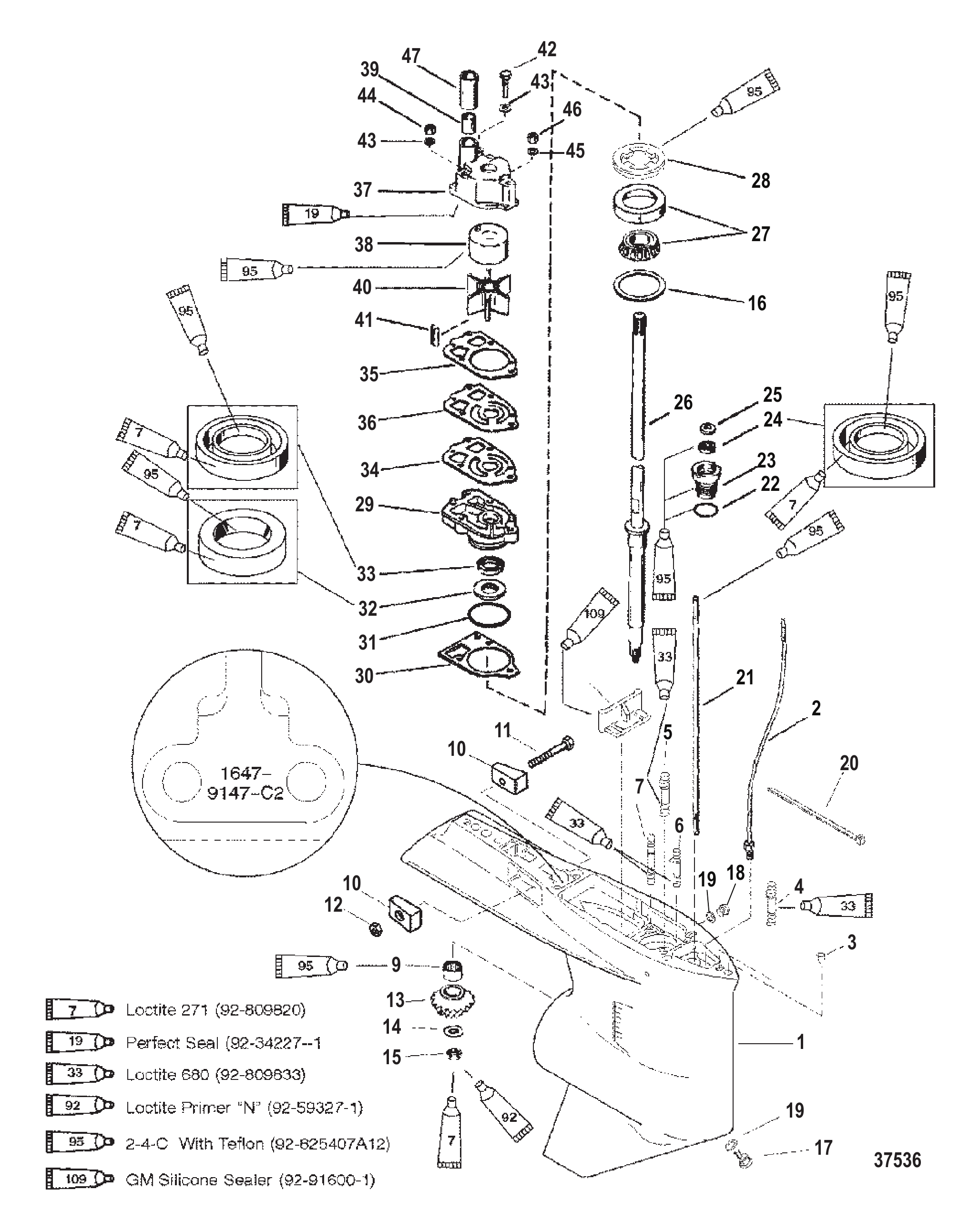

图 49齿轮箱（驱动轴）（标准旋转）（序列号0G438000及以上） GEAR HSG (DRIVESHAFT)(STD ROTATION) (S/N-0G438000, UP)

REF	零件编号	中文名称	英文名称	数量
1	9148A93	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148A94	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148T94	ORD 1647-9148T93	ORD 1647-9148T93	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
4	189783	螺柱(0.438×3.82英寸)	STUD (.438 x 3.82 Inches)	1
4	8M0034464	螺柱	STUD	1
5	579203	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	562972	螺柱(0.312-18/0.324-24×3.380)	STUD (.312-18/.324-24 x 3.380)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	306671	螺柱	STUD	2
8	67891	填充块	FILLER BLOCK	1
8	8M0039169	填充块	FILLER BLOCK	1
9	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
10	826134	阳极块	ANODE	2
10	826134Q	阳极块	ANODE	2
11	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
12	8268336	螺母 (M6)	NUT (M6)	1
12	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
13	NSS	不单独出售-小齿轮(属于43-828174A2部件)	NOT SOLD SEPARATE PINION GEAR (PART OF 43-828174A2	1
14	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
15	35921	螺母(0.625-18)	NUT (.625-18)	1
16	42637A1	垫片组	SHIM SET	AR
16	8M0063267	垫片组	SHIM SET	AR
17	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
17	8M0058389	放油螺钉套件	SCREW KIT Drain	1
18	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	1
18	79953Q04	放油螺钉套件	SCREW KIT Drain	1
19	19183	纤维垫圈	WASHER Fiber	2
19	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
20	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	1
21	789022	换档轴	SHIFT SHAFT	1
22	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
23	77631A2	衬套总成	BUSHING ASSEMBLY	1
24	8164641	油封	SEAL Oil	1
24	8M0246145	油封	OIL SEAL	1
25	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
26	440001	驱动轴	DRIVESHAFT	1
26	897624T	长驱动轴	DRIVESHAFT Long	1
26	442091	驱动轴	DRIVESHAFT	1
26	897625T	加长驱动轴	DRIVESHAFT X-Long	1
27	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
27	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
28	824519	固定座	RETAINER	1
28	8245191	固定座	RETAINER	1
29	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
29	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
30	426311	衬垫	GASKET	1
30	8M0204678	衬垫	GASKET	1
31	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
31	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
32	89238	油封	SEAL Oil	1
33	16977	油封	SEAL Oil	1
34	856081	衬垫	GASKET	1
34	8M0090319	衬垫@5	GASKET @5	1
35	856091	衬垫	GASKET	1
35	858524	衬垫	GASKET	1
36	32435	面板	FACE PLATE	1
36	8M0204677	面板	PLATE-FACE	1
37	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
37	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
38	48752	嵌件	INSERT	1
38	48752T	嵌件	INSERT	1
39	38970	密封件	SEAL	1
40	899841	叶轮	IMPELLER	1
40	89984T3	叶轮	IMPELLER	1
41	56654	键	KEY	1
41	8M0214992	键@5	KEY @5	1
42	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
42	8M0215009	螺钉	SCREW	1
43	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
43	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
44	13438	螺母(.250-28)	NUT (.250-28)	2
44	8267119	螺母(.250-28)	NUT (.250-28)	2
45	36001	垫圈	WASHER	1
46	13436	螺母	NUT	1
47	29804	套筒	SLEEVE	1
47	29804T	套筒	SLEEVE	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1

图 50启动电机总成 STARTER MOTOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
-	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	90645	驱动套件	DRIVE KIT	1
2	75661	驱动小齿轮总成	PINION ASSEMBLY Drive	1
2	13310T1	小齿轮总成	PINION ASSEMBLY	1
3	75660	驱动端板	PLATE DRIVE END	1
4	74968	贯穿螺栓	BOLT THRU	2
6	N.S.S.	不单独出售垫圈	Not Sold Separate Washer	1
7	79216	电枢	ARMATURE	1
8	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
9	61787	电刷架	HOLDER BRUSH	2
9	898265014	电刷支架	HOLDER-BRUSH	2
10	N.S.S.	不单独出售螺钉	Not Sold Separate Screw	2
11	15386	换向器端盖	END CAP COMMUTATOR	1
11	15386001	端盖	END CAP	1

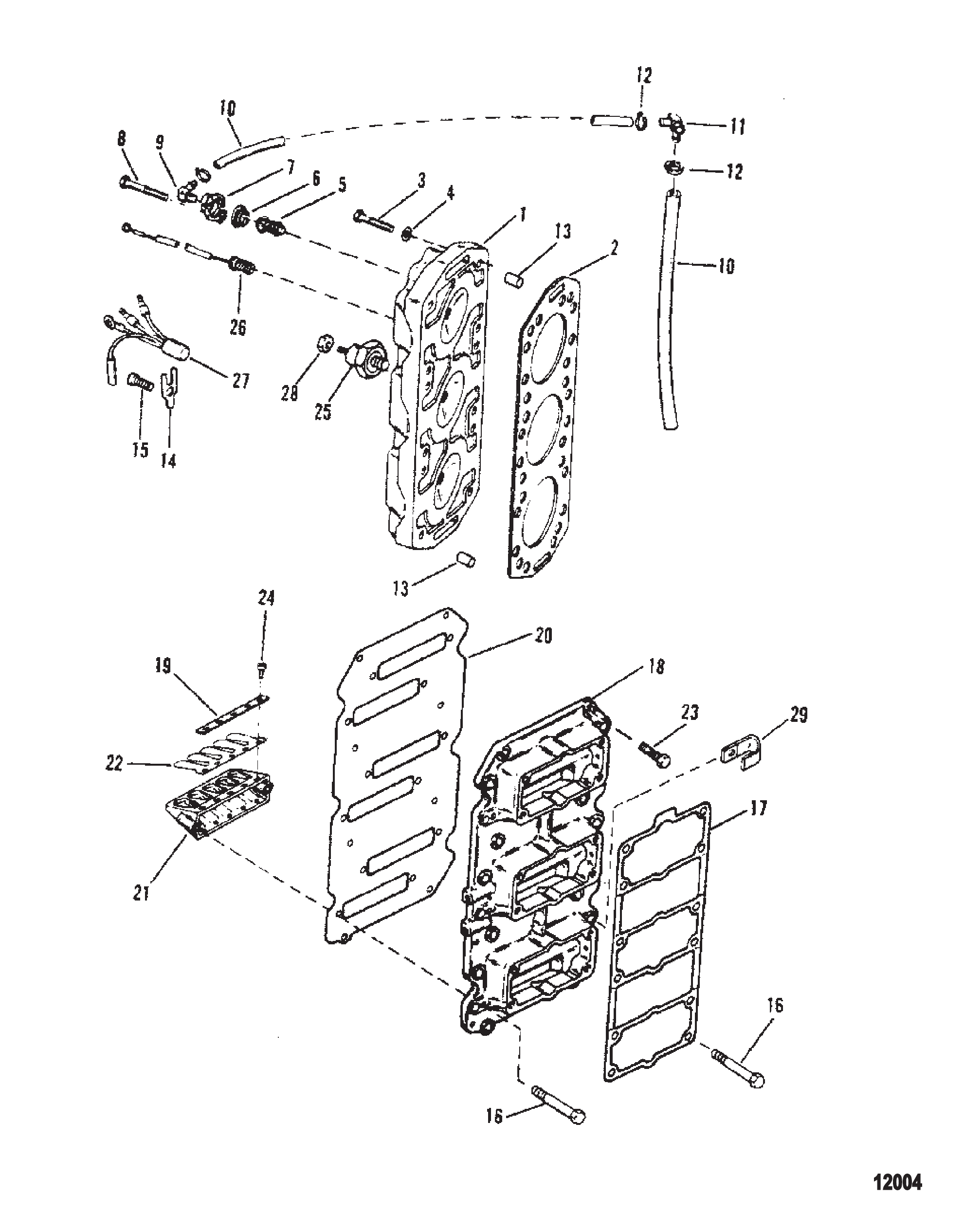

图 51簧片阀组与气缸盖 REED BLOCK AND CYLINDER HEAD

REF	零件编号	中文名称	英文名称	数量
1	18488F1	气缸盖	CYLINDER HEAD	2
2	8228441	衬垫	GASKET	2
2	822844T05	衬垫	GASKET	2
3	98534	螺钉 (.375-16 x 2.30)	SCREW (.375-16 x 2.30)	23
3	827426	螺钉	SCREW	1
4	63779	定位销 (.250 x .625)	PIN Dowel (.250 x .625)	4
5	62386	衬垫	GASKET	2
5	8M0204714	衬垫@4	GASKET @4	2
6	90390A1	盖板套件	COVER KIT	2
7	75692	节温器	THERMOSTAT	2
8	35386	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	4
9	68727	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
9	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
10	77653112	软管(59.00英寸散装)(裁切至12-3/4英寸)	HOSE (59.00 Inches Bulk) (Cut to 12-3/4 IN.)	1
10	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
11	68728	接头	FITTING	1
12	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
13	77653112	软管(59.00英寸散装)(裁切至11-1/2英寸)	HOSE (59.00 Inches Bulk) (Cut to 11-1/2 IN.)	1
13	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
14	77653112	软管(59.00英寸散装)(裁切至7-1/2英寸)	HOSE (59.00 Inches Bulk) (Cut to 7-1/2 IN.)	1
14	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
15	97465		SENDER Temperature (Starboard)	1
16	815914	三通接头	T-FITTING	1
17	13536A6		SENSOR ASSEMBLY Temperature (Port)	1
18	137151	固定座	RETAINER	2
19	98257	螺钉 (.312-18 x .500)	SCREW (.312-18 x .500)	2
20	826858	爆震传感器(200)	SENSOR Knock (200)	1
21	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	1
22	17735A2	适配板总成	ADAPTER PLATE ASSEMBLY	1
23	28668	螺钉 (.250-20 x .875) 不锈钢	SCREW (.250-20 x .875) Stainless Steel	8
24	146972	衬垫	GASKET	1
25	116453	簧片阀组	REED BLOCK	6
25	855952T3	簧片阀总成	REED BLOCK ASSEMBLY	6
26	55098	J型卡扣	J CLIP	1
26	8M0024808	J型夹	J-CLIP	1
27	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	6
28	90197	螺丝（.250-20 x 1.125）	SCREW (.250-20 x 1.125)	6
29	167371	衬垫	GASKET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	823434A97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 52齿轮箱（驱动轴）（反向旋转） GEAR HOUSING (DRIVESHAFT)(COUNTER ROTATION)

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
10	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0027784	螺母	NUT	4
11	82671117	螺母(.500-20)	NUT (.500-20)	4
12	99629A2	杠杆总成	LEVER ASSEMBLY	1
12	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	830899	张力弹簧	SPRING Tension	1
14	65830	尼龙衬套	NYLINER	2
15	830900	压缩弹簧	SPRING Compression	1
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99617	销	PIN	1
18	893709	销	PIN	1

图 53驱动轴壳体与排气管 DRIVESHAFT HOUSING AND EXHAUST TUBE

REF	零件编号	中文名称	英文名称	数量
1	8343A10	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8343A11	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8343T11	ORD 1590-8343T10	ORD 1590-8343T10	1
1	813563A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	813563T1	传动轴壳体-黑色-加长型	HOUSING Driveshaft - Black - X-Long	1
1	813563A2	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	813563T2	ORD 3503-813563T1	ORD 3503-813563T1	1
2	56295	双头螺柱(.437 x 2.69)	STUD (.437 x 2.69)	2
3	63474	螺钉(.500-20 x 6.00)	SCREW (.500-20 x 6.00)	2
3	898831	螺钉(.500-20 x 6.220)	SCREW (.500-20 x 6.220)	2
4	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
5	77327	支架	MOUNT	2
6	49339	垫圈(.8125)	WASHER (.8125)	2
7	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
8	28040	螺母(.500-20)	NUT (.500-20)	2
8	898832	螺母(.500-20)	NUT (.500-20)	2
9	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
10	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
11	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
11	8M0204653	螺母	NUT	2
12	67076	卡箍	CLAMP	2
12	8M0036782	卡箍	CLAMP	2
13	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
14	67077T	黑色盖	COVER Black	2
14	8M4500752	盖板	COVER	2
14	67077F1	灰色盖板	COVER Gray	2
14	67077T	黑色盖	COVER Black	2
15	88417	螺钉(#12-24×0.620)	SCREW (#12-24 x .620)	4
16	35521	螺母	NUT	4
17	48926	垫圈	WASHER	1
18	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	1
18	8M0204653	螺母	NUT	1
19	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	4
20	69254	螺母	NUT	4
21	828212	怠速排气套	BOOT Idle Exhaust	1
21	8M0039081	护套	BOOT	1
22	64649	堵头	PLUG	1
23	991732	衬垫	GASKET	1
23	991734	衬垫	GASKET	1
24	66350	下密封件	SEAL (LOWER)	1
24	66350001	密封件	SEAL	1
25	18276	排气管	TUBE Exhaust	1
25	18276T	排气管	EXHAUST TUBE	1
26	177261	上密封件	SEAL (UPPER)	1
26	8M0039076	密封件	SEAL	1
27	812834	排气管延长段	EXTENSION Exhaust	1
27	812834A2	排气延长总成	EXTENSION ASSEMBLY Exhaust	1
27	41942F3	排气管延长段	EXTENSION Exhaust	1
27	879288T71	排气管延长段	EXTENSION Exhaust	1
28	67295	水管	TUBE Water	1
28	8M0042788	长型水管	TUBE-WATER-LONG	1
28	74729	管	TUBE	1
28	8M0042790	水管	TUBE-WATER	1
29	78246	衬垫	GASKET	1
29	782461	衬垫	GASKET	1
30	18233A6	隔板总成	PLATE ASSEMBLY	1
30	18233A20	传动轴壳体板总成	PLATE ASSEMBLY Driveshaft Housing	1
31	8147012	密封件	SEAL	1
31	8M0043165	密封件-27.00英寸	SEAL-27.00 INCH	1
32	68011	支架	BRACKET	1
33	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
33	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
34	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
35	38970	密封件	SEAL	1
36	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	6
37	39072	塞(1/8英寸黄铜)	PLUG (1/8 Inch Brass)	2
37	390721	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	2
38	183071	衬垫	GASKET	1
38	183076	衬垫	GASKET	1
-	814754A98	衬垫套件	GASKET SET	1
-	8M0046714	衬垫套件	GASKET SET	1

图 54动力升降组件（可拆卸泵壳）金属马达壳体 POWER TRIM COMPONENTS (REMOVEABLE PUMP HOUSING) Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
10	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0027784	螺母	NUT	4
11	82671117	螺母(.500-20)	NUT (.500-20)	4
12	99629A2	杠杆总成	LEVER ASSEMBLY	1
12	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	830899	张力弹簧	SPRING Tension	1
14	65830	尼龙衬套	NYLINER	2
15	830900	压缩弹簧	SPRING Compression	1
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99617	销	PIN	1
18	893709	销	PIN	1

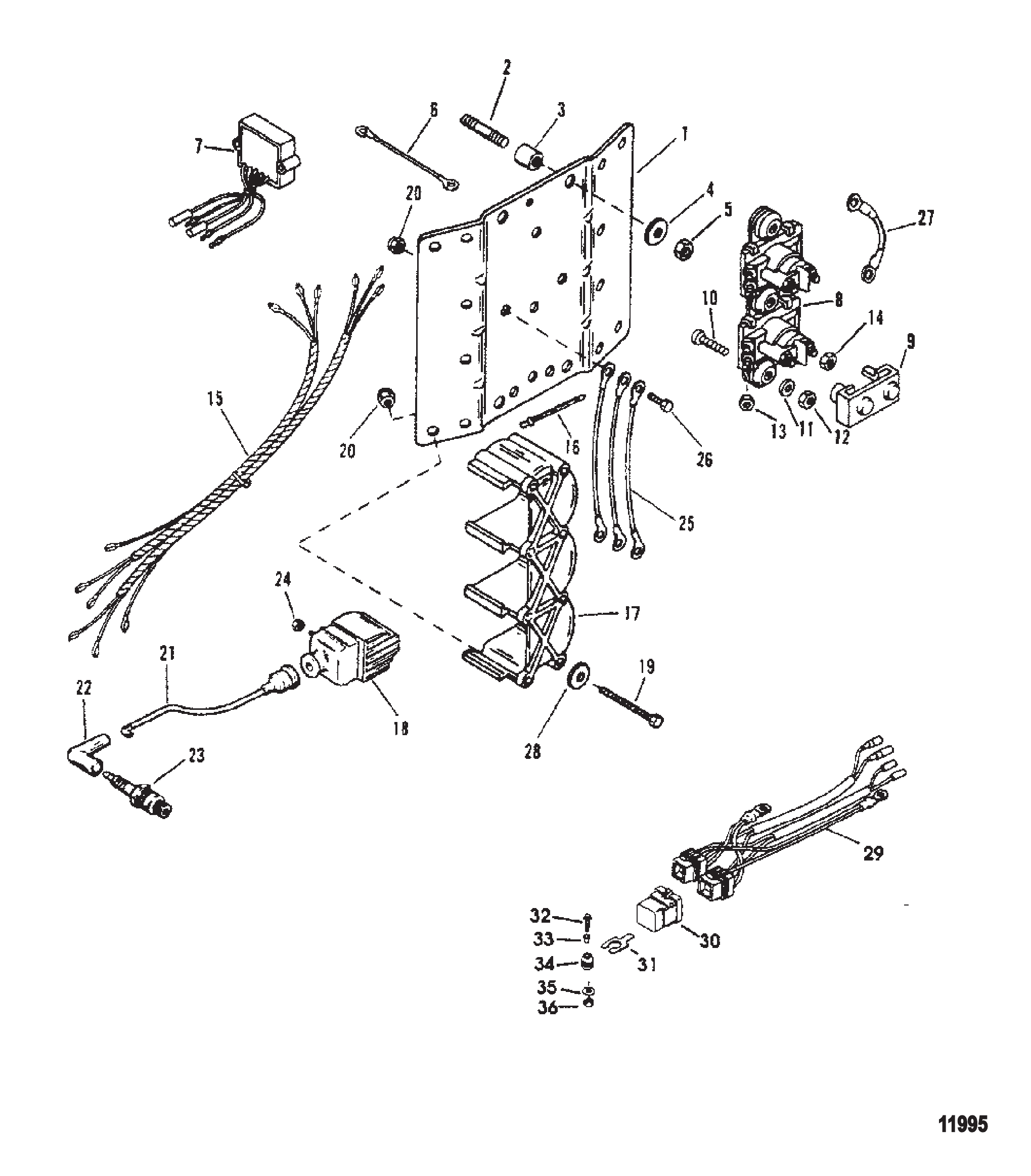

图 55点火线圈/电压调节器 IGNITION COIL/VOLTAGE REGULATOR

REF	零件编号	中文名称	英文名称	数量
1	195872	安装板	MOUNTING PLATE	1
2	33778	螺柱	STUD	4
3	19661	衬套	BUSHING	4
4	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
5	13438	螺母(.250-28)	NUT (.250-28)	4
5	8267119	螺母(.250-28)	NUT (.250-28)	4
6	88807A35	拉线总成	CABLE ASSEMBLY	1
7	854515	电压调节器	REGULATOR Voltage	2
7	8M0084173	电压调节器	VOLTAGE REGULATOR	2
8	69739A7	线束总成	HARNESS ASSEMBLY	1
9	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
10	43542	盖板	COVER	2
11	90048	螺钉 (#10-32 x 2.125)	SCREW (#10-32 x 2.125)	12
12	89302	垫圈(0.203 x 0.406 x 0.040)(适用处使用)	WASHER (.203 x .406 x .040) (USE WHERE APPLICABLE)	12
13	90078	螺母 (#10-32)	NUT (#10-32)	14
14	88807A13	拉线总成	CABLE ASSEMBLY	6
15	69022	螺钉 (#10-32 x .500) 不锈钢	SCREW (#10-32 x .500) Stainless Steel	2
16	832757A4	线圈套件	COIL KIT	6
16	8M0230859	点火线圈总成	COIL IGNITION ASY	6
17	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	12
18	813706A55	高压线总成	CABLE ASSEMBLY High Tension	1
18	813715A9	点火线缆套件	CABLE KIT Ignition	1
19	63709A1	护套/端子套件	BOOT/TERMINAL KIT	6
20	136862	火花塞（NGK #BU8H）	SPARK PLUG (NGK #BU8H)	6
20	13686Q	NGK BU8H @10	NGK BU8H @10	6
20	14103568	火花塞(NGK #BUZ8H-加拿大/比利时)	SPARK PLUG (NGK #BUZ8H - CANADA/BELGIUM)	6
20	896329885	SP #L6VC @4	SP #L6VC @4	6
21	826802A4	线束总成	HARNESS ASSEMBLY	1
22	828151A1	继电器总成	RELAY ASSEMBLY	2
22	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
23	828102	支架	BRACKET	2
23	8M0207771	安装支架	BRACKET Mounting	2
24	818968	衬套	BUSHING	2
24	8M0214955	衬套	BUSHING	2
25	818967	护孔环	GROMMET	2
25	8M0207785	护孔环	GROMMET	2
26	35950	垫圈 (.273 x .437 x .031) 不锈钢	WASHER (.273 x .437 x .031) Stainless Steel	2
27	13855A1	螺母/螺钉套件	NUT/SCREW KIT	2
28	NSS		NOT SOLD SEPARATE SCREW	2

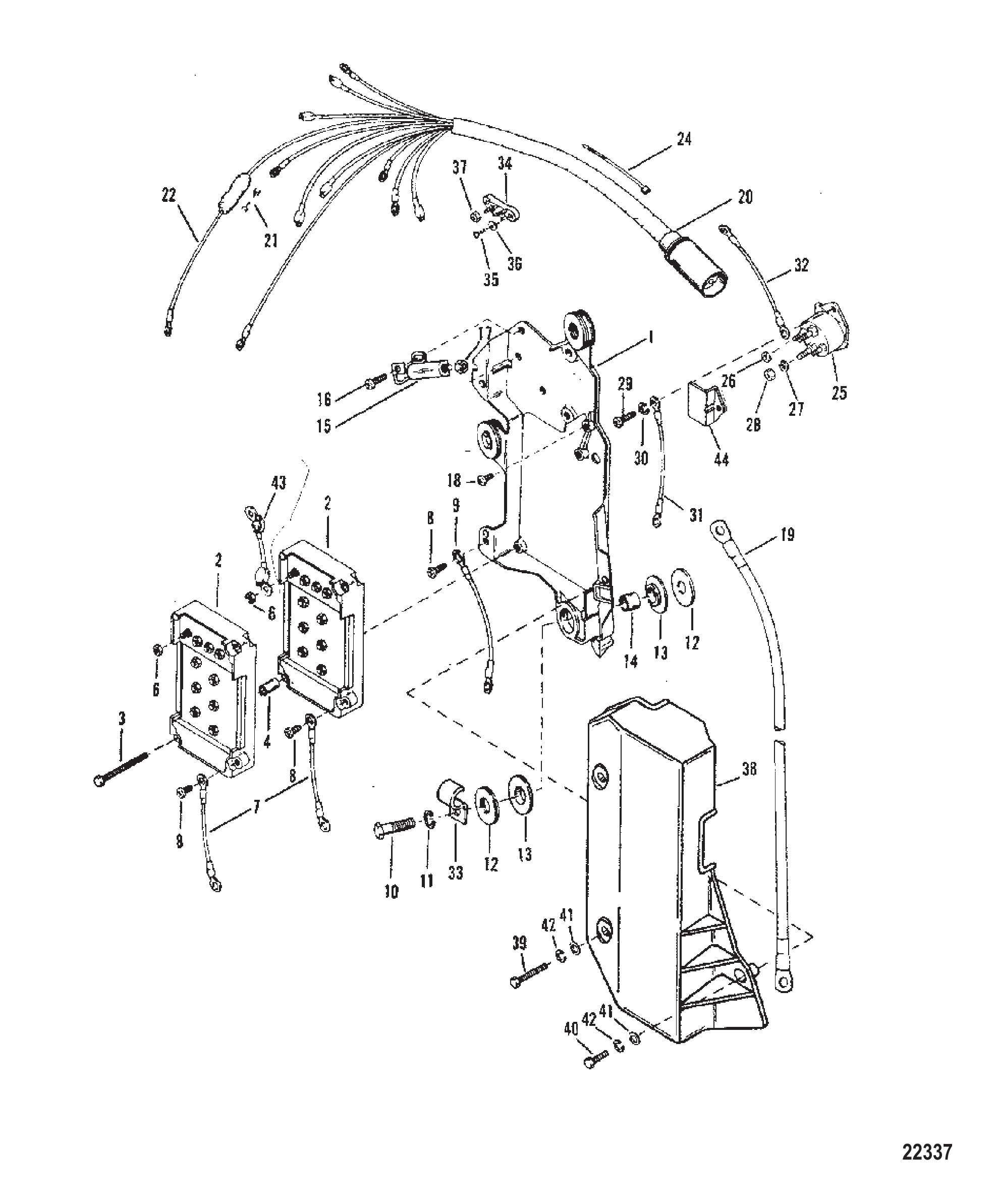

图 56飞轮/启动马达 FLYWHEEL/STARTER MOTOR

REF	零件编号	中文名称	英文名称	数量
1	18896A1	盖板套件	COVER KIT	1
2	79022	标记	MARKER	1
3	37572	螺钉 (.190-32 x .380)	SCREW (.190-32 x .380)	2
4	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	2
5	89219	塞（适用时使用）	PLUG (USE WHERE APPLICABLE)	1
5	89219001	堵头	PLUG	1
6	45907	黄色塞	PLUG Yellow	1
7	52901	螺母(0.625-18)	NUT (.625-18)	1
8	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
8	33001	垫圈	WASHER	1
9	817632A12	飞轮	FLYWHEEL	1
9	859238T16	飞轮总成	FLYWHEEL ASY	1
10	9610A19	定子	STATOR	1
11	90045	螺钉(#10-32×1.375)	SCREW (#10-32 x 1.375)	4
12	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	4
13	96455A9	触发板总成	PLATE ASSEMBLY Trigger	1
14	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
14	893893	启动马达	STARTER MOTOR	1
15	56703	轴环	COLLAR	2
15	8M0034918	轴环	COLLAR	2
16	68042	橡胶止挡	STOP Rubber	2
16	8M0043376	停机开关	STOP	2
17	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
18	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
19	93388A7	线缆总成(黑色)	CABLE ASSEMBLY (BLACK)	1
19	93388A14	线缆总成(黄/黑)	CABLE ASSEMBLY Yellow/Black	1
20	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
21	20890	螺母 (.250-20)	NUT (.250-20)	1

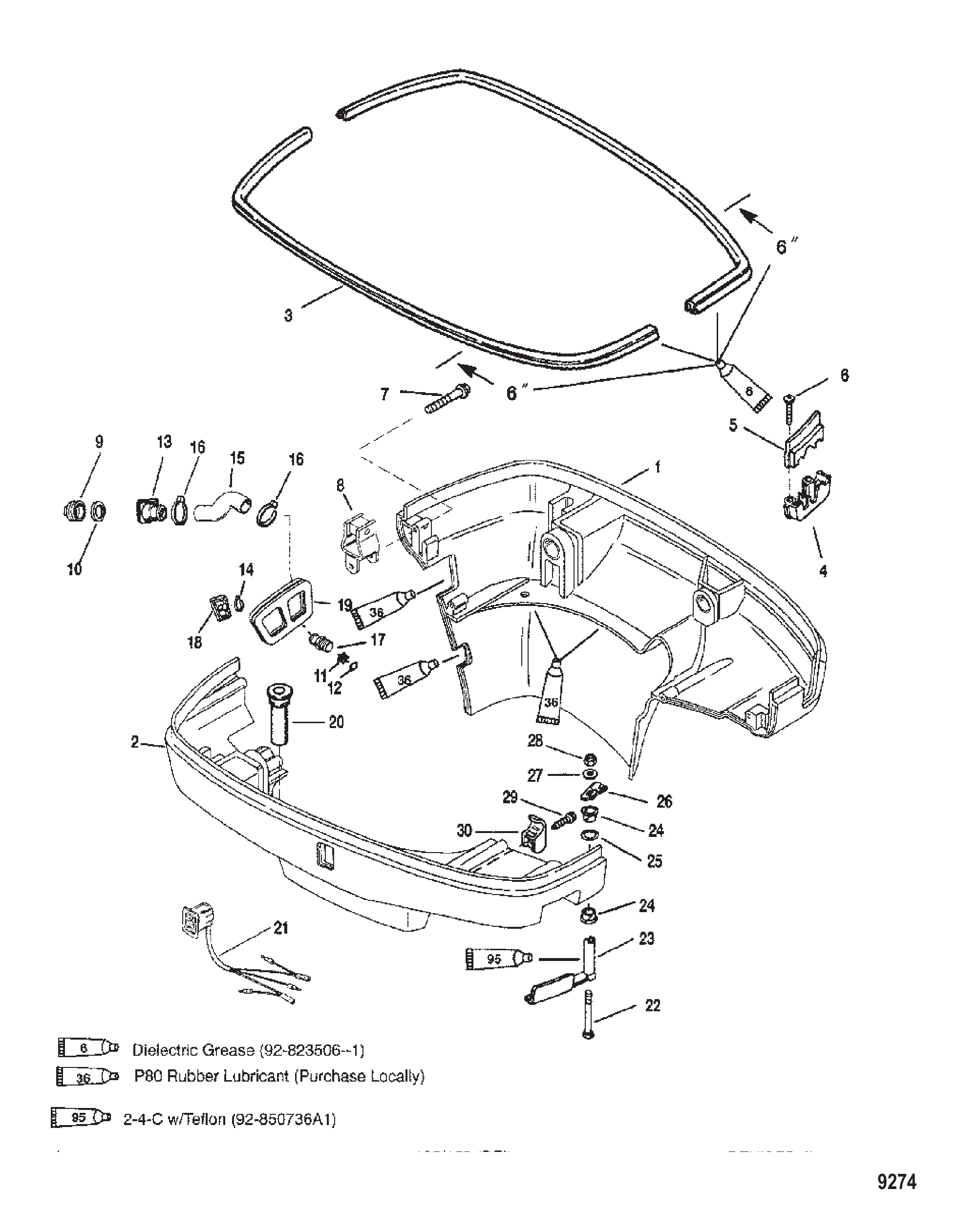

图 57下机罩 BOTTOM COWL

REF	零件编号	中文名称	英文名称	数量
1	834814A1	下机罩	BOTTOM COWL	1
1	834814A2	下机罩	BOTTOM COWL	1
2	834815A1	下机罩	BOTTOM COWL	1
2	8M0107322	机罩-底部右舷	COWL-BOTTOM, STBD	1
2	834815A2	下机罩	BOTTOM COWL	1
3	8253181	罩盖密封条(41英寸)	SEAL Cowl (41.00 Inches)	2
3	8M0109217	罩盖密封条	SEAL-COWL	2
4	822024	卡箍	CLAMP	1
5	822023	卡箍	CLAMP	1
6	92799	螺钉(#10-16x1.12)	SCREW (#10-16 x 1.12)	2
7	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	4
8	831209	固定座	RETAINER	1
9	821908	堵头	PLUG	1
10	821915	垫圈	WASHER	1
11	821963	止回阀	CHECK VALVE	1
11	8219631	止回阀	CHECK VALVE	1
12	30641	O型圈(0.299x0.103)	O-RING (.299 x .103)	1
13	821952	接头	FITTING	1
14	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
14	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
15	8320782	软管	HOSE	1
15	8M0039077	成型软管	HOSE-MOLDED	1
16	850896	卡箍 (28.6)	CLAMP (28.6)	2
17	8320763	接头	FITTING	1
18	821904	示流器接头	FITTING Tell-Tale	1
18	8M0077650	示流器接头	FITTING Tell-Tale	1
19	828216	怠速排气套	IDLE EXHAUST BOOT Exhaust	1
19	889847	怠速排气套	BOOT Idle Exhaust	1
20	817519A1	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	2
21	850691	开关	SWITCH	1
21	8M0235192	微调开关	SWITCH TRIM	1
22	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
23	821253F1	前手柄黑色	FRONT HANDLE Black	1
23	889740A02	手柄套件	HANDLE KIT	1
23	821253F2	前手柄	FRONT HANDLE	1
23	889740A02	手柄套件	HANDLE KIT	1
24	335891	衬套	BUSHING	2
25	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
26	8219423	棘爪	PAWL	1
27	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	1
28	401196	螺母 (M6)	NUT (M6)	1
29	8214281	螺钉(#10-16x0.625)	SCREW (#10-16 x .625)	1
30	822873	卡扣	CLIP	1

图 58CDM安装座 CDM MOUNTING

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
10	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0027784	螺母	NUT	4
11	82671117	螺母(.500-20)	NUT (.500-20)	4
12	99629A2	杠杆总成	LEVER ASSEMBLY	1
12	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	830899	张力弹簧	SPRING Tension	1
14	65830	尼龙衬套	NYLINER	2
15	830900	压缩弹簧	SPRING Compression	1
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99617	销	PIN	1
18	893709	销	PIN	1

图 59动力升降组件(铸造泵壳)金属电机壳体 POWER TRIM COMPONENTS (CAST PUMP HOUSING) Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
10	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0027784	螺母	NUT	4
11	82671117	螺母(.500-20)	NUT (.500-20)	4
12	99629A2	杠杆总成	LEVER ASSEMBLY	1
12	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	830899	张力弹簧	SPRING Tension	1
14	65830	尼龙衬套	NYLINER	2
15	830900	压缩弹簧	SPRING Compression	1
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99617	销	PIN	1
18	893709	销	PIN	1

图 60齿轮箱图表 GEAR HSG. CHART

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
10	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0027784	螺母	NUT	4
11	82671117	螺母(.500-20)	NUT (.500-20)	4
12	99629A2	杠杆总成	LEVER ASSEMBLY	1
12	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	830899	张力弹簧	SPRING Tension	1
14	65830	尼龙衬套	NYLINER	2
15	830900	压缩弹簧	SPRING Compression	1
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99617	销	PIN	1
18	893709	销	PIN	1

图 61启动马达 STARTER MOTOR

REF	零件编号	中文名称	英文名称	数量
-	NSS	起动机总成(不单独销售)	NOT SOLD SEPARATE Starter Motor Assembly	1
1	892339T01	启动电机总成	STARTER MOTOR ASSEMBLY	1
2	NSS	螺钉组(不单独销售)	NOT SOLD SEPARATE Screws	2
3	880805A1	齿轮套件	GEAR KIT	1
4	809463A1	电磁阀组件	SOLENOID KIT	1
5	8M0065258	电刷组	BRUSH SET	1
6	8M0034918	轴环	COLLAR	2
7	8M0043276	停机开关	STOP	1
8	NSS	高压警告贴纸(不单独销售)	NOT SOLD SEPARATE Decal-Waring-High Voltage	1
9	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
10	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
11	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
12	400213	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
13	400255	锁紧垫圈(M5)	LOCKWASHER (M5)	1
14	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1

图 62动力升降泵 POWER TRIM PUMP

REF	零件编号	中文名称	英文名称	数量
-	99186T	泵与电机总成	PUMP AND MOTOR	1
1	12659	机架与磁场套件	FRAME AND FIELD KIT	1
1	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
2	12665	电刷弹簧套件	SPRING KIT Brush	1
3	13506	电刷卡套件	BRUSH CARD KIT	1
3	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
4	12662	泵与端架套件	PUMP AND END FRAME KIT	1
4	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
5	126631	泵密封套件	SEAL KIT Pump	1
6	12660	端架套件	END FRAME KIT	1
6	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
7	12661	电枢套件	ARMATURE KIT	1
7	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
8	12664	贯穿螺栓套件	THRU BOLT KIT	1

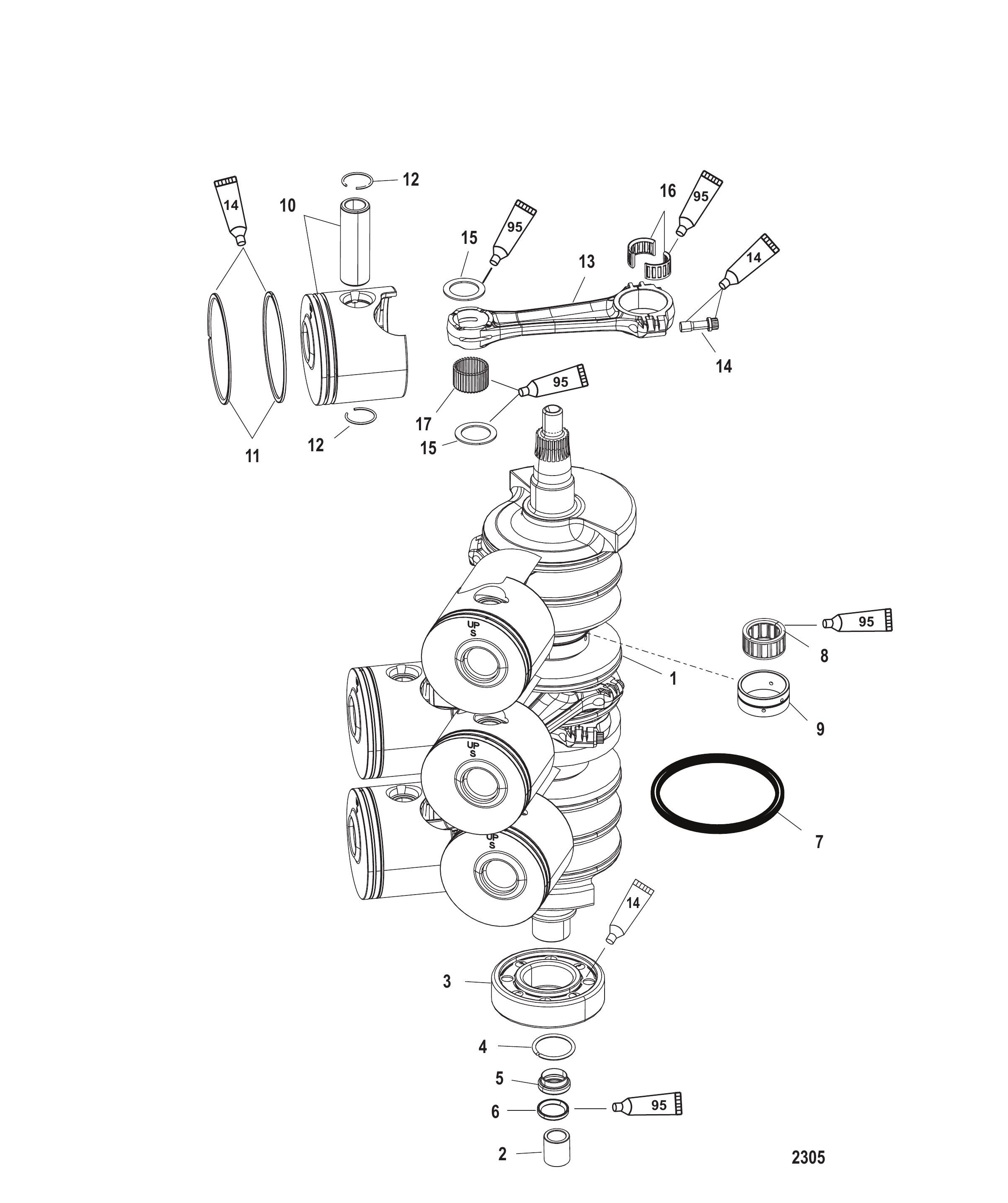

图 63曲轴、活塞及连杆 CRANKSHAFT PISTONS AND CONNECTING RODS

REF	零件编号	中文名称	英文名称	数量
1	850690T2	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	78662	耐磨套	WEAR SLEEVE	1
3	67923T	球轴承(下部)	BEARING Ball (LOWER)	1
4	67446	环	RING	1
5	54196A6	托架总成	CARRIER ASSEMBLY	1
6	65800	填料	PACKING	1
7	67377	密封环	RING Sealing	7
7	67377T	密封环	RING Sealing	7
8	16756A6	轴承套件	BEARING KIT	2
9	NSS	不单独销售轴承座圈	NOT SOLD SEPARATE Bearing Race	2
10	854687T5	活塞	PISTON	3
10	854686T5	活塞	PISTON	3
11	840684A12	活塞环套装（每套12环）	RING SET Piston (12 Rings per Set)	1
12	857196	锁紧环	LOCK RING	12
13	8M0081411	连杆总成	CONNECTING ROD ASSEMBLY	6
14	763491	螺钉(.312-24 x .875)	SCREW (.312-24 x .875)	12
15	812876	垫圈	WASHER	12
15	8M0012298	止推垫片	THRUST WASHER	12
16	8M0082405	轴承套件	BEARING KIT	6
17	822553	滚针轴承	BEARING Needle	174
17	8M0204691	滚针轴承@200	BRG-NEEDLE @200	174
-	881805A01	发动机垫片组	GASKET SET Engine	1
-	883201A01	动力头总成	POWERHEAD ASSEMBLY	1

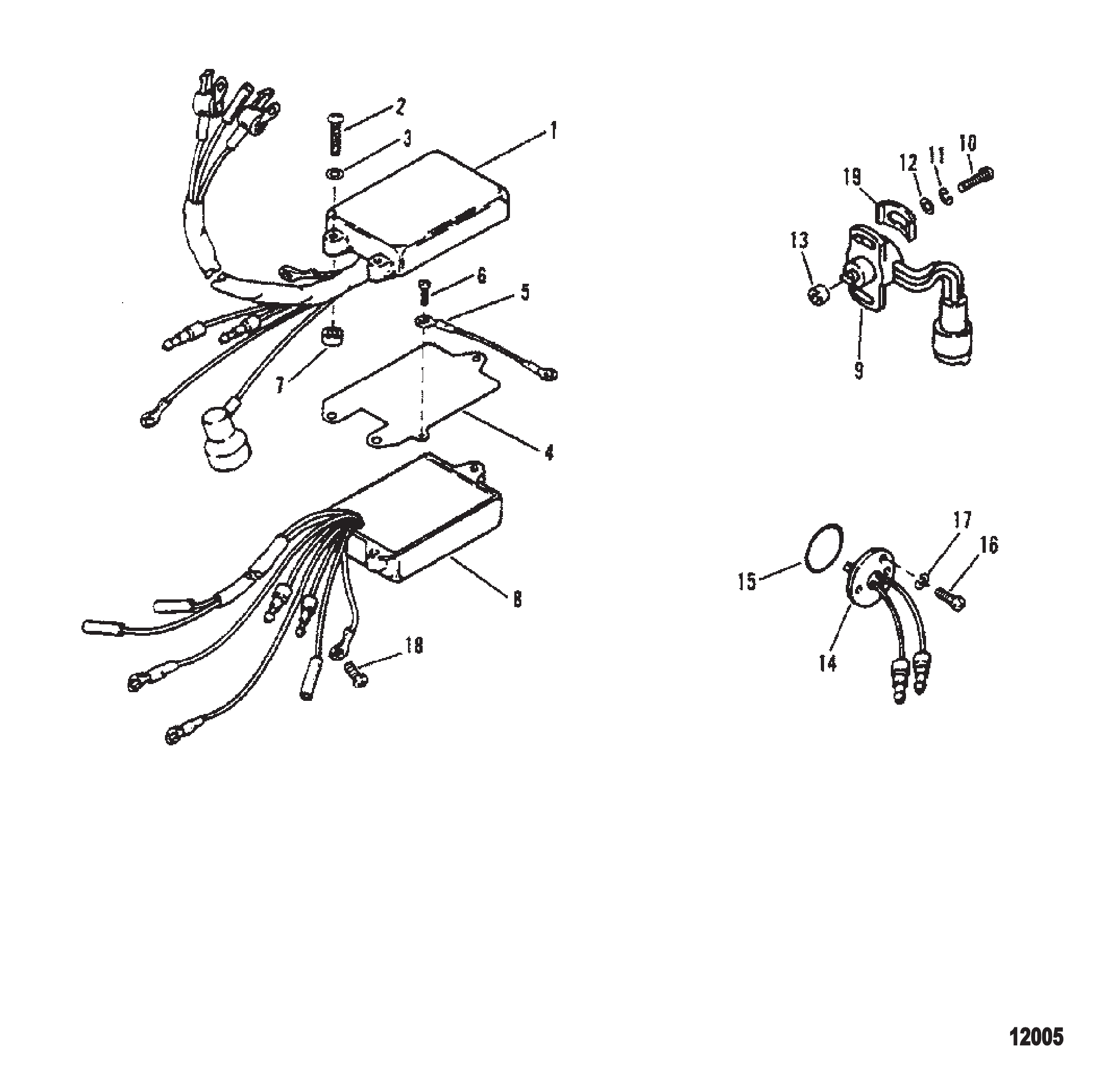

图 64爆震控制器/温度传感器 DETONATION CONTROLLER/TEMPERATURE SENSOR

REF	零件编号	中文名称	英文名称	数量
1	826800A8	爆震控制器总成	CONTROLLER ASSEMBLY Detonation	1
2	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	3
3	38833	垫圈	WASHER	3
4	13381	安装板	PLATE	1
5	88807A10	拉线总成	CABLE ASSEMBLY	1
6	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
7	94304	隔套	SPACER	3
8	41470A25	喷油警告模块总成	MODULE ASSEMBLY Oil Injection Warning	1
9	14851	油门位置指示器	INDICATOR Throttle Position	1
9	14851T03	指示器	INDICATOR	1
10	15150	螺钉(#8-32 x 0.625英寸)	SCREW (#8-32 x .625)	2
11	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	2
12	30164	垫圈(0.192x0.375x0.0312)不锈钢	WASHER (.192 x .375 x .0312) Stainless Steel	2
13	15885	套筒	SLEEVE	1
14	813501	安装板	PLATE	2
15	13221A1	温度传感器总成	SENSOR ASSEMBLY Temperature	1
15	13221T01	温度传感器	SENSOR TEMP	1
16	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
17	57583	螺丝（#8-32×0.375）	SCREW (#8-32 x .375)	3
17	57583T	螺丝#8-32×3/8	SCREW #8-32x3/8	3
18	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	3
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 65上罩与前护板 TOP COWL AND FRONT SHIELD

REF	零件编号	中文名称	英文名称	数量
1	9742A92	顶盖总成 (黑色)(无贴花)	TOP COWL ASSEMBLY (BLACK)(Without Decals)	1
1	9742A93	顶罩总成(灰色)(无贴花)	TOP COWL ASSEMBLY (GRAY)(Without Decals)	1
1	9743T10	顶罩	TOP COWL	1
2	812784	密封件	SEAL	1
3	815478	密封件	SEAL	1
4	815225	隔音垫(侧)	SOUND BLANKET (SIDE)	2
5	815226	隔音垫(顶)	SOUND BLANKET (TOP)	1
4/5	815225A1	隔音毯套装	SOUND BLANKET KIT	1
6	815227	前隔音垫	SOUND BLANKET FRONT	1
7	47341A1	手动/应急启动绳柄套件	ROPE AND HANDLE KIT Manual/Emergency Start	1
7	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
8	815848	螺母 (.312)	NUT (.312)	2
9	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
9	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2
10	184741	后支架	BRACKET REAR	2
11	18506	护孔环	GROMMET	3
11	18506001	护孔环	GROMMET	3
12	28636	螺钉(.250-20 x .750) 后支架	SCREW (.250-20 x .750) REAR BRACKET	4
13	816992	螺钉	SCREW	8
14	813096	挂钩	HOOK	2
14	813096A2	挂钩套件	HOOK KIT	2
15	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	2
16	813074	滚轮	ROLLER	2
16	8M0207770	滚轮@3	ROLLER @3	2
17	13194	挡圈	RING Retaining	2
18	56720	垫圈(0.330×0.750×0.060)不锈钢	WASHER (.330 x .750 x .060) Stainless Steel	4
19	187021	定位器	LOCATOR	1
20	18173	锁扣滚轮支架总成	BRACKET ASSEMBLY Latch Roller	1
20	893763	滚轮锁扣支架	BRACKET Roller Latch	1
21	813552	垫片(旧款)	SPACER (OLD DESIGN)	1
21	813076A2	手柄套件	HANDLE KIT	1
21A	816838	隔套	SPACER	1
22	31984	螺钉(0.312-18×1.375)	SCREW (.312-18 x 1.375)	2
22	69267	螺钉 (.312-18 x 1.750)	SCREW (.312-18 x 1.750)	2
23	18755A1	前护罩总成 (黑色)(无贴花)	FRONT SHIELD ASSEMBLY (BLACK)(Without Decals)	1
23	18755A2	前护罩总成 (灰色)(无贴花)	FRONT SHIELD ASSEMBLY (GRAY)(Without Decals)	1
25	77137	螺钉 (.190-16 x .620)	SCREW (.190-16 x .620)	4
26	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	4
26	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	4
27	36001	垫圈	WASHER	2

图 66齿轮箱（螺旋桨轴）（标准旋转）（序列号0G437999及以下） GEAR HSG (PROP SHAFT)(STD ROTATION) (S/N-0G437999, BELOW)

REF	零件编号	中文名称	英文名称	数量
1	9148A47	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148A48	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
51	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
52	789562	换挡凸轮	SHIFT CAM	1
53	79911A1	杆	ROD	1
54	79910	弹簧	SPRING	1
55	78906	销	PIN	1
55	8M0084245	弹簧定位销	PIN Spring Locator	1
56	78910	垫圈	WASHER	AR
57	44104A8	齿轮组	GEAR SET	1
58	549281	滚柱轴承	BEARING Roller	1
59	47397A1	垫片组(.002-3-5-10)	SHIM SET (.002-3-5-10)	AR
60	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
61	823174	离合器	CLUTCH	1
61	823174T	ORD 8M0100493	ORD 8M0100493	1
62	78905	十字销	PIN Cross	1
62	8M0084243	十字销	PIN Cross	1
63	78909	定位销	PIN Detent	2
64	78962	弹簧	SPRING	2
65	94148	螺旋桨轴	PROPELLER SHAFT	1
66	824986A2	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
67	824108	隔套(不用于高海拔)	SPACER (NOT USED W/HIGH ALTITUDE)	1
68	681001	止推环	RING Thrust	1
69	88957	滚珠轴承总成	BEARING ASSEMBLY Ball	1
69	88957T	滚珠轴承	BEARING Ball	1
70	31534	O型圈	O-RING	1
70	8M0214920	O型圈	O RING	1
71	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
71	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
72	30956	滚针轴承	BEARING Needle	1
72	30956T	滚针轴承	BEARING Needle	1
73	76868	密封件	SEAL	2
73	8M0248882	油封@5	SEAL-OIL @5	2
74	30281	键	KEY	1
75	79447	锁紧垫圈	TAB WASHER	1
76	79448	固定座	RETAINER	1
76	8M2011027	固定座	RETAINER	1
77	316405	平衡鳍板	TRIM TAB	1
77	8M0236553	平衡鳍板	TRIM TAB	1
78	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
78	8M0204686	螺钉	SCREW	1
79	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
80	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
81	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
81	8M0204653	螺母	NUT	2
82	8354671	推力毂	THRUST HUB	1
82	835467Q01	止推垫片套件	THRUST WASHER KIT	1
83	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
84	31211A2	花键垫圈	WASHER Splined	1
84	31211Q03	垫圈总成	WASHER ASSEMBLY	1
85	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
85	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
86	816629	锁紧垫圈	TAB WASHER	1
86	816629Q	锁紧垫圈	TAB WASHER	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	89238A2	密封套件	SEAL KIT	1

图 67燃油管理系统 FUEL MANAGEMENT SYSTEM

REF	零件编号	中文名称	英文名称	数量
-	14817A23	燃油管理系统总成	MANAGEMENT ASSEMBLY Fuel	1
1	8276922	盖板	COVER	1
2	15443	线束套件	HARNESS KIT	1
3	18792	密封件	SEAL	1
4	15029	O型圈及密封套件	O-RING AND SEAL KIT	1
5	8276992	燃油导轨	FUEL RAIL	1
5	827699T2	燃油导轨	FUEL RAIL	1
6	18715	燃油喷油器	INJECTOR Fuel	6
6	18715T	喷油器总成	INJECTOR ASSEMBLY	6
7	17422	滤清器	FILTER	1
8	827696	固定套件	RETAINER KIT	1
9	8276933	节气门体	THROTTLE BODY	1
10	8090572	接头套件	JOINT KIT	1
11	8276891	连杆套件	LINK KIT	1
12	827697	连杆杠杆套件	LEVER KIT Link	1
13	827698	螺钉套件	SCREW KIT	1
14	8276981	螺钉套件	SCREW KIT	1
15	8090851	弯头套件	ELBOW KIT	1
16	814233A1	施拉德阀套件	SCHRADER VALVE KIT	1
16	814233A02	阀套件	VALVE KIT	1
17	8142332	FMA接头套件	FMA JOINT KIT	1
18	8276942	软管套件	HOSE KIT	1
18	827694A01	软管套件-燃油	HOSE KIT-FUEL	1
19	67748	滚轮	ROLLER	1
20	90088	螺钉(.250-20x4)	SCREW (.250-20 x 4)	12
20	845674	螺钉(.250-20x4.00)	SCREW (.250-20 x 4.00)	12
21	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	10
21	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	10

图 68维修与支撑材料 SERVICE AND SUPPORT MATERIAL

REF	零件编号	中文名称	英文名称	数量
-	10126980	用户手册	OWNERS MANUAL	1
-	824052R2	维修手册	SERVICE MANUAL	1
-	824052R3	SM O/B V6 135-225	SM O/B V6 135-225	1
-	808553A96	贴花套件	DECAL SET	1
-	808553A00	贴花套件	DECAL SET	1
-	809689A96	贴花套件	DECAL SET	1
-	804696A03	贴花套件	DECAL SET	1
-	808559A96	贴花套件	DECAL SET	1
-	855418A97	贴花套件	DECAL SET	1
-	809688A00	贴花套件	DECAL SET	1
-	808554A96	贴花套件	DECAL SET	1
-	812563A00	贴花套件	DECAL SET	1
-	808558A96	贴花套件	DECAL SET	1
-	808562A03	贴花套件	DECAL SET	1
-	813033A96	贴花套件	DECAL SET	1
-	813033A03	贴花套件	DECAL SET	1
-	809706A96	贴花套件	DECAL SET	1
-	809706A03	贴花套件	DECAL SET	1
-	808557A96	贴花套件	DECAL SET	1
-	808557A01	贴花套件	DECAL SET	1
-	808556A96	贴花套件	DECAL SET	1
-	808556A03	贴花套件	DECAL SET	1
-	808561A96	贴花套件	DECAL SET	1
-	808561A03	贴花套件	DECAL SET	1
-	813033A97	贴花套件	DECAL SET	1
-	813033A03	贴花套件	DECAL SET	1
-	809706A97	贴花套件	DECAL SET	1
-	809706A03	贴花套件	DECAL SET	1
-	808557A97	贴花套件	DECAL SET	1
-	808557A01	贴花套件	DECAL SET	1
-	855419A97	贴花套件	DECAL SET	1
-	855419A00	贴花套件	DECAL SET	1
-	808556A97	贴花套件	DECAL SET	1
-	808556A03	贴花套件	DECAL SET	1
-	808561A97	贴花套件	DECAL SET	1
-	808561A03	贴花套件	DECAL SET	1
-	824911A25	条纹贴纸(25英尺卷-需6英尺)	DECAL Striping (ROLL OF 25 FT. - NEED 6 FT.)	1
-	808591A96	贴花套件	DECAL SET	1
-	808680A96	贴花套件	DECAL SET	1
-	808621A96	贴花套件	DECAL SET	1
-	808602A96	贴花套件	DECAL SET	1
-	808652A96	贴花套件	DECAL SET	1
-	808641A96	贴花套件	DECAL SET	1
-	85557713	EPA标签信息贴花	DECAL EPA Label Information	1
-	855577A13	REF SOB 09-18	REF SOB 09-18	1

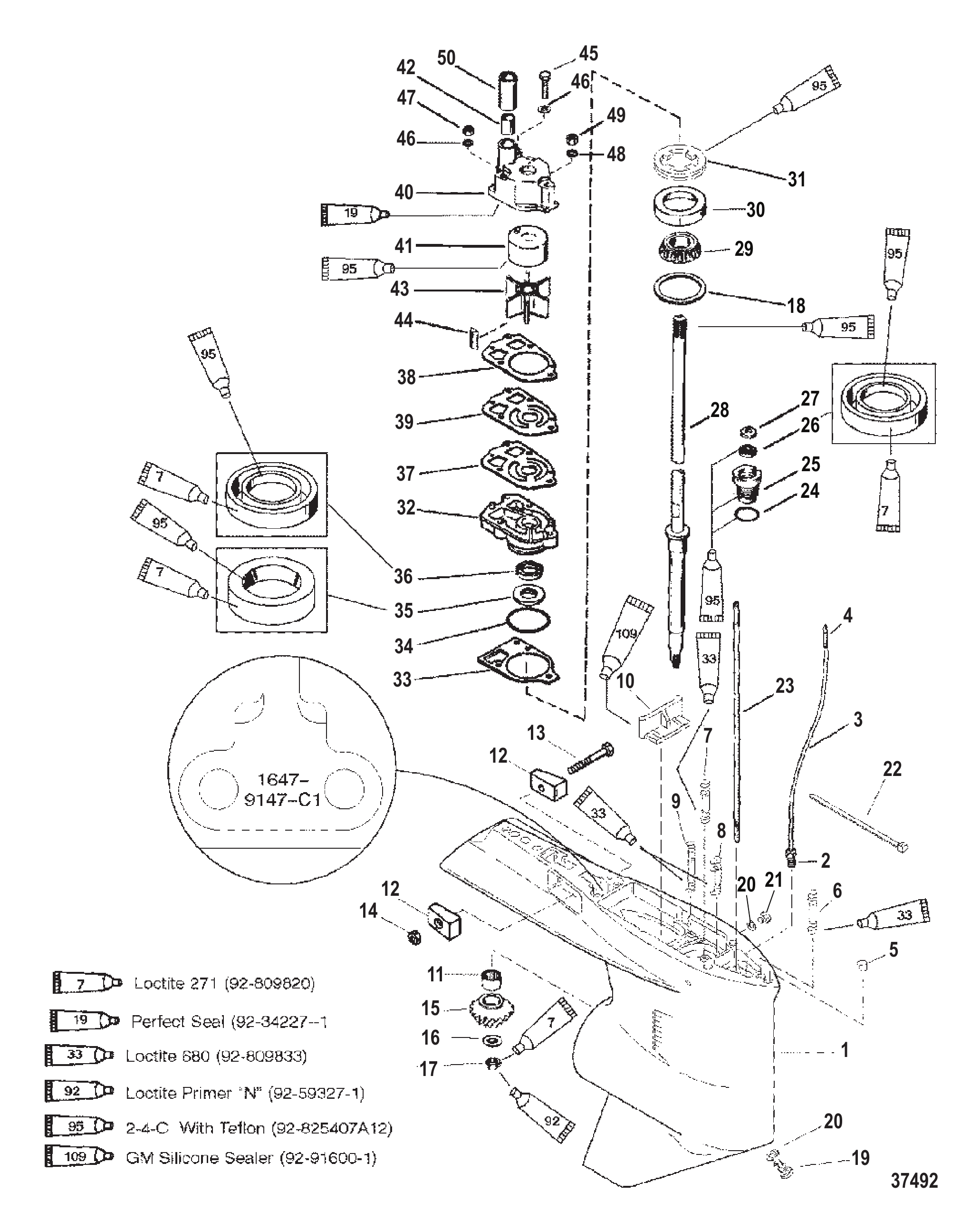

图 69齿轮箱（驱动轴）（标准旋转）（序列号0G437999及以下） GEAR HSG (DRIVESHAFT)(STD ROTATION) (S/N-0G437999, BELOW)

REF	零件编号	中文名称	英文名称	数量
1	9148A47	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148A48	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	NSS		NOT SOLD SEPARATE TUBING	1
4	NSS		NOT SOLD SEPARATE CONNECTOR	1
5	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
6	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
6	189783	螺柱(0.438×3.82英寸)	STUD (.438 x 3.82 Inches)	1
6	8M0034464	螺柱	STUD	1
7	579203	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
7	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
8	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
8	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
9	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
9	306671	螺柱	STUD	2
10	67891	填充块	FILLER BLOCK	1
10	8M0039169	填充块	FILLER BLOCK	1
11	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
12	826134	阳极块	ANODE	2
12	826134Q	阳极块	ANODE	2
13	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
14	8268336	螺母 (M6)	NUT (M6)	1
14	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
15	NSS	不单独出售-小齿轮(属于43-44104A8部件)(1.87:1齿比-15齿)	NOT SOLD SEPARATE PINION GEAR (PART OF 43-44104A8(1.87:1 GEAR RATIO-15TEETH)	1
16	92721	垫圈(0.965 x 0.630)(不用于高海拔)	WASHER (.965 x .630) (NOT USED W/HIGH ALTITUDE)	1
17	35921	螺母(0.625-18)	NUT (.625-18)	1
18	42637A1	垫片组	SHIM SET	AR
18	8M0063267	垫片组	SHIM SET	AR
19	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
19	8M0058389	放油螺钉套件	SCREW KIT Drain	1
20	19183	纤维垫圈	WASHER Fiber	2
20	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
21	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	1
21	79953Q04	放油螺钉套件	SCREW KIT Drain	1
22	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	1
23	789022	换档轴	SHIFT SHAFT	1
24	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
25	77631A2	衬套总成	BUSHING ASSEMBLY	1
26	8164641	油封	SEAL Oil	1
26	8M0246145	油封	OIL SEAL	1
27	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
28	440001	驱动轴	DRIVESHAFT	1
28	897624T	长驱动轴	DRIVESHAFT Long	1
28	442091	驱动轴	DRIVESHAFT	1
28	897625T	加长驱动轴	DRIVESHAFT X-Long	1
29	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
29	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
30	NSS	不单独出售-锥形杯	NOT SOLD SEPARATE CUP, TAPERED	1
31	824519	固定座	RETAINER	1
31	8245191	固定座	RETAINER	1
32	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
32	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
33	426311	衬垫	GASKET	1
33	8M0204678	衬垫	GASKET	1
34	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
34	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
35	89238	油封	SEAL Oil	1
36	16977	油封	SEAL Oil	1
37	856081	衬垫	GASKET	1
37	8M0090319	衬垫@5	GASKET @5	1
38	856091	衬垫	GASKET	1
38	858524	衬垫	GASKET	1
39	32435	面板	FACE PLATE	1
39	8M0204677	面板	PLATE-FACE	1
40	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
40	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
41	48752	嵌件	INSERT	1
41	48752T	嵌件	INSERT	1
42	38970	密封件	SEAL	1
43	899841	叶轮	IMPELLER	1
43	89984T3	叶轮	IMPELLER	1
44	56654	键	KEY	1
44	8M0214992	键@5	KEY @5	1
45	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
45	8M0215009	螺钉	SCREW	1
46	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
46	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
47	13438	螺母(.250-28)	NUT (.250-28)	2
47	8267119	螺母(.250-28)	NUT (.250-28)	2
48	36001	垫圈	WASHER	1
49	13436	螺母	NUT	1
50	29804	套筒	SLEEVE	1
50	29804T	套筒	SLEEVE	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1

图 70动力升降马达 POWER TRIM MOTOR

REF	零件编号	中文名称	英文名称	数量
-	828708	电机总成	MOTOR ASSEMBLY	1
1	828714A1	电刷与密封套件	BRUSH AND SEAL KIT	1
2	828713A1	电枢套件	ARMATURE KIT	1
2	828713T1	电枢套件	ARMATURE KIT	1
3	828715A1	端架（总成）	END FRAME (COMPLETE)	1

图 71泄放系统(右舷) BLEED SYSTEM (STARBOARD)

REF	零件编号	中文名称	英文名称	数量
1	9912688	管材(36英寸散装)裁切至7-1/4英寸	TUBING (36.00 Inches Bulk) Cut to 7-1/4 Inches	1
2	99130122	管材(20英尺散装)裁切至9英寸	TUBING (20.00 Feet Bulk) Cut to 9 Inches	2
2	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
3	99130122	管材(20英尺散装)裁切至4-1/2英寸	TUBING (20.00 Feet Bulk) Cut to 4-1/2 Inches	2
3	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
4	99130122	管材(20英尺散装)裁切至19英寸	TUBING (20.00 Feet Bulk) Cut to 19 Inches	1
4	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
5	99130122	管材(20英尺散装)裁切至1英寸	TUBING (20.00 Feet Bulk) Cut to 1 Inch	3
5	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	3
6	591692	三通接头	FITTING Tee	3
6	59169003	三通接头	FITTING Tee	3
7	426981	止回阀	CHECK VALVE	4
7	426982	止回阀	CHECK VALVE	4
8	18205	三通	TEE	1
9	426231	止回阀	CHECK VALVE	1
9	426233	止回阀	CHECK VALVE	1
10	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434R97	PH 150 EFI -RM	PH 150 EFI -RM	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817R97	PH 175 -RM	PH 175 -RM	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043R97	PH 200 -RM	PH 200 -RM	1

图 72燃油管理系统（壳体） FUEL MANAGEMENT SYSTEM (HOUSING)

REF	零件编号	中文名称	英文名称	数量
-	14817A23	燃油管理系统总成	MANAGEMENT ASSEMBLY Fuel	1
1	8276922	盖板	COVER	1
2	15443	线束套件	HARNESS KIT	1
3	18792	密封件	SEAL	1
4	15029	O型圈及密封套件	O-RING AND SEAL KIT	1
5	8276992	燃油导轨	FUEL RAIL	1
5	827699T2	燃油导轨	FUEL RAIL	1
6	18715	燃油喷油器	INJECTOR Fuel	6
6	18715T	喷油器总成	INJECTOR ASSEMBLY	6
7	17422	滤清器	FILTER	1
8	827696	固定套件	RETAINER KIT	1
9	8276933	节气门体	THROTTLE BODY	1
10	8090572	接头套件	JOINT KIT	1
11	8276891	连杆套件	LINK KIT	1
12	827697	连杆杠杆套件	LEVER KIT Link	1
13	827698	螺钉套件	SCREW KIT	1
14	8276981	螺钉套件	SCREW KIT	1
15	8090851	弯头套件	ELBOW KIT	1
16	814233A1	施拉德阀套件	SCHRADER VALVE KIT	1
16	814233A02	阀套件	VALVE KIT	1
17	8142332	FMA接头套件	FMA JOINT KIT	1
18	8276942	软管套件	HOSE KIT	1
18	827694A01	软管套件-燃油	HOSE KIT-FUEL	1
19	67748	滚轮	ROLLER	1
20	90088	螺钉(.250-20x4)	SCREW (.250-20 x 4)	12
20	845674	螺钉(.250-20x4.00)	SCREW (.250-20 x 4.00)	12
21	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	12
21	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	12

图 73艉板支架 Transom Brackets

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
10	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0027784	螺母	NUT	4
11	82671117	螺母(.500-20)	NUT (.500-20)	4
12	99629A2	杠杆总成	LEVER ASSEMBLY	1
12	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	830899	张力弹簧	SPRING Tension	1
14	65830	尼龙衬套	NYLINER	2
15	830900	压缩弹簧	SPRING Compression	1
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99617	销	PIN	1
18	893709	销	PIN	1

图 74附件 ACCESSORIES

REF	零件编号	中文名称	英文名称	数量
-	841970T01	硬质安装升级套件	UPDATE KIT Solid Mount	1

图 75泄放系统(左舷) BLEED SYSTEM (PORT)

REF	零件编号	中文名称	英文名称	数量
1	99130122	管材(20英尺散装)裁切至3-1/2英寸	TUBING (20.00 Feet Bulk) Cut to 3-1/2 Inches	1
2	591692	三通接头	FITTING Tee	1
2	59169003	三通接头	FITTING Tee	1
3	99130122	管材(20英尺散装)裁切至5-1/2英寸	TUBING (20.00 Feet Bulk) Cut to 5-1/2 Inches	1
3	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
4	99130122	管材(20英尺散装)裁切至1-1/4英寸	TUBING (20.00 Feet Bulk) Cut to 1-1/4 Inches	1
4	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
5	426981	止回阀(压入式-13/16长)	CHECK VALVE (PRESS-IN - 13/16 LONG)	3
5	426982	止回阀	CHECK VALVE	3
6	99130122	管材(20英尺散装)裁切至9英寸	TUBING (20.00 Feet Bulk) Cut to 9 Inches	2
6	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
7	56759	压入式倒钩接头	FITTING Barbed (PRESS-IN)	4
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434R97	PH 150 EFI -RM	PH 150 EFI -RM	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817R97	PH 175 -RM	PH 175 -RM	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043R97	PH 200 -RM	PH 200 -RM	1

图 76泄放系统(右舷) BLEED SYSTEM (STARBOARD)

REF	零件编号	中文名称	英文名称	数量
1	9912688	管材(36英寸散装)裁切至7-1/4英寸	TUBING (36.00 Inches Bulk) Cut to 7-1/4 Inches	1
2	99130122	管材(20英尺散装)裁切至9英寸	TUBING (20.00 Feet Bulk) Cut to 9 Inches	2
2	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
3	99130122	管材(20英尺散装)裁切至4-1/2英寸	TUBING (20.00 Feet Bulk) Cut to 4-1/2 Inches	2
3	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
4	99130122	管材(20英尺散装)裁切至19英寸	TUBING (20.00 Feet Bulk) Cut to 19 Inches	1
4	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
5	99130122	管材(20英尺散装)裁切至1英寸	TUBING (20.00 Feet Bulk) Cut to 1 Inch	3
5	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	3
6	591692	三通接头	FITTING Tee	3
6	59169003	三通接头	FITTING Tee	3
7	426981	止回阀	CHECK VALVE	4
7	426982	止回阀	CHECK VALVE	4
8	18205	三通	TEE	1
9	426231	止回阀	CHECK VALVE	1
9	426233	止回阀	CHECK VALVE	1
10	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434R97	PH 150 EFI -RM	PH 150 EFI -RM	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817R97	PH 175 -RM	PH 175 -RM	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043R97	PH 200 -RM	PH 200 -RM	1

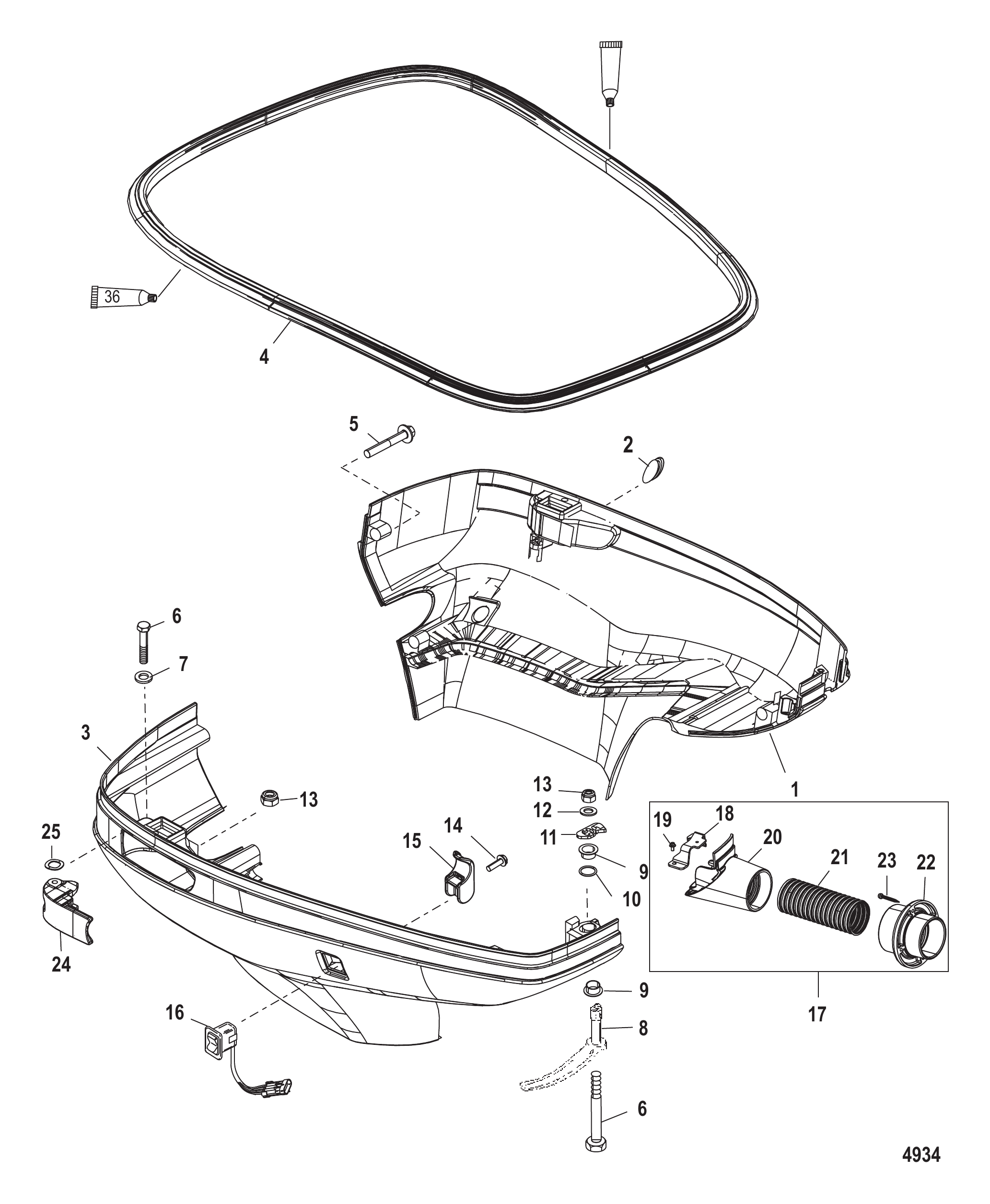

图 77下机罩 BOTTOM COWL

REF	零件编号	中文名称	英文名称	数量
1	850302A1	下罩盖（左舷）	BOTTOM COWL Port	1
1	850302A07	下罩盖（左舷）	BOTTOM COWL Port	1
1	8M0107324	下罩盖（左舷）	BOTTOM COWL Port	1
2	854367001	堵头	PLUG	1
3	850301A1	下罩盖（右舷）	BOTTOM COWL Starboard	1
3	850301A07	下罩盖（右舷）	BOTTOM COWL Starboard	1
3	850301A07	下罩盖（右舷）	BOTTOM COWL Starboard	1
3	8M0107323	下罩盖（右舷）	BOTTOM COWL Starboard	1
4	844155001	罩盖密封件	SEAL Cowl	1
4	8M0043268	罩盖密封条	SEAL-COWL	1
5	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	4
6	824868	螺钉(M6×75)	SCREW (M6 x 75)	3
7	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
7	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
8	850684F1	前手柄	FRONT HANDLE	1
8	8M0053903	前手柄	FRONT HANDLE	1
9	335891	衬套	BUSHING	2
10	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
11	8219423	棘爪	PAWL	1
12	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	1
13	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	3
14	8214281	螺钉(#10-16x0.625)	SCREW (#10-16 x .625)	1
15	822873	卡扣	CLIP	1
16	8569901	升降倾斜开关	SWITCH Trim	1
16	8M0235191	升降倾斜开关	SWITCH Trim	1
16	896620001	升降倾斜开关	SWITCH Trim	1
16	8M0235191	升降倾斜开关	SWITCH Trim	1
17	842756T01	索具套件	RIGGING KIT	1
18	842744002	支架	BRACKET	1
19	82130012	螺钉（M6 x 12）	SCREW (M6 x 12)	3
20	843185T02	联轴器	COUPLER	1
21	842756T05	软管	HOSE	1
21	842756005	软管	HOSE	1
22	843174T02	索具联轴器	COUPLER Rigging	1
22	843174002	联轴器	COUPLER	1
23	47994	螺钉 (#10 x 1.50)	SCREW (#10 x 1.50)	4
24	852361T1	机罩手柄	HANDLE Cowl	2
24	850682A06	支架和手柄套件	BRACKET AND HANDLE KIT	2
25	29402	波形垫圈	WAVE WASHER	2

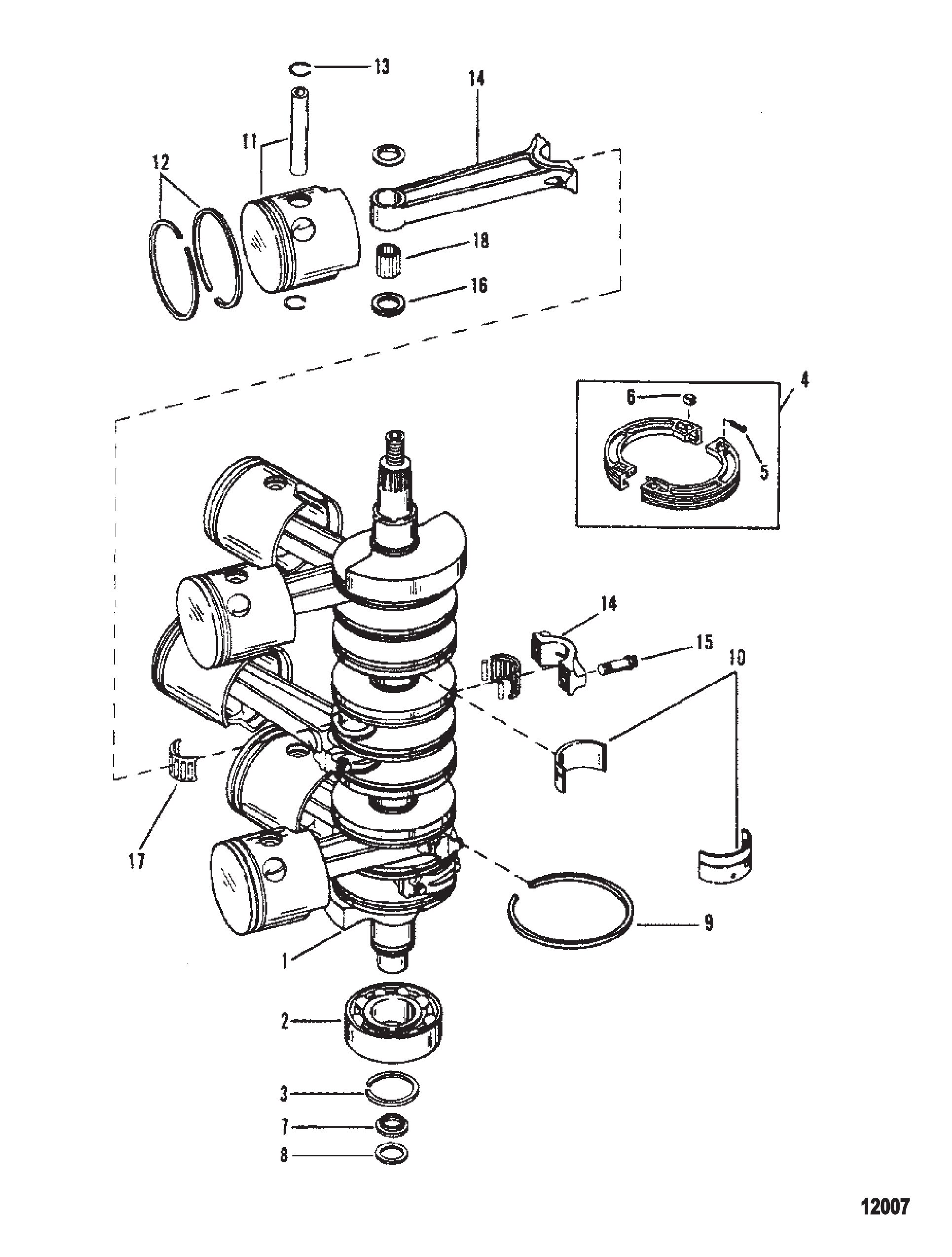

图 78曲轴、活塞及连杆 CRANKSHAFT PISTONS AND CONNECTING RODS

REF	零件编号	中文名称	英文名称	数量
1	9536A4	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	67923	下滚珠轴承	BEARING Ball Lower	1
2	67923T	滚珠轴承	BEARING Ball	1
3	67446	环	RING	1
4	14513A2	驱动齿轮段套件	GEAR SEGMENT KIT Drive	1
4	14513A09	驱动齿轮段套件	GEAR SEGMENT KIT Drive	1
5	813073	螺钉(#6-32 x .620)内六角头	SCREW (#6-32 x .620) Socket Head	2
6	813134	螺母(#6-32)专用	NUT (#6-32) Special	2
7	54196A6	托架总成	CARRIER ASSEMBLY	1
8	65800	填料	PACKING	1
9	67377		RING Sealing Sealing - Crankshaft	7
9	67377T	密封环	RING Sealing	7
10	16756A6	曲轴轴承套件	BEARING KIT Crankshaft	2
11	9738A7	右舷活塞总成 - 标准	PISTON ASSEMBLY Starboard - Standard	AR
11	9738T9	活塞总成标准型	PISTON ASSEMBLY Standard	AR
11	9738A8	右舷活塞总成（0.015加大）	PISTON ASSEMBLY Starboard (.015 O.S.)	AR
11	9738T10	活塞总成0.015加大	PISTON ASSEMBLY .015 Oversize	AR
11	9737A7	左舷活塞总成 - 标准	PISTON ASSEMBLY Port - Standard	3
11	9737T9	活塞总成标准型	PISTON ASSEMBLY Standard	3
11	9737A8	活塞总成-左舷(0.015加大)	PISTON ASSEMBLY Port (.015 O.S.)	AR
11	9737A10	活塞总成0.015加大	PISTON ASSEMBLY .015 Oversize	AR
12	815515A12	活塞环套装标准型（1.50毫米）	RING SET Piston Standard (1.50 MM)	1
12	815268A4	活塞环套装（0.015加大，1.50毫米）	RING SET Piston (.015 O.S.) (1.50 MM)	AR
13	52035	锁环	RING Lock	12
13	857196	锁紧环	LOCK RING	12
11	9738A9	右舷标准活塞总成	PISTON ASSEMBLY Standard Starboard - Standard	3
11	9738T9	活塞总成标准型	PISTON ASSEMBLY Standard	3
11	9738A10	右舷活塞总成（0.015加大）	PISTON ASSEMBLY .015 Oversize Starboard (.015 O.S.)	AR
11	9738T10	活塞总成0.015加大	PISTON ASSEMBLY .015 Oversize	AR
11	9737A9	左舷标准活塞总成	PISTON ASSEMBLY Standard Port Standard	3
11	9737T9	活塞总成标准型	PISTON ASSEMBLY Standard	3
11	9737A10	左舷活塞总成（0.015加大）	PISTON ASSEMBLY .015 Oversize Port (.015 O.S.)	AR
12	822321A12	活塞环套件标准型（2毫米）	RING KIT Piston - Standard Standard (2MM)	1
12	822321A1	活塞环套件-0.015加大(0.015加大)(2毫米)	RING KIT Piston - .015 Oversize (.015 O.S.) (2MM)	2
13	52035	锁环	RING Lock	12
13	857196	锁紧环	LOCK RING	12
14	818141A2	连杆套件	CONNECTING ROD KIT	6
14	818141A13	连杆总成	CONNECTING ROD ASSEMBLY	6
15	763491		SCREW (.312-24 x .875) Connecting Rod	12
16	812876	针阀定位垫圈	WASHER Needle Locating	12
16	8M0012298	止推垫片	THRUST WASHER	12
17	17514A2	轴承套件	BEARING KIT	6
17	8M0234886	轴承保持架	CAGE BEARING	6
18	822553	活塞端滚针轴承	BEARING Needle Piston End	174
18	8M0204691	滚针轴承@200	BRG-NEEDLE @200	174
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 79气缸体与端盖 CYLINDER BLOCK AND END CAPS

REF	零件编号	中文名称	英文名称	数量
1	9764A12	气缸体(175)	CYLINDER BLOCK (175)	1
1	9763A6	气缸体(200)	CYLINDER BLOCK (200)	1
1	9763T6	气缸体	CYLINDER BLOCK	1
2	818138	动力头螺柱(1-3/4")	STUD POWERHEAD (1-3/4")	2
2	8M0034455	螺柱1.750	STUD 1.750	2
2	76175	动力头螺柱(1-7/8英寸)	STUD POWERHEAD (1-7/8")	4 OR 6
3	67065	动力头螺柱(5-1/2英寸)	STUD POWERHEAD (5-1/2")	2
3	670654	螺柱(.375-16/.375-24 x 5.620)	STUD (.375-16/.375-24 x 5.620)	2
3	78438	动力头螺柱(6-3/4英寸)	STUD POWERHEAD (6-3/4")	2
3	8M0034454	螺柱(.375-16/.375-24 x 6.87)	STUD (.375-16/.375-24 x 6.87)	2
4	20033	定位销	PIN Dowel LOCATING	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	销(轴承座圈)	PIN (BEARING RACE)	2
5	8M0036405	销	PIN	2
6	11338	密封垫片	GASKET SEALING	2
7	42249	启动马达上盖	COVER STARTER MOTOR (UPPER)	1
7	8M0088723	启动器支架	BRACKET-STARTER	1
8	73657	盖至曲轴箱螺钉(.312-18 x 1.50)	SCREW (.312-18 x 1.50) COVER TO CRANKCASE	2
9	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
9	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
10	76867	启动电机盖(下部)	COVER STARTER MOTOR (LOWER)	1
11	77065	盖至曲轴箱螺钉(.312-18 x 2)	SCREW (.312-18 x 2) COVER TO CRANKCASE	2
11	815549	螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00)	2
12	99448	衬套	BUSHING	1
13	88807A20	线束总成盖	CABLE ASSEMBLY COVER	1
14	66717	螺钉(.375-16 x 3.250)	SCREW (.375-16 x 3.250)	8
14	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	6
15	9642A1	上端盖总成	END CAP ASSEMBLY Upper	1
15	858521T1	端盖总成	END CAP ASSEMBLY	1
16	54029	端盖O型圈(2.800 x .103)	O-RING (2.800 x .103) END CAP	1
17	16756A2	滚子轴承端盖总成	BEARING ASSEMBLY Roller END CAP	1
17	16756A4	轴承套件	BEARING KIT	1
18	41953	端盖密封件	SEAL END CAP	1
19	69034	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW AND LOCKWASHER (.312-18 x 1.00)	4
19	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	4
20	63153	J型卡扣	J CLIP	1
22	15094	双头螺柱(.190-32 x 1.870)	STUD (.190-32 x 1.870)	1
23	15093	飞轮盖至支架双头螺柱(#10-32 x 1.00)	STUD (#10-32 x 1.00) FLYWHEEL COVER TO BRACKET	2
23	8M0034435	螺柱	STUD	2
24	67269	飞轮盖螺柱隔套	SPACER FLYWHEEL COVER STUD	1
25	492211	飞轮盖螺柱垫圈	WASHER FLYWHEEL COVER STUD	6
25	8M0204663	垫片@5	WASHER @5	6
26	72761	飞轮盖螺柱不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel FLYWHEEL COVER STUD	3
27	816874	蝶形螺母(#10-32)飞轮盖螺柱	WING NUT (#10-32) FLYWHEEL COVER STUD	3
28	42248	飞轮罩支架	BRACKET FLYWHEEL COVER	1
28	422482	支架	BRACKET	1
29	49668	支架至曲轴箱螺钉(.250-20 x .750)	SCREW (.250-20 x .750) BRACKET TO CRANKCASE	2
30	7809A1	下端盖总成	END CAP ASSEMBLY LOWER	1
30	7809T1	端盖总成	END CAP ASSEMBLY	1
31	62700	端盖O型圈(3.237 x .103)	O-RING (3.237 x .103) END CAP	1
32	41953	端盖密封件	SEAL END CAP	2
33	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
34	26992	下端盖螺钉不锈钢锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel LOWER END CAP SCREW	4
35	64022	调节螺钉(.250-20 x 2.125)-气缸体	SCREW (.250-20 x 2.125) ADJUSTING - CYLINDER BLOCK	1
36	64015	锁紧螺母(.250-20)-调节螺钉	NUT (.250-20) JAM - ADJUSTING SCREW	1
37	26852	调节螺钉尼龙帽	CAP Nylon NYLON - ADJUSTING SCREW	1
38	87076A6	怠速控制总成(200)	IDLE SPEED CONTROL ASSEMBLY (200)	1
38	87076A10	怠速控制器	IDLE SPEED CONTROL	1
39	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
39	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
40	38833	垫圈	WASHER	3
41	93772A5	模块(175)	MODULE (175)	1
41	93772A11	提前角模块	ADVANCE MODULE	1
42	16793	卡箍(175)	CLAMP (175)	1
43	73286	螺钉(0.250-20×0.500)不锈钢(175)	SCREW (.250-20 x .500) Stainless Steel (175)	1
-	812817A90	动力头总成(完整)(175)	POWERHEAD ASSEMBLY COMPLETE (175)	1
-	812817T90	船用动力头	POWERHEAD MARINE	1
-	812827A90	动力头总成(完整)(200)	POWERHEAD ASSEMBLY COMPLETE (200)	1
-	812827T91	船用动力头	POWERHEAD MARINE	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 80爆震控制器/温度传感器 DETONATION CONTROLLER/TEMPERATURE SENSOR

REF	零件编号	中文名称	英文名称	数量
1	14856A3	爆震控制器总成(200)	CONTROLLER ASSEMBLY Detonation (200)	1
2	88447	螺钉(0.190-32×1.62)爆震控制器(200)	SCREW (.190-32 x 1.62) DETONATION CONTROLLER (200)	3
3	38833	爆震控制器螺钉垫圈(200)	WASHER DETONATION CONTROLLER SCREW (200)	3
4	13381	板(200)	PLATE (200)	1
5	60466A20	电缆总成(200)	CABLE ASSEMBLY (200)	1
5	88807A10	拉线总成	CABLE ASSEMBLY	1
6	62568	螺钉(#10-16×0.375)电缆至板(200)	SCREW (#10-16 x .375) CABLE TO PLATE (200)	1
7	94304	垫片(200)	SPACER (200)	3
8	41470A12	喷油警告模块总成	MODULE ASSEMBLY Oil Injection Warning	1
8	41470A25	喷油警告模块总成	MODULE ASSEMBLY Oil Injection Warning	1
9	14851T	节气门位置指示器	INDICATOR THROTTLE POSITION	1
9	14851T03	指示器	INDICATOR	1
10	15150		SCREW (#8-32 x .625) INDICATOR	2
11	26995		LOCKWASHER (#8) Stainless Steel INDICATOR SCREW	2
12	46101	指示器螺钉垫圈	WASHER INDICATOR SCREW	2
12	30164	垫圈(0.192x0.375x0.0312)不锈钢	WASHER (.192 x .375 x .0312) Stainless Steel	2
13	15885	套筒	SLEEVE	1
14	13221A1	温度传感器总成	SENSOR ASSEMBLY Temperature	1
14	13221T01	温度传感器	SENSOR TEMP	1
15	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
16	57583	螺钉(#8-32×0.375)温度传感器	SCREW (#8-32 x .375) TEMPERATURE SENSOR	3
16	57583T	螺丝#8-32×3/8	SCREW #8-32x3/8	3
17	26995	锁紧垫圈(#8)不锈钢温度传感器螺钉	LOCKWASHER (#8) Stainless Steel TEMPERATURE SENSOR SCREW	3
18	42813	螺钉（#10-32 X 0.380）	SCREW (#10-32 X .380)	1
19	813501	安装板	PLATE	2
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 81驱动轴壳体与排气管 DRIVESHAFT HOUSING AND EXHAUST TUBE

REF	零件编号	中文名称	英文名称	数量
1	832937A06	传动轴壳体总成-加长型	HOUSING ASSEMBLY Driveshaft - Long	1
1	832938A06	传动轴壳体总成-超长/特超长型	HOUSING ASSEMBLY Driveshaft - X/XX-Long	1
2	8M0008031	双头螺柱(M12 x 1.75 x 52)	STUD (M12 x 1.75 x 52)	4
3	88552835	螺栓(M12x35毫米)外六角	SCREW (M12 x 35 MM) External Hex	1
3	8M0102995	螺丝 (M12)	SCREW (M12)	1
3	892860	螺栓(M12x35)内六角	SCREW (M12 x 35) Internal Hex	1
4	8331231	护孔环	GROMMET	1
5	856982	垫圈(0.5×0.81×0.09英寸)不锈钢	WASHER (.500 x .810 x .090) Stainless Steel	5
6	896895	螺母(M12)	NUT (M12)	4
7	64649	堵头	PLUG	1
8	898834	螺栓（M14×178）	BOLT (M14 x 178)	2
9	88238A10	接地线总成	CABLE ASSEMBLY Ground	2
10	815432	垫圈(.562 x 2.00 x .125)	WASHER (.562 x 2.00 x .125)	2
11	8154331	垫圈（1.25×2.00×0.19）	WASHER (1.25 x 2.00 x .19)	2
12	8137711	支架	MOUNT	2
12	840361T	支架	MOUNT	2
12	8M0055931	支架	MOUNT	2
13	825190	垫圈	WASHER	2
14	896602	螺母(M14)	NUT (M14)	2
15	8186442	卡箍(耗尽时订购Design II套件879150A90)	CLAMP When Depleted Order Design II Kit 879150A90	2
15	879150A90	下支架盖套件	COVER KIT Lower Mount	2
16	8M0033179	螺钉 (M8 x 40)	SCREW (M8 x 40)	4
16	8M0084475	螺钉 (M8 x 40)	SCREW (M8 x 40)	4
17	72521	内齿锁紧垫圈	LOCKWASHER Internal Tooth	1
18	8M0001136	下支架盖(耗尽时订购Design II套件879150A90)	COVER Lower Mount When Depleted Order Design II Kit 879150A90	2
18	879150A90	下支架盖套件	COVER KIT Lower Mount	2
19	69079	螺钉 (#10-16 x .440)	SCREW (#10-16 x .440)	2
20	8329321	密封件	SEAL	1
21	833116A19	排气管总成	TUBE ASSEMBLY Exhaust	1
21	8M0075819	排气管总成	TUBE ASSEMBLY Exhaust	1
22	8524052	滤网	STRAINER	1
22	8M0026113	滤网	STRAINER	1
22	8M0026113	滤网	STRAINER	1
23	81893435	螺钉(M8×35)	SCREW (M8 x 35)	6
23	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	6
24	8329417	水管	TUBE Water	1
24	8M0042785	水管	TUBE-WATER	1
24	8329418	水管	TUBE Water	1
24	8M0042786	水管	TUBE Water	1
25	832940001	密封件	SEAL	1
26	8329391	卡箍	CLAMP	1
27	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
28	81893435	螺钉(M8×35)	SCREW (M8 x 35)	2
28	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	2
28	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	2
29	847541	垫圈	WASHER	4
30	879150A90	下支架盖套件	COVER KIT Lower Mount	2
31	8M4501006	下支架盖	COVER Lower Mount	2
31	8M0148785	盖板	COVER	2
32	8M4501003	卡箍	CLAMP	2
33	69079	螺钉 (#10-16 x .440)	SCREW (#10-16 x .440)	6

图 82双机延伸套件 DUAL ENGINE EXTENSION KIT

REF	零件编号	中文名称	英文名称	数量
-	92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
1	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
2	71565A2		TUBE ASSEMBLY Cable Guide	1
3	41055	支架	MOUNT	1
4	42100	锁紧垫圈	TAB WASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	88404	锁紧垫圈	TAB WASHER	2
7	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
8	17729A1	支架	BRACKET	2
9	62055	螺钉(.312-24 x 1.250)	SCREW (.312-24 x 1.250)	4
10	17728	锁紧垫圈	TAB WASHER	4
11	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	4
11	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	4
12	34863	螺母 (.375-24)	NUT (.375-24)	6
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	6
13	979331	转向眼环	STEERING EYE	2
13	8M0026167	转向眼环	STEERING EYE	2
14	23651	衬套(1.625)	SLEEVE (1.625)	2
15	97931	管材(4.00英寸)	TUBING (4.00 Inches)	2
16	8149513	联轴器(15.00英寸)	COUPLER (15.00 Inches)	1
16	8M0026098	联轴器15英寸	COUPLER 15 In.	1
17	42099	螺母(.562-18)	NUT (.562-18)	1
18	821169	联轴器	COUPLING	1
19	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	2
20	94319	螺钉(.375-24 x 1.5)	SCREW (.375-24 x 1.5)	1

图 83电控单元总成 E.C.U. ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	14632A15	发动机控制单元ECU(175)	ECU Engine Control Unit (175)	1
1	14632A13	发动机控制单元ECU(200)	ECU Engine Control Unit (200)	1
1	824003T16	电控单元	ECU	1
2	34948	隔套	SPACER	2
3	146951	卡扣	CLIP	1
4	90435	罩壳安装支架座	MOUNT COWL MOUNTING BRACKET	2
5	21249	安装垫圈	WASHER MOUNT ATTACHING	4
6	20361	安装螺母(0.250-28)	NUT (.250-28) MOUNT ATTACHING	4
6	8267089	螺母(.250-28)	NUT (.250-28)	4
7	88807A19	拉线总成	CABLE ASSEMBLY	1
8	14637	护孔环	GROMMET	1
9	14636	衬套	BUSHING	1
10	28667	螺钉 (0.250-20 x 1.00) 不锈钢	SCREW (.250-20 x 1.00) Stainless Steel	1
11	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
12	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	1
13	13202A2	水位传感器模块总成	MODULE ASSEMBLY Water Sensor	1
14	88807A18	线缆总成(黑色)	CABLE ASSEMBLY (BLACK)	1
15	37571	水位传感器模块螺钉(0.190-32×0.500)	SCREW (.190-32 x .500) WATER SENSOR MODULE	2
16	89302	水位传感器模块螺钉垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040) WATER SENSOR MODULE SCREW	2
17	98866A14	ECU与喷油器线束总成	HARNESS ASSEMBLY E.C.U. AND INJECTORS	1
18	87895A4	线束总成(175)	CABLE ASSEMBLY (175)	1

图 84排气歧管与排气板 EXHAUST MANIFOLD AND EXHAUST PLATE

REF	零件编号	中文名称	英文名称	数量
1	190361	分隔板	DIVIDER PLATE	1
2	19050	分隔板衬垫	GASKET DIVIDER PLATE	1
2	190503	衬垫	GASKET	1
3	814754		SEAL (12.50 Inches) DIVIDER PLATE	1
4	814634	卡箍	CLAMP	4
5	31984	螺钉(.312-18 x 1.375)分隔板	SCREW (.312-18 x 1.375) DIVIDER PLATE	3
5	53167	螺钉(.312-18 x .880)分隔板	SCREW (.312-18 x .880) DIVIDER PLATE	17
5	53167T	螺钉 0.312-18X 0.88	SCREW .312-18X .88	17
6	194373	端子排	TERMINAL BLOCK	1
7	90192	螺钉(.250-20 x .750)不锈钢接线板	SCREW (.250-20 x .750) Stainless Steel TERMINAL BLOCK	2
8	68729	安全阀盖	COVER RELIEF VALVE	1
8	8M0039767	盖板	COVER	1
9	45076	端子排黄铜螺母(#10-32)	NUT (#10-32) Brass TERMINAL BLOCK	3
10	813938	盖螺母（#10-32）接线板	CAP NUT (#10-32) TERMINAL BLOCK	3
11	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
12	78690	安全阀板衬垫	GASKET RELIEF VALVE PLATE	2
12	78690002	衬垫	GASKET	2
13	69570	膜片至板件螺钉(#10-16 x .750)	SCREW (#10-16 x .750) DIAPHRAGM TO PLATE	1
14	76451	膜片螺钉垫片	WASHER DIAPHRAGM SCREW	1
15	14479	隔膜	DIAPHRAGM	1
15	144791	隔膜	DIAPHRAGM	1
16	16496	导水板	DEFLECTOR Water	1
17	16497A1	安全阀板	PLATE RELIEF VALVE	1
18	64878	提升阀黑色压缩弹簧	SPRING (Black) COMPRESSION POPPET VALVE	1
19	85303	提升阀弹簧垫片	WASHER POPPET SPRING	1
20	14480	提升阀	POPPET VALVE	1
21	64872	提升阀衬套	GROMMET POPPET VALVE	1
22	65848	提升阀座	CARRIER POPPET VALVE	1
23	991763	排气板衬垫	GASKET EXHAUST PLATE	1
23	991764	衬垫	GASKET	1
24	18260A2	排气板总成	PLATE ASSEMBLY Exhaust EXHAUST	1
24	18260T2	排气板总成	PLATE ASSEMBLY Exhaust	1
26	20033	排气板定位销	PIN Dowel LOCATING - EXHAUST PLATE	2
26	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
27	8147011	排气板密封件	SEAL EXHAUST PLATE	1
27	8M0043164	密封件	SEAL	1
28	680101	密封件固定支架	BRACKET SEAL RETAINING	1
29	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	8
29	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	8
30	89772	连接器(.125-27)(直型)	CONNECTOR (.125-27) (STRAIGHT)	1
32	12602	护孔环	GROMMET	1
32	12602002	护孔环	GROMMET	1
33	19564	护孔环	GROMMET	1
33	8M0179867	护孔环	GROMMET	1
34	27132	排气板衬套	BUSHING EXHAUST PLATE	1
35	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
36	68783	螺钉(.312-18×2.50)	SCREW (.312-18 x 2.50)	1
37	66725	螺钉(.375-16×3.50)	SCREW (.375-16 x 3.50)	3
37	898833	螺钉(.375-16 x 3.500)	SCREW (.375-16 x 3.500)	3
38	812905A3	前支架总成	BRACKET ASSEMBLY FRONT	1
38	812905T	前支架	BRACKET Front	1
39	90285	前支架螺钉(.312-18 x .625)	SCREW (.312-18 x .625) FRONT BRACKET	4
40	187031	垫圈	WASHER	4
41	18778	护孔环	GROMMET	4
41	18778001	护孔环	GROMMET	4
42	18578A4	后支架总成	BRACKET ASSEMBLY Rear REAR	1
42	18578T09	支架总成(后部)	BRACKET ASSEMBLY Rear	1
43	814430	管接头(.500-14)	FITTING (.500-14)	1
43	8144301	接头	FITTING	1
44	92007	90度弯头(0.250-18)	FITTING (.250-18) (90 Degree)	1
44	920071	90度弯头	FITTING (90 Degree)	1
45	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	1
45	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
46	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
46	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
47	25970	动力头螺柱垫圈	WASHER POWERHEAD STUD	6
47	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	6
48	69254	动力头螺柱螺母	NUT POWERHEAD STUD	6
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 85飞轮/启动马达 FLYWHEEL/STARTER MOTOR

REF	零件编号	中文名称	英文名称	数量
1	18896A1	飞轮盖套件	COVER KIT FLYWHEEL	1
2	79022	正时标记	MARKER TIMING	1
3	37572	螺钉(0.190-32x0.380)正时标记	SCREW (.190-32 x .380) TIMING MARKER	2
4	72761	垫圈(0.203x0.562x0.060)不锈钢正时标记螺钉	WASHER (.203 x .562 x .060) Stainless Steel TIMING MARKER SCREW	2
5	89219	飞轮盖塞	PLUG FLYWHEEL COVER	1
5	89219001	堵头	PLUG	1
6	45907	飞轮黄色塞	PLUG Yellow FLYWHEEL	1
7	52901	螺母(.625-18)飞轮	NUT (.625-18) FLYWHEEL	1
8	68229	垫圈(0.641x1.250x0.190)飞轮	WASHER (.641 x 1.250 x .190) FLYWHEEL	1
8	33001	垫圈	WASHER	1
9	9841A7	飞轮(旧款)	FLYWHEEL (OLD DESIGN)	1
9	859238T16	飞轮总成	FLYWHEEL ASY	1
10	32417	飞轮板螺钉(0.250-28×0.625)(旧款)	SCREW (.250-28 x .625) FLYWHEEL PLATE (OLD DESIGN)	8
11	68997	飞轮毂螺钉(0.312-24×0.750)(旧款)	SCREW (.312-24 x .750) FLYWHEEL HUB (OLD DESIGN)	8
12	9610A5	定子	STATOR	1
13	90045	螺钉(#10-32 x 1.375)定子	SCREW (#10-32 x 1.375) STATOR	4
14	26996	锁紧垫圈(#10)不锈钢定子螺钉	LOCKWASHER (#10) Stainless Steel STATOR SCREW	4
15	96455A9	触发板总成	PLATE ASSEMBLY Trigger	1
16	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
17	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
17	893893	启动马达	STARTER MOTOR	1
18	56703	启动电机轴环	COLLAR STARTER MOTOR	2
18	8M0034918	轴环	COLLAR	2
19	68042	启动电机橡胶止动块	STOP Rubber RUBBER - STARTER MOTOR	2
19	8M0043376	停机开关	STOP	2
20	26992	锁紧垫圈(.250) 不锈钢起动机接线端	LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL	1
21	20890	螺母(.250-20) 起动机接线端	NUT (.250-20) STARTER MOTOR TERMINAL	1
22	93388A2	线缆总成(黑色)	CABLE ASSEMBLY Black	1
22	93388A14	线缆总成(黄/黑)	CABLE ASSEMBLY Yellow/Black	1
23	69035	螺钉和锁紧垫圈 (.250-20 x .625) 不锈钢电缆至启动马达	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel CABLE TO STARTER MOTOR	1
24	817632A2	飞轮(新款)	FLYWHEEL (NEW DESIGN)	1
24	859238T16	飞轮总成	FLYWHEEL ASY	1

图 86燃油管理系统 FUEL MANAGEMENT SYSTEM

REF	零件编号	中文名称	英文名称	数量
1C	827697	连杆杠杆套件	LEVER KIT Link	1
1D	827698	螺钉套件	SCREW KIT	1
1E	827699	燃油导轨	FUEL RAIL	1
1E	8276992	燃油导轨	FUEL RAIL	1
1E	827699T2	燃油导轨	FUEL RAIL	1
1F	809057	燃油管接头套件	JOINT KIT Fuel Pipe	1
1F	809057T	燃油管接头套件	JOINT KT-FUELPIPE	1
1G	8276981	螺钉套件	SCREW KIT	1
1H	809059	施拉德阀套件	SCHRADER VALVE KIT	1
28	15444	连接杆	LINK	1
28A	827689	连接杆	LINK	1
28A	8276891	连杆套件	LINK KIT	1

图 87燃油泵 FUEL PUMP

REF	零件编号	中文名称	英文名称	数量
-	14360T74	燃油泵总成	PUMP ASSEMBLY Fuel	1
1	NSS	不单独销售燃油泵	NOT SOLD SEPARATE Fuel Pump	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
4	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
5	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
6	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
10	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
11	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
12	987691	衬垫	GASKET	1
12	8M0204705	衬垫@2	GASKET @2	1
13	805063	O型圈(.301 x .070)	O-RING (.301 x .070)	1
13	8M0204683	O型圈(.070×.301内径)	O-Ring (.070 x .301 ID)	1
14	987752	安装板	PLATE	1
15	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
16	82104540		SCREW (M5 x 40) Fuel Pump	2
17	82130050	螺钉(M6×50)泵至曲轴箱	SCREW (M6 x 50) Pump to Crankcase	2
18	144303	底座	BASE	1
19	782792	45度弯头接头(1.25)	FITTING Elbow 45 Degree (1.25)	1
19	8M0207781	弯头	ELBOW	1
20	888493	弯头	ELBOW	1
21	822769	连接器	CONNECTOR	1
22	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
23	856822A2	软管套管总成(18.00英寸)	HOSE AND SLEEVE ASSEMBLY (18.00 Inches)	1
23	8M0043979	软管套管总成	HOSE AND SLEEVE ASSEMBLY	1
-	832933A05	动力头衬垫套件	GASKET SET Powerhead	1
-	841220A03	动力头衬垫套件	GASKET SET Powerhead	1

图 88齿轮箱(驱动轴)(标准/反向旋转) GEAR HOUSING (DRIVESHAFT)(STANDARD/COUNTER ROTATION)

REF	零件编号	中文名称	英文名称	数量
1	9148T93	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
4	189783	螺柱(0.438×3.82英寸)	STUD (.438 x 3.82 Inches)	1
4	8M0034464	螺柱	STUD	1
5	579203	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	562972	螺柱(0.312-18/0.324-24×3.380)	STUD (.312-18/.324-24 x 3.380)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	306671	螺柱	STUD	2
8	67891	填充块	FILLER BLOCK	1
8	8M0039169	填充块	FILLER BLOCK	1
9	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
10	826134	阳极块	ANODE	2
10	826134Q	阳极块	ANODE	2
11	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
12	8268336	螺母 (M6)	NUT (M6)	1
12	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
13	NSS	小齿轮(不单独销售属于43-828174A2或43-828701A1部件)	NOT SOLD SEPARATE Pinion Gear (Part of 43-828174A2 or 43-828701A1)	1
14	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
15	35921	螺母(0.625-18)	NUT (.625-18)	1
16	42637A1	垫片组	SHIM SET	AR
16	8M0063267	垫片组	SHIM SET	AR
17	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
17	8M0058389	放油螺钉套件	SCREW KIT Drain	1
18	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	1
18	79953Q04	放油螺钉套件	SCREW KIT Drain	1
19	19183	纤维垫圈	WASHER Fiber	2
19	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
20	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	1
21	789022	换档轴	SHIFT SHAFT	1
22	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
23	77631A2	衬套总成	BUSHING ASSEMBLY	1
24	8164641	油封	SEAL Oil	1
24	8M0246145	油封	OIL SEAL	1
25	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
26	440001	驱动轴	DRIVESHAFT	1
26	897624T	长驱动轴	DRIVESHAFT Long	1
26	442091	驱动轴	DRIVESHAFT	1
26	897625T	加长驱动轴	DRIVESHAFT X-Long	1
27	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
27	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
28	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
29	824519	固定座	RETAINER	1
29	8245191	固定座	RETAINER	1
30	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
30	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
31	426311	衬垫	GASKET	1
31	8M0204678	衬垫	GASKET	1
32	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
32	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
33	89238	油封	SEAL Oil	1
34	16977	油封	SEAL Oil	1
35	856081	衬垫	GASKET	1
35	8M0090319	衬垫@5	GASKET @5	1
36	856091	衬垫	GASKET	1
36	858524	衬垫	GASKET	1
37	32435	面板	FACE PLATE	1
37	8M0204677	面板	PLATE-FACE	1
38	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
38	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
39	48752T	嵌件	INSERT	1
40	38970	密封件	SEAL	1
41	899843	叶轮	IMPELLER	1
41	89984T3	叶轮	IMPELLER	1
42	56654	键	KEY	1
42	8M0214992	键@5	KEY @5	1
43	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
43	8M0215009	螺钉	SCREW	1
44	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
44	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
45	13438	螺母(.250-28)	NUT (.250-28)	2
45	8267119	螺母(.250-28)	NUT (.250-28)	2
46	36001	垫圈	WASHER	1
47	13436	螺母	NUT	1
48	29804	套筒	SLEEVE	1
48	29804T	套筒	SLEEVE	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1

图 89齿轮箱(螺旋桨轴)(反向旋转) GEAR HOUSING (PROP SHAFT)(COUNTER ROTATION)

REF	零件编号	中文名称	英文名称	数量
1	9148T93	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
49	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
50	789562	换挡凸轮	SHIFT CAM	1
51	828287	杆	ROD	1
52	44491A1	垫片组	SHIM SET	AR
52	8M0063266	垫片组	SHIM SET	AR
53	828830A2	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
54	814653	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
54	814653T	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
55	815481	止推垫片	THRUST WASHER	1
56	815480	推力轴承	BEARING Thrust	1
57	828702A2	倒车齿轮总成-15/28齿	GEAR ASSEMBLY Reverse - 15/28	1
58	15844	滚柱轴承总成	BEARING ASSEMBLY Roller	1
59	30893	弹簧	SPRING	1
60	854735T	滑动离合器	CLUTCH Sliding	1
60	859340T	离合器	CLUTCH	1
61	30632	十字销	PIN Cross	1
61	8M0100263	十字销	PIN Cross	1
62	828356	定位销	PIN Detent	1
63	828951	螺旋桨轴	PROPELLER SHAFT	1
64	828701A1	前进齿轮总成-15/28齿	GEAR ASSEMBLY Forward - 15/28	1
65	1761514	垫片(0.206)	SPACER SHIM (.206)	AR
65	1761515	垫片(0.208)	SPACER SHIM (.208)	AR
65	1761516	垫片(0.210)	SPACER SHIM (.210)	AR
65	1761517	垫片(0.212)	SPACER SHIM (.212)	AR
65	1761518	垫片(0.214)	SPACER SHIM (.214)	AR
65	1761519	垫片(0.216)	SPACER SHIM (.216)	AR
65	1761520	垫片(0.218)	SPACER SHIM (.218)	AR
65	1761521	垫片(0.220)	SPACER SHIM (.220)	AR
65	1761522	垫片(0.222)	SPACER SHIM (.222)	AR
65	1761523	垫片(0.224)	SPACER SHIM (.224)	AR
65	1761524	垫片(0.226)	SPACER SHIM (.226)	AR
65	1761525	垫片(0.228)	SPACER SHIM (.228)	AR
65	1761526	垫片(0.230)	SPACER SHIM (.230)	AR
66	815480	推力轴承	BEARING Thrust	1
67	815481	止推垫片	THRUST WASHER	1
68	828831A3	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
69	814653	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
69	814653T	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
70	18448	止推垫片	THRUST WASHER	2
71	15842	推力轴承	BEARING Thrust	2
72	8182911	推力座圈	RACE Thrust	2
73	814605	定位器	KEEPER	2
74	31534	O型圈	O-RING	1
74	8M0214920	O型圈	O RING	1
75	818290A4	轴承座总成	CARRIER ASSEMBLY Bearing	1
76	30956	滚针轴承	BEARING Needle	1
76	30956T	滚针轴承	BEARING Needle	1
77	14077	油封(内侧)	SEAL Oil (INSIDE)	1
78	76868	油封(外侧)	SEAL (OUTSIDE)	1
78	8M0248882	油封@5	SEAL-OIL @5	1
79	183231	锁紧垫圈	TAB WASHER	1
80	30281	键	KEY	1
81	79448	固定座	RETAINER	1
81	8M2011027	固定座	RETAINER	1
82	316405	平衡鳍板	TRIM TAB	1
82	8M0236553	平衡鳍板	TRIM TAB	1
82	76214A5	阳极套件	ANODE KIT	1
82	76214Q5	阳极套件	ANODE KIT	1
83	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
83	8M0204686	螺钉	SCREW	1
84	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
85	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
86	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
86	8M0204653	螺母	NUT	2
-	89238A2	密封套件	SEAL KIT	1

图 90齿轮箱(螺旋桨轴)(标准旋转) GEAR HOUSING (PROP SHAFT)(STANDARD ROTATION)

REF	零件编号	中文名称	英文名称	数量
1	9148T93	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
49	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
50	789562	换挡凸轮	SHIFT CAM	1
51	828287	杆	ROD	1
52	828174A2	齿轮组	GEAR SET	1
52	878613A2	前进齿轮总成 1.87:1 - 15/28齿	GEAR ASSEMBLY Forward 1.87:1 - 15/28	1
53	44491A1	垫片组(0.006-7-9-10-20)	SHIM SET (.006-7-9-10-20)	AR
53	8M0063266	垫片组	SHIM SET	AR
54	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
55	30895	滚针轴承	BEARING Needle	1
55	30895T	滚针轴承	BEARING Needle	1
56	854735T	滑动离合器	CLUTCH Sliding	1
56	859340T	离合器	CLUTCH	1
57	30632	十字销	PIN Cross	1
57	8M0100263	十字销	PIN Cross	1
58	828356	定位销	PIN Detent	1
59	30893	弹簧	SPRING	1
60	94148	螺旋桨轴	PROPELLER SHAFT	1
61	828175A1	倒车齿轮总成-15/28齿	GEAR ASSEMBLY Reverse - 15/28	1
62	824108	隔套	SPACER	1
63	681001	止推环	RING Thrust	1
64	88957	滚珠轴承总成	BEARING ASSEMBLY Ball	1
64	88957T	滚珠轴承	BEARING Ball	1
65	31534	O型圈	O-RING	1
65	8M0214920	O型圈	O RING	1
66	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
66	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	30956	滚针轴承	BEARING Needle	1
67	30956T	滚针轴承	BEARING Needle	1
68	14077	油封(内侧)	SEAL Oil (INSIDE)	1
69	76868	油封(外侧)	SEAL (OUTSIDE)	1
69	8M0248882	油封@5	SEAL-OIL @5	1
70	30281	键	KEY	1
71	79447	锁紧垫圈	TAB WASHER	1
72	79448	固定座	RETAINER	1
72	8M2011027	固定座	RETAINER	1
73	316405	平衡鳍板	TRIM TAB	1
73	8M0236553	平衡鳍板	TRIM TAB	1
73	76214A5	阳极套件	ANODE KIT	1
73	76214Q5	阳极套件	ANODE KIT	1
74	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
74	8M0204686	螺钉	SCREW	1
75	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
76	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
77	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
77	8M0204653	螺母	NUT	2
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	89238A2	密封套件	SEAL KIT	1

图 91齿轮箱对照表 GEAR HOUSING CHART

REF	零件编号	中文名称	英文名称	数量
-	814247A3	齿轮箱总成1.78:1速比-黑色	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Black	1
-	814247T3	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	814247A4	齿轮箱总成 1.78:1 减速比 - 灰色	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Gray	1
-	814247T4	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	9148A8	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A9	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T85	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A10	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A13	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T91	ORD 1647-9148T85	ORD 1647-9148T85	1
-	9148A45	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A18	齿轮箱总成-标准转向2:1速比	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio	1
-	9148T81	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A20	齿轮箱总成-标准转向2:1速比	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio	1
-	9148T87	ORD 1647-9148T81	ORD 1647-9148T81	1
-	9148A30	齿轮箱总成反向旋转	GEAR HOUSING ASSEMBLY Counter Rotation	1
-	9148T86	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A31	齿轮箱总成反向旋转	GEAR HOUSING ASSEMBLY Counter Rotation	1
-	9148T92	ORD 1647-9148T86	ORD 1647-9148T86	1
-	9148A65	齿轮箱总成-标准转向2:1速比	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio	1
-	9148T81	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A67	齿轮箱总成-标准转向2:1速比	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio	1
-	9148T82	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A66	齿轮箱总成-标准转向2:1速比	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio	1
-	9148T87	ORD 1647-9148T81	ORD 1647-9148T81	1
-	9148A68	齿轮箱总成-标准转向2:1速比	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio	1
-	9148T88	ORD 1647-9148T82	ORD 1647-9148T82	1
-	9148A69	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A72	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T85	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A70	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A73	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T91	ORD 1647-9148T85	ORD 1647-9148T85	1
-	9148A71	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A76	齿轮箱总成反向旋转	GEAR HOUSING ASSEMBLY Counter Rotation	1
-	9148T86	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A77	齿轮箱总成反向旋转	GEAR HOUSING ASSEMBLY Counter Rotation	1
-	9148T92	ORD 1647-9148T86	ORD 1647-9148T86	1

图 92点火线圈/电压调节器 IGNITION COIL/VOLTAGE REGULATOR

REF	零件编号	中文名称	英文名称	数量
1	195871	安装板	PLATE MOUNTING	1
2	99263	电压调节器螺钉	SCREW VOLTAGE REGULATOR	4
3	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
4	19661A1	隔套	SPACER	4
5	18736A15	电压调节器总成	REGULATOR ASSEMBLY Voltage	1
5	18736A21	调节器总成	REGULATOR ASSY	1
6	18717	密封件	SEAL	1
7	96158	启动电磁阀	SOLENOID Starter	2
7	8M0185622	电磁阀	SOLENOID	2
7	818864	电磁阀(灰白色)	SOLENOID (OFF WHITE)	2
7	8M0185144	启动电磁阀	SOLENOID START	2
8	31716	螺丝(0.250-20 x 0.620) 启动电磁阀	SCREW (.250-20 x .620) STARTER SOLENOID	3
9	88807A6	黑色电缆总成 (3.50 英寸)	CABLE ASSEMBLY (3.50 Inches) Black	1
10	56374	电磁阀螺钉螺母(.250-20)	NUT (.250-20) SOLENOID SCREW	3
10	8267098	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	3
11	26419	螺母(#8-32)-黄铜电磁阀端子	NUT (#8-32) Brass SOLENOID TERMINAL	4
12	94330	螺母 (.250-20) 黄铜电磁阀端子	NUT (.250-20) Brass SOLENOID TERMINAL	4
13	69739A7	线束总成(#2,4和6)	HARNESS ASSEMBLY (#2, 4 AND 6)	1
14	87379A14	线束总成(2.750英寸)(红色)	WIRE ASSEMBLY (2.750 Inches) (RED)	1
14	88807A8	黑色电缆总成 (3.50 英寸)	CABLE ASSEMBLY (3.50 Inches) Black	2
15	88807A29	电缆总成(9英寸-黑色)	CABLE ASSEMBLY (9" - BLACK)	1
16	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
16	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
17	43542	点火线圈盖	COVER IGNITION COIL	2
18	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	6
18	8M0230859	点火线圈总成	COIL IGNITION ASY	6
19	90048	点火线圈盖螺钉(#10-32 x 2.125)	SCREW (#10-32 x 2.125) IGNITION COIL COVER	12
20	90078	盖板螺钉/接地线螺母(#10-32)	NUT (#10-32) COVER SCREW/GROUND WIRE	14
21	813715A9	高压点火线束套件	CABLE KIT Ignition HIGH TENSION	1
22	63709A1	高压电缆护套/端子套件	BOOT/TERMINAL KIT HIGH TENSION CABLE	6
23	136862	火花塞（NGK #BU8H）	SPARK PLUG (NGK #BU8H)	6
23	13686Q	NGK BU8H @10	NGK BU8H @10	6
24	45076	螺母(#10-32)黄铜点火线圈端子	NUT (#10-32) Brass IGNITION COIL TERMINAL	12
25	88807A13	线束总成 (5-1/2" - BLACK)	CABLE ASSEMBLY (5-1/2" - BLACK)	6
26	69022		SCREW (#10-32 x .500) Stainless Steel GROUNDING WIRE	2
27	814423T	线圈板盖	COVER COIL PLATE	1
28	814343	盖板螺钉(#10-32×2.380)	SCREW (#10-32 x 2.380) COVER	4
29	97861	绝缘体	INSULATOR	2

图 93仪表装置 INSTRUMENTATION

REF	零件编号	中文名称	英文名称	数量
1	19674A1	拉绳开关总成	SWITCH ASSEMBLY Lanyard	1
2	18303	螺钉 (.190-16 x 1.750) 不锈钢	SCREW (.190-16 x 1.750) Stainless Steel	2
3	813679	适配器	ADAPTER	1
4	15920A54	拉绳总成	LANYARD ASSEMBLY	1
4	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
5	32866	螺钉 (#10-32 x 2.00) 不锈钢	SCREW (#10-32 x 2.00) Stainless Steel	2
6	18321	安装夹	CLAMP Mounting	1
7	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	2
8	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4
9	79146	固定座	RETAINER	3
10	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
10	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
11	812497A2	二极管总成	DIODE ASSEMBLY	1
11	898289A72	双拉绳二极管套件	DIODE KIT-LANYARD Dual	1
12	11149A2	线缆总成 (6.00英寸)	CABLE ASSEMBLY (6.00 Inches)	1

图 94杂项信息 MISCELLANEOUS INFORMATION

零件编号	中文名称	英文名称	数量
803177	零件手册150/175/200 EFI(2.5升)	PARTS MANUAL 150/175/200 EFI (2.5L)	1
10126990	用户手册	OWNERS MANUAL	1
824052R2	维修手册	SERVICE MANUAL	1
824052R3	SM O/B V6 135-225	SM O/B V6 135-225	1
808553A96	贴花套件	DECAL SET	1
808553A00	贴花套件	DECAL SET	1
809689A99	贴花套件	DECAL SET	1
804696A03	贴花套件	DECAL SET	1
808559A96	贴花套件	DECAL SET	1
855418A99	贴花套件	DECAL SET	1
809688A00	贴花套件	DECAL SET	1
808554A96	贴花套件	DECAL SET	1
812563A00	贴花套件	DECAL SET	1
808558A99	贴花套件	DECAL SET	1
808562A03	贴花套件	DECAL SET	1
813033A97	贴花套件	DECAL SET	1
813033A03	贴花套件	DECAL SET	1
809706A97	贴花套件	DECAL SET	1
809706A03	贴花套件	DECAL SET	1
808557A97	贴花套件	DECAL SET	1
808557A01	贴花套件	DECAL SET	1
855419A97	贴花套件	DECAL SET	1
855419A00	贴花套件	DECAL SET	1
808556A97	贴花套件	DECAL SET	1
808556A03	贴花套件	DECAL SET	1
808561A97	贴花套件	DECAL SET	1
808561A03	贴花套件	DECAL SET	1
824911A25	条纹贴纸(25英尺卷-需6英尺)	DECAL Striping (ROLL OF 25 FT. - NEED 6 FT.)	1
808591A96	贴花套件	DECAL SET	1
808680A96	贴花套件	DECAL SET	1
808621A96	贴花套件	DECAL SET	1
808602A96	贴花套件	DECAL SET	1
808652A96	贴花套件	DECAL SET	1
808641A96	贴花套件	DECAL SET	1
85698511	EPA标签信息贴花	DECAL EPA Label Information	1
856985A11	REF SOB 09-18	REF SOB 09-18	1

图 95喷油组件 OIL INJECTION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	12430A4	传感器总成	SENSOR ASSEMBLY	1
2	48409	螺钉(#10-16 x .625)不锈钢传感器固定	SCREW (#10-16 x .625) Stainless Steel SENSOR ATTACHING	1
3	815698	机油泵(175)	PUMP Oil (175)	1
3	815698T	油泵	PUMP Oil	1
3	815699	油泵总成(200)	PUMP ASSEMBLY Oil (200)	1
3	815699T	油泵总成	PUMP ASSEMBLY Oil	1
4	11379	油泵O型圈	O-RING OIL PUMP	1
5	41429A2	驱动齿轮轴承总成	BEARING ASSEMBLY DRIVE GEAR	1
6	14563	从动齿轮	GEAR Driven	1
7	32228	油泵至曲轴箱螺钉 (#10-32 x .625)	SCREW (#10-32 x .625) OIL PUMP TO CRANKCASE	1
7	41507	油泵至曲轴箱螺钉 (#10-32 x 1.120)	SCREW (#10-32 x 1.120) OIL PUMP TO CRANKCASE	1
8	1938512	油门连杆至油泵总成	LINK ASSEMBLY THROTTLE LEVER TO OIL PUMP	1
9	4301625	机油泵用管材(8英寸)	TUBING (8.00 Inches) OIL PUMP	1
9	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	1
10	99443T	油箱	RESERVOIR Oil	1
10	994436	储液罐	RESERVOIR	1
11	415823		CLAMP OIL HOSE	2
12	4301736	油箱至油泵油管	TUBING OIL RESERVOIR TO OIL PUMP	1
12	82381455	油管（25.00英寸散装）	TUBING (25.00 Inches Bulk)	1
13	69020	油箱固定螺钉 (#10-32 x .875)	SCREW (#10-32 x .875) OIL RESERVOIR ATTACHING	3
13	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
14	42118	油箱螺钉垫圈	WASHER OIL RESERVOIR SCREW	6
15	42117	油箱螺钉衬套	GROMMET OIL RESERVOIR SCREW	3
16	42116	油箱螺钉轴套	BUSHING OIL RESERVOIR SCREW	3
17	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	1
17	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
18	42425	油管三通	TEE OIL TUBING	1
19	9072925	油管(6-3/4")	HOSE OIL (6-3/4")	1
20	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
20	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
21	99439	油管(114.00英寸)	HOSE (114.00 Inches) OIL	1
22	415824	卡箍	CLAMP	2
24	43278	止回阀接头（曲轴箱）	FITTING CHECK VALVE (CRANKCASE)	1
24	8781051	止回阀	CHECK VALVE	1
25	87421	油箱	TANK	1
26	43298A2	油箱盖总成	CAP ASSEMBLY OIL TANK	1
27	11332	O型圈(2.225 x .210)盖	O-RING (2.225 x .210) CAP	1
28	816190A3	外壳总成适配器	HOUSING ASSEMBLY Adapter	1
28	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
29	11332	O型圈(2.225 x .210)适配器壳体	O-RING (2.225 x .210) ADAPTOR HOUSING	1
30	99802	吸油管	TUBE OIL PICK-UP	1
31	43300A9	油箱盖总成	CAP ASSEMBLY OIL RESERVOIR	1
32	43307	油箱盖衬垫	GASKET RESERVOIR CAP	1
32	43307T	衬垫	GASKET	1
33	99022A1	浮子总成	FLOAT ASSEMBLY	1
33	8M0187298	浮子总成	FLOAT ASSY	1
34	99265	压入式螺母	PUSH NUT	1

图 96动力升降组件 8M0231193 Power Trim Components 8M0231193

REF	零件编号	中文名称	英文名称	数量
-	8M0231193	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0225363	电机套件	MOTOR KIT	1
2	8M0225369	阀套件	VALVE KIT	1
3	8M0225371	手动释放套件	MANUAL RELEASE KIT	1
4	8M0245633	倾斜油缸套件	TILT CYLINDER KIT	1
5	8M0225370	枢轴销套件	PIVOT PIN KIT	1
6	8M0244575	减震杆套件	SHOCK ROD KIT	1
7	8M0244425	销杆眼套件	PIN ROD EYE KIT	1
8	8M0232231	螺钉螺母套件	SCREW NUT KIT	1
9	8M0225373	记忆活塞套件	MEMORY PISTON KIT	1
10	8M0225368	储液罐套件	RESERVOIR KIT	1
11	8M0174135	储液罐塞总成	PLUG RESERVOIR ASSEMBLY	1
12	8M0237525	泵套件	PUMP KIT	1
13	8M0225367	升降杆套件	TRIM ROD KIT	1
14	8M0242846	升降杆套件	TRIM ROD KIT	1
15	8M0225372	重建套件	REBUILD KIT	1

图 97动力升降组件（金属马达壳体） POWER TRIM COMPONENTS Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	855998A3	动力升降倾斜装置总成	POWER TRIM Complete	1
-	855998A11	动力调整套件	POWER TRIM KIT	1
-	855998A05	完整动力升降总成	POWER TRIM ASSEMBLY Complete	1
-	855998A11	动力调整套件	POWER TRIM KIT	1
1	878265A4	配平电机	TRIM MOTOR	1
1	8M0031551	配平电机	TRIM MOTOR	1
2	NSS	电枢(不单独销售)	NOT SOLD SEPARATE Armature	1
3	NSS	端架(不单独销售)	NOT SOLD SEPARATE End Frame	1
4	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
5	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
6	8782451	驱动轴	DRIVESHAFT	1
7	878410A1	压力检查套件	PO CHECK KIT	1
8	813442A2	手动释放总成 (含参考号#26)	MANUAL RELEASE ASSEMBLY (Includes Reference #26)	1
8	893929A01	安全阀套件	VALVE KIT Relief	1
9	878241A02	轴套件	SHAFT KIT	1
9	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
10	878267	销	PIN	1
11	878235A1	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
11	878235A03	倾斜油缸套件	CYLINDER KIT Tilt	1
11	878235A02	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
11	878235A03	倾斜油缸套件	CYLINDER KIT Tilt	1
12	878239A1	导向套件 (含参考号#26)	GUIDE KIT (Includes Reference #26)	1
12	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
13	878409A1	O型圈套件 (含参考号#26)	O-RING KIT (Includes Reference #26)	1
13	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
14	878412A1	减震杆套件 (含参考号#26)	SHOCK ROD KIT (Includes Reference #26)	1
14	8M0168219	减震杆套件	SHOCK ROD KIT	1
15	878242A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
15	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
16	878406A1	止回阀修理包 (含参考号#26)	REPAIR KIT Check Valve (Includes Reference #26)	1
16	878406A02	止回阀修理包	REPAIR KIT Check Valve	1
17	878414A1	活塞总成	PISTON ASSEMBLY	1
17	878414T01	活塞总成	PISTON ASSEMBLY	1
18	878413A1	活塞总成	PISTON ASSEMBLY	1
19	878243A1	导向器总成	GUIDE ASSEMBLY	2
19	8M0021648	端盖总成	END CAP ASSEMBLY	2
20	878264A1	储液罐套件	RESERVOIR KIT	1
21	811613	塞子总成	PLUG ASSEMBLY	1
22	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
23	43450	垫圈	WASHER	4
23	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
24	892251A01	泵套件	PUMP KIT	1
25	878408A1	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
26	821539	三叶销	PIN Trilobe	1
27	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
28	4002319	垫圈	WASHER	6
29	818298Q1	阳极套件	ANODE KIT	1
30	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
30	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
31	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
31	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	99625002	轴	SHAFT	1
33	69205	C形垫圈	C WASHER	1
33	8M0084613	C形垫圈	C-WASHER	1
34	22875	卡扣	CLIP	2
35	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	2
36	828547353	导管(内径0.350x3英尺散装)(裁切至12英寸)	CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk) (Cut to 12 Inches)	1
37	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

图 98动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	8M0168222	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0142591	电机套件	MOTOR KIT	1
2	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
3	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
4	8M0090403	驱动联轴器	COUPLING Drive	1
5	8M0142996	压力检查套件	PO CHECK KIT	1
6	8M0060141	手动释放套件	MANUAL RELEASE KIT	1
7	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
8	878267	销	PIN	1
9	8M0142998	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
9	8M0168220	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
10	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
11	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
12	8M0142592	升降杆套件左舷	TRIM ROD KIT Port	1
13	8M0143001	活塞总成	PISTON ASSEMBLY	1
14	8M0143003	端盖总成	END CAP ASSEMBLY	1
15	878264A1	储液罐套件	RESERVOIR KIT	1
16	811613	塞子总成	PLUG ASSEMBLY	1
17	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
18	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
19	8M0143004	泵套件	PUMP KIT	1
20	8M0148385	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
21	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
22	4002319	垫圈	WASHER	6
23	8M0094889	销	PIN	1
23	8M0161312	连杆销眼总成	PIN ROD EYE ASSEMBLY	1
24	8M0143005	减震杆套件	SHOCK ROD KIT	1
24	8M0168219	减震杆套件	SHOCK ROD KIT	1

图 99动力升降马达 POWER TRIM MOTOR

REF	零件编号	中文名称	英文名称	数量
-	811628	配平电机	TRIM MOTOR	1
-	828708	电机总成	MOTOR ASSEMBLY	1
-	878265A4	配平电机	TRIM MOTOR	1
1	811624	机架与磁场套件	FRAME AND FIELD KIT	1
2	811625	电刷卡套件	BRUSH CARD KIT	1
3	811623	端架套件	END FRAME KIT	1
4	811626	密封套件	SEAL KIT	1
5	811627	电枢套件	ARMATURE KIT	1
5	811628	配平电机	TRIM MOTOR	1
6	828714A1	电刷与密封套件	BRUSH AND SEAL KIT	1
7	828713A1	电枢套件	ARMATURE KIT	1
7	828713T1	电枢套件	ARMATURE KIT	1
8	828715A1	端盖总成	END FRAME Complete	1

图 100簧片阀组与气缸盖 REED BLOCK AND CYLINDER HEAD

REF	零件编号	中文名称	英文名称	数量
1	187893	气缸盖(175)	CYLINDER HEAD (175)	2
1	184883	气缸盖(200)	CYLINDER HEAD (200)	2
1	18488F2	气缸盖总成	CYLINDER HEAD ASSEMBLY	2
2	187861	衬垫(175)	GASKET (175)	2
2	18786T	衬垫	GASKET	2
2	184721	衬垫(200)	GASKET (200)	2
2	822844T05	衬垫	GASKET	2
3	98534	气缸盖螺钉 (.375-16 x 2.30)	SCREW (.375-16 x 2.30) CYLINDER HEAD	23
3	13450	螺钉(.375-16 x 2.30)(专用-200)	SCREW (.375-16 x 2.30) (SPECIAL - 200)	1
4	25909	气缸盖螺钉垫圈 (.406 x .812 x .065)	WASHER (.406 x .812 x .065) CYLINDER HEAD SCREW	24
5	75692	节温器	THERMOSTAT	2
6	62386	节温器衬垫	GASKET THERMOSTAT	2
6	8M0204714	衬垫@4	GASKET @4	2
7	90390A1	节温器盖套件	COVER KIT THERMOSTAT	2
8	35386	节温器盖螺钉 (.312-18 x 1.00)	SCREW (.312-18 x 1.00) THERMOSTAT COVER	4
9	68727	90度黄铜弯头接头 (.250-18)（水管用）	FITTING (.250-18) 90 Degree - Brass ELBOW - WATER HOSES	1
9	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
10	7765377	配水软管（散装24.500英寸）	HOSE (24.500 Inches Bulk) WATER DISTRIBUTION	2
10	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	2
11	68728	节温器盖接头	FITTING THERMOSTAT COVER	1
12	816311	水管束带(8.00英寸)	TIE STRAP (8.00 Inches) WATER HOSES	4
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
13	63779	定位销 (.250 x .625)	PIN Dowel (.250 x .625)	4
14	13715	传感器固定座	RETAINER SENSOR AND SENDER	2
14	137151	固定座	RETAINER	2
15	98257	螺钉 (0.312-18 x 0.500) 固定座	SCREW (.312-18 x .500) RETAINER	2
16	92160	不锈钢螺钉(.250-20 x .750)(175)	SCREW (.250-20 x .750) Stainless Steel (175)	6
16	90197	螺钉(.250-20 x 1.125)(175)	SCREW (.250-20 x 1.125) (175)	6
16	28668	不锈钢簧片块固定螺钉(.250-20 x .875)(200)	SCREW (.250-20 x .875) Stainless Steel REED BLOCK ATTACHING (200)	12
17	167371	适配板垫片	GASKET ADAPTOR PLATE	1
18	17735A2	适配板总成(175)	ADAPTER PLATE ASSEMBLY (175)	1
18	12124A3	板总成(200)	PLATE ASSEMBLY (200)	1
19	961832	簧片夹(175)	CLAMP Reed (175)	12
19	903911	簧片夹(200)	CLAMP Reed (200)	12
20	146972	衬垫(175)	GASKET (175)	1
20	813859	衬垫(200)	GASKET (200)	1
20	883775	衬垫	GASKET	1
21	75953	簧片块(175)	REED BLOCK (175)	6
21	87692	簧片块(200)	REED BLOCK (200)	6
22	75362A1	簧片总成(175)	REED ASSEMBLY (175)	6
22	19719A1	簧片总成(200)	REED ASSEMBLY (200)	6
23	28668	螺钉 (0.250-20 x 0.875) 不锈钢适配板	SCREW (.250-20 x .875) Stainless Steel ADAPTOR PLATE	8
24	14783	螺钉 (#8-32 x 0.187) 簧片至簧片座	SCREW (#8-32 x .187) REEDS TO REED BLOCK	84
24	823588	螺钉 (#8-32 x .250)	SCREW (#8-32 x .250)	84
25	13192	爆震传感器(200)	SENSOR Detonation (200)	1
25	825164A1	爆震传感器总成	SENSOR ASSEMBLY Detonation	1
26	97465	温度传感器（右舷）	SENDER Temperature (STARBOARD)	1
27	13536A6	温度传感器总成（左舷）	SENSOR ASSEMBLY Temperature (PORT)	1
28	45076	黄铜螺母(#10-32)(200)	NUT (#10-32) Brass (200)	1
29	55098	J型卡扣(200)	J CLIP (200)	1
29	8M0024808	J型夹	J-CLIP	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 101启动马达 STARTER MOTOR

REF	零件编号	中文名称	英文名称	数量
1	892339T	启动电机总成	STARTER MOTOR ASSEMBLY	1
2	803005	贯穿螺栓	THRU BOLT	2
3	880805A1	齿轮套件	GEAR KIT	1
4	809463A1	电磁阀组件	SOLENOID KIT	1
5	8M0065258	电刷组	BRUSH SET	1
6	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
7	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
8	NSS	高压警告贴纸 (不单独销售)	NOT SOLD SEPARATE Decal-Warning-High Voltage	1
9	400255	锁紧垫圈(M5)	LOCKWASHER (M5)	1
10	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
11	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
12	400213	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
13	56703	轴环	COLLAR	2
13	8M0034918	轴环	COLLAR	2
14	879845	停机开关	STOP	1
14	8M0043276	停机开关	STOP	1

图 102转向连接套件 Steering Attaching Kit

REF	零件编号	中文名称	英文名称	数量
-	92876A8	转向单装配套件	ATTACHING KIT Steering Single	1
1	41055A1	支架总成	BRACKET ASSEMBLY	1
2	71565A2	管总成	TUBE ASSEMBLY	1
3	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
4	821203	锁紧垫圈	LOCKWASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
7	93702	垫圈(.250外齿星形)	WASHER (.250 External Star)	4
8	88319	联轴器	COUPLING	1
8	850791T	联轴器	COUPLER	1
9	73732	螺钉 (.375-24 x 1.120)	SCREW (.375-24 x 1.120)	2
10	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	2
11	34863	螺母 (.375-24)	NUT (.375-24)	3
11	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	3

图 103旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM

REF	零件编号	中文名称	英文名称	数量
1	8710T20	黑色旋转支架总成	SWIVEL BRACKET ASSEMBLY Black	1
2	33504	O型圈	O-RING	1
2	8M0214926	O型圈 @10	O RING @10	1
3	818764	衬套	BUSHING	2
4	816039	隔套	SPACER	1
5	87735	油封(下)	SEAL Oil (LOWER)	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	816432	止推垫片	THRUST WASHER	1
9	814084F1	下轭架	YOKE Bottom	1
9	8M0219200	黑色下轭架	YOKE-BOTTOM-BLACK	1
9	826364F1	下轭架	YOKE Bottom	1
9	826364T	下轭架	YOKE Bottom	1
10	67684	挡圈	RING Retaining	1
11	996301	冲击板	STRIKER PLATE	2
11	8M0045383	冲击板	STRIKER PLATE	2
12	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
13	46335	螺母 (.375-24)	NUT (.375-24)	2
14	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
15	NSS	不单独销售-序列号覆膜标贴	NOT SOLD SEPARATE Decal-Serial Overlaminate	1
16	859187A1	调整传感器总成	SENDER ASSEMBLY Trim	1
17	852368	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
18	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
19	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
20	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
20	826432A2	转向臂旋转销总成-不锈钢	SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel	1
20	826432A2	转向臂旋转销总成-不锈钢	SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel	1
20	8M0132731	旋转销总成	SWIVEL PIN ASSY	1
21	816386	螺钉(M12×190)	SCREW (M12 x 190)	2
21	8M0141069	螺钉	SCREW	2
22	824998001	缓冲垫	BUMPER	1
23	8163851	上部支架	MOUNT Upper	2
24	8154371	垫圈	WASHER	2
25	815436	垫圈	WASHER	2
26	896963	螺母(M12)	NUT (M12)	2
27	813769	卡箍	CLAMP	1
27	8M0036783	卡箍	CLAMP	1
28	81893435	螺钉(M8×35)	SCREW (M8 x 35)	3
28	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
29	92876A10	连杆总成	LINK ROD ASSEMBLY	1
29	92876A12	连杆总成	LINK ROD ASSEMBLY	1
30	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
31	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
31	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
32	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2

图 104油门杆与换挡轴 THROTTLE LEVER AND SHIFT SHAFT

REF	零件编号	中文名称	英文名称	数量
1	74897		PIVOT TRIGGER PLATE	1
2	62459	球头总成触发板	BALL JOINT ASSEMBLY TRIGGER PLATE	1
2	62459T	球头节总成	BALL JOINT ASSY	1
3	45076	螺母(#10-32)黄铜连杆	NUT (#10-32) Brass LINK ROD	1
4	76035	触发板连杆	ROD TRIGGER PLATE	1
5	46438	球头螺母(#10-32)	NUT (#10-32) BALLJOINT	1
6	41094A3	点火提前杆总成	LEVER ASSEMBLY SPARK ADVANCE	1
7	64022	螺丝(.250-20x2.125)点火提前杆-止动	SCREW (.250-20 x 2.125) SPARK ADVANCE LEVER - STOP	1
8	64015	螺母(.250-20)点火提前止动螺丝	NUT (.250-20) SPARK ADVANCE STOP SCREW	1
9	26852	尼龙帽点火提前杆止动螺丝	CAP Nylon SPARK ADVANCE LEVER STOP SCREW	1
10	13627	螺钉 (.190-32 x 1.250)	SCREW (.190-32 x 1.250)	1
11	68219	螺母(#10-32)不锈钢点火提前杆止动螺丝	NUT (#10-32) Stainless Steel SPARK ADVANCE LEVER STOP SCREW	1
12	48039	点火提前杆止动螺丝帽	CAP SPARK ADVANCE LEVER STOP SCREW	1
13	41095T	油门控制杆	LEVER THROTTLE CONTROL	1
13	410952	杠杆	LEVER	1
14	55337	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
14	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
15	55164	油门杠杆衬套	BUSHING THROTTLE LEVER	1
16	55171	点火提前杆衬套	BUSHING SPARK ADVANCE LEVER	1
17	55162	弹簧	SPRING	1
18	46765	垫圈(0.390 x 1.50 x 0.120) 点火提前杆	WASHER (.390 x 1.50 x .120) SPARK ADVANCE LEVER	1
19	64022	螺丝(.250-20x2.125)节气门杆-止动	SCREW (.250-20 x 2.125) THROTTLE LEVER - STOP	1
20	64015	螺母(.250-20)节气门杆止动螺丝	NUT (.250-20) THROTTLE LEVER STOP SCREW	1
21	26852	尼龙帽节气门杆止动螺丝	CAP Nylon THROTTLE LEVER STOP SCREW	1
22	39483	锁扣拉线	LATCH CABLE	1
23	22486	螺丝(.250-28x.880)拉线锁扣至节气门杆	SCREW (.250-28 x .880) CABLE LATCH TO THROTTLE LEVER	1
23	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
24	20099	拉线锁扣至节气门杆弹簧	SPRING CABLE LATCH TO THROTTLE LEVER	1
25	35045	螺母(.250-28)拉线锁扣螺丝	NUT (.250-28) CABLE LATCH SCREW	1
25	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
26	14634	节气门控制杆	ROD THROTTLE CONTROL	1
27	14638	节气门控制杆套筒	BARREL THROTTLE CONTROL ROD	1
28	8142391	凸轮	CAM	1
28	8142392	节气门凸轮	THROTTLE CAM	1
29	93248	衬套	BUSHING	1
29	8M0215006	旋转衬套	BUSHING Swivel	1
30	26856	节气门凸轮衬套	BUSHING THROTTLE CAM	2
31	35045	螺母（0.250-28）节气门凸轮螺柱	NUT (.250-28) THROTTLE CAM STUD	1
31	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
33	814283A1	控制线缆锚定支架	BRACKET ANCHOR - CONTROL CABLES	1
33	814283A2	支架总成	BRACKET ASSEMBLY	1
34	98889	控制线缆锁扣	LATCH CONTROL CABLE	1
35	42975	闩锁传动螺钉	DRIVE SCREW LATCH	2
36	53167	螺丝(.312-18x.880)锚定支架固定	SCREW (.312-18 x .880) ANCHOR BRACKET ATTACHING	3
36	53167T	螺钉 0.312-18X 0.88	SCREW .312-18X .88	3
37	814284	连杆导向块	GUIDE BLOCK LINK ROD	1
38	20099	连杆至导向块弹簧	SPRING LINK ROD TO GUIDE BLOCK	1
39	67073A1	连杆总成	LINK ROD ASSEMBLY	1
40	52100	连杆耐磨板	WEAR PLATE LINK ROD	1
41	38279	闩锁	LATCH	1
41	8M0036768	闩锁	LATCH	1
42	35462	垫圈(.2656x.625x.0625)不锈钢锁扣	WASHER (.2656 x .625 x .0625) Stainless Steel LATCH	1
43	35045	螺母（0.250-28）连杆	NUT (.250-28) LINK ROD	1
43	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
44	79932A11	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
44	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
45	29720	连杆波形垫圈	WAVE WASHER LINK ROD	1
46	26600	尼龙衬套-连杆	BUSHING NYLON - LINK ROD	1
47	35462	垫圈(.2656 x .625 x .0625)不锈钢连杆	WASHER (.2656 x .625 x .0625) Stainless Steel LINK ROD	1
48	35045	螺母（0.250-28）连杆至换挡轴	NUT (.250-28) LINK ROD TO SHIFT SHAFT	1
48	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
49	39519	杯形套筒固定器-锚杆	CUP BARREL RETAINER - ANCHOR BAR	1

图 105专用工具 TOOLS SPECIAL

REF	零件编号	中文名称	英文名称	数量
-	815366A3	电池隔离器套件	ISOLATOR KIT Battery	1
-	58222A1	百分表工具	DIAL INDICATOR TOOL	1
-	89045	适配器	ADAPTER	1
-	890451	直流电压适配工具	ADAPTER TOOL Direct Voltage	1
-	52344	飞轮固定器工具(齿型)	FLYWHEEL HOLDER TOOL Teeth Type	1
-	73687A2	飞轮拉拔器套件	PULLER KIT Flywheel	1
-	849154T1	拉拔器总成	PULLER ASSEMBLY	1
-	99750A1	万用表	MULTI METER	1
-	24161	飞轮拉拔器盖工具	CAP TOOL Flywheel Puller	1
-	52024A1	开关总成	SWITCH ASSEMBLY	1
-	59339	维修用转速表	SERVICE TACHOMETER	1
-	892647A01	DMT万用表套件	MULTI-METER KIT DMT	1
-	850439T1	八腔测试仪	TESTER Eight Chamber	1
-	63998A1	单腔间隙工具	GAP TOOL Single Chamber	1
-	850439	火花测试器	SPARK TESTER	1
-	850439T1	八腔测试仪	TESTER Eight Chamber	1
-	14443A1	测试线束总成	HARNESS ASSEMBLY Test	1
-	99379	正时灯	TIMING LIGHT	1
-	29287	量规工具	GAUGE TOOL	1
-	55919	驱动头	DRIVER HEAD	1
-	52344	飞轮固定器工具(齿型)	FLYWHEEL HOLDER TOOL Teeth Type	1
-	73687A2	飞轮拉拔器套件	PULLER KIT Flywheel	1
-	849154T1	拉拔器总成	PULLER ASSEMBLY	1
-	90455	吊环	LIFTING EYE	1
-	904551	吊环	LIFTING EYE	1
-	77109A3	安装工具套件	INSTALLER KIT	1
-	52952A1	活塞销锁环拆卸工具	REMOVAL TOOL Piston Pin Lock Ring	1
-	52952T1	活塞销锁环拆卸工具	REMOVAL TOOL Piston Pin Lock Ring	1
-	74607A3	活塞销安装套件	INSTALLER KIT Piston Pin	1
-	65494	环压缩工具(2.0升)	COMPRESSOR TOOL Ring (2.0L)	1
-	65494T	环压缩工具	COMPRESSOR TOOL Ring	1
-	818773	活塞环压缩工具(2.5升)	COMPRESSOR TOOL Piston Ring (2.5L)	1
-	818773T	活塞环压缩工具(3.50)	COMPRESSOR TOOL Piston Ring (3.50)	1
-	24697	活塞环扩张工具	EXPANDER TOOL Piston Ring	1
-	30591A1	动力头支架工具	STAND TOOL Powerhead	1
-	30591T1	支架工具	STAND TOOL	1
-	24161	飞轮拉拔器盖工具	CAP TOOL Flywheel Puller	1
-	66274	扭矩扳手(0-150磅英寸)	TORQUE WRENCH (0-150 lb-in)	1
-	37241	通用拉拔板	PULLER PLATE Universal	1
-	112301	对正工具	ALIGNMENT TOOL	1
-	99750A1	万用表	MULTI METER	1
-	52915A6	测试仪表套件	TEST GAUGE KIT	1
-	74951	扳手	SPANNER WRENCH	1
-	63209	加热灯	HEAT LAMP	1
-	44487A1	调整杆导向器拆卸工具	REMOVER TOOL Trim Rod Guide	1
-	44487T1	调整杆导向器拆卸工具	REMOVER TOOL Trim Rod Guide	1
-	44486A1	调整杆拆卸工具	REMOVAL TOOL Trim Rod	1

图 106顶罩 TOP COWL

REF	零件编号	中文名称	英文名称	数量
1	881288T32	顶盖总成	TOP COWL ASSEMBLY	1
2	82130030	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
3	884041A1	隔音毯套装	SOUND BLANKET KIT	1
3	884041A04	隔音毯套装	SOUND BLANKET KIT	1
4	NSS	不单独出售-顶部隔音垫	NOT SOLD SEPARATE Sound Blanket-Top	1
5	NSS	不单独销售隔音垫-左舷	NOT SOLD SEPARATE Sound Blanket-Port	1
6	93702	垫圈(.250外齿星形)	WASHER (.250 External Star)	6
7	826639T	盖板	COVER	1
8	850682T4	后锁钩总成	HOOK ASSEMBLY Rear Latch	2
8	850682A06	支架和手柄套件	BRACKET AND HANDLE KIT	2
9	NSS		NOT SOLD SEPARATE Pin	2
10	8237951	挡圈	RING Retaining	2
11	815263	滚轮	ROLLER	2
11	8M0207770	滚轮@3	ROLLER @3	2
12	850685002	护孔环	GROMMET	1
12	850685T02	护孔环	GROMMET	1
13	821249M2	前支架	BRACKET Front	1
13	8M0036792	支架	BRACKET	1
14	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	2
15	815477	缓冲器锁扣	BUMPER Latch	1
16	8155381	滚动销	PIN Roll	1
17	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
18	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
18	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
19	8237951	挡圈	RING Retaining	1
20	815263	滚轮	ROLLER	1
20	8M0207770	滚轮@3	ROLLER @3	1
21	87161	垫圈	WASHER	1
-	897136A05	贴花套件	DECAL SET	1
-	8M0065133	ORD 8M0114995	ORD 8M0114995	1

图 107艉板支架 Transom Brackets

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂接头(左舷)	FITTING Grease (PORT)	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	54012	垫圈(0.530×0.870×0.105不锈钢)	WASHER (.530 x .870 x .105) Stainless Steel	4
10	8M0204665	垫圈(0.530×0.880×0.104 630不锈钢)	WASHER (.530 x .880 x .104) 630 Stainless Steel	4
11	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	99629T2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	830899	张力弹簧	SPRING Tension	1
15	65830	尼龙衬套	NYLINER	2
16	830900	压缩弹簧	SPRING Compression	1
17	99633	旋钮	KNOB	1
18	99615	槽销	PIN Groove	1
19	99617	销	PIN	1
19	893709	销	PIN	1

图 108线束/启动电磁阀 WIRING HARNESS/STARTER SOLENOID

REF	零件编号	中文名称	英文名称	数量
1	434291	点火板点火	IGNITION PLATE IGNITION	1
2	7778A9	开关盒总成	SWITCHBOX ASSEMBLY	2
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	开关盒螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) SWITCH BOX	2
4	94453	开关盒螺钉衬套	BUSHING SWITCH BOX SCREW	2
6	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	20
7	60871A10	线束总成-开关盒	WIRE ASSEMBLY SWITCH BOX	2
8	62568	螺丝(#10-16 x 0.375)导线固定	SCREW (#10-16 x .375) WIRE ATTACHING	3
9	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
10	69092	点火板螺钉(1.25)	SCREW (1.25) IGNITION PLATE	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈(.312)点火板螺钉	LOCKWASHER (.312) IGNITION PLATE SCREW	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈点火板螺钉	WASHER IGNITION PLATE SCREW	6
13	67264	橡胶垫圈点火板螺钉	WASHER (Rubber) IGNITION PLATE SCREW	6
14	67268	衬套点火板螺钉	BUSHING IGNITION PLATE SCREW	3
15	33386A3	开关总成	SWITCH ASSEMLBY	1
16	38055	水银开关螺钉(.190-32 x .620)	SCREW (.190-32 x .620) MERCURY SWITCH	1
17	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
18	87926	螺钉(#10-32 x .500)导线固定	SCREW (#10-32 x .500) LEAD ATTACHING	1
19	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
19	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
20	96220A12	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
21	79091	保险丝20安培	FUSE 20 Ampere	1
21	8M0207796	保险丝20安培	FUSE 20 AMP	1
22	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
24	816311	捆扎带(8英寸)线束和电缆	TIE STRAP (8.00 Inches) HARNESS AND CABLES	AR
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	68258A4	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
25	853654A1	电磁阀	SOLENOID	1
26	45076	螺母(#10-32)黄铜电磁阀端子	NUT (#10-32) Brass SOLENOID TERMINALS	2
27	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
28	68292	螺母（.312-18）电磁阀端子	NUT (.312-18) SOLENOID TERMINALS	2
28	8M0204668	螺母(.312-18)	NUT (.312-18)	2
29	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
30	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
31	65999A2	电缆总成黑色上部安装	CABLE ASSEMBLY Black UPPER MOUNT	1
32	88528A2	线缆总成(6英寸-红/白)	CABLE ASSEMBLY (6" - RED/WHITE)	1
32	91865A1	线束总成(3"-白/黑-175)	CABLE ASSEMBLY (3" - WHITE/BLACK - 175)	1
33	47483	J型卡扣	J CLIP	3
34	194372	端子排	TERMINAL BLOCK	1
35	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
36	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
37	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
38	814422T	点火板盖	COVER IGNITION PLATE	1
39	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	2
40	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
40	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
41	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
42	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	3
43	62310A2	线束总成(175)	CABLE ASSEMBLY (175)	1
44	78866	绝缘体	INSULATOR	1
