水星 Mercury V-175 MAGNUM 0D000750 THRU 0D081999 - 爆炸图零件明细

两冲程电喷 EFI · USA - Cat.# 90-81741890 · 共 28 个部位 · 1329 条零件

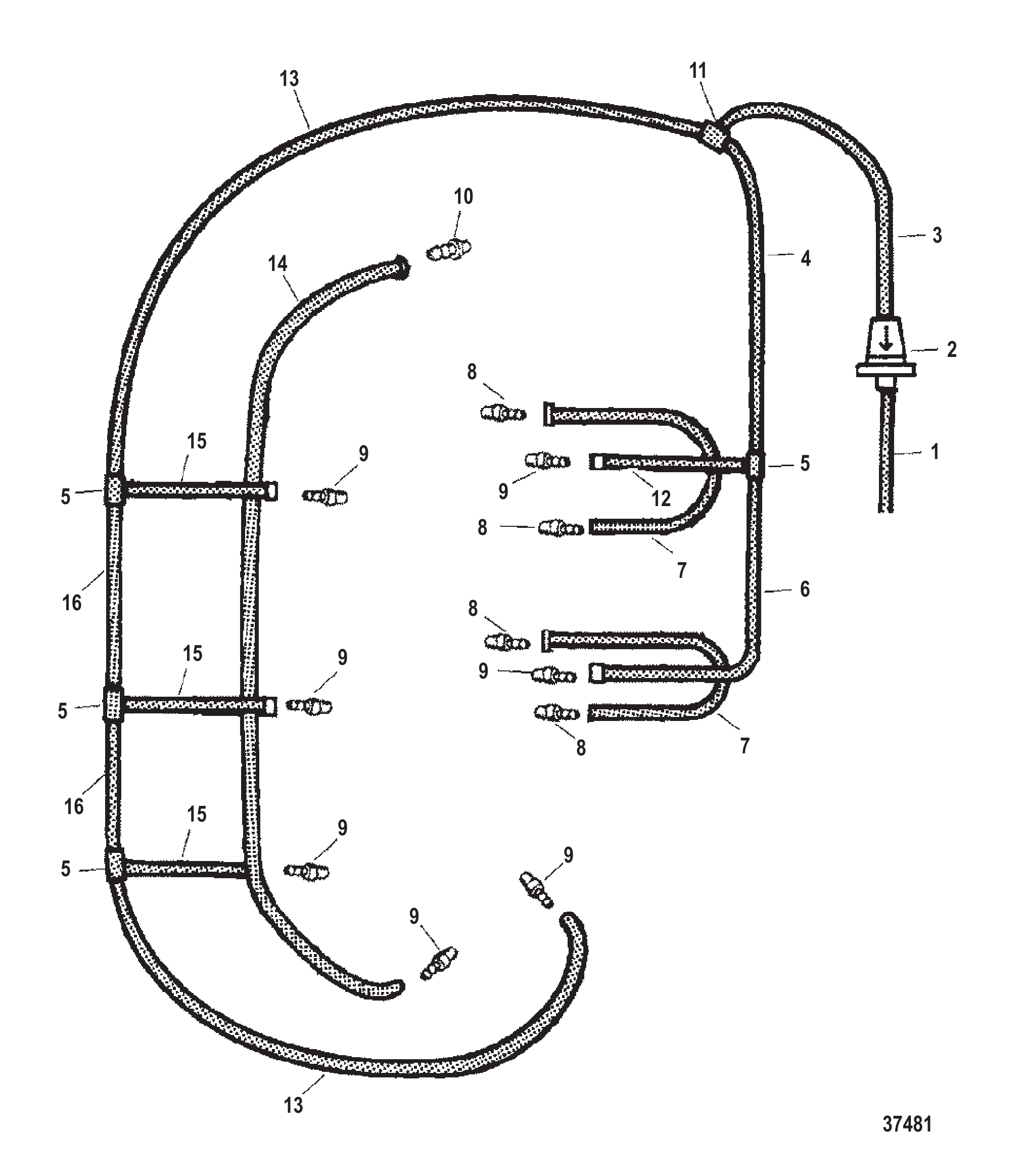

图 1泄压系统 BLEED SYSTEM

REF	零件编号	中文名称	英文名称	数量
1	9912688	管材(36.00英寸散装)(裁切至3-1/4英寸)	TUBING (36.00 Inches Bulk) (Cut to 3-1/4 IN.)	1
2	18206	滤清器	FILTER	1
2	8M0207786	滤清器	FILTER	1
3	9912688	管材(36.00英寸散装)(裁切至7-1/4英寸)	TUBING (36.00 Inches Bulk) (Cut to 7-1/4 IN.)	1
4	99130122	管材(20.00英尺散装)(裁切至3-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 3-1/2 IN.)	1
4	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
5	59169	接头	FITTING	4
5	59169003	三通接头	FITTING Tee	4
6	99130122	管材(20英尺整卷)(裁切至5-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 5-1/2 IN.)	1
6	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
7	99130122	管材(20.00英尺散装)(裁切至9英寸)	TUBING (20.00 Feet Bulk) (Cut to 9 IN.)	2
7	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
8	56759	压入式倒钩接头	FITTING Barbed (PRESS-IN)	4
9	426981	止回阀(压入式-13/16长)	CHECK VALVE (PRESS-IN - 13/16 LONG)	7
9	426982	止回阀	CHECK VALVE	7
10	426231	止回阀(压入式-11/16长)	CHECK VALVE (PRESS-IN - 11/16 LONG)	1
10	426233	止回阀	CHECK VALVE	1
11	18205	三通	TEE	1
12	99130122	管材(20.00英尺散装)(裁切至1-1/4英寸)	TUBING (20.00 Feet Bulk) (Cut to 1-1/4 IN.)	1
12	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
13	99130122	管材(20.00英尺散装)(裁切至9英寸)	TUBING (20.00 Feet Bulk) (Cut to 9 IN.)	2
13	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
14	99130122	管材(20.00英尺散装)(裁切至19英寸)	TUBING (20.00 Feet Bulk) (Cut to 19 IN.)	1
14	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
15	99130122	管材(20.00英尺散装)(裁切至1英寸)	TUBING (20.00 Feet Bulk) (Cut to 1 IN.)	3
15	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	3
16	99130122	管材(20英尺整卷)(裁切为4-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 4-1/2 IN.)	2
16	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
-	823434A97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

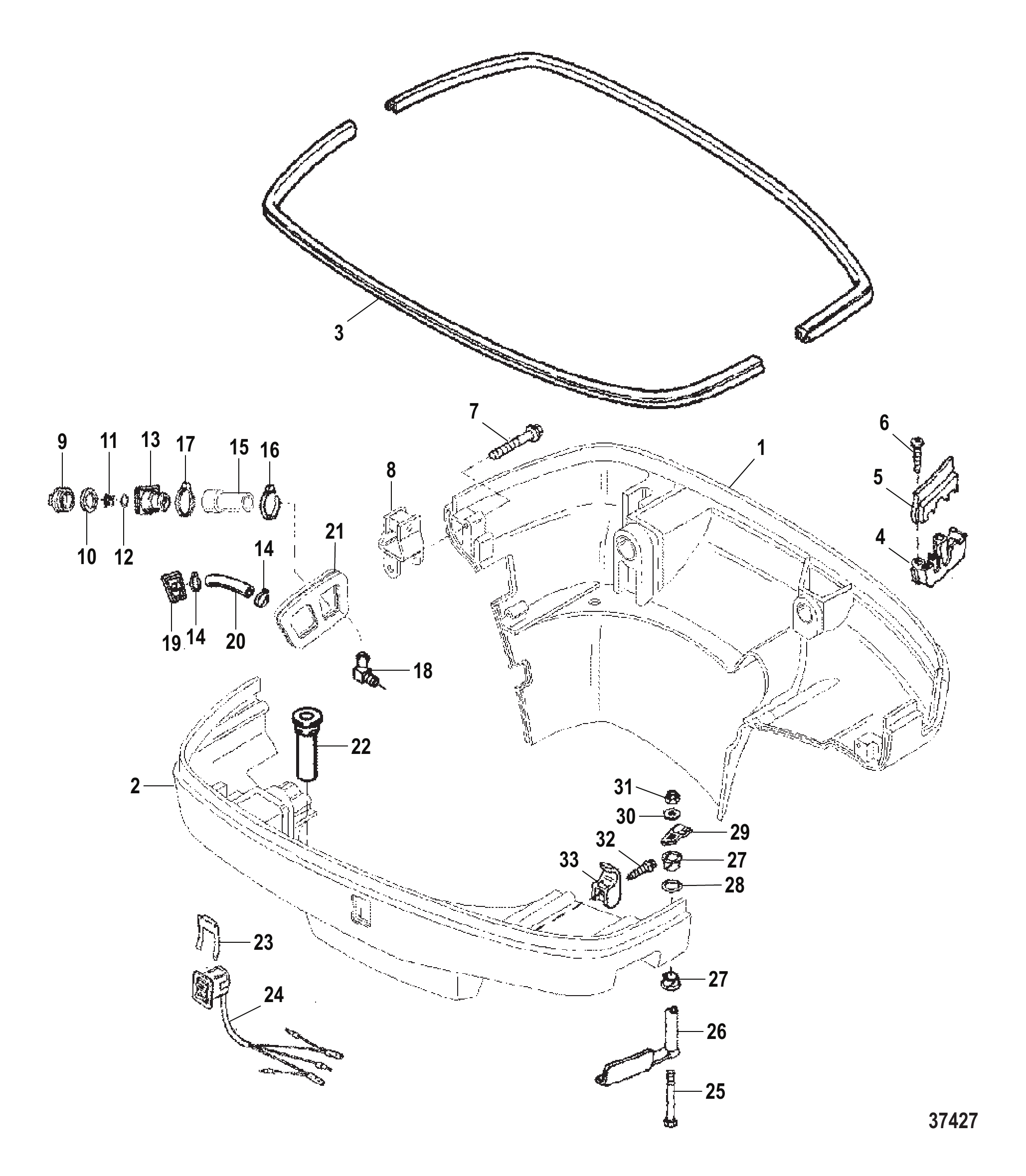

图 2下机罩 BOTTOM COWL

REF	零件编号	中文名称	英文名称	数量
1	828044A1	下罩壳(黑色)	BOTTOM COWL Black	1
1	828044A2	下罩壳总成(灰色)	BOTTOM COWL ASSEMBLY Gray	1
1	828044A1	下罩壳(黑色)	BOTTOM COWL Black	1
2	828045A1	下罩壳(黑色)	BOTTOM COWL Black	1
2	828045A2	下罩壳总成(灰色)	BOTTOM COWL ASSEMBLY Gray	1
3	8253181	罩盖密封条(41英寸)	SEAL Cowl (41.00 Inches)	2
3	8M0109217	罩盖密封条	SEAL-COWL	2
4	822024	卡箍	CLAMP	1
5	822023	卡箍	CLAMP	1
6	92799	螺钉(#10-16x1.12)	SCREW (#10-16 x 1.12)	2
7	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	4
8	831209	固定座	RETAINER	1
9	821908	堵头	PLUG	1
10	821915	垫圈	WASHER	1
11	821963	止回阀	CHECK VALVE	1
11	8219631	止回阀	CHECK VALVE	1
12	30641	O型圈(0.299x0.103)	O-RING (.299 x .103)	1
13	821952	接头	FITTING	1
14	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
14	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
15	827332	软管	HOSE	1
16	F698772	蜗杆卡箍	CLAMP Worm Gear	1
17	815504212	蜗杆卡箍	CLAMP Worm Gear	1
18	60522	气缸体弯头(45度)	ELBOW Cylinder Block (45 DEGREES)	1
15	8320782	软管	HOSE	1
15	8M0039077	成型软管	HOSE-MOLDED	1
17	815504212	蜗杆卡箍	CLAMP Worm Gear	2
18	832076	气缸体弯头	ELBOW Cylinder Block	1
18	8320761	止回阀接头	FITTING Check Valve	1
19	821904	示流器接头	FITTING Tell-Tale	1
19	8M0077650	示流器接头	FITTING Tell-Tale	1
20	830756109	软管(57英寸整卷)(裁切至8英寸)	HOSE (57.00 Inches Bulk) (Cut to 8 IN.)	1
20	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
21	828216	怠速排气套	IDLE EXHAUST BOOT Exhaust	1
21	889847	怠速排气套	BOOT Idle Exhaust	1
22	817519A1	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	2
23	8124431	固定座	RETAINER	1
23	8M0032848	开关固定座	RETAINER Switch	1
24	850691	开关	SWITCH	1
24	8M0235192	微调开关	SWITCH TRIM	1
25	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
26	821253F1	前手柄黑色	FRONT HANDLE Black	1
26	889740A02	手柄套件	HANDLE KIT	1
26	821253F2	前手柄	FRONT HANDLE	1
26	889740A02	手柄套件	HANDLE KIT	1
27	335891	衬套	BUSHING	2
28	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
29	8219423	棘爪	PAWL	1
30	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	1
31	401196	螺母 (M6)	NUT (M6)	1
32	8214281	螺钉(#10-16x0.625)	SCREW (#10-16 x .625)	1
33	822873	卡扣	CLIP	1

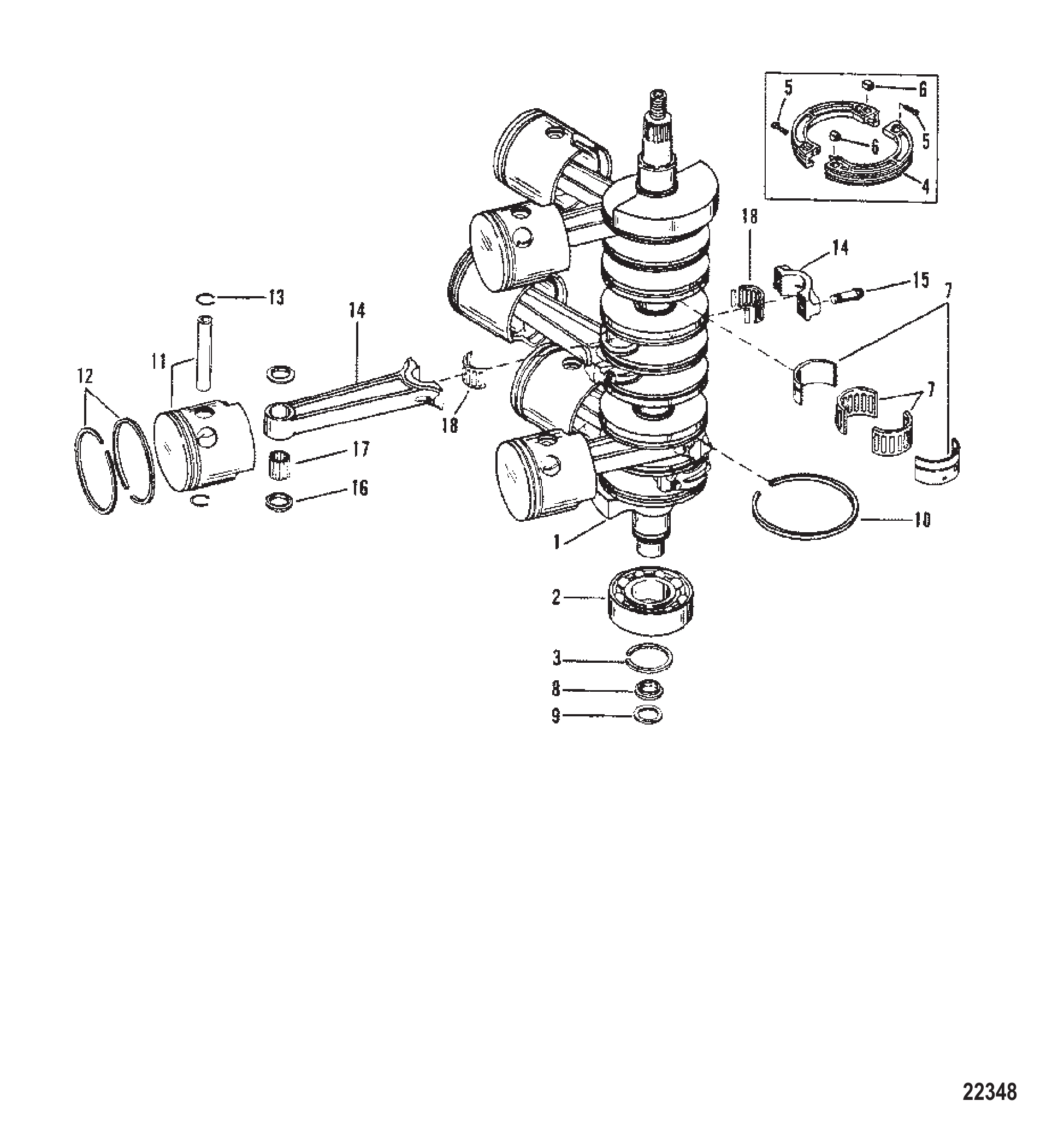

图 3曲轴（连杆锻件号644-818141） CRANKSHAFT (Conn. Rod Forging # is 644-818141)

REF	零件编号	中文名称	英文名称	数量
1	9536A4	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	67923	球轴承(下部)	BEARING Ball (LOWER)	1
2	67923T	滚珠轴承	BEARING Ball	1
3	67446	环	RING	1
4	14513A2	驱动齿轮段套件	GEAR SEGMENT KIT Drive	1
4	14513A09	驱动齿轮段套件	GEAR SEGMENT KIT Drive	1
5	813073	螺钉(#6-32 x .620)内六角头	SCREW (#6-32 x .620) Socket Head	2
6	813134	螺母(#6-32)专用	NUT (#6-32) Special	2
7	16756A1	滚柱轴承总成	BEARING ASSEMBLY Roller	2
7	16756A6	轴承套件	BEARING KIT	2
8	54196A6	托架总成	CARRIER ASSEMBLY	1
9	65800	填料	PACKING	1
10	67377	密封环(厚度0.124)	RING Sealing (.124 THICK)	7
10	67377T	密封环	RING Sealing	7
11	9738A7	活塞总成(右舷-标准)	PISTON ASSEMBLY (STARBOARD - STANDARD)	3
11	9738T9	活塞总成标准型	PISTON ASSEMBLY Standard	3
11	9738A8	活塞总成(右舷-加大0.015)	PISTON ASSEMBLY (STARBOARD - .015 O.S.)	AR
11	9738T10	活塞总成0.015加大	PISTON ASSEMBLY .015 Oversize	AR
11	9737A7	活塞总成(左舷-标准)	PISTON ASSEMBLY (PORT - STANDARD)	3
11	9737T9	活塞总成标准型	PISTON ASSEMBLY Standard	3
11	9737A8	活塞总成(左舷-加大0.015)	PISTON ASSEMBLY (PORT - .015 O.S.)	AR
11	9737A10	活塞总成0.015加大	PISTON ASSEMBLY .015 Oversize	AR
12	815515A12	活塞环组(标准)	RING SET Piston (STANDARD)	1
12	815268A4	活塞环组(.015加大)	RING SET Piston (.015 O.S.)	AR
13	52035		RING Lock PISTON	12
13	857196	锁紧环	LOCK RING	12
14	818141A2	连杆套件	CONNECTING ROD KIT	6
14	818141A13	连杆总成	CONNECTING ROD ASSEMBLY	6
15	763491	螺钉(0.312-24×0.875)连杆	SCREW (.312-24 x .875) CONNECTING ROD	12
16	812876	定位针垫圈	WASHER NEEDLE LOCATING	12
16	8M0012298	止推垫片	THRUST WASHER	12
17	674831	活塞端滚针轴承	BEARING Needle PISTON END	174
17	8M0204691	滚针轴承@200	BRG-NEEDLE @200	174
18	17514A1	轴承套件	BEARING KIT	6
18	8M0234886	轴承保持架	CAGE BEARING	6
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 4曲轴（连杆锻件号636-8118） CRANKSHAFT (Conn Rod Forging # is 636-8118)

REF	零件编号	中文名称	英文名称	数量
1	9536A4	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	67923	球轴承(下部)	BEARING Ball (LOWER)	1
2	67923T	滚珠轴承	BEARING Ball	1
3	67446	环	RING	1
4	14513A2	驱动齿轮段套件	GEAR SEGMENT KIT Drive	1
4	14513A09	驱动齿轮段套件	GEAR SEGMENT KIT Drive	1
5	813073	螺钉(#6-32 x .620)内六角头	SCREW (#6-32 x .620) Socket Head	2
6	813134	螺母(#6-32)专用	NUT (#6-32) Special	2
7	16756A1	滚柱轴承总成	BEARING ASSEMBLY Roller	2
7	16756A6	轴承套件	BEARING KIT	2
8	54196A6	托架总成	CARRIER ASSEMBLY	1
9	65800	填料	PACKING	1
10	67377	密封环(厚度0.124)	RING Sealing SEALING (.124 THICK)	7 OR 8
10	67377T	密封环	RING Sealing	7 OR 8
11	8666A22	活塞总成(右舷-标准)(175)	PISTON ASSEMBLY (STARBOARD - STANDARD) (175)	3
11	8666T42	活塞总成-右舷-标准	PIST.ASY.STBD.STD	3
11	8666A36	活塞总成(右舷-加大0.015)(175)	PISTON ASSEMBLY Starboard (STARBOARD - .015 O.S.) (175)	AR
11	8666A43	活塞总成-右舷-0.015	PIST.ASY STBD.015	AR
11	8667A22	活塞总成(左舷-标准)(175)	PISTON ASSEMBLY (PORT - STANDARD) (175)	3
11	8667T42	活塞总成-左舷-标准	PIST.ASY.PORT.STD	3
11	8667A36	活塞总成(左舷-加大0.015)(175)	PISTON ASSEMBLY Port (PORT - .015 O.S.) (175)	AR
11	8667A43	活塞总成-左舷-0.015	PIST.ASY PORT.015	AR
12	18487A12	活塞环组(标准)(175)	RING SET Piston (STANDARD) (175)	1
12	815267A4	活塞环组(加大0.015)(175)	RING SET Piston (.015 O.S.) (175)	AR
11	9738A2	活塞总成(右舷-标准)(200)	PISTON ASSEMBLY (STARBOARD - STANDARD) (200)	3
11	9738T4	活塞-右舷-标准	PISTON-STBD-STD	3
11	9738A3	活塞总成(右舷-加大0.015)(200)	PISTON ASSEMBLY (STARBOARD - .015 O.S.) (200)	AR
11	9738A5	活塞-右舷-0.015	PISTON-STBD-.015	AR
11	9737A2	活塞总成(左舷-标准)(200)	PISTON ASSEMBLY (PORT - STANDARD) (200)	3
11	9737T4	活塞-左舷-标准	PISTON-PORT-STD	3
11	9737A3	活塞总成(左舷-加大0.015)(200)	PISTON ASSEMBLY (PORT - .015 O.S.) (200)	AR
11	9737A5	活塞-左舷-0.015	PISTON-PORT-.015	AR
12	815515A12	活塞环组(标准)(200)	RING SET Piston (STANDARD) (200)	1
12	815268A4	活塞环组(加大0.015)(200)	RING SET Piston (.015 O.S.) (200)	AR
13	52035	锁环	RING Lock	12
13	857196	锁紧环	LOCK RING	12
14	8119A5	连杆总成	CONNECTING ROD ASSEMBLY	6
14	8119A6	连杆套件	CONN ROD KIT	6
15	93886	螺钉(.312-28x.875)	SCREW (.312-28 x .875)	12
16	47247	垫圈	WASHER	12
16	8M0032839	垫片@5	WASHER @5	12
17	67483	滚针轴承	BEARING Needle	174
18	17514A1	轴承套件	BEARING KIT	6
18	8M0234886	轴承保持架	CAGE BEARING	6
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

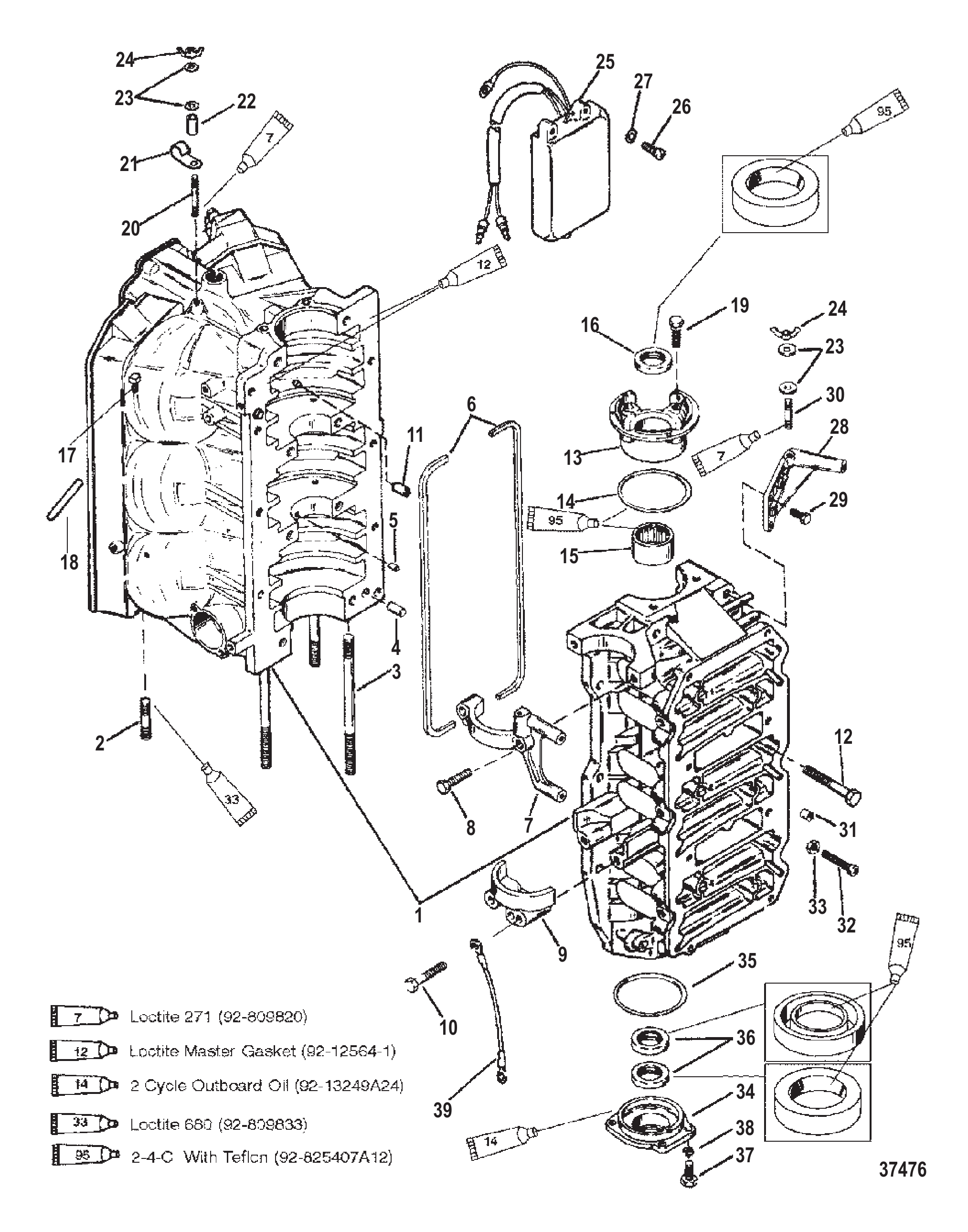

图 5气缸体与端盖 CYLINDER BLOCK AND END CAPS

REF	零件编号	中文名称	英文名称	数量
1	9763A23	气缸体	CYLINDER BLOCK	1
1	9763T23	气缸体	CYLINDER BLOCK	1
1	9763A17	气缸体	CYLINDER BLOCK	1
1	9763T17	气缸体	CYLINDER BLOCK	1
1	9763A61	气缸体	CYLINDER BLOCK	1
1	9763T61	气缸体	CYLINDER BLOCK	1
2	8181383	动力头螺柱（1-3/4英寸）	STUD Powerhead (1-3/4 IN.)	6
2	8M0034455	螺柱1.750	STUD 1.750	6
3	670653	螺柱（.375 x 5.620）	STUD (.375 x 5.620)	2
3	670654	螺柱(.375-16/.375-24 x 5.620)	STUD (.375-16/.375-24 x 5.620)	2
3	784384	螺柱（.375 x 6.870）	STUD (.375 x 6.870)	2
3	8M0034454	螺柱(.375-16/.375-24 x 6.87)	STUD (.375-16/.375-24 x 6.87)	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	销(轴承座圈)	PIN (BEARING RACE)	2
5	8M0036405	销	PIN	2
6	11338	衬垫	GASKET	2
7	42249	上盖	COVER (UPPER)	1
7	8M0088723	启动器支架	BRACKET-STARTER	1
8	828213	螺钉(.312-18 x 1.500)六角法兰	SCREW (.312-18 x 1.500) Hex Flange	2
9	76867	下盖	COVER (LOWER)	1
10	828214	螺钉(.312-18 x 2.00)六角法兰	SCREW (.312-18 x 2.00) Hex Flange	2
11	99448	衬套	BUSHING	1
12	66717	螺钉(.375-16 x 3.250)	SCREW (.375-16 x 3.250)	8
12	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	6
13	9642A1	上端盖总成	END CAP ASSEMBLY Upper	1
13	858521T1	端盖总成	END CAP ASSEMBLY	1
14	54029	O型圈(2.800 x .103)	O-RING (2.800 x .103)	1
15	16756A4	轴承套件	BEARING KIT	1
16	41953	密封件	SEAL	1
17	822715	弯头接头	FITTING Elbow	6
18	15026	盖帽	CAP	6
19	69034	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW AND LOCKWASHER (.312-18 x 1.00)	4
19	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	4
20	15094	双头螺柱(.190-32 x 1.870)	STUD (.190-32 x 1.870)	1
21	63153	J型卡扣	J CLIP	1
22	67269	隔套	SPACER	1
23	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	3
23	8M0204663	垫片@5	WASHER @5	3
24	816874	蝶形螺母 (#10-32)	WING NUT (#10-32)	3
25	87076A10	怠速控制器	IDLE SPEED CONTROL	1
26	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
26	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
27	30164	垫圈(0.192x0.375x0.0312)不锈钢	WASHER (.192 x .375 x .0312) Stainless Steel	3
28	42248	支架	BRACKET	1
28	422482	支架	BRACKET	1
29	49668	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	2
30	15093	双头螺柱(#10-32 x 1.00)	STUD (#10-32 x 1.00)	2
30	8M0034435	螺柱	STUD	2
31	26852	尼龙帽	CAP Nylon	1
32	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
33	64015	螺母 (.250-20)	NUT (.250-20)	1
34	7809A1	端盖总成	END CAP ASSEMBLY	1
34	7809T1	端盖总成	END CAP ASSEMBLY	1
35	62700	O型圈(3.237 x .103)	O-RING (3.237 x .103)	1
36	41953	密封件	SEAL	2
37	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
38	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
39	88807A20	拉线总成	CABLE ASSEMBLY	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	823434A97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

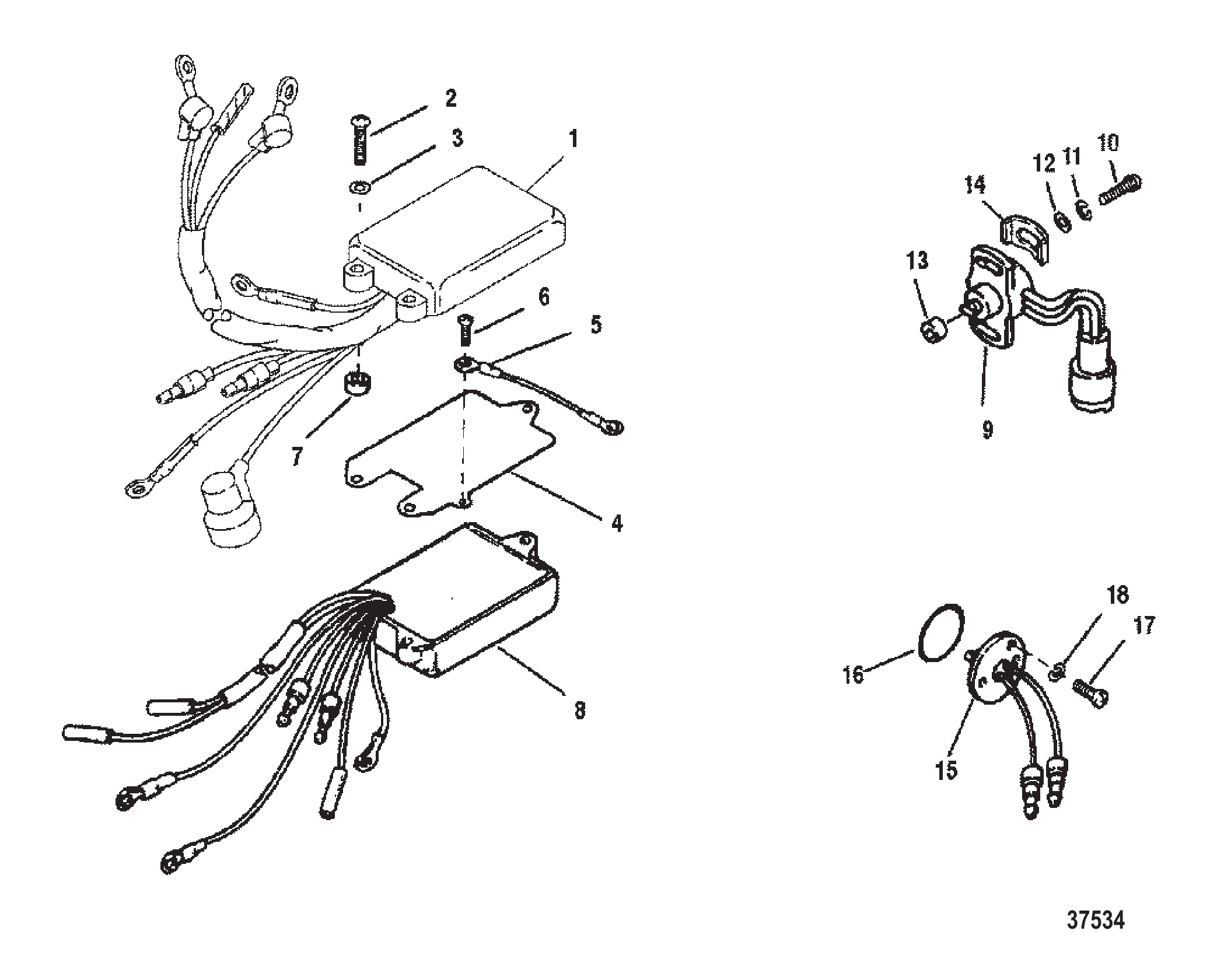

图 6爆震控制器/温度传感器 DETONATION CONTROLLER/TEMPERATURE SENSOR

REF	零件编号	中文名称	英文名称	数量
1	826800A8	爆震控制器总成	CONTROLLER ASSEMBLY Detonation	1
2	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	3
3	38833	垫圈	WASHER	3
4	13381	安装板	PLATE	1
5	88807A10	拉线总成	CABLE ASSEMBLY	1
6	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
7	94304	隔套	SPACER	3
8	41470A25	喷油警告模块总成	MODULE ASSEMBLY Oil Injection Warning	1
9	14851	油门位置指示器	INDICATOR Throttle Position	1
9	14851T03	指示器	INDICATOR	1
10	15150	螺钉(#8-32 x 0.625英寸)	SCREW (#8-32 x .625)	2
11	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	2
12	30164	垫圈(0.192x0.375x0.0312)不锈钢	WASHER (.192 x .375 x .0312) Stainless Steel	2
13	15885	套筒	SLEEVE	1
14	813501	安装板	PLATE	2
15	13221A1	温度传感器总成	SENSOR ASSEMBLY Temperature	1
15	13221T01	温度传感器	SENSOR TEMP	1
16	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
17	57583	螺丝（#8-32×0.375）	SCREW (#8-32 x .375)	3
17	57583T	螺丝#8-32×3/8	SCREW #8-32x3/8	3
18	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	3
-	815791A92	发动机垫片组	GASKET SET Engine	1

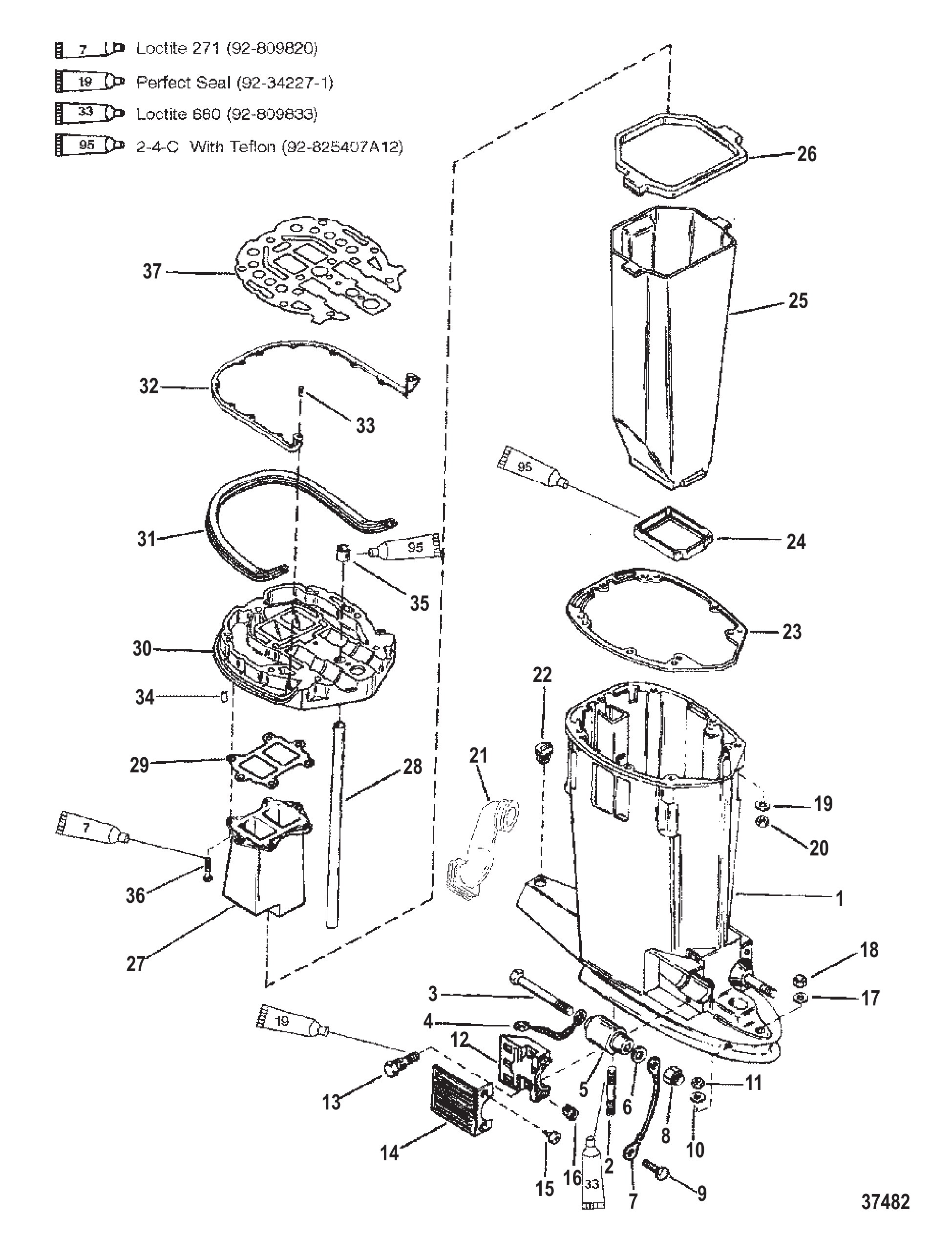

图 7驱动轴壳体与排气管 DRIVESHAFT HOUSING AND EXHAUST TUBE

REF	零件编号	中文名称	英文名称	数量
1	8343A10	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8343T10	驱动轴壳体总成-黑色-长型	HOUSING ASSEMBLY Driveshaft - Black - Long	1
1	8343A11	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8343T11	ORD 1590-8343T10	ORD 1590-8343T10	1
1	813563A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	813563T1	传动轴壳体-黑色-加长型	HOUSING Driveshaft - Black - X-Long	1
1	813563A2	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	813563T2	ORD 3503-813563T1	ORD 3503-813563T1	1
2	56295	双头螺柱(.437 x 2.69)	STUD (.437 x 2.69)	2
3	63474	螺钉(.500-20 x 6.00)	SCREW (.500-20 x 6.00)	2
3	898831	螺钉(.500-20 x 6.220)	SCREW (.500-20 x 6.220)	2
4	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
5	77327	支架	MOUNT	2
6	49339	垫圈(.8125)	WASHER (.8125)	2
7	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
8	28040	螺母(.500-20)	NUT (.500-20)	2
8	898832	螺母(.500-20)	NUT (.500-20)	2
9	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
10	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
11	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
11	8M0204653	螺母	NUT	2
12	67076	卡箍	CLAMP	2
12	8M0036782	卡箍	CLAMP	2
13	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
14	67077T	黑色盖	COVER Black	2
14	8M4500752	盖板	COVER	2
14	67077F1	灰色盖板	COVER Gray	2
14	67077T	黑色盖	COVER Black	2
15	88417	螺钉(#12-24×0.620)	SCREW (#12-24 x .620)	4
16	35521	螺母	NUT	4
17	48926	垫圈	WASHER	1
18	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	1
18	8M0204653	螺母	NUT	1
19	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	4
20	69254	螺母	NUT	4
21	828212	怠速排气套	BOOT Idle Exhaust	1
21	8M0039081	护套	BOOT	1
22	64649	堵头	PLUG	1
23	991732	衬垫	GASKET	1
23	991734	衬垫	GASKET	1
24	66350	下密封件	SEAL (LOWER)	1
24	66350001	密封件	SEAL	1
25	18276	排气管	TUBE Exhaust	1
25	18276T	排气管	EXHAUST TUBE	1
26	177261	上密封件	SEAL (UPPER)	1
26	8M0039076	密封件	SEAL	1
27	812834	排气管延长段	EXTENSION Exhaust	1
27	812834A2	排气延长总成	EXTENSION ASSEMBLY Exhaust	1
27	41942F3	排气管延长段	EXTENSION Exhaust	1
27	879288T71	排气管延长段	EXTENSION Exhaust	1
28	67295	水管	TUBE Water	1
28	8M0042788	长型水管	TUBE-WATER-LONG	1
28	74729	管	TUBE	1
28	8M0042790	水管	TUBE-WATER	1
29	78246	衬垫	GASKET	1
29	782461	衬垫	GASKET	1
30	18233A3	隔板总成	PLATE ASSEMBLY	1
30	18233A20	传动轴壳体板总成	PLATE ASSEMBLY Driveshaft Housing	1
31	8147012	密封件	SEAL	1
31	8M0043165	密封件-27.00英寸	SEAL-27.00 INCH	1
32	68011	支架	BRACKET	1
33	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
33	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
34	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
35	38970	密封件	SEAL	1
36	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	6
37	183071	衬垫	GASKET	1
37	183076	衬垫	GASKET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

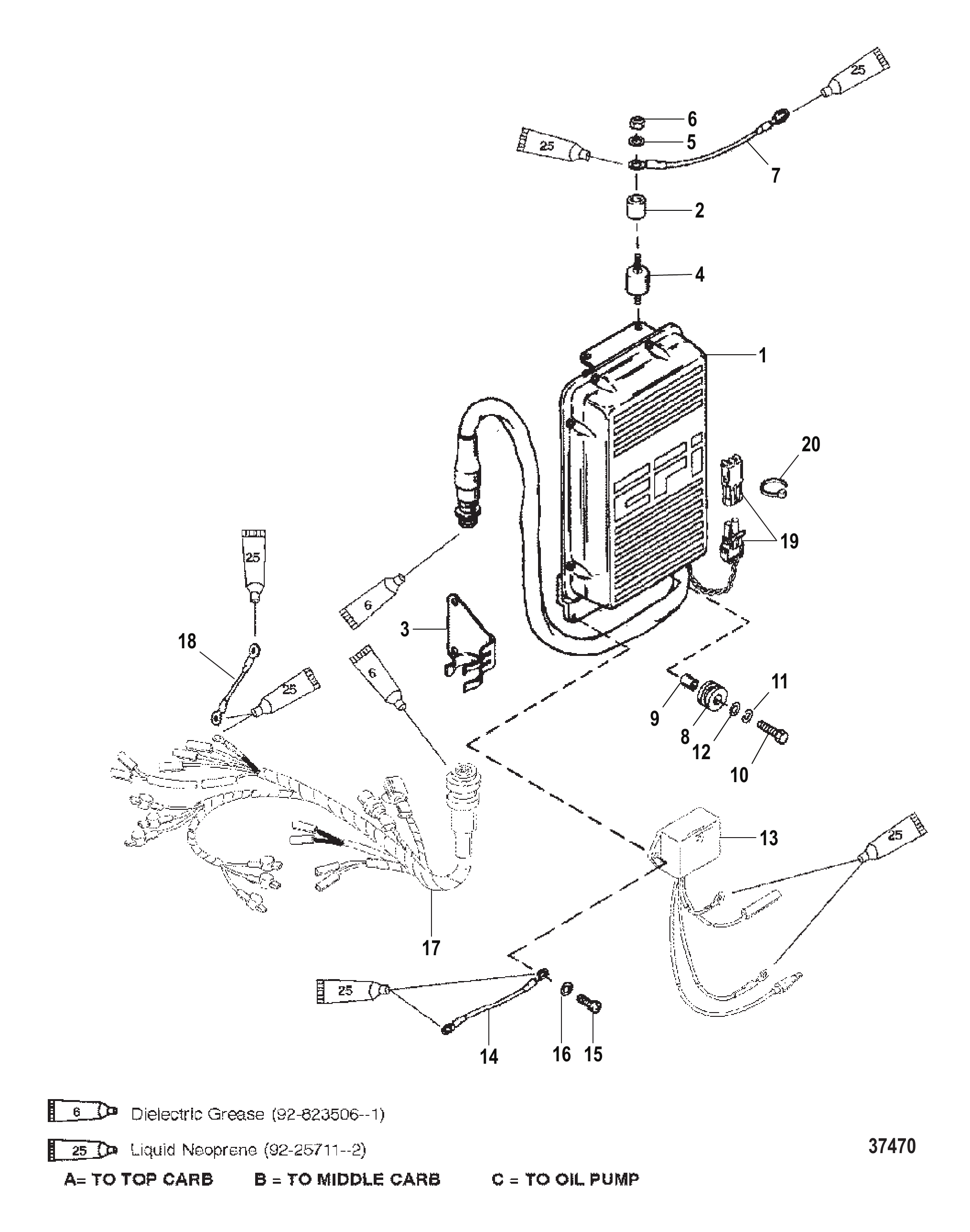

图 8电控单元总成 E.C.U. ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	824003A10	发动机控制单元ECU	ECU Engine Control Unit	1
1	824003A9	发动机控制单元ECU	ECU Engine Control Unit	1
1	824003T25	电控单元	ECU	1
1	824003A8	发动机控制单元ECU	ECU Engine Control Unit	1
1	824003T26	电控单元	ECU	1
2	34948	隔套	SPACER	2
3	146951	卡扣	CLIP	1
4	90435	支架	MOUNT	2
5	21249	垫圈	WASHER	4
6	20361	螺母(.250-28)	NUT (.250-28)	4
6	8267089	螺母(.250-28)	NUT (.250-28)	4
7	88807A19	拉线总成	CABLE ASSEMBLY	1
8	14637	护孔环	GROMMET	1
9	14636	衬套	BUSHING	1
10	28667	螺钉 (0.250-20 x 1.00) 不锈钢	SCREW (.250-20 x 1.00) Stainless Steel	1
11	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
12	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	1
13	13202A4	水位传感器模块总成	MODULE ASSEMBLY Water Sensor	1
14	88807A18	线缆总成(黑色)	CABLE ASSEMBLY (BLACK)	1
15	37571	螺钉(.190-32 x 0.500)	SCREW (.190-32 x .500)	2
16	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
17	98866A25	线束总成 ECU与喷油器	HARNESS ASSEMBLY ECU And Injectors	1
18	87895A4	线缆总成(150/175)	CABLE ASSEMBLY (150/175)	1
19	832948A1	2针公头连接器总成	CONNECTOR ASSEMBLY 2 POS Male	1
20	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
20	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR

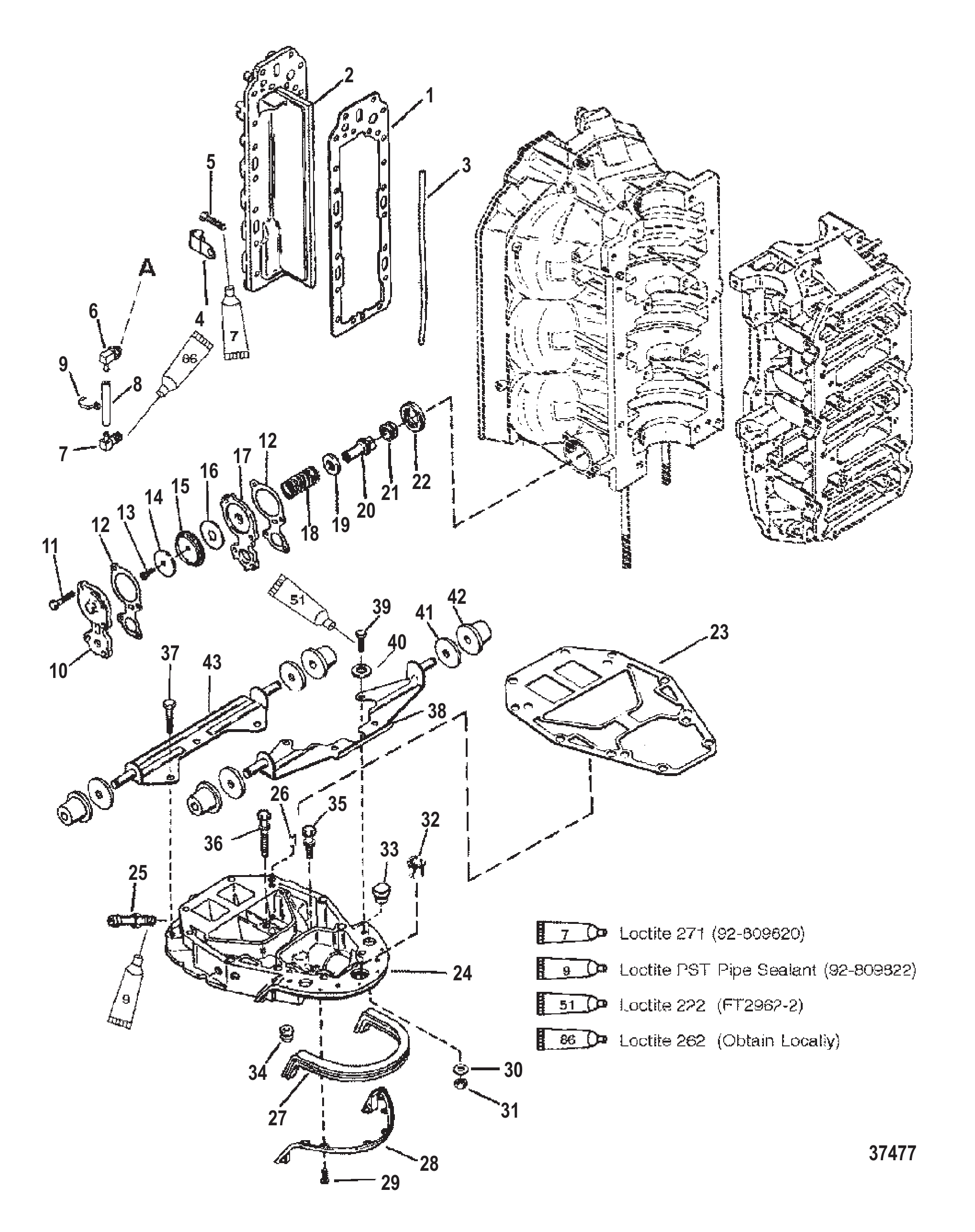

图 9排气歧管与排气板 EXHAUST MANIFOLD AND EXHAUST PLATE

REF	零件编号	中文名称	英文名称	数量
1	190503	衬垫	GASKET	1
2	827323A2	分隔板	DIVIDER PLATE	1
3	814754	密封件(12.50英寸)	SEAL (12.50 Inches)	1
4	814634	卡箍	CLAMP	4
5	826356	螺钉带垫圈(.312-18 x 1.500)	SCREW AND WASHER (.312-18 x 1.500)	20
5	8263561	螺钉带垫圈(.312-18 x 1.500)	SCREW AND WASHER (.312-18 x 1.500)	20
6	814430	管接头(.500-14)	FITTING (.500-14)	1
6	8144301	接头	FITTING	1
7	92007	管接头(.250-18)(90度)	FITTING (.250-18) (90 DEGREES)	1
7	920071	90度弯头	FITTING (90 Degree)	1
8	830756109	软管（57.00英寸整卷）（裁切至23-1/2英寸）	HOSE (57.00 Inches Bulk) (Cut to 23-1/2 IN.)	1
8	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
9	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
10	68729	盖板	COVER	1
10	8M0039767	盖板	COVER	1
11	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
12	78690	衬垫	GASKET	2
12	78690002	衬垫	GASKET	2
13	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
14	76451	垫圈	WASHER	1
15	14479	隔膜	DIAPHRAGM	1
15	144791	隔膜	DIAPHRAGM	1
16	16496	导水板	DEFLECTOR Water	1
17	16497A1	安装板	PLATE	1
18	64878	弹簧(黑色)	SPRING (Black)	1
19	85303	垫圈	WASHER	1
20	14480	提动阀	POPPET	1
21	64872	护孔环	GROMMET	1
22	65848	托架	CARRIER	1
23	991763	衬垫	GASKET	1
23	991764	衬垫	GASKET	1
24	18260A2	排气板总成	PLATE ASSEMBLY Exhaust	1
24	18260T2	排气板总成	PLATE ASSEMBLY Exhaust	1
25	897721	连接器(.125-27)(直型)	CONNECTOR (.125-27) (STRAIGHT)	1
25	89772Q1	连接器(.125-27)	CONNECTOR (.125-27)	1
26	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
27	8147011	密封件	SEAL	1
27	8M0043164	密封件	SEAL	1
28	680101	支架	BRACKET	1
29	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	8
29	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	8
30	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	6
31	69254	螺母	NUT	6
32	27132	衬套	BUSHING	1
33	19564	护孔环	GROMMET	1
33	8M0179867	护孔环	GROMMET	1
34	19565	护孔环	GROMMET	1
34	19565002	护孔环	GROMMET	1
35	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
36	68783	螺钉(.312-18×2.50)	SCREW (.312-18 x 2.50)	1
37	66725	螺钉(.375-16×3.50)	SCREW (.375-16 x 3.50)	3
37	898833	螺钉(.375-16 x 3.500)	SCREW (.375-16 x 3.500)	3
38	812905A5	前支架总成	BRACKET ASSEMBLY Front	1
38	812905T	前支架	BRACKET Front	1
39	8055571	螺钉(0.3125-18×0.50)	SCREW (.3125-18 x .50)	4
39	90285	螺钉 (.312-18 x .625)	SCREW (.312-18 x .625)	4
40	56720	垫圈(0.330 x 0.750 x 0.060)不锈钢(与5/8英寸参考#39配合使用)	WASHER (.330 x .750 x .060) Stainless Steel (USE WITH 5/8 IN. REF. #39)	4
41	187031	垫圈	WASHER	4
42	18778	护孔环	GROMMET	4
42	18778001	护孔环	GROMMET	4
43	18578A8	支架总成(后部)	BRACKET ASSEMBLY Rear	1
43	18578T09	支架总成(后部)	BRACKET ASSEMBLY Rear	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	823434A97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

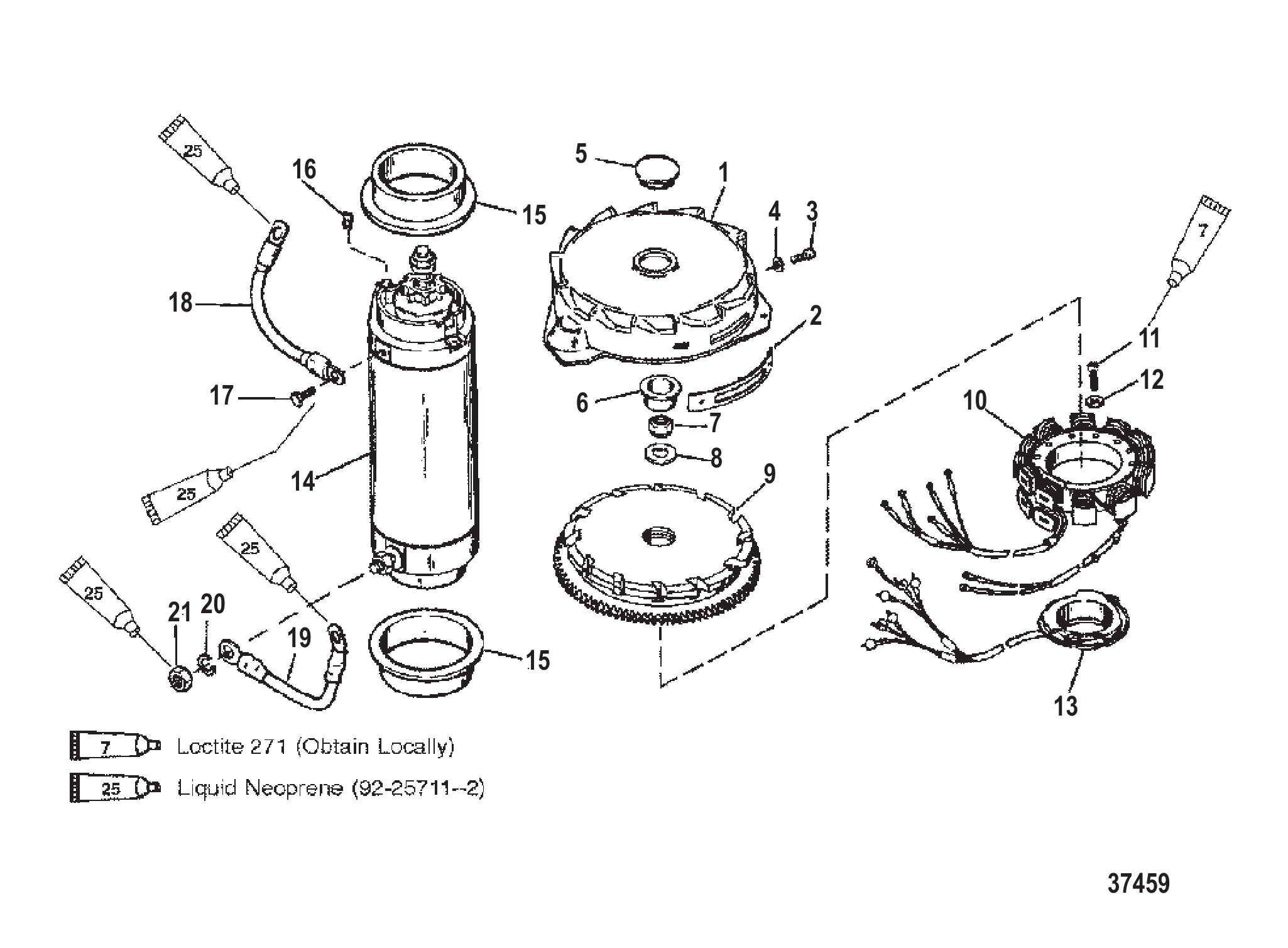

图 10飞轮/启动马达 FLYWHEEL/STARTER MOTOR

REF	零件编号	中文名称	英文名称	数量
1	18896A1	盖板套件	COVER KIT	1
2	79022	标记	MARKER	1
3	37572	螺钉 (.190-32 x .380)	SCREW (.190-32 x .380)	2
4	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	2
5	89219	塞（适用时使用）	PLUG (USE WHERE APPLICABLE)	1
5	89219001	堵头	PLUG	1
6	45907	黄色塞	PLUG Yellow	1
7	52901	螺母(0.625-18)	NUT (.625-18)	1
8	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
8	33001	垫圈	WASHER	1
9	817632A12	飞轮	FLYWHEEL	1
9	859238T16	飞轮总成	FLYWHEEL ASY	1
10	9610A19	定子	STATOR	1
11	90045	螺钉(#10-32×1.375)	SCREW (#10-32 x 1.375)	4
12	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	4
13	96455A9	触发板总成	PLATE ASSEMBLY Trigger	1
14	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
14	893893	启动马达	STARTER MOTOR	1
15	56703	轴环	COLLAR	2
15	8M0034918	轴环	COLLAR	2
16	68042	橡胶止挡	STOP Rubber	2
16	8M0043376	停机开关	STOP	2
17	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
18	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
19	93388A7	线缆总成(黑色)	CABLE ASSEMBLY (BLACK)	1
19	93388A14	线缆总成(黄/黑)	CABLE ASSEMBLY Yellow/Black	1
20	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
21	20890	螺母 (.250-20)	NUT (.250-20)	1

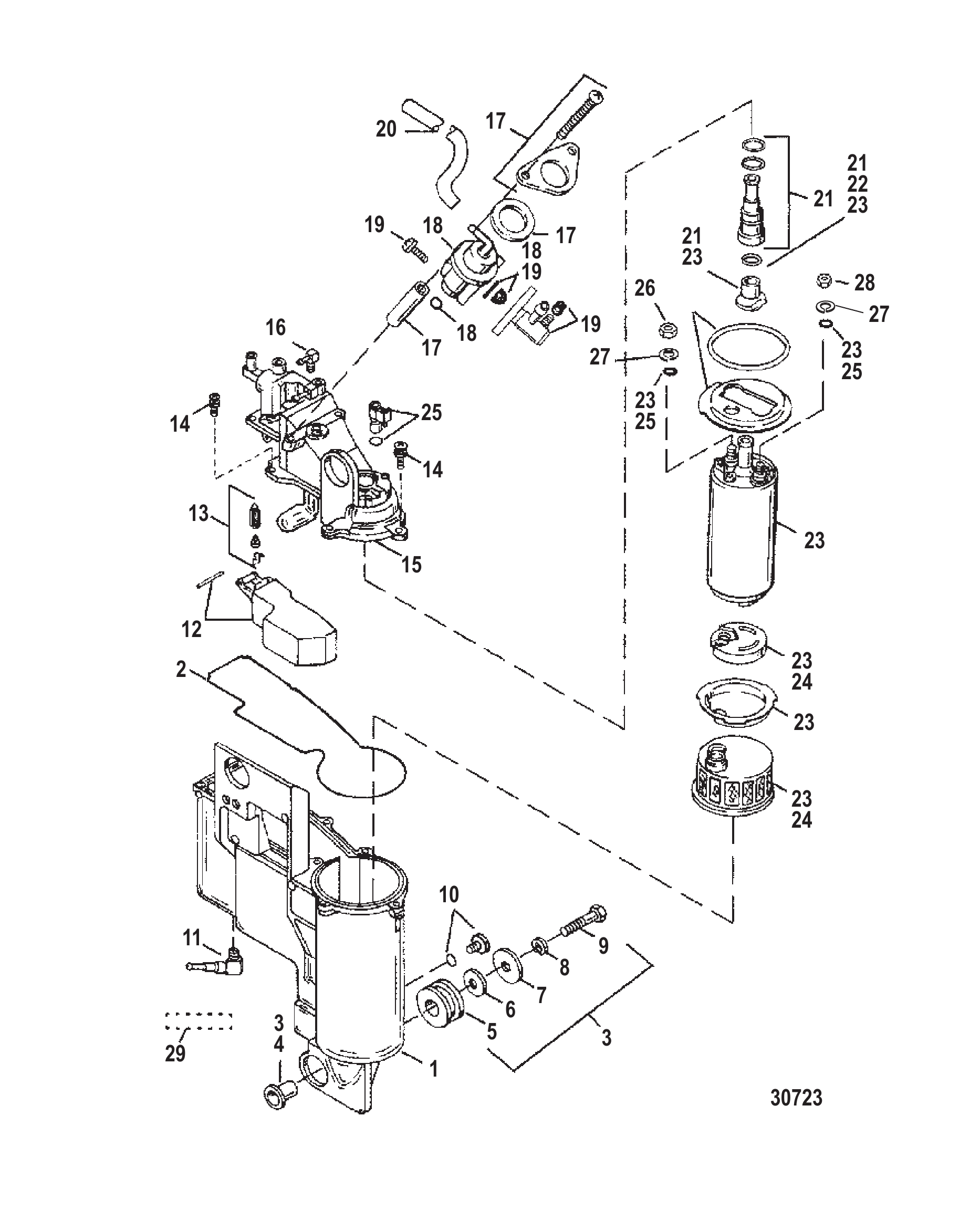

图 11燃油管理系统 FUEL MANAGEMENT SYSTEM

REF	零件编号	中文名称	英文名称	数量
-	14817A23	燃油管理系统总成	MANAGEMENT ASSEMBLY Fuel	1
-	14817A31	燃油管理系统总成	MANAGEMENT ASSEMBLY Fuel	1
1	8140111	阀体套件	BODY KIT	1
2	809086	O型圈	O-RING	1
3	809092A1	安装螺钉套件	SCREW KIT Mounting	1
4	809078	轴环	COLLAR	1
5	809079	护孔环	GROMMET	3
5	88033	护孔环	GROMMET	3
6	8090622	垫圈	WASHER	3
7	8090621	垫圈	WASHER	3
8	809080	锁紧垫圈	LOCKWASHER	3
8	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	3
9	8090611	螺钉	SCREW	3
10	809091	螺钉套件	SCREW KIT	1
11	424811	阀门	VALVE	1
12	15445	浮子套件	FLOAT KIT	1
13	15446	浮子阀套件	VALVE KIT Float	1
14	8140762	螺钉套件	SCREW KIT	1
15	8140102	盖板套件	COVER KIT	1
16	8090851	弯头套件	ELBOW KIT	1
17	809087	安装套件	ATTACHING KIT	1
18	8140122	燃油压力调节器套件	REGULATOR KIT Fuel Pressure	1
19	814233A1	施拉德阀套件	SCHRADER VALVE KIT	1
19	814233A02	阀套件	VALVE KIT	1
20	8276943	管件套件	TUBING KIT	1
21	809089	燃油泵接头套件	FITTING KIT Fuel Pump	1
22	15029	O型圈及密封套件	O-RING AND SEAL KIT	1
23	8090881	燃油泵套件	PUMP KIT Fuel	1
23	809088T1	燃油泵套件	PUMP KIT Fuel	1
24	8085041	滤清器套件-燃油	STRAINER KIT Fuel	1
24	808504T1	滤网套件	STRAINER KIT	1
25	8090901	连接套件	CONNECTION KIT	1
26	8237515	螺母(M4)	NUT (M4)	1
27	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	2
28	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
29	85698511	EPA标签信息贴花	DECAL EPA Label Information	1
29	856985A11	REF SOB 09-18	REF SOB 09-18	1

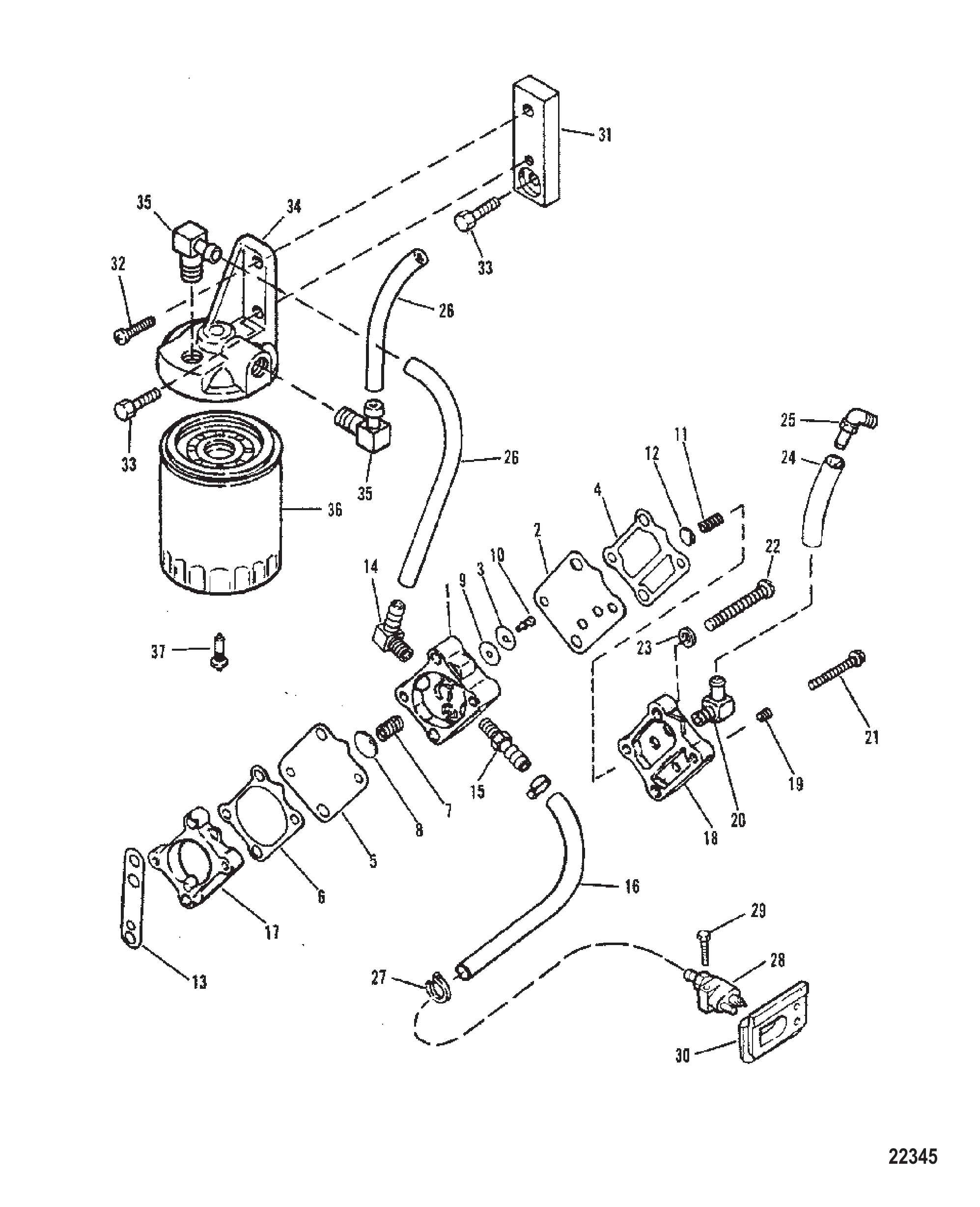

图 12燃油泵和燃油滤清器 FUEL PUMP AND FUEL FILTER

REF	零件编号	中文名称	英文名称	数量
1	15930A15	燃油泵套件	PUMP KIT Fuel	1
2	42990A6	膜片组件	DIAPHRAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve-Rubber	2
4	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
5	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
6	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
10	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
12	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
13	987691	底座衬垫	GASKET BASE	1
13	8M0204705	衬垫@2	GASKET @2	1
14	14868	燃油泵弯头接头	FITTING FUEL PUMP (ELBOW)	1
15	16604	直通接头(0.125-27)燃油泵	FITTING Straight (.125-27) FUEL PUMP	1
16	9912976	油管	TUBING	1
16	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
17	144303	燃油泵底座	BASE FUEL PUMP	1
18	98775A3	燃油泵板	PLATE FUEL PUMP	1
18	987752	安装板	PLATE	1
19	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
20	15979	接头	FITTING	1
21	16452	燃油泵螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) FUEL PUMP	2
22	4000310	燃油泵至曲轴箱螺钉(M5 x 40)	SCREW (M5 x 40) FUEL PUMP TO CRANKCASE	2
23	4002314	燃油泵螺钉垫圈	WASHER FUEL PUMP SCREW	2
24	9072925	脉冲软管	HOSE PULSE	1
25	99751	接头(0.0625-27)黄铜脉冲软管(90度)	FITTING (.0625-27) Brass PULSE HOSE (90 Degree)	1
25	997511	弯头	ELBOW	1
26	1350382	管材(30英寸散装)	TUBING (30.00 Inches Bulk)	2
26	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	2
27	816311		TIE STRAP (8.00 Inches) FUEL TUBING	AR
27	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
28	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
28	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
29	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
30	812782	密封件	SEAL	1
31	813657	支架	BRACKET	1
31	13170A3	底座	BASE	1
32	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
33	28668		SCREW (.250-20 x .875) Stainless Steel FUEL FILTER BASE	2
34	13170A1	燃油滤清器底座	BASE FUEL FILTER	1
34	13170A3	底座	BASE	1
35	13607	底座接头	FITTING BASE	2
35	136071	弯头	ELBOW	2
36	18458A1	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
36	18458Q3	燃油滤清器	FILTER-FUEL	1
37	14570		PROBE WATER SENSING	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

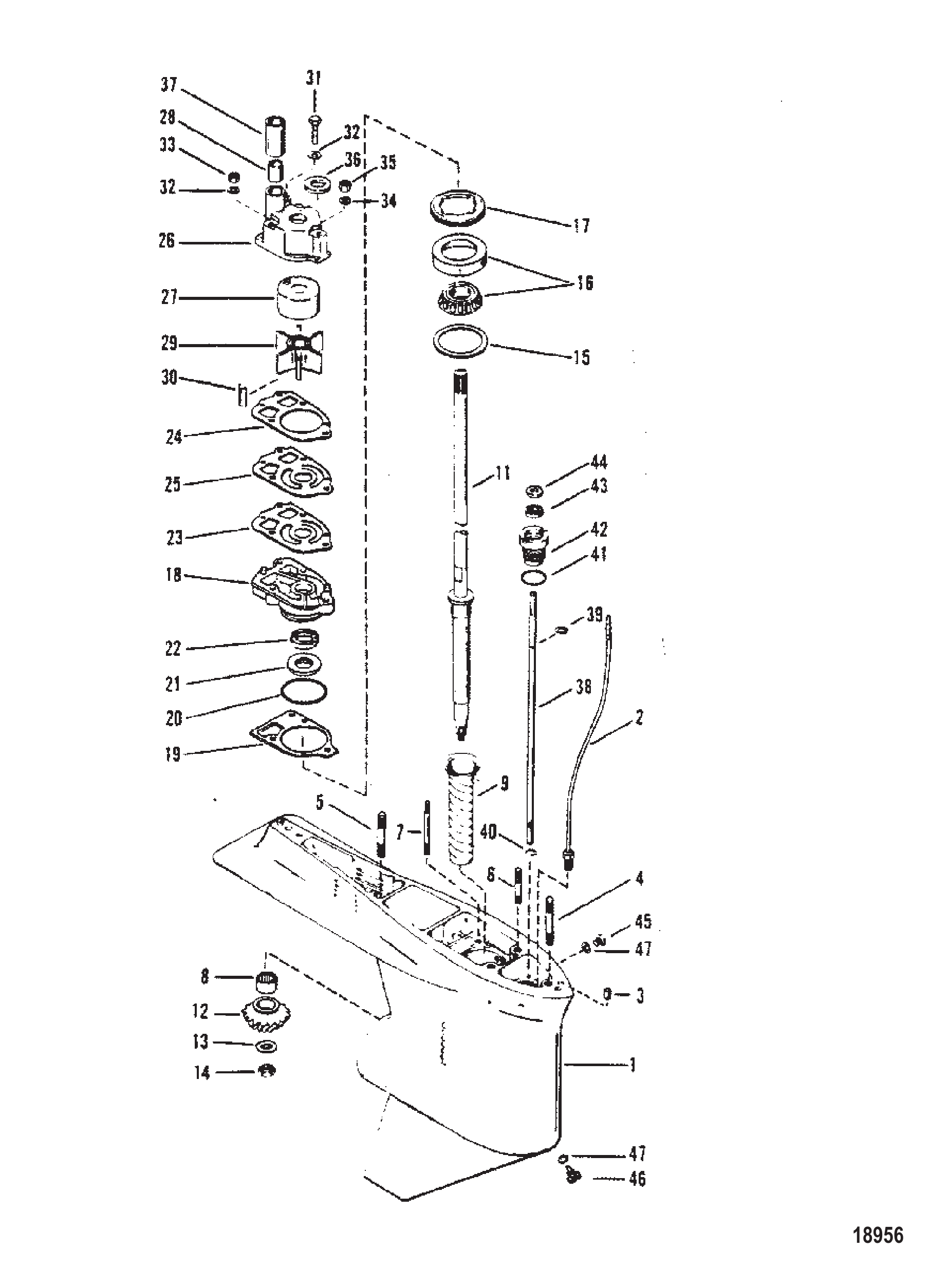

图 13齿轮箱（驱动轴）（1.87:1） GEAR HOUSING (DRIVESHAFT)(1.87:1)

REF	零件编号	中文名称	英文名称	数量
-	9148A8	齿轮箱总成(标准转向1.87:1速比)(黑色)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (BLACK)	1
-	9148A10	齿轮箱总成(标准转向1.87:1速比)(灰色)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (GRAY)	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
1	9148A11	齿轮箱总成(基础款-黑色)	GEAR HOUSING ASSEMBLY (BASIC - BLACK)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A12	齿轮箱总成(基础款-灰色)	GEAR HOUSING ASSEMBLY (BASIC - GRAY)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
2	85822A1	连接器总成	CONNECTOR ASSEMBLY	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	20033	定位销	PIN Dowel	2
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	78638	双头螺柱(.438 x 3.12)	STUD (.438 x 3.12)	1
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
5	57920	双头螺柱(.44 x 2.06)	STUD (.44 x 2.06)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	306671	螺柱	STUD	2
8	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	43998	润滑套筒	SLEEVE LUBRICATION	1
11	440001	驱动轴	DRIVESHAFT	1
11	897624T	长驱动轴	DRIVESHAFT Long	1
12	N.S.S.	小齿轮(不单独销售)(43-44104A2组件)	Not Sold Separate Pinion Gear (PART OF 43-44104A2)	1
13	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
14	35921	螺母(0.625-18)	NUT (.625-18)	1
15	42637A1	垫片组	SHIM SET	AR
15	8M0063267	垫片组	SHIM SET	AR
16	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
16	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
17	42633	螺母	NUT	1
17	8245191	固定座	RETAINER	1
18	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
19	426311	衬垫	GASKET	1
19	8M0204678	衬垫	GASKET	1
20	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
20	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
21	89238	油封	SEAL Oil	1
22	16977	油封	SEAL Oil	1
23	856081	衬垫(下部)	GASKET (LOWER)	1
23	8M0090319	衬垫@5	GASKET @5	1
24	856091	衬垫(上部)	GASKET (UPPER)	1
24	858524	衬垫	GASKET	1
25	32435	面板	FACE PLATE	1
25	8M0204677	面板	PLATE-FACE	1
26	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
27	48752	嵌件	INSERT	1
27	48752T	嵌件	INSERT	1
28	38970	密封件	SEAL	1
29	89984	叶轮	IMPELLER	1
29	89984T4	叶轮	IMPELLER	1
30	56654	键	KEY	1
30	8M0214992	键@5	KEY @5	1
31	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
31	8M0215009	螺钉	SCREW	1
32	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
33	13438	螺母(.250-28)	NUT (.250-28)	2
33	8267119	螺母(.250-28)	NUT (.250-28)	2
34	36001	垫圈	WASHER	1
35	13436	螺母	NUT	1
36	30271	橡胶环(传动轴用)(旧款)	RING Rubber RUBBER (DRIVE SHAFT) (OLD DESIGN)	1
36	8M0214918	环@5	RING @5	1
37	29804	套筒	SLEEVE	1
37	29804T	套筒	SLEEVE	1
38	78902	下换挡轴	SHAFT SHIFT LOWER	1
38	789022	换档轴	SHIFT SHAFT	1
39	29641	E型卡环	E RING	1
40	78907	挡圈（旧设计）	RING Retaining (OLD DESIGN)	1
41	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
42	77631A2	衬套总成	BUSHING ASSEMBLY	1
43	816464	油封	SEAL Oil	1
43	8M0246145	油封	OIL SEAL	1
44	77674	橡胶垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12) RUBBER	1
45	79953		SCREW (.375-16 x .250) GREASE FILLER	1
45	79953Q04	放油螺钉套件	SCREW KIT Drain	1
46	67892		SCREW Magnetic DRAIN	1
46	8M0058389	放油螺钉套件	SCREW KIT Drain	1
47	19183	纤维垫圈	WASHER Fiber	2
47	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
-	42579A4	水泵修理包	REBUILD KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 14齿轮箱（驱动轴）（2.0:1） GEAR HOUSING (DRIVESHAFT)(2.0:1)

REF	零件编号	中文名称	英文名称	数量
-	9148A20	齿轮箱总成-标准转向2:1速比	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio	1
1	9148A12	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
2	85822A1	连接器总成	CONNECTOR ASSEMBLY	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	20033	定位销	PIN Dowel	2
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	78638	双头螺栓(.438×3.12)(长型)	STUD (.438 x 3.12) (LONG)	1
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
4	18978	双头螺栓(.438×3.69)(加长型)	STUD (.438 x 3.69) (X-LONG)	1
4	8M0034464	螺柱	STUD	1
5	57920	双头螺柱(.44 x 2.06)	STUD (.44 x 2.06)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	306671	螺柱	STUD	2
8	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	43998	套筒	SLEEVE	1
11	440001	驱动轴(长型)	DRIVESHAFT (LONG)	1
11	897624T	长驱动轴	DRIVESHAFT Long	1
11	442091	驱动轴(加长型)	DRIVESHAFT (X-LONG)	1
11	897625T	加长驱动轴	DRIVESHAFT X-Long	1
12	N.S.S.	不单独出售小齿轮(43-44102A2部件)	Not Sold Separate Pinion Gear (PART OF 43-44102A2)	1
13	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
14	35921	螺母(0.625-18)	NUT (.625-18)	1
15	42637A1	垫片组	SHIM SET	AR
15	8M0063267	垫片组	SHIM SET	AR
16	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
16	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
17	42633	螺母	NUT	1
17	8245191	固定座	RETAINER	1
18	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
19	426311	衬垫	GASKET	1
19	8M0204678	衬垫	GASKET	1
20	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
20	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
21	89238	油封	SEAL Oil	1
22	16977	油封	SEAL Oil	1
23	856081	下部衬垫	GASKET LOWER	1
23	8M0090319	衬垫@5	GASKET @5	1
24	856091	上衬垫	GASKET UPPER	1
24	858524	衬垫	GASKET	1
25	32435	面板	FACE PLATE	1
25	8M0204677	面板	PLATE-FACE	1
26	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
27	48752	嵌件	INSERT	1
27	48752T	嵌件	INSERT	1
28	38970	橡胶密封件	SEAL RUBBER	1
29	89984	叶轮	IMPELLER	1
29	89984T4	叶轮	IMPELLER	1
30	56654	键	KEY	1
30	8M0214992	键@5	KEY @5	1
31	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
31	8M0215009	螺钉	SCREW	1
32	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
33	13438	螺母(.250-28)	NUT (.250-28)	2
33	8267119	螺母(.250-28)	NUT (.250-28)	2
34	36001	垫圈	WASHER	1
35	13436	螺母	NUT	1
36	30271	橡胶环(旧款)	RING Rubber (OLD DESIGN)	1
36	8M0214918	环@5	RING @5	1
37	29804	套筒	SLEEVE	1
37	29804T	套筒	SLEEVE	1
38	78902	下轴	SHAFT LOWER	1
38	789022	换档轴	SHIFT SHAFT	1
39	29641	E型卡环	E RING	1
40	78907	挡圈（旧设计）	RING Retaining (OLD DESIGN)	1
41	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
42	77631A2	衬套总成	BUSHING ASSEMBLY	1
43	816464	油封	SEAL Oil	1
43	8M0246145	油封	OIL SEAL	1
44	77674	橡胶垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12) RUBBER	1
45	79953		SCREW (.375-16 x .250) GREASE FILLER	1
45	79953Q04	放油螺钉套件	SCREW KIT Drain	1
46	67892		SCREW Magnetic DRAIN	1
46	8M0058389	放油螺钉套件	SCREW KIT Drain	1
47	19183	纤维垫圈	WASHER Fiber	2
47	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
-	42579A4	水泵修理包	REBUILD KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 15齿轮箱（螺旋桨轴）（1.87:1） GEAR HOUSING (PROPELLER SHAFT)(1.87:1)

REF	零件编号	中文名称	英文名称	数量
-	9148A8	齿轮箱总成(标准转向1.87:1速比)(黑色)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (BLACK)	1
-	9148A10	齿轮箱总成(标准转向1.87:1速比)(灰色)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (GRAY)	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
1	9148A11	齿轮箱总成(基础款-黑色)	GEAR HOUSING ASSEMBLY (BASIC - BLACK)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A12	齿轮箱总成(基础款-灰色)	GEAR HOUSING ASSEMBLY (BASIC - GRAY)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
48	78956	换挡凸轮	SHIFT CAM	1
48	789562	换挡凸轮	SHIFT CAM	1
49	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
50	816520	杆	ROD	1
50	79911A1	杆	ROD	1
51	79910	弹簧	SPRING	2
52	78910	垫圈	WASHER	AR
53	78906	销	PIN	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	47397A1	垫片组(.002-3-5-10)	SHIM SET (.002-3-5-10)	AR
55	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
56	44104A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
56	44104T2	齿轮组	GEAR SET	1
57	73363	滚柱轴承(5/8")	BEARING Roller (5/8")	2
57	73363T	轴承	BEARING	2
57	549281	滚柱轴承(1")	BEARING Roller (1")	1
58	78959	棘轮	RATCHET	1
58	823174T	ORD 8M0100493	ORD 8M0100493	1
59	78905	十字销	PIN Cross	1
59	8M0084243	十字销	PIN Cross	1
60	78909	定位销	PIN Detent	2
61	78962	弹簧	SPRING	2
62	94148	螺旋桨轴	PROPELLER SHAFT	1
63	N.S.S.		Not Sold Separate Reverse Gear (PART OF 43-44104A2)	1
64	681001	止推环	RING Thrust	1
65	88957A1	滚珠轴承	BEARING Ball	1
65	88957T	滚珠轴承	BEARING Ball	1
66	31534	O型圈	O-RING	1
66	8M0214920	O型圈	O RING	1
67	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	30956	滚针轴承	BEARING Needle	1
68	30956T	滚针轴承	BEARING Needle	1
69	76868	密封件	SEAL	2
69	8M0248882	油封@5	SEAL-OIL @5	2
70	30281	键	KEY	1
71	79447	锁紧垫圈	TAB WASHER	1
72	79448	固定座	RETAINER	1
72	8M2011027	固定座	RETAINER	1
73	31640A1	平衡板总成	TRIM TAB ASSEMBLY	1
73	31640Q4	平衡鳍板	TRIM TAB	1
74	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
75	67891	填充块	FILLER BLOCK	1
75	8M0039169	填充块	FILLER BLOCK	1
76	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
76	8M0204653	螺母	NUT	2
77	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
78	13171	推力毂	THRUST HUB	1
78	835467Q01	止推垫片套件	THRUST WASHER KIT	1
79	31211A2	花键垫圈	WASHER Splined	1
79	31211Q03	垫圈总成	WASHER ASSEMBLY	1
80	816629	锁紧垫圈	TAB WASHER	1
80	816629Q	锁紧垫圈	TAB WASHER	1
81	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
81	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
82	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
83	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
-	89238A2	密封套件	SEAL KIT	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 16齿轮箱（螺旋桨轴）（2.0:1） GEAR HOUSING (PROPELLER SHAFT)(2.0:1)

REF	零件编号	中文名称	英文名称	数量
-	9148A20	齿轮箱总成(标准转向2:1速比)(完整)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (Complete)	1
1	9148A12	齿轮箱总成(基础型)	GEAR HOUSING ASSEMBLY (Basic)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
48	78956	换挡凸轮	SHIFT CAM	1
48	789562	换挡凸轮	SHIFT CAM	1
49	89594A1	凸轮从动件总成	FOLLOWER ASSEMBLY CAM	1
50	816520	离合器作动杆	ROD CLUTCH ACTUATOR	1
50	79911A1	杆	ROD	1
51	79910	压缩弹簧	SPRING COMPRESSION	2
52	78910	压缩弹簧垫圈	WASHER COMPRESSION SPRING	AR
53	78906		PIN SPRING LOCATOR	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	47397A1	轴承外圈垫片组(.002-3-5-10)	SHIM SET BEARING OUTER RACE (.002-3-5-10)	AR
55	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
56	44102A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
57	73363	滚柱轴承(5/8")	BEARING Roller (5/8")	2
57	73363T	轴承	BEARING	2
57	549281	滚柱轴承(1")	BEARING Roller (1")	1
58	78959	棘轮滑动离合器	RATCHET SLIDING CLUTCH	1
58	823174T	ORD 8M0100493	ORD 8M0100493	1
59	78905	棘轮到螺旋桨轴十字销	PIN Cross RATCHET TO PROPELLER SHAFT	1
59	8M0084243	十字销	PIN Cross	1
60	78909	棘轮定位销	PIN Detent RATCHET	2
61	78962	十字销固定弹簧	SPRING RETAINING-CROSS PIN	2
62	94148	螺旋桨轴	PROPELLER SHAFT	1
63	N.S.S.	倒车齿轮不单独销售(43-44102A2部件)	Not Sold Separate Reverse Gear (PART OF 43-44102A2)	1
64	681001	推力环-轴承座	RING Thrust THRUST - BEARING CARRIER	1
65	88957A1	倒车档滚珠轴承	BEARING Ball BALL - REVERSE GEAR	1
65	88957T	滚珠轴承	BEARING Ball	1
66	31534	轴承座O型圈	O-RING BEARING CARRIER	1
66	8M0214920	O型圈	O RING	1
67	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	30956	滚针轴承-轴承座	BEARING Needle BEARING CARRIER	1
68	30956T	滚针轴承	BEARING Needle	1
69	76868	轴承座密封	SEAL BEARING CARRIER	2
69	8M0248882	油封@5	SEAL-OIL @5	2
70	30281		KEY LOCATING - BEARING CARRIER	1
71	79447	齿轮箱盖锁紧垫圈	TAB WASHER GEAR HOUSING COVER	1
72	79448	齿轮箱固定座	RETAINER GEAR HOUSING	1
72	8M2011027	固定座	RETAINER	1
73	31640Q4	调整片齿轮箱	TRIM TAB GEAR HOUSING	1
74	66024		SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING	1
75	67891	填充块	FILLER BLOCK	1
75	8M0039169	填充块	FILLER BLOCK	1
76	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
76	8M0204653	螺母	NUT	2
77	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
77	74727	螺钉(.375-16 x 6.00)	SCREW (.375-16 x 6.00)	1
78	13171	推力毂	THRUST HUB	1
78	835467Q01	止推垫片套件	THRUST WASHER KIT	1
79	31211A2	花键垫圈	WASHER Splined	1
79	31211Q03	垫圈总成	WASHER ASSEMBLY	1
80	816629	锁紧垫圈	TAB WASHER	1
80	816629Q	锁紧垫圈	TAB WASHER	1
81	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
81	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
82	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
83	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
-	89238A2	密封套件	SEAL KIT	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

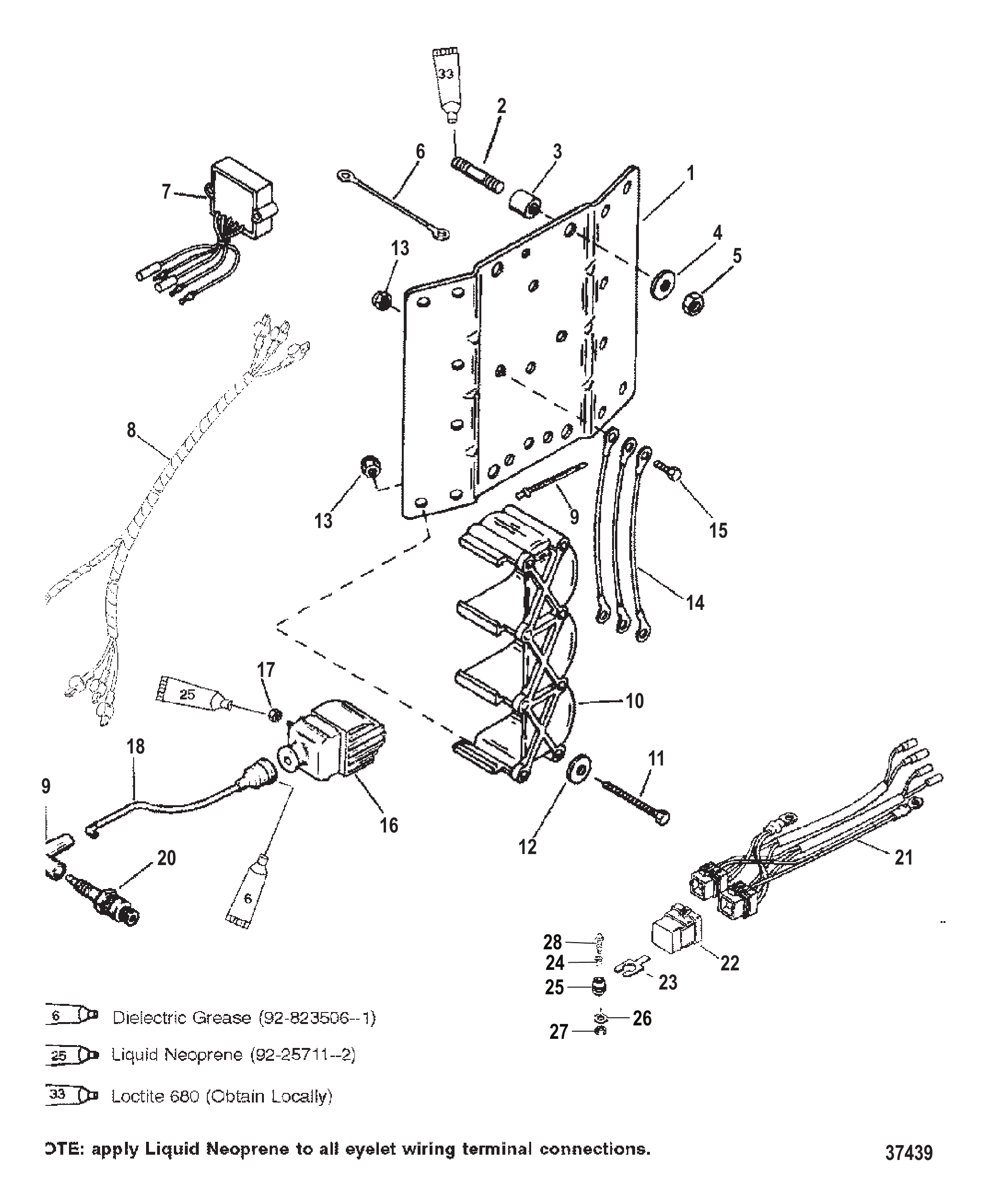

图 17点火线圈/电压调节器 IGNITION COIL/VOLTAGE REGULATOR

REF	零件编号	中文名称	英文名称	数量
1	195872	安装板	MOUNTING PLATE	1
2	33778	螺柱	STUD	4
3	19661	衬套	BUSHING	4
4	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
5	13438	螺母(.250-28)	NUT (.250-28)	4
5	8267119	螺母(.250-28)	NUT (.250-28)	4
6	88807A35	拉线总成	CABLE ASSEMBLY	1
7	854515	电压调节器	REGULATOR Voltage	2
7	8M0084173	电压调节器	VOLTAGE REGULATOR	2
8	69739A7	线束总成	HARNESS ASSEMBLY	1
9	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
10	43542	盖板	COVER	2
11	90048	螺钉 (#10-32 x 2.125)	SCREW (#10-32 x 2.125)	12
12	89302	垫圈(0.203 x 0.406 x 0.040)(适用处使用)	WASHER (.203 x .406 x .040) (USE WHERE APPLICABLE)	12
13	90078	螺母 (#10-32)	NUT (#10-32)	14
14	88807A13	拉线总成	CABLE ASSEMBLY	6
15	69022	螺钉 (#10-32 x .500) 不锈钢	SCREW (#10-32 x .500) Stainless Steel	2
16	832757A4	线圈套件	COIL KIT	6
16	8M0230859	点火线圈总成	COIL IGNITION ASY	6
17	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	12
18	813706A55	高压线总成	CABLE ASSEMBLY High Tension	1
18	813715A9	点火线缆套件	CABLE KIT Ignition	1
19	63709A1	护套/端子套件	BOOT/TERMINAL KIT	6
20	136862	火花塞（NGK #BU8H）	SPARK PLUG (NGK #BU8H)	6
20	13686Q	NGK BU8H @10	NGK BU8H @10	6
20	14103568	火花塞(NGK #BUZ8H-加拿大/比利时)	SPARK PLUG (NGK #BUZ8H - CANADA/BELGIUM)	6
20	896329885	SP #L6VC @4	SP #L6VC @4	6
21	826802A4	线束总成	HARNESS ASSEMBLY	1
22	828151A1	继电器总成	RELAY ASSEMBLY	2
22	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
23	828102	支架	BRACKET	2
23	8M0207771	安装支架	BRACKET Mounting	2
24	818968	衬套	BUSHING	2
24	8M0214955	衬套	BUSHING	2
25	818967	护孔环	GROMMET	2
25	8M0207785	护孔环	GROMMET	2
26	35950	垫圈 (.273 x .437 x .031) 不锈钢	WASHER (.273 x .437 x .031) Stainless Steel	2
27	13855A1	螺母/螺钉套件	NUT/SCREW KIT	2
28	NSS		NOT SOLD SEPARATE SCREW	2

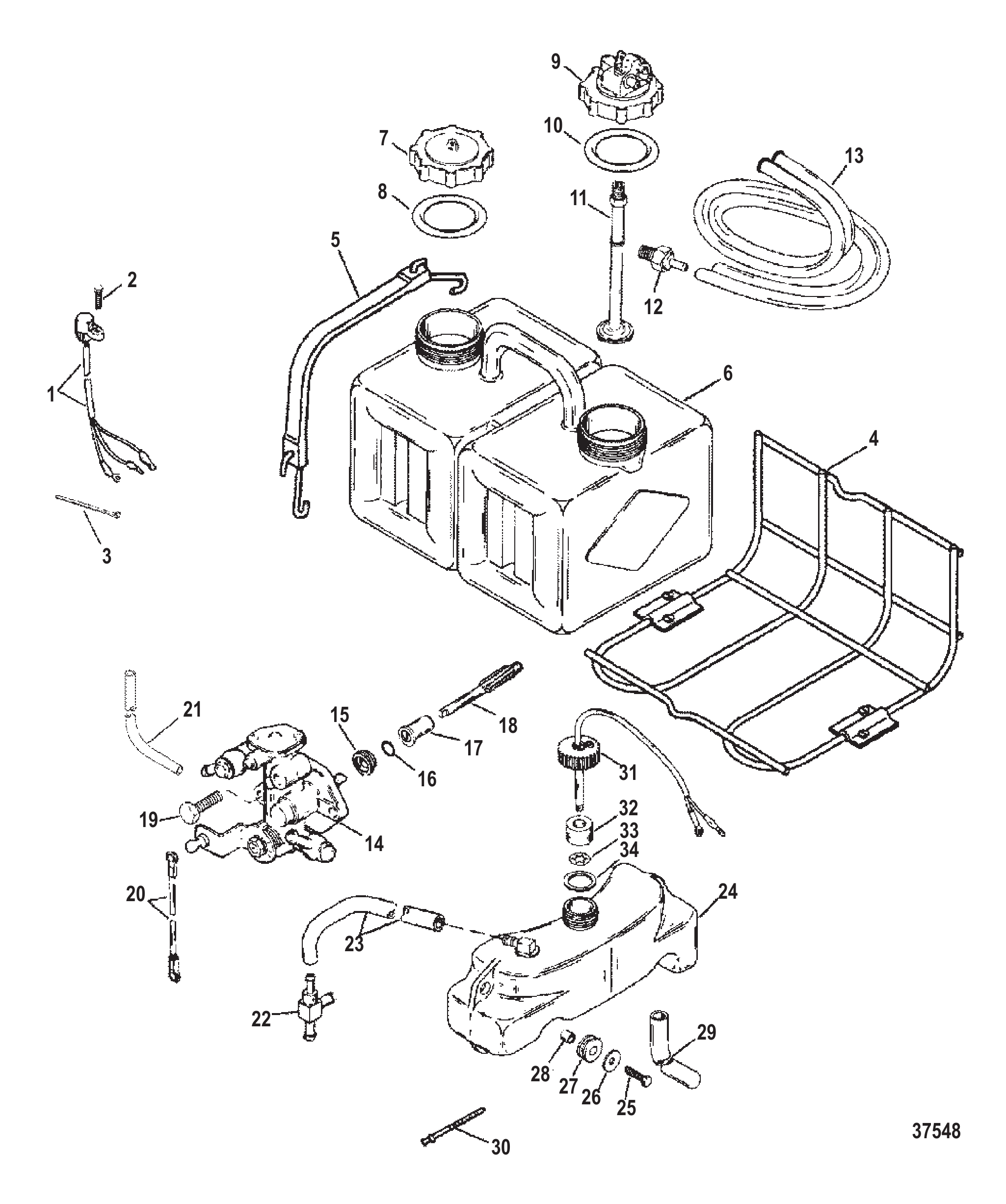

图 18喷油组件 OIL INJECTION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	12430A4	传感器总成	SENSOR ASSEMBLY	1
2	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
2	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
3	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	2
4	12335A1	支架套件	BRACKET KIT	1
5	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1
6	87421	油箱	TANK	1
7	43298A2	盖总成	CAP ASSEMBLY	1
8	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
9	816190A3	外壳总成适配器	HOUSING ASSEMBLY Adapter	1
9	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
10	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
11	99802	管	TUBE	1
12	432781	止回阀(曲轴箱)	CHECK VALVE (CRANKCASE)	1
12	8781051	止回阀	CHECK VALVE	1
13	99439	软管(114.00英寸)	HOSE (114.00 Inches)	1
14	815699	油泵总成	PUMP ASSEMBLY Oil	1
14	815699T	油泵总成	PUMP ASSEMBLY Oil	1
15	8141032	蜗杆衬套	BUSHING Worm	1
16	11379	O型圈	O-RING	1
17	997431	驱动齿轮轴承总成	BEARING ASSEMBLY Drive Gear	1
17	41429A2	轴承总成	BEARING ASSEMBLY	1
18	14563	从动齿轮	GEAR Driven	1
19	32228	螺钉（#10-32 X 0.625）	SCREW (#10-32 x .625)	1
19	41507	螺钉（#10-32 X 1.120）	SCREW (#10-32 x 1.120)	1
20	1938512	连杆总成	LINK ASSEMBLY	1
21	82381329	管材（12英寸散装）（裁切至7英寸）	TUBING (12.00 Inches Bulk) (Cut to 7 IN.)	1
21	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	1
22	424254	接头	FITTING	1
22	8M0207780	接头	FITTING	1
22	424252	油管接头	FITTING Oil Tubing	1
23	830756109	软管(57英寸散装)(截断至6英寸)	HOSE (57.00 Inches Bulk) (Cut to 6 IN.)	1
23	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
24	994436	储液罐	RESERVOIR	1
25	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
25	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
26	42118	垫圈	WASHER	6
27	42117	护孔环	GROMMET	3
28	42116	衬套	BUSHING	3
29	82381455	管材（25英寸散装）（裁切至4-3/4英寸）	TUBING (25.00 Inches Bulk) (Cut to 4-3/4 IN.)	1
30	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
30	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
31	43300A9	盖总成	CAP ASSEMBLY	1
32	99022A1	浮子总成	FLOAT ASSEMBLY	1
32	8M0187298	浮子总成	FLOAT ASSY	1
33	99265	压入式螺母	PUSH NUT	1
34	43307	衬垫	GASKET	1
34	43307T	衬垫	GASKET	1
-	823434A97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

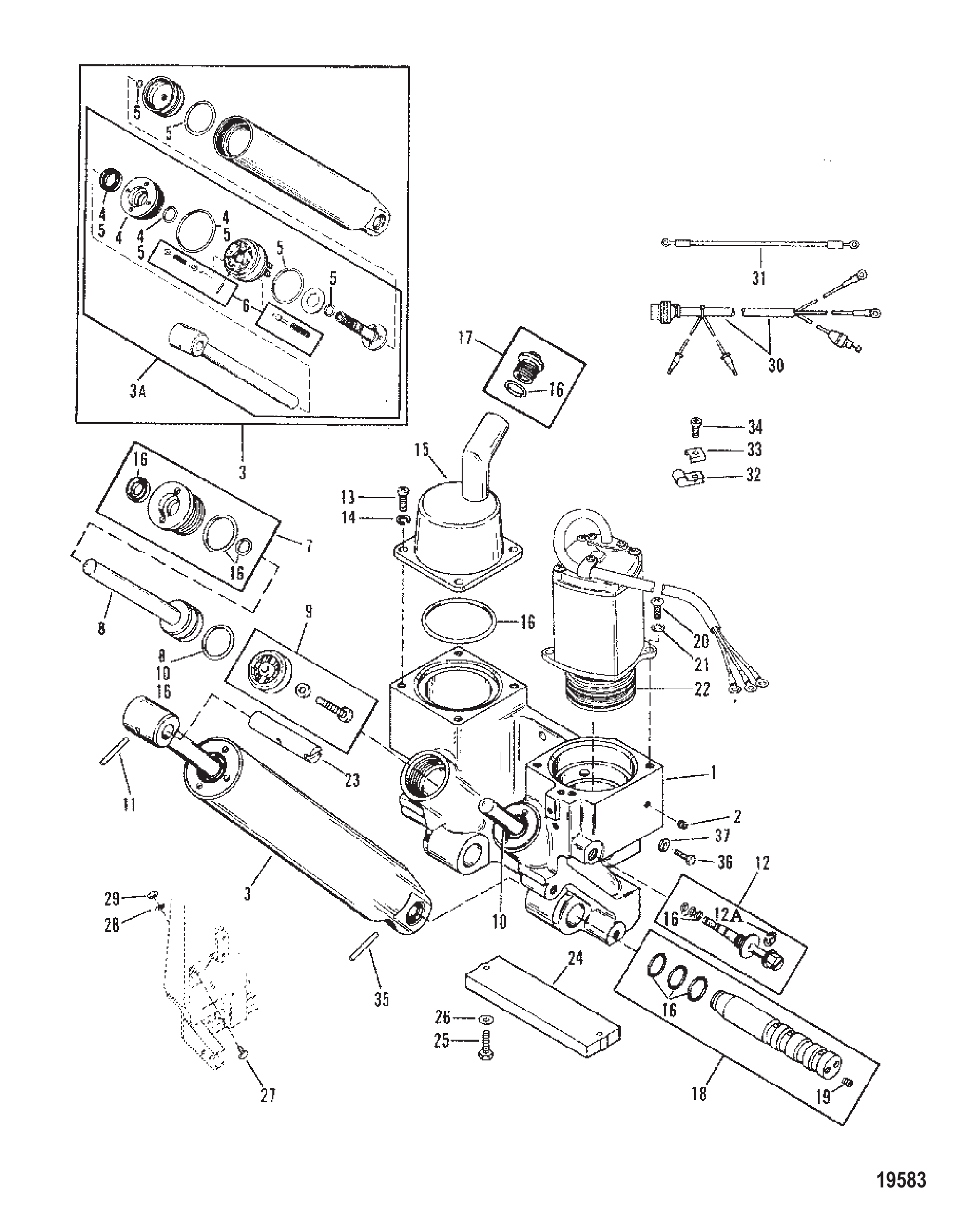

图 19动力升降组件 POWER TRIM COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	99659A21	歧管总成 (黑色)	MANIFOLD ASSEMBLY (BLACK)	1
1	99659A22	歧管总成 (灰色)	MANIFOLD ASSEMBLY (GRAY)	1
2	99616	管塞歧管	PIPE PLUG MANIFOLD	11
2	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	11
3	41493A7	配平油缸总成 (黑色)	TRIM CYLINDER ASSEMBLY (BLACK)	1
3	41493A4	配平油缸总成 (灰色)	TRIM CYLINDER ASSEMBLY (GRAY)	1
3	41493A7	升降油缸总成	TRIM CYLINDER ASSEMBLY	1
3A	811600	导向套件	GUIDE KIT	1
4	41492A1	导向器总成	GUIDE ASSEMBLY	1
5	41478A1	维修套件	REPAIR KIT	1
6	41482A2	止回阀套件	CHECK VALVE KIT	1
7	99638A1	导向总成装饰杆	GUIDE ASSEMBLY TRIM ROD	2
7	8M0021648	端盖总成	END CAP ASSEMBLY	2
8	43397A6	动力升降活塞/杆总成 (左舷)	PISTON/ROD ASSEMBLY Power Trim (PORT)	1
8	878413A1	活塞总成	PISTON ASSEMBLY	1
9	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
10	43398A3	动力升降活塞/杆总成 (右舷)	PISTON/ROD ASSEMBLY Power Trim (STARBOARD)	1
10	878414T01	活塞总成	PISTON ASSEMBLY	1
11	13794	沟槽销-升降油缸(上)	PIN Groove TRIM CYLINDER (UPPER)	1
11	821539	三叶销	PIN Trilobe	1
12	812843A1	阀门总成	VALVE ASSEMBLY	1
12	893929A01	安全阀套件	VALVE KIT Relief	1
12A	812844	E型卡环	E RING	1
12A	815949001	E形环	E-RING	1
13	4000327	螺钉(M6x14)-盖板	SCREW (M6 x 14) COVER	4
14	43450	盖板螺丝垫圈	WASHER COVER SCREW	4
14	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
15	99642	歧管盖	COVER MANIFOLD	1
16	48462A2	O型圈套件	O-RING KIT	1
16	48462A4	O型圈套件	O RING KIT	1
17	99609A1	塞子总成	PLUG ASSEMBLY	1
18	99641A1	轴总成	SHAFT ASSEMBLY	1
18	99641A02	轴总成	SHAFT ASSY	1
19	99616	轴管塞	PIPE PLUG SHAFT	2
19	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
20	4008820	螺钉(M6x20)-泵与马达	SCREW (M6 x 20) PUMP AND MOTOR	2
21	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
22	99186T	泵与电机总成	PUMP AND MOTOR	1
22	826729A10	ORD 8M0143217	ORD 8M0143217	1
23	99625		SHAFT UPPER	1
23	99625002	轴	SHAFT	1
24	43396A2	阳极总成	ANODE ASSEMBLY	1
24	818298Q1	阳极套件	ANODE KIT	1
25	4000330	螺钉(M6 x 25)阳极	SCREW (M6 x 25) ANODE	2
25	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
26	29245	垫圈(0.281x0.500x0.060)-不锈钢阳极螺钉	WASHER (.281 x .500 x .060) Stainless Steel ANODE SCREW	2
26	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
27	996301	撞板-升降轴	STRIKER PLATE TRIM SHAFT	2
27	8M0045383	冲击板	STRIKER PLATE	2
28	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
29	46335	螺母 (.375-24)	NUT (.375-24)	2
30	814609A1	线束总成-动力升降控制	HARNESS ASSEMBLY Control POWER TRIM	1
31	88808A22	线缆总成(6-7/8英寸-红色)	CABLE ASSEMBLY (6-7/8" - RED)	1
32	22875		CLIP PUMP WIRE	2
33	69205	C形垫圈线夹螺钉	C WASHER CLIP SCREW	2
33	8M0084613	C形垫圈	C-WASHER	2
34	69079	螺钉(#10-16x0.440)-夹子到艉板支架	SCREW (#10-16 x .440) CLIP TO TRANSOM BRACKET	2
35	44431	沟槽销-升降油缸(下)	PIN Groove TRIM CYLINDER (LOWER)	1
35	878267	销	PIN	1
36	4000377		SCREW (M10 x 30) MANIFOLD	6
37	400258	锁紧垫圈(M10)-不锈钢歧管螺钉	LOCKWASHER (M10) Stainless Steel MANIFOLD SCREW	6

图 20动力升降泵 POWER TRIM PUMP

REF	零件编号	中文名称	英文名称	数量
-	99186T	泵与电机总成	PUMP AND MOTOR	1
1	12659	机架与磁场套件	FRAME AND FIELD KIT	1
1	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
2	12665	电刷弹簧套件	SPRING KIT Brush	1
3	13506	电刷卡套件	BRUSH CARD KIT	1
3	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
4	12662	泵与端架套件	PUMP AND END FRAME KIT	1
4	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
5	126631	泵密封套件	SEAL KIT Pump	1
6	12660	端架套件	END FRAME KIT	1
6	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
7	12661	电枢套件	ARMATURE KIT	1
7	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
8	12664	贯穿螺栓套件	THRU BOLT KIT	1

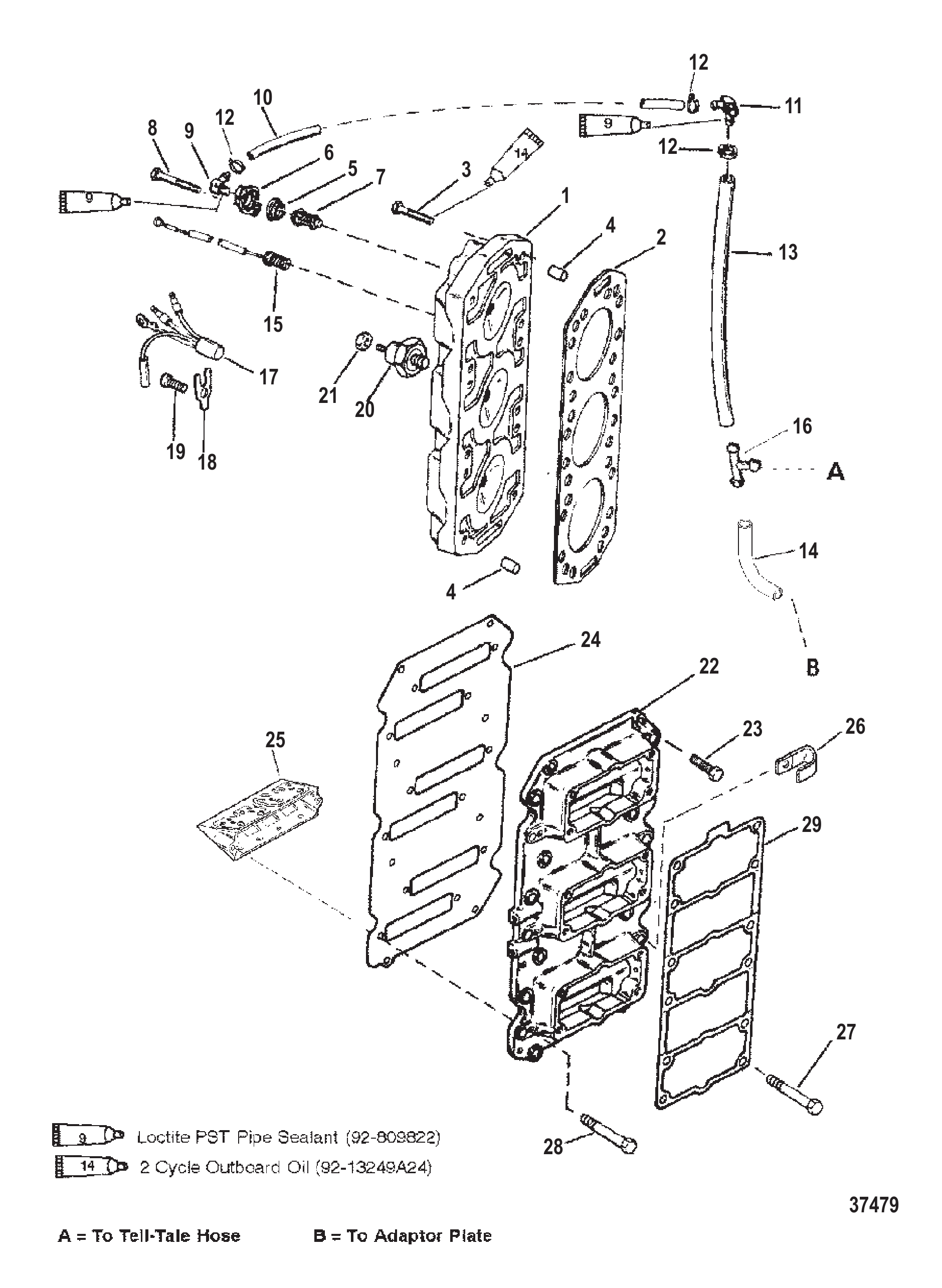

图 21簧片阀组与气缸盖 REED BLOCK AND CYLINDER HEAD

REF	零件编号	中文名称	英文名称	数量
1	18488F1	气缸盖	CYLINDER HEAD	2
2	8228441	衬垫	GASKET	2
2	822844T05	衬垫	GASKET	2
3	98534	螺钉 (.375-16 x 2.30)	SCREW (.375-16 x 2.30)	23
3	827426	螺钉	SCREW	1
4	63779	定位销 (.250 x .625)	PIN Dowel (.250 x .625)	4
5	62386	衬垫	GASKET	2
5	8M0204714	衬垫@4	GASKET @4	2
6	90390A1	盖板套件	COVER KIT	2
7	75692	节温器	THERMOSTAT	2
8	35386	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	4
9	68727	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
9	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
10	77653112	软管(59.00英寸散装)(裁切至12-3/4英寸)	HOSE (59.00 Inches Bulk) (Cut to 12-3/4 IN.)	1
10	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
11	68728	接头	FITTING	1
12	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
13	77653112	软管(59.00英寸散装)(裁切至11-1/2英寸)	HOSE (59.00 Inches Bulk) (Cut to 11-1/2 IN.)	1
13	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
14	77653112	软管(59.00英寸散装)(裁切至7-1/2英寸)	HOSE (59.00 Inches Bulk) (Cut to 7-1/2 IN.)	1
14	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
15	97465		SENDER Temperature (Starboard)	1
16	815914	三通接头	T-FITTING	1
17	13536A6		SENSOR ASSEMBLY Temperature (Port)	1
18	137151	固定座	RETAINER	2
19	98257	螺钉 (.312-18 x .500)	SCREW (.312-18 x .500)	2
20	826858	爆震传感器(200)	SENSOR Knock (200)	1
21	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	1
22	17735A2	适配板总成	ADAPTER PLATE ASSEMBLY	1
23	28668	螺钉 (.250-20 x .875) 不锈钢	SCREW (.250-20 x .875) Stainless Steel	8
24	146972	衬垫	GASKET	1
25	116453	簧片阀组	REED BLOCK	6
25	855952T3	簧片阀总成	REED BLOCK ASSEMBLY	6
26	55098	J型卡扣	J CLIP	1
26	8M0024808	J型夹	J-CLIP	1
27	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	6
28	90197	螺丝（.250-20 x 1.125）	SCREW (.250-20 x 1.125)	6
29	167371	衬垫	GASKET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	823434A97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 22维修/支撑材料 Service/Support Material

零件编号	中文名称	英文名称	数量
80856798	零件手册150/200 EFI ProMax/SuperMagnum	PARTS MANUAL 150/200 EFI ProMax/SuperMagnum	1
848714980	用户手册	OWNERS MANUAL	1
848714981	用户手册	MANUAL-OWNERS	1

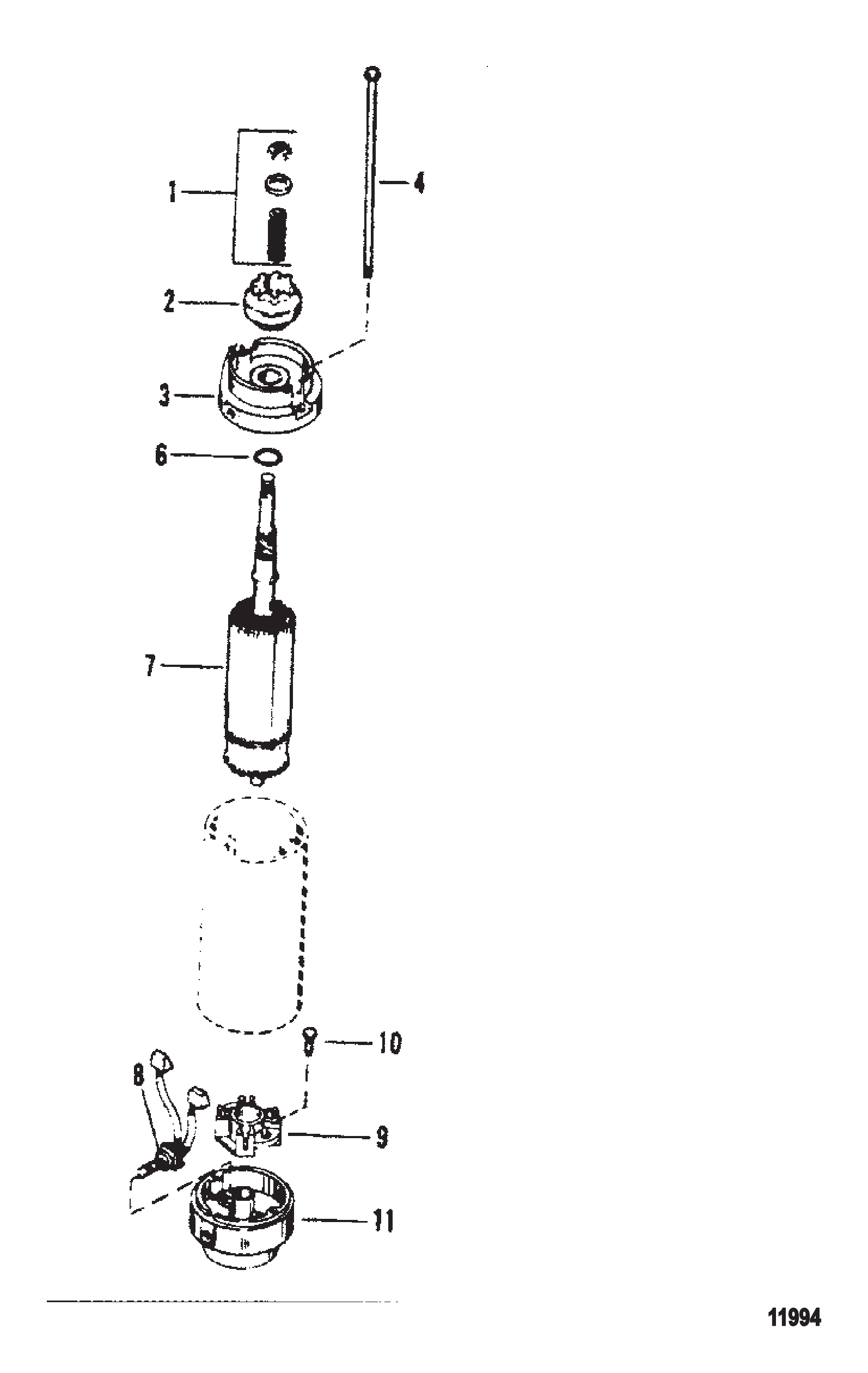

图 23启动电机总成 STARTER MOTOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
-	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	90645	驱动套件	DRIVE KIT	1
2	75661	驱动小齿轮总成	PINION ASSEMBLY Drive	1
2	13310T1	小齿轮总成	PINION ASSEMBLY	1
3	75660	驱动端板	PLATE DRIVE END	1
4	74968	贯穿螺栓	BOLT THRU	2
6	N.S.S.	不单独出售垫圈	Not Sold Separate Washer	1
7	79216	电枢	ARMATURE	1
8	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
9	61787	电刷架	HOLDER BRUSH	2
9	898265014	电刷支架	HOLDER-BRUSH	2
10	N.S.S.	不单独出售螺钉	Not Sold Separate Screw	2
11	15386	换向器端盖	END CAP COMMUTATOR	1
11	15386001	端盖	END CAP	1

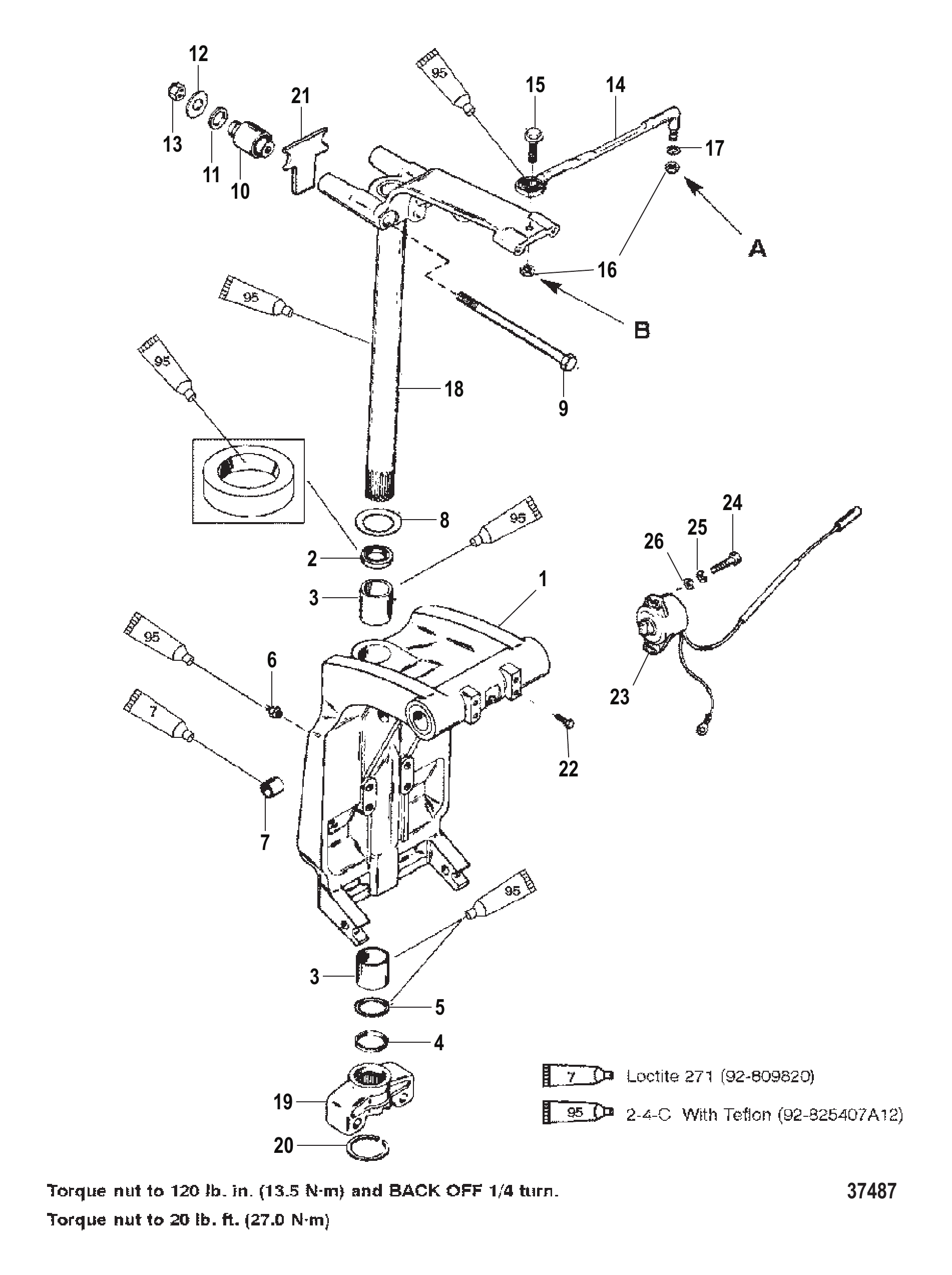

图 24旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM

REF	零件编号	中文名称	英文名称	数量
1	8710A20	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8M0102865	黑色旋转支架总成	SWIVEL BRACKET ASSEMBLY Black	1
1	8710A21	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8710T21	灰色旋转支架总成	SWIVEL BRACKET ASSEMBLY Gray	1
2	87735	油封(下)	SEAL Oil (LOWER)	1
3	818764	衬套	BUSHING	2
4	816039	隔套	SPACER	1
5	33504	O型圈	O-RING	1
5	8M0214926	O型圈 @10	O RING @10	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	816432	止推垫片	THRUST WASHER	1
9	78689	螺钉（0.437-20 X 7.50）	SCREW (.437-20 x 7.50)	2
9	8M0176309	螺钉	SCREW	2
10	77326	支架	MOUNT	2
11	66921	垫圈	WASHER	2
12	814432	垫圈	WASHER	2
12	78688	垫圈	WASHER	2
13	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
13	8M0204653	螺母	NUT	2
14	92876A1	转向连杆总成	LINK ASSEMBLY Steering	1
14	92876A12	连杆总成	LINK ROD ASSEMBLY	1
15	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	1
15	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
16	34863	螺母 (.375-24)	NUT (.375-24)	2
16	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
17	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
18	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
18	826432A2	转向臂旋转销总成-不锈钢	SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel	1
18	67706A56	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
18	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
19	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
19	878182T	轭架底部-不锈钢	YOKE Bottom - Stainless Steel	1
19	86580A2	底部轭架总成	YOKE ASSEMBLY Bottom	1
19	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
20	67684	挡圈	RING Retaining	1
21	888821	缓冲垫	BUMPER	1
21	8M0000516	上轭缓冲垫	BUMPER Top Yoke	1
22	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
23	821180A6	调整传感器总成	SENDER ASSEMBLY Trim	1
23	8M0074846	ORDER 8M0098273	ORDER 8M0098273	1
24	852368	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
25	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
26	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2

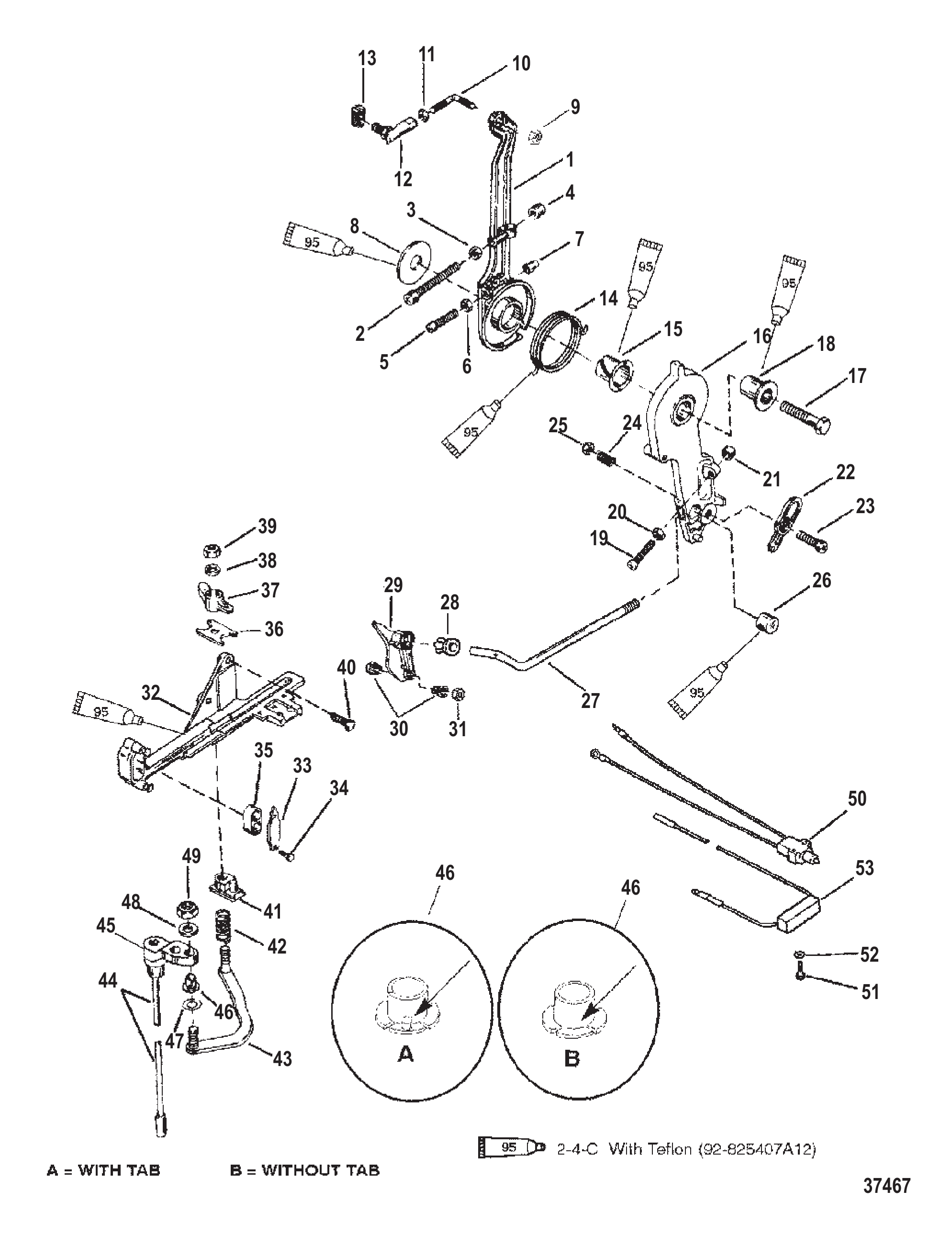

图 25油门杆与换挡轴 THROTTLE LEVER AND SHIFT SHAFT

REF	零件编号	中文名称	英文名称	数量
1	41094A3	杠杆总成	LEVER ASSEMBLY	1
2	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
3	64015	螺母 (.250-20)	NUT (.250-20)	1
4	26852	尼龙帽	CAP Nylon	1
5	13627	螺钉 (.190-32 x 1.250)	SCREW (.190-32 x 1.250)	1
6	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
7	48039	盖帽	CAP	1
8	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	1
9	46438	螺母 (#10-32)	NUT (#10-32)	1
10	76035	杆	ROD	1
11	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	1
12	62459	球头总成	BALL JOINT ASSEMBLY	1
12	62459T	球头节总成	BALL JOINT ASSY	1
13	74897	枢轴	PIVOT	1
13	74897T	枢轴	PIVOT	1
14	823235	弹簧	SPRING	1
15	55171	衬套	BUSHING	1
16	41095	杠杆	LEVER	1
16	410952	杠杆	LEVER	1
17	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
18	55164	衬套	BUSHING	1
19	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
20	64015	螺母 (.250-20)	NUT (.250-20)	1
21	26852	尼龙帽	CAP Nylon	1
22	39483	闩锁	LATCH	1
23	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
24	20099	弹簧	SPRING	1
25	35045	螺母(.250-28)	NUT (.250-28)	1
25	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
26	14638	套筒	BARREL	1
27	14634	杆	ROD	1
28	932481	衬套	BUSHING	1
28	8M0215006	旋转衬套	BUSHING Swivel	1
29	8142391	凸轮	CAM	1
29	8142392	节气门凸轮	THROTTLE CAM	1
30	26856	衬套	BUSHING	2
31	35045	螺母(.250-28)	NUT (.250-28)	1
31	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
32	814283A2	支架总成	BRACKET ASSEMBLY	1
33	98889	闩锁	LATCH	1
34	42975	传动螺钉	DRIVE SCREW	2
35	39519	杯套	CUP	1
36	52100	耐磨板	WEAR PLATE	1
37	38279	闩锁	LATCH	1
37	8M0036768	闩锁	LATCH	1
38	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
39	35045	螺母(.250-28)	NUT (.250-28)	1
39	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
40	53167	螺钉 (.312-18 x .880)	SCREW (.312-18 x .880)	3
40	53167T	螺钉 0.312-18X 0.88	SCREW .312-18X .88	3
41	814284	导向块	GUIDE BLOCK	1
42	20099	弹簧	SPRING	1
43	67073A1	连杆总成	LINK ROD ASSEMBLY	1
44	79932A11	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
44	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
44	79932A12	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
44	79932A17	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
44	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
44	79932A17	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
45	NSS	不单独出售-换档轴杆(上部)	NOT SOLD SEPARATE SHIFT SHAFT LEVER, UPPER	1
45	NSS	不单独出售-换档轴杆(上部)	NOT SOLD SEPARATE SHIFT SHAFT LEVER, UPPER	1
46	26856	衬套	BUSHING	1
46	26600	衬套	BUSHING	1
47	29720	波形垫圈	WAVE WASHER	1
48	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
49	35045	螺母(.250-28)	NUT (.250-28)	1
49	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
50	814281A1	怠速稳定换挡套件	IDLE STABILIZING SHIFT KIT	1
51	77478	螺钉 (#6-32 x .875)	SCREW (#6-32 x .875)	2
52	27882	垫圈	WASHER	2
53	17461A3	电阻模块	RESISTOR MODULE	1

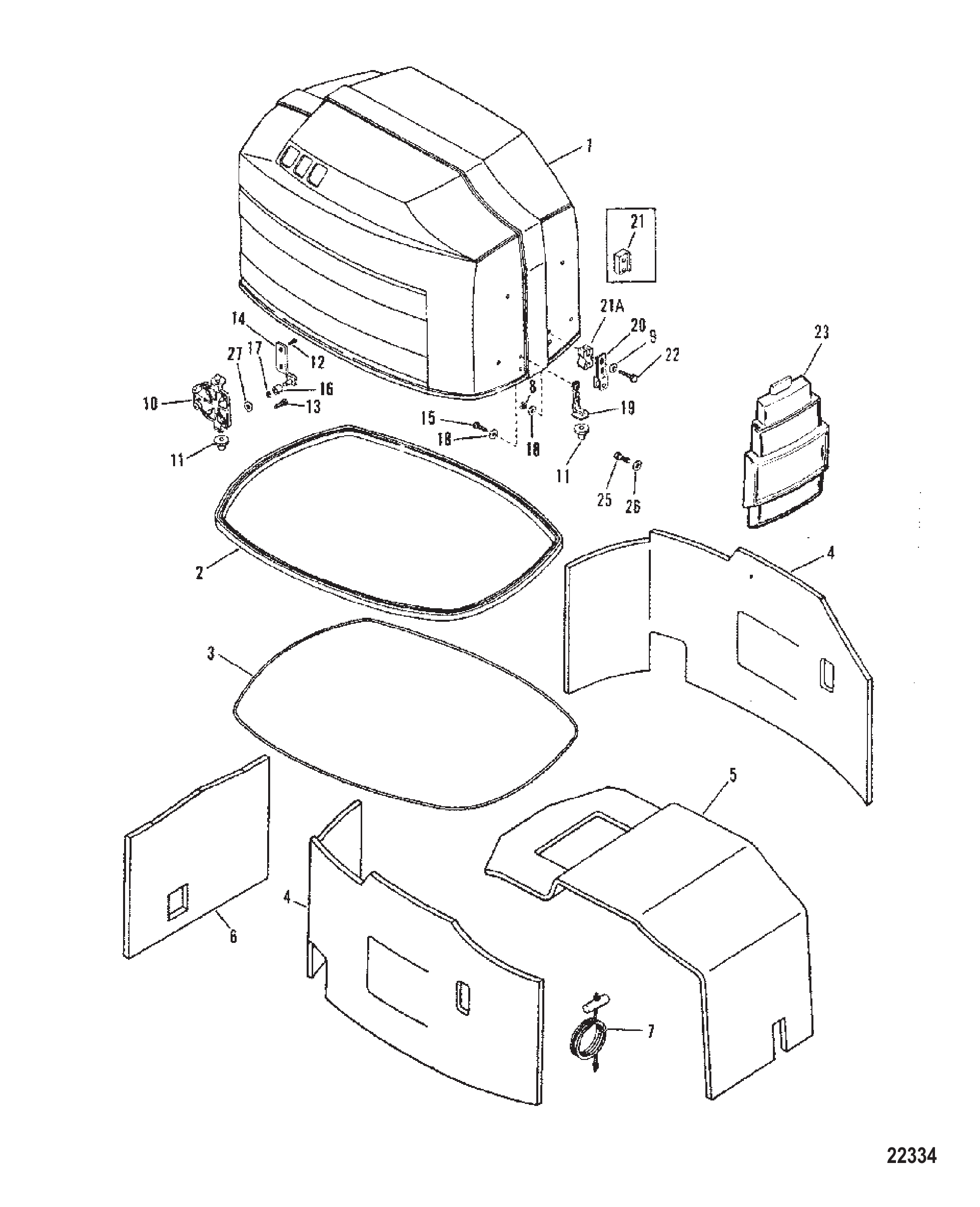

图 26上罩与前护板 TOP COWL AND FRONT SHIELD

REF	零件编号	中文名称	英文名称	数量
1	9742A92	顶盖总成 (黑色)(无贴花)	TOP COWL ASSEMBLY (BLACK)(Without Decals)	1
1	9742A93	顶罩总成(灰色)(无贴花)	TOP COWL ASSEMBLY (GRAY)(Without Decals)	1
1	9743T10	顶罩	TOP COWL	1
2	812784	密封件	SEAL	1
3	815478	密封件	SEAL	1
4	815225	隔音垫(侧)	SOUND BLANKET (SIDE)	2
5	815226	隔音垫(顶)	SOUND BLANKET (TOP)	1
4/5	815225A1	隔音毯套装	SOUND BLANKET KIT	1
6	815227	前隔音垫	SOUND BLANKET FRONT	1
7	47341A1	手动/应急启动绳柄套件	ROPE AND HANDLE KIT Manual/Emergency Start	1
7	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
8	815848	螺母 (.312)	NUT (.312)	2
9	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
9	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2
10	184741	后支架	BRACKET REAR	2
11	18506	护孔环	GROMMET	3
11	18506001	护孔环	GROMMET	3
12	28636	螺钉(.250-20 x .750) 后支架	SCREW (.250-20 x .750) REAR BRACKET	4
13	816992	螺钉	SCREW	8
14	813096	挂钩	HOOK	2
14	813096A2	挂钩套件	HOOK KIT	2
15	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	2
16	813074	滚轮	ROLLER	2
16	8M0207770	滚轮@3	ROLLER @3	2
17	13194	挡圈	RING Retaining	2
18	56720	垫圈(0.330×0.750×0.060)不锈钢	WASHER (.330 x .750 x .060) Stainless Steel	4
19	187021	定位器	LOCATOR	1
20	18173	锁扣滚轮支架总成	BRACKET ASSEMBLY Latch Roller	1
20	893763	滚轮锁扣支架	BRACKET Roller Latch	1
21	813552	垫片(旧款)	SPACER (OLD DESIGN)	1
21	813076A2	手柄套件	HANDLE KIT	1
21A	816838	隔套	SPACER	1
22	31984	螺钉(0.312-18×1.375)	SCREW (.312-18 x 1.375)	2
22	69267	螺钉 (.312-18 x 1.750)	SCREW (.312-18 x 1.750)	2
23	18755A1	前护罩总成 (黑色)(无贴花)	FRONT SHIELD ASSEMBLY (BLACK)(Without Decals)	1
23	18755A2	前护罩总成 (灰色)(无贴花)	FRONT SHIELD ASSEMBLY (GRAY)(Without Decals)	1
25	77137	螺钉 (.190-16 x .620)	SCREW (.190-16 x .620)	4
26	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	4
26	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	4
27	36001	垫圈	WASHER	2

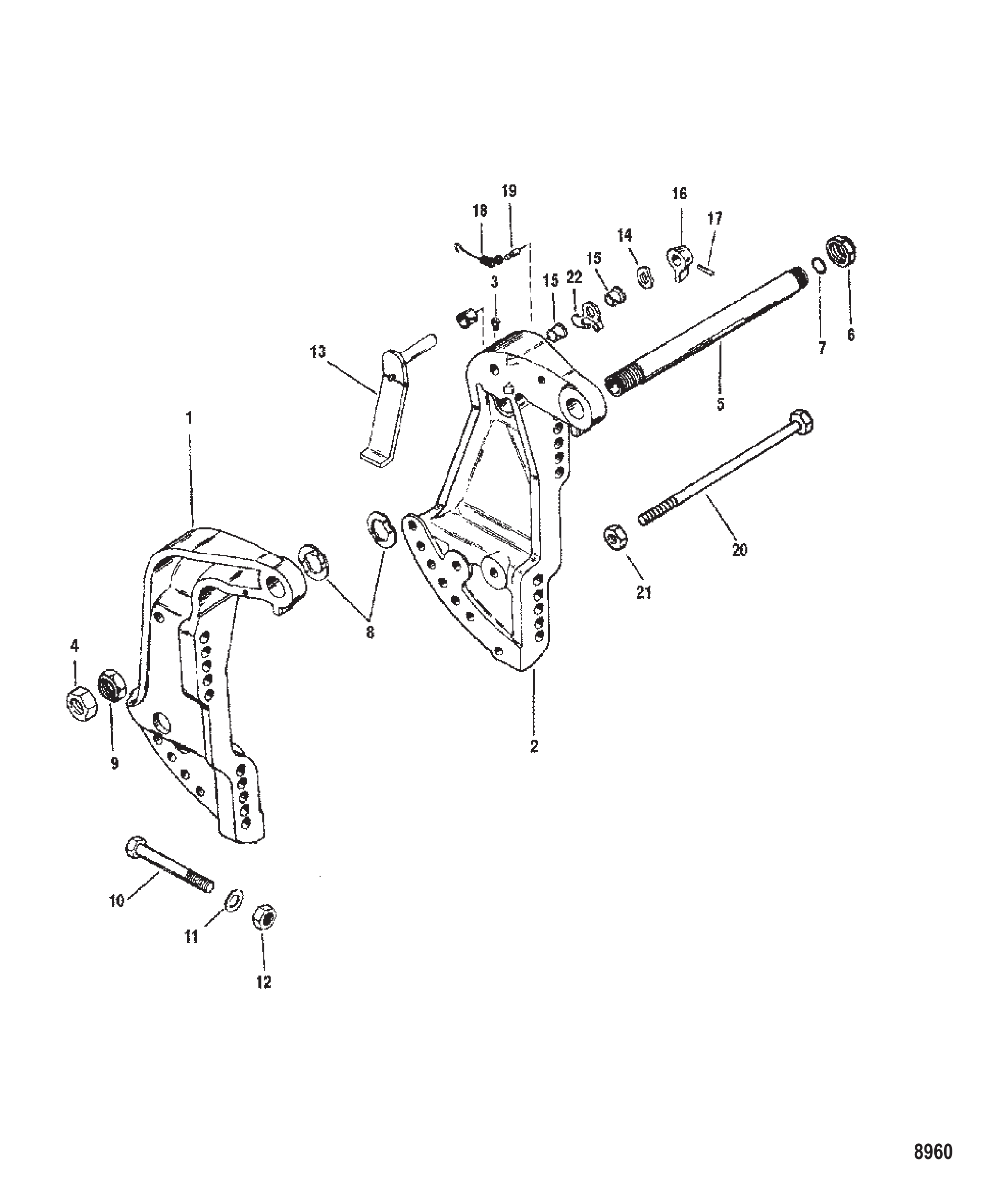

图 27艉板支架 TRANSOM BRACKETS

REF	零件编号	中文名称	英文名称	数量
1	8718A1	艉板支架总成(右舷)(黑色)	BRACKET ASSEMBLY Transom (STARBOARD) (BLACK)	1
1	8718F7	艉板支架	BRACKET Transom	1
1	8718A2	艉板支架总成(右舷)(灰色)	BRACKET ASSEMBLY Transom (STARBOARD) (GRAY)	1
1	8718F8	艉板支架	BRACKET Transom	1
2	8716A5	艉板支架总成(左舷)(黑色)	BRACKET ASSEMBLY Transom (PORT) (BLACK)	1
2	8716A8	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	8716A6	艉板支架总成(左舷)(灰色)	BRACKET ASSEMBLY Transom (PORT) (GRAY)	1
2	8716A9	艉板支架总成	BRACKET ASSEMBLY Transom	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	37984	螺母 (.875-14)	NUT (.875-14)	1
4	8M0041651	螺母 (.875-14)	NUT (.875-14)	1
5	99170A1	倾斜管	TILT TUBE	1
5	99170A2	倾斜管套件	TUBE KIT Tilt	1
6	90068T	倾斜管螺母（黑色）	NUT TILT TUBE (BLACK)	1
6	859133	螺母(1.00-14)	NUT (1.00-14)	1
6	90068T6	倾斜管螺母（灰色）	NUT TILT TUBE (GRAY)	1
6	859133	螺母(1.00-14)	NUT (1.00-14)	1
7	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
8	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
9	56041	螺母(.875-14)倾斜管	NUT (.875-14) TILT TUBE	1
9	858869	螺母 (.875-14)	NUT (.875-14)	1
10	677551	螺钉(.500-20 x 4.500)艉板支架至艉板	SCREW (.500-20 x 4.500) TRANSOM BRACKET TO TRANSOM	4
10	8M0149747	螺钉	SCREW	4
11	28421	垫圈(1.5 x 3.05 x 0.13)不锈钢艉板支架螺栓	WASHER (1.5 x 3.05 x 0.13) Stainless Steel TRANSOM BRACKET BOLT	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	8M0027784	艉板支架螺栓螺母	NUT TRANSOM BRACKET BOLT	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	99629A2	杠杆总成	LEVER ASSEMBLY	1
13	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	99611	波形垫圈	WAVE WASHER	1
15	65830	尼龙衬套	NYLINER	2
16	99633	旋钮(黑色)	KNOB (BLACK)	1
16	99633T6	旋钮(灰色)	KNOB (GRAY)	1
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99622	弹簧	SPRING	1
19	99604	槽销	PIN Groove	1
20	96930A1	倾斜锁螺栓总成	BOLT ASSEMBLY TILT LOCK	1
21	23161	螺栓螺母（3/8英寸-24牙）	NUT (.375-24) BOLT	1
22	814207	停机开关	STOP	1

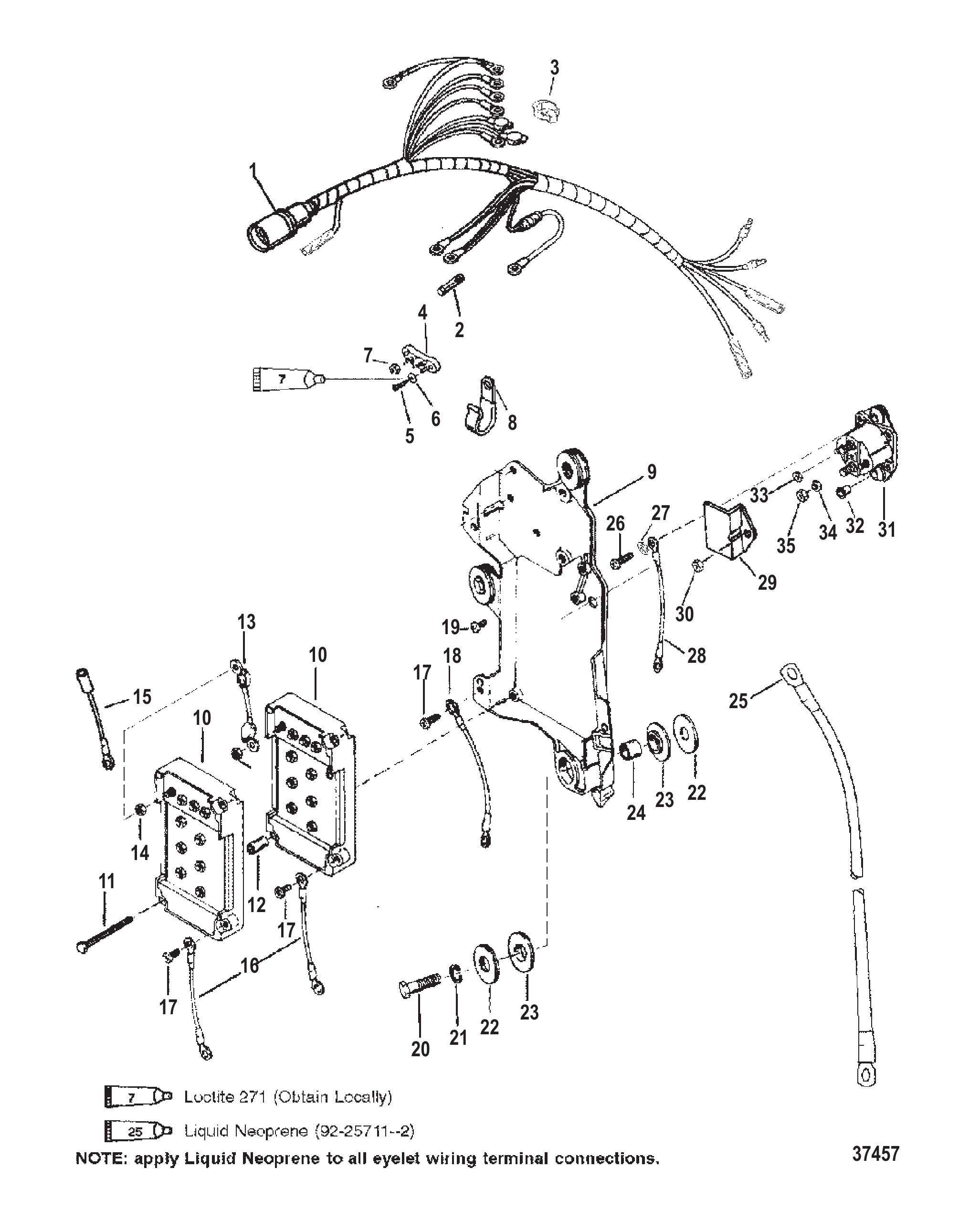

图 28线束/启动电磁阀 WIRING HARNESS/STARTER SOLENOID

REF	零件编号	中文名称	英文名称	数量
1	826730A4	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
2	79091	保险丝20安培	FUSE 20 Ampere	1
2	8M0207796	保险丝20安培	FUSE 20 AMP	1
3	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
3	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
4	194372	端子排	TERMINAL BLOCK	1
5	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
6	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
7	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
8	814634	卡箍	CLAMP	1
9	434292	点火板	IGNITION PLATE	1
10	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
11	13669	螺钉(#12-24x2.00)	SCREW (#12-24 x 2.00)	2
12	94453	衬套	BUSHING	2
13	62310A2	拉线总成	CABLE ASSEMBLY	1
14	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	20
15	91865A1	电缆总成(3英寸-白/黑)	CABLE ASSEMBLY (3 IN. - WHITE/BLACK)	1
15	88528A2	电缆总成(6英寸-红/白)	CABLE ASSEMBLY (6 IN. - RED/WHITE)	1
16	60871A10	线束总成	WIRE ASSEMBLY	2
17	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	2
17	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2
18	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
19	87926	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	1
20	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
21	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
21	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
22	36042	垫圈	WASHER	6
23	67264	垫圈(橡胶)	WASHER (Rubber)	6
24	67268	衬套	BUSHING	3
25	88439A23	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
25	88439A34	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
25	88439A24	蓄电池负极电缆总成	CABLE ASSEMBLY Negative - Battery	1
26	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	2
26	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
27	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
28	65999A2	线缆总成(黑色)	CABLE ASSEMBLY Black	1
29	78866	绝缘体	INSULATOR	1
30	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	4
31	817109A2	电磁阀总成(#10-32/.3125-18端子)	SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)	1
32	818968	衬套	BUSHING	2
32	8M0214955	衬套	BUSHING	2
33	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
34	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
35	68292	螺母(.312-18)	NUT (.312-18)	2
35	8M0204668	螺母(.312-18)	NUT (.312-18)	2
