水星 Mercury V-150 HP 0G303046 THRU 0G760299 - 爆炸图零件明细

两冲程 电喷 EFI · USA - Cat.# 90-81741896 · 共 42 个部位 · 1756 条零件

1附件2泄压系统3下机罩4曲轴、活塞及连杆5气缸体与端盖6爆震控制器/温度传感器7驱动轴壳体与排气管8双机延伸套件9电控单元总成10排气歧管与排气板11飞轮/启动马达12燃油管理系统（壳体）13燃油管理系统（蒸汽分离器）14燃油泵15齿轮箱图表（序列号0G437999及以下）16齿轮箱图表（序列号0G438000及以上）17齿轮箱（驱动）（逆时针旋转）（序列号0G437999及以下）18齿轮箱（驱动轴）（逆时针旋转）（序列号0G438000及以上）19齿轮箱（驱动轴）（标准旋转）（序列号0G437999及以下）20齿轮箱（驱动轴）（标准旋转）（序列号0G438000及以上）21齿轮箱（螺旋桨）（逆时针旋转）（序列号0G437999及以下）22齿轮箱（螺旋桨轴）（逆时针旋转）（序列号0G437999及以下）23齿轮箱（螺旋桨轴）（逆时针旋转）（序列号0G438000及以上）24齿轮箱（螺旋桨轴）（标准旋转）（序列号0G437999及以下）25齿轮箱（螺旋桨轴）（标准旋转）（序列号0G438000及以上）26点火线圈/电压调节器27仪表装置28喷油组件29动力升降组件 8M023119330动力升降组件（金属马达壳体）31动力升降组件（塑料马达壳体）32动力升降马达33簧片阀组与气缸盖34维修与支撑材料35启动马达36旋转支架与转向臂37油门杆与换挡轴38专用工具39顶罩40艉板支架（序列号0G589999及以下）41艉板支架（序列号0G590000及以上）42线束/启动电磁阀
图 1附件 ACCESSORIES
附件 ACCESSORIES
REF零件编号中文名称英文名称数量
-827927A8燃油管路总成（8英尺）LINE ASSEMBLY Fuel (8 Feet) (8 FT.)1
-877680Q8燃油软管总成(8英尺)HOSE ASSEMBLY Fuel (8 Feet)1
-827927A12燃油管路总成 (12英尺)LINE ASSEMBLY Fuel (12 Feet) (12 FT.)1
-877680Q12燃油软管总成(12英尺)HOSE ASSEMBLY Fuel (12 Feet)1
-17146A8燃油管路总成（8英尺）LINE ASSEMBLY Fuel (8 Feet) (8 FT.)1
-877681Q8燃油软管总成(8英尺)HOSE ASSEMBLY Fuel (8 Feet)1
-17146A12燃油管路总成 (12英尺)LINE ASSEMBLY Fuel (12 Feet) (12 FT.)1
-877681Q12燃油软管总成(12英尺)HOSE ASSEMBLY Fuel (12 Feet)1
-822379A12燃油管路总成(12英尺)LINE ASSEMBLY Fuel (12 Feet)1
-877683Q12燃油软管总成(12英尺)HOSE ASSEMBLY Fuel (12 Feet)1
-852400冲洗接头FLUSH COUPLING1
图 2泄压系统 BLEED SYSTEM
泄压系统 BLEED SYSTEM
REF零件编号中文名称英文名称数量
1827210A1泄放系统歧管总成MANIFOLD ASSEMBLY Bleed System1
2426231止回阀CHECK VALVE6
2426233止回阀CHECK VALVE6
315133接头FITTING1
492051螺钉(10-16×0.75)(10-16×3/4英寸)SCREW (10-16 x .75) (10-16 X 3/4 IN.)1
599130122管材(20英尺整卷)(9英寸)TUBING (20.00 Feet Bulk) (9 IN.)1
5892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
699130122管材(20.00英尺散装)(5-1/4英寸)TUBING (20.00 Feet Bulk) (5-1/4 IN.)2
6892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)2
776843接头FITTING3
7768431接头FITTING3
818206滤清器FILTER1
88M0207786滤清器FILTER1
99912688管材(36.00英寸散装)(2-3/4英寸)TUBING (36.00 Inches Bulk) (2-3/4 IN.)1
10827200三通接头FITTING Tee1
1199130122管材(20英尺散装)(9-1/2英寸)TUBING (20.00 Feet Bulk) (9-1/2 IN.)1
11892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
1215026盖帽CAP3
13827210A1泄放系统歧管总成MANIFOLD ASSEMBLY Bleed System1
14426231止回阀CHECK VALVE6
14426233止回阀CHECK VALVE6
1515133接头FITTING1
1692051螺钉(10-16×0.75)(10-16×3/4英寸)SCREW (10-16 x .75) (10-16 X 3/4 IN.)1
1799130122管材(20.00英尺散装)(5-1/4英寸)TUBING (20.00 Feet Bulk) (5-1/4 IN.)1
17892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
1899130122管材(20.00英尺散装)(20-1/2英寸)TUBING (20.00 Feet Bulk) (20-1/2 IN.)1
18892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
1999130122管材(20.00英尺散装)(7英寸)TUBING (20.00 Feet Bulk) (7 IN.)1
19892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
2099130122管材(20英尺散装)(8-1/2英寸)TUBING (20.00 Feet Bulk) (8-1/2 IN.)1
20892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
2176843接头FITTING3
21768431接头FITTING3
2215026盖帽CAP3
图 3下机罩 BOTTOM COWL
下机罩 BOTTOM COWL
REF零件编号中文名称英文名称数量
1818448A1下机罩BOTTOM COWL1
1818448A2下机罩BOTTOM COWL1
1818448A4下机罩BOTTOM COWL1
2818447A1下机罩BOTTOM COWL1
2818447A2下机罩BOTTOM COWL1
2818447A4下机罩BOTTOM COWL1
38253181罩盖密封条(41英寸)SEAL Cowl (41.00 Inches)2
38M0109217罩盖密封条SEAL-COWL2
482130040螺钉 (M6 x 40)SCREW (M6 x 40) (M6 X 1.0)4
5824868螺钉 (M6 x 75)SCREW (M6 x 75) (M6 X 1 X 75)1
6821253F1前手柄黑色FRONT HANDLE Black1
6889740A02手柄套件HANDLE KIT1
6821253F2前手柄FRONT HANDLE1
6889740A02手柄套件HANDLE KIT1
6821253F4前手柄FRONT HANDLE1
6889740A02手柄套件HANDLE KIT1
7335891衬套BUSHING2
848462O型圈 (.614 x .070)O-RING (.614 x .070)1
98219423棘爪PAWL1
1069057垫片(.281 x .734 x .063)WASHER (.281 x .734 x .063)1
11401196螺母 (M6)NUT (M6)1
128214281螺钉 (#10-16 x 0.625)SCREW (#10-16 x .625) (10-16 X .625)1
13822873卡扣CLIP1
1418286A40开关总成SWITCH ASSEMBLY1
148M0235192微调开关SWITCH TRIM1
158124431固定座RETAINER1
158M0032848开关固定座RETAINER Switch1
16822024卡箍(下部)CLAMP (LOWER)1
17822023卡箍 (上)CLAMP (UPPER)1
1892799螺钉 (#10-16 x 1.12)SCREW (#10-16 x 1.12) (10-16 X 1.12)2
图 4曲轴、活塞及连杆 CRANKSHAFT PISTONS AND CONNECTING RODS
曲轴、活塞及连杆 CRANKSHAFT PISTONS AND CONNECTING RODS
REF零件编号中文名称英文名称数量
19536A4曲轴总成CRANKSHAFT ASSEMBLY1
19536T4曲轴总成CRANKSHAFT ASSEMBLY1
267923球轴承(下部)BEARING Ball (LOWER)1
267923T滚珠轴承BEARING Ball1
367446环RING1
414513A3驱动齿轮段套件GEAR SEGMENT KIT Drive1
414513A09驱动齿轮段套件GEAR SEGMENT KIT Drive1
5854812螺钉(#6-32 x .630)内六角圆头SCREW (#6-32 x .630) Socket Button Head2
6854811特殊螺母(#6-32)NUT Special (#6-32)2
414513A2驱动齿轮段套件GEAR SEGMENT KIT Drive1
414513A09驱动齿轮段套件GEAR SEGMENT KIT Drive1
5813073螺钉(#6-32 x .620)内六角头SCREW (#6-32 x .620) Socket Head2
6813134螺母(#6-32)专用NUT (#6-32) Special2
754196A6托架总成CARRIER ASSEMBLY1
865800填料PACKING1
967377密封环RING Sealing7
967377T密封环RING Sealing7
1016756A6轴承套件BEARING KIT2
119738A9活塞总成标准型PISTON ASSEMBLY Standard3
119738T9活塞总成标准型PISTON ASSEMBLY Standard3
119738A10活塞总成0.015加大PISTON ASSEMBLY .015 OversizeAR
119738T10活塞总成0.015加大PISTON ASSEMBLY .015 OversizeAR
119737A9活塞总成标准型PISTON ASSEMBLY Standard3
119737T9活塞总成标准型PISTON ASSEMBLY Standard3
119737A10活塞总成0.015加大PISTON ASSEMBLY .015 OversizeAR
12822321A12活塞环套件-标准RING KIT Piston - Standard1
12822321A1活塞环套件-加大0.015RING KIT Piston - .015 Oversize2
1352035锁环RING Lock12
13857196锁紧环LOCK RING12
14818141A2连杆套件CONNECTING ROD KIT6
14818141A13连杆总成CONNECTING ROD ASSEMBLY6
15763491螺钉(.312-24 x .875)SCREW (.312-24 x .875)12
16812876垫圈WASHER12
168M0012298止推垫片THRUST WASHER12
1717514A2轴承套件BEARING KIT6
178M0234886轴承保持架CAGE BEARING6
18822553滚针轴承BEARING Needle174
188M0204691滚针轴承@200BRG-NEEDLE @200174
-815791A92发动机垫片组GASKET SET Engine1
-823434A97动力头总成POWERHEAD ASSEMBLY1
-823434T97动力头总成POWERHEAD ASSEMBLY1
-812817A97动力头总成POWERHEAD ASSEMBLY1
-812817T97动力头总成POWERHEAD ASSEMBLY1
-813043A97动力头总成POWERHEAD ASSEMBLY1
-813043T97动力头总成POWERHEAD ASSEMBLY1
图 5气缸体与端盖 CYLINDER BLOCK AND END CAPS
气缸体与端盖 CYLINDER BLOCK AND END CAPS
REF零件编号中文名称英文名称数量
19763A23气缸体CYLINDER BLOCK1
19763T23气缸体CYLINDER BLOCK1
19763A17气缸体CYLINDER BLOCK1
19763T17气缸体CYLINDER BLOCK1
19763A61气缸体CYLINDER BLOCK1
19763T61气缸体CYLINDER BLOCK1
28181383动力头螺柱（1-3/4英寸）STUD Powerhead (1-3/4 IN.)6
28M0034455螺柱1.750STUD 1.7506
3670653螺柱（.375 x 5.620）STUD (.375 x 5.620)2
3670654螺柱(.375-16/.375-24 x 5.620)STUD (.375-16/.375-24 x 5.620)2
3784384螺柱（.375 x 6.870）STUD (.375 x 6.870)2
38M0034454螺柱(.375-16/.375-24 x 6.87)STUD (.375-16/.375-24 x 6.87)2
443044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
567296销(轴承座圈)PIN (BEARING RACE)2
58M0036405销PIN2
611338衬垫GASKET2
742249上盖COVER (UPPER)1
78M0088723启动器支架BRACKET-STARTER1
8828213螺钉(.312-18 x 1.500)六角法兰SCREW (.312-18 x 1.500) Hex Flange2
976867下盖COVER (LOWER)1
10828214螺钉(.312-18 x 2.00)六角法兰SCREW (.312-18 x 2.00) Hex Flange2
1199448衬套BUSHING1
1266717螺钉(.375-16 x 3.250)SCREW (.375-16 x 3.250)8
1274824螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)6
139642A1上端盖总成END CAP ASSEMBLY Upper1
13858521T1端盖总成END CAP ASSEMBLY1
1454029O型圈(2.800 x .103)O-RING (2.800 x .103)1
1516756A4轴承套件BEARING KIT1
1641953密封件SEAL1
17822715弯头接头FITTING Elbow6
1815026盖帽CAP6
1969034螺钉带锁紧垫圈(.312-18 x 1.00)SCREW AND LOCKWASHER (.312-18 x 1.00)4
1930225螺钉带锁紧垫圈(.312-18 x 1.00)SCREW WITH LOCKWASHER (.312-18 x 1.00)4
2015094双头螺柱(.190-32 x 1.870)STUD (.190-32 x 1.870)1
2163153J型卡扣J CLIP1
2267269隔套SPACER1
2349221垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)WASHER (.187 x .500 x .062) Neoprene3
238M0204663垫片@5WASHER @53
24816874蝶形螺母 (#10-32)WING NUT (#10-32)3
2587076A10怠速控制器IDLE SPEED CONTROL1
2669020螺钉(#10-32 x .875)SCREW (#10-32 x .875)3
26690201螺钉(#10-32 x .875)SCREW (#10-32 x .875)3
2730164垫圈(0.192x0.375x0.0312)不锈钢WASHER (.192 x .375 x .0312) Stainless Steel3
2842248支架BRACKET1
28422482支架BRACKET1
2949668螺钉(.250-20 x .750)SCREW (.250-20 x .750)2
3015093双头螺柱(#10-32 x 1.00)STUD (#10-32 x 1.00)2
308M0034435螺柱STUD2
3126852尼龙帽CAP Nylon1
3264022螺钉(.250-20 x 2.125)SCREW (.250-20 x 2.125)1
3364015螺母 (.250-20)NUT (.250-20)1
347809A1端盖总成END CAP ASSEMBLY1
347809T1端盖总成END CAP ASSEMBLY1
3562700O型圈(3.237 x .103)O-RING (3.237 x .103)1
3641953密封件SEAL2
3728636螺钉(.250-20 x .750)SCREW (.250-20 x .750)4
3826992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel4
3988807A20拉线总成CABLE ASSEMBLY1
-815791A92发动机垫片组GASKET SET Engine1
-823434A97动力头总成POWERHEAD ASSEMBLY1
-823434T97动力头总成POWERHEAD ASSEMBLY1
-812817A97动力头总成POWERHEAD ASSEMBLY1
-812817T97动力头总成POWERHEAD ASSEMBLY1
-813043A97动力头总成POWERHEAD ASSEMBLY1
-813043T97动力头总成POWERHEAD ASSEMBLY1
图 6爆震控制器/温度传感器 DETONATION CONTROLLER/TEMPERATURE SENSOR
爆震控制器/温度传感器 DETONATION CONTROLLER/TEMPERATURE SENSOR
REF零件编号中文名称英文名称数量
1826800A8爆震控制器总成CONTROLLER ASSEMBLY Detonation1
288447螺钉 (.190-32 x 1.62)SCREW (.190-32 x 1.62)3
338833垫圈WASHER3
413381安装板PLATE1
588807A10拉线总成CABLE ASSEMBLY1
662568螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)1
794304隔套SPACER3
841470A25喷油警告模块总成MODULE ASSEMBLY Oil Injection Warning1
914851油门位置指示器INDICATOR Throttle Position1
914851T03指示器INDICATOR1
1015150螺钉(#8-32 x 0.625英寸)SCREW (#8-32 x .625)2
1126995防松垫圈(#8不锈钢)LOCKWASHER (#8) Stainless Steel2
1230164垫圈(0.192x0.375x0.0312)不锈钢WASHER (.192 x .375 x .0312) Stainless Steel2
1315885套筒SLEEVE1
14813501安装板PLATE2
1513221A1温度传感器总成SENSOR ASSEMBLY Temperature1
1513221T01温度传感器SENSOR TEMP1
1645711O型圈 (.612 x .103)O-RING (.612 x .103)1
1757583螺丝（#8-32×0.375）SCREW (#8-32 x .375)3
1757583T螺丝#8-32×3/8SCREW #8-32x3/83
1826995防松垫圈(#8不锈钢)LOCKWASHER (#8) Stainless Steel3
-815791A92发动机垫片组GASKET SET Engine1
图 7驱动轴壳体与排气管 DRIVESHAFT HOUSING AND EXHAUST TUBE
驱动轴壳体与排气管 DRIVESHAFT HOUSING AND EXHAUST TUBE
REF零件编号中文名称英文名称数量
18343A10驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
18343T10驱动轴壳体总成-黑色-长型HOUSING ASSEMBLY Driveshaft - Black - Long1
18343A11驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
18343T11ORD 1590-8343T10ORD 1590-8343T101
1813563A1驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
1813563T1传动轴壳体-黑色-加长型HOUSING Driveshaft - Black - X-Long1
1813563A2驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
1813563T2ORD 3503-813563T1ORD 3503-813563T11
256295双头螺柱(.437 x 2.69)STUD (.437 x 2.69)2
363474螺钉(.500-20 x 6.00)SCREW (.500-20 x 6.00)2
3898831螺钉(.500-20 x 6.220)SCREW (.500-20 x 6.220)2
488238A10接地线总成CABLE ASSEMBLY Ground1
577327支架MOUNT2
649339垫圈(.8125)WASHER (.8125)2
788238A10接地线总成CABLE ASSEMBLY Ground1
828040螺母(.500-20)NUT (.500-20)2
8898832螺母(.500-20)NUT (.500-20)2
941508螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel1
1045176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel2
1134933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
118M0204653螺母NUT2
1267076卡箍CLAMP2
128M0036782卡箍CLAMP2
1366727螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)4
1467077T黑色盖COVER Black2
148M4500752盖板COVER2
1467077F1灰色盖板COVER Gray2
1467077T黑色盖COVER Black2
1588417螺钉(#12-24×0.620)SCREW (#12-24 x .620)4
1635521螺母NUT4
1748926垫圈WASHER1
1834933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel1
188M0204653螺母NUT1
1920553垫圈(.406 x .734 x .063)WASHER (.406 x .734 x .063)4
2069254螺母NUT4
21828212怠速排气套BOOT Idle Exhaust1
218M0039081护套BOOT1
2264649堵头PLUG1
23991732衬垫GASKET1
23991734衬垫GASKET1
2466350下密封件SEAL (LOWER)1
2466350001密封件SEAL1
2518276排气管TUBE Exhaust1
2518276T排气管EXHAUST TUBE1
26177261上密封件SEAL (UPPER)1
268M0039076密封件SEAL1
27812834排气管延长段EXTENSION Exhaust1
27812834A2排气延长总成EXTENSION ASSEMBLY Exhaust1
2741942F3排气管延长段EXTENSION Exhaust1
27879288T71排气管延长段EXTENSION Exhaust1
2867295水管TUBE Water1
288M0042788长型水管TUBE-WATER-LONG1
2874729管TUBE1
288M0042790水管TUBE-WATER1
2978246衬垫GASKET1
29782461衬垫GASKET1
3018233A3隔板总成PLATE ASSEMBLY1
3018233A20传动轴壳体板总成PLATE ASSEMBLY Driveshaft Housing1
318147012密封件SEAL1
318M0043165密封件-27.00英寸SEAL-27.00 INCH1
3268011支架BRACKET1
33812832螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)12
33878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)12
3443044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
3538970密封件SEAL1
3690192螺钉(.250-20 x .750)不锈钢SCREW (.250-20 x .750) Stainless Steel6
37183071衬垫GASKET1
37183076衬垫GASKET1
-815791A92发动机垫片组GASKET SET Engine1
图 8双机延伸套件 DUAL ENGINE EXTENSION KIT
双机延伸套件 DUAL ENGINE EXTENSION KIT
REF零件编号中文名称英文名称数量
-92876A9双机延长套件EXTENSION KIT Dual Engine1
148462O型圈 (.614 x .070)O-RING (.614 x .070)1
2715651转向拉索套管TUBE Steering Cable1
341055支架MOUNT1
442100锁紧垫圈TAB WASHER2
537984螺母 (.875-14)NUT (.875-14)2
58M0041651螺母 (.875-14)NUT (.875-14)2
688404锁紧垫圈TAB WASHER2
738601螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250)4
817729A1支架BRACKET2
962055螺钉(.312-24 x 1.250)SCREW (.312-24 x 1.250)4
1017728锁紧垫圈TAB WASHER4
1114000螺钉(.375-24x1.25)SCREW (.375-24 x 1.25)4
11849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)4
1234863螺母 (.375-24)NUT (.375-24)6
128M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass6
13979331转向眼环STEERING EYE2
138M0026167转向眼环STEERING EYE2
1423651衬套(1.625)SLEEVE (1.625)2
1597931管材(4.00英寸)TUBING (4.00 Inches)2
168149513联轴器(15.00英寸)COUPLER (15.00 Inches)1
168M0026098联轴器15英寸COUPLER 15 In.1
1742099螺母(.562-18)NUT (.562-18)1
18821169联轴器COUPLING1
1934931不锈钢垫圈(.406x.734x.063)WASHER (.406 x .734 x .063) Stainless Steel2
2094319螺钉(.375-24 x 1.5)SCREW (.375-24 x 1.5)1
图 9电控单元总成 E.C.U. ASSEMBLY
电控单元总成 E.C.U. ASSEMBLY
REF零件编号中文名称英文名称数量
1824003A10发动机控制单元ECUECU Engine Control Unit1
1824003A9发动机控制单元ECUECU Engine Control Unit1
1824003T25电控单元ECU1
1824003A8发动机控制单元ECUECU Engine Control Unit1
1824003T26电控单元ECU1
234948隔套SPACER2
3146951卡扣CLIP1
490435支架MOUNT2
521249垫圈WASHER4
620361螺母(.250-28)NUT (.250-28)4
68267089螺母(.250-28)NUT (.250-28)4
788807A19拉线总成CABLE ASSEMBLY1
814637护孔环GROMMET1
914636衬套BUSHING1
1028667螺钉 (0.250-20 x 1.00) 不锈钢SCREW (.250-20 x 1.00) Stainless Steel1
1126992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel1
1265567不锈钢垫圈(0.265x0.750x0.048)WASHER (.265 x .750 x .048) Stainless Steel1
1313202A4水位传感器模块总成MODULE ASSEMBLY Water Sensor1
1488807A18线缆总成(黑色)CABLE ASSEMBLY (BLACK)1
1537571螺钉(.190-32 x 0.500)SCREW (.190-32 x .500)2
1689302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)2
1798866A25线束总成 ECU与喷油器HARNESS ASSEMBLY ECU And Injectors1
1887895A4线缆总成(150/175)CABLE ASSEMBLY (150/175)1
19832948A12针公头连接器总成CONNECTOR ASSEMBLY 2 POS Male1
20816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
20816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
图 10排气歧管与排气板 EXHAUST MANIFOLD AND EXHAUST PLATE
排气歧管与排气板 EXHAUST MANIFOLD AND EXHAUST PLATE
REF零件编号中文名称英文名称数量
1190503衬垫GASKET1
2827323A2分隔板DIVIDER PLATE1
3814754密封件(12.50英寸)SEAL (12.50 Inches)1
4814634卡箍CLAMP4
5826356螺钉带垫圈(.312-18 x 1.500)SCREW AND WASHER (.312-18 x 1.500)20
58263561螺钉带垫圈(.312-18 x 1.500)SCREW AND WASHER (.312-18 x 1.500)20
6814430管接头(.500-14)FITTING (.500-14)1
68144301接头FITTING1
792007管接头(.250-18)(90度)FITTING (.250-18) (90 DEGREES)1
792007190度弯头FITTING (90 Degree)1
8830756109软管（57.00英寸整卷）（裁切至23-1/2英寸）HOSE (57.00 Inches Bulk) (Cut to 23-1/2 IN.)1
88M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
9816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)2
9816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)2
1068729盖板COVER1
108M0039767盖板COVER1
1174824螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)4
1278690衬垫GASKET2
1278690002衬垫GASKET2
1369570螺钉(#10-16 x .750)SCREW (#10-16 x .750)1
1476451垫圈WASHER1
1514479隔膜DIAPHRAGM1
15144791隔膜DIAPHRAGM1
1616496导水板DEFLECTOR Water1
1716497A1安装板PLATE1
1864878弹簧(黑色)SPRING (Black)1
1985303垫圈WASHER1
2014480提动阀POPPET1
2164872护孔环GROMMET1
2265848托架CARRIER1
23991763衬垫GASKET1
23991764衬垫GASKET1
2418260A2排气板总成PLATE ASSEMBLY Exhaust1
2418260T2排气板总成PLATE ASSEMBLY Exhaust1
25897721连接器(.125-27)(直型)CONNECTOR (.125-27) (STRAIGHT)1
2589772Q1连接器(.125-27)CONNECTOR (.125-27)1
2643044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
278147011密封件SEAL1
278M0043164密封件SEAL1
28680101支架BRACKET1
29812832螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)8
29878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)8
3020553垫圈(.406 x .734 x .063)WASHER (.406 x .734 x .063)6
3169254螺母NUT6
3227132衬套BUSHING1
3319564护孔环GROMMET1
338M0179867护孔环GROMMET1
3419565护孔环GROMMET1
3419565002护孔环GROMMET1
3566727螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)1
3668783螺钉(.312-18×2.50)SCREW (.312-18 x 2.50)1
3766725螺钉(.375-16×3.50)SCREW (.375-16 x 3.50)3
37898833螺钉(.375-16 x 3.500)SCREW (.375-16 x 3.500)3
38812905A5前支架总成BRACKET ASSEMBLY Front1
38812905T前支架BRACKET Front1
398055571螺钉(0.3125-18×0.50)SCREW (.3125-18 x .50)4
3990285螺钉 (.312-18 x .625)SCREW (.312-18 x .625)4
4056720垫圈(0.330 x 0.750 x 0.060)不锈钢(与5/8英寸参考#39配合使用)WASHER (.330 x .750 x .060) Stainless Steel (USE WITH 5/8 IN. REF. #39)4
41187031垫圈WASHER4
4218778护孔环GROMMET4
4218778001护孔环GROMMET4
4318578A8支架总成(后部)BRACKET ASSEMBLY Rear1
4318578T09支架总成(后部)BRACKET ASSEMBLY Rear1
-815791A92发动机垫片组GASKET SET Engine1
-823434A97动力头总成POWERHEAD ASSEMBLY1
-823434T97动力头总成POWERHEAD ASSEMBLY1
-812817A97动力头总成POWERHEAD ASSEMBLY1
-812817T97动力头总成POWERHEAD ASSEMBLY1
-813043A97动力头总成POWERHEAD ASSEMBLY1
-813043T97动力头总成POWERHEAD ASSEMBLY1
图 11飞轮/启动马达 FLYWHEEL/STARTER MOTOR
飞轮/启动马达 FLYWHEEL/STARTER MOTOR
REF零件编号中文名称英文名称数量
118896A1盖板套件COVER KIT1
279022标记MARKER1
337572螺钉 (.190-32 x .380)SCREW (.190-32 x .380)2
472761不锈钢垫圈(.203 x .562 x .060)WASHER (.203 x .562 x .060) Stainless Steel2
589219塞（适用时使用）PLUG (USE WHERE APPLICABLE)1
589219001堵头PLUG1
645907黄色塞PLUG Yellow1
752901螺母(0.625-18)NUT (.625-18)1
868229垫圈(.641 x 1.250 x .190)WASHER (.641 x 1.250 x .190)1
833001垫圈WASHER1
9817632A12飞轮FLYWHEEL1
9859238T16飞轮总成FLYWHEEL ASY1
109610A19定子STATOR1
1190045螺钉(#10-32×1.375)SCREW (#10-32 x 1.375)4
1226996锁紧垫圈(#10)(不锈钢)LOCKWASHER (#10) Stainless Steel4
1396455A9触发板总成PLATE ASSEMBLY Trigger1
1479472启动电机总成STARTER MOTOR ASSEMBLY1
14893893启动马达STARTER MOTOR1
1556703轴环COLLAR2
158M0034918轴环COLLAR2
1668042橡胶止挡STOP Rubber2
168M0043376停机开关STOP2
1769035螺丝与锁紧垫圈(.250-20 x .625)不锈钢SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel1
1893388A1电缆总成(6.00英寸)黑色CABLE ASSEMBLY (6.00 Inches) Black1
1993388A7线缆总成(黑色)CABLE ASSEMBLY (BLACK)1
1993388A14线缆总成(黄/黑)CABLE ASSEMBLY Yellow/Black1
2026992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel1
2120890螺母 (.250-20)NUT (.250-20)1
图 12燃油管理系统（壳体） FUEL MANAGEMENT SYSTEM (HOUSING)
燃油管理系统（壳体） FUEL MANAGEMENT SYSTEM (HOUSING)
REF零件编号中文名称英文名称数量
-14817A23燃油管理系统总成MANAGEMENT ASSEMBLY Fuel1
18276922盖板COVER1
215443线束套件HARNESS KIT1
318792密封件SEAL1
415029O型圈及密封套件O-RING AND SEAL KIT1
58276992燃油导轨FUEL RAIL1
5827699T2燃油导轨FUEL RAIL1
618715燃油喷油器INJECTOR Fuel6
618715T喷油器总成INJECTOR ASSEMBLY6
717422滤清器FILTER1
8827696固定套件RETAINER KIT1
98276933节气门体THROTTLE BODY1
108090572接头套件JOINT KIT1
118276891连杆套件LINK KIT1
12827697连杆杠杆套件LEVER KIT Link1
13827698螺钉套件SCREW KIT1
148276981螺钉套件SCREW KIT1
158090851弯头套件ELBOW KIT1
16814233A1施拉德阀套件SCHRADER VALVE KIT1
16814233A02阀套件VALVE KIT1
178142332FMA接头套件FMA JOINT KIT1
188276942软管套件HOSE KIT1
18827694A01软管套件-燃油HOSE KIT-FUEL1
1967748滚轮ROLLER1
2090088螺钉(.250-20x4)SCREW (.250-20 x 4)12
20845674螺钉(.250-20x4.00)SCREW (.250-20 x 4.00)12
2129245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel12
218M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel12
图 13燃油管理系统（蒸汽分离器） FUEL MANAGEMENT SYSTEM (VAPOR SEPARATOR)
燃油管理系统（蒸汽分离器） FUEL MANAGEMENT SYSTEM (VAPOR SEPARATOR)
REF零件编号中文名称英文名称数量
-14817A23燃油管理系统总成MANAGEMENT ASSEMBLY Fuel1
18140111阀体套件BODY KIT1
2809086O型圈O-RING1
3809092A1安装螺钉套件SCREW KIT Mounting1
4809078轴环COLLAR1
5809079护孔环GROMMET3
588033护孔环GROMMET3
68090622垫圈WASHER3
78090621垫圈WASHER3
8809080锁紧垫圈LOCKWASHER3
8400256锁紧垫圈 (M6)LOCKWASHER (M6)3
98090611螺钉SCREW3
10809091螺钉套件SCREW KIT1
11424811阀门VALVE1
1215445浮子套件FLOAT KIT1
1315446浮子阀套件VALVE KIT Float1
148140762螺钉套件SCREW KIT1
158140102盖板套件COVER KIT1
168090851弯头套件ELBOW KIT1
17809087安装套件ATTACHING KIT1
188140122燃油压力调节器套件REGULATOR KIT Fuel Pressure1
19814233A1施拉德阀套件SCHRADER VALVE KIT1
19814233A02阀套件VALVE KIT1
208276943管件套件TUBING KIT1
21809089燃油泵接头套件FITTING KIT Fuel Pump1
2215029O型圈及密封套件O-RING AND SEAL KIT1
238090881燃油泵套件PUMP KIT Fuel1
23809088T1燃油泵套件PUMP KIT Fuel1
248085041滤清器套件-燃油STRAINER KIT Fuel1
24808504T1滤网套件STRAINER KIT1
258090901连接套件CONNECTION KIT1
268237515螺母(M4)NUT (M4)1
2726995防松垫圈(#8不锈钢)LOCKWASHER (#8) Stainless Steel2
28400211不锈钢螺母(M5)NUT (M5) Stainless Steel1
2985557713EPA标签信息贴花DECAL EPA Label Information1
29855577A13REF SOB 09-18REF SOB 09-181
图 14燃油泵 FUEL PUMP
燃油泵 FUEL PUMP
REF零件编号中文名称英文名称数量
114360A43燃油泵总成PUMP ASSEMBLY Fuel1
114360A78燃油泵套件PUMP KIT Fuel1
242990A10膜片组件DIAPHAGM KIT1
2857005A1膜片组件DIAPHRAGM KIT1
3NSSNOT SOLD SEPARATE CHECK VALVE2
4NSSNOT SOLD SEPARATE CHECK VALVE2
5NSSNOT SOLD SEPARATE RETAINER2
6NSSNOT SOLD SEPARATE GASKET1
7NSSNOT SOLD SEPARATE CAP1
8NSSNOT SOLD SEPARATE SPRING1
9NSSNOT SOLD SEPARATE DIAPHRAGM2
10NSSNOT SOLD SEPARATE GASKET1
11NSSNOT SOLD SEPARATE SPRING1
12NSSNOT SOLD SEPARATE CAP1
13987691衬垫GASKET1
138M0204705衬垫@2GASKET @21
14144303底座BASE1
15987752安装板PLATE1
166291090度弯头(0.125-27)ELBOW (.125-27) (90 DEGREES)1
1662910190度弯头接头(0.125-27)FITTING Elbow - 90 Degree (.125-27)1
1782130050螺钉 (M6 x 50)SCREW (M6 x 50) (M6 X 1)2
1882104540螺钉 (M5 x 40)SCREW (M5 x 40) (M5 X 0.8 X 40)2
19816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
19816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
2083075780管材(28.00英寸散装)(17英寸)TUBING (28.00 Inches Bulk) (17 IN.)3
208M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)3
21822769连接器CONNECTOR1
2213607接头 (随零件#25提供)FITTING (INCLUDED WITH REF. #25)1
22136071弯头ELBOW1
2318458A4滤清器套件FILTER KIT1
2318458Q4燃油水分离滤清器FILTER Fuel-Water Separating1
24828586探头PROBE1
248M0204710探头PROBE1
2513170A3底座BASE1
2682130030螺钉 (M6 x 30)SCREW (M6 x 30) (M6 X 30)2
2789771直型连接器(.250-18)CONNECTOR (.250-18) (STRAIGHT)1
2789771Q2连接器(.250-18)CONNECTOR (.250-18)1
-814195A97衬垫套件GASKET SET1
-809973A97动力头总成POWERHEAD ASSEMBLY1
图 15齿轮箱图表（序列号0G437999及以下） GEAR HOUSING CHART (S/N-0G437999 & BELOW)
齿轮箱图表（序列号0G437999及以下） GEAR HOUSING CHART (S/N-0G437999 & BELOW)
REF零件编号中文名称英文名称数量
-822442A51齿轮箱总成(黑色)GEAR HOUSING ASSEMBLY (BLACK)1
-822442T77REF OB PB 99-02REF OB PB 99-021
-822442A52齿轮箱总成(灰色)GEAR HOUSING ASSEMBLY (GRAY)1
-822442T78REF OB PB 99-02REF OB PB 99-021
-822442A53齿轮箱总成(黑色)GEAR HOUSING ASSEMBLY (BLACK)1
-857113T2齿轮箱GEAR HOUSING1
-822442A54齿轮箱总成(灰色)GEAR HOUSING ASSEMBLY (GRAY)1
-822442T82灰色齿轮箱CXLGEAR HSG GRAY CXL1
-827754A1传动轴延长套件EXTENSION KIT Driveshaft1
-827755A1传动轴延长套件EXTENSION KIT Driveshaft1
-826353A1传动轴延长套件EXTENSION KIT Driveshaft1
图 16齿轮箱图表（序列号0G438000及以上） GEAR HSG. CHART (S/N-0G438000 & UP)
齿轮箱图表（序列号0G438000及以上） GEAR HSG. CHART (S/N-0G438000 & UP)
REF零件编号中文名称英文名称数量
-9148A84齿轮箱总成GEAR HOUSING ASSEMBLY1
-9148T84齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A85齿轮箱总成GEAR HOUSING ASSEMBLY1
-9148T85齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A90齿轮箱总成GEAR HOUSING ASSEMBLY1
-9148T84齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A91齿轮箱总成GEAR HOUSING ASSEMBLY1
-9148T91ORD 1647-9148T85ORD 1647-9148T851
-9148A86齿轮箱总成GEAR HOUSING ASSEMBLY1
-9148T86齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A92齿轮箱总成GEAR HOUSING ASSEMBLY1
-9148T92ORD 1647-9148T86ORD 1647-9148T861
图 17齿轮箱（驱动）（逆时针旋转）（序列号0G437999及以下） GEAR HSG (DRIVE)(CNTR ROTATION) (S/N-0G437999, BELOW)
齿轮箱（驱动）（逆时针旋转）（序列号0G437999及以下） GEAR HSG (DRIVE)(CNTR ROTATION) (S/N-0G437999, BELOW)
REF零件编号中文名称英文名称数量
19148A47齿轮箱总成GEAR HOUSING ASSEMBLY1
19148A48齿轮箱总成GEAR HOUSING ASSEMBLY1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
285822A10连接器总成CONNECTOR ASSEMBLY1
3NSSNOT SOLD SEPARATE TUBING1
4NSSNOT SOLD SEPARATE CONNECTOR1
543044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
6189783螺柱(0.438×3.82英寸)STUD (.438 x 3.82 Inches)1
68M0034464螺柱STUD1
7579203双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
78M0133358双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
856297双头螺栓(.312×3.38)STUD (.312 x 3.38)1
88M0034463螺柱(.312-24 x 3.38)STUD (.312-24 x 3.38)1
930667双头螺栓(.250-20/.250-28×3.125)STUD (.250-20/.250-28 x 3.125)2
9306671螺柱STUD2
1067891填充块FILLER BLOCK1
108M0039169填充块FILLER BLOCK1
1142647A1滚柱轴承总成BEARING ASSEMBLY Roller1
12826134阳极块ANODE2
12826134Q阳极块ANODE2
134000333螺钉(M6 x 40)SCREW (M6 x 40)1
148268336螺母 (M6)NUT (M6)1
14401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
15NSSNOT SOLD SEPARATE PINION GEAR (PART OF 43-18475A1)1
1692721垫圈(.965×0.630)WASHER (.965 x .630)1
1735921螺母(0.625-18)NUT (.625-18)1
1842637A1垫片组SHIM SETAR
188M0063267垫片组SHIM SETAR
1967892A1磁吸式注油/放油塞套件FITTING KIT Magnetic, Plug Fill/Drain1
198M0058389放油螺钉套件SCREW KIT Drain1
2019183纤维垫圈WASHER Fiber2
208M0187157蓝色密封件@15SEAL-BLUE @152
2179953A2螺丝套件(.375-16 x .250)SCREW KIT (.375-16 x .250)1
2179953Q04放油螺钉套件SCREW KIT Drain1
2256762扎带(4.00英寸)TIE STRAP (4.00 Inches)1
23789022换档轴SHIFT SHAFT1
2425439O型圈(.862×0.103)O-RING (.862 x .103)1
2577631A2衬套总成BUSHING ASSEMBLY1
268164641油封SEAL Oil1
268M0246145油封OIL SEAL1
2777674垫圈(.35 x .75 x .12)WASHER (.35 x .75 x .12)1
28442091驱动轴DRIVESHAFT1
28897625T加长驱动轴DRIVESHAFT X-Long1
2936387A1轴承总成(滚子/外圈)BEARING ASSEMBLY Roller/Cup1
298M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
30NSSNOT SOLD SEPARATE CUP1
31824519固定座RETAINER1
318245191固定座RETAINER1
3242579A3水泵底座总成BASE ASSEMBLY Water Pump1
328M0077147带水泵底座总成BASE ASSY-W/P1
33426311衬垫GASKET1
338M0204678衬垫GASKET1
3490011O型圈(2.175 x 0.175)O-RING (2.175 x .175)1
348M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
3589238油封SEAL Oil1
3616977油封SEAL Oil1
37856081衬垫GASKET1
378M0090319衬垫@5GASKET @51
38856091衬垫GASKET1
38858524衬垫GASKET1
3932435面板FACE PLATE1
398M0204677面板PLATE-FACE1
4096148A1水泵壳体总成BODY ASSEMBLY Water Pump1
4096148T1水泵壳体总成BODY ASSEMBLY Water Pump1
4148752嵌件INSERT1
4148752T嵌件INSERT1
4238970密封件SEAL1
43899841叶轮IMPELLER1
4389984T3叶轮IMPELLER1
4456654键KEY1
448M0214992键@5KEY @51
4596411螺钉(#14-8×2.25)SCREW (#14-8 x 2.25)1
458M0215009螺钉SCREW1
4629245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
468M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
4713438螺母(.250-28)NUT (.250-28)2
478267119螺母(.250-28)NUT (.250-28)2
4836001垫圈WASHER1
4913436螺母NUT1
5029804套筒SLEEVE1
5029804T套筒SLEEVE1
-815791A92发动机垫片组GASKET SET Engine1
-96148A5水泵维修套件REPAIR KIT Water Pump1
-96148A8水泵维修套件WATER PUMP REPAIR KIT1
-89238A2密封套件SEAL KIT1
图 18齿轮箱（驱动轴）（逆时针旋转）（序列号0G438000及以上） GEAR HSG (DRIVESHAFT)(CNTR ROTATION) (S/N-0G438000, UP)
齿轮箱（驱动轴）（逆时针旋转）（序列号0G438000及以上） GEAR HSG (DRIVESHAFT)(CNTR ROTATION) (S/N-0G438000, UP)
REF零件编号中文名称英文名称数量
19148A93齿轮箱总成GEAR HOUSING ASSEMBLY1
19148A94齿轮箱总成GEAR HOUSING ASSEMBLY1
19148T94ORD 1647-9148T93ORD 1647-9148T931
285822A10连接器总成CONNECTOR ASSEMBLY1
343044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
4189783螺柱(0.438×3.82英寸)STUD (.438 x 3.82 Inches)1
48M0034464螺柱STUD1
5579203双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
58M0133358双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
6562972螺柱(0.312-18/0.324-24×3.380)STUD (.312-18/.324-24 x 3.380)1
68M0034463螺柱(.312-24 x 3.38)STUD (.312-24 x 3.38)1
730667双头螺栓(.250-20/.250-28×3.125)STUD (.250-20/.250-28 x 3.125)2
7306671螺柱STUD2
867891填充块FILLER BLOCK1
88M0039169填充块FILLER BLOCK1
942647A1滚柱轴承总成BEARING ASSEMBLY Roller1
10826134阳极块ANODE2
10826134Q阳极块ANODE2
114000333螺钉(M6 x 40)SCREW (M6 x 40)1
128268336螺母 (M6)NUT (M6)1
12401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
13NSS不单独出售-小齿轮(属于43-828701A1部件)NOT SOLD SEPARATE PINION GEAR (PART OF 43-828701A1)1
1492721垫圈(.965×0.630)WASHER (.965 x .630)1
1535921螺母(0.625-18)NUT (.625-18)1
1642637A1垫片组SHIM SETAR
168M0063267垫片组SHIM SETAR
1767892A1磁吸式注油/放油塞套件FITTING KIT Magnetic, Plug Fill/Drain1
178M0058389放油螺钉套件SCREW KIT Drain1
1879953A2螺丝套件(.375-16 x .250)SCREW KIT (.375-16 x .250)1
1879953Q04放油螺钉套件SCREW KIT Drain1
1919183纤维垫圈WASHER Fiber2
198M0187157蓝色密封件@15SEAL-BLUE @152
2056762扎带(4.00英寸)TIE STRAP (4.00 Inches)1
21789022换档轴SHIFT SHAFT1
2225439O型圈(.862×0.103)O-RING (.862 x .103)1
2377631A2衬套总成BUSHING ASSEMBLY1
248164641油封SEAL Oil1
248M0246145油封OIL SEAL1
2577674垫圈(.35 x .75 x .12)WASHER (.35 x .75 x .12)1
26442091驱动轴DRIVESHAFT1
26897625T加长驱动轴DRIVESHAFT X-Long1
2736387A1轴承总成(滚子/外圈)BEARING ASSEMBLY Roller/Cup1
278M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
28824519固定座RETAINER1
288245191固定座RETAINER1
2942579A3水泵底座总成BASE ASSEMBLY Water Pump1
298M0077147带水泵底座总成BASE ASSY-W/P1
30426311衬垫GASKET1
308M0204678衬垫GASKET1
3190011O型圈(2.175 x 0.175)O-RING (2.175 x .175)1
318M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
3289238油封SEAL Oil1
3316977油封SEAL Oil1
34856081衬垫GASKET1
348M0090319衬垫@5GASKET @51
35856091衬垫GASKET1
35858524衬垫GASKET1
3632435面板FACE PLATE1
368M0204677面板PLATE-FACE1
3796148A1水泵壳体总成BODY ASSEMBLY Water Pump1
3796148T1水泵壳体总成BODY ASSEMBLY Water Pump1
3848752嵌件INSERT1
3848752T嵌件INSERT1
3938970密封件SEAL1
40899841叶轮IMPELLER1
4089984T3叶轮IMPELLER1
4156654键KEY1
418M0214992键@5KEY @51
4296411螺钉(#14-8×2.25)SCREW (#14-8 x 2.25)1
428M0215009螺钉SCREW1
4329245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
438M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
4413438螺母(.250-28)NUT (.250-28)2
448267119螺母(.250-28)NUT (.250-28)2
4536001垫圈WASHER1
4613436螺母NUT1
4729804套筒SLEEVE1
4729804T套筒SLEEVE1
-815791A92发动机垫片组GASKET SET Engine1
-96148A5水泵维修套件REPAIR KIT Water Pump1
-96148A8水泵维修套件WATER PUMP REPAIR KIT1
-89238A2密封套件SEAL KIT1
图 19齿轮箱（驱动轴）（标准旋转）（序列号0G437999及以下） GEAR HSG (DRIVESHAFT)(STD ROTATION) (S/N-0G437999, BELOW)
齿轮箱（驱动轴）（标准旋转）（序列号0G437999及以下） GEAR HSG (DRIVESHAFT)(STD ROTATION) (S/N-0G437999, BELOW)
REF零件编号中文名称英文名称数量
19148A47齿轮箱总成GEAR HOUSING ASSEMBLY1
19148A48齿轮箱总成GEAR HOUSING ASSEMBLY1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
285822A10连接器总成CONNECTOR ASSEMBLY1
3NSSNOT SOLD SEPARATE TUBING1
4NSSNOT SOLD SEPARATE CONNECTOR1
543044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
6786382螺柱(.437-14/.437-20 x 3.120)STUD (.437-14/.437-20 x 3.120)1
6189783螺柱(0.438×3.82英寸)STUD (.438 x 3.82 Inches)1
68M0034464螺柱STUD1
7579203双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
78M0133358双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
856297双头螺栓(.312×3.38)STUD (.312 x 3.38)1
88M0034463螺柱(.312-24 x 3.38)STUD (.312-24 x 3.38)1
930667双头螺栓(.250-20/.250-28×3.125)STUD (.250-20/.250-28 x 3.125)2
9306671螺柱STUD2
1067891填充块FILLER BLOCK1
108M0039169填充块FILLER BLOCK1
1142647A1滚柱轴承总成BEARING ASSEMBLY Roller1
12826134阳极块ANODE2
12826134Q阳极块ANODE2
134000333螺钉(M6 x 40)SCREW (M6 x 40)1
148268336螺母 (M6)NUT (M6)1
14401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
15NSS不单独出售-小齿轮(属于43-44104A8部件)(1.87:1齿比-15齿)NOT SOLD SEPARATE PINION GEAR (PART OF 43-44104A8(1.87:1 GEAR RATIO-15TEETH)1
1692721垫圈(0.965 x 0.630)(不用于高海拔)WASHER (.965 x .630) (NOT USED W/HIGH ALTITUDE)1
1735921螺母(0.625-18)NUT (.625-18)1
1842637A1垫片组SHIM SETAR
188M0063267垫片组SHIM SETAR
1967892A1磁吸式注油/放油塞套件FITTING KIT Magnetic, Plug Fill/Drain1
198M0058389放油螺钉套件SCREW KIT Drain1
2019183纤维垫圈WASHER Fiber2
208M0187157蓝色密封件@15SEAL-BLUE @152
2179953A2螺丝套件(.375-16 x .250)SCREW KIT (.375-16 x .250)1
2179953Q04放油螺钉套件SCREW KIT Drain1
2256762扎带(4.00英寸)TIE STRAP (4.00 Inches)1
23789022换档轴SHIFT SHAFT1
2425439O型圈(.862×0.103)O-RING (.862 x .103)1
2577631A2衬套总成BUSHING ASSEMBLY1
268164641油封SEAL Oil1
268M0246145油封OIL SEAL1
2777674垫圈(.35 x .75 x .12)WASHER (.35 x .75 x .12)1
28440001驱动轴DRIVESHAFT1
28897624T长驱动轴DRIVESHAFT Long1
28442091驱动轴DRIVESHAFT1
28897625T加长驱动轴DRIVESHAFT X-Long1
2936387A1轴承总成(滚子/外圈)BEARING ASSEMBLY Roller/Cup1
298M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
30NSS不单独出售-锥形杯NOT SOLD SEPARATE CUP, TAPERED1
31824519固定座RETAINER1
318245191固定座RETAINER1
3242579A3水泵底座总成BASE ASSEMBLY Water Pump1
328M0077147带水泵底座总成BASE ASSY-W/P1
33426311衬垫GASKET1
338M0204678衬垫GASKET1
3490011O型圈(2.175 x 0.175)O-RING (2.175 x .175)1
348M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
3589238油封SEAL Oil1
3616977油封SEAL Oil1
37856081衬垫GASKET1
378M0090319衬垫@5GASKET @51
38856091衬垫GASKET1
38858524衬垫GASKET1
3932435面板FACE PLATE1
398M0204677面板PLATE-FACE1
4096148A1水泵壳体总成BODY ASSEMBLY Water Pump1
4096148T1水泵壳体总成BODY ASSEMBLY Water Pump1
4148752嵌件INSERT1
4148752T嵌件INSERT1
4238970密封件SEAL1
43899841叶轮IMPELLER1
4389984T3叶轮IMPELLER1
4456654键KEY1
448M0214992键@5KEY @51
4596411螺钉(#14-8×2.25)SCREW (#14-8 x 2.25)1
458M0215009螺钉SCREW1
4629245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
468M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
4713438螺母(.250-28)NUT (.250-28)2
478267119螺母(.250-28)NUT (.250-28)2
4836001垫圈WASHER1
4913436螺母NUT1
5029804套筒SLEEVE1
5029804T套筒SLEEVE1
-815791A92发动机垫片组GASKET SET Engine1
-96148A5水泵维修套件REPAIR KIT Water Pump1
-96148A8水泵维修套件WATER PUMP REPAIR KIT1
-89238A2密封套件SEAL KIT1
图 20齿轮箱（驱动轴）（标准旋转）（序列号0G438000及以上） GEAR HSG (DRIVESHAFT)(STD ROTATION) (S/N-0G438000, UP)
齿轮箱（驱动轴）（标准旋转）（序列号0G438000及以上） GEAR HSG (DRIVESHAFT)(STD ROTATION) (S/N-0G438000, UP)
REF零件编号中文名称英文名称数量
19148A93齿轮箱总成GEAR HOUSING ASSEMBLY1
19148A94齿轮箱总成GEAR HOUSING ASSEMBLY1
19148T94ORD 1647-9148T93ORD 1647-9148T931
285822A10连接器总成CONNECTOR ASSEMBLY1
343044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
4786382螺柱(.437-14/.437-20 x 3.120)STUD (.437-14/.437-20 x 3.120)1
4189783螺柱(0.438×3.82英寸)STUD (.438 x 3.82 Inches)1
48M0034464螺柱STUD1
5579203双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
58M0133358双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
6562972螺柱(0.312-18/0.324-24×3.380)STUD (.312-18/.324-24 x 3.380)1
68M0034463螺柱(.312-24 x 3.38)STUD (.312-24 x 3.38)1
730667双头螺栓(.250-20/.250-28×3.125)STUD (.250-20/.250-28 x 3.125)2
7306671螺柱STUD2
867891填充块FILLER BLOCK1
88M0039169填充块FILLER BLOCK1
942647A1滚柱轴承总成BEARING ASSEMBLY Roller1
10826134阳极块ANODE2
10826134Q阳极块ANODE2
114000333螺钉(M6 x 40)SCREW (M6 x 40)1
128268336螺母 (M6)NUT (M6)1
12401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
13NSS不单独出售-小齿轮(属于43-828174A2部件)NOT SOLD SEPARATE PINION GEAR (PART OF 43-828174A21
1492721垫圈(.965×0.630)WASHER (.965 x .630)1
1535921螺母(0.625-18)NUT (.625-18)1
1642637A1垫片组SHIM SETAR
168M0063267垫片组SHIM SETAR
1767892A1磁吸式注油/放油塞套件FITTING KIT Magnetic, Plug Fill/Drain1
178M0058389放油螺钉套件SCREW KIT Drain1
1879953A2螺丝套件(.375-16 x .250)SCREW KIT (.375-16 x .250)1
1879953Q04放油螺钉套件SCREW KIT Drain1
1919183纤维垫圈WASHER Fiber2
198M0187157蓝色密封件@15SEAL-BLUE @152
2056762扎带(4.00英寸)TIE STRAP (4.00 Inches)1
21789022换档轴SHIFT SHAFT1
2225439O型圈(.862×0.103)O-RING (.862 x .103)1
2377631A2衬套总成BUSHING ASSEMBLY1
248164641油封SEAL Oil1
248M0246145油封OIL SEAL1
2577674垫圈(.35 x .75 x .12)WASHER (.35 x .75 x .12)1
26440001驱动轴DRIVESHAFT1
26897624T长驱动轴DRIVESHAFT Long1
26442091驱动轴DRIVESHAFT1
26897625T加长驱动轴DRIVESHAFT X-Long1
2736387A1轴承总成(滚子/外圈)BEARING ASSEMBLY Roller/Cup1
278M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
28824519固定座RETAINER1
288245191固定座RETAINER1
2942579A3水泵底座总成BASE ASSEMBLY Water Pump1
298M0077147带水泵底座总成BASE ASSY-W/P1
30426311衬垫GASKET1
308M0204678衬垫GASKET1
3190011O型圈(2.175 x 0.175)O-RING (2.175 x .175)1
318M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
3289238油封SEAL Oil1
3316977油封SEAL Oil1
34856081衬垫GASKET1
348M0090319衬垫@5GASKET @51
35856091衬垫GASKET1
35858524衬垫GASKET1
3632435面板FACE PLATE1
368M0204677面板PLATE-FACE1
3796148A1水泵壳体总成BODY ASSEMBLY Water Pump1
3796148T1水泵壳体总成BODY ASSEMBLY Water Pump1
3848752嵌件INSERT1
3848752T嵌件INSERT1
3938970密封件SEAL1
40899841叶轮IMPELLER1
4089984T3叶轮IMPELLER1
4156654键KEY1
418M0214992键@5KEY @51
4296411螺钉(#14-8×2.25)SCREW (#14-8 x 2.25)1
428M0215009螺钉SCREW1
4329245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
438M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
4413438螺母(.250-28)NUT (.250-28)2
448267119螺母(.250-28)NUT (.250-28)2
4536001垫圈WASHER1
4613436螺母NUT1
4729804套筒SLEEVE1
4729804T套筒SLEEVE1
-815791A92发动机垫片组GASKET SET Engine1
-96148A5水泵维修套件REPAIR KIT Water Pump1
-96148A8水泵维修套件WATER PUMP REPAIR KIT1
-89238A2密封套件SEAL KIT1
图 21齿轮箱（螺旋桨）（逆时针旋转）（序列号0G437999及以下） GEAR HSG (PROP)(CNTR ROTATION) (S/N-0G437999, BELOW)
齿轮箱（螺旋桨）（逆时针旋转）（序列号0G437999及以下） GEAR HSG (PROP)(CNTR ROTATION) (S/N-0G437999, BELOW)
REF零件编号中文名称英文名称数量
19148A47齿轮箱总成GEAR HOUSING ASSEMBLY1
19148A48齿轮箱总成GEAR HOUSING ASSEMBLY1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
5189594A1从动件总成FOLLOWER ASSEMBLY1
52789562换挡凸轮SHIFT CAM1
53799111杆ROD1
5379911A1杆ROD1
5478906销PIN1
548M0084245弹簧定位销PIN Spring Locator1
5579910弹簧SPRING2
5678910垫圈WASHERAR
5714469轴承杯CUP Bearing1
5714469T轴承杯CUP Bearing1
5888957滚珠轴承总成BEARING ASSEMBLY Ball1
5888957T滚珠轴承BEARING Ball1
59NSS不单独出售-倒档齿轮(属于43-18475A1部件)NOT SOLD SEPARATE REVERSE GEAR (PART OF 43-18475A1)1
6015844滚柱轴承总成BEARING ASSEMBLY Roller1
61823174离合器CLUTCH1
61823174TORD 8M0100493ORD 8M01004931
6278909定位销PIN Detent2
6378905十字销PIN Cross1
638M0084243十字销PIN Cross1
6478962弹簧SPRING2
6518475A1前进齿轮总成GEAR ASSEMBLY Forward1
6518475T1齿轮组GEAR SET1
66176151调整垫片(.125)SPACER SHIM (.125)AR
66176152调整垫片(.127)SPACER SHIM (.127)AR
66176153调整垫片(.129)SPACER SHIM (.129)AR
66176154调整垫片(.131)SPACER SHIM (.131)AR
66176155调整垫片(.133)SPACER SHIM (.133)AR
66176156调整垫片(.135)SPACER SHIM (.135)AR
66176157调整垫片(.137)SPACER SHIM (.137)AR
66176158调整垫片(.139)SPACER SHIM (.139)AR
66176159调整垫片(.141)SPACER SHIM (.141)AR
661761510调整垫片(.143)SPACER SHIM (.143)AR
661761511调整垫片(.145)SPACER SHIM (.145)AR
661761512调整垫片(.147)SPACER SHIM (.147)AR
661761513调整垫片(.149)SPACER SHIM (.149)AR
图 22齿轮箱（螺旋桨轴）（逆时针旋转）（序列号0G437999及以下） GEAR HSG (PROP SHAFT)(CNTR ROTATION) (S/N-0G437999, BELOW)
齿轮箱（螺旋桨轴）（逆时针旋转）（序列号0G437999及以下） GEAR HSG (PROP SHAFT)(CNTR ROTATION) (S/N-0G437999, BELOW)
REF零件编号中文名称英文名称数量
19148A47齿轮箱总成GEAR HOUSING ASSEMBLY1
19148A48齿轮箱总成GEAR HOUSING ASSEMBLY1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
6715841滚柱轴承BEARING Roller1
6817616推力环THRUST RING1
6931534O型圈O-RING1
698M0214920O型圈O RING1
7018447A2轴承适配器总成ADAPTER ASSEMBLY Bearing1
7018447T2适配器总成ADAPTOR ASSEMBLY1
7115843滚柱轴承BEARING Roller1
7115843T滚针轴承BEARING Needle1
7218448止推垫片THRUST WASHER2
7315842推力轴承BEARING Thrust2
7418446螺旋桨轴PROPELLER SHAFT1
75818896A2轴承座总成CARRIER ASSEMBLY Bearing1
75818896T2轴承座BEARING CARRIER1
7630956滚针轴承BEARING Needle1
7630956T滚针轴承BEARING Needle1
7776868油封(内部)SEAL (INSIDE)1
778M0248882油封@5SEAL-OIL @51
7876868油封(外侧)SEAL (OUTSIDE)1
788M0248882油封@5SEAL-OIL @51
7930281键KEY1
80183231锁紧垫圈TAB WASHER1
8179448固定座RETAINER1
818M2011027固定座RETAINER1
82316405平衡鳍板TRIM TAB1
828M0236553平衡鳍板TRIM TAB1
83806327螺钉(.437-14 x 1.750)SCREW (.437-14 x 1.750)1
838M0204686螺钉SCREW1
8465210螺钉(.375-16 x 1.00)SCREW (.375-16 x 1.00)1
8545176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel2
8634933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
868M0204653螺母NUT2
878354671推力毂THRUST HUB1
87835467Q01止推垫片套件THRUST WASHER KIT1
88423511齿形锁紧垫圈LOCKWASHER Toothed1
8931211A2花键垫圈WASHER Splined1
8931211Q03垫圈总成WASHER ASSEMBLY1
9052707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
9052707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
91816629锁紧垫圈TAB WASHER1
91816629Q锁紧垫圈TAB WASHER1
-815791A92发动机垫片组GASKET SET Engine1
-89238A2密封套件SEAL KIT1
图 23齿轮箱（螺旋桨轴）（逆时针旋转）（序列号0G438000及以上） GEAR HSG (PROP SHAFT)(CNTR ROTATION) (S/N-0G438000, UP)
齿轮箱（螺旋桨轴）（逆时针旋转）（序列号0G438000及以上） GEAR HSG (PROP SHAFT)(CNTR ROTATION) (S/N-0G438000, UP)
REF零件编号中文名称英文名称数量
19148A93齿轮箱总成GEAR HOUSING ASSEMBLY1
19148A94齿轮箱总成GEAR HOUSING ASSEMBLY1
19148T94ORD 1647-9148T93ORD 1647-9148T931
4889594A1从动件总成FOLLOWER ASSEMBLY1
49789562换挡凸轮SHIFT CAM1
50828287杆ROD1
5144491A1垫片组SHIM SETAR
518M0063266垫片组SHIM SETAR
52828830A2轴承适配器总成ADAPTER ASSEMBLY Bearing1
53814653滚针轴承总成BEARING ASSEMBLY Needle Rollers1
53814653T滚针轴承总成BEARING ASSEMBLY Needle Rollers1
54815481止推垫片THRUST WASHER1
55815480推力轴承BEARING Thrust1
56828702A2倒车齿轮总成-15/28齿GEAR ASSEMBLY Reverse - 15/281
5715844滚柱轴承总成BEARING ASSEMBLY Roller1
5830893弹簧SPRING1
59828288滑动离合器SLIDING CLUTCH1
59859340T离合器CLUTCH1
6030632十字销PIN Cross1
608M0100263十字销PIN Cross1
61828356定位销PIN Detent1
62828951螺旋桨轴PROPELLER SHAFT1
63828701A1前进齿轮总成-15/28齿GEAR ASSEMBLY Forward - 15/281
641761514垫片(0.206)SPACER SHIM (.206)AR
641761515垫片(0.208)SPACER SHIM (.208)AR
641761516垫片(0.210)SPACER SHIM (.210)AR
641761517垫片(0.212)SPACER SHIM (.212)AR
641761518垫片(0.214)SPACER SHIM (.214)AR
641761519垫片(0.216)SPACER SHIM (.216)AR
641761520垫片(0.218)SPACER SHIM (.218)AR
641761521垫片(0.220)SPACER SHIM (.220)AR
641761522垫片(0.222)SPACER SHIM (.222)AR
641761523垫片(0.224)SPACER SHIM (.224)AR
641761524垫片(0.226)SPACER SHIM (.226)AR
641761525垫片(0.228)SPACER SHIM (.228)AR
641761526垫片(0.230)SPACER SHIM (.230)AR
图 24齿轮箱（螺旋桨轴）（标准旋转）（序列号0G437999及以下） GEAR HSG (PROP SHAFT)(STD ROTATION) (S/N-0G437999, BELOW)
齿轮箱（螺旋桨轴）（标准旋转）（序列号0G437999及以下） GEAR HSG (PROP SHAFT)(STD ROTATION) (S/N-0G437999, BELOW)
REF零件编号中文名称英文名称数量
19148A47齿轮箱总成GEAR HOUSING ASSEMBLY1
19148A48齿轮箱总成GEAR HOUSING ASSEMBLY1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
5189594A1从动件总成FOLLOWER ASSEMBLY1
52789562换挡凸轮SHIFT CAM1
5379911A1杆ROD1
5479910弹簧SPRING1
5578906销PIN1
558M0084245弹簧定位销PIN Spring Locator1
5678910垫圈WASHERAR
5744104A8齿轮组GEAR SET1
58549281滚柱轴承BEARING Roller1
5947397A1垫片组(.002-3-5-10)SHIM SET (.002-3-5-10)AR
6078172A1圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
61823174离合器CLUTCH1
61823174TORD 8M0100493ORD 8M01004931
6278905十字销PIN Cross1
628M0084243十字销PIN Cross1
6378909定位销PIN Detent2
6478962弹簧SPRING2
6594148螺旋桨轴PROPELLER SHAFT1
66824986A2倒车齿轮总成GEAR ASSEMBLY Reverse1
67824108隔套(不用于高海拔)SPACER (NOT USED W/HIGH ALTITUDE)1
68681001止推环RING Thrust1
6988957滚珠轴承总成BEARING ASSEMBLY Ball1
6988957T滚珠轴承BEARING Ball1
7031534O型圈O-RING1
708M0214920O型圈O RING1
7143567A1轴承座总成CARRIER ASSEMBLY Bearing1
7143567T1轴承座总成CARRIER ASSEMBLY Bearing1
7230956滚针轴承BEARING Needle1
7230956T滚针轴承BEARING Needle1
7376868密封件SEAL2
738M0248882油封@5SEAL-OIL @52
7430281键KEY1
7579447锁紧垫圈TAB WASHER1
7679448固定座RETAINER1
768M2011027固定座RETAINER1
77316405平衡鳍板TRIM TAB1
778M0236553平衡鳍板TRIM TAB1
78806327螺钉(.437-14 x 1.750)SCREW (.437-14 x 1.750)1
788M0204686螺钉SCREW1
7965210螺钉(.375-16 x 1.00)SCREW (.375-16 x 1.00)1
8045176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel2
8134933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
818M0204653螺母NUT2
828354671推力毂THRUST HUB1
82835467Q01止推垫片套件THRUST WASHER KIT1
83423511齿形锁紧垫圈LOCKWASHER Toothed1
8431211A2花键垫圈WASHER Splined1
8431211Q03垫圈总成WASHER ASSEMBLY1
8552707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
8552707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
86816629锁紧垫圈TAB WASHER1
86816629Q锁紧垫圈TAB WASHER1
-815791A92发动机垫片组GASKET SET Engine1
-89238A2密封套件SEAL KIT1
图 25齿轮箱（螺旋桨轴）（标准旋转）（序列号0G438000及以上） GEAR HSG (PROP SHAFT)(STD ROTATION) (S/N-0G438000, UP)
齿轮箱（螺旋桨轴）（标准旋转）（序列号0G438000及以上） GEAR HSG (PROP SHAFT)(STD ROTATION) (S/N-0G438000, UP)
REF零件编号中文名称英文名称数量
19148A93齿轮箱总成GEAR HOUSING ASSEMBLY1
19148A94齿轮箱总成GEAR HOUSING ASSEMBLY1
19148T94ORD 1647-9148T93ORD 1647-9148T931
4889594A1从动件总成FOLLOWER ASSEMBLY1
49789562换挡凸轮SHIFT CAM1
50828287杆ROD1
51828174A2齿轮组GEAR SET1
51878613A2前进齿轮总成 1.87:1 - 15/28齿GEAR ASSEMBLY Forward 1.87:1 - 15/281
5244491A1垫片组(0.006-7-9-10-20)SHIM SET (.006-7-9-10-20)AR
528M0063266垫片组SHIM SETAR
5330894A1圆锥轴承组BEARING SET Cup And Cone1
5430895滚针轴承BEARING Needle1
5430895T滚针轴承BEARING Needle1
55828288滑动离合器SLIDING CLUTCH1
55859340T离合器CLUTCH1
5630632十字销PIN Cross1
568M0100263十字销PIN Cross1
57828356定位销PIN Detent1
5830893弹簧SPRING1
5994148螺旋桨轴PROPELLER SHAFT1
60828175A1倒车齿轮总成-15/28齿GEAR ASSEMBLY Reverse - 15/281
61824108隔套SPACER1
62681001止推环RING Thrust1
6388957滚珠轴承总成BEARING ASSEMBLY Ball1
6388957T滚珠轴承BEARING Ball1
6431534O型圈O-RING1
648M0214920O型圈O RING1
6543567A1轴承座总成CARRIER ASSEMBLY Bearing1
6543567T1轴承座总成CARRIER ASSEMBLY Bearing1
6630956滚针轴承BEARING Needle1
6630956T滚针轴承BEARING Needle1
6714077油封(内侧)SEAL Oil (INSIDE)1
6876868油封(外侧)SEAL (OUTSIDE)1
688M0248882油封@5SEAL-OIL @51
6930281键KEY1
7079447锁紧垫圈TAB WASHER1
7179448固定座RETAINER1
718M2011027固定座RETAINER1
72316405平衡鳍板TRIM TAB1
728M0236553平衡鳍板TRIM TAB1
7276214A5阳极套件ANODE KIT1
7276214Q5阳极套件ANODE KIT1
73806327螺钉(.437-14 x 1.750)SCREW (.437-14 x 1.750)1
738M0204686螺钉SCREW1
7465210螺钉(.375-16 x 1.00)SCREW (.375-16 x 1.00)1
7545176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel2
7634933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
768M0204653螺母NUT2
778354671推力毂THRUST HUB1
77835467Q01止推垫片套件THRUST WASHER KIT1
78423511齿形锁紧垫圈LOCKWASHER Toothed1
7931211A2花键垫圈WASHER Splined1
7931211Q03垫圈总成WASHER ASSEMBLY1
8052707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
8052707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
81816629锁紧垫圈TAB WASHER1
81816629Q锁紧垫圈TAB WASHER1
-815791A92发动机垫片组GASKET SET Engine1
-89238A2密封套件SEAL KIT1
图 26点火线圈/电压调节器 IGNITION COIL/VOLTAGE REGULATOR
点火线圈/电压调节器 IGNITION COIL/VOLTAGE REGULATOR
REF零件编号中文名称英文名称数量
1195872安装板MOUNTING PLATE1
233778螺柱STUD4
319661衬套BUSHING4
426992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel4
513438螺母(.250-28)NUT (.250-28)4
58267119螺母(.250-28)NUT (.250-28)4
688807A35拉线总成CABLE ASSEMBLY1
7854515电压调节器REGULATOR Voltage2
78M0084173电压调节器VOLTAGE REGULATOR2
869739A7线束总成HARNESS ASSEMBLY1
9816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
9816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
1043542盖板COVER2
1190048螺钉 (#10-32 x 2.125)SCREW (#10-32 x 2.125)12
1289302垫圈(0.203 x 0.406 x 0.040)(适用处使用)WASHER (.203 x .406 x .040) (USE WHERE APPLICABLE)12
1390078螺母 (#10-32)NUT (#10-32)14
1488807A13拉线总成CABLE ASSEMBLY6
1569022螺钉 (#10-32 x .500) 不锈钢SCREW (#10-32 x .500) Stainless Steel2
16832757A4线圈套件COIL KIT6
168M0230859点火线圈总成COIL IGNITION ASY6
1745076黄铜螺母(#10-32)NUT (#10-32) Brass12
18813706A55高压线总成CABLE ASSEMBLY High Tension1
18813715A9点火线缆套件CABLE KIT Ignition1
1963709A1护套/端子套件BOOT/TERMINAL KIT6
20136862火花塞（NGK #BU8H）SPARK PLUG (NGK #BU8H)6
2013686QNGK BU8H @10NGK BU8H @106
2014103568火花塞(NGK #BUZ8H-加拿大/比利时)SPARK PLUG (NGK #BUZ8H - CANADA/BELGIUM)6
20896329885SP #L6VC @4SP #L6VC @46
21826802A4线束总成HARNESS ASSEMBLY1
22828151A1继电器总成RELAY ASSEMBLY2
228M0207773调整继电器总成RELAY ASSEMBLY Trim2
23828102支架BRACKET2
238M0207771安装支架BRACKET Mounting2
24818968衬套BUSHING2
248M0214955衬套BUSHING2
25818967护孔环GROMMET2
258M0207785护孔环GROMMET2
2635950垫圈 (.273 x .437 x .031) 不锈钢WASHER (.273 x .437 x .031) Stainless Steel2
2713855A1螺母/螺钉套件NUT/SCREW KIT2
28NSSNOT SOLD SEPARATE SCREW2
图 27仪表装置 INSTRUMENTATION
仪表装置 INSTRUMENTATION
REF零件编号中文名称英文名称数量
119674A1拉绳开关总成SWITCH ASSEMBLY Lanyard1
119674A07开关/拉绳套件SWITCH/LANYARD KIT1
218303螺钉 (.190-16 x 1.750) 不锈钢SCREW (.190-16 x 1.750) Stainless Steel2
3813679适配器ADAPTER1
415920A54拉绳总成LANYARD ASSEMBLY1
415920Q54拉绳总成LANYARD ASSEMBLY1
532866不锈钢螺钉 (#10-32 x 2.00)SCREW (#10-32 x 2.00) Stainless Steel (10-32 X 2 IN.)2
618321安装夹CLAMP Mounting1
724676垫圈 (.200 x .440 x .032)WASHER (.200 x .440 x .032)2
868219不锈钢螺母 (#10-32)NUT (#10-32) Stainless Steel (10-32)4
979146固定座RETAINER3
10816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)16
10816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)16
11812497A2二极管总成DIODE ASSEMBLY1
11898289A72双拉绳二极管套件DIODE KIT-LANYARD Dual1
1211149A2线缆总成 (6英寸)CABLE ASSEMBLY (6.00 Inches) (6 IN.)1
13835360A1警报仪表套件WARNING GAUGE KIT1
13859699A1警报仪表套件GAUGE KIT-WARNING1
14850020卡箍CLAMP1
1526419黄铜螺母 (#8-32)NUT (#8-32) Brass1
16825361星形锁紧垫圈(#8)LOCKWASHER Star (#8)1
1772729楔形底座灯泡(14V - 1.9W)LIGHT BULB Wedge Base (14V - 1.9W)4
1879888灯泡插座SOCKET Light Bulb4
19835359A1电缆总成(20.00英尺)CABLE ASSEMBLY (20.00 Feet)1
图 28喷油组件 OIL INJECTION COMPONENTS
喷油组件 OIL INJECTION COMPONENTS
REF零件编号中文名称英文名称数量
1830889A1油箱总成TANK ASSEMBLY Oil1
28260841隔套SPACER1
358376螺钉 (0.164-18 x 0.375)SCREW (.164-18 x .375) (.164-18 X .375)1
472761不锈钢垫圈(.203 x .562 x .060)WASHER (.203 x .562 x .060) Stainless Steel1
5814449A3盖总成CAP ASSEMBLY1
642999衬垫GASKET1
642999T衬垫GASKET1
712886A7开关总成SWITCH ASSEMBLY1
883476945螺钉(M8×45)SCREW (M8 X 45)2
9834758衬套BUSHING2
10833155护孔环GROMMET2
11834756护孔环GROMMET2
1219064衬套BUSHING2
1383476935螺钉 (M8 x 35)SCREW (M8 X 35)1
1456720垫圈(0.330×0.750×0.060)不锈钢WASHER (.330 x .750 x .060) Stainless Steel1
15825380护孔环GROMMET1
15825380001护孔环GROMMET1
1619064衬套BUSHING1
17830756109软管(57英寸整卷)(8英寸段)HOSE (57.00 Inches Bulk) (8 IN.)1
178M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
18424254接头FITTING1
188M0207780接头FITTING1
1999439软管(114.00英寸)HOSE (114.00 Inches)1
2087421油箱TANK1
2143298A2盖总成CAP ASSEMBLY1
2211332O型圈(2.225 x .210)O-RING (2.225 x .210)1
23816190A3外壳总成适配器HOUSING ASSEMBLY Adapter1
23816190A4机油收集器总成(无传感器)OIL PICK UP ASSEMBLY Without Sender1
2411332O型圈(2.225 x .210)O-RING (2.225 x .210)1
2599802管TUBE1
图 29动力升降组件 8M0231193 Power Trim Components 8M0231193
动力升降组件 8M0231193 Power Trim Components 8M0231193
REF零件编号中文名称英文名称数量
-8M0231193动力升降总成POWER TRIM ASSEMBLY1
18M0225363电机套件MOTOR KIT1
28M0225369阀套件VALVE KIT1
38M0225371手动释放套件MANUAL RELEASE KIT1
48M0245633倾斜油缸套件TILT CYLINDER KIT1
58M0225370枢轴销套件PIVOT PIN KIT1
68M0244575减震杆套件SHOCK ROD KIT1
78M0244425销杆眼套件PIN ROD EYE KIT1
88M0232231螺钉螺母套件SCREW NUT KIT1
98M0225373记忆活塞套件MEMORY PISTON KIT1
108M0225368储液罐套件RESERVOIR KIT1
118M0174135储液罐塞总成PLUG RESERVOIR ASSEMBLY1
128M0237525泵套件PUMP KIT1
138M0225367升降杆套件TRIM ROD KIT1
148M0242846升降杆套件TRIM ROD KIT1
158M0225372重建套件REBUILD KIT1
图 30动力升降组件（金属马达壳体） POWER TRIM COMPONENTS Metal Motor Housing
动力升降组件（金属马达壳体） POWER TRIM COMPONENTS Metal Motor Housing
REF零件编号中文名称英文名称数量
-826729A2升降倾斜总成TRIM AND TILT ASSEMBLY1
-855998A11动力调整套件POWER TRIM KIT1
1811604F歧管总成MANIFOLD ASSEMBLY1
256800管塞 (.0625-27)PLUG Pipe (.0625-27)9
3823552F气缸总成CYLINDER ASSEMBLY1
3880952A03ORD 8M0078330ORD 8M00783301
4823553配平活塞杆套件ROD KIT Trim Piston1
4823553T升降活塞杆ROD Trim Piston1
5811606导向套件GUIDE KIT1
5878239A02倾斜缸端盖套件END CAP KIT Tilt Cylinder1
6811607A1维修套件REPAIR KIT1
7811610A1止回阀套件CHECK VALVE KIT1
7823553T升降活塞杆ROD Trim Piston1
899638A1导向器总成GUIDE ASSEMBLY2
88M0021648端盖总成END CAP ASSEMBLY2
943397A6动力升降倾斜装置活塞/杆总成PISTON/ROD ASSEMBLY Power Trim1
9878413A1活塞总成PISTON ASSEMBLY1
943398A3动力升降倾斜装置活塞/杆总成PISTON/ROD ASSEMBLY Power Trim1
9878414T01活塞总成PISTON ASSEMBLY1
1012184A1升降过滤器总成TRIM FILTER ASSEMBLY1
11813442A2手动释放总成MANUAL RELEASE ASSEMBLY1
11893929A01安全阀套件VALVE KIT Relief1
12812844E型卡环E RING1
12815949001E形环E-RING1
13811612A2O型圈套件O-RING KIT1
13811612A3O型圈套件O-RING KIT1
14811617F泵PUMP1
14811617T1泵PUMP1
15811613塞子总成PLUG ASSEMBLY1
164000327螺钉 (M6 x 14)SCREW (M6 x 14)4
1743450垫圈WASHER4
174002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)4
18811611盖板COVER1
19828710驱动接头DRIVE JOINT1
20828708电机总成MOTOR ASSEMBLY1
20878265A4配平电机TRIM MOTOR1
21828709螺钉SCREW2
21881768A1螺钉/垫圈套件SCREW/WASHER KIT2
21811616螺钉SCREW2
22811614轴总成SHAFT ASSEMBLY1
228M0142997倾斜轴套件TILT SHAFT KIT1
2356800管塞 (.0625-27)PLUG Pipe (.0625-27)2
2444431槽销PIN Groove1
24878267销PIN1
25821539三叶销PIN Trilobe1
26996251轴SHAFT1
2699625002轴SHAFT1
27818298A1阳极套件ANODE KIT1
27818298Q1阳极套件ANODE KIT1
284000330螺钉 (M6 x 25)SCREW (M6 x 25) (M6 X 1 X 25)2
288M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
2929245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
298M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
304000377螺钉 (M10 x 30)SCREW (M10 x 30) (M10 X 1.5 X 30)6
314002319垫圈WASHER6
3226550卡箍CLAMP2
3369079螺钉 (#10-16 x .440)SCREW (#10-16 x .440) (10-16 X .44)2
3469205C形垫圈C WASHER2
348M0084613C形垫圈C-WASHER2
图 31动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing
动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing
REF零件编号中文名称英文名称数量
-8M0168222动力升降总成POWER TRIM ASSEMBLY1
18M0142591电机套件MOTOR KIT1
282494830螺钉 (M6 x 30)SCREW (M6 x 30)2
3400256锁紧垫圈 (M6)LOCKWASHER (M6)2
48M0090403驱动联轴器COUPLING Drive1
58M0142996压力检查套件PO CHECK KIT1
68M0060141手动释放套件MANUAL RELEASE KIT1
78M0142997倾斜轴套件TILT SHAFT KIT1
8878267销PIN1
98M0142998倾斜油缸总成TILT CYLINDER ASSEMBLY1
98M0168220倾斜油缸总成TILT CYLINDER ASSEMBLY1
108M0142999倾斜油缸O型圈套件O RING KIT TILT CYLINDER1
118M0143000记忆活塞套件MEMORY PISTON KIT1
128M0142592升降杆套件 左舷TRIM ROD KIT Port1
138M0143001活塞总成PISTON ASSEMBLY1
148M0143003端盖总成END CAP ASSEMBLY1
15878264A1储液罐套件RESERVOIR KIT1
16811613塞子总成PLUG ASSEMBLY1
174000327螺钉 (M6 x 14)SCREW (M6 x 14)4
184002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)4
198M0143004泵套件PUMP KIT1
208M0148385动力升降倾斜装置维修包REPAIR KIT Power Trim1
21858771螺钉 (M10 x 30)SCREW (M10 x 30)6
224002319垫圈WASHER6
238M0094889销PIN1
238M0161312连杆销眼总成PIN ROD EYE ASSEMBLY1
248M0143005减震杆套件SHOCK ROD KIT1
248M0168219减震杆套件SHOCK ROD KIT1

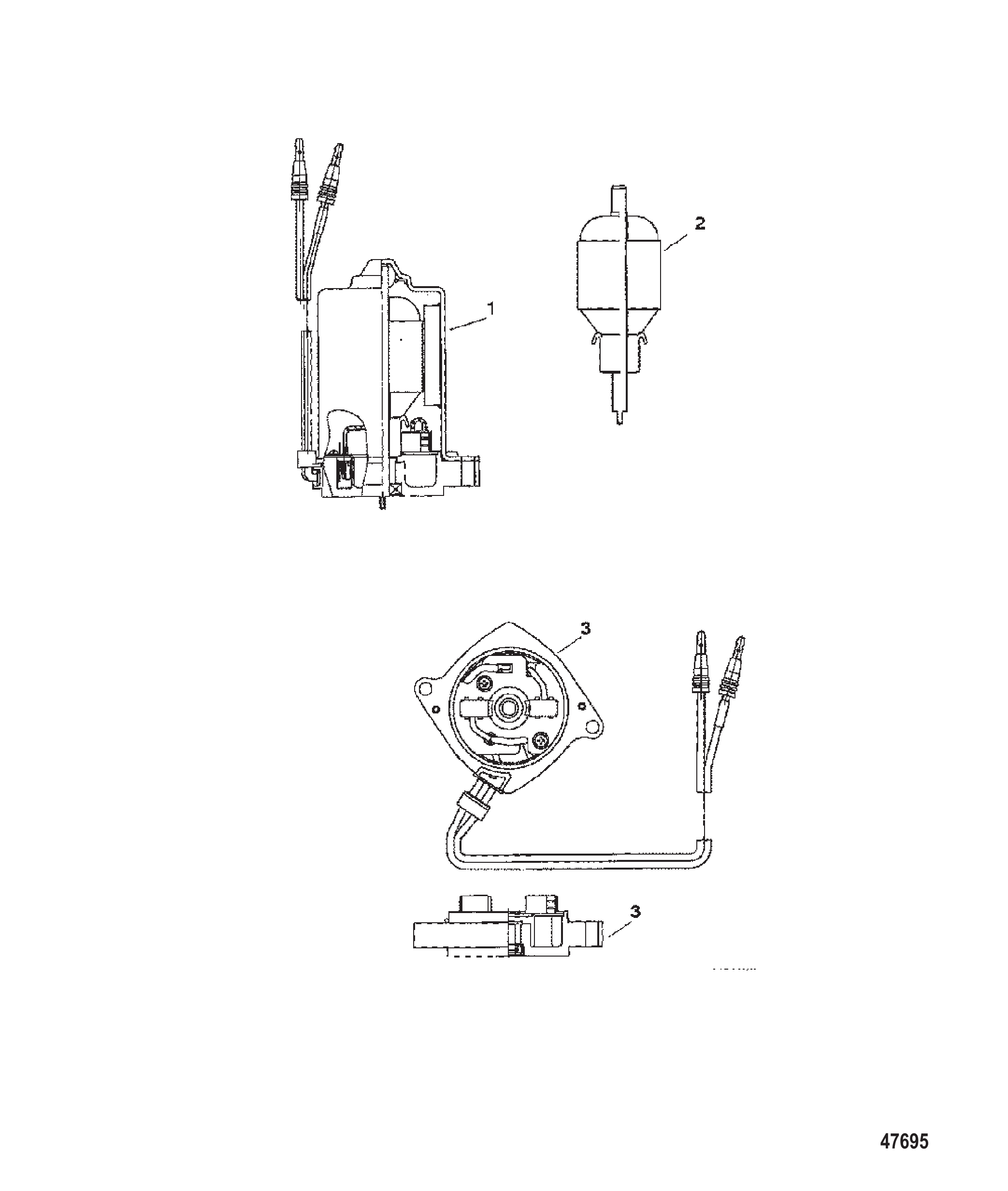

图 32动力升降马达 POWER TRIM MOTOR
动力升降马达 POWER TRIM MOTOR
REF零件编号中文名称英文名称数量
-828708电机总成MOTOR ASSEMBLY1
-878265A4配平电机TRIM MOTOR1
1828714A1电刷与密封套件BRUSH AND SEAL KIT1
2828713A1电枢套件ARMATURE KIT1
2828713T1电枢套件ARMATURE KIT1
3828715A1端架（总成）END FRAME (COMPLETE)1
图 33簧片阀组与气缸盖 REED BLOCK AND CYLINDER HEAD
簧片阀组与气缸盖 REED BLOCK AND CYLINDER HEAD
REF零件编号中文名称英文名称数量
118488F1气缸盖CYLINDER HEAD2
28228441衬垫GASKET2
2822844T05衬垫GASKET2
398534螺钉 (.375-16 x 2.30)SCREW (.375-16 x 2.30)23
3827426螺钉SCREW1
463779定位销 (.250 x .625)PIN Dowel (.250 x .625)4
562386衬垫GASKET2
58M0204714衬垫@4GASKET @42
690390A1盖板套件COVER KIT2
775692节温器THERMOSTAT2
835386螺丝(.312-18 x 1.00)SCREW (.312-18 x 1.00)4
96872790度弯头 (.250-18) - 黄铜FITTING (.250-18) 90 Degree - Brass1
968727190度弯头 (.250-18) - 黄铜FITTING (.250-18) 90 Degree - Brass1
1077653112软管(59.00英寸散装)(裁切至12-3/4英寸)HOSE (59.00 Inches Bulk) (Cut to 12-3/4 IN.)1
1077653101软管（散装48.00英寸）HOSE (48.00 Inches Bulk)1
1168728接头FITTING1
12816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
12816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
1377653112软管(59.00英寸散装)(裁切至11-1/2英寸)HOSE (59.00 Inches Bulk) (Cut to 11-1/2 IN.)1
1377653101软管（散装48.00英寸）HOSE (48.00 Inches Bulk)1
1477653112软管(59.00英寸散装)(裁切至7-1/2英寸)HOSE (59.00 Inches Bulk) (Cut to 7-1/2 IN.)1
1477653101软管（散装48.00英寸）HOSE (48.00 Inches Bulk)1
1597465SENDER Temperature (Starboard)1
16815914三通接头T-FITTING1
1713536A6SENSOR ASSEMBLY Temperature (Port)1
18137151固定座RETAINER2
1998257螺钉 (.312-18 x .500)SCREW (.312-18 x .500)2
20826858爆震传感器(200)SENSOR Knock (200)1
2145076黄铜螺母(#10-32)NUT (#10-32) Brass1
2217735A2适配板总成ADAPTER PLATE ASSEMBLY1
2328668螺钉 (.250-20 x .875) 不锈钢SCREW (.250-20 x .875) Stainless Steel8
24146972衬垫GASKET1
25116453簧片阀组REED BLOCK6
25855952T3簧片阀总成REED BLOCK ASSEMBLY6
2655098J型卡扣J CLIP1
268M0024808J型夹J-CLIP1
2755715螺钉(.250-20×0.880)SCREW (.250-20 x .880)6
2890197螺丝（.250-20 x 1.125）SCREW (.250-20 x 1.125)6
29167371衬垫GASKET1
-815791A92发动机垫片组GASKET SET Engine1
-823434A97动力头总成POWERHEAD ASSEMBLY1
-823434T97动力头总成POWERHEAD ASSEMBLY1
-812817A97动力头总成POWERHEAD ASSEMBLY1
-812817T97动力头总成POWERHEAD ASSEMBLY1
-813043A97动力头总成POWERHEAD ASSEMBLY1
-813043T97动力头总成POWERHEAD ASSEMBLY1
图 34维修与支撑材料 SERVICE AND SUPPORT MATERIAL
维修与支撑材料 SERVICE AND SUPPORT MATERIAL
REF零件编号中文名称英文名称数量
-10126980用户手册OWNERS MANUAL1
-824052R2维修手册SERVICE MANUAL1
-824052R3SM O/B V6 135-225SM O/B V6 135-2251
-808553A96贴花套件DECAL SET1
-808553A00贴花套件DECAL SET1
-809689A96贴花套件DECAL SET1
-804696A03贴花套件DECAL SET1
-808559A96贴花套件DECAL SET1
-855418A97贴花套件DECAL SET1
-809688A00贴花套件DECAL SET1
-808554A96贴花套件DECAL SET1
-812563A00贴花套件DECAL SET1
-808558A96贴花套件DECAL SET1
-808562A03贴花套件DECAL SET1
-813033A96贴花套件DECAL SET1
-813033A03贴花套件DECAL SET1
-809706A96贴花套件DECAL SET1
-809706A03贴花套件DECAL SET1
-808557A96贴花套件DECAL SET1
-808557A01贴花套件DECAL SET1
-808556A96贴花套件DECAL SET1
-808556A03贴花套件DECAL SET1
-808561A96贴花套件DECAL SET1
-808561A03贴花套件DECAL SET1
-813033A97贴花套件DECAL SET1
-813033A03贴花套件DECAL SET1
-809706A97贴花套件DECAL SET1
-809706A03贴花套件DECAL SET1
-808557A97贴花套件DECAL SET1
-808557A01贴花套件DECAL SET1
-855419A97贴花套件DECAL SET1
-855419A00贴花套件DECAL SET1
-808556A97贴花套件DECAL SET1
-808556A03贴花套件DECAL SET1
-808561A97贴花套件DECAL SET1
-808561A03贴花套件DECAL SET1
-824911A25条纹贴纸(25英尺卷-需6英尺)DECAL Striping (ROLL OF 25 FT. - NEED 6 FT.)1
-808591A96贴花套件DECAL SET1
-808680A96贴花套件DECAL SET1
-808621A96贴花套件DECAL SET1
-808602A96贴花套件DECAL SET1
-808652A96贴花套件DECAL SET1
-808641A96贴花套件DECAL SET1
-85557713EPA标签信息贴花DECAL EPA Label Information1
-855577A13REF SOB 09-18REF SOB 09-181
图 35启动马达 STARTER MOTOR
启动马达 STARTER MOTOR
REF零件编号中文名称英文名称数量
1833153启动电机总成STARTER MOTOR ASSEMBLY1
1898265008启动马达STARTER MOTOR1
2823639驱动端盖DRIVE CAP1
28236392驱动端盖DRIVE CAP1
38236411贯穿螺栓THRU BOLT2
48236401驱动套件DRIVE KIT1
586177小齿轮PINION1
5898265015小齿轮PINION1
68236381电枢ARMATURE1
7753841电刷/弹簧套件BRUSH/SPRING KIT1
7898265016电刷/弹簧套件BRUSH/SPRING KIT1
861787支架HOLDER1
8898265014电刷支架HOLDER-BRUSH1
98119011换向器端盖CAP Commutator1
10F15158螺钉SCREW2
1126992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel2
1294330螺母 (.250-20) 黄铜NUT (.250-20) Brass (1/4-20)2
1326992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel1
1420890螺母（1/4-20）NUT (.250-20) (1/4-20)1
1581893450螺钉 (M8 X 50)SCREW (M8 x 50) (M8 X 40)3
16824921隔套SPACER1
图 36旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM
旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM
REF零件编号中文名称英文名称数量
18710A20旋转支架总成SWIVEL BRACKET ASSEMBLY1
18M0102865黑色旋转支架总成SWIVEL BRACKET ASSEMBLY Black1
18710A21旋转支架总成SWIVEL BRACKET ASSEMBLY1
18710T21灰色旋转支架总成SWIVEL BRACKET ASSEMBLY Gray1
18710A23旋转支架SWIVEL BRACKET1
233504O型圈O-RING1
28M0214926O型圈 @10O RING @101
3818764衬套BUSHING2
4816039隔套SPACER1
587735油封(下)SEAL Oil (LOWER)1
674036润滑脂接头FITTING Grease2
68M0169589润滑脂接头FITTING Grease2
7821207衬套BUSHING2
8816432止推垫片THRUST WASHER1
9814084F1下轭架YOKE Bottom1
98M0219200黑色下轭架YOKE-BOTTOM-BLACK1
9814084F2下轭架YOKE Bottom1
9826364F1下轭架YOKE Bottom1
9826364T下轭架YOKE Bottom1
9826364F2下轭架YOKE Bottom1
9826364F3下轭架YOKE Bottom1
1067684挡圈RING Retaining1
11996301冲击板STRIKER PLATE2
118M0045383冲击板STRIKER PLATE2
1258643锁紧垫圈 (.375)LOCKWASHER (.375)2
1346335螺母 (.375-24)NUT (.375-24)2
1464014螺钉 (.250-28 x .500)SCREW (.250-28 x .500) (1/4-28)2
15821180A6调整传感器总成SENDER ASSEMBLY Trim1
158M0074846ORDER 8M0098273ORDER 8M00982731
1656682螺钉 (#10-24 x .750)SCREW (#10-24 x .750) (10-24 X 3/4 IN.)2
16852368螺钉（#10-24 X 0.750）SCREW (#10-24 x .750)2
1726996锁紧垫圈(#10)(不锈钢)LOCKWASHER (#10) Stainless Steel2
1889302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)2
1967706A55转向臂转销总成SWIVEL PIN ASSEMBLY Steering Arm1
19826432A2转向臂旋转销总成-不锈钢SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel1
1967706A56转向臂转销总成SWIVEL PIN ASSEMBLY Steering Arm1
1967706A55转向臂转销总成SWIVEL PIN ASSEMBLY Steering Arm1
19826432A2转向臂旋转销总成-不锈钢SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel1
198M0132731旋转销总成SWIVEL PIN ASSY1
19826432A3转向臂旋转销总成-不锈钢SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel1
19826432A2转向臂旋转销总成-不锈钢SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel1
19826432A6旋转销总成SWIVEL PIN ASSEMBLY1
198M0132731旋转销总成SWIVEL PIN ASSY1
20816386螺钉 (M12 X 190)SCREW (M12 x 190) (M12 X 1.75 X 190)2
208M0141069螺钉SCREW2
21824998缓冲垫BUMPER1
21824998001缓冲垫BUMPER1
228163851上部支架MOUNT Upper2
23815437垫圈WASHER2
238154371垫圈WASHER2
24815436垫圈WASHER2
2590099螺母(M12)NUT (M12)2
25896963螺母(M12)NUT (M12)2
26813769卡箍CLAMP1
268M0036783卡箍CLAMP1
2781893435螺钉(M8×35)SCREW (M8 x 35) (M8 X 35)3
278M0103814螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)3
2892876A1转向连杆总成LINK ASSEMBLY Steering1
2892876A12连杆总成LINK ROD ASSEMBLY1
2914000螺钉(.375-24x1.25)SCREW (.375-24 x 1.25)1
29849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)1
3034863螺母 (.375-24)NUT (.375-24) (.375-24)2
308M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass2
3137828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel2
图 37油门杆与换挡轴 THROTTLE LEVER AND SHIFT SHAFT
油门杆与换挡轴 THROTTLE LEVER AND SHIFT SHAFT
REF零件编号中文名称英文名称数量
141094A3杠杆总成LEVER ASSEMBLY1
264022螺钉(.250-20 x 2.125)SCREW (.250-20 x 2.125)1
364015螺母 (.250-20)NUT (.250-20)1
426852尼龙帽CAP Nylon1
513627螺钉 (.190-32 x 1.250)SCREW (.190-32 x 1.250)1
668219螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel1
748039盖帽CAP1
846765垫圈 (.390 x 1.50 x .120)WASHER (.390 x 1.50 x .120)1
946438螺母 (#10-32)NUT (#10-32)1
1076035杆ROD1
1145076黄铜螺母(#10-32)NUT (#10-32) Brass1
1262459球头总成BALL JOINT ASSEMBLY1
1262459T球头节总成BALL JOINT ASSY1
1374897枢轴PIVOT1
1374897T枢轴PIVOT1
14823235弹簧SPRING1
1555171衬套BUSHING1
1641095杠杆LEVER1
16410952杠杆LEVER1
17818165螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
1855164衬套BUSHING1
1964022螺钉(.250-20 x 2.125)SCREW (.250-20 x 2.125)1
2064015螺母 (.250-20)NUT (.250-20)1
2126852尼龙帽CAP Nylon1
2239483闩锁LATCH1
2369026螺钉 (.250-28 x .880)SCREW (.250-28 x .880)1
2420099弹簧SPRING1
2535045螺母(.250-28)NUT (.250-28)1
25826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
2614638套筒BARREL1
2714634杆ROD1
28932481衬套BUSHING1
288M0215006旋转衬套BUSHING Swivel1
298142391凸轮CAM1
298142392节气门凸轮THROTTLE CAM1
3026856衬套BUSHING2
3135045螺母(.250-28)NUT (.250-28)1
31826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
32814283A2支架总成BRACKET ASSEMBLY1
3398889闩锁LATCH1
3442975传动螺钉DRIVE SCREW2
3539519杯套CUP1
3652100耐磨板WEAR PLATE1
3738279闩锁LATCH1
378M0036768闩锁LATCH1
3835462垫圈(.2656 x .625 x .0625)不锈钢WASHER (.2656 x .625 x .0625) Stainless Steel1
3935045螺母(.250-28)NUT (.250-28)1
39826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
4053167螺钉 (.312-18 x .880)SCREW (.312-18 x .880)3
4053167T螺钉 0.312-18X 0.88SCREW .312-18X .883
41814284导向块GUIDE BLOCK1
4220099弹簧SPRING1
4367073A1连杆总成LINK ROD ASSEMBLY1
4479932A11换挡轴总成SHIFT SHAFT ASSEMBLY1
4479932A16换挡轴总成SHIFT SHAFT ASSEMBLY1
4479932A12换挡轴总成SHIFT SHAFT ASSEMBLY1
4479932A17换挡轴总成SHIFT SHAFT ASSEMBLY1
4479932A16换挡轴总成SHIFT SHAFT ASSEMBLY1
4479932A17换挡轴总成SHIFT SHAFT ASSEMBLY1
45NSS不单独出售-换档轴杆(上部)NOT SOLD SEPARATE SHIFT SHAFT LEVER, UPPER1
45NSS不单独出售-换档轴杆(上部)NOT SOLD SEPARATE SHIFT SHAFT LEVER, UPPER1
4626856衬套BUSHING1
4626600衬套BUSHING1
4729720波形垫圈WAVE WASHER1
4835462垫圈(.2656 x .625 x .0625)不锈钢WASHER (.2656 x .625 x .0625) Stainless Steel1
4935045螺母(.250-28)NUT (.250-28)1
49826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
50814281A1怠速稳定换挡套件IDLE STABILIZING SHIFT KIT1
5177478螺钉 (#6-32 x .875)SCREW (#6-32 x .875)2
5227882垫圈WASHER2
5317461A3电阻模块RESISTOR MODULE1
图 38专用工具 TOOLS SPECIAL
专用工具 TOOLS SPECIAL
REF零件编号中文名称英文名称数量
-815366A3电池隔离器套件ISOLATOR KIT Battery1
-58222A1百分表工具DIAL INDICATOR TOOL1
-89045适配器ADAPTER1
-890451直流电压适配工具ADAPTER TOOL Direct Voltage1
-52344飞轮固定器工具(齿型)FLYWHEEL HOLDER TOOL Teeth Type1
-73687A2飞轮拉拔器套件PULLER KIT Flywheel1
-849154T1拉拔器总成PULLER ASSEMBLY1
-99750A1万用表MULTI METER1
-24161飞轮拉拔器盖工具CAP TOOL Flywheel Puller1
-52024A1开关总成SWITCH ASSEMBLY1
-59339维修用转速表SERVICE TACHOMETER1
-892647A01DMT万用表套件MULTI-METER KIT DMT1
-850439T1八腔测试仪TESTER Eight Chamber1
-63998A1单腔间隙工具GAP TOOL Single Chamber1
-850439火花测试器SPARK TESTER1
-850439T1八腔测试仪TESTER Eight Chamber1
-14443A1测试线束总成HARNESS ASSEMBLY Test1
-99379正时灯TIMING LIGHT1
-29287量规工具GAUGE TOOL1
-55919驱动头DRIVER HEAD1
-52344飞轮固定器工具(齿型)FLYWHEEL HOLDER TOOL Teeth Type1
-73687A2飞轮拉拔器套件PULLER KIT Flywheel1
-849154T1拉拔器总成PULLER ASSEMBLY1
-90455吊环LIFTING EYE1
-904551吊环LIFTING EYE1
-77109A3安装工具套件INSTALLER KIT1
-52952A1活塞销锁环拆卸工具REMOVAL TOOL Piston Pin Lock Ring1
-52952T1活塞销锁环拆卸工具REMOVAL TOOL Piston Pin Lock Ring1
-74607A3活塞销安装套件INSTALLER KIT Piston Pin1
-65494环压缩工具(2.0升)COMPRESSOR TOOL Ring (2.0L)1
-65494T环压缩工具COMPRESSOR TOOL Ring1
-818773活塞环压缩工具(2.5升)COMPRESSOR TOOL Piston Ring (2.5L)1
-818773T活塞环压缩工具(3.50)COMPRESSOR TOOL Piston Ring (3.50)1
-24697活塞环扩张工具EXPANDER TOOL Piston Ring1
-30591A1动力头支架工具STAND TOOL Powerhead1
-30591T1支架工具STAND TOOL1
-24161飞轮拉拔器盖工具CAP TOOL Flywheel Puller1
-66274扭矩扳手(0-150磅英寸)TORQUE WRENCH (0-150 lb-in)1
-37241通用拉拔板PULLER PLATE Universal1
-112301对正工具ALIGNMENT TOOL1
-99750A1万用表MULTI METER1
-52915A6测试仪表套件TEST GAUGE KIT1
-74951扳手SPANNER WRENCH1
-63209加热灯HEAT LAMP1
-44487A1调整杆导向器拆卸工具REMOVER TOOL Trim Rod Guide1
-44487T1调整杆导向器拆卸工具REMOVER TOOL Trim Rod Guide1
-44486A1调整杆拆卸工具REMOVAL TOOL Trim Rod1
图 39顶罩 TOP COWL
顶罩 TOP COWL
REF零件编号中文名称英文名称数量
1833096A2顶盖总成TOP COWL ASSEMBLY1
1833096A3顶盖总成TOP COWL ASSEMBLY1
1833096T3银色顶罩TOP COWL-SILVER1
1833096A4顶盖总成TOP COWL ASSEMBLY1
2834806F1盖帽CAP1
2834806T2黑色外罩盖CAP-COWL-BLACK1
28348061盖帽CAP1
2834806T1镀铬盖CAP-CHROME1
2834806F3盖帽CAP1
382130012螺钉 (M6 x 12)SCREW (M6 x 12) (M6 X 12)3
4821250A1隔音毯套装SOUND BLANKET KIT1
5NSS不单独销售NOT SOLD SEPARATE2
6823865盖塞CAP PLUG3
7821248后闩锁钩REAR LATCH HOOK2
88237951挡圈RING Retaining3
9815263滚轮ROLLER3
98M0207770滚轮@3ROLLER @33
1029245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel4
108M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel4
11401196螺母 (M6)NUT (M6) (M6 X 1)4
12821249M2前支架BRACKET Front1
128M0036792支架BRACKET1
13815477缓冲器锁扣BUMPER Latch1
148155381滚动销PIN Roll1
15401196螺母 (M6)NUT (M6)3
1629245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel3
168M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel3
17826639T盖板COVER1
1847341A1手动/应急启动绳柄套件ROPE AND HANDLE KIT Manual/Emergency Start1
1847341A11手动启动绳柄套件ROPE AND HANDLE KIT Manual Starting1
图 40艉板支架（序列号0G589999及以下） TRANSOM BRACKETS (S/N-0G589999 & BELOW)
艉板支架（序列号0G589999及以下） TRANSOM BRACKETS (S/N-0G589999 & BELOW)
REF零件编号中文名称英文名称数量
18718F7艉板支架BRACKET Transom1
28716A8艉板支架总成BRACKET ASSEMBLY Transom1
18718F8艉板支架BRACKET Transom1
28716A9艉板支架总成BRACKET ASSEMBLY Transom1
398727润滑脂接头(左舷)FITTING Grease (PORT)1
38M0169588润滑脂接头FITTING Grease1
447525螺母 (.875-14) 底部NUT (.875-14) Bottom1
5826125A1倾斜管TILT TUBE1
6826135尼龙锁紧螺母(1.00-14)NUT Lock (1.00-14) Nylon Insert1
745711O型圈 (.612 x .103)O-RING (.612 x .103)1
888750波浪垫圈 (1.62 x 1.05)WASHER Wave (1.62 x 1.05)2
9826164螺母 (.875-14)NUT (.875-14)1
98M0231351锁紧螺母NUT Lock1
10677551螺钉(.500-20×4.500)SCREW (.500-20 x 4.500)4
108M0149747螺钉SCREW4
1128421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
118M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
128M0027784螺母NUT4
1282671117螺母(.500-20)NUT (.500-20)4
1399629A2杠杆总成LEVER ASSEMBLY1
138M0115104倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
1499611波形垫圈WAVE WASHER1
1565830尼龙衬套NYLINER2
1699633旋钮KNOB1
1799615槽销PIN Groove1
1899622弹簧SPRING1
1999604槽销PIN Groove1
2096930A1螺栓总成BOLT ASSEMBLY1
2123161螺母 (.375-24)NUT (.375-24)1
22814207停机开关STOP1
-815791A92发动机垫片组GASKET SET Engine1
图 41艉板支架（序列号0G590000及以上） Transom Brackets (S/N-0G590000 & Up)
艉板支架（序列号0G590000及以上） Transom Brackets (S/N-0G590000 & Up)
REF零件编号中文名称英文名称数量
1828334T03艉板支架总成-右舷BRACKET ASSEMBLY Transom-Starboard1
2828333T08艉板支架总成-左舷BRACKET ASSEMBLY Transom-Port1
398727润滑脂加注口接头FITTING Grease Port1
38M0169588润滑脂接头FITTING Grease1
4826125A1倾斜管TILT TUBE1
5826135尼龙锁紧螺母(1.00-14)NUT Lock (1.00-14) Nylon Insert1
645711O型圈 (.612 x .103)O-RING (.612 x .103)1
788750波浪垫圈 (1.62 x 1.05)WASHER Wave (1.62 x 1.05)2
8826164螺母 (.875-14)NUT (.875-14)1
88M0231351锁紧螺母NUT Lock1
9677551螺钉(.500-20×4.500)SCREW (.500-20 x 4.500)4
98M0149747螺钉SCREW4
1028421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
108M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
118M0027784螺母NUT4
1182671117螺母(.500-20)NUT (.500-20)4
1299629A2杠杆总成LEVER ASSEMBLY1
128M0115104倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
13830899张力弹簧SPRING Tension1
1465830尼龙衬套NYLINER2
15830900压缩弹簧SPRING Compression1
1699633旋钮KNOB1
1799615槽销PIN Groove1
1899617销PIN1
18893709销PIN1
-815791A92发动机垫片组GASKET SET Engine1
图 42线束/启动电磁阀 WIRING HARNESS/STARTER SOLENOID
线束/启动电磁阀 WIRING HARNESS/STARTER SOLENOID
REF零件编号中文名称英文名称数量
1826730A4发动机线束总成HARNESS ASSEMBLY Engine Wiring1
279091保险丝20安培FUSE 20 Ampere1
28M0207796保险丝20安培FUSE 20 AMP1
3816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
3816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
4194372端子排TERMINAL BLOCK1
538055螺钉(0.190-32x0.620)SCREW (.190-32 x .620)2
689302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)2
745076黄铜螺母(#10-32)NUT (#10-32) Brass2
8814634卡箍CLAMP1
9434292点火板IGNITION PLATE1
107778A12开关盒总成SWITCHBOX ASSEMBLY2
1113669螺钉(#12-24x2.00)SCREW (#12-24 x 2.00)2
1294453衬套BUSHING2
1362310A2拉线总成CABLE ASSEMBLY1
1445076黄铜螺母(#10-32)NUT (#10-32) Brass20
1591865A1电缆总成(3英寸-白/黑)CABLE ASSEMBLY (3 IN. - WHITE/BLACK)1
1588528A2电缆总成(6英寸-红/白)CABLE ASSEMBLY (6 IN. - RED/WHITE)1
1660871A10线束总成WIRE ASSEMBLY2
17817626螺钉(#10-16×0.380)SCREW (#10-16 x .380)2
17878607螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)2
1865999A3线缆总成(黑色)CABLE ASSEMBLY Black1
1987926螺钉(#10-32 x .500)SCREW (#10-32 x .500)1
2060411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)3
2126993锁紧垫圈 (.312)LOCKWASHER (.312)3
218M0204647锁紧垫圈 (.312)LOCKWASHER (.312)3
2236042垫圈WASHER6
2367264垫圈(橡胶)WASHER (Rubber)6
2467268衬套BUSHING3
2588439A23正极电缆总成-蓄电池CABLE ASSEMBLY Positive - Battery1
2588439A34正极电缆总成-蓄电池CABLE ASSEMBLY Positive - Battery1
2588439A24蓄电池负极电缆总成CABLE ASSEMBLY Negative - Battery1
2645561螺钉 (.250-20 x 1.12)SCREW (.250-20 x 1.12)2
26455611螺钉(.250-20 x 1.120)SCREW (.250-20 x 1.120)2
2726992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel2
2865999A2线缆总成(黑色)CABLE ASSEMBLY Black1
2978866绝缘体INSULATOR1
3045076黄铜螺母(#10-32)NUT (#10-32) Brass4
31817109A2电磁阀总成(#10-32/.3125-18端子)SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)1
32818968衬套BUSHING2
328M0214955衬套BUSHING2
3345076黄铜螺母(#10-32)NUT (#10-32) Brass2
3453166锁紧垫圈 (.312)LOCKWASHER (.312)2
3568292螺母(.312-18)NUT (.312-18)2
358M0204668螺母(.312-18)NUT (.312-18)2
