两冲程 电喷 EFI · USA - Cat.# 90-849864R1 · 共 27 个部位 · 692 条零件
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

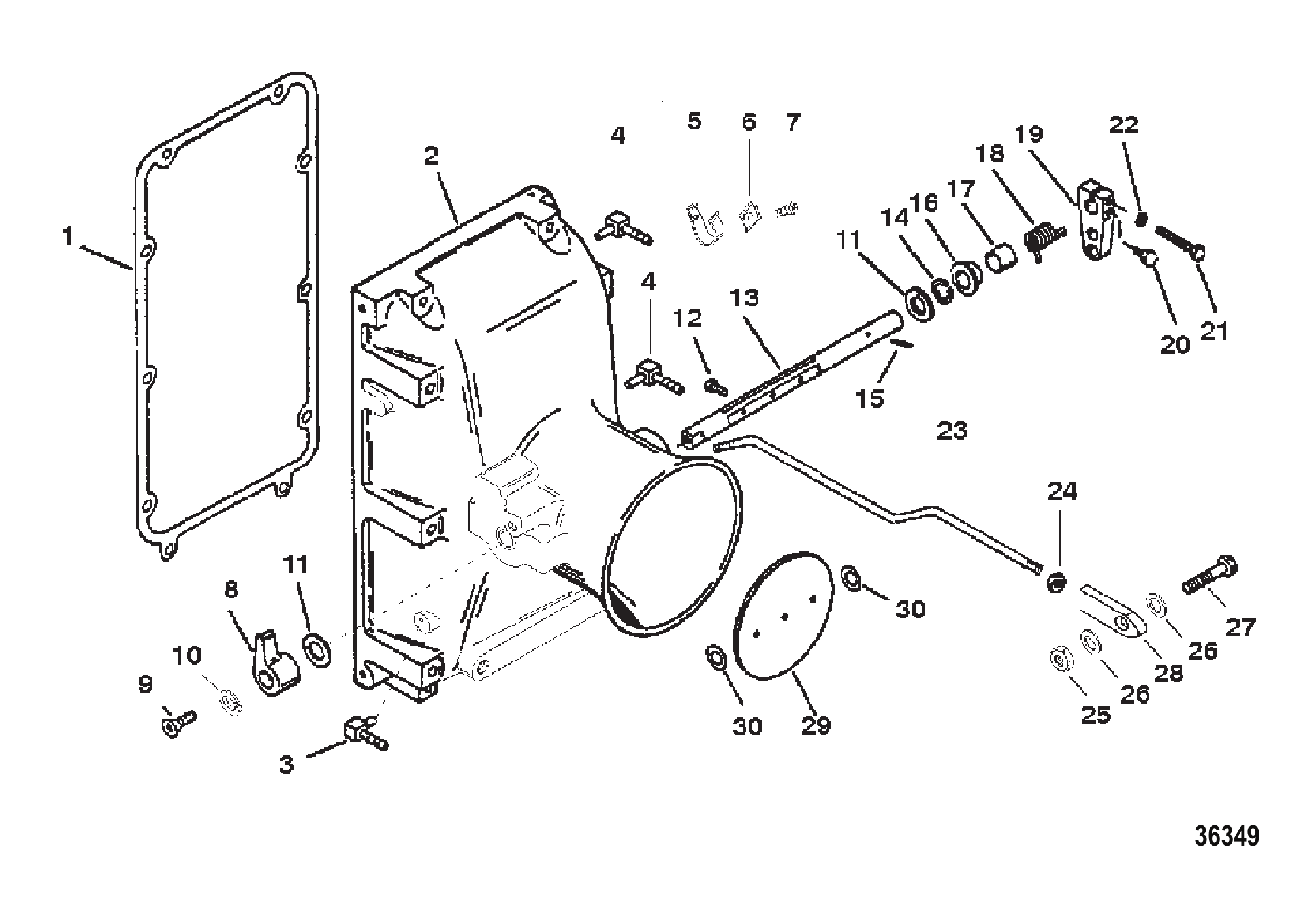

| 1 | 993163 | 衬垫 | GASKET | 1 |
| 2 | 816058A6 | 空气进气总成 | INLET ASSEMBLY Air | 1 |
| 2 | 816058A15 | 空气进气总成 | AIR INLET ASSY | 1 |
| 3 | 822715 | 弯头接头 | FITTING Elbow | 1 |
| 4 | 15133 | 接头 | FITTING | 2 |
| 5 | 24836 | 卡扣 | CLIP | 1 |
| 6 | 69205 | C形垫圈 | C WASHER | 1 |
| 6 | 8M0084613 | C形垫圈 | C-WASHER | 1 |
| 7 | 62568 | 螺钉（#10-16 x 0.375） | SCREW (#10-16 x .375) | 1 |
| 8 | 848026A1 | 执行器 | ACTUATOR | 1 |
| 9 | 32417 | 螺钉(.250-28 x .625) | SCREW (.250-28 x .625) | 1 |
| 10 | 78968 | 内锁紧垫圈 (.250) | LOCKWASHER Internal (.250) | 1 |
| 11 | 848023 | 止推垫片 | THRUST WASHER | 2 |
| 12 | 90766 | 螺钉(#10-32 x .500) | SCREW (#10-32 x .500) | 3 |
| 13 | 815490A3 | 节气门轴总成 | SHAFT ASSEMBLY Throttle | 1 |
| 14 | 847882 | 挡圈 | RING Retaining | 1 |
| 15 | 24800 | 销 | PIN | 2 |
| 16 | 848024 | 带凸缘衬套 | BUSHING (W/LIP) | 1 |
| 17 | 8480251 | 无凸缘衬套 | BUSHING (W/O LIP) | 1 |
| 18 | 988941 | 弹簧 | SPRING | 1 |
| 19 | 137261 | 油门杆 | LEVER Throttle | 1 |
| 20 | 41355 | 紧定螺丝(#10-32×0.25) | SET SCREW (#10-32 x .25) | 1 |
| 21 | 410891 | 螺丝(#8-32×1.00) | SCREW (#8-32 x 1.00) | 1 |
| 22 | 26995 | 防松垫圈(#8不锈钢) | LOCKWASHER (#8) Stainless Steel | 1 |
| 23 | 8162501 | 油门连杆 | LINK Throttle | 1 |
| 24 | 20013 | 螺母(.250-28) | NUT (.250-28) | 1 |
| 25 | 56374 | 螺母 (.250-20) | NUT (.250-20) | 1 |
| 25 | 8267098 | 螺母 (.250-20) 不锈钢 | NUT (.250-20) Stainless Steel | 1 |
| 26 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 26 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 27 | 816742 | 螺丝(.250-20 x 1.250) | SCREW (.250-20 x 1.250) | 2 |
| 28 | 847881 | 右旋连杆端 | ROD END Right Hand | 1 |
| 29 | 9871510 | 节气门片 | SHUTTER Throttle | 1 |
| 30 | 848046A1 | 垫片组 | SHIM SET | 1 |
| - | 814658A6 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 848039A44 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 848039A84 | 2.5竞赛版动力总成 | PWD ASY 2.5 RACE | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

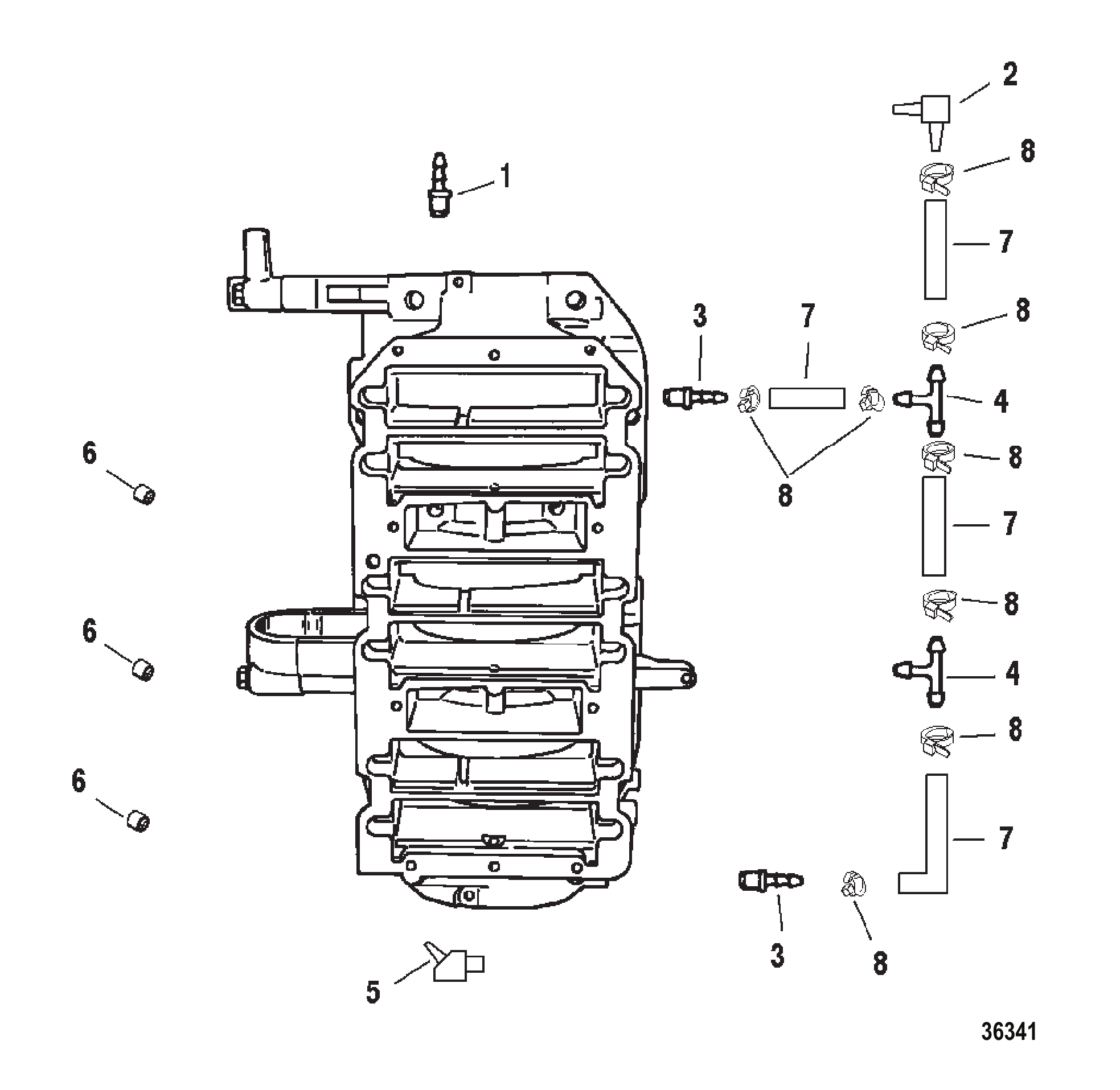

| 1 | 426231 | 止回阀(曲轴箱顶部) | CHECK VALVE (TOP OF CRANKCASE) | 1 |
| 2 | 15133 | 进气接头 | FITTING (AIR INLET) | 1 |
| 3 | 56759 | 接头(倒钩式)(曲轴箱侧面) | FITTING Barbed (SIDE OF CRANKCASE) | 2 |
| 4 | 591692 | 三通接头 | FITTING Tee | 2 |
| 5 | 818189A1 | 止回阀(曲轴箱底部) | CHECK VALVE (BOTTOM OF CRANKCASE) | 1 |
| 6 | 42657A3 | 止回阀(内部泄压) | CHECK VALVE (INTERNAL BLEED) | 3 |
| 7 | 6628570 | 泰贡管(48英寸散装) | TUBING Tygon (48.00 Inches Bulk) | AR |
| 7 | 66285600 | 油管 | TUBING | AR |
| 8 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | 8 |
| - | 848039A44 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

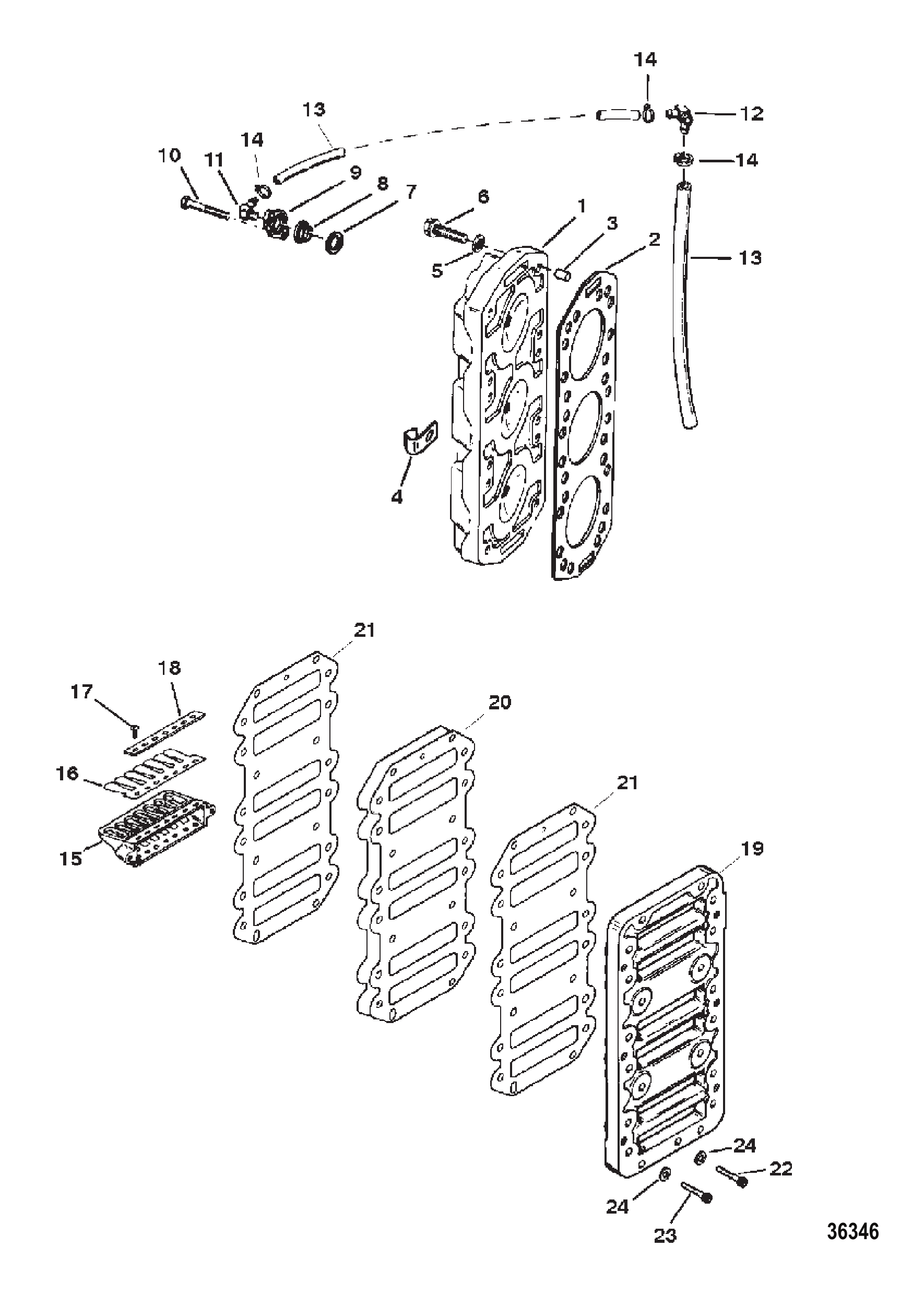

| - | 1878717 | 气缸盖(冠军2.5L型 36.5CC) | CYLINER HEAD (CHAMP 2.5L) 36.5CC | 2 |
| - | 848849A10 | 发动机控制单元ECU 8600限速版 | ECU Engine Control Unit 8600 LIMITER) | 1 |
| - | 8228441 | 衬垫(标准0.050) | GASKET (STD .050) | 2 |
| - | 840322 | 气缸盖衬垫(选装0.060) | GASKET Cylinder Head (OPTIONAL .060) | 2 |
| - | 848040A27 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 848039A46 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 840323A15 | 补丁贴花套件 | DECAL SET PATCH | 1 |

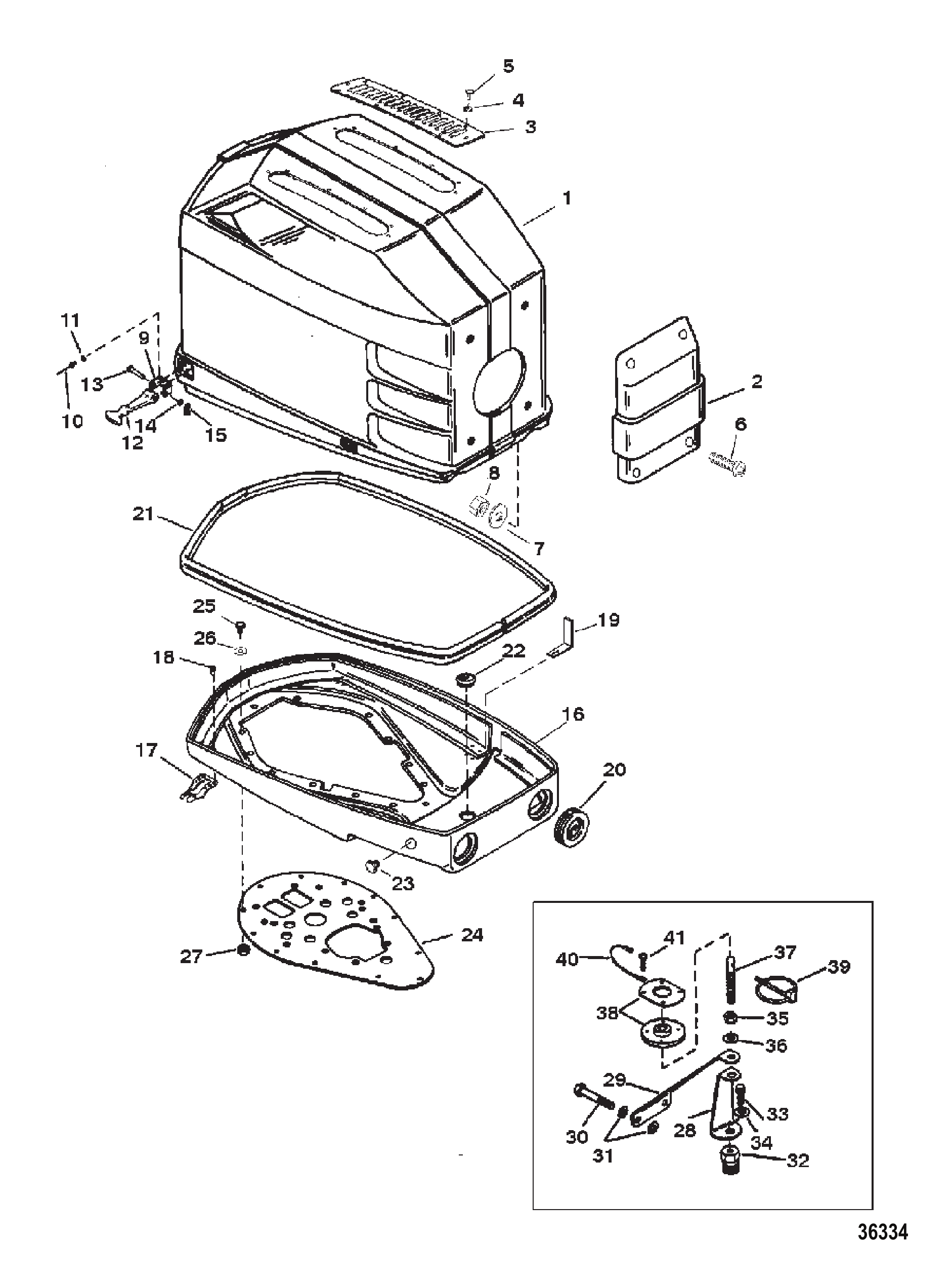

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 848290A15 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 2 | 848291 | 前盖 | FRONT COVER | 1 |
| 3 | 788582 | 护罩 | SHIELD | 2 |
| 4 | 57238 | 垫圈 | WASHER | 20 |
| 5 | 12147 | 抽芯铆钉 | POP RIVET | 20 |
| 6 | 37571 | 螺钉(.190-32 x 0.500) | SCREW (.190-32 x .500) | 4 |
| 7 | 56681 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 4 |
| 8 | 29488 | 螺母 (#10-32) | NUT (#10-32) | 4 |
| 9 | 71602 | 轭架 | YOKE | 4 |
| 10 | 816771 | 铆钉 | RIVET | 12 |
| 11 | 847883 | 垫圈(0.192x0.375x0.033) | WASHER (.192 x .375 x .033) | 12 |
| 12 | 817708 | 压紧件 | HOLD DOWN | 4 |
| 13 | 58712 | U型销 | PIN Clevis | 4 |
| 14 | 847883 | 垫圈(0.192x0.375x0.033) | WASHER (.192 x .375 x .033) | 4 |
| 15 | 21071 | 开口销 | COTTER PIN | 4 |
| - | 849850A1 | 贴花套件 | DECAL SET | 1 |
| - | 849850A3 | 贴花套装(98-99款) | DECAL SET Patch (98-99) | 1 |
| - | 840323A12 | 贴花套装(2000款) | DECAL SET Patch (2000) | 1 |
| 16 | 848164A3 | 下机罩 | BOTTOM COWL | 1 |
| 17 | 13734 | 固定座 | RETAINER | 4 |
| 18 | 848172 | 铆钉 | RIVET | 16 |
| 19 | 848165 | 支撑架 | BRACE | 2 |
| 20 | 8177133 | 护孔环 | GROMMET | 2 |
| 21 | 8177121 | 密封条(6.79英尺大卷) | SEAL (6.79 Feet Bulk) | 1 |
| 22 | 815784 | 盖帽 | CAP | 2 |
| 23 | 90585 | 喷口塞 | PLUG (JET PLUG) | 2 |
| 24 | 8221881 | 底板 | BASE PLATE | 1 |
| 25 | 38601 | 螺丝(.250-28 x 1.250) | SCREW (.250-28 x 1.250) | 13 |
| 26 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 13 |
| 27 | 35045 | 螺母(.250-28) | NUT (.250-28) | 13 |
| - | 821877A2 | 罩壳支撑套件 | SUPPORT KIT Cowl | 1 |
| 28 | 8218771 | 支架 | BRACKET | 1 |
| 29 | 821878 | 支架 | BRACKET | 1 |
| 30 | 821933 | 螺钉 | SCREW | 2 |
| 31 | 847539 | 垫圈 | WASHER | 4 |
| 32 | 821881 | 管塞 | PIPE PLUG | 1 |
| 33 | 818146 | 螺钉 | SCREW | 1 |
| 34 | 847541 | 垫圈 | WASHER | 1 |
| 35 | 71852 | 螺母 | NUT | 1 |
| 36 | 74758 | 垫圈(.469x.875x.063) | WASHER (.469 x .875 x .063) | 1 |
| 37 | 8218791 | 销 | PIN | 1 |
| 38 | 821880A2 | 罩壳支撑总成 | SUPPORT ASSEMBLY Cowl | 1 |
| 39 | 848126A1 | 扭转夹 | TORSION CLIP | 1 |
| 40 | 88238A4 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 41 | 821579 | 螺钉(#10-24x0.500) | SCREW (#10-24 x .500) | 4 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

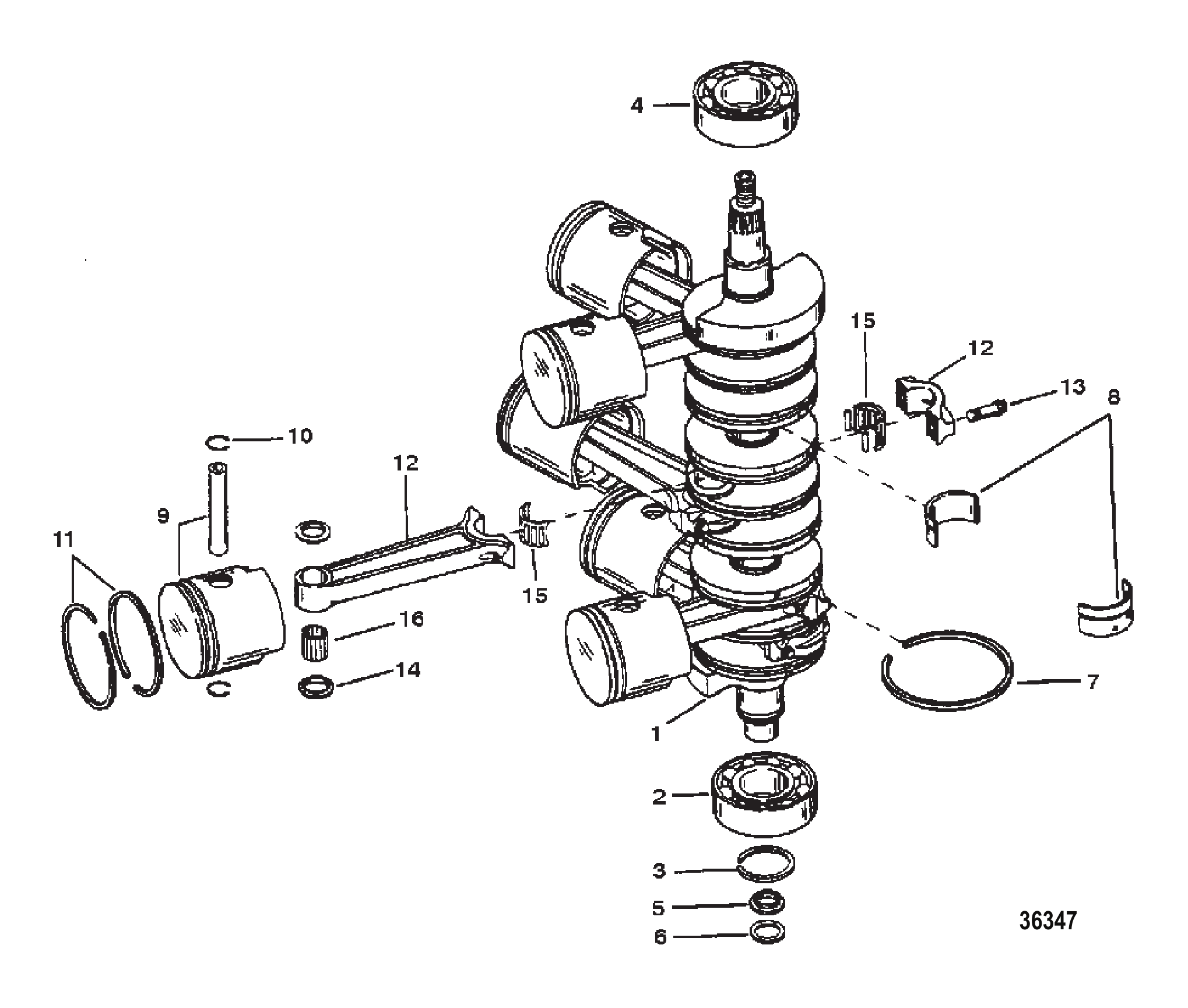

| 1 | 848330T4 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 2 | 67923 | 球轴承(下部) | BEARING Ball (LOWER) | 1 |
| 3 | 67446 | 环 | RING | 1 |
| 4 | 849819 | 球轴承(上部) | BEARING Ball (UPPER) | 1 |
| 5 | 54196A6 | 托架总成 | CARRIER ASSEMBLY | 1 |
| 6 | 65800 | 填料 | PACKING | 1 |
| 7 | 673772 | 环 | RING | 7 |
| 8 | 16756A8 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 2 |
| 9 | 827352A13 | 活塞总成(右舷) | PISTON ASSEMBLY (STARBOARD) | 3 |
| 9 | 827353A13 | 活塞总成(左舷) | PISTON ASSEMBLY (PORT) | 3 |
| 10 | 52035 | 锁紧环(红色) | RING Lock (RED) | 12 |
| 11 | 848201A12 | 活塞环组(每A12套装含12件) | RING SET Piston (12 PCS PER A12 SET) | 1 |
| 12 | 818141A9 | 连杆总成 | CONNECTING ROD ASSEMBLY | 6 |
| 13 | 848475 | 螺钉 | SCREW | 12 |
| 14 | 812876 | 垫圈 | WASHER | 12 |
| 15 | 821146A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 6 |
| 16 | 822553 | 滚针轴承 | BEARING Needle | 174 |
| - | 814658A6 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 848039A44 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |

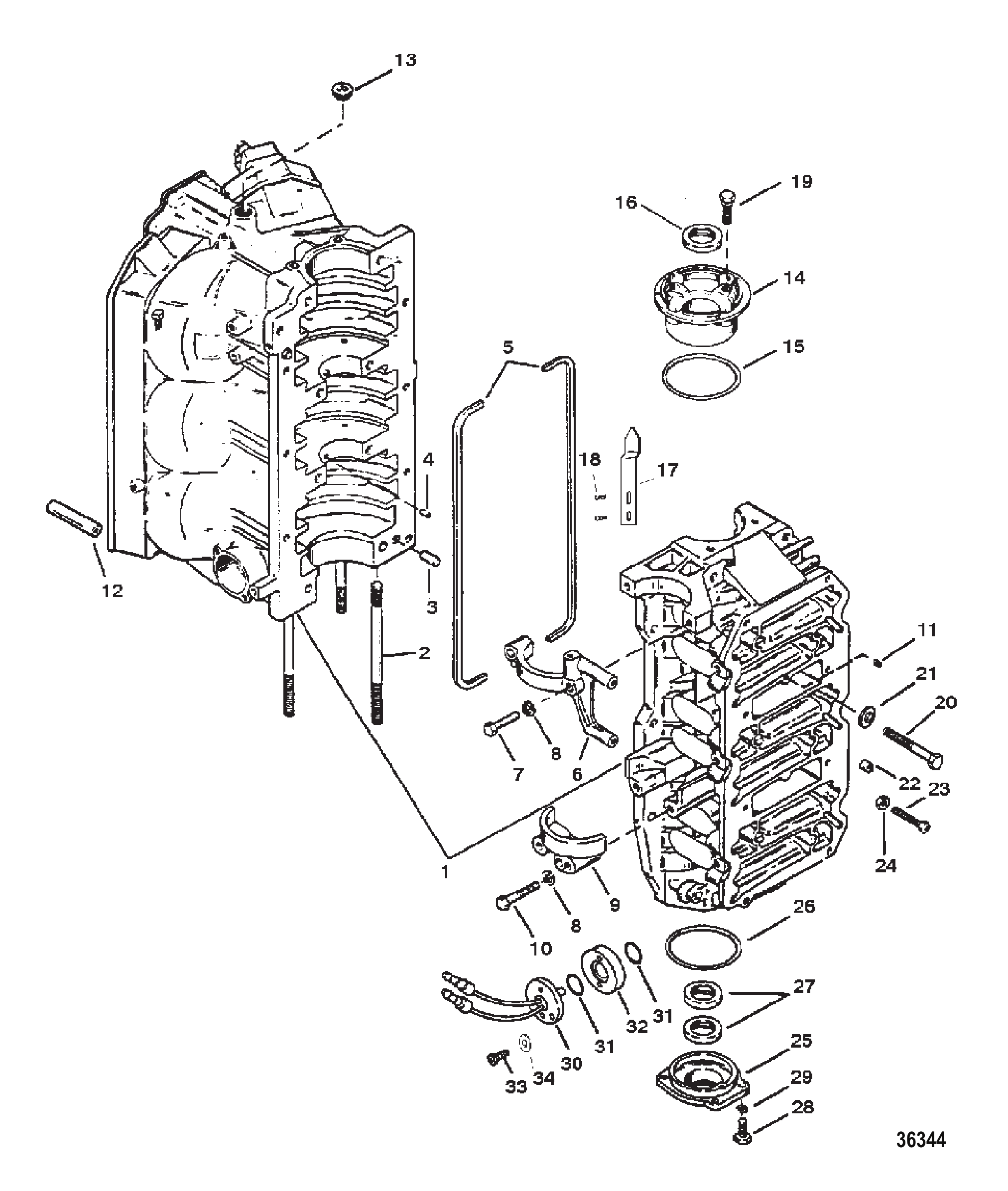

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 822230A39 | 气缸体 | CYLINDER BLOCK | 1 |
| 2 | 8221821 | 双头螺柱(4.625英寸) | STUD (4.625 Inches) | 2 |
| 2 | 822182 | 双头螺柱(4.500英寸) | STUD (4.500 Inches) | 6 |
| 3 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 3 |
| 4 | 67296 | 销(轴承座圈) | PIN (BEARING RACE) | 2 |
| 5 | 11338 | 衬垫 | GASKET | 2 |
| 6 | 42249 | 上盖 | COVER (UPPER) | 1 |
| 7 | 840202 | 螺钉(.312-18 x 1.500) | SCREW (.312-18 x 1.500) | 2 |
| 8 | 26993 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 4 |
| 9 | 76867 | 下盖 | COVER (LOWER) | 1 |
| 10 | 815549 | 螺钉(.312-18 x 2.00) | SCREW (.312-18 x 2.00) | 2 |
| 11 | 42657A3 | 止回阀 | CHECK VALVE | 3 |
| 12 | 830756109 | 软管(散装57英寸)(1-1/4英寸) | HOSE (57.00 Inches Bulk) (1-1/4 IN.) | 4 |
| 13 | 38407 | 水套堵头（0.500-14） | PLUG (.500-14) (WATER JACKET) | 1 |
| 14 | 848282A1 | 上端盖总成 | END CAP ASSEMBLY Upper | 1 |
| 15 | 54030 | O型圈(2.987×0.103) | O-RING (2.987 x .103) | 1 |
| 16 | 41953 | 密封件 | SEAL | 1 |
| 17 | 848465 | 支架 | BRACKET | 1 |
| 18 | 48409 | 螺钉 (#10-16 x .625) 不锈钢 | SCREW (#10-16 x .625) Stainless Steel | 2 |
| 19 | 69034 | 螺钉带锁紧垫圈(.312-18 x 1.00) | SCREW AND LOCKWASHER (.312-18 x 1.00) | 4 |
| 20 | 66717 | 螺钉(.375-16 x 3.250) | SCREW (.375-16 x 3.250) | 8 |
| 20 | 823188 | 螺丝(3/8-16×3-1/2英寸) | SCREW (3/8-16 X 3-1/2 IN.) | 2 |
| 20 | 8231991 | 螺丝(3/8-16×1-1/4英寸) | SCREW (3/8-16 X 1-1/4 IN.) | 10 |
| 21 | 822838 | 垫圈 (.401 x .745 x .097) | WASHER (.401 x .745 x .097) | 20 |
| 22 | 26852 | 尼龙帽 | CAP Nylon | 1 |
| 23 | 64022 | 螺钉(.250-20 x 2.125) | SCREW (.250-20 x 2.125) | 1 |
| 24 | 64015 | 螺母 (.250-20) | NUT (.250-20) | 1 |
| 25 | 8120A1 | 下端盖总成 | END CAP ASSEMBLY Lower | 1 |
| 26 | 62700 | O型圈(3.237 x .103) | O-RING (3.237 x .103) | 1 |
| 27 | 41953 | 密封件 | SEAL | 2 |
| 28 | 28636 | 螺钉(.250-20 x .750) | SCREW (.250-20 x .750) | 2 |
| 28 | 39669 | 螺钉(.250-20 x .750) | SCREW (.250-20 x .750) | 2 |
| 29 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 30 | 13221A1 | 温度传感器总成 | SENSOR ASSEMBLY Temperature | 1 |
| 31 | 45711 | O型圈 (.612 x .103) | O-RING (.612 x .103) | 2 |
| 32 | 816885 | 适配器 | ADAPTER | 1 |
| 33 | 34696 | 螺钉(#8-32 x .750) | SCREW (#8-32 x .750) | 2 |
| 34 | 20670 | 垫圈 | WASHER | 2 |
| 34 | 847883 | 垫圈(0.192x0.375x0.033) | WASHER (.192 x .375 x .033) | 2 |
| - | 814658A6 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 848039A44 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 848040A26 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |

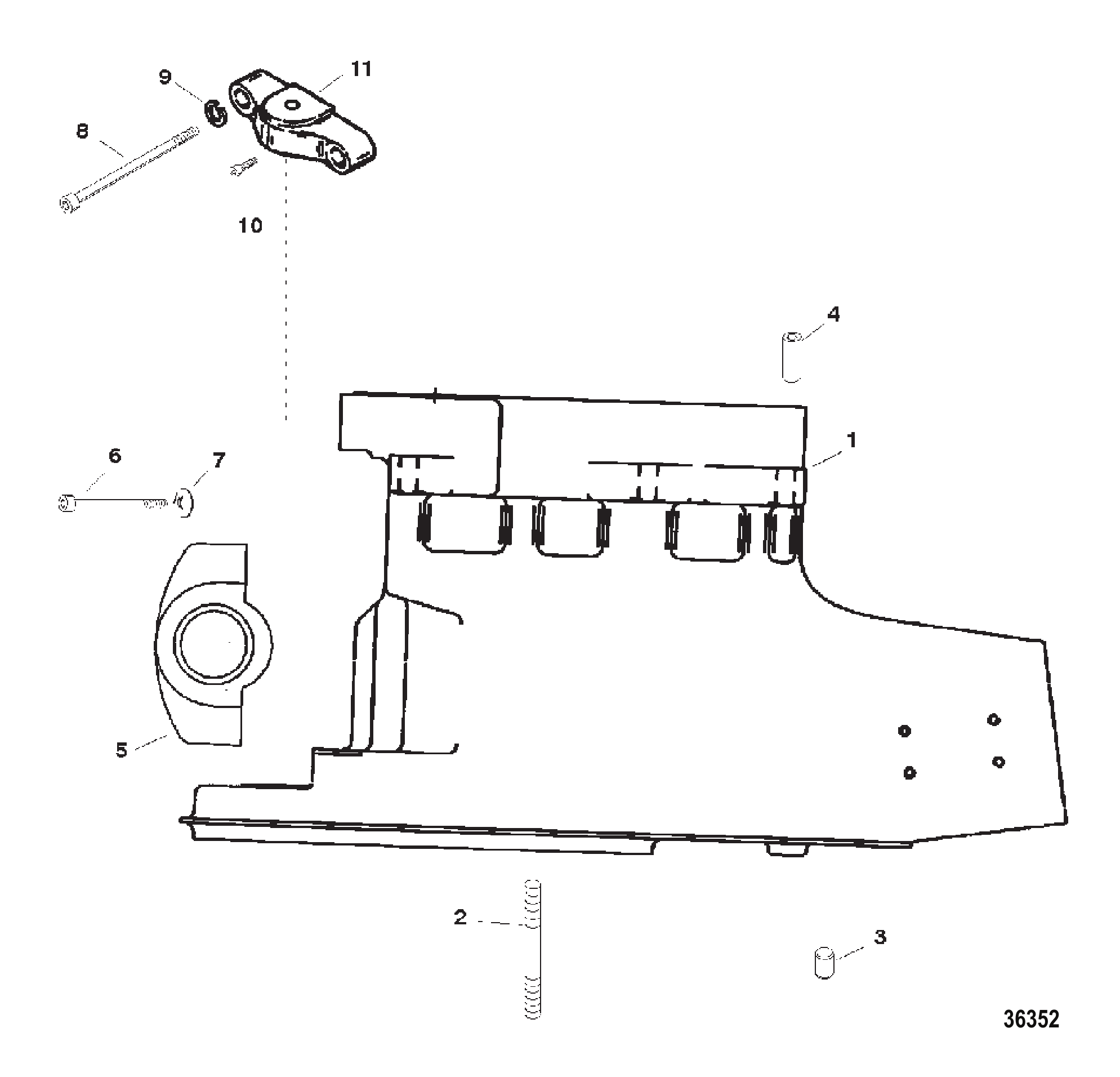

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 821986A5 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 2 | 822118 | 双头螺柱(.437x2.500) | STUD (.437 x 2.500) | 8 |
| 3 | 822107 | 定位销 | PIN Dowel | 2 |
| 4 | 165411 | 套筒 | SLEEVE | 2 |
| 5 | 822006A1 | 轭架 | YOKE | 1 |
| 6 | 995241 | 螺钉(.437-14x2.00) | SCREW (.437-14 x 2.00) | 2 |
| 7 | 326481 | 垫片(.450x.690x.090) | WASHER (.450 x .690 x .090) | 2 |
| 8 | 8221231 | 螺钉(.562x2.500) | SCREW (.562 x 2.500) | 2 |
| 9 | 180451 | 垫圈 | WASHER | 2 |
| 10 | 8221241 | 螺钉(.375x2.00) | SCREW (.375 x 2.00) | 1 |
| 11 | 8221221 | 轭架(非驱动轴壳体部件) | YOKE (NOT PART OF DRIVESHAFT HOUSING) | 2 |

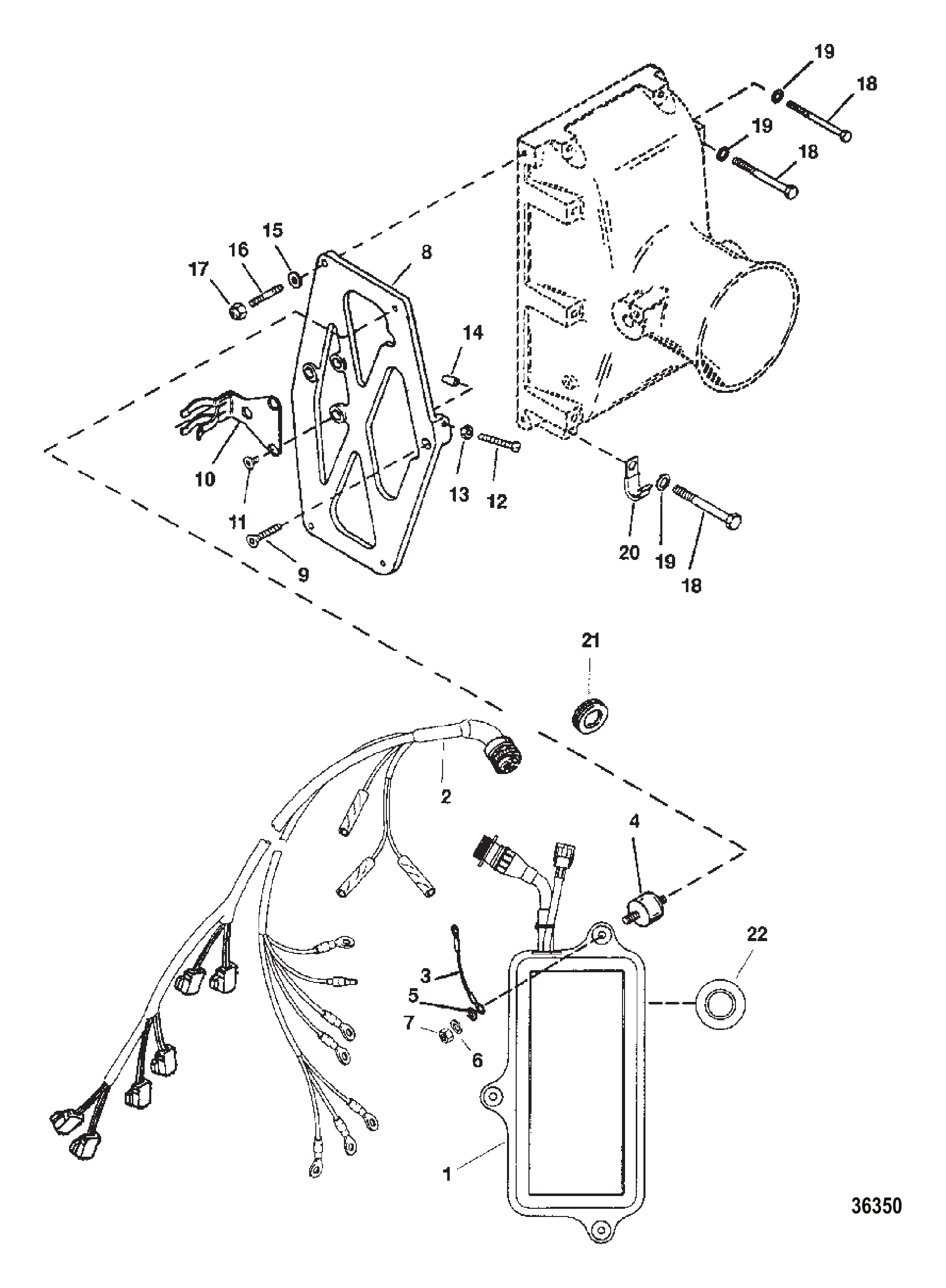

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 849849A8 | EFI控制盒总成 | CONTROL BOX ASSEMBLY EFI | 1 |
| 2 | 98866A27 | 线束总成(EFI) | HARNESS ASSEMBLY EFI | 1 |
| 3 | 65999A10 | 线缆总成(黑色) | CABLE ASSEMBLY (BLACK) | 1 |
| 4 | 122342 | 支架 | MOUNT | 3 |
| 5 | 69056 | 垫圈(.255 x .620 x .030) 不锈钢 | WASHER (.255 x .620 x .030) Stainless Steel | 2 |
| 6 | 78968 | 内锁紧垫圈 (.250) | LOCKWASHER Internal (.250) | 1 |
| 7 | 64015 | 螺母 (.250-20) | NUT (.250-20) | 3 |
| 8 | 8169582 | 支架 | BRACKET | 1 |
| 9 | 821035 | 螺丝(1/4-20×1-1/4英寸) | SCREW (1/4-20 X 1-1/4 IN.) | 1 |
| 10 | 821603 | 卡扣 | CLIP | 1 |
| 11 | 821036 | 螺丝(1/4-20×3/8) | SCREW (1/4-20 X 3/8) | 3 |
| 12 | 13627 | 螺钉 (.190-32 x 1.250) | SCREW (.190-32 x 1.250) | 1 |
| 13 | 68219 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 1 |
| 14 | 48039 | 盖帽 | CAP | 1 |
| 15 | 39143 | 垫圈(.253 x .625 x .0937) | WASHER (.253 x .625 x .0937) | 2 |
| 16 | 56766 | 螺柱(0.250-20/0.250-28×1.380) | STUD (.250-20/.250-28 x 1.380) | 2 |
| 17 | 35888 | 不锈钢螺母(.250-28) | NUT (.250-28) Stainless Steel | 2 |
| 18 | 844884 | 螺丝(0.250-20×3.62) | SCREW (.250-20 x 3.62) | 4 |
| 18 | 63328 | 螺钉(0.312-18 x 3.00) | SCREW (.312-18 x 3.00) | 6 |
| 19 | 39143 | 垫圈(.253 x .625 x .0937) | WASHER (.253 x .625 x .0937) | 4 |
| 19 | 34437 | 垫圈 | WASHER | 6 |
| 20 | 54457 | J型卡扣 | J CLIP | 2 |
| 21 | 190491 | 连接环 | COUPLE RING | 1 |
| 22 | 11023 | 堵头 | PLUG | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

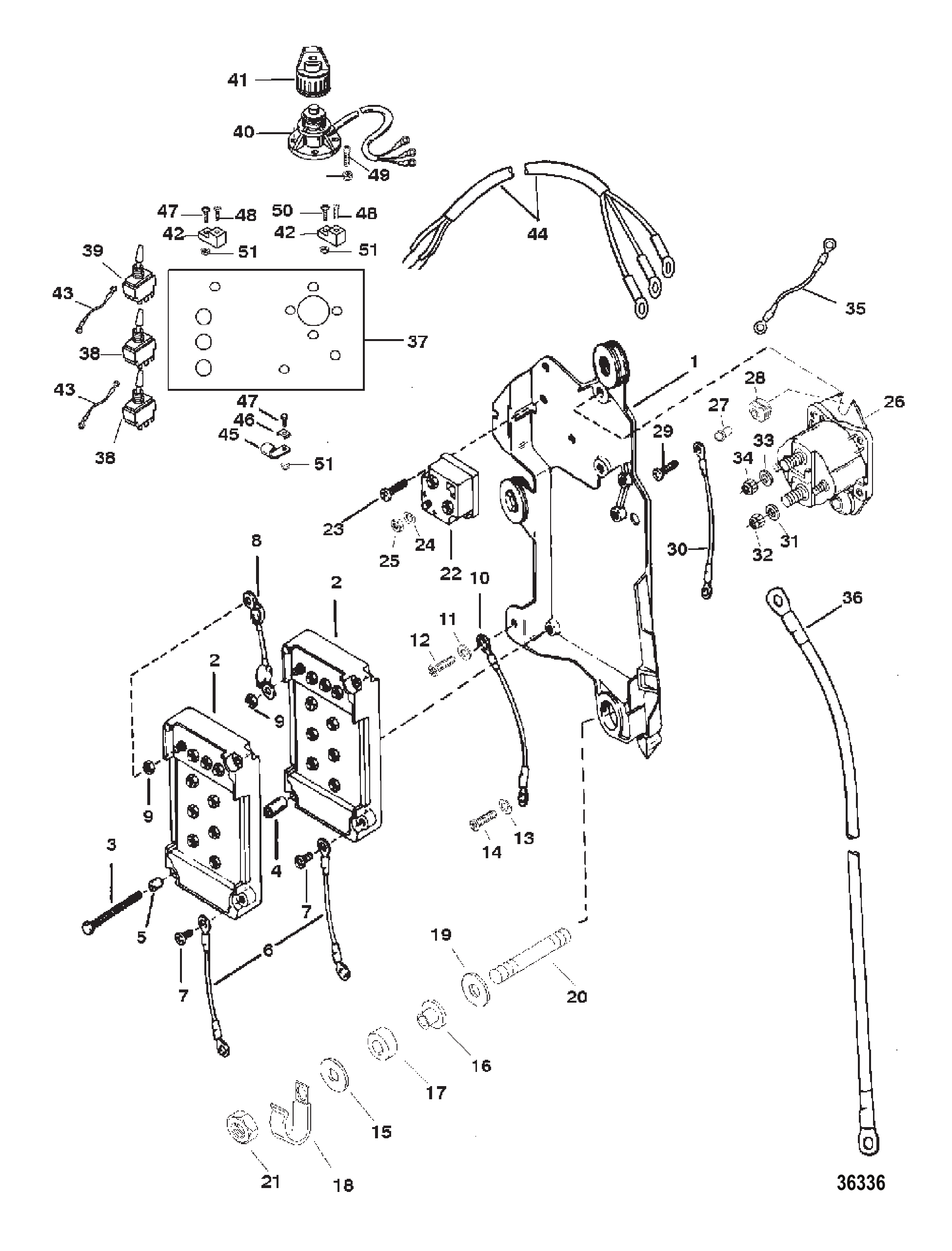

| 1 | 13624 | 点火板 | IGNITION PLATE | 1 |
| 2 | 7778A14 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 3 | 90815 | 螺钉(#12-24x2.250) | SCREW (#12-24 x 2.250) | 2 |
| 4 | 94453 | 衬套 | BUSHING | 2 |
| 5 | 94304 | 隔套 | SPACER | 2 |
| 6 | 60871A10 | 线束总成 | WIRE ASSEMBLY | 2 |
| 7 | 62568 | 螺钉（#10-16 x 0.375） | SCREW (#10-16 x .375) | 2 |
| 8 | 62310A2 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 9 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 20 |
| 10 | 65999A3 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 11 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 1 |
| 12 | 38055 | 螺钉(0.190-32x0.620) | SCREW (.190-32 x .620) | 1 |
| 13 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 1 |
| 14 | 42813 | 螺钉（#10-32 X 0.380） | SCREW (#10-32 X .380) | 1 |
| 15 | 56720 | 垫圈(0.330×0.750×0.060)不锈钢 | WASHER (.330 x .750 x .060) Stainless Steel | 3 |
| 16 | 19064 | 衬套 | BUSHING | 3 |
| 17 | 825380 | 护孔环 | GROMMET | 3 |
| 18 | 814634 | 卡箍 | CLAMP | 2 |
| 19 | 57792 | 垫圈 | WASHER | 3 |
| 20 | 78986 | 双头螺柱(.312-18/.312-24 x 1.750) | STUD (.312-18/.312-24 x 1.750) | 3 |
| 21 | 82670911 | 螺母(.312-24)不锈钢 | NUT (.312-24) Stainless Steel | 1 |
| 22 | 816770 | 整流器 | RECTIFIER | 1 |
| 23 | 38055 | 螺钉(0.190-32x0.620) | SCREW (.190-32 x .620) | 2 |
| 24 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 3 |
| 25 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 3 |
| 26 | 817109A2 | 电磁阀总成(#10-32/.3125-18端子) | SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals) | 1 |
| 27 | 822179 | 护孔环 | GROMMET | 2 |
| 28 | 818968 | 衬套 | BUSHING | 2 |
| 29 | 455611 | 螺钉(.250-20 x 1.120) | SCREW (.250-20 x 1.120) | 2 |
| 30 | 65999A2 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 31 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 2 |
| 32 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 33 | 34437 | 垫圈 | WASHER | 2 |
| 34 | 67980 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 35 | 60466A10 | 接地线总成 | CABLE ASSEMBLY Ground | 1 |
| 36 | 88439A14 | 电缆总成 蓄电池-正极 | CABLE ASSEMBLY Battery - Positive | 1 |
| 36 | 88439A2 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| - | 76366A4 | 电气面板总成 | PANEL ASSEMBLY Electrical | 1 |
| 37 | 76366 | 安装板 | PLATE | 1 |
| 38 | 66582 | 瞬时开关(启动,注油) | MONTENTARY SWITCH (STARTER, PRIMER) | 2 |
| 39 | 66581 | 燃油开关 | SWITCH FUEL | 1 |
| 40 | 856654A2 | 开关壳体总成 | HOUSING ASSEMBLY Switch | 1 |
| 41 | 75095A2 | 盖帽 | CAP | 1 |
| 42 | 45915 | 端子排 | TERMINAL BLOCK | 2 |
| 43 | 61393A8 | 电线 | WIRE | 2 |
| 44 | 93940A2 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 45 | 22875 | 卡扣 | CLIP | 1 |
| 46 | 69205 | C形垫圈 | C WASHER | 1 |
| 47 | 48591 | 螺钉(#10-32 x .500) | SCREW (#10-32 x .500) | 2 |
| 48 | 62568 | 螺钉（#10-16 x 0.375） | SCREW (#10-16 x .375) | 2 |
| 49 | 29072 | 螺钉（#10-32 X 0.625） | SCREW (#10-32 x .625) | 2 |
| 50 | 96113 | 不锈钢螺钉(#10-32x0.880) | SCREW (#10-32 x .880) Stainless Steel | 1 |
| 51 | 45812 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 5 |

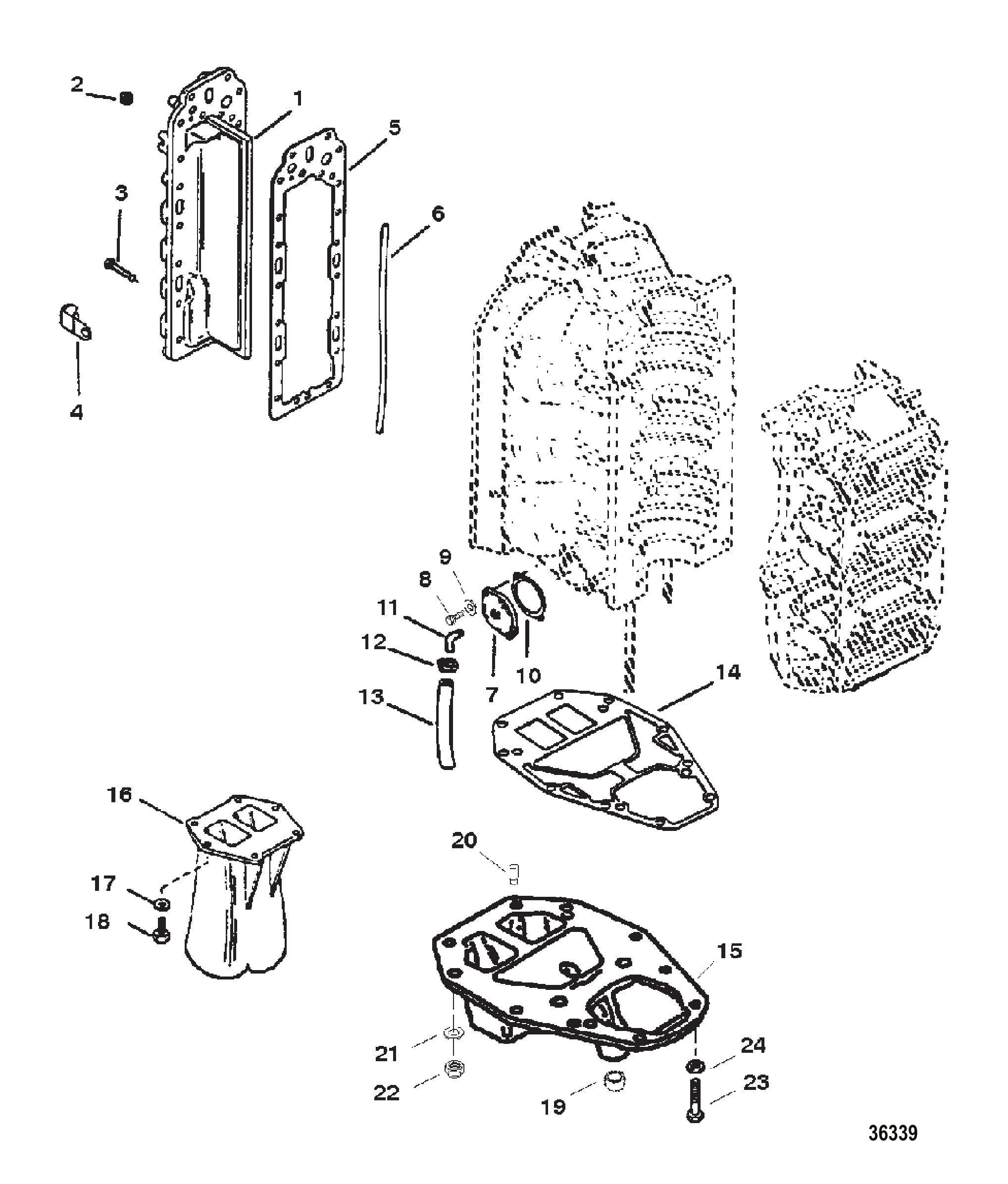

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 847609T4 | 排气隔板 | PLATE Exhaust Divider | 1 |
| 2 | 328022 | 黄铜管塞 (.125-27) | PLUG Pipe (.125-27) Brass | 1 |
| 3 | 848496 | 螺钉(0.312-18 x 1.50) | SCREW (.312-18 x 1.50) | 18 |
| 3 | 848497 | 螺丝(.312-18 x 1.00) | SCREW (.312-18 x 1.00) | 2 |
| 4 | 814634 | 大卡箍 | CLAMP (LARGE) | 2 |
| 4 | 642352 | 小J型夹 | J CLIP (SMALL) | 1 |
| 5 | 8475252 | 衬垫 | GASKET | 1 |
| 6 | 8147542 | 密封件 | SEAL | 1 |
| 7 | 99193 | 安全阀盖 | COVER Relief Valve | 1 |
| 8 | 28782 | 螺钉(.312-18 x .880)不锈钢 | SCREW (.312-18 x .880) Stainless Steel | 2 |
| 9 | 34437 | 垫圈 | WASHER | 2 |
| 10 | 889072 | 衬垫 | GASKET | 1 |
| 11 | 687271 | 90度弯头 (.250-18) - 黄铜 | FITTING (.250-18) 90 Degree - Brass | 1 |
| 12 | 815504104 | 蜗杆卡箍 | CLAMP Worm Gear | 2 |
| 13 | 7765377 | 软管 (24.500英寸 散装) | HOSE (24.500 Inches Bulk) | 1 |
| 14 | 823142 | 衬垫 | GASKET | 2 |
| - | 848166A3 | 排气延伸板总成 | PLATE ASSEMBLY Extension - Exhaust | 1 |
| 15 | 8481661 | 排气板 | PLATE Exhaust | 1 |
| 16 | 8494881 | 扩散器 | DIFFUSER | 1 |
| 17 | 822714 | 垫圈 | WASHER | 5 |
| 18 | 8232581 | 螺钉 | SCREW | 5 |
| 19 | 88397 | 密封件(3/4英寸水管) | SEAL (3/4 IN. WATER TUBE) | 1 |
| 19 | 38970 | 密封件(1/2英寸水管) | SEAL (1/2 IN. WATER TUBE) | 1 |
| 20 | 16527 | 定位销 | PIN Dowel | 2 |
| 21 | 822838 | 垫圈 (.401 x .745 x .097) | WASHER (.401 x .745 x .097) | 8 |
| 22 | 82671013 | 不锈钢螺母 (.375-24) | NUT (.375-24) Stainless Steel | 8 |
| 23 | 818218 | 螺钉（.375-16 x 2.500） | SCREW (.375-16 x 2.500) | 2 |
| 24 | 37828 | 不锈钢垫圈 (.390 x .625 x .062) | WASHER (.390 x .625 x .062) Stainless Steel | 2 |
| - | 814658A6 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 848039A44 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 52901 | 螺母(0.625-18) | NUT (.625-18) | 1 |
| 2 | 68229 | 垫圈(.641 x 1.250 x .190) | WASHER (.641 x 1.250 x .190) | 1 |
| 3 | 6080A41 | 飞轮 | FLYWHEEL | 1 |
| NS | 8M0065245 | 飞轮轮毂 | HUB, Flywheel | 1 |
| 4 | 90028 | 螺钉（#10-32 x 1.125） | SCREW (#10-32 x 1.125) | 6 |
| 5 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 24 |
| 6 | 5454A36 | 定子 | STATOR | 1 |
| 7 | 96455A11 | 触发板总成 | TRIGGER PLATE ASSEMBLY | 1 |
| 8 | 832757A4 | 线圈套件 | COIL KIT | 6 |
| 9 | 79743 | 盖板 | COVER | 3 |
| 10 | 88447 | 螺钉 (.190-32 x 1.62) | SCREW (.190-32 x 1.62) | 12 |
| 11 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 12 |
| 12 | 68513 | 螺钉(#10-32x.375)不锈钢 | SCREW (#10-32 x .375) Stainless Steel | 6 |
| 13 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 12 |
| 14 | 88807A6 | 黑色电缆总成 (3.50 英寸) | CABLE ASSEMBLY (3.50 Inches) Black | 6 |
| 15 | 815358 | 电缆 | CABLE | 6 |
| 16 | 14103550 | 火花塞 (NGK-BUZHW) | SPARK PLUG (NGK-BUZHW) | 6 |
| 17 | 69738A7 | 线束总成(#2,4&6) | HARNESS ASSEMBLY (#2, 4 & 6) | 1 |
| 17 | 69739A2 | 线束总成(#1,3&5) | HARNESS ASSEMBLY (#1, 3 & 5) | 1 |
| 18 | 60594A1 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 19 | 56703 | 轴环 | COLLAR | 2 |
| 20 | 68042 | 橡胶止挡 | STOP Rubber | 2 |
| 21 | 93388A1 | 电缆总成(6.00英寸)黑色 | CABLE ASSEMBLY (6.00 Inches) Black | 1 |
| 22 | 69035 | 螺丝与锁紧垫圈(.250-20 x .625)不锈钢 | SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel | 1 |
| 23 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 1 |
| 24 | 64015 | 螺母 (.250-20) | NUT (.250-20) | 1 |
| 25 | 93389A5 | 黄色线束总成（6.50英寸） | WIRE ASSEMBLY (6.50 Inches) Yellow | 1 |
| 26 | 68513 | 螺钉(#10-32x.375)不锈钢 | SCREW (#10-32 x .375) Stainless Steel | 1 |
| 27 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 1 |
| 28 | 63153 | J型卡扣 | J CLIP | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

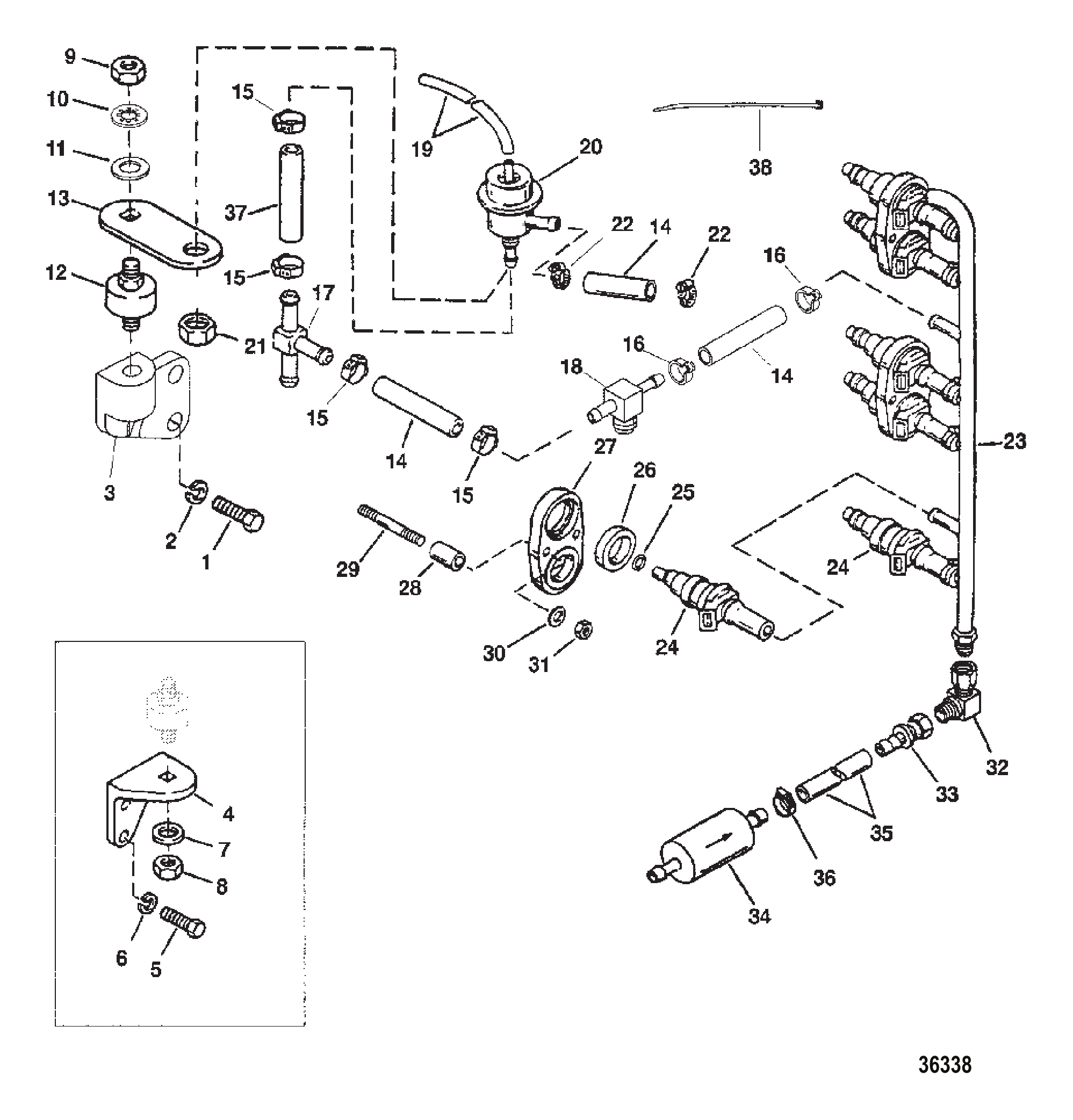

| 1 | 28667 | 螺钉 (0.250-20 x 1.00) 不锈钢 | SCREW (.250-20 x 1.00) Stainless Steel | 2 |
| 2 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 3 | 8490211 | 支架 | BRACKET | 1 |
| 4 | 99945 | 支架 | BRACKET | 1 |
| 5 | 28636 | 螺钉(.250-20 x .750) | SCREW (.250-20 x .750) | 2 |
| 6 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 7 | 35462 | 垫圈(.2656 x .625 x .0625)不锈钢 | WASHER (.2656 x .625 x .0625) Stainless Steel | 2 |
| 8 | 35888 | 不锈钢螺母(.250-28) | NUT (.250-28) Stainless Steel | 2 |
| 9 | 64015 | 螺母 (.250-20) | NUT (.250-20) | 1 |
| 10 | 78968 | 内锁紧垫圈 (.250) | LOCKWASHER Internal (.250) | 1 |
| 11 | 35462 | 垫圈(.2656 x .625 x .0625)不锈钢 | WASHER (.2656 x .625 x .0625) Stainless Steel | 1 |
| 12 | 12234 | 橡胶支座 | RUBBER MOUNT | 1 |
| 13 | 99944 | 支架 | SUPPORT | 1 |
| 14 | 774572 | 软管（散装48.00英寸） | HOSE (48.00 Inches Bulk) | AR |
| 15 | 13791 | 卡箍(15.7) | CLAMP (15.7) | 2 |
| 16 | 12999 | 卡箍(14.0) | CLAMP (14.0) | 4 |
| 17 | 17207 | 接头 | FITTING | 1 |
| 18 | 849606 | T型接头 | T FITTING | 1 |
| 19 | 6628570 | 泰贡管(48英寸散装) | TUBING Tygon (48.00 Inches Bulk) | 1 |
| 20 | 120262 | 燃油调节器 | REGULATOR Fuel | 1 |
| 21 | 15018 | 螺母 | NUT | 1 |
| 22 | 815504104 | 蜗杆卡箍 | CLAMP Worm Gear | 2 |
| 23 | 172063 | 燃油导轨 | FUEL RAIL | 1 |
| 24 | 98818 | 燃油喷油器 | INJECTOR Fuel | 6 |
| 25 | 94219 | 密封件 | SEAL | 6 |
| 26 | 30271 | 橡胶环 | RING Rubber | 6 |
| 27 | 98716 | 压紧件 | HOLD DOWN | 3 |
| 28 | 98717 | 隔套 | SPACER | 6 |
| 29 | 21184 | 双头螺栓(1/4-28×2) | STUD 1/4-28 x 2 | 6 |
| 30 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 6 |
| 31 | 35045 | 螺母(.250-28) | NUT (.250-28) | 6 |
| 32 | 818699 | 接头 | FITTING | 1 |
| 33 | 69406 | 接头 | FITTING | 1 |
| 34 | 818700 | 滤清器 | FILTER | 1 |
| 35 | 84876177 | 软管（84.00英寸散装） | HOSE (84.00 Inches Bulk) | 1 |
| 36 | 848763 | 卡箍（19.8毫米） | CLAMP (19.8 mm) | 1 |
| 36 | 848764 | 卡箍（21毫米） | CLAMP (21 mm) | 1 |
| 37 | 89713 | 软管 | HOSE | 1 |
| 38 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | 2 |
| - | 814658A6 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 848039A44 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |

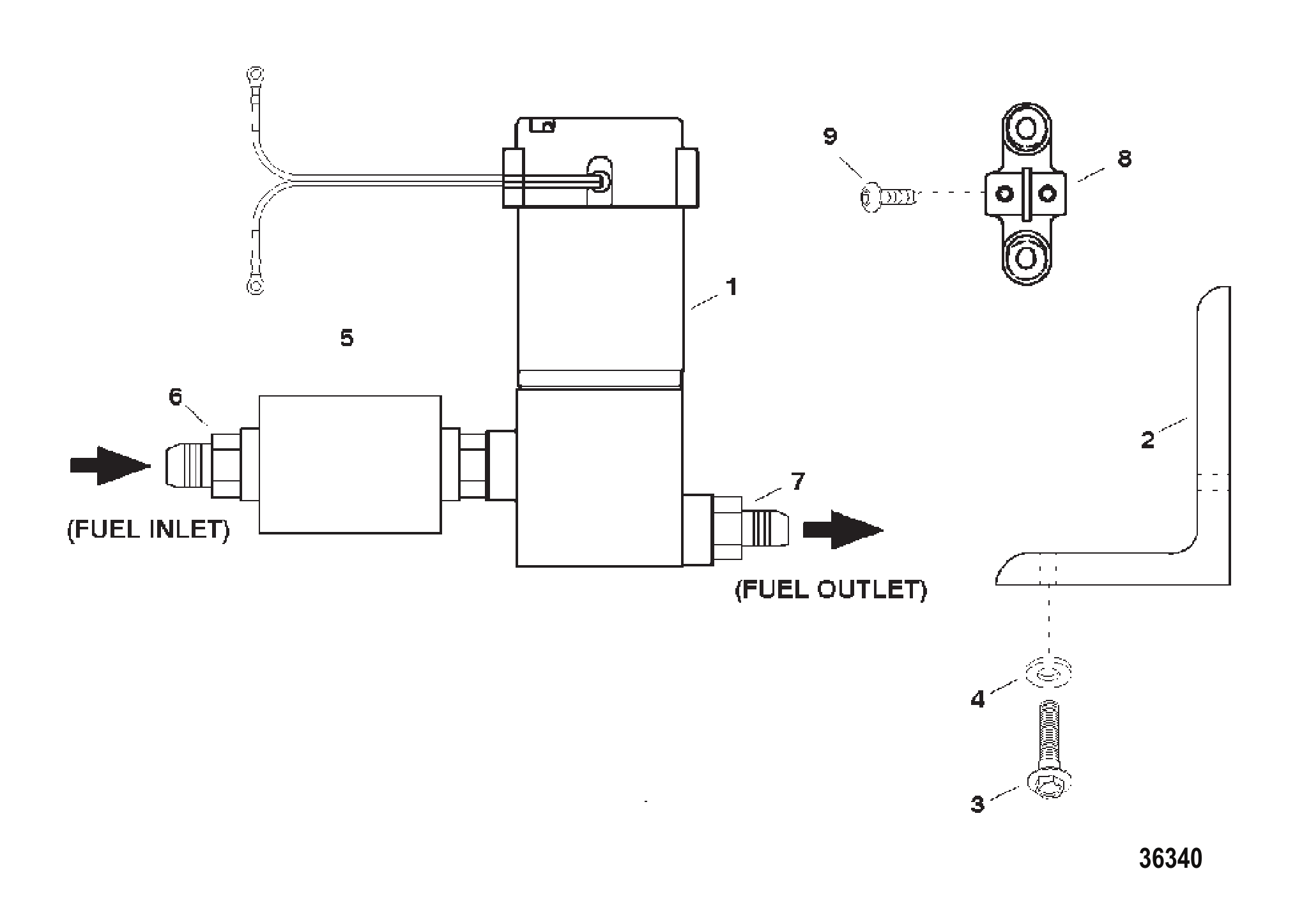

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 840368A1 | 燃油泵总成(完整) | PUMP ASSEMBLY Fuel (COMPLETE) | 1 |
| 1 | 840368 | 燃油泵 | PUMP Fuel | 1 |
| 2 | 840367 | 支架 | BRACKET | 1 |
| 3 | 8490314 | 螺钉 | SCREW | 2 |
| 4 | 814806 | 垫圈 (.344 x .688 x .065) 不锈钢 | WASHER (.344 x .688 x .065) Stainless Steel | 2 |
| 5 | 94865 | 燃油滤清器 | FILTER Fuel | 1 |
| 6 | 944631 | 燃油接头 | FITTING Fuel | 1 |
| 7 | 94273 | 燃油接头 | FITTING Fuel | 1 |
| 8 | 45559 | 端子排 | TERMINAL BLOCK | 1 |
| 9 | 62568 | 螺钉（#10-16 x 0.375） | SCREW (#10-16 x .375) | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

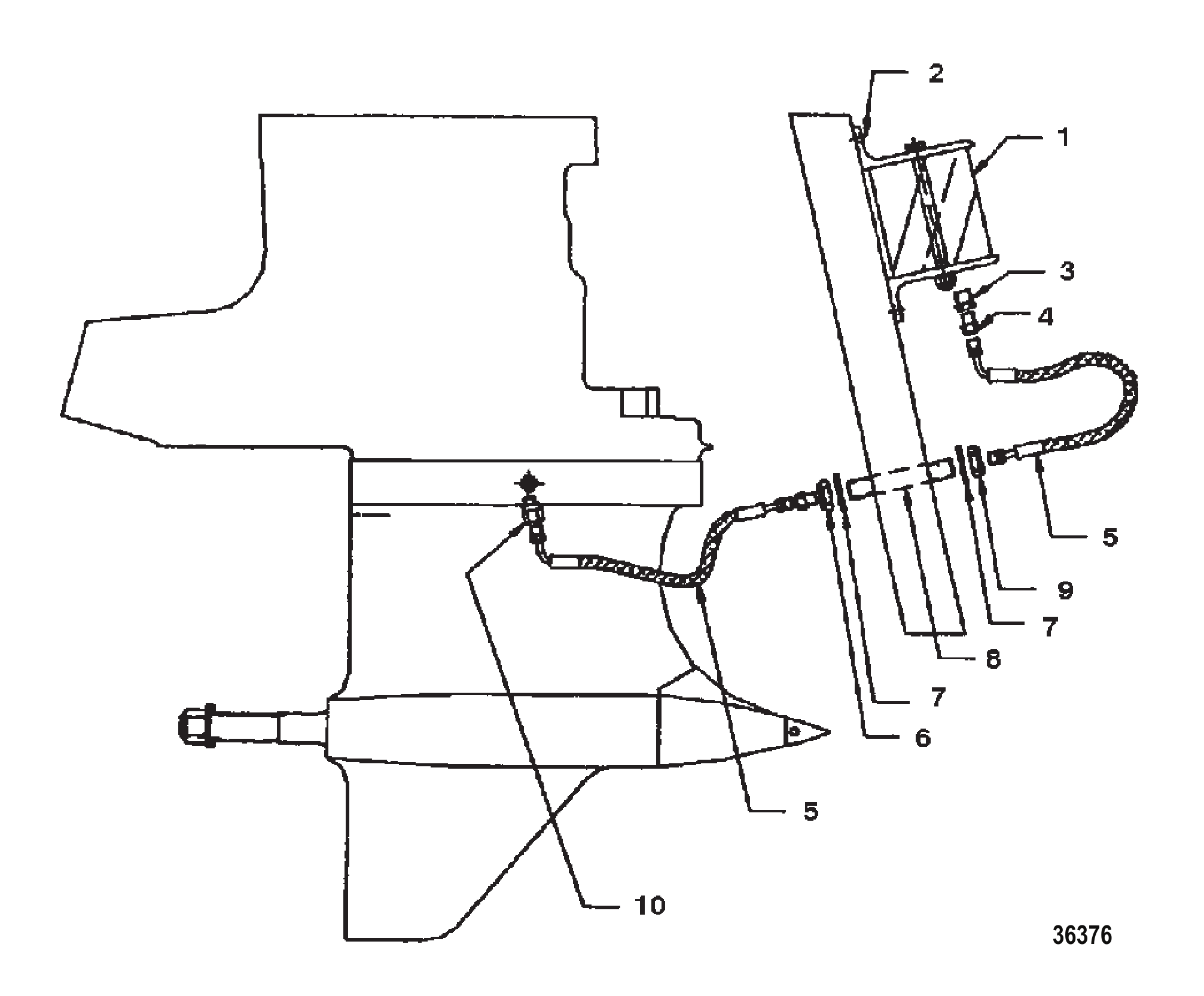

| - | 821085A3 | 齿轮箱滤罐套件 | GEARCASE CANISTER KIT | 1 |
| 1 | 821085A1 | 齿轮箱滤罐 | GEARCASE CANISTER | 1 |
| 2 | 16862 | 螺钉 (.250-10 x 1.25) | SCREW (.250-10 x 1.25) | 4 |
| 3 | 48556 | 变径衬套（.250至.125） | BUSHING Reducer (.250 To .125) | 1 |
| 4 | 48166 | 接头 | FITTING | 1 |
| 5 | 86036 | 钢编织软管 | HOSE (STEEL BRAIDED) | 2 |
| 6 | 22339 | 螺母(0.625-18) | NUT (.625-18) | 1 |
| 7 | 36258 | 垫圈 | WASHER | 2 |
| 7 | 47428 | 垫圈（.660 x 1.120 x .141）不锈钢 | WASHER (.660 x 1.120 x .141) Stainless Steel | 2 |
| 8 | 847018 | 螺柱（.625-11 x 4.500） | STUD (.625-11 x 4.500) | 1 |
| 9 | 69578A1 | 螺旋桨螺母套件 | PROP NUT KIT | 1 |
| 10 | 848104A1 | 适配器组件 | ADAPTER ASSEMBLY | 1 |

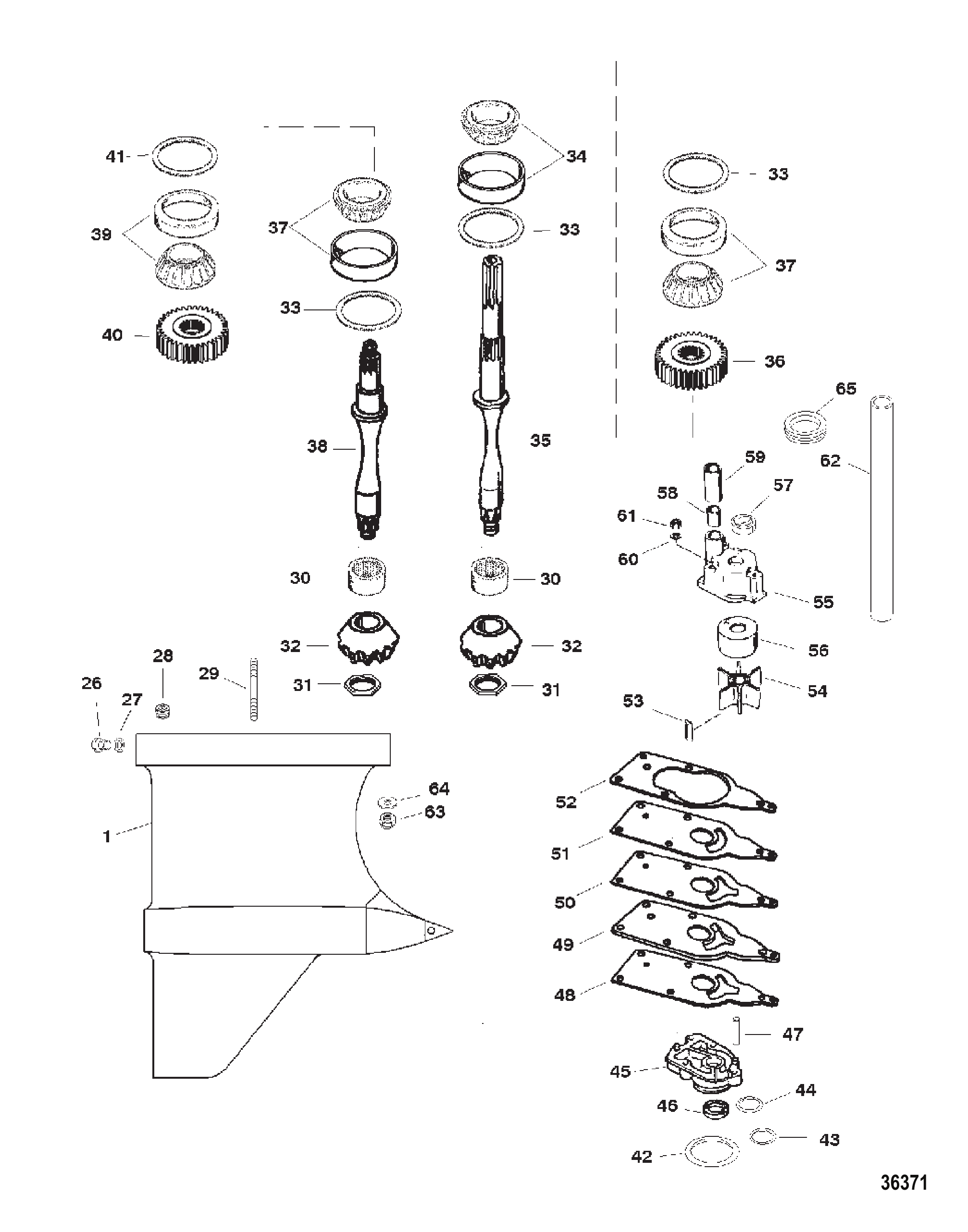

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

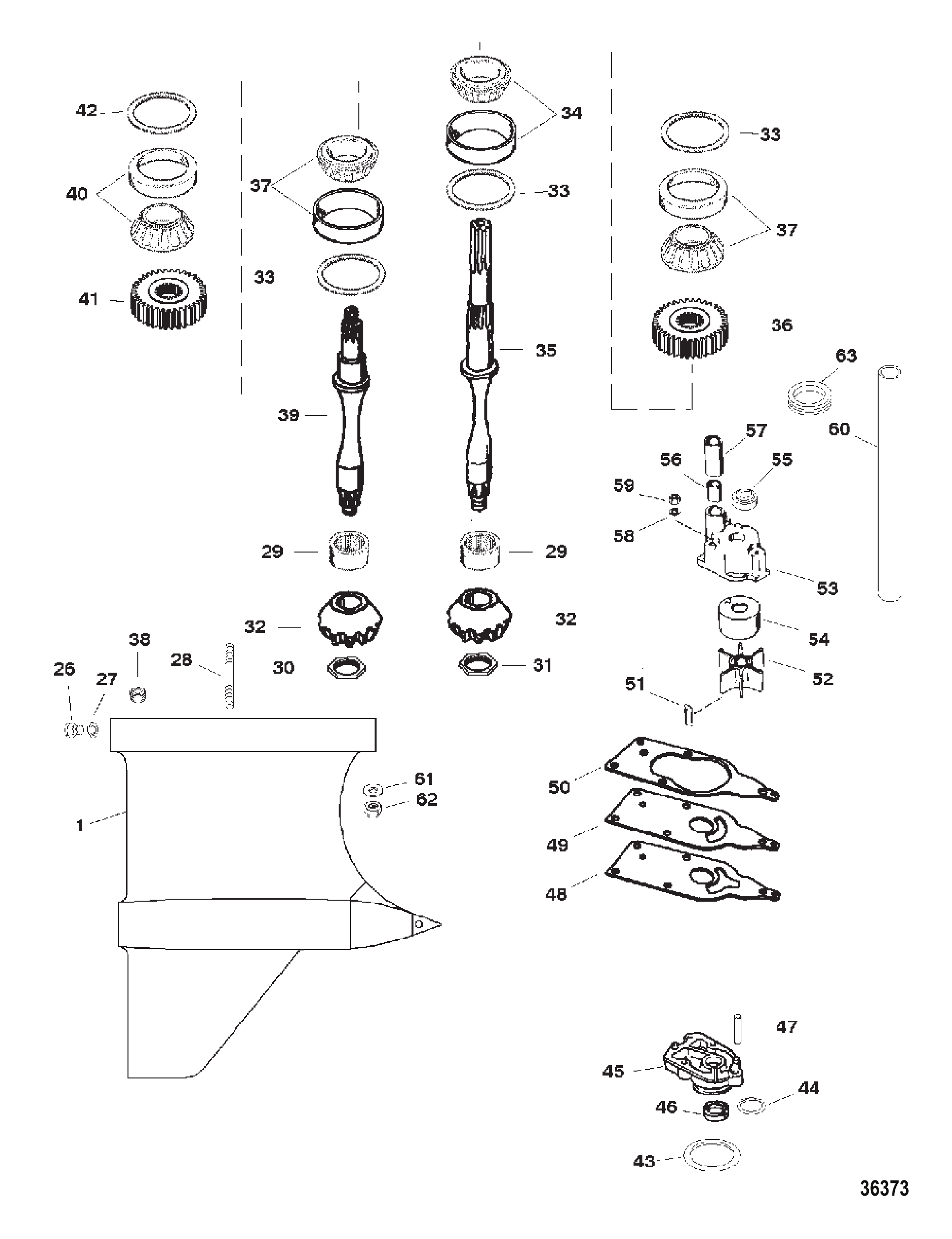

| - | 818877A13 | 齿轮箱总成（完整） | GEARCASE ASSEMBLY (COMPLETE) | 1 |
| 1 | 818877A14 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 26 | 14834A3 | 磁性放油塞总成 | PLUG ASSEMBLY Drain - Magnetic | 2 |
| 27 | 805726 | 橡胶O型圈 | O-RING Rubber | 2 |
| 28 | 69058 | 双头螺栓(0.312-18/0.312-24×1.690) | STUD (.312-18/.312-24 x 1.690) | 2 |
| 28 | 68166 | 螺柱(.312 x 2.125) | STUD (.312 x 2.125) | 5 |
| 29 | 818905 | 滚柱轴承 | BEARING Roller | 2 |
| 30 | 35921 | 螺母(0.625-18)(右后) | NUT (.625-18) (R.H. REAR) | 1 |
| 31 | 818932 | 左旋螺母(左前) | NUT Left Hand (L.H. FRONT) | 1 |
| 32 | 818931A2 | 齿轮组(1主动齿轮/1从动齿轮) | GEAR SET (1 PINION/1 DRIVEN) | 2 |
| 33 | 38657A1 | 垫片组 | SHIM ASSEMBLY | 3 |
| 34 | 38680A1 | 轴承总成(下部) | BEARING ASSEMBLY (LOWER) | 1 |
| 35 | 813781 | 驱动轴(前部) | DRIVESHAFT (FRONT) | 1 |
| 36 | 86639 | 齿轮 | GEAR | 1 |
| 37 | 38678A1 | 轴承总成 | BEARING ASSEMBLY | 2 |
| 38 | 73379 | 塞(.250-18) | PLUG (.250-18) | 1 |
| 39 | 815506 | 驱动轴(后部) | DRIVESHAFT (REAR) | 1 |
| 40 | 38681A1 | 轴承总成 | BEARING ASSEMBLY | 1 |
| 41 | 86640 | 标准旋转齿轮 | GEAR Standard Rotation | 1 |
| 42 | 38668A1 | 垫片组 | SHIM SET | 1 |
| 43 | 39695 | O型圈 | O-RING | 1 |
| 44 | 35276 | O型圈(.734 x .139) | O-RING (.734 x .139) | 1 |
| 45 | 821034A1 | 水泵底座总成 | BASE ASSEMBLY Water Pump | 1 |
| 46 | 16977 | 油封 | SEAL Oil | 2 |
| 47 | 29596 | 定位销 | PIN Dowel | 2 |
| 48 | 821305 | 衬垫 | GASKET | 1 |
| 49 | 85353 | 面板 | FACE PLATE | 1 |
| 50 | 821304 | 衬垫 | GASKET | 1 |
| 51 | 56654 | 键 | KEY | 1 |
| 52 | 899844 | 叶轮 | IMPELLER | 1 |
| 53 | 821541A2 | 水泵总成(3/4英寸水管) | PUMP ASSEMBLY Water (3/4 IN. WATER TUBE) | 1 |
| 54 | 30915 | 嵌件 | INSERT | 1 |
| 55 | 55905 | 油封 | SEAL Oil | 1 |
| 56 | 88397 | 密封件 | SEAL | 1 |
| 57 | 847685 | 套筒 | SLEEVE | 1 |
| 58 | 24812 | 垫圈 | WASHER | 7 |
| 59 | 54947 | 螺母(.312-24) | NUT (.312-24) | 7 |
| 60 | 8476504 | 水管 | TUBE Water | 1 |
| 61 | 822836 | 垫圈(.445 x .805 x .108) | WASHER (.445 x .805 x .108) | 8 |
| 62 | 82671015 | 螺母(.437-20)不锈钢 | NUT (.437-20) Stainless Steel | 8 |
| 63 | 30271 | 橡胶环 | RING Rubber | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 821964A8 | 齿轮箱总成（完整） | GEARCASE ASSEMBLY (COMPLETE) | 1 |
| 1 | 821964A9 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 26 | 14834A3 | 磁性放油塞总成 | PLUG ASSEMBLY Drain - Magnetic | 2 |
| 27 | 805726 | 橡胶O型圈 | O-RING Rubber | 2 |
| 28 | 32561 | 管塞-内六角头(.250-18) | PLUG Pipe - Allen Head (.250-18) | 1 |
| 29 | 814682 | 双头螺栓(0.250×0.812) | STUD (.250 x .812) | 3 |
| 29 | 848534 | 双头螺栓(0.250×3.18) | STUD (.250 x 3.18) | 2 |
| 30 | 31524 | 滚柱轴承 | BEARING Roller | 2 |
| 31 | 30932 | 螺母 | NUT | 2 |
| 32 | 815488A1 | 齿轮组(1主动齿轮/1从动齿轮) | GEAR SET (1 PINION/1 DRIVEN) | 2 |
| 33 | 38657A1 | 垫片组 | SHIM ASSEMBLY | 3 |
| 34 | 38680A1 | 轴承总成(下部) | BEARING ASSEMBLY (LOWER) | 1 |
| 35 | 87014 | 驱动轴(前部) | DRIVESHAFT (FRONT) | 1 |
| 36 | 60929 | 齿轮 | GEAR | 1 |
| 37 | 38678A1 | 轴承总成 | BEARING ASSEMBLY | 2 |
| 38 | 87015 | 驱动轴(后部) | DRIVESHAFT (REAR) | 1 |
| 39 | 38681A1 | 轴承总成 | BEARING ASSEMBLY | 1 |
| 40 | 60928 | 齿轮 | GEAR | 1 |
| 41 | 38668A1 | 垫片组 | SHIM SET | 1 |
| 42 | 32069 | O型圈 | O-RING | 1 |
| 43 | 59386 | 隔套 | SPACER | 1 |
| 44 | 35276 | O型圈(.734 x .139) | O-RING (.734 x .139) | 1 |
| 45 | 38631A1 | 水泵底座总成 | BASE ASSEMBLY Water Pump | 1 |
| 46 | 16977 | 油封 | SEAL Oil | 2 |
| 47 | 29596 | 定位销 | PIN Dowel | 2 |
| 48 | 848524 | 衬垫 | GASKET | 1 |
| 49 | 848522 | 隔套 | SPACER | 1 |
| 50 | 848528 | 衬垫 | GASKET | 1 |
| 51 | 8485211 | 面板 | FACE PLATE | 1 |
| 52 | 848525 | 衬垫 | GASKET | 1 |
| 53 | 566541 | 键 | KEY | 1 |
| 54 | 899844 | 叶轮 | IMPELLER | 1 |
| 55 | 848505A1 | 水泵总成(3/4英寸) | PUMP ASSEMBLY Water (3/4 IN.) | 1 |
| 56 | 8483211 | 嵌件 | INSERT | 1 |
| 57 | 55905 | 油封 | SEAL Oil | 1 |
| 58 | 88397 | 密封件(3/4英寸水管) | SEAL (3/4 IN. WATER TUBE) | 1 |
| 59 | 8476852 | 套筒 | SLEEVE | 1 |
| 60 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 5 |
| 61 | 30506 | 螺母(.250-28) | NUT (.250-28) | 5 |
| 62 | 8476506 | 水管(3/4英寸) | TUBE Water (3/4 IN.) | 1 |
| 63 | 822836 | 垫圈(.445 x .805 x .108) | WASHER (.445 x .805 x .108) | 8 |
| 64 | 82671015 | 螺母(.437-20)不锈钢 | NUT (.437-20) Stainless Steel | 8 |
| 65 | 30271 | 橡胶环 | RING Rubber | 1 |
| - | 821964A10 | 维修套件VI SSM | REBUILD KIT VI SSM | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

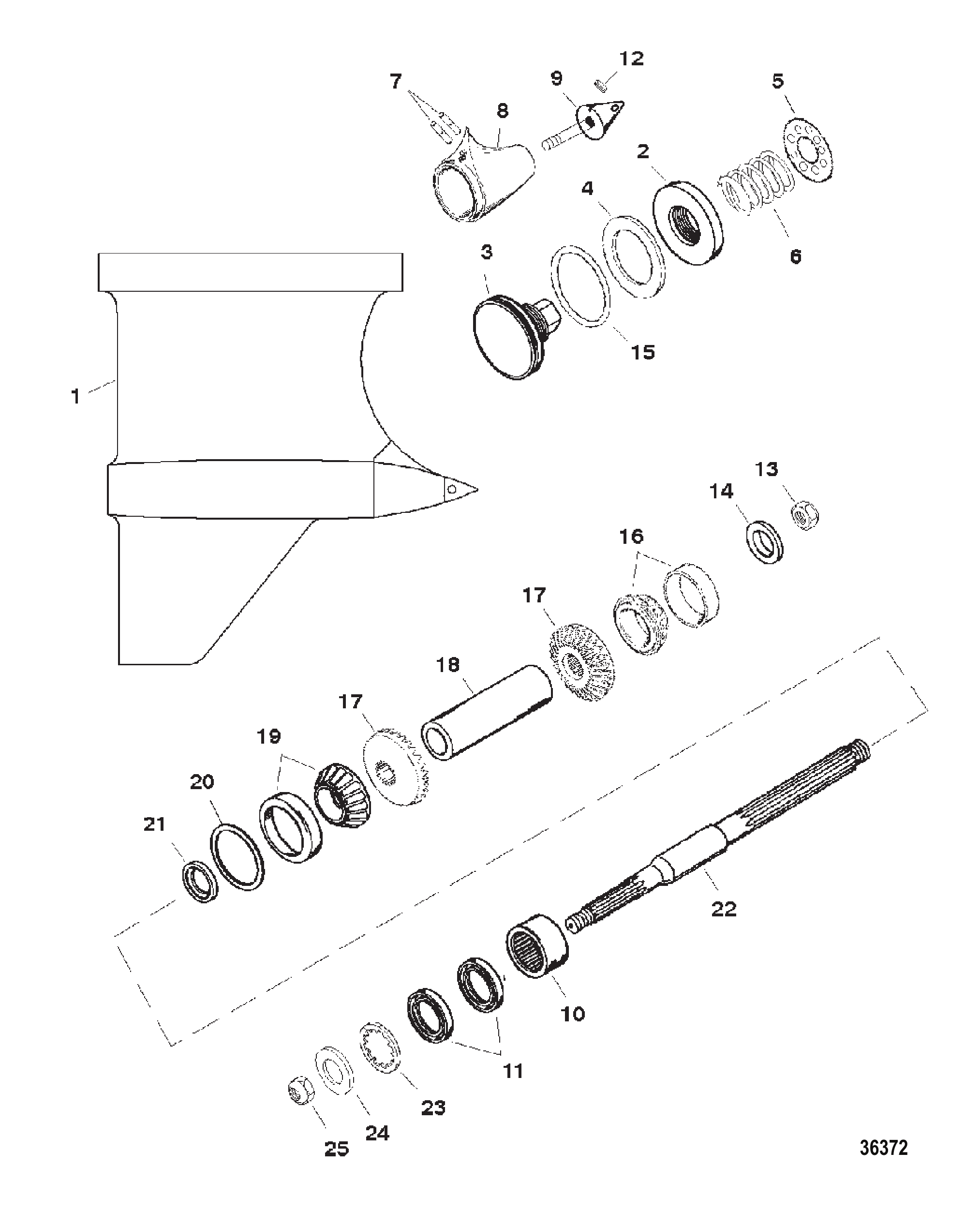

| - | 818877A13 | 齿轮箱总成（完整） | GEARCASE ASSEMBLY (COMPLETE) | 1 |
| 1 | 818877A14 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 2 | 65683 | 螺母 | NUT | 1 |
| 3 | NSS | 不单独销售锚定螺柱 | NOT SOLD SEPARATE ANCHOR STUD | 1 |
| 4 | 65690 | 垫圈 | WASHER | 1 |
| 5 | 65682 | 圆盘 | DISC | 1 |
| 6 | 65691 | 弹簧 | SPRING | 1 |
| 7 | 23803 | 销 | PIN | 2 |
| 8 | NSS | 不单独销售鼻锥 | NOT SOLD SEPARATE NOSE CONE | 1 |
| 9 | 87265 | 螺钉 | SCREW | 1 |
| 10 | 65697 | 滚柱轴承 | BEARING Roller | 1 |
| 11 | 16553 | 油封 | SEAL Oil | 2 |
| 12 | 65700 | 堵头 | PLUG | 1 |
| 13 | 25599 | 螺母(.750-16) | NUT (.750-16) | 1 |
| 14 | 85354 | 衬套 | BUSHING | 1 |
| 15 | 85355 | 四角密封环 | QUAD RING | 1 |
| 16 | 35924A1 | 轴承总成(前部) | BEARING ASSEMBLY (FRONT) | 1 |
| 17 | 818931A2 | 齿轮组(1主动齿轮/1从动齿轮) | GEAR SET (1 PINION/1 DRIVEN) | 2 |
| 18 | 39712 | 隔套 | SPACER | 1 |
| 19 | 65695A1 | 轴承总成(后部) | BEARING ASSEMBLY (REAR) | 1 |
| 20 | 38657A1 | 垫片组 | SHIM ASSEMBLY | 1 |
| 21 | 39696 | 垫圈 | WASHER | 1 |
| 22 | 65711 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 23 | 39701 | 垫圈 | WASHER | 1 |
| 24 | 39698 | 垫圈 | WASHER | 1 |
| 25 | 52707A1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

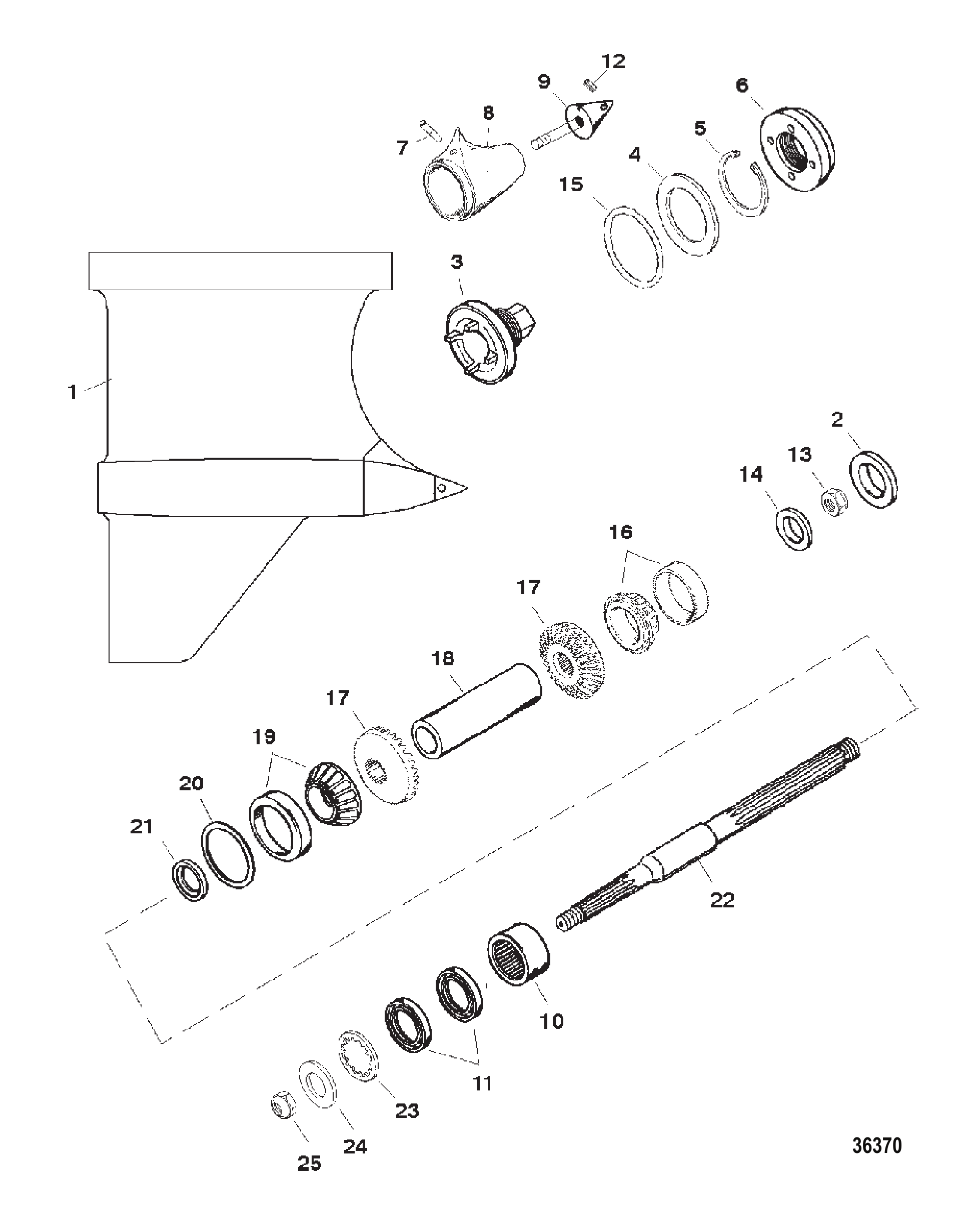

| - | 821964A8 | 齿轮箱总成（完整） | GEARCASE ASSEMBLY (COMPLETE) | 1 |
| 1 | 821964A9 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 2 | 28576 | 螺母 | NUT | 1 |
| 3 | NSS | 不单独出售 双头螺栓/锚栓 | NOT SOLD SEPARATE STUD, ANCHOR | 1 |
| 4 | 28565 | 垫圈 | WASHER | 1 |
| 5 | 28562 | 挡圈 | RING Retaining | 1 |
| 6 | 34195 | 盖板 | COVER | 1 |
| 7 | 23803 | 销 | PIN | 1 |
| 8 | NSS | 不单独销售鼻锥 | NOT SOLD SEPARATE NOSE CONE | 1 |
| 9 | 34150 | 螺钉 | SCREW | 1 |
| 10 | 87013 | 滚柱轴承 | BEARING Roller | 1 |
| 11 | 16553 | 油封 | SEAL Oil | 2 |
| 12 | 65700 | 堵头 | PLUG | 1 |
| 13 | 22339 | 螺母(0.625-18) | NUT (.625-18) | 1 |
| 14 | 90404 | 垫圈(凹面) | WASHER (Concave) | 1 |
| 14 | 90405 | 垫圈(凸面) | WASHER (Convex) | 1 |
| 15 | 26855 | O型圈(1.609 x 0.139) | O-RING (1.609 x .139) | 1 |
| 16 | 70087A1 | 轴承总成(前部) | BEARING ASSEMBLY (FRONT) | 1 |
| 17 | 815488A1 | 齿轮组(1主动齿轮/1从动齿轮) | GEAR SET (1 PINION/1 DRIVEN) | 2 |
| 18 | 38661 | 隔套 | SPACER | 1 |
| 19 | 32575A1 | 滚子轴承总成(后部) | BEARING ASSEMBLY Roller (REAR) | 1 |
| 20 | 32563A1 | 垫片组 | SHIM SET | 1 |
| 21 | 386881 | 垫圈 | WASHER | 1 |
| 22 | 78432 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 23 | 39701 | 垫圈 | WASHER | 1 |
| 24 | 39698 | 垫圈 | WASHER | 1 |
| 25 | 52707A1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| - | 821964A10 | 维修套件VI SSM | REBUILD KIT VI SSM | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

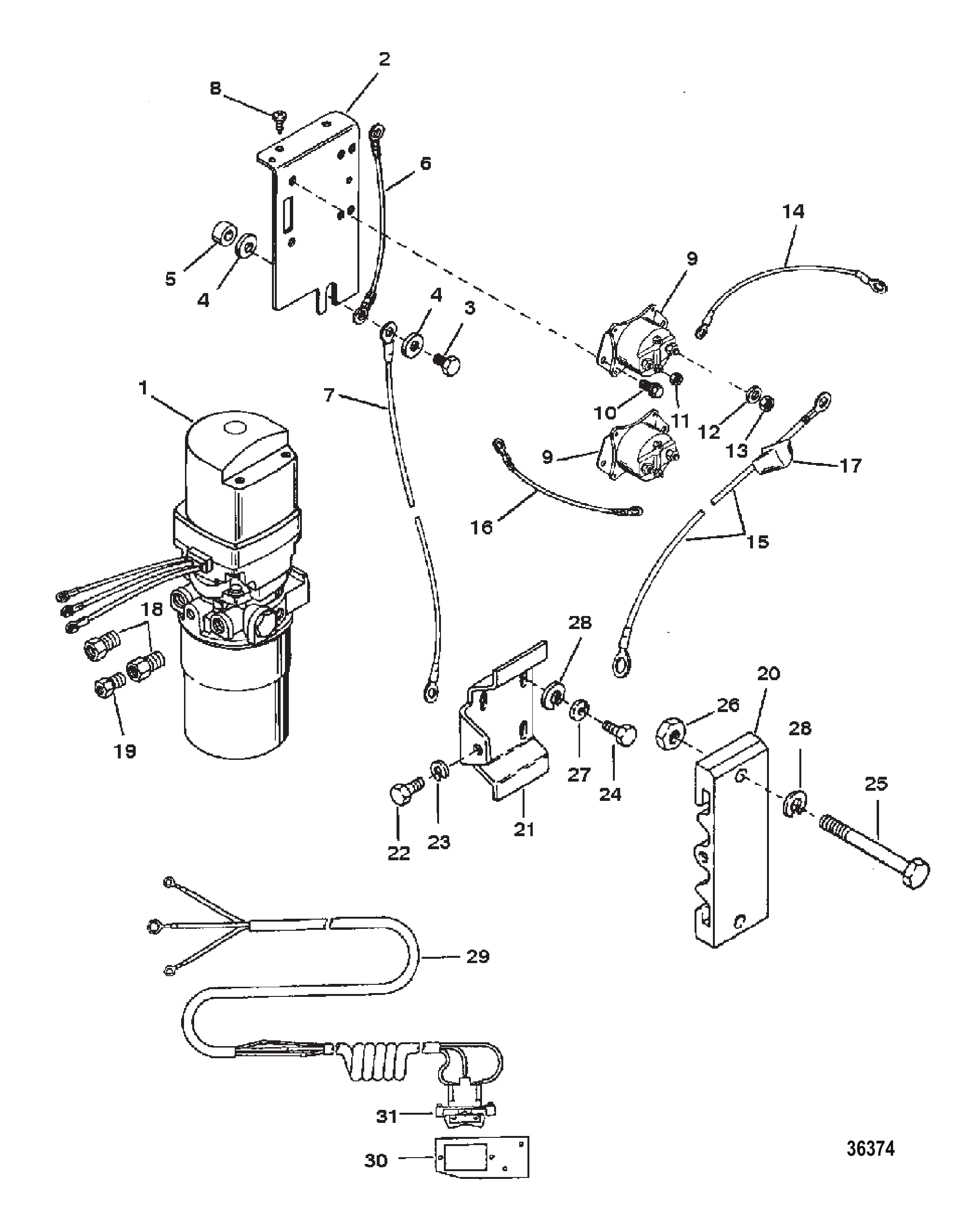

| 1 | 818611A2 | 液压平衡泵套件 | PUMP KIT Hydraulic Trim | 1 |
| 1 | 818377A2 | 液压平衡泵套件 | PUMP KIT Hydraulic Trim | 1 |
| 2 | 818567 | 支架 | BRACKET | 1 |
| 3 | 38837 | 螺钉(.312-18×1.12) | SCREW (.312-18 x 1.12) | 1 |
| 4 | 57792 | 垫圈 | WASHER | 1 |
| 5 | 34948 | 隔套 | SPACER | 2 |
| 6 | 65999A12 | 接地线总成 | CABLE ASSEMBLY Ground | 1 |
| 7 | 79138A9 | 电缆总成(6英尺)黑色-负极 | CABLE ASSEMBLY (6.00 Feet) Black-Negative | 1 |
| 8 | 92051 | 螺钉（10-16 x 0.75） | SCREW (10-16 x .75) | 1 |
| 9 | 76528A1 | 电磁阀 | SOLENOID | 2 |
| 10 | 41508 | 螺钉(0.250-20×0.500)不锈钢 | SCREW (.250-20 x .500) Stainless Steel | 4 |
| 11 | 20110 | 螺母 (#10-32) | NUT (#10-32) | 4 |
| 12 | 22753 | 垫圈 | WASHER | 4 |
| 13 | 26484 | 螺母(.312-18) | NUT (.312-18) | 4 |
| 14 | 65999A11 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 15 | 79139A27 | 电缆总成 蓄电池 (正极) | CABLE ASSEMBLY Battery (POSITIVE) | 1 |
| 16 | 79139A26 | 电缆总成(红色) | CABLE ASSEMBLY Red | 1 |
| 17 | 46265 | 护套 | BOOT | 3 |
| 18 | 77366 | 接头 | FITTING | 2 |
| 19 | 38609 | 堵头 | PLUG | 1 |
| - | 87762A2 | 平衡泵支架套件 | BRACKET KIT Trim Pump Mounting | 1 |
| 20 | 87762 | 支架 | BRACKET | 1 |
| 21 | 87760 | 安装板 | PLATE | 1 |
| 22 | 39349 | 螺钉(.312-18×0.75)不锈钢 | SCREW (.312-18 x .750) Stainless Steel | 1 |
| 23 | 26993 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 1 |
| 24 | 90271 | 螺钉(.375-16×0.62) | SCREW (.375-16 x .62) | 2 |
| 25 | 63826 | 螺钉(.375-16 x 2.50) | SCREW (.375-16 x 2.50) | 2 |
| 26 | 82670912 | 螺母(.375-16)不锈钢 | NUT (.375-16) Stainless Steel | 2 |
| 27 | 58643 | 锁紧垫圈 (.375) | LOCKWASHER (.375) | 2 |
| 28 | 856774 | 垫圈(0.406×0.750×0.105)不锈钢 | WASHER (.406 x .750 x .105) Stainless Steel | 4 |
| 29 | NSS | 不单独出售-配线总成(升降) | NOT SOLD SEPARATE HARNESS ASSEMBLY, TRIM | 1 |
| 30 | 61626A1 | 平衡开关板总成 | PLATE ASSEMBLY Trim Switch | 1 |
| 31 | 61691 | 开关 | SWITCH | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 1878715 | 气缸盖(26毫升) | CYLINDER HEAD (26 C.C.) | 2 |
| 2 | 8228441 | 衬垫 | GASKET | 2 |
| 3 | 63779 | 定位销 (.250 x .625) | PIN Dowel (.250 x .625) | 4 |
| 4 | 789451 | 卡箍 | CLAMP | 1 |
| 5 | 822838 | 垫圈 (.401 x .745 x .097) | WASHER (.401 x .745 x .097) | 24 |
| 6 | 98534 | 螺钉 (.375-16 x 2.30) | SCREW (.375-16 x 2.30) | 24 |
| 7 | 475332 | 垫圈 | WASHER | 2 |
| 8 | 62386 | 衬垫 | GASKET | 2 |
| 9 | 90390A1 | 盖板套件 | COVER KIT | 2 |
| 10 | 37562 | 不锈钢螺钉(.312-18 x 1.00) | SCREW (.312-18 x 1.00) Stainless Steel | 4 |
| 11 | 687271 | 90度弯头 (.250-18) - 黄铜 | FITTING (.250-18) 90 Degree - Brass | 1 |
| 12 | 68728 | 接头 | FITTING | 1 |
| 13 | 774572 | 软管（散装48.00英寸） | HOSE (48.00 Inches Bulk) | 1 |
| 14 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 3 |
| 15 | 876922 | 缸体 | BLOCK | 6 |
| 16 | 815242A3 | 簧片阀组件 | REED KIT | 6 |
| 17 | 823588 | 螺钉(#8-32 x 0.250)(每台发动机84个) | SCREW (#8-32 x .250) (84 PER ENGINE) | 14 |
| 18 | 903911 | 簧片夹 | CLAMP Reed | 12 |
| 19 | 987093 | 安装板 | PLATE | 1 |
| 20 | NSS | 不单独出售-隔板(属于818451A2部件) | NOT SOLD SEPARATE SPACER PLATE (PART OF 818451A2) | 1 |
| 21 | 127754 | 衬垫 | GASKET | 2 |
| 22 | 96529 | 螺钉 (.250-20 x 2.00) | SCREW (.250-20 x 2.00) | 2 |
| 23 | 848920 | 螺钉(0.250-20 x 2.50) | SCREW (.250-20 x 2.50) | 16 |
| 24 | 822837 | 垫圈 | WASHER | 14 |
| - | 814658A6 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 848039A44 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 0 | 849864R1 | 零件手册-高性能水星/马林S3000 | PARTS MANUAL HI PERF MERC/MAR S3000 | 1 |
| 0 | 818451A2 | 间隔套件(进气口) | SPACER KIT (AIR INLET) | 1 |
| 0 | 849006A1 | 水泵套件-径向排水-VI SSM | PUMP KIT Water - Radial Discharge - VI SSM | 1 |
| 0 | 849021A4 | 施拉德阀套件 | SCHRADER VALVE KIT | 1 |
| 0 | 18594A10 | 缸套套件(0.020) | LINER KIT (.020) Cylinder | 1 |
| 0 | 90415A23 | 螺栓套件 | BOLT KIT | 1 |
| 0 | 840154A1 | 适配器线束总成 | HARNESS ASSEMBLY Adaptor | 1 |
| 0 | 847620A3 | ECU测试仪-数字式 | TESTER ECU - Digital | 1 |
| 0 | 39573A1 | VI SSM工具套件 | VI SSM TOOL KIT | 1 |
| 0 | 847905A1 | IV SSM工具套件 | IV SSM TOOL KIT | 1 |
| 0 | 849963A1 | 安装工具-卡簧(红色卡扣) | INSTALLATION TOOL Circlip (RED CLIPS) | 1 |
| 0 | 818773 | 活塞环压缩工具 | COMPRESSOR TOOL Piston Ring | 1 |
| 0 | 832012A2 | 上端盖总成 | END CAP ASSEMBLY Upper | 1 |
| 0 | 849154T1 | 拉拔器总成 | PULLER ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

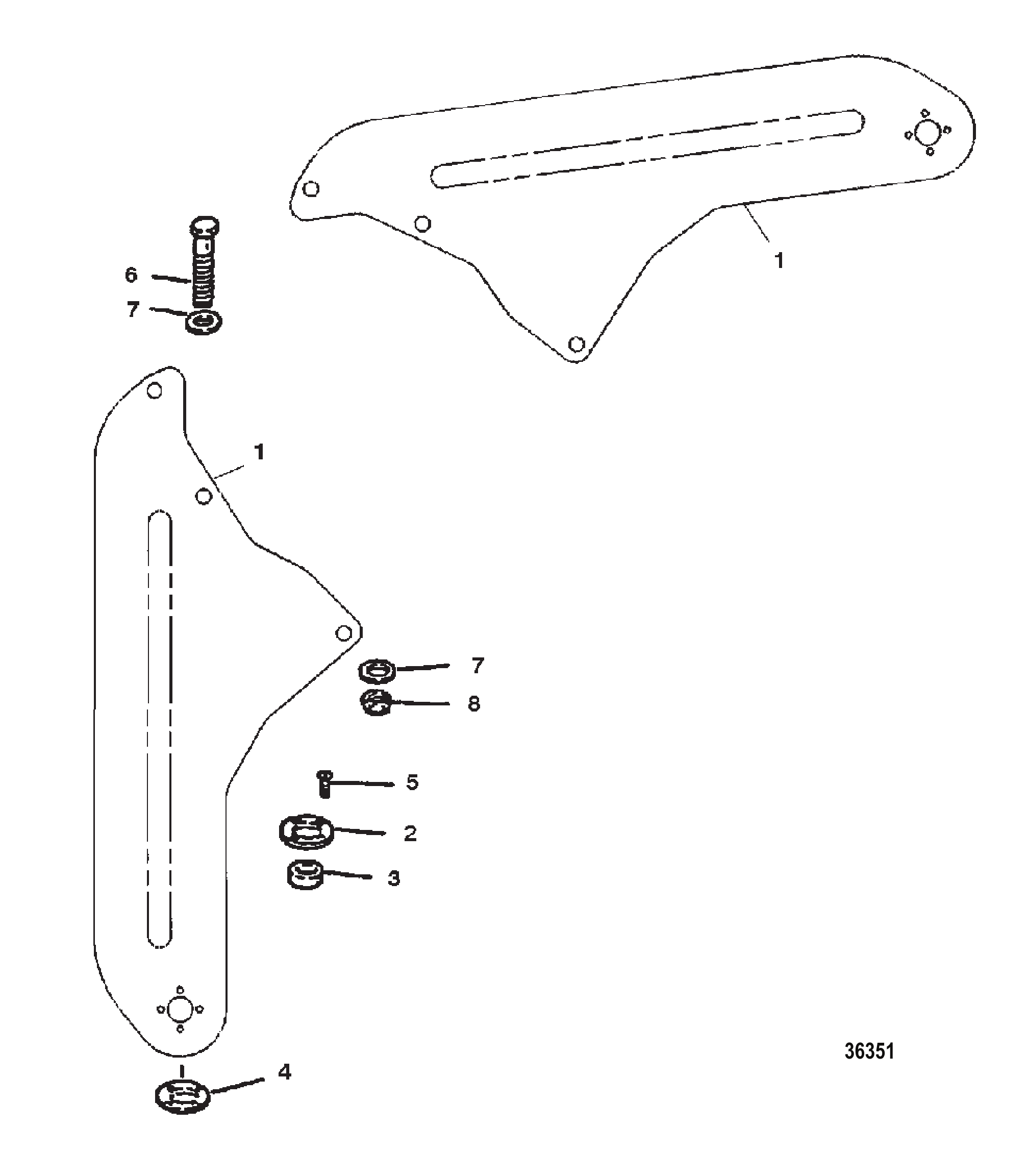

| - | 822112A3 | 转向臂套件 | ARM KIT Steering | 1 |
| 1 | 822112A1 | 转向臂总成 | ARM ASSEMBLY Steering | 1 |
| 1 | 822113A1 | 转向臂总成 | ARM ASSEMBLY Steering | 1 |
| 2 | 67022 | 转向板（上） | PLATE Steering (UPPER) | 2 |
| 3 | 847793 | 轴承 | BEARING | 2 |
| 4 | 67024 | 转向板（下） | PLATE Steering (LOWER) | 2 |
| 5 | 822116 | 螺钉 | SCREW | 8 |
| 6 | 56393 | 螺钉（.437-20 x 1.75） | SCREW (.437-20 x 1.75) | 6 |
| 7 | 34567 | 垫圈 | WASHER | 12 |
| 8 | 35053 | 螺母(.437-20) | NUT (.437-20) | 6 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

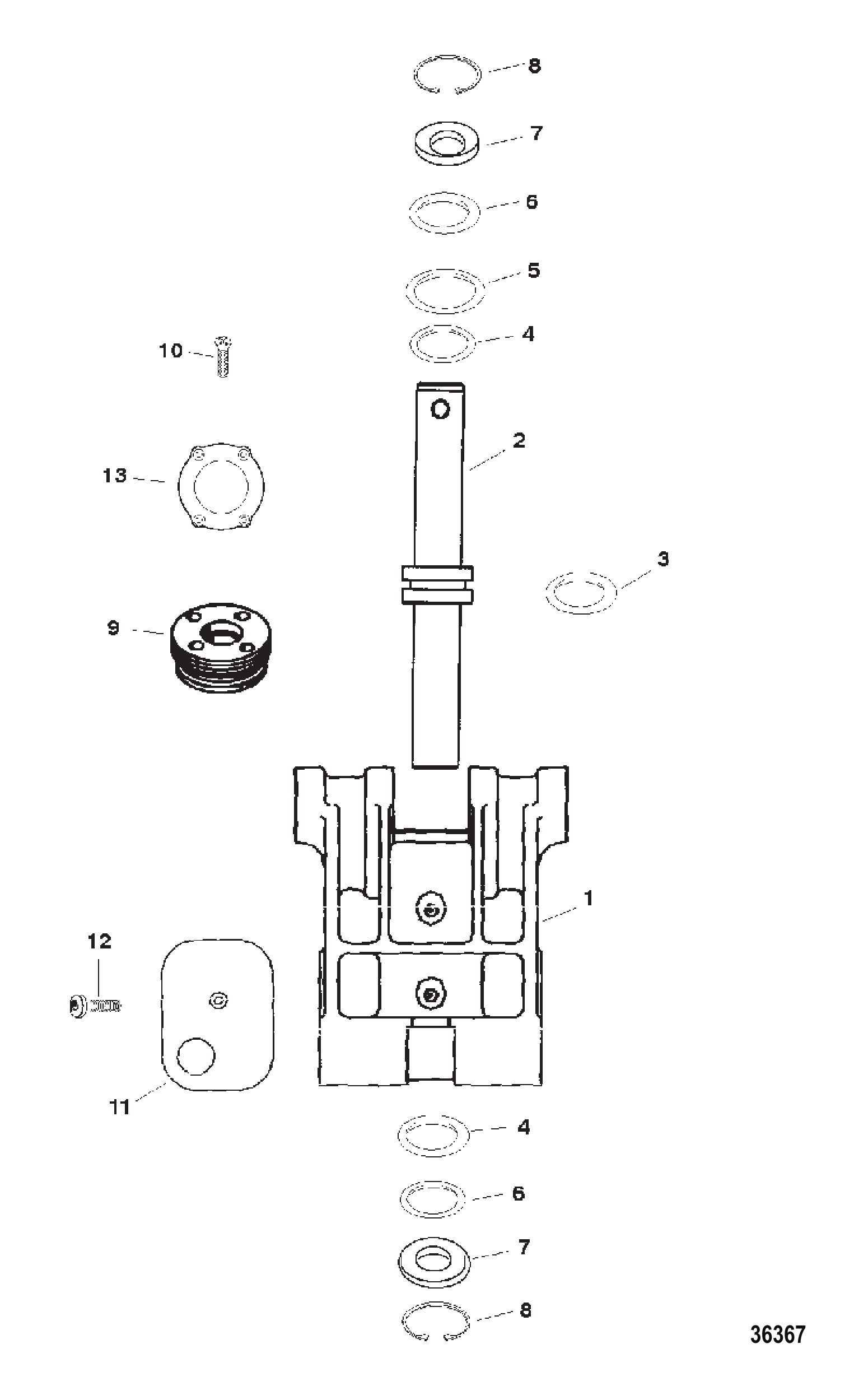

| - | 821921A15 | 旋转支架总成(完整) | SWIVEL BRACKET ASSEMBLY (COMPLETE) | 1 |
| 1 | 821921A14 | 旋转支架总成 | SWIVEL BRACKET ASSEMBLY | 1 |
| 2 | 822043 | 杆 | ROD | 1 |
| - | 11167A1 | O型圈套件 | O-RING KIT | 1 |
| 3 | NSS | 不单独出售四角环 | NOT SOLD SEPARATE QUAD RING | 1 |
| 4 | NSS | 不单独出售四角环 | NOT SOLD SEPARATE QUAD RING | 2 |
| 5 | NSS | NOT SOLD SEPARATE O-RING | 1 | |
| 6 | NSS | 不单独出售刮片 | NOT SOLD SEPARATE SCRAPER | 2 |
| 7 | 79869 | 垫圈 | WASHER | 2 |
| 8 | 798701 | 挡圈 | RING Retaining | 2 |
| 9 | NSS | 不单独出售导杆 | NOT SOLD SEPARATE ROD GUIDE | 1 |
| 10 | 86843 | 螺钉(#10-24x0.500) | SCREW (#10-24 x .500) | 4 |
| 11 | 441321 | 耐磨垫 | WEAR PAD | 2 |
| 11 | 441322 | 耐磨垫 | WEAR PAD | 2 |
| 12 | 822037 | 螺钉 | SCREW | 2 |
| 13 | 848691 | 安装板 | PLATE | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

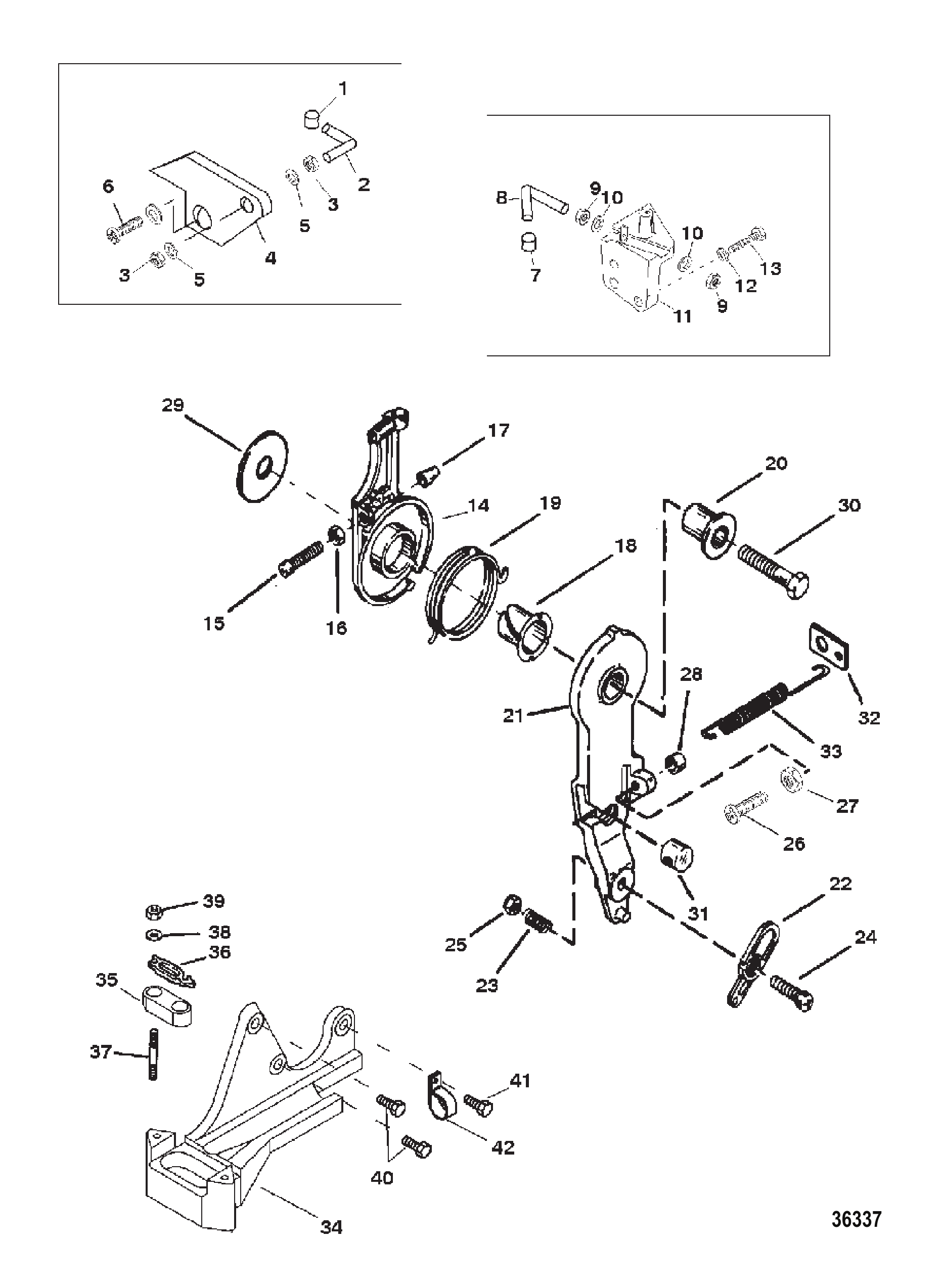

| 1 | 74897 | 枢轴 | PIVOT | 1 |
| 2 | 849036 | 连杆 | LINK ROD | 1 |
| 3 | 68219 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 2 |
| 4 | 964561 | 正时支架 | BRACKET Timing | 1 |
| 5 | 822836 | 垫圈(.445 x .805 x .108) | WASHER (.445 x .805 x .108) | 2 |
| 6 | 72094 | 螺钉(0.375-16 x 3.750) | SCREW (.375-16 x 3.750) | 1 |
| 7 | 74897 | 枢轴 | PIVOT | 1 |
| 8 | 849036 | 连杆 | LINK ROD | 1 |
| 9 | 68219 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 2 |
| 10 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 11 | 8489741 | 支架 | BRACKET | 1 |
| 12 | 814806 | 垫圈 (.344 x .688 x .065) 不锈钢 | WASHER (.344 x .688 x .065) Stainless Steel | 3 |
| 13 | 53576 | 螺丝(.312-18 x 1.125) | SCREW (.312-18 x 1.125) | 3 |
| 14 | 78441 | 点火提前杆 | LEVER Spark Advance | 1 |
| 15 | 64022 | 螺钉(.250-20 x 2.125) | SCREW (.250-20 x 2.125) | 1 |
| 16 | 64015 | 螺母 (.250-20) | NUT (.250-20) | 1 |
| 17 | 26852 | 尼龙帽 | CAP Nylon | 1 |
| 18 | 55171 | 衬套 | BUSHING | 1 |
| 19 | 68784 | 弹簧 | SPRING | 1 |
| 20 | 55164 | 衬套 | BUSHING | 1 |
| 21 | 77837 | 节气门控制杆 | LEVER Throttle Control | 1 |
| 22 | 39483 | 闩锁 | LATCH | 1 |
| 23 | 20099 | 弹簧 | SPRING | 1 |
| 24 | 69026 | 螺钉 (.250-28 x .880) | SCREW (.250-28 x .880) | 1 |
| 25 | 35045 | 螺母(.250-28) | NUT (.250-28) | 1 |
| 26 | 64022 | 螺钉(.250-20 x 2.125) | SCREW (.250-20 x 2.125) | 1 |
| 27 | 64015 | 螺母 (.250-20) | NUT (.250-20) | 1 |
| 28 | 26852 | 尼龙帽 | CAP Nylon | 1 |
| 29 | 46765 | 垫圈 (.390 x 1.50 x .120) | WASHER (.390 x 1.50 x .120) | 1 |
| 30 | 818165 | 螺钉 (.375-16 x 1.75) | SCREW (.375-16 x 1.75) | 1 |
| 31 | 60572 | 套筒 | BARREL | 1 |
| 32 | 75275 | 卡箍 | CLAMP | 1 |
| 33 | 91821 | 弹簧 | SPRING | 1 |
| 33 | 848470 | 弹簧 | SPRING | 1 |
| 34 | 146692 | 锚支架 | BRACKET Anchor | 1 |
| 35 | 16813 | 杯套 | CUP | 1 |
| 36 | 16814 | 闩锁 | LATCH | 1 |
| 37 | 18101 | 螺柱 | STUD | 2 |
| 38 | 73288 | 垫圈(.220 x .500 x .030)不锈钢 | WASHER (.220 x .500 x .030) Stainless Steel | 2 |
| 39 | 18102 | 螺母（#12-24） | NUT (#12-24) | 2 |
| 40 | 62958 | 螺丝(.312-18 x 1.00) | SCREW (.312-18 x 1.00) | 2 |
| 41 | 60147 | 螺丝(.250-20 x 1.25) | SCREW (.250-20 x 1.25) | 1 |
| 42 | 54457 | J型卡扣 | J CLIP | 1 |
| - | 848039A44 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |

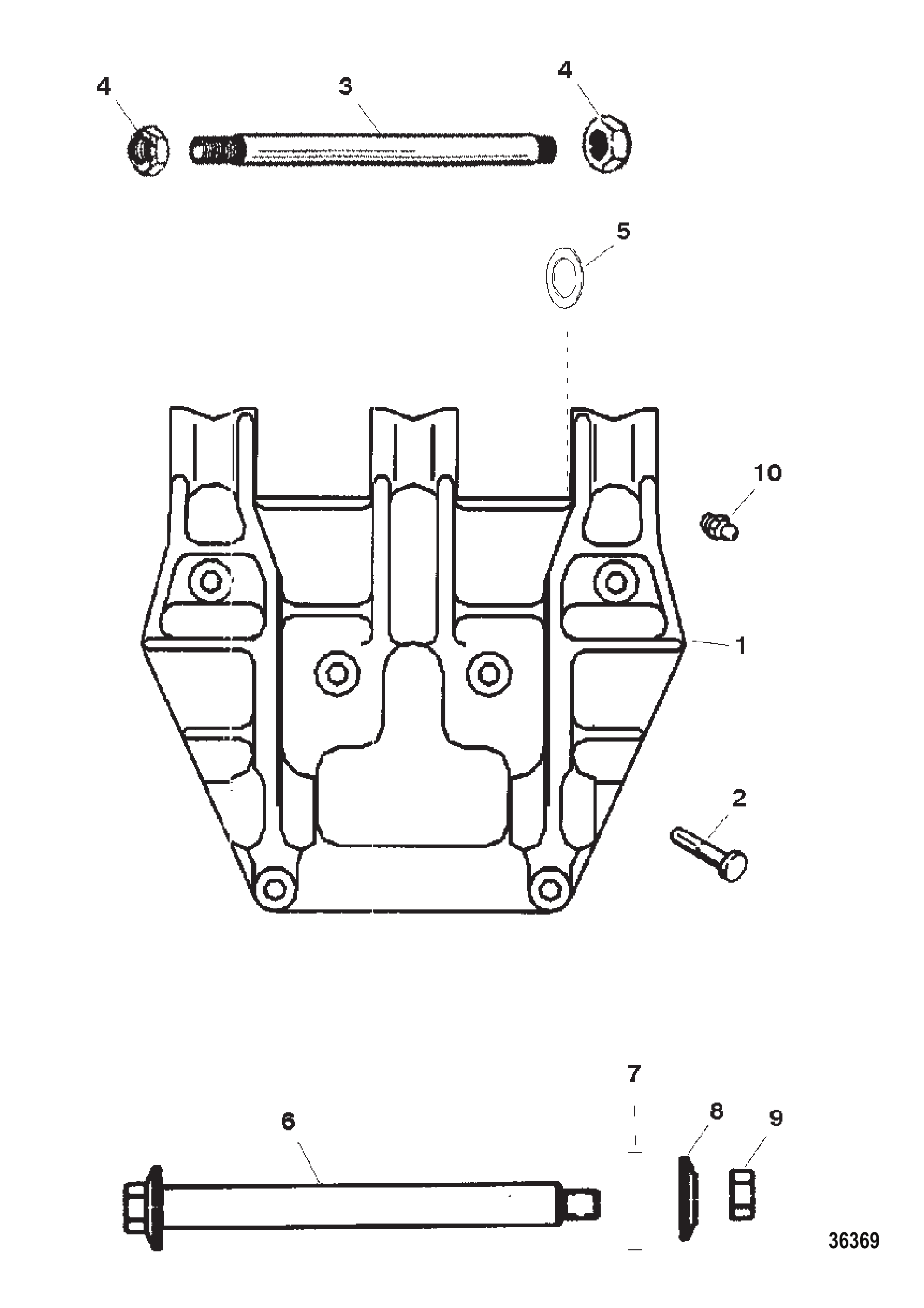

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8476631 | 艉板支架 - 黑色 | BRACKET Transom - Black | 1 |
| 2 | 44133 | 销 | PIN | 2 |
| 3 | 822106 | 倾斜管 | TILT TUBE | 1 |
| 4 | 34862 | 螺母(1.00-14) | NUT (1.00-14) | 2 |
| 5 | 21158A2 | 垫片套件 | SHIM KIT | 1 |
| 6 | 822075 | 调整销 | PIN Trim | 1 |
| 7 | 59378 | 垫圈 | WASHER | 1 |
| 8 | 822076 | 固定座 | RETAINER | 1 |
| 9 | 20220 | 螺母(.500-20) | NUT (.500-20) | 1 |
| 10 | 69059 | 接头 | FITTING | 2 |
| - | 11241A18 | 艉板安装套件 | ATTACHING KIT Transom | 1 |
| - | 46196 | 螺钉（.437-20 x 4.00） | SCREW (.437-20 x 4.00) | 2 |
| - | 70832 | 螺钉（.437-20 x 5.00） | SCREW (.437-20 x 5.00) | 4 |
| - | 44163 | 垫圈（.450 x 1.75 x .12） | WASHER (.450 x 1.75 x .12) | 6 |
| - | 45176 | 垫圈(.453 x .812 x .105)不锈钢 | WASHER (.453 x .812 x .105) Stainless Steel | 12 |
| - | 82671015 | 螺母(.437-20)不锈钢 | NUT (.437-20) Stainless Steel | 6 |

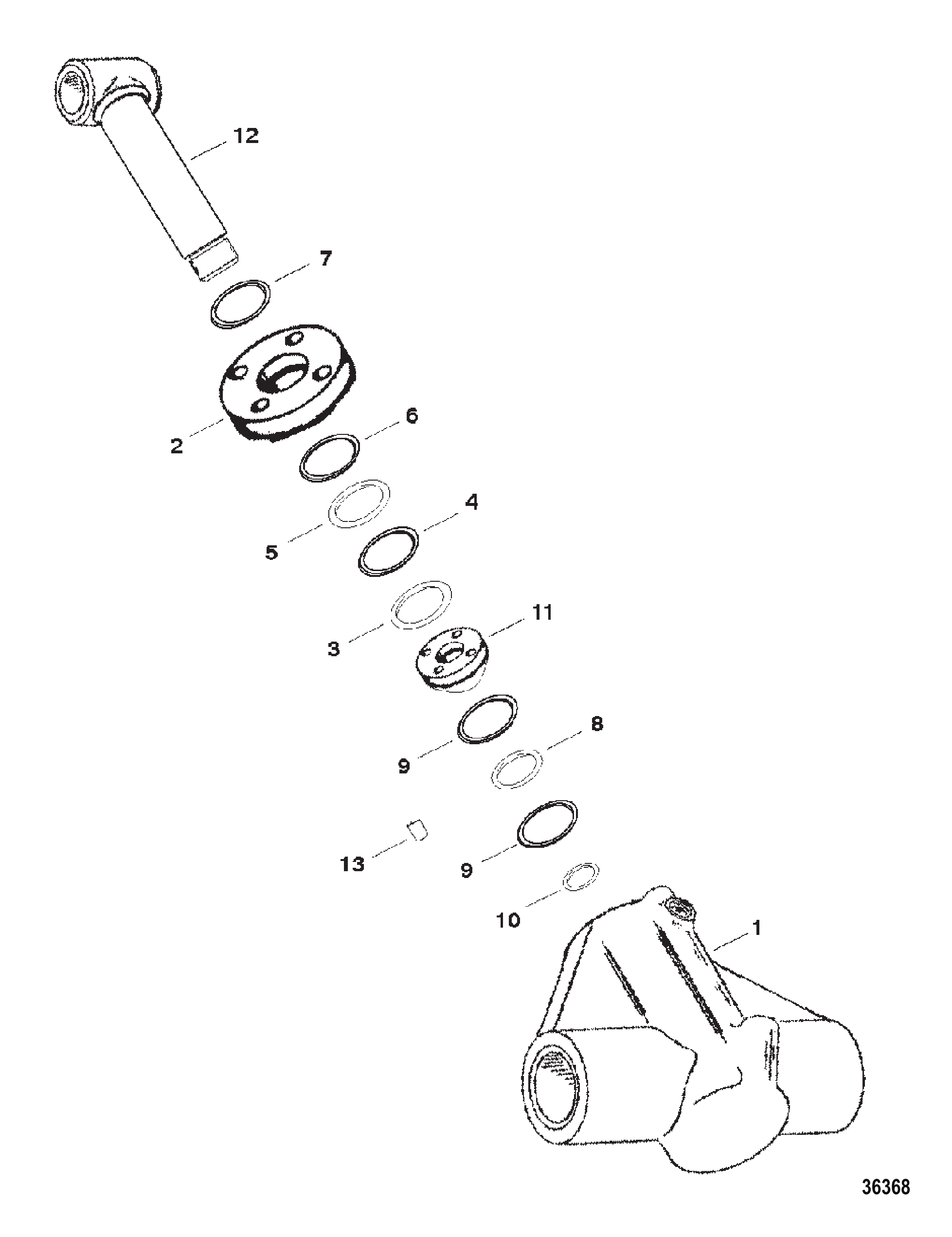

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 44120A5 | 升降油缸总成(黑色) | TRIM CYLINDER ASSEMBLY (Black) | 1 |
| 1 | 441202 | 升降油缸壳体 | HOUSING Trim Cylinder | 1 |
| 2 | 44123 | 固定座 | RETAINER | 1 |
| - | 11163A1 | 配平油缸修理包 | REPAIR KIT Trim Cylinder | 1 |
| 3 | NSS | NOT SOLD SEPARATE O-RING | 1 | |
| 4 | NSS | 不单独出售-支撑环 | NOT SOLD SEPARATE BACK UP RING | 1 |
| 5 | NSS | NOT SOLD SEPARATE O-RING | 1 | |
| 6 | NSS | 不单独出售-支撑环 | NOT SOLD SEPARATE BACK UP RING | 1 |
| 7 | NSS | 不单独出售刮水器 | NOT SOLD SEPARATE WIPER | 1 |
| 8 | NSS | NOT SOLD SEPARATE O-RING | 1 | |
| 9 | NSS | 不单独出售-支撑环 | NOT SOLD SEPARATE BACK UP RING | 2 |
| 10 | NSS | NOT SOLD SEPARATE O-RING | 1 | |
| 11 | 44125 | 动力配平活塞 | PISTON Power Trim | 1 |
| 12 | 8185162 | 配平杆 | TRIM ROD | 1 |
| 13 | 822103 | 注油孔盖 | GREASE HOLE COVER | 1 |
