水星 Mercury 300X (3.0L) PRO MAX 0T429940 THRU 0T999587 - 爆炸图零件明细

两冲程电喷 EFI · USA - Cat.# 90-85552902 · 共 112 个部位 · 4922 条零件

图 1曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	842753A04	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	NSS	磨损套筒(不单独销售)	NOT SOLD SEPARATE Wear Sleeve	1
3	67923T	滚珠轴承(下)	BEARING Ball (Lower)	1
4	67446	环	RING	1
5	843198	密封环	RING Seal	7
5	8M0071646	密封环	RING-SEAL	7
6	91800	半圆键	KEY Woodruff	1
7	35126	O型圈(.859 x .139)	O-RING (.859 x .139)	1
8	88270A02	轴承/座圈套件	BEARING/RACE KIT	2
9	88269T	轴承总成	BEARING ASSEMBLY	2
10	842987T03	活塞总成	PISTON ASSEMBLY	3
10	843199T13	活塞总成	PISTON ASSEMBLY	3
10	842986T03	活塞总成	PISTON ASSEMBLY	3
11	841202	环	RING	12
12	858772A02	活塞环组	RING SET Piston	1
13	822373A12	连杆总成	CONNECTING ROD ASSEMBLY	6
13	8M0125870	连杆	CONNECTING ROD	6
14	94320	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	12
15	844338A01	轴承总成	BEARING ASSEMBLY	6
15	8M0235070	轴承保持架	CAGE BEARING	6
16	88263	止推垫片	THRUST WASHER	12
17	88258001	滚针轴承	BEARING Needle	204
17	8M0204715	滚针@102	NEEDLES-BRG @102	204
18	816773A2		BEARING ASSEMBLY (Upper)	1
19	859093	密封件	SEAL	1
20	823683	O型圈(1.989 x .070)	O-RING (1.989 x .070)	1
-	841220A03	动力头衬垫套件	GASKET SET Powerhead	1
-	842983A02	动力头总成	POWERHEAD ASSEMBLY	1

图 2附件/仪表 Accessories/Instrumentation

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
10	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	82671117	螺母(.500-20)	NUT (.500-20)	4
12	99629T2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
12	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	830899	张力弹簧	SPRING Tension	1
14	65830	尼龙衬套	NYLINER	2
15	830900	压缩弹簧	SPRING Compression	1
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99617	销	PIN	1
18	893709	销	PIN	1
19	96930A1	螺栓总成	BOLT ASSEMBLY	1
20	23161	螺母 (.375-24)	NUT (.375-24)	1
21	88238A10	接地线总成	CABLE ASSEMBLY Ground	2
22	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1

图 3液压泵及安装支架(运动大师) Hydraulic Pump and mounting Brackets Sportmaster

REF	零件编号	中文名称	英文名称	数量
1	842753A04	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	NSS	磨损套筒(不单独销售)	NOT SOLD SEPARATE Wear Sleeve	1
3	67923T	滚珠轴承(下)	BEARING Ball (Lower)	1
4	67446	环	RING	1
5	843198	密封环	RING Seal	7
5	8M0071646	密封环	RING-SEAL	7
6	91800	半圆键	KEY Woodruff	1
7	35126	O型圈(.859 x .139)	O-RING (.859 x .139)	1
8	88270A02	轴承/座圈套件	BEARING/RACE KIT	2
9	88269T	轴承总成	BEARING ASSEMBLY	2
10	842987T03	活塞总成	PISTON ASSEMBLY	3
10	843199T13	活塞总成	PISTON ASSEMBLY	3
10	842986T03	活塞总成	PISTON ASSEMBLY	3
11	841202	环	RING	12
12	858772A02	活塞环组	RING SET Piston	1
13	822373A12	连杆总成	CONNECTING ROD ASSEMBLY	6
13	8M0125870	连杆	CONNECTING ROD	6
14	94320	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	12
15	844338A01	轴承总成	BEARING ASSEMBLY	6
15	8M0235070	轴承保持架	CAGE BEARING	6
16	88263	止推垫片	THRUST WASHER	12
17	88258001	滚针轴承	BEARING Needle	204
17	8M0204715	滚针@102	NEEDLES-BRG @102	204
18	816773A2		BEARING ASSEMBLY (Upper)	1
19	859093	密封件	SEAL	1
20	823683	O型圈(1.989 x .070)	O-RING (1.989 x .070)	1
-	841220A03	动力头衬垫套件	GASKET SET Powerhead	1
-	842983A02	动力头总成	POWERHEAD ASSEMBLY	1

图 4液压泵总成(运动大师) Hydraulic Pump Assembly (Sportmaster)

REF	零件编号	中文名称	英文名称	数量
-	818161A4	液压泵总成	PUMP ASSEMBLY Hydraulic	1
-	8M0051203	配平泵总成	PUMP ASSY-TRIM	1
1	811491	适配器	ADAPTER	1
1	8M0084543	适配器	ADAPTER	1
2	803852	联轴器	COUPLING	1
3	89498	O型圈	O-RING	1
4	811492T	泵总成(含螺钉)	PUMP ASSEMBLY Includes Screws)	1
5	89496	滤清器	FILTER	2
6	89497	O型圈	O-RING	1
7	41219T	储液罐	RESERVOIR	1
8	811493	螺钉套件	SCREW KIT	1
-	17649T	电机总成	MOTOR ASSEMBLY	1
-	891736T	电机总成	MOTOR ASSEMBLY	1
9	17632T	端盖总成	END CAP ASSEMBLY	1
9	891736T	电机总成	MOTOR ASSEMBLY	1
10	17626	螺钉	SCREW	4
10	891736T	电机总成	MOTOR ASSEMBLY	4
11	17625	O型圈	O-RING	1
11	891736T	电机总成	MOTOR ASSEMBLY	1
12	17621	螺钉	SCREW	2
12	891736T	电机总成	MOTOR ASSEMBLY	2
13	17633	支架套件	HOLDER KIT	1
13	891736T	电机总成	MOTOR ASSEMBLY	1
14	17631A1	电刷套件	BRUSH KIT	1
14	891736T	电机总成	MOTOR ASSEMBLY	1
15	17623	电枢	ARMATURE	1
15	891736T	电机总成	MOTOR ASSEMBLY	1
16	17653	垫圈	WASHER	2
16	891736T	电机总成	MOTOR ASSEMBLY	2
17	17624	磁场框架总成	FIELD AND FRAME ASSEMBLY	1
17	891736T	电机总成	MOTOR ASSEMBLY	1
18	17622	盖总成	COVER ASSEMBLY	1
18	891736T	电机总成	MOTOR ASSEMBLY	1
-	812498A1	安全阀套件	VALVE KIT Relief	1

图 5旋转支架(带集成配平) Swivel Bracket (With Integral Trim)

REF	零件编号	中文名称	英文名称	数量
1	8710T20	黑色旋转支架总成	SWIVEL BRACKET ASSEMBLY Black	1
2	33504	O型圈	O-RING	1
2	8M0214926	O型圈 @10	O RING @10	1
3	818764	衬套	BUSHING	2
4	816039	隔套	SPACER	1
5	87735	下油封	SEAL Oil Lower	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	816432	止推垫片	THRUST WASHER	1
9	826364F1	下轭架	YOKE Bottom	1
9	826364T	下轭架	YOKE Bottom	1
10	67684	挡圈	RING Retaining	1
11	996301	冲击板	STRIKER PLATE	2
11	8M0045383	冲击板	STRIKER PLATE	2
12	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
13	46335	螺母 (.375-24)	NUT (.375-24)	2
14	826432A2	转向臂旋转销总成-不锈钢	SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel	1
14	8M0132731	旋转销总成	SWIVEL PIN ASSY	1
15	8163861	螺栓(M12x175)	SCREW (M12 x 175)	2
15	8M0000518	螺栓(M12x175)	SCREW (M12 x 175)	2
16	4002321	垫圈(12.80 mm x 24.0 mm x 2.4 mm)不锈钢	WASHER (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel	2
17	4013812	螺母(M12)不锈钢	NUT (M12) Stainless Steel	2
18	92876A10	连杆总成	LINK ROD ASSEMBLY	1
18	92876A12	连杆总成	LINK ROD ASSEMBLY	1
19	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
20	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
20	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
21	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
22	859187A1	调整传感器总成	SENDER ASSEMBLY Trim	1
23	852368	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
24	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
25	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2

图 6齿轮箱(驱动轴)-TorqueMaster/FleetMaster-重型 Gear Housing (Drive-TorqueMaster/FleetMaster-Heavy Duty)

REF	零件编号	中文名称	英文名称	数量
1	899162A05	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	899162A06	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
2	81893440	螺钉 (M8 x 40)	SCREW (M8 x 40)	4
3	8569662	支架	BRACKET	2
3	8M0111325	盖板	COVER	2
4	903509	螺柱（M10×1.5×64）	STUD (M10 x 1.5 x 64)	4
5	8154431	螺柱（M10×1.5×155）	STUD (M10 x 1.5 x 155)	6
6	8248577	导流板	DEFLECTOR	6
7	8781051	止回阀	CHECK VALVE	1
8	67296	销	PIN	3
8	8M0036405	销	PIN	3
9	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
10	8245021	连接器	CONNECTOR	1
11	81893435	螺钉(M8×35)	SCREW (M8 x 35)	14
11	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	14
12	82446180	螺钉(M10×80)	SCREW (M10 x 80)	8
13	65292	J型卡扣	J CLIP	1
13	8M0024808	J型夹	J-CLIP	1
14	63779	定位销 (.250 x .625)	PIN Dowel (.250 x .625)	4
15	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	10
15	8M0214963	垫圈	WASHER	10
16	4013610	螺母(M10不锈钢)	NUT (M10) Stainless Steel	10
17	8283582	传感器	SENSOR	1
17	8M0082988	曲轴位置传感器	SENSOR Crankshaft Position	1
18	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	2
19	9787A4	端盖总成	END CAP ASSEMBLY	1
20	62700	O型圈(3.237 x .103)	O-RING (3.237 x .103)	1
21	8308981	密封件	SEAL	2
22	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	4
23	82130012	螺钉（M6 x 12）	SCREW (M6 x 12)	1
24	858902	卡箍	CLAMP	1
25	65292	J型卡扣	J CLIP	2
25	8M0024808	J型夹	J-CLIP	2
26	82130012	螺钉（M6 x 12）	SCREW (M6 x 12)	2
27	818574	密封件	SEAL	2
28	884391	密封件	SEAL	6
29	858485T07	右舷气缸盖	CYLINDER HEAD Starboard	1
29	841021A06	气缸盖总成(右舷)	CYLINDER HEAD ASSEMBLY Starboard	1
29	858483T07	左舷气缸盖	CYLINDER HEAD Port	1
29	841020A06	气缸盖总成(左舷)	CYLINDER HEAD ASSEMBLY Port	1
30	885599004	节温器 54°C/130°F	THERMOSTAT 54 Degree C/130 Degree F	2
30	8M0057307	节温器 54°C/130°F	THERMOSTAT 54 Degree C/130 Degree F	2
31	8503181	衬垫	GASKET	2
32	887601002	左舷盖	COVER Port	1
32	887602002	右舷盖	COVER Starboard	1
33	82130025	螺钉(M6x25)	SCREW (M6 x 25)	4
34	891570050	螺钉(M8 x 50)	SCREW (M8 x 50)	40
34	8M0045380	螺钉(M8 x 50)	SCREW (M8 x 50)	40
35	885342002	传感器总成	SENSOR ASSEMBLY	2
35	8M0148668	传感器总成	SENSOR ASSEMBLY	2
36	896699	O型圈（1.78毫米 x 0.08毫米）	O-RING (1.78 mm x .08 mm)	2
37	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
38	857186T02	隔板总成	PLATE ASSEMBLY	1
39	855729	支架	MOUNT	3
40	82130145	螺丝(M10 x 45)	SCREW (M10 x 45)	3
41	19565002	护孔环	GROMMET	1
42	855725	垫圈	WASHER	6
43	858424	卡箍	CLAMP	1
44	858951	J型卡扣	J CLIP	1
45	82130012	螺钉（M6 x 12）	SCREW (M6 x 12)	1
46	8M0005663	J型卡扣	J CLIP	1
47	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
47	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
48	82130030	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
49	8405101	销	PIN	1
49	8215832	特殊销（1.5英寸）	PIN Special (1.5 Inches)	1
50	82494810	螺丝 (M6 x 10)	SCREW (M6 x 10)	1
51	421581	衬套	BUSHING	1
-	832934A00	动力头衬垫套件	GASKET SET Powerhead	1
-	832933A05	动力头衬垫套件	GASKET SET Powerhead	1
-	841220A03	动力头衬垫套件	GASKET SET Powerhead	1
-	854198A07	动力头总成	POWERHEAD ASSEMBLY	1
-	877869A07	动力头总成	POWERHEAD ASSEMBLY	1
-	843034A07	动力头总成	POWERHEAD ASSEMBLY	1

图 7齿轮箱螺旋桨轴-Torque Master Gear Housing Propeller Shaft - Torque Master

REF	零件编号	中文名称	英文名称	数量
-	840470T9	齿轮箱总成完整（速比1.62:1）	GEAR HOUSING ASSEMBLY Complete (1.62:1)	1
-	840470T27	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	840470T8	齿轮箱总成完整（速比1.75:1）	GEAR HOUSING ASSEMBLY Complete (1.75:1)	1
1	840470T5	齿轮箱总成基础型	GEAR HOUSING ASSEMBLY Basic Basic	1
2	823903	换挡曲柄	SHIFT CRANK	1
2	8M0226861	换挡曲柄	CRANK-SHIFTER	1
3	19755T7	阀芯总成	SPOOL ASSEMBLY	1
3	8M0235940	阀芯总成	SPOOL ASSY	1
4	NSS	不单独销售线轴	NOT SOLD SEPARATE Spool	1
5	NSS	不单独销售套筒	NOT SOLD SEPARATE Sleeve	1
6	NSS	不单独销售开口销	NOT SOLD SEPARATE Cotter Pin	1
7	47397A1	垫片组	SHIM SET	AR
8	878087A6	前进/小齿轮组	GEAR SET Forward/Pinion	1
8	828168T3	前进/小齿轮组	GEAR SET Forward/Pinion	1
8	859321T04	前进/小齿轮组	GEAR SET Forward/Pinion	1
9	828437A2	轴承总成	BEARING ASSEMBLY	1
10	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
11	30895T	滚针轴承	BEARING Needle	1
12	856823	挡圈	RING Retaining	1
13	848878T	离合器	CLUTCH	1
14	78909	定位销	PIN Detent	2
15	848838	十字销	PIN Cross	1
16	78962	弹簧	SPRING	2
17	840453A03	螺旋桨轴	PROPELLER SHAFT	1
17	840453	右螺旋桨轴	PROPSHAFT RH	1
18	848880T1	倒挡齿轮	GEAR Reverse	1
18	848881A1	倒挡齿轮	GEAR Reverse	1
18	8M0192235	倒挡齿轮	GEAR-REVERSE	1
19	8241081	推力垫片	THRUST SPACER	1
20	88957T	滚珠轴承	BEARING Ball	1
21	681001	止推环	RING Thrust	1
22	31534	O型圈	O-RING	1
22	8M0214920	O型圈	O RING	1
23	848840T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
23	848840A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
24	817072	滚柱轴承	BEARING Roller	1
25	817071	卡环	RING Snap	1
26	815565	油封	SEAL Oil	2
27	30281	键	KEY	1
28	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
28	8M0058389	放油螺钉套件	SCREW KIT Drain	1
29	191833	密封件	SEAL	1
29	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
30	79447	锁紧垫圈	TAB WASHER	1
31	79448	固定座	RETAINER	1
31	8M2011027	固定座	RETAINER	1
32	85344	垫圈(.750内径)	WASHER (.750 Inside Diameter)	1
33	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
34	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
35	762145	阳极块	ANODE	1
35	76214Q5	阳极套件	ANODE KIT	1
36	8480611	盖板	COVER	1
37	85344	垫圈(.750内径)	WASHER (.750 Inside Diameter)	1
-	816575A6	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 8艉板支架(运动大师)(螺柱安装) Transom Bracket (Sportmaster)(Stud Mounting)

REF	零件编号	中文名称	英文名称	数量
-	855998A09	动力调整套件	POWER TRIM KIT	1
-	855998A11	动力调整套件	POWER TRIM KIT	1
1	8M0031551	配平电机	TRIM MOTOR	1
2	NSS	电枢(不单独销售)	NOT SOLD SEPARATE Armature	1
3	NSS	端架(不单独销售)	NOT SOLD SEPARATE End Frame	1
-	878285	O型圈	O-RING	1
4	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
5	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
6	8782451	驱动轴	DRIVESHAFT	1
7	878410A1	压力检查套件	PO CHECK KIT	1
8	893929A01	安全阀套件(含参考件#26)	VALVE KIT Relief Includes Reference #26	1
9	878241A03	倾斜枢轴套件	SHAFT KIT Tilt Pivot	1
9	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
10	878267	销	PIN	1
11	878235A03	倾斜油缸套件	CYLINDER KIT Tilt	1
11	898479A03	倾斜油缸套件	CYLINDER KIT Tilt	1
12	878239A02	倾斜缸端盖套件(含参考件#26)	END CAP KIT Tilt Cylinder Includes Reference #26	1
12	8M0090322	减震杆套件	SHOCK ROD KIT	1
13	878409A1	O型圈套件(含参考件#26)	O-RING KIT Includes Reference #26	1
13	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
14	878412A02	减震杆套件(含参考件#26)	SHOCK ROD KIT Includes Reference #26	1
14	8M0168219	减震杆套件	SHOCK ROD KIT	1
15	878242A02	记忆活塞总成	PISTON ASSEMBLY Memory	1
15	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
16	878406A02	止回阀修理包(含参考件#26)	REPAIR KIT Check Valve Includes Reference #26	1
16	8M0090322	减震杆套件	SHOCK ROD KIT	1
17	878414T01	活塞总成	PISTON ASSEMBLY	1
18	878413A1	活塞总成	PISTON ASSEMBLY	1
19	8M0021648	端盖总成	END CAP ASSEMBLY	2
20	878264A1	储液罐套件	RESERVOIR KIT	1
21	811613	塞子总成	PLUG ASSEMBLY	1
22	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
23	43450	垫圈	WASHER	4
23	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
24	892251A01	泵套件	PUMP KIT	1
25	878408A1	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
26	821539	三叶销	PIN Trilobe	1
27	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
28	4002319	垫圈	WASHER	6
29	818298Q1	阳极套件	ANODE KIT	1
30	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
30	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
31	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
31	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	99625002	轴	SHAFT	1
33	69205	C形垫圈	C WASHER	1
33	8M0084613	C形垫圈	C-WASHER	1
34	26550	卡箍	CLAMP	2
35	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
36	828547353	导管(.350内径x3.00英尺整卷)裁至12英寸	CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk) Cut to 12 Inches	1
37	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

图 9齿轮箱驱动轴-标准/反转-FleetMaster Gear Housing Driveshaft-Standard/Counter-FleetMaster

REF	零件编号	中文名称	英文名称	数量
1	842753A04	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	NSS	磨损套筒(不单独销售)	NOT SOLD SEPARATE Wear Sleeve	1
3	67923T	滚珠轴承(下)	BEARING Ball (Lower)	1
4	67446	环	RING	1
5	843198	密封环	RING Seal	7
5	8M0071646	密封环	RING-SEAL	7
6	91800	半圆键	KEY Woodruff	1
7	35126	O型圈(.859 x .139)	O-RING (.859 x .139)	1
8	88270A02	轴承/座圈套件	BEARING/RACE KIT	2
9	88269T	轴承总成	BEARING ASSEMBLY	2
10	842987T03	活塞总成	PISTON ASSEMBLY	3
10	843199T13	活塞总成	PISTON ASSEMBLY	3
10	842986T03	活塞总成	PISTON ASSEMBLY	3
11	841202	环	RING	12
12	858772A02	活塞环组	RING SET Piston	1
13	822373A12	连杆总成	CONNECTING ROD ASSEMBLY	6
13	8M0125870	连杆	CONNECTING ROD	6
14	94320	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	12
15	844338A01	轴承总成	BEARING ASSEMBLY	6
15	8M0235070	轴承保持架	CAGE BEARING	6
16	88263	止推垫片	THRUST WASHER	12
17	88258001	滚针轴承	BEARING Needle	204
17	8M0204715	滚针@102	NEEDLES-BRG @102	204
18	816773A2		BEARING ASSEMBLY (Upper)	1
19	859093	密封件	SEAL	1
20	823683	O型圈(1.989 x .070)	O-RING (1.989 x .070)	1
-	841220A03	动力头衬垫套件	GASKET SET Powerhead	1
-	842983A02	动力头总成	POWERHEAD ASSEMBLY	1

图 10齿轮箱螺旋桨轴-标准-Sportmaster Gear Housing Propeller Shaft-Standard-Sportmaster

REF	零件编号	中文名称	英文名称	数量
-	840306T6	齿轮箱总成(含扭矩片)	GEAR HOUSING ASSEMBLY Complete, With Torque Tab	1
1	840307T3	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	840306T3	齿轮箱总成基础型(带扭矩片)	GEAR HOUSING ASSEMBLY Basic, With Torque Tab	1
44	823903	换挡曲柄	SHIFT CRANK	1
44	8M0226861	换挡曲柄	CRANK-SHIFTER	1
45	19755T7	阀芯总成	SPOOL ASSEMBLY	1
45	8M0235940	阀芯总成	SPOOL ASSY	1
46	47397A1	垫片组	SHIM SET	1
47	878087A6	前进/小齿轮组	GEAR SET Forward/Pinion	1
47	828168T3	前进/小齿轮组	GEAR SET Forward/Pinion	1
47	859321T04	前进/小齿轮组	GEAR SET Forward/Pinion	1
48	828437A2	轴承总成	BEARING ASSEMBLY	1
49	30895T	滚针轴承	BEARING Needle	1
50	856823	挡圈	RING Retaining	1
51	848878T	离合器	CLUTCH	1
52	78909	定位销	PIN Detent	2
53	848838	十字销	PIN Cross	1
54	78962	弹簧	SPRING	2
55	840453A1	螺旋桨轴	PROPELLER SHAFT	1
55	840453A03	螺旋桨轴	PROPELLER SHAFT	1
56	848880T1	倒挡齿轮	GEAR Reverse	1
56	848881A1	倒挡齿轮	GEAR Reverse	1
56	8M0192235	倒挡齿轮	GEAR-REVERSE	1
57	8241081	推力垫片	THRUST SPACER	1
58	88957T	滚珠轴承	BEARING Ball	1
59	681001	止推环	RING Thrust	1
60	31534	O型圈	O-RING	1
60	8M0214920	O型圈	O RING	1
61	848840T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
61	848840A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
62	817072	滚柱轴承	BEARING Roller	1
63	817071	卡环	RING Snap	1
64	815565	油封	SEAL Oil	2
65	30281	键	KEY	1
66	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
66	8M0058389	放油螺钉套件	SCREW KIT Drain	1
67	191832	垫圈	WASHER	1
67	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
68	79447	锁紧垫圈	TAB WASHER	1
69	79448	固定座	RETAINER	1
69	8M2011027	固定座	RETAINER	1
70	85344	垫圈(.750内径)	WASHER (.750 Inside Diameter)	1
71	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
72	41350	螺钉(.437-14 x 2.50)不锈钢	SCREW (.437-14 x 2.50) Stainless Steel	1
73	76214T3	阳极块	ANODE	1
-	816575A6	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	840389A2	螺旋桨毂套件	PROP HUB KIT	1
-	8M0183487	重型螺旋桨轮毂套件	HUB KIT-HD PROP	1
-	840382A1	缓冲条套件	SNUBBER STRIP KIT	1
-	840382A02	缓冲条套件	SNUBBER STRIP KIT	1

图 11齿轮箱驱动轴-标准旋转-运动大师 Gear Housing Driveshaft-Standard Rotation-SportMaster

REF	零件编号	中文名称	英文名称	数量
-	840306T6	齿轮箱总成(含扭矩片)	GEAR HOUSING ASSEMBLY Complete, With Torque Tab	1
1	840307T3	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	840306T3	齿轮箱总成基础型(带扭矩片)	GEAR HOUSING ASSEMBLY Basic, With Torque Tab	1
2	379721	销	PIN	1
3	826134Q	阳极块	ANODE	2
4	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
5	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
6	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
7	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
8	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	1
8	79953Q04	放油螺钉套件	SCREW KIT Drain	1
9	191832	垫圈	WASHER	1
9	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
10	NSS	小齿轮(不单独销售)	NOT SOLD SEPARATE Pinion Gear	1
11	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
12	35921	螺母(0.625-18)	NUT (.625-18)	1
13	824145	换档轴	SHIFT SHAFT	1
14	848836A1	衬套总成	BUSHING ASSEMBLY	1
15	8164641	油封	SEAL Oil	1
15	8M0246145	油封	OIL SEAL	1
16	36318	O型圈(0.799英寸)	O-RING (.799)	1
16	8M0214927	O型圈@5	O RING @5	1
17	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	2
18	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
19	848831	驱动轴(下)	DRIVESHAFT Lower	1
20	43037	键	KEY	1
20	8M0204723	键	KEY	1
21	38657A1	垫片组	SHIM ASSEMBLY	1
21	8M0063268	垫片组	SHIM SET	1
22	48939A2	圆锥滚子轴承	BEARING Taper Roller	1
22	8M0146553	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
23	42637A1	垫片组	SHIM SET	1
23	8M0063267	垫片组	SHIM SET	1
24	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
24	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
25	8245191	固定座	RETAINER	1
26A	840836A2	托架总成	CARRIER ASSEMBLY	1
26A	8M0192207	密封载体套件	CARRIER KIT-SEAL	1
26	807929A1	托架总成	CARRIER ASSEMBLY	1
26	8M0214948	托架总成	CARRIER ASSY	1
26B	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	2
27	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
27	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
28	66302	油封	SEAL Oil	1
28	8M0214939	油封@3	SEAL @3	1
29	66302	油封	SEAL Oil	1
29	8M0214939	油封@3	SEAL @3	1
30	817275A1	水泵壳体套件	HOUSING KIT Water Pump	1
31	816575A2	密封套件	SEAL KIT	1
32	430331	衬垫	GASKET	1
33	8172771	水泵上垫片	GASKET Water Pump, Upper	1
34	8172761	面板	FACEPLATE	1
34	8M0204709	面板	FACEPLATE	1
35	43026T2	叶轮	IMPELLER	1
36	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	6
37	832942A1	联轴器总成	COUPLING ASSEMBLY	1
38	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
38	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
39	35027	O型圈(1.046英寸)	O-RING (1.046)	1
39	8M0204654	O型圈	O-RING	1
40	848832A1	上驱动轴总成	DRIVESHAFT ASSEMBLY Upper	1
40	827755A1	延长套件上驱动轴	EXTENSION KIT Driveshaft Upper	1
41	823902	联轴器	COUPLING	1
42	848834	水道板	PLATE Water Passage	1
43	848835	衬垫	GASKET	1
-	816575A6	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	817275A5	水泵修理包	REBUILD KIT Water Pump	1
-	43026T11	水泵叶轮维修套件	REPAIR KIT Water Pump Impeller	1
-	8M0100526	水泵叶轮维修套件	REPAIR KIT Water Impeller	1

图 12齿轮箱(驱动)标准/反向旋转-Sportmaster型 Gear Housing (Drive) Standard/Counter Rotatation-Sportmaster

REF	零件编号	中文名称	英文名称	数量
1	899162A05	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	899162A06	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
2	81893440	螺钉 (M8 x 40)	SCREW (M8 x 40)	4
3	8569662	支架	BRACKET	2
3	8M0111325	盖板	COVER	2
4	903509	螺柱（M10×1.5×64）	STUD (M10 x 1.5 x 64)	4
5	8154431	螺柱（M10×1.5×155）	STUD (M10 x 1.5 x 155)	6
6	8248577	导流板	DEFLECTOR	6
7	8781051	止回阀	CHECK VALVE	1
8	67296	销	PIN	3
8	8M0036405	销	PIN	3
9	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
10	8245021	连接器	CONNECTOR	1
11	81893435	螺钉(M8×35)	SCREW (M8 x 35)	14
11	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	14
12	82446180	螺钉(M10×80)	SCREW (M10 x 80)	8
13	65292	J型卡扣	J CLIP	1
13	8M0024808	J型夹	J-CLIP	1
14	63779	定位销 (.250 x .625)	PIN Dowel (.250 x .625)	4
15	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	10
15	8M0214963	垫圈	WASHER	10
16	4013610	螺母(M10不锈钢)	NUT (M10) Stainless Steel	10
17	8283582	传感器	SENSOR	1
17	8M0082988	曲轴位置传感器	SENSOR Crankshaft Position	1
18	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	2
19	9787A4	端盖总成	END CAP ASSEMBLY	1
20	62700	O型圈(3.237 x .103)	O-RING (3.237 x .103)	1
21	8308981	密封件	SEAL	2
22	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	4
23	82130012	螺钉（M6 x 12）	SCREW (M6 x 12)	1
24	858902	卡箍	CLAMP	1
25	65292	J型卡扣	J CLIP	2
25	8M0024808	J型夹	J-CLIP	2
26	82130012	螺钉（M6 x 12）	SCREW (M6 x 12)	2
27	818574	密封件	SEAL	2
28	884391	密封件	SEAL	6
29	858485T07	右舷气缸盖	CYLINDER HEAD Starboard	1
29	841021A06	气缸盖总成(右舷)	CYLINDER HEAD ASSEMBLY Starboard	1
29	858483T07	左舷气缸盖	CYLINDER HEAD Port	1
29	841020A06	气缸盖总成(左舷)	CYLINDER HEAD ASSEMBLY Port	1
30	885599004	节温器 54°C/130°F	THERMOSTAT 54 Degree C/130 Degree F	2
30	8M0057307	节温器 54°C/130°F	THERMOSTAT 54 Degree C/130 Degree F	2
31	8503181	衬垫	GASKET	2
32	887601002	左舷盖	COVER Port	1
32	887602002	右舷盖	COVER Starboard	1
33	82130025	螺钉(M6x25)	SCREW (M6 x 25)	4
34	891570050	螺钉(M8 x 50)	SCREW (M8 x 50)	40
34	8M0045380	螺钉(M8 x 50)	SCREW (M8 x 50)	40
35	885342002	传感器总成	SENSOR ASSEMBLY	2
35	8M0148668	传感器总成	SENSOR ASSEMBLY	2
36	896699	O型圈（1.78毫米 x 0.08毫米）	O-RING (1.78 mm x .08 mm)	2
37	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
38	857186T02	隔板总成	PLATE ASSEMBLY	1
39	855729	支架	MOUNT	3
40	82130145	螺丝(M10 x 45)	SCREW (M10 x 45)	3
41	19565002	护孔环	GROMMET	1
42	855725	垫圈	WASHER	6
43	858424	卡箍	CLAMP	1
44	858951	J型卡扣	J CLIP	1
45	82130012	螺钉（M6 x 12）	SCREW (M6 x 12)	1
46	8M0005663	J型卡扣	J CLIP	1
47	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
47	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
48	82130030	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
49	8405101	销	PIN	1
49	8215832	特殊销（1.5英寸）	PIN Special (1.5 Inches)	1
50	82494810	螺丝 (M6 x 10)	SCREW (M6 x 10)	1
51	421581	衬套	BUSHING	1
-	832934A00	动力头衬垫套件	GASKET SET Powerhead	1
-	832933A05	动力头衬垫套件	GASKET SET Powerhead	1
-	841220A03	动力头衬垫套件	GASKET SET Powerhead	1
-	854198A07	动力头总成	POWERHEAD ASSEMBLY	1
-	877869A07	动力头总成	POWERHEAD ASSEMBLY	1
-	843034A07	动力头总成	POWERHEAD ASSEMBLY	1

图 13动力升降组件金属马达壳 Power Trim Components Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	855998A09	动力调整套件	POWER TRIM KIT	1
-	855998A11	动力调整套件	POWER TRIM KIT	1
1	8M0031551	配平电机	TRIM MOTOR	1
2	NSS	电枢(不单独销售)	NOT SOLD SEPARATE Armature	1
3	NSS	端架(不单独销售)	NOT SOLD SEPARATE End Frame	1
-	878285	O型圈	O-RING	1
4	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
5	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
6	8782451	驱动轴	DRIVESHAFT	1
7	878410A1	压力检查套件	PO CHECK KIT	1
8	893929A01	安全阀套件(含参考件#26)	VALVE KIT Relief Includes Reference #26	1
9	878241A03	倾斜枢轴套件	SHAFT KIT Tilt Pivot	1
9	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
10	878267	销	PIN	1
11	878235A03	倾斜油缸套件	CYLINDER KIT Tilt	1
11	898479A03	倾斜油缸套件	CYLINDER KIT Tilt	1
12	878239A02	倾斜缸端盖套件(含参考件#26)	END CAP KIT Tilt Cylinder Includes Reference #26	1
12	8M0090322	减震杆套件	SHOCK ROD KIT	1
13	878409A1	O型圈套件(含参考件#26)	O-RING KIT Includes Reference #26	1
13	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
14	878412A02	减震杆套件(含参考件#26)	SHOCK ROD KIT Includes Reference #26	1
14	8M0168219	减震杆套件	SHOCK ROD KIT	1
15	878242A02	记忆活塞总成	PISTON ASSEMBLY Memory	1
15	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
16	878406A02	止回阀修理包(含参考件#26)	REPAIR KIT Check Valve Includes Reference #26	1
16	8M0090322	减震杆套件	SHOCK ROD KIT	1
17	878414T01	活塞总成	PISTON ASSEMBLY	1
18	878413A1	活塞总成	PISTON ASSEMBLY	1
19	8M0021648	端盖总成	END CAP ASSEMBLY	2
20	878264A1	储液罐套件	RESERVOIR KIT	1
21	811613	塞子总成	PLUG ASSEMBLY	1
22	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
23	43450	垫圈	WASHER	4
23	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
24	892251A01	泵套件	PUMP KIT	1
25	878408A1	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
26	821539	三叶销	PIN Trilobe	1
27	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
28	4002319	垫圈	WASHER	6
29	818298Q1	阳极套件	ANODE KIT	1
30	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
30	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
31	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
31	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	99625002	轴	SHAFT	1
33	69205	C形垫圈	C WASHER	1
33	8M0084613	C形垫圈	C-WASHER	1
34	26550	卡箍	CLAMP	2
35	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
36	828547353	导管(.350内径x3.00英尺整卷)裁至12英寸	CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk) Cut to 12 Inches	1
37	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

图 14动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	8M0168222	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0142591	电机套件	MOTOR KIT	1
2	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
3	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
4	8M0090403	驱动联轴器	COUPLING Drive	1
5	8M0142996	压力检查套件	PO CHECK KIT	1
6	8M0060141	手动释放套件	MANUAL RELEASE KIT	1
7	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
8	878267	销	PIN	1
9	8M0142998	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
9	8M0168220	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
10	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
11	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
12	8M0142592	升降杆套件左舷	TRIM ROD KIT Port	1
13	8M0143001	活塞总成	PISTON ASSEMBLY	1
14	8M0143003	端盖总成	END CAP ASSEMBLY	1
15	878264A1	储液罐套件	RESERVOIR KIT	1
16	811613	塞子总成	PLUG ASSEMBLY	1
17	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
18	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
19	8M0143004	泵套件	PUMP KIT	1
20	8M0148385	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
21	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
22	4002319	垫圈	WASHER	6
23	8M0094889	销	PIN	1
23	8M0161312	连杆销眼总成	PIN ROD EYE ASSEMBLY	1
24	8M0143005	减震杆套件	SHOCK ROD KIT	1
24	8M0168219	减震杆套件	SHOCK ROD KIT	1

图 15艉板支架(舰队/扭矩大师) Transom Brackets (Fleet/Torque Master)

REF	零件编号	中文名称	英文名称	数量
-	855998A09	动力调整套件	POWER TRIM KIT	1
-	855998A11	动力调整套件	POWER TRIM KIT	1
1	8M0031551	配平电机	TRIM MOTOR	1
2	NSS	电枢(不单独销售)	NOT SOLD SEPARATE Armature	1
3	NSS	端架(不单独销售)	NOT SOLD SEPARATE End Frame	1
-	878285	O型圈	O-RING	1
4	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
5	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
6	8782451	驱动轴	DRIVESHAFT	1
7	878410A1	压力检查套件	PO CHECK KIT	1
8	893929A01	安全阀套件(含参考件#26)	VALVE KIT Relief Includes Reference #26	1
9	878241A03	倾斜枢轴套件	SHAFT KIT Tilt Pivot	1
9	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
10	878267	销	PIN	1
11	878235A03	倾斜油缸套件	CYLINDER KIT Tilt	1
11	898479A03	倾斜油缸套件	CYLINDER KIT Tilt	1
12	878239A02	倾斜缸端盖套件(含参考件#26)	END CAP KIT Tilt Cylinder Includes Reference #26	1
12	8M0090322	减震杆套件	SHOCK ROD KIT	1
13	878409A1	O型圈套件(含参考件#26)	O-RING KIT Includes Reference #26	1
13	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
14	878412A02	减震杆套件(含参考件#26)	SHOCK ROD KIT Includes Reference #26	1
14	8M0168219	减震杆套件	SHOCK ROD KIT	1
15	878242A02	记忆活塞总成	PISTON ASSEMBLY Memory	1
15	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
16	878406A02	止回阀修理包(含参考件#26)	REPAIR KIT Check Valve Includes Reference #26	1
16	8M0090322	减震杆套件	SHOCK ROD KIT	1
17	878414T01	活塞总成	PISTON ASSEMBLY	1
18	878413A1	活塞总成	PISTON ASSEMBLY	1
19	8M0021648	端盖总成	END CAP ASSEMBLY	2
20	878264A1	储液罐套件	RESERVOIR KIT	1
21	811613	塞子总成	PLUG ASSEMBLY	1
22	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
23	43450	垫圈	WASHER	4
23	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
24	892251A01	泵套件	PUMP KIT	1
25	878408A1	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
26	821539	三叶销	PIN Trilobe	1
27	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
28	4002319	垫圈	WASHER	6
29	818298Q1	阳极套件	ANODE KIT	1
30	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
30	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
31	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
31	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	99625002	轴	SHAFT	1
33	69205	C形垫圈	C WASHER	1
33	8M0084613	C形垫圈	C-WASHER	1
34	26550	卡箍	CLAMP	2
35	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
36	828547353	导管(.350内径x3.00英尺整卷)裁至12英寸	CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk) Cut to 12 Inches	1
37	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

图 16液压泵总成(运动大师) Hydraulic Pump Assembly Sportmaster

REF	零件编号	中文名称	英文名称	数量
-	846859A1	液压泵总成	PUMP ASSEMBLY Hydraulic	1
1	811491	适配器	ADAPTER	1
1	8M0084543	适配器	ADAPTER	1
2	803852	联轴器	COUPLING	1
3	89498	O型圈	O-RING	1
4	811492T	泵总成(含螺钉)	PUMP ASSEMBLY (INCLUDES SCREWS)	1
5	89496	滤清器	FILTER	2
6	89497	储液端O型圈	O-RING Reservoir End	1
7	41219T	储液罐	RESERVOIR	1
8	811493	螺钉套件	SCREW KIT	1
-	17649T	电机总成	MOTOR ASSEMBLY	1
-	891736T	电机总成	MOTOR ASSEMBLY	1
-	891736T	电机总成	MOTOR ASSEMBLY	1
9	17632T	端盖总成	END CAP ASSEMBLY	1
9	891736T	电机总成	MOTOR ASSEMBLY	1
9	NSS	非单独销售端盖	NOT SOLD SEPARATE End Cap	1
10	17626	螺钉	SCREW	4
10	891736T	电机总成	MOTOR ASSEMBLY	4
10	891741	螺钉	SCREW	4
11	17625	O型圈	O-RING	1
11	891736T	电机总成	MOTOR ASSEMBLY	1
11	891740	O型圈	O-RING	1
12	17621	螺钉	SCREW	2
12	891736T	电机总成	MOTOR ASSEMBLY	2
12	891739	螺钉	SCREW	2
13	17633	支架套件	HOLDER KIT	1
13	891736T	电机总成	MOTOR ASSEMBLY	1
13	891738	支架总成	HOLDER ASSEMBLY	1
14	17631A1	电刷套件	BRUSH KIT	1
14	891736T	电机总成	MOTOR ASSEMBLY	1
14	891737	电刷套件	BRUSH KIT	1
15	17623	电枢	ARMATURE	1
15	891736T	电机总成	MOTOR ASSEMBLY	1
15	NSS	电枢(不单独销售)	NOT SOLD SEPARATE Armature	1
16	17653	垫圈	WASHER	2
16	891736T	电机总成	MOTOR ASSEMBLY	2
16	NSS	止推垫圈(不单独销售)	NOT SOLD SEPARATE Thrust Washer	2
17	17624	磁场框架总成	FIELD AND FRAME ASSEMBLY	1
17	891736T	电机总成	MOTOR ASSEMBLY	1
17	NSS		NOT SOLD SEPARATE Field and Frame	1
18	17622	盖总成	COVER ASSEMBLY	1
18	891736T	电机总成	MOTOR ASSEMBLY	1
18	NSS	盖板(不单独销售)	NOT SOLD SEPARATE Cover	1
-	812498A1	安全阀套件	VALVE KIT Relief	1

图 17齿轮箱驱动轴-反转-运动大师 Gear Housing Driveshaft-Counter Rotation-SportMaster

REF	零件编号	中文名称	英文名称	数量
1	840307T3	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	379721	销	PIN	1
3	826134Q	阳极块	ANODE	2
4	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
5	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
6	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
7	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
8	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	1
8	79953Q04	放油螺钉套件	SCREW KIT Drain	1
9	191832	垫圈	WASHER	1
9	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
10	NSS	小齿轮(不单独销售)	NOT SOLD SEPARATE Pinion Gear	1
11	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
12	35921	螺母(0.625-18)	NUT (.625-18)	1
13	824145	换档轴	SHIFT SHAFT	1
14	848836A1	衬套总成	BUSHING ASSEMBLY	1
15	8164641	油封	SEAL Oil	1
15	8M0246145	油封	OIL SEAL	1
16	36318	O型圈(0.799英寸)	O-RING (.799)	1
16	8M0214927	O型圈@5	O RING @5	1
17	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	2
18	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
19	848831	驱动轴(下)	DRIVESHAFT Lower	1
20	43037	键	KEY	1
20	8M0204723	键	KEY	1
21	38657A1	垫片组	SHIM ASSEMBLY	1
21	8M0063268	垫片组	SHIM SET	1
22	48939A2	圆锥滚子轴承	BEARING Taper Roller	1
22	8M0146553	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
23	42637A1	垫片组	SHIM SET	1
23	8M0063267	垫片组	SHIM SET	1
24	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
24	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
25	8245191	固定座	RETAINER	1
26A	840836A2	托架总成	CARRIER ASSEMBLY	1
26A	8M0192207	密封载体套件	CARRIER KIT-SEAL	1
26	807929A1	托架总成	CARRIER ASSEMBLY	1
26	8M0214948	托架总成	CARRIER ASSY	1
26B	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	2
27	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
27	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
28	66302	油封	SEAL Oil	1
28	8M0214939	油封@3	SEAL @3	1
29	66302	油封	SEAL Oil	1
29	8M0214939	油封@3	SEAL @3	1
30	817275A1	水泵壳体套件	HOUSING KIT Water Pump	1
31	816575A2	密封套件	SEAL KIT	1
32	430331	衬垫	GASKET	1
33	8172771	水泵上垫片	GASKET Water Pump, Upper	1
34	8172761	面板	FACEPLATE	1
34	8M0204709	面板	FACEPLATE	1
35	43026T2	叶轮	IMPELLER	1
36	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	6
37	832942A1	联轴器总成	COUPLING ASSEMBLY	1
38	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
38	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
39	35027	O型圈(1.046英寸)	O-RING (1.046)	1
39	8M0204654	O型圈	O-RING	1
40	848832A1	上驱动轴总成	DRIVESHAFT ASSEMBLY Upper	1
41	823902	联轴器	COUPLING	1
42	848834	水道板	PLATE Water Passage	1
43	848835	衬垫	GASKET	1
-	816575A6	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	817275A5	水泵修理包	REBUILD KIT Water Pump	1
-	43026T11	水泵叶轮维修套件	REPAIR KIT Water Pump Impeller	1
-	8M0100526	水泵叶轮维修套件	REPAIR KIT Water Impeller	1

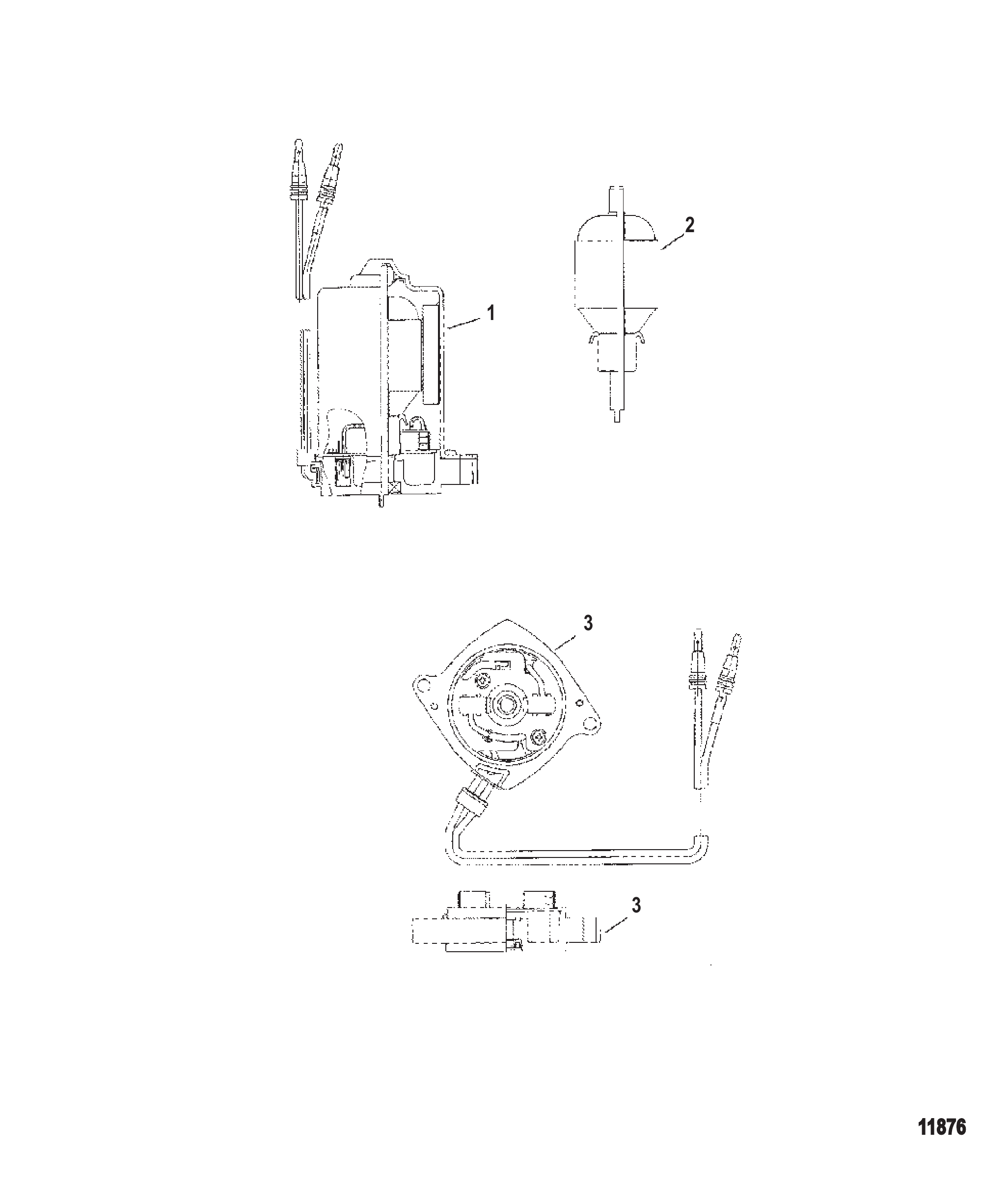

图 18动力升降电机(可拆泵壳) Power Trim Motor (Removable Pump Housing)

REF	零件编号	中文名称	英文名称	数量
-	828708T	配平电机	TRIM MOTOR	1
-	878265A4	配平电机	TRIM MOTOR	1
1	828714A1	电刷与密封套件	BRUSH AND SEAL KIT	1
2	828713A1	电枢套件	ARMATURE KIT	1
2	828713T1	电枢套件	ARMATURE KIT	1
3	828715A1	端盖总成	END FRAME Complete	1

图 19齿轮箱螺旋桨轴-反向-Sportmaster型 Gear Housing Propeller Shaft-Counter-Sportmaster

REF	零件编号	中文名称	英文名称	数量
1	840307T3	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
44	823903	换挡曲柄	SHIFT CRANK	1
44	8M0226861	换挡曲柄	CRANK-SHIFTER	1
45	19755T7	阀芯总成	SPOOL ASSEMBLY	1
45	8M0235940	阀芯总成	SPOOL ASSY	1
46	47397A1	垫片组	SHIM SET	1
47	848876A1	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
48	15843T	滚针轴承	BEARING Needle	1
49	815480	推力轴承	BEARING Thrust	1
50	828290A5	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
50	828696T4	倒挡齿轮	GEAR Reverse	1
51	15844	滚柱轴承总成	BEARING ASSEMBLY Roller	1
52	848878T	离合器	CLUTCH	1
53	78909	定位销	PIN Detent	2
54	848838	十字销	PIN Cross	1
55	78962	弹簧	SPRING	2
56	840452A1	螺旋桨轴	PROPELLER SHAFT	1
56	840452A03	螺旋桨轴	PROPELLER SHAFT	1
57	828289A4	前进齿轮总成	GEAR ASSEMBLY Forward	1
57	828695A3	前进齿轮总成	GEAR ASSEMBLY Forward	1
58	1761540	调整垫片	SPACER Shim	AR
58	1761541	调整垫片	SPACER SHIM	AR
58	1761542	调整垫片	SPACER SHIM	AR
58	1761543	调整垫片	SPACER SHIM	AR
58	1761544	调整垫片	SPACER SHIM	AR
58	1761545	调整垫片	SPACER SHIM	AR
58	1761546	调整垫片	SPACER SHIM	AR
58	1761547	调整垫片	SPACER SHIM	AR
58	1761548	调整垫片	SPACER SHIM	AR
58	1761549	调整垫片	SPACER SHIM	AR
58	1761550	调整垫片	SPACER SHIM	AR
58	1761551	调整垫片	SPACER SHIM	AR
59	815480	推力轴承	BEARING Thrust	1
60	848875A1	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
61	15843T	滚针轴承	BEARING Needle	1
62	18448	止推垫片	THRUST WASHER	1
63	15842	推力轴承	BEARING Thrust	2
64	8182912	止推轴承	THRUST RACE	2
64	8182911	推力座圈	RACE Thrust	2
65	814605	定位器	KEEPER	2
66	31534	O型圈	O-RING	1
66	8M0214920	O型圈	O RING	1
67	848841T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	848841A1	轴承座总成	CARRIER ASSY-BRG	1
68	817072	滚柱轴承	BEARING Roller	1
69	815565	油封	SEAL Oil	2
70	817071	卡环	RING Snap	1
71	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
71	8M0058389	放油螺钉套件	SCREW KIT Drain	1
72	191832	垫圈	WASHER	1
72	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
73	30281	键	KEY	1
74	79447	锁紧垫圈	TAB WASHER	1
75	79448	固定座	RETAINER	1
75	8M2011027	固定座	RETAINER	1
76	85344	垫圈(.750内径)	WASHER (.750 Inside Diameter)	1
77	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
78	76214T3	阳极块	ANODE	1
79	41350	螺钉(.437-14 x 2.50)不锈钢	SCREW (.437-14 x 2.50) Stainless Steel	1
-	816575A6	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	840389A2	螺旋桨毂套件	PROP HUB KIT	1
-	8M0183487	重型螺旋桨轮毂套件	HUB KIT-HD PROP	1
-	840382A1	缓冲条套件	SNUBBER STRIP KIT	1
-	840382A02	缓冲条套件	SNUBBER STRIP KIT	1

图 20动力升降组件(可拆泵壳)金属电机壳 Power Trim Components (Removable Pump Housing) Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	826729T2	完整动力升降总成	POWER TRIM ASSEMBLY Complete	1
-	855998A11	动力调整套件	POWER TRIM KIT	1
1	811604F	歧管总成	MANIFOLD ASSEMBLY	1
2	878089	管塞 (.0625-27)	PLUG Pipe (.0625-27)	9
3	823552F	气缸总成	CYLINDER ASSEMBLY	1
3	880952A03	ORD 8M0078330	ORD 8M0078330	1
4	823553T	升降活塞杆	ROD Trim Piston	1
4	880952A02	液压油缸套件	CYLINDER KIT-HYD	1
5	811606	导向套件	GUIDE KIT	1
5	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
6	811607A1	维修套件	REPAIR KIT	1
7	811610A1	止回阀套件	CHECK VALVE KIT	1
7	823553T	升降活塞杆	ROD Trim Piston	1
8	99638A1	导向器总成	GUIDE ASSEMBLY	2
8	8M0021648	端盖总成	END CAP ASSEMBLY	2
9	43397T6	活塞总成	PISTON ASSEMBLY	1
9	878413A1	活塞总成	PISTON ASSEMBLY	1
9	43398T3	动力调整活塞总成	PISTON ASSEMBLY Power Trim	1
9	878414T01	活塞总成	PISTON ASSEMBLY	1
10	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
11	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
11	893929A01	安全阀套件	VALVE KIT Relief	1
12	812844	E型卡环	E RING	1
12	815949001	E形环	E-RING	1
13	811612A2	O型圈套件	O-RING KIT	1
13	811612A3	O型圈套件	O-RING KIT	1
14	811617T1	泵	PUMP	1
15	811613	塞子总成	PLUG ASSEMBLY	1
16	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
17	43450	垫圈	WASHER	4
17	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
18	811611	盖板	COVER	1
19	828710	驱动接头	DRIVE JOINT	1
20	828708T	配平电机	TRIM MOTOR	1
20	878265A4	配平电机	TRIM MOTOR	1
21	828709	长螺钉	SCREW Long	2
21	881768A1	螺钉/垫圈套件	SCREW/WASHER KIT	2
21	811616	短螺钉	SCREW Short	2
22	811614T	轴总成	SHAFT ASSEMBLY	1
22	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
23	878089	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
24	44431	槽销	PIN Groove	1
24	878267	销	PIN	1
25	821539	三叶销	PIN Trilobe	1
26	996251	轴	SHAFT	1
26	99625002	轴	SHAFT	1
27	818298Q1	阳极套件	ANODE KIT	1
28	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
28	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
29	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
29	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
30	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
31	4002319	垫圈	WASHER	6
32	26550	卡箍	CLAMP	2
33	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
33	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
34	69205	C形垫圈	C WASHER	1
34	8M0084613	C形垫圈	C-WASHER	1
35	435301	警示贴纸-动力微调	DECAL Caution-Power Trim	1
36	828547353	导管 (.350内径 x 3.00英尺散装)	CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk)	1
37	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

图 21空气处理器组件(序列号0T818119及以下) Air Handler Components (Serial Number 0T818119 and Below)

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
10	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	82671117	螺母(.500-20)	NUT (.500-20)	4
12	99629T2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
12	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	830899	张力弹簧	SPRING Tension	1
14	65830	尼龙衬套	NYLINER	2
15	830900	压缩弹簧	SPRING Compression	1
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99617	销	PIN	1
18	893709	销	PIN	1
19	96930A1	螺栓总成	BOLT ASSEMBLY	1
20	23161	螺母 (.375-24)	NUT (.375-24)	1
21	88238A10	接地线总成	CABLE ASSEMBLY Ground	2
22	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1

图 22艉板支架(运动大师)(螺栓安装) Transom Brackets (Sportmaster)(Bolt Mounting)

REF	零件编号	中文名称	英文名称	数量
1	847800A1	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	847801A1	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	847801T01	艉板支架-右舷	BRACKET Transom - Starboard	1
3	847798A1	耐磨垫套件	WEAR PAD KIT	1
3	847798A02	耐磨垫套件	WEAR PAD KIT	1
4	86843	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	4
5	87180	螺栓(0.500-20 x 11.00)	BOLT (.500-20 x 11.00)	1
6	88512	卡箍	CLAMP	4
6	75275	卡箍	CLAMP	2
7	88829	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	6
8	858869	螺母 (.875-14)	NUT (.875-14)	1
8	859133	螺母(1.00-14)	NUT (1.00-14)	1
8	82671327	螺母(1.0-14)	NUT (1.0-14)	1
9	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
10	99170A2	倾斜管套件	TUBE KIT Tilt	1
10	826125A1	倾斜管	TILT TUBE	1
11	85035T	隔套	SPACER	1
11	8M0237541	艉板隔套	SPACER Transom	1
12	677552	螺钉(0.500-20 x 6.500)	SCREW (.500-20 x 6.500)	2
12	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	2
12	8M0149747	螺钉	SCREW	2
13	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
13	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
14	82671117	螺母(.500-20)	NUT (.500-20)	4
15	82671317	螺母(.500-20)	NUT (.500-20)	1
16	70732	螺钉 (.250-20 x 2.00)	SCREW (.250-20 x 2.00)	4
17	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
17	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
18	85026T	安装板	PLATE	2
19	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
20	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
20	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
21	54343	螺柱（.312-24 x 1.380）	STUD (.312-24 x 1.380)	4
21	8M0034451	螺柱	STUD	4
22	89949A1	隔板总成	PLATE ASSEMBLY	1
23	843108	垫圈（.330 x .560 x .060）不锈钢	WASHER (.330 x .560 x .060) Stainless Steel	4
24	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	4
25	89024	液压软管	HOSE Hydraulic	1
25	89023	液压软管	HOSE Hydaulic	1
26	96993	液压软管	HOSE Hydraulic	1
26	96994	液压软管	HOSE Hydraulic	1
27	87871	盖板	COVER	1
27	87871T	盖板	COVER	1
28	45507	护孔环	GROMMET	1
29	32866	螺钉 (#10-32 x 2.00) 不锈钢	SCREW (#10-32 x 2.00) Stainless Steel	4
30	87775	衬垫	GASKET	1
31	20878	垫圈	WASHER	4
32	826709106	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4
32	8M0204718	螺母	NUT	4
33	79610A17	配平油缸	TRIM CYLINDER	1
33	79610T28	配平油缸	TRIM CYLINDER	1
33	79610T28	配平油缸	TRIM CYLINDER	1
33	79610A32	配平油缸套件	TRIM CYLINDER KIT	1
34	847724	衬套	BUSHING	2
35	841223	轴承	BEARING	1
36	30316	弹簧	SPRING	2
37	85020T	枢轴销	PIN Pivot	2
38	841199	调整销	PIN Trim	1
38	8220752	调整销	PIN Trim	1
39	822076	固定座	RETAINER	1
40	82671317	螺母(.500-20)	NUT (.500-20)	1
41	8071791	紧定螺钉（.250-20 x .820）	SET SCREW (.250-20 x .820)	1
42	85022	垫圈(2.00 x 1.06 x 0.060)	WASHER (2.00 x 1.06 x .060)	2
43	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
44	54012	垫圈(0.530×0.870×0.105不锈钢)	WASHER (.530 x .870 x .105) Stainless Steel	4
44	8M0204665	垫圈(0.530×0.880×0.104 630不锈钢)	WASHER (.530 x .880 x .104) 630 Stainless Steel	4
-	79879A1	维修套件（用于调整油缸）	REPAIR KIT (For Trim Cylinders)	1

图 23齿轮箱驱动轴-标准-舰队大师 Gear Housing Driveshaft-Standard-FleetMaster

REF	零件编号	中文名称	英文名称	数量
-	859399T22	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236198	GC DSI XL 1.75	GC DSI XL 1.75	1
1	859399T24	齿轮箱总成(基础型)	GEAR HOUSING ASSEMBLY Complete Basic	1
2	379721	销	PIN	1
3	821526	填充块	FILLER BLOCK	1
3	821526001	填充块	FILLER BLOCK	1
4	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
4	8M0058389	放油螺钉套件	SCREW KIT Drain	1
5	191832	垫圈	WASHER	1
5	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
6	826134Q	阳极块	ANODE	2
7	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
8	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
9	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
10	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
11	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	1
11	79953Q04	放油螺钉套件	SCREW KIT Drain	1
12	191832	垫圈	WASHER	1
12	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
13	859402	皮托管	PITOT TUBE	1
14	85944971	管材(52.00英寸)(裁切为12.00英寸)	TUBING (52.00 Inches) (Cut to 12.00 Inch Length)	1
14	85944975	管材(72.00英寸散装)	TUBING (72.00 Inches Bulk)	1
15	859432	接头	FITTING	1
15	881866	接头	FITTING	1
16	858934	盖板	COVER	1
17	858935	衬垫	GASKET	1
18	36318	O型圈(0.799英寸)	O-RING (.799)	1
18	8M0214927	O型圈@5	O RING @5	1
19	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	2
20	8164641	油封	SEAL Oil	1
20	8M0246145	油封	OIL SEAL	1
21	NSS	非单独销售小齿轮(43-859321A3部件)	NOT SOLD SEPARATE Pinion Gear (PART OF 43-859321A3)	1
22	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
23	35921	螺母(0.625-18)	NUT (.625-18)	1
24	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
25	824145	换档轴	SHIFT SHAFT	1
26	43037	键	KEY	1
26	8M0204723	键	KEY	1
27	859348	驱动轴	DRIVESHAFT	1
28	38657A1	垫片组	SHIM ASSEMBLY	AR
28	8M0063268	垫片组	SHIM SET	AR
29	48939A2	圆锥滚子轴承	BEARING Taper Roller	1
29	8M0146553	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
30	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
31	42637A1	垫片组	SHIM SET	AR
31	8M0063267	垫片组	SHIM SET	AR
32	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
32	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
33	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
34	8245191	固定座	RETAINER	1
35	807929A1	托架总成	CARRIER ASSEMBLY	1
35	8M0214948	托架总成	CARRIER ASSY	1
36	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
36	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
37	66302	油封	SEAL Oil	1
37	8M0214939	油封@3	SEAL @3	1
38	66302	油封	SEAL Oil	1
38	8M0214939	油封@3	SEAL @3	1
39	817275A1	水泵壳体套件	HOUSING KIT Water Pump	1
40	816575A2	密封套件	SEAL KIT	1
41	430331	衬垫	GASKET	1
42	8172771	水泵上垫片	GASKET Water Pump, Upper	1
43	8172761	面板	FACEPLATE	1
43	8M0204709	面板	FACEPLATE	1
44	43026T2	叶轮	IMPELLER	1
45	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	4
46	832942A1	联轴器总成	COUPLING ASSEMBLY	1
47	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
47	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
48	35027	O型圈(1.046英寸)	O-RING (1.046)	1
48	8M0204654	O型圈	O-RING	1
49	827755A1	传动轴延长套件	EXTENSION KIT Driveshaft	1
50	823902	联轴器	COUPLING	1
-	816575A5	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	817275A5	水泵修理包	REBUILD KIT Water Pump	1
-	43026T11	水泵叶轮维修套件	REPAIR KIT Water Pump Impeller	1
-	8M0100526	水泵叶轮维修套件	REPAIR KIT Water Impeller	1

图 24气缸体与端盖 Cylinder Block and End Cap

REF	零件编号	中文名称	英文名称	数量
1	899162A05	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	899162A06	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
2	81893440	螺钉 (M8 x 40)	SCREW (M8 x 40)	4
3	8569662	支架	BRACKET	2
3	8M0111325	盖板	COVER	2
4	903509	螺柱（M10×1.5×64）	STUD (M10 x 1.5 x 64)	4
5	8154431	螺柱（M10×1.5×155）	STUD (M10 x 1.5 x 155)	6
6	8248577	导流板	DEFLECTOR	6
7	8781051	止回阀	CHECK VALVE	1
8	67296	销	PIN	3
8	8M0036405	销	PIN	3
9	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
10	8245021	连接器	CONNECTOR	1
11	81893435	螺钉(M8×35)	SCREW (M8 x 35)	14
11	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	14
12	82446180	螺钉(M10×80)	SCREW (M10 x 80)	8
13	65292	J型卡扣	J CLIP	1
13	8M0024808	J型夹	J-CLIP	1
14	63779	定位销 (.250 x .625)	PIN Dowel (.250 x .625)	4
15	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	10
15	8M0214963	垫圈	WASHER	10
16	4013610	螺母(M10不锈钢)	NUT (M10) Stainless Steel	10
17	8283582	传感器	SENSOR	1
17	8M0082988	曲轴位置传感器	SENSOR Crankshaft Position	1
18	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	2
19	9787A4	端盖总成	END CAP ASSEMBLY	1
20	62700	O型圈(3.237 x .103)	O-RING (3.237 x .103)	1
21	8308981	密封件	SEAL	2
22	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	4
23	82130012	螺钉（M6 x 12）	SCREW (M6 x 12)	1
24	858902	卡箍	CLAMP	1
25	65292	J型卡扣	J CLIP	2
25	8M0024808	J型夹	J-CLIP	2
26	82130012	螺钉（M6 x 12）	SCREW (M6 x 12)	2
27	818574	密封件	SEAL	2
28	884391	密封件	SEAL	6
29	858485T07	右舷气缸盖	CYLINDER HEAD Starboard	1
29	841021A06	气缸盖总成(右舷)	CYLINDER HEAD ASSEMBLY Starboard	1
29	858483T07	左舷气缸盖	CYLINDER HEAD Port	1
29	841020A06	气缸盖总成(左舷)	CYLINDER HEAD ASSEMBLY Port	1
30	885599004	节温器 54°C/130°F	THERMOSTAT 54 Degree C/130 Degree F	2
30	8M0057307	节温器 54°C/130°F	THERMOSTAT 54 Degree C/130 Degree F	2
31	8503181	衬垫	GASKET	2
32	887601002	左舷盖	COVER Port	1
32	887602002	右舷盖	COVER Starboard	1
33	82130025	螺钉(M6x25)	SCREW (M6 x 25)	4
34	891570050	螺钉(M8 x 50)	SCREW (M8 x 50)	40
34	8M0045380	螺钉(M8 x 50)	SCREW (M8 x 50)	40
35	885342002	传感器总成	SENSOR ASSEMBLY	2
35	8M0148668	传感器总成	SENSOR ASSEMBLY	2
36	896699	O型圈（1.78毫米 x 0.08毫米）	O-RING (1.78 mm x .08 mm)	2
37	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
38	857186T02	隔板总成	PLATE ASSEMBLY	1
39	855729	支架	MOUNT	3
40	82130145	螺丝(M10 x 45)	SCREW (M10 x 45)	3
41	19565002	护孔环	GROMMET	1
42	855725	垫圈	WASHER	6
43	858424	卡箍	CLAMP	1
44	858951	J型卡扣	J CLIP	1
45	82130012	螺钉（M6 x 12）	SCREW (M6 x 12)	1
46	8M0005663	J型卡扣	J CLIP	1
47	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
47	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
48	82130030	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
49	8405101	销	PIN	1
49	8215832	特殊销（1.5英寸）	PIN Special (1.5 Inches)	1
50	82494810	螺丝 (M6 x 10)	SCREW (M6 x 10)	1
51	421581	衬套	BUSHING	1
-	832934A00	动力头衬垫套件	GASKET SET Powerhead	1
-	832933A05	动力头衬垫套件	GASKET SET Powerhead	1
-	841220A03	动力头衬垫套件	GASKET SET Powerhead	1
-	854198A07	动力头总成	POWERHEAD ASSEMBLY	1
-	877869A07	动力头总成	POWERHEAD ASSEMBLY	1
-	843034A07	动力头总成	POWERHEAD ASSEMBLY	1

图 25齿轮箱(螺旋桨轴-反转)-FleetMaster重型 Gear Housing (Prop-Counter Rotation-FleetMaster Heavy Duty)

REF	零件编号	中文名称	英文名称	数量
1	899162A05	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	899162A06	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
2	81893440	螺钉 (M8 x 40)	SCREW (M8 x 40)	4
3	8569662	支架	BRACKET	2
3	8M0111325	盖板	COVER	2
4	903509	螺柱（M10×1.5×64）	STUD (M10 x 1.5 x 64)	4
5	8154431	螺柱（M10×1.5×155）	STUD (M10 x 1.5 x 155)	6
6	8248577	导流板	DEFLECTOR	6
7	8781051	止回阀	CHECK VALVE	1
8	67296	销	PIN	3
8	8M0036405	销	PIN	3
9	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
10	8245021	连接器	CONNECTOR	1
11	81893435	螺钉(M8×35)	SCREW (M8 x 35)	14
11	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	14
12	82446180	螺钉(M10×80)	SCREW (M10 x 80)	8
13	65292	J型卡扣	J CLIP	1
13	8M0024808	J型夹	J-CLIP	1
14	63779	定位销 (.250 x .625)	PIN Dowel (.250 x .625)	4
15	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	10
15	8M0214963	垫圈	WASHER	10
16	4013610	螺母(M10不锈钢)	NUT (M10) Stainless Steel	10
17	8283582	传感器	SENSOR	1
17	8M0082988	曲轴位置传感器	SENSOR Crankshaft Position	1
18	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	2
19	9787A4	端盖总成	END CAP ASSEMBLY	1
20	62700	O型圈(3.237 x .103)	O-RING (3.237 x .103)	1
21	8308981	密封件	SEAL	2
22	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	4
23	82130012	螺钉（M6 x 12）	SCREW (M6 x 12)	1
24	858902	卡箍	CLAMP	1
25	65292	J型卡扣	J CLIP	2
25	8M0024808	J型夹	J-CLIP	2
26	82130012	螺钉（M6 x 12）	SCREW (M6 x 12)	2
27	818574	密封件	SEAL	2
28	884391	密封件	SEAL	6
29	858485T07	右舷气缸盖	CYLINDER HEAD Starboard	1
29	841021A06	气缸盖总成(右舷)	CYLINDER HEAD ASSEMBLY Starboard	1
29	858483T07	左舷气缸盖	CYLINDER HEAD Port	1
29	841020A06	气缸盖总成(左舷)	CYLINDER HEAD ASSEMBLY Port	1
30	885599004	节温器 54°C/130°F	THERMOSTAT 54 Degree C/130 Degree F	2
30	8M0057307	节温器 54°C/130°F	THERMOSTAT 54 Degree C/130 Degree F	2
31	8503181	衬垫	GASKET	2
32	887601002	左舷盖	COVER Port	1
32	887602002	右舷盖	COVER Starboard	1
33	82130025	螺钉(M6x25)	SCREW (M6 x 25)	4
34	891570050	螺钉(M8 x 50)	SCREW (M8 x 50)	40
34	8M0045380	螺钉(M8 x 50)	SCREW (M8 x 50)	40
35	885342002	传感器总成	SENSOR ASSEMBLY	2
35	8M0148668	传感器总成	SENSOR ASSEMBLY	2
36	896699	O型圈（1.78毫米 x 0.08毫米）	O-RING (1.78 mm x .08 mm)	2
37	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
38	857186T02	隔板总成	PLATE ASSEMBLY	1
39	855729	支架	MOUNT	3
40	82130145	螺丝(M10 x 45)	SCREW (M10 x 45)	3
41	19565002	护孔环	GROMMET	1
42	855725	垫圈	WASHER	6
43	858424	卡箍	CLAMP	1
44	858951	J型卡扣	J CLIP	1
45	82130012	螺钉（M6 x 12）	SCREW (M6 x 12)	1
46	8M0005663	J型卡扣	J CLIP	1
47	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
47	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
48	82130030	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
49	8405101	销	PIN	1
49	8215832	特殊销（1.5英寸）	PIN Special (1.5 Inches)	1
50	82494810	螺丝 (M6 x 10)	SCREW (M6 x 10)	1
51	421581	衬套	BUSHING	1
-	832934A00	动力头衬垫套件	GASKET SET Powerhead	1
-	832933A05	动力头衬垫套件	GASKET SET Powerhead	1
-	841220A03	动力头衬垫套件	GASKET SET Powerhead	1
-	854198A07	动力头总成	POWERHEAD ASSEMBLY	1
-	877869A07	动力头总成	POWERHEAD ASSEMBLY	1
-	843034A07	动力头总成	POWERHEAD ASSEMBLY	1

图 26空气处理器组件(序列号0T818120及以上) Air Handler Components (Serial Number 0T818120 and Up)

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
10	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	82671117	螺母(.500-20)	NUT (.500-20)	4
12	99629T2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
12	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	830899	张力弹簧	SPRING Tension	1
14	65830	尼龙衬套	NYLINER	2
15	830900	压缩弹簧	SPRING Compression	1
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99617	销	PIN	1
18	893709	销	PIN	1
19	96930A1	螺栓总成	BOLT ASSEMBLY	1
20	23161	螺母 (.375-24)	NUT (.375-24)	1
21	88238A10	接地线总成	CABLE ASSEMBLY Ground	2
22	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1

图 27齿轮箱驱动轴-Torque Master Gear Housing Driveshaft - Torque Master

REF	零件编号	中文名称	英文名称	数量
-	840470T9	齿轮箱总成完整（速比1.62:1）	GEAR HOUSING ASSEMBLY Complete (1.62:1)	1
-	840470T27	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840470T8	齿轮箱总成完整（速比1.75:1）	GEAR HOUSING ASSEMBLY Complete (1.75:1)	1
1	840470T5	齿轮箱总成基础型	GEAR HOUSING ASSEMBLY Basic Basic	1
2	379721	销	PIN	1
3	821526	填充块	FILLER BLOCK	1
3	821526001	填充块	FILLER BLOCK	1
4	826134Q	阳极块	ANODE	2
5	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
6	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
7	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
8	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
9	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	1
9	79953Q04	放油螺钉套件	SCREW KIT Drain	1
10	191833	密封件	SEAL	1
10	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
11	859402	皮托管	PITOT TUBE	1
12	8164641	油封	SEAL Oil	1
12	8M0246145	油封	OIL SEAL	1
13	881866	接头	FITTING	1
14	858934	盖板	COVER	1
15	858935	衬垫	GASKET	1
16	36318	O型圈(0.799英寸)	O-RING (.799)	2
16	8M0214927	O型圈@5	O RING @5	2
17	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	2
18	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	4
19	NSS	不单独出售小齿轮（43-828168T3或43-878087A6部件）	NOT SOLD SEPARATE Pinion Gear(Part of 43-828168T3 or 43-878087A6)	1
20	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
21	35921	螺母(0.625-18)	NUT (.625-18)	1
22	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
23	824145	下换挡轴	SHIFT SHAFT Lower	1
24	43037	键	KEY	1
24	8M0204723	键	KEY	1
25	848831	驱动轴	DRIVESHAFT	1
26	38657A1	垫片组	SHIM ASSEMBLY	AR
26	8M0063268	垫片组	SHIM SET	AR
27	48939A2	圆锥滚子轴承	BEARING Taper Roller	1
27	8M0146553	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
28	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
29	42637A1	垫片组	SHIM SET	AR
29	8M0063267	垫片组	SHIM SET	AR
30	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
30	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
31	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
32	8245191	固定座	RETAINER	1
33	840836A2	托架总成	CARRIER ASSEMBLY	1
33	8M0192207	密封载体套件	CARRIER KIT-SEAL	1
34	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
34	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
35	66302	油封	SEAL Oil	1
35	8M0214939	油封@3	SEAL @3	1
36	66302	油封	SEAL Oil	1
36	8M0214939	油封@3	SEAL @3	1
37	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	2
38	817275A1	水泵壳体套件	HOUSING KIT Water Pump	1
39	816575A2	密封套件	SEAL KIT	1
40	430331	衬垫	GASKET	1
41	8172771	水泵上垫片	GASKET Water Pump, Upper	1
42	8172761	面板	FACEPLATE	1
42	8M0204709	面板	FACEPLATE	1
43	43026T2	叶轮	IMPELLER	1
44	832942A1	联轴器总成	COUPLING ASSEMBLY	1
45	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
45	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
46	35027	O型圈(1.046英寸)	O-RING (1.046)	1
46	8M0204654	O型圈	O-RING	1
47	8488321	长驱动轴	DRIVESHAFT Long	1
48	823902	联轴器	COUPLING	1
-	816575A6	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	817275A5	水泵修理包	REBUILD KIT Water Pump	1

图 28齿轮箱(螺旋桨轴)-TorqueMaster/FleetMaster-重型 Gear Housing (Prop-TorqueMaster/FleetMaster-Heavy Duty)

REF	零件编号	中文名称	英文名称	数量
1	842753A04	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	NSS	磨损套筒(不单独销售)	NOT SOLD SEPARATE Wear Sleeve	1
3	67923T	滚珠轴承(下)	BEARING Ball (Lower)	1
4	67446	环	RING	1
5	843198	密封环	RING Seal	7
5	8M0071646	密封环	RING-SEAL	7
6	91800	半圆键	KEY Woodruff	1
7	35126	O型圈(.859 x .139)	O-RING (.859 x .139)	1
8	88270A02	轴承/座圈套件	BEARING/RACE KIT	2
9	88269T	轴承总成	BEARING ASSEMBLY	2
10	842987T03	活塞总成	PISTON ASSEMBLY	3
10	843199T13	活塞总成	PISTON ASSEMBLY	3
10	842986T03	活塞总成	PISTON ASSEMBLY	3
11	841202	环	RING	12
12	858772A02	活塞环组	RING SET Piston	1
13	822373A12	连杆总成	CONNECTING ROD ASSEMBLY	6
13	8M0125870	连杆	CONNECTING ROD	6
14	94320	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	12
15	844338A01	轴承总成	BEARING ASSEMBLY	6
15	8M0235070	轴承保持架	CAGE BEARING	6
16	88263	止推垫片	THRUST WASHER	12
17	88258001	滚针轴承	BEARING Needle	204
17	8M0204715	滚针@102	NEEDLES-BRG @102	204
18	816773A2		BEARING ASSEMBLY (Upper)	1
19	859093	密封件	SEAL	1
20	823683	O型圈(1.989 x .070)	O-RING (1.989 x .070)	1
-	841220A03	动力头衬垫套件	GASKET SET Powerhead	1
-	842983A02	动力头总成	POWERHEAD ASSEMBLY	1

图 29艉板支架(舰队大师) Transom Brackets FleetMaster

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
10	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	82671117	螺母(.500-20)	NUT (.500-20)	4
12	99629T2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
12	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	830899	张力弹簧	SPRING Tension	1
14	65830	尼龙衬套	NYLINER	2
15	830900	压缩弹簧	SPRING Compression	1
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99617	销	PIN	1
18	893709	销	PIN	1
19	96930A1	螺栓总成	BOLT ASSEMBLY	1
20	23161	螺母 (.375-24)	NUT (.375-24)	1
21	88238A10	接地线总成	CABLE ASSEMBLY Ground	2
22	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1

图 30齿轮箱螺旋桨轴-反向-FleetMaster型 Gear Housing Propeller Shaft-Counter-FleetMaster

REF	零件编号	中文名称	英文名称	数量
-	859399T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236209	GC DSI CXL 1.75	GC DSI CXL 1.75	1
1	859399T24	齿轮箱总成(基础型)	GEAR HOUSING ASSEMBLY Complete Basic	1
52	823903	换挡曲柄	SHIFT CRANK	1
52	8M0226861	换挡曲柄	CRANK-SHIFTER	1
53	19755T7	阀芯总成	SPOOL ASSEMBLY	1
53	8M0235940	阀芯总成	SPOOL ASSY	1
54	NSS	不单独销售线轴	NOT SOLD SEPARATE Spool	1
55	NSS	不单独销售套筒	NOT SOLD SEPARATE Sleeve	1
56	NSS	不单独销售开口销	NOT SOLD SEPARATE Cotter Pin	1
57	44491A1	垫片组	SHIM SET	AR
57	8M0063266	垫片组	SHIM SET	AR
58	828830A2	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
59	814653T	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
60	815481	止推垫片	THRUST WASHER	1
61	815480	推力轴承	BEARING Thrust	1
62	828696T2	倒挡齿轮(12/21齿)	GEAR Reverse (12/21)	1
63	15844	滚柱轴承总成	BEARING ASSEMBLY Roller	1
64	78962	弹簧	SPRING	2
65	848878T	离合器	CLUTCH	1
66	848838	十字销	PIN Cross	1
67	78909	定位销	PIN Detent	2
68	824111	螺旋桨轴	PROPELLER SHAFT	1
68	8M0140448	左螺旋桨轴	PROP SHAFT LH	1
69	828695A1	前进/小齿轮组(12/21齿)	GEAR SET Forward/Pinion (12/21)	1
70	1761514	垫片(0.206)	SPACER SHIM (.206)	AR
70	1761515	垫片(0.208)	SPACER SHIM (.208)	AR
70	1761516	垫片(0.210)	SPACER SHIM (.210)	AR
70	1761517	垫片(0.212)	SPACER SHIM (.212)	AR
70	1761518	垫片(0.214)	SPACER SHIM (.214)	AR
70	1761519	垫片(0.216)	SPACER SHIM (.216)	AR
70	1761520	垫片(0.218)	SPACER SHIM (.218)	AR
70	1761521	垫片(0.220)	SPACER SHIM (.220)	AR
70	1761522	垫片(0.222)	SPACER SHIM (.222)	AR
70	1761523	垫片(0.224)	SPACER SHIM (.224)	AR
70	1761524	垫片(0.226)	SPACER SHIM (.226)	AR
70	1761525	垫片(0.228)	SPACER SHIM (.228)	AR
70	1761526	垫片(0.230)	SPACER SHIM (.230)	AR
71	815480	推力轴承	BEARING Thrust	1
72	815481	止推垫片	THRUST WASHER	1
73	828831A3	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
74	814653T	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
75	18448	止推垫片	THRUST WASHER	2
76	15842	推力轴承	BEARING Thrust	2
77	8182911	推力座圈	RACE Thrust	2
78	814605	定位器	KEEPER	2
79	31534	O型圈	O-RING	1
79	8M0214920	O型圈	O RING	1
80	818290T8	轴承座总成	CARRIER ASSEMBLY Bearing	1
81	30956T	滚针轴承	BEARING Needle	1
82	14077	内侧油封	SEAL Oil Inside	1
83	76868	外侧密封件	SEAL Outside	1
83	8M0248882	油封@5	SEAL-OIL @5	1
84	18323	锁紧垫圈	TAB WASHER	1
85	79448	固定座	RETAINER	1
85	8M2011027	固定座	RETAINER	1
86	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
87	76214T3	阳极块	ANODE	1
88	41350	螺钉(.437-14 x 2.50)不锈钢	SCREW (.437-14 x 2.50) Stainless Steel	1
-	840389A2	螺旋桨毂套件	PROP HUB KIT	1
-	8M0183487	重型螺旋桨轮毂套件	HUB KIT-HD PROP	1
-	840382A1	缓冲条套件	SNUBBER STRIP KIT	1
-	840382A02	缓冲条套件	SNUBBER STRIP KIT	1

图 31齿轮箱驱动轴-反转-舰队大师 Gear Housing Driveshaft-Counter-FleetMaster

REF	零件编号	中文名称	英文名称	数量
-	859399T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236209	GC DSI CXL 1.75	GC DSI CXL 1.75	1
1	859399T24	齿轮箱总成(基础型)	GEAR HOUSING ASSEMBLY Complete Basic	1
2	379721	销	PIN	1
3	821526	填充块	FILLER BLOCK	1
3	821526001	填充块	FILLER BLOCK	1
4	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
4	8M0058389	放油螺钉套件	SCREW KIT Drain	1
5	191832	垫圈	WASHER	1
5	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
6	826134Q	阳极块	ANODE	2
7	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
8	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
9	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
10	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
11	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	1
11	79953Q04	放油螺钉套件	SCREW KIT Drain	1
12	191832	垫圈	WASHER	1
12	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
13	859402	皮托管	PITOT TUBE	1
14	85944971	管材(52英寸)	TUBING (52.00 Inches)	1
14	85944975	管材(72.00英寸散装)	TUBING (72.00 Inches Bulk)	1
15	859432	接头	FITTING	1
15	881866	接头	FITTING	1
16	858934	盖板	COVER	1
17	858935	衬垫	GASKET	1
18	36318	O型圈(0.799英寸)	O-RING (.799)	1
18	8M0214927	O型圈@5	O RING @5	1
19	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	2
20	8164641	油封	SEAL Oil	1
20	8M0246145	油封	OIL SEAL	1
21	NSS	不单独出售小齿轮 (属于43-828695A1)	NOT SOLD SEPARATE Pinion Gear (PART OF 43-828695A1)	1
22	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
23	35921	螺母(0.625-18)	NUT (.625-18)	1
24	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
25	824145	换档轴	SHIFT SHAFT	1
26	43037	键	KEY	1
26	8M0204723	键	KEY	1
27	859348	驱动轴	DRIVESHAFT	1
28	38657A1	垫片组	SHIM ASSEMBLY	AR
28	8M0063268	垫片组	SHIM SET	AR
29	48939A2	圆锥滚子轴承	BEARING Taper Roller	1
29	8M0146553	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
30	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
31	42637A1	垫片组 (0.006至0.048)	SHIM SET (006 Thru 048)	AR
31	8M0063267	垫片组	SHIM SET	AR
32	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
32	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
33	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
34	8245191	固定座	RETAINER	1
35	807929A1	托架总成	CARRIER ASSEMBLY	1
35	8M0214948	托架总成	CARRIER ASSY	1
36	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
36	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
37	66302	油封	SEAL Oil	1
37	8M0214939	油封@3	SEAL @3	1
38	66302	油封	SEAL Oil	1
38	8M0214939	油封@3	SEAL @3	1
39	817275A1	水泵壳体套件	HOUSING KIT Water Pump	1
40	816575A2	密封套件	SEAL KIT	1
41	430331	衬垫	GASKET	1
42	8172771	水泵上垫片	GASKET Water Pump, Upper	1
43	8172761	面板	FACEPLATE	1
43	8M0204709	面板	FACEPLATE	1
44	43026T2	叶轮	IMPELLER	1
45	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	4
46	832942A1	联轴器总成	COUPLING ASSEMBLY	1
47	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
47	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
48	35027	O型圈(1.046英寸)	O-RING (1.046)	1
48	8M0204654	O型圈	O-RING	1
49	NSS	不单独销售-反向旋转标识	NOT SOLD SEPARATE Decal-Counter Rotation	1
50	827755A1	传动轴延长套件	EXTENSION KIT Driveshaft	1
51	823902	联轴器	COUPLING	1
-	816575A5	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	817275A5	水泵修理包	REBUILD KIT Water Pump	1
-	43026T11	水泵叶轮维修套件	REPAIR KIT Water Pump Impeller	1
-	8M0100526	水泵叶轮维修套件	REPAIR KIT Water Impeller	1

图 32齿轮箱螺旋桨轴-标准型-FleetMaster Gear Housing Propeller Shaft-Standard-FleetMaster

REF	零件编号	中文名称	英文名称	数量
-	859399T22	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236198	GC DSI XL 1.75	GC DSI XL 1.75	1
1	859399T24	齿轮箱总成(基础型)	GEAR HOUSING ASSEMBLY Complete Basic	1
51	823903	换挡曲柄	SHIFT CRANK	1
51	8M0226861	换挡曲柄	CRANK-SHIFTER	1
52	19755T7	阀芯总成	SPOOL ASSEMBLY	1
52	8M0235940	阀芯总成	SPOOL ASSY	1
53	NSS	不单独销售换挡轴	NOT SOLD SEPARATE Shift Spool	1
54	NSS	不单独销售开口销	NOT SOLD SEPARATE Cotter Pin	1
55	NSS	不单独销售套筒	NOT SOLD SEPARATE Sleeve	1
56	44491A1	垫片组	SHIM SET	AR
56	8M0063266	垫片组	SHIM SET	AR
57	859321A3	前进/小齿轮组(12/21齿)	GEAR SET Forward/Pinion (12/21)	1
58	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
59	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
60	30895T	滚针轴承	BEARING Needle	1
61	856823	挡圈	RING Retaining	1
62	78962	弹簧	SPRING	2
63	848878T	离合器	CLUTCH	1
64	78909	定位销	PIN Detent	2
65	848838	十字销	PIN Cross	1
66	824110	螺旋桨轴	PROPELLER SHAFT	1
66	8M0140440	右螺旋桨轴	PROPSHAFT RH	1
67	859322A1	倒挡齿轮(12/21齿)	GEAR Reverse (12/21)	1
68	824108	隔套	SPACER	1
69	681001	止推环	RING Thrust	1
70	88957T	滚珠轴承	BEARING Ball	1
71	31534	O型圈	O-RING	1
71	8M0214920	O型圈	O RING	1
72	818763T11	轴承座总成	CARRIER ASSEMBLY Bearing	1
73	30956T	滚针轴承	BEARING Needle	1
74	14077	内侧油封	SEAL Oil Inside	1
75	76868	外侧密封件	SEAL Outside	1
75	8M0248882	油封@5	SEAL-OIL @5	1
76	18323	锁紧垫圈	TAB WASHER	1
77	79448	固定座	RETAINER	1
77	8M2011027	固定座	RETAINER	1
78	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
79	76214T3	阳极块	ANODE	1
80	41350	螺钉(.437-14 x 2.50)不锈钢	SCREW (.437-14 x 2.50) Stainless Steel	1
-	840389A2	螺旋桨毂套件	PROP HUB KIT	1
-	8M0183487	重型螺旋桨轮毂套件	HUB KIT-HD PROP	1
-	840382A1	缓冲条套件	SNUBBER STRIP KIT	1
-	840382A02	缓冲条套件	SNUBBER STRIP KIT	1

图 33动力升降组件 8M0231193 Power Trim Components 8M0231193

REF	零件编号	中文名称	英文名称	数量
-	8M0231193	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0225363	电机套件	MOTOR KIT	1
2	8M0225369	阀套件	VALVE KIT	1
3	8M0225371	手动释放套件	MANUAL RELEASE KIT	1
4	8M0245633	倾斜油缸套件	TILT CYLINDER KIT	1
5	8M0225370	枢轴销套件	PIVOT PIN KIT	1
6	8M0244575	减震杆套件	SHOCK ROD KIT	1
7	8M0244425	销杆眼套件	PIN ROD EYE KIT	1
8	8M0232231	螺钉螺母套件	SCREW NUT KIT	1
9	8M0225373	记忆活塞套件	MEMORY PISTON KIT	1
10	8M0225368	储液罐套件	RESERVOIR KIT	1
11	8M0174135	储液罐塞总成	PLUG RESERVOIR ASSEMBLY	1
12	8M0237525	泵套件	PUMP KIT	1
13	8M0225367	升降杆套件	TRIM ROD KIT	1
14	8M0242846	升降杆套件	TRIM ROD KIT	1
15	8M0225372	重建套件	REBUILD KIT	1

图 34附件 Accessories

零件编号	中文名称	英文名称	数量
15969A3	甲板加油套件	DECK FILL KIT Oil	1
812497A2	二极管总成(双引擎)	DIODE ASSEMBLY (DUAL ENGINE)	1
898289A72	双拉绳二极管套件	DIODE KIT-LANYARD Dual	1
44357A2	冲洗附件	FLUSHING ATTACHMENT	1
44357Q2	冲洗附件	FLUSHING ATTACHMENT	1
827927A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
877680Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
827927A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
877680Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
17146A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
877681Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
17146A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
877681Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
822379A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
877683Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
852400	冲洗接头	FLUSH COUPLING	1
19674A2	开关/拉绳套件	SWITCH/LANYARD KIT	1
19674Q2	开关/拉绳套件	SWITCH/LANYARD KIT	1
88334A2	防腐电极套件	MERCATHODE KIT	1
8M0180081	防腐电极套件	MERCATHODE KIT	1
86300A5	防腐电极监测器	MERCATHODE MONITOR	1
41729A3	软管延长套件	HOSE EXTENSION KIT	1
825191A1	索具软管套件	RIGGING HOSE KIT	1
825191A3	停产参见PB99-4	NLA SEE PB99-4	1
17334A2	视觉警告系统(低油位/过热)	VISUAL WARNING SYSTEM (LOW OIL/OVERHEAT)	1

图 35空气处理器组件 Air Handler Components

REF	零件编号	中文名称	英文名称	数量
-	840444T1	空气处理器总成	AIR HANDLER ASSEMBLY	1
1	840366A2	进气板总成	PLATE ASSEMBLY Intake	1
1	840366A5	进气板总成	PLATE ASSEMBLY Intake	1
2	8046801	衬垫	GASKET	1
3	840418T1	簧片阀组	REED BLOCK	6
3	840418T04	簧片阀总成	REED BLOCK ASSEMBLY	6
4	849038	螺钉 (M3 x 5)	SCREW (M3 x 5)	60
5	840447	簧片阀板	REED PLATE	12
6	840445A1	簧片阀瓣	REED PETAL	6
6	840445A04	簧片阀总成	REED PETAL ASSEMBLY	6
7	8555252	螺钉 (M6)	SCREW (M6)	12
8	858539A3	空气集气室套件	PLENUM KIT Air	1
9	8046791	衬垫	GASKET	1
9	804679004	衬垫	GASKET	1
10	1993716	螺钉(M6 x 16)	SCREW (M6 x 16)	1
11	804873	支架	BRACKET	1
11	884522	MAP传感器支架	BRACKET MAP Sensor	1
12	854445	MAP传感器	SENSOR MAP	1
12	8M0237529	MAP传感器	SENSOR MAP	1
13	858535	温度传感器总成	SENSOR ASSEMBLY Temperature	1
13	8M0214984	温度传感器	SENSOR Temperature	1
14	627021	O型圈(.301 x .070)	O-RING (.301 x .070)	1
15	840512	卡扣	CLIP	1
16	840546T2	凸轮总成	CAM ASSEMBLY	1
17	932481	衬套	BUSHING	1
17	8M0215006	旋转衬套	BUSHING Swivel	1
18	8235694	螺纹球头	BALL Threaded	1
19	81893440	螺钉 (M8 x 40)	SCREW (M8 x 40)	1
20	856895	衬套	BUSHING	1
21	993211	接头	FITTING	1
22	8266241	卡箍	CLAMP	1
23	84044875	螺钉(M6×75)	SCREW (M6 x 75)	12
24	4001987	螺钉(M4×16)	SCREW (M4 x 16)	2
25	840405T1	燃油导轨	FUEL RAIL	1
26	857149T2	油泵总成	PUMP ASSEMBLY Oil	1
26	8M0185614	机油泵	OIL PUMP	1
27	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	6
28	855362	护孔环	GROMMET	6
28	855362001	护孔环	GROMMET	6
29	855364	衬套	BUSHING	6
30	81893440	螺钉 (M8 x 40)	SCREW (M8 x 40)	3
31	81893435	螺钉(M8×35)	SCREW (M8 x 35)	3
31	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
32	855425A4	节气门体套件	THROTTLE BODY KIT	1
32	855425A06	节气门体套件	THROTTLE BODY KIT	1
33	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	4
34	855426	O型圈	O-RING	1
35	8533511	护孔环	GROMMET	1
36	840449	卡扣	CLIP	1
37	8588511	节气门杠杆总成	LEVER ASSEMBLY Throttle	1
37	858851A03	节气门杠杆总成	LEVER ASSEMBLY Throttle	1
38	677483	滚轮	ROLLER	1
39	8237951	挡圈	RING Retaining	1
40	40056107	螺钉(M5×16)	SCREW (M5 x 16)	1
41	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	1
42	69432	外锁紧垫圈(#10)	LOCKWASHER External (#10)	1
43	840506T	支架	BRACKET	1
44	81893440	螺钉 (M8 x 40)	SCREW (M8 x 40)	2
-	832933A01	动力头衬垫套件	GASKET SET Powerhead	1
-	840756A01	动力头总成	POWERHEAD ASSEMBLY	1
-	840756A04	动力头总成	POWERHEAD ASSEMBLY	1

图 36下罩 Bottom Cowl

REF	零件编号	中文名称	英文名称	数量
1	818448A1	下机罩	BOTTOM COWL	1
1	818448A2	下机罩	BOTTOM COWL	1
1	818448A4	下机罩	BOTTOM COWL	1
2	818447A1	下机罩	BOTTOM COWL	1
2	818447A2	下机罩	BOTTOM COWL	1
2	818447A4	下机罩	BOTTOM COWL	1
3	8253181	罩盖密封条(41英寸)	SEAL Cowl (41.00 Inches)	2
3	8M0109217	罩盖密封条	SEAL-COWL	2
4	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	4
5	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
6	821253F1	前手柄黑色	FRONT HANDLE Black	1
6	889740A02	手柄套件	HANDLE KIT	1
6	821253F2	前手柄	FRONT HANDLE	1
6	889740A02	手柄套件	HANDLE KIT	1
6	821253F4	前手柄	FRONT HANDLE	1
6	889740A02	手柄套件	HANDLE KIT	1
7	335891	衬套	BUSHING	2
8	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
9	8219423	棘爪	PAWL	1
10	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	1
11	401196	螺母 (M6)	NUT (M6)	1
12	8214281	螺钉(#10-16x0.625)	SCREW (#10-16 x .625)	1
13	822873	卡扣	CLIP	1
14	850691	开关	SWITCH	1
14	8M0235192	微调开关	SWITCH TRIM	1
15	8124431	固定件(适用处使用)	RETAINER (USE WHERE APPLICABLE)	1
15	8M0032848	开关固定座	RETAINER Switch	1
16	822024	卡箍(下部)	CLAMP (LOWER)	1
17	822023	卡箍 (上)	CLAMP (UPPER)	1
18	92799	螺钉(#10-16x1.12)	SCREW (#10-16 x 1.12)	2

图 37线圈板 Coil Plate

REF	零件编号	中文名称	英文名称	数量
1	850295T2	线圈安装板	PLATE Coil Mounting	1
2	879984A1	线圈套件	COIL KIT	6
2	8M0077471	点火线圈	IGNITION COIL	6
3	82129130	螺钉 (M6 x 30)	SCREW (M6 x 30)	12
4	881908T	电缆组	CABLE SET	1
5	828991	卡扣	CLIP	1
5	828991T	卡扣	CLIP	1
6	941	火花塞	SPARK PLUG	6
7	882757T1	线圈线束总成	HARNESS ASSEMBLY Coil	1
7	882757T02	线圈线束总成	HARNESS ASSEMBLY Coil	1
-	854839T02	5针线束总成	HARNESS ASSEMBLY 5 Pin	1
-	879346A51	线束维修套件	HARNESS REPAIR KIT	1
8	858414A1	编织电缆总成	CABLE ASSEMBLY Braided	2
9	82129110	螺丝 (M6 x 10)	SCREW (M6 x 10)	3
10	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	3
10	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	3
11	833155	护孔环	GROMMET	4
12	4002318	垫圈 8.90 x 24.0x 2.4 不锈钢	WASHER 8.90 x 24.0x 2.4 PL SS	4
13	8502341	衬套	BUSHING	4
14	81893435	螺钉(M8×35)	SCREW (M8 x 35)	4
14	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
15	881879A7	传感器套件 (0-50 PSI)	SENSOR KIT (0-50 PSI)	1
15	8M0157742	水压传感器	SENSOR Water Pressure	1
16	859431	接头	FITTING	1
16	8M0207782	直通接头	FITTING Straight	1
16	892403	接头	FITTING	1
16	8M0207782	直通接头	FITTING Straight	1
17	883066	夹子 (.865)	CLIP (.865)	1
18	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
19	85978571	管材（52英寸整卷）（裁切至18英寸）	TUBING (52.00 Inches Bulk) (Cut to 18 Inches)	1
20	36001	垫圈	WASHER	2

图 38曲轴活塞与连杆 Crankshaft Pistons And Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	842753A02	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	NSS	磨损套筒(不单独销售)	NOT SOLD SEPARATE Wear Sleeve	1
3	67923T	下滚珠轴承	BEARING Ball Lower	1
4	67446	环	RING	1
5	816106	环	RING	7
5	843198T01	密封环	RING Seal	7
6	91800	半圆键	KEY Woodruff	1
7	35126	O型圈(.859 x .139)	O-RING (.859 x .139)	1
8	88270A1	轴承座圈总成	RACE ASSEMBLY	2
8	88270A02	轴承/座圈套件	BEARING/RACE KIT	2
9	NSS	滚针轴承(不单独销售)	NOT SOLD SEPARATE Needle Roller	2
10	858295T2	活塞	PISTON	3
10	858294T2	活塞	PISTON	3
11	8320811	锁紧环	LOCK RING	12
12	827179A12	活塞环组	RING SET Piston	1
13	823683	O型圈(1.989 x .070)	O-RING (1.989 x .070)	1
14	822373A7	连杆总成	CONNECTING ROD ASSEMBLY	6
14	8M0125869	连杆套件	CONN ROD KIT	6
15	94320	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	12
16	43012A1	轴承/保持架套件	BEARING/CAGE KIT	12
16	8M0235070	轴承保持架	CAGE BEARING	12
17	NSS	不单独销售滚针轴承	NOT SOLD SEPARATE Needle Roller Bearing	96
18	88263	止推垫片	THRUST WASHER	12
19	88258	滚针轴承	NEEDLE Roller Bearing	204
19	8M0204715	滚针@102	NEEDLES-BRG @102	204
20	816773A2	上部轴承总成	BEARING ASSEMBLY Upper	1
21	859093	密封件	SEAL	1
-	832933A01	动力头衬垫套件	GASKET SET Powerhead	1
-	840756A01	动力头总成	POWERHEAD ASSEMBLY	1
-	840756A04	动力头总成	POWERHEAD ASSEMBLY	1

图 39气缸体与端盖 Cylinder Block And End Cap

REF	零件编号	中文名称	英文名称	数量
1	9811A19	气缸体	CYLINDER BLOCK	1
1	9811A10	气缸体	CYLINDER BLOCK	1
1	9811A19	气缸体	CYLINDER BLOCK	1
2	903509	螺柱（M10×1.5×64）	STUD (M10 x 1.5 x 64)	4
3	8154431	螺柱（M10×1.5×155）	STUD (M10 x 1.5 x 155)	6
4	328021	管塞 (.125-27)	PLUG Pipe (.125-27)	1
4	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
5	36382	管接头 (.250-18 x .62)黄铜(按需使用)	FITTING (.250-18 x .62) Brass (USE WHERE APPLICABLE)	2
6	8248572	导水板	DEFLECTOR Water	4
6	8248577	导流板	DEFLECTOR	4
7	43278	接头	FITTING	1
7	8781051	止回阀	CHECK VALVE	1
8	8245021	连接器	CONNECTOR	6
9	821583	销	PIN	2
9	8215832	特殊销（1.5英寸）	PIN Special (1.5 Inches)	2
10	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
11	76843	接头	FITTING	13
11	768431	接头	FITTING	13
11	76843	接头	FITTING	6
11	768431	接头	FITTING	6
12	8348041	止回阀	CHECK VALVE	6
13	8282182	止回阀	CHECK VALVE	6
14	426585	止回阀	CHECK VALVE	2
15	81893435	螺钉(M8×35)	SCREW (M8 x 35)	14
15	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	14
16	8159234	止回阀	CHECK VALVE	2
17	82446180	螺钉(M10×80)	SCREW (M10 x 80)	8
18	67296	销	PIN	3
18	8M0036405	销	PIN	3
19	825367A1	载体总成（含6个载体）	CARRIER ASSEMBLY (INCLUDES 6 CARRIERS)	1
20	42657A3	止回阀	CHECK VALVE	6
21	850309	堵头	PLUG	6
21	850309001	止动塞	PLUG Stop	6
22	8217621	正时指针	TIMING POINTER	1
23	68727	管接头 (.250-18)90度-黄铜(随编号26提供)	FITTING (.250-18) 90 Degree - Brass (INCLUDED W/REF. #26)	1
23	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
24	82130012	螺钉（M6 x 12）	SCREW (M6 x 12)	1
25	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
26	826544A1	管件套件	TUBING KIT	1
27	99130122	管材（20英尺卷装）（22-1/2英寸）	TUBING (20.00 Feet Bulk) (22-1/2 IN.)	1
27	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
28	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	10
28	8M0214963	垫圈	WASHER	10
29	400266	螺母(M10)	NUT (M10)	10
29	4013610	螺母(M10不锈钢)	NUT (M10) Stainless Steel	10
30	99130122	管材(20英尺散装)(3-3/4英寸)	TUBING (20.00 Feet Bulk) (3-3/4 IN.)	1
30	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
30	99130122	管材（20英尺散装）（4英寸）	TUBING (20.00 Feet Bulk) (4 IN.)	1
30	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
31	827201	管塞	PIPE PLUG	6
31	8272011	管塞	PIPE PLUG	6
32	8256751	支架	BRACKET	1
33	82130012	螺钉（M6 x 12）	SCREW (M6 x 12)	1
34	8211051	发电机支架	BRACKET Alternator	1
35	81893450	螺钉(M8 x 50)	SCREW (M8 x 50)	2
36	8212251	支架	BRACKET	1
37	82130012	螺钉（M6 x 12）	SCREW (M6 x 12)	2
38	822486	导向支架	BRACKET Guide	1
39	821909	传感器	SENSOR	1
40	82104510	螺钉 (M5 x 10)	SCREW (M5 x 10)	1
41	818574	密封件	SEAL	2
42	818573	O型圈	O-RING	6
43	812851A2	气缸盖	CYLINDER HEAD	2
44	833072	节温器 62°C（143°F）	THERMOSTAT 62° Celsius (143° Fahrenheit)	2
44	833072003	节温器 62°C (143°F)	THERMOSTAT 62°C (143°F)	2
44	75692		THERMOSTAT (143 DEGREES)	2
45	62386	衬垫	GASKET	2
45	8M0204714	衬垫@4	GASKET @4	2
46	19801A1	节温器盖	THERMOSTAT COVER	2
46	198012	节温器盖	COVER Thermostat	2
46	19801A1	节温器盖	THERMOSTAT COVER	2
47	816781	管接头 (45度)	FITTING (45 DEGREE)	2
47	8167811	弯头	ELBOW	2
47	68727	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	2
47	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	2
48	77653112	软管（59英寸散装）（19英寸/20-1/2英寸）	HOSE (59.00 Inches Bulk) (19 IN.)(20-1/2 IN.)	2
48	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	2
48	77653112	软管（59英寸散装）（20英寸/21-1/2英寸）	HOSE (59.00 Inches Bulk) (20 IN.)(21-1/2 IN.)	2
48	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	2
49	82446090	螺钉（M8×90）	SCREW (M8 x 90)	4
50	82446050	螺钉(M8 x 50)	SCREW (M8 x 50)	36
50	8M0045380	螺钉(M8 x 50)	SCREW (M8 x 50)	36
51	13536A11	温度传感器总成	SENSOR ASSEMBLY Temperature	1
51	13536A14	温度传感器总成	SENSOR ASSEMBLY Temperature	1
52	88807A42	电缆总成（适用时使用）	CABLE ASSEMBLY (USE WHERE APPLICABLE)	1
53	828523	传感器固定座	RETAINER Sensor	1
54	828552	螺钉（.375-16×.500）	SCREW (.375-16 x .500)	1
55	137151	固定座	RETAINER	1
56	81893412	螺钉（M8×12）	SCREW (M8 x 12)	1
57	9787A3	下端盖总成	END CAP ASSEMBLY Lower	1
57	9787A5	端盖总成	END CAP ASSY	1
57	9787A4	端盖总成	END CAP ASSEMBLY	1
58	62700	O型圈(3.237 x .103)	O-RING (3.237 x .103)	1
58	62700	O型圈(3.237 x .103)	O-RING (3.237 x .103)	1
59	8185711	油封	SEAL Oil	2
59	830898	油封	SEAL Oil	2
59	8308981	密封件	SEAL	2
60	815449	油封	SEAL Oil	1
60	859093	密封件	SEAL	1
61	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	4
62	8261211	支架	BRACKET	1
63	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
64	82130012	螺钉（M6 x 12）	SCREW (M6 x 12)	2
65	8266241	卡箍	CLAMP	1
-	814195A93	衬垫套件	GASKET SET	1
-	809794A97	动力头总成	POWERHEAD ASSEMBLY	1
-	809794R97	PH 225/250 -RM	PH 225/250 -RM	1

图 40驱动轴壳与排气管 Driveshaft Housing and Exhaust Tube

REF	零件编号	中文名称	英文名称	数量
1	832937A3	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	832937A06	传动轴壳体总成-加长型	HOUSING ASSEMBLY Driveshaft - Long	1
1	832937A05	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	832937A06	传动轴壳体总成-加长型	HOUSING ASSEMBLY Driveshaft - Long	1
1	832938A5	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	832938A06	传动轴壳体总成-超长/特超长型	HOUSING ASSEMBLY Driveshaft - X/XX-Long	1
2	856983	双头螺柱(M12 x 52)	STUD (M12 x 52)	4
2	8M0008031	双头螺柱(M12 x 1.75 x 52)	STUD (M12 x 1.75 x 52)	4
3	88552835	螺钉(M12×35毫米)	SCREW (M12 x 35 MM)	1
3	8M0102995	螺丝 (M12)	SCREW (M12)	1
4	8331231	护孔环	GROMMET	1
5	856982	垫圈(0.5×0.81×0.09英寸)不锈钢	WASHER (.500 x .810 x .090) Stainless Steel	4
6	857008	螺母(M12×1.75)	NUT (M12 x 1.75)	4
6	896895	螺母(M12)	NUT (M12)	4
7	64649	堵头	PLUG	1
8	815431	螺钉（M14×178）	SCREW (M14 x 178)	2
8	898834	螺栓（M14×178）	BOLT (M14 x 178)	2
8	815431002	螺栓（M14×178）	BOLT (M14 x 178)	2
8	898834	螺栓（M14×178）	BOLT (M14 x 178)	2
9	88238A10	接地线总成	CABLE ASSEMBLY Ground	2
10	815432	垫圈(.562 x 2.00 x .125)	WASHER (.562 x 2.00 x .125)	2
11	8154331	垫圈（1.25×2.00×0.19）	WASHER (1.25 x 2.00 x .19)	2
12	8137711	支架	MOUNT	2
13	825190	垫圈	WASHER	2
14	815434	螺母	NUT	2
14	896602	螺母(M14)	NUT (M14)	2
15	8186442	卡箍	CLAMP	2
15	879150A90	下支架盖套件	COVER KIT Lower Mount	2
16	81893435	螺钉(M8×35)	SCREW (M8 x 35)	4
16	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
17	72521	内齿锁紧垫圈	LOCKWASHER Internal Tooth	1
18	818645F1	黑色盖	COVER Black	2
18	8M0001136	下支架盖	COVER Lower Mount	2
19	69079	螺钉 (#10-16 x .440)	SCREW (#10-16 x .440)	2
20	8329321	密封件	SEAL	1
21	833116A4	排气管总成	TUBE ASSEMBLY Exhaust	1
22	8524052	滤网	STRAINER	1
22	8M0026113	滤网	STRAINER	1
23	81893435	螺钉(M8×35)	SCREW (M8 x 35)	6
23	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	6
24	8329417	水管	TUBE Water	1
24	8M0042785	水管	TUBE-WATER	1
24	8329418	水管	TUBE Water	1
24	8M0042786	水管	TUBE Water	1
24	8329419	水管	TUBE Water	1
24	8M0042787	水管	TUBE-WATER	1
25	832940	密封件	SEAL	1
25	832940001	密封件	SEAL	1
25	832940001	密封件	SEAL	1
26	8329391	卡箍	CLAMP	1
27	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
28	823979T1	隔套	SPACER	1
28	8M0105088	传动轴壳体加长隔套（黑色）	SPACER Driveshaft Housing X-Long, Black	1
29	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
30	857009	双头螺柱（M12×179）	STUD (M12 x 179)	4
30	8M0008047	双头螺柱（M12×179）	STUD (M12 x 179)	4
31	857137	螺钉 (M12 X 160)	SCREW (M12 x 160)	1
32	81893435	螺钉(M8×35)	SCREW (M8 x 35)	2
32	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	2

图 41驱动轴壳与排气管 Drive Shaft Housing And Exhaust Tube

REF	零件编号	中文名称	英文名称	数量
1	848939T3	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	849778T2	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	849778A2	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	816055	双头螺柱(.500 x 4.50)	STUD (.500 x 4.50)	2
3	4009135	螺钉(M12 x 35)	SCREW (M12 x 35)	2
3	892860	螺钉(M12 x 35)	SCREW (M12 x 35)	2
4	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
5	816056	垫圈	WASHER	2
6	82670817	螺母(.500-20)	NUT (.500-20)	2
6	898832	螺母(.500-20)	NUT (.500-20)	2
7	8331231	护孔环	GROMMET	1
8	8329321	密封件	SEAL	1
9	833116A9	排气管总成	TUBE ASSEMBLY Exhaust	1
10	81893435	螺钉(M8×35)	SCREW (M8 x 35)	6
10	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	6
11	8329411	水管	TUBE Water	1
11	8M0042785	水管	TUBE-WATER	1
11	8329412	水管	TUBE Water	1
11	8M0042786	水管	TUBE Water	1
12	832940	密封件	SEAL	1
12	832940001	密封件	SEAL	1
13	8329391	卡箍	CLAMP	1
14	848843	双头螺柱(M12 x 65)	STUD (M12 x 65)	4
14	8M0045821	螺柱	STUD	4
14	856983	双头螺柱(M12 x 52)	STUD (M12 x 52)	4
14	8M0008031	双头螺柱(M12 x 1.75 x 52)	STUD (M12 x 1.75 x 52)	4
15	4002321	垫圈(12.80 mm x 24.0 mm x 2.4 mm)不锈钢	WASHER (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel	4
16	4013812	螺母(M12)不锈钢	NUT (M12) Stainless Steel	4
17	859747	联轴器	COUPLER	1
17	8M0214971	耦合接头 (4 MM)	COUPLER Fitting (4 MM)	1
18	859732	堵头	PLUG	1
19	85944971	管材(52.00英寸)黑色	TUBING (52.00 Inches) Black	1
19	85944975	管材(72.00英寸散装)	TUBING (72.00 Inches Bulk)	1
20	859448	接头	FITTING	1
20	859448T	接头	FITTING	1
21	821555	护孔环	GROMMET	1
21	8M0153609	护孔环	GROMMET	1
22	850181	捆扎带(11.750英寸)	TIE STRAP (11.750 Inches)	1

图 42双缆连接套件 Dual Cable Attaching Kit

REF	零件编号	中文名称	英文名称	数量
-	92876A8	转向安装套件	ATTACHING KIT Steering	1
1	41055A1	支架总成	BRACKET ASSEMBLY	1
2	71565A2	管总成	TUBE ASSEMBLY	1
3	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
4	821203	锁紧垫圈	LOCKWASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
7	78968	内锁紧垫圈 (.250)	LOCKWASHER Internal (.250)	4
8	850791T	联轴器	COUPLER	1
9	73732	螺钉 (.375-24 x 1.120)	SCREW (.375-24 x 1.120)	2
10	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
11	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	3
11	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	3

图 43排气板 Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	818450A2	排气板总成	PLATE ASSEMBLY Exhaust	1
1	832935A1	排气板总成	PLATE ASSEMBLY Exhaust	1
2	832994	滤网	STRAINER	2
3	8139322	衬垫	GASKET	1
3	8329331	衬垫	GASKET	1
3	8329335	衬垫	GASKET	1
4	823988	衬垫(下部)	GASKET (LOWER)	1
5	64878	弹簧(黑色)	SPRING (Black)	1
5	854478	弹簧	SPRING	1
5	64878	弹簧(黑色)	SPRING (Black)	1
6	8329342	衬垫(下部)	GASKET (LOWER)	1
6	8329344	衬垫	GASKET	1
7	8238051	密封件	SEAL	1
7	8M0043157	密封件	SEAL	1
8	81893435	螺钉(M8×35)	SCREW (M8 x 35)	2
8	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	2
9	656632	盖板	COVER	1
9	8M0237835	罩盖总成	COVER ASSY	1
10	65664A1	隔板总成	PLATE ASSEMBLY	1
11	88907	衬垫	GASKET	2
11	88907003	衬垫	GASKET	2
12	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
13	76451	垫圈	WASHER	1
14	64877	隔膜	DIAPHRAGM	1
14	648771	隔膜	DIAPHRAGM	1
15	814189	提动阀	POPPET	1
16	814191	护孔环	GROMMET	1
17	814190	托架	CARRIER	1
18	81893435	螺钉(M8×35)	SCREW (M8 x 35)	4
18	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
19	34982	连接器	CONNECTOR	2
20	78279	弯头（45度）	ELBOW (45 DEGREES)	1
20	8M0207781	弯头	ELBOW	1
21	821975	45度弯头	ELBOW 45 Degree	1
22	821255	怠速排气套	BOOT Idle Exhaust	1
23	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
23	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
24	830756109	软管(57英寸散装)(2-1/2英寸)	HOSE (57.00 Inches Bulk) (2-1/2 IN.)	1
24	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
25	821904	示流器接头	FITTING Tell-Tale	1
25	8M0077650	示流器接头	FITTING Tell-Tale	1
26	821908	堵头	PLUG	1
27	821915	垫圈	WASHER	1
28	821963	止回阀	CHECK VALVE	1
28	8219631	止回阀	CHECK VALVE	1
29	30641	O型圈(0.299x0.103)	O-RING (.299 x .103)	1
30	821952	接头	FITTING	1
31	821976	软管	HOSE	1
32	817519A1	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	2
33	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	4
34	8268336	螺母 (M6)	NUT (M6)	1
34	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
35	35459	垫圈	WASHER	1
36	824012	滚轮	ROLLER	1
37	8268336	螺母 (M6)	NUT (M6)	1
37	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
38	8141935	换挡连杆	SHIFT LINK	1
38	883142A03	换挡连杆套件	SHIFT LINK KIT	1
39	42994	衬套	BUSHING	1
40	8240701	上换挡轴	SHIFT SHAFT Upper	1
40	8M0036408	换挡轴	SHAFT-SHIFT	1
40	8240702	上换挡轴	SHIFT SHAFT Upper	1
40	8M0187153	XL型上换挡轴	SHAFT SHIFT UP XL	1
40	8240703	上换挡轴	SHIFT SHAFT Upper	1
41	48237	衬套	BUSHING	1
42	19565	护孔环	GROMMET	1
42	19565002	护孔环	GROMMET	1
43	43585	联轴器	COUPLING	1
44	828808	堵头	PLUG	2
-	814195A93	衬垫套件	GASKET SET	1
-	809794A97	动力头总成	POWERHEAD ASSEMBLY	1
-	809794R97	PH 225/250 -RM	PH 225/250 -RM	1

图 44飞轮/交流发电机 Flywheel/Alternator

REF	零件编号	中文名称	英文名称	数量
1	881247A1	交流发电机	ALTERNATOR	1
1	8M6013461	交流发电机	ALTERNATOR	1
2	8523742	弹簧	SPRING	1
3	856815T2	张紧臂总成	ARM TENSIONER ASSEMBLY	1
4	4002320	垫圈	WASHER	2
5	8568941	衬套	BUSHING	1
6	856900	螺柱(M10×85)	STUD (M10 x 85)	1
6	8M0034457	螺柱(M10×85)	STUD (M10 x 85)	1
7	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	1
8	852385A2	皮带轮总成	PULLEY ASSEMBLY	1
8	8M6005030	皮带轮总成	PULLEY ASSY	1
9	4010835	螺钉(M10×35)六角法兰-不锈钢	SCREW (M10 x 35) Hex Flange - Stainless Steel	1
10	82850711	皮带	BELT	1
10	828507Q11	蛇形皮带	BELT-SERPENTINE	1
11	859619T1	飞轮	FLYWHEEL	1
12	42979	螺母(M16)	NUT (M16)	1
13	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
13	33001	垫圈	WASHER	1
14	45907	黄色塞	PLUG Yellow	1
15	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
16	856583A5	拉线总成	CABLE ASSEMBLY	1
17	4002319	垫圈	WASHER	1
18	82130150	螺丝(M10 x 50)	SCREW (M10 x 50)	2
19	82130012	螺钉（M6 x 12）	SCREW (M6 x 12)	1

图 45燃油泵 Fuel Pump

REF	零件编号	中文名称	英文名称	数量
1	14360A43	燃油泵总成	PUMP ASSEMBLY Fuel	1
1	14360A78	燃油泵套件	PUMP KIT Fuel	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve-Rubber	2
4	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
5	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
6	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
7	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
8	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
9	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
10	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
12	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
13	987691	底座衬垫	GASKET Base	1
13	8M0204705	衬垫@2	GASKET @2	1
14	144303	底座	BASE	1
15	987752	安装板	PLATE	1
16	62910	90度弯头(0.125-27)	ELBOW (.125-27) (90 DEGREES)	1
16	629101	90度弯头接头(0.125-27)	FITTING Elbow - 90 Degree (.125-27)	1
17	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2
18	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
19	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
19	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
20	83075780	管材(28.00英寸散装)(17英寸)	TUBING (28.00 Inches Bulk) (17 IN.)	3
20	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	3
21	822769	连接器	CONNECTOR	1
22	136071	弯头(含参考号25)	ELBOW (INCLUDED WITH REF. #25)	1
23	18458A3	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
23	18458Q3	燃油滤清器	FILTER-FUEL	1
23	18458A4	滤清器套件	FILTER KIT	1
23	18458Q4	燃油水分离滤清器	FILTER Fuel-Water Separating	1
24	14570	探头	PROBE	1
24	828586	探头	PROBE	1
24	8M0204710	探头	PROBE	1
25	13170A3	底座	BASE	1
26	82130030	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
27	897712	直型连接器(.250-18)	CONNECTOR (.250-18) (STRAIGHT)	1
27	89771Q2	连接器(.250-18)	CONNECTOR (.250-18)	1
-	814195A93	衬垫套件	GASKET SET	1
-	809794A97	动力头总成	POWERHEAD ASSEMBLY	1
-	809794R97	PH 225/250 -RM	PH 225/250 -RM	1

图 46燃油导轨 Fuel Rail

REF	零件编号	中文名称	英文名称	数量
1	840405T1	燃油导轨	FUEL RAIL	1
2	840414A1	接头总成	FITTING ASSEMBLY	1
3	840416	O型圈	O-RING	2
4	840415	卡箍	CLAMP	2
5	82104512	螺钉(M5 x 12)	SCREW (M5 x 12)	2
6	840511T	支架	BRACKET	2
7	82104512	螺钉(M5 x 12)	SCREW (M5 x 12)	2
8	859376	卡扣	CLIP	2
9	840411T	燃油压力调节器	REGULATOR Fuel Pressure	1
10	82130014	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
11	804838A1	燃油阀套件	VALVE KIT Fuel	1
11	8M0047053	施拉德阀维修包	VALVE KIT Shrader	1
12	840416	O型圈	O-RING	2
13	82130035	螺钉(M6x35)	SCREW (M6 x 35)	3
14	18715T	喷油器总成	INJECTOR ASSEMBLY	6
15	805511A1	喷油器密封套件	SEALING KIT Fuel Injector	1

图 47燃油系统 Fuel System

REF	零件编号	中文名称	英文名称	数量
1	840429	软管	HOSE	1
2	840437	卡扣	CLIP	1
3	855896T	滤清器	FILTER	1
4	830756109	软管 (57.00英寸整卷) (裁切为3.50英寸长度)	HOSE (57.00 Inches Bulk) (Cut to 3.50 Inch Length)	1
4	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
5	840436	卡扣	CLIP	1
6	840435	软管	HOSE	1
7	826544A1	管件套件	TUBING KIT	1
8	8568172	软管	HOSE	1
8	8M0064778	软管	HOSE	1
9	8583253	卡箍	CLAMP	1
10	822769	连接器	CONNECTOR	1
11	85583463	管材 (33.00英寸整卷) (裁切为15.00英寸长度)	TUBING (33.00 Inches Bulk) (Cut to 15.00 Inch Length)	1
11	85583464	管材 (34.00英寸整卷)	TUBING (34.00 Inches Bulk)	1
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
13	774572	软管 (48.00英寸整卷) (裁切为15.00英寸长度)	HOSE (48.00 Inches Bulk) (Cut to 15.00 Inch Length)	1
14	13791	卡箍(15.7)	CLAMP (15.7)	3
14	8M0214911	卡箍@5	CLAMP @5	3
14	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	2
14	8M0214964	卡箍	CLAMP	2
-	840756A01	动力头总成	POWERHEAD ASSEMBLY	1
-	840756A04	动力头总成	POWERHEAD ASSEMBLY	1

图 48齿轮箱图表 Gear Housing Chart

REF	零件编号	中文名称	英文名称	数量
-	849012T8	齿轮箱总成-标准转向(1.62)	GEAR HOUSING ASSEMBLY Complete-Standard Rotation (1.62)	1
-	840470T27	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	849012T7	齿轮箱总成-标准转向(1.75)	GEAR HOUSING ASSEMBLY Complete-Standard Rotation (1.75)	1
-	840470T8	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	849012T5	齿轮箱总成-标准转向(1.62)	GEAR HOUSING ASSEMBLY Complete-Standard Rotation (1.62)	1
-	840470T27	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	849012T4	齿轮箱总成-标准转向(1.75)	GEAR HOUSING ASSEMBLY Complete-Standard Rotation (1.75)	1
-	840470T8	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	849107T7	齿轮箱总成-标准转向	GEAR HOUSING ASSEMBLY Complete-Standard Rotation	1
-	8M0236198	GC DSI XL 1.75	GC DSI XL 1.75	1
-	849107T4	齿轮箱总成-标准转向	GEAR HOUSING ASSEMBLY Complete-Standard Rotation	1
-	8M0236198	GC DSI XL 1.75	GC DSI XL 1.75	1
-	840306T1	齿轮箱总成(带扭矩片)-标准转向(1.62)	GEAR HOUSING ASSEMBLY Complete, With Torque Tab-Standard Rotation (1.62)	1
-	840306T6	齿轮箱总成(含扭矩片)	GEAR HOUSING ASSEMBLY Complete, With Torque Tab	1
-	840306T2	齿轮箱总成(带扭矩片)-标准转向(1.75)	GEAR HOUSING ASSEMBLY Complete, With Torque Tab-Standard Rotation (1.75)	1
-	840306T7	齿轮箱总成(含扭矩片)	GEAR HOUSING ASSEMBLY Complete, With Torque Tab	1
-	849014T1	齿轮箱总成-标准转向(1.62)	GEAR HOUSING ASSEMBLY Complete-Standard Rotation (1.62)	1
-	840306T6	齿轮箱总成(含扭矩片)	GEAR HOUSING ASSEMBLY Complete, With Torque Tab	1
-	849014T3	齿轮箱总成-标准转向(1.75)	GEAR HOUSING ASSEMBLY Complete-Standard Rotation (1.75)	1
-	840306T7	齿轮箱总成(含扭矩片)	GEAR HOUSING ASSEMBLY Complete, With Torque Tab	1
-	849107T8	齿轮箱总成-反向转向	GEAR HOUSING ASSEMBLY Complete-Counter Rotation	1
-	8M0236209	GC DSI CXL 1.75	GC DSI CXL 1.75	1
-	849107T5	齿轮箱总成-反向转向	GEAR HOUSING ASSEMBLY Complete-Counter Rotation	1
-	8M0236209	GC DSI CXL 1.75	GC DSI CXL 1.75	1
-	840307T1	齿轮箱总成-反向转向(1.62)	GEAR HOUSING ASSEMBLY Complete-Counter Rotation (1.62)	1
-	840307T10	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840307T2	齿轮箱总成-反向转向(1.75)	GEAR HOUSING ASSEMBLY Complete-Counter Rotation (1.75)	1
-	840307T11	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	849015T1	齿轮箱总成-反向转向(1.62)	GEAR HOUSING ASSEMBLY Complete-Counter Rotation (1.62)	1
-	840307T10	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	849015T3	齿轮箱总成-反向转向(1.75)	GEAR HOUSING ASSEMBLY Complete-Counter Rotation (1.75)	1
-	840307T11	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1

图 49液压泵及安装支架(运动大师) Hydraulic Pump And Mounting Brackets (Sportmaster)

REF	零件编号	中文名称	英文名称	数量
-	846859A4	液压泵总成	PUMP ASSEMBLY Hydraulic Complete	1
1	818161A4	液压泵总成	PUMP ASSEMBLY Hydraulic	1
1	8M0051203	配平泵总成	PUMP ASSY-TRIM	1
2	818567	支架	BRACKET	1
3	38837	螺钉(.312-18×1.12)	SCREW (.312-18 x 1.12)	1
4	57792	垫圈	WASHER	2
5	34948	隔套	SPACER	1
6	65999A12	接地线总成	CABLE ASSEMBLY Ground	1
7	79138A9	电缆总成(6英尺)黑色-负极	CABLE ASSEMBLY (6.00 Feet) Black-Negative	1
8	92051	螺钉（10-16 x 0.75）	SCREW (10-16 x .75)	2
9	79147A5	线束总成	HARNESS ASSEMBLY	1
10	79091	保险丝20安培	FUSE 20 Ampere	1
10	8M0207796	保险丝20安培	FUSE 20 AMP	1
11	88075	固定座	RETAINER	1
12	853654A1	电磁阀	SOLENOID	2
13	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	4
14	20110	螺母 (#10-32)	NUT (#10-32)	4
15	26484	螺母(.312-18)	NUT (.312-18)	4
15	8M0204646	螺母(.312-18)	NUT (.312-18)	4
16	79023A10	保险丝总成110安培	FUSE ASSEMBLY 110 Ampere	1
16	79023T10	保险丝总成110安培	FUSE ASSEMBLY 110 Ampere	1
17	96457	酚醛垫圈(.27×.81×.062)	WASHER Phenolic (.27 x .81 x .062)	1
18	21825	螺母(.250-28)	NUT (.250-28)	1
19	65999A11	拉线总成	CABLE ASSEMBLY	1
20	79139A12	电缆总成红色-正极	CABLE ASSEMBLY Red-Positive	1
21	46265	护套	BOOT	4
22	22753	垫圈	WASHER	4
23	79139A26	电缆总成(红色)	CABLE ASSEMBLY Red	1
24	87760T	安装板	MOUNTING PLATE	1
25	39349	螺钉(.312-18×0.75)不锈钢	SCREW (.312-18 x .750) Stainless Steel	1
26	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
26	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
27	90271	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	2
28	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
29	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	4
29	8M0214963	垫圈	WASHER	4
30	87762	支架	BRACKET	1
31	63826	螺钉(.375-16 x 2.50)	SCREW (.375-16 x 2.50)	2
32	82670912	螺母(.375-16)不锈钢	NUT (.375-16) Stainless Steel	2
33	818200	接头	FITTING	1
34	77366	接头	FITTING	2
35	65017A14	线束总成	HARNESS ASSEMBLY	1
36	848017T4	升降线束总成	HARNESS ASSEMBLY Trim	1

图 50仪表装置 Instrumentation

REF	零件编号	中文名称	英文名称	数量
1	19674A1	拉绳开关总成	SWITCH ASSEMBLY Lanyard	1
1	19674A07	开关/拉绳套件	SWITCH/LANYARD KIT	1
2	18303	螺钉 (.190-16 x 1.750) 不锈钢	SCREW (.190-16 x 1.750) Stainless Steel	2
3	813679	适配器	ADAPTER	1
4	15920A54	拉绳总成	LANYARD ASSEMBLY	1
4	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
5	32866	螺钉 (#10-32 x 2.00) 不锈钢	SCREW (#10-32 x 2.00) Stainless Steel	2
6	18321	安装夹	CLAMP Mounting	1
7	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	2
8	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4
9	79146	固定座	RETAINER	3
10	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
10	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
11	812497A2	二极管总成	DIODE ASSEMBLY	1
11	898289A72	双拉绳二极管套件	DIODE KIT-LANYARD Dual	1
12	11149A2	线缆总成 (6.00英寸)	CABLE ASSEMBLY (6.00 Inches)	1
13	827871A1	警报仪表套件	WARNING GAUGE KIT	1
13	859698A1	警报仪表套件	WARNING GAUGE KIT	1
14	823486	卡箍	CLAMP	1
15	817315	边框	BEZEL	1
16	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	2
17	15163	灯	LAMP	3
18	79888	灯泡插座	SOCKET Light Bulb	3
19	827752A1	电缆总成(20.00英尺)	CABLE ASSEMBLY (20.00 Feet)	1

图 51钥匙开关总成 Key Switch Assembly

REF	零件编号	中文名称	英文名称	数量
1	816626A20	钥匙开关线束总成(20英尺)	HARNESS ASSEMBLY Key Switch (20.00 Feet)	1
2	90468A1	钥匙盖总成	COVER ASSEMBLY Key	2
3	76424	支架	BRACKET	1
4	55422	双头螺柱 (#10-32 x 2.00)	STUD (#10-32 x 2.00)	2
5	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	2
6	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
7	816479A3	板组件套件	PLATE KIT	2
8	88107A5	钥匙开关套件(钥匙型号参见下表)	SWITCH KIT Key (SEE CHART BELOW FOR KEY)	1
9	879755	特殊螺母-黑色尼龙	NUT Special - Black Nylon	1
10	816492A1	音响报警器总成	ALARM ASSEMBLY Audio Warning	1
10	8M0210763	报警器	ALARM	1
11	8127111	垫片(0.375)	SPACER (.375)	2
11	812711	隔套(0.250)	SPACER (.250)	2
-	894911	点火钥匙(1A)	KEY Ignition (1A)	1
-	894912	点火钥匙(1B)	KEY Ignition (1B)	1
-	894913	点火钥匙(1C)	KEY Ignition (1C)	1
-	894914	点火钥匙(1D)	KEY Ignition (1D)	1
-	894915	点火钥匙(1E)	KEY Ignition (1E)	1
-	894916	点火钥匙(1F)	KEY Ignition (1F)	1
-	894917	点火钥匙(2A)	KEY Ignition (2A)	1
-	894918	点火钥匙(2B)	KEY Ignition (2B)	1
-	894919	点火钥匙(2C)	KEY Ignition (2C)	1
-	8949110	点火钥匙(2D)	KEY Ignition (2D)	1
-	8949111	点火钥匙(2E)	KEY Ignition (2E)	1
-	8949112	点火钥匙(2F)	KEY Ignition (2F)	1

图 52杂项 Miscellaneous

零件编号	中文名称	英文名称	数量
85552901	零件手册 300X(3.0L电喷)PRO MAX	PARTS MANUAL 300X (3.0L EFI) PRO MAX	1
849233010	用户手册	OWNERS MANUAL	1
840514	维修手册	SERVICE MANUAL	1
840514R01	维修手册	SERVICE MANUAL	1
804675A01	EPA标签信息贴花	DECAL EPA Label Information	1

图 53润滑系统 Oiling System

REF	零件编号	中文名称	英文名称	数量
1	858955	连接器	CONNECTOR	2
2	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
2	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	AR
3	875289	软管	HOSE	1
4	875284	管路过滤器	FILTER In Line	1
4	875284T01	滤清器-机油在线式	FILTER Oil - In Line	1
5	875283	软管(2.00英寸)	HOSE (2.00 Inches)	1
6	424254	接头	FITTING	1
6	8M0207780	接头	FITTING	1
7	830756109	软管(57.00英寸卷材)(裁切为7.00英寸)	HOSE (57.00 Inches Bulk) (Cut to 7.00 Inch Length)	1
7	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
8	859230	固定座	RETAINER	2
8	859230T	固定座	RETAINER	2
9	82381455	管材(25.00英寸卷材)(裁切为15.50英寸)	TUBING (25.00 Inches Bulk) (Cut to 15.50 Inch Length)	1
10	840399	Y型接头	Y-FITTING	1
11	85583463	管材(33.00英寸卷材)(裁切为3.50英寸)	TUBING (33.00 Inches Bulk) (Cut to 3.50 Inch Length)	1
11	85583464	管材 (34.00英寸整卷)	TUBING (34.00 Inches Bulk)	1
12	897131	软管(2.75英寸)	HOSE (2.75 Inches)	1
13	85606064	管材(36.00英寸卷材)(裁切为27.00英寸)	TUBING (36.00 Inches Bulk) (Cut to 27.00 Inch Length)	1
13	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
14	85606064	管材(36.00英寸卷材)(裁切为25.00英寸)	TUBING (36.00 Inches Bulk) (Cut to 25.00 Inch Length)	1
14	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
15	85606064	管材(36.00英寸卷材)(裁切为14.50英寸)	TUBING (36.00 Inches Bulk) (Cut to 14.50 Inch Length)	1
15	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
16	85606064	管材(36.00英寸卷材)(裁切为16.50英寸)	TUBING (36.00 Inches Bulk) (Cut to 16.50 Inch Length)	1
16	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
17	85606064	管材(36.00英寸卷材)(裁切为19.50英寸)	TUBING (36.00 Inches Bulk) (Cut to 19.50 Inch Length)	1
17	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
18	85606064	管材(36.00英寸卷材)(裁切为22.00英寸)	TUBING (36.00 Inches Bulk) (Cut to 22.00 Inch Length)	1
18	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
19	858870	止回阀(90度)	CHECK VALVE (90 Degrees)	6

图 54机油喷射组件 Oil Injection Components

REF	零件编号	中文名称	英文名称	数量
1	818456A1	油箱总成	TANK ASSEMBLY Oil	1
2	830889A1	油箱总成	TANK ASSEMBLY Oil	1
3	8260841	隔套	SPACER	1
4	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
5	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
6	814449A2	盖总成	CAP ASSEMBLY	1
6	814449A3	盖总成	CAP ASSEMBLY	1
6	814449A3	盖总成	CAP ASSEMBLY	1
7	42999	衬垫	GASKET	1
7	42999T	衬垫	GASKET	1
8	12886A6	开关总成	SWITCH ASSEMBLY	1
8	12886A7	开关总成	SWITCH ASSEMBLY	1
9	19064	衬套	BUSHING	3
10	825380	护孔环	GROMMET	3
10	825380001	护孔环	GROMMET	3
11	56720	垫圈(0.330×0.750×0.060)不锈钢	WASHER (.330 x .750 x .060) Stainless Steel	3
12	81893435	螺钉(M8×35)	SCREW (M8 x 35)	3
12	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
13	830756109	软管(57英寸整卷)(10英寸段)	HOSE (57.00 Inches Bulk) (10 IN.)	1
13	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
13	830756109	软管(57英寸整卷)(8英寸段)	HOSE (57.00 Inches Bulk) (8 IN.)	1
13	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
14	424254	接头	FITTING	1
14	8M0207780	接头	FITTING	1
15	82104530	螺钉(30毫米)	SCREW (30MM)	1
16	8155361	油泵	PUMP Oil	1
16	815536T1	油泵	PUMP Oil	1
17	11379	O型圈	O-RING	1
18	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
19	817631	从动齿轮轴承	BEARING Driven Gear	1
20	430204	从动齿轮	GEAR Driven	1
21	816974	推力轴承	BEARING Thrust	1
22	82104520	螺钉（M5×20）	SCREW (M5 x 20)	1
23	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
23	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
24	82381451	管材(8.5英寸)	TUBING (8-1/2 IN.)	1
24	82381455	油管（25.00英寸散装）	TUBING (25.00 Inches Bulk)	1
25	87421	油箱	TANK	1
26	43298A2	盖总成	CAP ASSEMBLY	1
27	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
28	816190A3	外壳总成适配器	HOUSING ASSEMBLY Adapter	1
28	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
29	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
30	99802	管	TUBE	1
31	99439	软管(114.00英寸)	HOSE (114.00 Inches)	1
32	12335A1	支架套件	BRACKET KIT	1
33	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1
34	82381329	管材(12英寸散装)(7英寸)	TUBING (12.00 Inches Bulk) (7 IN.)	1
34	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	1

图 55左舷泄放系统 Port Bleed System

REF	零件编号	中文名称	英文名称	数量
1	8282182	止回阀	CHECK VALVE	3
2	8272011	管塞	PIPE PLUG	2
3	85606065	管材(38英寸整卷)(裁切至20.5英寸)	TUBING (38.00 Inches Bulk) (Cut to 20-1/2 Inches)	1
3	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
4	8159234	止回阀	CHECK VALVE	1
5	8592352	止回阀90度(.0625-27)	CHECK VALVE 90 Degree (.0625-27)	3
6	85606065	管材(38英寸整卷)(裁切至13英寸)	TUBING (38.00 Inches Bulk) (Cut to 13 Inches)	1
6	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
7	426585	止回阀	CHECK VALVE	1
8	8272011	管塞	PIPE PLUG	2
9	23567	卡扣	CLIP	1
10	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
11	85606065	管材(38英寸整卷)(裁切至11英寸)	TUBING (38.00 Inches Bulk) (Cut to 11 Inches)	1
11	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
12	892024122	管材(散装240英寸)(裁切至22.5英寸)	TUBING (240.00 Inches Bulk) (Cut to 22-1/2 Inches)	1
-	883892A04	动力头总成	POWERHEAD ASSEMBLY	1
-	883892A07	动力头总成	POWERHEAD ASSEMBLY	1
-	883893A04	动力头总成	POWERHEAD ASSEMBLY	1
-	883893A07	PH 3L WORK EFI	PH 3L WORK EFI	1
-	883894A04	动力头总成	POWERHEAD ASSEMBLY	1
-	883894A07	动力头总成	POWERHEAD ASSEMBLY	1
-	891823A04	动力头总成	POWERHEAD ASSEMBLY	1
-	891823A07	动力头总成	POWERHEAD ASSEMBLY	1

图 56动力头衬垫组件 Powerhead Gasket Set Components

REF	零件编号	中文名称	英文名称	数量
-	832934A00	动力头衬垫套件	GASKET SET Powerhead	1
0	857005A1	燃油泵膜片维修包	DIAPHRAGM KIT Fuel Pump	1
0	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
0	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
0	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
0	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
0	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
0	NSS	不单独销售端盖-弹簧	NOT SOLD SEPARATE Cap-Spring End	1
0	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
0	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
0	987691	燃油泵衬垫	GASKET Fuel Pump	1
0	8M0204705	衬垫@2	GASKET @2	1
0	804680	燃油管理适配板垫片	GASKET Fuel Management Adaptor Plate	1
0	62700	O型圈(3.237x0.103)下端盖	O-RING (3.237 x .103) Lower End Cap	1
0	818574	密封件（气缸盖）	SEAL Cylinder Head	2
0	8503181	节温器盖衬垫	GASKET Thermostat Cover	2
0	35126	O型圈(.859 x .139)曲轴-下部	O-RING (.859 x .139) Crankshaft-Lower	1
0	823683	O型圈（1.989×0.070）（曲轴上端）	O-RING (1.989 x .070) Crankshaft-Upper	1
0	8329335	气缸体衬垫	GASKET Cylinder Block	1
0	832933006	衬垫	GASKET	1
0	8329344	排气板衬垫	GASKET Exhaust Plate	1
0	832934006	衬垫	GASKET	1
0	88907003	衬垫(安全阀盖与阀板)	GASKET Relief Valve Cover & Plate	2
0	854639	密封件（节温器）	SEAL Thermostat	2
0	854639001	密封件	SEAL	2

图 57动力升降组件(铸造泵壳)金属电机壳 Power Trim Components (Cast Pump Housing) Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	855998A3	动力升降倾斜装置总成	POWER TRIM Complete	1
-	855998A11	动力调整套件	POWER TRIM KIT	1
1	878265A4	配平电机	TRIM MOTOR	1
1	8M0031551	配平电机	TRIM MOTOR	1
2	NSS	电枢(不单独销售)	NOT SOLD SEPARATE Armature	1
3	NSS	端架(不单独销售)	NOT SOLD SEPARATE End Frame	1
4	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
5	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
6	878245	联轴器	COUPLING	1
6	8782451	驱动轴	DRIVESHAFT	1
7	878410A1	压力检查套件	PO CHECK KIT	1
8	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
8	893929A01	安全阀套件	VALVE KIT Relief	1
9	878241A1	轴套件(含参考号26)	SHAFT KIT (Incls. Ref. #26)	1
9	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
10	878267	销	PIN	1
11	878235A1	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
11	878235A03	倾斜油缸套件	CYLINDER KIT Tilt	1
12	878239A1	导向套件(含参考号26)	GUIDE KIT (Incls. Ref. #26)	1
12	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
13	878409A1	O型圈套件(含参考号26)	O-RING KIT (Incls. Ref. #26)	1
13	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
14	878412A1	减震杆套件(含参考号26)	SHOCK ROD KIT (Incls. Ref. #26)	1
14	8M0168219	减震杆套件	SHOCK ROD KIT	1
15	878242A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
15	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
16	878406A1	止回阀维修套件(含参考号26)	REPAIR KIT Check Valve (Incls. Ref. #26)	1
16	878406A02	止回阀修理包	REPAIR KIT Check Valve	1
17	878414A1	活塞总成	PISTON ASSEMBLY	1
17	878414T01	活塞总成	PISTON ASSEMBLY	1
18	878413A1	活塞总成	PISTON ASSEMBLY	1
19	878243A1	导向器总成	GUIDE ASSEMBLY	2
19	8M0021648	端盖总成	END CAP ASSEMBLY	2
20	878264A1	储液罐套件	RESERVOIR KIT	1
21	811613	塞子总成	PLUG ASSEMBLY	1
22	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
23	43450	垫圈	WASHER	4
23	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
24	878411A1	泵套件	PUMP KIT	1
24	892251A01	泵套件	PUMP KIT	1
25	878408A1	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
26	821539	三叶销	PIN Trilobe	1
27	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
28	4002319	垫圈	WASHER	6
29	818298Q1	阳极套件	ANODE KIT	1
30	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
30	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
31	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
31	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	996251	轴	SHAFT	1
32	99625002	轴	SHAFT	1
33	69205	C形垫圈	C WASHER	2
33	8M0084613	C形垫圈	C-WASHER	2
34	22875	卡扣	CLIP	2
35	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	2
36	828547353	导管 (.350内径 x 3.00英尺散装)	CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk)	1
37	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

图 58维修/支撑材料 Servie/Support Material

REF	零件编号	中文名称	英文名称	数量
-	832934A00	动力头衬垫套件	GASKET SET Powerhead	1
0	857005A1	燃油泵膜片维修包	DIAPHRAGM KIT Fuel Pump	1
0	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
0	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
0	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
0	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
0	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
0	NSS	不单独销售端盖-弹簧	NOT SOLD SEPARATE Cap-Spring End	1
0	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
0	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
0	987691	燃油泵衬垫	GASKET Fuel Pump	1
0	8M0204705	衬垫@2	GASKET @2	1
0	804680	燃油管理适配板垫片	GASKET Fuel Management Adaptor Plate	1
0	62700	O型圈(3.237x0.103)下端盖	O-RING (3.237 x .103) Lower End Cap	1
0	818574	密封件（气缸盖）	SEAL Cylinder Head	2
0	8503181	节温器盖衬垫	GASKET Thermostat Cover	2
0	35126	O型圈(.859 x .139)曲轴-下部	O-RING (.859 x .139) Crankshaft-Lower	1
0	823683	O型圈（1.989×0.070）（曲轴上端）	O-RING (1.989 x .070) Crankshaft-Upper	1
0	8329335	气缸体衬垫	GASKET Cylinder Block	1
0	832933006	衬垫	GASKET	1
0	8329344	排气板衬垫	GASKET Exhaust Plate	1
0	832934006	衬垫	GASKET	1
0	88907003	衬垫(安全阀盖与阀板)	GASKET Relief Valve Cover & Plate	2
0	854639	密封件（节温器）	SEAL Thermostat	2
0	854639001	密封件	SEAL	2

图 59电磁阀板 Solenoid Plate

REF	零件编号	中文名称	英文名称	数量
-	NSS	不单独销售-电气板总成(完整)	NOT SOLD SEPARATE Electrical Plate Assembly-Complete	1
1	858366T2	安装板	PLATE	1
2	817109A2	电磁阀总成(#10-32/.3125-18端子)	SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)	1
3	822179	护孔环	GROMMET	2
4	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
4	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
5	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	5
6	818968	衬套	BUSHING	2
6	8M0214955	衬套	BUSHING	2
7	882751A1	继电器总成	RELAY ASSEMBLY	3
7	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	3
8	NSS	微调继电器标识贴(不单独销售)	NOT SOLD SEPARATE Decal-Trim Relay	3
9	828102	支架	BRACKET	3
9	8M0207771	安装支架	BRACKET Mounting	3
10	818968	衬套	BUSHING	3
10	8M0214955	衬套	BUSHING	3
11	818967	护孔环	GROMMET	3
11	8M0207785	护孔环	GROMMET	3
12	82129110	螺丝 (M6 x 10)	SCREW (M6 x 10)	2
13	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
14	828991T	卡扣	CLIP	1
15	858755	卡箍(1.00)	CLIP (1.00)	1
16	878231A6	保险丝线束总成-100安培	HARNESS ASSEMBLY Fuse - 100 Ampere	1
17	819514T21	升降线束总成	HARNESS ASSEMBLY Trim	1
18	892973T01	发动机线束总成	HARNESS ASSEMBLY Engine	1
19	83296920	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	4
19	832969T20	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	4
19	8329695	迷你保险丝-棕色-5安培	FUSE Mini - Tan - 5 Ampere	1
19	832969T05	迷你保险丝-棕色-5安培	FUSE Mini - Tan - 5 Ampere	1
20	858754	保险丝盖	COVER Fuse	1
-	878073A2	线束总成(节气门位置传感器)	HARNESS ASSEMBLY (TPS)	1
-	879346A41	线束维修套件	HARNESS REPAIR KIT	1
-	879964A2	曲轴位置编码器线束总成	HARNESS ASSEMBLY Encoder Crank Position Sensor	1
-	881262A2	线束总成(交流发电机)	HARNESS ASSEMBLY Alternator Alternator	1
21	882829A1	启动机电缆总成	CABLE ASSEMBLY Starter	1
22	88439A46	电缆总成蓄电池-正极	CABLE ASSEMBLY Battery - Positive	1
23	68292	螺母(.312-18)	NUT (.312-18)	2
23	8M0204668	螺母(.312-18)	NUT (.312-18)	2
24	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
25	813938	盖形螺母(#10-32)	CAP NUT (#10-32)	2
26	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
27	88807A16	黑色电缆总成(4.00英寸)	CABLE ASSEMBLY (4.00 Inches) Black	1
28	13540	母头护帽	CAP Female	AR
28	13541	公插头	PLUG Male	1
29	88555741T	推进控制模块PCM	PCM Propulsion Control Module	1
29	89790644T	PCM控制模块	PCM	1
29	88555742T	推进控制模块PCM	PCM Propulsion Control Module	1
29	89790645T	PCM控制模块	PCM	1
29	88555743T	推进控制模块PCM	PCM Propulsion Control Module	1
29	89790646T	PCM控制模块	PCM	1
30	82130025	螺钉(M6x25)	SCREW (M6 x 25)	3
31	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	3
32	834985	护孔环	GROMMET	3
32	8M0190980	护孔环	GROMMET	3
33	856954	衬套	BUSHING	3
34	891520001	卡扣	CLIP	1
35	82129114	螺钉 (M6 x 14)	SCREW (M6 x 14)	1
36	892295F01	支架	BRACKET	1
37	834985	护孔环	GROMMET	2
37	8M0190980	护孔环	GROMMET	2
38	822003	衬套	BUSHING	2
39	881879011	压力传感器 (0 - 100 PSI)	SENSOR Pressure (0 - 100 PSI)	1
39	881879T11	压力传感器 (0 - 100 PSI)	SENSOR Pressure (0 - 100 PSI)	1
40	892403	接头	FITTING	1
40	8M0207782	直通接头	FITTING Straight	1
41	883066	夹子 (.865)	CLIP (.865)	1
42	879962	卡扣	CLIP	1
43	82130025	螺钉(M6x25)	SCREW (M6 x 25)	2
44	82130012	螺钉（M6 x 12）	SCREW (M6 x 12)	3
45	88439A26	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
46	81893420	螺钉(M8 x 20)	SCREW (M8 x 20)	1
47	882815A1	线束总成(200/3.0L机型)	HARNESS ASSEMBLY (200/3.0L Work)	1
48	877613A02	防水插头总成6针	CONNECTOR ASSEMBLY Weather Cap 6 Pin	1
49	830796A04	防水插头总成-4针公头	CONNECTOR ASSEMBLY Weather Cap - 4 Position Male	1

图 60右舷泄放系统 Starboard Bleed System

REF	零件编号	中文名称	英文名称	数量
1	85606065	管材(38英寸整卷)(裁切至15.5英寸)	TUBING (38.00 Inches Bulk) (Cut to 15-1/2 Inches)	1
1	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
2	8592352	止回阀90度(.0625-27)	CHECK VALVE 90 Degree (.0625-27)	3
3	85606065	管材(38英寸整卷)(裁切16-1/2英寸)	TUBING (38.00 Inches Bulk) (Cut to 16-1/2 Inches)	1
3	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
4	85606065	管材(38英寸整卷)(裁切至15英寸)	TUBING (38.00 Inches Bulk) (Cut to 15 Inches)	1
4	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
5	23567	卡扣	CLIP	1
6	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
7	8282182	止回阀	CHECK VALVE	3
-	883892A04	动力头总成	POWERHEAD ASSEMBLY	1
-	883892A07	动力头总成	POWERHEAD ASSEMBLY	1
-	883893A04	动力头总成	POWERHEAD ASSEMBLY	1
-	883893A07	PH 3L WORK EFI	PH 3L WORK EFI	1
-	883894A04	动力头总成	POWERHEAD ASSEMBLY	1
-	883894A07	动力头总成	POWERHEAD ASSEMBLY	1
-	891823A04	动力头总成	POWERHEAD ASSEMBLY	1
-	891823A07	动力头总成	POWERHEAD ASSEMBLY	1

图 61启动电机 Starter Motor

REF	零件编号	中文名称	英文名称	数量
1	8184453	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	898265009	启动马达	STARTER MOTOR	1
2	823639	驱动端盖	DRIVE CAP	1
2	8236392	驱动端盖	DRIVE CAP	1
3	823641	贯穿螺栓	THRU BOLT	2
4	823640	驱动套件	DRIVE KIT	1
4	823640T	驱动套件	DRIVE KIT	1
5	13310	驱动器	DRIVE	1
5	13310T1	小齿轮总成	PINION ASSEMBLY	1
6	823638	电枢	ARMATURE	1
7	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
7	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	61787	支架	HOLDER	1
8	898265014	电刷支架	HOLDER-BRUSH	1
9	8119011	换向器端盖	CAP Commutator	1
10	F15158	螺钉	SCREW	2
11	8272822	警告标贴	DECAL Warning	1
12	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
13	94330	螺母 (.250-20) 黄铜	NUT (.250-20) Brass	2
14	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
15	20890	螺母 (.250-20)	NUT (.250-20)	1
16	81893450	螺钉(M8 x 50)	SCREW (M8 x 50)	3
17	824921	隔套	SPACER	1

图 62转向连接套件 Steering Attaching Kit

REF	零件编号	中文名称	英文名称	数量
-	92876A8	转向安装套件	ATTACHING KIT Steering	1
1	41055A1	支架总成	BRACKET ASSEMBLY	1
2	715651	转向拉索套管	TUBE Steering Cable	1
3	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
4	821203	锁紧垫圈	LOCKWASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
7	78968	内锁紧垫圈 (.250)	LOCKWASHER Internal (.250)	4
8	850791T	联轴器	COUPLER	1
9	73732	螺钉 (.375-24 x 1.120)	SCREW (.375-24 x 1.120)	2
10	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
11	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	3
11	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	3

图 63旋转支架(重型) Swivel Bracket (Heavy Duty)

REF	零件编号	中文名称	英文名称	数量
1	847723A3	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
2	847729	油封	SEAL Oil	2
3	847726	轴承	BEARING	2
4	74036	润滑脂接头	FITTING Grease	4
4	8M0169589	润滑脂接头	FITTING Grease	4
5	847728	轴承	BEARING	2
6	82203524	轴承(1.50英寸)	BEARING (1.50 IN.)	2
7	85023	油封	SEAL Oil	2
8	87161	垫圈	WASHER	2
9	48171	O型圈(0.364 x 0.070)	O-RING (.364. x .070)	2
10	85030A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
10	85028A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
11	86600	衬套	BUSHING	1
12	85367	弹簧	SPRING	1
13	41052	柱塞	PLUNGER	1
14	88876	螺柱	STUD	1
15	86603	旋钮	KNOB	1
16	864751	联轴器	COUPLING	1
17	69745	滚动销	PIN Roll	2
18	88049	弹簧	SPRING	1
19	93861	开口销	COTTER PIN	1
20	78854	波形垫圈	WAVE WASHER	1
21	814084T1	下轭架	YOKE Bottom	1
22	848125	螺旋锁紧挡圈	RING Retaining - Spiral Lock	2
23	840308T2	旋转销总成	SWIVEL PIN ASSEMBLY	1
23	879330T36	旋转销	PIN-SWIVEL	1
24	92876A10	连杆总成	LINK ROD ASSEMBLY	1
24	92876A12	连杆总成	LINK ROD ASSEMBLY	1
25	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
26	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
26	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
27	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
28	8495812	螺钉(.500-13 x 7.00)	SCREW (.500-13 x 7.00)	2
28	8495811	螺栓(.500-13x7.750)	SCREW (.500-13 x 7.750)	2
29	816056	垫圈	WASHER	2
30	4002321	垫圈(12.80 mm x 24.0 mm x 2.4 mm)不锈钢	WASHER (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel	2
31	844766	螺母(.500-13)	NUT (.500-13)	2

图 64节气门联动装置 Throttle Linkage

REF	零件编号	中文名称	英文名称	数量
1	8252682	杠杆	LEVER	1
1	8M0040987	杠杆	LEVER	1
2	81893435	螺钉(M8×35)	SCREW (M8 x 35)	1
2	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	1
3	36042	垫圈	WASHER	1
4	821113	衬套	BUSHING	1
5	40124	螺钉 (M6 x 55)	SCREW (M6 x 55)	2
6	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
7	42942	盖帽	CAP	2
8	42927	嵌件	INSERT	1
9	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
10	932481	衬套	BUSHING	1
10	8M0215006	旋转衬套	BUSHING Swivel	1
11	8583541	连杆(连接凸轮)	LINK To Cam	1
12	8240102	支架	BRACKET	1
12	824010T05	支架	BRACKET	1
13	824016	闩锁	LATCH	1
14	42975	传动螺钉	DRIVE SCREW	2
15	824015	筒形保持杯	CUP Barrel Retainer	2
16	82155025	螺丝(M8 x 25 mm)不锈钢	SCREW (M8 x 25 mm) Stainless Steel	2
17	859172	卡箍	CLAMP	1
18	82155025	螺丝(M8 x 25 mm)不锈钢	SCREW (M8 x 25 mm) Stainless Steel	1
19	896662	滑动支架	BRACKET Slide	1
19	8M0039052	滑动支架	BRACKET Slide	1
20	889514A01	开关	SWITCH	1
20	8M0207794	开关	SWITCH	1
21	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
22	82470620	螺钉 (M3.5 x 20)	SCREW (M3.5 x 20)	2
23	43430	垫圈	WASHER	1
24	35459	垫圈	WASHER	1
25	36001	垫圈	WASHER	1

图 65顶罩 Top Cowl

REF	零件编号	中文名称	英文名称	数量
1	814277A14	顶盖总成	TOP COWL ASSEMBLY	1
1	814277T14	顶盖总成	TOP COWL ASSEMBLY	1
1	814277A15	顶盖总成	TOP COWL ASSEMBLY	1
1	814277T15	顶盖总成	TOP COWL ASSEMBLY	1
1	814277A25	顶盖总成	TOP COWL ASSEMBLY	1
1	814277T25	白色顶盖总成	COWL ASSY-TOP-WHI	1
2	821256F1	进气口	INLET Air	1
2	821256T03	进气口	INLET Air	1
2	821256F2	进气口	INLET Air	1
2	821256T2	银色进气口	INLET Air - Silver	1
2	821256F6	进气口	INLET Air	1
3	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	4
4	821250A1	隔音毯套装	SOUND BLANKET KIT	1
5	823865	盖塞	CAP PLUG	2
6	821248	后闩锁钩	REAR LATCH HOOK	2
7	8237951	挡圈	RING Retaining	3
8	815263	滚轮	ROLLER	3
8	8M0207770	滚轮@3	ROLLER @3	3
9	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
9	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
10	401196	螺母 (M6)	NUT (M6)	4
11	821249M2	前支架	BRACKET Front	1
11	8M0036792	支架	BRACKET	1
12	815477	缓冲器锁扣	BUMPER Latch	1
13	8155381	滚动销	PIN Roll	1
14	401196	螺母 (M6)	NUT (M6)	3
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	3
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	3
16	826639T	盖板	COVER	1
17	47341A1	手动/应急启动绳柄套件	ROPE AND HANDLE KIT Manual/Emergency Start	1
17	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1

图 66艉板支架(运动大师) Transom Brackets (Sportmaster)

REF	零件编号	中文名称	英文名称	数量
1	847800A1	艉板支架总成	BRACKET ASSEMBLY Transom	1
1	844353T01	艉板套件	TRANSOM KIT	1
2	847801A1	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	847801T01	艉板支架-右舷	BRACKET Transom - Starboard	1
3	847798A1	耐磨垫套件	WEAR PAD KIT	1
3	847798A02	耐磨垫套件	WEAR PAD KIT	1
4	86843	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	4
5	87180	螺栓(0.500-20 x 11.00)	BOLT (.500-20 x 11.00)	1
6	88512	卡箍	CLAMP	4
6	75275	卡箍	CLAMP	2
7	88829	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	6
8	858869	螺母 (.875-14)	NUT (.875-14)	1
8	34862	螺母(1.00-14)	NUT (1.00-14)	1
8	859133	螺母(1.00-14)	NUT (1.00-14)	1
9	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
10	99170A2	倾斜管套件	TUBE KIT Tilt	1
10	826125A1	倾斜管	TILT TUBE	1
11	85035T	隔套	SPACER	1
11	8M0237541	艉板隔套	SPACER Transom	1
12	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
12	8M0149747	螺钉	SCREW	4
13	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
13	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
14	82671117	螺母(.500-20)	NUT (.500-20)	4
15	20220	螺母(.500-20)	NUT (.500-20)	1
15	82671317	螺母(.500-20)	NUT (.500-20)	1
16	70732	螺钉 (.250-20 x 2.00)	SCREW (.250-20 x 2.00)	4
17	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
17	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
18	85026T	安装板	PLATE	2
19	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
20	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
20	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
21	54343	螺柱（.312-24 x 1.380）	STUD (.312-24 x 1.380)	4
21	8M0034451	螺柱	STUD	4
22	89949A1	隔板总成	PLATE ASSEMBLY	1
23	847539	垫圈	WASHER	4
24	35814	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	4
24	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	4
25	89024	液压软管6英尺-泵升/右舷艉板	HOSE Hydraulic 6 Feet-Pump-Up/Port at Transom	1
25	89023	液压软管6英尺-泵降/左舷艉板	HOSE Hydaulic 6 Feet-Pump-Down/Starboard at Transom	1
26	96993	液压缸软管-上升/右舷艉板	HOSE Hydraulic Cylinder-Up/Port at Transom	1
26	96994	液压缸软管-下降/左舷艉板	HOSE Hydraulic Cylinder-Down/Starboard at Transom	1
27	87871	盖板	COVER	1
27	87871T	盖板	COVER	1
28	45507	护孔环	GROMMET	1
29	32866	螺钉 (#10-32 x 2.00) 不锈钢	SCREW (#10-32 x 2.00) Stainless Steel	4
30	87775	衬垫	GASKET	1
31	20878	垫圈	WASHER	4
32	29488	螺母 (#10-32)	NUT (#10-32)	4
32	8M0204718	螺母	NUT	4
33	79610A17	配平油缸	TRIM CYLINDER	1
33	79610T28	配平油缸	TRIM CYLINDER	1
34	847724	衬套	BUSHING	2
35	85022	垫圈(2.00 x 1.06 x 0.060)	WASHER (2.00 x 1.06 x .060)	2
36	30316	弹簧	SPRING	2
37	85020T	枢轴销	PIN Pivot	2
38	8220752	调整销	PIN Trim	1
39	822076	固定座	RETAINER	1
40	20220	螺母(.500-20)	NUT (.500-20)	1
40	82671317	螺母(.500-20)	NUT (.500-20)	1
-	79879A1		REPAIR KIT For Trim Cylinders	1

图 67油气分离器组件 Vapor Separator Components

REF	零件编号	中文名称	英文名称	数量
1	883245T2	盖板套件	COVER KIT	1
1	883245T04	蒸汽分离器盖套件	COVER KIT Vapor Separator	1
1	883245T04	蒸汽分离器盖套件	COVER KIT Vapor Separator	1
2	881740	直通接头	FITTING Straight	1
3	883249	接头	FITTING	1
4	NSS	不单独销售弯头	NOT SOLD SEPARATE Elbow	1
5	855437A2	泵出口接头套件	FITTING KIT Pump Outlet	1
5	885186A1	配件套件	FITTING KIT	1
6	883209	O型圈	O-RING	1
6	8M0062785	O型圈	O-RING	1
6	831985	O型圈（0.468 x 0.078）	O-RING (.468 x .078)	1
7	885188	滤清器	FILTER	1
8	883219	阀门	VALVE	1
9	883209	O型圈	O-RING	1
9	8M0062785	O型圈	O-RING	1
10	883220	盖帽	CAP	1
11	883208	堵头	PLUG	1
12	883248	密封件	SEAL	1
13	883252	衬垫	GASKET	1
14	883257T1	调节器	REGULATOR	1
15	883593A1	O型圈套件	O-RING KIT	1
16	883258	垫圈	WASHER	1
17	883261	螺钉(M5×0.8)	SCREW (M5 x .8)	2
18	883261	螺钉(M5×0.8)	SCREW (M5 x .8)	1
19	881831	线束总成	WIRE ASSEMBLY	1
20	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	7
21	883253A1	浮子套件	FLOAT KIT	1
22	F10064	轴	SHAFT	1
23	883247A1	进油阀/阀座组件	VALVE/SEAT KIT Inlet	1
24	883223	螺钉(M6 x 16)	SCREW (M6 x 16)	1
25	18458Q4	燃油水分离滤清器	FILTER Fuel-Water Separating	1
26	8285861	探头	PROBE	1
26	8M0204710	探头	PROBE	1
27	883260	挡板	BAFFLE	1
27	889318002	挡板燃油	BAFFLE Fuel	1
28	883223	螺钉(M6 x 16)	SCREW (M6 x 16)	3
29	881705T1	泵套件	PUMP KIT	1
30	855428	套筒	SLEEVE	1
30	8M6000589	套筒	SLEEVE	1
31	883256T1	油杯套件	BOWL KIT	1
32	883248	密封件	SEAL	1
33	855435A1	塞套件	PLUG KIT	1
34	883209	O型圈	O-RING	1
34	8M0062785	O型圈	O-RING	1
35	16955	螺丝(M6 x 8)	SCREW (M6 x 8)	1

图 68蒸汽分离器组件 Vapor Seperator Components

REF	零件编号	中文名称	英文名称	数量
-	832934A00	动力头衬垫套件	GASKET SET Powerhead	1
0	857005A1	燃油泵膜片维修包	DIAPHRAGM KIT Fuel Pump	1
0	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
0	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
0	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
0	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
0	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
0	NSS	不单独销售端盖-弹簧	NOT SOLD SEPARATE Cap-Spring End	1
0	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
0	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
0	987691	燃油泵衬垫	GASKET Fuel Pump	1
0	8M0204705	衬垫@2	GASKET @2	1
0	804680	燃油管理适配板垫片	GASKET Fuel Management Adaptor Plate	1
0	62700	O型圈(3.237x0.103)下端盖	O-RING (3.237 x .103) Lower End Cap	1
0	818574	密封件（气缸盖）	SEAL Cylinder Head	2
0	8503181	节温器盖衬垫	GASKET Thermostat Cover	2
0	35126	O型圈(.859 x .139)曲轴-下部	O-RING (.859 x .139) Crankshaft-Lower	1
0	823683	O型圈（1.989×0.070）（曲轴上端）	O-RING (1.989 x .070) Crankshaft-Upper	1
0	8329335	气缸体衬垫	GASKET Cylinder Block	1
0	832933006	衬垫	GASKET	1
0	8329344	排气板衬垫	GASKET Exhaust Plate	1
0	832934006	衬垫	GASKET	1
0	88907003	衬垫(安全阀盖与阀板)	GASKET Relief Valve Cover & Plate	2
0	854639	密封件（节温器）	SEAL Thermostat	2
0	854639001	密封件	SEAL	2

图 69附件/仪表 Accessories/Instrumentation

REF	零件编号	中文名称	英文名称	数量
1	19674A1	拉绳开关总成	SWITCH ASSEMBLY Lanyard	1
2	18303	螺钉 (.190-16 x 1.750) 不锈钢	SCREW (.190-16 x 1.750) Stainless Steel	2
3	813679	适配器	ADAPTER	1
4	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
5	32866	螺钉 (#10-32 x 2.00) 不锈钢	SCREW (#10-32 x 2.00) Stainless Steel	2
6	18321	安装夹	CLAMP Mounting	1
7	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	2
8	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4
9	79146	固定座	RETAINER	3
10	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
11	812497A2	二极管总成	DIODE ASSEMBLY	1
11	898289A72	双拉绳二极管套件	DIODE KIT-LANYARD Dual	1
12	11149A2	线缆总成 (6.00英寸)	CABLE ASSEMBLY (6.00 Inches)	1
13	881176A1	盖总成 3位公连接器	CAP ASSEMBLY 3 Position-Male Connector	1
14	881175A1	盖总成 3位母连接器	CAP ASSEMBLY 3 Position-Female Connector	1
15	859318T1	终端接头 10针 (CAN 1和2)	TERMINATOR 10 Pin (CAN 1 and 2)	1
15	8M0210753	终端接线盒	TERMINATOR Junction Box	1
16	859318T2	防水帽 - 10针	CAP Weather - 10 Pin	1
16	8M0210754	防水帽	WEATHER CAP	1
17	878492T4	四通接线盒	JUNCTION BOX 4 Way	1
17	878492T14	四通接线盒	JUNCTION BOX 4 Way	1
18	878492T6	六通接线盒	JUNCTION BOX 6 Way	1
18	878492T16	六通接线盒	JUNCTION BOX 6 Way	1
-	879981T20	线束总成 (SC1000R-20)	HARNESS ASSEMBLY (SC1000R-20)	1
-	879979T1	转速表线束总成 (SC1000-3)	HARNESS ASSEMBLY Tachometer (SC1000-3)	1
-	879979T11	转速表线束总成	HARNESS ASSEMBLY Tachometer	1
-	879968T10	线束总成(SC1000-10)	HARNESS ASSEMBLY (SC1000-10)	1
-	879896K4	系统监控套件SC1000-前装式	SYSTEM MONITOR KIT SC1000 - Front Mount Front Mount	1
-	879896K10	系统监控套件 SC1000 - 前装式	SYSTEM MONITOR KIT SC1000 - Front Mount	1
-	879896K08	系统监控套件 SC1000 - 前装式	SYSTEM MONITOR KIT SC1000 - Front Mount	1
-	879896K10	系统监控套件 SC1000 - 前装式	SYSTEM MONITOR KIT SC1000 - Front Mount	1
-	858610A31	燃油软管总成	HOSE ASSEMBLY Fuel	1
-	8M0038610	带注油球的燃油软管总成(9英尺)	HOSE ASSEMBLY Fuel (9 Feet) With Primer Bulb	1
-	879918K11	水压表(白色)	WATER PRESSURE GAUGE (White) (WHITE)	1
-	879914K11	配平表(白色)	TRIM GAUGE (White) (WHITE)	1

图 70空气处理器组件(序列号0T818119及以下) Air Handler Components (Serial Number 0T818119 and Below)

REF	零件编号	中文名称	英文名称	数量
-	840444T2	空气处理器总成	AIR HANDLER ASSEMBLY	1
1	840366A5	进气板总成	PLATE ASSEMBLY Intake	1
2	8046801	衬垫	GASKET	1
3	840418T2	簧片阀总成	REED BLOCK ASSEMBLY	6
3	840418T04	簧片阀总成	REED BLOCK ASSEMBLY	6
4	849038	螺钉(M3 x 5)	SCREW (M3 x 5) (M3 x 5)	60
5	840447	簧片阀板	REED PLATE	12
6	840445A3	簧片阀套件	REED PETAL KIT	1
6	840445A04	簧片阀总成	REED PETAL ASSEMBLY	1
7	8555252	螺钉 (M6)	SCREW (M6)	12
8	858539A3	空气集气室套件	PLENUM KIT Air	1
9	8046791	衬垫	GASKET	1
9	804679004	衬垫	GASKET	1
10	1993716	螺钉(M6 x 16)	SCREW (M6 x 16)	1
11	884522	MAP传感器支架	BRACKET MAP Sensor	1
12	854445	MAP传感器	SENSOR MAP	1
12	8M0237529	MAP传感器	SENSOR MAP	1
13	889575	传感器总成	SENSOR ASSEMBLY	1
13	8M0214984	温度传感器	SENSOR Temperature	1
14	627021	O型圈(.301 x .070)	O-RING (.301 x .070)	1
15	840512	卡扣	CLIP	1
16	840546T4	凸轮总成	CAM ASSEMBLY	1
17	932481	旋转衬套	BUSHING Swivel	1
17	8M0215006	旋转衬套	BUSHING Swivel	1
18	8235694	螺纹球头	BALL Threaded	1
19	40011154	螺钉(M8x50)不锈钢	SCREW (M8 x 50) Stainless Steel	1
20	856895	衬套	BUSHING	1
21	993211	接头	FITTING	1
22	65292	J型卡扣	J CLIP	2
22	8M0024808	J型夹	J-CLIP	2
23	84044875	螺钉(M6×75)	SCREW (M6 x 75)	12
24	4001987	螺钉(M4×16)	SCREW (M4 x 16)	2
25	840405T1	燃油导轨	FUEL RAIL	1
26	857149T2	油泵总成	PUMP ASSEMBLY Oil Oil	1
26	8M0185614	机油泵	OIL PUMP	1
27	4002318	垫圈 8.90 x 24.0x 2.4 不锈钢	WASHER 8.90 x 24.0x 2.4 PL SS	3
28	855362	护孔环	GROMMET	3
28	855362001	护孔环	GROMMET	3
29	855364	衬套	BUSHING	3
30	81893435	螺钉(M8×35)	SCREW (M8 x 35)	3
30	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
31	81893440	螺钉 (M8 x 40)	SCREW (M8 x 40)	2
32	855425A4	节气门体套件	THROTTLE BODY KIT	1
32	855425A06	节气门体套件	THROTTLE BODY KIT	1
33	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	4
34	855426	O型圈	O-RING	1
35	8533511	护孔环	GROMMET	1
36	840449	卡扣	CLIP	1
37	8588511	节气门杠杆总成	LEVER ASSEMBLY Throttle	1
37	858851A03	节气门杠杆总成	LEVER ASSEMBLY Throttle	1
38	840968	滚轮	ROLLER	1
38	8M0072162	滚轮	ROLLER	1
39	8237951	挡圈	RING Retaining	1
40	40056107	螺钉(M5×16)	SCREW (M5 x 16)	1
41	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	1
42	69432	外锁紧垫圈(#10)	LOCKWASHER External (#10)	1
43	840506T	支架	BRACKET	1
-	832933A01	动力头衬垫套件	GASKET SET Powerhead	1
-	840756A03	动力头总成	POWERHEAD ASSEMBLY	1
-	840756A04	动力头总成	POWERHEAD ASSEMBLY	1

图 71空气处理器组件(序列号0T818120及以上) Air Handler Components (Serial Number 0T818120 and Up)

REF	零件编号	中文名称	英文名称	数量
-	840444T04	空气处理器总成	AIR HANDLER ASSEMBLY	1
1	840366A5	进气板总成	PLATE ASSEMBLY Intake	1
2	8046801	衬垫	GASKET	1
3	840418T2	簧片阀总成	REED BLOCK ASSEMBLY	6
3	840418T04	簧片阀总成	REED BLOCK ASSEMBLY	6
4	849038	螺钉 (M3 x 5)	SCREW (M3 x 5)	60
5	840447	簧片阀板	REED PLATE	12
6	840445A3	簧片阀套件	REED PETAL KIT	1
6	840445A04	簧片阀总成	REED PETAL ASSEMBLY	1
7	8555252	螺钉 (M6)	SCREW (M6)	12
8	858539A3	空气集气室套件	PLENUM KIT Air	1
9	8046793	衬垫	GASKET	1
9	804679004	衬垫	GASKET	1
9	804679004	衬垫	GASKET	1
10	1993716	螺钉(M6 x 16)	SCREW (M6 x 16)	1
11	884522	MAP传感器支架	BRACKET MAP Sensor	1
12	854445	MAP传感器	SENSOR MAP	1
12	8M0237529	MAP传感器	SENSOR MAP	1
13	885342001	传感器总成	SENSOR ASSEMBLY	1
13	8M0148668	传感器总成	SENSOR ASSEMBLY	1
14	888814	O型圈(0.351 x 0.072)	O-RING (.351 x .072)	1
14	896699	O型圈（1.78毫米 x 0.08毫米）	O-RING (1.78 mm x .08 mm)	1
15	840512	卡扣	CLIP	1
16	840546T4	凸轮总成	CAM ASSEMBLY	1
17	932481	衬套	BUSHING	1
17	8M0215006	旋转衬套	BUSHING Swivel	1
18	8235694	螺纹球头	BALL Threaded	1
19	40011155	不锈钢螺钉(M8x55)	SCREW (M8 x 55) Stainless Steel	1
20	8807371	衬套	BUSHING	1
21	993211	接头	FITTING	1
22	883942	螺钉(M4×16)	SCREW (M4 x 16)	2
23	840405T1	燃油导轨	FUEL RAIL	1
24	857149T2	油泵总成	PUMP ASSEMBLY Oil	1
24	8M0185614	机油泵	OIL PUMP	1
25	81893435	螺钉(M8×35)	SCREW (M8 x 35)	3
25	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
26	855425A06	节气门体套件	THROTTLE BODY KIT	1
27	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	4
28	855426	O型圈	O-RING	1
29	8533511	护孔环	GROMMET	1
30	858851A03	节气门杠杆总成	LEVER ASSEMBLY Throttle	1
31	889610	滚轮	ROLLER	1
31	8M0072162	滚轮	ROLLER	1
32	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
32	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
33	826709104	螺母(#8-32)不锈钢	NUT (#8-32) Stainless Steel	1
34	889354	专用螺钉	SCREW Special	1
35	881991	杯形垫圈	WASHER Cupped	1
35	8M0095734	垫圈/螺钉套件	WASHER/SCREW KIT	1
36	881992	线轴垫圈	WASHER Spool	1
36	8M0095734	垫圈/螺钉套件	WASHER/SCREW KIT	1
37	69432	外锁紧垫圈(#10)	LOCKWASHER External (#10)	1
38	56720	垫圈(0.330×0.750×0.060)不锈钢	WASHER (.330 x .750 x .060) Stainless Steel	1
39	65292	J型卡扣	J CLIP	2
39	8M0024808	J型夹	J-CLIP	2
40	84044875	螺钉(M6×75)	SCREW (M6 x 75)	12
41	4002318	垫圈 8.90 x 24.0x 2.4 不锈钢	WASHER 8.90 x 24.0x 2.4 PL SS	3
42	855362	护孔环	GROMMET	3
42	855362001	护孔环	GROMMET	3
42	855362001	护孔环	GROMMET	3
43	855364	衬套	BUSHING	3
44	840506T	支架	BRACKET	1
45	81893440	螺钉 (M8 x 40)	SCREW (M8 x 40)	2
46	840449	卡扣	CLIP	1
-	832933A01	动力头衬垫套件	GASKET SET Powerhead	1
-	840756A04	动力头总成	POWERHEAD ASSEMBLY	1

图 72下罩 Bottom Cowl

REF	零件编号	中文名称	英文名称	数量
1	850302A1	下罩盖（左舷）	BOTTOM COWL Port	1
1	850302A07	下罩盖（左舷）	BOTTOM COWL Port	1
1	8M0107324	下罩盖（左舷）	BOTTOM COWL Port	1
2	854367001	堵头	PLUG	1
3	850301A1	下罩盖（右舷）	BOTTOM COWL Starboard	1
3	850301A07	下罩盖（右舷）	BOTTOM COWL Starboard	1
3	850301A07	下罩盖（右舷）	BOTTOM COWL Starboard	1
3	8M0107323	下罩盖（右舷）	BOTTOM COWL Starboard	1
4	844155001	罩盖密封件	SEAL Cowl	1
4	8M0043268	罩盖密封条	SEAL-COWL	1
5	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	4
6	824868	螺钉(M6×75)	SCREW (M6 x 75)	3
7	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
7	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
8	850684F1	前手柄	FRONT HANDLE	1
8	8M0053903	前手柄	FRONT HANDLE	1
9	335891	衬套	BUSHING	2
10	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
11	8219423	棘爪	PAWL	1
12	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	1
13	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	3
14	8214281	螺钉(#10-16x0.625)	SCREW (#10-16 x .625)	1
15	822873	卡扣	CLIP	1
16	8569901	升降倾斜开关	SWITCH Trim	1
16	8M0235191	升降倾斜开关	SWITCH Trim	1
16	896620001	升降倾斜开关	SWITCH Trim	1
16	8M0235191	升降倾斜开关	SWITCH Trim	1
17	842756T01	索具套件	RIGGING KIT	1
18	842744002	支架	BRACKET	1
19	82130012	螺钉（M6 x 12）	SCREW (M6 x 12)	3
20	843185T02	联轴器	COUPLER	1
21	842756T05	软管	HOSE	1
21	842756005	软管	HOSE	1
22	843174T02	索具联轴器	COUPLER Rigging	1
22	843174002	联轴器	COUPLER	1
23	47994	螺钉 (#10 x 1.50)	SCREW (#10 x 1.50)	4
24	852361T1	机罩手柄	HANDLE Cowl	2
24	850682A06	支架和手柄套件	BRACKET AND HANDLE KIT	2
25	29402	波形垫圈	WAVE WASHER	2

图 73线圈板 Coil Plate

REF	零件编号	中文名称	英文名称	数量
-	NSS	不单独销售线圈安装板总成	NOT SOLD SEPARATE Plate Assembly-Coil Mounting	1
1	850295T4	安装板	PLATE	1
2	856991A1	线圈套件	COIL KIT	6
3	82129130	螺钉 (M6 x 30)	SCREW (M6 x 30)	12
4	881908T	电缆组	CABLE SET	6
5	859595T	双线圈驱动器	DRIVER Dual Coil	3
6	858414A1	编织电缆总成	CABLE ASSEMBLY Braided	2
7	82129110	螺丝 (M6 x 10)	SCREW (M6 x 10)	4
8	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
8	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
9	833155	护孔环	GROMMET	4
10	8502341	衬套	BUSHING	4
11	881879A7	传感器套件 (0-50 PSI)	SENSOR KIT (0-50 PSI)	1
11	8M0157742	水压传感器	SENSOR Water Pressure	1
12	892403	接头	FITTING	1
12	8M0207782	直通接头	FITTING Straight	1
13	883066	夹子 (.865)	CLIP (.865)	1
14	85978571	管材（52英寸整卷）（裁切至18英寸）	TUBING (52.00 Inches Bulk) (Cut to 18 Inches)	1
15	892972T01	线圈线束总成	HARNESS ASSEMBLY Coil	1
16	859671	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
17	843220001	火花塞	SPARK PLUG	6
17	843220Q	NGK IZFR6J @4	NGK IZFR6J @4	6
18	81893435	螺钉(M8×35)	SCREW (M8 x 35)	4
18	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
19	4002318	垫圈 8.90 x 24.0x 2.4 不锈钢	WASHER 8.90 x 24.0x 2.4 PL SS	4
20	881866	接头	FITTING	1
21	875207	三通接头	TEE Fitting	1
22	85978571	管材(52英寸整卷)(裁切至44英寸)	TUBING (52.00 Inches Bulk) (Cut to 44 Inches)	1
23	859747	联轴器	COUPLER	1
23	8M0214971	耦合接头 (4 MM)	COUPLER Fitting (4 MM)	1
24	859732	堵头	PLUG	1
25	85978571	管材(52英寸整卷)(裁切5英寸)	TUBING (52.00 Inches Bulk) (Cut to 5 Inches)	1
26	879962	卡扣	CLIP	1
27	82129114	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
28	36001	垫圈	WASHER	2

图 74曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	842753A02	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	NSS	磨损套筒(不单独销售)	NOT SOLD SEPARATE Wear Sleeve	1
3	67923T	滚珠轴承(下)	BEARING Ball (Lower)	1
4	67446	环	RING	1
5	843198001	密封环	RING Seal	7
5	843198T01	密封环	RING Seal	7
6	91800	半圆键	KEY Woodruff	1
7	35126	O型圈(.859 x .139)	O-RING (.859 x .139)	1
8	88270A1	轴承座圈总成	RACE ASSEMBLY	2
8	88270A02	轴承/座圈套件	BEARING/RACE KIT	2
9	88269T	轴承总成	BEARING ASSEMBLY	2
10	843200T03	活塞总成	PISTON ASSEMBLY	3
10	842986T03	活塞总成	PISTON ASSEMBLY	3
10	843200T13	活塞总成	PISTON ASSEMBLY	3
10	842986T03	活塞总成	PISTON ASSEMBLY	3
10	843199T03	活塞总成	PISTON ASSEMBLY	3
10	843199T13	活塞总成	PISTON ASSEMBLY	3
10	843199T13	活塞总成	PISTON ASSEMBLY	3
11	841202	环	RING	12
12	858772A02	活塞环组	RING SET Piston	1
13	822373A09	连杆总成	CONNECTING ROD ASSEMBLY	6
13	8M0125869	连杆套件	CONN ROD KIT	6
14	94320	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	12
15	43012A1	轴承/保持架套件	BEARING/CAGE KIT	12
15	8M0235070	轴承保持架	CAGE BEARING	12
16	NSS	不单独销售滚针轴承	NOT SOLD SEPARATE Needle Roller Bearing	96
17	88263	止推垫片	THRUST WASHER	12
18	88258001	滚针轴承	BEARING Needle	204
18	8M0204715	滚针@102	NEEDLES-BRG @102	204
19	816773A2		BEARING ASSEMBLY (Upper)	1
20	859093	密封件	SEAL	1
21	823683	O型圈(1.989 x .070)	O-RING (1.989 x .070)	1
-	843034A05	动力头总成	POWERHEAD ASSEMBLY	1
-	843034A07	动力头总成	POWERHEAD ASSEMBLY	1
-	832933A05	动力头衬垫套件	GASKET SET Powerhead	1
-	841220A03	动力头衬垫套件	GASKET SET Powerhead	1

图 75气缸体与端盖 Cylinder Block and End Cap

REF	零件编号	中文名称	英文名称	数量
1	9811T92	气缸体	CYLINDER BLOCK	1
2	81893440	螺钉 (M8 x 40)	SCREW (M8 x 40)	4
3	8569662	支架	BRACKET	2
3	8M0111325	盖板	COVER	2
4	903509	螺柱（M10×1.5×64）	STUD (M10 x 1.5 x 64)	4
5	8154431	螺柱（M10×1.5×155）	STUD (M10 x 1.5 x 155)	6
6	8248577	导流板	DEFLECTOR	6
7	8781051	止回阀	CHECK VALVE	1
8	67296	销	PIN	3
8	8M0036405	销	PIN	3
9	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
10	850309001	止动塞	PLUG Stop	6
11	81893435	螺钉(M8×35)	SCREW (M8 x 35)	14
11	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	14
12	82446180	螺钉(M10×80)	SCREW (M10 x 80)	8
13	8245021	连接器	CONNECTOR	1
14	63779	定位销 (.250 x .625)	PIN Dowel (.250 x .625)	4
15	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	10
15	8M0214963	垫圈	WASHER	10
16	4013610	螺母(M10不锈钢)	NUT (M10) Stainless Steel	10
17	8283582	传感器	SENSOR	1
17	8M0082988	曲轴位置传感器	SENSOR Crankshaft Position	1
18	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	2
19	9787A4	端盖总成	END CAP ASSEMBLY	1
20	62700	O型圈(3.237 x .103)	O-RING (3.237 x .103)	1
21	8308981	密封件	SEAL	2
22	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	4
23	82130012	螺钉（M6 x 12）	SCREW (M6 x 12)	1
24	858902	卡箍	CLAMP	1
25	8215832	特殊销（1.5英寸）	PIN Special (1.5 Inches)	1
26	82130012	螺钉（M6 x 12）	SCREW (M6 x 12)	1
27	818574	密封件	SEAL	2
28	884391	密封件	SEAL	6
29	841021A06	气缸盖总成(右舷)	CYLINDER HEAD ASSEMBLY Starboard	1
29	841020A06	气缸盖总成(左舷)	CYLINDER HEAD ASSEMBLY Port	1
30	885599004	节温器 54°C/130°F	THERMOSTAT 54 Degree C/130 Degree F	2
30	8M0057307	节温器 54°C/130°F	THERMOSTAT 54 Degree C/130 Degree F	2
31	8503181	衬垫	GASKET	2
32	887601	节温器盖	COVER Thermostat	1
32	887601002	左舷盖	COVER Port	1
32	887602	节温器盖	COVER Thermostat	1
32	887602002	右舷盖	COVER Starboard	1
33	82130025	螺钉(M6x25)	SCREW (M6 x 25)	4
34	891570	螺钉(M8 x 50)	SCREW (M8 x 50)	40
34	8M0045380	螺钉(M8 x 50)	SCREW (M8 x 50)	40
34	891570050	螺钉(M8 x 50)	SCREW (M8 x 50)	40
34	8M0045380	螺钉(M8 x 50)	SCREW (M8 x 50)	40
35	885342001	传感器总成	SENSOR ASSEMBLY	2
35	8M0148668	传感器总成	SENSOR ASSEMBLY	2
36	888814	O型圈(0.351 x 0.072)	O-RING (.351 x .072)	2
36	896699	O型圈（1.78毫米 x 0.08毫米）	O-RING (1.78 mm x .08 mm)	2
37	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
38	857186A1	隔板总成	PLATE ASSEMBLY	1
38	857186T02	隔板总成	PLATE ASSEMBLY	1
39	855729	支架	MOUNT	3
40	82130145	螺丝(M10 x 45)	SCREW (M10 x 45)	3
41	19565002	护孔环	GROMMET	1
42	855725	垫圈	WASHER	6
43	858424	卡箍	CLAMP	1
44	858951	J型卡扣	J CLIP	1
45	82130012	螺钉（M6 x 12）	SCREW (M6 x 12)	1
46	82494810	螺丝 (M6 x 10)	SCREW (M6 x 10)	1
-	843034A05	动力头总成	POWERHEAD ASSEMBLY	1
-	843034A07	动力头总成	POWERHEAD ASSEMBLY	1
-	832933A05	动力头衬垫套件	GASKET SET Powerhead	1
-	841220A03	动力头衬垫套件	GASKET SET Powerhead	1

图 76驱动轴壳与排气管 Driveshaft Housing and Exhaust Tube

REF	零件编号	中文名称	英文名称	数量
1	832937A06	传动轴壳体总成-加长型	HOUSING ASSEMBLY Driveshaft - Long	1
1	832938A06	传动轴壳体总成-超长/特超长型	HOUSING ASSEMBLY Driveshaft - X/XX-Long	1
2	8M0008031	双头螺柱(M12 x 1.75 x 52)	STUD (M12 x 1.75 x 52)	4
3	88552835	螺栓(M12x35毫米)外六角	SCREW (M12 x 35 MM) External Hex	1
3	8M0102995	螺丝 (M12)	SCREW (M12)	1
3	892860	螺栓(M12x35)内六角	SCREW (M12 x 35) Internal Hex	1
4	8331231	护孔环	GROMMET	1
5	856982	垫圈(0.5×0.81×0.09英寸)不锈钢	WASHER (.500 x .810 x .090) Stainless Steel	5
6	896895	螺母(M12)	NUT (M12)	4
7	64649	堵头	PLUG	1
8	898834	螺栓（M14×178）	BOLT (M14 x 178)	2
9	88238A10	接地线总成	CABLE ASSEMBLY Ground	2
10	815432	垫圈(.562 x 2.00 x .125)	WASHER (.562 x 2.00 x .125)	2
11	8154331	垫圈（1.25×2.00×0.19）	WASHER (1.25 x 2.00 x .19)	2
12	8137711	支架	MOUNT	2
12	840361T	支架	MOUNT	2
12	8M0055931	支架	MOUNT	2
13	825190	垫圈	WASHER	2
14	896602	螺母(M14)	NUT (M14)	2
15	8186442	卡箍(耗尽时订购Design II套件879150A90)	CLAMP When Depleted Order Design II Kit 879150A90	2
15	879150A90	下支架盖套件	COVER KIT Lower Mount	2
16	8M0033179	螺钉 (M8 x 40)	SCREW (M8 x 40)	4
16	8M0084475	螺钉 (M8 x 40)	SCREW (M8 x 40)	4
17	72521	内齿锁紧垫圈	LOCKWASHER Internal Tooth	1
18	8M0001136	下支架盖(耗尽时订购Design II套件879150A90)	COVER Lower Mount When Depleted Order Design II Kit 879150A90	2
18	879150A90	下支架盖套件	COVER KIT Lower Mount	2
19	69079	螺钉 (#10-16 x .440)	SCREW (#10-16 x .440)	2
20	8329321	密封件	SEAL	1
21	833116A19	排气管总成	TUBE ASSEMBLY Exhaust	1
21	8M0075819	排气管总成	TUBE ASSEMBLY Exhaust	1
22	8524052	滤网	STRAINER	1
22	8M0026113	滤网	STRAINER	1
22	8M0026113	滤网	STRAINER	1
23	81893435	螺钉(M8×35)	SCREW (M8 x 35)	6
23	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	6
24	8329417	水管	TUBE Water	1
24	8M0042785	水管	TUBE-WATER	1
24	8329418	水管	TUBE Water	1
24	8M0042786	水管	TUBE Water	1
25	832940001	密封件	SEAL	1
26	8329391	卡箍	CLAMP	1
27	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
28	81893435	螺钉(M8×35)	SCREW (M8 x 35)	2
28	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	2
28	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	2
29	847541	垫圈	WASHER	4
30	879150A90	下支架盖套件	COVER KIT Lower Mount	2
31	8M4501006	下支架盖	COVER Lower Mount	2
31	8M0148785	盖板	COVER	2
32	8M4501003	卡箍	CLAMP	2
33	69079	螺钉 (#10-16 x .440)	SCREW (#10-16 x .440)	6

图 77双缆连接套件 Dual Cable Attaching Kit

REF	零件编号	中文名称	英文名称	数量
-	92876A8	转向安装套件	ATTACHING KIT Steering	1
1	41055A1	支架总成	BRACKET ASSEMBLY	1
2	715651	转向拉索套管	TUBE Steering Cable	1
3	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
4	821203	锁紧垫圈	LOCKWASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
7	78968	内锁紧垫圈 (.250)	LOCKWASHER Internal (.250)	4
8	850791T	联轴器	COUPLER	1
9	73732	螺钉 (.375-24 x 1.120)	SCREW (.375-24 x 1.120)	2
10	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
11	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	3
11	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	3

图 78排气板 Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	832935A17	排气板总成	PLATE ASSEMBLY Exhaust	1
2	8329335	衬垫	GASKET	1
2	832933006	衬垫	GASKET	1
3	8329344	衬垫(下部)	GASKET (LOWER)	1
3	832934006	衬垫	GASKET	1
4	8238051	密封件	SEAL	1
4	8M0043157	密封件	SEAL	1
5	8320761	止回阀接头	FITTING Check Valve	1
6	817519A1	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	2
7	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	4
8	8348084	滤网	STRAINER	1
9	887603	接头	FITTING	1
10	65663A2	盖总成	COVER ASSEMBLY	1
10	8M0237835	罩盖总成	COVER ASSY	1
11	81893435	螺钉(M8×35)	SCREW (M8 x 35)	2
11	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	2
12	814190	托架	CARRIER	1
13	814191	护孔环	GROMMET	1
14	814189	提动阀	POPPET	1
15	64878	弹簧(黑色)	SPRING (Black)	1
16	65664A1	安全阀板总成	PLATE ASSEMBLY Relief Valve	1
17	88907003	衬垫	GASKET	2
18	648771	隔膜	DIAPHRAGM	1
19	76451	垫圈	WASHER	1
20	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
21	81893435	螺钉(M8×35)	SCREW (M8 x 35)	4
21	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
22	850306A04	怠速排气护套套件	BOOT KIT Idle Exhaust	1
23	888910	安装板	PLATE	1
24	82239312	螺钉(M5 x 12)	SCREW (M5 x 12)	2
25	821908	堵头	PLUG	1
26	821915	垫圈	WASHER	1
27	859626A1	冲洗软管套件(进口)	FLUSH HOSE KIT (Inlet)	1
28	8596001	接头	FITTING	1
29	30641	O型圈(0.299x0.103)	O-RING (.299 x .103)	1
30	8219631	止回阀	CHECK VALVE	1
31	850896	卡箍 (28.6)	CLAMP (28.6)	2
32	821904	示流器接头	FITTING Tell-Tale	1
32	8M0077650	示流器接头	FITTING Tell-Tale	1
33	48237	衬套	BUSHING	1
34	43585	联轴器	COUPLING	1
35	12602002	护孔环	GROMMET	1
36	822002	护孔环	GROMMET	1
37	94848	接头	FITTING	1
-	843034A05	动力头总成	POWERHEAD ASSEMBLY	1
-	843034A07	动力头总成	POWERHEAD ASSEMBLY	1
-	832933A05	动力头衬垫套件	GASKET SET Powerhead	1
-	841220A03	动力头衬垫套件	GASKET SET Powerhead	1

图 79飞轮/交流发电机 Flywheel/Alternator

REF	零件编号	中文名称	英文名称	数量
1	881247A1	交流发电机	ALTERNATOR
2	8523742	弹簧	SPRING	1
3	400636	螺母	NUT	1
4	856815T2	张紧臂总成	ARM TENSIONER ASSEMBLY	1
5	4002320	垫圈	WASHER	1
6	8M0034457	螺柱(M10×85)	STUD (M10 x 85)	1
6	8M0063255	双头螺栓M10x92	STUD M10x92	1
7	8568941	衬套	BUSHING	1
8	852385A2	皮带轮总成	PULLEY ASSEMBLY	1
8	8M6005030	皮带轮总成	PULLEY ASSY	1
9	4010835	螺钉(M10×35)六角法兰-不锈钢	SCREW (M10 x 35) Hex Flange - Stainless Steel	1
10	828507Q5	皮带	BELT	1
11	859619T1	飞轮	FLYWHEEL	1
12	42979	螺母(M16)	NUT (M16)	1
13	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
13	33001	垫圈	WASHER	1
14	47533	垫圈节温器	WASHER Thermostat	1
15	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
16	856583A5	线缆总成至缸体	CABLE ASSEMBLY To Block	1
17	4002319	垫圈	WASHER	1
18	82130150	螺丝(M10 x 50)	SCREW (M10 x 50)	2
19	45907	黄色塞	PLUG Yellow	1

图 80燃油泵 Fuel Pump

REF	零件编号	中文名称	英文名称	数量
-	14360T74	燃油泵总成	PUMP ASSEMBLY Fuel	1
1	NSS	不单独销售燃油泵	NOT SOLD SEPARATE Fuel Pump	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
4	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
5	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
6	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
10	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
11	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
12	987691	衬垫	GASKET	1
12	8M0204705	衬垫@2	GASKET @2	1
13	805063	O型圈(.301 x .070)	O-RING (.301 x .070)	1
13	8M0204683	O型圈(.070×.301内径)	O-Ring (.070 x .301 ID)	1
14	987752	安装板	PLATE	1
15	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
16	82104540		SCREW (M5 x 40) Fuel Pump	2
17	82130050	螺钉(M6×50)泵至曲轴箱	SCREW (M6 x 50) Pump to Crankcase	2
18	144303	底座	BASE	1
19	782792	45度弯头接头(1.25)	FITTING Elbow 45 Degree (1.25)	1
19	8M0207781	弯头	ELBOW	1
20	888493	弯头	ELBOW	1
21	822769	连接器	CONNECTOR	1
22	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
23	856822A2	软管套管总成(18.00英寸)	HOSE AND SLEEVE ASSEMBLY (18.00 Inches)	1
23	8M0043979	软管套管总成	HOSE AND SLEEVE ASSEMBLY	1
-	832933A05	动力头衬垫套件	GASKET SET Powerhead	1
-	841220A03	动力头衬垫套件	GASKET SET Powerhead	1

图 81燃油导轨 Fuel Rail

REF	零件编号	中文名称	英文名称	数量
1	840405T1	燃油导轨	FUEL RAIL	1
2	840414A1	接头总成	FITTING ASSEMBLY	1
3	840416	O型圈	O-RING	2
4	840415	卡箍	CLAMP	2
5	82104512	螺钉(M5 x 12)	SCREW (M5 x 12)	2
6	840511T	支架	BRACKET	2
7	82104512	螺钉(M5 x 12)	SCREW (M5 x 12)	2
8	859376	卡扣	CLIP	2
9	840411T	燃油压力调节器	REGULATOR Fuel Pressure	1
10	82130014	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
11	804838A1	燃油阀套件	VALVE KIT Fuel	1
11	8M0047053	施拉德阀维修包	VALVE KIT Shrader	1
12	840416	O型圈	O-RING	2
13	82130035	螺钉(M6x35)	SCREW (M6 x 35)	3
14	18715T	喷油器总成	INJECTOR ASSEMBLY	6
15	805511A1	喷油器密封套件	SEALING KIT Fuel Injector	1

图 82燃油系统 Fuel System

REF	零件编号	中文名称	英文名称	数量
-	884433T15	燃油导轨总成(完整)	FUEL RAIL ASSEMBLY Complete	1
1	NSS	燃油轨（左舷）不单独销售	NOT SOLD SEPARATE Fuel Rail (Port)	1
2	NSS	燃油轨（右舷）不单独销售	NOT SOLD SEPARATE Fuel Rail (Starboard)	1
3	804830	卡箍	CLAMP	4
4	804525001	螺丝包(2件)(M5x10)	SCREW PACKAGE (2 Per)(M5 x 10)	11
4	8M0041100	螺钉 (M5 x 10)	SCREW (M5 x 10)	11
5	883542	阀门总成(0.375英寸直径)	VALVE ASSEMBLY (.375 Inch Diameter)	2
5	8M0047053	施拉德阀维修包	VALVE KIT Shrader	2
6	804840	O型圈套件	O-RING KIT	1
7	805515	施拉德阀帽-黄铜	CAP Shrader Valve - Brass	2
7	8M0046566	阀帽	CAP Valve	2
8	804835	堵头	PLUG	1
9	880816	卡箍	CLAMP	1
9	8M0041097	支架	BRACKET	1
10	8048311	卡箍	CLAMP	4
11	804528	喷油器	INJECTOR	6
11	8M0222157	燃油喷射器	FUEL INJECTOR	6
12	804530	O型圈套件(含6件)	O-RING KIT Contains 6 pcs	1
13	804529	O型圈套件(含6件)	O-RING KIT Contains 6 pcs	1
14	804522	卡箍	CLAMP	2
15	804532	O型圈套件 (16件/套)	O-RING KIT (16 per Kit	1
16	804832	卡箍	CLAMP	2
17	804526	螺丝包(M5x16)(2件)	SCREW PACKAGE (M5 x 16) (2 Per)	4
18	804535001	盖板	COVER	1
19	804534001	弹簧	SPRING	1
20	804533	膜片总成	DIAPHRAGM ASSEMBLY	1
21	804536	O型圈	O-RING	1
22	804836	接头	FITTING	1
23	804827	软管	HOSE	1
23	8M6001364	软管总成	HOSE ASSEMBLY	1
24	889310	燃油供给软管	HOSE Fuel Supply	1
24	8M6001362	软管总成	HOSE ASSEMBLY	1
25	889311	燃油旁通软管	HOSE Fuel By Pass	1
25	8M6001363	软管总成	HOSE ASSEMBLY	1
NS	804840	O型圈套件	O-RING KIT	1
26	888852	燃油导向器密封件	SEAL Fuel Director	1
27	884595A01	空气喷射器总成	INJECTOR ASSEMBLY Air	6
27	8M6001744	空气喷射器总成	INJECTOR ASM-AIR	6
28	804875	密封套件	SEAL KIT	1
29	859404002	喷射垫片	WASHER Injection	6
30	828791	卡扣	CLIP	4
31	858778	双头螺栓(M10x91)	STUD (M10 x 91)	4
31	8M0063255	双头螺栓M10x92	STUD M10x92	4
32	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	4
33	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	1
33	8M0214964	卡箍	CLAMP	1
34	856822A2	软管套管总成(18.00英寸)	HOSE AND SLEEVE ASSEMBLY (18.00 Inches)	1
34	8M0043979	软管套管总成	HOSE AND SLEEVE ASSEMBLY	1
35	822769	连接器	CONNECTOR	1
36	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
37	899145	绑带夹	CLIP Tie Strap	4
-	8M6002988	膜片维修包	DIAPHRAM KIT	2
-	8M6002989	燃油调节器维修包(15PSI)	FUEL REGULATOR KIT 15 PSI	1
-	8M6002990	燃油调节器维修包(10PSI)	FUEL REGULATOR KIT 10 PSI	1
-	8M6002991	空气调节器套件	AIR REGULATOR KIT	1

图 83齿轮箱(驱动)标准/反向旋转-Sportmaster型 Gear Housing (Drive) Standard/Counter Rotatation-Sportmaster

REF	零件编号	中文名称	英文名称	数量
-	840306T6	齿轮箱总成(含扭矩片)	GEAR HOUSING ASSEMBLY Complete, With Torque Tab	1
-	840306T08	齿轮箱总成(含扭矩片)	GEAR HOUSING ASSEMBLY Complete, With Torque Tab	1
-	8M0236140	GC小号长1.62	GC SM L 1.62	1
-	840306T12	齿轮箱总成(含扭矩片)	GEAR HOUSING ASSEMBLY Complete, With Torque Tab	1
-	8M0236141	GC 1.62 XL	GC 1.62 XL	1
-	840307T12	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840307T15	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236268	GC SM L 1.62 HD	GC SM L 1.62 HD	1
-	840307T19	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840307T25	齿轮箱总成完整（速比1.62:1 加长标准型）	GEAR HOUSING ASSEMBLY Complete (1.62:1 X-Long Standard)	1
-	840307T10	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840307T14	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236257	GC SM CL 1.62	GC SM CL 1.62	1
-	840307T18	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840307T24	齿轮箱总成(1.62:1超长轴反旋)	GEAR HOUSING ASSEMBLY Complete (1.62:1 X-Long Counter Rotation)	1
-	840306T7	齿轮箱总成(含扭矩片)	GEAR HOUSING ASSEMBLY Complete, With Torque Tab	1
-	840306T09	齿轮箱总成(含扭矩片)	GEAR HOUSING ASSEMBLY Complete, With Torque Tab	1
-	8M0236142	GC SM L 1.75	GC SM L 1.75	1
-	840306T13	齿轮箱总成(含扭矩片)	GEAR HOUSING ASSEMBLY Complete, With Torque Tab	1
-	840306T17	G CASE 1.75 XL	G CASE 1.75 XL	1
-	840307T13	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840307T17	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236301	GC SM L 1.75 HD	GC SM L 1.75 HD	1
-	840307T21	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236323	GC SM XL 1.75	GC SM XL 1.75	1
-	840307T11	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840307T16	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840307T26	齿轮箱总成(1.75:1长轴反旋)	GEAR HOUSING ASSEMBLY Complete (1.75:1 Long Counter Rotation)	1
-	840307T20	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236312	GC SM CXL 1.75	GC SM CXL 1.75	1
-	840307T10	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840306T11	齿轮箱总成(含扭矩片)	GEAR HOUSING ASSEMBLY Complete, With Torque Tab	1
-	840306T19	G CASE 2.00 LG	G CASE 2.00 LG	1
1	840306T3	齿轮箱总成基础型(带扭矩片)	GEAR HOUSING ASSEMBLY Basic, With Torque Tab	1
1	840307T3	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	379721	销	PIN	1
3	826134Q	阳极块	ANODE	2
4	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
5	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
6	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
7	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
8	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	1
8	79953Q04	放油螺钉套件	SCREW KIT Drain	1
9	191833	密封件	SEAL	1
9	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
10	NSS	小齿轮(不单独销售)	NOT SOLD SEPARATE Pinion Gear	1
11	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
12	35921	螺母(0.625-18)	NUT (.625-18)	1
13	824145	换档轴	SHIFT SHAFT	1
14	848836A1	衬套总成	BUSHING ASSEMBLY	1
15	8164641	油封	SEAL Oil	1
15	8M0246145	油封	OIL SEAL	1
16	36318	O型圈(0.799英寸)	O-RING (.799)	1
16	8M0214927	O型圈@5	O RING @5	1
17	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	2
18	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
19	848831	传动轴(下)	DRIVESHAFT (LOWER)	1
19	881938	驱动轴	DRIVESHAFT	1
19	881942	驱动轴	DRIVESHAFT	1
20	43037	键	KEY	1
20	8M0204723	键	KEY	1
21	38657A1	垫片组	SHIM ASSEMBLY	1
21	8M0063268	垫片组	SHIM SET	1
22	48939A2	圆锥滚子轴承	BEARING Taper Roller	1
22	8M0146553	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
23	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
24	42637A1	垫片组	SHIM SET	1
24	8M0063267	垫片组	SHIM SET	1
25	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
25	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
26	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
27	8245191	固定座	RETAINER	1
28	840836A2	托架总成	CARRIER ASSEMBLY	1
28	8M0192207	密封载体套件	CARRIER KIT-SEAL	1
29	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
29	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
30	66302	油封	SEAL Oil	1
30	8M0214939	油封@3	SEAL @3	1
31	66302	油封	SEAL Oil	1
31	8M0214939	油封@3	SEAL @3	1
32	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	2
33	817275A1	水泵壳体套件	HOUSING KIT Water Pump	1
33	817275A10	水泵壳体套件	HOUSING KIT Water Pump	1
34	816575A2	密封套件	SEAL KIT	1
35	430331	衬垫	GASKET	1
36	8172771	水泵上垫片	GASKET Water Pump, Upper	1
37	8172761	面板	FACEPLATE	1
37	8M0204709	面板	FACEPLATE	1
38	43026T2	叶轮	IMPELLER	1
39	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	6
40	832942A1	联轴器总成	COUPLING ASSEMBLY	1
41	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
41	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
42	35027	O型圈(1.046英寸)	O-RING (1.046)	1
42	8M0204654	O型圈	O-RING	1
43	848834	水道板	PLATE Water Passage	1
44	848835	衬垫	GASKET	1
45	848832A1	驱动轴总成(上部)	DRIVESHAFT ASSEMBLY (UPPER)	1
45	827755A1	驱动轴延长套件(上部)	EXTENSION KIT Driveshaft (UPPER)	1
46	823902	联轴器	COUPLING	1
-	816575A6	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	817275A5	水泵修理包	REBUILD KIT Water Pump	1
-	817275A11	水泵修理包	REBUILD KIT Water Pump	1
-	43026T11	水泵叶轮维修套件	REPAIR KIT Water Pump Impeller	1
-	8M0100526	水泵叶轮维修套件	REPAIR KIT Water Impeller	1
-	43026Q06	水泵叶轮维修套件	REPAIR KIT Water Pump Impeller	1
-	8M0100526	水泵叶轮维修套件	REPAIR KIT Water Impeller	1

图 84齿轮箱(驱动轴)-TorqueMaster/FleetMaster-重型 Gear Housing (Drive-TorqueMaster/FleetMaster-Heavy Duty)

REF	零件编号	中文名称	英文名称	数量
-	840470T9	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840470T27	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840470T17	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840470T27	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840470T8	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840470T16	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236154	GC TM L 1.75	GC TM L 1.75	1
-	840470T24	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236165	GC TM XL 1.75	GC TM XL 1.75	1
-	840470T18	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840470T31	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840470T19	齿轮箱总成完整型(2:1)	GEAR HOUSING ASSEMBLY Complete (2:1)	1
-	840470T33	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840470T25	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0131313	齿轮箱	GEAR HOUSING	1
-	840470T20	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236198	GC DSI XL 1.75	GC DSI XL 1.75	1
-	840470T22	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	842004T28	XXL齿轮箱总成	GEAR HOUSING ASSEMBLY XXL, Complete	1
-	840470T26	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	842004T03	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840470T21	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236209	GC DSI CXL 1.75	GC DSI CXL 1.75	1
-	840470T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0131315	齿轮箱	GEAR HOUSING	1
1	840470T5	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	379721	销	PIN	1
3	821526	填充块	FILLER BLOCK	1
3	821526001	填充块	FILLER BLOCK	1
4	826134Q	阳极块	ANODE	2
5	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
6	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
7	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
8	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
9	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	1
9	79953Q04	放油螺钉套件	SCREW KIT Drain	1
10	191833	密封件	SEAL	1
10	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
11	859402	皮托管	PITOT TUBE	1
12	85944975	管材(72英寸散装)(截断至7英寸)	TUBING (72.00 Inches Bulk) Cut to 7 Inches	1
13	881866	接头	FITTING	1
14	858934	盖板	COVER	1
15	858935	衬垫	GASKET	1
16	36318	O型圈(0.799英寸)	O-RING (.799)	2
16	8M0214927	O型圈@5	O RING @5	2
17	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	2
18	8164641	油封	SEAL Oil	1
18	8M0246145	油封	OIL SEAL	1
19	NSS	小齿轮(不单独销售)	NOT SOLD SEPARATE Pinion Gear	1
20	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
21	35921	螺母(0.625-18)	NUT (.625-18)	1
22	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
23	824145	换挡轴(下部)	SHIFT SHAFT (LOWER)	1
24	43037	键	KEY	1
24	8M0204723	键	KEY	1
25	848831	驱动轴	DRIVESHAFT	1
25	881938	驱动轴	DRIVESHAFT	1
25	881942	驱动轴	DRIVESHAFT	1
26	38657A1	垫片组	SHIM ASSEMBLY	AR
26	8M0063268	垫片组	SHIM SET	AR
27	48939A2	圆锥滚子轴承	BEARING Taper Roller	1
27	8M0146553	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
28	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
29	42637A1	垫片组	SHIM SET	AR
29	8M0063267	垫片组	SHIM SET	AR
30	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
30	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
31	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
32	8245191	固定座	RETAINER	1
33	840836A2	托架总成	CARRIER ASSEMBLY	1
33	8M0192207	密封载体套件	CARRIER KIT-SEAL	1
34	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
34	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
35	66302	油封	SEAL Oil	1
35	8M0214939	油封@3	SEAL @3	1
36	66302	油封	SEAL Oil	1
36	8M0214939	油封@3	SEAL @3	1
37	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	2
38	817275A1	水泵壳体套件	HOUSING KIT Water Pump	1
38	817275A10	水泵壳体套件	HOUSING KIT Water Pump	1
39	816575A2	密封套件	SEAL KIT	1
40	430331	衬垫	GASKET	1
41	8172771	水泵上垫片	GASKET Water Pump, Upper	1
42	8172761	面板	FACEPLATE	1
42	8M0204709	面板	FACEPLATE	1
43	43026T2	叶轮	IMPELLER	1
44	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	4
45	832942A1	联轴器总成	COUPLING ASSEMBLY	1
46	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
46	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
47	35027	O型圈(1.046英寸)	O-RING (1.046)	1
47	8M0204654	O型圈	O-RING	1
48	848832A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
49	823902	联轴器	COUPLING	1
-	816575A6	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	817275A5	水泵修理包	REBUILD KIT Water Pump	1
-	817275A11	水泵修理包	REBUILD KIT Water Pump	1
-	43026T11	水泵叶轮维修套件	REPAIR KIT Water Pump Impeller	1
-	8M0100526	水泵叶轮维修套件	REPAIR KIT Water Impeller	1
-	43026Q06	水泵叶轮维修套件	REPAIR KIT Water Pump Impeller	1
-	8M0100526	水泵叶轮维修套件	REPAIR KIT Water Impeller	1

图 85齿轮箱(螺旋桨轴-反转)-FleetMaster重型 Gear Housing (Prop-Counter Rotation-FleetMaster Heavy Duty)

REF	零件编号	中文名称	英文名称	数量
-	840470T26	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840470T21	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236209	GC DSI CXL 1.75	GC DSI CXL 1.75	1
-	840470T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0131315	齿轮箱	GEAR HOUSING	1
1	840307T3	齿轮箱总成(基础)	GEAR HOUSING ASSEMBLY Basic (Basic)	1
2	823903	换挡曲柄	SHIFT CRANK	1
2	8M0226861	换挡曲柄	CRANK-SHIFTER	1
3	19755T7	阀芯总成	SPOOL ASSEMBLY	1
3	8M0235940	阀芯总成	SPOOL ASSY	1
4	NSS	不单独销售线轴	NOT SOLD SEPARATE Spool	1
5	NSS	不单独销售套筒	NOT SOLD SEPARATE Sleeve	1
6	NSS	不单独销售开口销	NOT SOLD SEPARATE Cotter Pin	1
7	47397A1	垫片组	SHIM SET	AR
8	848876A1	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
9	15843T	滚针轴承	BEARING Needle	1
10	815480	推力轴承	BEARING Thrust	1
11	828696T2	倒挡齿轮(12/21齿)	GEAR Reverse (12/21)	1
12	15844	滚柱轴承总成	BEARING ASSEMBLY Roller	1
13	848878T	离合器	CLUTCH	1
14	78909	定位销	PIN Detent	2
15	848838	十字销	PIN Cross	1
16	78962	弹簧	SPRING	2
17	844185	螺旋桨轴	PROPELLER SHAFT	1
17	8M0051204	螺旋桨轴	PROPSHAFT	1
18	828695T04	前进/小齿轮组	GEAR SET Forward/Pinion	1
18	828695A3	前进齿轮总成	GEAR ASSEMBLY Forward	1
19	1761540	调整垫片	SPACER Shim	AR
19	1761541	调整垫片	SPACER SHIM	AR
19	1761542	调整垫片	SPACER SHIM	AR
19	1761543	调整垫片	SPACER SHIM	AR
19	1761544	调整垫片	SPACER SHIM	AR
19	1761545	调整垫片	SPACER SHIM	AR
19	1761546	调整垫片	SPACER SHIM	AR
19	1761547	调整垫片	SPACER SHIM	AR
19	1761548	调整垫片	SPACER SHIM	AR
19	1761549	调整垫片	SPACER SHIM	AR
19	1761550	调整垫片	SPACER SHIM	AR
19	1761551	调整垫片	SPACER SHIM	AR
20	815480	推力轴承	BEARING Thrust	1
21	848875A1	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
22	15843T	滚针轴承	BEARING Needle	1
23	18448	止推垫片	THRUST WASHER	1
24	15842	推力轴承	BEARING Thrust	2
25	8182912	止推轴承	THRUST RACE	2
25	8182911	推力座圈	RACE Thrust	2
26	814605	定位器	KEEPER	2
27	31534	O型圈	O-RING	1
27	8M0214920	O型圈	O RING	1
28	848841T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
28	848841A1	轴承座总成	CARRIER ASSY-BRG	1
29	817072	滚柱轴承	BEARING Roller	1
30	815565	油封	SEAL Oil	2
31	817071	卡环	RING Snap	1
32	67892A05	磁性放油螺塞套件	PLUG KIT Drain (Magnetic)	1
32	8M0058389	放油螺钉套件	SCREW KIT Drain	1
33	191833	密封件	SEAL	1
33	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
34	30281	键	KEY	1
35	79447	锁紧垫圈	TAB WASHER	1
36	79448	固定座	RETAINER	1
36	8M2011027	固定座	RETAINER	1
37	85344	垫圈(.750内径)	WASHER (.750 Inside Diameter)	1
38	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
39	762145	阳极块	ANODE	1
39	76214Q5	阳极套件	ANODE KIT	1
40	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
-	816575A4	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	840389K06	螺旋桨毂套件	PROP HUB KIT	1
-	8M0183487	重型螺旋桨轮毂套件	HUB KIT-HD PROP	1
-	840382A02	缓冲条套件	SNUBBER STRIP KIT	1

图 86齿轮箱(螺旋桨轴)-TorqueMaster/FleetMaster-重型 Gear Housing (Prop-TorqueMaster/FleetMaster-Heavy Duty)

REF	零件编号	中文名称	英文名称	数量
-	840470T9	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840470T27	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840470T17	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840470T27	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840470T8	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840470T16	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236154	GC TM L 1.75	GC TM L 1.75	1
-	840470T24	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236165	GC TM XL 1.75	GC TM XL 1.75	1
-	840470T18	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840470T31	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840470T19	齿轮箱总成完整型(2:1)	GEAR HOUSING ASSEMBLY Complete (2:1)	1
-	840470T33	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840470T25	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0131313	齿轮箱	GEAR HOUSING	1
-	840470T20	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8M0236198	GC DSI XL 1.75	GC DSI XL 1.75	1
-	840470T22	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	842004T28	XXL齿轮箱总成	GEAR HOUSING ASSEMBLY XXL, Complete	1
1	840470T5	齿轮箱总成(基础型)	GEAR HOUSING ASSEMBLY Basic (BASIC)	1
2	823903	换挡曲柄	SHIFT CRANK	1
2	8M0226861	换挡曲柄	CRANK-SHIFTER	1
3	19755T7	阀芯总成	SPOOL ASSEMBLY	1
3	8M0235940	阀芯总成	SPOOL ASSY	1
4	NSS	不单独销售线轴	NOT SOLD SEPARATE Spool	1
5	NSS	不单独销售套筒	NOT SOLD SEPARATE Sleeve	1
6	NSS	不单独销售开口销	NOT SOLD SEPARATE Cotter Pin	1
7	47397A1	垫片组	SHIM SET	AR
8	878087A6	前进/小齿轮组	GEAR SET Forward/Pinion	1
8	828168T3	前进/小齿轮组	GEAR SET Forward/Pinion	1
8	859321T04	前进/小齿轮组	GEAR SET Forward/Pinion	1
8	878611T03	前进/小齿轮组	GEAR SET Forward/Pinion	1
8	878617A05	前进/小齿轮组	GEAR SET Forward/Pinion	1
8	859321T04	前进/小齿轮组	GEAR SET Forward/Pinion	1
9	828437A2	轴承总成	BEARING ASSEMBLY	1
10	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
11	30895T	滚针轴承	BEARING Needle	1
12	856823	挡圈	RING Retaining	1
13	848878T	离合器	CLUTCH	1
14	78909	定位销	PIN Detent	2
15	848838	十字销	PIN Cross	1
16	78962	弹簧	SPRING	2
17	840453A2	螺旋桨轴	PROPELLER SHAFT	1
17	840453A03	螺旋桨轴	PROPELLER SHAFT	1
17	840453A03	螺旋桨轴	PROPELLER SHAFT	1
17	840453	右螺旋桨轴	PROPSHAFT RH	1
17	844186	螺旋桨轴	PROPELLER SHAFT	1
17	841978	螺旋桨轴	PROPELLER SHAFT	1
18	848880T1	倒挡齿轮	GEAR Reverse	1
18	848881A1	倒挡齿轮	GEAR Reverse	1
18	8M0192235	倒挡齿轮	GEAR-REVERSE	1
18	844147T01	倒挡齿轮	GEAR Reverse	1
18	844148T01	倒挡齿轮	GEAR Reverse	1
19	8241081	推力垫片	THRUST SPACER	1
20	88957T	滚珠轴承	BEARING Ball	1
21	681001	止推环	RING Thrust	1
22	31534	O型圈	O-RING	1
22	8M0214920	O型圈	O RING	1
23	848840T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
23	848840A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
24	817072	滚柱轴承	BEARING Roller	1
25	817071	卡环	RING Snap	1
26	815565	油封	SEAL Oil	2
27	30281	键	KEY	1
28	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
28	8M0058389	放油螺钉套件	SCREW KIT Drain	1
28	67892A05	磁性放油螺塞套件	PLUG KIT Drain (Magnetic)	1
28	8M0058389	放油螺钉套件	SCREW KIT Drain	1
29	191833	密封件	SEAL	1
29	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
30	79447	锁紧垫圈	TAB WASHER	1
31	79448	固定座	RETAINER	1
31	8M2011027	固定座	RETAINER	1
32	85344	垫圈(.750内径)	WASHER (.750 Inside Diameter)	1
33	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
34	41350	不锈钢螺钉(.437-14 x 2.50)(2-1/2英寸)	SCREW (.437-14 x 2.50) Stainless Steel (2-1/2 IN.)	1
35	76214T3	阳极块	ANODE	1
36	8480611	盖板	COVER	1
37	85344	垫圈(.750内径)	WASHER (.750 Inside Diameter)	1
-	816575A6	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 87齿轮箱驱动轴-标准/反转-FleetMaster Gear Housing Driveshaft-Standard/Counter-FleetMaster

REF	零件编号	中文名称	英文名称	数量
-	859399T43	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	859399T37	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	842004T18	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	859399T44	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	842004T17	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	859399T38	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	842004T19	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	859399T24	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
2	379721	销	PIN	1
3	821526	填充块	FILLER BLOCK	1
3	821526001	填充块	FILLER BLOCK	1
4	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	1
4	79953Q04	放油螺钉套件	SCREW KIT Drain	1
5	191833	密封件	SEAL	1
5	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
6	826134Q	阳极块	ANODE	2
7	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
8	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
9	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
10	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
11	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	1
11	79953Q04	放油螺钉套件	SCREW KIT Drain	1
12	191833	密封件	SEAL	1
12	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
13	859402	皮托管	PITOT TUBE	1
14	8164641	油封	SEAL Oil	1
14	8M0246145	油封	OIL SEAL	1
15	881866	接头	FITTING	1
16	858934	盖板	COVER	1
17	858935	衬垫	GASKET	1
18	36318	O型圈(0.799英寸)	O-RING (.799)	1
18	8M0214927	O型圈@5	O RING @5	1
19	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	2
20	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	4
21	NSS	不单独出售小齿轮（43-878617A2部件）	NOT SOLD SEPARATE Pinion Gear (Part of 43-878617A2)	1
22	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
23	35921	螺母(0.625-18)	NUT (.625-18)	1
24	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
25	824145		SHIFT SHAFT (Lower)	1
26	43037	键	KEY	1
26	8M0204723	键	KEY	1
27	881942	驱动轴	DRIVESHAFT	1
27	881943	驱动轴	DRIVESHAFT	1
28	38657A1	垫片组	SHIM ASSEMBLY	AR
28	8M0063268	垫片组	SHIM SET	AR
29	48939A2	圆锥滚子轴承	BEARING Taper Roller	1
29	8M0146553	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
30	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
31	42637A1	垫片组	SHIM SET	AR
31	8M0063267	垫片组	SHIM SET	AR
32	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
32	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
33	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
34	8245191	固定座	RETAINER	1
35	807929A1	托架总成	CARRIER ASSEMBLY	1
35	8M0214948	托架总成	CARRIER ASSY	1
36	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
36	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
37	66302	油封	SEAL Oil	1
37	8M0214939	油封@3	SEAL @3	1
38	66302	油封	SEAL Oil	1
38	8M0214939	油封@3	SEAL @3	1
39	817275A5	水泵修理包	REBUILD KIT Water Pump	1
40	816575A2	密封套件	SEAL KIT	1
41	430331	衬垫	GASKET	1
42	8172771	水泵上垫片	GASKET Water Pump, Upper	1
43	8172761	面板	FACEPLATE	1
43	8M0204709	面板	FACEPLATE	1
44	43026T2	叶轮	IMPELLER	1
45	832942A1	联轴器总成	COUPLING ASSEMBLY	1
46	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
46	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
47	35027	O型圈(1.046英寸)	O-RING (1.046)	1
47	8M0204654	O型圈	O-RING	1
-	816575A4	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	817275A5	水泵修理包	REBUILD KIT Water Pump	1

图 88齿轮箱螺旋桨轴-反向-FleetMaster型 Gear Housing Propeller Shaft-Counter-FleetMaster

REF	零件编号	中文名称	英文名称	数量
-	859399T44	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	859399T38	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	842004T19	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	859399T24	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
2	823903	换挡曲柄	SHIFT CRANK	1
2	8M0226861	换挡曲柄	CRANK-SHIFTER	1
3	19755T7	阀芯总成	SPOOL ASSEMBLY	1
3	8M0235940	阀芯总成	SPOOL ASSY	1
4	NSS	不单独销售线轴	NOT SOLD SEPARATE Spool	1
5	NSS	不单独销售套筒	NOT SOLD SEPARATE Sleeve	1
6	NSS	不单独销售开口销	NOT SOLD SEPARATE Cotter Pin	1
7	44491A1	垫片组	SHIM SET	AR
7	8M0063266	垫片组	SHIM SET	AR
8	828830A2	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
9	814653T	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
10	815481	止推垫片	THRUST WASHER	1
11	815480	推力轴承	BEARING Thrust	1
12	855652T1	倒挡齿轮	GEAR Reverse	1
13	15844	滚柱轴承总成	BEARING ASSEMBLY Roller	1
14	78962	弹簧	SPRING	2
15	848878T	离合器	CLUTCH	1
16	848838	十字销	PIN Cross	1
17	78909	定位销	PIN Detent	2
18	824111	螺旋桨轴	PROPELLER SHAFT	1
18	8M0140448	左螺旋桨轴	PROP SHAFT LH	1
19	855651A1	前进/小齿轮组	GEAR SET Forward/Pinion	1
20	1761514	垫片(0.206)	SPACER SHIM (.206)	AR
20	1761515	垫片(0.208)	SPACER SHIM (.208)	AR
20	1761516	垫片(0.210)	SPACER SHIM (.210)	AR
20	1761517	垫片(0.212)	SPACER SHIM (.212)	AR
20	1761518	垫片(0.214)	SPACER SHIM (.214)	AR
20	1761519	垫片(0.216)	SPACER SHIM (.216)	AR
20	1761520	垫片(0.218)	SPACER SHIM (.218)	AR
20	1761521	垫片(0.220)	SPACER SHIM (.220)	AR
20	1761522	垫片(0.222)	SPACER SHIM (.222)	AR
20	1761523	垫片(0.224)	SPACER SHIM (.224)	AR
20	1761524	垫片(0.226)	SPACER SHIM (.226)	AR
20	1761525	垫片(0.228)	SPACER SHIM (.228)	AR
20	1761526	垫片(0.230)	SPACER SHIM (.230)	AR
21	815480	推力轴承	BEARING Thrust	1
22	815481	止推垫片	THRUST WASHER	1
23	828831A3	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
24	814653T	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
25	18448	止推垫片	THRUST WASHER	2
26	15842	推力轴承	BEARING Thrust	2
27	8182911	推力座圈	RACE Thrust	2
28	814605	定位器	KEEPER	2
29	31534	O型圈	O-RING	1
29	8M0214920	O型圈	O RING	1
30	818290T8	轴承座总成	CARRIER ASSEMBLY Bearing	1
31	30956T	滚针轴承	BEARING Needle	1
32	14077	油封(内侧)	SEAL Oil (INSIDE)	1
33	76868	油封(外侧)	SEAL (OUTSIDE)	1
33	8M0248882	油封@5	SEAL-OIL @5	1
34	18323	锁紧垫圈	TAB WASHER	1
35	79448	固定座	RETAINER	1
35	8M2011027	固定座	RETAINER	1
36	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
37	762145	阳极块	ANODE	1
37	76214Q5	阳极套件	ANODE KIT	1
38	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
-	816575A4	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 89齿轮箱螺旋桨轴-反向-Sportmaster型 Gear Housing Propeller Shaft-Counter-Sportmaster

REF	零件编号	中文名称	英文名称	数量
0	849781T69	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	849781T70	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	840561T70	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	849781A2	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	8M0084203	齿轮箱-SM型	GEAR HOUSING-SM	1
50	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
51	789562	换挡凸轮	SHIFT CAM	1
52	79911A1	杆	ROD	1
53	78906	销	PIN	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	79910	弹簧	SPRING	2
55	78910	垫圈	WASHER	AR
56	14469T	轴承杯	CUP Bearing	1
57	88957T	滚珠轴承	BEARING Ball	1
58	NSS		NOT SOLD SEPARATE Reverse Gear (Part of 43-15845A2)	1
59	15844	滚柱轴承总成	BEARING ASSEMBLY Roller	1
60	42672T	棘轮	RATCHET	1
61	78909	定位销	PIN Detent	2
62	42671	十字销	PIN Cross	1
63	78962	弹簧	SPRING	2
64	15845A2	齿轮组	GEAR SET	1
65	176151	调整垫片(.125)	SPACER SHIM (.125)	AR
65	176152	调整垫片(.127)	SPACER SHIM (.127)	AR
65	176153	调整垫片(.129)	SPACER SHIM (.129)	AR
65	176154	调整垫片(.131)	SPACER SHIM (.131)	AR
65	176155	调整垫片(.133)	SPACER SHIM (.133)	AR
65	176156	调整垫片(.135)	SPACER SHIM (.135)	AR
65	176157	调整垫片(.137)	SPACER SHIM (.137)	AR
65	176158	调整垫片(.139)	SPACER SHIM (.139)	AR
65	176159	调整垫片(.141)	SPACER SHIM (.141)	AR
65	1761510	调整垫片(.143)	SPACER SHIM (.143)	AR
65	1761511	调整垫片(.145)	SPACER SHIM (.145)	AR
65	1761512	调整垫片(.147)	SPACER SHIM (.147)	AR
65	1761513	调整垫片(.149)	SPACER SHIM (.149)	AR
66	15841	滚柱轴承	BEARING Roller	1
67	17616	推力环	THRUST RING	1
68	31534	O型圈	O-RING	1
68	8M0214920	O型圈	O RING	1
69	15838A2	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
70	15843	滚柱轴承	BEARING Roller	1
70	15843T	滚针轴承	BEARING Needle	1
71	15834	推力轴承	BEARING Thrust	2
72	815495T	螺旋桨轴	PROPELLER SHAFT	1
73	847616T1	轴承座	CARRIER Bearing	1
74	817072	滚柱轴承	BEARING Roller	1
75	815565	油封	SEAL Oil	2
76	817071	卡环	RING Snap	1
77	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
77	8M0058389	放油螺钉套件	SCREW KIT Drain	1
78	19183	纤维垫圈	WASHER Fiber	1
78	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
79	30281	键	KEY	1
80	79447	锁紧垫圈	TAB WASHER	1
81	158401	盖板	COVER	1
82	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
83	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
83	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
84	41350	螺钉(.437-14 x 2.50)不锈钢	SCREW (.437-14 x 2.50) Stainless Steel	1
84	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
85	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	2
86	134391	螺母 (.4375-20)	NUT (.4375-20)	2
86	859116	螺母(.437-20)	NUT (.437-20)	2
87	30206	螺钉(.375-16 x 1.00)不锈钢	SCREW (.375-16 x 1.00) Stainless Steel	1
88	76214T3	阳极块	ANODE	1
88	76214Q5	阳极套件	ANODE KIT	1
-	90415A24	螺柱套件	STUD KIT	1
-	59579	双头螺柱(.437-14/.437-20 x 2.812)	STUD (.437-14/.437-20 x 2.812)	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	840389A2	螺旋桨毂套件	PROP HUB KIT	1
-	8M0183487	重型螺旋桨轮毂套件	HUB KIT-HD PROP	1

图 90齿轮箱螺旋桨轴-标准型-FleetMaster Gear Housing Propeller Shaft-Standard-FleetMaster

REF	零件编号	中文名称	英文名称	数量
-	859399T43	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	859399T37	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	842004T18	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	859399T24	齿轮箱总成完整（基础型）	GEAR HOUSING ASSEMBLY Complete (Basic)	1
2	823903	换挡曲柄	SHIFT CRANK	1
2	8M0226861	换挡曲柄	CRANK-SHIFTER	1
3	19755T7	阀芯总成	SPOOL ASSEMBLY	1
3	8M0235940	阀芯总成	SPOOL ASSY	1
4	NSS	不单独销售线轴	NOT SOLD SEPARATE Spool	1
5	NSS	不单独销售套筒	NOT SOLD SEPARATE Sleeve	1
6	NSS	不单独销售开口销	NOT SOLD SEPARATE Cotter Pin	1
7	44491A1	垫片组	SHIM SET	AR
7	8M0063266	垫片组	SHIM SET	AR
8	878617A2	前进/小齿轮组	GEAR SET Forward/Pinion	1
9	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
10	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
11	30895T	滚针轴承	BEARING Needle	1
12	856823	挡圈	RING Retaining	1
13	848878T	离合器	CLUTCH	1
14	78909	定位销	PIN Detent	2
15	848838	十字销	PIN Cross	1
16	78962	弹簧	SPRING	2
17	824110	螺旋桨轴	PROPELLER SHAFT	1
17	8M0140440	右螺旋桨轴	PROPSHAFT RH	1
18	853593A1	齿轮	GEAR	1
19	824108	隔套	SPACER	1
20	88957T	滚珠轴承	BEARING Ball	1
21	681001	止推环	RING Thrust	1
22	31534	O型圈	O-RING	1
22	8M0214920	O型圈	O RING	1
23	818763T11	轴承座总成	CARRIER ASSEMBLY Bearing	1
24	30956T	滚针轴承	BEARING Needle	1
25	14077	油封(内侧)	SEAL Oil (INSIDE)	1
26	76868	油封(外侧)	SEAL (OUTSIDE)	1
26	8M0248882	油封@5	SEAL-OIL @5	1
27	18323	锁紧垫圈	TAB WASHER	1
28	79448	固定座	RETAINER	1
28	8M2011027	固定座	RETAINER	1
29	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
30	762145	阳极块	ANODE	1
30	76214Q5	阳极套件	ANODE KIT	1
31	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
-	816575A4	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 91齿轮箱螺旋桨轴-标准-Sportmaster Gear Housing Propeller Shaft-Standard-Sportmaster

REF	零件编号	中文名称	英文名称	数量
-	849780A33	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	849780T34	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840560T34	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	849780A2	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	8M0083306	齿轮箱-SM型	GEAR HOUSING-SM	1
50	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
51	789562	换挡凸轮	SHIFT CAM	1
52	79911A1	杆	ROD	1
53	78906	销	PIN	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	79910	弹簧	SPRING	2
55	78910	垫圈	WASHER	2
56	47397A1	垫片组	SHIM SET	AR
57	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
58	44104A7	齿轮组(含小齿轮)(1.87:1传动比)	GEAR SET Includes Pinion- 1.87:1 Gear Ratio	1
59	549281	滚柱轴承	BEARING Roller	1
60	42672T	棘轮	RATCHET	1
61	78909	定位销	PIN Detent	2
62	42671	十字销	PIN Cross	1
63	78962	弹簧	SPRING	2
64	822820F1	螺旋桨轴	PROPELLER SHAFT	1
64	840451A03	螺旋桨轴	PROPELLER SHAFT	1
65	822824A1	倒档齿轮总成(1.87:1传动比)	GEAR ASSEMBLY Reverse 1.87:1 Gear Ratio	1
65	8M0192202	倒挡齿轮	GEAR-REVERSE	1
66	822823	推力环	THRUST RING	1
67	88957T	滚珠轴承	BEARING Ball	1
68	681001	止推环	RING Thrust	1
69	31534	O型圈	O-RING	1
69	8M0214920	O型圈	O RING	1
70	848840T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
70	848840A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
71	817072	滚柱轴承	BEARING Roller	1
72	817071	卡环	RING Snap	1
73	815565	油封	SEAL Oil	2
74	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
74	8M0058389	放油螺钉套件	SCREW KIT Drain	1
75	19183	纤维垫圈	WASHER Fiber	1
75	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
76	30281	键	KEY	1
77	79447	锁紧垫圈	TAB WASHER	1
78	79448	固定座	RETAINER	1
78	8M2011027	固定座	RETAINER	1
79	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
80	827614	螺旋桨螺母	PROP NUT	1
80	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
81	13171T1	推力毂	THRUST HUB	1
81	8354675	止推垫片	THRUST WASHER	1
82	31211A2	花键垫圈	WASHER Splined	1
82	31211Q03	垫圈总成	WASHER ASSEMBLY	1
83	41350	螺钉(.437-14 x 2.50)不锈钢	SCREW (.437-14 x 2.50) Stainless Steel	1
83	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
84	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	2
85	134391	螺母 (.4375-20)	NUT (.4375-20)	2
85	859116	螺母(.437-20)	NUT (.437-20)	2
86	30206	螺钉(.375-16 x 1.00)不锈钢	SCREW (.375-16 x 1.00) Stainless Steel	1
87	762143	阳极块	ANODE	1
87	76214T3	阳极块	ANODE	1
87	76214A5	阳极套件	ANODE KIT	1
87	76214Q5	阳极套件	ANODE KIT	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	90415A24	螺柱套件	STUD KIT	1
-	59579	双头螺柱(.437-14/.437-20 x 2.812)	STUD (.437-14/.437-20 x 2.812)	1

图 92液压泵及安装支架(运动大师) Hydraulic Pump and mounting Brackets Sportmaster

REF	零件编号	中文名称	英文名称	数量
-	846859A4	液压泵总成(完整)	PUMP ASSEMBLY Hydraulic (COMPLETE)	1
1	846859A1	液压泵总成	PUMP ASSEMBLY Hydraulic	1
1	8M0051203	配平泵总成	PUMP ASSY-TRIM	1
2	818567	支架	BRACKET	1
3	38837	螺钉(.312-18×1.12)	SCREW (.312-18 x 1.12)	1
4	57792	垫圈	WASHER	2
5	34948	隔套	SPACER	1
6	65999A12	接地线总成	CABLE ASSEMBLY Ground	1
7	79138A9	电缆总成(6英尺)黑色-负极	CABLE ASSEMBLY (6.00 Feet) Black-Negative	1
8	92051	螺钉（10-16 x 0.75）	SCREW (10-16 x .75)	2
9	79147A5	线束总成	HARNESS ASSEMBLY	1
10	79091	保险丝20安培	FUSE 20 Ampere	1
10	8M0207796	保险丝20安培	FUSE 20 AMP	1
11	88075	固定座	RETAINER	1
12	853654A1	电磁阀	SOLENOID	2
13	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	4
14	20110	螺母 (#10-32)	NUT (#10-32)	4
15	26484	螺母(.312-18)	NUT (.312-18)	4
15	8M0204646	螺母(.312-18)	NUT (.312-18)	4
15	859119	螺母(5/16-18)	NUT (5/16-18)	4
15	8M0204646	螺母(.312-18)	NUT (.312-18)	4
16	79023A10	保险丝总成110安培	FUSE ASSEMBLY 110 Ampere	1
16	79023T10	保险丝总成110安培	FUSE ASSEMBLY 110 Ampere	1
17	96457	酚醛垫圈(.27×.81×.062)	WASHER Phenolic (.27 x .81 x .062)	1
18	21825	螺母(.250-28)	NUT (.250-28)	1
19	65999A11	拉线总成	CABLE ASSEMBLY	1
20	79139A12	电缆总成红色-正极	CABLE ASSEMBLY Red-Positive	1
21	46265	护套	BOOT	5
22	22753	垫圈	WASHER	4
23	79139A26	红色线缆总成	CABLE ASSEMBLY Red (RED)	1
24	87760T	安装板	MOUNTING PLATE	1
25	39349	螺钉(.312-18×0.75)不锈钢	SCREW (.312-18 x .750) Stainless Steel	1
26	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
26	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
27	90271	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	2
28	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
29	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	4
29	8M0214963	垫圈	WASHER	4
30	87762	支架	BRACKET	1
31	63826	螺钉(.375-16 x 2.50)	SCREW (.375-16 x 2.50)	2
32	82670912	螺母(.375-16)不锈钢	NUT (.375-16) Stainless Steel	2
33	818200	接头	FITTING	1
34	77366	接头	FITTING	2
35	95084A18	保险丝线束总成	CABLE ASSEMBLY Fuse	1
36	65017A14	线束总成	HARNESS ASSEMBLY	1
37	848017T4	升降线束总成	HARNESS ASSEMBLY Trim	1

图 93液压泵总成(运动大师) Hydraulic Pump Assembly Sportmaster

REF	零件编号	中文名称	英文名称	数量
-	846859A1	液压泵总成	PUMP ASSEMBLY Hydraulic	1
1	811491	适配器	ADAPTER	1
1	8M0084543	适配器	ADAPTER	1
2	803852	联轴器	COUPLING	1
3	89498	O型圈	O-RING	1
4	811492T	泵总成(含螺钉)	PUMP ASSEMBLY (INCLUDES SCREWS)	1
5	89496	滤清器	FILTER	2
6	89497	储液端O型圈	O-RING Reservoir End	1
7	41219T	储液罐	RESERVOIR	1
8	811493	螺钉套件	SCREW KIT	1
-	17649T	电机总成	MOTOR ASSEMBLY	1
-	891736T	电机总成	MOTOR ASSEMBLY	1
-	891736T	电机总成	MOTOR ASSEMBLY	1
9	17632T	端盖总成	END CAP ASSEMBLY	1
9	891736T	电机总成	MOTOR ASSEMBLY	1
9	NSS	非单独销售端盖	NOT SOLD SEPARATE End Cap	1
10	17626	螺钉	SCREW	4
10	891736T	电机总成	MOTOR ASSEMBLY	4
10	891741	螺钉	SCREW	4
11	17625	O型圈	O-RING	1
11	891736T	电机总成	MOTOR ASSEMBLY	1
11	891740	O型圈	O-RING	1
12	17621	螺钉	SCREW	2
12	891736T	电机总成	MOTOR ASSEMBLY	2
12	891739	螺钉	SCREW	2
13	17633	支架套件	HOLDER KIT	1
13	891736T	电机总成	MOTOR ASSEMBLY	1
13	891738	支架总成	HOLDER ASSEMBLY	1
14	17631A1	电刷套件	BRUSH KIT	1
14	891736T	电机总成	MOTOR ASSEMBLY	1
14	891737	电刷套件	BRUSH KIT	1
15	17623	电枢	ARMATURE	1
15	891736T	电机总成	MOTOR ASSEMBLY	1
15	NSS	电枢(不单独销售)	NOT SOLD SEPARATE Armature	1
16	17653	垫圈	WASHER	2
16	891736T	电机总成	MOTOR ASSEMBLY	2
16	NSS	止推垫圈(不单独销售)	NOT SOLD SEPARATE Thrust Washer	2
17	17624	磁场框架总成	FIELD AND FRAME ASSEMBLY	1
17	891736T	电机总成	MOTOR ASSEMBLY	1
17	NSS		NOT SOLD SEPARATE Field and Frame	1
18	17622	盖总成	COVER ASSEMBLY	1
18	891736T	电机总成	MOTOR ASSEMBLY	1
18	NSS	盖板(不单独销售)	NOT SOLD SEPARATE Cover	1
-	812498A1	安全阀套件	VALVE KIT Relief	1

图 94钥匙开关总成 Key Switch Assembly

REF	零件编号	中文名称	英文名称	数量
1	816626A20	钥匙开关线束总成(20英尺)	HARNESS ASSEMBLY Key Switch (20.00 Feet)	1
2	90468A1	钥匙盖总成	COVER ASSEMBLY Key	2
3	76424	支架	BRACKET	1
4	55422	双头螺柱 (#10-32 x 2.00)	STUD (#10-32 x 2.00)	2
5	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	2
6	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
7	816479A3	板组件套件	PLATE KIT	2
8	88107A5	钥匙开关套件	SWITCH KIT Key	1
9	879755	特殊螺母-黑色尼龙	NUT Special - Black Nylon	1
10	816492A1	音响报警器总成	ALARM ASSEMBLY Audio Warning	1
10	8M0210763	报警器	ALARM	1
11	8127111	垫片(0.375)	SPACER (.375)	2
11	812711	隔套(0.250)	SPACER (.250)	2
-	894911	点火钥匙(1A)	KEY Ignition (1A)	1
-	894912	点火钥匙(1B)	KEY Ignition (1B)	1
-	894913	点火钥匙(1C)	KEY Ignition (1C)	1
-	894914	点火钥匙(1D)	KEY Ignition (1D)	1
-	894915	点火钥匙(1E)	KEY Ignition (1E)	1
-	894916	点火钥匙(1F)	KEY Ignition (1F)	1
-	894917	点火钥匙(2A)	KEY Ignition (2A)	1
-	894918	点火钥匙(2B)	KEY Ignition (2B)	1
-	894919	点火钥匙(2C)	KEY Ignition (2C)	1
-	8949110	点火钥匙(2D)	KEY Ignition (2D)	1
-	8949111	点火钥匙(2E)	KEY Ignition (2E)	1
-	8949112	点火钥匙(2F)	KEY Ignition (2F)	1

图 95润滑系统 Oiling System

REF	零件编号	中文名称	英文名称	数量
1	85606065	管材(38英寸散装)(截断至11.5英寸)	TUBING (38.00 Inches Bulk) (Cut to 11.50 Inches)	2
2	85606065	管材(38英寸整卷)(裁切至5英寸)	TUBING (38.00 Inches Bulk) (Cut to 5 Inches)	1
2	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
3	18206	滤清器	FILTER	2
3	8M0207786	滤清器	FILTER	2
4	85606065	管材(38英寸整卷)(裁切至9英寸)	TUBING (38.00 Inches Bulk) (Cut to 9 Inches)	1
4	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
5	884525T1	机油箱	TANK Oil	1
5	8M0064075	机油箱	TANK Oil	1
6	NSS	不单独销售标签-储液罐	NOT SOLD SEPARATE Decal-Reservoir	1
7	855362001	护孔环	GROMMET	3
8	855364	衬套	BUSHING	2
9	883050	隔套	SPACER	1
10	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
11	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
12	856156A4	开关	SWITCH	1
12	856156T04	开关	SWITCH	1
13	885553	软管	HOSE	1
14	424254	接头	FITTING	1
14	8M0207780	接头	FITTING	1
15	887609	堵头	PLUG	1
16	4002318	垫圈 8.90 x 24.0x 2.4 不锈钢	WASHER 8.90 x 24.0x 2.4 PL SS	3
17	81893435	螺钉(M8×35)	SCREW (M8 x 35)	2
17	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	2
18	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
19	8752891	软管	HOSE	1
20	858955	连接器	CONNECTOR	2
21	875283	软管(2.00英寸)	HOSE (2.00 Inches)	1
22	875284001	滤清器-机油在线式	FILTER Oil - In Line	1
22	875284T01	滤清器-机油在线式	FILTER Oil - In Line	1
23	NSS	不单独销售塞	NOT SOLD SEPARATE Plug	2
24	892830053	软管(24英寸编织)(截断至22英寸)	HOSE (24.00 Inches Braided) (Cut to 22 Inches)	1
25	81893460	螺钉 (M8 x 60)	SCREW (M8 x 60)	1
26	858870	止回阀	CHECK VALVE	6
27	859230	固定座	RETAINER	2
27	859230T	固定座	RETAINER	2
28	85583466	软管(40英寸散装)(截断至34英寸)连接油泵图示#2	HOSE (40.00 Inches Bulk) (Cut to 34 Inches) To Oil Pump Connection Illustrated as #2	1
28	8M0054213	软管	HOSE	1
29	85606065	管材(38英寸散装)(截断至19.5英寸)连接油泵图示#6	TUBING (38.00 Inches Bulk) (Cut to 19.50 Inches) To Oil Pump Connection Illustrated as #6	1
29	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
30	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	AR
31	85606065	管材(38英寸散装)(截断至11英寸)连接油泵图示#5	TUBING (38.00 Inches Bulk) (Cut to 11 Inches) To Oil Pump Connection Illustrated as #5	1
31	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
32	85606065	管材(38英寸整卷)(裁切至6英寸)至油泵连接#4图示位置	TUBING (38.00 Inches Bulk) (Cut to 6 Inches) To Oil Pump Connection Illustrated as #4	1
32	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
33	85606065	管材(38英寸整卷)(裁切至4英寸)至油泵连接#3图示位置	TUBING (38.00 Inches Bulk) (Cut to 4 Inches) To Oil Pump Connection Illustrated as #3	1
33	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
34	883988	弯头	ELBOW	2
35	85606065	管材(38英寸散装)(截断至22英寸)连接油泵图示#7	TUBING (38.00 Inches Bulk) (Cut to 22 Inches) To Oil Pump Connection Illustrated as #7	1
35	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
36	85606065	管材(38英寸散装)(截断至16.5英寸)连接油泵图示#1	TUBING (38.00 Inches Bulk) (Cut to 16.50 Inches) To Oil Pump Connection Illustrated as #1	1
36	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
37	85606065	管材(38英寸散装)(截断至7英寸)	TUBING (38.00 Inches Bulk) (Cut to 7 Inches)	2
37	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	2

图 96左舷泄放系统 Port Bleed System

REF	零件编号	中文名称	英文名称	数量
1	8159234	止回阀	CHECK VALVE	1
2	99130122	管材(20.00英尺卷材)(裁切为25.00英寸)	TUBING (20.00 Feet Bulk) (Cut to 25.00 Inch Length)	1
2	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
3	8282182	止回阀	CHECK VALVE	4
4	99130122	管材(20.00英尺卷材)(裁切为5.00英寸)	TUBING (20.00 Feet Bulk) (Cut to 5.00 Inch Length)	2
4	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
5	99130122	管材(20.00英尺卷材)(裁切为9.50英寸)	TUBING (20.00 Feet Bulk) (Cut to 9.50 Inch Length)	3
5	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	3
6	8348041	止回阀	CHECK VALVE	2
7	426585	止回阀	CHECK VALVE	1
8	99130122	管材(20.00英尺卷材)(裁切为2.00英寸)	TUBING (20.00 Feet Bulk) (Cut to 2.00 Inch Length)	1
8	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
9	99130122	管材(20.00英尺卷材)(裁切为14.50英寸)	TUBING (20.00 Feet Bulk) (Cut to 14.50 Inch Length)	1
9	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
10	99130122	管材(20.00英尺卷材)(裁切为9.50英寸)	TUBING (20.00 Feet Bulk) (Cut to 9.50 Inch Length)	1
10	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
11	591692	三通接头	FITTING Tee	1
11	59169003	三通接头	FITTING Tee	1
-	840756A01	动力头总成	POWERHEAD ASSEMBLY	1
-	840756A04	动力头总成	POWERHEAD ASSEMBLY	1

图 97动力头衬垫组件 Powerhead Gasket Set Components

REF	零件编号	中文名称	英文名称	数量
-	832933A05	动力头衬垫套件	GASKET SET Powerhead	1
-	857005A1	燃油泵膜片维修包	DIAPHRAGM KIT Fuel Pump	1
-	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
-	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
-	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
-	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
-	NSS	增压弹簧(不单独销售)	NOT SOLD SEPARATE Spring-Boost	1
-	NSS	不单独销售端盖-弹簧	NOT SOLD SEPARATE Cap-Spring End	1
-	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
-	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
-	987691	燃油泵衬垫	GASKET Fuel Pump	1
-	8M0204705	衬垫@2	GASKET @2	1
-	841220	衬垫（空气处理器适配板）	GASKET Air Handler Adaptor Plate	1
-	62700	O型圈(3.237x0.103)下端盖	O-RING (3.237 x .103) Lower End Cap	1
-	818574	密封件（气缸盖）	SEAL Cylinder Head	2
-	8503181	节温器盖衬垫	GASKET Thermostat Cover	2
-	35126	O型圈(.859 x .139)曲轴-下部	O-RING (.859 x .139) Crankshaft-Lower	1
-	823683	O型圈（1.989×0.070）（曲轴上端）	O-RING (1.989 x .070) Crankshaft-Upper	1
-	8329335	衬垫排气板-上部	GASKET Exhaust Plate-Upper	1
-	832933006	衬垫	GASKET	1
-	8329344	衬垫排气板-下部	GASKET Exhaust Plate-Lower	1
-	832934006	衬垫	GASKET	1
-	88907003	安全阀盖与板衬垫	GASKET Relief Valve Cover and Plate	2

图 98动力升降组件 8M0231193 Power Trim Components 8M0231193

REF	零件编号	中文名称	英文名称	数量
-	8M0231193	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0225363	电机套件	MOTOR KIT	1
2	8M0225369	阀套件	VALVE KIT	1
3	8M0225371	手动释放套件	MANUAL RELEASE KIT	1
4	8M0245633	倾斜油缸套件	TILT CYLINDER KIT	1
5	8M0225370	枢轴销套件	PIVOT PIN KIT	1
6	8M0244575	减震杆套件	SHOCK ROD KIT	1
7	8M0244425	销杆眼套件	PIN ROD EYE KIT	1
8	8M0232231	螺钉螺母套件	SCREW NUT KIT	1
9	8M0225373	记忆活塞套件	MEMORY PISTON KIT	1
10	8M0225368	储液罐套件	RESERVOIR KIT	1
11	8M0174135	储液罐塞总成	PLUG RESERVOIR ASSEMBLY	1
12	8M0237525	泵套件	PUMP KIT	1
13	8M0225367	升降杆套件	TRIM ROD KIT	1
14	8M0242846	升降杆套件	TRIM ROD KIT	1
15	8M0225372	重建套件	REBUILD KIT	1

图 99动力升降组件金属马达壳 Power Trim Components Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	855998A3	动力升降倾斜装置总成	POWER TRIM Complete	1
-	855998A11	动力调整套件	POWER TRIM KIT	1
-	855998A05	完整动力升降总成	POWER TRIM ASSEMBLY Complete	1
-	855998A11	动力调整套件	POWER TRIM KIT	1
1	878265A4	配平电机	TRIM MOTOR	1
1	8M0031551	配平电机	TRIM MOTOR	1
2	NSS	电枢(不单独销售)	NOT SOLD SEPARATE Armature	1
3	NSS	端架(不单独销售)	NOT SOLD SEPARATE End Frame	1
4	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
5	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
6	8782451	驱动轴	DRIVESHAFT	1
7	878410A1	压力检查套件	PO CHECK KIT	1
8	813442A2	手动释放总成 (含参考号#26)	MANUAL RELEASE ASSEMBLY (Includes Reference #26)	1
8	893929A01	安全阀套件	VALVE KIT Relief	1
9	878241A02	轴套件	SHAFT KIT	1
9	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
10	878267	销	PIN	1
11	878235A1	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
11	878235A03	倾斜油缸套件	CYLINDER KIT Tilt	1
11	878235A02	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
11	878235A03	倾斜油缸套件	CYLINDER KIT Tilt	1
12	878239A1	导向套件 (含参考号#26)	GUIDE KIT (Includes Reference #26)	1
12	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
13	878409A1	O型圈套件 (含参考号#26)	O-RING KIT (Includes Reference #26)	1
13	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
14	878412A1	减震杆套件 (含参考号#26)	SHOCK ROD KIT (Includes Reference #26)	1
14	8M0168219	减震杆套件	SHOCK ROD KIT	1
15	878242A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
15	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
16	878406A1	止回阀修理包 (含参考号#26)	REPAIR KIT Check Valve (Includes Reference #26)	1
16	878406A02	止回阀修理包	REPAIR KIT Check Valve	1
17	878414A1	活塞总成	PISTON ASSEMBLY	1
17	878414T01	活塞总成	PISTON ASSEMBLY	1
18	878413A1	活塞总成	PISTON ASSEMBLY	1
19	878243A1	导向器总成	GUIDE ASSEMBLY	2
19	8M0021648	端盖总成	END CAP ASSEMBLY	2
20	878264A1	储液罐套件	RESERVOIR KIT	1
21	811613	塞子总成	PLUG ASSEMBLY	1
22	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
23	43450	垫圈	WASHER	4
23	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
24	892251A01	泵套件	PUMP KIT	1
25	878408A1	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
26	821539	三叶销	PIN Trilobe	1
27	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
28	4002319	垫圈	WASHER	6
29	818298Q1	阳极套件	ANODE KIT	1
30	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
30	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
31	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
31	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	99625002	轴	SHAFT	1
33	69205	C形垫圈	C WASHER	1
33	8M0084613	C形垫圈	C-WASHER	1
34	22875	卡扣	CLIP	2
35	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	2
36	828547353	导管(内径0.350x3英尺散装)(裁切至12英寸)	CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk) (Cut to 12 Inches)	1
37	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

图 100动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	8M0168222	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0142591	电机套件	MOTOR KIT	1
2	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
3	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
4	8M0090403	驱动联轴器	COUPLING Drive	1
5	8M0142996	压力检查套件	PO CHECK KIT	1
6	8M0060141	手动释放套件	MANUAL RELEASE KIT	1
7	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
8	878267	销	PIN	1
9	8M0142998	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
9	8M0168220	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
10	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
11	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
12	8M0142592	升降杆套件左舷	TRIM ROD KIT Port	1
13	8M0143001	活塞总成	PISTON ASSEMBLY	1
14	8M0143003	端盖总成	END CAP ASSEMBLY	1
15	878264A1	储液罐套件	RESERVOIR KIT	1
16	811613	塞子总成	PLUG ASSEMBLY	1
17	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
18	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
19	8M0143004	泵套件	PUMP KIT	1
20	8M0148385	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
21	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
22	4002319	垫圈	WASHER	6
23	8M0094889	销	PIN	1
23	8M0161312	连杆销眼总成	PIN ROD EYE ASSEMBLY	1
24	8M0143005	减震杆套件	SHOCK ROD KIT	1
24	8M0168219	减震杆套件	SHOCK ROD KIT	1

图 101维修/支撑材料 Servie/Support Material

零件编号	中文名称	英文名称	数量
85552902	零件手册 300X电喷(3.0L)	PARTS MANUAL 300X EFI (3.0L)	1
849233020	用户手册	OWNERS MANUAL	1
849233021	用户手册	MANUAL-OWNERS	1
849233030	用户手册	OWNERS MANUAL	1
849233031	用户手册	MANUAL-OWNERS	1
849233040	用户手册	OWNERS MANUAL	1
849233041	用户手册	MANUAL-OWNERS	1
849233050	用户手册	OWNERS MANUAL	1
849233051	用户手册	MANUAL-OWNERS	1
840514R01	维修手册	SERVICE MANUAL	1
849232050	安装手册	INSTALLATION MANUAL	1
842758A01	装配示意图	DIAGRAMS ASSEMBLY	1
842759	顶盖与套筒	TOC and SLEEVE	1
842760	线路图01	DIAGRAM 01 Wiring	1
842761	线路图02/03/04	DIAGRAM 02/03/04 Wiring	1
842762	非CAN总线线路图	DIAGRAM Non CAN	1
842763	CAN总线线路图	DIAGRAM CAN	1
842764	燃油系统图	DIAGRAM Fuel	1
842769	水流示意图	DIAGRAM Water Flow	1
804675A02	EPA标签信息贴花	DECAL EPA Label Information	1
804675A03	EPA标签信息贴花	DECAL EPA Label Information	1
804675A04	EPA标签信息贴花	DECAL EPA Label Information	1
804675A05	EPA标签信息贴花	DECAL EPA Label Information	1

图 102电磁阀板 Solenoid Plate

REF	零件编号	中文名称	英文名称	数量
-	NSS	电气板总成(不单独销售)	NOT SOLD SEPARATE Electrical Plate Assembly	1
1	858366T2	安装板	PLATE	1
2	817109A2	电磁阀总成(#10-32/.3125-18端子)	SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)	1
3	822179	护孔环	GROMMET	2
4	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
4	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
5	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	5
6	818968	衬套	BUSHING	2
6	8M0214955	衬套	BUSHING	2
7	882751A1	继电器总成	RELAY ASSEMBLY	3
7	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	3
8	NSS	微调继电器标识贴(不单独销售)	NOT SOLD SEPARATE Decal-Trim Relay	1
9	828102	支架	BRACKET	3
9	8M0207771	安装支架	BRACKET Mounting	3
10	818968	衬套	BUSHING	3
10	8M0214955	衬套	BUSHING	3
11	818967	护孔环	GROMMET	3
11	8M0207785	护孔环	GROMMET	3
12	82129110	螺丝 (M6 x 10)	SCREW (M6 x 10)	2
13	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
14	828991	卡扣	CLIP	1
14	828991T	卡扣	CLIP	1
15	858755	卡箍(1.00)	CLIP (1.00)	1
16	878231A6	保险丝线束总成-100安培	HARNESS ASSEMBLY Fuse - 100 Ampere	1
17	819514T21	升降线束总成	HARNESS ASSEMBLY Trim	1
18	892971T01	发动机线束总成	HARNESS ASSEMBLY Engine	1
19	83296920	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	3
19	832969T20	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	3
19	8329695	迷你保险丝-棕色-5安培	FUSE Mini - Tan - 5 Ampere	1
19	832969T05	迷你保险丝-棕色-5安培	FUSE Mini - Tan - 5 Ampere	1
20	858754	保险丝盖	COVER Fuse	1
-	878073A2	线束总成(节气门位置传感器)	HARNESS ASSEMBLY (TPS)	1
-	879346A41	线束维修套件	HARNESS REPAIR KIT	1
-	858781A2	直喷器线束总成	HARNESS ASSEMBLY Direct Injector	1
-	879346A49	线束维修套件	HARNESS REPAIR KIT	1
-	858780A2	喷油器线束总成	HARNESS ASSEMBLY Fuel Injector	1
-	879346A50	线束维修套件	HARNESS REPAIR KIT	1
-	881262A2	线束总成(交流发电机)	HARNESS ASSEMBLY Alternator Alternator	1
21	882829A1	启动机电缆总成	CABLE ASSEMBLY Starter	1
22	88439A46	电缆总成蓄电池-正极	CABLE ASSEMBLY Battery - Positive	1
23	68292	螺母(.312-18)	NUT (.312-18)	2
23	8M0204668	螺母(.312-18)	NUT (.312-18)	2
24	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
25	813938	盖形螺母(#10-32)	CAP NUT (#10-32)	1
26	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
27	88807A16	黑色电缆总成(4.00英寸)	CABLE ASSEMBLY (4.00 Inches) Black	1
28	13541	公插头	PLUG Male	1
29	88555755T	推进控制模块PCM	PCM Propulsion Control Module	1
30	82130025	螺钉(M6x25)	SCREW (M6 x 25)	3
31	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	3
32	834985	护孔环	GROMMET	3
32	8M0190980	护孔环	GROMMET	3
33	856954	衬套	BUSHING	3
34	891520001	卡扣	CLIP	1
35	82129114	螺钉 (M6 x 14)	SCREW (M6 x 14)	1
36	892295F01	支架	BRACKET	1
37	834985	护孔环	GROMMET	2
37	8M0190980	护孔环	GROMMET	2
38	822003	衬套	BUSHING	2
39	881879011	压力传感器 (0 - 100 PSI)	SENSOR Pressure (0 - 100 PSI)	1
39	881879T11	压力传感器 (0 - 100 PSI)	SENSOR Pressure (0 - 100 PSI)	1
40	892403	接头	FITTING	1
40	8M0207782	直通接头	FITTING Straight	1
41	883066	夹子 (.865)	CLIP (.865)	1
42	879962	卡扣	CLIP	1
43	82130025	螺钉(M6x25)	SCREW (M6 x 25)	2
44	82130012	螺钉（M6 x 12）	SCREW (M6 x 12)	3
45	88439A26	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
46	81893420	螺钉(M8 x 20)	SCREW (M8 x 20)	1
47	830796A04	防水插头总成-4针公头	CONNECTOR ASSEMBLY Weather Cap - 4 Position Male	1
48	896542A01	线束总成适配器(适用时使用)	HARNESS ASSEMBLY Adaptor (Use where Applicable)	1
48	896542T01	线束总成适配器-带支架(12英寸)14针公头转8针母头	HARNESS ASSEMBLY Adapter - With Bracket (12 Inches) 14 Pin Male To 8 Pin Female	1
49	877613A02	防水插头总成6针	CONNECTOR ASSEMBLY Weather Cap 6 Pin	1

图 103右舷泄放系统 Starboard Bleed System

REF	零件编号	中文名称	英文名称	数量
1	768431	接头	FITTING	3
2	99130122	管材(20.00英尺卷材)(裁切为16.00英寸)	TUBING (20.00 Feet Bulk) (Cut to 16.00 Inch Length)	1
2	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
3	99130122	管材 (20.00英尺散装) (裁切至15.00英寸)	TUBING (20.00 Feet Bulk) (Cut to 15.00 Inch Length)	1
3	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
4	99130122	管材(20.00英尺卷材)(裁切为17.00英寸)	TUBING (20.00 Feet Bulk) (Cut to 17.00 Inch Length)	1
4	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
5	22875	卡扣	CLIP	1
6	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
7	8282182	止回阀	CHECK VALVE	1
8	99130122	管材(20.00英尺卷材)(裁切为5.00英寸)	TUBING (20.00 Feet Bulk) (Cut to 5.00 Inch Length)	2
8	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
9	99130122	管材(20.00英尺卷材)(裁切为1.25英寸)	TUBING (20.00 Feet Bulk) (Cut to 1.25 Inch Length)	1
9	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
10	591692	三通接头	FITTING Tee	1
10	59169003	三通接头	FITTING Tee	1
11	8348041	止回阀	CHECK VALVE	4
12	426585	止回阀	CHECK VALVE	2
13	8159234	止回阀	CHECK VALVE	1
14	99130122	管材(20.00英尺卷材)(裁切为3.75英寸)	TUBING (20.00 Feet Bulk) (Cut to 3.75 Inch Length)	1
14	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
-	840756A01	动力头总成	POWERHEAD ASSEMBLY	1
-	840756A04	动力头总成	POWERHEAD ASSEMBLY	1

图 104启动电机 Starter Motor

REF	零件编号	中文名称	英文名称	数量
1	892339T	启动电机总成	STARTER MOTOR ASSEMBLY	1
2	803005	贯穿螺栓	THRU BOLT	2
3	880805A1	齿轮套件	GEAR KIT	1
4	809463A1	电磁阀组件	SOLENOID KIT	1
5	8M0065258	电刷组	BRUSH SET	1
6	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
7	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
8	NSS	高压警告贴纸 (不单独销售)	NOT SOLD SEPARATE Decal-Warning-High Voltage	1
9	400255	锁紧垫圈(M5)	LOCKWASHER (M5)	1
10	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
11	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
12	400213	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
13	56703	轴环	COLLAR	2
13	8M0034918	轴环	COLLAR	2
14	879845	停机开关	STOP	1
14	8M0043276	停机开关	STOP	1

图 105旋转支架(重型) Swivel Bracket (Heavy Duty)

REF	零件编号	中文名称	英文名称	数量
1	847723A3	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
2	847729	油封	SEAL Oil	2
3	847726	轴承	BEARING	2
4	74036	润滑脂接头	FITTING Grease	4
4	8M0169589	润滑脂接头	FITTING Grease	4
5	847728	轴承	BEARING	2
6	82203524	轴承(1.50英寸)	BEARING (1.50 IN.)	2
7	85023	油封	SEAL Oil	2
8	87161	垫圈	WASHER	2
9	48171	O型圈(0.364 x 0.070)	O-RING (.364. x .070)	2
10	85030A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
10	85028A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
11	86600	衬套	BUSHING	1
12	85367	弹簧	SPRING	1
13	41052	柱塞	PLUNGER	1
14	88876	螺柱	STUD	1
15	86603	旋钮	KNOB	1
16	864751	联轴器	COUPLING	1
17	69745	滚动销	PIN Roll	2
18	88049	弹簧	SPRING	1
19	93861	开口销	COTTER PIN	1
20	78854	波形垫圈	WAVE WASHER	1
21	814084T1	下轭架	YOKE Bottom	1
22	848125	螺旋锁紧挡圈	RING Retaining - Spiral Lock	2
23	840308T2	旋转销总成	SWIVEL PIN ASSEMBLY	1
23	879330T36	旋转销	PIN-SWIVEL	1
24	92876A10	连杆总成	LINK ROD ASSEMBLY	1
24	92876A12	连杆总成	LINK ROD ASSEMBLY	1
25	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
26	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
26	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
27	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
28	8495812	螺钉(.500-13 x 7.00)	SCREW (.500-13 x 7.00)	2
28	8495811	螺栓(.500-13x7.750)	SCREW (.500-13 x 7.750)	2
29	816056	垫圈	WASHER	2
30	4002321	垫圈(12.80 mm x 24.0 mm x 2.4 mm)不锈钢	WASHER (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel	2
31	844766	螺母(.500-13)	NUT (.500-13)	2

图 106旋转支架(带集成配平) Swivel Bracket (With Integral Trim)

REF	零件编号	中文名称	英文名称	数量
1	8710T20	黑色旋转支架总成	SWIVEL BRACKET ASSEMBLY Black	1
2	33504	O型圈	O-RING	1
2	8M0214926	O型圈 @10	O RING @10	1
3	818764	衬套	BUSHING	2
4	816039	隔套	SPACER	1
5	87735	下油封	SEAL Oil Lower	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	816432	止推垫片	THRUST WASHER	1
9	826364F1	下轭架	YOKE Bottom	1
9	826364T	下轭架	YOKE Bottom	1
10	67684	挡圈	RING Retaining	1
11	996301	冲击板	STRIKER PLATE	2
11	8M0045383	冲击板	STRIKER PLATE	2
12	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
13	46335	螺母 (.375-24)	NUT (.375-24)	2
14	826432A2	转向臂旋转销总成-不锈钢	SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel	1
14	8M0132731	旋转销总成	SWIVEL PIN ASSY	1
15	8163861	螺栓(M12x175)	SCREW (M12 x 175)	2
15	8M0000518	螺栓(M12x175)	SCREW (M12 x 175)	2
16	4002321	垫圈(12.80 mm x 24.0 mm x 2.4 mm)不锈钢	WASHER (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel	2
17	4013812	螺母(M12)不锈钢	NUT (M12) Stainless Steel	2
18	92876A10	连杆总成	LINK ROD ASSEMBLY	1
18	92876A12	连杆总成	LINK ROD ASSEMBLY	1
19	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
20	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
20	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
21	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
22	859187A1	调整传感器总成	SENDER ASSEMBLY Trim	1
23	852368	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
24	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
25	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2

图 107节气门联动装置 Throttle Linkage

REF	零件编号	中文名称	英文名称	数量
1	8252682	杠杆	LEVER	1
2	81893460	螺钉 (M8 x 60)	SCREW (M8 x 60)	1
3	887605	衬套	BUSHING	1
4	821113	衬套	BUSHING	1
5	40124	螺钉 (M6 x 55)	SCREW (M6 x 55)	2
6	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
7	42942	盖帽	CAP	2
8	42927	嵌件	INSERT	1
9	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
10	932481	衬套	BUSHING	1
10	8M0215006	旋转衬套	BUSHING Swivel	1
11	884834	连接杆	LINK	1
12	8240102	锚支架	BRACKET Anchor	1
12	824010T05	支架	BRACKET	1
13	824016	闩锁	LATCH	1
14	42975	传动螺钉	DRIVE SCREW	2
15	824015	筒形保持杯	CUP Barrel Retainer	2
16	82155025	螺丝(M8 x 25 mm)不锈钢	SCREW (M8 x 25 mm) Stainless Steel	2
17	43430	垫圈	WASHER	1
18	82155025	螺丝(M8 x 25 mm)不锈钢	SCREW (M8 x 25 mm) Stainless Steel	1
19	896662	滑动支架	BRACKET Slide	1
19	8M0039052	滑动支架	BRACKET Slide	1
20	889514A01	开关	SWITCH	1
20	8M0207794	开关	SWITCH	1
21	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
22	82470620	螺钉 (M3.5 x 20)	SCREW (M3.5 x 20)	2
23	35459	垫圈	WASHER	2
24	883142A03	换挡连杆套件	SHIFT LINK KIT	1
25	8539683	滑块	SLIDE	1
26	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
27	42994	衬套	BUSHING	1
28	8240701	上换挡轴	SHIFT SHAFT Upper	1
28	8M0036408	换挡轴	SHAFT-SHIFT	1
28	8240702	上换挡轴	SHIFT SHAFT Upper	1
28	8M0187153	XL型上换挡轴	SHAFT SHIFT UP XL	1
29	40011113	不锈钢螺丝(M5x45)	SCREW (M5 x 45) Stainless Steel	3
30	8582261	盖板	COVER	1
31	883082	连接杆	LINK	1
31	8M0008111	连接杆	LINK	1
32	883081	杠杆	LEVER	1
33	83295211	油门位置指示器	INDICATOR Throttle Position	1
33	8M6005165	TPI	TPI	1
34	82130025	螺钉(M6x25)	SCREW (M6 x 25)	3
35	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	3
36	834985	护孔环	GROMMET	3
36	8M0190980	护孔环	GROMMET	3
37	856954	衬套	BUSHING	3
38	8544862	支架	BRACKET	1
39	858932	卡扣	CLIP	1
40	858353T5	凸轮总成	CAM ASSEMBLY	1
41	8235694	螺纹球头	BALL Threaded	1
42	932481	衬套	BUSHING	1
42	8M0215006	旋转衬套	BUSHING Swivel	1
43	40011155	不锈钢螺钉(M8x55)	SCREW (M8 x 55) Stainless Steel	1
44	8807371	衬套	BUSHING	1
45	56720	垫圈(0.330×0.750×0.060)不锈钢	WASHER (.330 x .750 x .060) Stainless Steel	1

图 108顶罩 Top Cowl

REF	零件编号	中文名称	英文名称	数量
1	881288T32	顶盖总成	TOP COWL ASSEMBLY	1
2	82130030	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
3	884041A1	隔音毯套装	SOUND BLANKET KIT	1
3	884041A04	隔音毯套装	SOUND BLANKET KIT	1
4	NSS	不单独出售-顶部隔音垫	NOT SOLD SEPARATE Sound Blanket-Top	1
5	NSS	不单独销售隔音垫-左舷	NOT SOLD SEPARATE Sound Blanket-Port	1
6	93702	垫圈(.250外齿星形)	WASHER (.250 External Star)	6
7	826639T	盖板	COVER	1
8	850682T4	后锁钩总成	HOOK ASSEMBLY Rear Latch	2
8	850682A06	支架和手柄套件	BRACKET AND HANDLE KIT	2
9	NSS		NOT SOLD SEPARATE Pin	2
10	8237951	挡圈	RING Retaining	2
11	815263	滚轮	ROLLER	2
11	8M0207770	滚轮@3	ROLLER @3	2
12	850685002	护孔环	GROMMET	1
12	850685T02	护孔环	GROMMET	1
13	821249M2	前支架	BRACKET Front	1
13	8M0036792	支架	BRACKET	1
14	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	2
15	815477	缓冲器锁扣	BUMPER Latch	1
16	8155381	滚动销	PIN Roll	1
17	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
18	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
18	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
19	8237951	挡圈	RING Retaining	1
20	815263	滚轮	ROLLER	1
20	8M0207770	滚轮@3	ROLLER @3	1
21	87161	垫圈	WASHER	1
-	897136A05	贴花套件	DECAL SET	1
-	8M0065133	ORD 8M0114995	ORD 8M0114995	1

图 109艉板支架(舰队/扭矩大师) Transom Brackets (Fleet/Torque Master)

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂接头(左舷)	FITTING Grease (PORT)	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	54012	垫圈(0.530×0.870×0.105不锈钢)	WASHER (.530 x .870 x .105) Stainless Steel	4
10	8M0204665	垫圈(0.530×0.880×0.104 630不锈钢)	WASHER (.530 x .880 x .104) 630 Stainless Steel	4
11	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	99629T2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
4	830899	张力弹簧	SPRING Tension	1
15	65830	尼龙衬套	NYLINER	2
16	830900	压缩弹簧	SPRING Compression	1
17	99633	旋钮	KNOB	1
18	99615	槽销	PIN Groove	1
19	99617	销	PIN	1
19	893709	销	PIN	1
20	96930A1	螺栓总成	BOLT ASSEMBLY	1
21	23161	螺母 (.375-24)	NUT (.375-24)	1
22	88238A10	接地线总成	CABLE ASSEMBLY Ground	2
23	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1

图 110艉板支架(运动大师)(螺栓安装) Transom Brackets (Sportmaster)(Bolt Mounting)

REF	零件编号	中文名称	英文名称	数量
1	847800A1	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	847801A1	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	847801T01	艉板支架-右舷	BRACKET Transom - Starboard	1
3	847798A1	耐磨垫套件	WEAR PAD KIT	1
3	847798A02	耐磨垫套件	WEAR PAD KIT	1
4	86843	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	4
5	87180	螺栓(0.500-20 x 11.00)	BOLT (.500-20 x 11.00)	1
6	88512	卡箍	CLAMP	4
6	75275	卡箍	CLAMP	2
7	88829	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	6
8	858869	螺母 (.875-14)	NUT (.875-14)	1
8	859133	螺母(1.00-14)	NUT (1.00-14)	1
8	82671327	螺母(1.0-14)	NUT (1.0-14)	1
9	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
10	99170A2	倾斜管套件	TUBE KIT Tilt	1
10	826125A1	倾斜管	TILT TUBE	1
11	85035T	隔套	SPACER	1
11	8M0237541	艉板隔套	SPACER Transom	1
12	677552	螺钉(0.500-20 x 6.500)	SCREW (.500-20 x 6.500)	2
12	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	2
12	8M0149747	螺钉	SCREW	2
13	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
13	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
14	82671117	螺母(.500-20)	NUT (.500-20)	4
15	82671317	螺母(.500-20)	NUT (.500-20)	1
16	70732	螺钉 (.250-20 x 2.00)	SCREW (.250-20 x 2.00)	4
17	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
17	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
18	85026T	安装板	PLATE	2
19	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
20	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
20	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
21	54343	螺柱（.312-24 x 1.380）	STUD (.312-24 x 1.380)	4
21	8M0034451	螺柱	STUD	4
22	89949A1	隔板总成	PLATE ASSEMBLY	1
23	843108	垫圈（.330 x .560 x .060）不锈钢	WASHER (.330 x .560 x .060) Stainless Steel	4
24	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	4
25	89024	液压软管	HOSE Hydraulic	1
25	89023	液压软管	HOSE Hydaulic	1
26	96993	液压软管	HOSE Hydraulic	1
26	96994	液压软管	HOSE Hydraulic	1
27	87871	盖板	COVER	1
27	87871T	盖板	COVER	1
28	45507	护孔环	GROMMET	1
29	32866	螺钉 (#10-32 x 2.00) 不锈钢	SCREW (#10-32 x 2.00) Stainless Steel	4
30	87775	衬垫	GASKET	1
31	20878	垫圈	WASHER	4
32	826709106	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4
32	8M0204718	螺母	NUT	4
33	79610A17	配平油缸	TRIM CYLINDER	1
33	79610T28	配平油缸	TRIM CYLINDER	1
33	79610T28	配平油缸	TRIM CYLINDER	1
33	79610A32	配平油缸套件	TRIM CYLINDER KIT	1
34	847724	衬套	BUSHING	2
35	841223	轴承	BEARING	1
36	30316	弹簧	SPRING	2
37	85020T	枢轴销	PIN Pivot	2
38	841199	调整销	PIN Trim	1
38	8220752	调整销	PIN Trim	1
39	822076	固定座	RETAINER	1
40	82671317	螺母(.500-20)	NUT (.500-20)	1
41	8071791	紧定螺钉（.250-20 x .820）	SET SCREW (.250-20 x .820)	1
42	85022	垫圈(2.00 x 1.06 x 0.060)	WASHER (2.00 x 1.06 x .060)	2
43	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
44	54012	垫圈(0.530×0.870×0.105不锈钢)	WASHER (.530 x .870 x .105) Stainless Steel	4
44	8M0204665	垫圈(0.530×0.880×0.104 630不锈钢)	WASHER (.530 x .880 x .104) 630 Stainless Steel	4
-	79879A1	维修套件（用于调整油缸）	REPAIR KIT (For Trim Cylinders)	1

图 111艉板支架(运动大师)(螺柱安装) Transom Bracket (Sportmaster)(Stud Mounting)

REF	零件编号	中文名称	英文名称	数量
1	847800A03	艉板支架总成-左舷	BRACKET ASSEMBLY Transom - Port	1
2	847801A03	艉板支架总成 - 右舷	BRACKET ASSEMBLY Transom - Starboard	1
3	847798A02	耐磨垫套件	WEAR PAD KIT	1
4	86843	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	4
5	843013	螺柱	STUD	2
5	8M0034469	螺柱	STUD	2
6	88512	卡箍	CLAMP	4
7	88829	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	6
8	858869	螺母 (.875-14)	NUT (.875-14)	1
8	859133	螺母(1.00-14)	NUT (1.00-14)	1
8	82671327	螺母(1.0-14)	NUT (1.0-14)	1
9	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
10	826125A1	倾斜管	TILT TUBE	1
11	85035T	隔套	SPACER	1
11	8M0237541	艉板隔套	SPACER Transom	1
12	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	2/4
12	8M0149747	螺钉	SCREW	2/4
12	677552	螺钉(0.500-20 x 6.500)	SCREW (.500-20 x 6.500)	2
13	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
13	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
14	82671117	螺母(.500-20)	NUT (.500-20)	4
15	826709117	螺母(0.500-20)不锈钢	NUT (.500-20) Stainless Steel	2
16	70732	螺钉 (.250-20 x 2.00)	SCREW (.250-20 x 2.00)	4
17	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
17	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
18	85026T	安装板	PLATE	2
19	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
20	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
20	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
21	54343	螺柱（.312-24 x 1.380）	STUD (.312-24 x 1.380)	4
21	8M0034451	螺柱	STUD	4
22	89949A1	隔板总成	PLATE ASSEMBLY	1
23	843108	垫圈（.330 x .560 x .060）不锈钢	WASHER (.330 x .560 x .060) Stainless Steel	4
24	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	4
25	89024001	液压软管总成(10英尺)泵升-左舷艉板	HOSE ASSEMBLY Hydraulic (10 Feet) Pump Up - Port at Transom	1
25	89023001	液压软管总成(10英尺)泵降-右舷艉板	HOSE ASSEMBLY Hydraulic (10 Feet) Pump Down - Starboard at Transom	1
26	96993	液压软管	HOSE Hydraulic	1
26	96994	液压软管	HOSE Hydraulic	1
27	87871	盖板	COVER	1
27	87871T	盖板	COVER	1
28	45507	护孔环	GROMMET	1
29	32866	螺钉 (#10-32 x 2.00) 不锈钢	SCREW (#10-32 x 2.00) Stainless Steel	4
30	87775	衬垫	GASKET	1
31	20878	垫圈	WASHER	4
32	826709106	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4
32	8M0204718	螺母	NUT	4
33	79610T28	配平油缸	TRIM CYLINDER	1
33	79610A32	配平油缸套件	TRIM CYLINDER KIT	1
34	847724	衬套	BUSHING	2
35	841223	轴承	BEARING	1
36	30316	弹簧	SPRING	2
37	85020T	枢轴销	PIN Pivot	2
38	841199	调整销	PIN Trim	1
39	822076	固定座	RETAINER	1
40	82671317	螺母(.500-20)	NUT (.500-20)	1
41	8071791	紧定螺钉（.250-20 x .820）	SET SCREW (.250-20 x .820)	1
42	85022	垫圈(2.00 x 1.06 x 0.060)	WASHER (2.00 x 1.06 x .060)	2
43	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
44	54012	垫圈(0.530×0.870×0.105不锈钢)	WASHER (.530 x .870 x .105) Stainless Steel	4
44	8M0204665	垫圈(0.530×0.880×0.104 630不锈钢)	WASHER (.530 x .880 x .104) 630 Stainless Steel	4
45	54012	垫圈(0.530×0.870×0.105不锈钢)	WASHER (.530 x .870 x .105) Stainless Steel	2
45	8M0204665	垫圈(0.530×0.880×0.104 630不锈钢)	WASHER (.530 x .880 x .104) 630 Stainless Steel	2
46	75275	卡箍	CLAMP	2
-	79879A1	维修套件（用于调整油缸）	REPAIR KIT (For Trim Cylinders)	1

图 112蒸汽分离器组件 Vapor Seperator Components

REF	零件编号	中文名称	英文名称	数量
1	881704T2	盖板套件	COVER KIT	1
2	881740	直通接头	FITTING Straight	1
3	883249	接头	FITTING	1
4	881736	接头	FITTING	1
5	855437A2	泵出口接头套件	FITTING KIT Pump Outlet	1
6	883209	O型圈	O-RING	1
6	8M0062785	O型圈	O-RING	1
7	883219	阀门	VALVE	1
8	883988	弯头	ELBOW	1
9	883220	盖帽	CAP	1
10	883208	堵头	PLUG	1
11	883248	密封件	SEAL	1
12	883252	衬垫	GASKET	1
13	883261	螺钉(M5×0.8)	SCREW (M5 x .8)	1
14	881831	线束总成	WIRE ASSEMBLY	1
15	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	7
16	883253A1	浮子套件	FLOAT KIT	1
17	F10064	轴	SHAFT	1
18	883247A1	进油阀/阀座组件	VALVE/SEAT KIT Inlet	1
19	883223	螺钉(M6 x 16)	SCREW (M6 x 16)	1
20	18458Q4	燃油水分离滤清器	FILTER Fuel-Water Separating	1
21	8285861	探头	PROBE	1
21	8M0204710	探头	PROBE	1
22	883260	挡板	BAFFLE	1
22	889318002	挡板燃油	BAFFLE Fuel	1
23	883223	螺钉(M6 x 16)	SCREW (M6 x 16)	3
24	881705T1	泵套件	PUMP KIT	1
25	855428	套筒	SLEEVE	1
25	8M6000589	套筒	SLEEVE	1
26	881703T2	油杯套件	BOWL KIT	1
27	883248	密封件	SEAL	1
28	855435A1	塞套件	PLUG KIT	1
29	883209	O型圈	O-RING	1
29	8M0062785	O型圈	O-RING	1
30	81893435	螺钉(M8×35)	SCREW (M8 x 35)	3
30	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
31	855362	护孔环	GROMMET	3
31	855362001	护孔环	GROMMET	3
31	855362001	护孔环	GROMMET	3
32	855364	衬套	BUSHING	3
33	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	3
34	16955	螺丝(M6 x 8)	SCREW (M6 x 8)	1
