水星 Mercury 225 EFI PRO MAX/SUPER MAG 0G610104 THRU 0G856999 - 爆炸图零件明细

两冲程电喷 EFI · USA - Cat.# 90-80918498 · 共 48 个部位 · 1902 条零件

1泄放系统 2齿轮箱驱动轴-反转-SportMaster 3艉板支架(短型/离岸型)4ECU总成 5齿轮箱图表-SportMaster 6钥匙开关 7启动电机 8气缸体与端盖 9维修/支撑材料 10艉板支架-长型 11动力升降组件金属马达壳 12簧片阀组与气缸盖 13旋转支架(短型/离岸型)14燃油泵和燃油滤清器 15齿轮箱驱动轴-TorqueMaster 16齿轮箱螺旋桨轴-TorqueMaster型 17齿轮箱驱动轴-标准-SportMaster 18曲轴、活塞及连杆 19液压泵总成 20转向连接套件 21齿轮箱螺旋桨轴-反转-SportMaster 22动力升降组件（塑料马达壳体）23油气分离器组件 24动力升降组件 8M0231193 25旋转支架及转向臂-短型 26驱动轴壳体(离岸型)27排气分隔板及排气板 28艉板支架(长型)29旋转支架(长型)30燃油管理系统 31温度传感器 32齿轮箱螺旋桨轴-标准-SportMaster 33齿轮箱驱动轴-TorqueMaster 34配平电磁阀板 35线束/启动继电器 36油门杆与换挡轴 37机油喷射组件 38下罩 39飞轮、启动电机及点火线圈 40艉板支架-短型 41齿轮箱螺旋桨轴-标准-Sportmaster 42仪表装置 43旋转支架及转向臂-长型 44液压泵和安装支架 45驱动轴壳体 46动力升降倾斜电机 47顶罩 48齿轮箱螺旋桨轴-TorqueMaster

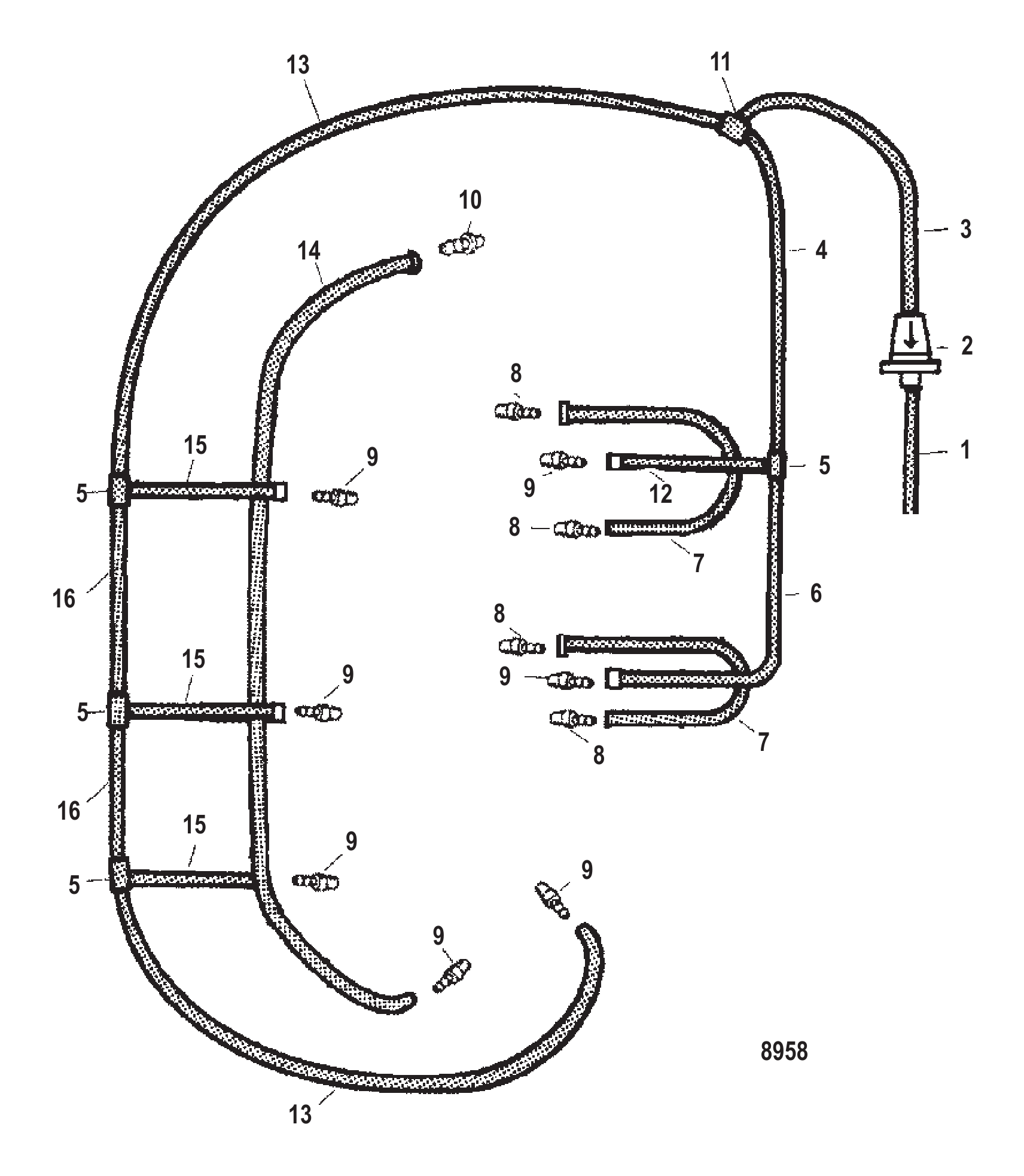

图 1泄放系统 Bleed System

REF	零件编号	中文名称	英文名称	数量
1	9912688	管材(36.00英寸散装)(3-1/4英寸)	TUBING (36.00 Inches Bulk) (3-1/4 IN.)	1
2	18206	滤清器	FILTER	1
3	9912688	管材(36.00英寸散装)(3-1/4英寸)	TUBING (36.00 Inches Bulk) (3-1/4 IN.)	1
4	99130122	管材(20.00英尺散装)(3-1/2英寸)	TUBING (20.00 Feet Bulk) (3-1/2 IN.)	1
5	591692	三通接头	FITTING Tee	4
6	99130122	管材 (20.00英尺散装) (5-1/2英寸)	TUBING (20.00 Feet Bulk) (5-1/2 IN.)	1
7	99130122	管材(20英尺整卷)(9英寸)	TUBING (20.00 Feet Bulk) (9 IN.)	2
8	56759	压入式倒钩接头	FITTING Barbed (PRESS-IN)	4
9	426981	止回阀(压入式-13/16长)	CHECK VALVE (PRESS-IN - 13/16 LONG)	7
10	426231	止回阀(压入式-11/16长)	CHECK VALVE (PRESS-IN - 11/16 LONG)	1
11	18205	三通	TEE	1
12	99130122	管材(20英尺散装)(1.25英寸)	TUBING (20.00 Feet Bulk) (1-1/4 IN.)	1
13	99130122	管材(20英尺整卷)(9英寸)	TUBING (20.00 Feet Bulk) (9 IN.)	2
14	99130122	管材(20.00英尺散装)(19英寸)	TUBING (20.00 Feet Bulk) (19 IN.)	1
15	99130122	管材(20英尺散装)(1英寸)	TUBING (20.00 Feet Bulk) (1 IN.)	3
16	99130122	管材(20英尺整卷)(4.5英寸)	TUBING (20.00 Feet Bulk) (4-1/2 IN.)	2
-	809430T95	动力头总成	POWERHEAD ASSEMBLY	1

图 2齿轮箱驱动轴-反转-SportMaster Gear Housing Driveshaft-Counter-SportMaster

REF	零件编号	中文名称	英文名称	数量
1	15930A15	燃油泵套件	PUMP KIT Fuel	1
2	42990A6	膜片组件	DIAPHRAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve-Rubber	2
4	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
5	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
6	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
10	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
12	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
13	987691	底座衬垫	GASKET BASE	1
13	8M0204705	衬垫@2	GASKET @2	1
14	14868	燃油泵弯头接头	FITTING FUEL PUMP (ELBOW)	1
15	16604	直通接头(0.125-27)燃油泵	FITTING Straight (.125-27) FUEL PUMP	1
16	9912976	油管	TUBING	1
16	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
17	144303	燃油泵底座	BASE FUEL PUMP	1
18	98775A3	燃油泵板	PLATE FUEL PUMP	1
18	987752	安装板	PLATE	1
19	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
20	15979	接头	FITTING	1
21	16452	燃油泵螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) FUEL PUMP	2
22	4000310	燃油泵至曲轴箱螺钉(M5 x 40)	SCREW (M5 x 40) FUEL PUMP TO CRANKCASE	2
23	4002314	燃油泵螺钉垫圈	WASHER FUEL PUMP SCREW	2
24	9072925	脉冲软管	HOSE PULSE	1
25	99751	接头(0.0625-27)黄铜脉冲软管(90度)	FITTING (.0625-27) Brass PULSE HOSE (90 Degree)	1
25	997511	弯头	ELBOW	1
26	1350382	管材(30英寸散装)	TUBING (30.00 Inches Bulk)	2
26	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	2
27	816311		TIE STRAP (8.00 Inches) FUEL TUBING	AR
27	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
28	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
28	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
29	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
30	812782	密封件	SEAL	1
31	813657	支架	BRACKET	1
31	13170A3	底座	BASE	1
32	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
33	28668		SCREW (.250-20 x .875) Stainless Steel FUEL FILTER BASE	2
34	13170A1	燃油滤清器底座	BASE FUEL FILTER	1
34	13170A3	底座	BASE	1
35	13607	底座接头	FITTING BASE	2
35	136071	弯头	ELBOW	2
36	18458A1	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
36	18458Q3	燃油滤清器	FILTER-FUEL	1
37	14570		PROBE WATER SENSING	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 3艉板支架(短型/离岸型) Transom Brackets (Short/Offshore)

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	54012	垫圈(0.530×0.870×0.105不锈钢)	WASHER (.530 x .870 x .105) Stainless Steel	4
10	8M0204665	垫圈(0.530×0.880×0.104 630不锈钢)	WASHER (.530 x .880 x .104) 630 Stainless Steel	4
11	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	99629T2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	830899	张力弹簧	SPRING Tension	1
15	65830	尼龙衬套	NYLINER	2
16	830900	压缩弹簧	SPRING Compression	1
17	99633	旋钮	KNOB	1
18	99615	槽销	PIN Groove	1
19	99617	销	PIN	1
19	893709	销	PIN	1

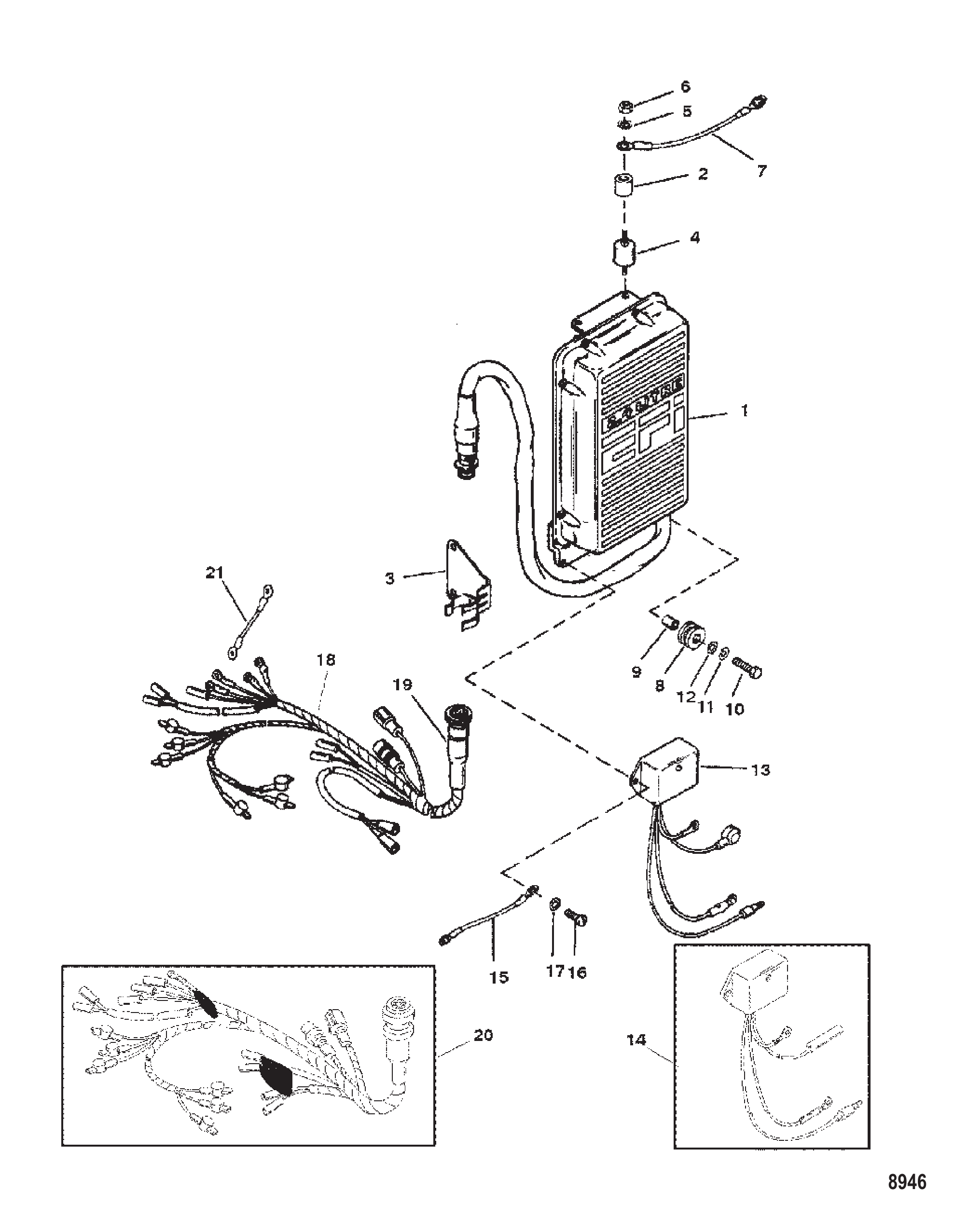

图 4ECU总成 ECU Assembly

REF	零件编号	中文名称	英文名称	数量
1	8240037	发动机控制单元ECU	ECU Engine Control Unit	1
1	824003A7	电控单元	ECU	1
1	8240035	发动机控制单元ECU	ECU Engine Control Unit	1
1	824003A5	电控单元	ECU	1
1	82400313	发动机控制单元ECU	ECU Engine Control Unit	1
1	824003A13	发动机控制单元ECU	ECU Engine Control Unit	1
1	82400311	发动机控制单元ECU	ECU Engine Control Unit	1
1	824003T11	电控单元	ECU	1
1	824003A13	发动机控制单元ECU	ECU Engine Control Unit	1
1	824003A11	发动机控制单元ECU	ECU Engine Control Unit	1
1	824003T11	电控单元	ECU	1
2	34948	隔套	SPACER	2
3	146951	卡扣	CLIP	1
4	90435	支架	MOUNT	2
5	21249	垫圈	WASHER	4
6	20361	螺母(.250-28)	NUT (.250-28)	4
6	8267089	螺母(.250-28)	NUT (.250-28)	4
7	88807A19	拉线总成	CABLE ASSEMBLY	1
8	14637	护孔环	GROMMET	1
9	14636	衬套	BUSHING	1
10	28667	螺钉 (0.250-20 x 1.00) 不锈钢	SCREW (.250-20 x 1.00) Stainless Steel	1
11	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
12	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	1
13	13202A2	水位传感器模块总成	MODULE ASSEMBLY Water Sensor	1
14	13202A4	水位传感器模块总成	MODULE ASSEMBLY Water Sensor	1
15	88807A18	线缆总成(黑色)	CABLE ASSEMBLY (BLACK)	1
16	37571	螺钉(.190-32 x 0.500)	SCREW (.190-32 x .500)	2
17	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
18	98866A14	线束总成	HARNESS ASSEMBLY	1
19	190491	连接环	COUPLE RING	1
20	98866A25	线束总成 ECU与喷油器	HARNESS ASSEMBLY ECU And Injectors	1
21	87895A4	拉线总成	CABLE ASSEMBLY	1

图 5齿轮箱图表-SportMaster Gear Housing Chart SportMaster

REF	零件编号	中文名称	英文名称	数量
1	15930A15	燃油泵套件	PUMP KIT Fuel	1
2	42990A6	膜片组件	DIAPHRAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve-Rubber	2
4	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
5	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
6	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
10	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
12	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
13	987691	底座衬垫	GASKET BASE	1
13	8M0204705	衬垫@2	GASKET @2	1
14	14868	燃油泵弯头接头	FITTING FUEL PUMP (ELBOW)	1
15	16604	直通接头(0.125-27)燃油泵	FITTING Straight (.125-27) FUEL PUMP	1
16	9912976	油管	TUBING	1
16	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
17	144303	燃油泵底座	BASE FUEL PUMP	1
18	98775A3	燃油泵板	PLATE FUEL PUMP	1
18	987752	安装板	PLATE	1
19	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
20	15979	接头	FITTING	1
21	16452	燃油泵螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) FUEL PUMP	2
22	4000310	燃油泵至曲轴箱螺钉(M5 x 40)	SCREW (M5 x 40) FUEL PUMP TO CRANKCASE	2
23	4002314	燃油泵螺钉垫圈	WASHER FUEL PUMP SCREW	2
24	9072925	脉冲软管	HOSE PULSE	1
25	99751	接头(0.0625-27)黄铜脉冲软管(90度)	FITTING (.0625-27) Brass PULSE HOSE (90 Degree)	1
25	997511	弯头	ELBOW	1
26	1350382	管材(30英寸散装)	TUBING (30.00 Inches Bulk)	2
26	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	2
27	816311		TIE STRAP (8.00 Inches) FUEL TUBING	AR
27	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
28	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
28	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
29	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
30	812782	密封件	SEAL	1
31	813657	支架	BRACKET	1
31	13170A3	底座	BASE	1
32	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
33	28668		SCREW (.250-20 x .875) Stainless Steel FUEL FILTER BASE	2
34	13170A1	燃油滤清器底座	BASE FUEL FILTER	1
34	13170A3	底座	BASE	1
35	13607	底座接头	FITTING BASE	2
35	136071	弯头	ELBOW	2
36	18458A1	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
36	18458Q3	燃油滤清器	FILTER-FUEL	1
37	14570		PROBE WATER SENSING	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

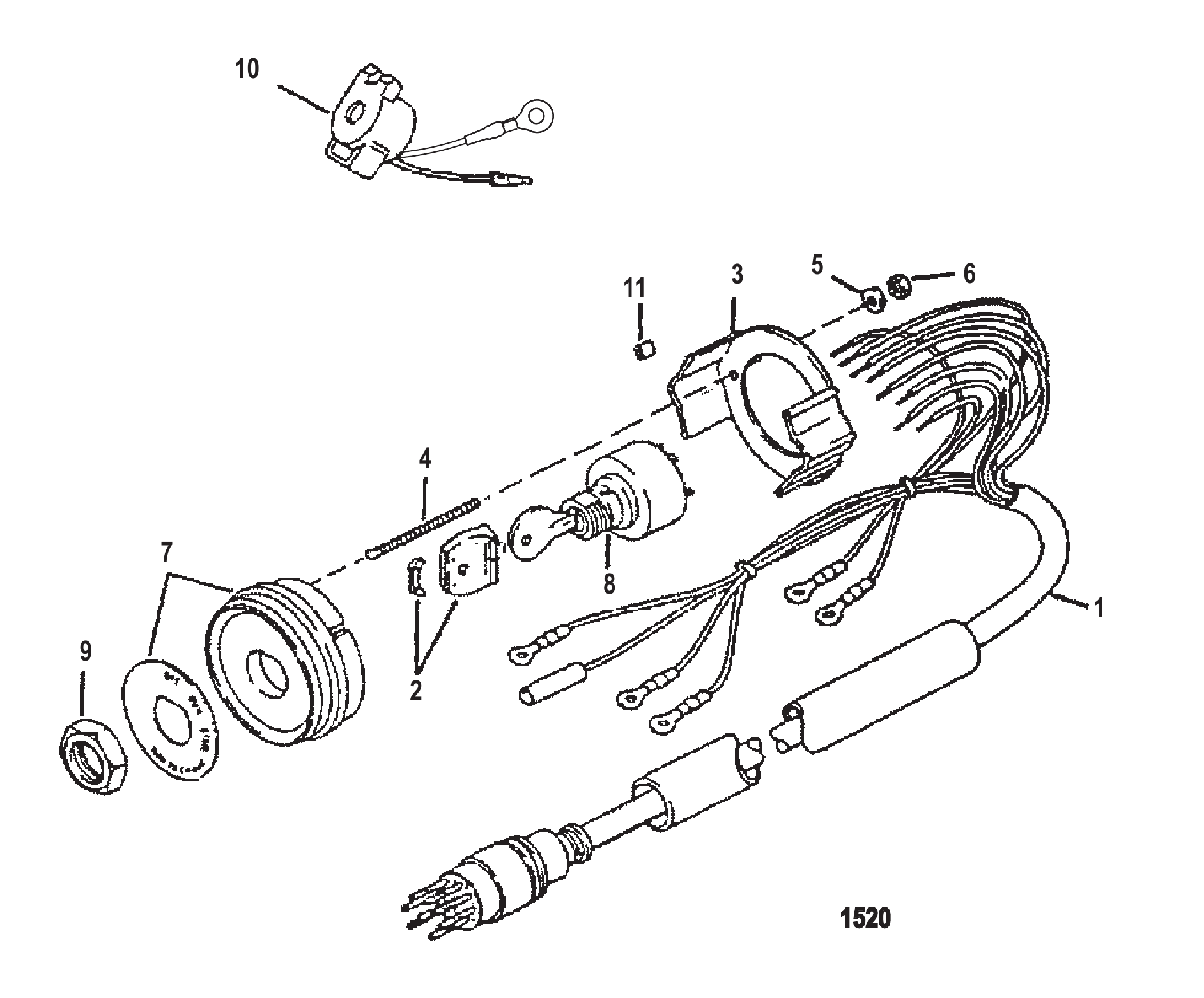

图 6钥匙开关 Key Switch

REF	零件编号	中文名称	英文名称	数量
1	816626A15	线束总成-钥匙开关(15英尺)	HARNESS ASSEMBLY Key Switch (15.00 Feet) (15 FEET)	1
2	90468A1	钥匙盖总成	COVER ASSEMBLY Key	2
3	76424	支架	BRACKET	1
4	55422	双头螺柱 (#10-32 x 2.00)	STUD (#10-32 x 2.00)	2
5	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	2
6	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
7	816479A3	板组件套件	PLATE KIT	2
8	88107		KEY SWITCH (See Below for Key)	1
8	88107A5	钥匙开关套件	SWITCH KIT Key	1
9	93543	特殊螺母-镀铬黄铜	NUT Special - Chrome Brass	1
9	879755	特殊螺母-黑色尼龙	NUT Special - Black Nylon	1
10	816492A1	音响报警器总成	ALARM ASSEMBLY Audio Warning	1
10	8M0210763	报警器	ALARM	1
11	8127111	垫片(0.375)	SPACER (.375)	2
11	812711	隔套(0.250)	SPACER (.250)	2
-	894911	点火钥匙(1A)	KEY Ignition (1A)	1
-	894912	点火钥匙(1B)	KEY Ignition (1B)	1
-	894913	点火钥匙(1C)	KEY Ignition (1C)	1
-	894914	点火钥匙(1D)	KEY Ignition (1D)	1
-	894915	点火钥匙(1E)	KEY Ignition (1E)	1
-	894916	点火钥匙(1F)	KEY Ignition (1F)	1
-	894917	点火钥匙(2A)	KEY Ignition (2A)	1
-	894918	点火钥匙(2B)	KEY Ignition (2B)	1
-	894919	点火钥匙(2C)	KEY Ignition (2C)	1
-	8949110	点火钥匙(2D)	KEY Ignition (2D)	1
-	8949111	点火钥匙(2E)	KEY Ignition (2E)	1
-	8949112	点火钥匙(2F)	KEY Ignition (2F)	1

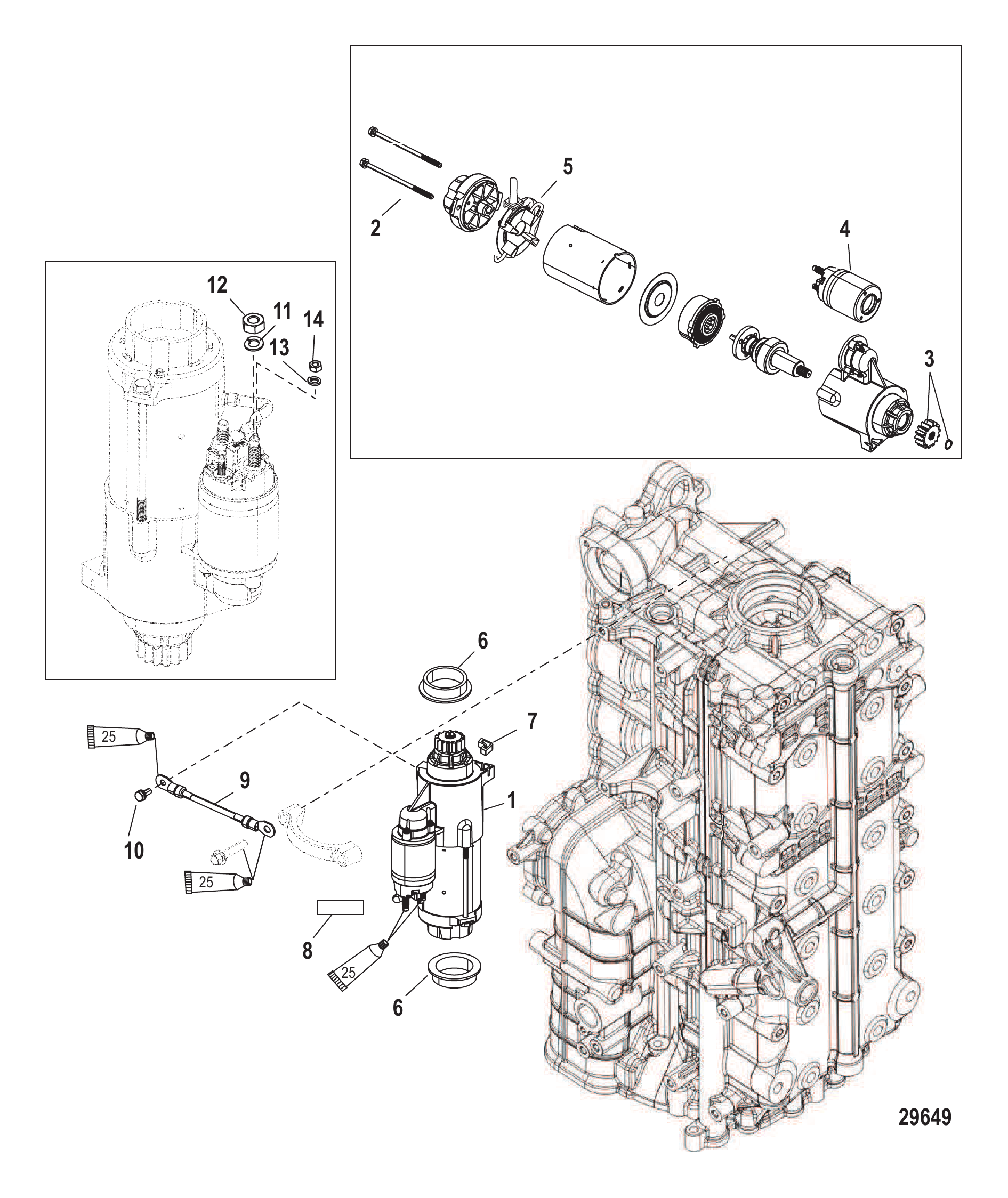

图 7启动电机 Starter Motor

REF	零件编号	中文名称	英文名称	数量
-	NSS	起动机总成(不单独销售)	NOT SOLD SEPARATE Starter Motor Assembly	1
1	892339T01	启动电机总成	STARTER MOTOR ASSEMBLY	1
2	NSS	螺钉组(不单独销售)	NOT SOLD SEPARATE Screws	2
3	880805A1	齿轮套件	GEAR KIT	1
4	809463A1	电磁阀组件	SOLENOID KIT	1
5	8M0065258	电刷组	BRUSH SET	1
6	8M0034918	轴环	COLLAR	2
7	8M0043276	停机开关	STOP	1
8	NSS	高压警告贴纸(不单独销售)	NOT SOLD SEPARATE Decal-Waring-High Voltage	1
9	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
10	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
11	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
12	400213	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
13	400255	锁紧垫圈(M5)	LOCKWASHER (M5)	1
14	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1

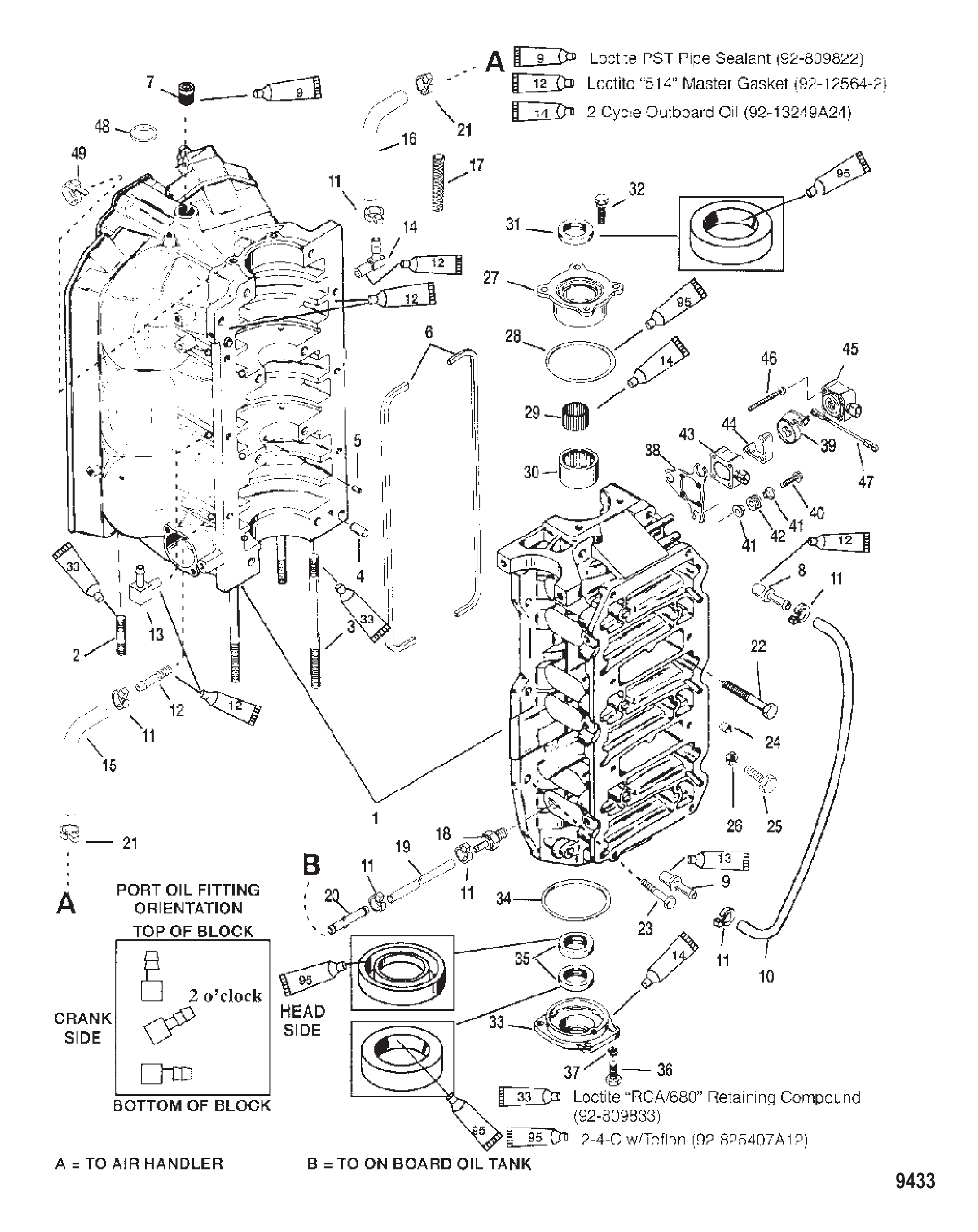

图 8气缸体与端盖 Cylinder Block and End Caps

REF	零件编号	中文名称	英文名称	数量
1	828340A5	气缸体	CYLINDER BLOCK	1
2	8181383	动力头螺柱（1-3/4英寸）	STUD Powerhead (1-3/4 IN.)	6
2	8M0034455	螺柱1.750	STUD 1.750	6
3	670653	双头螺柱（0.375×5.620英寸，5-1/2英寸）	STUD (.375 x 5.620) (5-1/2 IN.)	2
3	670654	螺柱(.375-16/.375-24 x 5.620)	STUD (.375-16/.375-24 x 5.620)	2
3	784384	双头螺栓(.375 x 6.870)(6-3/4英寸)	STUD (.375 x 6.870) (6-3/4 IN.)	2
3	8M0034454	螺柱(.375-16/.375-24 x 6.87)	STUD (.375-16/.375-24 x 6.87)	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	销(轴承座圈)	PIN (BEARING RACE)	2
5	8M0036405	销	PIN	2
6	11338	衬垫	GASKET	2
7	384071	接头(1/2-14)	FITTING (1/2-14) (1/2-14)	1
8	426231	止回阀	CHECK VALVE	1
8	426233	止回阀	CHECK VALVE	1
9	426981	止回阀	CHECK VALVE	1
9	426982	止回阀	CHECK VALVE	1
10	99130122	管材(20英尺整卷)(裁切为19英寸)	TUBING (20.00 Feet Bulk) (Cut to 19 Inches)	1
10	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
11	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	10
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	10
12	852760	直通接头	FITTING (STRAIGHT)	2
13	855622	弯头接头	FITTING (ELBOW)	1
14	8267611	弯头	ELBOW (ELBOW)	3
15	85583445	管材(16英寸)	TUBING (16 IN.)	2
15	85583464	管材 (34.00英寸整卷)	TUBING (34.00 Inches Bulk)	2
15	85583445	管材(20英寸)	TUBING (20 IN.)	1
15	85583464	管材 (34.00英寸整卷)	TUBING (34.00 Inches Bulk)	1
16	85606064	管材(36.00英寸整料)(24-1/2英寸)	TUBING (36.00 Inches Bulk) (24-1/2 IN.)	3
16	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	3
17	828547753	导管(.750内径x3.00英尺整料)(裁切至7英寸)	CONDUIT (.750 Inside Diameter x 3.00 Feet Bulk) (Cut to 7 Inches)	1
18	432781	止回阀	CHECK VALVE	1
18	8781051	止回阀	CHECK VALVE	1
19	830756109	软管(57.00英寸整料)(裁切至11-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 11-1/2 Inches)	1
19	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
20	822769	连接器	CONNECTOR	1
21	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	6
22	66717	螺钉(.375-16 x 3.250)	SCREW (.375-16 x 3.250)	8
23	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	6
24	26852	尼龙帽	CAP Nylon	1
25	856832	螺丝 (.250-20 x 1.750)	SCREW (.250-20 x 1.750)	1
26	64015	螺母 (.250-20)	NUT (.250-20)	1
27	832760A1	上端盖总成	END CAP ASSEMBLY Upper	1
27	832760T1	端盖总成	END CAP ASSEMBLY	1
28	54029	O型圈(2.800 x .103)	O-RING (2.800 x .103)	1
29	16756A4	轴承套件	BEARING KIT	1
30	NSS	不单独销售轴承座圈	NOT SOLD SEPARATE Bearing Race	1
31	41953	密封件	SEAL	1
32	69034	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW AND LOCKWASHER (.312-18 x 1.00)	4
32	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	4
33	7809A1	端盖总成	END CAP ASSEMBLY	1
33	7809T1	端盖总成	END CAP ASSEMBLY	1
34	62700	O型圈(3.237 x .103)	O-RING (3.237 x .103)	1
35	41953	密封件	SEAL	2
36	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
37	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
38	853882	支架	BRACKET	1
38	8538821	节气门位置指示器安装支架	BRACKET Throttle Position Indicator Mount	1
39	8519371	节气门位置指示器杠杆	LEVER Throttle Position Indicator	1
40	82130025	螺钉(M6x25)	SCREW (M6 x 25)	3
41	8318701	衬套	BUSHING	6
42	834985	护孔环	GROMMET	3
42	8M0190980	护孔环	GROMMET	3
43	8M6005905	节气门位置指示器(内侧)	INDICATOR Throttle Position (Inside)	1
44	850882	隔套	SPACER	1
45	8329522	节气门位置指示器(外侧)	INDICATOR Throttle Position (Outside)	1
45	8M6005166	TPI	TPI	1
46	850828	螺钉(#10-32 X 2-3/4英寸)	SCREW (#10-32 X 2-3/4 IN.)	3
47	1938541	油门连杆	LINK Throttle	1
47	8M0084738	连杆总成	LINK ASSY	1
48	NSS	不单独销售序列号塞	NOT SOLD SEPARATE Plug-Serial Number	1
49	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
49	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
-	814754A98	衬垫套件	GASKET SET	1
-	8M0046714	衬垫套件	GASKET SET	1
-	854008A98	动力头总成	POWERHEAD ASSEMBLY	1
-	804545T99	动力头总成	POWERHEAD ASSEMBLY	1

图 9维修/支撑材料 Service/Support Material

REF	零件编号	中文名称	英文名称	数量
-	896280006	零件手册200/225/250/275四冲程Verado	PARTS MANUAL 200/225/250/275 4-Stroke Verado	1
-	896579T00	维修手册	SERVICE MANUAL	1
-	8M0082470	MNL-SERV 200-300V	MNL-SERV 200-300V	1
-	10238060	安装手册	INSTALLATION MANUAL	1
-	10237060	用户手册	OWNERS MANUAL	1
-	10237J60	用户手册(西班牙语)	OWNERS MANUAL Spanish	1
-	10237D60	用户手册(法语)	OWNERS MANUAL French	1
-	895269001	产品指南	PRODUCT GUIDE	1
-	895269002	产品指南	GUIDE-PRODUCT	1
-	895282A06	EPA标签信息贴花	DECAL EPA Label Information	1

图 10艉板支架-长型 Transom Brackets Long

REF	零件编号	中文名称	英文名称	数量
1	885355T03	顶盖总成	TOP COWL ASSEMBLY	1
1	885355T02	顶盖总成	TOP COWL ASSEMBLY	1
1	8M0050000	顶罩-水星型	COWL-TOP MARINER	1
2	885354T	空气导流帽	CAP Air Dam	1
2	885354T01	空气导流帽-水星黑色款	CAP, Air Dam Mercury, Black	1
2	895838T	空气导流帽	CAP Air Dam	1
2	895838T01	空气导流帽-水星型	CAP Air Dam - Mariner	1
3	888971	前锁扣槽	FRONT LATCH RECEIVER	1
4	885545	上罩壳密封件	SEAL Top Cowl	1
4	8M0111178	密封件	SEAL	1
5	888951	电缆	CABLE	1
5	8M0080461	锁扣拉索	CABLE Latch	1
6	888959	铰链销	PIN Hinge	1
7	888956	手控锁杆	LATCH Hand Lever	1
8	895373	弹簧	SPRING	1
9	888955	锁扣连杆	LINK Latch Connecting	1
10	26953	开口销	COTTER PIN	2
11	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
12	888952	联动臂	LINKAGE ARM	2
13	888953	弹簧	SPRING	2
14	822417	销	PIN	2
15	888950020	螺钉(M4x20毫米)(M4x1.75)	SCREW (M4 x 20 mm) (M4 x 1.75)	6
16	888970	左舷饰板(左)	APPLIQUE Port (Port)	1
16	888970A01	饰板套件	APPLIQUE KIT	1
16	895839	左舷饰板(左)	APPLIQUE Port (Port)	1
16	895839A01	饰板套件	APPLIQUE KIT	1
17	888969	右舷饰板(右)	APPLIQUE Starboard (Starboard)	1
17	895840	右舷饰板(右)	APPLIQUE Starboard (Starboard)	1
18	4010610	不锈钢螺钉(M6x10)	SCREW (M6 x 10) Stainless Steel	2
-	892564A05	贴花套件	DECAL SET	1
-	859271A05	贴花套件	DECAL SET	1
-	895252A05	贴花套件	DECAL SET	1
-	895253A05	贴花套件	DECAL SET	1
-	892571A05	贴花套件	DECAL SET	1
-	892571A07	贴花套件(水星200)	DECAL SET (Mariner 200)	1
-	892871A05	贴花套件	DECAL SET	1
-	892871A07	贴花套件(水星225)	DECAL SET (Mariner 225)	1
-	895254A05	贴花套件	DECAL SET	1
-	895254A07	贴花套件(水星250)	DECAL SET (Mariner 250)	1
-	895255A05	贴花套件	DECAL SET	1
-	895255A07	贴花套件(水星275)	DECAL SET (Mariner 275)	1

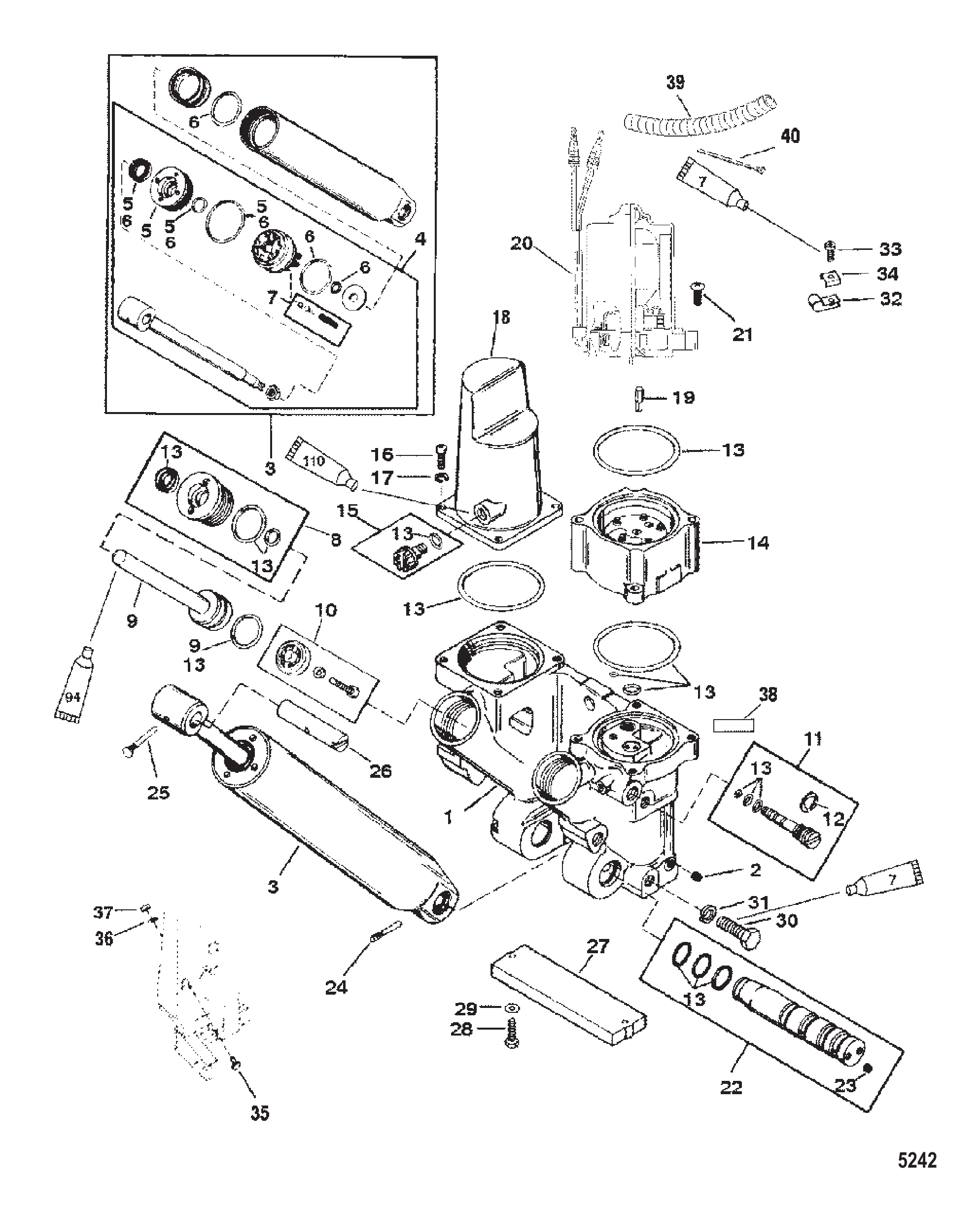

图 11动力升降组件金属马达壳 Power Trim Components Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	826729A2	升降倾斜总成	TRIM AND TILT ASSEMBLY	1
1	811604F	歧管总成	MANIFOLD ASSEMBLY	1
2	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	9
3	823552F	气缸总成	CYLINDER ASSEMBLY	1
3	880952A03	ORD 8M0078330	ORD 8M0078330	1
4	823553	配平活塞杆套件	ROD KIT Trim Piston	1
4	823553T	升降活塞杆	ROD Trim Piston	1
5	811606	导向套件	GUIDE KIT	1
5	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
6	811607A1	维修套件	REPAIR KIT	1
7	811610A1	止回阀套件	CHECK VALVE KIT	1
7	823553T	升降活塞杆	ROD Trim Piston	1
8	99638A1	导向器总成	GUIDE ASSEMBLY	2
8	8M0021648	端盖总成	END CAP ASSEMBLY	2
9	43397A6	动力升降倾斜装置活塞/杆总成	PISTON/ROD ASSEMBLY Power Trim	1
9	878413A1	活塞总成	PISTON ASSEMBLY	1
9	43398A3	动力升降倾斜装置活塞/杆总成	PISTON/ROD ASSEMBLY Power Trim	1
9	878414T01	活塞总成	PISTON ASSEMBLY	1
10	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
11	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
11	893929A01	安全阀套件	VALVE KIT Relief	1
12	812844	E型卡环	E RING	1
12	815949001	E形环	E-RING	1
13	811612A2	O型圈套件	O-RING KIT	1
13	811612A3	O型圈套件	O-RING KIT	1
14	811617F	泵	PUMP	1
14	811617T1	泵	PUMP	1
15	811613	塞子总成	PLUG ASSEMBLY	1
16	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
17	43450	垫圈	WASHER	4
17	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
18	811611	盖板	COVER	1
19	828710	驱动接头	DRIVE JOINT	1
20	828708	电机总成	MOTOR ASSEMBLY	1
20	878265A4	配平电机	TRIM MOTOR	1
21	828709	螺钉 (长)	SCREW (LONG)	2
21	881768A1	螺钉/垫圈套件	SCREW/WASHER KIT	2
21	811616	螺钉 (短)	SCREW (SHORT)	2
22	811614	轴总成	SHAFT ASSEMBLY	1
22	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
23	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
24	44431	槽销	PIN Groove	1
24	878267	销	PIN	1
25	821539	三叶销	PIN Trilobe	1
26	996251	轴	SHAFT	1
26	99625002	轴	SHAFT	1
27	818298A1	阳极套件	ANODE KIT	1
27	818298Q1	阳极套件	ANODE KIT	1
28	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
28	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
29	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
29	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
30	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
31	4002319	垫圈	WASHER	6
32	26550	卡箍	CLAMP	2
33	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
33	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
34	69205	C形垫圈	C WASHER	1
34	8M0084613	C形垫圈	C-WASHER	1
35	996301	冲击板	STRIKER PLATE	2
35	8M0045383	冲击板	STRIKER PLATE	2
36	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
37	46335	螺母 (.375-24)	NUT (.375-24)	2
38	435301	警示贴纸-动力微调	DECAL Caution-Power Trim	1
39	828547353	导管 (.350内径 x 3.00英尺散装)	CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk)	1
40	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
40	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

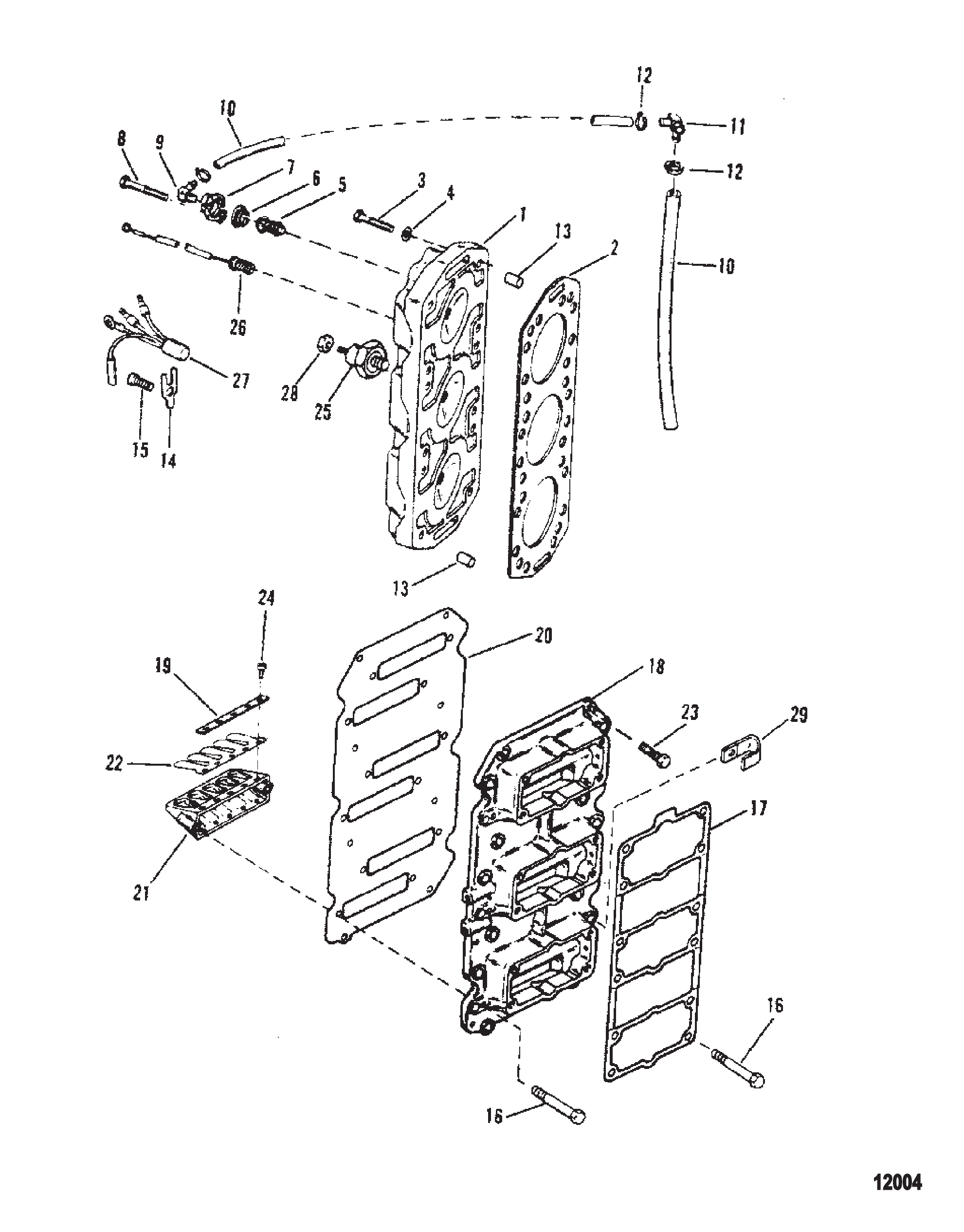

图 12簧片阀组与气缸盖 Reed Block and Cylinder Head

REF	零件编号	中文名称	英文名称	数量
1	18488F1	气缸盖	CYLINDER HEAD	2
2	8228441	衬垫	GASKET	2
2	822844T05	衬垫	GASKET	2
3	98534	螺钉 (.375-16 x 2.30)	SCREW (.375-16 x 2.30)	23
3	827426	螺钉	SCREW	1
4	63779	定位销 (.250 x .625)	PIN Dowel (.250 x .625)	4
5	62386	衬垫	GASKET	2
5	8M0204714	衬垫@4	GASKET @4	2
6	90390A1	盖板套件	COVER KIT	2
7	75692	节温器	THERMOSTAT	2
8	35386	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	4
9	68727	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
9	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
10	77653112	软管(59.00英寸散装)(裁切至12-3/4英寸)	HOSE (59.00 Inches Bulk) (Cut to 12-3/4 IN.)	1
10	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
11	68728	接头	FITTING	1
12	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
13	77653112	软管(59.00英寸散装)(裁切至11-1/2英寸)	HOSE (59.00 Inches Bulk) (Cut to 11-1/2 IN.)	1
13	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
14	77653112	软管(59.00英寸散装)(裁切至7-1/2英寸)	HOSE (59.00 Inches Bulk) (Cut to 7-1/2 IN.)	1
14	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
15	97465		SENDER Temperature (Starboard)	1
16	815914	三通接头	T-FITTING	1
17	13536A6		SENSOR ASSEMBLY Temperature (Port)	1
18	137151	固定座	RETAINER	2
19	98257	螺钉 (.312-18 x .500)	SCREW (.312-18 x .500)	2
20	826858	爆震传感器(200)	SENSOR Knock (200)	1
21	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	1
22	17735A2	适配板总成	ADAPTER PLATE ASSEMBLY	1
23	28668	螺钉 (.250-20 x .875) 不锈钢	SCREW (.250-20 x .875) Stainless Steel	8
24	146972	衬垫	GASKET	1
25	116453	簧片阀组	REED BLOCK	6
25	855952T3	簧片阀总成	REED BLOCK ASSEMBLY	6
26	55098	J型卡扣	J CLIP	1
26	8M0024808	J型夹	J-CLIP	1
27	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	6
28	90197	螺丝（.250-20 x 1.125）	SCREW (.250-20 x 1.125)	6
29	167371	衬垫	GASKET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	823434A97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 13旋转支架(短型/离岸型) Swivel Bracket (Short/Offshore)

REF	零件编号	中文名称	英文名称	数量
1	8710T20	黑色旋转支架总成	SWIVEL BRACKET ASSEMBLY Black	1
2	87735	油封	SEAL Oil	1
3	818764	衬套	BUSHING	2
4	816039	隔套	SPACER	1
5	33504	O型圈	O-RING	1
5	8M0214926	O型圈 @10	O RING @10	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	816432	止推垫片	THRUST WASHER	1
9	78689	螺钉（0.437-20 X 7.50）	SCREW (.437-20 x 7.50)	2
9	8M0176309	螺钉	SCREW	2
10	776981	支架	MOUNT	2
11	78688	垫圈	WASHER	2
12	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
12	8M0204653	螺母	NUT	2
13	92876A10	连杆总成	LINK ROD ASSEMBLY	1
13	92876A12	连杆总成	LINK ROD ASSEMBLY	1
14	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
15	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
15	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
16	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
17	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
17	826432A2	转向臂旋转销总成-不锈钢	SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel	1
18	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
18	878182T	轭架底部-不锈钢	YOKE Bottom - Stainless Steel	1
19	67684	挡圈	RING Retaining	1
20	54457	J型卡扣	J CLIP	1
21	859187A1	调整传感器总成	SENDER ASSEMBLY Trim	1
22	852368	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
23	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
24	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
25	996301	冲击板	STRIKER PLATE	2
25	8M0045383	冲击板	STRIKER PLATE	2
26	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
27	46335	螺母 (.375-24)	NUT (.375-24)	2
28	821180A6	调整传感器总成	SENDER ASSEMBLY Trim	1
28	8M0074846	ORDER 8M0098273	ORDER 8M0098273	1

图 14燃油泵和燃油滤清器 Fuel Pump and Fuel Filter

REF	零件编号	中文名称	英文名称	数量
1	15930A15	燃油泵套件	PUMP KIT Fuel	1
2	42990A6	膜片组件	DIAPHRAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve-Rubber	2
4	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
5	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
6	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
10	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
12	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
13	987691	底座衬垫	GASKET BASE	1
13	8M0204705	衬垫@2	GASKET @2	1
14	14868	燃油泵弯头接头	FITTING FUEL PUMP (ELBOW)	1
15	16604	直通接头(0.125-27)燃油泵	FITTING Straight (.125-27) FUEL PUMP	1
16	9912976	油管	TUBING	1
16	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
17	144303	燃油泵底座	BASE FUEL PUMP	1
18	98775A3	燃油泵板	PLATE FUEL PUMP	1
18	987752	安装板	PLATE	1
19	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
20	15979	接头	FITTING	1
21	16452	燃油泵螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) FUEL PUMP	2
22	4000310	燃油泵至曲轴箱螺钉(M5 x 40)	SCREW (M5 x 40) FUEL PUMP TO CRANKCASE	2
23	4002314	燃油泵螺钉垫圈	WASHER FUEL PUMP SCREW	2
24	9072925	脉冲软管	HOSE PULSE	1
25	99751	接头(0.0625-27)黄铜脉冲软管(90度)	FITTING (.0625-27) Brass PULSE HOSE (90 Degree)	1
25	997511	弯头	ELBOW	1
26	1350382	管材(30英寸散装)	TUBING (30.00 Inches Bulk)	2
26	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	2
27	816311		TIE STRAP (8.00 Inches) FUEL TUBING	AR
27	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
28	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
28	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
29	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
30	812782	密封件	SEAL	1
31	813657	支架	BRACKET	1
31	13170A3	底座	BASE	1
32	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
33	28668		SCREW (.250-20 x .875) Stainless Steel FUEL FILTER BASE	2
34	13170A1	燃油滤清器底座	BASE FUEL FILTER	1
34	13170A3	底座	BASE	1
35	13607	底座接头	FITTING BASE	2
35	136071	弯头	ELBOW	2
36	18458A1	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
36	18458Q3	燃油滤清器	FILTER-FUEL	1
37	14570		PROBE WATER SENSING	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

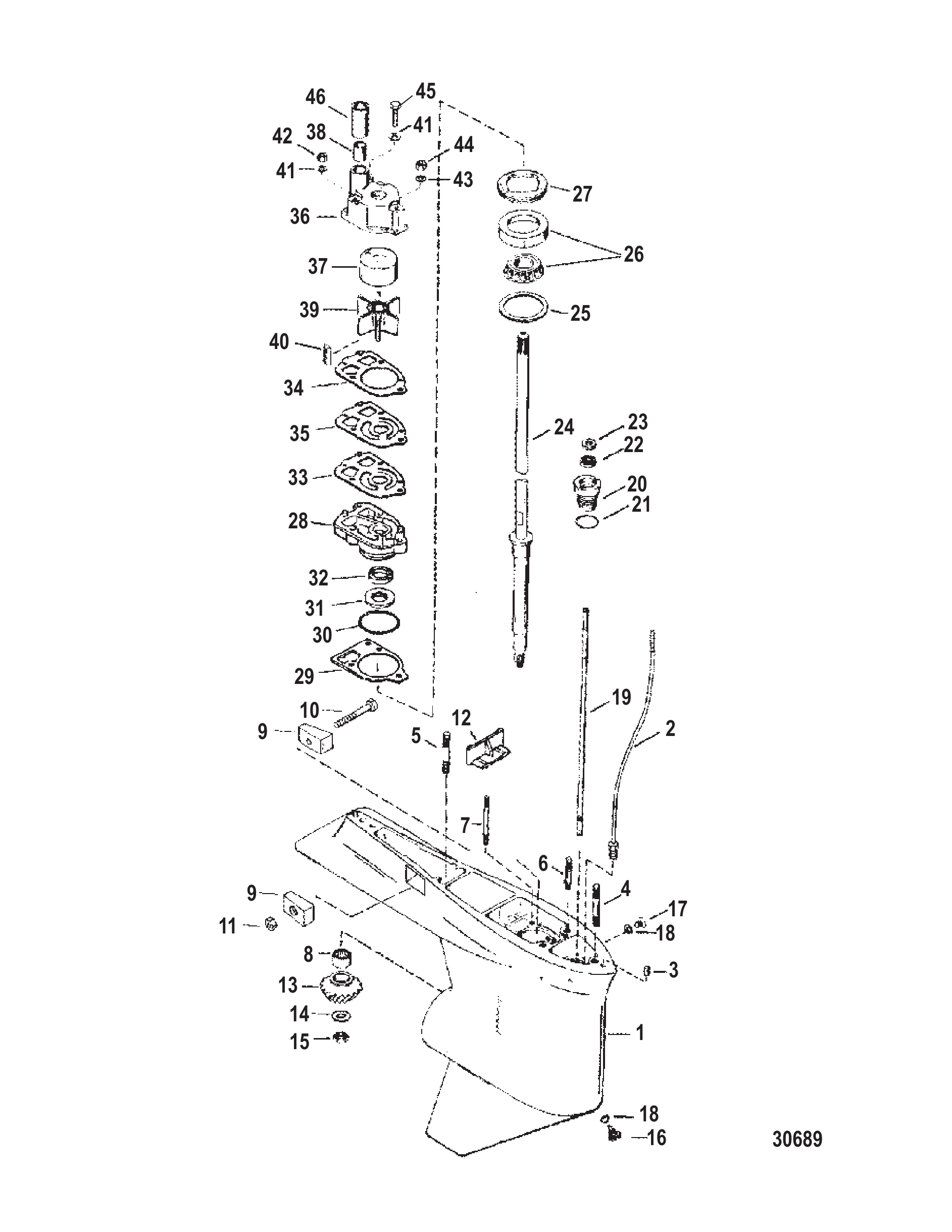

图 15齿轮箱驱动轴-TorqueMaster Gear Housing Driveshaft - TorqueMaster

REF	零件编号	中文名称	英文名称	数量
-	827214T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	827214T16	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	827214T25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
5	579203	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	562972	螺柱(0.312-18/0.324-24×3.380)	STUD (.312-18/.324-24 x 3.380)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	306671	螺柱	STUD	2
8	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	826134Q	阳极块	ANODE	2
10	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
11	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
12	67891	填充块	FILLER BLOCK	1
12	8M0039169	填充块	FILLER BLOCK	1
13	NSS	小齿轮(不单独销售)	NOT SOLD SEPARATE Pinion Gear	1
14	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
15	35921	螺母(0.625-18)	NUT (.625-18)	1
16	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
16	8M0058389	放油螺钉套件	SCREW KIT Drain	1
17	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	1
17	79953Q04	放油螺钉套件	SCREW KIT Drain	1
18	191832	垫圈	WASHER	2
18	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
19	789022	换档轴	SHIFT SHAFT	1
20	77631A2	衬套总成	BUSHING ASSEMBLY	1
21	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
22	8164641	油封	SEAL Oil	1
22	8M0246145	油封	OIL SEAL	1
23	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
24	848449A5	驱动轴总成	DRIVESHAFT ASSEMBLY	1
24	8M0192234	驱动轴	DRIVESHAFT	1
25	42637A1	垫片组	SHIM SET	AR
25	8M0063267	垫片组	SHIM SET	AR
26	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
26	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
27	8245191	固定座	RETAINER	1
28	44292A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
29	426311	衬垫	GASKET	1
29	8M0204678	衬垫	GASKET	1
30	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
30	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
31	89238	油封	SEAL Oil	1
32	16977	油封	SEAL Oil	1
33	18051	衬垫(下部)	GASKET (LOWER)	1
34	858524	衬垫(上部)	GASKET (UPPER)	1
35	32435	面板	FACE PLATE	1
35	8M0204677	面板	PLATE-FACE	1
36	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
37	48752T	嵌件	INSERT	1
38	38970	密封件	SEAL	1
39	89984T4	叶轮	IMPELLER	1
40	56654	键	KEY	1
40	8M0214992	键@5	KEY @5	1
41	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
41	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
42	8267119	螺母(.250-28)	NUT (.250-28)	2
43	36001	垫圈	WASHER	1
44	13436	螺母	NUT	1
45	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
45	8M0215009	螺钉	SCREW	1
46	29804T	套筒	SLEEVE	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	881805A01	发动机垫片组	GASKET SET Engine	1

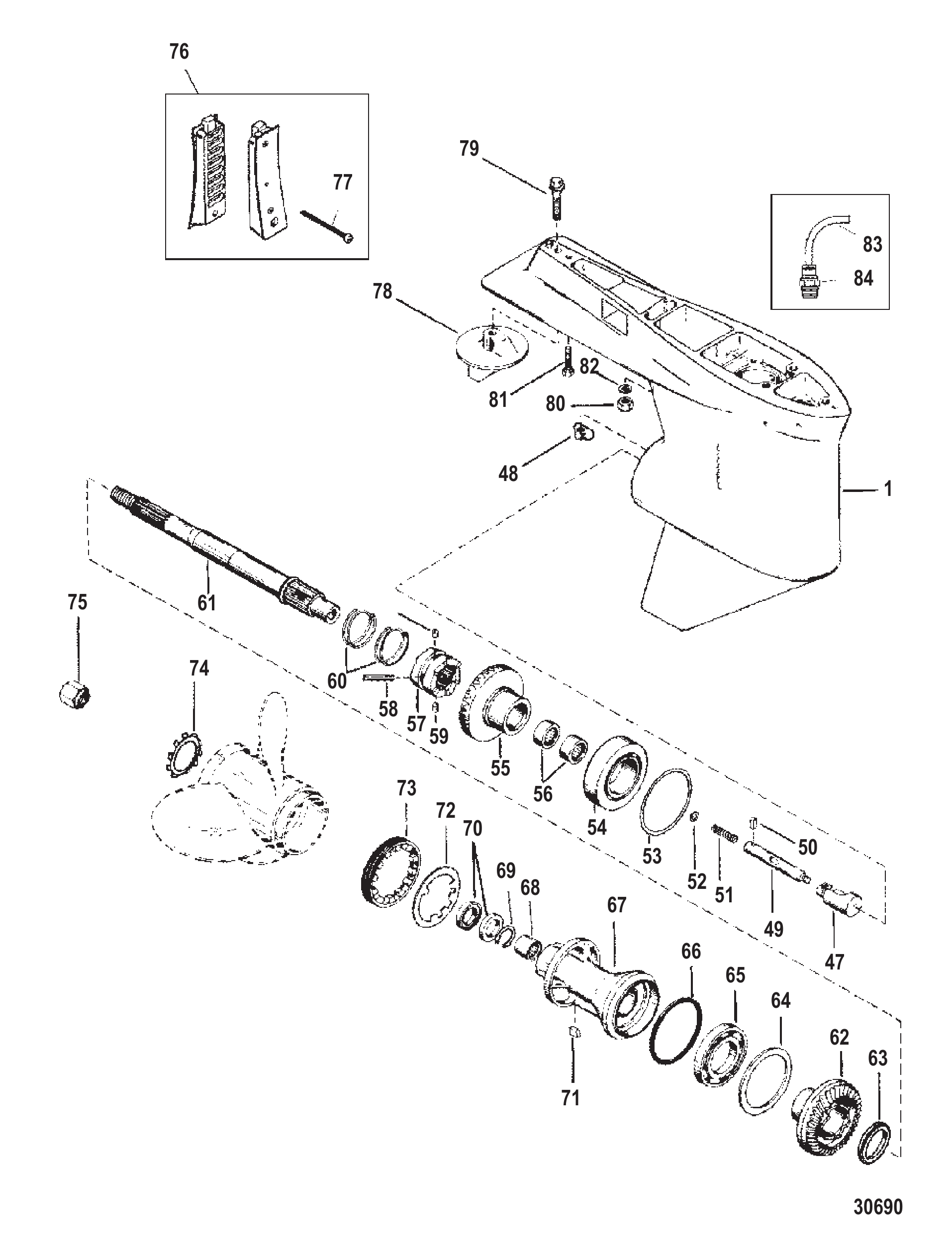

图 16齿轮箱螺旋桨轴-TorqueMaster型 Gear Housing Propeller Shaft - TorqueMaster

REF	零件编号	中文名称	英文名称	数量
-	827214T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	827214T16	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	827214T25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
47	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
48	789562	换挡凸轮	SHIFT CAM	1
49	79911A1	杆	ROD	1
50	78906	销	PIN	1
50	8M0084245	弹簧定位销	PIN Spring Locator	1
51	79910	弹簧	SPRING	2
52	78910	垫圈	WASHER	AR
53	47397A1	垫片组	SHIM SET	AR
54	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
55	44104A7	齿轮组	GEAR SET	1
56	549281	滚柱轴承	BEARING Roller	1
57	42672T	棘轮	RATCHET	1
58	42671	十字销	PIN Cross	1
59	78909	定位销	PIN Detent	2
60	78962	弹簧	SPRING	2
61	840451A2	螺旋桨轴	PROPELLER SHAFT	1
61	840451A03	螺旋桨轴	PROPELLER SHAFT	1
-	840389K5	轮毂套件	HUB KIT	1
-	8M0183487	重型螺旋桨轮毂套件	HUB KIT-HD PROP	1
-	840382A1	缓冲条套件	SNUBBER STRIP KIT	1
-	840382A02	缓冲条套件	SNUBBER STRIP KIT	1
62	822824A1	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
62	8M0192202	倒挡齿轮	GEAR-REVERSE	1
63	822823	推力环	THRUST RING	1
64	681001	止推环	RING Thrust	1
65	88957T	滚珠轴承	BEARING Ball	1
66	31534	O型圈	O-RING	1
66	8M0214920	O型圈	O RING	1
67	848840T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	848840A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	817072	滚柱轴承	BEARING Roller	1
69	817071	卡环	RING Snap	1
70	815565	油封	SEAL Oil	2
71	30281	键	KEY	1
72	79447	锁紧垫圈	TAB WASHER	1
73	79448	固定座	RETAINER	1
73	8M2011027	固定座	RETAINER	1
74	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
75	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
76	832066A1	进水口板套件	PLATE KIT Water Inlet	1
77	188642	螺钉(#8-32 x .500)	SCREW (#8-32 x .500)	4
78	76214Q5	阳极套件	ANODE KIT	1
79	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
80	859116	螺母(.437-20)	NUT (.437-20)	2
81	30206	螺钉(.375-16 x 1.00)不锈钢	SCREW (.375-16 x 1.00) Stainless Steel	1
82	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	2
83	859432	接头	FITTING	1
83	881866	接头	FITTING	1
84	85944975	管材(72英寸整料)(裁切至7英寸)	TUBING (72.00 Inches Bulk) (Cut to 7 IN.)	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 17齿轮箱驱动轴-标准-SportMaster Gear Housing Driveshaft-Standard-SportMaster

REF	零件编号	中文名称	英文名称	数量
1	15930A15	燃油泵套件	PUMP KIT Fuel	1
2	42990A6	膜片组件	DIAPHRAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve-Rubber	2
4	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
5	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
6	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
10	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
12	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
13	987691	底座衬垫	GASKET BASE	1
13	8M0204705	衬垫@2	GASKET @2	1
14	14868	燃油泵弯头接头	FITTING FUEL PUMP (ELBOW)	1
15	16604	直通接头(0.125-27)燃油泵	FITTING Straight (.125-27) FUEL PUMP	1
16	9912976	油管	TUBING	1
16	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
17	144303	燃油泵底座	BASE FUEL PUMP	1
18	98775A3	燃油泵板	PLATE FUEL PUMP	1
18	987752	安装板	PLATE	1
19	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
20	15979	接头	FITTING	1
21	16452	燃油泵螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) FUEL PUMP	2
22	4000310	燃油泵至曲轴箱螺钉(M5 x 40)	SCREW (M5 x 40) FUEL PUMP TO CRANKCASE	2
23	4002314	燃油泵螺钉垫圈	WASHER FUEL PUMP SCREW	2
24	9072925	脉冲软管	HOSE PULSE	1
25	99751	接头(0.0625-27)黄铜脉冲软管(90度)	FITTING (.0625-27) Brass PULSE HOSE (90 Degree)	1
25	997511	弯头	ELBOW	1
26	1350382	管材(30英寸散装)	TUBING (30.00 Inches Bulk)	2
26	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	2
27	816311		TIE STRAP (8.00 Inches) FUEL TUBING	AR
27	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
28	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
28	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
29	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
30	812782	密封件	SEAL	1
31	813657	支架	BRACKET	1
31	13170A3	底座	BASE	1
32	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
33	28668		SCREW (.250-20 x .875) Stainless Steel FUEL FILTER BASE	2
34	13170A1	燃油滤清器底座	BASE FUEL FILTER	1
34	13170A3	底座	BASE	1
35	13607	底座接头	FITTING BASE	2
35	136071	弯头	ELBOW	2
36	18458A1	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
36	18458Q3	燃油滤清器	FILTER-FUEL	1
37	14570		PROBE WATER SENSING	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

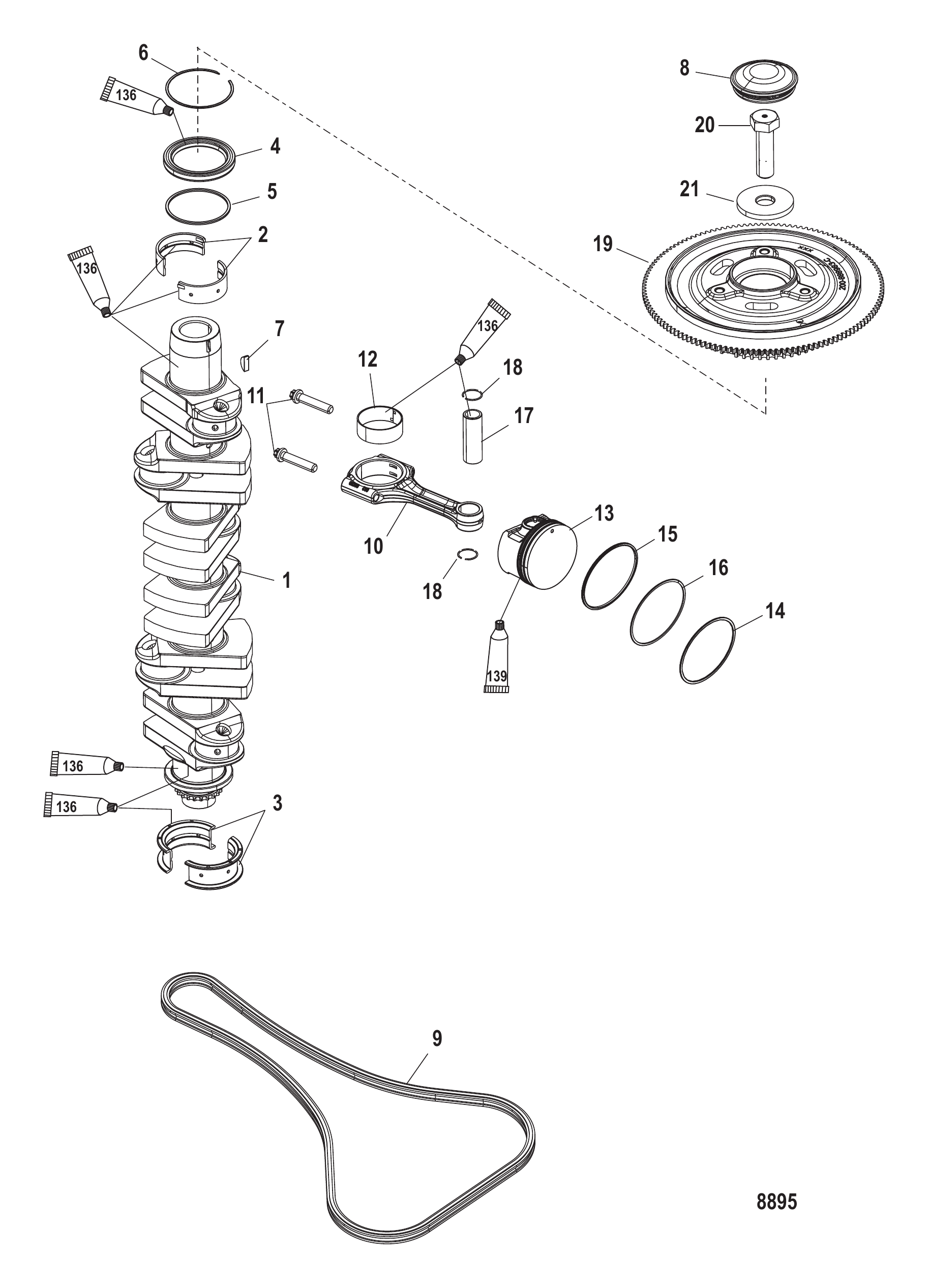

图 18曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	891644A04	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	897498T01	主轴承-绿色(曲轴上端)	BEARING Main - Green Crankshaft-Upper	12/AR
2	897498T02	主轴承-海军蓝(曲轴上端)	BEARING Main - Navy Blue Crankshaft-Upper	12/AR
2	897498T03	主轴承-白色(曲轴上端)	BEARING Main - White Crankshaft-Upper	12/AR
2	897498T04	主轴承-橙色(曲轴上端)	BEARING Main - Orange Crankshaft-Upper	12/AR
3	892309T01	推力轴承-绿色(曲轴下端)	BEARING Thrust - Green Crankshaft-Lower	2/AR
3	8M0117003	轴承	BEARING	2/AR
3	892309T02	推力轴承-海军蓝(曲轴下端)	BEARING Thrust - Navy Blue Crankshaft-Lower	2/AR
3	8M0117001	轴承	BEARING	2/AR
3	892309T03	推力轴承-白色(曲轴下端)	BEARING Thrust - White Crankshaft-Lower	2/AR
3	8M0117002	轴承	BEARING	2/AR
3	892309T04	推力轴承-橙色(曲轴下端)	BEARING Thrust - Orange Crankshaft-Lower	2/AR
3	8M0117004	轴承	BEARING	2/AR
4	8805251	油封(主轴承顶部)	SEAL Top Main Bearing	1
4	8M0032912	密封件	SEAL	1
5	896883	隔套	SPACER	1
6	896882	挡圈	RING Retaining	1
7	91800	半圆键	KEY Woodruff	1
8	885348	飞轮螺栓盖	CAP Flywheel Bolt	1
9	897796	链条(凸轮轴驱动滚子链)	CHAIN Roller Cam Drive	1
9	8M0103398	链条(凸轮轴驱动滚子链)	CHAIN Roller Cam Drive	1
10	881210T02	连杆总成	CONNECTING ROD ASSEMBLY	6
10	8M0103285	连杆总成	CONNECTING ROD ASSEMBLY	6
11	884441	螺栓	BOLT	12
12	892005A01	连杆轴承-蓝色	BEARING Connecting Rod - Blue	12/AR
12	892005A02	连杆轴承-白色	BEARING Connecting Rod - White	12/AR
12	892005A03	连杆轴承-橙色	BEARING Connecting Rod - Orange	12/AR
13	897737T01	活塞总成	PISTON ASSEMBLY	6
13	897737A04	活塞/喷油嘴套件	PISTON/OILJET KIT	6
14	881180A02	活塞环组	RING SET Piston	6
15	NSS	活塞环-油环(不单独销售)	NOT SOLD SEPARATE Piston Ring-Oil	6
16	NSS	活塞环-第二道(不单独销售)	NOT SOLD SEPARATE Piston Ring-2nd	6
17	NSS	活塞销（不单独销售）	NOT SOLD SEPARATE Piston Pin	6
18	881184	卡簧	CIRCLIP	12
19	888983T02	飞轮	FLYWHEEL	1
19	888983T03	飞轮总成	FLYWHEEL ASSEMBLY	1
20	880515	螺栓(M20×68)	BOLT (M20 x 68)	1
20	8M0147042	螺栓	BOLT	1
21	880517	垫圈	WASHER	1
21	8M0090010	垫圈	WASHER	1
-	880552A06	动力头衬垫套件	GASKET SET Powerhead	1
-	880552A07	动力头衬垫套件	GASKET SET Powerhead	1
-	895247A06	动力头总成	POWERHEAD ASSEMBLY	1
-	895247R06	RM L6 GEN1 VERADO	RM L6 GEN1 VERADO	1

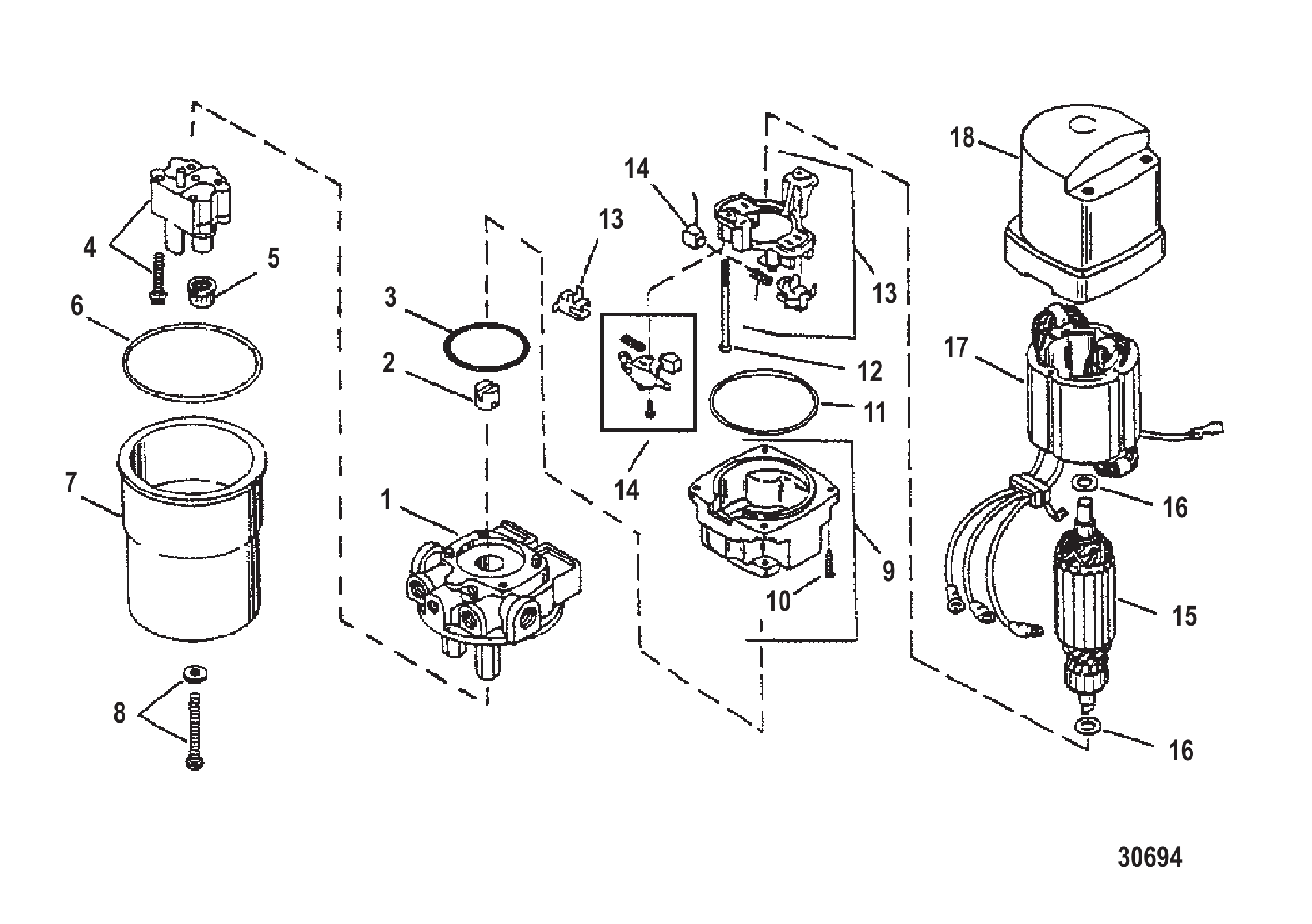

图 19液压泵总成 Hydraulic Pump Assembly

REF	零件编号	中文名称	英文名称	数量
-	846859A1	液压泵总成	PUMP ASSEMBLY Hydraulic	1
1	811491	适配器	ADAPTER	1
1	8M0084543	适配器	ADAPTER	1
2	803852	联轴器	COUPLING	1
3	89498	O型圈	O-RING	1
4	811492T	泵总成(含螺钉)	PUMP ASSEMBLY (INCLUDES SCREWS)	1
5	89496	滤清器	FILTER	2
6	89497	O型圈	O-RING	1
7	41219T	储液罐	RESERVOIR	1
8	811493	螺钉套件	SCREW KIT	1
-	17649T	电机总成	MOTOR ASSEMBLY	1
-	891736T	电机总成	MOTOR ASSEMBLY	1
-	891736T	电机总成	MOTOR ASSEMBLY	1
9	17632T	端盖总成	END CAP ASSEMBLY	1
9	891736T	电机总成	MOTOR ASSEMBLY	1
9	NSS		NOT SOLD SEPARATE END FRAME	1
10	17626	螺钉	SCREW	4
10	891736T	电机总成	MOTOR ASSEMBLY	4
10	891741	螺钉	SCREW	4
11	17625	O型圈	O-RING	1
11	891736T	电机总成	MOTOR ASSEMBLY	1
11	891740	O型圈	O-RING	1
12	17621	螺钉	SCREW	2
12	891736T	电机总成	MOTOR ASSEMBLY	2
12	891739	螺钉	SCREW	2
13	17633	支架套件	HOLDER KIT	1
13	891736T	电机总成	MOTOR ASSEMBLY	1
13	891738	支架总成	HOLDER ASSEMBLY	1
14	17631A1	电刷套件	BRUSH KIT	1
14	891736T	电机总成	MOTOR ASSEMBLY	1
14	891737	电刷套件	BRUSH KIT	1
15	17623	电枢	ARMATURE	1
15	891736T	电机总成	MOTOR ASSEMBLY	1
15	NSS		NOT SOLD SEPARATE ARMATURE	1
16	17653	垫圈	WASHER	2
16	891736T	电机总成	MOTOR ASSEMBLY	2
16	NSS	止推垫片(不单独销售)	NOT SOLD SEPARATE THRUST WASHET	2
17	17624	磁场框架总成	FIELD AND FRAME ASSEMBLY	1
17	891736T	电机总成	MOTOR ASSEMBLY	1
17	NSS	磁场与框架(不单独销售)	NOT SOLD SEPARATE FIELD AND FRAME	1
18	17622	盖总成	COVER ASSEMBLY	1
18	891736T	电机总成	MOTOR ASSEMBLY	1
18	NSS	壳体(不单独销售)	NOT SOLD SEPARATE HOUSING	1
-	812498A1	安全阀套件	VALVE KIT Relief	1

图 20转向连接套件 Steering Attaching Kit

REF	零件编号	中文名称	英文名称	数量
0	92876A8	转向安装套件	ATTACHING KIT Steering	1
1	41055A1	支架总成	BRACKET ASSEMBLY	1
2	71565A2	管总成	TUBE ASSEMBLY	1
3	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
4	821203	锁紧垫圈	LOCKWASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
7	78968	内锁紧垫圈 (.250)	LOCKWASHER Internal (.250)	4
8	850791T	联轴器	COUPLER	1
9	73732	螺钉 (.375-24 x 1.120)	SCREW (.375-24 x 1.120)	2
10	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
11	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	1
11	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1

图 21齿轮箱螺旋桨轴-反转-SportMaster Gear Housing Propeller Shaft-Counter-SportMaster

REF	零件编号	中文名称	英文名称	数量
1	15930A15	燃油泵套件	PUMP KIT Fuel	1
2	42990A6	膜片组件	DIAPHRAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve-Rubber	2
4	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
5	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
6	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
10	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
12	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
13	987691	底座衬垫	GASKET BASE	1
13	8M0204705	衬垫@2	GASKET @2	1
14	14868	燃油泵弯头接头	FITTING FUEL PUMP (ELBOW)	1
15	16604	直通接头(0.125-27)燃油泵	FITTING Straight (.125-27) FUEL PUMP	1
16	9912976	油管	TUBING	1
16	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
17	144303	燃油泵底座	BASE FUEL PUMP	1
18	98775A3	燃油泵板	PLATE FUEL PUMP	1
18	987752	安装板	PLATE	1
19	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
20	15979	接头	FITTING	1
21	16452	燃油泵螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) FUEL PUMP	2
22	4000310	燃油泵至曲轴箱螺钉(M5 x 40)	SCREW (M5 x 40) FUEL PUMP TO CRANKCASE	2
23	4002314	燃油泵螺钉垫圈	WASHER FUEL PUMP SCREW	2
24	9072925	脉冲软管	HOSE PULSE	1
25	99751	接头(0.0625-27)黄铜脉冲软管(90度)	FITTING (.0625-27) Brass PULSE HOSE (90 Degree)	1
25	997511	弯头	ELBOW	1
26	1350382	管材(30英寸散装)	TUBING (30.00 Inches Bulk)	2
26	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	2
27	816311		TIE STRAP (8.00 Inches) FUEL TUBING	AR
27	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
28	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
28	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
29	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
30	812782	密封件	SEAL	1
31	813657	支架	BRACKET	1
31	13170A3	底座	BASE	1
32	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
33	28668		SCREW (.250-20 x .875) Stainless Steel FUEL FILTER BASE	2
34	13170A1	燃油滤清器底座	BASE FUEL FILTER	1
34	13170A3	底座	BASE	1
35	13607	底座接头	FITTING BASE	2
35	136071	弯头	ELBOW	2
36	18458A1	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
36	18458Q3	燃油滤清器	FILTER-FUEL	1
37	14570		PROBE WATER SENSING	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 22动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	8M0168222	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0142591	电机套件	MOTOR KIT	1
2	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
3	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
4	8M0090403	驱动联轴器	COUPLING Drive	1
5	8M0142996	压力检查套件	PO CHECK KIT	1
6	8M0060141	手动释放套件	MANUAL RELEASE KIT	1
7	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
8	878267	销	PIN	1
9	8M0142998	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
9	8M0168220	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
10	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
11	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
12	8M0142592	升降杆套件左舷	TRIM ROD KIT Port	1
13	8M0143001	活塞总成	PISTON ASSEMBLY	1
14	8M0143003	端盖总成	END CAP ASSEMBLY	1
15	878264A1	储液罐套件	RESERVOIR KIT	1
16	811613	塞子总成	PLUG ASSEMBLY	1
17	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
18	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
19	8M0143004	泵套件	PUMP KIT	1
20	8M0148385	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
21	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
22	4002319	垫圈	WASHER	6
23	8M0094889	销	PIN	1
23	8M0161312	连杆销眼总成	PIN ROD EYE ASSEMBLY	1
24	8M0143005	减震杆套件	SHOCK ROD KIT	1
24	8M0168219	减震杆套件	SHOCK ROD KIT	1

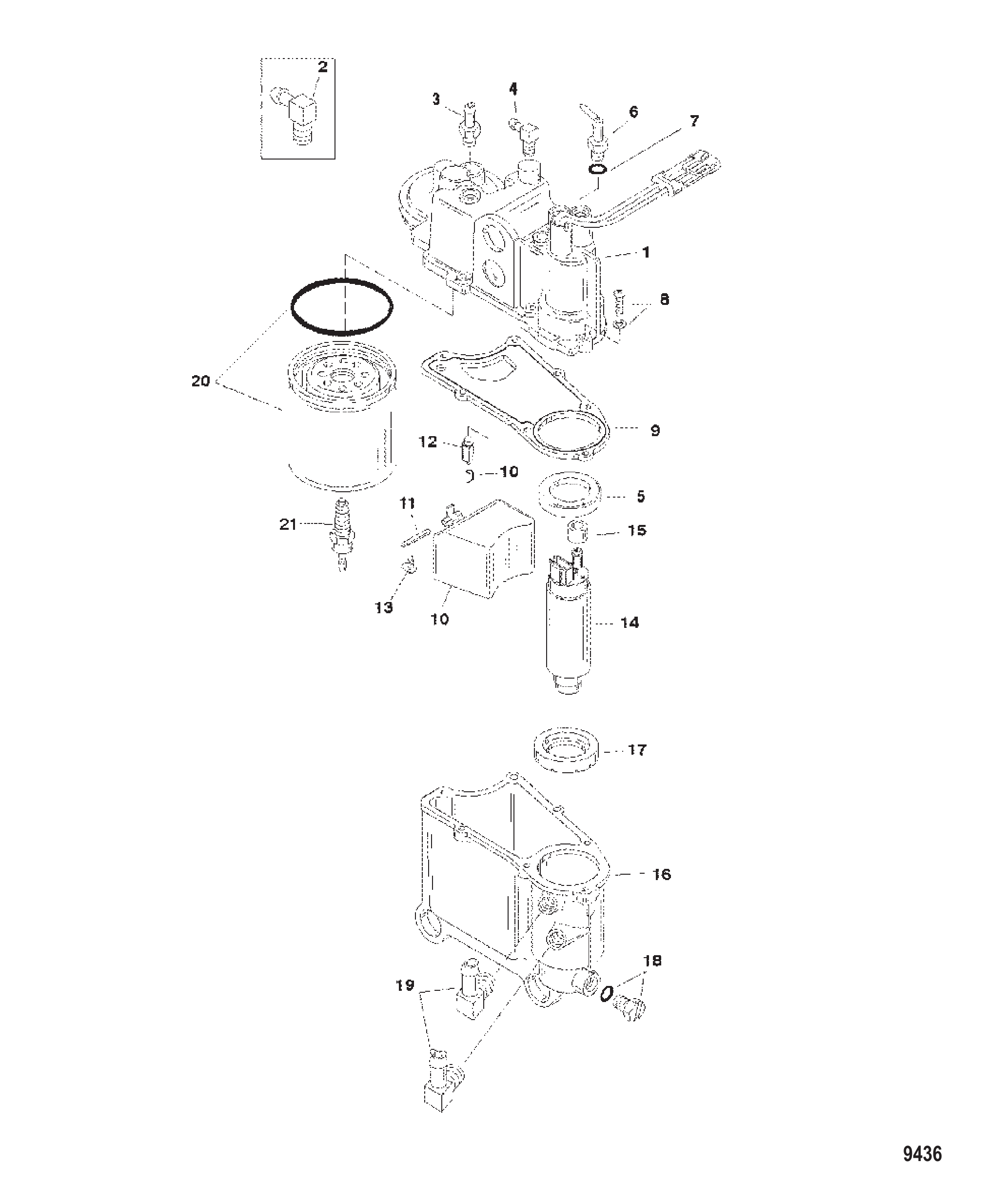

图 23油气分离器组件 Vapor Separator Components

REF	零件编号	中文名称	英文名称	数量
1	855432A1	盖板套件	COVER KIT	1
2	NSS	不单独销售弯头	NOT SOLD SEPARATE Elbow	1
3	8568431	直通接头	FITTING Straight STRAIGHT	1
4	19688	接头	FITTING	1
5	803878	密封件	SEAL	1
6	NSS	不单独销售泵出口配件包	NOT SOLD SEPARATE Fitting Kit-Pump Outlet	1
6	855437A2	泵出口接头套件	FITTING KIT Pump Outlet	1
7	NSS	O型圈（不单独销售）	NOT SOLD SEPARATE O Ring	1
8	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	7
9	855528	衬垫	GASKET	1
9	8M6002520	衬垫套件	GASKET KIT	1
10	855430A1	浮子套件	FLOAT KIT	1
10	8M6004920	浮子套件	FLOAT KIT	1
11	F10064	轴	SHAFT	1
12	855431	针阀	VALVE Needle	1
12	8M6004917	进气阀	VALVE-INLET	1
13	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
14	855427A1	泵套件	PUMP KIT	1
15	855428	套筒	SLEEVE	1
15	8M6000589	套筒	SLEEVE	1
16	855434A1	油杯套件	BOWL KIT	1
17	855433	密封件	SEAL	1
17	8554331	密封件	SEAL	1
18	855435A1	塞套件	PLUG KIT	1
19	8554245	弯头	ELBOW	2
20	18458A4	滤清器套件	FILTER KIT	1
20	18458Q4	燃油水分离滤清器	FILTER Fuel-Water Separating	1
21	828586	探头	PROBE	1
21	8M0204710	探头	PROBE	1

图 24动力升降组件 8M0231193 Power Trim Components 8M0231193

REF	零件编号	中文名称	英文名称	数量
-	8M0231193	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0225363	电机套件	MOTOR KIT	1
2	8M0225369	阀套件	VALVE KIT	1
3	8M0225371	手动释放套件	MANUAL RELEASE KIT	1
4	8M0245633	倾斜油缸套件	TILT CYLINDER KIT	1
5	8M0225370	枢轴销套件	PIVOT PIN KIT	1
6	8M0244575	减震杆套件	SHOCK ROD KIT	1
7	8M0244425	销杆眼套件	PIN ROD EYE KIT	1
8	8M0232231	螺钉螺母套件	SCREW NUT KIT	1
9	8M0225373	记忆活塞套件	MEMORY PISTON KIT	1
10	8M0225368	储液罐套件	RESERVOIR KIT	1
11	8M0174135	储液罐塞总成	PLUG RESERVOIR ASSEMBLY	1
12	8M0237525	泵套件	PUMP KIT	1
13	8M0225367	升降杆套件	TRIM ROD KIT	1
14	8M0242846	升降杆套件	TRIM ROD KIT	1
15	8M0225372	重建套件	REBUILD KIT	1

图 25旋转支架及转向臂-短型 Swivel Bracket and Steering Arm Short

REF	零件编号	中文名称	英文名称	数量
0	92876A8	转向安装套件	ATTACHING KIT Steering	1
1	41055A1	支架总成	BRACKET ASSEMBLY	1
2	71565A2	管总成	TUBE ASSEMBLY	1
3	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
4	821203	锁紧垫圈	LOCKWASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
7	78968	内锁紧垫圈 (.250)	LOCKWASHER Internal (.250)	4
8	850791T	联轴器	COUPLER	1
9	73732	螺钉 (.375-24 x 1.120)	SCREW (.375-24 x 1.120)	2
10	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
11	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	1
11	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1

图 26驱动轴壳体(离岸型) Driveshaft Housing (Offshore)

REF	零件编号	中文名称	英文名称	数量
1	826730A4	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
2	79091	保险丝20安培	FUSE 20 Ampere	1
2	8M0207796	保险丝20安培	FUSE 20 AMP	1
3	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
3	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
4	194372	端子排	TERMINAL BLOCK	1
5	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
6	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
7	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
8	814634	卡箍	CLAMP	1
9	434292	点火板	IGNITION PLATE	1
10	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
11	13669	螺钉(#12-24x2.00)	SCREW (#12-24 x 2.00)	2
12	94453	衬套	BUSHING	2
13	62310A2	拉线总成	CABLE ASSEMBLY	1
14	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	20
15	91865A1	电缆总成(3英寸-白/黑)	CABLE ASSEMBLY (3 IN. - WHITE/BLACK)	1
15	88528A2	电缆总成(6英寸-红/白)	CABLE ASSEMBLY (6 IN. - RED/WHITE)	1
16	60871A10	线束总成	WIRE ASSEMBLY	2
17	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	2
17	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2
18	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
19	87926	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	1
20	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
21	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
21	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
22	36042	垫圈	WASHER	6
23	67264	垫圈(橡胶)	WASHER (Rubber)	6
24	67268	衬套	BUSHING	3
25	88439A23	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
25	88439A34	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
25	88439A24	蓄电池负极电缆总成	CABLE ASSEMBLY Negative - Battery	1
26	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	2
26	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
27	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
28	65999A2	线缆总成(黑色)	CABLE ASSEMBLY Black	1
29	78866	绝缘体	INSULATOR	1
30	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	4
31	817109A2	电磁阀总成(#10-32/.3125-18端子)	SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)	1
32	818968	衬套	BUSHING	2
32	8M0214955	衬套	BUSHING	2
33	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
34	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
35	68292	螺母(.312-18)	NUT (.312-18)	2
35	8M0204668	螺母(.312-18)	NUT (.312-18)	2

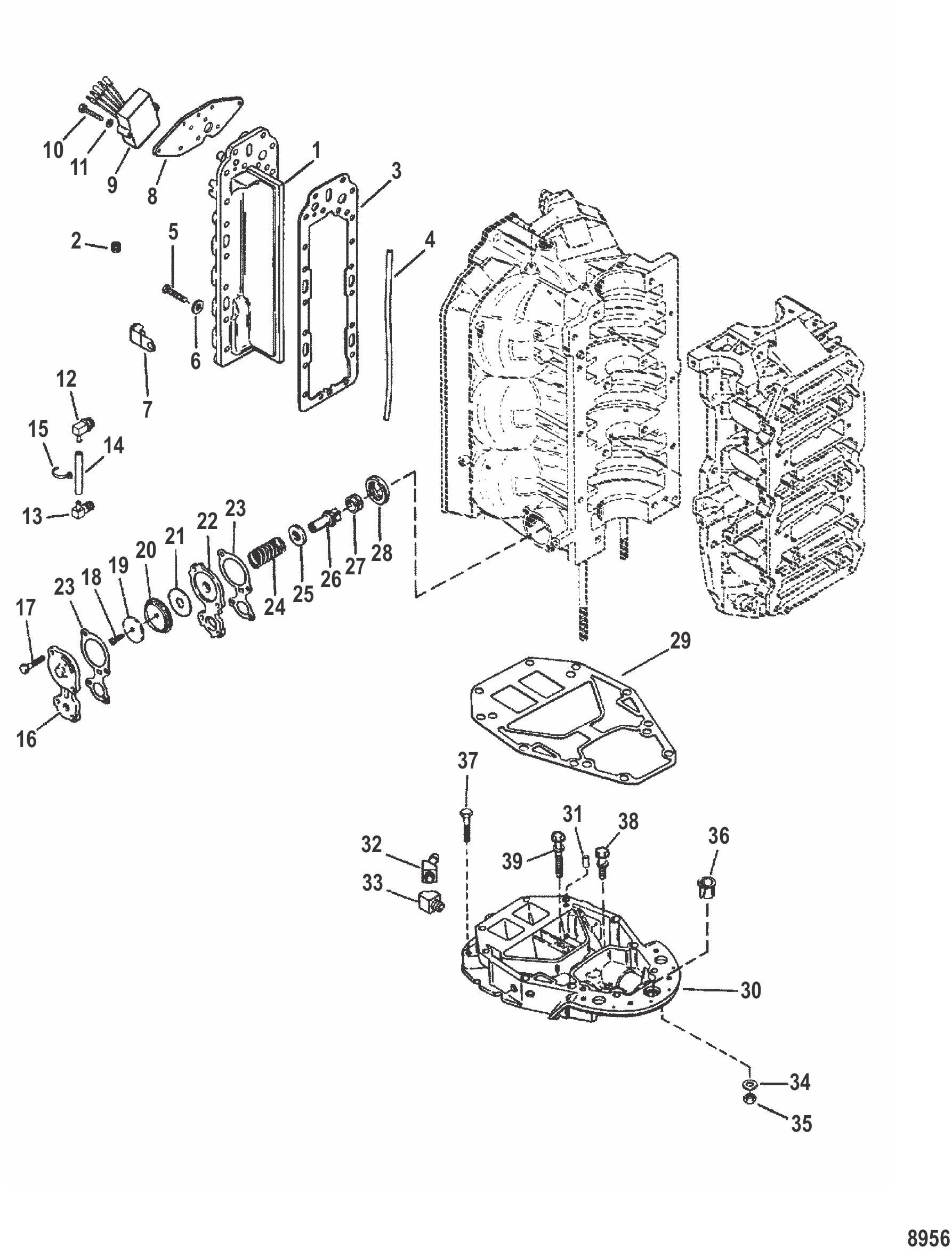

图 27排气分隔板及排气板 Exhaust Divider and Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	815552A1	分隔板	DIVIDER PLATE	1
2	328021	管塞 (.125-27)	PLUG Pipe (.125-27)	1
2	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
3	8475251	衬垫	GASKET	1
3	847525004	衬垫	GASKET	1
4	814754	密封件(12.50英寸)	SEAL (12.50 Inches)	1
5	847538	螺钉	SCREW	18
5	848496	螺钉(0.312-18 x 1.50)	SCREW (.312-18 x 1.50)	18
5	848497	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	2
6	847526	垫圈（适用处使用）	WASHER (USE WHERE APPLICABLE)	20
7	814634	大卡箍	CLAMP (LARGE)	AR
7	642352	小J型夹	J CLIP (SMALL)	1
7	61001	J型卡扣	J CLIP	1
8	8478951	板调节器	PLATE Regulator	1
9	815279T	电压调节器	REGULATOR Voltage	1
9	8M0084173	电压调节器	VOLTAGE REGULATOR	1
10	69697	螺钉(.250-28 x 1.50)	SCREW (.250-28 x 1.50)	4
11	35045	螺母(.250-28)	NUT (.250-28)	4
11	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	4
12	814430	管接头(.500-14)	FITTING (.500-14)	1
12	8144301	接头	FITTING	1
13	92007	管接头(.250-18)(90度)	FITTING (.250-18) (90 DEGREES)	1
13	920071	90度弯头	FITTING (90 Degree)	1
14	830756109	软管（57.00英寸整卷）（裁切至23-1/2英寸）	HOSE (57.00 Inches Bulk) (Cut to 23-1/2 IN.)	1
14	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
15	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
15	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
16	68729	盖板	COVER	1
16	8M0039767	盖板	COVER	1
17	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
18	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
19	76451	垫圈	WASHER	1
20	14479	隔膜	DIAPHRAGM	1
20	144791	隔膜	DIAPHRAGM	1
21	16496	导水板	DEFLECTOR Water	1
22	16497A1	安装板	PLATE	1
23	78690	衬垫	GASKET	2
23	78690002	衬垫	GASKET	2
24	64878	弹簧(黑色)	SPRING (Black)	1
25	85303	垫圈	WASHER	1
26	14480	提动阀	POPPET	1
27	64872	护孔环	GROMMET	1
28	65848	托架	CARRIER	1
29	8231421	衬垫	GASKET	2
29	8231422	衬垫	GASKET	2
30	18260A4	排气板总成	PLATE ASSEMBLY Exhaust	1
31	823106	定位销 (.875)	PIN Dowel (.875)	2
31	8M0043826	定位销	PIN Dowel	2
32	14867	45度弯头	ELBOW 45 Degree (45 DEGREES)	1
33	29085	45度弯管接头	FITTING Elbow (45 Degree)	1
33	8M0123050	45度弯管接头	FITTING Elbow (45 Degree)	1
34	822838	垫圈 (.401 x .745 x .097)	WASHER (.401 x .745 x .097)	6
35	46335	螺母 (.375-24)	NUT (.375-24)	6
36	27132	衬套	BUSHING	1
37	66725	螺钉(.375-16×3.50)	SCREW (.375-16 x 3.50)	3
37	898833	螺钉(.375-16 x 3.500)	SCREW (.375-16 x 3.500)	3
38	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
39	68783	螺钉(.312-18×2.50)	SCREW (.312-18 x 2.50)	1
-	823142A94	衬垫套件	GASKET SET	1
-	809839A94	动力头总成	POWERHEAD ASSEMBLY	1
-	809839T94	PH 150 EFI	PH 150 EFI	1
-	808603A94	动力头总成	POWERHEAD ASSEMBLY	1
-	808603T94	动力头总成	POWERHEAD ASSEMBLY	1

图 28艉板支架(长型) Transom Brackets (Long)

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	54012	垫圈(0.530×0.870×0.105不锈钢)	WASHER (.530 x .870 x .105) Stainless Steel	4
10	8M0204665	垫圈(0.530×0.880×0.104 630不锈钢)	WASHER (.530 x .880 x .104) 630 Stainless Steel	4
11	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	99629T2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	830899	张力弹簧	SPRING Tension	1
15	65830	尼龙衬套	NYLINER	2
16	830900	压缩弹簧	SPRING Compression	1
17	99633	旋钮	KNOB	1
18	99615	槽销	PIN Groove	1
19	99617	销	PIN	1
19	893709	销	PIN	1

图 29旋转支架(长型) Swivel Bracket (Long)

REF	零件编号	中文名称	英文名称	数量
1	8710T20	黑色旋转支架总成	SWIVEL BRACKET ASSEMBLY Black	1
2	87735	油封	SEAL Oil	1
3	818764	衬套	BUSHING	2
4	816039	隔套	SPACER	1
5	33504	O型圈	O-RING	1
5	8M0214926	O型圈 @10	O RING @10	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	816432	止推垫片	THRUST WASHER	1
9	78689	螺钉（0.437-20 X 7.50）	SCREW (.437-20 x 7.50)	2
9	8M0176309	螺钉	SCREW	2
10	776981	支架	MOUNT	2
11	78688	垫圈	WASHER	2
12	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
12	8M0204653	螺母	NUT	2
13	92876A10	连杆总成	LINK ROD ASSEMBLY	1
13	92876A12	连杆总成	LINK ROD ASSEMBLY	1
14	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
15	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
15	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
16	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
17	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
17	826432A2	转向臂旋转销总成-不锈钢	SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel	1
18	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
18	878182T	轭架底部-不锈钢	YOKE Bottom - Stainless Steel	1
19	67684	挡圈	RING Retaining	1
20	54457	J型卡扣	J CLIP	1
21	859187A1	调整传感器总成	SENDER ASSEMBLY Trim	1
22	852368	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
23	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
24	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
25	996301	冲击板	STRIKER PLATE	2
25	8M0045383	冲击板	STRIKER PLATE	2
26	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
27	46335	螺母 (.375-24)	NUT (.375-24)	2
28	821180A6	调整传感器总成	SENDER ASSEMBLY Trim	1
28	8M0074846	ORDER 8M0098273	ORDER 8M0098273	1

图 30燃油管理系统 Fuel Management System

REF	零件编号	中文名称	英文名称	数量
-	14817A23	燃油管理系统总成	MANAGEMENT ASSEMBLY Fuel	1
1	8276922	盖板	COVER	1
2	15443	线束套件	HARNESS KIT	1
3	18792	密封件	SEAL	1
4	15029	O型圈及密封套件	O-RING AND SEAL KIT	1
5	8276992	燃油导轨	FUEL RAIL	1
5	827699T2	燃油导轨	FUEL RAIL	1
6	18715	燃油喷油器	INJECTOR Fuel	6
6	18715T	喷油器总成	INJECTOR ASSEMBLY	6
7	17422	滤清器	FILTER	1
8	827696	固定套件	RETAINER KIT	1
9	8276933	节气门体	THROTTLE BODY	1
10	8090572	接头套件	JOINT KIT	1
11	8276891	连杆套件	LINK KIT	1
12	827697	连杆杠杆套件	LEVER KIT Link	1
13	827698	螺钉套件	SCREW KIT	1
14	8276981	螺钉套件	SCREW KIT	1
15	8090851	弯头套件	ELBOW KIT	1
16	814233A1	施拉德阀套件	SCHRADER VALVE KIT	1
16	814233A02	阀套件	VALVE KIT	1
17	8142332	FMA接头套件	FMA JOINT KIT	1
18	8276942	软管套件	HOSE KIT	1
18	827694A01	软管套件-燃油	HOSE KIT-FUEL	1
19	67748	滚轮	ROLLER	1
20	90088	螺钉(.250-20x4)	SCREW (.250-20 x 4)	12
20	845674	螺钉(.250-20x4.00)	SCREW (.250-20 x 4.00)	12
21	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	10
21	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	10

图 31温度传感器 Temperature Sensor

REF	零件编号	中文名称	英文名称	数量
0	92876A8	转向安装套件	ATTACHING KIT Steering	1
1	41055A1	支架总成	BRACKET ASSEMBLY	1
2	71565A2	管总成	TUBE ASSEMBLY	1
3	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
4	821203	锁紧垫圈	LOCKWASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
7	78968	内锁紧垫圈 (.250)	LOCKWASHER Internal (.250)	4
8	850791T	联轴器	COUPLER	1
9	73732	螺钉 (.375-24 x 1.120)	SCREW (.375-24 x 1.120)	2
10	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
11	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	1
11	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1

图 32齿轮箱螺旋桨轴-标准-SportMaster Gear Housing Propeller Shaft-Standard-SportMaster

REF	零件编号	中文名称	英文名称	数量
1	15930A15	燃油泵套件	PUMP KIT Fuel	1
2	42990A6	膜片组件	DIAPHRAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve-Rubber	2
4	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
5	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
6	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
10	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
12	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
13	987691	底座衬垫	GASKET BASE	1
13	8M0204705	衬垫@2	GASKET @2	1
14	14868	燃油泵弯头接头	FITTING FUEL PUMP (ELBOW)	1
15	16604	直通接头(0.125-27)燃油泵	FITTING Straight (.125-27) FUEL PUMP	1
16	9912976	油管	TUBING	1
16	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
17	144303	燃油泵底座	BASE FUEL PUMP	1
18	98775A3	燃油泵板	PLATE FUEL PUMP	1
18	987752	安装板	PLATE	1
19	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
20	15979	接头	FITTING	1
21	16452	燃油泵螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) FUEL PUMP	2
22	4000310	燃油泵至曲轴箱螺钉(M5 x 40)	SCREW (M5 x 40) FUEL PUMP TO CRANKCASE	2
23	4002314	燃油泵螺钉垫圈	WASHER FUEL PUMP SCREW	2
24	9072925	脉冲软管	HOSE PULSE	1
25	99751	接头(0.0625-27)黄铜脉冲软管(90度)	FITTING (.0625-27) Brass PULSE HOSE (90 Degree)	1
25	997511	弯头	ELBOW	1
26	1350382	管材(30英寸散装)	TUBING (30.00 Inches Bulk)	2
26	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	2
27	816311		TIE STRAP (8.00 Inches) FUEL TUBING	AR
27	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
28	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
28	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
29	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
30	812782	密封件	SEAL	1
31	813657	支架	BRACKET	1
31	13170A3	底座	BASE	1
32	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
33	28668		SCREW (.250-20 x .875) Stainless Steel FUEL FILTER BASE	2
34	13170A1	燃油滤清器底座	BASE FUEL FILTER	1
34	13170A3	底座	BASE	1
35	13607	底座接头	FITTING BASE	2
35	136071	弯头	ELBOW	2
36	18458A1	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
36	18458Q3	燃油滤清器	FILTER-FUEL	1
37	14570		PROBE WATER SENSING	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 33齿轮箱驱动轴-TorqueMaster Gear Housing Driveshaft-TorqueMaster

REF	零件编号	中文名称	英文名称	数量
1	15930A15	燃油泵套件	PUMP KIT Fuel	1
2	42990A6	膜片组件	DIAPHRAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve-Rubber	2
4	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
5	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
6	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
10	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
12	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
13	987691	底座衬垫	GASKET BASE	1
13	8M0204705	衬垫@2	GASKET @2	1
14	14868	燃油泵弯头接头	FITTING FUEL PUMP (ELBOW)	1
15	16604	直通接头(0.125-27)燃油泵	FITTING Straight (.125-27) FUEL PUMP	1
16	9912976	油管	TUBING	1
16	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
17	144303	燃油泵底座	BASE FUEL PUMP	1
18	98775A3	燃油泵板	PLATE FUEL PUMP	1
18	987752	安装板	PLATE	1
19	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
20	15979	接头	FITTING	1
21	16452	燃油泵螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) FUEL PUMP	2
22	4000310	燃油泵至曲轴箱螺钉(M5 x 40)	SCREW (M5 x 40) FUEL PUMP TO CRANKCASE	2
23	4002314	燃油泵螺钉垫圈	WASHER FUEL PUMP SCREW	2
24	9072925	脉冲软管	HOSE PULSE	1
25	99751	接头(0.0625-27)黄铜脉冲软管(90度)	FITTING (.0625-27) Brass PULSE HOSE (90 Degree)	1
25	997511	弯头	ELBOW	1
26	1350382	管材(30英寸散装)	TUBING (30.00 Inches Bulk)	2
26	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	2
27	816311		TIE STRAP (8.00 Inches) FUEL TUBING	AR
27	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
28	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
28	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
29	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
30	812782	密封件	SEAL	1
31	813657	支架	BRACKET	1
31	13170A3	底座	BASE	1
32	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
33	28668		SCREW (.250-20 x .875) Stainless Steel FUEL FILTER BASE	2
34	13170A1	燃油滤清器底座	BASE FUEL FILTER	1
34	13170A3	底座	BASE	1
35	13607	底座接头	FITTING BASE	2
35	136071	弯头	ELBOW	2
36	18458A1	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
36	18458Q3	燃油滤清器	FILTER-FUEL	1
37	14570		PROBE WATER SENSING	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 34配平电磁阀板 Trim Solenoid Plate

REF	零件编号	中文名称	英文名称	数量
1	885355T03	顶盖总成	TOP COWL ASSEMBLY	1
1	885355T02	顶盖总成	TOP COWL ASSEMBLY	1
1	8M0050000	顶罩-水星型	COWL-TOP MARINER	1
2	885354T	空气导流帽	CAP Air Dam	1
2	885354T01	空气导流帽-水星黑色款	CAP, Air Dam Mercury, Black	1
2	895838T	空气导流帽	CAP Air Dam	1
2	895838T01	空气导流帽-水星型	CAP Air Dam - Mariner	1
3	888971	前锁扣槽	FRONT LATCH RECEIVER	1
4	885545	上罩壳密封件	SEAL Top Cowl	1
4	8M0111178	密封件	SEAL	1
5	888951	电缆	CABLE	1
5	8M0080461	锁扣拉索	CABLE Latch	1
6	888959	铰链销	PIN Hinge	1
7	888956	手控锁杆	LATCH Hand Lever	1
8	895373	弹簧	SPRING	1
9	888955	锁扣连杆	LINK Latch Connecting	1
10	26953	开口销	COTTER PIN	2
11	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
12	888952	联动臂	LINKAGE ARM	2
13	888953	弹簧	SPRING	2
14	822417	销	PIN	2
15	888950020	螺钉(M4x20毫米)(M4x1.75)	SCREW (M4 x 20 mm) (M4 x 1.75)	6
16	888970	左舷饰板(左)	APPLIQUE Port (Port)	1
16	888970A01	饰板套件	APPLIQUE KIT	1
16	895839	左舷饰板(左)	APPLIQUE Port (Port)	1
16	895839A01	饰板套件	APPLIQUE KIT	1
17	888969	右舷饰板(右)	APPLIQUE Starboard (Starboard)	1
17	895840	右舷饰板(右)	APPLIQUE Starboard (Starboard)	1
18	4010610	不锈钢螺钉(M6x10)	SCREW (M6 x 10) Stainless Steel	2
-	892564A05	贴花套件	DECAL SET	1
-	859271A05	贴花套件	DECAL SET	1
-	895252A05	贴花套件	DECAL SET	1
-	895253A05	贴花套件	DECAL SET	1
-	892571A05	贴花套件	DECAL SET	1
-	892571A07	贴花套件(水星200)	DECAL SET (Mariner 200)	1
-	892871A05	贴花套件	DECAL SET	1
-	892871A07	贴花套件(水星225)	DECAL SET (Mariner 225)	1
-	895254A05	贴花套件	DECAL SET	1
-	895254A07	贴花套件(水星250)	DECAL SET (Mariner 250)	1
-	895255A05	贴花套件	DECAL SET	1
-	895255A07	贴花套件(水星275)	DECAL SET (Mariner 275)	1

图 35线束/启动继电器 Wiring Harness/Starter Solenoid

REF	零件编号	中文名称	英文名称	数量
1	826730A4	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
2	79091	保险丝20安培	FUSE 20 Ampere	1
2	8M0207796	保险丝20安培	FUSE 20 AMP	1
3	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
3	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
4	194372	端子排	TERMINAL BLOCK	1
5	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
6	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
7	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
8	814634	卡箍	CLAMP	1
9	434292	点火板	IGNITION PLATE	1
10	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
11	13669	螺钉(#12-24x2.00)	SCREW (#12-24 x 2.00)	2
12	94453	衬套	BUSHING	2
13	62310A2	拉线总成	CABLE ASSEMBLY	1
14	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	20
15	91865A1	电缆总成(3英寸-白/黑)	CABLE ASSEMBLY (3 IN. - WHITE/BLACK)	1
15	88528A2	电缆总成(6英寸-红/白)	CABLE ASSEMBLY (6 IN. - RED/WHITE)	1
16	60871A10	线束总成	WIRE ASSEMBLY	2
17	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	2
17	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2
18	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
19	87926	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	1
20	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
21	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
21	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
22	36042	垫圈	WASHER	6
23	67264	垫圈(橡胶)	WASHER (Rubber)	6
24	67268	衬套	BUSHING	3
25	88439A23	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
25	88439A34	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
25	88439A24	蓄电池负极电缆总成	CABLE ASSEMBLY Negative - Battery	1
26	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	2
26	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
27	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
28	65999A2	线缆总成(黑色)	CABLE ASSEMBLY Black	1
29	78866	绝缘体	INSULATOR	1
30	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	4
31	817109A2	电磁阀总成(#10-32/.3125-18端子)	SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)	1
32	818968	衬套	BUSHING	2
32	8M0214955	衬套	BUSHING	2
33	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
34	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
35	68292	螺母(.312-18)	NUT (.312-18)	2
35	8M0204668	螺母(.312-18)	NUT (.312-18)	2

图 36油门杆与换挡轴 Throttle Lever and Shift Shaft

REF	零件编号	中文名称	英文名称	数量
1	850389	杠杆	LEVER	1
2	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
3	55164	衬套	BUSHING	1
4	74759	垫圈(0.391x0.880x0.125)不锈钢	WASHER (.391 x .880 x .125) Stainless Steel	1
5	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	1
6	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
7	64015	螺母 (.250-20)	NUT (.250-20)	1
8	26852	尼龙帽	CAP Nylon	1
9	42927	嵌件	INSERT	1
10	35459	垫圈	WASHER	1
11	8268336	螺母 (M6)	NUT (M6)	1
11	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
12	8503931	凸轮	CAM	1
12	856221A1	凸轮套件	CAM KIT	1
13	852970	衬套	BUSHING	1
14	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	1
15	932481	衬套	BUSHING	2
15	8M0215006	旋转衬套	BUSHING Swivel	2
16	8235694	螺纹球头	BALL Threaded	1
17	850815	连接杆	LINK	1
17	8508152	杆	ROD	1
18	67748	滚轮	ROLLER	1
19	850286	油门滚轮	ROLLER Throttle	1
19	8502861	杠杆	LEVER	1
20	40056107	螺钉(M5×16)	SCREW (M5 x 16)	1
21	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	1
22	69432	外锁紧垫圈(#10)	LOCKWASHER External (#10)	1
23	8142831	锚支架	BRACKET Anchor	1
23	814283T6	锚支架总成	BRACKET ASSEMBLY Anchor	1
24	98889	闩锁	LATCH	1
25	42975	传动螺钉	DRIVE SCREW	2
26	39519	杯套	CUP	1
27	52100	耐磨板	WEAR PLATE	1
28	38279	闩锁	LATCH	1
28	8M0036768	闩锁	LATCH	1
29	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
30	35045	螺母(.250-28)	NUT (.250-28)	1
30	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
31	28782	螺钉(.312-18 x .880)不锈钢	SCREW (.312-18 x .880) Stainless Steel	3
32	814284	导向块	GUIDE BLOCK	1
33	20099	弹簧	SPRING	1
34	67073A1	连杆总成	LINK ROD ASSEMBLY	1
35	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
35	79932A17	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
36	NSS	弹性销(不单独销售)	NOT SOLD SEPARATE Roll Pin	1
37	NSS	不单独销售-换挡轴上杆	NOT SOLD SEPARATE Shift Shaft Lever-Upper	1
38	26856	衬套	BUSHING	1
39	29720	波形垫圈	WAVE WASHER	1
40	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
41	35045	螺母(.250-28)	NUT (.250-28)	1
41	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
42	814281A2	开关	SWITCH	1
42	8M0052931	开关	SWITCH	1
43	77478	螺钉 (#6-32 x .875)	SCREW (#6-32 x .875)	2
44	27882	垫圈	WASHER	2

图 37机油喷射组件 Oil Injection Components

REF	零件编号	中文名称	英文名称	数量
1	12335A1	支架套件	BRACKET KIT	1
2	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1
3	87421	油箱	TANK	1
4	43298A2	盖总成	CAP ASSEMBLY	1
5	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
6	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
7	816190A3	外壳总成适配器	HOUSING ASSEMBLY Adapter	1
7	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
8	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
9	99802	管	TUBE	1
10	99439	软管(114.00英寸)	HOSE (114.00 Inches)	1
11	833069A3	油箱总成	RESERVOIR ASSEMBLY Oil	1
11	8M0062954	储油罐	RESERVOIR, OIL	1
12	NSS	不单独销售标签-储液罐	NOT SOLD SEPARATE Decal-Reservoir	1
13	855362	护孔环	GROMMET	3
13	855362001	护孔环	GROMMET	3
14	49436	垫圈	WASHER	3
15	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
16	855364	衬套	BUSHING	3
17	69267	螺钉 (.312-18 x 1.750)	SCREW (.312-18 x 1.750)	2
18	833155	护孔环	GROMMET	2
19	8502341	衬套	BUSHING	2
20	82381455	管材(25英寸整卷)(裁切为20英寸)	TUBING (25.00 Inches Bulk) (Cut to 20 Inches)	1
21	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
21	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
22	12886A8	开关	SWITCH	1
23	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
24	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
25	8260841	隔套	SPACER	1
26	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	7
26	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	7
27	NSS	不单独销售塞	NOT SOLD SEPARATE Plug	1
28	424254	接头	FITTING	1
28	8M0207780	接头	FITTING	1
29	830756109	软管(57.00英寸散装)(裁切至6英寸)	HOSE (57.00 Inches Bulk) (Cut to 6 Inches)	1
29	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
30	855785	燃油冷却器	COOLER Fuel	1
30	855785A1	燃油冷却器总成	COOLER ASSEMBLY Fuel	1
31	855761	止回阀	CHECK VALVE	1
31	8557611	止回阀	CHECK VALVE	1
32	13791	卡箍(15.7)	CLAMP (15.7)	4
32	8M0214911	卡箍@5	CLAMP @5	4
33	85682239	管材(17英寸整卷)(裁切为3英寸)	TUBING (17.00 Inches Bulk) (Cut to 3 Inches)	1
34	856822A3	软管(带绝缘套管)(30英寸)	HOSE (W/INSULATING SLEEVE) (30 IN.)	1

图 38下罩 Bottom Cowl

REF	零件编号	中文名称	英文名称	数量
1	834814A1	下机罩	BOTTOM COWL	1
1	834814A2	下机罩	BOTTOM COWL	1
2	834815A1	下机罩	BOTTOM COWL	1
2	8M0107322	机罩-底部右舷	COWL-BOTTOM, STBD	1
2	834815A2	下机罩	BOTTOM COWL	1
3	8253181	罩盖密封条(41英寸)	SEAL Cowl (41.00 Inches)	2
3	8M0109217	罩盖密封条	SEAL-COWL	2
4	822024	卡箍	CLAMP	1
5	822023	卡箍	CLAMP	1
6	92799	螺钉(#10-16x1.12)	SCREW (#10-16 x 1.12)	2
7	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	4
8	831209	固定座	RETAINER	1
9	821908	堵头	PLUG	1
10	821915	垫圈	WASHER	1
11	821963	止回阀	CHECK VALVE	1
11	8219631	止回阀	CHECK VALVE	1
12	30641	O型圈(0.299x0.103)	O-RING (.299 x .103)	1
13	821952	接头	FITTING	1
14	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
14	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
15	8320782	软管	HOSE	1
15	8M0039077	成型软管	HOSE-MOLDED	1
16	850896	卡箍 (28.6)	CLAMP (28.6)	2
17	8320763	接头	FITTING	1
18	821904	示流器接头	FITTING Tell-Tale	1
18	8M0077650	示流器接头	FITTING Tell-Tale	1
19	828216	怠速排气套	IDLE EXHAUST BOOT Exhaust	1
19	889847	怠速排气套	BOOT Idle Exhaust	1
20	817519A1	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	2
21	850691	开关	SWITCH	1
21	8M0235192	微调开关	SWITCH TRIM	1
22	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
23	821253F1	前手柄黑色	FRONT HANDLE Black	1
23	889740A02	手柄套件	HANDLE KIT	1
23	821253F2	前手柄	FRONT HANDLE	1
23	889740A02	手柄套件	HANDLE KIT	1
24	335891	衬套	BUSHING	2
25	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
26	8219423	棘爪	PAWL	1
27	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	1
28	401196	螺母 (M6)	NUT (M6)	1
29	8214281	螺钉(#10-16x0.625)	SCREW (#10-16 x .625)	1
30	822873	卡扣	CLIP	1

图 39飞轮、启动电机及点火线圈 Flywheel, Starter Motor and Ignition Coils

REF	零件编号	中文名称	英文名称	数量
1	18896A1	盖板套件	COVER KIT	1
2	79022	标记	MARKER	1
3	37572	螺钉 (.190-32 x .380)	SCREW (.190-32 x .380)	2
4	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	2
5	89219	塞（适用时使用）	PLUG (USE WHERE APPLICABLE)	1
5	89219001	堵头	PLUG	1
6	45907	黄色塞	PLUG Yellow	1
7	52901	螺母(0.625-18)	NUT (.625-18)	1
8	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
8	33001	垫圈	WASHER	1
9	817632A12	飞轮	FLYWHEEL	1
9	859238T16	飞轮总成	FLYWHEEL ASY	1
10	9610A27	定子	STATOR	1
11	90045	螺钉(#10-32×1.375)	SCREW (#10-32 x 1.375)	4
12	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	4
13	96455A9	触发板总成	PLATE ASSEMBLY Trigger	1
14	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
14	893893	启动马达	STARTER MOTOR	1
15	56703	轴环	COLLAR	2
15	8M0034918	轴环	COLLAR	2
16	68042	橡胶止挡	STOP Rubber	2
16	8M0043376	停机开关	STOP	2
17	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
18	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
19	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
20	20890	螺母 (.250-20)	NUT (.250-20)	1
21	69739A7	线束总成	HARNESS ASSEMBLY	1
22	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	6
22	8M0230859	点火线圈总成	COIL IGNITION ASY	6
22	7370A19	点火线圈总成	COIL ASSEMBLY Ignition	6
22	8M0230859	点火线圈总成	COIL IGNITION ASY	6
22	832757A4	线圈套件	COIL KIT	6
22	8M0230859	点火线圈总成	COIL IGNITION ASY	6
23	79743	盖板	COVER	3
24	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	12
25	30164	垫圈(0.192x0.375x0.0312)不锈钢	WASHER (.192 x .375 x .0312) Stainless Steel	12
26	88807A6	电缆总成（3.50英寸）黑色	CABLE ASSEMBLY (3.50 Inches) Black (BLACK)	6
27	68513	螺钉(#10-32x.375)不锈钢	SCREW (#10-32 x .375) Stainless Steel	6
28	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	18
29	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	12
30	136862	火花塞	SPARK PLUG	6
30	13686Q	NGK BU8H @10	NGK BU8H @10	6
31	815358A1	点火电缆组	CABLE SET Ignition	1

图 40艉板支架-短型 Transom Brackets Short

REF	零件编号	中文名称	英文名称	数量
1	885355T03	顶盖总成	TOP COWL ASSEMBLY	1
1	885355T02	顶盖总成	TOP COWL ASSEMBLY	1
1	8M0050000	顶罩-水星型	COWL-TOP MARINER	1
2	885354T	空气导流帽	CAP Air Dam	1
2	885354T01	空气导流帽-水星黑色款	CAP, Air Dam Mercury, Black	1
2	895838T	空气导流帽	CAP Air Dam	1
2	895838T01	空气导流帽-水星型	CAP Air Dam - Mariner	1
3	888971	前锁扣槽	FRONT LATCH RECEIVER	1
4	885545	上罩壳密封件	SEAL Top Cowl	1
4	8M0111178	密封件	SEAL	1
5	888951	电缆	CABLE	1
5	8M0080461	锁扣拉索	CABLE Latch	1
6	888959	铰链销	PIN Hinge	1
7	888956	手控锁杆	LATCH Hand Lever	1
8	895373	弹簧	SPRING	1
9	888955	锁扣连杆	LINK Latch Connecting	1
10	26953	开口销	COTTER PIN	2
11	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
12	888952	联动臂	LINKAGE ARM	2
13	888953	弹簧	SPRING	2
14	822417	销	PIN	2
15	888950020	螺钉(M4x20毫米)(M4x1.75)	SCREW (M4 x 20 mm) (M4 x 1.75)	6
16	888970	左舷饰板(左)	APPLIQUE Port (Port)	1
16	888970A01	饰板套件	APPLIQUE KIT	1
16	895839	左舷饰板(左)	APPLIQUE Port (Port)	1
16	895839A01	饰板套件	APPLIQUE KIT	1
17	888969	右舷饰板(右)	APPLIQUE Starboard (Starboard)	1
17	895840	右舷饰板(右)	APPLIQUE Starboard (Starboard)	1
18	4010610	不锈钢螺钉(M6x10)	SCREW (M6 x 10) Stainless Steel	2
-	892564A05	贴花套件	DECAL SET	1
-	859271A05	贴花套件	DECAL SET	1
-	895252A05	贴花套件	DECAL SET	1
-	895253A05	贴花套件	DECAL SET	1
-	892571A05	贴花套件	DECAL SET	1
-	892571A07	贴花套件(水星200)	DECAL SET (Mariner 200)	1
-	892871A05	贴花套件	DECAL SET	1
-	892871A07	贴花套件(水星225)	DECAL SET (Mariner 225)	1
-	895254A05	贴花套件	DECAL SET	1
-	895254A07	贴花套件(水星250)	DECAL SET (Mariner 250)	1
-	895255A05	贴花套件	DECAL SET	1
-	895255A07	贴花套件(水星275)	DECAL SET (Mariner 275)	1

图 41齿轮箱螺旋桨轴-标准-Sportmaster Gear Housing Propeller Shaft-Standard-Sportmaster

REF	零件编号	中文名称	英文名称	数量
-	827214T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	827214T16	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	827214T25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
47	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
48	789562	换挡凸轮	SHIFT CAM	1
49	79911A1	杆	ROD	1
50	78906	销	PIN	1
50	8M0084245	弹簧定位销	PIN Spring Locator	1
51	79910	弹簧	SPRING	2
52	78910	垫圈	WASHER	AR
53	47397A1	垫片组	SHIM SET	AR
54	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
55	44104A7	齿轮组	GEAR SET	1
56	549281	滚柱轴承	BEARING Roller	1
57	42672T	棘轮	RATCHET	1
58	42671	十字销	PIN Cross	1
59	78909	定位销	PIN Detent	2
60	78962	弹簧	SPRING	2
61	840451A2	螺旋桨轴	PROPELLER SHAFT	1
61	840451A03	螺旋桨轴	PROPELLER SHAFT	1
-	840389K5	轮毂套件	HUB KIT	1
-	8M0183487	重型螺旋桨轮毂套件	HUB KIT-HD PROP	1
-	840382A1	缓冲条套件	SNUBBER STRIP KIT	1
-	840382A02	缓冲条套件	SNUBBER STRIP KIT	1
62	822824A1	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
62	8M0192202	倒挡齿轮	GEAR-REVERSE	1
63	822823	推力环	THRUST RING	1
64	681001	止推环	RING Thrust	1
65	88957T	滚珠轴承	BEARING Ball	1
66	31534	O型圈	O-RING	1
66	8M0214920	O型圈	O RING	1
67	848840T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	848840A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	817072	滚柱轴承	BEARING Roller	1
69	817071	卡环	RING Snap	1
70	815565	油封	SEAL Oil	2
71	30281	键	KEY	1
72	79447	锁紧垫圈	TAB WASHER	1
73	79448	固定座	RETAINER	1
73	8M2011027	固定座	RETAINER	1
74	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
75	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
76	832066A1	进水口板套件	PLATE KIT Water Inlet	1
77	188642	螺钉(#8-32 x .500)	SCREW (#8-32 x .500)	4
78	76214Q5	阳极套件	ANODE KIT	1
79	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
80	859116	螺母(.437-20)	NUT (.437-20)	2
81	30206	螺钉(.375-16 x 1.00)不锈钢	SCREW (.375-16 x 1.00) Stainless Steel	1
82	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	2
83	859432	接头	FITTING	1
83	881866	接头	FITTING	1
84	85944975	管材(72英寸整料)(裁切至7英寸)	TUBING (72.00 Inches Bulk) (Cut to 7 IN.)	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 42仪表装置 Instrumentation

REF	零件编号	中文名称	英文名称	数量
1	19674A1	拉绳开关总成	SWITCH ASSEMBLY Lanyard	1
2	18303	螺钉 (.190-16 x 1.750) 不锈钢	SCREW (.190-16 x 1.750) Stainless Steel	2
3	813679	适配器	ADAPTER	1
4	15920A54	拉绳总成	LANYARD ASSEMBLY	1
4	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
5	32866	螺钉 (#10-32 x 2.00) 不锈钢	SCREW (#10-32 x 2.00) Stainless Steel	2
6	18321	安装夹	CLAMP Mounting	1
7	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	2
8	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4
9	79146	固定座	RETAINER	3
10	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	16
10	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	16
11	812497A2	二极管总成	DIODE ASSEMBLY	1
11	898289A72	双拉绳二极管套件	DIODE KIT-LANYARD Dual	1
12	11149A2	线缆总成 (6.00英寸)	CABLE ASSEMBLY (6.00 Inches)	1
13	835360A2	警报仪表套件	WARNING GAUGE KIT	1
13	859699A1	警报仪表套件	GAUGE KIT-WARNING	1
14	850020	卡箍	CLAMP	1
15	825361	星形锁紧垫圈(#8)	LOCKWASHER Star (#8)	1
16	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	2
17	15163	灯	LAMP	4
18	79888	灯泡插座	SOCKET Light Bulb	4
19	835359A1	电缆总成(20.00英尺)	CABLE ASSEMBLY (20.00 Feet)	1

图 43旋转支架及转向臂-长型 Swivel Bracket and Steering Arm Long

REF	零件编号	中文名称	英文名称	数量
0	92876A8	转向安装套件	ATTACHING KIT Steering	1
1	41055A1	支架总成	BRACKET ASSEMBLY	1
2	71565A2	管总成	TUBE ASSEMBLY	1
3	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
4	821203	锁紧垫圈	LOCKWASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
7	78968	内锁紧垫圈 (.250)	LOCKWASHER Internal (.250)	4
8	850791T	联轴器	COUPLER	1
9	73732	螺钉 (.375-24 x 1.120)	SCREW (.375-24 x 1.120)	2
10	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
11	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	1
11	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1

图 44液压泵和安装支架 Hydraulic Pump and Mounting Brackets

REF	零件编号	中文名称	英文名称	数量
-	846859A4	液压泵总成(完整)	PUMP ASSEMBLY Hydraulic (COMPLETE)	1
1	846859A1	液压泵总成	PUMP ASSEMBLY Hydraulic	1
1	8M0051203	配平泵总成	PUMP ASSY-TRIM	1
2	818567	支架	BRACKET	1
3	38837	螺钉(.312-18×1.12)	SCREW (.312-18 x 1.12)	1
4	57792	垫圈	WASHER	2
5	34948	隔套	SPACER	1
6	65999A12	接地线总成	CABLE ASSEMBLY Ground	1
7	79138A9	电缆总成(6英尺)黑色负极	CABLE ASSEMBLY (6.00 Feet) Black-Negative (NEGATIVE)	1
8	92051	螺钉（10-16 x 0.75）	SCREW (10-16 x .75)	2
9	79147A5	线束总成	HARNESS ASSEMBLY	1
10	79091	保险丝20安培	FUSE 20 Ampere	1
10	8M0207796	保险丝20安培	FUSE 20 AMP	1
11	88075	固定座	RETAINER	1
12	853654A1	电磁阀	SOLENOID	2
13	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	4
14	20110	螺母 (#10-32)	NUT (#10-32)	4
15	859119	螺母(5/16-18)	NUT (5/16-18)	4
15	8M0204646	螺母(.312-18)	NUT (.312-18)	4
16	79023A10	保险丝总成110安培	FUSE ASSEMBLY 110 Ampere	1
16	79023T10	保险丝总成110安培	FUSE ASSEMBLY 110 Ampere	1
17	96457	酚醛垫圈(.27×.81×.062)	WASHER Phenolic (.27 x .81 x .062)	1
18	21825	螺母(.250-28)	NUT (.250-28)	1
19	65999A11	拉线总成	CABLE ASSEMBLY	1
20	79139A12	电缆总成红色正极	CABLE ASSEMBLY Red-Positive (POSITIVE)	1
21	46265	护套	BOOT	5
22	22753	垫圈	WASHER	4
23	79139A26	电缆总成(红色)	CABLE ASSEMBLY Red	1
24	87760T	安装板	MOUNTING PLATE	1
25	39349	螺钉(.312-18×0.75)不锈钢	SCREW (.312-18 x .750) Stainless Steel	1
26	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
26	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
27	90271	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	2
28	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
29	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	4
29	8M0214963	垫圈	WASHER	4
30	87762	支架	BRACKET	1
31	63826	螺钉(.375-16 x 2.50)	SCREW (.375-16 x 2.50)	2
32	82670912	螺母(.375-16)不锈钢	NUT (.375-16) Stainless Steel	2
33	818200	接头	FITTING	1
34	77366	接头	FITTING	2
35	95084A18	保险丝线束总成	CABLE ASSEMBLY Fuse	1
36	65017A14	线束总成	HARNESS ASSEMBLY	1
37	848017T4	升降线束总成	HARNESS ASSEMBLY Trim	1

图 45驱动轴壳体 Driveshaft Housing

REF	零件编号	中文名称	英文名称	数量
1	880646T01	驱动轴壳体-黑色	HOUSING Driveshaft, Black	1
2	885366T01	下部护套总成-左舷	CHAP ASSEMBLY Lower-Port	1
2	885365T03	加长护套总成-左右舷-黑色	CHAP ASSEMBLY Long - Port and Starboard, Black	1
2	885364T01	下部护套总成-左舷	CHAP ASSEMBLY Lower-Port	1
2	885363T04	超长/特超长护套总成-左右舷	CHAP ASSEMBLY X-Long/XX-Long - Port and Starboard	1
3	885365T01	下部护套总成-右舷	CHAP ASSEMBLY Lower-Starboard	1
3	885365T03	加长护套总成-左右舷-黑色	CHAP ASSEMBLY Long - Port and Starboard, Black	1
3	885363T01	下部护套总成-右舷	CHAP ASSEMBLY Lower-Starboard	1
3	885363T04	超长/特超长护套总成-左右舷	CHAP ASSEMBLY X-Long/XX-Long - Port and Starboard	1
4	892073002	台阶螺丝 (M6)	SHOULDER SCREW (M6)	8 or 12
4	8M0230980	螺丝 (M6x14) 六角法兰B型	SCREW (M6 x 14) Hex Flange B	8 or 12
5	889568001	护孔环	GROMMET	1
6	889656T	蒸汽分离器罩	SHROUD Vapor Separator	1
6	889656T01	护罩	SHROUD	1
7	88552675	螺钉 (M8 x 75)	SCREW (M8 x 75)	2
7	8M0103818	螺丝 (M8x75)	SCREW (M8 X 75)	2
8	885526120	螺丝 (M8x120)	SCREW (M8 x 120)	2
8	8M0103812	螺钉	SCREW	2
9	88552650	螺钉(M8 x 50)	SCREW (M8 x 50)	2
9	8M0103816	螺丝 M8x50 六角法兰	SCREW M8 x 50 HEX FLG	2
10	88552640	螺钉 (M8 x 40)	SCREW (M8 x 40)	1
10	8M0103815	螺钉	SCREW	1
11	88552635	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
11	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
12	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	3
13	897784A01	上部护套支架套件	BRACKET KIT Upper Chap	2
14	88552520	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	2
14	8M0103806	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	2
15	88552630	螺钉 (M8 x 30)	SCREW (M8 x 30)	1
15	8M0103813	螺钉 (M8 x 30)	SCREW (M8 x 30)	1
16	85944975	管材 (72英寸整卷) 裁切至26英寸	TUBING (72.00 Inches Bulk) Cut to 26 Inches	1
16	85944975	管材 (72英寸整卷) 裁切至44英寸	TUBING (72.00 Inches Bulk) Cut to 44 Inches)	1
17	859448	接头	FITTING	1
17	859448T	接头	FITTING	1
18	821555001	护孔环	GROMMET	1
18	8M0153609	护孔环	GROMMET	1
19	889831	固定座	RETAINER	1
19	889831001	固定座	RETAINER
20	856983	双头螺柱(M12 x 52)	STUD (M12 x 52)	4
20	8M0008031	双头螺柱(M12 x 1.75 x 52)	STUD (M12 x 1.75 x 52)	4
21	856982	垫圈(0.5×0.81×0.09英寸)不锈钢	WASHER (.500 x .810 x .090) Stainless Steel	4 or 5
22	896895	螺母(M12)	NUT (M12)	4
23	88552835	螺钉(M12×35毫米)	SCREW (M12 x 35 MM)	1
23	8M0102995	螺丝 (M12)	SCREW (M12)	1
24	824928001	橡胶塞	PLUG Rubber	1
25	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	10
25	8M0214963	垫圈	WASHER	10
26	884412	螺母	NUT	10
27	88552845	螺丝 (M12x45)	SCREW (M12 x 45)	4
27	8M0103825	螺丝@2	SCREW @2	4
28	880647T	隔套	SPACER	1
28	8M0105088	传动轴壳体加长隔套（黑色）	SPACER Driveshaft Housing X-Long, Black	1
29	857137	螺钉 (M12 X 160)	SCREW (M12 x 160)	1
30	857009	双头螺柱（M12×179）	STUD (M12 x 179)	4
30	8M0008047	双头螺柱（M12×179）	STUD (M12 x 179)	4
31	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
32	855623	衬套 (按需使用)	BUSHING (Use where Applicable)	1
33	896251	O型圈	O-RING	2
33	898033	卡扣	CLIP	2
34	NSS	非单独销售贴纸-放油口	NOT SOLD SEPARATE Decal-Oil Drain	1
35	880648T01	驱动轴壳体-黑色	HOUSING Driveshaft, Black	1
35	8M0113287	驱动轴壳体黑色加长型	DSH BLACK XL	1
36	891966006	外罩支架	BRACKET Cowl	1
37	88552520	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	2
37	8M0103806	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	2
-	895247A06	动力头总成	POWERHEAD ASSEMBLY	1
-	895247R06	RM L6 GEN1 VERADO	RM L6 GEN1 VERADO	1

图 46动力升降倾斜电机 Power Trim Motor

REF	零件编号	中文名称	英文名称	数量
-	828708	电机总成	MOTOR ASSEMBLY	1
1	828714A1	电刷与密封套件	BRUSH AND SEAL KIT	1
2	828713A1	电枢套件	ARMATURE KIT	1
2	828713T1	电枢套件	ARMATURE KIT	1
3	828715A1	端架（总成）	END FRAME (COMPLETE)	1

图 47顶罩 Top Cowl

REF	零件编号	中文名称	英文名称	数量
1	885355T03	顶盖总成	TOP COWL ASSEMBLY	1
1	885355T02	顶盖总成	TOP COWL ASSEMBLY	1
1	8M0050000	顶罩-水星型	COWL-TOP MARINER	1
2	885354T	空气导流帽	CAP Air Dam	1
2	885354T01	空气导流帽-水星黑色款	CAP, Air Dam Mercury, Black	1
2	895838T	空气导流帽	CAP Air Dam	1
2	895838T01	空气导流帽-水星型	CAP Air Dam - Mariner	1
3	888971	前锁扣槽	FRONT LATCH RECEIVER	1
4	885545	上罩壳密封件	SEAL Top Cowl	1
4	8M0111178	密封件	SEAL	1
5	888951	电缆	CABLE	1
5	8M0080461	锁扣拉索	CABLE Latch	1
6	888959	铰链销	PIN Hinge	1
7	888956	手控锁杆	LATCH Hand Lever	1
8	895373	弹簧	SPRING	1
9	888955	锁扣连杆	LINK Latch Connecting	1
10	26953	开口销	COTTER PIN	2
11	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
12	888952	联动臂	LINKAGE ARM	2
13	888953	弹簧	SPRING	2
14	822417	销	PIN	2
15	888950020	螺钉(M4x20毫米)(M4x1.75)	SCREW (M4 x 20 mm) (M4 x 1.75)	6
16	888970	左舷饰板(左)	APPLIQUE Port (Port)	1
16	888970A01	饰板套件	APPLIQUE KIT	1
16	895839	左舷饰板(左)	APPLIQUE Port (Port)	1
16	895839A01	饰板套件	APPLIQUE KIT	1
17	888969	右舷饰板(右)	APPLIQUE Starboard (Starboard)	1
17	895840	右舷饰板(右)	APPLIQUE Starboard (Starboard)	1
18	4010610	不锈钢螺钉(M6x10)	SCREW (M6 x 10) Stainless Steel	2
-	892564A05	贴花套件	DECAL SET	1
-	859271A05	贴花套件	DECAL SET	1
-	895252A05	贴花套件	DECAL SET	1
-	895253A05	贴花套件	DECAL SET	1
-	892571A05	贴花套件	DECAL SET	1
-	892571A07	贴花套件(水星200)	DECAL SET (Mariner 200)	1
-	892871A05	贴花套件	DECAL SET	1
-	892871A07	贴花套件(水星225)	DECAL SET (Mariner 225)	1
-	895254A05	贴花套件	DECAL SET	1
-	895254A07	贴花套件(水星250)	DECAL SET (Mariner 250)	1
-	895255A05	贴花套件	DECAL SET	1
-	895255A07	贴花套件(水星275)	DECAL SET (Mariner 275)	1

图 48齿轮箱螺旋桨轴-TorqueMaster Gear Housing Propeller Shaft-TorqueMaster

REF	零件编号	中文名称	英文名称	数量
1	15930A15	燃油泵套件	PUMP KIT Fuel	1
2	42990A6	膜片组件	DIAPHRAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve-Rubber	2
4	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
5	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
6	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
10	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
12	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
13	987691	底座衬垫	GASKET BASE	1
13	8M0204705	衬垫@2	GASKET @2	1
14	14868	燃油泵弯头接头	FITTING FUEL PUMP (ELBOW)	1
15	16604	直通接头(0.125-27)燃油泵	FITTING Straight (.125-27) FUEL PUMP	1
16	9912976	油管	TUBING	1
16	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
17	144303	燃油泵底座	BASE FUEL PUMP	1
18	98775A3	燃油泵板	PLATE FUEL PUMP	1
18	987752	安装板	PLATE	1
19	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
20	15979	接头	FITTING	1
21	16452	燃油泵螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) FUEL PUMP	2
22	4000310	燃油泵至曲轴箱螺钉(M5 x 40)	SCREW (M5 x 40) FUEL PUMP TO CRANKCASE	2
23	4002314	燃油泵螺钉垫圈	WASHER FUEL PUMP SCREW	2
24	9072925	脉冲软管	HOSE PULSE	1
25	99751	接头(0.0625-27)黄铜脉冲软管(90度)	FITTING (.0625-27) Brass PULSE HOSE (90 Degree)	1
25	997511	弯头	ELBOW	1
26	1350382	管材(30英寸散装)	TUBING (30.00 Inches Bulk)	2
26	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	2
27	816311		TIE STRAP (8.00 Inches) FUEL TUBING	AR
27	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
28	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
28	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
29	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
30	812782	密封件	SEAL	1
31	813657	支架	BRACKET	1
31	13170A3	底座	BASE	1
32	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
33	28668		SCREW (.250-20 x .875) Stainless Steel FUEL FILTER BASE	2
34	13170A1	燃油滤清器底座	BASE FUEL FILTER	1
34	13170A3	底座	BASE	1
35	13607	底座接头	FITTING BASE	2
35	136071	弯头	ELBOW	2
36	18458A1	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
36	18458Q3	燃油滤清器	FILTER-FUEL	1
37	14570		PROBE WATER SENSING	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
