两冲程 电喷 EFI · USA - Cat.# 90-803199004 · 共 33 个部位 · 1396 条零件
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 0 | 15969A3 | 甲板加油套件 | DECK FILL KIT Oil | 1 |
| 0 | 812497A2 | 二极管总成(双引擎) | DIODE ASSEMBLY (DUAL ENGINE) | 1 |
| 0 | 898289A72 | 双拉绳二极管套件 | DIODE KIT-LANYARD Dual | 1 |
| 0 | 44357Q2 | 冲洗附件 | FLUSHING ATTACHMENT | 1 |
| 0 | 858610A31 | 燃油软管总成(随机提供) | HOSE ASSEMBLY Fuel (SUPPLIED W/ENGINE) | 1 |
| 0 | 8M0038610 | 带注油球的燃油软管总成(9英尺) | HOSE ASSEMBLY Fuel (9 Feet) With Primer Bulb | 1 |
| 0 | 877680Q8 | 燃油软管总成 (8英尺)(带快速接头) | HOSE ASSEMBLY Fuel (8 Feet) (8 FT.)(WITH QUICK DISCONNECT) | 1 |
| 0 | 8M0044836 | 燃油软管总成(8英尺)Quicksilver品牌 | HOSE ASSEMBLY Fuel (8 Feet) Quicksilver Branded | 1 |
| 0 | 877680Q12 | 燃油软管总成 (12英尺)(带快速接头) | HOSE ASSEMBLY Fuel (12 Feet) (12 FT.)(WITH QUICK DISCONNECT) | 1 |
| 0 | 858109Q12 | 燃油软管总成(12英尺)-带快速接头 | HOSE ASSEMBLY Fuel (12 Feet) - With Quick Disconnect | 1 |
| 0 | 877681Q8 | 燃油软管总成 (8英尺)(仅发动机端带快速接头) | HOSE ASSEMBLY Fuel (8 Feet) (8 FT.)(WITH QUICK DISCONNECT ENGINE END ONLY) | 1 |
| 0 | 858104Q08 | 燃油软管总成(8英尺)-仅发动机端带快速接头 | HOSE ASSEMBLY Fuel (8 Feet) - With Quick Disconnect Engine End Only | 1 |
| 0 | 877681Q12 | 燃油软管总成 (12英尺)(仅发动机端带快速接头) | HOSE ASSEMBLY Fuel (12 Feet) (12 FT.)(WITH QUICK DISCONNECT ENGINE END ONLY) | 1 |
| 0 | 858106Q12 | 燃油软管总成(12英尺)-仅发动机端带快速接头 | HOSE ASSEMBLY Fuel (12 Feet) - With Quick Disconnect Engine End Only | 1 |
| 0 | 877683Q12 | HOSE ASSEMBLY Fuel (12 Feet) (NO FITTINGS) | 1 | |
| 0 | 858108Q12 | 燃油软管总成(8英尺)-无接头 | HOSE ASSEMBLY Fuel (8 Feet) - No Fittings | 1 |
| 0 | 852400 | 冲洗接头 | FLUSH COUPLING | 1 |
| 0 | 19674A2 | 开关/拉绳套件 | SWITCH/LANYARD KIT | 1 |
| 0 | 19674Q2 | 开关/拉绳套件 | SWITCH/LANYARD KIT | 1 |
| 0 | 88334A2 | 防腐电极套件 | MERCATHODE KIT | 1 |
| 0 | 8M0180081 | 防腐电极套件 | MERCATHODE KIT | 1 |
| 0 | 41729A3 | 软管延长套件 | HOSE EXTENSION KIT | 1 |
| 0 | NSS | 不单独出售的索具软管套件 | NOT SOLD SEPARATE Rigging Hose Kit | 1 |
| 0 | 17334A2 | 视觉警告系统(低油位/过热) | VISUAL WARNING SYSTEM (LOW OIL/OVERHEAT) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

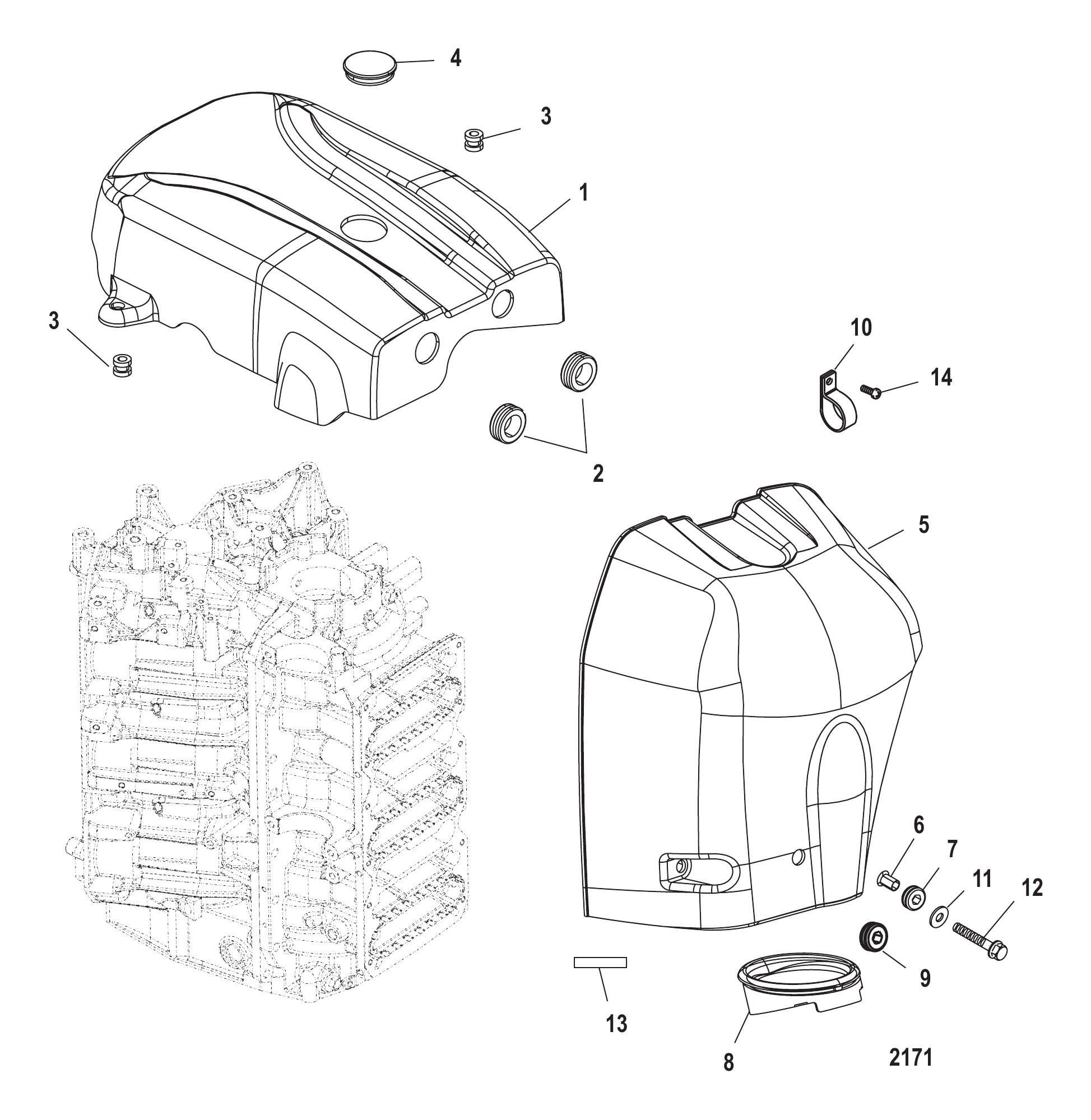

| 1 | 880009T02 | 飞轮盖 | COVER Flywheel | 1 |
| 1 | 892854T01 | 飞轮盖 | COVER Flywheel | 1 |
| 1 | 892854T01 | 飞轮盖 | COVER Flywheel | 1 |
| 2 | 13467 | 衬套（内径0.88） | GROMMET (.88 Inside Diameter) | 2 |
| 3 | 821555 | 护孔环 | GROMMET | 2 |
| 3 | 8M0153609 | 护孔环 | GROMMET | 2 |
| 3 | 821555001 | 护孔环 | GROMMET | 2 |
| 3 | 8M0153609 | 护孔环 | GROMMET | 2 |
| 4 | 89219 | 堵头 | PLUG | 1 |
| 4 | 89219001 | 堵头 | PLUG | 1 |
| 4 | 89219001 | 堵头 | PLUG | 1 |
| 5 | 881909T3 | 消音器总成 | ATTENUATOR ASSEMBLY | 1 |
| 6 | 856954 | 衬套 | BUSHING | 1 |
| 7 | 834985 | 护孔环 | GROMMET | 1 |
| 7 | 8M0190980 | 护孔环 | GROMMET | 1 |
| 8 | 882767 | 密封件 | SEAL | 1 |
| 9 | 20116 | 护孔环 | GROMMET | 1 |
| 10 | 23567 | 卡扣 | CLIP | 1 |
| 11 | 65567 | 不锈钢垫圈(0.265x0.750x0.048) | WASHER (.265 x .750 x .048) Stainless Steel | 1 |
| 12 | 82130025 | 螺钉(M6x25) | SCREW (M6 x 25) | 1 |
| 13 | 881865 | 警示贴纸-挂档启动 | DECAL Caution-Start in Gear | 1 |
| 14 | 69570 | 螺钉(#10-16 x .750) | SCREW (#10-16 x .750) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

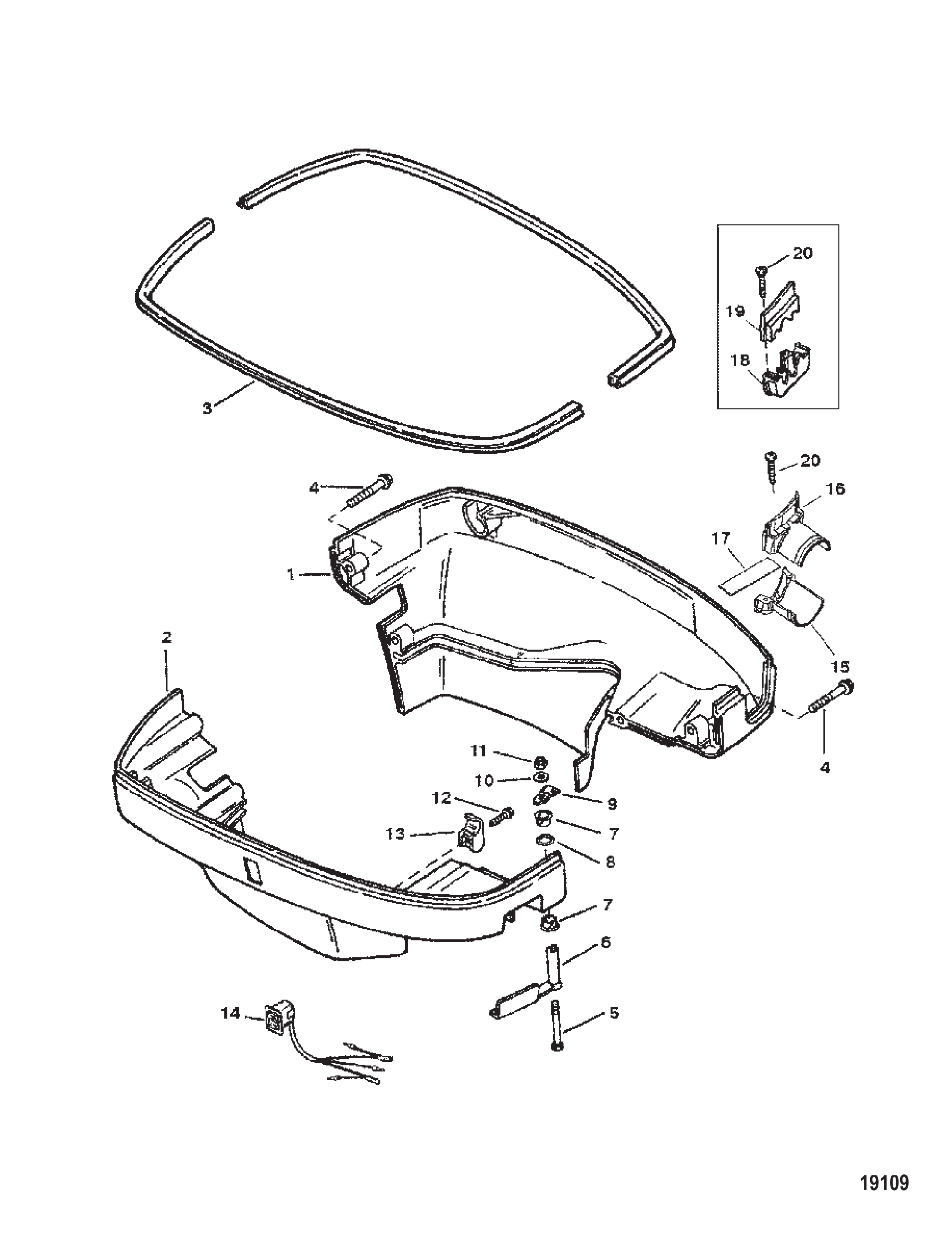

| 1 | 818448A1 | 下机罩 | BOTTOM COWL | 1 |
| 2 | 818447A1 | 下机罩 | BOTTOM COWL | 1 |
| 3 | 8253181 | 罩盖密封条(41英寸) | SEAL Cowl (41.00 Inches) | 2 |
| 3 | 8M0109217 | 罩盖密封条 | SEAL-COWL | 2 |
| 4 | 82130040 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 4 |
| 5 | 824868 | 螺钉(M6×75) | SCREW (M6 x 75) | 1 |
| 6 | 821253F1 | 前手柄黑色 | FRONT HANDLE Black | 1 |
| 6 | 889740A02 | 手柄套件 | HANDLE KIT | 1 |
| 7 | 335891 | 衬套 | BUSHING | 2 |
| 8 | 48462 | O型圈 (.614 x .070) | O-RING (.614 x .070) | 1 |
| 9 | 8219423 | 棘爪 | PAWL | 1 |
| 10 | 69057 | 垫片(.281 x .734 x .063) | WASHER (.281 x .734 x .063) | 1 |
| 11 | 401366 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 12 | 8214281 | 螺钉(#10-16x0.625) | SCREW (#10-16 x .625) | 1 |
| 13 | 822873 | 卡扣 | CLIP | 1 |
| 14 | 856990 | 开关总成 | SWITCH ASSEMBLY | 1 |
| 14 | 8M0235192 | 微调开关 | SWITCH TRIM | 1 |
| 15 | 859435 | 嵌件(下部) | INSERT (LOWER) | 1 |
| 15 | 859435T | 嵌件 | INSERT | 1 |
| 16 | 859434 | 嵌件(上部) | INSERT (UPPER) | 1 |
| 16 | 859434T | 嵌件 | INSERT | 1 |
| 17 | 859343 | 泡沫垫 | FOAM | 1 |
| 18 | 822024 | 卡箍(下部) | CLAMP (LOWER) | 1 |
| 19 | 822023 | 卡箍 (上) | CLAMP (UPPER) | 1 |
| 20 | 92799 | 螺钉(#10-16x1.12) | SCREW (#10-16 x 1.12) | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

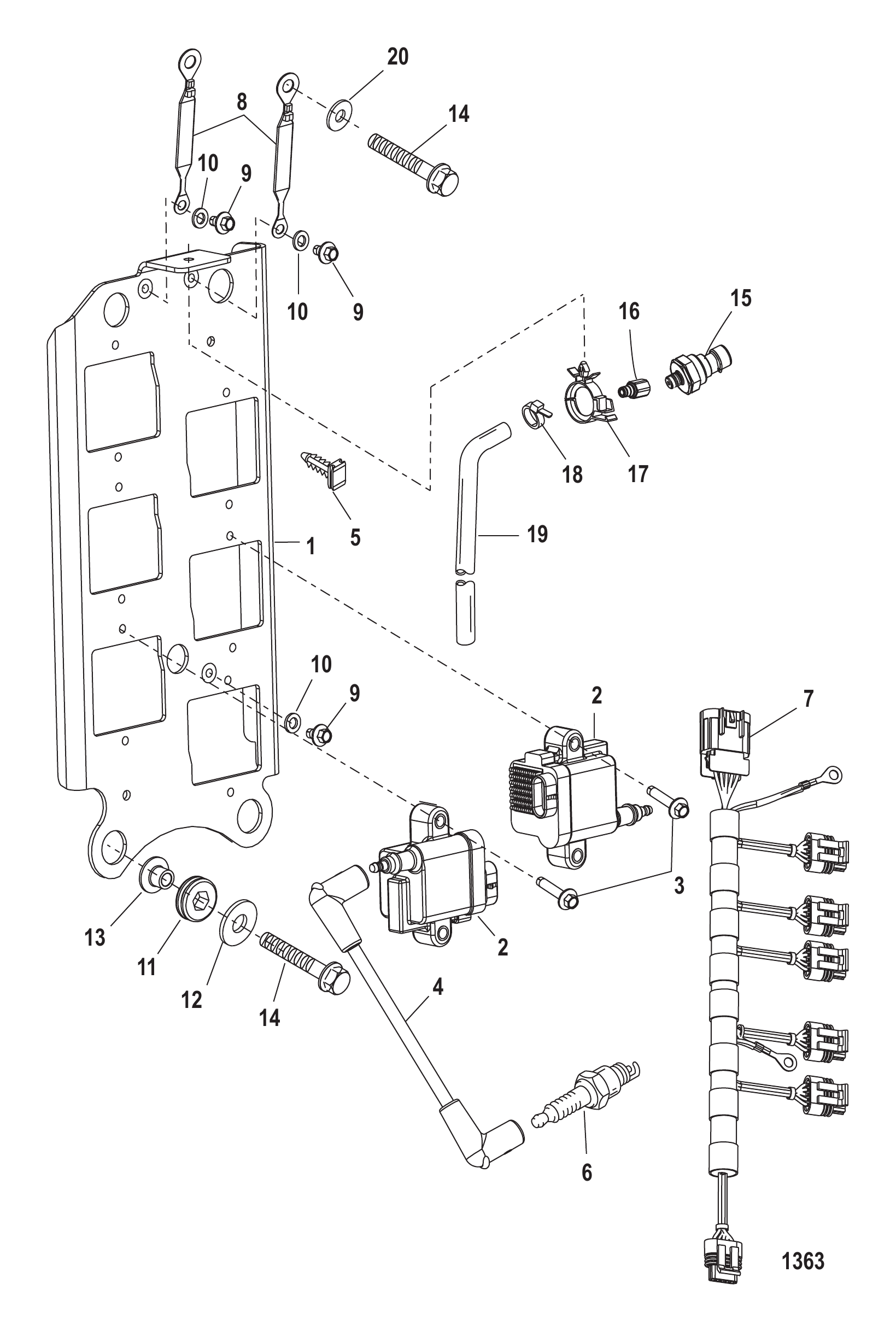

| 1 | 850295T2 | 线圈安装板 | PLATE Coil Mounting | 1 |
| 2 | 879984A1 | 线圈套件 | COIL KIT | 6 |
| 2 | 8M0077471 | 点火线圈 | IGNITION COIL | 6 |
| 3 | 82129130 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 12 |
| 4 | 881908T | 电缆组 | CABLE SET | 1 |
| 5 | 828991 | 卡扣 | CLIP | 1 |
| 5 | 828991T | 卡扣 | CLIP | 1 |
| 6 | 941 | 火花塞 | SPARK PLUG | 6 |
| 7 | 882757T1 | 线圈线束总成 | HARNESS ASSEMBLY Coil | 1 |
| 7 | 882757T02 | 线圈线束总成 | HARNESS ASSEMBLY Coil | 1 |
| - | 854839T02 | 5针线束总成 | HARNESS ASSEMBLY 5 Pin | 1 |
| - | 879346A51 | 线束维修套件 | HARNESS REPAIR KIT | 1 |
| 8 | 858414A1 | 编织电缆总成 | CABLE ASSEMBLY Braided | 2 |
| 9 | 82129110 | 螺丝 (M6 x 10) | SCREW (M6 x 10) | 3 |
| 10 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 3 |
| 10 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 3 |
| 11 | 833155 | 护孔环 | GROMMET | 4 |
| 12 | 4002318 | 垫圈 8.90 x 24.0x 2.4 不锈钢 | WASHER 8.90 x 24.0x 2.4 PL SS | 4 |
| 13 | 8502341 | 衬套 | BUSHING | 4 |
| 14 | 81893435 | 螺钉(M8×35) | SCREW (M8 x 35) | 4 |
| 14 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 4 |
| 15 | 881879A7 | 传感器套件 (0-50 PSI) | SENSOR KIT (0-50 PSI) | 1 |
| 15 | 8M0157742 | 水压传感器 | SENSOR Water Pressure | 1 |
| 16 | 859431 | 接头 | FITTING | 1 |
| 16 | 8M0207782 | 直通接头 | FITTING Straight | 1 |
| 16 | 892403 | 接头 | FITTING | 1 |
| 16 | 8M0207782 | 直通接头 | FITTING Straight | 1 |
| 17 | 883066 | 夹子 (.865) | CLIP (.865) | 1 |
| 18 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 19 | 85978571 | 管材（52英寸整卷）（裁切至18英寸） | TUBING (52.00 Inches Bulk) (Cut to 18 Inches) | 1 |
| 20 | 36001 | 垫圈 | WASHER | 2 |

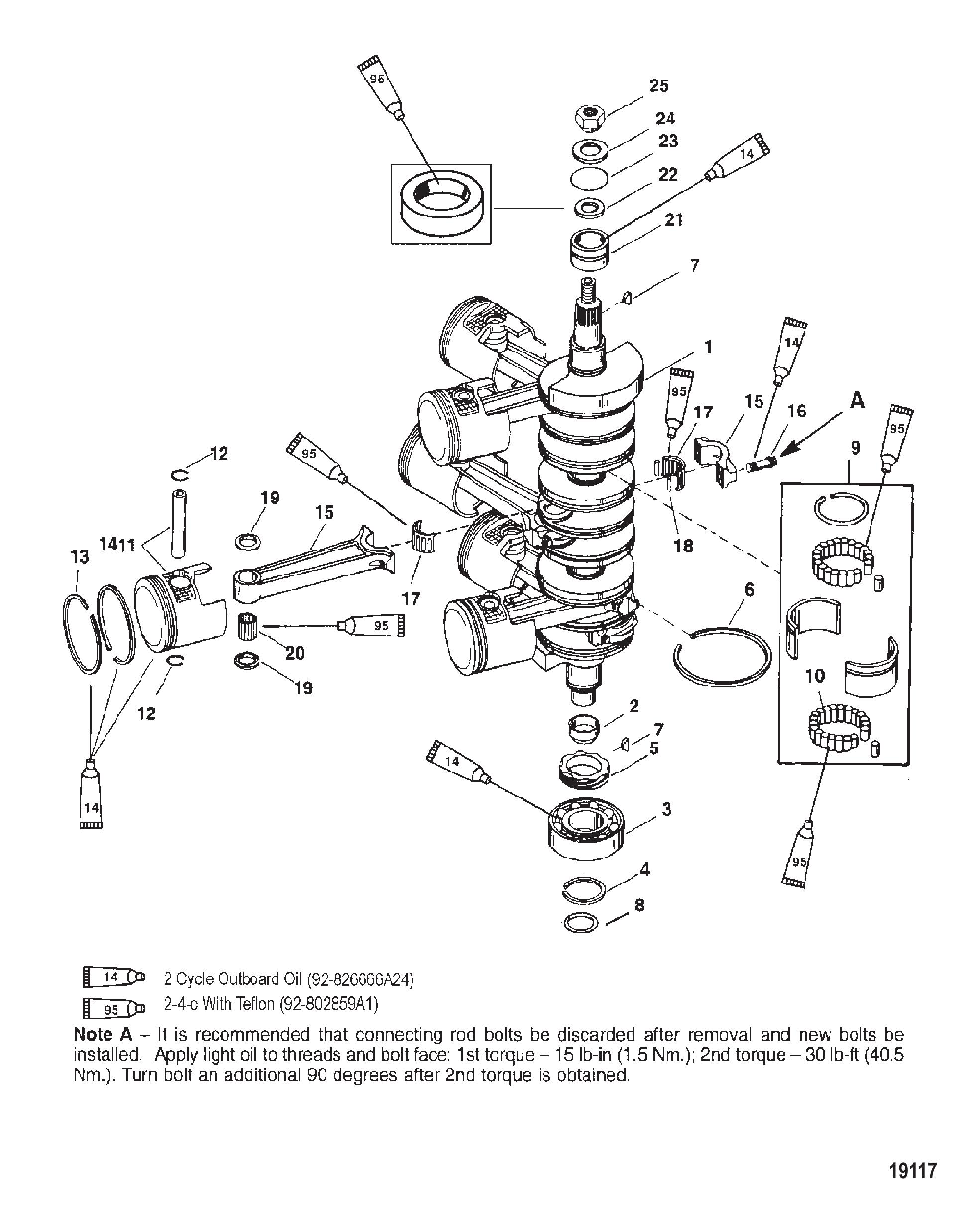

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9784T6 | 曲轴 | CRANKSHAFT | 1 |
| 1 | 9784A11 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 2 | NSS | 磨损套筒(不单独销售) | NOT SOLD SEPARATE Wear Sleeve | 1 |
| 3 | 67923T | 球轴承(下部) | BEARING Ball (LOWER) | 1 |
| 4 | 67446 | 环 | RING | 1 |
| 5 | 19301 | 齿轮 | GEAR | 1 |
| 6 | 816106 | 环 | RING | 7 |
| 6 | 843198T01 | 密封环 | RING Seal | 7 |
| 7 | 91800 | 半圆键 | KEY Woodruff | 2 |
| 8 | 35126 | O型圈(.859 x .139) | O-RING (.859 x .139) | 1 |
| 9 | 88270A1 | 轴承座圈总成 | RACE ASSEMBLY | 2 |
| 9 | 88270A02 | 轴承/座圈套件 | BEARING/RACE KIT | 2 |
| 10 | NSS | 滚针轴承(不单独销售) | NOT SOLD SEPARATE Needle Bearing | 2 |
| 9 | 817001A1 | 轴承座圈总成 | RACE ASSEMBLY Bearing | 2 |
| 9 | 8M0113288 | 轴承座圈总成 | RACE ASSY-BEARING | 2 |
| 10 | NSS | 滚轮(不单独销售) | NOT SOLD SEPARATE Roller | 88 |
| 11 | 858295T1 | 活塞 | PISTON | 3 |
| 11 | 858295T14 | 活塞总成 标准 - 右舷 | PISTON ASSEMBLY Standard - Starboard | 3 |
| 11 | 858294T1 | 活塞 | PISTON | 3 |
| 11 | 858294T14 | 活塞总成 标准 - 左舷 | PISTON ASSEMBLY Standard - Port | 3 |
| 11 | 878572A2 | 活塞总成 | PISTON ASSEMBLY | AR |
| 11 | 878574A2 | 活塞总成 | PISTON ASSEMBLY | AR |
| 11 | 878571A2 | 活塞总成 | PISTON ASSEMBLY | AR |
| 11 | 878573A2 | 活塞总成 | PISTON ASSEMBLY | AR |
| 12 | 8320811 | 锁紧环 | LOCK RING | 12 |
| 13 | 827179A12 | 活塞环组(含12个通用环) | RING SET Piston With 12 Common Rings | 1 |
| 13 | 826293A12 | 活塞环组(含12个通用环) | RING SET Piston With 12 Common Rings | AR |
| 13 | 875252A12 | 活塞环组 | RING SET Piston | AR |
| 13 | 826297A12 | 活塞环组(含12个通用环) | RING SET Piston With 12 Common Rings | AR |
| 13 | 875257A12 | 活塞环组 | RING SET Piston | AR |
| 13 | 858772A12 | 活塞环组(各6个顶环和底环) | RING SET Piston With 6 Each Top and Bottom Rings | 1 |
| 13 | 875252A12 | 活塞环组(各6个顶环和底环) | RING SET Piston With 6 Each Top and Bottom Rings | AR |
| 13 | 875257A12 | 活塞环组(各6个顶环和底环) | RING SET Piston With 6 Each Top and Bottom Rings | AR |
| 14 | NSS | 第二道活塞环(不单独销售) | NOT SOLD SEPARATE Piston Ring (SECOND) | 6 |
| 15 | 822373A7 | 连杆总成 | CONNECTING ROD ASSEMBLY | 6 |
| 15 | 8M0125869 | 连杆套件 | CONN ROD KIT | 6 |
| 16 | 94320 | 螺钉(.375-24 x 1.250) | SCREW (.375-24 x 1.250) | 12 |
| 17 | 43012A1 | 轴承/保持架套件 | BEARING/CAGE KIT | 6 |
| 17 | 8M0235070 | 轴承保持架 | CAGE BEARING | 6 |
| 18 | NSS | 轴承（不单独销售） | NOT SOLD SEPARATE Bearing | 96 |
| 19 | 88263 | 止推垫片 | THRUST WASHER | 12 |
| 20 | 88258 | 滚针轴承 | NEEDLE Roller Bearing | 204 |
| 20 | 8M0204715 | 滚针@102 | NEEDLES-BRG @102 | 204 |
| 21 | 816773A2 | 轴承总成（上部） | BEARING ASSEMBLY (UPPER) | 1 |
| 22 | 859093 | 密封件 | SEAL | 1 |
| 23 | 823683 | O型圈(1.989 x .070) | O-RING (1.989 x .070) | 1 |
| 24 | 68229 | 垫圈(.641 x 1.250 x .190) | WASHER (.641 x 1.250 x .190) | 1 |
| 24 | 33001 | 垫圈 | WASHER | 1 |
| 25 | 42979 | 螺母(M16) | NUT (M16) | 1 |
| - | 814195A93 | 衬垫套件 | GASKET SET | 1 |
| - | 809794A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 809794R97 | PH 225/250 -RM | PH 225/250 -RM | 1 |
| - | 804799A00 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 804800A00 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 804800R00 | PH 250 EFI RM | PH 250 EFI RM | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

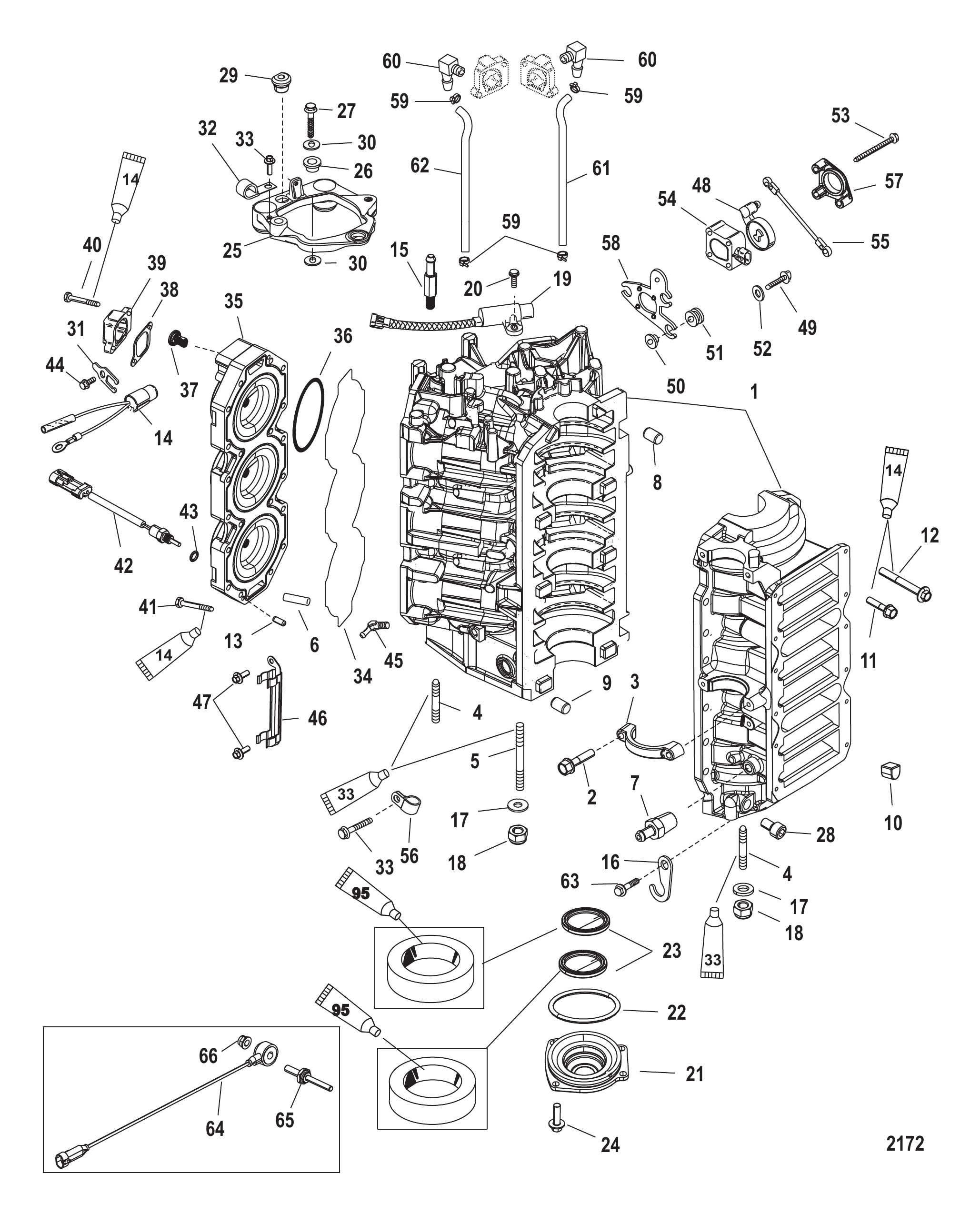

| 1 | 9811T92 | 气缸体 | CYLINDER BLOCK | 1 |
| 1 | 899162A06 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 1 | 9811T91 | 气缸体 | CYLINDER BLOCK | 1 |
| 1 | 899162A05 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 1 | 9811T93 | 气缸体 | CYLINDER BLOCK | 1 |
| 1 | 899162A07 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 2 | 81893440 | 螺钉 (M8 x 40) | SCREW (M8 x 40) | 4 |
| 3 | 8569662 | 支架 | BRACKET | 2 |
| 3 | 8M0111325 | 盖板 | COVER | 2 |
| 4 | 903509 | 螺柱（M10×1.5×64） | STUD (M10 x 1.5 x 64) | 4 |
| 5 | 8154431 | 螺柱（M10×1.5×155） | STUD (M10 x 1.5 x 155) | 6 |
| 6 | 8248577 | 导流板 | DEFLECTOR | 6 |
| 7 | 8781051 | 止回阀 | CHECK VALVE | 1 |
| 8 | 67296 | 销 | PIN | 3 |
| 8 | 8M0036405 | 销 | PIN | 3 |
| 9 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 1 |
| 10 | 850309 | 堵头 | PLUG | 6 |
| 10 | 850309001 | 止动塞 | PLUG Stop | 6 |
| 10 | 850309001 | 止动塞 | PLUG Stop | 6 |
| 11 | 81893435 | 螺钉(M8×35) | SCREW (M8 x 35) | 14 |
| 11 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 14 |
| 12 | 82446180 | 螺钉(M10×80) | SCREW (M10 x 80) | 8 |
| 13 | 63779 | 定位销 (.250 x .625) | PIN Dowel (.250 x .625) | 4 |
| 14 | 13536A13 | 温度传感器总成 | SENSOR ASSEMBLY Temperature | 1 |
| 15 | 8405101 | 销 | PIN | 2 |
| 16 | 8588641 | 固定座 | RETAINER | 1 |
| 17 | 856774 | 垫圈(0.406×0.750×0.105)不锈钢 | WASHER (.406 x .750 x .105) Stainless Steel | 10 |
| 17 | 8M0214963 | 垫圈 | WASHER | 10 |
| 18 | 4013610 | 螺母(M10不锈钢) | NUT (M10) Stainless Steel | 10 |
| 19 | 8283582 | 传感器 | SENSOR | 1 |
| 19 | 8M0082988 | 曲轴位置传感器 | SENSOR Crankshaft Position | 1 |
| 20 | 40011107 | 不锈钢螺钉(M5x16) | SCREW (M5 x 16) Stainless Steel | 2 |
| 21 | 9787A4 | 端盖总成 | END CAP ASSEMBLY | 1 |
| 22 | 62700 | O型圈(3.237 x .103) | O-RING (3.237 x .103) | 1 |
| 23 | 8308981 | 密封件 | SEAL | 2 |
| 24 | 82130020 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 4 |
| 25 | 857186A1 | 隔板总成 | PLATE ASSEMBLY | 1 |
| 25 | 857186T02 | 隔板总成 | PLATE ASSEMBLY | 1 |
| 26 | 855729 | 支架 | MOUNT | 3 |
| 27 | 82130145 | 螺丝(M10 x 45) | SCREW (M10 x 45) | 3 |
| 28 | 82130012 | 螺钉（M6 x 12） | SCREW (M6 x 12) | 1 |
| 28 | 82494810 | 螺丝 (M6 x 10) | SCREW (M6 x 10) | 1 |
| 29 | 19565 | 护孔环 | GROMMET | 1 |
| 29 | 19565002 | 护孔环 | GROMMET | 1 |
| 29 | 19565002 | 护孔环 | GROMMET | 1 |
| 30 | 855725 | 垫圈 | WASHER | 6 |
| 31 | 137151 | 固定座 | RETAINER | 1 |
| 32 | 858951 | J型卡扣 | J CLIP | 1 |
| 33 | 82130012 | 螺钉（M6 x 12） | SCREW (M6 x 12) | 1 |
| 34 | 818574 | 密封件 | SEAL | 2 |
| 35 | 812851A27 | 气缸盖总成 | CYLINDER HEAD ASSEMBLY | 2 |
| 35 | 812851A26 | 气缸盖 | CYLINDER HEAD | 2 |
| 36 | 884391 | 密封件 | SEAL | 6 |
| 37 | 885599003 | 节温器 54°C (130°F) | THERMOSTAT 54°C (130°F) (130 Degrees) | 2 |
| 37 | 8M0057307 | 节温器 54°C/130°F | THERMOSTAT 54 Degree C/130 Degree F | 2 |
| 37 | 885599004 | 节温器 54°C/130°F | THERMOSTAT 54 Degree C/130 Degree F | 2 |
| 37 | 8M0057307 | 节温器 54°C/130°F | THERMOSTAT 54 Degree C/130 Degree F | 2 |
| 38 | 8503181 | 衬垫 | GASKET | 2 |
| 39 | 887926 | 节温器盖 | COVER Thermostat | 2 |
| 39 | 8M0039357 | 盖板 | COVER | 2 |
| 40 | 82130025 | 螺钉(M6x25) | SCREW (M6 x 25) | 4 |
| 41 | 859096 | 螺钉(M8 x 50) | SCREW (M8 x 50) | 40 |
| 41 | 8M0045380 | 螺钉(M8 x 50) | SCREW (M8 x 50) | 40 |
| 42 | 885342001 | 传感器总成 | SENSOR ASSEMBLY | 2 |
| 42 | 8M0148668 | 传感器总成 | SENSOR ASSEMBLY | 2 |
| 43 | 888814 | O型圈(0.351 x 0.072) | O-RING (.351 x .072) | 2 |
| 43 | 896699 | O型圈（1.78毫米 x 0.08毫米） | O-RING (1.78 mm x .08 mm) | 2 |
| 44 | 81893414 | 螺钉（M8 x 14） | SCREW (M8 x 14) | 1 |
| 45 | 782792 | 45度弯头接头(1.25) | FITTING Elbow 45 Degree (1.25) | 1 |
| 45 | 8M0207781 | 弯头 | ELBOW | 1 |
| 46 | 8266241 | 卡箍(适用处使用) | CLAMP (Use where applicable) | 1 |
| 47 | 82130012 | 螺钉(M6×12)(适用处使用) | SCREW (M6 x 12) (Use where applicable) | 2 |
| 48 | 8583561 | TPI杠杆 | LEVER TPI | 1 |
| 49 | 82130025 | 螺钉(M6x25) | SCREW (M6 x 25) | 3 |
| 50 | 856954 | 衬套 | BUSHING | 3 |
| 51 | 834985 | 护孔环 | GROMMET | 3 |
| 51 | 8M0190980 | 护孔环 | GROMMET | 3 |
| 52 | 65567 | 不锈钢垫圈(0.265x0.750x0.048) | WASHER (.265 x .750 x .048) Stainless Steel | 3 |
| 53 | 40011113 | 不锈钢螺丝(M5x45) | SCREW (M5 x 45) Stainless Steel | 3 |
| 54 | 83295211 | 油门位置指示器 | INDICATOR Throttle Position | 1 |
| 54 | 8M6005165 | TPI | TPI | 1 |
| 55 | 859095 | 连接杆 | LINK | 1 |
| 55 | 8M0084743 | 连接杆 | LINK | 1 |
| 56 | 858902 | 卡箍 | CLAMP | 1 |
| 57 | 8582261 | 盖板 | COVER | 1 |
| 58 | 8544862 | 支架 | BRACKET | 1 |
| 59 | 888988014 | 卡箍 (25.6毫米) | CLAMP (25.6 mm) | 4 |
| 59 | 855228 | 卡箍 | CLAMP | 4 |
| 60 | 8533394 | 接头 | FITTING | 2 |
| 61 | 8404461 | HOSE (Starboard) | 1 | |
| 62 | 8404462 | HOSE (Port) | 1 | |
| 63 | 81893420 | 螺钉(M8 x 20) | SCREW (M8 x 20) | 1 |
| 64 | 878187 | 爆震传感器总成 | SENSOR ASSEMBLY Knock | 2 |
| 64 | 8M6003194 | 爆震传感器总成 | SENSOR ASSEMBLY Knock | 2 |
| 65 | 882781 | 螺柱 | STUD | 2 |
| 66 | 826292 | 螺母(M10)黄铜/镀镍 | NUT (M10) Brass/Nickel Plated | 2 |
| - | 832934A00 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 883892A04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 883892A07 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 883893A04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 883893A07 | PH 3L WORK EFI | PH 3L WORK EFI | 1 |
| - | 883894A04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 883894A07 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 891823A04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 891823A07 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |

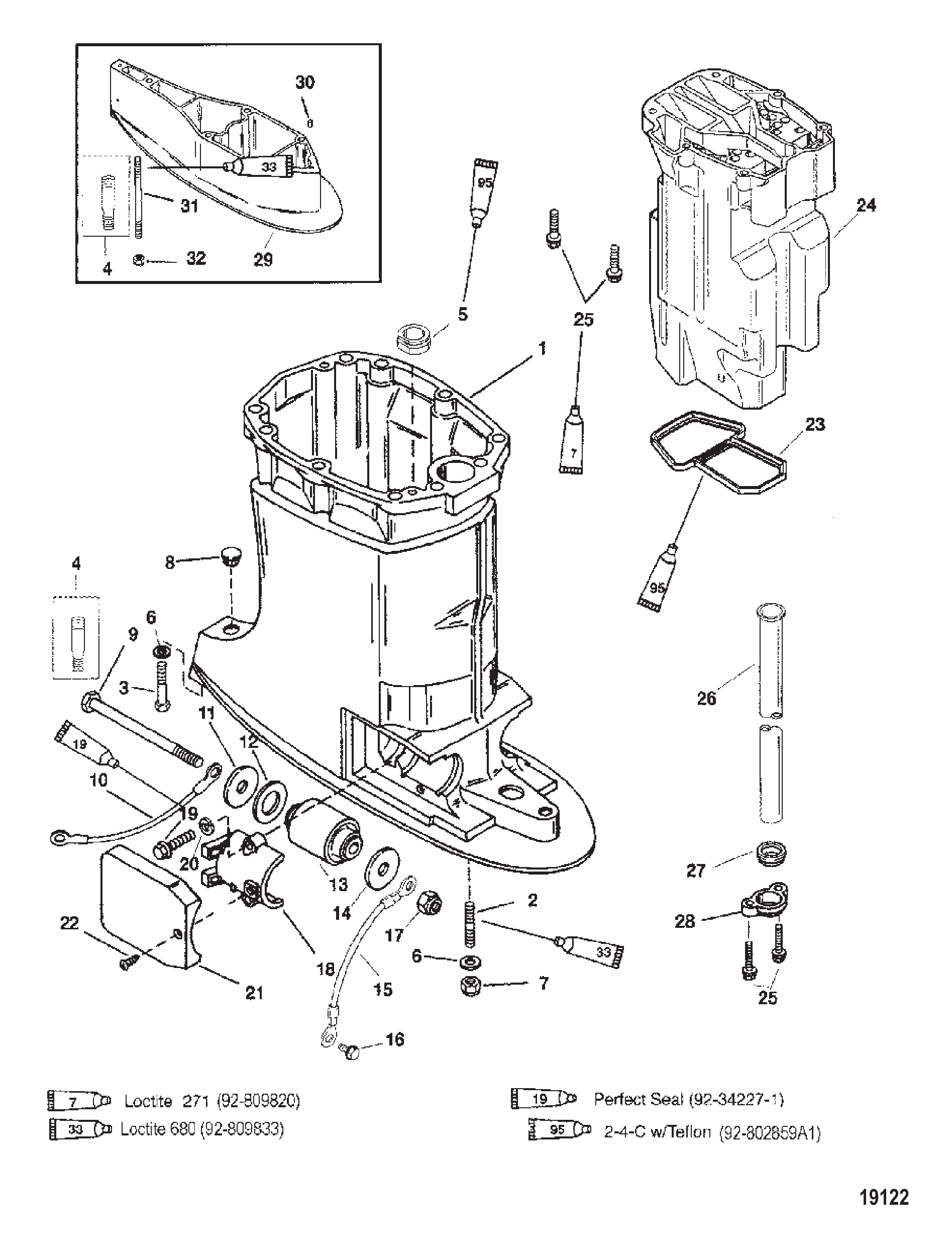

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 832937A3 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 1 | 832937A06 | 传动轴壳体总成-加长型 | HOUSING ASSEMBLY Driveshaft - Long | 1 |
| 1 | 832938A5 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 1 | 832938A06 | 传动轴壳体总成-超长/特超长型 | HOUSING ASSEMBLY Driveshaft - X/XX-Long | 1 |
| 2 | 856983 | 双头螺柱(M12 x 52) | STUD (M12 x 52) | 4 |
| 2 | 8M0008031 | 双头螺柱(M12 x 1.75 x 52) | STUD (M12 x 1.75 x 52) | 4 |
| 3 | 82130130 | 螺钉 (M10 x 30) | SCREW (M10 x 30) | 1 |
| 3 | 857136 | 螺钉(M12×35毫米) | SCREW (M12 x 35 MM) | 1 |
| 4 | 858569 | 阶梯螺柱 (54MM X 10/12) | STEPPED STUD (54MM X 10/12) | 1 |
| 4 | 8M0036404 | 双头螺栓-M12/M10 | STUD-M12/M10 | 1 |
| 4 | 858570 | 阶梯螺柱 (175MM X 10/12) | STEPPED STUD (175MM X 10/12) | 1 |
| 5 | 8331231 | 护孔环 | GROMMET | 1 |
| 6 | 856982 | 垫圈(0.5×0.81×0.09英寸)不锈钢 | WASHER (.500 x .810 x .090) Stainless Steel | 5 |
| 7 | 857008 | 螺母(M12×1.75) | NUT (M12 x 1.75) | 4 |
| 7 | 896895 | 螺母(M12) | NUT (M12) | 4 |
| 8 | 64649 | 堵头 | PLUG | 1 |
| 9 | 815431 | 螺钉（M14×178） | SCREW (M14 x 178) | 2 |
| 9 | 898834 | 螺栓（M14×178） | BOLT (M14 x 178) | 2 |
| 10 | 88238A10 | 接地线总成 | CABLE ASSEMBLY Ground | 1 |
| 11 | 815432 | 垫圈(.562 x 2.00 x .125) | WASHER (.562 x 2.00 x .125) | 2 |
| 12 | 8154331 | 垫圈（1.25×2.00×0.19） | WASHER (1.25 x 2.00 x .19) | 2 |
| 13 | 8137711 | 支架 | MOUNT | 2 |
| 14 | 825190 | 垫圈 | WASHER | 1 |
| 15 | 88238A10 | 接地线总成 | CABLE ASSEMBLY Ground | 1 |
| 16 | 41508 | 螺钉(0.250-20×0.500)不锈钢 | SCREW (.250-20 x .500) Stainless Steel | 1 |
| 17 | 815434 | 螺母 | NUT | 2 |
| 17 | 896602 | 螺母(M14) | NUT (M14) | 2 |
| 18 | 8186442 | 卡箍 | CLAMP | 2 |
| 18 | 879150A90 | 下支架盖套件 | COVER KIT Lower Mount | 2 |
| 19 | 81893435 | 螺钉(M8×35) | SCREW (M8 x 35) | 4 |
| 19 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 4 |
| 20 | 72521 | 内齿锁紧垫圈 | LOCKWASHER Internal Tooth | 1 |
| 21 | 818645F1 | 黑色盖 | COVER Black | 2 |
| 21 | 8M0001136 | 下支架盖 | COVER Lower Mount | 2 |
| 22 | 69079 | 螺钉 (#10-16 x .440) | SCREW (#10-16 x .440) | 2 |
| 23 | 8329321 | 密封件 | SEAL | 1 |
| 24 | 833116A7 | 排气管总成 | TUBE ASSEMBLY Exhaust | 1 |
| - | NSS | 滤网(不单独销售) | NOT SOLD SEPARATE Strainer | 1 |
| 25 | 81893435 | 螺钉(M8×35) | SCREW (M8 x 35) | 6 |
| 25 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 6 |
| 26 | 8329411 | 水管 | TUBE Water | 1 |
| 26 | 8M0042785 | 水管 | TUBE-WATER | 1 |
| 26 | 8329412 | 水管 | TUBE Water | 1 |
| 26 | 8M0042786 | 水管 | TUBE Water | 1 |
| 26 | 8329413 | 水管 | TUBE Water | 1 |
| 26 | 8M0042787 | 水管 | TUBE-WATER | 1 |
| 27 | 832940 | 密封件 | SEAL | 1 |
| 27 | 832940001 | 密封件 | SEAL | 1 |
| 28 | 8329391 | 卡箍 | CLAMP | 1 |
| 29 | 823979T1 | 隔套 | SPACER | 1 |
| 29 | 8M0105088 | 传动轴壳体加长隔套（黑色） | SPACER Driveshaft Housing X-Long, Black | 1 |
| 30 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 2 |
| 31 | 857009 | 双头螺柱（M12×179） | STUD (M12 x 179) | 4 |
| 31 | 8M0008047 | 双头螺柱（M12×179） | STUD (M12 x 179) | 4 |
| 31 | 824118 | 双头螺柱（M10×1.5×173） | STUD (M10 X 1.5 X 173) | 1 |
| 32 | 400636 | 螺母（M10×1.5） | NUT (M10 X 1.5) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

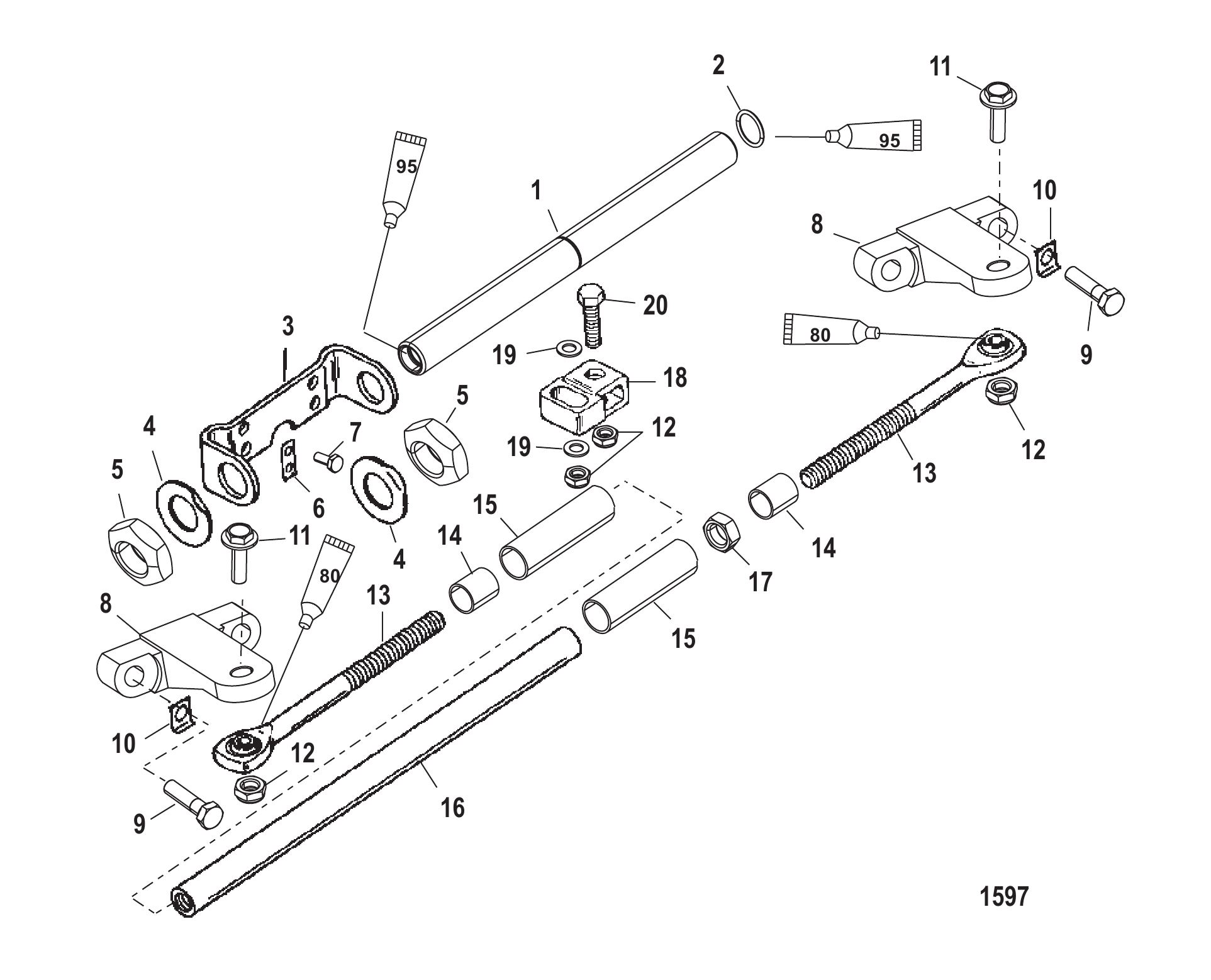

| - | 92876A9 | 双机延长套件 | EXTENSION KIT Dual Engine | 1 |
| 1 | 715651 | 转向拉索套管 | TUBE Steering Cable | 1 |
| 2 | 48462 | O型圈 (.614 x .070) | O-RING (.614 x .070) | 1 |
| 3 | 41055 | 支架 | MOUNT | 1 |
| 4 | 42100 | 锁紧垫圈 | TAB WASHER | 2 |
| 5 | 37984 | 螺母 (.875-14) | NUT (.875-14) | 2 |
| 5 | 8M0041651 | 螺母 (.875-14) | NUT (.875-14) | 2 |
| 6 | 88404 | 锁紧垫圈 | TAB WASHER | 2 |
| 7 | 38601 | 螺丝(.250-28 x 1.250) | SCREW (.250-28 x 1.250) | 4 |
| 8 | 17729A1 | 支架 | BRACKET | 2 |
| 9 | 62055 | 螺钉(.312-24 x 1.250) | SCREW (.312-24 x 1.250) | 4 |
| 10 | 17728 | 锁紧垫圈 | TAB WASHER | 4 |
| 11 | 140001 | 螺钉(0.375-24×1.38) | SCREW (.375-24 x 1.38) | 2 |
| 12 | 34863 | 螺母 (.375-24) | NUT (.375-24) | 6 |
| 12 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 6 |
| 13 | 979331 | 转向眼环 | STEERING EYE | 2 |
| 13 | 8M0026167 | 转向眼环 | STEERING EYE | 2 |
| 14 | 23651 | 衬套(1.625) | SLEEVE (1.625) | 2 |
| 15 | 97931 | 管材(4.00英寸) | TUBING (4.00 Inches) | 2 |
| 16 | 8149513 | 联轴器(15.00英寸) | COUPLER (15.00 Inches) | 1 |
| 16 | 8M0026098 | 联轴器15英寸 | COUPLER 15 In. | 1 |
| 17 | 42099 | 螺母(.562-18) | NUT (.562-18) | 1 |
| 18 | 821169 | 联轴器 | COUPLING | 1 |
| 19 | 34931 | 不锈钢垫圈(.406x.734x.063) | WASHER (.406 x .734 x .063) Stainless Steel | 2 |
| 20 | 94319 | 螺钉(.375-24 x 1.5) | SCREW (.375-24 x 1.5) | 1 |

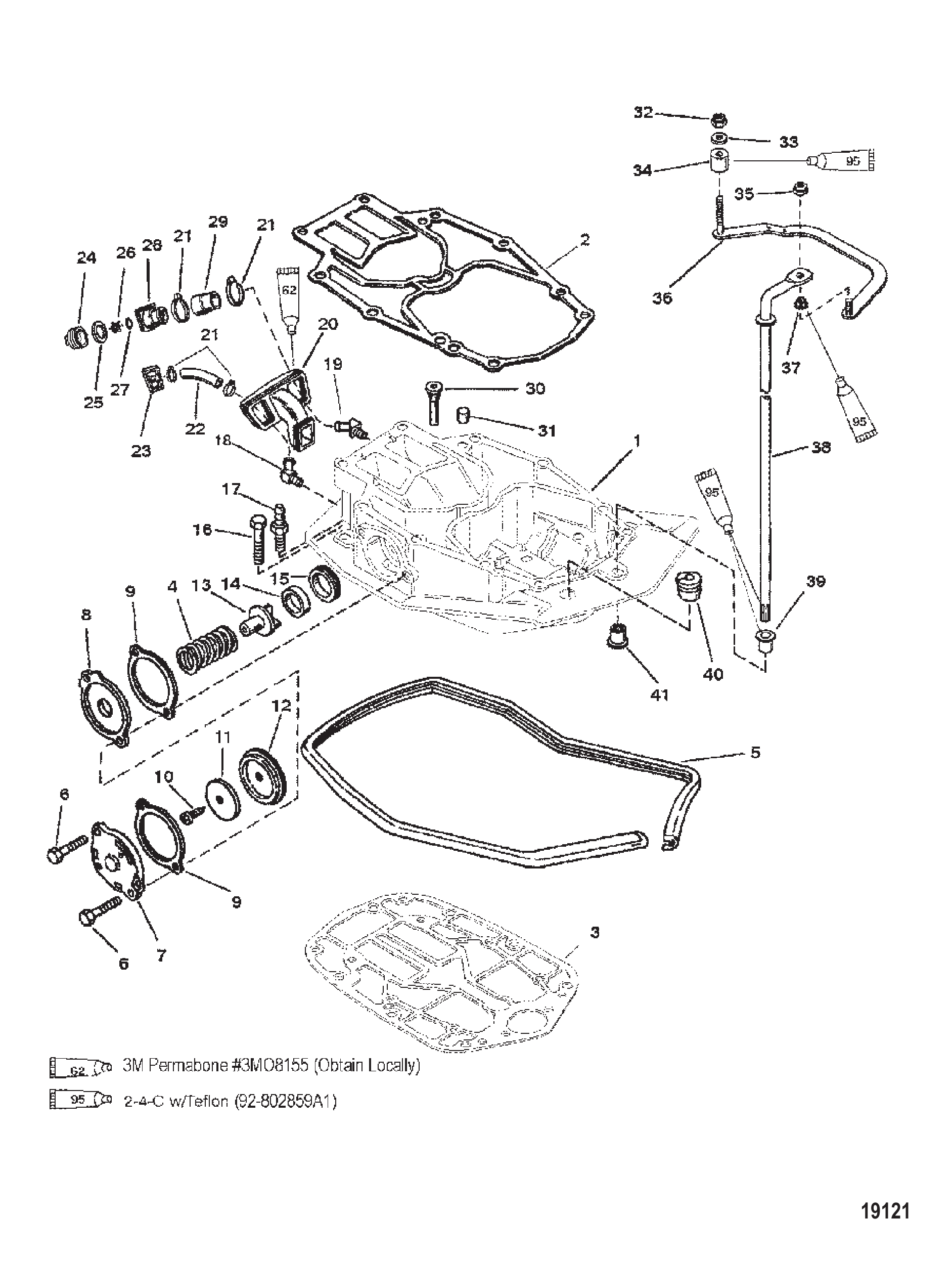

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 832935A1 | 排气板总成 | PLATE ASSEMBLY Exhaust | 1 |
| 2 | 8329332 | 衬垫 | GASKET | 1 |
| 2 | 8329335 | 衬垫 | GASKET | 1 |
| 3 | 8329343 | 衬垫(下部) | GASKET (LOWER) | 1 |
| 3 | 8329344 | 衬垫 | GASKET | 1 |
| 4 | 64878 | 弹簧(黑色) | SPRING (Black) | 1 |
| 5 | 8238051 | 密封件 | SEAL | 1 |
| 5 | 8M0043157 | 密封件 | SEAL | 1 |
| 6 | 81893435 | 螺钉(M8×35) | SCREW (M8 x 35) | 2 |
| 6 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 2 |
| 7 | 656632 | 盖板 | COVER | 1 |
| 7 | 8M0237835 | 罩盖总成 | COVER ASSY | 1 |
| 8 | 65664A1 | 隔板总成 | PLATE ASSEMBLY | 1 |
| 9 | 88907 | 衬垫 | GASKET | 2 |
| 9 | 88907003 | 衬垫 | GASKET | 2 |
| 10 | 69570 | 螺钉(#10-16 x .750) | SCREW (#10-16 x .750) | 1 |
| 11 | 76451 | 垫圈 | WASHER | 1 |
| 12 | 64877 | 隔膜 | DIAPHRAGM | 1 |
| 12 | 648771 | 隔膜 | DIAPHRAGM | 1 |
| 13 | 814189 | 提动阀 | POPPET | 1 |
| 14 | 814191 | 护孔环 | GROMMET | 1 |
| 15 | 814190 | 托架 | CARRIER | 1 |
| 16 | 81893435 | 螺钉(M8×35) | SCREW (M8 x 35) | 6 |
| 16 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 6 |
| 17 | 34982 | 连接器 | CONNECTOR | 2 |
| 18 | 782792 | 管接头 45度弯头 (1.25) | FITTING Elbow 45 Degree (1.25) (45 DEGREES) | 1 |
| 18 | 8M0207781 | 弯头 | ELBOW | 1 |
| 19 | 821975 | 45度弯头 | ELBOW 45 Degree (45 DEGREES) | 1 |
| 20 | 821255 | 怠速排气套 | BOOT Idle Exhaust | 1 |
| 21 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 22 | 830756109 | 软管(57英寸散装)(2-1/2英寸) | HOSE (57.00 Inches Bulk) (2-1/2 IN.) | 1 |
| 22 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 23 | 821904 | 示流器接头 | FITTING Tell-Tale | 1 |
| 23 | 8M0077650 | 示流器接头 | FITTING Tell-Tale | 1 |
| 24 | 821908 | 堵头 | PLUG | 1 |
| 25 | 821915 | 垫圈 | WASHER | 1 |
| 26 | 821963 | 止回阀 | CHECK VALVE | 1 |
| 26 | 8219631 | 止回阀 | CHECK VALVE | 1 |
| 27 | 30641 | O型圈(0.299x0.103) | O-RING (.299 x .103) | 1 |
| 28 | 821952 | 接头 | FITTING | 1 |
| 29 | 821976 | 软管 | HOSE | 1 |
| 30 | 817519A1 | 排水单向阀总成 | CHECK VALVE ASSEMBLY Drain | 2 |
| 31 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 4 |
| 32 | 8268336 | 螺母 (M6) | NUT (M6) | 1 |
| 32 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 33 | 35459 | 垫圈 | WASHER | 1 |
| 34 | 824012 | 滚轮 | ROLLER | 1 |
| 35 | 8268336 | 螺母 (M6) | NUT (M6) | 1 |
| 35 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 36 | 8141935 | 换挡连杆 | SHIFT LINK | 1 |
| 36 | 883142A03 | 换挡连杆套件 | SHIFT LINK KIT | 1 |
| 37 | 42994 | 衬套 | BUSHING | 1 |
| 38 | 8240701 | 上换挡轴 | SHIFT SHAFT Upper | 1 |
| 38 | 8M0036408 | 换挡轴 | SHAFT-SHIFT | 1 |
| 38 | 8240702 | 上换挡轴 | SHIFT SHAFT Upper | 1 |
| 38 | 8M0187153 | XL型上换挡轴 | SHAFT SHIFT UP XL | 1 |
| 38 | 8240703 | 上换挡轴 | SHIFT SHAFT Upper | 1 |
| 39 | 48237 | 衬套 | BUSHING | 1 |
| 40 | 126021 | 护孔环 | GROMMET | 1 |
| 40 | 12602002 | 护孔环 | GROMMET | 1 |
| 41 | 43585 | 联轴器 | COUPLING | 1 |
| - | 814195A93 | 衬垫套件 | GASKET SET | 1 |
| - | 809794A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 809794R97 | PH 225/250 -RM | PH 225/250 -RM | 1 |
| - | 804799A00 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 804800A00 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 804800R00 | PH 250 EFI RM | PH 250 EFI RM | 1 |

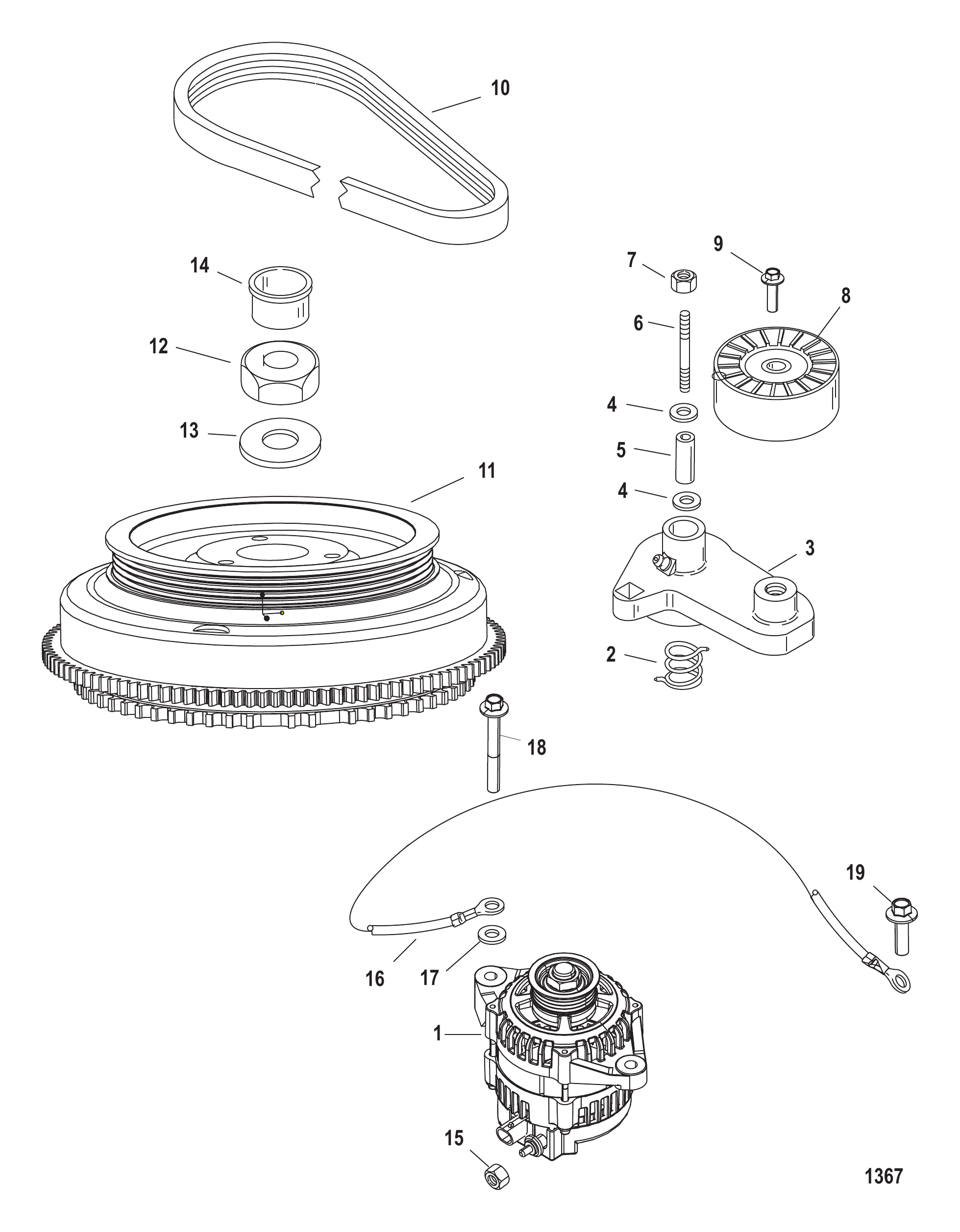

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 881247A1 | 交流发电机 | ALTERNATOR | 1 |
| 1 | 8M6013461 | 交流发电机 | ALTERNATOR | 1 |
| 2 | 8523742 | 弹簧 | SPRING | 1 |
| 3 | 856815T2 | 张紧臂总成 | ARM TENSIONER ASSEMBLY | 1 |
| 4 | 4002320 | 垫圈 | WASHER | 2 |
| 5 | 8568941 | 衬套 | BUSHING | 1 |
| 6 | 856900 | 螺柱(M10×85) | STUD (M10 x 85) | 1 |
| 6 | 8M0034457 | 螺柱(M10×85) | STUD (M10 x 85) | 1 |
| 7 | 826292 | 螺母(M10)黄铜/镀镍 | NUT (M10) Brass/Nickel Plated | 1 |
| 8 | 852385A2 | 皮带轮总成 | PULLEY ASSEMBLY | 1 |
| 8 | 8M6005030 | 皮带轮总成 | PULLEY ASSY | 1 |
| 9 | 4010835 | 螺钉(M10×35)六角法兰-不锈钢 | SCREW (M10 x 35) Hex Flange - Stainless Steel | 1 |
| 10 | 82850711 | 皮带 | BELT | 1 |
| 10 | 828507Q11 | 蛇形皮带 | BELT-SERPENTINE | 1 |
| 11 | 859619T1 | 飞轮 | FLYWHEEL | 1 |
| 12 | 42979 | 螺母(M16) | NUT (M16) | 1 |
| 13 | 68229 | 垫圈(.641 x 1.250 x .190) | WASHER (.641 x 1.250 x .190) | 1 |
| 13 | 33001 | 垫圈 | WASHER | 1 |
| 14 | 45907 | 黄色塞 | PLUG Yellow | 1 |
| 15 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 16 | 856583A5 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 17 | 4002319 | 垫圈 | WASHER | 1 |
| 18 | 82130150 | 螺丝(M10 x 50) | SCREW (M10 x 50) | 2 |
| 19 | 82130012 | 螺钉（M6 x 12） | SCREW (M6 x 12) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

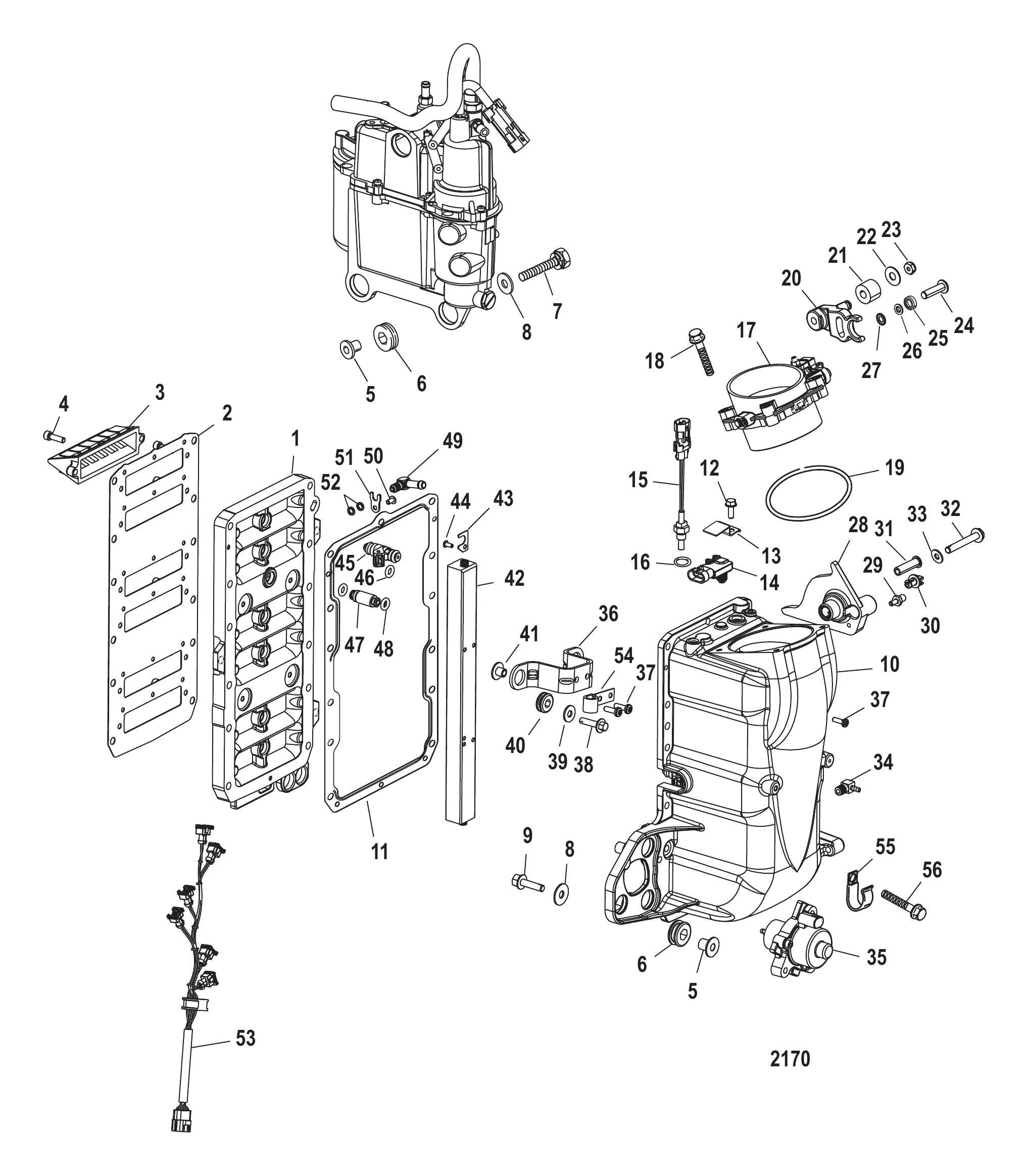

| - | 880004T07 | 燃油管理系统总成 | MANAGEMENT ASSEMBLY Fuel | 1 |
| - | 880004T08 | 燃油管理系统总成 | MANAGEMENT ASSEMBLY Fuel | 1 |
| 1 | 883951T1 | 适配板 | ADAPTER PLATE | 1 |
| 2 | 804680 | 衬垫 | GASKET | 1 |
| 3 | 828623T4 | 簧片阀组 | REED BLOCK | 6 |
| 4 | 8555252 | 螺钉 (M6) | SCREW (M6) | 12 |
| 5 | 855364 | 衬套 | BUSHING | 6 |
| 6 | 855362 | 护孔环 | GROMMET | 6 |
| 6 | 855362001 | 护孔环 | GROMMET | 6 |
| 6 | 855362001 | 护孔环 | GROMMET | 6 |
| 7 | 81893435 | 螺钉(M8×35) | SCREW (M8 x 35) | 3 |
| 7 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 3 |
| 8 | 817274 | 垫圈(0.344×1.00×0.063)不锈钢 | WASHER (.344 x 1.00 x .063) Stainless Steel | 6 |
| 9 | 81893430 | 螺钉 (M8 x 30) | SCREW (M8 x 30) | 3 |
| 9 | 81893435 | 螺钉(M8×35) | SCREW (M8 x 35) | 3 |
| 10 | 883950T1 | 空气集气室套件 | PLENUM KIT Air | 1 |
| 11 | 8046793 | 衬垫 | GASKET | 1 |
| 11 | 804679004 | 衬垫 | GASKET | 1 |
| 11 | 804679004 | 衬垫 | GASKET | 1 |
| 12 | 1993716 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 1 |
| 13 | 884522 | MAP传感器支架 | BRACKET MAP Sensor | 1 |
| 14 | 854445 | MAP传感器 | SENSOR MAP | 1 |
| 14 | 8M0237529 | MAP传感器 | SENSOR MAP | 1 |
| 15 | 885342001 | 传感器总成 | SENSOR ASSEMBLY | 1 |
| 15 | 8M0148668 | 传感器总成 | SENSOR ASSEMBLY | 1 |
| 16 | 888814 | O型圈(0.351 x 0.072) | O-RING (.351 x .072) | 1 |
| 16 | 896699 | O型圈（1.78毫米 x 0.08毫米） | O-RING (1.78 mm x .08 mm) | 1 |
| 17 | 883949T1 | 节气门体套件 | THROTTLE BODY KIT | 1 |
| 18 | 82130040 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 4 |
| 19 | 855426 | O型圈 | O-RING | 1 |
| 20 | 858851A03 | 节气门杠杆总成 | LEVER ASSEMBLY Throttle | 1 |
| 21 | 889610 | 滚轮 | ROLLER | 1 |
| 21 | 8M0072162 | 滚轮 | ROLLER | 1 |
| 22 | 56681 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 1 |
| 22 | 8M0204666 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 1 |
| 23 | 826709104 | 螺母(#8-32)不锈钢 | NUT (#8-32) Stainless Steel | 1 |
| 24 | 889354 | 专用螺钉 | SCREW Special | 1 |
| 25 | 881991 | 杯形垫圈 | WASHER Cupped | 1 |
| 25 | 8M0095734 | 垫圈/螺钉套件 | WASHER/SCREW KIT | 1 |
| 26 | 881992 | 线轴垫圈 | WASHER Spool | 1 |
| 26 | 8M0095734 | 垫圈/螺钉套件 | WASHER/SCREW KIT | 1 |
| 27 | 69432 | 外锁紧垫圈(#10) | LOCKWASHER External (#10) | 1 |
| 28 | 858353A3 | 凸轮总成 | CAM ASSEMBLY | 1 |
| 28 | 858353A08 | 凸轮总成 | CAM ASSEMBLY | 1 |
| 28 | 858353A08 | 凸轮总成 | CAM ASSEMBLY | 1 |
| 29 | 8235694 | 螺纹球头 | BALL Threaded | 1 |
| 30 | 932481 | 衬套 | BUSHING | 1 |
| 30 | 8M0215006 | 旋转衬套 | BUSHING Swivel | 1 |
| 31 | 8807371 | 衬套 | BUSHING | 1 |
| 32 | 40011155 | 不锈钢螺钉(M8x55) | SCREW (M8 x 55) Stainless Steel | 1 |
| 33 | 56720 | 垫圈(0.330×0.750×0.060)不锈钢 | WASHER (.330 x .750 x .060) Stainless Steel | 1 |
| 34 | 993211 | 接头 | FITTING | 1 |
| 35 | 879892T04 | 泵总成 | PUMP ASSEMBLY | 1 |
| 35 | 8M0185615 | EFI机油泵 | OIL PUMP EFI | 1 |
| 36 | 883926 | 支架 | BRACKET | 2 |
| 37 | 883942 | 螺钉(M4×16) | SCREW (M4 x 16) | 6 |
| 38 | 82130025 | 螺钉(M6x25) | SCREW (M6 x 25) | 4 |
| 39 | 4002316 | 垫圈(6.60 X 17.0 X 1.5不锈钢) | WASHER (6.60 X 17.0 X 1.5SS) | 4 |
| 39 | 8M0214930 | 垫圈6.60 x 17.0 x 1.5 | WASHER 6.60 x 17.0 x 1.5 | 4 |
| 40 | 834985 | 护孔环 | GROMMET | 4 |
| 40 | 8M0190980 | 护孔环 | GROMMET | 4 |
| 41 | 822003 | 衬套 | BUSHING | 4 |
| 42 | 883952T1 | 燃油导轨 | FUEL RAIL | 1 |
| 43 | 8833821 | 固定座 | RETAINER | 7 |
| 44 | 840118 | 螺钉 (#8-32 x 0.380) | SCREW (#8-32 x .380) | 7 |
| 45 | 840481001 | 喷油器总成 | INJECTOR ASSEMBLY | 6 |
| 45 | 840481T01 | 喷油器总成 | INJECTOR ASSEMBLY | 6 |
| 45 | 840481T01 | 喷油器总成 | INJECTOR ASSEMBLY | 6 |
| 46 | 895239A01 | O型圈套件 | O-RING KIT | 6 |
| 47 | 8832151 | 管 | TUBE | 1 |
| 48 | 883355 | O型圈 | O-RING | 2 |
| 49 | 883940 | 接头 | FITTING | 1 |
| 50 | 883376 | 螺钉(#10-24 x .375) | SCREW (#10-24 x .375) | 1 |
| 51 | 883382 | 固定座 | RETAINER | 1 |
| 52 | 20385 | O型圈(.239 x .070) | O-RING (.239 x .070) | 2 |
| 53 | 880745T1 | 燃油轨线束总成 | HARNESS ASSEMBLY Fuel Rail | 1 |
| 54 | 883941 | 卡箍 | CLAMP | 2 |
| 55 | 65292 | J型卡扣(适用处使用) | J CLIP (Use where Applicable) | 2 |
| 55 | 8M0024808 | J型夹 | J-CLIP | 2 |
| 56 | 82130040 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 12 |
| - | 832934A00 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 883892A04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 883892A07 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 883893A04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 883893A07 | PH 3L WORK EFI | PH 3L WORK EFI | 1 |
| - | 883894A04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 883894A07 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 891823A04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 891823A07 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

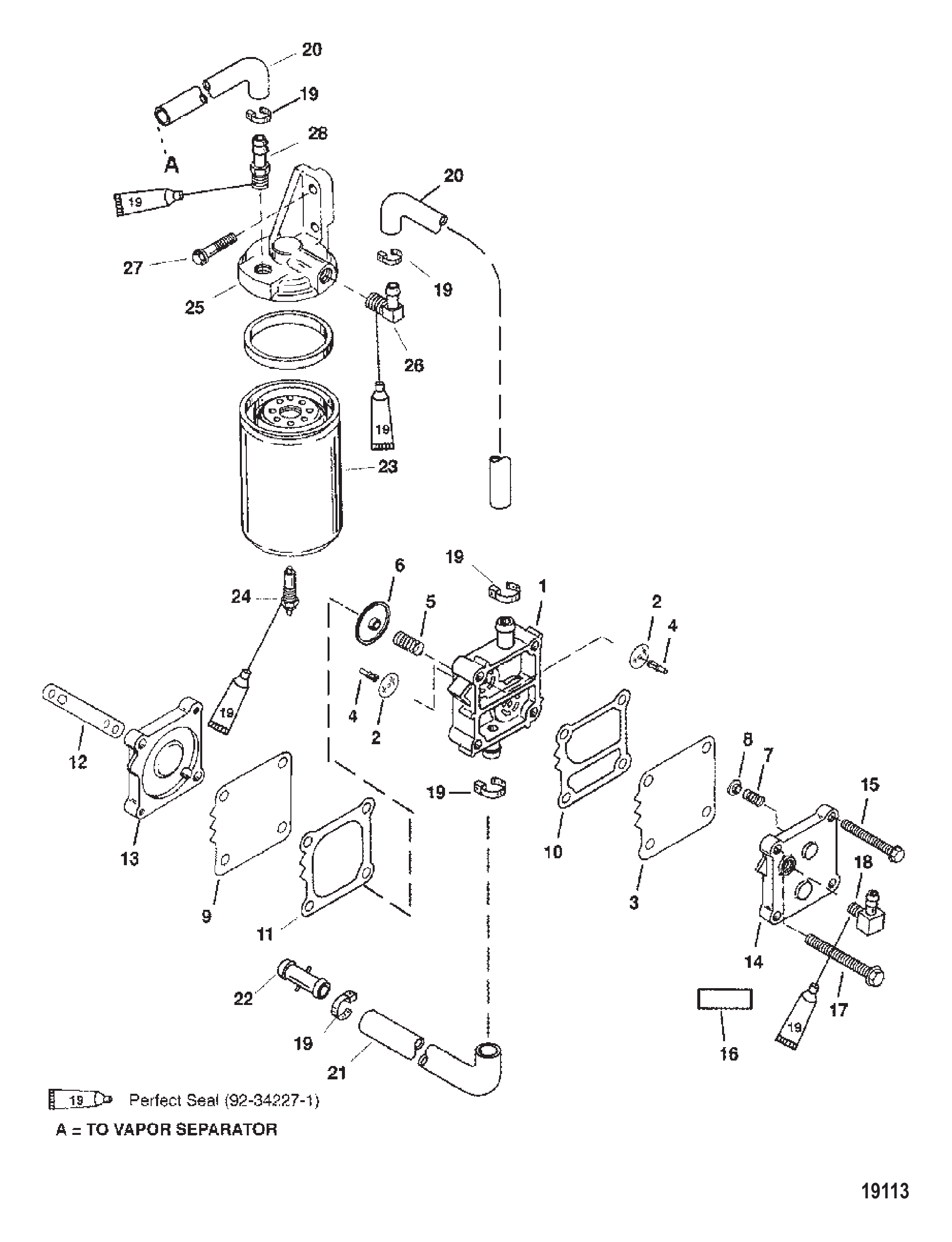

| - | 14360A71 | 燃油泵总成 | PUMP ASSEMBLY Fuel | 1 |
| 1 | NSS | 不单独销售 燃油泵 | NOT SOLD SEPARATE Fuel Pump | 1 |
| 2 | 857005A1 | 膜片组件 | DIAPHRAGM KIT | 1 |
| 3 | NSS | 膜片(不单独销售) | NOT SOLD SEPARATE Diaphragm | 1 |
| 4 | NSS | 固定座(不单独销售) | NOT SOLD SEPARATE Retainer | 2 |
| 5 | NSS | 弹簧(不单独销售) | NOT SOLD SEPARATE Spring | 1 |
| 6 | NSS | 盖帽(不单独销售) | NOT SOLD SEPARATE Cap | 1 |
| 7 | NSS | 弹簧(不单独销售) | NOT SOLD SEPARATE Spring | 1 |
| 8 | NSS | 盖帽(不单独销售) | NOT SOLD SEPARATE Cap | 1 |
| 9 | NSS | 膜片(不单独销售) | NOT SOLD SEPARATE Diaphragm | 1 |
| 10 | NSS | 增压垫片(不单独销售) | NOT SOLD SEPARATE Gasket-Boost | 1 |
| 11 | NSS | 脉冲垫片(不单独销售) | NOT SOLD SEPARATE Gasket-Pulse | 1 |
| 12 | 987691 | 衬垫 | GASKET | 1 |
| 12 | 8M0204705 | 衬垫@2 | GASKET @2 | 1 |
| 13 | 144303 | 底座 | BASE | 1 |
| 14 | 987752 | 安装板 | PLATE | 1 |
| 15 | 82104540 | 螺钉(M5 x 40) | SCREW (M5 x 40) | 2 |
| 16 | NSS | 标贴(不单独销售) | NOT SOLD SEPARATE Decal | 1 |
| 17 | 82130050 | 螺钉(M6 x 50) | SCREW (M6 x 50) | 2 |
| 18 | 629101 | 90度弯头接头(0.125-27) | FITTING Elbow - 90 Degree (.125-27) | 1 |
| 19 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 20 | 830757130 | 管材 (.312)(70.00英寸整卷)(17英寸) | TUBING (.312) (70.00 Inches Bulk) (17 IN.) | 2 |
| 20 | 8M0108349 | 软管 (70英寸散装) | HOSE (70 Inches Bulk) | 2 |
| 21 | 85936157 | 管材 (26.00英寸整卷)(26英寸) | TUBING (26.00 Inches Bulk) (26 IN.) | 1 |
| 21 | 85682257 | 燃油软管-26英寸 | HOSE-26 INCH FUEL | 1 |
| 21 | 830757130 | 管材 (.312)(70.00英寸整卷)(17英寸) | TUBING (.312) (70.00 Inches Bulk) (17 IN.) | 1 |
| 21 | 8M0108349 | 软管 (70英寸散装) | HOSE (70 Inches Bulk) | 1 |
| 22 | 822769 | 连接器 | CONNECTOR | 1 |
| 23 | 18458Q4 | 燃油水分离滤清器 | FILTER Fuel-Water Separating | 1 |
| 24 | 828586 | 探头 | PROBE | 1 |
| 24 | 8M0204710 | 探头 | PROBE | 1 |
| 25 | 13170A3 | 底座 | BASE | 1 |
| 26 | 136071 | 弯头 | ELBOW | 1 |
| 27 | 82130030 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 2 |
| 28 | 897712 | 连接器(.250-18) | CONNECTOR (.250-18) | 1 |
| 28 | 89771Q2 | 连接器(.250-18) | CONNECTOR (.250-18) | 1 |
| - | 814195A93 | 衬垫套件 | GASKET SET | 1 |
| - | 809794A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 809794R97 | PH 225/250 -RM | PH 225/250 -RM | 1 |
| - | 804799A00 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 804800A00 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 804800R00 | PH 250 EFI RM | PH 250 EFI RM | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

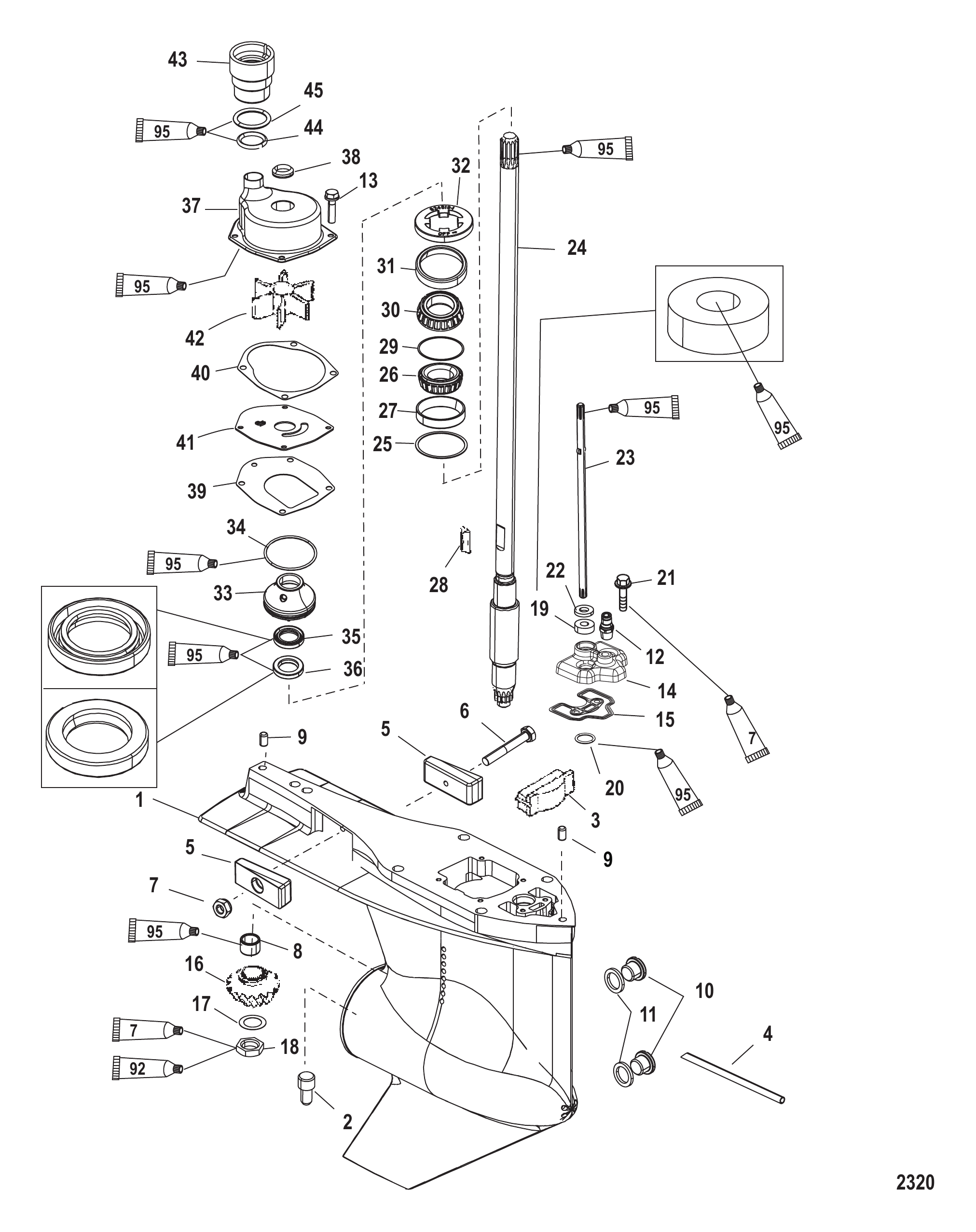

| - | 859399T13 | 齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米) | GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter) | 1 |
| - | 859399T14 | 齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米) | GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter) | 1 |
| - | 859399T15 | 齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米) | GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter) | 1 |
| - | 859399T16 | 齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米) | GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter) | 1 |
| - | 859399T17 | 齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米) | GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter) | 1 |
| 1 | 859399T18 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 2 | 379721 | 销 | PIN | 1 |
| 3 | 821526 | 填充块 | FILLER BLOCK | 1 |
| 4 | 859402 | 皮托管 | PITOT TUBE | 1 |
| 5 | 826134Q | 阳极块 | ANODE | 2 |
| 6 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 1 |
| 7 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 8 | 42647A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 9 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 2 |
| 10 | 79953Q2 | 排水螺钉套件(.375-16 x .250) | SCREW KIT (.375-16 x .250) Drain | 2 |
| 11 | 191833 | 密封件 | SEAL | 2 |
| 12 | 881866 | 接头 | FITTING | 1 |
| 13 | 1993716 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 4 |
| 14 | 858934 | 盖板 | COVER | 1 |
| 15 | 858935 | 衬垫 | GASKET | 1 |
| 16 | NSS | 不单独销售-小齿轮（1.75:1 - 12/21）（43-859321A3或43-828695A1部件） | NOT SOLD SEPARATE Pinion Gear (1.75:1 - 12/21)(Part of 43-859321A3 or 43-828695A1) | 1 |
| 17 | 92721 | 垫圈(.965×0.630) | WASHER (.965 x .630) | 1 |
| 18 | 35921 | 螺母(0.625-18) | NUT (.625-18) | 1 |
| 19 | 8164641 | 油封 | SEAL Oil | 1 |
| 20 | 36318 | O型圈(0.799英寸) | O-RING (.799) | 1 |
| 20 | 896522 | O型圈(799×.103) | O-RING (799 x .103) | 1 |
| 21 | 1993716 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 2 |
| 22 | 77674 | 垫圈(.35 x .75 x .12) | WASHER (.35 x .75 x .12) | 1 |
| 23 | 824145 | 换档轴 | SHIFT SHAFT | 1 |
| 24 | 881938 | 驱动轴 | DRIVESHAFT | 1 |
| 24 | 881942 | 驱动轴 | DRIVESHAFT | 1 |
| 24 | 881943 | 驱动轴 | DRIVESHAFT | 1 |
| 25 | 38657A1 | 垫片组 | SHIM ASSEMBLY | AR |
| 26 | 48939A2 | 圆锥滚子轴承 | BEARING Taper Roller | 1 |
| 27 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 28 | 43037 | 键 | KEY | 1 |
| 29 | 42637A1 | 垫片组 | SHIM SET | AR |
| 30 | 36387A1 | 轴承总成(滚子/外圈) | BEARING ASSEMBLY Roller/Cup | 1 |
| 31 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 32 | 8245191 | 固定座 | RETAINER | 1 |
| 33 | 807929A1 | 托架总成 | CARRIER ASSEMBLY | 1 |
| 34 | 90011 | O型圈(2.175 x 0.175) | O-RING (2.175 x .175) | 1 |
| 34 | 896523 | O型圈(2.175 x 0.103) | O-RING (2.175 x .103) | 1 |
| 35 | 66302 | 油封 | SEAL Oil | 1 |
| 36 | 66302 | 油封 | SEAL Oil | 1 |
| 37 | 817275A2 | 水泵上壳体套件 | HOUSING KIT Upper Water Pump | 1 |
| 38 | 816575A2 | 密封套件 | SEAL KIT | 1 |
| 39 | 430331 | 衬垫 | GASKET | 1 |
| 40 | 8172771 | 水泵上垫片 | GASKET Water Pump, Upper | 1 |
| 41 | 8172761 | 面板 | FACEPLATE | 1 |
| 42 | 43026T2 | 叶轮 | IMPELLER | 1 |
| 43 | 832942A1 | 联轴器总成 | COUPLING ASSEMBLY | 1 |
| 44 | 21836 | O型圈(.796 x .139) | O-RING (.796 x .139) | 1 |
| 45 | 35027 | O型圈(1.046英寸) | O-RING (1.046) | 1 |
| - | 817275A5 | 水泵修理包 | REBUILD KIT Water Pump | 1 |
| - | 816575A4 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| - | 43026Q06 | 水泵叶轮维修套件 | REPAIR KIT Water Pump Impeller | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 859399T16 | 齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米) | GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter) | 1 |
| - | 859399T17 | 齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米) | GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter) | 1 |
| 1 | 859399T18 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 2 | 859403 | 堵头 | PLUG | 1 |
| 3 | 823903 | 换挡曲柄 | SHIFT CRANK | 1 |
| 4 | 19755T7 | 阀芯总成 | SPOOL ASSEMBLY | 1 |
| 5 | NSS | 不单独销售线轴 | NOT SOLD SEPARATE Spool | 1 |
| 6 | NSS | 不单独销售套筒 | NOT SOLD SEPARATE Sleeve | 1 |
| 7 | 469501 | 开口销 | COTTER PIN | 1 |
| 8 | 44491A1 | 垫片组 | SHIM SET | AR |
| 9 | 828830A2 | 轴承适配器总成 | ADAPTER ASSEMBLY Bearing | 1 |
| 10 | 814653T | 滚针轴承总成 | BEARING ASSEMBLY Needle Rollers | 1 |
| 11 | 815481 | 止推垫片 | THRUST WASHER | 1 |
| 12 | 815480 | 推力轴承 | BEARING Thrust | 1 |
| 13 | 828696T2 | 倒挡齿轮(12/21齿) | GEAR Reverse (12/21) | 1 |
| 14 | 15844 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 15 | 30893 | 弹簧 | SPRING | 1 |
| 16 | 859340T | 离合器 | CLUTCH | 1 |
| 17 | 30632 | 十字销 | PIN Cross | 1 |
| 18 | 828356 | 定位销 | PIN Detent | 1 |
| 19 | 824111 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 20 | 828695A1 | 前进/小齿轮组(12/21齿) | GEAR SET Forward/Pinion (12/21) | 1 |
| 21 | 1761514 | 垫片(0.206) | SPACER SHIM (.206) | AR |
| 21 | 1761515 | 垫片(0.208) | SPACER SHIM (.208) | AR |
| 21 | 1761516 | 垫片(0.210) | SPACER SHIM (.210) | AR |
| 21 | 1761517 | 垫片(0.212) | SPACER SHIM (.212) | AR |
| 21 | 1761518 | 垫片(0.214) | SPACER SHIM (.214) | AR |
| 21 | 1761519 | 垫片(0.216) | SPACER SHIM (.216) | AR |
| 21 | 1761520 | 垫片(0.218) | SPACER SHIM (.218) | AR |
| 21 | 1761521 | 垫片(0.220) | SPACER SHIM (.220) | AR |
| 21 | 1761522 | 垫片(0.222) | SPACER SHIM (.222) | AR |
| 21 | 1761523 | 垫片(0.224) | SPACER SHIM (.224) | AR |
| 21 | 1761524 | 垫片(0.226) | SPACER SHIM (.226) | AR |
| 21 | 1761525 | 垫片(0.228) | SPACER SHIM (.228) | AR |
| 21 | 1761526 | 垫片(0.230) | SPACER SHIM (.230) | AR |
| 22 | 815480 | 推力轴承 | BEARING Thrust | 1 |
| 23 | 815481 | 止推垫片 | THRUST WASHER | 1 |
| 24 | 828831A3 | 轴承适配器总成 | ADAPTER ASSEMBLY Bearing | 1 |
| 25 | 814653T | 滚针轴承总成 | BEARING ASSEMBLY Needle Rollers | 1 |

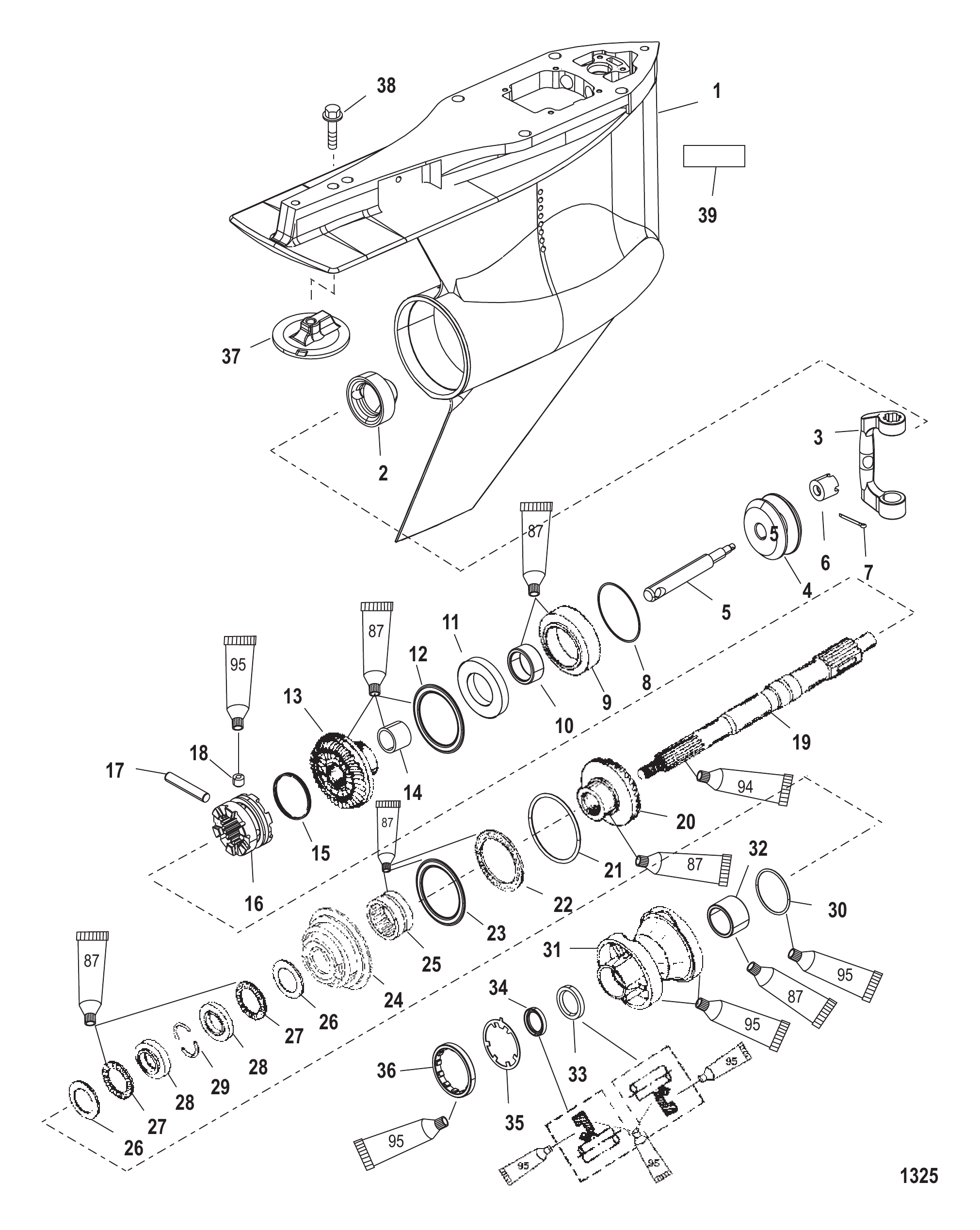

| 26 | 18448 | 止推垫片 | THRUST WASHER | 2 |
| 27 | 15842 | 推力轴承 | BEARING Thrust | 2 |
| 28 | 8182911 | 推力座圈 | RACE Thrust | 2 |
| 29 | 814605 | 定位器 | KEEPER | 2 |
| 30 | 31534 | O型圈 | O-RING | 1 |
| 30 | 896524 | O型圈(3.850×.210) | O-RING (3.850 x .210) | 1 |
| 31 | 818290T8 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 32 | 30956T | 滚针轴承 | BEARING Needle | 1 |
| 33 | 14077 | SEAL Oil (Inside) | 1 | |
| 34 | 76868 | SEAL (Outside) | 1 | |
| 35 | 18323 | 锁紧垫圈 | TAB WASHER | 1 |
| 36 | 79448 | 固定座 | RETAINER | 1 |
| 37 | 76214Q5 | 阳极套件 | ANODE KIT | 1 |
| 38 | 806327 | 螺钉(.437-14 x 1.750) | SCREW (.437-14 x 1.750) | 1 |
| 39 | NSS | 不单独出售 贴纸-反转标志 | NOT SOLD SEPARATE Decal- Counter Rotation | 1 |
| - | 816575A4 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

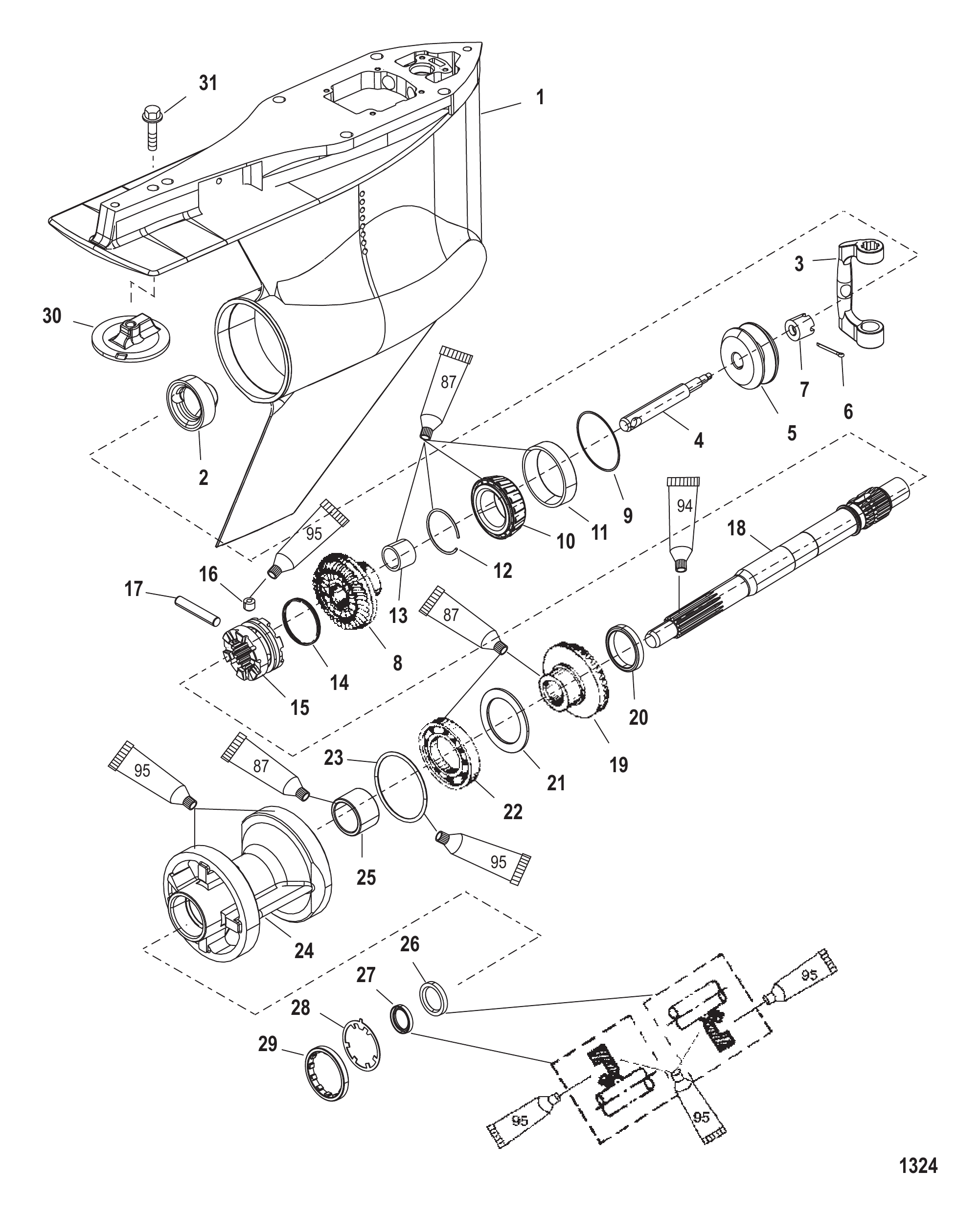

| - | 859399T13 | 齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米) | GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter) | 1 |
| - | 859399T14 | 齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米) | GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter) | 1 |
| - | 859399T15 | 齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米) | GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter) | 1 |
| 1 | 859399T18 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 2 | 859403 | 堵头 | PLUG | 1 |
| 3 | 823903 | 换挡曲柄 | SHIFT CRANK | 1 |
| 4 | 19755T7 | 阀芯总成 | SPOOL ASSEMBLY | 1 |
| 5 | NSS | 不单独销售换挡轴 | NOT SOLD SEPARATE Shift Spool | 1 |
| 6 | 469501 | 开口销 | COTTER PIN | 1 |
| 7 | NSS | 不单独销售套筒 | NOT SOLD SEPARATE Sleeve | 1 |
| 8 | 859321A3 | 前进/小齿轮组(12/21齿) | GEAR SET Forward/Pinion (12/21) | 1 |
| 9 | 44491A1 | 垫片组 | SHIM SET | AR |
| 10 | 30894A1 | 圆锥轴承组 | BEARING SET Cup And Cone | 1 |
| 11 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 12 | 856823 | 挡圈 | RING Retaining | 1 |
| 13 | 30895T | 滚针轴承 | BEARING Needle | 1 |
| 14 | 30893 | 弹簧 | SPRING | 1 |
| 15 | 859340T | 离合器 | CLUTCH | 1 |
| 16 | 828356 | 定位销 | PIN Detent | 1 |
| 17 | 30632 | 十字销 | PIN Cross | 1 |
| 18 | 824110 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 19 | 859322A1 | 倒挡齿轮(12/21齿) | GEAR Reverse (12/21) | 1 |
| 20 | 824108 | 隔套 | SPACER | 1 |
| 21 | 681001 | 止推环 | RING Thrust | 1 |
| 22 | 88957T | 滚珠轴承 | BEARING Ball | 1 |
| 23 | 31534 | O型圈 | O-RING | 1 |
| 23 | 896524 | O型圈(3.850×.210) | O-RING (3.850 x .210) | 1 |
| 24 | 818763T11 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 25 | 30956T | 滚针轴承 | BEARING Needle | 1 |
| 26 | 14077 | SEAL Oil (Inside) | 1 | |
| 27 | 76868 | SEAL (Outside) | 1 | |
| 28 | 18323 | 锁紧垫圈 | TAB WASHER | 1 |
| 29 | 79448 | 固定座 | RETAINER | 1 |
| 30 | 76214Q5 | 阳极套件 | ANODE KIT | 1 |
| 31 | 806327 | 螺钉(.437-14 x 1.750) | SCREW (.437-14 x 1.750) | 1 |
| - | 816575A4 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

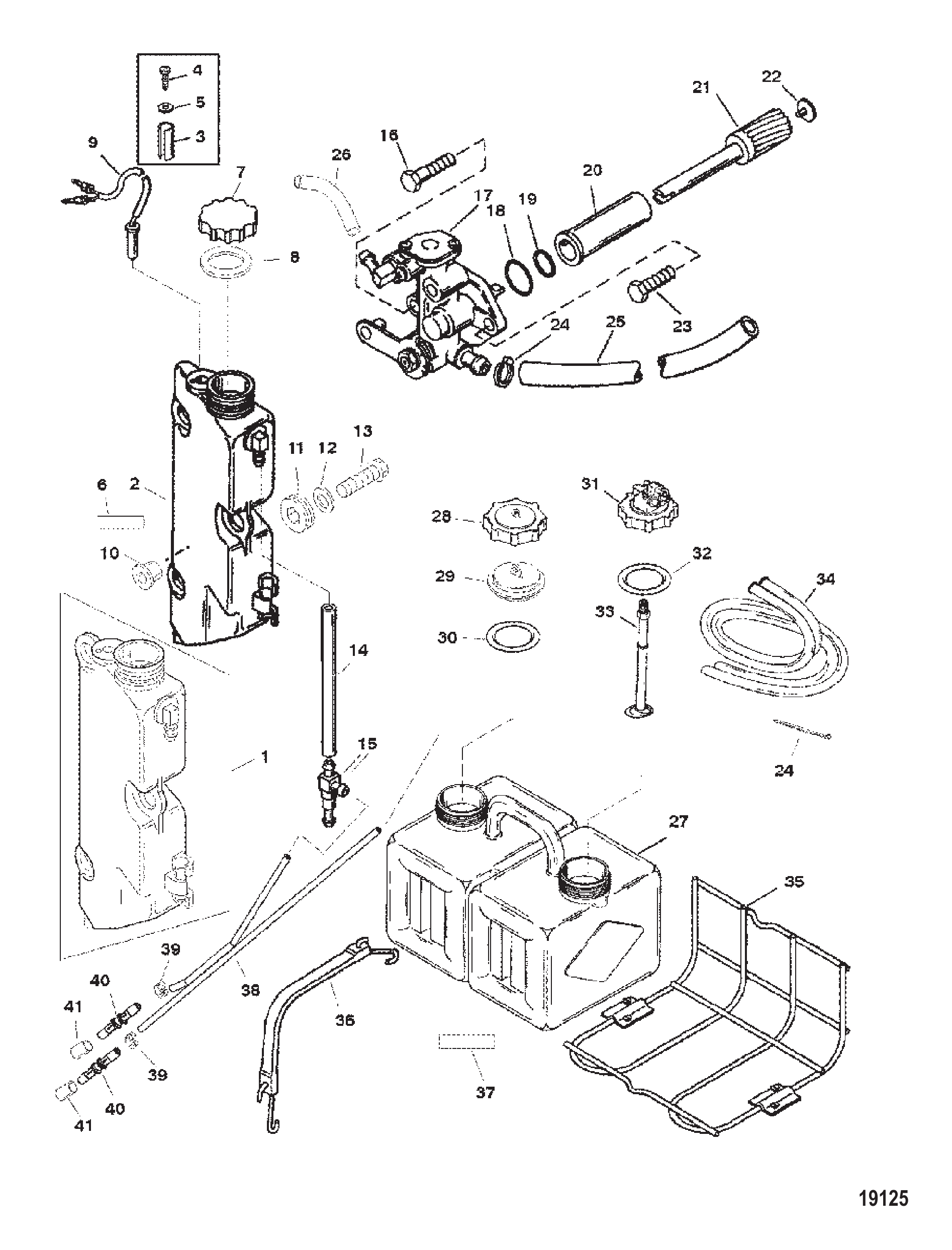

| 1 | 830889A1 | 油箱总成 | TANK ASSEMBLY Oil | 1 |
| 2 | 818456A1 | 油箱总成 | TANK ASSEMBLY Oil | 1 |
| 3 | 8260841 | 隔套 | SPACER | 1 |
| 4 | 58376 | 螺钉(.164-18 x .375) | SCREW (.164-18 x .375) | 1 |
| 5 | 72761 | 不锈钢垫圈(.203 x .562 x .060) | WASHER (.203 x .562 x .060) Stainless Steel | 1 |
| 6 | NSS | 不单独销售 贴纸-油箱 | NOT SOLD SEPARATE Decal-Oil Tank | 1 |
| 7 | 814449A3 | 盖总成 | CAP ASSEMBLY | 1 |
| 8 | 42999 | 衬垫 | GASKET | 1 |
| 8 | 42999T | 衬垫 | GASKET | 1 |
| 9 | 12886A7 | 开关总成 | SWITCH ASSEMBLY | 1 |
| 10 | 19064 | 衬套 | BUSHING | 3 |
| 11 | 825380 | 护孔环 | GROMMET | 3 |
| 11 | 825380001 | 护孔环 | GROMMET | 3 |
| 12 | 49436 | 垫圈 | WASHER | 3 |
| 13 | 81893435 | 螺钉(M8×35) | SCREW (M8 x 35) | 3 |
| 13 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 3 |
| 14 | 830756109 | 软管(57.00英寸散装) | HOSE (57.00 Inches Bulk) | 1 |
| 14 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 14 | 830756109 | 软管(57.00英寸散装) | HOSE (57.00 Inches Bulk) | 1 |
| 14 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 15 | 424254 | 接头 | FITTING | 1 |
| 15 | 8M0207780 | 接头 | FITTING | 1 |
| 16 | 82104530 | 螺钉 (M5 X 30) | SCREW (M5 X 30) | 1 |
| 17 | 815536T1 | 油泵 | PUMP Oil | 1 |
| 18 | 11379 | O型圈 | O-RING | 1 |
| 19 | 48462 | O型圈 (.614 x .070) | O-RING (.614 x .070) | 1 |
| 20 | 817631 | 从动齿轮轴承 | BEARING Driven Gear | 1 |
| 21 | 430204 | 从动齿轮 | GEAR Driven | 1 |
| 22 | 816974 | 推力轴承 | BEARING Thrust | 1 |
| 23 | 82104520 | 螺钉（M5×20） | SCREW (M5 x 20) (M5 X 20) | 1 |
| 24 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 25 | 82381455 | 管材 (25.00英寸整卷)(8-3/4英寸) | TUBING (25.00 Inches Bulk) (8-3/4 IN.) | 1 |
| 26 | 82381335 | 管材(15英寸整卷)(7英寸) | TUBING (15.00 Inches Bulk) (7 IN.) | 1 |
| 27 | 87421 | 油箱 | TANK | 1 |
| 28 | 43298A2 | 盖总成 | CAP ASSEMBLY | 2 |
| 29 | NSS | 不单独销售嵌件 | NOT SOLD SEPARATE Insert | 1 |
| 30 | 11332 | O型圈(2.225 x .210) | O-RING (2.225 x .210) | 1 |
| 31 | 816190A4 | 机油收集器总成(无传感器) | OIL PICK UP ASSEMBLY Without Sender | 1 |
| 32 | 11332 | O型圈(2.225 x .210) | O-RING (2.225 x .210) | 1 |
| 33 | 99802 | 管 | TUBE | 1 |
| 34 | 99439 | 软管(114.00英寸) | HOSE (114.00 Inches) | 1 |
| 35 | 12335A1 | 支架套件 | BRACKET KIT | 1 |
| 36 | 12323A1 | 绳索/挂钩套件 | CORD/HOOK KIT | 1 |
| 37 | NSS | 警示标贴-远程油箱(不单独销售) | NOT SOLD SEPARATE Decal-Caution Remote Tank | 1 |
| 38 | 858853 | 软管 | HOSE | 1 |
| 39 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 2 |
| 40 | 858955 | 连接器 | CONNECTOR | 2 |
| 41 | NSS | 盖帽(不单独销售) | NOT SOLD SEPARATE Cap | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

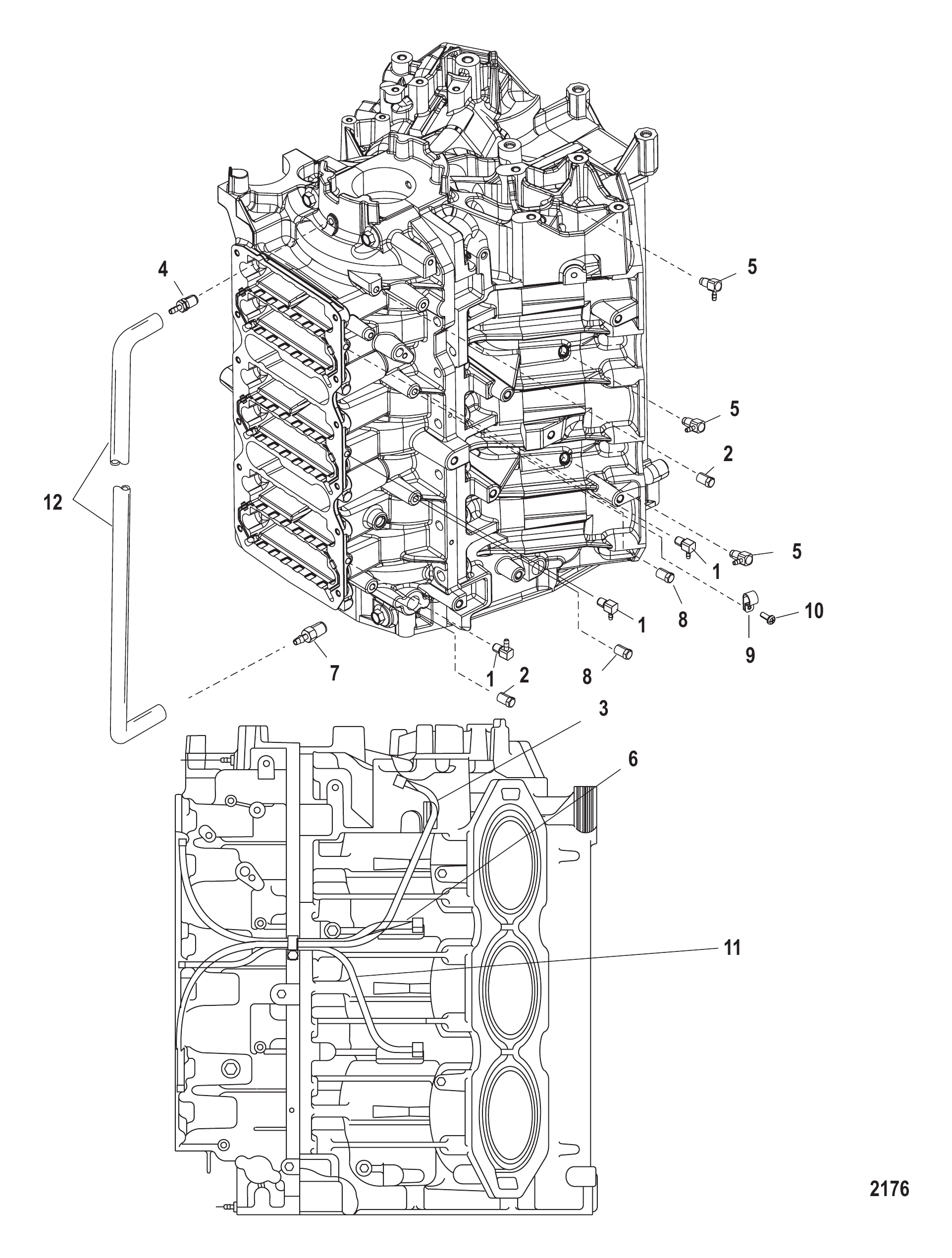

| 1 | 8282182 | 止回阀 | CHECK VALVE | 3 |
| 2 | 8272011 | 管塞 | PIPE PLUG | 2 |
| 3 | 85606065 | 管材(38英寸整卷)(裁切至20.5英寸) | TUBING (38.00 Inches Bulk) (Cut to 20-1/2 Inches) | 1 |
| 3 | 8M0054152 | 管材(39.00英寸整卷) | TUBING (39.00 Inches Bulk) | 1 |
| 4 | 8159234 | 止回阀 | CHECK VALVE | 1 |
| 5 | 8592352 | 止回阀90度(.0625-27) | CHECK VALVE 90 Degree (.0625-27) | 3 |
| 6 | 85606065 | 管材(38英寸整卷)(裁切至13英寸) | TUBING (38.00 Inches Bulk) (Cut to 13 Inches) | 1 |
| 6 | 8M0054152 | 管材(39.00英寸整卷) | TUBING (39.00 Inches Bulk) | 1 |
| 7 | 426585 | 止回阀 | CHECK VALVE | 1 |
| 8 | 8272011 | 管塞 | PIPE PLUG | 2 |
| 9 | 23567 | 卡扣 | CLIP | 1 |
| 10 | 878608 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 1 |
| 11 | 85606065 | 管材(38英寸整卷)(裁切至11英寸) | TUBING (38.00 Inches Bulk) (Cut to 11 Inches) | 1 |
| 11 | 8M0054152 | 管材(39.00英寸整卷) | TUBING (39.00 Inches Bulk) | 1 |
| 12 | 892024122 | 管材(散装240英寸)(裁切至22.5英寸) | TUBING (240.00 Inches Bulk) (Cut to 22-1/2 Inches) | 1 |
| - | 883892A04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 883892A07 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 883893A04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 883893A07 | PH 3L WORK EFI | PH 3L WORK EFI | 1 |
| - | 883894A04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 883894A07 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 891823A04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 891823A07 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 832934A00 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| 0 | 857005A1 | 燃油泵膜片维修包 | DIAPHRAGM KIT Fuel Pump | 1 |
| 0 | NSS | 膜片(不单独销售) | NOT SOLD SEPARATE Diaphragm | 2 |
| 0 | NSS | 固定座(不单独销售) | NOT SOLD SEPARATE Retainer | 2 |
| 0 | NSS | 弹簧(不单独销售) | NOT SOLD SEPARATE Spring | 1 |
| 0 | NSS | 盖帽(不单独销售) | NOT SOLD SEPARATE Cap | 1 |
| 0 | NSS | 弹簧(不单独销售) | NOT SOLD SEPARATE Spring | 1 |
| 0 | NSS | 不单独销售 端盖-弹簧 | NOT SOLD SEPARATE Cap-Spring End | 1 |
| 0 | NSS | 增压垫片(不单独销售) | NOT SOLD SEPARATE Gasket-Boost | 1 |
| 0 | NSS | 脉冲垫片(不单独销售) | NOT SOLD SEPARATE Gasket-Pulse | 1 |
| 0 | 987691 | 燃油泵衬垫 | GASKET Fuel Pump | 1 |
| 0 | 8M0204705 | 衬垫@2 | GASKET @2 | 1 |
| 0 | 804680 | 燃油管理适配板垫片 | GASKET Fuel Management Adaptor Plate | 1 |
| 0 | 62700 | O型圈(3.237x0.103)下端盖 | O-RING (3.237 x .103) Lower End Cap | 1 |
| 0 | 818574 | 密封件（气缸盖） | SEAL Cylinder Head | 2 |
| 0 | 8503181 | 节温器盖衬垫 | GASKET Thermostat Cover | 2 |
| 0 | 35126 | O型圈(.859 x .139)曲轴-下部 | O-RING (.859 x .139) Crankshaft-Lower | 1 |
| 0 | 823683 | O型圈（1.989×0.070）（曲轴上端） | O-RING (1.989 x .070) Crankshaft-Upper | 1 |
| 0 | 8329335 | 气缸体衬垫 | GASKET Cylinder Block | 1 |
| 0 | 832933006 | 衬垫 | GASKET | 1 |
| 0 | 8329344 | 排气板衬垫 | GASKET Exhaust Plate | 1 |
| 0 | 832934006 | 衬垫 | GASKET | 1 |
| 0 | 88907003 | 衬垫(安全阀盖与阀板) | GASKET Relief Valve Cover & Plate | 2 |
| 0 | 854639 | 密封件（节温器） | SEAL Thermostat | 2 |
| 0 | 854639001 | 密封件 | SEAL | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

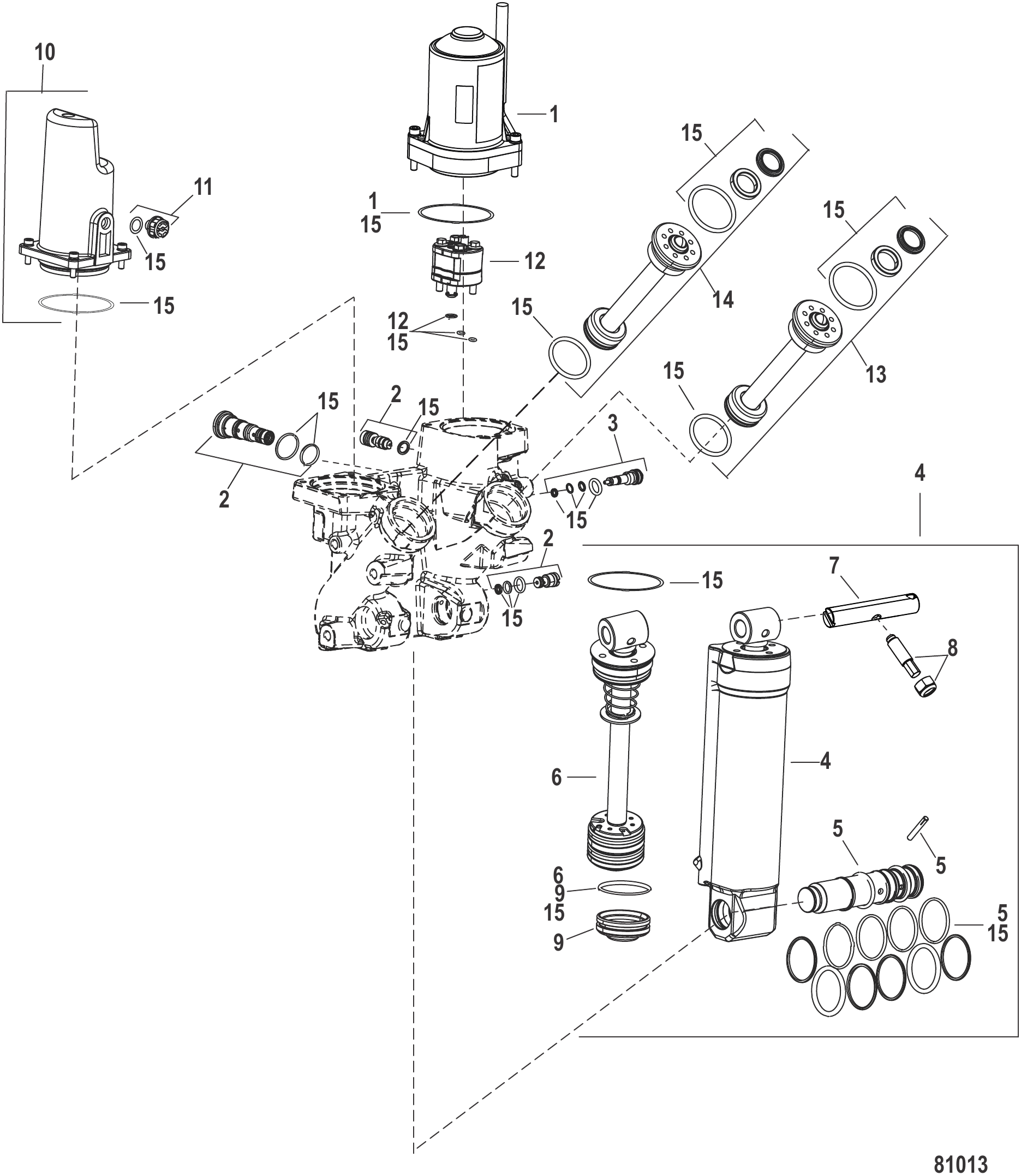

| - | 8M0231193 | 动力升降总成 | POWER TRIM ASSEMBLY | 1 |
| 1 | 8M0225363 | 电机套件 | MOTOR KIT | 1 |
| 2 | 8M0225369 | 阀套件 | VALVE KIT | 1 |
| 3 | 8M0225371 | 手动释放套件 | MANUAL RELEASE KIT | 1 |
| 4 | 8M0245633 | 倾斜油缸套件 | TILT CYLINDER KIT | 1 |
| 5 | 8M0225370 | 枢轴销套件 | PIVOT PIN KIT | 1 |
| 6 | 8M0244575 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 7 | 8M0244425 | 销杆眼套件 | PIN ROD EYE KIT | 1 |
| 8 | 8M0232231 | 螺钉螺母套件 | SCREW NUT KIT | 1 |
| 9 | 8M0225373 | 记忆活塞套件 | MEMORY PISTON KIT | 1 |
| 10 | 8M0225368 | 储液罐套件 | RESERVOIR KIT | 1 |
| 11 | 8M0174135 | 储液罐塞总成 | PLUG RESERVOIR ASSEMBLY | 1 |
| 12 | 8M0237525 | 泵套件 | PUMP KIT | 1 |
| 13 | 8M0225367 | 升降杆套件 | TRIM ROD KIT | 1 |
| 14 | 8M0242846 | 升降杆套件 | TRIM ROD KIT | 1 |
| 15 | 8M0225372 | 重建套件 | REBUILD KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 855998A3 | 动力升降倾斜装置总成 | POWER TRIM Complete | 1 |
| - | 855998A11 | 动力调整套件 | POWER TRIM KIT | 1 |
| - | 855998A05 | 完整动力升降总成 | POWER TRIM ASSEMBLY Complete | 1 |
| - | 855998A11 | 动力调整套件 | POWER TRIM KIT | 1 |
| 1 | 878265A4 | 配平电机 | TRIM MOTOR | 1 |
| 1 | 8M0031551 | 配平电机 | TRIM MOTOR | 1 |
| 2 | NSS | 电枢(不单独销售) | NOT SOLD SEPARATE Armature | 1 |
| 3 | NSS | 端架(不单独销售) | NOT SOLD SEPARATE End Frame | 1 |
| 4 | 82494830 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 2 |
| 5 | 400256 | 锁紧垫圈 (M6) | LOCKWASHER (M6) | 2 |
| 6 | 8782451 | 驱动轴 | DRIVESHAFT | 1 |
| 7 | 878410A1 | 压力检查套件 | PO CHECK KIT | 1 |
| 8 | 813442A2 | 手动释放总成 | MANUAL RELEASE ASSEMBLY | 1 |
| 8 | 893929A01 | 安全阀套件 | VALVE KIT Relief | 1 |
| 9 | 878241A02 | 轴套件 | SHAFT KIT | 1 |
| 9 | 8M0142997 | 倾斜轴套件 | TILT SHAFT KIT | 1 |
| 10 | 878267 | 销 | PIN | 1 |
| 11 | 878235A1 | 倾斜油缸总成 | TILT CYLINDER ASSEMBLY | 1 |
| 11 | 878235A03 | 倾斜油缸套件 | CYLINDER KIT Tilt | 1 |
| 11 | 878235A02 | 倾斜油缸总成 | TILT CYLINDER ASSEMBLY | 1 |
| 11 | 878235A03 | 倾斜油缸套件 | CYLINDER KIT Tilt | 1 |
| 12 | 878239A1 | 导向套件 | GUIDE KIT | 1 |
| 12 | 878239A02 | 倾斜缸端盖套件 | END CAP KIT Tilt Cylinder | 1 |
| 13 | 878409A1 | O型圈套件 | O-RING KIT | 1 |
| 13 | 8M0142999 | 倾斜油缸O型圈套件 | O RING KIT TILT CYLINDER | 1 |
| 14 | 878412A1 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 14 | 8M0168219 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 15 | 878242A1 | 记忆活塞总成 | PISTON ASSEMBLY Memory | 1 |
| 15 | 8M0143000 | 记忆活塞套件 | MEMORY PISTON KIT | 1 |
| 16 | 878406A1 | 止回阀修理包 | REPAIR KIT Check Valve | 1 |
| 16 | 878406A02 | 止回阀修理包 | REPAIR KIT Check Valve | 1 |
| 17 | 878414A1 | 活塞总成 | PISTON ASSEMBLY | 1 |
| 17 | 878414T01 | 活塞总成 | PISTON ASSEMBLY | 1 |
| 18 | 878413A1 | 活塞总成 | PISTON ASSEMBLY | 1 |
| 19 | 878243A1 | 导向器总成 | GUIDE ASSEMBLY | 2 |
| 19 | 8M0021648 | 端盖总成 | END CAP ASSEMBLY | 2 |
| 20 | 878264A1 | 储液罐套件 | RESERVOIR KIT | 1 |
| 21 | 811613 | 塞子总成 | PLUG ASSEMBLY | 1 |
| 22 | 4000327 | 螺钉 (M6 x 14) | SCREW (M6 x 14) | 4 |
| 23 | 43450 | 垫圈 | WASHER | 4 |
| 23 | 4002315 | 垫圈(6.60x12.5x1.5mm-不锈钢) | WASHER (6.60 X 12.5 X 1.5 mm -SS) | 4 |
| 24 | 892251A01 | 泵套件 | PUMP KIT | 1 |
| 25 | 878408A1 | 动力升降倾斜装置维修包 | REPAIR KIT Power Trim | 1 |
| 26 | 821539 | 三叶销 | PIN Trilobe | 1 |
| 27 | 858771 | 螺钉 (M10 x 30) | SCREW (M10 x 30) | 6 |
| 28 | 4002319 | 垫圈 | WASHER | 6 |
| 29 | 818298Q1 | 阳极套件 | ANODE KIT | 1 |
| 30 | 4000330 | 螺钉(M6x25) | SCREW (M6 x 25) | 2 |
| 30 | 8M0204707 | 不锈钢六角大帽螺钉(M6x25) | SCREW M6 x 25 HX HD CAP SS | 2 |
| 31 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 31 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 32 | 996251 | 轴 | SHAFT | 1 |
| 32 | 99625002 | 轴 | SHAFT | 1 |
| 32 | 99625002 | 轴 | SHAFT | 11 |
| 33 | 69205 | C形垫圈 | C WASHER | 1 |
| 33 | 8M0084613 | C形垫圈 | C-WASHER | 1 |
| 34 | 26550 | 卡箍 | CLAMP | 2 |
| 35 | 878609 | 螺钉 (#10-16 x .600) | SCREW (#10-16 x .600) | 1 |
| 36 | 828547353 | 导管(内径0.350x3英尺散装)(裁切至12英寸) | CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk) (Cut to 12 Inches) | 1 |
| 37 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0168222 | 动力升降总成 | POWER TRIM ASSEMBLY | 1 |
| 1 | 8M0142591 | 电机套件 | MOTOR KIT | 1 |
| 2 | 82494830 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 2 |
| 3 | 400256 | 锁紧垫圈 (M6) | LOCKWASHER (M6) | 2 |
| 4 | 8M0090403 | 驱动联轴器 | COUPLING Drive | 1 |
| 5 | 8M0142996 | 压力检查套件 | PO CHECK KIT | 1 |
| 6 | 8M0060141 | 手动释放套件 | MANUAL RELEASE KIT | 1 |
| 7 | 8M0142997 | 倾斜轴套件 | TILT SHAFT KIT | 1 |
| 8 | 878267 | 销 | PIN | 1 |
| 9 | 8M0142998 | 倾斜油缸总成 | TILT CYLINDER ASSEMBLY | 1 |
| 9 | 8M0168220 | 倾斜油缸总成 | TILT CYLINDER ASSEMBLY | 1 |
| 10 | 8M0142999 | 倾斜油缸O型圈套件 | O RING KIT TILT CYLINDER | 1 |
| 11 | 8M0143000 | 记忆活塞套件 | MEMORY PISTON KIT | 1 |
| 12 | 8M0142592 | 升降杆套件 左舷 | TRIM ROD KIT Port | 1 |
| 13 | 8M0143001 | 活塞总成 | PISTON ASSEMBLY | 1 |
| 14 | 8M0143003 | 端盖总成 | END CAP ASSEMBLY | 1 |
| 15 | 878264A1 | 储液罐套件 | RESERVOIR KIT | 1 |
| 16 | 811613 | 塞子总成 | PLUG ASSEMBLY | 1 |
| 17 | 4000327 | 螺钉 (M6 x 14) | SCREW (M6 x 14) | 4 |
| 18 | 4002315 | 垫圈(6.60x12.5x1.5mm-不锈钢) | WASHER (6.60 X 12.5 X 1.5 mm -SS) | 4 |
| 19 | 8M0143004 | 泵套件 | PUMP KIT | 1 |
| 20 | 8M0148385 | 动力升降倾斜装置维修包 | REPAIR KIT Power Trim | 1 |
| 21 | 858771 | 螺钉 (M10 x 30) | SCREW (M10 x 30) | 6 |
| 22 | 4002319 | 垫圈 | WASHER | 6 |
| 23 | 8M0094889 | 销 | PIN | 1 |
| 23 | 8M0161312 | 连杆销眼总成 | PIN ROD EYE ASSEMBLY | 1 |
| 24 | 8M0143005 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 24 | 8M0168219 | 减震杆套件 | SHOCK ROD KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 0 | 803199 | 零件手册 225/250 (3.0L) EFI | PARTS MANUAL 225/250 (3.0L) EFI | 1 |
| 0 | 822900R3 | 维修手册 | SERVICE MANUAL | 1 |
| 0 | 10128010 | 用户手册 | OWNERS MANUAL | 1 |
| 0 | 824105A00 | 贴花套件 | DECAL SET | 1 |
| 0 | 8M0112711 | 贴花套件 | DECAL KIT | 1 |
| 0 | 809693A00 | 贴花套件 | DECAL SET | 1 |
| 0 | 8M0114999 | 服务套件贴纸 | DECAL-SERVICE KIT | 1 |
| 0 | 809167A00 | 贴花套件 | DECAL SET | 1 |
| 0 | 8M0114999 | 服务套件贴纸 | DECAL-SERVICE KIT | 1 |
| 0 | 824105A96 | 贴花套件 | DECAL SET | 1 |
| 0 | 824105A00 | 贴花套件 | DECAL SET | 1 |
| 0 | 809693A99 | 贴花套件 | DECAL SET | 1 |
| 0 | 809693A00 | 贴花套件 | DECAL SET | 1 |
| 0 | 809167A99 | 贴花套件 | DECAL SET | 1 |
| 0 | 809167A00 | 贴花套件 | DECAL SET | 1 |
| 0 | 809709A97 | 贴花套件 | DECAL SET | 1 |
| 0 | 827438A97 | 贴花套件 | DECAL SET | 1 |
| 0 | 827438A01 | 贴花套件 | DECAL SET | 1 |
| 0 | 809168A97 | 贴花套件 | DECAL SET | 1 |
| 0 | 809168A01 | 贴花套件 | DECAL SET | 1 |
| 0 | 824911A25 | 条纹贴花 | DECAL Striping | 1 |
| 0 | 827438A00 | 贴花套件 | DECAL SET | 1 |
| 0 | 827438A01 | 贴花套件 | DECAL SET | 1 |
| 0 | 827438A01 | 贴花套件 | DECAL SET | 1 |
| 0 | 809168A00 | 贴花套件 | DECAL SET | 1 |
| 0 | 809168A01 | 贴花套件 | DECAL SET | 1 |
| 0 | 809168A01 | 贴花套件 | DECAL SET | 1 |
| 0 | 809848A96 | 贴花套件 | DECAL SET | 1 |
| 0 | 809854A96 | 贴花套件 | DECAL SET | 1 |
| 0 | 856985A12 | EPA标签信息贴花 | DECAL EPA Label Information | 1 |
| 0 | 804670A00 | EPA标签信息贴花 | DECAL EPA Label Information | 1 |
| 0 | 804670A01 | EPA标签信息贴花 | DECAL EPA Label Information | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 858366T2 | 安装板 | PLATE | 1 |
| 2 | 817109A2 | 电磁阀总成(#10-32/.3125-18端子) | SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals) | 1 |
| 3 | 822179 | 护孔环 | GROMMET | 2 |
| 4 | 82129125 | 螺丝(M6 x 25毫米) | SCREW (M6 x 25 mm) | 5 |
| 5 | 818968 | 衬套 | BUSHING | 2 |
| 6 | 882751A1 | 继电器总成 | RELAY ASSEMBLY | 3 |
| 7 | NSS | 标贴(不单独销售) | NOT SOLD SEPARATE Decal | 3 |
| 8 | 828102 | 支架 | BRACKET | 3 |
| 9 | 818968 | 衬套 | BUSHING | 3 |
| 10 | 818967 | 护孔环 | GROMMET | 3 |
| 11 | 880005T2 | 发动机线束总成 | HARNESS ASSEMBLY Engine Wiring | 1 |
| 12 | 83296920 | 迷你保险丝-黄色-20安 | FUSE Mini - Yellow - 20 Ampere | 3 |
| 12 | 8329695 | 迷你保险丝-棕色-5安培 | FUSE Mini - Tan - 5 Ampere | 1 |
| 13 | 858754 | 保险丝盖 | COVER Fuse | 1 |
| - | 878073A2 | 线束总成(节气门位置传感器) | HARNESS ASSEMBLY (TPS) | 1 |
| - | 879964A2 | 曲轴位置编码器线束总成 | HARNESS ASSEMBLY Encoder Crank Position Sensor | 1 |
| - | 881262A2 | 线束总成(交流发电机) | HARNESS ASSEMBLY Alternator Alternator | 1 |
| 14 | 82129114 | 螺钉 (M6 x 14) | SCREW (M6 x 14) | 1 |
| 15 | 55098 | J型卡扣 | J CLIP | 1 |
| 16 | 882830A1 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 17 | 82130012 | 螺钉（M6 x 12） | SCREW (M6 x 12) | 3 |
| 18 | 819514T18 | 升降线束总成 | HARNESS ASSEMBLY Trim | 1 |
| 19 | 859244T1 | 数字适配器线束总成 | HARNESS ASSEMBLY Digital Adaptor | 1 |
| 20 | 878231A6 | 保险丝线束总成-100安培 | HARNESS ASSEMBLY Fuse - 100 Ampere | 1 |
| 21 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 22 | 813938 | 盖形螺母(#10-32) | CAP NUT (#10-32) | 2 |
| 23 | 68292 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 24 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 25 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 26 | 858755 | 卡箍(1.00) | CLIP (1.00) | 1 |
| 27 | 828991 | 卡扣 | CLIP | 1 |
| 28 | 88555721S | 推进控制模块PCM | PCM Propulsion Control Module | 1 |
| 28 | 88555741S | 推进控制模块PCM | PCM Propulsion Control Module | 1 |
| 28 | 88555711S | 推进控制模块PCM | PCM Propulsion Control Module | 1 |
| 28 | 88555742S | 推进控制模块PCM | PCM Propulsion Control Module | 1 |
| 28 | 88555710S | 推进控制模块PCM | PCM Propulsion Control Module | 1 |
| 28 | 88555744S | 推进控制模块PCM | PCM Propulsion Control Module | 1 |
| 28 | 88555712S | 推进控制模块PCM | PCM Propulsion Control Module | 1 |
| 28 | 88555743S | 推进控制模块PCM | PCM Propulsion Control Module | 1 |
| 29 | 82130025 | 螺钉(M6x25) | SCREW (M6 x 25) | 3 |
| 30 | 856954 | 衬套 | BUSHING | 3 |
| 31 | 834985 | 护孔环 | GROMMET | 3 |
| 32 | 65567 | 不锈钢垫圈(0.265x0.750x0.048) | WASHER (.265 x .750 x .048) Stainless Steel | 3 |
| 33 | 8590881 | 卡扣 | CLIP | 1 |
| 34 | 82129110 | 螺丝 (M6 x 10) | SCREW (M6 x 10) | 3 |
| 35 | 881879A2 | 传感器套件 (100 PSI) | SENSOR KIT (100 PSI) | 1 |
| 36 | 859431 | 接头 | FITTING | 1 |
| 36 | 892403 | 接头 | FITTING | 1 |
| 37 | 883066 | 夹子 (.865) | CLIP (.865) | 1 |
| 38 | 859313 | 支架 | BRACKET | 1 |
| 39 | 818967 | 护孔环 | GROMMET | 1 |
| 40 | 818968 | 衬套(连接缸体) | BUSHING To Block | 1 |
| 41 | 82130025 | 螺钉(M6x25) | SCREW (M6 x 25) | 1 |
| 42 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 43 | 88807A16 | 黑色电缆总成(4.00英寸) | CABLE ASSEMBLY (4.00 Inches) Black | 1 |
| 44 | 81893420 | 螺钉(M8 x 20) | SCREW (M8 x 20) | 1 |
| 45 | 88439A26 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 45 | 88439A25 | 电缆总成 蓄电池-正极 | CABLE ASSEMBLY Battery - Positive | 1 |
| 46 | 832948A1 | 2针公头连接器总成 | CONNECTOR ASSEMBLY 2 POS Male | 1 |
| 47 | 881065A1 | 6针插头连接器 | CONNECTOR 6 Pin Plug | 1 |
| 48 | 882815A1 | 线束总成(200/3.0L机型) | HARNESS ASSEMBLY (200/3.0L Work) | 1 |
| 49 | 881175A1 | 盖总成-3位母接头（反旋转） | CAP ASSEMBLY 3 Position-Female Connector (Counter Rotation) | 1 |
| 50 | 881176A1 | 盖总成-3位公接头（反旋转） | CAP ASSEMBLY 3 Position-Male Connector (Counter Rotation) | 1 |
| 51 | 8500671 | 红色绝缘护套 | BOOT Insulator - Red | 1 |
| - | 13540 | 母头护帽 | CAP Female | AR |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | NSS | 不单独销售-电气板总成(完整) | NOT SOLD SEPARATE Electrical Plate Assembly-Complete | 1 |
| 1 | 858366T2 | 安装板 | PLATE | 1 |
| 2 | 817109A2 | 电磁阀总成(#10-32/.3125-18端子) | SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals) | 1 |
| 3 | 822179 | 护孔环 | GROMMET | 2 |
| 4 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 5 | 82129125 | 螺丝(M6 x 25毫米) | SCREW (M6 x 25 mm) | 5 |
| 6 | 818968 | 衬套 | BUSHING | 2 |
| 7 | 882751A1 | 继电器总成 | RELAY ASSEMBLY | 3 |
| 8 | NSS | 微调继电器标识贴(不单独销售) | NOT SOLD SEPARATE Decal-Trim Relay | 3 |
| 9 | 828102 | 支架 | BRACKET | 3 |
| 10 | 818968 | 衬套 | BUSHING | 3 |
| 11 | 818967 | 护孔环 | GROMMET | 3 |
| 12 | 82129110 | 螺丝 (M6 x 10) | SCREW (M6 x 10) | 2 |
| 13 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 14 | 828991 | 卡扣 | CLIP | 1 |
| 15 | 858755 | 卡箍(1.00) | CLIP (1.00) | 1 |
| 16 | 878231A6 | 保险丝线束总成-100安培 | HARNESS ASSEMBLY Fuse - 100 Ampere | 1 |
| 17 | 819514T21 | 升降线束总成 | HARNESS ASSEMBLY Trim | 1 |
| 18 | 892973T01 | 发动机线束总成 | HARNESS ASSEMBLY Engine | 1 |
| 19 | 83296920 | 迷你保险丝-黄色-20安 | FUSE Mini - Yellow - 20 Ampere | 4 |
| 19 | 8329695 | 迷你保险丝-棕色-5安培 | FUSE Mini - Tan - 5 Ampere | 1 |
| 20 | 858754 | 保险丝盖 | COVER Fuse | 1 |
| - | 878073A2 | 线束总成(节气门位置传感器) | HARNESS ASSEMBLY (TPS) | 1 |
| - | 879964A2 | 曲轴位置编码器线束总成 | HARNESS ASSEMBLY Encoder Crank Position Sensor | 1 |
| - | 881262A2 | 线束总成(交流发电机) | HARNESS ASSEMBLY Alternator Alternator | 1 |
| 21 | 882829A1 | 启动机电缆总成 | CABLE ASSEMBLY Starter | 1 |
| 22 | 88439A46 | 电缆总成 蓄电池-正极 | CABLE ASSEMBLY Battery - Positive | 1 |
| 23 | 68292 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 24 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 25 | 813938 | 盖形螺母(#10-32) | CAP NUT (#10-32) | 2 |
| 26 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 27 | 88807A16 | 黑色电缆总成(4.00英寸) | CABLE ASSEMBLY (4.00 Inches) Black | 1 |
| 28 | 13540 | 母头护帽 | CAP Female | AR |
| 28 | 13541 | 公插头 | PLUG Male | 1 |
| 29 | 88555741S | 推进控制模块PCM | PCM Propulsion Control Module | 1 |
| 29 | 88555742S | 推进控制模块PCM | PCM Propulsion Control Module | 1 |
| 29 | 88555744S | 推进控制模块PCM | PCM Propulsion Control Module | 1 |
| 29 | 88555743S | 推进控制模块PCM | PCM Propulsion Control Module | 1 |
| 30 | 82130025 | 螺钉(M6x25) | SCREW (M6 x 25) | 3 |
| 31 | 65567 | 不锈钢垫圈(0.265x0.750x0.048) | WASHER (.265 x .750 x .048) Stainless Steel | 3 |
| 32 | 834985 | 护孔环 | GROMMET | 3 |
| 33 | 856954 | 衬套 | BUSHING | 3 |
| 34 | 891520001 | 卡扣 | CLIP | 1 |
| 35 | 82129114 | 螺钉 (M6 x 14) | SCREW (M6 x 14) | 1 |
| 36 | 892295F01 | 支架 | BRACKET | 1 |
| 37 | 834985 | 护孔环 | GROMMET | 2 |
| 38 | 822003 | 衬套 | BUSHING | 2 |
| 39 | 881879011 | 压力传感器 (0 - 100 PSI) | SENSOR Pressure (0 - 100 PSI) | 1 |
| 40 | 892403 | 接头 | FITTING | 1 |
| 41 | 883066 | 夹子 (.865) | CLIP (.865) | 1 |
| 42 | 879962 | 卡扣 | CLIP | 2 |
| 43 | 82130025 | 螺钉(M6x25) | SCREW (M6 x 25) | 2 |
| 44 | 82130012 | 螺钉（M6 x 12） | SCREW (M6 x 12) | 3 |
| 45 | 88439A26 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 46 | 81893420 | 螺钉(M8 x 20) | SCREW (M8 x 20) | 1 |
| 47 | 882815A1 | 线束总成(200/3.0L机型) | HARNESS ASSEMBLY (200/3.0L Work) | 1 |
| 48 | 877613A02 | 防水插头总成6针 | CONNECTOR ASSEMBLY Weather Cap 6 Pin | 1 |
| 49 | 830796A04 | 防水插头总成-4针公头 | CONNECTOR ASSEMBLY Weather Cap - 4 Position Male | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 881866 | 接头 | FITTING | 1 |
| 2 | 85978571 | 管材(52英寸整卷)(裁切至44英寸) | TUBING (52.00 Inches Bulk) (Cut to 44 Inches) | 1 |
| 3 | 859747 | 联轴器 | COUPLER | 1 |
| 3 | 8M0214971 | 耦合接头 (4 MM) | COUPLER Fitting (4 MM) | 1 |
| 4 | 859732 | 堵头 | PLUG | 1 |
| 5 | 859731 | 适配管接头 | FITTING Adapter | 1 |
| 5 | 8M0214970 | 接头 | FITTING | 1 |
| 6 | 85978571 | 管材(52英寸整卷)(裁切5英寸) | TUBING (52.00 Inches Bulk) (Cut to 5 Inches) | 1 |
| 7 | 875207 | 三通接头(连接线圈板传感器) | TEE Fitting To Coil Plate Sensor | 1 |
| 8 | 85944975 | 管材（72英寸整料，需裁至52英寸） | TUBING (72.00 Inches Bulk) (Cut to 52 Inches) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 85606065 | 管材(38英寸整卷)(裁切至15.5英寸) | TUBING (38.00 Inches Bulk) (Cut to 15-1/2 Inches) | 1 |
| 1 | 8M0054152 | 管材(39.00英寸整卷) | TUBING (39.00 Inches Bulk) | 1 |
| 2 | 8592352 | 止回阀90度(.0625-27) | CHECK VALVE 90 Degree (.0625-27) | 3 |
| 3 | 85606065 | 管材(38英寸整卷)(裁切16-1/2英寸) | TUBING (38.00 Inches Bulk) (Cut to 16-1/2 Inches) | 1 |
| 3 | 8M0054152 | 管材(39.00英寸整卷) | TUBING (39.00 Inches Bulk) | 1 |
| 4 | 85606065 | 管材(38英寸整卷)(裁切至15英寸) | TUBING (38.00 Inches Bulk) (Cut to 15 Inches) | 1 |
| 4 | 8M0054152 | 管材(39.00英寸整卷) | TUBING (39.00 Inches Bulk) | 1 |
| 5 | 23567 | 卡扣 | CLIP | 1 |
| 6 | 878608 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 1 |
| 7 | 8282182 | 止回阀 | CHECK VALVE | 3 |
| - | 883892A04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 883892A07 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 883893A04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 883893A07 | PH 3L WORK EFI | PH 3L WORK EFI | 1 |
| - | 883894A04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 883894A07 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 891823A04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 891823A07 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8184455 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 2 | 8236392 | 驱动端盖 | DRIVE CAP | 1 |
| 3 | 823641 | 贯穿螺栓 | THRU BOLT | 2 |
| 4 | 823640T | 驱动套件 | DRIVE KIT | 1 |
| 5 | 13310T1 | 小齿轮总成 | PINION ASSEMBLY | 1 |
| 6 | 823638 | 电枢 | ARMATURE | 1 |
| 7 | 75384 | 电刷/弹簧套件 | BRUSH/SPRING KIT | 1 |
| 7 | 898265016 | 电刷/弹簧套件 | BRUSH/SPRING KIT | 1 |
| 8 | 61787 | 支架 | HOLDER | 1 |
| 8 | 898265014 | 电刷支架 | HOLDER-BRUSH | 1 |
| 9 | 8119011 | 换向器端盖 | CAP Commutator | 1 |
| 10 | F15158 | 螺钉 | SCREW | 2 |
| 11 | 8272822 | 高压警告标贴 | DECAL Warning High Voltage | 1 |
| 12 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 2 |
| 13 | 94330 | 螺母 (.250-20) 黄铜 | NUT (.250-20) Brass | 2 |
| 14 | 26992 | 锁紧垫圈(.250)不锈钢 | LOCKWASHER (.250) Stainless Steel | 1 |
| 15 | 20890 | 螺母 (.250-20) | NUT (.250-20) | 1 |
| 16 | 81893450 | 螺钉(M8 x 50) | SCREW (M8 x 50) | 3 |
| 17 | 824921 | 隔套 | SPACER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8710T20 | 黑色旋转支架总成 | SWIVEL BRACKET ASSEMBLY Black | 1 |
| 2 | 33504 | O型圈 | O-RING | 1 |
| 2 | 8M0214926 | O型圈 @10 | O RING @10 | 1 |
| 3 | 818764 | 衬套 | BUSHING | 2 |
| 4 | 816039 | 隔套 | SPACER | 1 |
| 5 | 87735 | 油封(下) | SEAL Oil (LOWER) | 1 |
| 6 | 74036 | 润滑脂接头 | FITTING Grease | 2 |
| 6 | 8M0169589 | 润滑脂接头 | FITTING Grease | 2 |
| 7 | 821207 | 衬套 | BUSHING | 2 |
| 8 | 816432 | 止推垫片 | THRUST WASHER | 1 |
| 9 | 814084F1 | 下轭架 | YOKE Bottom | 1 |
| 9 | 8M0219200 | 黑色下轭架 | YOKE-BOTTOM-BLACK | 1 |
| 9 | 826364F1 | 下轭架 | YOKE Bottom | 1 |
| 9 | 826364T | 下轭架 | YOKE Bottom | 1 |
| 10 | 67684 | 挡圈 | RING Retaining | 1 |
| 11 | 996301 | 冲击板 | STRIKER PLATE | 2 |
| 11 | 8M0045383 | 冲击板 | STRIKER PLATE | 2 |
| 12 | 58643 | 锁紧垫圈 (.375) | LOCKWASHER (.375) | 2 |
| 13 | 46335 | 螺母 (.375-24) | NUT (.375-24) | 2 |
| 14 | 64014 | 螺钉(.250-28x.500) | SCREW (.250-28 x .500) | 2 |
| 15 | 821180A6 | 调整传感器总成 | SENDER ASSEMBLY Trim | 1 |
| 15 | 8M0074846 | ORDER 8M0098273 | ORDER 8M0098273 | 1 |
| 16 | 852368 | 螺钉（#10-24 X 0.750） | SCREW (#10-24 x .750) | 2 |
| 17 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 2 |
| 18 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 19 | 67706A55 | 转向臂转销总成 | SWIVEL PIN ASSEMBLY Steering Arm | 1 |
| 19 | 826432A2 | 转向臂旋转销总成-不锈钢 | SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel | 1 |
| 19 | 826432A2 | 转向臂旋转销总成-不锈钢 | SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel | 1 |
| 19 | 8M0132731 | 旋转销总成 | SWIVEL PIN ASSY | 1 |
| 20 | 816386 | 螺钉(M12×190) | SCREW (M12 x 190) | 2 |
| 20 | 8M0141069 | 螺钉 | SCREW | 2 |
| 21 | 824998 | 缓冲垫 | BUMPER | 1 |
| 21 | 824998001 | 缓冲垫 | BUMPER | 1 |
| 22 | 8163851 | 上部支架 | MOUNT Upper | 2 |
| 23 | 8154371 | 垫圈 | WASHER | 2 |
| 24 | 815436 | 垫圈 | WASHER | 2 |
| 25 | 859129 | 螺母(M12) | NUT (M12) | 2 |
| 25 | 896963 | 螺母(M12) | NUT (M12) | 2 |
| 26 | 813769 | 卡箍 | CLAMP | 1 |
| 26 | 8M0036783 | 卡箍 | CLAMP | 1 |
| 27 | 81893435 | 螺钉(M8×35) | SCREW (M8 x 35) | 3 |
| 27 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 3 |
| 28 | 92876A10 | 连杆总成 | LINK ROD ASSEMBLY | 1 |
| 28 | 92876A12 | 连杆总成 | LINK ROD ASSEMBLY | 1 |
| 29 | 849838 | 螺钉(.375-24 x 1.250) | SCREW (.375-24 x 1.250) | 1 |
| 30 | 826709113 | 不锈钢螺母 (.375-24) | NUT (.375-24) Stainless Steel | 2 |
| 30 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 2 |
| 31 | 37828 | 不锈钢垫圈 (.390 x .625 x .062) | WASHER (.390 x .625 x .062) Stainless Steel | 2 |
| 32 | NSS | 不单独销售-序列号覆膜标贴 | NOT SOLD SEPARATE Decal-Serial Overlaminate | 1 |
| 33 | 859732 | 堵头 | PLUG | 2 |
| 34 | 859731 | 适配管接头 | FITTING Adapter | 2 |
| 34 | 8M0214970 | 接头 | FITTING | 2 |
| 35 | 859448 | 接头 | FITTING | 1 |
| 35 | 859448T | 接头 | FITTING | 1 |
| 36 | 821555 | 护孔环 | GROMMET | 1 |
| 36 | 8M0153609 | 护孔环 | GROMMET | 1 |
| 37 | 850181 | 捆扎带(11.750英寸) | TIE STRAP (11.750 Inches) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8252682 | 杠杆 | LEVER | 1 |
| 1 | 8M0040987 | 杠杆 | LEVER | 1 |
| 2 | 81893435 | 螺钉(M8×35) | SCREW (M8 x 35) | 1 |
| 2 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 1 |
| 3 | 36042 | 垫圈 | WASHER | 1 |
| 4 | 821113 | 衬套 | BUSHING | 1 |
| 5 | 40124 | 螺钉 (M6 x 55) | SCREW (M6 x 55) | 2 |
| 6 | 400212 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 2 |
| 7 | 42942 | 盖帽 | CAP | 2 |
| 8 | 42927 | 嵌件 | INSERT | 1 |
| 9 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 10 | 932481 | 衬套 | BUSHING | 1 |
| 10 | 8M0215006 | 旋转衬套 | BUSHING Swivel | 1 |
| 11 | 8583541 | 连杆(连接凸轮) | LINK To Cam | 1 |
| 12 | 8240102 | 支架 | BRACKET | 1 |
| 12 | 824010T05 | 支架 | BRACKET | 1 |
| 13 | 824016 | 闩锁 | LATCH | 1 |
| 14 | 42975 | 传动螺钉 | DRIVE SCREW | 2 |
| 15 | 824015 | 筒形保持杯 | CUP Barrel Retainer | 2 |
| 16 | 82155025 | 螺丝(M8 x 25 mm)不锈钢 | SCREW (M8 x 25 mm) Stainless Steel | 2 |
| 17 | 859172 | 卡箍 | CLAMP | 1 |
| 18 | 82155025 | 螺丝(M8 x 25 mm)不锈钢 | SCREW (M8 x 25 mm) Stainless Steel | 1 |
| 19 | 896662 | 滑动支架 | BRACKET Slide | 1 |
| 19 | 8M0039052 | 滑动支架 | BRACKET Slide | 1 |
| 20 | 889514A01 | 开关 | SWITCH | 1 |
| 20 | 8M0207794 | 开关 | SWITCH | 1 |
| 21 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 22 | 82470620 | 螺钉 (M3.5 x 20) | SCREW (M3.5 x 20) | 2 |
| 23 | 43430 | 垫圈 | WASHER | 1 |
| 24 | 35459 | 垫圈 | WASHER | 1 |
| 25 | 36001 | 垫圈 | WASHER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 0 | 880118A2 | 模块 | CARTRIDGE | 1 |
| 0 | 880118A04 | DDT诊断模块 | DDT CARTRIDGE | 1 |
| 0 | 880118A04 | DDT诊断模块 | DDT CARTRIDGE | 1 |
| 0 | 58222A1 | 百分表工具 | DIAL INDICATOR TOOL | 1 |
| 0 | 822560A5 | 线束总成-DDT适配器 | HARNESS ASSEMBLY DDT Adapter | 1 |
| 0 | 52344 | 飞轮固定器工具(齿型) | FLYWHEEL HOLDER TOOL Teeth Type | 1 |
| 0 | 827001A1 | 动力头支架工具 | STAND TOOL Powerhead | 1 |
| 0 | 825003A1 | DDT诊断线束总成 | CABLE ASSEMBLY DDT | 1 |
| 0 | 823686A2 | 数字诊断测试仪 | DIGITAL DIAGNOSTIC TESTER | 1 |
| 0 | 854009A3 | 转速多功能表DMT 2000数字式 | TACH MULTI METER DMT 2000 Digital | 1 |
| 0 | 892647A01 | DMT万用表套件 | MULTI-METER KIT DMT | 1 |
| 0 | 892647A01 | DMT万用表套件 | MULTI-METER KIT DMT | 1 |
| 0 | 24161 | 飞轮拉拔器盖工具 | CAP TOOL Flywheel Puller | 1 |
| 0 | 52024A1 | 开关总成 | SWITCH ASSEMBLY | 1 |
| 0 | 850439T1 | 八腔测试仪 | TESTER Eight Chamber | 1 |
| 0 | 63998A1 | 单腔间隙工具 | GAP TOOL Single Chamber | 1 |
| 0 | 99379 | 正时灯 | TIMING LIGHT | 1 |
| 0 | 29287 | 量规工具 | GAUGE TOOL | 1 |
| 0 | 55919 | 驱动头 | DRIVER HEAD | 1 |
| 0 | 90455T1 | 吊环 | LIFTING EYE | 1 |
| 0 | 904551 | 吊环 | LIFTING EYE | 1 |
| 0 | 904551 | 吊环 | LIFTING EYE | 1 |
| 0 | 93004A2 | 锁环安装工具 | INSTALLATION TOOL Lock Ring | 1 |
| 0 | 52952T1 | 活塞销锁环拆卸工具 | REMOVAL TOOL Piston Pin Lock Ring | 1 |
| 0 | 92973A1 | 活塞销心轴工具 | MANDREL TOOL Piston Pin | 1 |
| 0 | 24697 | 活塞环扩张工具 | EXPANDER TOOL Piston Ring | 1 |
| 0 | 812549T | 动力头支架 | STAND Powerhead | 1 |
| 0 | 823237T | 活塞环压缩工具(3.625英寸) | COMPRESSOR TOOL Piston Ring (3.625) | 1 |
| 0 | 66274 | 扭矩扳手(0-150磅英寸) | TORQUE WRENCH (0-150 lb-in) | 1 |
| 0 | 37241 | 通用拉拔板 | PULLER PLATE Universal | 1 |
| 0 | 112301 | 对正工具 | ALIGNMENT TOOL | 1 |
| 0 | 74951 | 扳手 | SPANNER WRENCH | 1 |
| 0 | 63209 | 加热灯 | HEAT LAMP | 1 |
| 0 | 53459 | 背隙指示杆工具 | ROD TOOL Backlash Indicator Flag | 1 |
| 0 | 78473 | 背隙测量仪 | INDICATOR TOOL Backlash | 1 |
| 0 | 8M0053505 | 背隙指示工具 | TOOL Indicator, Backlash | 1 |
| 0 | 816244 | 轴承驱动器工具 | DRIVER TOOL Bearing | 1 |
| 0 | 816245 | 轴承拆卸工具 | REMOVAL TOOL Bearing | 1 |
| 0 | 31106T | 轴承安装心轴杯 | MANDREL Bearing Driver Cup | 1 |
| 0 | 87120T | 轴承杯驱动器工具 | DRIVER TOOL Bearing Cup | 1 |
| 0 | 14311A2 | 轴承预紧工具 | PRE LOAD TOOL Bearing | 1 |
| 0 | 14311A04 | 预紧力工具 | TOOL Preload | 1 |
| 0 | 14311A04 | 预紧力工具 | TOOL Preload | 1 |
| 0 | 31229A7 | 轴承拉拔器套件 | PULLER KIT Bearing | 1 |
| 0 | 15755T | 滚针轴承驱动器 | NEEDLE BEARING DRIVER | 1 |
| 0 | 36569T | 驱动头工具 | DRIVE HEAD TOOL | 1 |
| 0 | 37323 | 滚针轴承导杆工具 | DRIVER ROD TOOL Needle Bearings | 1 |
| 0 | 36571T | 导向垫圈 | PILOT WASHER | 1 |
| 0 | 38628T | 轴承安装工具 | INSTALLER TOOL Bearing | 1 |
| 0 | 24156 | 螺母(0.625-18) | NUT (.625-18) | 1 |
| 0 | 29310 | 安装板 | PLATE | 1 |
| 0 | 34961 | 垫圈 | WASHER | 1 |
| 0 | 43506T | 轴承固定工具 | RETAINING TOOL Bearing | 1 |
| 0 | 54048 | 垫圈 | WASHER | 1 |
| 0 | 86642 | 安装工具-横销 | INSTALLATION TOOL Cross Pin | 1 |
| 0 | 83155 | 千分表转接套件 | ADAPTER KIT Dial Indicator | 1 |
| 0 | 8M0237356 | 适配器套件 | ADAPTER KIT | 1 |
| 0 | 89897 | 固定工具-百分表 | HOLDING TOOL Dial Indicator | 1 |
| 0 | 36577T | 杯形驱动器 | DRIVER CUP | 1 |
| 0 | 61077T | 传动轴适配器工具 | ADAPTER TOOL Driveshaft | 1 |
| 0 | 56775T | 传动轴固定工具 | HOLDING TOOL Driveshaft | 1 |
| 0 | 36577T | 杯形驱动器 | DRIVER CUP | 1 |
| 0 | 61077T | 传动轴适配器工具 | ADAPTER TOOL Driveshaft | 1 |
| 0 | 56775T | 传动轴固定工具 | HOLDING TOOL Driveshaft | 1 |
| 0 | 815850 | 前进齿轮安装工具 | FOWARD GEAR INSTALLATION TOOL | 1 |
| 0 | 86943T | 安装工具-滚针轴承(前进齿轮) | INSTALLER TOOL Needle Bearing - Forward Gear | 1 |
| 0 | 61069T | 螺母工具-齿轮箱盖 | NUT TOOL Gear Housing Cover | 1 |
| 0 | 816243 | 导板 | GUIDE PLATE | 1 |
| 0 | 816242 | 拉拔器爪 | PULLER JAWS | 1 |
| 0 | 92788T | 心轴 | MANDREL | 1 |
| 0 | 33491 | 驱动器 | DRIVER | 1 |
| 0 | 31108T | 油封驱动器 | DRIVER Oil Seal | 1 |
| 0 | 817569T | 油封安装工具 | DRIVER TOOL Oil Seal | 1 |
| 0 | 12349A2 | 小齿轮定位工具 | LOCATION TOOL Pinion | 1 |
| 0 | 12349A05 | 小齿轮定位工具 | TOOL Pinion Locating | 1 |
| 0 | 12349A05 | 小齿轮定位工具 | TOOL Pinion Locating | 1 |
| 0 | 56048T | 小齿轮垫片调整工具 | SHIMMING TOOL Pinion Gear | 1 |
| 0 | 56048001 | 齿轮高度工具 | TOOL Gear Height | 1 |
| 0 | 56048001 | 齿轮高度工具 | TOOL Gear Height | 1 |
| 0 | 61067A3 | 小齿轮螺母适配器工具 | ADAPTER TOOL Pinion Nut | 1 |
| 0 | 61067A04 | 扳手工具（小齿轮螺母） | WRENCH TOOL Pinion Nut | 1 |
| 0 | 61067A04 | 扳手工具（小齿轮螺母） | WRENCH TOOL Pinion Nut | 1 |
| 0 | 93003 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 0 | 85716 | 拉拔螺栓工具-轴承座 | PULLER BOLT TOOL Bearing Carrier | 1 |
| 0 | 46086A1 | 拉拔器爪头总成 | PULLER JAW ASSEMBLY | 1 |
| 0 | 18605A2 | 安装工具-轴承适配器 | INSTALLATION TOOL Bearing Adaptor | 1 |
| 0 | 34569A1 | 滑动锤拉拔器总成 | PULLER ASSEMBLY Slide Hammer | 1 |
| 0 | 821571A1 | 水泵定位销导向工具 | GUIDE TOOL Water Pump Alignment Pins | 1 |
| 0 | 803146A04 | 卡箍工具套件 | CLAMP TOOL KIT | 1 |
| 0 | 881833A2 | 空气/燃油压力表 | GAUGE Air/Fuel Pressure | 1 |
| 0 | 881833A03 | 气油压力表套件 | GAUGE KIT Air/Fuel Pressure | 1 |
| 0 | 881833A03 | 气油压力表套件 | GAUGE KIT Air/Fuel Pressure | 1 |
| 0 | 881814A1 | 线束密封套件 | SEAL KIT Wire Harness | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 814277T14 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 1 | 814277T15 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 2 | 821256T1 | 黑色进气口 | INLET Air - Black | 1 |
| 2 | 821256T03 | 进气口 | INLET Air | 1 |
| 2 | 821256T2 | 银色进气口 | INLET Air - Silver | 1 |
| 3 | 82130016 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 4 |
| 4 | 821250A1 | 隔音毯套装 | SOUND BLANKET KIT | 1 |
| 5 | NSS | 不单独销售 隔音毯(侧面) | NOT SOLD SEPARATE Sound Blanket (SIDE) | 2 |
| 6 | 823865 | 盖塞 | CAP PLUG | 2 |
| 7 | 821248 | 后闩锁钩 | REAR LATCH HOOK | 2 |
| 8 | 8237951 | 挡圈 | RING Retaining | 3 |
| 9 | 815263 | 滚轮 | ROLLER | 3 |
| 9 | 8M0207770 | 滚轮@3 | ROLLER @3 | 3 |
| 10 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 4 |
| 10 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 4 |
| 11 | 401366 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 4 |
| 12 | 821249M2 | 前支架 | BRACKET Front | 1 |
| 12 | 8M0036792 | 支架 | BRACKET | 1 |
| 13 | 815477 | 缓冲器锁扣 | BUMPER Latch | 1 |
| 14 | 8155381 | 滚动销 | PIN Roll | 1 |
| 15 | 401366 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 3 |
| 16 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 3 |
| 16 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 3 |
| 17 | 826639T | 盖板 | COVER | 1 |
| 18 | 47341A11 | 手动启动绳柄套件 | ROPE AND HANDLE KIT Manual Starting | 1 |
| 19 | NSS | 不单独销售 贴花-磨合 | NOT SOLD SEPARATE Decal-Break-In | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 828334T03 | 艉板支架总成-右舷 | BRACKET ASSEMBLY Transom-Starboard | 1 |
| 2 | 828333T08 | 艉板支架总成-左舷 | BRACKET ASSEMBLY Transom-Port | 1 |
| 3 | 98727 | 润滑脂接头(左舷) | FITTING Grease (PORT) | 1 |
| 3 | 8M0169588 | 润滑脂接头 | FITTING Grease | 1 |
| 4 | 826125A1 | 倾斜管 | TILT TUBE | 1 |
| 5 | 826135 | 尼龙锁紧螺母(1.00-14) | NUT Lock (1.00-14) Nylon Insert | 1 |
| 6 | 45711 | O型圈 (.612 x .103) | O-RING (.612 x .103) | 1 |
| 7 | 88750 | 波浪垫圈 (1.62 x 1.05) | WASHER Wave (1.62 x 1.05) | 2 |
| 8 | 826164 | 螺母 (.875-14) | NUT (.875-14) | 1 |
| 8 | 8M0231351 | 锁紧螺母 | NUT Lock | 1 |
| 9 | 677551 | 螺钉(.500-20×4.500) | SCREW (.500-20 x 4.500) | 4 |
| 9 | 8M0149747 | 螺钉 | SCREW | 4 |
| 10 | 54012 | 垫圈(0.530×0.870×0.105不锈钢) | WASHER (.530 x .870 x .105) Stainless Steel | 4 |
| 10 | 8M0204665 | 垫圈(0.530×0.880×0.104 630不锈钢) | WASHER (.530 x .880 x .104) 630 Stainless Steel | 4 |
| 11 | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 11 | 8M0204648 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 12 | 82671117 | 螺母(.500-20) | NUT (.500-20) | 4 |
| 13 | 99629T2 | 倾斜锁定杆总成 | LEVER ASSEMBLY Tilt Lock | 1 |
| 13 | 8M0115104 | 倾斜锁定杆总成 | LEVER ASSEMBLY Tilt Lock | 1 |
| 14 | 830899 | 张力弹簧 | SPRING Tension | 1 |
| 15 | 65830 | 尼龙衬套 | NYLINER | 2 |
| 16 | 830900 | 压缩弹簧 | SPRING Compression | 1 |
| 17 | 99633 | 旋钮 | KNOB | 1 |
| 18 | 99615 | 槽销 | PIN Groove | 1 |
| 19 | 99617 | 销 | PIN | 1 |
| 19 | 893709 | 销 | PIN | 1 |
| 20 | 96930A1 | 螺栓总成 | BOLT ASSEMBLY | 1 |
| 21 | 25909 | 垫圈(.406 x .812 x .065) | WASHER (.406 x .812 x .065) | 1 |
| 22 | 23161 | 螺母 (.375-24) | NUT (.375-24) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 883245T2 | 盖板套件 | COVER KIT | 1 |
| 1 | 883245T04 | 蒸汽分离器盖套件 | COVER KIT Vapor Separator | 1 |
| 1 | 883245T04 | 蒸汽分离器盖套件 | COVER KIT Vapor Separator | 1 |
| 2 | 881740 | 直通接头 | FITTING Straight | 1 |
| 3 | 883249 | 接头 | FITTING | 1 |
| 4 | NSS | 不单独销售 弯头 | NOT SOLD SEPARATE Elbow | 1 |
| 5 | 855437A2 | 泵出口接头套件 | FITTING KIT Pump Outlet | 1 |
| 5 | 885186A1 | 配件套件 | FITTING KIT | 1 |
| 6 | 883209 | O型圈 | O-RING | 1 |
| 6 | 8M0062785 | O型圈 | O-RING | 1 |
| 6 | 831985 | O型圈（0.468 x 0.078） | O-RING (.468 x .078) | 1 |
| 7 | 885188 | 滤清器 | FILTER | 1 |
| 8 | 883219 | 阀门 | VALVE | 1 |
| 9 | 883209 | O型圈 | O-RING | 1 |
| 9 | 8M0062785 | O型圈 | O-RING | 1 |
| 10 | 883220 | 盖帽 | CAP | 1 |
| 11 | 883208 | 堵头 | PLUG | 1 |
| 12 | 883248 | 密封件 | SEAL | 1 |
| 13 | 883252 | 衬垫 | GASKET | 1 |
| 14 | 883257T1 | 调节器 | REGULATOR | 1 |
| 15 | 883593A1 | O型圈套件 | O-RING KIT | 1 |
| 16 | 883258 | 垫圈 | WASHER | 1 |
| 17 | 883261 | 螺钉(M5×0.8) | SCREW (M5 x .8) | 2 |
| 18 | 883261 | 螺钉(M5×0.8) | SCREW (M5 x .8) | 1 |
| 19 | 881831 | 线束总成 | WIRE ASSEMBLY | 1 |
| 20 | 808612 | 螺钉及垫圈 (#8-32 x .750) | SCREW AND WASHER (#8-32 x .750) | 7 |
| 21 | 883253A1 | 浮子套件 | FLOAT KIT | 1 |
| 22 | F10064 | 轴 | SHAFT | 1 |
| 23 | 883247A1 | 进油阀/阀座组件 | VALVE/SEAT KIT Inlet | 1 |
| 24 | 883223 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 1 |
| 25 | 18458Q4 | 燃油水分离滤清器 | FILTER Fuel-Water Separating | 1 |
| 26 | 8285861 | 探头 | PROBE | 1 |
| 26 | 8M0204710 | 探头 | PROBE | 1 |
| 27 | 883260 | 挡板 | BAFFLE | 1 |
| 27 | 889318002 | 挡板 燃油 | BAFFLE Fuel | 1 |
| 28 | 883223 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 3 |
| 29 | 881705T1 | 泵套件 | PUMP KIT | 1 |
| 30 | 855428 | 套筒 | SLEEVE | 1 |
| 30 | 8M6000589 | 套筒 | SLEEVE | 1 |
| 31 | 883256T1 | 油杯套件 | BOWL KIT | 1 |
| 32 | 883248 | 密封件 | SEAL | 1 |
| 33 | 855435A1 | 塞套件 | PLUG KIT | 1 |
| 34 | 883209 | O型圈 | O-RING | 1 |
| 34 | 8M0062785 | O型圈 | O-RING | 1 |
| 35 | 16955 | 螺丝(M6 x 8) | SCREW (M6 x 8) | 1 |
