水星 Mercury 200 EFI PRO MAX/SUPER MAG 0G857000 THRU 0G858150 - 爆炸图零件明细

两冲程 电喷 EFI · Belgium - Cat.# 90-803922 · 共 98 个部位 · 4172 条零件

1外罩2配平电磁阀板3燃油管理系统4齿轮箱驱动轴-标准-SportMaster5旋转支架及转向臂-长型6燃油管理系统(0G366999及以下)7油气分离器组件8动力升降组件 8M02311939动力升降组件金属马达壳10爆震控制器/温度传感器11燃油管理系统(0G367000及以上)12艉板支架-长型13燃油泵(铝制壳体)14液压泵总成15齿轮箱螺旋桨轴-1.78:1传动比16下罩17齿轮箱驱动轴-TorqueMaster18齿轮箱(驱动)标准/反向旋转-运动大师19启动电机20气缸体与端盖21簧片阀组与气缸盖22泄放系统23齿轮箱图表(运动大师)24燃油泵(塑料壳体带模制配件)25齿轮箱螺旋桨轴-扭矩大师1.87:1/2:126飞轮、启动电机及点火线圈27顶罩28齿轮箱螺旋桨轴-TorqueMaster型29动力升降组件（塑料马达壳体）30仪表装置31线束和启动电磁阀32齿轮箱(驱动)扭矩大师1.87:1/2:133维修/支撑材料34齿轮箱(驱动轴)(1.78:1)35动力升降倾斜电机36液压泵和安装支架37艉板支架-短型38齿轮箱(驱动轴)(CLE-1.87:1/2:1)39线束/启动继电器40燃油管理系统(0G366999及以下)41齿轮箱螺旋桨轴-标准旋转-运动大师42驱动轴壳与排气管43钥匙开关44ECU总成45配平电磁阀板(0G205107及以上)46曲轴、活塞及连杆47机油喷射组件48油门杆与换挡轴49转向连接套件50燃油泵/过滤器51艉板支架52排气分隔板及排气板53齿轮箱螺旋桨轴-CLE-1.87:1/2:1传动比54燃油泵(塑料壳体带松散配件)55齿轮箱螺旋桨轴-反向旋转-运动大师56配平电磁阀板(0G205106及以下)57旋转支架及转向臂-短型58齿轮箱螺旋桨轴-标准-SportMaster59温度传感器60维修/支撑材料61旋转支架与转向臂62泄放系统63下罩64曲轴、活塞及连杆65气缸体与端盖66驱动轴壳与排气管67ECU总成68排气分隔板及排气板69飞轮、启动电机及点火线圈70燃油管理系统71燃油泵/过滤器72齿轮箱驱动轴-标准-SportMaster73齿轮箱驱动轴-TorqueMaster74齿轮箱螺旋桨轴-标准-SportMaster75齿轮箱螺旋桨轴-TorqueMaster型76液压泵和安装支架77液压泵总成78仪表装置79钥匙开关80机油喷射组件81动力升降组件 8M023119382动力升降组件金属马达壳83动力升降组件（塑料马达壳体）84动力升降倾斜电机85簧片阀组与气缸盖86维修/支撑材料87启动电机88转向连接套件89旋转支架及转向臂-长型90旋转支架及转向臂-短型91温度传感器92油门杆与换挡轴93顶罩94艉板支架-长型95艉板支架-短型96配平电磁阀板97油气分离器组件98线束/启动继电器
图 1外罩 Cowling
外罩 Cowling
REF零件编号中文名称英文名称数量
1817704A22顶盖总成TOP COWL ASSEMBLY1
1817704A23顶盖总成TOP COWL ASSEMBLY1
1817704T23灰色顶罩COWL-TOP-GRAY1
2817706A3前盖FRONT COVER1
2817706A4前盖FRONT COVER1
369570螺钉(#10-16 x .750)SCREW (#10-16 x .750)4
422887垫圈WASHER4
571602轭架YOKE4
58M0192198轭架YOKE4
5716021轭架YOKE4
6816771铆钉RIVET12
7847883垫圈(0.192x0.375x0.033)WASHER (.192 x .375 x .033)12
8817708压紧件HOLD DOWN4
958712U型销PIN Clevis4
10847883垫圈(0.192x0.375x0.033)WASHER (.192 x .375 x .033)4
1121071开口销COTTER PIN4
11210711开口销COTTER PIN4
12848164A7底壳BOTTOM PAN1
12848164T7黑色底罩COWL-BOTTOM-BLACK1
12817709A13底壳BOTTOM PAN1
12848164T8灰色底罩COWL-BOTTOM-GRAY1
13815784盖帽CAP2
1413734固定座RETAINER4
148M0192190固定座RETAINER4
14137341固定座RETAINER4
15848172开口铆钉RIVET (POP-OPEN)16
168177121密封条(6.79英尺大卷)SEAL (6.79 Feet Bulk)1
16817712003密封条(6.79英尺)SEAL (6.79 Feet)1
1738601螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250)11
1829245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel11
188M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel11
198221882安装板PLATE1
19822188T2安装板PLATE1
2035045螺母(.250-28)NUT (.250-28)11
20826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel11
21848165支撑架BRACE2
228177131护孔环GROMMET2
228177133护孔环GROMMET2
23847894A1围板SKIRT1
23847894T1黑色围板SKIRT-BLACK1
23847894A2围板SKIRT1
2469028螺钉（.250-28 x .750）不锈钢SCREW (.250-28 x .750) Stainless Steel8
2535462垫圈(.2656 x .625 x .0625)不锈钢WASHER (.2656 x .625 x .0625) Stainless Steel16
2635045螺母(.250-28)NUT (.250-28)8
26826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel8
27126021护孔环GROMMET1
2712602002护孔环GROMMET1
2818286A40开关总成SWITCH ASSEMBLY1
288M0235192微调开关SWITCH TRIM1
298124431固定座RETAINER1
298M0032848开关固定座RETAINER Switch1
30847897燃油接头支架BRACKET Fuel Connector1
3128668螺钉 (.250-20 x .875) 不锈钢SCREW (.250-20 x .875) Stainless Steel2
32814101螺母 (.250-20) 不锈钢NUT (.250-20) Stainless Steel2
328M0207776螺母NUT2
3388621固定座(按需使用)RETAINER (Use where Applicable)1
3469020螺钉(#10-32 x .875)SCREW (#10-32 x .875)2
34690201螺钉(#10-32 x .875)SCREW (#10-32 x .875)2
3529488螺母 (#10-32)NUT (#10-32)2
358M0204718螺母NUT2
图 2配平电磁阀板 Trim Solenoid Plate
配平电磁阀板 Trim Solenoid Plate
REF零件编号中文名称英文名称数量
1885355T03顶盖总成TOP COWL ASSEMBLY1
1885355T02顶盖总成TOP COWL ASSEMBLY1
18M0050000顶罩-水星型COWL-TOP MARINER1
2885354T空气导流帽CAP Air Dam1
2885354T01空气导流帽-水星黑色款CAP, Air Dam Mercury, Black1
2895838T空气导流帽CAP Air Dam1
2895838T01空气导流帽-水星型CAP Air Dam - Mariner1
3888971前锁扣槽FRONT LATCH RECEIVER1
4885545上罩壳密封件SEAL Top Cowl1
48M0111178密封件SEAL1
5888951电缆CABLE1
58M0080461锁扣拉索CABLE Latch1
6888959铰链销PIN Hinge1
7888956手控锁杆LATCH Hand Lever1
8895373弹簧SPRING1
9888955锁扣连杆LINK Latch Connecting1
1026953开口销COTTER PIN2
1189302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)2
12888952联动臂LINKAGE ARM2
13888953弹簧SPRING2
14822417销PIN2
15888950020螺钉(M4x20毫米)(M4x1.75)SCREW (M4 x 20 mm) (M4 x 1.75)6
16888970左舷饰板(左)APPLIQUE Port (Port)1
16888970A01饰板套件APPLIQUE KIT1
16895839左舷饰板(左)APPLIQUE Port (Port)1
16895839A01饰板套件APPLIQUE KIT1
17888969右舷饰板(右)APPLIQUE Starboard (Starboard)1
17895840右舷饰板(右)APPLIQUE Starboard (Starboard)1
184010610不锈钢螺钉(M6x10)SCREW (M6 x 10) Stainless Steel2
-892564A05贴花套件DECAL SET1
-859271A05贴花套件DECAL SET1
-895252A05贴花套件DECAL SET1
-895253A05贴花套件DECAL SET1
-892571A05贴花套件DECAL SET1
-892571A07贴花套件(水星200)DECAL SET (Mariner 200)1
-892871A05贴花套件DECAL SET1
-892871A07贴花套件(水星225)DECAL SET (Mariner 225)1
-895254A05贴花套件DECAL SET1
-895254A07贴花套件(水星250)DECAL SET (Mariner 250)1
-895255A05贴花套件DECAL SET1
-895255A07贴花套件(水星275)DECAL SET (Mariner 275)1
图 3燃油管理系统 Fuel Management System
燃油管理系统 Fuel Management System
REF零件编号中文名称英文名称数量
-14817A23燃油管理系统总成MANAGEMENT ASSEMBLY Fuel1
18276922盖板COVER1
215443线束套件HARNESS KIT1
318792密封件SEAL1
415029O型圈及密封套件O-RING AND SEAL KIT1
58276992燃油导轨FUEL RAIL1
5827699T2燃油导轨FUEL RAIL1
618715燃油喷油器INJECTOR Fuel6
618715T喷油器总成INJECTOR ASSEMBLY6
717422滤清器FILTER1
8827696固定套件RETAINER KIT1
98276933节气门体THROTTLE BODY1
108090572接头套件JOINT KIT1
118276891连杆套件LINK KIT1
12827697连杆杠杆套件LEVER KIT Link1
13827698螺钉套件SCREW KIT1
148276981螺钉套件SCREW KIT1
158090851弯头套件ELBOW KIT1
16814233A1施拉德阀套件SCHRADER VALVE KIT1
16814233A02阀套件VALVE KIT1
178142332FMA接头套件FMA JOINT KIT1
188276942软管套件HOSE KIT1
18827694A01软管套件-燃油HOSE KIT-FUEL1
1967748滚轮ROLLER1
2090088螺钉(.250-20x4)SCREW (.250-20 x 4)12
20845674螺钉(.250-20x4.00)SCREW (.250-20 x 4.00)12
2129245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel10
218M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel10
图 4齿轮箱驱动轴-标准-SportMaster Gear Housing Driveshaft-Standard-SportMaster
齿轮箱驱动轴-标准-SportMaster Gear Housing Driveshaft-Standard-SportMaster
REF零件编号中文名称英文名称数量
-827214T23齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
1827214T16基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
1827214T25基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
285822A10连接器总成CONNECTOR ASSEMBLY1
343044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
4786382螺柱(.437-14/.437-20 x 3.120)STUD (.437-14/.437-20 x 3.120)1
5579203双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
58M0133358双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
6562972螺柱(0.312-18/0.324-24×3.380)STUD (.312-18/.324-24 x 3.380)1
68M0034463螺柱(.312-24 x 3.38)STUD (.312-24 x 3.38)1
730667双头螺栓(.250-20/.250-28×3.125)STUD (.250-20/.250-28 x 3.125)2
7306671螺柱STUD2
842647A1滚柱轴承总成BEARING ASSEMBLY Roller1
9826134Q阳极块ANODE2
104000333螺钉(M6 x 40)SCREW (M6 x 40)1
11401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
1267891填充块FILLER BLOCK1
128M0039169填充块FILLER BLOCK1
13NSS小齿轮(不单独销售)NOT SOLD SEPARATE Pinion Gear1
1492721垫圈(.965×0.630)WASHER (.965 x .630)1
1535921螺母(0.625-18)NUT (.625-18)1
1667892A1磁吸式注油/放油塞套件FITTING KIT Magnetic, Plug Fill/Drain1
168M0058389放油螺钉套件SCREW KIT Drain1
1779953Q2排水螺钉套件(.375-16 x .250)SCREW KIT (.375-16 x .250) Drain1
1779953Q04放油螺钉套件SCREW KIT Drain1
18191832垫圈WASHER2
188M0187157蓝色密封件@15SEAL-BLUE @152
19789022换档轴SHIFT SHAFT1
2077631A2衬套总成BUSHING ASSEMBLY1
2125439O型圈(.862×0.103)O-RING (.862 x .103)1
228164641油封SEAL Oil1
228M0246145油封OIL SEAL1
2377674垫圈(.35 x .75 x .12)WASHER (.35 x .75 x .12)1
24848449A5驱动轴总成DRIVESHAFT ASSEMBLY1
248M0192234驱动轴DRIVESHAFT1
2542637A1垫片组SHIM SETAR
258M0063267垫片组SHIM SETAR
2636387A1轴承总成(滚子/外圈)BEARING ASSEMBLY Roller/Cup1
268M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
278245191固定座RETAINER1
2844292A3水泵底座总成BASE ASSEMBLY Water Pump1
29426311衬垫GASKET1
298M0204678衬垫GASKET1
3090011O型圈(2.175 x 0.175)O-RING (2.175 x .175)1
308M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
3189238油封SEAL Oil1
3216977油封SEAL Oil1
3318051衬垫(下部)GASKET (LOWER)1
34858524衬垫(上部)GASKET (UPPER)1
3532435面板FACE PLATE1
358M0204677面板PLATE-FACE1
3696148T1水泵壳体总成BODY ASSEMBLY Water Pump1
3748752T嵌件INSERT1
3838970密封件SEAL1
3989984T4叶轮IMPELLER1
4056654键KEY1
408M0214992键@5KEY @51
4129245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
418M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
428267119螺母(.250-28)NUT (.250-28)2
4336001垫圈WASHER1
4413436螺母NUT1
4596411螺钉(#14-8×2.25)SCREW (#14-8 x 2.25)1
458M0215009螺钉SCREW1
4629804T套筒SLEEVE1
-89238A3齿轮箱密封套件SEAL KIT Gear Housing1
-881805A01发动机垫片组GASKET SET Engine1
图 5旋转支架及转向臂-长型 Swivel Bracket and Steering Arm Long
旋转支架及转向臂-长型 Swivel Bracket and Steering Arm Long
REF零件编号中文名称英文名称数量
-896280006零件手册200/225/250/275四冲程VeradoPARTS MANUAL 200/225/250/275 4-Stroke Verado1
-896579T00维修手册SERVICE MANUAL1
-8M0082470MNL-SERV 200-300VMNL-SERV 200-300V1
-10238060安装手册INSTALLATION MANUAL1
-10237060用户手册OWNERS MANUAL1
-10237J60用户手册(西班牙语)OWNERS MANUAL Spanish1
-10237D60用户手册(法语)OWNERS MANUAL French1
-895269001产品指南PRODUCT GUIDE1
-895269002产品指南GUIDE-PRODUCT1
-895282A06EPA标签信息贴花DECAL EPA Label Information1
图 6燃油管理系统(0G366999及以下) Fuel Management System (0G366999 and Below)
燃油管理系统(0G366999及以下) Fuel Management System (0G366999 and Below)
REF零件编号中文名称英文名称数量
-14817A19燃油管理系统总成MANAGEMENT ASSEMBLY Fuel1
1827693节气门体THROTTLE BODY1
2827692盖板COVER1
3827696固定套件RETAINER KIT1
467748滚轮ROLLER1
518715燃油喷油器INJECTOR Fuel6
518715T喷油器总成INJECTOR ASSEMBLY6
617422滤清器FILTER1
715443线束套件HARNESS KIT1
815442燃油滤清器套件(DESIGN I型)FILTER KIT Fuel (DESIGN I)1
9154421燃油滤清器套件FILTER KIT Fuel1
9154422燃油滤清器套件FILTER KIT Fuel1
9154422燃油滤清器套件FILTER KIT Fuel1
10150282燃油滤清器FILTER Fuel1
11400034螺钉(M5×14)SCREW (M5 x 14)1
12400255锁紧垫圈(M5)LOCKWASHER (M5)1
131350382管材(30英寸散装)(1/2英寸外径)TUBING (30.00 Inches Bulk) (1/2 IN. O.D.)1
131350385管材(33英寸整卷)TUBING (33.00 Inches Bulk)1
149912688管材(36英寸散装)(1/8英寸内径)TUBING (36.00 Inches Bulk) (1/8 IN. I.D.)1
1599130122管材(20英尺散装)(3/32英寸内径)TUBING (20.00 Feet Bulk) (3/32 IN. I.D.)1
15892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
1615027调节器REGULATOR1
17814233弯头套件ELBOW KIT1
1818791衬垫GASKET1
19814012安装板PLATE1
20814076螺钉SCREWAR
21814010盖板套件COVER KIT1
224001987螺钉(M4×16)SCREW (M4 x 16)6
2326995防松垫圈(#8不锈钢)LOCKWASHER (#8) Stainless Steel6
2418790密封件SEAL1
2515029O型圈及密封套件O-RING AND SEAL KIT1
2615446浮子阀套件VALVE KIT Float1
2715445浮子套件FLOAT KIT1
28814011阀体套件BODY KIT1
2942481止回阀CHECK VALVE1
29424811阀门VALVE1
304000332螺钉(M6x35)SCREW (M6 x 35)3
3118241止回阀CHECK VALVE1
32814077切断阀VALVE Shut-Off1
3318792密封件SEAL1
3419275隔套SPACER3
35814913隔套SPACER3
3635280垫圈（0.255 x 0.620 x 0.030）不锈钢（大号）WASHER (.255 x .620 x .030) Stainless Steel (LARGE)3
3769057垫圈(0.281x0.734x0.063)(小号)WASHER (.281 x .734 x .063) (SMALL)3
3813791卡箍(15.7)CLAMP (15.7)2
388M0214911卡箍@5CLAMP @52
391350382管材(30英寸散装)(1-3/4英寸)TUBING (30.00 Inches Bulk) (1-3/4 IN.)1
391350385管材(33英寸整卷)TUBING (33.00 Inches Bulk)1
40F698772蜗杆卡箍CLAMP Worm Gear2
4114639覆盖件BLANKET1
4214640T盖板COVER1
4332228螺钉（#10-32 X 0.625）SCREW (#10-32 x .625)4
4426996锁紧垫圈(#10)(不锈钢)LOCKWASHER (#10) Stainless Steel4
4590088螺钉(.250-20x4)SCREW (.250-20 x 4)12
45845674螺钉(.250-20x4.00)SCREW (.250-20 x 4.00)12
4629245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel10
468M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel10
4714307A1燃油泵总成PUMP ASSEMBLY Fuel1
4714307T01燃油泵FUEL PUMP1
48146332软管HOSE1
49823501燃油滤清器FILTER Fuel1
49885188滤清器FILTER1
图 7油气分离器组件 Vapor Separator Components
油气分离器组件 Vapor Separator Components
REF零件编号中文名称英文名称数量
1855432A1盖板套件COVER KIT1
2NSS不单独销售 弯头NOT SOLD SEPARATE Elbow1
38568431直通接头FITTING Straight STRAIGHT1
419688接头FITTING1
5803878密封件SEAL1
6NSS不单独销售 泵出口配件包NOT SOLD SEPARATE Fitting Kit-Pump Outlet1
6855437A2泵出口接头套件FITTING KIT Pump Outlet1
7NSSO型圈（不单独销售）NOT SOLD SEPARATE O Ring1
8808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)7
9855528衬垫GASKET1
98M6002520衬垫套件GASKET KIT1
10855430A1浮子套件FLOAT KIT1
108M6004920浮子套件FLOAT KIT1
11F10064轴SHAFT1
12855431针阀VALVE Needle1
128M6004917进气阀VALVE-INLET1
135902螺钉(#6-32 x .187)SCREW (#6-32 x .187)1
14855427A1泵套件PUMP KIT1
15855428套筒SLEEVE1
158M6000589套筒SLEEVE1
16855434A1油杯套件BOWL KIT1
17855433密封件SEAL1
178554331密封件SEAL1
18855435A1塞套件PLUG KIT1
198554245弯头ELBOW2
2018458A4滤清器套件FILTER KIT1
2018458Q4燃油水分离滤清器FILTER Fuel-Water Separating1
21828586探头PROBE1
218M0204710探头PROBE1
图 8动力升降组件 8M0231193 Power Trim Components 8M0231193
动力升降组件 8M0231193 Power Trim Components 8M0231193
REF零件编号中文名称英文名称数量
-8M0231193动力升降总成POWER TRIM ASSEMBLY1
18M0225363电机套件MOTOR KIT1
28M0225369阀套件VALVE KIT1
38M0225371手动释放套件MANUAL RELEASE KIT1
48M0245633倾斜油缸套件TILT CYLINDER KIT1
58M0225370枢轴销套件PIVOT PIN KIT1
68M0244575减震杆套件SHOCK ROD KIT1
78M0244425销杆眼套件PIN ROD EYE KIT1
88M0232231螺钉螺母套件SCREW NUT KIT1
98M0225373记忆活塞套件MEMORY PISTON KIT1
108M0225368储液罐套件RESERVOIR KIT1
118M0174135储液罐塞总成PLUG RESERVOIR ASSEMBLY1
128M0237525泵套件PUMP KIT1
138M0225367升降杆套件TRIM ROD KIT1
148M0242846升降杆套件TRIM ROD KIT1
158M0225372重建套件REBUILD KIT1
图 9动力升降组件金属马达壳 Power Trim Components Metal Motor Housing
动力升降组件金属马达壳 Power Trim Components Metal Motor Housing
REF零件编号中文名称英文名称数量
-826729A2升降倾斜总成TRIM AND TILT ASSEMBLY1
1811604F歧管总成MANIFOLD ASSEMBLY1
256800管塞 (.0625-27)PLUG Pipe (.0625-27)9
3823552F气缸总成CYLINDER ASSEMBLY1
3880952A03ORD 8M0078330ORD 8M00783301
4823553配平活塞杆套件ROD KIT Trim Piston1
4823553T升降活塞杆ROD Trim Piston1
5811606导向套件GUIDE KIT1
5878239A02倾斜缸端盖套件END CAP KIT Tilt Cylinder1
6811607A1维修套件REPAIR KIT1
7811610A1止回阀套件CHECK VALVE KIT1
7823553T升降活塞杆ROD Trim Piston1
899638A1导向器总成GUIDE ASSEMBLY2
88M0021648端盖总成END CAP ASSEMBLY2
943397A6动力升降倾斜装置活塞/杆总成PISTON/ROD ASSEMBLY Power Trim1
9878413A1活塞总成PISTON ASSEMBLY1
943398A3动力升降倾斜装置活塞/杆总成PISTON/ROD ASSEMBLY Power Trim1
9878414T01活塞总成PISTON ASSEMBLY1
1012184A1升降过滤器总成TRIM FILTER ASSEMBLY1
11813442A2手动释放总成MANUAL RELEASE ASSEMBLY1
11893929A01安全阀套件VALVE KIT Relief1
12812844E型卡环E RING1
12815949001E形环E-RING1
13811612A2O型圈套件O-RING KIT1
13811612A3O型圈套件O-RING KIT1
14811617F泵PUMP1
14811617T1泵PUMP1
15811613塞子总成PLUG ASSEMBLY1
164000327螺钉 (M6 x 14)SCREW (M6 x 14)4
1743450垫圈WASHER4
174002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)4
18811611盖板COVER1
19828710驱动接头DRIVE JOINT1
20828708电机总成MOTOR ASSEMBLY1
20878265A4配平电机TRIM MOTOR1
21828709螺钉 (长)SCREW (LONG)2
21881768A1螺钉/垫圈套件SCREW/WASHER KIT2
21811616螺钉 (短)SCREW (SHORT)2
22811614轴总成SHAFT ASSEMBLY1
228M0142997倾斜轴套件TILT SHAFT KIT1
2356800管塞 (.0625-27)PLUG Pipe (.0625-27)2
2444431槽销PIN Groove1
24878267销PIN1
25821539三叶销PIN Trilobe1
26996251轴SHAFT1
2699625002轴SHAFT1
27818298A1阳极套件ANODE KIT1
27818298Q1阳极套件ANODE KIT1
284000330螺钉(M6x25)SCREW (M6 x 25)2
288M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
2929245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
298M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
304000377螺钉 (M10 x 30)SCREW (M10 x 30)6
314002319垫圈WASHER6
3226550卡箍CLAMP2
338128321螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
33878609螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
3469205C形垫圈C WASHER1
348M0084613C形垫圈C-WASHER1
35996301冲击板STRIKER PLATE2
358M0045383冲击板STRIKER PLATE2
3658643锁紧垫圈 (.375)LOCKWASHER (.375)2
3746335螺母 (.375-24)NUT (.375-24)2
38435301警示贴纸-动力微调DECAL Caution-Power Trim1
39828547353导管 (.350内径 x 3.00英尺 散装)CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk)1
40816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
40816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
图 10爆震控制器/温度传感器 Detonation Controller/Temperature Sensor
爆震控制器/温度传感器 Detonation Controller/Temperature Sensor
REF零件编号中文名称英文名称数量
1826800A8爆震控制器总成CONTROLLER ASSEMBLY Detonation1
288447螺钉 (.190-32 x 1.62)SCREW (.190-32 x 1.62)3
338833垫圈WASHER3
413381安装板PLATE1
588807A10拉线总成CABLE ASSEMBLY1
662568螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)1
794304隔套SPACER3
841470A25喷油警告模块总成MODULE ASSEMBLY Oil Injection Warning1
914851油门位置指示器INDICATOR Throttle Position1
914851T03指示器INDICATOR1
1015150螺钉(#8-32 x 0.625英寸)SCREW (#8-32 x .625)2
1126995防松垫圈(#8不锈钢)LOCKWASHER (#8) Stainless Steel2
1230164垫圈(0.192x0.375x0.0312)不锈钢WASHER (.192 x .375 x .0312) Stainless Steel2
1315885套筒SLEEVE1
14813501安装板PLATE2
1513221A1温度传感器总成SENSOR ASSEMBLY Temperature1
1513221T01温度传感器SENSOR TEMP1
1645711O型圈 (.612 x .103)O-RING (.612 x .103)1
1757583螺丝（#8-32×0.375）SCREW (#8-32 x .375)3
1757583T螺丝#8-32×3/8SCREW #8-32x3/83
1826995防松垫圈(#8不锈钢)LOCKWASHER (#8) Stainless Steel3
-815791A92发动机垫片组GASKET SET Engine1
图 11燃油管理系统(0G367000及以上) Fuel Management System (0G367000 and Up)
燃油管理系统(0G367000及以上) Fuel Management System (0G367000 and Up)
REF零件编号中文名称英文名称数量
-14817A23燃油管理系统总成MANAGEMENT ASSEMBLY Fuel1
18276922盖板COVER1
215443线束套件HARNESS KIT1
318792密封件SEAL1
415029O型圈及密封套件O-RING AND SEAL KIT1
58276992燃油导轨FUEL RAIL1
5827699T2燃油导轨FUEL RAIL1
618715燃油喷油器INJECTOR Fuel1
618715T喷油器总成INJECTOR ASSEMBLY1
717422滤清器FILTER1
8827696固定套件RETAINER KIT1
98276933节气门体THROTTLE BODY1
108090572接头套件JOINT KIT1
118276891连杆套件LINK KIT1
12827697连杆杠杆套件LEVER KIT Link1
13827698螺钉套件SCREW KIT1
148276981螺钉套件SCREW KIT1
158090851弯头套件ELBOW KIT1
16814233A1施拉德阀套件SCHRADER VALVE KIT1
16814233A02阀套件VALVE KIT1
178142332FMA接头套件FMA JOINT KIT1
188276942软管套件HOSE KIT1
18827694A01软管套件-燃油HOSE KIT-FUEL1
1967748滚轮ROLLER1
2090088螺钉(.250-20x4)SCREW (.250-20 x 4)10
20845674螺钉(.250-20x4.00)SCREW (.250-20 x 4.00)10
2129245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel10
218M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel10
图 12艉板支架-长型 Transom Brackets Long
艉板支架-长型 Transom Brackets Long
REF零件编号中文名称英文名称数量
1885355T03顶盖总成TOP COWL ASSEMBLY1
1885355T02顶盖总成TOP COWL ASSEMBLY1
18M0050000顶罩-水星型COWL-TOP MARINER1
2885354T空气导流帽CAP Air Dam1
2885354T01空气导流帽-水星黑色款CAP, Air Dam Mercury, Black1
2895838T空气导流帽CAP Air Dam1
2895838T01空气导流帽-水星型CAP Air Dam - Mariner1
3888971前锁扣槽FRONT LATCH RECEIVER1
4885545上罩壳密封件SEAL Top Cowl1
48M0111178密封件SEAL1
5888951电缆CABLE1
58M0080461锁扣拉索CABLE Latch1
6888959铰链销PIN Hinge1
7888956手控锁杆LATCH Hand Lever1
8895373弹簧SPRING1
9888955锁扣连杆LINK Latch Connecting1
1026953开口销COTTER PIN2
1189302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)2
12888952联动臂LINKAGE ARM2
13888953弹簧SPRING2
14822417销PIN2
15888950020螺钉(M4x20毫米)(M4x1.75)SCREW (M4 x 20 mm) (M4 x 1.75)6
16888970左舷饰板(左)APPLIQUE Port (Port)1
16888970A01饰板套件APPLIQUE KIT1
16895839左舷饰板(左)APPLIQUE Port (Port)1
16895839A01饰板套件APPLIQUE KIT1
17888969右舷饰板(右)APPLIQUE Starboard (Starboard)1
17895840右舷饰板(右)APPLIQUE Starboard (Starboard)1
184010610不锈钢螺钉(M6x10)SCREW (M6 x 10) Stainless Steel2
-892564A05贴花套件DECAL SET1
-859271A05贴花套件DECAL SET1
-895252A05贴花套件DECAL SET1
-895253A05贴花套件DECAL SET1
-892571A05贴花套件DECAL SET1
-892571A07贴花套件(水星200)DECAL SET (Mariner 200)1
-892871A05贴花套件DECAL SET1
-892871A07贴花套件(水星225)DECAL SET (Mariner 225)1
-895254A05贴花套件DECAL SET1
-895254A07贴花套件(水星250)DECAL SET (Mariner 250)1
-895255A05贴花套件DECAL SET1
-895255A07贴花套件(水星275)DECAL SET (Mariner 275)1
图 13燃油泵(铝制壳体) Fuel Pump (Aluminum Body)
燃油泵(铝制壳体) Fuel Pump (Aluminum Body)
REF零件编号中文名称英文名称数量
115930A21燃油泵总成PUMP ASSEMBLY Fuel1
242990A10膜片组件DIAPHAGM KIT1
2857005A1膜片组件DIAPHRAGM KIT1
3NSS止回阀(不单独销售)NOT SOLD SEPARATE Check Valve2
4NSS增压垫片(不单独销售)NOT SOLD SEPARATE Gasket-Boost1
5NSS膜片(不单独销售)NOT SOLD SEPARATE Diaphragm2
6NSS脉冲垫片(不单独销售)NOT SOLD SEPARATE Gasket-Pulse1
7NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring1
8NSS盖帽(不单独销售)NOT SOLD SEPARATE Cap1
9NSS止回阀(不单独销售)NOT SOLD SEPARATE Check Vavle2
10NSS固定座(不单独销售)NOT SOLD SEPARATE Retainer2
11NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring1
12NSS盖帽(不单独销售)NOT SOLD SEPARATE Cap1
13987691底座衬垫GASKET Base1
138M0204705衬垫@2GASKET @21
14144303BASE Fuel Pump1
15987752燃油泵板PLATE Fuel Pump1
1699664弯头ELBOW2
1699664290度弯头接头(0.125-27x0.250)尼龙FITTING Elbow 90 Degree (.125-27 x .250) Nylon2
1729111连接器CONNECTOR1
17291112接头FITTING1
1882104540SCREW (M5 x 40) Fuel Pump2
1982130050SCREW (M6 x 50) Fuel Pump to Crankcase2
2083075780管材(28.00英寸散装)TUBING (28.00 Inches Bulk)1
208M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
2183075780管材(28.00英寸散装)TUBING (28.00 Inches Bulk)1
218M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
22816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
22816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
23816856A3燃油接头总成-塑料CONNECTOR ASSEMBLY Fuel - Plastic1
23816856Q3燃油接头总成CONNECTOR ASSEMBLY Fuel1
2469067螺钉(.250-20×1.375)SCREW (.250-20 x 1.375)1
251350382管材(30英寸散装)TUBING (30.00 Inches Bulk)2
251350385管材(33英寸整卷)TUBING (33.00 Inches Bulk)2
2618458A3燃油滤清器总成FILTER ASSEMBLY Fuel1
2618458Q3燃油滤清器FILTER-FUEL1
2714570探头PROBE1
2813170A3底座BASE1
2913607接头FITTING2
29136071弯头ELBOW2
3045561螺钉 (.250-20 x 1.12)SCREW (.250-20 x 1.12)2
30455611螺钉(.250-20 x 1.120)SCREW (.250-20 x 1.120)2
-823142A94衬垫套件GASKET SET1
-809839A94动力头总成POWERHEAD ASSEMBLY1
-809839T94PH 150 EFIPH 150 EFI1
-808603A94动力头总成POWERHEAD ASSEMBLY1
-808603T94动力头总成POWERHEAD ASSEMBLY1
图 14液压泵总成 Hydraulic Pump Assembly
液压泵总成 Hydraulic Pump Assembly
REF零件编号中文名称英文名称数量
-846859A1液压泵总成PUMP ASSEMBLY Hydraulic1
1811491适配器ADAPTER1
18M0084543适配器ADAPTER1
2803852联轴器COUPLING1
389498O型圈O-RING1
4811492T泵总成(含螺钉)PUMP ASSEMBLY (INCLUDES SCREWS)1
589496滤清器FILTER2
689497O型圈O-RING1
741219T储液罐RESERVOIR1
8811493螺钉套件SCREW KIT1
-17649T电机总成MOTOR ASSEMBLY1
-891736T电机总成MOTOR ASSEMBLY1
-891736T电机总成MOTOR ASSEMBLY1
917632T端盖总成END CAP ASSEMBLY1
9891736T电机总成MOTOR ASSEMBLY1
9NSSNOT SOLD SEPARATE END FRAME1
1017626螺钉SCREW4
10891736T电机总成MOTOR ASSEMBLY4
10891741螺钉SCREW4
1117625O型圈O-RING1
11891736T电机总成MOTOR ASSEMBLY1
11891740O型圈O-RING1
1217621螺钉SCREW2
12891736T电机总成MOTOR ASSEMBLY2
12891739螺钉SCREW2
1317633支架套件HOLDER KIT1
13891736T电机总成MOTOR ASSEMBLY1
13891738支架总成HOLDER ASSEMBLY1
1417631A1电刷套件BRUSH KIT1
14891736T电机总成MOTOR ASSEMBLY1
14891737电刷套件BRUSH KIT1
1517623电枢ARMATURE1
15891736T电机总成MOTOR ASSEMBLY1
15NSSNOT SOLD SEPARATE ARMATURE1
1617653垫圈WASHER2
16891736T电机总成MOTOR ASSEMBLY2
16NSS止推垫片(不单独销售)NOT SOLD SEPARATE THRUST WASHET2
1717624磁场框架总成FIELD AND FRAME ASSEMBLY1
17891736T电机总成MOTOR ASSEMBLY1
17NSS磁场与框架(不单独销售)NOT SOLD SEPARATE FIELD AND FRAME1
1817622盖总成COVER ASSEMBLY1
18891736T电机总成MOTOR ASSEMBLY1
18NSS壳体(不单独销售)NOT SOLD SEPARATE HOUSING1
-812498A1安全阀套件VALVE KIT Relief1
图 15齿轮箱螺旋桨轴-1.78:1传动比 Gear Housing Propeller Shaft - 1.78:1 Gear Ratio
齿轮箱螺旋桨轴-1.78:1传动比 Gear Housing Propeller Shaft - 1.78:1 Gear Ratio
REF零件编号中文名称英文名称数量
-814247A3齿轮箱总成1.78:1速比-黑色GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Black1
-814247A4齿轮箱总成 1.78:1 减速比 - 灰色GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Gray1
-814247T4齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
1814247A1齿轮箱总成 基础型-黑色GEAR HOUSING ASSEMBLY Basic - Black1
1814247T1齿轮箱总成基础型-黑色GEAR HOUSING ASSEMBLY Basic-Black1
1814247A2齿轮箱总成 基础型-灰色GEAR HOUSING ASSEMBLY Basic - Gray1
1814247T2ORD 1674-814247T1ORD 1674-814247T11
4376039换挡凸轮控制CAM Shift Control1
43760394换挡凸轮控制CAM Shift Control1
4444491A1垫片组SHIM SETAR
448M0063266垫片组SHIM SETAR
4530894A1圆锥轴承组BEARING SET Cup And Cone1
4616279A2前进齿轮总成GEAR ASSEMBLY Forward1
4730895滚针轴承BEARING Needle1
4730895T滚针轴承BEARING Needle1
4812239A1凸轮从动件套件FOLLOWER KIT Cam1
48850315A1凸轮从动件套件FOLLOWER KIT Cam1
4930622弹簧SPRING1
50822539离合器CLUTCH1
50822539T离合器CLUTCH1
5130632十字销PIN Cross1
518M0100263十字销PIN Cross1
5230893弹簧SPRING1
5312238T螺旋桨轴PROPELLER SHAFT1
54NSS倒车齿轮(不单独销售)(43-16279A2部件)NOT SOLD SEPARATE Reverse Gear (Part of 43-16279A2)1
5576358止推垫片THRUST WASHER1
5629976O型圈O-RING1
5741529A2轴承座总成CARRIER ASSEMBLY Bearing1
5741529T2托架总成CARRIER ASSY1
5898727润滑脂接头FITTING Grease2
588M0169588润滑脂接头FITTING Grease2
5930956滚针轴承BEARING Needle1
5930956T滚针轴承BEARING Needle1
6076868油封(外侧)SEAL (OUTSIDE)1
608M0248882油封@5SEAL-OIL @51
6114077油封(内侧)SEAL Oil (INSIDE)1
6230281键KEY1
6352700锁紧垫圈TAB WASHER1
6452699盖板COVER1
6513191A1止推垫片THRUST WASHER1
6513191Q01止推垫片THRUST WASHER1
6652707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
6652707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
67816629锁紧垫圈TAB WASHER1
67816629Q锁紧垫圈TAB WASHER1
6830206螺钉(.375-16 x 1.00)不锈钢SCREW (.375-16 x 1.00) Stainless Steel1
6976214A5阳极套件ANODE KIT1
6976214Q5阳极套件ANODE KIT1
7066024螺钉(.437-14 x 1.75)SCREW (.437-14 x 1.75)1
71822836垫圈(.445 x .805 x .108)WASHER (.445 x .805 x .108)2
72134391螺母 (.4375-20)NUT (.4375-20)2
72859116螺母(.437-20)NUT (.437-20)2
-89238A2密封套件SEAL KIT1
图 16下罩 Bottom Cowl
下罩 Bottom Cowl
REF零件编号中文名称英文名称数量
1834814A1下机罩BOTTOM COWL1
1834814A2下机罩BOTTOM COWL1
2834815A1下机罩BOTTOM COWL1
28M0107322机罩-底部 右舷COWL-BOTTOM, STBD1
2834815A2下机罩BOTTOM COWL1
38253181罩盖密封条(41英寸)SEAL Cowl (41.00 Inches)2
38M0109217罩盖密封条SEAL-COWL2
4822024卡箍CLAMP1
5822023卡箍CLAMP1
692799螺钉(#10-16x1.12)SCREW (#10-16 x 1.12)2
782130040螺钉(M6 x 40)SCREW (M6 x 40)4
8831209固定座RETAINER1
9821908堵头PLUG1
10821915垫圈WASHER1
11821963止回阀CHECK VALVE1
118219631止回阀CHECK VALVE1
1230641O型圈(0.299x0.103)O-RING (.299 x .103)1
13821952接头FITTING1
14816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
14816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
158320782软管HOSE1
158M0039077成型软管HOSE-MOLDED1
16850896卡箍 (28.6)CLAMP (28.6)2
178320763接头FITTING1
18821904示流器接头FITTING Tell-Tale1
188M0077650示流器接头FITTING Tell-Tale1
19828216怠速排气套IDLE EXHAUST BOOT Exhaust1
19889847怠速排气套BOOT Idle Exhaust1
20817519A1排水单向阀总成CHECK VALVE ASSEMBLY Drain2
21850691开关SWITCH1
218M0235192微调开关SWITCH TRIM1
22824868螺钉(M6×75)SCREW (M6 x 75)1
23821253F1前手柄黑色FRONT HANDLE Black1
23889740A02手柄套件HANDLE KIT1
23821253F2前手柄FRONT HANDLE1
23889740A02手柄套件HANDLE KIT1
24335891衬套BUSHING2
2548462O型圈 (.614 x .070)O-RING (.614 x .070)1
268219423棘爪PAWL1
2769057垫片(.281 x .734 x .063)WASHER (.281 x .734 x .063)1
28401196螺母 (M6)NUT (M6)1
298214281螺钉(#10-16x0.625)SCREW (#10-16 x .625)1
30822873卡扣CLIP1
图 17齿轮箱驱动轴-TorqueMaster Gear Housing Driveshaft - TorqueMaster
齿轮箱驱动轴-TorqueMaster Gear Housing Driveshaft - TorqueMaster
REF零件编号中文名称英文名称数量
-827214T23齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
1827214T16基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
1827214T25基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
285822A10连接器总成CONNECTOR ASSEMBLY1
343044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
4786382螺柱(.437-14/.437-20 x 3.120)STUD (.437-14/.437-20 x 3.120)1
5579203双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
58M0133358双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
6562972螺柱(0.312-18/0.324-24×3.380)STUD (.312-18/.324-24 x 3.380)1
68M0034463螺柱(.312-24 x 3.38)STUD (.312-24 x 3.38)1
730667双头螺栓(.250-20/.250-28×3.125)STUD (.250-20/.250-28 x 3.125)2
7306671螺柱STUD2
842647A1滚柱轴承总成BEARING ASSEMBLY Roller1
9826134Q阳极块ANODE2
104000333螺钉(M6 x 40)SCREW (M6 x 40)1
11401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
1267891填充块FILLER BLOCK1
128M0039169填充块FILLER BLOCK1
13NSS小齿轮(不单独销售)NOT SOLD SEPARATE Pinion Gear1
1492721垫圈(.965×0.630)WASHER (.965 x .630)1
1535921螺母(0.625-18)NUT (.625-18)1
1667892A1磁吸式注油/放油塞套件FITTING KIT Magnetic, Plug Fill/Drain1
168M0058389放油螺钉套件SCREW KIT Drain1
1779953Q2排水螺钉套件(.375-16 x .250)SCREW KIT (.375-16 x .250) Drain1
1779953Q04放油螺钉套件SCREW KIT Drain1
18191832垫圈WASHER2
188M0187157蓝色密封件@15SEAL-BLUE @152
19789022换档轴SHIFT SHAFT1
2077631A2衬套总成BUSHING ASSEMBLY1
2125439O型圈(.862×0.103)O-RING (.862 x .103)1
228164641油封SEAL Oil1
228M0246145油封OIL SEAL1
2377674垫圈(.35 x .75 x .12)WASHER (.35 x .75 x .12)1
24848449A5驱动轴总成DRIVESHAFT ASSEMBLY1
248M0192234驱动轴DRIVESHAFT1
2542637A1垫片组SHIM SETAR
258M0063267垫片组SHIM SETAR
2636387A1轴承总成(滚子/外圈)BEARING ASSEMBLY Roller/Cup1
268M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
278245191固定座RETAINER1
2844292A3水泵底座总成BASE ASSEMBLY Water Pump1
29426311衬垫GASKET1
298M0204678衬垫GASKET1
3090011O型圈(2.175 x 0.175)O-RING (2.175 x .175)1
308M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
3189238油封SEAL Oil1
3216977油封SEAL Oil1
3318051衬垫(下部)GASKET (LOWER)1
34858524衬垫(上部)GASKET (UPPER)1
3532435面板FACE PLATE1
358M0204677面板PLATE-FACE1
3696148T1水泵壳体总成BODY ASSEMBLY Water Pump1
3748752T嵌件INSERT1
3838970密封件SEAL1
3989984T4叶轮IMPELLER1
4056654键KEY1
408M0214992键@5KEY @51
4129245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
418M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
428267119螺母(.250-28)NUT (.250-28)2
4336001垫圈WASHER1
4413436螺母NUT1
4596411螺钉(#14-8×2.25)SCREW (#14-8 x 2.25)1
458M0215009螺钉SCREW1
4629804T套筒SLEEVE1
-89238A3齿轮箱密封套件SEAL KIT Gear Housing1
-881805A01发动机垫片组GASKET SET Engine1
图 18齿轮箱(驱动)标准/反向旋转-运动大师 Gear Housing (Drive) Standard/Counter Rotation-SportMaster
齿轮箱(驱动)标准/反向旋转-运动大师 Gear Housing (Drive) Standard/Counter Rotation-SportMaster
REF零件编号中文名称英文名称数量
1848450A25基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
1848474A39齿轮箱总成-基本型(无扭矩片)GEAR HOUSING ASSEMBLY Basic-Without Torque Tab1
18M0084203齿轮箱-SM型GEAR HOUSING-SM1
28479503盖板COVER2
2847950T3盖板COVER2
334776O型圈O-RING2
4815904螺钉(#10-32 x .500)SCREW (#10-32 x .500)12
543044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
642647A1滚柱轴承总成BEARING ASSEMBLY Roller1
767891填充块FILLER BLOCK1
78M0039169填充块FILLER BLOCK1
8847949管塞PLUG Pipe1
956297双头螺栓(.312×3.38)STUD (.312 x 3.38)1
98M0034463螺柱(.312-24 x 3.38)STUD (.312-24 x 3.38)1
1069501螺柱(5/16 X 3-1/4英寸)STUD (5/16 X 3-1/4 IN.)1
1159579双头螺柱(.437-14/.437-20 x 2.812)STUD (.437-14/.437-20 x 2.812)3
1178638螺柱(0.438x3.12)(7/16 X 3-1/8英寸)STUD (.438 x 3.12) (7/16 X 3-1/8 IN.)1
11786382螺柱(.437-14/.437-20 x 3.120)STUD (.437-14/.437-20 x 3.120)1
11579201双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
118M0133358双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
1174730螺柱(7/16 X 7.06英寸)STUD (7/16 X 7.06 IN.)2
1174732螺柱(7/16 X 7.69英寸)STUD (7/16 X 7.69 IN.)3
1178639螺柱(7/16 X 8-1/8英寸)STUD (7/16 X 8-1/8 IN.)1
12826134阳极块ANODE2
12826134Q阳极块ANODE2
134000333螺钉(M6 x 40)SCREW (M6 x 40)1
148268336螺母 (M6)NUT (M6)1
14401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
15NSS小齿轮(不单独销售)NOT SOLD SEPARATE Pinion Gear1
1692721垫圈(.965×0.630)WASHER (.965 x .630)1
1735921螺母(0.625-18)NUT (.625-18)1
1879953A2螺丝套件(.375-16 x .250)SCREW KIT (.375-16 x .250)1
1879953Q04放油螺钉套件SCREW KIT Drain1
1919183纤维垫圈WASHER Fiber1
198M0187157蓝色密封件@15SEAL-BLUE @151
20789022换挡轴(下部)SHIFT SHAFT (LOWER)1
2177631A2衬套总成BUSHING ASSEMBLY1
2225439O型圈(.862×0.103)O-RING (.862 x .103)1
238164641油封SEAL Oil1
238M0246145油封OIL SEAL1
2477674垫圈(.35 x .75 x .12)WASHER (.35 x .75 x .12)1
25848449A4驱动轴总成DRIVESHAFT ASSEMBLY1
258M0192233驱动轴DRIVESHAFT1
25848449A5驱动轴总成DRIVESHAFT ASSEMBLY1
258M0192234驱动轴DRIVESHAFT1
25848449A6驱动轴总成DRIVESHAFT ASSEMBLY1
2638657A1垫片组SHIM ASSEMBLY1
268M0063268垫片组SHIM SET1
2748939A2圆锥滚子轴承BEARING Taper Roller1
278M0146553杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
2842637A1垫片组SHIM SETAR
288M0063267垫片组SHIM SETAR
2936387A1轴承总成(滚子/外圈)BEARING ASSEMBLY Roller/Cup1
298M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
30824519固定座RETAINER1
308245191固定座RETAINER1
3144292A3水泵底座总成BASE ASSEMBLY Water Pump1
32426311衬垫GASKET1
328M0204678衬垫GASKET1
3390011O型圈(2.175 x 0.175)O-RING (2.175 x .175)1
338M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
3489238油封SEAL Oil1
3516977油封SEAL Oil1
3618051衬垫GASKET1
37856091衬垫GASKET1
37858524衬垫GASKET1
3832435面板FACE PLATE1
388M0204677面板PLATE-FACE1
39847710A1水泵壳体总成BODY ASSEMBLY Water Pump1
39847710T1水泵壳体总成BODY ASSEMBLY Water Pump1
3996148A1水泵壳体总成BODY ASSEMBLY Water Pump1
3996148T1水泵壳体总成BODY ASSEMBLY Water Pump1
4048752嵌件INSERT1
4048752T嵌件INSERT1
4188397密封件SEAL1
4138970密封件SEAL1
42847685套筒SLEEVE1
4229804套筒SLEEVE1
4229804T套筒SLEEVE1
4356654键KEY1
438M0214992键@5KEY @51
44899842叶轮IMPELLER1
4489984T4叶轮IMPELLER1
4529245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
458M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
4613438螺母(.250-28)NUT (.250-28)2
468267119螺母(.250-28)NUT (.250-28)2
4736001垫圈WASHER1
4813436螺母NUT1
4996411螺钉(#14-8×2.25)SCREW (#14-8 x 2.25)1
498M0215009螺钉SCREW1
-89238A3齿轮箱密封套件SEAL KIT Gear Housing1
-823142A94衬垫套件GASKET SET1
-90415A24螺柱套件STUD KIT1
-59579双头螺柱(.437-14/.437-20 x 2.812)STUD (.437-14/.437-20 x 2.812)1
-90415A25螺柱套件STUD KIT1
图 19启动电机 Starter Motor
启动电机 Starter Motor
REF零件编号中文名称英文名称数量
-NSS起动机总成(不单独销售)NOT SOLD SEPARATE Starter Motor Assembly1
1892339T01启动电机总成STARTER MOTOR ASSEMBLY1
2NSS螺钉组(不单独销售)NOT SOLD SEPARATE Screws2
3880805A1齿轮套件GEAR KIT1
4809463A1电磁阀组件SOLENOID KIT1
58M0065258电刷组BRUSH SET1
68M0034918轴环COLLAR2
78M0043276停机开关STOP1
8NSS高压警告贴纸(不单独销售)NOT SOLD SEPARATE Decal-Waring-High Voltage1
993388A1电缆总成(6.00英寸)黑色CABLE ASSEMBLY (6.00 Inches) Black1
1069035螺丝与锁紧垫圈(.250-20 x .625)不锈钢SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel1
1126993锁紧垫圈 (.312)LOCKWASHER (.312)1
118M0204647锁紧垫圈 (.312)LOCKWASHER (.312)1
12400213不锈钢螺母 (M8)NUT (M8) Stainless Steel1
13400255锁紧垫圈(M5)LOCKWASHER (M5)1
14400211不锈钢螺母(M5)NUT (M5) Stainless Steel1
图 20气缸体与端盖 Cylinder Block and End Caps
气缸体与端盖 Cylinder Block and End Caps
REF零件编号中文名称英文名称数量
1828340A5气缸体CYLINDER BLOCK1
28181383动力头螺柱（1-3/4英寸）STUD Powerhead (1-3/4 IN.)6
28M0034455螺柱1.750STUD 1.7506
3670653双头螺柱（0.375×5.620英寸，5-1/2英寸）STUD (.375 x 5.620) (5-1/2 IN.)2
3670654螺柱(.375-16/.375-24 x 5.620)STUD (.375-16/.375-24 x 5.620)2
3784384双头螺栓(.375 x 6.870)(6-3/4英寸)STUD (.375 x 6.870) (6-3/4 IN.)2
38M0034454螺柱(.375-16/.375-24 x 6.87)STUD (.375-16/.375-24 x 6.87)2
443044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
567296销(轴承座圈)PIN (BEARING RACE)2
58M0036405销PIN2
611338衬垫GASKET2
7384071接头(1/2-14)FITTING (1/2-14) (1/2-14)1
8426231止回阀CHECK VALVE1
8426233止回阀CHECK VALVE1
9426981止回阀CHECK VALVE1
9426982止回阀CHECK VALVE1
1099130122管材(20英尺整卷)(裁切为19英寸)TUBING (20.00 Feet Bulk) (Cut to 19 Inches)1
10892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
11816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)10
11816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)10
12852760直通接头FITTING (STRAIGHT)2
13855622弯头接头FITTING (ELBOW)1
148267611弯头ELBOW (ELBOW)3
1585583445管材(16英寸)TUBING (16 IN.)2
1585583464管材 (34.00英寸整卷)TUBING (34.00 Inches Bulk)2
1585583445管材(20英寸)TUBING (20 IN.)1
1585583464管材 (34.00英寸整卷)TUBING (34.00 Inches Bulk)1
1685606064管材(36.00英寸整料)(24-1/2英寸)TUBING (36.00 Inches Bulk) (24-1/2 IN.)3
168M0054152管材(39.00英寸整卷)TUBING (39.00 Inches Bulk)3
17828547753导管(.750内径x3.00英尺整料)(裁切至7英寸)CONDUIT (.750 Inside Diameter x 3.00 Feet Bulk) (Cut to 7 Inches)1
18432781止回阀CHECK VALVE1
188781051止回阀CHECK VALVE1
19830756109软管(57.00英寸整料)(裁切至11-1/2英寸)HOSE (57.00 Inches Bulk) (Cut to 11-1/2 Inches)1
198M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
20822769连接器CONNECTOR1
2156762扎带(4.00英寸)TIE STRAP (4.00 Inches)6
2266717螺钉(.375-16 x 3.250)SCREW (.375-16 x 3.250)8
2374824螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)6
2426852尼龙帽CAP Nylon1
25856832螺丝 (.250-20 x 1.750)SCREW (.250-20 x 1.750)1
2664015螺母 (.250-20)NUT (.250-20)1
27832760A1上端盖总成END CAP ASSEMBLY Upper1
27832760T1端盖总成END CAP ASSEMBLY1
2854029O型圈(2.800 x .103)O-RING (2.800 x .103)1
2916756A4轴承套件BEARING KIT1
30NSS不单独销售 轴承座圈NOT SOLD SEPARATE Bearing Race1
3141953密封件SEAL1
3269034螺钉带锁紧垫圈(.312-18 x 1.00)SCREW AND LOCKWASHER (.312-18 x 1.00)4
3230225螺钉带锁紧垫圈(.312-18 x 1.00)SCREW WITH LOCKWASHER (.312-18 x 1.00)4
337809A1端盖总成END CAP ASSEMBLY1
337809T1端盖总成END CAP ASSEMBLY1
3462700O型圈(3.237 x .103)O-RING (3.237 x .103)1
3541953密封件SEAL2
3628636螺钉(.250-20 x .750)SCREW (.250-20 x .750)4
3726992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel4
38853882支架BRACKET1
388538821节气门位置指示器安装支架BRACKET Throttle Position Indicator Mount1
398519371节气门位置指示器杠杆LEVER Throttle Position Indicator1
4082130025螺钉(M6x25)SCREW (M6 x 25)3
418318701衬套BUSHING6
42834985护孔环GROMMET3
428M0190980护孔环GROMMET3
438M6005905节气门位置指示器(内侧)INDICATOR Throttle Position (Inside)1
44850882隔套SPACER1
458329522节气门位置指示器(外侧)INDICATOR Throttle Position (Outside)1
458M6005166TPITPI1
46850828螺钉(#10-32 X 2-3/4英寸)SCREW (#10-32 X 2-3/4 IN.)3
471938541油门连杆LINK Throttle1
478M0084738连杆总成LINK ASSY1
48NSS不单独销售序列号塞NOT SOLD SEPARATE Plug-Serial Number1
49816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
49816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
-814754A98衬垫套件GASKET SET1
-8M0046714衬垫套件GASKET SET1
-854008A98动力头总成POWERHEAD ASSEMBLY1
-804545T99动力头总成POWERHEAD ASSEMBLY1
图 21簧片阀组与气缸盖 Reed Block and Cylinder Head
簧片阀组与气缸盖 Reed Block and Cylinder Head
REF零件编号中文名称英文名称数量
118488F1气缸盖CYLINDER HEAD2
28228441衬垫GASKET2
2822844T05衬垫GASKET2
398534螺钉 (.375-16 x 2.30)SCREW (.375-16 x 2.30)23
3827426螺钉SCREW1
463779定位销 (.250 x .625)PIN Dowel (.250 x .625)4
562386衬垫GASKET2
58M0204714衬垫@4GASKET @42
690390A1盖板套件COVER KIT2
775692节温器THERMOSTAT2
835386螺丝(.312-18 x 1.00)SCREW (.312-18 x 1.00)4
96872790度弯头 (.250-18) - 黄铜FITTING (.250-18) 90 Degree - Brass1
968727190度弯头 (.250-18) - 黄铜FITTING (.250-18) 90 Degree - Brass1
1077653112软管(59.00英寸散装)(裁切至12-3/4英寸)HOSE (59.00 Inches Bulk) (Cut to 12-3/4 IN.)1
1077653101软管（散装48.00英寸）HOSE (48.00 Inches Bulk)1
1168728接头FITTING1
12816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
12816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
1377653112软管(59.00英寸散装)(裁切至11-1/2英寸)HOSE (59.00 Inches Bulk) (Cut to 11-1/2 IN.)1
1377653101软管（散装48.00英寸）HOSE (48.00 Inches Bulk)1
1477653112软管(59.00英寸散装)(裁切至7-1/2英寸)HOSE (59.00 Inches Bulk) (Cut to 7-1/2 IN.)1
1477653101软管（散装48.00英寸）HOSE (48.00 Inches Bulk)1
1597465SENDER Temperature (Starboard)1
16815914三通接头T-FITTING1
1713536A6SENSOR ASSEMBLY Temperature (Port)1
18137151固定座RETAINER2
1998257螺钉 (.312-18 x .500)SCREW (.312-18 x .500)2
20826858爆震传感器(200)SENSOR Knock (200)1
2145076黄铜螺母(#10-32)NUT (#10-32) Brass1
2217735A2适配板总成ADAPTER PLATE ASSEMBLY1
2328668螺钉 (.250-20 x .875) 不锈钢SCREW (.250-20 x .875) Stainless Steel8
24146972衬垫GASKET1
25116453簧片阀组REED BLOCK6
25855952T3簧片阀总成REED BLOCK ASSEMBLY6
2655098J型卡扣J CLIP1
268M0024808J型夹J-CLIP1
2755715螺钉(.250-20×0.880)SCREW (.250-20 x .880)6
2890197螺丝（.250-20 x 1.125）SCREW (.250-20 x 1.125)6
29167371衬垫GASKET1
-815791A92发动机垫片组GASKET SET Engine1
-823434A97动力头总成POWERHEAD ASSEMBLY1
-823434T97动力头总成POWERHEAD ASSEMBLY1
-812817A97动力头总成POWERHEAD ASSEMBLY1
-812817T97动力头总成POWERHEAD ASSEMBLY1
-813043A97动力头总成POWERHEAD ASSEMBLY1
-813043T97动力头总成POWERHEAD ASSEMBLY1
图 22泄放系统 Bleed System
泄放系统 Bleed System
REF零件编号中文名称英文名称数量
19912688管材(36.00英寸散装)(裁切至3-1/4英寸)TUBING (36.00 Inches Bulk) (Cut to 3-1/4 IN.)1
218206滤清器FILTER1
28M0207786滤清器FILTER1
39912688管材(36.00英寸散装)(裁切至7-1/4英寸)TUBING (36.00 Inches Bulk) (Cut to 7-1/4 IN.)1
499130122管材(20.00英尺散装)(裁切至3-1/2英寸)TUBING (20.00 Feet Bulk) (Cut to 3-1/2 IN.)1
4892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
559169接头FITTING4
559169003三通接头FITTING Tee4
699130122管材(20英尺整卷)(裁切至5-1/2英寸)TUBING (20.00 Feet Bulk) (Cut to 5-1/2 IN.)1
6892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
799130122管材(20.00英尺散装)(裁切至9英寸)TUBING (20.00 Feet Bulk) (Cut to 9 IN.)2
7892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)2
856759压入式倒钩接头FITTING Barbed (PRESS-IN)4
9426981止回阀(压入式-13/16长)CHECK VALVE (PRESS-IN - 13/16 LONG)7
9426982止回阀CHECK VALVE7
10426231止回阀(压入式-11/16长)CHECK VALVE (PRESS-IN - 11/16 LONG)1
10426233止回阀CHECK VALVE1
1118205三通TEE1
1299130122管材(20.00英尺散装)(裁切至1-1/4英寸)TUBING (20.00 Feet Bulk) (Cut to 1-1/4 IN.)1
12892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
1399130122管材(20.00英尺散装)(裁切至9英寸)TUBING (20.00 Feet Bulk) (Cut to 9 IN.)2
13892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)2
1499130122管材(20.00英尺散装)(裁切至19英寸)TUBING (20.00 Feet Bulk) (Cut to 19 IN.)1
14892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
1599130122管材(20.00英尺散装)(裁切至1英寸)TUBING (20.00 Feet Bulk) (Cut to 1 IN.)3
15892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)3
1699130122管材(20英尺整卷)(裁切为4-1/2英寸)TUBING (20.00 Feet Bulk) (Cut to 4-1/2 IN.)2
16892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)2
-823434A97动力头总成POWERHEAD ASSEMBLY1
-823434T97动力头总成POWERHEAD ASSEMBLY1
-812817A97动力头总成POWERHEAD ASSEMBLY1
-812817T97动力头总成POWERHEAD ASSEMBLY1
-813043A97动力头总成POWERHEAD ASSEMBLY1
-813043T97动力头总成POWERHEAD ASSEMBLY1
图 23齿轮箱图表(运动大师) Gear Housing Chart (SportMaster)
齿轮箱图表(运动大师) Gear Housing Chart (SportMaster)
REF零件编号中文名称英文名称数量
-848450A15齿轮箱总成GEAR HOUSING ASSEMBLY1
-840560T33齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-848450A16齿轮箱总成GEAR HOUSING ASSEMBLY1
-840560T34齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-848450A17齿轮箱总成GEAR HOUSING ASSEMBLY1
-840560T35齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-848450A18齿轮箱总成GEAR HOUSING ASSEMBLY1
-8M0081852齿轮箱GEAR HOUSING1
-848450A19齿轮箱总成GEAR HOUSING ASSEMBLY1
-840560T37G CASE-2:1 RH LG CASE-2:1 RH L1
-848474A21齿轮箱总成GEAR HOUSING ASSEMBLY1
-840561T33G CASE-1.87 RH SG CASE-1.87 RH S1
-848474A22齿轮箱总成GEAR HOUSING ASSEMBLY1
-840561T34G CASE-1.87 RH LG CASE-1.87 RH L1
-848474A23齿轮箱总成GEAR HOUSING ASSEMBLY1
-840561A35G CASE-1.87 RH XLG CASE-1.87 RH XL1
-848474A27齿轮箱总成GEAR HOUSING ASSEMBLY1
-840561T36G CASE-2:1 RH SG CASE-2:1 RH S1
-848474A28齿轮箱总成GEAR HOUSING ASSEMBLY1
-840561A37齿轮箱GEAR HOUSING1
-848474A29齿轮箱总成GEAR HOUSING ASSEMBLY1
-840561A38齿轮箱GEAR HOUSING1
-848474A24齿轮箱总成GEAR HOUSING ASSEMBLY1
-840561T69齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-848474A25齿轮箱总成GEAR HOUSING ASSEMBLY1
-840561T70齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-848474A26齿轮箱总成GEAR HOUSING ASSEMBLY1
-840561T71齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-848474A30齿轮箱总成GEAR HOUSING ASSEMBLY1
-840561T72G CASE-2:1 LH SG CASE-2:1 LH S1
-848474A31齿轮箱总成GEAR HOUSING ASSEMBLY1
-840561A73齿轮箱GEAR HOUSING1
-848474A32齿轮箱总成GEAR HOUSING ASSEMBLY1
-840561T74G CASE-2:1 LH XLG CASE-2:1 LH XL1
-848450A31齿轮箱总成GEAR HOUSING ASSEMBLY1
-840560A27齿轮箱GEAR HOUSING1
-848450A29齿轮箱总成GEAR HOUSING ASSEMBLY1
-840560A28齿轮箱GEAR HOUSING1
-848450A32齿轮箱总成GEAR HOUSING ASSEMBLY1
-840560A30ORD1687-840560A09ORD1687-840560A091
-848450A30齿轮箱总成GEAR HOUSING ASSEMBLY1
-840560T31G CASE-1.75 RH LG CASE-1.75 RH L1
图 24燃油泵(塑料壳体带模制配件) Fuel Pump (Plastic Body With Molded Fittings)
燃油泵(塑料壳体带模制配件) Fuel Pump (Plastic Body With Molded Fittings)
REF零件编号中文名称英文名称数量
114360A43燃油泵总成PUMP ASSEMBLY Fuel1
242990A10膜片组件DIAPHAGM KIT1
2857005A1膜片组件DIAPHRAGM KIT1
3NSS橡胶止回阀(不单独销售)NOT SOLD SEPARATE Check Valve-Rubber2
4NSS增压垫片(不单独销售)NOT SOLD SEPARATE Gasket-Boost1
5NSS膜片(不单独销售)NOT SOLD SEPARATE Diaphragm2
6NSS脉冲垫片(不单独销售)NOT SOLD SEPARATE Gasket-Pulse1
7NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring1
8NSS盖帽(不单独销售)NOT SOLD SEPARATE Cap1
9NSS止回阀(不单独销售)NOT SOLD SEPARATE Check Valve2
10NSS固定座(不单独销售)NOT SOLD SEPARATE Retainer2
11NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring1
12NSS盖帽(不单独销售)NOT SOLD SEPARATE Cap1
13987691底座衬垫GASKET Base1
138M0204705衬垫@2GASKET @21
14144303BASE Fuel Pump1
15987752燃油泵板PLATE Fuel Pump1
1699664弯头ELBOW1
1699664290度弯头接头(0.125-27x0.250)尼龙FITTING Elbow 90 Degree (.125-27 x .250) Nylon1
1782104540SCREW (M5 x 40) Fuel Pump2
1882130050SCREW (M6 x 50) Fuel Pump to Crankcase2
1983075780管材(28.00英寸散装)TUBING (28.00 Inches Bulk)1
198M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
2083075780管材(28.00英寸散装)TUBING (28.00 Inches Bulk)1
208M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
21816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
21816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
22816856A3燃油接头总成-塑料CONNECTOR ASSEMBLY Fuel - Plastic1
22816856Q3燃油接头总成CONNECTOR ASSEMBLY Fuel1
2369067螺钉(.250-20×1.375)SCREW (.250-20 x 1.375)1
241350382管材(30英寸散装)TUBING (30.00 Inches Bulk)2
241350385管材(33英寸整卷)TUBING (33.00 Inches Bulk)2
2518458A3燃油滤清器总成FILTER ASSEMBLY Fuel1
2518458Q3燃油滤清器FILTER-FUEL1
2614570探头PROBE1
2713170A3底座BASE1
2813607接头FITTING2
28136071弯头ELBOW2
2945561螺钉 (.250-20 x 1.12)SCREW (.250-20 x 1.12)2
29455611螺钉(.250-20 x 1.120)SCREW (.250-20 x 1.120)2
-823142A94衬垫套件GASKET SET1
-809839A94动力头总成POWERHEAD ASSEMBLY1
-809839T94PH 150 EFIPH 150 EFI1
-808603A94动力头总成POWERHEAD ASSEMBLY1
-808603T94动力头总成POWERHEAD ASSEMBLY1
图 25齿轮箱螺旋桨轴-扭矩大师1.87:1/2:1 Gear Housing Propeller Shaft-Torque Master 1.87:1/2:1
齿轮箱螺旋桨轴-扭矩大师1.87:1/2:1 Gear Housing Propeller Shaft-Torque Master 1.87:1/2:1
REF零件编号中文名称英文名称数量
-827214A5齿轮箱总成GEAR HOUSING ASSEMBLY1
-827214A6齿轮箱总成GEAR HOUSING ASSEMBLY1
-827214T24齿轮箱TMGEAR HOUSING TM1
-827214A3齿轮箱总成GEAR HOUSING ASSEMBLY1
-827214T23齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-827214A4齿轮箱总成GEAR HOUSING ASSEMBLY1
-827214T23齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-827214A11齿轮箱总成GEAR HOUSING ASSEMBLY1
-827214T24齿轮箱TMGEAR HOUSING TM1
-827214A10齿轮箱总成GEAR HOUSING ASSEMBLY1
-827214T23齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
1827214A7齿轮箱总成GEAR HOUSING ASSEMBLY1
1827214T25基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
1827214A8齿轮箱总成GEAR HOUSING ASSEMBLY1
1827214T25基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
1827214A12齿轮箱总成GEAR HOUSING ASSEMBLY1
1827214T25基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
4789594A1从动件总成FOLLOWER ASSEMBLY1
4878956换挡凸轮SHIFT CAM1
48789562换挡凸轮SHIFT CAM1
4979911A1杆ROD1
5078906销PIN1
508M0084245弹簧定位销PIN Spring Locator1
5179910弹簧SPRING1
5278910垫圈WASHERAR
5347397A1垫片组SHIM SETAR
5478172A1圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
5544102A5齿轮组GEAR SET1
5544102A7齿轮组GEAR SET1
5544104A7齿轮组GEAR SET1
56549281滚柱轴承BEARING Roller1
5742672棘轮RATCHET1
5742672T棘轮RATCHET1
5842671十字销PIN Cross1
5978909定位销PIN Detent2
6078962弹簧SPRING2
61822820F1螺旋桨轴PROPELLER SHAFT1
61840451A03螺旋桨轴PROPELLER SHAFT1
62847632A1倒车齿轮总成GEAR ASSEMBLY Reverse1
62822824A1倒车齿轮总成GEAR ASSEMBLY Reverse1
628M0192202倒挡齿轮GEAR-REVERSE1
63824108隔套SPACER1
64681001止推环RING Thrust1
6588957滚珠轴承总成BEARING ASSEMBLY Ball1
6588957T滚珠轴承BEARING Ball1
6631534O型圈O-RING1
668M0214920O型圈O RING1
67847610A1轴承座总成CARRIER ASSEMBLY Bearing1
67848840A1轴承座总成CARRIER ASSEMBLY Bearing1
68817072滚柱轴承BEARING Roller1
69817071卡环RING Snap1
70815565油封SEAL Oil2
7130281键KEY1
7279447锁紧垫圈TAB WASHER1
73158401盖板COVER1
74131711推力毂THRUST HUB1
7413171T1推力毂THRUST HUB1
75423511齿形锁紧垫圈LOCKWASHER Toothed1
7631211A2花键垫圈WASHER Splined1
7631211Q03垫圈总成WASHER ASSEMBLY1
7752707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
7752707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
78816629锁紧垫圈TAB WASHER1
78816629Q锁紧垫圈TAB WASHER1
7976214A5阳极套件ANODE KIT1
7976214Q5阳极套件ANODE KIT1
8066024螺钉(.437-14 x 1.75)SCREW (.437-14 x 1.75)1
81134391螺母 (.4375-20)NUT (.4375-20)2
81859116螺母(.437-20)NUT (.437-20)2
8230206螺钉(.375-16 x 1.00)不锈钢SCREW (.375-16 x 1.00) Stainless Steel1
83822836垫圈(.445 x .805 x .108)WASHER (.445 x .805 x .108)2
-89238A3齿轮箱密封套件SEAL KIT Gear Housing1
图 26飞轮、启动电机及点火线圈 Flywheel, Starter Motor and Ignition Coils
飞轮、启动电机及点火线圈 Flywheel, Starter Motor and Ignition Coils
REF零件编号中文名称英文名称数量
118896A1盖板套件COVER KIT1
279022标记MARKER1
337572螺钉 (.190-32 x .380)SCREW (.190-32 x .380)2
472761不锈钢垫圈(.203 x .562 x .060)WASHER (.203 x .562 x .060) Stainless Steel2
589219塞（适用时使用）PLUG (USE WHERE APPLICABLE)1
589219001堵头PLUG1
645907黄色塞PLUG Yellow1
752901螺母(0.625-18)NUT (.625-18)1
868229垫圈(.641 x 1.250 x .190)WASHER (.641 x 1.250 x .190)1
833001垫圈WASHER1
9817632A12飞轮FLYWHEEL1
9859238T16飞轮总成FLYWHEEL ASY1
109610A27定子STATOR1
1190045螺钉(#10-32×1.375)SCREW (#10-32 x 1.375)4
1226996锁紧垫圈(#10)(不锈钢)LOCKWASHER (#10) Stainless Steel4
1396455A9触发板总成PLATE ASSEMBLY Trigger1
1479472启动电机总成STARTER MOTOR ASSEMBLY1
14893893启动马达STARTER MOTOR1
1556703轴环COLLAR2
158M0034918轴环COLLAR2
1668042橡胶止挡STOP Rubber2
168M0043376停机开关STOP2
1769035螺丝与锁紧垫圈(.250-20 x .625)不锈钢SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel1
1893388A1电缆总成(6.00英寸)黑色CABLE ASSEMBLY (6.00 Inches) Black1
1926992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel1
2020890螺母 (.250-20)NUT (.250-20)1
2169739A7线束总成HARNESS ASSEMBLY1
227370A13点火线圈总成COIL ASSEMBLY Ignition6
228M0230859点火线圈总成COIL IGNITION ASY6
227370A19点火线圈总成COIL ASSEMBLY Ignition6
228M0230859点火线圈总成COIL IGNITION ASY6
22832757A4线圈套件COIL KIT6
228M0230859点火线圈总成COIL IGNITION ASY6
2379743盖板COVER3
2488447螺钉 (.190-32 x 1.62)SCREW (.190-32 x 1.62)12
2530164垫圈(0.192x0.375x0.0312)不锈钢WASHER (.192 x .375 x .0312) Stainless Steel12
2688807A6电缆总成（3.50英寸）黑色CABLE ASSEMBLY (3.50 Inches) Black (BLACK)6
2768513螺钉(#10-32x.375)不锈钢SCREW (#10-32 x .375) Stainless Steel6
2826996锁紧垫圈(#10)(不锈钢)LOCKWASHER (#10) Stainless Steel18
2945076黄铜螺母(#10-32)NUT (#10-32) Brass12
30136862火花塞SPARK PLUG6
3013686QNGK BU8H @10NGK BU8H @106
31815358A1点火电缆组CABLE SET Ignition1
图 27顶罩 Top Cowl
顶罩 Top Cowl
REF零件编号中文名称英文名称数量
1885355T03顶盖总成TOP COWL ASSEMBLY1
1885355T02顶盖总成TOP COWL ASSEMBLY1
18M0050000顶罩-水星型COWL-TOP MARINER1
2885354T空气导流帽CAP Air Dam1
2885354T01空气导流帽-水星黑色款CAP, Air Dam Mercury, Black1
2895838T空气导流帽CAP Air Dam1
2895838T01空气导流帽-水星型CAP Air Dam - Mariner1
3888971前锁扣槽FRONT LATCH RECEIVER1
4885545上罩壳密封件SEAL Top Cowl1
48M0111178密封件SEAL1
5888951电缆CABLE1
58M0080461锁扣拉索CABLE Latch1
6888959铰链销PIN Hinge1
7888956手控锁杆LATCH Hand Lever1
8895373弹簧SPRING1
9888955锁扣连杆LINK Latch Connecting1
1026953开口销COTTER PIN2
1189302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)2
12888952联动臂LINKAGE ARM2
13888953弹簧SPRING2
14822417销PIN2
15888950020螺钉(M4x20毫米)(M4x1.75)SCREW (M4 x 20 mm) (M4 x 1.75)6
16888970左舷饰板(左)APPLIQUE Port (Port)1
16888970A01饰板套件APPLIQUE KIT1
16895839左舷饰板(左)APPLIQUE Port (Port)1
16895839A01饰板套件APPLIQUE KIT1
17888969右舷饰板(右)APPLIQUE Starboard (Starboard)1
17895840右舷饰板(右)APPLIQUE Starboard (Starboard)1
184010610不锈钢螺钉(M6x10)SCREW (M6 x 10) Stainless Steel2
-892564A05贴花套件DECAL SET1
-859271A05贴花套件DECAL SET1
-895252A05贴花套件DECAL SET1
-895253A05贴花套件DECAL SET1
-892571A05贴花套件DECAL SET1
-892571A07贴花套件(水星200)DECAL SET (Mariner 200)1
-892871A05贴花套件DECAL SET1
-892871A07贴花套件(水星225)DECAL SET (Mariner 225)1
-895254A05贴花套件DECAL SET1
-895254A07贴花套件(水星250)DECAL SET (Mariner 250)1
-895255A05贴花套件DECAL SET1
-895255A07贴花套件(水星275)DECAL SET (Mariner 275)1
图 28齿轮箱螺旋桨轴-TorqueMaster型 Gear Housing Propeller Shaft - TorqueMaster
齿轮箱螺旋桨轴-TorqueMaster型 Gear Housing Propeller Shaft - TorqueMaster
REF零件编号中文名称英文名称数量
-827214T23齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
1827214T16基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
1827214T25基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
4789594A1从动件总成FOLLOWER ASSEMBLY1
48789562换挡凸轮SHIFT CAM1
4979911A1杆ROD1
5078906销PIN1
508M0084245弹簧定位销PIN Spring Locator1
5179910弹簧SPRING2
5278910垫圈WASHERAR
5347397A1垫片组SHIM SETAR
5478172A1圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
5544104A7齿轮组GEAR SET1
56549281滚柱轴承BEARING Roller1
5742672T棘轮RATCHET1
5842671十字销PIN Cross1
5978909定位销PIN Detent2
6078962弹簧SPRING2
61840451A2螺旋桨轴PROPELLER SHAFT1
61840451A03螺旋桨轴PROPELLER SHAFT1
-840389K5轮毂套件HUB KIT1
-8M0183487重型螺旋桨轮毂套件HUB KIT-HD PROP1
-840382A1缓冲条套件SNUBBER STRIP KIT1
-840382A02缓冲条套件SNUBBER STRIP KIT1
62822824A1倒车齿轮总成GEAR ASSEMBLY Reverse1
628M0192202倒挡齿轮GEAR-REVERSE1
63822823推力环THRUST RING1
64681001止推环RING Thrust1
6588957T滚珠轴承BEARING Ball1
6631534O型圈O-RING1
668M0214920O型圈O RING1
67848840T1轴承座总成CARRIER ASSEMBLY Bearing1
67848840A1轴承座总成CARRIER ASSEMBLY Bearing1
68817072滚柱轴承BEARING Roller1
69817071卡环RING Snap1
70815565油封SEAL Oil2
7130281键KEY1
7279447锁紧垫圈TAB WASHER1
7379448固定座RETAINER1
738M2011027固定座RETAINER1
74423511齿形锁紧垫圈LOCKWASHER Toothed1
7552707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
76832066A1进水口板套件PLATE KIT Water Inlet1
77188642螺钉(#8-32 x .500)SCREW (#8-32 x .500)4
7876214Q5阳极套件ANODE KIT1
7966024螺钉(.437-14 x 1.75)SCREW (.437-14 x 1.75)1
80859116螺母(.437-20)NUT (.437-20)2
8130206螺钉(.375-16 x 1.00)不锈钢SCREW (.375-16 x 1.00) Stainless Steel1
82822836垫圈(.445 x .805 x .108)WASHER (.445 x .805 x .108)2
83859432接头FITTING1
83881866接头FITTING1
8485944975管材(72英寸整料)(裁切至7英寸)TUBING (72.00 Inches Bulk) (Cut to 7 IN.)1
-89238A3齿轮箱密封套件SEAL KIT Gear Housing1
图 29动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing
动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing
REF零件编号中文名称英文名称数量
-8M0168222动力升降总成POWER TRIM ASSEMBLY1
18M0142591电机套件MOTOR KIT1
282494830螺钉 (M6 x 30)SCREW (M6 x 30)2
3400256锁紧垫圈 (M6)LOCKWASHER (M6)2
48M0090403驱动联轴器COUPLING Drive1
58M0142996压力检查套件PO CHECK KIT1
68M0060141手动释放套件MANUAL RELEASE KIT1
78M0142997倾斜轴套件TILT SHAFT KIT1
8878267销PIN1
98M0142998倾斜油缸总成TILT CYLINDER ASSEMBLY1
98M0168220倾斜油缸总成TILT CYLINDER ASSEMBLY1
108M0142999倾斜油缸O型圈套件O RING KIT TILT CYLINDER1
118M0143000记忆活塞套件MEMORY PISTON KIT1
128M0142592升降杆套件 左舷TRIM ROD KIT Port1
138M0143001活塞总成PISTON ASSEMBLY1
148M0143003端盖总成END CAP ASSEMBLY1
15878264A1储液罐套件RESERVOIR KIT1
16811613塞子总成PLUG ASSEMBLY1
174000327螺钉 (M6 x 14)SCREW (M6 x 14)4
184002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)4
198M0143004泵套件PUMP KIT1
208M0148385动力升降倾斜装置维修包REPAIR KIT Power Trim1
21858771螺钉 (M10 x 30)SCREW (M10 x 30)6
224002319垫圈WASHER6
238M0094889销PIN1
238M0161312连杆销眼总成PIN ROD EYE ASSEMBLY1
248M0143005减震杆套件SHOCK ROD KIT1
248M0168219减震杆套件SHOCK ROD KIT1
图 30仪表装置 Instrumentation
仪表装置 Instrumentation
REF零件编号中文名称英文名称数量
119674A1拉绳开关总成SWITCH ASSEMBLY Lanyard1
218303螺钉 (.190-16 x 1.750) 不锈钢SCREW (.190-16 x 1.750) Stainless Steel2
3813679适配器ADAPTER1
415920A54拉绳总成LANYARD ASSEMBLY1
415920Q54拉绳总成LANYARD ASSEMBLY1
532866螺钉 (#10-32 x 2.00) 不锈钢SCREW (#10-32 x 2.00) Stainless Steel2
618321安装夹CLAMP Mounting1
724676垫圈 (.200 x .440 x .032)WASHER (.200 x .440 x .032)2
868219螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel4
979146固定座RETAINER3
10816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)16
10816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)16
11812497A2二极管总成DIODE ASSEMBLY1
11898289A72双拉绳二极管套件DIODE KIT-LANYARD Dual1
1211149A2线缆总成 (6.00英寸)CABLE ASSEMBLY (6.00 Inches)1
13835360A2警报仪表套件WARNING GAUGE KIT1
13859699A1警报仪表套件GAUGE KIT-WARNING1
14850020卡箍CLAMP1
15825361星形锁紧垫圈(#8)LOCKWASHER Star (#8)1
1626419黄铜螺母 (#8-32)NUT (#8-32) Brass2
1715163灯LAMP4
1879888灯泡插座SOCKET Light Bulb4
19835359A1电缆总成(20.00英尺)CABLE ASSEMBLY (20.00 Feet)1
图 31线束和启动电磁阀 Wiring Harness and Starter Solenoid
线束和启动电磁阀 Wiring Harness and Starter Solenoid
REF零件编号中文名称英文名称数量
1434292点火板IGNITION PLATE1
27778A12开关盒总成SWITCHBOX ASSEMBLY2
313669螺钉(#12-24x2.00)SCREW (#12-24 x 2.00)2
494453衬套BUSHING2
562310A2拉线总成CABLE ASSEMBLY1
645076黄铜螺母(#10-32)NUT (#10-32) Brass20
760871A10线束总成WIRE ASSEMBLY2
8817626螺钉(#10-16×0.380)SCREW (#10-16 x .380)3
8878607螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)3
991865A1拉线总成CABLE ASSEMBLY1
988528A2拉线总成CABLE ASSEMBLY1
1060411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)3
1126993锁紧垫圈 (.312)LOCKWASHER (.312)3
118M0204647锁紧垫圈 (.312)LOCKWASHER (.312)3
1236042垫圈WASHER6
1367264垫圈(橡胶)WASHER (Rubber) (RUBBER)6
1467268衬套BUSHING3
1565999A3黑色电缆总成CABLE ASSEMBLY Black (BLACK)1
1687926螺钉(#10-32 x .500)SCREW (#10-32 x .500)1
1788439A3正极电缆总成-蓄电池CABLE ASSEMBLY Positive - Battery1
1788439A4蓄电池负极电缆总成CABLE ASSEMBLY Battery - Negative1
1893388A7拉线总成CABLE ASSEMBLY1
1893388A14线缆总成(黄/黑)CABLE ASSEMBLY Yellow/Black1
19817109A2电磁阀总成(#10-32/.3125-18端子)SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)1
20818968衬套BUSHING2
208M0214955衬套BUSHING2
2145076黄铜螺母(#10-32)NUT (#10-32) Brass4
2253166锁紧垫圈 (.312)LOCKWASHER (.312)2
2368292螺母(.312-18)NUT (.312-18)2
238M0204668螺母(.312-18)NUT (.312-18)2
2445076黄铜螺母(#10-32)NUT (#10-32) Brass2
2597861绝缘体INSULATOR1
2665999A2黑色电缆总成CABLE ASSEMBLY Black (BLACK)1
2745561螺钉(0.250-20 x 1.12英寸)(1-1/8英寸)SCREW (.250-20 x 1.12) (1-1/8 Inch)2
27455611螺钉(.250-20 x 1.120)SCREW (.250-20 x 1.120)2
28194372端子排TERMINAL BLOCK1
2938055螺钉(0.190-32x0.620)SCREW (.190-32 x .620)2
3089302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)2
3145076黄铜螺母(#10-32)NUT (#10-32) Brass2
3296220A16发动机线束总成HARNESS ASSEMBLY Engine Wiring1
32848464A2发动机线束总成HARNESS ASSEMBLY Engine Wiring1
3379091保险丝20安培FUSE 20 Ampere1
338M0207796保险丝20安培FUSE 20 AMP1
34816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
34816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
图 32齿轮箱(驱动)扭矩大师1.87:1/2:1 Gear Housing (Drive)Torque Master 1.87:1/2:1
齿轮箱(驱动)扭矩大师1.87:1/2:1 Gear Housing (Drive)Torque Master 1.87:1/2:1
REF零件编号中文名称英文名称数量
-827214A5齿轮箱总成GEAR HOUSING ASSEMBLY1
-827214A6齿轮箱总成GEAR HOUSING ASSEMBLY1
-827214T24齿轮箱TMGEAR HOUSING TM1
-827214A3齿轮箱总成GEAR HOUSING ASSEMBLY1
-827214T23齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-827214A4齿轮箱总成GEAR HOUSING ASSEMBLY1
-827214T23齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-827214A11齿轮箱总成GEAR HOUSING ASSEMBLY1
-827214T24齿轮箱TMGEAR HOUSING TM1
-827214A10齿轮箱总成GEAR HOUSING ASSEMBLY1
-827214T23齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
1827214A7齿轮箱总成GEAR HOUSING ASSEMBLY1
1827214T25基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
1827214A8齿轮箱总成GEAR HOUSING ASSEMBLY1
1827214T25基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
1827214A12齿轮箱总成GEAR HOUSING ASSEMBLY1
1827214T25基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
285822A10连接器总成CONNECTOR ASSEMBLY1
343044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
478638螺柱(0.438x3.12)(3-1/8英寸)STUD (.438 x 3.12) (3-1/8 IN.)1
4786382螺柱(.437-14/.437-20 x 3.120)STUD (.437-14/.437-20 x 3.120)1
5579201双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
58M0133358双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
656297双头螺栓(.312×3.38)STUD (.312 x 3.38)1
68M0034463螺柱(.312-24 x 3.38)STUD (.312-24 x 3.38)1
769501螺柱STUD2
842647A1滚柱轴承总成BEARING ASSEMBLY Roller1
9826134阳极块ANODE2
9826134Q阳极块ANODE2
104000333螺钉(M6 x 40)SCREW (M6 x 40)1
118268336螺母 (M6)NUT (M6)1
11401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
1267891填充块FILLER BLOCK1
128M0039169填充块FILLER BLOCK1
13NSS不单独出售-小齿轮(属于43-44102A5或43-13742A2部件)NOT SOLD SEPARATE Pinion Gear (Part of 43-44102A5 or 43-13742A2)1
1492721垫圈(.965×0.630)WASHER (.965 x .630)1
1535921螺母(0.625-18)NUT (.625-18)1
1667892A1磁吸式注油/放油塞套件FITTING KIT Magnetic, Plug Fill/Drain1
168M0058389放油螺钉套件SCREW KIT Drain1
1779953A2螺丝套件(.375-16 x .250)SCREW KIT (.375-16 x .250)1
1779953Q04放油螺钉套件SCREW KIT Drain1
1819183纤维垫圈WASHER Fiber2
188M0187157蓝色密封件@15SEAL-BLUE @152
19789022换档轴SHIFT SHAFT1
2077631A2衬套总成BUSHING ASSEMBLY1
2125439O型圈(.862×0.103)O-RING (.862 x .103)1
228164641油封SEAL Oil1
228M0246145油封OIL SEAL1
2377674垫圈(.35 x .75 x .12)WASHER (.35 x .75 x .12)1
24848449A5驱动轴总成DRIVESHAFT ASSEMBLY1
248M0192234驱动轴DRIVESHAFT1
2542637A1垫片组SHIM SETAR
258M0063267垫片组SHIM SETAR
2636387A1轴承总成(滚子/外圈)BEARING ASSEMBLY Roller/Cup1
268M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
27824519固定座RETAINER1
278245191固定座RETAINER1
2844292A3水泵底座总成BASE ASSEMBLY Water Pump1
29426311衬垫GASKET1
298M0204678衬垫GASKET1
3090011O型圈(2.175 x 0.175)O-RING (2.175 x .175)1
308M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
3189238油封SEAL Oil1
3216977油封SEAL Oil1
3318051衬垫GASKET1
34856091衬垫GASKET1
34858524衬垫GASKET1
3532435面板FACE PLATE1
358M0204677面板PLATE-FACE1
3696148A1水泵壳体总成BODY ASSEMBLY Water Pump1
3696148T1水泵壳体总成BODY ASSEMBLY Water Pump1
3748752嵌件INSERT1
3748752T嵌件INSERT1
3838970密封件SEAL1
39899842叶轮IMPELLER1
3989984T4叶轮IMPELLER1
4056654键KEY1
408M0214992键@5KEY @51
4129245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
418M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
4213438螺母(.250-28)NUT (.250-28)2
428267119螺母(.250-28)NUT (.250-28)2
4336001垫圈WASHER1
4413436螺母NUT1
4596411螺钉(#14-8×2.25)SCREW (#14-8 x 2.25)1
458M0215009螺钉SCREW1
4629804套筒SLEEVE1
4629804T套筒SLEEVE1
-96148A5水泵维修套件REPAIR KIT Water Pump1
-96148A8水泵维修套件WATER PUMP REPAIR KIT1
-89238A3齿轮箱密封套件SEAL KIT Gear Housing1
图 33维修/支撑材料 Service/Support material
维修/支撑材料 Service/Support material
REF零件编号中文名称英文名称数量
-896280006零件手册200/225/250/275四冲程VeradoPARTS MANUAL 200/225/250/275 4-Stroke Verado1
-896579T00维修手册SERVICE MANUAL1
-8M0082470MNL-SERV 200-300VMNL-SERV 200-300V1
-10238060安装手册INSTALLATION MANUAL1
-10237060用户手册OWNERS MANUAL1
-10237J60用户手册(西班牙语)OWNERS MANUAL Spanish1
-10237D60用户手册(法语)OWNERS MANUAL French1
-895269001产品指南PRODUCT GUIDE1
-895269002产品指南GUIDE-PRODUCT1
-895282A06EPA标签信息贴花DECAL EPA Label Information1
图 34齿轮箱(驱动轴)(1.78:1) Gear Housing (Driveshaft)(1.78:1)
齿轮箱(驱动轴)(1.78:1) Gear Housing (Driveshaft)(1.78:1)
REF零件编号中文名称英文名称数量
-814247A3齿轮箱总成1.78:1速比-黑色GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Black1
-814247A4齿轮箱总成 1.78:1 减速比 - 灰色GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Gray1
-814247T4齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
1814247A1齿轮箱总成 基础型-黑色GEAR HOUSING ASSEMBLY Basic - Black1
1814247T1齿轮箱总成基础型-黑色GEAR HOUSING ASSEMBLY Basic-Black1
1814247A2齿轮箱总成 基础型-灰色GEAR HOUSING ASSEMBLY Basic - Gray1
1814247T2ORD 1674-814247T1ORD 1674-814247T11
285822A10连接器总成CONNECTOR ASSEMBLY1
343044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
478638螺柱(0.438x3.12)(3-1/8英寸)STUD (.438 x 3.12) (3-1/8 IN.)1
4786382螺柱(.437-14/.437-20 x 3.120)STUD (.437-14/.437-20 x 3.120)1
5579201双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
58M0133358双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
656297双头螺栓(.312×3.38)STUD (.312 x 3.38)1
68M0034463螺柱(.312-24 x 3.38)STUD (.312-24 x 3.38)1
730667双头螺栓(.250-20/.250-28×3.125)STUD (.250-20/.250-28 x 3.125)2
7306671螺柱STUD2
835934A1滚柱轴承总成BEARING ASSEMBLY Roller1
967891填充块FILLER BLOCK1
98M0039169填充块FILLER BLOCK1
10NSSNOT SOLD SEPARATE Pinion Gear (Part of 43-16279A2)1
1135921螺母(0.625-18)NUT (.625-18)1
1267892A1磁吸式注油/放油塞套件FITTING KIT Magnetic, Plug Fill/Drain1
128M0058389放油螺钉套件SCREW KIT Drain1
1379953A2螺丝套件(.375-16 x .250)SCREW KIT (.375-16 x .250)1
1379953Q04放油螺钉套件SCREW KIT Drain1
1419183纤维垫圈WASHER Fiber2
148M0187157蓝色密封件@15SEAL-BLUE @152
158152641换档轴SHIFT SHAFT1
1677631A2衬套总成BUSHING ASSEMBLY1
1725439O型圈(.862×0.103)O-RING (.862 x .103)1
188164641油封SEAL Oil1
188M0246145油封OIL SEAL1
1977674垫圈(.35 x .75 x .12)WASHER (.35 x .75 x .12)1
20815168驱动轴DRIVESHAFT1
2142637A1垫片组SHIM SETAR
218M0063267垫片组SHIM SETAR
2236387A1轴承总成(滚子/外圈)BEARING ASSEMBLY Roller/Cup1
228M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
23824519固定座RETAINER1
238245191固定座RETAINER1
2442579A3水泵底座总成BASE ASSEMBLY Water Pump1
248M0077147带水泵底座总成BASE ASSY-W/P1
25426311衬垫GASKET1
258M0204678衬垫GASKET1
2690011O型圈(2.175 x 0.175)O-RING (2.175 x .175)1
268M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
2789238油封SEAL Oil1
2816977油封SEAL Oil1
29856081衬垫GASKET1
298M0090319衬垫@5GASKET @51
30856091衬垫GASKET1
30858524衬垫GASKET1
3132435面板FACE PLATE1
318M0204677面板PLATE-FACE1
3296148A1水泵壳体总成BODY ASSEMBLY Water Pump1
3296148T1水泵壳体总成BODY ASSEMBLY Water Pump1
3348752嵌件INSERT1
3348752T嵌件INSERT1
3438970密封件SEAL1
35899841叶轮IMPELLER1
3589984T3叶轮IMPELLER1
3656654键KEY1
368M0214992键@5KEY @51
3729245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
378M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
3813438螺母(.250-28)NUT (.250-28)2
388267119螺母(.250-28)NUT (.250-28)2
3936001垫圈WASHER1
4013436螺母NUT1
4196411螺钉(#14-8×2.25)SCREW (#14-8 x 2.25)1
418M0215009螺钉SCREW1
4229804套筒SLEEVE1
4229804T套筒SLEEVE1
-96148A5水泵维修套件REPAIR KIT Water Pump1
-96148A8水泵维修套件WATER PUMP REPAIR KIT1
-89238A2密封套件SEAL KIT1

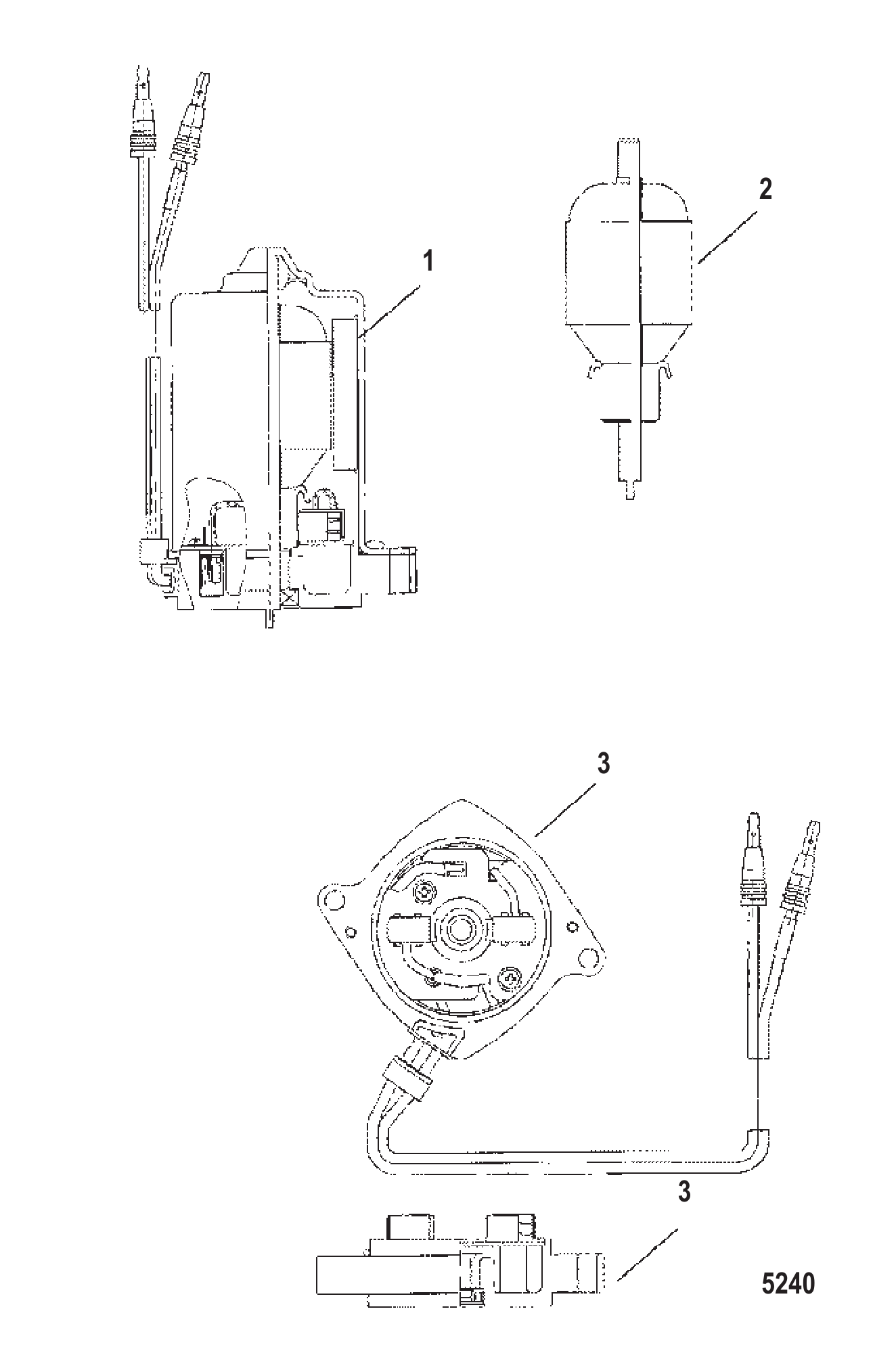

图 35动力升降倾斜电机 Power Trim Motor
动力升降倾斜电机 Power Trim Motor
REF零件编号中文名称英文名称数量
-828708电机总成MOTOR ASSEMBLY1
1828714A1电刷与密封套件BRUSH AND SEAL KIT1
2828713A1电枢套件ARMATURE KIT1
2828713T1电枢套件ARMATURE KIT1
3828715A1端架（总成）END FRAME (COMPLETE)1
图 36液压泵和安装支架 Hydraulic Pump and Mounting Brackets
液压泵和安装支架 Hydraulic Pump and Mounting Brackets
REF零件编号中文名称英文名称数量
-846859A4液压泵总成(完整)PUMP ASSEMBLY Hydraulic (COMPLETE)1
1846859A1液压泵总成PUMP ASSEMBLY Hydraulic1
18M0051203配平泵总成PUMP ASSY-TRIM1
2818567支架BRACKET1
338837螺钉(.312-18×1.12)SCREW (.312-18 x 1.12)1
457792垫圈WASHER2
534948隔套SPACER1
665999A12接地线总成CABLE ASSEMBLY Ground1
779138A9电缆总成(6英尺)黑色负极CABLE ASSEMBLY (6.00 Feet) Black-Negative (NEGATIVE)1
892051螺钉（10-16 x 0.75）SCREW (10-16 x .75)2
979147A5线束总成HARNESS ASSEMBLY1
1079091保险丝20安培FUSE 20 Ampere1
108M0207796保险丝20安培FUSE 20 AMP1
1188075固定座RETAINER1
12853654A1电磁阀SOLENOID2
1341508螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel4
1420110螺母 (#10-32)NUT (#10-32)4
15859119螺母(5/16-18)NUT (5/16-18)4
158M0204646螺母(.312-18)NUT (.312-18)4
1679023A10保险丝总成110安培FUSE ASSEMBLY 110 Ampere1
1679023T10保险丝总成110安培FUSE ASSEMBLY 110 Ampere1
1796457酚醛垫圈(.27×.81×.062)WASHER Phenolic (.27 x .81 x .062)1
1821825螺母(.250-28)NUT (.250-28)1
1965999A11拉线总成CABLE ASSEMBLY1
2079139A12电缆总成红色正极CABLE ASSEMBLY Red-Positive (POSITIVE)1
2146265护套BOOT5
2222753垫圈WASHER4
2379139A26电缆总成(红色)CABLE ASSEMBLY Red1
2487760T安装板MOUNTING PLATE1
2539349螺钉(.312-18×0.75)不锈钢SCREW (.312-18 x .750) Stainless Steel1
2626993锁紧垫圈 (.312)LOCKWASHER (.312)1
268M0204647锁紧垫圈 (.312)LOCKWASHER (.312)1
2790271螺钉(.375-16×0.62)SCREW (.375-16 x .62)2
2858643锁紧垫圈 (.375)LOCKWASHER (.375)2
29856774垫圈(0.406×0.750×0.105)不锈钢WASHER (.406 x .750 x .105) Stainless Steel4
298M0214963垫圈WASHER4
3087762支架BRACKET1
3163826螺钉(.375-16 x 2.50)SCREW (.375-16 x 2.50)2
3282670912螺母(.375-16)不锈钢NUT (.375-16) Stainless Steel2
33818200接头FITTING1
3477366接头FITTING2
3595084A18保险丝线束总成CABLE ASSEMBLY Fuse1
3665017A14线束总成HARNESS ASSEMBLY1
37848017T4升降线束总成HARNESS ASSEMBLY Trim1
图 37艉板支架-短型 Transom Brackets Short
艉板支架-短型 Transom Brackets Short
REF零件编号中文名称英文名称数量
1885355T03顶盖总成TOP COWL ASSEMBLY1
1885355T02顶盖总成TOP COWL ASSEMBLY1
18M0050000顶罩-水星型COWL-TOP MARINER1
2885354T空气导流帽CAP Air Dam1
2885354T01空气导流帽-水星黑色款CAP, Air Dam Mercury, Black1
2895838T空气导流帽CAP Air Dam1
2895838T01空气导流帽-水星型CAP Air Dam - Mariner1
3888971前锁扣槽FRONT LATCH RECEIVER1
4885545上罩壳密封件SEAL Top Cowl1
48M0111178密封件SEAL1
5888951电缆CABLE1
58M0080461锁扣拉索CABLE Latch1
6888959铰链销PIN Hinge1
7888956手控锁杆LATCH Hand Lever1
8895373弹簧SPRING1
9888955锁扣连杆LINK Latch Connecting1
1026953开口销COTTER PIN2
1189302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)2
12888952联动臂LINKAGE ARM2
13888953弹簧SPRING2
14822417销PIN2
15888950020螺钉(M4x20毫米)(M4x1.75)SCREW (M4 x 20 mm) (M4 x 1.75)6
16888970左舷饰板(左)APPLIQUE Port (Port)1
16888970A01饰板套件APPLIQUE KIT1
16895839左舷饰板(左)APPLIQUE Port (Port)1
16895839A01饰板套件APPLIQUE KIT1
17888969右舷饰板(右)APPLIQUE Starboard (Starboard)1
17895840右舷饰板(右)APPLIQUE Starboard (Starboard)1
184010610不锈钢螺钉(M6x10)SCREW (M6 x 10) Stainless Steel2
-892564A05贴花套件DECAL SET1
-859271A05贴花套件DECAL SET1
-895252A05贴花套件DECAL SET1
-895253A05贴花套件DECAL SET1
-892571A05贴花套件DECAL SET1
-892571A07贴花套件(水星200)DECAL SET (Mariner 200)1
-892871A05贴花套件DECAL SET1
-892871A07贴花套件(水星225)DECAL SET (Mariner 225)1
-895254A05贴花套件DECAL SET1
-895254A07贴花套件(水星250)DECAL SET (Mariner 250)1
-895255A05贴花套件DECAL SET1
-895255A07贴花套件(水星275)DECAL SET (Mariner 275)1
图 38齿轮箱(驱动轴)(CLE-1.87:1/2:1) Gear Housing (Driveshaft)(CLE-1.87:1/2:1)
齿轮箱(驱动轴)(CLE-1.87:1/2:1) Gear Housing (Driveshaft)(CLE-1.87:1/2:1)
REF零件编号中文名称英文名称数量
-847902A84齿轮箱总成GEAR HOUSING ASSEMBLY1
-847902A82齿轮箱总成GEAR HOUSING ASSEMBLY1
-840560T34齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-847902A85齿轮箱总成GEAR HOUSING ASSEMBLY1
-840560T37G CASE-2:1 RH LG CASE-2:1 RH L1
-847902A83齿轮箱总成GEAR HOUSING ASSEMBLY1
-840560T34齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
1847902A15齿轮箱总成GEAR HOUSING ASSEMBLY1
18M0083306齿轮箱-SM型GEAR HOUSING-SM1
1847902A16齿轮箱总成GEAR HOUSING ASSEMBLY1
18M0083306齿轮箱-SM型GEAR HOUSING-SM1
28479501盖板COVER2
28479502盖板COVER2
334776O型圈O-RING2
4815904螺钉(#10-32 x .500)SCREW (#10-32 x .500)12
542647A1滚柱轴承总成BEARING ASSEMBLY Roller1
643044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
778638螺柱(0.438x3.12)(3-1/8英寸)STUD (.438 x 3.12) (3-1/8 IN.)1
7786382螺柱(.437-14/.437-20 x 3.120)STUD (.437-14/.437-20 x 3.120)1
8579201双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
88M0133358双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
956297双头螺栓(.312×3.38)STUD (.312 x 3.38)1
98M0034463螺柱(.312-24 x 3.38)STUD (.312-24 x 3.38)1
1069501螺柱(3-1/4英寸)STUD (3-1/4 IN.)2
1143998套筒SLEEVE1
12847949管塞PLUG Pipe1
1367891填充块FILLER BLOCK1
138M0039169填充块FILLER BLOCK1
14NSS不单独出售-小齿轮(属于43-44104A7或43-44102A5部件)NOT SOLD SEPARATE Pinion Gear (Part of 43-44104A7 or 43-44102A5)1
1592721垫圈(.965×0.630)WASHER (.965 x .630)1
1635921螺母(0.625-18)NUT (.625-18)1
1767892A1磁吸式注油/放油塞套件FITTING KIT Magnetic, Plug Fill/Drain1
178M0058389放油螺钉套件SCREW KIT Drain1
1879953A2螺丝套件(.375-16 x .250)SCREW KIT (.375-16 x .250)1
1879953Q04放油螺钉套件SCREW KIT Drain1
1919183纤维垫圈WASHER Fiber2
198M0187157蓝色密封件@15SEAL-BLUE @152
20789022换挡轴(下部)SHIFT SHAFT (LOWER)1
2129641E型挡圈(按需使用)E RING (USE WHERE APPLICABLE)1
2277631A2衬套总成BUSHING ASSEMBLY1
2325439O型圈(.862×0.103)O-RING (.862 x .103)1
248164641油封SEAL Oil1
248M0246145油封OIL SEAL1
2577674垫圈(.35 x .75 x .12)WASHER (.35 x .75 x .12)1
26848449A5驱动轴总成DRIVESHAFT ASSEMBLY1
268M0192234驱动轴DRIVESHAFT1
2742637A1垫片组SHIM SETAR
278M0063267垫片组SHIM SETAR
2836387A1轴承总成(滚子/外圈)BEARING ASSEMBLY Roller/Cup1
288M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
29824519固定座RETAINER1
298245191固定座RETAINER1
3044292A3水泵底座总成BASE ASSEMBLY Water Pump1
31426311衬垫GASKET1
318M0204678衬垫GASKET1
3290011O型圈(2.175 x 0.175)O-RING (2.175 x .175)1
328M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
3389238油封SEAL Oil1
3416977油封SEAL Oil1
3518051衬垫(下部)GASKET (LOWER)1
36856091衬垫(上部)GASKET (UPPER)1
36858524衬垫GASKET1
3732435面板FACE PLATE1
378M0204677面板PLATE-FACE1
3896148A1水泵壳体总成BODY ASSEMBLY Water Pump1
3896148T1水泵壳体总成BODY ASSEMBLY Water Pump1
3948752嵌件INSERT1
3948752T嵌件INSERT1
4038970密封件SEAL1
41899842叶轮IMPELLER1
4189984T4叶轮IMPELLER1
4256654键KEY1
428M0214992键@5KEY @51
4329245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
438M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
4413438螺母(.250-28)NUT (.250-28)2
448267119螺母(.250-28)NUT (.250-28)2
4536001垫圈WASHER1
4613436螺母NUT1
4796411螺钉(#14-8×2.25)SCREW (#14-8 x 2.25)1
478M0215009螺钉SCREW1
4829804套筒SLEEVE1
4829804T套筒SLEEVE1
-823142A94衬垫套件GASKET SET1
-89238A3齿轮箱密封套件SEAL KIT Gear Housing1
图 39线束/启动继电器 Wiring Harness/Starter Solenoid
线束/启动继电器 Wiring Harness/Starter Solenoid
REF零件编号中文名称英文名称数量
1826730A4发动机线束总成HARNESS ASSEMBLY Engine Wiring1
279091保险丝20安培FUSE 20 Ampere1
28M0207796保险丝20安培FUSE 20 AMP1
3816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
3816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
4194372端子排TERMINAL BLOCK1
538055螺钉(0.190-32x0.620)SCREW (.190-32 x .620)2
689302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)2
745076黄铜螺母(#10-32)NUT (#10-32) Brass2
8814634卡箍CLAMP1
9434292点火板IGNITION PLATE1
107778A12开关盒总成SWITCHBOX ASSEMBLY2
1113669螺钉(#12-24x2.00)SCREW (#12-24 x 2.00)2
1294453衬套BUSHING2
1362310A2拉线总成CABLE ASSEMBLY1
1445076黄铜螺母(#10-32)NUT (#10-32) Brass20
1591865A1电缆总成(3英寸-白/黑)CABLE ASSEMBLY (3 IN. - WHITE/BLACK)1
1588528A2电缆总成(6英寸-红/白)CABLE ASSEMBLY (6 IN. - RED/WHITE)1
1660871A10线束总成WIRE ASSEMBLY2
17817626螺钉(#10-16×0.380)SCREW (#10-16 x .380)2
17878607螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)2
1865999A3线缆总成(黑色)CABLE ASSEMBLY Black1
1987926螺钉(#10-32 x .500)SCREW (#10-32 x .500)1
2060411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)3
2126993锁紧垫圈 (.312)LOCKWASHER (.312)3
218M0204647锁紧垫圈 (.312)LOCKWASHER (.312)3
2236042垫圈WASHER6
2367264垫圈(橡胶)WASHER (Rubber)6
2467268衬套BUSHING3
2588439A23正极电缆总成-蓄电池CABLE ASSEMBLY Positive - Battery1
2588439A34正极电缆总成-蓄电池CABLE ASSEMBLY Positive - Battery1
2588439A24蓄电池负极电缆总成CABLE ASSEMBLY Negative - Battery1
2645561螺钉 (.250-20 x 1.12)SCREW (.250-20 x 1.12)2
26455611螺钉(.250-20 x 1.120)SCREW (.250-20 x 1.120)2
2726992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel2
2865999A2线缆总成(黑色)CABLE ASSEMBLY Black1
2978866绝缘体INSULATOR1
3045076黄铜螺母(#10-32)NUT (#10-32) Brass4
31817109A2电磁阀总成(#10-32/.3125-18端子)SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)1
32818968衬套BUSHING2
328M0214955衬套BUSHING2
3345076黄铜螺母(#10-32)NUT (#10-32) Brass2
3453166锁紧垫圈 (.312)LOCKWASHER (.312)2
3568292螺母(.312-18)NUT (.312-18)2
358M0204668螺母(.312-18)NUT (.312-18)2
图 40燃油管理系统(0G366999及以下) Fuel management System (0G366999 and Below)
燃油管理系统(0G366999及以下) Fuel management System (0G366999 and Below)
REF零件编号中文名称英文名称数量
1827697连杆杠杆套件LEVER KIT Link1
2827698螺钉套件SCREW KIT1
3827699燃油导轨FUEL RAIL1
38276992燃油导轨FUEL RAIL1
3827699T2燃油导轨FUEL RAIL1
4809057燃油管接头套件JOINT KIT Fuel Pipe1
4809057T燃油管接头套件JOINT KT-FUELPIPE1
58276981螺钉套件SCREW KIT1
6809059施拉德阀套件SCHRADER VALVE KIT1
715444连杆(设计I型)LINK (DESIGN I)1
88276891连杆套件(设计II型)LINK KIT (DESIGN II)1
图 41齿轮箱螺旋桨轴-标准旋转-运动大师 Gear Housing Propeller Shaft-Standard Rotation-Sportmaster
齿轮箱螺旋桨轴-标准旋转-运动大师 Gear Housing Propeller Shaft-Standard Rotation-Sportmaster
REF零件编号中文名称英文名称数量
1848450A25基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
1848474A39齿轮箱总成-基本型(无扭矩片)GEAR HOUSING ASSEMBLY Basic-Without Torque Tab1
18M0084203齿轮箱-SM型GEAR HOUSING-SM1
5089594A1从动件总成FOLLOWER ASSEMBLY1
51789562换挡凸轮SHIFT CAM1
5279911A1杆ROD1
5378906销PIN1
538M0084245弹簧定位销PIN Spring Locator1
5479910弹簧SPRING2
5578910垫圈WASHER2
5647397A1垫片组SHIM SETAR
5778172A1圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
5844104A7齿轮组(含小齿轮)GEAR SET (Included Pinion)1
5844102A5齿轮组(含小齿轮)GEAR SET (Included Pinion)1
5844102A7齿轮组GEAR SET1
58848855A2齿轮组GEAR SET1
58848855T2齿轮组-1.62右旋GEAR SET-1.62 RH1
58849189A2齿轮组GEAR SET1
58849189T2齿轮转换套件GEAR CONVERSION KIT1
59549281滚柱轴承BEARING Roller1
6042672棘轮RATCHET1
6042672T棘轮RATCHET1
6178909定位销PIN Detent2
6242671十字销PIN Cross1
6378962弹簧SPRING2
64822820F1螺旋桨轴PROPELLER SHAFT1
64840451A03螺旋桨轴PROPELLER SHAFT1
65822824A1倒车齿轮总成GEAR ASSEMBLY Reverse1
658M0192202倒挡齿轮GEAR-REVERSE1
65847632A1倒车齿轮总成GEAR ASSEMBLY Reverse1
65N.S.S.不单独出售-倒车齿轮Not Sold Separate Reverse Gear1
65N.S.S.不单独出售-倒车齿轮Not Sold Separate Reverse Gear1
66822823推力环THRUST RING1
6788957滚珠轴承总成BEARING ASSEMBLY Ball1
6788957T滚珠轴承BEARING Ball1
68681001止推环RING Thrust1
6931534O型圈O-RING1
698M0214920O型圈O RING1
70847610A1轴承座总成CARRIER ASSEMBLY Bearing1
70848840A1轴承座总成CARRIER ASSEMBLY Bearing1
71817072滚柱轴承BEARING Roller1
72817071卡环RING Snap1
73815565油封SEAL Oil2
7467892A1磁吸式注油/放油塞套件FITTING KIT Magnetic, Plug Fill/Drain1
748M0058389放油螺钉套件SCREW KIT Drain1
7519183纤维垫圈WASHER Fiber1
758M0187157蓝色密封件@15SEAL-BLUE @151
7630281键KEY1
7779447锁紧垫圈TAB WASHER1
78158401盖板COVER1
79131711推力毂THRUST HUB1
7913171T1推力毂THRUST HUB1
80423511齿形锁紧垫圈LOCKWASHER Toothed1
8131211A2花键垫圈WASHER Splined1
8131211Q03垫圈总成WASHER ASSEMBLY1
8252707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
8252707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
83816629锁紧垫圈TAB WASHER1
83816629Q锁紧垫圈TAB WASHER1
8441350螺钉(.437-14 x 2.50)不锈钢SCREW (.437-14 x 2.50) Stainless Steel1
8466024螺钉(.437-14 x 1.75)SCREW (.437-14 x 1.75)1
85822836垫圈(.445 x .805 x .108)WASHER (.445 x .805 x .108)2
86134391螺母 (.4375-20)NUT (.4375-20)2
86859116螺母(.437-20)NUT (.437-20)2
8730206螺钉(.375-16 x 1.00)不锈钢SCREW (.375-16 x 1.00) Stainless Steel1
8715929螺钉(.375-16 x 16 x 6.00)SCREW (.375-16 x 16 x 6.00)1
88762143阳极块ANODE1
8876214T3阳极块ANODE1
8876214A5阳极套件ANODE KIT1
8876214Q5阳极套件ANODE KIT1
88762141阳极块ANODE1
8876214T1阳极块ANODE1
-89238A3齿轮箱密封套件SEAL KIT Gear Housing1
-90415A24螺柱套件STUD KIT1
-59579双头螺柱(.437-14/.437-20 x 2.812)STUD (.437-14/.437-20 x 2.812)1
-90415A25螺柱套件STUD KIT1
图 42驱动轴壳与排气管 Driveshaft Housing and Exhaust Tube
驱动轴壳与排气管 Driveshaft Housing and Exhaust Tube
REF零件编号中文名称英文名称数量
18343A10驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
18343A11驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
18343T11ORD 1590-8343T10ORD 1590-8343T101
1813563A1驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
1813563T1传动轴壳体-黑色-加长型HOUSING Driveshaft - Black - X-Long1
1813563A2驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
1813563T2ORD 3503-813563T1ORD 3503-813563T11
256295双头螺柱(.437 x 2.69)STUD (.437 x 2.69)2
363474螺钉(.500-20 x 6.00)SCREW (.500-20 x 6.00)2
3898831螺钉(.500-20 x 6.220)SCREW (.500-20 x 6.220)2
488238A10接地线总成CABLE ASSEMBLY Ground1
577327支架MOUNT2
649339垫圈(.8125)WASHER (.8125)2
788238A10接地线总成CABLE ASSEMBLY Ground1
828040螺母(.500-20)NUT (.500-20)2
8898832螺母(.500-20)NUT (.500-20)2
941508螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel1
1045176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel2
1134933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
118M0204653螺母NUT2
1267076卡箍CLAMP2
128M0036782卡箍CLAMP2
1366727螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)4
1467077T黑色盖COVER Black2
148M4500752盖板COVER2
1467077F1灰色盖板COVER Gray2
1467077T黑色盖COVER Black2
1588417螺钉(#12-24×0.620)SCREW (#12-24 x .620)4
1635521螺母NUT4
1748926垫圈WASHER1
1834933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel1
188M0204653螺母NUT1
1920553垫圈(.406 x .734 x .063)WASHER (.406 x .734 x .063)4
2069254螺母NUT4
21828212怠速排气套BOOT Idle Exhaust1
218M0039081护套BOOT1
2264649堵头PLUG1
23991732衬垫GASKET1
23991734衬垫GASKET1
2466350下密封件SEAL (LOWER)1
2466350001密封件SEAL1
2518276排气管TUBE Exhaust1
2518276T排气管EXHAUST TUBE1
26177261上密封件SEAL (UPPER)1
268M0039076密封件SEAL1
27812834排气管延长段EXTENSION Exhaust1
27812834A2排气延长总成EXTENSION ASSEMBLY Exhaust1
2741942F3排气管延长段EXTENSION Exhaust1
27879288T71排气管延长段EXTENSION Exhaust1
2867295水管TUBE Water1
288M0042788长型水管TUBE-WATER-LONG1
2874729管TUBE1
288M0042790水管TUBE-WATER1
2978246衬垫GASKET1
29782461衬垫GASKET1
3018233A6隔板总成PLATE ASSEMBLY1
3018233A20传动轴壳体板总成PLATE ASSEMBLY Driveshaft Housing1
318147012密封件SEAL1
318M0043165密封件-27.00英寸SEAL-27.00 INCH1
3268011支架BRACKET1
33812832螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)12
33878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)12
3443044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
3538970密封件SEAL1
3690192螺钉(.250-20 x .750)不锈钢SCREW (.250-20 x .750) Stainless Steel6
3739072塞(1/8英寸黄铜)PLUG (1/8 Inch Brass)2
37390721黄铜管塞 (.125-27)PLUG Pipe (.125-27) Brass2
38183071衬垫GASKET1
38183076衬垫GASKET1
-814754A98衬垫套件GASKET SET1
-8M0046714衬垫套件GASKET SET1
图 43钥匙开关 Key Switch
钥匙开关 Key Switch
REF零件编号中文名称英文名称数量
1816626A15线束总成-钥匙开关(15英尺)HARNESS ASSEMBLY Key Switch (15.00 Feet) (15 FEET)1
290468A1钥匙盖总成COVER ASSEMBLY Key2
376424支架BRACKET1
455422双头螺柱 (#10-32 x 2.00)STUD (#10-32 x 2.00)2
524676垫圈 (.200 x .440 x .032)WASHER (.200 x .440 x .032)2
668219螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel2
7816479A3板组件套件PLATE KIT2
888107KEY SWITCH (See Below for Key)1
888107A5钥匙开关套件SWITCH KIT Key1
993543特殊螺母-镀铬黄铜NUT Special - Chrome Brass1
9879755特殊螺母-黑色尼龙NUT Special - Black Nylon1
10816492A1音响报警器总成ALARM ASSEMBLY Audio Warning1
108M0210763报警器ALARM1
118127111垫片(0.375)SPACER (.375)2
11812711隔套(0.250)SPACER (.250)2
-894911点火钥匙(1A)KEY Ignition (1A)1
-894912点火钥匙(1B)KEY Ignition (1B)1
-894913点火钥匙(1C)KEY Ignition (1C)1
-894914点火钥匙(1D)KEY Ignition (1D)1
-894915点火钥匙(1E)KEY Ignition (1E)1
-894916点火钥匙(1F)KEY Ignition (1F)1
-894917点火钥匙(2A)KEY Ignition (2A)1
-894918点火钥匙(2B)KEY Ignition (2B)1
-894919点火钥匙(2C)KEY Ignition (2C)1
-8949110点火钥匙(2D)KEY Ignition (2D)1
-8949111点火钥匙(2E)KEY Ignition (2E)1
-8949112点火钥匙(2F)KEY Ignition (2F)1
图 44ECU总成 ECU Assembly
ECU总成 ECU Assembly
REF零件编号中文名称英文名称数量
18240037发动机控制单元ECUECU Engine Control Unit1
1824003A7电控单元ECU1
18240035发动机控制单元ECUECU Engine Control Unit1
1824003A5电控单元ECU1
182400313发动机控制单元ECUECU Engine Control Unit1
1824003A13发动机控制单元ECUECU Engine Control Unit1
182400311发动机控制单元ECUECU Engine Control Unit1
1824003T11电控单元ECU1
1824003A13发动机控制单元ECUECU Engine Control Unit1
1824003A11发动机控制单元ECUECU Engine Control Unit1
1824003T11电控单元ECU1
234948隔套SPACER2
3146951卡扣CLIP1
490435支架MOUNT2
521249垫圈WASHER4
620361螺母(.250-28)NUT (.250-28)4
68267089螺母(.250-28)NUT (.250-28)4
788807A19拉线总成CABLE ASSEMBLY1
814637护孔环GROMMET1
914636衬套BUSHING1
1028667螺钉 (0.250-20 x 1.00) 不锈钢SCREW (.250-20 x 1.00) Stainless Steel1
1126992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel1
1265567不锈钢垫圈(0.265x0.750x0.048)WASHER (.265 x .750 x .048) Stainless Steel1
1313202A2水位传感器模块总成MODULE ASSEMBLY Water Sensor1
1413202A4水位传感器模块总成MODULE ASSEMBLY Water Sensor1
1588807A18线缆总成(黑色)CABLE ASSEMBLY (BLACK)1
1637571螺钉(.190-32 x 0.500)SCREW (.190-32 x .500)2
1789302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)2
1898866A14线束总成HARNESS ASSEMBLY1
19190491连接环COUPLE RING1
2098866A25线束总成 ECU与喷油器HARNESS ASSEMBLY ECU And Injectors1
2187895A4拉线总成CABLE ASSEMBLY1
图 45配平电磁阀板(0G205107及以上) Trim Solenoid Plate (0G205107 and Up)
配平电磁阀板(0G205107及以上) Trim Solenoid Plate (0G205107 and Up)
REF零件编号中文名称英文名称数量
1847896安装板PLATE1
2828151继电器RELAY2
28M0207773调整继电器总成RELAY ASSEMBLY Trim2
3818967护孔环GROMMET2
38M0207785护孔环GROMMET2
4818968衬套BUSHING2
48M0214955衬套BUSHING2
545561螺钉 (.250-20 x 1.12)SCREW (.250-20 x 1.12)2
5455611螺钉(.250-20 x 1.120)SCREW (.250-20 x 1.120)2
635950垫圈 (.273 x .437 x .031) 不锈钢WASHER (.273 x .437 x .031) Stainless Steel2
7814101螺母 (.250-20) 不锈钢NUT (.250-20) Stainless Steel2
78M0207776螺母NUT2
8828102支架BRACKET2
88M0207771安装支架BRACKET Mounting2
926992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel2
1073286螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel2
1169028螺钉（.250-28 x .750）不锈钢SCREW (.250-28 x .750) Stainless Steel2
1235462垫圈(.2656 x .625 x .0625)不锈钢WASHER (.2656 x .625 x .0625) Stainless Steel2
1335280垫圈(.255 x .620 x .030) 不锈钢WASHER (.255 x .620 x .030) Stainless Steel2
1435045螺母(.250-28)NUT (.250-28)2
14826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel2
15826802A4线束总成HARNESS ASSEMBLY1
图 46曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods
曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods
REF零件编号中文名称英文名称数量
1891644A04曲轴总成CRANKSHAFT ASSEMBLY1
2897498T01主轴承-绿色(曲轴上端)BEARING Main - Green Crankshaft-Upper12/AR
2897498T02主轴承-海军蓝(曲轴上端)BEARING Main - Navy Blue Crankshaft-Upper12/AR
2897498T03主轴承-白色(曲轴上端)BEARING Main - White Crankshaft-Upper12/AR
2897498T04主轴承-橙色(曲轴上端)BEARING Main - Orange Crankshaft-Upper12/AR
3892309T01推力轴承-绿色(曲轴下端)BEARING Thrust - Green Crankshaft-Lower2/AR
38M0117003轴承BEARING2/AR
3892309T02推力轴承-海军蓝(曲轴下端)BEARING Thrust - Navy Blue Crankshaft-Lower2/AR
38M0117001轴承BEARING2/AR
3892309T03推力轴承-白色(曲轴下端)BEARING Thrust - White Crankshaft-Lower2/AR
38M0117002轴承BEARING2/AR
3892309T04推力轴承-橙色(曲轴下端)BEARING Thrust - Orange Crankshaft-Lower2/AR
38M0117004轴承BEARING2/AR
48805251油封(主轴承顶部)SEAL Top Main Bearing1
48M0032912密封件SEAL1
5896883隔套SPACER1
6896882挡圈RING Retaining1
791800半圆键KEY Woodruff1
8885348飞轮螺栓盖CAP Flywheel Bolt1
9897796链条(凸轮轴驱动滚子链)CHAIN Roller Cam Drive1
98M0103398链条(凸轮轴驱动滚子链)CHAIN Roller Cam Drive1
10881210T02连杆总成CONNECTING ROD ASSEMBLY6
108M0103285连杆总成CONNECTING ROD ASSEMBLY6
11884441螺栓BOLT12
12892005A01连杆轴承-蓝色BEARING Connecting Rod - Blue12/AR
12892005A02连杆轴承-白色BEARING Connecting Rod - White12/AR
12892005A03连杆轴承-橙色BEARING Connecting Rod - Orange12/AR
13897737T01活塞总成PISTON ASSEMBLY6
13897737A04活塞/喷油嘴套件PISTON/OILJET KIT6
14881180A02活塞环组RING SET Piston6
15NSS活塞环-油环(不单独销售)NOT SOLD SEPARATE Piston Ring-Oil6
16NSS活塞环-第二道(不单独销售)NOT SOLD SEPARATE Piston Ring-2nd6
17NSS活塞销（不单独销售）NOT SOLD SEPARATE Piston Pin6
18881184卡簧CIRCLIP12
19888983T02飞轮FLYWHEEL1
19888983T03飞轮总成FLYWHEEL ASSEMBLY1
20880515螺栓(M20×68)BOLT (M20 x 68)1
208M0147042螺栓BOLT1
21880517垫圈WASHER1
218M0090010垫圈WASHER1
-880552A06动力头衬垫套件GASKET SET Powerhead1
-880552A07动力头衬垫套件GASKET SET Powerhead1
-895247A06动力头总成POWERHEAD ASSEMBLY1
-895247R06RM L6 GEN1 VERADORM L6 GEN1 VERADO1
图 47机油喷射组件 Oil Injection Components
机油喷射组件 Oil Injection Components
REF零件编号中文名称英文名称数量
112335A1支架套件BRACKET KIT1
212323A1绳索/挂钩套件CORD/HOOK KIT1
387421油箱TANK1
443298A2盖总成CAP ASSEMBLY1
5NSS不单独销售嵌件NOT SOLD SEPARATE Insert1
611332O型圈(2.225 x .210)O-RING (2.225 x .210)1
7816190A3外壳总成适配器HOUSING ASSEMBLY Adapter1
7816190A4机油收集器总成(无传感器)OIL PICK UP ASSEMBLY Without Sender1
811332O型圈(2.225 x .210)O-RING (2.225 x .210)1
999802管TUBE1
1099439软管(114.00英寸)HOSE (114.00 Inches)1
11833069A3油箱总成RESERVOIR ASSEMBLY Oil1
118M0062954储油罐RESERVOIR, OIL1
12NSS不单独销售标签-储液罐NOT SOLD SEPARATE Decal-Reservoir1
13855362护孔环GROMMET3
13855362001护孔环GROMMET3
1449436垫圈WASHER3
1560411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)1
16855364衬套BUSHING3
1769267螺钉 (.312-18 x 1.750)SCREW (.312-18 x 1.750)2
18833155护孔环GROMMET2
198502341衬套BUSHING2
2082381455管材(25英寸整卷)(裁切为20英寸)TUBING (25.00 Inches Bulk) (Cut to 20 Inches)1
21816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
21816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
2212886A8开关SWITCH1
2358376螺钉(.164-18 x .375)SCREW (.164-18 x .375)1
2472761不锈钢垫圈(.203 x .562 x .060)WASHER (.203 x .562 x .060) Stainless Steel1
258260841隔套SPACER1
26816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)7
26816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)7
27NSS不单独销售 塞NOT SOLD SEPARATE Plug1
28424254接头FITTING1
288M0207780接头FITTING1
29830756109软管(57.00英寸散装)(裁切至6英寸)HOSE (57.00 Inches Bulk) (Cut to 6 Inches)1
298M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
30855785燃油冷却器COOLER Fuel1
30855785A1燃油冷却器总成COOLER ASSEMBLY Fuel1
31855761止回阀CHECK VALVE1
318557611止回阀CHECK VALVE1
3213791卡箍(15.7)CLAMP (15.7)4
328M0214911卡箍@5CLAMP @54
3385682239管材(17英寸整卷)(裁切为3英寸)TUBING (17.00 Inches Bulk) (Cut to 3 Inches)1
34856822A3软管(带绝缘套管)(30英寸)HOSE (W/INSULATING SLEEVE) (30 IN.)1
图 48油门杆与换挡轴 Throttle Lever and Shift Shaft
油门杆与换挡轴 Throttle Lever and Shift Shaft
REF零件编号中文名称英文名称数量
1850389杠杆LEVER1
2818165螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
355164衬套BUSHING1
474759垫圈(0.391x0.880x0.125)不锈钢WASHER (.391 x .880 x .125) Stainless Steel1
537828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel1
664022螺钉(.250-20 x 2.125)SCREW (.250-20 x 2.125)1
764015螺母 (.250-20)NUT (.250-20)1
826852尼龙帽CAP Nylon1
942927嵌件INSERT1
1035459垫圈WASHER1
118268336螺母 (M6)NUT (M6)1
11401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
128503931凸轮CAM1
12856221A1凸轮套件CAM KIT1
13852970衬套BUSHING1
1482130040螺钉(M6 x 40)SCREW (M6 x 40)1
15932481衬套BUSHING2
158M0215006旋转衬套BUSHING Swivel2
168235694螺纹球头BALL Threaded1
17850815连接杆LINK1
178508152杆ROD1
1867748滚轮ROLLER1
19850286油门滚轮ROLLER Throttle1
198502861杠杆LEVER1
2040056107螺钉(M5×16)SCREW (M5 x 16)1
2189302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)1
2269432外锁紧垫圈(#10)LOCKWASHER External (#10)1
238142831锚支架BRACKET Anchor1
23814283T6锚支架总成BRACKET ASSEMBLY Anchor1
2498889闩锁LATCH1
2542975传动螺钉DRIVE SCREW2
2639519杯套CUP1
2752100耐磨板WEAR PLATE1
2838279闩锁LATCH1
288M0036768闩锁LATCH1
2935462垫圈(.2656 x .625 x .0625)不锈钢WASHER (.2656 x .625 x .0625) Stainless Steel1
3035045螺母(.250-28)NUT (.250-28)1
30826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
3128782螺钉(.312-18 x .880)不锈钢SCREW (.312-18 x .880) Stainless Steel3
32814284导向块GUIDE BLOCK1
3320099弹簧SPRING1
3467073A1连杆总成LINK ROD ASSEMBLY1
3579932A16换挡轴总成SHIFT SHAFT ASSEMBLY1
3579932A17换挡轴总成SHIFT SHAFT ASSEMBLY1
36NSS弹性销(不单独销售)NOT SOLD SEPARATE Roll Pin1
37NSS不单独销售-换挡轴上杆NOT SOLD SEPARATE Shift Shaft Lever-Upper1
3826856衬套BUSHING1
3929720波形垫圈WAVE WASHER1
4035462垫圈(.2656 x .625 x .0625)不锈钢WASHER (.2656 x .625 x .0625) Stainless Steel1
4135045螺母(.250-28)NUT (.250-28)1
41826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
42814281A2开关SWITCH1
428M0052931开关SWITCH1
4377478螺钉 (#6-32 x .875)SCREW (#6-32 x .875)2
4427882垫圈WASHER2
图 49转向连接套件 Steering Attaching Kit
转向连接套件 Steering Attaching Kit
REF零件编号中文名称英文名称数量
092876A8转向安装套件ATTACHING KIT Steering1
141055A1支架总成BRACKET ASSEMBLY1
271565A2管总成TUBE ASSEMBLY1
348462O型圈 (.614 x .070)O-RING (.614 x .070)1
4821203锁紧垫圈LOCKWASHER2
537984螺母 (.875-14)NUT (.875-14)2
58M0041651螺母 (.875-14)NUT (.875-14)2
638601螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250)4
778968内锁紧垫圈 (.250)LOCKWASHER Internal (.250)4
8850791T联轴器COUPLER1
973732螺钉 (.375-24 x 1.120)SCREW (.375-24 x 1.120)2
1037828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel2
11826709113不锈钢螺母 (.375-24)NUT (.375-24) Stainless Steel1
118M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass1
图 50燃油泵/过滤器 Fuel Pump/Filter
燃油泵/过滤器 Fuel Pump/Filter
REF零件编号中文名称英文名称数量
-14817A23燃油管理系统总成MANAGEMENT ASSEMBLY Fuel1
18276922盖板COVER1
215443线束套件HARNESS KIT1
318792密封件SEAL1
415029O型圈及密封套件O-RING AND SEAL KIT1
58276992燃油导轨FUEL RAIL1
5827699T2燃油导轨FUEL RAIL1
618715燃油喷油器INJECTOR Fuel6
618715T喷油器总成INJECTOR ASSEMBLY6
717422滤清器FILTER1
8827696固定套件RETAINER KIT1
98276933节气门体THROTTLE BODY1
108090572接头套件JOINT KIT1
118276891连杆套件LINK KIT1
12827697连杆杠杆套件LEVER KIT Link1
13827698螺钉套件SCREW KIT1
148276981螺钉套件SCREW KIT1
158090851弯头套件ELBOW KIT1
16814233A1施拉德阀套件SCHRADER VALVE KIT1
16814233A02阀套件VALVE KIT1
178142332FMA接头套件FMA JOINT KIT1
188276942软管套件HOSE KIT1
18827694A01软管套件-燃油HOSE KIT-FUEL1
1967748滚轮ROLLER1
2090088螺钉(.250-20x4)SCREW (.250-20 x 4)12
20845674螺钉(.250-20x4.00)SCREW (.250-20 x 4.00)12
2129245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel10
218M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel10
图 51艉板支架 Transom Brackets
艉板支架 Transom Brackets
REF零件编号中文名称英文名称数量
1828334T03艉板支架总成-右舷BRACKET ASSEMBLY Transom-Starboard1
2828333T08艉板支架总成-左舷BRACKET ASSEMBLY Transom-Port1
398727润滑脂接头FITTING Grease1
38M0169588润滑脂接头FITTING Grease1
4826125A1倾斜管TILT TUBE1
5826135尼龙锁紧螺母(1.00-14)NUT Lock (1.00-14) Nylon Insert1
645711O型圈 (.612 x .103)O-RING (.612 x .103)1
788750波浪垫圈 (1.62 x 1.05)WASHER Wave (1.62 x 1.05)2
8826164螺母 (.875-14)NUT (.875-14)1
88M0231351锁紧螺母NUT Lock1
9677551螺钉(.500-20×4.500)SCREW (.500-20 x 4.500)4
98M0149747螺钉SCREW4
1028421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
108M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
118M0027784螺母NUT4
1182671117螺母(.500-20)NUT (.500-20)4
1299629A2杠杆总成LEVER ASSEMBLY1
128M0115104倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
13830899张力弹簧SPRING Tension1
1465830尼龙衬套NYLINER2
15830900压缩弹簧SPRING Compression1
1699633旋钮KNOB1
1799615槽销PIN Groove1
1899617销PIN1
18893709销PIN1
图 52排气分隔板及排气板 Exhaust Divider and Exhaust Plate
排气分隔板及排气板 Exhaust Divider and Exhaust Plate
REF零件编号中文名称英文名称数量
1815552A1分隔板DIVIDER PLATE1
2328021管塞 (.125-27)PLUG Pipe (.125-27)1
2328022黄铜管塞 (.125-27)PLUG Pipe (.125-27) Brass1
38475251衬垫GASKET1
3847525004衬垫GASKET1
4814754密封件(12.50英寸)SEAL (12.50 Inches)1
5847538螺钉SCREW18
5848496螺钉(0.312-18 x 1.50)SCREW (.312-18 x 1.50)18
5848497螺丝(.312-18 x 1.00)SCREW (.312-18 x 1.00)2
6847526垫圈（适用处使用）WASHER (USE WHERE APPLICABLE)20
7814634大卡箍CLAMP (LARGE)AR
7642352小J型夹J CLIP (SMALL)1
761001J型卡扣J CLIP1
88478951板 调节器PLATE Regulator1
9815279T电压调节器REGULATOR Voltage1
98M0084173电压调节器VOLTAGE REGULATOR1
1069697螺钉(.250-28 x 1.50)SCREW (.250-28 x 1.50)4
1135045螺母(.250-28)NUT (.250-28)4
11826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel4
12814430管接头(.500-14)FITTING (.500-14)1
128144301接头FITTING1
1392007管接头(.250-18)(90度)FITTING (.250-18) (90 DEGREES)1
1392007190度弯头FITTING (90 Degree)1
14830756109软管（57.00英寸整卷）（裁切至23-1/2英寸）HOSE (57.00 Inches Bulk) (Cut to 23-1/2 IN.)1
148M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
15816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)2
15816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)2
1668729盖板COVER1
168M0039767盖板COVER1
1774824螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)4
1869570螺钉(#10-16 x .750)SCREW (#10-16 x .750)1
1976451垫圈WASHER1
2014479隔膜DIAPHRAGM1
20144791隔膜DIAPHRAGM1
2116496导水板DEFLECTOR Water1
2216497A1安装板PLATE1
2378690衬垫GASKET2
2378690002衬垫GASKET2
2464878弹簧(黑色)SPRING (Black)1
2585303垫圈WASHER1
2614480提动阀POPPET1
2764872护孔环GROMMET1
2865848托架CARRIER1
298231421衬垫GASKET2
298231422衬垫GASKET2
3018260A4排气板总成PLATE ASSEMBLY Exhaust1
31823106定位销 (.875)PIN Dowel (.875)2
318M0043826定位销PIN Dowel2
321486745度弯头ELBOW 45 Degree (45 DEGREES)1
332908545度弯管接头FITTING Elbow (45 Degree)1
338M012305045度弯管接头FITTING Elbow (45 Degree)1
34822838垫圈 (.401 x .745 x .097)WASHER (.401 x .745 x .097)6
3546335螺母 (.375-24)NUT (.375-24)6
3627132衬套BUSHING1
3766725螺钉(.375-16×3.50)SCREW (.375-16 x 3.50)3
37898833螺钉(.375-16 x 3.500)SCREW (.375-16 x 3.500)3
3866727螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)1
3968783螺钉(.312-18×2.50)SCREW (.312-18 x 2.50)1
-823142A94衬垫套件GASKET SET1
-809839A94动力头总成POWERHEAD ASSEMBLY1
-809839T94PH 150 EFIPH 150 EFI1
-808603A94动力头总成POWERHEAD ASSEMBLY1
-808603T94动力头总成POWERHEAD ASSEMBLY1
图 53齿轮箱螺旋桨轴-CLE-1.87:1/2:1传动比 Gear Housing Propeller Shaft - CLE-1.87:1/2:1 Gear Ratio
齿轮箱螺旋桨轴-CLE-1.87:1/2:1传动比 Gear Housing Propeller Shaft - CLE-1.87:1/2:1 Gear Ratio
REF零件编号中文名称英文名称数量
-847902A84齿轮箱总成GEAR HOUSING ASSEMBLY1
-847902A82齿轮箱总成GEAR HOUSING ASSEMBLY1
-840560T34齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-847902A85齿轮箱总成GEAR HOUSING ASSEMBLY1
-840560T37G CASE-2:1 RH LG CASE-2:1 RH L1
-847902A83齿轮箱总成GEAR HOUSING ASSEMBLY1
-840560T34齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
1847902A15齿轮箱总成GEAR HOUSING ASSEMBLY1
18M0083306齿轮箱-SM型GEAR HOUSING-SM1
1847902A16齿轮箱总成GEAR HOUSING ASSEMBLY1
18M0083306齿轮箱-SM型GEAR HOUSING-SM1
4989594A1从动件总成FOLLOWER ASSEMBLY1
5078956换挡凸轮SHIFT CAM1
50789562换挡凸轮SHIFT CAM1
5179911A1杆ROD1
5278906销PIN1
528M0084245弹簧定位销PIN Spring Locator1
5379910弹簧SPRING2
5478910垫圈WASHER2
5547397A1垫片组SHIM SETAR
5678172A1圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
5744102A5齿轮组GEAR SET1
5744102A7齿轮组GEAR SET1
5744104A7齿轮组(含倒车齿轮)GEAR SET (Includes Reverse Gear)1
58549281滚柱轴承BEARING Roller1
5942672棘轮RATCHET1
5942672T棘轮RATCHET1
6078909定位销PIN Detent2
6142671十字销PIN Cross1
6278962弹簧SPRING2
63822820F1螺旋桨轴PROPELLER SHAFT1
63840451A03螺旋桨轴PROPELLER SHAFT1
64847632A1倒车齿轮总成GEAR ASSEMBLY Reverse1
64822824A1倒车齿轮总成GEAR ASSEMBLY Reverse1
648M0192202倒挡齿轮GEAR-REVERSE1
65822823推力环THRUST RING1
6688957滚珠轴承总成BEARING ASSEMBLY Ball1
6688957T滚珠轴承BEARING Ball1
67681001止推环RING Thrust1
6831534O型圈O-RING1
688M0214920O型圈O RING1
69847610A1轴承座总成CARRIER ASSEMBLY Bearing1
69848840A1轴承座总成CARRIER ASSEMBLY Bearing1
70817072滚柱轴承BEARING Roller1
71815565油封SEAL Oil2
72817071卡环RING Snap1
7367892A1磁吸式注油/放油塞套件FITTING KIT Magnetic, Plug Fill/Drain1
738M0058389放油螺钉套件SCREW KIT Drain1
7419183纤维垫圈WASHER Fiber1
748M0187157蓝色密封件@15SEAL-BLUE @151
7530281键KEY1
7679447锁紧垫圈TAB WASHER1
77158401盖板COVER1
78131711推力毂THRUST HUB1
7813171T1推力毂THRUST HUB1
7952707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
7952707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
80816629锁紧垫圈TAB WASHER1
80816629Q锁紧垫圈TAB WASHER1
8131211A2花键垫圈WASHER Splined1
8131211Q03垫圈总成WASHER ASSEMBLY1
82423511齿形锁紧垫圈LOCKWASHER Toothed1
8366024螺钉(.437-14 x 1.75)SCREW (.437-14 x 1.75)1
8476214A5阳极套件ANODE KIT1
8476214Q5阳极套件ANODE KIT1
85822836垫圈(.445 x .805 x .108)WASHER (.445 x .805 x .108)2
86134391螺母 (.4375-20)NUT (.4375-20)2
86859116螺母(.437-20)NUT (.437-20)2
8730206螺钉(.375-16 x 1.00)不锈钢SCREW (.375-16 x 1.00) Stainless Steel1
-89238A3齿轮箱密封套件SEAL KIT Gear Housing1
图 54燃油泵(塑料壳体带松散配件) Fuel Pump (Plastic Body With Loose Fittings)
燃油泵(塑料壳体带松散配件) Fuel Pump (Plastic Body With Loose Fittings)
REF零件编号中文名称英文名称数量
114360A53燃油泵总成PUMP ASSEMBLY Fuel1
242990A10膜片组件DIAPHAGM KIT1
2857005A1膜片组件DIAPHRAGM KIT1
3NSS橡胶止回阀(不单独销售)NOT SOLD SEPARATE Check Valve-Rubber2
4NSS增压垫片(不单独销售)NOT SOLD SEPARATE Gasket-Boost1
5NSS膜片(不单独销售)NOT SOLD SEPARATE Diaphragm2
6NSS脉冲垫片(不单独销售)NOT SOLD SEPARATE Gasket-Pulse1
7NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring1
8NSS盖帽(不单独销售)NOT SOLD SEPARATE Cap1
9NSS止回阀(不单独销售)NOT SOLD SEPARATE Check Valve2
10NSS固定座(不单独销售)NOT SOLD SEPARATE Retainer2
11NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring1
12NSS盖帽(不单独销售)NOT SOLD SEPARATE Cap1
13987691底座衬垫GASKET Base1
138M0204705衬垫@2GASKET @21
14144303BASE Fuel Pump1
15987752燃油泵板PLATE Fuel Pump1
1699664弯头ELBOW1
1699664290度弯头接头(0.125-27x0.250)尼龙FITTING Elbow 90 Degree (.125-27 x .250) Nylon1
1729111连接器CONNECTOR1
17291112接头FITTING1
184333590度接头(.125-27)尼龙CONNECTOR 90 Degree (.125-27) Nylon1
1843335190度接头-带防振密封CONNECTOR 90 Degree - With Vibraseal1
1982104540SCREW (M5 x 40) Fuel Pump2
2082130050SCREW (M6 x 50) Fuel Pump to Crankcase2
219912878软管 (.187) (26.00英寸散装)HOSE (.187) (26.00 Inches Bulk)1
2299751接头(0.0625-27)黄铜FITTING (.0625-27) Brass1
22997511弯头ELBOW1
2383075780管材(28.00英寸散装)TUBING (28.00 Inches Bulk)1
238M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
24816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
24816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
25816856A3燃油接头总成-塑料CONNECTOR ASSEMBLY Fuel - Plastic1
25816856Q3燃油接头总成CONNECTOR ASSEMBLY Fuel1
2669067螺钉(.250-20×1.375)SCREW (.250-20 x 1.375)1
271350382管材(30英寸散装)(15-1/2英寸)(19英寸)TUBING (30.00 Inches Bulk) (15-1/2 IN.)(19 IN.)2
271350385管材(33英寸整卷)TUBING (33.00 Inches Bulk)2
2818458A3燃油滤清器总成FILTER ASSEMBLY Fuel1
2818458Q3燃油滤清器FILTER-FUEL1
2914570探头PROBE1
3013170A3底座BASE1
3113607接头FITTING2
31136071弯头ELBOW2
3245561螺钉 (.250-20 x 1.12)SCREW (.250-20 x 1.12)2
32455611螺钉(.250-20 x 1.120)SCREW (.250-20 x 1.120)2
331350382管材(30英寸散装)(15-1/2英寸)(19英寸)TUBING (30.00 Inches Bulk) (15-1/2 IN.)(19 IN.)2
331350385管材(33英寸整卷)TUBING (33.00 Inches Bulk)2
3418458A4滤清器套件FILTER KIT1
3418458Q4燃油水分离滤清器FILTER Fuel-Water Separating1
35828586探头PROBE1
358M0204710探头PROBE1
3613170A3底座BASE1
3789771直型连接器(.250-18)CONNECTOR (.250-18) (STRAIGHT)1
3789771Q2连接器(.250-18)CONNECTOR (.250-18)1
3813607接头FITTING1
38136071弯头ELBOW1
3945561螺钉 (.250-20 x 1.12)SCREW (.250-20 x 1.12)2
39455611螺钉(.250-20 x 1.120)SCREW (.250-20 x 1.120)2
-823142A94衬垫套件GASKET SET1
-809839A94动力头总成POWERHEAD ASSEMBLY1
-809839T94PH 150 EFIPH 150 EFI1
-808603A94动力头总成POWERHEAD ASSEMBLY1
-808603T94动力头总成POWERHEAD ASSEMBLY1
图 55齿轮箱螺旋桨轴-反向旋转-运动大师 Gear Housing Propeller Shaft-Counter Rotation-Sportmaster
齿轮箱螺旋桨轴-反向旋转-运动大师 Gear Housing Propeller Shaft-Counter Rotation-Sportmaster
REF零件编号中文名称英文名称数量
1848474A39齿轮箱总成-基本型(无扭矩片)GEAR HOUSING ASSEMBLY Basic-Without Torque Tab1
5089594A1从动件总成FOLLOWER ASSEMBLY1
51789562换挡凸轮SHIFT CAM1
5279911A1杆ROD1
5378906销PIN1
538M0084245弹簧定位销PIN Spring Locator1
5479910弹簧SPRING2
5578910垫圈WASHERAR
5614469轴承杯CUP Bearing1
5614469T轴承杯CUP Bearing1
5788957滚珠轴承总成BEARING ASSEMBLY Ball1
5788957T滚珠轴承BEARING Ball1
58NSSNOT SOLD SEPARATE Reverse Gear (Part of 43-15845A2)1
58817516A1倒车齿轮总成GEAR ASSEMBLY Reverse1
58817516T1倒挡齿轮GEAR-REVERSE1
5915844滚柱轴承总成BEARING ASSEMBLY Roller1
6042672棘轮RATCHET1
6042672T棘轮RATCHET1
6178909定位销PIN Detent2
6242671十字销PIN Cross1
6378962弹簧SPRING2
6415845A2齿轮组GEAR SET1
64817515A2齿轮组-前进档GEAR SET Forward1
64817515T2齿轮组-前进档GEAR SET-FORWARD1
65176151调整垫片(.125)SPACER SHIM (.125)AR
65176152调整垫片(.127)SPACER SHIM (.127)AR
65176153调整垫片(.129)SPACER SHIM (.129)AR
65176154调整垫片(.131)SPACER SHIM (.131)AR
65176155调整垫片(.133)SPACER SHIM (.133)AR
65176156调整垫片(.135)SPACER SHIM (.135)AR
65176157调整垫片(.137)SPACER SHIM (.137)AR
65176158调整垫片(.139)SPACER SHIM (.139)AR
65176159调整垫片(.141)SPACER SHIM (.141)AR
651761510调整垫片(.143)SPACER SHIM (.143)AR
651761511调整垫片(.145)SPACER SHIM (.145)AR
651761512调整垫片(.147)SPACER SHIM (.147)AR
651761513调整垫片(.149)SPACER SHIM (.149)AR
6615841滚柱轴承BEARING Roller1
6717616推力环THRUST RING1
6831534O型圈O-RING1
688M0214920O型圈O RING1
6915838A2轴承适配器总成ADAPTER ASSEMBLY Bearing1
7015843滚柱轴承BEARING Roller1
7015843T滚针轴承BEARING Needle1
7115834推力轴承BEARING Thrust2
72815495T螺旋桨轴PROPELLER SHAFT1
73847616A1轴承座总成CARRIER ASSEMBLY Bearing1
73847616T1轴承座CARRIER Bearing1
74817072滚柱轴承BEARING Roller1
75815565油封SEAL Oil2
76817071卡环RING Snap1
7767892A1磁吸式注油/放油塞套件FITTING KIT Magnetic, Plug Fill/Drain1
778M0058389放油螺钉套件SCREW KIT Drain1
7819183纤维垫圈WASHER Fiber1
788M0187157蓝色密封件@15SEAL-BLUE @151
7930281键KEY1
8079447锁紧垫圈TAB WASHER1
81158401盖板COVER1
82131711推力毂THRUST HUB1
8213171T1推力毂THRUST HUB1
83423511齿形锁紧垫圈LOCKWASHER Toothed1
8431211A2花键垫圈WASHER Splined1
8431211Q03垫圈总成WASHER ASSEMBLY1
8552707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
8552707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
86816629锁紧垫圈TAB WASHER1
86816629Q锁紧垫圈TAB WASHER1
8741350螺钉(.437-14 x 2.50)不锈钢SCREW (.437-14 x 2.50) Stainless Steel1
8766024螺钉(.437-14 x 1.75)SCREW (.437-14 x 1.75)1
88822836垫圈(.445 x .805 x .108)WASHER (.445 x .805 x .108)2
89134391螺母 (.4375-20)NUT (.4375-20)2
89859116螺母(.437-20)NUT (.437-20)2
9030206螺钉(.375-16 x 1.00)不锈钢SCREW (.375-16 x 1.00) Stainless Steel1
9015929螺钉(.375-16 x 16 x 6.00)SCREW (.375-16 x 16 x 6.00)1
91762143阳极块ANODE1
9176214T3阳极块ANODE1
9176214A5阳极套件ANODE KIT1
9176214Q5阳极套件ANODE KIT1
91762141阳极块ANODE1
9176214T1阳极块ANODE1
-89238A3齿轮箱密封套件SEAL KIT Gear Housing1
-90415A24螺柱套件STUD KIT1
-59579双头螺柱(.437-14/.437-20 x 2.812)STUD (.437-14/.437-20 x 2.812)1
-90415A25螺柱套件STUD KIT1
图 56配平电磁阀板(0G205106及以下) Trim Solenoid Plate (0G205106 and Below)
配平电磁阀板(0G205106及以下) Trim Solenoid Plate (0G205106 and Below)
REF零件编号中文名称英文名称数量
1847896安装板PLATE1
2818997A1电磁阀总成SOLENOID ASSEMBLY2
28M0185145电磁阀总成SOLENOID ASSEMBLY2
3818967护孔环GROMMET4
38M0207785护孔环GROMMET4
4818968衬套BUSHING4
48M0214955衬套BUSHING4
545561螺钉 (.250-20 x 1.12)SCREW (.250-20 x 1.12)3
5455611螺钉(.250-20 x 1.120)SCREW (.250-20 x 1.120)3
635950垫圈 (.273 x .437 x .031) 不锈钢WASHER (.273 x .437 x .031) Stainless Steel3
7814101螺母 (.250-20) 不锈钢NUT (.250-20) Stainless Steel3
78M0207776螺母NUT3
888807A6黑色电缆总成 (3.50 英寸)CABLE ASSEMBLY (3.50 Inches) Black2
926995防松垫圈(#8不锈钢)LOCKWASHER (#8) Stainless Steel4
1026419黄铜螺母 (#8-32)NUT (#8-32) Brass4
1142813螺钉(#10-32 X 0.380英寸)(10-32 X 3/8英寸)SCREW (#10-32 X .380) (10-32 X .3/8 IN.)2
1226996锁紧垫圈(#10)(不锈钢)LOCKWASHER (#10) Stainless Steel2
1387379A14线束总成(2.750英寸)(红色)WIRE ASSEMBLY (2.750 Inches) (RED)1
1426992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel4
1594330螺母(0.250-20)黄铜NUT (.250-20) Brass (BRASS)2
1673286螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel2
1769028螺钉（.250-28 x .750）不锈钢SCREW (.250-28 x .750) Stainless Steel2
1835462垫圈(.2656 x .625 x .0625)不锈钢WASHER (.2656 x .625 x .0625) Stainless Steel2
1935280垫圈(.255 x .620 x .030) 不锈钢WASHER (.255 x .620 x .030) Stainless Steel2
2035045螺母(.250-28)NUT (.250-28)2
20826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel2
图 57旋转支架及转向臂-短型 Swivel Bracket and Steering Arm Short
旋转支架及转向臂-短型 Swivel Bracket and Steering Arm Short
REF零件编号中文名称英文名称数量
-896280006零件手册200/225/250/275四冲程VeradoPARTS MANUAL 200/225/250/275 4-Stroke Verado1
-896579T00维修手册SERVICE MANUAL1
-8M0082470MNL-SERV 200-300VMNL-SERV 200-300V1
-10238060安装手册INSTALLATION MANUAL1
-10237060用户手册OWNERS MANUAL1
-10237J60用户手册(西班牙语)OWNERS MANUAL Spanish1
-10237D60用户手册(法语)OWNERS MANUAL French1
-895269001产品指南PRODUCT GUIDE1
-895269002产品指南GUIDE-PRODUCT1
-895282A06EPA标签信息贴花DECAL EPA Label Information1
图 58齿轮箱螺旋桨轴-标准-SportMaster Gear Housing Propeller Shaft-Standard-SportMaster
齿轮箱螺旋桨轴-标准-SportMaster Gear Housing Propeller Shaft-Standard-SportMaster
REF零件编号中文名称英文名称数量
-827214T23齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
1827214T16基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
1827214T25基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
4789594A1从动件总成FOLLOWER ASSEMBLY1
48789562换挡凸轮SHIFT CAM1
4979911A1杆ROD1
5078906销PIN1
508M0084245弹簧定位销PIN Spring Locator1
5179910弹簧SPRING2
5278910垫圈WASHERAR
5347397A1垫片组SHIM SETAR
5478172A1圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
5544104A7齿轮组GEAR SET1
56549281滚柱轴承BEARING Roller1
5742672T棘轮RATCHET1
5842671十字销PIN Cross1
5978909定位销PIN Detent2
6078962弹簧SPRING2
61840451A2螺旋桨轴PROPELLER SHAFT1
61840451A03螺旋桨轴PROPELLER SHAFT1
-840389K5轮毂套件HUB KIT1
-8M0183487重型螺旋桨轮毂套件HUB KIT-HD PROP1
-840382A1缓冲条套件SNUBBER STRIP KIT1
-840382A02缓冲条套件SNUBBER STRIP KIT1
62822824A1倒车齿轮总成GEAR ASSEMBLY Reverse1
628M0192202倒挡齿轮GEAR-REVERSE1
63822823推力环THRUST RING1
64681001止推环RING Thrust1
6588957T滚珠轴承BEARING Ball1
6631534O型圈O-RING1
668M0214920O型圈O RING1
67848840T1轴承座总成CARRIER ASSEMBLY Bearing1
67848840A1轴承座总成CARRIER ASSEMBLY Bearing1
68817072滚柱轴承BEARING Roller1
69817071卡环RING Snap1
70815565油封SEAL Oil2
7130281键KEY1
7279447锁紧垫圈TAB WASHER1
7379448固定座RETAINER1
738M2011027固定座RETAINER1
74423511齿形锁紧垫圈LOCKWASHER Toothed1
7552707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
76832066A1进水口板套件PLATE KIT Water Inlet1
77188642螺钉(#8-32 x .500)SCREW (#8-32 x .500)4
7876214Q5阳极套件ANODE KIT1
7966024螺钉(.437-14 x 1.75)SCREW (.437-14 x 1.75)1
80859116螺母(.437-20)NUT (.437-20)2
8130206螺钉(.375-16 x 1.00)不锈钢SCREW (.375-16 x 1.00) Stainless Steel1
82822836垫圈(.445 x .805 x .108)WASHER (.445 x .805 x .108)2
83859432接头FITTING1
83881866接头FITTING1
8485944975管材(72英寸整料)(裁切至7英寸)TUBING (72.00 Inches Bulk) (Cut to 7 IN.)1
-89238A3齿轮箱密封套件SEAL KIT Gear Housing1
图 59温度传感器 Temperature Sensor
温度传感器 Temperature Sensor
REF零件编号中文名称英文名称数量
-896280006零件手册200/225/250/275四冲程VeradoPARTS MANUAL 200/225/250/275 4-Stroke Verado1
-896579T00维修手册SERVICE MANUAL1
-8M0082470MNL-SERV 200-300VMNL-SERV 200-300V1
-10238060安装手册INSTALLATION MANUAL1
-10237060用户手册OWNERS MANUAL1
-10237J60用户手册(西班牙语)OWNERS MANUAL Spanish1
-10237D60用户手册(法语)OWNERS MANUAL French1
-895269001产品指南PRODUCT GUIDE1
-895269002产品指南GUIDE-PRODUCT1
-895282A06EPA标签信息贴花DECAL EPA Label Information1
图 60维修/支撑材料 Service/Support Material
维修/支撑材料 Service/Support Material
REF零件编号中文名称英文名称数量
-896280006零件手册200/225/250/275四冲程VeradoPARTS MANUAL 200/225/250/275 4-Stroke Verado1
-896579T00维修手册SERVICE MANUAL1
-8M0082470MNL-SERV 200-300VMNL-SERV 200-300V1
-10238060安装手册INSTALLATION MANUAL1
-10237060用户手册OWNERS MANUAL1
-10237J60用户手册(西班牙语)OWNERS MANUAL Spanish1
-10237D60用户手册(法语)OWNERS MANUAL French1
-895269001产品指南PRODUCT GUIDE1
-895269002产品指南GUIDE-PRODUCT1
-895282A06EPA标签信息贴花DECAL EPA Label Information1
图 61旋转支架与转向臂 Swivel Bracket and Steering Arm
旋转支架与转向臂 Swivel Bracket and Steering Arm
REF零件编号中文名称英文名称数量
18710A20旋转支架总成SWIVEL BRACKET ASSEMBLY1
18710A21旋转支架总成SWIVEL BRACKET ASSEMBLY1
18710T21灰色旋转支架总成SWIVEL BRACKET ASSEMBLY Gray1
233504O型圈O-RING1
28M0214926O型圈 @10O RING @101
3818764衬套BUSHING2
4816039隔套SPACER1
587735油封(下)SEAL Oil (LOWER)1
674036润滑脂接头FITTING Grease2
68M0169589润滑脂接头FITTING Grease2
7821207衬套BUSHING2
8816432止推垫片THRUST WASHER1
986580A1底部轭架总成YOKE ASSEMBLY Bottom1
9878182T轭架底部-不锈钢YOKE Bottom - Stainless Steel1
986580A2底部轭架总成YOKE ASSEMBLY Bottom1
986580A1底部轭架总成YOKE ASSEMBLY Bottom1
1067684挡圈RING Retaining1
11996301冲击板STRIKER PLATE2
118M0045383冲击板STRIKER PLATE2
1258643锁紧垫圈 (.375)LOCKWASHER (.375)2
1346335螺母 (.375-24)NUT (.375-24)2
1464014螺钉(0.250-28x0.500)(1/4-28x1/2英寸)SCREW (.250-28 x .500) (1/4-28 X 1/2 IN.)2
15NSS不单独销售-序列号覆膜标贴NOT SOLD SEPARATE Decal-Serial Overlaminate1
16821180A6调整传感器总成SENDER ASSEMBLY Trim1
168M0074846ORDER 8M0098273ORDER 8M00982731
17852368螺钉（#10-24 X 0.750）SCREW (#10-24 x .750)2
1826996锁紧垫圈(#10)(不锈钢)LOCKWASHER (#10) Stainless Steel2
1989302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)2
2067706A55转向臂转销总成SWIVEL PIN ASSEMBLY Steering Arm1
20826432A2转向臂旋转销总成-不锈钢SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel1
2067706A56转向臂转销总成SWIVEL PIN ASSEMBLY Steering Arm1
2067706A55转向臂转销总成SWIVEL PIN ASSEMBLY Steering Arm1
2178689螺钉(0.437-20x7.50)(7/16-20x7-1/2英寸)SCREW (.437-20 x 7.50) (7/16-20 X 7-1/2 IN.)2
218M0176309螺钉SCREW2
22888821缓冲垫BUMPER1
228M0000516上轭缓冲垫BUMPER Top Yoke1
2377326支架MOUNT2
2466921垫圈WASHER2
25814432垫圈WASHER2
2578688垫圈WASHER2
2634933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
268M0204653螺母NUT2
2792876A1转向连杆总成LINK ASSEMBLY Steering1
2792876A12连杆总成LINK ROD ASSEMBLY1
2814000螺钉(0.375-24x1.25)(3/8-24x1-1/4英寸)SCREW (.375-24 x 1.25) (3/8-24 X 1-1/4 IN.)1
28849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)1
2934863螺母 (.375-24)NUT (.375-24)2
298M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass2
3037828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel2
31816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
31816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
图 62泄放系统 Bleed System
泄放系统 Bleed System
REF零件编号中文名称英文名称数量
199130122泄放管(20.00英尺散装)TUBING (20.00 Feet Bulk) BLEED1
259169接头FITTING4
259169003三通接头FITTING Tee4
342698止回阀 (压入式 - 13/16"长)CHECK VALVE (PRESS-IN - 13/16" LONG)7
3426982止回阀CHECK VALVE7
442623止回阀 (压入式 - 11/16"长)CHECK VALVE (PRESS-IN - 11/16" LONG)1
4426233止回阀CHECK VALVE1
515133压入式接头FITTING (PRESS-IN)6
656759倒钩接头FITTING Barbed4
715026黄色弯头盖CAP ELBOW (YELLOW)4
818205三通TEE1
99912688管材 (36.00英寸散装)TUBING (36.00 Inches Bulk)1
1018206滤清器FILTER1
108M0207786滤清器FILTER1
图 63下罩 Bottom Cowl
下罩 Bottom Cowl
REF零件编号中文名称英文名称数量
1850302A1下罩盖（左舷）BOTTOM COWL Port1
1850302A07下罩盖（左舷）BOTTOM COWL Port1
18M0107324下罩盖（左舷）BOTTOM COWL Port1
2854367001堵头PLUG1
3850301A1下罩盖（右舷）BOTTOM COWL Starboard1
3850301A07下罩盖（右舷）BOTTOM COWL Starboard1
3850301A07下罩盖（右舷）BOTTOM COWL Starboard1
38M0107323下罩盖（右舷）BOTTOM COWL Starboard1
4844155001罩盖密封件SEAL Cowl1
48M0043268罩盖密封条SEAL-COWL1
582130040螺钉(M6 x 40)SCREW (M6 x 40)4
6824868螺钉(M6×75)SCREW (M6 x 75)3
729245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
78M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
8850684F1前手柄FRONT HANDLE1
88M0053903前手柄FRONT HANDLE1
9335891衬套BUSHING2
1048462O型圈 (.614 x .070)O-RING (.614 x .070)1
118219423棘爪PAWL1
1269057垫片(.281 x .734 x .063)WASHER (.281 x .734 x .063)1
13401366螺母(M6)不锈钢NUT (M6) Stainless Steel3
148214281螺钉(#10-16x0.625)SCREW (#10-16 x .625)1
15822873卡扣CLIP1
168569901升降倾斜开关SWITCH Trim1
168M0235191升降倾斜开关SWITCH Trim1
16896620001升降倾斜开关SWITCH Trim1
168M0235191升降倾斜开关SWITCH Trim1
17842756T01索具套件RIGGING KIT1
18842744002支架BRACKET1
1982130012螺钉（M6 x 12）SCREW (M6 x 12)3
20843185T02联轴器COUPLER1
21842756T05软管HOSE1
21842756005软管HOSE1
22843174T02索具联轴器COUPLER Rigging1
22843174002联轴器COUPLER1
2347994螺钉 (#10 x 1.50)SCREW (#10 x 1.50)4
24852361T1机罩手柄HANDLE Cowl2
24850682A06支架和手柄套件BRACKET AND HANDLE KIT2
2529402波形垫圈WAVE WASHER2
图 64曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods
曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods
REF零件编号中文名称英文名称数量
1842753A02曲轴总成CRANKSHAFT ASSEMBLY1
2NSS磨损套筒(不单独销售)NOT SOLD SEPARATE Wear Sleeve1
367923T滚珠轴承(下)BEARING Ball (Lower)1
467446环RING1
5843198001密封环RING Seal7
5843198T01密封环RING Seal7
691800半圆键KEY Woodruff1
735126O型圈(.859 x .139)O-RING (.859 x .139)1
888270A1轴承座圈总成RACE ASSEMBLY2
888270A02轴承/座圈套件BEARING/RACE KIT2
988269T轴承总成BEARING ASSEMBLY2
10843200T03活塞总成PISTON ASSEMBLY3
10842986T03活塞总成PISTON ASSEMBLY3
10843200T13活塞总成PISTON ASSEMBLY3
10842986T03活塞总成PISTON ASSEMBLY3
10843199T03活塞总成PISTON ASSEMBLY3
10843199T13活塞总成PISTON ASSEMBLY3
10843199T13活塞总成PISTON ASSEMBLY3
11841202环RING12
12858772A02活塞环组RING SET Piston1
13822373A09连杆总成CONNECTING ROD ASSEMBLY6
138M0125869连杆套件CONN ROD KIT6
1494320螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)12
1543012A1轴承/保持架套件BEARING/CAGE KIT12
158M0235070轴承保持架CAGE BEARING12
16NSS不单独销售 滚针轴承NOT SOLD SEPARATE Needle Roller Bearing96
1788263止推垫片THRUST WASHER12
1888258001滚针轴承BEARING Needle204
188M0204715滚针@102NEEDLES-BRG @102204
19816773A2BEARING ASSEMBLY (Upper)1
20859093密封件SEAL1
21823683O型圈(1.989 x .070)O-RING (1.989 x .070)1
-843034A05动力头总成POWERHEAD ASSEMBLY1
-843034A07动力头总成POWERHEAD ASSEMBLY1
-832933A05动力头衬垫套件GASKET SET Powerhead1
-841220A03动力头衬垫套件GASKET SET Powerhead1
图 65气缸体与端盖 Cylinder Block and End Caps
气缸体与端盖 Cylinder Block and End Caps
REF零件编号中文名称英文名称数量
19764A12气缸体(175)CYLINDER BLOCK (175)1
19763A6气缸体(200)CYLINDER BLOCK (200)1
19763T6气缸体CYLINDER BLOCK1
2818138动力头螺柱(1-3/4")STUD POWERHEAD (1-3/4")2
28M0034455螺柱1.750STUD 1.7502
276175动力头螺柱(1-7/8英寸)STUD POWERHEAD (1-7/8")4 OR 6
367065动力头螺柱(5-1/2英寸)STUD POWERHEAD (5-1/2")2
3670654螺柱(.375-16/.375-24 x 5.620)STUD (.375-16/.375-24 x 5.620)2
378438动力头螺柱(6-3/4英寸)STUD POWERHEAD (6-3/4")2
38M0034454螺柱(.375-16/.375-24 x 6.87)STUD (.375-16/.375-24 x 6.87)2
420033定位销PIN Dowel LOCATING2
443044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
567296销(轴承座圈)PIN (BEARING RACE)2
58M0036405销PIN2
611338密封垫片GASKET SEALING2
742249启动马达上盖COVER STARTER MOTOR (UPPER)1
78M0088723启动器支架BRACKET-STARTER1
873657盖至曲轴箱螺钉(.312-18 x 1.50)SCREW (.312-18 x 1.50) COVER TO CRANKCASE2
926993锁紧垫圈 (.312)LOCKWASHER (.312)4
98M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
1076867启动电机盖(下部)COVER STARTER MOTOR (LOWER)1
1177065盖至曲轴箱螺钉(.312-18 x 2)SCREW (.312-18 x 2) COVER TO CRANKCASE2
11815549螺钉(.312-18 x 2.00)SCREW (.312-18 x 2.00)2
1299448衬套BUSHING1
1388807A20线束总成盖CABLE ASSEMBLY COVER1
1466717螺钉(.375-16 x 3.250)SCREW (.375-16 x 3.250)8
1474824螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)6
159642A1上端盖总成END CAP ASSEMBLY Upper1
15858521T1端盖总成END CAP ASSEMBLY1
1654029端盖O型圈(2.800 x .103)O-RING (2.800 x .103) END CAP1
1716756A2滚子轴承端盖总成BEARING ASSEMBLY Roller END CAP1
1716756A4轴承套件BEARING KIT1
1841953端盖密封件SEAL END CAP1
1969034螺钉带锁紧垫圈(.312-18 x 1.00)SCREW AND LOCKWASHER (.312-18 x 1.00)4
1930225螺钉带锁紧垫圈(.312-18 x 1.00)SCREW WITH LOCKWASHER (.312-18 x 1.00)4
2063153J型卡扣J CLIP1
2215094双头螺柱(.190-32 x 1.870)STUD (.190-32 x 1.870)1
2315093飞轮盖至支架双头螺柱(#10-32 x 1.00)STUD (#10-32 x 1.00) FLYWHEEL COVER TO BRACKET2
238M0034435螺柱STUD2
2467269飞轮盖螺柱隔套SPACER FLYWHEEL COVER STUD1
25492211飞轮盖螺柱垫圈WASHER FLYWHEEL COVER STUD6
258M0204663垫片@5WASHER @56
2672761飞轮盖螺柱不锈钢垫圈(.203 x .562 x .060)WASHER (.203 x .562 x .060) Stainless Steel FLYWHEEL COVER STUD3
27816874蝶形螺母(#10-32)飞轮盖螺柱WING NUT (#10-32) FLYWHEEL COVER STUD3
2842248飞轮罩支架BRACKET FLYWHEEL COVER1
28422482支架BRACKET1
2949668支架至曲轴箱螺钉(.250-20 x .750)SCREW (.250-20 x .750) BRACKET TO CRANKCASE2
307809A1下端盖总成END CAP ASSEMBLY LOWER1
307809T1端盖总成END CAP ASSEMBLY1
3162700端盖O型圈(3.237 x .103)O-RING (3.237 x .103) END CAP1
3241953端盖密封件SEAL END CAP2
3328636螺钉(.250-20 x .750)SCREW (.250-20 x .750)4
3426992下端盖螺钉不锈钢锁紧垫圈(.250)LOCKWASHER (.250) Stainless Steel LOWER END CAP SCREW4
3564022调节螺钉(.250-20 x 2.125)-气缸体SCREW (.250-20 x 2.125) ADJUSTING - CYLINDER BLOCK1
3664015锁紧螺母(.250-20)-调节螺钉NUT (.250-20) JAM - ADJUSTING SCREW1
3726852调节螺钉尼龙帽CAP Nylon NYLON - ADJUSTING SCREW1
3887076A6怠速控制总成(200)IDLE SPEED CONTROL ASSEMBLY (200)1
3887076A10怠速控制器IDLE SPEED CONTROL1
3969020螺钉(#10-32 x .875)SCREW (#10-32 x .875)3
39690201螺钉(#10-32 x .875)SCREW (#10-32 x .875)3
4038833垫圈WASHER3
4193772A5模块(175)MODULE (175)1
4193772A11提前角模块ADVANCE MODULE1
4216793卡箍(175)CLAMP (175)1
4373286螺钉(0.250-20×0.500)不锈钢(175)SCREW (.250-20 x .500) Stainless Steel (175)1
-812817A90动力头总成(完整)(175)POWERHEAD ASSEMBLY COMPLETE (175)1
-812817T90船用动力头POWERHEAD MARINE1
-812827A90动力头总成(完整)(200)POWERHEAD ASSEMBLY COMPLETE (200)1
-812827T91船用动力头POWERHEAD MARINE1
-815810A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1
-815809A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1
图 66驱动轴壳与排气管 Driveshaft Housing and Exhaust Tube
驱动轴壳与排气管 Driveshaft Housing and Exhaust Tube
REF零件编号中文名称英文名称数量
1832937A06传动轴壳体总成-加长型HOUSING ASSEMBLY Driveshaft - Long1
1832938A06传动轴壳体总成-超长/特超长型HOUSING ASSEMBLY Driveshaft - X/XX-Long1
28M0008031双头螺柱(M12 x 1.75 x 52)STUD (M12 x 1.75 x 52)4
388552835螺栓(M12x35毫米)外六角SCREW (M12 x 35 MM) External Hex1
38M0102995螺丝 (M12)SCREW (M12)1
3892860螺栓(M12x35)内六角SCREW (M12 x 35) Internal Hex1
48331231护孔环GROMMET1
5856982垫圈(0.5×0.81×0.09英寸)不锈钢WASHER (.500 x .810 x .090) Stainless Steel5
6896895螺母(M12)NUT (M12)4
764649堵头PLUG1
8898834螺栓（M14×178）BOLT (M14 x 178)2
988238A10接地线总成CABLE ASSEMBLY Ground2
10815432垫圈(.562 x 2.00 x .125)WASHER (.562 x 2.00 x .125)2
118154331垫圈（1.25×2.00×0.19）WASHER (1.25 x 2.00 x .19)2
128137711支架MOUNT2
12840361T支架MOUNT2
128M0055931支架MOUNT2
13825190垫圈WASHER2
14896602螺母(M14)NUT (M14)2
158186442卡箍(耗尽时订购Design II套件879150A90)CLAMP When Depleted Order Design II Kit 879150A902
15879150A90下支架盖套件COVER KIT Lower Mount2
168M0033179螺钉 (M8 x 40)SCREW (M8 x 40)4
168M0084475螺钉 (M8 x 40)SCREW (M8 x 40)4
1772521内齿锁紧垫圈LOCKWASHER Internal Tooth1
188M0001136下支架盖(耗尽时订购Design II套件879150A90)COVER Lower Mount When Depleted Order Design II Kit 879150A902
18879150A90下支架盖套件COVER KIT Lower Mount2
1969079螺钉 (#10-16 x .440)SCREW (#10-16 x .440)2
208329321密封件SEAL1
21833116A19排气管总成TUBE ASSEMBLY Exhaust1
218M0075819排气管总成TUBE ASSEMBLY Exhaust1
228524052滤网STRAINER1
228M0026113滤网STRAINER1
228M0026113滤网STRAINER1
2381893435螺钉(M8×35)SCREW (M8 x 35)6
238M0103814螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)6
248329417水管TUBE Water1
248M0042785水管TUBE-WATER1
248329418水管TUBE Water1
248M0042786水管TUBE Water1
25832940001密封件SEAL1
268329391卡箍CLAMP1
2741508螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel1
2881893435螺钉(M8×35)SCREW (M8 x 35)2
288M0103814螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)2
288M0103814螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)2
29847541垫圈WASHER4
30879150A90下支架盖套件COVER KIT Lower Mount2
318M4501006下支架盖COVER Lower Mount2
318M0148785盖板COVER2
328M4501003卡箍CLAMP2
3369079螺钉 (#10-16 x .440)SCREW (#10-16 x .440)6
图 67ECU总成 ECU Assembly
ECU总成 ECU Assembly
REF零件编号中文名称英文名称数量
18240037发动机控制单元ECUECU Engine Control Unit1
1824003A7电控单元ECU1
18240035发动机控制单元ECUECU Engine Control Unit1
1824003A5电控单元ECU1
182400313发动机控制单元ECUECU Engine Control Unit1
1824003A13发动机控制单元ECUECU Engine Control Unit1
182400311发动机控制单元ECUECU Engine Control Unit1
1824003T11电控单元ECU1
1824003A13发动机控制单元ECUECU Engine Control Unit1
1824003A11发动机控制单元ECUECU Engine Control Unit1
1824003T11电控单元ECU1
234948隔套SPACER2
3146951卡扣CLIP1
490435支架MOUNT2
521249垫圈WASHER4
620361螺母(.250-28)NUT (.250-28)4
68267089螺母(.250-28)NUT (.250-28)4
788807A19拉线总成CABLE ASSEMBLY1
814637护孔环GROMMET1
914636衬套BUSHING1
1028667螺钉 (0.250-20 x 1.00) 不锈钢SCREW (.250-20 x 1.00) Stainless Steel1
1126992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel1
1265567不锈钢垫圈(0.265x0.750x0.048)WASHER (.265 x .750 x .048) Stainless Steel1
1313202A2水位传感器模块总成MODULE ASSEMBLY Water Sensor1
1413202A4水位传感器模块总成MODULE ASSEMBLY Water Sensor1
1588807A18线缆总成(黑色)CABLE ASSEMBLY (BLACK)1
1637571螺钉(.190-32 x 0.500)SCREW (.190-32 x .500)2
1789302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)2
1898866A14线束总成HARNESS ASSEMBLY1
19190491连接环COUPLE RING1
2098866A25线束总成 ECU与喷油器HARNESS ASSEMBLY ECU And Injectors1
2187895A4拉线总成CABLE ASSEMBLY1
图 68排气分隔板及排气板 Exhaust Divider and Exhaust Plate
排气分隔板及排气板 Exhaust Divider and Exhaust Plate
REF零件编号中文名称英文名称数量
1815552A1分隔板DIVIDER PLATE1
2328021管塞 (.125-27)PLUG Pipe (.125-27)1
2328022黄铜管塞 (.125-27)PLUG Pipe (.125-27) Brass1
38475251衬垫GASKET1
3847525004衬垫GASKET1
4814754密封件(12.50英寸)SEAL (12.50 Inches)1
5847538螺钉SCREW18
5848496螺钉(0.312-18 x 1.50)SCREW (.312-18 x 1.50)18
5848497螺丝(.312-18 x 1.00)SCREW (.312-18 x 1.00)2
6847526垫圈（适用处使用）WASHER (USE WHERE APPLICABLE)20
7814634大卡箍CLAMP (LARGE)AR
7642352小J型夹J CLIP (SMALL)1
761001J型卡扣J CLIP1
88478951板 调节器PLATE Regulator1
9815279T电压调节器REGULATOR Voltage1
98M0084173电压调节器VOLTAGE REGULATOR1
1069697螺钉(.250-28 x 1.50)SCREW (.250-28 x 1.50)4
1135045螺母(.250-28)NUT (.250-28)4
11826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel4
12814430管接头(.500-14)FITTING (.500-14)1
128144301接头FITTING1
1392007管接头(.250-18)(90度)FITTING (.250-18) (90 DEGREES)1
1392007190度弯头FITTING (90 Degree)1
14830756109软管（57.00英寸整卷）（裁切至23-1/2英寸）HOSE (57.00 Inches Bulk) (Cut to 23-1/2 IN.)1
148M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
15816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)2
15816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)2
1668729盖板COVER1
168M0039767盖板COVER1
1774824螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)4
1869570螺钉(#10-16 x .750)SCREW (#10-16 x .750)1
1976451垫圈WASHER1
2014479隔膜DIAPHRAGM1
20144791隔膜DIAPHRAGM1
2116496导水板DEFLECTOR Water1
2216497A1安装板PLATE1
2378690衬垫GASKET2
2378690002衬垫GASKET2
2464878弹簧(黑色)SPRING (Black)1
2585303垫圈WASHER1
2614480提动阀POPPET1
2764872护孔环GROMMET1
2865848托架CARRIER1
298231421衬垫GASKET2
298231422衬垫GASKET2
3018260A4排气板总成PLATE ASSEMBLY Exhaust1
31823106定位销 (.875)PIN Dowel (.875)2
318M0043826定位销PIN Dowel2
321486745度弯头ELBOW 45 Degree (45 DEGREES)1
332908545度弯管接头FITTING Elbow (45 Degree)1
338M012305045度弯管接头FITTING Elbow (45 Degree)1
34822838垫圈 (.401 x .745 x .097)WASHER (.401 x .745 x .097)6
3546335螺母 (.375-24)NUT (.375-24)6
3627132衬套BUSHING1
3766725螺钉(.375-16×3.50)SCREW (.375-16 x 3.50)3
37898833螺钉(.375-16 x 3.500)SCREW (.375-16 x 3.500)3
3866727螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)1
3968783螺钉(.312-18×2.50)SCREW (.312-18 x 2.50)1
-823142A94衬垫套件GASKET SET1
-809839A94动力头总成POWERHEAD ASSEMBLY1
-809839T94PH 150 EFIPH 150 EFI1
-808603A94动力头总成POWERHEAD ASSEMBLY1
-808603T94动力头总成POWERHEAD ASSEMBLY1
图 69飞轮、启动电机及点火线圈 Flywheel, Starter Motor and Ignition Coils
飞轮、启动电机及点火线圈 Flywheel, Starter Motor and Ignition Coils
REF零件编号中文名称英文名称数量
118896A1盖板套件COVER KIT1
279022标记MARKER1
337572螺钉 (.190-32 x .380)SCREW (.190-32 x .380)2
472761不锈钢垫圈(.203 x .562 x .060)WASHER (.203 x .562 x .060) Stainless Steel2
589219塞（适用时使用）PLUG (USE WHERE APPLICABLE)1
589219001堵头PLUG1
645907黄色塞PLUG Yellow1
752901螺母(0.625-18)NUT (.625-18)1
868229垫圈(.641 x 1.250 x .190)WASHER (.641 x 1.250 x .190)1
833001垫圈WASHER1
9817632A12飞轮FLYWHEEL1
9859238T16飞轮总成FLYWHEEL ASY1
109610A27定子STATOR1
1190045螺钉(#10-32×1.375)SCREW (#10-32 x 1.375)4
1226996锁紧垫圈(#10)(不锈钢)LOCKWASHER (#10) Stainless Steel4
1396455A9触发板总成PLATE ASSEMBLY Trigger1
1479472启动电机总成STARTER MOTOR ASSEMBLY1
14893893启动马达STARTER MOTOR1
1556703轴环COLLAR2
158M0034918轴环COLLAR2
1668042橡胶止挡STOP Rubber2
168M0043376停机开关STOP2
1769035螺丝与锁紧垫圈(.250-20 x .625)不锈钢SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel1
1893388A1电缆总成(6.00英寸)黑色CABLE ASSEMBLY (6.00 Inches) Black1
1926992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel1
2020890螺母 (.250-20)NUT (.250-20)1
2169739A7线束总成HARNESS ASSEMBLY1
227370A13点火线圈总成COIL ASSEMBLY Ignition6
228M0230859点火线圈总成COIL IGNITION ASY6
227370A19点火线圈总成COIL ASSEMBLY Ignition6
228M0230859点火线圈总成COIL IGNITION ASY6
22832757A4线圈套件COIL KIT6
228M0230859点火线圈总成COIL IGNITION ASY6
2379743盖板COVER3
2488447螺钉 (.190-32 x 1.62)SCREW (.190-32 x 1.62)12
2530164垫圈(0.192x0.375x0.0312)不锈钢WASHER (.192 x .375 x .0312) Stainless Steel12
2688807A6电缆总成（3.50英寸）黑色CABLE ASSEMBLY (3.50 Inches) Black (BLACK)6
2768513螺钉(#10-32x.375)不锈钢SCREW (#10-32 x .375) Stainless Steel6
2826996锁紧垫圈(#10)(不锈钢)LOCKWASHER (#10) Stainless Steel18
2945076黄铜螺母(#10-32)NUT (#10-32) Brass12
30136862火花塞SPARK PLUG6
3013686QNGK BU8H @10NGK BU8H @106
31815358A1点火电缆组CABLE SET Ignition1
图 70燃油管理系统 Fuel Management System
燃油管理系统 Fuel Management System
REF零件编号中文名称英文名称数量
114817A11燃油管理系统总成MANAGEMENT ASSEMBLY Fuel1
267748滚轮凸轮ROLLER CAM1
318715燃油喷油器INJECTOR Fuel6
318715T喷油器总成INJECTOR ASSEMBLY6
417422喷油器滤清器FILTER INJECTOR1
515443线束套件HARNESS KIT1
615442燃油滤清器套件FILTER KIT Fuel1
7150282燃油滤清器FILTER Fuel1
8400034SCREW (M5 x 14) FILTER COVER1
9400255LOCKWASHER (M5) COVER SCREW1
101350377软管(1/2"外径)HOSE (1/2" O.D.)1
101350385管材(33英寸整卷)TUBING (33.00 Inches Bulk)1
119912688管材(36.00英寸散装)(1/8"内径)TUBING (36.00 Inches Bulk) (1/8" I.D.)1
1299130122管材(20.00英尺散装)(3/32"内径)TUBING (20.00 Feet Bulk) (3/32" I.D.)1
12892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
1315027REGULATOR PRESSURE1
14814233弯头套件ELBOW KIT1
1518791GASKET PRESSURE REGULATOR1
16814012PLATE PRESSURE REGULATOR1
17814076螺钉SCREWAR
18814010盖板套件COVER KIT1
194001987分离器盖螺钉(M4 x 16)SCREW (M4 x 16) COVER TO SEPARATOR6
2026995LOCKWASHER (#8) Stainless Steel COVER SCREW6
2118790蒸汽分离器密封件SEAL VAPOR SEPARATOR1
2215029O型圈及密封套件O-RING AND SEAL KIT1
2315446浮子阀套件VALVE KIT Float1
2415445浮子套件FLOAT KIT1
25814011阀体套件BODY KIT1
2642481止回阀CHECK VALVE1
26424811阀门VALVE1
274000332SCREW (M6 x 35) SEPARATOR3
2815444连接杆LINK1
2918241止回阀CHECK VALVE1
30814077切断阀VALVE Shut-Off1
3118792SEAL INJECTOR MANIFOLD1
3219275隔套SPACER3
34814913隔套SPACER3
3535280垫圈（0.255 x 0.620 x 0.030）不锈钢（大号）WASHER (.255 x .620 x .030) Stainless Steel (LARGE)3
3620346垫圈(小)WASHER (SMALL)3
3669057垫片(.281 x .734 x .063)WASHER (.281 x .734 x .063)3
3713791CLAMP (15.7) HOSE2
378M0214911卡箍@5CLAMP @52
381350377软管(1-3/4")HOSE (1-3/4")1
381350385管材(33英寸整卷)TUBING (33.00 Inches Bulk)1
39816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
39816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
4014639BLANKET FUEL PUMP1
4114640T燃油泵盖COVER FUEL PUMP1
4232228螺钉（#10-32 X 0.625）SCREW (#10-32 x .625)4
4326996锁紧垫圈(#10)(不锈钢)LOCKWASHER (#10) Stainless Steel4
4490088螺钉(.250-20x4)SCREW (.250-20 x 4)12
44845674螺钉(.250-20x4.00)SCREW (.250-20 x 4.00)12
4529245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel12
458M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel12
4614307T燃油泵PUMP Fuel1
4614307T01燃油泵FUEL PUMP1
4714633软管HOSE1
47146332软管HOSE1
图 71燃油泵/过滤器 Fuel Pump/Filter
燃油泵/过滤器 Fuel Pump/Filter
REF零件编号中文名称英文名称数量
114360A66燃油泵总成PUMP ASSEMBLY Fuel1
242990A10膜片组件DIAPHAGM KIT1
2857005A1膜片组件DIAPHRAGM KIT1
3NSS橡胶止回阀(不单独销售)NOT SOLD SEPARATE Check Valve-Rubber2
4NSS增压垫片(不单独销售)NOT SOLD SEPARATE Gasket-Boost1
5NSS膜片(不单独销售)NOT SOLD SEPARATE Diaphragm2
6NSS脉冲垫片(不单独销售)NOT SOLD SEPARATE Gasket-Pulse1
7NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring1
8NSS盖帽(不单独销售)NOT SOLD SEPARATE Cap1
9NSS止回阀(不单独销售)NOT SOLD SEPARATE Check Valve2
10NSS固定座(不单独销售)NOT SOLD SEPARATE Retainer2
11NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring1
12NSS盖帽(不单独销售)NOT SOLD SEPARATE Cap1
13987691底座衬垫GASKET Base1
138M0204705衬垫@2GASKET @21
14144303BASE Fuel Pump1
15987752燃油泵板PLATE Fuel Pump1
16996641弯头ELBOW1
1699664290度弯头接头(0.125-27x0.250)尼龙FITTING Elbow 90 Degree (.125-27 x .250) Nylon1
17291111接头FITTING1
17291112接头FITTING1
184333590度接头(.125-27)尼龙CONNECTOR 90 Degree (.125-27) Nylon1
1843335190度接头-带防振密封CONNECTOR 90 Degree - With Vibraseal1
1982104540SCREW (M5 x 40) Fuel Pump2
2082130050SCREW (M6 x 50) Fuel Pump to Crankcase2
21830757130管材(.312)(70.00英寸散装)(裁切至13-1/2英寸)TUBING (.312) (70.00 Inches Bulk) (Cut to 13-1/2 Inches)1
218M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
22816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
22816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
23822769连接器CONNECTOR1
241350385管材(33.00英寸散装)(裁切至15-1/2英寸和19英寸)TUBING (33.00 Inches Bulk) (Cut to 15-1/2 Inches and 19 Inches)2
2518458A4滤清器套件FILTER KIT1
2518458Q4燃油水分离滤清器FILTER Fuel-Water Separating1
26828586探头PROBE1
268M0204710探头PROBE1
2713170A3底座BASE1
28897712连接器(.250-18)CONNECTOR (.250-18)1
2889771Q2连接器(.250-18)CONNECTOR (.250-18)1
29136071弯头ELBOW1
30455611螺钉(.250-20 x 1.120)SCREW (.250-20 x 1.120)2
-823142A98发动机垫片组GASKET SET Engine1
-808603T94动力头总成POWERHEAD ASSEMBLY1
图 72齿轮箱驱动轴-标准-SportMaster Gear Housing Driveshaft-Standard-SportMaster
齿轮箱驱动轴-标准-SportMaster Gear Housing Driveshaft-Standard-SportMaster
REF零件编号中文名称英文名称数量
-849780A33齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-849780T34齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-840560T34齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
1849780A2基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
18M0083306齿轮箱-SM型GEAR HOUSING-SM1
2847950T4盖板COVER2
28479504盖板COVER2
334776O型圈O-RING2
4815904螺钉(#10-32 x .500)SCREW (#10-32 x .500)12
543044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
642647A1滚柱轴承总成BEARING ASSEMBLY Roller1
767891填充块FILLER BLOCK1
78M0039169填充块FILLER BLOCK1
8847949管塞PLUG Pipe1
9562972螺柱(0.312-18/0.324-24×3.380)STUD (.312-18/.324-24 x 3.380)1
98M0034463螺柱(.312-24 x 3.38)STUD (.312-24 x 3.38)1
1069501STUD (5/16 x 3-1/4 IN.)2
1159579双头螺柱(.437-14/.437-20 x 2.812)STUD (.437-14/.437-20 x 2.812)3
11786382螺柱(.437-14/.437-20 x 3.120)STUD (.437-14/.437-20 x 3.120)1
11579203双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
118M0133358双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
12826134阳极块ANODE2
12826134Q阳极块ANODE2
134000333螺钉(M6 x 40)SCREW (M6 x 40)1
148268336螺母 (M6)NUT (M6)1
14401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
15NSS小齿轮(不单独销售)(43-44104A7部件)NOT SOLD SEPARATE Pinion Gear (Part of 43-44104A7)1
1692721垫圈(.965×0.630)WASHER (.965 x .630)1
1735921螺母(0.625-18)NUT (.625-18)1
1879953A2螺丝套件(.375-16 x .250)SCREW KIT (.375-16 x .250)1
1879953Q04放油螺钉套件SCREW KIT Drain1
1919183纤维垫圈WASHER Fiber1
198M0187157蓝色密封件@15SEAL-BLUE @151
20789022换挡轴(下部)SHIFT SHAFT (LOWER)1
2177631A2衬套总成BUSHING ASSEMBLY1
2225439O型圈(.862×0.103)O-RING (.862 x .103)1
238164641油封SEAL Oil1
238M0246145油封OIL SEAL1
2477674垫圈(.35 x .75 x .12)WASHER (.35 x .75 x .12)1
25848449A4驱动轴总成DRIVESHAFT ASSEMBLY1
258M0192233驱动轴DRIVESHAFT1
25848449A5驱动轴总成DRIVESHAFT ASSEMBLY1
258M0192234驱动轴DRIVESHAFT1
2638657A1垫片组SHIM ASSEMBLY1
268M0063268垫片组SHIM SET1
2748939A2圆锥滚子轴承BEARING Taper Roller1
278M0146553杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
2842637A1垫片组SHIM SETAR
288M0063267垫片组SHIM SETAR
2936387A1轴承总成(滚子/外圈)BEARING ASSEMBLY Roller/Cup1
298M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
30824519固定座RETAINER1
308245191固定座RETAINER1
3144292A3水泵底座总成BASE ASSEMBLY Water Pump1
32426311衬垫GASKET1
328M0204678衬垫GASKET1
3390011O型圈(2.175 x 0.175)O-RING (2.175 x .175)1
338M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
3489238油封SEAL Oil1
3516977油封SEAL Oil1
3618051衬垫(下部)GASKET (LOWER)1
37856091衬垫(上部)GASKET (UPPER)1
37858524衬垫GASKET1
3832435面板FACE PLATE1
388M0204677面板PLATE-FACE1
3996148T1水泵壳体总成BODY ASSEMBLY Water Pump1
4048752嵌件INSERT1
4048752T嵌件INSERT1
4138970密封件SEAL1
4229804T套筒SLEEVE1
4356654键KEY1
438M0214992键@5KEY @51
4489984T4叶轮IMPELLER1
4529245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
458M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
4613438螺母(.250-28)NUT (.250-28)2
468267119螺母(.250-28)NUT (.250-28)2
4736001垫圈WASHER1
4813436螺母NUT1
4996411螺钉(#14-8×2.25)SCREW (#14-8 x 2.25)1
498M0215009螺钉SCREW1
-89238A3齿轮箱密封套件SEAL KIT Gear Housing1
-823142A98发动机垫片组GASKET SET Engine1
-90415A24螺柱套件STUD KIT1
-59579双头螺柱(.437-14/.437-20 x 2.812)STUD (.437-14/.437-20 x 2.812)1
图 73齿轮箱驱动轴-TorqueMaster Gear Housing Driveshaft - TorqueMaster
齿轮箱驱动轴-TorqueMaster Gear Housing Driveshaft - TorqueMaster
REF零件编号中文名称英文名称数量
-827214T14齿轮箱总成(完整)(1.87:1)GEAR HOUSING ASSEMBLY Complete (1.87:1)1
1827214T16基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
1827214T25基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
285822A10连接器总成CONNECTOR ASSEMBLY1
343044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
4786382螺柱(.437-14/.437-20 x 3.120)STUD (.437-14/.437-20 x 3.120)1
5579203双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
58M0133358双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
6562972螺柱(0.312-18/0.324-24×3.380)STUD (.312-18/.324-24 x 3.380)1
68M0034463螺柱(.312-24 x 3.38)STUD (.312-24 x 3.38)1
769501螺柱STUD2
842647A1滚柱轴承总成BEARING ASSEMBLY Roller1
9826134阳极块ANODE2
9826134Q阳极块ANODE2
104000333螺钉(M6 x 40)SCREW (M6 x 40)1
118268336螺母 (M6)NUT (M6)1
11401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
1267891填充块FILLER BLOCK1
128M0039169填充块FILLER BLOCK1
13NSS小齿轮(不单独销售)(43-44104A7部件)NOT SOLD SEPARATE Pinion Gear (Part of 43-44104A7)1
1492721垫圈(.965×0.630)WASHER (.965 x .630)1
1535921螺母(0.625-18)NUT (.625-18)1
1667892A1磁吸式注油/放油塞套件FITTING KIT Magnetic, Plug Fill/Drain1
168M0058389放油螺钉套件SCREW KIT Drain1
1779953A2螺丝套件(.375-16 x .250)SCREW KIT (.375-16 x .250)1
1779953Q04放油螺钉套件SCREW KIT Drain1
1819183纤维垫圈WASHER Fiber2
188M0187157蓝色密封件@15SEAL-BLUE @152
19789022换档轴SHIFT SHAFT1
2077631A2衬套总成BUSHING ASSEMBLY1
2125439O型圈(.862×0.103)O-RING (.862 x .103)1
228164641油封SEAL Oil1
228M0246145油封OIL SEAL1
2377674垫圈(.35 x .75 x .12)WASHER (.35 x .75 x .12)1
24848449A5驱动轴总成DRIVESHAFT ASSEMBLY1
248M0192234驱动轴DRIVESHAFT1
2542637A1垫片组SHIM SETAR
258M0063267垫片组SHIM SETAR
2636387A1轴承总成(滚子/外圈)BEARING ASSEMBLY Roller/Cup1
268M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
27824519固定座RETAINER1
278245191固定座RETAINER1
2844292A3水泵底座总成BASE ASSEMBLY Water Pump1
29426311衬垫GASKET1
298M0204678衬垫GASKET1
3090011O型圈(2.175 x 0.175)O-RING (2.175 x .175)1
308M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
3189238油封SEAL Oil1
3216977油封SEAL Oil1
3318051下衬垫GASKET Lower1
34856091上衬垫GASKET Upper1
34858524衬垫GASKET1
3532435面板FACE PLATE1
358M0204677面板PLATE-FACE1
3696148T1水泵壳体总成BODY ASSEMBLY Water Pump1
3748752嵌件INSERT1
3748752T嵌件INSERT1
3838970密封件SEAL1
3989984T4叶轮IMPELLER1
4056654键KEY1
408M0214992键@5KEY @51
4129245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
418M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
4213438螺母(.250-28)NUT (.250-28)2
428267119螺母(.250-28)NUT (.250-28)2
4336001垫圈WASHER1
4413436螺母NUT1
4596411螺钉(#14-8×2.25)SCREW (#14-8 x 2.25)1
458M0215009螺钉SCREW1
4629804T套筒SLEEVE1
-96148A5水泵维修套件REPAIR KIT Water Pump1
-96148A8水泵维修套件WATER PUMP REPAIR KIT1
-89238A3齿轮箱密封套件SEAL KIT Gear Housing1
图 74齿轮箱螺旋桨轴-标准-SportMaster Gear Housing Propeller Shaft-Standard-SportMaster
齿轮箱螺旋桨轴-标准-SportMaster Gear Housing Propeller Shaft-Standard-SportMaster
REF零件编号中文名称英文名称数量
-849780A33齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-849780T34齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-840560T34齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
1849780A2基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
18M0083306齿轮箱-SM型GEAR HOUSING-SM1
5089594A1从动件总成FOLLOWER ASSEMBLY1
51789562换挡凸轮SHIFT CAM1
5279911A1杆ROD1
5378906销PIN1
538M0084245弹簧定位销PIN Spring Locator1
5479910弹簧SPRING2
5578910垫圈WASHER2
5647397A1垫片组SHIM SETAR
5778172A1圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
5844104A7齿轮组(含小齿轮)(1.87:1传动比)GEAR SET Includes Pinion- 1.87:1 Gear Ratio1
59549281滚柱轴承BEARING Roller1
6042672T棘轮RATCHET1
6178909定位销PIN Detent2
6242671十字销PIN Cross1
6378962弹簧SPRING2
64822820F1螺旋桨轴PROPELLER SHAFT1
64840451A03螺旋桨轴PROPELLER SHAFT1
65822824A1倒档齿轮总成(1.87:1传动比)GEAR ASSEMBLY Reverse 1.87:1 Gear Ratio1
658M0192202倒挡齿轮GEAR-REVERSE1
66822823推力环THRUST RING1
6788957T滚珠轴承BEARING Ball1
68681001止推环RING Thrust1
6931534O型圈O-RING1
698M0214920O型圈O RING1
70848840T1轴承座总成CARRIER ASSEMBLY Bearing1
70848840A1轴承座总成CARRIER ASSEMBLY Bearing1
71817072滚柱轴承BEARING Roller1
72817071卡环RING Snap1
73815565油封SEAL Oil2
7467892A1磁吸式注油/放油塞套件FITTING KIT Magnetic, Plug Fill/Drain1
748M0058389放油螺钉套件SCREW KIT Drain1
7519183纤维垫圈WASHER Fiber1
758M0187157蓝色密封件@15SEAL-BLUE @151
7630281键KEY1
7779447锁紧垫圈TAB WASHER1
7879448固定座RETAINER1
788M2011027固定座RETAINER1
79423511齿形锁紧垫圈LOCKWASHER Toothed1
80827614螺旋桨螺母PROP NUT1
8052707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
8113171T1推力毂THRUST HUB1
818354675止推垫片THRUST WASHER1
8231211A2花键垫圈WASHER Splined1
8231211Q03垫圈总成WASHER ASSEMBLY1
8341350螺钉(.437-14 x 2.50)不锈钢SCREW (.437-14 x 2.50) Stainless Steel1
8366024螺钉(.437-14 x 1.75)SCREW (.437-14 x 1.75)1
84822836垫圈(.445 x .805 x .108)WASHER (.445 x .805 x .108)2
85134391螺母 (.4375-20)NUT (.4375-20)2
85859116螺母(.437-20)NUT (.437-20)2
8630206螺钉(.375-16 x 1.00)不锈钢SCREW (.375-16 x 1.00) Stainless Steel1
87762143阳极块ANODE1
8776214T3阳极块ANODE1
8776214A5阳极套件ANODE KIT1
8776214Q5阳极套件ANODE KIT1
-89238A3齿轮箱密封套件SEAL KIT Gear Housing1
-90415A24螺柱套件STUD KIT1
-59579双头螺柱(.437-14/.437-20 x 2.812)STUD (.437-14/.437-20 x 2.812)1
图 75齿轮箱螺旋桨轴-TorqueMaster型 Gear Housing Propeller Shaft - TorqueMaster
齿轮箱螺旋桨轴-TorqueMaster型 Gear Housing Propeller Shaft - TorqueMaster
REF零件编号中文名称英文名称数量
-842739T08齿轮箱总成 完整 (长型)(1.75:1)GEAR HOUSING ASSEMBLY Complete (Long)(1.75:1)1
-842739T12齿轮箱总成 完整 (长型)(1.75:1)GEAR HOUSING ASSEMBLY Complete (Long)(1.75:1)1
-842739T13齿轮箱总成(完整)(长型)(1.75:1)(黑色)GEAR HOUSING ASSEMBLY Complete (Long)(1.75:1)(Black)1
-842739T06齿轮箱总成 完整 (加长型)(1.75:1)GEAR HOUSING ASSEMBLY Complete (X-Long)(1.75:1)1
-842739T15齿轮箱总成(完整)(加长型)(1.75:1)(黑色)GEAR HOUSING ASSEMBLY Complete (XLong)(1.75:1)(Black)1
-842739T14齿轮箱总成 完整 (加长型)(1.75:1)GEAR HOUSING ASSEMBLY Complete (X-Long)(1.75:1)1
-842739T15齿轮箱总成(完整)(加长型)(1.75:1)(黑色)GEAR HOUSING ASSEMBLY Complete (XLong)(1.75:1)(Black)1
1842739T03基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
1842739T16齿轮箱总成(基础)(黑色)GEAR HOUSING ASSEMBLY Basic (Black)1
1842739T16齿轮箱总成(基础)(黑色)GEAR HOUSING ASSEMBLY Basic (Black)1
18M0072954齿轮箱总成 基础型 (银色)GEAR HOUSING ASSEMBLY Basic (Silver)1
2859403堵头PLUG1
3823903换挡曲柄SHIFT CRANK1
38M0226861换挡曲柄CRANK-SHIFTER1
419755T7阀芯总成SPOOL ASSEMBLY1
48M0235940阀芯总成SPOOL ASSY1
5NSS不单独销售线轴NOT SOLD SEPARATE Spool1
6NSS不单独销售套筒NOT SOLD SEPARATE Sleeve1
7NSS不单独销售开口销NOT SOLD SEPARATE Cotter Pin1
847397A1垫片组SHIM SETAR
9859321T04前进/小齿轮组GEAR SET Forward/Pinion1
10828437A2轴承总成BEARING ASSEMBLY1
11NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
1230895T滚针轴承BEARING Needle1
13856823挡圈RING Retaining1
14848878T离合器CLUTCH1
1578909定位销PIN Detent2
16848838十字销PIN Cross1
1778962弹簧SPRING2
18841978螺旋桨轴PROPELLER SHAFT1
19848881A1倒挡齿轮GEAR Reverse1
198M0192235倒挡齿轮GEAR-REVERSE1
208241081推力垫片THRUST SPACER1
2188957T滚珠轴承BEARING Ball1
22681001止推环RING Thrust1
2331534O型圈O-RING1
238M0214920O型圈O RING1
23896524O型圈(3.850×.210)O-RING (3.850 x .210)1
238M0142840O型圈(3.85×0.210)O-RING (3.85 x 0.210)1
24848840T1轴承座总成CARRIER ASSEMBLY Bearing1
24848840A1轴承座总成CARRIER ASSEMBLY Bearing1
25817072滚柱轴承BEARING Roller1
26817071卡环RING Snap1
27815565油封SEAL Oil2
2830281键KEY1
2967892A06磁性放油塞套件PLUG KIT Drain - Magnetic1
298M0058389放油螺钉套件SCREW KIT Drain1
2979953Q04放油螺钉套件SCREW KIT Drain1
30830749密封件SEAL1
308M0204693放油螺塞密封件SEAL Drain Plug1
3179447锁紧垫圈TAB WASHER1
3279448固定座RETAINER1
328M2011027固定座RETAINER1
33762145阳极块ANODE1
3376214Q5阳极套件ANODE KIT1
3466024螺钉(.437-14 x 1.75)SCREW (.437-14 x 1.75)1
-816575A6齿轮箱密封套件SEAL KIT Gear Housing1
图 76液压泵和安装支架 Hydraulic Pump and Mounting Brackets
液压泵和安装支架 Hydraulic Pump and Mounting Brackets
REF零件编号中文名称英文名称数量
-846859A4液压泵总成(完整)PUMP ASSEMBLY Hydraulic (COMPLETE)1
1818161A4液压泵总成PUMP ASSEMBLY Hydraulic1
18M0051203配平泵总成PUMP ASSY-TRIM1
2818567支架BRACKET1
338837螺钉(.312-18×1.12)SCREW (.312-18 x 1.12)1
457792垫圈WASHER2
534948隔套SPACER1
665999A12接地线总成CABLE ASSEMBLY Ground1
779138A9电缆总成(6英尺)黑色-负极CABLE ASSEMBLY (6.00 Feet) Black-Negative1
892051螺钉（10-16 x 0.75）SCREW (10-16 x .75)2
979147A5线束总成HARNESS ASSEMBLY1
1079091保险丝20安培FUSE 20 Ampere1
108M0207796保险丝20安培FUSE 20 AMP1
1188075固定座RETAINER1
12853654A1电磁阀SOLENOID2
1341508螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel4
1420110螺母 (#10-32)NUT (#10-32)4
1526484螺母(.312-18)NUT (.312-18)4
158M0204646螺母(.312-18)NUT (.312-18)4
1679023A10保险丝总成110安培FUSE ASSEMBLY 110 Ampere1
1679023T10保险丝总成110安培FUSE ASSEMBLY 110 Ampere1
1796457酚醛垫圈(.27×.81×.062)WASHER Phenolic (.27 x .81 x .062)1
1821825螺母(.250-28)NUT (.250-28)1
1965999A11拉线总成CABLE ASSEMBLY1
2079139A12电缆总成红色-正极CABLE ASSEMBLY Red-Positive1
2146265护套BOOT4
2222753垫圈WASHER4
2379139A26电缆总成(红色)CABLE ASSEMBLY Red1
2487760T安装板MOUNTING PLATE1
2539349螺钉(.312-18×0.75)不锈钢SCREW (.312-18 x .750) Stainless Steel1
2626993锁紧垫圈 (.312)LOCKWASHER (.312)1
268M0204647锁紧垫圈 (.312)LOCKWASHER (.312)1
2790271螺钉(.375-16×0.62)SCREW (.375-16 x .62)2
2858643锁紧垫圈 (.375)LOCKWASHER (.375)2
29856774垫圈(0.406×0.750×0.105)不锈钢WASHER (.406 x .750 x .105) Stainless Steel4
298M0214963垫圈WASHER4
3087762支架BRACKET1
3163826螺钉(.375-16 x 2.50)SCREW (.375-16 x 2.50)2
3268411螺母（.375-16）NUT (.375-16)2
3282670912螺母(.375-16)不锈钢NUT (.375-16) Stainless Steel2
33818200接头FITTING1
3477366接头FITTING2
3595084A18线束总成(含保险丝)(参考#9)CABLE ASSEMBLY Fuse Included with Reference #91
3665017A14线束总成HARNESS ASSEMBLY1
37848017A2升降线束总成HARNESS ASSEMBLY Trim1
图 77液压泵总成 Hydraulic Pump Assembly
液压泵总成 Hydraulic Pump Assembly
REF零件编号中文名称英文名称数量
-818161A4液压泵总成PUMP ASSEMBLY Hydraulic1
1811491适配器ADAPTER1
18M0084543适配器ADAPTER1
2803852联轴器COUPLING1
389498电机端O型圈O-RING Motor End1
4811492T泵总成(含螺钉)PUMP ASSEMBLY (INCLUDES SCREWS)1
589496滤清器FILTER2
689497储液端O型圈O-RING Reservoir End1
741219T储液罐RESERVOIR1
8811493螺钉套件SCREW KIT1
-17649T电机总成MOTOR ASSEMBLY1
-891736T电机总成MOTOR ASSEMBLY1
917632T端盖总成END CAP ASSEMBLY1
9891736T电机总成MOTOR ASSEMBLY1
1017626螺钉SCREW4
10891736T电机总成MOTOR ASSEMBLY4
1117625O型圈O-RING1
11891736T电机总成MOTOR ASSEMBLY1
1217621螺钉SCREW2
12891736T电机总成MOTOR ASSEMBLY2
1317633支架套件HOLDER KIT1
13891736T电机总成MOTOR ASSEMBLY1
1417631A1电刷套件BRUSH KIT1
14891736T电机总成MOTOR ASSEMBLY1
1517623电枢ARMATURE1
15891736T电机总成MOTOR ASSEMBLY1
1617653垫圈WASHER2
16891736T电机总成MOTOR ASSEMBLY2
1717624磁场框架总成FIELD AND FRAME ASSEMBLY1
17891736T电机总成MOTOR ASSEMBLY1
1817622盖总成COVER ASSEMBLY1
18891736T电机总成MOTOR ASSEMBLY1
-812498A1安全阀套件VALVE KIT Relief1
图 78仪表装置 Instrumentation
仪表装置 Instrumentation
REF零件编号中文名称英文名称数量
119674A1拉绳开关总成SWITCH ASSEMBLY Lanyard1
218303螺钉 (.190-16 x 1.750) 不锈钢SCREW (.190-16 x 1.750) Stainless Steel2
3813679适配器ADAPTER1
415920A54拉绳总成LANYARD ASSEMBLY1
415920Q54拉绳总成LANYARD ASSEMBLY1
532866螺钉 (#10-32 x 2.00) 不锈钢SCREW (#10-32 x 2.00) Stainless Steel2
618321安装夹CLAMP Mounting1
724676垫圈 (.200 x .440 x .032)WASHER (.200 x .440 x .032)2
868219螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel4
979146固定座RETAINER3
10816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
10816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
11812497A2二极管总成DIODE ASSEMBLY1
11898289A72双拉绳二极管套件DIODE KIT-LANYARD Dual1
1211149A2线缆总成 (6.00英寸)CABLE ASSEMBLY (6.00 Inches)1
图 79钥匙开关 Key Switch
钥匙开关 Key Switch
REF零件编号中文名称英文名称数量
1816626A15线束总成-钥匙开关(15英尺)HARNESS ASSEMBLY Key Switch (15.00 Feet) (15 FEET)1
290468A1钥匙盖总成COVER ASSEMBLY Key2
376424支架BRACKET1
455422双头螺柱 (#10-32 x 2.00)STUD (#10-32 x 2.00)2
524676垫圈 (.200 x .440 x .032)WASHER (.200 x .440 x .032)2
668219螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel2
7816479A3板组件套件PLATE KIT2
888107KEY SWITCH (See Below for Key)1
888107A5钥匙开关套件SWITCH KIT Key1
993543特殊螺母-镀铬黄铜NUT Special - Chrome Brass1
9879755特殊螺母-黑色尼龙NUT Special - Black Nylon1
10816492A1音响报警器总成ALARM ASSEMBLY Audio Warning1
108M0210763报警器ALARM1
118127111垫片(0.375)SPACER (.375)2
11812711隔套(0.250)SPACER (.250)2
-894911点火钥匙(1A)KEY Ignition (1A)1
-894912点火钥匙(1B)KEY Ignition (1B)1
-894913点火钥匙(1C)KEY Ignition (1C)1
-894914点火钥匙(1D)KEY Ignition (1D)1
-894915点火钥匙(1E)KEY Ignition (1E)1
-894916点火钥匙(1F)KEY Ignition (1F)1
-894917点火钥匙(2A)KEY Ignition (2A)1
-894918点火钥匙(2B)KEY Ignition (2B)1
-894919点火钥匙(2C)KEY Ignition (2C)1
-8949110点火钥匙(2D)KEY Ignition (2D)1
-8949111点火钥匙(2E)KEY Ignition (2E)1
-8949112点火钥匙(2F)KEY Ignition (2F)1
图 80机油喷射组件 Oil Injection Components
机油喷射组件 Oil Injection Components
REF零件编号中文名称英文名称数量
112430A4传感器总成SENSOR ASSEMBLY1
248409螺钉(#10-16 x .625)不锈钢传感器固定SCREW (#10-16 x .625) Stainless Steel SENSOR ATTACHING1
3815698机油泵(175)PUMP Oil (175)1
3815698T油泵PUMP Oil1
3815699油泵总成(200)PUMP ASSEMBLY Oil (200)1
3815699T油泵总成PUMP ASSEMBLY Oil1
411379油泵O型圈O-RING OIL PUMP1
541429A2驱动齿轮轴承总成BEARING ASSEMBLY DRIVE GEAR1
614563从动齿轮GEAR Driven1
732228油泵至曲轴箱螺钉 (#10-32 x .625)SCREW (#10-32 x .625) OIL PUMP TO CRANKCASE1
741507油泵至曲轴箱螺钉 (#10-32 x 1.120)SCREW (#10-32 x 1.120) OIL PUMP TO CRANKCASE1
81938512油门连杆至油泵总成LINK ASSEMBLY THROTTLE LEVER TO OIL PUMP1
94301625机油泵用管材(8英寸)TUBING (8.00 Inches) OIL PUMP1
982381335油管(15.00英寸 散装)TUBING (15.00 Inches Bulk)1
1099443T油箱RESERVOIR Oil1
10994436储液罐RESERVOIR1
11415823CLAMP OIL HOSE2
124301736油箱至油泵油管TUBING OIL RESERVOIR TO OIL PUMP1
1282381455油管（25.00英寸散装）TUBING (25.00 Inches Bulk)1
1369020油箱固定螺钉 (#10-32 x .875)SCREW (#10-32 x .875) OIL RESERVOIR ATTACHING3
13690201螺钉(#10-32 x .875)SCREW (#10-32 x .875)3
1442118油箱螺钉垫圈WASHER OIL RESERVOIR SCREW6
1542117油箱螺钉衬套GROMMET OIL RESERVOIR SCREW3
1642116油箱螺钉轴套BUSHING OIL RESERVOIR SCREW3
1799127109管路(57.00英寸 散装)LINE (57.00 Inches Bulk)1
178M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
1842425油管三通TEE OIL TUBING1
199072925油管(6-3/4")HOSE OIL (6-3/4")1
20816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
20816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
2199439油管(114.00英寸)HOSE (114.00 Inches) OIL1
22415824卡箍CLAMP2
2443278止回阀接头（曲轴箱）FITTING CHECK VALVE (CRANKCASE)1
248781051止回阀CHECK VALVE1
2587421油箱TANK1
2643298A2油箱盖总成CAP ASSEMBLY OIL TANK1
2711332O型圈(2.225 x .210)盖O-RING (2.225 x .210) CAP1
28816190A3外壳总成适配器HOUSING ASSEMBLY Adapter1
28816190A4机油收集器总成(无传感器)OIL PICK UP ASSEMBLY Without Sender1
2911332O型圈(2.225 x .210)适配器壳体O-RING (2.225 x .210) ADAPTOR HOUSING1
3099802吸油管TUBE OIL PICK-UP1
3143300A9油箱盖总成CAP ASSEMBLY OIL RESERVOIR1
3243307油箱盖衬垫GASKET RESERVOIR CAP1
3243307T衬垫GASKET1
3399022A1浮子总成FLOAT ASSEMBLY1
338M0187298浮子总成FLOAT ASSY1
3499265压入式螺母PUSH NUT1
图 81动力升降组件 8M0231193 Power Trim Components 8M0231193
动力升降组件 8M0231193 Power Trim Components 8M0231193
REF零件编号中文名称英文名称数量
-8M0231193动力升降总成POWER TRIM ASSEMBLY1
18M0225363电机套件MOTOR KIT1
28M0225369阀套件VALVE KIT1
38M0225371手动释放套件MANUAL RELEASE KIT1
48M0245633倾斜油缸套件TILT CYLINDER KIT1
58M0225370枢轴销套件PIVOT PIN KIT1
68M0244575减震杆套件SHOCK ROD KIT1
78M0244425销杆眼套件PIN ROD EYE KIT1
88M0232231螺钉螺母套件SCREW NUT KIT1
98M0225373记忆活塞套件MEMORY PISTON KIT1
108M0225368储液罐套件RESERVOIR KIT1
118M0174135储液罐塞总成PLUG RESERVOIR ASSEMBLY1
128M0237525泵套件PUMP KIT1
138M0225367升降杆套件TRIM ROD KIT1
148M0242846升降杆套件TRIM ROD KIT1
158M0225372重建套件REBUILD KIT1
图 82动力升降组件金属马达壳 Power Trim Components Metal Motor Housing
动力升降组件金属马达壳 Power Trim Components Metal Motor Housing
REF零件编号中文名称英文名称数量
-855998A3动力升降倾斜装置总成POWER TRIM Complete1
-855998A11动力调整套件POWER TRIM KIT1
-855998A05完整动力升降总成POWER TRIM ASSEMBLY Complete1
-855998A11动力调整套件POWER TRIM KIT1
1878265A4配平电机TRIM MOTOR1
18M0031551配平电机TRIM MOTOR1
2NSS电枢(不单独销售)NOT SOLD SEPARATE Armature1
3NSS端架(不单独销售)NOT SOLD SEPARATE End Frame1
482494830螺钉 (M6 x 30)SCREW (M6 x 30)2
5400256锁紧垫圈 (M6)LOCKWASHER (M6)2
68782451驱动轴DRIVESHAFT1
7878410A1压力检查套件PO CHECK KIT1
8813442A2手动释放总成 (含参考号#26)MANUAL RELEASE ASSEMBLY (Includes Reference #26)1
8893929A01安全阀套件VALVE KIT Relief1
9878241A02轴套件SHAFT KIT1
98M0142997倾斜轴套件TILT SHAFT KIT1
10878267销PIN1
11878235A1倾斜油缸总成TILT CYLINDER ASSEMBLY1
11878235A03倾斜油缸套件CYLINDER KIT Tilt1
11878235A02倾斜油缸总成TILT CYLINDER ASSEMBLY1
11878235A03倾斜油缸套件CYLINDER KIT Tilt1
12878239A1导向套件 (含参考号#26)GUIDE KIT (Includes Reference #26)1
12878239A02倾斜缸端盖套件END CAP KIT Tilt Cylinder1
13878409A1O型圈套件 (含参考号#26)O-RING KIT (Includes Reference #26)1
138M0142999倾斜油缸O型圈套件O RING KIT TILT CYLINDER1
14878412A1减震杆套件 (含参考号#26)SHOCK ROD KIT (Includes Reference #26)1
148M0168219减震杆套件SHOCK ROD KIT1
15878242A1记忆活塞总成PISTON ASSEMBLY Memory1
158M0143000记忆活塞套件MEMORY PISTON KIT1
16878406A1止回阀修理包 (含参考号#26)REPAIR KIT Check Valve (Includes Reference #26)1
16878406A02止回阀修理包REPAIR KIT Check Valve1
17878414A1活塞总成PISTON ASSEMBLY1
17878414T01活塞总成PISTON ASSEMBLY1
18878413A1活塞总成PISTON ASSEMBLY1
19878243A1导向器总成GUIDE ASSEMBLY2
198M0021648端盖总成END CAP ASSEMBLY2
20878264A1储液罐套件RESERVOIR KIT1
21811613塞子总成PLUG ASSEMBLY1
224000327螺钉 (M6 x 14)SCREW (M6 x 14)4
2343450垫圈WASHER4
234002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)4
24892251A01泵套件PUMP KIT1
25878408A1动力升降倾斜装置维修包REPAIR KIT Power Trim1
26821539三叶销PIN Trilobe1
27858771螺钉 (M10 x 30)SCREW (M10 x 30)6
284002319垫圈WASHER6
29818298Q1阳极套件ANODE KIT1
304000330螺钉(M6x25)SCREW (M6 x 25)2
308M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
3129245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
318M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
3299625002轴SHAFT1
3369205C形垫圈C WASHER1
338M0084613C形垫圈C-WASHER1
3422875卡扣CLIP2
35878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)2
36828547353导管(内径0.350x3英尺散装)(裁切至12英寸)CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk) (Cut to 12 Inches)1
37816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
图 83动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing
动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing
REF零件编号中文名称英文名称数量
-8M0168222动力升降总成POWER TRIM ASSEMBLY1
18M0142591电机套件MOTOR KIT1
282494830螺钉 (M6 x 30)SCREW (M6 x 30)2
3400256锁紧垫圈 (M6)LOCKWASHER (M6)2
48M0090403驱动联轴器COUPLING Drive1
58M0142996压力检查套件PO CHECK KIT1
68M0060141手动释放套件MANUAL RELEASE KIT1
78M0142997倾斜轴套件TILT SHAFT KIT1
8878267销PIN1
98M0142998倾斜油缸总成TILT CYLINDER ASSEMBLY1
98M0168220倾斜油缸总成TILT CYLINDER ASSEMBLY1
108M0142999倾斜油缸O型圈套件O RING KIT TILT CYLINDER1
118M0143000记忆活塞套件MEMORY PISTON KIT1
128M0142592升降杆套件 左舷TRIM ROD KIT Port1
138M0143001活塞总成PISTON ASSEMBLY1
148M0143003端盖总成END CAP ASSEMBLY1
15878264A1储液罐套件RESERVOIR KIT1
16811613塞子总成PLUG ASSEMBLY1
174000327螺钉 (M6 x 14)SCREW (M6 x 14)4
184002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)4
198M0143004泵套件PUMP KIT1
208M0148385动力升降倾斜装置维修包REPAIR KIT Power Trim1
21858771螺钉 (M10 x 30)SCREW (M10 x 30)6
224002319垫圈WASHER6
238M0094889销PIN1
238M0161312连杆销眼总成PIN ROD EYE ASSEMBLY1
248M0143005减震杆套件SHOCK ROD KIT1
248M0168219减震杆套件SHOCK ROD KIT1
图 84动力升降倾斜电机 Power Trim Motor
动力升降倾斜电机 Power Trim Motor
REF零件编号中文名称英文名称数量
-811628配平电机TRIM MOTOR1
-828708电机总成MOTOR ASSEMBLY1
-878265A4配平电机TRIM MOTOR1
1811624机架与磁场套件FRAME AND FIELD KIT1
2811625电刷卡套件BRUSH CARD KIT1
3811623端架套件END FRAME KIT1
4811626密封套件SEAL KIT1
5811627电枢套件ARMATURE KIT1
5811628配平电机TRIM MOTOR1
6828714A1电刷与密封套件BRUSH AND SEAL KIT1
7828713A1电枢套件ARMATURE KIT1
7828713T1电枢套件ARMATURE KIT1
8828715A1端盖总成END FRAME Complete1
图 85簧片阀组与气缸盖 Reed Block and Cylinder Head
簧片阀组与气缸盖 Reed Block and Cylinder Head
REF零件编号中文名称英文名称数量
1187893气缸盖(175)CYLINDER HEAD (175)2
1184883气缸盖(200)CYLINDER HEAD (200)2
118488F2气缸盖总成CYLINDER HEAD ASSEMBLY2
2187861衬垫(175)GASKET (175)2
218786T衬垫GASKET2
2184721衬垫(200)GASKET (200)2
2822844T05衬垫GASKET2
398534气缸盖螺钉 (.375-16 x 2.30)SCREW (.375-16 x 2.30) CYLINDER HEAD23
313450螺钉(.375-16 x 2.30)(专用-200)SCREW (.375-16 x 2.30) (SPECIAL - 200)1
425909气缸盖螺钉垫圈 (.406 x .812 x .065)WASHER (.406 x .812 x .065) CYLINDER HEAD SCREW24
575692节温器THERMOSTAT2
662386节温器衬垫GASKET THERMOSTAT2
68M0204714衬垫@4GASKET @42
790390A1节温器盖套件COVER KIT THERMOSTAT2
835386节温器盖螺钉 (.312-18 x 1.00)SCREW (.312-18 x 1.00) THERMOSTAT COVER4
96872790度黄铜弯头接头 (.250-18)（水管用）FITTING (.250-18) 90 Degree - Brass ELBOW - WATER HOSES1
968727190度弯头 (.250-18) - 黄铜FITTING (.250-18) 90 Degree - Brass1
107765377配水软管（散装24.500英寸）HOSE (24.500 Inches Bulk) WATER DISTRIBUTION2
1077653101软管（散装48.00英寸）HOSE (48.00 Inches Bulk)2
1168728节温器盖接头FITTING THERMOSTAT COVER1
12816311水管束带(8.00英寸)TIE STRAP (8.00 Inches) WATER HOSES4
12816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)4
1363779定位销 (.250 x .625)PIN Dowel (.250 x .625)4
1413715传感器固定座RETAINER SENSOR AND SENDER2
14137151固定座RETAINER2
1598257螺钉 (0.312-18 x 0.500) 固定座SCREW (.312-18 x .500) RETAINER2
1692160不锈钢螺钉(.250-20 x .750)(175)SCREW (.250-20 x .750) Stainless Steel (175)6
1690197螺钉(.250-20 x 1.125)(175)SCREW (.250-20 x 1.125) (175)6
1628668不锈钢簧片块固定螺钉(.250-20 x .875)(200)SCREW (.250-20 x .875) Stainless Steel REED BLOCK ATTACHING (200)12
17167371适配板垫片GASKET ADAPTOR PLATE1
1817735A2适配板总成(175)ADAPTER PLATE ASSEMBLY (175)1
1812124A3板总成(200)PLATE ASSEMBLY (200)1
19961832簧片夹(175)CLAMP Reed (175)12
19903911簧片夹(200)CLAMP Reed (200)12
20146972衬垫(175)GASKET (175)1
20813859衬垫(200)GASKET (200)1
20883775衬垫GASKET1
2175953簧片块(175)REED BLOCK (175)6
2187692簧片块(200)REED BLOCK (200)6
2275362A1簧片总成(175)REED ASSEMBLY (175)6
2219719A1簧片总成(200)REED ASSEMBLY (200)6
2328668螺钉 (0.250-20 x 0.875) 不锈钢适配板SCREW (.250-20 x .875) Stainless Steel ADAPTOR PLATE8
2414783螺钉 (#8-32 x 0.187) 簧片至簧片座SCREW (#8-32 x .187) REEDS TO REED BLOCK84
24823588螺钉 (#8-32 x .250)SCREW (#8-32 x .250)84
2513192爆震传感器(200)SENSOR Detonation (200)1
25825164A1爆震传感器总成SENSOR ASSEMBLY Detonation1
2697465温度传感器（右舷）SENDER Temperature (STARBOARD)1
2713536A6温度传感器总成（左舷）SENSOR ASSEMBLY Temperature (PORT)1
2845076黄铜螺母(#10-32)(200)NUT (#10-32) Brass (200)1
2955098J型卡扣(200)J CLIP (200)1
298M0024808J型夹J-CLIP1
-815810A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1
-815809A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1
图 86维修/支撑材料 Service/Support Material
维修/支撑材料 Service/Support Material
REF零件编号中文名称英文名称数量
-896328005零件手册 225 PRO XS (3.0L) DFIPARTS MANUAL 225 PRO XS (3.0L) DFI1
-841916维修手册SERVICE MANUAL1
-841916R01维修手册SERVICE MANUAL1
-841915050用户手册OWNERS MANUAL1
-841915051用户手册MANUAL-OWNERS1
-841915060用户手册OWNERS MANUAL1
-841914050安装手册INSTALLATION MANUAL1
-841914051安装手册MANUAL-INSTALL1
-841914060安装手册INSTALLATION MANUAL1
-898246A05EPA标签信息贴花DECAL EPA Label Information1
-898246A06EPA标签信息贴花DECAL EPA Label Information1
图 87启动电机 Starter Motor
启动电机 Starter Motor
REF零件编号中文名称英文名称数量
1892339T启动电机总成STARTER MOTOR ASSEMBLY1
2803005贯穿螺栓THRU BOLT2
3880805A1齿轮套件GEAR KIT1
4809463A1电磁阀组件SOLENOID KIT1
58M0065258电刷组BRUSH SET1
669035螺丝与锁紧垫圈(.250-20 x .625)不锈钢SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel1
793388A1电缆总成(6.00英寸)黑色CABLE ASSEMBLY (6.00 Inches) Black1
8NSS高压警告贴纸 (不单独销售)NOT SOLD SEPARATE Decal-Warning-High Voltage1
9400255锁紧垫圈(M5)LOCKWASHER (M5)1
10400211不锈钢螺母(M5)NUT (M5) Stainless Steel1
1126993锁紧垫圈 (.312)LOCKWASHER (.312)1
118M0204647锁紧垫圈 (.312)LOCKWASHER (.312)1
12400213不锈钢螺母 (M8)NUT (M8) Stainless Steel1
1356703轴环COLLAR2
138M0034918轴环COLLAR2
14879845停机开关STOP1
148M0043276停机开关STOP1
图 88转向连接套件 Steering Attaching Kit
转向连接套件 Steering Attaching Kit
REF零件编号中文名称英文名称数量
-92876A8转向单装配套件ATTACHING KIT Steering Single1
141055A1支架总成BRACKET ASSEMBLY1
271565A2管总成TUBE ASSEMBLY1
348462O型圈 (.614 x .070)O-RING (.614 x .070)1
4821203锁紧垫圈LOCKWASHER2
537984螺母 (.875-14)NUT (.875-14)2
58M0041651螺母 (.875-14)NUT (.875-14)2
638601螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250)4
793702垫圈(.250外齿星形)WASHER (.250 External Star)4
888319联轴器COUPLING1
8850791T联轴器COUPLER1
973732螺钉 (.375-24 x 1.120)SCREW (.375-24 x 1.120)2
1034931不锈钢垫圈(.406x.734x.063)WASHER (.406 x .734 x .063) Stainless Steel2
1134863螺母 (.375-24)NUT (.375-24)3
118M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass3
图 89旋转支架及转向臂-长型 Swivel Bracket and Steering Arm Long
旋转支架及转向臂-长型 Swivel Bracket and Steering Arm Long
REF零件编号中文名称英文名称数量
18710T20黑色旋转支架总成SWIVEL BRACKET ASSEMBLY Black1
287735油封SEAL Oil1
3818764衬套BUSHING2
4816039隔套SPACER1
533504O型圈O-RING1
58M0214926O型圈 @10O RING @101
674036润滑脂接头FITTING Grease2
68M0169589润滑脂接头FITTING Grease2
7821207衬套BUSHING2
8816432止推垫片THRUST WASHER1
978689螺钉（0.437-20 X 7.50）SCREW (.437-20 x 7.50)2
98M0176309螺钉SCREW2
10776981支架MOUNT2
11814432垫圈WASHER2
1178688垫圈WASHER2
1234933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
128M0204653螺母NUT2
1392876A10连杆总成LINK ROD ASSEMBLY1
1392876A12连杆总成LINK ROD ASSEMBLY1
14849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)1
1534863螺母 (.375-24)NUT (.375-24)2
158M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass2
1637828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel2
1767706A55转向臂转销总成SWIVEL PIN ASSEMBLY Steering Arm1
17826432A2转向臂旋转销总成-不锈钢SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel1
1886580A1底部轭架总成YOKE ASSEMBLY Bottom1
18878182T轭架底部-不锈钢YOKE Bottom - Stainless Steel1
1967684挡圈RING Retaining1
2064014螺钉(.250-28x.500)SCREW (.250-28 x .500)2
2154457J型卡扣J CLIP1
22821180A6调整传感器总成SENDER ASSEMBLY Trim1
228M0074846ORDER 8M0098273ORDER 8M00982731
23852368螺钉（#10-24 X 0.750）SCREW (#10-24 x .750)2
2426996锁紧垫圈(#10)(不锈钢)LOCKWASHER (#10) Stainless Steel2
2589302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)2
图 90旋转支架及转向臂-短型 Swivel Bracket and Steering Arm Short
旋转支架及转向臂-短型 Swivel Bracket and Steering Arm Short
REF零件编号中文名称英文名称数量
1818810A8旋转支架总成SWIVEL BRACKET ASSEMBLY1
2847729油封SEAL Oil2
3847726轴承BEARING2
474036润滑脂接头FITTING Grease4
48M0169589润滑脂接头FITTING Grease4
5847728轴承BEARING2
682203524轴承(1-1/2英寸)BEARING (1-1/2 IN.)2
782203540轴承(2-1/2英寸)BEARING (2-1/2 IN.)2
885023油封SEAL Oil2
987161垫圈WASHER2
1048171O型圈(0.364 x 0.070)O-RING (.364. x .070)2
1185030A2倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
1185028A2倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
1286600衬套BUSHING1
1385367弹簧SPRING1
1441052柱塞PLUNGER1
1588876螺柱STUD1
1686603旋钮KNOB1
17864751联轴器COUPLING1
1869745滚动销PIN Roll2
1988049弹簧SPRING1
2093861开口销COTTER PIN1
2178854波形垫圈WAVE WASHER1
2286580F4下轭架YOKE Bottom1
23848125螺旋锁紧挡圈RING Retaining - Spiral Lock2
2467706A59转向臂转销总成SWIVEL PIN ASSEMBLY Steering Arm1
248M0192243旋转销PIN-SWIVEL1
2592876A10连杆总成LINK ROD ASSEMBLY1
2592876A12连杆总成LINK ROD ASSEMBLY1
26849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)1
2734863螺母 (.375-24)NUT (.375-24)2
278M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass2
2837828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel2
图 91温度传感器 Temperature Sensor
温度传感器 Temperature Sensor
REF零件编号中文名称英文名称数量
141470A25喷油警告模块总成MODULE ASSEMBLY Oil Injection Warning1
214851油门位置指示器INDICATOR Throttle Position1
214851T03指示器INDICATOR1
315150螺钉(#8-32 x 0.625英寸)SCREW (#8-32 x .625)2
426995防松垫圈(#8不锈钢)LOCKWASHER (#8) Stainless Steel2
530164垫圈(0.192x0.375x0.0312)不锈钢WASHER (.192 x .375 x .0312) Stainless Steel2
615885套筒SLEEVE1
7813501安装板PLATE2
813221A1温度传感器总成SENSOR ASSEMBLY Temperature1
813221T01温度传感器SENSOR TEMP1
945711O型圈 (.612 x .103)O-RING (.612 x .103)1
1057583螺丝（#8-32×0.375）SCREW (#8-32 x .375)3
1057583T螺丝#8-32×3/8SCREW #8-32x3/83
1126995防松垫圈(#8不锈钢)LOCKWASHER (#8) Stainless Steel3
-823142A98发动机垫片组GASKET SET Engine1
图 92油门杆与换挡轴 Throttle Lever and Shift Shaft
油门杆与换挡轴 Throttle Lever and Shift Shaft
REF零件编号中文名称英文名称数量
174897PIVOT TRIGGER PLATE1
262459球头总成触发板BALL JOINT ASSEMBLY TRIGGER PLATE1
262459T球头节总成BALL JOINT ASSY1
345076螺母(#10-32)黄铜连杆NUT (#10-32) Brass LINK ROD1
476035触发板连杆ROD TRIGGER PLATE1
546438球头螺母(#10-32)NUT (#10-32) BALLJOINT1
641094A3点火提前杆总成LEVER ASSEMBLY SPARK ADVANCE1
764022螺丝(.250-20x2.125)点火提前杆-止动SCREW (.250-20 x 2.125) SPARK ADVANCE LEVER - STOP1
864015螺母(.250-20)点火提前止动螺丝NUT (.250-20) SPARK ADVANCE STOP SCREW1
926852尼龙帽点火提前杆止动螺丝CAP Nylon SPARK ADVANCE LEVER STOP SCREW1
1013627螺钉 (.190-32 x 1.250)SCREW (.190-32 x 1.250)1
1168219螺母(#10-32)不锈钢点火提前杆止动螺丝NUT (#10-32) Stainless Steel SPARK ADVANCE LEVER STOP SCREW1
1248039点火提前杆止动螺丝帽CAP SPARK ADVANCE LEVER STOP SCREW1
1341095T油门控制杆LEVER THROTTLE CONTROL1
13410952杠杆LEVER1
1455337螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
14818165螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
1555164油门杠杆衬套BUSHING THROTTLE LEVER1
1655171点火提前杆衬套BUSHING SPARK ADVANCE LEVER1
1755162弹簧SPRING1
1846765垫圈(0.390 x 1.50 x 0.120) 点火提前杆WASHER (.390 x 1.50 x .120) SPARK ADVANCE LEVER1
1964022螺丝(.250-20x2.125)节气门杆-止动SCREW (.250-20 x 2.125) THROTTLE LEVER - STOP1
2064015螺母(.250-20)节气门杆止动螺丝NUT (.250-20) THROTTLE LEVER STOP SCREW1
2126852尼龙帽节气门杆止动螺丝CAP Nylon THROTTLE LEVER STOP SCREW1
2239483锁扣拉线LATCH CABLE1
2322486螺丝(.250-28x.880)拉线锁扣至节气门杆SCREW (.250-28 x .880) CABLE LATCH TO THROTTLE LEVER1
2369026螺钉 (.250-28 x .880)SCREW (.250-28 x .880)1
2420099拉线锁扣至节气门杆弹簧SPRING CABLE LATCH TO THROTTLE LEVER1
2535045螺母(.250-28)拉线锁扣螺丝NUT (.250-28) CABLE LATCH SCREW1
25826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
2614634节气门控制杆ROD THROTTLE CONTROL1
2714638节气门控制杆套筒BARREL THROTTLE CONTROL ROD1
288142391凸轮CAM1
288142392节气门凸轮THROTTLE CAM1
2993248衬套BUSHING1
298M0215006旋转衬套BUSHING Swivel1
3026856节气门凸轮衬套BUSHING THROTTLE CAM2
3135045螺母（0.250-28）节气门凸轮螺柱NUT (.250-28) THROTTLE CAM STUD1
31826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
33814283A1控制线缆锚定支架BRACKET ANCHOR - CONTROL CABLES1
33814283A2支架总成BRACKET ASSEMBLY1
3498889控制线缆锁扣LATCH CONTROL CABLE1
3542975闩锁传动螺钉DRIVE SCREW LATCH2
3653167螺丝(.312-18x.880)锚定支架固定SCREW (.312-18 x .880) ANCHOR BRACKET ATTACHING3
3653167T螺钉 0.312-18X 0.88SCREW .312-18X .883
37814284连杆导向块GUIDE BLOCK LINK ROD1
3820099连杆至导向块弹簧SPRING LINK ROD TO GUIDE BLOCK1
3967073A1连杆总成LINK ROD ASSEMBLY1
4052100连杆耐磨板WEAR PLATE LINK ROD1
4138279闩锁LATCH1
418M0036768闩锁LATCH1
4235462垫圈(.2656x.625x.0625)不锈钢锁扣WASHER (.2656 x .625 x .0625) Stainless Steel LATCH1
4335045螺母（0.250-28）连杆NUT (.250-28) LINK ROD1
43826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
4479932A11换挡轴总成SHIFT SHAFT ASSEMBLY1
4479932A16换挡轴总成SHIFT SHAFT ASSEMBLY1
4529720连杆波形垫圈WAVE WASHER LINK ROD1
4626600尼龙衬套-连杆BUSHING NYLON - LINK ROD1
4735462垫圈(.2656 x .625 x .0625)不锈钢连杆WASHER (.2656 x .625 x .0625) Stainless Steel LINK ROD1
4835045螺母（0.250-28）连杆至换挡轴NUT (.250-28) LINK ROD TO SHIFT SHAFT1
48826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
4939519杯形套筒固定器-锚杆CUP BARREL RETAINER - ANCHOR BAR1
图 93顶罩 Top Cowl
顶罩 Top Cowl
REF零件编号中文名称英文名称数量
1881288T32顶盖总成TOP COWL ASSEMBLY1
282130030螺钉 (M6 x 30)SCREW (M6 x 30)4
3884041A1隔音毯套装SOUND BLANKET KIT1
3884041A04隔音毯套装SOUND BLANKET KIT1
4NSS不单独出售-顶部隔音垫NOT SOLD SEPARATE Sound Blanket-Top1
5NSS不单独销售 隔音垫-左舷NOT SOLD SEPARATE Sound Blanket-Port1
693702垫圈(.250外齿星形)WASHER (.250 External Star)6
7826639T盖板COVER1
8850682T4后锁钩总成HOOK ASSEMBLY Rear Latch2
8850682A06支架和手柄套件BRACKET AND HANDLE KIT2
9NSSNOT SOLD SEPARATE Pin2
108237951挡圈RING Retaining2
11815263滚轮ROLLER2
118M0207770滚轮@3ROLLER @32
12850685002护孔环GROMMET1
12850685T02护孔环GROMMET1
13821249M2前支架BRACKET Front1
138M0036792支架BRACKET1
1482130020螺钉 (M6 x 20)SCREW (M6 x 20)2
15815477缓冲器锁扣BUMPER Latch1
168155381滚动销PIN Roll1
17401366螺母(M6)不锈钢NUT (M6) Stainless Steel1
1829245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
188M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
198237951挡圈RING Retaining1
20815263滚轮ROLLER1
208M0207770滚轮@3ROLLER @31
2187161垫圈WASHER1
-897136A05贴花套件DECAL SET1
-8M0065133ORD 8M0114995ORD 8M01149951
图 94艉板支架-长型 Transom Brackets Long
艉板支架-长型 Transom Brackets Long
REF零件编号中文名称英文名称数量
1828334T03艉板支架总成-右舷BRACKET ASSEMBLY Transom-Starboard1
2828333T08艉板支架总成-左舷BRACKET ASSEMBLY Transom-Port1
398727润滑脂接头FITTING Grease1
38M0169588润滑脂接头FITTING Grease1
4826125A1倾斜管TILT TUBE1
5826135尼龙锁紧螺母(1.00-14)NUT Lock (1.00-14) Nylon Insert1
645711O型圈 (.612 x .103)O-RING (.612 x .103)1
788750波浪垫圈 (1.62 x 1.05)WASHER Wave (1.62 x 1.05)2
8826164螺母 (.875-14)NUT (.875-14)1
88M0231351锁紧螺母NUT Lock1
9677551螺钉(.500-20×4.500)SCREW (.500-20 x 4.500)4
98M0149747螺钉SCREW4
1028421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
108M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
118M0027784螺母NUT4
1182671117螺母(.500-20)NUT (.500-20)4
1299629A2杠杆总成LEVER ASSEMBLY1
128M0115104倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
13830899张力弹簧SPRING Tension1
1465830尼龙衬套NYLINER2
15830900压缩弹簧SPRING Compression1
1699633旋钮KNOB1
1799615槽销PIN Groove1
1899617销PIN1
18893709销PIN1
图 95艉板支架-短型 Transom Brackets Short
艉板支架-短型 Transom Brackets Short
REF零件编号中文名称英文名称数量
1847800A1艉板支架总成BRACKET ASSEMBLY Transom1
2847801A1艉板支架总成BRACKET ASSEMBLY Transom1
2847801T01艉板支架-右舷BRACKET Transom - Starboard1
3847798A1耐磨垫套件WEAR PAD KIT1
3847798A02耐磨垫套件WEAR PAD KIT1
486843螺钉(#10-24x0.500)SCREW (#10-24 x .500)4
587180螺栓(0.500-20 x 11.00)BOLT (.500-20 x 11.00)1
688512卡箍CLAMP4
675275卡箍CLAMP2
788829螺钉(#10-24x0.500)SCREW (#10-24 x .500)6
830499螺母(7/8-14)NUT (7/8-14)1
8858869螺母 (.875-14)NUT (.875-14)1
834862螺母(1.00-14)NUT (1.00-14)1
8859133螺母(1.00-14)NUT (1.00-14)1
988750波浪垫圈 (1.62 x 1.05)WASHER Wave (1.62 x 1.05)2
1099170A2倾斜管套件TUBE KIT Tilt1
10826125A1倾斜管TILT TUBE1
1185035T隔套SPACER1
118M0237541艉板隔套SPACER Transom1
12677551螺钉(.500-20×4.500)SCREW (.500-20 x 4.500)4
128M0149747螺钉SCREW4
1328421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
138M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
148M0027784螺母NUT4
1482671117螺母(.500-20)NUT (.500-20)4
1520220螺母(.500-20)NUT (.500-20)1
1582671317螺母(.500-20)NUT (.500-20)1
1670732螺钉 (.250-20 x 2.00)SCREW (.250-20 x 2.00)4
1729245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel4
178M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel4
1885026T安装板PLATE2
1928636螺钉(.250-20 x .750)SCREW (.250-20 x .750)4
2029245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel4
208M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel4
2154343螺柱（.312-24 x 1.380）STUD (.312-24 x 1.380)4
218M0034451螺柱STUD4
2289949A1隔板总成PLATE ASSEMBLY1
23847539垫圈WASHER4
2435814螺母(.312-24)不锈钢NUT (.312-24) Stainless Steel4
2482670911螺母(.312-24)不锈钢NUT (.312-24) Stainless Steel4
2589024液压软管HOSE Hydraulic1
2589023液压软管HOSE Hydaulic1
2696993液压软管HOSE Hydraulic1
2696994液压软管HOSE Hydraulic1
2787871盖板COVER1
2787871T盖板COVER1
2845507护孔环GROMMET1
2932866螺钉 (#10-32 x 2.00) 不锈钢SCREW (#10-32 x 2.00) Stainless Steel4
3087775衬垫GASKET1
3120878垫圈WASHER4
3229488螺母 (#10-32)NUT (#10-32)4
328M0204718螺母NUT4
3379610A21配平油缸TRIM CYLINDER1
3379610T29配平油缸TRIM CYLINDER1
34847724衬套BUSHING2
3585022垫圈(2.00 x 1.06 x 0.060)WASHER (2.00 x 1.06 x .060)2
3630316弹簧SPRING2
3785020枢轴销PIN Pivot2
3785020T枢轴销PIN Pivot2
388220752调整销PIN Trim1
39822076固定座RETAINER1
4020220螺母(.500-20)NUT (.500-20)1
4082671317螺母(.500-20)NUT (.500-20)1
-79879A1维修套件（用于调整油缸）REPAIR KIT (For Trim Cylinders)1
图 96配平电磁阀板 Trim Solenoid Plate
配平电磁阀板 Trim Solenoid Plate
REF零件编号中文名称英文名称数量
1849761安装板PLATE1
2828151A1继电器总成RELAY ASSEMBLY2
28M0207773调整继电器总成RELAY ASSEMBLY Trim2
3818967护孔环GROMMET2
38M0207785护孔环GROMMET2
4818968衬套BUSHING2
48M0214955衬套BUSHING2
5828102支架BRACKET2
58M0207771安装支架BRACKET Mounting2
6455611螺钉(.250-20 x 1.120)SCREW (.250-20 x 1.120)2
735950垫圈 (.273 x .437 x .031) 不锈钢WASHER (.273 x .437 x .031) Stainless Steel2
8814101螺母 (.250-20) 不锈钢NUT (.250-20) Stainless Steel2
88M0207776螺母NUT2
926992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel2
1073286螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel2
1169028螺钉（.250-28 x .750）不锈钢SCREW (.250-28 x .750) Stainless Steel2
1235462垫圈(.2656 x .625 x .0625)不锈钢WASHER (.2656 x .625 x .0625) Stainless Steel2
1355098J型卡扣J CLIP1
138M0024808J型夹J-CLIP1
1435280垫圈(.255 x .620 x .030) 不锈钢WASHER (.255 x .620 x .030) Stainless Steel2
1535045螺母(.250-28)NUT (.250-28)2
15826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel2
16826802A4线束总成HARNESS ASSEMBLY1
图 97油气分离器组件 Vapor Separator Components
油气分离器组件 Vapor Separator Components
REF零件编号中文名称英文名称数量
-880133T07蒸汽分离器总成VAPOR SEPARATOR ASSEMBLY1
1889317T1盖板套件COVER KIT1
2NSS阀座(不单独销售)NOT SOLD SEPARATE Seat1
3889318001挡板PLATE Baffle1
4883223螺钉(M6 x 16)SCREW (M6 x 16)2
5889319衬垫GASKET1
6883556接头FITTING1
7883209O型圈O-RING1
78M0062785O型圈O-RING1
8889329接头FITTING1
9883208堵头PLUG1
10884380T燃油滤清器FILTER Fuel1
108M0122423水星燃油滤清器FUEL FILTER Quicksilver1
11889320A1浮子套件FLOAT KIT1
12F10064轴SHAFT1
13888725T02燃油泵总成-高压PUMP ASSEMBLY Fuel - High Pressure1
14855428套筒SLEEVE1
148M6000589套筒SLEEVE1
158893162O型圈O-RING1
16889321密封件SEAL1
168M6001412密封件SEAL1
17889328固定座RETAINER1
189643螺钉SCREW11
19888733T02增压泵总成PUMP ASSEMBLY Boost1
20889322护孔环GROMMET1
21889316O型圈O-RING1
22889323密封件SEAL1
228M6001413密封件SEAL1
23889324T02油杯套件BOWL KIT1
23889324T03油杯套件BOWL KIT1
24889325A1电线WIRE1
24889325A02电线WIRE1
25NSS止回阀(不单独销售)NOT SOLD SEPARATE Check Valve1
26855424011接头FITTING2
27889326A1进气阀套件VALVE KIT Inlet1
28889327A1放油螺钉SCREW Drian2
298893161O型圈O-RING2
30889330水温传感器SENSOR Water1
308M0214989燃油含水传感器SENSOR WIF1
3178279245度弯头接头(1.25)FITTING Elbow 45 Degree (1.25)1
318M0207781弯头ELBOW1
32627021O型圈(.301 x .070)O-RING (.301 x .070)2
33889430嵌件INSERT1
34883545002软管HOSE1
35884820施拉德阀SHRADER VALVE1
36891778O型圈O-RING1
37884819卡扣CLIP1
3882130012螺钉（M6 x 12）SCREW (M6 x 12)1
39855362001护孔环GROMMET3
40883050隔套SPACER3
4181893460螺钉 (M8 x 60)SCREW (M8 x 60)3
424002318垫圈 8.90 x 24.0x 2.4 不锈钢WASHER 8.90 x 24.0x 2.4 PL SS3
-889316A1蒸汽分离器O型圈套件O-RING KIT Vapor Seperator1
图 98线束/启动继电器 Wiring Harness/Starter Solenoid
线束/启动继电器 Wiring Harness/Starter Solenoid
REF零件编号中文名称英文名称数量
1434291点火板 点火IGNITION PLATE IGNITION1
27778A9开关盒总成SWITCHBOX ASSEMBLY2
27778A12开关盒总成SWITCHBOX ASSEMBLY2
313669开关盒螺钉(#12-24 x 2.00)SCREW (#12-24 x 2.00) SWITCH BOX2
494453开关盒螺钉衬套BUSHING SWITCH BOX SCREW2
645076螺母(#10-32)黄铜开关盒端子NUT (#10-32) Brass SWITCH BOX TERMINAL20
760871A10线束总成-开关盒WIRE ASSEMBLY SWITCH BOX2
862568螺丝(#10-16 x 0.375)导线固定SCREW (#10-16 x .375) WIRE ATTACHING3
965999A3线缆总成(黑色)CABLE ASSEMBLY Black1
1069092点火板螺钉(1.25)SCREW (1.25) IGNITION PLATE3
1060411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)3
1126993锁紧垫圈(.312)点火板螺钉LOCKWASHER (.312) IGNITION PLATE SCREW3
118M0204647锁紧垫圈 (.312)LOCKWASHER (.312)3
1236042垫圈 点火板螺钉WASHER IGNITION PLATE SCREW6
1367264橡胶垫圈 点火板螺钉WASHER (Rubber) IGNITION PLATE SCREW6
1467268衬套 点火板螺钉BUSHING IGNITION PLATE SCREW3
1533386A3开关总成SWITCH ASSEMLBY1
1638055水银开关螺钉(.190-32 x .620)SCREW (.190-32 x .620) MERCURY SWITCH1
1745076螺母 (#10-32) 黄铜水银开关端子NUT (#10-32) Brass MERCURY SWITCH TERMINAL1
1887926螺钉(#10-32 x .500)导线固定SCREW (#10-32 x .500) LEAD ATTACHING1
1988439A3正极电缆总成-蓄电池CABLE ASSEMBLY Positive - Battery1
1988439A4蓄电池负极电缆总成CABLE ASSEMBLY Battery - Negative1
2096220A12发动机线束总成HARNESS ASSEMBLY ENGINE1
2179091保险丝20安培FUSE 20 Ampere1
218M0207796保险丝20安培FUSE 20 AMP1
2295084A2电缆总成-保险丝CABLE ASSEMBLY FUSE1
24816311捆扎带(8英寸)线束和电缆TIE STRAP (8.00 Inches) HARNESS AND CABLESAR
24816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
2568258A4启动电磁阀总成SOLENOID ASSEMBLY Starter1
25853654A1电磁阀SOLENOID1
2645076螺母(#10-32)黄铜 电磁阀端子NUT (#10-32) Brass SOLENOID TERMINALS2
2753166锁紧垫圈 (.312)LOCKWASHER (.312)2
2868292螺母（.312-18）电磁阀端子NUT (.312-18) SOLENOID TERMINALS2
288M0204668螺母(.312-18)NUT (.312-18)2
2931716螺钉(0.250-20x0.620)SCREW (.250-20 x .620)2
3026992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel2
3165999A2电缆总成 黑色 上部安装CABLE ASSEMBLY Black UPPER MOUNT1
3288528A2线缆总成(6英寸-红/白)CABLE ASSEMBLY (6" - RED/WHITE)1
3291865A1线束总成(3"-白/黑-175)CABLE ASSEMBLY (3" - WHITE/BLACK - 175)1
3347483J型卡扣J CLIP3
34194372端子排TERMINAL BLOCK1
3538055螺钉(0.190-32x0.620)SCREW (.190-32 x .620)2
3689302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)2
3745076黄铜螺母(#10-32)NUT (#10-32) Brass2
38814422T点火板盖COVER IGNITION PLATE1
3988447螺钉 (.190-32 x 1.62)SCREW (.190-32 x 1.62)2
4069020螺钉(#10-32 x .875)SCREW (#10-32 x .875)1
40690201螺钉(#10-32 x .875)SCREW (#10-32 x .875)1
4189302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)3
4226996锁紧垫圈(#10)(不锈钢)LOCKWASHER (#10) Stainless Steel3
4362310A2线束总成(175)CABLE ASSEMBLY (175)1
4478866绝缘体INSULATOR1
