水星 Mercury 200 EFI PRO MAX/SUPER MAG 0D935000 THRU 0G610079 - 爆炸图零件明细

两冲程电喷 EFI · Belgium - Cat.# 90-80856794 · 共 102 个部位 · 4542 条零件

图 1泄放系统 Bleed System

REF	零件编号	中文名称	英文名称	数量
1	99130122	泄放管(20.00英尺散装)	TUBING (20.00 Feet Bulk) BLEED	1
2	59169	接头	FITTING	4
2	59169003	三通接头	FITTING Tee	4
3	42698	止回阀 (压入式 - 13/16"长)	CHECK VALVE (PRESS-IN - 13/16" LONG)	7
3	426982	止回阀	CHECK VALVE	7
4	42623	止回阀 (压入式 - 11/16"长)	CHECK VALVE (PRESS-IN - 11/16" LONG)	1
4	426233	止回阀	CHECK VALVE	1
5	15133	压入式接头	FITTING (PRESS-IN)	6
6	56759	倒钩接头	FITTING Barbed	4
7	15026	黄色弯头盖	CAP ELBOW (YELLOW)	4
8	18205	三通	TEE	1
9	9912688	管材 (36.00英寸散装)	TUBING (36.00 Inches Bulk)	1
10	18206	滤清器	FILTER	1
10	8M0207786	滤清器	FILTER	1

图 2外罩 Cowling

REF	零件编号	中文名称	英文名称	数量
1	817704A22	顶盖总成	TOP COWL ASSEMBLY	1
1	817704A23	顶盖总成	TOP COWL ASSEMBLY	1
1	817704T23	灰色顶罩	COWL-TOP-GRAY	1
2	817706A3	前盖	FRONT COVER	1
2	817706A4	前盖	FRONT COVER	1
3	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	4
4	22887	垫圈	WASHER	4
5	71602	轭架	YOKE	4
5	8M0192198	轭架	YOKE	4
5	716021	轭架	YOKE	4
6	816771	铆钉	RIVET	12
7	847883	垫圈(0.192x0.375x0.033)	WASHER (.192 x .375 x .033)	12
8	817708	压紧件	HOLD DOWN	4
9	58712	U型销	PIN Clevis	4
10	847883	垫圈(0.192x0.375x0.033)	WASHER (.192 x .375 x .033)	4
11	21071	开口销	COTTER PIN	4
11	210711	开口销	COTTER PIN	4
12	848164A7	底壳	BOTTOM PAN	1
12	848164T7	黑色底罩	COWL-BOTTOM-BLACK	1
12	817709A13	底壳	BOTTOM PAN	1
12	848164T8	灰色底罩	COWL-BOTTOM-GRAY	1
13	815784	盖帽	CAP	2
14	13734	固定座	RETAINER	4
14	8M0192190	固定座	RETAINER	4
14	137341	固定座	RETAINER	4
15	848172	开口铆钉	RIVET (POP-OPEN)	16
16	8177121	密封条(6.79英尺大卷)	SEAL (6.79 Feet Bulk)	1
16	817712003	密封条(6.79英尺)	SEAL (6.79 Feet)	1
17	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	11
18	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	11
18	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	11
19	8221882	安装板	PLATE	1
19	822188T2	安装板	PLATE	1
20	35045	螺母(.250-28)	NUT (.250-28)	11
20	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	11
21	848165	支撑架	BRACE	2
22	8177131	护孔环	GROMMET	2
22	8177133	护孔环	GROMMET	2
23	847894A1	围板	SKIRT	1
23	847894T1	黑色围板	SKIRT-BLACK	1
23	847894A2	围板	SKIRT	1
24	69028	螺钉（.250-28 x .750）不锈钢	SCREW (.250-28 x .750) Stainless Steel	8
25	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	16
26	35045	螺母(.250-28)	NUT (.250-28)	8
26	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	8
27	126021	护孔环	GROMMET	1
27	12602002	护孔环	GROMMET	1
28	18286A40	开关总成	SWITCH ASSEMBLY	1
28	8M0235192	微调开关	SWITCH TRIM	1
29	8124431	固定座	RETAINER	1
29	8M0032848	开关固定座	RETAINER Switch	1
30	847897	燃油接头支架	BRACKET Fuel Connector	1
31	28668	螺钉 (.250-20 x .875) 不锈钢	SCREW (.250-20 x .875) Stainless Steel	2
32	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	2
32	8M0207776	螺母	NUT	2
33	88621	固定座(按需使用)	RETAINER (Use where Applicable)	1
34	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	2
34	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	2
35	29488	螺母 (#10-32)	NUT (#10-32)	2
35	8M0204718	螺母	NUT	2

图 3曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	842753A02	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	NSS	磨损套筒(不单独销售)	NOT SOLD SEPARATE Wear Sleeve	1
3	67923T	滚珠轴承(下)	BEARING Ball (Lower)	1
4	67446	环	RING	1
5	843198001	密封环	RING Seal	7
5	843198T01	密封环	RING Seal	7
6	91800	半圆键	KEY Woodruff	1
7	35126	O型圈(.859 x .139)	O-RING (.859 x .139)	1
8	88270A1	轴承座圈总成	RACE ASSEMBLY	2
8	88270A02	轴承/座圈套件	BEARING/RACE KIT	2
9	88269T	轴承总成	BEARING ASSEMBLY	2
10	843200T03	活塞总成	PISTON ASSEMBLY	3
10	842986T03	活塞总成	PISTON ASSEMBLY	3
10	843200T13	活塞总成	PISTON ASSEMBLY	3
10	842986T03	活塞总成	PISTON ASSEMBLY	3
10	843199T03	活塞总成	PISTON ASSEMBLY	3
10	843199T13	活塞总成	PISTON ASSEMBLY	3
10	843199T13	活塞总成	PISTON ASSEMBLY	3
11	841202	环	RING	12
12	858772A02	活塞环组	RING SET Piston	1
13	822373A09	连杆总成	CONNECTING ROD ASSEMBLY	6
13	8M0125869	连杆套件	CONN ROD KIT	6
14	94320	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	12
15	43012A1	轴承/保持架套件	BEARING/CAGE KIT	12
15	8M0235070	轴承保持架	CAGE BEARING	12
16	NSS	不单独销售滚针轴承	NOT SOLD SEPARATE Needle Roller Bearing	96
17	88263	止推垫片	THRUST WASHER	12
18	88258001	滚针轴承	BEARING Needle	204
18	8M0204715	滚针@102	NEEDLES-BRG @102	204
19	816773A2		BEARING ASSEMBLY (Upper)	1
20	859093	密封件	SEAL	1
21	823683	O型圈(1.989 x .070)	O-RING (1.989 x .070)	1
-	843034A05	动力头总成	POWERHEAD ASSEMBLY	1
-	843034A07	动力头总成	POWERHEAD ASSEMBLY	1
-	832933A05	动力头衬垫套件	GASKET SET Powerhead	1
-	841220A03	动力头衬垫套件	GASKET SET Powerhead	1

图 4气缸体与端盖 Cylinder Block and End Caps

REF	零件编号	中文名称	英文名称	数量
1	9764A12	气缸体(175)	CYLINDER BLOCK (175)	1
1	9763A6	气缸体(200)	CYLINDER BLOCK (200)	1
1	9763T6	气缸体	CYLINDER BLOCK	1
2	818138	动力头螺柱(1-3/4")	STUD POWERHEAD (1-3/4")	2
2	8M0034455	螺柱1.750	STUD 1.750	2
2	76175	动力头螺柱(1-7/8英寸)	STUD POWERHEAD (1-7/8")	4 OR 6
3	67065	动力头螺柱(5-1/2英寸)	STUD POWERHEAD (5-1/2")	2
3	670654	螺柱(.375-16/.375-24 x 5.620)	STUD (.375-16/.375-24 x 5.620)	2
3	78438	动力头螺柱(6-3/4英寸)	STUD POWERHEAD (6-3/4")	2
3	8M0034454	螺柱(.375-16/.375-24 x 6.87)	STUD (.375-16/.375-24 x 6.87)	2
4	20033	定位销	PIN Dowel LOCATING	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	销(轴承座圈)	PIN (BEARING RACE)	2
5	8M0036405	销	PIN	2
6	11338	密封垫片	GASKET SEALING	2
7	42249	启动马达上盖	COVER STARTER MOTOR (UPPER)	1
7	8M0088723	启动器支架	BRACKET-STARTER	1
8	73657	盖至曲轴箱螺钉(.312-18 x 1.50)	SCREW (.312-18 x 1.50) COVER TO CRANKCASE	2
9	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
9	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
10	76867	启动电机盖(下部)	COVER STARTER MOTOR (LOWER)	1
11	77065	盖至曲轴箱螺钉(.312-18 x 2)	SCREW (.312-18 x 2) COVER TO CRANKCASE	2
11	815549	螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00)	2
12	99448	衬套	BUSHING	1
13	88807A20	线束总成盖	CABLE ASSEMBLY COVER	1
14	66717	螺钉(.375-16 x 3.250)	SCREW (.375-16 x 3.250)	8
14	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	6
15	9642A1	上端盖总成	END CAP ASSEMBLY Upper	1
15	858521T1	端盖总成	END CAP ASSEMBLY	1
16	54029	端盖O型圈(2.800 x .103)	O-RING (2.800 x .103) END CAP	1
17	16756A2	滚子轴承端盖总成	BEARING ASSEMBLY Roller END CAP	1
17	16756A4	轴承套件	BEARING KIT	1
18	41953	端盖密封件	SEAL END CAP	1
19	69034	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW AND LOCKWASHER (.312-18 x 1.00)	4
19	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	4
20	63153	J型卡扣	J CLIP	1
22	15094	双头螺柱(.190-32 x 1.870)	STUD (.190-32 x 1.870)	1
23	15093	飞轮盖至支架双头螺柱(#10-32 x 1.00)	STUD (#10-32 x 1.00) FLYWHEEL COVER TO BRACKET	2
23	8M0034435	螺柱	STUD	2
24	67269	飞轮盖螺柱隔套	SPACER FLYWHEEL COVER STUD	1
25	492211	飞轮盖螺柱垫圈	WASHER FLYWHEEL COVER STUD	6
25	8M0204663	垫片@5	WASHER @5	6
26	72761	飞轮盖螺柱不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel FLYWHEEL COVER STUD	3
27	816874	蝶形螺母(#10-32)飞轮盖螺柱	WING NUT (#10-32) FLYWHEEL COVER STUD	3
28	42248	飞轮罩支架	BRACKET FLYWHEEL COVER	1
28	422482	支架	BRACKET	1
29	49668	支架至曲轴箱螺钉(.250-20 x .750)	SCREW (.250-20 x .750) BRACKET TO CRANKCASE	2
30	7809A1	下端盖总成	END CAP ASSEMBLY LOWER	1
30	7809T1	端盖总成	END CAP ASSEMBLY	1
31	62700	端盖O型圈(3.237 x .103)	O-RING (3.237 x .103) END CAP	1
32	41953	端盖密封件	SEAL END CAP	2
33	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
34	26992	下端盖螺钉不锈钢锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel LOWER END CAP SCREW	4
35	64022	调节螺钉(.250-20 x 2.125)-气缸体	SCREW (.250-20 x 2.125) ADJUSTING - CYLINDER BLOCK	1
36	64015	锁紧螺母(.250-20)-调节螺钉	NUT (.250-20) JAM - ADJUSTING SCREW	1
37	26852	调节螺钉尼龙帽	CAP Nylon NYLON - ADJUSTING SCREW	1
38	87076A6	怠速控制总成(200)	IDLE SPEED CONTROL ASSEMBLY (200)	1
38	87076A10	怠速控制器	IDLE SPEED CONTROL	1
39	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
39	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
40	38833	垫圈	WASHER	3
41	93772A5	模块(175)	MODULE (175)	1
41	93772A11	提前角模块	ADVANCE MODULE	1
42	16793	卡箍(175)	CLAMP (175)	1
43	73286	螺钉(0.250-20×0.500)不锈钢(175)	SCREW (.250-20 x .500) Stainless Steel (175)	1
-	812817A90	动力头总成(完整)(175)	POWERHEAD ASSEMBLY COMPLETE (175)	1
-	812817T90	船用动力头	POWERHEAD MARINE	1
-	812827A90	动力头总成(完整)(200)	POWERHEAD ASSEMBLY COMPLETE (200)	1
-	812827T91	船用动力头	POWERHEAD MARINE	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 5爆震控制器/温度传感器 Detonation Controller/Temperature Sensor

REF	零件编号	中文名称	英文名称	数量
1	14856A3	爆震控制器总成(200)	CONTROLLER ASSEMBLY Detonation (200)	1
2	88447	螺钉(0.190-32×1.62)爆震控制器(200)	SCREW (.190-32 x 1.62) DETONATION CONTROLLER (200)	3
3	38833	爆震控制器螺钉垫圈(200)	WASHER DETONATION CONTROLLER SCREW (200)	3
4	13381	板(200)	PLATE (200)	1
5	60466A20	电缆总成(200)	CABLE ASSEMBLY (200)	1
5	88807A10	拉线总成	CABLE ASSEMBLY	1
6	62568	螺钉(#10-16×0.375)电缆至板(200)	SCREW (#10-16 x .375) CABLE TO PLATE (200)	1
7	94304	垫片(200)	SPACER (200)	3
8	41470A12	喷油警告模块总成	MODULE ASSEMBLY Oil Injection Warning	1
8	41470A25	喷油警告模块总成	MODULE ASSEMBLY Oil Injection Warning	1
9	14851T	节气门位置指示器	INDICATOR THROTTLE POSITION	1
9	14851T03	指示器	INDICATOR	1
10	15150		SCREW (#8-32 x .625) INDICATOR	2
11	26995		LOCKWASHER (#8) Stainless Steel INDICATOR SCREW	2
12	46101	指示器螺钉垫圈	WASHER INDICATOR SCREW	2
12	30164	垫圈(0.192x0.375x0.0312)不锈钢	WASHER (.192 x .375 x .0312) Stainless Steel	2
13	15885	套筒	SLEEVE	1
14	13221A1	温度传感器总成	SENSOR ASSEMBLY Temperature	1
14	13221T01	温度传感器	SENSOR TEMP	1
15	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
16	57583	螺钉(#8-32×0.375)温度传感器	SCREW (#8-32 x .375) TEMPERATURE SENSOR	3
16	57583T	螺丝#8-32×3/8	SCREW #8-32x3/8	3
17	26995	锁紧垫圈(#8)不锈钢温度传感器螺钉	LOCKWASHER (#8) Stainless Steel TEMPERATURE SENSOR SCREW	3
18	42813	螺钉（#10-32 X 0.380）	SCREW (#10-32 X .380)	1
19	813501	安装板	PLATE	2
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 6驱动轴壳与排气管 Driveshaft Housing and Exhaust Tube

REF	零件编号	中文名称	英文名称	数量
1	832937A06	传动轴壳体总成-加长型	HOUSING ASSEMBLY Driveshaft - Long	1
1	832938A06	传动轴壳体总成-超长/特超长型	HOUSING ASSEMBLY Driveshaft - X/XX-Long	1
2	8M0008031	双头螺柱(M12 x 1.75 x 52)	STUD (M12 x 1.75 x 52)	4
3	88552835	螺栓(M12x35毫米)外六角	SCREW (M12 x 35 MM) External Hex	1
3	8M0102995	螺丝 (M12)	SCREW (M12)	1
3	892860	螺栓(M12x35)内六角	SCREW (M12 x 35) Internal Hex	1
4	8331231	护孔环	GROMMET	1
5	856982	垫圈(0.5×0.81×0.09英寸)不锈钢	WASHER (.500 x .810 x .090) Stainless Steel	5
6	896895	螺母(M12)	NUT (M12)	4
7	64649	堵头	PLUG	1
8	898834	螺栓（M14×178）	BOLT (M14 x 178)	2
9	88238A10	接地线总成	CABLE ASSEMBLY Ground	2
10	815432	垫圈(.562 x 2.00 x .125)	WASHER (.562 x 2.00 x .125)	2
11	8154331	垫圈（1.25×2.00×0.19）	WASHER (1.25 x 2.00 x .19)	2
12	8137711	支架	MOUNT	2
12	840361T	支架	MOUNT	2
12	8M0055931	支架	MOUNT	2
13	825190	垫圈	WASHER	2
14	896602	螺母(M14)	NUT (M14)	2
15	8186442	卡箍(耗尽时订购Design II套件879150A90)	CLAMP When Depleted Order Design II Kit 879150A90	2
15	879150A90	下支架盖套件	COVER KIT Lower Mount	2
16	8M0033179	螺钉 (M8 x 40)	SCREW (M8 x 40)	4
16	8M0084475	螺钉 (M8 x 40)	SCREW (M8 x 40)	4
17	72521	内齿锁紧垫圈	LOCKWASHER Internal Tooth	1
18	8M0001136	下支架盖(耗尽时订购Design II套件879150A90)	COVER Lower Mount When Depleted Order Design II Kit 879150A90	2
18	879150A90	下支架盖套件	COVER KIT Lower Mount	2
19	69079	螺钉 (#10-16 x .440)	SCREW (#10-16 x .440)	2
20	8329321	密封件	SEAL	1
21	833116A19	排气管总成	TUBE ASSEMBLY Exhaust	1
21	8M0075819	排气管总成	TUBE ASSEMBLY Exhaust	1
22	8524052	滤网	STRAINER	1
22	8M0026113	滤网	STRAINER	1
22	8M0026113	滤网	STRAINER	1
23	81893435	螺钉(M8×35)	SCREW (M8 x 35)	6
23	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	6
24	8329417	水管	TUBE Water	1
24	8M0042785	水管	TUBE-WATER	1
24	8329418	水管	TUBE Water	1
24	8M0042786	水管	TUBE Water	1
25	832940001	密封件	SEAL	1
26	8329391	卡箍	CLAMP	1
27	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
28	81893435	螺钉(M8×35)	SCREW (M8 x 35)	2
28	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	2
28	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	2
29	847541	垫圈	WASHER	4
30	879150A90	下支架盖套件	COVER KIT Lower Mount	2
31	8M4501006	下支架盖	COVER Lower Mount	2
31	8M0148785	盖板	COVER	2
32	8M4501003	卡箍	CLAMP	2
33	69079	螺钉 (#10-16 x .440)	SCREW (#10-16 x .440)	6

图 7ECU总成 ECU Assembly

REF	零件编号	中文名称	英文名称	数量
1	8240037	发动机控制单元ECU	ECU Engine Control Unit	1
1	824003A7	电控单元	ECU	1
1	8240035	发动机控制单元ECU	ECU Engine Control Unit	1
1	824003A5	电控单元	ECU	1
1	82400313	发动机控制单元ECU	ECU Engine Control Unit	1
1	824003A13	发动机控制单元ECU	ECU Engine Control Unit	1
1	82400311	发动机控制单元ECU	ECU Engine Control Unit	1
1	824003T11	电控单元	ECU	1
1	824003A13	发动机控制单元ECU	ECU Engine Control Unit	1
1	824003A11	发动机控制单元ECU	ECU Engine Control Unit	1
1	824003T11	电控单元	ECU	1
2	34948	隔套	SPACER	2
3	146951	卡扣	CLIP	1
4	90435	支架	MOUNT	2
5	21249	垫圈	WASHER	4
6	20361	螺母(.250-28)	NUT (.250-28)	4
6	8267089	螺母(.250-28)	NUT (.250-28)	4
7	88807A19	拉线总成	CABLE ASSEMBLY	1
8	14637	护孔环	GROMMET	1
9	14636	衬套	BUSHING	1
10	28667	螺钉 (0.250-20 x 1.00) 不锈钢	SCREW (.250-20 x 1.00) Stainless Steel	1
11	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
12	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	1
13	13202A2	水位传感器模块总成	MODULE ASSEMBLY Water Sensor	1
14	13202A4	水位传感器模块总成	MODULE ASSEMBLY Water Sensor	1
15	88807A18	线缆总成(黑色)	CABLE ASSEMBLY (BLACK)	1
16	37571	螺钉(.190-32 x 0.500)	SCREW (.190-32 x .500)	2
17	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
18	98866A14	线束总成	HARNESS ASSEMBLY	1
19	190491	连接环	COUPLE RING	1
20	98866A25	线束总成 ECU与喷油器	HARNESS ASSEMBLY ECU And Injectors	1
21	87895A4	拉线总成	CABLE ASSEMBLY	1

图 8排气分隔板及排气板 Exhaust Divider and Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	815552A1	分隔板	DIVIDER PLATE	1
2	328021	管塞 (.125-27)	PLUG Pipe (.125-27)	1
2	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
3	8475251	衬垫	GASKET	1
3	847525004	衬垫	GASKET	1
4	814754	密封件(12.50英寸)	SEAL (12.50 Inches)	1
5	847538	螺钉	SCREW	18
5	848496	螺钉(0.312-18 x 1.50)	SCREW (.312-18 x 1.50)	18
5	848497	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	2
6	847526	垫圈（适用处使用）	WASHER (USE WHERE APPLICABLE)	20
7	814634	大卡箍	CLAMP (LARGE)	AR
7	642352	小J型夹	J CLIP (SMALL)	1
7	61001	J型卡扣	J CLIP	1
8	8478951	板调节器	PLATE Regulator	1
9	815279T	电压调节器	REGULATOR Voltage	1
9	8M0084173	电压调节器	VOLTAGE REGULATOR	1
10	69697	螺钉(.250-28 x 1.50)	SCREW (.250-28 x 1.50)	4
11	35045	螺母(.250-28)	NUT (.250-28)	4
11	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	4
12	814430	管接头(.500-14)	FITTING (.500-14)	1
12	8144301	接头	FITTING	1
13	92007	管接头(.250-18)(90度)	FITTING (.250-18) (90 DEGREES)	1
13	920071	90度弯头	FITTING (90 Degree)	1
14	830756109	软管（57.00英寸整卷）（裁切至23-1/2英寸）	HOSE (57.00 Inches Bulk) (Cut to 23-1/2 IN.)	1
14	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
15	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
15	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
16	68729	盖板	COVER	1
16	8M0039767	盖板	COVER	1
17	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
18	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
19	76451	垫圈	WASHER	1
20	14479	隔膜	DIAPHRAGM	1
20	144791	隔膜	DIAPHRAGM	1
21	16496	导水板	DEFLECTOR Water	1
22	16497A1	安装板	PLATE	1
23	78690	衬垫	GASKET	2
23	78690002	衬垫	GASKET	2
24	64878	弹簧(黑色)	SPRING (Black)	1
25	85303	垫圈	WASHER	1
26	14480	提动阀	POPPET	1
27	64872	护孔环	GROMMET	1
28	65848	托架	CARRIER	1
29	8231421	衬垫	GASKET	2
29	8231422	衬垫	GASKET	2
30	18260A4	排气板总成	PLATE ASSEMBLY Exhaust	1
31	823106	定位销 (.875)	PIN Dowel (.875)	2
31	8M0043826	定位销	PIN Dowel	2
32	14867	45度弯头	ELBOW 45 Degree (45 DEGREES)	1
33	29085	45度弯管接头	FITTING Elbow (45 Degree)	1
33	8M0123050	45度弯管接头	FITTING Elbow (45 Degree)	1
34	822838	垫圈 (.401 x .745 x .097)	WASHER (.401 x .745 x .097)	6
35	46335	螺母 (.375-24)	NUT (.375-24)	6
36	27132	衬套	BUSHING	1
37	66725	螺钉(.375-16×3.50)	SCREW (.375-16 x 3.50)	3
37	898833	螺钉(.375-16 x 3.500)	SCREW (.375-16 x 3.500)	3
38	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
39	68783	螺钉(.312-18×2.50)	SCREW (.312-18 x 2.50)	1
-	823142A94	衬垫套件	GASKET SET	1
-	809839A94	动力头总成	POWERHEAD ASSEMBLY	1
-	809839T94	PH 150 EFI	PH 150 EFI	1
-	808603A94	动力头总成	POWERHEAD ASSEMBLY	1
-	808603T94	动力头总成	POWERHEAD ASSEMBLY	1

图 9飞轮、启动电机及点火线圈 Flywheel, Starter Motor and Ignition Coils

REF	零件编号	中文名称	英文名称	数量
1	18896A1	盖板套件	COVER KIT	1
2	79022	标记	MARKER	1
3	37572	螺钉 (.190-32 x .380)	SCREW (.190-32 x .380)	2
4	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	2
5	89219	塞（适用时使用）	PLUG (USE WHERE APPLICABLE)	1
5	89219001	堵头	PLUG	1
6	45907	黄色塞	PLUG Yellow	1
7	52901	螺母(0.625-18)	NUT (.625-18)	1
8	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
8	33001	垫圈	WASHER	1
9	817632A12	飞轮	FLYWHEEL	1
9	859238T16	飞轮总成	FLYWHEEL ASY	1
10	9610A27	定子	STATOR	1
11	90045	螺钉(#10-32×1.375)	SCREW (#10-32 x 1.375)	4
12	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	4
13	96455A9	触发板总成	PLATE ASSEMBLY Trigger	1
14	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
14	893893	启动马达	STARTER MOTOR	1
15	56703	轴环	COLLAR	2
15	8M0034918	轴环	COLLAR	2
16	68042	橡胶止挡	STOP Rubber	2
16	8M0043376	停机开关	STOP	2
17	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
18	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
19	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
20	20890	螺母 (.250-20)	NUT (.250-20)	1
21	69739A7	线束总成	HARNESS ASSEMBLY	1
22	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	6
22	8M0230859	点火线圈总成	COIL IGNITION ASY	6
22	7370A19	点火线圈总成	COIL ASSEMBLY Ignition	6
22	8M0230859	点火线圈总成	COIL IGNITION ASY	6
22	832757A4	线圈套件	COIL KIT	6
22	8M0230859	点火线圈总成	COIL IGNITION ASY	6
23	79743	盖板	COVER	3
24	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	12
25	30164	垫圈(0.192x0.375x0.0312)不锈钢	WASHER (.192 x .375 x .0312) Stainless Steel	12
26	88807A6	电缆总成（3.50英寸）黑色	CABLE ASSEMBLY (3.50 Inches) Black (BLACK)	6
27	68513	螺钉(#10-32x.375)不锈钢	SCREW (#10-32 x .375) Stainless Steel	6
28	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	18
29	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	12
30	136862	火花塞	SPARK PLUG	6
30	13686Q	NGK BU8H @10	NGK BU8H @10	6
31	815358A1	点火电缆组	CABLE SET Ignition	1

图 10燃油管理系统(0G366999及以下) Fuel management System (0G366999 and Below)

REF	零件编号	中文名称	英文名称	数量
1	827697	连杆杠杆套件	LEVER KIT Link	1
2	827698	螺钉套件	SCREW KIT	1
3	827699	燃油导轨	FUEL RAIL	1
3	8276992	燃油导轨	FUEL RAIL	1
3	827699T2	燃油导轨	FUEL RAIL	1
4	809057	燃油管接头套件	JOINT KIT Fuel Pipe	1
4	809057T	燃油管接头套件	JOINT KT-FUELPIPE	1
5	8276981	螺钉套件	SCREW KIT	1
6	809059	施拉德阀套件	SCHRADER VALVE KIT	1
7	15444	连杆(设计I型)	LINK (DESIGN I)	1
8	8276891	连杆套件(设计II型)	LINK KIT (DESIGN II)	1

图 11燃油管理系统(0G367000及以上) Fuel Management System (0G367000 and Up)

REF	零件编号	中文名称	英文名称	数量
-	14817A23	燃油管理系统总成	MANAGEMENT ASSEMBLY Fuel	1
1	8276922	盖板	COVER	1
2	15443	线束套件	HARNESS KIT	1
3	18792	密封件	SEAL	1
4	15029	O型圈及密封套件	O-RING AND SEAL KIT	1
5	8276992	燃油导轨	FUEL RAIL	1
5	827699T2	燃油导轨	FUEL RAIL	1
6	18715	燃油喷油器	INJECTOR Fuel	1
6	18715T	喷油器总成	INJECTOR ASSEMBLY	1
7	17422	滤清器	FILTER	1
8	827696	固定套件	RETAINER KIT	1
9	8276933	节气门体	THROTTLE BODY	1
10	8090572	接头套件	JOINT KIT	1
11	8276891	连杆套件	LINK KIT	1
12	827697	连杆杠杆套件	LEVER KIT Link	1
13	827698	螺钉套件	SCREW KIT	1
14	8276981	螺钉套件	SCREW KIT	1
15	8090851	弯头套件	ELBOW KIT	1
16	814233A1	施拉德阀套件	SCHRADER VALVE KIT	1
16	814233A02	阀套件	VALVE KIT	1
17	8142332	FMA接头套件	FMA JOINT KIT	1
18	8276942	软管套件	HOSE KIT	1
18	827694A01	软管套件-燃油	HOSE KIT-FUEL	1
19	67748	滚轮	ROLLER	1
20	90088	螺钉(.250-20x4)	SCREW (.250-20 x 4)	10
20	845674	螺钉(.250-20x4.00)	SCREW (.250-20 x 4.00)	10
21	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	10
21	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	10

图 12燃油泵(铝制壳体) Fuel Pump (Aluminum Body)

REF	零件编号	中文名称	英文名称	数量
1	15930A21	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
4	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
5	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
6	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Vavle	2
10	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
12	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
13	987691	底座衬垫	GASKET Base	1
13	8M0204705	衬垫@2	GASKET @2	1
14	144303		BASE Fuel Pump	1
15	987752	燃油泵板	PLATE Fuel Pump	1
16	99664	弯头	ELBOW	2
16	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	2
17	29111	连接器	CONNECTOR	1
17	291112	接头	FITTING	1
18	82104540		SCREW (M5 x 40) Fuel Pump	2
19	82130050		SCREW (M6 x 50) Fuel Pump to Crankcase	2
20	83075780	管材(28.00英寸散装)	TUBING (28.00 Inches Bulk)	1
20	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
21	83075780	管材(28.00英寸散装)	TUBING (28.00 Inches Bulk)	1
21	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
22	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
22	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
23	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
23	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
24	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
25	1350382	管材(30英寸散装)	TUBING (30.00 Inches Bulk)	2
25	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	2
26	18458A3	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
26	18458Q3	燃油滤清器	FILTER-FUEL	1
27	14570	探头	PROBE	1
28	13170A3	底座	BASE	1
29	13607	接头	FITTING	2
29	136071	弯头	ELBOW	2
30	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	2
30	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
-	823142A94	衬垫套件	GASKET SET	1
-	809839A94	动力头总成	POWERHEAD ASSEMBLY	1
-	809839T94	PH 150 EFI	PH 150 EFI	1
-	808603A94	动力头总成	POWERHEAD ASSEMBLY	1
-	808603T94	动力头总成	POWERHEAD ASSEMBLY	1

图 13燃油泵(塑料壳体带松散配件) Fuel Pump (Plastic Body With Loose Fittings)

REF	零件编号	中文名称	英文名称	数量
1	14360A53	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve-Rubber	2
4	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
5	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
6	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
10	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
12	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
13	987691	底座衬垫	GASKET Base	1
13	8M0204705	衬垫@2	GASKET @2	1
14	144303		BASE Fuel Pump	1
15	987752	燃油泵板	PLATE Fuel Pump	1
16	99664	弯头	ELBOW	1
16	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
17	29111	连接器	CONNECTOR	1
17	291112	接头	FITTING	1
18	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	1
18	433351	90度接头-带防振密封	CONNECTOR 90 Degree - With Vibraseal	1
19	82104540		SCREW (M5 x 40) Fuel Pump	2
20	82130050		SCREW (M6 x 50) Fuel Pump to Crankcase	2
21	9912878	软管 (.187) (26.00英寸散装)	HOSE (.187) (26.00 Inches Bulk)	1
22	99751	接头(0.0625-27)黄铜	FITTING (.0625-27) Brass	1
22	997511	弯头	ELBOW	1
23	83075780	管材(28.00英寸散装)	TUBING (28.00 Inches Bulk)	1
23	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
24	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
25	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
26	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
27	1350382	管材(30英寸散装)(15-1/2英寸)(19英寸)	TUBING (30.00 Inches Bulk) (15-1/2 IN.)(19 IN.)	2
27	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	2
28	18458A3	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
28	18458Q3	燃油滤清器	FILTER-FUEL	1
29	14570	探头	PROBE	1
30	13170A3	底座	BASE	1
31	13607	接头	FITTING	2
31	136071	弯头	ELBOW	2
32	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	2
32	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
33	1350382	管材(30英寸散装)(15-1/2英寸)(19英寸)	TUBING (30.00 Inches Bulk) (15-1/2 IN.)(19 IN.)	2
33	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	2
34	18458A4	滤清器套件	FILTER KIT	1
34	18458Q4	燃油水分离滤清器	FILTER Fuel-Water Separating	1
35	828586	探头	PROBE	1
35	8M0204710	探头	PROBE	1
36	13170A3	底座	BASE	1
37	89771	直型连接器(.250-18)	CONNECTOR (.250-18) (STRAIGHT)	1
37	89771Q2	连接器(.250-18)	CONNECTOR (.250-18)	1
38	13607	接头	FITTING	1
38	136071	弯头	ELBOW	1
39	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	2
39	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
-	823142A94	衬垫套件	GASKET SET	1
-	809839A94	动力头总成	POWERHEAD ASSEMBLY	1
-	809839T94	PH 150 EFI	PH 150 EFI	1
-	808603A94	动力头总成	POWERHEAD ASSEMBLY	1
-	808603T94	动力头总成	POWERHEAD ASSEMBLY	1

图 14燃油泵(塑料壳体带模制配件) Fuel Pump (Plastic Body With Molded Fittings)

REF	零件编号	中文名称	英文名称	数量
1	14360A43	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve-Rubber	2
4	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
5	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
6	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
10	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
12	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
13	987691	底座衬垫	GASKET Base	1
13	8M0204705	衬垫@2	GASKET @2	1
14	144303		BASE Fuel Pump	1
15	987752	燃油泵板	PLATE Fuel Pump	1
16	99664	弯头	ELBOW	1
16	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
17	82104540		SCREW (M5 x 40) Fuel Pump	2
18	82130050		SCREW (M6 x 50) Fuel Pump to Crankcase	2
19	83075780	管材(28.00英寸散装)	TUBING (28.00 Inches Bulk)	1
19	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
20	83075780	管材(28.00英寸散装)	TUBING (28.00 Inches Bulk)	1
20	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
21	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
21	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
22	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
22	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
23	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
24	1350382	管材(30英寸散装)	TUBING (30.00 Inches Bulk)	2
24	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	2
25	18458A3	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
25	18458Q3	燃油滤清器	FILTER-FUEL	1
26	14570	探头	PROBE	1
27	13170A3	底座	BASE	1
28	13607	接头	FITTING	2
28	136071	弯头	ELBOW	2
29	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	2
29	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
-	823142A94	衬垫套件	GASKET SET	1
-	809839A94	动力头总成	POWERHEAD ASSEMBLY	1
-	809839T94	PH 150 EFI	PH 150 EFI	1
-	808603A94	动力头总成	POWERHEAD ASSEMBLY	1
-	808603T94	动力头总成	POWERHEAD ASSEMBLY	1

图 15齿轮箱(驱动)扭矩大师1.87:1/2:1 Gear Housing (Drive)Torque Master 1.87:1/2:1

REF	零件编号	中文名称	英文名称	数量
-	827214A5	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214A6	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214T24	齿轮箱TM	GEAR HOUSING TM	1
-	827214A3	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	827214A4	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	827214A11	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214T24	齿轮箱TM	GEAR HOUSING TM	1
-	827214A10	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	827214A7	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	827214T25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	827214A8	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	827214T25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	827214A12	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	827214T25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	78638	螺柱(0.438x3.12)(3-1/8英寸)	STUD (.438 x 3.12) (3-1/8 IN.)	1
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
5	579201	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	69501	螺柱	STUD	2
8	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	826134	阳极块	ANODE	2
9	826134Q	阳极块	ANODE	2
10	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
11	8268336	螺母 (M6)	NUT (M6)	1
11	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
12	67891	填充块	FILLER BLOCK	1
12	8M0039169	填充块	FILLER BLOCK	1
13	NSS	不单独出售-小齿轮(属于43-44102A5或43-13742A2部件)	NOT SOLD SEPARATE Pinion Gear (Part of 43-44102A5 or 43-13742A2)	1
14	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
15	35921	螺母(0.625-18)	NUT (.625-18)	1
16	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
16	8M0058389	放油螺钉套件	SCREW KIT Drain	1
17	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	1
17	79953Q04	放油螺钉套件	SCREW KIT Drain	1
18	19183	纤维垫圈	WASHER Fiber	2
18	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
19	789022	换档轴	SHIFT SHAFT	1
20	77631A2	衬套总成	BUSHING ASSEMBLY	1
21	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
22	8164641	油封	SEAL Oil	1
22	8M0246145	油封	OIL SEAL	1
23	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
24	848449A5	驱动轴总成	DRIVESHAFT ASSEMBLY	1
24	8M0192234	驱动轴	DRIVESHAFT	1
25	42637A1	垫片组	SHIM SET	AR
25	8M0063267	垫片组	SHIM SET	AR
26	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
26	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
27	824519	固定座	RETAINER	1
27	8245191	固定座	RETAINER	1
28	44292A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
29	426311	衬垫	GASKET	1
29	8M0204678	衬垫	GASKET	1
30	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
30	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
31	89238	油封	SEAL Oil	1
32	16977	油封	SEAL Oil	1
33	18051	衬垫	GASKET	1
34	856091	衬垫	GASKET	1
34	858524	衬垫	GASKET	1
35	32435	面板	FACE PLATE	1
35	8M0204677	面板	PLATE-FACE	1
36	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
36	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
37	48752	嵌件	INSERT	1
37	48752T	嵌件	INSERT	1
38	38970	密封件	SEAL	1
39	899842	叶轮	IMPELLER	1
39	89984T4	叶轮	IMPELLER	1
40	56654	键	KEY	1
40	8M0214992	键@5	KEY @5	1
41	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
41	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
42	13438	螺母(.250-28)	NUT (.250-28)	2
42	8267119	螺母(.250-28)	NUT (.250-28)	2
43	36001	垫圈	WASHER	1
44	13436	螺母	NUT	1
45	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
45	8M0215009	螺钉	SCREW	1
46	29804	套筒	SLEEVE	1
46	29804T	套筒	SLEEVE	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 16齿轮箱(驱动)标准/反向旋转-运动大师 Gear Housing (Drive) Standard/Counter Rotation-SportMaster

REF	零件编号	中文名称	英文名称	数量
1	848450A25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	848474A39	齿轮箱总成-基本型(无扭矩片)	GEAR HOUSING ASSEMBLY Basic-Without Torque Tab	1
1	8M0084203	齿轮箱-SM型	GEAR HOUSING-SM	1
2	8479503	盖板	COVER	2
2	847950T3	盖板	COVER	2
3	34776	O型圈	O-RING	2
4	815904	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	12
5	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
6	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
7	67891	填充块	FILLER BLOCK	1
7	8M0039169	填充块	FILLER BLOCK	1
8	847949	管塞	PLUG Pipe	1
9	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
9	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
10	69501	螺柱(5/16 X 3-1/4英寸)	STUD (5/16 X 3-1/4 IN.)	1
11	59579	双头螺柱(.437-14/.437-20 x 2.812)	STUD (.437-14/.437-20 x 2.812)	3
11	78638	螺柱(0.438x3.12)(7/16 X 3-1/8英寸)	STUD (.438 x 3.12) (7/16 X 3-1/8 IN.)	1
11	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
11	579201	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
11	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
11	74730	螺柱(7/16 X 7.06英寸)	STUD (7/16 X 7.06 IN.)	2
11	74732	螺柱(7/16 X 7.69英寸)	STUD (7/16 X 7.69 IN.)	3
11	78639	螺柱(7/16 X 8-1/8英寸)	STUD (7/16 X 8-1/8 IN.)	1
12	826134	阳极块	ANODE	2
12	826134Q	阳极块	ANODE	2
13	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
14	8268336	螺母 (M6)	NUT (M6)	1
14	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
15	NSS	小齿轮(不单独销售)	NOT SOLD SEPARATE Pinion Gear	1
16	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
17	35921	螺母(0.625-18)	NUT (.625-18)	1
18	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	1
18	79953Q04	放油螺钉套件	SCREW KIT Drain	1
19	19183	纤维垫圈	WASHER Fiber	1
19	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
20	789022	换挡轴(下部)	SHIFT SHAFT (LOWER)	1
21	77631A2	衬套总成	BUSHING ASSEMBLY	1
22	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
23	8164641	油封	SEAL Oil	1
23	8M0246145	油封	OIL SEAL	1
24	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
25	848449A4	驱动轴总成	DRIVESHAFT ASSEMBLY	1
25	8M0192233	驱动轴	DRIVESHAFT	1
25	848449A5	驱动轴总成	DRIVESHAFT ASSEMBLY	1
25	8M0192234	驱动轴	DRIVESHAFT	1
25	848449A6	驱动轴总成	DRIVESHAFT ASSEMBLY	1
26	38657A1	垫片组	SHIM ASSEMBLY	1
26	8M0063268	垫片组	SHIM SET	1
27	48939A2	圆锥滚子轴承	BEARING Taper Roller	1
27	8M0146553	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
28	42637A1	垫片组	SHIM SET	AR
28	8M0063267	垫片组	SHIM SET	AR
29	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
29	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
30	824519	固定座	RETAINER	1
30	8245191	固定座	RETAINER	1
31	44292A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
32	426311	衬垫	GASKET	1
32	8M0204678	衬垫	GASKET	1
33	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
33	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
34	89238	油封	SEAL Oil	1
35	16977	油封	SEAL Oil	1
36	18051	衬垫	GASKET	1
37	856091	衬垫	GASKET	1
37	858524	衬垫	GASKET	1
38	32435	面板	FACE PLATE	1
38	8M0204677	面板	PLATE-FACE	1
39	847710A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
39	847710T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
39	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
39	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
40	48752	嵌件	INSERT	1
40	48752T	嵌件	INSERT	1
41	88397	密封件	SEAL	1
41	38970	密封件	SEAL	1
42	847685	套筒	SLEEVE	1
42	29804	套筒	SLEEVE	1
42	29804T	套筒	SLEEVE	1
43	56654	键	KEY	1
43	8M0214992	键@5	KEY @5	1
44	899842	叶轮	IMPELLER	1
44	89984T4	叶轮	IMPELLER	1
45	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
45	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
46	13438	螺母(.250-28)	NUT (.250-28)	2
46	8267119	螺母(.250-28)	NUT (.250-28)	2
47	36001	垫圈	WASHER	1
48	13436	螺母	NUT	1
49	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
49	8M0215009	螺钉	SCREW	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	823142A94	衬垫套件	GASKET SET	1
-	90415A24	螺柱套件	STUD KIT	1
-	59579	双头螺柱(.437-14/.437-20 x 2.812)	STUD (.437-14/.437-20 x 2.812)	1
-	90415A25	螺柱套件	STUD KIT	1

图 17齿轮箱(驱动轴)(1.78:1) Gear Housing (Driveshaft)(1.78:1)

REF	零件编号	中文名称	英文名称	数量
-	814247A3	齿轮箱总成1.78:1速比-黑色	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Black	1
-	814247A4	齿轮箱总成 1.78:1 减速比 - 灰色	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Gray	1
-	814247T4	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	814247A1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic - Black	1
1	814247T1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	814247A2	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic - Gray	1
1	814247T2	ORD 1674-814247T1	ORD 1674-814247T1	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	78638	螺柱(0.438x3.12)(3-1/8英寸)	STUD (.438 x 3.12) (3-1/8 IN.)	1
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
5	579201	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	306671	螺柱	STUD	2
8	35934A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	67891	填充块	FILLER BLOCK	1
9	8M0039169	填充块	FILLER BLOCK	1
10	NSS		NOT SOLD SEPARATE Pinion Gear (Part of 43-16279A2)	1
11	35921	螺母(0.625-18)	NUT (.625-18)	1
12	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
12	8M0058389	放油螺钉套件	SCREW KIT Drain	1
13	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	1
13	79953Q04	放油螺钉套件	SCREW KIT Drain	1
14	19183	纤维垫圈	WASHER Fiber	2
14	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
15	8152641	换档轴	SHIFT SHAFT	1
16	77631A2	衬套总成	BUSHING ASSEMBLY	1
17	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
18	8164641	油封	SEAL Oil	1
18	8M0246145	油封	OIL SEAL	1
19	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
20	815168	驱动轴	DRIVESHAFT	1
21	42637A1	垫片组	SHIM SET	AR
21	8M0063267	垫片组	SHIM SET	AR
22	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
22	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
23	824519	固定座	RETAINER	1
23	8245191	固定座	RETAINER	1
24	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
24	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
25	426311	衬垫	GASKET	1
25	8M0204678	衬垫	GASKET	1
26	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
26	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
27	89238	油封	SEAL Oil	1
28	16977	油封	SEAL Oil	1
29	856081	衬垫	GASKET	1
29	8M0090319	衬垫@5	GASKET @5	1
30	856091	衬垫	GASKET	1
30	858524	衬垫	GASKET	1
31	32435	面板	FACE PLATE	1
31	8M0204677	面板	PLATE-FACE	1
32	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
32	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
33	48752	嵌件	INSERT	1
33	48752T	嵌件	INSERT	1
34	38970	密封件	SEAL	1
35	899841	叶轮	IMPELLER	1
35	89984T3	叶轮	IMPELLER	1
36	56654	键	KEY	1
36	8M0214992	键@5	KEY @5	1
37	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
37	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
38	13438	螺母(.250-28)	NUT (.250-28)	2
38	8267119	螺母(.250-28)	NUT (.250-28)	2
39	36001	垫圈	WASHER	1
40	13436	螺母	NUT	1
41	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
41	8M0215009	螺钉	SCREW	1
42	29804	套筒	SLEEVE	1
42	29804T	套筒	SLEEVE	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1

图 18齿轮箱(驱动轴)(CLE-1.87:1/2:1) Gear Housing (Driveshaft)(CLE-1.87:1/2:1)

REF	零件编号	中文名称	英文名称	数量
-	847902A84	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	847902A82	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T34	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	847902A85	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T37	G CASE-2:1 RH L	G CASE-2:1 RH L	1
-	847902A83	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T34	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	847902A15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8M0083306	齿轮箱-SM型	GEAR HOUSING-SM	1
1	847902A16	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8M0083306	齿轮箱-SM型	GEAR HOUSING-SM	1
2	8479501	盖板	COVER	2
2	8479502	盖板	COVER	2
3	34776	O型圈	O-RING	2
4	815904	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	12
5	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
6	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
7	78638	螺柱(0.438x3.12)(3-1/8英寸)	STUD (.438 x 3.12) (3-1/8 IN.)	1
7	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
8	579201	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
8	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
9	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
9	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
10	69501	螺柱(3-1/4英寸)	STUD (3-1/4 IN.)	2
11	43998	套筒	SLEEVE	1
12	847949	管塞	PLUG Pipe	1
13	67891	填充块	FILLER BLOCK	1
13	8M0039169	填充块	FILLER BLOCK	1
14	NSS	不单独出售-小齿轮(属于43-44104A7或43-44102A5部件)	NOT SOLD SEPARATE Pinion Gear (Part of 43-44104A7 or 43-44102A5)	1
15	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
16	35921	螺母(0.625-18)	NUT (.625-18)	1
17	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
17	8M0058389	放油螺钉套件	SCREW KIT Drain	1
18	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	1
18	79953Q04	放油螺钉套件	SCREW KIT Drain	1
19	19183	纤维垫圈	WASHER Fiber	2
19	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
20	789022	换挡轴(下部)	SHIFT SHAFT (LOWER)	1
21	29641	E型挡圈(按需使用)	E RING (USE WHERE APPLICABLE)	1
22	77631A2	衬套总成	BUSHING ASSEMBLY	1
23	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
24	8164641	油封	SEAL Oil	1
24	8M0246145	油封	OIL SEAL	1
25	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
26	848449A5	驱动轴总成	DRIVESHAFT ASSEMBLY	1
26	8M0192234	驱动轴	DRIVESHAFT	1
27	42637A1	垫片组	SHIM SET	AR
27	8M0063267	垫片组	SHIM SET	AR
28	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
28	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
29	824519	固定座	RETAINER	1
29	8245191	固定座	RETAINER	1
30	44292A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
31	426311	衬垫	GASKET	1
31	8M0204678	衬垫	GASKET	1
32	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
32	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
33	89238	油封	SEAL Oil	1
34	16977	油封	SEAL Oil	1
35	18051	衬垫(下部)	GASKET (LOWER)	1
36	856091	衬垫(上部)	GASKET (UPPER)	1
36	858524	衬垫	GASKET	1
37	32435	面板	FACE PLATE	1
37	8M0204677	面板	PLATE-FACE	1
38	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
38	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
39	48752	嵌件	INSERT	1
39	48752T	嵌件	INSERT	1
40	38970	密封件	SEAL	1
41	899842	叶轮	IMPELLER	1
41	89984T4	叶轮	IMPELLER	1
42	56654	键	KEY	1
42	8M0214992	键@5	KEY @5	1
43	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
43	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
44	13438	螺母(.250-28)	NUT (.250-28)	2
44	8267119	螺母(.250-28)	NUT (.250-28)	2
45	36001	垫圈	WASHER	1
46	13436	螺母	NUT	1
47	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
47	8M0215009	螺钉	SCREW	1
48	29804	套筒	SLEEVE	1
48	29804T	套筒	SLEEVE	1
-	823142A94	衬垫套件	GASKET SET	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 19齿轮箱图表(运动大师) Gear Housing Chart (SportMaster)

REF	零件编号	中文名称	英文名称	数量
-	848450A15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T33	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	848450A16	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T34	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	848450A17	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T35	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	848450A18	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8M0081852	齿轮箱	GEAR HOUSING	1
-	848450A19	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T37	G CASE-2:1 RH L	G CASE-2:1 RH L	1
-	848474A21	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561T33	G CASE-1.87 RH S	G CASE-1.87 RH S	1
-	848474A22	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561T34	G CASE-1.87 RH L	G CASE-1.87 RH L	1
-	848474A23	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561A35	G CASE-1.87 RH XL	G CASE-1.87 RH XL	1
-	848474A27	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561T36	G CASE-2:1 RH S	G CASE-2:1 RH S	1
-	848474A28	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561A37	齿轮箱	GEAR HOUSING	1
-	848474A29	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561A38	齿轮箱	GEAR HOUSING	1
-	848474A24	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561T69	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	848474A25	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561T70	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	848474A26	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561T71	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	848474A30	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561T72	G CASE-2:1 LH S	G CASE-2:1 LH S	1
-	848474A31	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561A73	齿轮箱	GEAR HOUSING	1
-	848474A32	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561T74	G CASE-2:1 LH XL	G CASE-2:1 LH XL	1
-	848450A31	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560A27	齿轮箱	GEAR HOUSING	1
-	848450A29	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560A28	齿轮箱	GEAR HOUSING	1
-	848450A32	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560A30	ORD1687-840560A09	ORD1687-840560A09	1
-	848450A30	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T31	G CASE-1.75 RH L	G CASE-1.75 RH L	1

图 20齿轮箱螺旋桨轴-反向旋转-运动大师 Gear Housing Propeller Shaft-Counter Rotation-Sportmaster

REF	零件编号	中文名称	英文名称	数量
1	848474A39	齿轮箱总成-基本型(无扭矩片)	GEAR HOUSING ASSEMBLY Basic-Without Torque Tab	1
50	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
51	789562	换挡凸轮	SHIFT CAM	1
52	79911A1	杆	ROD	1
53	78906	销	PIN	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	79910	弹簧	SPRING	2
55	78910	垫圈	WASHER	AR
56	14469	轴承杯	CUP Bearing	1
56	14469T	轴承杯	CUP Bearing	1
57	88957	滚珠轴承总成	BEARING ASSEMBLY Ball	1
57	88957T	滚珠轴承	BEARING Ball	1
58	NSS		NOT SOLD SEPARATE Reverse Gear (Part of 43-15845A2)	1
58	817516A1	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
58	817516T1	倒挡齿轮	GEAR-REVERSE	1
59	15844	滚柱轴承总成	BEARING ASSEMBLY Roller	1
60	42672	棘轮	RATCHET	1
60	42672T	棘轮	RATCHET	1
61	78909	定位销	PIN Detent	2
62	42671	十字销	PIN Cross	1
63	78962	弹簧	SPRING	2
64	15845A2	齿轮组	GEAR SET	1
64	817515A2	齿轮组-前进档	GEAR SET Forward	1
64	817515T2	齿轮组-前进档	GEAR SET-FORWARD	1
65	176151	调整垫片(.125)	SPACER SHIM (.125)	AR
65	176152	调整垫片(.127)	SPACER SHIM (.127)	AR
65	176153	调整垫片(.129)	SPACER SHIM (.129)	AR
65	176154	调整垫片(.131)	SPACER SHIM (.131)	AR
65	176155	调整垫片(.133)	SPACER SHIM (.133)	AR
65	176156	调整垫片(.135)	SPACER SHIM (.135)	AR
65	176157	调整垫片(.137)	SPACER SHIM (.137)	AR
65	176158	调整垫片(.139)	SPACER SHIM (.139)	AR
65	176159	调整垫片(.141)	SPACER SHIM (.141)	AR
65	1761510	调整垫片(.143)	SPACER SHIM (.143)	AR
65	1761511	调整垫片(.145)	SPACER SHIM (.145)	AR
65	1761512	调整垫片(.147)	SPACER SHIM (.147)	AR
65	1761513	调整垫片(.149)	SPACER SHIM (.149)	AR
66	15841	滚柱轴承	BEARING Roller	1
67	17616	推力环	THRUST RING	1
68	31534	O型圈	O-RING	1
68	8M0214920	O型圈	O RING	1
69	15838A2	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
70	15843	滚柱轴承	BEARING Roller	1
70	15843T	滚针轴承	BEARING Needle	1
71	15834	推力轴承	BEARING Thrust	2
72	815495T	螺旋桨轴	PROPELLER SHAFT	1
73	847616A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
73	847616T1	轴承座	CARRIER Bearing	1
74	817072	滚柱轴承	BEARING Roller	1
75	815565	油封	SEAL Oil	2
76	817071	卡环	RING Snap	1
77	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
77	8M0058389	放油螺钉套件	SCREW KIT Drain	1
78	19183	纤维垫圈	WASHER Fiber	1
78	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
79	30281	键	KEY	1
80	79447	锁紧垫圈	TAB WASHER	1
81	158401	盖板	COVER	1
82	131711	推力毂	THRUST HUB	1
82	13171T1	推力毂	THRUST HUB	1
83	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
84	31211A2	花键垫圈	WASHER Splined	1
84	31211Q03	垫圈总成	WASHER ASSEMBLY	1
85	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
85	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
86	816629	锁紧垫圈	TAB WASHER	1
86	816629Q	锁紧垫圈	TAB WASHER	1
87	41350	螺钉(.437-14 x 2.50)不锈钢	SCREW (.437-14 x 2.50) Stainless Steel	1
87	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
88	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	2
89	134391	螺母 (.4375-20)	NUT (.4375-20)	2
89	859116	螺母(.437-20)	NUT (.437-20)	2
90	30206	螺钉(.375-16 x 1.00)不锈钢	SCREW (.375-16 x 1.00) Stainless Steel	1
90	15929	螺钉(.375-16 x 16 x 6.00)	SCREW (.375-16 x 16 x 6.00)	1
91	762143	阳极块	ANODE	1
91	76214T3	阳极块	ANODE	1
91	76214A5	阳极套件	ANODE KIT	1
91	76214Q5	阳极套件	ANODE KIT	1
91	762141	阳极块	ANODE	1
91	76214T1	阳极块	ANODE	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	90415A24	螺柱套件	STUD KIT	1
-	59579	双头螺柱(.437-14/.437-20 x 2.812)	STUD (.437-14/.437-20 x 2.812)	1
-	90415A25	螺柱套件	STUD KIT	1

图 21齿轮箱螺旋桨轴-标准旋转-运动大师 Gear Housing Propeller Shaft-Standard Rotation-Sportmaster

REF	零件编号	中文名称	英文名称	数量
1	848450A25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	848474A39	齿轮箱总成-基本型(无扭矩片)	GEAR HOUSING ASSEMBLY Basic-Without Torque Tab	1
1	8M0084203	齿轮箱-SM型	GEAR HOUSING-SM	1
50	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
51	789562	换挡凸轮	SHIFT CAM	1
52	79911A1	杆	ROD	1
53	78906	销	PIN	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	79910	弹簧	SPRING	2
55	78910	垫圈	WASHER	2
56	47397A1	垫片组	SHIM SET	AR
57	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
58	44104A7	齿轮组(含小齿轮)	GEAR SET (Included Pinion)	1
58	44102A5	齿轮组(含小齿轮)	GEAR SET (Included Pinion)	1
58	44102A7	齿轮组	GEAR SET	1
58	848855A2	齿轮组	GEAR SET	1
58	848855T2	齿轮组-1.62右旋	GEAR SET-1.62 RH	1
58	849189A2	齿轮组	GEAR SET	1
58	849189T2	齿轮转换套件	GEAR CONVERSION KIT	1
59	549281	滚柱轴承	BEARING Roller	1
60	42672	棘轮	RATCHET	1
60	42672T	棘轮	RATCHET	1
61	78909	定位销	PIN Detent	2
62	42671	十字销	PIN Cross	1
63	78962	弹簧	SPRING	2
64	822820F1	螺旋桨轴	PROPELLER SHAFT	1
64	840451A03	螺旋桨轴	PROPELLER SHAFT	1
65	822824A1	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
65	8M0192202	倒挡齿轮	GEAR-REVERSE	1
65	847632A1	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
65	N.S.S.	不单独出售-倒车齿轮	Not Sold Separate Reverse Gear	1
65	N.S.S.	不单独出售-倒车齿轮	Not Sold Separate Reverse Gear	1
66	822823	推力环	THRUST RING	1
67	88957	滚珠轴承总成	BEARING ASSEMBLY Ball	1
67	88957T	滚珠轴承	BEARING Ball	1
68	681001	止推环	RING Thrust	1
69	31534	O型圈	O-RING	1
69	8M0214920	O型圈	O RING	1
70	847610A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
70	848840A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
71	817072	滚柱轴承	BEARING Roller	1
72	817071	卡环	RING Snap	1
73	815565	油封	SEAL Oil	2
74	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
74	8M0058389	放油螺钉套件	SCREW KIT Drain	1
75	19183	纤维垫圈	WASHER Fiber	1
75	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
76	30281	键	KEY	1
77	79447	锁紧垫圈	TAB WASHER	1
78	158401	盖板	COVER	1
79	131711	推力毂	THRUST HUB	1
79	13171T1	推力毂	THRUST HUB	1
80	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
81	31211A2	花键垫圈	WASHER Splined	1
81	31211Q03	垫圈总成	WASHER ASSEMBLY	1
82	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
82	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
83	816629	锁紧垫圈	TAB WASHER	1
83	816629Q	锁紧垫圈	TAB WASHER	1
84	41350	螺钉(.437-14 x 2.50)不锈钢	SCREW (.437-14 x 2.50) Stainless Steel	1
84	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
85	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	2
86	134391	螺母 (.4375-20)	NUT (.4375-20)	2
86	859116	螺母(.437-20)	NUT (.437-20)	2
87	30206	螺钉(.375-16 x 1.00)不锈钢	SCREW (.375-16 x 1.00) Stainless Steel	1
87	15929	螺钉(.375-16 x 16 x 6.00)	SCREW (.375-16 x 16 x 6.00)	1
88	762143	阳极块	ANODE	1
88	76214T3	阳极块	ANODE	1
88	76214A5	阳极套件	ANODE KIT	1
88	76214Q5	阳极套件	ANODE KIT	1
88	762141	阳极块	ANODE	1
88	76214T1	阳极块	ANODE	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	90415A24	螺柱套件	STUD KIT	1
-	59579	双头螺柱(.437-14/.437-20 x 2.812)	STUD (.437-14/.437-20 x 2.812)	1
-	90415A25	螺柱套件	STUD KIT	1

图 22齿轮箱螺旋桨轴-扭矩大师1.87:1/2:1 Gear Housing Propeller Shaft-Torque Master 1.87:1/2:1

REF	零件编号	中文名称	英文名称	数量
-	827214A5	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214A6	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214T24	齿轮箱TM	GEAR HOUSING TM	1
-	827214A3	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	827214A4	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	827214A11	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214T24	齿轮箱TM	GEAR HOUSING TM	1
-	827214A10	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	827214A7	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	827214T25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	827214A8	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	827214T25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	827214A12	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	827214T25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
47	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
48	78956	换挡凸轮	SHIFT CAM	1
48	789562	换挡凸轮	SHIFT CAM	1
49	79911A1	杆	ROD	1
50	78906	销	PIN	1
50	8M0084245	弹簧定位销	PIN Spring Locator	1
51	79910	弹簧	SPRING	1
52	78910	垫圈	WASHER	AR
53	47397A1	垫片组	SHIM SET	AR
54	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
55	44102A5	齿轮组	GEAR SET	1
55	44102A7	齿轮组	GEAR SET	1
55	44104A7	齿轮组	GEAR SET	1
56	549281	滚柱轴承	BEARING Roller	1
57	42672	棘轮	RATCHET	1
57	42672T	棘轮	RATCHET	1
58	42671	十字销	PIN Cross	1
59	78909	定位销	PIN Detent	2
60	78962	弹簧	SPRING	2
61	822820F1	螺旋桨轴	PROPELLER SHAFT	1
61	840451A03	螺旋桨轴	PROPELLER SHAFT	1
62	847632A1	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
62	822824A1	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
62	8M0192202	倒挡齿轮	GEAR-REVERSE	1
63	824108	隔套	SPACER	1
64	681001	止推环	RING Thrust	1
65	88957	滚珠轴承总成	BEARING ASSEMBLY Ball	1
65	88957T	滚珠轴承	BEARING Ball	1
66	31534	O型圈	O-RING	1
66	8M0214920	O型圈	O RING	1
67	847610A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	848840A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	817072	滚柱轴承	BEARING Roller	1
69	817071	卡环	RING Snap	1
70	815565	油封	SEAL Oil	2
71	30281	键	KEY	1
72	79447	锁紧垫圈	TAB WASHER	1
73	158401	盖板	COVER	1
74	131711	推力毂	THRUST HUB	1
74	13171T1	推力毂	THRUST HUB	1
75	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
76	31211A2	花键垫圈	WASHER Splined	1
76	31211Q03	垫圈总成	WASHER ASSEMBLY	1
77	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
77	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
78	816629	锁紧垫圈	TAB WASHER	1
78	816629Q	锁紧垫圈	TAB WASHER	1
79	76214A5	阳极套件	ANODE KIT	1
79	76214Q5	阳极套件	ANODE KIT	1
80	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
81	134391	螺母 (.4375-20)	NUT (.4375-20)	2
81	859116	螺母(.437-20)	NUT (.437-20)	2
82	30206	螺钉(.375-16 x 1.00)不锈钢	SCREW (.375-16 x 1.00) Stainless Steel	1
83	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	2
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 23齿轮箱螺旋桨轴-1.78:1传动比 Gear Housing Propeller Shaft - 1.78:1 Gear Ratio

REF	零件编号	中文名称	英文名称	数量
-	814247A3	齿轮箱总成1.78:1速比-黑色	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Black	1
-	814247A4	齿轮箱总成 1.78:1 减速比 - 灰色	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Gray	1
-	814247T4	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	814247A1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic - Black	1
1	814247T1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	814247A2	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic - Gray	1
1	814247T2	ORD 1674-814247T1	ORD 1674-814247T1	1
43	76039	换挡凸轮控制	CAM Shift Control	1
43	760394	换挡凸轮控制	CAM Shift Control	1
44	44491A1	垫片组	SHIM SET	AR
44	8M0063266	垫片组	SHIM SET	AR
45	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
46	16279A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
47	30895	滚针轴承	BEARING Needle	1
47	30895T	滚针轴承	BEARING Needle	1
48	12239A1	凸轮从动件套件	FOLLOWER KIT Cam	1
48	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
49	30622	弹簧	SPRING	1
50	822539	离合器	CLUTCH	1
50	822539T	离合器	CLUTCH	1
51	30632	十字销	PIN Cross	1
51	8M0100263	十字销	PIN Cross	1
52	30893	弹簧	SPRING	1
53	12238T	螺旋桨轴	PROPELLER SHAFT	1
54	NSS	倒车齿轮(不单独销售)(43-16279A2部件)	NOT SOLD SEPARATE Reverse Gear (Part of 43-16279A2)	1
55	76358	止推垫片	THRUST WASHER	1
56	29976	O型圈	O-RING	1
57	41529A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
57	41529T2	托架总成	CARRIER ASSY	1
58	98727	润滑脂接头	FITTING Grease	2
58	8M0169588	润滑脂接头	FITTING Grease	2
59	30956	滚针轴承	BEARING Needle	1
59	30956T	滚针轴承	BEARING Needle	1
60	76868	油封(外侧)	SEAL (OUTSIDE)	1
60	8M0248882	油封@5	SEAL-OIL @5	1
61	14077	油封(内侧)	SEAL Oil (INSIDE)	1
62	30281	键	KEY	1
63	52700	锁紧垫圈	TAB WASHER	1
64	52699	盖板	COVER	1
65	13191A1	止推垫片	THRUST WASHER	1
65	13191Q01	止推垫片	THRUST WASHER	1
66	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
66	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
67	816629	锁紧垫圈	TAB WASHER	1
67	816629Q	锁紧垫圈	TAB WASHER	1
68	30206	螺钉(.375-16 x 1.00)不锈钢	SCREW (.375-16 x 1.00) Stainless Steel	1
69	76214A5	阳极套件	ANODE KIT	1
69	76214Q5	阳极套件	ANODE KIT	1
70	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
71	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	2
72	134391	螺母 (.4375-20)	NUT (.4375-20)	2
72	859116	螺母(.437-20)	NUT (.437-20)	2
-	89238A2	密封套件	SEAL KIT	1

图 24齿轮箱螺旋桨轴-CLE-1.87:1/2:1传动比 Gear Housing Propeller Shaft - CLE-1.87:1/2:1 Gear Ratio

REF	零件编号	中文名称	英文名称	数量
-	847902A84	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	847902A82	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T34	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	847902A85	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T37	G CASE-2:1 RH L	G CASE-2:1 RH L	1
-	847902A83	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T34	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	847902A15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8M0083306	齿轮箱-SM型	GEAR HOUSING-SM	1
1	847902A16	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8M0083306	齿轮箱-SM型	GEAR HOUSING-SM	1
49	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
50	78956	换挡凸轮	SHIFT CAM	1
50	789562	换挡凸轮	SHIFT CAM	1
51	79911A1	杆	ROD	1
52	78906	销	PIN	1
52	8M0084245	弹簧定位销	PIN Spring Locator	1
53	79910	弹簧	SPRING	2
54	78910	垫圈	WASHER	2
55	47397A1	垫片组	SHIM SET	AR
56	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
57	44102A5	齿轮组	GEAR SET	1
57	44102A7	齿轮组	GEAR SET	1
57	44104A7	齿轮组(含倒车齿轮)	GEAR SET (Includes Reverse Gear)	1
58	549281	滚柱轴承	BEARING Roller	1
59	42672	棘轮	RATCHET	1
59	42672T	棘轮	RATCHET	1
60	78909	定位销	PIN Detent	2
61	42671	十字销	PIN Cross	1
62	78962	弹簧	SPRING	2
63	822820F1	螺旋桨轴	PROPELLER SHAFT	1
63	840451A03	螺旋桨轴	PROPELLER SHAFT	1
64	847632A1	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
64	822824A1	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
64	8M0192202	倒挡齿轮	GEAR-REVERSE	1
65	822823	推力环	THRUST RING	1
66	88957	滚珠轴承总成	BEARING ASSEMBLY Ball	1
66	88957T	滚珠轴承	BEARING Ball	1
67	681001	止推环	RING Thrust	1
68	31534	O型圈	O-RING	1
68	8M0214920	O型圈	O RING	1
69	847610A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
69	848840A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
70	817072	滚柱轴承	BEARING Roller	1
71	815565	油封	SEAL Oil	2
72	817071	卡环	RING Snap	1
73	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
73	8M0058389	放油螺钉套件	SCREW KIT Drain	1
74	19183	纤维垫圈	WASHER Fiber	1
74	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
75	30281	键	KEY	1
76	79447	锁紧垫圈	TAB WASHER	1
77	158401	盖板	COVER	1
78	131711	推力毂	THRUST HUB	1
78	13171T1	推力毂	THRUST HUB	1
79	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
79	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
80	816629	锁紧垫圈	TAB WASHER	1
80	816629Q	锁紧垫圈	TAB WASHER	1
81	31211A2	花键垫圈	WASHER Splined	1
81	31211Q03	垫圈总成	WASHER ASSEMBLY	1
82	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
83	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
84	76214A5	阳极套件	ANODE KIT	1
84	76214Q5	阳极套件	ANODE KIT	1
85	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	2
86	134391	螺母 (.4375-20)	NUT (.4375-20)	2
86	859116	螺母(.437-20)	NUT (.437-20)	2
87	30206	螺钉(.375-16 x 1.00)不锈钢	SCREW (.375-16 x 1.00) Stainless Steel	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 25仪表装置 Instrumentation

REF	零件编号	中文名称	英文名称	数量
1	19674A1	拉绳开关总成	SWITCH ASSEMBLY Lanyard	1
2	18303	螺钉 (.190-16 x 1.750) 不锈钢	SCREW (.190-16 x 1.750) Stainless Steel	2
3	813679	适配器	ADAPTER	1
4	15920A54	拉绳总成	LANYARD ASSEMBLY	1
4	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
5	32866	螺钉 (#10-32 x 2.00) 不锈钢	SCREW (#10-32 x 2.00) Stainless Steel	2
6	18321	安装夹	CLAMP Mounting	1
7	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	2
8	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4
9	79146	固定座	RETAINER	3
10	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
10	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
11	812497A2	二极管总成	DIODE ASSEMBLY	1
11	898289A72	双拉绳二极管套件	DIODE KIT-LANYARD Dual	1
12	11149A2	线缆总成 (6.00英寸)	CABLE ASSEMBLY (6.00 Inches)	1

图 26钥匙开关 Key Switch

REF	零件编号	中文名称	英文名称	数量
1	816626A15	线束总成-钥匙开关(15英尺)	HARNESS ASSEMBLY Key Switch (15.00 Feet) (15 FEET)	1
2	90468A1	钥匙盖总成	COVER ASSEMBLY Key	2
3	76424	支架	BRACKET	1
4	55422	双头螺柱 (#10-32 x 2.00)	STUD (#10-32 x 2.00)	2
5	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	2
6	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
7	816479A3	板组件套件	PLATE KIT	2
8	88107		KEY SWITCH (See Below for Key)	1
8	88107A5	钥匙开关套件	SWITCH KIT Key	1
9	93543	特殊螺母-镀铬黄铜	NUT Special - Chrome Brass	1
9	879755	特殊螺母-黑色尼龙	NUT Special - Black Nylon	1
10	816492A1	音响报警器总成	ALARM ASSEMBLY Audio Warning	1
10	8M0210763	报警器	ALARM	1
11	8127111	垫片(0.375)	SPACER (.375)	2
11	812711	隔套(0.250)	SPACER (.250)	2
-	894911	点火钥匙(1A)	KEY Ignition (1A)	1
-	894912	点火钥匙(1B)	KEY Ignition (1B)	1
-	894913	点火钥匙(1C)	KEY Ignition (1C)	1
-	894914	点火钥匙(1D)	KEY Ignition (1D)	1
-	894915	点火钥匙(1E)	KEY Ignition (1E)	1
-	894916	点火钥匙(1F)	KEY Ignition (1F)	1
-	894917	点火钥匙(2A)	KEY Ignition (2A)	1
-	894918	点火钥匙(2B)	KEY Ignition (2B)	1
-	894919	点火钥匙(2C)	KEY Ignition (2C)	1
-	8949110	点火钥匙(2D)	KEY Ignition (2D)	1
-	8949111	点火钥匙(2E)	KEY Ignition (2E)	1
-	8949112	点火钥匙(2F)	KEY Ignition (2F)	1

图 27机油喷射组件 Oil Injection Components

REF	零件编号	中文名称	英文名称	数量
1	12430A4	传感器总成	SENSOR ASSEMBLY	1
2	48409	螺钉(#10-16 x .625)不锈钢传感器固定	SCREW (#10-16 x .625) Stainless Steel SENSOR ATTACHING	1
3	815698	机油泵(175)	PUMP Oil (175)	1
3	815698T	油泵	PUMP Oil	1
3	815699	油泵总成(200)	PUMP ASSEMBLY Oil (200)	1
3	815699T	油泵总成	PUMP ASSEMBLY Oil	1
4	11379	油泵O型圈	O-RING OIL PUMP	1
5	41429A2	驱动齿轮轴承总成	BEARING ASSEMBLY DRIVE GEAR	1
6	14563	从动齿轮	GEAR Driven	1
7	32228	油泵至曲轴箱螺钉 (#10-32 x .625)	SCREW (#10-32 x .625) OIL PUMP TO CRANKCASE	1
7	41507	油泵至曲轴箱螺钉 (#10-32 x 1.120)	SCREW (#10-32 x 1.120) OIL PUMP TO CRANKCASE	1
8	1938512	油门连杆至油泵总成	LINK ASSEMBLY THROTTLE LEVER TO OIL PUMP	1
9	4301625	机油泵用管材(8英寸)	TUBING (8.00 Inches) OIL PUMP	1
9	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	1
10	99443T	油箱	RESERVOIR Oil	1
10	994436	储液罐	RESERVOIR	1
11	415823		CLAMP OIL HOSE	2
12	4301736	油箱至油泵油管	TUBING OIL RESERVOIR TO OIL PUMP	1
12	82381455	油管（25.00英寸散装）	TUBING (25.00 Inches Bulk)	1
13	69020	油箱固定螺钉 (#10-32 x .875)	SCREW (#10-32 x .875) OIL RESERVOIR ATTACHING	3
13	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
14	42118	油箱螺钉垫圈	WASHER OIL RESERVOIR SCREW	6
15	42117	油箱螺钉衬套	GROMMET OIL RESERVOIR SCREW	3
16	42116	油箱螺钉轴套	BUSHING OIL RESERVOIR SCREW	3
17	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	1
17	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
18	42425	油管三通	TEE OIL TUBING	1
19	9072925	油管(6-3/4")	HOSE OIL (6-3/4")	1
20	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
20	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
21	99439	油管(114.00英寸)	HOSE (114.00 Inches) OIL	1
22	415824	卡箍	CLAMP	2
24	43278	止回阀接头（曲轴箱）	FITTING CHECK VALVE (CRANKCASE)	1
24	8781051	止回阀	CHECK VALVE	1
25	87421	油箱	TANK	1
26	43298A2	油箱盖总成	CAP ASSEMBLY OIL TANK	1
27	11332	O型圈(2.225 x .210)盖	O-RING (2.225 x .210) CAP	1
28	816190A3	外壳总成适配器	HOUSING ASSEMBLY Adapter	1
28	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
29	11332	O型圈(2.225 x .210)适配器壳体	O-RING (2.225 x .210) ADAPTOR HOUSING	1
30	99802	吸油管	TUBE OIL PICK-UP	1
31	43300A9	油箱盖总成	CAP ASSEMBLY OIL RESERVOIR	1
32	43307	油箱盖衬垫	GASKET RESERVOIR CAP	1
32	43307T	衬垫	GASKET	1
33	99022A1	浮子总成	FLOAT ASSEMBLY	1
33	8M0187298	浮子总成	FLOAT ASSY	1
34	99265	压入式螺母	PUSH NUT	1

图 28动力升降组件 8M0231193 Power Trim Components 8M0231193

REF	零件编号	中文名称	英文名称	数量
-	8M0231193	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0225363	电机套件	MOTOR KIT	1
2	8M0225369	阀套件	VALVE KIT	1
3	8M0225371	手动释放套件	MANUAL RELEASE KIT	1
4	8M0245633	倾斜油缸套件	TILT CYLINDER KIT	1
5	8M0225370	枢轴销套件	PIVOT PIN KIT	1
6	8M0244575	减震杆套件	SHOCK ROD KIT	1
7	8M0244425	销杆眼套件	PIN ROD EYE KIT	1
8	8M0232231	螺钉螺母套件	SCREW NUT KIT	1
9	8M0225373	记忆活塞套件	MEMORY PISTON KIT	1
10	8M0225368	储液罐套件	RESERVOIR KIT	1
11	8M0174135	储液罐塞总成	PLUG RESERVOIR ASSEMBLY	1
12	8M0237525	泵套件	PUMP KIT	1
13	8M0225367	升降杆套件	TRIM ROD KIT	1
14	8M0242846	升降杆套件	TRIM ROD KIT	1
15	8M0225372	重建套件	REBUILD KIT	1

图 29动力升降组件金属马达壳 Power Trim Components Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	855998A3	动力升降倾斜装置总成	POWER TRIM Complete	1
-	855998A11	动力调整套件	POWER TRIM KIT	1
-	855998A05	完整动力升降总成	POWER TRIM ASSEMBLY Complete	1
-	855998A11	动力调整套件	POWER TRIM KIT	1
1	878265A4	配平电机	TRIM MOTOR	1
1	8M0031551	配平电机	TRIM MOTOR	1
2	NSS	电枢(不单独销售)	NOT SOLD SEPARATE Armature	1
3	NSS	端架(不单独销售)	NOT SOLD SEPARATE End Frame	1
4	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
5	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
6	8782451	驱动轴	DRIVESHAFT	1
7	878410A1	压力检查套件	PO CHECK KIT	1
8	813442A2	手动释放总成 (含参考号#26)	MANUAL RELEASE ASSEMBLY (Includes Reference #26)	1
8	893929A01	安全阀套件	VALVE KIT Relief	1
9	878241A02	轴套件	SHAFT KIT	1
9	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
10	878267	销	PIN	1
11	878235A1	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
11	878235A03	倾斜油缸套件	CYLINDER KIT Tilt	1
11	878235A02	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
11	878235A03	倾斜油缸套件	CYLINDER KIT Tilt	1
12	878239A1	导向套件 (含参考号#26)	GUIDE KIT (Includes Reference #26)	1
12	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
13	878409A1	O型圈套件 (含参考号#26)	O-RING KIT (Includes Reference #26)	1
13	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
14	878412A1	减震杆套件 (含参考号#26)	SHOCK ROD KIT (Includes Reference #26)	1
14	8M0168219	减震杆套件	SHOCK ROD KIT	1
15	878242A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
15	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
16	878406A1	止回阀修理包 (含参考号#26)	REPAIR KIT Check Valve (Includes Reference #26)	1
16	878406A02	止回阀修理包	REPAIR KIT Check Valve	1
17	878414A1	活塞总成	PISTON ASSEMBLY	1
17	878414T01	活塞总成	PISTON ASSEMBLY	1
18	878413A1	活塞总成	PISTON ASSEMBLY	1
19	878243A1	导向器总成	GUIDE ASSEMBLY	2
19	8M0021648	端盖总成	END CAP ASSEMBLY	2
20	878264A1	储液罐套件	RESERVOIR KIT	1
21	811613	塞子总成	PLUG ASSEMBLY	1
22	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
23	43450	垫圈	WASHER	4
23	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
24	892251A01	泵套件	PUMP KIT	1
25	878408A1	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
26	821539	三叶销	PIN Trilobe	1
27	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
28	4002319	垫圈	WASHER	6
29	818298Q1	阳极套件	ANODE KIT	1
30	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
30	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
31	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
31	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	99625002	轴	SHAFT	1
33	69205	C形垫圈	C WASHER	1
33	8M0084613	C形垫圈	C-WASHER	1
34	22875	卡扣	CLIP	2
35	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	2
36	828547353	导管(内径0.350x3英尺散装)(裁切至12英寸)	CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk) (Cut to 12 Inches)	1
37	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

图 30动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	8M0168222	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0142591	电机套件	MOTOR KIT	1
2	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
3	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
4	8M0090403	驱动联轴器	COUPLING Drive	1
5	8M0142996	压力检查套件	PO CHECK KIT	1
6	8M0060141	手动释放套件	MANUAL RELEASE KIT	1
7	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
8	878267	销	PIN	1
9	8M0142998	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
9	8M0168220	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
10	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
11	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
12	8M0142592	升降杆套件左舷	TRIM ROD KIT Port	1
13	8M0143001	活塞总成	PISTON ASSEMBLY	1
14	8M0143003	端盖总成	END CAP ASSEMBLY	1
15	878264A1	储液罐套件	RESERVOIR KIT	1
16	811613	塞子总成	PLUG ASSEMBLY	1
17	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
18	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
19	8M0143004	泵套件	PUMP KIT	1
20	8M0148385	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
21	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
22	4002319	垫圈	WASHER	6
23	8M0094889	销	PIN	1
23	8M0161312	连杆销眼总成	PIN ROD EYE ASSEMBLY	1
24	8M0143005	减震杆套件	SHOCK ROD KIT	1
24	8M0168219	减震杆套件	SHOCK ROD KIT	1

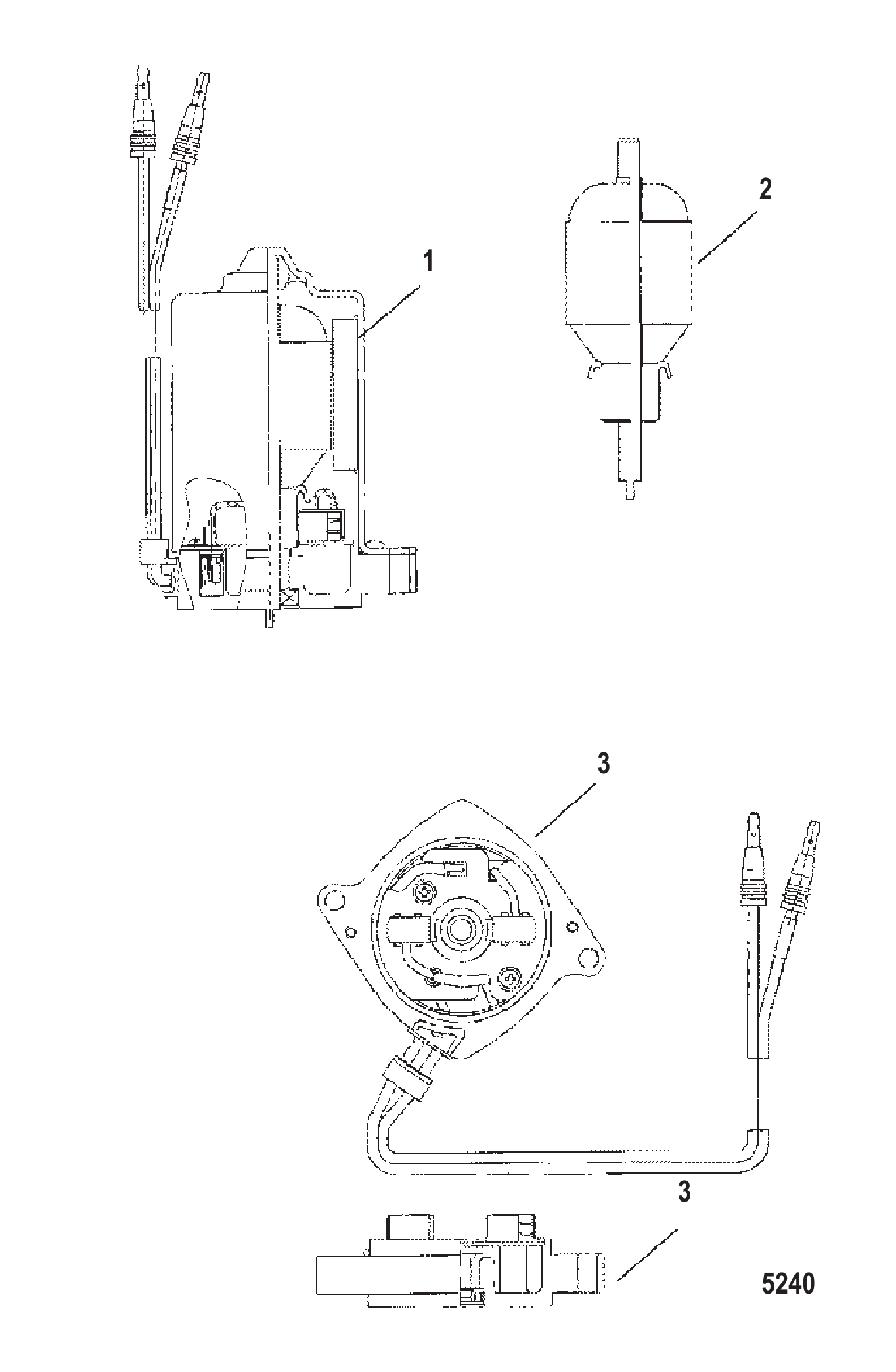

图 31动力升降倾斜电机 Power Trim Motor

REF	零件编号	中文名称	英文名称	数量
-	811628	配平电机	TRIM MOTOR	1
-	828708	电机总成	MOTOR ASSEMBLY	1
-	878265A4	配平电机	TRIM MOTOR	1
1	811624	机架与磁场套件	FRAME AND FIELD KIT	1
2	811625	电刷卡套件	BRUSH CARD KIT	1
3	811623	端架套件	END FRAME KIT	1
4	811626	密封套件	SEAL KIT	1
5	811627	电枢套件	ARMATURE KIT	1
5	811628	配平电机	TRIM MOTOR	1
6	828714A1	电刷与密封套件	BRUSH AND SEAL KIT	1
7	828713A1	电枢套件	ARMATURE KIT	1
7	828713T1	电枢套件	ARMATURE KIT	1
8	828715A1	端盖总成	END FRAME Complete	1

图 32簧片阀组与气缸盖 Reed Block and Cylinder Head

REF	零件编号	中文名称	英文名称	数量
1	187893	气缸盖(175)	CYLINDER HEAD (175)	2
1	184883	气缸盖(200)	CYLINDER HEAD (200)	2
1	18488F2	气缸盖总成	CYLINDER HEAD ASSEMBLY	2
2	187861	衬垫(175)	GASKET (175)	2
2	18786T	衬垫	GASKET	2
2	184721	衬垫(200)	GASKET (200)	2
2	822844T05	衬垫	GASKET	2
3	98534	气缸盖螺钉 (.375-16 x 2.30)	SCREW (.375-16 x 2.30) CYLINDER HEAD	23
3	13450	螺钉(.375-16 x 2.30)(专用-200)	SCREW (.375-16 x 2.30) (SPECIAL - 200)	1
4	25909	气缸盖螺钉垫圈 (.406 x .812 x .065)	WASHER (.406 x .812 x .065) CYLINDER HEAD SCREW	24
5	75692	节温器	THERMOSTAT	2
6	62386	节温器衬垫	GASKET THERMOSTAT	2
6	8M0204714	衬垫@4	GASKET @4	2
7	90390A1	节温器盖套件	COVER KIT THERMOSTAT	2
8	35386	节温器盖螺钉 (.312-18 x 1.00)	SCREW (.312-18 x 1.00) THERMOSTAT COVER	4
9	68727	90度黄铜弯头接头 (.250-18)（水管用）	FITTING (.250-18) 90 Degree - Brass ELBOW - WATER HOSES	1
9	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
10	7765377	配水软管（散装24.500英寸）	HOSE (24.500 Inches Bulk) WATER DISTRIBUTION	2
10	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	2
11	68728	节温器盖接头	FITTING THERMOSTAT COVER	1
12	816311	水管束带(8.00英寸)	TIE STRAP (8.00 Inches) WATER HOSES	4
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
13	63779	定位销 (.250 x .625)	PIN Dowel (.250 x .625)	4
14	13715	传感器固定座	RETAINER SENSOR AND SENDER	2
14	137151	固定座	RETAINER	2
15	98257	螺钉 (0.312-18 x 0.500) 固定座	SCREW (.312-18 x .500) RETAINER	2
16	92160	不锈钢螺钉(.250-20 x .750)(175)	SCREW (.250-20 x .750) Stainless Steel (175)	6
16	90197	螺钉(.250-20 x 1.125)(175)	SCREW (.250-20 x 1.125) (175)	6
16	28668	不锈钢簧片块固定螺钉(.250-20 x .875)(200)	SCREW (.250-20 x .875) Stainless Steel REED BLOCK ATTACHING (200)	12
17	167371	适配板垫片	GASKET ADAPTOR PLATE	1
18	17735A2	适配板总成(175)	ADAPTER PLATE ASSEMBLY (175)	1
18	12124A3	板总成(200)	PLATE ASSEMBLY (200)	1
19	961832	簧片夹(175)	CLAMP Reed (175)	12
19	903911	簧片夹(200)	CLAMP Reed (200)	12
20	146972	衬垫(175)	GASKET (175)	1
20	813859	衬垫(200)	GASKET (200)	1
20	883775	衬垫	GASKET	1
21	75953	簧片块(175)	REED BLOCK (175)	6
21	87692	簧片块(200)	REED BLOCK (200)	6
22	75362A1	簧片总成(175)	REED ASSEMBLY (175)	6
22	19719A1	簧片总成(200)	REED ASSEMBLY (200)	6
23	28668	螺钉 (0.250-20 x 0.875) 不锈钢适配板	SCREW (.250-20 x .875) Stainless Steel ADAPTOR PLATE	8
24	14783	螺钉 (#8-32 x 0.187) 簧片至簧片座	SCREW (#8-32 x .187) REEDS TO REED BLOCK	84
24	823588	螺钉 (#8-32 x .250)	SCREW (#8-32 x .250)	84
25	13192	爆震传感器(200)	SENSOR Detonation (200)	1
25	825164A1	爆震传感器总成	SENSOR ASSEMBLY Detonation	1
26	97465	温度传感器（右舷）	SENDER Temperature (STARBOARD)	1
27	13536A6	温度传感器总成（左舷）	SENSOR ASSEMBLY Temperature (PORT)	1
28	45076	黄铜螺母(#10-32)(200)	NUT (#10-32) Brass (200)	1
29	55098	J型卡扣(200)	J CLIP (200)	1
29	8M0024808	J型夹	J-CLIP	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 33维修/支撑材料 Service/Support material

REF	零件编号	中文名称	英文名称	数量
-	896328005	零件手册 225 PRO XS (3.0L) DFI	PARTS MANUAL 225 PRO XS (3.0L) DFI	1
-	841916	维修手册	SERVICE MANUAL	1
-	841916R01	维修手册	SERVICE MANUAL	1
-	841915050	用户手册	OWNERS MANUAL	1
-	841915051	用户手册	MANUAL-OWNERS	1
-	841915060	用户手册	OWNERS MANUAL	1
-	841914050	安装手册	INSTALLATION MANUAL	1
-	841914051	安装手册	MANUAL-INSTALL	1
-	841914060	安装手册	INSTALLATION MANUAL	1
-	898246A05	EPA标签信息贴花	DECAL EPA Label Information	1
-	898246A06	EPA标签信息贴花	DECAL EPA Label Information	1

图 34启动电机 Starter Motor

REF	零件编号	中文名称	英文名称	数量
1	892339T	启动电机总成	STARTER MOTOR ASSEMBLY	1
2	803005	贯穿螺栓	THRU BOLT	2
3	880805A1	齿轮套件	GEAR KIT	1
4	809463A1	电磁阀组件	SOLENOID KIT	1
5	8M0065258	电刷组	BRUSH SET	1
6	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
7	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
8	NSS	高压警告贴纸 (不单独销售)	NOT SOLD SEPARATE Decal-Warning-High Voltage	1
9	400255	锁紧垫圈(M5)	LOCKWASHER (M5)	1
10	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
11	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
12	400213	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
13	56703	轴环	COLLAR	2
13	8M0034918	轴环	COLLAR	2
14	879845	停机开关	STOP	1
14	8M0043276	停机开关	STOP	1

图 35转向连接套件 Steering Attaching Kit

REF	零件编号	中文名称	英文名称	数量
-	92876A8	转向单装配套件	ATTACHING KIT Steering Single	1
1	41055A1	支架总成	BRACKET ASSEMBLY	1
2	71565A2	管总成	TUBE ASSEMBLY	1
3	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
4	821203	锁紧垫圈	LOCKWASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
7	93702	垫圈(.250外齿星形)	WASHER (.250 External Star)	4
8	88319	联轴器	COUPLING	1
8	850791T	联轴器	COUPLER	1
9	73732	螺钉 (.375-24 x 1.120)	SCREW (.375-24 x 1.120)	2
10	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	2
11	34863	螺母 (.375-24)	NUT (.375-24)	3
11	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	3

图 36旋转支架与转向臂 Swivel Bracket and Steering Arm

REF	零件编号	中文名称	英文名称	数量
1	8710T20	黑色旋转支架总成	SWIVEL BRACKET ASSEMBLY Black	1
2	33504	O型圈	O-RING	1
2	8M0214926	O型圈 @10	O RING @10	1
3	818764	衬套	BUSHING	2
4	816039	隔套	SPACER	1
5	87735	油封(下)	SEAL Oil (LOWER)	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	816432	止推垫片	THRUST WASHER	1
9	814084F1	下轭架	YOKE Bottom	1
9	8M0219200	黑色下轭架	YOKE-BOTTOM-BLACK	1
9	826364F1	下轭架	YOKE Bottom	1
9	826364T	下轭架	YOKE Bottom	1
10	67684	挡圈	RING Retaining	1
11	996301	冲击板	STRIKER PLATE	2
11	8M0045383	冲击板	STRIKER PLATE	2
12	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
13	46335	螺母 (.375-24)	NUT (.375-24)	2
14	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
15	NSS	不单独销售-序列号覆膜标贴	NOT SOLD SEPARATE Decal-Serial Overlaminate	1
16	859187A1	调整传感器总成	SENDER ASSEMBLY Trim	1
17	852368	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
18	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
19	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
20	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
20	826432A2	转向臂旋转销总成-不锈钢	SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel	1
20	826432A2	转向臂旋转销总成-不锈钢	SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel	1
20	8M0132731	旋转销总成	SWIVEL PIN ASSY	1
21	816386	螺钉(M12×190)	SCREW (M12 x 190)	2
21	8M0141069	螺钉	SCREW	2
22	824998001	缓冲垫	BUMPER	1
23	8163851	上部支架	MOUNT Upper	2
24	8154371	垫圈	WASHER	2
25	815436	垫圈	WASHER	2
26	896963	螺母(M12)	NUT (M12)	2
27	813769	卡箍	CLAMP	1
27	8M0036783	卡箍	CLAMP	1
28	81893435	螺钉(M8×35)	SCREW (M8 x 35)	3
28	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
29	92876A10	连杆总成	LINK ROD ASSEMBLY	1
29	92876A12	连杆总成	LINK ROD ASSEMBLY	1
30	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
31	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
31	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
32	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2

图 37油门杆与换挡轴 Throttle Lever and Shift Shaft

REF	零件编号	中文名称	英文名称	数量
1	74897		PIVOT TRIGGER PLATE	1
2	62459	球头总成触发板	BALL JOINT ASSEMBLY TRIGGER PLATE	1
2	62459T	球头节总成	BALL JOINT ASSY	1
3	45076	螺母(#10-32)黄铜连杆	NUT (#10-32) Brass LINK ROD	1
4	76035	触发板连杆	ROD TRIGGER PLATE	1
5	46438	球头螺母(#10-32)	NUT (#10-32) BALLJOINT	1
6	41094A3	点火提前杆总成	LEVER ASSEMBLY SPARK ADVANCE	1
7	64022	螺丝(.250-20x2.125)点火提前杆-止动	SCREW (.250-20 x 2.125) SPARK ADVANCE LEVER - STOP	1
8	64015	螺母(.250-20)点火提前止动螺丝	NUT (.250-20) SPARK ADVANCE STOP SCREW	1
9	26852	尼龙帽点火提前杆止动螺丝	CAP Nylon SPARK ADVANCE LEVER STOP SCREW	1
10	13627	螺钉 (.190-32 x 1.250)	SCREW (.190-32 x 1.250)	1
11	68219	螺母(#10-32)不锈钢点火提前杆止动螺丝	NUT (#10-32) Stainless Steel SPARK ADVANCE LEVER STOP SCREW	1
12	48039	点火提前杆止动螺丝帽	CAP SPARK ADVANCE LEVER STOP SCREW	1
13	41095T	油门控制杆	LEVER THROTTLE CONTROL	1
13	410952	杠杆	LEVER	1
14	55337	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
14	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
15	55164	油门杠杆衬套	BUSHING THROTTLE LEVER	1
16	55171	点火提前杆衬套	BUSHING SPARK ADVANCE LEVER	1
17	55162	弹簧	SPRING	1
18	46765	垫圈(0.390 x 1.50 x 0.120) 点火提前杆	WASHER (.390 x 1.50 x .120) SPARK ADVANCE LEVER	1
19	64022	螺丝(.250-20x2.125)节气门杆-止动	SCREW (.250-20 x 2.125) THROTTLE LEVER - STOP	1
20	64015	螺母(.250-20)节气门杆止动螺丝	NUT (.250-20) THROTTLE LEVER STOP SCREW	1
21	26852	尼龙帽节气门杆止动螺丝	CAP Nylon THROTTLE LEVER STOP SCREW	1
22	39483	锁扣拉线	LATCH CABLE	1
23	22486	螺丝(.250-28x.880)拉线锁扣至节气门杆	SCREW (.250-28 x .880) CABLE LATCH TO THROTTLE LEVER	1
23	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
24	20099	拉线锁扣至节气门杆弹簧	SPRING CABLE LATCH TO THROTTLE LEVER	1
25	35045	螺母(.250-28)拉线锁扣螺丝	NUT (.250-28) CABLE LATCH SCREW	1
25	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
26	14634	节气门控制杆	ROD THROTTLE CONTROL	1
27	14638	节气门控制杆套筒	BARREL THROTTLE CONTROL ROD	1
28	8142391	凸轮	CAM	1
28	8142392	节气门凸轮	THROTTLE CAM	1
29	93248	衬套	BUSHING	1
29	8M0215006	旋转衬套	BUSHING Swivel	1
30	26856	节气门凸轮衬套	BUSHING THROTTLE CAM	2
31	35045	螺母（0.250-28）节气门凸轮螺柱	NUT (.250-28) THROTTLE CAM STUD	1
31	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
33	814283A1	控制线缆锚定支架	BRACKET ANCHOR - CONTROL CABLES	1
33	814283A2	支架总成	BRACKET ASSEMBLY	1
34	98889	控制线缆锁扣	LATCH CONTROL CABLE	1
35	42975	闩锁传动螺钉	DRIVE SCREW LATCH	2
36	53167	螺丝(.312-18x.880)锚定支架固定	SCREW (.312-18 x .880) ANCHOR BRACKET ATTACHING	3
36	53167T	螺钉 0.312-18X 0.88	SCREW .312-18X .88	3
37	814284	连杆导向块	GUIDE BLOCK LINK ROD	1
38	20099	连杆至导向块弹簧	SPRING LINK ROD TO GUIDE BLOCK	1
39	67073A1	连杆总成	LINK ROD ASSEMBLY	1
40	52100	连杆耐磨板	WEAR PLATE LINK ROD	1
41	38279	闩锁	LATCH	1
41	8M0036768	闩锁	LATCH	1
42	35462	垫圈(.2656x.625x.0625)不锈钢锁扣	WASHER (.2656 x .625 x .0625) Stainless Steel LATCH	1
43	35045	螺母（0.250-28）连杆	NUT (.250-28) LINK ROD	1
43	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
44	79932A11	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
44	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
45	29720	连杆波形垫圈	WAVE WASHER LINK ROD	1
46	26600	尼龙衬套-连杆	BUSHING NYLON - LINK ROD	1
47	35462	垫圈(.2656 x .625 x .0625)不锈钢连杆	WASHER (.2656 x .625 x .0625) Stainless Steel LINK ROD	1
48	35045	螺母（0.250-28）连杆至换挡轴	NUT (.250-28) LINK ROD TO SHIFT SHAFT	1
48	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
49	39519	杯形套筒固定器-锚杆	CUP BARREL RETAINER - ANCHOR BAR	1

图 38艉板支架 Transom Brackets

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂接头(左舷)	FITTING Grease (PORT)	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	54012	垫圈(0.530×0.870×0.105不锈钢)	WASHER (.530 x .870 x .105) Stainless Steel	4
10	8M0204665	垫圈(0.530×0.880×0.104 630不锈钢)	WASHER (.530 x .880 x .104) 630 Stainless Steel	4
11	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	99629T2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	830899	张力弹簧	SPRING Tension	1
15	65830	尼龙衬套	NYLINER	2
16	830900	压缩弹簧	SPRING Compression	1
17	99633	旋钮	KNOB	1
18	99615	槽销	PIN Groove	1
19	99617	销	PIN	1
19	893709	销	PIN	1

图 39配平电磁阀板(0G205106及以下) Trim Solenoid Plate (0G205106 and Below)

REF	零件编号	中文名称	英文名称	数量
1	847896	安装板	PLATE	1
2	818997A1	电磁阀总成	SOLENOID ASSEMBLY	2
2	8M0185145	电磁阀总成	SOLENOID ASSEMBLY	2
3	818967	护孔环	GROMMET	4
3	8M0207785	护孔环	GROMMET	4
4	818968	衬套	BUSHING	4
4	8M0214955	衬套	BUSHING	4
5	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	3
5	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	3
6	35950	垫圈 (.273 x .437 x .031) 不锈钢	WASHER (.273 x .437 x .031) Stainless Steel	3
7	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	3
7	8M0207776	螺母	NUT	3
8	88807A6	黑色电缆总成 (3.50 英寸)	CABLE ASSEMBLY (3.50 Inches) Black	2
9	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	4
10	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	4
11	42813	螺钉(#10-32 X 0.380英寸)(10-32 X 3/8英寸)	SCREW (#10-32 X .380) (10-32 X .3/8 IN.)	2
12	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
13	87379A14	线束总成(2.750英寸)(红色)	WIRE ASSEMBLY (2.750 Inches) (RED)	1
14	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
15	94330	螺母(0.250-20)黄铜	NUT (.250-20) Brass (BRASS)	2
16	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	2
17	69028	螺钉（.250-28 x .750）不锈钢	SCREW (.250-28 x .750) Stainless Steel	2
18	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	2
19	35280	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
20	35045	螺母(.250-28)	NUT (.250-28)	2
20	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	2

图 40配平电磁阀板(0G205107及以上) Trim Solenoid Plate (0G205107 and Up)

REF	零件编号	中文名称	英文名称	数量
1	847896	安装板	PLATE	1
2	828151	继电器	RELAY	2
2	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
3	818967	护孔环	GROMMET	2
3	8M0207785	护孔环	GROMMET	2
4	818968	衬套	BUSHING	2
4	8M0214955	衬套	BUSHING	2
5	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	2
5	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
6	35950	垫圈 (.273 x .437 x .031) 不锈钢	WASHER (.273 x .437 x .031) Stainless Steel	2
7	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	2
7	8M0207776	螺母	NUT	2
8	828102	支架	BRACKET	2
8	8M0207771	安装支架	BRACKET Mounting	2
9	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
10	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	2
11	69028	螺钉（.250-28 x .750）不锈钢	SCREW (.250-28 x .750) Stainless Steel	2
12	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	2
13	35280	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
14	35045	螺母(.250-28)	NUT (.250-28)	2
14	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	2
15	826802A4	线束总成	HARNESS ASSEMBLY	1

图 41线束和启动电磁阀 Wiring Harness and Starter Solenoid

REF	零件编号	中文名称	英文名称	数量
1	434292	点火板	IGNITION PLATE	1
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	螺钉(#12-24x2.00)	SCREW (#12-24 x 2.00)	2
4	94453	衬套	BUSHING	2
5	62310A2	拉线总成	CABLE ASSEMBLY	1
6	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	20
7	60871A10	线束总成	WIRE ASSEMBLY	2
8	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	3
8	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	3
9	91865A1	拉线总成	CABLE ASSEMBLY	1
9	88528A2	拉线总成	CABLE ASSEMBLY	1
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈	WASHER	6
13	67264	垫圈(橡胶)	WASHER (Rubber) (RUBBER)	6
14	67268	衬套	BUSHING	3
15	65999A3	黑色电缆总成	CABLE ASSEMBLY Black (BLACK)	1
16	87926	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	1
17	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
17	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
18	93388A7	拉线总成	CABLE ASSEMBLY	1
18	93388A14	线缆总成(黄/黑)	CABLE ASSEMBLY Yellow/Black	1
19	817109A2	电磁阀总成(#10-32/.3125-18端子)	SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)	1
20	818968	衬套	BUSHING	2
20	8M0214955	衬套	BUSHING	2
21	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	4
22	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
23	68292	螺母(.312-18)	NUT (.312-18)	2
23	8M0204668	螺母(.312-18)	NUT (.312-18)	2
24	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
25	97861	绝缘体	INSULATOR	1
26	65999A2	黑色电缆总成	CABLE ASSEMBLY Black (BLACK)	1
27	45561	螺钉(0.250-20 x 1.12英寸)(1-1/8英寸)	SCREW (.250-20 x 1.12) (1-1/8 Inch)	2
27	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
28	194372	端子排	TERMINAL BLOCK	1
29	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
30	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
31	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
32	96220A16	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
32	848464A2	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
33	79091	保险丝20安培	FUSE 20 Ampere	1
33	8M0207796	保险丝20安培	FUSE 20 AMP	1
34	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
34	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR

图 42外罩 Cowling

REF	零件编号	中文名称	英文名称	数量
1	817704A22	顶盖总成	TOP COWL ASSEMBLY	1
1	817704A23	顶盖总成	TOP COWL ASSEMBLY	1
1	817704T23	灰色顶罩	COWL-TOP-GRAY	1
2	817706A3	前盖	FRONT COVER	1
2	817706A4	前盖	FRONT COVER	1
3	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	4
4	22887	垫圈	WASHER	4
5	71602	轭架	YOKE	4
5	8M0192198	轭架	YOKE	4
5	716021	轭架	YOKE	4
6	816771	铆钉	RIVET	12
7	847883	垫圈(0.192x0.375x0.033)	WASHER (.192 x .375 x .033)	12
8	817708	压紧件	HOLD DOWN	4
9	58712	U型销	PIN Clevis	4
10	847883	垫圈(0.192x0.375x0.033)	WASHER (.192 x .375 x .033)	4
11	21071	开口销	COTTER PIN	4
11	210711	开口销	COTTER PIN	4
12	848164A7	底壳	BOTTOM PAN	1
12	848164T7	黑色底罩	COWL-BOTTOM-BLACK	1
12	817709A13	底壳	BOTTOM PAN	1
12	848164T8	灰色底罩	COWL-BOTTOM-GRAY	1
13	815784	盖帽	CAP	2
14	13734	固定座	RETAINER	4
14	8M0192190	固定座	RETAINER	4
14	137341	固定座	RETAINER	4
15	848172	开口铆钉	RIVET (POP-OPEN)	16
16	8177121	密封条(6.79英尺大卷)	SEAL (6.79 Feet Bulk)	1
16	817712003	密封条(6.79英尺)	SEAL (6.79 Feet)	1
17	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	11
18	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	11
18	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	11
19	8221882	安装板	PLATE	1
19	822188T2	安装板	PLATE	1
20	35045	螺母(.250-28)	NUT (.250-28)	11
20	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	11
21	848165	支撑架	BRACE	2
22	8177131	护孔环	GROMMET	2
22	8177133	护孔环	GROMMET	2
23	847894A1	围板	SKIRT	1
23	847894T1	黑色围板	SKIRT-BLACK	1
23	847894A2	围板	SKIRT	1
24	69028	螺钉（.250-28 x .750）不锈钢	SCREW (.250-28 x .750) Stainless Steel	8
25	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	16
26	35045	螺母(.250-28)	NUT (.250-28)	8
26	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	8
27	126021	护孔环	GROMMET	1
27	12602002	护孔环	GROMMET	1
28	18286A40	开关总成	SWITCH ASSEMBLY	1
28	8M0235192	微调开关	SWITCH TRIM	1
29	8124431	固定座	RETAINER	1
29	8M0032848	开关固定座	RETAINER Switch	1
30	847897	燃油接头支架	BRACKET Fuel Connector	1
31	28668	螺钉 (.250-20 x .875) 不锈钢	SCREW (.250-20 x .875) Stainless Steel	2
32	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	2
32	8M0207776	螺母	NUT	2
33	88621	固定座(按需使用)	RETAINER (Use where Applicable)	1
34	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	2
34	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	2
35	29488	螺母 (#10-32)	NUT (#10-32)	2
35	8M0204718	螺母	NUT	2

图 43配平电磁阀板 Trim Solenoid Plate

REF	零件编号	中文名称	英文名称	数量
1	885355T03	顶盖总成	TOP COWL ASSEMBLY	1
1	885355T02	顶盖总成	TOP COWL ASSEMBLY	1
1	8M0050000	顶罩-水星型	COWL-TOP MARINER	1
2	885354T	空气导流帽	CAP Air Dam	1
2	885354T01	空气导流帽-水星黑色款	CAP, Air Dam Mercury, Black	1
2	895838T	空气导流帽	CAP Air Dam	1
2	895838T01	空气导流帽-水星型	CAP Air Dam - Mariner	1
3	888971	前锁扣槽	FRONT LATCH RECEIVER	1
4	885545	上罩壳密封件	SEAL Top Cowl	1
4	8M0111178	密封件	SEAL	1
5	888951	电缆	CABLE	1
5	8M0080461	锁扣拉索	CABLE Latch	1
6	888959	铰链销	PIN Hinge	1
7	888956	手控锁杆	LATCH Hand Lever	1
8	895373	弹簧	SPRING	1
9	888955	锁扣连杆	LINK Latch Connecting	1
10	26953	开口销	COTTER PIN	2
11	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
12	888952	联动臂	LINKAGE ARM	2
13	888953	弹簧	SPRING	2
14	822417	销	PIN	2
15	888950020	螺钉(M4x20毫米)(M4x1.75)	SCREW (M4 x 20 mm) (M4 x 1.75)	6
16	888970	左舷饰板(左)	APPLIQUE Port (Port)	1
16	888970A01	饰板套件	APPLIQUE KIT	1
16	895839	左舷饰板(左)	APPLIQUE Port (Port)	1
16	895839A01	饰板套件	APPLIQUE KIT	1
17	888969	右舷饰板(右)	APPLIQUE Starboard (Starboard)	1
17	895840	右舷饰板(右)	APPLIQUE Starboard (Starboard)	1
18	4010610	不锈钢螺钉(M6x10)	SCREW (M6 x 10) Stainless Steel	2
-	892564A05	贴花套件	DECAL SET	1
-	859271A05	贴花套件	DECAL SET	1
-	895252A05	贴花套件	DECAL SET	1
-	895253A05	贴花套件	DECAL SET	1
-	892571A05	贴花套件	DECAL SET	1
-	892571A07	贴花套件(水星200)	DECAL SET (Mariner 200)	1
-	892871A05	贴花套件	DECAL SET	1
-	892871A07	贴花套件(水星225)	DECAL SET (Mariner 225)	1
-	895254A05	贴花套件	DECAL SET	1
-	895254A07	贴花套件(水星250)	DECAL SET (Mariner 250)	1
-	895255A05	贴花套件	DECAL SET	1
-	895255A07	贴花套件(水星275)	DECAL SET (Mariner 275)	1

图 44燃油管理系统 Fuel Management System

REF	零件编号	中文名称	英文名称	数量
-	14817A23	燃油管理系统总成	MANAGEMENT ASSEMBLY Fuel	1
1	8276922	盖板	COVER	1
2	15443	线束套件	HARNESS KIT	1
3	18792	密封件	SEAL	1
4	15029	O型圈及密封套件	O-RING AND SEAL KIT	1
5	8276992	燃油导轨	FUEL RAIL	1
5	827699T2	燃油导轨	FUEL RAIL	1
6	18715	燃油喷油器	INJECTOR Fuel	6
6	18715T	喷油器总成	INJECTOR ASSEMBLY	6
7	17422	滤清器	FILTER	1
8	827696	固定套件	RETAINER KIT	1
9	8276933	节气门体	THROTTLE BODY	1
10	8090572	接头套件	JOINT KIT	1
11	8276891	连杆套件	LINK KIT	1
12	827697	连杆杠杆套件	LEVER KIT Link	1
13	827698	螺钉套件	SCREW KIT	1
14	8276981	螺钉套件	SCREW KIT	1
15	8090851	弯头套件	ELBOW KIT	1
16	814233A1	施拉德阀套件	SCHRADER VALVE KIT	1
16	814233A02	阀套件	VALVE KIT	1
17	8142332	FMA接头套件	FMA JOINT KIT	1
18	8276942	软管套件	HOSE KIT	1
18	827694A01	软管套件-燃油	HOSE KIT-FUEL	1
19	67748	滚轮	ROLLER	1
20	90088	螺钉(.250-20x4)	SCREW (.250-20 x 4)	12
20	845674	螺钉(.250-20x4.00)	SCREW (.250-20 x 4.00)	12
21	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	10
21	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	10

图 45齿轮箱驱动轴-标准-SportMaster Gear Housing Driveshaft-Standard-SportMaster

REF	零件编号	中文名称	英文名称	数量
-	827214T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	827214T16	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	827214T25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
5	579203	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	562972	螺柱(0.312-18/0.324-24×3.380)	STUD (.312-18/.324-24 x 3.380)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	306671	螺柱	STUD	2
8	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	826134Q	阳极块	ANODE	2
10	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
11	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
12	67891	填充块	FILLER BLOCK	1
12	8M0039169	填充块	FILLER BLOCK	1
13	NSS	小齿轮(不单独销售)	NOT SOLD SEPARATE Pinion Gear	1
14	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
15	35921	螺母(0.625-18)	NUT (.625-18)	1
16	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
16	8M0058389	放油螺钉套件	SCREW KIT Drain	1
17	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	1
17	79953Q04	放油螺钉套件	SCREW KIT Drain	1
18	191832	垫圈	WASHER	2
18	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
19	789022	换档轴	SHIFT SHAFT	1
20	77631A2	衬套总成	BUSHING ASSEMBLY	1
21	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
22	8164641	油封	SEAL Oil	1
22	8M0246145	油封	OIL SEAL	1
23	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
24	848449A5	驱动轴总成	DRIVESHAFT ASSEMBLY	1
24	8M0192234	驱动轴	DRIVESHAFT	1
25	42637A1	垫片组	SHIM SET	AR
25	8M0063267	垫片组	SHIM SET	AR
26	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
26	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
27	8245191	固定座	RETAINER	1
28	44292A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
29	426311	衬垫	GASKET	1
29	8M0204678	衬垫	GASKET	1
30	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
30	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
31	89238	油封	SEAL Oil	1
32	16977	油封	SEAL Oil	1
33	18051	衬垫(下部)	GASKET (LOWER)	1
34	858524	衬垫(上部)	GASKET (UPPER)	1
35	32435	面板	FACE PLATE	1
35	8M0204677	面板	PLATE-FACE	1
36	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
37	48752T	嵌件	INSERT	1
38	38970	密封件	SEAL	1
39	89984T4	叶轮	IMPELLER	1
40	56654	键	KEY	1
40	8M0214992	键@5	KEY @5	1
41	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
41	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
42	8267119	螺母(.250-28)	NUT (.250-28)	2
43	36001	垫圈	WASHER	1
44	13436	螺母	NUT	1
45	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
45	8M0215009	螺钉	SCREW	1
46	29804T	套筒	SLEEVE	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	881805A01	发动机垫片组	GASKET SET Engine	1

图 46旋转支架及转向臂-长型 Swivel Bracket and Steering Arm Long

REF	零件编号	中文名称	英文名称	数量
-	896280006	零件手册200/225/250/275四冲程Verado	PARTS MANUAL 200/225/250/275 4-Stroke Verado	1
-	896579T00	维修手册	SERVICE MANUAL	1
-	8M0082470	MNL-SERV 200-300V	MNL-SERV 200-300V	1
-	10238060	安装手册	INSTALLATION MANUAL	1
-	10237060	用户手册	OWNERS MANUAL	1
-	10237J60	用户手册(西班牙语)	OWNERS MANUAL Spanish	1
-	10237D60	用户手册(法语)	OWNERS MANUAL French	1
-	895269001	产品指南	PRODUCT GUIDE	1
-	895269002	产品指南	GUIDE-PRODUCT	1
-	895282A06	EPA标签信息贴花	DECAL EPA Label Information	1

图 47燃油管理系统(0G366999及以下) Fuel Management System (0G366999 and Below)

REF	零件编号	中文名称	英文名称	数量
-	14817A19	燃油管理系统总成	MANAGEMENT ASSEMBLY Fuel	1
1	827693	节气门体	THROTTLE BODY	1
2	827692	盖板	COVER	1
3	827696	固定套件	RETAINER KIT	1
4	67748	滚轮	ROLLER	1
5	18715	燃油喷油器	INJECTOR Fuel	6
5	18715T	喷油器总成	INJECTOR ASSEMBLY	6
6	17422	滤清器	FILTER	1
7	15443	线束套件	HARNESS KIT	1
8	15442	燃油滤清器套件(DESIGN I型)	FILTER KIT Fuel (DESIGN I)	1
9	154421	燃油滤清器套件	FILTER KIT Fuel	1
9	154422	燃油滤清器套件	FILTER KIT Fuel	1
9	154422	燃油滤清器套件	FILTER KIT Fuel	1
10	150282	燃油滤清器	FILTER Fuel	1
11	400034	螺钉(M5×14)	SCREW (M5 x 14)	1
12	400255	锁紧垫圈(M5)	LOCKWASHER (M5)	1
13	1350382	管材(30英寸散装)(1/2英寸外径)	TUBING (30.00 Inches Bulk) (1/2 IN. O.D.)	1
13	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	1
14	9912688	管材(36英寸散装)(1/8英寸内径)	TUBING (36.00 Inches Bulk) (1/8 IN. I.D.)	1
15	99130122	管材(20英尺散装)(3/32英寸内径)	TUBING (20.00 Feet Bulk) (3/32 IN. I.D.)	1
15	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
16	15027	调节器	REGULATOR	1
17	814233	弯头套件	ELBOW KIT	1
18	18791	衬垫	GASKET	1
19	814012	安装板	PLATE	1
20	814076	螺钉	SCREW	AR
21	814010	盖板套件	COVER KIT	1
22	4001987	螺钉(M4×16)	SCREW (M4 x 16)	6
23	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	6
24	18790	密封件	SEAL	1
25	15029	O型圈及密封套件	O-RING AND SEAL KIT	1
26	15446	浮子阀套件	VALVE KIT Float	1
27	15445	浮子套件	FLOAT KIT	1
28	814011	阀体套件	BODY KIT	1
29	42481	止回阀	CHECK VALVE	1
29	424811	阀门	VALVE	1
30	4000332	螺钉(M6x35)	SCREW (M6 x 35)	3
31	18241	止回阀	CHECK VALVE	1
32	814077	切断阀	VALVE Shut-Off	1
33	18792	密封件	SEAL	1
34	19275	隔套	SPACER	3
35	814913	隔套	SPACER	3
36	35280	垫圈（0.255 x 0.620 x 0.030）不锈钢（大号）	WASHER (.255 x .620 x .030) Stainless Steel (LARGE)	3
37	69057	垫圈(0.281x0.734x0.063)(小号)	WASHER (.281 x .734 x .063) (SMALL)	3
38	13791	卡箍(15.7)	CLAMP (15.7)	2
38	8M0214911	卡箍@5	CLAMP @5	2
39	1350382	管材(30英寸散装)(1-3/4英寸)	TUBING (30.00 Inches Bulk) (1-3/4 IN.)	1
39	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	1
40	F698772	蜗杆卡箍	CLAMP Worm Gear	2
41	14639	覆盖件	BLANKET	1
42	14640T	盖板	COVER	1
43	32228	螺钉（#10-32 X 0.625）	SCREW (#10-32 x .625)	4
44	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	4
45	90088	螺钉(.250-20x4)	SCREW (.250-20 x 4)	12
45	845674	螺钉(.250-20x4.00)	SCREW (.250-20 x 4.00)	12
46	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	10
46	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	10
47	14307A1	燃油泵总成	PUMP ASSEMBLY Fuel	1
47	14307T01	燃油泵	FUEL PUMP	1
48	146332	软管	HOSE	1
49	823501	燃油滤清器	FILTER Fuel	1
49	885188	滤清器	FILTER	1

图 48油气分离器组件 Vapor Separator Components

REF	零件编号	中文名称	英文名称	数量
1	855432A1	盖板套件	COVER KIT	1
2	NSS	不单独销售弯头	NOT SOLD SEPARATE Elbow	1
3	8568431	直通接头	FITTING Straight STRAIGHT	1
4	19688	接头	FITTING	1
5	803878	密封件	SEAL	1
6	NSS	不单独销售泵出口配件包	NOT SOLD SEPARATE Fitting Kit-Pump Outlet	1
6	855437A2	泵出口接头套件	FITTING KIT Pump Outlet	1
7	NSS	O型圈（不单独销售）	NOT SOLD SEPARATE O Ring	1
8	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	7
9	855528	衬垫	GASKET	1
9	8M6002520	衬垫套件	GASKET KIT	1
10	855430A1	浮子套件	FLOAT KIT	1
10	8M6004920	浮子套件	FLOAT KIT	1
11	F10064	轴	SHAFT	1
12	855431	针阀	VALVE Needle	1
12	8M6004917	进气阀	VALVE-INLET	1
13	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
14	855427A1	泵套件	PUMP KIT	1
15	855428	套筒	SLEEVE	1
15	8M6000589	套筒	SLEEVE	1
16	855434A1	油杯套件	BOWL KIT	1
17	855433	密封件	SEAL	1
17	8554331	密封件	SEAL	1
18	855435A1	塞套件	PLUG KIT	1
19	8554245	弯头	ELBOW	2
20	18458A4	滤清器套件	FILTER KIT	1
20	18458Q4	燃油水分离滤清器	FILTER Fuel-Water Separating	1
21	828586	探头	PROBE	1
21	8M0204710	探头	PROBE	1

图 49动力升降组件 8M0231193 Power Trim Components 8M0231193

REF	零件编号	中文名称	英文名称	数量
-	8M0231193	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0225363	电机套件	MOTOR KIT	1
2	8M0225369	阀套件	VALVE KIT	1
3	8M0225371	手动释放套件	MANUAL RELEASE KIT	1
4	8M0245633	倾斜油缸套件	TILT CYLINDER KIT	1
5	8M0225370	枢轴销套件	PIVOT PIN KIT	1
6	8M0244575	减震杆套件	SHOCK ROD KIT	1
7	8M0244425	销杆眼套件	PIN ROD EYE KIT	1
8	8M0232231	螺钉螺母套件	SCREW NUT KIT	1
9	8M0225373	记忆活塞套件	MEMORY PISTON KIT	1
10	8M0225368	储液罐套件	RESERVOIR KIT	1
11	8M0174135	储液罐塞总成	PLUG RESERVOIR ASSEMBLY	1
12	8M0237525	泵套件	PUMP KIT	1
13	8M0225367	升降杆套件	TRIM ROD KIT	1
14	8M0242846	升降杆套件	TRIM ROD KIT	1
15	8M0225372	重建套件	REBUILD KIT	1

图 50动力升降组件金属马达壳 Power Trim Components Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	826729A2	升降倾斜总成	TRIM AND TILT ASSEMBLY	1
1	811604F	歧管总成	MANIFOLD ASSEMBLY	1
2	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	9
3	823552F	气缸总成	CYLINDER ASSEMBLY	1
3	880952A03	ORD 8M0078330	ORD 8M0078330	1
4	823553	配平活塞杆套件	ROD KIT Trim Piston	1
4	823553T	升降活塞杆	ROD Trim Piston	1
5	811606	导向套件	GUIDE KIT	1
5	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
6	811607A1	维修套件	REPAIR KIT	1
7	811610A1	止回阀套件	CHECK VALVE KIT	1
7	823553T	升降活塞杆	ROD Trim Piston	1
8	99638A1	导向器总成	GUIDE ASSEMBLY	2
8	8M0021648	端盖总成	END CAP ASSEMBLY	2
9	43397A6	动力升降倾斜装置活塞/杆总成	PISTON/ROD ASSEMBLY Power Trim	1
9	878413A1	活塞总成	PISTON ASSEMBLY	1
9	43398A3	动力升降倾斜装置活塞/杆总成	PISTON/ROD ASSEMBLY Power Trim	1
9	878414T01	活塞总成	PISTON ASSEMBLY	1
10	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
11	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
11	893929A01	安全阀套件	VALVE KIT Relief	1
12	812844	E型卡环	E RING	1
12	815949001	E形环	E-RING	1
13	811612A2	O型圈套件	O-RING KIT	1
13	811612A3	O型圈套件	O-RING KIT	1
14	811617F	泵	PUMP	1
14	811617T1	泵	PUMP	1
15	811613	塞子总成	PLUG ASSEMBLY	1
16	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
17	43450	垫圈	WASHER	4
17	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
18	811611	盖板	COVER	1
19	828710	驱动接头	DRIVE JOINT	1
20	828708	电机总成	MOTOR ASSEMBLY	1
20	878265A4	配平电机	TRIM MOTOR	1
21	828709	螺钉 (长)	SCREW (LONG)	2
21	881768A1	螺钉/垫圈套件	SCREW/WASHER KIT	2
21	811616	螺钉 (短)	SCREW (SHORT)	2
22	811614	轴总成	SHAFT ASSEMBLY	1
22	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
23	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
24	44431	槽销	PIN Groove	1
24	878267	销	PIN	1
25	821539	三叶销	PIN Trilobe	1
26	996251	轴	SHAFT	1
26	99625002	轴	SHAFT	1
27	818298A1	阳极套件	ANODE KIT	1
27	818298Q1	阳极套件	ANODE KIT	1
28	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
28	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
29	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
29	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
30	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
31	4002319	垫圈	WASHER	6
32	26550	卡箍	CLAMP	2
33	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
33	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
34	69205	C形垫圈	C WASHER	1
34	8M0084613	C形垫圈	C-WASHER	1
35	996301	冲击板	STRIKER PLATE	2
35	8M0045383	冲击板	STRIKER PLATE	2
36	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
37	46335	螺母 (.375-24)	NUT (.375-24)	2
38	435301	警示贴纸-动力微调	DECAL Caution-Power Trim	1
39	828547353	导管 (.350内径 x 3.00英尺散装)	CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk)	1
40	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
40	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

图 51爆震控制器/温度传感器 Detonation Controller/Temperature Sensor

REF	零件编号	中文名称	英文名称	数量
1	826800A8	爆震控制器总成	CONTROLLER ASSEMBLY Detonation	1
2	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	3
3	38833	垫圈	WASHER	3
4	13381	安装板	PLATE	1
5	88807A10	拉线总成	CABLE ASSEMBLY	1
6	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
7	94304	隔套	SPACER	3
8	41470A25	喷油警告模块总成	MODULE ASSEMBLY Oil Injection Warning	1
9	14851	油门位置指示器	INDICATOR Throttle Position	1
9	14851T03	指示器	INDICATOR	1
10	15150	螺钉(#8-32 x 0.625英寸)	SCREW (#8-32 x .625)	2
11	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	2
12	30164	垫圈(0.192x0.375x0.0312)不锈钢	WASHER (.192 x .375 x .0312) Stainless Steel	2
13	15885	套筒	SLEEVE	1
14	813501	安装板	PLATE	2
15	13221A1	温度传感器总成	SENSOR ASSEMBLY Temperature	1
15	13221T01	温度传感器	SENSOR TEMP	1
16	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
17	57583	螺丝（#8-32×0.375）	SCREW (#8-32 x .375)	3
17	57583T	螺丝#8-32×3/8	SCREW #8-32x3/8	3
18	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	3
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 52燃油管理系统(0G367000及以上) Fuel Management System (0G367000 and Up)

REF	零件编号	中文名称	英文名称	数量
-	14817A23	燃油管理系统总成	MANAGEMENT ASSEMBLY Fuel	1
1	8276922	盖板	COVER	1
2	15443	线束套件	HARNESS KIT	1
3	18792	密封件	SEAL	1
4	15029	O型圈及密封套件	O-RING AND SEAL KIT	1
5	8276992	燃油导轨	FUEL RAIL	1
5	827699T2	燃油导轨	FUEL RAIL	1
6	18715	燃油喷油器	INJECTOR Fuel	1
6	18715T	喷油器总成	INJECTOR ASSEMBLY	1
7	17422	滤清器	FILTER	1
8	827696	固定套件	RETAINER KIT	1
9	8276933	节气门体	THROTTLE BODY	1
10	8090572	接头套件	JOINT KIT	1
11	8276891	连杆套件	LINK KIT	1
12	827697	连杆杠杆套件	LEVER KIT Link	1
13	827698	螺钉套件	SCREW KIT	1
14	8276981	螺钉套件	SCREW KIT	1
15	8090851	弯头套件	ELBOW KIT	1
16	814233A1	施拉德阀套件	SCHRADER VALVE KIT	1
16	814233A02	阀套件	VALVE KIT	1
17	8142332	FMA接头套件	FMA JOINT KIT	1
18	8276942	软管套件	HOSE KIT	1
18	827694A01	软管套件-燃油	HOSE KIT-FUEL	1
19	67748	滚轮	ROLLER	1
20	90088	螺钉(.250-20x4)	SCREW (.250-20 x 4)	10
20	845674	螺钉(.250-20x4.00)	SCREW (.250-20 x 4.00)	10
21	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	10
21	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	10

图 53艉板支架-长型 Transom Brackets Long

REF	零件编号	中文名称	英文名称	数量
1	885355T03	顶盖总成	TOP COWL ASSEMBLY	1
1	885355T02	顶盖总成	TOP COWL ASSEMBLY	1
1	8M0050000	顶罩-水星型	COWL-TOP MARINER	1
2	885354T	空气导流帽	CAP Air Dam	1
2	885354T01	空气导流帽-水星黑色款	CAP, Air Dam Mercury, Black	1
2	895838T	空气导流帽	CAP Air Dam	1
2	895838T01	空气导流帽-水星型	CAP Air Dam - Mariner	1
3	888971	前锁扣槽	FRONT LATCH RECEIVER	1
4	885545	上罩壳密封件	SEAL Top Cowl	1
4	8M0111178	密封件	SEAL	1
5	888951	电缆	CABLE	1
5	8M0080461	锁扣拉索	CABLE Latch	1
6	888959	铰链销	PIN Hinge	1
7	888956	手控锁杆	LATCH Hand Lever	1
8	895373	弹簧	SPRING	1
9	888955	锁扣连杆	LINK Latch Connecting	1
10	26953	开口销	COTTER PIN	2
11	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
12	888952	联动臂	LINKAGE ARM	2
13	888953	弹簧	SPRING	2
14	822417	销	PIN	2
15	888950020	螺钉(M4x20毫米)(M4x1.75)	SCREW (M4 x 20 mm) (M4 x 1.75)	6
16	888970	左舷饰板(左)	APPLIQUE Port (Port)	1
16	888970A01	饰板套件	APPLIQUE KIT	1
16	895839	左舷饰板(左)	APPLIQUE Port (Port)	1
16	895839A01	饰板套件	APPLIQUE KIT	1
17	888969	右舷饰板(右)	APPLIQUE Starboard (Starboard)	1
17	895840	右舷饰板(右)	APPLIQUE Starboard (Starboard)	1
18	4010610	不锈钢螺钉(M6x10)	SCREW (M6 x 10) Stainless Steel	2
-	892564A05	贴花套件	DECAL SET	1
-	859271A05	贴花套件	DECAL SET	1
-	895252A05	贴花套件	DECAL SET	1
-	895253A05	贴花套件	DECAL SET	1
-	892571A05	贴花套件	DECAL SET	1
-	892571A07	贴花套件(水星200)	DECAL SET (Mariner 200)	1
-	892871A05	贴花套件	DECAL SET	1
-	892871A07	贴花套件(水星225)	DECAL SET (Mariner 225)	1
-	895254A05	贴花套件	DECAL SET	1
-	895254A07	贴花套件(水星250)	DECAL SET (Mariner 250)	1
-	895255A05	贴花套件	DECAL SET	1
-	895255A07	贴花套件(水星275)	DECAL SET (Mariner 275)	1

图 54燃油泵(铝制壳体) Fuel Pump (Aluminum Body)

REF	零件编号	中文名称	英文名称	数量
1	15930A21	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
4	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
5	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
6	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Vavle	2
10	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
12	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
13	987691	底座衬垫	GASKET Base	1
13	8M0204705	衬垫@2	GASKET @2	1
14	144303		BASE Fuel Pump	1
15	987752	燃油泵板	PLATE Fuel Pump	1
16	99664	弯头	ELBOW	2
16	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	2
17	29111	连接器	CONNECTOR	1
17	291112	接头	FITTING	1
18	82104540		SCREW (M5 x 40) Fuel Pump	2
19	82130050		SCREW (M6 x 50) Fuel Pump to Crankcase	2
20	83075780	管材(28.00英寸散装)	TUBING (28.00 Inches Bulk)	1
20	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
21	83075780	管材(28.00英寸散装)	TUBING (28.00 Inches Bulk)	1
21	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
22	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
22	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
23	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
23	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
24	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
25	1350382	管材(30英寸散装)	TUBING (30.00 Inches Bulk)	2
25	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	2
26	18458A3	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
26	18458Q3	燃油滤清器	FILTER-FUEL	1
27	14570	探头	PROBE	1
28	13170A3	底座	BASE	1
29	13607	接头	FITTING	2
29	136071	弯头	ELBOW	2
30	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	2
30	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
-	823142A94	衬垫套件	GASKET SET	1
-	809839A94	动力头总成	POWERHEAD ASSEMBLY	1
-	809839T94	PH 150 EFI	PH 150 EFI	1
-	808603A94	动力头总成	POWERHEAD ASSEMBLY	1
-	808603T94	动力头总成	POWERHEAD ASSEMBLY	1

图 55液压泵总成 Hydraulic Pump Assembly

REF	零件编号	中文名称	英文名称	数量
-	846859A1	液压泵总成	PUMP ASSEMBLY Hydraulic	1
1	811491	适配器	ADAPTER	1
1	8M0084543	适配器	ADAPTER	1
2	803852	联轴器	COUPLING	1
3	89498	O型圈	O-RING	1
4	811492T	泵总成(含螺钉)	PUMP ASSEMBLY (INCLUDES SCREWS)	1
5	89496	滤清器	FILTER	2
6	89497	O型圈	O-RING	1
7	41219T	储液罐	RESERVOIR	1
8	811493	螺钉套件	SCREW KIT	1
-	17649T	电机总成	MOTOR ASSEMBLY	1
-	891736T	电机总成	MOTOR ASSEMBLY	1
-	891736T	电机总成	MOTOR ASSEMBLY	1
9	17632T	端盖总成	END CAP ASSEMBLY	1
9	891736T	电机总成	MOTOR ASSEMBLY	1
9	NSS		NOT SOLD SEPARATE END FRAME	1
10	17626	螺钉	SCREW	4
10	891736T	电机总成	MOTOR ASSEMBLY	4
10	891741	螺钉	SCREW	4
11	17625	O型圈	O-RING	1
11	891736T	电机总成	MOTOR ASSEMBLY	1
11	891740	O型圈	O-RING	1
12	17621	螺钉	SCREW	2
12	891736T	电机总成	MOTOR ASSEMBLY	2
12	891739	螺钉	SCREW	2
13	17633	支架套件	HOLDER KIT	1
13	891736T	电机总成	MOTOR ASSEMBLY	1
13	891738	支架总成	HOLDER ASSEMBLY	1
14	17631A1	电刷套件	BRUSH KIT	1
14	891736T	电机总成	MOTOR ASSEMBLY	1
14	891737	电刷套件	BRUSH KIT	1
15	17623	电枢	ARMATURE	1
15	891736T	电机总成	MOTOR ASSEMBLY	1
15	NSS		NOT SOLD SEPARATE ARMATURE	1
16	17653	垫圈	WASHER	2
16	891736T	电机总成	MOTOR ASSEMBLY	2
16	NSS	止推垫片(不单独销售)	NOT SOLD SEPARATE THRUST WASHET	2
17	17624	磁场框架总成	FIELD AND FRAME ASSEMBLY	1
17	891736T	电机总成	MOTOR ASSEMBLY	1
17	NSS	磁场与框架(不单独销售)	NOT SOLD SEPARATE FIELD AND FRAME	1
18	17622	盖总成	COVER ASSEMBLY	1
18	891736T	电机总成	MOTOR ASSEMBLY	1
18	NSS	壳体(不单独销售)	NOT SOLD SEPARATE HOUSING	1
-	812498A1	安全阀套件	VALVE KIT Relief	1

图 56齿轮箱螺旋桨轴-1.78:1传动比 Gear Housing Propeller Shaft - 1.78:1 Gear Ratio

REF	零件编号	中文名称	英文名称	数量
-	814247A3	齿轮箱总成1.78:1速比-黑色	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Black	1
-	814247A4	齿轮箱总成 1.78:1 减速比 - 灰色	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Gray	1
-	814247T4	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	814247A1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic - Black	1
1	814247T1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	814247A2	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic - Gray	1
1	814247T2	ORD 1674-814247T1	ORD 1674-814247T1	1
43	76039	换挡凸轮控制	CAM Shift Control	1
43	760394	换挡凸轮控制	CAM Shift Control	1
44	44491A1	垫片组	SHIM SET	AR
44	8M0063266	垫片组	SHIM SET	AR
45	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
46	16279A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
47	30895	滚针轴承	BEARING Needle	1
47	30895T	滚针轴承	BEARING Needle	1
48	12239A1	凸轮从动件套件	FOLLOWER KIT Cam	1
48	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
49	30622	弹簧	SPRING	1
50	822539	离合器	CLUTCH	1
50	822539T	离合器	CLUTCH	1
51	30632	十字销	PIN Cross	1
51	8M0100263	十字销	PIN Cross	1
52	30893	弹簧	SPRING	1
53	12238T	螺旋桨轴	PROPELLER SHAFT	1
54	NSS	倒车齿轮(不单独销售)(43-16279A2部件)	NOT SOLD SEPARATE Reverse Gear (Part of 43-16279A2)	1
55	76358	止推垫片	THRUST WASHER	1
56	29976	O型圈	O-RING	1
57	41529A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
57	41529T2	托架总成	CARRIER ASSY	1
58	98727	润滑脂接头	FITTING Grease	2
58	8M0169588	润滑脂接头	FITTING Grease	2
59	30956	滚针轴承	BEARING Needle	1
59	30956T	滚针轴承	BEARING Needle	1
60	76868	油封(外侧)	SEAL (OUTSIDE)	1
60	8M0248882	油封@5	SEAL-OIL @5	1
61	14077	油封(内侧)	SEAL Oil (INSIDE)	1
62	30281	键	KEY	1
63	52700	锁紧垫圈	TAB WASHER	1
64	52699	盖板	COVER	1
65	13191A1	止推垫片	THRUST WASHER	1
65	13191Q01	止推垫片	THRUST WASHER	1
66	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
66	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
67	816629	锁紧垫圈	TAB WASHER	1
67	816629Q	锁紧垫圈	TAB WASHER	1
68	30206	螺钉(.375-16 x 1.00)不锈钢	SCREW (.375-16 x 1.00) Stainless Steel	1
69	76214A5	阳极套件	ANODE KIT	1
69	76214Q5	阳极套件	ANODE KIT	1
70	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
71	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	2
72	134391	螺母 (.4375-20)	NUT (.4375-20)	2
72	859116	螺母(.437-20)	NUT (.437-20)	2
-	89238A2	密封套件	SEAL KIT	1

图 57下罩 Bottom Cowl

REF	零件编号	中文名称	英文名称	数量
1	834814A1	下机罩	BOTTOM COWL	1
1	834814A2	下机罩	BOTTOM COWL	1
2	834815A1	下机罩	BOTTOM COWL	1
2	8M0107322	机罩-底部右舷	COWL-BOTTOM, STBD	1
2	834815A2	下机罩	BOTTOM COWL	1
3	8253181	罩盖密封条(41英寸)	SEAL Cowl (41.00 Inches)	2
3	8M0109217	罩盖密封条	SEAL-COWL	2
4	822024	卡箍	CLAMP	1
5	822023	卡箍	CLAMP	1
6	92799	螺钉(#10-16x1.12)	SCREW (#10-16 x 1.12)	2
7	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	4
8	831209	固定座	RETAINER	1
9	821908	堵头	PLUG	1
10	821915	垫圈	WASHER	1
11	821963	止回阀	CHECK VALVE	1
11	8219631	止回阀	CHECK VALVE	1
12	30641	O型圈(0.299x0.103)	O-RING (.299 x .103)	1
13	821952	接头	FITTING	1
14	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
14	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
15	8320782	软管	HOSE	1
15	8M0039077	成型软管	HOSE-MOLDED	1
16	850896	卡箍 (28.6)	CLAMP (28.6)	2
17	8320763	接头	FITTING	1
18	821904	示流器接头	FITTING Tell-Tale	1
18	8M0077650	示流器接头	FITTING Tell-Tale	1
19	828216	怠速排气套	IDLE EXHAUST BOOT Exhaust	1
19	889847	怠速排气套	BOOT Idle Exhaust	1
20	817519A1	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	2
21	850691	开关	SWITCH	1
21	8M0235192	微调开关	SWITCH TRIM	1
22	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
23	821253F1	前手柄黑色	FRONT HANDLE Black	1
23	889740A02	手柄套件	HANDLE KIT	1
23	821253F2	前手柄	FRONT HANDLE	1
23	889740A02	手柄套件	HANDLE KIT	1
24	335891	衬套	BUSHING	2
25	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
26	8219423	棘爪	PAWL	1
27	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	1
28	401196	螺母 (M6)	NUT (M6)	1
29	8214281	螺钉(#10-16x0.625)	SCREW (#10-16 x .625)	1
30	822873	卡扣	CLIP	1

图 58齿轮箱驱动轴-TorqueMaster Gear Housing Driveshaft - TorqueMaster

REF	零件编号	中文名称	英文名称	数量
-	827214T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	827214T16	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	827214T25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
5	579203	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	562972	螺柱(0.312-18/0.324-24×3.380)	STUD (.312-18/.324-24 x 3.380)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	306671	螺柱	STUD	2
8	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	826134Q	阳极块	ANODE	2
10	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
11	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
12	67891	填充块	FILLER BLOCK	1
12	8M0039169	填充块	FILLER BLOCK	1
13	NSS	小齿轮(不单独销售)	NOT SOLD SEPARATE Pinion Gear	1
14	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
15	35921	螺母(0.625-18)	NUT (.625-18)	1
16	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
16	8M0058389	放油螺钉套件	SCREW KIT Drain	1
17	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	1
17	79953Q04	放油螺钉套件	SCREW KIT Drain	1
18	191832	垫圈	WASHER	2
18	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
19	789022	换档轴	SHIFT SHAFT	1
20	77631A2	衬套总成	BUSHING ASSEMBLY	1
21	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
22	8164641	油封	SEAL Oil	1
22	8M0246145	油封	OIL SEAL	1
23	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
24	848449A5	驱动轴总成	DRIVESHAFT ASSEMBLY	1
24	8M0192234	驱动轴	DRIVESHAFT	1
25	42637A1	垫片组	SHIM SET	AR
25	8M0063267	垫片组	SHIM SET	AR
26	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
26	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
27	8245191	固定座	RETAINER	1
28	44292A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
29	426311	衬垫	GASKET	1
29	8M0204678	衬垫	GASKET	1
30	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
30	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
31	89238	油封	SEAL Oil	1
32	16977	油封	SEAL Oil	1
33	18051	衬垫(下部)	GASKET (LOWER)	1
34	858524	衬垫(上部)	GASKET (UPPER)	1
35	32435	面板	FACE PLATE	1
35	8M0204677	面板	PLATE-FACE	1
36	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
37	48752T	嵌件	INSERT	1
38	38970	密封件	SEAL	1
39	89984T4	叶轮	IMPELLER	1
40	56654	键	KEY	1
40	8M0214992	键@5	KEY @5	1
41	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
41	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
42	8267119	螺母(.250-28)	NUT (.250-28)	2
43	36001	垫圈	WASHER	1
44	13436	螺母	NUT	1
45	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
45	8M0215009	螺钉	SCREW	1
46	29804T	套筒	SLEEVE	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	881805A01	发动机垫片组	GASKET SET Engine	1

图 59齿轮箱(驱动)标准/反向旋转-运动大师 Gear Housing (Drive) Standard/Counter Rotation-SportMaster

REF	零件编号	中文名称	英文名称	数量
1	848450A25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	848474A39	齿轮箱总成-基本型(无扭矩片)	GEAR HOUSING ASSEMBLY Basic-Without Torque Tab	1
1	8M0084203	齿轮箱-SM型	GEAR HOUSING-SM	1
2	8479503	盖板	COVER	2
2	847950T3	盖板	COVER	2
3	34776	O型圈	O-RING	2
4	815904	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	12
5	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
6	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
7	67891	填充块	FILLER BLOCK	1
7	8M0039169	填充块	FILLER BLOCK	1
8	847949	管塞	PLUG Pipe	1
9	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
9	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
10	69501	螺柱(5/16 X 3-1/4英寸)	STUD (5/16 X 3-1/4 IN.)	1
11	59579	双头螺柱(.437-14/.437-20 x 2.812)	STUD (.437-14/.437-20 x 2.812)	3
11	78638	螺柱(0.438x3.12)(7/16 X 3-1/8英寸)	STUD (.438 x 3.12) (7/16 X 3-1/8 IN.)	1
11	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
11	579201	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
11	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
11	74730	螺柱(7/16 X 7.06英寸)	STUD (7/16 X 7.06 IN.)	2
11	74732	螺柱(7/16 X 7.69英寸)	STUD (7/16 X 7.69 IN.)	3
11	78639	螺柱(7/16 X 8-1/8英寸)	STUD (7/16 X 8-1/8 IN.)	1
12	826134	阳极块	ANODE	2
12	826134Q	阳极块	ANODE	2
13	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
14	8268336	螺母 (M6)	NUT (M6)	1
14	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
15	NSS	小齿轮(不单独销售)	NOT SOLD SEPARATE Pinion Gear	1
16	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
17	35921	螺母(0.625-18)	NUT (.625-18)	1
18	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	1
18	79953Q04	放油螺钉套件	SCREW KIT Drain	1
19	19183	纤维垫圈	WASHER Fiber	1
19	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
20	789022	换挡轴(下部)	SHIFT SHAFT (LOWER)	1
21	77631A2	衬套总成	BUSHING ASSEMBLY	1
22	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
23	8164641	油封	SEAL Oil	1
23	8M0246145	油封	OIL SEAL	1
24	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
25	848449A4	驱动轴总成	DRIVESHAFT ASSEMBLY	1
25	8M0192233	驱动轴	DRIVESHAFT	1
25	848449A5	驱动轴总成	DRIVESHAFT ASSEMBLY	1
25	8M0192234	驱动轴	DRIVESHAFT	1
25	848449A6	驱动轴总成	DRIVESHAFT ASSEMBLY	1
26	38657A1	垫片组	SHIM ASSEMBLY	1
26	8M0063268	垫片组	SHIM SET	1
27	48939A2	圆锥滚子轴承	BEARING Taper Roller	1
27	8M0146553	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
28	42637A1	垫片组	SHIM SET	AR
28	8M0063267	垫片组	SHIM SET	AR
29	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
29	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
30	824519	固定座	RETAINER	1
30	8245191	固定座	RETAINER	1
31	44292A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
32	426311	衬垫	GASKET	1
32	8M0204678	衬垫	GASKET	1
33	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
33	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
34	89238	油封	SEAL Oil	1
35	16977	油封	SEAL Oil	1
36	18051	衬垫	GASKET	1
37	856091	衬垫	GASKET	1
37	858524	衬垫	GASKET	1
38	32435	面板	FACE PLATE	1
38	8M0204677	面板	PLATE-FACE	1
39	847710A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
39	847710T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
39	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
39	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
40	48752	嵌件	INSERT	1
40	48752T	嵌件	INSERT	1
41	88397	密封件	SEAL	1
41	38970	密封件	SEAL	1
42	847685	套筒	SLEEVE	1
42	29804	套筒	SLEEVE	1
42	29804T	套筒	SLEEVE	1
43	56654	键	KEY	1
43	8M0214992	键@5	KEY @5	1
44	899842	叶轮	IMPELLER	1
44	89984T4	叶轮	IMPELLER	1
45	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
45	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
46	13438	螺母(.250-28)	NUT (.250-28)	2
46	8267119	螺母(.250-28)	NUT (.250-28)	2
47	36001	垫圈	WASHER	1
48	13436	螺母	NUT	1
49	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
49	8M0215009	螺钉	SCREW	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	823142A94	衬垫套件	GASKET SET	1
-	90415A24	螺柱套件	STUD KIT	1
-	59579	双头螺柱(.437-14/.437-20 x 2.812)	STUD (.437-14/.437-20 x 2.812)	1
-	90415A25	螺柱套件	STUD KIT	1

图 60启动电机 Starter Motor

REF	零件编号	中文名称	英文名称	数量
-	NSS	起动机总成(不单独销售)	NOT SOLD SEPARATE Starter Motor Assembly	1
1	892339T01	启动电机总成	STARTER MOTOR ASSEMBLY	1
2	NSS	螺钉组(不单独销售)	NOT SOLD SEPARATE Screws	2
3	880805A1	齿轮套件	GEAR KIT	1
4	809463A1	电磁阀组件	SOLENOID KIT	1
5	8M0065258	电刷组	BRUSH SET	1
6	8M0034918	轴环	COLLAR	2
7	8M0043276	停机开关	STOP	1
8	NSS	高压警告贴纸(不单独销售)	NOT SOLD SEPARATE Decal-Waring-High Voltage	1
9	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
10	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
11	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
12	400213	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
13	400255	锁紧垫圈(M5)	LOCKWASHER (M5)	1
14	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1

图 61气缸体与端盖 Cylinder Block and End Caps

REF	零件编号	中文名称	英文名称	数量
1	828340A5	气缸体	CYLINDER BLOCK	1
2	8181383	动力头螺柱（1-3/4英寸）	STUD Powerhead (1-3/4 IN.)	6
2	8M0034455	螺柱1.750	STUD 1.750	6
3	670653	双头螺柱（0.375×5.620英寸，5-1/2英寸）	STUD (.375 x 5.620) (5-1/2 IN.)	2
3	670654	螺柱(.375-16/.375-24 x 5.620)	STUD (.375-16/.375-24 x 5.620)	2
3	784384	双头螺栓(.375 x 6.870)(6-3/4英寸)	STUD (.375 x 6.870) (6-3/4 IN.)	2
3	8M0034454	螺柱(.375-16/.375-24 x 6.87)	STUD (.375-16/.375-24 x 6.87)	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	销(轴承座圈)	PIN (BEARING RACE)	2
5	8M0036405	销	PIN	2
6	11338	衬垫	GASKET	2
7	384071	接头(1/2-14)	FITTING (1/2-14) (1/2-14)	1
8	426231	止回阀	CHECK VALVE	1
8	426233	止回阀	CHECK VALVE	1
9	426981	止回阀	CHECK VALVE	1
9	426982	止回阀	CHECK VALVE	1
10	99130122	管材(20英尺整卷)(裁切为19英寸)	TUBING (20.00 Feet Bulk) (Cut to 19 Inches)	1
10	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
11	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	10
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	10
12	852760	直通接头	FITTING (STRAIGHT)	2
13	855622	弯头接头	FITTING (ELBOW)	1
14	8267611	弯头	ELBOW (ELBOW)	3
15	85583445	管材(16英寸)	TUBING (16 IN.)	2
15	85583464	管材 (34.00英寸整卷)	TUBING (34.00 Inches Bulk)	2
15	85583445	管材(20英寸)	TUBING (20 IN.)	1
15	85583464	管材 (34.00英寸整卷)	TUBING (34.00 Inches Bulk)	1
16	85606064	管材(36.00英寸整料)(24-1/2英寸)	TUBING (36.00 Inches Bulk) (24-1/2 IN.)	3
16	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	3
17	828547753	导管(.750内径x3.00英尺整料)(裁切至7英寸)	CONDUIT (.750 Inside Diameter x 3.00 Feet Bulk) (Cut to 7 Inches)	1
18	432781	止回阀	CHECK VALVE	1
18	8781051	止回阀	CHECK VALVE	1
19	830756109	软管(57.00英寸整料)(裁切至11-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 11-1/2 Inches)	1
19	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
20	822769	连接器	CONNECTOR	1
21	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	6
22	66717	螺钉(.375-16 x 3.250)	SCREW (.375-16 x 3.250)	8
23	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	6
24	26852	尼龙帽	CAP Nylon	1
25	856832	螺丝 (.250-20 x 1.750)	SCREW (.250-20 x 1.750)	1
26	64015	螺母 (.250-20)	NUT (.250-20)	1
27	832760A1	上端盖总成	END CAP ASSEMBLY Upper	1
27	832760T1	端盖总成	END CAP ASSEMBLY	1
28	54029	O型圈(2.800 x .103)	O-RING (2.800 x .103)	1
29	16756A4	轴承套件	BEARING KIT	1
30	NSS	不单独销售轴承座圈	NOT SOLD SEPARATE Bearing Race	1
31	41953	密封件	SEAL	1
32	69034	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW AND LOCKWASHER (.312-18 x 1.00)	4
32	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	4
33	7809A1	端盖总成	END CAP ASSEMBLY	1
33	7809T1	端盖总成	END CAP ASSEMBLY	1
34	62700	O型圈(3.237 x .103)	O-RING (3.237 x .103)	1
35	41953	密封件	SEAL	2
36	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
37	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
38	853882	支架	BRACKET	1
38	8538821	节气门位置指示器安装支架	BRACKET Throttle Position Indicator Mount	1
39	8519371	节气门位置指示器杠杆	LEVER Throttle Position Indicator	1
40	82130025	螺钉(M6x25)	SCREW (M6 x 25)	3
41	8318701	衬套	BUSHING	6
42	834985	护孔环	GROMMET	3
42	8M0190980	护孔环	GROMMET	3
43	8M6005905	节气门位置指示器(内侧)	INDICATOR Throttle Position (Inside)	1
44	850882	隔套	SPACER	1
45	8329522	节气门位置指示器(外侧)	INDICATOR Throttle Position (Outside)	1
45	8M6005166	TPI	TPI	1
46	850828	螺钉(#10-32 X 2-3/4英寸)	SCREW (#10-32 X 2-3/4 IN.)	3
47	1938541	油门连杆	LINK Throttle	1
47	8M0084738	连杆总成	LINK ASSY	1
48	NSS	不单独销售序列号塞	NOT SOLD SEPARATE Plug-Serial Number	1
49	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
49	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
-	814754A98	衬垫套件	GASKET SET	1
-	8M0046714	衬垫套件	GASKET SET	1
-	854008A98	动力头总成	POWERHEAD ASSEMBLY	1
-	804545T99	动力头总成	POWERHEAD ASSEMBLY	1

图 62簧片阀组与气缸盖 Reed Block and Cylinder Head

REF	零件编号	中文名称	英文名称	数量
1	18488F1	气缸盖	CYLINDER HEAD	2
2	8228441	衬垫	GASKET	2
2	822844T05	衬垫	GASKET	2
3	98534	螺钉 (.375-16 x 2.30)	SCREW (.375-16 x 2.30)	23
3	827426	螺钉	SCREW	1
4	63779	定位销 (.250 x .625)	PIN Dowel (.250 x .625)	4
5	62386	衬垫	GASKET	2
5	8M0204714	衬垫@4	GASKET @4	2
6	90390A1	盖板套件	COVER KIT	2
7	75692	节温器	THERMOSTAT	2
8	35386	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	4
9	68727	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
9	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
10	77653112	软管(59.00英寸散装)(裁切至12-3/4英寸)	HOSE (59.00 Inches Bulk) (Cut to 12-3/4 IN.)	1
10	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
11	68728	接头	FITTING	1
12	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
13	77653112	软管(59.00英寸散装)(裁切至11-1/2英寸)	HOSE (59.00 Inches Bulk) (Cut to 11-1/2 IN.)	1
13	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
14	77653112	软管(59.00英寸散装)(裁切至7-1/2英寸)	HOSE (59.00 Inches Bulk) (Cut to 7-1/2 IN.)	1
14	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
15	97465		SENDER Temperature (Starboard)	1
16	815914	三通接头	T-FITTING	1
17	13536A6		SENSOR ASSEMBLY Temperature (Port)	1
18	137151	固定座	RETAINER	2
19	98257	螺钉 (.312-18 x .500)	SCREW (.312-18 x .500)	2
20	826858	爆震传感器(200)	SENSOR Knock (200)	1
21	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	1
22	17735A2	适配板总成	ADAPTER PLATE ASSEMBLY	1
23	28668	螺钉 (.250-20 x .875) 不锈钢	SCREW (.250-20 x .875) Stainless Steel	8
24	146972	衬垫	GASKET	1
25	116453	簧片阀组	REED BLOCK	6
25	855952T3	簧片阀总成	REED BLOCK ASSEMBLY	6
26	55098	J型卡扣	J CLIP	1
26	8M0024808	J型夹	J-CLIP	1
27	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	6
28	90197	螺丝（.250-20 x 1.125）	SCREW (.250-20 x 1.125)	6
29	167371	衬垫	GASKET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	823434A97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 63泄放系统 Bleed System

REF	零件编号	中文名称	英文名称	数量
1	9912688	管材(36.00英寸散装)(裁切至3-1/4英寸)	TUBING (36.00 Inches Bulk) (Cut to 3-1/4 IN.)	1
2	18206	滤清器	FILTER	1
2	8M0207786	滤清器	FILTER	1
3	9912688	管材(36.00英寸散装)(裁切至7-1/4英寸)	TUBING (36.00 Inches Bulk) (Cut to 7-1/4 IN.)	1
4	99130122	管材(20.00英尺散装)(裁切至3-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 3-1/2 IN.)	1
4	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
5	59169	接头	FITTING	4
5	59169003	三通接头	FITTING Tee	4
6	99130122	管材(20英尺整卷)(裁切至5-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 5-1/2 IN.)	1
6	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
7	99130122	管材(20.00英尺散装)(裁切至9英寸)	TUBING (20.00 Feet Bulk) (Cut to 9 IN.)	2
7	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
8	56759	压入式倒钩接头	FITTING Barbed (PRESS-IN)	4
9	426981	止回阀(压入式-13/16长)	CHECK VALVE (PRESS-IN - 13/16 LONG)	7
9	426982	止回阀	CHECK VALVE	7
10	426231	止回阀(压入式-11/16长)	CHECK VALVE (PRESS-IN - 11/16 LONG)	1
10	426233	止回阀	CHECK VALVE	1
11	18205	三通	TEE	1
12	99130122	管材(20.00英尺散装)(裁切至1-1/4英寸)	TUBING (20.00 Feet Bulk) (Cut to 1-1/4 IN.)	1
12	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
13	99130122	管材(20.00英尺散装)(裁切至9英寸)	TUBING (20.00 Feet Bulk) (Cut to 9 IN.)	2
13	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
14	99130122	管材(20.00英尺散装)(裁切至19英寸)	TUBING (20.00 Feet Bulk) (Cut to 19 IN.)	1
14	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
15	99130122	管材(20.00英尺散装)(裁切至1英寸)	TUBING (20.00 Feet Bulk) (Cut to 1 IN.)	3
15	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	3
16	99130122	管材(20英尺整卷)(裁切为4-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 4-1/2 IN.)	2
16	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
-	823434A97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 64齿轮箱图表(运动大师) Gear Housing Chart (SportMaster)

REF	零件编号	中文名称	英文名称	数量
-	848450A15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T33	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	848450A16	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T34	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	848450A17	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T35	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	848450A18	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8M0081852	齿轮箱	GEAR HOUSING	1
-	848450A19	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T37	G CASE-2:1 RH L	G CASE-2:1 RH L	1
-	848474A21	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561T33	G CASE-1.87 RH S	G CASE-1.87 RH S	1
-	848474A22	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561T34	G CASE-1.87 RH L	G CASE-1.87 RH L	1
-	848474A23	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561A35	G CASE-1.87 RH XL	G CASE-1.87 RH XL	1
-	848474A27	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561T36	G CASE-2:1 RH S	G CASE-2:1 RH S	1
-	848474A28	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561A37	齿轮箱	GEAR HOUSING	1
-	848474A29	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561A38	齿轮箱	GEAR HOUSING	1
-	848474A24	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561T69	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	848474A25	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561T70	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	848474A26	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561T71	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	848474A30	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561T72	G CASE-2:1 LH S	G CASE-2:1 LH S	1
-	848474A31	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561A73	齿轮箱	GEAR HOUSING	1
-	848474A32	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561T74	G CASE-2:1 LH XL	G CASE-2:1 LH XL	1
-	848450A31	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560A27	齿轮箱	GEAR HOUSING	1
-	848450A29	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560A28	齿轮箱	GEAR HOUSING	1
-	848450A32	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560A30	ORD1687-840560A09	ORD1687-840560A09	1
-	848450A30	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T31	G CASE-1.75 RH L	G CASE-1.75 RH L	1

图 65燃油泵(塑料壳体带模制配件) Fuel Pump (Plastic Body With Molded Fittings)

REF	零件编号	中文名称	英文名称	数量
1	14360A43	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve-Rubber	2
4	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
5	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
6	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
10	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
12	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
13	987691	底座衬垫	GASKET Base	1
13	8M0204705	衬垫@2	GASKET @2	1
14	144303		BASE Fuel Pump	1
15	987752	燃油泵板	PLATE Fuel Pump	1
16	99664	弯头	ELBOW	1
16	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
17	82104540		SCREW (M5 x 40) Fuel Pump	2
18	82130050		SCREW (M6 x 50) Fuel Pump to Crankcase	2
19	83075780	管材(28.00英寸散装)	TUBING (28.00 Inches Bulk)	1
19	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
20	83075780	管材(28.00英寸散装)	TUBING (28.00 Inches Bulk)	1
20	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
21	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
21	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
22	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
22	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
23	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
24	1350382	管材(30英寸散装)	TUBING (30.00 Inches Bulk)	2
24	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	2
25	18458A3	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
25	18458Q3	燃油滤清器	FILTER-FUEL	1
26	14570	探头	PROBE	1
27	13170A3	底座	BASE	1
28	13607	接头	FITTING	2
28	136071	弯头	ELBOW	2
29	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	2
29	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
-	823142A94	衬垫套件	GASKET SET	1
-	809839A94	动力头总成	POWERHEAD ASSEMBLY	1
-	809839T94	PH 150 EFI	PH 150 EFI	1
-	808603A94	动力头总成	POWERHEAD ASSEMBLY	1
-	808603T94	动力头总成	POWERHEAD ASSEMBLY	1

图 66齿轮箱螺旋桨轴-扭矩大师1.87:1/2:1 Gear Housing Propeller Shaft-Torque Master 1.87:1/2:1

REF	零件编号	中文名称	英文名称	数量
-	827214A5	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214A6	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214T24	齿轮箱TM	GEAR HOUSING TM	1
-	827214A3	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	827214A4	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	827214A11	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214T24	齿轮箱TM	GEAR HOUSING TM	1
-	827214A10	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	827214A7	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	827214T25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	827214A8	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	827214T25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	827214A12	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	827214T25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
47	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
48	78956	换挡凸轮	SHIFT CAM	1
48	789562	换挡凸轮	SHIFT CAM	1
49	79911A1	杆	ROD	1
50	78906	销	PIN	1
50	8M0084245	弹簧定位销	PIN Spring Locator	1
51	79910	弹簧	SPRING	1
52	78910	垫圈	WASHER	AR
53	47397A1	垫片组	SHIM SET	AR
54	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
55	44102A5	齿轮组	GEAR SET	1
55	44102A7	齿轮组	GEAR SET	1
55	44104A7	齿轮组	GEAR SET	1
56	549281	滚柱轴承	BEARING Roller	1
57	42672	棘轮	RATCHET	1
57	42672T	棘轮	RATCHET	1
58	42671	十字销	PIN Cross	1
59	78909	定位销	PIN Detent	2
60	78962	弹簧	SPRING	2
61	822820F1	螺旋桨轴	PROPELLER SHAFT	1
61	840451A03	螺旋桨轴	PROPELLER SHAFT	1
62	847632A1	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
62	822824A1	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
62	8M0192202	倒挡齿轮	GEAR-REVERSE	1
63	824108	隔套	SPACER	1
64	681001	止推环	RING Thrust	1
65	88957	滚珠轴承总成	BEARING ASSEMBLY Ball	1
65	88957T	滚珠轴承	BEARING Ball	1
66	31534	O型圈	O-RING	1
66	8M0214920	O型圈	O RING	1
67	847610A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	848840A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	817072	滚柱轴承	BEARING Roller	1
69	817071	卡环	RING Snap	1
70	815565	油封	SEAL Oil	2
71	30281	键	KEY	1
72	79447	锁紧垫圈	TAB WASHER	1
73	158401	盖板	COVER	1
74	131711	推力毂	THRUST HUB	1
74	13171T1	推力毂	THRUST HUB	1
75	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
76	31211A2	花键垫圈	WASHER Splined	1
76	31211Q03	垫圈总成	WASHER ASSEMBLY	1
77	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
77	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
78	816629	锁紧垫圈	TAB WASHER	1
78	816629Q	锁紧垫圈	TAB WASHER	1
79	76214A5	阳极套件	ANODE KIT	1
79	76214Q5	阳极套件	ANODE KIT	1
80	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
81	134391	螺母 (.4375-20)	NUT (.4375-20)	2
81	859116	螺母(.437-20)	NUT (.437-20)	2
82	30206	螺钉(.375-16 x 1.00)不锈钢	SCREW (.375-16 x 1.00) Stainless Steel	1
83	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	2
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 67飞轮、启动电机及点火线圈 Flywheel, Starter Motor and Ignition Coils

REF	零件编号	中文名称	英文名称	数量
1	18896A1	盖板套件	COVER KIT	1
2	79022	标记	MARKER	1
3	37572	螺钉 (.190-32 x .380)	SCREW (.190-32 x .380)	2
4	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	2
5	89219	塞（适用时使用）	PLUG (USE WHERE APPLICABLE)	1
5	89219001	堵头	PLUG	1
6	45907	黄色塞	PLUG Yellow	1
7	52901	螺母(0.625-18)	NUT (.625-18)	1
8	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
8	33001	垫圈	WASHER	1
9	817632A12	飞轮	FLYWHEEL	1
9	859238T16	飞轮总成	FLYWHEEL ASY	1
10	9610A27	定子	STATOR	1
11	90045	螺钉(#10-32×1.375)	SCREW (#10-32 x 1.375)	4
12	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	4
13	96455A9	触发板总成	PLATE ASSEMBLY Trigger	1
14	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
14	893893	启动马达	STARTER MOTOR	1
15	56703	轴环	COLLAR	2
15	8M0034918	轴环	COLLAR	2
16	68042	橡胶止挡	STOP Rubber	2
16	8M0043376	停机开关	STOP	2
17	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
18	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
19	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
20	20890	螺母 (.250-20)	NUT (.250-20)	1
21	69739A7	线束总成	HARNESS ASSEMBLY	1
22	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	6
22	8M0230859	点火线圈总成	COIL IGNITION ASY	6
22	7370A19	点火线圈总成	COIL ASSEMBLY Ignition	6
22	8M0230859	点火线圈总成	COIL IGNITION ASY	6
22	832757A4	线圈套件	COIL KIT	6
22	8M0230859	点火线圈总成	COIL IGNITION ASY	6
23	79743	盖板	COVER	3
24	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	12
25	30164	垫圈(0.192x0.375x0.0312)不锈钢	WASHER (.192 x .375 x .0312) Stainless Steel	12
26	88807A6	电缆总成（3.50英寸）黑色	CABLE ASSEMBLY (3.50 Inches) Black (BLACK)	6
27	68513	螺钉(#10-32x.375)不锈钢	SCREW (#10-32 x .375) Stainless Steel	6
28	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	18
29	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	12
30	136862	火花塞	SPARK PLUG	6
30	13686Q	NGK BU8H @10	NGK BU8H @10	6
31	815358A1	点火电缆组	CABLE SET Ignition	1

图 68顶罩 Top Cowl

REF	零件编号	中文名称	英文名称	数量
1	885355T03	顶盖总成	TOP COWL ASSEMBLY	1
1	885355T02	顶盖总成	TOP COWL ASSEMBLY	1
1	8M0050000	顶罩-水星型	COWL-TOP MARINER	1
2	885354T	空气导流帽	CAP Air Dam	1
2	885354T01	空气导流帽-水星黑色款	CAP, Air Dam Mercury, Black	1
2	895838T	空气导流帽	CAP Air Dam	1
2	895838T01	空气导流帽-水星型	CAP Air Dam - Mariner	1
3	888971	前锁扣槽	FRONT LATCH RECEIVER	1
4	885545	上罩壳密封件	SEAL Top Cowl	1
4	8M0111178	密封件	SEAL	1
5	888951	电缆	CABLE	1
5	8M0080461	锁扣拉索	CABLE Latch	1
6	888959	铰链销	PIN Hinge	1
7	888956	手控锁杆	LATCH Hand Lever	1
8	895373	弹簧	SPRING	1
9	888955	锁扣连杆	LINK Latch Connecting	1
10	26953	开口销	COTTER PIN	2
11	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
12	888952	联动臂	LINKAGE ARM	2
13	888953	弹簧	SPRING	2
14	822417	销	PIN	2
15	888950020	螺钉(M4x20毫米)(M4x1.75)	SCREW (M4 x 20 mm) (M4 x 1.75)	6
16	888970	左舷饰板(左)	APPLIQUE Port (Port)	1
16	888970A01	饰板套件	APPLIQUE KIT	1
16	895839	左舷饰板(左)	APPLIQUE Port (Port)	1
16	895839A01	饰板套件	APPLIQUE KIT	1
17	888969	右舷饰板(右)	APPLIQUE Starboard (Starboard)	1
17	895840	右舷饰板(右)	APPLIQUE Starboard (Starboard)	1
18	4010610	不锈钢螺钉(M6x10)	SCREW (M6 x 10) Stainless Steel	2
-	892564A05	贴花套件	DECAL SET	1
-	859271A05	贴花套件	DECAL SET	1
-	895252A05	贴花套件	DECAL SET	1
-	895253A05	贴花套件	DECAL SET	1
-	892571A05	贴花套件	DECAL SET	1
-	892571A07	贴花套件(水星200)	DECAL SET (Mariner 200)	1
-	892871A05	贴花套件	DECAL SET	1
-	892871A07	贴花套件(水星225)	DECAL SET (Mariner 225)	1
-	895254A05	贴花套件	DECAL SET	1
-	895254A07	贴花套件(水星250)	DECAL SET (Mariner 250)	1
-	895255A05	贴花套件	DECAL SET	1
-	895255A07	贴花套件(水星275)	DECAL SET (Mariner 275)	1

图 69齿轮箱螺旋桨轴-TorqueMaster型 Gear Housing Propeller Shaft - TorqueMaster

REF	零件编号	中文名称	英文名称	数量
-	827214T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	827214T16	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	827214T25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
47	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
48	789562	换挡凸轮	SHIFT CAM	1
49	79911A1	杆	ROD	1
50	78906	销	PIN	1
50	8M0084245	弹簧定位销	PIN Spring Locator	1
51	79910	弹簧	SPRING	2
52	78910	垫圈	WASHER	AR
53	47397A1	垫片组	SHIM SET	AR
54	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
55	44104A7	齿轮组	GEAR SET	1
56	549281	滚柱轴承	BEARING Roller	1
57	42672T	棘轮	RATCHET	1
58	42671	十字销	PIN Cross	1
59	78909	定位销	PIN Detent	2
60	78962	弹簧	SPRING	2
61	840451A2	螺旋桨轴	PROPELLER SHAFT	1
61	840451A03	螺旋桨轴	PROPELLER SHAFT	1
-	840389K5	轮毂套件	HUB KIT	1
-	8M0183487	重型螺旋桨轮毂套件	HUB KIT-HD PROP	1
-	840382A1	缓冲条套件	SNUBBER STRIP KIT	1
-	840382A02	缓冲条套件	SNUBBER STRIP KIT	1
62	822824A1	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
62	8M0192202	倒挡齿轮	GEAR-REVERSE	1
63	822823	推力环	THRUST RING	1
64	681001	止推环	RING Thrust	1
65	88957T	滚珠轴承	BEARING Ball	1
66	31534	O型圈	O-RING	1
66	8M0214920	O型圈	O RING	1
67	848840T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	848840A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	817072	滚柱轴承	BEARING Roller	1
69	817071	卡环	RING Snap	1
70	815565	油封	SEAL Oil	2
71	30281	键	KEY	1
72	79447	锁紧垫圈	TAB WASHER	1
73	79448	固定座	RETAINER	1
73	8M2011027	固定座	RETAINER	1
74	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
75	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
76	832066A1	进水口板套件	PLATE KIT Water Inlet	1
77	188642	螺钉(#8-32 x .500)	SCREW (#8-32 x .500)	4
78	76214Q5	阳极套件	ANODE KIT	1
79	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
80	859116	螺母(.437-20)	NUT (.437-20)	2
81	30206	螺钉(.375-16 x 1.00)不锈钢	SCREW (.375-16 x 1.00) Stainless Steel	1
82	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	2
83	859432	接头	FITTING	1
83	881866	接头	FITTING	1
84	85944975	管材(72英寸整料)(裁切至7英寸)	TUBING (72.00 Inches Bulk) (Cut to 7 IN.)	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 70动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	8M0168222	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0142591	电机套件	MOTOR KIT	1
2	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
3	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
4	8M0090403	驱动联轴器	COUPLING Drive	1
5	8M0142996	压力检查套件	PO CHECK KIT	1
6	8M0060141	手动释放套件	MANUAL RELEASE KIT	1
7	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
8	878267	销	PIN	1
9	8M0142998	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
9	8M0168220	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
10	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
11	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
12	8M0142592	升降杆套件左舷	TRIM ROD KIT Port	1
13	8M0143001	活塞总成	PISTON ASSEMBLY	1
14	8M0143003	端盖总成	END CAP ASSEMBLY	1
15	878264A1	储液罐套件	RESERVOIR KIT	1
16	811613	塞子总成	PLUG ASSEMBLY	1
17	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
18	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
19	8M0143004	泵套件	PUMP KIT	1
20	8M0148385	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
21	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
22	4002319	垫圈	WASHER	6
23	8M0094889	销	PIN	1
23	8M0161312	连杆销眼总成	PIN ROD EYE ASSEMBLY	1
24	8M0143005	减震杆套件	SHOCK ROD KIT	1
24	8M0168219	减震杆套件	SHOCK ROD KIT	1

图 71仪表装置 Instrumentation

REF	零件编号	中文名称	英文名称	数量
1	19674A1	拉绳开关总成	SWITCH ASSEMBLY Lanyard	1
2	18303	螺钉 (.190-16 x 1.750) 不锈钢	SCREW (.190-16 x 1.750) Stainless Steel	2
3	813679	适配器	ADAPTER	1
4	15920A54	拉绳总成	LANYARD ASSEMBLY	1
4	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
5	32866	螺钉 (#10-32 x 2.00) 不锈钢	SCREW (#10-32 x 2.00) Stainless Steel	2
6	18321	安装夹	CLAMP Mounting	1
7	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	2
8	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4
9	79146	固定座	RETAINER	3
10	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	16
10	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	16
11	812497A2	二极管总成	DIODE ASSEMBLY	1
11	898289A72	双拉绳二极管套件	DIODE KIT-LANYARD Dual	1
12	11149A2	线缆总成 (6.00英寸)	CABLE ASSEMBLY (6.00 Inches)	1
13	835360A2	警报仪表套件	WARNING GAUGE KIT	1
13	859699A1	警报仪表套件	GAUGE KIT-WARNING	1
14	850020	卡箍	CLAMP	1
15	825361	星形锁紧垫圈(#8)	LOCKWASHER Star (#8)	1
16	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	2
17	15163	灯	LAMP	4
18	79888	灯泡插座	SOCKET Light Bulb	4
19	835359A1	电缆总成(20.00英尺)	CABLE ASSEMBLY (20.00 Feet)	1

图 72线束和启动电磁阀 Wiring Harness and Starter Solenoid

REF	零件编号	中文名称	英文名称	数量
1	434292	点火板	IGNITION PLATE	1
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	螺钉(#12-24x2.00)	SCREW (#12-24 x 2.00)	2
4	94453	衬套	BUSHING	2
5	62310A2	拉线总成	CABLE ASSEMBLY	1
6	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	20
7	60871A10	线束总成	WIRE ASSEMBLY	2
8	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	3
8	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	3
9	91865A1	拉线总成	CABLE ASSEMBLY	1
9	88528A2	拉线总成	CABLE ASSEMBLY	1
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈	WASHER	6
13	67264	垫圈(橡胶)	WASHER (Rubber) (RUBBER)	6
14	67268	衬套	BUSHING	3
15	65999A3	黑色电缆总成	CABLE ASSEMBLY Black (BLACK)	1
16	87926	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	1
17	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
17	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
18	93388A7	拉线总成	CABLE ASSEMBLY	1
18	93388A14	线缆总成(黄/黑)	CABLE ASSEMBLY Yellow/Black	1
19	817109A2	电磁阀总成(#10-32/.3125-18端子)	SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)	1
20	818968	衬套	BUSHING	2
20	8M0214955	衬套	BUSHING	2
21	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	4
22	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
23	68292	螺母(.312-18)	NUT (.312-18)	2
23	8M0204668	螺母(.312-18)	NUT (.312-18)	2
24	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
25	97861	绝缘体	INSULATOR	1
26	65999A2	黑色电缆总成	CABLE ASSEMBLY Black (BLACK)	1
27	45561	螺钉(0.250-20 x 1.12英寸)(1-1/8英寸)	SCREW (.250-20 x 1.12) (1-1/8 Inch)	2
27	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
28	194372	端子排	TERMINAL BLOCK	1
29	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
30	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
31	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
32	96220A16	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
32	848464A2	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
33	79091	保险丝20安培	FUSE 20 Ampere	1
33	8M0207796	保险丝20安培	FUSE 20 AMP	1
34	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
34	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR

图 73齿轮箱(驱动)扭矩大师1.87:1/2:1 Gear Housing (Drive)Torque Master 1.87:1/2:1

REF	零件编号	中文名称	英文名称	数量
-	827214A5	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214A6	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214T24	齿轮箱TM	GEAR HOUSING TM	1
-	827214A3	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	827214A4	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	827214A11	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214T24	齿轮箱TM	GEAR HOUSING TM	1
-	827214A10	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	827214A7	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	827214T25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	827214A8	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	827214T25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	827214A12	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	827214T25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	78638	螺柱(0.438x3.12)(3-1/8英寸)	STUD (.438 x 3.12) (3-1/8 IN.)	1
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
5	579201	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	69501	螺柱	STUD	2
8	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	826134	阳极块	ANODE	2
9	826134Q	阳极块	ANODE	2
10	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
11	8268336	螺母 (M6)	NUT (M6)	1
11	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
12	67891	填充块	FILLER BLOCK	1
12	8M0039169	填充块	FILLER BLOCK	1
13	NSS	不单独出售-小齿轮(属于43-44102A5或43-13742A2部件)	NOT SOLD SEPARATE Pinion Gear (Part of 43-44102A5 or 43-13742A2)	1
14	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
15	35921	螺母(0.625-18)	NUT (.625-18)	1
16	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
16	8M0058389	放油螺钉套件	SCREW KIT Drain	1
17	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	1
17	79953Q04	放油螺钉套件	SCREW KIT Drain	1
18	19183	纤维垫圈	WASHER Fiber	2
18	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
19	789022	换档轴	SHIFT SHAFT	1
20	77631A2	衬套总成	BUSHING ASSEMBLY	1
21	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
22	8164641	油封	SEAL Oil	1
22	8M0246145	油封	OIL SEAL	1
23	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
24	848449A5	驱动轴总成	DRIVESHAFT ASSEMBLY	1
24	8M0192234	驱动轴	DRIVESHAFT	1
25	42637A1	垫片组	SHIM SET	AR
25	8M0063267	垫片组	SHIM SET	AR
26	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
26	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
27	824519	固定座	RETAINER	1
27	8245191	固定座	RETAINER	1
28	44292A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
29	426311	衬垫	GASKET	1
29	8M0204678	衬垫	GASKET	1
30	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
30	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
31	89238	油封	SEAL Oil	1
32	16977	油封	SEAL Oil	1
33	18051	衬垫	GASKET	1
34	856091	衬垫	GASKET	1
34	858524	衬垫	GASKET	1
35	32435	面板	FACE PLATE	1
35	8M0204677	面板	PLATE-FACE	1
36	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
36	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
37	48752	嵌件	INSERT	1
37	48752T	嵌件	INSERT	1
38	38970	密封件	SEAL	1
39	899842	叶轮	IMPELLER	1
39	89984T4	叶轮	IMPELLER	1
40	56654	键	KEY	1
40	8M0214992	键@5	KEY @5	1
41	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
41	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
42	13438	螺母(.250-28)	NUT (.250-28)	2
42	8267119	螺母(.250-28)	NUT (.250-28)	2
43	36001	垫圈	WASHER	1
44	13436	螺母	NUT	1
45	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
45	8M0215009	螺钉	SCREW	1
46	29804	套筒	SLEEVE	1
46	29804T	套筒	SLEEVE	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 74维修/支撑材料 Service/Support material

REF	零件编号	中文名称	英文名称	数量
-	896280006	零件手册200/225/250/275四冲程Verado	PARTS MANUAL 200/225/250/275 4-Stroke Verado	1
-	896579T00	维修手册	SERVICE MANUAL	1
-	8M0082470	MNL-SERV 200-300V	MNL-SERV 200-300V	1
-	10238060	安装手册	INSTALLATION MANUAL	1
-	10237060	用户手册	OWNERS MANUAL	1
-	10237J60	用户手册(西班牙语)	OWNERS MANUAL Spanish	1
-	10237D60	用户手册(法语)	OWNERS MANUAL French	1
-	895269001	产品指南	PRODUCT GUIDE	1
-	895269002	产品指南	GUIDE-PRODUCT	1
-	895282A06	EPA标签信息贴花	DECAL EPA Label Information	1

图 75齿轮箱(驱动轴)(1.78:1) Gear Housing (Driveshaft)(1.78:1)

REF	零件编号	中文名称	英文名称	数量
-	814247A3	齿轮箱总成1.78:1速比-黑色	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Black	1
-	814247A4	齿轮箱总成 1.78:1 减速比 - 灰色	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Gray	1
-	814247T4	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	814247A1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic - Black	1
1	814247T1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	814247A2	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic - Gray	1
1	814247T2	ORD 1674-814247T1	ORD 1674-814247T1	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	78638	螺柱(0.438x3.12)(3-1/8英寸)	STUD (.438 x 3.12) (3-1/8 IN.)	1
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
5	579201	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	306671	螺柱	STUD	2
8	35934A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	67891	填充块	FILLER BLOCK	1
9	8M0039169	填充块	FILLER BLOCK	1
10	NSS		NOT SOLD SEPARATE Pinion Gear (Part of 43-16279A2)	1
11	35921	螺母(0.625-18)	NUT (.625-18)	1
12	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
12	8M0058389	放油螺钉套件	SCREW KIT Drain	1
13	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	1
13	79953Q04	放油螺钉套件	SCREW KIT Drain	1
14	19183	纤维垫圈	WASHER Fiber	2
14	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
15	8152641	换档轴	SHIFT SHAFT	1
16	77631A2	衬套总成	BUSHING ASSEMBLY	1
17	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
18	8164641	油封	SEAL Oil	1
18	8M0246145	油封	OIL SEAL	1
19	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
20	815168	驱动轴	DRIVESHAFT	1
21	42637A1	垫片组	SHIM SET	AR
21	8M0063267	垫片组	SHIM SET	AR
22	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
22	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
23	824519	固定座	RETAINER	1
23	8245191	固定座	RETAINER	1
24	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
24	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
25	426311	衬垫	GASKET	1
25	8M0204678	衬垫	GASKET	1
26	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
26	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
27	89238	油封	SEAL Oil	1
28	16977	油封	SEAL Oil	1
29	856081	衬垫	GASKET	1
29	8M0090319	衬垫@5	GASKET @5	1
30	856091	衬垫	GASKET	1
30	858524	衬垫	GASKET	1
31	32435	面板	FACE PLATE	1
31	8M0204677	面板	PLATE-FACE	1
32	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
32	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
33	48752	嵌件	INSERT	1
33	48752T	嵌件	INSERT	1
34	38970	密封件	SEAL	1
35	899841	叶轮	IMPELLER	1
35	89984T3	叶轮	IMPELLER	1
36	56654	键	KEY	1
36	8M0214992	键@5	KEY @5	1
37	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
37	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
38	13438	螺母(.250-28)	NUT (.250-28)	2
38	8267119	螺母(.250-28)	NUT (.250-28)	2
39	36001	垫圈	WASHER	1
40	13436	螺母	NUT	1
41	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
41	8M0215009	螺钉	SCREW	1
42	29804	套筒	SLEEVE	1
42	29804T	套筒	SLEEVE	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1

图 76动力升降倾斜电机 Power Trim Motor

REF	零件编号	中文名称	英文名称	数量
-	828708	电机总成	MOTOR ASSEMBLY	1
1	828714A1	电刷与密封套件	BRUSH AND SEAL KIT	1
2	828713A1	电枢套件	ARMATURE KIT	1
2	828713T1	电枢套件	ARMATURE KIT	1
3	828715A1	端架（总成）	END FRAME (COMPLETE)	1

图 77液压泵和安装支架 Hydraulic Pump and Mounting Brackets

REF	零件编号	中文名称	英文名称	数量
-	846859A4	液压泵总成(完整)	PUMP ASSEMBLY Hydraulic (COMPLETE)	1
1	846859A1	液压泵总成	PUMP ASSEMBLY Hydraulic	1
1	8M0051203	配平泵总成	PUMP ASSY-TRIM	1
2	818567	支架	BRACKET	1
3	38837	螺钉(.312-18×1.12)	SCREW (.312-18 x 1.12)	1
4	57792	垫圈	WASHER	2
5	34948	隔套	SPACER	1
6	65999A12	接地线总成	CABLE ASSEMBLY Ground	1
7	79138A9	电缆总成(6英尺)黑色负极	CABLE ASSEMBLY (6.00 Feet) Black-Negative (NEGATIVE)	1
8	92051	螺钉（10-16 x 0.75）	SCREW (10-16 x .75)	2
9	79147A5	线束总成	HARNESS ASSEMBLY	1
10	79091	保险丝20安培	FUSE 20 Ampere	1
10	8M0207796	保险丝20安培	FUSE 20 AMP	1
11	88075	固定座	RETAINER	1
12	853654A1	电磁阀	SOLENOID	2
13	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	4
14	20110	螺母 (#10-32)	NUT (#10-32)	4
15	859119	螺母(5/16-18)	NUT (5/16-18)	4
15	8M0204646	螺母(.312-18)	NUT (.312-18)	4
16	79023A10	保险丝总成110安培	FUSE ASSEMBLY 110 Ampere	1
16	79023T10	保险丝总成110安培	FUSE ASSEMBLY 110 Ampere	1
17	96457	酚醛垫圈(.27×.81×.062)	WASHER Phenolic (.27 x .81 x .062)	1
18	21825	螺母(.250-28)	NUT (.250-28)	1
19	65999A11	拉线总成	CABLE ASSEMBLY	1
20	79139A12	电缆总成红色正极	CABLE ASSEMBLY Red-Positive (POSITIVE)	1
21	46265	护套	BOOT	5
22	22753	垫圈	WASHER	4
23	79139A26	电缆总成(红色)	CABLE ASSEMBLY Red	1
24	87760T	安装板	MOUNTING PLATE	1
25	39349	螺钉(.312-18×0.75)不锈钢	SCREW (.312-18 x .750) Stainless Steel	1
26	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
26	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
27	90271	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	2
28	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
29	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	4
29	8M0214963	垫圈	WASHER	4
30	87762	支架	BRACKET	1
31	63826	螺钉(.375-16 x 2.50)	SCREW (.375-16 x 2.50)	2
32	82670912	螺母(.375-16)不锈钢	NUT (.375-16) Stainless Steel	2
33	818200	接头	FITTING	1
34	77366	接头	FITTING	2
35	95084A18	保险丝线束总成	CABLE ASSEMBLY Fuse	1
36	65017A14	线束总成	HARNESS ASSEMBLY	1
37	848017T4	升降线束总成	HARNESS ASSEMBLY Trim	1

图 78艉板支架-短型 Transom Brackets Short

REF	零件编号	中文名称	英文名称	数量
1	885355T03	顶盖总成	TOP COWL ASSEMBLY	1
1	885355T02	顶盖总成	TOP COWL ASSEMBLY	1
1	8M0050000	顶罩-水星型	COWL-TOP MARINER	1
2	885354T	空气导流帽	CAP Air Dam	1
2	885354T01	空气导流帽-水星黑色款	CAP, Air Dam Mercury, Black	1
2	895838T	空气导流帽	CAP Air Dam	1
2	895838T01	空气导流帽-水星型	CAP Air Dam - Mariner	1
3	888971	前锁扣槽	FRONT LATCH RECEIVER	1
4	885545	上罩壳密封件	SEAL Top Cowl	1
4	8M0111178	密封件	SEAL	1
5	888951	电缆	CABLE	1
5	8M0080461	锁扣拉索	CABLE Latch	1
6	888959	铰链销	PIN Hinge	1
7	888956	手控锁杆	LATCH Hand Lever	1
8	895373	弹簧	SPRING	1
9	888955	锁扣连杆	LINK Latch Connecting	1
10	26953	开口销	COTTER PIN	2
11	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
12	888952	联动臂	LINKAGE ARM	2
13	888953	弹簧	SPRING	2
14	822417	销	PIN	2
15	888950020	螺钉(M4x20毫米)(M4x1.75)	SCREW (M4 x 20 mm) (M4 x 1.75)	6
16	888970	左舷饰板(左)	APPLIQUE Port (Port)	1
16	888970A01	饰板套件	APPLIQUE KIT	1
16	895839	左舷饰板(左)	APPLIQUE Port (Port)	1
16	895839A01	饰板套件	APPLIQUE KIT	1
17	888969	右舷饰板(右)	APPLIQUE Starboard (Starboard)	1
17	895840	右舷饰板(右)	APPLIQUE Starboard (Starboard)	1
18	4010610	不锈钢螺钉(M6x10)	SCREW (M6 x 10) Stainless Steel	2
-	892564A05	贴花套件	DECAL SET	1
-	859271A05	贴花套件	DECAL SET	1
-	895252A05	贴花套件	DECAL SET	1
-	895253A05	贴花套件	DECAL SET	1
-	892571A05	贴花套件	DECAL SET	1
-	892571A07	贴花套件(水星200)	DECAL SET (Mariner 200)	1
-	892871A05	贴花套件	DECAL SET	1
-	892871A07	贴花套件(水星225)	DECAL SET (Mariner 225)	1
-	895254A05	贴花套件	DECAL SET	1
-	895254A07	贴花套件(水星250)	DECAL SET (Mariner 250)	1
-	895255A05	贴花套件	DECAL SET	1
-	895255A07	贴花套件(水星275)	DECAL SET (Mariner 275)	1

图 79齿轮箱(驱动轴)(CLE-1.87:1/2:1) Gear Housing (Driveshaft)(CLE-1.87:1/2:1)

REF	零件编号	中文名称	英文名称	数量
-	847902A84	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	847902A82	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T34	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	847902A85	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T37	G CASE-2:1 RH L	G CASE-2:1 RH L	1
-	847902A83	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T34	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	847902A15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8M0083306	齿轮箱-SM型	GEAR HOUSING-SM	1
1	847902A16	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8M0083306	齿轮箱-SM型	GEAR HOUSING-SM	1
2	8479501	盖板	COVER	2
2	8479502	盖板	COVER	2
3	34776	O型圈	O-RING	2
4	815904	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	12
5	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
6	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
7	78638	螺柱(0.438x3.12)(3-1/8英寸)	STUD (.438 x 3.12) (3-1/8 IN.)	1
7	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
8	579201	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
8	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
9	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
9	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
10	69501	螺柱(3-1/4英寸)	STUD (3-1/4 IN.)	2
11	43998	套筒	SLEEVE	1
12	847949	管塞	PLUG Pipe	1
13	67891	填充块	FILLER BLOCK	1
13	8M0039169	填充块	FILLER BLOCK	1
14	NSS	不单独出售-小齿轮(属于43-44104A7或43-44102A5部件)	NOT SOLD SEPARATE Pinion Gear (Part of 43-44104A7 or 43-44102A5)	1
15	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
16	35921	螺母(0.625-18)	NUT (.625-18)	1
17	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
17	8M0058389	放油螺钉套件	SCREW KIT Drain	1
18	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	1
18	79953Q04	放油螺钉套件	SCREW KIT Drain	1
19	19183	纤维垫圈	WASHER Fiber	2
19	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
20	789022	换挡轴(下部)	SHIFT SHAFT (LOWER)	1
21	29641	E型挡圈(按需使用)	E RING (USE WHERE APPLICABLE)	1
22	77631A2	衬套总成	BUSHING ASSEMBLY	1
23	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
24	8164641	油封	SEAL Oil	1
24	8M0246145	油封	OIL SEAL	1
25	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
26	848449A5	驱动轴总成	DRIVESHAFT ASSEMBLY	1
26	8M0192234	驱动轴	DRIVESHAFT	1
27	42637A1	垫片组	SHIM SET	AR
27	8M0063267	垫片组	SHIM SET	AR
28	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
28	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
29	824519	固定座	RETAINER	1
29	8245191	固定座	RETAINER	1
30	44292A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
31	426311	衬垫	GASKET	1
31	8M0204678	衬垫	GASKET	1
32	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
32	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
33	89238	油封	SEAL Oil	1
34	16977	油封	SEAL Oil	1
35	18051	衬垫(下部)	GASKET (LOWER)	1
36	856091	衬垫(上部)	GASKET (UPPER)	1
36	858524	衬垫	GASKET	1
37	32435	面板	FACE PLATE	1
37	8M0204677	面板	PLATE-FACE	1
38	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
38	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
39	48752	嵌件	INSERT	1
39	48752T	嵌件	INSERT	1
40	38970	密封件	SEAL	1
41	899842	叶轮	IMPELLER	1
41	89984T4	叶轮	IMPELLER	1
42	56654	键	KEY	1
42	8M0214992	键@5	KEY @5	1
43	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
43	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
44	13438	螺母(.250-28)	NUT (.250-28)	2
44	8267119	螺母(.250-28)	NUT (.250-28)	2
45	36001	垫圈	WASHER	1
46	13436	螺母	NUT	1
47	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
47	8M0215009	螺钉	SCREW	1
48	29804	套筒	SLEEVE	1
48	29804T	套筒	SLEEVE	1
-	823142A94	衬垫套件	GASKET SET	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 80线束/启动继电器 Wiring Harness/Starter Solenoid

REF	零件编号	中文名称	英文名称	数量
1	826730A4	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
2	79091	保险丝20安培	FUSE 20 Ampere	1
2	8M0207796	保险丝20安培	FUSE 20 AMP	1
3	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
3	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
4	194372	端子排	TERMINAL BLOCK	1
5	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
6	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
7	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
8	814634	卡箍	CLAMP	1
9	434292	点火板	IGNITION PLATE	1
10	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
11	13669	螺钉(#12-24x2.00)	SCREW (#12-24 x 2.00)	2
12	94453	衬套	BUSHING	2
13	62310A2	拉线总成	CABLE ASSEMBLY	1
14	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	20
15	91865A1	电缆总成(3英寸-白/黑)	CABLE ASSEMBLY (3 IN. - WHITE/BLACK)	1
15	88528A2	电缆总成(6英寸-红/白)	CABLE ASSEMBLY (6 IN. - RED/WHITE)	1
16	60871A10	线束总成	WIRE ASSEMBLY	2
17	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	2
17	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2
18	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
19	87926	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	1
20	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
21	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
21	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
22	36042	垫圈	WASHER	6
23	67264	垫圈(橡胶)	WASHER (Rubber)	6
24	67268	衬套	BUSHING	3
25	88439A23	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
25	88439A34	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
25	88439A24	蓄电池负极电缆总成	CABLE ASSEMBLY Negative - Battery	1
26	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	2
26	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
27	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
28	65999A2	线缆总成(黑色)	CABLE ASSEMBLY Black	1
29	78866	绝缘体	INSULATOR	1
30	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	4
31	817109A2	电磁阀总成(#10-32/.3125-18端子)	SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)	1
32	818968	衬套	BUSHING	2
32	8M0214955	衬套	BUSHING	2
33	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
34	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
35	68292	螺母(.312-18)	NUT (.312-18)	2
35	8M0204668	螺母(.312-18)	NUT (.312-18)	2

图 81燃油管理系统(0G366999及以下) Fuel management System (0G366999 and Below)

REF	零件编号	中文名称	英文名称	数量
1	827697	连杆杠杆套件	LEVER KIT Link	1
2	827698	螺钉套件	SCREW KIT	1
3	827699	燃油导轨	FUEL RAIL	1
3	8276992	燃油导轨	FUEL RAIL	1
3	827699T2	燃油导轨	FUEL RAIL	1
4	809057	燃油管接头套件	JOINT KIT Fuel Pipe	1
4	809057T	燃油管接头套件	JOINT KT-FUELPIPE	1
5	8276981	螺钉套件	SCREW KIT	1
6	809059	施拉德阀套件	SCHRADER VALVE KIT	1
7	15444	连杆(设计I型)	LINK (DESIGN I)	1
8	8276891	连杆套件(设计II型)	LINK KIT (DESIGN II)	1

图 82齿轮箱螺旋桨轴-标准旋转-运动大师 Gear Housing Propeller Shaft-Standard Rotation-Sportmaster

REF	零件编号	中文名称	英文名称	数量
1	848450A25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	848474A39	齿轮箱总成-基本型(无扭矩片)	GEAR HOUSING ASSEMBLY Basic-Without Torque Tab	1
1	8M0084203	齿轮箱-SM型	GEAR HOUSING-SM	1
50	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
51	789562	换挡凸轮	SHIFT CAM	1
52	79911A1	杆	ROD	1
53	78906	销	PIN	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	79910	弹簧	SPRING	2
55	78910	垫圈	WASHER	2
56	47397A1	垫片组	SHIM SET	AR
57	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
58	44104A7	齿轮组(含小齿轮)	GEAR SET (Included Pinion)	1
58	44102A5	齿轮组(含小齿轮)	GEAR SET (Included Pinion)	1
58	44102A7	齿轮组	GEAR SET	1
58	848855A2	齿轮组	GEAR SET	1
58	848855T2	齿轮组-1.62右旋	GEAR SET-1.62 RH	1
58	849189A2	齿轮组	GEAR SET	1
58	849189T2	齿轮转换套件	GEAR CONVERSION KIT	1
59	549281	滚柱轴承	BEARING Roller	1
60	42672	棘轮	RATCHET	1
60	42672T	棘轮	RATCHET	1
61	78909	定位销	PIN Detent	2
62	42671	十字销	PIN Cross	1
63	78962	弹簧	SPRING	2
64	822820F1	螺旋桨轴	PROPELLER SHAFT	1
64	840451A03	螺旋桨轴	PROPELLER SHAFT	1
65	822824A1	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
65	8M0192202	倒挡齿轮	GEAR-REVERSE	1
65	847632A1	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
65	N.S.S.	不单独出售-倒车齿轮	Not Sold Separate Reverse Gear	1
65	N.S.S.	不单独出售-倒车齿轮	Not Sold Separate Reverse Gear	1
66	822823	推力环	THRUST RING	1
67	88957	滚珠轴承总成	BEARING ASSEMBLY Ball	1
67	88957T	滚珠轴承	BEARING Ball	1
68	681001	止推环	RING Thrust	1
69	31534	O型圈	O-RING	1
69	8M0214920	O型圈	O RING	1
70	847610A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
70	848840A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
71	817072	滚柱轴承	BEARING Roller	1
72	817071	卡环	RING Snap	1
73	815565	油封	SEAL Oil	2
74	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
74	8M0058389	放油螺钉套件	SCREW KIT Drain	1
75	19183	纤维垫圈	WASHER Fiber	1
75	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
76	30281	键	KEY	1
77	79447	锁紧垫圈	TAB WASHER	1
78	158401	盖板	COVER	1
79	131711	推力毂	THRUST HUB	1
79	13171T1	推力毂	THRUST HUB	1
80	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
81	31211A2	花键垫圈	WASHER Splined	1
81	31211Q03	垫圈总成	WASHER ASSEMBLY	1
82	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
82	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
83	816629	锁紧垫圈	TAB WASHER	1
83	816629Q	锁紧垫圈	TAB WASHER	1
84	41350	螺钉(.437-14 x 2.50)不锈钢	SCREW (.437-14 x 2.50) Stainless Steel	1
84	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
85	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	2
86	134391	螺母 (.4375-20)	NUT (.4375-20)	2
86	859116	螺母(.437-20)	NUT (.437-20)	2
87	30206	螺钉(.375-16 x 1.00)不锈钢	SCREW (.375-16 x 1.00) Stainless Steel	1
87	15929	螺钉(.375-16 x 16 x 6.00)	SCREW (.375-16 x 16 x 6.00)	1
88	762143	阳极块	ANODE	1
88	76214T3	阳极块	ANODE	1
88	76214A5	阳极套件	ANODE KIT	1
88	76214Q5	阳极套件	ANODE KIT	1
88	762141	阳极块	ANODE	1
88	76214T1	阳极块	ANODE	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	90415A24	螺柱套件	STUD KIT	1
-	59579	双头螺柱(.437-14/.437-20 x 2.812)	STUD (.437-14/.437-20 x 2.812)	1
-	90415A25	螺柱套件	STUD KIT	1

图 83驱动轴壳与排气管 Driveshaft Housing and Exhaust Tube

REF	零件编号	中文名称	英文名称	数量
1	8343A10	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8343A11	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8343T11	ORD 1590-8343T10	ORD 1590-8343T10	1
1	813563A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	813563T1	传动轴壳体-黑色-加长型	HOUSING Driveshaft - Black - X-Long	1
1	813563A2	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	813563T2	ORD 3503-813563T1	ORD 3503-813563T1	1
2	56295	双头螺柱(.437 x 2.69)	STUD (.437 x 2.69)	2
3	63474	螺钉(.500-20 x 6.00)	SCREW (.500-20 x 6.00)	2
3	898831	螺钉(.500-20 x 6.220)	SCREW (.500-20 x 6.220)	2
4	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
5	77327	支架	MOUNT	2
6	49339	垫圈(.8125)	WASHER (.8125)	2
7	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
8	28040	螺母(.500-20)	NUT (.500-20)	2
8	898832	螺母(.500-20)	NUT (.500-20)	2
9	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
10	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
11	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
11	8M0204653	螺母	NUT	2
12	67076	卡箍	CLAMP	2
12	8M0036782	卡箍	CLAMP	2
13	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
14	67077T	黑色盖	COVER Black	2
14	8M4500752	盖板	COVER	2
14	67077F1	灰色盖板	COVER Gray	2
14	67077T	黑色盖	COVER Black	2
15	88417	螺钉(#12-24×0.620)	SCREW (#12-24 x .620)	4
16	35521	螺母	NUT	4
17	48926	垫圈	WASHER	1
18	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	1
18	8M0204653	螺母	NUT	1
19	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	4
20	69254	螺母	NUT	4
21	828212	怠速排气套	BOOT Idle Exhaust	1
21	8M0039081	护套	BOOT	1
22	64649	堵头	PLUG	1
23	991732	衬垫	GASKET	1
23	991734	衬垫	GASKET	1
24	66350	下密封件	SEAL (LOWER)	1
24	66350001	密封件	SEAL	1
25	18276	排气管	TUBE Exhaust	1
25	18276T	排气管	EXHAUST TUBE	1
26	177261	上密封件	SEAL (UPPER)	1
26	8M0039076	密封件	SEAL	1
27	812834	排气管延长段	EXTENSION Exhaust	1
27	812834A2	排气延长总成	EXTENSION ASSEMBLY Exhaust	1
27	41942F3	排气管延长段	EXTENSION Exhaust	1
27	879288T71	排气管延长段	EXTENSION Exhaust	1
28	67295	水管	TUBE Water	1
28	8M0042788	长型水管	TUBE-WATER-LONG	1
28	74729	管	TUBE	1
28	8M0042790	水管	TUBE-WATER	1
29	78246	衬垫	GASKET	1
29	782461	衬垫	GASKET	1
30	18233A6	隔板总成	PLATE ASSEMBLY	1
30	18233A20	传动轴壳体板总成	PLATE ASSEMBLY Driveshaft Housing	1
31	8147012	密封件	SEAL	1
31	8M0043165	密封件-27.00英寸	SEAL-27.00 INCH	1
32	68011	支架	BRACKET	1
33	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
33	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
34	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
35	38970	密封件	SEAL	1
36	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	6
37	39072	塞(1/8英寸黄铜)	PLUG (1/8 Inch Brass)	2
37	390721	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	2
38	183071	衬垫	GASKET	1
38	183076	衬垫	GASKET	1
-	814754A98	衬垫套件	GASKET SET	1
-	8M0046714	衬垫套件	GASKET SET	1

图 84钥匙开关 Key Switch

REF	零件编号	中文名称	英文名称	数量
1	816626A15	线束总成-钥匙开关(15英尺)	HARNESS ASSEMBLY Key Switch (15.00 Feet) (15 FEET)	1
2	90468A1	钥匙盖总成	COVER ASSEMBLY Key	2
3	76424	支架	BRACKET	1
4	55422	双头螺柱 (#10-32 x 2.00)	STUD (#10-32 x 2.00)	2
5	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	2
6	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
7	816479A3	板组件套件	PLATE KIT	2
8	88107		KEY SWITCH (See Below for Key)	1
8	88107A5	钥匙开关套件	SWITCH KIT Key	1
9	93543	特殊螺母-镀铬黄铜	NUT Special - Chrome Brass	1
9	879755	特殊螺母-黑色尼龙	NUT Special - Black Nylon	1
10	816492A1	音响报警器总成	ALARM ASSEMBLY Audio Warning	1
10	8M0210763	报警器	ALARM	1
11	8127111	垫片(0.375)	SPACER (.375)	2
11	812711	隔套(0.250)	SPACER (.250)	2
-	894911	点火钥匙(1A)	KEY Ignition (1A)	1
-	894912	点火钥匙(1B)	KEY Ignition (1B)	1
-	894913	点火钥匙(1C)	KEY Ignition (1C)	1
-	894914	点火钥匙(1D)	KEY Ignition (1D)	1
-	894915	点火钥匙(1E)	KEY Ignition (1E)	1
-	894916	点火钥匙(1F)	KEY Ignition (1F)	1
-	894917	点火钥匙(2A)	KEY Ignition (2A)	1
-	894918	点火钥匙(2B)	KEY Ignition (2B)	1
-	894919	点火钥匙(2C)	KEY Ignition (2C)	1
-	8949110	点火钥匙(2D)	KEY Ignition (2D)	1
-	8949111	点火钥匙(2E)	KEY Ignition (2E)	1
-	8949112	点火钥匙(2F)	KEY Ignition (2F)	1

图 85ECU总成 ECU Assembly

REF	零件编号	中文名称	英文名称	数量
1	8240037	发动机控制单元ECU	ECU Engine Control Unit	1
1	824003A7	电控单元	ECU	1
1	8240035	发动机控制单元ECU	ECU Engine Control Unit	1
1	824003A5	电控单元	ECU	1
1	82400313	发动机控制单元ECU	ECU Engine Control Unit	1
1	824003A13	发动机控制单元ECU	ECU Engine Control Unit	1
1	82400311	发动机控制单元ECU	ECU Engine Control Unit	1
1	824003T11	电控单元	ECU	1
1	824003A13	发动机控制单元ECU	ECU Engine Control Unit	1
1	824003A11	发动机控制单元ECU	ECU Engine Control Unit	1
1	824003T11	电控单元	ECU	1
2	34948	隔套	SPACER	2
3	146951	卡扣	CLIP	1
4	90435	支架	MOUNT	2
5	21249	垫圈	WASHER	4
6	20361	螺母(.250-28)	NUT (.250-28)	4
6	8267089	螺母(.250-28)	NUT (.250-28)	4
7	88807A19	拉线总成	CABLE ASSEMBLY	1
8	14637	护孔环	GROMMET	1
9	14636	衬套	BUSHING	1
10	28667	螺钉 (0.250-20 x 1.00) 不锈钢	SCREW (.250-20 x 1.00) Stainless Steel	1
11	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
12	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	1
13	13202A2	水位传感器模块总成	MODULE ASSEMBLY Water Sensor	1
14	13202A4	水位传感器模块总成	MODULE ASSEMBLY Water Sensor	1
15	88807A18	线缆总成(黑色)	CABLE ASSEMBLY (BLACK)	1
16	37571	螺钉(.190-32 x 0.500)	SCREW (.190-32 x .500)	2
17	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
18	98866A14	线束总成	HARNESS ASSEMBLY	1
19	190491	连接环	COUPLE RING	1
20	98866A25	线束总成 ECU与喷油器	HARNESS ASSEMBLY ECU And Injectors	1
21	87895A4	拉线总成	CABLE ASSEMBLY	1

图 86配平电磁阀板(0G205107及以上) Trim Solenoid Plate (0G205107 and Up)

REF	零件编号	中文名称	英文名称	数量
1	847896	安装板	PLATE	1
2	828151	继电器	RELAY	2
2	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
3	818967	护孔环	GROMMET	2
3	8M0207785	护孔环	GROMMET	2
4	818968	衬套	BUSHING	2
4	8M0214955	衬套	BUSHING	2
5	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	2
5	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
6	35950	垫圈 (.273 x .437 x .031) 不锈钢	WASHER (.273 x .437 x .031) Stainless Steel	2
7	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	2
7	8M0207776	螺母	NUT	2
8	828102	支架	BRACKET	2
8	8M0207771	安装支架	BRACKET Mounting	2
9	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
10	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	2
11	69028	螺钉（.250-28 x .750）不锈钢	SCREW (.250-28 x .750) Stainless Steel	2
12	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	2
13	35280	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
14	35045	螺母(.250-28)	NUT (.250-28)	2
14	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	2
15	826802A4	线束总成	HARNESS ASSEMBLY	1

图 87曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	891644A04	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	897498T01	主轴承-绿色(曲轴上端)	BEARING Main - Green Crankshaft-Upper	12/AR
2	897498T02	主轴承-海军蓝(曲轴上端)	BEARING Main - Navy Blue Crankshaft-Upper	12/AR
2	897498T03	主轴承-白色(曲轴上端)	BEARING Main - White Crankshaft-Upper	12/AR
2	897498T04	主轴承-橙色(曲轴上端)	BEARING Main - Orange Crankshaft-Upper	12/AR
3	892309T01	推力轴承-绿色(曲轴下端)	BEARING Thrust - Green Crankshaft-Lower	2/AR
3	8M0117003	轴承	BEARING	2/AR
3	892309T02	推力轴承-海军蓝(曲轴下端)	BEARING Thrust - Navy Blue Crankshaft-Lower	2/AR
3	8M0117001	轴承	BEARING	2/AR
3	892309T03	推力轴承-白色(曲轴下端)	BEARING Thrust - White Crankshaft-Lower	2/AR
3	8M0117002	轴承	BEARING	2/AR
3	892309T04	推力轴承-橙色(曲轴下端)	BEARING Thrust - Orange Crankshaft-Lower	2/AR
3	8M0117004	轴承	BEARING	2/AR
4	8805251	油封(主轴承顶部)	SEAL Top Main Bearing	1
4	8M0032912	密封件	SEAL	1
5	896883	隔套	SPACER	1
6	896882	挡圈	RING Retaining	1
7	91800	半圆键	KEY Woodruff	1
8	885348	飞轮螺栓盖	CAP Flywheel Bolt	1
9	897796	链条(凸轮轴驱动滚子链)	CHAIN Roller Cam Drive	1
9	8M0103398	链条(凸轮轴驱动滚子链)	CHAIN Roller Cam Drive	1
10	881210T02	连杆总成	CONNECTING ROD ASSEMBLY	6
10	8M0103285	连杆总成	CONNECTING ROD ASSEMBLY	6
11	884441	螺栓	BOLT	12
12	892005A01	连杆轴承-蓝色	BEARING Connecting Rod - Blue	12/AR
12	892005A02	连杆轴承-白色	BEARING Connecting Rod - White	12/AR
12	892005A03	连杆轴承-橙色	BEARING Connecting Rod - Orange	12/AR
13	897737T01	活塞总成	PISTON ASSEMBLY	6
13	897737A04	活塞/喷油嘴套件	PISTON/OILJET KIT	6
14	881180A02	活塞环组	RING SET Piston	6
15	NSS	活塞环-油环(不单独销售)	NOT SOLD SEPARATE Piston Ring-Oil	6
16	NSS	活塞环-第二道(不单独销售)	NOT SOLD SEPARATE Piston Ring-2nd	6
17	NSS	活塞销（不单独销售）	NOT SOLD SEPARATE Piston Pin	6
18	881184	卡簧	CIRCLIP	12
19	888983T02	飞轮	FLYWHEEL	1
19	888983T03	飞轮总成	FLYWHEEL ASSEMBLY	1
20	880515	螺栓(M20×68)	BOLT (M20 x 68)	1
20	8M0147042	螺栓	BOLT	1
21	880517	垫圈	WASHER	1
21	8M0090010	垫圈	WASHER	1
-	880552A06	动力头衬垫套件	GASKET SET Powerhead	1
-	880552A07	动力头衬垫套件	GASKET SET Powerhead	1
-	895247A06	动力头总成	POWERHEAD ASSEMBLY	1
-	895247R06	RM L6 GEN1 VERADO	RM L6 GEN1 VERADO	1

图 88机油喷射组件 Oil Injection Components

REF	零件编号	中文名称	英文名称	数量
1	12335A1	支架套件	BRACKET KIT	1
2	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1
3	87421	油箱	TANK	1
4	43298A2	盖总成	CAP ASSEMBLY	1
5	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
6	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
7	816190A3	外壳总成适配器	HOUSING ASSEMBLY Adapter	1
7	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
8	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
9	99802	管	TUBE	1
10	99439	软管(114.00英寸)	HOSE (114.00 Inches)	1
11	833069A3	油箱总成	RESERVOIR ASSEMBLY Oil	1
11	8M0062954	储油罐	RESERVOIR, OIL	1
12	NSS	不单独销售标签-储液罐	NOT SOLD SEPARATE Decal-Reservoir	1
13	855362	护孔环	GROMMET	3
13	855362001	护孔环	GROMMET	3
14	49436	垫圈	WASHER	3
15	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
16	855364	衬套	BUSHING	3
17	69267	螺钉 (.312-18 x 1.750)	SCREW (.312-18 x 1.750)	2
18	833155	护孔环	GROMMET	2
19	8502341	衬套	BUSHING	2
20	82381455	管材(25英寸整卷)(裁切为20英寸)	TUBING (25.00 Inches Bulk) (Cut to 20 Inches)	1
21	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
21	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
22	12886A8	开关	SWITCH	1
23	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
24	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
25	8260841	隔套	SPACER	1
26	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	7
26	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	7
27	NSS	不单独销售塞	NOT SOLD SEPARATE Plug	1
28	424254	接头	FITTING	1
28	8M0207780	接头	FITTING	1
29	830756109	软管(57.00英寸散装)(裁切至6英寸)	HOSE (57.00 Inches Bulk) (Cut to 6 Inches)	1
29	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
30	855785	燃油冷却器	COOLER Fuel	1
30	855785A1	燃油冷却器总成	COOLER ASSEMBLY Fuel	1
31	855761	止回阀	CHECK VALVE	1
31	8557611	止回阀	CHECK VALVE	1
32	13791	卡箍(15.7)	CLAMP (15.7)	4
32	8M0214911	卡箍@5	CLAMP @5	4
33	85682239	管材(17英寸整卷)(裁切为3英寸)	TUBING (17.00 Inches Bulk) (Cut to 3 Inches)	1
34	856822A3	软管(带绝缘套管)(30英寸)	HOSE (W/INSULATING SLEEVE) (30 IN.)	1

图 89油门杆与换挡轴 Throttle Lever and Shift Shaft

REF	零件编号	中文名称	英文名称	数量
1	850389	杠杆	LEVER	1
2	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
3	55164	衬套	BUSHING	1
4	74759	垫圈(0.391x0.880x0.125)不锈钢	WASHER (.391 x .880 x .125) Stainless Steel	1
5	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	1
6	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
7	64015	螺母 (.250-20)	NUT (.250-20)	1
8	26852	尼龙帽	CAP Nylon	1
9	42927	嵌件	INSERT	1
10	35459	垫圈	WASHER	1
11	8268336	螺母 (M6)	NUT (M6)	1
11	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
12	8503931	凸轮	CAM	1
12	856221A1	凸轮套件	CAM KIT	1
13	852970	衬套	BUSHING	1
14	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	1
15	932481	衬套	BUSHING	2
15	8M0215006	旋转衬套	BUSHING Swivel	2
16	8235694	螺纹球头	BALL Threaded	1
17	850815	连接杆	LINK	1
17	8508152	杆	ROD	1
18	67748	滚轮	ROLLER	1
19	850286	油门滚轮	ROLLER Throttle	1
19	8502861	杠杆	LEVER	1
20	40056107	螺钉(M5×16)	SCREW (M5 x 16)	1
21	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	1
22	69432	外锁紧垫圈(#10)	LOCKWASHER External (#10)	1
23	8142831	锚支架	BRACKET Anchor	1
23	814283T6	锚支架总成	BRACKET ASSEMBLY Anchor	1
24	98889	闩锁	LATCH	1
25	42975	传动螺钉	DRIVE SCREW	2
26	39519	杯套	CUP	1
27	52100	耐磨板	WEAR PLATE	1
28	38279	闩锁	LATCH	1
28	8M0036768	闩锁	LATCH	1
29	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
30	35045	螺母(.250-28)	NUT (.250-28)	1
30	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
31	28782	螺钉(.312-18 x .880)不锈钢	SCREW (.312-18 x .880) Stainless Steel	3
32	814284	导向块	GUIDE BLOCK	1
33	20099	弹簧	SPRING	1
34	67073A1	连杆总成	LINK ROD ASSEMBLY	1
35	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
35	79932A17	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
36	NSS	弹性销(不单独销售)	NOT SOLD SEPARATE Roll Pin	1
37	NSS	不单独销售-换挡轴上杆	NOT SOLD SEPARATE Shift Shaft Lever-Upper	1
38	26856	衬套	BUSHING	1
39	29720	波形垫圈	WAVE WASHER	1
40	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
41	35045	螺母(.250-28)	NUT (.250-28)	1
41	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
42	814281A2	开关	SWITCH	1
42	8M0052931	开关	SWITCH	1
43	77478	螺钉 (#6-32 x .875)	SCREW (#6-32 x .875)	2
44	27882	垫圈	WASHER	2

图 90转向连接套件 Steering Attaching Kit

REF	零件编号	中文名称	英文名称	数量
0	92876A8	转向安装套件	ATTACHING KIT Steering	1
1	41055A1	支架总成	BRACKET ASSEMBLY	1
2	71565A2	管总成	TUBE ASSEMBLY	1
3	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
4	821203	锁紧垫圈	LOCKWASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
7	78968	内锁紧垫圈 (.250)	LOCKWASHER Internal (.250)	4
8	850791T	联轴器	COUPLER	1
9	73732	螺钉 (.375-24 x 1.120)	SCREW (.375-24 x 1.120)	2
10	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
11	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	1
11	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1

图 91燃油泵/过滤器 Fuel Pump/Filter

REF	零件编号	中文名称	英文名称	数量
-	14817A23	燃油管理系统总成	MANAGEMENT ASSEMBLY Fuel	1
1	8276922	盖板	COVER	1
2	15443	线束套件	HARNESS KIT	1
3	18792	密封件	SEAL	1
4	15029	O型圈及密封套件	O-RING AND SEAL KIT	1
5	8276992	燃油导轨	FUEL RAIL	1
5	827699T2	燃油导轨	FUEL RAIL	1
6	18715	燃油喷油器	INJECTOR Fuel	6
6	18715T	喷油器总成	INJECTOR ASSEMBLY	6
7	17422	滤清器	FILTER	1
8	827696	固定套件	RETAINER KIT	1
9	8276933	节气门体	THROTTLE BODY	1
10	8090572	接头套件	JOINT KIT	1
11	8276891	连杆套件	LINK KIT	1
12	827697	连杆杠杆套件	LEVER KIT Link	1
13	827698	螺钉套件	SCREW KIT	1
14	8276981	螺钉套件	SCREW KIT	1
15	8090851	弯头套件	ELBOW KIT	1
16	814233A1	施拉德阀套件	SCHRADER VALVE KIT	1
16	814233A02	阀套件	VALVE KIT	1
17	8142332	FMA接头套件	FMA JOINT KIT	1
18	8276942	软管套件	HOSE KIT	1
18	827694A01	软管套件-燃油	HOSE KIT-FUEL	1
19	67748	滚轮	ROLLER	1
20	90088	螺钉(.250-20x4)	SCREW (.250-20 x 4)	12
20	845674	螺钉(.250-20x4.00)	SCREW (.250-20 x 4.00)	12
21	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	10
21	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	10

图 92艉板支架 Transom Brackets

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
10	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0027784	螺母	NUT	4
11	82671117	螺母(.500-20)	NUT (.500-20)	4
12	99629A2	杠杆总成	LEVER ASSEMBLY	1
12	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	830899	张力弹簧	SPRING Tension	1
14	65830	尼龙衬套	NYLINER	2
15	830900	压缩弹簧	SPRING Compression	1
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99617	销	PIN	1
18	893709	销	PIN	1

图 93排气分隔板及排气板 Exhaust Divider and Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	815552A1	分隔板	DIVIDER PLATE	1
2	328021	管塞 (.125-27)	PLUG Pipe (.125-27)	1
2	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
3	8475251	衬垫	GASKET	1
3	847525004	衬垫	GASKET	1
4	814754	密封件(12.50英寸)	SEAL (12.50 Inches)	1
5	847538	螺钉	SCREW	18
5	848496	螺钉(0.312-18 x 1.50)	SCREW (.312-18 x 1.50)	18
5	848497	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	2
6	847526	垫圈（适用处使用）	WASHER (USE WHERE APPLICABLE)	20
7	814634	大卡箍	CLAMP (LARGE)	AR
7	642352	小J型夹	J CLIP (SMALL)	1
7	61001	J型卡扣	J CLIP	1
8	8478951	板调节器	PLATE Regulator	1
9	815279T	电压调节器	REGULATOR Voltage	1
9	8M0084173	电压调节器	VOLTAGE REGULATOR	1
10	69697	螺钉(.250-28 x 1.50)	SCREW (.250-28 x 1.50)	4
11	35045	螺母(.250-28)	NUT (.250-28)	4
11	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	4
12	814430	管接头(.500-14)	FITTING (.500-14)	1
12	8144301	接头	FITTING	1
13	92007	管接头(.250-18)(90度)	FITTING (.250-18) (90 DEGREES)	1
13	920071	90度弯头	FITTING (90 Degree)	1
14	830756109	软管（57.00英寸整卷）（裁切至23-1/2英寸）	HOSE (57.00 Inches Bulk) (Cut to 23-1/2 IN.)	1
14	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
15	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
15	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
16	68729	盖板	COVER	1
16	8M0039767	盖板	COVER	1
17	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
18	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
19	76451	垫圈	WASHER	1
20	14479	隔膜	DIAPHRAGM	1
20	144791	隔膜	DIAPHRAGM	1
21	16496	导水板	DEFLECTOR Water	1
22	16497A1	安装板	PLATE	1
23	78690	衬垫	GASKET	2
23	78690002	衬垫	GASKET	2
24	64878	弹簧(黑色)	SPRING (Black)	1
25	85303	垫圈	WASHER	1
26	14480	提动阀	POPPET	1
27	64872	护孔环	GROMMET	1
28	65848	托架	CARRIER	1
29	8231421	衬垫	GASKET	2
29	8231422	衬垫	GASKET	2
30	18260A4	排气板总成	PLATE ASSEMBLY Exhaust	1
31	823106	定位销 (.875)	PIN Dowel (.875)	2
31	8M0043826	定位销	PIN Dowel	2
32	14867	45度弯头	ELBOW 45 Degree (45 DEGREES)	1
33	29085	45度弯管接头	FITTING Elbow (45 Degree)	1
33	8M0123050	45度弯管接头	FITTING Elbow (45 Degree)	1
34	822838	垫圈 (.401 x .745 x .097)	WASHER (.401 x .745 x .097)	6
35	46335	螺母 (.375-24)	NUT (.375-24)	6
36	27132	衬套	BUSHING	1
37	66725	螺钉(.375-16×3.50)	SCREW (.375-16 x 3.50)	3
37	898833	螺钉(.375-16 x 3.500)	SCREW (.375-16 x 3.500)	3
38	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
39	68783	螺钉(.312-18×2.50)	SCREW (.312-18 x 2.50)	1
-	823142A94	衬垫套件	GASKET SET	1
-	809839A94	动力头总成	POWERHEAD ASSEMBLY	1
-	809839T94	PH 150 EFI	PH 150 EFI	1
-	808603A94	动力头总成	POWERHEAD ASSEMBLY	1
-	808603T94	动力头总成	POWERHEAD ASSEMBLY	1

图 94齿轮箱螺旋桨轴-CLE-1.87:1/2:1传动比 Gear Housing Propeller Shaft - CLE-1.87:1/2:1 Gear Ratio

REF	零件编号	中文名称	英文名称	数量
-	847902A84	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	847902A82	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T34	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	847902A85	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T37	G CASE-2:1 RH L	G CASE-2:1 RH L	1
-	847902A83	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T34	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	847902A15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8M0083306	齿轮箱-SM型	GEAR HOUSING-SM	1
1	847902A16	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8M0083306	齿轮箱-SM型	GEAR HOUSING-SM	1
49	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
50	78956	换挡凸轮	SHIFT CAM	1
50	789562	换挡凸轮	SHIFT CAM	1
51	79911A1	杆	ROD	1
52	78906	销	PIN	1
52	8M0084245	弹簧定位销	PIN Spring Locator	1
53	79910	弹簧	SPRING	2
54	78910	垫圈	WASHER	2
55	47397A1	垫片组	SHIM SET	AR
56	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
57	44102A5	齿轮组	GEAR SET	1
57	44102A7	齿轮组	GEAR SET	1
57	44104A7	齿轮组(含倒车齿轮)	GEAR SET (Includes Reverse Gear)	1
58	549281	滚柱轴承	BEARING Roller	1
59	42672	棘轮	RATCHET	1
59	42672T	棘轮	RATCHET	1
60	78909	定位销	PIN Detent	2
61	42671	十字销	PIN Cross	1
62	78962	弹簧	SPRING	2
63	822820F1	螺旋桨轴	PROPELLER SHAFT	1
63	840451A03	螺旋桨轴	PROPELLER SHAFT	1
64	847632A1	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
64	822824A1	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
64	8M0192202	倒挡齿轮	GEAR-REVERSE	1
65	822823	推力环	THRUST RING	1
66	88957	滚珠轴承总成	BEARING ASSEMBLY Ball	1
66	88957T	滚珠轴承	BEARING Ball	1
67	681001	止推环	RING Thrust	1
68	31534	O型圈	O-RING	1
68	8M0214920	O型圈	O RING	1
69	847610A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
69	848840A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
70	817072	滚柱轴承	BEARING Roller	1
71	815565	油封	SEAL Oil	2
72	817071	卡环	RING Snap	1
73	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
73	8M0058389	放油螺钉套件	SCREW KIT Drain	1
74	19183	纤维垫圈	WASHER Fiber	1
74	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
75	30281	键	KEY	1
76	79447	锁紧垫圈	TAB WASHER	1
77	158401	盖板	COVER	1
78	131711	推力毂	THRUST HUB	1
78	13171T1	推力毂	THRUST HUB	1
79	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
79	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
80	816629	锁紧垫圈	TAB WASHER	1
80	816629Q	锁紧垫圈	TAB WASHER	1
81	31211A2	花键垫圈	WASHER Splined	1
81	31211Q03	垫圈总成	WASHER ASSEMBLY	1
82	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
83	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
84	76214A5	阳极套件	ANODE KIT	1
84	76214Q5	阳极套件	ANODE KIT	1
85	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	2
86	134391	螺母 (.4375-20)	NUT (.4375-20)	2
86	859116	螺母(.437-20)	NUT (.437-20)	2
87	30206	螺钉(.375-16 x 1.00)不锈钢	SCREW (.375-16 x 1.00) Stainless Steel	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 95燃油泵(塑料壳体带松散配件) Fuel Pump (Plastic Body With Loose Fittings)

REF	零件编号	中文名称	英文名称	数量
1	14360A53	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve-Rubber	2
4	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
5	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
6	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
10	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
12	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
13	987691	底座衬垫	GASKET Base	1
13	8M0204705	衬垫@2	GASKET @2	1
14	144303		BASE Fuel Pump	1
15	987752	燃油泵板	PLATE Fuel Pump	1
16	99664	弯头	ELBOW	1
16	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
17	29111	连接器	CONNECTOR	1
17	291112	接头	FITTING	1
18	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	1
18	433351	90度接头-带防振密封	CONNECTOR 90 Degree - With Vibraseal	1
19	82104540		SCREW (M5 x 40) Fuel Pump	2
20	82130050		SCREW (M6 x 50) Fuel Pump to Crankcase	2
21	9912878	软管 (.187) (26.00英寸散装)	HOSE (.187) (26.00 Inches Bulk)	1
22	99751	接头(0.0625-27)黄铜	FITTING (.0625-27) Brass	1
22	997511	弯头	ELBOW	1
23	83075780	管材(28.00英寸散装)	TUBING (28.00 Inches Bulk)	1
23	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
24	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
25	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
26	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
27	1350382	管材(30英寸散装)(15-1/2英寸)(19英寸)	TUBING (30.00 Inches Bulk) (15-1/2 IN.)(19 IN.)	2
27	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	2
28	18458A3	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
28	18458Q3	燃油滤清器	FILTER-FUEL	1
29	14570	探头	PROBE	1
30	13170A3	底座	BASE	1
31	13607	接头	FITTING	2
31	136071	弯头	ELBOW	2
32	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	2
32	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
33	1350382	管材(30英寸散装)(15-1/2英寸)(19英寸)	TUBING (30.00 Inches Bulk) (15-1/2 IN.)(19 IN.)	2
33	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	2
34	18458A4	滤清器套件	FILTER KIT	1
34	18458Q4	燃油水分离滤清器	FILTER Fuel-Water Separating	1
35	828586	探头	PROBE	1
35	8M0204710	探头	PROBE	1
36	13170A3	底座	BASE	1
37	89771	直型连接器(.250-18)	CONNECTOR (.250-18) (STRAIGHT)	1
37	89771Q2	连接器(.250-18)	CONNECTOR (.250-18)	1
38	13607	接头	FITTING	1
38	136071	弯头	ELBOW	1
39	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	2
39	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
-	823142A94	衬垫套件	GASKET SET	1
-	809839A94	动力头总成	POWERHEAD ASSEMBLY	1
-	809839T94	PH 150 EFI	PH 150 EFI	1
-	808603A94	动力头总成	POWERHEAD ASSEMBLY	1
-	808603T94	动力头总成	POWERHEAD ASSEMBLY	1

图 96齿轮箱螺旋桨轴-反向旋转-运动大师 Gear Housing Propeller Shaft-Counter Rotation-Sportmaster

REF	零件编号	中文名称	英文名称	数量
1	848474A39	齿轮箱总成-基本型(无扭矩片)	GEAR HOUSING ASSEMBLY Basic-Without Torque Tab	1
50	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
51	789562	换挡凸轮	SHIFT CAM	1
52	79911A1	杆	ROD	1
53	78906	销	PIN	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	79910	弹簧	SPRING	2
55	78910	垫圈	WASHER	AR
56	14469	轴承杯	CUP Bearing	1
56	14469T	轴承杯	CUP Bearing	1
57	88957	滚珠轴承总成	BEARING ASSEMBLY Ball	1
57	88957T	滚珠轴承	BEARING Ball	1
58	NSS		NOT SOLD SEPARATE Reverse Gear (Part of 43-15845A2)	1
58	817516A1	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
58	817516T1	倒挡齿轮	GEAR-REVERSE	1
59	15844	滚柱轴承总成	BEARING ASSEMBLY Roller	1
60	42672	棘轮	RATCHET	1
60	42672T	棘轮	RATCHET	1
61	78909	定位销	PIN Detent	2
62	42671	十字销	PIN Cross	1
63	78962	弹簧	SPRING	2
64	15845A2	齿轮组	GEAR SET	1
64	817515A2	齿轮组-前进档	GEAR SET Forward	1
64	817515T2	齿轮组-前进档	GEAR SET-FORWARD	1
65	176151	调整垫片(.125)	SPACER SHIM (.125)	AR
65	176152	调整垫片(.127)	SPACER SHIM (.127)	AR
65	176153	调整垫片(.129)	SPACER SHIM (.129)	AR
65	176154	调整垫片(.131)	SPACER SHIM (.131)	AR
65	176155	调整垫片(.133)	SPACER SHIM (.133)	AR
65	176156	调整垫片(.135)	SPACER SHIM (.135)	AR
65	176157	调整垫片(.137)	SPACER SHIM (.137)	AR
65	176158	调整垫片(.139)	SPACER SHIM (.139)	AR
65	176159	调整垫片(.141)	SPACER SHIM (.141)	AR
65	1761510	调整垫片(.143)	SPACER SHIM (.143)	AR
65	1761511	调整垫片(.145)	SPACER SHIM (.145)	AR
65	1761512	调整垫片(.147)	SPACER SHIM (.147)	AR
65	1761513	调整垫片(.149)	SPACER SHIM (.149)	AR
66	15841	滚柱轴承	BEARING Roller	1
67	17616	推力环	THRUST RING	1
68	31534	O型圈	O-RING	1
68	8M0214920	O型圈	O RING	1
69	15838A2	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
70	15843	滚柱轴承	BEARING Roller	1
70	15843T	滚针轴承	BEARING Needle	1
71	15834	推力轴承	BEARING Thrust	2
72	815495T	螺旋桨轴	PROPELLER SHAFT	1
73	847616A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
73	847616T1	轴承座	CARRIER Bearing	1
74	817072	滚柱轴承	BEARING Roller	1
75	815565	油封	SEAL Oil	2
76	817071	卡环	RING Snap	1
77	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
77	8M0058389	放油螺钉套件	SCREW KIT Drain	1
78	19183	纤维垫圈	WASHER Fiber	1
78	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
79	30281	键	KEY	1
80	79447	锁紧垫圈	TAB WASHER	1
81	158401	盖板	COVER	1
82	131711	推力毂	THRUST HUB	1
82	13171T1	推力毂	THRUST HUB	1
83	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
84	31211A2	花键垫圈	WASHER Splined	1
84	31211Q03	垫圈总成	WASHER ASSEMBLY	1
85	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
85	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
86	816629	锁紧垫圈	TAB WASHER	1
86	816629Q	锁紧垫圈	TAB WASHER	1
87	41350	螺钉(.437-14 x 2.50)不锈钢	SCREW (.437-14 x 2.50) Stainless Steel	1
87	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
88	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	2
89	134391	螺母 (.4375-20)	NUT (.4375-20)	2
89	859116	螺母(.437-20)	NUT (.437-20)	2
90	30206	螺钉(.375-16 x 1.00)不锈钢	SCREW (.375-16 x 1.00) Stainless Steel	1
90	15929	螺钉(.375-16 x 16 x 6.00)	SCREW (.375-16 x 16 x 6.00)	1
91	762143	阳极块	ANODE	1
91	76214T3	阳极块	ANODE	1
91	76214A5	阳极套件	ANODE KIT	1
91	76214Q5	阳极套件	ANODE KIT	1
91	762141	阳极块	ANODE	1
91	76214T1	阳极块	ANODE	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	90415A24	螺柱套件	STUD KIT	1
-	59579	双头螺柱(.437-14/.437-20 x 2.812)	STUD (.437-14/.437-20 x 2.812)	1
-	90415A25	螺柱套件	STUD KIT	1

图 97配平电磁阀板(0G205106及以下) Trim Solenoid Plate (0G205106 and Below)

REF	零件编号	中文名称	英文名称	数量
1	847896	安装板	PLATE	1
2	818997A1	电磁阀总成	SOLENOID ASSEMBLY	2
2	8M0185145	电磁阀总成	SOLENOID ASSEMBLY	2
3	818967	护孔环	GROMMET	4
3	8M0207785	护孔环	GROMMET	4
4	818968	衬套	BUSHING	4
4	8M0214955	衬套	BUSHING	4
5	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	3
5	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	3
6	35950	垫圈 (.273 x .437 x .031) 不锈钢	WASHER (.273 x .437 x .031) Stainless Steel	3
7	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	3
7	8M0207776	螺母	NUT	3
8	88807A6	黑色电缆总成 (3.50 英寸)	CABLE ASSEMBLY (3.50 Inches) Black	2
9	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	4
10	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	4
11	42813	螺钉(#10-32 X 0.380英寸)(10-32 X 3/8英寸)	SCREW (#10-32 X .380) (10-32 X .3/8 IN.)	2
12	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
13	87379A14	线束总成(2.750英寸)(红色)	WIRE ASSEMBLY (2.750 Inches) (RED)	1
14	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
15	94330	螺母(0.250-20)黄铜	NUT (.250-20) Brass (BRASS)	2
16	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	2
17	69028	螺钉（.250-28 x .750）不锈钢	SCREW (.250-28 x .750) Stainless Steel	2
18	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	2
19	35280	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
20	35045	螺母(.250-28)	NUT (.250-28)	2
20	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	2

图 98旋转支架及转向臂-短型 Swivel Bracket and Steering Arm Short

REF	零件编号	中文名称	英文名称	数量
-	896280006	零件手册200/225/250/275四冲程Verado	PARTS MANUAL 200/225/250/275 4-Stroke Verado	1
-	896579T00	维修手册	SERVICE MANUAL	1
-	8M0082470	MNL-SERV 200-300V	MNL-SERV 200-300V	1
-	10238060	安装手册	INSTALLATION MANUAL	1
-	10237060	用户手册	OWNERS MANUAL	1
-	10237J60	用户手册(西班牙语)	OWNERS MANUAL Spanish	1
-	10237D60	用户手册(法语)	OWNERS MANUAL French	1
-	895269001	产品指南	PRODUCT GUIDE	1
-	895269002	产品指南	GUIDE-PRODUCT	1
-	895282A06	EPA标签信息贴花	DECAL EPA Label Information	1

图 99齿轮箱螺旋桨轴-标准-SportMaster Gear Housing Propeller Shaft-Standard-SportMaster

REF	零件编号	中文名称	英文名称	数量
-	827214T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	827214T16	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	827214T25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
47	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
48	789562	换挡凸轮	SHIFT CAM	1
49	79911A1	杆	ROD	1
50	78906	销	PIN	1
50	8M0084245	弹簧定位销	PIN Spring Locator	1
51	79910	弹簧	SPRING	2
52	78910	垫圈	WASHER	AR
53	47397A1	垫片组	SHIM SET	AR
54	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
55	44104A7	齿轮组	GEAR SET	1
56	549281	滚柱轴承	BEARING Roller	1
57	42672T	棘轮	RATCHET	1
58	42671	十字销	PIN Cross	1
59	78909	定位销	PIN Detent	2
60	78962	弹簧	SPRING	2
61	840451A2	螺旋桨轴	PROPELLER SHAFT	1
61	840451A03	螺旋桨轴	PROPELLER SHAFT	1
-	840389K5	轮毂套件	HUB KIT	1
-	8M0183487	重型螺旋桨轮毂套件	HUB KIT-HD PROP	1
-	840382A1	缓冲条套件	SNUBBER STRIP KIT	1
-	840382A02	缓冲条套件	SNUBBER STRIP KIT	1
62	822824A1	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
62	8M0192202	倒挡齿轮	GEAR-REVERSE	1
63	822823	推力环	THRUST RING	1
64	681001	止推环	RING Thrust	1
65	88957T	滚珠轴承	BEARING Ball	1
66	31534	O型圈	O-RING	1
66	8M0214920	O型圈	O RING	1
67	848840T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	848840A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	817072	滚柱轴承	BEARING Roller	1
69	817071	卡环	RING Snap	1
70	815565	油封	SEAL Oil	2
71	30281	键	KEY	1
72	79447	锁紧垫圈	TAB WASHER	1
73	79448	固定座	RETAINER	1
73	8M2011027	固定座	RETAINER	1
74	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
75	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
76	832066A1	进水口板套件	PLATE KIT Water Inlet	1
77	188642	螺钉(#8-32 x .500)	SCREW (#8-32 x .500)	4
78	76214Q5	阳极套件	ANODE KIT	1
79	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
80	859116	螺母(.437-20)	NUT (.437-20)	2
81	30206	螺钉(.375-16 x 1.00)不锈钢	SCREW (.375-16 x 1.00) Stainless Steel	1
82	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	2
83	859432	接头	FITTING	1
83	881866	接头	FITTING	1
84	85944975	管材(72英寸整料)(裁切至7英寸)	TUBING (72.00 Inches Bulk) (Cut to 7 IN.)	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 100温度传感器 Temperature Sensor

REF	零件编号	中文名称	英文名称	数量
-	896280006	零件手册200/225/250/275四冲程Verado	PARTS MANUAL 200/225/250/275 4-Stroke Verado	1
-	896579T00	维修手册	SERVICE MANUAL	1
-	8M0082470	MNL-SERV 200-300V	MNL-SERV 200-300V	1
-	10238060	安装手册	INSTALLATION MANUAL	1
-	10237060	用户手册	OWNERS MANUAL	1
-	10237J60	用户手册(西班牙语)	OWNERS MANUAL Spanish	1
-	10237D60	用户手册(法语)	OWNERS MANUAL French	1
-	895269001	产品指南	PRODUCT GUIDE	1
-	895269002	产品指南	GUIDE-PRODUCT	1
-	895282A06	EPA标签信息贴花	DECAL EPA Label Information	1

图 101维修/支撑材料 Service/Support Material

REF	零件编号	中文名称	英文名称	数量
-	896280006	零件手册200/225/250/275四冲程Verado	PARTS MANUAL 200/225/250/275 4-Stroke Verado	1
-	896579T00	维修手册	SERVICE MANUAL	1
-	8M0082470	MNL-SERV 200-300V	MNL-SERV 200-300V	1
-	10238060	安装手册	INSTALLATION MANUAL	1
-	10237060	用户手册	OWNERS MANUAL	1
-	10237J60	用户手册(西班牙语)	OWNERS MANUAL Spanish	1
-	10237D60	用户手册(法语)	OWNERS MANUAL French	1
-	895269001	产品指南	PRODUCT GUIDE	1
-	895269002	产品指南	GUIDE-PRODUCT	1
-	895282A06	EPA标签信息贴花	DECAL EPA Label Information	1

图 102旋转支架与转向臂 Swivel Bracket and Steering Arm

REF	零件编号	中文名称	英文名称	数量
1	8710A20	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8710A21	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8710T21	灰色旋转支架总成	SWIVEL BRACKET ASSEMBLY Gray	1
2	33504	O型圈	O-RING	1
2	8M0214926	O型圈 @10	O RING @10	1
3	818764	衬套	BUSHING	2
4	816039	隔套	SPACER	1
5	87735	油封(下)	SEAL Oil (LOWER)	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	816432	止推垫片	THRUST WASHER	1
9	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
9	878182T	轭架底部-不锈钢	YOKE Bottom - Stainless Steel	1
9	86580A2	底部轭架总成	YOKE ASSEMBLY Bottom	1
9	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
10	67684	挡圈	RING Retaining	1
11	996301	冲击板	STRIKER PLATE	2
11	8M0045383	冲击板	STRIKER PLATE	2
12	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
13	46335	螺母 (.375-24)	NUT (.375-24)	2
14	64014	螺钉(0.250-28x0.500)(1/4-28x1/2英寸)	SCREW (.250-28 x .500) (1/4-28 X 1/2 IN.)	2
15	NSS	不单独销售-序列号覆膜标贴	NOT SOLD SEPARATE Decal-Serial Overlaminate	1
16	821180A6	调整传感器总成	SENDER ASSEMBLY Trim	1
16	8M0074846	ORDER 8M0098273	ORDER 8M0098273	1
17	852368	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
18	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
19	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
20	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
20	826432A2	转向臂旋转销总成-不锈钢	SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel	1
20	67706A56	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
20	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
21	78689	螺钉(0.437-20x7.50)(7/16-20x7-1/2英寸)	SCREW (.437-20 x 7.50) (7/16-20 X 7-1/2 IN.)	2
21	8M0176309	螺钉	SCREW	2
22	888821	缓冲垫	BUMPER	1
22	8M0000516	上轭缓冲垫	BUMPER Top Yoke	1
23	77326	支架	MOUNT	2
24	66921	垫圈	WASHER	2
25	814432	垫圈	WASHER	2
25	78688	垫圈	WASHER	2
26	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
26	8M0204653	螺母	NUT	2
27	92876A1	转向连杆总成	LINK ASSEMBLY Steering	1
27	92876A12	连杆总成	LINK ROD ASSEMBLY	1
28	14000	螺钉(0.375-24x1.25)(3/8-24x1-1/4英寸)	SCREW (.375-24 x 1.25) (3/8-24 X 1-1/4 IN.)	1
28	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
29	34863	螺母 (.375-24)	NUT (.375-24)	2
29	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
30	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
31	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
31	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
