水星 Mercury 150 HP PRO MAX/SUPER MAG 0D935000 THRU 0G610049 - 爆炸图零件明细

两冲程电喷 EFI · USA - Cat.# 90-80856794 · 共 41 个部位 · 1932 条零件

1泄放系统 2外罩 3曲轴、活塞及连杆 4气缸体与端盖 5爆震控制器/温度传感器 6驱动轴壳与排气管 7ECU总成 8排气分隔板及排气板 9飞轮、启动电机及点火线圈 10燃油管理系统(0G366999及以下)11燃油管理系统(0G367000及以上)12燃油泵(铝制壳体)13燃油泵(塑料壳体带松散配件)14燃油泵(塑料壳体带模制配件)15齿轮箱(驱动)扭矩大师1.87:1/2:1 16齿轮箱(驱动)标准/反向旋转-运动大师 17齿轮箱(驱动轴)(1.78:1)18齿轮箱(驱动轴)(CLE-1.87:1/2:1)19齿轮箱图表(运动大师)20齿轮箱螺旋桨轴-反向旋转-运动大师 21齿轮箱螺旋桨轴-标准旋转-运动大师 22齿轮箱螺旋桨轴-扭矩大师1.87:1/2:1 23齿轮箱螺旋桨轴-1.78:1传动比 24齿轮箱螺旋桨轴-CLE-1.87:1/2:1传动比 25仪表装置 26钥匙开关 27机油喷射组件 28动力升降组件 8M0231193 29动力升降组件金属马达壳 30动力升降组件（塑料马达壳体）31动力升降倾斜电机 32簧片阀组与气缸盖 33维修/支撑材料 34启动电机 35转向连接套件 36旋转支架与转向臂 37油门杆与换挡轴 38艉板支架 39配平电磁阀板(0G205106及以下)40配平电磁阀板(0G205107及以上)41线束和启动电磁阀

图 1泄放系统 Bleed System

REF	零件编号	中文名称	英文名称	数量
1	827210A9	泄放系统歧管总成	MANIFOLD ASSEMBLY Bleed System	1
2	426231	止回阀	CHECK VALVE	6
2	426233	止回阀	CHECK VALVE	6
3	13035	接头	FITTING	1
3	8M0181450	接头	FITTING	1
4	92051	螺钉（10-16 x 0.75）	SCREW (10-16 x .75)	1
5	99130122	管材 (20.00英尺散装) (5-1/2英寸)	TUBING (20.00 Feet Bulk) (5-1/2 IN.)	2
5	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
6	99130122	管材(20.00英尺散装)(7英寸)	TUBING (20.00 Feet Bulk) (7 IN.)	2
6	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
7	99130122	管材(20英尺整卷)(6英寸)	TUBING (20.00 Feet Bulk) (6 IN.)	2
7	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
8	8245021	连接器	CONNECTOR	3
9	99130122	管材 (20英尺散装) (10-1/2英寸)	TUBING (20.00 Feet Bulk) (10-1/2 IN.)	1
9	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
10	8348041	止回阀	CHECK VALVE	3
11	99130122	管材 (20英尺散装) (1-3/4英寸)	TUBING (20.00 Feet Bulk) (1-3/4 IN.)	3
11	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	3
12	8282182	止回阀	CHECK VALVE	3
13	99130122	管材(20英尺整卷)(4.5英寸)	TUBING (20.00 Feet Bulk) (4-1/2 IN.)	1
13	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
14	9912688	管材 (36英寸散装) (10-1/4英寸)	TUBING (36.00 Inches Bulk) (10-1/4 IN.)	1
15	827210A9	泄放系统歧管总成	MANIFOLD ASSEMBLY Bleed System	1
16	426231	止回阀	CHECK VALVE	6
16	426233	止回阀	CHECK VALVE	6
17	13035	接头	FITTING	1
17	8M0181450	接头	FITTING	1
18	92051	螺钉（10-16 x 0.75）	SCREW (10-16 x .75)	1
19	99130122	管材(20.00英尺散装)(7英寸)	TUBING (20.00 Feet Bulk) (7 IN.)	1
19	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
20	99130122	管材 (20.00英尺散装) (5-1/2英寸)	TUBING (20.00 Feet Bulk) (5-1/2 IN.)	1
20	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
21	8245021	连接器	CONNECTOR	3
22	8348041	止回阀	CHECK VALVE	3
23	99130122	管材 (20英尺散装) (1-3/4英寸)	TUBING (20.00 Feet Bulk) (1-3/4 IN.)	3
23	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	3
24	8282182	止回阀	CHECK VALVE	3
25	99130122	管材(20英尺整卷)(4.5英寸)	TUBING (20.00 Feet Bulk) (4-1/2 IN.)	1
25	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
26	99130122	管材(20英尺整卷)(9英寸)	TUBING (20.00 Feet Bulk) (9 IN.)	1
26	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
27	9912688	管材 (36英寸散装) (1-1/4英寸)	TUBING (36.00 Inches Bulk) (1-1/4 IN.)	1
28	13033	三通接头	TEE FITTING	1
29	817518	三通	TEE	1
30	830756109	软管 (57英寸散装) (1-1/2英寸)	HOSE (57.00 Inches Bulk) (1-1/2 IN.)	1
30	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
31	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
31	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
32	9912688	管材 (36英寸散装) (13英寸)	TUBING (36.00 Inches Bulk) (13 IN.)	1
-	854198A98	动力头总成	POWERHEAD ASSEMBLY	1
-	854198A99	动力头总成	POWERHEAD ASSEMBLY	1
-	854199A98	动力头总成	POWERHEAD ASSEMBLY	1
-	854199A99	动力头总成	POWERHEAD ASSEMBLY	1

图 2外罩 Cowling

REF	零件编号	中文名称	英文名称	数量
1	817704A22	顶盖总成	TOP COWL ASSEMBLY	1
1	817704A23	顶盖总成	TOP COWL ASSEMBLY	1
1	817704T23	灰色顶罩	COWL-TOP-GRAY	1
2	817706A3	前盖	FRONT COVER	1
2	817706A4	前盖	FRONT COVER	1
3	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	4
4	22887	垫圈	WASHER	4
5	71602	轭架	YOKE	4
5	8M0192198	轭架	YOKE	4
5	716021	轭架	YOKE	4
6	816771	铆钉	RIVET	12
7	847883	垫圈(0.192x0.375x0.033)	WASHER (.192 x .375 x .033)	12
8	817708	压紧件	HOLD DOWN	4
9	58712	U型销	PIN Clevis	4
10	847883	垫圈(0.192x0.375x0.033)	WASHER (.192 x .375 x .033)	4
11	21071	开口销	COTTER PIN	4
11	210711	开口销	COTTER PIN	4
12	848164A7	底壳	BOTTOM PAN	1
12	848164T7	黑色底罩	COWL-BOTTOM-BLACK	1
12	817709A13	底壳	BOTTOM PAN	1
12	848164T8	灰色底罩	COWL-BOTTOM-GRAY	1
13	815784	盖帽	CAP	2
14	13734	固定座	RETAINER	4
14	8M0192190	固定座	RETAINER	4
14	137341	固定座	RETAINER	4
15	848172	开口铆钉	RIVET (POP-OPEN)	16
16	8177121	密封条(6.79英尺大卷)	SEAL (6.79 Feet Bulk)	1
16	817712003	密封条(6.79英尺)	SEAL (6.79 Feet)	1
17	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	11
18	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	11
18	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	11
19	8221882	安装板	PLATE	1
19	822188T2	安装板	PLATE	1
20	35045	螺母(.250-28)	NUT (.250-28)	11
20	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	11
21	848165	支撑架	BRACE	2
22	8177131	护孔环	GROMMET	2
22	8177133	护孔环	GROMMET	2
23	847894A1	围板	SKIRT	1
23	847894T1	黑色围板	SKIRT-BLACK	1
23	847894A2	围板	SKIRT	1
24	69028	螺钉（.250-28 x .750）不锈钢	SCREW (.250-28 x .750) Stainless Steel	8
25	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	16
26	35045	螺母(.250-28)	NUT (.250-28)	8
26	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	8
27	126021	护孔环	GROMMET	1
27	12602002	护孔环	GROMMET	1
28	18286A40	开关总成	SWITCH ASSEMBLY	1
28	8M0235192	微调开关	SWITCH TRIM	1
29	8124431	固定座	RETAINER	1
29	8M0032848	开关固定座	RETAINER Switch	1
30	847897	燃油接头支架	BRACKET Fuel Connector	1
31	28668	螺钉 (.250-20 x .875) 不锈钢	SCREW (.250-20 x .875) Stainless Steel	2
32	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	2
32	8M0207776	螺母	NUT	2
33	88621	固定座(按需使用)	RETAINER (Use where Applicable)	1
34	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	2
34	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	2
35	29488	螺母 (#10-32)	NUT (#10-32)	2
35	8M0204718	螺母	NUT	2

图 3曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	9784A8	曲轴	CRANKSHAFT	1
1	9784A11	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	NSS	磨损套筒(不单独销售)	NOT SOLD SEPARATE Wear Sleeve	1
3	67923	球轴承(下部)	BEARING Ball (LOWER)	1
3	67923T	滚珠轴承	BEARING Ball	1
4	67446	环	RING	1
5	816106	环	RING	7
5	843198T01	密封环	RING Seal	7
6	91800	半圆键	KEY Woodruff	1
7	35126	O型圈(.859 x .139)	O-RING (.859 x .139)	1
8	817001A1	轴承座圈总成	RACE ASSEMBLY Bearing	2
8	8M0113288	轴承座圈总成	RACE ASSY-BEARING	2
9	NSS	滚针轴承(不单独销售)	NOT SOLD SEPARATE Needle Roller	88
10	855354A3	活塞	PISTON	3
10	859297T2	活塞	PISTON	3
10	855353A3	活塞	PISTON	3
10	855353T3	活塞	PISTON	3
10	856936A2	活塞总成	PISTON ASSEMBLY	AR
10	859444A2	活塞总成	PISTON ASSEMBLY	AR
10	856938A2	活塞总成	PISTON ASSEMBLY	AR
10	859446A2	活塞总成	PISTON ASSEMBLY	AR
10	856935A2	活塞总成	PISTON ASSEMBLY	AR
10	859443A2	活塞总成	PISTON ASSEMBLY	AR
10	856937A2	活塞总成	PISTON ASSEMBLY	AR
10	859445A2	活塞总成	PISTON ASSEMBLY	AR
11	8320811	锁紧环	LOCK RING	12
12	834805A12	活塞环组	RING SET Piston	12
12	856939A12	活塞环组	RING SET Piston	3
12	875252A12	活塞环组	RING SET Piston	3
12	856940A12	活塞环组	RING SET Piston	3
12	875257A12	活塞环组	RING SET Piston	3
13	822373A3	连杆总成	CONNECTING ROD ASSEMBLY	6
13	8M0125869	连杆套件	CONN ROD KIT	6
14	94320	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	12
15	43012A1	轴承/保持架套件	BEARING/CAGE KIT	12
15	8M0235070	轴承保持架	CAGE BEARING	12
16	NSS	不单独销售滚针轴承	NOT SOLD SEPARATE Needle Roller Bearing	96
17	88263	止推垫片	THRUST WASHER	12
18	88258	滚针轴承	NEEDLE Roller Bearing	204
18	8M0204715	滚针@102	NEEDLES-BRG @102	204
19	816773A2	轴承总成（上部）	BEARING ASSEMBLY (UPPER)	1
20	815449	油封	SEAL Oil	1
20	859093	密封件	SEAL	1
21	823683	O型圈(1.989 x .070)	O-RING (1.989 x .070)	1
-	854198A98	动力头总成	POWERHEAD ASSEMBLY	1
-	854198A99	动力头总成	POWERHEAD ASSEMBLY	1
-	854199A98	动力头总成	POWERHEAD ASSEMBLY	1
-	854199A99	动力头总成	POWERHEAD ASSEMBLY	1
-	832934A98	衬垫套件	GASKET SET	1
-	8M0133170	衬垫套件	GASKET SET	1

图 4气缸体与端盖 Cylinder Block and End Caps

REF	零件编号	中文名称	英文名称	数量
1	858961T32	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
2	847529	双头螺柱(.375-16/.375-24 x 2.490)(2-1/2英寸)	STUD (.375-16/.375-24 x 2.490) (2-1/2 IN.)	8
2	8M0034430	螺柱	STUD	8
3	76175	双头螺柱(.375 x 1.88)	STUD (.375 x 1.88)	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	销(轴承座圈)	PIN (BEARING RACE)	2
5	8M0036405	销	PIN	2
6	8569662	支架	BRACKET	1
6	8M0111325	盖板	COVER	1
7	828213	螺钉(.312-18 x 1.500)六角法兰	SCREW (.312-18 x 1.500) Hex Flange	2
8	76867	底盖	COVER (Bottom)	1
9	828214	螺钉(.312-18 x 2.00)六角法兰	SCREW (.312-18 x 2.00) Hex Flange	2
10	66717	螺钉(.375-16 x 3.250)	SCREW (.375-16 x 3.250)	8
11	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	6
12	26852	尼龙帽	CAP Nylon	1
13	856832	螺丝 (.250-20 x 1.750)	SCREW (.250-20 x 1.750)	1
14	64015	螺母 (.250-20)	NUT (.250-20)	1
15	832760T1	端盖总成	END CAP ASSEMBLY	1
16	54029	O型圈(2.800 x .103)	O-RING (2.800 x .103)	1
17	16756A4	轴承套件	BEARING KIT	1
18	NSS	不单独销售	NOT SOLD SEPARATE	1
19	41953	密封件	SEAL	1
20	881190	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	4
21	7809T1	端盖总成	END CAP ASSEMBLY	1
22	62700	O型圈(3.237 x .103)	O-RING (3.237 x .103)	1
23	41953	密封件	SEAL	2
24	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
25	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
26	8538821	节气门位置指示器安装支架	BRACKET Throttle Position Indicator Mount	1
27	851937A1	节气门位置指示器杆总成	LEVER ASSEMBLY Throttle Position Indicator	1
28	82130025	螺钉(M6x25)	SCREW (M6 x 25)	3
29	856954	衬套	BUSHING	3
30	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	3
31	834985	护孔环	GROMMET	3
31	8M0190980	护孔环	GROMMET	3
32	83295211		INDICATOR Throttle Position (INSIDE)	1
32	8M6005165	TPI	TPI	1
33	8508281	螺钉（#10-32 x 2.00）	SCREW (#10-32 x 2.00)	3
34	843120	隔套	SPACER	3
35	878175	连杆总成	LINK ASSEMBLY	1
35	8M0084738	连杆总成	LINK ASSY	1
36	81893414	螺钉（M8 x 14）	SCREW (M8 x 14)	1
37	822838	垫圈 (.401 x .745 x .097)	WASHER (.401 x .745 x .097)	10
38	4013610	螺母(M10不锈钢)	NUT (M10) Stainless Steel	10
39	8215832	特殊销（1.5英寸）	PIN Special (1.5 Inches)	1
40	8283582	传感器	SENSOR	1
40	8M0082988	曲轴位置传感器	SENSOR Crankshaft Position	1
41	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	2
42	883048	堵头(.500-14)	PLUG (.500-14)	1
43	830756109	软管(57.00英寸散装)(裁切至1-1/4英寸)	HOSE (57.00 Inches Bulk) (Cut to 1-1/4 Inches)	2
43	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	2
44	830756109	软管(57.00英寸整料)(裁切至1-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 1-1/2 Inches)	2
44	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	2
-	841125T02	动力头总成	POWERHEAD ASSEMBLY	1
-	843151A05	衬垫套件	GASKET SET	1

图 5爆震控制器/温度传感器 Detonation Controller/Temperature Sensor

REF	零件编号	中文名称	英文名称	数量
1	14856A14	爆震控制器总成	CONTROLLER ASSEMBLY Detonation	1
2	88447	爆震控制器螺钉（0.190-32×1.62英寸）	SCREW (.190-32 x 1.62) Detonation Controller	3
3	38833	爆震控制器螺钉垫圈	WASHER Detonation Controller Screw	3
4	13381	安装板	PLATE	1
5	60466A20	拉线总成	CABLE ASSEMBLY	1
5	88807A10	拉线总成	CABLE ASSEMBLY	1
6	62568	电缆固定板螺钉（#10-16×0.375英寸）	SCREW (#10-16 x .375) Cable To Plate	1
7	94304	隔套	SPACER	3
8	41470A25	喷油警告模块总成	MODULE ASSEMBLY Oil Injection Warning	1
9	14851	油门位置指示器	INDICATOR Throttle Position	1
9	14851T03	指示器	INDICATOR	1
10	15150	指示器螺钉（#8-32×0.625英寸）	SCREW (#8-32 x .625) Indicator	2
11	26995	不锈钢指示器螺钉锁紧垫圈（#8）	LOCKWASHER (#8) Stainless Steel Indicator Screw	2
12	30164	不锈钢指示器螺钉垫圈（0.192×0.375×0.0312英寸）	WASHER (.192 x .375 x .0312) Stainless Steel Indicator Screw	2
13	15885	套筒	SLEEVE	1
14	13221A1	温度传感器总成	SENSOR ASSEMBLY Temperature	1
14	13221T01	温度传感器	SENSOR TEMP	1
15	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
16	57583	螺丝（#8-32×0.375）	SCREW (#8-32 x .375)	3
16	57583T	螺丝#8-32×3/8	SCREW #8-32x3/8	3
17	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	3
18	42813	螺钉（#10-32 X 0.380）	SCREW (#10-32 X .380)	1
19	813501	安装板	PLATE	2
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 6驱动轴壳与排气管 Driveshaft Housing and Exhaust Tube

REF	零件编号	中文名称	英文名称	数量
1	832937A05	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	832937A06	传动轴壳体总成-加长型	HOUSING ASSEMBLY Driveshaft - Long	1
1	832938A5	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	832938A06	传动轴壳体总成-超长/特超长型	HOUSING ASSEMBLY Driveshaft - X/XX-Long	1
2	856983	双头螺柱(M12 x 52)	STUD (M12 x 52)	4
2	8M0008031	双头螺柱(M12 x 1.75 x 52)	STUD (M12 x 1.75 x 52)	4
3	857136	螺钉(M12×35毫米)	SCREW (M12 x 35 MM)	1
4	8331231	护孔环	GROMMET	1
5	856982	垫圈(0.5×0.81×0.09英寸)不锈钢	WASHER (.500 x .810 x .090) Stainless Steel	5
6	896895	螺母(M12)	NUT (M12)	4
7	64649	堵头	PLUG	1
8	898834	螺栓（M14×178）	BOLT (M14 x 178)	2
9	88238A10	接地线总成	CABLE ASSEMBLY Ground	2
10	815432	垫圈(.562 x 2.00 x .125)	WASHER (.562 x 2.00 x .125)	2
11	8154331	垫圈（1.25×2.00×0.19）	WASHER (1.25 x 2.00 x .19)	2
12	8137711	支架	MOUNT	2
13	825190	垫圈	WASHER	2
14	896602	螺母(M14)	NUT (M14)	2
15	8186442	卡箍	CLAMP	2
15	879150A90	下支架盖套件	COVER KIT Lower Mount	2
16	81893435	螺钉(M8×35)	SCREW (M8 x 35)	4
16	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
17	72521	内齿锁紧垫圈	LOCKWASHER Internal Tooth	1
18	8M0001136	下支架盖	COVER Lower Mount	2
18	879150A90	下支架盖套件	COVER KIT Lower Mount	2
19	69079	螺钉 (#10-16 x .440)	SCREW (#10-16 x .440)	2
20	8329321	密封件	SEAL	1
21	833116A4	排气管总成	TUBE ASSEMBLY Exhaust	1
22	8524052	滤网	STRAINER	1
22	8M0026113	滤网	STRAINER	1
23	81893435	螺钉(M8×35)	SCREW (M8 x 35)	6
23	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	6
24	8329417	水管	TUBE Water	1
24	8M0042785	水管	TUBE-WATER	1
24	8329418	水管	TUBE Water	1
24	8M0042786	水管	TUBE Water	1
24	8329419	水管	TUBE Water	1
24	8M0042787	水管	TUBE-WATER	1
25	832940001	密封件	SEAL	1
26	8329391	卡箍	CLAMP	1
27	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
28	823979T1	隔套	SPACER	1
28	8M0105088	传动轴壳体加长隔套（黑色）	SPACER Driveshaft Housing X-Long, Black	1
29	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
30	857009	双头螺柱（M12×179）	STUD (M12 x 179)	4
30	8M0008047	双头螺柱（M12×179）	STUD (M12 x 179)	4
31	857137	螺钉 (M12 X 160)	SCREW (M12 x 160)	1
32	81893435	螺钉(M8×35)	SCREW (M8 x 35)	2
32	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	2

图 7ECU总成 ECU Assembly

REF	零件编号	中文名称	英文名称	数量
1	8240037	发动机控制单元ECU	ECU Engine Control Unit	1
1	824003A7	电控单元	ECU	1
1	8240035	发动机控制单元ECU	ECU Engine Control Unit	1
1	824003A5	电控单元	ECU	1
1	82400313	发动机控制单元ECU	ECU Engine Control Unit	1
1	824003A13	发动机控制单元ECU	ECU Engine Control Unit	1
1	82400311	发动机控制单元ECU	ECU Engine Control Unit	1
1	824003T11	电控单元	ECU	1
1	824003A13	发动机控制单元ECU	ECU Engine Control Unit	1
1	824003A11	发动机控制单元ECU	ECU Engine Control Unit	1
1	824003T11	电控单元	ECU	1
2	34948	隔套	SPACER	2
3	146951	卡扣	CLIP	1
4	90435	支架	MOUNT	2
5	21249	垫圈	WASHER	4
6	20361	螺母(.250-28)	NUT (.250-28)	4
6	8267089	螺母(.250-28)	NUT (.250-28)	4
7	88807A19	拉线总成	CABLE ASSEMBLY	1
8	14637	护孔环	GROMMET	1
9	14636	衬套	BUSHING	1
10	28667	螺钉 (0.250-20 x 1.00) 不锈钢	SCREW (.250-20 x 1.00) Stainless Steel	1
11	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
12	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	1
13	13202A2	水位传感器模块总成	MODULE ASSEMBLY Water Sensor	1
14	13202A4	水位传感器模块总成	MODULE ASSEMBLY Water Sensor	1
15	88807A18	线缆总成(黑色)	CABLE ASSEMBLY (BLACK)	1
16	37571	螺钉(.190-32 x 0.500)	SCREW (.190-32 x .500)	2
17	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
18	98866A14	线束总成	HARNESS ASSEMBLY	1
19	190491	连接环	COUPLE RING	1
20	98866A25	线束总成 ECU与喷油器	HARNESS ASSEMBLY ECU And Injectors	1
21	87895A4	拉线总成	CABLE ASSEMBLY	1

图 8排气分隔板及排气板 Exhaust Divider and Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	815552A1	分隔板	DIVIDER PLATE	1
2	328021	管塞 (.125-27)	PLUG Pipe (.125-27)	1
2	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
3	8475251	衬垫	GASKET	1
3	847525004	衬垫	GASKET	1
4	814754	密封件(12.50英寸)	SEAL (12.50 Inches)	1
5	847538	螺钉	SCREW	18
5	848496	螺钉(0.312-18 x 1.50)	SCREW (.312-18 x 1.50)	18
5	848497	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	2
6	847526	垫圈（适用处使用）	WASHER (USE WHERE APPLICABLE)	20
7	814634	大卡箍	CLAMP (LARGE)	AR
7	642352	小J型夹	J CLIP (SMALL)	1
7	61001	J型卡扣	J CLIP	1
8	8478951	板调节器	PLATE Regulator	1
9	815279T	电压调节器	REGULATOR Voltage	1
9	8M0084173	电压调节器	VOLTAGE REGULATOR	1
10	69697	螺钉(.250-28 x 1.50)	SCREW (.250-28 x 1.50)	4
11	35045	螺母(.250-28)	NUT (.250-28)	4
11	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	4
12	814430	管接头(.500-14)	FITTING (.500-14)	1
12	8144301	接头	FITTING	1
13	92007	管接头(.250-18)(90度)	FITTING (.250-18) (90 DEGREES)	1
13	920071	90度弯头	FITTING (90 Degree)	1
14	830756109	软管（57.00英寸整卷）（裁切至23-1/2英寸）	HOSE (57.00 Inches Bulk) (Cut to 23-1/2 IN.)	1
14	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
15	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
15	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
16	68729	盖板	COVER	1
16	8M0039767	盖板	COVER	1
17	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
18	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
19	76451	垫圈	WASHER	1
20	14479	隔膜	DIAPHRAGM	1
20	144791	隔膜	DIAPHRAGM	1
21	16496	导水板	DEFLECTOR Water	1
22	16497A1	安装板	PLATE	1
23	78690	衬垫	GASKET	2
23	78690002	衬垫	GASKET	2
24	64878	弹簧(黑色)	SPRING (Black)	1
25	85303	垫圈	WASHER	1
26	14480	提动阀	POPPET	1
27	64872	护孔环	GROMMET	1
28	65848	托架	CARRIER	1
29	8231421	衬垫	GASKET	2
29	8231422	衬垫	GASKET	2
30	18260A4	排气板总成	PLATE ASSEMBLY Exhaust	1
31	823106	定位销 (.875)	PIN Dowel (.875)	2
31	8M0043826	定位销	PIN Dowel	2
32	14867	45度弯头	ELBOW 45 Degree (45 DEGREES)	1
33	29085	45度弯管接头	FITTING Elbow (45 Degree)	1
33	8M0123050	45度弯管接头	FITTING Elbow (45 Degree)	1
34	822838	垫圈 (.401 x .745 x .097)	WASHER (.401 x .745 x .097)	6
35	46335	螺母 (.375-24)	NUT (.375-24)	6
36	27132	衬套	BUSHING	1
37	66725	螺钉(.375-16×3.50)	SCREW (.375-16 x 3.50)	3
37	898833	螺钉(.375-16 x 3.500)	SCREW (.375-16 x 3.500)	3
38	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
39	68783	螺钉(.312-18×2.50)	SCREW (.312-18 x 2.50)	1
-	823142A94	衬垫套件	GASKET SET	1
-	809839A94	动力头总成	POWERHEAD ASSEMBLY	1
-	809839T94	PH 150 EFI	PH 150 EFI	1
-	808603A94	动力头总成	POWERHEAD ASSEMBLY	1
-	808603T94	动力头总成	POWERHEAD ASSEMBLY	1

图 9飞轮、启动电机及点火线圈 Flywheel, Starter Motor and Ignition Coils

REF	零件编号	中文名称	英文名称	数量
1	18896A1	盖板套件	COVER KIT	1
2	79022	标记	MARKER	1
3	37572	螺钉 (.190-32 x .380)	SCREW (.190-32 x .380)	2
4	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	2
5	89219	塞（适用时使用）	PLUG (USE WHERE APPLICABLE)	1
5	89219001	堵头	PLUG	1
6	45907	黄色塞	PLUG Yellow	1
7	52901	螺母(0.625-18)	NUT (.625-18)	1
8	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
8	33001	垫圈	WASHER	1
9	817632A12	飞轮	FLYWHEEL	1
9	859238T16	飞轮总成	FLYWHEEL ASY	1
10	9610A27	定子	STATOR	1
11	90045	螺钉(#10-32×1.375)	SCREW (#10-32 x 1.375)	4
12	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	4
13	96455A9	触发板总成	PLATE ASSEMBLY Trigger	1
14	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
14	893893	启动马达	STARTER MOTOR	1
15	56703	轴环	COLLAR	2
15	8M0034918	轴环	COLLAR	2
16	68042	橡胶止挡	STOP Rubber	2
16	8M0043376	停机开关	STOP	2
17	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
18	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
19	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
20	20890	螺母 (.250-20)	NUT (.250-20)	1
21	69739A7	线束总成	HARNESS ASSEMBLY	1
22	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	6
22	8M0230859	点火线圈总成	COIL IGNITION ASY	6
22	7370A19	点火线圈总成	COIL ASSEMBLY Ignition	6
22	8M0230859	点火线圈总成	COIL IGNITION ASY	6
22	832757A4	线圈套件	COIL KIT	6
22	8M0230859	点火线圈总成	COIL IGNITION ASY	6
23	79743	盖板	COVER	3
24	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	12
25	30164	垫圈(0.192x0.375x0.0312)不锈钢	WASHER (.192 x .375 x .0312) Stainless Steel	12
26	88807A6	电缆总成（3.50英寸）黑色	CABLE ASSEMBLY (3.50 Inches) Black (BLACK)	6
27	68513	螺钉(#10-32x.375)不锈钢	SCREW (#10-32 x .375) Stainless Steel	6
28	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	18
29	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	12
30	136862	火花塞	SPARK PLUG	6
30	13686Q	NGK BU8H @10	NGK BU8H @10	6
31	815358A1	点火电缆组	CABLE SET Ignition	1

图 10燃油管理系统(0G366999及以下) Fuel management System (0G366999 and Below)

REF	零件编号	中文名称	英文名称	数量
-	14817A19	燃油管理系统总成	MANAGEMENT ASSEMBLY Fuel	1
1	827693	节气门体	THROTTLE BODY	1
2	827692	盖板	COVER	1
3	827696	固定套件	RETAINER KIT	1
4	67748	滚轮	ROLLER	1
5	18715	燃油喷油器	INJECTOR Fuel	6
5	18715T	喷油器总成	INJECTOR ASSEMBLY	6
6	17422	滤清器	FILTER	1
7	15443	线束套件	HARNESS KIT	1
8	15442	燃油滤清器套件(DESIGN I型)	FILTER KIT Fuel (DESIGN I)	1
9	154421	燃油滤清器套件	FILTER KIT Fuel	1
9	154422	燃油滤清器套件	FILTER KIT Fuel	1
9	154422	燃油滤清器套件	FILTER KIT Fuel	1
10	150282	燃油滤清器	FILTER Fuel	1
11	400034	螺钉(M5×14)	SCREW (M5 x 14)	1
12	400255	锁紧垫圈(M5)	LOCKWASHER (M5)	1
13	1350382	管材(30英寸散装)(1/2英寸外径)	TUBING (30.00 Inches Bulk) (1/2 IN. O.D.)	1
13	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	1
14	9912688	管材(36英寸散装)(1/8英寸内径)	TUBING (36.00 Inches Bulk) (1/8 IN. I.D.)	1
15	99130122	管材(20英尺散装)(3/32英寸内径)	TUBING (20.00 Feet Bulk) (3/32 IN. I.D.)	1
15	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
16	15027	调节器	REGULATOR	1
17	814233	弯头套件	ELBOW KIT	1
18	18791	衬垫	GASKET	1
19	814012	安装板	PLATE	1
20	814076	螺钉	SCREW	AR
21	814010	盖板套件	COVER KIT	1
22	4001987	螺钉(M4×16)	SCREW (M4 x 16)	6
23	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	6
24	18790	密封件	SEAL	1
25	15029	O型圈及密封套件	O-RING AND SEAL KIT	1
26	15446	浮子阀套件	VALVE KIT Float	1
27	15445	浮子套件	FLOAT KIT	1
28	814011	阀体套件	BODY KIT	1
29	42481	止回阀	CHECK VALVE	1
29	424811	阀门	VALVE	1
30	4000332	螺钉(M6x35)	SCREW (M6 x 35)	3
31	18241	止回阀	CHECK VALVE	1
32	814077	切断阀	VALVE Shut-Off	1
33	18792	密封件	SEAL	1
34	19275	隔套	SPACER	3
35	814913	隔套	SPACER	3
36	35280	垫圈（0.255 x 0.620 x 0.030）不锈钢（大号）	WASHER (.255 x .620 x .030) Stainless Steel (LARGE)	3
37	69057	垫圈(0.281x0.734x0.063)(小号)	WASHER (.281 x .734 x .063) (SMALL)	3
38	13791	卡箍(15.7)	CLAMP (15.7)	2
38	8M0214911	卡箍@5	CLAMP @5	2
39	1350382	管材(30英寸散装)(1-3/4英寸)	TUBING (30.00 Inches Bulk) (1-3/4 IN.)	1
39	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	1
40	F698772	蜗杆卡箍	CLAMP Worm Gear	2
41	14639	覆盖件	BLANKET	1
42	14640T	盖板	COVER	1
43	32228	螺钉（#10-32 X 0.625）	SCREW (#10-32 x .625)	4
44	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	4
45	90088	螺钉(.250-20x4)	SCREW (.250-20 x 4)	12
45	845674	螺钉(.250-20x4.00)	SCREW (.250-20 x 4.00)	12
46	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	10
46	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	10
47	14307A1	燃油泵总成	PUMP ASSEMBLY Fuel	1
47	14307T01	燃油泵	FUEL PUMP	1
48	146332	软管	HOSE	1
49	823501	燃油滤清器	FILTER Fuel	1
49	885188	滤清器	FILTER	1

图 11燃油管理系统(0G367000及以上) Fuel Management System (0G367000 and Up)

REF	零件编号	中文名称	英文名称	数量
-	14817A23	燃油管理系统总成	MANAGEMENT ASSEMBLY Fuel	1
1	8276922	盖板	COVER	1
2	15443	线束套件	HARNESS KIT	1
3	18792	密封件	SEAL	1
4	15029	O型圈及密封套件	O-RING AND SEAL KIT	1
5	8276992	燃油导轨	FUEL RAIL	1
5	827699T2	燃油导轨	FUEL RAIL	1
6	18715	燃油喷油器	INJECTOR Fuel	1
6	18715T	喷油器总成	INJECTOR ASSEMBLY	1
7	17422	滤清器	FILTER	1
8	827696	固定套件	RETAINER KIT	1
9	8276933	节气门体	THROTTLE BODY	1
10	8090572	接头套件	JOINT KIT	1
11	8276891	连杆套件	LINK KIT	1
12	827697	连杆杠杆套件	LEVER KIT Link	1
13	827698	螺钉套件	SCREW KIT	1
14	8276981	螺钉套件	SCREW KIT	1
15	8090851	弯头套件	ELBOW KIT	1
16	814233A1	施拉德阀套件	SCHRADER VALVE KIT	1
16	814233A02	阀套件	VALVE KIT	1
17	8142332	FMA接头套件	FMA JOINT KIT	1
18	8276942	软管套件	HOSE KIT	1
18	827694A01	软管套件-燃油	HOSE KIT-FUEL	1
19	67748	滚轮	ROLLER	1
20	90088	螺钉(.250-20x4)	SCREW (.250-20 x 4)	10
20	845674	螺钉(.250-20x4.00)	SCREW (.250-20 x 4.00)	10
21	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	10
21	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	10

图 12燃油泵(铝制壳体) Fuel Pump (Aluminum Body)

REF	零件编号	中文名称	英文名称	数量
1	15930A21	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
4	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
5	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
6	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Vavle	2
10	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
12	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
13	987691	底座衬垫	GASKET Base	1
13	8M0204705	衬垫@2	GASKET @2	1
14	144303		BASE Fuel Pump	1
15	987752	燃油泵板	PLATE Fuel Pump	1
16	99664	弯头	ELBOW	2
16	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	2
17	29111	连接器	CONNECTOR	1
17	291112	接头	FITTING	1
18	82104540		SCREW (M5 x 40) Fuel Pump	2
19	82130050		SCREW (M6 x 50) Fuel Pump to Crankcase	2
20	83075780	管材(28.00英寸散装)	TUBING (28.00 Inches Bulk)	1
20	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
21	83075780	管材(28.00英寸散装)	TUBING (28.00 Inches Bulk)	1
21	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
22	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
22	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
23	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
23	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
24	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
25	1350382	管材(30英寸散装)	TUBING (30.00 Inches Bulk)	2
25	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	2
26	18458A3	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
26	18458Q3	燃油滤清器	FILTER-FUEL	1
27	14570	探头	PROBE	1
28	13170A3	底座	BASE	1
29	13607	接头	FITTING	2
29	136071	弯头	ELBOW	2
30	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	2
30	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
-	823142A94	衬垫套件	GASKET SET	1
-	809839A94	动力头总成	POWERHEAD ASSEMBLY	1
-	809839T94	PH 150 EFI	PH 150 EFI	1
-	808603A94	动力头总成	POWERHEAD ASSEMBLY	1
-	808603T94	动力头总成	POWERHEAD ASSEMBLY	1

图 13燃油泵(塑料壳体带松散配件) Fuel Pump (Plastic Body With Loose Fittings)

REF	零件编号	中文名称	英文名称	数量
1	14360A53	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve-Rubber	2
4	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
5	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
6	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
10	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
12	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
13	987691	底座衬垫	GASKET Base	1
13	8M0204705	衬垫@2	GASKET @2	1
14	144303		BASE Fuel Pump	1
15	987752	燃油泵板	PLATE Fuel Pump	1
16	99664	弯头	ELBOW	1
16	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
17	29111	连接器	CONNECTOR	1
17	291112	接头	FITTING	1
18	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	1
18	433351	90度接头-带防振密封	CONNECTOR 90 Degree - With Vibraseal	1
19	82104540		SCREW (M5 x 40) Fuel Pump	2
20	82130050		SCREW (M6 x 50) Fuel Pump to Crankcase	2
21	9912878	软管 (.187) (26.00英寸散装)	HOSE (.187) (26.00 Inches Bulk)	1
22	99751	接头(0.0625-27)黄铜	FITTING (.0625-27) Brass	1
22	997511	弯头	ELBOW	1
23	83075780	管材(28.00英寸散装)	TUBING (28.00 Inches Bulk)	1
23	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
24	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
25	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
26	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
27	1350382	管材(30英寸散装)(15-1/2英寸)(19英寸)	TUBING (30.00 Inches Bulk) (15-1/2 IN.)(19 IN.)	2
27	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	2
28	18458A3	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
28	18458Q3	燃油滤清器	FILTER-FUEL	1
29	14570	探头	PROBE	1
30	13170A3	底座	BASE	1
31	13607	接头	FITTING	2
31	136071	弯头	ELBOW	2
32	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	2
32	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
33	1350382	管材(30英寸散装)(15-1/2英寸)(19英寸)	TUBING (30.00 Inches Bulk) (15-1/2 IN.)(19 IN.)	2
33	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	2
34	18458A4	滤清器套件	FILTER KIT	1
34	18458Q4	燃油水分离滤清器	FILTER Fuel-Water Separating	1
35	828586	探头	PROBE	1
35	8M0204710	探头	PROBE	1
36	13170A3	底座	BASE	1
37	89771	直型连接器(.250-18)	CONNECTOR (.250-18) (STRAIGHT)	1
37	89771Q2	连接器(.250-18)	CONNECTOR (.250-18)	1
38	13607	接头	FITTING	1
38	136071	弯头	ELBOW	1
39	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	2
39	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
-	823142A94	衬垫套件	GASKET SET	1
-	809839A94	动力头总成	POWERHEAD ASSEMBLY	1
-	809839T94	PH 150 EFI	PH 150 EFI	1
-	808603A94	动力头总成	POWERHEAD ASSEMBLY	1
-	808603T94	动力头总成	POWERHEAD ASSEMBLY	1

图 14燃油泵(塑料壳体带模制配件) Fuel Pump (Plastic Body With Molded Fittings)

REF	零件编号	中文名称	英文名称	数量
1	14360A43	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve-Rubber	2
4	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
5	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
6	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
10	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
12	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
13	987691	底座衬垫	GASKET Base	1
13	8M0204705	衬垫@2	GASKET @2	1
14	144303		BASE Fuel Pump	1
15	987752	燃油泵板	PLATE Fuel Pump	1
16	99664	弯头	ELBOW	1
16	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
17	82104540		SCREW (M5 x 40) Fuel Pump	2
18	82130050		SCREW (M6 x 50) Fuel Pump to Crankcase	2
19	83075780	管材(28.00英寸散装)	TUBING (28.00 Inches Bulk)	1
19	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
20	83075780	管材(28.00英寸散装)	TUBING (28.00 Inches Bulk)	1
20	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
21	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
21	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
22	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
22	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
23	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
24	1350382	管材(30英寸散装)	TUBING (30.00 Inches Bulk)	2
24	1350385	管材(33英寸整卷)	TUBING (33.00 Inches Bulk)	2
25	18458A3	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
25	18458Q3	燃油滤清器	FILTER-FUEL	1
26	14570	探头	PROBE	1
27	13170A3	底座	BASE	1
28	13607	接头	FITTING	2
28	136071	弯头	ELBOW	2
29	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	2
29	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
-	823142A94	衬垫套件	GASKET SET	1
-	809839A94	动力头总成	POWERHEAD ASSEMBLY	1
-	809839T94	PH 150 EFI	PH 150 EFI	1
-	808603A94	动力头总成	POWERHEAD ASSEMBLY	1
-	808603T94	动力头总成	POWERHEAD ASSEMBLY	1

图 15齿轮箱(驱动)扭矩大师1.87:1/2:1 Gear Housing (Drive)Torque Master 1.87:1/2:1

REF	零件编号	中文名称	英文名称	数量
-	827214A5	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214A6	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214T24	齿轮箱TM	GEAR HOUSING TM	1
-	827214A3	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	827214A4	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	827214A11	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214T24	齿轮箱TM	GEAR HOUSING TM	1
-	827214A10	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	827214A7	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	827214T25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	827214A8	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	827214T25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	827214A12	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	827214T25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	78638	螺柱(0.438x3.12)(3-1/8英寸)	STUD (.438 x 3.12) (3-1/8 IN.)	1
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
5	579201	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	69501	螺柱	STUD	2
8	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	826134	阳极块	ANODE	2
9	826134Q	阳极块	ANODE	2
10	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
11	8268336	螺母 (M6)	NUT (M6)	1
11	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
12	67891	填充块	FILLER BLOCK	1
12	8M0039169	填充块	FILLER BLOCK	1
13	NSS	不单独出售-小齿轮(属于43-44102A5或43-13742A2部件)	NOT SOLD SEPARATE Pinion Gear (Part of 43-44102A5 or 43-13742A2)	1
14	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
15	35921	螺母(0.625-18)	NUT (.625-18)	1
16	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
16	8M0058389	放油螺钉套件	SCREW KIT Drain	1
17	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	1
17	79953Q04	放油螺钉套件	SCREW KIT Drain	1
18	19183	纤维垫圈	WASHER Fiber	2
18	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
19	789022	换档轴	SHIFT SHAFT	1
20	77631A2	衬套总成	BUSHING ASSEMBLY	1
21	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
22	8164641	油封	SEAL Oil	1
22	8M0246145	油封	OIL SEAL	1
23	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
24	848449A5	驱动轴总成	DRIVESHAFT ASSEMBLY	1
24	8M0192234	驱动轴	DRIVESHAFT	1
25	42637A1	垫片组	SHIM SET	AR
25	8M0063267	垫片组	SHIM SET	AR
26	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
26	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
27	824519	固定座	RETAINER	1
27	8245191	固定座	RETAINER	1
28	44292A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
29	426311	衬垫	GASKET	1
29	8M0204678	衬垫	GASKET	1
30	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
30	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
31	89238	油封	SEAL Oil	1
32	16977	油封	SEAL Oil	1
33	18051	衬垫	GASKET	1
34	856091	衬垫	GASKET	1
34	858524	衬垫	GASKET	1
35	32435	面板	FACE PLATE	1
35	8M0204677	面板	PLATE-FACE	1
36	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
36	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
37	48752	嵌件	INSERT	1
37	48752T	嵌件	INSERT	1
38	38970	密封件	SEAL	1
39	899842	叶轮	IMPELLER	1
39	89984T4	叶轮	IMPELLER	1
40	56654	键	KEY	1
40	8M0214992	键@5	KEY @5	1
41	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
41	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
42	13438	螺母(.250-28)	NUT (.250-28)	2
42	8267119	螺母(.250-28)	NUT (.250-28)	2
43	36001	垫圈	WASHER	1
44	13436	螺母	NUT	1
45	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
45	8M0215009	螺钉	SCREW	1
46	29804	套筒	SLEEVE	1
46	29804T	套筒	SLEEVE	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 16齿轮箱(驱动)标准/反向旋转-运动大师 Gear Housing (Drive) Standard/Counter Rotation-SportMaster

REF	零件编号	中文名称	英文名称	数量
1	848450A25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	848474A39	齿轮箱总成-基本型(无扭矩片)	GEAR HOUSING ASSEMBLY Basic-Without Torque Tab	1
1	8M0084203	齿轮箱-SM型	GEAR HOUSING-SM	1
2	8479503	盖板	COVER	2
2	847950T3	盖板	COVER	2
3	34776	O型圈	O-RING	2
4	815904	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	12
5	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
6	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
7	67891	填充块	FILLER BLOCK	1
7	8M0039169	填充块	FILLER BLOCK	1
8	847949	管塞	PLUG Pipe	1
9	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
9	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
10	69501	螺柱(5/16 X 3-1/4英寸)	STUD (5/16 X 3-1/4 IN.)	1
11	59579	双头螺柱(.437-14/.437-20 x 2.812)	STUD (.437-14/.437-20 x 2.812)	3
11	78638	螺柱(0.438x3.12)(7/16 X 3-1/8英寸)	STUD (.438 x 3.12) (7/16 X 3-1/8 IN.)	1
11	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
11	579201	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
11	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
11	74730	螺柱(7/16 X 7.06英寸)	STUD (7/16 X 7.06 IN.)	2
11	74732	螺柱(7/16 X 7.69英寸)	STUD (7/16 X 7.69 IN.)	3
11	78639	螺柱(7/16 X 8-1/8英寸)	STUD (7/16 X 8-1/8 IN.)	1
12	826134	阳极块	ANODE	2
12	826134Q	阳极块	ANODE	2
13	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
14	8268336	螺母 (M6)	NUT (M6)	1
14	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
15	NSS	小齿轮(不单独销售)	NOT SOLD SEPARATE Pinion Gear	1
16	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
17	35921	螺母(0.625-18)	NUT (.625-18)	1
18	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	1
18	79953Q04	放油螺钉套件	SCREW KIT Drain	1
19	19183	纤维垫圈	WASHER Fiber	1
19	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
20	789022	换挡轴(下部)	SHIFT SHAFT (LOWER)	1
21	77631A2	衬套总成	BUSHING ASSEMBLY	1
22	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
23	8164641	油封	SEAL Oil	1
23	8M0246145	油封	OIL SEAL	1
24	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
25	848449A4	驱动轴总成	DRIVESHAFT ASSEMBLY	1
25	8M0192233	驱动轴	DRIVESHAFT	1
25	848449A5	驱动轴总成	DRIVESHAFT ASSEMBLY	1
25	8M0192234	驱动轴	DRIVESHAFT	1
25	848449A6	驱动轴总成	DRIVESHAFT ASSEMBLY	1
26	38657A1	垫片组	SHIM ASSEMBLY	1
26	8M0063268	垫片组	SHIM SET	1
27	48939A2	圆锥滚子轴承	BEARING Taper Roller	1
27	8M0146553	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
28	42637A1	垫片组	SHIM SET	AR
28	8M0063267	垫片组	SHIM SET	AR
29	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
29	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
30	824519	固定座	RETAINER	1
30	8245191	固定座	RETAINER	1
31	44292A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
32	426311	衬垫	GASKET	1
32	8M0204678	衬垫	GASKET	1
33	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
33	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
34	89238	油封	SEAL Oil	1
35	16977	油封	SEAL Oil	1
36	18051	衬垫	GASKET	1
37	856091	衬垫	GASKET	1
37	858524	衬垫	GASKET	1
38	32435	面板	FACE PLATE	1
38	8M0204677	面板	PLATE-FACE	1
39	847710A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
39	847710T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
39	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
39	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
40	48752	嵌件	INSERT	1
40	48752T	嵌件	INSERT	1
41	88397	密封件	SEAL	1
41	38970	密封件	SEAL	1
42	847685	套筒	SLEEVE	1
42	29804	套筒	SLEEVE	1
42	29804T	套筒	SLEEVE	1
43	56654	键	KEY	1
43	8M0214992	键@5	KEY @5	1
44	899842	叶轮	IMPELLER	1
44	89984T4	叶轮	IMPELLER	1
45	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
45	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
46	13438	螺母(.250-28)	NUT (.250-28)	2
46	8267119	螺母(.250-28)	NUT (.250-28)	2
47	36001	垫圈	WASHER	1
48	13436	螺母	NUT	1
49	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
49	8M0215009	螺钉	SCREW	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	823142A94	衬垫套件	GASKET SET	1
-	90415A24	螺柱套件	STUD KIT	1
-	59579	双头螺柱(.437-14/.437-20 x 2.812)	STUD (.437-14/.437-20 x 2.812)	1
-	90415A25	螺柱套件	STUD KIT	1

图 17齿轮箱(驱动轴)(1.78:1) Gear Housing (Driveshaft)(1.78:1)

REF	零件编号	中文名称	英文名称	数量
-	814247A3	齿轮箱总成1.78:1速比-黑色	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Black	1
-	814247A4	齿轮箱总成 1.78:1 减速比 - 灰色	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Gray	1
-	814247T4	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	814247A1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic - Black	1
1	814247T1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	814247A2	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic - Gray	1
1	814247T2	ORD 1674-814247T1	ORD 1674-814247T1	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	78638	螺柱(0.438x3.12)(3-1/8英寸)	STUD (.438 x 3.12) (3-1/8 IN.)	1
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
5	579201	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	306671	螺柱	STUD	2
8	35934A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	67891	填充块	FILLER BLOCK	1
9	8M0039169	填充块	FILLER BLOCK	1
10	NSS		NOT SOLD SEPARATE Pinion Gear (Part of 43-16279A2)	1
11	35921	螺母(0.625-18)	NUT (.625-18)	1
12	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
12	8M0058389	放油螺钉套件	SCREW KIT Drain	1
13	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	1
13	79953Q04	放油螺钉套件	SCREW KIT Drain	1
14	19183	纤维垫圈	WASHER Fiber	2
14	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
15	8152641	换档轴	SHIFT SHAFT	1
16	77631A2	衬套总成	BUSHING ASSEMBLY	1
17	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
18	8164641	油封	SEAL Oil	1
18	8M0246145	油封	OIL SEAL	1
19	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
20	815168	驱动轴	DRIVESHAFT	1
21	42637A1	垫片组	SHIM SET	AR
21	8M0063267	垫片组	SHIM SET	AR
22	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
22	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
23	824519	固定座	RETAINER	1
23	8245191	固定座	RETAINER	1
24	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
24	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
25	426311	衬垫	GASKET	1
25	8M0204678	衬垫	GASKET	1
26	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
26	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
27	89238	油封	SEAL Oil	1
28	16977	油封	SEAL Oil	1
29	856081	衬垫	GASKET	1
29	8M0090319	衬垫@5	GASKET @5	1
30	856091	衬垫	GASKET	1
30	858524	衬垫	GASKET	1
31	32435	面板	FACE PLATE	1
31	8M0204677	面板	PLATE-FACE	1
32	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
32	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
33	48752	嵌件	INSERT	1
33	48752T	嵌件	INSERT	1
34	38970	密封件	SEAL	1
35	899841	叶轮	IMPELLER	1
35	89984T3	叶轮	IMPELLER	1
36	56654	键	KEY	1
36	8M0214992	键@5	KEY @5	1
37	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
37	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
38	13438	螺母(.250-28)	NUT (.250-28)	2
38	8267119	螺母(.250-28)	NUT (.250-28)	2
39	36001	垫圈	WASHER	1
40	13436	螺母	NUT	1
41	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
41	8M0215009	螺钉	SCREW	1
42	29804	套筒	SLEEVE	1
42	29804T	套筒	SLEEVE	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1

图 18齿轮箱(驱动轴)(CLE-1.87:1/2:1) Gear Housing (Driveshaft)(CLE-1.87:1/2:1)

REF	零件编号	中文名称	英文名称	数量
-	847902A84	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	847902A82	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T34	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	847902A85	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T37	G CASE-2:1 RH L	G CASE-2:1 RH L	1
-	847902A83	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T34	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	847902A15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8M0083306	齿轮箱-SM型	GEAR HOUSING-SM	1
1	847902A16	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8M0083306	齿轮箱-SM型	GEAR HOUSING-SM	1
2	8479501	盖板	COVER	2
2	8479502	盖板	COVER	2
3	34776	O型圈	O-RING	2
4	815904	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	12
5	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
6	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
7	78638	螺柱(0.438x3.12)(3-1/8英寸)	STUD (.438 x 3.12) (3-1/8 IN.)	1
7	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
8	579201	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
8	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
9	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
9	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
10	69501	螺柱(3-1/4英寸)	STUD (3-1/4 IN.)	2
11	43998	套筒	SLEEVE	1
12	847949	管塞	PLUG Pipe	1
13	67891	填充块	FILLER BLOCK	1
13	8M0039169	填充块	FILLER BLOCK	1
14	NSS	不单独出售-小齿轮(属于43-44104A7或43-44102A5部件)	NOT SOLD SEPARATE Pinion Gear (Part of 43-44104A7 or 43-44102A5)	1
15	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
16	35921	螺母(0.625-18)	NUT (.625-18)	1
17	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
17	8M0058389	放油螺钉套件	SCREW KIT Drain	1
18	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	1
18	79953Q04	放油螺钉套件	SCREW KIT Drain	1
19	19183	纤维垫圈	WASHER Fiber	2
19	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
20	789022	换挡轴(下部)	SHIFT SHAFT (LOWER)	1
21	29641	E型挡圈(按需使用)	E RING (USE WHERE APPLICABLE)	1
22	77631A2	衬套总成	BUSHING ASSEMBLY	1
23	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
24	8164641	油封	SEAL Oil	1
24	8M0246145	油封	OIL SEAL	1
25	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
26	848449A5	驱动轴总成	DRIVESHAFT ASSEMBLY	1
26	8M0192234	驱动轴	DRIVESHAFT	1
27	42637A1	垫片组	SHIM SET	AR
27	8M0063267	垫片组	SHIM SET	AR
28	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
28	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
29	824519	固定座	RETAINER	1
29	8245191	固定座	RETAINER	1
30	44292A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
31	426311	衬垫	GASKET	1
31	8M0204678	衬垫	GASKET	1
32	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
32	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
33	89238	油封	SEAL Oil	1
34	16977	油封	SEAL Oil	1
35	18051	衬垫(下部)	GASKET (LOWER)	1
36	856091	衬垫(上部)	GASKET (UPPER)	1
36	858524	衬垫	GASKET	1
37	32435	面板	FACE PLATE	1
37	8M0204677	面板	PLATE-FACE	1
38	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
38	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
39	48752	嵌件	INSERT	1
39	48752T	嵌件	INSERT	1
40	38970	密封件	SEAL	1
41	899842	叶轮	IMPELLER	1
41	89984T4	叶轮	IMPELLER	1
42	56654	键	KEY	1
42	8M0214992	键@5	KEY @5	1
43	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
43	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
44	13438	螺母(.250-28)	NUT (.250-28)	2
44	8267119	螺母(.250-28)	NUT (.250-28)	2
45	36001	垫圈	WASHER	1
46	13436	螺母	NUT	1
47	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
47	8M0215009	螺钉	SCREW	1
48	29804	套筒	SLEEVE	1
48	29804T	套筒	SLEEVE	1
-	823142A94	衬垫套件	GASKET SET	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 19齿轮箱图表(运动大师) Gear Housing Chart (SportMaster)

REF	零件编号	中文名称	英文名称	数量
-	848450A15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T33	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	848450A16	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T34	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	848450A17	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T35	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	848450A18	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8M0081852	齿轮箱	GEAR HOUSING	1
-	848450A19	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T37	G CASE-2:1 RH L	G CASE-2:1 RH L	1
-	848474A21	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561T33	G CASE-1.87 RH S	G CASE-1.87 RH S	1
-	848474A22	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561T34	G CASE-1.87 RH L	G CASE-1.87 RH L	1
-	848474A23	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561A35	G CASE-1.87 RH XL	G CASE-1.87 RH XL	1
-	848474A27	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561T36	G CASE-2:1 RH S	G CASE-2:1 RH S	1
-	848474A28	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561A37	齿轮箱	GEAR HOUSING	1
-	848474A29	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561A38	齿轮箱	GEAR HOUSING	1
-	848474A24	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561T69	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	848474A25	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561T70	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	848474A26	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561T71	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	848474A30	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561T72	G CASE-2:1 LH S	G CASE-2:1 LH S	1
-	848474A31	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561A73	齿轮箱	GEAR HOUSING	1
-	848474A32	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840561T74	G CASE-2:1 LH XL	G CASE-2:1 LH XL	1
-	848450A31	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560A27	齿轮箱	GEAR HOUSING	1
-	848450A29	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560A28	齿轮箱	GEAR HOUSING	1
-	848450A32	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560A30	ORD1687-840560A09	ORD1687-840560A09	1
-	848450A30	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T31	G CASE-1.75 RH L	G CASE-1.75 RH L	1

图 20齿轮箱螺旋桨轴-反向旋转-运动大师 Gear Housing Propeller Shaft-Counter Rotation-Sportmaster

REF	零件编号	中文名称	英文名称	数量
1	848474A39	齿轮箱总成-基本型(无扭矩片)	GEAR HOUSING ASSEMBLY Basic-Without Torque Tab	1
50	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
51	789562	换挡凸轮	SHIFT CAM	1
52	79911A1	杆	ROD	1
53	78906	销	PIN	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	79910	弹簧	SPRING	2
55	78910	垫圈	WASHER	AR
56	14469	轴承杯	CUP Bearing	1
56	14469T	轴承杯	CUP Bearing	1
57	88957	滚珠轴承总成	BEARING ASSEMBLY Ball	1
57	88957T	滚珠轴承	BEARING Ball	1
58	NSS		NOT SOLD SEPARATE Reverse Gear (Part of 43-15845A2)	1
58	817516A1	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
58	817516T1	倒挡齿轮	GEAR-REVERSE	1
59	15844	滚柱轴承总成	BEARING ASSEMBLY Roller	1
60	42672	棘轮	RATCHET	1
60	42672T	棘轮	RATCHET	1
61	78909	定位销	PIN Detent	2
62	42671	十字销	PIN Cross	1
63	78962	弹簧	SPRING	2
64	15845A2	齿轮组	GEAR SET	1
64	817515A2	齿轮组-前进档	GEAR SET Forward	1
64	817515T2	齿轮组-前进档	GEAR SET-FORWARD	1
65	176151	调整垫片(.125)	SPACER SHIM (.125)	AR
65	176152	调整垫片(.127)	SPACER SHIM (.127)	AR
65	176153	调整垫片(.129)	SPACER SHIM (.129)	AR
65	176154	调整垫片(.131)	SPACER SHIM (.131)	AR
65	176155	调整垫片(.133)	SPACER SHIM (.133)	AR
65	176156	调整垫片(.135)	SPACER SHIM (.135)	AR
65	176157	调整垫片(.137)	SPACER SHIM (.137)	AR
65	176158	调整垫片(.139)	SPACER SHIM (.139)	AR
65	176159	调整垫片(.141)	SPACER SHIM (.141)	AR
65	1761510	调整垫片(.143)	SPACER SHIM (.143)	AR
65	1761511	调整垫片(.145)	SPACER SHIM (.145)	AR
65	1761512	调整垫片(.147)	SPACER SHIM (.147)	AR
65	1761513	调整垫片(.149)	SPACER SHIM (.149)	AR
66	15841	滚柱轴承	BEARING Roller	1
67	17616	推力环	THRUST RING	1
68	31534	O型圈	O-RING	1
68	8M0214920	O型圈	O RING	1
69	15838A2	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
70	15843	滚柱轴承	BEARING Roller	1
70	15843T	滚针轴承	BEARING Needle	1
71	15834	推力轴承	BEARING Thrust	2
72	815495T	螺旋桨轴	PROPELLER SHAFT	1
73	847616A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
73	847616T1	轴承座	CARRIER Bearing	1
74	817072	滚柱轴承	BEARING Roller	1
75	815565	油封	SEAL Oil	2
76	817071	卡环	RING Snap	1
77	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
77	8M0058389	放油螺钉套件	SCREW KIT Drain	1
78	19183	纤维垫圈	WASHER Fiber	1
78	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
79	30281	键	KEY	1
80	79447	锁紧垫圈	TAB WASHER	1
81	158401	盖板	COVER	1
82	131711	推力毂	THRUST HUB	1
82	13171T1	推力毂	THRUST HUB	1
83	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
84	31211A2	花键垫圈	WASHER Splined	1
84	31211Q03	垫圈总成	WASHER ASSEMBLY	1
85	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
85	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
86	816629	锁紧垫圈	TAB WASHER	1
86	816629Q	锁紧垫圈	TAB WASHER	1
87	41350	螺钉(.437-14 x 2.50)不锈钢	SCREW (.437-14 x 2.50) Stainless Steel	1
87	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
88	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	2
89	134391	螺母 (.4375-20)	NUT (.4375-20)	2
89	859116	螺母(.437-20)	NUT (.437-20)	2
90	30206	螺钉(.375-16 x 1.00)不锈钢	SCREW (.375-16 x 1.00) Stainless Steel	1
90	15929	螺钉(.375-16 x 16 x 6.00)	SCREW (.375-16 x 16 x 6.00)	1
91	762143	阳极块	ANODE	1
91	76214T3	阳极块	ANODE	1
91	76214A5	阳极套件	ANODE KIT	1
91	76214Q5	阳极套件	ANODE KIT	1
91	762141	阳极块	ANODE	1
91	76214T1	阳极块	ANODE	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	90415A24	螺柱套件	STUD KIT	1
-	59579	双头螺柱(.437-14/.437-20 x 2.812)	STUD (.437-14/.437-20 x 2.812)	1
-	90415A25	螺柱套件	STUD KIT	1

图 21齿轮箱螺旋桨轴-标准旋转-运动大师 Gear Housing Propeller Shaft-Standard Rotation-Sportmaster

REF	零件编号	中文名称	英文名称	数量
1	848450A25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	848474A39	齿轮箱总成-基本型(无扭矩片)	GEAR HOUSING ASSEMBLY Basic-Without Torque Tab	1
1	8M0084203	齿轮箱-SM型	GEAR HOUSING-SM	1
50	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
51	789562	换挡凸轮	SHIFT CAM	1
52	79911A1	杆	ROD	1
53	78906	销	PIN	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	79910	弹簧	SPRING	2
55	78910	垫圈	WASHER	2
56	47397A1	垫片组	SHIM SET	AR
57	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
58	44104A7	齿轮组(含小齿轮)	GEAR SET (Included Pinion)	1
58	44102A5	齿轮组(含小齿轮)	GEAR SET (Included Pinion)	1
58	44102A7	齿轮组	GEAR SET	1
58	848855A2	齿轮组	GEAR SET	1
58	848855T2	齿轮组-1.62右旋	GEAR SET-1.62 RH	1
58	849189A2	齿轮组	GEAR SET	1
58	849189T2	齿轮转换套件	GEAR CONVERSION KIT	1
59	549281	滚柱轴承	BEARING Roller	1
60	42672	棘轮	RATCHET	1
60	42672T	棘轮	RATCHET	1
61	78909	定位销	PIN Detent	2
62	42671	十字销	PIN Cross	1
63	78962	弹簧	SPRING	2
64	822820F1	螺旋桨轴	PROPELLER SHAFT	1
64	840451A03	螺旋桨轴	PROPELLER SHAFT	1
65	822824A1	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
65	8M0192202	倒挡齿轮	GEAR-REVERSE	1
65	847632A1	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
65	N.S.S.	不单独出售-倒车齿轮	Not Sold Separate Reverse Gear	1
65	N.S.S.	不单独出售-倒车齿轮	Not Sold Separate Reverse Gear	1
66	822823	推力环	THRUST RING	1
67	88957	滚珠轴承总成	BEARING ASSEMBLY Ball	1
67	88957T	滚珠轴承	BEARING Ball	1
68	681001	止推环	RING Thrust	1
69	31534	O型圈	O-RING	1
69	8M0214920	O型圈	O RING	1
70	847610A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
70	848840A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
71	817072	滚柱轴承	BEARING Roller	1
72	817071	卡环	RING Snap	1
73	815565	油封	SEAL Oil	2
74	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
74	8M0058389	放油螺钉套件	SCREW KIT Drain	1
75	19183	纤维垫圈	WASHER Fiber	1
75	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
76	30281	键	KEY	1
77	79447	锁紧垫圈	TAB WASHER	1
78	158401	盖板	COVER	1
79	131711	推力毂	THRUST HUB	1
79	13171T1	推力毂	THRUST HUB	1
80	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
81	31211A2	花键垫圈	WASHER Splined	1
81	31211Q03	垫圈总成	WASHER ASSEMBLY	1
82	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
82	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
83	816629	锁紧垫圈	TAB WASHER	1
83	816629Q	锁紧垫圈	TAB WASHER	1
84	41350	螺钉(.437-14 x 2.50)不锈钢	SCREW (.437-14 x 2.50) Stainless Steel	1
84	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
85	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	2
86	134391	螺母 (.4375-20)	NUT (.4375-20)	2
86	859116	螺母(.437-20)	NUT (.437-20)	2
87	30206	螺钉(.375-16 x 1.00)不锈钢	SCREW (.375-16 x 1.00) Stainless Steel	1
87	15929	螺钉(.375-16 x 16 x 6.00)	SCREW (.375-16 x 16 x 6.00)	1
88	762143	阳极块	ANODE	1
88	76214T3	阳极块	ANODE	1
88	76214A5	阳极套件	ANODE KIT	1
88	76214Q5	阳极套件	ANODE KIT	1
88	762141	阳极块	ANODE	1
88	76214T1	阳极块	ANODE	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	90415A24	螺柱套件	STUD KIT	1
-	59579	双头螺柱(.437-14/.437-20 x 2.812)	STUD (.437-14/.437-20 x 2.812)	1
-	90415A25	螺柱套件	STUD KIT	1

图 22齿轮箱螺旋桨轴-扭矩大师1.87:1/2:1 Gear Housing Propeller Shaft-Torque Master 1.87:1/2:1

REF	零件编号	中文名称	英文名称	数量
-	827214A5	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214A6	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214T24	齿轮箱TM	GEAR HOUSING TM	1
-	827214A3	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	827214A4	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	827214A11	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214T24	齿轮箱TM	GEAR HOUSING TM	1
-	827214A10	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	827214T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	827214A7	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	827214T25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	827214A8	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	827214T25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	827214A12	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	827214T25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
47	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
48	78956	换挡凸轮	SHIFT CAM	1
48	789562	换挡凸轮	SHIFT CAM	1
49	79911A1	杆	ROD	1
50	78906	销	PIN	1
50	8M0084245	弹簧定位销	PIN Spring Locator	1
51	79910	弹簧	SPRING	1
52	78910	垫圈	WASHER	AR
53	47397A1	垫片组	SHIM SET	AR
54	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
55	44102A5	齿轮组	GEAR SET	1
55	44102A7	齿轮组	GEAR SET	1
55	44104A7	齿轮组	GEAR SET	1
56	549281	滚柱轴承	BEARING Roller	1
57	42672	棘轮	RATCHET	1
57	42672T	棘轮	RATCHET	1
58	42671	十字销	PIN Cross	1
59	78909	定位销	PIN Detent	2
60	78962	弹簧	SPRING	2
61	822820F1	螺旋桨轴	PROPELLER SHAFT	1
61	840451A03	螺旋桨轴	PROPELLER SHAFT	1
62	847632A1	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
62	822824A1	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
62	8M0192202	倒挡齿轮	GEAR-REVERSE	1
63	824108	隔套	SPACER	1
64	681001	止推环	RING Thrust	1
65	88957	滚珠轴承总成	BEARING ASSEMBLY Ball	1
65	88957T	滚珠轴承	BEARING Ball	1
66	31534	O型圈	O-RING	1
66	8M0214920	O型圈	O RING	1
67	847610A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	848840A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	817072	滚柱轴承	BEARING Roller	1
69	817071	卡环	RING Snap	1
70	815565	油封	SEAL Oil	2
71	30281	键	KEY	1
72	79447	锁紧垫圈	TAB WASHER	1
73	158401	盖板	COVER	1
74	131711	推力毂	THRUST HUB	1
74	13171T1	推力毂	THRUST HUB	1
75	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
76	31211A2	花键垫圈	WASHER Splined	1
76	31211Q03	垫圈总成	WASHER ASSEMBLY	1
77	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
77	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
78	816629	锁紧垫圈	TAB WASHER	1
78	816629Q	锁紧垫圈	TAB WASHER	1
79	76214A5	阳极套件	ANODE KIT	1
79	76214Q5	阳极套件	ANODE KIT	1
80	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
81	134391	螺母 (.4375-20)	NUT (.4375-20)	2
81	859116	螺母(.437-20)	NUT (.437-20)	2
82	30206	螺钉(.375-16 x 1.00)不锈钢	SCREW (.375-16 x 1.00) Stainless Steel	1
83	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	2
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 23齿轮箱螺旋桨轴-1.78:1传动比 Gear Housing Propeller Shaft - 1.78:1 Gear Ratio

REF	零件编号	中文名称	英文名称	数量
-	814247A3	齿轮箱总成1.78:1速比-黑色	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Black	1
-	814247A4	齿轮箱总成 1.78:1 减速比 - 灰色	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Gray	1
-	814247T4	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	814247A1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic - Black	1
1	814247T1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	814247A2	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic - Gray	1
1	814247T2	ORD 1674-814247T1	ORD 1674-814247T1	1
43	76039	换挡凸轮控制	CAM Shift Control	1
43	760394	换挡凸轮控制	CAM Shift Control	1
44	44491A1	垫片组	SHIM SET	AR
44	8M0063266	垫片组	SHIM SET	AR
45	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
46	16279A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
47	30895	滚针轴承	BEARING Needle	1
47	30895T	滚针轴承	BEARING Needle	1
48	12239A1	凸轮从动件套件	FOLLOWER KIT Cam	1
48	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
49	30622	弹簧	SPRING	1
50	822539	离合器	CLUTCH	1
50	822539T	离合器	CLUTCH	1
51	30632	十字销	PIN Cross	1
51	8M0100263	十字销	PIN Cross	1
52	30893	弹簧	SPRING	1
53	12238T	螺旋桨轴	PROPELLER SHAFT	1
54	NSS	倒车齿轮(不单独销售)(43-16279A2部件)	NOT SOLD SEPARATE Reverse Gear (Part of 43-16279A2)	1
55	76358	止推垫片	THRUST WASHER	1
56	29976	O型圈	O-RING	1
57	41529A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
57	41529T2	托架总成	CARRIER ASSY	1
58	98727	润滑脂接头	FITTING Grease	2
58	8M0169588	润滑脂接头	FITTING Grease	2
59	30956	滚针轴承	BEARING Needle	1
59	30956T	滚针轴承	BEARING Needle	1
60	76868	油封(外侧)	SEAL (OUTSIDE)	1
60	8M0248882	油封@5	SEAL-OIL @5	1
61	14077	油封(内侧)	SEAL Oil (INSIDE)	1
62	30281	键	KEY	1
63	52700	锁紧垫圈	TAB WASHER	1
64	52699	盖板	COVER	1
65	13191A1	止推垫片	THRUST WASHER	1
65	13191Q01	止推垫片	THRUST WASHER	1
66	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
66	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
67	816629	锁紧垫圈	TAB WASHER	1
67	816629Q	锁紧垫圈	TAB WASHER	1
68	30206	螺钉(.375-16 x 1.00)不锈钢	SCREW (.375-16 x 1.00) Stainless Steel	1
69	76214A5	阳极套件	ANODE KIT	1
69	76214Q5	阳极套件	ANODE KIT	1
70	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
71	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	2
72	134391	螺母 (.4375-20)	NUT (.4375-20)	2
72	859116	螺母(.437-20)	NUT (.437-20)	2
-	89238A2	密封套件	SEAL KIT	1

图 24齿轮箱螺旋桨轴-CLE-1.87:1/2:1传动比 Gear Housing Propeller Shaft - CLE-1.87:1/2:1 Gear Ratio

REF	零件编号	中文名称	英文名称	数量
-	847902A84	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	847902A82	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T34	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	847902A85	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T37	G CASE-2:1 RH L	G CASE-2:1 RH L	1
-	847902A83	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	840560T34	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	847902A15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8M0083306	齿轮箱-SM型	GEAR HOUSING-SM	1
1	847902A16	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8M0083306	齿轮箱-SM型	GEAR HOUSING-SM	1
49	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
50	78956	换挡凸轮	SHIFT CAM	1
50	789562	换挡凸轮	SHIFT CAM	1
51	79911A1	杆	ROD	1
52	78906	销	PIN	1
52	8M0084245	弹簧定位销	PIN Spring Locator	1
53	79910	弹簧	SPRING	2
54	78910	垫圈	WASHER	2
55	47397A1	垫片组	SHIM SET	AR
56	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
57	44102A5	齿轮组	GEAR SET	1
57	44102A7	齿轮组	GEAR SET	1
57	44104A7	齿轮组(含倒车齿轮)	GEAR SET (Includes Reverse Gear)	1
58	549281	滚柱轴承	BEARING Roller	1
59	42672	棘轮	RATCHET	1
59	42672T	棘轮	RATCHET	1
60	78909	定位销	PIN Detent	2
61	42671	十字销	PIN Cross	1
62	78962	弹簧	SPRING	2
63	822820F1	螺旋桨轴	PROPELLER SHAFT	1
63	840451A03	螺旋桨轴	PROPELLER SHAFT	1
64	847632A1	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
64	822824A1	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
64	8M0192202	倒挡齿轮	GEAR-REVERSE	1
65	822823	推力环	THRUST RING	1
66	88957	滚珠轴承总成	BEARING ASSEMBLY Ball	1
66	88957T	滚珠轴承	BEARING Ball	1
67	681001	止推环	RING Thrust	1
68	31534	O型圈	O-RING	1
68	8M0214920	O型圈	O RING	1
69	847610A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
69	848840A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
70	817072	滚柱轴承	BEARING Roller	1
71	815565	油封	SEAL Oil	2
72	817071	卡环	RING Snap	1
73	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
73	8M0058389	放油螺钉套件	SCREW KIT Drain	1
74	19183	纤维垫圈	WASHER Fiber	1
74	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
75	30281	键	KEY	1
76	79447	锁紧垫圈	TAB WASHER	1
77	158401	盖板	COVER	1
78	131711	推力毂	THRUST HUB	1
78	13171T1	推力毂	THRUST HUB	1
79	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
79	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
80	816629	锁紧垫圈	TAB WASHER	1
80	816629Q	锁紧垫圈	TAB WASHER	1
81	31211A2	花键垫圈	WASHER Splined	1
81	31211Q03	垫圈总成	WASHER ASSEMBLY	1
82	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
83	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
84	76214A5	阳极套件	ANODE KIT	1
84	76214Q5	阳极套件	ANODE KIT	1
85	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	2
86	134391	螺母 (.4375-20)	NUT (.4375-20)	2
86	859116	螺母(.437-20)	NUT (.437-20)	2
87	30206	螺钉(.375-16 x 1.00)不锈钢	SCREW (.375-16 x 1.00) Stainless Steel	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 25仪表装置 Instrumentation

REF	零件编号	中文名称	英文名称	数量
1	19674A1	拉绳开关总成	SWITCH ASSEMBLY Lanyard	1
1	19674A07	开关/拉绳套件	SWITCH/LANYARD KIT	1
2	18303	螺钉 (.190-16 x 1.750) 不锈钢	SCREW (.190-16 x 1.750) Stainless Steel	2
3	813679	适配器	ADAPTER	1
4	15920A54	拉绳总成	LANYARD ASSEMBLY	1
4	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
5	32866	螺钉 (#10-32 x 2.00) 不锈钢	SCREW (#10-32 x 2.00) Stainless Steel	2
6	18321	安装夹	CLAMP Mounting	1
7	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	2
8	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4
9	79146	固定座	RETAINER	3
10	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	9
10	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	9
11	812497A2	二极管总成	DIODE ASSEMBLY	1
11	898289A72	双拉绳二极管套件	DIODE KIT-LANYARD Dual	1
12	11149A2	线缆总成 (6.00英寸)	CABLE ASSEMBLY (6.00 Inches)	1
13	835360A2	警报仪表套件	WARNING GAUGE KIT	1
13	859699A1	警报仪表套件	GAUGE KIT-WARNING	1
14	850020	卡箍	CLAMP	1
15	825361	星形锁紧垫圈(#8)	LOCKWASHER Star (#8)	1
16	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	2
17	15163	灯	LAMP	4
18	79888	灯泡插座	SOCKET Light Bulb	4
19	835359A1	电缆总成(20.00英尺)	CABLE ASSEMBLY (20.00 Feet)	1

图 26钥匙开关 Key Switch

REF	零件编号	中文名称	英文名称	数量
1	816626A15	线束总成-钥匙开关(15英尺)	HARNESS ASSEMBLY Key Switch (15.00 Feet) (15 FEET)	1
2	90468A1	钥匙盖总成	COVER ASSEMBLY Key	2
3	76424	支架	BRACKET	1
4	55422	双头螺柱 (#10-32 x 2.00)	STUD (#10-32 x 2.00)	2
5	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	2
6	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
7	816479A3	板组件套件	PLATE KIT	2
8	88107		KEY SWITCH (See Below for Key)	1
8	88107A5	钥匙开关套件	SWITCH KIT Key	1
9	93543	特殊螺母-镀铬黄铜	NUT Special - Chrome Brass	1
9	879755	特殊螺母-黑色尼龙	NUT Special - Black Nylon	1
10	816492A1	音响报警器总成	ALARM ASSEMBLY Audio Warning	1
10	8M0210763	报警器	ALARM	1
11	8127111	垫片(0.375)	SPACER (.375)	2
11	812711	隔套(0.250)	SPACER (.250)	2
-	894911	点火钥匙(1A)	KEY Ignition (1A)	1
-	894912	点火钥匙(1B)	KEY Ignition (1B)	1
-	894913	点火钥匙(1C)	KEY Ignition (1C)	1
-	894914	点火钥匙(1D)	KEY Ignition (1D)	1
-	894915	点火钥匙(1E)	KEY Ignition (1E)	1
-	894916	点火钥匙(1F)	KEY Ignition (1F)	1
-	894917	点火钥匙(2A)	KEY Ignition (2A)	1
-	894918	点火钥匙(2B)	KEY Ignition (2B)	1
-	894919	点火钥匙(2C)	KEY Ignition (2C)	1
-	8949110	点火钥匙(2D)	KEY Ignition (2D)	1
-	8949111	点火钥匙(2E)	KEY Ignition (2E)	1
-	8949112	点火钥匙(2F)	KEY Ignition (2F)	1

图 27机油喷射组件 Oil Injection Components

REF	零件编号	中文名称	英文名称	数量
1	830889A1	油箱总成	TANK ASSEMBLY Oil	1
2	NSS	不单独销售标签-储液罐	NOT SOLD SEPARATE Decal-Reservoir	1
3	8260841	隔套	SPACER	1
4	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
5	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
6	814449A3	盖总成	CAP ASSEMBLY	1
7	42999	衬垫	GASKET	1
7	42999T	衬垫	GASKET	1
8	12886A7	开关总成	SWITCH ASSEMBLY	1
9	81893435	螺钉(M8×35)	SCREW (M8 x 35)	1
9	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	1
10	49436	垫圈	WASHER	3
11	855362	护孔环	GROMMET	3
11	855362001	护孔环	GROMMET	3
12	855364	衬套	BUSHING	3
13	830756109	软管(57英寸整卷)(8英寸段)	HOSE (57.00 Inches Bulk) (8 IN.)	1
13	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
14	424254	接头	FITTING	1
14	8M0207780	接头	FITTING	1
15	12335A1	支架套件	BRACKET KIT	1
16	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1
17	87421	油箱	TANK	1
18	43298A2	盖总成	CAP ASSEMBLY	1
19	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
20	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
21	816190A3	外壳总成适配器	HOUSING ASSEMBLY Adapter	1
21	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
22	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
23	99802	管	TUBE	1
24	99439	软管(114.00英寸)	HOSE (114.00 Inches)	1
25	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	7
25	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	7
26	NSS	警示标贴-远程油箱(不单独销售)	NOT SOLD SEPARATE Decal-Caution Remote Tank	1
27	81893445	螺钉(M8×45)	SCREW (M8 X 45)	2
28	8558412	燃油冷却器	COOLER Fuel	1
28	855841T2	燃油冷却器	COOLER Fuel	1
29	8502341	衬套	BUSHING	2
30	833155	护孔环	GROMMET	2
31	85466755	软管(25英寸)	HOSE (25 IN.)	1
32	856819	软管	HOSE	1
33	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	4
33	8M0214964	卡箍	CLAMP	4

图 28动力升降组件 8M0231193 Power Trim Components 8M0231193

REF	零件编号	中文名称	英文名称	数量
-	8M0231193	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0225363	电机套件	MOTOR KIT	1
2	8M0225369	阀套件	VALVE KIT	1
3	8M0225371	手动释放套件	MANUAL RELEASE KIT	1
4	8M0245633	倾斜油缸套件	TILT CYLINDER KIT	1
5	8M0225370	枢轴销套件	PIVOT PIN KIT	1
6	8M0244575	减震杆套件	SHOCK ROD KIT	1
7	8M0244425	销杆眼套件	PIN ROD EYE KIT	1
8	8M0232231	螺钉螺母套件	SCREW NUT KIT	1
9	8M0225373	记忆活塞套件	MEMORY PISTON KIT	1
10	8M0225368	储液罐套件	RESERVOIR KIT	1
11	8M0174135	储液罐塞总成	PLUG RESERVOIR ASSEMBLY	1
12	8M0237525	泵套件	PUMP KIT	1
13	8M0225367	升降杆套件	TRIM ROD KIT	1
14	8M0242846	升降杆套件	TRIM ROD KIT	1
15	8M0225372	重建套件	REBUILD KIT	1

图 29动力升降组件金属马达壳 Power Trim Components Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	855998A3	动力升降倾斜装置总成	POWER TRIM Complete	1
-	855998A11	动力调整套件	POWER TRIM KIT	1
-	855998A05	完整动力升降总成	POWER TRIM ASSEMBLY Complete	1
-	855998A11	动力调整套件	POWER TRIM KIT	1
1	878265A4	配平电机	TRIM MOTOR	1
1	8M0031551	配平电机	TRIM MOTOR	1
2	NSS	电枢(不单独销售)	NOT SOLD SEPARATE Armature	1
3	NSS	端架(不单独销售)	NOT SOLD SEPARATE End Frame	1
4	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
5	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
6	8782451	驱动轴	DRIVESHAFT	1
7	878410A1	压力检查套件	PO CHECK KIT	1
8	813442A2	手动释放总成 (含参考号#26)	MANUAL RELEASE ASSEMBLY (Includes Reference #26)	1
8	893929A01	安全阀套件	VALVE KIT Relief	1
9	878241A02	轴套件	SHAFT KIT	1
9	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
10	878267	销	PIN	1
11	878235A1	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
11	878235A03	倾斜油缸套件	CYLINDER KIT Tilt	1
11	878235A02	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
11	878235A03	倾斜油缸套件	CYLINDER KIT Tilt	1
12	878239A1	导向套件 (含参考号#26)	GUIDE KIT (Includes Reference #26)	1
12	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
13	878409A1	O型圈套件 (含参考号#26)	O-RING KIT (Includes Reference #26)	1
13	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
14	878412A1	减震杆套件 (含参考号#26)	SHOCK ROD KIT (Includes Reference #26)	1
14	8M0168219	减震杆套件	SHOCK ROD KIT	1
15	878242A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
15	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
16	878406A1	止回阀修理包 (含参考号#26)	REPAIR KIT Check Valve (Includes Reference #26)	1
16	878406A02	止回阀修理包	REPAIR KIT Check Valve	1
17	878414A1	活塞总成	PISTON ASSEMBLY	1
17	878414T01	活塞总成	PISTON ASSEMBLY	1
18	878413A1	活塞总成	PISTON ASSEMBLY	1
19	878243A1	导向器总成	GUIDE ASSEMBLY	2
19	8M0021648	端盖总成	END CAP ASSEMBLY	2
20	878264A1	储液罐套件	RESERVOIR KIT	1
21	811613	塞子总成	PLUG ASSEMBLY	1
22	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
23	43450	垫圈	WASHER	4
23	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
24	892251A01	泵套件	PUMP KIT	1
25	878408A1	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
26	821539	三叶销	PIN Trilobe	1
27	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
28	4002319	垫圈	WASHER	6
29	818298Q1	阳极套件	ANODE KIT	1
30	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
30	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
31	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
31	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	996251	轴	SHAFT	1
32	99625002	轴	SHAFT	1
32	99625002	轴	SHAFT	11
33	69205	C形垫圈	C WASHER	1
33	8M0084613	C形垫圈	C-WASHER	1
34	26550	卡箍	CLAMP	2
35	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
36	828547353	导管(内径0.350x3英尺散装)(裁切至12英寸)	CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk) (Cut to 12 Inches)	1
37	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

图 30动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	8M0168222	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0142591	电机套件	MOTOR KIT	1
2	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
3	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
4	8M0090403	驱动联轴器	COUPLING Drive	1
5	8M0142996	压力检查套件	PO CHECK KIT	1
6	8M0060141	手动释放套件	MANUAL RELEASE KIT	1
7	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
8	878267	销	PIN	1
9	8M0142998	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
9	8M0168220	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
10	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
11	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
12	8M0142592	升降杆套件左舷	TRIM ROD KIT Port	1
13	8M0143001	活塞总成	PISTON ASSEMBLY	1
14	8M0143003	端盖总成	END CAP ASSEMBLY	1
15	878264A1	储液罐套件	RESERVOIR KIT	1
16	811613	塞子总成	PLUG ASSEMBLY	1
17	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
18	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
19	8M0143004	泵套件	PUMP KIT	1
20	8M0148385	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
21	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
22	4002319	垫圈	WASHER	6
23	8M0094889	销	PIN	1
23	8M0161312	连杆销眼总成	PIN ROD EYE ASSEMBLY	1
24	8M0143005	减震杆套件	SHOCK ROD KIT	1
24	8M0168219	减震杆套件	SHOCK ROD KIT	1

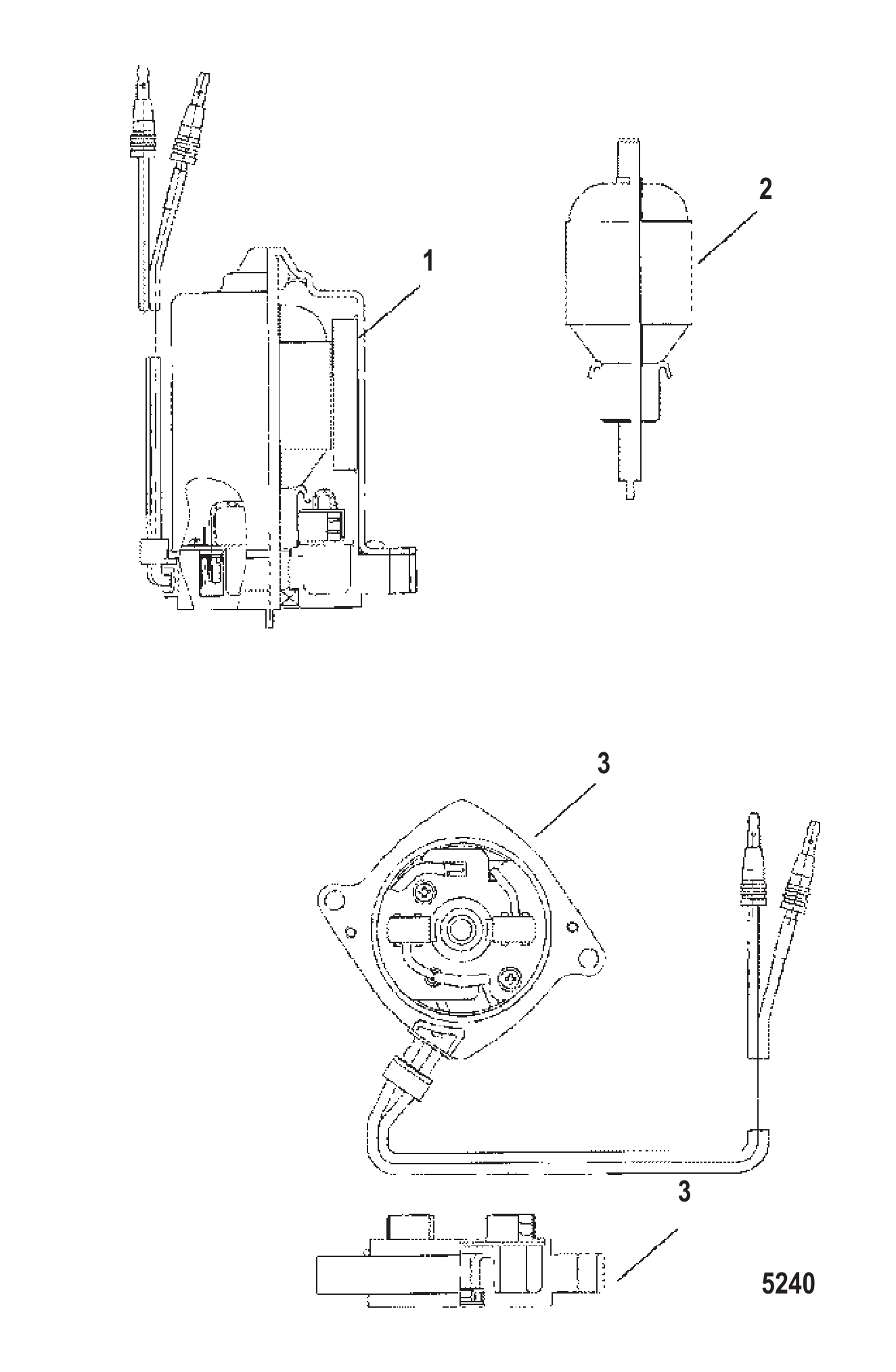

图 31动力升降倾斜电机 Power Trim Motor

REF	零件编号	中文名称	英文名称	数量
-	828708	电机总成	MOTOR ASSEMBLY	1
-	878265A4	配平电机	TRIM MOTOR	1
1	828714A1	电刷与密封套件	BRUSH AND SEAL KIT	1
2	828713A1	电枢套件	ARMATURE KIT	1
2	828713T1	电枢套件	ARMATURE KIT	1
3	828715A1	端架（总成）	END FRAME (COMPLETE)	1

图 32簧片阀组与气缸盖 Reed Block and Cylinder Head

REF	零件编号	中文名称	英文名称	数量
1	18488F1	气缸盖	CYLINDER HEAD	2
1	8M0143213	气缸盖	HEAD CYLINDER	2
2	8228441	衬垫	GASKET	2
2	822844T05	衬垫	GASKET	2
3	98534	螺钉 (.375-16 x 2.30)	SCREW (.375-16 x 2.30)	24
3	13450	螺钉 (.375-16 x 2.30)	SCREW (.375-16 x 2.30)	1
4	815914	三通接头	T-FITTING	1
5	75692	节温器	THERMOSTAT	2
6	62386	衬垫	GASKET	2
6	8M0204714	衬垫@4	GASKET @4	2
7	90390A1	盖板套件	COVER KIT	2
8	35386	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	4
9	13607	水管接头	FITTING WATER HOSES	2
9	136071	弯头	ELBOW	2
10	83075780	管材(28英寸散装)(裁切1段2-1/2英寸,2段7-1/2英寸,1段10-1/2英寸,1段14-1/2英寸)	TUBING (28.00 Inches Bulk) (Cut (1) to 2-1/2 Inches, (2) to 7-1/2 Inches, (1) to 10-1/2 Inches, (1) to 14-1/2 Inches)	5
10	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	5
11	90824	三通	TEE	1
11	90824001	三通接头	TEE FITTING	1
12	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
13	63779	定位销 (.250 x .625)	PIN Dowel (.250 x .625)	4
14	137151	固定座	RETAINER	2
15	98257	螺钉 (.312-18 x .500)	SCREW (.312-18 x .500)	2
16	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	6
16	90197	螺丝（.250-20 x 1.125）	SCREW (.250-20 x 1.125)	6
17	167371	衬垫	GASKET	1
18	17735A2	适配板总成	ADAPTER PLATE ASSEMBLY	1
19	146972	衬垫	GASKET	1
20	961832	簧片夹	CLAMP Reed	12
21	75953	簧片阀组	REED BLOCK	6
21	11645A4	簧片阀组	REED BLOCK	6
22	14594A1	簧片组件	REED ASSEMBLY	6
22	14594A2	簧片组	REED SET	6
22	14594A3	簧片组件	REED ASSEMBLY	6
22	8M0192191	簧片踏板	REED PEDAL	6
23	823588	螺钉(#8-32 x 0.250英寸)簧片至簧片座	SCREW (#8-32 x .250) Reeds to Reed Block	60
23	849039	螺钉	SCREW	48
23	849038	螺钉 (M3 x 5)	SCREW (M3 x 5)	48
24	28668	螺钉 (.250-20 x .875) 不锈钢	SCREW (.250-20 x .875) Stainless Steel	8
25	825164	爆震传感器	SENSOR Detonation	1
26	97465	温度传感器（右舷）	SENDER Temperature (STARBOARD)	1
27	13536A6	温度传感器总成（左舷）	SENSOR ASSEMBLY Temperature (PORT)	1
28	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	1
29	55098	J型卡扣	J CLIP	1
29	8M0024808	J型夹	J-CLIP	1
-	823142A94	衬垫套件	GASKET SET	1
-	809839A94	动力头总成	POWERHEAD ASSEMBLY	1
-	809839T94	PH 150 EFI	PH 150 EFI	1
-	808603A94	动力头总成	POWERHEAD ASSEMBLY	1
-	808603T94	动力头总成	POWERHEAD ASSEMBLY	1

图 33维修/支撑材料 Service/Support material

REF	零件编号	中文名称	英文名称	数量
-	80856794	零件手册150/200 PRO-MAX/SUPER MAGNUM(EFI)	PARTS MANUAL 150/200 PRO-MAX/SUPER MAGNUM (EFI)	1
-	824052R2	维修手册	SERVICE MANUAL	1
-	824052R3	SM O/B V6 135-225	SM O/B V6 135-225	1
-	847984A94	贴花套件	DECAL SET	1
-	818265A94	贴花套件	DECAL SET	1
-	848714	用户手册	OWNERS MANUAL	1
-	848716	用户手册	OWNERS MANUAL	1

图 34启动电机 Starter Motor

REF	零件编号	中文名称	英文名称	数量
1	853329T	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	892339T01	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	892339T	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	892339T01	启动电机总成	STARTER MOTOR ASSEMBLY	1
2	803005	贯穿螺栓	THRU BOLT	2
3	880805A1	齿轮套件	GEAR KIT	1
4	809463A1	电磁阀组件	SOLENOID KIT	1
5	8M0065258	电刷组	BRUSH SET	1
6	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
7	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
8	8272822	高压警告标贴	DECAL Warning High Voltage	1
8	NSS	高压警告贴纸 (不单独销售)	NOT SOLD SEPARATE Decal-Warning-High Voltage	1
9	400255	锁紧垫圈(M5)	LOCKWASHER (M5)	1
10	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
11	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
12	400213	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
13	56703	轴环	COLLAR	2
13	8M0034918	轴环	COLLAR	2
14	879845	停机开关	STOP	1
14	8M0043276	停机开关	STOP	1

图 35转向连接套件 Steering Attaching Kit

REF	零件编号	中文名称	英文名称	数量
-	92876A8	转向单装配套件	ATTACHING KIT Steering Single	1
1	41055A1	支架总成	BRACKET ASSEMBLY	1
2	71565A2	管总成	TUBE ASSEMBLY	1
3	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
4	821203	锁紧垫圈	LOCKWASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
7	78968	内锁紧垫圈 (.250)	LOCKWASHER Internal (.250)	4
8	850791T	联轴器	COUPLER	1
9	73732	螺钉 (.375-24 x 1.120)	SCREW (.375-24 x 1.120)	2
10	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
11	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	1
11	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1

图 36旋转支架与转向臂 Swivel Bracket and Steering Arm

REF	零件编号	中文名称	英文名称	数量
1	8710T20	黑色旋转支架总成	SWIVEL BRACKET ASSEMBLY Black	1
1	8M0102865	黑色旋转支架总成	SWIVEL BRACKET ASSEMBLY Black	1
2	33504	O型圈	O-RING	1
2	8M0214926	O型圈 @10	O RING @10	1
3	818764	衬套	BUSHING	2
4	816039	隔套	SPACER	1
5	87735		SEAL Oil (Lower)	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	816432	止推垫片	THRUST WASHER	1
9	814084F1	下轭架	YOKE Bottom	1
9	8M0219200	黑色下轭架	YOKE-BOTTOM-BLACK	1
9	826364F1	下轭架	YOKE Bottom	1
9	826364T	下轭架	YOKE Bottom	1
10	67684	挡圈	RING Retaining	1
11	996301	冲击板	STRIKER PLATE	2
11	8M0045383	冲击板	STRIKER PLATE	2
12	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
13	46335	螺母 (.375-24)	NUT (.375-24)	2
14	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
15	NSS	不单独销售-序列号覆膜标贴	NOT SOLD SEPARATE Decal-Serial Overlaminate	1
16	859187A1	调整传感器总成	SENDER ASSEMBLY Trim	1
17	852368	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
18	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
19	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
20	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
20	826432A2	转向臂旋转销总成-不锈钢	SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel	1
20	826432A2	转向臂旋转销总成-不锈钢	SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel	1
20	8M0132731	旋转销总成	SWIVEL PIN ASSY	1
21	816386	螺钉(M12×190)	SCREW (M12 x 190)	2
21	8M0141069	螺钉	SCREW	2
22	824998	缓冲垫	BUMPER	1
22	824998001	缓冲垫	BUMPER	1
22	824998001	缓冲垫	BUMPER	1
23	8163851	上部支架	MOUNT Upper	2
24	8154371	垫圈	WASHER	2
25	815436	垫圈	WASHER	2
26	896963	螺母(M12)	NUT (M12)	2
27	813769	卡箍	CLAMP	1
27	8M0036783	卡箍	CLAMP	1
28	81893435	螺钉(M8×35)	SCREW (M8 x 35)	3
28	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
29	92876A10	连杆总成	LINK ROD ASSEMBLY	1
29	92876A12	连杆总成	LINK ROD ASSEMBLY	1
30	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
31	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
31	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
32	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2

图 37油门杆与换挡轴 Throttle Lever and Shift Shaft

REF	零件编号	中文名称	英文名称	数量
1	8503891	节气门控制杆	LEVER Throttle Control	1
2	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
3	55164	衬套	BUSHING	1
4	858959	隔套	SPACER	1
5	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
6	64015	螺母 (.250-20)	NUT (.250-20)	1
7	26852	尼龙帽	CAP Nylon	1
8	42927	嵌件	INSERT	1
9	35459	垫圈	WASHER	1
10	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
11	814283T6	锚支架总成	BRACKET ASSEMBLY Anchor Anchor	1
12	98889	闩锁	LATCH	1
13	42975	传动螺钉	DRIVE SCREW	2
14	39519	杯套	CUP	1
15	52100	耐磨板	WEAR PLATE	1
16	38279	闩锁	LATCH	1
16	8M0036768	闩锁	LATCH	1
17	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
18	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
19	28782	螺钉(.312-18 x .880)不锈钢	SCREW (.312-18 x .880) Stainless Steel	3
20	814284	导向块	GUIDE BLOCK	1
21	20099	弹簧	SPRING	1
22	67073A1	连杆总成	LINK ROD ASSEMBLY	1
23	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
23	79932A17	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
24	NSS	弹性销(不单独销售)	NOT SOLD SEPARATE Roll Pin	1
25	NSS	不单独销售-换挡轴上杆	NOT SOLD SEPARATE Shift Shaft Lever-Upper	1
26	26856	衬套	BUSHING	1
27	29720	波形垫圈	WAVE WASHER	1
28	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
29	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
30	889514A02	开关	SWITCH	1
30	889514T02	开关	SWITCH	1
31	77478	螺钉 (#6-32 x .875)	SCREW (#6-32 x .875)	2
32	27882	垫圈	WASHER	2
33	932481	旋转衬套	BUSHING Swivel	1
33	8M0215006	旋转衬套	BUSHING Swivel	1
34	8508152	杆	ROD	1
35	858847A2	凸轮	CAM	1
36	8235694	螺纹球头	BALL Threaded	1
37	932481	衬套	BUSHING	1
37	8M0215006	旋转衬套	BUSHING Swivel	1
38	81893440	螺钉 (M8 x 40)	SCREW (M8 x 40)	1
39	856895	衬套	BUSHING	1
40	850286A03	油门杆/滚轮套件	LEVER/ROLLER KIT Throttle	1
41	889610	滚轮	ROLLER	1
41	8M0072162	滚轮	ROLLER	1
42	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
42	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
43	826709104	螺母(#8-32)不锈钢	NUT (#8-32) Stainless Steel	1
44	889354	专用螺钉	SCREW Special	1
45	881991	杯形垫圈	WASHER Cupped	1
45	8M0095734	垫圈/螺钉套件	WASHER/SCREW KIT	1
46	881992	线轴垫圈	WASHER Spool	1
46	8M0095734	垫圈/螺钉套件	WASHER/SCREW KIT	1
47	69432	外锁紧垫圈(#10)	LOCKWASHER External (#10)	1

图 38艉板支架 Transom Brackets

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂接头(左舷)	FITTING Grease (PORT)	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
10	54012	垫圈(0.530×0.870×0.105不锈钢)	WASHER (.530 x .870 x .105) Stainless Steel	4
11	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	99629T2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	830899	张力弹簧	SPRING Tension	1
15	65830	尼龙衬套	NYLINER	2
16	830900	压缩弹簧	SPRING Compression	1
17	99633	旋钮	KNOB	1
18	99615	槽销	PIN Groove	1
19	99617	销	PIN	1

图 39配平电磁阀板(0G205106及以下) Trim Solenoid Plate (0G205106 and Below)

REF	零件编号	中文名称	英文名称	数量
1	847896	安装板	PLATE	1
2	818997A1	电磁阀总成	SOLENOID ASSEMBLY	2
2	8M0185145	电磁阀总成	SOLENOID ASSEMBLY	2
3	818967	护孔环	GROMMET	4
3	8M0207785	护孔环	GROMMET	4
4	818968	衬套	BUSHING	4
4	8M0214955	衬套	BUSHING	4
5	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	3
5	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	3
6	35950	垫圈 (.273 x .437 x .031) 不锈钢	WASHER (.273 x .437 x .031) Stainless Steel	3
7	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	3
7	8M0207776	螺母	NUT	3
8	88807A6	黑色电缆总成 (3.50 英寸)	CABLE ASSEMBLY (3.50 Inches) Black	2
9	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	4
10	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	4
11	42813	螺钉(#10-32 X 0.380英寸)(10-32 X 3/8英寸)	SCREW (#10-32 X .380) (10-32 X .3/8 IN.)	2
12	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
13	87379A14	线束总成(2.750英寸)(红色)	WIRE ASSEMBLY (2.750 Inches) (RED)	1
14	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
15	94330	螺母(0.250-20)黄铜	NUT (.250-20) Brass (BRASS)	2
16	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	2
17	69028	螺钉（.250-28 x .750）不锈钢	SCREW (.250-28 x .750) Stainless Steel	2
18	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	2
19	35280	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
20	35045	螺母(.250-28)	NUT (.250-28)	2
20	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	2

图 40配平电磁阀板(0G205107及以上) Trim Solenoid Plate (0G205107 and Up)

REF	零件编号	中文名称	英文名称	数量
1	847896	安装板	PLATE	1
2	828151	继电器	RELAY	2
2	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
3	818967	护孔环	GROMMET	2
3	8M0207785	护孔环	GROMMET	2
4	818968	衬套	BUSHING	2
4	8M0214955	衬套	BUSHING	2
5	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	2
5	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
6	35950	垫圈 (.273 x .437 x .031) 不锈钢	WASHER (.273 x .437 x .031) Stainless Steel	2
7	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	2
7	8M0207776	螺母	NUT	2
8	828102	支架	BRACKET	2
8	8M0207771	安装支架	BRACKET Mounting	2
9	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
10	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	2
11	69028	螺钉（.250-28 x .750）不锈钢	SCREW (.250-28 x .750) Stainless Steel	2
12	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	2
13	35280	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
14	35045	螺母(.250-28)	NUT (.250-28)	2
14	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	2
15	826802A4	线束总成	HARNESS ASSEMBLY	1

图 41线束和启动电磁阀 Wiring Harness and Starter Solenoid

REF	零件编号	中文名称	英文名称	数量
1	434292	点火板	IGNITION PLATE	1
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	螺钉(#12-24x2.00)	SCREW (#12-24 x 2.00)	2
4	94453	衬套	BUSHING	2
5	62310A2	拉线总成	CABLE ASSEMBLY	1
6	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	20
7	60871A10	线束总成	WIRE ASSEMBLY	2
8	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	3
8	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	3
9	91865A1	拉线总成	CABLE ASSEMBLY	1
9	88528A2	拉线总成	CABLE ASSEMBLY	1
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈	WASHER	6
13	67264	垫圈(橡胶)	WASHER (Rubber) (RUBBER)	6
14	67268	衬套	BUSHING	3
15	65999A3	黑色电缆总成	CABLE ASSEMBLY Black (BLACK)	1
16	87926	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	1
17	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
17	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
18	93388A7	拉线总成	CABLE ASSEMBLY	1
18	93388A14	线缆总成(黄/黑)	CABLE ASSEMBLY Yellow/Black	1
19	817109A2	电磁阀总成(#10-32/.3125-18端子)	SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)	1
20	818968	衬套	BUSHING	2
20	8M0214955	衬套	BUSHING	2
21	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	4
22	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
23	68292	螺母(.312-18)	NUT (.312-18)	2
23	8M0204668	螺母(.312-18)	NUT (.312-18)	2
24	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
25	97861	绝缘体	INSULATOR	1
26	65999A2	黑色电缆总成	CABLE ASSEMBLY Black (BLACK)	1
27	45561	螺钉(0.250-20 x 1.12英寸)(1-1/8英寸)	SCREW (.250-20 x 1.12) (1-1/8 Inch)	2
27	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
28	194372	端子排	TERMINAL BLOCK	1
29	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
30	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
31	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
32	96220A16	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
32	848464A2	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
33	79091	保险丝20安培	FUSE 20 Ampere	1
33	8M0207796	保险丝20安培	FUSE 20 AMP	1
34	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
34	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
