两冲程 直喷 DFI OptiMax · USA - Cat.# 90-8M0081780 · 共 35 个部位 · 1358 条零件

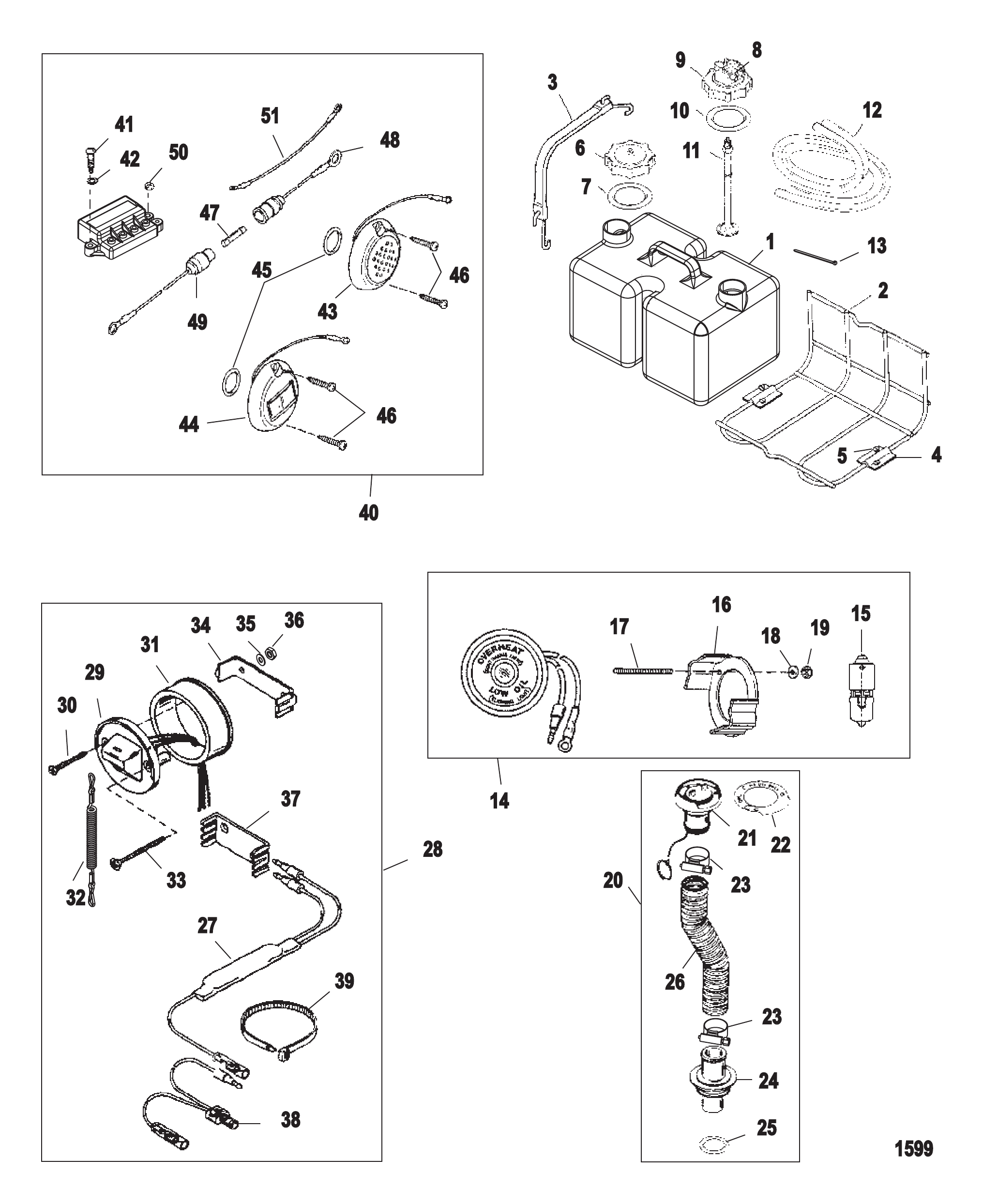

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 887767K03 | 启动/停止开关套件-三引擎 | SWITCH KIT Start/Stop - Triple (Triple Engine) | 1 |
| - | 8M0117133 | 仪表板安装启停开关面板-三引擎 | START/STOP SWITCH PAD Dash Mount - Triple | 1 |
| - | 852400 | 冲洗接头 | FLUSH COUPLING | 1 |
| - | 15969A3 | 甲板加油套件 | DECK FILL KIT Oil | 1 |
| - | 812497A2 | 二极管总成 | DIODE ASSEMBLY | 1 |
| - | 898289A72 | 双拉绳二极管套件 | DIODE KIT-LANYARD Dual | 1 |
| - | 44357Q2 | 冲洗附件 | FLUSHING ATTACHMENT | 1 |
| - | 881150Q1 | 双进水口冲洗套件 | FLUSH KIT Dual Water Pick Up | 1 |
| - | 825191A03 | 索具软管套件 | HOSE KIT Rigging | 1 |
| - | 19674A2 | 开关/拉绳套件 | SWITCH/LANYARD KIT | 1 |
| - | 19674Q2 | 开关/拉绳套件 | SWITCH/LANYARD KIT | 1 |
| - | 88334A2 | 防腐电极套件 | MERCATHODE KIT | 1 |
| - | 8M0180081 | 防腐电极套件 | MERCATHODE KIT | 1 |
| - | 879899K04 | 系统转速/速度套件-灰色表盘 | SYSTEM TACK/SPEED KIT Gray Face | 1 |
| - | 8M0063203 | KT-TACH/SPD 80GRY | KT-TACH/SPD 80GRY | 1 |
| - | 879897K03 | 系统转速表-灰色表盘 | SYSTEM TACH Gray Face | 1 |
| - | 8M6001270 | 转速表套件-7K灰色 | TACH KIT-7K GRAY | 1 |
| - | 879899K14 | 系统转速/速度套件-白色表盘 | STSTEM TACH/SPEED KIT White Face | 1 |
| - | 889223K32 | 转速表/速度表套件 | TACHOMETER / SPEEDOMETER KIT | 1 |
| - | 879897K13 | 系统转速表-白色表盘 | SYSTEM TACH White Face | 1 |
| - | 889222K22 | 转速表套件0-7000转-白色表盘 | TACHOMETER KIT 0-7000 RPM White Face | 1 |
| - | 41729A3 | 软管延长套件 | HOSE EXTENSION KIT | 1 |
| - | 877561A2 | 适配器线束总成 | HARNESS ASSEMBLY Adapter | 1 |
| - | 859187A1 | 调整传感器总成 | SENDER ASSEMBLY Trim | 1 |
| - | 887979A2 | 倾斜限位开关套件 | SWITCH KIT Tilt Limit | 1 |
| 1 | 8742A22 | 遥控油箱总成 | TANK ASSEMBLY Remote Oil Remote Oil | 1 |
| 1 | 8742A21 | 遥控机油箱总成 | TANK ASSEMBLY Remote Oil | 1 |
| 2 | 12335A1 | 支架套件 | BRACKET KIT | 1 |
| 3 | 12323A1 | 绳索/挂钩套件 | CORD/HOOK KIT | 1 |
| 4 | 12320 | 支架 | BRACKET | 2 |
| 5 | 79968 | 螺丝(#12-11 x .750) | SCREW (#12-11 x .750) | 4 |
| 6 | 43298A2 | 盖总成 | CAP ASSEMBLY | 1 |
| 7 | 11332 | O型圈(2.225 x .210) | O-RING (2.225 x .210) | 1 |
| 8 | 816190A4 | 机油收集器总成(无传感器) | OIL PICK UP ASSEMBLY Without Sender | 1 |
| 8 | 816190A5 | 带传感器的吸油总成 | OIL PICK UP ASSEMBLY With Sender | 1 |
| 9 | 43298A2 | 盖总成 | CAP ASSEMBLY | 1 |
| 10 | 11332 | O型圈(2.225 x .210) | O-RING (2.225 x .210) | 1 |
| 11 | 99802 | 管 | TUBE | 12 |
| 12 | 99439 | 软管(114.00英寸) | HOSE (114.00 Inches) | 1 |
| 13 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 5 |
| 14 | 17334A2 | 视觉警告系统 | VISUAL WARNING SYSTEM | 1 |
| 15 | 17429 | 灯 | LAMP | 1 |
| 16 | 76424 | 支架 | BRACKET | 1 |
| 17 | 55422 | 双头螺柱 (#10-32 x 2.00) | STUD (#10-32 x 2.00) | 2 |
| 18 | 24676 | 垫圈 (.200 x .440 x .032) | WASHER (.200 x .440 x .032) | 2 |
| 19 | 68219 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 2 |
| 20 | 15969A3 | 甲板加油套件 | DECK FILL KIT Oil | 1 |
| 21 | 15969A5 | 甲板加油套件 | DECK FILL KIT Oil | 1 |
| 21 | 15969A13 | 甲板加油套件 | DECK FILL KIT Oil | 1 |
| 22 | 15966 | 安装板 | PLATE | 1 |
| 23 | 815504228 | 蜗杆卡箍 | CLAMP Worm Gear | 2 |
| 23 | 8M0232395 | 软管卡箍 | CLAMP HOSE | 2 |
| 24 | 15967 | 加油口适配器 | ADAPTER Oil Filler | 1 |
| 25 | 11332 | O型圈(2.225 x .210) | O-RING (2.225 x .210) | 1 |
| 26 | 850719 | 软管(100.00英尺整卷) | HOSE (100.00 Feet Bulk) | AR |
| 27 | 812497A2 | 二极管总成 | DIODE ASSEMBLY | 1 |
| 27 | 898289A72 | 双拉绳二极管套件 | DIODE KIT-LANYARD Dual | 1 |
| 28 | 19674Q2 | 开关/拉绳套件 | SWITCH/LANYARD KIT | 1 |
| 29 | 19674A1 | 拉绳开关总成 | SWITCH ASSEMBLY Lanyard | 1 |
| 29 | 19674A07 | 开关/拉绳套件 | SWITCH/LANYARD KIT | 1 |
| 30 | 18303 | 螺钉 (.190-16 x 1.750) 不锈钢 | SCREW (.190-16 x 1.750) Stainless Steel | 2 |
| 31 | 813679 | 适配器 | ADAPTER | 1 |
| 32 | 15920Q54 | 拉绳总成 | LANYARD ASSEMBLY | 1 |
| 33 | 32866 | 螺钉 (#10-32 x 2.00) 不锈钢 | SCREW (#10-32 x 2.00) Stainless Steel | 2 |
| 34 | 18321 | 安装夹 | CLAMP Mounting | 1 |
| 35 | 24676 | 垫圈 (.200 x .440 x .032) | WASHER (.200 x .440 x .032) | 2 |
| 36 | 68219 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 4 |
| 37 | 79146 | 固定座 | RETAINER | 1 |
| 38 | 11149A2 | 线缆总成 (6.00英寸) | CABLE ASSEMBLY (6.00 Inches) | 1 |
| 39 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 40 | 88334A2 | 防腐电极套件 | MERCATHODE KIT | 1 |
| 40 | 8M0180081 | 防腐电极套件 | MERCATHODE KIT | 1 |
| 41 | 22793 | 螺丝(#9-14x0.875) | SCREW (#9-14 x .875) | 2 |
| 42 | 30164 | 垫圈(0.192x0.375x0.0312)不锈钢 | WASHER (.192 x .375 x .0312) Stainless Steel | 2 |
| 43 | 72958A5 | 电极总成 | ELECTRODE ASSEMBLY | 1 |
| 44 | 72957A5 | 阳极总成 | ANODE ASSEMBLY | 1 |
| 44 | 8M0181304 | 阳极总成 | ANODE ASSY | 1 |
| 45 | 21836 | O型圈(.796 x .139) | O-RING (.796 x .139) | 2 |
| 45 | 8M0204645 | O型圈(.796 x .139) | O-RING (.796 x .139) | 2 |
| 46 | 87698 | 螺丝(#10-16 x 1.250)不锈钢 | SCREW (#10-16 x 1.250) Stainless Steel | 4 |
| 47 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 47 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 48 | 95084A10 | 电缆总成(5.00英寸)红色 | CABLE ASSEMBLY (5.00 Inches) Red | 1 |
| 48 | 8M0207788 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 49 | 95084A13 | 电缆总成(64.00英寸) | CABLE ASSEMBLY (64.00 Inches) | 1 |
| 50 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 4 |
| 51 | 79138A8 | 电缆总成(72.00英寸)黑色 | CABLE ASSEMBLY (72.00 Inches) Black | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

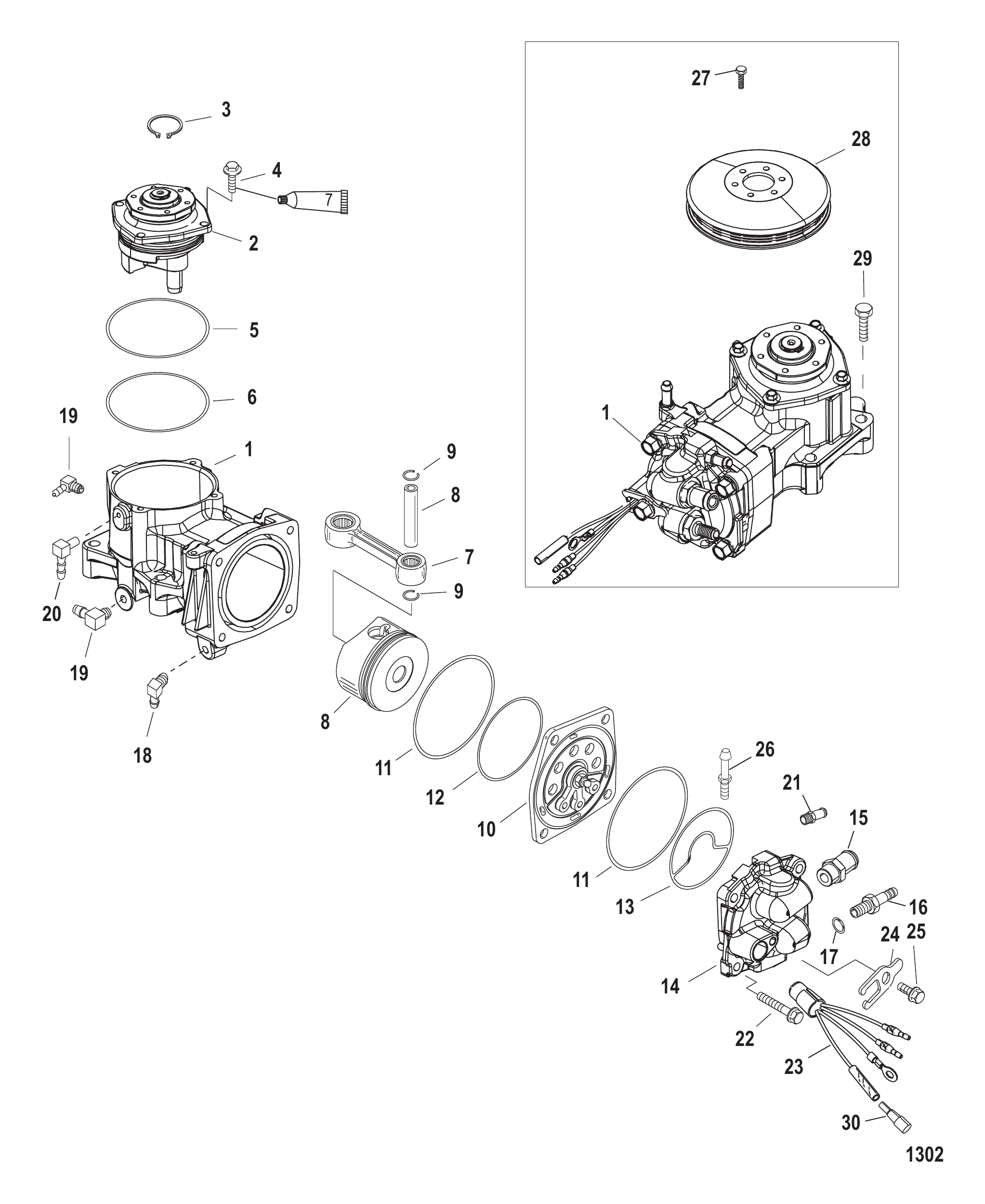

| 1 | 828123T19 | 空气压缩机总成 | COMPRESSOR ASSEMBLY Air | 1 |
| 1 | 8M0060052 | 空气压缩机总成 | COMPRESSORY ASSEMBLY Air | 1 |
| 1 | 828123T26 | 空气压缩机总成 | COMPRESSOR ASSEMBLY Air | 1 |
| 1 | 8M0060052 | 空气压缩机总成 | COMPRESSORY ASSEMBLY Air | 1 |
| 1 | 828123T29 | 空气压缩机总成 | COMPRESSOR ASSEMBLY Air | 1 |
| 1 | 8M0060052 | 空气压缩机总成 | COMPRESSORY ASSEMBLY Air | 1 |
| 2 | 828131A8 | 端盖总成 | END CAP ASSEMBLY | 1 |
| 2 | 8M0050792 | 端盖总成 | END CAP ASSEMBLY | 1 |
| 2 | 828131A09 | 端盖总成 | END CAP ASSEMBLY | 1 |
| 2 | 8M0050792 | 端盖总成 | END CAP ASSEMBLY | 1 |
| 3 | NSS | 卡环(不单独销售) | NOT SOLD SEPARATE Snap Ring | 1 |
| 4 | 82130020 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 4 |
| 5 | 832804 | O型圈（2.739 x 0.070） | O-RING (2.739 x .070) | 1 |
| 6 | 832804 | O型圈（2.739 x 0.070） | O-RING (2.739 x .070) | 1 |
| 7 | 833146T3 | 连杆总成 | CONNECTING ROD ASSEMBLY | 1 |
| 7 | 833146T06 | 连杆总成 | CONNECTING ROD ASSEMBLY | 1 |
| 7 | 833146T05 | 连杆总成 | CONNECTING ROD ASSEMBLY | 1 |
| 7 | 833146T06 | 连杆总成 | CONNECTING ROD ASSEMBLY | 1 |
| 7 | 833146T06 | 连杆总成 | CONNECTING ROD ASSEMBLY | 1 |
| 8 | NSS | 活塞总成(不单独销售) | NOT SOLD SEPARATE Piston assembly | 1 |
| 9 | 8348101 | 锁环 | RING Lock | 2 |
| 10 | 835088A10 | 簧片阀板总成 | REED PLATE ASSEMBLY | 1 |
| 11 | 67207 | O型圈（3.489 x 0.070） | O-RING (3.489 x .070) | 2 |
| 12 | 832804 | O型圈（2.739 x 0.070） | O-RING (2.739 x .070) | 1 |
| 13 | 828225 | 密封件 | SEAL | 1 |
| 14 | 835087A8 | 压缩机缸盖套件 | HEAD KIT Compressor | 1 |
| 14 | 8M0073889 | 压缩机缸盖套件 | HEAD KIT Compressor | 1 |
| 15 | 8812711 | 接头 | FITTING | 1 |
| 16 | 856744 | 接头 | FITTING | 1 |
| 17 | 831985 | O型圈（0.468 x 0.078） | O-RING (.468 x .078) | 1 |
| 18 | 996642 | 90度弯头接头(0.125-27x0.250)尼龙 | FITTING Elbow 90 Degree (.125-27 x .250) Nylon | 1 |
| 19 | 428641 | 止回阀接头 | FITTING Check Valve | 2 |
| 20 | 151331 | 接头 | FITTING | 1 |
| 21 | 16604 | 直通接头（0.125-27） | FITTING Straight (.125-27) | 1 |
| 22 | 82446035 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 4 |
| 23 | 13536A14 | 温度传感器总成 | SENSOR ASSEMBLY Temperature | 1 |
| 24 | 137151 | 固定座 | RETAINER | 1 |
| 25 | 81893414 | 螺钉（M8 x 14） | SCREW (M8 x 14) | 1 |
| 26 | 8215832 | 特殊销（1.5英寸） | PIN Special (1.5 Inches) | 1 |
| 27 | 85593912 | 螺钉（M6 x 12） | SCREW (M6 x 12) | 6 |
| 28 | 8328233 | 滑轮 | PULLEY | 1 |
| 28 | 8M0175171 | 滑轮 | PULLEY | 1 |
| 29 | 81893450 | 螺钉(M8 x 50) | SCREW (M8 x 50) | 4 |
| 30 | 13541 | 公插头 | PLUG Male | 1 |
| - | 832804A1 | O型圈套件 | O-RING KIT | 1 |
| - | 832804A03 | O型圈套件 | O-RING KIT | 1 |

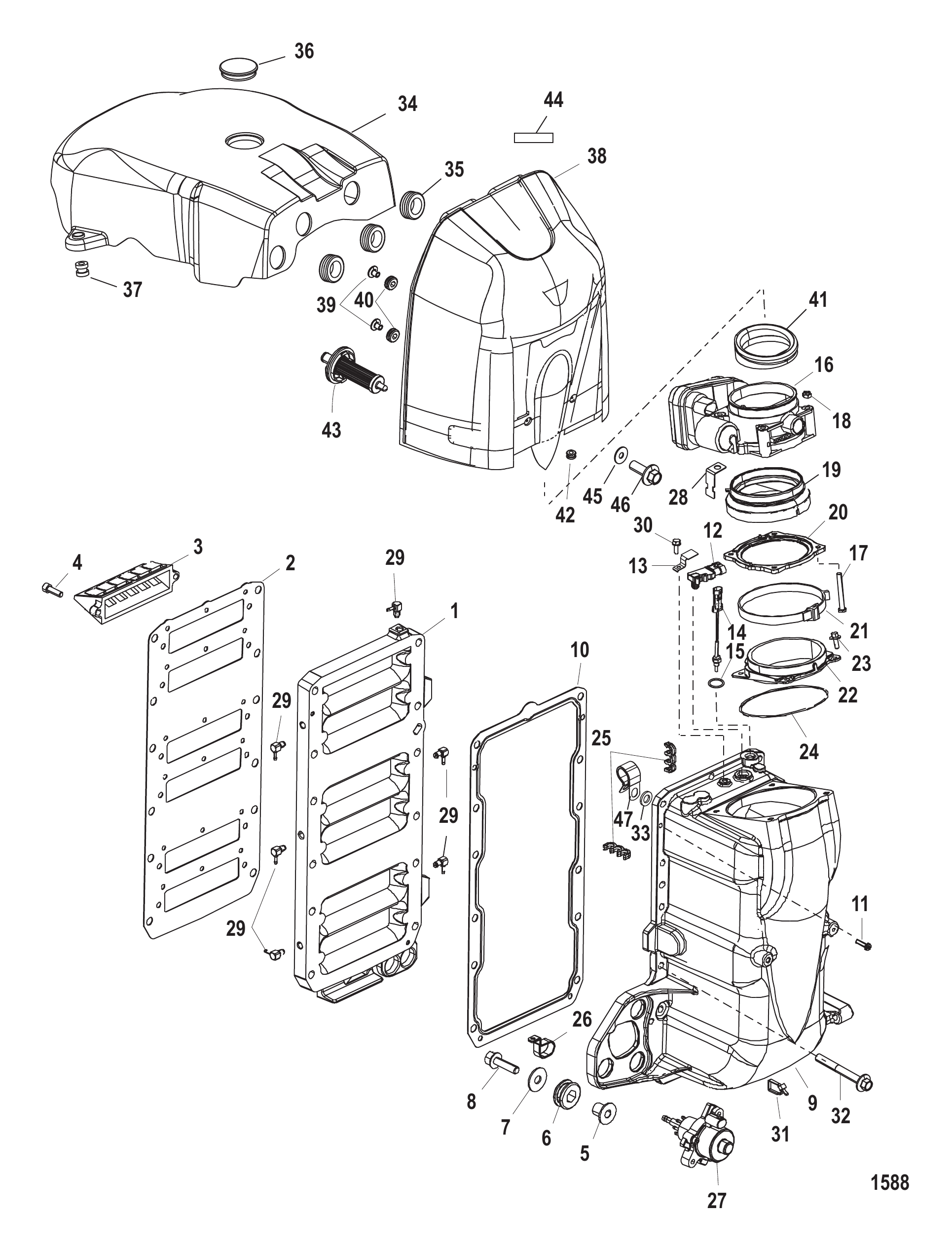

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 884552T1 | 空气处理器总成 | AIR HANDLER ASSEMBLY | 1 |
| - | 884552T03 | 空气处理器总成 | AIR HANDLER ASSEMBLY | 1 |
| - | 884552T07 | 空气处理器总成 (完整) | AIR HANDLER ASSEMBLY Complete | 1 |
| 1 | 858541T3 | 安装板 | PLATE | 1 |
| 2 | 804680 | 衬垫 | GASKET | 1 |
| 3 | 828623T6 | 簧片阀总成 | REED BLOCK ASSEMBLY | 6 |
| 4 | 8555252 | 螺钉 (M6) | SCREW (M6) | 12 |
| 5 | 855364 | 衬套 | BUSHING | 3 |
| 6 | 855362 | 护孔环 | GROMMET | 3 |
| 6 | 855362001 | 护孔环 | GROMMET | 3 |
| 6 | 855362001 | 护孔环 | GROMMET | 3 |
| 7 | 817274 | 垫圈(0.344×1.00×0.063)不锈钢 | WASHER (.344 x 1.00 x .063) Stainless Steel | 3 |
| 8 | 81893430 | 螺钉 (M8 x 30) | SCREW (M8 x 30) | 3 |
| 8 | 81893435 | 螺钉(M8×35) | SCREW (M8 x 35) | 3 |
| 9 | 858539T6 | 空气集气室套件 | PLENUM KIT Air | 1 |
| 10 | 8046793 | 衬垫 | GASKET | 1 |
| 10 | 804679004 | 衬垫 | GASKET | 1 |
| 10 | 804679004 | 衬垫 | GASKET | 1 |
| 11 | 883942 | 螺钉(M4×16) | SCREW (M4 x 16) | 2 |
| 12 | 854445 | MAP传感器 | SENSOR MAP | 1 |
| 12 | 8M0237529 | MAP传感器 | SENSOR MAP | 1 |
| 13 | 884522 | MAP传感器支架 | BRACKET MAP Sensor | 1 |
| 14 | 889575 | 传感器总成 | SENSOR ASSEMBLY | 1 |
| 14 | 8M0214984 | 温度传感器 | SENSOR Temperature | 1 |
| 14 | 885342001 | 传感器总成 | SENSOR ASSEMBLY | 1 |
| 14 | 8M0148668 | 传感器总成 | SENSOR ASSEMBLY | 1 |
| 15 | 627021 | O型圈(.301 x .070) | O-RING (.301 x .070) | 1 |
| 15 | 888814 | O型圈(0.351 x 0.072) | O-RING (.351 x .072) | 1 |
| 15 | 896699 | O型圈（1.78毫米 x 0.08毫米） | O-RING (1.78 mm x .08 mm) | 1 |
| 16 | 877828T02 | 电子节气门控制器 | CONTROL Throttle - Electronic | 1 |
| 17 | 881852 | 螺柱 M6 X 50 | STUD M6 x 50 | 4 |
| 18 | 889452 | 螺母 | NUT | 4 |
| 19 | 881005 | 隔离器 | ISOLATOR | 1 |
| 20 | 880791 | 安装板 | PLATE | 1 |
| 21 | 889594 | 卡箍 | CLAMP | 1 |
| 21 | 889594001 | 卡箍 | CLAMP | 1 |
| 22 | 881004 | 安装板 | PLATE | 1 |
| 23 | 82130014 | 螺钉 (M6 x 14) | SCREW (M6 x 14) | 4 |
| 24 | 855426 | O型圈 | O-RING | 1 |
| 25 | 859230 | 固定座 | RETAINER | 1 |
| 25 | 859230T | 固定座 | RETAINER | 1 |
| 26 | 804842 | 卡箍 | CLAMP | 1 |
| 27 | 857149T2 | 油泵总成 | PUMP ASSEMBLY Oil | 1 |
| 27 | 8M0185614 | 机油泵 | OIL PUMP | 1 |
| 28 | 884353 | 支架 | BRACKET | 1 |
| 29 | 858870 | 止回阀 | CHECK VALVE | 6 |
| 30 | 1993716 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 1 |
| 31 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 32 | 82130040 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 12 |
| 33 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 33 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 34 | 880083T1 | 盖总成 | COVER ASSEMBLY | 1 |
| 35 | 13467 | 衬套（内径0.88） | GROMMET (.88 Inside Diameter) | 3 |
| 36 | 89219 | 堵头 | PLUG | 1 |
| 36 | 89219001 | 堵头 | PLUG | 1 |
| 36 | 89219001 | 堵头 | PLUG | 1 |
| 37 | 821555 | 护孔环 | GROMMET | 2 |
| 37 | 8M0153609 | 护孔环 | GROMMET | 2 |
| 37 | 821555001 | 护孔环 | GROMMET | 2 |
| 37 | 8M0153609 | 护孔环 | GROMMET | 2 |
| 38 | 881277T2 | 衰减器 | ATTENUATOR | 1 |
| 39 | 856954 | 衬套 | BUSHING | 2 |
| 40 | 834985 | 护孔环 | GROMMET | 2 |
| 40 | 8M0190980 | 护孔环 | GROMMET | 2 |
| 41 | NSS | 不单独销售 密封件 | NOT SOLD SEPARATE Seal | 1 |
| 42 | 20116 | 护孔环 | GROMMET | 1 |
| 43 | 880084T | 滤清器总成 | FILTER ASSEMBLY | 1 |
| 43 | 880084T01 | 空气滤清器总成 | FILTER ASSEMBLY Air | 1 |
| 44 | 881865 | 挂档启动警示贴纸 | DECAL Caution-Start in Gear (Start In Gear) | 1 |
| 45 | 65567 | 不锈钢垫圈(0.265x0.750x0.048) | WASHER (.265 x .750 x .048) Stainless Steel | 2 |
| 46 | 82130025 | 螺钉(M6x25) | SCREW (M6 x 25) | 2 |
| 47 | 858902 | 卡箍 | CLAMP | 1 |
| - | 832934A00 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 877869A03 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 877869A07 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 877869A04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 877869A07 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |

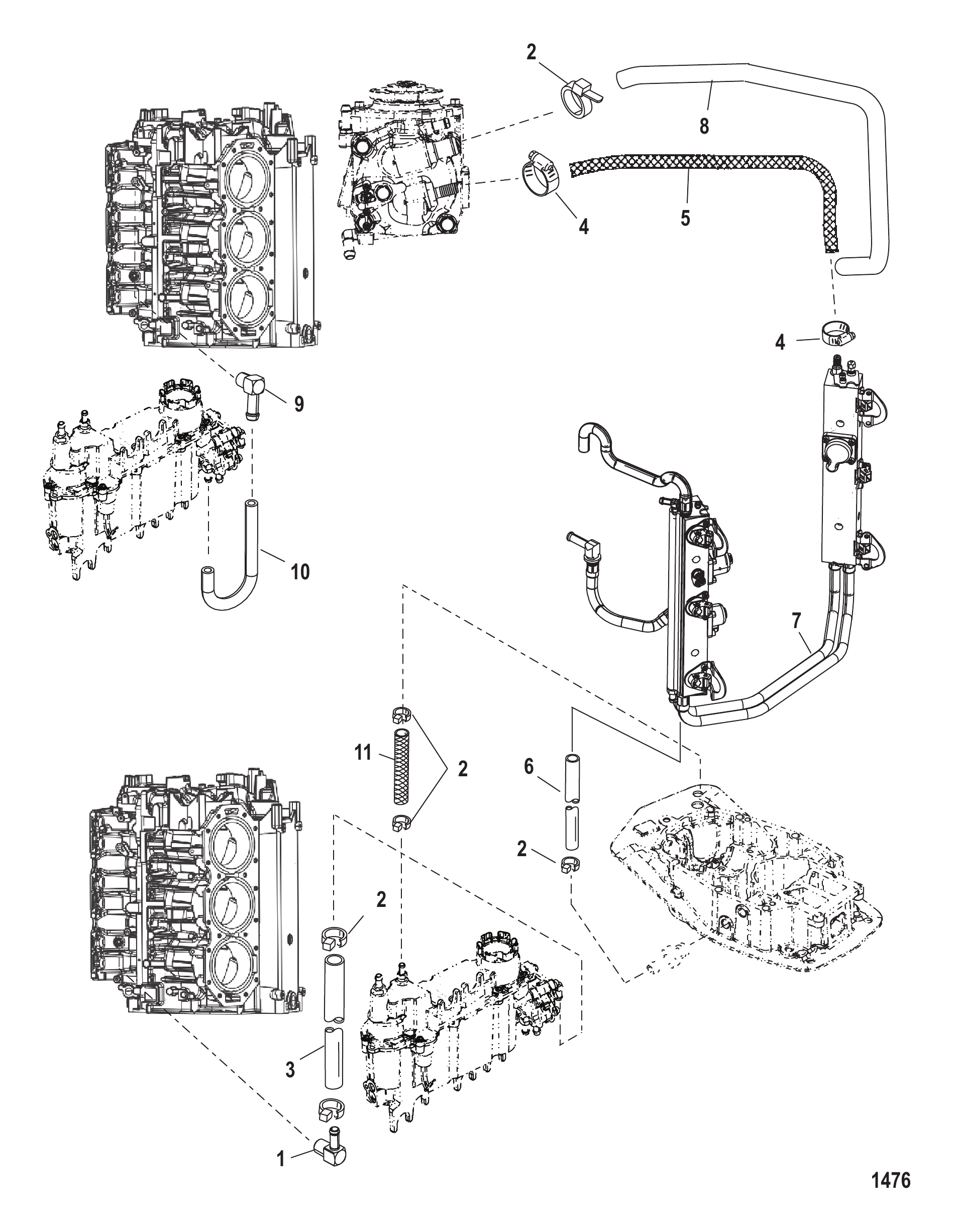

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 856842 | 弯头 | ELBOW | 1 |
| 2 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 3 | 830757130 | 管材(.312)(70英寸整卷)(裁切至8英寸) | TUBING (.312) (70.00 Inches Bulk) (Cut to 8 Inches) | 1 |
| 3 | 8M0108349 | 软管 (70英寸散装) | HOSE (70 Inches Bulk) | 1 |
| 4 | 856880 | 软管卡箍（15.3） | CLAMP Hose (15.3) | 2 |
| 4 | 8M0214964 | 卡箍 | CLAMP | 2 |
| 5 | 8567631 | 软管总成 | HOSE ASSEMBLY | 1 |
| 6 | 889314 | 空气旁通软管 | HOSE Air By-Pass | 1 |
| 7 | 804829 | 空气平衡软管总成 | HOSE ASSEMBLY Air Balance | 1 |
| 7 | 8M6001365 | 软管总成 | HOSE ASSEMBLY | 1 |
| 8 | 8812851 | 成型软管 | HOSE Molded | 1 |
| 9 | 875271 | 90度接头-黄铜(.125-27) | FITTING 90 Degree - Brass (.125-27) | 1 |
| 10 | 887630 | 成型软管 | HOSE Molded | 1 |
| 11 | 888827 | 软管/套管 | HOSE/SLEEVE | 1 |
| 11 | 8M0116380 | 套筒 | SLEEVE | 1 |
| - | 877869A03 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 877869A07 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 877869A04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 877869A07 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

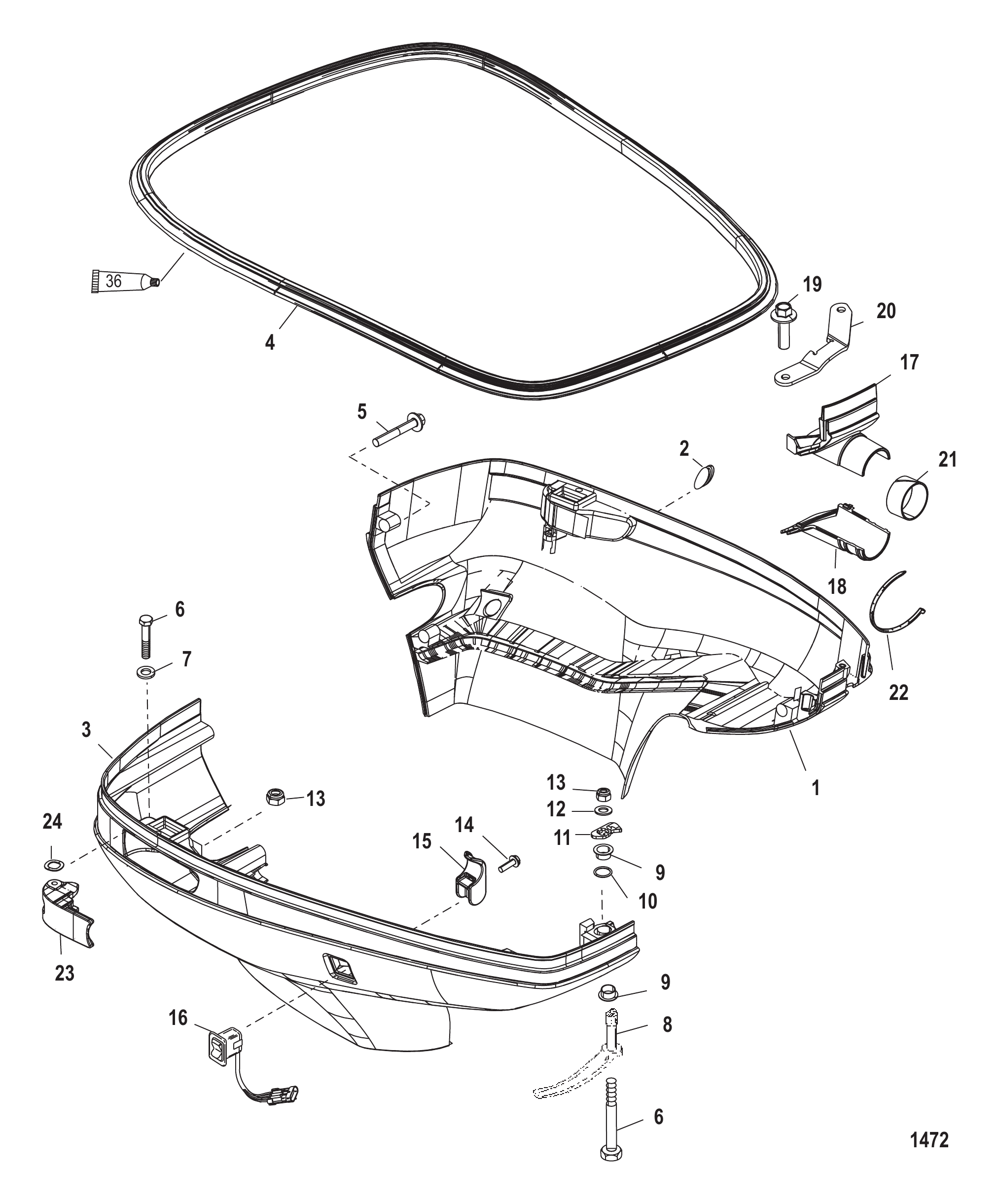

| 1 | 850302A1 | 下罩-左舷(左) | BOTTOM COWL Port (Port) | 1 |
| 1 | 850302A07 | 下罩盖（左舷） | BOTTOM COWL Port | 1 |
| 2 | 854367001 | 堵头 | PLUG | 1 |
| 3 | 850301A1 | 下罩-右舷(右) | BOTTOM COWL Starboard (Starboard) | 1 |
| 3 | 850301A07 | 下罩盖（右舷） | BOTTOM COWL Starboard | 1 |
| 4 | 8253183 | 密封条(44英寸) | SEAL (44.00 Inches) | 2 |
| 4 | 8M0109218 | 罩盖密封条 | SEAL - COWL | 2 |
| 5 | 82130040 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 4 |
| 6 | 824868 | 螺钉(M6×75) | SCREW (M6 x 75) | 3 |
| 7 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 7 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 8 | 850684F1 | 前手柄 | FRONT HANDLE | 1 |
| 8 | 8M0053903 | 前手柄 | FRONT HANDLE | 1 |
| 9 | 335891 | 衬套 | BUSHING | 2 |
| 10 | 48462 | O型圈 (.614 x .070) | O-RING (.614 x .070) | 1 |
| 11 | 8219423 | 棘爪 | PAWL | 1 |
| 12 | 69057 | 垫片(.281 x .734 x .063) | WASHER (.281 x .734 x .063) | 1 |
| 13 | 401366 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 3 |
| 14 | 8214281 | 螺钉(#10-16x0.625) | SCREW (#10-16 x .625) | 1 |
| 15 | 822873 | 卡扣 | CLIP | 1 |
| 16 | 8569901 | 升降倾斜开关 | SWITCH Trim | 1 |
| 16 | 8M0235191 | 升降倾斜开关 | SWITCH Trim | 1 |
| 16 | 896620001 | 升降倾斜开关 | SWITCH Trim | 1 |
| 16 | 8M0235191 | 升降倾斜开关 | SWITCH Trim | 1 |
| 17 | 859359A2 | 索具套件(上部) | RIGGING KIT (Upper) | 1 |
| 17 | 8M8027677 | 3.0升索具套件 | RIGGING KIT 3.0L | 1 |
| 18 | NSS | 下部夹具(不单独销售) | NOT SOLD SEPARATE Clamp-Lower | 1 |
| 19 | 82130012 | 螺钉（M6 x 12） | SCREW (M6 x 12) | 2 |
| 20 | NSS | 绑带(不单独销售) | NOT SOLD SEPARATE Strap | 1 |
| 21 | 859343 | 泡沫垫 | FOAM | 1 |
| 22 | 850181 | 捆扎带(11.750英寸) | TIE STRAP (11.750 Inches) | 2 |
| 23 | 852361T1 | 机罩手柄 | HANDLE Cowl | 2 |
| 23 | 850682A06 | 支架和手柄套件 | BRACKET AND HANDLE KIT | 2 |
| 24 | 29402 | 波形垫圈 | WAVE WASHER | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

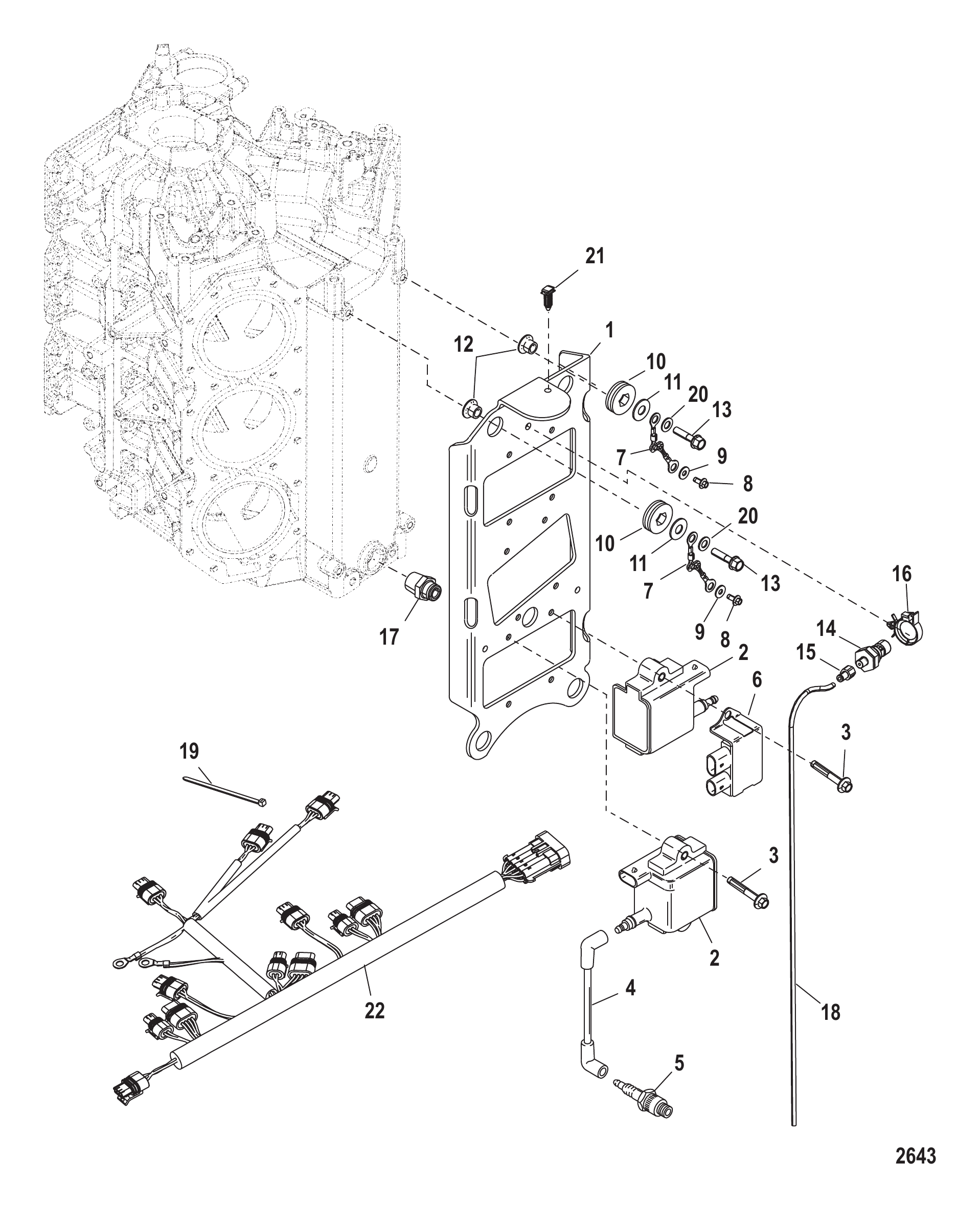

| 1 | 850295T4 | 安装板 | PLATE | 1 |
| 2 | 856991A1 | 线圈套件 | COIL KIT | 6 |
| 3 | 82129130 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 12 |
| 4 | 881908T | 电缆组 | CABLE SET | 1 |
| 5 | 889597001 | 火花塞 | SPARK PLUG | 6 |
| 5 | 889597Q | NGK IZFR5G @4 | NGK IZFR5G @4 | 6 |
| 6 | 859595T | 双线圈驱动器 | DRIVER Dual Coil | 3 |
| 7 | 858414A1 | 编织电缆总成 | CABLE ASSEMBLY Braided | 2 |
| 8 | 82129110 | 螺丝 (M6 x 10) | SCREW (M6 x 10) | 2 |
| 9 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 9 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 10 | 833155 | 护孔环 | GROMMET | 4 |
| 11 | 4002318 | 垫圈 8.90 x 24.0x 2.4 不锈钢 | WASHER 8.90 x 24.0x 2.4 PL SS | 4 |
| 12 | 8502341 | 衬套 | BUSHING | 4 |
| 13 | 81893435 | 螺钉(M8×35) | SCREW (M8 x 35) | 4 |
| 13 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 4 |
| 14 | 881879A7 | 传感器套件 (0-50 PSI) | SENSOR KIT (0-50 PSI) | 1 |
| 14 | 8M0157742 | 水压传感器 | SENSOR Water Pressure | 1 |
| 15 | 892403 | 接头 | FITTING | 1 |
| 15 | 8M0207782 | 直通接头 | FITTING Straight | 1 |
| 16 | 883066 | 夹子 (.865) | CLIP (.865) | 1 |
| 17 | 881866 | 接头 | FITTING | 1 |
| 18 | 85978571 | 管材（52英寸整卷）（裁切至18英寸） | TUBING (52.00 Inches Bulk) (Cut to 18 Inches) | 1 |
| 19 | 859671 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 20 | 36001 | 垫圈 | WASHER | 2 |
| 21 | 828991T | 卡扣 | CLIP | 1 |
| 22 | 892972T01 | 线圈线束总成 | HARNESS ASSEMBLY Coil | 1 |

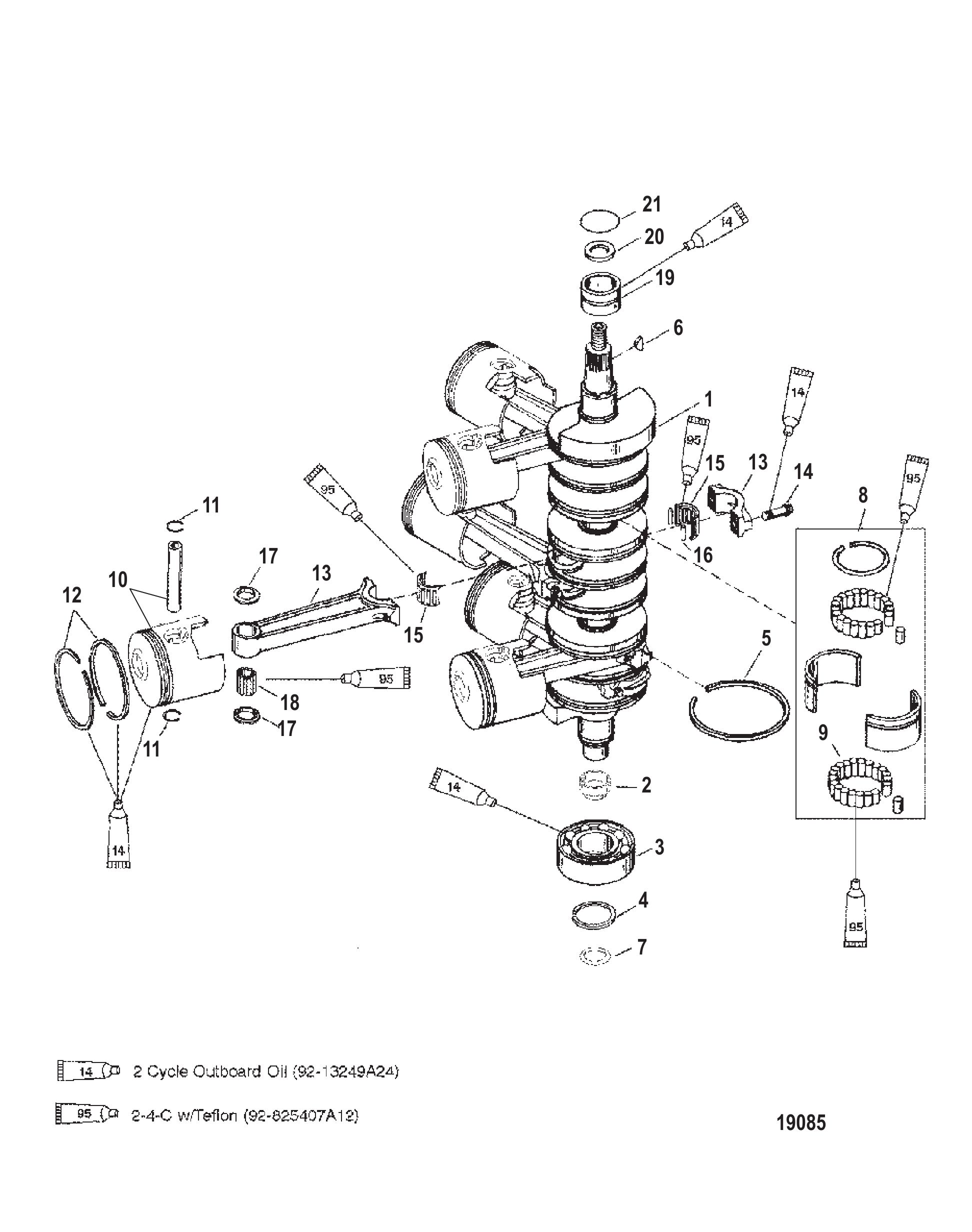

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9784A8 | 曲轴 | CRANKSHAFT | 1 |
| 1 | 9784A11 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 2 | NSS | 磨损套筒(不单独销售) | NOT SOLD SEPARATE Wear Sleeve | 1 |
| 3 | 67923 | 球轴承(下部) | BEARING Ball (LOWER) | 1 |
| 3 | 67923T | 滚珠轴承 | BEARING Ball | 1 |
| 4 | 67446 | 环 | RING | 1 |
| 5 | 816106 | 环 | RING | 7 |
| 5 | 843198T01 | 密封环 | RING Seal | 7 |
| 6 | 91800 | 半圆键 | KEY Woodruff | 1 |
| 7 | 35126 | O型圈(.859 x .139) | O-RING (.859 x .139) | 1 |
| 8 | 817001A1 | 轴承座圈总成 | RACE ASSEMBLY Bearing | 2 |
| 8 | 8M0113288 | 轴承座圈总成 | RACE ASSY-BEARING | 2 |
| 9 | NSS | 滚针轴承(不单独销售) | NOT SOLD SEPARATE Needle Roller | 88 |
| 10 | 855354A3 | 活塞 | PISTON | 3 |
| 10 | 859297T2 | 活塞 | PISTON | 3 |
| 10 | 855353A3 | 活塞 | PISTON | 3 |
| 10 | 855353T3 | 活塞 | PISTON | 3 |
| 10 | 856936A2 | 活塞总成 | PISTON ASSEMBLY | AR |
| 10 | 859444A2 | 活塞总成 | PISTON ASSEMBLY | AR |
| 10 | 856938A2 | 活塞总成 | PISTON ASSEMBLY | AR |
| 10 | 859446A2 | 活塞总成 | PISTON ASSEMBLY | AR |
| 10 | 856935A2 | 活塞总成 | PISTON ASSEMBLY | AR |
| 10 | 859443A2 | 活塞总成 | PISTON ASSEMBLY | AR |
| 10 | 856937A2 | 活塞总成 | PISTON ASSEMBLY | AR |
| 10 | 859445A2 | 活塞总成 | PISTON ASSEMBLY | AR |
| 11 | 8320811 | 锁紧环 | LOCK RING | 12 |
| 12 | 834805A12 | 活塞环组 | RING SET Piston | 12 |
| 12 | 856939A12 | 活塞环组 | RING SET Piston | 3 |
| 12 | 875252A12 | 活塞环组 | RING SET Piston | 3 |
| 12 | 856940A12 | 活塞环组 | RING SET Piston | 3 |
| 12 | 875257A12 | 活塞环组 | RING SET Piston | 3 |
| 13 | 822373A3 | 连杆总成 | CONNECTING ROD ASSEMBLY | 6 |
| 13 | 8M0125869 | 连杆套件 | CONN ROD KIT | 6 |
| 14 | 94320 | 螺钉(.375-24 x 1.250) | SCREW (.375-24 x 1.250) | 12 |
| 15 | 43012A1 | 轴承/保持架套件 | BEARING/CAGE KIT | 12 |
| 15 | 8M0235070 | 轴承保持架 | CAGE BEARING | 12 |
| 16 | NSS | 不单独销售 滚针轴承 | NOT SOLD SEPARATE Needle Roller Bearing | 96 |
| 17 | 88263 | 止推垫片 | THRUST WASHER | 12 |
| 18 | 88258 | 滚针轴承 | NEEDLE Roller Bearing | 204 |
| 18 | 8M0204715 | 滚针@102 | NEEDLES-BRG @102 | 204 |
| 19 | 816773A2 | 轴承总成（上部） | BEARING ASSEMBLY (UPPER) | 1 |
| 20 | 815449 | 油封 | SEAL Oil | 1 |
| 20 | 859093 | 密封件 | SEAL | 1 |
| 21 | 823683 | O型圈(1.989 x .070) | O-RING (1.989 x .070) | 1 |
| - | 854198A98 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 854198A99 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 854199A98 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 854199A99 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 832934A98 | 衬垫套件 | GASKET SET | 1 |
| - | 8M0133170 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

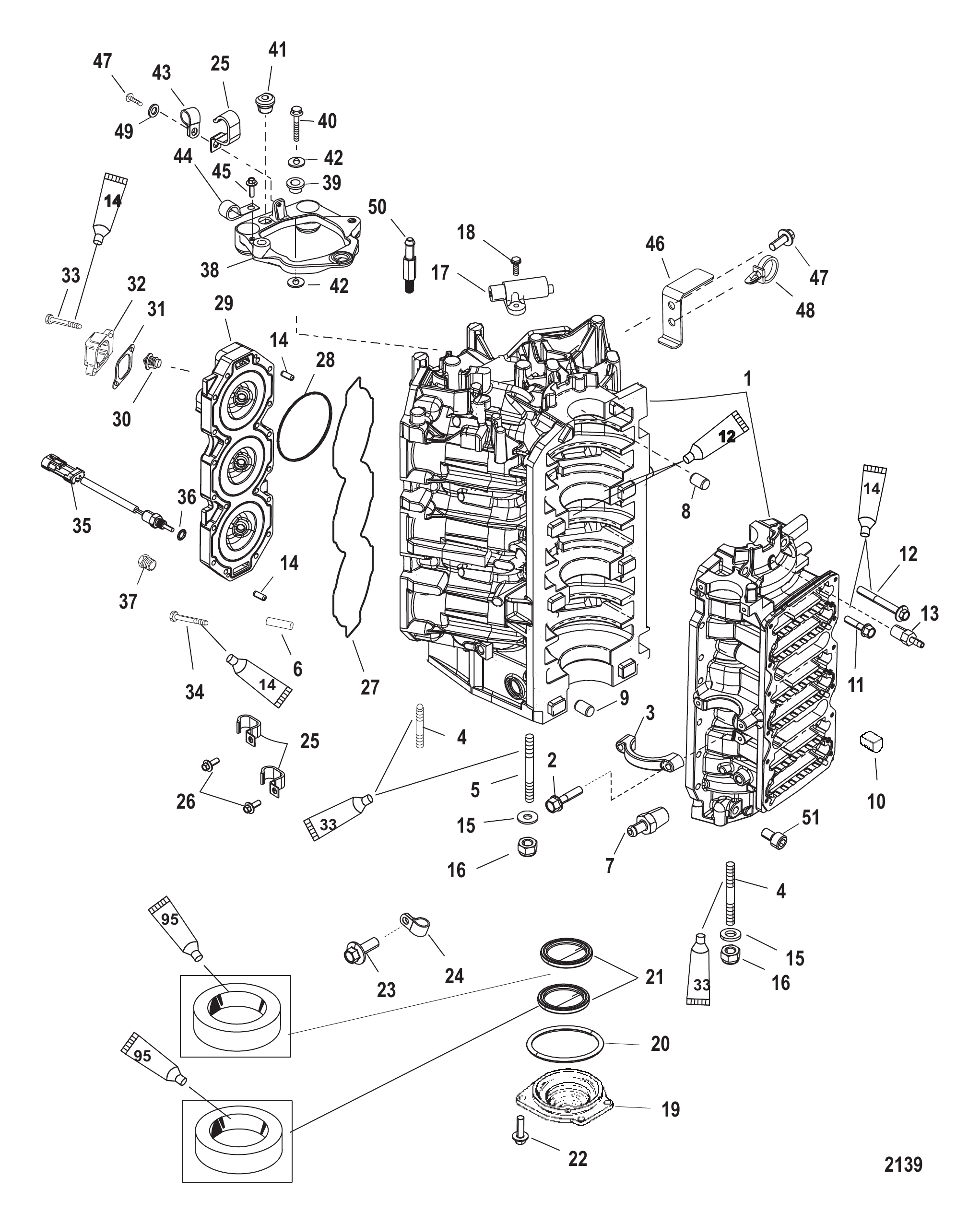

| 1 | 9811T87 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 1 | 899162A06 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 1 | 9811T92 | 气缸体 | CYLINDER BLOCK | 1 |
| 1 | 899162A06 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 2 | 81893440 | 螺钉 (M8 x 40) | SCREW (M8 x 40) | 4 |
| 3 | 8569662 | 支架 | BRACKET | 2 |
| 3 | 8M0111325 | 盖板 | COVER | 2 |
| 4 | 903509 | 螺柱（M10×1.5×64） | STUD (M10 x 1.5 x 64) | 4 |
| 5 | 8154431 | 螺柱（M10×1.5×155） | STUD (M10 x 1.5 x 155) | 6 |
| 6 | 8248577 | 导流板 | DEFLECTOR | 6 |
| 7 | 8781051 | 止回阀 | CHECK VALVE | 1 |
| 8 | 67296 | 销 | PIN | 3 |
| 8 | 8M0036405 | 销 | PIN | 3 |
| 9 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 1 |
| 10 | 850309 | 堵头 | PLUG | 6 |
| 10 | 850309001 | 止动塞 | PLUG Stop | 6 |
| 10 | 850309001 | 止动塞 | PLUG Stop | 6 |
| 11 | 81893435 | 螺钉(M8×35) | SCREW (M8 x 35) | 14 |
| 11 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 14 |
| 12 | 82446180 | 螺钉(M10×80) | SCREW (M10 x 80) | 8 |
| 13 | 8245021 | 连接器 | CONNECTOR | 1 |
| 14 | 63779 | 定位销 (.250 x .625) | PIN Dowel (.250 x .625) | 4 |
| 15 | 856774 | 垫圈(0.406×0.750×0.105)不锈钢 | WASHER (.406 x .750 x .105) Stainless Steel | 10 |
| 15 | 8M0214963 | 垫圈 | WASHER | 10 |
| 16 | 4013610 | 螺母(M10不锈钢) | NUT (M10) Stainless Steel | 10 |
| 17 | 8283582 | 传感器 | SENSOR | 1 |
| 17 | 8M0082988 | 曲轴位置传感器 | SENSOR Crankshaft Position | 1 |
| 18 | 40011107 | 不锈钢螺钉(M5x16) | SCREW (M5 x 16) Stainless Steel | 2 |
| 19 | 9787A4 | 端盖总成 | END CAP ASSEMBLY | 1 |
| 20 | 62700 | O型圈(3.237 x .103) | O-RING (3.237 x .103) | 1 |
| 21 | 8308981 | 密封件 | SEAL | 2 |
| 22 | 82130020 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 4 |
| 23 | 82130012 | 螺钉（M6 x 12） | SCREW (M6 x 12) | 1 |
| 24 | 858902 | 卡箍 | CLAMP | 1 |
| 25 | 65292 | J型卡扣 | J CLIP | 3 |
| 25 | 8M0024808 | J型夹 | J-CLIP | 3 |
| 26 | 82130012 | 螺钉（M6 x 12） | SCREW (M6 x 12) | 2 |
| 27 | 818574 | 密封件 | SEAL | 2 |
| 28 | 884391 | 密封件 | SEAL | 6 |
| 29 | 858485T6 | 气缸盖 | CYLINDER HEAD | 1 |
| 29 | 858485T07 | 右舷气缸盖 | CYLINDER HEAD Starboard | 1 |
| 29 | 858485T07 | 右舷气缸盖 | CYLINDER HEAD Starboard | 1 |
| 29 | 858483T6 | 气缸盖 | CYLINDER HEAD | 1 |
| 29 | 858483T07 | 左舷气缸盖 | CYLINDER HEAD Port | 1 |
| 29 | 858483T07 | 左舷气缸盖 | CYLINDER HEAD Port | 1 |
| 30 | 885599003 | 节温器 54°C (130°F) | THERMOSTAT 54°C (130°F) (130 Degrees) | 2 |
| 30 | 8M0057307 | 节温器 54°C/130°F | THERMOSTAT 54 Degree C/130 Degree F | 2 |
| 30 | 885599004 | 节温器 54°C/130°F | THERMOSTAT 54 Degree C/130 Degree F | 2 |
| 30 | 8M0057307 | 节温器 54°C/130°F | THERMOSTAT 54 Degree C/130 Degree F | 2 |
| 31 | 8503181 | 衬垫 | GASKET | 2 |
| 32 | 887601 | 节温器盖 | COVER Thermostat | 1 |
| 32 | 887601002 | 左舷盖 | COVER Port | 1 |
| 32 | 887602 | 节温器盖 | COVER Thermostat | 1 |
| 32 | 887602002 | 右舷盖 | COVER Starboard | 1 |
| 33 | 82130025 | 螺钉(M6x25) | SCREW (M6 x 25) | 4 |
| 34 | 859096 | 螺钉(M8 x 50) | SCREW (M8 x 50) | 40 |
| 34 | 8M0045380 | 螺钉(M8 x 50) | SCREW (M8 x 50) | 40 |
| 35 | 889575 | 传感器总成 | SENSOR ASSEMBLY | 2 |
| 35 | 8M0214984 | 温度传感器 | SENSOR Temperature | 2 |
| 35 | 885342001 | 传感器总成 | SENSOR ASSEMBLY | 2 |
| 35 | 8M0148668 | 传感器总成 | SENSOR ASSEMBLY | 2 |
| 36 | 627021 | O型圈(.301 x .070) | O-RING (.301 x .070) | 2 |
| 36 | 888814 | O型圈(0.351 x 0.072) | O-RING (.351 x .072) | 2 |
| 36 | 896699 | O型圈（1.78毫米 x 0.08毫米） | O-RING (1.78 mm x .08 mm) | 2 |
| 37 | 328022 | 黄铜管塞 (.125-27) | PLUG Pipe (.125-27) Brass | 1 or 2 |
| 38 | 857186A1 | 隔板总成 | PLATE ASSEMBLY | 1 |
| 38 | 857186T02 | 隔板总成 | PLATE ASSEMBLY | 1 |
| 39 | 855729 | 支架 | MOUNT | 3 |
| 40 | 82130145 | 螺丝(M10 x 45) | SCREW (M10 x 45) | 3 |
| 41 | 19565 | 护孔环 | GROMMET | 1 |
| 41 | 19565002 | 护孔环 | GROMMET | 1 |
| 41 | 19565002 | 护孔环 | GROMMET | 1 |
| 42 | 855725 | 垫圈 | WASHER | 6 |
| 43 | 858424 | 卡箍 | CLAMP | 1 |
| 44 | 858951 | J型卡扣 | J CLIP | 1 |
| 45 | 82130012 | 螺钉（M6 x 12） | SCREW (M6 x 12) | 1 |
| 46 | 888435 | 支架 | BRACKET | 1 |
| 47 | 82130016 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 2 |
| 48 | 858932 | 卡扣 | CLIP | 1 |
| 49 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 49 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 50 | 8405101 | 销 | PIN | 1 |
| 51 | 82494810 | 螺丝 (M6 x 10) | SCREW (M6 x 10) | 1 |
| - | 832934A00 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 877869A03 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 877869A07 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 877869A04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 877869A07 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |

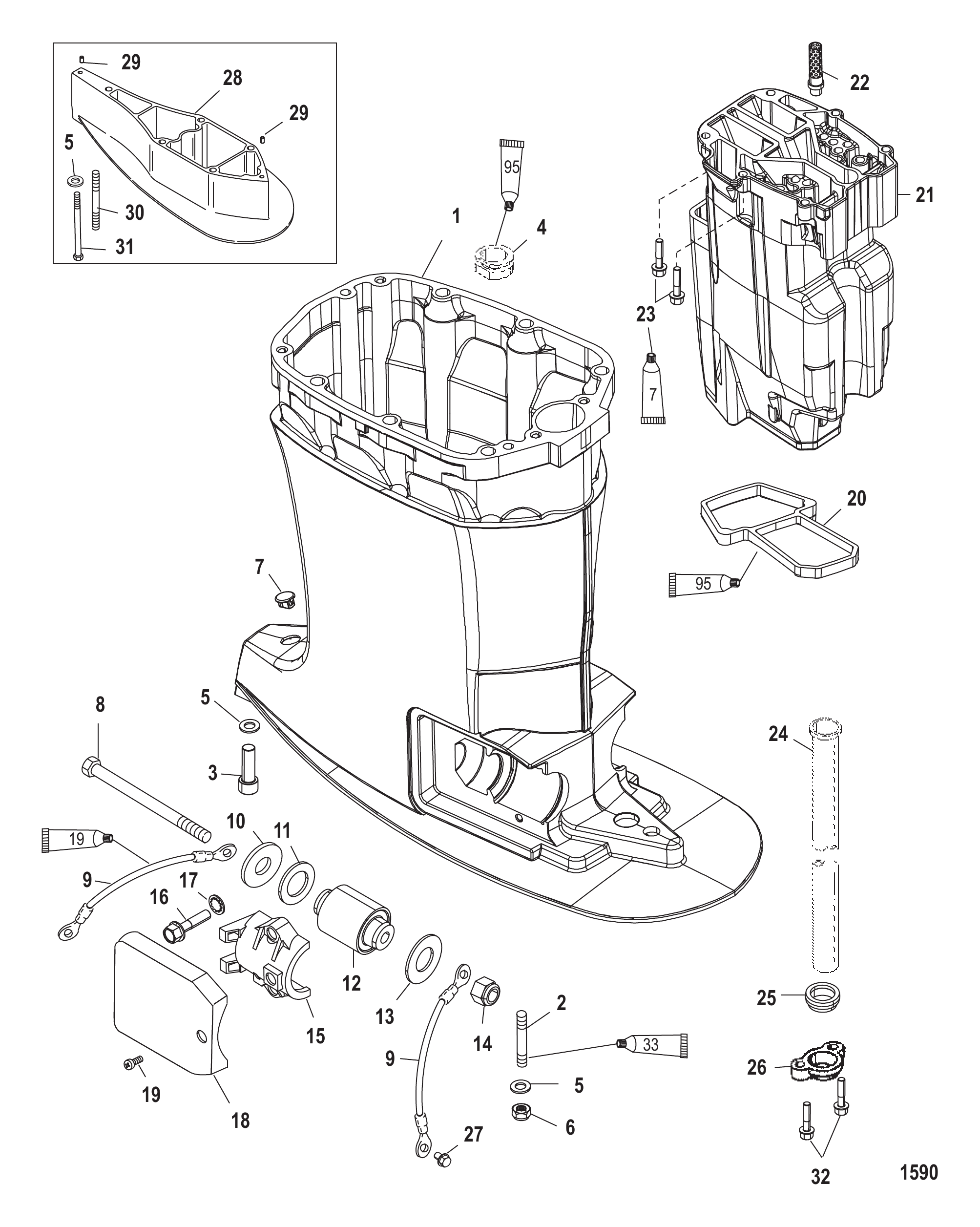

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 832937A05 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 1 | 832937A06 | 传动轴壳体总成-加长型 | HOUSING ASSEMBLY Driveshaft - Long | 1 |
| 1 | 832938A5 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 1 | 832938A06 | 传动轴壳体总成-超长/特超长型 | HOUSING ASSEMBLY Driveshaft - X/XX-Long | 1 |
| 2 | 856983 | 双头螺柱(M12 x 52) | STUD (M12 x 52) | 4 |
| 2 | 8M0008031 | 双头螺柱(M12 x 1.75 x 52) | STUD (M12 x 1.75 x 52) | 4 |
| 3 | 857136 | 螺钉(M12×35毫米) | SCREW (M12 x 35 MM) | 1 |
| 4 | 8331231 | 护孔环 | GROMMET | 1 |
| 5 | 856982 | 垫圈(0.5×0.81×0.09英寸)不锈钢 | WASHER (.500 x .810 x .090) Stainless Steel | 5 |
| 6 | 896895 | 螺母(M12) | NUT (M12) | 4 |
| 7 | 64649 | 堵头 | PLUG | 1 |
| 8 | 898834 | 螺栓（M14×178） | BOLT (M14 x 178) | 2 |
| 9 | 88238A10 | 接地线总成 | CABLE ASSEMBLY Ground | 2 |
| 10 | 815432 | 垫圈(.562 x 2.00 x .125) | WASHER (.562 x 2.00 x .125) | 2 |
| 11 | 8154331 | 垫圈（1.25×2.00×0.19） | WASHER (1.25 x 2.00 x .19) | 2 |
| 12 | 8137711 | 支架 | MOUNT | 2 |
| 13 | 825190 | 垫圈 | WASHER | 2 |
| 14 | 896602 | 螺母(M14) | NUT (M14) | 2 |
| 15 | 8186442 | 卡箍 | CLAMP | 2 |
| 15 | 879150A90 | 下支架盖套件 | COVER KIT Lower Mount | 2 |
| 16 | 81893435 | 螺钉(M8×35) | SCREW (M8 x 35) | 4 |
| 16 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 4 |
| 17 | 72521 | 内齿锁紧垫圈 | LOCKWASHER Internal Tooth | 1 |
| 18 | 8M0001136 | 下支架盖 | COVER Lower Mount | 2 |
| 18 | 879150A90 | 下支架盖套件 | COVER KIT Lower Mount | 2 |
| 19 | 69079 | 螺钉 (#10-16 x .440) | SCREW (#10-16 x .440) | 2 |
| 20 | 8329321 | 密封件 | SEAL | 1 |
| 21 | 833116A4 | 排气管总成 | TUBE ASSEMBLY Exhaust | 1 |
| 22 | 8524052 | 滤网 | STRAINER | 1 |
| 22 | 8M0026113 | 滤网 | STRAINER | 1 |
| 23 | 81893435 | 螺钉(M8×35) | SCREW (M8 x 35) | 6 |
| 23 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 6 |
| 24 | 8329417 | 水管 | TUBE Water | 1 |
| 24 | 8M0042785 | 水管 | TUBE-WATER | 1 |
| 24 | 8329418 | 水管 | TUBE Water | 1 |
| 24 | 8M0042786 | 水管 | TUBE Water | 1 |
| 24 | 8329419 | 水管 | TUBE Water | 1 |
| 24 | 8M0042787 | 水管 | TUBE-WATER | 1 |
| 25 | 832940001 | 密封件 | SEAL | 1 |
| 26 | 8329391 | 卡箍 | CLAMP | 1 |
| 27 | 41508 | 螺钉(0.250-20×0.500)不锈钢 | SCREW (.250-20 x .500) Stainless Steel | 1 |
| 28 | 823979T1 | 隔套 | SPACER | 1 |
| 28 | 8M0105088 | 传动轴壳体加长隔套（黑色） | SPACER Driveshaft Housing X-Long, Black | 1 |
| 29 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 2 |
| 30 | 857009 | 双头螺柱（M12×179） | STUD (M12 x 179) | 4 |
| 30 | 8M0008047 | 双头螺柱（M12×179） | STUD (M12 x 179) | 4 |
| 31 | 857137 | 螺钉 (M12 X 160) | SCREW (M12 x 160) | 1 |
| 32 | 81893435 | 螺钉(M8×35) | SCREW (M8 x 35) | 2 |
| 32 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

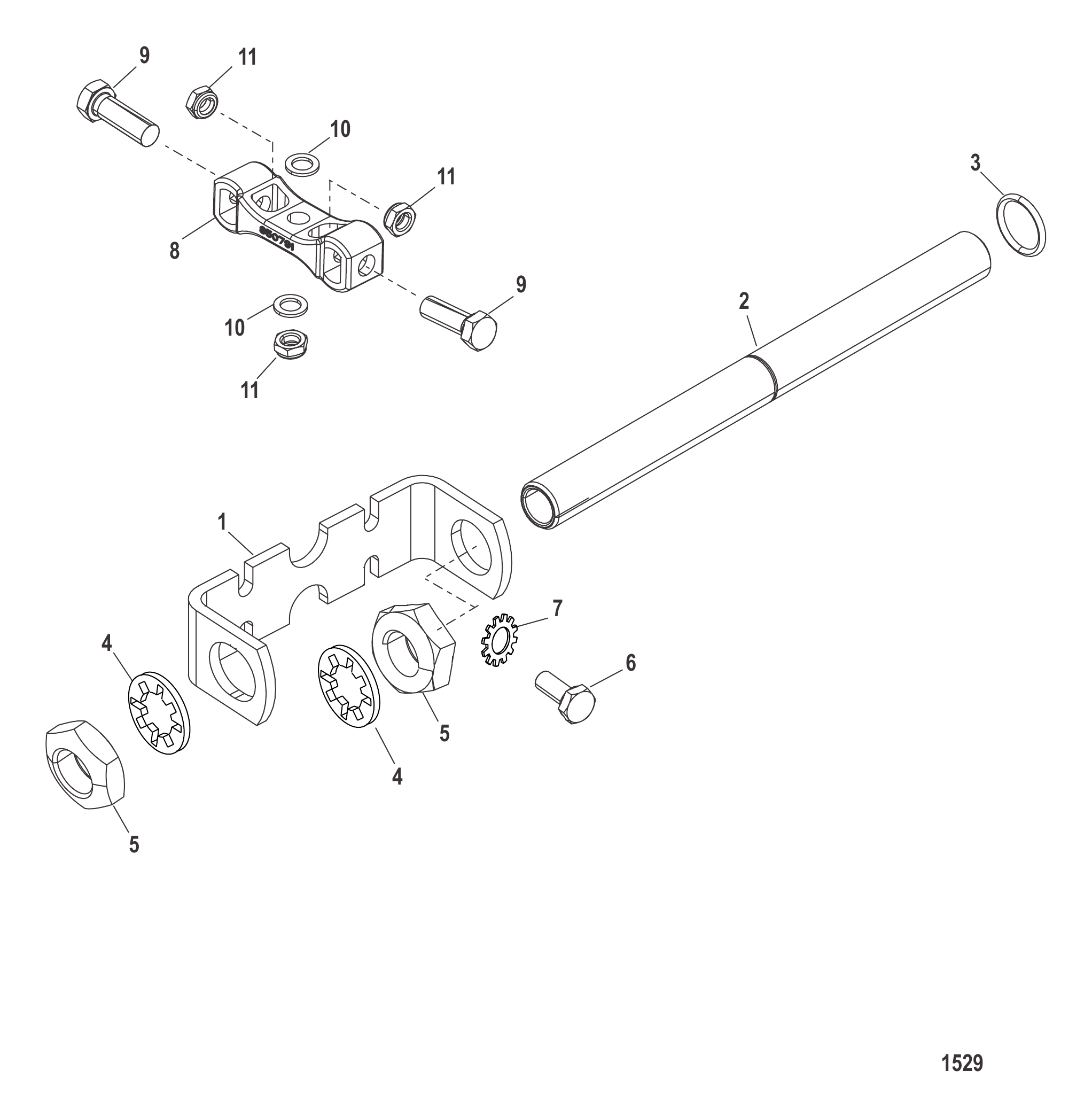

| - | 92876A8 | 转向安装套件 | ATTACHING KIT Steering | 1 |
| 1 | 41055A1 | 支架总成 | BRACKET ASSEMBLY | 1 |
| 2 | 715651 | 转向拉索套管 | TUBE Steering Cable | 1 |
| 3 | 48462 | O型圈 (.614 x .070) | O-RING (.614 x .070) | 1 |
| 4 | 821203 | 锁紧垫圈 | LOCKWASHER | 2 |
| 5 | 37984 | 螺母 (.875-14) | NUT (.875-14) | 2 |
| 5 | 8M0041651 | 螺母 (.875-14) | NUT (.875-14) | 2 |
| 6 | 38601 | 螺丝(.250-28 x 1.250) | SCREW (.250-28 x 1.250) | 4 |
| 7 | 78968 | 内锁紧垫圈 (.250) | LOCKWASHER Internal (.250) | 4 |
| 8 | 850791T | 联轴器 | COUPLER | 1 |
| 9 | 73732 | 螺钉 (.375-24 x 1.120) | SCREW (.375-24 x 1.120) | 2 |
| 10 | 37828 | 不锈钢垫圈 (.390 x .625 x .062) | WASHER (.390 x .625 x .062) Stainless Steel | 2 |
| 11 | 826709113 | 不锈钢螺母 (.375-24) | NUT (.375-24) Stainless Steel | 3 |
| 11 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 3 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

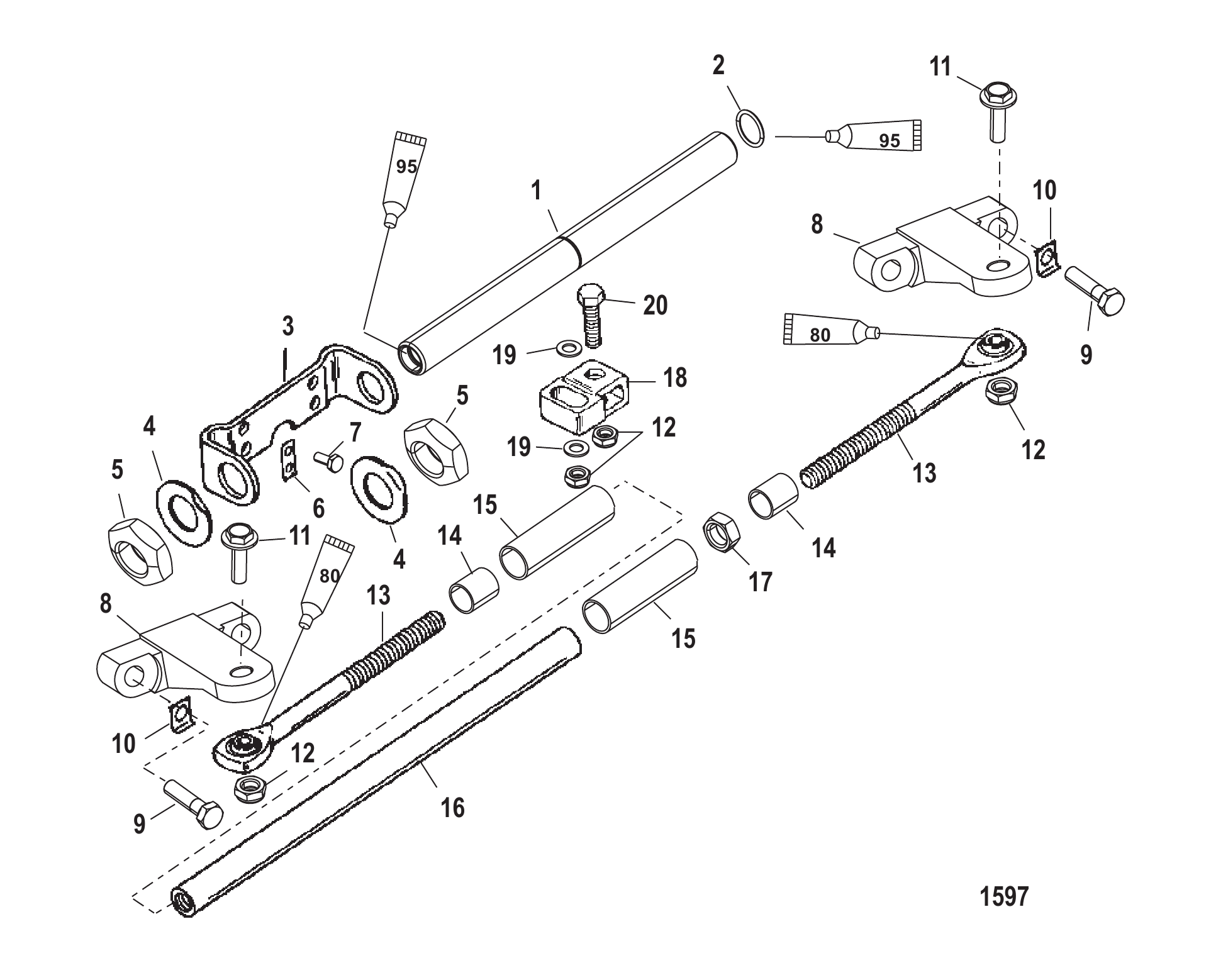

| - | 92876A9 | 双机延长套件 | EXTENSION KIT Dual Engine | 1 |
| 1 | 71565A2 | 管总成 | TUBE ASSEMBLY | 1 |
| 2 | 48462 | O型圈 (.614 x .070) | O-RING (.614 x .070) | 1 |
| 3 | 41055 | 支架 | MOUNT | 1 |
| 4 | 42100 | 锁紧垫圈 | TAB WASHER | 2 |
| 5 | 37984 | 螺母 (.875-14) | NUT (.875-14) | 2 |
| 5 | 8M0041651 | 螺母 (.875-14) | NUT (.875-14) | 2 |
| 6 | 88404 | 锁紧垫圈 | TAB WASHER | 2 |
| 7 | 38601 | 螺丝(.250-28 x 1.250) | SCREW (.250-28 x 1.250) | 4 |
| 8 | 17729A1 | 支架 | BRACKET | 2 |
| 9 | 62055 | 螺钉(.312-24 x 1.250) | SCREW (.312-24 x 1.250) | 4 |
| 10 | 17728 | 锁紧垫圈 | TAB WASHER | 4 |
| 11 | 140001 | 螺钉(0.375-24×1.38) | SCREW (.375-24 x 1.38) | 2 |
| 12 | 826709113 | 不锈钢螺母 (.375-24) | NUT (.375-24) Stainless Steel | 6 |
| 12 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 6 |
| 13 | 979331 | 转向眼环 | STEERING EYE | 2 |
| 13 | 8M0026167 | 转向眼环 | STEERING EYE | 2 |
| 14 | 23651 | 衬套(1.625) | SLEEVE (1.625) | 2 |
| 15 | 97931 | 管材(4.00英寸) | TUBING (4.00 Inches) | 2 |
| 16 | 8149513 | 联轴器(15.00英寸) | COUPLER (15.00 Inches) | 1 |
| 16 | 8M0026098 | 联轴器15英寸 | COUPLER 15 In. | 1 |
| 17 | 42099 | 螺母(.562-18) | NUT (.562-18) | 1 |
| 18 | 821169 | 联轴器 | COUPLING | 1 |
| 19 | 34931 | 不锈钢垫圈(.406x.734x.063) | WASHER (.406 x .734 x .063) Stainless Steel | 1 |
| 19 | 37828 | 不锈钢垫圈 (.390 x .625 x .062) | WASHER (.390 x .625 x .062) Stainless Steel | 1 |
| 20 | 94319 | 螺钉(.375-24 x 1.5) | SCREW (.375-24 x 1.5) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

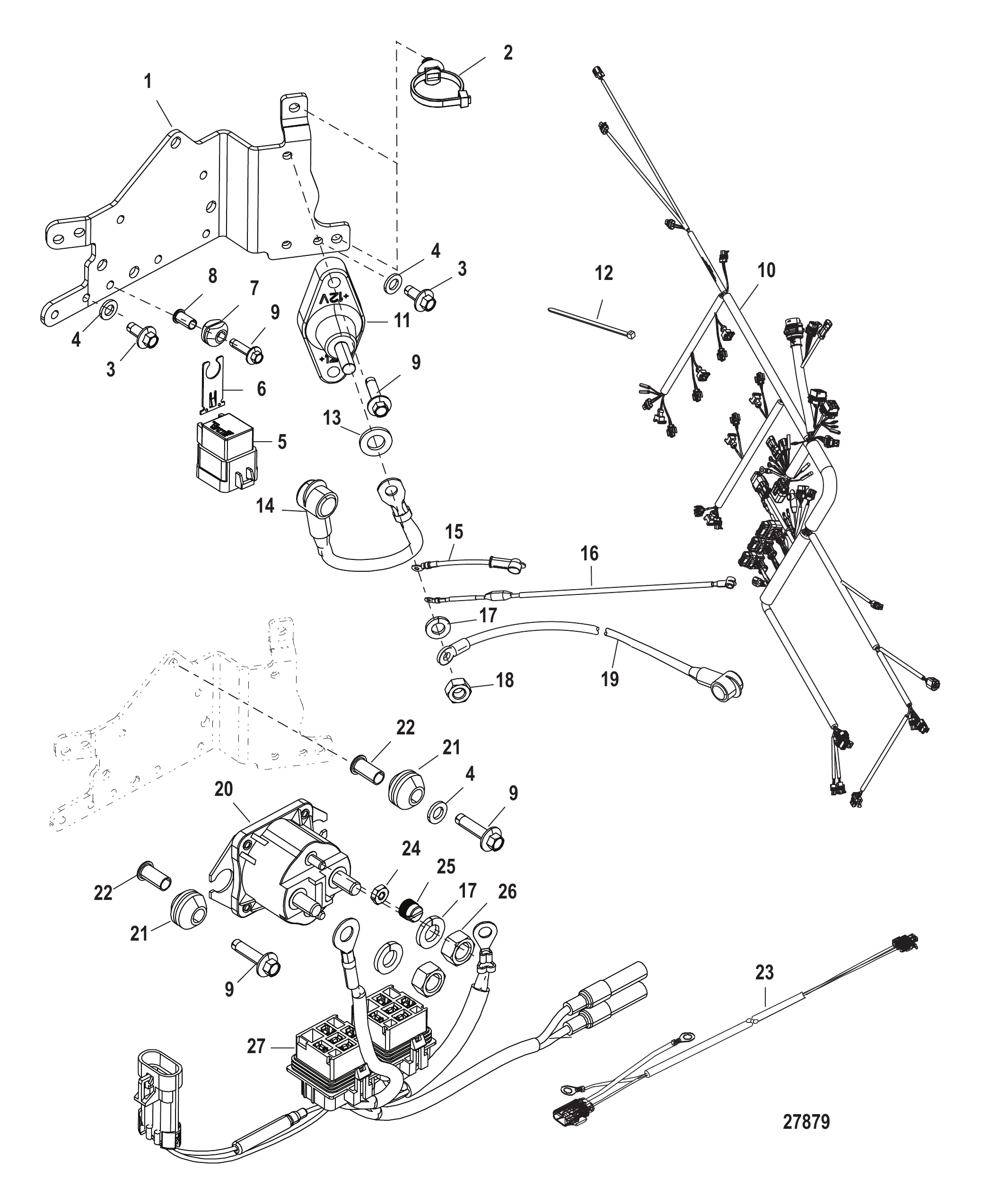

| - | NSS | 不单独销售-电气板总成(完整) | NOT SOLD SEPARATE Electrical Plate Assembly-Complete | 1 |
| 1 | 899071T01 | 安装板 | PLATE | 1 |
| 2 | 899145 | 绑带夹 | CLIP Tie Strap | 2 |
| 3 | 82129114 | 螺钉 (M6 x 14) | SCREW (M6 x 14) | 2 |
| 4 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 3 |
| 4 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 3 |
| 5 | 882751A1 | 继电器总成 | RELAY ASSEMBLY | 3 |
| 5 | 8M0207773 | 调整继电器总成 | RELAY ASSEMBLY Trim | 3 |
| 6 | 828102 | 支架 | BRACKET | 3 |
| 6 | 8M0207771 | 安装支架 | BRACKET Mounting | 3 |
| 7 | 818967 | 护孔环 | GROMMET | 3 |
| 7 | 8M0207785 | 护孔环 | GROMMET | 3 |
| 8 | 818968 | 衬套 | BUSHING | 3 |
| 8 | 8M0214955 | 衬套 | BUSHING | 3 |
| 9 | 82129125 | 螺丝(M6 x 25毫米) | SCREW (M6 x 25 mm) | 7 |
| 10 | 892974T06 | 发动机线束总成 | HARNESS ASSEMBLY Engine | 1 |
| - | 83296920 | 迷你保险丝-黄色-20安 | FUSE Mini - Yellow - 20 Ampere | 5 |
| - | 832969T20 | 迷你保险丝-黄色-20安 | FUSE Mini - Yellow - 20 Ampere | 5 |
| - | 8329692 | 迷你保险丝-灰色-2安培 | FUSE Mini - Gray - 2 Ampere | 1 |
| - | 8M0207797 | 迷你保险丝-灰色-2安培 | FUSE Mini - Gray - 2 Ampere | 1 |
| - | 8329695 | 迷你保险丝-棕色-5安培 | FUSE Mini - Tan - 5 Ampere | 1 |
| - | 832969T05 | 迷你保险丝-棕色-5安培 | FUSE Mini - Tan - 5 Ampere | 1 |
| - | 858781A2 | 直喷器线束总成 | HARNESS ASSEMBLY Direct Injector | 1 |
| - | 879346A49 | 线束维修套件 | HARNESS REPAIR KIT | 1 |
| - | 858780A2 | 喷油器线束总成 | HARNESS ASSEMBLY Fuel Injector | 1 |
| - | 879346A50 | 线束维修套件 | HARNESS REPAIR KIT | 1 |
| - | 881262A2 | 交流发电机线束总成 | HARNESS ASSEMBLY Alternator | 1 |
| - | 878073A2 | 节气门位置传感器线束总成 | HARNESS ASSEMBLY Throttle Position Sensor | 1 |
| - | 879346A41 | 线束维修套件 | HARNESS REPAIR KIT | 1 |
| 11 | 875302A1 | 带电螺柱总成 | HOT STUD ASSEMBLY | 1 |
| 12 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 13 | 85172 | 垫圈 | WASHER | 1 |
| 14 | 93388T21 | 线缆总成(黑色) | CABLE ASSEMBLY Black | 1 |
| 15 | 93388A17 | 线缆总成(8.50英寸) | CABLE ASSEMBLY (8.50 Inches) | 1 |
| 16 | 878231A6 | 保险丝线束总成-100安培 | HARNESS ASSEMBLY Fuse - 100 Ampere | 1 |
| 17 | 53166 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 3 |
| 18 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 1 |
| 19 | 88439A46 | 电缆总成 蓄电池-正极 | CABLE ASSEMBLY Battery - Positive | 1 |
| 20 | 817109A2 | 电磁阀总成(#10-32/.3125-18端子) | SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals) | 1 |
| 21 | 822179 | 护孔环 | GROMMET | 2 |
| 22 | 818968 | 衬套 | BUSHING | 2 |
| 22 | 8M0214955 | 衬套 | BUSHING | 2 |
| 23 | 888416T03 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 23 | 8M0113732 | DTS清洁电源线束总成(14英尺) | HARNESS ASSEMBLY DTS, Clean Power, 14 Feet | 1 |
| 24 | 45076 | 黄铜螺母(#10-32) | NUT (#10-32) Brass | 2 |
| 25 | 813938 | 盖形螺母(#10-32) | CAP NUT (#10-32) | 2 |
| 26 | 68292 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 26 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 27 | 819514A19 | 升降线束总成 | HARNESS ASSEMBLY Trim | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

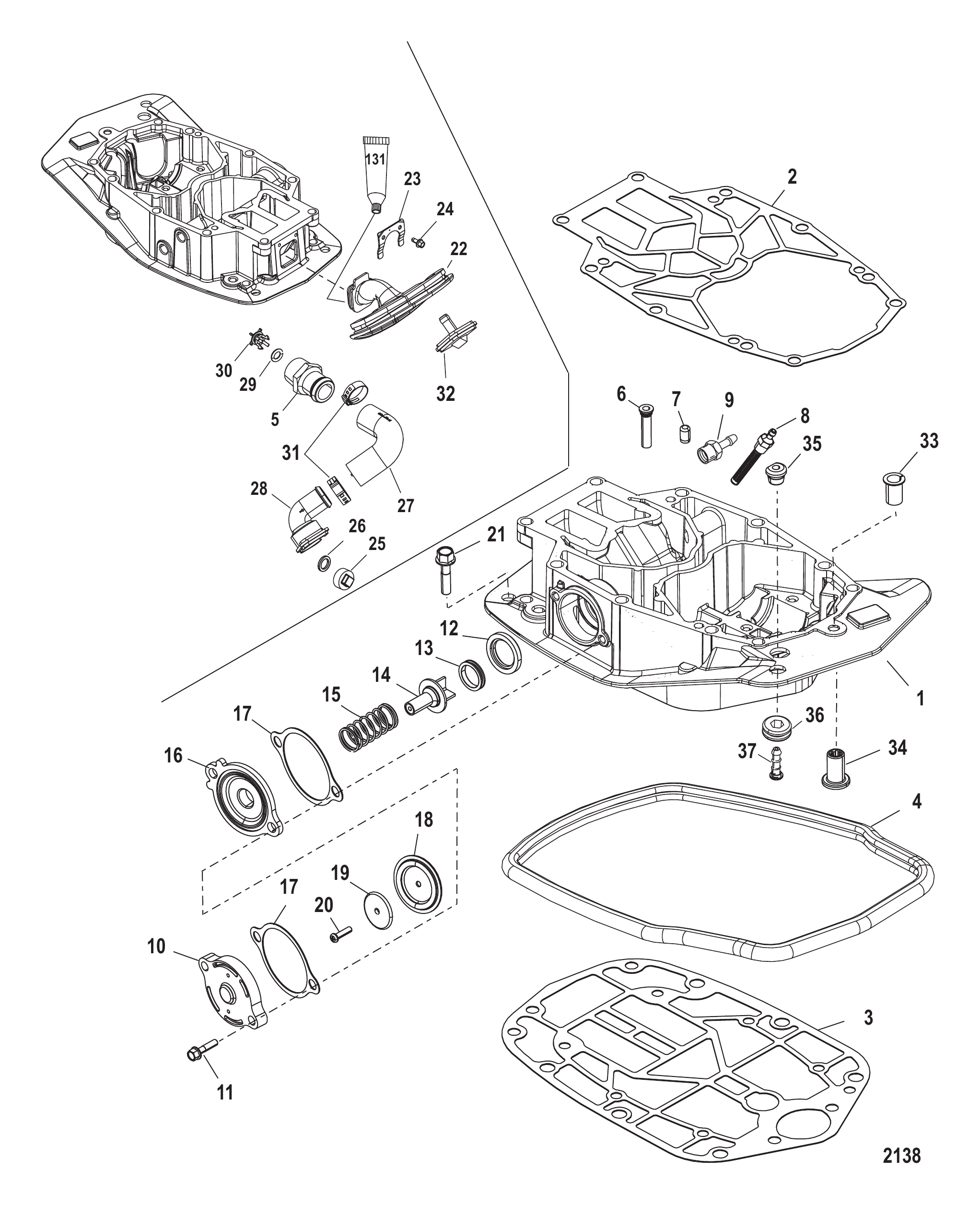

| 1 | 832935A16 | 排气板总成 | PLATE ASSEMBLY Exhaust | 1 |
| 1 | 832935A17 | 排气板总成 | PLATE ASSEMBLY Exhaust | 1 |
| 1 | 832935A17 | 排气板总成 | PLATE ASSEMBLY Exhaust | 1 |
| 2 | 8329335 | 衬垫 | GASKET | 1 |
| 2 | 832933006 | 衬垫 | GASKET | 1 |
| 3 | 8329344 | 衬垫(下部) | GASKET (Lower) | 1 |
| 3 | 832934006 | 衬垫 | GASKET | 1 |
| 4 | 8238051 | 密封件 | SEAL | 1 |
| 4 | 8M0043157 | 密封件 | SEAL | 1 |
| 5 | 8320761 | 止回阀接头 | FITTING Check Valve | 1 |
| 6 | 817519A1 | 排水单向阀总成 | CHECK VALVE ASSEMBLY Drain | 2 |
| 7 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 4 |
| 8 | 8348084 | 滤网 | STRAINER | 1 |
| 9 | 887603 | 接头 | FITTING | 1 |
| 10 | 65663A2 | 盖总成 | COVER ASSEMBLY | 1 |
| 10 | 8M0237835 | 罩盖总成 | COVER ASSY | 1 |
| 11 | 81893435 | 螺钉(M8×35) | SCREW (M8 x 35) | 2 |
| 11 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 2 |
| 12 | 814190 | 托架 | CARRIER | 1 |
| 13 | 814191 | 护孔环 | GROMMET | 1 |
| 14 | 814189 | 提动阀 | POPPET | 1 |
| 15 | 64878 | 弹簧(黑色) | SPRING (Black) | 1 |
| 16 | 65664A1 | 隔板总成 | PLATE ASSEMBLY | 1 |
| 17 | 88907003 | 衬垫 | GASKET | 2 |
| 18 | 648771 | 隔膜 | DIAPHRAGM | 1 |
| 19 | 76451 | 垫圈 | WASHER | 1 |
| 20 | 69570 | 螺钉(#10-16 x .750) | SCREW (#10-16 x .750) | 1 |
| 21 | 81893435 | 螺钉(M8×35) | SCREW (M8 x 35) | 4 |
| 21 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 4 |
| 22 | 8503061 | 怠速排气套 | BOOT Idle Exhaust | 1 |
| 22 | 850306A04 | 怠速排气护套套件 | BOOT KIT Idle Exhaust | 1 |
| 22 | 850306A04 | 怠速排气护套套件 | BOOT KIT Idle Exhaust | 1 |
| 23 | 888910 | 安装板 | PLATE | 1 |
| 24 | 82239312 | 螺钉(M5 x 12) | SCREW (M5 x 12) | 2 |
| 25 | 821908 | 堵头 | PLUG | 1 |
| 26 | 821915 | 垫圈 | WASHER | 1 |
| 27 | 859626A1 | 冲洗软管套件(进口) | FLUSH HOSE KIT (Inlet) | 1 |
| 28 | 8596001 | 接头 | FITTING | 1 |
| 29 | 30641 | O型圈(0.299x0.103) | O-RING (.299 x .103) | 1 |
| 30 | 8219631 | 止回阀 | CHECK VALVE | 1 |
| 31 | 850896 | 卡箍 (28.6) | CLAMP (28.6) | 2 |
| 32 | 821904 | 示流器接头 | FITTING Tell-Tale | 1 |
| 32 | 8M0077650 | 示流器接头 | FITTING Tell-Tale | 1 |
| 33 | 48237 | 衬套 | BUSHING | 1 |
| 34 | 43585 | 联轴器 | COUPLING | 1 |
| 35 | 126021 | 护孔环 | GROMMET | 1 |
| 35 | 12602002 | 护孔环 | GROMMET | 1 |
| 35 | 12602002 | 护孔环 | GROMMET | 1 |
| 36 | 822002 | 护孔环 | GROMMET | 1 |
| 37 | 94848 | 接头 | FITTING | 1 |
| - | 832934A00 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

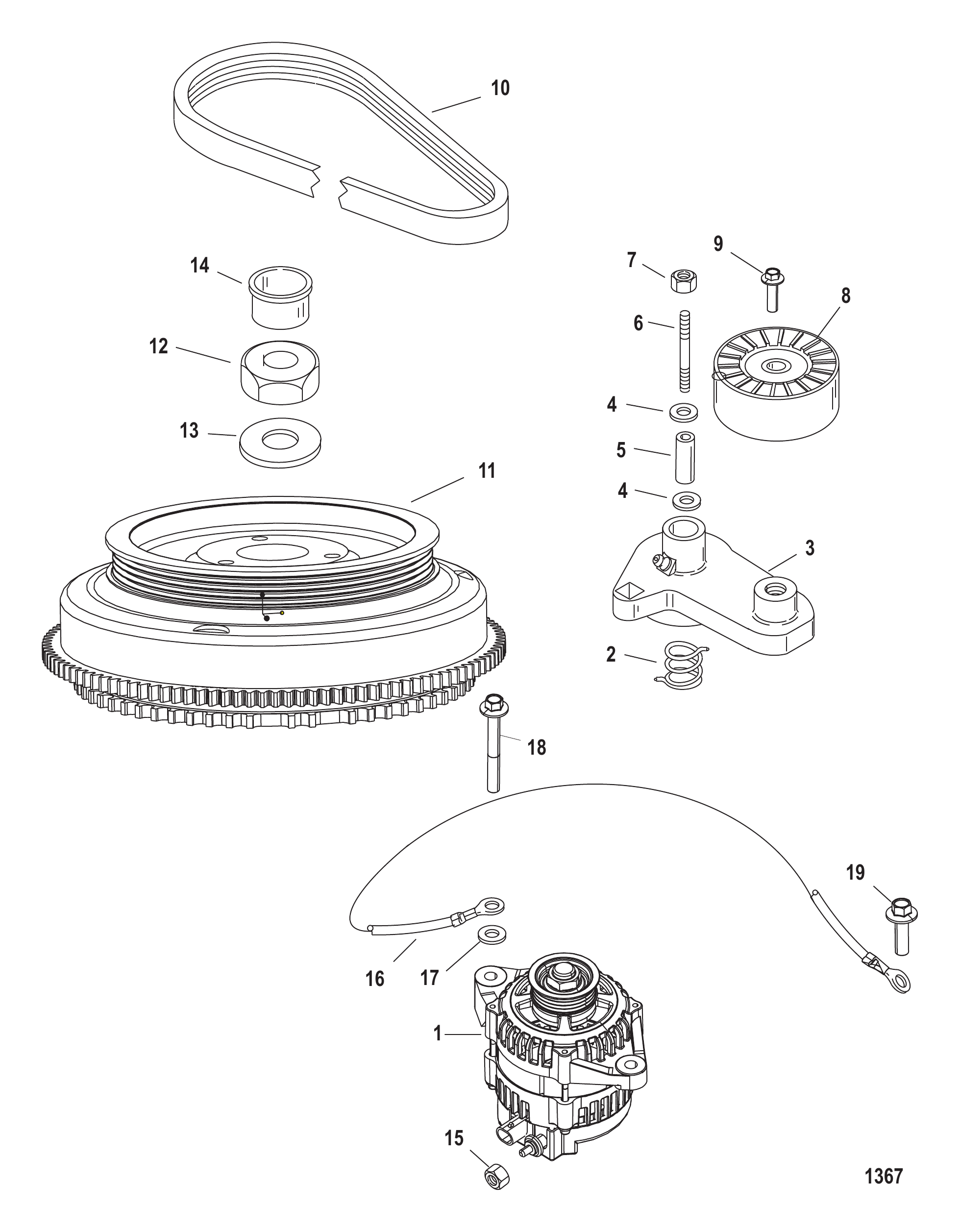

| 1 | 881247A1 | 交流发电机 | ALTERNATOR | 1 |
| 1 | 8M6013461 | 交流发电机 | ALTERNATOR | 1 |
| 2 | 8523742 | 弹簧 | SPRING | 1 |
| 3 | 856815T2 | 张紧臂总成 | ARM TENSIONER ASSEMBLY | 1 |
| 4 | 4002320 | 垫圈 | WASHER | 2 |
| 5 | 8568941 | 衬套 | BUSHING | 1 |
| 6 | 856900 | 螺柱(M10×85) | STUD (M10 x 85) | 1 |
| 6 | 8M0034457 | 螺柱(M10×85) | STUD (M10 x 85) | 1 |
| 7 | 826292 | 螺母(M10)黄铜/镀镍 | NUT (M10) Brass/Nickel Plated | 1 |
| 8 | 852385A2 | 皮带轮总成 | PULLEY ASSEMBLY | 1 |
| 8 | 8M6005030 | 皮带轮总成 | PULLEY ASSY | 1 |
| 9 | 4010835 | 螺钉(M10×35)六角法兰-不锈钢 | SCREW (M10 x 35) Hex Flange - Stainless Steel | 1 |
| 10 | 828507Q5 | 皮带 | BELT | 1 |
| 11 | 859619T1 | 飞轮 | FLYWHEEL | 1 |
| 12 | 42979 | 螺母(M16) | NUT (M16) | 1 |
| 13 | 68229 | 垫圈(.641 x 1.250 x .190) | WASHER (.641 x 1.250 x .190) | 1 |
| 13 | 33001 | 垫圈 | WASHER | 1 |
| 14 | 45907 | 黄色塞 | PLUG Yellow | 1 |
| 15 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 16 | 856583A5 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 17 | 4002319 | 垫圈 | WASHER | 1 |
| 18 | 82130150 | 螺丝(M10 x 50) | SCREW (M10 x 50) | 2 |
| 19 | 82130012 | 螺钉（M6 x 12） | SCREW (M6 x 12) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

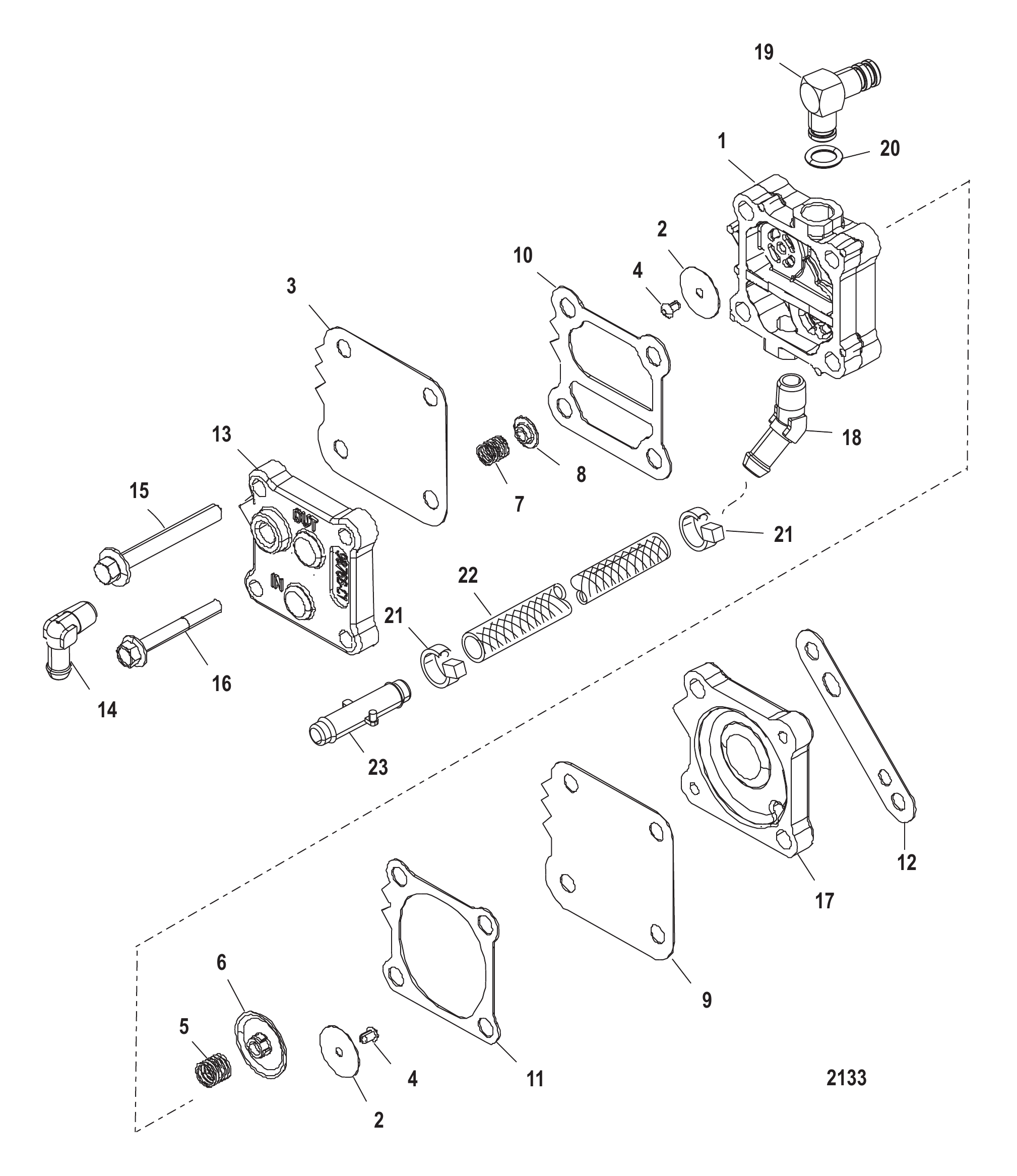

| - | 14360T77 | 燃油泵总成 | PUMP ASSEMBLY Fuel | 1 |
| - | 14360T74 | 燃油泵总成 | PUMP ASSEMBLY Fuel | 1 |
| 1 | NSS | 不单独销售 燃油泵 | NOT SOLD SEPARATE Fuel Pump | 1 |
| 2 | 857005A1 | 膜片组件 | DIAPHRAGM KIT | 2 |
| 3 | NSS | 膜片(不单独销售) | NOT SOLD SEPARATE Diaphragm | 1 |
| 4 | NSS | 固定座(不单独销售) | NOT SOLD SEPARATE Retainer | 2 |
| 5 | NSS | 弹簧(不单独销售) | NOT SOLD SEPARATE Spring | 1 |
| 6 | NSS | 盖帽(不单独销售) | NOT SOLD SEPARATE Cap | 1 |
| 7 | NSS | 弹簧(不单独销售) | NOT SOLD SEPARATE Spring | 1 |
| 8 | NSS | 盖帽(不单独销售) | NOT SOLD SEPARATE Cap | 1 |
| 9 | NSS | 膜片(不单独销售) | NOT SOLD SEPARATE Diaphragm | 1 |
| 10 | NSS | 增压垫片(不单独销售) | NOT SOLD SEPARATE Gasket-Boost | 1 |
| 11 | NSS | 脉冲垫片(不单独销售) | NOT SOLD SEPARATE Gasket-Pulse | 1 |
| 12 | 987691 | 衬垫 | GASKET | 1 |
| 12 | 8M0204705 | 衬垫@2 | GASKET @2 | 1 |
| 13 | 987752 | 安装板 | PLATE | 1 |
| 14 | 996642 | 90度弯头接头(0.125-27x0.250)尼龙 | FITTING Elbow 90 Degree (.125-27 x .250) Nylon | 1 |
| 15 | 82104540 | SCREW (M5 x 40) Fuel Pump | 2 | |
| 16 | 82130050 | 螺钉(M6×50)泵至曲轴箱 | SCREW (M6 x 50) Pump to Crankcase | 2 |
| 17 | 144303 | 底座 | BASE | 1 |
| 18 | 291112 | 接头 | FITTING | 1 |
| 18 | 782792 | 45度弯头接头(1.25) | FITTING Elbow 45 Degree (1.25) | 1 |
| 18 | 8M0207781 | 弯头 | ELBOW | 1 |
| 19 | 888493 | 弯头 | ELBOW | 1 |
| 20 | 805063 | O型圈(.301 x .070) | O-RING (.301 x .070) | 1 |
| 20 | 8M0204683 | O型圈(.070×.301内径) | O-Ring (.070 x .301 ID) | 1 |
| 21 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 2 |
| 22 | 856822A2 | 软管套管总成(18.00英寸) | HOSE AND SLEEVE ASSEMBLY (18.00 Inches) | 1 |
| 22 | 8M0043979 | 软管套管总成 | HOSE AND SLEEVE ASSEMBLY | 1 |
| 23 | 822769 | 连接器 | CONNECTOR | 1 |
| - | 832934A00 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 877869A03 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 877869A07 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 877869A04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 877869A07 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 856880 | 软管卡箍（15.3） | CLAMP Hose (15.3) | 4 |
| 1 | 8M0214964 | 卡箍 | CLAMP | 4 |
| 2 | 8557611 | 止回阀 | CHECK VALVE | 1 |
| 3 | 8583253 | 卡箍 | CLAMP | 1 |
| 4 | 858939 | 螺钉 (M5 x 35) | SCREW (M5 x 35) | 1 |
| 5 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 5 |
| 6 | 822769 | 连接器 | CONNECTOR | 1 |
| 7 | 856818A1 | 软管/套管 | HOSE/SLEEVE | 1 |
| 7 | 8M0064780 | 软管总成 | HOSE ASSEMBLY | 1 |
| 8 | 8568172 | 软管 | HOSE | 1 |
| 8 | 8M0064778 | 软管 | HOSE | 1 |
| 9 | 804825 | 燃油供给软管 | HOSE Fuel Supply | 1 |
| 10 | 804826 | 燃油旁通软管 | HOSE Fuel Bypass | 1 |
| 11 | 804827 | 软管 | HOSE | 1 |
| 11 | 8M6001364 | 软管总成 | HOSE ASSEMBLY | 1 |
| 12 | 830756109 | 软管(57英寸整卷)(裁切至18英寸) | HOSE (57.00 Inches Bulk) (Cut to 18.00 Inch Length) | 1 |
| 12 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 13 | 8589052 | 弯头 | ELBOW | 1 |
| 14 | 856825 | 软管 | HOSE | 1 |
| 15 | 856778 | 软管 | HOSE | 1 |
| 16 | 85682239 | 管材(17英寸整卷) | TUBING (17.00 Inches Bulk) | 1 |
| 17 | 85686953 | 套管(27英寸整卷)(裁切至14英寸) | SLEEVE (27.00 Inches Bulk) (Cut to 14.00 Inch Length) | 2 |
| 18 | 85686953 | 套管(27英寸整卷)(裁切至8英寸) | SLEEVE (27.00 Inches Bulk) (Cut to 8.00 Inch Length) | 1 |
| 19 | NSS | 盖帽(不单独销售) | NOT SOLD SEPARATE Cap | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 840306T14 | 齿轮箱总成 完整 带扭矩片 (1.62:1 长标准型) | GEAR HOUSING ASSEMBLY Complete, With Torque Tab (1.62:1 Long Standard) | 1 |
| - | 8M0236140 | GC小号长1.62 | GC SM L 1.62 | 1 |
| - | 840307T23 | 齿轮箱总成(1.62:1长轴标准)(重型) | GEAR HOUSING ASSEMBLY Complete (1.62:1 Long Standard)(Heavy Duty) | 1 |
| - | 8M0236268 | GC SM L 1.62 HD | GC SM L 1.62 HD | 1 |
| - | 840306T16 | 齿轮箱总成(带扭矩片1.75:1长轴标准) | GEAR HOUSING ASSEMBLY Complete, With Torque Tab (1.75:1 Long Standard) | 1 |
| - | 8M0236142 | GC SM L 1.75 | GC SM L 1.75 | 1 |
| - | 840307T27 | 齿轮箱总成(1.75:1长轴标准)(重型) | GEAR HOUSING ASSEMBLY Complete (1.75:1 Long Standard)(Heavy Duty) | 1 |
| - | 8M0236301 | GC SM L 1.75 HD | GC SM L 1.75 HD | 1 |
| 1 | 840306T3 | 齿轮箱总成基础型(带扭矩片) | GEAR HOUSING ASSEMBLY Basic, With Torque Tab | 1 |
| 2 | 379721 | 销 | PIN | 1 |
| 3 | 826134Q | 阳极块 | ANODE | 2 |
| 4 | 4000333 | 螺钉(M6 x 40) | SCREW (M6 x 40) | 1 |
| 5 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 6 | 42647A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 7 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 2 |
| 8 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 9 | 191833 | 密封件 | SEAL | 1 |
| 9 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 1 |
| 10 | NSS | 小齿轮(不单独销售) | NOT SOLD SEPARATE Pinion Gear | 1 |
| 11 | 92721 | 垫圈(.965×0.630) | WASHER (.965 x .630) | 1 |
| 12 | 35921 | 螺母(0.625-18) | NUT (.625-18) | 1 |
| 13 | 824145 | 换档轴 | SHIFT SHAFT | 1 |
| 14 | 848836A1 | 衬套总成 | BUSHING ASSEMBLY | 1 |
| 15 | 8164641 | 油封 | SEAL Oil | 1 |
| 15 | 8M0246145 | 油封 | OIL SEAL | 1 |
| 16 | 36318 | O型圈(0.799英寸) | O-RING (.799) | 1 |
| 16 | 8M0214927 | O型圈@5 | O RING @5 | 1 |
| 17 | 82130016 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 2 |
| 18 | 77674 | 垫圈(.35 x .75 x .12) | WASHER (.35 x .75 x .12) | 1 |
| 19 | 881938 | 驱动轴 | DRIVESHAFT | 1 |
| 20 | 43037 | 键 | KEY | 1 |
| 20 | 8M0204723 | 键 | KEY | 1 |
| 21 | 38657A1 | 垫片组 | SHIM ASSEMBLY | AR |
| 21 | 8M0063268 | 垫片组 | SHIM SET | AR |
| 22 | 48939A2 | 圆锥滚子轴承 | BEARING Taper Roller | 1 |
| 22 | 8M0146553 | 杯/锥轴承总成 | BEARING ASSEMBLY Cup/Cone | 1 |
| 23 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 24 | 42637A1 | 垫片组 | SHIM SET | AR |
| 24 | 8M0063267 | 垫片组 | SHIM SET | AR |
| 25 | 36387A1 | 轴承总成(滚子/外圈) | BEARING ASSEMBLY Roller/Cup | 1 |
| 25 | 8M0146566 | 杯/锥轴承总成 | BEARING ASSEMBLY Cup/Cone | 1 |
| 26 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 27 | 8245191 | 固定座 | RETAINER | 1 |
| 28 | 840836A2 | 托架总成 | CARRIER ASSEMBLY | 1 |
| 28 | 8M0192207 | 密封载体套件 | CARRIER KIT-SEAL | 1 |
| 29 | 90011 | O型圈(2.175 x 0.175) | O-RING (2.175 x .175) | 1 |
| 29 | 8M0142854 | O型圈(2.175 x 0.103) | O-RING (2.175 x .103) | 1 |
| 30 | 66302 | 油封 | SEAL Oil | 1 |
| 30 | 8M0214939 | 油封@3 | SEAL @3 | 1 |
| 31 | 66302 | 油封 | SEAL Oil | 1 |
| 31 | 8M0214939 | 油封@3 | SEAL @3 | 1 |
| 32 | 82130016 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 2 |
| 33 | 817275A1 | 水泵壳体套件 | HOUSING KIT Water Pump | 1 |
| 34 | 816575A2 | 密封套件 | SEAL KIT | 1 |
| 35 | 430331 | 衬垫 | GASKET | 1 |
| 36 | 8172771 | 水泵上垫片 | GASKET Water Pump, Upper | 1 |
| 37 | 8172761 | 面板 | FACEPLATE | 1 |
| 37 | 8M0204709 | 面板 | FACEPLATE | 1 |
| 38 | 43026T2 | 叶轮 | IMPELLER | 1 |
| 39 | 82130020 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 6 |
| 40 | 832942A1 | 联轴器总成 | COUPLING ASSEMBLY | 1 |
| 41 | 21836 | O型圈(.796 x .139) | O-RING (.796 x .139) | 1 |
| 41 | 8M0204645 | O型圈(.796 x .139) | O-RING (.796 x .139) | 1 |
| 42 | 35027 | O型圈(1.046英寸) | O-RING (1.046) | 1 |
| 42 | 8M0204654 | O型圈 | O-RING | 1 |
| 43 | 848834 | 水道板 | PLATE Water Passage | 1 |
| 44 | 848835 | 衬垫 | GASKET | 1 |
| - | 816575A6 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| - | 817275A5 | 水泵修理包 | REBUILD KIT Water Pump | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 840306T08 | 齿轮箱总成(含扭矩片) | GEAR HOUSING ASSEMBLY Complete, With Torque Tab | 1 |
| - | 8M0236140 | GC小号长1.62 | GC SM L 1.62 | 1 |
| 1 | 840306T3 | 齿轮箱总成基础型(带扭矩片) | GEAR HOUSING ASSEMBLY Basic, With Torque Tab | 1 |
| 2 | 823903 | 换挡曲柄 | SHIFT CRANK | 1 |
| 2 | 8M0226861 | 换挡曲柄 | CRANK-SHIFTER | 1 |
| 3 | 19755T7 | 阀芯总成 | SPOOL ASSEMBLY | 1 |
| 3 | 8M0235940 | 阀芯总成 | SPOOL ASSY | 1 |
| 4 | NSS | 不单独销售线轴 | NOT SOLD SEPARATE Spool | 1 |
| 5 | NSS | 不单独销售套筒 | NOT SOLD SEPARATE Sleeve | 1 |
| 6 | NSS | 不单独销售开口销 | NOT SOLD SEPARATE Cotter Pin | 1 |
| 7 | 47397A1 | 垫片组 | SHIM SET | AR |
| 8 | 878087A6 | 前进/小齿轮组 | GEAR SET Forward/Pinion | 1 |
| 9 | 828437A2 | 轴承总成 | BEARING ASSEMBLY | 1 |
| 10 | NSS | 杯状件(不单独销售) | NOT SOLD SEPARATE Cup | 1 |
| 11 | 30895T | 滚针轴承 | BEARING Needle | 1 |
| 12 | 856823 | 挡圈 | RING Retaining | 1 |
| 13 | 848878T | 离合器 | CLUTCH | 1 |
| 14 | 78909 | 定位销 | PIN Detent | 2 |
| 15 | 848838 | 十字销 | PIN Cross | 1 |
| 16 | 78962 | 弹簧 | SPRING | 2 |
| 17 | 840453A03 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 17 | 840453 | 右螺旋桨轴 | PROPSHAFT RH | 1 |
| 18 | 848880T1 | 倒挡齿轮 | GEAR Reverse | 1 |
| 19 | 8241081 | 推力垫片 | THRUST SPACER | 1 |
| 20 | 88957T | 滚珠轴承 | BEARING Ball | 1 |
| 21 | 681001 | 止推环 | RING Thrust | 1 |
| 22 | 31534 | O型圈 | O-RING | 1 |
| 22 | 8M0214920 | O型圈 | O RING | 1 |
| 23 | 848840T1 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 23 | 848840A1 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 24 | 817072 | 滚柱轴承 | BEARING Roller | 1 |
| 25 | 817071 | 卡环 | RING Snap | 1 |
| 26 | 815565 | 油封 | SEAL Oil | 2 |
| 27 | 30281 | 键 | KEY | 1 |
| 28 | 67892A06 | 磁性放油塞套件 | PLUG KIT Drain - Magnetic | 1 |
| 28 | 8M0058389 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 29 | 191833 | 密封件 | SEAL | 1 |
| 29 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 1 |
| 30 | 79447 | 锁紧垫圈 | TAB WASHER | 1 |
| 31 | 79448 | 固定座 | RETAINER | 1 |
| 31 | 8M2011027 | 固定座 | RETAINER | 1 |
| 32 | 85344 | 垫圈(.750内径) | WASHER (.750 Inside Diameter) | 1 |
| 33 | 52707Q1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| 34 | 66024 | 螺钉(.437-14 x 1.75) | SCREW (.437-14 x 1.75) | 1 |
| 35 | 762145 | 阳极块 | ANODE | 1 |
| 35 | 76214Q5 | 阳极套件 | ANODE KIT | 1 |
| - | 816575A4 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| - | 840389K06 | 螺旋桨毂套件 | PROP HUB KIT | 1 |
| - | 8M0183487 | 重型螺旋桨轮毂套件 | HUB KIT-HD PROP | 1 |
| - | 840382A02 | 缓冲条套件 | SNUBBER STRIP KIT | 1 |

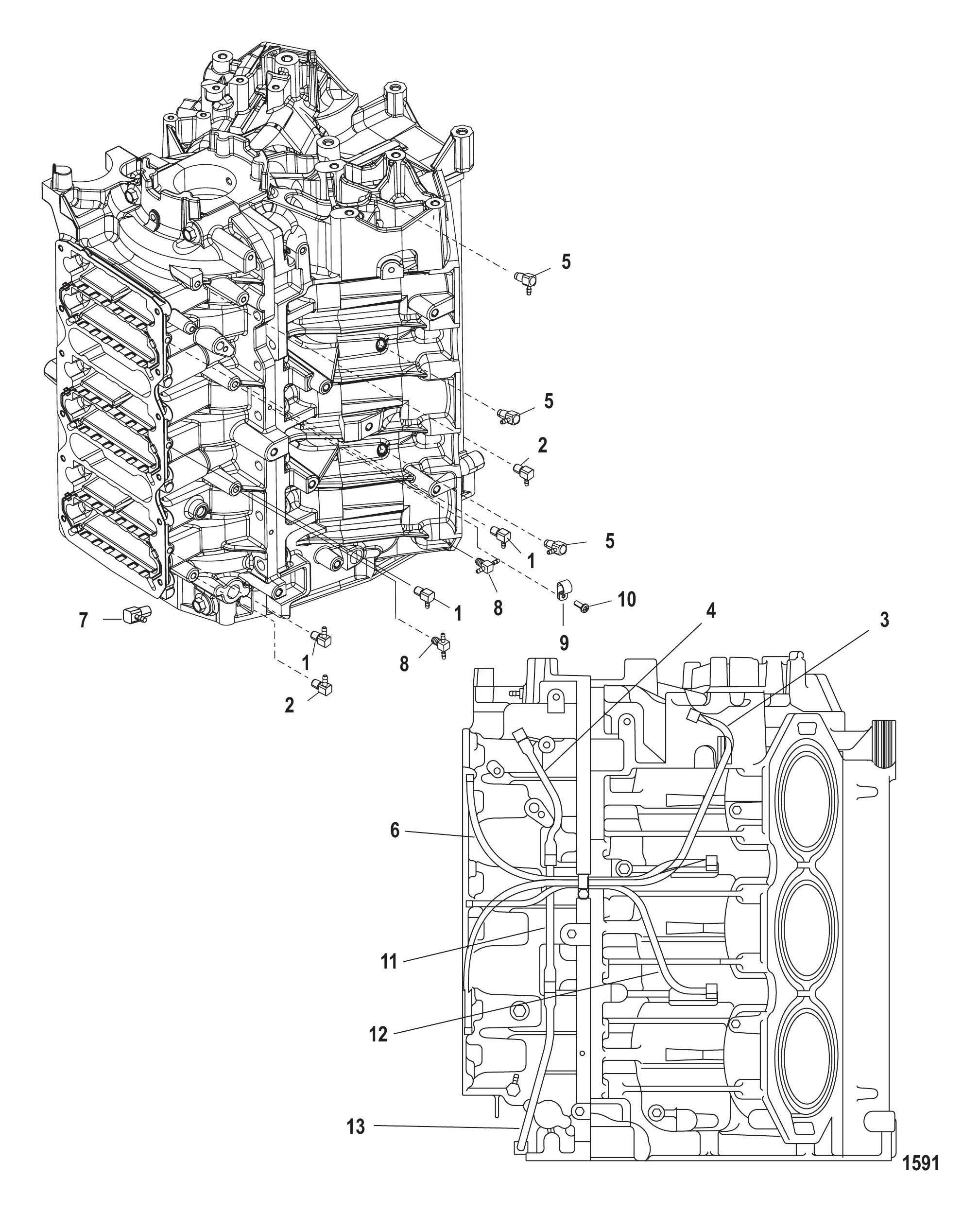

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 85606065 | 管材(38英寸整卷)(裁切至11.5英寸)至缸体 | TUBING (38.00 Inches Bulk) (Cut to 11-1/2 Inches) To Block | 2 |
| 1 | 8M0054152 | 管材(39.00英寸整卷) | TUBING (39.00 Inches Bulk) | 2 |
| 2 | 85606065 | 管材(38英寸整卷)(裁切至5英寸)至缸体 | TUBING (38.00 Inches Bulk) (Cut to 5 Inches) To Block | 1 |
| 2 | 8M0054152 | 管材(39.00英寸整卷) | TUBING (39.00 Inches Bulk) | 1 |
| 3 | 18206001 | 燃油滤清器 | FILTER Fuel | 2 |
| 3 | 8M0207786 | 滤清器 | FILTER | 2 |
| 4 | 85606065 | 管材(38英寸整卷)(裁切至9英寸) | TUBING (38.00 Inches Bulk) (Cut to 9 Inches) | 1 |
| 4 | 8M0054152 | 管材(39.00英寸整卷) | TUBING (39.00 Inches Bulk) | 1 |
| 5 | 884525T1 | 机油箱 | TANK Oil | 1 |
| 5 | 8M0064075 | 机油箱 | TANK Oil | 1 |
| 6 | NSS | 不单独销售标签-储液罐 | NOT SOLD SEPARATE Decal-Reservoir | 1 |
| 7 | 855362 | 护孔环 | GROMMET | 3 |
| 7 | 855362001 | 护孔环 | GROMMET | 3 |
| 7 | 855362001 | 护孔环 | GROMMET | 3 |
| 8 | 855364 | 衬套 | BUSHING | 2 |
| 9 | 883050 | 隔套 | SPACER | 1 |
| 10 | 58376 | 螺钉(.164-18 x .375) | SCREW (.164-18 x .375) | 1 |
| 11 | 72761 | 不锈钢垫圈(.203 x .562 x .060) | WASHER (.203 x .562 x .060) Stainless Steel | 1 |
| 12 | 856156A4 | 开关 | SWITCH | 1 |
| 12 | 856156T04 | 开关 | SWITCH | 1 |
| 13 | 885553 | 软管 | HOSE | 1 |
| 14 | 424254 | 接头 | FITTING | 1 |
| 14 | 8M0207780 | 接头 | FITTING | 1 |
| 15 | 887609 | 堵头 | PLUG | 1 |
| 16 | 4002318 | 垫圈 8.90 x 24.0x 2.4 不锈钢 | WASHER 8.90 x 24.0x 2.4 PL SS | 3 |
| 17 | 81893435 | 螺钉(M8×35) | SCREW (M8 x 35) | 2 |
| 17 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 2 |
| 18 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 19 | 8752891 | 至缸体软管 | HOSE To Block | 1 |
| 20 | 858955 | 连接器 | CONNECTOR | 2 |
| 21 | 875283 | 软管(2.00英寸) | HOSE (2.00 Inches) | 1 |
| 22 | 875284001 | 滤清器-机油在线式 | FILTER Oil - In Line | 1 |
| 22 | 875284T01 | 滤清器-机油在线式 | FILTER Oil - In Line | 1 |
| 23 | NSS | 不单独销售 塞 | NOT SOLD SEPARATE Plug | 2 |
| 24 | 892830053 | 编织软管(24英寸)(裁切至22英寸)至油泵中心 | HOSE (24.00 Inches Braided) (Cut to 22 Inches) To Center of Oil Pump | 1 |
| 25 | 85583466 | 软管(40英寸整卷)(裁切至33英寸)至油泵连接#2图示位置 | HOSE (40.00 Inches Bulk) (Cut to 33 Inches) To Oil Pump Connection Illustrated as #2 | 1 |
| 25 | 8M0054213 | 软管 | HOSE | 1 |
| 26 | 85606065 | 管材(38英寸整卷)(裁切至19.5英寸)至油泵连接#6图示位置 | TUBING (38.00 Inches Bulk) (Cut to 19-1/2 Inches) To Oil Pump Connection Illustrated as #6 | 1 |
| 26 | 8M0054152 | 管材(39.00英寸整卷) | TUBING (39.00 Inches Bulk) | 1 |
| 27 | 56762 | 扎带(4.00英寸) | TIE STRAP (4.00 Inches) | AR |
| 28 | 85606065 | 管材(38英寸整卷)(裁切至11.5英寸)至油泵连接#5图示位置 | TUBING (38.00 Inches Bulk) (Cut to 11-1/2 Inches) To Oil Pump Connection Illustrated as #5 | 1 |
| 28 | 8M0054152 | 管材(39.00英寸整卷) | TUBING (39.00 Inches Bulk) | 1 |
| 29 | 85606065 | 管材(38英寸整卷)(裁切至6英寸)至油泵连接#4图示位置 | TUBING (38.00 Inches Bulk) (Cut to 6 Inches) To Oil Pump Connection Illustrated as #4 | 1 |
| 29 | 8M0054152 | 管材(39.00英寸整卷) | TUBING (39.00 Inches Bulk) | 1 |
| 30 | 85606065 | 管材(38英寸整卷)(裁切至4英寸)至油泵连接#3图示位置 | TUBING (38.00 Inches Bulk) (Cut to 4 Inches) To Oil Pump Connection Illustrated as #3 | 1 |
| 30 | 8M0054152 | 管材(39.00英寸整卷) | TUBING (39.00 Inches Bulk) | 1 |
| 31 | 85606065 | 管材(38英寸整卷)(裁切至20.5英寸)至油泵连接#1图示位置 | TUBING (38.00 Inches Bulk) (Cut to 20-1/2 Inches) To Oil Pump Connection Illustrated as #1 | 1 |
| 31 | 8M0054152 | 管材(39.00英寸整卷) | TUBING (39.00 Inches Bulk) | 1 |
| 32 | 85606065 | 管材(38英寸整卷)(裁切至15.5英寸)至油泵连接#7图示位置 | TUBING (38.00 Inches Bulk) (Cut to 15-1/2 Incehs) To Oil Pump Connection Illustrated as #7 | 1 |
| 32 | 8M0054152 | 管材(39.00英寸整卷) | TUBING (39.00 Inches Bulk) | 1 |
| 33 | 81893460 | 螺钉 (M8 x 60) | SCREW (M8 x 60) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 89790633T | 推进控制模块 PCM 200 | PCM Propulsion Control Module 200 | 1 |
| 1 | 89790634T | 推进控制模块 PCM 225 | PCM Propulsion Control Module 225 | 1 |
| 2 | 82130025 | 螺钉(M6x25) | SCREW (M6 x 25) | 3 |
| 3 | 65567 | 不锈钢垫圈(0.265x0.750x0.048) | WASHER (.265 x .750 x .048) Stainless Steel | 3 |
| 4 | 834985 | 护孔环 | GROMMET | 3 |
| 4 | 8M0190980 | 护孔环 | GROMMET | 3 |
| 5 | 856954 | 衬套 | BUSHING | 3 |
| 6 | 891520001 | 卡扣 | CLIP | 1 |
| 7 | 82129114 | 螺钉 (M6 x 14) | SCREW (M6 x 14) | 2 |
| 8 | 82130012 | 螺钉（M6 x 12） | SCREW (M6 x 12) | 3 |
| 9 | 13540 | 母头护帽 | CAP Female | 1 |
| 10 | 88439A26 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
| 11 | 81893420 | 螺钉(M8 x 20) | SCREW (M8 x 20) | 1 |
| 12 | 830796A04 | 防水插头总成-4针公头 | CONNECTOR ASSEMBLY Weather Cap - 4 Position Male | 1 |
| 13 | 877613A02 | 防水插头总成6针 | CONNECTOR ASSEMBLY Weather Cap 6 Pin | 1 |
| 14 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 15 | 858953 | 支架 | BRACKET | 1 |
| 16 | 65292 | J型卡扣 | J CLIP | 1 |
| 16 | 8M0024808 | J型夹 | J-CLIP | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 887801 | 弯头配件90度(.0625-27) | FITTING Elbow 90 Degree (.0625-27) | 3 |
| 2 | 887801 | 弯头配件90度(.0625-27) | FITTING Elbow 90 Degree (.0625-27) | 2 |
| 3 | 85606065 | 管材(38英寸整卷)(裁切至20.5英寸) | TUBING (38.00 Inches Bulk) (Cut to 20-1/2 Inches) | 1 |
| 3 | 8M0054152 | 管材(39.00英寸整卷) | TUBING (39.00 Inches Bulk) | 1 |
| 4 | 85606065 | 管材(38英寸整卷)(裁切至5英寸) | TUBING (38.00 Inches Bulk) (Cut to 5 Inches) | 1 |
| 4 | 8M0054152 | 管材(39.00英寸整卷) | TUBING (39.00 Inches Bulk) | 1 |
| 5 | 8592352 | 止回阀90度(.0625-27) | CHECK VALVE 90 Degree (.0625-27) | 3 |
| 6 | 85606065 | 管材(38英寸整卷)(裁切至13英寸) | TUBING (38.00 Inches Bulk) (Cut to 13 Inches) | 1 |
| 6 | 8M0054152 | 管材(39.00英寸整卷) | TUBING (39.00 Inches Bulk) | 1 |
| 7 | 8282182 | 止回阀 | CHECK VALVE | 1 |
| 8 | 8582362 | 止回阀 | CHECK VALVE | 2 |
| 9 | 23567 | 卡扣 | CLIP | 1 |
| 10 | 878608 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 1 |
| 11 | 85606065 | 管材(38.00英寸散装)(裁切至4-3/4英寸) | TUBING (38.00 Inches Bulk) (Cut to 4-3/4 Inches) | 1 |
| 11 | 8M0054152 | 管材(39.00英寸整卷) | TUBING (39.00 Inches Bulk) | 1 |
| 12 | 85606065 | 管材(38英寸整卷)(裁切至11英寸) | TUBING (38.00 Inches Bulk) (Cut to 11 Inches) | 1 |
| 12 | 8M0054152 | 管材(39.00英寸整卷) | TUBING (39.00 Inches Bulk) | 1 |
| 13 | 85606065 | 管材(38英寸整卷)(裁切至9.5英寸) | TUBING (38.00 Inches Bulk) (Cut to 9-1/2 Inches) | 1 |
| 13 | 8M0054152 | 管材(39.00英寸整卷) | TUBING (39.00 Inches Bulk) | 1 |
| - | 877869A03 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 877869A07 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 877869A04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 877869A07 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 832934A00 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| 0 | 857005A1 | 燃油泵膜片维修包 | DIAPHRAGM KIT Fuel Pump | 1 |
| 0 | NSS | 膜片(不单独销售) | NOT SOLD SEPARATE Diaphragm | 2 |
| 0 | NSS | 固定座(不单独销售) | NOT SOLD SEPARATE Retainer | 2 |
| 0 | NSS | 弹簧(不单独销售) | NOT SOLD SEPARATE Spring | 1 |
| 0 | NSS | 盖帽(不单独销售) | NOT SOLD SEPARATE Cap | 1 |
| 0 | NSS | 不单独销售-增压弹簧 | NOT SOLD SEPARATE Srping-Boost | 1 |
| 0 | NSS | 不单独销售 端盖-弹簧 | NOT SOLD SEPARATE Cap-Spring End | 1 |
| 0 | NSS | 增压垫片(不单独销售) | NOT SOLD SEPARATE Gasket-Boost | 1 |
| 0 | NSS | 脉冲垫片(不单独销售) | NOT SOLD SEPARATE Gasket-Pulse | 1 |
| 0 | 987691 | 燃油泵衬垫 | GASKET Fuel Pump | 1 |
| 0 | 8M0204705 | 衬垫@2 | GASKET @2 | 1 |
| 0 | 804680 | 衬垫（空气处理器适配板） | GASKET Air Handler Adaptor Plate | 1 |
| 0 | 62700 | O型圈(3.237x0.103)下端盖 | O-RING (3.237 x .103) Lower End Cap | 1 |
| 0 | 818574 | 密封件（气缸盖） | SEAL Cylinder Head | 2 |
| 0 | 8503181 | 节温器盖衬垫 | GASKET Thermostat Cover | 2 |
| 0 | 35126 | O型圈(.859 x .139)曲轴-下部 | O-RING (.859 x .139) Crankshaft-Lower | 1 |
| 0 | 823683 | O型圈（1.989×0.070）（曲轴上端） | O-RING (1.989 x .070) Crankshaft-Upper | 1 |
| 0 | 8329335 | 气缸体衬垫 | GASKET Cylinder Block | 1 |
| 0 | 832933006 | 衬垫 | GASKET | 1 |
| 0 | 8329344 | 排气板衬垫 | GASKET Exhaust Plate | 1 |
| 0 | 832934006 | 衬垫 | GASKET | 1 |
| 0 | 88907003 | 衬垫(安全阀盖与阀板) | GASKET Relief Valve Cover & Plate | 2 |
| 0 | 854639 | 密封件（节温器） | SEAL Thermostat | 2 |
| 0 | 854639001 | 密封件 | SEAL | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0231193 | 动力升降总成 | POWER TRIM ASSEMBLY | 1 |
| 1 | 8M0225363 | 电机套件 | MOTOR KIT | 1 |
| 2 | 8M0225369 | 阀套件 | VALVE KIT | 1 |
| 3 | 8M0225371 | 手动释放套件 | MANUAL RELEASE KIT | 1 |
| 4 | 8M0245633 | 倾斜油缸套件 | TILT CYLINDER KIT | 1 |
| 5 | 8M0225370 | 枢轴销套件 | PIVOT PIN KIT | 1 |
| 6 | 8M0244575 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 7 | 8M0244425 | 销杆眼套件 | PIN ROD EYE KIT | 1 |
| 8 | 8M0232231 | 螺钉螺母套件 | SCREW NUT KIT | 1 |
| 9 | 8M0225373 | 记忆活塞套件 | MEMORY PISTON KIT | 1 |
| 10 | 8M0225368 | 储液罐套件 | RESERVOIR KIT | 1 |
| 11 | 8M0174135 | 储液罐塞总成 | PLUG RESERVOIR ASSEMBLY | 1 |
| 12 | 8M0237525 | 泵套件 | PUMP KIT | 1 |
| 13 | 8M0225367 | 升降杆套件 | TRIM ROD KIT | 1 |
| 14 | 8M0242846 | 升降杆套件 | TRIM ROD KIT | 1 |
| 15 | 8M0225372 | 重建套件 | REBUILD KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 855998A3 | 动力升降倾斜装置总成 | POWER TRIM Complete | 1 |
| - | 855998A11 | 动力调整套件 | POWER TRIM KIT | 1 |
| - | 855998A05 | 完整动力升降总成 | POWER TRIM ASSEMBLY Complete | 1 |
| - | 855998A11 | 动力调整套件 | POWER TRIM KIT | 1 |
| 1 | 878265A4 | 配平电机 | TRIM MOTOR | 1 |
| 1 | 8M0031551 | 配平电机 | TRIM MOTOR | 1 |
| 2 | NSS | 电枢(不单独销售) | NOT SOLD SEPARATE Armature | 1 |
| 3 | NSS | 端架(不单独销售) | NOT SOLD SEPARATE End Frame | 1 |
| 4 | 82494830 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 2 |
| 5 | 400256 | 锁紧垫圈 (M6) | LOCKWASHER (M6) | 2 |
| 6 | 8782451 | 驱动轴 | DRIVESHAFT | 1 |
| 7 | 878410A1 | 压力检查套件 | PO CHECK KIT | 1 |
| 8 | 813442A2 | 手动释放总成 (含参考号#26) | MANUAL RELEASE ASSEMBLY (Includes Reference #26) | 1 |
| 8 | 893929A01 | 安全阀套件 | VALVE KIT Relief | 1 |
| 9 | 878241A02 | 轴套件 | SHAFT KIT | 1 |
| 9 | 8M0142997 | 倾斜轴套件 | TILT SHAFT KIT | 1 |
| 10 | 878267 | 销 | PIN | 1 |
| 11 | 878235A1 | 倾斜油缸总成 | TILT CYLINDER ASSEMBLY | 1 |
| 11 | 878235A03 | 倾斜油缸套件 | CYLINDER KIT Tilt | 1 |
| 11 | 878235A02 | 倾斜油缸总成 | TILT CYLINDER ASSEMBLY | 1 |
| 11 | 878235A03 | 倾斜油缸套件 | CYLINDER KIT Tilt | 1 |
| 12 | 878239A1 | 导向套件 (含参考号#26) | GUIDE KIT (Includes Reference #26) | 1 |
| 12 | 878239A02 | 倾斜缸端盖套件 | END CAP KIT Tilt Cylinder | 1 |
| 13 | 878409A1 | O型圈套件 (含参考号#26) | O-RING KIT (Includes Reference #26) | 1 |
| 13 | 8M0142999 | 倾斜油缸O型圈套件 | O RING KIT TILT CYLINDER | 1 |
| 14 | 878412A1 | 减震杆套件 (含参考号#26) | SHOCK ROD KIT (Includes Reference #26) | 1 |
| 14 | 8M0168219 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 15 | 878242A1 | 记忆活塞总成 | PISTON ASSEMBLY Memory | 1 |
| 15 | 8M0143000 | 记忆活塞套件 | MEMORY PISTON KIT | 1 |
| 16 | 878406A1 | 止回阀修理包 (含参考号#26) | REPAIR KIT Check Valve (Includes Reference #26) | 1 |
| 16 | 878406A02 | 止回阀修理包 | REPAIR KIT Check Valve | 1 |
| 17 | 878414A1 | 活塞总成 | PISTON ASSEMBLY | 1 |
| 17 | 878414T01 | 活塞总成 | PISTON ASSEMBLY | 1 |
| 18 | 878413A1 | 活塞总成 | PISTON ASSEMBLY | 1 |
| 19 | 878243A1 | 导向器总成 | GUIDE ASSEMBLY | 2 |
| 19 | 8M0021648 | 端盖总成 | END CAP ASSEMBLY | 2 |
| 20 | 878264A1 | 储液罐套件 | RESERVOIR KIT | 1 |
| 21 | 811613 | 塞子总成 | PLUG ASSEMBLY | 1 |
| 22 | 4000327 | 螺钉 (M6 x 14) | SCREW (M6 x 14) | 4 |
| 23 | 43450 | 垫圈 | WASHER | 4 |
| 23 | 4002315 | 垫圈(6.60x12.5x1.5mm-不锈钢) | WASHER (6.60 X 12.5 X 1.5 mm -SS) | 4 |
| 24 | 892251A01 | 泵套件 | PUMP KIT | 1 |
| 25 | 878408A1 | 动力升降倾斜装置维修包 | REPAIR KIT Power Trim | 1 |
| 26 | 821539 | 三叶销 | PIN Trilobe | 1 |
| 27 | 858771 | 螺钉 (M10 x 30) | SCREW (M10 x 30) | 6 |
| 28 | 4002319 | 垫圈 | WASHER | 6 |
| 29 | 818298Q1 | 阳极套件 | ANODE KIT | 1 |
| 30 | 4000330 | 螺钉(M6x25) | SCREW (M6 x 25) | 2 |
| 30 | 8M0204707 | 不锈钢六角大帽螺钉(M6x25) | SCREW M6 x 25 HX HD CAP SS | 2 |
| 31 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 31 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 32 | 996251 | 轴 | SHAFT | 1 |
| 32 | 99625002 | 轴 | SHAFT | 1 |
| 32 | 99625002 | 轴 | SHAFT | 11 |
| 33 | 69205 | C形垫圈 | C WASHER | 1 |
| 33 | 8M0084613 | C形垫圈 | C-WASHER | 1 |
| 34 | 26550 | 卡箍 | CLAMP | 2 |
| 35 | 878609 | 螺钉 (#10-16 x .600) | SCREW (#10-16 x .600) | 1 |
| 36 | 828547353 | 导管(内径0.350x3英尺散装)(裁切至12英寸) | CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk) (Cut to 12 Inches) | 1 |
| 37 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 8M0168222 | 动力升降总成 | POWER TRIM ASSEMBLY | 1 |
| 1 | 8M0142591 | 电机套件 | MOTOR KIT | 1 |
| 2 | 82494830 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 2 |
| 3 | 400256 | 锁紧垫圈 (M6) | LOCKWASHER (M6) | 2 |
| 4 | 8M0090403 | 驱动联轴器 | COUPLING Drive | 1 |
| 5 | 8M0142996 | 压力检查套件 | PO CHECK KIT | 1 |
| 6 | 8M0060141 | 手动释放套件 | MANUAL RELEASE KIT | 1 |
| 7 | 8M0142997 | 倾斜轴套件 | TILT SHAFT KIT | 1 |
| 8 | 878267 | 销 | PIN | 1 |
| 9 | 8M0142998 | 倾斜油缸总成 | TILT CYLINDER ASSEMBLY | 1 |
| 9 | 8M0168220 | 倾斜油缸总成 | TILT CYLINDER ASSEMBLY | 1 |
| 10 | 8M0142999 | 倾斜油缸O型圈套件 | O RING KIT TILT CYLINDER | 1 |
| 11 | 8M0143000 | 记忆活塞套件 | MEMORY PISTON KIT | 1 |
| 12 | 8M0142592 | 升降杆套件 左舷 | TRIM ROD KIT Port | 1 |
| 13 | 8M0143001 | 活塞总成 | PISTON ASSEMBLY | 1 |
| 14 | 8M0143003 | 端盖总成 | END CAP ASSEMBLY | 1 |
| 15 | 878264A1 | 储液罐套件 | RESERVOIR KIT | 1 |
| 16 | 811613 | 塞子总成 | PLUG ASSEMBLY | 1 |
| 17 | 4000327 | 螺钉 (M6 x 14) | SCREW (M6 x 14) | 4 |
| 18 | 4002315 | 垫圈(6.60x12.5x1.5mm-不锈钢) | WASHER (6.60 X 12.5 X 1.5 mm -SS) | 4 |
| 19 | 8M0143004 | 泵套件 | PUMP KIT | 1 |
| 20 | 8M0148385 | 动力升降倾斜装置维修包 | REPAIR KIT Power Trim | 1 |
| 21 | 858771 | 螺钉 (M10 x 30) | SCREW (M10 x 30) | 6 |
| 22 | 4002319 | 垫圈 | WASHER | 6 |
| 23 | 8M0094889 | 销 | PIN | 1 |
| 23 | 8M0161312 | 连杆销眼总成 | PIN ROD EYE ASSEMBLY | 1 |
| 24 | 8M0143005 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 24 | 8M0168219 | 减震杆套件 | SHOCK ROD KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 889453003 | 零件手册200/225 DFI (3.0L)(DTS) | PARTS MANUAL 200/225 DFI (3.0L)(DTS) | 1 |
| - | 859769R2 | 维修手册 | SERVICE MANUAL | 1 |
| - | 859769R03 | 维修手册 | SERVICE MANUAL | 1 |
| - | 859769R03 | 维修手册 | SERVICE MANUAL | 1 |
| - | 10233030 | 用户手册 | OWNERS MANUAL | 1 |
| - | 10233040 | 用户手册 | OWNERS MANUAL | 1 |
| - | 10233050 | 用户手册 | OWNERS MANUAL | 1 |
| - | 10233060 | 用户手册 | OWNERS MANUAL | 1 |
| - | 10234060 | 安装手册 | INSTALLATION MANUAL | 1 |
| - | 88343311 | 加州超低排放贴花 | DECAL California-Very Low Emission | 1 |
| - | 804658A03 | EPA标签信息贴花 | DECAL EPA Label Information | 1 |
| - | 804658A04 | EPA标签信息贴花 | DECAL EPA Label Information | 1 |
| - | 804658A05 | EPA标签信息贴花 | DECAL EPA Label Information | 1 |
| - | 804658A06 | EPA标签信息贴花 | DECAL EPA Label Information | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 899080T01 | 锚支架总成 | BRACKET ASSEMBLY Anchor | 1 |
| 2 | 824016 | 闩锁 | LATCH | 1 |
| 3 | 42975 | 传动螺钉 | DRIVE SCREW | 2 |
| 4 | 824015 | 筒形保持杯 | CUP Barrel Retainer | 2 |
| 5 | 8M0052939 | 开关 | SWITCH | 1 |
| 5 | 8M0207794 | 开关 | SWITCH | 1 |
| 6 | 82470620 | 螺钉 (M3.5 x 20) | SCREW (M3.5 x 20) | 2 |
| 7 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 8 | 8M0033943 | 换挡导轨 | SHIFT RAIL | 1 |
| 9 | 8M0006893 | 螺钉 (M8 x 25 毫米) | SCREW (M8 x 25 MM) | 4 |
| 10 | 8M0026171 | 上换挡轴 | SHIFT SHAFT Upper | 1 |
| 10 | 8M0188529 | 加长换挡轴 | SHAFT SHIFT LONG | 1 |
| 10 | 8M0026172 | 上换挡轴 | SHIFT SHAFT Upper | 1 |
| 10 | 8M0179833 | XL型上换挡轴 | SHAFT SHIFT UP XL | 1 |
| 10 | 8M0026173 | 上换挡轴 | SHIFT SHAFT Upper | 1 |
| 10 | 8M0188525 | 超长换挡轴 | SHAFT SHIFT XXL | 1 |
| 11 | 892263 | 衬套 | BUSHING | 1 |
| 12 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 13 | 69056 | 垫圈(.255 x .620 x .030) 不锈钢 | WASHER (.255 x .620 x .030) Stainless Steel | 1 |
| 14 | 899083 | 换挡连杆 | LINK Shift | 1 |
| 15 | 899082 | 换挡滑块 | SLIDE Shift | 1 |
| 15 | 8M0085621 | 换挡滑套 | SLIDE-SHIFT | 1 |
| 16 | 8M0000793 | 换挡连杆销 | PIN Shift Link | 1 |
| 17 | 896551 | 衬套 | BUSHING | 1 |
| 18 | 69056 | 垫圈(.255 x .620 x .030) 不锈钢 | WASHER (.255 x .620 x .030) Stainless Steel | 1 |
| 19 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 20 | 8M0001157 | 蝴蝶夹销 | PIN Bow Tie Clip | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 85606065 | 管材(38英寸整卷)(裁切至15.5英寸) | TUBING (38.00 Inches Bulk) (Cut to 15-1/2 Inches) | 1 |
| 1 | 8M0054152 | 管材(39.00英寸整卷) | TUBING (39.00 Inches Bulk) | 1 |
| 2 | 8592352 | 止回阀90度(.0625-27) | CHECK VALVE 90 Degree (.0625-27) | 3 |
| 3 | 85606065 | 管材(38英寸整卷)(裁切16-1/2英寸) | TUBING (38.00 Inches Bulk) (Cut to 16-1/2 Inches) | 1 |
| 3 | 8M0054152 | 管材(39.00英寸整卷) | TUBING (39.00 Inches Bulk) | 1 |
| 4 | 85606065 | 管材(38英寸整卷)(裁切至15英寸) | TUBING (38.00 Inches Bulk) (Cut to 15 Inches) | 1 |
| 4 | 8M0054152 | 管材(39.00英寸整卷) | TUBING (39.00 Inches Bulk) | 1 |
| 5 | 23567 | 卡扣 | CLIP | 1 |
| 6 | 878608 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 1 |
| 7 | 887801 | 弯头配件90度(.0625-27) | FITTING Elbow 90 Degree (.0625-27) | 3 |
| - | 877869A03 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 877869A07 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 877869A04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 877869A07 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 853329T | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 1 | 892339T01 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 1 | 892339T | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 1 | 892339T01 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 2 | 803005 | 贯穿螺栓 | THRU BOLT | 2 |
| 3 | 880805A1 | 齿轮套件 | GEAR KIT | 1 |
| 4 | 809463A1 | 电磁阀组件 | SOLENOID KIT | 1 |
| 5 | 8M0065258 | 电刷组 | BRUSH SET | 1 |
| 6 | 69035 | 螺丝与锁紧垫圈(.250-20 x .625)不锈钢 | SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel | 1 |
| 7 | 93388A1 | 电缆总成(6.00英寸)黑色 | CABLE ASSEMBLY (6.00 Inches) Black | 1 |
| 8 | 8272822 | 高压警告标贴 | DECAL Warning High Voltage | 1 |
| 8 | NSS | 高压警告贴纸 (不单独销售) | NOT SOLD SEPARATE Decal-Warning-High Voltage | 1 |
| 9 | 400255 | 锁紧垫圈(M5) | LOCKWASHER (M5) | 1 |
| 10 | 400211 | 不锈钢螺母(M5) | NUT (M5) Stainless Steel | 1 |
| 11 | 26993 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 1 |
| 11 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 1 |
| 12 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 1 |
| 13 | 56703 | 轴环 | COLLAR | 2 |
| 13 | 8M0034918 | 轴环 | COLLAR | 2 |
| 14 | 879845 | 停机开关 | STOP | 1 |
| 14 | 8M0043276 | 停机开关 | STOP | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8710T20 | 黑色旋转支架总成 | SWIVEL BRACKET ASSEMBLY Black | 1 |
| 1 | 8M0102865 | 黑色旋转支架总成 | SWIVEL BRACKET ASSEMBLY Black | 1 |
| 2 | 33504 | O型圈 | O-RING | 1 |
| 2 | 8M0214926 | O型圈 @10 | O RING @10 | 1 |
| 3 | 818764 | 衬套 | BUSHING | 2 |
| 4 | 816039 | 隔套 | SPACER | 1 |
| 5 | 87735 | 下油封 | SEAL Oil Lower | 1 |
| 6 | 74036 | 润滑脂接头 | FITTING Grease | 2 |
| 6 | 8M0169589 | 润滑脂接头 | FITTING Grease | 2 |
| 7 | 821207 | 衬套 | BUSHING | 2 |
| 8 | 816432 | 止推垫片 | THRUST WASHER | 1 |
| 9 | 826364T | 下轭架 | YOKE Bottom | 1 |
| 10 | 67684 | 挡圈 | RING Retaining | 1 |
| 11 | 996301 | 冲击板 | STRIKER PLATE | 2 |
| 11 | 8M0045383 | 冲击板 | STRIKER PLATE | 2 |
| 12 | 58643 | 锁紧垫圈 (.375) | LOCKWASHER (.375) | 2 |
| 13 | 46335 | 螺母 (.375-24) | NUT (.375-24) | 2 |
| 14 | 826709113 | 螺母(.375-24)不锈钢(含于连杆总成) | NUT (.375-24) Stainless Steel (Included with Link Rod Assembly) | 2 |
| 14 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 2 |
| 15 | NSS | 不单独销售-序列号覆膜贴 | NOT SOLD SEPARATE Decal - Serial Overlaminate | 1 |
| 16 | 859187A1 | 调整传感器总成 | SENDER ASSEMBLY Trim | 1 |
| 17 | 852368 | 螺钉（#10-24 X 0.750） | SCREW (#10-24 x .750) | 2 |
| 18 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 2 |
| 19 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 2 |
| 20 | 826432A2 | 转向臂旋转销总成-不锈钢 | SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel | 1 |
| 20 | 8M0132731 | 旋转销总成 | SWIVEL PIN ASSY | 1 |
| 21 | 8M0000518 | 螺栓(M12x175) | SCREW (M12 x 175) | 2 |
| 22 | 37828 | 垫圈(.390x.625x.062)不锈钢(含于连杆总成) | WASHER (.390 x .625 x .062) Stainless Steel (Included with Link Rod Assembly) | 2 |
| 23 | 4002321 | 垫圈(12.80 mm x 24.0 mm x 2.4 mm)不锈钢 | WASHER (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel | 2 |
| 24 | 896963 | 螺母(M12) | NUT (M12) | 2 |
| 25 | 92876A12 | 连杆总成 | LINK ROD ASSEMBLY | 1 |
| 26 | 849838 | 螺钉(.375-24 x 1.250) | SCREW (.375-24 x 1.250) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8252681 | 节气门控制杆 | LEVER Throttle Control | 1 |
| 1 | 8M0040987 | 杠杆 | LEVER | 1 |
| 2 | 81893435 | 螺钉(M8×35) | SCREW (M8 x 35) | 1 |
| 2 | 8M0103814 | 螺钉 (M8 x 35 毫米) | SCREW (M8 x 35 MM) | 1 |
| 3 | 36042 | 垫圈 | WASHER | 1 |
| 4 | 821113 | 衬套 | BUSHING | 1 |
| 5 | 40124 | 螺钉 (M6 x 55) | SCREW (M6 x 55) | 2 |
| 6 | 400212 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 2 |
| 7 | 42942 | 盖帽 | CAP | 2 |
| 8 | 42927 | 嵌件 | INSERT | 1 |
| 9 | 8268336 | 螺母 (M6) | NUT (M6) | 1 |
| 9 | 401386 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 10 | 856896 | 轴承 | BEARING | 1 |
| 11 | 8503825 | 凸轮 | CAM | 1 |
| 11 | 850382A3 | 凸轮 | CAM | 1 |
| 12 | 856895 | 衬套 | BUSHING | 1 |
| 13 | 81893440 | 螺钉 (M8 x 40) | SCREW (M8 x 40) | 1 |
| 14 | 8235694 | 螺纹球头 | BALL Threaded | 1 |
| 15 | 932481 | 衬套 | BUSHING | 2 |
| 15 | 8M0215006 | 旋转衬套 | BUSHING Swivel | 2 |
| 16 | 8524353 | 连接杆 | LINK | 1 |
| 17 | 67748 | 滚轮 | ROLLER | 1 |
| 18 | 850286 | 油门滚轮 | ROLLER Throttle | 1 |
| 18 | 8502861 | 杠杆 | LEVER | 1 |
| 19 | 8237951 | 挡圈 | RING Retaining | 1 |
| 20 | 40056107 | 螺钉(M5×16) | SCREW (M5 x 16) | 1 |
| 21 | 89302 | 垫圈(0.203×0.406×0.040) | WASHER (.203 x .406 x .040) | 1 |
| 22 | 69432 | 外锁紧垫圈(#10) | LOCKWASHER External (#10) | 1 |
| 23 | 8240102 | 支架 | BRACKET | 1 |
| 23 | 824010T05 | 支架 | BRACKET | 1 |
| 24 | 824016 | 闩锁 | LATCH | 1 |
| 25 | 42975 | 传动螺钉 | DRIVE SCREW | 2 |
| 26 | 824015 | 筒形保持杯 | CUP Barrel Retainer | 2 |
| 27 | 82155025 | 螺丝(M8 x 25 mm)不锈钢 | SCREW (M8 x 25 mm) Stainless Steel | 3 |
| 28 | 82155025 | 螺丝(M8 x 25 mm)不锈钢 | SCREW (M8 x 25 mm) Stainless Steel | 1 |
| 29 | 854653 | 导向滚轮 | GUIDE Roller | 1 |
| 29 | 8M0039052 | 滑动支架 | BRACKET Slide | 1 |
| 30 | 814281A2 | 开关 | SWITCH | 1 |
| 30 | 8M0052931 | 开关 | SWITCH | 1 |
| 31 | 816311 | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 31 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 1 |
| 32 | 82470620 | 螺钉 (M3.5 x 20) | SCREW (M3.5 x 20) | 2 |
| 33 | 8568331 | 支架 | BRACKET | 1 |
| 34 | 856879 | 支架 | BRACKET | 1 |
| 35 | 856840 | 扎带(5.20英寸) | TIE STRAP (5.20 Inches) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 881288T1 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 1 | 8M0059965 | 顶罩-黑色 | COWL-TOP-BLACK | 1 |
| 1 | 881288T2 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 1 | 8M0059966 | 顶罩-银色 | COWL-TOP-SILVER | 1 |
| 2 | 82130030 | 螺钉 (M6 x 30) | SCREW (M6 x 30) | 4 |
| 3 | 884041A1 | 隔音毯套装 | SOUND BLANKET KIT | 1 |
| 3 | 884041A04 | 隔音毯套装 | SOUND BLANKET KIT | 1 |
| 4 | NSS | 不单独出售-顶部隔音垫 | NOT SOLD SEPARATE Sound Blanket-Top | 1 |
| 5 | NSS | 不单独销售 隔音垫-左舷 | NOT SOLD SEPARATE Sound Blanket-Port | 1 |
| 6 | 93702 | 垫圈(.250外齿星形) | WASHER (.250 External Star) | 6 |
| 7 | 826639T | 盖板 | COVER | 1 |
| 8 | 850682T4 | 后锁钩总成 | HOOK ASSEMBLY Rear Latch | 2 |
| 8 | 850682A06 | 支架和手柄套件 | BRACKET AND HANDLE KIT | 2 |
| 9 | NSS | NOT SOLD SEPARATE Pin | 2 | |
| 10 | 8237951 | 挡圈 | RING Retaining | 2 |
| 11 | 815263 | 滚轮 | ROLLER | 2 |
| 11 | 8M0207770 | 滚轮@3 | ROLLER @3 | 2 |
| 12 | 8506851 | 护孔环 | GROMMET | 1 |
| 12 | 850685T02 | 护孔环 | GROMMET | 1 |
| 12 | 850685002 | 护孔环 | GROMMET | 1 |
| 12 | 850685T02 | 护孔环 | GROMMET | 1 |
| 13 | 821249M2 | 前支架 | BRACKET Front | 1 |
| 13 | 8M0036792 | 支架 | BRACKET | 1 |
| 14 | 82130020 | 螺钉 (M6 x 20) | SCREW (M6 x 20) | 2 |
| 15 | 815477 | 缓冲器锁扣 | BUMPER Latch | 1 |
| 16 | 8155381 | 滚动销 | PIN Roll | 1 |
| 17 | 401366 | 螺母(M6)不锈钢 | NUT (M6) Stainless Steel | 1 |
| 18 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 18 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 19 | 8237951 | 挡圈 | RING Retaining | 1 |
| 20 | 815263 | 滚轮 | ROLLER | 1 |
| 20 | 8M0207770 | 滚轮@3 | ROLLER @3 | 1 |
| 21 | 87161 | 垫圈 | WASHER | 1 |
| 22 | NSS | 不单独销售 贴花-磨合 | NOT SOLD SEPARATE Decal-Break-In | 1 |
| 23 | NSS | 不单独销售-反向旋转标识 | NOT SOLD SEPARATE Decal-Counter Rotation | 1 |
| - | 855410A04 | 贴花套件 | DECAL SET | 1 |
| - | 8M0065127 | ORD 8M0099561 | ORD 8M0099561 | 1 |
| - | 855412A04 | 贴花套件 | DECAL SET | 1 |
| - | 8M0065131 | ORD 8M0099562 | ORD 8M0099562 | 1 |
| - | 855412A06 | 贴花套件 | DECAL SET | 1 |
| - | 855405A03 | 贴花套件 | DECAL SET | 1 |
| - | 855405A04 | 贴花套件 | DECAL SET | 1 |
| - | 855405A04 | 贴花套件 | DECAL SET | 1 |
| - | 8M0065127 | ORD 8M0099561 | ORD 8M0099561 | 1 |
| - | 855408A03 | 贴花套件 | DECAL SET | 1 |
| - | 855408A04 | 贴花套件 | DECAL SET | 1 |
| - | 855408A04 | 贴花套件 | DECAL SET | 1 |
| - | 8M0065131 | ORD 8M0099562 | ORD 8M0099562 | 1 |
| - | 855408A06 | 贴花套件 | DECAL SET | 1 |
| - | 855409A03 | 贴花套件 | DECAL SET | 1 |
| - | 8M0065129 | 贴花套件 | DECAL SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 828334T03 | 艉板支架总成-右舷 | BRACKET ASSEMBLY Transom-Starboard | 1 |
| 2 | 828333T08 | 艉板支架总成-左舷 | BRACKET ASSEMBLY Transom-Port | 1 |
| 3 | 98727 | 润滑脂接头(左舷) | FITTING Grease (PORT) | 1 |
| 3 | 8M0169588 | 润滑脂接头 | FITTING Grease | 1 |
| 4 | 826125A1 | 倾斜管 | TILT TUBE | 1 |
| 5 | 826135 | 尼龙锁紧螺母(1.00-14) | NUT Lock (1.00-14) Nylon Insert | 1 |
| 6 | 45711 | O型圈 (.612 x .103) | O-RING (.612 x .103) | 1 |
| 7 | 88750 | 波浪垫圈 (1.62 x 1.05) | WASHER Wave (1.62 x 1.05) | 2 |
| 8 | 826164 | 螺母 (.875-14) | NUT (.875-14) | 1 |
| 8 | 8M0231351 | 锁紧螺母 | NUT Lock | 1 |
| 9 | 677551 | 螺钉(.500-20×4.500) | SCREW (.500-20 x 4.500) | 4 |
| 9 | 8M0149747 | 螺钉 | SCREW | 4 |
| 10 | 54012 | 垫圈(0.530×0.870×0.105不锈钢) | WASHER (.530 x .870 x .105) Stainless Steel | 4 |
| 10 | 8M0204665 | 垫圈(0.530×0.880×0.104 630不锈钢) | WASHER (.530 x .880 x .104) 630 Stainless Steel | 4 |
| 11 | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 11 | 8M0204648 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 12 | 82671117 | 螺母(.500-20) | NUT (.500-20) | 4 |
| 13 | 99629T2 | 倾斜锁定杆总成 | LEVER ASSEMBLY Tilt Lock | 1 |
| 13 | 8M0115104 | 倾斜锁定杆总成 | LEVER ASSEMBLY Tilt Lock | 1 |
| 14 | 830899 | 张力弹簧 | SPRING Tension | 1 |
| 15 | 65830 | 尼龙衬套 | NYLINER | 2 |
| 16 | 830900 | 压缩弹簧 | SPRING Compression | 1 |
| 17 | 99633 | 旋钮 | KNOB | 1 |
| 18 | 99615 | 槽销 | PIN Groove | 1 |
| 19 | 99617 | 销 | PIN | 1 |
| 19 | 893709 | 销 | PIN | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | NSS | 不单独销售 蒸汽分离器总成 | NOT SOLD SEPARATE Vapor Separator Assembly | 1 |
| - | 880133T07 | 蒸汽分离器总成 | VAPOR SEPARATOR ASSEMBLY | 1 |
| - | 880133T12 | 蒸汽分离器总成 | VAPOR SEPARATOR ASSEMBLY | 1 |
| 1 | 889317T1 | 盖板套件 | COVER KIT | 1 |
| 2 | NSS | 阀座(不单独销售) | NOT SOLD SEPARATE Seat | 1 |
| 3 | 889318 | 挡板 | PLATE Baffle | 1 |
| 3 | 889318001 | 挡板 | PLATE Baffle | 1 |
| 3 | 889318001 | 挡板 | PLATE Baffle | 1 |
| 4 | 883223 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 2 |
| 5 | 889319 | 衬垫 | GASKET | 1 |
| 6 | 883556 | 接头 | FITTING | 1 |
| 7 | 883209 | O型圈 | O-RING | 1 |
| 7 | 8M0062785 | O型圈 | O-RING | 1 |
| 8 | 889329 | 接头 | FITTING | 1 |
| 9 | 883208 | 堵头 | PLUG | 1 |
| 10 | 884380T | 燃油滤清器 | FILTER Fuel | 1 |
| 10 | 8M0122423 | 水星燃油滤清器 | FUEL FILTER Quicksilver | 1 |
| 11 | 889320A1 | 浮子套件 | FLOAT KIT | 1 |
| 12 | F10064 | 轴 | SHAFT | 1 |
| 13 | 888725T1 | 燃油泵总成-高压 | PUMP ASSEMBLY Fuel - High Pressure | 1 |
| 13 | 888725T02 | 燃油泵总成-高压 | PUMP ASSEMBLY Fuel - High Pressure | 1 |
| 13 | 888725T02 | 燃油泵总成-高压 | PUMP ASSEMBLY Fuel - High Pressure | 1 |
| 14 | 855428 | 套筒 | SLEEVE | 1 |
| 14 | 8M6000589 | 套筒 | SLEEVE | 1 |
| 15 | 8893162 | O型圈 | O-RING | 1 |
| 16 | 889321 | 密封件 | SEAL | 1 |
| 16 | 8M6001412 | 密封件 | SEAL | 1 |
| 17 | 889328 | 固定座 | RETAINER | 1 |
| 18 | 9643 | 螺钉 | SCREW | 11 |
| 19 | 888733T1 | 增压泵 | PUMP Boost | 1 |
| 19 | 888733T02 | 增压泵总成 | PUMP ASSEMBLY Boost | 1 |
| 19 | 888733T02 | 增压泵总成 | PUMP ASSEMBLY Boost | 1 |
| 20 | 889322 | 护孔环 | GROMMET | 1 |
| 21 | 889316 | O型圈 | O-RING | 1 |
| 22 | 889323 | 密封件 | SEAL | 1 |
| 22 | 8M6001413 | 密封件 | SEAL | 1 |
| 23 | 889324T1 | 油杯套件 | BOWL KIT | 1 |
| 23 | 889324T02 | 油杯套件 | BOWL KIT | 1 |
| 23 | 889324T02 | 油杯套件 | BOWL KIT | 1 |
| 23 | 889324T03 | 油杯套件 | BOWL KIT | 1 |
| 24 | 889325A1 | 电线 | WIRE | 1 |
| 24 | 889325A02 | 电线 | WIRE | 1 |
| 25 | NSS | 止回阀(不单独销售) | NOT SOLD SEPARATE Check Valve | 1 |
| 26 | 8554241 | 接头 | FITTING | 2 |
| 26 | 855424011 | 接头 | FITTING | 2 |
| 27 | 889326A1 | 进气阀套件 | VALVE KIT Inlet | 1 |
| 28 | 889327A1 | 放油螺钉 | SCREW Drian | 2 |
| 29 | 8893161 | O型圈 | O-RING | 2 |
| 30 | 889330 | 水温传感器 | SENSOR Water | 1 |
| 30 | 8M0214989 | 燃油含水传感器 | SENSOR WIF | 1 |
| 31 | 996642 | 90度弯头接头(0.125-27x0.250)尼龙 | FITTING Elbow 90 Degree (.125-27 x .250) Nylon | 1 |
| 31 | 782792 | 45度弯头接头(1.25) | FITTING Elbow 45 Degree (1.25) | 1 |
| 31 | 8M0207781 | 弯头 | ELBOW | 1 |
| 32 | 627021 | O型圈(.301 x .070) | O-RING (.301 x .070) | 2 |
| 33 | 889430 | 嵌件 | INSERT | 1 |
| 34 | 8835451 | 软管 | HOSE | 1 |
| 34 | 883545002 | 软管 | HOSE | 1 |
| 35 | 884820 | 施拉德阀 | SHRADER VALVE | 1 |
| 36 | 891778 | O型圈 | O-RING | 1 |
| 37 | 884819 | 卡扣 | CLIP | 1 |
| 38 | 82130012 | 螺钉（M6 x 12） | SCREW (M6 x 12) | 1 |
| 39 | 855362 | 护孔环 | GROMMET | 3 |
| 39 | 855362001 | 护孔环 | GROMMET | 3 |
| 39 | 855362001 | 护孔环 | GROMMET | 3 |
| 40 | 883050 | 隔套 | SPACER | 3 |
| 41 | 81893460 | 螺钉 (M8 x 60) | SCREW (M8 x 60) | 3 |
| 42 | 4002318 | 垫圈 8.90 x 24.0x 2.4 不锈钢 | WASHER 8.90 x 24.0x 2.4 PL SS | 3 |
| - | 889316A1 | 蒸汽分离器O型圈套件 | O-RING KIT Vapor Seperator | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 858855 | 直通接头 | FITTING Straight | 4 |
| 2 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 4 |
| 3 | 859090 | 排放软管 | HOSE Dump | 1 |
| 3 | 859090001 | 右舷排放软管 | HOSE Starboard Dump | 1 |
| 3 | 859090001 | 右舷排放软管 | HOSE Starboard Dump | 1 |
| 4 | 859089 | 排放软管 | HOSE Dump | 1 |
| 4 | 859089001 | 左舷排放软管 | HOSE Port Dump | 1 |
| 4 | 859089001 | 左舷排放软管 | HOSE Port Dump | 1 |
| 5 | 856839 | 油管 | TUBING | 1 |
| 6 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 2 |
| 7 | 858807 | 软管 | HOSE | 1 |
| 8 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 2 |
| 9 | 858865 | 软管 | HOSE | 1 |
| 10 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | 2 |
| 11 | 291112 | 接头 | FITTING | 1 |
| 12 | 996642 | 90度弯头接头(0.125-27x0.250)尼龙 | FITTING Elbow 90 Degree (.125-27 x .250) Nylon | 1 |
| - | 877869A03 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 877869A07 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 877869A04 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 877869A07 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
