水星 Mercury 200 HP XS 6 CYL (2.5L) 1E000797 THRU 1E002110 - 爆炸图零件明细

两冲程直喷 DFI OptiMax · USA - Cat.# 90-881844006 · 共 126 个部位 · 5525 条零件

图 1空气压缩机组件 AIR COMPRESSOR COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	831998A21	空气压缩机套件 (不含皮带轮)	COMPRESSOR KIT Air (W/O PULLEY)	1
1	8M0060053	空气压缩机总成	COMPRESSOR ASSEMBLY Air	1
2	NSS		NOT SOLD SEPARATE BODY	1
3	828131A5	端盖总成	END CAP ASSEMBLY	1
3	8M0050792	端盖总成	END CAP ASSEMBLY	1
4	NSS	不单独销售挡圈	NOT SOLD SEPARATE RETAINING RING	1
5	89224	O型圈	O-RING	1
6	832804	O型圈（2.739 x 0.070）	O-RING (2.739 x .070)	1
7	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	4
8	833146T3	连杆总成	CONNECTING ROD ASSEMBLY	1
8	833146T06	连杆总成	CONNECTING ROD ASSEMBLY	1
9	NSS		NOT SOLD SEPARATE BEARING	1
10	NSS		NOT SOLD SEPARATE BEARING	1
11	NSS		NOT SOLD SEPARATE PISTON ASSEMBLY (W/RINGS AND PIN)	1
12	NSS		NOT SOLD SEPARATE OIL SCRAPER RING	1
13	NSS		NOT SOLD SEPARATE TOP RING	1
14	NSS		NOT SOLD SEPARATE OIL RING	1
15	NSS		NOT SOLD SEPARATE WRIST PIN	1
16	NSS		NOT SOLD SEPARATE PISTON WITH WRIST PIN	1
17	8348101	锁环	RING Lock	2
18	835088A10	簧片阀板总成	REED PLATE ASSEMBLY	1
19	67207	O型圈（3.489 x 0.070）	O-RING (3.489 x .070)	2
20	832804	O型圈（2.739 x 0.070）	O-RING (2.739 x .070)	1
21	828225	密封件	SEAL	1
22	835087A3	压缩机缸盖总成	HEAD ASSEMBLY Compressor	1
22	8M0073890	压缩机缸盖套件	HEAD KIT Compressor	1
23	8307534	接头（1.62英寸）	FITTING (1.62 Inches)	1
24	82446035	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
25	13536A14	温度传感器总成	SENSOR ASSEMBLY Temperature	1
26	855349	护孔环	GROMMET	1
26	855349002	护孔环	GROMMET	1
27	137151	固定座	RETAINER	1
28	81893412	螺钉（M8×12）	SCREW (M8 x 12)	1
29	831985	O型圈（0.468 x 0.078）	O-RING (.468 x .078)	1
30	390721	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
31	151331	接头	FITTING	1
32	428641	止回阀接头	FITTING Check Valve	2
33	851975	弯头接头-45度-黄铜（0.125-27）	FITTING Elbow - 45 Degree - Brass (.125-27)	1
34	14868	接头	FITTING	1
35	856744	接头	FITTING	1
36	NSS	非单独销售贴纸-墨西哥组装	NOT SOLD SEPARATE DECAL, Assembled in Mexico	1
37	NSS	非单独销售贴纸-组装说明	NOT SOLD SEPARATE DECAL, Assembly Instructions	1
38	4010825	螺丝(M10 x 25)六角法兰-不锈钢	SCREW (M10 x 25) Hex Flange - Stainless Steel	2
39	858762	双头螺柱（0.312-18/0.312-24 x 4.190）	STUD (.312-18/.312-24 x 4.190)	1
39	858762001	双头螺柱（0.312-18/0.312-24 x 4.190）	STUD (.312-18/.312-24 x 4.190)	1
40	854640	特殊垫圈	WASHER Special	2
41	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
42	8328233	滑轮	PULLEY	1
42	8M0175171	滑轮	PULLEY	1
43	85593912	螺钉（M6 x 12）	SCREW (M6 x 12)	5
-	832804A1	O型圈套件	O-RING KIT	1
-	832804A03	O型圈套件	O-RING KIT	1

图 2机油喷射组件 Oil Injection Components

REF	零件编号	中文名称	英文名称	数量
1	12335A1	支架套件	BRACKET KIT	1
2	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1
3	87421	油箱	TANK	1
4	43298A2	盖总成	CAP ASSEMBLY	1
5	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
6	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
7	816190A3	外壳总成适配器	HOUSING ASSEMBLY Adapter	1
7	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
8	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
9	99802	管	TUBE	1
10	99439	软管(114.00英寸)	HOSE (114.00 Inches)	1
11	833069A3	油箱总成	RESERVOIR ASSEMBLY Oil	1
11	8M0062954	储油罐	RESERVOIR, OIL	1
12	NSS	不单独销售标签-储液罐	NOT SOLD SEPARATE Decal-Reservoir	1
13	855362	护孔环	GROMMET	3
13	855362001	护孔环	GROMMET	3
14	49436	垫圈	WASHER	3
15	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
16	855364	衬套	BUSHING	3
17	69267	螺钉 (.312-18 x 1.750)	SCREW (.312-18 x 1.750)	2
18	833155	护孔环	GROMMET	2
19	8502341	衬套	BUSHING	2
20	82381455	管材(25英寸整卷)(裁切为20英寸)	TUBING (25.00 Inches Bulk) (Cut to 20 Inches)	1
21	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
21	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
22	12886A8	开关	SWITCH	1
23	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
24	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
25	8260841	隔套	SPACER	1
26	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	7
26	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	7
27	NSS	不单独销售塞	NOT SOLD SEPARATE Plug	1
28	424254	接头	FITTING	1
28	8M0207780	接头	FITTING	1
29	830756109	软管(57.00英寸散装)(裁切至6英寸)	HOSE (57.00 Inches Bulk) (Cut to 6 Inches)	1
29	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
30	855785	燃油冷却器	COOLER Fuel	1
30	855785A1	燃油冷却器总成	COOLER ASSEMBLY Fuel	1
31	855761	止回阀	CHECK VALVE	1
31	8557611	止回阀	CHECK VALVE	1
32	13791	卡箍(15.7)	CLAMP (15.7)	4
32	8M0214911	卡箍@5	CLAMP @5	4
33	85682239	管材(17英寸整卷)(裁切为3英寸)	TUBING (17.00 Inches Bulk) (Cut to 3 Inches)	1
34	856822A3	软管(带绝缘套管)(30英寸)	HOSE (W/INSULATING SLEEVE) (30 IN.)	1

图 3飞轮/交流发电机 Flywheel/Alternator

REF	零件编号	中文名称	英文名称	数量
1	8285072	皮带	BELT	1
2	834936A3	飞轮	FLYWHEEL	1
2	834936T6	飞轮	FLYWHEEL	1
3	52901	螺母(0.625-18)	NUT (.625-18)	1
4	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
4	33001	垫圈	WASHER	1
5	45907	黄色塞	PLUG Yellow	1
6	834832	交流发电机	ALTERNATOR	1
6	857006T	交流发电机	ALTERNATOR	1
7	832080M2	发电机支架	BRACKET Alternator	1
8	81893430	螺钉 (M8 x 30)	SCREW (M8 x 30)	1
8	81893435	螺钉(M8×35)	SCREW (M8 x 35)	1
9	821583	销	PIN	1
9	8215832	特殊销（1.5英寸）	PIN Special (1.5 Inches)	1
10	812618	不锈钢螺钉(.312-18 x 1.00)带尼龙垫	SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch	3
11	82446180	螺钉(M10×80)	SCREW (M10 x 80)	1
12	855798	弹簧	SPRING	1
12	855798001	弹簧	SPRING	1
13	8502913	皮带张紧器	BELT TENSIONER	1
13	850291T3	皮带张紧器	BELT TENSIONER	1
14	855728	双头螺栓(M10 X 54)	STUD (M10 X 54)	1
14	8557281	螺柱	STUD	1
15	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	1
16	852385A1	滑轮	PULLEY	1
16	8M6005030	皮带轮总成	PULLEY ASSY	1
17	4010835	螺钉(M10×35)六角法兰-不锈钢	SCREW (M10 x 35) Hex Flange - Stainless Steel	1
18	856030A2	衬套套装	BUSHING KIT	1
19	85045	O型圈(.551 x .070)	O-RING (.551 x .070)	2
20	NLA	不再供应	No Longer Available	1
21	42139	衬套	BUSHING	1
22	857006T	交流发电机	ALTERNATOR	1
22	889955A03	交流发电机套件	ALTERNATOR KIT	1
23	40108100	螺钉(M10×100)六角法兰-不锈钢	SCREW (M10 x 100) Hex Flange - Stainless Steel	1
23	8M0012503	螺钉(M10×1.5)	SCREW (M10 x 1.5)	1
24	40108120	螺钉(M10×120)六角法兰-不锈钢	SCREW (M10 x 120) Hex Flange - Stainless Steel	1
25	29395	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	3
25	8M0042641	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	3
26	856975	支架	MOUNT	3
27	856972T	支架	BRACKET	1
27	858391T01	支架	BRACKET	1
28	845998	垫圈(0.406×1.250×0.089)	WASHER (.406 x 1.250 x .089)	3
29	856973T	支架	BRACKET	1
29	858393T01	支架	BRACKET	1
30	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	2
31	82446155	螺钉(M10×55)	SCREW (M10 x 55)	1
32	856583T2	拉线总成	CABLE ASSEMBLY	1
33	821583	销	PIN	1
33	8215832	特殊销（1.5英寸）	PIN Special (1.5 Inches)	1
34	856974T	支架	BRACKET	1
34	857142T	支架	BRACKET	1
35	812618	不锈钢螺钉(.312-18 x 1.00)带尼龙垫	SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch	3
36	855798	弹簧	SPRING	1
36	855798001	弹簧	SPRING	1
37	856815T2	张紧臂总成	ARM TENSIONER ASSEMBLY	1
38	856900	螺柱(M10×85)	STUD (M10 x 85)	1
38	8M0034457	螺柱(M10×85)	STUD (M10 x 85)	1
39	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	1
40	856894	衬套	BUSHING	1
40	8568941	衬套	BUSHING	1
41	4002320	垫圈	WASHER	2
42	852385A1	滑轮	PULLEY	1
42	8M6005030	皮带轮总成	PULLEY ASSY	1
43	4010835	螺钉(M10×35)六角法兰-不锈钢	SCREW (M10 x 35) Hex Flange - Stainless Steel	1

图 4空气软管 Air Hoses

REF	零件编号	中文名称	英文名称	数量
1	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
2	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
3	830757130	管材 (0.312英寸) (70英寸整卷) (裁切至6英寸)	TUBING (.312) (70.00 Inches Bulk) (Cut to 6 IN.)	1
3	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
4	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	2
4	8M0214964	卡箍	CLAMP	2
5	8502512	软管	HOSE	1
6	85687631	套管（16.00英寸）	SLEEVE (16.00 Inches)	1
7	804823	软管/接头总成	HOSE/FITTING ASSEMBLY	1
7	8M6000383	软管总成	HOSE ASSEMBLY	1
8	804824	软管/接头总成	HOSE/FITTING ASSEMBLY	1
8	8M6000382	软管总成	HOSE ASSEMBLY	1
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
10	16604	直通接头（0.125-27）	FITTING Straight (.125-27)	1
11	14867	45度弯头	ELBOW 45 Degree	1
-	883201A01	动力头总成	POWERHEAD ASSEMBLY	1

图 5气缸体与端盖 Cylinder Block and End Caps

REF	零件编号	中文名称	英文名称	数量
1	828340A5	气缸体	CYLINDER BLOCK	1
1	828340A14	气缸体	CYLINDER BLOCK	1
2	8181383	动力头螺柱（1-3/4英寸）	STUD Powerhead (1-3/4 IN.)	6
2	8M0034455	螺柱1.750	STUD 1.750	6
3	670653	双头螺柱（0.375×5.620英寸，5-1/2英寸）	STUD (.375 x 5.620) (5-1/2 IN.)	2
3	670654	螺柱(.375-16/.375-24 x 5.620)	STUD (.375-16/.375-24 x 5.620)	2
3	784384	双头螺栓(.375 x 6.870)(6-3/4英寸)	STUD (.375 x 6.870) (6-3/4 IN.)	2
3	8M0034454	螺柱(.375-16/.375-24 x 6.87)	STUD (.375-16/.375-24 x 6.87)	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	销(轴承座圈)	PIN (BEARING RACE)	2
5	8M0036405	销	PIN	2
6	11338	衬垫	GASKET	2
7	384071	接头(1/2-14)	FITTING (1/2-14) (1/2-14)	1
8	426231	止回阀	CHECK VALVE	1
8	426233	止回阀	CHECK VALVE	1
9	426981	止回阀	CHECK VALVE	1
9	426982	止回阀	CHECK VALVE	1
10	99130122	管材(20英尺整卷)(裁切为19英寸)	TUBING (20.00 Feet Bulk) (Cut to 19 Inches)	1
10	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
11	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	10
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	10
12	852760	直通接头	FITTING (STRAIGHT)	2
13	855622	弯头接头	FITTING (ELBOW)	1
14	8267611	弯头	ELBOW (ELBOW)	3
15	85583445	管材(16英寸)	TUBING (16 IN.)	2
15	85583464	管材 (34.00英寸整卷)	TUBING (34.00 Inches Bulk)	2
15	85583445	管材(20英寸)	TUBING (20 IN.)	1
15	85583464	管材 (34.00英寸整卷)	TUBING (34.00 Inches Bulk)	1
16	85606064	管材(36.00英寸整料)(24-1/2英寸)	TUBING (36.00 Inches Bulk) (24-1/2 IN.)	3
16	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	3
17	828547753	导管(.750内径x3.00英尺整料)(裁切至7英寸)	CONDUIT (.750 Inside Diameter x 3.00 Feet Bulk) (Cut to 7 Inches)	1
18	432781	止回阀	CHECK VALVE	1
18	8781051	止回阀	CHECK VALVE	1
19	830756109	软管(57.00英寸整料)(裁切至11-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 11-1/2 Inches)	1
19	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
20	822769	连接器	CONNECTOR	1
21	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	6
22	66717	螺钉(.375-16 x 3.250)	SCREW (.375-16 x 3.250)	8
23	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	6
24	26852	尼龙帽	CAP Nylon	1
25	856832	螺丝 (.250-20 x 1.750)	SCREW (.250-20 x 1.750)	1
26	64015	螺母 (.250-20)	NUT (.250-20)	1
27	832760A1	上端盖总成	END CAP ASSEMBLY Upper	1
27	832760T1	端盖总成	END CAP ASSEMBLY	1
28	54029	O型圈(2.800 x .103)	O-RING (2.800 x .103)	1
29	16756A4	轴承套件	BEARING KIT	1
30	NSS	不单独销售轴承座圈	NOT SOLD SEPARATE Bearing Race	1
31	41953	密封件	SEAL	1
32	69034	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW AND LOCKWASHER (.312-18 x 1.00)	4
32	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	4
33	7809A1	端盖总成	END CAP ASSEMBLY	1
33	7809T1	端盖总成	END CAP ASSEMBLY	1
34	62700	O型圈(3.237 x .103)	O-RING (3.237 x .103)	1
35	41953	密封件	SEAL	2
36	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
37	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
38	853882	支架	BRACKET	1
38	8538821	节气门位置指示器安装支架	BRACKET Throttle Position Indicator Mount	1
39	8519371	节气门位置指示器杠杆	LEVER Throttle Position Indicator	1
40	82130025	螺钉(M6x25)	SCREW (M6 x 25)	3
41	8318701	衬套	BUSHING	6
42	834985	护孔环	GROMMET	3
42	8M0190980	护孔环	GROMMET	3
43	8M6005905	节气门位置指示器(内侧)	INDICATOR Throttle Position (Inside)	1
44	850882	隔套	SPACER	1
45	8329522	节气门位置指示器(外侧)	INDICATOR Throttle Position (Outside)	1
45	8M6005166	TPI	TPI	1
46	850828	螺钉(#10-32 X 2-3/4英寸)	SCREW (#10-32 X 2-3/4 IN.)	3
47	1938541	油门连杆	LINK Throttle	1
47	8M0084738	连杆总成	LINK ASSY	1
48	NSS	不单独销售序列号塞	NOT SOLD SEPARATE Plug-Serial Number	1
49	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
49	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
-	814754A98	衬垫套件	GASKET SET	1
-	8M0046714	衬垫套件	GASKET SET	1
-	854008A98	动力头总成	POWERHEAD ASSEMBLY	1
-	804545T99	动力头总成	POWERHEAD ASSEMBLY	1

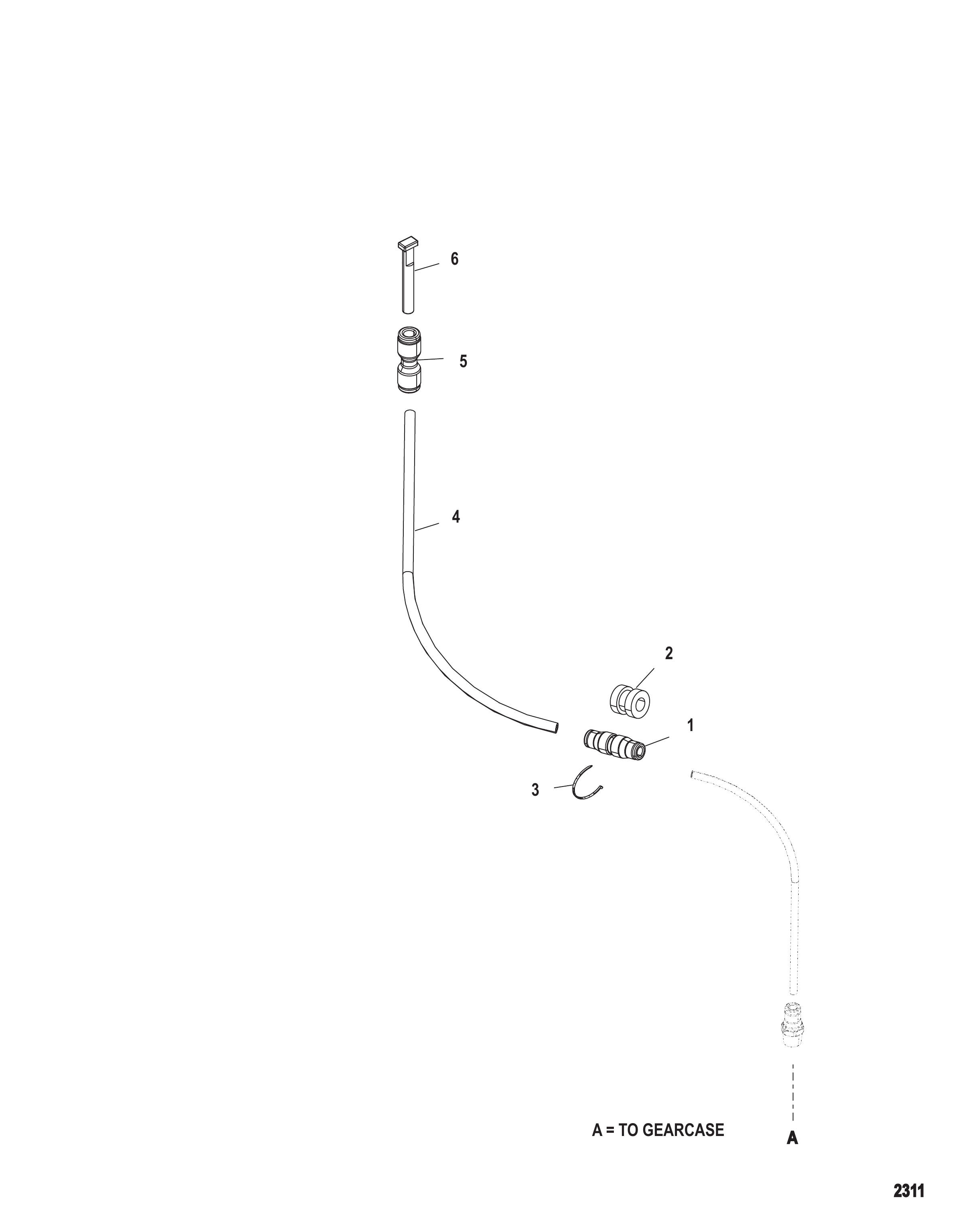

图 6速度计传感器-TorqueMaster型 SPEEDOMETER PICKUP-TORQUEMASTER

REF	零件编号	中文名称	英文名称	数量
1	859448	接头	FITTING	1
2	821555	护孔环	GROMMET	1
2	8M0153609	护孔环	GROMMET	1
3	850181	捆扎带(11.750英寸)	TIE STRAP (11.750 Inches)	1
4	85944975	管材 (72英寸整卷) (裁切至52英寸)	TUBING (72.00 Inches Bulk) (Cut to 52 IN.)	1
5	859747	联轴器	COUPLER	1
5	8M0214971	耦合接头 (4 MM)	COUPLER Fitting (4 MM)	1
6	859732	堵头	PLUG	1

图 7钥匙开关/仪表/附件 KEY SWITCH/INSTRUMENTATION/ACCESSORIES

REF	零件编号	中文名称	英文名称	数量
1	816626A15	钥匙开关线束总成(15英尺)	HARNESS ASSEMBLY Key Switch (15.00 Feet)	1
2	90468A1	钥匙盖总成	COVER ASSEMBLY Key	2
3	76424	支架	BRACKET	1
4	55422	双头螺柱 (#10-32 x 2.00)	STUD (#10-32 x 2.00)	2
5	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	2
6	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
7	816479A3	板组件套件	PLATE KIT	2
8	88107A5	钥匙开关套件	SWITCH KIT Key	1
9	879755	特殊螺母-黑色尼龙	NUT Special - Black Nylon	1
10	816492A1	音响报警器总成	ALARM ASSEMBLY Audio Warning	1
10	8M0210763	报警器	ALARM	1
10	816492A2	报警器	ALARM	1
10	8M0089727	报警器总成	ALARM ASSEMBLY	1
11	8127111	垫片(0.375)	SPACER (.375)	2
11	812711	隔套(0.250)	SPACER (.250)	2
0	894911	点火钥匙(1A)	KEY Ignition (1A)	1
0	894912	点火钥匙(1B)	KEY Ignition (1B)	1
0	894913	点火钥匙(1C)	KEY Ignition (1C)	1
0	894914	点火钥匙(1D)	KEY Ignition (1D)	1
0	894915	点火钥匙(1E)	KEY Ignition (1E)	1
0	894916	点火钥匙(1F)	KEY Ignition (1F)	1
0	894917	点火钥匙(2A)	KEY Ignition (2A)	1
0	894918	点火钥匙(2B)	KEY Ignition (2B)	1
0	894919	点火钥匙(2C)	KEY Ignition (2C)	1
0	8949110	点火钥匙(2D)	KEY Ignition (2D)	1
0	8949111	点火钥匙(2E)	KEY Ignition (2E)	1
0	8949112	点火钥匙(2F)	KEY Ignition (2F)	1
12	86322A7	线缆总成(1.50英尺)黑色	CABLE ASSEMBLY (1.50 Feet) Black	1
12	86323A5	线缆总成(1.50英尺)紫色	CABLE ASSEMBLY (1.50 Feet) Purple	1
13	825338A3	动力升降倾斜仪表白面黑刻度黑边框	GAUGE Power Trim, White Face, Black Graduation, Black Bezel	1
13	895292Q41	动力升降倾斜指示器黑面橙白刻度黑边框	GAUGE Power Trim Indicator, Black Face, Orange/White Graduations, Black Bezel	1
14	79480	支架	BRACKET	1
15	72729	楔形底座灯泡(14V - 1.9W)	LIGHT BULB Wedge Base (14V - 1.9W)	1
16	79888	灯泡插座	SOCKET Light Bulb	1
17	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	5
18	68878A6	蜂鸣报警器总成	HORN ASSEMBLY Buzzer Alarm	1
19	68879	盖板	COVER	1
20	79697	隔套	SPACER	2
20	8M0084588	隔套	SPACER	2
21	26427	垫圈	WASHER	4
22	35401	螺钉(#10 x 1.00)	SCREW (#10 x 1.00)	2
23	86396A8	转速表线束总成(5.00英尺)	HARNESS ASSEMBLY Tachometer (5.00 Feet)	1
24	879981T20	线束总成 (SC1000R-20)	HARNESS ASSEMBLY (SC1000R-20)	1
25	859318T1	终端接头 10针 (CAN 1和2)	TERMINATOR 10 Pin (CAN 1 and 2)	1
25	8M0210753	终端接线盒	TERMINATOR Junction Box	1
26	878492T4	四通接线盒	JUNCTION BOX 4 Way	1
26	878492T14	四通接线盒	JUNCTION BOX 4 Way	1
27	859318T2	防水帽 - 10针	CAP Weather - 10 Pin	1
27	8M0210754	防水帽	WEATHER CAP	1
28	879979T1	转速表线束总成 (SC1000-3)	HARNESS ASSEMBLY Tachometer (SC1000-3)	1
28	879979T11	转速表线束总成	HARNESS ASSEMBLY Tachometer	1
-	858610A31	燃油软管总成	HOSE ASSEMBLY Fuel	1
-	8M0038610	带注油球的燃油软管总成(9英尺)	HOSE ASSEMBLY Fuel (9 Feet) With Primer Bulb	1
-	859688A11	水压表套件 (2-30 PSI) 白面黑刻度白边框	GAUGE KIT Water Pressure (2-30 PSI) White Face, Black Graduation, White Bezel	1
-	895288A23	水压表套件 (2-30 PSI) 白面黑刻度白边框	GAUGE KIT Water Pressure (2-30 PSI) White Face, Black Graduations, White Bezel	1
-	879896K4	系统监控套件 SC1000 - 前装式	SYSTEM MONITOR KIT SC1000 - Front Mount	1
-	879896K10	系统监控套件 SC1000 - 前装式	SYSTEM MONITOR KIT SC1000 - Front Mount	1
29	879982T30	线束总成	HARNESS ASSEMBLY	1

图 8空气软管(序列号1E050629及以上) Air Hoses (SN 1E050629 & Above)

REF	零件编号	中文名称	英文名称	数量
1	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	2
2	89772	连接器(.125-27)	CONNECTOR (.125-27)	1
3	29085	45度弯管接头	FITTING Elbow (45 Degree)	1
3	8M0123050	45度弯管接头	FITTING Elbow (45 Degree)	1
4	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
5	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
6	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
7	85833935	管材 (15英寸整卷) (裁切至7英寸)	TUBING (15.00 Inches Bulk) (Cut to 7 IN.)	1
7	85833939	软管(17英寸整卷)	HOSE (17.00 Inches Bulk)	1
8	8348084	滤网	STRAINER	1
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
10	85833935	管材 (15英寸整卷) (裁切至4.5英寸)	TUBING (15.00 Inches Bulk) (Cut to 4-1/2 IN.)	1
10	85833939	软管(17英寸整卷)	HOSE (17.00 Inches Bulk)	1
11	291112	接头	FITTING	1
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
13	83476463	管材 (32英寸整卷) (裁切至18.5英寸)	TUBING (32.00 Inches Bulk) (Cut to 18-1/2 IN.)	1
14	859432	接头	FITTING	1
14	881866	接头	FITTING	1
15	85978568	管材 (44英寸整卷) (裁切至15英寸)(灰色)	TUBING (44.00 Inches Bulk) (Cut to 15 IN.)(GRAY)	1
15	85978571	管材(52英寸整卷)	TUBING (52.00 Inches Bulk)	1
16	859431	接头	FITTING	1
16	8M0207782	直通接头	FITTING Straight	1
17	881879A7	传感器套件(0-50 PSI)(棕褐色)	SENSOR KIT (0-50 PSI) (TAN)	1
17	8M0157742	水压传感器	SENSOR Water Pressure	1
18	858954	卡箍(0.625英寸)	CLIP (.625)	1
19	875207	三通接头	TEE Fitting	1
20	85978568	管材 (44英寸整卷) (裁切至44英寸)(灰色)	TUBING (44.00 Inches Bulk) (Cut to 44 IN.)(GRAY)	1
20	85978571	管材(52英寸整卷)	TUBING (52.00 Inches Bulk)	1
21	859747	联轴器	COUPLER	1
21	8M0214971	耦合接头 (4 MM)	COUPLER Fitting (4 MM)	1
22	859732	堵头	PLUG	1
23	859731	适配管接头	FITTING Adapter	1
23	8M0214970	接头	FITTING	1
24	85978568	管材 (44英寸整卷) (裁切至5英寸)(灰色)	TUBING (44.00 Inches Bulk) (Cut to 5 IN.)(GRAY)	1
24	85978571	管材(52英寸整卷)	TUBING (52.00 Inches Bulk)	1
25	858459	接头	FITTING	1
26	77653101	软管 (48英寸整卷) (裁切至23.5英寸)	HOSE (48.00 Inches Bulk) (Cut to 23-1/2 IN.)	1
27	8276021	成型软管	MOLDED HOSE	1
27	8M0114859	软管	HOSE	1
27	77653101	软管 (48英寸整卷) (裁切至5英寸)	HOSE (48.00 Inches Bulk) (Cut to 5 IN.)	1
28	77653101	软管 (48英寸整卷) (裁切至17.5英寸)	HOSE (48.00 Inches Bulk) (Cut to 17-1/2 IN.)	1
-	883201A01	动力头总成	POWERHEAD ASSEMBLY	1

图 9喷油组件 OIL INJECTION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	12335A1	支架套件	BRACKET KIT	1
2	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1
3	87421	油箱	TANK	1
4	43298A2	盖总成	CAP ASSEMBLY	1
5	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
6	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
7	816190A3	外壳总成适配器	HOUSING ASSEMBLY Adapter	1
7	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
8	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
9	99802	管	TUBE	1
10	99439	软管(114.00英寸)	HOSE (114.00 Inches)	1
11	833069A3	油箱总成	RESERVOIR ASSEMBLY Oil	1
11	8M0062954	储油罐	RESERVOIR, OIL	1
12	NSS	不单独销售标签-储液罐	NOT SOLD SEPARATE Decal-Reservoir	1
13	855362	护孔环	GROMMET	3
13	855362001	护孔环	GROMMET	3
14	49436	垫圈	WASHER	3
15	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
16	855364	衬套	BUSHING	3
17	69267	螺钉 (.312-18 x 1.750)	SCREW (.312-18 x 1.750)	2
18	833155	护孔环	GROMMET	2
19	8502341	衬套	BUSHING	2
20	82381455	管材(25英寸整卷)(裁切为20英寸)	TUBING (25.00 Inches Bulk) (Cut to 20 Inches)	1
21	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
21	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
22	12886A8	开关	SWITCH	1
23	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
24	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
25	8260841	隔套	SPACER	1
26	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	7
26	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	7
27	NSS	不单独销售塞	NOT SOLD SEPARATE Plug	1
28	424254	接头	FITTING	1
28	8M0207780	接头	FITTING	1
29	830756109	软管(57.00英寸散装)(裁切至6英寸)	HOSE (57.00 Inches Bulk) (Cut to 6 Inches)	1
29	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
30	855785	燃油冷却器	COOLER Fuel	1
30	855785A1	燃油冷却器总成	COOLER ASSEMBLY Fuel	1
31	855761	止回阀	CHECK VALVE	1
31	8557611	止回阀	CHECK VALVE	1
32	13791	卡箍(15.7)	CLAMP (15.7)	4
32	8M0214911	卡箍@5	CLAMP @5	4
33	85682239	管材(17英寸整卷)(裁切为3英寸)	TUBING (17.00 Inches Bulk) (Cut to 3 Inches)	1
34	856822A3	软管(带绝缘套管)(30英寸)	HOSE (W/INSULATING SLEEVE) (30 IN.)	1

图 10齿轮箱螺旋桨轴-TorqueMaster型 GEAR HOUSING Propeller Shaft - TorqueMaster

REF	零件编号	中文名称	英文名称	数量
-	827214T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	827214T16	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	827214T25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
47	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
48	789562	换挡凸轮	SHIFT CAM	1
49	79911A1	杆	ROD	1
50	78906	销	PIN	1
50	8M0084245	弹簧定位销	PIN Spring Locator	1
51	79910	弹簧	SPRING	2
52	78910	垫圈	WASHER	AR
53	47397A1	垫片组	SHIM SET	AR
54	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
55	44104A7	齿轮组	GEAR SET	1
56	549281	滚柱轴承	BEARING Roller	1
57	42672T	棘轮	RATCHET	1
58	42671	十字销	PIN Cross	1
59	78909	定位销	PIN Detent	2
60	78962	弹簧	SPRING	2
61	840451A2	螺旋桨轴	PROPELLER SHAFT	1
61	840451A03	螺旋桨轴	PROPELLER SHAFT	1
-	840389K5	轮毂套件	HUB KIT	1
-	8M0183487	重型螺旋桨轮毂套件	HUB KIT-HD PROP	1
-	840382A1	缓冲条套件	SNUBBER STRIP KIT	1
-	840382A02	缓冲条套件	SNUBBER STRIP KIT	1
62	822824A1	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
62	8M0192202	倒挡齿轮	GEAR-REVERSE	1
63	822823	推力环	THRUST RING	1
64	681001	止推环	RING Thrust	1
65	88957T	滚珠轴承	BEARING Ball	1
66	31534	O型圈	O-RING	1
66	8M0214920	O型圈	O RING	1
67	848840T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	848840A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	817072	滚柱轴承	BEARING Roller	1
69	817071	卡环	RING Snap	1
70	815565	油封	SEAL Oil	2
71	30281	键	KEY	1
72	79447	锁紧垫圈	TAB WASHER	1
73	79448	固定座	RETAINER	1
73	8M2011027	固定座	RETAINER	1
74	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
75	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
76	832066A1	进水口板套件	PLATE KIT Water Inlet	1
77	188642	螺钉(#8-32 x .500)	SCREW (#8-32 x .500)	4
78	76214Q5	阳极套件	ANODE KIT	1
79	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
80	859116	螺母(.437-20)	NUT (.437-20)	2
81	30206	螺钉(.375-16 x 1.00)不锈钢	SCREW (.375-16 x 1.00) Stainless Steel	1
82	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	2
83	859432	接头	FITTING	1
83	881866	接头	FITTING	1
84	85944975	管材(72英寸整料)(裁切至7英寸)	TUBING (72.00 Inches Bulk) (Cut to 7 IN.)	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 11曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	891644A04	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	897498T01	主轴承-绿色(曲轴上端)	BEARING Main - Green Crankshaft-Upper	12/AR
2	897498T02	主轴承-海军蓝(曲轴上端)	BEARING Main - Navy Blue Crankshaft-Upper	12/AR
2	897498T03	主轴承-白色(曲轴上端)	BEARING Main - White Crankshaft-Upper	12/AR
2	897498T04	主轴承-橙色(曲轴上端)	BEARING Main - Orange Crankshaft-Upper	12/AR
3	892309T01	推力轴承-绿色(曲轴下端)	BEARING Thrust - Green Crankshaft-Lower	2/AR
3	8M0117003	轴承	BEARING	2/AR
3	892309T02	推力轴承-海军蓝(曲轴下端)	BEARING Thrust - Navy Blue Crankshaft-Lower	2/AR
3	8M0117001	轴承	BEARING	2/AR
3	892309T03	推力轴承-白色(曲轴下端)	BEARING Thrust - White Crankshaft-Lower	2/AR
3	8M0117002	轴承	BEARING	2/AR
3	892309T04	推力轴承-橙色(曲轴下端)	BEARING Thrust - Orange Crankshaft-Lower	2/AR
3	8M0117004	轴承	BEARING	2/AR
4	8805251	油封(主轴承顶部)	SEAL Top Main Bearing	1
4	8M0032912	密封件	SEAL	1
5	896883	隔套	SPACER	1
6	896882	挡圈	RING Retaining	1
7	91800	半圆键	KEY Woodruff	1
8	885348	飞轮螺栓盖	CAP Flywheel Bolt	1
9	897796	链条(凸轮轴驱动滚子链)	CHAIN Roller Cam Drive	1
9	8M0103398	链条(凸轮轴驱动滚子链)	CHAIN Roller Cam Drive	1
10	881210T02	连杆总成	CONNECTING ROD ASSEMBLY	6
10	8M0103285	连杆总成	CONNECTING ROD ASSEMBLY	6
11	884441	螺栓	BOLT	12
12	892005A01	连杆轴承-蓝色	BEARING Connecting Rod - Blue	12/AR
12	892005A02	连杆轴承-白色	BEARING Connecting Rod - White	12/AR
12	892005A03	连杆轴承-橙色	BEARING Connecting Rod - Orange	12/AR
13	897737T01	活塞总成	PISTON ASSEMBLY	6
13	897737A04	活塞/喷油嘴套件	PISTON/OILJET KIT	6
14	881180A02	活塞环组	RING SET Piston	6
15	NSS	活塞环-油环(不单独销售)	NOT SOLD SEPARATE Piston Ring-Oil	6
16	NSS	活塞环-第二道(不单独销售)	NOT SOLD SEPARATE Piston Ring-2nd	6
17	NSS	活塞销（不单独销售）	NOT SOLD SEPARATE Piston Pin	6
18	881184	卡簧	CIRCLIP	12
19	888983T02	飞轮	FLYWHEEL	1
19	888983T03	飞轮总成	FLYWHEEL ASSEMBLY	1
20	880515	螺栓(M20×68)	BOLT (M20 x 68)	1
20	8M0147042	螺栓	BOLT	1
21	880517	垫圈	WASHER	1
21	8M0090010	垫圈	WASHER	1
-	880552A06	动力头衬垫套件	GASKET SET Powerhead	1
-	880552A07	动力头衬垫套件	GASKET SET Powerhead	1
-	895247A06	动力头总成	POWERHEAD ASSEMBLY	1
-	895247R06	RM L6 GEN1 VERADO	RM L6 GEN1 VERADO	1

图 12空气软管 AIR HOSES

REF	零件编号	中文名称	英文名称	数量
1	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
2	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
3	830757130	管材 (0.312英寸) (70英寸整卷) (裁切至6英寸)	TUBING (.312) (70.00 Inches Bulk) (Cut to 6 IN.)	1
3	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
4	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	2
4	8M0214964	卡箍	CLAMP	2
5	8502512	软管	HOSE	1
6	85687631	套管（16.00英寸）	SLEEVE (16.00 Inches)	1
7	804823	软管/接头总成	HOSE/FITTING ASSEMBLY	1
7	8M6000383	软管总成	HOSE ASSEMBLY	1
8	804824	软管/接头总成	HOSE/FITTING ASSEMBLY	1
8	8M6000382	软管总成	HOSE ASSEMBLY	1
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
10	16604	直通接头（0.125-27）	FITTING Straight (.125-27)	1
11	14867	45度弯头	ELBOW 45 Degree	1
-	883201A01	动力头总成	POWERHEAD ASSEMBLY	1

图 13转向连接套件 STEERING ATTACHING KIT

REF	零件编号	中文名称	英文名称	数量
0	92876A8	转向安装套件	ATTACHING KIT Steering	1
1	41055A1	支架总成	BRACKET ASSEMBLY	1
2	71565A2	管总成	TUBE ASSEMBLY	1
3	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
4	821203	锁紧垫圈	LOCKWASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
7	78968	内锁紧垫圈 (.250)	LOCKWASHER Internal (.250)	4
8	850791T	联轴器	COUPLER	1
9	73732	螺钉 (.375-24 x 1.120)	SCREW (.375-24 x 1.120)	2
10	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
11	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	1
11	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1

图 14艉板支架(长型) Transom Brackets (Long)

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	54012	垫圈(0.530×0.870×0.105不锈钢)	WASHER (.530 x .870 x .105) Stainless Steel	4
10	8M0204665	垫圈(0.530×0.880×0.104 630不锈钢)	WASHER (.530 x .880 x .104) 630 Stainless Steel	4
11	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	99629T2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	830899	张力弹簧	SPRING Tension	1
15	65830	尼龙衬套	NYLINER	2
16	830900	压缩弹簧	SPRING Compression	1
17	99633	旋钮	KNOB	1
18	99615	槽销	PIN Groove	1
19	99617	销	PIN	1
19	893709	销	PIN	1

图 15衬垫组件套装(完整动力头及下部单元) Gasket Set Components Complete Powerhead and Lower Unit

REF	零件编号	中文名称	英文名称	数量
1	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	2
2	89772	连接器(.125-27)	CONNECTOR (.125-27)	1
3	29085	45度弯管接头	FITTING Elbow (45 Degree)	1
3	8M0123050	45度弯管接头	FITTING Elbow (45 Degree)	1
4	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
5	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
6	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
7	85833935	管材 (15英寸整卷) (裁切至7英寸)	TUBING (15.00 Inches Bulk) (Cut to 7 IN.)	1
7	85833939	软管(17英寸整卷)	HOSE (17.00 Inches Bulk)	1
8	8348084	滤网	STRAINER	1
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
10	85833935	管材 (15英寸整卷) (裁切至4.5英寸)	TUBING (15.00 Inches Bulk) (Cut to 4-1/2 IN.)	1
10	85833939	软管(17英寸整卷)	HOSE (17.00 Inches Bulk)	1
11	291112	接头	FITTING	1
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
13	83476463	管材 (32英寸整卷) (裁切至18.5英寸)	TUBING (32.00 Inches Bulk) (Cut to 18-1/2 IN.)	1
14	859432	接头	FITTING	1
14	881866	接头	FITTING	1
15	85978568	管材 (44英寸整卷) (裁切至15英寸)(灰色)	TUBING (44.00 Inches Bulk) (Cut to 15 IN.)(GRAY)	1
15	85978571	管材(52英寸整卷)	TUBING (52.00 Inches Bulk)	1
16	859431	接头	FITTING	1
16	8M0207782	直通接头	FITTING Straight	1
17	881879A7	传感器套件(0-50 PSI)(棕褐色)	SENSOR KIT (0-50 PSI) (TAN)	1
17	8M0157742	水压传感器	SENSOR Water Pressure	1
18	858954	卡箍(0.625英寸)	CLIP (.625)	1
19	875207	三通接头	TEE Fitting	1
20	85978568	管材 (44英寸整卷) (裁切至44英寸)(灰色)	TUBING (44.00 Inches Bulk) (Cut to 44 IN.)(GRAY)	1
20	85978571	管材(52英寸整卷)	TUBING (52.00 Inches Bulk)	1
21	859747	联轴器	COUPLER	1
21	8M0214971	耦合接头 (4 MM)	COUPLER Fitting (4 MM)	1
22	859732	堵头	PLUG	1
23	859731	适配管接头	FITTING Adapter	1
23	8M0214970	接头	FITTING	1
24	85978568	管材 (44英寸整卷) (裁切至5英寸)(灰色)	TUBING (44.00 Inches Bulk) (Cut to 5 IN.)(GRAY)	1
24	85978571	管材(52英寸整卷)	TUBING (52.00 Inches Bulk)	1
25	858459	接头	FITTING	1
26	77653101	软管 (48英寸整卷) (裁切至23.5英寸)	HOSE (48.00 Inches Bulk) (Cut to 23-1/2 IN.)	1
27	8276021	成型软管	MOLDED HOSE	1
27	8M0114859	软管	HOSE	1
27	77653101	软管 (48英寸整卷) (裁切至5英寸)	HOSE (48.00 Inches Bulk) (Cut to 5 IN.)	1
28	77653101	软管 (48英寸整卷) (裁切至17.5英寸)	HOSE (48.00 Inches Bulk) (Cut to 17-1/2 IN.)	1
-	883201A01	动力头总成	POWERHEAD ASSEMBLY	1

图 16液压泵和安装支架 Hydraulic Pump and Mounting Brackets

REF	零件编号	中文名称	英文名称	数量
-	846859A4	液压泵总成(完整)	PUMP ASSEMBLY Hydraulic (COMPLETE)	1
1	846859A1	液压泵总成	PUMP ASSEMBLY Hydraulic	1
1	8M0051203	配平泵总成	PUMP ASSY-TRIM	1
2	818567	支架	BRACKET	1
3	38837	螺钉(.312-18×1.12)	SCREW (.312-18 x 1.12)	1
4	57792	垫圈	WASHER	2
5	34948	隔套	SPACER	1
6	65999A12	接地线总成	CABLE ASSEMBLY Ground	1
7	79138A9	电缆总成(6英尺)黑色负极	CABLE ASSEMBLY (6.00 Feet) Black-Negative (NEGATIVE)	1
8	92051	螺钉（10-16 x 0.75）	SCREW (10-16 x .75)	2
9	79147A5	线束总成	HARNESS ASSEMBLY	1
10	79091	保险丝20安培	FUSE 20 Ampere	1
10	8M0207796	保险丝20安培	FUSE 20 AMP	1
11	88075	固定座	RETAINER	1
12	853654A1	电磁阀	SOLENOID	2
13	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	4
14	20110	螺母 (#10-32)	NUT (#10-32)	4
15	859119	螺母(5/16-18)	NUT (5/16-18)	4
15	8M0204646	螺母(.312-18)	NUT (.312-18)	4
16	79023A10	保险丝总成110安培	FUSE ASSEMBLY 110 Ampere	1
16	79023T10	保险丝总成110安培	FUSE ASSEMBLY 110 Ampere	1
17	96457	酚醛垫圈(.27×.81×.062)	WASHER Phenolic (.27 x .81 x .062)	1
18	21825	螺母(.250-28)	NUT (.250-28)	1
19	65999A11	拉线总成	CABLE ASSEMBLY	1
20	79139A12	电缆总成红色正极	CABLE ASSEMBLY Red-Positive (POSITIVE)	1
21	46265	护套	BOOT	5
22	22753	垫圈	WASHER	4
23	79139A26	电缆总成(红色)	CABLE ASSEMBLY Red	1
24	87760T	安装板	MOUNTING PLATE	1
25	39349	螺钉(.312-18×0.75)不锈钢	SCREW (.312-18 x .750) Stainless Steel	1
26	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
26	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
27	90271	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	2
28	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
29	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	4
29	8M0214963	垫圈	WASHER	4
30	87762	支架	BRACKET	1
31	63826	螺钉(.375-16 x 2.50)	SCREW (.375-16 x 2.50)	2
32	82670912	螺母(.375-16)不锈钢	NUT (.375-16) Stainless Steel	2
33	818200	接头	FITTING	1
34	77366	接头	FITTING	2
35	95084A18	保险丝线束总成	CABLE ASSEMBLY Fuse	1
36	65017A14	线束总成	HARNESS ASSEMBLY	1
37	848017T4	升降线束总成	HARNESS ASSEMBLY Trim	1

图 17空气处理器组件 Air Handler Components

REF	零件编号	中文名称	英文名称	数量
-	855633A4	空气处理器总成	AIR HANDLER ASSEMBLY	1
-	855633A15	空气处理器总成	AIR HANDLER ASSEMBLY	1
1	855420T02	适配板套件	ADAPTER PLATE KIT	1
2	146973	衬垫	GASKET	1
3	850058	衬垫	GASKET	1
3	8500581	衬垫	GASKET	1
4	116455	簧片阀组	REED BLOCK	6
4	855952T2	簧片阀组	REED BLOCK	6
5	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	12
6	855762	油泵	PUMP Oil	1
6	855884P1	油泵	PUMP Oil	1
7	8565421	衬垫	GASKET	1
8	8552841	支架	BRACKET	1
9	855424	接头	FITTING	3
10	8554241	接头	FITTING	3
11	8554246	接头	FITTING	1
11	892267T02	蒸汽分离器总成	VAPOR SEPARATOR ASSEMBLY	1
12	8554248	接头(直通)	FITTING (STRIAGHT)	1
13	855364	衬套	BUSHING	6
14	855362	护孔环	GROMMET	6
14	855362001	护孔环	GROMMET	6
15	81893440	螺钉 (M8 x 40)	SCREW (M8 x 40)	6
16	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	6
17	850248A1	空气集气室套件	PLENUM KIT Air	1
18	8554242	弯头	ELBOW	1
19	8554249	弯头	ELBOW	1
19	15133	接头	FITTING	1
20	850058	衬垫	GASKET	1
20	8500581	衬垫	GASKET	1
21	13221A1	温度传感器总成	SENSOR ASSEMBLY Temperature	1
21	13221T01	温度传感器	SENSOR TEMP	1
22	4005685	螺钉（M4×10）	SCREW (M4 x 10)	3
23	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	3
24	4001987	螺钉(M4×16)	SCREW (M4 x 16)	12
25	855422A1	节气门体套件	THROTTLE BODY KIT	1
26	855423	O型圈	O-RING	1
27	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	4

图 18下机罩 BOTTOM COWL

REF	零件编号	中文名称	英文名称	数量
1	834814A1	下机罩	BOTTOM COWL	1
1	834814A2	下机罩	BOTTOM COWL	1
2	834815A1	下机罩	BOTTOM COWL	1
2	8M0107322	机罩-底部右舷	COWL-BOTTOM, STBD	1
2	834815A2	下机罩	BOTTOM COWL	1
3	8253181	罩盖密封条(41英寸)	SEAL Cowl (41.00 Inches)	2
3	8M0109217	罩盖密封条	SEAL-COWL	2
4	822024	卡箍	CLAMP	1
5	822023	卡箍	CLAMP	1
6	92799	螺钉(#10-16x1.12)	SCREW (#10-16 x 1.12)	2
7	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	4
8	831209	固定座	RETAINER	1
9	821908	堵头	PLUG	1
10	821915	垫圈	WASHER	1
11	821963	止回阀	CHECK VALVE	1
11	8219631	止回阀	CHECK VALVE	1
12	30641	O型圈(0.299x0.103)	O-RING (.299 x .103)	1
13	821952	接头	FITTING	1
14	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
14	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
15	8320782	软管	HOSE	1
15	8M0039077	成型软管	HOSE-MOLDED	1
16	850896	卡箍 (28.6)	CLAMP (28.6)	2
17	8320763	接头	FITTING	1
18	821904	示流器接头	FITTING Tell-Tale	1
18	8M0077650	示流器接头	FITTING Tell-Tale	1
19	828216	怠速排气套	IDLE EXHAUST BOOT Exhaust	1
19	889847	怠速排气套	BOOT Idle Exhaust	1
20	817519A1	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	2
21	850691	开关	SWITCH	1
21	8M0235192	微调开关	SWITCH TRIM	1
22	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
23	821253F1	前手柄黑色	FRONT HANDLE Black	1
23	889740A02	手柄套件	HANDLE KIT	1
23	821253F2	前手柄	FRONT HANDLE	1
23	889740A02	手柄套件	HANDLE KIT	1
24	335891	衬套	BUSHING	2
25	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
26	8219423	棘爪	PAWL	1
27	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	1
28	401196	螺母 (M6)	NUT (M6)	1
29	8214281	螺钉(#10-16x0.625)	SCREW (#10-16 x .625)	1
30	822873	卡扣	CLIP	1

图 19旋转支架(长型) Swivel Bracket (Long)

REF	零件编号	中文名称	英文名称	数量
1	8710T20	黑色旋转支架总成	SWIVEL BRACKET ASSEMBLY Black	1
1	8M0102865	黑色旋转支架总成	SWIVEL BRACKET ASSEMBLY Black	1
2	87735	油封	SEAL Oil	1
3	818764	衬套	BUSHING	2
4	816039	隔套	SPACER	1
5	33504	O型圈	O-RING	1
5	8M0214926	O型圈 @10	O RING @10	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	816432	止推垫片	THRUST WASHER	1
9	78689	螺钉（0.437-20 X 7.50）	SCREW (.437-20 x 7.50)	2
9	8M0176309	螺钉	SCREW	2
10	776981	支架	MOUNT	2
11	78688	垫圈	WASHER	2
12	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
12	8M0204653	螺母	NUT	2
13	92876A10	连杆总成	LINK ROD ASSEMBLY	1
13	92876A12	连杆总成	LINK ROD ASSEMBLY	1
14	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
15	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
15	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
16	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
17	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
17	826432A2	转向臂旋转销总成-不锈钢	SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel	1
18	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
18	878182T	轭架底部-不锈钢	YOKE Bottom - Stainless Steel	1
19	67684	挡圈	RING Retaining	1
20	54457	J型卡扣	J CLIP	1
21	859187A1	调整传感器总成	SENDER ASSEMBLY Trim	1
22	852368	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
23	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
24	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
25	996301	冲击板	STRIKER PLATE	2
25	8M0045383	冲击板	STRIKER PLATE	2
26	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
27	46335	螺母 (.375-24)	NUT (.375-24)	2
28	821180A6	调整传感器总成	SENDER ASSEMBLY Trim	1
28	8M0074846	ORDER 8M0098273	ORDER 8M0098273	1

图 20旋转支架(短型) Swivel Bracket (Short)

REF	零件编号	中文名称	英文名称	数量
1	818810T14	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8M0145740	旋转支架	SWIVEL BRACKET	1
1	818810A8	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8M0145740	旋转支架	SWIVEL BRACKET	1
2	847729	油封	SEAL Oil	2
3	847726	轴承	BEARING	2
4	74036	润滑脂接头	FITTING Grease	4
4	8M0169589	润滑脂接头	FITTING Grease	4
5	847728	轴承	BEARING	2
6	82203522	轴承 (1.375英寸)(左舷)	BEARING (1.375 IN.)(PORT)	1
6	82203516	轴承	BEARING	1
6	82203524	轴承	BEARING	2
7	82203540	轴承	BEARING	2
8	85023	油封	SEAL Oil	2
9	87161	垫圈	WASHER	2
10	48171	O型圈(0.364 x 0.070)	O-RING (.364. x .070)	2
11	85030A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
11	85028A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
12	86600	衬套	BUSHING	1
13	85367	弹簧	SPRING	1
14	41052	柱塞	PLUNGER	1
15	88876	螺柱	STUD	1
16	86603	旋钮	KNOB	1
17	864751	联轴器	COUPLING	1
18	69745	滚动销	PIN Roll	2
19	88049	弹簧	SPRING	1
20	93861	开口销	COTTER PIN	1
21	78854	波形垫圈	WAVE WASHER	1
22	86580F4	下轭架	YOKE Bottom	1
23	848125	螺旋锁紧挡圈	RING Retaining - Spiral Lock	2
24	840787T1	旋转销	SWIVEL PIN	1
24	8M0192243	旋转销	PIN-SWIVEL	1
25	92876A10	连杆总成	LINK ROD ASSEMBLY	1
25	92876A12	连杆总成	LINK ROD ASSEMBLY	1
26	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
27	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
27	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
28	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
29	132121	螺钉	SCREW	2
30	816056	垫圈	WASHER	2
31	841198A1	配平传感器总成	SENSOR ASSEMBLY Trim	1
32	852453	螺钉(#10-24 x .560)	SCREW (#10-24 x .560)	2

图 21顶罩 TOP COWL

REF	零件编号	中文名称	英文名称	数量
1	885355T03	顶盖总成	TOP COWL ASSEMBLY	1
1	885355T02	顶盖总成	TOP COWL ASSEMBLY	1
1	8M0050000	顶罩-水星型	COWL-TOP MARINER	1
2	885354T	空气导流帽	CAP Air Dam	1
2	885354T01	空气导流帽-水星黑色款	CAP, Air Dam Mercury, Black	1
2	895838T	空气导流帽	CAP Air Dam	1
2	895838T01	空气导流帽-水星型	CAP Air Dam - Mariner	1
3	888971	前锁扣槽	FRONT LATCH RECEIVER	1
4	885545	上罩壳密封件	SEAL Top Cowl	1
4	8M0111178	密封件	SEAL	1
5	888951	电缆	CABLE	1
5	8M0080461	锁扣拉索	CABLE Latch	1
6	888959	铰链销	PIN Hinge	1
7	888956	手控锁杆	LATCH Hand Lever	1
8	895373	弹簧	SPRING	1
9	888955	锁扣连杆	LINK Latch Connecting	1
10	26953	开口销	COTTER PIN	2
11	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
12	888952	联动臂	LINKAGE ARM	2
13	888953	弹簧	SPRING	2
14	822417	销	PIN	2
15	888950020	螺钉(M4x20毫米)(M4x1.75)	SCREW (M4 x 20 mm) (M4 x 1.75)	6
16	888970	左舷饰板(左)	APPLIQUE Port (Port)	1
16	888970A01	饰板套件	APPLIQUE KIT	1
16	895839	左舷饰板(左)	APPLIQUE Port (Port)	1
16	895839A01	饰板套件	APPLIQUE KIT	1
17	888969	右舷饰板(右)	APPLIQUE Starboard (Starboard)	1
17	895840	右舷饰板(右)	APPLIQUE Starboard (Starboard)	1
18	4010610	不锈钢螺钉(M6x10)	SCREW (M6 x 10) Stainless Steel	2
-	892564A05	贴花套件	DECAL SET	1
-	859271A05	贴花套件	DECAL SET	1
-	895252A05	贴花套件	DECAL SET	1
-	895253A05	贴花套件	DECAL SET	1
-	892571A05	贴花套件	DECAL SET	1
-	892571A07	贴花套件(水星200)	DECAL SET (Mariner 200)	1
-	892871A05	贴花套件	DECAL SET	1
-	892871A07	贴花套件(水星225)	DECAL SET (Mariner 225)	1
-	895254A05	贴花套件	DECAL SET	1
-	895254A07	贴花套件(水星250)	DECAL SET (Mariner 250)	1
-	895255A05	贴花套件	DECAL SET	1
-	895255A07	贴花套件(水星275)	DECAL SET (Mariner 275)	1

图 22启动马达 STARTER MOTOR

REF	零件编号	中文名称	英文名称	数量
-	NSS	起动机总成(不单独销售)	NOT SOLD SEPARATE Starter Motor Assembly	1
1	892339T01	启动电机总成	STARTER MOTOR ASSEMBLY	1
2	NSS	螺钉组(不单独销售)	NOT SOLD SEPARATE Screws	2
3	880805A1	齿轮套件	GEAR KIT	1
4	809463A1	电磁阀组件	SOLENOID KIT	1
5	8M0065258	电刷组	BRUSH SET	1
6	8M0034918	轴环	COLLAR	2
7	8M0043276	停机开关	STOP	1
8	NSS	高压警告贴纸(不单独销售)	NOT SOLD SEPARATE Decal-Waring-High Voltage	1
9	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
10	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
11	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
12	400213	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
13	400255	锁紧垫圈(M5)	LOCKWASHER (M5)	1
14	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1

图 23钥匙开关/仪表/附件 Key Switch/Instrumentation/Accessories

REF	零件编号	中文名称	英文名称	数量
1	816626A15	钥匙开关线束总成(15英尺)	HARNESS ASSEMBLY Key Switch (15.00 Feet)	1
2	90468A1	钥匙盖总成	COVER ASSEMBLY Key	2
3	76424	支架	BRACKET	1
4	55422	双头螺柱 (#10-32 x 2.00)	STUD (#10-32 x 2.00)	2
5	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	2
6	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
7	816479A3	板组件套件	PLATE KIT	2
8	88107A5	钥匙开关套件	SWITCH KIT Key	1
9	879755	特殊螺母-黑色尼龙	NUT Special - Black Nylon	1
10	816492A1	音响报警器总成	ALARM ASSEMBLY Audio Warning	1
10	8M0210763	报警器	ALARM	1
10	816492A2	报警器	ALARM	1
10	8M0089727	报警器总成	ALARM ASSEMBLY	1
11	8127111	垫片(0.375)	SPACER (.375)	2
11	812711	隔套(0.250)	SPACER (.250)	2
0	894911	点火钥匙(1A)	KEY Ignition (1A)	1
0	894912	点火钥匙(1B)	KEY Ignition (1B)	1
0	894913	点火钥匙(1C)	KEY Ignition (1C)	1
0	894914	点火钥匙(1D)	KEY Ignition (1D)	1
0	894915	点火钥匙(1E)	KEY Ignition (1E)	1
0	894916	点火钥匙(1F)	KEY Ignition (1F)	1
0	894917	点火钥匙(2A)	KEY Ignition (2A)	1
0	894918	点火钥匙(2B)	KEY Ignition (2B)	1
0	894919	点火钥匙(2C)	KEY Ignition (2C)	1
0	8949110	点火钥匙(2D)	KEY Ignition (2D)	1
0	8949111	点火钥匙(2E)	KEY Ignition (2E)	1
0	8949112	点火钥匙(2F)	KEY Ignition (2F)	1
12	86322A7	线缆总成(1.50英尺)黑色	CABLE ASSEMBLY (1.50 Feet) Black	1
12	86323A5	线缆总成(1.50英尺)紫色	CABLE ASSEMBLY (1.50 Feet) Purple	1
13	825338A3	动力升降倾斜仪表白面黑刻度黑边框	GAUGE Power Trim, White Face, Black Graduation, Black Bezel	1
13	895292Q41	动力升降倾斜指示器黑面橙白刻度黑边框	GAUGE Power Trim Indicator, Black Face, Orange/White Graduations, Black Bezel	1
14	79480	支架	BRACKET	1
15	72729	楔形底座灯泡(14V - 1.9W)	LIGHT BULB Wedge Base (14V - 1.9W)	1
16	79888	灯泡插座	SOCKET Light Bulb	1
17	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	5
18	68878A6	蜂鸣报警器总成	HORN ASSEMBLY Buzzer Alarm	1
19	68879	盖板	COVER	1
20	79697	隔套	SPACER	2
20	8M0084588	隔套	SPACER	2
21	26427	垫圈	WASHER	4
22	35401	螺钉(#10 x 1.00)	SCREW (#10 x 1.00)	2
23	86396A8	转速表线束总成(5.00英尺)	HARNESS ASSEMBLY Tachometer (5.00 Feet)	1
24	879981T20	线束总成 (SC1000R-20)	HARNESS ASSEMBLY (SC1000R-20)	1
25	859318T1	终端接头 10针 (CAN 1和2)	TERMINATOR 10 Pin (CAN 1 and 2)	1
25	8M0210753	终端接线盒	TERMINATOR Junction Box	1
26	878492T4	四通接线盒	JUNCTION BOX 4 Way	1
26	878492T14	四通接线盒	JUNCTION BOX 4 Way	1
27	859318T2	防水帽 - 10针	CAP Weather - 10 Pin	1
27	8M0210754	防水帽	WEATHER CAP	1
28	879979T1	转速表线束总成 (SC1000-3)	HARNESS ASSEMBLY Tachometer (SC1000-3)	1
28	879979T11	转速表线束总成	HARNESS ASSEMBLY Tachometer	1
-	858610A31	燃油软管总成	HOSE ASSEMBLY Fuel	1
-	8M0038610	带注油球的燃油软管总成(9英尺)	HOSE ASSEMBLY Fuel (9 Feet) With Primer Bulb	1
-	859688A11	水压表套件 (2-30 PSI) 白面黑刻度白边框	GAUGE KIT Water Pressure (2-30 PSI) White Face, Black Graduation, White Bezel	1
-	895288A23	水压表套件 (2-30 PSI) 白面黑刻度白边框	GAUGE KIT Water Pressure (2-30 PSI) White Face, Black Graduations, White Bezel	1
-	879896K4	系统监控套件 SC1000 - 前装式	SYSTEM MONITOR KIT SC1000 - Front Mount	1
-	879896K10	系统监控套件 SC1000 - 前装式	SYSTEM MONITOR KIT SC1000 - Front Mount	1
29	879982T30	线束总成	HARNESS ASSEMBLY	1

图 24驱动轴壳体 DRIVESHAFT HOUSING

REF	零件编号	中文名称	英文名称	数量
1	880646T01	驱动轴壳体-黑色	HOUSING Driveshaft, Black	1
2	885366T01	下部护套总成-左舷	CHAP ASSEMBLY Lower-Port	1
2	885365T03	加长护套总成-左右舷-黑色	CHAP ASSEMBLY Long - Port and Starboard, Black	1
2	885364T01	下部护套总成-左舷	CHAP ASSEMBLY Lower-Port	1
2	885363T04	超长/特超长护套总成-左右舷	CHAP ASSEMBLY X-Long/XX-Long - Port and Starboard	1
3	885365T01	下部护套总成-右舷	CHAP ASSEMBLY Lower-Starboard	1
3	885365T03	加长护套总成-左右舷-黑色	CHAP ASSEMBLY Long - Port and Starboard, Black	1
3	885363T01	下部护套总成-右舷	CHAP ASSEMBLY Lower-Starboard	1
3	885363T04	超长/特超长护套总成-左右舷	CHAP ASSEMBLY X-Long/XX-Long - Port and Starboard	1
4	892073002	台阶螺丝 (M6)	SHOULDER SCREW (M6)	8 or 12
4	8M0230980	螺丝 (M6x14) 六角法兰B型	SCREW (M6 x 14) Hex Flange B	8 or 12
5	889568001	护孔环	GROMMET	1
6	889656T	蒸汽分离器罩	SHROUD Vapor Separator	1
6	889656T01	护罩	SHROUD	1
7	88552675	螺钉 (M8 x 75)	SCREW (M8 x 75)	2
7	8M0103818	螺丝 (M8x75)	SCREW (M8 X 75)	2
8	885526120	螺丝 (M8x120)	SCREW (M8 x 120)	2
8	8M0103812	螺钉	SCREW	2
9	88552650	螺钉(M8 x 50)	SCREW (M8 x 50)	2
9	8M0103816	螺丝 M8x50 六角法兰	SCREW M8 x 50 HEX FLG	2
10	88552640	螺钉 (M8 x 40)	SCREW (M8 x 40)	1
10	8M0103815	螺钉	SCREW	1
11	88552635	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
11	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
12	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	3
13	897784A01	上部护套支架套件	BRACKET KIT Upper Chap	2
14	88552520	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	2
14	8M0103806	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	2
15	88552630	螺钉 (M8 x 30)	SCREW (M8 x 30)	1
15	8M0103813	螺钉 (M8 x 30)	SCREW (M8 x 30)	1
16	85944975	管材 (72英寸整卷) 裁切至26英寸	TUBING (72.00 Inches Bulk) Cut to 26 Inches	1
16	85944975	管材 (72英寸整卷) 裁切至44英寸	TUBING (72.00 Inches Bulk) Cut to 44 Inches)	1
17	859448	接头	FITTING	1
17	859448T	接头	FITTING	1
18	821555001	护孔环	GROMMET	1
18	8M0153609	护孔环	GROMMET	1
19	889831	固定座	RETAINER	1
19	889831001	固定座	RETAINER
20	856983	双头螺柱(M12 x 52)	STUD (M12 x 52)	4
20	8M0008031	双头螺柱(M12 x 1.75 x 52)	STUD (M12 x 1.75 x 52)	4
21	856982	垫圈(0.5×0.81×0.09英寸)不锈钢	WASHER (.500 x .810 x .090) Stainless Steel	4 or 5
22	896895	螺母(M12)	NUT (M12)	4
23	88552835	螺钉(M12×35毫米)	SCREW (M12 x 35 MM)	1
23	8M0102995	螺丝 (M12)	SCREW (M12)	1
24	824928001	橡胶塞	PLUG Rubber	1
25	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	10
25	8M0214963	垫圈	WASHER	10
26	884412	螺母	NUT	10
27	88552845	螺丝 (M12x45)	SCREW (M12 x 45)	4
27	8M0103825	螺丝@2	SCREW @2	4
28	880647T	隔套	SPACER	1
28	8M0105088	传动轴壳体加长隔套（黑色）	SPACER Driveshaft Housing X-Long, Black	1
29	857137	螺钉 (M12 X 160)	SCREW (M12 x 160)	1
30	857009	双头螺柱（M12×179）	STUD (M12 x 179)	4
30	8M0008047	双头螺柱（M12×179）	STUD (M12 x 179)	4
31	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
32	855623	衬套 (按需使用)	BUSHING (Use where Applicable)	1
33	896251	O型圈	O-RING	2
33	898033	卡扣	CLIP	2
34	NSS	非单独销售贴纸-放油口	NOT SOLD SEPARATE Decal-Oil Drain	1
35	880648T01	驱动轴壳体-黑色	HOUSING Driveshaft, Black	1
35	8M0113287	驱动轴壳体黑色加长型	DSH BLACK XL	1
36	891966006	外罩支架	BRACKET Cowl	1
37	88552520	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	2
37	8M0103806	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	2
-	895247A06	动力头总成	POWERHEAD ASSEMBLY	1
-	895247R06	RM L6 GEN1 VERADO	RM L6 GEN1 VERADO	1

图 25蒸汽分离器组件 VAPOR SEPARATOR COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	855432A1	盖板套件	COVER KIT	1
2	NSS	不单独销售弯头	NOT SOLD SEPARATE Elbow	1
3	8568431	直通接头	FITTING Straight STRAIGHT	1
4	19688	接头	FITTING	1
5	803878	密封件	SEAL	1
6	NSS	不单独销售泵出口配件包	NOT SOLD SEPARATE Fitting Kit-Pump Outlet	1
6	855437A2	泵出口接头套件	FITTING KIT Pump Outlet	1
7	NSS	O型圈（不单独销售）	NOT SOLD SEPARATE O Ring	1
8	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	7
9	855528	衬垫	GASKET	1
9	8M6002520	衬垫套件	GASKET KIT	1
10	855430A1	浮子套件	FLOAT KIT	1
10	8M6004920	浮子套件	FLOAT KIT	1
11	F10064	轴	SHAFT	1
12	855431	针阀	VALVE Needle	1
12	8M6004917	进气阀	VALVE-INLET	1
13	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
14	855427A1	泵套件	PUMP KIT	1
15	855428	套筒	SLEEVE	1
15	8M6000589	套筒	SLEEVE	1
16	855434A1	油杯套件	BOWL KIT	1
17	855433	密封件	SEAL	1
17	8554331	密封件	SEAL	1
18	855435A1	塞套件	PLUG KIT	1
19	8554245	弯头	ELBOW	2
20	18458A4	滤清器套件	FILTER KIT	1
20	18458Q4	燃油水分离滤清器	FILTER Fuel-Water Separating	1
21	828586	探头	PROBE	1
21	8M0204710	探头	PROBE	1

图 26液压泵总成 Hydraulic Pump Assembly

REF	零件编号	中文名称	英文名称	数量
-	846859A1	液压泵总成	PUMP ASSEMBLY Hydraulic	1
-	8M0051203	配平泵总成	PUMP ASSY-TRIM	1
1	811491	适配器	ADAPTER	1
1	8M0084543	适配器	ADAPTER	1
2	803852	联轴器	COUPLING	1
3	89498	O型圈	O-RING	1
4	811492T	泵总成(含螺钉)	PUMP ASSEMBLY (INCLUDES SCREWS)	1
5	89496	滤清器	FILTER	2
6	89497	O型圈	O-RING	1
7	41219T	储液罐	RESERVOIR	1
8	811493	螺钉套件	SCREW KIT	1
-	17649T	电机总成	MOTOR ASSEMBLY	1
-	891736T	电机总成	MOTOR ASSEMBLY	1
-	891736T	电机总成	MOTOR ASSEMBLY	1
9	17632T	端盖总成	END CAP ASSEMBLY	1
9	891736T	电机总成	MOTOR ASSEMBLY	1
9	NSS		NOT SOLD SEPARATE END FRAME	1
10	17626	螺钉	SCREW	4
10	891736T	电机总成	MOTOR ASSEMBLY	4
10	891741	螺钉	SCREW	4
11	17625	O型圈	O-RING	1
11	891736T	电机总成	MOTOR ASSEMBLY	1
11	891740	O型圈	O-RING	1
12	17621	螺钉	SCREW	2
12	891736T	电机总成	MOTOR ASSEMBLY	2
12	891739	螺钉	SCREW	2
13	17633	支架套件	HOLDER KIT	1
13	891736T	电机总成	MOTOR ASSEMBLY	1
13	891738	支架总成	HOLDER ASSEMBLY	1
14	17631A1	电刷套件	BRUSH KIT	1
14	891736T	电机总成	MOTOR ASSEMBLY	1
14	891737	电刷套件	BRUSH KIT	1
15	17623	电枢	ARMATURE	1
15	891736T	电机总成	MOTOR ASSEMBLY	1
15	NSS		NOT SOLD SEPARATE ARMATURE	1
16	17653	垫圈	WASHER	2
16	891736T	电机总成	MOTOR ASSEMBLY	2
16	NSS	止推垫片(不单独销售)	NOT SOLD SEPARATE THRUST WASHET	2
17	17624	磁场框架总成	FIELD AND FRAME ASSEMBLY	1
17	891736T	电机总成	MOTOR ASSEMBLY	1
17	NSS	磁场与框架(不单独销售)	NOT SOLD SEPARATE FIELD AND FRAME	1
18	17622	盖总成	COVER ASSEMBLY	1
18	891736T	电机总成	MOTOR ASSEMBLY	1
18	NSS	壳体(不单独销售)	NOT SOLD SEPARATE HOUSING	1
-	812498A1	安全阀套件	VALVE KIT Relief	1

图 27飞轮/交流发电机 FLYWHEEL/ALTERNATOR

REF	零件编号	中文名称	英文名称	数量
1	8285072	皮带	BELT	1
2	834936A3	飞轮	FLYWHEEL	1
2	834936T6	飞轮	FLYWHEEL	1
3	52901	螺母(0.625-18)	NUT (.625-18)	1
4	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
4	33001	垫圈	WASHER	1
5	45907	黄色塞	PLUG Yellow	1
6	834832	交流发电机	ALTERNATOR	1
6	857006T	交流发电机	ALTERNATOR	1
7	832080M2	发电机支架	BRACKET Alternator	1
8	81893430	螺钉 (M8 x 30)	SCREW (M8 x 30)	1
8	81893435	螺钉(M8×35)	SCREW (M8 x 35)	1
9	821583	销	PIN	1
9	8215832	特殊销（1.5英寸）	PIN Special (1.5 Inches)	1
10	812618	不锈钢螺钉(.312-18 x 1.00)带尼龙垫	SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch	3
11	82446180	螺钉(M10×80)	SCREW (M10 x 80)	1
12	855798	弹簧	SPRING	1
12	855798001	弹簧	SPRING	1
13	8502913	皮带张紧器	BELT TENSIONER	1
13	850291T3	皮带张紧器	BELT TENSIONER	1
14	855728	双头螺栓(M10 X 54)	STUD (M10 X 54)	1
14	8557281	螺柱	STUD	1
15	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	1
16	852385A1	滑轮	PULLEY	1
16	8M6005030	皮带轮总成	PULLEY ASSY	1
17	4010835	螺钉(M10×35)六角法兰-不锈钢	SCREW (M10 x 35) Hex Flange - Stainless Steel	1
18	856030A2	衬套套装	BUSHING KIT	1
19	85045	O型圈(.551 x .070)	O-RING (.551 x .070)	2
20	NLA	不再供应	No Longer Available	1
21	42139	衬套	BUSHING	1
22	857006T	交流发电机	ALTERNATOR	1
22	889955A03	交流发电机套件	ALTERNATOR KIT	1
23	40108100	螺钉(M10×100)六角法兰-不锈钢	SCREW (M10 x 100) Hex Flange - Stainless Steel	1
23	8M0012503	螺钉(M10×1.5)	SCREW (M10 x 1.5)	1
24	40108120	螺钉(M10×120)六角法兰-不锈钢	SCREW (M10 x 120) Hex Flange - Stainless Steel	1
25	29395	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	3
25	8M0042641	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	3
26	856975	支架	MOUNT	3
27	856972T	支架	BRACKET	1
27	858391T01	支架	BRACKET	1
28	845998	垫圈(0.406×1.250×0.089)	WASHER (.406 x 1.250 x .089)	3
29	856973T	支架	BRACKET	1
29	858393T01	支架	BRACKET	1
30	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	2
31	82446155	螺钉(M10×55)	SCREW (M10 x 55)	1
32	856583T2	拉线总成	CABLE ASSEMBLY	1
33	821583	销	PIN	1
33	8215832	特殊销（1.5英寸）	PIN Special (1.5 Inches)	1
34	856974T	支架	BRACKET	1
34	857142T	支架	BRACKET	1
35	812618	不锈钢螺钉(.312-18 x 1.00)带尼龙垫	SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch	3
36	855798	弹簧	SPRING	1
36	855798001	弹簧	SPRING	1
37	856815T2	张紧臂总成	ARM TENSIONER ASSEMBLY	1
38	856900	螺柱(M10×85)	STUD (M10 x 85)	1
38	8M0034457	螺柱(M10×85)	STUD (M10 x 85)	1
39	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	1
40	856894	衬套	BUSHING	1
40	8568941	衬套	BUSHING	1
41	4002320	垫圈	WASHER	2
42	852385A1	滑轮	PULLEY	1
42	8M6005030	皮带轮总成	PULLEY ASSY	1
43	4010835	螺钉(M10×35)六角法兰-不锈钢	SCREW (M10 x 35) Hex Flange - Stainless Steel	1

图 28线圈板总成 Coil Plate Assembly

REF	零件编号	中文名称	英文名称	数量
1	8506753	线圈板	PLATE Coil	1
2	850676F1	隔套	SPACER	6
3	8502341	衬套	BUSHING	4
4	833155	护孔环	GROMMET	4
5	850898	螺丝 (.250-20 x 3.250)	SCREW (.250-20 x 3.250)	6
6	856991A1	线圈套件	COIL KIT	6
7	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	6
7	8M0207776	螺母	NUT	6
8	821945T74	高压电缆组	CABLE SET Hi Tension	1
8	881908T	电缆组	CABLE SET	1
9	859595T	双线圈驱动器	DRIVER Dual Coil	3
10	858414A1	编织电缆总成	CABLE ASSEMBLY Braided	2
11	82129110	螺丝 (M6 x 10)	SCREW (M6 x 10)	2
12	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
12	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
13	828547353	导管 (.350内径 x 3.00英尺散装)	CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk)	1
14	8556721	火花塞	SPARK PLUG	6
14	889597Q	NGK IZFR5G @4	NGK IZFR5G @4	6
15	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
16	49436	垫圈	WASHER	4
17	82129114	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
18	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
18	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
19	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
19	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2
20	883066	夹子 (.865)	CLIP (.865)	2
21	881879A7	传感器套件 (0-50 PSI)	SENSOR KIT (0-50 PSI)	1
21	8M0157742	水压传感器	SENSOR Water Pressure	1
22	881879A6	传感器(0-100 PSI)	SENSOR (0 - 100 PSI)	1
22	881879T11	压力传感器 (0 - 100 PSI)	SENSOR Pressure (0 - 100 PSI)	1
23	859431	接头	FITTING	1
23	8M0207782	直通接头	FITTING Straight	1
24	85944975	管材 (72英寸整卷) (裁切至14.5英寸)	TUBING (72.00 Inches Bulk) (Cut to 14 -1/2 In.)	1
25	859747	联轴器	COUPLER	1
25	8M0214971	耦合接头 (4 MM)	COUPLER Fitting (4 MM)	1
26	85978571	管材 (52英寸整卷) (裁切至15英寸)	TUBING (52.00 Inches Bulk) (Cut to 15 IN.)	1
27	875207	三通接头	TEE Fitting	1
28	85978571	管材 (52英寸整卷) (裁切至5英寸)	TUBING (52.00 Inches Bulk) (Cut to 5 IN.)	1
29	85944975	管材 (72英寸整卷) (裁切至52英寸)	TUBING (72.00 Inches Bulk) (Cut to 52 IN.)	1

图 29气缸盖 CYLINDER HEAD

REF	零件编号	中文名称	英文名称	数量
1	852380A1	气缸盖	CYLINDER HEAD	1
1	852381A1	气缸盖	CYLINDER HEAD	1
1	852381T1	气缸盖	CYLINDER HEAD	1
2	8525203	衬垫	GASKET	2
3	832971	螺钉 (.375-16 x 3.00)	SCREW (.375-16 x 3.00)	24
4	74840	定位销	PIN Dowel	4
5	62386	衬垫	GASKET	2
5	8M0204714	衬垫@4	GASKET @4	2
6	8307371	盖板	COVER	2
6	8M0039353	盖板	COVER	2
7	833072	节温器 62°C（143°F）	THERMOSTAT 62° Celsius (143° Fahrenheit)	2
7	833072003	节温器 62°C (143°F)	THERMOSTAT 62°C (143°F)	2
8	82130025	螺钉(M6x25)	SCREW (M6 x 25)	4
9	687271	90度弯头 (.250-18) 黄铜(右舷)	FITTING (.250-18) 90 Degree - Brass (Starboard)	1
10	68728	接头(左舷)	FITTING (Port)	1
11	77653112	软管(59.00英寸整料)(21-1/2英寸)	HOSE (59.00 Inches Bulk) (21-1/2 IN.)	1
11	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
12	77653112	软管(59.00英寸散装)(11-1/2英寸)	HOSE (59.00 Inches Bulk) (11-1/2 IN.)	1
12	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
13	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	5
13	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	5
14	13536A14	温度传感器总成(右舷)	SENSOR ASSEMBLY Temperature (Starboard)	1
15	137151	固定座	RETAINER	1
16	81893412	螺钉（M8×12）	SCREW (M8 x 12)	1
-	814754A98	衬垫套件	GASKET SET	1
-	8M0046714	衬垫套件	GASKET SET	1
-	854008A98	动力头总成	POWERHEAD ASSEMBLY	1
-	804545T99	动力头总成	POWERHEAD ASSEMBLY	1

图 30曲轴、活塞及连杆 CRANKSHAFT PISTONS AND CONNECTING RODS

REF	零件编号	中文名称	英文名称	数量
1	850690T2	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	78662	耐磨套	WEAR SLEEVE	1
3	67923T	球轴承(下部)	BEARING Ball (LOWER)	1
4	67446	环	RING	1
5	54196A6	托架总成	CARRIER ASSEMBLY	1
6	65800	填料	PACKING	1
7	67377	密封环	RING Sealing	7
7	67377T	密封环	RING Sealing	7
8	16756A6	轴承套件	BEARING KIT	2
9	NSS	不单独销售轴承座圈	NOT SOLD SEPARATE Bearing Race	2
10	854687T5	活塞	PISTON	3
10	854686T5	活塞	PISTON	3
11	840684A12	活塞环套装（每套12环）	RING SET Piston (12 Rings per Set)	1
12	857196	锁紧环	LOCK RING	12
13	8M0081411	连杆总成	CONNECTING ROD ASSEMBLY	6
14	763491	螺钉(.312-24 x .875)	SCREW (.312-24 x .875)	12
15	812876	垫圈	WASHER	12
15	8M0012298	止推垫片	THRUST WASHER	12
16	8M0082405	轴承套件	BEARING KIT	6
17	822553	滚针轴承	BEARING Needle	174
17	8M0204691	滚针轴承@200	BRG-NEEDLE @200	174
-	881805A01	发动机垫片组	GASKET SET Engine	1
-	883201A01	动力头总成	POWERHEAD ASSEMBLY	1

图 31燃油泵 Fuel Pump

REF	零件编号	中文名称	英文名称	数量
1	NSS	不单独销售燃油泵	NOT SOLD SEPARATE Fuel Pump	1
2	14360A53	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	14360T75	燃油泵总成	PUMP ASSEMBLY Fuel	1
3	42990A10	膜片组件	DIAPHAGM KIT	2
3	857005A1	膜片组件	DIAPHRAGM KIT	2
4	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
5	NSS		NOT SOLD SEPARATE Rubber Check Valve	2
6	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
10	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
11	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
12	987691	衬垫	GASKET	1
12	8M0204705	衬垫@2	GASKET @2	1
13	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
14	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
15	987752	安装板	PLATE	1
16	996641	弯头	ELBOW	2
16	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	2
17	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
17	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2
18	144303	底座	BASE	1
19	78279	弯头（45度）	ELBOW (45 DEGREES)	1
19	8M0207781	弯头	ELBOW	1
20	291111	接头	FITTING	1
20	291112	接头	FITTING	1
21	83075780	管材(28.00英寸散装)	TUBING (28.00 Inches Bulk)	1
21	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
22	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
22	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
23	856822A1	管材(带绝缘套管)(7英寸)	TUBING (W/INSULATING SLEEVE) (7 IN.)	1
23	8M0064784	成型脉冲软管	HOSE,MOLDED,PULSE	1
24	856822A2	软管套管总成(18.00英寸)	HOSE AND SLEEVE ASSEMBLY (18.00 Inches)	1
24	8M0043979	软管套管总成	HOSE AND SLEEVE ASSEMBLY	1
25	822769	连接器	CONNECTOR	1
-	814754A98	衬垫套件	GASKET SET	1
-	8M0046714	衬垫套件	GASKET SET	1
-	854008A98	动力头总成	POWERHEAD ASSEMBLY	1
-	804545T99	动力头总成	POWERHEAD ASSEMBLY	1

图 32齿轮箱(螺旋桨轴)(反向旋转)(Sportmaster型) GEAR HOUSING (PROP SHAFT)(COUNTER ROTATION)(SPORTMASTER)

REF	零件编号	中文名称	英文名称	数量
-	840561T69	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840561T70	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	849781A2	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	8M0084203	齿轮箱-SM型	GEAR HOUSING-SM	1
50	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
51	789562	换挡凸轮	SHIFT CAM	1
52	79911A1	杆	ROD	1
53	78906	销	PIN	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	79910	弹簧	SPRING	2
55	78910	垫圈	WASHER	AR
56	14469T	轴承杯	CUP Bearing	1
57	88957T	滚珠轴承	BEARING Ball	1
58	NSS	倒车齿轮(不单独销售)	NOT SOLD SEPARATE Reverse Gear	1
59	15844	滚柱轴承总成	BEARING ASSEMBLY Roller	1
60	42672T	棘轮	RATCHET	1
61	78909	定位销	PIN Detent	2
62	42671	十字销	PIN Cross	1
63	78962	弹簧	SPRING	2
64	15845A2	齿轮组	GEAR SET	1
65	176151	调整垫片(.125)	SPACER SHIM (.125)	AR
65	176152	调整垫片(.127)	SPACER SHIM (.127)	AR
65	176153	调整垫片(.129)	SPACER SHIM (.129)	AR
65	176154	调整垫片(.131)	SPACER SHIM (.131)	AR
65	176155	调整垫片(.133)	SPACER SHIM (.133)	AR
65	176156	调整垫片(.135)	SPACER SHIM (.135)	AR
65	176157	调整垫片(.137)	SPACER SHIM (.137)	AR
65	176158	调整垫片(.139)	SPACER SHIM (.139)	AR
65	176159	调整垫片(.141)	SPACER SHIM (.141)	AR
65	1761510	调整垫片(.143)	SPACER SHIM (.143)	AR
65	1761511	调整垫片(.145)	SPACER SHIM (.145)	AR
65	1761512	调整垫片(.147)	SPACER SHIM (.147)	AR
65	1761513	调整垫片(.149)	SPACER SHIM (.149)	AR
66	15841	滚柱轴承	BEARING Roller	1
67	17616	推力环	THRUST RING	1
68	31534	O型圈	O-RING	1
68	8M0214920	O型圈	O RING	1
69	15838A2	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
70	15843T	滚针轴承	BEARING Needle	1
71	15834	推力轴承	BEARING Thrust	2
72	840450A2	螺旋桨轴	PROPELLLER SHAFT	1
72	840450A03	螺旋桨轴套件	PROPELLER SHAFT KIT	1
73	840389K5	轮毂套件	HUB KIT	1
73	8M0183487	重型螺旋桨轮毂套件	HUB KIT-HD PROP	1
-	840382A1	缓冲条套件	SNUBBER STRIP KIT	1
-	840382A02	缓冲条套件	SNUBBER STRIP KIT	1
74	847616T1	轴承座	CARRIER Bearing	1
75	817072	滚柱轴承	BEARING Roller	1
76	815565	油封	SEAL Oil	2
77	817071	卡环	RING Snap	1
78	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
78	8M0058389	放油螺钉套件	SCREW KIT Drain	1
79	191832	垫圈	WASHER	1
79	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
80	30281	键	KEY	1
81	79447	锁紧垫圈	TAB WASHER	1
82	158401	盖板	COVER	1
83	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
84	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
85	41350	螺钉(.437-14 x 2.50)不锈钢	SCREW (.437-14 x 2.50) Stainless Steel	1
86	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	2
87	859116	螺母(.437-20)	NUT (.437-20)	2
88	30206	螺钉(.375-16 x 1.00)不锈钢	SCREW (.375-16 x 1.00) Stainless Steel	1
89	76214T3	阳极块	ANODE	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	90415A24	螺柱套件	STUD KIT	1
-	59579	双头螺柱(.437-14/.437-20 x 2.812)	STUD (.437-14/.437-20 x 2.812)	1

图 33齿轮箱(螺旋桨轴)(标准旋转)(Sportmaster型) GEAR HOUSING (PROP SHAFT)(STANDARD ROTATION)(SPORTMASTER)

REF	零件编号	中文名称	英文名称	数量
-	840560T33	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840560T34	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	849780A2	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	8M0083306	齿轮箱-SM型	GEAR HOUSING-SM	1
50	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
51	789562	换挡凸轮	SHIFT CAM	1
52	79911A1	杆	ROD	1
53	78906	销	PIN	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	79910	弹簧	SPRING	2
55	78910	垫圈	WASHER	2
56	47397A1	垫片组	SHIM SET	AR
57	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
58	44104A7		GEAR SET (Includes Pinion)	1
59	549281	滚柱轴承	BEARING Roller	1
60	42672T	棘轮	RATCHET	1
61	78909	定位销	PIN Detent	2
62	42671	十字销	PIN Cross	1
63	78962	弹簧	SPRING	2
64	840451A2	螺旋桨轴	PROPELLER SHAFT	1
64	840451A03	螺旋桨轴	PROPELLER SHAFT	1
-	840389K5	轮毂套件	HUB KIT	1
-	8M0183487	重型螺旋桨轮毂套件	HUB KIT-HD PROP	1
-	840382A1	缓冲条套件	SNUBBER STRIP KIT	1
-	840382A02	缓冲条套件	SNUBBER STRIP KIT	1
65	822824A1	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
65	8M0192202	倒挡齿轮	GEAR-REVERSE	1
66	822823	推力环	THRUST RING	1
67	88957T	滚珠轴承	BEARING Ball	1
68	681001	止推环	RING Thrust	1
69	31534	O型圈	O-RING	1
69	8M0214920	O型圈	O RING	1
70	848840T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
70	848840A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
71	817072	滚柱轴承	BEARING Roller	1
72	817071	卡环	RING Snap	2
73	815565	油封	SEAL Oil	2
74	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
74	8M0058389	放油螺钉套件	SCREW KIT Drain	1
75	191832	垫圈	WASHER	1
75	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
76	30281	键	KEY	1
77	79447	锁紧垫圈	TAB WASHER	1
78	79448	固定座	RETAINER	1
78	8M2011027	固定座	RETAINER	1
79	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
80	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
81	41350	螺钉(.437-14 x 2.50)不锈钢	SCREW (.437-14 x 2.50) Stainless Steel	1
81	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
82	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	2
83	859116	螺母(.437-20)	NUT (.437-20)	2
84	30206	螺钉(.375-16 x 1.00)不锈钢	SCREW (.375-16 x 1.00) Stainless Steel	1
85	76214T3	阳极块	ANODE	1
85	76214Q5	阳极套件	ANODE KIT	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	90415A24	螺柱套件	STUD KIT	1
-	59579	双头螺柱(.437-14/.437-20 x 2.812)	STUD (.437-14/.437-20 x 2.812)	1

图 34衬垫组件套装(完整动力头及下部单元) Gasket Set Components (Complete Powerhead and Lower Unit)

REF	零件编号	中文名称	英文名称	数量
1	831998A9	空气压缩机总成(参见空气压缩机部件分解图)	COMPRESSOR ASSEMBLY Air (SEE BREAKDOWN ON AIR COMPRESSOR COMPONENTS)	1
2	85593912	螺钉（M6 x 12）	SCREW (M6 x 12)	5
3	8328231	滑轮	PULLEY	1
3	8M0175171	滑轮	PULLEY	1
4	4010825	螺丝(M10 x 25)六角法兰-不锈钢	SCREW (M10 x 25) Hex Flange - Stainless Steel	2
5	8502511	软管	HOSE	1
5	8502512	软管	HOSE	1
6	85652329	绝缘套管(15英寸)	INSULATOR SLEEVE (15 IN.)	1
7	852379T5	燃油导轨	FUEL RAIL	1
7	852379T6	燃油导轨	FUEL RAIL	1
8	8500653	喷油器	INJECTOR	6
8	8M6001743	空气喷射器总成	INJECTOR ASSEMBLY Air	6
9	855697	卡箍(16.2)	CLAMP (16.2)	4
9	8M0204696	卡箍	CLAMP	4
10	85564361	软管(16英寸)	HOSE (16 IN.)	2
11	92345	螺柱	STUD	1
12	854640	特殊垫圈	WASHER Special	2
13	35814	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
13	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
14	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
14	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
15	852378T5	燃油导轨	FUEL RAIL	1
15	852378T6	燃油导轨	FUEL RAIL	1
16	830756109	软管(57.00英寸整料)(裁切至22-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 22-1/2 Inches)	1
16	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
17	826810	止回阀	CHECK VALVE	1
18	83075780	管材(28英寸整卷)(裁切为2-1/2英寸)	TUBING (28.00 Inches Bulk) (Cut to 2-1/2 Inches)	1
18	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
19	83476463	管材(32英寸整卷)(裁切为28-1/2英寸)	TUBING (32.00 Inches Bulk) (Cut to 28-1/2 Inches)	1
20	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	2
20	8M0214964	卡箍	CLAMP	2
21	85606064	管材(36英寸整卷)(28-1/2英寸)	TUBING (36.00 Inches Bulk) (28-1/2 IN.)	1
21	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
22	82104510	螺钉 (M5 x 10)	SCREW (M5 x 10)	4
23	46997	卡箍	CLAMP	4
24	852961	螺柱	STUD	4
24	8M0063255	双头螺栓M10x92	STUD M10x92	4
25	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	4
26	NSS	不单独销售软管(30英寸)	NOT SOLD SEPARATE Hose (30 IN.)	1
26	856822A3	软管(30英寸)	HOSE (30 IN.)	1
27	8558481	软管	HOSE	1
27	855848A1	软管	HOSE	1
28	828694A1	杯形垫片总成	WASHER ASSEMBLY Cupped	6
29	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	4
29	8M0214964	卡箍	CLAMP	4
30	85686953	套管(27英寸整卷)(裁切为18英寸)	SLEEVE (27.00 Inches Bulk) (Cut to 18 Inches)	1

图 35旋转支架(长型) SWIVEL BRACKET (LONG)

REF	零件编号	中文名称	英文名称	数量
1	8710T20	黑色旋转支架总成	SWIVEL BRACKET ASSEMBLY Black	1
2	87735	油封	SEAL Oil	1
3	818764	衬套	BUSHING	2
4	816039	隔套	SPACER	1
5	33504	O型圈	O-RING	1
5	8M0214926	O型圈 @10	O RING @10	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	816432	止推垫片	THRUST WASHER	1
9	78689	螺钉（0.437-20 X 7.50）	SCREW (.437-20 x 7.50)	2
9	8M0176309	螺钉	SCREW	2
10	776981	支架	MOUNT	2
11	78688	垫圈	WASHER	2
12	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
12	8M0204653	螺母	NUT	2
13	92876A10	连杆总成	LINK ROD ASSEMBLY	1
13	92876A12	连杆总成	LINK ROD ASSEMBLY	1
14	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
15	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
15	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
16	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
17	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
17	826432A2	转向臂旋转销总成-不锈钢	SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel	1
18	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
18	878182T	轭架底部-不锈钢	YOKE Bottom - Stainless Steel	1
19	67684	挡圈	RING Retaining	1
20	54457	J型卡扣	J CLIP	1
21	859187A1	调整传感器总成	SENDER ASSEMBLY Trim	1
22	852368	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
23	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
24	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
25	996301	冲击板	STRIKER PLATE	2
25	8M0045383	冲击板	STRIKER PLATE	2
26	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
27	46335	螺母 (.375-24)	NUT (.375-24)	2
28	821180A6	调整传感器总成	SENDER ASSEMBLY Trim	1
28	8M0074846	ORDER 8M0098273	ORDER 8M0098273	1

图 36齿轮箱(驱动轴)(标准/反向旋转)(Sportmaster型) GEAR HOUSING (DRIVESHAFT)(STD/COUNTER ROTATION)(SPORTMASTER)

REF	零件编号	中文名称	英文名称	数量
-	840560T33	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840560T34	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840561T69	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840561T70	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	849780A2	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	8M0083306	齿轮箱-SM型	GEAR HOUSING-SM	1
1	849781A2	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	8M0084203	齿轮箱-SM型	GEAR HOUSING-SM	1
2	847950T4	盖板	COVER	2
2	8479504	盖板	COVER	2
3	34776	O型圈	O-RING	2
4	815904	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	12
5	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
6	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
7	67891	填充块	FILLER BLOCK	1
7	8M0039169	填充块	FILLER BLOCK	1
8	847949	管塞	PLUG Pipe	1
9	562972	螺柱(0.312-18/0.324-24×3.380)	STUD (.312-18/.324-24 x 3.380)	1
9	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
10	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
10	306671	螺柱	STUD	2
11	59579	双头螺柱(.437-14/.437-20 x 2.812)	STUD (.437-14/.437-20 x 2.812)	3
11	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
11	579203	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
11	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
12	826134Q	阳极块	ANODE	2
13	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
14	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
15	NSS		NOT SOLD SEPARATE PINION GEAR	1
16	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
17	35921	螺母(0.625-18)	NUT (.625-18)	1
18	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	1
18	79953Q04	放油螺钉套件	SCREW KIT Drain	1
19	191832	垫圈	WASHER	1
19	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
20	789022	换挡轴(下部)	SHIFT SHAFT (LOWER)	1
21	77631A2	衬套总成	BUSHING ASSEMBLY	1
22	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
23	8164641	油封	SEAL Oil	1
23	8M0246145	油封	OIL SEAL	1
24	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
25	848449A4	驱动轴总成	DRIVESHAFT ASSEMBLY	1
25	8M0192233	驱动轴	DRIVESHAFT	1
25	848449A5	驱动轴总成	DRIVESHAFT ASSEMBLY	1
25	8M0192234	驱动轴	DRIVESHAFT	1
26	38657A1	垫片组	SHIM ASSEMBLY	1
26	8M0063268	垫片组	SHIM SET	1
27	48939A2	圆锥滚子轴承	BEARING Taper Roller	1
27	8M0146553	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
28	42637A1	垫片组	SHIM SET	AR
28	8M0063267	垫片组	SHIM SET	AR
29	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
29	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
30	8245191	固定座	RETAINER	1
31	44292A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
32	426311	衬垫	GASKET	1
32	8M0204678	衬垫	GASKET	1
33	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
33	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
34	89238	油封	SEAL Oil	1
35	16977	油封	SEAL Oil	1
36	18051	衬垫(下部)	GASKET (LOWER)	1
37	858524	衬垫(上部)	GASKET (UPPER)	1
38	32435	面板	FACE PLATE	1
38	8M0204677	面板	PLATE-FACE	1
39	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
40	48752T	嵌件	INSERT	1
41	38970	密封件	SEAL	1
42	29804T	套筒	SLEEVE	1
43	56654	键	KEY	1
43	8M0214992	键@5	KEY @5	1
44	89984T4	叶轮	IMPELLER	1
45	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
45	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
46	8267119	螺母(.250-28)	NUT (.250-28)	2
47	36001	垫圈	WASHER	1
48	13436	螺母	NUT	1
49	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
49	8M0215009	螺钉	SCREW	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	881805A01	发动机垫片组	GASKET SET Engine	1
-	90415A24	螺柱套件	STUD KIT	1
-	59579	双头螺柱(.437-14/.437-20 x 2.812)	STUD (.437-14/.437-20 x 2.812)	1

图 37燃油软管 FUEL HOSES

REF	零件编号	中文名称	英文名称	数量
1	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
2	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	5
2	8M0214964	卡箍	CLAMP	5
3	858955	连接器	CONNECTOR	1
4	830756109	软管 (57英寸整卷) (裁切至7.5英寸)	HOSE (57.00 Inches Bulk) (Cut to 7-1/2 IN.)	1
4	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
5	856822A1	油管	TUBING	1
5	8M0064784	成型脉冲软管	HOSE,MOLDED,PULSE	1
6	822769	连接器	CONNECTOR	1
7	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
8	858757A1	软管总成(25.50英寸)	HOSE ASSEMBLY (25.50 Inches)	1
8	8M0062344	软管总成	HOSE ASSY	1
9	804822	软管	HOSE	1
9	8M6001914	软管	HOSE	1
10	8048211	管材（含O型圈）	TUBING (INCLUDES ORINGS)	1
10	8M6001755	软管总成	HOSE ASSY	1
11	8557611	止回阀	CHECK VALVE	1
12	856822A2	软管套管总成(18.00英寸)	HOSE AND SLEEVE ASSEMBLY (18.00 Inches)	1
12	8M0043979	软管套管总成	HOSE AND SLEEVE ASSEMBLY	1
13	85677870	软管	HOSE	1
13	8M0064634	软管	HOSE	1
14	85677887	软管	HOSE	1
14	8M0064635	软管	HOSE	1
15	85686953	套管(27.00英寸整卷)	SLEEVE (27.00 Inches Bulk)	2

图 38维修/支撑材料 Service/Support Material

REF	零件编号	中文名称	英文名称	数量
-	896280006	零件手册200/225/250/275四冲程Verado	PARTS MANUAL 200/225/250/275 4-Stroke Verado	1
-	896579T00	维修手册	SERVICE MANUAL	1
-	8M0082470	MNL-SERV 200-300V	MNL-SERV 200-300V	1
-	10238060	安装手册	INSTALLATION MANUAL	1
-	10237060	用户手册	OWNERS MANUAL	1
-	10237J60	用户手册(西班牙语)	OWNERS MANUAL Spanish	1
-	10237D60	用户手册(法语)	OWNERS MANUAL French	1
-	895269001	产品指南	PRODUCT GUIDE	1
-	895269002	产品指南	GUIDE-PRODUCT	1
-	895282A06	EPA标签信息贴花	DECAL EPA Label Information	1

图 39旋转支架(短型) SWIVEL BRACKET (SHORT)

REF	零件编号	中文名称	英文名称	数量
1	818810T14	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	818810A8	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8M0145740	旋转支架	SWIVEL BRACKET	1
2	847729	油封	SEAL Oil	2
3	847726	轴承	BEARING	2
4	74036	润滑脂接头	FITTING Grease	4
4	8M0169589	润滑脂接头	FITTING Grease	4
5	847728	轴承	BEARING	2
6	82203522	轴承 (1.375英寸)(左舷)	BEARING (1.375 IN.)(PORT)	1
6	82203516	轴承	BEARING	1
6	82203524	轴承	BEARING	2
7	82203540	轴承	BEARING	2
8	85023	油封	SEAL Oil	2
9	87161	垫圈	WASHER	2
10	48171	O型圈(0.364 x 0.070)	O-RING (.364. x .070)	2
11	85030A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
11	85028A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
12	86600	衬套	BUSHING	1
13	85367	弹簧	SPRING	1
14	41052	柱塞	PLUNGER	1
15	88876	螺柱	STUD	1
16	86603	旋钮	KNOB	1
17	864751	联轴器	COUPLING	1
18	69745	滚动销	PIN Roll	2
19	88049	弹簧	SPRING	1
20	93861	开口销	COTTER PIN	1
21	78854	波形垫圈	WAVE WASHER	1
22	86580F4	下轭架	YOKE Bottom	1
23	848125	螺旋锁紧挡圈	RING Retaining - Spiral Lock	2
24	840787T1	旋转销	SWIVEL PIN	1
24	8M0192243	旋转销	PIN-SWIVEL	1
25	92876A10	连杆总成	LINK ROD ASSEMBLY	1
25	92876A12	连杆总成	LINK ROD ASSEMBLY	1
26	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
27	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
27	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
28	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
29	132121	螺钉	SCREW	2
30	816056	垫圈	WASHER	2
31	841198A1	配平传感器总成	SENSOR ASSEMBLY Trim	1
32	852453	螺钉(#10-24 x .560)	SCREW (#10-24 x .560)	2

图 40驱动轴壳体 Driveshaft Housing

REF	零件编号	中文名称	英文名称	数量
1	880646T01	驱动轴壳体-黑色	HOUSING Driveshaft, Black	1
2	885366T01	下部护套总成-左舷	CHAP ASSEMBLY Lower-Port	1
2	885365T03	加长护套总成-左右舷-黑色	CHAP ASSEMBLY Long - Port and Starboard, Black	1
2	885364T01	下部护套总成-左舷	CHAP ASSEMBLY Lower-Port	1
2	885363T04	超长/特超长护套总成-左右舷	CHAP ASSEMBLY X-Long/XX-Long - Port and Starboard	1
3	885365T01	下部护套总成-右舷	CHAP ASSEMBLY Lower-Starboard	1
3	885365T03	加长护套总成-左右舷-黑色	CHAP ASSEMBLY Long - Port and Starboard, Black	1
3	885363T01	下部护套总成-右舷	CHAP ASSEMBLY Lower-Starboard	1
3	885363T04	超长/特超长护套总成-左右舷	CHAP ASSEMBLY X-Long/XX-Long - Port and Starboard	1
4	892073002	台阶螺丝 (M6)	SHOULDER SCREW (M6)	8 or 12
4	8M0230980	螺丝 (M6x14) 六角法兰B型	SCREW (M6 x 14) Hex Flange B	8 or 12
5	889568001	护孔环	GROMMET	1
6	889656T	蒸汽分离器罩	SHROUD Vapor Separator	1
6	889656T01	护罩	SHROUD	1
7	88552675	螺钉 (M8 x 75)	SCREW (M8 x 75)	2
7	8M0103818	螺丝 (M8x75)	SCREW (M8 X 75)	2
8	885526120	螺丝 (M8x120)	SCREW (M8 x 120)	2
8	8M0103812	螺钉	SCREW	2
9	88552650	螺钉(M8 x 50)	SCREW (M8 x 50)	2
9	8M0103816	螺丝 M8x50 六角法兰	SCREW M8 x 50 HEX FLG	2
10	88552640	螺钉 (M8 x 40)	SCREW (M8 x 40)	1
10	8M0103815	螺钉	SCREW	1
11	88552635	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
11	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
12	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	3
13	897784A01	上部护套支架套件	BRACKET KIT Upper Chap	2
14	88552520	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	2
14	8M0103806	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	2
15	88552630	螺钉 (M8 x 30)	SCREW (M8 x 30)	1
15	8M0103813	螺钉 (M8 x 30)	SCREW (M8 x 30)	1
16	85944975	管材 (72英寸整卷) 裁切至26英寸	TUBING (72.00 Inches Bulk) Cut to 26 Inches	1
16	85944975	管材 (72英寸整卷) 裁切至44英寸	TUBING (72.00 Inches Bulk) Cut to 44 Inches)	1
17	859448	接头	FITTING	1
17	859448T	接头	FITTING	1
18	821555001	护孔环	GROMMET	1
18	8M0153609	护孔环	GROMMET	1
19	889831	固定座	RETAINER	1
19	889831001	固定座	RETAINER
20	856983	双头螺柱(M12 x 52)	STUD (M12 x 52)	4
20	8M0008031	双头螺柱(M12 x 1.75 x 52)	STUD (M12 x 1.75 x 52)	4
21	856982	垫圈(0.5×0.81×0.09英寸)不锈钢	WASHER (.500 x .810 x .090) Stainless Steel	4 or 5
22	896895	螺母(M12)	NUT (M12)	4
23	88552835	螺钉(M12×35毫米)	SCREW (M12 x 35 MM)	1
23	8M0102995	螺丝 (M12)	SCREW (M12)	1
24	824928001	橡胶塞	PLUG Rubber	1
25	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	10
25	8M0214963	垫圈	WASHER	10
26	884412	螺母	NUT	10
27	88552845	螺丝 (M12x45)	SCREW (M12 x 45)	4
27	8M0103825	螺丝@2	SCREW @2	4
28	880647T	隔套	SPACER	1
28	8M0105088	传动轴壳体加长隔套（黑色）	SPACER Driveshaft Housing X-Long, Black	1
29	857137	螺钉 (M12 X 160)	SCREW (M12 x 160)	1
30	857009	双头螺柱（M12×179）	STUD (M12 x 179)	4
30	8M0008047	双头螺柱（M12×179）	STUD (M12 x 179)	4
31	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
32	855623	衬套 (按需使用)	BUSHING (Use where Applicable)	1
33	896251	O型圈	O-RING	2
33	898033	卡扣	CLIP	2
34	NSS	非单独销售贴纸-放油口	NOT SOLD SEPARATE Decal-Oil Drain	1
35	880648T01	驱动轴壳体-黑色	HOUSING Driveshaft, Black	1
35	8M0113287	驱动轴壳体黑色加长型	DSH BLACK XL	1
36	891966006	外罩支架	BRACKET Cowl	1
37	88552520	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	2
37	8M0103806	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	2
-	895247A06	动力头总成	POWERHEAD ASSEMBLY	1
-	895247R06	RM L6 GEN1 VERADO	RM L6 GEN1 VERADO	1

图 41齿轮箱（驱动轴-Torque Master） Gear Housing (Driveshaft-Torque Master)

REF	零件编号	中文名称	英文名称	数量
1	831998A9	空气压缩机总成(参见空气压缩机部件分解图)	COMPRESSOR ASSEMBLY Air (SEE BREAKDOWN ON AIR COMPRESSOR COMPONENTS)	1
2	85593912	螺钉（M6 x 12）	SCREW (M6 x 12)	5
3	8328231	滑轮	PULLEY	1
3	8M0175171	滑轮	PULLEY	1
4	4010825	螺丝(M10 x 25)六角法兰-不锈钢	SCREW (M10 x 25) Hex Flange - Stainless Steel	2
5	8502511	软管	HOSE	1
5	8502512	软管	HOSE	1
6	85652329	绝缘套管(15英寸)	INSULATOR SLEEVE (15 IN.)	1
7	852379T5	燃油导轨	FUEL RAIL	1
7	852379T6	燃油导轨	FUEL RAIL	1
8	8500653	喷油器	INJECTOR	6
8	8M6001743	空气喷射器总成	INJECTOR ASSEMBLY Air	6
9	855697	卡箍(16.2)	CLAMP (16.2)	4
9	8M0204696	卡箍	CLAMP	4
10	85564361	软管(16英寸)	HOSE (16 IN.)	2
11	92345	螺柱	STUD	1
12	854640	特殊垫圈	WASHER Special	2
13	35814	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
13	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
14	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
14	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
15	852378T5	燃油导轨	FUEL RAIL	1
15	852378T6	燃油导轨	FUEL RAIL	1
16	830756109	软管(57.00英寸整料)(裁切至22-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 22-1/2 Inches)	1
16	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
17	826810	止回阀	CHECK VALVE	1
18	83075780	管材(28英寸整卷)(裁切为2-1/2英寸)	TUBING (28.00 Inches Bulk) (Cut to 2-1/2 Inches)	1
18	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
19	83476463	管材(32英寸整卷)(裁切为28-1/2英寸)	TUBING (32.00 Inches Bulk) (Cut to 28-1/2 Inches)	1
20	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	2
20	8M0214964	卡箍	CLAMP	2
21	85606064	管材(36英寸整卷)(28-1/2英寸)	TUBING (36.00 Inches Bulk) (28-1/2 IN.)	1
21	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
22	82104510	螺钉 (M5 x 10)	SCREW (M5 x 10)	4
23	46997	卡箍	CLAMP	4
24	852961	螺柱	STUD	4
24	8M0063255	双头螺栓M10x92	STUD M10x92	4
25	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	4
26	NSS	不单独销售软管(30英寸)	NOT SOLD SEPARATE Hose (30 IN.)	1
26	856822A3	软管(30英寸)	HOSE (30 IN.)	1
27	8558481	软管	HOSE	1
27	855848A1	软管	HOSE	1
28	828694A1	杯形垫片总成	WASHER ASSEMBLY Cupped	6
29	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	4
29	8M0214964	卡箍	CLAMP	4
30	85686953	套管(27英寸整卷)(裁切为18英寸)	SLEEVE (27.00 Inches Bulk) (Cut to 18 Inches)	1

图 42下罩 Bottom Cowl

REF	零件编号	中文名称	英文名称	数量
1	834814A1	下机罩	BOTTOM COWL	1
1	834814A2	下机罩	BOTTOM COWL	1
2	834815A1	下机罩	BOTTOM COWL	1
2	8M0107322	机罩-底部右舷	COWL-BOTTOM, STBD	1
2	834815A2	下机罩	BOTTOM COWL	1
3	8253181	罩盖密封条(41英寸)	SEAL Cowl (41.00 Inches)	2
3	8M0109217	罩盖密封条	SEAL-COWL	2
4	822024	卡箍	CLAMP	1
5	822023	卡箍	CLAMP	1
6	92799	螺钉(#10-16x1.12)	SCREW (#10-16 x 1.12)	2
7	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	4
8	831209	固定座	RETAINER	1
9	821908	堵头	PLUG	1
10	821915	垫圈	WASHER	1
11	821963	止回阀	CHECK VALVE	1
11	8219631	止回阀	CHECK VALVE	1
12	30641	O型圈(0.299x0.103)	O-RING (.299 x .103)	1
13	821952	接头	FITTING	1
14	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
14	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
15	8320782	软管	HOSE	1
15	8M0039077	成型软管	HOSE-MOLDED	1
16	850896	卡箍 (28.6)	CLAMP (28.6)	2
17	8320763	接头	FITTING	1
18	821904	示流器接头	FITTING Tell-Tale	1
18	8M0077650	示流器接头	FITTING Tell-Tale	1
19	828216	怠速排气套	IDLE EXHAUST BOOT Exhaust	1
19	889847	怠速排气套	BOOT Idle Exhaust	1
20	817519A1	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	2
21	850691	开关	SWITCH	1
21	8M0235192	微调开关	SWITCH TRIM	1
22	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
23	821253F1	前手柄黑色	FRONT HANDLE Black	1
23	889740A02	手柄套件	HANDLE KIT	1
23	821253F2	前手柄	FRONT HANDLE	1
23	889740A02	手柄套件	HANDLE KIT	1
24	335891	衬套	BUSHING	2
25	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
26	8219423	棘爪	PAWL	1
27	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	1
28	401196	螺母 (M6)	NUT (M6)	1
29	8214281	螺钉(#10-16x0.625)	SCREW (#10-16 x .625)	1
30	822873	卡扣	CLIP	1

图 43电气板总成 ELECTRICAL PLATE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	833137F1	安装板	PLATE	1
2	88807A16	黑色电缆总成(4.00英寸)	CABLE ASSEMBLY (4.00 Inches) Black	1
3	828151A1	继电器总成	RELAY ASSEMBLY	3
3	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	3
4	NSS		NOT SOLD SEPARATE DECAL, Trim Relay	3
5	828102	支架	BRACKET	3
5	8M0207771	安装支架	BRACKET Mounting	3
6	818968	衬套	BUSHING	3
6	8M0214955	衬套	BUSHING	3
7	818967	护孔环	GROMMET	3
7	8M0207785	护孔环	GROMMET	3
8	878084T3	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
8	878084T4	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
9	858754	保险丝盖	COVER Fuse	1
10	858781A2	线束总成(直喷喷油器)	HARNESS ASSEMBLY (DIRECT INJECTOR)	1
10	879346A49	线束维修套件	HARNESS REPAIR KIT	1
11	858780A2	线束总成(燃油喷射器)	HARNESS ASSEMBLY (FUEL INJECTOR)	1
11	879346A50	线束维修套件	HARNESS REPAIR KIT	1
12	878073A2	线束总成(节气门位置传感器)	HARNESS ASSEMBLY (TPS)	1
12	879346A41	线束维修套件	HARNESS REPAIR KIT	1
13	83296920	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	4
13	832969T20	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	4
13	83296915	迷你保险丝-蓝色-15安培	FUSE Mini - Blue - 15 Ampere	1
13	832969T15	迷你保险丝-蓝色-15安培	FUSE Mini - Blue - 15 Ampere	1
13	8329695	迷你保险丝-棕色-5安培	FUSE Mini - Tan - 5 Ampere	1
13	832969T05	迷你保险丝-棕色-5安培	FUSE Mini - Tan - 5 Ampere	1
14	8500673	黄色绝缘护套	BOOT Insulator - Yellow	1
15	819514T16	升降线束总成	HARNESS ASSEMBLY Trim	1
16	8500671	红色绝缘护套	BOOT Insulator - Red	1
17	858755	卡箍(1.00)	CLIP (1.00)	1
18	828991	卡扣	CLIP	1
18	828991T	卡扣	CLIP	1
19	82129110	螺丝 (M6 x 10)	SCREW (M6 x 10)	3
20	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	4
21	82129135	螺钉(M6x35)	SCREW (M6 x 35)	1
22	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
23	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
24	91912	衬套	BUSHING	1
25	68292	螺母(.312-18)	NUT (.312-18)	2
25	8M0204668	螺母(.312-18)	NUT (.312-18)	2
26	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
27	85961067S	发动机控制模块ECM	ECM Engine Control Module	1
27	885557T24	PCM控制模块	PCM	1
28	82130025	螺钉(M6x25)	SCREW (M6 x 25)	3
29	856954	衬套	BUSHING	3
30	834985	护孔环	GROMMET	3
30	8M0190980	护孔环	GROMMET	3
31	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	3
32	8590881	卡扣	CLIP	1
33	82129114	螺钉 (M6 x 14)	SCREW (M6 x 14)	1
34	82130012	螺钉（M6 x 12）	SCREW (M6 x 12)	3
35	817109A2	电磁阀总成(#10-32/.3125-18端子)	SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)	1
36	822179	护孔环	GROMMET	2
37	818968	衬套	BUSHING	2
37	8M0214955	衬套	BUSHING	2
38	813938	盖形螺母(#10-32)	CAP NUT (#10-32)	1
39	878231A6	保险丝线束总成-100安培	HARNESS ASSEMBLY Fuse - 100 Ampere	1
40	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
40	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
41	859244T2	线束总成	HARNESS ASSEMBLY	1
41	859244A2	Smartcraft线束总成	HARNESS ASSEMBLY Smartcraft	1
42	882829A1	启动机电缆总成	CABLE ASSEMBLY Starter	1
43	830233	红色绝缘护套	BOOT Insulator - Red	1
44	880771T1	电缆总成(24.00英寸)红色	CABLE ASSEMBLY (24.00 Inches) Red	1

图 44齿轮箱螺旋桨轴-反向-Sportmaster型 Gear Housing Propeller Shaft-Counter-Sportmaster

REF	零件编号	中文名称	英文名称	数量
1	831998A9	空气压缩机总成(参见空气压缩机部件分解图)	COMPRESSOR ASSEMBLY Air (SEE BREAKDOWN ON AIR COMPRESSOR COMPONENTS)	1
2	85593912	螺钉（M6 x 12）	SCREW (M6 x 12)	5
3	8328231	滑轮	PULLEY	1
3	8M0175171	滑轮	PULLEY	1
4	4010825	螺丝(M10 x 25)六角法兰-不锈钢	SCREW (M10 x 25) Hex Flange - Stainless Steel	2
5	8502511	软管	HOSE	1
5	8502512	软管	HOSE	1
6	85652329	绝缘套管(15英寸)	INSULATOR SLEEVE (15 IN.)	1
7	852379T5	燃油导轨	FUEL RAIL	1
7	852379T6	燃油导轨	FUEL RAIL	1
8	8500653	喷油器	INJECTOR	6
8	8M6001743	空气喷射器总成	INJECTOR ASSEMBLY Air	6
9	855697	卡箍(16.2)	CLAMP (16.2)	4
9	8M0204696	卡箍	CLAMP	4
10	85564361	软管(16英寸)	HOSE (16 IN.)	2
11	92345	螺柱	STUD	1
12	854640	特殊垫圈	WASHER Special	2
13	35814	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
13	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
14	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
14	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
15	852378T5	燃油导轨	FUEL RAIL	1
15	852378T6	燃油导轨	FUEL RAIL	1
16	830756109	软管(57.00英寸整料)(裁切至22-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 22-1/2 Inches)	1
16	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
17	826810	止回阀	CHECK VALVE	1
18	83075780	管材(28英寸整卷)(裁切为2-1/2英寸)	TUBING (28.00 Inches Bulk) (Cut to 2-1/2 Inches)	1
18	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
19	83476463	管材(32英寸整卷)(裁切为28-1/2英寸)	TUBING (32.00 Inches Bulk) (Cut to 28-1/2 Inches)	1
20	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	2
20	8M0214964	卡箍	CLAMP	2
21	85606064	管材(36英寸整卷)(28-1/2英寸)	TUBING (36.00 Inches Bulk) (28-1/2 IN.)	1
21	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
22	82104510	螺钉 (M5 x 10)	SCREW (M5 x 10)	4
23	46997	卡箍	CLAMP	4
24	852961	螺柱	STUD	4
24	8M0063255	双头螺栓M10x92	STUD M10x92	4
25	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	4
26	NSS	不单独销售软管(30英寸)	NOT SOLD SEPARATE Hose (30 IN.)	1
26	856822A3	软管(30英寸)	HOSE (30 IN.)	1
27	8558481	软管	HOSE	1
27	855848A1	软管	HOSE	1
28	828694A1	杯形垫片总成	WASHER ASSEMBLY Cupped	6
29	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	4
29	8M0214964	卡箍	CLAMP	4
30	85686953	套管(27英寸整卷)(裁切为18英寸)	SLEEVE (27.00 Inches Bulk) (Cut to 18 Inches)	1

图 45燃油软管 Fuel Hoses

REF	零件编号	中文名称	英文名称	数量
1	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
2	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	5
2	8M0214964	卡箍	CLAMP	5
3	858955	连接器	CONNECTOR	1
4	830756109	软管 (57英寸整卷) (裁切至7.5英寸)	HOSE (57.00 Inches Bulk) (Cut to 7-1/2 IN.)	1
4	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
5	856822A1	油管	TUBING	1
5	8M0064784	成型脉冲软管	HOSE,MOLDED,PULSE	1
6	822769	连接器	CONNECTOR	1
7	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
8	858757A1	软管总成(25.50英寸)	HOSE ASSEMBLY (25.50 Inches)	1
8	8M0062344	软管总成	HOSE ASSY	1
9	804822	软管	HOSE	1
9	8M6001914	软管	HOSE	1
10	8048211	管材（含O型圈）	TUBING (INCLUDES ORINGS)	1
10	8M6001755	软管总成	HOSE ASSY	1
11	8557611	止回阀	CHECK VALVE	1
12	856822A2	软管套管总成(18.00英寸)	HOSE AND SLEEVE ASSEMBLY (18.00 Inches)	1
12	8M0043979	软管套管总成	HOSE AND SLEEVE ASSEMBLY	1
13	85677870	软管	HOSE	1
13	8M0064634	软管	HOSE	1
14	85677887	软管	HOSE	1
14	8M0064635	软管	HOSE	1
15	85686953	套管(27.00英寸整卷)	SLEEVE (27.00 Inches Bulk)	2

图 46气缸体与端盖 CYLINDER BLOCK AND END CAPS

REF	零件编号	中文名称	英文名称	数量
1	828340A5	气缸体	CYLINDER BLOCK	1
2	8181383	动力头螺柱（1-3/4英寸）	STUD Powerhead (1-3/4 IN.)	6
2	8M0034455	螺柱1.750	STUD 1.750	6
3	670653	双头螺柱（0.375×5.620英寸，5-1/2英寸）	STUD (.375 x 5.620) (5-1/2 IN.)	2
3	670654	螺柱(.375-16/.375-24 x 5.620)	STUD (.375-16/.375-24 x 5.620)	2
3	784384	双头螺栓(.375 x 6.870)(6-3/4英寸)	STUD (.375 x 6.870) (6-3/4 IN.)	2
3	8M0034454	螺柱(.375-16/.375-24 x 6.87)	STUD (.375-16/.375-24 x 6.87)	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	销(轴承座圈)	PIN (BEARING RACE)	2
5	8M0036405	销	PIN	2
6	11338	衬垫	GASKET	2
7	384071	接头(1/2-14)	FITTING (1/2-14) (1/2-14)	1
8	426231	止回阀	CHECK VALVE	1
8	426233	止回阀	CHECK VALVE	1
9	426981	止回阀	CHECK VALVE	1
9	426982	止回阀	CHECK VALVE	1
10	99130122	管材(20英尺整卷)(裁切为19英寸)	TUBING (20.00 Feet Bulk) (Cut to 19 Inches)	1
10	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
11	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	10
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	10
12	852760	直通接头	FITTING (STRAIGHT)	2
13	855622	弯头接头	FITTING (ELBOW)	1
14	8267611	弯头	ELBOW (ELBOW)	3
15	85583445	管材(16英寸)	TUBING (16 IN.)	2
15	85583464	管材 (34.00英寸整卷)	TUBING (34.00 Inches Bulk)	2
15	85583445	管材(20英寸)	TUBING (20 IN.)	1
15	85583464	管材 (34.00英寸整卷)	TUBING (34.00 Inches Bulk)	1
16	85606064	管材(36.00英寸整料)(24-1/2英寸)	TUBING (36.00 Inches Bulk) (24-1/2 IN.)	3
16	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	3
17	828547753	导管(.750内径x3.00英尺整料)(裁切至7英寸)	CONDUIT (.750 Inside Diameter x 3.00 Feet Bulk) (Cut to 7 Inches)	1
18	432781	止回阀	CHECK VALVE	1
18	8781051	止回阀	CHECK VALVE	1
19	830756109	软管(57.00英寸整料)(裁切至11-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 11-1/2 Inches)	1
19	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
20	822769	连接器	CONNECTOR	1
21	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	6
22	66717	螺钉(.375-16 x 3.250)	SCREW (.375-16 x 3.250)	8
23	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	6
24	26852	尼龙帽	CAP Nylon	1
25	856832	螺丝 (.250-20 x 1.750)	SCREW (.250-20 x 1.750)	1
26	64015	螺母 (.250-20)	NUT (.250-20)	1
27	832760A1	上端盖总成	END CAP ASSEMBLY Upper	1
27	832760T1	端盖总成	END CAP ASSEMBLY	1
28	54029	O型圈(2.800 x .103)	O-RING (2.800 x .103)	1
29	16756A4	轴承套件	BEARING KIT	1
30	NSS	不单独销售轴承座圈	NOT SOLD SEPARATE Bearing Race	1
31	41953	密封件	SEAL	1
32	69034	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW AND LOCKWASHER (.312-18 x 1.00)	4
32	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	4
33	7809A1	端盖总成	END CAP ASSEMBLY	1
33	7809T1	端盖总成	END CAP ASSEMBLY	1
34	62700	O型圈(3.237 x .103)	O-RING (3.237 x .103)	1
35	41953	密封件	SEAL	2
36	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
37	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
38	853882	支架	BRACKET	1
38	8538821	节气门位置指示器安装支架	BRACKET Throttle Position Indicator Mount	1
39	8519371	节气门位置指示器杠杆	LEVER Throttle Position Indicator	1
40	82130025	螺钉(M6x25)	SCREW (M6 x 25)	3
41	8318701	衬套	BUSHING	6
42	834985	护孔环	GROMMET	3
42	8M0190980	护孔环	GROMMET	3
43	8M6005905	节气门位置指示器(内侧)	INDICATOR Throttle Position (Inside)	1
44	850882	隔套	SPACER	1
45	8329522	节气门位置指示器(外侧)	INDICATOR Throttle Position (Outside)	1
45	8M6005166	TPI	TPI	1
46	850828	螺钉(#10-32 X 2-3/4英寸)	SCREW (#10-32 X 2-3/4 IN.)	3
47	1938541	油门连杆	LINK Throttle	1
47	8M0084738	连杆总成	LINK ASSY	1
48	NSS	不单独销售序列号塞	NOT SOLD SEPARATE Plug-Serial Number	1
49	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
49	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
-	814754A98	衬垫套件	GASKET SET	1
-	8M0046714	衬垫套件	GASKET SET	1
-	854008A98	动力头总成	POWERHEAD ASSEMBLY	1
-	804545T99	动力头总成	POWERHEAD ASSEMBLY	1

图 47水管 Water Hoses

REF	零件编号	中文名称	英文名称	数量
1	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	2
2	89772	连接器(.125-27)	CONNECTOR (.125-27)	1
3	29085	45度弯管接头	FITTING Elbow (45 Degree)	1
3	8M0123050	45度弯管接头	FITTING Elbow (45 Degree)	1
4	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
5	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
6	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
7	85833935	管材 (15英寸整卷) (裁切至7英寸)	TUBING (15.00 Inches Bulk) (Cut to 7 IN.)	1
7	85833939	软管(17英寸整卷)	HOSE (17.00 Inches Bulk)	1
8	8348084	滤网	STRAINER	1
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
10	85833935	管材 (15英寸整卷) (裁切至4.5英寸)	TUBING (15.00 Inches Bulk) (Cut to 4-1/2 IN.)	1
10	85833939	软管(17英寸整卷)	HOSE (17.00 Inches Bulk)	1
11	291112	接头	FITTING	1
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
13	83476463	管材 (32英寸整卷) (裁切至18.5英寸)	TUBING (32.00 Inches Bulk) (Cut to 18-1/2 IN.)	1
14	859432	接头	FITTING	1
14	881866	接头	FITTING	1
15	85978568	管材 (44英寸整卷) (裁切至15英寸)(灰色)	TUBING (44.00 Inches Bulk) (Cut to 15 IN.)(GRAY)	1
15	85978571	管材(52英寸整卷)	TUBING (52.00 Inches Bulk)	1
16	859431	接头	FITTING	1
16	8M0207782	直通接头	FITTING Straight	1
17	881879A7	传感器套件(0-50 PSI)(棕褐色)	SENSOR KIT (0-50 PSI) (TAN)	1
17	8M0157742	水压传感器	SENSOR Water Pressure	1
18	858954	卡箍(0.625英寸)	CLIP (.625)	1
19	875207	三通接头	TEE Fitting	1
20	85978568	管材 (44英寸整卷) (裁切至44英寸)(灰色)	TUBING (44.00 Inches Bulk) (Cut to 44 IN.)(GRAY)	1
20	85978571	管材(52英寸整卷)	TUBING (52.00 Inches Bulk)	1
21	859747	联轴器	COUPLER	1
21	8M0214971	耦合接头 (4 MM)	COUPLER Fitting (4 MM)	1
22	859732	堵头	PLUG	1
23	859731	适配管接头	FITTING Adapter	1
23	8M0214970	接头	FITTING	1
24	85978568	管材 (44英寸整卷) (裁切至5英寸)(灰色)	TUBING (44.00 Inches Bulk) (Cut to 5 IN.)(GRAY)	1
24	85978571	管材(52英寸整卷)	TUBING (52.00 Inches Bulk)	1
25	858459	接头	FITTING	1
26	77653101	软管 (48英寸整卷) (裁切至23.5英寸)	HOSE (48.00 Inches Bulk) (Cut to 23-1/2 IN.)	1
27	8276021	成型软管	MOLDED HOSE	1
27	8M0114859	软管	HOSE	1
27	77653101	软管 (48英寸整卷) (裁切至5英寸)	HOSE (48.00 Inches Bulk) (Cut to 5 IN.)	1
28	77653101	软管 (48英寸整卷) (裁切至17.5英寸)	HOSE (48.00 Inches Bulk) (Cut to 17-1/2 IN.)	1
-	883201A01	动力头总成	POWERHEAD ASSEMBLY	1

图 48线圈板总成 COIL PLATE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	8506753	线圈板	PLATE Coil	1
2	850676F1	隔套	SPACER	6
3	8502341	衬套	BUSHING	4
4	833155	护孔环	GROMMET	4
5	850898	螺丝 (.250-20 x 3.250)	SCREW (.250-20 x 3.250)	6
6	856991A1	线圈套件	COIL KIT	6
7	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	6
7	8M0207776	螺母	NUT	6
8	821945T74	高压电缆组	CABLE SET Hi Tension	1
8	881908T	电缆组	CABLE SET	1
9	859595T	双线圈驱动器	DRIVER Dual Coil	3
10	858414A1	编织电缆总成	CABLE ASSEMBLY Braided	2
11	82129110	螺丝 (M6 x 10)	SCREW (M6 x 10)	2
12	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
12	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
13	828547353	导管 (.350内径 x 3.00英尺散装)	CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk)	1
14	8556721	火花塞	SPARK PLUG	6
14	889597Q	NGK IZFR5G @4	NGK IZFR5G @4	6
15	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
16	49436	垫圈	WASHER	4
17	82129114	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
18	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
18	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
19	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
19	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2
20	883066	夹子 (.865)	CLIP (.865)	2
21	881879A7	传感器套件 (0-50 PSI)	SENSOR KIT (0-50 PSI)	1
21	8M0157742	水压传感器	SENSOR Water Pressure	1
22	881879A6	传感器(0-100 PSI)	SENSOR (0 - 100 PSI)	1
22	881879T11	压力传感器 (0 - 100 PSI)	SENSOR Pressure (0 - 100 PSI)	1
23	859431	接头	FITTING	1
23	8M0207782	直通接头	FITTING Straight	1
24	85944975	管材 (72英寸整卷) (裁切至14.5英寸)	TUBING (72.00 Inches Bulk) (Cut to 14 -1/2 In.)	1
25	859747	联轴器	COUPLER	1
25	8M0214971	耦合接头 (4 MM)	COUPLER Fitting (4 MM)	1
26	85978571	管材 (52英寸整卷) (裁切至15英寸)	TUBING (52.00 Inches Bulk) (Cut to 15 IN.)	1
27	875207	三通接头	TEE Fitting	1
28	85978571	管材 (52英寸整卷) (裁切至5英寸)	TUBING (52.00 Inches Bulk) (Cut to 5 IN.)	1
29	85944975	管材 (72英寸整卷) (裁切至52英寸)	TUBING (72.00 Inches Bulk) (Cut to 52 IN.)	1

图 49空气处理器/飞轮盖 Air Handler/Flywheel Cover

REF	零件编号	中文名称	英文名称	数量
-	855633A4	空气处理器总成	AIR HANDLER ASSEMBLY	1
1	855420T02	适配板套件	ADAPTER PLATE KIT	1
2	146973	衬垫	GASKET	1
3	850058	衬垫	GASKET	1
3	8500581	衬垫	GASKET	1
4	116455	簧片阀组	REED BLOCK	6
4	855952T2	簧片阀组	REED BLOCK	6
5	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	12
6	855762	油泵	PUMP Oil	1
6	855884P1	油泵	PUMP Oil	1
7	8565421	衬垫	GASKET	1
8	8552841	支架	BRACKET	1
9	855424	接头	FITTING	3
10	8554241	接头	FITTING	3
11	8554246	接头	FITTING	1
11	892267T02	蒸汽分离器总成	VAPOR SEPARATOR ASSEMBLY	1
12	8554248	接头(直通)	FITTING (STRIAGHT)	1
13	855364	衬套	BUSHING	6
14	855362	护孔环	GROMMET	6
14	855362001	护孔环	GROMMET	6
15	81893440	螺钉 (M8 x 40)	SCREW (M8 x 40)	6
16	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	6
17	850248A1	空气集气室套件	PLENUM KIT Air	1
18	8554242	弯头	ELBOW	1
19	8554249	弯头	ELBOW	1
19	15133	接头	FITTING	1
20	850058	衬垫	GASKET	1
20	8500581	衬垫	GASKET	1
21	13221A1	温度传感器总成	SENSOR ASSEMBLY Temperature	1
21	13221T01	温度传感器	SENSOR TEMP	1
22	4005685	螺钉（M4×10）	SCREW (M4 x 10)	3
23	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	3
24	4001987	螺钉(M4×16)	SCREW (M4 x 16)	12
25	855422A1	节气门体套件	THROTTLE BODY KIT	1
26	855423	O型圈	O-RING	1
27	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	4

图 50齿轮箱(驱动)标准/反向旋转-Sportmaster型 Gear Housing (Drive) Standard/Counter Rotatation-Sportmaster

REF	零件编号	中文名称	英文名称	数量
1	831998A9	空气压缩机总成(参见空气压缩机部件分解图)	COMPRESSOR ASSEMBLY Air (SEE BREAKDOWN ON AIR COMPRESSOR COMPONENTS)	1
2	85593912	螺钉（M6 x 12）	SCREW (M6 x 12)	5
3	8328231	滑轮	PULLEY	1
3	8M0175171	滑轮	PULLEY	1
4	4010825	螺丝(M10 x 25)六角法兰-不锈钢	SCREW (M10 x 25) Hex Flange - Stainless Steel	2
5	8502511	软管	HOSE	1
5	8502512	软管	HOSE	1
6	85652329	绝缘套管(15英寸)	INSULATOR SLEEVE (15 IN.)	1
7	852379T5	燃油导轨	FUEL RAIL	1
7	852379T6	燃油导轨	FUEL RAIL	1
8	8500653	喷油器	INJECTOR	6
8	8M6001743	空气喷射器总成	INJECTOR ASSEMBLY Air	6
9	855697	卡箍(16.2)	CLAMP (16.2)	4
9	8M0204696	卡箍	CLAMP	4
10	85564361	软管(16英寸)	HOSE (16 IN.)	2
11	92345	螺柱	STUD	1
12	854640	特殊垫圈	WASHER Special	2
13	35814	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
13	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
14	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
14	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
15	852378T5	燃油导轨	FUEL RAIL	1
15	852378T6	燃油导轨	FUEL RAIL	1
16	830756109	软管(57.00英寸整料)(裁切至22-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 22-1/2 Inches)	1
16	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
17	826810	止回阀	CHECK VALVE	1
18	83075780	管材(28英寸整卷)(裁切为2-1/2英寸)	TUBING (28.00 Inches Bulk) (Cut to 2-1/2 Inches)	1
18	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
19	83476463	管材(32英寸整卷)(裁切为28-1/2英寸)	TUBING (32.00 Inches Bulk) (Cut to 28-1/2 Inches)	1
20	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	2
20	8M0214964	卡箍	CLAMP	2
21	85606064	管材(36英寸整卷)(28-1/2英寸)	TUBING (36.00 Inches Bulk) (28-1/2 IN.)	1
21	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
22	82104510	螺钉 (M5 x 10)	SCREW (M5 x 10)	4
23	46997	卡箍	CLAMP	4
24	852961	螺柱	STUD	4
24	8M0063255	双头螺栓M10x92	STUD M10x92	4
25	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	4
26	NSS	不单独销售软管(30英寸)	NOT SOLD SEPARATE Hose (30 IN.)	1
26	856822A3	软管(30英寸)	HOSE (30 IN.)	1
27	8558481	软管	HOSE	1
27	855848A1	软管	HOSE	1
28	828694A1	杯形垫片总成	WASHER ASSEMBLY Cupped	6
29	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	4
29	8M0214964	卡箍	CLAMP	4
30	85686953	套管(27英寸整卷)(裁切为18英寸)	SLEEVE (27.00 Inches Bulk) (Cut to 18 Inches)	1

图 51启动电机 Starter Motor

REF	零件编号	中文名称	英文名称	数量
-	NSS	起动机总成(不单独销售)	NOT SOLD SEPARATE Starter Motor Assembly	1
1	892339T01	启动电机总成	STARTER MOTOR ASSEMBLY	1
2	NSS	螺钉组(不单独销售)	NOT SOLD SEPARATE Screws	2
3	880805A1	齿轮套件	GEAR KIT	1
4	809463A1	电磁阀组件	SOLENOID KIT	1
5	8M0065258	电刷组	BRUSH SET	1
6	8M0034918	轴环	COLLAR	2
7	8M0043276	停机开关	STOP	1
8	NSS	高压警告贴纸(不单独销售)	NOT SOLD SEPARATE Decal-Waring-High Voltage	1
9	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
10	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
11	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
12	400213	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
13	400255	锁紧垫圈(M5)	LOCKWASHER (M5)	1
14	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1

图 52空气处理器组件 AIR HANDLER COMPONENTS

REF	零件编号	中文名称	英文名称	数量
-	855633A4	空气处理器总成	AIR HANDLER ASSEMBLY	1
1	855420T02	适配板套件	ADAPTER PLATE KIT	1
2	146973	衬垫	GASKET	1
3	850058	衬垫	GASKET	1
3	8500581	衬垫	GASKET	1
4	116455	簧片阀组	REED BLOCK	6
4	855952T2	簧片阀组	REED BLOCK	6
5	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	12
6	855762	油泵	PUMP Oil	1
6	855884P1	油泵	PUMP Oil	1
7	8565421	衬垫	GASKET	1
8	8552841	支架	BRACKET	1
9	855424	接头	FITTING	3
10	8554241	接头	FITTING	3
11	8554246	接头	FITTING	1
11	892267T02	蒸汽分离器总成	VAPOR SEPARATOR ASSEMBLY	1
12	8554248	接头(直通)	FITTING (STRIAGHT)	1
13	855364	衬套	BUSHING	6
14	855362	护孔环	GROMMET	6
14	855362001	护孔环	GROMMET	6
15	81893440	螺钉 (M8 x 40)	SCREW (M8 x 40)	6
16	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	6
17	850248A1	空气集气室套件	PLENUM KIT Air	1
18	8554242	弯头	ELBOW	1
19	8554249	弯头	ELBOW	1
19	15133	接头	FITTING	1
20	850058	衬垫	GASKET	1
20	8500581	衬垫	GASKET	1
21	13221A1	温度传感器总成	SENSOR ASSEMBLY Temperature	1
21	13221T01	温度传感器	SENSOR TEMP	1
22	4005685	螺钉（M4×10）	SCREW (M4 x 10)	3
23	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	3
24	4001987	螺钉(M4×16)	SCREW (M4 x 16)	12
25	855422A1	节气门体套件	THROTTLE BODY KIT	1
26	855423	O型圈	O-RING	1
27	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	4

图 53燃油轨 FUEL RAILS

REF	零件编号	中文名称	英文名称	数量
1	831998A9	空气压缩机总成(参见空气压缩机部件分解图)	COMPRESSOR ASSEMBLY Air (SEE BREAKDOWN ON AIR COMPRESSOR COMPONENTS)	1
2	85593912	螺钉（M6 x 12）	SCREW (M6 x 12)	5
3	8328231	滑轮	PULLEY	1
3	8M0175171	滑轮	PULLEY	1
4	4010825	螺丝(M10 x 25)六角法兰-不锈钢	SCREW (M10 x 25) Hex Flange - Stainless Steel	2
5	8502511	软管	HOSE	1
5	8502512	软管	HOSE	1
6	85652329	绝缘套管(15英寸)	INSULATOR SLEEVE (15 IN.)	1
7	852379T5	燃油导轨	FUEL RAIL	1
7	852379T6	燃油导轨	FUEL RAIL	1
8	8500653	喷油器	INJECTOR	6
8	8M6001743	空气喷射器总成	INJECTOR ASSEMBLY Air	6
9	855697	卡箍(16.2)	CLAMP (16.2)	4
9	8M0204696	卡箍	CLAMP	4
10	85564361	软管(16英寸)	HOSE (16 IN.)	2
11	92345	螺柱	STUD	1
12	854640	特殊垫圈	WASHER Special	2
13	35814	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
13	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
14	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
14	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
15	852378T5	燃油导轨	FUEL RAIL	1
15	852378T6	燃油导轨	FUEL RAIL	1
16	830756109	软管(57.00英寸整料)(裁切至22-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 22-1/2 Inches)	1
16	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
17	826810	止回阀	CHECK VALVE	1
18	83075780	管材(28英寸整卷)(裁切为2-1/2英寸)	TUBING (28.00 Inches Bulk) (Cut to 2-1/2 Inches)	1
18	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
19	83476463	管材(32英寸整卷)(裁切为28-1/2英寸)	TUBING (32.00 Inches Bulk) (Cut to 28-1/2 Inches)	1
20	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	2
20	8M0214964	卡箍	CLAMP	2
21	85606064	管材(36英寸整卷)(28-1/2英寸)	TUBING (36.00 Inches Bulk) (28-1/2 IN.)	1
21	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
22	82104510	螺钉 (M5 x 10)	SCREW (M5 x 10)	4
23	46997	卡箍	CLAMP	4
24	852961	螺柱	STUD	4
24	8M0063255	双头螺栓M10x92	STUD M10x92	4
25	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	4
26	NSS	不单独销售软管(30英寸)	NOT SOLD SEPARATE Hose (30 IN.)	1
26	856822A3	软管(30英寸)	HOSE (30 IN.)	1
27	8558481	软管	HOSE	1
27	855848A1	软管	HOSE	1
28	828694A1	杯形垫片总成	WASHER ASSEMBLY Cupped	6
29	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	4
29	8M0214964	卡箍	CLAMP	4
30	85686953	套管(27英寸整卷)(裁切为18英寸)	SLEEVE (27.00 Inches Bulk) (Cut to 18 Inches)	1

图 54动力升降组件金属马达壳 Power Trim Components Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	826729A2	升降倾斜总成	TRIM AND TILT ASSEMBLY	1
1	811604F	歧管总成	MANIFOLD ASSEMBLY	1
2	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	9
3	823552F	气缸总成	CYLINDER ASSEMBLY	1
3	880952A03	ORD 8M0078330	ORD 8M0078330	1
4	823553	配平活塞杆套件	ROD KIT Trim Piston	1
4	823553T	升降活塞杆	ROD Trim Piston	1
5	811606	导向套件	GUIDE KIT	1
5	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
6	811607A1	维修套件	REPAIR KIT	1
7	811610A1	止回阀套件	CHECK VALVE KIT	1
7	823553T	升降活塞杆	ROD Trim Piston	1
8	99638A1	导向器总成	GUIDE ASSEMBLY	2
8	8M0021648	端盖总成	END CAP ASSEMBLY	2
9	43397A6	动力升降倾斜装置活塞/杆总成	PISTON/ROD ASSEMBLY Power Trim	1
9	878413A1	活塞总成	PISTON ASSEMBLY	1
9	43398A3	动力升降倾斜装置活塞/杆总成	PISTON/ROD ASSEMBLY Power Trim	1
9	878414T01	活塞总成	PISTON ASSEMBLY	1
10	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
11	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
11	893929A01	安全阀套件	VALVE KIT Relief	1
12	812844	E型卡环	E RING	1
12	815949001	E形环	E-RING	1
13	811612A2	O型圈套件	O-RING KIT	1
13	811612A3	O型圈套件	O-RING KIT	1
14	811617F	泵	PUMP	1
14	811617T1	泵	PUMP	1
15	811613	塞子总成	PLUG ASSEMBLY	1
16	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
17	43450	垫圈	WASHER	4
17	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
18	811611	盖板	COVER	1
19	828710	驱动接头	DRIVE JOINT	1
20	828708	电机总成	MOTOR ASSEMBLY	1
20	878265A4	配平电机	TRIM MOTOR	1
21	828709	螺钉 (长)	SCREW (LONG)	2
21	881768A1	螺钉/垫圈套件	SCREW/WASHER KIT	2
21	811616	螺钉 (短)	SCREW (SHORT)	2
22	811614	轴总成	SHAFT ASSEMBLY	1
22	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
23	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
24	44431	槽销	PIN Groove	1
24	878267	销	PIN	1
25	821539	三叶销	PIN Trilobe	1
26	996251	轴	SHAFT	1
26	99625002	轴	SHAFT	1
27	818298A1	阳极套件	ANODE KIT	1
27	818298Q1	阳极套件	ANODE KIT	1
28	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
28	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
29	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
29	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
30	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
31	4002319	垫圈	WASHER	6
32	26550	卡箍	CLAMP	2
33	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
33	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
34	69205	C形垫圈	C WASHER	1
34	8M0084613	C形垫圈	C-WASHER	1
35	996301	冲击板	STRIKER PLATE	2
35	8M0045383	冲击板	STRIKER PLATE	2
36	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
37	46335	螺母 (.375-24)	NUT (.375-24)	2
38	435301	警示贴纸-动力微调	DECAL Caution-Power Trim	1
39	828547353	导管 (.350内径 x 3.00英尺散装)	CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk)	1
40	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
40	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

图 55电气板总成 Electrical Plate Assembly

REF	零件编号	中文名称	英文名称	数量
1	833137F1	安装板	PLATE	1
2	88807A16	黑色电缆总成(4.00英寸)	CABLE ASSEMBLY (4.00 Inches) Black	1
3	828151A1	继电器总成	RELAY ASSEMBLY	3
3	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	3
4	NSS		NOT SOLD SEPARATE DECAL, Trim Relay	3
5	828102	支架	BRACKET	3
5	8M0207771	安装支架	BRACKET Mounting	3
6	818968	衬套	BUSHING	3
6	8M0214955	衬套	BUSHING	3
7	818967	护孔环	GROMMET	3
7	8M0207785	护孔环	GROMMET	3
8	878084T3	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
8	878084T4	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
9	858754	保险丝盖	COVER Fuse	1
10	858781A2	线束总成(直喷喷油器)	HARNESS ASSEMBLY (DIRECT INJECTOR)	1
10	879346A49	线束维修套件	HARNESS REPAIR KIT	1
11	858780A2	线束总成(燃油喷射器)	HARNESS ASSEMBLY (FUEL INJECTOR)	1
11	879346A50	线束维修套件	HARNESS REPAIR KIT	1
12	878073A2	线束总成(节气门位置传感器)	HARNESS ASSEMBLY (TPS)	1
12	879346A41	线束维修套件	HARNESS REPAIR KIT	1
13	83296920	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	4
13	832969T20	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	4
13	83296915	迷你保险丝-蓝色-15安培	FUSE Mini - Blue - 15 Ampere	1
13	832969T15	迷你保险丝-蓝色-15安培	FUSE Mini - Blue - 15 Ampere	1
13	8329695	迷你保险丝-棕色-5安培	FUSE Mini - Tan - 5 Ampere	1
13	832969T05	迷你保险丝-棕色-5安培	FUSE Mini - Tan - 5 Ampere	1
14	8500673	黄色绝缘护套	BOOT Insulator - Yellow	1
15	819514T16	升降线束总成	HARNESS ASSEMBLY Trim	1
16	8500671	红色绝缘护套	BOOT Insulator - Red	1
17	858755	卡箍(1.00)	CLIP (1.00)	1
18	828991	卡扣	CLIP	1
18	828991T	卡扣	CLIP	1
19	82129110	螺丝 (M6 x 10)	SCREW (M6 x 10)	3
20	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	4
21	82129135	螺钉(M6x35)	SCREW (M6 x 35)	1
22	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
23	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
24	91912	衬套	BUSHING	1
25	68292	螺母(.312-18)	NUT (.312-18)	2
25	8M0204668	螺母(.312-18)	NUT (.312-18)	2
26	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
27	85961067S	发动机控制模块ECM	ECM Engine Control Module	1
27	885557T24	PCM控制模块	PCM	1
28	82130025	螺钉(M6x25)	SCREW (M6 x 25)	3
29	856954	衬套	BUSHING	3
30	834985	护孔环	GROMMET	3
30	8M0190980	护孔环	GROMMET	3
31	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	3
32	8590881	卡扣	CLIP	1
33	82129114	螺钉 (M6 x 14)	SCREW (M6 x 14)	1
34	82130012	螺钉（M6 x 12）	SCREW (M6 x 12)	3
35	817109A2	电磁阀总成(#10-32/.3125-18端子)	SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)	1
36	822179	护孔环	GROMMET	2
37	818968	衬套	BUSHING	2
37	8M0214955	衬套	BUSHING	2
38	813938	盖形螺母(#10-32)	CAP NUT (#10-32)	1
39	878231A6	保险丝线束总成-100安培	HARNESS ASSEMBLY Fuse - 100 Ampere	1
40	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
40	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
41	859244T2	线束总成	HARNESS ASSEMBLY	1
41	859244A2	Smartcraft线束总成	HARNESS ASSEMBLY Smartcraft	1
42	882829A1	启动机电缆总成	CABLE ASSEMBLY Starter	1
43	830233	红色绝缘护套	BOOT Insulator - Red	1
44	880771T1	电缆总成(24.00英寸)红色	CABLE ASSEMBLY (24.00 Inches) Red	1

图 56蒸汽分离器组件 Vapor Seperator Components

REF	零件编号	中文名称	英文名称	数量
1	847800A1	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	847801A1	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	847801T01	艉板支架-右舷	BRACKET Transom - Starboard	1
3	847798A1	耐磨垫套件	WEAR PAD KIT	1
3	847798A02	耐磨垫套件	WEAR PAD KIT	1
4	86843	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	4
5	87180	螺栓(0.500-20 x 11.00)	BOLT (.500-20 x 11.00)	1
6	88512	卡箍	CLAMP	4
6	75275	卡箍	CLAMP	2
7	88829	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	6
8	858869	螺母 (.875-14)	NUT (.875-14)	1
8	859133	螺母(1.00-14)	NUT (1.00-14)	1
8	82671327	螺母(1.0-14)	NUT (1.0-14)	1
9	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
10	99170A2	倾斜管套件	TUBE KIT Tilt	1
10	826125A1	倾斜管	TILT TUBE	1
11	85035T	隔套	SPACER	1
11	8M0237541	艉板隔套	SPACER Transom	1
12	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
12	8M0149747	螺钉	SCREW	4
13	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
13	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
14	82671117	螺母(.500-20)	NUT (.500-20)	4
15	82671317	螺母(.500-20)	NUT (.500-20)	1
16	70732	螺钉 (.250-20 x 2.00)	SCREW (.250-20 x 2.00)	4
17	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
17	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
18	85026T	安装板	PLATE	2
19	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
20	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
20	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
21	54343	螺柱（.312-24 x 1.380）	STUD (.312-24 x 1.380)	4
21	8M0034451	螺柱	STUD	4
22	89949A1	隔板总成	PLATE ASSEMBLY	1
23	847539	垫圈	WASHER	4
24	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	4
25	89024	液压软管	HOSE Hydraulic	1
25	89023	液压软管	HOSE Hydaulic	1
26	96993	液压软管	HOSE Hydraulic	1
26	96994	液压软管	HOSE Hydraulic	1
27	87871	盖板	COVER	1
27	87871T	盖板	COVER	1
28	45507	护孔环	GROMMET	1
29	32866	螺钉 (#10-32 x 2.00) 不锈钢	SCREW (#10-32 x 2.00) Stainless Steel	4
30	87775	衬垫	GASKET	1
31	20878	垫圈	WASHER	4
32	29488	螺母 (#10-32)	NUT (#10-32)	4
32	8M0204718	螺母	NUT	4
33	79610T29	配平油缸	TRIM CYLINDER	1
33	79610A33	配平油缸套件	TRIM CYLINDER KIT	1
33	79610A21	配平油缸	TRIM CYLINDER	1
33	79610T29	配平油缸	TRIM CYLINDER	1
34	847724	衬套	BUSHING	2
35	841223	轴承	BEARING	1
36	30316	弹簧	SPRING	2
37	85020T	枢轴销	PIN Pivot	2
38	841199	调整销	PIN Trim	1
38	8220752	调整销	PIN Trim	1
39	822076	固定座	RETAINER	1
40	82671317	螺母(.500-20)	NUT (.500-20)	1
41	8071791	紧定螺钉（.250-20 x .820）	SET SCREW (.250-20 x .820)	1
42	85022	垫圈(2.00 x 1.06 x 0.060)	WASHER (2.00 x 1.06 x .060)	2
43	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
44	54012	垫圈(0.530×0.870×0.105不锈钢)	WASHER (.530 x .870 x .105) Stainless Steel	4
44	8M0204665	垫圈(0.530×0.880×0.104 630不锈钢)	WASHER (.530 x .880 x .104) 630 Stainless Steel	4
-	79879A1		REPAIR KIT (FOR TRIM CYLINDERS)	1

图 57空气压缩机组件 Air Compressor Components

REF	零件编号	中文名称	英文名称	数量
1	831998A9	空气压缩机总成	COMPRESSOR ASSEMBLY Air	1
1	8M0060053	空气压缩机总成	COMPRESSOR ASSEMBLY Air	1
2	828131A4	端盖总成	END CAP ASSEMBLY	1
2	8M0050792	端盖总成	END CAP ASSEMBLY	1
3	NSS	非单独销售挡圈	NOT SOLD SEPARATE Retaining Ring	1
4	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	4
5	89224	O型圈	O-RING	1
6	832804	O型圈（2.739 x 0.070）	O-RING (2.739 x .070)	1
7	833146A3	连杆总成	CONNECTING ROD ASSEMBLY	1
7	833146T06	连杆总成	CONNECTING ROD ASSEMBLY	1
8	828222A4	活塞总成	PISTON ASSEMBLY	1
9	8348101	锁环	RING Lock	2
10	835088A10	簧片阀板总成	REED PLATE ASSEMBLY	1
11	67207	O型圈（3.489 x 0.070）	O-RING (3.489 x .070)	2
12	832804	O型圈（2.739 x 0.070）	O-RING (2.739 x .070)	1
13	828225	密封件	SEAL	1
14	8350871	气缸盖压缩机	HEAD Compressor	1
14	835087A3	压缩机缸盖总成	HEAD ASSEMBLY Compressor	1
15	8307532	直通接头	FITTING Straight	1
16	81893435	螺钉(M8×35)	SCREW (M8 x 35)	4
16	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
17	15133	接头	FITTING	1
18	14868	接头	FITTING	2
19	39072	塞(1/8英寸黄铜)	PLUG (1/8 Inch Brass)	1
19	390721	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
20	16604	直通接头（0.125-27）	FITTING Straight (.125-27)	1
21	13536A12	温度传感器总成	SENSOR ASSEMBLY Temperature	1
22	137151	固定座	RETAINER	1
23	81893412	螺钉（M8×12）	SCREW (M8 x 12)	1
24	831985	O型圈（0.468 x 0.078）	O-RING (.468 x .078)	1
25	8567441	接头	FITTING	1
25	856744	接头	FITTING	1
26	39072	塞(1/8英寸黄铜)	PLUG (1/8 Inch Brass)	1
26	390721	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
27	835454	直通接头	FITTING Straight	1
28	NSS	标贴(不单独销售)	NOT SOLD SEPARATE Decal	1
29	855349	护孔环	GROMMET	1
29	855349002	护孔环	GROMMET	1
-	832804A1	O型圈套件	O-RING KIT	1
-	832804A03	O型圈套件	O-RING KIT	1

图 58气缸盖 Cylinder Head

REF	零件编号	中文名称	英文名称	数量
1	852380A1	气缸盖	CYLINDER HEAD	1
1	852381A1	气缸盖	CYLINDER HEAD	1
1	852381T1	气缸盖	CYLINDER HEAD	1
2	8525203	衬垫	GASKET	2
3	832971	螺钉 (.375-16 x 3.00)	SCREW (.375-16 x 3.00)	24
4	74840	定位销	PIN Dowel	4
5	62386	衬垫	GASKET	2
5	8M0204714	衬垫@4	GASKET @4	2
6	8307371	盖板	COVER	2
6	8M0039353	盖板	COVER	2
7	833072	节温器 62°C（143°F）	THERMOSTAT 62° Celsius (143° Fahrenheit)	2
7	833072003	节温器 62°C (143°F)	THERMOSTAT 62°C (143°F)	2
8	82130025	螺钉(M6x25)	SCREW (M6 x 25)	4
9	687271	90度弯头 (.250-18) 黄铜(右舷)	FITTING (.250-18) 90 Degree - Brass (Starboard)	1
10	68728	接头(左舷)	FITTING (Port)	1
11	77653112	软管(59.00英寸整料)(21-1/2英寸)	HOSE (59.00 Inches Bulk) (21-1/2 IN.)	1
11	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
12	77653112	软管(59.00英寸散装)(11-1/2英寸)	HOSE (59.00 Inches Bulk) (11-1/2 IN.)	1
12	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
13	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	5
13	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	5
14	13536A14	温度传感器总成(右舷)	SENSOR ASSEMBLY Temperature (Starboard)	1
15	137151	固定座	RETAINER	1
16	81893412	螺钉（M8×12）	SCREW (M8 x 12)	1
-	814754A98	衬垫套件	GASKET SET	1
-	8M0046714	衬垫套件	GASKET SET	1
-	854008A98	动力头总成	POWERHEAD ASSEMBLY	1
-	804545T99	动力头总成	POWERHEAD ASSEMBLY	1

图 59排气板 EXHAUST PLATE

REF	零件编号	中文名称	英文名称	数量
1	190506	衬垫	GASKET	1
2	828343A4	排气分隔板套件	PLATE KIT Exhaust Divider	1
2	828343A05	排气分隔板总成	PLATE ASSEMBLY Exhaust Divider	1
3	814754	密封件(12.50英寸)	SEAL (12.50 Inches)	1
4	8263561	螺钉带垫圈(.312-18 x 1.500)	SCREW AND WASHER (.312-18 x 1.500)	17
5	881190	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	2
6	687291	盖板	COVER	1
6	8M0039767	盖板	COVER	1
7	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
8	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
9	76451	垫圈	WASHER	1
10	144791	隔膜	DIAPHRAGM	1
11	16496	导水板	DEFLECTOR Water	1
12	16497A1	安装板	PLATE	1
13	78690	衬垫	GASKET	2
13	78690002	衬垫	GASKET	2
14	42996	不锈钢弹簧	SPRING (Stainless Steel)	1
15	14480	提动阀	POPPET	1
16	64872	护孔环	GROMMET	1
17	65848	托架	CARRIER	1
18	8231422	衬垫	GASKET	1
19	850814T2	排气板	PLATE Exhaust	1
20	27132	衬套	BUSHING	1
21	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
22	68783	螺钉(.312-18×2.50)	SCREW (.312-18 x 2.50)	1
23	66725	螺钉(.375-16×3.50)	SCREW (.375-16 x 3.50)	3
23	898833	螺钉(.375-16 x 3.500)	SCREW (.375-16 x 3.500)	3
24	183076	衬垫	GASKET	1
25	18233A8	传动轴壳体板总成	PLATE ASSEMBLY Driveshaft Housing	1
25	18233A20	传动轴壳体板总成	PLATE ASSEMBLY Driveshaft Housing	1
26	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	6
27	782461	衬垫	GASKET	1
28	419424	排气管延长段	EXTENSION Exhaust	1
28	879288T71	排气管延长段	EXTENSION Exhaust	1
29	672951	水管	TUBE Water	1
29	8590971	水管	TUBE Water	1
29	8M0042788	长型水管	TUBE-WATER-LONG	1
30	43044	定位销-无孔型 (0.375x0.625) 板至驱动轴壳体	PIN Dowel - Without Hole (.375 x .625) Plate to Driveshaft Housing	2
31	38970	密封件	SEAL	1
32	823106	定位销 (0.875) 板至动力头	PIN Dowel (.875) Plate to Powerhead	2
32	8M0043826	定位销	PIN Dowel	2
33	817717T7	排气延长板	PLATE Extension - Exhaust	1
33	817717A7	排气延长板总成	PLATE ASSEMBLY Exhaust Extension	1
34	58893	双头螺柱 (0.250-28x1.310)	STUD (.250-28 x 1.310)	6
34	8M0030694	螺钉(0.25-20×1.00)	SCREW (0.25-20 x 1.00)	6
35	20533	垫圈	WASHER	6
36	30506	螺母(.250-28)	NUT (.250-28)	6
37	44260	固定座	RETAINER	1
38	28635	不锈钢螺丝(.250-20 x .620)	SCREW (.250-20 x .620) Stainless Steel	1
39	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
40	91903	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	3
41	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	3
42	428611	管接头-黄铜(.750-14)	FITTING Pipe - Brass (.750-14)	1
42	8M0204679	管接头-黄铜(.750-14)	FITTING Pipe - Brass (.750-14)	1
43	883048	堵头(.500-14)	PLUG (.500-14)	1
44	36382	管接头（0.250-18×0.62）黄铜	FITTING (.250-18 x .62) Brass	1
-	881805A01	发动机垫片组	GASKET SET Engine	1
-	883201A01	动力头总成	POWERHEAD ASSEMBLY	1

图 60顶罩 Top Cowl

REF	零件编号	中文名称	英文名称	数量
1	885355T03	顶盖总成	TOP COWL ASSEMBLY	1
1	885355T02	顶盖总成	TOP COWL ASSEMBLY	1
1	8M0050000	顶罩-水星型	COWL-TOP MARINER	1
2	885354T	空气导流帽	CAP Air Dam	1
2	885354T01	空气导流帽-水星黑色款	CAP, Air Dam Mercury, Black	1
2	895838T	空气导流帽	CAP Air Dam	1
2	895838T01	空气导流帽-水星型	CAP Air Dam - Mariner	1
3	888971	前锁扣槽	FRONT LATCH RECEIVER	1
4	885545	上罩壳密封件	SEAL Top Cowl	1
4	8M0111178	密封件	SEAL	1
5	888951	电缆	CABLE	1
5	8M0080461	锁扣拉索	CABLE Latch	1
6	888959	铰链销	PIN Hinge	1
7	888956	手控锁杆	LATCH Hand Lever	1
8	895373	弹簧	SPRING	1
9	888955	锁扣连杆	LINK Latch Connecting	1
10	26953	开口销	COTTER PIN	2
11	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
12	888952	联动臂	LINKAGE ARM	2
13	888953	弹簧	SPRING	2
14	822417	销	PIN	2
15	888950020	螺钉(M4x20毫米)(M4x1.75)	SCREW (M4 x 20 mm) (M4 x 1.75)	6
16	888970	左舷饰板(左)	APPLIQUE Port (Port)	1
16	888970A01	饰板套件	APPLIQUE KIT	1
16	895839	左舷饰板(左)	APPLIQUE Port (Port)	1
16	895839A01	饰板套件	APPLIQUE KIT	1
17	888969	右舷饰板(右)	APPLIQUE Starboard (Starboard)	1
17	895840	右舷饰板(右)	APPLIQUE Starboard (Starboard)	1
18	4010610	不锈钢螺钉(M6x10)	SCREW (M6 x 10) Stainless Steel	2
-	892564A05	贴花套件	DECAL SET	1
-	859271A05	贴花套件	DECAL SET	1
-	895252A05	贴花套件	DECAL SET	1
-	895253A05	贴花套件	DECAL SET	1
-	892571A05	贴花套件	DECAL SET	1
-	892571A07	贴花套件(水星200)	DECAL SET (Mariner 200)	1
-	892871A05	贴花套件	DECAL SET	1
-	892871A07	贴花套件(水星225)	DECAL SET (Mariner 225)	1
-	895254A05	贴花套件	DECAL SET	1
-	895254A07	贴花套件(水星250)	DECAL SET (Mariner 250)	1
-	895255A05	贴花套件	DECAL SET	1
-	895255A07	贴花套件(水星275)	DECAL SET (Mariner 275)	1

图 61动力升降组件 8M0231193 Power Trim Components 8M0231193

REF	零件编号	中文名称	英文名称	数量
-	8M0231193	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0225363	电机套件	MOTOR KIT	1
2	8M0225369	阀套件	VALVE KIT	1
3	8M0225371	手动释放套件	MANUAL RELEASE KIT	1
4	8M0245633	倾斜油缸套件	TILT CYLINDER KIT	1
5	8M0225370	枢轴销套件	PIVOT PIN KIT	1
6	8M0244575	减震杆套件	SHOCK ROD KIT	1
7	8M0244425	销杆眼套件	PIN ROD EYE KIT	1
8	8M0232231	螺钉螺母套件	SCREW NUT KIT	1
9	8M0225373	记忆活塞套件	MEMORY PISTON KIT	1
10	8M0225368	储液罐套件	RESERVOIR KIT	1
11	8M0174135	储液罐塞总成	PLUG RESERVOIR ASSEMBLY	1
12	8M0237525	泵套件	PUMP KIT	1
13	8M0225367	升降杆套件	TRIM ROD KIT	1
14	8M0242846	升降杆套件	TRIM ROD KIT	1
15	8M0225372	重建套件	REBUILD KIT	1

图 62油门杆与换挡轴 Throttle Lever and Shift Shaft

REF	零件编号	中文名称	英文名称	数量
1	850389	杠杆	LEVER	1
1	8M0040990	节气门控制杆	LEVER Throttle Control	1
2	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
3	55164	衬套	BUSHING	1
4	74759	垫圈(0.391x0.880x0.125)不锈钢	WASHER (.391 x .880 x .125) Stainless Steel	1
5	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	1
6	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
7	64015	螺母 (.250-20)	NUT (.250-20)	1
8	26852	尼龙帽	CAP Nylon	1
9	42927	嵌件	INSERT	1
10	35459	垫圈	WASHER	1
11	8268336	螺母 (M6)	NUT (M6)	1
11	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
12	8503931	凸轮	CAM	1
12	856221A1	凸轮套件	CAM KIT	1
13	852970	衬套	BUSHING	1
14	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	1
15	932481	衬套	BUSHING	2
15	8M0215006	旋转衬套	BUSHING Swivel	2
16	8235694	螺纹球头	BALL Threaded	1
17	850815	连接杆	LINK	1
17	8508152	杆	ROD	1
18	67748	滚轮	ROLLER	1
19	850286	油门滚轮	ROLLER Throttle	1
19	8502861	杠杆	LEVER	1
20	40056107	螺钉(M5×16)	SCREW (M5 x 16)	1
21	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	1
22	69432	外锁紧垫圈(#10)	LOCKWASHER External (#10)	1
23	8142831	锚支架	BRACKET Anchor	1
23	814283T6	锚支架总成	BRACKET ASSEMBLY Anchor	1
24	98889	闩锁	LATCH	1
25	42975	传动螺钉	DRIVE SCREW	2
26	39519	杯套	CUP	1
27	52100	耐磨板	WEAR PLATE	1
28	38279	闩锁	LATCH	1
28	8M0036768	闩锁	LATCH	1
29	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
30	35045	螺母(.250-28)	NUT (.250-28)	1
30	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
31	28782	螺钉(.312-18 x .880)不锈钢	SCREW (.312-18 x .880) Stainless Steel	3
32	814284	导向块	GUIDE BLOCK	1
33	20099	弹簧	SPRING	1
34	67073A1	连杆总成	LINK ROD ASSEMBLY	1
35	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
35	79932A17	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
36	NSS	弹性销(不单独销售)	NOT SOLD SEPARATE Roll Pin	1
37	NSS	不单独销售-换挡轴上杆	NOT SOLD SEPARATE Shift Shaft Lever-Upper	1
38	26856	衬套	BUSHING	1
39	29720	波形垫圈	WAVE WASHER	1
40	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
41	35045	螺母(.250-28)	NUT (.250-28)	1
41	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
42	814281A2	开关	SWITCH	1
42	8M0052931	开关	SWITCH	1
43	77478	螺钉 (#6-32 x .875)	SCREW (#6-32 x .875)	2
44	27882	垫圈	WASHER	2

图 63空气软管(序列号1E050628及以下) Air Hoses (S/N 1E050628 & Below)

REF	零件编号	中文名称	英文名称	数量
1	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	2
2	89772	连接器(.125-27)	CONNECTOR (.125-27)	1
3	29085	45度弯管接头	FITTING Elbow (45 Degree)	1
3	8M0123050	45度弯管接头	FITTING Elbow (45 Degree)	1
4	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
5	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
6	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
7	85833935	管材 (15英寸整卷) (裁切至7英寸)	TUBING (15.00 Inches Bulk) (Cut to 7 IN.)	1
7	85833939	软管(17英寸整卷)	HOSE (17.00 Inches Bulk)	1
8	8348084	滤网	STRAINER	1
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
10	85833935	管材 (15英寸整卷) (裁切至4.5英寸)	TUBING (15.00 Inches Bulk) (Cut to 4-1/2 IN.)	1
10	85833939	软管(17英寸整卷)	HOSE (17.00 Inches Bulk)	1
11	291112	接头	FITTING	1
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
13	83476463	管材 (32英寸整卷) (裁切至18.5英寸)	TUBING (32.00 Inches Bulk) (Cut to 18-1/2 IN.)	1
14	859432	接头	FITTING	1
14	881866	接头	FITTING	1
15	85978568	管材 (44英寸整卷) (裁切至15英寸)(灰色)	TUBING (44.00 Inches Bulk) (Cut to 15 IN.)(GRAY)	1
15	85978571	管材(52英寸整卷)	TUBING (52.00 Inches Bulk)	1
16	859431	接头	FITTING	1
16	8M0207782	直通接头	FITTING Straight	1
17	881879A7	传感器套件(0-50 PSI)(棕褐色)	SENSOR KIT (0-50 PSI) (TAN)	1
17	8M0157742	水压传感器	SENSOR Water Pressure	1
18	858954	卡箍(0.625英寸)	CLIP (.625)	1
19	875207	三通接头	TEE Fitting	1
20	85978568	管材 (44英寸整卷) (裁切至44英寸)(灰色)	TUBING (44.00 Inches Bulk) (Cut to 44 IN.)(GRAY)	1
20	85978571	管材(52英寸整卷)	TUBING (52.00 Inches Bulk)	1
21	859747	联轴器	COUPLER	1
21	8M0214971	耦合接头 (4 MM)	COUPLER Fitting (4 MM)	1
22	859732	堵头	PLUG	1
23	859731	适配管接头	FITTING Adapter	1
23	8M0214970	接头	FITTING	1
24	85978568	管材 (44英寸整卷) (裁切至5英寸)(灰色)	TUBING (44.00 Inches Bulk) (Cut to 5 IN.)(GRAY)	1
24	85978571	管材(52英寸整卷)	TUBING (52.00 Inches Bulk)	1
25	858459	接头	FITTING	1
26	77653101	软管 (48英寸整卷) (裁切至23.5英寸)	HOSE (48.00 Inches Bulk) (Cut to 23-1/2 IN.)	1
27	8276021	成型软管	MOLDED HOSE	1
27	8M0114859	软管	HOSE	1
27	77653101	软管 (48英寸整卷) (裁切至5英寸)	HOSE (48.00 Inches Bulk) (Cut to 5 IN.)	1
28	77653101	软管 (48英寸整卷) (裁切至17.5英寸)	HOSE (48.00 Inches Bulk) (Cut to 17-1/2 IN.)	1
-	883201A01	动力头总成	POWERHEAD ASSEMBLY	1

图 64齿轮箱螺旋桨轴-标准-Sportmaster Gear Housing Propeller Shaft-Standard-Sportmaster

REF	零件编号	中文名称	英文名称	数量
1	831998A9	空气压缩机总成(参见空气压缩机部件分解图)	COMPRESSOR ASSEMBLY Air (SEE BREAKDOWN ON AIR COMPRESSOR COMPONENTS)	1
2	85593912	螺钉（M6 x 12）	SCREW (M6 x 12)	5
3	8328231	滑轮	PULLEY	1
3	8M0175171	滑轮	PULLEY	1
4	4010825	螺丝(M10 x 25)六角法兰-不锈钢	SCREW (M10 x 25) Hex Flange - Stainless Steel	2
5	8502511	软管	HOSE	1
5	8502512	软管	HOSE	1
6	85652329	绝缘套管(15英寸)	INSULATOR SLEEVE (15 IN.)	1
7	852379T5	燃油导轨	FUEL RAIL	1
7	852379T6	燃油导轨	FUEL RAIL	1
8	8500653	喷油器	INJECTOR	6
8	8M6001743	空气喷射器总成	INJECTOR ASSEMBLY Air	6
9	855697	卡箍(16.2)	CLAMP (16.2)	4
9	8M0204696	卡箍	CLAMP	4
10	85564361	软管(16英寸)	HOSE (16 IN.)	2
11	92345	螺柱	STUD	1
12	854640	特殊垫圈	WASHER Special	2
13	35814	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
13	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
14	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
14	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
15	852378T5	燃油导轨	FUEL RAIL	1
15	852378T6	燃油导轨	FUEL RAIL	1
16	830756109	软管(57.00英寸整料)(裁切至22-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 22-1/2 Inches)	1
16	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
17	826810	止回阀	CHECK VALVE	1
18	83075780	管材(28英寸整卷)(裁切为2-1/2英寸)	TUBING (28.00 Inches Bulk) (Cut to 2-1/2 Inches)	1
18	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
19	83476463	管材(32英寸整卷)(裁切为28-1/2英寸)	TUBING (32.00 Inches Bulk) (Cut to 28-1/2 Inches)	1
20	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	2
20	8M0214964	卡箍	CLAMP	2
21	85606064	管材(36英寸整卷)(28-1/2英寸)	TUBING (36.00 Inches Bulk) (28-1/2 IN.)	1
21	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
22	82104510	螺钉 (M5 x 10)	SCREW (M5 x 10)	4
23	46997	卡箍	CLAMP	4
24	852961	螺柱	STUD	4
24	8M0063255	双头螺栓M10x92	STUD M10x92	4
25	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	4
26	NSS	不单独销售软管(30英寸)	NOT SOLD SEPARATE Hose (30 IN.)	1
26	856822A3	软管(30英寸)	HOSE (30 IN.)	1
27	8558481	软管	HOSE	1
27	855848A1	软管	HOSE	1
28	828694A1	杯形垫片总成	WASHER ASSEMBLY Cupped	6
29	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	4
29	8M0214964	卡箍	CLAMP	4
30	85686953	套管(27英寸整卷)(裁切为18英寸)	SLEEVE (27.00 Inches Bulk) (Cut to 18 Inches)	1

图 65配平泵及安装支架 Trim Pump and Mounting Brackets

REF	零件编号	中文名称	英文名称	数量
1	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	2
2	89772	连接器(.125-27)	CONNECTOR (.125-27)	1
3	29085	45度弯管接头	FITTING Elbow (45 Degree)	1
3	8M0123050	45度弯管接头	FITTING Elbow (45 Degree)	1
4	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
5	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
6	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
7	85833935	管材 (15英寸整卷) (裁切至7英寸)	TUBING (15.00 Inches Bulk) (Cut to 7 IN.)	1
7	85833939	软管(17英寸整卷)	HOSE (17.00 Inches Bulk)	1
8	8348084	滤网	STRAINER	1
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
10	85833935	管材 (15英寸整卷) (裁切至4.5英寸)	TUBING (15.00 Inches Bulk) (Cut to 4-1/2 IN.)	1
10	85833939	软管(17英寸整卷)	HOSE (17.00 Inches Bulk)	1
11	291112	接头	FITTING	1
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
13	83476463	管材 (32英寸整卷) (裁切至18.5英寸)	TUBING (32.00 Inches Bulk) (Cut to 18-1/2 IN.)	1
14	859432	接头	FITTING	1
14	881866	接头	FITTING	1
15	85978568	管材 (44英寸整卷) (裁切至15英寸)(灰色)	TUBING (44.00 Inches Bulk) (Cut to 15 IN.)(GRAY)	1
15	85978571	管材(52英寸整卷)	TUBING (52.00 Inches Bulk)	1
16	859431	接头	FITTING	1
16	8M0207782	直通接头	FITTING Straight	1
17	881879A7	传感器套件(0-50 PSI)(棕褐色)	SENSOR KIT (0-50 PSI) (TAN)	1
17	8M0157742	水压传感器	SENSOR Water Pressure	1
18	858954	卡箍(0.625英寸)	CLIP (.625)	1
19	875207	三通接头	TEE Fitting	1
20	85978568	管材 (44英寸整卷) (裁切至44英寸)(灰色)	TUBING (44.00 Inches Bulk) (Cut to 44 IN.)(GRAY)	1
20	85978571	管材(52英寸整卷)	TUBING (52.00 Inches Bulk)	1
21	859747	联轴器	COUPLER	1
21	8M0214971	耦合接头 (4 MM)	COUPLER Fitting (4 MM)	1
22	859732	堵头	PLUG	1
23	859731	适配管接头	FITTING Adapter	1
23	8M0214970	接头	FITTING	1
24	85978568	管材 (44英寸整卷) (裁切至5英寸)(灰色)	TUBING (44.00 Inches Bulk) (Cut to 5 IN.)(GRAY)	1
24	85978571	管材(52英寸整卷)	TUBING (52.00 Inches Bulk)	1
25	858459	接头	FITTING	1
26	77653101	软管 (48英寸整卷) (裁切至23.5英寸)	HOSE (48.00 Inches Bulk) (Cut to 23-1/2 IN.)	1
27	8276021	成型软管	MOLDED HOSE	1
27	8M0114859	软管	HOSE	1
27	77653101	软管 (48英寸整卷) (裁切至5英寸)	HOSE (48.00 Inches Bulk) (Cut to 5 IN.)	1
28	77653101	软管 (48英寸整卷) (裁切至17.5英寸)	HOSE (48.00 Inches Bulk) (Cut to 17-1/2 IN.)	1
-	883201A01	动力头总成	POWERHEAD ASSEMBLY	1

图 66服务/支持材料 SERVICE/SUPPORT MATERIAL

REF	零件编号	中文名称	英文名称	数量
-	896280006	零件手册200/225/250/275四冲程Verado	PARTS MANUAL 200/225/250/275 4-Stroke Verado	1
-	896579T00	维修手册	SERVICE MANUAL	1
-	8M0082470	MNL-SERV 200-300V	MNL-SERV 200-300V	1
-	10238060	安装手册	INSTALLATION MANUAL	1
-	10237060	用户手册	OWNERS MANUAL	1
-	10237J60	用户手册(西班牙语)	OWNERS MANUAL Spanish	1
-	10237D60	用户手册(法语)	OWNERS MANUAL French	1
-	895269001	产品指南	PRODUCT GUIDE	1
-	895269002	产品指南	GUIDE-PRODUCT	1
-	895282A06	EPA标签信息贴花	DECAL EPA Label Information	1

图 67油门杆与换挡轴 THROTTLE LEVER AND SHIFT SHAFT

REF	零件编号	中文名称	英文名称	数量
1	850389	杠杆	LEVER	1
2	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
3	55164	衬套	BUSHING	1
4	74759	垫圈(0.391x0.880x0.125)不锈钢	WASHER (.391 x .880 x .125) Stainless Steel	1
5	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	1
6	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
7	64015	螺母 (.250-20)	NUT (.250-20)	1
8	26852	尼龙帽	CAP Nylon	1
9	42927	嵌件	INSERT	1
10	35459	垫圈	WASHER	1
11	8268336	螺母 (M6)	NUT (M6)	1
11	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
12	8503931	凸轮	CAM	1
12	856221A1	凸轮套件	CAM KIT	1
13	852970	衬套	BUSHING	1
14	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	1
15	932481	衬套	BUSHING	2
15	8M0215006	旋转衬套	BUSHING Swivel	2
16	8235694	螺纹球头	BALL Threaded	1
17	850815	连接杆	LINK	1
17	8508152	杆	ROD	1
18	67748	滚轮	ROLLER	1
19	850286	油门滚轮	ROLLER Throttle	1
19	8502861	杠杆	LEVER	1
20	40056107	螺钉(M5×16)	SCREW (M5 x 16)	1
21	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	1
22	69432	外锁紧垫圈(#10)	LOCKWASHER External (#10)	1
23	8142831	锚支架	BRACKET Anchor	1
23	814283T6	锚支架总成	BRACKET ASSEMBLY Anchor	1
24	98889	闩锁	LATCH	1
25	42975	传动螺钉	DRIVE SCREW	2
26	39519	杯套	CUP	1
27	52100	耐磨板	WEAR PLATE	1
28	38279	闩锁	LATCH	1
28	8M0036768	闩锁	LATCH	1
29	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
30	35045	螺母(.250-28)	NUT (.250-28)	1
30	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
31	28782	螺钉(.312-18 x .880)不锈钢	SCREW (.312-18 x .880) Stainless Steel	3
32	814284	导向块	GUIDE BLOCK	1
33	20099	弹簧	SPRING	1
34	67073A1	连杆总成	LINK ROD ASSEMBLY	1
35	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
35	79932A17	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
36	NSS	弹性销(不单独销售)	NOT SOLD SEPARATE Roll Pin	1
37	NSS	不单独销售-换挡轴上杆	NOT SOLD SEPARATE Shift Shaft Lever-Upper	1
38	26856	衬套	BUSHING	1
39	29720	波形垫圈	WAVE WASHER	1
40	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
41	35045	螺母(.250-28)	NUT (.250-28)	1
41	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
42	814281A2	开关	SWITCH	1
42	8M0052931	开关	SWITCH	1
43	77478	螺钉 (#6-32 x .875)	SCREW (#6-32 x .875)	2
44	27882	垫圈	WASHER	2

图 68空气处理器 AIR HANDLER

REF	零件编号	中文名称	英文名称	数量
1	827325A1	盖总成	COVER ASSEMBLY	1
2	821555	护孔环	GROMMET	2
2	8M0153609	护孔环	GROMMET	2
3	853333	空气滤清器	FILTER Air	1
3	853333T	滤清器	FILTER	1
4	853352	盖板	COVER	1
5	855590	铆钉	RIVET	1
6	854633	固定座	RETAINER	1
7	64705	接头	FITTING	1
8	855613	护孔环	GROMMET	1
9	8556131	护孔环	GROMMET	1
10	855633A4	空气处理器总成	AIR HANDLER ASSEMBLY	1
10	855633A15	空气处理器总成	AIR HANDLER ASSEMBLY	1
11	856139	垫片	SHIM	1
11	8561391	垫片	SHIM	1
12	NSS	不单独销售(挂档启动警告标贴)	NOT SOLD SEPARATE Decal-Caution-Start in Gear	1
13	8557561	支架	BRACKET	1
13	855756A1	支架套件	BRACKET KIT	1
14	1993716	螺钉(M6 x 16)	SCREW (M6 x 16)	4
15	8558432	泵总成	PUMP ASSEMBLY	1
15	8M0240950	燃油泵总成	PUMP ASSY FUEL	1
16	13791	卡箍(15.7)	CLAMP (15.7)	4
16	8M0214911	卡箍@5	CLAMP @5	4
17	1350385	管材(33.00英寸整料)(5-1/2英寸)	TUBING (33.00 Inches Bulk) (5-1/2 IN.)	1
18	85564361	软管(18英寸)	HOSE (18 IN.)	1
19	83312531	绝缘套管	INSULATING SLEEVE	1
20	855802	弯头	ELBOW	1
20	855802A1	弯头	ELBOW	1
21	805026A1	接头	FITTING	1
22	805062	O型圈（.530 x .082）	O-RING (.530 x .082)	1
23	8554247	接头	FITTING	1
24	8285581	编码器	ENCODER	1
25	418051	螺钉 (#10-24 x 0.620)	SCREW (#10-24 x .620)	1
26	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
26	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
27	97224	J型卡箍(右舷上部)	J CLIP (UPPER STBD.)	2
28	814634	卡箍(下部)	CLAMP (LOWER)	1
29	817504	螺钉（0.250-20 x 1.500）不锈钢	SCREW (.250-20 x 1.500) Stainless Steel	12
30	830756109	软管(57.00英寸整料)(裁切至1-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 1-1/2 Inches)	1
30	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
31	830756109	软管(57.00英寸整料)(裁切至5英寸)	HOSE (57.00 Inches Bulk) (Cut to 5 Inches)	1
31	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
32	855896	通风罐	CANISTER Vent	1
32	855896T	滤清器	FILTER	1
33	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
33	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
34	860273	连接器	CONNECTOR	1
35	821583	销	PIN	1
35	8215832	特殊销（1.5英寸）	PIN Special (1.5 Inches)	1
36	85557726	EPA标签信息贴花	DECAL EPA Label Information	1
36	855577A26	REF SOB 09-18	REF SOB 09-18	1
37	61990	扎带(14.00英寸)	TIE STRAP (14.00 Inches)	1
38	88807A27	拉线总成	CABLE ASSEMBLY	1
39	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
39	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
40	12038	垫圈	WASHER	1
40	8M0207778	垫圈（0.344×0.625×0.063英寸）	WASHER .344 x .625 x.063	1
-	854008A98	动力头总成	POWERHEAD ASSEMBLY	1
-	804545T99	动力头总成	POWERHEAD ASSEMBLY	1

图 69艉板支架(短型) Transom Brackets (Short)

REF	零件编号	中文名称	英文名称	数量
1	847800A1	艉板支架总成	BRACKET ASSEMBLY Transom	1
1	844353T01	艉板套件	TRANSOM KIT	1
2	847801A1	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	847801T01	艉板支架-右舷	BRACKET Transom - Starboard	1
3	847798A1	耐磨垫套件	WEAR PAD KIT	1
3	847798A02	耐磨垫套件	WEAR PAD KIT	1
4	86843	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	4
5	87180	螺栓(0.500-20 x 11.00)	BOLT (.500-20 x 11.00)	1
6	88512	卡箍	CLAMP	4
6	75275	卡箍	CLAMP	2
7	88829	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	6
8	858869	螺母 (.875-14)	NUT (.875-14)	1
8	859133	螺母(1.00-14)	NUT (1.00-14)	1
8	82671327	螺母(1.0-14)	NUT (1.0-14)	1
9	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
10	99170A2	倾斜管套件	TUBE KIT Tilt	1
10	826125A1	倾斜管	TILT TUBE	1
11	85035T	隔套	SPACER	1
11	8M0237541	艉板隔套	SPACER Transom	1
12	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
12	8M0149747	螺钉	SCREW	4
13	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
13	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
14	82671117	螺母(.500-20)	NUT (.500-20)	4
15	82671317	螺母(.500-20)	NUT (.500-20)	1
16	70732	螺钉 (.250-20 x 2.00)	SCREW (.250-20 x 2.00)	4
17	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
17	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
18	85026T	安装板	PLATE	2
19	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
20	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
20	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
21	54343	螺柱（.312-24 x 1.380）	STUD (.312-24 x 1.380)	4
21	8M0034451	螺柱	STUD	4
22	89949A1	隔板总成	PLATE ASSEMBLY	1
23	847539	垫圈	WASHER	4
24	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	4
25	89024	液压软管	HOSE Hydraulic	1
25	89023	液压软管	HOSE Hydaulic	1
26	96993	液压软管	HOSE Hydraulic	1
26	96994	液压软管	HOSE Hydraulic	1
27	87871	盖板	COVER	1
27	87871T	盖板	COVER	1
28	45507	护孔环	GROMMET	1
29	32866	螺钉 (#10-32 x 2.00) 不锈钢	SCREW (#10-32 x 2.00) Stainless Steel	4
30	87775	衬垫	GASKET	1
31	20878	垫圈	WASHER	4
32	29488	螺母 (#10-32)	NUT (#10-32)	4
32	8M0204718	螺母	NUT	4
33	79610T29	配平油缸	TRIM CYLINDER	1
33	79610A33	配平油缸套件	TRIM CYLINDER KIT	1
33	79610A21	配平油缸	TRIM CYLINDER	1
33	79610T29	配平油缸	TRIM CYLINDER	1
34	847724	衬套	BUSHING	2
35	841223	轴承	BEARING	1
36	30316	弹簧	SPRING	2
37	85020T	枢轴销	PIN Pivot	2
38	841199	调整销	PIN Trim	1
38	8220752	调整销	PIN Trim	1
39	822076	固定座	RETAINER	1
40	82671317	螺母(.500-20)	NUT (.500-20)	1
41	8071791	紧定螺钉（.250-20 x .820）	SET SCREW (.250-20 x .820)	1
42	85022	垫圈(2.00 x 1.06 x 0.060)	WASHER (2.00 x 1.06 x .060)	2
43	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
44	54012	垫圈(0.530×0.870×0.105不锈钢)	WASHER (.530 x .870 x .105) Stainless Steel	4
44	8M0204665	垫圈(0.530×0.880×0.104 630不锈钢)	WASHER (.530 x .880 x .104) 630 Stainless Steel	4
-	79879A1		REPAIR KIT (FOR TRIM CYLINDERS)	1

图 70齿轮箱螺旋桨轴-Torque Master Gear Housing Propeller Shaft - Torque Master

REF	零件编号	中文名称	英文名称	数量
1	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	2
2	89772	连接器(.125-27)	CONNECTOR (.125-27)	1
3	29085	45度弯管接头	FITTING Elbow (45 Degree)	1
3	8M0123050	45度弯管接头	FITTING Elbow (45 Degree)	1
4	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
5	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
6	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
7	85833935	管材 (15英寸整卷) (裁切至7英寸)	TUBING (15.00 Inches Bulk) (Cut to 7 IN.)	1
7	85833939	软管(17英寸整卷)	HOSE (17.00 Inches Bulk)	1
8	8348084	滤网	STRAINER	1
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
10	85833935	管材 (15英寸整卷) (裁切至4.5英寸)	TUBING (15.00 Inches Bulk) (Cut to 4-1/2 IN.)	1
10	85833939	软管(17英寸整卷)	HOSE (17.00 Inches Bulk)	1
11	291112	接头	FITTING	1
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
13	83476463	管材 (32英寸整卷) (裁切至18.5英寸)	TUBING (32.00 Inches Bulk) (Cut to 18-1/2 IN.)	1
14	859432	接头	FITTING	1
14	881866	接头	FITTING	1
15	85978568	管材 (44英寸整卷) (裁切至15英寸)(灰色)	TUBING (44.00 Inches Bulk) (Cut to 15 IN.)(GRAY)	1
15	85978571	管材(52英寸整卷)	TUBING (52.00 Inches Bulk)	1
16	859431	接头	FITTING	1
16	8M0207782	直通接头	FITTING Straight	1
17	881879A7	传感器套件(0-50 PSI)(棕褐色)	SENSOR KIT (0-50 PSI) (TAN)	1
17	8M0157742	水压传感器	SENSOR Water Pressure	1
18	858954	卡箍(0.625英寸)	CLIP (.625)	1
19	875207	三通接头	TEE Fitting	1
20	85978568	管材 (44英寸整卷) (裁切至44英寸)(灰色)	TUBING (44.00 Inches Bulk) (Cut to 44 IN.)(GRAY)	1
20	85978571	管材(52英寸整卷)	TUBING (52.00 Inches Bulk)	1
21	859747	联轴器	COUPLER	1
21	8M0214971	耦合接头 (4 MM)	COUPLER Fitting (4 MM)	1
22	859732	堵头	PLUG	1
23	859731	适配管接头	FITTING Adapter	1
23	8M0214970	接头	FITTING	1
24	85978568	管材 (44英寸整卷) (裁切至5英寸)(灰色)	TUBING (44.00 Inches Bulk) (Cut to 5 IN.)(GRAY)	1
24	85978571	管材(52英寸整卷)	TUBING (52.00 Inches Bulk)	1
25	858459	接头	FITTING	1
26	77653101	软管 (48英寸整卷) (裁切至23.5英寸)	HOSE (48.00 Inches Bulk) (Cut to 23-1/2 IN.)	1
27	8276021	成型软管	MOLDED HOSE	1
27	8M0114859	软管	HOSE	1
27	77653101	软管 (48英寸整卷) (裁切至5英寸)	HOSE (48.00 Inches Bulk) (Cut to 5 IN.)	1
28	77653101	软管 (48英寸整卷) (裁切至17.5英寸)	HOSE (48.00 Inches Bulk) (Cut to 17-1/2 IN.)	1
-	883201A01	动力头总成	POWERHEAD ASSEMBLY	1

图 71液压泵总成 HYDRAULIC PUMP ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
-	846859A1	液压泵总成	PUMP ASSEMBLY Hydraulic	1
1	811491	适配器	ADAPTER	1
1	8M0084543	适配器	ADAPTER	1
2	803852	联轴器	COUPLING	1
3	89498	O型圈	O-RING	1
4	811492T	泵总成(含螺钉)	PUMP ASSEMBLY (INCLUDES SCREWS)	1
5	89496	滤清器	FILTER	2
6	89497	O型圈	O-RING	1
7	41219T	储液罐	RESERVOIR	1
8	811493	螺钉套件	SCREW KIT	1
-	17649T	电机总成	MOTOR ASSEMBLY	1
-	891736T	电机总成	MOTOR ASSEMBLY	1
-	891736T	电机总成	MOTOR ASSEMBLY	1
9	17632T	端盖总成	END CAP ASSEMBLY	1
9	891736T	电机总成	MOTOR ASSEMBLY	1
9	NSS		NOT SOLD SEPARATE END FRAME	1
10	17626	螺钉	SCREW	4
10	891736T	电机总成	MOTOR ASSEMBLY	4
10	891741	螺钉	SCREW	4
11	17625	O型圈	O-RING	1
11	891736T	电机总成	MOTOR ASSEMBLY	1
11	891740	O型圈	O-RING	1
12	17621	螺钉	SCREW	2
12	891736T	电机总成	MOTOR ASSEMBLY	2
12	891739	螺钉	SCREW	2
13	17633	支架套件	HOLDER KIT	1
13	891736T	电机总成	MOTOR ASSEMBLY	1
13	891738	支架总成	HOLDER ASSEMBLY	1
14	17631A1	电刷套件	BRUSH KIT	1
14	891736T	电机总成	MOTOR ASSEMBLY	1
14	891737	电刷套件	BRUSH KIT	1
15	17623	电枢	ARMATURE	1
15	891736T	电机总成	MOTOR ASSEMBLY	1
15	NSS		NOT SOLD SEPARATE ARMATURE	1
16	17653	垫圈	WASHER	2
16	891736T	电机总成	MOTOR ASSEMBLY	2
16	NSS	止推垫片(不单独销售)	NOT SOLD SEPARATE THRUST WASHET	2
17	17624	磁场框架总成	FIELD AND FRAME ASSEMBLY	1
17	891736T	电机总成	MOTOR ASSEMBLY	1
17	NSS	磁场与框架(不单独销售)	NOT SOLD SEPARATE FIELD AND FRAME	1
18	17622	盖总成	COVER ASSEMBLY	1
18	891736T	电机总成	MOTOR ASSEMBLY	1
18	NSS	壳体(不单独销售)	NOT SOLD SEPARATE HOUSING	1
-	812498A1	安全阀套件	VALVE KIT Relief	1

图 72排气板 Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	190506	衬垫	GASKET	1
2	828343A4	排气分隔板套件	PLATE KIT Exhaust Divider	1
2	828343A05	排气分隔板总成	PLATE ASSEMBLY Exhaust Divider	1
3	814754	密封件(12.50英寸)	SEAL (12.50 Inches)	1
4	8263561	螺钉带垫圈(.312-18 x 1.500)	SCREW AND WASHER (.312-18 x 1.500)	17
5	881190	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	2
6	687291	盖板	COVER	1
6	8M0039767	盖板	COVER	1
7	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
8	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
9	76451	垫圈	WASHER	1
10	144791	隔膜	DIAPHRAGM	1
11	16496	导水板	DEFLECTOR Water	1
12	16497A1	安装板	PLATE	1
13	78690	衬垫	GASKET	2
13	78690002	衬垫	GASKET	2
14	42996	不锈钢弹簧	SPRING (Stainless Steel)	1
15	14480	提动阀	POPPET	1
16	64872	护孔环	GROMMET	1
17	65848	托架	CARRIER	1
18	8231422	衬垫	GASKET	1
19	850814T2	排气板	PLATE Exhaust	1
20	27132	衬套	BUSHING	1
21	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
22	68783	螺钉(.312-18×2.50)	SCREW (.312-18 x 2.50)	1
23	66725	螺钉(.375-16×3.50)	SCREW (.375-16 x 3.50)	3
23	898833	螺钉(.375-16 x 3.500)	SCREW (.375-16 x 3.500)	3
24	183076	衬垫	GASKET	1
25	18233A8	传动轴壳体板总成	PLATE ASSEMBLY Driveshaft Housing	1
25	18233A20	传动轴壳体板总成	PLATE ASSEMBLY Driveshaft Housing	1
26	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	6
27	782461	衬垫	GASKET	1
28	419424	排气管延长段	EXTENSION Exhaust	1
28	879288T71	排气管延长段	EXTENSION Exhaust	1
29	672951	水管	TUBE Water	1
29	8590971	水管	TUBE Water	1
29	8M0042788	长型水管	TUBE-WATER-LONG	1
30	43044	定位销-无孔型 (0.375x0.625) 板至驱动轴壳体	PIN Dowel - Without Hole (.375 x .625) Plate to Driveshaft Housing	2
31	38970	密封件	SEAL	1
32	823106	定位销 (0.875) 板至动力头	PIN Dowel (.875) Plate to Powerhead	2
32	8M0043826	定位销	PIN Dowel	2
33	817717T7	排气延长板	PLATE Extension - Exhaust	1
33	817717A7	排气延长板总成	PLATE ASSEMBLY Exhaust Extension	1
34	58893	双头螺柱 (0.250-28x1.310)	STUD (.250-28 x 1.310)	6
34	8M0030694	螺钉(0.25-20×1.00)	SCREW (0.25-20 x 1.00)	6
35	20533	垫圈	WASHER	6
36	30506	螺母(.250-28)	NUT (.250-28)	6
37	44260	固定座	RETAINER	1
38	28635	不锈钢螺丝(.250-20 x .620)	SCREW (.250-20 x .620) Stainless Steel	1
39	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
40	91903	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	3
41	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	3
42	428611	管接头-黄铜(.750-14)	FITTING Pipe - Brass (.750-14)	1
42	8M0204679	管接头-黄铜(.750-14)	FITTING Pipe - Brass (.750-14)	1
43	883048	堵头(.500-14)	PLUG (.500-14)	1
44	36382	管接头（0.250-18×0.62）黄铜	FITTING (.250-18 x .62) Brass	1
-	881805A01	发动机垫片组	GASKET SET Engine	1
-	883201A01	动力头总成	POWERHEAD ASSEMBLY	1

图 73艉板支架(短型) TRANSOM BRACKETS (SHORT)

REF	零件编号	中文名称	英文名称	数量
1	847800A1	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	847801A1	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	847801T01	艉板支架-右舷	BRACKET Transom - Starboard	1
3	847798A1	耐磨垫套件	WEAR PAD KIT	1
3	847798A02	耐磨垫套件	WEAR PAD KIT	1
4	86843	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	4
5	87180	螺栓(0.500-20 x 11.00)	BOLT (.500-20 x 11.00)	1
6	88512	卡箍	CLAMP	4
6	75275	卡箍	CLAMP	2
7	88829	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	6
8	858869	螺母 (.875-14)	NUT (.875-14)	1
8	859133	螺母(1.00-14)	NUT (1.00-14)	1
8	82671327	螺母(1.0-14)	NUT (1.0-14)	1
9	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
10	99170A2	倾斜管套件	TUBE KIT Tilt	1
10	826125A1	倾斜管	TILT TUBE	1
11	85035T	隔套	SPACER	1
11	8M0237541	艉板隔套	SPACER Transom	1
12	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
12	8M0149747	螺钉	SCREW	4
13	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
13	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
14	82671117	螺母(.500-20)	NUT (.500-20)	4
15	82671317	螺母(.500-20)	NUT (.500-20)	1
16	70732	螺钉 (.250-20 x 2.00)	SCREW (.250-20 x 2.00)	4
17	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
17	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
18	85026T	安装板	PLATE	2
19	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
20	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
20	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
21	54343	螺柱（.312-24 x 1.380）	STUD (.312-24 x 1.380)	4
21	8M0034451	螺柱	STUD	4
22	89949A1	隔板总成	PLATE ASSEMBLY	1
23	847539	垫圈	WASHER	4
24	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	4
25	89024	液压软管	HOSE Hydraulic	1
25	89023	液压软管	HOSE Hydaulic	1
26	96993	液压软管	HOSE Hydraulic	1
26	96994	液压软管	HOSE Hydraulic	1
27	87871	盖板	COVER	1
27	87871T	盖板	COVER	1
28	45507	护孔环	GROMMET	1
29	32866	螺钉 (#10-32 x 2.00) 不锈钢	SCREW (#10-32 x 2.00) Stainless Steel	4
30	87775	衬垫	GASKET	1
31	20878	垫圈	WASHER	4
32	29488	螺母 (#10-32)	NUT (#10-32)	4
32	8M0204718	螺母	NUT	4
33	79610T29	配平油缸	TRIM CYLINDER	1
33	79610A33	配平油缸套件	TRIM CYLINDER KIT	1
33	79610A21	配平油缸	TRIM CYLINDER	1
33	79610T29	配平油缸	TRIM CYLINDER	1
34	847724	衬套	BUSHING	2
35	841223	轴承	BEARING	1
36	30316	弹簧	SPRING	2
37	85020T	枢轴销	PIN Pivot	2
38	841199	调整销	PIN Trim	1
38	8220752	调整销	PIN Trim	1
39	822076	固定座	RETAINER	1
40	82671317	螺母(.500-20)	NUT (.500-20)	1
41	8071791	紧定螺钉（.250-20 x .820）	SET SCREW (.250-20 x .820)	1
42	85022	垫圈(2.00 x 1.06 x 0.060)	WASHER (2.00 x 1.06 x .060)	2
43	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
44	54012	垫圈(0.530×0.870×0.105不锈钢)	WASHER (.530 x .870 x .105) Stainless Steel	4
44	8M0204665	垫圈(0.530×0.880×0.104 630不锈钢)	WASHER (.530 x .880 x .104) 630 Stainless Steel	4
-	79879A1		REPAIR KIT (FOR TRIM CYLINDERS)	1

图 74液压泵与安装支架 HYDRAULIC PUMP AND MOUNTING BRACKETS

REF	零件编号	中文名称	英文名称	数量
-	846859A4	液压泵总成(完整)	PUMP ASSEMBLY Hydraulic (COMPLETE)	1
1	846859A1	液压泵总成	PUMP ASSEMBLY Hydraulic	1
1	8M0051203	配平泵总成	PUMP ASSY-TRIM	1
2	818567	支架	BRACKET	1
3	38837	螺钉(.312-18×1.12)	SCREW (.312-18 x 1.12)	1
4	57792	垫圈	WASHER	2
5	34948	隔套	SPACER	1
6	65999A12	接地线总成	CABLE ASSEMBLY Ground	1
7	79138A9	电缆总成(6英尺)黑色负极	CABLE ASSEMBLY (6.00 Feet) Black-Negative (NEGATIVE)	1
8	92051	螺钉（10-16 x 0.75）	SCREW (10-16 x .75)	2
9	79147A5	线束总成	HARNESS ASSEMBLY	1
10	79091	保险丝20安培	FUSE 20 Ampere	1
10	8M0207796	保险丝20安培	FUSE 20 AMP	1
11	88075	固定座	RETAINER	1
12	853654A1	电磁阀	SOLENOID	2
13	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	4
14	20110	螺母 (#10-32)	NUT (#10-32)	4
15	859119	螺母(5/16-18)	NUT (5/16-18)	4
15	8M0204646	螺母(.312-18)	NUT (.312-18)	4
16	79023A10	保险丝总成110安培	FUSE ASSEMBLY 110 Ampere	1
16	79023T10	保险丝总成110安培	FUSE ASSEMBLY 110 Ampere	1
17	96457	酚醛垫圈(.27×.81×.062)	WASHER Phenolic (.27 x .81 x .062)	1
18	21825	螺母(.250-28)	NUT (.250-28)	1
19	65999A11	拉线总成	CABLE ASSEMBLY	1
20	79139A12	电缆总成红色正极	CABLE ASSEMBLY Red-Positive (POSITIVE)	1
21	46265	护套	BOOT	5
22	22753	垫圈	WASHER	4
23	79139A26	电缆总成(红色)	CABLE ASSEMBLY Red	1
24	87760T	安装板	MOUNTING PLATE	1
25	39349	螺钉(.312-18×0.75)不锈钢	SCREW (.312-18 x .750) Stainless Steel	1
26	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
26	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
27	90271	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	2
28	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
29	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	4
29	8M0214963	垫圈	WASHER	4
30	87762	支架	BRACKET	1
31	63826	螺钉(.375-16 x 2.50)	SCREW (.375-16 x 2.50)	2
32	82670912	螺母(.375-16)不锈钢	NUT (.375-16) Stainless Steel	2
33	818200	接头	FITTING	1
34	77366	接头	FITTING	2
35	95084A18	保险丝线束总成	CABLE ASSEMBLY Fuse	1
36	65017A14	线束总成	HARNESS ASSEMBLY	1
37	848017T4	升降线束总成	HARNESS ASSEMBLY Trim	1

图 75动力升降组件（金属马达壳体） POWER TRIM COMPONENTS Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	826729A2	升降倾斜总成	TRIM AND TILT ASSEMBLY	1
1	811604F	歧管总成	MANIFOLD ASSEMBLY	1
2	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	9
3	823552F	气缸总成	CYLINDER ASSEMBLY	1
3	880952A03	ORD 8M0078330	ORD 8M0078330	1
4	823553	配平活塞杆套件	ROD KIT Trim Piston	1
4	823553T	升降活塞杆	ROD Trim Piston	1
5	811606	导向套件	GUIDE KIT	1
5	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
6	811607A1	维修套件	REPAIR KIT	1
7	811610A1	止回阀套件	CHECK VALVE KIT	1
7	823553T	升降活塞杆	ROD Trim Piston	1
8	99638A1	导向器总成	GUIDE ASSEMBLY	2
8	8M0021648	端盖总成	END CAP ASSEMBLY	2
9	43397A6	动力升降倾斜装置活塞/杆总成	PISTON/ROD ASSEMBLY Power Trim	1
9	878413A1	活塞总成	PISTON ASSEMBLY	1
9	43398A3	动力升降倾斜装置活塞/杆总成	PISTON/ROD ASSEMBLY Power Trim	1
9	878414T01	活塞总成	PISTON ASSEMBLY	1
10	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
11	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
11	893929A01	安全阀套件	VALVE KIT Relief	1
12	812844	E型卡环	E RING	1
12	815949001	E形环	E-RING	1
13	811612A2	O型圈套件	O-RING KIT	1
13	811612A3	O型圈套件	O-RING KIT	1
14	811617F	泵	PUMP	1
14	811617T1	泵	PUMP	1
15	811613	塞子总成	PLUG ASSEMBLY	1
16	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
17	43450	垫圈	WASHER	4
17	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
18	811611	盖板	COVER	1
19	828710	驱动接头	DRIVE JOINT	1
20	828708	电机总成	MOTOR ASSEMBLY	1
20	878265A4	配平电机	TRIM MOTOR	1
21	828709	螺钉 (长)	SCREW (LONG)	2
21	881768A1	螺钉/垫圈套件	SCREW/WASHER KIT	2
21	811616	螺钉 (短)	SCREW (SHORT)	2
22	811614	轴总成	SHAFT ASSEMBLY	1
22	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
23	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
24	44431	槽销	PIN Groove	1
24	878267	销	PIN	1
25	821539	三叶销	PIN Trilobe	1
26	996251	轴	SHAFT	1
26	99625002	轴	SHAFT	1
27	818298A1	阳极套件	ANODE KIT	1
27	818298Q1	阳极套件	ANODE KIT	1
28	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
28	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
29	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
29	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
30	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
31	4002319	垫圈	WASHER	6
32	26550	卡箍	CLAMP	2
33	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
33	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
34	69205	C形垫圈	C WASHER	1
34	8M0084613	C形垫圈	C-WASHER	1
35	996301	冲击板	STRIKER PLATE	2
35	8M0045383	冲击板	STRIKER PLATE	2
36	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
37	46335	螺母 (.375-24)	NUT (.375-24)	2
38	435301	警示贴纸-动力微调	DECAL Caution-Power Trim	1
39	828547353	导管 (.350内径 x 3.00英尺散装)	CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk)	1
40	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
40	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

图 76油管 OIL LINES

REF	零件编号	中文名称	英文名称	数量
1	85606065	管材(38英寸散装)(截断至24英寸)	TUBING (38.00 Inches Bulk) (Cut to 24 IN.)	1
2	85606065	管材(38英寸散装)(截断至18.5英寸)	TUBING (38.00 Inches Bulk) (Cut to 18-1/2 IN.)	1
2	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
3	85606065	管材(38英寸散装)(截断至15.5英寸)	TUBING (38.00 Inches Bulk) (Cut to 15-1/2 IN.)	1
3	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
4	85606065	管材(38英寸散装)(截断至24.5英寸)	TUBING (38.00 Inches Bulk) (Cut to 24-1/2 IN.)	2
4	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	2
5	85606065	管材(38英寸散装)(截断至27英寸)	TUBING (38.00 Inches Bulk) (Cut to 27 IN.)	1
5	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
6	858805	止回阀	CHECK VALVE	6
7	69355	扎带(5.50英寸)	TIE STRAP (5.50 Inches)	AR
7	8M0214940	扎带	TIE STRAP	AR
8	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
9	82381455	管材(25英寸散装)(截断至24英寸)	TUBING (25.00 Inches Bulk) (Cut to 24 IN.)	1
10	85583463	管材(33英寸散装)(截断至32英寸)	TUBING (33.00 Inches Bulk) (Cut to 32 IN.)	1
10	85583464	管材 (34.00英寸整卷)	TUBING (34.00 Inches Bulk)	1
11	8781051	止回阀	CHECK VALVE	1
12	424254	接头	FITTING	1
12	8M0207780	接头	FITTING	1
13	830756109	软管(57英寸散装)(截断至6英寸)	HOSE (57.00 Inches Bulk) (Cut to 6 IN.)	1
13	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
14	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	2
15	875289	软管	HOSE	1
16	858955	连接器	CONNECTOR	2
17	875284	管路过滤器	FILTER In Line	1
17	875284T01	滤清器-机油在线式	FILTER Oil - In Line	1
18	875283	软管(2.00英寸)	HOSE (2.00 Inches)	1
-	883201A01	动力头总成	POWERHEAD ASSEMBLY	1

图 77钥匙开关/仪表/附件 Key Switch/Instumentation/Accessories

REF	零件编号	中文名称	英文名称	数量
1	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	2
2	89772	连接器(.125-27)	CONNECTOR (.125-27)	1
3	29085	45度弯管接头	FITTING Elbow (45 Degree)	1
3	8M0123050	45度弯管接头	FITTING Elbow (45 Degree)	1
4	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
5	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
6	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
7	85833935	管材 (15英寸整卷) (裁切至7英寸)	TUBING (15.00 Inches Bulk) (Cut to 7 IN.)	1
7	85833939	软管(17英寸整卷)	HOSE (17.00 Inches Bulk)	1
8	8348084	滤网	STRAINER	1
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
10	85833935	管材 (15英寸整卷) (裁切至4.5英寸)	TUBING (15.00 Inches Bulk) (Cut to 4-1/2 IN.)	1
10	85833939	软管(17英寸整卷)	HOSE (17.00 Inches Bulk)	1
11	291112	接头	FITTING	1
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
13	83476463	管材 (32英寸整卷) (裁切至18.5英寸)	TUBING (32.00 Inches Bulk) (Cut to 18-1/2 IN.)	1
14	859432	接头	FITTING	1
14	881866	接头	FITTING	1
15	85978568	管材 (44英寸整卷) (裁切至15英寸)(灰色)	TUBING (44.00 Inches Bulk) (Cut to 15 IN.)(GRAY)	1
15	85978571	管材(52英寸整卷)	TUBING (52.00 Inches Bulk)	1
16	859431	接头	FITTING	1
16	8M0207782	直通接头	FITTING Straight	1
17	881879A7	传感器套件(0-50 PSI)(棕褐色)	SENSOR KIT (0-50 PSI) (TAN)	1
17	8M0157742	水压传感器	SENSOR Water Pressure	1
18	858954	卡箍(0.625英寸)	CLIP (.625)	1
19	875207	三通接头	TEE Fitting	1
20	85978568	管材 (44英寸整卷) (裁切至44英寸)(灰色)	TUBING (44.00 Inches Bulk) (Cut to 44 IN.)(GRAY)	1
20	85978571	管材(52英寸整卷)	TUBING (52.00 Inches Bulk)	1
21	859747	联轴器	COUPLER	1
21	8M0214971	耦合接头 (4 MM)	COUPLER Fitting (4 MM)	1
22	859732	堵头	PLUG	1
23	859731	适配管接头	FITTING Adapter	1
23	8M0214970	接头	FITTING	1
24	85978568	管材 (44英寸整卷) (裁切至5英寸)(灰色)	TUBING (44.00 Inches Bulk) (Cut to 5 IN.)(GRAY)	1
24	85978571	管材(52英寸整卷)	TUBING (52.00 Inches Bulk)	1
25	858459	接头	FITTING	1
26	77653101	软管 (48英寸整卷) (裁切至23.5英寸)	HOSE (48.00 Inches Bulk) (Cut to 23-1/2 IN.)	1
27	8276021	成型软管	MOLDED HOSE	1
27	8M0114859	软管	HOSE	1
27	77653101	软管 (48英寸整卷) (裁切至5英寸)	HOSE (48.00 Inches Bulk) (Cut to 5 IN.)	1
28	77653101	软管 (48英寸整卷) (裁切至17.5英寸)	HOSE (48.00 Inches Bulk) (Cut to 17-1/2 IN.)	1
-	883201A01	动力头总成	POWERHEAD ASSEMBLY	1

图 78水管 WATER HOSES

REF	零件编号	中文名称	英文名称	数量
1	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	2
2	89772	连接器(.125-27)	CONNECTOR (.125-27)	1
3	29085	45度弯管接头	FITTING Elbow (45 Degree)	1
3	8M0123050	45度弯管接头	FITTING Elbow (45 Degree)	1
4	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
5	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
6	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
7	85833935	管材 (15英寸整卷) (裁切至7英寸)	TUBING (15.00 Inches Bulk) (Cut to 7 IN.)	1
7	85833939	软管(17英寸整卷)	HOSE (17.00 Inches Bulk)	1
8	8348084	滤网	STRAINER	1
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
10	85833935	管材 (15英寸整卷) (裁切至4.5英寸)	TUBING (15.00 Inches Bulk) (Cut to 4-1/2 IN.)	1
10	85833939	软管(17英寸整卷)	HOSE (17.00 Inches Bulk)	1
11	291112	接头	FITTING	1
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
13	83476463	管材 (32英寸整卷) (裁切至18.5英寸)	TUBING (32.00 Inches Bulk) (Cut to 18-1/2 IN.)	1
14	859432	接头	FITTING	1
14	881866	接头	FITTING	1
15	85978568	管材 (44英寸整卷) (裁切至15英寸)(灰色)	TUBING (44.00 Inches Bulk) (Cut to 15 IN.)(GRAY)	1
15	85978571	管材(52英寸整卷)	TUBING (52.00 Inches Bulk)	1
16	859431	接头	FITTING	1
16	8M0207782	直通接头	FITTING Straight	1
17	881879A7	传感器套件(0-50 PSI)(棕褐色)	SENSOR KIT (0-50 PSI) (TAN)	1
17	8M0157742	水压传感器	SENSOR Water Pressure	1
18	858954	卡箍(0.625英寸)	CLIP (.625)	1
19	875207	三通接头	TEE Fitting	1
20	85978568	管材 (44英寸整卷) (裁切至44英寸)(灰色)	TUBING (44.00 Inches Bulk) (Cut to 44 IN.)(GRAY)	1
20	85978571	管材(52英寸整卷)	TUBING (52.00 Inches Bulk)	1
21	859747	联轴器	COUPLER	1
21	8M0214971	耦合接头 (4 MM)	COUPLER Fitting (4 MM)	1
22	859732	堵头	PLUG	1
23	859731	适配管接头	FITTING Adapter	1
23	8M0214970	接头	FITTING	1
24	85978568	管材 (44英寸整卷) (裁切至5英寸)(灰色)	TUBING (44.00 Inches Bulk) (Cut to 5 IN.)(GRAY)	1
24	85978571	管材(52英寸整卷)	TUBING (52.00 Inches Bulk)	1
25	858459	接头	FITTING	1
26	77653101	软管 (48英寸整卷) (裁切至23.5英寸)	HOSE (48.00 Inches Bulk) (Cut to 23-1/2 IN.)	1
27	8276021	成型软管	MOLDED HOSE	1
27	8M0114859	软管	HOSE	1
27	77653101	软管 (48英寸整卷) (裁切至5英寸)	HOSE (48.00 Inches Bulk) (Cut to 5 IN.)	1
28	77653101	软管 (48英寸整卷) (裁切至17.5英寸)	HOSE (48.00 Inches Bulk) (Cut to 17-1/2 IN.)	1
-	883201A01	动力头总成	POWERHEAD ASSEMBLY	1

图 79油管 Oil Lines

REF	零件编号	中文名称	英文名称	数量
1	85606065	管材(38英寸散装)(截断至24英寸)	TUBING (38.00 Inches Bulk) (Cut to 24 IN.)	1
2	85606065	管材(38英寸散装)(截断至18.5英寸)	TUBING (38.00 Inches Bulk) (Cut to 18-1/2 IN.)	1
2	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
3	85606065	管材(38英寸散装)(截断至15.5英寸)	TUBING (38.00 Inches Bulk) (Cut to 15-1/2 IN.)	1
3	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
4	85606065	管材(38英寸散装)(截断至24.5英寸)	TUBING (38.00 Inches Bulk) (Cut to 24-1/2 IN.)	2
4	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	2
5	85606065	管材(38英寸散装)(截断至27英寸)	TUBING (38.00 Inches Bulk) (Cut to 27 IN.)	1
5	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
6	858805	止回阀	CHECK VALVE	6
7	69355	扎带(5.50英寸)	TIE STRAP (5.50 Inches)	AR
7	8M0214940	扎带	TIE STRAP	AR
8	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
9	82381455	管材(25英寸散装)(截断至24英寸)	TUBING (25.00 Inches Bulk) (Cut to 24 IN.)	1
10	85583463	管材(33英寸散装)(截断至32英寸)	TUBING (33.00 Inches Bulk) (Cut to 32 IN.)	1
10	85583464	管材 (34.00英寸整卷)	TUBING (34.00 Inches Bulk)	1
11	8781051	止回阀	CHECK VALVE	1
12	424254	接头	FITTING	1
12	8M0207780	接头	FITTING	1
13	830756109	软管(57英寸散装)(截断至6英寸)	HOSE (57.00 Inches Bulk) (Cut to 6 IN.)	1
13	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
14	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	2
15	875289	软管	HOSE	1
16	858955	连接器	CONNECTOR	2
17	875284	管路过滤器	FILTER In Line	1
17	875284T01	滤清器-机油在线式	FILTER Oil - In Line	1
18	875283	软管(2.00英寸)	HOSE (2.00 Inches)	1
-	883201A01	动力头总成	POWERHEAD ASSEMBLY	1

图 80动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	8M0168222	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0142591	电机套件	MOTOR KIT	1
2	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
3	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
4	8M0090403	驱动联轴器	COUPLING Drive	1
5	8M0142996	压力检查套件	PO CHECK KIT	1
6	8M0060141	手动释放套件	MANUAL RELEASE KIT	1
7	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
8	878267	销	PIN	1
9	8M0142998	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
9	8M0168220	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
10	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
11	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
12	8M0142592	升降杆套件左舷	TRIM ROD KIT Port	1
13	8M0143001	活塞总成	PISTON ASSEMBLY	1
14	8M0143003	端盖总成	END CAP ASSEMBLY	1
15	878264A1	储液罐套件	RESERVOIR KIT	1
16	811613	塞子总成	PLUG ASSEMBLY	1
17	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
18	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
19	8M0143004	泵套件	PUMP KIT	1
20	8M0148385	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
21	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
22	4002319	垫圈	WASHER	6
23	8M0094889	销	PIN	1
23	8M0161312	连杆销眼总成	PIN ROD EYE ASSEMBLY	1
24	8M0143005	减震杆套件	SHOCK ROD KIT	1
24	8M0168219	减震杆套件	SHOCK ROD KIT	1

图 81燃油泵 FUEL PUMP

REF	零件编号	中文名称	英文名称	数量
1	NSS	不单独销售燃油泵	NOT SOLD SEPARATE Fuel Pump	1
2	14360A53	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	14360T75	燃油泵总成	PUMP ASSEMBLY Fuel	1
3	42990A10	膜片组件	DIAPHAGM KIT	2
3	857005A1	膜片组件	DIAPHRAGM KIT	2
4	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
5	NSS		NOT SOLD SEPARATE Rubber Check Valve	2
6	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
10	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
11	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
12	987691	衬垫	GASKET	1
12	8M0204705	衬垫@2	GASKET @2	1
13	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
14	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
15	987752	安装板	PLATE	1
16	996641	弯头	ELBOW	2
16	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	2
17	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
17	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2
18	144303	底座	BASE	1
19	78279	弯头（45度）	ELBOW (45 DEGREES)	1
19	8M0207781	弯头	ELBOW	1
20	291111	接头	FITTING	1
20	291112	接头	FITTING	1
21	83075780	管材(28.00英寸散装)	TUBING (28.00 Inches Bulk)	1
21	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
22	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
22	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
23	856822A1	管材(带绝缘套管)(7英寸)	TUBING (W/INSULATING SLEEVE) (7 IN.)	1
23	8M0064784	成型脉冲软管	HOSE,MOLDED,PULSE	1
24	856822A2	软管套管总成(18.00英寸)	HOSE AND SLEEVE ASSEMBLY (18.00 Inches)	1
24	8M0043979	软管套管总成	HOSE AND SLEEVE ASSEMBLY	1
25	822769	连接器	CONNECTOR	1
-	814754A98	衬垫套件	GASKET SET	1
-	8M0046714	衬垫套件	GASKET SET	1
-	854008A98	动力头总成	POWERHEAD ASSEMBLY	1
-	804545T99	动力头总成	POWERHEAD ASSEMBLY	1

图 82齿轮箱驱动轴-TorqueMaster型 GEAR HOUSING Driveshaft - TorqueMaster

REF	零件编号	中文名称	英文名称	数量
-	827214T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	827214T16	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	827214T25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
5	579203	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	562972	螺柱(0.312-18/0.324-24×3.380)	STUD (.312-18/.324-24 x 3.380)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	306671	螺柱	STUD	2
8	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	826134Q	阳极块	ANODE	2
10	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
11	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
12	67891	填充块	FILLER BLOCK	1
12	8M0039169	填充块	FILLER BLOCK	1
13	NSS	小齿轮(不单独销售)	NOT SOLD SEPARATE Pinion Gear	1
14	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
15	35921	螺母(0.625-18)	NUT (.625-18)	1
16	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
16	8M0058389	放油螺钉套件	SCREW KIT Drain	1
17	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	1
17	79953Q04	放油螺钉套件	SCREW KIT Drain	1
18	191832	垫圈	WASHER	2
18	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
19	789022	换档轴	SHIFT SHAFT	1
20	77631A2	衬套总成	BUSHING ASSEMBLY	1
21	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
22	8164641	油封	SEAL Oil	1
22	8M0246145	油封	OIL SEAL	1
23	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
24	848449A5	驱动轴总成	DRIVESHAFT ASSEMBLY	1
24	8M0192234	驱动轴	DRIVESHAFT	1
25	42637A1	垫片组	SHIM SET	AR
25	8M0063267	垫片组	SHIM SET	AR
26	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
26	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
27	8245191	固定座	RETAINER	1
28	44292A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
29	426311	衬垫	GASKET	1
29	8M0204678	衬垫	GASKET	1
30	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
30	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
31	89238	油封	SEAL Oil	1
32	16977	油封	SEAL Oil	1
33	18051	衬垫(下部)	GASKET (LOWER)	1
34	858524	衬垫(上部)	GASKET (UPPER)	1
35	32435	面板	FACE PLATE	1
35	8M0204677	面板	PLATE-FACE	1
36	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
37	48752T	嵌件	INSERT	1
38	38970	密封件	SEAL	1
39	89984T4	叶轮	IMPELLER	1
40	56654	键	KEY	1
40	8M0214992	键@5	KEY @5	1
41	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
41	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
42	8267119	螺母(.250-28)	NUT (.250-28)	2
43	36001	垫圈	WASHER	1
44	13436	螺母	NUT	1
45	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
45	8M0215009	螺钉	SCREW	1
46	29804T	套筒	SLEEVE	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	881805A01	发动机垫片组	GASKET SET Engine	1

图 83燃油导轨 Fuel Rails

REF	零件编号	中文名称	英文名称	数量
1	831998A9	空气压缩机总成(参见空气压缩机部件分解图)	COMPRESSOR ASSEMBLY Air (SEE BREAKDOWN ON AIR COMPRESSOR COMPONENTS)	1
2	85593912	螺钉（M6 x 12）	SCREW (M6 x 12)	5
3	8328231	滑轮	PULLEY	1
3	8M0175171	滑轮	PULLEY	1
4	4010825	螺丝(M10 x 25)六角法兰-不锈钢	SCREW (M10 x 25) Hex Flange - Stainless Steel	2
5	8502511	软管	HOSE	1
5	8502512	软管	HOSE	1
6	85652329	绝缘套管(15英寸)	INSULATOR SLEEVE (15 IN.)	1
7	852379T5	燃油导轨	FUEL RAIL	1
7	852379T6	燃油导轨	FUEL RAIL	1
8	8500653	喷油器	INJECTOR	6
8	8M6001743	空气喷射器总成	INJECTOR ASSEMBLY Air	6
9	855697	卡箍(16.2)	CLAMP (16.2)	4
9	8M0204696	卡箍	CLAMP	4
10	85564361	软管(16英寸)	HOSE (16 IN.)	2
11	92345	螺柱	STUD	1
12	854640	特殊垫圈	WASHER Special	2
13	35814	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
13	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
14	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
14	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
15	852378T5	燃油导轨	FUEL RAIL	1
15	852378T6	燃油导轨	FUEL RAIL	1
16	830756109	软管(57.00英寸整料)(裁切至22-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 22-1/2 Inches)	1
16	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
17	826810	止回阀	CHECK VALVE	1
18	83075780	管材(28英寸整卷)(裁切为2-1/2英寸)	TUBING (28.00 Inches Bulk) (Cut to 2-1/2 Inches)	1
18	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
19	83476463	管材(32英寸整卷)(裁切为28-1/2英寸)	TUBING (32.00 Inches Bulk) (Cut to 28-1/2 Inches)	1
20	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	2
20	8M0214964	卡箍	CLAMP	2
21	85606064	管材(36英寸整卷)(28-1/2英寸)	TUBING (36.00 Inches Bulk) (28-1/2 IN.)	1
21	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
22	82104510	螺钉 (M5 x 10)	SCREW (M5 x 10)	4
23	46997	卡箍	CLAMP	4
24	852961	螺柱	STUD	4
24	8M0063255	双头螺栓M10x92	STUD M10x92	4
25	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	4
26	NSS	不单独销售软管(30英寸)	NOT SOLD SEPARATE Hose (30 IN.)	1
26	856822A3	软管(30英寸)	HOSE (30 IN.)	1
27	8558481	软管	HOSE	1
27	855848A1	软管	HOSE	1
28	828694A1	杯形垫片总成	WASHER ASSEMBLY Cupped	6
29	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	4
29	8M0214964	卡箍	CLAMP	4
30	85686953	套管(27英寸整卷)(裁切为18英寸)	SLEEVE (27.00 Inches Bulk) (Cut to 18 Inches)	1

图 84双缆连接套件 Dual Cable Attaching Kit

REF	零件编号	中文名称	英文名称	数量
1	880646T01	驱动轴壳体-黑色	HOUSING Driveshaft, Black	1
2	885366T01	下部护套总成-左舷	CHAP ASSEMBLY Lower-Port	1
2	885365T03	加长护套总成-左右舷-黑色	CHAP ASSEMBLY Long - Port and Starboard, Black	1
2	885364T01	下部护套总成-左舷	CHAP ASSEMBLY Lower-Port	1
2	885363T04	超长/特超长护套总成-左右舷	CHAP ASSEMBLY X-Long/XX-Long - Port and Starboard	1
3	885365T01	下部护套总成-右舷	CHAP ASSEMBLY Lower-Starboard	1
3	885365T03	加长护套总成-左右舷-黑色	CHAP ASSEMBLY Long - Port and Starboard, Black	1
3	885363T01	下部护套总成-右舷	CHAP ASSEMBLY Lower-Starboard	1
3	885363T04	超长/特超长护套总成-左右舷	CHAP ASSEMBLY X-Long/XX-Long - Port and Starboard	1
4	892073002	台阶螺丝 (M6)	SHOULDER SCREW (M6)	8 or 12
4	8M0230980	螺丝 (M6x14) 六角法兰B型	SCREW (M6 x 14) Hex Flange B	8 or 12
5	889568001	护孔环	GROMMET	1
6	889656T	蒸汽分离器罩	SHROUD Vapor Separator	1
6	889656T01	护罩	SHROUD	1
7	88552675	螺钉 (M8 x 75)	SCREW (M8 x 75)	2
7	8M0103818	螺丝 (M8x75)	SCREW (M8 X 75)	2
8	885526120	螺丝 (M8x120)	SCREW (M8 x 120)	2
8	8M0103812	螺钉	SCREW	2
9	88552650	螺钉(M8 x 50)	SCREW (M8 x 50)	2
9	8M0103816	螺丝 M8x50 六角法兰	SCREW M8 x 50 HEX FLG	2
10	88552640	螺钉 (M8 x 40)	SCREW (M8 x 40)	1
10	8M0103815	螺钉	SCREW	1
11	88552635	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
11	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
12	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	3
13	897784A01	上部护套支架套件	BRACKET KIT Upper Chap	2
14	88552520	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	2
14	8M0103806	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	2
15	88552630	螺钉 (M8 x 30)	SCREW (M8 x 30)	1
15	8M0103813	螺钉 (M8 x 30)	SCREW (M8 x 30)	1
16	85944975	管材 (72英寸整卷) 裁切至26英寸	TUBING (72.00 Inches Bulk) Cut to 26 Inches	1
16	85944975	管材 (72英寸整卷) 裁切至44英寸	TUBING (72.00 Inches Bulk) Cut to 44 Inches)	1
17	859448	接头	FITTING	1
17	859448T	接头	FITTING	1
18	821555001	护孔环	GROMMET	1
18	8M0153609	护孔环	GROMMET	1
19	889831	固定座	RETAINER	1
19	889831001	固定座	RETAINER
20	856983	双头螺柱(M12 x 52)	STUD (M12 x 52)	4
20	8M0008031	双头螺柱(M12 x 1.75 x 52)	STUD (M12 x 1.75 x 52)	4
21	856982	垫圈(0.5×0.81×0.09英寸)不锈钢	WASHER (.500 x .810 x .090) Stainless Steel	4 or 5
22	896895	螺母(M12)	NUT (M12)	4
23	88552835	螺钉(M12×35毫米)	SCREW (M12 x 35 MM)	1
23	8M0102995	螺丝 (M12)	SCREW (M12)	1
24	824928001	橡胶塞	PLUG Rubber	1
25	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	10
25	8M0214963	垫圈	WASHER	10
26	884412	螺母	NUT	10
27	88552845	螺丝 (M12x45)	SCREW (M12 x 45)	4
27	8M0103825	螺丝@2	SCREW @2	4
28	880647T	隔套	SPACER	1
28	8M0105088	传动轴壳体加长隔套（黑色）	SPACER Driveshaft Housing X-Long, Black	1
29	857137	螺钉 (M12 X 160)	SCREW (M12 x 160)	1
30	857009	双头螺柱（M12×179）	STUD (M12 x 179)	4
30	8M0008047	双头螺柱（M12×179）	STUD (M12 x 179)	4
31	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
32	855623	衬套 (按需使用)	BUSHING (Use where Applicable)	1
33	896251	O型圈	O-RING	2
33	898033	卡扣	CLIP	2
34	NSS	非单独销售贴纸-放油口	NOT SOLD SEPARATE Decal-Oil Drain	1
35	880648T01	驱动轴壳体-黑色	HOUSING Driveshaft, Black	1
35	8M0113287	驱动轴壳体黑色加长型	DSH BLACK XL	1
36	891966006	外罩支架	BRACKET Cowl	1
37	88552520	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	2
37	8M0103806	螺钉(M6 x 20毫米)不锈钢	SCREW (M6 x 20 mm) Stainless Steel	2
-	895247A06	动力头总成	POWERHEAD ASSEMBLY	1
-	895247R06	RM L6 GEN1 VERADO	RM L6 GEN1 VERADO	1

图 85齿轮箱螺旋桨轴-TorqueMaster型 Gear Housing Propeller Shaft Torque Master

REF	零件编号	中文名称	英文名称	数量
1	831998A9	空气压缩机总成(参见空气压缩机部件分解图)	COMPRESSOR ASSEMBLY Air (SEE BREAKDOWN ON AIR COMPRESSOR COMPONENTS)	1
2	85593912	螺钉（M6 x 12）	SCREW (M6 x 12)	5
3	8328231	滑轮	PULLEY	1
3	8M0175171	滑轮	PULLEY	1
4	4010825	螺丝(M10 x 25)六角法兰-不锈钢	SCREW (M10 x 25) Hex Flange - Stainless Steel	2
5	8502511	软管	HOSE	1
5	8502512	软管	HOSE	1
6	85652329	绝缘套管(15英寸)	INSULATOR SLEEVE (15 IN.)	1
7	852379T5	燃油导轨	FUEL RAIL	1
7	852379T6	燃油导轨	FUEL RAIL	1
8	8500653	喷油器	INJECTOR	6
8	8M6001743	空气喷射器总成	INJECTOR ASSEMBLY Air	6
9	855697	卡箍(16.2)	CLAMP (16.2)	4
9	8M0204696	卡箍	CLAMP	4
10	85564361	软管(16英寸)	HOSE (16 IN.)	2
11	92345	螺柱	STUD	1
12	854640	特殊垫圈	WASHER Special	2
13	35814	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
13	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
14	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
14	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
15	852378T5	燃油导轨	FUEL RAIL	1
15	852378T6	燃油导轨	FUEL RAIL	1
16	830756109	软管(57.00英寸整料)(裁切至22-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 22-1/2 Inches)	1
16	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
17	826810	止回阀	CHECK VALVE	1
18	83075780	管材(28英寸整卷)(裁切为2-1/2英寸)	TUBING (28.00 Inches Bulk) (Cut to 2-1/2 Inches)	1
18	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
19	83476463	管材(32英寸整卷)(裁切为28-1/2英寸)	TUBING (32.00 Inches Bulk) (Cut to 28-1/2 Inches)	1
20	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	2
20	8M0214964	卡箍	CLAMP	2
21	85606064	管材(36英寸整卷)(28-1/2英寸)	TUBING (36.00 Inches Bulk) (28-1/2 IN.)	1
21	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
22	82104510	螺钉 (M5 x 10)	SCREW (M5 x 10)	4
23	46997	卡箍	CLAMP	4
24	852961	螺柱	STUD	4
24	8M0063255	双头螺栓M10x92	STUD M10x92	4
25	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	4
26	NSS	不单独销售软管(30英寸)	NOT SOLD SEPARATE Hose (30 IN.)	1
26	856822A3	软管(30英寸)	HOSE (30 IN.)	1
27	8558481	软管	HOSE	1
27	855848A1	软管	HOSE	1
28	828694A1	杯形垫片总成	WASHER ASSEMBLY Cupped	6
29	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	4
29	8M0214964	卡箍	CLAMP	4
30	85686953	套管(27英寸整卷)(裁切为18英寸)	SLEEVE (27.00 Inches Bulk) (Cut to 18 Inches)	1

图 86空气压缩机组件 Air Compressor Components

REF	零件编号	中文名称	英文名称	数量
1	831998A9	空气压缩机总成	COMPRESSOR ASSEMBLY Air	1
1	8M0060053	空气压缩机总成	COMPRESSOR ASSEMBLY Air	1
2	828131A4	端盖总成	END CAP ASSEMBLY	1
2	8M0050792	端盖总成	END CAP ASSEMBLY	1
3	NSS	非单独销售挡圈	NOT SOLD SEPARATE Retaining Ring	1
4	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	4
5	89224	O型圈	O-RING	1
6	832804	O型圈（2.739 x 0.070）	O-RING (2.739 x .070)	1
7	833146A3	连杆总成	CONNECTING ROD ASSEMBLY	1
7	833146T06	连杆总成	CONNECTING ROD ASSEMBLY	1
8	828222A4	活塞总成	PISTON ASSEMBLY	1
9	8348101	锁环	RING Lock	2
10	835088A10	簧片阀板总成	REED PLATE ASSEMBLY	1
11	67207	O型圈（3.489 x 0.070）	O-RING (3.489 x .070)	2
12	832804	O型圈（2.739 x 0.070）	O-RING (2.739 x .070)	1
13	828225	密封件	SEAL	1
14	8350871	气缸盖压缩机	HEAD Compressor	1
14	835087A3	压缩机缸盖总成	HEAD ASSEMBLY Compressor	1
15	8307532	直通接头	FITTING Straight	1
16	81893435	螺钉(M8×35)	SCREW (M8 x 35)	4
16	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
17	15133	接头	FITTING	1
18	14868	接头	FITTING	2
19	39072	塞(1/8英寸黄铜)	PLUG (1/8 Inch Brass)	1
19	390721	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
20	16604	直通接头（0.125-27）	FITTING Straight (.125-27)	1
21	13536A12	温度传感器总成	SENSOR ASSEMBLY Temperature	1
22	137151	固定座	RETAINER	1
23	81893412	螺钉（M8×12）	SCREW (M8 x 12)	1
24	831985	O型圈（0.468 x 0.078）	O-RING (.468 x .078)	1
25	8567441	接头	FITTING	1
25	856744	接头	FITTING	1
26	39072	塞(1/8英寸黄铜)	PLUG (1/8 Inch Brass)	1
26	390721	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
27	835454	直通接头	FITTING Straight	1
28	NSS	标贴(不单独销售)	NOT SOLD SEPARATE Decal	1
29	855349	护孔环	GROMMET	1
29	855349002	护孔环	GROMMET	1
-	832804A1	O型圈套件	O-RING KIT	1
-	832804A03	O型圈套件	O-RING KIT	1

图 87空气处理器组件 Air Handler Components

REF	零件编号	中文名称	英文名称	数量
-	855633A4	空气处理器总成	AIR HANDLER ASSEMBLY	1
-	855633A15	空气处理器总成	AIR HANDLER ASSEMBLY	1
1	855420T02	适配板套件	ADAPTER PLATE KIT	1
2	146973	衬垫	GASKET	1
3	850058	衬垫	GASKET	1
3	8500581	衬垫	GASKET	1
4	116455	簧片阀组	REED BLOCK	6
4	855952T2	簧片阀组	REED BLOCK	6
5	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	12
6	855762	油泵	PUMP Oil	1
6	855884P1	油泵	PUMP Oil	1
7	8565421	衬垫	GASKET	1
8	8552841	支架	BRACKET	1
9	855424	接头	FITTING	3
10	8554241	接头	FITTING	3
11	8554246	接头	FITTING	1
11	892267T02	蒸汽分离器总成	VAPOR SEPARATOR ASSEMBLY	1
12	8554248	接头(直通)	FITTING (STRIAGHT)	1
13	855364	衬套	BUSHING	6
14	855362	护孔环	GROMMET	6
14	855362001	护孔环	GROMMET	6
15	81893440	螺钉 (M8 x 40)	SCREW (M8 x 40)	6
16	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	6
17	850248A1	空气集气室套件	PLENUM KIT Air	1
18	8554242	弯头	ELBOW	1
19	8554249	弯头	ELBOW	1
19	15133	接头	FITTING	1
20	850058	衬垫	GASKET	1
20	8500581	衬垫	GASKET	1
21	13221A1	温度传感器总成	SENSOR ASSEMBLY Temperature	1
21	13221T01	温度传感器	SENSOR TEMP	1
22	4005685	螺钉（M4×10）	SCREW (M4 x 10)	3
23	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	3
24	4001987	螺钉(M4×16)	SCREW (M4 x 16)	12
25	855422A1	节气门体套件	THROTTLE BODY KIT	1
26	855423	O型圈	O-RING	1
27	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	4

图 88空气处理器/飞轮盖 Air Handler/Flywheel Cover

REF	零件编号	中文名称	英文名称	数量
1	827325T11	盖总成	COVER ASSEMBLY	1
2	821555	护孔环	GROMMET	2
2	8M0153609	护孔环	GROMMET	2
2	821555001	护孔环	GROMMET	2
2	8M0153609	护孔环	GROMMET	2
3	853333T	滤清器	FILTER	1
4	853352	盖板	COVER	1
5	857101	护孔环	GROMMET	1
6	89219	堵头	PLUG	1
6	89219001	堵头	PLUG	1
6	89219001	堵头	PLUG	1
7	855613	护孔环	GROMMET	1
8	8556131	护孔环	GROMMET	1
9	881865	警示贴纸-挂档启动	DECAL Caution-Start in Gear	1
10	8283582	传感器	SENSOR	1
10	8M0082988	曲轴位置传感器	SENSOR Crankshaft Position	1
11	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	2
12	8215832	特殊销（1.5英寸）	PIN Special (1.5 Inches)	1
13	883080	J型卡扣	J CLIP	2
14	817504	螺钉（0.250-20 x 1.500）不锈钢	SCREW (.250-20 x 1.500) Stainless Steel	12
15	633003	卡箍	CLAMP	1
16	8261151	连接器卡箍	CLAMP Connector	1
-	879808T04	动力头总成	POWERHEAD ASSEMBLY	1
-	879808T07	动力头总成	POWERHEAD ASSEMBLY	1
-	879809T01	动力头总成	POWERHEAD ASSEMBLY	1
-	879809T07	动力头总成	POWERHEAD ASSEMBLY	1

图 89空气软管(序列号1E050629及以上) Air Hoses (SN 1E050629 & Above)

REF	零件编号	中文名称	英文名称	数量
1	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
2	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
3	830757130	管材(.312)(70.00英寸散装)(裁切至6英寸)	TUBING (.312) (70.00 Inches Bulk) (Cut to 6 Inches)	1
3	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
4	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	2
4	8M0214964	卡箍	CLAMP	2
5	8502512	软管	HOSE	1
6	85687631	套管（16.00英寸）	SLEEVE (16.00 Inches)	1
7	804823	软管/接头总成	HOSE/FITTING ASSEMBLY	1
7	8M6000383	软管总成	HOSE ASSEMBLY	1
8	804824	软管/接头总成	HOSE/FITTING ASSEMBLY	1
8	8M6000382	软管总成	HOSE ASSEMBLY	1
9	804532	O型圈套件	O-RING KIT	1
10	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
11	881197	空气消声器	MUFFLER Air	1
12	85833939	软管（17英寸卷料/连接底壳）	HOSE (17.00 Inches Bulk) To Bottom Pan	1
-	883201A01	动力头总成	POWERHEAD ASSEMBLY	1

图 90空气软管(序列号1E050628及以下) Air Hoses (S/N 1E050628 & Below)

REF	零件编号	中文名称	英文名称	数量
1	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
2	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
3	830757130	管材(.312)(70.00英寸散装)(裁切至6英寸)	TUBING (.312) (70.00 Inches Bulk) (Cut to 6 Inches)	1
3	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
4	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	2
4	8M0214964	卡箍	CLAMP	2
5	8502512	软管	HOSE	1
6	85687631	套管（16.00英寸）	SLEEVE (16.00 Inches)	1
7	804823	软管/接头总成	HOSE/FITTING ASSEMBLY	1
7	8M6000383	软管总成	HOSE ASSEMBLY	1
8	804824	软管/接头总成	HOSE/FITTING ASSEMBLY	1
8	8M6000382	软管总成	HOSE ASSEMBLY	1
9	804532	O型圈套件	O-RING KIT	1
10	16604	直通接头(.125-27)(长型)	FITTING Straight (.125-27) (Long)	1
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
12	14867	45度弯头(短型)	ELBOW 45 Degree (Short)	1
-	883201A01	动力头总成	POWERHEAD ASSEMBLY	1

图 91下罩 Bottom Cowl

REF	零件编号	中文名称	英文名称	数量
1	878587A1	下罩总成	BOTTOM COWL ASSEMBLY	1
1	8M0107315	底部罩盖-左舷	COWL-BOTTOM, PORT	1
2	858743A2	下罩总成	BOTTOM COWL ASSEMBLY	1
2	8M0113913	右舷下罩B	COWL-LOWER STBD B	1
3	8253181	罩盖密封条(41英寸)	SEAL Cowl (41.00 Inches)	2
3	8M0109217	罩盖密封条	SEAL-COWL	2
4	878547T	嵌件	INSERT	1
5	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	8
6	831209	固定座	RETAINER	1
7	858742	怠速排气套	BOOT Idle Exhaust	1
8	859251	护孔环	GROMMET	1
8	8M0039078	护孔环	GROMMET	1
9	827948	接头	FITTING	1
10	855576	垫圈	WASHER	1
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
12	830756109	软管(57英寸整卷)(裁切至5英寸长度)	HOSE (57.00 Inches Bulk) (Cut To 5.00 Inch Length)	1
12	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
13	881535	软管(32.00英寸)	HOSE (32.00 Inches)	1
14	9912688	管材(36.00英寸散装)(26.00英寸)	TUBING (36.00 Inches Bulk) (26.00 Inch)	1
15	817518	三通	TEE	1
16	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	2
17	8587411	护孔环	GROMMET	1
17	889724	护孔环	GROMMET	1
18	856990	开关总成	SWITCH ASSEMBLY	1
18	8M0235192	微调开关	SWITCH TRIM	1
19	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
20	821253F1	前手柄黑色	FRONT HANDLE Black	1
20	889740A02	手柄套件	HANDLE KIT	1
21	33589	衬套	BUSHING	2
22	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
23	8219423	棘爪	PAWL	1
24	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	1
25	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
26	13541	公插头	PLUG Male	2

图 92线圈板总成 Coil Plate Assembly

REF	零件编号	中文名称	英文名称	数量
-	NSS	线圈板总成(不单独销售)	NOT SOLD SEPARATE COIL PLATE ASSEMBLY	1
1	8506753	线圈板	PLATE Coil	1
1	8M0011731	线圈板	PLATE Coil	1
2	850676F1	隔套	SPACER	6
3	8502341	衬套	BUSHING	4
4	833155	护孔环	GROMMET	4
5	850898	螺丝 (.250-20 x 3.250)	SCREW (.250-20 x 3.250)	6
6	856991A1	线圈套件	COIL KIT	6
7	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	6
7	8M0207776	螺母	NUT	6
8	881908T	电缆组	CABLE SET	1
9	859595T	双线圈驱动器	DRIVER Dual Coil	3
10	858414A1	编织电缆总成	CABLE ASSEMBLY Braided	2
11	82129110	螺丝 (M6 x 10)	SCREW (M6 x 10)	2
12	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
12	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
13	828547353	导管 (.350内径 x 3.00英尺散装)	CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk)	1
14	8556721	火花塞	SPARK PLUG	6
14	889597Q	NGK IZFR5G @4	NGK IZFR5G @4	6
15	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
16	49436	垫圈	WASHER	4
17	82129114	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
18	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
18	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
19	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
19	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2

图 93曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	880894T	曲轴	CRANKSHAFT	1
2	8040992	油封	SEAL Oil	1
3	8041002	油封	SEAL Oil	1
4	804101T	轴承	BEARING	4
4	804101T10	轴承	BEARING	4
4	804101T20	轴承	BEARING	4
5	804102T	轴承	BEARING	5
5	804102T10	轴承	BEARING	5
5	804102T20	轴承	BEARING	5
5	804102T30	轴承	BEARING	5
6	804103T	轴承	BEARING	1
6	804103T10	轴承	BEARING	1
6	804103T20	轴承	BEARING	1
7	880895A05	活塞总成	PISTON ASSEMBLY	4
7	880895A14	活塞/连杆总成	PISTON/CONN ROD	4
7	880895A12	活塞总成	PISTON ASSEMBLY	AR
7	880895A16	活塞/连杆总成	PISTON/CONN ROD	AR
8	880896	螺栓(M8 x 38)	BOLT (M8 x 38)	8
9	880897T02	活塞环组	RING SET Piston	4
9	880898T02	活塞环组	RING SET Piston	AR
10	880899T	轴承	BEARING	8
10	880899T10	轴承	BEARING	8
10	880899T20	轴承	BEARING	8
10	880899T30	轴承	BEARING	8
-	858732A06	衬垫套件	GASKET SET	1
-	881421T04	动力头总成	POWERHEAD ASSEMBLY	1

图 94气缸体与端盖 Cylinder Block and End Caps

REF	零件编号	中文名称	英文名称	数量
1	828340A5	气缸体	CYLINDER BLOCK	1
1	828340A14	气缸体	CYLINDER BLOCK	1
2	8181383	动力头螺柱（1-3/4英寸）	STUD Powerhead (1-3/4 IN.)	6
2	8M0034455	螺柱1.750	STUD 1.750	6
3	670653	双头螺柱（0.375×5.620英寸，5-1/2英寸）	STUD (.375 x 5.620) (5-1/2 IN.)	2
3	670654	螺柱(.375-16/.375-24 x 5.620)	STUD (.375-16/.375-24 x 5.620)	2
3	784384	双头螺栓(.375 x 6.870)(6-3/4英寸)	STUD (.375 x 6.870) (6-3/4 IN.)	2
3	8M0034454	螺柱(.375-16/.375-24 x 6.87)	STUD (.375-16/.375-24 x 6.87)	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	销(轴承座圈)	PIN (BEARING RACE)	2
5	8M0036405	销	PIN	2
6	11338	衬垫	GASKET	2
7	384071	接头(1/2-14)	FITTING (1/2-14) (1/2-14)	1
8	426231	止回阀	CHECK VALVE	1
8	426233	止回阀	CHECK VALVE	1
9	426981	止回阀	CHECK VALVE	1
9	426982	止回阀	CHECK VALVE	1
10	99130122	管材(20英尺整卷)(裁切为19英寸)	TUBING (20.00 Feet Bulk) (Cut to 19 Inches)	1
10	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
11	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	10
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	10
12	852760	直通接头	FITTING (STRAIGHT)	2
13	855622	弯头接头	FITTING (ELBOW)	1
14	8267611	弯头	ELBOW (ELBOW)	3
15	85583445	管材(16英寸)	TUBING (16 IN.)	2
15	85583464	管材 (34.00英寸整卷)	TUBING (34.00 Inches Bulk)	2
15	85583445	管材(20英寸)	TUBING (20 IN.)	1
15	85583464	管材 (34.00英寸整卷)	TUBING (34.00 Inches Bulk)	1
16	85606064	管材(36.00英寸整料)(24-1/2英寸)	TUBING (36.00 Inches Bulk) (24-1/2 IN.)	3
16	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	3
17	828547753	导管(.750内径x3.00英尺整料)(裁切至7英寸)	CONDUIT (.750 Inside Diameter x 3.00 Feet Bulk) (Cut to 7 Inches)	1
18	432781	止回阀	CHECK VALVE	1
18	8781051	止回阀	CHECK VALVE	1
19	830756109	软管(57.00英寸整料)(裁切至11-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 11-1/2 Inches)	1
19	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
20	822769	连接器	CONNECTOR	1
21	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	6
22	66717	螺钉(.375-16 x 3.250)	SCREW (.375-16 x 3.250)	8
23	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	6
24	26852	尼龙帽	CAP Nylon	1
25	856832	螺丝 (.250-20 x 1.750)	SCREW (.250-20 x 1.750)	1
26	64015	螺母 (.250-20)	NUT (.250-20)	1
27	832760A1	上端盖总成	END CAP ASSEMBLY Upper	1
27	832760T1	端盖总成	END CAP ASSEMBLY	1
28	54029	O型圈(2.800 x .103)	O-RING (2.800 x .103)	1
29	16756A4	轴承套件	BEARING KIT	1
30	NSS	不单独销售轴承座圈	NOT SOLD SEPARATE Bearing Race	1
31	41953	密封件	SEAL	1
32	69034	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW AND LOCKWASHER (.312-18 x 1.00)	4
32	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	4
33	7809A1	端盖总成	END CAP ASSEMBLY	1
33	7809T1	端盖总成	END CAP ASSEMBLY	1
34	62700	O型圈(3.237 x .103)	O-RING (3.237 x .103)	1
35	41953	密封件	SEAL	2
36	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
37	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
38	853882	支架	BRACKET	1
38	8538821	节气门位置指示器安装支架	BRACKET Throttle Position Indicator Mount	1
39	8519371	节气门位置指示器杠杆	LEVER Throttle Position Indicator	1
40	82130025	螺钉(M6x25)	SCREW (M6 x 25)	3
41	8318701	衬套	BUSHING	6
42	834985	护孔环	GROMMET	3
42	8M0190980	护孔环	GROMMET	3
43	8M6005905	节气门位置指示器(内侧)	INDICATOR Throttle Position (Inside)	1
44	850882	隔套	SPACER	1
45	8329522	节气门位置指示器(外侧)	INDICATOR Throttle Position (Outside)	1
45	8M6005166	TPI	TPI	1
46	850828	螺钉(#10-32 X 2-3/4英寸)	SCREW (#10-32 X 2-3/4 IN.)	3
47	1938541	油门连杆	LINK Throttle	1
47	8M0084738	连杆总成	LINK ASSY	1
48	NSS	不单独销售序列号塞	NOT SOLD SEPARATE Plug-Serial Number	1
49	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
49	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
-	814754A98	衬垫套件	GASKET SET	1
-	8M0046714	衬垫套件	GASKET SET	1
-	854008A98	动力头总成	POWERHEAD ASSEMBLY	1
-	804545T99	动力头总成	POWERHEAD ASSEMBLY	1

图 95气缸盖 Cylinder Head

REF	零件编号	中文名称	英文名称	数量
1	881310T2	气缸盖总成	CYLINDER HEAD ASSEMBLY	1
1	881310T08	气缸盖总成基础款	CYLINDER HEAD ASSEMBLY Basic	1
2	804110	导向销	PIN Guide	16
3	804111	堵头	PLUG	4
4	804112	螺栓(M7 x 48)	BOLT (M7 x 48)	4
5	804113	定位销	PIN Dowel	4
6	804114	螺栓(M7×37)	BOLT (M7 x 37)	16
7	881311	螺栓(M10×145)	BOLT (M10 x 145)	10
8	804116	轴环	COLLAR	2
8	8M0070515	定位销	DOWEL PIN	2
9	8041151	衬垫	GASKET	1
10	83124714	螺栓	BOLT	4
11	831246	密封垫圈	WASHER Sealing	4
12	881312	螺栓(M8×55)	BOLT (M8 x 55)	5
13	NSS	阳极 (不单独销售)	NOT SOLD SEPARATE Anode	2
14	804086	护孔环	GROMMET	2
15	804085	盖板	COVER	2
15	804085A01	罩盖/阳极套件	COVER/ANODE KIT	2
16	8524741	螺栓 (M6 x 20)	BOLT (M6 x 20)	2
17	827207	螺栓 (M8 x 25)	BOLT (M8 x 25)	4
18	881284	火花塞	SPARK PLUG	4
18	881284Q	PG LFR6A-11 @10	PG LFR6A-11 @10	4
19	881429	节温器	THERMOSTAT	1
19	8M6013864	节温器	THERMOSTAT	1
20	881430	节温器盖	COVER Thermostat	1
20	8041271	节温器盖	THERMOSTAT COVER	1
21	8248326	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
22	881313T1	盖板套件	COVER KIT	1
23	804119	通气盖	COVER Breather	1
24	804120	螺钉(M4 x 8)	SCREW (M4 x 8)	8
25	804123	衬垫	GASKET	1
26	855690	护孔环	GROMMET	2
27	858530	螺栓 (M6 x 30)	BOLT (M6 x 30)	14
28	859578A1	油塞总成	PLUG ASSEMBLY Oil	1
28	8M0240831	油塞	OIL PLUG	1
29	NSS	O型圈(不单独销售)	NOT SOLD SEPARATE O-Ring	1
30	858752	盖板	COVER	1
30	858752001	盖板	COVER	1
31	1993716	螺钉(M6 x 16)	SCREW (M6 x 16)	5
-	858732T01	衬垫套件	GASKET SET	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	881310T1	气缸盖总成	CYLINDER HEAD ASSEMBLY	1
-	881310T09	气缸盖	HEAD-CYLINDER	1
-	881421T01	动力头总成	POWERHEAD ASSEMBLY	1
-	881421T04	动力头总成	POWERHEAD ASSEMBLY	1
-	881421T02	动力头总成	POWERHEAD ASSEMBLY	1
-	881421T04	动力头总成	POWERHEAD ASSEMBLY	1

图 96驱动轴壳体 Driveshaft Housing

REF	零件编号	中文名称	英文名称	数量
1	858576T03	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	858576T2	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	903501	双头螺柱(M10×100)	STUD (M10 x 100)	1
2	9035015	双头螺柱(M10×227)	STUD (M10 x 227)	1
3	9035012	双头螺柱(M10×63)	STUD (M10 x 63)	4
3	9035016	双头螺柱(M10×190)	STUD (M10 x 190)	4
3	8M0034462	双头螺柱(M10×190)	STUD (M10 x 190)	4
4	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	5
4	8M0214963	垫圈	WASHER	5
5	40140	螺母(M10)	NUT (M10)	5
6	85822A15	速度计传感器总成	PICKUP ASSEMBLY Speedometer	1
7	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	1
7	433351	90度接头-带防振密封	CONNECTOR 90 Degree - With Vibraseal	1
8	85822	直通接头	CONNECTOR Straight	1
8	85822T	直通接头	CONNECTOR Straight	1
9	44343T1	支架	MOUNT	2
10	42973	螺栓(M12×154)	BOLT (M12 x 154)	2
10	898835001	螺钉(M12 x 154)	SCREW (M12 x 154)	2
11	30119	垫圈(外径0.875英寸)	WASHER (.875 Inch Outside Diameter)	2
12	43528	螺母(M12)	NUT (M12)	2
12	8M0204662	螺母	NUT	2
13	88238A10	接地线总成	CABLE ASSEMBLY Ground	2
14	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
15	858916T	卡箍	CLAMP	2
16	4010725	螺钉 (M8 x 25)	SCREW (M8 x 25)	4
17	858745	盖帽	CAP	4
17	8M0142713	支撑盖帽	CAP Chap Support	4
18	859550	衬套	BUSHING	1
19	24873	定位销	PIN Alignment	1
20	855622	接头	FITTING	1
21	12092A3	隔套套件	SPACER KIT	1
22	43043	定位销-带孔(0.375×0.625)	PIN Dowel - With Hole (.375 x .625)	1
22	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
22	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
23	813745	隔套	SPACER	1
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2

图 97双缆连接套件 Dual Cable Attaching Kit

REF	零件编号	中文名称	英文名称	数量
-	92876A8	转向安装套件	ATTACHING KIT Steering	1
1	41055A1	支架总成	BRACKET ASSEMBLY	1
2	715651	转向拉索套管	TUBE Steering Cable	1
3	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
4	821203	锁紧垫圈	LOCKWASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
7	78968	内锁紧垫圈 (.250)	LOCKWASHER Internal (.250)	4
8	850791T	联轴器	COUPLER	1
9	73732	螺钉 (.375-24 x 1.120)	SCREW (.375-24 x 1.120)	2
10	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
11	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	3
11	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	3

图 98电气板总成 Electrical Plate Assembly

REF	零件编号	中文名称	英文名称	数量
1	833137F1	安装板	PLATE	1
2	88807A16	黑色电缆总成(4.00英寸)	CABLE ASSEMBLY (4.00 Inches) Black	1
3	828151A1	继电器总成	RELAY ASSEMBLY	3
3	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	3
4	NSS		NOT SOLD SEPARATE DECAL-TRIM RELAY	3
5	828102	支架	BRACKET	3
5	8M0207771	安装支架	BRACKET Mounting	3
6	818968	衬套	BUSHING	3
6	8M0214955	衬套	BUSHING	3
7	818967	护孔环	GROMMET	3
7	8M0207785	护孔环	GROMMET	3
8	878084T3	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
8	878084T4	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
9	858754	保险丝盖	COVER Fuse	1
10	858781A2	线束总成(直喷喷油器)	HARNESS ASSEMBLY (DIRECT INJECTOR)	1
10	879346A49	线束维修套件	HARNESS REPAIR KIT	1
11	858780A2	线束总成(燃油喷射器)	HARNESS ASSEMBLY (FUEL INJECTOR)	1
11	879346A50	线束维修套件	HARNESS REPAIR KIT	1
12	878073A2	线束总成(节气门位置传感器)	HARNESS ASSEMBLY (TPS)	1
12	879346A41	线束维修套件	HARNESS REPAIR KIT	1
-	879964A2	曲轴位置编码器线束总成	HARNESS ASSEMBLY Encoder Crank Position Sensor	1
-	881262A2	线束总成(交流发电机)	HARNESS ASSEMBLY Alternator Alternator	1
13	83296920	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	4
13	832969T20	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	4
13	83296915	迷你保险丝-蓝色-15安培	FUSE Mini - Blue - 15 Ampere	1
13	832969T15	迷你保险丝-蓝色-15安培	FUSE Mini - Blue - 15 Ampere	1
13	8329695	迷你保险丝-棕色-5安培	FUSE Mini - Tan - 5 Ampere	1
13	832969T05	迷你保险丝-棕色-5安培	FUSE Mini - Tan - 5 Ampere	1
14	68292	螺母(.312-18)	NUT (.312-18)	2
14	8M0204668	螺母(.312-18)	NUT (.312-18)	2
15	819514T16	升降线束总成	HARNESS ASSEMBLY Trim	1
16	878231A6	保险丝线束总成-100安培	HARNESS ASSEMBLY Fuse - 100 Ampere	1
17	858755	卡箍(1.00)	CLIP (1.00)	1
18	828991	卡扣	CLIP	1
18	828991T	卡扣	CLIP	1
19	82129110	螺丝 (M6 x 10)	SCREW (M6 x 10)	3
20	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	4
21	82129135	螺钉(M6x35)	SCREW (M6 x 35)	1
22	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
23	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
24	91912	衬套	BUSHING	1
25	13541	公插头	PLUG Male	1
26	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
27	85961021	发动机控制模块ECM	ECM Engine Control Module	1
27	8M0086580	电控单元	ECU	1
27	85961055S	发动机控制模块ECM	ECM Engine Control Module	1
27	8M0086580	电控单元	ECU	1
27	85961056S	发动机控制模块ECM	ECM Engine Control Module	1
27	8M0086581	电控单元	ECU	1
27	85961057S	发动机控制模块ECM	ECM Engine Control Module	1
27	8M0086584	电控单元	ECU	1
28	82130025	螺钉(M6x25)	SCREW (M6 x 25)	3
29	856954	衬套	BUSHING	3
30	834985	护孔环	GROMMET	3
30	8M0190980	护孔环	GROMMET	3
31	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	3
32	8590881	卡扣	CLIP	1
33	82129114	螺钉 (M6 x 14)	SCREW (M6 x 14)	1
34	82130012	螺钉（M6 x 12）	SCREW (M6 x 12)	3
35	817109A2	电磁阀总成(#10-32/.3125-18端子)	SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)	1
36	822179	护孔环	GROMMET	2
37	818968	衬套	BUSHING	2
37	8M0214955	衬套	BUSHING	2
38	813938	盖形螺母(#10-32)	CAP NUT (#10-32)	1
39	882829A1	启动机电缆总成	CABLE ASSEMBLY Starter	1
40	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
40	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
41	832948A1	2针公头连接器总成	CONNECTOR ASSEMBLY 2 POS Male	1
42	13540	母头护帽	CAP Female	2
43	881065A1	6针插头连接器	CONNECTOR 6 Pin Plug	1
44	8500673	黄色绝缘护套	BOOT Insulator - Yellow	1
45	880771T1	电缆总成(24.00英寸)红色	CABLE ASSEMBLY (24.00 Inches) Red	1
46	8500671	红色绝缘护套	BOOT Insulator - Red	1
47	881175A1	3位母头连接器盖总成	CAP ASSEMBLY 3 Position-Female Connector (FEMALE)	1
48	881176A1	3位公头连接器盖总成	CAP ASSEMBLY 3 Position-Male Connector (MALE)	1

图 99排气板 Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	858582T	适配板总成	ADAPTER PLATE ASSEMBLY	1
2	23784	定位销	PIN Dowel	7
3	880090	接头	FITTING	1
4	817519A2	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	2
5	126021	护孔环	GROMMET	1
5	12602002	护孔环	GROMMET	1
6	8585831	衬垫	GASKET	1
7	858572T	油底壳	SUMP Oil	1
7	858572T01	油底壳	SUMP Oil	1
8	858584A1	排气管总成	TUBE ASSEMBLY Exhaust	1
9	881295	O型圈	O-RING	1
10	894171	护孔环	GROMMET	1
10	89417004	护孔环	GROMMET	1
11	858575	水管	TUBE Water	1
11	8M0026130	水管	TUBE Water	1
11	8585751	水管	TUBE Water	1
11	8M0026129	水管	TUBE Water	1
12	814080	上密封件	SEAL Upper	1
12	814080001	密封件	SEAL	1
13	858571T	机油吸油管	TUBE Oil Pick Up	1
14	859082	O型圈	O-RING	1
15	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	4
15	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	4
16	8248327	螺钉 (M6 x 30)	SCREW (M6 x 30)	12
16	8M0214957	螺钉	SCREW	12
17	8596021	量油尺	DIPSTICK	1
18	48237	衬套	BUSHING	1
19	858577A2	换档轴	SHIFT SHAFT	1
19	858577A3	换档杆总成	LEVER ASSY-SHIFT	1
20	859177A3	换挡连杆	SHIFT LINK	1
21	NSS	不单独销售衬套	NOT SOLD SEPARATE Bushing	1
22	879997	换档滑块	SHIFT SLIDER	1
23	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
24	813745	隔套	SPACER	1
24	11289	隔套	SPACER	1
25	43585	联轴器	COUPLING	1
26	859746	开口销	COTTER PIN	2
27	858573	密封件	SEAL	1
27	8M0039073	密封件	SEAL	1
28	8288181	放油塞	PLUG Drain	1
29	828816	衬垫	GASKET	1
29	8M0204692	衬垫@5	GASKET @5	1
30	82483213	螺钉(M6 x 60)	SCREW (M6 x 60)	4

图 100飞轮/交流发电机 Flywheel/Alternator

REF	零件编号	中文名称	英文名称	数量
1	8285072	皮带	BELT	1
2	834936A3	飞轮	FLYWHEEL	1
2	834936T6	飞轮	FLYWHEEL	1
3	52901	螺母(0.625-18)	NUT (.625-18)	1
4	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
4	33001	垫圈	WASHER	1
5	45907	黄色塞	PLUG Yellow	1
6	834832	交流发电机	ALTERNATOR	1
6	857006T	交流发电机	ALTERNATOR	1
7	832080M2	发电机支架	BRACKET Alternator	1
8	81893430	螺钉 (M8 x 30)	SCREW (M8 x 30)	1
8	81893435	螺钉(M8×35)	SCREW (M8 x 35)	1
9	821583	销	PIN	1
9	8215832	特殊销（1.5英寸）	PIN Special (1.5 Inches)	1
10	812618	不锈钢螺钉(.312-18 x 1.00)带尼龙垫	SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch	3
11	82446180	螺钉(M10×80)	SCREW (M10 x 80)	1
12	855798	弹簧	SPRING	1
12	855798001	弹簧	SPRING	1
13	8502913	皮带张紧器	BELT TENSIONER	1
13	850291T3	皮带张紧器	BELT TENSIONER	1
14	855728	双头螺栓(M10 X 54)	STUD (M10 X 54)	1
14	8557281	螺柱	STUD	1
15	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	1
16	852385A1	滑轮	PULLEY	1
16	8M6005030	皮带轮总成	PULLEY ASSY	1
17	4010835	螺钉(M10×35)六角法兰-不锈钢	SCREW (M10 x 35) Hex Flange - Stainless Steel	1
18	856030A2	衬套套装	BUSHING KIT	1
19	85045	O型圈(.551 x .070)	O-RING (.551 x .070)	2
20	NLA	不再供应	No Longer Available	1
21	42139	衬套	BUSHING	1
22	857006T	交流发电机	ALTERNATOR	1
22	889955A03	交流发电机套件	ALTERNATOR KIT	1
23	40108100	螺钉(M10×100)六角法兰-不锈钢	SCREW (M10 x 100) Hex Flange - Stainless Steel	1
23	8M0012503	螺钉(M10×1.5)	SCREW (M10 x 1.5)	1
24	40108120	螺钉(M10×120)六角法兰-不锈钢	SCREW (M10 x 120) Hex Flange - Stainless Steel	1
25	29395	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	3
25	8M0042641	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	3
26	856975	支架	MOUNT	3
27	856972T	支架	BRACKET	1
27	858391T01	支架	BRACKET	1
28	845998	垫圈(0.406×1.250×0.089)	WASHER (.406 x 1.250 x .089)	3
29	856973T	支架	BRACKET	1
29	858393T01	支架	BRACKET	1
30	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	2
31	82446155	螺钉(M10×55)	SCREW (M10 x 55)	1
32	856583T2	拉线总成	CABLE ASSEMBLY	1
33	821583	销	PIN	1
33	8215832	特殊销（1.5英寸）	PIN Special (1.5 Inches)	1
34	856974T	支架	BRACKET	1
34	857142T	支架	BRACKET	1
35	812618	不锈钢螺钉(.312-18 x 1.00)带尼龙垫	SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch	3
36	855798	弹簧	SPRING	1
36	855798001	弹簧	SPRING	1
37	856815T2	张紧臂总成	ARM TENSIONER ASSEMBLY	1
38	856900	螺柱(M10×85)	STUD (M10 x 85)	1
38	8M0034457	螺柱(M10×85)	STUD (M10 x 85)	1
39	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	1
40	856894	衬套	BUSHING	1
40	8568941	衬套	BUSHING	1
41	4002320	垫圈	WASHER	2
42	852385A1	滑轮	PULLEY	1
42	8M6005030	皮带轮总成	PULLEY ASSY	1
43	4010835	螺钉(M10×35)六角法兰-不锈钢	SCREW (M10 x 35) Hex Flange - Stainless Steel	1

图 101燃油软管 Fuel Hoses

REF	零件编号	中文名称	英文名称	数量
1	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
2	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	5
2	8M0214964	卡箍	CLAMP	5
3	858955	连接器	CONNECTOR	1
4	830756109	软管（57英寸整料）（裁切至7-1/2英寸）	HOSE (57.00 Inches Bulk) (Cut to 7-1/2 Inches)	1
4	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
5	856822A1	油管	TUBING	1
5	8M0064784	成型脉冲软管	HOSE,MOLDED,PULSE	1
6	822769	连接器	CONNECTOR	1
7	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
8	858757A1	软管总成(25.50英寸)	HOSE ASSEMBLY (25.50 Inches)	1
8	8M0062344	软管总成	HOSE ASSY	1
9	804822	软管	HOSE	1
9	8M6001914	软管	HOSE	1
10	804821	管材（含O型圈）	TUBING (INCLUDES ORINGS)	1
10	8048211	油管	TUBING	1
11	8557611	止回阀	CHECK VALVE	1
12	856822A2	软管套管总成(18.00英寸)	HOSE AND SLEEVE ASSEMBLY (18.00 Inches)	1
12	8M0043979	软管套管总成	HOSE AND SLEEVE ASSEMBLY	1
13	85677870	软管	HOSE	1
13	8M0064634	软管	HOSE	1
14	85677887	软管	HOSE	1
14	8M0064635	软管	HOSE	1
15	85686953	套管(27.00英寸整卷)	SLEEVE (27.00 Inches Bulk)	2

图 102燃油泵 Fuel Pump

REF	零件编号	中文名称	英文名称	数量
1	880890T1	燃油泵	PUMP Fuel	1
2	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
3	881544	弹簧	SPRING	1
4	881545	柱塞	PLUNGER	1
5	881546	弹簧	SPRING	1
6	881547	隔膜	DIAPHRAGM	1
7	881548	销	PIN	1
8	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
9	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
10	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
11	881550	螺钉	SCREW	3
12	881333	螺母	NUT	3
13	804255	O型圈	O-RING	1
13	8M0050719	O型圈	O-RING	1
14	879650	卡箍	CLAMP	2
14	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	2
15	804256	螺栓 (M6 x 30)	BOLT (M6 x 30)	2
16	881543	软管	HOSE	1
16	881543002	油管	TUBING	1
17	881542	支架	BRACKET	1
18	8527768	螺栓(M6 x 16)	BOLT (M6 x 16)	1
18	811188T	螺栓	BOLT	1
19	8528161	螺母	NUT	1
19	82382M	螺母	NUT	1
20	881538T1	滤清器总成	FILTER ASSEMBLY	1
20	881538T02	燃油滤清器总成	FILTER ASSY-FUEL	1
21	881540	滤芯1.75英寸	ELEMENT 1.75 Inches	1
21	8M0168897	燃油滤清器	FUEL FILTER	1
21	8M0101436	滤芯1.50英寸	ELEMENT 1.50 Inches	1
21	8M0117705	燃油滤清器	FILTER-FUEL	1
22	826966M	O型圈	O-RING	1
22	826966T	O型圈	O RING	1
23	881541	浮子	FLOAT	1
24	881539	杯套	CUP	1
24	8M0101437	杯套	CUP	1
24	8M0137185	燃油杯	CUP FUEL	1
25	879650	卡箍	CLAMP	2
25	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	2
26	804260	支架	BRACKET	1
27	804112	螺栓(M7 x 48)	BOLT (M7 x 48)	2
28	804113	定位销	PIN Dowel	2
29	84292M	垫圈	WASHER	2
30	804257	燃油转换杆	LEVER Fuel Change	1
31	881334	轴	SHAFT	1
32	804259	销	PIN	2
32	82738M	滚销	PIN-ROLL	2
33	830757130	管材(.312)(70英寸整卷)裁切至55英寸长度	TUBING (.312) (70.00 Inches Bulk) Cut to 55.00 Inch Length.	1
33	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
34	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
35	822769	连接器	CONNECTOR	1
36	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
37	828547T1	导管(.500内径 x 3英尺整卷)	CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk)	1
-	858732T01	衬垫套件	GASKET SET	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	881310T1	气缸盖总成	CYLINDER HEAD ASSEMBLY	1
-	881310T09	气缸盖	HEAD-CYLINDER	1

图 103燃油导轨 Fuel Rails

REF	零件编号	中文名称	英文名称	数量
1	831998A9	空气压缩机总成(参见空气压缩机部件分解图)	COMPRESSOR ASSEMBLY Air (SEE BREAKDOWN ON AIR COMPRESSOR COMPONENTS)	1
2	85593912	螺钉（M6 x 12）	SCREW (M6 x 12)	5
3	8328231	滑轮	PULLEY	1
3	8M0175171	滑轮	PULLEY	1
4	4010825	螺丝(M10 x 25)六角法兰-不锈钢	SCREW (M10 x 25) Hex Flange - Stainless Steel	2
5	8502511	软管	HOSE	1
5	8502512	软管	HOSE	1
6	85652329	绝缘套管(15英寸)	INSULATOR SLEEVE (15 IN.)	1
7	852379T5	燃油导轨	FUEL RAIL	1
7	852379T6	燃油导轨	FUEL RAIL	1
8	8500653	喷油器	INJECTOR	6
8	8M6001743	空气喷射器总成	INJECTOR ASSEMBLY Air	6
9	855697	卡箍(16.2)	CLAMP (16.2)	4
9	8M0204696	卡箍	CLAMP	4
10	85564361	软管(16英寸)	HOSE (16 IN.)	2
11	92345	螺柱	STUD	1
12	854640	特殊垫圈	WASHER Special	2
13	35814	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
13	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
14	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
14	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
15	852378T5	燃油导轨	FUEL RAIL	1
15	852378T6	燃油导轨	FUEL RAIL	1
16	830756109	软管(57.00英寸整料)(裁切至22-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 22-1/2 Inches)	1
16	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
17	826810	止回阀	CHECK VALVE	1
18	83075780	管材(28英寸整卷)(裁切为2-1/2英寸)	TUBING (28.00 Inches Bulk) (Cut to 2-1/2 Inches)	1
18	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
19	83476463	管材(32英寸整卷)(裁切为28-1/2英寸)	TUBING (32.00 Inches Bulk) (Cut to 28-1/2 Inches)	1
20	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	2
20	8M0214964	卡箍	CLAMP	2
21	85606064	管材(36英寸整卷)(28-1/2英寸)	TUBING (36.00 Inches Bulk) (28-1/2 IN.)	1
21	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
22	82104510	螺钉 (M5 x 10)	SCREW (M5 x 10)	4
23	46997	卡箍	CLAMP	4
24	852961	螺柱	STUD	4
24	8M0063255	双头螺栓M10x92	STUD M10x92	4
25	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	4
26	NSS	不单独销售软管(30英寸)	NOT SOLD SEPARATE Hose (30 IN.)	1
26	856822A3	软管(30英寸)	HOSE (30 IN.)	1
27	8558481	软管	HOSE	1
27	855848A1	软管	HOSE	1
28	828694A1	杯形垫片总成	WASHER ASSEMBLY Cupped	6
29	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	4
29	8M0214964	卡箍	CLAMP	4
30	85686953	套管(27英寸整卷)(裁切为18英寸)	SLEEVE (27.00 Inches Bulk) (Cut to 18 Inches)	1

图 104衬垫组件套装(完整动力头及下部单元) Gasket Set Components Complete Powerhead and Lower Unit

REF	零件编号	中文名称	英文名称	数量
-	881805A01	发动机动力头与下部单元衬垫套装	GASKET SET Engine Powerhead and Lower Unit	1
0	857005A1	膜片组件	DIAPHRAGM KIT	1
0	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
0	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
0	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
0	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
0	NSS	增压弹簧(不单独销售)	NOT SOLD SEPARATE Spring-Boost	1
0	NSS	不单独销售端盖-弹簧	NOT SOLD SEPARATE Cap-Spring End	1
0	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
0	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
0	987691	燃油泵衬垫	GASKET Fuel Pump	1
0	8M0204705	衬垫@2	GASKET @2	1
0	54029	O型圈(2.800x0.103)上端盖	O-RING (2.800 x .103) Upper End Cap	1
0	62700	O型圈(3.237x0.103)下端盖	O-RING (3.237 x .103) Lower End Cap	1
0	62386001	节温器盖衬垫	GASKET Thermostat Cover	2
0	8M0204714	衬垫@4	GASKET @4	2
0	65800	曲轴下密封填料	PACKING Crankshaft-Lower	1
0	190506	排气分隔板衬垫	GASKET Exhaust Divider Plate	1
0	814754	排气分隔板密封条（12.5英寸）	SEAL (12.50 Inches) Exhaust Divider Plate	1
0	78690002	安全阀盖与板衬垫	GASKET Relief Valve Cover and Plate	2
0	8231422	气缸体衬垫	GASKET Cylinder Block	1
0	183076	驱动轴壳体板衬垫-长型	GASKET DriveShaft Housing Plate - Long	1
0	782461	排气延伸衬垫-长型	GASKET Exhaust Extension - Long	1
0	38970	驱动轴壳体板密封条-长型	SEAL DriveShaft Housing Plate - Long	1
0	991734	驱动轴壳体衬垫-长型	GASKET Driveshaft Housing - Long	1
0	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
0	426311	水泵底座下部衬垫	GASKET Water Pump Base-Lower	1
0	8M0204678	衬垫	GASKET	1
0	90011	水泵底座下部O型圈(2.175x0.175)	O-RING (2.175 x .175) Water Pump Base-Lower	1
0	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
0	18051	水泵底座下部衬垫	GASKET Water Pump Base-Lower	1
0	858524	水泵底座上部衬垫	GASKET Water Pump Base-Upper	1
0	38970	水泵体密封件	SEAL Water Pump Body	1

图 105齿轮箱(驱动)标准/反向旋转-Sportmaster型 Gear Housing (Drive) Standard/Counter Rotatation-Sportmaster

REF	零件编号	中文名称	英文名称	数量
0	840560T33	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	840560T34	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	840561T69	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	840561T70	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	849780A2	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	8M0083306	齿轮箱-SM型	GEAR HOUSING-SM	1
1	849781A2	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	8M0084203	齿轮箱-SM型	GEAR HOUSING-SM	1
2	8479504	盖板	COVER	2
3	34776	O型圈	O-RING	2
4	815904	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	12
5	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
6	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
7	67891	填充块	FILLER BLOCK	1
7	8M0039169	填充块	FILLER BLOCK	1
8	847949	管塞	PLUG Pipe	1
9	562972	螺柱(0.312-18/0.324-24×3.380)	STUD (.312-18/.324-24 x 3.380)	1
9	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
10	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
10	306671	螺柱	STUD	2
11	826134Q	阳极块	ANODE	2
12	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
13	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
14	59579	双头螺柱(.437-14/.437-20 x 2.812)	STUD (.437-14/.437-20 x 2.812)	3
14	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
14	579203	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
14	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
15	NSS	小齿轮(不单独销售)	NOT SOLD SEPARATE Pinion Gear	1
16	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
17	35921	螺母(0.625-18)	NUT (.625-18)	1
18	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	1
18	79953Q04	放油螺钉套件	SCREW KIT Drain	1
19	191833	密封件	SEAL	1
19	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
20	789022	换挡轴(下部)	SHIFT SHAFT (LOWER)	1
21	77631A2	衬套总成	BUSHING ASSEMBLY	1
22	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
23	8164641	油封	SEAL Oil	1
23	8M0246145	油封	OIL SEAL	1
24	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
25	848449A4	驱动轴总成	DRIVESHAFT ASSEMBLY	1
25	8M0192233	驱动轴	DRIVESHAFT	1
25	848449A5	驱动轴总成	DRIVESHAFT ASSEMBLY	1
25	8M0192234	驱动轴	DRIVESHAFT	1
26	38657A1	垫片组	SHIM ASSEMBLY	1
26	8M0063268	垫片组	SHIM SET	1
27	48939A2	圆锥滚子轴承	BEARING Taper Roller	1
27	8M0146553	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
28	NSS	滚子轴承杯(不单独销售)	NOT SOLD SEPARATE Cup-Roller Bearing	1
29	42637A1	垫片组	SHIM SET	AR
29	8M0063267	垫片组	SHIM SET	AR
30	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
30	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
31	NSS	杯形轴承(不单独销售)	NOT SOLD SEPARATE Cup-Bearing	1
32	8245191	固定座	RETAINER	1
33	44292A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
34	426311	衬垫	GASKET	1
34	8M0204678	衬垫	GASKET	1
35	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
35	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
36	89238	油封	SEAL Oil	1
37	16977	油封	SEAL Oil	1
38	18051	衬垫(下部)	GASKET (LOWER)	1
39	858524	衬垫(上部)	GASKET (UPPER)	1
40	324351	面板	FACE PLATE	1
40	8M0204677	面板	PLATE-FACE	1
41	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
42	48752T	嵌件	INSERT	1
43	38970	密封件	SEAL	1
44	29804T	套筒	SLEEVE	1
45	56654	键	KEY	1
45	8M0214992	键@5	KEY @5	1
46	89984T4	叶轮	IMPELLER	1
47	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
47	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
48	8267119	螺母(.250-28)	NUT (.250-28)	2
49	36001	垫圈	WASHER	1
50	13436	螺母	NUT	1
51	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
51	8M0215009	螺钉	SCREW	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	881805A01	发动机垫片组	GASKET SET Engine	1
-	90415A24	螺柱套件	STUD KIT	1
-	59579	双头螺柱(.437-14/.437-20 x 2.812)	STUD (.437-14/.437-20 x 2.812)	1

图 106齿轮箱（驱动轴-Torque Master） Gear Housing (Driveshaft-Torque Master)

REF	零件编号	中文名称	英文名称	数量
-	827214T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	827214T25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
3	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
4	579203	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
4	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	562972	螺柱(0.312-18/0.324-24×3.380)	STUD (.312-18/.324-24 x 3.380)	1
5	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
6	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
6	306671	螺柱	STUD	2
7	67891	填充块	FILLER BLOCK	1
7	8M0039169	填充块	FILLER BLOCK	1
8	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	826134Q	阳极块	ANODE	2
10	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
11	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
12	29804T	套筒	SLEEVE	1
13	NSS	小齿轮(不单独销售)	NOT SOLD SEPARATE Pinion Gear	1
14	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
15	35921	螺母(0.625-18)	NUT (.625-18)	1
16	42637A1	垫片组	SHIM SET	AR
16	8M0063267	垫片组	SHIM SET	AR
17	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	1
17	79953Q04	放油螺钉套件	SCREW KIT Drain	1
18	191833	密封件	SEAL	2
18	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
19	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
19	8M0058389	放油螺钉套件	SCREW KIT Drain	1
19	67892A05	磁性放油螺塞套件	PLUG KIT Drain (Magnetic)	1
19	8M0058389	放油螺钉套件	SCREW KIT Drain	1
20	789022	换档轴	SHIFT SHAFT	1
21	77631A2	衬套总成	BUSHING ASSEMBLY	1
22	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
23	8164641	油封	SEAL Oil	1
23	8M0246145	油封	OIL SEAL	1
24	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
25	848449A5	驱动轴总成	DRIVESHAFT ASSEMBLY	1
25	8M0192234	驱动轴	DRIVESHAFT	1
26	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
26	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
27	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
28	8245191	固定座	RETAINER	1
29	44292A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
30	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	1
31	426311	衬垫	GASKET	1
31	8M0204678	衬垫	GASKET	1
32	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
32	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
33	89238	油封	SEAL Oil	1
34	16977	油封	SEAL Oil	1
35	18051	衬垫(下部)	GASKET (LOWER)	1
36	858524	衬垫(上部)	GASKET (UPPER)	1
37	324351	面板	FACE PLATE	1
37	8M0204677	面板	PLATE-FACE	1
38	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
39	48752T	嵌件	INSERT	1
40	38970	密封件	SEAL	1
41	89984T4	叶轮	IMPELLER	1
42	56654	键	KEY	1
42	8M0214992	键@5	KEY @5	1
43	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
43	8M0215009	螺钉	SCREW	1
44	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
44	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
45	8267119	螺母(.250-28)	NUT (.250-28)	2
46	36001	垫圈	WASHER	1
47	13436	螺母	NUT	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	881805A01	发动机垫片组	GASKET SET Engine	1

图 107齿轮箱螺旋桨轴-反向-Sportmaster型 Gear Housing Propeller Shaft-Counter-Sportmaster

REF	零件编号	中文名称	英文名称	数量
0	840561T69	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	840561T70	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	849781A2	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	8M0084203	齿轮箱-SM型	GEAR HOUSING-SM	1
2	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
3	789562	换挡凸轮	SHIFT CAM	1
4	79911A1	杆	ROD	1
5	79910	弹簧	SPRING	2
6	78906	销	PIN	1
6	8M0084245	弹簧定位销	PIN Spring Locator	1
7	78910	垫圈	WASHER	2
8	14469T	轴承杯	CUP Bearing	1
9	88957T	滚珠轴承	BEARING Ball	1
10	NSS	倒车齿轮(不单独销售)	NOT SOLD SEPARATE Reverse Gear	1
11	15844	滚柱轴承总成	BEARING ASSEMBLY Roller	1
12	42672T	棘轮	RATCHET	1
13	78909	定位销	PIN Detent	2
14	42671	十字销	PIN Cross	1
15	78962	弹簧	SPRING	2
16	15845A2	齿轮组	GEAR SET	1
17	176151	调整垫片(.125)	SPACER SHIM (.125)	AR
17	176152	调整垫片(.127)	SPACER SHIM (.127)	AR
17	176153	调整垫片(.129)	SPACER SHIM (.129)	AR
17	176154	调整垫片(.131)	SPACER SHIM (.131)	AR
17	176155	调整垫片(.133)	SPACER SHIM (.133)	AR
17	176156	调整垫片(.135)	SPACER SHIM (.135)	AR
17	176157	调整垫片(.137)	SPACER SHIM (.137)	AR
17	176158	调整垫片(.139)	SPACER SHIM (.139)	AR
17	176159	调整垫片(.141)	SPACER SHIM (.141)	AR
17	1761510	调整垫片(.143)	SPACER SHIM (.143)	AR
17	1761511	调整垫片(.145)	SPACER SHIM (.145)	AR
17	1761512	调整垫片(.147)	SPACER SHIM (.147)	AR
17	1761513	调整垫片(.149)	SPACER SHIM (.149)	AR
18	15841	滚柱轴承	BEARING Roller	1
19	17616	推力环	THRUST RING	1
20	31534	O型圈	O-RING	1
20	8M0214920	O型圈	O RING	1
21	15838A2	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
22	15843T	滚针轴承	BEARING Needle	1
23	15834	推力轴承	BEARING Thrust	2
24	840450A03	螺旋桨轴套件	PROPELLER SHAFT KIT	1
-	840389K06	螺旋桨毂套件	PROP HUB KIT	1
-	8M0183487	重型螺旋桨轮毂套件	HUB KIT-HD PROP	1
-	840382A02	缓冲条套件	SNUBBER STRIP KIT	1
25	847616T1	轴承座	CARRIER Bearing	1
26	817072	滚柱轴承	BEARING Roller	1
27	815565	油封	SEAL Oil	2
28	817071	卡环	RING Snap	1
29	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
29	8M0058389	放油螺钉套件	SCREW KIT Drain	1
29	67892A05	磁性放油螺塞套件	PLUG KIT Drain (Magnetic)	1
29	8M0058389	放油螺钉套件	SCREW KIT Drain	1
30	191833	密封件	SEAL	1
30	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
31	30281	键	KEY	1
32	79447	锁紧垫圈	TAB WASHER	1
33	158401	盖板	COVER	1
34	85344	垫圈(.750内径)	WASHER (.750 Inside Diameter)	1
35	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
36	41350	螺钉(.437-14 x 2.50)不锈钢	SCREW (.437-14 x 2.50) Stainless Steel	1
37	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	2
38	859116	螺母(.437-20)	NUT (.437-20)	2
39	30206	螺钉(.375-16 x 1.00)不锈钢	SCREW (.375-16 x 1.00) Stainless Steel	1
40	76214T3	阳极块	ANODE	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	90415A24	螺柱套件	STUD KIT	1
-	59579	双头螺柱(.437-14/.437-20 x 2.812)	STUD (.437-14/.437-20 x 2.812)	1

图 108齿轮箱螺旋桨轴-标准-Sportmaster Gear Housing Propeller Shaft-Standard-Sportmaster

REF	零件编号	中文名称	英文名称	数量
-	840560T33	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	840560T34	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	849780A2	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	8M0083306	齿轮箱-SM型	GEAR HOUSING-SM	1
2	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
3	789562	换挡凸轮	SHIFT CAM	1
4	79911A1	杆	ROD	1
5	79910	弹簧	SPRING	2
6	78906	销	PIN	1
6	8M0084245	弹簧定位销	PIN Spring Locator	1
7	78910	垫圈	WASHER	2
8	47397A1	垫片组	SHIM SET	AR
9	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
10	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
11	44104A7		GEAR SET (Includes Pinion)	1
12	549281	滚柱轴承	BEARING Roller	1
13	42672T	棘轮	RATCHET	1
14	78909	定位销	PIN Detent	2
15	42671	十字销	PIN Cross	1
16	78962	弹簧	SPRING	2
17	840451A2	螺旋桨轴	PROPELLER SHAFT	1
17	840451A03	螺旋桨轴	PROPELLER SHAFT	1
17	840451A03	螺旋桨轴	PROPELLER SHAFT	1
-	840389K5	轮毂套件	HUB KIT	1
-	8M0183487	重型螺旋桨轮毂套件	HUB KIT-HD PROP	1
-	840389K06	螺旋桨毂套件	PROP HUB KIT	1
-	8M0183487	重型螺旋桨轮毂套件	HUB KIT-HD PROP	1
-	840382A1	缓冲条套件	SNUBBER STRIP KIT	1
-	840382A02	缓冲条套件	SNUBBER STRIP KIT	1
-	840382A02	缓冲条套件	SNUBBER STRIP KIT	1
18	822824A1	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
18	8M0192202	倒挡齿轮	GEAR-REVERSE	1
19	822823	推力环	THRUST RING	1
20	88957T	滚珠轴承	BEARING Ball	1
21	681001	止推环	RING Thrust	1
22	31534	O型圈	O-RING	1
22	8M0214920	O型圈	O RING	1
23	848840T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
23	848840A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
24	817072	滚柱轴承	BEARING Roller	1
25	817071	卡环	RING Snap	2
26	815565	油封	SEAL Oil	2
27	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
27	8M0058389	放油螺钉套件	SCREW KIT Drain	1
27	67892A05	磁性放油螺塞套件	PLUG KIT Drain (Magnetic)	1
27	8M0058389	放油螺钉套件	SCREW KIT Drain	1
28	191833	密封件	SEAL	1
28	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
29	79448	固定座	RETAINER	1
29	8M2011027	固定座	RETAINER	1
30	30281	键	KEY	1
31	79447	锁紧垫圈	TAB WASHER	1
32	85344	垫圈(.750内径)	WASHER (.750 Inside Diameter)	1
33	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
34	41350	螺钉(.437-14 x 2.50)不锈钢	SCREW (.437-14 x 2.50) Stainless Steel	1
34	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
35	76214T3	阳极块	ANODE	1
35	76214Q5	阳极套件	ANODE KIT	1
36	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	2
37	859116	螺母(.437-20)	NUT (.437-20)	2
38	30206	螺钉(.375-16 x 1.00)不锈钢	SCREW (.375-16 x 1.00) Stainless Steel	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	90415A24	螺柱套件	STUD KIT	1
-	59579	双头螺柱(.437-14/.437-20 x 2.812)	STUD (.437-14/.437-20 x 2.812)	1

图 109齿轮箱螺旋桨轴-Torque Master Gear Housing Propeller Shaft - Torque Master

REF	零件编号	中文名称	英文名称	数量
-	827214T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	827214T25	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
3	789562	换挡凸轮	SHIFT CAM	1
4	79911A1	杆	ROD	1
5	79910	弹簧	SPRING	2
6	78906	销	PIN	1
6	8M0084245	弹簧定位销	PIN Spring Locator	1
7	78910	垫圈	WASHER	AR
8	47397A1	垫片组	SHIM SET	AR
9	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
10	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
11	44104A7	齿轮组	GEAR SET	1
12	549281	滚柱轴承	BEARING Roller	1
13	42672T	棘轮	RATCHET	1
14	42671	十字销	PIN Cross	1
15	78909	定位销	PIN Detent	2
16	78962	弹簧	SPRING	2
17	840451A03	螺旋桨轴	PROPELLER SHAFT	1
-	840389K06	螺旋桨毂套件	PROP HUB KIT	1
-	8M0183487	重型螺旋桨轮毂套件	HUB KIT-HD PROP	1
-	840382A02	缓冲条套件	SNUBBER STRIP KIT	1
18	822824A1	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
18	8M0192202	倒挡齿轮	GEAR-REVERSE	1
19	822823	推力环	THRUST RING	1
20	681001	止推环	RING Thrust	1
21	88957T	滚珠轴承	BEARING Ball	1
22	31534	O型圈	O-RING	1
22	8M0214920	O型圈	O RING	1
23	848840T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
23	848840A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
24	817072	滚柱轴承	BEARING Roller	1
25	817071	卡环	RING Snap	1
26	815565	油封	SEAL Oil	2
27	79448	固定座	RETAINER	1
27	8M2011027	固定座	RETAINER	1
28	30281	键	KEY	1
29	79447	锁紧垫圈	TAB WASHER	1
30	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
31	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
32	832066A1	进水口板套件	PLATE KIT Water Inlet	1
33	188642	螺钉(#8-32 x .500)	SCREW (#8-32 x .500)	4
34	76214Q5	阳极套件	ANODE KIT	1
35	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
36	859116	螺母(.437-20)	NUT (.437-20)	2
37	30206	螺钉(.375-16 x 1.00)不锈钢	SCREW (.375-16 x 1.00) Stainless Steel	1
38	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	2
39	881866	接头	FITTING	1
40	85944975	管材(72英寸散装)(截断至7英寸)	TUBING (72.00 Inches Bulk) (Cut to 7 Inches)	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 110钥匙开关/仪表/附件 Key Switch/Instumentation/Accessories

REF	零件编号	中文名称	英文名称	数量
1	896537T20	线束总成(20英尺)钥匙-阻风门-喇叭	HARNESS ASSEMBLY (20 Feet) Key - Choke - Horn	1
2	897716	点火开关套件(3位)含钥匙	SWITCH KIT Ignition (3 Position) With Keys	1
2	897716K01	点火开关套件(3位)含钥匙	SWITCH KIT Ignition (3 Position) With Keys	1
3	816492A2	报警器	ALARM	1
3	8M0089727	报警器总成	ALARM ASSEMBLY	1
-	894911	点火钥匙(1A)	KEY Ignition (1A)	1
-	894912	点火钥匙(1B)	KEY Ignition (1B)	1
-	894913	点火钥匙(1C)	KEY Ignition (1C)	1
-	894914	点火钥匙(1D)	KEY Ignition (1D)	1
-	894915	点火钥匙(1E)	KEY Ignition (1E)	1
-	894916	点火钥匙(1F)	KEY Ignition (1F)	1
-	894917	点火钥匙(2A)	KEY Ignition (2A)	1
-	894918	点火钥匙(2B)	KEY Ignition (2B)	1
-	894919	点火钥匙(2C)	KEY Ignition (2C)	1
-	8949110	点火钥匙(2D)	KEY Ignition (2D)	1
-	8949111	点火钥匙(2E)	KEY Ignition (2E)	1
-	8949112	点火钥匙(2F)	KEY Ignition (2F)	1
4	879981T20	线束总成 (SC1000R-20)	HARNESS ASSEMBLY (SC1000R-20)	1
5	859318T1	终端接头 10针 (CAN 1和2)	TERMINATOR 10 Pin (CAN 1 and 2)	1
5	8M0210753	终端接线盒	TERMINATOR Junction Box	1
6	878492T14	四通接线盒	JUNCTION BOX 4 Way	1
6	8M0165557	接线盒套件	J-BOX KIT	1
7	859318T2	防水帽 - 10针	CAP Weather - 10 Pin	1
7	8M0210754	防水帽	WEATHER CAP	1
8	879979T1	转速表线束总成 (SC1000-3)	HARNESS ASSEMBLY Tachometer (SC1000-3)	1
8	879979T11	转速表线束总成	HARNESS ASSEMBLY Tachometer	1
-	858610A31	燃油软管总成	HOSE ASSEMBLY Fuel	1
-	8M0038610	带注油球的燃油软管总成(9英尺)	HOSE ASSEMBLY Fuel (9 Feet) With Primer Bulb	1
-	8M0038610	带注油球的燃油软管总成(9英尺)	HOSE ASSEMBLY Fuel (9 Feet) With Primer Bulb	1
-	8M8025356	燃油软管总成(9英尺)	HOSE ASSEMBLY Fuel (9 Feet)	1

图 111机油喷射组件 Oil Injection Components

REF	零件编号	中文名称	英文名称	数量
1	12335A1	支架套件	BRACKET KIT	1
2	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1
3	87421	油箱	TANK	1
4	43298A2	盖总成	CAP ASSEMBLY	1
5	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
6	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
7	816190A3	外壳总成适配器	HOUSING ASSEMBLY Adapter	1
7	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
8	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
9	99802	管	TUBE	1
10	99439	软管(114.00英寸)	HOSE (114.00 Inches)	1
11	833069A3	油箱总成	RESERVOIR ASSEMBLY Oil	1
11	8M0062954	储油罐	RESERVOIR, OIL	1
12	NSS	不单独销售标签-储液罐	NOT SOLD SEPARATE Decal-Reservoir	1
13	855362	护孔环	GROMMET	3
13	855362001	护孔环	GROMMET	3
14	49436	垫圈	WASHER	3
15	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
16	855364	衬套	BUSHING	3
17	69267	螺钉 (.312-18 x 1.750)	SCREW (.312-18 x 1.750)	2
18	833155	护孔环	GROMMET	2
19	8502341	衬套	BUSHING	2
20	82381455	管材(25英寸整卷)(裁切为20英寸)	TUBING (25.00 Inches Bulk) (Cut to 20 Inches)	1
21	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
21	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
22	12886A8	开关	SWITCH	1
23	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
24	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
25	8260841	隔套	SPACER	1
26	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	7
26	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	7
27	NSS	不单独销售塞	NOT SOLD SEPARATE Plug	1
28	424254	接头	FITTING	1
28	8M0207780	接头	FITTING	1
29	830756109	软管(57.00英寸散装)(裁切至6英寸)	HOSE (57.00 Inches Bulk) (Cut to 6 Inches)	1
29	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
30	855785	燃油冷却器	COOLER Fuel	1
30	855785A1	燃油冷却器总成	COOLER ASSEMBLY Fuel	1
31	855761	止回阀	CHECK VALVE	1
31	8557611	止回阀	CHECK VALVE	1
32	13791	卡箍(15.7)	CLAMP (15.7)	4
32	8M0214911	卡箍@5	CLAMP @5	4
33	85682239	管材(17英寸整卷)(裁切为3英寸)	TUBING (17.00 Inches Bulk) (Cut to 3 Inches)	1
34	856822A3	软管(带绝缘套管)(30英寸)	HOSE (W/INSULATING SLEEVE) (30 IN.)	1

图 112油管 Oil Lines

REF	零件编号	中文名称	英文名称	数量
1	85606064	管材(36.00英寸整料)(裁切至24英寸)	TUBING (36.00 Inches Bulk) (Cut to 24 Inches)	1
1	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
2	85606064	管材(36.00英寸整料)(裁切至18-1/2英寸)	TUBING (36.00 Inches Bulk) (Cut to 18-1/2 Inches)	1
2	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
3	85606064	管材(36.00英寸整料)(裁切至15-1/2英寸)	TUBING (36.00 Inches Bulk) (Cut to 15-1/2 Inches)	1
3	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
4	85606064	管材(36.00英寸整料)(裁切至24-1/2英寸)	TUBING (36.00 Inches Bulk) (Cut to 24-1/2 Inches)	3
4	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	3
4	85606064	管材(36.00英寸整料)(裁切至24-1/2英寸)	TUBING (36.00 Inches Bulk) (Cut to 24-1/2 Inches)	2
4	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	2
5	858805	止回阀	CHECK VALVE	6
6	69355	扎带(5.50英寸)	TIE STRAP (5.50 Inches)	AR
6	8M0214940	扎带	TIE STRAP	AR
7	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
8	830756109	软管(57.00英寸散装)(裁切至6英寸)	HOSE (57.00 Inches Bulk) (Cut to 6 Inches)	1
8	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
9	82381455	管材(25.00英寸整料)(裁切至24英寸)	TUBING (25.00 Inches Bulk) (Cut to 24 Inches)	1
10	85583463	管材(33.00英寸整料)(裁切至32英寸)	TUBING (33.00 Inches Bulk) (Cut to 32 Inches)	1
10	85583464	管材 (34.00英寸整卷)	TUBING (34.00 Inches Bulk)	1
11	858955	连接器	CONNECTOR	2
12	426981	止回阀	CHECK VALVE	1
12	426982	止回阀	CHECK VALVE	1
13	426231	止回阀	CHECK VALVE	1
13	426233	止回阀	CHECK VALVE	1
14	99130122	管材(20英尺整卷)(裁切为19英寸)	TUBING (20.00 Feet Bulk) (Cut to 19 Inches)	1
14	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
15	432783	止回阀	CHECK VALVE	1
15	8781051	止回阀	CHECK VALVE	1
16	424254	接头	FITTING	1
16	8M0207780	接头	FITTING	1
17	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	2
18	875289	软管	HOSE	1
19	830756109	软管(57.00英寸整料)(裁切至22-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 22-1/2 Inches)	1
19	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
20	826810	止回阀	CHECK VALVE	1
21	830757130	管材(.312)(70.00英寸整料)(裁切至2-1/2英寸)	TUBING (.312) (70.00 Inches Bulk) (Cut to 2-1/2 Inches)	1
21	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
22	875284	管路过滤器	FILTER In Line	1
22	875284T01	滤清器-机油在线式	FILTER Oil - In Line	1
23	875283	软管(2.00英寸)	HOSE (2.00 Inches)	1
24	85606064	管材(36.00英寸整料)(裁切至27英寸)	TUBING (36.00 Inches Bulk) (Cut to 27 Inches)	1
24	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
-	854008T00	动力头总成	POWERHEAD ASSEMBLY	1

图 113动力升降组件 8M0231193 Power Trim Components 8M0231193

REF	零件编号	中文名称	英文名称	数量
-	8M0231193	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0225363	电机套件	MOTOR KIT	1
2	8M0225369	阀套件	VALVE KIT	1
3	8M0225371	手动释放套件	MANUAL RELEASE KIT	1
4	8M0245633	倾斜油缸套件	TILT CYLINDER KIT	1
5	8M0225370	枢轴销套件	PIVOT PIN KIT	1
6	8M0244575	减震杆套件	SHOCK ROD KIT	1
7	8M0244425	销杆眼套件	PIN ROD EYE KIT	1
8	8M0232231	螺钉螺母套件	SCREW NUT KIT	1
9	8M0225373	记忆活塞套件	MEMORY PISTON KIT	1
10	8M0225368	储液罐套件	RESERVOIR KIT	1
11	8M0174135	储液罐塞总成	PLUG RESERVOIR ASSEMBLY	1
12	8M0237525	泵套件	PUMP KIT	1
13	8M0225367	升降杆套件	TRIM ROD KIT	1
14	8M0242846	升降杆套件	TRIM ROD KIT	1
15	8M0225372	重建套件	REBUILD KIT	1

图 114动力升降组件金属马达壳 Power Trim Components Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	826729A2	升降倾斜总成	TRIM AND TILT ASSEMBLY	1
1	811604F	歧管总成	MANIFOLD ASSEMBLY	1
2	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	9
3	823552F	气缸总成	CYLINDER ASSEMBLY	1
3	880952A03	ORD 8M0078330	ORD 8M0078330	1
4	823553	配平活塞杆套件	ROD KIT Trim Piston	1
4	823553T	升降活塞杆	ROD Trim Piston	1
5	811606	导向套件	GUIDE KIT	1
5	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
6	811607A1	维修套件	REPAIR KIT	1
7	811610A1	止回阀套件	CHECK VALVE KIT	1
7	823553T	升降活塞杆	ROD Trim Piston	1
8	99638A1	导向器总成	GUIDE ASSEMBLY	2
8	8M0021648	端盖总成	END CAP ASSEMBLY	2
9	43397A6	动力升降倾斜装置活塞/杆总成	PISTON/ROD ASSEMBLY Power Trim	1
9	878413A1	活塞总成	PISTON ASSEMBLY	1
9	43398A3	动力升降倾斜装置活塞/杆总成	PISTON/ROD ASSEMBLY Power Trim	1
9	878414T01	活塞总成	PISTON ASSEMBLY	1
10	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
11	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
11	893929A01	安全阀套件	VALVE KIT Relief	1
12	812844	E型卡环	E RING	1
12	815949001	E形环	E-RING	1
13	811612A2	O型圈套件	O-RING KIT	1
13	811612A3	O型圈套件	O-RING KIT	1
14	811617F	泵	PUMP	1
14	811617T1	泵	PUMP	1
15	811613	塞子总成	PLUG ASSEMBLY	1
16	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
17	43450	垫圈	WASHER	4
17	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
18	811611	盖板	COVER	1
19	828710	驱动接头	DRIVE JOINT	1
20	828708	电机总成	MOTOR ASSEMBLY	1
20	878265A4	配平电机	TRIM MOTOR	1
21	828709	螺钉 (长)	SCREW (LONG)	2
21	881768A1	螺钉/垫圈套件	SCREW/WASHER KIT	2
21	811616	螺钉 (短)	SCREW (SHORT)	2
22	811614	轴总成	SHAFT ASSEMBLY	1
22	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
23	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
24	44431	槽销	PIN Groove	1
24	878267	销	PIN	1
25	821539	三叶销	PIN Trilobe	1
26	996251	轴	SHAFT	1
26	99625002	轴	SHAFT	1
27	818298A1	阳极套件	ANODE KIT	1
27	818298Q1	阳极套件	ANODE KIT	1
28	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
28	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
29	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
29	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
30	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
31	4002319	垫圈	WASHER	6
32	26550	卡箍	CLAMP	2
33	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
33	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
34	69205	C形垫圈	C WASHER	1
34	8M0084613	C形垫圈	C-WASHER	1
35	996301	冲击板	STRIKER PLATE	2
35	8M0045383	冲击板	STRIKER PLATE	2
36	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
37	46335	螺母 (.375-24)	NUT (.375-24)	2
38	435301	警示贴纸-动力微调	DECAL Caution-Power Trim	1
39	828547353	导管 (.350内径 x 3.00英尺散装)	CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk)	1
40	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
40	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

图 115动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	8M0168222	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0142591	电机套件	MOTOR KIT	1
2	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
3	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
4	8M0090403	驱动联轴器	COUPLING Drive	1
5	8M0142996	压力检查套件	PO CHECK KIT	1
6	8M0060141	手动释放套件	MANUAL RELEASE KIT	1
7	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
8	878267	销	PIN	1
9	8M0142998	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
9	8M0168220	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
10	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
11	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
12	8M0142592	升降杆套件左舷	TRIM ROD KIT Port	1
13	8M0143001	活塞总成	PISTON ASSEMBLY	1
14	8M0143003	端盖总成	END CAP ASSEMBLY	1
15	878264A1	储液罐套件	RESERVOIR KIT	1
16	811613	塞子总成	PLUG ASSEMBLY	1
17	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
18	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
19	8M0143004	泵套件	PUMP KIT	1
20	8M0148385	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
21	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
22	4002319	垫圈	WASHER	6
23	8M0094889	销	PIN	1
23	8M0161312	连杆销眼总成	PIN ROD EYE ASSEMBLY	1
24	8M0143005	减震杆套件	SHOCK ROD KIT	1
24	8M0168219	减震杆套件	SHOCK ROD KIT	1

图 116维修/支撑材料 Service/Support Material

零件编号	中文名称	英文名称	数量
88183801	零件手册-115EFI(四冲程)	PARTS MANUAL 115 EFI (4-Stroke) Parts Manual	1
881980	维修手册	SERVICE MANUAL	1
881980R03	SM O/B 115 EFI 4S	SM O/B 115 EFI 4S	1
10225030	用户手册	OWNERS MANUAL	1
858610A31	燃油软管总成	HOSE ASSEMBLY Fuel	1
8M0038610	带注油球的燃油软管总成(9英尺)	HOSE ASSEMBLY Fuel (9 Feet) With Primer Bulb	1
880177	组合扳手工具(10毫米)	SCRENCH TOOL (10 mm)	1
881828	星形头工具套件	STARBIT TOOL KIT	1
881649A01	贴花套件	DECAL SET	1
881649A05	贴花套件	DECAL SET	1
881840A01	贴花套件	DECAL SET	1
881840A03	贴花套件	DECAL SET	1
881840A03	贴花套件	DECAL SET	1
881840A05	贴花套件	DECAL SET	1
881650A01	贴花套件	DECAL SET	1
881650A03	贴花套件	DECAL SET	1
881650A03	贴花套件	DECAL SET	1
881702A01	贴花套件	DECAL SET	1
881839A01	EPA标签信息贴花	DECAL EPA Label Information	1
881839A02	EPA标签信息贴花	Decal EPA Label Information	1
881839A03	EPA标签信息贴花	DECAL EPA Label Information	1
816834A1	转速表	TACHOMETER	1
816932A1	温度表	TEMPERATURE GAUGE	1
86306	适配器	ADAPTER	1
86306A01	适配器	ADAPTER	1
817054A3	水压表总成	GAUGE ASSEMBLY Water Pressure	1
821400A2	动力升降倾斜传感器套件	SENDER KIT Power Trim	1
8M0074845	ORD 8M0098264	ORD 8M0098264	1
92876A8	转向安装套件	ATTACHING KIT Steering	1
92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
883040A1	转速表模块套件	TACH MODULE KIT	1

图 117启动电机 Starter Motor

REF	零件编号	中文名称	英文名称	数量
-	881368T1	启动电机总成	STARTER MOTOR ASSEMBLY	1
-	881368T2	启动电机总成	STARTER MOTOR ASSEMBLY	1
-	881368T2	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	804314T	定子	STATOR	1
2	804313T	电枢	ARMATURE	1
3	881369T1	电刷支架总成	HOLDER ASSEMBLY Brush	1
4	804316	电刷组	BRUSH SET	1
5	804317	弹簧	SPRING	4
6	881370T	支架	BRACKET	1
7	804337	螺钉(M4×16)	SCREW (M4 x 16)	2
8	804335	贯穿螺栓(M6×120)	THRU BOLT (M6 x 120)	2
9	804321T1	齿轮套件	GEAR KIT	1
10	804322	离合器	CLUTCH	1
11	804330	垫圈套件	WASHER KIT	1
12	804324	支架	BRACKET	1
13	804326	齿圈	RING GEAR	1
14	804327	衬垫	GASKET	1
15	804325	轴承	BEARING	1
16	804323	小齿轮轴	SHAFT Pinion	1
17	804329	惰轮	IDLER GEAR	3
17	804329001	惰轮	GEAR Idler	3
18	804328	支架	BRACKET	1
19	804331T	盖板	COVER	1
20	804336	螺栓(M6×52)	BOLT (M6 x 52)	2
21	804319	小齿轮	PINION	1
22	804320	小齿轮止动组	STOP SET Pinion	1
23	804332	杠杆套件	LEVER KIT	1
24	804334	盖板	COVER	1
25	881371T	启动继电器	RELAY Starter	1
25	881371T1	启动继电器	RELAY Starter	1
25	881371T1	启动继电器	RELAY Starter	1
26	804605	螺栓(M8×45)	BOLT (M8 x 45)	3
27	881373	接线端子	TERMINAL	1
28	881377	锁紧垫圈	LOCKWASHER	1
29	82382M	螺母	NUT	1
30	881372	螺母	NUT	1
31	881374	盖板	COVER	1

图 118旋转支架(长型) Swivel Bracket (Long)

REF	零件编号	中文名称	英文名称	数量
1	8710T20	黑色旋转支架总成	SWIVEL BRACKET ASSEMBLY Black	1
1	8M0102865	黑色旋转支架总成	SWIVEL BRACKET ASSEMBLY Black	1
2	87735	油封	SEAL Oil	1
3	818764	衬套	BUSHING	2
4	816039	隔套	SPACER	1
5	33504	O型圈	O-RING	1
5	8M0214926	O型圈 @10	O RING @10	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	816432	止推垫片	THRUST WASHER	1
9	78689	螺钉（0.437-20 X 7.50）	SCREW (.437-20 x 7.50)	2
9	8M0176309	螺钉	SCREW	2
10	776981	支架	MOUNT	2
11	78688	垫圈	WASHER	2
12	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
12	8M0204653	螺母	NUT	2
13	92876A10	连杆总成	LINK ROD ASSEMBLY	1
13	92876A12	连杆总成	LINK ROD ASSEMBLY	1
14	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
15	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
15	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
16	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
17	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
17	826432A2	转向臂旋转销总成-不锈钢	SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel	1
18	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
18	878182T	轭架底部-不锈钢	YOKE Bottom - Stainless Steel	1
19	67684	挡圈	RING Retaining	1
20	54457	J型卡扣	J CLIP	1
21	859187A1	调整传感器总成	SENDER ASSEMBLY Trim	1
22	852368	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
23	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
24	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
25	996301	冲击板	STRIKER PLATE	2
25	8M0045383	冲击板	STRIKER PLATE	2
26	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
27	46335	螺母 (.375-24)	NUT (.375-24)	2
28	821180A6	调整传感器总成	SENDER ASSEMBLY Trim	1
28	8M0074846	ORDER 8M0098273	ORDER 8M0098273	1

图 119旋转支架(短型) Swivel Bracket (Short)

REF	零件编号	中文名称	英文名称	数量
1	818810T14	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8M0145740	旋转支架	SWIVEL BRACKET	1
1	818810A8	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8M0145740	旋转支架	SWIVEL BRACKET	1
2	847729	油封	SEAL Oil	2
3	847726	轴承	BEARING	2
4	74036	润滑脂接头	FITTING Grease	4
4	8M0169589	润滑脂接头	FITTING Grease	4
5	847728	轴承	BEARING	2
6	82203522	轴承 (1.375英寸)(左舷)	BEARING (1.375 IN.)(PORT)	1
6	82203516	轴承	BEARING	1
6	82203524	轴承	BEARING	2
7	82203540	轴承	BEARING	2
8	85023	油封	SEAL Oil	2
9	87161	垫圈	WASHER	2
10	48171	O型圈(0.364 x 0.070)	O-RING (.364. x .070)	2
11	85030A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
11	85028A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
12	86600	衬套	BUSHING	1
13	85367	弹簧	SPRING	1
14	41052	柱塞	PLUNGER	1
15	88876	螺柱	STUD	1
16	86603	旋钮	KNOB	1
17	864751	联轴器	COUPLING	1
18	69745	滚动销	PIN Roll	2
19	88049	弹簧	SPRING	1
20	93861	开口销	COTTER PIN	1
21	78854	波形垫圈	WAVE WASHER	1
22	86580F4	下轭架	YOKE Bottom	1
23	848125	螺旋锁紧挡圈	RING Retaining - Spiral Lock	2
24	840787T1	旋转销	SWIVEL PIN	1
24	8M0192243	旋转销	PIN-SWIVEL	1
25	92876A10	连杆总成	LINK ROD ASSEMBLY	1
25	92876A12	连杆总成	LINK ROD ASSEMBLY	1
26	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
27	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
27	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
28	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
29	132121	螺钉	SCREW	2
30	816056	垫圈	WASHER	2
31	841198A1	配平传感器总成	SENSOR ASSEMBLY Trim	1
32	852453	螺钉(#10-24 x .560)	SCREW (#10-24 x .560)	2

图 120油门杆与换挡轴 Throttle Lever and Shift Shaft

REF	零件编号	中文名称	英文名称	数量
1	850389	杠杆	LEVER	1
1	8M0040990	节气门控制杆	LEVER Throttle Control	1
2	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
3	55164	衬套	BUSHING	1
4	74759	垫圈(0.391x0.880x0.125)不锈钢	WASHER (.391 x .880 x .125) Stainless Steel	1
5	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	1
6	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
7	64015	螺母 (.250-20)	NUT (.250-20)	1
8	26852	尼龙帽	CAP Nylon	1
9	42927	嵌件	INSERT	1
10	35459	垫圈	WASHER	1
11	8268336	螺母 (M6)	NUT (M6)	1
11	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
12	8503931	凸轮	CAM	1
12	856221A1	凸轮套件	CAM KIT	1
13	852970	衬套	BUSHING	1
14	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	1
15	932481	衬套	BUSHING	2
15	8M0215006	旋转衬套	BUSHING Swivel	2
16	8235694	螺纹球头	BALL Threaded	1
17	850815	连接杆	LINK	1
17	8508152	杆	ROD	1
18	67748	滚轮	ROLLER	1
19	850286	油门滚轮	ROLLER Throttle	1
19	8502861	杠杆	LEVER	1
20	40056107	螺钉(M5×16)	SCREW (M5 x 16)	1
21	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	1
22	69432	外锁紧垫圈(#10)	LOCKWASHER External (#10)	1
23	8142831	锚支架	BRACKET Anchor	1
23	814283T6	锚支架总成	BRACKET ASSEMBLY Anchor	1
24	98889	闩锁	LATCH	1
25	42975	传动螺钉	DRIVE SCREW	2
26	39519	杯套	CUP	1
27	52100	耐磨板	WEAR PLATE	1
28	38279	闩锁	LATCH	1
28	8M0036768	闩锁	LATCH	1
29	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
30	35045	螺母(.250-28)	NUT (.250-28)	1
30	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
31	28782	螺钉(.312-18 x .880)不锈钢	SCREW (.312-18 x .880) Stainless Steel	3
32	814284	导向块	GUIDE BLOCK	1
33	20099	弹簧	SPRING	1
34	67073A1	连杆总成	LINK ROD ASSEMBLY	1
35	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
35	79932A17	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
36	NSS	弹性销(不单独销售)	NOT SOLD SEPARATE Roll Pin	1
37	NSS	不单独销售-换挡轴上杆	NOT SOLD SEPARATE Shift Shaft Lever-Upper	1
38	26856	衬套	BUSHING	1
39	29720	波形垫圈	WAVE WASHER	1
40	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
41	35045	螺母(.250-28)	NUT (.250-28)	1
41	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
42	814281A2	开关	SWITCH	1
42	8M0052931	开关	SWITCH	1
43	77478	螺钉 (#6-32 x .875)	SCREW (#6-32 x .875)	2
44	27882	垫圈	WASHER	2

图 121顶罩 Top Cowl

REF	零件编号	中文名称	英文名称	数量
1	827328T9	顶盖总成	TOP COWL ASSEMBLY	1
1	827328T10	顶盖总成	TOP COWL ASSEMBLY	1
2	821256T1	黑色进气口	INLET Air - Black	1
2	821256T03	进气口	INLET Air	1
2	821256T2	银色进气口	INLET Air - Silver	1
3	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	4
4	859356A1	隔音毯套装	SOUND BLANKET KIT	1
4	859356A02	隔音毯套装	SOUND BLANKET KIT	1
5	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	1
6	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	1
7	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	2
8	823865	盖塞	CAP PLUG	2
9	831207T10	手柄	HANDLE	1
9	831207A16	罩盖锁手柄套件	HANDLE KIT Cowl Latch	1
10	812707	衬套	BUSHING	2
11	831214	隔套	SPACER	1
12	12134	波形垫圈	WASHER Wave	1
13	F481777	凸轮锁轴	CAM Latch Shaft	1
13	8M0001081	凸轮	CAM	1
14	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
14	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
15	1993716	螺钉(M6 x 16)	SCREW (M6 x 16)	1
16	821249M2	前支架	BRACKET Front	3
16	8M0036792	支架	BRACKET	3
17	815477	缓冲器锁扣	BUMPER Latch	3
18	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
18	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
19	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	6
20	8237951	挡圈	RING Retaining	1
21	815263	滚轮	ROLLER	1
21	8M0207770	滚轮@3	ROLLER @3	1
22	8155381	滚动销	PIN Roll	1
23	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
23	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
24	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
25	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
26	12066Q9	绳索	ROPE	1
26	12066Q10	启动绳@2	ROPE-STARTER@2	1

图 122艉板支架(长型) Transom Brackets (Long)

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	54012	垫圈(0.530×0.870×0.105不锈钢)	WASHER (.530 x .870 x .105) Stainless Steel	4
10	8M0204665	垫圈(0.530×0.880×0.104 630不锈钢)	WASHER (.530 x .880 x .104) 630 Stainless Steel	4
11	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	99629T2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	830899	张力弹簧	SPRING Tension	1
15	65830	尼龙衬套	NYLINER	2
16	830900	压缩弹簧	SPRING Compression	1
17	99633	旋钮	KNOB	1
18	99615	槽销	PIN Groove	1
19	99617	销	PIN	1
19	893709	销	PIN	1

图 123艉板支架(短型) Transom Brackets (Short)

REF	零件编号	中文名称	英文名称	数量
1	847800A1	艉板支架总成	BRACKET ASSEMBLY Transom	1
1	844353T01	艉板套件	TRANSOM KIT	1
2	847801A1	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	847801T01	艉板支架-右舷	BRACKET Transom - Starboard	1
3	847798A1	耐磨垫套件	WEAR PAD KIT	1
3	847798A02	耐磨垫套件	WEAR PAD KIT	1
4	86843	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	4
5	87180	螺栓(0.500-20 x 11.00)	BOLT (.500-20 x 11.00)	1
6	88512	卡箍	CLAMP	4
6	75275	卡箍	CLAMP	2
7	88829	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	6
8	858869	螺母 (.875-14)	NUT (.875-14)	1
8	859133	螺母(1.00-14)	NUT (1.00-14)	1
8	82671327	螺母(1.0-14)	NUT (1.0-14)	1
9	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
10	99170A2	倾斜管套件	TUBE KIT Tilt	1
10	826125A1	倾斜管	TILT TUBE	1
11	85035T	隔套	SPACER	1
11	8M0237541	艉板隔套	SPACER Transom	1
12	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
12	8M0149747	螺钉	SCREW	4
13	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
13	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
14	82671117	螺母(.500-20)	NUT (.500-20)	4
15	82671317	螺母(.500-20)	NUT (.500-20)	1
16	70732	螺钉 (.250-20 x 2.00)	SCREW (.250-20 x 2.00)	4
17	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
17	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
18	85026T	安装板	PLATE	2
19	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
20	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
20	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
21	54343	螺柱（.312-24 x 1.380）	STUD (.312-24 x 1.380)	4
21	8M0034451	螺柱	STUD	4
22	89949A1	隔板总成	PLATE ASSEMBLY	1
23	847539	垫圈	WASHER	4
24	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	4
25	89024	液压软管	HOSE Hydraulic	1
25	89023	液压软管	HOSE Hydaulic	1
26	96993	液压软管	HOSE Hydraulic	1
26	96994	液压软管	HOSE Hydraulic	1
27	87871	盖板	COVER	1
27	87871T	盖板	COVER	1
28	45507	护孔环	GROMMET	1
29	32866	螺钉 (#10-32 x 2.00) 不锈钢	SCREW (#10-32 x 2.00) Stainless Steel	4
30	87775	衬垫	GASKET	1
31	20878	垫圈	WASHER	4
32	29488	螺母 (#10-32)	NUT (#10-32)	4
32	8M0204718	螺母	NUT	4
33	79610T29	配平油缸	TRIM CYLINDER	1
33	79610A33	配平油缸套件	TRIM CYLINDER KIT	1
33	79610A21	配平油缸	TRIM CYLINDER	1
33	79610T29	配平油缸	TRIM CYLINDER	1
34	847724	衬套	BUSHING	2
35	841223	轴承	BEARING	1
36	30316	弹簧	SPRING	2
37	85020T	枢轴销	PIN Pivot	2
38	841199	调整销	PIN Trim	1
38	8220752	调整销	PIN Trim	1
39	822076	固定座	RETAINER	1
40	82671317	螺母(.500-20)	NUT (.500-20)	1
41	8071791	紧定螺钉（.250-20 x .820）	SET SCREW (.250-20 x .820)	1
42	85022	垫圈(2.00 x 1.06 x 0.060)	WASHER (2.00 x 1.06 x .060)	2
43	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
44	54012	垫圈(0.530×0.870×0.105不锈钢)	WASHER (.530 x .870 x .105) Stainless Steel	4
44	8M0204665	垫圈(0.530×0.880×0.104 630不锈钢)	WASHER (.530 x .880 x .104) 630 Stainless Steel	4
-	79879A1		REPAIR KIT (FOR TRIM CYLINDERS)	1

图 124配平泵及安装支架 Trim Pump and Mounting Brackets

REF	零件编号	中文名称	英文名称	数量
1	843017T03	配平泵总成-完整	PUMP ASSEMBLY Trim - Complete	1
1	843017A03	配平泵总成-完整	PUMP ASSEMBLY Trim - Complete	1
2	843017T01	配平泵总成	PUMP ASSEMBLY Trim	1
3	865448A01	油箱盖	CAP Oil Reservoir	1
3	8M0188327	油箱盖	CAP Oil Reservoir	1
4	808727	接头(.50-20 UNF转.4375-24倒角)	CONNECTOR (.50-20 UNF To .4375-24 Inverted Flare)	2
5	818200	接头	FITTING	1
6	861680	绝缘体	INSULATOR	1
7	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	1
8	79139A12	电缆总成红色-正极	CABLE ASSEMBLY Red-Positive	1
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
10	79023A10	保险丝总成110安培	FUSE ASSEMBLY 110 Ampere	1
10	79023T10	保险丝总成110安培	FUSE ASSEMBLY 110 Ampere	1
11	94275	连接杆	LINK	1
12	25908	垫圈(.265 x .812 x .0625)	WASHER (.265 x .812 x .0625)	1
13	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
14	21825	螺母(.250-28)	NUT (.250-28)	1
15	96158T	电磁阀	SOLENOID	2
15	8M0185622	电磁阀	SOLENOID	2
16	826709104	螺母(#8-32)不锈钢	NUT (#8-32) Stainless Steel	4
17	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	4
18	826709108	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	4
19	846866	支撑架	BRACE	1
20	826709112	螺母(.375-16)不锈钢	NUT (.375-16) Stainless Steel	2
21	79147A09	线束总成	HARNESS ASSEMBLY	1
22	57807	不锈钢螺钉(#10-16 x 0.750)	SCREW (#10-16 x .750) Stainless Steel	2
23	79138A9	电缆总成(6英尺)黑色-负极	CABLE ASSEMBLY (6.00 Feet) Black-Negative	1
24	846673	不锈钢垫圈(.265 x .500 x .060)	WASHER (.265 x .500 x .060) Stainless Steel	1
25	86322A15	电缆总成(5.5英寸)黑色	CABLE ASSEMBLY (5.50 Inches) Black	1
26	86322A24	电缆总成(4英寸)	CABLE ASSEMBLY (4.00 Inches)	1
27	841226001	支架	BRACKET	1
27	8M0192208	泵支架	BRACKET Pump	1
28	844417	螺钉(.375-16 x .875不锈钢)	SCREW (.375-16 x .875) Stainless Steel	4
29	848017T06	升降线束总成	HARNESS ASSEMBLY Trim	1
30	65017A14	线束总成	HARNESS ASSEMBLY	1
31	79146	固定座	RETAINER	2
32	842031T02	倾斜开关套件	SWITCH KIT Tilt	1
-	842109A01	地板安装套件	MOUNT KIT Floor	1
-	87762A04	平衡泵支架总成	BRACKET ASSEMBLY Trim Pump Mounting	1

图 125蒸汽分离器组件 Vapor Seperator Components

REF	零件编号	中文名称	英文名称	数量
1	855432T05	盖板套件	COVER KIT	1
1	8M6004919	盖板套件	COVER KIT	1
2	8554246	接头	FITTING	1
2	892267T02	蒸汽分离器总成	VAPOR SEPARATOR ASSEMBLY	1
3	881740	直通接头	FITTING Straight	1
4	883208	堵头	PLUG	1
5	883252	衬垫	GASKET	1
6	803878	密封件泵	SEAL Pump	1
7	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	7
8	885186A1	配件套件	FITTING KIT	1
9	831985	O型圈（0.468 x 0.078）	O-RING (.468 x .078)	1
10	881831	线束总成	WIRE ASSEMBLY	1
11	855427A1	泵套件	PUMP KIT	1
12	855428	套筒	SLEEVE	1
12	8M6000589	套筒	SLEEVE	1
13	855430A1	浮子套件	FLOAT KIT	1
13	8M6004920	浮子套件	FLOAT KIT	1
14	F10064	轴	SHAFT	1
15	855431	针阀	VALVE Needle	1
15	8M6004917	进气阀	VALVE-INLET	1
16	883223	螺钉(M6 x 16)	SCREW (M6 x 16)	1
17	883247A02	阀座/阀门	SEAT/VALVE	1
17	8M6004918	阀门/阀座套件	VALVE/SEAT KIT	1
18	883260	挡板	BAFFLE	1
18	889318002	挡板燃油	BAFFLE Fuel	1
19	883223	螺钉(M6 x 16)	SCREW (M6 x 16)	3
20	18458T4	滤清器套件	FILTER KIT	1
21	8285861	探头	PROBE	1
21	8M0204710	探头	PROBE	1
22	855434T04	油杯套件	BOWL KIT	1
23	880862A1	配件套件	FITTING KIT	1
24	880863	O型圈	O-RING	1
25	855435A1	塞套件	PLUG KIT	1
26	883209	O型圈	O-RING	1
26	8M0062785	O型圈	O-RING	1
27	8554331	密封件泵	SEAL Pump	1
28	8554245	弯头	ELBOW	2
29	8558432	泵总成	PUMP ASSEMBLY	1
29	8M0240950	燃油泵总成	PUMP ASSY FUEL	1
30	855802A1	弯头	ELBOW	1
31	883551	O型圈	O-RING	1
32	855756A1	支架套件	BRACKET KIT	1
33	1993716	螺钉(M6 x 16)	SCREW (M6 x 16)	4
34	850181	捆扎带(11.750英寸)	TIE STRAP (11.750 Inches)	1
35	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	10
36	856928	护孔环	GROMMET	1
37	880862A1	配件套件	FITTING KIT	1
38	880863	O型圈	O-RING	1
39	82130010	螺丝 (M6 x 10)	SCREW (M6 x 10)	1

图 126水管 Water Hoses

REF	零件编号	中文名称	英文名称	数量
1	8603001	接头	FITTING	1
2	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
3	77653101	软管(48英寸整卷)(裁切20英寸)	HOSE (48.00 Inches Bulk) (Cut to 20 Inches)	1
4	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
5	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
6	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
7	85833935	管材(15英寸整卷)(裁切7英寸)	TUBING (15.00 Inches Bulk) (Cut to 7 Inches)	1
7	85833939	软管(17英寸整卷)	HOSE (17.00 Inches Bulk)	1
8	8348084	滤网	STRAINER	1
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
10	85833935	管材(15英寸整卷)(裁切4.5英寸)	TUBING (15.00 Inches Bulk) Cut to (4-1/2 Inches)	1
10	85833939	软管(17英寸整卷)	HOSE (17.00 Inches Bulk)	1
11	291112	接头	FITTING	1
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
13	83476463	管材(32英寸整卷)(裁切18.5英寸)	TUBING (32.00 Inches Bulk) (Cut to 18-1/2 Inches)	1
14	859432	接头	FITTING	1
14	881866	接头	FITTING	1
15	85978568	管材(44英寸整卷)(裁切15英寸)(灰色)	TUBING (44.00 Inches Bulk) (Cut to 15 Inches)(Gray)	1
15	85978571	管材(52英寸整卷)	TUBING (52.00 Inches Bulk)	1
16	859431	接头	FITTING	1
16	8M0207782	直通接头	FITTING Straight	1
17	859596	传感器(0-50PSI)(棕褐色)	SENSOR (0-50 PSI) (TAN)	1
17	8M0157742	水压传感器	SENSOR Water Pressure	1
18	858954	卡箍(0.625英寸)	CLIP (.625)	1
19	875207	三通接头	TEE Fitting	1
20	85978568	管材(44英寸整卷)	TUBING (44.00 Inches Bulk)	1
20	85978571	管材(52英寸整卷)	TUBING (52.00 Inches Bulk)	1
21	859747	联轴器	COUPLER	1
21	8M0214971	耦合接头 (4 MM)	COUPLER Fitting (4 MM)	1
22	859732	堵头	PLUG	1
23	859731	适配管接头	FITTING Adapter	1
23	8M0214970	接头	FITTING	1
24	85978515	管材(5英寸)	TUBING (5.00 Inches)	1
25	858459	接头	FITTING	1
26	77653101	软管(48英寸整卷)(裁切9.75英寸)	HOSE (48.00 Inches Bulk) (Cut to 9-3/4 Inches)	1
27	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
28	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	2
29	814634	卡箍	CLAMP	1
30	77653101	软管 (48.00英寸散装) (裁切至15-1/2英寸)	HOSE (48.00 Inches Bulk) (Cut to 15-1/2 Inches)	1
31	77653101	软管 (48.00英寸散装) (裁切至11-3/4英寸)	HOSE (48.00 Inches Bulk) (Cut to 11-3/4 Inches)	1
32	16604	直通接头（0.125-27）	FITTING Straight (.125-27)	1
-	854008T00	动力头总成	POWERHEAD ASSEMBLY	1
