水星 Mercury 175 HP V6 CYL (2.5L) 0T178500 THRU 0T800999 - 爆炸图零件明细

两冲程直喷 DFI OptiMax · USA - Cat.# 90-80350201 · 共 41 个部位 · 1671 条零件

1附件 2空气压缩机组件 3空气处理器 4空气处理器组件 5空气软管 6下机罩 7线圈板总成 8曲轴、活塞及连杆 9气缸体与端盖 10气缸盖 11数字电气部件 12驱动轴壳体与排气管 13双机连接杆套件 14电气板总成 15排气歧管与排气板 16飞轮/交流发电机 17燃油软管 18燃油泵 19燃油轨 20齿轮箱（驱动轴）（反向旋转）21齿轮箱（驱动轴）（标准旋转）22齿轮箱（螺旋桨轴）（反向旋转）23齿轮箱（螺旋桨轴）（标准旋转）24喷油组件 25油管 26动力升降组件(铸造泵壳)金属电机壳体 27动力升降组件(可拆卸泵壳)金属电机壳体 28动力升降组件 8M0231193 29动力升降组件（塑料马达壳体）30动力升降电机(可拆卸泵壳)31服务/支持材料 32速度计传感系统 33启动马达 34旋转支架与转向臂 35油门杆与换挡轴 36专用工具 37顶罩（序列号0T408999及以下）38顶罩（序列号0T409000及以上）39艉板支架 40蒸汽分离器组件 41水管

图 1附件 ACCESSORIES

零件编号	中文名称	英文名称	数量
824072A5	延长套件(22.5)	EXTENSION KIT (22.5)	1
824072A6	延长套件(22.5)	EXTENSION KIT (22.5)	1
824072A5	延长套件(22.5)	EXTENSION KIT (22.5)	1
8278652	换挡轴(22.5英寸)	SHIFT SHAFT (22-1/2 IN.)	1
826195A1	驱动轴(22.5英寸)	DRIVESHAFT (22-1/2 IN.)	1
828813A2	舵柄套件	TILLER HANDLE KIT	1
828813A33	舵柄套件	TILLER HANDLE KIT	1
828813A3	舵柄套件	TILLER HANDLE KIT	1
828813A2	舵柄套件	TILLER HANDLE KIT	1
822573A11	动力升降仪表传感器套件	SENDER KIT Power Trim Gauge	1
822573A12	动力升降倾斜传感器套件	SENDER KIT Power Trim	1
828813A10	舵柄套件	TILLER HANDLE KIT	1
828813A31	舵柄套件	TILLER HANDLE KIT	1
828813A11	舵柄套件	TILLER HANDLE KIT	1
828813A31	舵柄套件	TILLER HANDLE KIT	1
830893A1	马力限制套件	HORSEPOWER RESTRICTOR KIT	1
828019A1	油压传感器套件	SENDER KIT Oil Pressure	1
8M0068785	油压适配器套件	ADPT KIT-OIL PRES	1
816667A2	转向支架总成（不带提手）	BRACKET ASSEMBLY Steering (W/O CARRYING HANDLE)	1
827927A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
877680Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
827927A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
877680Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
17146A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
877681Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
17146A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
877681Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
822379A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
877683Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
831248A1	排放检测探头工具	PROBE TOOL Emissions	1

图 2空气压缩机组件 AIR COMPRESSOR COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	831998A16	空气压缩机套件(带皮带轮)	COMPRESSOR KIT Air (WITH PULLEY)	1
1	831998A21	空气压缩机套件(带皮带轮)	COMPRESSOR KIT Air (WITH PULLEY)	1
1	8M0060053	空气压缩机总成	COMPRESSOR ASSEMBLY Air	1
2	NSS		NOT SOLD SEPARATE BODY	1
3	828131A5	端盖总成	END CAP ASSEMBLY	1
3	8M0050792	端盖总成	END CAP ASSEMBLY	1
3	828131A8	端盖总成	END CAP ASSEMBLY	1
3	8M0050792	端盖总成	END CAP ASSEMBLY	1
4	NSS	不单独销售挡圈	NOT SOLD SEPARATE RETAINING RING	1
5	89224	O型圈	O-RING	1
5	832804	O型圈（2.739 x 0.070）	O-RING (2.739 x .070)	1
6	832804	O型圈（2.739 x 0.070）	O-RING (2.739 x .070)	1
7	82130025	螺钉(M6x25)	SCREW (M6 x 25)	4
7	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	4
8	833146T3	连杆总成	CONNECTING ROD ASSEMBLY	1
8	833146T06	连杆总成	CONNECTING ROD ASSEMBLY	1
9	NSS		NOT SOLD SEPARATE BEARING	1
10	NSS		NOT SOLD SEPARATE BEARING	1
11	NSS		NOT SOLD SEPARATE PISTON ASSEMBLY (W/RINGS AND PIN)	1
12	NSS		NOT SOLD SEPARATE OIL SCRAPER RING	1
13	NSS		NOT SOLD SEPARATE TOP RING	1
14	NSS		NOT SOLD SEPARATE OIL RING	1
15	NSS		NOT SOLD SEPARATE WRIST PIN	1
16	NSS		NOT SOLD SEPARATE PISTON WITH WRIST PIN	1
17	8348101	锁环	RING Lock	2
18	835088A10	簧片阀板总成	REED PLATE ASSEMBLY	1
19	67207	O型圈（3.489 x 0.070）	O-RING (3.489 x .070)	2
20	832804	O型圈（2.739 x 0.070）	O-RING (2.739 x .070)	1
21	828225	密封件	SEAL	1
22	835087A3	压缩机缸盖总成	HEAD ASSEMBLY Compressor	1
22	8M0073890	压缩机缸盖套件	HEAD KIT Compressor	1
23	8307534	接头（1.62英寸）	FITTING (1.62 Inches)	1
24	82446035	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
25	13536A14	温度传感器总成	SENSOR ASSEMBLY Temperature	1
26	137151	固定座	RETAINER	1
27	81893412	螺钉（M8×12）	SCREW (M8 x 12)	1
28	831985	O型圈（0.468 x 0.078）	O-RING (.468 x .078)	1
29	390721	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
30	151331	接头	FITTING	1
31	428641	止回阀接头	FITTING Check Valve	2
32	851975	弯头接头-45度-黄铜（0.125-27）	FITTING Elbow - 45 Degree - Brass (.125-27)	1
33	14868	接头	FITTING	1
34	856744	接头	FITTING	1
35	855349	护孔环	GROMMET	1
35	855349002	护孔环	GROMMET	1
36	NSS		NOT SOLD SEPARATE DECAL-ASSEMBLY INSTRUCTIONS	1
37	4010825	螺丝(M10 x 25)六角法兰-不锈钢	SCREW (M10 x 25) Hex Flange - Stainless Steel	2
38	858762	双头螺柱（0.312-18/0.312-24 x 4.190）	STUD (.312-18/.312-24 x 4.190)	1
38	858762001	双头螺柱（0.312-18/0.312-24 x 4.190）	STUD (.312-18/.312-24 x 4.190)	1
39	854640	特殊垫圈	WASHER Special	2
40	46356	螺母(.312-24)	NUT (.312-24)	1
41	8328233	滑轮	PULLEY	1
41	8M0175171	滑轮	PULLEY	1
42	85593912	螺钉（M6 x 12）	SCREW (M6 x 12)	6
43	13536A12	温度传感器总成	SENSOR ASSEMBLY Temperature	1
-	832804A1	O型圈套件	O-RING KIT	1
-	832804A03	O型圈套件	O-RING KIT	1

图 3空气处理器 AIR HANDLER

REF	零件编号	中文名称	英文名称	数量
1	827325T11	盖总成	COVER ASSEMBLY	1
2	821555	护孔环	GROMMET	2
2	8M0153609	护孔环	GROMMET	2
3	853333T	滤清器	FILTER	1
4	853352	盖板	COVER	1
5	857101	护孔环	GROMMET	1
6	855613	护孔环	GROMMET	1
7	8556131	护孔环	GROMMET	1
8	855633T16	空气处理器总成	AIR HANDLER ASSEMBLY	1
9	881865	警示贴纸-挂档启动	DECAL Caution-Start in Gear	1
10	855756A1	支架套件	BRACKET KIT	1
11	803818	套筒	SLEEVE	1
12	1993716	螺钉(M6 x 16)	SCREW (M6 x 16)	4
13	8558432	泵总成	PUMP ASSEMBLY	1
13	8M0240950	燃油泵总成	PUMP ASSY FUEL	1
14	13791	卡箍(15.7)	CLAMP (15.7)	4
14	8M0214911	卡箍@5	CLAMP @5	4
15	856778	软管	HOSE	1
16	855802A1	弯头	ELBOW	1
17	856812	接头	FITTING	1
17	880862A1	配件套件	FITTING KIT	1
18	805062	O型圈（.530 x .082）	O-RING (.530 x .082)	1
19	856928	护孔环	GROMMET	1
20	8283582	传感器	SENSOR	1
20	8M0082988	曲轴位置传感器	SENSOR Crankshaft Position	1
21	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	2
22	883080	J型卡扣	J CLIP	2
23	817504	螺钉（0.250-20 x 1.500）不锈钢	SCREW (.250-20 x 1.500) Stainless Steel	12
24	8215832	特殊销（1.5英寸）	PIN Special (1.5 Inches)	1
25	804657A01	EPA标签信息贴花	DECAL EPA Label Information	1
25	804657A02	EPA标签信息贴花	DECAL EPA Label Information	1
25	883929A02	EPA标签信息贴花	DECAL EPA Label Information	1
25	804657A03	EPA标签信息贴花	DECAL EPA Label Information	1
25	883929A03	EPA标签信息贴花	DECAL EPA Label Information	1
26	61990	扎带(14.00英寸)	TIE STRAP (14.00 Inches)	1
27	881831	线束总成	WIRE ASSEMBLY	1
28	1993716	螺钉(M6 x 16)	SCREW (M6 x 16)	1
29	633003	卡箍	CLAMP	1
30	8261151	连接器卡箍	CLAMP Connector	1
-	879808T01	动力头总成	POWERHEAD ASSEMBLY	1
-	879808T07	动力头总成	POWERHEAD ASSEMBLY	1
-	879809T01	动力头总成	POWERHEAD ASSEMBLY	1
-	879809T07	动力头总成	POWERHEAD ASSEMBLY	1

图 4空气处理器组件 AIR HANDLER COMPONENTS

REF	零件编号	中文名称	英文名称	数量
-	855633T16	空气处理器总成	AIR HANDLER ASSEMBLY	1
1	855420A1	适配板套件	ADAPTER PLATE KIT	1
2	146973	衬垫	GASKET	1
3	8500581	衬垫	GASKET	1
4	855952T3	簧片阀总成	REED BLOCK ASSEMBLY	6
5	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	12
6	857149T2	油泵总成	PUMP ASSEMBLY Oil	1
6	8M0185614	机油泵	OIL PUMP	1
7	855364	衬套	BUSHING	6
8	855362	护孔环	GROMMET	6
8	855362001	护孔环	GROMMET	6
9	81893435	螺钉(M8×35)	SCREW (M8 x 35)	3
9	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
10	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	6
11	850248A2	空气集气室套件	PLENUM KIT Air	1
12	81893430	螺钉 (M8 x 30)	SCREW (M8 x 30)	3
12	81893435	螺钉(M8×35)	SCREW (M8 x 35)	3
13	858535	温度传感器总成	SENSOR ASSEMBLY Temperature	1
13	8M0214984	温度传感器	SENSOR Temperature	1
14	627021	O型圈(.301 x .070)	O-RING (.301 x .070)	1
15	4001987	螺钉(M4×16)	SCREW (M4 x 16)	2
16	855422A1	节气门体套件	THROTTLE BODY KIT	1
17	855423	O型圈	O-RING	1
18	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	4
19	1993716	螺钉(M6 x 16)	SCREW (M6 x 16)	3
20	854445	MAP传感器	SENSOR MAP	1
20	8M0237529	MAP传感器	SENSOR MAP	1
21	804873	支架	BRACKET	1
21	884522	MAP传感器支架	BRACKET MAP Sensor	1
-	879808T01	动力头总成	POWERHEAD ASSEMBLY	1
-	879808T07	动力头总成	POWERHEAD ASSEMBLY	1
-	879809T01	动力头总成	POWERHEAD ASSEMBLY	1
-	879809T07	动力头总成	POWERHEAD ASSEMBLY	1

图 5空气软管 AIR HOSES

REF	零件编号	中文名称	英文名称	数量
1	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
2	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
3	830757130	管材(0.312英寸)(70英寸整卷)(6英寸)	TUBING (.312) (70.00 Inches Bulk) (6 IN.)	1
3	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
4	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	2
4	8M0214964	卡箍	CLAMP	2
5	8502512	软管	HOSE	1
6	85687631	套管（16.00英寸）	SLEEVE (16.00 Inches)	1
7	804823	空气平衡软管/接头总成	HOSE/FITTING ASSEMBLY Air Balance	1
7	8M6000383	软管总成	HOSE ASSEMBLY	1
8	804824	软管/接头总成空气旁通	HOSE/FITTING ASSEMBLY Air By-Pass	1
8	8M6000382	软管总成	HOSE ASSEMBLY	1
9	804532	O型圈套件	O-RING KIT	1
10	16604	直通接头（0.125-27）	FITTING Straight (.125-27)	1
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
-	879808T01	动力头总成	POWERHEAD ASSEMBLY	1
-	879808T07	动力头总成	POWERHEAD ASSEMBLY	1
-	879809T01	动力头总成	POWERHEAD ASSEMBLY	1
-	879809T07	动力头总成	POWERHEAD ASSEMBLY	1

图 6下机罩 BOTTOM COWL

REF	零件编号	中文名称	英文名称	数量
1	826277F1	下机罩	BOTTOM COWL	1
1	826277F2	下机罩	BOTTOM COWL	1
1	826277T2	下机罩	BOTTOM COWL	1
2	826278F3	下机罩	BOTTOM COWL	1
2	826278T7	下机罩	BOTTOM COWL	1
2	826278F4	下机罩	BOTTOM COWL	1
2	826278T4	下机罩	BOTTOM COWL	1
3	82684430	螺钉 (M6 x 30)	SCREW (M6 x 30)	6
4	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
4	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
5	825238	密封件	SEAL	1
5	825238002	密封件	SEAL	1
6	82684460	螺钉(M6 x 60)	SCREW (M6 x 60)	1
7	855627	衬垫	GASKET	1
8	827948	接头	FITTING	1
9	855576	垫圈	WASHER	1
10	826273	护套	BOOT	1
10	826273001	护套	BOOT	1
11	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
12	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	1
13	825783	锁钩	LATCH HOOK	1
13	893766	锁钩	HOOK Latch	1
14	12134	波形垫圈	WASHER Wave	1
15	812707	衬套	BUSHING	2
16	12134	波形垫圈	WASHER Wave	1
17	825782F1	罩壳锁杆	LEVER Cowl Latch	1
17	825782F2	罩壳锁杆	LEVER Cowl Latch	1
17	825782F1	罩壳锁杆	LEVER Cowl Latch	1

图 7线圈板总成 COIL PLATE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
-	NSS	线圈板总成(不单独销售)	NOT SOLD SEPARATE COIL PLATE ASSEMBLY	1
1	8506753	线圈板	PLATE Coil	1
1	8M0011731	线圈板	PLATE Coil	1
2	850676F1	隔套	SPACER	6
3	8502341	衬套	BUSHING	4
4	833155	护孔环	GROMMET	4
5	850898	螺丝 (.250-20 x 3.250)	SCREW (.250-20 x 3.250)	6
6	856991A1	线圈套件	COIL KIT	6
7	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	6
7	8M0207776	螺母	NUT	6
8	881908T	电缆组	CABLE SET	1
9	859595T	双线圈驱动器	DRIVER Dual Coil	3
10	858414A1	编织电缆总成	CABLE ASSEMBLY Braided	2
11	82129110	螺丝 (M6 x 10)	SCREW (M6 x 10)	2
12	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
12	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
13	828547353	导管 (.350内径 x 3.00英尺散装)	CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk)	1
14	8556721	火花塞	SPARK PLUG	6
14	889597Q	NGK IZFR5G @4	NGK IZFR5G @4	6
15	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
16	49436	垫圈	WASHER	4
17	82129114	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
18	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
18	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
19	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
19	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2

图 8曲轴、活塞及连杆 CRANKSHAFT PISTONS AND CONNECTING RODS

REF	零件编号	中文名称	英文名称	数量
1	850690T2	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	78662	耐磨套	WEAR SLEEVE	1
3	67923T	球轴承(下部)	BEARING Ball (LOWER)	1
4	67446	环	RING	1
5	54196A6	托架总成	CARRIER ASSEMBLY	1
6	65800	填料	PACKING	1
7	67377	密封环	RING Sealing	7
7	67377T	密封环	RING Sealing	7
8	16756A6	轴承套件	BEARING KIT	2
9	NSS		NOT SOLD SEPARATE RACE	2
10	859563T4	活塞	PISTON	3
10	859563T17	右舷活塞总成 - 标准	PISTON ASSEMBLY Starboard - Standard	3
10	859562T4	活塞	PISTON	3
10	859562T17	左舷活塞总成 - 标准	PISTON ASSEMBLY Port - Standard	3
10	859563A5	活塞总成	PISTON ASSEMBLY	AR
10	859562A5	活塞总成	PISTON ASSEMBLY	AR
11	877544A12	活塞环组	RING SET	1
11	878106A12	活塞环组	RING SET Piston	AR
12	NSS	不单独销售活塞环(下部)	NOT SOLD SEPARATE PISTON RING (LOWER)	1
13	8320811	锁紧环	LOCK RING	12
14	877853A2	连杆套件	CONNECTING ROD KIT	6
14	877853A04	连杆总成	CONNECTING ROD ASSEMBLY	6
15	763491	螺钉(.312-24 x .875)	SCREW (.312-24 x .875)	12
16	877541	止推垫片	THRUST WASHER	12
16	8M0012299	止推垫片	THRUST WASHER	12
17	17514A1	轴承套件	BEARING KIT	3
17	8M0234886	轴承保持架	CAGE BEARING	3
18	822553	滚针轴承	BEARING Needle	204
18	8M0204691	滚针轴承@200	BRG-NEEDLE @200	204
-	814754A00	发动机垫片组	GASKET SET Engine	1
-	8M0046714	衬垫套件	GASKET SET	1
-	879808T01	动力头总成	POWERHEAD ASSEMBLY	1
-	879808T07	动力头总成	POWERHEAD ASSEMBLY	1
-	879809T01	动力头总成	POWERHEAD ASSEMBLY	1
-	879809T07	动力头总成	POWERHEAD ASSEMBLY	1

图 9气缸体与端盖 CYLINDER BLOCK AND END CAPS

REF	零件编号	中文名称	英文名称	数量
1	858961A8	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	858961A10	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
2	8181384	螺柱 (1.750英寸)	STUD (1.750 Inches)	6
2	8M0034455	螺柱1.750	STUD 1.750	6
3	670653	螺柱（.375 x 5.620）	STUD (.375 x 5.620)	2
3	670654	螺柱(.375-16/.375-24 x 5.620)	STUD (.375-16/.375-24 x 5.620)	2
3	784385	螺柱 (.375-16/.375-24 x 6.870)	STUD (.375-16/.375-24 x 6.870)	2
3	8M0034454	螺柱(.375-16/.375-24 x 6.87)	STUD (.375-16/.375-24 x 6.87)	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	销(轴承座圈)	PIN (BEARING RACE)	2
5	8M0036405	销	PIN	2
6	8569662	支架	BRACKET	1
6	8M0111325	盖板	COVER	1
7	828213	螺钉(.312-18 x 1.500)六角法兰	SCREW (.312-18 x 1.500) Hex Flange	2
8	76867	下盖	COVER (BOTTOM)	1
9	828214	螺钉(.312-18 x 2.00)六角法兰	SCREW (.312-18 x 2.00) Hex Flange	2
10	66717	螺钉(.375-16 x 3.250)	SCREW (.375-16 x 3.250)	8
11	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	6
12	26852	尼龙帽	CAP Nylon	1
13	856832	螺丝 (.250-20 x 1.750)	SCREW (.250-20 x 1.750)	1
14	64015	螺母 (.250-20)	NUT (.250-20)	1
15	832760T1	端盖总成	END CAP ASSEMBLY	1
16	54029	O型圈(2.800 x .103)	O-RING (2.800 x .103)	1
17	16756A4	轴承套件	BEARING KIT	1
18	NSS		NOT SOLD SEPARATE BEARING RACE	1
19	41953	密封件	SEAL	1
20	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	4
21	7809T1	端盖总成	END CAP ASSEMBLY	1
22	62700	O型圈(3.237 x .103)	O-RING (3.237 x .103)	1
23	41953	密封件	SEAL	2
24	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
25	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
26	8538821	节气门位置指示器安装支架	BRACKET Throttle Position Indicator Mount	1
27	8519371	节气门位置指示器杠杆	LEVER Throttle Position Indicator	1
28	82130025	螺钉(M6x25)	SCREW (M6 x 25)	3
29	856954	衬套	BUSHING	3
30	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	3
31	834985	护孔环	GROMMET	3
31	8M0190980	护孔环	GROMMET	3
32	83295211		INDICATOR Throttle Position (INSIDE)	1
32	8M6005165	TPI	TPI	1
33	8582261	盖板	COVER	1
34	8508281	螺钉（#10-32 x 2.00）	SCREW (#10-32 x 2.00)	3
35	878175	连杆总成	LINK ASSEMBLY	1
35	8M0084738	连杆总成	LINK ASSY	1
36	88439A26	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
37	81893414	螺钉（M8 x 14）	SCREW (M8 x 14)	1
38	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
39	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
-	879808T01	动力头总成	POWERHEAD ASSEMBLY	1
-	879808T07	动力头总成	POWERHEAD ASSEMBLY	1
-	879809T01	动力头总成	POWERHEAD ASSEMBLY	1
-	879809T07	动力头总成	POWERHEAD ASSEMBLY	1

图 10气缸盖 CYLINDER HEAD

REF	零件编号	中文名称	英文名称	数量
-	825034A8	气缸盖总成	CYLINDER HEAD ASSEMBLY	1
1	825034A9	气缸盖总成	CYLINDER HEAD ASSEMBLY	1
2	83124714	螺栓	BOLT	4
3	831246	密封垫圈	WASHER Sealing	4
4	825037	导套	GUIDE	8
4	8M0054272	气门导管	GUIDE - VALVE	8
5	825038	卡簧	CIRCLIP	8
6	84088M	螺丝 (M6 x 10)	SCREW (M6 x 10)	4
7	827610	衬垫	GASKET	4
8	826887M	阳极块	ANODE	4
9	825040	护孔环	GROMMET	4
10	826888M	盖板	COVER	4
11	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	4
11	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	4
12	827607	螺栓	BOLT	1
13	4005785	螺钉（M4×10）	SCREW (M4 x 10)	4
14	825055	盖板	COVER	1
15	825056	O型圈	O-RING	1
16	8250534	盖板	COVER	1
16	8250532	盖板	COVER	1
16	8250534	盖板	COVER	1
17	825054	通气管	BREATHER PIPE	1
18	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	7
18	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	7
19	825032	衬垫	GASKET	1
20	825010	定位销	PIN Dowel	2
21	82500925	螺钉(M6x25)	SCREW (M6 x 25)	5
21	893745025	螺钉(M6x25)	SCREW (M6 x 25)	5
22	82503395	螺钉（M9 x 95）	SCREW (M9 x 95)	10
22	893747095	螺钉（M9 X 95）	SCREW (M9 X 95)	10
23	827610	衬垫	GASKET	1
24	826060	隔膜	DIAPHRAGM	1
25	828528	支架	BRACKET	1
26	830294	支架	BRACKET	1
26	830294T1	支架	BRACKET	1
27	40011126	不锈钢螺丝(M6 x 13)	SCREW (M6 x 13) Stainless Steel	2
28	62910	弯头(0.125-27)	ELBOW (.125-27)	1
28	629101	90度弯头接头(0.125-27)	FITTING Elbow - 90 Degree (.125-27)	1
29	8266241	卡箍	CLAMP	1
30	825490	堵头	PLUG	1
30	8M0240831	油塞	OIL PLUG	1
31	825492	O型圈	O-RING	1
31	8M0052669	O型圈	O-RING	1
-	832013A96	衬垫套件	GASKET SET	1
-	822775A97	动力头总成	POWERHEAD ASSEMBLY	1
-	822775T97	动力头总成	POWERHEAD ASSEMBLY	1
-	822775A98	动力头总成	POWERHEAD ASSEMBLY	1

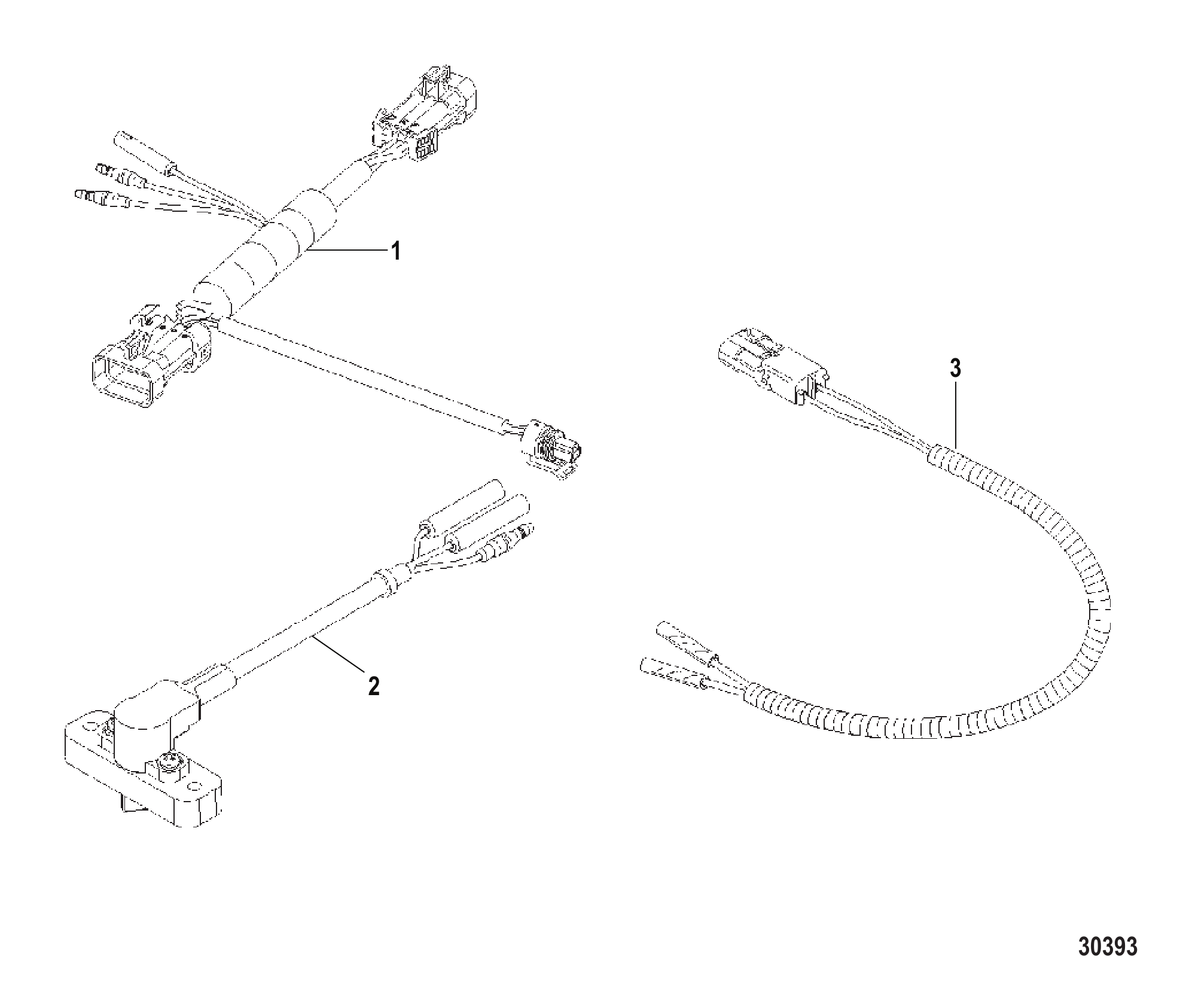

图 11数字电气部件 DIGITAL ELECTRIC PARTS

REF	零件编号	中文名称	英文名称	数量
1	859244T2	线束总成	HARNESS ASSEMBLY	1
2	859187A1	调整传感器总成	SENDER ASSEMBLY Trim	1
3	859316T1	诊断适配器线束总成	HARNESS ASSEMBLY Diagnostic Adapter	1

图 12驱动轴壳体与排气管 DRIVESHAFT HOUSING AND EXHAUST TUBE

REF	零件编号	中文名称	英文名称	数量
1	8343T10	驱动轴壳体总成-黑色-长型	HOUSING ASSEMBLY Driveshaft - Black - Long	1
1	813563T1	传动轴壳体-黑色-加长型	HOUSING Driveshaft - Black - X-Long	1
2	56295	双头螺柱(.437 x 2.69)	STUD (.437 x 2.69)	2
3	63474	螺钉(.500-20 x 6.00)	SCREW (.500-20 x 6.00)	2
3	898831	螺钉(.500-20 x 6.220)	SCREW (.500-20 x 6.220)	2
4	88238A10	接地线总成	CABLE ASSEMBLY Ground	2
5	77327	支架	MOUNT	2
6	49339	垫圈(.8125)	WASHER (.8125)	2
7	82670817	螺母(.500-20)	NUT (.500-20)	2
7	898832	螺母(.500-20)	NUT (.500-20)	2
8	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
9	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
10	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
10	8M0204653	螺母	NUT	2
11	67076	卡箍	CLAMP	2
11	8M0036782	卡箍	CLAMP	2
12	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
13	67077T	黑色盖	COVER Black	2
13	8M4500752	盖板	COVER	2
14	88417	螺钉(#12-24×0.620)	SCREW (#12-24 x .620)	4
15	35521	螺母	NUT	4
16	48926	垫圈	WASHER	1
17	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	1
17	8M0204653	螺母	NUT	1
18	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	4
19	69254	螺母	NUT	4
20	828212	怠速排气套	BOOT Idle Exhaust	1
20	8M0039081	护套	BOOT	1
21	64649	堵头	PLUG	1
22	991734	衬垫	GASKET	1
23	66350	下密封件	SEAL (LOWER)	1
23	66350001	密封件	SEAL	1
24	18276	排气管	TUBE Exhaust	1
24	18276T	排气管	EXHAUST TUBE	1
25	177261	上密封件	SEAL (UPPER)	1
25	8M0039076	密封件	SEAL	1
26	812834A2	排气延长总成	EXTENSION ASSEMBLY Exhaust	1
27	883085	螺柱(0.25×1.38)	STUD (.250 x 1.38)	4
27	56766	螺柱(0.250-20/0.250-28×1.380)	STUD (.250-20/.250-28 x 1.380)	4
28	35044	垫圈(0.281×0.625×0.065)不锈钢	WASHER (.281 x .625 x .065) Stainless Steel	4
29	888500	螺母	NUT	4
30	419424	排气管延长段	EXTENSION Exhaust	1
30	879288T71	排气管延长段	EXTENSION Exhaust	1
31	67295	水管	TUBE Water	1
31	8M0042788	长型水管	TUBE-WATER-LONG	1
31	74729	管	TUBE	1
31	8M0042790	水管	TUBE-WATER	1
32	18233A8	传动轴壳体板总成	PLATE ASSEMBLY Driveshaft Housing	1
32	18233A20	传动轴壳体板总成	PLATE ASSEMBLY Driveshaft Housing	1
32	18233A20	传动轴壳体板总成	PLATE ASSEMBLY Driveshaft Housing	1
33	8147012	密封件	SEAL	1
33	8M0043165	密封件-27.00英寸	SEAL-27.00 INCH	1
34	68011	支架	BRACKET	1
35	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
36	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
37	38970	密封件	SEAL	1
38	183076	衬垫	GASKET	1
39	NSS		NOT SOLD SEPARATE DECAL-COUNTER ROTATION	1
40	8128341	排气管延长段	EXTENSION Exhaust	1
40	812834A2	排气延长总成	EXTENSION ASSEMBLY Exhaust	1
41	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	6
-	814754A00	发动机垫片组	GASKET SET Engine	1
-	8M0046714	衬垫套件	GASKET SET	1

图 13双机连接杆套件 Dual Engine Tie Bar Kit

REF	零件编号	中文名称	英文名称	数量
-	92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
1	71565A2	管总成	TUBE ASSEMBLY	1
2	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
3	41055	支架	MOUNT	1
4	42100	锁紧垫圈	TAB WASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	88404	锁紧垫圈	TAB WASHER	2
7	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
8	17729A1	支架	BRACKET	2
9	62055	螺钉(.312-24 x 1.250)	SCREW (.312-24 x 1.250)	4
10	17728	锁紧垫圈	TAB WASHER	4
11	140001	螺钉(0.375-24×1.38)	SCREW (.375-24 x 1.38)	2
12	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	6
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	6
13	979331	转向眼环	STEERING EYE	2
13	8M0026167	转向眼环	STEERING EYE	2
14	23651	衬套(1.625)	SLEEVE (1.625)	2
15	97931	管材(4.00英寸)	TUBING (4.00 Inches)	2
16	8149513	联轴器(15.00英寸)	COUPLER (15.00 Inches)	1
16	8M0026098	联轴器15英寸	COUPLER 15 In.	1
17	42099	螺母(.562-18)	NUT (.562-18)	1
18	821169	联轴器	COUPLING	1
19	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	1
19	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	1
20	94319	螺钉(.375-24 x 1.5)	SCREW (.375-24 x 1.5)	1

图 14电气板总成 ELECTRICAL PLATE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	833137F1	安装板	PLATE	1
2	88807A16	黑色电缆总成(4.00英寸)	CABLE ASSEMBLY (4.00 Inches) Black	1
3	828151A1	继电器总成	RELAY ASSEMBLY	3
3	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	3
4	NSS		NOT SOLD SEPARATE DECAL-TRIM RELAY	3
5	828102	支架	BRACKET	3
5	8M0207771	安装支架	BRACKET Mounting	3
6	818968	衬套	BUSHING	3
6	8M0214955	衬套	BUSHING	3
7	818967	护孔环	GROMMET	3
7	8M0207785	护孔环	GROMMET	3
8	878084T3	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
8	878084T4	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
9	858754	保险丝盖	COVER Fuse	1
10	858781A2	线束总成(直喷喷油器)	HARNESS ASSEMBLY (DIRECT INJECTOR)	1
10	879346A49	线束维修套件	HARNESS REPAIR KIT	1
11	858780A2	线束总成(燃油喷射器)	HARNESS ASSEMBLY (FUEL INJECTOR)	1
11	879346A50	线束维修套件	HARNESS REPAIR KIT	1
12	878073A2	线束总成(节气门位置传感器)	HARNESS ASSEMBLY (TPS)	1
12	879346A41	线束维修套件	HARNESS REPAIR KIT	1
-	879964A2	曲轴位置编码器线束总成	HARNESS ASSEMBLY Encoder Crank Position Sensor	1
-	881262A2	线束总成(交流发电机)	HARNESS ASSEMBLY Alternator Alternator	1
13	83296920	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	4
13	832969T20	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	4
13	83296915	迷你保险丝-蓝色-15安培	FUSE Mini - Blue - 15 Ampere	1
13	832969T15	迷你保险丝-蓝色-15安培	FUSE Mini - Blue - 15 Ampere	1
13	8329695	迷你保险丝-棕色-5安培	FUSE Mini - Tan - 5 Ampere	1
13	832969T05	迷你保险丝-棕色-5安培	FUSE Mini - Tan - 5 Ampere	1
14	68292	螺母(.312-18)	NUT (.312-18)	2
14	8M0204668	螺母(.312-18)	NUT (.312-18)	2
15	819514T16	升降线束总成	HARNESS ASSEMBLY Trim	1
16	878231A6	保险丝线束总成-100安培	HARNESS ASSEMBLY Fuse - 100 Ampere	1
17	858755	卡箍(1.00)	CLIP (1.00)	1
18	828991	卡扣	CLIP	1
18	828991T	卡扣	CLIP	1
19	82129110	螺丝 (M6 x 10)	SCREW (M6 x 10)	3
20	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	4
21	82129135	螺钉(M6x35)	SCREW (M6 x 35)	1
22	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
23	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
24	91912	衬套	BUSHING	1
25	13541	公插头	PLUG Male	1
26	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
27	85961021	发动机控制模块ECM	ECM Engine Control Module	1
27	8M0086580	电控单元	ECU	1
27	85961055S	发动机控制模块ECM	ECM Engine Control Module	1
27	8M0086580	电控单元	ECU	1
27	85961056S	发动机控制模块ECM	ECM Engine Control Module	1
27	8M0086581	电控单元	ECU	1
27	85961057S	发动机控制模块ECM	ECM Engine Control Module	1
27	8M0086584	电控单元	ECU	1
28	82130025	螺钉(M6x25)	SCREW (M6 x 25)	3
29	856954	衬套	BUSHING	3
30	834985	护孔环	GROMMET	3
30	8M0190980	护孔环	GROMMET	3
31	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	3
32	8590881	卡扣	CLIP	1
33	82129114	螺钉 (M6 x 14)	SCREW (M6 x 14)	1
34	82130012	螺钉（M6 x 12）	SCREW (M6 x 12)	3
35	817109A2	电磁阀总成(#10-32/.3125-18端子)	SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)	1
36	822179	护孔环	GROMMET	2
37	818968	衬套	BUSHING	2
37	8M0214955	衬套	BUSHING	2
38	813938	盖形螺母(#10-32)	CAP NUT (#10-32)	1
39	882829A1	启动机电缆总成	CABLE ASSEMBLY Starter	1
40	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
40	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
41	832948A1	2针公头连接器总成	CONNECTOR ASSEMBLY 2 POS Male	1
42	13540	母头护帽	CAP Female	2
43	881065A1	6针插头连接器	CONNECTOR 6 Pin Plug	1
44	8500673	黄色绝缘护套	BOOT Insulator - Yellow	1
45	880771T1	电缆总成(24.00英寸)红色	CABLE ASSEMBLY (24.00 Inches) Red	1
46	8500671	红色绝缘护套	BOOT Insulator - Red	1
47	881175A1	3位母头连接器盖总成	CAP ASSEMBLY 3 Position-Female Connector (FEMALE)	1
48	881176A1	3位公头连接器盖总成	CAP ASSEMBLY 3 Position-Male Connector (MALE)	1

图 15排气歧管与排气板 EXHAUST MANIFOLD AND EXHAUST PLATE

REF	零件编号	中文名称	英文名称	数量
1	190506	衬垫	GASKET	1
2	828343A4	排气分隔板套件	PLATE KIT Exhaust Divider	1
2	828343A05	排气分隔板总成	PLATE ASSEMBLY Exhaust Divider	1
3	814754	密封件(12.50英寸)	SEAL (12.50 Inches)	1
4	8263561	螺钉带垫圈(.312-18 x 1.500)	SCREW AND WASHER (.312-18 x 1.500)	17
5	881190	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	2
6	687291	盖板	COVER	1
6	8M0039767	盖板	COVER	1
7	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
8	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
9	76451	垫圈	WASHER	1
10	144791	隔膜	DIAPHRAGM	1
11	16496	导水板	DEFLECTOR Water	1
12	16497A1	安装板	PLATE	1
13	78690	衬垫	GASKET	2
13	78690002	衬垫	GASKET	2
14	42996	不锈钢弹簧	SPRING (Stainless Steel)	1
15	14480	提动阀	POPPET	1
16	64872	护孔环	GROMMET	1
17	65848	托架	CARRIER	1
18	991764	衬垫	GASKET	1
19	850814T2	排气板	PLATE Exhaust	1
19	850814T4	排气板	PLATE Exhaust	1
20	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
21	8147011	密封件	SEAL	1
21	8M0043164	密封件	SEAL	1
22	680101	支架	BRACKET	1
23	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	8
24	19565	护孔环	GROMMET	1
24	19565002	护孔环	GROMMET	1
25	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	4
26	69254	螺母	NUT	6
27	27132	衬套	BUSHING	1
28	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
29	68783	螺钉(.312-18×2.50)	SCREW (.312-18 x 2.50)	1
30	66725	螺钉(.375-16×3.50)	SCREW (.375-16 x 3.50)	3
30	898833	螺钉(.375-16 x 3.500)	SCREW (.375-16 x 3.500)	3
31	812905A5	前支架总成	BRACKET ASSEMBLY Front	1
31	812905T	前支架	BRACKET Front	1
32	8055571	螺钉(0.3125-18×0.50)	SCREW (.3125-18 x .50)	4
33	187031	垫圈	WASHER	4
34	18778T	护孔环	GROMMET	4
34	18778001	护孔环	GROMMET	4
35	18578T8	支架总成(后部)	BRACKET ASSEMBLY Rear	1
35	18578T09	支架总成(后部)	BRACKET ASSEMBLY Rear	1
36	126021	护孔环	GROMMET	1
36	12602002	护孔环	GROMMET	1
37	35385		SCREW (.312-18 x 1-3/4) (SLAVE)	1
-	814754A00	发动机垫片组	GASKET SET Engine	1
-	8M0046714	衬垫套件	GASKET SET	1
-	879808T01	动力头总成	POWERHEAD ASSEMBLY	1
-	879808T07	动力头总成	POWERHEAD ASSEMBLY	1
-	879809T01	动力头总成	POWERHEAD ASSEMBLY	1
-	879809T07	动力头总成	POWERHEAD ASSEMBLY	1

图 16飞轮/交流发电机 FLYWHEEL/ALTERNATOR

REF	零件编号	中文名称	英文名称	数量
1	875285T1	交流发电机	ALTERNATOR	1
1	881248T	交流发电机	ALTERNATOR	1
1	8M0064021	交流发电机	ALTERNATOR	1
2	40108100	螺钉(M10×100)六角法兰-不锈钢	SCREW (M10 x 100) Hex Flange - Stainless Steel	1
2	8M0012503	螺钉(M10×1.5)	SCREW (M10 x 1.5)	1
3	40108120	螺钉(M10×120)六角法兰-不锈钢	SCREW (M10 x 120) Hex Flange - Stainless Steel	1
4	29395	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	3
4	8M0042641	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	3
5	856975	支架	MOUNT	3
6	858391T	支架	BRACKET	1
6	858391T01	支架	BRACKET	1
7	845998	垫圈(0.406×1.250×0.089)	WASHER (.406 x 1.250 x .089)	3
8	858393T	支架	BRACKET	1
8	858393T01	支架	BRACKET	1
9	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	2
10	82446155	螺钉(M10×55)	SCREW (M10 x 55)	1
11	856583T2	拉线总成	CABLE ASSEMBLY	1
12	8215832	特殊销（1.5英寸）	PIN Special (1.5 Inches)	1
13	857142T	支架	BRACKET	1
14	812618	不锈钢螺钉(.312-18 x 1.00)带尼龙垫	SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch	3
15	855798	弹簧	SPRING	1
15	855798001	弹簧	SPRING	1
16	856815T2	张紧臂总成	ARM TENSIONER ASSEMBLY	1
17	856900	螺柱(M10×85)	STUD (M10 x 85)	1
17	8M0034457	螺柱(M10×85)	STUD (M10 x 85)	1
18	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	1
19	8568941	衬套	BUSHING	1
20	4002320	垫圈	WASHER	2
21	852385A2	皮带轮总成	PULLEY ASSEMBLY	1
21	8M6005030	皮带轮总成	PULLEY ASSY	1
22	4010835	螺钉(M10×35)六角法兰-不锈钢	SCREW (M10 x 35) Hex Flange - Stainless Steel	1
23	8285074	皮带	BELT	1
23	828507Q4	皮带	BELT	1
24	859734T1	飞轮	FLYWHEEL	1
25	52901	螺母(0.625-18)	NUT (.625-18)	1
26	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
26	33001	垫圈	WASHER	1
27	45907	黄色塞	PLUG Yellow	1
28	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
29	4002319	垫圈	WASHER	1

图 17燃油软管 FUEL HOSES

REF	零件编号	中文名称	英文名称	数量
1	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
2	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	5
2	8M0214964	卡箍	CLAMP	5
3	858955	连接器	CONNECTOR	1
4	830756109	软管(57英寸整卷)(裁切至7.5英寸)	HOSE (57.00 Inches Bulk) (CUT TO 7.5 INCHES)	1
4	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
5	856822A1	油管	TUBING	1
5	8M0064784	成型脉冲软管	HOSE,MOLDED,PULSE	1
6	822769	连接器	CONNECTOR	1
7	NSS		NOT SOLD SEPARATE CAP	1
8	858757A1	软管总成(25.50英寸)	HOSE ASSEMBLY (25.50 Inches)	1
8	8M0062344	软管总成	HOSE ASSY	1
9	804822	软管	HOSE	1
9	8M6001914	软管	HOSE	1
10	8048211	管材（含O型圈）	TUBING (INCLUDES ORINGS)	1
10	8M6001755	软管总成	HOSE ASSY	1
11	8557611	止回阀	CHECK VALVE	1
12	856822A2	软管套管总成(18.00英寸)	HOSE AND SLEEVE ASSEMBLY (18.00 Inches)	1
12	8M0043979	软管套管总成	HOSE AND SLEEVE ASSEMBLY	1
13	85677870	软管	HOSE	1
13	8M0064634	软管	HOSE	1
14	85677887	软管	HOSE	1
14	8M0064635	软管	HOSE	1
15	85686953	套管(27.00英寸整卷)	SLEEVE (27.00 Inches Bulk)	2

图 18燃油泵 FUEL PUMP

REF	零件编号	中文名称	英文名称	数量
1	8162961	燃油滤清器	FILTER Fuel	1
2	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
2	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
3	830756109	软管(57英寸整卷)(10英寸段)	HOSE (57.00 Inches Bulk) (10 IN.)	1
3	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
4	83075780	管材(28.00英寸散装)	TUBING (28.00 Inches Bulk)	1
4	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
5	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
5	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
-	16524	燃油接头O型圈	O-RING Fuel Connector	1
6	826398A3	燃油泵总成	PUMP ASSEMBLY Fuel	1
6	826398T3	燃油泵	PUMP Fuel	1
7	809564	螺钉 (M5 x 35)	SCREW (M5 x 35)	4
8	809565	盖板	COVER	1
9	8095611	隔膜	DIAPHRAGM	1
10	41889M	螺钉 (M3 x 5)	SCREW (M3 x 5)	2
11	82537M	螺母	NUT	2
12	809560	止回阀	CHECK VALVE	2
12	41888M	止回阀	CHECK VALVE	2
13	8095612	隔膜	DIAPHRAGM	1
14	8095661	销	PIN	1
15	809562	弹簧	SPRING	1
16	82388M	螺母 (M5)	NUT (M5)	4
17	8095621	弹簧	SPRING	1
18	8095631	柱塞	PLUNGER	1
19	825492	O型圈	O-RING	1
19	8M0052669	O型圈	O-RING	1
20	82684430	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
21	55098	J型卡扣	J CLIP	1
21	8M0024808	J型夹	J-CLIP	1
22	816856A4	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
22	8M0148585	连接器总成	CONNECTOR ASY	1
-	16524	燃油接头O型圈	O-RING Fuel Connector	1
23	830756109	软管(57英寸整卷)(19英寸)	HOSE (57.00 Inches Bulk) (19 IN.)	1
23	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
24	830756109	软管(57英寸整卷)(16英寸段)	HOSE (57.00 Inches Bulk) (16 IN.)	1
24	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
25	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
26	816296	燃油滤清器	FILTER Fuel	1
26	816296Q03	燃油滤清器@3	FILTER-FUEL @3	1
-	832013A96	衬垫套件	GASKET SET	1

图 19燃油轨 FUEL RAILS

REF	零件编号	中文名称	英文名称	数量
1	858221T4	燃油导轨	FUEL RAIL	1
1	859516T06	燃油导轨	FUEL RAIL	1
2	858222A3	燃油导轨总成	FUEL RAIL ASSEMBLY	1
2	859517T02	燃油导轨	FUEL RAIL	1
3	804830	卡箍	CLAMP	4
4	804525	螺丝包(M5 x 8)(每包2个)	SCREW PACKAGE (M5 x 8) (2 Per)	15
4	804525001	螺丝包(2件)(M5x10)	SCREW PACKAGE (2 Per)(M5 x 10)	15
5	804837	阀门总成(0.5英寸直径)(导轨长边)	VALVE ASSEMBLY (.5 Inch Diameter) (Long side of rail)	1
5	804838A1	燃油阀门套件(导轨短边)	VALVE KIT Fuel (Short side of rail)	1
5	8M0047053	施拉德阀维修包	VALVE KIT Shrader	1
6	804840	O型圈套件	O-RING KIT	1
7	804839	盖帽	CAP	2
7	805515	施拉德阀帽-黄铜	CAP Shrader Valve - Brass	2
8	804835	堵头	PLUG	1
9	880816	卡箍	CLAMP	1
9	8M0041097	支架	BRACKET	1
10	804831	卡箍	CLAMP	4
10	8048311	卡箍	CLAMP	4
11	804841	喷油器	INJECTOR	6
12	804530	O型圈套件(含6件)	O-RING KIT Contains 6 pcs	1
13	804529	O型圈套件(含6件)	O-RING KIT Contains 6 pcs	1
14	804522	卡箍	CLAMP	2
15	880808	卡箍	CLAMP	1
16	880807T	空气调节器	REGULATOR Air	1
16	8M0222160	空气调节器	AIR REGULATOR	1
17	880809	O型圈套件	O-RING KIT	1
18	804832	卡箍	CLAMP	2
19	804526	螺丝包(M5x16)(2件)	SCREW PACKAGE (M5 x 16) (2 Per)	4
20	804535	盖板	COVER	1
20	804535001	盖板	COVER	1
21	804534	弹簧	SPRING	1
22	804533	膜片总成	DIAPHRAGM ASSEMBLY	1
23	804536	O型圈	O-RING	1
24	804834	堵头	PLUG	1
25	804836	接头	FITTING	1
26	804532		O-RING KIT (16 per Kit)	1
27	850065A11	喷油器	INJECTOR	6
27	8M6001743	空气喷射器总成	INJECTOR ASSEMBLY Air	6
27	883078A3	空气喷射器	INJECTOR Air	6
27	8M6001743	空气喷射器总成	INJECTOR ASSEMBLY Air	6
27	883078A4	空气喷射器维修包	INJECTOR KIT Air	6
27	8M6001743	空气喷射器总成	INJECTOR ASSEMBLY Air	6
28	804875	直喷器密封套件	SEAL KIT Direct Injector	6
29	858778	双头螺栓(M10x91)	STUD (M10 x 91)	4
29	8M0063255	双头螺栓M10x92	STUD M10x92	4
30	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	4
31	828694A1	杯形垫片总成	WASHER ASSEMBLY Cupped	6
32	859376	卡扣	CLIP	4
-	879808T01	动力头总成	POWERHEAD ASSEMBLY	1
-	879808T07	动力头总成	POWERHEAD ASSEMBLY	1
-	879809T01	动力头总成	POWERHEAD ASSEMBLY	1
-	879809T07	动力头总成	POWERHEAD ASSEMBLY	1

图 20齿轮箱（驱动轴）（反向旋转） GEAR HOUSING (DRIVESHAFT)(COUNTER ROTATION)

REF	零件编号	中文名称	英文名称	数量
-	9148T86	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T83	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
1	9148T93	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
3	189783	螺柱(0.438×3.82英寸)	STUD (.438 x 3.82 Inches)	1
3	8M0034464	螺柱	STUD	1
4	579203	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
4	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	562972	螺柱(0.312-18/0.324-24×3.380)	STUD (.312-18/.324-24 x 3.380)	1
5	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
6	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
6	306671	螺柱	STUD	2
7	67891	填充块	FILLER BLOCK	1
7	8M0039169	填充块	FILLER BLOCK	1
8	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	826134Q	阳极块	ANODE	2
10	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
11	8268336	螺母 (M6)	NUT (M6)	1
11	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
12	85944975	管材(72.00英寸散装)(12英寸)	TUBING (72.00 Inches Bulk) (12 IN.)	1
13	859432	接头	FITTING	1
13	881866	接头	FITTING	1
14	NSS	不单独销售	NOT SOLD SEPARATE	1
14	44101T3	小齿轮	GEAR Pinion	1
15	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
16	35921	螺母(0.625-18)	NUT (.625-18)	1
17	42637A1	垫片组(006至048)	SHIM SET (006 THRU 048)	AR
17	8M0063267	垫片组	SHIM SET	AR
18	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	2
18	79953Q04	放油螺钉套件	SCREW KIT Drain	2
19	191832	垫圈	WASHER	2
19	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
20	789022	换档轴	SHIFT SHAFT	1
21	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
22	77631A2	衬套总成	BUSHING ASSEMBLY	1
23	8164641	油封	SEAL Oil	1
23	8M0246145	油封	OIL SEAL	1
24	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
25	442091	驱动轴	DRIVESHAFT	1
25	897625T	加长驱动轴	DRIVESHAFT X-Long	1
26	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
26	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
27	NSS		NOT SOLD SEPARATE CUP	1
28	8245191	固定座	RETAINER	1
29	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
29	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
30	NSS		NOT SOLD SEPARATE RETAINER	1
31	426311	衬垫	GASKET	1
31	8M0204678	衬垫	GASKET	1
32	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
32	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
33	89238	油封	SEAL Oil	1
34	16977	油封	SEAL Oil	1
35	856081	衬垫	GASKET	1
35	8M0090319	衬垫@5	GASKET @5	1
36	858524	衬垫	GASKET	1
37	32435	面板	FACE PLATE	1
37	8M0204677	面板	PLATE-FACE	1
38	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
39	48752T	嵌件	INSERT	1
40	38970	密封件	SEAL	1
41	89984T3	叶轮	IMPELLER	1
42	56654	键	KEY	1
42	8M0214992	键@5	KEY @5	1
43	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
43	8M0215009	螺钉	SCREW	1
44	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
44	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
45	8267119	螺母(.250-28)	NUT (.250-28)	2
46	36001	垫圈	WASHER	1
47	13436	螺母	NUT	1
48	29804T	套筒	SLEEVE	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1
-	814754A00	发动机垫片组	GASKET SET Engine	1
-	8M0046714	衬垫套件	GASKET SET	1
-	803034T1	轴承与油封套件(不含前轴承)	BEARING AND SEAL KIT (W/O FWD. BRG.)	1

图 21齿轮箱（驱动轴）（标准旋转） GEAR HOUSING (DRIVESHAFT)(STANDARD ROTATION)

REF	零件编号	中文名称	英文名称	数量
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T85	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T81	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T82	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
1	9148T93	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
3	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
3	189783	螺柱(0.438×3.82英寸)	STUD (.438 x 3.82 Inches)	1
3	8M0034464	螺柱	STUD	1
4	579203	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
4	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	562972	螺柱(0.312-18/0.324-24×3.380)	STUD (.312-18/.324-24 x 3.380)	1
5	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
6	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
6	306671	螺柱	STUD	2
7	67891	填充块	FILLER BLOCK	1
7	8M0039169	填充块	FILLER BLOCK	1
8	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	826134Q	阳极块	ANODE	2
10	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
11	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
12	85944975	管材(72.00英寸散装)	TUBING (72.00 Inches Bulk)	1
12	85944975	管材(72.00英寸散装)	TUBING (72.00 Inches Bulk)	1
13	859432	接头	FITTING	1
13	881866	接头	FITTING	1
14	NSS	不单独销售	NOT SOLD SEPARATE	1
14	44101T3	小齿轮	GEAR Pinion	1
15	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
16	35921	螺母(0.625-18)	NUT (.625-18)	1
17	42637A1	垫片组(006至048)	SHIM SET (006 THRU 048)	AR
17	8M0063267	垫片组	SHIM SET	AR
18	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	2
18	79953Q04	放油螺钉套件	SCREW KIT Drain	2
19	191832	垫圈	WASHER	2
19	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
20	789022	换档轴	SHIFT SHAFT	1
21	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
22	77631A2	衬套总成	BUSHING ASSEMBLY	1
23	8164641	油封	SEAL Oil	1
23	8M0246145	油封	OIL SEAL	1
24	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
25	440001	驱动轴	DRIVESHAFT	1
25	897624T	长驱动轴	DRIVESHAFT Long	1
25	442091	驱动轴	DRIVESHAFT	1
25	897625T	加长驱动轴	DRIVESHAFT X-Long	1
26	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
26	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
27	NSS		NOT SOLD SEPARATE CUP	1
28	8245191	固定座	RETAINER	1
29	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
29	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
30	NSS		NOT SOLD SEPARATE RETAINER	1
31	426311	衬垫	GASKET	1
31	8M0204678	衬垫	GASKET	1
32	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
32	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
33	89238	油封	SEAL Oil	1
34	16977	油封	SEAL Oil	1
35	856081	衬垫	GASKET	1
35	8M0090319	衬垫@5	GASKET @5	1
36	858524	衬垫	GASKET	1
37	32435	面板	FACE PLATE	1
37	8M0204677	面板	PLATE-FACE	1
38	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
39	48752T	嵌件	INSERT	1
40	38970	密封件	SEAL	1
41	89984T3	叶轮	IMPELLER	1
42	56654	键	KEY	1
42	8M0214992	键@5	KEY @5	1
43	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
43	8M0215009	螺钉	SCREW	1
44	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
44	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
45	8267119	螺母(.250-28)	NUT (.250-28)	2
46	36001	垫圈	WASHER	1
47	13436	螺母	NUT	1
48	29804T	套筒	SLEEVE	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1
-	803033T1	轴承与油封套件(不含前轴承)	BEARING AND SEAL KIT (W/O FWD. BRG.)	1
-	814754A00	发动机垫片组	GASKET SET Engine	1
-	8M0046714	衬垫套件	GASKET SET	1

图 22齿轮箱（螺旋桨轴）（反向旋转） GEAR HOUSING (PROPSHAFT)(COUNTER ROTATION)

REF	零件编号	中文名称	英文名称	数量
-	9148T86	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T83	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
1	9148T93	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
3	789562	换挡凸轮	SHIFT CAM	1
4	828287	杆	ROD	1
5	44491A1	垫片组(006至050)	SHIM SET (006 THRU 050)	AR
5	8M0063266	垫片组	SHIM SET	AR
6	828830A2	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
7	814653T	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
8	815481	止推垫片	THRUST WASHER	1
9	815480	推力轴承	BEARING Thrust	1
10	828702A2	倒车齿轮总成-15/28齿	GEAR ASSEMBLY Reverse - 15/28	1
10	828704A2	倒车齿轮总成-14/28齿	GEAR ASSEMBLY Reverse - 14/28	1
11	15844	滚柱轴承总成	BEARING ASSEMBLY Roller	1
12	30893	弹簧	SPRING	1
13	859340T	离合器	CLUTCH	1
14	30632	十字销	PIN Cross	1
14	8M0100263	十字销	PIN Cross	1
15	828356	定位销	PIN Detent	1
16	828951	螺旋桨轴	PROPELLER SHAFT	1
17	828701A1	前进齿轮总成-15/28齿	GEAR ASSEMBLY Forward - 15/28	1
17	828703A1	前进齿轮总成-14/28齿	GEAR ASSEMBLY Forward - 14/28	1
18	1761552	垫片(0.202)	SPACER SHIM (.202)	AR
18	1761553	垫片(0.204)	SPACER SHIM (.204)	AR
18	1761514	垫片(0.206)	SPACER SHIM (.206)	AR
18	1761515	垫片(0.208)	SPACER SHIM (.208)	AR
18	1761516	垫片(0.210)	SPACER SHIM (.210)	AR
18	1761517	垫片(0.212)	SPACER SHIM (.212)	AR
18	1761518	垫片(0.214)	SPACER SHIM (.214)	AR
18	1761519	垫片(0.216)	SPACER SHIM (.216)	AR
18	1761520	垫片(0.218)	SPACER SHIM (.218)	AR
18	1761521	垫片(0.220)	SPACER SHIM (.220)	AR
18	1761522	垫片(0.222)	SPACER SHIM (.222)	AR
18	1761523	垫片(0.224)	SPACER SHIM (.224)	AR
18	1761524	垫片(0.226)	SPACER SHIM (.226)	AR
18	1761525	垫片(0.228)	SPACER SHIM (.228)	AR
18	1761526	垫片(0.230)	SPACER SHIM (.230)	AR
19	815480	推力轴承	BEARING Thrust	1
20	815481	止推垫片	THRUST WASHER	1
21	828831A3	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
22	814653T	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
23	18448	止推垫片	THRUST WASHER	2
24	15842	推力轴承	BEARING Thrust	2
25	8182911	推力座圈	RACE Thrust	2
26	814605	定位器	KEEPER	2
27	31534	O型圈	O-RING	1
27	8M0214920	O型圈	O RING	1
28	818290A4	轴承座总成	CARRIER ASSEMBLY Bearing	1
29	30956T	滚针轴承	BEARING Needle	1
30	14077	油封	SEAL Oil	1
31	76868	密封件	SEAL	1
31	8M0248882	油封@5	SEAL-OIL @5	1
32	183231	锁紧垫圈	TAB WASHER	1
33	30281	键	KEY	1
34	79448	固定座	RETAINER	1
34	8M2011027	固定座	RETAINER	1
35	31640T5	平衡鳍板	TRIM TAB	1
35	8M0236553	平衡鳍板	TRIM TAB	1
36	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
36	8M0204686	螺钉	SCREW	1
37	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
38	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
39	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
39	8M0204653	螺母	NUT	2
40	NSS		NOT SOLD SEPARATE DECAL-COUNTER ROTATION	1
-	803034T1	轴承与油封套件(不含前轴承)	BEARING AND SEAL KIT (W/O FWD. BRG.)	1
-	803491T1	离合器/凸轮从动件总成	FOLLOWER ASSEMBLY Clutch/Cam	1

图 23齿轮箱（螺旋桨轴）（标准旋转） GEAR HOUSING (PROPSHAFT)(STANDARD ROTATION)

REF	零件编号	中文名称	英文名称	数量
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T85	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T81	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T82	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
1	9148T93	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
3	789562	换挡凸轮	SHIFT CAM	1
4	828287	杆	ROD	1
5	878613A2	前进齿轮总成 1.87:1 - 15/28齿	GEAR ASSEMBLY Forward 1.87:1 - 15/28	1
5	803615T2	小齿轮/前进齿轮总成	GEAR ASSEMBLY Pinion/Forward	1
5	878615A2	前进齿轮总成 2:1 - 14/28齿	GEAR ASSEMBLY Forward 2:1 - 14/28	1
5	803612T2	小齿轮/前进齿轮总成	GEAR ASSEMBLY Pinion/Forward	1
6	44491A1	垫片组(0.006至0.050)	SHIM SET (.006 THRU 050)	AR
6	8M0063266	垫片组	SHIM SET	AR
7	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
8	NSS		NOT SOLD SEPARATE CUP	1
9	30895T	滚针轴承	BEARING Needle	1
10	856823	挡圈	RING Retaining	1
11	859340T	离合器	CLUTCH	1
12	30632	十字销	PIN Cross	1
12	8M0100263	十字销	PIN Cross	1
13	828356	定位销	PIN Detent	1
14	30893	弹簧	SPRING	1
15	94148	螺旋桨轴	PROPELLER SHAFT	1
16	828175A1	倒车齿轮总成-15/28齿	GEAR ASSEMBLY Reverse - 15/28	1
16	828177A1	倒车齿轮总成-14/28齿	GEAR ASSEMBLY Reverse - 14/28	1
17	824108	隔套	SPACER	1
18	681001	止推环	RING Thrust	1
19	88957T	滚珠轴承	BEARING Ball	1
20	31534	O型圈	O-RING	1
20	8M0214920	O型圈	O RING	1
21	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
22	30956T	滚针轴承	BEARING Needle	1
23	14077	油封(内侧)	SEAL Oil (INSIDE)	1
24	76868	油封(外侧)	SEAL (OUTSIDE)	1
24	8M0248882	油封@5	SEAL-OIL @5	1
25	30281	键	KEY	1
26	79447	锁紧垫圈	TAB WASHER	1
27	79448	固定座	RETAINER	1
27	8M2011027	固定座	RETAINER	1
28	31640T5	平衡鳍板	TRIM TAB	1
28	8M0236553	平衡鳍板	TRIM TAB	1
29	76214Q5	阳极套件	ANODE KIT	1
30	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
30	8M0204686	螺钉	SCREW	1
31	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
32	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
33	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
33	8M0204653	螺母	NUT	2
-	89238A2	密封套件	SEAL KIT	1
-	803491T1	离合器/凸轮从动件总成	FOLLOWER ASSEMBLY Clutch/Cam	1
-	803033T1	轴承与油封套件(不含前轴承)	BEARING AND SEAL KIT (W/O FWD. BRG.)	1
-	814754A00	发动机垫片组	GASKET SET Engine	1
-	8M0046714	衬垫套件	GASKET SET	1

图 24喷油组件 OIL INJECTION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	85606065		TUBING (38.00 Inches Bulk) (CUT TO 24 INCHES)	1
2	85606065	管材(38英寸整卷)(裁切至18.5英寸)	TUBING (38.00 Inches Bulk) (CUT TO 18.5 INCHES)	1
2	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
3	85606065	管材(38英寸整卷)(裁切至15.5英寸)	TUBING (38.00 Inches Bulk) (CUT TO 15.5 INCHES)	1
3	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
4	85606065	管材(38英寸整卷)(裁切24.5英寸)	TUBING (38.00 Inches Bulk) (CUT 24.5 INCHES)	2
4	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	2
5	85606065		TUBING (38.00 Inches Bulk) (CUT TO 27 INCHES)	1
5	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
6	858805	止回阀	CHECK VALVE	6
7	69355	扎带(5.50英寸)	TIE STRAP (5.50 Inches)	AR
7	8M0214940	扎带	TIE STRAP	AR
8	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
9	82381455		TUBING (25.00 Inches Bulk) (CUT TO 24 INCHES)	1
9	892830053	软管(24英寸编织)(裁切至24英寸)	HOSE (24.00 Inches Braided) (CUT TO 24 INCHES)	1
10	85583464	管材(34英寸整卷)(裁切至32英寸)	TUBING (34.00 Inches Bulk) (CUT TO 32 INCHES)	1
10	85583466	软管(40英寸整卷)	HOSE (40.00 Inches Bulk)	1
11	8781051	止回阀	CHECK VALVE	1
12	424254	接头	FITTING	1
12	8M0207780	接头	FITTING	1
13	830756109		HOSE (57.00 Inches Bulk) (CUT TO 6 INCHES)	1
13	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
14	NSS		NOT SOLD SEPARATE CAP	2
15	875289	软管	HOSE	1
16	858955	连接器	CONNECTOR	2
17	875284	管路过滤器	FILTER In Line	1
17	875284T01	滤清器-机油在线式	FILTER Oil - In Line	1
18	875283	软管(2.00英寸)	HOSE (2.00 Inches)	1
19	833069T9	储液罐总成	RESERVOIR ASSEMBLY	1
19	8M0063190	油箱总成	OIL TANK ASSY	1
20	NSS		NOT SOLD SEPARATE DECAL-RESERVOIR	1
21	855362	护孔环	GROMMET	3
21	855362001	护孔环	GROMMET	3
22	49436	垫圈	WASHER	3
23	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
24	855364	衬套	BUSHING	3
25	856156A2	开关总成	SWITCH ASSEMBLY	1
25	856156T02	开关总成	SWITCH ASSEMBLY	1
26	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
27	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
28	814634	卡箍	CLAMP	2
-	879808T01	动力头总成	POWERHEAD ASSEMBLY	1
-	879808T07	动力头总成	POWERHEAD ASSEMBLY	1
-	879809T01	动力头总成	POWERHEAD ASSEMBLY	1
-	879809T07	动力头总成	POWERHEAD ASSEMBLY	1

图 25油管 OIL LINES

REF	零件编号	中文名称	英文名称	数量
1	85606065	管材(38英寸整卷)(30英寸)	TUBING (38.00 Inches Bulk) (30 IN.)	1
2	85606065	管材(38英寸整卷)(22.5英寸)	TUBING (38.00 Inches Bulk) (22-1/2 IN.)	1
2	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
3	887801	弯头配件90度(.0625-27)	FITTING Elbow 90 Degree (.0625-27)	2
4	8592352	止回阀90度(.0625-27)	CHECK VALVE 90 Degree (.0625-27)	2
5	85606065	管材(38英寸整卷)(16.5英寸)	TUBING (38.00 Inches Bulk) (16-1/2 IN.)	2
5	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	2
6	151333	接头	FITTING	2
7	69355	扎带(5.50英寸)	TIE STRAP (5.50 Inches)	AR
7	8M0214940	扎带	TIE STRAP	AR
8	85606065	管材(38英寸整卷)(22英寸)	TUBING (38.00 Inches Bulk) (22 IN.)	1
8	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
9	591692	三通接头	FITTING Tee	2
9	59169003	三通接头	FITTING Tee	2
10	85606065	管材(38英寸整卷)(1.5英寸)	TUBING (38.00 Inches Bulk) (1-1/2 IN.)	2
10	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	2
11	85606065	管材(38英寸整卷)(4.75英寸)	TUBING (38.00 Inches Bulk) (4 -3/4 IN.)	1
11	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
12	85606065	管材(38英寸整卷)(3.5英寸)	TUBING (38.00 Inches Bulk) (3-1/2 IN.)	1
12	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
13	426233	止回阀	CHECK VALVE	3
14	426982	止回阀	CHECK VALVE	1
-	879808T01	动力头总成	POWERHEAD ASSEMBLY	1
-	879808T07	动力头总成	POWERHEAD ASSEMBLY	1
-	879809T01	动力头总成	POWERHEAD ASSEMBLY	1
-	879809T07	动力头总成	POWERHEAD ASSEMBLY	1

图 26动力升降组件(铸造泵壳)金属电机壳体 POWER TRIM COMPONENTS (CAST PUMP HOUSING) Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	855998A3	动力升降倾斜装置总成	POWER TRIM Complete	1
1	878265A4	配平电机	TRIM MOTOR	1
1	8M0031551	配平电机	TRIM MOTOR	1
2	NSS		NOT SOLD SEPARATE ARMATURE	1
3	NSS		NOT SOLD SEPARATE END FRAME	1
4	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
5	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
6	878245	联轴器	COUPLING	1
6	8782451	驱动轴	DRIVESHAFT	1
7	878410A1	压力检查套件	PO CHECK KIT	1
8	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
8	893929A01	安全阀套件	VALVE KIT Relief	1
9	878241A1	轴套件	SHAFT KIT	1
9	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
10	878267	销	PIN	1
11	878235A1	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
11	878235A03	倾斜油缸套件	CYLINDER KIT Tilt	1
12	878239A1	导向套件	GUIDE KIT	1
12	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
13	878409A1	O型圈套件	O-RING KIT	1
13	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
14	878412A1	减震杆套件	SHOCK ROD KIT	1
14	8M0168219	减震杆套件	SHOCK ROD KIT	1
15	878242A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
15	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
16	878406A1	止回阀修理包	REPAIR KIT Check Valve	1
16	878406A02	止回阀修理包	REPAIR KIT Check Valve	1
17	878414A1	活塞总成	PISTON ASSEMBLY	1
17	878414T01	活塞总成	PISTON ASSEMBLY	1
18	878413A1	活塞总成	PISTON ASSEMBLY	1
19	878243A1	导向器总成	GUIDE ASSEMBLY	2
19	8M0021648	端盖总成	END CAP ASSEMBLY	2
20	878264A1	储液罐套件	RESERVOIR KIT	1
21	811613	塞子总成	PLUG ASSEMBLY	1
22	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
23	43450	垫圈	WASHER	4
23	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
24	878411A1	泵套件	PUMP KIT	1
24	892251A01	泵套件	PUMP KIT	1
25	878408A1	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
26	821539	三叶销	PIN Trilobe	1
27	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
28	4002319	垫圈	WASHER	6
29	818298Q1	阳极套件	ANODE KIT	1
30	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
30	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
31	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
31	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	996251	轴	SHAFT	1
32	99625002	轴	SHAFT	1
33	69205	C形垫圈	C WASHER	1
33	8M0084613	C形垫圈	C-WASHER	1
34	26550	卡箍	CLAMP	2
35	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
36	828547353	导管(内径0.350英寸x3.00英尺散装)(12英寸)	CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk) (12 IN.)	1
37	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

图 27动力升降组件(可拆卸泵壳)金属电机壳体 POWER TRIM COMPONENTS (REMOVABLE PUMP HOUSING) Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	826729T2	完整动力升降总成	POWER TRIM ASSEMBLY Complete	1
1	811604F	歧管总成	MANIFOLD ASSEMBLY	1
2	878089	管塞 (.0625-27)	PLUG Pipe (.0625-27)	9
3	880952A1	倾斜油缸总成	CYLINDER ASSEMBLY Tilt	1
3	880952A03	ORD 8M0078330	ORD 8M0078330	1
4	823553T	升降活塞杆	ROD Trim Piston	1
4	880952A02	液压油缸套件	CYLINDER KIT-HYD	1
5	878239A1	导向套件	GUIDE KIT	1
5	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
6	811607A1	维修套件	REPAIR KIT	1
7	811610A1	止回阀套件	CHECK VALVE KIT	1
7	823553T	升降活塞杆	ROD Trim Piston	1
8	878243A1	导向器总成	GUIDE ASSEMBLY	2
8	8M0021648	端盖总成	END CAP ASSEMBLY	2
9	878413A1	活塞总成	PISTON ASSEMBLY	1
9	878414A1	活塞总成	PISTON ASSEMBLY	1
9	878414T01	活塞总成	PISTON ASSEMBLY	1
10	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
11	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
11	893929A01	安全阀套件	VALVE KIT Relief	1
12	812844	E型卡环	E RING	1
12	815949001	E形环	E-RING	1
13	811612A3	O型圈套件	O-RING KIT	1
14	811617T1	泵	PUMP	1
15	811613	塞子总成	PLUG ASSEMBLY	1
16	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
17	43450	垫圈	WASHER	4
17	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
18	811611	盖板	COVER	1
19	828710	驱动接头	DRIVE JOINT	1
20	828708T	配平电机	TRIM MOTOR	1
20	878265A4	配平电机	TRIM MOTOR	1
21	828709	螺钉	SCREW	2
21	881768A1	螺钉/垫圈套件	SCREW/WASHER KIT	2
21	811616	螺钉	SCREW	2
22	811614T	轴总成	SHAFT ASSEMBLY	1
22	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
23	878089	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
24	44431	槽销	PIN Groove	1
24	878267	销	PIN	1
25	821539	三叶销	PIN Trilobe	1
26	996251	轴	SHAFT	1
26	99625002	轴	SHAFT	1
27	818298Q1	阳极套件	ANODE KIT	1
28	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
28	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
29	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
29	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
30	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
31	4002319	垫圈	WASHER	6
32	26550	卡箍	CLAMP	2
33	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
34	69205	C形垫圈	C WASHER	2
34	8M0084613	C形垫圈	C-WASHER	2
35	435301	警示贴纸-动力微调	DECAL Caution-Power Trim	1
36	828547353	导管 (.350内径 x 3.00英尺散装)	CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk)	1
37	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

图 28动力升降组件 8M0231193 Power Trim Components 8M0231193

REF	零件编号	中文名称	英文名称	数量
-	8M0231193	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0225363	电机套件	MOTOR KIT	1
2	8M0225369	阀套件	VALVE KIT	1
3	8M0225371	手动释放套件	MANUAL RELEASE KIT	1
4	8M0245633	倾斜油缸套件	TILT CYLINDER KIT	1
5	8M0225370	枢轴销套件	PIVOT PIN KIT	1
6	8M0244575	减震杆套件	SHOCK ROD KIT	1
7	8M0244425	销杆眼套件	PIN ROD EYE KIT	1
8	8M0232231	螺钉螺母套件	SCREW NUT KIT	1
9	8M0225373	记忆活塞套件	MEMORY PISTON KIT	1
10	8M0225368	储液罐套件	RESERVOIR KIT	1
11	8M0174135	储液罐塞总成	PLUG RESERVOIR ASSEMBLY	1
12	8M0237525	泵套件	PUMP KIT	1
13	8M0225367	升降杆套件	TRIM ROD KIT	1
14	8M0242846	升降杆套件	TRIM ROD KIT	1
15	8M0225372	重建套件	REBUILD KIT	1

图 29动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	8M0168222	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0142591	电机套件	MOTOR KIT	1
2	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
3	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
4	8M0090403	驱动联轴器	COUPLING Drive	1
5	8M0142996	压力检查套件	PO CHECK KIT	1
6	8M0060141	手动释放套件	MANUAL RELEASE KIT	1
7	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
8	878267	销	PIN	1
9	8M0142998	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
9	8M0168220	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
10	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
11	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
12	8M0142592	升降杆套件左舷	TRIM ROD KIT Port	1
13	8M0143001	活塞总成	PISTON ASSEMBLY	1
14	8M0143003	端盖总成	END CAP ASSEMBLY	1
15	878264A1	储液罐套件	RESERVOIR KIT	1
16	811613	塞子总成	PLUG ASSEMBLY	1
17	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
18	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
19	8M0143004	泵套件	PUMP KIT	1
20	8M0148385	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
21	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
22	4002319	垫圈	WASHER	6
23	8M0094889	销	PIN	1
23	8M0161312	连杆销眼总成	PIN ROD EYE ASSEMBLY	1
24	8M0143005	减震杆套件	SHOCK ROD KIT	1
24	8M0168219	减震杆套件	SHOCK ROD KIT	1

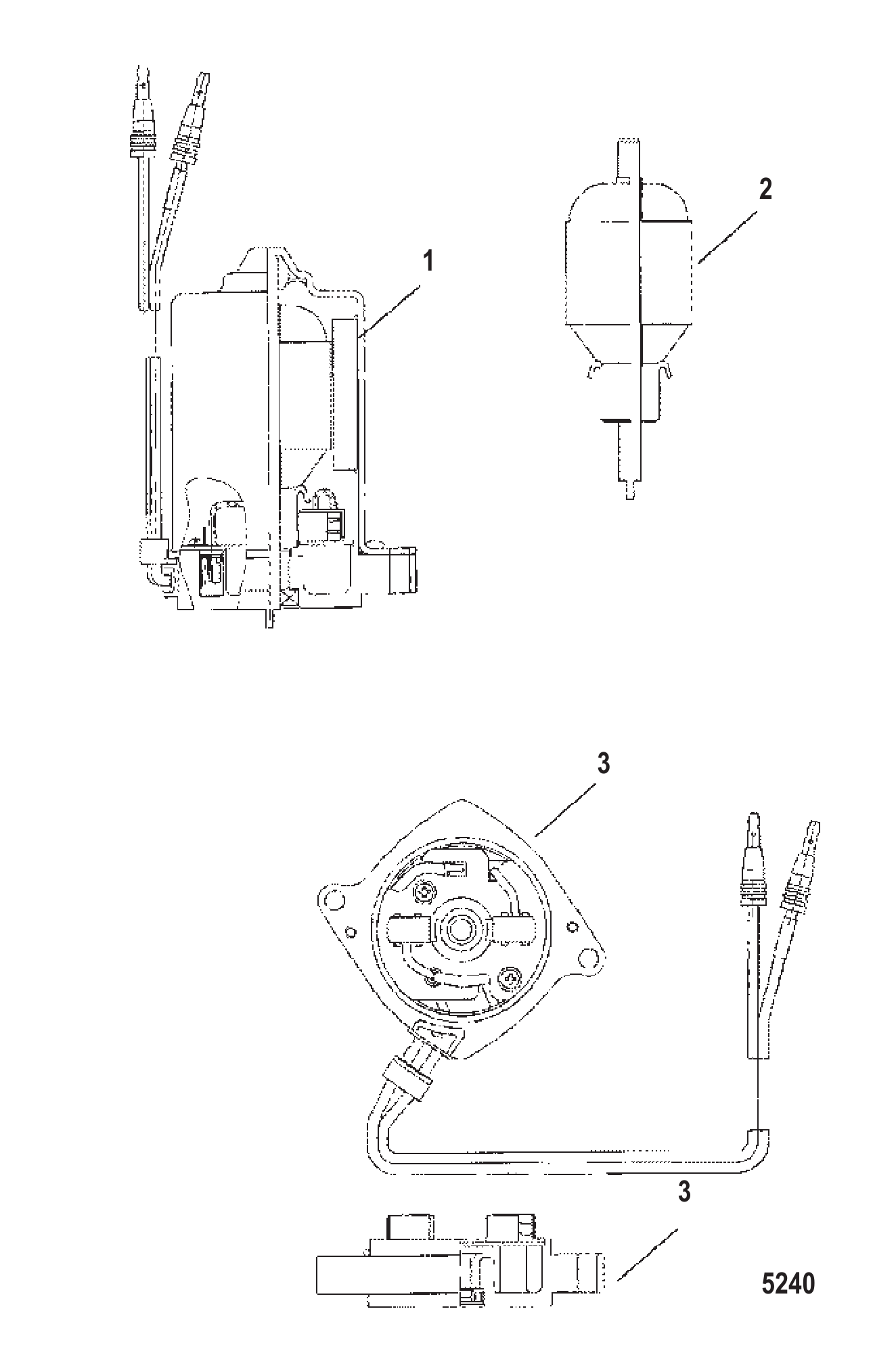

图 30动力升降电机(可拆卸泵壳) POWER TRIM MOTOR (REMOVABLE PUMP HOUSING)

REF	零件编号	中文名称	英文名称	数量
-	828708T	配平电机	TRIM MOTOR	1
1	828714A1	电刷与密封套件	BRUSH AND SEAL KIT	1
2	828713A1	电枢套件	ARMATURE KIT	1
2	828713T1	电枢套件	ARMATURE KIT	1
3	828715A1	端架（总成）	END FRAME (COMPLETE)	1

图 31服务/支持材料 SERVICE/SUPPORT MATERIAL

REF	零件编号	中文名称	英文名称	数量
-	87982801	零件手册 40/50/60(4缸)化油器四冲程	PARTS MANUAL 40/50/60 (4 Cylinder) Carb 4-Stroke	1
-	10223020	用户手册	OWNERS MANUAL	1
-	858896	维修手册	SERVICE MANUAL	1
-	852151A1	工具包	TOOL KIT	1
-	8M0162977	工具包	TOOL KIT	1
-	854695A00	贴花套件	DECAL SET	1
-	883523A01	贴花套件	DECAL SET	1
-	850482A97	贴花套件	DECAL SET	1
-	883229A01	贴花套件	DECAL SET	1
-	826337A00	贴花套件	DECAL SET	1
-	8M0114762	服务套件贴纸	DECAL-SERVICE KIT	1
-	879753A01	贴花套件	DECAL SET	1
-	826338A01	贴花套件	DECAL SET	1
-	883522A01	贴花套件	DECAL SET	1
-	879754A01	贴花套件	DECAL SET	1
-	880811A01	贴花套件	DECAL SET	1
-	883522A01	贴花套件	DECAL SET	1
-	804655A02	EPA标签信息贴花	DECAL EPA Label Information	1

图 32速度计传感系统 SPEEDOMETER PICKUP SYSTEM

REF	零件编号	中文名称	英文名称	数量
1	881879A6	传感器(0-100 PSI)	SENSOR (0 - 100 PSI)	1
2	859431	接头	FITTING	1
2	8M0207782	直通接头	FITTING Straight	1
3	883066	夹子 (.865)	CLIP (.865)	1
3	858954	卡箍(0.625英寸)	CLIP (.625)	1
4	85944975	管材(72英寸整卷)(46英寸)(黑色)	TUBING (72.00 Inches Bulk) (46 IN.)(BLACK)	1
-	NSS	不单独销售联管节总成	NOT SOLD SEPARATE UNION ASSEMBLY	1
5	859448	接头	FITTING	1
5	859448T	接头	FITTING	1
6	821555	护孔环	GROMMET	1
6	8M0153609	护孔环	GROMMET	1
7	850181	捆扎带(11.750英寸)	TIE STRAP (11.750 Inches)	1
8	859747	联轴器	COUPLER	1
8	8M0214971	耦合接头 (4 MM)	COUPLER Fitting (4 MM)	1
9	859732	堵头	PLUG	1
10	859731	适配管接头	FITTING Adapter	1
10	8M0214970	接头	FITTING	1
11	85944975	管材(72英寸整卷)(14.5英寸)	TUBING (72.00 Inches Bulk) (14-1/2 IN.)	1

图 33启动马达 STARTER MOTOR

REF	零件编号	中文名称	英文名称	数量
1	884044T	启动电机总成	STARTER MOTOR ASSEMBLY	1
2	15384	贯穿螺栓	THRU BOLT	2
3	906433	驱动套件	DRIVE KIT	1
3	891752	驱动套件	DRIVE KIT	1
4	8236386	电枢	ARMATURE	1
5	68575T2	小齿轮	PINION	1
6	8236392	驱动端盖	DRIVE CAP	1
7	8119013	换向器端盖	CAP Commutator	1
8	753841	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
9	61787	支架	HOLDER	1
9	898265014	电刷支架	HOLDER-BRUSH	1
10	F15158	螺钉	SCREW	2
11	8272822	高压警告标贴	DECAL Warning High Voltage	1

图 34旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM

REF	零件编号	中文名称	英文名称	数量
1	8710T20	黑色旋转支架总成	SWIVEL BRACKET ASSEMBLY Black	1
2	33504	O型圈	O-RING	1
2	8M0214926	O型圈 @10	O RING @10	1
3	818764	衬套	BUSHING	2
4	816039	隔套	SPACER	1
5	87735	油封(下)	SEAL Oil (LOWER)	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	816432	止推垫片	THRUST WASHER	1
9	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
9	878182T	轭架底部-不锈钢	YOKE Bottom - Stainless Steel	1
9	878182T	轭架底部-不锈钢	YOKE Bottom - Stainless Steel	1
9	878182T01	下轭架	YOKE Bottom	1
10	67684	挡圈	RING Retaining	1
11	996301	冲击板	STRIKER PLATE	2
11	8M0045383	冲击板	STRIKER PLATE	2
12	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
13	46335	螺母 (.375-24)	NUT (.375-24)	2
14	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
15	NSS	不单独销售序列号覆膜贴花	NOT SOLD SEPARATE DECAL-SERIAL NUMBER OVERLAMINATE	1
16	821180A6	调整传感器总成	SENDER ASSEMBLY Trim	1
16	8M0074846	ORDER 8M0098273	ORDER 8M0098273	1
17	852368	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
18	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
19	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
20	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
20	826432A2	转向臂旋转销总成-不锈钢	SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel	1
20	826432A2	转向臂旋转销总成-不锈钢	SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel	1
20	8M0132731	旋转销总成	SWIVEL PIN ASSY	1
21	78689	螺钉（0.437-20 X 7.50）	SCREW (.437-20 x 7.50)	2
21	8M0176309	螺钉	SCREW	2
22	888821	缓冲垫	BUMPER	1
22	8M0000516	上轭缓冲垫	BUMPER Top Yoke	1
23	77326	支架	MOUNT	2
24	66921	垫圈	WASHER	2
25	78688	垫圈	WASHER	2
26	82671015	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
26	8M0204653	螺母	NUT	2
27	92876A10	连杆总成	LINK ROD ASSEMBLY	1
27	92876A12	连杆总成	LINK ROD ASSEMBLY	1
28	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
29	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
29	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
30	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
31	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

图 35油门杆与换挡轴 THROTTLE LEVER AND SHIFT SHAFT

REF	零件编号	中文名称	英文名称	数量
1	8503891	节气门控制杆	LEVER Throttle Control	1
2	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
3	55164	衬套	BUSHING	1
4	858959	隔套	SPACER	1
5	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
6	64015	螺母 (.250-20)	NUT (.250-20)	1
7	26852	尼龙帽	CAP Nylon	1
8	42927	嵌件	INSERT	1
9	35459	垫圈	WASHER	1
10	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
11	8562211	凸轮	CAM	1
12	856895	衬套	BUSHING	1
13	81893440	螺钉 (M8 x 40)	SCREW (M8 x 40)	1
14	932481	衬套	BUSHING	2
14	8M0215006	旋转衬套	BUSHING Swivel	2
15	856896	轴承	BEARING	1
16	8508152	杆	ROD	1
17	67748	滚轮	ROLLER	1
18	8502861	杠杆	LEVER	1
18	850286A03	油门杆/滚轮套件	LEVER/ROLLER KIT Throttle	1
19	40056107	螺钉(M5×16)	SCREW (M5 x 16)	1
20	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	1
21	69432	外锁紧垫圈(#10)	LOCKWASHER External (#10)	1
22	814283T6	锚支架总成	BRACKET ASSEMBLY Anchor	1
23	98889	闩锁	LATCH	1
24	42975	传动螺钉	DRIVE SCREW	2
25	39519	杯套	CUP	1
26	52100	耐磨板	WEAR PLATE	1
27	38279	闩锁	LATCH	1
27	8M0036768	闩锁	LATCH	1
28	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
29	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
30	28782	螺钉(.312-18 x .880)不锈钢	SCREW (.312-18 x .880) Stainless Steel	3
31	814284	导向块	GUIDE BLOCK	1
32	20099	弹簧	SPRING	1
33	67073A1	连杆总成	LINK ROD ASSEMBLY	1
34	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
34	79932A17	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
35	NSS		NOT SOLD SEPARATE ROLL PIN	1
36	NSS		NOT SOLD SEPARATE SHIFT SHAFT LEVER-UPPER	1
37	26856	衬套	BUSHING	1
38	29720	波形垫圈	WAVE WASHER	1
39	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
40	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
41	814281A2	开关	SWITCH	1
41	8M0052931	开关	SWITCH	1
42	77478	螺钉 (#6-32 x .875)	SCREW (#6-32 x .875)	2
43	27882	垫圈	WASHER	2

图 36专用工具 TOOLS-SPECIAL

零件编号	中文名称	英文名称	数量
880118A2	模块	CARTRIDGE	1
822560A5	线束总成-DDT适配器	HARNESS ASSEMBLY DDT Adapter	1
52344	飞轮固定器工具(齿型)	FLYWHEEL HOLDER TOOL Teeth Type	1
849154T1	拉拔器总成	PULLER ASSEMBLY	1
825003A1	DDT诊断线束总成	CABLE ASSEMBLY DDT	1
823686A2	数字诊断测试仪	DIGITAL DIAGNOSTIC TESTER	1
99750A1	万用表	MULTI METER	1
52024A1	开关总成	SWITCH ASSEMBLY	1
59339	维修用转速表	SERVICE TACHOMETER	1
892647A01	DMT万用表套件	MULTI-METER KIT DMT	1
850439T1	八腔测试仪	TESTER Eight Chamber	1
63998A1	单腔间隙工具	GAP TOOL Single Chamber	1
850439T	检测仪	TESTER	1
850439T1	八腔测试仪	TESTER Eight Chamber	1
825824A2	转速表接口模块	TACH INTERFACE MODULE	1
99379	正时灯	TIMING LIGHT	1
112301	对正工具	ALIGNMENT TOOL	1
99750A1	万用表	MULTI METER	1
52915A6	测试仪表套件	TEST GAUGE KIT	1
74951	扳手	SPANNER WRENCH	1
63209	加热灯	HEAT LAMP	1
44487T1	调整杆导向器拆卸工具	REMOVER TOOL Trim Rod Guide	1
44486A1	调整杆拆卸工具	REMOVAL TOOL Trim Rod	1
55919	驱动头	DRIVER HEAD	1
90455T	吊环	LIFTING EYE	1
904551	吊环	LIFTING EYE	1
77109A3	安装工具套件	INSTALLER KIT	1
52952T1	活塞销锁环拆卸工具	REMOVAL TOOL Piston Pin Lock Ring	1
24697	活塞环扩张工具	EXPANDER TOOL Piston Ring	1
92973A1	活塞销心轴工具	MANDREL TOOL Piston Pin	1
30591T1	支架工具	STAND TOOL	1
24161	飞轮拉拔器盖工具	CAP TOOL Flywheel Puller	1
818773T	活塞环压缩工具(3.50)	COMPRESSOR TOOL Piston Ring (3.50)	1
66274	扭矩扳手(0-150磅英寸)	TORQUE WRENCH (0-150 lb-in)	1
37241	通用拉拔板	PULLER PLATE Universal	1
881834A1	仪表	GAUGE	1
8519802	定型工具	SIZING TOOL	1
8519803	安装帽	CAP Installation	1
16850A7	仪表套件	GAUGE KIT	1
881833A03	气油压力表套件	GAUGE KIT Air/Fuel Pressure	1
78473	背隙测量仪	INDICATOR TOOL Backlash	1
8M0053505	背隙指示工具	TOOL Indicator, Backlash	1
196601	背隙测量仪	INDICATOR TOOL Backlash	1
31106T	轴承安装心轴杯	MANDREL Bearing Driver Cup	1
87120T	轴承杯驱动器工具	DRIVER TOOL Bearing Cup	1
18601	轴承安装工具	INSTALLATION TOOL Bearing	1
14311A2	轴承预紧工具	PRE LOAD TOOL Bearing	1
14311A04	预紧力工具	TOOL Preload	1
31229A7	轴承拉拔器套件	PULLER KIT Bearing	1
15755T	滚针轴承驱动器	NEEDLE BEARING DRIVER	1
36569T	驱动头工具	DRIVE HEAD TOOL	1
37323	滚针轴承导杆工具	DRIVER ROD TOOL Needle Bearings	1
36571T	导向垫圈	PILOT WASHER	1
38628T	轴承安装工具	INSTALLER TOOL Bearing	1
24156	螺母(0.625-18)	NUT (.625-18)	1
29310	安装板	PLATE	1
34961	垫圈	WASHER	1
43506T	轴承固定工具	RETAINING TOOL Bearing	1
89897	固定工具-百分表	HOLDING TOOL Dial Indicator	1
73688	工具-盖螺母	TOOL Cover Nut	1
86642	安装工具-横销	INSTALLATION TOOL Cross Pin	1
58222A1	百分表工具	DIAL INDICATOR TOOL	1
815850	前进齿轮安装工具	FOWARD GEAR INSTALLATION TOOL	1
86943T	安装工具-滚针轴承(前进齿轮)	INSTALLER TOOL Needle Bearing - Forward Gear	1
61069T	螺母工具-齿轮箱盖	NUT TOOL Gear Housing Cover	1
816243	导板	GUIDE PLATE	1
816242	拉拔器爪	PULLER JAWS	1
37429	垫圈	WASHER	1
92788T	心轴	MANDREL	1
31108T	油封驱动器	DRIVER Oil Seal	1
12349A2	小齿轮定位工具	LOCATION TOOL Pinion	1
12349A05	小齿轮定位工具	TOOL Pinion Locating	1
74776T	小齿轮定位工具	LOCATION TOOL Pinion Gear	1
93003	螺旋桨轴	PROPELLER SHAFT	1
816292	滚针轴承驱动器	NEEDLE BEARING DRIVER	1
85716	拉拔螺栓工具-轴承座	PULLER BOLT TOOL Bearing Carrier	1
46086A1	拉拔器爪头总成	PULLER JAW ASSEMBLY	1
37241	通用拉拔板	PULLER PLATE Universal	1
18605A2	安装工具-轴承适配器	INSTALLATION TOOL Bearing Adaptor	1
34569A1	滑动锤拉拔器总成	PULLER ASSEMBLY Slide Hammer	1
31107T	拆装工具-换挡轴衬套	REMOVAL/INSTALL TOOL Shift Shaft Bushing	1
66274	扭矩扳手(0-150磅英寸)	TORQUE WRENCH (0-150 lb-in)	1

图 37顶罩（序列号0T408999及以下） TOP COWL (S/N-0T408999 AND BELOW)

REF	零件编号	中文名称	英文名称	数量
1	852552T3	顶盖总成	TOP COWL ASSEMBLY	1
1	852552T4	顶盖总成	TOP COWL ASSEMBLY	1
2	821256T1	黑色进气口	INLET Air - Black	1
2	821256T03	进气口	INLET Air	1
2	821256T2	银色进气口	INLET Air - Silver	1
3	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	4
4	854607A1	隔音毯套装	SOUND BLANKET KIT	1
5	NSS	隔音毯-顶部后侧(不单独销售)	NOT SOLD SEPARATE SOUND BLANKET-TOP BACK	1
6	NSS	隔音毯(左舷)(不单独销售)	NOT SOLD SEPARATE SOUND BLANKET (PORT)	1
7	NSS	隔音毯(右舷)(不单独销售)	NOT SOLD SEPARATE SOUND BLANKET(STARBOARD)	1
8	NSS	隔音毯-前侧(不单独销售)	NOT SOLD SEPARATE SOUND BLANKET-FRONT	1
9	NSS	隔音毯-后侧(不单独销售)	NOT SOLD SEPARATE SOUND BLANKET-BACK	2
10	823865	盖塞	CAP PLUG	2
11	831207A14	手柄总成黑色	HANDLE ASSEMBLY Black	1
11	831207A16	罩盖锁手柄套件	HANDLE KIT Cowl Latch	1
11	831207A15	手柄总成银色	HANDLE ASSEMBLY Silver	1
11	831207A16	罩盖锁手柄套件	HANDLE KIT Cowl Latch	1
12	812707	衬套	BUSHING	2
13	831214	隔套	SPACER	1
14	12134	波形垫圈	WASHER Wave	1
15	F481777	凸轮锁轴	CAM Latch Shaft	1
15	8M0001081	凸轮	CAM	1
16	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
16	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
17	NSS		NOT SOLD SEPARATE WASHER
18	1993716	螺钉(M6 x 16)	SCREW (M6 x 16)	1
19	821249M2	前支架	BRACKET Front	3
19	8M0036792	支架	BRACKET	3
20	815477	缓冲器锁扣	BUMPER Latch	3
21	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
21	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
22	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	7
23	8237951	挡圈	RING Retaining	1
24	815263	滚轮	ROLLER	1
24	8M0207770	滚轮@3	ROLLER @3	1
25	8155381	滚动销	PIN Roll	1
26	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
26	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
27	NSS		NOT SOLD SEPARATE DECAL-COUNTER ROTATION	1
27	NSS		NOT SOLD SEPARATE DECAL-COUNTER ROTATION	1
28	NSS	标识贴-磨合期(不单独销售)	NOT SOLD SEPARATE DECAL-BREAK IN	1

图 38顶罩（序列号0T409000及以上） TOP COWL (S/N-0T409000 AND UP)

REF	零件编号	中文名称	英文名称	数量
1	883013T1	顶盖总成	TOP COWL ASSEMBLY	1
1	883058T1	顶盖总成	TOP COWL ASSEMBLY	1
2	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	4
3	883019A1	隔音毯套装	SOUND BLANKET KIT	1
3	883019A02	隔音毯套装	SOUND BLANKET KIT	1
4	NSS	隔音毯(左舷)(不单独销售)	NOT SOLD SEPARATE SOUND BLANKET(PORT)	1
5	NSS	隔音毯(右舷)(不单独销售)	NOT SOLD SEPARATE SOUND BLANKET (STARBOARD)	1
6	NSS	隔音毯(后部)(不单独销售)	NOT SOLD SEPARATE SOUND BLANKET (REAR)	1
7	831207A14	手柄总成黑色	HANDLE ASSEMBLY Black	1
7	831207A16	罩盖锁手柄套件	HANDLE KIT Cowl Latch	1
7	831207A15	手柄总成银色	HANDLE ASSEMBLY Silver	1
7	831207A16	罩盖锁手柄套件	HANDLE KIT Cowl Latch	1
8	812707	衬套	BUSHING	2
9	8312141	隔套	SPACER	1
10	19605	垫圈(.520 x .850 x .060) 尼龙-黑色	WASHER (.520 x .850 x .060) Nylon - Black	1
10	8M0042643	垫圈(.520 x .850 x .060) 尼龙黑色	WASHER (.520 x .850 x .060) Nylon, Black	1
11	12134	波形垫圈	WASHER Wave	1
12	F481777	凸轮锁轴	CAM Latch Shaft	1
12	8M0001081	凸轮	CAM	1
13	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
13	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
14	1993716	螺钉(M6 x 16)	SCREW (M6 x 16)	1
15	821249M2	前支架	BRACKET Front	3
15	8M0036792	支架	BRACKET	3
16	815477	缓冲器锁扣	BUMPER Latch	3
17	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
17	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
18	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	3
19	8237951	挡圈	RING Retaining	1
20	815263	滚轮	ROLLER	1
20	8M0207770	滚轮@3	ROLLER @3	1
21	8155381	滚动销	PIN Roll	1
22	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
22	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
23	NSS	不单独销售-反向旋转标识	NOT SOLD SEPARATE Decal-Counter Rotation	1
24	NSS	标识贴-磨合期(不单独销售)	NOT SOLD SEPARATE Decal Break-In	1

图 39艉板支架 Transom Brackets

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂接头(左舷)	FITTING Grease (PORT)	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	54012	垫圈(0.530×0.870×0.105不锈钢)	WASHER (.530 x .870 x .105) Stainless Steel	4
10	8M0204665	垫圈(0.530×0.880×0.104 630不锈钢)	WASHER (.530 x .880 x .104) 630 Stainless Steel	4
11	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	99629T2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	830899	张力弹簧	SPRING Tension	1
15	65830	尼龙衬套	NYLINER	2
16	830900	压缩弹簧	SPRING Compression	1
17	99633	旋钮	KNOB	1
18	99615	槽销	PIN Groove	1
19	99617	销	PIN	1
19	893709	销	PIN	1

图 40蒸汽分离器组件 VAPOR SEPARATOR COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	855432A1	盖板套件	COVER KIT	1
2	8568431	直通接头	FITTING Straight STRAIGHT	1
3	196881	90度弯头	FITTING (90 Degree)	1
4	803878	密封件	SEAL	1
5	855437A2	泵出口接头套件	FITTING KIT Pump Outlet	1
6	NSS		NOT SOLD SEPARATE O-RING	1
7	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	7
8	855528	衬垫	GASKET	1
8	8M6002520	衬垫套件	GASKET KIT	1
9	855430A1	浮子套件	FLOAT KIT	1
9	8M6004920	浮子套件	FLOAT KIT	1
10	F10064	轴	SHAFT	1
11	855431	针阀	VALVE Needle	1
11	8M6004917	进气阀	VALVE-INLET	1
12	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
13	855427A1	泵套件	PUMP KIT	1
14	855428	套筒	SLEEVE	1
14	8M6000589	套筒	SLEEVE	1
15	855434A2	油杯套件	BOWL KIT	1
16	880862A1	配件套件	FITTING KIT	1
17	880863	O型圈	O-RING	1
18	8554331	密封件	SEAL	1
19	855435A1	塞套件	PLUG KIT	1
20	8554245	弯头	ELBOW	2
21	18458Q4	燃油水分离滤清器	FILTER Fuel-Water Separating	1
22	8285861	探头	PROBE	1
22	8M0204710	探头	PROBE	1

图 41水管 WATER HOSES

REF	零件编号	中文名称	英文名称	数量
1	8603001	接头	FITTING	1
2	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
3	77653101	软管(48英寸整卷)(20英寸)	HOSE (48.00 Inches Bulk) (20 IN.)	1
4	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
5	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
6	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
7	85833935	管材(15英寸整卷)(7英寸)	TUBING (15.00 Inches Bulk) (7 IN.)	1
7	85833939	软管(17英寸整卷)	HOSE (17.00 Inches Bulk)	1
8	8348084	滤网	STRAINER	1
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
10	85833935	管材(15英寸整卷)(4.5英寸)	TUBING (15.00 Inches Bulk) (4-1/2 IN.)	1
10	85833939	软管(17英寸整卷)	HOSE (17.00 Inches Bulk)	1
11	291112	接头	FITTING	1
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
13	83476463	管材(32英寸整卷)(18.5英寸)	TUBING (32.00 Inches Bulk) (18-1/2 IN.)	1
14	859432	接头	FITTING	1
14	881866	接头	FITTING	1
15	85978568	管材(44英寸整卷)(15英寸)(灰色)	TUBING (44.00 Inches Bulk) (15 IN.)(GRAY)	1
15	85978571	管材(52英寸整卷)	TUBING (52.00 Inches Bulk)	1
16	859431	接头	FITTING	1
16	8M0207782	直通接头	FITTING Straight	1
17	881879A7	传感器套件(0-50 PSI)(棕褐色)	SENSOR KIT (0-50 PSI) (TAN)	1
17	8M0157742	水压传感器	SENSOR Water Pressure	1
18	883066	夹子 (.865)	CLIP (.865)	1
18	858954	卡箍(0.625英寸)	CLIP (.625)	1
19	875207	三通接头	TEE Fitting	1
20	85978568	管材(44英寸整卷)(灰色)	TUBING (44.00 Inches Bulk) (GRAY)	1
20	85978571	管材(52英寸整卷)	TUBING (52.00 Inches Bulk)	1
21	859747	联轴器	COUPLER	1
21	8M0214971	耦合接头 (4 MM)	COUPLER Fitting (4 MM)	1
22	859732	堵头	PLUG	1
23	859731	适配管接头	FITTING Adapter	1
23	8M0214970	接头	FITTING	1
24	85978568	管材(44英寸整卷)(5英寸)(灰色)	TUBING (44.00 Inches Bulk) (5 IN.)(GRAY)	1
24	85978571	管材(52英寸整卷)	TUBING (52.00 Inches Bulk)	1
25	77653101	软管(48英寸整卷)(24英寸)	HOSE (48.00 Inches Bulk) (24 IN.)	1
26	77653101	软管(48英寸整卷)(21英寸)	HOSE (48.00 Inches Bulk) (21IN.)	1
27	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
28	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	2
29	883089	接头	FITTING	2
30	858459	接头	FITTING	1
31	77653101	软管 (48.00英寸散装) (23-1/2英寸)	HOSE (48.00 Inches Bulk) (23-1/2 IN.)	1
32	8276021	成型软管	MOLDED HOSE	1
32	8M0114859	软管	HOSE	1
33	77653101	软管 (48.00英寸散装) (17-1/2英寸)	HOSE (48.00 Inches Bulk) (17-1/2 IN.)	1
34	897722	直通接头	FITTING Straight	1
-	879808T01	动力头总成	POWERHEAD ASSEMBLY	1
-	879808T07	动力头总成	POWERHEAD ASSEMBLY	1
-	879809T01	动力头总成	POWERHEAD ASSEMBLY	1
-	879809T07	动力头总成	POWERHEAD ASSEMBLY	1
