水星 Mercury 150 HP V6 CYL (2.5L) 0T178500 THRU 0T800999 - 爆炸图零件明细

两冲程直喷 DFI OptiMax · USA - Cat.# 90-80350201 · 共 135 个部位 · 6144 条零件

1空气压缩机组件 2顶罩（序列号0T409000及以上）3速度计传感系统 4动力升降组件 8M0231193 5燃油轨 6油气分离器组件 7燃油轨组件 8齿轮箱（驱动轴）（标准旋转）9空气软管 10驱动轴壳与排气管 11维修/支撑材料 12PCM安装座序列号1B490866及以上 13服务/支持材料 14机油喷射组件 15油管 16启动马达 17甲板注油套件15969A3或15969A5 18衬垫组件-完整-动力头与下部单元 19专用工具 20电气板总成序列号1B490865及以下 21空气处理器 22燃油软管 23顶罩 24下机罩 25数字电气部件 26曲轴、活塞及连杆 27线圈板总成 28气缸盖 29齿轮箱（螺旋桨轴）（标准旋转）30水管 31驱动轴壳体与排气管 32防腐电极套件 33气缸体与端盖 34电气板总成序列号1B490866及以上 35齿轮箱（驱动轴）（标准/反向旋转）36空气压缩机组件 37空气处理器/飞轮盖 38线圈板总成 39线圈板总成序列号1B490866及以上 40空气处理器组件 41齿轮箱（驱动轴）（反向旋转）42蒸汽分离器组件 43曲轴、活塞及连杆 44动力升降电机(可拆卸泵壳)45油门杆与换挡轴 46气缸体与端盖 47空气压缩机组件 SN 1B884880及以下 48动力升降组件(可拆卸泵壳)金属电机壳体 49旋转支架与转向臂 50空气处理器组件 51水管 52附件 53齿轮箱（螺旋桨轴）（反向旋转）54飞轮/交流发电机 55双机连接杆套件 56飞轮与发电机 57线圈板总成序列号1B490865及以下 58燃油软管 59专用工具 60油管 61水泵套件(喷射型)62顶罩（序列号0T408999及以下）63旋转支架与转向臂 64飞轮/交流发电机 65排气歧管与排气板 66动力升降组件金属马达壳 67喷油组件 68电气板总成 69油门杆与换挡轴 70空气压缩机组件 SN 1B884881及以上 71动力升降倾斜电机 72空气处理器 73齿轮箱螺旋桨轴-标准旋转 74燃油导轨 75启动电机 76工具 77电气组件 78附件 79齿轮箱驱动轴-标准/反向旋转 80燃油泵 81气缸盖 82数字电气部件 83艉板支架 84排气歧管与排气板 85电气板总成 86动力升降组件（塑料马达壳体）87动力升降组件(铸造泵壳)金属电机壳体 88空气软管 89下罩 90视觉警示套件17334A2 91齿轮箱螺旋桨轴-反向旋转 92燃油泵 93仪表装置 94速度计传感系统 95附件 96空气压缩机组件 97空气处理器 98空气处理器组件 99空气软管 100下机罩 101线圈板总成 102曲轴、活塞及连杆 103气缸体与端盖 104气缸盖 105数字电气部件 106驱动轴壳体与排气管 107双机连接杆套件 108电气板总成 109排气歧管与排气板 110飞轮/交流发电机 111燃油软管 112燃油泵 113燃油轨 114齿轮箱（驱动轴）（反向旋转）115齿轮箱（驱动轴）（标准旋转）116齿轮箱（螺旋桨轴）（反向旋转）117齿轮箱（螺旋桨轴）（标准旋转）118喷油组件 119油管 120动力升降组件(铸造泵壳)金属电机壳体 121动力升降组件(可拆卸泵壳)金属电机壳体 122动力升降组件 8M0231193 123动力升降组件（塑料马达壳体）124动力升降电机(可拆卸泵壳)125服务/支持材料 126速度计传感系统 127启动马达 128旋转支架与转向臂 129油门杆与换挡轴 130专用工具 131顶罩（序列号0T408999及以下）132顶罩（序列号0T409000及以上）133艉板支架 134蒸汽分离器组件 135水管

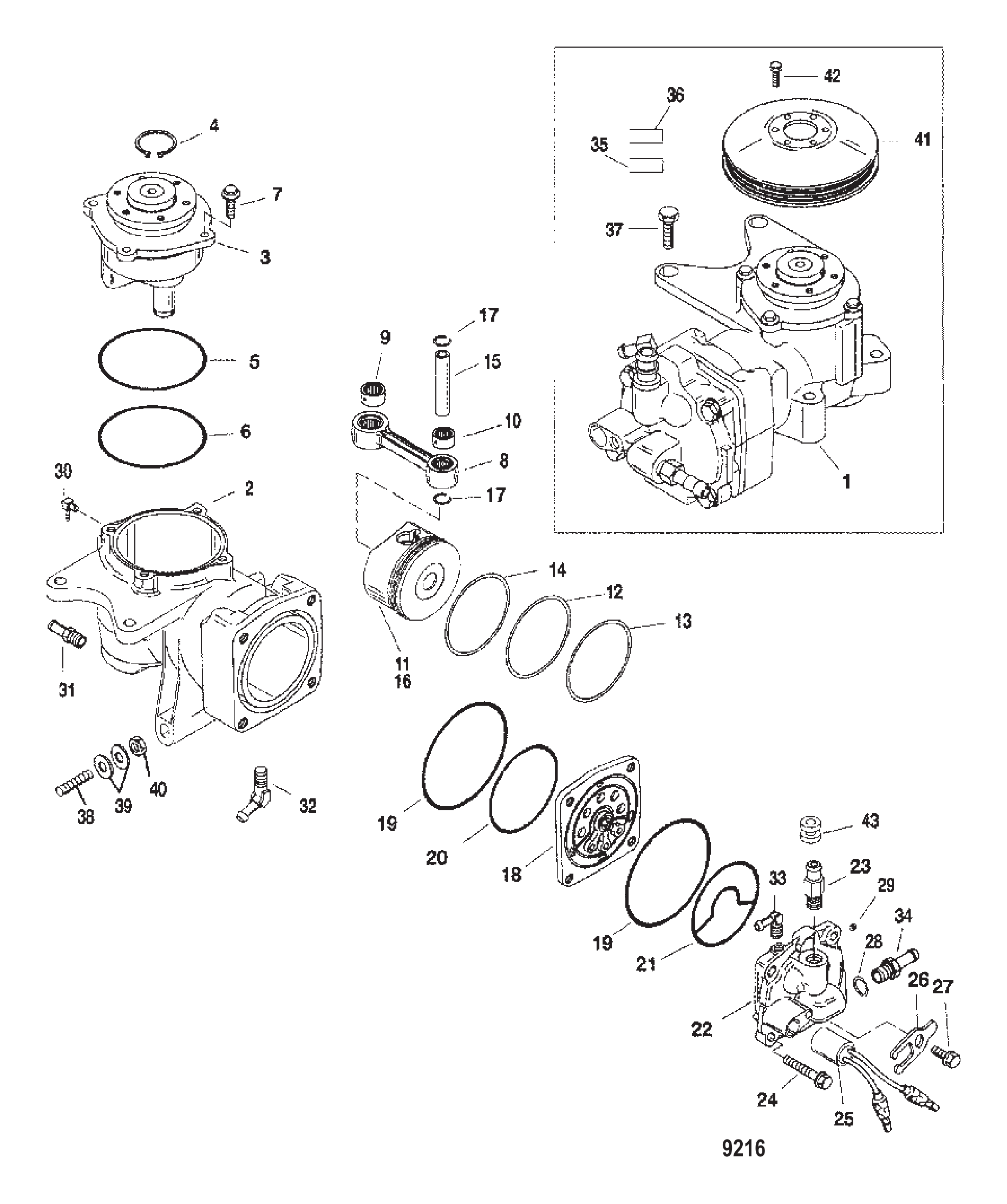

图 1空气压缩机组件 Air Compressor Components

REF	零件编号	中文名称	英文名称	数量
1	831998A14	空气压缩机总成（不含皮带轮）	COMPRESSOR ASSEMBLY Air (Without Pulley)	1
2	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
3	828131A5	端盖总成	END CAP ASSEMBLY	1
3	8M0050792	端盖总成	END CAP ASSEMBLY	1
4	NSS	非单独销售挡圈	NOT SOLD SEPARATE Retaining Ring	1
5	89224	O型圈	O-RING	1
6	832804	O型圈（2.739 x 0.070）	O-RING (2.739 x .070)	1
7	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	4
8	833146A3	连杆总成	CONNECTING ROD ASSEMBLY	1
8	833146T06	连杆总成	CONNECTING ROD ASSEMBLY	1
9	NSS	轴承（不单独销售）	NOT SOLD SEPARATE Bearing	1
10	NSS	轴承（不单独销售）	NOT SOLD SEPARATE Bearing	1
11	828222A4	活塞总成（含环和销）	PISTON ASSEMBLY (W/RINGS AND PIN)	1
12	NSS	刮油环（不单独销售）	NOT SOLD SEPARATE Oil Scraper Ring	1
13	NSS	顶环（不单独销售）	NOT SOLD SEPARATE Top Ring	1
14	NSS	油环（不单独销售）	NOT SOLD SEPARATE Oil Ring	1
15	NSS	活塞销（不单独销售）	NOT SOLD SEPARATE Wrist Pin	1
16	NSS	带活塞销的活塞（不单独销售）	NOT SOLD SEPARATE Piston with Wrist Pin	1
17	8348101	锁环	RING Lock	2
18	835088A10	簧片阀板总成	REED PLATE ASSEMBLY	1
19	67207	O型圈（3.489 x 0.070）	O-RING (3.489 x .070)	2
20	832804	O型圈（2.739 x 0.070）	O-RING (2.739 x .070)	1
21	828225	密封件	SEAL	1
22	835087A3	压缩机缸盖总成	HEAD ASSEMBLY Compressor	1
22	8M0073890	压缩机缸盖套件	HEAD KIT Compressor	1
23	8307532	直通接头	FITTING Straight	1
24	82446035	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
25	13536A12	温度传感器总成	SENSOR ASSEMBLY Temperature	1
26	137151	固定座	RETAINER	1
27	81893412	螺钉（M8×12）	SCREW (M8 x 12)	1
28	831985	O型圈（0.468 x 0.078）	O-RING (.468 x .078)	1
29	390721	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
30	151331	接头	FITTING	1
31	16604	直通接头（0.125-27）	FITTING Straight (.125-27)	1
32	851975	弯头接头-45度-黄铜（0.125-27）	FITTING Elbow - 45 Degree - Brass (.125-27)	1
33	14868	接头	FITTING	1
34	856744	接头	FITTING	1
35	NSS	不单独销售贴纸-墨西哥	NOT SOLD SEPARATE Decal-Mexico	1
36	NSS	不单独销售贴纸-组装说明	NOT SOLD SEPARATE Decal-Assembly Instructions	1
37	4010825	螺丝(M10 x 25)六角法兰-不锈钢	SCREW (M10 x 25) Hex Flange - Stainless Steel	2
38	858762	双头螺柱（0.312-18/0.312-24 x 4.190）	STUD (.312-18/.312-24 x 4.190)	1
38	858762001	双头螺柱（0.312-18/0.312-24 x 4.190）	STUD (.312-18/.312-24 x 4.190)	1
39	854640	特殊垫圈	WASHER Special	2
40	35814	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
40	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
41	8328231	滑轮	PULLEY	1
41	8M0175171	滑轮	PULLEY	1
42	85593912	螺钉（M6 x 12）	SCREW (M6 x 12)	5
43	855349	护孔环	GROMMET	1
43	855349002	护孔环	GROMMET	1
-	832804A1	O型圈套件	O-RING KIT	1
-	832804A03	O型圈套件	O-RING KIT	1

图 2顶罩（序列号0T409000及以上） TOP COWL (S/N-0T409000 AND UP)

REF	零件编号	中文名称	英文名称	数量
1	850389	杠杆	LEVER	1
2	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
3	55164	衬套	BUSHING	1
4	74759	垫圈(0.391x0.880x0.125)不锈钢	WASHER (.391 x .880 x .125) Stainless Steel	1
5	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	1
6	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
7	64015	螺母 (.250-20)	NUT (.250-20)	1
8	26852	尼龙帽	CAP Nylon	1
9	42927	嵌件	INSERT	1
10	35459	垫圈	WASHER	1
11	8268336	螺母 (M6)	NUT (M6)	1
11	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
12	8503931	凸轮	CAM	1
12	856221A1	凸轮套件	CAM KIT	1
13	852970	衬套	BUSHING	1
14	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	1
15	932481	衬套	BUSHING	2
15	8M0215006	旋转衬套	BUSHING Swivel	2
16	8235694	螺纹球头	BALL Threaded	1
17	850815	连接杆	LINK	1
17	8508152	杆	ROD	1
18	67748	滚轮	ROLLER	1
19	850286	油门滚轮	ROLLER Throttle	1
19	8502861	杠杆	LEVER	1
20	40056107	螺钉(M5×16)	SCREW (M5 x 16)	1
21	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	1
22	69432	外锁紧垫圈(#10)	LOCKWASHER External (#10)	1
23	8142831	锚支架	BRACKET Anchor	1
23	814283T6	锚支架总成	BRACKET ASSEMBLY Anchor	1
24	98889	闩锁	LATCH	1
25	42975	传动螺钉	DRIVE SCREW	2
26	39519	杯套	CUP	1
27	52100	耐磨板	WEAR PLATE	1
28	38279	闩锁	LATCH	1
28	8M0036768	闩锁	LATCH	1
29	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
30	35045	螺母(.250-28)	NUT (.250-28)	1
30	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
31	28782	螺钉(.312-18 x .880)不锈钢	SCREW (.312-18 x .880) Stainless Steel	3
32	814284	导向块	GUIDE BLOCK	1
33	20099	弹簧	SPRING	1
34	67073A1	连杆总成	LINK ROD ASSEMBLY	1
35	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
35	79932A17	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
36	NSS	弹性销(不单独销售)	NOT SOLD SEPARATE Roll Pin	1
37	NSS	不单独销售-换挡轴上杆	NOT SOLD SEPARATE Shift Shaft Lever-Upper	1
38	26856	衬套	BUSHING	1
39	29720	波形垫圈	WAVE WASHER	1
40	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
41	35045	螺母(.250-28)	NUT (.250-28)	1
41	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
42	814281A2	开关	SWITCH	1
42	8M0052931	开关	SWITCH	1
43	77478	螺钉 (#6-32 x .875)	SCREW (#6-32 x .875)	2
44	27882	垫圈	WASHER	2

图 3速度计传感系统 Speedometer Pickup System

REF	零件编号	中文名称	英文名称	数量
-	892440A08	动力转向泵套件	PUMP KIT Power Steering Pump Kit	1
-	892440A09	动力转向泵套件	PUMP KIT Power Steering Pump Kit	1
-	8M0131263	动力转向泵套件(24英尺)	PUMP KIT Power Steering (24 Feet)	1
-	892380A02	标准转向舵机套件(40cc)	STEERING HELM KIT Standard (40 cc)	1
-	8M0240080	标准舵机套件40CM	HELM KIT-STD 40CM	1
-	892557A02	标准转向舵机套件(32cc)	STEERING HELM KIT Standard (32 cc)	1
-	8M0240079	标准舵机套件32CM	HELM KIT-STD 32CM	1
-	892558A02	标准转向舵机套件(50cc)	STEERING HELM KIT Standard (50 cc)	1
-	8M0240081	标准舵机套件50CM	HELM KIT-STD 50CM	1
-	892450K01	液压软管套件(1英尺)油缸至舵机	HOSE KIT (1 Foot) Hydraulic, Cylinder to Helm	1
-	897982K01	ORD 32-897982K02	ORD 32-897982K02	1
-	892450K02	液压软管套件(2英尺)油缸至舵机	HOSE KIT (2 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167281	软管套件2FT	HOSE KIT 2FT	1
-	892450K03	液压软管套件(3英尺)油缸至舵机	HOSE KIT (3 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167282	软管套件3FT	HOSE KIT 3 FT	1
-	892450K04	液压软管套件(4英尺)油缸至舵机	HOSE KIT (4 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167283	软管套件4FT	HOSE KIT 4 FT	1
-	892450K05	液压软管套件(5英尺)油缸至舵机	HOSE KIT (5 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167284	软管套件5FT	HOSE KIT 5 FT	1
-	892450K06	液压软管套件(6英尺)油缸至舵机	HOSE KIT (6 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167285	软管套件6FT	HOSE KIT 6 FT	1
-	892450K07	液压软管套件(7英尺)油缸至舵机	HOSE KIT (7 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167286	软管套件7FT	HOSE KIT 7 FT	1
-	892450K08	液压软管套件(8英尺)油缸至舵机	HOSE KIT (8 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167287	软管套件8FT	HOSE KIT 8 FT	1
-	892450K10	液压软管套件(10英尺)油缸至舵机	HOSE KIT (10 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167288	软管套件10FT	HOSE KIT 10 FT	1
-	892450K12	液压软管套件(12英尺)油缸至舵机	HOSE KIT (12 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167289	软管套件12FT	HOSE KIT 12 FT	1
-	892450K14	液压软管套件(14英尺)油缸至舵机	HOSE KIT (14 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167290	软管套件 14英尺	HOSE KIT 14 FT	1
-	892450K16	液压软管套件(16英尺)油缸至舵机	HOSE KIT (16 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167291	软管套件 16英尺	HOSE KIT 16 FT	1
-	892450K18	液压软管套件(18英尺)油缸至舵机	HOSE KIT (18 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167292	软管套件 18英尺	HOSE KIT 18 FT	1
-	892450K22	液压软管套件(22英尺)油缸至舵机	HOSE KIT (22 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167294	软管套件 22英尺	HOSE KIT 22 FT	1
-	892450K24	液压软管套件(24英尺)油缸至舵机	HOSE KIT (24 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167295	软管套件 24英尺	HOSE KIT 24 FT	1
-	892450K26	液压软管套件(26英尺)油缸至舵机	HOSE KIT (26 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167296	软管套件 26英尺	HOSE KIT 26 FT	1
-	892450K30	液压软管套件(30英尺)油缸至舵机	HOSE KIT (30 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167298	软管套件 30英尺	HOSE KIT 30 FT	1
-	892438K02	动力转向软管套件动力模块 (2英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (2 Feet) Hydraulic, Pump to Helm	1
-	8M0150604	泵至舱壁/舵机套件 2英尺	PUMP TO BULKHEAD/HELM KIT 2 Ft	1
-	892438K03	动力转向软管套件动力模块 (3英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (3 Feet) Hydraulic, Pump to Helm	1
-	8M0150605	泵至舱壁/舵机套件 3英尺	PUMP TO BULKHEAD/HELM KIT 3 Ft	1
-	892438K04	动力转向软管套件动力模块 (4英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (4 Feet) Hydraulic, Pump to Helm	1
-	8M0150606	泵至舱壁/舵机套件 4英尺	PUMP TO BULKHEAD/HELM KIT 4 Ft	1
-	892438K05	动力转向软管套件动力模块 (5英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (5 Feet) Hydraulic, Pump to Helm	1
-	8M0150607	泵至舱壁/舵机套件 5英尺	PUMP TO BULKHEAD/HELM KIT 5 Ft	1
-	892438K06	软管套件动力模块 (6英尺) 液压, 泵至舵机	HOSE KIT Power Module (6 Feet) Hydraulic, Pump to Helm	1
-	8M0150608	泵至舱壁/舵机套件 6英尺	PUMP TO BULKHEAD/HELM KIT 6 Ft	1
-	892438K07	软管套件动力模块 (7英尺) 液压, 泵至舵机	HOSE KIT Power Module (7 Feet) Hydraulic, Pump to Helm	1
-	8M0150610	泵至舱壁/舵机套件 7英尺	PUMP TO BULKHEAD/HELM KIT 7 Ft	1
-	892438K08	软管套件动力模块 (8英尺) 液压, 泵至舵机	HOSE KIT Power Module (8 Feet) Hydraulic, Pump to Helm	1
-	8M0150612	泵至舱壁/舵机套件 8英尺	PUMP TO BULKHEAD/HELM KIT 8 Ft	1
-	892438K10	动力转向软管套件动力模块 (10英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (10 Feet) Hydraulic, Pump to Helm	1
-	8M0150613	泵至舱壁/舵机套件 10英尺	PUMP TO BULKHEAD/HELM KIT 10 Ft	1
-	892438K12	动力转向软管套件动力模块 (12英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (12 Feet) Hydraulic, Pump to Helm	1
-	8M0150614	泵至舱壁/舵机套件 12英尺	PUMP TO BULKHEAD/HELM KIT 12 Ft	1
-	892438K14	动力转向软管套件动力模块 (14英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (14 Feet) Hydraulic, Pump to Helm	1
-	8M0150615	泵至舱壁/舵机套件 14英尺	PUMP TO BULKHEAD/HELM KIT 14 Ft	1
-	892438K16	动力转向软管套件动力模块 (16英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (16 Feet) Hydraulic, Pump to Helm	1
-	8M0150616	泵至舱壁/舵机套件 16英尺	PUMP TO BULKHEAD/HELM KIT 16 Ft	1
-	892438K18	动力转向软管套件动力模块 (18英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (18 Feet) Hydraulic, Pump to Helm	1
-	8M0150617	泵至舱壁/舵机套件 18英尺	PUMP TO BULKHEAD/HELM KIT 18 Ft	1
-	892438K20	动力转向软管套件动力模块 (20英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (20 Feet) Hydraulic, Pump to Helm	1
-	8M0150618	泵至舱壁/舵机套件 20英尺	PUMP TO BULKHEAD/HELM KIT 20 ft	1
-	892438K22	动力转向软管套件动力模块 (22英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (22 Feet) Hydraulic, Pump to Helm	1
-	8M0150619	泵至舱壁/舵机套件 22英尺	PUMP TO BULKHEAD/HELM KIT 22 FT	1
-	892438K24	动力转向软管套件动力模块 (24英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (24 Feet) Hydraulic, Pump to Helm	1
-	8M0150620	泵至舱壁/舵机套件 24英尺	PUMP TO BULKHEAD/HELM KIT 24 FT	1
-	892825008	液压软管 (8英尺) 舵机至压力罐	HOSE (8 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825010	液压软管 (10英尺) 舵机至压力罐	HOSE (10 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825012	液压软管 (12英尺) 舵机至压力罐	HOSE (12 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825014	液压软管 (14英尺) 舵机至压力罐	HOSE (14 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825016	液压软管 (16英尺) 舵机至压力罐	HOSE (16 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825018	液压软管 (18英尺) 舵机至压力罐	HOSE (18 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825020	液压软管 (20英尺) 舵机至压力罐	HOSE (20 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825022	液压软管 (22英尺) 舵机至压力罐	HOSE (22 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825024	液压软管 (24英尺) 舵机至压力罐	HOSE (24 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825026	液压软管 (26英尺) 舵机至压力罐	HOSE (26 Feet) Hydraulic, Helm to Pressure Tank	1
-	893395A01	嵌入式安装板	PLATE Flush Mount	1
-	875207	三通接头	TEE Fitting	1
-	892486K08	模拟转换套件	CONVERSION KIT Analog	1
-	889611K02	附件电源线束套件(30英尺)	HARNESS KIT Accessory Power (30 Feet)	1
-	899785K04	附件电源线束总成(30英尺)	HARNESS ASSEMBLY Accessory Power (30 Feet)	1
-	88334A2	防腐电极套件	MERCATHODE KIT	1
-	8M0180081	防腐电极套件	MERCATHODE KIT	1
-	825191A03	索具软管套件	HOSE KIT Rigging	1
-	880717A01	齿轮箱螺丝/密封套件	SCREW/SEAL KIT Gearcase	1
-	88439A50	电池电缆组	CABLE SET Battery	1
-	8M0210761	电池电缆组(12英尺)	CABLE SET (12 ft) Battery	1
-	44357Q2	冲洗附件	FLUSHING ATTACHMENT	1
-	44357T2	冲洗附件	FLUSHING ATTACHMENT	1
-	881150Q1	双进水口冲洗套件	FLUSH KIT Dual Water Pick Up	1
-	881150K1	双进水口冲洗密封套件	SEAL KIT Flush - Dual Water Pickup	1
-	897967100	燃油管路 (100.00英尺)	LINE Fuel (100.00 Feet)	1
-	8M0038563	燃油管路 (100.00英尺)	LINE Fuel (100.00 Feet)	1
-	899712A01	连续性电缆套件	CABLE KIT Continuity	1

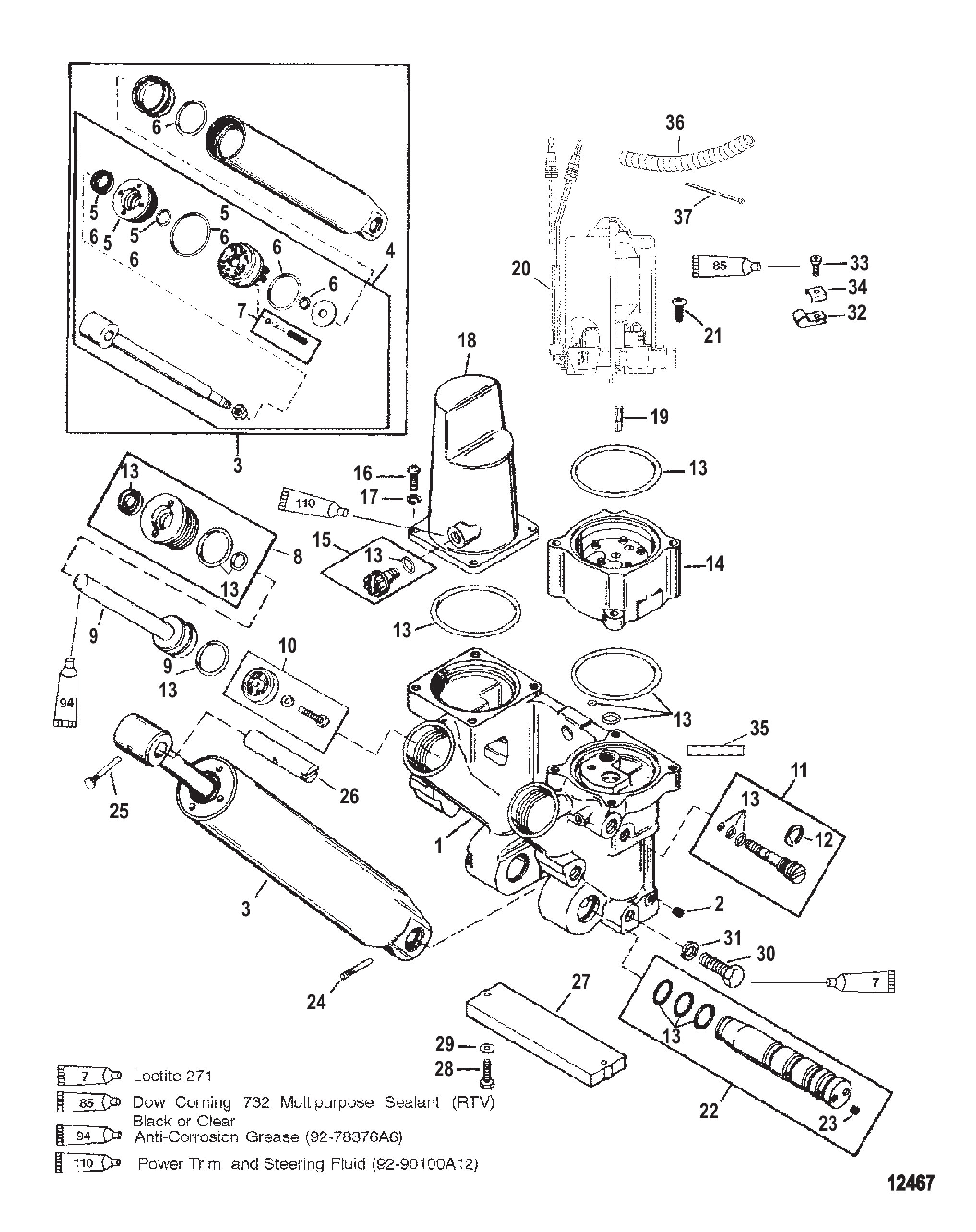

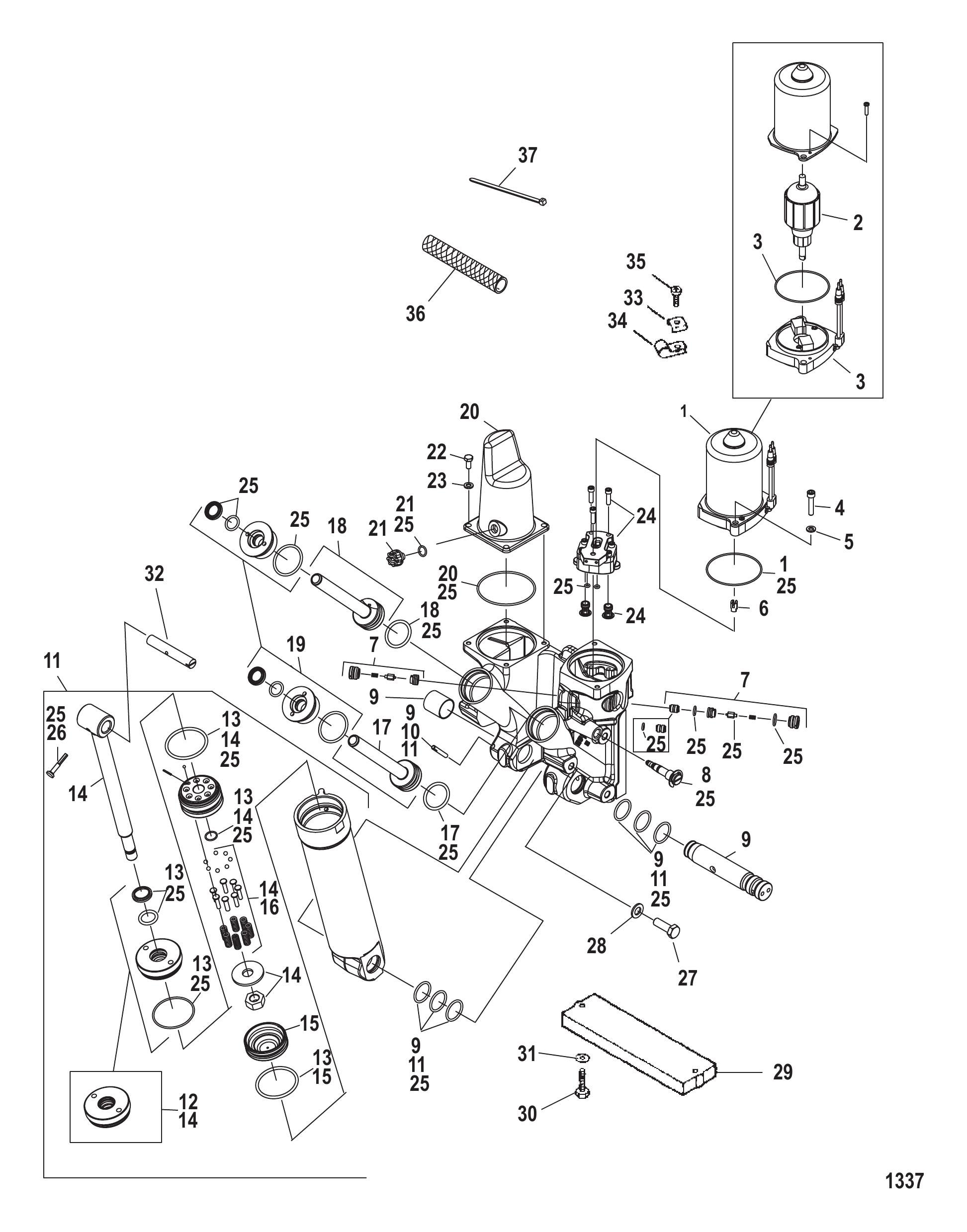

图 4动力升降组件 8M0231193 Power Trim Components 8M0231193

REF	零件编号	中文名称	英文名称	数量
-	8M0231193	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0225363	电机套件	MOTOR KIT	1
2	8M0225369	阀套件	VALVE KIT	1
3	8M0225371	手动释放套件	MANUAL RELEASE KIT	1
4	8M0245633	倾斜油缸套件	TILT CYLINDER KIT	1
5	8M0225370	枢轴销套件	PIVOT PIN KIT	1
6	8M0244575	减震杆套件	SHOCK ROD KIT	1
7	8M0244425	销杆眼套件	PIN ROD EYE KIT	1
8	8M0232231	螺钉螺母套件	SCREW NUT KIT	1
9	8M0225373	记忆活塞套件	MEMORY PISTON KIT	1
10	8M0225368	储液罐套件	RESERVOIR KIT	1
11	8M0174135	储液罐塞总成	PLUG RESERVOIR ASSEMBLY	1
12	8M0237525	泵套件	PUMP KIT	1
13	8M0225367	升降杆套件	TRIM ROD KIT	1
14	8M0242846	升降杆套件	TRIM ROD KIT	1
15	8M0225372	重建套件	REBUILD KIT	1

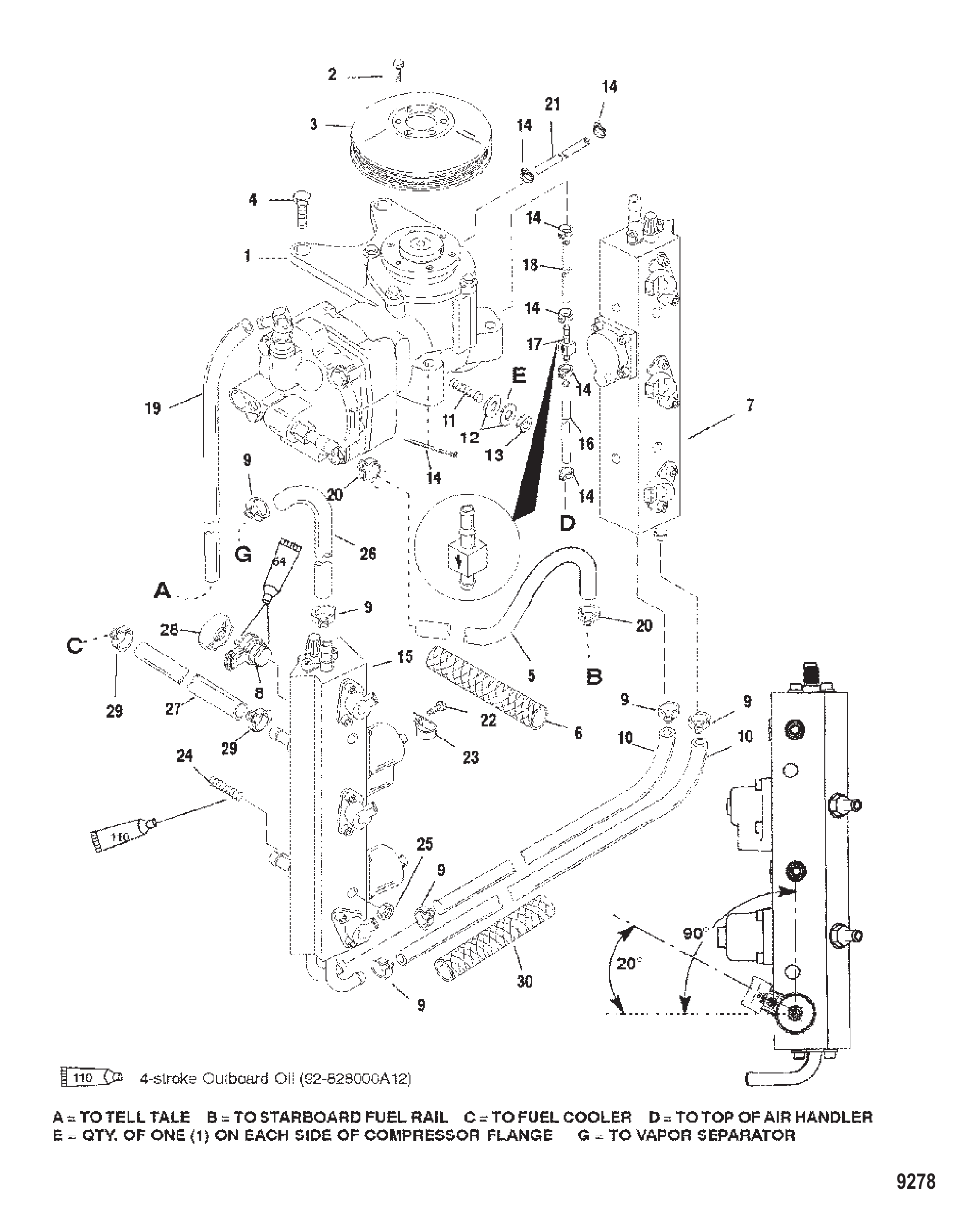

图 5燃油轨 FUEL RAILS

REF	零件编号	中文名称	英文名称	数量
1	831998A9	空气压缩机总成(参见空气压缩机部件分解图)	COMPRESSOR ASSEMBLY Air (SEE BREAKDOWN ON AIR COMPRESSOR COMPONENTS)	1
2	85593912	螺钉（M6 x 12）	SCREW (M6 x 12)	5
3	8328231	滑轮	PULLEY	1
3	8M0175171	滑轮	PULLEY	1
4	4010825	螺丝(M10 x 25)六角法兰-不锈钢	SCREW (M10 x 25) Hex Flange - Stainless Steel	2
5	8502511	软管	HOSE	1
5	8502512	软管	HOSE	1
6	85652329	绝缘套管(15英寸)	INSULATOR SLEEVE (15 IN.)	1
7	852379T5	燃油导轨	FUEL RAIL	1
7	852379T6	燃油导轨	FUEL RAIL	1
8	8500653	喷油器	INJECTOR	6
8	8M6001743	空气喷射器总成	INJECTOR ASSEMBLY Air	6
9	855697	卡箍(16.2)	CLAMP (16.2)	4
9	8M0204696	卡箍	CLAMP	4
10	85564361	软管(16英寸)	HOSE (16 IN.)	2
11	92345	螺柱	STUD	1
12	854640	特殊垫圈	WASHER Special	2
13	35814	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
13	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
14	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
14	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
15	852378T5	燃油导轨	FUEL RAIL	1
15	852378T6	燃油导轨	FUEL RAIL	1
16	830756109	软管(57.00英寸整料)(裁切至22-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 22-1/2 Inches)	1
16	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
17	826810	止回阀	CHECK VALVE	1
18	83075780	管材(28英寸整卷)(裁切为2-1/2英寸)	TUBING (28.00 Inches Bulk) (Cut to 2-1/2 Inches)	1
18	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
19	83476463	管材(32英寸整卷)(裁切为28-1/2英寸)	TUBING (32.00 Inches Bulk) (Cut to 28-1/2 Inches)	1
20	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	2
20	8M0214964	卡箍	CLAMP	2
21	85606064	管材(36英寸整卷)(28-1/2英寸)	TUBING (36.00 Inches Bulk) (28-1/2 IN.)	1
21	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
22	82104510	螺钉 (M5 x 10)	SCREW (M5 x 10)	4
23	46997	卡箍	CLAMP	4
24	852961	螺柱	STUD	4
24	8M0063255	双头螺栓M10x92	STUD M10x92	4
25	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	4
26	NSS	不单独销售软管(30英寸)	NOT SOLD SEPARATE Hose (30 IN.)	1
26	856822A3	软管(30英寸)	HOSE (30 IN.)	1
27	8558481	软管	HOSE	1
27	855848A1	软管	HOSE	1
28	828694A1	杯形垫片总成	WASHER ASSEMBLY Cupped	6
29	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	4
29	8M0214964	卡箍	CLAMP	4
30	85686953	套管(27英寸整卷)(裁切为18英寸)	SLEEVE (27.00 Inches Bulk) (Cut to 18 Inches)	1

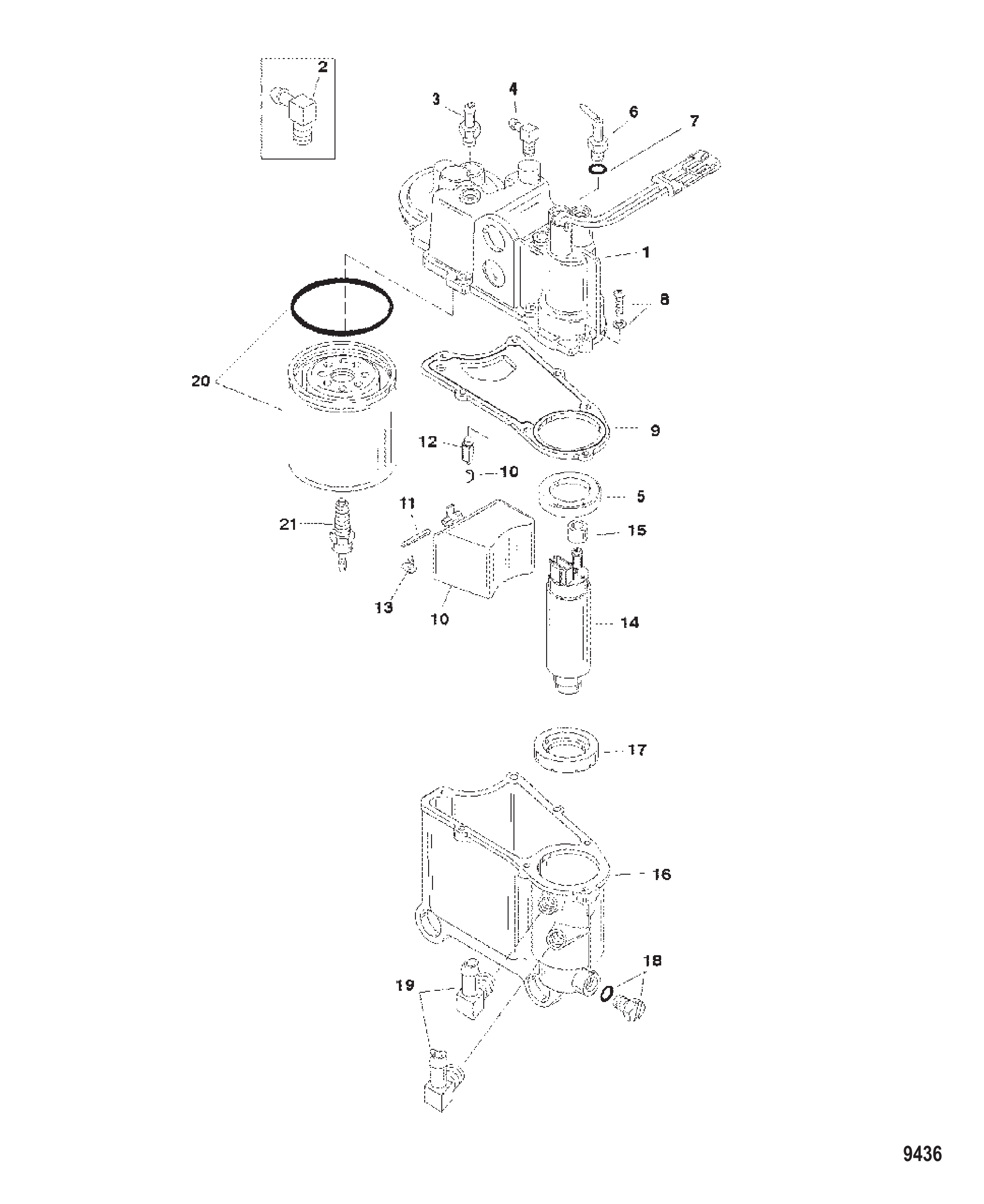

图 6油气分离器组件 Vapor Separator Components

REF	零件编号	中文名称	英文名称	数量
1	855432A1	盖板套件	COVER KIT	1
2	NSS	不单独销售弯头	NOT SOLD SEPARATE Elbow	1
3	8568431	直通接头	FITTING Straight STRAIGHT	1
4	19688	接头	FITTING	1
5	803878	密封件	SEAL	1
6	NSS	不单独销售泵出口配件包	NOT SOLD SEPARATE Fitting Kit-Pump Outlet	1
6	855437A2	泵出口接头套件	FITTING KIT Pump Outlet	1
7	NSS	O型圈（不单独销售）	NOT SOLD SEPARATE O Ring	1
8	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	7
9	855528	衬垫	GASKET	1
9	8M6002520	衬垫套件	GASKET KIT	1
10	855430A1	浮子套件	FLOAT KIT	1
10	8M6004920	浮子套件	FLOAT KIT	1
11	F10064	轴	SHAFT	1
12	855431	针阀	VALVE Needle	1
12	8M6004917	进气阀	VALVE-INLET	1
13	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
14	855427A1	泵套件	PUMP KIT	1
15	855428	套筒	SLEEVE	1
15	8M6000589	套筒	SLEEVE	1
16	855434A1	油杯套件	BOWL KIT	1
17	855433	密封件	SEAL	1
17	8554331	密封件	SEAL	1
18	855435A1	塞套件	PLUG KIT	1
19	8554245	弯头	ELBOW	2
20	18458A4	滤清器套件	FILTER KIT	1
20	18458Q4	燃油水分离滤清器	FILTER Fuel-Water Separating	1
21	828586	探头	PROBE	1
21	8M0204710	探头	PROBE	1

图 7燃油轨组件 Fuel Rail Components

REF	零件编号	中文名称	英文名称	数量
1	855432A1	盖板套件	COVER KIT	1
2	NSS	不单独销售弯头	NOT SOLD SEPARATE Elbow	1
3	8568431	直通接头	FITTING Straight STRAIGHT	1
4	19688	接头	FITTING	1
5	803878	密封件	SEAL	1
6	NSS	不单独销售泵出口配件包	NOT SOLD SEPARATE Fitting Kit-Pump Outlet	1
6	855437A2	泵出口接头套件	FITTING KIT Pump Outlet	1
7	NSS	O型圈（不单独销售）	NOT SOLD SEPARATE O Ring	1
8	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	7
9	855528	衬垫	GASKET	1
9	8M6002520	衬垫套件	GASKET KIT	1
10	855430A1	浮子套件	FLOAT KIT	1
10	8M6004920	浮子套件	FLOAT KIT	1
11	F10064	轴	SHAFT	1
12	855431	针阀	VALVE Needle	1
12	8M6004917	进气阀	VALVE-INLET	1
13	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
14	855427A1	泵套件	PUMP KIT	1
15	855428	套筒	SLEEVE	1
15	8M6000589	套筒	SLEEVE	1
16	855434A1	油杯套件	BOWL KIT	1
17	855433	密封件	SEAL	1
17	8554331	密封件	SEAL	1
18	855435A1	塞套件	PLUG KIT	1
19	8554245	弯头	ELBOW	2
20	18458A4	滤清器套件	FILTER KIT	1
20	18458Q4	燃油水分离滤清器	FILTER Fuel-Water Separating	1
21	828586	探头	PROBE	1
21	8M0204710	探头	PROBE	1

图 8齿轮箱（驱动轴）（标准旋转） GEAR HOUSING (DRIVESHAFT)(STANDARD ROTATION)

REF	零件编号	中文名称	英文名称	数量
1	831998A9	空气压缩机总成(参见空气压缩机部件分解图)	COMPRESSOR ASSEMBLY Air (SEE BREAKDOWN ON AIR COMPRESSOR COMPONENTS)	1
2	85593912	螺钉（M6 x 12）	SCREW (M6 x 12)	5
3	8328231	滑轮	PULLEY	1
3	8M0175171	滑轮	PULLEY	1
4	4010825	螺丝(M10 x 25)六角法兰-不锈钢	SCREW (M10 x 25) Hex Flange - Stainless Steel	2
5	8502511	软管	HOSE	1
5	8502512	软管	HOSE	1
6	85652329	绝缘套管(15英寸)	INSULATOR SLEEVE (15 IN.)	1
7	852379T5	燃油导轨	FUEL RAIL	1
7	852379T6	燃油导轨	FUEL RAIL	1
8	8500653	喷油器	INJECTOR	6
8	8M6001743	空气喷射器总成	INJECTOR ASSEMBLY Air	6
9	855697	卡箍(16.2)	CLAMP (16.2)	4
9	8M0204696	卡箍	CLAMP	4
10	85564361	软管(16英寸)	HOSE (16 IN.)	2
11	92345	螺柱	STUD	1
12	854640	特殊垫圈	WASHER Special	2
13	35814	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
13	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
14	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
14	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
15	852378T5	燃油导轨	FUEL RAIL	1
15	852378T6	燃油导轨	FUEL RAIL	1
16	830756109	软管(57.00英寸整料)(裁切至22-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 22-1/2 Inches)	1
16	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
17	826810	止回阀	CHECK VALVE	1
18	83075780	管材(28英寸整卷)(裁切为2-1/2英寸)	TUBING (28.00 Inches Bulk) (Cut to 2-1/2 Inches)	1
18	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
19	83476463	管材(32英寸整卷)(裁切为28-1/2英寸)	TUBING (32.00 Inches Bulk) (Cut to 28-1/2 Inches)	1
20	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	2
20	8M0214964	卡箍	CLAMP	2
21	85606064	管材(36英寸整卷)(28-1/2英寸)	TUBING (36.00 Inches Bulk) (28-1/2 IN.)	1
21	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
22	82104510	螺钉 (M5 x 10)	SCREW (M5 x 10)	4
23	46997	卡箍	CLAMP	4
24	852961	螺柱	STUD	4
24	8M0063255	双头螺栓M10x92	STUD M10x92	4
25	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	4
26	NSS	不单独销售软管(30英寸)	NOT SOLD SEPARATE Hose (30 IN.)	1
26	856822A3	软管(30英寸)	HOSE (30 IN.)	1
27	8558481	软管	HOSE	1
27	855848A1	软管	HOSE	1
28	828694A1	杯形垫片总成	WASHER ASSEMBLY Cupped	6
29	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	4
29	8M0214964	卡箍	CLAMP	4
30	85686953	套管(27英寸整卷)(裁切为18英寸)	SLEEVE (27.00 Inches Bulk) (Cut to 18 Inches)	1

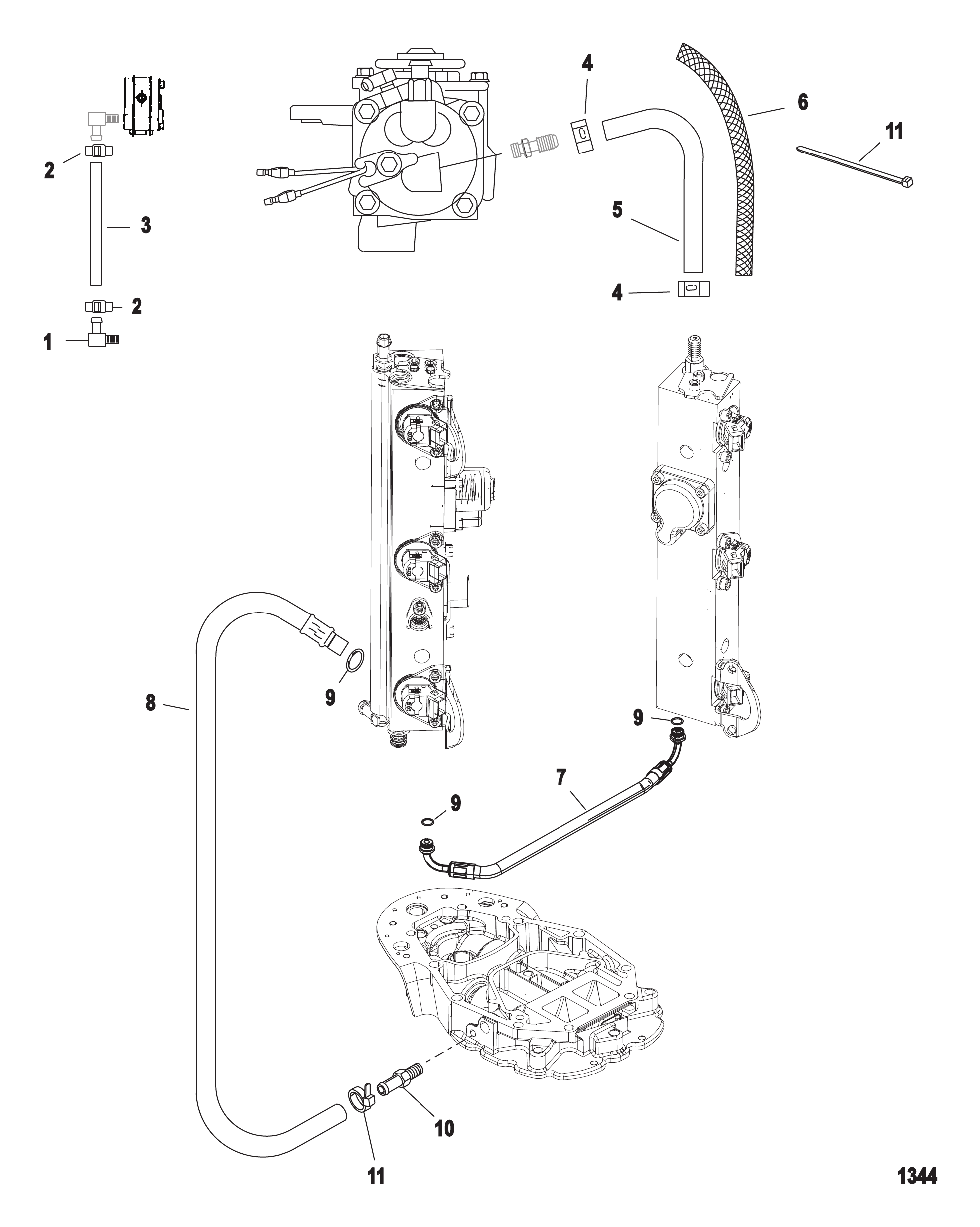

图 9空气软管 AIR HOSES

REF	零件编号	中文名称	英文名称	数量
-	855633A4	空气处理器总成	AIR HANDLER ASSEMBLY	1
1	855420T02	适配板套件	ADAPTER PLATE KIT	1
2	146973	衬垫	GASKET	1
3	850058	衬垫	GASKET	1
3	8500581	衬垫	GASKET	1
4	116455	簧片阀组	REED BLOCK	6
4	855952T2	簧片阀组	REED BLOCK	6
5	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	12
6	855762	油泵	PUMP Oil	1
6	855884P1	油泵	PUMP Oil	1
7	8565421	衬垫	GASKET	1
8	8552841	支架	BRACKET	1
9	855424	接头	FITTING	3
10	8554241	接头	FITTING	3
11	8554246	接头	FITTING	1
11	892267T02	蒸汽分离器总成	VAPOR SEPARATOR ASSEMBLY	1
12	8554248	接头(直通)	FITTING (STRIAGHT)	1
13	855364	衬套	BUSHING	6
14	855362	护孔环	GROMMET	6
14	855362001	护孔环	GROMMET	6
15	81893440	螺钉 (M8 x 40)	SCREW (M8 x 40)	6
16	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	6
17	850248A1	空气集气室套件	PLENUM KIT Air	1
18	8554242	弯头	ELBOW	1
19	8554249	弯头	ELBOW	1
19	15133	接头	FITTING	1
20	850058	衬垫	GASKET	1
20	8500581	衬垫	GASKET	1
21	13221A1	温度传感器总成	SENSOR ASSEMBLY Temperature	1
21	13221T01	温度传感器	SENSOR TEMP	1
22	4005685	螺钉（M4×10）	SCREW (M4 x 10)	3
23	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	3
24	4001987	螺钉(M4×16)	SCREW (M4 x 16)	12
25	855422A1	节气门体套件	THROTTLE BODY KIT	1
26	855423	O型圈	O-RING	1
27	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	4

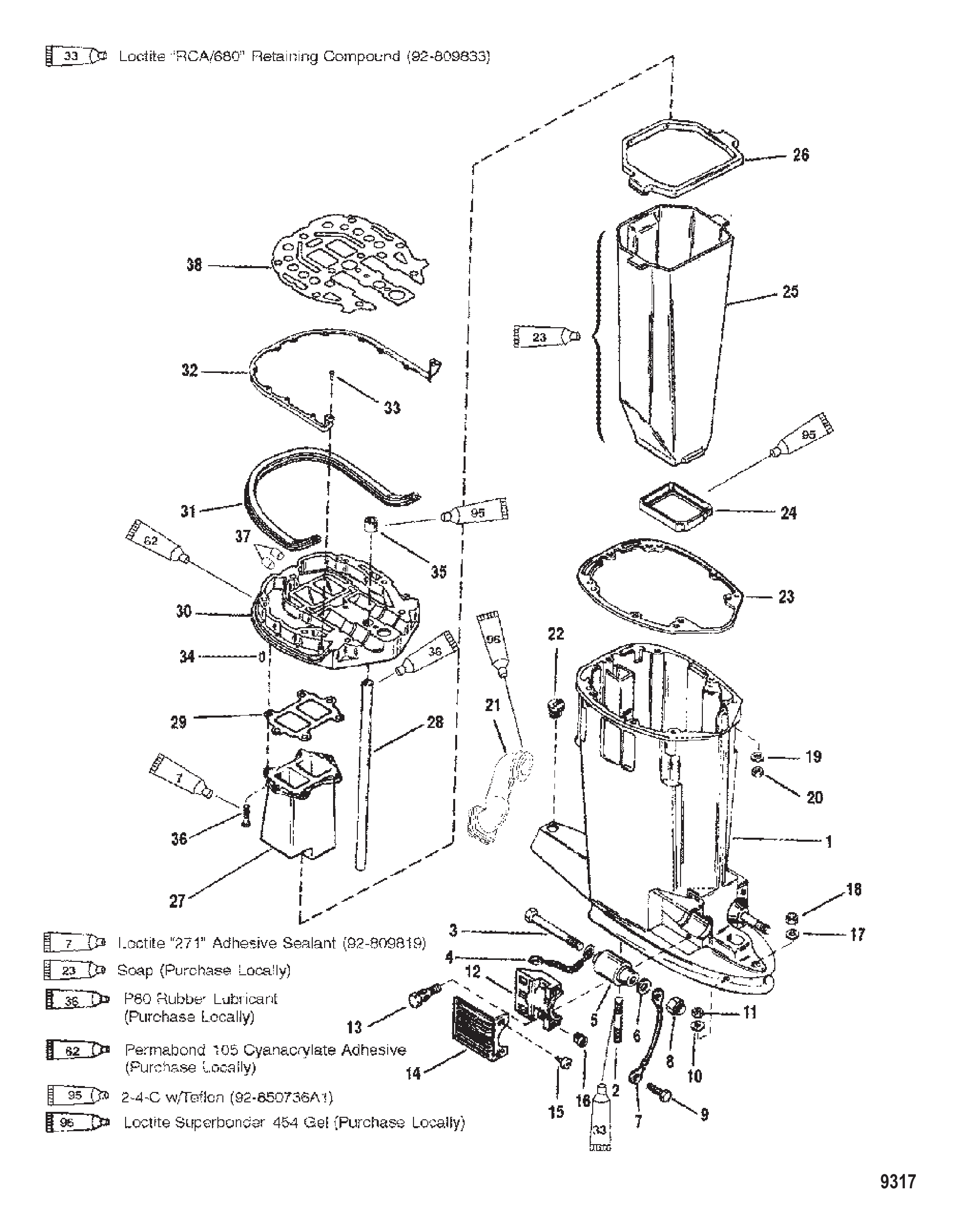

图 10驱动轴壳与排气管 Driveshaft Housing and Exhaust Tube

REF	零件编号	中文名称	英文名称	数量
1	8343A10	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8343A11	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8343T11	ORD 1590-8343T10	ORD 1590-8343T10	1
1	813563A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	813563T1	传动轴壳体-黑色-加长型	HOUSING Driveshaft - Black - X-Long	1
1	813563A2	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	813563T2	ORD 3503-813563T1	ORD 3503-813563T1	1
2	56295	双头螺柱(.437 x 2.69)	STUD (.437 x 2.69)	2
3	63474	螺钉(.500-20 x 6.00)	SCREW (.500-20 x 6.00)	2
3	898831	螺钉(.500-20 x 6.220)	SCREW (.500-20 x 6.220)	2
4	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
5	77327	支架	MOUNT	2
6	49339	垫圈(.8125)	WASHER (.8125)	2
7	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
8	28040	螺母(.500-20)	NUT (.500-20)	2
8	898832	螺母(.500-20)	NUT (.500-20)	2
9	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
10	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
11	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
11	8M0204653	螺母	NUT	2
12	67076	卡箍	CLAMP	2
12	8M0036782	卡箍	CLAMP	2
13	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
14	67077T	黑色盖	COVER Black	2
14	8M4500752	盖板	COVER	2
14	67077F1	灰色盖板	COVER Gray	2
14	67077T	黑色盖	COVER Black	2
15	88417	螺钉(#12-24×0.620)	SCREW (#12-24 x .620)	4
16	35521	螺母	NUT	4
17	48926	垫圈	WASHER	1
18	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	1
18	8M0204653	螺母	NUT	1
19	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	4
20	69254	螺母	NUT	4
21	828212	怠速排气套	BOOT Idle Exhaust	1
21	8M0039081	护套	BOOT	1
22	64649	堵头	PLUG	1
23	991732	衬垫	GASKET	1
23	991734	衬垫	GASKET	1
24	66350	下密封件	SEAL (LOWER)	1
24	66350001	密封件	SEAL	1
25	18276	排气管	TUBE Exhaust	1
25	18276T	排气管	EXHAUST TUBE	1
26	177261	上密封件	SEAL (UPPER)	1
26	8M0039076	密封件	SEAL	1
27	812834	排气管延长段	EXTENSION Exhaust	1
27	812834A2	排气延长总成	EXTENSION ASSEMBLY Exhaust	1
27	41942F3	排气管延长段	EXTENSION Exhaust	1
27	879288T71	排气管延长段	EXTENSION Exhaust	1
28	67295	水管	TUBE Water	1
28	8M0042788	长型水管	TUBE-WATER-LONG	1
28	74729	管	TUBE	1
28	8M0042790	水管	TUBE-WATER	1
29	78246	衬垫	GASKET	1
29	782461	衬垫	GASKET	1
30	18233A6	隔板总成	PLATE ASSEMBLY	1
30	18233A20	传动轴壳体板总成	PLATE ASSEMBLY Driveshaft Housing	1
31	8147012	密封件	SEAL	1
31	8M0043165	密封件-27.00英寸	SEAL-27.00 INCH	1
32	68011	支架	BRACKET	1
33	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
33	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
34	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
35	38970	密封件	SEAL	1
36	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	6
37	39072	塞(1/8英寸黄铜)	PLUG (1/8 Inch Brass)	2
37	390721	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	2
38	183071	衬垫	GASKET	1
38	183076	衬垫	GASKET	1
-	814754A98	衬垫套件	GASKET SET	1
-	8M0046714	衬垫套件	GASKET SET	1

图 11维修/支撑材料 Service/Support Material

REF	零件编号	中文名称	英文名称	数量
-	896280006	零件手册200/225/250/275四冲程Verado	PARTS MANUAL 200/225/250/275 4-Stroke Verado	1
-	896579T00	维修手册	SERVICE MANUAL	1
-	8M0082470	MNL-SERV 200-300V	MNL-SERV 200-300V	1
-	10238060	安装手册	INSTALLATION MANUAL	1
-	10237060	用户手册	OWNERS MANUAL	1
-	10237J60	用户手册(西班牙语)	OWNERS MANUAL Spanish	1
-	10237D60	用户手册(法语)	OWNERS MANUAL French	1
-	895269001	产品指南	PRODUCT GUIDE	1
-	895269002	产品指南	GUIDE-PRODUCT	1
-	895282A06	EPA标签信息贴花	DECAL EPA Label Information	1

图 12PCM安装座序列号1B490866及以上 PCM Mounting Serial Number 1B490866 and Up

REF	零件编号	中文名称	英文名称	数量
1	88334A2	防腐电极套件	MERCATHODE KIT	1
2	42600A09	防腐电极总成	MERCATHODE ASSEMBLY	1
3	22793	螺丝(#9-14x0.875)	SCREW (#9-14 x .875)	2
4	30164	垫圈(0.192x0.375x0.0312)不锈钢	WASHER (.192 x .375 x .0312) Stainless Steel	2
5	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	4
6	72958A5	电极总成	ELECTRODE ASSEMBLY	1
7	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
7	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
8	87698	螺丝(#10-16 x 1.250)不锈钢	SCREW (#10-16 x 1.250) Stainless Steel	2
9	72957A5	阳极总成	ANODE ASSEMBLY	1
9	8M0181304	阳极总成	ANODE ASSY	1
10	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
10	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
11	87698	螺丝(#10-16 x 1.250)不锈钢	SCREW (#10-16 x 1.250) Stainless Steel	2
12	79091	保险丝20安培	FUSE 20 Ampere	1
12	8M0207796	保险丝20安培	FUSE 20 AMP	1
13	95084A10	电缆总成(5.00英寸)红色	CABLE ASSEMBLY (5.00 Inches) Red	1
13	8M0207788	拉线总成	CABLE ASSEMBLY	1
14	95084A13	电缆总成(64.00英寸)	CABLE ASSEMBLY (64.00 Inches)	1
15	79138A8	电缆总成(72.00英寸)黑色	CABLE ASSEMBLY (72.00 Inches) Black	1

图 13服务/支持材料 SERVICE/SUPPORT MATERIAL

REF	零件编号	中文名称	英文名称	数量
-	896280006	零件手册200/225/250/275四冲程Verado	PARTS MANUAL 200/225/250/275 4-Stroke Verado	1
-	896579T00	维修手册	SERVICE MANUAL	1
-	8M0082470	MNL-SERV 200-300V	MNL-SERV 200-300V	1
-	10238060	安装手册	INSTALLATION MANUAL	1
-	10237060	用户手册	OWNERS MANUAL	1
-	10237J60	用户手册(西班牙语)	OWNERS MANUAL Spanish	1
-	10237D60	用户手册(法语)	OWNERS MANUAL French	1
-	895269001	产品指南	PRODUCT GUIDE	1
-	895269002	产品指南	GUIDE-PRODUCT	1
-	895282A06	EPA标签信息贴花	DECAL EPA Label Information	1

图 14机油喷射组件 Oil Injection Components

REF	零件编号	中文名称	英文名称	数量
1	12335A1	支架套件	BRACKET KIT	1
2	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1
3	87421	油箱	TANK	1
4	43298A2	盖总成	CAP ASSEMBLY	1
5	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
6	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
7	816190A3	外壳总成适配器	HOUSING ASSEMBLY Adapter	1
7	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
8	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
9	99802	管	TUBE	1
10	99439	软管(114.00英寸)	HOSE (114.00 Inches)	1
11	833069A3	油箱总成	RESERVOIR ASSEMBLY Oil	1
11	8M0062954	储油罐	RESERVOIR, OIL	1
12	NSS	不单独销售标签-储液罐	NOT SOLD SEPARATE Decal-Reservoir	1
13	855362	护孔环	GROMMET	3
13	855362001	护孔环	GROMMET	3
14	49436	垫圈	WASHER	3
15	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
16	855364	衬套	BUSHING	3
17	69267	螺钉 (.312-18 x 1.750)	SCREW (.312-18 x 1.750)	2
18	833155	护孔环	GROMMET	2
19	8502341	衬套	BUSHING	2
20	82381455	管材(25英寸整卷)(裁切为20英寸)	TUBING (25.00 Inches Bulk) (Cut to 20 Inches)	1
21	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
21	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
22	12886A8	开关	SWITCH	1
23	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
24	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
25	8260841	隔套	SPACER	1
26	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	7
26	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	7
27	NSS	不单独销售塞	NOT SOLD SEPARATE Plug	1
28	424254	接头	FITTING	1
28	8M0207780	接头	FITTING	1
29	830756109	软管(57.00英寸散装)(裁切至6英寸)	HOSE (57.00 Inches Bulk) (Cut to 6 Inches)	1
29	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
30	855785	燃油冷却器	COOLER Fuel	1
30	855785A1	燃油冷却器总成	COOLER ASSEMBLY Fuel	1
31	855761	止回阀	CHECK VALVE	1
31	8557611	止回阀	CHECK VALVE	1
32	13791	卡箍(15.7)	CLAMP (15.7)	4
32	8M0214911	卡箍@5	CLAMP @5	4
33	85682239	管材(17英寸整卷)(裁切为3英寸)	TUBING (17.00 Inches Bulk) (Cut to 3 Inches)	1
34	856822A3	软管(带绝缘套管)(30英寸)	HOSE (W/INSULATING SLEEVE) (30 IN.)	1

图 15油管 OIL LINES

REF	零件编号	中文名称	英文名称	数量
1	12335A1	支架套件	BRACKET KIT	1
2	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1
3	87421	油箱	TANK	1
4	43298A2	盖总成	CAP ASSEMBLY	1
5	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
6	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
7	816190A3	外壳总成适配器	HOUSING ASSEMBLY Adapter	1
7	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
8	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
9	99802	管	TUBE	1
10	99439	软管(114.00英寸)	HOSE (114.00 Inches)	1
11	833069A3	油箱总成	RESERVOIR ASSEMBLY Oil	1
11	8M0062954	储油罐	RESERVOIR, OIL	1
12	NSS	不单独销售标签-储液罐	NOT SOLD SEPARATE Decal-Reservoir	1
13	855362	护孔环	GROMMET	3
13	855362001	护孔环	GROMMET	3
14	49436	垫圈	WASHER	3
15	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
16	855364	衬套	BUSHING	3
17	69267	螺钉 (.312-18 x 1.750)	SCREW (.312-18 x 1.750)	2
18	833155	护孔环	GROMMET	2
19	8502341	衬套	BUSHING	2
20	82381455	管材(25英寸整卷)(裁切为20英寸)	TUBING (25.00 Inches Bulk) (Cut to 20 Inches)	1
21	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
21	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
22	12886A8	开关	SWITCH	1
23	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
24	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
25	8260841	隔套	SPACER	1
26	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	7
26	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	7
27	NSS	不单独销售塞	NOT SOLD SEPARATE Plug	1
28	424254	接头	FITTING	1
28	8M0207780	接头	FITTING	1
29	830756109	软管(57.00英寸散装)(裁切至6英寸)	HOSE (57.00 Inches Bulk) (Cut to 6 Inches)	1
29	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
30	855785	燃油冷却器	COOLER Fuel	1
30	855785A1	燃油冷却器总成	COOLER ASSEMBLY Fuel	1
31	855761	止回阀	CHECK VALVE	1
31	8557611	止回阀	CHECK VALVE	1
32	13791	卡箍(15.7)	CLAMP (15.7)	4
32	8M0214911	卡箍@5	CLAMP @5	4
33	85682239	管材(17英寸整卷)(裁切为3英寸)	TUBING (17.00 Inches Bulk) (Cut to 3 Inches)	1
34	856822A3	软管(带绝缘套管)(30英寸)	HOSE (W/INSULATING SLEEVE) (30 IN.)	1

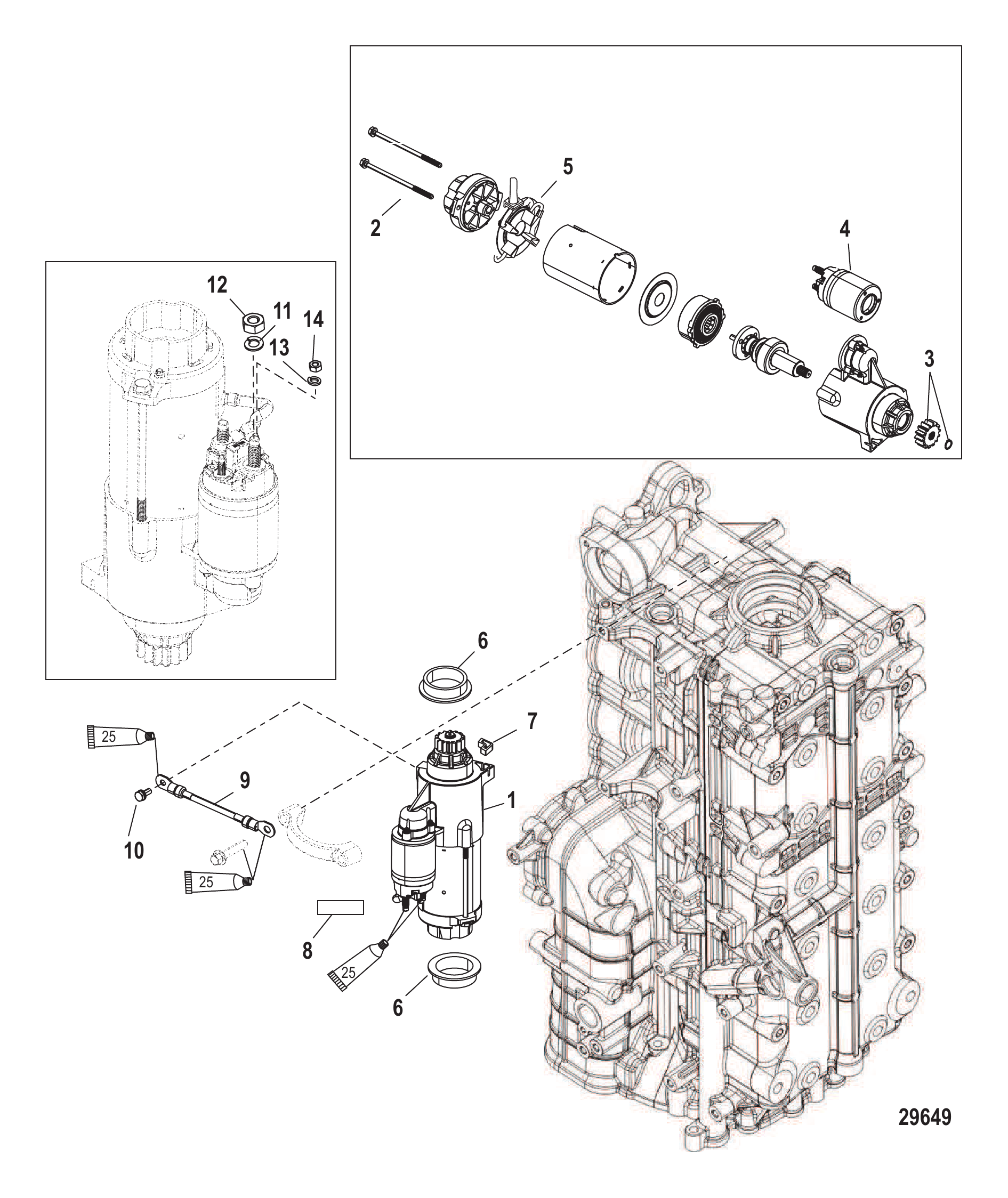

图 16启动马达 STARTER MOTOR

REF	零件编号	中文名称	英文名称	数量
-	NSS	起动机总成(不单独销售)	NOT SOLD SEPARATE Starter Motor Assembly	1
1	892339T01	启动电机总成	STARTER MOTOR ASSEMBLY	1
2	NSS	螺钉组(不单独销售)	NOT SOLD SEPARATE Screws	2
3	880805A1	齿轮套件	GEAR KIT	1
4	809463A1	电磁阀组件	SOLENOID KIT	1
5	8M0065258	电刷组	BRUSH SET	1
6	8M0034918	轴环	COLLAR	2
7	8M0043276	停机开关	STOP	1
8	NSS	高压警告贴纸(不单独销售)	NOT SOLD SEPARATE Decal-Waring-High Voltage	1
9	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
10	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
11	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
12	400213	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
13	400255	锁紧垫圈(M5)	LOCKWASHER (M5)	1
14	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1

图 17甲板注油套件15969A3或15969A5 Deck Oil Fill Kit 15969A3 or 15969A5

REF	零件编号	中文名称	英文名称	数量
1	855432A1	盖板套件	COVER KIT	1
2	NSS	不单独销售弯头	NOT SOLD SEPARATE Elbow	1
3	8568431	直通接头	FITTING Straight STRAIGHT	1
4	19688	接头	FITTING	1
5	803878	密封件	SEAL	1
6	NSS	不单独销售泵出口配件包	NOT SOLD SEPARATE Fitting Kit-Pump Outlet	1
6	855437A2	泵出口接头套件	FITTING KIT Pump Outlet	1
7	NSS	O型圈（不单独销售）	NOT SOLD SEPARATE O Ring	1
8	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	7
9	855528	衬垫	GASKET	1
9	8M6002520	衬垫套件	GASKET KIT	1
10	855430A1	浮子套件	FLOAT KIT	1
10	8M6004920	浮子套件	FLOAT KIT	1
11	F10064	轴	SHAFT	1
12	855431	针阀	VALVE Needle	1
12	8M6004917	进气阀	VALVE-INLET	1
13	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
14	855427A1	泵套件	PUMP KIT	1
15	855428	套筒	SLEEVE	1
15	8M6000589	套筒	SLEEVE	1
16	855434A1	油杯套件	BOWL KIT	1
17	855433	密封件	SEAL	1
17	8554331	密封件	SEAL	1
18	855435A1	塞套件	PLUG KIT	1
19	8554245	弯头	ELBOW	2
20	18458A4	滤清器套件	FILTER KIT	1
20	18458Q4	燃油水分离滤清器	FILTER Fuel-Water Separating	1
21	828586	探头	PROBE	1
21	8M0204710	探头	PROBE	1

图 18衬垫组件-完整-动力头与下部单元 Gasket Set Components-Complete-Powerhead and Lower Unit

REF	零件编号	中文名称	英文名称	数量
1	855432A1	盖板套件	COVER KIT	1
2	NSS	不单独销售弯头	NOT SOLD SEPARATE Elbow	1
3	8568431	直通接头	FITTING Straight STRAIGHT	1
4	19688	接头	FITTING	1
5	803878	密封件	SEAL	1
6	NSS	不单独销售泵出口配件包	NOT SOLD SEPARATE Fitting Kit-Pump Outlet	1
6	855437A2	泵出口接头套件	FITTING KIT Pump Outlet	1
7	NSS	O型圈（不单独销售）	NOT SOLD SEPARATE O Ring	1
8	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	7
9	855528	衬垫	GASKET	1
9	8M6002520	衬垫套件	GASKET KIT	1
10	855430A1	浮子套件	FLOAT KIT	1
10	8M6004920	浮子套件	FLOAT KIT	1
11	F10064	轴	SHAFT	1
12	855431	针阀	VALVE Needle	1
12	8M6004917	进气阀	VALVE-INLET	1
13	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
14	855427A1	泵套件	PUMP KIT	1
15	855428	套筒	SLEEVE	1
15	8M6000589	套筒	SLEEVE	1
16	855434A1	油杯套件	BOWL KIT	1
17	855433	密封件	SEAL	1
17	8554331	密封件	SEAL	1
18	855435A1	塞套件	PLUG KIT	1
19	8554245	弯头	ELBOW	2
20	18458A4	滤清器套件	FILTER KIT	1
20	18458Q4	燃油水分离滤清器	FILTER Fuel-Water Separating	1
21	828586	探头	PROBE	1
21	8M0204710	探头	PROBE	1

图 19专用工具 TOOLS-SPECIAL

REF	零件编号	中文名称	英文名称	数量
1	850389	杠杆	LEVER	1
2	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
3	55164	衬套	BUSHING	1
4	74759	垫圈(0.391x0.880x0.125)不锈钢	WASHER (.391 x .880 x .125) Stainless Steel	1
5	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	1
6	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
7	64015	螺母 (.250-20)	NUT (.250-20)	1
8	26852	尼龙帽	CAP Nylon	1
9	42927	嵌件	INSERT	1
10	35459	垫圈	WASHER	1
11	8268336	螺母 (M6)	NUT (M6)	1
11	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
12	8503931	凸轮	CAM	1
12	856221A1	凸轮套件	CAM KIT	1
13	852970	衬套	BUSHING	1
14	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	1
15	932481	衬套	BUSHING	2
15	8M0215006	旋转衬套	BUSHING Swivel	2
16	8235694	螺纹球头	BALL Threaded	1
17	850815	连接杆	LINK	1
17	8508152	杆	ROD	1
18	67748	滚轮	ROLLER	1
19	850286	油门滚轮	ROLLER Throttle	1
19	8502861	杠杆	LEVER	1
20	40056107	螺钉(M5×16)	SCREW (M5 x 16)	1
21	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	1
22	69432	外锁紧垫圈(#10)	LOCKWASHER External (#10)	1
23	8142831	锚支架	BRACKET Anchor	1
23	814283T6	锚支架总成	BRACKET ASSEMBLY Anchor	1
24	98889	闩锁	LATCH	1
25	42975	传动螺钉	DRIVE SCREW	2
26	39519	杯套	CUP	1
27	52100	耐磨板	WEAR PLATE	1
28	38279	闩锁	LATCH	1
28	8M0036768	闩锁	LATCH	1
29	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
30	35045	螺母(.250-28)	NUT (.250-28)	1
30	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
31	28782	螺钉(.312-18 x .880)不锈钢	SCREW (.312-18 x .880) Stainless Steel	3
32	814284	导向块	GUIDE BLOCK	1
33	20099	弹簧	SPRING	1
34	67073A1	连杆总成	LINK ROD ASSEMBLY	1
35	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
35	79932A17	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
36	NSS	弹性销(不单独销售)	NOT SOLD SEPARATE Roll Pin	1
37	NSS	不单独销售-换挡轴上杆	NOT SOLD SEPARATE Shift Shaft Lever-Upper	1
38	26856	衬套	BUSHING	1
39	29720	波形垫圈	WAVE WASHER	1
40	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
41	35045	螺母(.250-28)	NUT (.250-28)	1
41	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
42	814281A2	开关	SWITCH	1
42	8M0052931	开关	SWITCH	1
43	77478	螺钉 (#6-32 x .875)	SCREW (#6-32 x .875)	2
44	27882	垫圈	WASHER	2

图 20电气板总成序列号1B490865及以下 Electrical Plate Assembly Serial Number 1B490865 and Below

REF	零件编号	中文名称	英文名称	数量
1	855432A1	盖板套件	COVER KIT	1
2	NSS	不单独销售弯头	NOT SOLD SEPARATE Elbow	1
3	8568431	直通接头	FITTING Straight STRAIGHT	1
4	19688	接头	FITTING	1
5	803878	密封件	SEAL	1
6	NSS	不单独销售泵出口配件包	NOT SOLD SEPARATE Fitting Kit-Pump Outlet	1
6	855437A2	泵出口接头套件	FITTING KIT Pump Outlet	1
7	NSS	O型圈（不单独销售）	NOT SOLD SEPARATE O Ring	1
8	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	7
9	855528	衬垫	GASKET	1
9	8M6002520	衬垫套件	GASKET KIT	1
10	855430A1	浮子套件	FLOAT KIT	1
10	8M6004920	浮子套件	FLOAT KIT	1
11	F10064	轴	SHAFT	1
12	855431	针阀	VALVE Needle	1
12	8M6004917	进气阀	VALVE-INLET	1
13	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
14	855427A1	泵套件	PUMP KIT	1
15	855428	套筒	SLEEVE	1
15	8M6000589	套筒	SLEEVE	1
16	855434A1	油杯套件	BOWL KIT	1
17	855433	密封件	SEAL	1
17	8554331	密封件	SEAL	1
18	855435A1	塞套件	PLUG KIT	1
19	8554245	弯头	ELBOW	2
20	18458A4	滤清器套件	FILTER KIT	1
20	18458Q4	燃油水分离滤清器	FILTER Fuel-Water Separating	1
21	828586	探头	PROBE	1
21	8M0204710	探头	PROBE	1

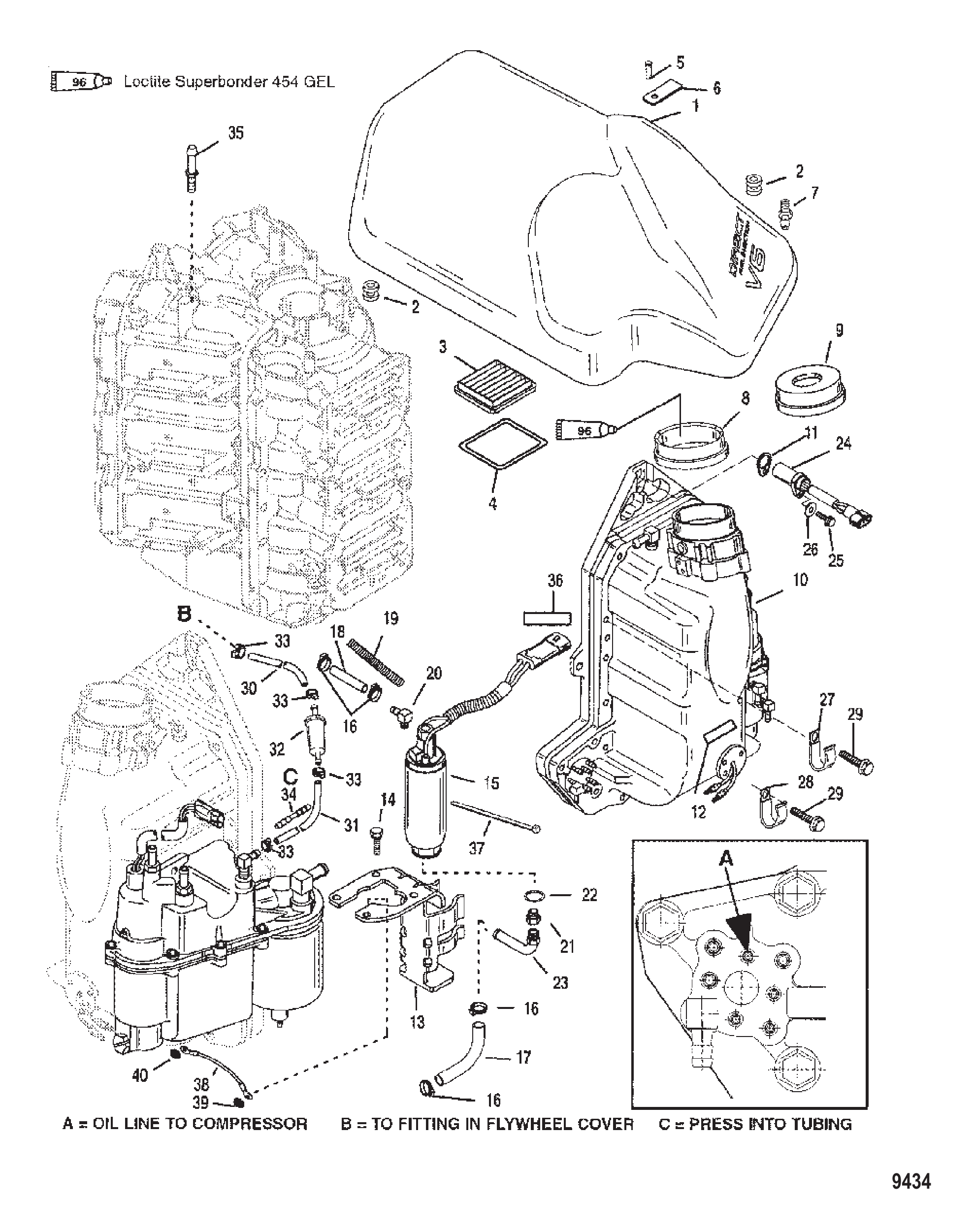

图 21空气处理器 Air Handler

REF	零件编号	中文名称	英文名称	数量
1	827325A1	盖总成	COVER ASSEMBLY	1
2	821555	护孔环	GROMMET	2
2	8M0153609	护孔环	GROMMET	2
3	853333	空气滤清器	FILTER Air	1
3	853333T	滤清器	FILTER	1
4	853352	盖板	COVER	1
5	855590	铆钉	RIVET	1
6	854633	固定座	RETAINER	1
7	64705	接头	FITTING	1
8	855613	护孔环	GROMMET	1
9	8556131	护孔环	GROMMET	1
10	855633A4	空气处理器总成	AIR HANDLER ASSEMBLY	1
10	855633A15	空气处理器总成	AIR HANDLER ASSEMBLY	1
11	856139	垫片	SHIM	1
11	8561391	垫片	SHIM	1
12	NSS	不单独销售(挂档启动警告标贴)	NOT SOLD SEPARATE Decal-Caution-Start in Gear	1
13	8557561	支架	BRACKET	1
13	855756A1	支架套件	BRACKET KIT	1
14	1993716	螺钉(M6 x 16)	SCREW (M6 x 16)	4
15	8558432	泵总成	PUMP ASSEMBLY	1
15	8M0240950	燃油泵总成	PUMP ASSY FUEL	1
16	13791	卡箍(15.7)	CLAMP (15.7)	4
16	8M0214911	卡箍@5	CLAMP @5	4
17	1350385	管材(33.00英寸整料)(5-1/2英寸)	TUBING (33.00 Inches Bulk) (5-1/2 IN.)	1
18	85564361	软管(18英寸)	HOSE (18 IN.)	1
19	83312531	绝缘套管	INSULATING SLEEVE	1
20	855802	弯头	ELBOW	1
20	855802A1	弯头	ELBOW	1
21	805026A1	接头	FITTING	1
22	805062	O型圈（.530 x .082）	O-RING (.530 x .082)	1
23	8554247	接头	FITTING	1
24	8285581	编码器	ENCODER	1
25	418051	螺钉 (#10-24 x 0.620)	SCREW (#10-24 x .620)	1
26	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
26	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
27	97224	J型卡箍(右舷上部)	J CLIP (UPPER STBD.)	2
28	814634	卡箍(下部)	CLAMP (LOWER)	1
29	817504	螺钉（0.250-20 x 1.500）不锈钢	SCREW (.250-20 x 1.500) Stainless Steel	12
30	830756109	软管(57.00英寸整料)(裁切至1-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 1-1/2 Inches)	1
30	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
31	830756109	软管(57.00英寸整料)(裁切至5英寸)	HOSE (57.00 Inches Bulk) (Cut to 5 Inches)	1
31	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
32	855896	通风罐	CANISTER Vent	1
32	855896T	滤清器	FILTER	1
33	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
33	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
34	860273	连接器	CONNECTOR	1
35	821583	销	PIN	1
35	8215832	特殊销（1.5英寸）	PIN Special (1.5 Inches)	1
36	85557726	EPA标签信息贴花	DECAL EPA Label Information	1
36	855577A26	REF SOB 09-18	REF SOB 09-18	1
37	61990	扎带(14.00英寸)	TIE STRAP (14.00 Inches)	1
38	88807A27	拉线总成	CABLE ASSEMBLY	1
39	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
39	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
40	12038	垫圈	WASHER	1
40	8M0207778	垫圈（0.344×0.625×0.063英寸）	WASHER .344 x .625 x.063	1
-	854008A98	动力头总成	POWERHEAD ASSEMBLY	1
-	804545T99	动力头总成	POWERHEAD ASSEMBLY	1

图 22燃油软管 Fuel Hoses

REF	零件编号	中文名称	英文名称	数量
-	892440A08	动力转向泵套件	PUMP KIT Power Steering Pump Kit	1
-	892440A09	动力转向泵套件	PUMP KIT Power Steering Pump Kit	1
-	8M0131263	动力转向泵套件(24英尺)	PUMP KIT Power Steering (24 Feet)	1
-	892380A02	标准转向舵机套件(40cc)	STEERING HELM KIT Standard (40 cc)	1
-	8M0240080	标准舵机套件40CM	HELM KIT-STD 40CM	1
-	892557A02	标准转向舵机套件(32cc)	STEERING HELM KIT Standard (32 cc)	1
-	8M0240079	标准舵机套件32CM	HELM KIT-STD 32CM	1
-	892558A02	标准转向舵机套件(50cc)	STEERING HELM KIT Standard (50 cc)	1
-	8M0240081	标准舵机套件50CM	HELM KIT-STD 50CM	1
-	892450K01	液压软管套件(1英尺)油缸至舵机	HOSE KIT (1 Foot) Hydraulic, Cylinder to Helm	1
-	897982K01	ORD 32-897982K02	ORD 32-897982K02	1
-	892450K02	液压软管套件(2英尺)油缸至舵机	HOSE KIT (2 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167281	软管套件2FT	HOSE KIT 2FT	1
-	892450K03	液压软管套件(3英尺)油缸至舵机	HOSE KIT (3 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167282	软管套件3FT	HOSE KIT 3 FT	1
-	892450K04	液压软管套件(4英尺)油缸至舵机	HOSE KIT (4 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167283	软管套件4FT	HOSE KIT 4 FT	1
-	892450K05	液压软管套件(5英尺)油缸至舵机	HOSE KIT (5 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167284	软管套件5FT	HOSE KIT 5 FT	1
-	892450K06	液压软管套件(6英尺)油缸至舵机	HOSE KIT (6 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167285	软管套件6FT	HOSE KIT 6 FT	1
-	892450K07	液压软管套件(7英尺)油缸至舵机	HOSE KIT (7 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167286	软管套件7FT	HOSE KIT 7 FT	1
-	892450K08	液压软管套件(8英尺)油缸至舵机	HOSE KIT (8 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167287	软管套件8FT	HOSE KIT 8 FT	1
-	892450K10	液压软管套件(10英尺)油缸至舵机	HOSE KIT (10 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167288	软管套件10FT	HOSE KIT 10 FT	1
-	892450K12	液压软管套件(12英尺)油缸至舵机	HOSE KIT (12 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167289	软管套件12FT	HOSE KIT 12 FT	1
-	892450K14	液压软管套件(14英尺)油缸至舵机	HOSE KIT (14 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167290	软管套件 14英尺	HOSE KIT 14 FT	1
-	892450K16	液压软管套件(16英尺)油缸至舵机	HOSE KIT (16 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167291	软管套件 16英尺	HOSE KIT 16 FT	1
-	892450K18	液压软管套件(18英尺)油缸至舵机	HOSE KIT (18 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167292	软管套件 18英尺	HOSE KIT 18 FT	1
-	892450K22	液压软管套件(22英尺)油缸至舵机	HOSE KIT (22 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167294	软管套件 22英尺	HOSE KIT 22 FT	1
-	892450K24	液压软管套件(24英尺)油缸至舵机	HOSE KIT (24 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167295	软管套件 24英尺	HOSE KIT 24 FT	1
-	892450K26	液压软管套件(26英尺)油缸至舵机	HOSE KIT (26 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167296	软管套件 26英尺	HOSE KIT 26 FT	1
-	892450K30	液压软管套件(30英尺)油缸至舵机	HOSE KIT (30 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167298	软管套件 30英尺	HOSE KIT 30 FT	1
-	892438K02	动力转向软管套件动力模块 (2英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (2 Feet) Hydraulic, Pump to Helm	1
-	8M0150604	泵至舱壁/舵机套件 2英尺	PUMP TO BULKHEAD/HELM KIT 2 Ft	1
-	892438K03	动力转向软管套件动力模块 (3英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (3 Feet) Hydraulic, Pump to Helm	1
-	8M0150605	泵至舱壁/舵机套件 3英尺	PUMP TO BULKHEAD/HELM KIT 3 Ft	1
-	892438K04	动力转向软管套件动力模块 (4英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (4 Feet) Hydraulic, Pump to Helm	1
-	8M0150606	泵至舱壁/舵机套件 4英尺	PUMP TO BULKHEAD/HELM KIT 4 Ft	1
-	892438K05	动力转向软管套件动力模块 (5英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (5 Feet) Hydraulic, Pump to Helm	1
-	8M0150607	泵至舱壁/舵机套件 5英尺	PUMP TO BULKHEAD/HELM KIT 5 Ft	1
-	892438K06	软管套件动力模块 (6英尺) 液压, 泵至舵机	HOSE KIT Power Module (6 Feet) Hydraulic, Pump to Helm	1
-	8M0150608	泵至舱壁/舵机套件 6英尺	PUMP TO BULKHEAD/HELM KIT 6 Ft	1
-	892438K07	软管套件动力模块 (7英尺) 液压, 泵至舵机	HOSE KIT Power Module (7 Feet) Hydraulic, Pump to Helm	1
-	8M0150610	泵至舱壁/舵机套件 7英尺	PUMP TO BULKHEAD/HELM KIT 7 Ft	1
-	892438K08	软管套件动力模块 (8英尺) 液压, 泵至舵机	HOSE KIT Power Module (8 Feet) Hydraulic, Pump to Helm	1
-	8M0150612	泵至舱壁/舵机套件 8英尺	PUMP TO BULKHEAD/HELM KIT 8 Ft	1
-	892438K10	动力转向软管套件动力模块 (10英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (10 Feet) Hydraulic, Pump to Helm	1
-	8M0150613	泵至舱壁/舵机套件 10英尺	PUMP TO BULKHEAD/HELM KIT 10 Ft	1
-	892438K12	动力转向软管套件动力模块 (12英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (12 Feet) Hydraulic, Pump to Helm	1
-	8M0150614	泵至舱壁/舵机套件 12英尺	PUMP TO BULKHEAD/HELM KIT 12 Ft	1
-	892438K14	动力转向软管套件动力模块 (14英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (14 Feet) Hydraulic, Pump to Helm	1
-	8M0150615	泵至舱壁/舵机套件 14英尺	PUMP TO BULKHEAD/HELM KIT 14 Ft	1
-	892438K16	动力转向软管套件动力模块 (16英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (16 Feet) Hydraulic, Pump to Helm	1
-	8M0150616	泵至舱壁/舵机套件 16英尺	PUMP TO BULKHEAD/HELM KIT 16 Ft	1
-	892438K18	动力转向软管套件动力模块 (18英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (18 Feet) Hydraulic, Pump to Helm	1
-	8M0150617	泵至舱壁/舵机套件 18英尺	PUMP TO BULKHEAD/HELM KIT 18 Ft	1
-	892438K20	动力转向软管套件动力模块 (20英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (20 Feet) Hydraulic, Pump to Helm	1
-	8M0150618	泵至舱壁/舵机套件 20英尺	PUMP TO BULKHEAD/HELM KIT 20 ft	1
-	892438K22	动力转向软管套件动力模块 (22英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (22 Feet) Hydraulic, Pump to Helm	1
-	8M0150619	泵至舱壁/舵机套件 22英尺	PUMP TO BULKHEAD/HELM KIT 22 FT	1
-	892438K24	动力转向软管套件动力模块 (24英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (24 Feet) Hydraulic, Pump to Helm	1
-	8M0150620	泵至舱壁/舵机套件 24英尺	PUMP TO BULKHEAD/HELM KIT 24 FT	1
-	892825008	液压软管 (8英尺) 舵机至压力罐	HOSE (8 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825010	液压软管 (10英尺) 舵机至压力罐	HOSE (10 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825012	液压软管 (12英尺) 舵机至压力罐	HOSE (12 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825014	液压软管 (14英尺) 舵机至压力罐	HOSE (14 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825016	液压软管 (16英尺) 舵机至压力罐	HOSE (16 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825018	液压软管 (18英尺) 舵机至压力罐	HOSE (18 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825020	液压软管 (20英尺) 舵机至压力罐	HOSE (20 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825022	液压软管 (22英尺) 舵机至压力罐	HOSE (22 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825024	液压软管 (24英尺) 舵机至压力罐	HOSE (24 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825026	液压软管 (26英尺) 舵机至压力罐	HOSE (26 Feet) Hydraulic, Helm to Pressure Tank	1
-	893395A01	嵌入式安装板	PLATE Flush Mount	1
-	875207	三通接头	TEE Fitting	1
-	892486K08	模拟转换套件	CONVERSION KIT Analog	1
-	889611K02	附件电源线束套件(30英尺)	HARNESS KIT Accessory Power (30 Feet)	1
-	899785K04	附件电源线束总成(30英尺)	HARNESS ASSEMBLY Accessory Power (30 Feet)	1
-	88334A2	防腐电极套件	MERCATHODE KIT	1
-	8M0180081	防腐电极套件	MERCATHODE KIT	1
-	825191A03	索具软管套件	HOSE KIT Rigging	1
-	880717A01	齿轮箱螺丝/密封套件	SCREW/SEAL KIT Gearcase	1
-	88439A50	电池电缆组	CABLE SET Battery	1
-	8M0210761	电池电缆组(12英尺)	CABLE SET (12 ft) Battery	1
-	44357Q2	冲洗附件	FLUSHING ATTACHMENT	1
-	44357T2	冲洗附件	FLUSHING ATTACHMENT	1
-	881150Q1	双进水口冲洗套件	FLUSH KIT Dual Water Pick Up	1
-	881150K1	双进水口冲洗密封套件	SEAL KIT Flush - Dual Water Pickup	1
-	897967100	燃油管路 (100.00英尺)	LINE Fuel (100.00 Feet)	1
-	8M0038563	燃油管路 (100.00英尺)	LINE Fuel (100.00 Feet)	1
-	899712A01	连续性电缆套件	CABLE KIT Continuity	1

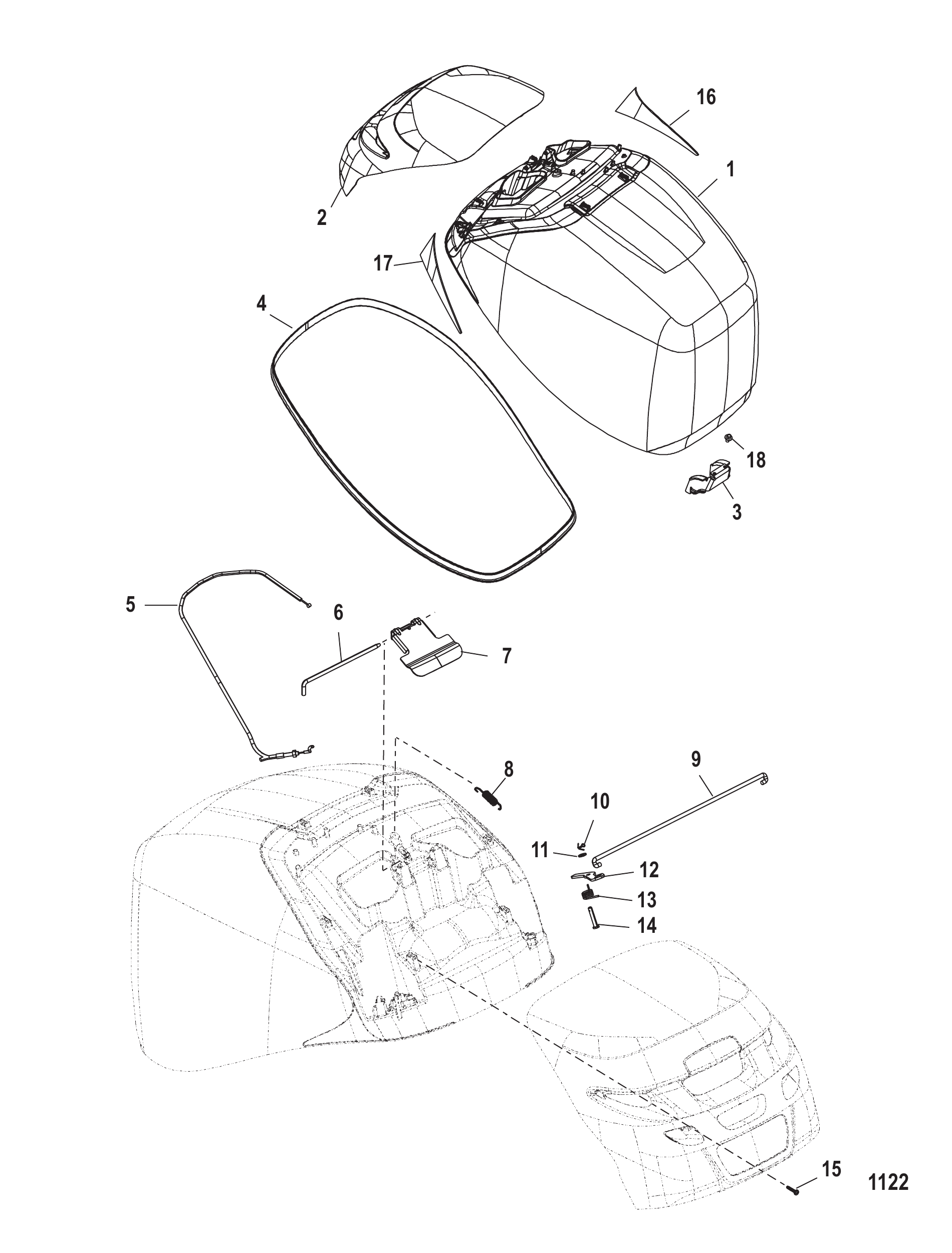

图 23顶罩 Top Cowl

REF	零件编号	中文名称	英文名称	数量
1	885355T03	顶盖总成	TOP COWL ASSEMBLY	1
1	885355T02	顶盖总成	TOP COWL ASSEMBLY	1
1	8M0050000	顶罩-水星型	COWL-TOP MARINER	1
2	885354T	空气导流帽	CAP Air Dam	1
2	885354T01	空气导流帽-水星黑色款	CAP, Air Dam Mercury, Black	1
2	895838T	空气导流帽	CAP Air Dam	1
2	895838T01	空气导流帽-水星型	CAP Air Dam - Mariner	1
3	888971	前锁扣槽	FRONT LATCH RECEIVER	1
4	885545	上罩壳密封件	SEAL Top Cowl	1
4	8M0111178	密封件	SEAL	1
5	888951	电缆	CABLE	1
5	8M0080461	锁扣拉索	CABLE Latch	1
6	888959	铰链销	PIN Hinge	1
7	888956	手控锁杆	LATCH Hand Lever	1
8	895373	弹簧	SPRING	1
9	888955	锁扣连杆	LINK Latch Connecting	1
10	26953	开口销	COTTER PIN	2
11	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
12	888952	联动臂	LINKAGE ARM	2
13	888953	弹簧	SPRING	2
14	822417	销	PIN	2
15	888950020	螺钉(M4x20毫米)(M4x1.75)	SCREW (M4 x 20 mm) (M4 x 1.75)	6
16	888970	左舷饰板(左)	APPLIQUE Port (Port)	1
16	888970A01	饰板套件	APPLIQUE KIT	1
16	895839	左舷饰板(左)	APPLIQUE Port (Port)	1
16	895839A01	饰板套件	APPLIQUE KIT	1
17	888969	右舷饰板(右)	APPLIQUE Starboard (Starboard)	1
17	895840	右舷饰板(右)	APPLIQUE Starboard (Starboard)	1
18	4010610	不锈钢螺钉(M6x10)	SCREW (M6 x 10) Stainless Steel	2
-	892564A05	贴花套件	DECAL SET	1
-	859271A05	贴花套件	DECAL SET	1
-	895252A05	贴花套件	DECAL SET	1
-	895253A05	贴花套件	DECAL SET	1
-	892571A05	贴花套件	DECAL SET	1
-	892571A07	贴花套件(水星200)	DECAL SET (Mariner 200)	1
-	892871A05	贴花套件	DECAL SET	1
-	892871A07	贴花套件(水星225)	DECAL SET (Mariner 225)	1
-	895254A05	贴花套件	DECAL SET	1
-	895254A07	贴花套件(水星250)	DECAL SET (Mariner 250)	1
-	895255A05	贴花套件	DECAL SET	1
-	895255A07	贴花套件(水星275)	DECAL SET (Mariner 275)	1

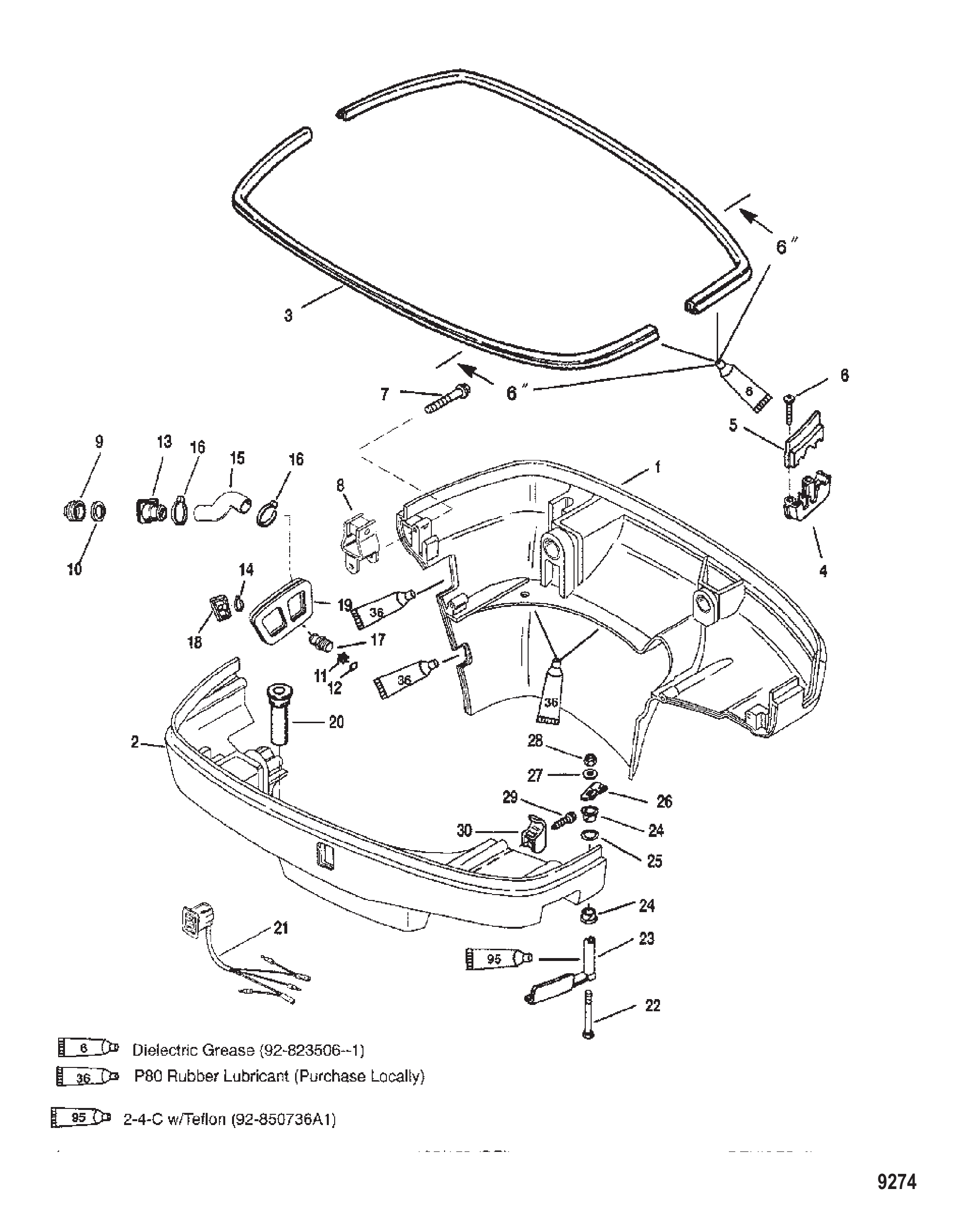

图 24下机罩 BOTTOM COWL

REF	零件编号	中文名称	英文名称	数量
1	834814A1	下机罩	BOTTOM COWL	1
1	834814A2	下机罩	BOTTOM COWL	1
2	834815A1	下机罩	BOTTOM COWL	1
2	8M0107322	机罩-底部右舷	COWL-BOTTOM, STBD	1
2	834815A2	下机罩	BOTTOM COWL	1
3	8253181	罩盖密封条(41英寸)	SEAL Cowl (41.00 Inches)	2
3	8M0109217	罩盖密封条	SEAL-COWL	2
4	822024	卡箍	CLAMP	1
5	822023	卡箍	CLAMP	1
6	92799	螺钉(#10-16x1.12)	SCREW (#10-16 x 1.12)	2
7	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	4
8	831209	固定座	RETAINER	1
9	821908	堵头	PLUG	1
10	821915	垫圈	WASHER	1
11	821963	止回阀	CHECK VALVE	1
11	8219631	止回阀	CHECK VALVE	1
12	30641	O型圈(0.299x0.103)	O-RING (.299 x .103)	1
13	821952	接头	FITTING	1
14	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
14	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
15	8320782	软管	HOSE	1
15	8M0039077	成型软管	HOSE-MOLDED	1
16	850896	卡箍 (28.6)	CLAMP (28.6)	2
17	8320763	接头	FITTING	1
18	821904	示流器接头	FITTING Tell-Tale	1
18	8M0077650	示流器接头	FITTING Tell-Tale	1
19	828216	怠速排气套	IDLE EXHAUST BOOT Exhaust	1
19	889847	怠速排气套	BOOT Idle Exhaust	1
20	817519A1	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	2
21	850691	开关	SWITCH	1
21	8M0235192	微调开关	SWITCH TRIM	1
22	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
23	821253F1	前手柄黑色	FRONT HANDLE Black	1
23	889740A02	手柄套件	HANDLE KIT	1
23	821253F2	前手柄	FRONT HANDLE	1
23	889740A02	手柄套件	HANDLE KIT	1
24	335891	衬套	BUSHING	2
25	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
26	8219423	棘爪	PAWL	1
27	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	1
28	401196	螺母 (M6)	NUT (M6)	1
29	8214281	螺钉(#10-16x0.625)	SCREW (#10-16 x .625)	1
30	822873	卡扣	CLIP	1

图 25数字电气部件 Digital Electric Parts

REF	零件编号	中文名称	英文名称	数量
-	892440A08	动力转向泵套件	PUMP KIT Power Steering Pump Kit	1
-	892440A09	动力转向泵套件	PUMP KIT Power Steering Pump Kit	1
-	8M0131263	动力转向泵套件(24英尺)	PUMP KIT Power Steering (24 Feet)	1
-	892380A02	标准转向舵机套件(40cc)	STEERING HELM KIT Standard (40 cc)	1
-	8M0240080	标准舵机套件40CM	HELM KIT-STD 40CM	1
-	892557A02	标准转向舵机套件(32cc)	STEERING HELM KIT Standard (32 cc)	1
-	8M0240079	标准舵机套件32CM	HELM KIT-STD 32CM	1
-	892558A02	标准转向舵机套件(50cc)	STEERING HELM KIT Standard (50 cc)	1
-	8M0240081	标准舵机套件50CM	HELM KIT-STD 50CM	1
-	892450K01	液压软管套件(1英尺)油缸至舵机	HOSE KIT (1 Foot) Hydraulic, Cylinder to Helm	1
-	897982K01	ORD 32-897982K02	ORD 32-897982K02	1
-	892450K02	液压软管套件(2英尺)油缸至舵机	HOSE KIT (2 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167281	软管套件2FT	HOSE KIT 2FT	1
-	892450K03	液压软管套件(3英尺)油缸至舵机	HOSE KIT (3 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167282	软管套件3FT	HOSE KIT 3 FT	1
-	892450K04	液压软管套件(4英尺)油缸至舵机	HOSE KIT (4 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167283	软管套件4FT	HOSE KIT 4 FT	1
-	892450K05	液压软管套件(5英尺)油缸至舵机	HOSE KIT (5 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167284	软管套件5FT	HOSE KIT 5 FT	1
-	892450K06	液压软管套件(6英尺)油缸至舵机	HOSE KIT (6 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167285	软管套件6FT	HOSE KIT 6 FT	1
-	892450K07	液压软管套件(7英尺)油缸至舵机	HOSE KIT (7 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167286	软管套件7FT	HOSE KIT 7 FT	1
-	892450K08	液压软管套件(8英尺)油缸至舵机	HOSE KIT (8 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167287	软管套件8FT	HOSE KIT 8 FT	1
-	892450K10	液压软管套件(10英尺)油缸至舵机	HOSE KIT (10 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167288	软管套件10FT	HOSE KIT 10 FT	1
-	892450K12	液压软管套件(12英尺)油缸至舵机	HOSE KIT (12 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167289	软管套件12FT	HOSE KIT 12 FT	1
-	892450K14	液压软管套件(14英尺)油缸至舵机	HOSE KIT (14 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167290	软管套件 14英尺	HOSE KIT 14 FT	1
-	892450K16	液压软管套件(16英尺)油缸至舵机	HOSE KIT (16 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167291	软管套件 16英尺	HOSE KIT 16 FT	1
-	892450K18	液压软管套件(18英尺)油缸至舵机	HOSE KIT (18 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167292	软管套件 18英尺	HOSE KIT 18 FT	1
-	892450K22	液压软管套件(22英尺)油缸至舵机	HOSE KIT (22 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167294	软管套件 22英尺	HOSE KIT 22 FT	1
-	892450K24	液压软管套件(24英尺)油缸至舵机	HOSE KIT (24 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167295	软管套件 24英尺	HOSE KIT 24 FT	1
-	892450K26	液压软管套件(26英尺)油缸至舵机	HOSE KIT (26 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167296	软管套件 26英尺	HOSE KIT 26 FT	1
-	892450K30	液压软管套件(30英尺)油缸至舵机	HOSE KIT (30 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167298	软管套件 30英尺	HOSE KIT 30 FT	1
-	892438K02	动力转向软管套件动力模块 (2英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (2 Feet) Hydraulic, Pump to Helm	1
-	8M0150604	泵至舱壁/舵机套件 2英尺	PUMP TO BULKHEAD/HELM KIT 2 Ft	1
-	892438K03	动力转向软管套件动力模块 (3英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (3 Feet) Hydraulic, Pump to Helm	1
-	8M0150605	泵至舱壁/舵机套件 3英尺	PUMP TO BULKHEAD/HELM KIT 3 Ft	1
-	892438K04	动力转向软管套件动力模块 (4英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (4 Feet) Hydraulic, Pump to Helm	1
-	8M0150606	泵至舱壁/舵机套件 4英尺	PUMP TO BULKHEAD/HELM KIT 4 Ft	1
-	892438K05	动力转向软管套件动力模块 (5英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (5 Feet) Hydraulic, Pump to Helm	1
-	8M0150607	泵至舱壁/舵机套件 5英尺	PUMP TO BULKHEAD/HELM KIT 5 Ft	1
-	892438K06	软管套件动力模块 (6英尺) 液压, 泵至舵机	HOSE KIT Power Module (6 Feet) Hydraulic, Pump to Helm	1
-	8M0150608	泵至舱壁/舵机套件 6英尺	PUMP TO BULKHEAD/HELM KIT 6 Ft	1
-	892438K07	软管套件动力模块 (7英尺) 液压, 泵至舵机	HOSE KIT Power Module (7 Feet) Hydraulic, Pump to Helm	1
-	8M0150610	泵至舱壁/舵机套件 7英尺	PUMP TO BULKHEAD/HELM KIT 7 Ft	1
-	892438K08	软管套件动力模块 (8英尺) 液压, 泵至舵机	HOSE KIT Power Module (8 Feet) Hydraulic, Pump to Helm	1
-	8M0150612	泵至舱壁/舵机套件 8英尺	PUMP TO BULKHEAD/HELM KIT 8 Ft	1
-	892438K10	动力转向软管套件动力模块 (10英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (10 Feet) Hydraulic, Pump to Helm	1
-	8M0150613	泵至舱壁/舵机套件 10英尺	PUMP TO BULKHEAD/HELM KIT 10 Ft	1
-	892438K12	动力转向软管套件动力模块 (12英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (12 Feet) Hydraulic, Pump to Helm	1
-	8M0150614	泵至舱壁/舵机套件 12英尺	PUMP TO BULKHEAD/HELM KIT 12 Ft	1
-	892438K14	动力转向软管套件动力模块 (14英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (14 Feet) Hydraulic, Pump to Helm	1
-	8M0150615	泵至舱壁/舵机套件 14英尺	PUMP TO BULKHEAD/HELM KIT 14 Ft	1
-	892438K16	动力转向软管套件动力模块 (16英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (16 Feet) Hydraulic, Pump to Helm	1
-	8M0150616	泵至舱壁/舵机套件 16英尺	PUMP TO BULKHEAD/HELM KIT 16 Ft	1
-	892438K18	动力转向软管套件动力模块 (18英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (18 Feet) Hydraulic, Pump to Helm	1
-	8M0150617	泵至舱壁/舵机套件 18英尺	PUMP TO BULKHEAD/HELM KIT 18 Ft	1
-	892438K20	动力转向软管套件动力模块 (20英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (20 Feet) Hydraulic, Pump to Helm	1
-	8M0150618	泵至舱壁/舵机套件 20英尺	PUMP TO BULKHEAD/HELM KIT 20 ft	1
-	892438K22	动力转向软管套件动力模块 (22英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (22 Feet) Hydraulic, Pump to Helm	1
-	8M0150619	泵至舱壁/舵机套件 22英尺	PUMP TO BULKHEAD/HELM KIT 22 FT	1
-	892438K24	动力转向软管套件动力模块 (24英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (24 Feet) Hydraulic, Pump to Helm	1
-	8M0150620	泵至舱壁/舵机套件 24英尺	PUMP TO BULKHEAD/HELM KIT 24 FT	1
-	892825008	液压软管 (8英尺) 舵机至压力罐	HOSE (8 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825010	液压软管 (10英尺) 舵机至压力罐	HOSE (10 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825012	液压软管 (12英尺) 舵机至压力罐	HOSE (12 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825014	液压软管 (14英尺) 舵机至压力罐	HOSE (14 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825016	液压软管 (16英尺) 舵机至压力罐	HOSE (16 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825018	液压软管 (18英尺) 舵机至压力罐	HOSE (18 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825020	液压软管 (20英尺) 舵机至压力罐	HOSE (20 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825022	液压软管 (22英尺) 舵机至压力罐	HOSE (22 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825024	液压软管 (24英尺) 舵机至压力罐	HOSE (24 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825026	液压软管 (26英尺) 舵机至压力罐	HOSE (26 Feet) Hydraulic, Helm to Pressure Tank	1
-	893395A01	嵌入式安装板	PLATE Flush Mount	1
-	875207	三通接头	TEE Fitting	1
-	892486K08	模拟转换套件	CONVERSION KIT Analog	1
-	889611K02	附件电源线束套件(30英尺)	HARNESS KIT Accessory Power (30 Feet)	1
-	899785K04	附件电源线束总成(30英尺)	HARNESS ASSEMBLY Accessory Power (30 Feet)	1
-	88334A2	防腐电极套件	MERCATHODE KIT	1
-	8M0180081	防腐电极套件	MERCATHODE KIT	1
-	825191A03	索具软管套件	HOSE KIT Rigging	1
-	880717A01	齿轮箱螺丝/密封套件	SCREW/SEAL KIT Gearcase	1
-	88439A50	电池电缆组	CABLE SET Battery	1
-	8M0210761	电池电缆组(12英尺)	CABLE SET (12 ft) Battery	1
-	44357Q2	冲洗附件	FLUSHING ATTACHMENT	1
-	44357T2	冲洗附件	FLUSHING ATTACHMENT	1
-	881150Q1	双进水口冲洗套件	FLUSH KIT Dual Water Pick Up	1
-	881150K1	双进水口冲洗密封套件	SEAL KIT Flush - Dual Water Pickup	1
-	897967100	燃油管路 (100.00英尺)	LINE Fuel (100.00 Feet)	1
-	8M0038563	燃油管路 (100.00英尺)	LINE Fuel (100.00 Feet)	1
-	899712A01	连续性电缆套件	CABLE KIT Continuity	1

图 26曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	891644A04	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	897498T01	主轴承-绿色(曲轴上端)	BEARING Main - Green Crankshaft-Upper	12/AR
2	897498T02	主轴承-海军蓝(曲轴上端)	BEARING Main - Navy Blue Crankshaft-Upper	12/AR
2	897498T03	主轴承-白色(曲轴上端)	BEARING Main - White Crankshaft-Upper	12/AR
2	897498T04	主轴承-橙色(曲轴上端)	BEARING Main - Orange Crankshaft-Upper	12/AR
3	892309T01	推力轴承-绿色(曲轴下端)	BEARING Thrust - Green Crankshaft-Lower	2/AR
3	8M0117003	轴承	BEARING	2/AR
3	892309T02	推力轴承-海军蓝(曲轴下端)	BEARING Thrust - Navy Blue Crankshaft-Lower	2/AR
3	8M0117001	轴承	BEARING	2/AR
3	892309T03	推力轴承-白色(曲轴下端)	BEARING Thrust - White Crankshaft-Lower	2/AR
3	8M0117002	轴承	BEARING	2/AR
3	892309T04	推力轴承-橙色(曲轴下端)	BEARING Thrust - Orange Crankshaft-Lower	2/AR
3	8M0117004	轴承	BEARING	2/AR
4	8805251	油封(主轴承顶部)	SEAL Top Main Bearing	1
4	8M0032912	密封件	SEAL	1
5	896883	隔套	SPACER	1
6	896882	挡圈	RING Retaining	1
7	91800	半圆键	KEY Woodruff	1
8	885348	飞轮螺栓盖	CAP Flywheel Bolt	1
9	897796	链条(凸轮轴驱动滚子链)	CHAIN Roller Cam Drive	1
9	8M0103398	链条(凸轮轴驱动滚子链)	CHAIN Roller Cam Drive	1
10	881210T02	连杆总成	CONNECTING ROD ASSEMBLY	6
10	8M0103285	连杆总成	CONNECTING ROD ASSEMBLY	6
11	884441	螺栓	BOLT	12
12	892005A01	连杆轴承-蓝色	BEARING Connecting Rod - Blue	12/AR
12	892005A02	连杆轴承-白色	BEARING Connecting Rod - White	12/AR
12	892005A03	连杆轴承-橙色	BEARING Connecting Rod - Orange	12/AR
13	897737T01	活塞总成	PISTON ASSEMBLY	6
13	897737A04	活塞/喷油嘴套件	PISTON/OILJET KIT	6
14	881180A02	活塞环组	RING SET Piston	6
15	NSS	活塞环-油环(不单独销售)	NOT SOLD SEPARATE Piston Ring-Oil	6
16	NSS	活塞环-第二道(不单独销售)	NOT SOLD SEPARATE Piston Ring-2nd	6
17	NSS	活塞销（不单独销售）	NOT SOLD SEPARATE Piston Pin	6
18	881184	卡簧	CIRCLIP	12
19	888983T02	飞轮	FLYWHEEL	1
19	888983T03	飞轮总成	FLYWHEEL ASSEMBLY	1
20	880515	螺栓(M20×68)	BOLT (M20 x 68)	1
20	8M0147042	螺栓	BOLT	1
21	880517	垫圈	WASHER	1
21	8M0090010	垫圈	WASHER	1
-	880552A06	动力头衬垫套件	GASKET SET Powerhead	1
-	880552A07	动力头衬垫套件	GASKET SET Powerhead	1
-	895247A06	动力头总成	POWERHEAD ASSEMBLY	1
-	895247R06	RM L6 GEN1 VERADO	RM L6 GEN1 VERADO	1

图 27线圈板总成 Coil Plate Assembly

REF	零件编号	中文名称	英文名称	数量
1	855432A1	盖板套件	COVER KIT	1
2	NSS	不单独销售弯头	NOT SOLD SEPARATE Elbow	1
3	8568431	直通接头	FITTING Straight STRAIGHT	1
4	19688	接头	FITTING	1
5	803878	密封件	SEAL	1
6	NSS	不单独销售泵出口配件包	NOT SOLD SEPARATE Fitting Kit-Pump Outlet	1
6	855437A2	泵出口接头套件	FITTING KIT Pump Outlet	1
7	NSS	O型圈（不单独销售）	NOT SOLD SEPARATE O Ring	1
8	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	7
9	855528	衬垫	GASKET	1
9	8M6002520	衬垫套件	GASKET KIT	1
10	855430A1	浮子套件	FLOAT KIT	1
10	8M6004920	浮子套件	FLOAT KIT	1
11	F10064	轴	SHAFT	1
12	855431	针阀	VALVE Needle	1
12	8M6004917	进气阀	VALVE-INLET	1
13	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
14	855427A1	泵套件	PUMP KIT	1
15	855428	套筒	SLEEVE	1
15	8M6000589	套筒	SLEEVE	1
16	855434A1	油杯套件	BOWL KIT	1
17	855433	密封件	SEAL	1
17	8554331	密封件	SEAL	1
18	855435A1	塞套件	PLUG KIT	1
19	8554245	弯头	ELBOW	2
20	18458A4	滤清器套件	FILTER KIT	1
20	18458Q4	燃油水分离滤清器	FILTER Fuel-Water Separating	1
21	828586	探头	PROBE	1
21	8M0204710	探头	PROBE	1

图 28气缸盖 CYLINDER HEAD

REF	零件编号	中文名称	英文名称	数量
1	852380A1	气缸盖	CYLINDER HEAD	1
1	852381A1	气缸盖	CYLINDER HEAD	1
1	852381T1	气缸盖	CYLINDER HEAD	1
2	8525203	衬垫	GASKET	2
3	832971	螺钉 (.375-16 x 3.00)	SCREW (.375-16 x 3.00)	24
4	74840	定位销	PIN Dowel	4
5	62386	衬垫	GASKET	2
5	8M0204714	衬垫@4	GASKET @4	2
6	8307371	盖板	COVER	2
6	8M0039353	盖板	COVER	2
7	833072	节温器 62°C（143°F）	THERMOSTAT 62° Celsius (143° Fahrenheit)	2
7	833072003	节温器 62°C (143°F)	THERMOSTAT 62°C (143°F)	2
8	82130025	螺钉(M6x25)	SCREW (M6 x 25)	4
9	687271	90度弯头 (.250-18) 黄铜(右舷)	FITTING (.250-18) 90 Degree - Brass (Starboard)	1
10	68728	接头(左舷)	FITTING (Port)	1
11	77653112	软管(59.00英寸整料)(21-1/2英寸)	HOSE (59.00 Inches Bulk) (21-1/2 IN.)	1
11	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
12	77653112	软管(59.00英寸散装)(11-1/2英寸)	HOSE (59.00 Inches Bulk) (11-1/2 IN.)	1
12	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
13	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	5
13	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	5
14	13536A14	温度传感器总成(右舷)	SENSOR ASSEMBLY Temperature (Starboard)	1
15	137151	固定座	RETAINER	1
16	81893412	螺钉（M8×12）	SCREW (M8 x 12)	1
-	814754A98	衬垫套件	GASKET SET	1
-	8M0046714	衬垫套件	GASKET SET	1
-	854008A98	动力头总成	POWERHEAD ASSEMBLY	1
-	804545T99	动力头总成	POWERHEAD ASSEMBLY	1

图 29齿轮箱（螺旋桨轴）（标准旋转） GEAR HOUSING (PROPSHAFT)(STANDARD ROTATION)

REF	零件编号	中文名称	英文名称	数量
1	831998A9	空气压缩机总成(参见空气压缩机部件分解图)	COMPRESSOR ASSEMBLY Air (SEE BREAKDOWN ON AIR COMPRESSOR COMPONENTS)	1
2	85593912	螺钉（M6 x 12）	SCREW (M6 x 12)	5
3	8328231	滑轮	PULLEY	1
3	8M0175171	滑轮	PULLEY	1
4	4010825	螺丝(M10 x 25)六角法兰-不锈钢	SCREW (M10 x 25) Hex Flange - Stainless Steel	2
5	8502511	软管	HOSE	1
5	8502512	软管	HOSE	1
6	85652329	绝缘套管(15英寸)	INSULATOR SLEEVE (15 IN.)	1
7	852379T5	燃油导轨	FUEL RAIL	1
7	852379T6	燃油导轨	FUEL RAIL	1
8	8500653	喷油器	INJECTOR	6
8	8M6001743	空气喷射器总成	INJECTOR ASSEMBLY Air	6
9	855697	卡箍(16.2)	CLAMP (16.2)	4
9	8M0204696	卡箍	CLAMP	4
10	85564361	软管(16英寸)	HOSE (16 IN.)	2
11	92345	螺柱	STUD	1
12	854640	特殊垫圈	WASHER Special	2
13	35814	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
13	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
14	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
14	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
15	852378T5	燃油导轨	FUEL RAIL	1
15	852378T6	燃油导轨	FUEL RAIL	1
16	830756109	软管(57.00英寸整料)(裁切至22-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 22-1/2 Inches)	1
16	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
17	826810	止回阀	CHECK VALVE	1
18	83075780	管材(28英寸整卷)(裁切为2-1/2英寸)	TUBING (28.00 Inches Bulk) (Cut to 2-1/2 Inches)	1
18	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
19	83476463	管材(32英寸整卷)(裁切为28-1/2英寸)	TUBING (32.00 Inches Bulk) (Cut to 28-1/2 Inches)	1
20	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	2
20	8M0214964	卡箍	CLAMP	2
21	85606064	管材(36英寸整卷)(28-1/2英寸)	TUBING (36.00 Inches Bulk) (28-1/2 IN.)	1
21	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
22	82104510	螺钉 (M5 x 10)	SCREW (M5 x 10)	4
23	46997	卡箍	CLAMP	4
24	852961	螺柱	STUD	4
24	8M0063255	双头螺栓M10x92	STUD M10x92	4
25	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	4
26	NSS	不单独销售软管(30英寸)	NOT SOLD SEPARATE Hose (30 IN.)	1
26	856822A3	软管(30英寸)	HOSE (30 IN.)	1
27	8558481	软管	HOSE	1
27	855848A1	软管	HOSE	1
28	828694A1	杯形垫片总成	WASHER ASSEMBLY Cupped	6
29	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	4
29	8M0214964	卡箍	CLAMP	4
30	85686953	套管(27英寸整卷)(裁切为18英寸)	SLEEVE (27.00 Inches Bulk) (Cut to 18 Inches)	1

图 30水管 Water Hoses

REF	零件编号	中文名称	英文名称	数量
-	892440A08	动力转向泵套件	PUMP KIT Power Steering Pump Kit	1
-	892440A09	动力转向泵套件	PUMP KIT Power Steering Pump Kit	1
-	8M0131263	动力转向泵套件(24英尺)	PUMP KIT Power Steering (24 Feet)	1
-	892380A02	标准转向舵机套件(40cc)	STEERING HELM KIT Standard (40 cc)	1
-	8M0240080	标准舵机套件40CM	HELM KIT-STD 40CM	1
-	892557A02	标准转向舵机套件(32cc)	STEERING HELM KIT Standard (32 cc)	1
-	8M0240079	标准舵机套件32CM	HELM KIT-STD 32CM	1
-	892558A02	标准转向舵机套件(50cc)	STEERING HELM KIT Standard (50 cc)	1
-	8M0240081	标准舵机套件50CM	HELM KIT-STD 50CM	1
-	892450K01	液压软管套件(1英尺)油缸至舵机	HOSE KIT (1 Foot) Hydraulic, Cylinder to Helm	1
-	897982K01	ORD 32-897982K02	ORD 32-897982K02	1
-	892450K02	液压软管套件(2英尺)油缸至舵机	HOSE KIT (2 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167281	软管套件2FT	HOSE KIT 2FT	1
-	892450K03	液压软管套件(3英尺)油缸至舵机	HOSE KIT (3 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167282	软管套件3FT	HOSE KIT 3 FT	1
-	892450K04	液压软管套件(4英尺)油缸至舵机	HOSE KIT (4 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167283	软管套件4FT	HOSE KIT 4 FT	1
-	892450K05	液压软管套件(5英尺)油缸至舵机	HOSE KIT (5 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167284	软管套件5FT	HOSE KIT 5 FT	1
-	892450K06	液压软管套件(6英尺)油缸至舵机	HOSE KIT (6 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167285	软管套件6FT	HOSE KIT 6 FT	1
-	892450K07	液压软管套件(7英尺)油缸至舵机	HOSE KIT (7 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167286	软管套件7FT	HOSE KIT 7 FT	1
-	892450K08	液压软管套件(8英尺)油缸至舵机	HOSE KIT (8 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167287	软管套件8FT	HOSE KIT 8 FT	1
-	892450K10	液压软管套件(10英尺)油缸至舵机	HOSE KIT (10 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167288	软管套件10FT	HOSE KIT 10 FT	1
-	892450K12	液压软管套件(12英尺)油缸至舵机	HOSE KIT (12 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167289	软管套件12FT	HOSE KIT 12 FT	1
-	892450K14	液压软管套件(14英尺)油缸至舵机	HOSE KIT (14 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167290	软管套件 14英尺	HOSE KIT 14 FT	1
-	892450K16	液压软管套件(16英尺)油缸至舵机	HOSE KIT (16 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167291	软管套件 16英尺	HOSE KIT 16 FT	1
-	892450K18	液压软管套件(18英尺)油缸至舵机	HOSE KIT (18 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167292	软管套件 18英尺	HOSE KIT 18 FT	1
-	892450K22	液压软管套件(22英尺)油缸至舵机	HOSE KIT (22 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167294	软管套件 22英尺	HOSE KIT 22 FT	1
-	892450K24	液压软管套件(24英尺)油缸至舵机	HOSE KIT (24 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167295	软管套件 24英尺	HOSE KIT 24 FT	1
-	892450K26	液压软管套件(26英尺)油缸至舵机	HOSE KIT (26 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167296	软管套件 26英尺	HOSE KIT 26 FT	1
-	892450K30	液压软管套件(30英尺)油缸至舵机	HOSE KIT (30 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167298	软管套件 30英尺	HOSE KIT 30 FT	1
-	892438K02	动力转向软管套件动力模块 (2英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (2 Feet) Hydraulic, Pump to Helm	1
-	8M0150604	泵至舱壁/舵机套件 2英尺	PUMP TO BULKHEAD/HELM KIT 2 Ft	1
-	892438K03	动力转向软管套件动力模块 (3英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (3 Feet) Hydraulic, Pump to Helm	1
-	8M0150605	泵至舱壁/舵机套件 3英尺	PUMP TO BULKHEAD/HELM KIT 3 Ft	1
-	892438K04	动力转向软管套件动力模块 (4英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (4 Feet) Hydraulic, Pump to Helm	1
-	8M0150606	泵至舱壁/舵机套件 4英尺	PUMP TO BULKHEAD/HELM KIT 4 Ft	1
-	892438K05	动力转向软管套件动力模块 (5英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (5 Feet) Hydraulic, Pump to Helm	1
-	8M0150607	泵至舱壁/舵机套件 5英尺	PUMP TO BULKHEAD/HELM KIT 5 Ft	1
-	892438K06	软管套件动力模块 (6英尺) 液压, 泵至舵机	HOSE KIT Power Module (6 Feet) Hydraulic, Pump to Helm	1
-	8M0150608	泵至舱壁/舵机套件 6英尺	PUMP TO BULKHEAD/HELM KIT 6 Ft	1
-	892438K07	软管套件动力模块 (7英尺) 液压, 泵至舵机	HOSE KIT Power Module (7 Feet) Hydraulic, Pump to Helm	1
-	8M0150610	泵至舱壁/舵机套件 7英尺	PUMP TO BULKHEAD/HELM KIT 7 Ft	1
-	892438K08	软管套件动力模块 (8英尺) 液压, 泵至舵机	HOSE KIT Power Module (8 Feet) Hydraulic, Pump to Helm	1
-	8M0150612	泵至舱壁/舵机套件 8英尺	PUMP TO BULKHEAD/HELM KIT 8 Ft	1
-	892438K10	动力转向软管套件动力模块 (10英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (10 Feet) Hydraulic, Pump to Helm	1
-	8M0150613	泵至舱壁/舵机套件 10英尺	PUMP TO BULKHEAD/HELM KIT 10 Ft	1
-	892438K12	动力转向软管套件动力模块 (12英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (12 Feet) Hydraulic, Pump to Helm	1
-	8M0150614	泵至舱壁/舵机套件 12英尺	PUMP TO BULKHEAD/HELM KIT 12 Ft	1
-	892438K14	动力转向软管套件动力模块 (14英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (14 Feet) Hydraulic, Pump to Helm	1
-	8M0150615	泵至舱壁/舵机套件 14英尺	PUMP TO BULKHEAD/HELM KIT 14 Ft	1
-	892438K16	动力转向软管套件动力模块 (16英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (16 Feet) Hydraulic, Pump to Helm	1
-	8M0150616	泵至舱壁/舵机套件 16英尺	PUMP TO BULKHEAD/HELM KIT 16 Ft	1
-	892438K18	动力转向软管套件动力模块 (18英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (18 Feet) Hydraulic, Pump to Helm	1
-	8M0150617	泵至舱壁/舵机套件 18英尺	PUMP TO BULKHEAD/HELM KIT 18 Ft	1
-	892438K20	动力转向软管套件动力模块 (20英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (20 Feet) Hydraulic, Pump to Helm	1
-	8M0150618	泵至舱壁/舵机套件 20英尺	PUMP TO BULKHEAD/HELM KIT 20 ft	1
-	892438K22	动力转向软管套件动力模块 (22英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (22 Feet) Hydraulic, Pump to Helm	1
-	8M0150619	泵至舱壁/舵机套件 22英尺	PUMP TO BULKHEAD/HELM KIT 22 FT	1
-	892438K24	动力转向软管套件动力模块 (24英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (24 Feet) Hydraulic, Pump to Helm	1
-	8M0150620	泵至舱壁/舵机套件 24英尺	PUMP TO BULKHEAD/HELM KIT 24 FT	1
-	892825008	液压软管 (8英尺) 舵机至压力罐	HOSE (8 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825010	液压软管 (10英尺) 舵机至压力罐	HOSE (10 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825012	液压软管 (12英尺) 舵机至压力罐	HOSE (12 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825014	液压软管 (14英尺) 舵机至压力罐	HOSE (14 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825016	液压软管 (16英尺) 舵机至压力罐	HOSE (16 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825018	液压软管 (18英尺) 舵机至压力罐	HOSE (18 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825020	液压软管 (20英尺) 舵机至压力罐	HOSE (20 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825022	液压软管 (22英尺) 舵机至压力罐	HOSE (22 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825024	液压软管 (24英尺) 舵机至压力罐	HOSE (24 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825026	液压软管 (26英尺) 舵机至压力罐	HOSE (26 Feet) Hydraulic, Helm to Pressure Tank	1
-	893395A01	嵌入式安装板	PLATE Flush Mount	1
-	875207	三通接头	TEE Fitting	1
-	892486K08	模拟转换套件	CONVERSION KIT Analog	1
-	889611K02	附件电源线束套件(30英尺)	HARNESS KIT Accessory Power (30 Feet)	1
-	899785K04	附件电源线束总成(30英尺)	HARNESS ASSEMBLY Accessory Power (30 Feet)	1
-	88334A2	防腐电极套件	MERCATHODE KIT	1
-	8M0180081	防腐电极套件	MERCATHODE KIT	1
-	825191A03	索具软管套件	HOSE KIT Rigging	1
-	880717A01	齿轮箱螺丝/密封套件	SCREW/SEAL KIT Gearcase	1
-	88439A50	电池电缆组	CABLE SET Battery	1
-	8M0210761	电池电缆组(12英尺)	CABLE SET (12 ft) Battery	1
-	44357Q2	冲洗附件	FLUSHING ATTACHMENT	1
-	44357T2	冲洗附件	FLUSHING ATTACHMENT	1
-	881150Q1	双进水口冲洗套件	FLUSH KIT Dual Water Pick Up	1
-	881150K1	双进水口冲洗密封套件	SEAL KIT Flush - Dual Water Pickup	1
-	897967100	燃油管路 (100.00英尺)	LINE Fuel (100.00 Feet)	1
-	8M0038563	燃油管路 (100.00英尺)	LINE Fuel (100.00 Feet)	1
-	899712A01	连续性电缆套件	CABLE KIT Continuity	1

图 31驱动轴壳体与排气管 DRIVESHAFT HOUSING AND EXHAUST TUBE

REF	零件编号	中文名称	英文名称	数量
1	8343A10	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8343T10	驱动轴壳体总成-黑色-长型	HOUSING ASSEMBLY Driveshaft - Black - Long	1
1	8343A11	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8343T11	ORD 1590-8343T10	ORD 1590-8343T10	1
1	813563A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	813563T1	传动轴壳体-黑色-加长型	HOUSING Driveshaft - Black - X-Long	1
1	813563A2	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	813563T2	ORD 3503-813563T1	ORD 3503-813563T1	1
2	56295	双头螺柱(.437 x 2.69)	STUD (.437 x 2.69)	2
3	63474	螺钉(.500-20 x 6.00)	SCREW (.500-20 x 6.00)	2
3	898831	螺钉(.500-20 x 6.220)	SCREW (.500-20 x 6.220)	2
4	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
5	77327	支架	MOUNT	2
6	49339	垫圈(.8125)	WASHER (.8125)	2
7	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
8	28040	螺母(.500-20)	NUT (.500-20)	2
8	898832	螺母(.500-20)	NUT (.500-20)	2
9	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
10	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
11	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
11	8M0204653	螺母	NUT	2
12	67076	卡箍	CLAMP	2
12	8M0036782	卡箍	CLAMP	2
13	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
14	67077T	黑色盖	COVER Black	2
14	8M4500752	盖板	COVER	2
14	67077F1	灰色盖板	COVER Gray	2
14	67077T	黑色盖	COVER Black	2
15	88417	螺钉(#12-24×0.620)	SCREW (#12-24 x .620)	4
16	35521	螺母	NUT	4
17	48926	垫圈	WASHER	1
18	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	1
18	8M0204653	螺母	NUT	1
19	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	4
20	69254	螺母	NUT	4
21	828212	怠速排气套	BOOT Idle Exhaust	1
21	8M0039081	护套	BOOT	1
22	64649	堵头	PLUG	1
23	991732	衬垫	GASKET	1
23	991734	衬垫	GASKET	1
24	66350	下密封件	SEAL (LOWER)	1
24	66350001	密封件	SEAL	1
25	18276	排气管	TUBE Exhaust	1
25	18276T	排气管	EXHAUST TUBE	1
26	177261	上密封件	SEAL (UPPER)	1
26	8M0039076	密封件	SEAL	1
27	812834	排气管延长段	EXTENSION Exhaust	1
27	812834A2	排气延长总成	EXTENSION ASSEMBLY Exhaust	1
27	41942F3	排气管延长段	EXTENSION Exhaust	1
27	879288T71	排气管延长段	EXTENSION Exhaust	1
28	67295	水管	TUBE Water	1
28	8M0042788	长型水管	TUBE-WATER-LONG	1
28	74729	管	TUBE	1
28	8M0042790	水管	TUBE-WATER	1
29	78246	衬垫	GASKET	1
29	782461	衬垫	GASKET	1
30	18233A6	隔板总成	PLATE ASSEMBLY	1
30	18233A20	传动轴壳体板总成	PLATE ASSEMBLY Driveshaft Housing	1
31	8147012	密封件	SEAL	1
31	8M0043165	密封件-27.00英寸	SEAL-27.00 INCH	1
32	68011	支架	BRACKET	1
33	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
33	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
34	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
35	38970	密封件	SEAL	1
36	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	6
37	39072	塞(1/8英寸黄铜)	PLUG (1/8 Inch Brass)	2
37	390721	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	2
38	183071	衬垫	GASKET	1
38	183076	衬垫	GASKET	1
-	814754A98	衬垫套件	GASKET SET	1
-	8M0046714	衬垫套件	GASKET SET	1

图 32防腐电极套件 Mercathode Kit

REF	零件编号	中文名称	英文名称	数量
1	88334A2	防腐电极套件	MERCATHODE KIT	1
1	8M0180081	防腐电极套件	MERCATHODE KIT	1
2	42600A09	防腐电极总成	MERCATHODE ASSEMBLY	1
3	22793	螺丝(#9-14x0.875)	SCREW (#9-14 x .875)	2
4	30164	垫圈(0.192x0.375x0.0312)不锈钢	WASHER (.192 x .375 x .0312) Stainless Steel	2
5	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	4
6	72958A5	电极总成	ELECTRODE ASSEMBLY	1
7	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
7	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
8	87698	螺丝(#10-16 x 1.250)不锈钢	SCREW (#10-16 x 1.250) Stainless Steel	2
9	72957A5	阳极总成	ANODE ASSEMBLY	1
9	8M0181304	阳极总成	ANODE ASSY	1
10	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
10	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
11	87698	螺丝(#10-16 x 1.250)不锈钢	SCREW (#10-16 x 1.250) Stainless Steel	2
12	79091	保险丝20安培	FUSE 20 Ampere	1
12	8M0207796	保险丝20安培	FUSE 20 AMP	1
13	95084A10	电缆总成(5.00英寸)红色	CABLE ASSEMBLY (5.00 Inches) Red	1
13	8M0207788	拉线总成	CABLE ASSEMBLY	1
14	95084A13	电缆总成(64.00英寸)	CABLE ASSEMBLY (64.00 Inches)	1
15	79138A8	电缆总成(72.00英寸)黑色	CABLE ASSEMBLY (72.00 Inches) Black	1

图 33气缸体与端盖 CYLINDER BLOCK AND END CAPS

REF	零件编号	中文名称	英文名称	数量
1	828340A5	气缸体	CYLINDER BLOCK	1
2	8181383	动力头螺柱（1-3/4英寸）	STUD Powerhead (1-3/4 IN.)	6
2	8M0034455	螺柱1.750	STUD 1.750	6
3	670653	双头螺柱（0.375×5.620英寸，5-1/2英寸）	STUD (.375 x 5.620) (5-1/2 IN.)	2
3	670654	螺柱(.375-16/.375-24 x 5.620)	STUD (.375-16/.375-24 x 5.620)	2
3	784384	双头螺栓(.375 x 6.870)(6-3/4英寸)	STUD (.375 x 6.870) (6-3/4 IN.)	2
3	8M0034454	螺柱(.375-16/.375-24 x 6.87)	STUD (.375-16/.375-24 x 6.87)	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	销(轴承座圈)	PIN (BEARING RACE)	2
5	8M0036405	销	PIN	2
6	11338	衬垫	GASKET	2
7	384071	接头(1/2-14)	FITTING (1/2-14) (1/2-14)	1
8	426231	止回阀	CHECK VALVE	1
8	426233	止回阀	CHECK VALVE	1
9	426981	止回阀	CHECK VALVE	1
9	426982	止回阀	CHECK VALVE	1
10	99130122	管材(20英尺整卷)(裁切为19英寸)	TUBING (20.00 Feet Bulk) (Cut to 19 Inches)	1
10	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
11	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	10
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	10
12	852760	直通接头	FITTING (STRAIGHT)	2
13	855622	弯头接头	FITTING (ELBOW)	1
14	8267611	弯头	ELBOW (ELBOW)	3
15	85583445	管材(16英寸)	TUBING (16 IN.)	2
15	85583464	管材 (34.00英寸整卷)	TUBING (34.00 Inches Bulk)	2
15	85583445	管材(20英寸)	TUBING (20 IN.)	1
15	85583464	管材 (34.00英寸整卷)	TUBING (34.00 Inches Bulk)	1
16	85606064	管材(36.00英寸整料)(24-1/2英寸)	TUBING (36.00 Inches Bulk) (24-1/2 IN.)	3
16	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	3
17	828547753	导管(.750内径x3.00英尺整料)(裁切至7英寸)	CONDUIT (.750 Inside Diameter x 3.00 Feet Bulk) (Cut to 7 Inches)	1
18	432781	止回阀	CHECK VALVE	1
18	8781051	止回阀	CHECK VALVE	1
19	830756109	软管(57.00英寸整料)(裁切至11-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 11-1/2 Inches)	1
19	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
20	822769	连接器	CONNECTOR	1
21	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	6
22	66717	螺钉(.375-16 x 3.250)	SCREW (.375-16 x 3.250)	8
23	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	6
24	26852	尼龙帽	CAP Nylon	1
25	856832	螺丝 (.250-20 x 1.750)	SCREW (.250-20 x 1.750)	1
26	64015	螺母 (.250-20)	NUT (.250-20)	1
27	832760A1	上端盖总成	END CAP ASSEMBLY Upper	1
27	832760T1	端盖总成	END CAP ASSEMBLY	1
28	54029	O型圈(2.800 x .103)	O-RING (2.800 x .103)	1
29	16756A4	轴承套件	BEARING KIT	1
30	NSS	不单独销售轴承座圈	NOT SOLD SEPARATE Bearing Race	1
31	41953	密封件	SEAL	1
32	69034	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW AND LOCKWASHER (.312-18 x 1.00)	4
32	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	4
33	7809A1	端盖总成	END CAP ASSEMBLY	1
33	7809T1	端盖总成	END CAP ASSEMBLY	1
34	62700	O型圈(3.237 x .103)	O-RING (3.237 x .103)	1
35	41953	密封件	SEAL	2
36	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
37	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
38	853882	支架	BRACKET	1
38	8538821	节气门位置指示器安装支架	BRACKET Throttle Position Indicator Mount	1
39	8519371	节气门位置指示器杠杆	LEVER Throttle Position Indicator	1
40	82130025	螺钉(M6x25)	SCREW (M6 x 25)	3
41	8318701	衬套	BUSHING	6
42	834985	护孔环	GROMMET	3
42	8M0190980	护孔环	GROMMET	3
43	8M6005905	节气门位置指示器(内侧)	INDICATOR Throttle Position (Inside)	1
44	850882	隔套	SPACER	1
45	8329522	节气门位置指示器(外侧)	INDICATOR Throttle Position (Outside)	1
45	8M6005166	TPI	TPI	1
46	850828	螺钉(#10-32 X 2-3/4英寸)	SCREW (#10-32 X 2-3/4 IN.)	3
47	1938541	油门连杆	LINK Throttle	1
47	8M0084738	连杆总成	LINK ASSY	1
48	NSS	不单独销售序列号塞	NOT SOLD SEPARATE Plug-Serial Number	1
49	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
49	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
-	814754A98	衬垫套件	GASKET SET	1
-	8M0046714	衬垫套件	GASKET SET	1
-	854008A98	动力头总成	POWERHEAD ASSEMBLY	1
-	804545T99	动力头总成	POWERHEAD ASSEMBLY	1

图 34电气板总成序列号1B490866及以上 Electrical Plate Assembly Serial Number 1B490866 and Up

REF	零件编号	中文名称	英文名称	数量
1	855432A1	盖板套件	COVER KIT	1
2	NSS	不单独销售弯头	NOT SOLD SEPARATE Elbow	1
3	8568431	直通接头	FITTING Straight STRAIGHT	1
4	19688	接头	FITTING	1
5	803878	密封件	SEAL	1
6	NSS	不单独销售泵出口配件包	NOT SOLD SEPARATE Fitting Kit-Pump Outlet	1
6	855437A2	泵出口接头套件	FITTING KIT Pump Outlet	1
7	NSS	O型圈（不单独销售）	NOT SOLD SEPARATE O Ring	1
8	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	7
9	855528	衬垫	GASKET	1
9	8M6002520	衬垫套件	GASKET KIT	1
10	855430A1	浮子套件	FLOAT KIT	1
10	8M6004920	浮子套件	FLOAT KIT	1
11	F10064	轴	SHAFT	1
12	855431	针阀	VALVE Needle	1
12	8M6004917	进气阀	VALVE-INLET	1
13	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
14	855427A1	泵套件	PUMP KIT	1
15	855428	套筒	SLEEVE	1
15	8M6000589	套筒	SLEEVE	1
16	855434A1	油杯套件	BOWL KIT	1
17	855433	密封件	SEAL	1
17	8554331	密封件	SEAL	1
18	855435A1	塞套件	PLUG KIT	1
19	8554245	弯头	ELBOW	2
20	18458A4	滤清器套件	FILTER KIT	1
20	18458Q4	燃油水分离滤清器	FILTER Fuel-Water Separating	1
21	828586	探头	PROBE	1
21	8M0204710	探头	PROBE	1

图 35齿轮箱（驱动轴）（标准/反向旋转） Gear Housing (Driveshaft)(Standard/Counter Rotation)

REF	零件编号	中文名称	英文名称	数量
0	880686T13	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	880686T14	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	8M0236256	GC L6 4S XL	GC L6 4S XL	1
0	880686T16	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	8M0236259	GC L6 4S XXL	GC L6 4S XXL	1
0	880686T18	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	880686T15	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	8M0236258	GC L6 4S CXL	GC L6 4S CXL	1
0	880686T17	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	8M0236260	GC L6 4S CXXL	GC L6 4S CXXL	1
1	880687T01	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	8M0056631	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	821526001	填充块	FILLER BLOCK	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	826134Q	阳极块	ANODE	1
5	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
6	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
7	79953A04	塞组件(.375-16×.250)	PLUG ASSEMBLY (.375-16 x .250)	1
8	830749	密封件	SEAL	1
8	8M0204693	放油螺塞密封件	SEAL Drain Plug	1
9	76214T5	阳极套件	ANODE KIT	1
9	76214Q5	阳极套件	ANODE KIT	1
10	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
10	8M0204686	螺钉	SCREW	1
11	85944975	管材(72英寸整卷)裁切7英寸(按需使用)	TUBING (72.00 Inches Bulk) Cut to 7 Inches (Use where Applicable)	1
11	85944975	管材(72英寸整卷)裁切12英寸(按需使用)	TUBING (72.00 Inches Bulk) Cut to 12 Inches (Use where Applicable)	1
11	85944975	管材(72英寸整卷)裁切17英寸(按需使用)	TUBING (72.00 Inches Bulk) Cut to 17 Inches (Use where Applicable)	1
12	881866	接头	FITTING	1
13	880703A1	盖总成	COVER ASSEMBLY	1
13	8M0047129	盖总成	COVER ASSEMBLY	1
14	8164641	油封	SEAL Oil	1
14	8M0246145	油封	OIL SEAL	1
15	896522	O型圈(799×.103)	O-RING (799 x .103)	1
16	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	4
16	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	4
17	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
18	880729	衬垫	GASKET	1
19	824145	换档轴	SHIFT SHAFT	1
20	NSS	不单独销售小齿轮13齿	NOT SOLD SEPARATE Pinion Gear 13 Teeth	1
21	35921	螺母(0.625-18)	NUT (.625-18)	1
22	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
23	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
24	888572	驱动轴	DRIVESHAFT	1
24	888573	驱动轴	DRIVESHAFT	1
24	888574	驱动轴	DRIVESHAFT	1
25	884327A02	垫片/轴承组件	SHIM/BEARING ASSEMBLY	1
26	38657A1	垫片组	SHIM ASSEMBLY	AR
26	8M0063268	垫片组	SHIM SET	AR
27	NSS	不单独销售滚子轴承组件	NOT SOLD SEPARATE Roller Bearing Assembly	1
28	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
29	NSS	不单独销售滚子轴承组件	NOT SOLD SEPARATE Roller Bearing Assembly	1
30	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
31	8245191	固定座	RETAINER	1
32	817275A09	水泵壳体-总成	HOUSING Water Pump-Complete	1
33	861415A1	密封套件	SEAL KIT	1
34	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	4
34	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	4
35	43026T2	叶轮	IMPELLER	1
36	8172761	面板	FACEPLATE	1
36	8M0204709	面板	FACEPLATE	1
37	880719	挡圈	RING Retaining	1
38	888909A1	油封座组件	CARRIER ASSEMBLY Oil Seal	1
38	8M0007131	油封座组件	CARRIER ASSEMBLY Oil Seal	1
39	896523	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
39	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
40	NSS	不单独销售油封	NOT SOLD SEPARATE Oil Seal	1
41	NSS	不单独销售油封	NOT SOLD SEPARATE Oil Seal	1
42	43037	键	KEY	1
42	8M0204723	键	KEY	1
43	8172771	水泵上垫片	GASKET Water Pump, Upper	1
44	430331	衬垫	GASKET	1
45	43585	联轴器	COUPLING	1
-	830749A01	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	43026Q06	水泵叶轮维修套件	REPAIR KIT Water Pump Impeller	1
-	8M0100526	水泵叶轮维修套件	REPAIR KIT Water Impeller	1
-	817275A08	水泵上修包	REPAIR KIT Water Pump-Upper	1

图 36空气压缩机组件 AIR COMPRESSOR COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	831998A9	空气压缩机总成	COMPRESSOR ASSEMBLY Air	1
1	8M0060053	空气压缩机总成	COMPRESSOR ASSEMBLY Air	1
2	828131A4	端盖总成	END CAP ASSEMBLY	1
2	8M0050792	端盖总成	END CAP ASSEMBLY	1
3	NSS	非单独销售挡圈	NOT SOLD SEPARATE Retaining Ring	1
4	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	4
5	89224	O型圈	O-RING	1
6	832804	O型圈（2.739 x 0.070）	O-RING (2.739 x .070)	1
7	833146A3	连杆总成	CONNECTING ROD ASSEMBLY	1
7	833146T06	连杆总成	CONNECTING ROD ASSEMBLY	1
8	828222A4	活塞总成	PISTON ASSEMBLY	1
9	8348101	锁环	RING Lock	2
10	835088A10	簧片阀板总成	REED PLATE ASSEMBLY	1
11	67207	O型圈（3.489 x 0.070）	O-RING (3.489 x .070)	2
12	832804	O型圈（2.739 x 0.070）	O-RING (2.739 x .070)	1
13	828225	密封件	SEAL	1
14	8350871	气缸盖压缩机	HEAD Compressor	1
14	835087A3	压缩机缸盖总成	HEAD ASSEMBLY Compressor	1
15	8307532	直通接头	FITTING Straight	1
16	81893435	螺钉(M8×35)	SCREW (M8 x 35)	4
16	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
17	15133	接头	FITTING	1
18	14868	接头	FITTING	2
19	39072	塞(1/8英寸黄铜)	PLUG (1/8 Inch Brass)	1
19	390721	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
20	16604	直通接头（0.125-27）	FITTING Straight (.125-27)	1
21	13536A12	温度传感器总成	SENSOR ASSEMBLY Temperature	1
22	137151	固定座	RETAINER	1
23	81893412	螺钉（M8×12）	SCREW (M8 x 12)	1
24	831985	O型圈（0.468 x 0.078）	O-RING (.468 x .078)	1
25	8567441	接头	FITTING	1
25	856744	接头	FITTING	1
26	39072	塞(1/8英寸黄铜)	PLUG (1/8 Inch Brass)	1
26	390721	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
27	835454	直通接头	FITTING Straight	1
28	NSS	标贴(不单独销售)	NOT SOLD SEPARATE Decal	1
29	855349	护孔环	GROMMET	1
29	855349002	护孔环	GROMMET	1
-	832804A1	O型圈套件	O-RING KIT	1
-	832804A03	O型圈套件	O-RING KIT	1

图 37空气处理器/飞轮盖 Air Handler/Flywheel Cover

REF	零件编号	中文名称	英文名称	数量
1	855432A1	盖板套件	COVER KIT	1
2	NSS	不单独销售弯头	NOT SOLD SEPARATE Elbow	1
3	8568431	直通接头	FITTING Straight STRAIGHT	1
4	19688	接头	FITTING	1
5	803878	密封件	SEAL	1
6	NSS	不单独销售泵出口配件包	NOT SOLD SEPARATE Fitting Kit-Pump Outlet	1
6	855437A2	泵出口接头套件	FITTING KIT Pump Outlet	1
7	NSS	O型圈（不单独销售）	NOT SOLD SEPARATE O Ring	1
8	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	7
9	855528	衬垫	GASKET	1
9	8M6002520	衬垫套件	GASKET KIT	1
10	855430A1	浮子套件	FLOAT KIT	1
10	8M6004920	浮子套件	FLOAT KIT	1
11	F10064	轴	SHAFT	1
12	855431	针阀	VALVE Needle	1
12	8M6004917	进气阀	VALVE-INLET	1
13	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
14	855427A1	泵套件	PUMP KIT	1
15	855428	套筒	SLEEVE	1
15	8M6000589	套筒	SLEEVE	1
16	855434A1	油杯套件	BOWL KIT	1
17	855433	密封件	SEAL	1
17	8554331	密封件	SEAL	1
18	855435A1	塞套件	PLUG KIT	1
19	8554245	弯头	ELBOW	2
20	18458A4	滤清器套件	FILTER KIT	1
20	18458Q4	燃油水分离滤清器	FILTER Fuel-Water Separating	1
21	828586	探头	PROBE	1
21	8M0204710	探头	PROBE	1

图 38线圈板总成 COIL PLATE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	834814A1	下机罩	BOTTOM COWL	1
1	834814A2	下机罩	BOTTOM COWL	1
2	834815A1	下机罩	BOTTOM COWL	1
2	8M0107322	机罩-底部右舷	COWL-BOTTOM, STBD	1
2	834815A2	下机罩	BOTTOM COWL	1
3	8253181	罩盖密封条(41英寸)	SEAL Cowl (41.00 Inches)	2
3	8M0109217	罩盖密封条	SEAL-COWL	2
4	822024	卡箍	CLAMP	1
5	822023	卡箍	CLAMP	1
6	92799	螺钉(#10-16x1.12)	SCREW (#10-16 x 1.12)	2
7	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	4
8	831209	固定座	RETAINER	1
9	821908	堵头	PLUG	1
10	821915	垫圈	WASHER	1
11	821963	止回阀	CHECK VALVE	1
11	8219631	止回阀	CHECK VALVE	1
12	30641	O型圈(0.299x0.103)	O-RING (.299 x .103)	1
13	821952	接头	FITTING	1
14	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
14	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
15	8320782	软管	HOSE	1
15	8M0039077	成型软管	HOSE-MOLDED	1
16	850896	卡箍 (28.6)	CLAMP (28.6)	2
17	8320763	接头	FITTING	1
18	821904	示流器接头	FITTING Tell-Tale	1
18	8M0077650	示流器接头	FITTING Tell-Tale	1
19	828216	怠速排气套	IDLE EXHAUST BOOT Exhaust	1
19	889847	怠速排气套	BOOT Idle Exhaust	1
20	817519A1	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	2
21	850691	开关	SWITCH	1
21	8M0235192	微调开关	SWITCH TRIM	1
22	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
23	821253F1	前手柄黑色	FRONT HANDLE Black	1
23	889740A02	手柄套件	HANDLE KIT	1
23	821253F2	前手柄	FRONT HANDLE	1
23	889740A02	手柄套件	HANDLE KIT	1
24	335891	衬套	BUSHING	2
25	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
26	8219423	棘爪	PAWL	1
27	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	1
28	401196	螺母 (M6)	NUT (M6)	1
29	8214281	螺钉(#10-16x0.625)	SCREW (#10-16 x .625)	1
30	822873	卡扣	CLIP	1

图 39线圈板总成序列号1B490866及以上 Coil Plate Assembly Serial Number 1B490866 and Up

REF	零件编号	中文名称	英文名称	数量
1	855432A1	盖板套件	COVER KIT	1
2	NSS	不单独销售弯头	NOT SOLD SEPARATE Elbow	1
3	8568431	直通接头	FITTING Straight STRAIGHT	1
4	19688	接头	FITTING	1
5	803878	密封件	SEAL	1
6	NSS	不单独销售泵出口配件包	NOT SOLD SEPARATE Fitting Kit-Pump Outlet	1
6	855437A2	泵出口接头套件	FITTING KIT Pump Outlet	1
7	NSS	O型圈（不单独销售）	NOT SOLD SEPARATE O Ring	1
8	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	7
9	855528	衬垫	GASKET	1
9	8M6002520	衬垫套件	GASKET KIT	1
10	855430A1	浮子套件	FLOAT KIT	1
10	8M6004920	浮子套件	FLOAT KIT	1
11	F10064	轴	SHAFT	1
12	855431	针阀	VALVE Needle	1
12	8M6004917	进气阀	VALVE-INLET	1
13	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
14	855427A1	泵套件	PUMP KIT	1
15	855428	套筒	SLEEVE	1
15	8M6000589	套筒	SLEEVE	1
16	855434A1	油杯套件	BOWL KIT	1
17	855433	密封件	SEAL	1
17	8554331	密封件	SEAL	1
18	855435A1	塞套件	PLUG KIT	1
19	8554245	弯头	ELBOW	2
20	18458A4	滤清器套件	FILTER KIT	1
20	18458Q4	燃油水分离滤清器	FILTER Fuel-Water Separating	1
21	828586	探头	PROBE	1
21	8M0204710	探头	PROBE	1

图 40空气处理器组件 Air Handler Components

REF	零件编号	中文名称	英文名称	数量
-	855633A4	空气处理器总成	AIR HANDLER ASSEMBLY	1
-	855633A15	空气处理器总成	AIR HANDLER ASSEMBLY	1
1	855420T02	适配板套件	ADAPTER PLATE KIT	1
2	146973	衬垫	GASKET	1
3	850058	衬垫	GASKET	1
3	8500581	衬垫	GASKET	1
4	116455	簧片阀组	REED BLOCK	6
4	855952T2	簧片阀组	REED BLOCK	6
5	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	12
6	855762	油泵	PUMP Oil	1
6	855884P1	油泵	PUMP Oil	1
7	8565421	衬垫	GASKET	1
8	8552841	支架	BRACKET	1
9	855424	接头	FITTING	3
10	8554241	接头	FITTING	3
11	8554246	接头	FITTING	1
11	892267T02	蒸汽分离器总成	VAPOR SEPARATOR ASSEMBLY	1
12	8554248	接头(直通)	FITTING (STRIAGHT)	1
13	855364	衬套	BUSHING	6
14	855362	护孔环	GROMMET	6
14	855362001	护孔环	GROMMET	6
15	81893440	螺钉 (M8 x 40)	SCREW (M8 x 40)	6
16	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	6
17	850248A1	空气集气室套件	PLENUM KIT Air	1
18	8554242	弯头	ELBOW	1
19	8554249	弯头	ELBOW	1
19	15133	接头	FITTING	1
20	850058	衬垫	GASKET	1
20	8500581	衬垫	GASKET	1
21	13221A1	温度传感器总成	SENSOR ASSEMBLY Temperature	1
21	13221T01	温度传感器	SENSOR TEMP	1
22	4005685	螺钉（M4×10）	SCREW (M4 x 10)	3
23	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	3
24	4001987	螺钉(M4×16)	SCREW (M4 x 16)	12
25	855422A1	节气门体套件	THROTTLE BODY KIT	1
26	855423	O型圈	O-RING	1
27	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	4

图 41齿轮箱（驱动轴）（反向旋转） GEAR HOUSING (DRIVESHAFT)(COUNTER ROTATION)

REF	零件编号	中文名称	英文名称	数量
1	831998A9	空气压缩机总成(参见空气压缩机部件分解图)	COMPRESSOR ASSEMBLY Air (SEE BREAKDOWN ON AIR COMPRESSOR COMPONENTS)	1
2	85593912	螺钉（M6 x 12）	SCREW (M6 x 12)	5
3	8328231	滑轮	PULLEY	1
3	8M0175171	滑轮	PULLEY	1
4	4010825	螺丝(M10 x 25)六角法兰-不锈钢	SCREW (M10 x 25) Hex Flange - Stainless Steel	2
5	8502511	软管	HOSE	1
5	8502512	软管	HOSE	1
6	85652329	绝缘套管(15英寸)	INSULATOR SLEEVE (15 IN.)	1
7	852379T5	燃油导轨	FUEL RAIL	1
7	852379T6	燃油导轨	FUEL RAIL	1
8	8500653	喷油器	INJECTOR	6
8	8M6001743	空气喷射器总成	INJECTOR ASSEMBLY Air	6
9	855697	卡箍(16.2)	CLAMP (16.2)	4
9	8M0204696	卡箍	CLAMP	4
10	85564361	软管(16英寸)	HOSE (16 IN.)	2
11	92345	螺柱	STUD	1
12	854640	特殊垫圈	WASHER Special	2
13	35814	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
13	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
14	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
14	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
15	852378T5	燃油导轨	FUEL RAIL	1
15	852378T6	燃油导轨	FUEL RAIL	1
16	830756109	软管(57.00英寸整料)(裁切至22-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 22-1/2 Inches)	1
16	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
17	826810	止回阀	CHECK VALVE	1
18	83075780	管材(28英寸整卷)(裁切为2-1/2英寸)	TUBING (28.00 Inches Bulk) (Cut to 2-1/2 Inches)	1
18	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
19	83476463	管材(32英寸整卷)(裁切为28-1/2英寸)	TUBING (32.00 Inches Bulk) (Cut to 28-1/2 Inches)	1
20	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	2
20	8M0214964	卡箍	CLAMP	2
21	85606064	管材(36英寸整卷)(28-1/2英寸)	TUBING (36.00 Inches Bulk) (28-1/2 IN.)	1
21	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
22	82104510	螺钉 (M5 x 10)	SCREW (M5 x 10)	4
23	46997	卡箍	CLAMP	4
24	852961	螺柱	STUD	4
24	8M0063255	双头螺栓M10x92	STUD M10x92	4
25	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	4
26	NSS	不单独销售软管(30英寸)	NOT SOLD SEPARATE Hose (30 IN.)	1
26	856822A3	软管(30英寸)	HOSE (30 IN.)	1
27	8558481	软管	HOSE	1
27	855848A1	软管	HOSE	1
28	828694A1	杯形垫片总成	WASHER ASSEMBLY Cupped	6
29	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	4
29	8M0214964	卡箍	CLAMP	4
30	85686953	套管(27英寸整卷)(裁切为18英寸)	SLEEVE (27.00 Inches Bulk) (Cut to 18 Inches)	1

图 42蒸汽分离器组件 VAPOR SEPARATOR COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	855432A1	盖板套件	COVER KIT	1
2	NSS	不单独销售弯头	NOT SOLD SEPARATE Elbow	1
3	8568431	直通接头	FITTING Straight STRAIGHT	1
4	19688	接头	FITTING	1
5	803878	密封件	SEAL	1
6	NSS	不单独销售泵出口配件包	NOT SOLD SEPARATE Fitting Kit-Pump Outlet	1
6	855437A2	泵出口接头套件	FITTING KIT Pump Outlet	1
7	NSS	O型圈（不单独销售）	NOT SOLD SEPARATE O Ring	1
8	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	7
9	855528	衬垫	GASKET	1
9	8M6002520	衬垫套件	GASKET KIT	1
10	855430A1	浮子套件	FLOAT KIT	1
10	8M6004920	浮子套件	FLOAT KIT	1
11	F10064	轴	SHAFT	1
12	855431	针阀	VALVE Needle	1
12	8M6004917	进气阀	VALVE-INLET	1
13	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
14	855427A1	泵套件	PUMP KIT	1
15	855428	套筒	SLEEVE	1
15	8M6000589	套筒	SLEEVE	1
16	855434A1	油杯套件	BOWL KIT	1
17	855433	密封件	SEAL	1
17	8554331	密封件	SEAL	1
18	855435A1	塞套件	PLUG KIT	1
19	8554245	弯头	ELBOW	2
20	18458A4	滤清器套件	FILTER KIT	1
20	18458Q4	燃油水分离滤清器	FILTER Fuel-Water Separating	1
21	828586	探头	PROBE	1
21	8M0204710	探头	PROBE	1

图 43曲轴、活塞及连杆 CRANKSHAFT PISTONS AND CONNECTING RODS

REF	零件编号	中文名称	英文名称	数量
1	834814A1	下机罩	BOTTOM COWL	1
1	834814A2	下机罩	BOTTOM COWL	1
2	834815A1	下机罩	BOTTOM COWL	1
2	8M0107322	机罩-底部右舷	COWL-BOTTOM, STBD	1
2	834815A2	下机罩	BOTTOM COWL	1
3	8253181	罩盖密封条(41英寸)	SEAL Cowl (41.00 Inches)	2
3	8M0109217	罩盖密封条	SEAL-COWL	2
4	822024	卡箍	CLAMP	1
5	822023	卡箍	CLAMP	1
6	92799	螺钉(#10-16x1.12)	SCREW (#10-16 x 1.12)	2
7	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	4
8	831209	固定座	RETAINER	1
9	821908	堵头	PLUG	1
10	821915	垫圈	WASHER	1
11	821963	止回阀	CHECK VALVE	1
11	8219631	止回阀	CHECK VALVE	1
12	30641	O型圈(0.299x0.103)	O-RING (.299 x .103)	1
13	821952	接头	FITTING	1
14	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
14	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
15	8320782	软管	HOSE	1
15	8M0039077	成型软管	HOSE-MOLDED	1
16	850896	卡箍 (28.6)	CLAMP (28.6)	2
17	8320763	接头	FITTING	1
18	821904	示流器接头	FITTING Tell-Tale	1
18	8M0077650	示流器接头	FITTING Tell-Tale	1
19	828216	怠速排气套	IDLE EXHAUST BOOT Exhaust	1
19	889847	怠速排气套	BOOT Idle Exhaust	1
20	817519A1	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	2
21	850691	开关	SWITCH	1
21	8M0235192	微调开关	SWITCH TRIM	1
22	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
23	821253F1	前手柄黑色	FRONT HANDLE Black	1
23	889740A02	手柄套件	HANDLE KIT	1
23	821253F2	前手柄	FRONT HANDLE	1
23	889740A02	手柄套件	HANDLE KIT	1
24	335891	衬套	BUSHING	2
25	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
26	8219423	棘爪	PAWL	1
27	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	1
28	401196	螺母 (M6)	NUT (M6)	1
29	8214281	螺钉(#10-16x0.625)	SCREW (#10-16 x .625)	1
30	822873	卡扣	CLIP	1

图 44动力升降电机(可拆卸泵壳) POWER TRIM MOTOR (REMOVABLE PUMP HOUSING)

REF	零件编号	中文名称	英文名称	数量
1	12335A1	支架套件	BRACKET KIT	1
2	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1
3	87421	油箱	TANK	1
4	43298A2	盖总成	CAP ASSEMBLY	1
5	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
6	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
7	816190A3	外壳总成适配器	HOUSING ASSEMBLY Adapter	1
7	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
8	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
9	99802	管	TUBE	1
10	99439	软管(114.00英寸)	HOSE (114.00 Inches)	1
11	833069A3	油箱总成	RESERVOIR ASSEMBLY Oil	1
11	8M0062954	储油罐	RESERVOIR, OIL	1
12	NSS	不单独销售标签-储液罐	NOT SOLD SEPARATE Decal-Reservoir	1
13	855362	护孔环	GROMMET	3
13	855362001	护孔环	GROMMET	3
14	49436	垫圈	WASHER	3
15	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
16	855364	衬套	BUSHING	3
17	69267	螺钉 (.312-18 x 1.750)	SCREW (.312-18 x 1.750)	2
18	833155	护孔环	GROMMET	2
19	8502341	衬套	BUSHING	2
20	82381455	管材(25英寸整卷)(裁切为20英寸)	TUBING (25.00 Inches Bulk) (Cut to 20 Inches)	1
21	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
21	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
22	12886A8	开关	SWITCH	1
23	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
24	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
25	8260841	隔套	SPACER	1
26	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	7
26	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	7
27	NSS	不单独销售塞	NOT SOLD SEPARATE Plug	1
28	424254	接头	FITTING	1
28	8M0207780	接头	FITTING	1
29	830756109	软管(57.00英寸散装)(裁切至6英寸)	HOSE (57.00 Inches Bulk) (Cut to 6 Inches)	1
29	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
30	855785	燃油冷却器	COOLER Fuel	1
30	855785A1	燃油冷却器总成	COOLER ASSEMBLY Fuel	1
31	855761	止回阀	CHECK VALVE	1
31	8557611	止回阀	CHECK VALVE	1
32	13791	卡箍(15.7)	CLAMP (15.7)	4
32	8M0214911	卡箍@5	CLAMP @5	4
33	85682239	管材(17英寸整卷)(裁切为3英寸)	TUBING (17.00 Inches Bulk) (Cut to 3 Inches)	1
34	856822A3	软管(带绝缘套管)(30英寸)	HOSE (W/INSULATING SLEEVE) (30 IN.)	1

图 45油门杆与换挡轴 THROTTLE LEVER AND SHIFT SHAFT

REF	零件编号	中文名称	英文名称	数量
1	850389	杠杆	LEVER	1
2	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
3	55164	衬套	BUSHING	1
4	74759	垫圈(0.391x0.880x0.125)不锈钢	WASHER (.391 x .880 x .125) Stainless Steel	1
5	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	1
6	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
7	64015	螺母 (.250-20)	NUT (.250-20)	1
8	26852	尼龙帽	CAP Nylon	1
9	42927	嵌件	INSERT	1
10	35459	垫圈	WASHER	1
11	8268336	螺母 (M6)	NUT (M6)	1
11	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
12	8503931	凸轮	CAM	1
12	856221A1	凸轮套件	CAM KIT	1
13	852970	衬套	BUSHING	1
14	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	1
15	932481	衬套	BUSHING	2
15	8M0215006	旋转衬套	BUSHING Swivel	2
16	8235694	螺纹球头	BALL Threaded	1
17	850815	连接杆	LINK	1
17	8508152	杆	ROD	1
18	67748	滚轮	ROLLER	1
19	850286	油门滚轮	ROLLER Throttle	1
19	8502861	杠杆	LEVER	1
20	40056107	螺钉(M5×16)	SCREW (M5 x 16)	1
21	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	1
22	69432	外锁紧垫圈(#10)	LOCKWASHER External (#10)	1
23	8142831	锚支架	BRACKET Anchor	1
23	814283T6	锚支架总成	BRACKET ASSEMBLY Anchor	1
24	98889	闩锁	LATCH	1
25	42975	传动螺钉	DRIVE SCREW	2
26	39519	杯套	CUP	1
27	52100	耐磨板	WEAR PLATE	1
28	38279	闩锁	LATCH	1
28	8M0036768	闩锁	LATCH	1
29	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
30	35045	螺母(.250-28)	NUT (.250-28)	1
30	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
31	28782	螺钉(.312-18 x .880)不锈钢	SCREW (.312-18 x .880) Stainless Steel	3
32	814284	导向块	GUIDE BLOCK	1
33	20099	弹簧	SPRING	1
34	67073A1	连杆总成	LINK ROD ASSEMBLY	1
35	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
35	79932A17	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
36	NSS	弹性销(不单独销售)	NOT SOLD SEPARATE Roll Pin	1
37	NSS	不单独销售-换挡轴上杆	NOT SOLD SEPARATE Shift Shaft Lever-Upper	1
38	26856	衬套	BUSHING	1
39	29720	波形垫圈	WAVE WASHER	1
40	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
41	35045	螺母(.250-28)	NUT (.250-28)	1
41	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
42	814281A2	开关	SWITCH	1
42	8M0052931	开关	SWITCH	1
43	77478	螺钉 (#6-32 x .875)	SCREW (#6-32 x .875)	2
44	27882	垫圈	WASHER	2

图 46气缸体与端盖 Cylinder Block and End Caps

REF	零件编号	中文名称	英文名称	数量
1	828340A5	气缸体	CYLINDER BLOCK	1
1	828340A14	气缸体	CYLINDER BLOCK	1
2	8181383	动力头螺柱（1-3/4英寸）	STUD Powerhead (1-3/4 IN.)	6
2	8M0034455	螺柱1.750	STUD 1.750	6
3	670653	双头螺柱（0.375×5.620英寸，5-1/2英寸）	STUD (.375 x 5.620) (5-1/2 IN.)	2
3	670654	螺柱(.375-16/.375-24 x 5.620)	STUD (.375-16/.375-24 x 5.620)	2
3	784384	双头螺栓(.375 x 6.870)(6-3/4英寸)	STUD (.375 x 6.870) (6-3/4 IN.)	2
3	8M0034454	螺柱(.375-16/.375-24 x 6.87)	STUD (.375-16/.375-24 x 6.87)	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	销(轴承座圈)	PIN (BEARING RACE)	2
5	8M0036405	销	PIN	2
6	11338	衬垫	GASKET	2
7	384071	接头(1/2-14)	FITTING (1/2-14) (1/2-14)	1
8	426231	止回阀	CHECK VALVE	1
8	426233	止回阀	CHECK VALVE	1
9	426981	止回阀	CHECK VALVE	1
9	426982	止回阀	CHECK VALVE	1
10	99130122	管材(20英尺整卷)(裁切为19英寸)	TUBING (20.00 Feet Bulk) (Cut to 19 Inches)	1
10	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
11	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	10
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	10
12	852760	直通接头	FITTING (STRAIGHT)	2
13	855622	弯头接头	FITTING (ELBOW)	1
14	8267611	弯头	ELBOW (ELBOW)	3
15	85583445	管材(16英寸)	TUBING (16 IN.)	2
15	85583464	管材 (34.00英寸整卷)	TUBING (34.00 Inches Bulk)	2
15	85583445	管材(20英寸)	TUBING (20 IN.)	1
15	85583464	管材 (34.00英寸整卷)	TUBING (34.00 Inches Bulk)	1
16	85606064	管材(36.00英寸整料)(24-1/2英寸)	TUBING (36.00 Inches Bulk) (24-1/2 IN.)	3
16	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	3
17	828547753	导管(.750内径x3.00英尺整料)(裁切至7英寸)	CONDUIT (.750 Inside Diameter x 3.00 Feet Bulk) (Cut to 7 Inches)	1
18	432781	止回阀	CHECK VALVE	1
18	8781051	止回阀	CHECK VALVE	1
19	830756109	软管(57.00英寸整料)(裁切至11-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 11-1/2 Inches)	1
19	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
20	822769	连接器	CONNECTOR	1
21	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	6
22	66717	螺钉(.375-16 x 3.250)	SCREW (.375-16 x 3.250)	8
23	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	6
24	26852	尼龙帽	CAP Nylon	1
25	856832	螺丝 (.250-20 x 1.750)	SCREW (.250-20 x 1.750)	1
26	64015	螺母 (.250-20)	NUT (.250-20)	1
27	832760A1	上端盖总成	END CAP ASSEMBLY Upper	1
27	832760T1	端盖总成	END CAP ASSEMBLY	1
28	54029	O型圈(2.800 x .103)	O-RING (2.800 x .103)	1
29	16756A4	轴承套件	BEARING KIT	1
30	NSS	不单独销售轴承座圈	NOT SOLD SEPARATE Bearing Race	1
31	41953	密封件	SEAL	1
32	69034	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW AND LOCKWASHER (.312-18 x 1.00)	4
32	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	4
33	7809A1	端盖总成	END CAP ASSEMBLY	1
33	7809T1	端盖总成	END CAP ASSEMBLY	1
34	62700	O型圈(3.237 x .103)	O-RING (3.237 x .103)	1
35	41953	密封件	SEAL	2
36	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
37	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
38	853882	支架	BRACKET	1
38	8538821	节气门位置指示器安装支架	BRACKET Throttle Position Indicator Mount	1
39	8519371	节气门位置指示器杠杆	LEVER Throttle Position Indicator	1
40	82130025	螺钉(M6x25)	SCREW (M6 x 25)	3
41	8318701	衬套	BUSHING	6
42	834985	护孔环	GROMMET	3
42	8M0190980	护孔环	GROMMET	3
43	8M6005905	节气门位置指示器(内侧)	INDICATOR Throttle Position (Inside)	1
44	850882	隔套	SPACER	1
45	8329522	节气门位置指示器(外侧)	INDICATOR Throttle Position (Outside)	1
45	8M6005166	TPI	TPI	1
46	850828	螺钉(#10-32 X 2-3/4英寸)	SCREW (#10-32 X 2-3/4 IN.)	3
47	1938541	油门连杆	LINK Throttle	1
47	8M0084738	连杆总成	LINK ASSY	1
48	NSS	不单独销售序列号塞	NOT SOLD SEPARATE Plug-Serial Number	1
49	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
49	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
-	814754A98	衬垫套件	GASKET SET	1
-	8M0046714	衬垫套件	GASKET SET	1
-	854008A98	动力头总成	POWERHEAD ASSEMBLY	1
-	804545T99	动力头总成	POWERHEAD ASSEMBLY	1

图 47空气压缩机组件 SN 1B884880及以下 Air Compressor Components SN 1B884880 and below

REF	零件编号	中文名称	英文名称	数量
1	855432A1	盖板套件	COVER KIT	1
2	NSS	不单独销售弯头	NOT SOLD SEPARATE Elbow	1
3	8568431	直通接头	FITTING Straight STRAIGHT	1
4	19688	接头	FITTING	1
5	803878	密封件	SEAL	1
6	NSS	不单独销售泵出口配件包	NOT SOLD SEPARATE Fitting Kit-Pump Outlet	1
6	855437A2	泵出口接头套件	FITTING KIT Pump Outlet	1
7	NSS	O型圈（不单独销售）	NOT SOLD SEPARATE O Ring	1
8	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	7
9	855528	衬垫	GASKET	1
9	8M6002520	衬垫套件	GASKET KIT	1
10	855430A1	浮子套件	FLOAT KIT	1
10	8M6004920	浮子套件	FLOAT KIT	1
11	F10064	轴	SHAFT	1
12	855431	针阀	VALVE Needle	1
12	8M6004917	进气阀	VALVE-INLET	1
13	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
14	855427A1	泵套件	PUMP KIT	1
15	855428	套筒	SLEEVE	1
15	8M6000589	套筒	SLEEVE	1
16	855434A1	油杯套件	BOWL KIT	1
17	855433	密封件	SEAL	1
17	8554331	密封件	SEAL	1
18	855435A1	塞套件	PLUG KIT	1
19	8554245	弯头	ELBOW	2
20	18458A4	滤清器套件	FILTER KIT	1
20	18458Q4	燃油水分离滤清器	FILTER Fuel-Water Separating	1
21	828586	探头	PROBE	1
21	8M0204710	探头	PROBE	1

图 48动力升降组件(可拆卸泵壳)金属电机壳体 POWER TRIM COMPONENTS (REMOVABLE PUMP HOUSING) Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
1	12335A1	支架套件	BRACKET KIT	1
2	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1
3	87421	油箱	TANK	1
4	43298A2	盖总成	CAP ASSEMBLY	1
5	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
6	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
7	816190A3	外壳总成适配器	HOUSING ASSEMBLY Adapter	1
7	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
8	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
9	99802	管	TUBE	1
10	99439	软管(114.00英寸)	HOSE (114.00 Inches)	1
11	833069A3	油箱总成	RESERVOIR ASSEMBLY Oil	1
11	8M0062954	储油罐	RESERVOIR, OIL	1
12	NSS	不单独销售标签-储液罐	NOT SOLD SEPARATE Decal-Reservoir	1
13	855362	护孔环	GROMMET	3
13	855362001	护孔环	GROMMET	3
14	49436	垫圈	WASHER	3
15	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
16	855364	衬套	BUSHING	3
17	69267	螺钉 (.312-18 x 1.750)	SCREW (.312-18 x 1.750)	2
18	833155	护孔环	GROMMET	2
19	8502341	衬套	BUSHING	2
20	82381455	管材(25英寸整卷)(裁切为20英寸)	TUBING (25.00 Inches Bulk) (Cut to 20 Inches)	1
21	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
21	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
22	12886A8	开关	SWITCH	1
23	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
24	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
25	8260841	隔套	SPACER	1
26	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	7
26	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	7
27	NSS	不单独销售塞	NOT SOLD SEPARATE Plug	1
28	424254	接头	FITTING	1
28	8M0207780	接头	FITTING	1
29	830756109	软管(57.00英寸散装)(裁切至6英寸)	HOSE (57.00 Inches Bulk) (Cut to 6 Inches)	1
29	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
30	855785	燃油冷却器	COOLER Fuel	1
30	855785A1	燃油冷却器总成	COOLER ASSEMBLY Fuel	1
31	855761	止回阀	CHECK VALVE	1
31	8557611	止回阀	CHECK VALVE	1
32	13791	卡箍(15.7)	CLAMP (15.7)	4
32	8M0214911	卡箍@5	CLAMP @5	4
33	85682239	管材(17英寸整卷)(裁切为3英寸)	TUBING (17.00 Inches Bulk) (Cut to 3 Inches)	1
34	856822A3	软管(带绝缘套管)(30英寸)	HOSE (W/INSULATING SLEEVE) (30 IN.)	1

图 49旋转支架与转向臂 Swivel Bracket and Steering Arm

REF	零件编号	中文名称	英文名称	数量
1	8710A20	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8710A21	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8710T21	灰色旋转支架总成	SWIVEL BRACKET ASSEMBLY Gray	1
2	33504	O型圈	O-RING	1
2	8M0214926	O型圈 @10	O RING @10	1
3	818764	衬套	BUSHING	2
4	816039	隔套	SPACER	1
5	87735	油封(下)	SEAL Oil (LOWER)	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	816432	止推垫片	THRUST WASHER	1
9	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
9	878182T	轭架底部-不锈钢	YOKE Bottom - Stainless Steel	1
9	86580A2	底部轭架总成	YOKE ASSEMBLY Bottom	1
9	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
10	67684	挡圈	RING Retaining	1
11	996301	冲击板	STRIKER PLATE	2
11	8M0045383	冲击板	STRIKER PLATE	2
12	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
13	46335	螺母 (.375-24)	NUT (.375-24)	2
14	64014	螺钉(0.250-28x0.500)(1/4-28x1/2英寸)	SCREW (.250-28 x .500) (1/4-28 X 1/2 IN.)	2
15	NSS	不单独销售-序列号覆膜标贴	NOT SOLD SEPARATE Decal-Serial Overlaminate	1
16	821180A6	调整传感器总成	SENDER ASSEMBLY Trim	1
16	8M0074846	ORDER 8M0098273	ORDER 8M0098273	1
17	852368	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
18	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
19	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
20	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
20	826432A2	转向臂旋转销总成-不锈钢	SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel	1
20	67706A56	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
20	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
21	78689	螺钉(0.437-20x7.50)(7/16-20x7-1/2英寸)	SCREW (.437-20 x 7.50) (7/16-20 X 7-1/2 IN.)	2
21	8M0176309	螺钉	SCREW	2
22	888821	缓冲垫	BUMPER	1
22	8M0000516	上轭缓冲垫	BUMPER Top Yoke	1
23	77326	支架	MOUNT	2
24	66921	垫圈	WASHER	2
25	814432	垫圈	WASHER	2
25	78688	垫圈	WASHER	2
26	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
26	8M0204653	螺母	NUT	2
27	92876A1	转向连杆总成	LINK ASSEMBLY Steering	1
27	92876A12	连杆总成	LINK ROD ASSEMBLY	1
28	14000	螺钉(0.375-24x1.25)(3/8-24x1-1/4英寸)	SCREW (.375-24 x 1.25) (3/8-24 X 1-1/4 IN.)	1
28	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
29	34863	螺母 (.375-24)	NUT (.375-24)	2
29	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
30	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
31	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
31	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

图 50空气处理器组件 AIR HANDLER COMPONENTS

REF	零件编号	中文名称	英文名称	数量
-	855633A4	空气处理器总成	AIR HANDLER ASSEMBLY	1
1	855420T02	适配板套件	ADAPTER PLATE KIT	1
2	146973	衬垫	GASKET	1
3	850058	衬垫	GASKET	1
3	8500581	衬垫	GASKET	1
4	116455	簧片阀组	REED BLOCK	6
4	855952T2	簧片阀组	REED BLOCK	6
5	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	12
6	855762	油泵	PUMP Oil	1
6	855884P1	油泵	PUMP Oil	1
7	8565421	衬垫	GASKET	1
8	8552841	支架	BRACKET	1
9	855424	接头	FITTING	3
10	8554241	接头	FITTING	3
11	8554246	接头	FITTING	1
11	892267T02	蒸汽分离器总成	VAPOR SEPARATOR ASSEMBLY	1
12	8554248	接头(直通)	FITTING (STRIAGHT)	1
13	855364	衬套	BUSHING	6
14	855362	护孔环	GROMMET	6
14	855362001	护孔环	GROMMET	6
15	81893440	螺钉 (M8 x 40)	SCREW (M8 x 40)	6
16	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	6
17	850248A1	空气集气室套件	PLENUM KIT Air	1
18	8554242	弯头	ELBOW	1
19	8554249	弯头	ELBOW	1
19	15133	接头	FITTING	1
20	850058	衬垫	GASKET	1
20	8500581	衬垫	GASKET	1
21	13221A1	温度传感器总成	SENSOR ASSEMBLY Temperature	1
21	13221T01	温度传感器	SENSOR TEMP	1
22	4005685	螺钉（M4×10）	SCREW (M4 x 10)	3
23	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	3
24	4001987	螺钉(M4×16)	SCREW (M4 x 16)	12
25	855422A1	节气门体套件	THROTTLE BODY KIT	1
26	855423	O型圈	O-RING	1
27	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	4

图 51水管 WATER HOSES

REF	零件编号	中文名称	英文名称	数量
1	855432A1	盖板套件	COVER KIT	1
2	NSS	不单独销售弯头	NOT SOLD SEPARATE Elbow	1
3	8568431	直通接头	FITTING Straight STRAIGHT	1
4	19688	接头	FITTING	1
5	803878	密封件	SEAL	1
6	NSS	不单独销售泵出口配件包	NOT SOLD SEPARATE Fitting Kit-Pump Outlet	1
6	855437A2	泵出口接头套件	FITTING KIT Pump Outlet	1
7	NSS	O型圈（不单独销售）	NOT SOLD SEPARATE O Ring	1
8	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	7
9	855528	衬垫	GASKET	1
9	8M6002520	衬垫套件	GASKET KIT	1
10	855430A1	浮子套件	FLOAT KIT	1
10	8M6004920	浮子套件	FLOAT KIT	1
11	F10064	轴	SHAFT	1
12	855431	针阀	VALVE Needle	1
12	8M6004917	进气阀	VALVE-INLET	1
13	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
14	855427A1	泵套件	PUMP KIT	1
15	855428	套筒	SLEEVE	1
15	8M6000589	套筒	SLEEVE	1
16	855434A1	油杯套件	BOWL KIT	1
17	855433	密封件	SEAL	1
17	8554331	密封件	SEAL	1
18	855435A1	塞套件	PLUG KIT	1
19	8554245	弯头	ELBOW	2
20	18458A4	滤清器套件	FILTER KIT	1
20	18458Q4	燃油水分离滤清器	FILTER Fuel-Water Separating	1
21	828586	探头	PROBE	1
21	8M0204710	探头	PROBE	1

图 52附件 ACCESSORIES

REF	零件编号	中文名称	英文名称	数量
-	8M0080199	动力转向泵套件(4英尺)	PUMP KIT Power Steering (4 Feet)	1
-	8M0080200	动力转向泵套件(12英尺)	PUMP KIT Power Steering (12 Feet)	1
-	8M0131262	动力转向泵套件(12英尺)	PUMP KIT Power Steering (12 Feet)	1
-	8M0080201	动力转向泵套件(24英尺)	PUMP KIT Power Steering (24 Feet)	1
-	8M0131263	动力转向泵套件(24英尺)	PUMP KIT Power Steering (24 Feet)	1
-	892380A02	标准转向舵机套件(40cc)	STEERING HELM KIT Standard (40 cc)	1
-	8M0240080	标准舵机套件40CM	HELM KIT-STD 40CM	1
-	892557A02	标准转向舵机套件(32cc)	STEERING HELM KIT Standard (32 cc)	1
-	8M0240079	标准舵机套件32CM	HELM KIT-STD 32CM	1
-	892558A02	标准转向舵机套件(50cc)	STEERING HELM KIT Standard (50 cc)	1
-	8M0240081	标准舵机套件50CM	HELM KIT-STD 50CM	1
-	8M0046914	液压软管套件(2英尺)油缸至舵机	HOSE KIT Hydraulic (2 Feet) Cylinder to Helm	1
-	8M0167281	软管套件2FT	HOSE KIT 2FT	1
-	8M0046915	液压软管套件(3英尺)油缸至舵机	HOSE KIT Hydraulic (3 Feet) Cylinder to Helm	1
-	8M0167282	软管套件3FT	HOSE KIT 3 FT	1
-	8M0046916	液压软管套件(4英尺)油缸至舵机	HOSE KIT Hydraulic (4 Feet) Cylinder to Helm	1
-	8M0167283	软管套件4FT	HOSE KIT 4 FT	1
-	8M0046917	液压软管套件(5英尺)油缸至舵机	HOSE KIT Hydraulic (5 Feet) Cylinder to Helm	1
-	8M0167284	软管套件5FT	HOSE KIT 5 FT	1
-	8M0046918	液压软管套件(6英尺)油缸至舵机	HOSE KIT Hydraulic (6 Feet) Cylinder to Helm	1
-	8M0167285	软管套件6FT	HOSE KIT 6 FT	1
-	8M0046919	液压软管套件(7英尺)油缸至舵机	HOSE KIT Hydraulic (7 Feet) Cylinder to Helm	1
-	8M0167286	软管套件7FT	HOSE KIT 7 FT	1
-	8M0046920	液压软管套件(8英尺)油缸至舵机	HOSE KIT Hydraulic (8 Feet) Cylinder to Helm	1
-	8M0167287	软管套件8FT	HOSE KIT 8 FT	1
-	8M0046921	液压软管套件(10英尺)油缸至舵机	HOSE KIT Hydraulic (10 Feet) Cylinder to Helm	1
-	8M0167288	软管套件10FT	HOSE KIT 10 FT	1
-	8M0046922	液压软管套件(12英尺)油缸至舵机	HOSE KIT Hydraulic (12 Feet) Cylinder to Helm	1
-	8M0167289	软管套件12FT	HOSE KIT 12 FT	1
-	8M0046923	液压软管套件(14英尺)油缸至舵机	HOSE KIT Hydraulic (14 Feet) Cylinder to Helm	1
-	8M0167290	软管套件 14英尺	HOSE KIT 14 FT	1
-	8M0046924	液压软管套件 (16英尺) 油缸至舵机	HOSE KIT Hydraulic (16 Feet) Cylinder to Helm	1
-	8M0167291	软管套件 16英尺	HOSE KIT 16 FT	1
-	8M0046925	液压软管套件 (18英尺) 油缸至舵机	HOSE KIT Hydraulic (18 Feet) Cylinder to Helm	1
-	8M0167292	软管套件 18英尺	HOSE KIT 18 FT	1
-	8M0046927	液压软管套件 (22英尺) 油缸至舵机	HOSE KIT Hydraulic (22 Feet) Cylinder to Helm	1
-	8M0167294	软管套件 22英尺	HOSE KIT 22 FT	1
-	8M0046928	液压软管套件 (24英尺) 油缸至舵机	HOSE KIT Hydraulic (24 Feet) Cylinder to Helm	1
-	8M0167295	软管套件 24英尺	HOSE KIT 24 FT	1
-	8M0046929	液压软管套件 (26英尺) 油缸至舵机	HOSE KIT Hydraulic (26 Feet) Cylinder to Helm	1
-	8M0167296	软管套件 26英尺	HOSE KIT 26 FT	1
-	8M0046931	液压软管套件 (30英尺) 油缸至舵机	HOSE KIT Hydraulic (30 Feet) Cylinder to Helm	1
-	8M0167298	软管套件 30英尺	HOSE KIT 30 FT	1
-	892438K02	动力转向软管套件动力模块 (2英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (2 Feet) Hydraulic, Pump to Helm	1
-	8M0150604	泵至舱壁/舵机套件 2英尺	PUMP TO BULKHEAD/HELM KIT 2 Ft	1
-	892438K03	动力转向软管套件动力模块 (3英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (3 Feet) Hydraulic, Pump to Helm	1
-	8M0150605	泵至舱壁/舵机套件 3英尺	PUMP TO BULKHEAD/HELM KIT 3 Ft	1
-	892438K04	动力转向软管套件动力模块 (4英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (4 Feet) Hydraulic, Pump to Helm	1
-	8M0150606	泵至舱壁/舵机套件 4英尺	PUMP TO BULKHEAD/HELM KIT 4 Ft	1
-	892438K05	动力转向软管套件动力模块 (5英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (5 Feet) Hydraulic, Pump to Helm	1
-	8M0150607	泵至舱壁/舵机套件 5英尺	PUMP TO BULKHEAD/HELM KIT 5 Ft	1
-	892438K06	软管套件动力模块 (6英尺) 液压, 泵至舵机	HOSE KIT Power Module (6 Feet) Hydraulic, Pump to Helm	1
-	8M0150608	泵至舱壁/舵机套件 6英尺	PUMP TO BULKHEAD/HELM KIT 6 Ft	1
-	892438K07	软管套件动力模块 (7英尺) 液压, 泵至舵机	HOSE KIT Power Module (7 Feet) Hydraulic, Pump to Helm	1
-	8M0150610	泵至舱壁/舵机套件 7英尺	PUMP TO BULKHEAD/HELM KIT 7 Ft	1
-	892438K08	软管套件动力模块 (8英尺) 液压, 泵至舵机	HOSE KIT Power Module (8 Feet) Hydraulic, Pump to Helm	1
-	8M0150612	泵至舱壁/舵机套件 8英尺	PUMP TO BULKHEAD/HELM KIT 8 Ft	1
-	892438K10	动力转向软管套件动力模块 (10英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (10 Feet) Hydraulic, Pump to Helm	1
-	8M0150613	泵至舱壁/舵机套件 10英尺	PUMP TO BULKHEAD/HELM KIT 10 Ft	1
-	892438K12	动力转向软管套件动力模块 (12英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (12 Feet) Hydraulic, Pump to Helm	1
-	8M0150614	泵至舱壁/舵机套件 12英尺	PUMP TO BULKHEAD/HELM KIT 12 Ft	1
-	892438K14	动力转向软管套件动力模块 (14英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (14 Feet) Hydraulic, Pump to Helm	1
-	8M0150615	泵至舱壁/舵机套件 14英尺	PUMP TO BULKHEAD/HELM KIT 14 Ft	1
-	892438K16	动力转向软管套件动力模块 (16英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (16 Feet) Hydraulic, Pump to Helm	1
-	8M0150616	泵至舱壁/舵机套件 16英尺	PUMP TO BULKHEAD/HELM KIT 16 Ft	1
-	892438K18	动力转向软管套件动力模块 (18英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (18 Feet) Hydraulic, Pump to Helm	1
-	8M0150617	泵至舱壁/舵机套件 18英尺	PUMP TO BULKHEAD/HELM KIT 18 Ft	1
-	892438K20	动力转向软管套件动力模块 (20英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (20 Feet) Hydraulic, Pump to Helm	1
-	8M0150618	泵至舱壁/舵机套件 20英尺	PUMP TO BULKHEAD/HELM KIT 20 ft	1
-	892438K22	动力转向软管套件动力模块 (22英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (22 Feet) Hydraulic, Pump to Helm	1
-	8M0150619	泵至舱壁/舵机套件 22英尺	PUMP TO BULKHEAD/HELM KIT 22 FT	1
-	892438K24	动力转向软管套件动力模块 (24英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (24 Feet) Hydraulic, Pump to Helm	1
-	8M0150620	泵至舱壁/舵机套件 24英尺	PUMP TO BULKHEAD/HELM KIT 24 FT	1
-	892825008	液压软管 (8英尺) 舵机至压力罐	HOSE (8 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825010	液压软管 (10英尺) 舵机至压力罐	HOSE (10 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825012	液压软管 (12英尺) 舵机至压力罐	HOSE (12 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825014	液压软管 (14英尺) 舵机至压力罐	HOSE (14 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825016	液压软管 (16英尺) 舵机至压力罐	HOSE (16 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825018	液压软管 (18英尺) 舵机至压力罐	HOSE (18 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825020	液压软管 (20英尺) 舵机至压力罐	HOSE (20 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825022	液压软管 (22英尺) 舵机至压力罐	HOSE (22 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825024	液压软管 (24英尺) 舵机至压力罐	HOSE (24 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825026	液压软管 (26英尺) 舵机至压力罐	HOSE (26 Feet) Hydraulic, Helm to Pressure Tank	1
-	893395A01	嵌入式安装板	PLATE Flush Mount	1
-	875207	三通接头	TEE Fitting	1
-	892486K08	模拟转换套件	CONVERSION KIT Analog	1
-	899785K04	附件电源线束总成(30英尺)	HARNESS ASSEMBLY Accessory Power (30 Feet)	1
-	88334A2	防腐电极套件	MERCATHODE KIT	1
-	8M0180081	防腐电极套件	MERCATHODE KIT	1
-	825191A03	索具软管套件	HOSE KIT Rigging	1
-	880717A01	齿轮箱螺丝/密封套件	SCREW/SEAL KIT Gearcase	1
-	88439A50	电池电缆组	CABLE SET Battery	1
-	8M0210761	电池电缆组(12英尺)	CABLE SET (12 ft) Battery	1
-	44357Q2	冲洗附件	FLUSHING ATTACHMENT	1
-	881150Q1	双进水口冲洗套件	FLUSH KIT Dual Water Pick Up	1
-	8M0038563	燃油管路 (100.00英尺)	LINE Fuel (100.00 Feet)	1
-	899712A01	连续性电缆套件	CABLE KIT Continuity	1
-	8M0052924	尾鳍	SKEG	1
-	8M0052921	水道堵塞套件	PLUG KIT Water Passage	1
-	8M0075876	发动机冲洗适配器套件	ENGINE FLUSH ADAPTER KIT	1
-	8M0079968	泵排水套件升级包	PUMP DRAIN KIT Upgrade kit	1

图 53齿轮箱（螺旋桨轴）（反向旋转） GEAR HOUSING (PROPSHAFT)(COUNTER ROTATION)

REF	零件编号	中文名称	英文名称	数量
1	831998A9	空气压缩机总成(参见空气压缩机部件分解图)	COMPRESSOR ASSEMBLY Air (SEE BREAKDOWN ON AIR COMPRESSOR COMPONENTS)	1
2	85593912	螺钉（M6 x 12）	SCREW (M6 x 12)	5
3	8328231	滑轮	PULLEY	1
3	8M0175171	滑轮	PULLEY	1
4	4010825	螺丝(M10 x 25)六角法兰-不锈钢	SCREW (M10 x 25) Hex Flange - Stainless Steel	2
5	8502511	软管	HOSE	1
5	8502512	软管	HOSE	1
6	85652329	绝缘套管(15英寸)	INSULATOR SLEEVE (15 IN.)	1
7	852379T5	燃油导轨	FUEL RAIL	1
7	852379T6	燃油导轨	FUEL RAIL	1
8	8500653	喷油器	INJECTOR	6
8	8M6001743	空气喷射器总成	INJECTOR ASSEMBLY Air	6
9	855697	卡箍(16.2)	CLAMP (16.2)	4
9	8M0204696	卡箍	CLAMP	4
10	85564361	软管(16英寸)	HOSE (16 IN.)	2
11	92345	螺柱	STUD	1
12	854640	特殊垫圈	WASHER Special	2
13	35814	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
13	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
14	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
14	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
15	852378T5	燃油导轨	FUEL RAIL	1
15	852378T6	燃油导轨	FUEL RAIL	1
16	830756109	软管(57.00英寸整料)(裁切至22-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 22-1/2 Inches)	1
16	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
17	826810	止回阀	CHECK VALVE	1
18	83075780	管材(28英寸整卷)(裁切为2-1/2英寸)	TUBING (28.00 Inches Bulk) (Cut to 2-1/2 Inches)	1
18	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
19	83476463	管材(32英寸整卷)(裁切为28-1/2英寸)	TUBING (32.00 Inches Bulk) (Cut to 28-1/2 Inches)	1
20	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	2
20	8M0214964	卡箍	CLAMP	2
21	85606064	管材(36英寸整卷)(28-1/2英寸)	TUBING (36.00 Inches Bulk) (28-1/2 IN.)	1
21	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
22	82104510	螺钉 (M5 x 10)	SCREW (M5 x 10)	4
23	46997	卡箍	CLAMP	4
24	852961	螺柱	STUD	4
24	8M0063255	双头螺栓M10x92	STUD M10x92	4
25	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	4
26	NSS	不单独销售软管(30英寸)	NOT SOLD SEPARATE Hose (30 IN.)	1
26	856822A3	软管(30英寸)	HOSE (30 IN.)	1
27	8558481	软管	HOSE	1
27	855848A1	软管	HOSE	1
28	828694A1	杯形垫片总成	WASHER ASSEMBLY Cupped	6
29	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	4
29	8M0214964	卡箍	CLAMP	4
30	85686953	套管(27英寸整卷)(裁切为18英寸)	SLEEVE (27.00 Inches Bulk) (Cut to 18 Inches)	1

图 54飞轮/交流发电机 Flywheel/Alternator

REF	零件编号	中文名称	英文名称	数量
1	8285072	皮带	BELT	1
2	834936A3	飞轮	FLYWHEEL	1
2	834936T6	飞轮	FLYWHEEL	1
3	52901	螺母(0.625-18)	NUT (.625-18)	1
4	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
4	33001	垫圈	WASHER	1
5	45907	黄色塞	PLUG Yellow	1
6	834832	交流发电机	ALTERNATOR	1
6	857006T	交流发电机	ALTERNATOR	1
7	832080M2	发电机支架	BRACKET Alternator	1
8	81893430	螺钉 (M8 x 30)	SCREW (M8 x 30)	1
8	81893435	螺钉(M8×35)	SCREW (M8 x 35)	1
9	821583	销	PIN	1
9	8215832	特殊销（1.5英寸）	PIN Special (1.5 Inches)	1
10	812618	不锈钢螺钉(.312-18 x 1.00)带尼龙垫	SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch	3
11	82446180	螺钉(M10×80)	SCREW (M10 x 80)	1
12	855798	弹簧	SPRING	1
12	855798001	弹簧	SPRING	1
13	8502913	皮带张紧器	BELT TENSIONER	1
13	850291T3	皮带张紧器	BELT TENSIONER	1
14	855728	双头螺栓(M10 X 54)	STUD (M10 X 54)	1
14	8557281	螺柱	STUD	1
15	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	1
16	852385A1	滑轮	PULLEY	1
16	8M6005030	皮带轮总成	PULLEY ASSY	1
17	4010835	螺钉(M10×35)六角法兰-不锈钢	SCREW (M10 x 35) Hex Flange - Stainless Steel	1
18	856030A2	衬套套装	BUSHING KIT	1
19	85045	O型圈(.551 x .070)	O-RING (.551 x .070)	2
20	NLA	不再供应	No Longer Available	1
21	42139	衬套	BUSHING	1
22	857006T	交流发电机	ALTERNATOR	1
22	889955A03	交流发电机套件	ALTERNATOR KIT	1
23	40108100	螺钉(M10×100)六角法兰-不锈钢	SCREW (M10 x 100) Hex Flange - Stainless Steel	1
23	8M0012503	螺钉(M10×1.5)	SCREW (M10 x 1.5)	1
24	40108120	螺钉(M10×120)六角法兰-不锈钢	SCREW (M10 x 120) Hex Flange - Stainless Steel	1
25	29395	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	3
25	8M0042641	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	3
26	856975	支架	MOUNT	3
27	856972T	支架	BRACKET	1
27	858391T01	支架	BRACKET	1
28	845998	垫圈(0.406×1.250×0.089)	WASHER (.406 x 1.250 x .089)	3
29	856973T	支架	BRACKET	1
29	858393T01	支架	BRACKET	1
30	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	2
31	82446155	螺钉(M10×55)	SCREW (M10 x 55)	1
32	856583T2	拉线总成	CABLE ASSEMBLY	1
33	821583	销	PIN	1
33	8215832	特殊销（1.5英寸）	PIN Special (1.5 Inches)	1
34	856974T	支架	BRACKET	1
34	857142T	支架	BRACKET	1
35	812618	不锈钢螺钉(.312-18 x 1.00)带尼龙垫	SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch	3
36	855798	弹簧	SPRING	1
36	855798001	弹簧	SPRING	1
37	856815T2	张紧臂总成	ARM TENSIONER ASSEMBLY	1
38	856900	螺柱(M10×85)	STUD (M10 x 85)	1
38	8M0034457	螺柱(M10×85)	STUD (M10 x 85)	1
39	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	1
40	856894	衬套	BUSHING	1
40	8568941	衬套	BUSHING	1
41	4002320	垫圈	WASHER	2
42	852385A1	滑轮	PULLEY	1
42	8M6005030	皮带轮总成	PULLEY ASSY	1
43	4010835	螺钉(M10×35)六角法兰-不锈钢	SCREW (M10 x 35) Hex Flange - Stainless Steel	1

图 55双机连接杆套件 Dual Engine Tie Bar Kit

REF	零件编号	中文名称	英文名称	数量
-	92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
1	71565A2	管总成	TUBE ASSEMBLY	1
2	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
3	41055	支架	MOUNT	1
4	42100	锁紧垫圈	TAB WASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	88404	锁紧垫圈	TAB WASHER	2
7	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
8	17729A1	支架	BRACKET	2
9	62055	螺钉(.312-24 x 1.250)	SCREW (.312-24 x 1.250)	4
10	17728	锁紧垫圈	TAB WASHER	4
11	140001	螺钉(0.375-24×1.38)	SCREW (.375-24 x 1.38)	2
12	34863	螺母 (.375-24)	NUT (.375-24)	6
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	6
13	979331	转向眼环	STEERING EYE	2
13	8M0026167	转向眼环	STEERING EYE	2
14	23651	衬套(1.625)	SLEEVE (1.625)	2
15	97931	管材(4.00英寸)	TUBING (4.00 Inches)	2
16	8149513	联轴器(15.00英寸)	COUPLER (15.00 Inches)	1
16	8M0026098	联轴器15英寸	COUPLER 15 In.	1
17	42099	螺母(.562-18)	NUT (.562-18)	1
18	821169	联轴器	COUPLING	1
19	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	1
20	94319	螺钉(.375-24 x 1.5)	SCREW (.375-24 x 1.5)	1

图 56飞轮与发电机 Flywheel and Alternator

REF	零件编号	中文名称	英文名称	数量
-	892440A08	动力转向泵套件	PUMP KIT Power Steering Pump Kit	1
-	892440A09	动力转向泵套件	PUMP KIT Power Steering Pump Kit	1
-	8M0131263	动力转向泵套件(24英尺)	PUMP KIT Power Steering (24 Feet)	1
-	892380A02	标准转向舵机套件(40cc)	STEERING HELM KIT Standard (40 cc)	1
-	8M0240080	标准舵机套件40CM	HELM KIT-STD 40CM	1
-	892557A02	标准转向舵机套件(32cc)	STEERING HELM KIT Standard (32 cc)	1
-	8M0240079	标准舵机套件32CM	HELM KIT-STD 32CM	1
-	892558A02	标准转向舵机套件(50cc)	STEERING HELM KIT Standard (50 cc)	1
-	8M0240081	标准舵机套件50CM	HELM KIT-STD 50CM	1
-	892450K01	液压软管套件(1英尺)油缸至舵机	HOSE KIT (1 Foot) Hydraulic, Cylinder to Helm	1
-	897982K01	ORD 32-897982K02	ORD 32-897982K02	1
-	892450K02	液压软管套件(2英尺)油缸至舵机	HOSE KIT (2 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167281	软管套件2FT	HOSE KIT 2FT	1
-	892450K03	液压软管套件(3英尺)油缸至舵机	HOSE KIT (3 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167282	软管套件3FT	HOSE KIT 3 FT	1
-	892450K04	液压软管套件(4英尺)油缸至舵机	HOSE KIT (4 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167283	软管套件4FT	HOSE KIT 4 FT	1
-	892450K05	液压软管套件(5英尺)油缸至舵机	HOSE KIT (5 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167284	软管套件5FT	HOSE KIT 5 FT	1
-	892450K06	液压软管套件(6英尺)油缸至舵机	HOSE KIT (6 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167285	软管套件6FT	HOSE KIT 6 FT	1
-	892450K07	液压软管套件(7英尺)油缸至舵机	HOSE KIT (7 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167286	软管套件7FT	HOSE KIT 7 FT	1
-	892450K08	液压软管套件(8英尺)油缸至舵机	HOSE KIT (8 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167287	软管套件8FT	HOSE KIT 8 FT	1
-	892450K10	液压软管套件(10英尺)油缸至舵机	HOSE KIT (10 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167288	软管套件10FT	HOSE KIT 10 FT	1
-	892450K12	液压软管套件(12英尺)油缸至舵机	HOSE KIT (12 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167289	软管套件12FT	HOSE KIT 12 FT	1
-	892450K14	液压软管套件(14英尺)油缸至舵机	HOSE KIT (14 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167290	软管套件 14英尺	HOSE KIT 14 FT	1
-	892450K16	液压软管套件(16英尺)油缸至舵机	HOSE KIT (16 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167291	软管套件 16英尺	HOSE KIT 16 FT	1
-	892450K18	液压软管套件(18英尺)油缸至舵机	HOSE KIT (18 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167292	软管套件 18英尺	HOSE KIT 18 FT	1
-	892450K22	液压软管套件(22英尺)油缸至舵机	HOSE KIT (22 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167294	软管套件 22英尺	HOSE KIT 22 FT	1
-	892450K24	液压软管套件(24英尺)油缸至舵机	HOSE KIT (24 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167295	软管套件 24英尺	HOSE KIT 24 FT	1
-	892450K26	液压软管套件(26英尺)油缸至舵机	HOSE KIT (26 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167296	软管套件 26英尺	HOSE KIT 26 FT	1
-	892450K30	液压软管套件(30英尺)油缸至舵机	HOSE KIT (30 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167298	软管套件 30英尺	HOSE KIT 30 FT	1
-	892438K02	动力转向软管套件动力模块 (2英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (2 Feet) Hydraulic, Pump to Helm	1
-	8M0150604	泵至舱壁/舵机套件 2英尺	PUMP TO BULKHEAD/HELM KIT 2 Ft	1
-	892438K03	动力转向软管套件动力模块 (3英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (3 Feet) Hydraulic, Pump to Helm	1
-	8M0150605	泵至舱壁/舵机套件 3英尺	PUMP TO BULKHEAD/HELM KIT 3 Ft	1
-	892438K04	动力转向软管套件动力模块 (4英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (4 Feet) Hydraulic, Pump to Helm	1
-	8M0150606	泵至舱壁/舵机套件 4英尺	PUMP TO BULKHEAD/HELM KIT 4 Ft	1
-	892438K05	动力转向软管套件动力模块 (5英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (5 Feet) Hydraulic, Pump to Helm	1
-	8M0150607	泵至舱壁/舵机套件 5英尺	PUMP TO BULKHEAD/HELM KIT 5 Ft	1
-	892438K06	软管套件动力模块 (6英尺) 液压, 泵至舵机	HOSE KIT Power Module (6 Feet) Hydraulic, Pump to Helm	1
-	8M0150608	泵至舱壁/舵机套件 6英尺	PUMP TO BULKHEAD/HELM KIT 6 Ft	1
-	892438K07	软管套件动力模块 (7英尺) 液压, 泵至舵机	HOSE KIT Power Module (7 Feet) Hydraulic, Pump to Helm	1
-	8M0150610	泵至舱壁/舵机套件 7英尺	PUMP TO BULKHEAD/HELM KIT 7 Ft	1
-	892438K08	软管套件动力模块 (8英尺) 液压, 泵至舵机	HOSE KIT Power Module (8 Feet) Hydraulic, Pump to Helm	1
-	8M0150612	泵至舱壁/舵机套件 8英尺	PUMP TO BULKHEAD/HELM KIT 8 Ft	1
-	892438K10	动力转向软管套件动力模块 (10英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (10 Feet) Hydraulic, Pump to Helm	1
-	8M0150613	泵至舱壁/舵机套件 10英尺	PUMP TO BULKHEAD/HELM KIT 10 Ft	1
-	892438K12	动力转向软管套件动力模块 (12英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (12 Feet) Hydraulic, Pump to Helm	1
-	8M0150614	泵至舱壁/舵机套件 12英尺	PUMP TO BULKHEAD/HELM KIT 12 Ft	1
-	892438K14	动力转向软管套件动力模块 (14英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (14 Feet) Hydraulic, Pump to Helm	1
-	8M0150615	泵至舱壁/舵机套件 14英尺	PUMP TO BULKHEAD/HELM KIT 14 Ft	1
-	892438K16	动力转向软管套件动力模块 (16英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (16 Feet) Hydraulic, Pump to Helm	1
-	8M0150616	泵至舱壁/舵机套件 16英尺	PUMP TO BULKHEAD/HELM KIT 16 Ft	1
-	892438K18	动力转向软管套件动力模块 (18英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (18 Feet) Hydraulic, Pump to Helm	1
-	8M0150617	泵至舱壁/舵机套件 18英尺	PUMP TO BULKHEAD/HELM KIT 18 Ft	1
-	892438K20	动力转向软管套件动力模块 (20英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (20 Feet) Hydraulic, Pump to Helm	1
-	8M0150618	泵至舱壁/舵机套件 20英尺	PUMP TO BULKHEAD/HELM KIT 20 ft	1
-	892438K22	动力转向软管套件动力模块 (22英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (22 Feet) Hydraulic, Pump to Helm	1
-	8M0150619	泵至舱壁/舵机套件 22英尺	PUMP TO BULKHEAD/HELM KIT 22 FT	1
-	892438K24	动力转向软管套件动力模块 (24英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (24 Feet) Hydraulic, Pump to Helm	1
-	8M0150620	泵至舱壁/舵机套件 24英尺	PUMP TO BULKHEAD/HELM KIT 24 FT	1
-	892825008	液压软管 (8英尺) 舵机至压力罐	HOSE (8 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825010	液压软管 (10英尺) 舵机至压力罐	HOSE (10 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825012	液压软管 (12英尺) 舵机至压力罐	HOSE (12 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825014	液压软管 (14英尺) 舵机至压力罐	HOSE (14 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825016	液压软管 (16英尺) 舵机至压力罐	HOSE (16 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825018	液压软管 (18英尺) 舵机至压力罐	HOSE (18 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825020	液压软管 (20英尺) 舵机至压力罐	HOSE (20 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825022	液压软管 (22英尺) 舵机至压力罐	HOSE (22 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825024	液压软管 (24英尺) 舵机至压力罐	HOSE (24 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825026	液压软管 (26英尺) 舵机至压力罐	HOSE (26 Feet) Hydraulic, Helm to Pressure Tank	1
-	893395A01	嵌入式安装板	PLATE Flush Mount	1
-	875207	三通接头	TEE Fitting	1
-	892486K08	模拟转换套件	CONVERSION KIT Analog	1
-	889611K02	附件电源线束套件(30英尺)	HARNESS KIT Accessory Power (30 Feet)	1
-	899785K04	附件电源线束总成(30英尺)	HARNESS ASSEMBLY Accessory Power (30 Feet)	1
-	88334A2	防腐电极套件	MERCATHODE KIT	1
-	8M0180081	防腐电极套件	MERCATHODE KIT	1
-	825191A03	索具软管套件	HOSE KIT Rigging	1
-	880717A01	齿轮箱螺丝/密封套件	SCREW/SEAL KIT Gearcase	1
-	88439A50	电池电缆组	CABLE SET Battery	1
-	8M0210761	电池电缆组(12英尺)	CABLE SET (12 ft) Battery	1
-	44357Q2	冲洗附件	FLUSHING ATTACHMENT	1
-	44357T2	冲洗附件	FLUSHING ATTACHMENT	1
-	881150Q1	双进水口冲洗套件	FLUSH KIT Dual Water Pick Up	1
-	881150K1	双进水口冲洗密封套件	SEAL KIT Flush - Dual Water Pickup	1
-	897967100	燃油管路 (100.00英尺)	LINE Fuel (100.00 Feet)	1
-	8M0038563	燃油管路 (100.00英尺)	LINE Fuel (100.00 Feet)	1
-	899712A01	连续性电缆套件	CABLE KIT Continuity	1

图 57线圈板总成序列号1B490865及以下 Coil Plate Assembly Serial Number 1B490865 and Below

REF	零件编号	中文名称	英文名称	数量
1	855432A1	盖板套件	COVER KIT	1
2	NSS	不单独销售弯头	NOT SOLD SEPARATE Elbow	1
3	8568431	直通接头	FITTING Straight STRAIGHT	1
4	19688	接头	FITTING	1
5	803878	密封件	SEAL	1
6	NSS	不单独销售泵出口配件包	NOT SOLD SEPARATE Fitting Kit-Pump Outlet	1
6	855437A2	泵出口接头套件	FITTING KIT Pump Outlet	1
7	NSS	O型圈（不单独销售）	NOT SOLD SEPARATE O Ring	1
8	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	7
9	855528	衬垫	GASKET	1
9	8M6002520	衬垫套件	GASKET KIT	1
10	855430A1	浮子套件	FLOAT KIT	1
10	8M6004920	浮子套件	FLOAT KIT	1
11	F10064	轴	SHAFT	1
12	855431	针阀	VALVE Needle	1
12	8M6004917	进气阀	VALVE-INLET	1
13	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
14	855427A1	泵套件	PUMP KIT	1
15	855428	套筒	SLEEVE	1
15	8M6000589	套筒	SLEEVE	1
16	855434A1	油杯套件	BOWL KIT	1
17	855433	密封件	SEAL	1
17	8554331	密封件	SEAL	1
18	855435A1	塞套件	PLUG KIT	1
19	8554245	弯头	ELBOW	2
20	18458A4	滤清器套件	FILTER KIT	1
20	18458Q4	燃油水分离滤清器	FILTER Fuel-Water Separating	1
21	828586	探头	PROBE	1
21	8M0204710	探头	PROBE	1

图 58燃油软管 FUEL HOSES

REF	零件编号	中文名称	英文名称	数量
1	8285072	皮带	BELT	1
2	834936A3	飞轮	FLYWHEEL	1
2	834936T6	飞轮	FLYWHEEL	1
3	52901	螺母(0.625-18)	NUT (.625-18)	1
4	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
4	33001	垫圈	WASHER	1
5	45907	黄色塞	PLUG Yellow	1
6	834832	交流发电机	ALTERNATOR	1
6	857006T	交流发电机	ALTERNATOR	1
7	832080M2	发电机支架	BRACKET Alternator	1
8	81893430	螺钉 (M8 x 30)	SCREW (M8 x 30)	1
8	81893435	螺钉(M8×35)	SCREW (M8 x 35)	1
9	821583	销	PIN	1
9	8215832	特殊销（1.5英寸）	PIN Special (1.5 Inches)	1
10	812618	不锈钢螺钉(.312-18 x 1.00)带尼龙垫	SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch	3
11	82446180	螺钉(M10×80)	SCREW (M10 x 80)	1
12	855798	弹簧	SPRING	1
12	855798001	弹簧	SPRING	1
13	8502913	皮带张紧器	BELT TENSIONER	1
13	850291T3	皮带张紧器	BELT TENSIONER	1
14	855728	双头螺栓(M10 X 54)	STUD (M10 X 54)	1
14	8557281	螺柱	STUD	1
15	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	1
16	852385A1	滑轮	PULLEY	1
16	8M6005030	皮带轮总成	PULLEY ASSY	1
17	4010835	螺钉(M10×35)六角法兰-不锈钢	SCREW (M10 x 35) Hex Flange - Stainless Steel	1
18	856030A2	衬套套装	BUSHING KIT	1
19	85045	O型圈(.551 x .070)	O-RING (.551 x .070)	2
20	NLA	不再供应	No Longer Available	1
21	42139	衬套	BUSHING	1
22	857006T	交流发电机	ALTERNATOR	1
22	889955A03	交流发电机套件	ALTERNATOR KIT	1
23	40108100	螺钉(M10×100)六角法兰-不锈钢	SCREW (M10 x 100) Hex Flange - Stainless Steel	1
23	8M0012503	螺钉(M10×1.5)	SCREW (M10 x 1.5)	1
24	40108120	螺钉(M10×120)六角法兰-不锈钢	SCREW (M10 x 120) Hex Flange - Stainless Steel	1
25	29395	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	3
25	8M0042641	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	3
26	856975	支架	MOUNT	3
27	856972T	支架	BRACKET	1
27	858391T01	支架	BRACKET	1
28	845998	垫圈(0.406×1.250×0.089)	WASHER (.406 x 1.250 x .089)	3
29	856973T	支架	BRACKET	1
29	858393T01	支架	BRACKET	1
30	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	2
31	82446155	螺钉(M10×55)	SCREW (M10 x 55)	1
32	856583T2	拉线总成	CABLE ASSEMBLY	1
33	821583	销	PIN	1
33	8215832	特殊销（1.5英寸）	PIN Special (1.5 Inches)	1
34	856974T	支架	BRACKET	1
34	857142T	支架	BRACKET	1
35	812618	不锈钢螺钉(.312-18 x 1.00)带尼龙垫	SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch	3
36	855798	弹簧	SPRING	1
36	855798001	弹簧	SPRING	1
37	856815T2	张紧臂总成	ARM TENSIONER ASSEMBLY	1
38	856900	螺柱(M10×85)	STUD (M10 x 85)	1
38	8M0034457	螺柱(M10×85)	STUD (M10 x 85)	1
39	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	1
40	856894	衬套	BUSHING	1
40	8568941	衬套	BUSHING	1
41	4002320	垫圈	WASHER	2
42	852385A1	滑轮	PULLEY	1
42	8M6005030	皮带轮总成	PULLEY ASSY	1
43	4010835	螺钉(M10×35)六角法兰-不锈钢	SCREW (M10 x 35) Hex Flange - Stainless Steel	1

图 59专用工具 Tools Special

REF	零件编号	中文名称	英文名称	数量
1	855432A1	盖板套件	COVER KIT	1
2	NSS	不单独销售弯头	NOT SOLD SEPARATE Elbow	1
3	8568431	直通接头	FITTING Straight STRAIGHT	1
4	19688	接头	FITTING	1
5	803878	密封件	SEAL	1
6	NSS	不单独销售泵出口配件包	NOT SOLD SEPARATE Fitting Kit-Pump Outlet	1
6	855437A2	泵出口接头套件	FITTING KIT Pump Outlet	1
7	NSS	O型圈（不单独销售）	NOT SOLD SEPARATE O Ring	1
8	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	7
9	855528	衬垫	GASKET	1
9	8M6002520	衬垫套件	GASKET KIT	1
10	855430A1	浮子套件	FLOAT KIT	1
10	8M6004920	浮子套件	FLOAT KIT	1
11	F10064	轴	SHAFT	1
12	855431	针阀	VALVE Needle	1
12	8M6004917	进气阀	VALVE-INLET	1
13	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
14	855427A1	泵套件	PUMP KIT	1
15	855428	套筒	SLEEVE	1
15	8M6000589	套筒	SLEEVE	1
16	855434A1	油杯套件	BOWL KIT	1
17	855433	密封件	SEAL	1
17	8554331	密封件	SEAL	1
18	855435A1	塞套件	PLUG KIT	1
19	8554245	弯头	ELBOW	2
20	18458A4	滤清器套件	FILTER KIT	1
20	18458Q4	燃油水分离滤清器	FILTER Fuel-Water Separating	1
21	828586	探头	PROBE	1
21	8M0204710	探头	PROBE	1

图 60油管 Oil Lines

REF	零件编号	中文名称	英文名称	数量
-	892440A08	动力转向泵套件	PUMP KIT Power Steering Pump Kit	1
-	892440A09	动力转向泵套件	PUMP KIT Power Steering Pump Kit	1
-	8M0131263	动力转向泵套件(24英尺)	PUMP KIT Power Steering (24 Feet)	1
-	892380A02	标准转向舵机套件(40cc)	STEERING HELM KIT Standard (40 cc)	1
-	8M0240080	标准舵机套件40CM	HELM KIT-STD 40CM	1
-	892557A02	标准转向舵机套件(32cc)	STEERING HELM KIT Standard (32 cc)	1
-	8M0240079	标准舵机套件32CM	HELM KIT-STD 32CM	1
-	892558A02	标准转向舵机套件(50cc)	STEERING HELM KIT Standard (50 cc)	1
-	8M0240081	标准舵机套件50CM	HELM KIT-STD 50CM	1
-	892450K01	液压软管套件(1英尺)油缸至舵机	HOSE KIT (1 Foot) Hydraulic, Cylinder to Helm	1
-	897982K01	ORD 32-897982K02	ORD 32-897982K02	1
-	892450K02	液压软管套件(2英尺)油缸至舵机	HOSE KIT (2 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167281	软管套件2FT	HOSE KIT 2FT	1
-	892450K03	液压软管套件(3英尺)油缸至舵机	HOSE KIT (3 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167282	软管套件3FT	HOSE KIT 3 FT	1
-	892450K04	液压软管套件(4英尺)油缸至舵机	HOSE KIT (4 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167283	软管套件4FT	HOSE KIT 4 FT	1
-	892450K05	液压软管套件(5英尺)油缸至舵机	HOSE KIT (5 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167284	软管套件5FT	HOSE KIT 5 FT	1
-	892450K06	液压软管套件(6英尺)油缸至舵机	HOSE KIT (6 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167285	软管套件6FT	HOSE KIT 6 FT	1
-	892450K07	液压软管套件(7英尺)油缸至舵机	HOSE KIT (7 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167286	软管套件7FT	HOSE KIT 7 FT	1
-	892450K08	液压软管套件(8英尺)油缸至舵机	HOSE KIT (8 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167287	软管套件8FT	HOSE KIT 8 FT	1
-	892450K10	液压软管套件(10英尺)油缸至舵机	HOSE KIT (10 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167288	软管套件10FT	HOSE KIT 10 FT	1
-	892450K12	液压软管套件(12英尺)油缸至舵机	HOSE KIT (12 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167289	软管套件12FT	HOSE KIT 12 FT	1
-	892450K14	液压软管套件(14英尺)油缸至舵机	HOSE KIT (14 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167290	软管套件 14英尺	HOSE KIT 14 FT	1
-	892450K16	液压软管套件(16英尺)油缸至舵机	HOSE KIT (16 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167291	软管套件 16英尺	HOSE KIT 16 FT	1
-	892450K18	液压软管套件(18英尺)油缸至舵机	HOSE KIT (18 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167292	软管套件 18英尺	HOSE KIT 18 FT	1
-	892450K22	液压软管套件(22英尺)油缸至舵机	HOSE KIT (22 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167294	软管套件 22英尺	HOSE KIT 22 FT	1
-	892450K24	液压软管套件(24英尺)油缸至舵机	HOSE KIT (24 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167295	软管套件 24英尺	HOSE KIT 24 FT	1
-	892450K26	液压软管套件(26英尺)油缸至舵机	HOSE KIT (26 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167296	软管套件 26英尺	HOSE KIT 26 FT	1
-	892450K30	液压软管套件(30英尺)油缸至舵机	HOSE KIT (30 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167298	软管套件 30英尺	HOSE KIT 30 FT	1
-	892438K02	动力转向软管套件动力模块 (2英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (2 Feet) Hydraulic, Pump to Helm	1
-	8M0150604	泵至舱壁/舵机套件 2英尺	PUMP TO BULKHEAD/HELM KIT 2 Ft	1
-	892438K03	动力转向软管套件动力模块 (3英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (3 Feet) Hydraulic, Pump to Helm	1
-	8M0150605	泵至舱壁/舵机套件 3英尺	PUMP TO BULKHEAD/HELM KIT 3 Ft	1
-	892438K04	动力转向软管套件动力模块 (4英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (4 Feet) Hydraulic, Pump to Helm	1
-	8M0150606	泵至舱壁/舵机套件 4英尺	PUMP TO BULKHEAD/HELM KIT 4 Ft	1
-	892438K05	动力转向软管套件动力模块 (5英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (5 Feet) Hydraulic, Pump to Helm	1
-	8M0150607	泵至舱壁/舵机套件 5英尺	PUMP TO BULKHEAD/HELM KIT 5 Ft	1
-	892438K06	软管套件动力模块 (6英尺) 液压, 泵至舵机	HOSE KIT Power Module (6 Feet) Hydraulic, Pump to Helm	1
-	8M0150608	泵至舱壁/舵机套件 6英尺	PUMP TO BULKHEAD/HELM KIT 6 Ft	1
-	892438K07	软管套件动力模块 (7英尺) 液压, 泵至舵机	HOSE KIT Power Module (7 Feet) Hydraulic, Pump to Helm	1
-	8M0150610	泵至舱壁/舵机套件 7英尺	PUMP TO BULKHEAD/HELM KIT 7 Ft	1
-	892438K08	软管套件动力模块 (8英尺) 液压, 泵至舵机	HOSE KIT Power Module (8 Feet) Hydraulic, Pump to Helm	1
-	8M0150612	泵至舱壁/舵机套件 8英尺	PUMP TO BULKHEAD/HELM KIT 8 Ft	1
-	892438K10	动力转向软管套件动力模块 (10英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (10 Feet) Hydraulic, Pump to Helm	1
-	8M0150613	泵至舱壁/舵机套件 10英尺	PUMP TO BULKHEAD/HELM KIT 10 Ft	1
-	892438K12	动力转向软管套件动力模块 (12英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (12 Feet) Hydraulic, Pump to Helm	1
-	8M0150614	泵至舱壁/舵机套件 12英尺	PUMP TO BULKHEAD/HELM KIT 12 Ft	1
-	892438K14	动力转向软管套件动力模块 (14英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (14 Feet) Hydraulic, Pump to Helm	1
-	8M0150615	泵至舱壁/舵机套件 14英尺	PUMP TO BULKHEAD/HELM KIT 14 Ft	1
-	892438K16	动力转向软管套件动力模块 (16英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (16 Feet) Hydraulic, Pump to Helm	1
-	8M0150616	泵至舱壁/舵机套件 16英尺	PUMP TO BULKHEAD/HELM KIT 16 Ft	1
-	892438K18	动力转向软管套件动力模块 (18英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (18 Feet) Hydraulic, Pump to Helm	1
-	8M0150617	泵至舱壁/舵机套件 18英尺	PUMP TO BULKHEAD/HELM KIT 18 Ft	1
-	892438K20	动力转向软管套件动力模块 (20英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (20 Feet) Hydraulic, Pump to Helm	1
-	8M0150618	泵至舱壁/舵机套件 20英尺	PUMP TO BULKHEAD/HELM KIT 20 ft	1
-	892438K22	动力转向软管套件动力模块 (22英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (22 Feet) Hydraulic, Pump to Helm	1
-	8M0150619	泵至舱壁/舵机套件 22英尺	PUMP TO BULKHEAD/HELM KIT 22 FT	1
-	892438K24	动力转向软管套件动力模块 (24英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (24 Feet) Hydraulic, Pump to Helm	1
-	8M0150620	泵至舱壁/舵机套件 24英尺	PUMP TO BULKHEAD/HELM KIT 24 FT	1
-	892825008	液压软管 (8英尺) 舵机至压力罐	HOSE (8 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825010	液压软管 (10英尺) 舵机至压力罐	HOSE (10 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825012	液压软管 (12英尺) 舵机至压力罐	HOSE (12 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825014	液压软管 (14英尺) 舵机至压力罐	HOSE (14 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825016	液压软管 (16英尺) 舵机至压力罐	HOSE (16 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825018	液压软管 (18英尺) 舵机至压力罐	HOSE (18 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825020	液压软管 (20英尺) 舵机至压力罐	HOSE (20 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825022	液压软管 (22英尺) 舵机至压力罐	HOSE (22 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825024	液压软管 (24英尺) 舵机至压力罐	HOSE (24 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825026	液压软管 (26英尺) 舵机至压力罐	HOSE (26 Feet) Hydraulic, Helm to Pressure Tank	1
-	893395A01	嵌入式安装板	PLATE Flush Mount	1
-	875207	三通接头	TEE Fitting	1
-	892486K08	模拟转换套件	CONVERSION KIT Analog	1
-	889611K02	附件电源线束套件(30英尺)	HARNESS KIT Accessory Power (30 Feet)	1
-	899785K04	附件电源线束总成(30英尺)	HARNESS ASSEMBLY Accessory Power (30 Feet)	1
-	88334A2	防腐电极套件	MERCATHODE KIT	1
-	8M0180081	防腐电极套件	MERCATHODE KIT	1
-	825191A03	索具软管套件	HOSE KIT Rigging	1
-	880717A01	齿轮箱螺丝/密封套件	SCREW/SEAL KIT Gearcase	1
-	88439A50	电池电缆组	CABLE SET Battery	1
-	8M0210761	电池电缆组(12英尺)	CABLE SET (12 ft) Battery	1
-	44357Q2	冲洗附件	FLUSHING ATTACHMENT	1
-	44357T2	冲洗附件	FLUSHING ATTACHMENT	1
-	881150Q1	双进水口冲洗套件	FLUSH KIT Dual Water Pick Up	1
-	881150K1	双进水口冲洗密封套件	SEAL KIT Flush - Dual Water Pickup	1
-	897967100	燃油管路 (100.00英尺)	LINE Fuel (100.00 Feet)	1
-	8M0038563	燃油管路 (100.00英尺)	LINE Fuel (100.00 Feet)	1
-	899712A01	连续性电缆套件	CABLE KIT Continuity	1

图 61水泵套件(喷射型) Water Pump Kit Jet

REF	零件编号	中文名称	英文名称	数量
1	88334A2	防腐电极套件	MERCATHODE KIT	1
2	42600A09	防腐电极总成	MERCATHODE ASSEMBLY	1
3	22793	螺丝(#9-14x0.875)	SCREW (#9-14 x .875)	2
4	30164	垫圈(0.192x0.375x0.0312)不锈钢	WASHER (.192 x .375 x .0312) Stainless Steel	2
5	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	4
6	72958A5	电极总成	ELECTRODE ASSEMBLY	1
7	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
7	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
8	87698	螺丝(#10-16 x 1.250)不锈钢	SCREW (#10-16 x 1.250) Stainless Steel	2
9	72957A5	阳极总成	ANODE ASSEMBLY	1
9	8M0181304	阳极总成	ANODE ASSY	1
10	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
10	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
11	87698	螺丝(#10-16 x 1.250)不锈钢	SCREW (#10-16 x 1.250) Stainless Steel	2
12	79091	保险丝20安培	FUSE 20 Ampere	1
12	8M0207796	保险丝20安培	FUSE 20 AMP	1
13	95084A10	电缆总成(5.00英寸)红色	CABLE ASSEMBLY (5.00 Inches) Red	1
13	8M0207788	拉线总成	CABLE ASSEMBLY	1
14	95084A13	电缆总成(64.00英寸)	CABLE ASSEMBLY (64.00 Inches)	1
15	79138A8	电缆总成(72.00英寸)黑色	CABLE ASSEMBLY (72.00 Inches) Black	1

图 62顶罩（序列号0T408999及以下） TOP COWL (S/N-0T408999 AND BELOW)

REF	零件编号	中文名称	英文名称	数量
1	850389	杠杆	LEVER	1
2	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
3	55164	衬套	BUSHING	1
4	74759	垫圈(0.391x0.880x0.125)不锈钢	WASHER (.391 x .880 x .125) Stainless Steel	1
5	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	1
6	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
7	64015	螺母 (.250-20)	NUT (.250-20)	1
8	26852	尼龙帽	CAP Nylon	1
9	42927	嵌件	INSERT	1
10	35459	垫圈	WASHER	1
11	8268336	螺母 (M6)	NUT (M6)	1
11	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
12	8503931	凸轮	CAM	1
12	856221A1	凸轮套件	CAM KIT	1
13	852970	衬套	BUSHING	1
14	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	1
15	932481	衬套	BUSHING	2
15	8M0215006	旋转衬套	BUSHING Swivel	2
16	8235694	螺纹球头	BALL Threaded	1
17	850815	连接杆	LINK	1
17	8508152	杆	ROD	1
18	67748	滚轮	ROLLER	1
19	850286	油门滚轮	ROLLER Throttle	1
19	8502861	杠杆	LEVER	1
20	40056107	螺钉(M5×16)	SCREW (M5 x 16)	1
21	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	1
22	69432	外锁紧垫圈(#10)	LOCKWASHER External (#10)	1
23	8142831	锚支架	BRACKET Anchor	1
23	814283T6	锚支架总成	BRACKET ASSEMBLY Anchor	1
24	98889	闩锁	LATCH	1
25	42975	传动螺钉	DRIVE SCREW	2
26	39519	杯套	CUP	1
27	52100	耐磨板	WEAR PLATE	1
28	38279	闩锁	LATCH	1
28	8M0036768	闩锁	LATCH	1
29	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
30	35045	螺母(.250-28)	NUT (.250-28)	1
30	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
31	28782	螺钉(.312-18 x .880)不锈钢	SCREW (.312-18 x .880) Stainless Steel	3
32	814284	导向块	GUIDE BLOCK	1
33	20099	弹簧	SPRING	1
34	67073A1	连杆总成	LINK ROD ASSEMBLY	1
35	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
35	79932A17	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
36	NSS	弹性销(不单独销售)	NOT SOLD SEPARATE Roll Pin	1
37	NSS	不单独销售-换挡轴上杆	NOT SOLD SEPARATE Shift Shaft Lever-Upper	1
38	26856	衬套	BUSHING	1
39	29720	波形垫圈	WAVE WASHER	1
40	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
41	35045	螺母(.250-28)	NUT (.250-28)	1
41	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
42	814281A2	开关	SWITCH	1
42	8M0052931	开关	SWITCH	1
43	77478	螺钉 (#6-32 x .875)	SCREW (#6-32 x .875)	2
44	27882	垫圈	WASHER	2

图 63旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM

REF	零件编号	中文名称	英文名称	数量
1	8710A20	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8710A21	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8710T21	灰色旋转支架总成	SWIVEL BRACKET ASSEMBLY Gray	1
2	33504	O型圈	O-RING	1
2	8M0214926	O型圈 @10	O RING @10	1
3	818764	衬套	BUSHING	2
4	816039	隔套	SPACER	1
5	87735	油封(下)	SEAL Oil (LOWER)	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	816432	止推垫片	THRUST WASHER	1
9	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
9	878182T	轭架底部-不锈钢	YOKE Bottom - Stainless Steel	1
9	86580A2	底部轭架总成	YOKE ASSEMBLY Bottom	1
9	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
10	67684	挡圈	RING Retaining	1
11	996301	冲击板	STRIKER PLATE	2
11	8M0045383	冲击板	STRIKER PLATE	2
12	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
13	46335	螺母 (.375-24)	NUT (.375-24)	2
14	64014	螺钉(0.250-28x0.500)(1/4-28x1/2英寸)	SCREW (.250-28 x .500) (1/4-28 X 1/2 IN.)	2
15	NSS	不单独销售-序列号覆膜标贴	NOT SOLD SEPARATE Decal-Serial Overlaminate	1
16	821180A6	调整传感器总成	SENDER ASSEMBLY Trim	1
16	8M0074846	ORDER 8M0098273	ORDER 8M0098273	1
17	852368	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
18	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
19	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
20	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
20	826432A2	转向臂旋转销总成-不锈钢	SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel	1
20	67706A56	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
20	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
21	78689	螺钉(0.437-20x7.50)(7/16-20x7-1/2英寸)	SCREW (.437-20 x 7.50) (7/16-20 X 7-1/2 IN.)	2
21	8M0176309	螺钉	SCREW	2
22	888821	缓冲垫	BUMPER	1
22	8M0000516	上轭缓冲垫	BUMPER Top Yoke	1
23	77326	支架	MOUNT	2
24	66921	垫圈	WASHER	2
25	814432	垫圈	WASHER	2
25	78688	垫圈	WASHER	2
26	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
26	8M0204653	螺母	NUT	2
27	92876A1	转向连杆总成	LINK ASSEMBLY Steering	1
27	92876A12	连杆总成	LINK ROD ASSEMBLY	1
28	14000	螺钉(0.375-24x1.25)(3/8-24x1-1/4英寸)	SCREW (.375-24 x 1.25) (3/8-24 X 1-1/4 IN.)	1
28	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
29	34863	螺母 (.375-24)	NUT (.375-24)	2
29	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
30	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
31	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
31	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

图 64飞轮/交流发电机 FLYWHEEL/ALTERNATOR

REF	零件编号	中文名称	英文名称	数量
1	8285072	皮带	BELT	1
2	834936A3	飞轮	FLYWHEEL	1
2	834936T6	飞轮	FLYWHEEL	1
3	52901	螺母(0.625-18)	NUT (.625-18)	1
4	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
4	33001	垫圈	WASHER	1
5	45907	黄色塞	PLUG Yellow	1
6	834832	交流发电机	ALTERNATOR	1
6	857006T	交流发电机	ALTERNATOR	1
7	832080M2	发电机支架	BRACKET Alternator	1
8	81893430	螺钉 (M8 x 30)	SCREW (M8 x 30)	1
8	81893435	螺钉(M8×35)	SCREW (M8 x 35)	1
9	821583	销	PIN	1
9	8215832	特殊销（1.5英寸）	PIN Special (1.5 Inches)	1
10	812618	不锈钢螺钉(.312-18 x 1.00)带尼龙垫	SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch	3
11	82446180	螺钉(M10×80)	SCREW (M10 x 80)	1
12	855798	弹簧	SPRING	1
12	855798001	弹簧	SPRING	1
13	8502913	皮带张紧器	BELT TENSIONER	1
13	850291T3	皮带张紧器	BELT TENSIONER	1
14	855728	双头螺栓(M10 X 54)	STUD (M10 X 54)	1
14	8557281	螺柱	STUD	1
15	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	1
16	852385A1	滑轮	PULLEY	1
16	8M6005030	皮带轮总成	PULLEY ASSY	1
17	4010835	螺钉(M10×35)六角法兰-不锈钢	SCREW (M10 x 35) Hex Flange - Stainless Steel	1
18	856030A2	衬套套装	BUSHING KIT	1
19	85045	O型圈(.551 x .070)	O-RING (.551 x .070)	2
20	NLA	不再供应	No Longer Available	1
21	42139	衬套	BUSHING	1
22	857006T	交流发电机	ALTERNATOR	1
22	889955A03	交流发电机套件	ALTERNATOR KIT	1
23	40108100	螺钉(M10×100)六角法兰-不锈钢	SCREW (M10 x 100) Hex Flange - Stainless Steel	1
23	8M0012503	螺钉(M10×1.5)	SCREW (M10 x 1.5)	1
24	40108120	螺钉(M10×120)六角法兰-不锈钢	SCREW (M10 x 120) Hex Flange - Stainless Steel	1
25	29395	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	3
25	8M0042641	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	3
26	856975	支架	MOUNT	3
27	856972T	支架	BRACKET	1
27	858391T01	支架	BRACKET	1
28	845998	垫圈(0.406×1.250×0.089)	WASHER (.406 x 1.250 x .089)	3
29	856973T	支架	BRACKET	1
29	858393T01	支架	BRACKET	1
30	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	2
31	82446155	螺钉(M10×55)	SCREW (M10 x 55)	1
32	856583T2	拉线总成	CABLE ASSEMBLY	1
33	821583	销	PIN	1
33	8215832	特殊销（1.5英寸）	PIN Special (1.5 Inches)	1
34	856974T	支架	BRACKET	1
34	857142T	支架	BRACKET	1
35	812618	不锈钢螺钉(.312-18 x 1.00)带尼龙垫	SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch	3
36	855798	弹簧	SPRING	1
36	855798001	弹簧	SPRING	1
37	856815T2	张紧臂总成	ARM TENSIONER ASSEMBLY	1
38	856900	螺柱(M10×85)	STUD (M10 x 85)	1
38	8M0034457	螺柱(M10×85)	STUD (M10 x 85)	1
39	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	1
40	856894	衬套	BUSHING	1
40	8568941	衬套	BUSHING	1
41	4002320	垫圈	WASHER	2
42	852385A1	滑轮	PULLEY	1
42	8M6005030	皮带轮总成	PULLEY ASSY	1
43	4010835	螺钉(M10×35)六角法兰-不锈钢	SCREW (M10 x 35) Hex Flange - Stainless Steel	1

图 65排气歧管与排气板 Exhaust Manifold and Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	190503	衬垫	GASKET	1
2	8283431	排气隔板	PLATE Exhaust Divider	1
2	828343T3	排气隔板	PLATE Exhaust Divider	1
3	814754	密封件(12.50英寸)	SEAL (12.50 Inches)	1
4	826356	螺钉带垫圈(.312-18 x 1.500)	SCREW AND WASHER (.312-18 x 1.500)	17
4	8263561	螺钉带垫圈(.312-18 x 1.500)	SCREW AND WASHER (.312-18 x 1.500)	17
5	855288	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	2
5	881190	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	2
6	8348082	滤网	STRAINER	1
7	83075780	管材(28.00英寸整料)(裁切至4-1/2英寸)	TUBING (28.00 Inches Bulk) (Cut to 4-1/2 Inches)	1
7	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
8	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
9	77653112	软管(59.00英寸整料)(21-1/2英寸)	HOSE (59.00 Inches Bulk) (21-1/2 IN.)	1
9	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
10	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	5
10	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	5
11	68729	盖板	COVER	1
11	8M0039767	盖板	COVER	1
12	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
13	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
14	76451	垫圈	WASHER	1
15	14479	隔膜	DIAPHRAGM	1
15	144791	隔膜	DIAPHRAGM	1
16	16496	导水板	DEFLECTOR Water	1
17	16497A1	安装板	PLATE	1
18	78690	衬垫	GASKET	2
18	78690002	衬垫	GASKET	2
19	64878	弹簧(黑色)	SPRING (Black)	1
20	85303	垫圈	WASHER	1
21	14480	提动阀	POPPET	1
22	64872	护孔环	GROMMET	1
23	65848	托架	CARRIER	1
24	991763	衬垫	GASKET	1
24	991764	衬垫	GASKET	1
25	850814A1	排气板总成	PLATE ASSEMBLY Exhaust	1
25	850814T1	排气板总成	PLATE ASSEMBLY Exhaust	1
26	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
27	8147011	密封件	SEAL	1
27	8M0043164	密封件	SEAL	1
28	680101	支架	BRACKET	1
29	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	8
29	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	8
30	89772	连接器(.125-27)(直通)(背部)	CONNECTOR (.125-27) (STRAIGHT)(BACK)	1
31	629101	90度弯头(.125-27)(右舷顶部孔)	FITTING Elbow - 90 Degree (.125-27) (STARBOARD-TOP HOLE)	1
32	89772	连接器(.125-27)(直通)(右舷底部孔)	CONNECTOR (.125-27) (STRAIGHT)(STARBOARD-BOTTOM HOLE)	1
33	19564	护孔环	GROMMET	1
33	8M0179867	护孔环	GROMMET	1
34	19565	护孔环	GROMMET	1
34	19565002	护孔环	GROMMET	1
35	77653112	软管(59.00英寸整料)(25英寸)	HOSE (59.00 Inches Bulk) (25 IN.)	1
35	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
36	852759	软管	HOSE	1
37	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	4
38	69254	螺母	NUT	6
39	27132	衬套	BUSHING	1
40	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
41	68783	螺钉(.312-18×2.50)	SCREW (.312-18 x 2.50)	1
42	66725	螺钉(.375-16×3.50)	SCREW (.375-16 x 3.50)	3
42	898833	螺钉(.375-16 x 3.500)	SCREW (.375-16 x 3.500)	3
43	812905A5	前支架总成	BRACKET ASSEMBLY Front	1
43	812905T	前支架	BRACKET Front	1
44	8055571	螺钉(0.3125-18×0.50)	SCREW (.3125-18 x .50)	4
45	187031	垫圈	WASHER	4
46	18778	护孔环	GROMMET	4
46	18778001	护孔环	GROMMET	4
47	18578A8	支架总成(后部)	BRACKET ASSEMBLY Rear	1
47	18578T09	支架总成(后部)	BRACKET ASSEMBLY Rear	1
-	814754A98	衬垫套件	GASKET SET	1
-	8M0046714	衬垫套件	GASKET SET	1
-	854008A98	动力头总成	POWERHEAD ASSEMBLY	1
-	804545T99	动力头总成	POWERHEAD ASSEMBLY	1

图 66动力升降组件金属马达壳 Power Trim Components Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	826729A2	升降倾斜总成	TRIM AND TILT ASSEMBLY	1
1	811604F	歧管总成	MANIFOLD ASSEMBLY	1
2	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	9
3	823552F	气缸总成	CYLINDER ASSEMBLY	1
3	880952A03	ORD 8M0078330	ORD 8M0078330	1
4	823553	配平活塞杆套件	ROD KIT Trim Piston	1
4	823553T	升降活塞杆	ROD Trim Piston	1
5	811606	导向套件	GUIDE KIT	1
5	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
6	811607A1	维修套件	REPAIR KIT	1
7	811610A1	止回阀套件	CHECK VALVE KIT	1
7	823553T	升降活塞杆	ROD Trim Piston	1
8	99638A1	导向器总成	GUIDE ASSEMBLY	2
8	8M0021648	端盖总成	END CAP ASSEMBLY	2
9	43397A6	动力升降倾斜装置活塞/杆总成	PISTON/ROD ASSEMBLY Power Trim	1
9	878413A1	活塞总成	PISTON ASSEMBLY	1
9	43398A3	动力升降倾斜装置活塞/杆总成	PISTON/ROD ASSEMBLY Power Trim	1
9	878414T01	活塞总成	PISTON ASSEMBLY	1
10	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
11	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
11	893929A01	安全阀套件	VALVE KIT Relief	1
12	812844	E型卡环	E RING	1
12	815949001	E形环	E-RING	1
13	811612A2	O型圈套件	O-RING KIT	1
13	811612A3	O型圈套件	O-RING KIT	1
14	811617F	泵	PUMP	1
14	811617T1	泵	PUMP	1
15	811613	塞子总成	PLUG ASSEMBLY	1
16	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
17	43450	垫圈	WASHER	4
17	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
18	811611	盖板	COVER	1
19	828710	驱动接头	DRIVE JOINT	1
20	828708	电机总成	MOTOR ASSEMBLY	1
20	878265A4	配平电机	TRIM MOTOR	1
21	828709	螺钉 (长)	SCREW (LONG)	2
21	881768A1	螺钉/垫圈套件	SCREW/WASHER KIT	2
21	811616	螺钉 (短)	SCREW (SHORT)	2
22	811614	轴总成	SHAFT ASSEMBLY	1
22	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
23	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
24	44431	槽销	PIN Groove	1
24	878267	销	PIN	1
25	821539	三叶销	PIN Trilobe	1
26	996251	轴	SHAFT	1
26	99625002	轴	SHAFT	1
27	818298A1	阳极套件	ANODE KIT	1
27	818298Q1	阳极套件	ANODE KIT	1
28	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
28	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
29	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
29	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
30	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
31	4002319	垫圈	WASHER	6
32	26550	卡箍	CLAMP	2
33	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
33	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
34	69205	C形垫圈	C WASHER	1
34	8M0084613	C形垫圈	C-WASHER	1
35	996301	冲击板	STRIKER PLATE	2
35	8M0045383	冲击板	STRIKER PLATE	2
36	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
37	46335	螺母 (.375-24)	NUT (.375-24)	2
38	435301	警示贴纸-动力微调	DECAL Caution-Power Trim	1
39	828547353	导管 (.350内径 x 3.00英尺散装)	CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk)	1
40	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
40	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

图 67喷油组件 OIL INJECTION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	12335A1	支架套件	BRACKET KIT	1
2	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1
3	87421	油箱	TANK	1
4	43298A2	盖总成	CAP ASSEMBLY	1
5	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
6	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
7	816190A3	外壳总成适配器	HOUSING ASSEMBLY Adapter	1
7	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
8	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
9	99802	管	TUBE	1
10	99439	软管(114.00英寸)	HOSE (114.00 Inches)	1
11	833069A3	油箱总成	RESERVOIR ASSEMBLY Oil	1
11	8M0062954	储油罐	RESERVOIR, OIL	1
12	NSS	不单独销售标签-储液罐	NOT SOLD SEPARATE Decal-Reservoir	1
13	855362	护孔环	GROMMET	3
13	855362001	护孔环	GROMMET	3
14	49436	垫圈	WASHER	3
15	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
16	855364	衬套	BUSHING	3
17	69267	螺钉 (.312-18 x 1.750)	SCREW (.312-18 x 1.750)	2
18	833155	护孔环	GROMMET	2
19	8502341	衬套	BUSHING	2
20	82381455	管材(25英寸整卷)(裁切为20英寸)	TUBING (25.00 Inches Bulk) (Cut to 20 Inches)	1
21	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
21	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
22	12886A8	开关	SWITCH	1
23	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
24	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
25	8260841	隔套	SPACER	1
26	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	7
26	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	7
27	NSS	不单独销售塞	NOT SOLD SEPARATE Plug	1
28	424254	接头	FITTING	1
28	8M0207780	接头	FITTING	1
29	830756109	软管(57.00英寸散装)(裁切至6英寸)	HOSE (57.00 Inches Bulk) (Cut to 6 Inches)	1
29	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
30	855785	燃油冷却器	COOLER Fuel	1
30	855785A1	燃油冷却器总成	COOLER ASSEMBLY Fuel	1
31	855761	止回阀	CHECK VALVE	1
31	8557611	止回阀	CHECK VALVE	1
32	13791	卡箍(15.7)	CLAMP (15.7)	4
32	8M0214911	卡箍@5	CLAMP @5	4
33	85682239	管材(17英寸整卷)(裁切为3英寸)	TUBING (17.00 Inches Bulk) (Cut to 3 Inches)	1
34	856822A3	软管(带绝缘套管)(30英寸)	HOSE (W/INSULATING SLEEVE) (30 IN.)	1

图 68电气板总成 Electrical Plate Assembly

REF	零件编号	中文名称	英文名称	数量
1	855432A1	盖板套件	COVER KIT	1
2	NSS	不单独销售弯头	NOT SOLD SEPARATE Elbow	1
3	8568431	直通接头	FITTING Straight STRAIGHT	1
4	19688	接头	FITTING	1
5	803878	密封件	SEAL	1
6	NSS	不单独销售泵出口配件包	NOT SOLD SEPARATE Fitting Kit-Pump Outlet	1
6	855437A2	泵出口接头套件	FITTING KIT Pump Outlet	1
7	NSS	O型圈（不单独销售）	NOT SOLD SEPARATE O Ring	1
8	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	7
9	855528	衬垫	GASKET	1
9	8M6002520	衬垫套件	GASKET KIT	1
10	855430A1	浮子套件	FLOAT KIT	1
10	8M6004920	浮子套件	FLOAT KIT	1
11	F10064	轴	SHAFT	1
12	855431	针阀	VALVE Needle	1
12	8M6004917	进气阀	VALVE-INLET	1
13	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
14	855427A1	泵套件	PUMP KIT	1
15	855428	套筒	SLEEVE	1
15	8M6000589	套筒	SLEEVE	1
16	855434A1	油杯套件	BOWL KIT	1
17	855433	密封件	SEAL	1
17	8554331	密封件	SEAL	1
18	855435A1	塞套件	PLUG KIT	1
19	8554245	弯头	ELBOW	2
20	18458A4	滤清器套件	FILTER KIT	1
20	18458Q4	燃油水分离滤清器	FILTER Fuel-Water Separating	1
21	828586	探头	PROBE	1
21	8M0204710	探头	PROBE	1

图 69油门杆与换挡轴 Throttle Lever and Shift Shaft

REF	零件编号	中文名称	英文名称	数量
1	850389	杠杆	LEVER	1
1	8M0040990	节气门控制杆	LEVER Throttle Control	1
2	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
3	55164	衬套	BUSHING	1
4	74759	垫圈(0.391x0.880x0.125)不锈钢	WASHER (.391 x .880 x .125) Stainless Steel	1
5	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	1
6	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
7	64015	螺母 (.250-20)	NUT (.250-20)	1
8	26852	尼龙帽	CAP Nylon	1
9	42927	嵌件	INSERT	1
10	35459	垫圈	WASHER	1
11	8268336	螺母 (M6)	NUT (M6)	1
11	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
12	8503931	凸轮	CAM	1
12	856221A1	凸轮套件	CAM KIT	1
13	852970	衬套	BUSHING	1
14	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	1
15	932481	衬套	BUSHING	2
15	8M0215006	旋转衬套	BUSHING Swivel	2
16	8235694	螺纹球头	BALL Threaded	1
17	850815	连接杆	LINK	1
17	8508152	杆	ROD	1
18	67748	滚轮	ROLLER	1
19	850286	油门滚轮	ROLLER Throttle	1
19	8502861	杠杆	LEVER	1
20	40056107	螺钉(M5×16)	SCREW (M5 x 16)	1
21	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	1
22	69432	外锁紧垫圈(#10)	LOCKWASHER External (#10)	1
23	8142831	锚支架	BRACKET Anchor	1
23	814283T6	锚支架总成	BRACKET ASSEMBLY Anchor	1
24	98889	闩锁	LATCH	1
25	42975	传动螺钉	DRIVE SCREW	2
26	39519	杯套	CUP	1
27	52100	耐磨板	WEAR PLATE	1
28	38279	闩锁	LATCH	1
28	8M0036768	闩锁	LATCH	1
29	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
30	35045	螺母(.250-28)	NUT (.250-28)	1
30	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
31	28782	螺钉(.312-18 x .880)不锈钢	SCREW (.312-18 x .880) Stainless Steel	3
32	814284	导向块	GUIDE BLOCK	1
33	20099	弹簧	SPRING	1
34	67073A1	连杆总成	LINK ROD ASSEMBLY	1
35	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
35	79932A17	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
36	NSS	弹性销(不单独销售)	NOT SOLD SEPARATE Roll Pin	1
37	NSS	不单独销售-换挡轴上杆	NOT SOLD SEPARATE Shift Shaft Lever-Upper	1
38	26856	衬套	BUSHING	1
39	29720	波形垫圈	WAVE WASHER	1
40	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
41	35045	螺母(.250-28)	NUT (.250-28)	1
41	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
42	814281A2	开关	SWITCH	1
42	8M0052931	开关	SWITCH	1
43	77478	螺钉 (#6-32 x .875)	SCREW (#6-32 x .875)	2
44	27882	垫圈	WASHER	2

图 70空气压缩机组件 SN 1B884881及以上 Air Compressor Components SN 1B884881 and up

REF	零件编号	中文名称	英文名称	数量
1	855432A1	盖板套件	COVER KIT	1
2	NSS	不单独销售弯头	NOT SOLD SEPARATE Elbow	1
3	8568431	直通接头	FITTING Straight STRAIGHT	1
4	19688	接头	FITTING	1
5	803878	密封件	SEAL	1
6	NSS	不单独销售泵出口配件包	NOT SOLD SEPARATE Fitting Kit-Pump Outlet	1
6	855437A2	泵出口接头套件	FITTING KIT Pump Outlet	1
7	NSS	O型圈（不单独销售）	NOT SOLD SEPARATE O Ring	1
8	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	7
9	855528	衬垫	GASKET	1
9	8M6002520	衬垫套件	GASKET KIT	1
10	855430A1	浮子套件	FLOAT KIT	1
10	8M6004920	浮子套件	FLOAT KIT	1
11	F10064	轴	SHAFT	1
12	855431	针阀	VALVE Needle	1
12	8M6004917	进气阀	VALVE-INLET	1
13	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
14	855427A1	泵套件	PUMP KIT	1
15	855428	套筒	SLEEVE	1
15	8M6000589	套筒	SLEEVE	1
16	855434A1	油杯套件	BOWL KIT	1
17	855433	密封件	SEAL	1
17	8554331	密封件	SEAL	1
18	855435A1	塞套件	PLUG KIT	1
19	8554245	弯头	ELBOW	2
20	18458A4	滤清器套件	FILTER KIT	1
20	18458Q4	燃油水分离滤清器	FILTER Fuel-Water Separating	1
21	828586	探头	PROBE	1
21	8M0204710	探头	PROBE	1

图 71动力升降倾斜电机 Power Trim Motor

REF	零件编号	中文名称	英文名称	数量
-	828708	电机总成	MOTOR ASSEMBLY	1
-	878265A4	配平电机	TRIM MOTOR	1
1	828714A1	电刷与密封套件	BRUSH AND SEAL KIT	1
2	828713A1	电枢套件	ARMATURE KIT	1
2	828713T1	电枢套件	ARMATURE KIT	1
3	828715A1	端架（总成）	END FRAME (COMPLETE)	1

图 72空气处理器 AIR HANDLER

REF	零件编号	中文名称	英文名称	数量
1	827325A1	盖总成	COVER ASSEMBLY	1
2	821555	护孔环	GROMMET	2
2	8M0153609	护孔环	GROMMET	2
3	853333	空气滤清器	FILTER Air	1
3	853333T	滤清器	FILTER	1
4	853352	盖板	COVER	1
5	855590	铆钉	RIVET	1
6	854633	固定座	RETAINER	1
7	64705	接头	FITTING	1
8	855613	护孔环	GROMMET	1
9	8556131	护孔环	GROMMET	1
10	855633A4	空气处理器总成	AIR HANDLER ASSEMBLY	1
10	855633A15	空气处理器总成	AIR HANDLER ASSEMBLY	1
11	856139	垫片	SHIM	1
11	8561391	垫片	SHIM	1
12	NSS	不单独销售(挂档启动警告标贴)	NOT SOLD SEPARATE Decal-Caution-Start in Gear	1
13	8557561	支架	BRACKET	1
13	855756A1	支架套件	BRACKET KIT	1
14	1993716	螺钉(M6 x 16)	SCREW (M6 x 16)	4
15	8558432	泵总成	PUMP ASSEMBLY	1
15	8M0240950	燃油泵总成	PUMP ASSY FUEL	1
16	13791	卡箍(15.7)	CLAMP (15.7)	4
16	8M0214911	卡箍@5	CLAMP @5	4
17	1350385	管材(33.00英寸整料)(5-1/2英寸)	TUBING (33.00 Inches Bulk) (5-1/2 IN.)	1
18	85564361	软管(18英寸)	HOSE (18 IN.)	1
19	83312531	绝缘套管	INSULATING SLEEVE	1
20	855802	弯头	ELBOW	1
20	855802A1	弯头	ELBOW	1
21	805026A1	接头	FITTING	1
22	805062	O型圈（.530 x .082）	O-RING (.530 x .082)	1
23	8554247	接头	FITTING	1
24	8285581	编码器	ENCODER	1
25	418051	螺钉 (#10-24 x 0.620)	SCREW (#10-24 x .620)	1
26	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
26	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
27	97224	J型卡箍(右舷上部)	J CLIP (UPPER STBD.)	2
28	814634	卡箍(下部)	CLAMP (LOWER)	1
29	817504	螺钉（0.250-20 x 1.500）不锈钢	SCREW (.250-20 x 1.500) Stainless Steel	12
30	830756109	软管(57.00英寸整料)(裁切至1-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 1-1/2 Inches)	1
30	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
31	830756109	软管(57.00英寸整料)(裁切至5英寸)	HOSE (57.00 Inches Bulk) (Cut to 5 Inches)	1
31	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
32	855896	通风罐	CANISTER Vent	1
32	855896T	滤清器	FILTER	1
33	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
33	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
34	860273	连接器	CONNECTOR	1
35	821583	销	PIN	1
35	8215832	特殊销（1.5英寸）	PIN Special (1.5 Inches)	1
36	85557726	EPA标签信息贴花	DECAL EPA Label Information	1
36	855577A26	REF SOB 09-18	REF SOB 09-18	1
37	61990	扎带(14.00英寸)	TIE STRAP (14.00 Inches)	1
38	88807A27	拉线总成	CABLE ASSEMBLY	1
39	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
39	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
40	12038	垫圈	WASHER	1
40	8M0207778	垫圈（0.344×0.625×0.063英寸）	WASHER .344 x .625 x.063	1
-	854008A98	动力头总成	POWERHEAD ASSEMBLY	1
-	804545T99	动力头总成	POWERHEAD ASSEMBLY	1

图 73齿轮箱螺旋桨轴-标准旋转 Gear Housing Propeller Shaft - Standard Rotation

REF	零件编号	中文名称	英文名称	数量
0	880686T13	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	880686T14	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	8M0236256	GC L6 4S XL	GC L6 4S XL	1
0	880686T16	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	8M0236259	GC L6 4S XXL	GC L6 4S XXL	1
1	880687T01	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	8M0056631	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	NSS	不单独销售塞	NOT SOLD SEPARATE Plug	1
3	892075	换挡曲柄	CRANK Shifter	1
3	896847A01	换挡曲柄5/16枢轴销	CRANK, Shifter 5/16 Pivot Pin	1
4	19755T7	阀芯总成	SPOOL ASSEMBLY	1
4	8M0235940	阀芯总成	SPOOL ASSY	1
5	NSS	不单独销售线轴	NOT SOLD SEPARATE Spool	1
6	469501	开口销	COTTER PIN	1
7	NSS	不单独销售调节套筒	NOT SOLD SEPARATE Sleeve Adjusting	1
8	892595A02	齿轮组(前进档与小齿轮)	GEAR SET Forward And Pinion	1
8	892595A05	前进/小齿轮组	GEAR SET Forward/Pinion	1
9	884328A01	垫片组	SHIM SET	AR
9	8M0063270	垫片组	SHIM SET	AR
10	884323T01	滚柱轴承总成	BEARING ASSEMBLY Roller	1
10	8M0142836	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
11	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
12	23721	挡圈	RING Retaining	1
12	8M0051043	挡圈	RING Retaining	1
13	892805	止推垫片	THRUST WASHER	1
13	8M0053823	止推垫圈(内径1.50×外径2.046)	WASHER Thrust, (1.50 ID x 2.046 OD)	1
14	884325T01	圆锥滚子轴承组件	BEARING ASSEMBLY Roller-Tappered	1
14	8M0142835	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
15	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
16	880714T	离合器	CLUTCH	1
17	30893	弹簧	SPRING	1
18	828356	定位销	PIN Detent	1
19	888530	螺旋桨轴	PROPELLER SHAFT	1
20	30632	十字销	PIN Cross	1
20	8M0100263	十字销	PIN Cross	1
21	880695A01	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
21	8M0142891	倒挡齿轮24齿	GEAR Reverse, 24T	1
22	880699	推力环	THRUST RING	1
23	891919001	止推隔套	SPACER Thrust	1
24	880696A08	轴承座总成	CARRIER ASSEMBLY Bearing	1
25	891936A01	垫片组	SHIM SET	AR
26	884329T	滚珠轴承	BEARING Ball	1
26	8M0142873	滚珠轴承	BEARING Ball	1
27	888483	油封	SEAL Oil	1
27	8M0204700	油封	SEAL Oil	1
28	884330T01	圆锥轴承组件	BEARING ASSEMBLY Taper	1
28	8M0148319	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper Cup/Cone	1
29	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
30	896600	油封	SEAL Oil	1
30	8M0204700	油封	SEAL Oil	1
31	896524	O型圈(3.850×.210)	O-RING (3.850 x .210)	1
31	8M0142840	O型圈(3.85×0.210)	O-RING (3.85 x 0.210)	1
32	880717A01	螺丝/密封套件	SCREW/SEAL KIT	1
33	830749	密封件	SEAL	1
33	8M0204693	放油螺塞密封件	SEAL Drain Plug	1
34	880697	键槽垫圈	KEYED WASHER	1
35	79448	固定座	RETAINER	1
35	8M2011027	固定座	RETAINER	1
-	830749A01	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 74燃油导轨 Fuel Rails

REF	零件编号	中文名称	英文名称	数量
1	831998A9	空气压缩机总成(参见空气压缩机部件分解图)	COMPRESSOR ASSEMBLY Air (SEE BREAKDOWN ON AIR COMPRESSOR COMPONENTS)	1
2	85593912	螺钉（M6 x 12）	SCREW (M6 x 12)	5
3	8328231	滑轮	PULLEY	1
3	8M0175171	滑轮	PULLEY	1
4	4010825	螺丝(M10 x 25)六角法兰-不锈钢	SCREW (M10 x 25) Hex Flange - Stainless Steel	2
5	8502511	软管	HOSE	1
5	8502512	软管	HOSE	1
6	85652329	绝缘套管(15英寸)	INSULATOR SLEEVE (15 IN.)	1
7	852379T5	燃油导轨	FUEL RAIL	1
7	852379T6	燃油导轨	FUEL RAIL	1
8	8500653	喷油器	INJECTOR	6
8	8M6001743	空气喷射器总成	INJECTOR ASSEMBLY Air	6
9	855697	卡箍(16.2)	CLAMP (16.2)	4
9	8M0204696	卡箍	CLAMP	4
10	85564361	软管(16英寸)	HOSE (16 IN.)	2
11	92345	螺柱	STUD	1
12	854640	特殊垫圈	WASHER Special	2
13	35814	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
13	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
14	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
14	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
15	852378T5	燃油导轨	FUEL RAIL	1
15	852378T6	燃油导轨	FUEL RAIL	1
16	830756109	软管(57.00英寸整料)(裁切至22-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 22-1/2 Inches)	1
16	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
17	826810	止回阀	CHECK VALVE	1
18	83075780	管材(28英寸整卷)(裁切为2-1/2英寸)	TUBING (28.00 Inches Bulk) (Cut to 2-1/2 Inches)	1
18	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
19	83476463	管材(32英寸整卷)(裁切为28-1/2英寸)	TUBING (32.00 Inches Bulk) (Cut to 28-1/2 Inches)	1
20	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	2
20	8M0214964	卡箍	CLAMP	2
21	85606064	管材(36英寸整卷)(28-1/2英寸)	TUBING (36.00 Inches Bulk) (28-1/2 IN.)	1
21	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
22	82104510	螺钉 (M5 x 10)	SCREW (M5 x 10)	4
23	46997	卡箍	CLAMP	4
24	852961	螺柱	STUD	4
24	8M0063255	双头螺栓M10x92	STUD M10x92	4
25	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	4
26	NSS	不单独销售软管(30英寸)	NOT SOLD SEPARATE Hose (30 IN.)	1
26	856822A3	软管(30英寸)	HOSE (30 IN.)	1
27	8558481	软管	HOSE	1
27	855848A1	软管	HOSE	1
28	828694A1	杯形垫片总成	WASHER ASSEMBLY Cupped	6
29	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	4
29	8M0214964	卡箍	CLAMP	4
30	85686953	套管(27英寸整卷)(裁切为18英寸)	SLEEVE (27.00 Inches Bulk) (Cut to 18 Inches)	1

图 75启动电机 Starter Motor

REF	零件编号	中文名称	英文名称	数量
-	NSS	起动机总成(不单独销售)	NOT SOLD SEPARATE Starter Motor Assembly	1
1	892339T01	启动电机总成	STARTER MOTOR ASSEMBLY	1
2	NSS	螺钉组(不单独销售)	NOT SOLD SEPARATE Screws	2
3	880805A1	齿轮套件	GEAR KIT	1
4	809463A1	电磁阀组件	SOLENOID KIT	1
5	8M0065258	电刷组	BRUSH SET	1
6	8M0034918	轴环	COLLAR	2
7	8M0043276	停机开关	STOP	1
8	NSS	高压警告贴纸(不单独销售)	NOT SOLD SEPARATE Decal-Waring-High Voltage	1
9	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
10	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
11	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
12	400213	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
13	400255	锁紧垫圈(M5)	LOCKWASHER (M5)	1
14	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1

图 76工具 Tools

REF	零件编号	中文名称	英文名称	数量
-	895277001	扳手工具(75毫米x30)带槽	TOOL Wrench (75 mm x 30) Flute	1
-	809905001	扭矩转换扳手	WRENCH Torque Adapter	1
-	822778004	动力调整适配器工具	TOOL Adaptor Fitting-Power Trim	1
-	895343T02	飞轮拉拔器工具	TOOL Flywheel Puller	1
-	895346	螺栓	BOLT	1
-	896504A01	舷外机吊装机构工具	TOOL ASSEMBLY OB Lifting Mech	1
-	889675A01	14针分流器工具	TOOL Shunt 14-Pin	1
-	804998T	齿轮油加注/排放工具	DRAIN/FILL TOOL Gearlube	1
-	896661	燃油滤清器工具	TOOL Fuel Filter	1
-	889283A01	燃油灌注工具包	TOOL KIT Fuel Priming	1

图 77电气组件 Electrical Components

REF	零件编号	中文名称	英文名称	数量
1	850675	电气安装板	PLATE Electrical Mounting	1
2	850227	点火线圈	COIL Ignition	6
2	856991A1	线圈套件	COIL KIT	6
3	821945A63	高压电缆总成	CABLE ASSEMBLY Hi Tension	1
4	63709A1	护套/端子套件	BOOT/TERMINAL KIT	1
5	855672	火花塞	SPARK PLUG	6
5	889597Q	NGK IZFR5G @4	NGK IZFR5G @4	6
5	855717	火花塞	SPARK PLUG	OPT
5	8557171	火花塞	SPARK PLUG	OPT
6	8506761	隔套	SPACER	6
6	850676F1	隔套	SPACER	6
7	850898	螺丝 (.250-20 x 3.250)	SCREW (.250-20 x 3.250)	6
8	825762	MAP传感器	SENSOR MAP	1
9	82129114	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
10	9912688	管材(36英寸整卷)(裁切为31英寸)	TUBING (36.00 Inches Bulk) (Cut to 31 Inches)	1
11	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
12	49436	垫圈	WASHER	4
13	833155	护孔环	GROMMET	4
14	8502341	衬套	BUSHING	4
15	82129114	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
16	35044	垫圈(0.281×0.625×0.065)不锈钢	WASHER (.281 x .625 x .065) Stainless Steel	6
17	56374	螺母 (.250-20)	NUT (.250-20)	6
17	8267098	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	6
18	819514A14	升降线束总成	HARNESS ASSEMBLY Trim	1
19	828151A1	继电器总成	RELAY ASSEMBLY	3
19	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	3
20	NSS	微调继电器标识贴(不单独销售)	NOT SOLD SEPARATE Decal-Trim Relay	3
21	828102	支架	BRACKET	3
21	8M0207771	安装支架	BRACKET Mounting	3
22	818968	衬套	BUSHING	3
22	8M0214955	衬套	BUSHING	3
23	818967	护孔环	GROMMET	3
23	8M0207785	护孔环	GROMMET	3
24	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
24	82129135	螺钉(M6x35)	SCREW (M6 x 35)	1
25	91912	衬套	BUSHING	1
26	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
26	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
27	850681A2	发动机线束总成	HARNESS ASSEMBLY Engine	1
27	850681A6	发动机线束	HARNESS-ENGINE	1
28	856624A2	线束总成	HARNESS ASSEMBLY	1
29	812619	黄色保险丝-20安培	FUSE Yellow - 20 Ampere	4
30	NSS	不单独销售保险丝支架	NOT SOLD SEPARATE Bracket-Fuse Holder	1
31	855634	螺钉(M4x8)	SCREW (M4 X 8)	2
32	856496A8	发动机控制单元ECU	ECU Engine Control Unit	1
32	858891A20	电控单元	ECU	1
32	856496A9	发动机控制单元ECU	ECU Engine Control Unit	1
32	858891A21	电控单元	ECU	1
33	830897	垫	PAD	1
34	82130025	螺钉(M6x25)	SCREW (M6 x 25)	3
35	8318701	衬套	BUSHING	6
36	834985	护孔环	GROMMET	3
36	8M0190980	护孔环	GROMMET	3
37	82129114	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
38	853947	卡扣	CLIP	1
39	8266241	卡箍	CLAMP	1
40	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	2
40	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2
41	8331371	电磁阀安装板	PLATE Solenoid Mounting	1
42	82130012	螺钉（M6 x 12）	SCREW (M6 x 12)	3
43	82129114	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
44	817109A2	电磁阀总成(#10-32/.3125-18端子)	SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)	1
45	822179	护孔环	GROMMET	2
46	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
47	93388A7	线缆总成(黑色)	CABLE ASSEMBLY (BLACK)	1
47	93388A14	线缆总成(黄/黑)	CABLE ASSEMBLY Yellow/Black	1
48	818968	衬套	BUSHING	2
48	8M0214955	衬套	BUSHING	2
49	88439A25	电缆总成蓄电池-正极	CABLE ASSEMBLY Battery - Positive	1
50	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
51	68292	螺母(.312-18)	NUT (.312-18)	2
51	8M0204668	螺母(.312-18)	NUT (.312-18)	2
52	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
53	88807A16	黑色电缆总成(4.00英寸)	CABLE ASSEMBLY (4.00 Inches) Black	1
54	813938	盖形螺母(#10-32)	CAP NUT (#10-32)	1
55	78866	绝缘体	INSULATOR	1
56	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	1

图 78附件 Accessories

REF	零件编号	中文名称	英文名称	数量
-	892440A08	动力转向泵套件	PUMP KIT Power Steering Pump Kit	1
-	892440A09	动力转向泵套件	PUMP KIT Power Steering Pump Kit	1
-	8M0131263	动力转向泵套件(24英尺)	PUMP KIT Power Steering (24 Feet)	1
-	892380A02	标准转向舵机套件(40cc)	STEERING HELM KIT Standard (40 cc)	1
-	8M0240080	标准舵机套件40CM	HELM KIT-STD 40CM	1
-	892557A02	标准转向舵机套件(32cc)	STEERING HELM KIT Standard (32 cc)	1
-	8M0240079	标准舵机套件32CM	HELM KIT-STD 32CM	1
-	892558A02	标准转向舵机套件(50cc)	STEERING HELM KIT Standard (50 cc)	1
-	8M0240081	标准舵机套件50CM	HELM KIT-STD 50CM	1
-	892450K01	液压软管套件(1英尺)油缸至舵机	HOSE KIT (1 Foot) Hydraulic, Cylinder to Helm	1
-	897982K01	ORD 32-897982K02	ORD 32-897982K02	1
-	892450K02	液压软管套件(2英尺)油缸至舵机	HOSE KIT (2 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167281	软管套件2FT	HOSE KIT 2FT	1
-	892450K03	液压软管套件(3英尺)油缸至舵机	HOSE KIT (3 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167282	软管套件3FT	HOSE KIT 3 FT	1
-	892450K04	液压软管套件(4英尺)油缸至舵机	HOSE KIT (4 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167283	软管套件4FT	HOSE KIT 4 FT	1
-	892450K05	液压软管套件(5英尺)油缸至舵机	HOSE KIT (5 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167284	软管套件5FT	HOSE KIT 5 FT	1
-	892450K06	液压软管套件(6英尺)油缸至舵机	HOSE KIT (6 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167285	软管套件6FT	HOSE KIT 6 FT	1
-	892450K07	液压软管套件(7英尺)油缸至舵机	HOSE KIT (7 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167286	软管套件7FT	HOSE KIT 7 FT	1
-	892450K08	液压软管套件(8英尺)油缸至舵机	HOSE KIT (8 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167287	软管套件8FT	HOSE KIT 8 FT	1
-	892450K10	液压软管套件(10英尺)油缸至舵机	HOSE KIT (10 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167288	软管套件10FT	HOSE KIT 10 FT	1
-	892450K12	液压软管套件(12英尺)油缸至舵机	HOSE KIT (12 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167289	软管套件12FT	HOSE KIT 12 FT	1
-	892450K14	液压软管套件(14英尺)油缸至舵机	HOSE KIT (14 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167290	软管套件 14英尺	HOSE KIT 14 FT	1
-	892450K16	液压软管套件(16英尺)油缸至舵机	HOSE KIT (16 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167291	软管套件 16英尺	HOSE KIT 16 FT	1
-	892450K18	液压软管套件(18英尺)油缸至舵机	HOSE KIT (18 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167292	软管套件 18英尺	HOSE KIT 18 FT	1
-	892450K22	液压软管套件(22英尺)油缸至舵机	HOSE KIT (22 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167294	软管套件 22英尺	HOSE KIT 22 FT	1
-	892450K24	液压软管套件(24英尺)油缸至舵机	HOSE KIT (24 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167295	软管套件 24英尺	HOSE KIT 24 FT	1
-	892450K26	液压软管套件(26英尺)油缸至舵机	HOSE KIT (26 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167296	软管套件 26英尺	HOSE KIT 26 FT	1
-	892450K30	液压软管套件(30英尺)油缸至舵机	HOSE KIT (30 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167298	软管套件 30英尺	HOSE KIT 30 FT	1
-	892438K02	动力转向软管套件动力模块 (2英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (2 Feet) Hydraulic, Pump to Helm	1
-	8M0150604	泵至舱壁/舵机套件 2英尺	PUMP TO BULKHEAD/HELM KIT 2 Ft	1
-	892438K03	动力转向软管套件动力模块 (3英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (3 Feet) Hydraulic, Pump to Helm	1
-	8M0150605	泵至舱壁/舵机套件 3英尺	PUMP TO BULKHEAD/HELM KIT 3 Ft	1
-	892438K04	动力转向软管套件动力模块 (4英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (4 Feet) Hydraulic, Pump to Helm	1
-	8M0150606	泵至舱壁/舵机套件 4英尺	PUMP TO BULKHEAD/HELM KIT 4 Ft	1
-	892438K05	动力转向软管套件动力模块 (5英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (5 Feet) Hydraulic, Pump to Helm	1
-	8M0150607	泵至舱壁/舵机套件 5英尺	PUMP TO BULKHEAD/HELM KIT 5 Ft	1
-	892438K06	软管套件动力模块 (6英尺) 液压, 泵至舵机	HOSE KIT Power Module (6 Feet) Hydraulic, Pump to Helm	1
-	8M0150608	泵至舱壁/舵机套件 6英尺	PUMP TO BULKHEAD/HELM KIT 6 Ft	1
-	892438K07	软管套件动力模块 (7英尺) 液压, 泵至舵机	HOSE KIT Power Module (7 Feet) Hydraulic, Pump to Helm	1
-	8M0150610	泵至舱壁/舵机套件 7英尺	PUMP TO BULKHEAD/HELM KIT 7 Ft	1
-	892438K08	软管套件动力模块 (8英尺) 液压, 泵至舵机	HOSE KIT Power Module (8 Feet) Hydraulic, Pump to Helm	1
-	8M0150612	泵至舱壁/舵机套件 8英尺	PUMP TO BULKHEAD/HELM KIT 8 Ft	1
-	892438K10	动力转向软管套件动力模块 (10英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (10 Feet) Hydraulic, Pump to Helm	1
-	8M0150613	泵至舱壁/舵机套件 10英尺	PUMP TO BULKHEAD/HELM KIT 10 Ft	1
-	892438K12	动力转向软管套件动力模块 (12英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (12 Feet) Hydraulic, Pump to Helm	1
-	8M0150614	泵至舱壁/舵机套件 12英尺	PUMP TO BULKHEAD/HELM KIT 12 Ft	1
-	892438K14	动力转向软管套件动力模块 (14英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (14 Feet) Hydraulic, Pump to Helm	1
-	8M0150615	泵至舱壁/舵机套件 14英尺	PUMP TO BULKHEAD/HELM KIT 14 Ft	1
-	892438K16	动力转向软管套件动力模块 (16英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (16 Feet) Hydraulic, Pump to Helm	1
-	8M0150616	泵至舱壁/舵机套件 16英尺	PUMP TO BULKHEAD/HELM KIT 16 Ft	1
-	892438K18	动力转向软管套件动力模块 (18英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (18 Feet) Hydraulic, Pump to Helm	1
-	8M0150617	泵至舱壁/舵机套件 18英尺	PUMP TO BULKHEAD/HELM KIT 18 Ft	1
-	892438K20	动力转向软管套件动力模块 (20英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (20 Feet) Hydraulic, Pump to Helm	1
-	8M0150618	泵至舱壁/舵机套件 20英尺	PUMP TO BULKHEAD/HELM KIT 20 ft	1
-	892438K22	动力转向软管套件动力模块 (22英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (22 Feet) Hydraulic, Pump to Helm	1
-	8M0150619	泵至舱壁/舵机套件 22英尺	PUMP TO BULKHEAD/HELM KIT 22 FT	1
-	892438K24	动力转向软管套件动力模块 (24英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (24 Feet) Hydraulic, Pump to Helm	1
-	8M0150620	泵至舱壁/舵机套件 24英尺	PUMP TO BULKHEAD/HELM KIT 24 FT	1
-	892825008	液压软管 (8英尺) 舵机至压力罐	HOSE (8 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825010	液压软管 (10英尺) 舵机至压力罐	HOSE (10 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825012	液压软管 (12英尺) 舵机至压力罐	HOSE (12 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825014	液压软管 (14英尺) 舵机至压力罐	HOSE (14 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825016	液压软管 (16英尺) 舵机至压力罐	HOSE (16 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825018	液压软管 (18英尺) 舵机至压力罐	HOSE (18 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825020	液压软管 (20英尺) 舵机至压力罐	HOSE (20 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825022	液压软管 (22英尺) 舵机至压力罐	HOSE (22 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825024	液压软管 (24英尺) 舵机至压力罐	HOSE (24 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825026	液压软管 (26英尺) 舵机至压力罐	HOSE (26 Feet) Hydraulic, Helm to Pressure Tank	1
-	893395A01	嵌入式安装板	PLATE Flush Mount	1
-	875207	三通接头	TEE Fitting	1
-	892486K08	模拟转换套件	CONVERSION KIT Analog	1
-	889611K02	附件电源线束套件(30英尺)	HARNESS KIT Accessory Power (30 Feet)	1
-	899785K04	附件电源线束总成(30英尺)	HARNESS ASSEMBLY Accessory Power (30 Feet)	1
-	88334A2	防腐电极套件	MERCATHODE KIT	1
-	8M0180081	防腐电极套件	MERCATHODE KIT	1
-	825191A03	索具软管套件	HOSE KIT Rigging	1
-	880717A01	齿轮箱螺丝/密封套件	SCREW/SEAL KIT Gearcase	1
-	88439A50	电池电缆组	CABLE SET Battery	1
-	8M0210761	电池电缆组(12英尺)	CABLE SET (12 ft) Battery	1
-	44357Q2	冲洗附件	FLUSHING ATTACHMENT	1
-	44357T2	冲洗附件	FLUSHING ATTACHMENT	1
-	881150Q1	双进水口冲洗套件	FLUSH KIT Dual Water Pick Up	1
-	881150K1	双进水口冲洗密封套件	SEAL KIT Flush - Dual Water Pickup	1
-	897967100	燃油管路 (100.00英尺)	LINE Fuel (100.00 Feet)	1
-	8M0038563	燃油管路 (100.00英尺)	LINE Fuel (100.00 Feet)	1
-	899712A01	连续性电缆套件	CABLE KIT Continuity	1

图 79齿轮箱驱动轴-标准/反向旋转 Gear Housing Driveshaft - Standard/Counter Rotation

REF	零件编号	中文名称	英文名称	数量
1	855432A1	盖板套件	COVER KIT	1
2	NSS	不单独销售弯头	NOT SOLD SEPARATE Elbow	1
3	8568431	直通接头	FITTING Straight STRAIGHT	1
4	19688	接头	FITTING	1
5	803878	密封件	SEAL	1
6	NSS	不单独销售泵出口配件包	NOT SOLD SEPARATE Fitting Kit-Pump Outlet	1
6	855437A2	泵出口接头套件	FITTING KIT Pump Outlet	1
7	NSS	O型圈（不单独销售）	NOT SOLD SEPARATE O Ring	1
8	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	7
9	855528	衬垫	GASKET	1
9	8M6002520	衬垫套件	GASKET KIT	1
10	855430A1	浮子套件	FLOAT KIT	1
10	8M6004920	浮子套件	FLOAT KIT	1
11	F10064	轴	SHAFT	1
12	855431	针阀	VALVE Needle	1
12	8M6004917	进气阀	VALVE-INLET	1
13	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
14	855427A1	泵套件	PUMP KIT	1
15	855428	套筒	SLEEVE	1
15	8M6000589	套筒	SLEEVE	1
16	855434A1	油杯套件	BOWL KIT	1
17	855433	密封件	SEAL	1
17	8554331	密封件	SEAL	1
18	855435A1	塞套件	PLUG KIT	1
19	8554245	弯头	ELBOW	2
20	18458A4	滤清器套件	FILTER KIT	1
20	18458Q4	燃油水分离滤清器	FILTER Fuel-Water Separating	1
21	828586	探头	PROBE	1
21	8M0204710	探头	PROBE	1

图 80燃油泵 Fuel Pump

REF	零件编号	中文名称	英文名称	数量
1	NSS	不单独销售燃油泵	NOT SOLD SEPARATE Fuel Pump	1
2	14360A53	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	14360T75	燃油泵总成	PUMP ASSEMBLY Fuel	1
3	42990A10	膜片组件	DIAPHAGM KIT	2
3	857005A1	膜片组件	DIAPHRAGM KIT	2
4	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
5	NSS		NOT SOLD SEPARATE Rubber Check Valve	2
6	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
10	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
11	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
12	987691	衬垫	GASKET	1
12	8M0204705	衬垫@2	GASKET @2	1
13	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
14	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
15	987752	安装板	PLATE	1
16	996641	弯头	ELBOW	2
16	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	2
17	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
17	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2
18	144303	底座	BASE	1
19	78279	弯头（45度）	ELBOW (45 DEGREES)	1
19	8M0207781	弯头	ELBOW	1
20	291111	接头	FITTING	1
20	291112	接头	FITTING	1
21	83075780	管材(28.00英寸散装)	TUBING (28.00 Inches Bulk)	1
21	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
22	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
22	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
23	856822A1	管材(带绝缘套管)(7英寸)	TUBING (W/INSULATING SLEEVE) (7 IN.)	1
23	8M0064784	成型脉冲软管	HOSE,MOLDED,PULSE	1
24	856822A2	软管套管总成(18.00英寸)	HOSE AND SLEEVE ASSEMBLY (18.00 Inches)	1
24	8M0043979	软管套管总成	HOSE AND SLEEVE ASSEMBLY	1
25	822769	连接器	CONNECTOR	1
-	814754A98	衬垫套件	GASKET SET	1
-	8M0046714	衬垫套件	GASKET SET	1
-	854008A98	动力头总成	POWERHEAD ASSEMBLY	1
-	804545T99	动力头总成	POWERHEAD ASSEMBLY	1

图 81气缸盖 Cylinder Head

REF	零件编号	中文名称	英文名称	数量
1	852380A1	气缸盖	CYLINDER HEAD	1
1	852381A1	气缸盖	CYLINDER HEAD	1
1	852381T1	气缸盖	CYLINDER HEAD	1
2	8525203	衬垫	GASKET	2
3	832971	螺钉 (.375-16 x 3.00)	SCREW (.375-16 x 3.00)	24
4	74840	定位销	PIN Dowel	4
5	62386	衬垫	GASKET	2
5	8M0204714	衬垫@4	GASKET @4	2
6	8307371	盖板	COVER	2
6	8M0039353	盖板	COVER	2
7	833072	节温器 62°C（143°F）	THERMOSTAT 62° Celsius (143° Fahrenheit)	2
7	833072003	节温器 62°C (143°F)	THERMOSTAT 62°C (143°F)	2
8	82130025	螺钉(M6x25)	SCREW (M6 x 25)	4
9	687271	90度弯头 (.250-18) 黄铜(右舷)	FITTING (.250-18) 90 Degree - Brass (Starboard)	1
10	68728	接头(左舷)	FITTING (Port)	1
11	77653112	软管(59.00英寸整料)(21-1/2英寸)	HOSE (59.00 Inches Bulk) (21-1/2 IN.)	1
11	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
12	77653112	软管(59.00英寸散装)(11-1/2英寸)	HOSE (59.00 Inches Bulk) (11-1/2 IN.)	1
12	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
13	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	5
13	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	5
14	13536A14	温度传感器总成(右舷)	SENSOR ASSEMBLY Temperature (Starboard)	1
15	137151	固定座	RETAINER	1
16	81893412	螺钉（M8×12）	SCREW (M8 x 12)	1
-	814754A98	衬垫套件	GASKET SET	1
-	8M0046714	衬垫套件	GASKET SET	1
-	854008A98	动力头总成	POWERHEAD ASSEMBLY	1
-	804545T99	动力头总成	POWERHEAD ASSEMBLY	1

图 82数字电气部件 DIGITAL ELECTRIC PARTS

REF	零件编号	中文名称	英文名称	数量
1	852380A1	气缸盖	CYLINDER HEAD	1
1	852381A1	气缸盖	CYLINDER HEAD	1
1	852381T1	气缸盖	CYLINDER HEAD	1
2	8525203	衬垫	GASKET	2
3	832971	螺钉 (.375-16 x 3.00)	SCREW (.375-16 x 3.00)	24
4	74840	定位销	PIN Dowel	4
5	62386	衬垫	GASKET	2
5	8M0204714	衬垫@4	GASKET @4	2
6	8307371	盖板	COVER	2
6	8M0039353	盖板	COVER	2
7	833072	节温器 62°C（143°F）	THERMOSTAT 62° Celsius (143° Fahrenheit)	2
7	833072003	节温器 62°C (143°F)	THERMOSTAT 62°C (143°F)	2
8	82130025	螺钉(M6x25)	SCREW (M6 x 25)	4
9	687271	90度弯头 (.250-18) 黄铜(右舷)	FITTING (.250-18) 90 Degree - Brass (Starboard)	1
10	68728	接头(左舷)	FITTING (Port)	1
11	77653112	软管(59.00英寸整料)(21-1/2英寸)	HOSE (59.00 Inches Bulk) (21-1/2 IN.)	1
11	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
12	77653112	软管(59.00英寸散装)(11-1/2英寸)	HOSE (59.00 Inches Bulk) (11-1/2 IN.)	1
12	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
13	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	5
13	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	5
14	13536A14	温度传感器总成(右舷)	SENSOR ASSEMBLY Temperature (Starboard)	1
15	137151	固定座	RETAINER	1
16	81893412	螺钉（M8×12）	SCREW (M8 x 12)	1
-	814754A98	衬垫套件	GASKET SET	1
-	8M0046714	衬垫套件	GASKET SET	1
-	854008A98	动力头总成	POWERHEAD ASSEMBLY	1
-	804545T99	动力头总成	POWERHEAD ASSEMBLY	1

图 83艉板支架 Transom Brackets

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
10	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0027784	螺母	NUT	4
11	82671117	螺母(.500-20)	NUT (.500-20)	4
12	99629A2	杠杆总成	LEVER ASSEMBLY	1
12	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	830899	张力弹簧	SPRING Tension	1
14	65830	尼龙衬套	NYLINER	2
15	830900	压缩弹簧	SPRING Compression	1
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99617	销	PIN	1
18	893709	销	PIN	1

图 84排气歧管与排气板 EXHAUST MANIFOLD AND EXHAUST PLATE

REF	零件编号	中文名称	英文名称	数量
1	190503	衬垫	GASKET	1
2	8283431	排气隔板	PLATE Exhaust Divider	1
2	828343T3	排气隔板	PLATE Exhaust Divider	1
3	814754	密封件(12.50英寸)	SEAL (12.50 Inches)	1
4	826356	螺钉带垫圈(.312-18 x 1.500)	SCREW AND WASHER (.312-18 x 1.500)	17
4	8263561	螺钉带垫圈(.312-18 x 1.500)	SCREW AND WASHER (.312-18 x 1.500)	17
5	855288	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	2
5	881190	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	2
6	8348082	滤网	STRAINER	1
7	83075780	管材(28.00英寸整料)(裁切至4-1/2英寸)	TUBING (28.00 Inches Bulk) (Cut to 4-1/2 Inches)	1
7	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
8	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
9	77653112	软管(59.00英寸整料)(21-1/2英寸)	HOSE (59.00 Inches Bulk) (21-1/2 IN.)	1
9	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
10	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	5
10	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	5
11	68729	盖板	COVER	1
11	8M0039767	盖板	COVER	1
12	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
13	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
14	76451	垫圈	WASHER	1
15	14479	隔膜	DIAPHRAGM	1
15	144791	隔膜	DIAPHRAGM	1
16	16496	导水板	DEFLECTOR Water	1
17	16497A1	安装板	PLATE	1
18	78690	衬垫	GASKET	2
18	78690002	衬垫	GASKET	2
19	64878	弹簧(黑色)	SPRING (Black)	1
20	85303	垫圈	WASHER	1
21	14480	提动阀	POPPET	1
22	64872	护孔环	GROMMET	1
23	65848	托架	CARRIER	1
24	991763	衬垫	GASKET	1
24	991764	衬垫	GASKET	1
25	850814A1	排气板总成	PLATE ASSEMBLY Exhaust	1
25	850814T1	排气板总成	PLATE ASSEMBLY Exhaust	1
26	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
27	8147011	密封件	SEAL	1
27	8M0043164	密封件	SEAL	1
28	680101	支架	BRACKET	1
29	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	8
29	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	8
30	89772	连接器(.125-27)(直通)(背部)	CONNECTOR (.125-27) (STRAIGHT)(BACK)	1
31	629101	90度弯头(.125-27)(右舷顶部孔)	FITTING Elbow - 90 Degree (.125-27) (STARBOARD-TOP HOLE)	1
32	89772	连接器(.125-27)(直通)(右舷底部孔)	CONNECTOR (.125-27) (STRAIGHT)(STARBOARD-BOTTOM HOLE)	1
33	19564	护孔环	GROMMET	1
33	8M0179867	护孔环	GROMMET	1
34	19565	护孔环	GROMMET	1
34	19565002	护孔环	GROMMET	1
35	77653112	软管(59.00英寸整料)(25英寸)	HOSE (59.00 Inches Bulk) (25 IN.)	1
35	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
36	852759	软管	HOSE	1
37	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	4
38	69254	螺母	NUT	6
39	27132	衬套	BUSHING	1
40	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
41	68783	螺钉(.312-18×2.50)	SCREW (.312-18 x 2.50)	1
42	66725	螺钉(.375-16×3.50)	SCREW (.375-16 x 3.50)	3
42	898833	螺钉(.375-16 x 3.500)	SCREW (.375-16 x 3.500)	3
43	812905A5	前支架总成	BRACKET ASSEMBLY Front	1
43	812905T	前支架	BRACKET Front	1
44	8055571	螺钉(0.3125-18×0.50)	SCREW (.3125-18 x .50)	4
45	187031	垫圈	WASHER	4
46	18778	护孔环	GROMMET	4
46	18778001	护孔环	GROMMET	4
47	18578A8	支架总成(后部)	BRACKET ASSEMBLY Rear	1
47	18578T09	支架总成(后部)	BRACKET ASSEMBLY Rear	1
-	814754A98	衬垫套件	GASKET SET	1
-	8M0046714	衬垫套件	GASKET SET	1
-	854008A98	动力头总成	POWERHEAD ASSEMBLY	1
-	804545T99	动力头总成	POWERHEAD ASSEMBLY	1

图 85电气板总成 ELECTRICAL PLATE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	8343A10	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8343A11	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8343T11	ORD 1590-8343T10	ORD 1590-8343T10	1
1	813563A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	813563T1	传动轴壳体-黑色-加长型	HOUSING Driveshaft - Black - X-Long	1
1	813563A2	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	813563T2	ORD 3503-813563T1	ORD 3503-813563T1	1
2	56295	双头螺柱(.437 x 2.69)	STUD (.437 x 2.69)	2
3	63474	螺钉(.500-20 x 6.00)	SCREW (.500-20 x 6.00)	2
3	898831	螺钉(.500-20 x 6.220)	SCREW (.500-20 x 6.220)	2
4	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
5	77327	支架	MOUNT	2
6	49339	垫圈(.8125)	WASHER (.8125)	2
7	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
8	28040	螺母(.500-20)	NUT (.500-20)	2
8	898832	螺母(.500-20)	NUT (.500-20)	2
9	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
10	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
11	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
11	8M0204653	螺母	NUT	2
12	67076	卡箍	CLAMP	2
12	8M0036782	卡箍	CLAMP	2
13	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
14	67077T	黑色盖	COVER Black	2
14	8M4500752	盖板	COVER	2
14	67077F1	灰色盖板	COVER Gray	2
14	67077T	黑色盖	COVER Black	2
15	88417	螺钉(#12-24×0.620)	SCREW (#12-24 x .620)	4
16	35521	螺母	NUT	4
17	48926	垫圈	WASHER	1
18	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	1
18	8M0204653	螺母	NUT	1
19	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	4
20	69254	螺母	NUT	4
21	828212	怠速排气套	BOOT Idle Exhaust	1
21	8M0039081	护套	BOOT	1
22	64649	堵头	PLUG	1
23	991732	衬垫	GASKET	1
23	991734	衬垫	GASKET	1
24	66350	下密封件	SEAL (LOWER)	1
24	66350001	密封件	SEAL	1
25	18276	排气管	TUBE Exhaust	1
25	18276T	排气管	EXHAUST TUBE	1
26	177261	上密封件	SEAL (UPPER)	1
26	8M0039076	密封件	SEAL	1
27	812834	排气管延长段	EXTENSION Exhaust	1
27	812834A2	排气延长总成	EXTENSION ASSEMBLY Exhaust	1
27	41942F3	排气管延长段	EXTENSION Exhaust	1
27	879288T71	排气管延长段	EXTENSION Exhaust	1
28	67295	水管	TUBE Water	1
28	8M0042788	长型水管	TUBE-WATER-LONG	1
28	74729	管	TUBE	1
28	8M0042790	水管	TUBE-WATER	1
29	78246	衬垫	GASKET	1
29	782461	衬垫	GASKET	1
30	18233A6	隔板总成	PLATE ASSEMBLY	1
30	18233A20	传动轴壳体板总成	PLATE ASSEMBLY Driveshaft Housing	1
31	8147012	密封件	SEAL	1
31	8M0043165	密封件-27.00英寸	SEAL-27.00 INCH	1
32	68011	支架	BRACKET	1
33	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
33	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
34	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
35	38970	密封件	SEAL	1
36	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	6
37	39072	塞(1/8英寸黄铜)	PLUG (1/8 Inch Brass)	2
37	390721	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	2
38	183071	衬垫	GASKET	1
38	183076	衬垫	GASKET	1
-	814754A98	衬垫套件	GASKET SET	1
-	8M0046714	衬垫套件	GASKET SET	1

图 86动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	8M0168222	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0142591	电机套件	MOTOR KIT	1
2	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
3	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
4	8M0090403	驱动联轴器	COUPLING Drive	1
5	8M0142996	压力检查套件	PO CHECK KIT	1
6	8M0060141	手动释放套件	MANUAL RELEASE KIT	1
7	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
8	878267	销	PIN	1
9	8M0142998	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
9	8M0168220	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
10	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
11	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
12	8M0142592	升降杆套件左舷	TRIM ROD KIT Port	1
13	8M0143001	活塞总成	PISTON ASSEMBLY	1
14	8M0143003	端盖总成	END CAP ASSEMBLY	1
15	878264A1	储液罐套件	RESERVOIR KIT	1
16	811613	塞子总成	PLUG ASSEMBLY	1
17	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
18	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
19	8M0143004	泵套件	PUMP KIT	1
20	8M0148385	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
21	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
22	4002319	垫圈	WASHER	6
23	8M0094889	销	PIN	1
23	8M0161312	连杆销眼总成	PIN ROD EYE ASSEMBLY	1
24	8M0143005	减震杆套件	SHOCK ROD KIT	1
24	8M0168219	减震杆套件	SHOCK ROD KIT	1

图 87动力升降组件(铸造泵壳)金属电机壳体 POWER TRIM COMPONENTS (CAST PUMP HOUSING) Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
1	12335A1	支架套件	BRACKET KIT	1
2	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1
3	87421	油箱	TANK	1
4	43298A2	盖总成	CAP ASSEMBLY	1
5	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
6	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
7	816190A3	外壳总成适配器	HOUSING ASSEMBLY Adapter	1
7	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
8	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
9	99802	管	TUBE	1
10	99439	软管(114.00英寸)	HOSE (114.00 Inches)	1
11	833069A3	油箱总成	RESERVOIR ASSEMBLY Oil	1
11	8M0062954	储油罐	RESERVOIR, OIL	1
12	NSS	不单独销售标签-储液罐	NOT SOLD SEPARATE Decal-Reservoir	1
13	855362	护孔环	GROMMET	3
13	855362001	护孔环	GROMMET	3
14	49436	垫圈	WASHER	3
15	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
16	855364	衬套	BUSHING	3
17	69267	螺钉 (.312-18 x 1.750)	SCREW (.312-18 x 1.750)	2
18	833155	护孔环	GROMMET	2
19	8502341	衬套	BUSHING	2
20	82381455	管材(25英寸整卷)(裁切为20英寸)	TUBING (25.00 Inches Bulk) (Cut to 20 Inches)	1
21	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
21	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
22	12886A8	开关	SWITCH	1
23	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
24	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
25	8260841	隔套	SPACER	1
26	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	7
26	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	7
27	NSS	不单独销售塞	NOT SOLD SEPARATE Plug	1
28	424254	接头	FITTING	1
28	8M0207780	接头	FITTING	1
29	830756109	软管(57.00英寸散装)(裁切至6英寸)	HOSE (57.00 Inches Bulk) (Cut to 6 Inches)	1
29	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
30	855785	燃油冷却器	COOLER Fuel	1
30	855785A1	燃油冷却器总成	COOLER ASSEMBLY Fuel	1
31	855761	止回阀	CHECK VALVE	1
31	8557611	止回阀	CHECK VALVE	1
32	13791	卡箍(15.7)	CLAMP (15.7)	4
32	8M0214911	卡箍@5	CLAMP @5	4
33	85682239	管材(17英寸整卷)(裁切为3英寸)	TUBING (17.00 Inches Bulk) (Cut to 3 Inches)	1
34	856822A3	软管(带绝缘套管)(30英寸)	HOSE (W/INSULATING SLEEVE) (30 IN.)	1

图 88空气软管 Air Hoses

REF	零件编号	中文名称	英文名称	数量
-	892440A08	动力转向泵套件	PUMP KIT Power Steering Pump Kit	1
-	892440A09	动力转向泵套件	PUMP KIT Power Steering Pump Kit	1
-	8M0131263	动力转向泵套件(24英尺)	PUMP KIT Power Steering (24 Feet)	1
-	892380A02	标准转向舵机套件(40cc)	STEERING HELM KIT Standard (40 cc)	1
-	8M0240080	标准舵机套件40CM	HELM KIT-STD 40CM	1
-	892557A02	标准转向舵机套件(32cc)	STEERING HELM KIT Standard (32 cc)	1
-	8M0240079	标准舵机套件32CM	HELM KIT-STD 32CM	1
-	892558A02	标准转向舵机套件(50cc)	STEERING HELM KIT Standard (50 cc)	1
-	8M0240081	标准舵机套件50CM	HELM KIT-STD 50CM	1
-	892450K01	液压软管套件(1英尺)油缸至舵机	HOSE KIT (1 Foot) Hydraulic, Cylinder to Helm	1
-	897982K01	ORD 32-897982K02	ORD 32-897982K02	1
-	892450K02	液压软管套件(2英尺)油缸至舵机	HOSE KIT (2 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167281	软管套件2FT	HOSE KIT 2FT	1
-	892450K03	液压软管套件(3英尺)油缸至舵机	HOSE KIT (3 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167282	软管套件3FT	HOSE KIT 3 FT	1
-	892450K04	液压软管套件(4英尺)油缸至舵机	HOSE KIT (4 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167283	软管套件4FT	HOSE KIT 4 FT	1
-	892450K05	液压软管套件(5英尺)油缸至舵机	HOSE KIT (5 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167284	软管套件5FT	HOSE KIT 5 FT	1
-	892450K06	液压软管套件(6英尺)油缸至舵机	HOSE KIT (6 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167285	软管套件6FT	HOSE KIT 6 FT	1
-	892450K07	液压软管套件(7英尺)油缸至舵机	HOSE KIT (7 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167286	软管套件7FT	HOSE KIT 7 FT	1
-	892450K08	液压软管套件(8英尺)油缸至舵机	HOSE KIT (8 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167287	软管套件8FT	HOSE KIT 8 FT	1
-	892450K10	液压软管套件(10英尺)油缸至舵机	HOSE KIT (10 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167288	软管套件10FT	HOSE KIT 10 FT	1
-	892450K12	液压软管套件(12英尺)油缸至舵机	HOSE KIT (12 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167289	软管套件12FT	HOSE KIT 12 FT	1
-	892450K14	液压软管套件(14英尺)油缸至舵机	HOSE KIT (14 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167290	软管套件 14英尺	HOSE KIT 14 FT	1
-	892450K16	液压软管套件(16英尺)油缸至舵机	HOSE KIT (16 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167291	软管套件 16英尺	HOSE KIT 16 FT	1
-	892450K18	液压软管套件(18英尺)油缸至舵机	HOSE KIT (18 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167292	软管套件 18英尺	HOSE KIT 18 FT	1
-	892450K22	液压软管套件(22英尺)油缸至舵机	HOSE KIT (22 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167294	软管套件 22英尺	HOSE KIT 22 FT	1
-	892450K24	液压软管套件(24英尺)油缸至舵机	HOSE KIT (24 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167295	软管套件 24英尺	HOSE KIT 24 FT	1
-	892450K26	液压软管套件(26英尺)油缸至舵机	HOSE KIT (26 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167296	软管套件 26英尺	HOSE KIT 26 FT	1
-	892450K30	液压软管套件(30英尺)油缸至舵机	HOSE KIT (30 Feet) Hydraulic, Cylinder to Helm	1
-	8M0167298	软管套件 30英尺	HOSE KIT 30 FT	1
-	892438K02	动力转向软管套件动力模块 (2英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (2 Feet) Hydraulic, Pump to Helm	1
-	8M0150604	泵至舱壁/舵机套件 2英尺	PUMP TO BULKHEAD/HELM KIT 2 Ft	1
-	892438K03	动力转向软管套件动力模块 (3英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (3 Feet) Hydraulic, Pump to Helm	1
-	8M0150605	泵至舱壁/舵机套件 3英尺	PUMP TO BULKHEAD/HELM KIT 3 Ft	1
-	892438K04	动力转向软管套件动力模块 (4英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (4 Feet) Hydraulic, Pump to Helm	1
-	8M0150606	泵至舱壁/舵机套件 4英尺	PUMP TO BULKHEAD/HELM KIT 4 Ft	1
-	892438K05	动力转向软管套件动力模块 (5英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (5 Feet) Hydraulic, Pump to Helm	1
-	8M0150607	泵至舱壁/舵机套件 5英尺	PUMP TO BULKHEAD/HELM KIT 5 Ft	1
-	892438K06	软管套件动力模块 (6英尺) 液压, 泵至舵机	HOSE KIT Power Module (6 Feet) Hydraulic, Pump to Helm	1
-	8M0150608	泵至舱壁/舵机套件 6英尺	PUMP TO BULKHEAD/HELM KIT 6 Ft	1
-	892438K07	软管套件动力模块 (7英尺) 液压, 泵至舵机	HOSE KIT Power Module (7 Feet) Hydraulic, Pump to Helm	1
-	8M0150610	泵至舱壁/舵机套件 7英尺	PUMP TO BULKHEAD/HELM KIT 7 Ft	1
-	892438K08	软管套件动力模块 (8英尺) 液压, 泵至舵机	HOSE KIT Power Module (8 Feet) Hydraulic, Pump to Helm	1
-	8M0150612	泵至舱壁/舵机套件 8英尺	PUMP TO BULKHEAD/HELM KIT 8 Ft	1
-	892438K10	动力转向软管套件动力模块 (10英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (10 Feet) Hydraulic, Pump to Helm	1
-	8M0150613	泵至舱壁/舵机套件 10英尺	PUMP TO BULKHEAD/HELM KIT 10 Ft	1
-	892438K12	动力转向软管套件动力模块 (12英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (12 Feet) Hydraulic, Pump to Helm	1
-	8M0150614	泵至舱壁/舵机套件 12英尺	PUMP TO BULKHEAD/HELM KIT 12 Ft	1
-	892438K14	动力转向软管套件动力模块 (14英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (14 Feet) Hydraulic, Pump to Helm	1
-	8M0150615	泵至舱壁/舵机套件 14英尺	PUMP TO BULKHEAD/HELM KIT 14 Ft	1
-	892438K16	动力转向软管套件动力模块 (16英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (16 Feet) Hydraulic, Pump to Helm	1
-	8M0150616	泵至舱壁/舵机套件 16英尺	PUMP TO BULKHEAD/HELM KIT 16 Ft	1
-	892438K18	动力转向软管套件动力模块 (18英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (18 Feet) Hydraulic, Pump to Helm	1
-	8M0150617	泵至舱壁/舵机套件 18英尺	PUMP TO BULKHEAD/HELM KIT 18 Ft	1
-	892438K20	动力转向软管套件动力模块 (20英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (20 Feet) Hydraulic, Pump to Helm	1
-	8M0150618	泵至舱壁/舵机套件 20英尺	PUMP TO BULKHEAD/HELM KIT 20 ft	1
-	892438K22	动力转向软管套件动力模块 (22英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (22 Feet) Hydraulic, Pump to Helm	1
-	8M0150619	泵至舱壁/舵机套件 22英尺	PUMP TO BULKHEAD/HELM KIT 22 FT	1
-	892438K24	动力转向软管套件动力模块 (24英尺) 液压, 泵至舵机	POWER STEERING HOSE KIT Power Module (24 Feet) Hydraulic, Pump to Helm	1
-	8M0150620	泵至舱壁/舵机套件 24英尺	PUMP TO BULKHEAD/HELM KIT 24 FT	1
-	892825008	液压软管 (8英尺) 舵机至压力罐	HOSE (8 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825010	液压软管 (10英尺) 舵机至压力罐	HOSE (10 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825012	液压软管 (12英尺) 舵机至压力罐	HOSE (12 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825014	液压软管 (14英尺) 舵机至压力罐	HOSE (14 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825016	液压软管 (16英尺) 舵机至压力罐	HOSE (16 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825018	液压软管 (18英尺) 舵机至压力罐	HOSE (18 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825020	液压软管 (20英尺) 舵机至压力罐	HOSE (20 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825022	液压软管 (22英尺) 舵机至压力罐	HOSE (22 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825024	液压软管 (24英尺) 舵机至压力罐	HOSE (24 Feet) Hydraulic, Helm to Pressure Tank	1
-	892825026	液压软管 (26英尺) 舵机至压力罐	HOSE (26 Feet) Hydraulic, Helm to Pressure Tank	1
-	893395A01	嵌入式安装板	PLATE Flush Mount	1
-	875207	三通接头	TEE Fitting	1
-	892486K08	模拟转换套件	CONVERSION KIT Analog	1
-	889611K02	附件电源线束套件(30英尺)	HARNESS KIT Accessory Power (30 Feet)	1
-	899785K04	附件电源线束总成(30英尺)	HARNESS ASSEMBLY Accessory Power (30 Feet)	1
-	88334A2	防腐电极套件	MERCATHODE KIT	1
-	8M0180081	防腐电极套件	MERCATHODE KIT	1
-	825191A03	索具软管套件	HOSE KIT Rigging	1
-	880717A01	齿轮箱螺丝/密封套件	SCREW/SEAL KIT Gearcase	1
-	88439A50	电池电缆组	CABLE SET Battery	1
-	8M0210761	电池电缆组(12英尺)	CABLE SET (12 ft) Battery	1
-	44357Q2	冲洗附件	FLUSHING ATTACHMENT	1
-	44357T2	冲洗附件	FLUSHING ATTACHMENT	1
-	881150Q1	双进水口冲洗套件	FLUSH KIT Dual Water Pick Up	1
-	881150K1	双进水口冲洗密封套件	SEAL KIT Flush - Dual Water Pickup	1
-	897967100	燃油管路 (100.00英尺)	LINE Fuel (100.00 Feet)	1
-	8M0038563	燃油管路 (100.00英尺)	LINE Fuel (100.00 Feet)	1
-	899712A01	连续性电缆套件	CABLE KIT Continuity	1

图 89下罩 Bottom Cowl

REF	零件编号	中文名称	英文名称	数量
1	834814A1	下机罩	BOTTOM COWL	1
1	834814A2	下机罩	BOTTOM COWL	1
2	834815A1	下机罩	BOTTOM COWL	1
2	8M0107322	机罩-底部右舷	COWL-BOTTOM, STBD	1
2	834815A2	下机罩	BOTTOM COWL	1
3	8253181	罩盖密封条(41英寸)	SEAL Cowl (41.00 Inches)	2
3	8M0109217	罩盖密封条	SEAL-COWL	2
4	822024	卡箍	CLAMP	1
5	822023	卡箍	CLAMP	1
6	92799	螺钉(#10-16x1.12)	SCREW (#10-16 x 1.12)	2
7	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	4
8	831209	固定座	RETAINER	1
9	821908	堵头	PLUG	1
10	821915	垫圈	WASHER	1
11	821963	止回阀	CHECK VALVE	1
11	8219631	止回阀	CHECK VALVE	1
12	30641	O型圈(0.299x0.103)	O-RING (.299 x .103)	1
13	821952	接头	FITTING	1
14	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
14	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
15	8320782	软管	HOSE	1
15	8M0039077	成型软管	HOSE-MOLDED	1
16	850896	卡箍 (28.6)	CLAMP (28.6)	2
17	8320763	接头	FITTING	1
18	821904	示流器接头	FITTING Tell-Tale	1
18	8M0077650	示流器接头	FITTING Tell-Tale	1
19	828216	怠速排气套	IDLE EXHAUST BOOT Exhaust	1
19	889847	怠速排气套	BOOT Idle Exhaust	1
20	817519A1	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	2
21	850691	开关	SWITCH	1
21	8M0235192	微调开关	SWITCH TRIM	1
22	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
23	821253F1	前手柄黑色	FRONT HANDLE Black	1
23	889740A02	手柄套件	HANDLE KIT	1
23	821253F2	前手柄	FRONT HANDLE	1
23	889740A02	手柄套件	HANDLE KIT	1
24	335891	衬套	BUSHING	2
25	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
26	8219423	棘爪	PAWL	1
27	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	1
28	401196	螺母 (M6)	NUT (M6)	1
29	8214281	螺钉(#10-16x0.625)	SCREW (#10-16 x .625)	1
30	822873	卡扣	CLIP	1

图 90视觉警示套件17334A2 Visual Warning Kit 17334A2

REF	零件编号	中文名称	英文名称	数量
1	88334A2	防腐电极套件	MERCATHODE KIT	1
2	42600A09	防腐电极总成	MERCATHODE ASSEMBLY	1
3	22793	螺丝(#9-14x0.875)	SCREW (#9-14 x .875)	2
4	30164	垫圈(0.192x0.375x0.0312)不锈钢	WASHER (.192 x .375 x .0312) Stainless Steel	2
5	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	4
6	72958A5	电极总成	ELECTRODE ASSEMBLY	1
7	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
7	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
8	87698	螺丝(#10-16 x 1.250)不锈钢	SCREW (#10-16 x 1.250) Stainless Steel	2
9	72957A5	阳极总成	ANODE ASSEMBLY	1
9	8M0181304	阳极总成	ANODE ASSY	1
10	21836	O型圈(.796 x .139)	O-RING (.796 x .139)	1
10	8M0204645	O型圈(.796 x .139)	O-RING (.796 x .139)	1
11	87698	螺丝(#10-16 x 1.250)不锈钢	SCREW (#10-16 x 1.250) Stainless Steel	2
12	79091	保险丝20安培	FUSE 20 Ampere	1
12	8M0207796	保险丝20安培	FUSE 20 AMP	1
13	95084A10	电缆总成(5.00英寸)红色	CABLE ASSEMBLY (5.00 Inches) Red	1
13	8M0207788	拉线总成	CABLE ASSEMBLY	1
14	95084A13	电缆总成(64.00英寸)	CABLE ASSEMBLY (64.00 Inches)	1
15	79138A8	电缆总成(72.00英寸)黑色	CABLE ASSEMBLY (72.00 Inches) Black	1

图 91齿轮箱螺旋桨轴-反向旋转 Gear Housing Propeller Shaft - Counter Rotation

REF	零件编号	中文名称	英文名称	数量
0	880686T18	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	880686T15	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	8M0236258	GC L6 4S CXL	GC L6 4S CXL	1
0	880686T17	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	8M0236260	GC L6 4S CXXL	GC L6 4S CXXL	1
1	880687T01	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	8M0056631	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	NSS	不单独销售塞	NOT SOLD SEPARATE Plug	1
3	892075	换挡曲柄	CRANK Shifter	1
3	896847A01	换挡曲柄5/16枢轴销	CRANK, Shifter 5/16 Pivot Pin	1
4	19755T7	阀芯总成	SPOOL ASSEMBLY	1
4	8M0235940	阀芯总成	SPOOL ASSY	1
5	NSS	不单独销售线轴	NOT SOLD SEPARATE Spool	1
6	469501	开口销	COTTER PIN	1
7	NSS	不单独销售调节套筒	NOT SOLD SEPARATE Sleeve Adjusting	1
8	892809A02	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
9	884323T01	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	8M0142836	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
10	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
11	23721	挡圈	RING Retaining	1
11	8M0051043	挡圈	RING Retaining	1
12	892805	止推垫片	THRUST WASHER	1
12	8M0053823	止推垫圈(内径1.50×外径2.046)	WASHER Thrust, (1.50 ID x 2.046 OD)	1
13	884325T01	圆锥滚子轴承组件	BEARING ASSEMBLY Roller-Tappered	1
13	8M0142835	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper (Cup/Cone)	1
14	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
15	884328A01	垫片组	SHIM SET	AR
15	8M0063270	垫片组	SHIM SET	AR
16	30893	弹簧	SPRING	1
17	880714T	离合器	CLUTCH	1
18	30632	十字销	PIN Cross	1
18	8M0100263	十字销	PIN Cross	1
19	828356	定位销	PIN Detent	1
20	888530	螺旋桨轴	PROPELLER SHAFT	1
21	880720A02	前进/小齿轮组	GEAR SET Forward/Pinion	1
21	8M0119540	前进齿轮套件	GEAR KIT-FORWARD	1
22	880699	推力环	THRUST RING	1
23	815480	推力轴承	BEARING Thrust	1
24	880696A10	轴承座总成	CARRIER ASSEMBLY Bearing	1
25	896524	O型圈(3.850×.210)	O-RING (3.850 x .210)	1
25	8M0142840	O型圈(3.85×0.210)	O-RING (3.85 x 0.210)	1
26	814653T	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
27	880728	轴承适配器	ADAPTER Bearing	1
27	8M0148384	前进齿轮轴承适配器	ADAPTER Bearing Forward Gear	1
28	47397A1	垫片组	SHIM SET	AR
29	891936A01	垫片组	SHIM SET	AR
30	884330T01	圆锥轴承组件	BEARING ASSEMBLY Taper	1
30	8M0148319	圆锥滚子轴承(外圈/内圈)	BEARING Roller Taper Cup/Cone	1
31	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
32	896600	油封	SEAL Oil	1
32	8M0204700	油封	SEAL Oil	1
33	888483	油封	SEAL Oil	1
33	8M0204700	油封	SEAL Oil	1
34	880717A01	螺丝/密封套件	SCREW/SEAL KIT	1
35	830749	密封件	SEAL	1
35	8M0204693	放油螺塞密封件	SEAL Drain Plug	1
36	892818	适配器	ADAPTER	1
36	8M0053183	前进齿轮适配器	ADAPTER Foward Gear	1
37	891919001	止推隔套	SPACER Thrust	1
38	880697	键槽垫圈	KEYED WASHER	1
39	79448	固定座	RETAINER	1
39	8M2011027	固定座	RETAINER	1
40	NSS	不单独销售-反向旋转标识	NOT SOLD SEPARATE Decal-Counter Rotation	1
-	830749A01	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 92燃油泵 FUEL PUMP

REF	零件编号	中文名称	英文名称	数量
1	NSS	不单独销售燃油泵	NOT SOLD SEPARATE Fuel Pump	1
2	14360A53	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	14360T75	燃油泵总成	PUMP ASSEMBLY Fuel	1
3	42990A10	膜片组件	DIAPHAGM KIT	2
3	857005A1	膜片组件	DIAPHRAGM KIT	2
4	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
5	NSS		NOT SOLD SEPARATE Rubber Check Valve	2
6	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
10	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
11	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
12	987691	衬垫	GASKET	1
12	8M0204705	衬垫@2	GASKET @2	1
13	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
14	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
15	987752	安装板	PLATE	1
16	996641	弯头	ELBOW	2
16	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	2
17	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
17	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2
18	144303	底座	BASE	1
19	78279	弯头（45度）	ELBOW (45 DEGREES)	1
19	8M0207781	弯头	ELBOW	1
20	291111	接头	FITTING	1
20	291112	接头	FITTING	1
21	83075780	管材(28.00英寸散装)	TUBING (28.00 Inches Bulk)	1
21	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
22	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
22	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
23	856822A1	管材(带绝缘套管)(7英寸)	TUBING (W/INSULATING SLEEVE) (7 IN.)	1
23	8M0064784	成型脉冲软管	HOSE,MOLDED,PULSE	1
24	856822A2	软管套管总成(18.00英寸)	HOSE AND SLEEVE ASSEMBLY (18.00 Inches)	1
24	8M0043979	软管套管总成	HOSE AND SLEEVE ASSEMBLY	1
25	822769	连接器	CONNECTOR	1
-	814754A98	衬垫套件	GASKET SET	1
-	8M0046714	衬垫套件	GASKET SET	1
-	854008A98	动力头总成	POWERHEAD ASSEMBLY	1
-	804545T99	动力头总成	POWERHEAD ASSEMBLY	1

图 93仪表装置 Instrumentation

REF	零件编号	中文名称	英文名称	数量
1	19674A1	拉绳开关总成	SWITCH ASSEMBLY Lanyard	1
1	19674A07	开关/拉绳套件	SWITCH/LANYARD KIT	1
2	18303	螺钉 (.190-16 x 1.750) 不锈钢	SCREW (.190-16 x 1.750) Stainless Steel	2
3	813679	适配器	ADAPTER	1
4	15920A54	拉绳总成	LANYARD ASSEMBLY	1
4	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
5	32866	螺钉 (#10-32 x 2.00) 不锈钢	SCREW (#10-32 x 2.00) Stainless Steel	2
6	18321	安装夹	CLAMP Mounting	1
7	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	2
8	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4
9	79146	固定座	RETAINER	3
10	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	16
10	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	16
11	812497A2	二极管总成	DIODE ASSEMBLY	1
11	898289A72	双拉绳二极管套件	DIODE KIT-LANYARD Dual	1
12	11149A2	线缆总成 (6.00英寸)	CABLE ASSEMBLY (6.00 Inches)	1
13	835360A2	警报仪表套件	WARNING GAUGE KIT	1
13	859699A1	警报仪表套件	GAUGE KIT-WARNING	1
14	850020	卡箍	CLAMP	1
15	825361	星形锁紧垫圈(#8)	LOCKWASHER Star (#8)	1
16	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	2
17	15163	灯	LAMP	4
18	79888	灯泡插座	SOCKET Light Bulb	4
19	835359A1	电缆总成(20.00英尺)	CABLE ASSEMBLY (20.00 Feet)	1

图 94速度计传感系统 SPEEDOMETER PICKUP SYSTEM

REF	零件编号	中文名称	英文名称	数量
-	896280006	零件手册200/225/250/275四冲程Verado	PARTS MANUAL 200/225/250/275 4-Stroke Verado	1
-	896579T00	维修手册	SERVICE MANUAL	1
-	8M0082470	MNL-SERV 200-300V	MNL-SERV 200-300V	1
-	10238060	安装手册	INSTALLATION MANUAL	1
-	10237060	用户手册	OWNERS MANUAL	1
-	10237J60	用户手册(西班牙语)	OWNERS MANUAL Spanish	1
-	10237D60	用户手册(法语)	OWNERS MANUAL French	1
-	895269001	产品指南	PRODUCT GUIDE	1
-	895269002	产品指南	GUIDE-PRODUCT	1
-	895282A06	EPA标签信息贴花	DECAL EPA Label Information	1

图 95附件 ACCESSORIES

零件编号	中文名称	英文名称	数量
86306A01	适配器	ADAPTER	1
821400A2	动力升降倾斜传感器套件	SENDER KIT Power Trim	1
8M0074845	ORD 8M0098264	ORD 8M0098264	1
92876A8	转向安装套件	ATTACHING KIT Steering	1
92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
883040A1	转速表模块套件	TACH MODULE KIT	1

图 96空气压缩机组件 AIR COMPRESSOR COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	831998A9	空气压缩机总成	COMPRESSOR ASSEMBLY Air	1
1	8M0060053	空气压缩机总成	COMPRESSOR ASSEMBLY Air	1
2	828131A4	端盖总成	END CAP ASSEMBLY	1
2	8M0050792	端盖总成	END CAP ASSEMBLY	1
3	NSS	非单独销售挡圈	NOT SOLD SEPARATE Retaining Ring	1
4	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	4
5	89224	O型圈	O-RING	1
6	832804	O型圈（2.739 x 0.070）	O-RING (2.739 x .070)	1
7	833146A3	连杆总成	CONNECTING ROD ASSEMBLY	1
7	833146T06	连杆总成	CONNECTING ROD ASSEMBLY	1
8	828222A4	活塞总成	PISTON ASSEMBLY	1
9	8348101	锁环	RING Lock	2
10	835088A10	簧片阀板总成	REED PLATE ASSEMBLY	1
11	67207	O型圈（3.489 x 0.070）	O-RING (3.489 x .070)	2
12	832804	O型圈（2.739 x 0.070）	O-RING (2.739 x .070)	1
13	828225	密封件	SEAL	1
14	8350871	气缸盖压缩机	HEAD Compressor	1
14	835087A3	压缩机缸盖总成	HEAD ASSEMBLY Compressor	1
15	8307532	直通接头	FITTING Straight	1
16	81893435	螺钉(M8×35)	SCREW (M8 x 35)	4
16	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	4
17	15133	接头	FITTING	1
18	14868	接头	FITTING	2
19	39072	塞(1/8英寸黄铜)	PLUG (1/8 Inch Brass)	1
19	390721	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
20	16604	直通接头（0.125-27）	FITTING Straight (.125-27)	1
21	13536A12	温度传感器总成	SENSOR ASSEMBLY Temperature	1
22	137151	固定座	RETAINER	1
23	81893412	螺钉（M8×12）	SCREW (M8 x 12)	1
24	831985	O型圈（0.468 x 0.078）	O-RING (.468 x .078)	1
25	8567441	接头	FITTING	1
25	856744	接头	FITTING	1
26	39072	塞(1/8英寸黄铜)	PLUG (1/8 Inch Brass)	1
26	390721	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
27	835454	直通接头	FITTING Straight	1
28	NSS	标贴(不单独销售)	NOT SOLD SEPARATE Decal	1
29	855349	护孔环	GROMMET	1
29	855349002	护孔环	GROMMET	1
-	832804A1	O型圈套件	O-RING KIT	1
-	832804A03	O型圈套件	O-RING KIT	1

图 97空气处理器 AIR HANDLER

REF	零件编号	中文名称	英文名称	数量
1	827325A1	盖总成	COVER ASSEMBLY	1
2	821555	护孔环	GROMMET	2
2	8M0153609	护孔环	GROMMET	2
3	853333	空气滤清器	FILTER Air	1
3	853333T	滤清器	FILTER	1
4	853352	盖板	COVER	1
5	855590	铆钉	RIVET	1
6	854633	固定座	RETAINER	1
7	64705	接头	FITTING	1
8	855613	护孔环	GROMMET	1
9	8556131	护孔环	GROMMET	1
10	855633A4	空气处理器总成	AIR HANDLER ASSEMBLY	1
10	855633A15	空气处理器总成	AIR HANDLER ASSEMBLY	1
11	856139	垫片	SHIM	1
11	8561391	垫片	SHIM	1
12	NSS	不单独销售(挂档启动警告标贴)	NOT SOLD SEPARATE Decal-Caution-Start in Gear	1
13	8557561	支架	BRACKET	1
13	855756A1	支架套件	BRACKET KIT	1
14	1993716	螺钉(M6 x 16)	SCREW (M6 x 16)	4
15	8558432	泵总成	PUMP ASSEMBLY	1
15	8M0240950	燃油泵总成	PUMP ASSY FUEL	1
16	13791	卡箍(15.7)	CLAMP (15.7)	4
16	8M0214911	卡箍@5	CLAMP @5	4
17	1350385	管材(33.00英寸整料)(5-1/2英寸)	TUBING (33.00 Inches Bulk) (5-1/2 IN.)	1
18	85564361	软管(18英寸)	HOSE (18 IN.)	1
19	83312531	绝缘套管	INSULATING SLEEVE	1
20	855802	弯头	ELBOW	1
20	855802A1	弯头	ELBOW	1
21	805026A1	接头	FITTING	1
22	805062	O型圈（.530 x .082）	O-RING (.530 x .082)	1
23	8554247	接头	FITTING	1
24	8285581	编码器	ENCODER	1
25	418051	螺钉 (#10-24 x 0.620)	SCREW (#10-24 x .620)	1
26	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
26	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
27	97224	J型卡箍(右舷上部)	J CLIP (UPPER STBD.)	2
28	814634	卡箍(下部)	CLAMP (LOWER)	1
29	817504	螺钉（0.250-20 x 1.500）不锈钢	SCREW (.250-20 x 1.500) Stainless Steel	12
30	830756109	软管(57.00英寸整料)(裁切至1-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 1-1/2 Inches)	1
30	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
31	830756109	软管(57.00英寸整料)(裁切至5英寸)	HOSE (57.00 Inches Bulk) (Cut to 5 Inches)	1
31	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
32	855896	通风罐	CANISTER Vent	1
32	855896T	滤清器	FILTER	1
33	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
33	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
34	860273	连接器	CONNECTOR	1
35	821583	销	PIN	1
35	8215832	特殊销（1.5英寸）	PIN Special (1.5 Inches)	1
36	85557726	EPA标签信息贴花	DECAL EPA Label Information	1
36	855577A26	REF SOB 09-18	REF SOB 09-18	1
37	61990	扎带(14.00英寸)	TIE STRAP (14.00 Inches)	1
38	88807A27	拉线总成	CABLE ASSEMBLY	1
39	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
39	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
40	12038	垫圈	WASHER	1
40	8M0207778	垫圈（0.344×0.625×0.063英寸）	WASHER .344 x .625 x.063	1
-	854008A98	动力头总成	POWERHEAD ASSEMBLY	1
-	804545T99	动力头总成	POWERHEAD ASSEMBLY	1

图 98空气处理器组件 AIR HANDLER COMPONENTS

REF	零件编号	中文名称	英文名称	数量
-	855633A4	空气处理器总成	AIR HANDLER ASSEMBLY	1
1	855420T02	适配板套件	ADAPTER PLATE KIT	1
2	146973	衬垫	GASKET	1
3	850058	衬垫	GASKET	1
3	8500581	衬垫	GASKET	1
4	116455	簧片阀组	REED BLOCK	6
4	855952T2	簧片阀组	REED BLOCK	6
5	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	12
6	855762	油泵	PUMP Oil	1
6	855884P1	油泵	PUMP Oil	1
7	8565421	衬垫	GASKET	1
8	8552841	支架	BRACKET	1
9	855424	接头	FITTING	3
10	8554241	接头	FITTING	3
11	8554246	接头	FITTING	1
11	892267T02	蒸汽分离器总成	VAPOR SEPARATOR ASSEMBLY	1
12	8554248	接头(直通)	FITTING (STRIAGHT)	1
13	855364	衬套	BUSHING	6
14	855362	护孔环	GROMMET	6
14	855362001	护孔环	GROMMET	6
15	81893440	螺钉 (M8 x 40)	SCREW (M8 x 40)	6
16	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	6
17	850248A1	空气集气室套件	PLENUM KIT Air	1
18	8554242	弯头	ELBOW	1
19	8554249	弯头	ELBOW	1
19	15133	接头	FITTING	1
20	850058	衬垫	GASKET	1
20	8500581	衬垫	GASKET	1
21	13221A1	温度传感器总成	SENSOR ASSEMBLY Temperature	1
21	13221T01	温度传感器	SENSOR TEMP	1
22	4005685	螺钉（M4×10）	SCREW (M4 x 10)	3
23	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	3
24	4001987	螺钉(M4×16)	SCREW (M4 x 16)	12
25	855422A1	节气门体套件	THROTTLE BODY KIT	1
26	855423	O型圈	O-RING	1
27	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	4

图 99空气软管 AIR HOSES

REF	零件编号	中文名称	英文名称	数量
1	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
2	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
3	830757130	管材(.312)(70.00英寸散装)(裁切至6英寸)	TUBING (.312) (70.00 Inches Bulk) (Cut to 6 Inches)	1
3	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
4	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	2
4	8M0214964	卡箍	CLAMP	2
5	8502512	软管	HOSE	1
6	85687631	套管（16.00英寸）	SLEEVE (16.00 Inches)	1
7	804823	空气平衡软管/接头总成	HOSE/FITTING ASSEMBLY Air Balance	1
7	8M6000383	软管总成	HOSE ASSEMBLY	1
8	804824	软管/接头总成	HOSE/FITTING ASSEMBLY	1
8	8M6000382	软管总成	HOSE ASSEMBLY	1
9	804532	O型圈套件	O-RING KIT	1
10	16604	直通接头（0.125-27）	FITTING Straight (.125-27)	1
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
-	854008T00	动力头总成	POWERHEAD ASSEMBLY	1

图 100下机罩 BOTTOM COWL

REF	零件编号	中文名称	英文名称	数量
1	878587A1	下罩总成	BOTTOM COWL ASSEMBLY	1
1	8M0107315	底部罩盖-左舷	COWL-BOTTOM, PORT	1
2	858743A2	下罩总成	BOTTOM COWL ASSEMBLY	1
2	8M0113913	右舷下罩B	COWL-LOWER STBD B	1
3	8253181	罩盖密封条(41英寸)	SEAL Cowl (41.00 Inches)	2
3	8M0109217	罩盖密封条	SEAL-COWL	2
4	878547T	嵌件	INSERT	1
5	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	8
6	831209	固定座	RETAINER	1
7	858742	怠速排气套	BOOT Idle Exhaust	1
8	859251	护孔环	GROMMET	1
8	8M0039078	护孔环	GROMMET	1
9	827948	接头	FITTING	1
10	855576	垫圈	WASHER	1
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
12	830756109	软管(57英寸整卷)(裁切至5英寸长度)	HOSE (57.00 Inches Bulk) (Cut To 5.00 Inch Length)	1
12	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
13	881535	软管(32.00英寸)	HOSE (32.00 Inches)	1
14	9912688	管材(36.00英寸散装)(26.00英寸)	TUBING (36.00 Inches Bulk) (26.00 Inch)	1
15	817518	三通	TEE	1
16	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	2
17	8587411	护孔环	GROMMET	1
17	889724	护孔环	GROMMET	1
18	856990	开关总成	SWITCH ASSEMBLY	1
18	8M0235192	微调开关	SWITCH TRIM	1
19	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
20	821253F1	前手柄黑色	FRONT HANDLE Black	1
20	889740A02	手柄套件	HANDLE KIT	1
21	33589	衬套	BUSHING	2
22	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
23	8219423	棘爪	PAWL	1
24	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	1
25	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
26	13541	公插头	PLUG Male	2

图 101线圈板总成 COIL PLATE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
-	NSS	线圈板总成(不单独销售)	NOT SOLD SEPARATE COIL PLATE ASSEMBLY	1
1	8506753	线圈板	PLATE Coil	1
1	8M0011731	线圈板	PLATE Coil	1
2	850676F1	隔套	SPACER	6
3	8502341	衬套	BUSHING	4
4	833155	护孔环	GROMMET	4
5	850898	螺丝 (.250-20 x 3.250)	SCREW (.250-20 x 3.250)	6
6	856991A1	线圈套件	COIL KIT	6
7	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	6
7	8M0207776	螺母	NUT	6
8	881908T	电缆组	CABLE SET	1
9	859595T	双线圈驱动器	DRIVER Dual Coil	3
10	858414A1	编织电缆总成	CABLE ASSEMBLY Braided	2
11	82129110	螺丝 (M6 x 10)	SCREW (M6 x 10)	2
12	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
12	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
13	828547353	导管 (.350内径 x 3.00英尺散装)	CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk)	1
14	8556721	火花塞	SPARK PLUG	6
14	889597Q	NGK IZFR5G @4	NGK IZFR5G @4	6
15	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
16	49436	垫圈	WASHER	4
17	82129114	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
18	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
18	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
19	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
19	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2

图 102曲轴、活塞及连杆 CRANKSHAFT PISTONS AND CONNECTING RODS

REF	零件编号	中文名称	英文名称	数量
1	880894T	曲轴	CRANKSHAFT	1
2	8040992	油封	SEAL Oil	1
3	8041002	油封	SEAL Oil	1
4	804101T	轴承	BEARING	4
4	804101T10	轴承	BEARING	4
4	804101T20	轴承	BEARING	4
5	804102T	轴承	BEARING	5
5	804102T10	轴承	BEARING	5
5	804102T20	轴承	BEARING	5
5	804102T30	轴承	BEARING	5
6	804103T	轴承	BEARING	1
6	804103T10	轴承	BEARING	1
6	804103T20	轴承	BEARING	1
7	880895T1	活塞总成	PISTON ASSEMBLY	4
7	880895A14	活塞/连杆总成	PISTON/CONN ROD	4
7	880895T10	活塞总成	PISTON ASSEMBLY	AR
7	880895A16	活塞/连杆总成	PISTON/CONN ROD	AR
8	880896	螺栓(M8 x 38)	BOLT (M8 x 38)	8
9	880897T1	活塞环组	RING SET Piston	4
9	880897T02	活塞环组	RING SET Piston	4
9	880898T1	活塞环组	RING SET Piston	AR
9	880898T02	活塞环组	RING SET Piston	AR
10	880899T	轴承	BEARING	8
10	880899T10	轴承	BEARING	8
10	880899T20	轴承	BEARING	8
10	880899T30	轴承	BEARING	8
-	881421T01	动力头总成	POWERHEAD ASSEMBLY	1
-	881421T04	动力头总成	POWERHEAD ASSEMBLY	1
-	881421T02	动力头总成	POWERHEAD ASSEMBLY	1
-	881421T04	动力头总成	POWERHEAD ASSEMBLY	1

图 103气缸体与端盖 CYLINDER BLOCK AND END CAPS

REF	零件编号	中文名称	英文名称	数量
1	828340A5	气缸体	CYLINDER BLOCK	1
2	8181383	动力头螺柱（1-3/4英寸）	STUD Powerhead (1-3/4 IN.)	6
2	8M0034455	螺柱1.750	STUD 1.750	6
3	670653	双头螺柱（0.375×5.620英寸，5-1/2英寸）	STUD (.375 x 5.620) (5-1/2 IN.)	2
3	670654	螺柱(.375-16/.375-24 x 5.620)	STUD (.375-16/.375-24 x 5.620)	2
3	784384	双头螺栓(.375 x 6.870)(6-3/4英寸)	STUD (.375 x 6.870) (6-3/4 IN.)	2
3	8M0034454	螺柱(.375-16/.375-24 x 6.87)	STUD (.375-16/.375-24 x 6.87)	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	销(轴承座圈)	PIN (BEARING RACE)	2
5	8M0036405	销	PIN	2
6	11338	衬垫	GASKET	2
7	384071	接头(1/2-14)	FITTING (1/2-14) (1/2-14)	1
8	426231	止回阀	CHECK VALVE	1
8	426233	止回阀	CHECK VALVE	1
9	426981	止回阀	CHECK VALVE	1
9	426982	止回阀	CHECK VALVE	1
10	99130122	管材(20英尺整卷)(裁切为19英寸)	TUBING (20.00 Feet Bulk) (Cut to 19 Inches)	1
10	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
11	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	10
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	10
12	852760	直通接头	FITTING (STRAIGHT)	2
13	855622	弯头接头	FITTING (ELBOW)	1
14	8267611	弯头	ELBOW (ELBOW)	3
15	85583445	管材(16英寸)	TUBING (16 IN.)	2
15	85583464	管材 (34.00英寸整卷)	TUBING (34.00 Inches Bulk)	2
15	85583445	管材(20英寸)	TUBING (20 IN.)	1
15	85583464	管材 (34.00英寸整卷)	TUBING (34.00 Inches Bulk)	1
16	85606064	管材(36.00英寸整料)(24-1/2英寸)	TUBING (36.00 Inches Bulk) (24-1/2 IN.)	3
16	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	3
17	828547753	导管(.750内径x3.00英尺整料)(裁切至7英寸)	CONDUIT (.750 Inside Diameter x 3.00 Feet Bulk) (Cut to 7 Inches)	1
18	432781	止回阀	CHECK VALVE	1
18	8781051	止回阀	CHECK VALVE	1
19	830756109	软管(57.00英寸整料)(裁切至11-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 11-1/2 Inches)	1
19	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
20	822769	连接器	CONNECTOR	1
21	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	6
22	66717	螺钉(.375-16 x 3.250)	SCREW (.375-16 x 3.250)	8
23	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	6
24	26852	尼龙帽	CAP Nylon	1
25	856832	螺丝 (.250-20 x 1.750)	SCREW (.250-20 x 1.750)	1
26	64015	螺母 (.250-20)	NUT (.250-20)	1
27	832760A1	上端盖总成	END CAP ASSEMBLY Upper	1
27	832760T1	端盖总成	END CAP ASSEMBLY	1
28	54029	O型圈(2.800 x .103)	O-RING (2.800 x .103)	1
29	16756A4	轴承套件	BEARING KIT	1
30	NSS	不单独销售轴承座圈	NOT SOLD SEPARATE Bearing Race	1
31	41953	密封件	SEAL	1
32	69034	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW AND LOCKWASHER (.312-18 x 1.00)	4
32	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	4
33	7809A1	端盖总成	END CAP ASSEMBLY	1
33	7809T1	端盖总成	END CAP ASSEMBLY	1
34	62700	O型圈(3.237 x .103)	O-RING (3.237 x .103)	1
35	41953	密封件	SEAL	2
36	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
37	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
38	853882	支架	BRACKET	1
38	8538821	节气门位置指示器安装支架	BRACKET Throttle Position Indicator Mount	1
39	8519371	节气门位置指示器杠杆	LEVER Throttle Position Indicator	1
40	82130025	螺钉(M6x25)	SCREW (M6 x 25)	3
41	8318701	衬套	BUSHING	6
42	834985	护孔环	GROMMET	3
42	8M0190980	护孔环	GROMMET	3
43	8M6005905	节气门位置指示器(内侧)	INDICATOR Throttle Position (Inside)	1
44	850882	隔套	SPACER	1
45	8329522	节气门位置指示器(外侧)	INDICATOR Throttle Position (Outside)	1
45	8M6005166	TPI	TPI	1
46	850828	螺钉(#10-32 X 2-3/4英寸)	SCREW (#10-32 X 2-3/4 IN.)	3
47	1938541	油门连杆	LINK Throttle	1
47	8M0084738	连杆总成	LINK ASSY	1
48	NSS	不单独销售序列号塞	NOT SOLD SEPARATE Plug-Serial Number	1
49	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
49	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
-	814754A98	衬垫套件	GASKET SET	1
-	8M0046714	衬垫套件	GASKET SET	1
-	854008A98	动力头总成	POWERHEAD ASSEMBLY	1
-	804545T99	动力头总成	POWERHEAD ASSEMBLY	1

图 104气缸盖 CYLINDER HEAD

REF	零件编号	中文名称	英文名称	数量
1	881310T2	气缸盖总成	CYLINDER HEAD ASSEMBLY	1
1	881310T08	气缸盖总成基础款	CYLINDER HEAD ASSEMBLY Basic	1
2	804110	导向销	PIN Guide	16
3	804111	堵头	PLUG	4
4	804112	螺栓(M7 x 48)	BOLT (M7 x 48)	4
5	804113	定位销	PIN Dowel	4
6	804114	螺栓(M7×37)	BOLT (M7 x 37)	16
7	881311	螺栓(M10×145)	BOLT (M10 x 145)	10
8	804116	轴环	COLLAR	2
8	8M0070515	定位销	DOWEL PIN	2
9	8041151	衬垫	GASKET	1
10	83124714	螺栓	BOLT	4
11	831246	密封垫圈	WASHER Sealing	4
12	881312	螺栓(M8×55)	BOLT (M8 x 55)	5
13	NSS	阳极 (不单独销售)	NOT SOLD SEPARATE Anode	2
14	804086	护孔环	GROMMET	2
15	804085	盖板	COVER	2
15	804085A01	罩盖/阳极套件	COVER/ANODE KIT	2
16	8524741	螺栓 (M6 x 20)	BOLT (M6 x 20)	2
17	827207	螺栓 (M8 x 25)	BOLT (M8 x 25)	4
18	881284	火花塞	SPARK PLUG	4
18	881284Q	PG LFR6A-11 @10	PG LFR6A-11 @10	4
19	881429	节温器	THERMOSTAT	1
19	8M6013864	节温器	THERMOSTAT	1
20	881430	节温器盖	COVER Thermostat	1
20	8041271	节温器盖	THERMOSTAT COVER	1
21	8248326	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
22	881313T1	盖板套件	COVER KIT	1
23	804119	通气盖	COVER Breather	1
24	804120	螺钉(M4 x 8)	SCREW (M4 x 8)	8
25	804123	衬垫	GASKET	1
26	855690	护孔环	GROMMET	2
27	858530	螺栓 (M6 x 30)	BOLT (M6 x 30)	14
28	859578A1	油塞总成	PLUG ASSEMBLY Oil	1
28	8M0240831	油塞	OIL PLUG	1
29	NSS	O型圈(不单独销售)	NOT SOLD SEPARATE O-Ring	1
30	858752	盖板	COVER	1
30	858752001	盖板	COVER	1
31	1993716	螺钉(M6 x 16)	SCREW (M6 x 16)	5
-	858732T01	衬垫套件	GASKET SET	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	881310T1	气缸盖总成	CYLINDER HEAD ASSEMBLY	1
-	881310T09	气缸盖	HEAD-CYLINDER	1
-	881421T01	动力头总成	POWERHEAD ASSEMBLY	1
-	881421T04	动力头总成	POWERHEAD ASSEMBLY	1
-	881421T02	动力头总成	POWERHEAD ASSEMBLY	1
-	881421T04	动力头总成	POWERHEAD ASSEMBLY	1

图 105数字电气部件 DIGITAL ELECTRIC PARTS

REF	零件编号	中文名称	英文名称	数量
1	859244T2	线束总成	HARNESS ASSEMBLY	1
1	859244A2	Smartcraft线束总成	HARNESS ASSEMBLY Smartcraft	1
2	13541	公插头	PLUG Male	1
3	859743T1	线束总成	HARNESS ASSEMBLY	1
3	859743T2	船用仪表线束总成	HARNESS ASSEMBLY Boat Instruments	1
4	859187A1	调整传感器总成	SENDER ASSEMBLY Trim	1
5	859223	速度/温度传感器	SENSOR Speed/Temperature	1
5	859223A01	速度/温度传感器	SENSOR SPD/TEMP	1
6	859316T1	诊断适配器线束总成	HARNESS ASSEMBLY Diagnostic Adapter	1

图 106驱动轴壳体与排气管 DRIVESHAFT HOUSING AND EXHAUST TUBE

REF	零件编号	中文名称	英文名称	数量
1	8343A10	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8343T10	驱动轴壳体总成-黑色-长型	HOUSING ASSEMBLY Driveshaft - Black - Long	1
1	8343A11	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8343T11	ORD 1590-8343T10	ORD 1590-8343T10	1
1	813563A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	813563T1	传动轴壳体-黑色-加长型	HOUSING Driveshaft - Black - X-Long	1
1	813563A2	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	813563T2	ORD 3503-813563T1	ORD 3503-813563T1	1
2	56295	双头螺柱(.437 x 2.69)	STUD (.437 x 2.69)	2
3	63474	螺钉(.500-20 x 6.00)	SCREW (.500-20 x 6.00)	2
3	898831	螺钉(.500-20 x 6.220)	SCREW (.500-20 x 6.220)	2
4	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
5	77327	支架	MOUNT	2
6	49339	垫圈(.8125)	WASHER (.8125)	2
7	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
8	28040	螺母(.500-20)	NUT (.500-20)	2
8	898832	螺母(.500-20)	NUT (.500-20)	2
9	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
10	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
11	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
11	8M0204653	螺母	NUT	2
12	67076	卡箍	CLAMP	2
12	8M0036782	卡箍	CLAMP	2
13	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
14	67077T	黑色盖	COVER Black	2
14	8M4500752	盖板	COVER	2
14	67077F1	灰色盖板	COVER Gray	2
14	67077T	黑色盖	COVER Black	2
15	88417	螺钉(#12-24×0.620)	SCREW (#12-24 x .620)	4
16	35521	螺母	NUT	4
17	48926	垫圈	WASHER	1
18	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	1
18	8M0204653	螺母	NUT	1
19	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	4
20	69254	螺母	NUT	4
21	828212	怠速排气套	BOOT Idle Exhaust	1
21	8M0039081	护套	BOOT	1
22	64649	堵头	PLUG	1
23	991732	衬垫	GASKET	1
23	991734	衬垫	GASKET	1
24	66350	下密封件	SEAL (LOWER)	1
24	66350001	密封件	SEAL	1
25	18276	排气管	TUBE Exhaust	1
25	18276T	排气管	EXHAUST TUBE	1
26	177261	上密封件	SEAL (UPPER)	1
26	8M0039076	密封件	SEAL	1
27	812834	排气管延长段	EXTENSION Exhaust	1
27	812834A2	排气延长总成	EXTENSION ASSEMBLY Exhaust	1
27	41942F3	排气管延长段	EXTENSION Exhaust	1
27	879288T71	排气管延长段	EXTENSION Exhaust	1
28	67295	水管	TUBE Water	1
28	8M0042788	长型水管	TUBE-WATER-LONG	1
28	74729	管	TUBE	1
28	8M0042790	水管	TUBE-WATER	1
29	78246	衬垫	GASKET	1
29	782461	衬垫	GASKET	1
30	18233A6	隔板总成	PLATE ASSEMBLY	1
30	18233A20	传动轴壳体板总成	PLATE ASSEMBLY Driveshaft Housing	1
31	8147012	密封件	SEAL	1
31	8M0043165	密封件-27.00英寸	SEAL-27.00 INCH	1
32	68011	支架	BRACKET	1
33	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
33	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
34	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
35	38970	密封件	SEAL	1
36	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	6
37	39072	塞(1/8英寸黄铜)	PLUG (1/8 Inch Brass)	2
37	390721	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	2
38	183071	衬垫	GASKET	1
38	183076	衬垫	GASKET	1
-	814754A98	衬垫套件	GASKET SET	1
-	8M0046714	衬垫套件	GASKET SET	1

图 107双机连接杆套件 Dual Engine Tie Bar Kit

REF	零件编号	中文名称	英文名称	数量
-	92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
1	71565A2	管总成	TUBE ASSEMBLY	1
2	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
3	41055	支架	MOUNT	1
4	42100	锁紧垫圈	TAB WASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	88404	锁紧垫圈	TAB WASHER	2
7	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
8	17729A1	支架	BRACKET	2
9	62055	螺钉(.312-24 x 1.250)	SCREW (.312-24 x 1.250)	4
10	17728	锁紧垫圈	TAB WASHER	4
11	140001	螺钉(0.375-24×1.38)	SCREW (.375-24 x 1.38)	2
12	34863	螺母 (.375-24)	NUT (.375-24)	6
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	6
13	979331	转向眼环	STEERING EYE	2
13	8M0026167	转向眼环	STEERING EYE	2
14	23651	衬套(1.625)	SLEEVE (1.625)	2
15	97931	管材(4.00英寸)	TUBING (4.00 Inches)	2
16	8149513	联轴器(15.00英寸)	COUPLER (15.00 Inches)	1
16	8M0026098	联轴器15英寸	COUPLER 15 In.	1
17	42099	螺母(.562-18)	NUT (.562-18)	1
18	821169	联轴器	COUPLING	1
19	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	1
20	94319	螺钉(.375-24 x 1.5)	SCREW (.375-24 x 1.5)	1

图 108电气板总成 ELECTRICAL PLATE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	833137F1	安装板	PLATE	1
2	88807A16	黑色电缆总成(4.00英寸)	CABLE ASSEMBLY (4.00 Inches) Black	1
3	828151A1	继电器总成	RELAY ASSEMBLY	3
3	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	3
4	NSS		NOT SOLD SEPARATE DECAL-TRIM RELAY	3
5	828102	支架	BRACKET	3
5	8M0207771	安装支架	BRACKET Mounting	3
6	818968	衬套	BUSHING	3
6	8M0214955	衬套	BUSHING	3
7	818967	护孔环	GROMMET	3
7	8M0207785	护孔环	GROMMET	3
8	878084T3	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
8	878084T4	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
9	858754	保险丝盖	COVER Fuse	1
10	858781A2	线束总成(直喷喷油器)	HARNESS ASSEMBLY (DIRECT INJECTOR)	1
10	879346A49	线束维修套件	HARNESS REPAIR KIT	1
11	858780A2	线束总成(燃油喷射器)	HARNESS ASSEMBLY (FUEL INJECTOR)	1
11	879346A50	线束维修套件	HARNESS REPAIR KIT	1
12	878073A2	线束总成(节气门位置传感器)	HARNESS ASSEMBLY (TPS)	1
12	879346A41	线束维修套件	HARNESS REPAIR KIT	1
-	879964A2	曲轴位置编码器线束总成	HARNESS ASSEMBLY Encoder Crank Position Sensor	1
-	881262A2	线束总成(交流发电机)	HARNESS ASSEMBLY Alternator Alternator	1
13	83296920	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	4
13	832969T20	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	4
13	83296915	迷你保险丝-蓝色-15安培	FUSE Mini - Blue - 15 Ampere	1
13	832969T15	迷你保险丝-蓝色-15安培	FUSE Mini - Blue - 15 Ampere	1
13	8329695	迷你保险丝-棕色-5安培	FUSE Mini - Tan - 5 Ampere	1
13	832969T05	迷你保险丝-棕色-5安培	FUSE Mini - Tan - 5 Ampere	1
14	68292	螺母(.312-18)	NUT (.312-18)	2
14	8M0204668	螺母(.312-18)	NUT (.312-18)	2
15	819514T16	升降线束总成	HARNESS ASSEMBLY Trim	1
16	878231A6	保险丝线束总成-100安培	HARNESS ASSEMBLY Fuse - 100 Ampere	1
17	858755	卡箍(1.00)	CLIP (1.00)	1
18	828991	卡扣	CLIP	1
18	828991T	卡扣	CLIP	1
19	82129110	螺丝 (M6 x 10)	SCREW (M6 x 10)	3
20	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	4
21	82129135	螺钉(M6x35)	SCREW (M6 x 35)	1
22	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
23	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
24	91912	衬套	BUSHING	1
25	13541	公插头	PLUG Male	1
26	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
27	85961021	发动机控制模块ECM	ECM Engine Control Module	1
27	8M0086580	电控单元	ECU	1
27	85961055S	发动机控制模块ECM	ECM Engine Control Module	1
27	8M0086580	电控单元	ECU	1
27	85961056S	发动机控制模块ECM	ECM Engine Control Module	1
27	8M0086581	电控单元	ECU	1
27	85961057S	发动机控制模块ECM	ECM Engine Control Module	1
27	8M0086584	电控单元	ECU	1
28	82130025	螺钉(M6x25)	SCREW (M6 x 25)	3
29	856954	衬套	BUSHING	3
30	834985	护孔环	GROMMET	3
30	8M0190980	护孔环	GROMMET	3
31	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	3
32	8590881	卡扣	CLIP	1
33	82129114	螺钉 (M6 x 14)	SCREW (M6 x 14)	1
34	82130012	螺钉（M6 x 12）	SCREW (M6 x 12)	3
35	817109A2	电磁阀总成(#10-32/.3125-18端子)	SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)	1
36	822179	护孔环	GROMMET	2
37	818968	衬套	BUSHING	2
37	8M0214955	衬套	BUSHING	2
38	813938	盖形螺母(#10-32)	CAP NUT (#10-32)	1
39	882829A1	启动机电缆总成	CABLE ASSEMBLY Starter	1
40	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
40	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
41	832948A1	2针公头连接器总成	CONNECTOR ASSEMBLY 2 POS Male	1
42	13540	母头护帽	CAP Female	2
43	881065A1	6针插头连接器	CONNECTOR 6 Pin Plug	1
44	8500673	黄色绝缘护套	BOOT Insulator - Yellow	1
45	880771T1	电缆总成(24.00英寸)红色	CABLE ASSEMBLY (24.00 Inches) Red	1
46	8500671	红色绝缘护套	BOOT Insulator - Red	1
47	881175A1	3位母头连接器盖总成	CAP ASSEMBLY 3 Position-Female Connector (FEMALE)	1
48	881176A1	3位公头连接器盖总成	CAP ASSEMBLY 3 Position-Male Connector (MALE)	1

图 109排气歧管与排气板 EXHAUST MANIFOLD AND EXHAUST PLATE

REF	零件编号	中文名称	英文名称	数量
1	190503	衬垫	GASKET	1
2	8283431	排气隔板	PLATE Exhaust Divider	1
2	828343T3	排气隔板	PLATE Exhaust Divider	1
3	814754	密封件(12.50英寸)	SEAL (12.50 Inches)	1
4	826356	螺钉带垫圈(.312-18 x 1.500)	SCREW AND WASHER (.312-18 x 1.500)	17
4	8263561	螺钉带垫圈(.312-18 x 1.500)	SCREW AND WASHER (.312-18 x 1.500)	17
5	855288	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	2
5	881190	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	2
6	8348082	滤网	STRAINER	1
7	83075780	管材(28.00英寸整料)(裁切至4-1/2英寸)	TUBING (28.00 Inches Bulk) (Cut to 4-1/2 Inches)	1
7	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
8	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
9	77653112	软管(59.00英寸整料)(21-1/2英寸)	HOSE (59.00 Inches Bulk) (21-1/2 IN.)	1
9	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
10	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	5
10	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	5
11	68729	盖板	COVER	1
11	8M0039767	盖板	COVER	1
12	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
13	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
14	76451	垫圈	WASHER	1
15	14479	隔膜	DIAPHRAGM	1
15	144791	隔膜	DIAPHRAGM	1
16	16496	导水板	DEFLECTOR Water	1
17	16497A1	安装板	PLATE	1
18	78690	衬垫	GASKET	2
18	78690002	衬垫	GASKET	2
19	64878	弹簧(黑色)	SPRING (Black)	1
20	85303	垫圈	WASHER	1
21	14480	提动阀	POPPET	1
22	64872	护孔环	GROMMET	1
23	65848	托架	CARRIER	1
24	991763	衬垫	GASKET	1
24	991764	衬垫	GASKET	1
25	850814A1	排气板总成	PLATE ASSEMBLY Exhaust	1
25	850814T1	排气板总成	PLATE ASSEMBLY Exhaust	1
26	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
27	8147011	密封件	SEAL	1
27	8M0043164	密封件	SEAL	1
28	680101	支架	BRACKET	1
29	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	8
29	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	8
30	89772	连接器(.125-27)(直通)(背部)	CONNECTOR (.125-27) (STRAIGHT)(BACK)	1
31	629101	90度弯头(.125-27)(右舷顶部孔)	FITTING Elbow - 90 Degree (.125-27) (STARBOARD-TOP HOLE)	1
32	89772	连接器(.125-27)(直通)(右舷底部孔)	CONNECTOR (.125-27) (STRAIGHT)(STARBOARD-BOTTOM HOLE)	1
33	19564	护孔环	GROMMET	1
33	8M0179867	护孔环	GROMMET	1
34	19565	护孔环	GROMMET	1
34	19565002	护孔环	GROMMET	1
35	77653112	软管(59.00英寸整料)(25英寸)	HOSE (59.00 Inches Bulk) (25 IN.)	1
35	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
36	852759	软管	HOSE	1
37	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	4
38	69254	螺母	NUT	6
39	27132	衬套	BUSHING	1
40	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
41	68783	螺钉(.312-18×2.50)	SCREW (.312-18 x 2.50)	1
42	66725	螺钉(.375-16×3.50)	SCREW (.375-16 x 3.50)	3
42	898833	螺钉(.375-16 x 3.500)	SCREW (.375-16 x 3.500)	3
43	812905A5	前支架总成	BRACKET ASSEMBLY Front	1
43	812905T	前支架	BRACKET Front	1
44	8055571	螺钉(0.3125-18×0.50)	SCREW (.3125-18 x .50)	4
45	187031	垫圈	WASHER	4
46	18778	护孔环	GROMMET	4
46	18778001	护孔环	GROMMET	4
47	18578A8	支架总成(后部)	BRACKET ASSEMBLY Rear	1
47	18578T09	支架总成(后部)	BRACKET ASSEMBLY Rear	1
-	814754A98	衬垫套件	GASKET SET	1
-	8M0046714	衬垫套件	GASKET SET	1
-	854008A98	动力头总成	POWERHEAD ASSEMBLY	1
-	804545T99	动力头总成	POWERHEAD ASSEMBLY	1

图 110飞轮/交流发电机 FLYWHEEL/ALTERNATOR

REF	零件编号	中文名称	英文名称	数量
1	8285072	皮带	BELT	1
2	834936A3	飞轮	FLYWHEEL	1
2	834936T6	飞轮	FLYWHEEL	1
3	52901	螺母(0.625-18)	NUT (.625-18)	1
4	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
4	33001	垫圈	WASHER	1
5	45907	黄色塞	PLUG Yellow	1
6	834832	交流发电机	ALTERNATOR	1
6	857006T	交流发电机	ALTERNATOR	1
7	832080M2	发电机支架	BRACKET Alternator	1
8	81893430	螺钉 (M8 x 30)	SCREW (M8 x 30)	1
8	81893435	螺钉(M8×35)	SCREW (M8 x 35)	1
9	821583	销	PIN	1
9	8215832	特殊销（1.5英寸）	PIN Special (1.5 Inches)	1
10	812618	不锈钢螺钉(.312-18 x 1.00)带尼龙垫	SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch	3
11	82446180	螺钉(M10×80)	SCREW (M10 x 80)	1
12	855798	弹簧	SPRING	1
12	855798001	弹簧	SPRING	1
13	8502913	皮带张紧器	BELT TENSIONER	1
13	850291T3	皮带张紧器	BELT TENSIONER	1
14	855728	双头螺栓(M10 X 54)	STUD (M10 X 54)	1
14	8557281	螺柱	STUD	1
15	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	1
16	852385A1	滑轮	PULLEY	1
16	8M6005030	皮带轮总成	PULLEY ASSY	1
17	4010835	螺钉(M10×35)六角法兰-不锈钢	SCREW (M10 x 35) Hex Flange - Stainless Steel	1
18	856030A2	衬套套装	BUSHING KIT	1
19	85045	O型圈(.551 x .070)	O-RING (.551 x .070)	2
20	NLA	不再供应	No Longer Available	1
21	42139	衬套	BUSHING	1
22	857006T	交流发电机	ALTERNATOR	1
22	889955A03	交流发电机套件	ALTERNATOR KIT	1
23	40108100	螺钉(M10×100)六角法兰-不锈钢	SCREW (M10 x 100) Hex Flange - Stainless Steel	1
23	8M0012503	螺钉(M10×1.5)	SCREW (M10 x 1.5)	1
24	40108120	螺钉(M10×120)六角法兰-不锈钢	SCREW (M10 x 120) Hex Flange - Stainless Steel	1
25	29395	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	3
25	8M0042641	垫圈(0.390×1.00×0.06)	WASHER (.390 x 1.00 x .06)	3
26	856975	支架	MOUNT	3
27	856972T	支架	BRACKET	1
27	858391T01	支架	BRACKET	1
28	845998	垫圈(0.406×1.250×0.089)	WASHER (.406 x 1.250 x .089)	3
29	856973T	支架	BRACKET	1
29	858393T01	支架	BRACKET	1
30	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	2
31	82446155	螺钉(M10×55)	SCREW (M10 x 55)	1
32	856583T2	拉线总成	CABLE ASSEMBLY	1
33	821583	销	PIN	1
33	8215832	特殊销（1.5英寸）	PIN Special (1.5 Inches)	1
34	856974T	支架	BRACKET	1
34	857142T	支架	BRACKET	1
35	812618	不锈钢螺钉(.312-18 x 1.00)带尼龙垫	SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch	3
36	855798	弹簧	SPRING	1
36	855798001	弹簧	SPRING	1
37	856815T2	张紧臂总成	ARM TENSIONER ASSEMBLY	1
38	856900	螺柱(M10×85)	STUD (M10 x 85)	1
38	8M0034457	螺柱(M10×85)	STUD (M10 x 85)	1
39	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	1
40	856894	衬套	BUSHING	1
40	8568941	衬套	BUSHING	1
41	4002320	垫圈	WASHER	2
42	852385A1	滑轮	PULLEY	1
42	8M6005030	皮带轮总成	PULLEY ASSY	1
43	4010835	螺钉(M10×35)六角法兰-不锈钢	SCREW (M10 x 35) Hex Flange - Stainless Steel	1

图 111燃油软管 FUEL HOSES

REF	零件编号	中文名称	英文名称	数量
1	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
2	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	5
2	8M0214964	卡箍	CLAMP	5
3	858955	连接器	CONNECTOR	1
4	830756109	软管（57英寸整料）（裁切至7-1/2英寸）	HOSE (57.00 Inches Bulk) (Cut to 7-1/2 Inches)	1
4	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
5	856822A1	油管	TUBING	1
5	8M0064784	成型脉冲软管	HOSE,MOLDED,PULSE	1
6	822769	连接器	CONNECTOR	1
7	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
8	858757A1	软管总成(25.50英寸)	HOSE ASSEMBLY (25.50 Inches)	1
8	8M0062344	软管总成	HOSE ASSY	1
9	804822	软管	HOSE	1
9	8M6001914	软管	HOSE	1
10	804821	管材（含O型圈）	TUBING (INCLUDES ORINGS)	1
10	8048211	油管	TUBING	1
11	8557611	止回阀	CHECK VALVE	1
12	856822A2	软管套管总成(18.00英寸)	HOSE AND SLEEVE ASSEMBLY (18.00 Inches)	1
12	8M0043979	软管套管总成	HOSE AND SLEEVE ASSEMBLY	1
13	85677870	软管	HOSE	1
13	8M0064634	软管	HOSE	1
14	85677887	软管	HOSE	1
14	8M0064635	软管	HOSE	1
15	85686953	套管(27.00英寸整卷)	SLEEVE (27.00 Inches Bulk)	2

图 112燃油泵 FUEL PUMP

REF	零件编号	中文名称	英文名称	数量
1	880890T1	燃油泵	PUMP Fuel	1
2	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
3	881544	弹簧	SPRING	1
4	881545	柱塞	PLUNGER	1
5	881546	弹簧	SPRING	1
6	881547	隔膜	DIAPHRAGM	1
7	881548	销	PIN	1
8	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
9	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
10	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
11	881550	螺钉	SCREW	3
12	881333	螺母	NUT	3
13	804255	O型圈	O-RING	1
13	8M0050719	O型圈	O-RING	1
14	879650	卡箍	CLAMP	2
14	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	2
15	804256	螺栓 (M6 x 30)	BOLT (M6 x 30)	2
16	881543	软管	HOSE	1
16	881543002	油管	TUBING	1
17	881542	支架	BRACKET	1
18	8527768	螺栓(M6 x 16)	BOLT (M6 x 16)	1
18	811188T	螺栓	BOLT	1
19	8528161	螺母	NUT	1
19	82382M	螺母	NUT	1
20	881538T1	滤清器总成	FILTER ASSEMBLY	1
20	881538T02	燃油滤清器总成	FILTER ASSY-FUEL	1
21	881540	滤芯1.75英寸	ELEMENT 1.75 Inches	1
21	8M0168897	燃油滤清器	FUEL FILTER	1
21	8M0101436	滤芯1.50英寸	ELEMENT 1.50 Inches	1
21	8M0117705	燃油滤清器	FILTER-FUEL	1
22	826966M	O型圈	O-RING	1
22	826966T	O型圈	O RING	1
23	881541	浮子	FLOAT	1
24	881539	杯套	CUP	1
24	8M0101437	杯套	CUP	1
24	8M0137185	燃油杯	CUP FUEL	1
25	879650	卡箍	CLAMP	2
25	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	2
26	804260	支架	BRACKET	1
27	804112	螺栓(M7 x 48)	BOLT (M7 x 48)	2
28	804113	定位销	PIN Dowel	2
29	84292M	垫圈	WASHER	2
30	804257	燃油转换杆	LEVER Fuel Change	1
31	881334	轴	SHAFT	1
32	804259	销	PIN	2
32	82738M	滚销	PIN-ROLL	2
33	830757130	管材(.312)(70英寸整卷)裁切至55英寸长度	TUBING (.312) (70.00 Inches Bulk) Cut to 55.00 Inch Length.	1
33	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
34	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
35	822769	连接器	CONNECTOR	1
36	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
37	828547T1	导管(.500内径 x 3英尺整卷)	CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk)	1
-	858732T01	衬垫套件	GASKET SET	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	881310T1	气缸盖总成	CYLINDER HEAD ASSEMBLY	1
-	881310T09	气缸盖	HEAD-CYLINDER	1

图 113燃油轨 FUEL RAILS

REF	零件编号	中文名称	英文名称	数量
1	831998A9	空气压缩机总成(参见空气压缩机部件分解图)	COMPRESSOR ASSEMBLY Air (SEE BREAKDOWN ON AIR COMPRESSOR COMPONENTS)	1
2	85593912	螺钉（M6 x 12）	SCREW (M6 x 12)	5
3	8328231	滑轮	PULLEY	1
3	8M0175171	滑轮	PULLEY	1
4	4010825	螺丝(M10 x 25)六角法兰-不锈钢	SCREW (M10 x 25) Hex Flange - Stainless Steel	2
5	8502511	软管	HOSE	1
5	8502512	软管	HOSE	1
6	85652329	绝缘套管(15英寸)	INSULATOR SLEEVE (15 IN.)	1
7	852379T5	燃油导轨	FUEL RAIL	1
7	852379T6	燃油导轨	FUEL RAIL	1
8	8500653	喷油器	INJECTOR	6
8	8M6001743	空气喷射器总成	INJECTOR ASSEMBLY Air	6
9	855697	卡箍(16.2)	CLAMP (16.2)	4
9	8M0204696	卡箍	CLAMP	4
10	85564361	软管(16英寸)	HOSE (16 IN.)	2
11	92345	螺柱	STUD	1
12	854640	特殊垫圈	WASHER Special	2
13	35814	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
13	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
14	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
14	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
15	852378T5	燃油导轨	FUEL RAIL	1
15	852378T6	燃油导轨	FUEL RAIL	1
16	830756109	软管(57.00英寸整料)(裁切至22-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 22-1/2 Inches)	1
16	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
17	826810	止回阀	CHECK VALVE	1
18	83075780	管材(28英寸整卷)(裁切为2-1/2英寸)	TUBING (28.00 Inches Bulk) (Cut to 2-1/2 Inches)	1
18	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
19	83476463	管材(32英寸整卷)(裁切为28-1/2英寸)	TUBING (32.00 Inches Bulk) (Cut to 28-1/2 Inches)	1
20	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	2
20	8M0214964	卡箍	CLAMP	2
21	85606064	管材(36英寸整卷)(28-1/2英寸)	TUBING (36.00 Inches Bulk) (28-1/2 IN.)	1
21	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
22	82104510	螺钉 (M5 x 10)	SCREW (M5 x 10)	4
23	46997	卡箍	CLAMP	4
24	852961	螺柱	STUD	4
24	8M0063255	双头螺栓M10x92	STUD M10x92	4
25	826292	螺母(M10)黄铜/镀镍	NUT (M10) Brass/Nickel Plated	4
26	NSS	不单独销售软管(30英寸)	NOT SOLD SEPARATE Hose (30 IN.)	1
26	856822A3	软管(30英寸)	HOSE (30 IN.)	1
27	8558481	软管	HOSE	1
27	855848A1	软管	HOSE	1
28	828694A1	杯形垫片总成	WASHER ASSEMBLY Cupped	6
29	856880	软管卡箍（15.3）	CLAMP Hose (15.3)	4
29	8M0214964	卡箍	CLAMP	4
30	85686953	套管(27英寸整卷)(裁切为18英寸)	SLEEVE (27.00 Inches Bulk) (Cut to 18 Inches)	1

图 114齿轮箱（驱动轴）（反向旋转） GEAR HOUSING (DRIVESHAFT)(COUNTER ROTATION)

REF	零件编号	中文名称	英文名称	数量
-	9148T86	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T83	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
1	9148T93	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
3	189783	螺柱(0.438×3.82英寸)	STUD (.438 x 3.82 Inches)	1
3	8M0034464	螺柱	STUD	1
4	579203	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
4	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	562972	螺柱(0.312-18/0.324-24×3.380)	STUD (.312-18/.324-24 x 3.380)	1
5	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
6	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
6	306671	螺柱	STUD	2
7	67891	填充块	FILLER BLOCK	1
7	8M0039169	填充块	FILLER BLOCK	1
8	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	826134Q	阳极块	ANODE	2
10	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
11	8268336	螺母 (M6)	NUT (M6)	1
11	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
12	85944975	管材(72.00英寸散装)(12英寸)	TUBING (72.00 Inches Bulk) (12 IN.)	1
13	859432	接头	FITTING	1
13	881866	接头	FITTING	1
14	NSS	不单独销售	NOT SOLD SEPARATE	1
14	44101T3	小齿轮	GEAR Pinion	1
15	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
16	35921	螺母(0.625-18)	NUT (.625-18)	1
17	42637A1	垫片组(006至048)	SHIM SET (006 THRU 048)	AR
17	8M0063267	垫片组	SHIM SET	AR
18	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	2
18	79953Q04	放油螺钉套件	SCREW KIT Drain	2
19	191832	垫圈	WASHER	2
19	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
20	789022	换档轴	SHIFT SHAFT	1
21	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
22	77631A2	衬套总成	BUSHING ASSEMBLY	1
23	8164641	油封	SEAL Oil	1
23	8M0246145	油封	OIL SEAL	1
24	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
25	442091	驱动轴	DRIVESHAFT	1
25	897625T	加长驱动轴	DRIVESHAFT X-Long	1
26	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
26	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
27	NSS		NOT SOLD SEPARATE CUP	1
28	8245191	固定座	RETAINER	1
29	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
29	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
30	NSS		NOT SOLD SEPARATE RETAINER	1
31	426311	衬垫	GASKET	1
31	8M0204678	衬垫	GASKET	1
32	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
32	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
33	89238	油封	SEAL Oil	1
34	16977	油封	SEAL Oil	1
35	856081	衬垫	GASKET	1
35	8M0090319	衬垫@5	GASKET @5	1
36	858524	衬垫	GASKET	1
37	32435	面板	FACE PLATE	1
37	8M0204677	面板	PLATE-FACE	1
38	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
39	48752T	嵌件	INSERT	1
40	38970	密封件	SEAL	1
41	89984T3	叶轮	IMPELLER	1
42	56654	键	KEY	1
42	8M0214992	键@5	KEY @5	1
43	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
43	8M0215009	螺钉	SCREW	1
44	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
44	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
45	8267119	螺母(.250-28)	NUT (.250-28)	2
46	36001	垫圈	WASHER	1
47	13436	螺母	NUT	1
48	29804T	套筒	SLEEVE	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1
-	814754A00	发动机垫片组	GASKET SET Engine	1
-	8M0046714	衬垫套件	GASKET SET	1
-	803034T1	轴承与油封套件(不含前轴承)	BEARING AND SEAL KIT (W/O FWD. BRG.)	1

图 115齿轮箱（驱动轴）（标准旋转） GEAR HOUSING (DRIVESHAFT)(STANDARD ROTATION)

REF	零件编号	中文名称	英文名称	数量
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T85	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T81	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T82	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
1	9148T93	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
3	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
3	189783	螺柱(0.438×3.82英寸)	STUD (.438 x 3.82 Inches)	1
3	8M0034464	螺柱	STUD	1
4	579203	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
4	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	562972	螺柱(0.312-18/0.324-24×3.380)	STUD (.312-18/.324-24 x 3.380)	1
5	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
6	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
6	306671	螺柱	STUD	2
7	67891	填充块	FILLER BLOCK	1
7	8M0039169	填充块	FILLER BLOCK	1
8	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	826134Q	阳极块	ANODE	2
10	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
11	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
12	85944975	管材(72.00英寸散装)	TUBING (72.00 Inches Bulk)	1
12	85944975	管材(72.00英寸散装)	TUBING (72.00 Inches Bulk)	1
13	859432	接头	FITTING	1
13	881866	接头	FITTING	1
14	NSS	不单独销售	NOT SOLD SEPARATE	1
14	44101T3	小齿轮	GEAR Pinion	1
15	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
16	35921	螺母(0.625-18)	NUT (.625-18)	1
17	42637A1	垫片组(006至048)	SHIM SET (006 THRU 048)	AR
17	8M0063267	垫片组	SHIM SET	AR
18	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	2
18	79953Q04	放油螺钉套件	SCREW KIT Drain	2
19	191832	垫圈	WASHER	2
19	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
20	789022	换档轴	SHIFT SHAFT	1
21	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
22	77631A2	衬套总成	BUSHING ASSEMBLY	1
23	8164641	油封	SEAL Oil	1
23	8M0246145	油封	OIL SEAL	1
24	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
25	440001	驱动轴	DRIVESHAFT	1
25	897624T	长驱动轴	DRIVESHAFT Long	1
25	442091	驱动轴	DRIVESHAFT	1
25	897625T	加长驱动轴	DRIVESHAFT X-Long	1
26	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
26	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
27	NSS		NOT SOLD SEPARATE CUP	1
28	8245191	固定座	RETAINER	1
29	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
29	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
30	NSS		NOT SOLD SEPARATE RETAINER	1
31	426311	衬垫	GASKET	1
31	8M0204678	衬垫	GASKET	1
32	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
32	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
33	89238	油封	SEAL Oil	1
34	16977	油封	SEAL Oil	1
35	856081	衬垫	GASKET	1
35	8M0090319	衬垫@5	GASKET @5	1
36	858524	衬垫	GASKET	1
37	32435	面板	FACE PLATE	1
37	8M0204677	面板	PLATE-FACE	1
38	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
39	48752T	嵌件	INSERT	1
40	38970	密封件	SEAL	1
41	89984T3	叶轮	IMPELLER	1
42	56654	键	KEY	1
42	8M0214992	键@5	KEY @5	1
43	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
43	8M0215009	螺钉	SCREW	1
44	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
44	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
45	8267119	螺母(.250-28)	NUT (.250-28)	2
46	36001	垫圈	WASHER	1
47	13436	螺母	NUT	1
48	29804T	套筒	SLEEVE	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1
-	803033T1	轴承与油封套件(不含前轴承)	BEARING AND SEAL KIT (W/O FWD. BRG.)	1
-	814754A00	发动机垫片组	GASKET SET Engine	1
-	8M0046714	衬垫套件	GASKET SET	1

图 116齿轮箱（螺旋桨轴）（反向旋转） GEAR HOUSING (PROPSHAFT)(COUNTER ROTATION)

REF	零件编号	中文名称	英文名称	数量
-	9148T86	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T83	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
1	9148T93	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
3	789562	换挡凸轮	SHIFT CAM	1
4	828287	杆	ROD	1
5	44491A1	垫片组(006至050)	SHIM SET (006 THRU 050)	AR
5	8M0063266	垫片组	SHIM SET	AR
6	828830A2	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
7	814653T	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
8	815481	止推垫片	THRUST WASHER	1
9	815480	推力轴承	BEARING Thrust	1
10	828702A2	倒车齿轮总成-15/28齿	GEAR ASSEMBLY Reverse - 15/28	1
10	828704A2	倒车齿轮总成-14/28齿	GEAR ASSEMBLY Reverse - 14/28	1
11	15844	滚柱轴承总成	BEARING ASSEMBLY Roller	1
12	30893	弹簧	SPRING	1
13	859340T	离合器	CLUTCH	1
14	30632	十字销	PIN Cross	1
14	8M0100263	十字销	PIN Cross	1
15	828356	定位销	PIN Detent	1
16	828951	螺旋桨轴	PROPELLER SHAFT	1
17	828701A1	前进齿轮总成-15/28齿	GEAR ASSEMBLY Forward - 15/28	1
17	828703A1	前进齿轮总成-14/28齿	GEAR ASSEMBLY Forward - 14/28	1
18	1761552	垫片(0.202)	SPACER SHIM (.202)	AR
18	1761553	垫片(0.204)	SPACER SHIM (.204)	AR
18	1761514	垫片(0.206)	SPACER SHIM (.206)	AR
18	1761515	垫片(0.208)	SPACER SHIM (.208)	AR
18	1761516	垫片(0.210)	SPACER SHIM (.210)	AR
18	1761517	垫片(0.212)	SPACER SHIM (.212)	AR
18	1761518	垫片(0.214)	SPACER SHIM (.214)	AR
18	1761519	垫片(0.216)	SPACER SHIM (.216)	AR
18	1761520	垫片(0.218)	SPACER SHIM (.218)	AR
18	1761521	垫片(0.220)	SPACER SHIM (.220)	AR
18	1761522	垫片(0.222)	SPACER SHIM (.222)	AR
18	1761523	垫片(0.224)	SPACER SHIM (.224)	AR
18	1761524	垫片(0.226)	SPACER SHIM (.226)	AR
18	1761525	垫片(0.228)	SPACER SHIM (.228)	AR
18	1761526	垫片(0.230)	SPACER SHIM (.230)	AR
19	815480	推力轴承	BEARING Thrust	1
20	815481	止推垫片	THRUST WASHER	1
21	828831A3	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
22	814653T	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
23	18448	止推垫片	THRUST WASHER	2
24	15842	推力轴承	BEARING Thrust	2
25	8182911	推力座圈	RACE Thrust	2
26	814605	定位器	KEEPER	2
27	31534	O型圈	O-RING	1
27	8M0214920	O型圈	O RING	1
28	818290A4	轴承座总成	CARRIER ASSEMBLY Bearing	1
29	30956T	滚针轴承	BEARING Needle	1
30	14077	油封	SEAL Oil	1
31	76868	密封件	SEAL	1
31	8M0248882	油封@5	SEAL-OIL @5	1
32	183231	锁紧垫圈	TAB WASHER	1
33	30281	键	KEY	1
34	79448	固定座	RETAINER	1
34	8M2011027	固定座	RETAINER	1
35	31640T5	平衡鳍板	TRIM TAB	1
35	8M0236553	平衡鳍板	TRIM TAB	1
36	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
36	8M0204686	螺钉	SCREW	1
37	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
38	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
39	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
39	8M0204653	螺母	NUT	2
40	NSS		NOT SOLD SEPARATE DECAL-COUNTER ROTATION	1
-	803034T1	轴承与油封套件(不含前轴承)	BEARING AND SEAL KIT (W/O FWD. BRG.)	1
-	803491T1	离合器/凸轮从动件总成	FOLLOWER ASSEMBLY Clutch/Cam	1

图 117齿轮箱（螺旋桨轴）（标准旋转） GEAR HOUSING (PROPSHAFT)(STANDARD ROTATION)

REF	零件编号	中文名称	英文名称	数量
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T85	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T81	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T82	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
1	9148T93	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
3	789562	换挡凸轮	SHIFT CAM	1
4	828287	杆	ROD	1
5	878613A2	前进齿轮总成 1.87:1 - 15/28齿	GEAR ASSEMBLY Forward 1.87:1 - 15/28	1
5	803615T2	小齿轮/前进齿轮总成	GEAR ASSEMBLY Pinion/Forward	1
5	878615A2	前进齿轮总成 2:1 - 14/28齿	GEAR ASSEMBLY Forward 2:1 - 14/28	1
5	803612T2	小齿轮/前进齿轮总成	GEAR ASSEMBLY Pinion/Forward	1
6	44491A1	垫片组(0.006至0.050)	SHIM SET (.006 THRU 050)	AR
6	8M0063266	垫片组	SHIM SET	AR
7	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
8	NSS		NOT SOLD SEPARATE CUP	1
9	30895T	滚针轴承	BEARING Needle	1
10	856823	挡圈	RING Retaining	1
11	859340T	离合器	CLUTCH	1
12	30632	十字销	PIN Cross	1
12	8M0100263	十字销	PIN Cross	1
13	828356	定位销	PIN Detent	1
14	30893	弹簧	SPRING	1
15	94148	螺旋桨轴	PROPELLER SHAFT	1
16	828175A1	倒车齿轮总成-15/28齿	GEAR ASSEMBLY Reverse - 15/28	1
16	828177A1	倒车齿轮总成-14/28齿	GEAR ASSEMBLY Reverse - 14/28	1
17	824108	隔套	SPACER	1
18	681001	止推环	RING Thrust	1
19	88957T	滚珠轴承	BEARING Ball	1
20	31534	O型圈	O-RING	1
20	8M0214920	O型圈	O RING	1
21	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
22	30956T	滚针轴承	BEARING Needle	1
23	14077	油封(内侧)	SEAL Oil (INSIDE)	1
24	76868	油封(外侧)	SEAL (OUTSIDE)	1
24	8M0248882	油封@5	SEAL-OIL @5	1
25	30281	键	KEY	1
26	79447	锁紧垫圈	TAB WASHER	1
27	79448	固定座	RETAINER	1
27	8M2011027	固定座	RETAINER	1
28	31640T5	平衡鳍板	TRIM TAB	1
28	8M0236553	平衡鳍板	TRIM TAB	1
29	76214Q5	阳极套件	ANODE KIT	1
30	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
30	8M0204686	螺钉	SCREW	1
31	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
32	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
33	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
33	8M0204653	螺母	NUT	2
-	89238A2	密封套件	SEAL KIT	1
-	803491T1	离合器/凸轮从动件总成	FOLLOWER ASSEMBLY Clutch/Cam	1
-	803033T1	轴承与油封套件(不含前轴承)	BEARING AND SEAL KIT (W/O FWD. BRG.)	1
-	814754A00	发动机垫片组	GASKET SET Engine	1
-	8M0046714	衬垫套件	GASKET SET	1

图 118喷油组件 OIL INJECTION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	12335A1	支架套件	BRACKET KIT	1
2	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1
3	87421	油箱	TANK	1
4	43298A2	盖总成	CAP ASSEMBLY	1
5	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
6	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
7	816190A3	外壳总成适配器	HOUSING ASSEMBLY Adapter	1
7	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
8	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
9	99802	管	TUBE	1
10	99439	软管(114.00英寸)	HOSE (114.00 Inches)	1
11	833069A3	油箱总成	RESERVOIR ASSEMBLY Oil	1
11	8M0062954	储油罐	RESERVOIR, OIL	1
12	NSS	不单独销售标签-储液罐	NOT SOLD SEPARATE Decal-Reservoir	1
13	855362	护孔环	GROMMET	3
13	855362001	护孔环	GROMMET	3
14	49436	垫圈	WASHER	3
15	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
16	855364	衬套	BUSHING	3
17	69267	螺钉 (.312-18 x 1.750)	SCREW (.312-18 x 1.750)	2
18	833155	护孔环	GROMMET	2
19	8502341	衬套	BUSHING	2
20	82381455	管材(25英寸整卷)(裁切为20英寸)	TUBING (25.00 Inches Bulk) (Cut to 20 Inches)	1
21	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
21	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
22	12886A8	开关	SWITCH	1
23	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
24	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
25	8260841	隔套	SPACER	1
26	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	7
26	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	7
27	NSS	不单独销售塞	NOT SOLD SEPARATE Plug	1
28	424254	接头	FITTING	1
28	8M0207780	接头	FITTING	1
29	830756109	软管(57.00英寸散装)(裁切至6英寸)	HOSE (57.00 Inches Bulk) (Cut to 6 Inches)	1
29	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
30	855785	燃油冷却器	COOLER Fuel	1
30	855785A1	燃油冷却器总成	COOLER ASSEMBLY Fuel	1
31	855761	止回阀	CHECK VALVE	1
31	8557611	止回阀	CHECK VALVE	1
32	13791	卡箍(15.7)	CLAMP (15.7)	4
32	8M0214911	卡箍@5	CLAMP @5	4
33	85682239	管材(17英寸整卷)(裁切为3英寸)	TUBING (17.00 Inches Bulk) (Cut to 3 Inches)	1
34	856822A3	软管(带绝缘套管)(30英寸)	HOSE (W/INSULATING SLEEVE) (30 IN.)	1

图 119油管 OIL LINES

REF	零件编号	中文名称	英文名称	数量
1	85606064	管材(36.00英寸整料)(裁切至24英寸)	TUBING (36.00 Inches Bulk) (Cut to 24 Inches)	1
1	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
2	85606064	管材(36.00英寸整料)(裁切至18-1/2英寸)	TUBING (36.00 Inches Bulk) (Cut to 18-1/2 Inches)	1
2	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
3	85606064	管材(36.00英寸整料)(裁切至15-1/2英寸)	TUBING (36.00 Inches Bulk) (Cut to 15-1/2 Inches)	1
3	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
4	85606064	管材(36.00英寸整料)(裁切至24-1/2英寸)	TUBING (36.00 Inches Bulk) (Cut to 24-1/2 Inches)	3
4	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	3
4	85606064	管材(36.00英寸整料)(裁切至24-1/2英寸)	TUBING (36.00 Inches Bulk) (Cut to 24-1/2 Inches)	2
4	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	2
5	858805	止回阀	CHECK VALVE	6
6	69355	扎带(5.50英寸)	TIE STRAP (5.50 Inches)	AR
6	8M0214940	扎带	TIE STRAP	AR
7	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
8	830756109	软管(57.00英寸散装)(裁切至6英寸)	HOSE (57.00 Inches Bulk) (Cut to 6 Inches)	1
8	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
9	82381455	管材(25.00英寸整料)(裁切至24英寸)	TUBING (25.00 Inches Bulk) (Cut to 24 Inches)	1
10	85583463	管材(33.00英寸整料)(裁切至32英寸)	TUBING (33.00 Inches Bulk) (Cut to 32 Inches)	1
10	85583464	管材 (34.00英寸整卷)	TUBING (34.00 Inches Bulk)	1
11	858955	连接器	CONNECTOR	2
12	426981	止回阀	CHECK VALVE	1
12	426982	止回阀	CHECK VALVE	1
13	426231	止回阀	CHECK VALVE	1
13	426233	止回阀	CHECK VALVE	1
14	99130122	管材(20英尺整卷)(裁切为19英寸)	TUBING (20.00 Feet Bulk) (Cut to 19 Inches)	1
14	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
15	432783	止回阀	CHECK VALVE	1
15	8781051	止回阀	CHECK VALVE	1
16	424254	接头	FITTING	1
16	8M0207780	接头	FITTING	1
17	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	2
18	875289	软管	HOSE	1
19	830756109	软管(57.00英寸整料)(裁切至22-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 22-1/2 Inches)	1
19	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
20	826810	止回阀	CHECK VALVE	1
21	830757130	管材(.312)(70.00英寸整料)(裁切至2-1/2英寸)	TUBING (.312) (70.00 Inches Bulk) (Cut to 2-1/2 Inches)	1
21	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
22	875284	管路过滤器	FILTER In Line	1
22	875284T01	滤清器-机油在线式	FILTER Oil - In Line	1
23	875283	软管(2.00英寸)	HOSE (2.00 Inches)	1
24	85606064	管材(36.00英寸整料)(裁切至27英寸)	TUBING (36.00 Inches Bulk) (Cut to 27 Inches)	1
24	8M0054152	管材(39.00英寸整卷)	TUBING (39.00 Inches Bulk)	1
-	854008T00	动力头总成	POWERHEAD ASSEMBLY	1

图 120动力升降组件(铸造泵壳)金属电机壳体 POWER TRIM COMPONENTS (CAST PUMP HOUSING) Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	855998A3	动力升降倾斜装置总成	POWER TRIM Complete	1
1	878265A4	配平电机	TRIM MOTOR	1
1	8M0031551	配平电机	TRIM MOTOR	1
2	NSS		NOT SOLD SEPARATE ARMATURE	1
3	NSS		NOT SOLD SEPARATE END FRAME	1
4	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
5	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
6	878245	联轴器	COUPLING	1
6	8782451	驱动轴	DRIVESHAFT	1
7	878410A1	压力检查套件	PO CHECK KIT	1
8	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
8	893929A01	安全阀套件	VALVE KIT Relief	1
9	878241A1	轴套件	SHAFT KIT	1
9	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
10	878267	销	PIN	1
11	878235A1	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
11	878235A03	倾斜油缸套件	CYLINDER KIT Tilt	1
12	878239A1	导向套件	GUIDE KIT	1
12	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
13	878409A1	O型圈套件	O-RING KIT	1
13	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
14	878412A1	减震杆套件	SHOCK ROD KIT	1
14	8M0168219	减震杆套件	SHOCK ROD KIT	1
15	878242A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
15	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
16	878406A1	止回阀修理包	REPAIR KIT Check Valve	1
16	878406A02	止回阀修理包	REPAIR KIT Check Valve	1
17	878414A1	活塞总成	PISTON ASSEMBLY	1
17	878414T01	活塞总成	PISTON ASSEMBLY	1
18	878413A1	活塞总成	PISTON ASSEMBLY	1
19	878243A1	导向器总成	GUIDE ASSEMBLY	2
19	8M0021648	端盖总成	END CAP ASSEMBLY	2
20	878264A1	储液罐套件	RESERVOIR KIT	1
21	811613	塞子总成	PLUG ASSEMBLY	1
22	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
23	43450	垫圈	WASHER	4
23	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
24	878411A1	泵套件	PUMP KIT	1
24	892251A01	泵套件	PUMP KIT	1
25	878408A1	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
26	821539	三叶销	PIN Trilobe	1
27	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
28	4002319	垫圈	WASHER	6
29	818298Q1	阳极套件	ANODE KIT	1
30	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
30	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
31	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
31	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	996251	轴	SHAFT	1
32	99625002	轴	SHAFT	1
33	69205	C形垫圈	C WASHER	1
33	8M0084613	C形垫圈	C-WASHER	1
34	26550	卡箍	CLAMP	2
35	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
36	828547353	导管(内径0.350英寸x3.00英尺散装)(12英寸)	CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk) (12 IN.)	1
37	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

图 121动力升降组件(可拆卸泵壳)金属电机壳体 POWER TRIM COMPONENTS (REMOVABLE PUMP HOUSING) Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	826729T2	完整动力升降总成	POWER TRIM ASSEMBLY Complete	1
1	811604F	歧管总成	MANIFOLD ASSEMBLY	1
2	878089	管塞 (.0625-27)	PLUG Pipe (.0625-27)	9
3	880952A1	倾斜油缸总成	CYLINDER ASSEMBLY Tilt	1
3	880952A03	ORD 8M0078330	ORD 8M0078330	1
4	823553T	升降活塞杆	ROD Trim Piston	1
4	880952A02	液压油缸套件	CYLINDER KIT-HYD	1
5	878239A1	导向套件	GUIDE KIT	1
5	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
6	811607A1	维修套件	REPAIR KIT	1
7	811610A1	止回阀套件	CHECK VALVE KIT	1
7	823553T	升降活塞杆	ROD Trim Piston	1
8	878243A1	导向器总成	GUIDE ASSEMBLY	2
8	8M0021648	端盖总成	END CAP ASSEMBLY	2
9	878413A1	活塞总成	PISTON ASSEMBLY	1
9	878414A1	活塞总成	PISTON ASSEMBLY	1
9	878414T01	活塞总成	PISTON ASSEMBLY	1
10	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
11	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
11	893929A01	安全阀套件	VALVE KIT Relief	1
12	812844	E型卡环	E RING	1
12	815949001	E形环	E-RING	1
13	811612A3	O型圈套件	O-RING KIT	1
14	811617T1	泵	PUMP	1
15	811613	塞子总成	PLUG ASSEMBLY	1
16	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
17	43450	垫圈	WASHER	4
17	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
18	811611	盖板	COVER	1
19	828710	驱动接头	DRIVE JOINT	1
20	828708T	配平电机	TRIM MOTOR	1
20	878265A4	配平电机	TRIM MOTOR	1
21	828709	螺钉	SCREW	2
21	881768A1	螺钉/垫圈套件	SCREW/WASHER KIT	2
21	811616	螺钉	SCREW	2
22	811614T	轴总成	SHAFT ASSEMBLY	1
22	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
23	878089	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
24	44431	槽销	PIN Groove	1
24	878267	销	PIN	1
25	821539	三叶销	PIN Trilobe	1
26	996251	轴	SHAFT	1
26	99625002	轴	SHAFT	1
27	818298Q1	阳极套件	ANODE KIT	1
28	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
28	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
29	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
29	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
30	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
31	4002319	垫圈	WASHER	6
32	26550	卡箍	CLAMP	2
33	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
34	69205	C形垫圈	C WASHER	2
34	8M0084613	C形垫圈	C-WASHER	2
35	435301	警示贴纸-动力微调	DECAL Caution-Power Trim	1
36	828547353	导管 (.350内径 x 3.00英尺散装)	CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk)	1
37	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

图 122动力升降组件 8M0231193 Power Trim Components 8M0231193

REF	零件编号	中文名称	英文名称	数量
-	8M0231193	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0225363	电机套件	MOTOR KIT	1
2	8M0225369	阀套件	VALVE KIT	1
3	8M0225371	手动释放套件	MANUAL RELEASE KIT	1
4	8M0245633	倾斜油缸套件	TILT CYLINDER KIT	1
5	8M0225370	枢轴销套件	PIVOT PIN KIT	1
6	8M0244575	减震杆套件	SHOCK ROD KIT	1
7	8M0244425	销杆眼套件	PIN ROD EYE KIT	1
8	8M0232231	螺钉螺母套件	SCREW NUT KIT	1
9	8M0225373	记忆活塞套件	MEMORY PISTON KIT	1
10	8M0225368	储液罐套件	RESERVOIR KIT	1
11	8M0174135	储液罐塞总成	PLUG RESERVOIR ASSEMBLY	1
12	8M0237525	泵套件	PUMP KIT	1
13	8M0225367	升降杆套件	TRIM ROD KIT	1
14	8M0242846	升降杆套件	TRIM ROD KIT	1
15	8M0225372	重建套件	REBUILD KIT	1

图 123动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	8M0168222	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0142591	电机套件	MOTOR KIT	1
2	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
3	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
4	8M0090403	驱动联轴器	COUPLING Drive	1
5	8M0142996	压力检查套件	PO CHECK KIT	1
6	8M0060141	手动释放套件	MANUAL RELEASE KIT	1
7	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
8	878267	销	PIN	1
9	8M0142998	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
9	8M0168220	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
10	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
11	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
12	8M0142592	升降杆套件左舷	TRIM ROD KIT Port	1
13	8M0143001	活塞总成	PISTON ASSEMBLY	1
14	8M0143003	端盖总成	END CAP ASSEMBLY	1
15	878264A1	储液罐套件	RESERVOIR KIT	1
16	811613	塞子总成	PLUG ASSEMBLY	1
17	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
18	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
19	8M0143004	泵套件	PUMP KIT	1
20	8M0148385	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
21	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
22	4002319	垫圈	WASHER	6
23	8M0094889	销	PIN	1
23	8M0161312	连杆销眼总成	PIN ROD EYE ASSEMBLY	1
24	8M0143005	减震杆套件	SHOCK ROD KIT	1
24	8M0168219	减震杆套件	SHOCK ROD KIT	1

图 124动力升降电机(可拆卸泵壳) POWER TRIM MOTOR (REMOVABLE PUMP HOUSING)

REF	零件编号	中文名称	英文名称	数量
-	828708T	配平电机	TRIM MOTOR	1
1	828714A1	电刷与密封套件	BRUSH AND SEAL KIT	1
2	828713A1	电枢套件	ARMATURE KIT	1
2	828713T1	电枢套件	ARMATURE KIT	1
3	828715A1	端架（总成）	END FRAME (COMPLETE)	1

图 125服务/支持材料 SERVICE/SUPPORT MATERIAL

零件编号	中文名称	英文名称	数量
88183801	零件手册-115EFI(四冲程)	PARTS MANUAL 115 EFI (4-Stroke) Parts Manual	1
881980	维修手册	SERVICE MANUAL	1
881980R03	SM O/B 115 EFI 4S	SM O/B 115 EFI 4S	1
10225030	用户手册	OWNERS MANUAL	1
858610A31	燃油软管总成	HOSE ASSEMBLY Fuel	1
8M0038610	带注油球的燃油软管总成(9英尺)	HOSE ASSEMBLY Fuel (9 Feet) With Primer Bulb	1
880177	组合扳手工具(10毫米)	SCRENCH TOOL (10 mm)	1
881828	星形头工具套件	STARBIT TOOL KIT	1
881649A01	贴花套件	DECAL SET	1
881649A05	贴花套件	DECAL SET	1
881840A01	贴花套件	DECAL SET	1
881840A03	贴花套件	DECAL SET	1
881840A03	贴花套件	DECAL SET	1
881840A05	贴花套件	DECAL SET	1
881650A01	贴花套件	DECAL SET	1
881650A03	贴花套件	DECAL SET	1
881650A03	贴花套件	DECAL SET	1
881702A01	贴花套件	DECAL SET	1
881839A01	EPA标签信息贴花	DECAL EPA Label Information	1
881839A02	EPA标签信息贴花	Decal EPA Label Information	1
881839A03	EPA标签信息贴花	DECAL EPA Label Information	1
816834A1	转速表	TACHOMETER	1
816932A1	温度表	TEMPERATURE GAUGE	1
86306	适配器	ADAPTER	1
86306A01	适配器	ADAPTER	1
817054A3	水压表总成	GAUGE ASSEMBLY Water Pressure	1
821400A2	动力升降倾斜传感器套件	SENDER KIT Power Trim	1
8M0074845	ORD 8M0098264	ORD 8M0098264	1
92876A8	转向安装套件	ATTACHING KIT Steering	1
92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
883040A1	转速表模块套件	TACH MODULE KIT	1

图 126速度计传感系统 SPEEDOMETER PICKUP SYSTEM

REF	零件编号	中文名称	英文名称	数量
-	859604A1	皮托管传感器总成	SENSOR ASSEMBLY Pitot	1
-	881879T11	压力传感器 (0 - 100 PSI)	SENSOR Pressure (0 - 100 PSI)	1
1	NSS	不单独销售	NOT SOLD SEPARATE	1
2	859431	接头	FITTING	1
2	8M0207782	直通接头	FITTING Straight	1
3	858954	卡箍(0.625英寸)	CLIP (.625)	1
4	85944971	管材(52英寸)	TUBING (52.00 Inches)	1
4	85944975	管材(72.00英寸散装)	TUBING (72.00 Inches Bulk)	1
5	859448	接头	FITTING	1
5	859448T	接头	FITTING	1
6	821555	护孔环	GROMMET	1
6	8M0153609	护孔环	GROMMET	1
7	850181	捆扎带(11.750英寸)	TIE STRAP (11.750 Inches)	1
8	859747	联轴器	COUPLER	1
8	8M0214971	耦合接头 (4 MM)	COUPLER Fitting (4 MM)	1
9	859732	堵头	PLUG	1
10	859731	适配管接头	FITTING Adapter	1
10	8M0214970	接头	FITTING	1

图 127启动马达 STARTER MOTOR

REF	零件编号	中文名称	英文名称	数量
-	881368T1	启动电机总成	STARTER MOTOR ASSEMBLY	1
-	881368T2	启动电机总成	STARTER MOTOR ASSEMBLY	1
-	881368T2	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	804314T	定子	STATOR	1
2	804313T	电枢	ARMATURE	1
3	881369T1	电刷支架总成	HOLDER ASSEMBLY Brush	1
4	804316	电刷组	BRUSH SET	1
5	804317	弹簧	SPRING	4
6	881370T	支架	BRACKET	1
7	804337	螺钉(M4×16)	SCREW (M4 x 16)	2
8	804335	贯穿螺栓(M6×120)	THRU BOLT (M6 x 120)	2
9	804321T1	齿轮套件	GEAR KIT	1
10	804322	离合器	CLUTCH	1
11	804330	垫圈套件	WASHER KIT	1
12	804324	支架	BRACKET	1
13	804326	齿圈	RING GEAR	1
14	804327	衬垫	GASKET	1
15	804325	轴承	BEARING	1
16	804323	小齿轮轴	SHAFT Pinion	1
17	804329	惰轮	IDLER GEAR	3
17	804329001	惰轮	GEAR Idler	3
18	804328	支架	BRACKET	1
19	804331T	盖板	COVER	1
20	804336	螺栓(M6×52)	BOLT (M6 x 52)	2
21	804319	小齿轮	PINION	1
22	804320	小齿轮止动组	STOP SET Pinion	1
23	804332	杠杆套件	LEVER KIT	1
24	804334	盖板	COVER	1
25	881371T	启动继电器	RELAY Starter	1
25	881371T1	启动继电器	RELAY Starter	1
25	881371T1	启动继电器	RELAY Starter	1
26	804605	螺栓(M8×45)	BOLT (M8 x 45)	3
27	881373	接线端子	TERMINAL	1
28	881377	锁紧垫圈	LOCKWASHER	1
29	82382M	螺母	NUT	1
30	881372	螺母	NUT	1
31	881374	盖板	COVER	1

图 128旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM

REF	零件编号	中文名称	英文名称	数量
1	818904T1	旋转支架	SWIVEL BRACKET	1
1	8M0220957	旋转支架总成	SWIVEL BRKT ASSY	1
2	87735	下油封	SEAL Oil Lower	1
3	818764	衬套	BUSHING	2
4	33504	O型圈	O-RING	1
4	8M0214926	O型圈 @10	O RING @10	1
5	816039	隔套	SPACER	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
9	99661A26	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	99661A35	旋转销总成	SWIVEL PIN ASSEMBLY	1
10	92876A10	连杆总成	LINK ROD ASSEMBLY	1
10	92876A12	连杆总成	LINK ROD ASSEMBLY	1
11	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
12	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
13	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
14	42961A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
14	42961A06	底部轭架总成	YOKE ASSEMBLY Bottom	1
15	67684	挡圈	RING Retaining	1
16	816432	止推垫片	THRUST WASHER	1
17	NSS	不单独销售贴纸, 序列号覆膜	NOT SOLD SEPARATE Decal, Serial Overlaminate	1
18	11288	下轭缓冲垫	BUMPER Bottom Yoke	1
18	11288001	下轭缓冲垫	BUMPER Bottom Yoke	1
19	88882	上轭缓冲垫	BUMPER Top Yoke	1

图 129油门杆与换挡轴 THROTTLE LEVER AND SHIFT SHAFT

REF	零件编号	中文名称	英文名称	数量
1	850389	杠杆	LEVER	1
2	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
3	55164	衬套	BUSHING	1
4	74759	垫圈(0.391x0.880x0.125)不锈钢	WASHER (.391 x .880 x .125) Stainless Steel	1
5	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	1
6	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
7	64015	螺母 (.250-20)	NUT (.250-20)	1
8	26852	尼龙帽	CAP Nylon	1
9	42927	嵌件	INSERT	1
10	35459	垫圈	WASHER	1
11	8268336	螺母 (M6)	NUT (M6)	1
11	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
12	8503931	凸轮	CAM	1
12	856221A1	凸轮套件	CAM KIT	1
13	852970	衬套	BUSHING	1
14	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	1
15	932481	衬套	BUSHING	2
15	8M0215006	旋转衬套	BUSHING Swivel	2
16	8235694	螺纹球头	BALL Threaded	1
17	850815	连接杆	LINK	1
17	8508152	杆	ROD	1
18	67748	滚轮	ROLLER	1
19	850286	油门滚轮	ROLLER Throttle	1
19	8502861	杠杆	LEVER	1
20	40056107	螺钉(M5×16)	SCREW (M5 x 16)	1
21	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	1
22	69432	外锁紧垫圈(#10)	LOCKWASHER External (#10)	1
23	8142831	锚支架	BRACKET Anchor	1
23	814283T6	锚支架总成	BRACKET ASSEMBLY Anchor	1
24	98889	闩锁	LATCH	1
25	42975	传动螺钉	DRIVE SCREW	2
26	39519	杯套	CUP	1
27	52100	耐磨板	WEAR PLATE	1
28	38279	闩锁	LATCH	1
28	8M0036768	闩锁	LATCH	1
29	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
30	35045	螺母(.250-28)	NUT (.250-28)	1
30	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
31	28782	螺钉(.312-18 x .880)不锈钢	SCREW (.312-18 x .880) Stainless Steel	3
32	814284	导向块	GUIDE BLOCK	1
33	20099	弹簧	SPRING	1
34	67073A1	连杆总成	LINK ROD ASSEMBLY	1
35	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
35	79932A17	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
36	NSS	弹性销(不单独销售)	NOT SOLD SEPARATE Roll Pin	1
37	NSS	不单独销售-换挡轴上杆	NOT SOLD SEPARATE Shift Shaft Lever-Upper	1
38	26856	衬套	BUSHING	1
39	29720	波形垫圈	WAVE WASHER	1
40	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
41	35045	螺母(.250-28)	NUT (.250-28)	1
41	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
42	814281A2	开关	SWITCH	1
42	8M0052931	开关	SWITCH	1
43	77478	螺钉 (#6-32 x .875)	SCREW (#6-32 x .875)	2
44	27882	垫圈	WASHER	2

图 130专用工具 TOOLS-SPECIAL

零件编号	中文名称	英文名称	数量
880118A2	模块	CARTRIDGE	1
822560A5	线束总成-DDT适配器	HARNESS ASSEMBLY DDT Adapter	1
52344	飞轮固定器工具(齿型)	FLYWHEEL HOLDER TOOL Teeth Type	1
849154T1	拉拔器总成	PULLER ASSEMBLY	1
825003A1	DDT诊断线束总成	CABLE ASSEMBLY DDT	1
823686A2	数字诊断测试仪	DIGITAL DIAGNOSTIC TESTER	1
99750A1	万用表	MULTI METER	1
52024A1	开关总成	SWITCH ASSEMBLY	1
59339	维修用转速表	SERVICE TACHOMETER	1
892647A01	DMT万用表套件	MULTI-METER KIT DMT	1
850439T1	八腔测试仪	TESTER Eight Chamber	1
63998A1	单腔间隙工具	GAP TOOL Single Chamber	1
850439T	检测仪	TESTER	1
850439T1	八腔测试仪	TESTER Eight Chamber	1
825824A2	转速表接口模块	TACH INTERFACE MODULE	1
99379	正时灯	TIMING LIGHT	1
112301	对正工具	ALIGNMENT TOOL	1
99750A1	万用表	MULTI METER	1
52915A6	测试仪表套件	TEST GAUGE KIT	1
74951	扳手	SPANNER WRENCH	1
63209	加热灯	HEAT LAMP	1
44487T1	调整杆导向器拆卸工具	REMOVER TOOL Trim Rod Guide	1
44486A1	调整杆拆卸工具	REMOVAL TOOL Trim Rod	1
55919	驱动头	DRIVER HEAD	1
90455T	吊环	LIFTING EYE	1
904551	吊环	LIFTING EYE	1
77109A3	安装工具套件	INSTALLER KIT	1
52952T1	活塞销锁环拆卸工具	REMOVAL TOOL Piston Pin Lock Ring	1
24697	活塞环扩张工具	EXPANDER TOOL Piston Ring	1
92973A1	活塞销心轴工具	MANDREL TOOL Piston Pin	1
30591T1	支架工具	STAND TOOL	1
24161	飞轮拉拔器盖工具	CAP TOOL Flywheel Puller	1
818773T	活塞环压缩工具(3.50)	COMPRESSOR TOOL Piston Ring (3.50)	1
66274	扭矩扳手(0-150磅英寸)	TORQUE WRENCH (0-150 lb-in)	1
37241	通用拉拔板	PULLER PLATE Universal	1
881834A1	仪表	GAUGE	1
8519802	定型工具	SIZING TOOL	1
8519803	安装帽	CAP Installation	1
16850A7	仪表套件	GAUGE KIT	1
881833A03	气油压力表套件	GAUGE KIT Air/Fuel Pressure	1
78473	背隙测量仪	INDICATOR TOOL Backlash	1
8M0053505	背隙指示工具	TOOL Indicator, Backlash	1
196601	背隙测量仪	INDICATOR TOOL Backlash	1
31106T	轴承安装心轴杯	MANDREL Bearing Driver Cup	1
87120T	轴承杯驱动器工具	DRIVER TOOL Bearing Cup	1
18601	轴承安装工具	INSTALLATION TOOL Bearing	1
14311A2	轴承预紧工具	PRE LOAD TOOL Bearing	1
14311A04	预紧力工具	TOOL Preload	1
31229A7	轴承拉拔器套件	PULLER KIT Bearing	1
15755T	滚针轴承驱动器	NEEDLE BEARING DRIVER	1
36569T	驱动头工具	DRIVE HEAD TOOL	1
37323	滚针轴承导杆工具	DRIVER ROD TOOL Needle Bearings	1
36571T	导向垫圈	PILOT WASHER	1
38628T	轴承安装工具	INSTALLER TOOL Bearing	1
24156	螺母(0.625-18)	NUT (.625-18)	1
29310	安装板	PLATE	1
34961	垫圈	WASHER	1
43506T	轴承固定工具	RETAINING TOOL Bearing	1
89897	固定工具-百分表	HOLDING TOOL Dial Indicator	1
73688	工具-盖螺母	TOOL Cover Nut	1
86642	安装工具-横销	INSTALLATION TOOL Cross Pin	1
58222A1	百分表工具	DIAL INDICATOR TOOL	1
815850	前进齿轮安装工具	FOWARD GEAR INSTALLATION TOOL	1
86943T	安装工具-滚针轴承(前进齿轮)	INSTALLER TOOL Needle Bearing - Forward Gear	1
61069T	螺母工具-齿轮箱盖	NUT TOOL Gear Housing Cover	1
816243	导板	GUIDE PLATE	1
816242	拉拔器爪	PULLER JAWS	1
37429	垫圈	WASHER	1
92788T	心轴	MANDREL	1
31108T	油封驱动器	DRIVER Oil Seal	1
12349A2	小齿轮定位工具	LOCATION TOOL Pinion	1
12349A05	小齿轮定位工具	TOOL Pinion Locating	1
74776T	小齿轮定位工具	LOCATION TOOL Pinion Gear	1
93003	螺旋桨轴	PROPELLER SHAFT	1
816292	滚针轴承驱动器	NEEDLE BEARING DRIVER	1
85716	拉拔螺栓工具-轴承座	PULLER BOLT TOOL Bearing Carrier	1
46086A1	拉拔器爪头总成	PULLER JAW ASSEMBLY	1
37241	通用拉拔板	PULLER PLATE Universal	1
18605A2	安装工具-轴承适配器	INSTALLATION TOOL Bearing Adaptor	1
34569A1	滑动锤拉拔器总成	PULLER ASSEMBLY Slide Hammer	1
31107T	拆装工具-换挡轴衬套	REMOVAL/INSTALL TOOL Shift Shaft Bushing	1
66274	扭矩扳手(0-150磅英寸)	TORQUE WRENCH (0-150 lb-in)	1

图 131顶罩（序列号0T408999及以下） TOP COWL (S/N-0T408999 AND BELOW)

REF	零件编号	中文名称	英文名称	数量
1	852552T3	顶盖总成	TOP COWL ASSEMBLY	1
1	852552T4	顶盖总成	TOP COWL ASSEMBLY	1
2	821256T1	黑色进气口	INLET Air - Black	1
2	821256T03	进气口	INLET Air	1
2	821256T2	银色进气口	INLET Air - Silver	1
3	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	4
4	854607A1	隔音毯套装	SOUND BLANKET KIT	1
5	NSS	隔音毯-顶部后侧(不单独销售)	NOT SOLD SEPARATE SOUND BLANKET-TOP BACK	1
6	NSS	隔音毯(左舷)(不单独销售)	NOT SOLD SEPARATE SOUND BLANKET (PORT)	1
7	NSS	隔音毯(右舷)(不单独销售)	NOT SOLD SEPARATE SOUND BLANKET(STARBOARD)	1
8	NSS	隔音毯-前侧(不单独销售)	NOT SOLD SEPARATE SOUND BLANKET-FRONT	1
9	NSS	隔音毯-后侧(不单独销售)	NOT SOLD SEPARATE SOUND BLANKET-BACK	2
10	823865	盖塞	CAP PLUG	2
11	831207A14	手柄总成黑色	HANDLE ASSEMBLY Black	1
11	831207A16	罩盖锁手柄套件	HANDLE KIT Cowl Latch	1
11	831207A15	手柄总成银色	HANDLE ASSEMBLY Silver	1
11	831207A16	罩盖锁手柄套件	HANDLE KIT Cowl Latch	1
12	812707	衬套	BUSHING	2
13	831214	隔套	SPACER	1
14	12134	波形垫圈	WASHER Wave	1
15	F481777	凸轮锁轴	CAM Latch Shaft	1
15	8M0001081	凸轮	CAM	1
16	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
16	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
17	NSS		NOT SOLD SEPARATE WASHER
18	1993716	螺钉(M6 x 16)	SCREW (M6 x 16)	1
19	821249M2	前支架	BRACKET Front	3
19	8M0036792	支架	BRACKET	3
20	815477	缓冲器锁扣	BUMPER Latch	3
21	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
21	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
22	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	7
23	8237951	挡圈	RING Retaining	1
24	815263	滚轮	ROLLER	1
24	8M0207770	滚轮@3	ROLLER @3	1
25	8155381	滚动销	PIN Roll	1
26	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
26	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
27	NSS		NOT SOLD SEPARATE DECAL-COUNTER ROTATION	1
27	NSS		NOT SOLD SEPARATE DECAL-COUNTER ROTATION	1
28	NSS	标识贴-磨合期(不单独销售)	NOT SOLD SEPARATE DECAL-BREAK IN	1

图 132顶罩（序列号0T409000及以上） TOP COWL (S/N-0T409000 AND UP)

REF	零件编号	中文名称	英文名称	数量
1	883013T1	顶盖总成	TOP COWL ASSEMBLY	1
1	883058T1	顶盖总成	TOP COWL ASSEMBLY	1
2	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	4
3	883019A1	隔音毯套装	SOUND BLANKET KIT	1
3	883019A02	隔音毯套装	SOUND BLANKET KIT	1
4	NSS	隔音毯(左舷)(不单独销售)	NOT SOLD SEPARATE SOUND BLANKET(PORT)	1
5	NSS	隔音毯(右舷)(不单独销售)	NOT SOLD SEPARATE SOUND BLANKET (STARBOARD)	1
6	NSS	隔音毯(后部)(不单独销售)	NOT SOLD SEPARATE SOUND BLANKET (REAR)	1
7	831207A14	手柄总成黑色	HANDLE ASSEMBLY Black	1
7	831207A16	罩盖锁手柄套件	HANDLE KIT Cowl Latch	1
7	831207A15	手柄总成银色	HANDLE ASSEMBLY Silver	1
7	831207A16	罩盖锁手柄套件	HANDLE KIT Cowl Latch	1
8	812707	衬套	BUSHING	2
9	8312141	隔套	SPACER	1
10	19605	垫圈(.520 x .850 x .060) 尼龙-黑色	WASHER (.520 x .850 x .060) Nylon - Black	1
10	8M0042643	垫圈(.520 x .850 x .060) 尼龙黑色	WASHER (.520 x .850 x .060) Nylon, Black	1
11	12134	波形垫圈	WASHER Wave	1
12	F481777	凸轮锁轴	CAM Latch Shaft	1
12	8M0001081	凸轮	CAM	1
13	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
13	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
14	1993716	螺钉(M6 x 16)	SCREW (M6 x 16)	1
15	821249M2	前支架	BRACKET Front	3
15	8M0036792	支架	BRACKET	3
16	815477	缓冲器锁扣	BUMPER Latch	3
17	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
17	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
18	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	3
19	8237951	挡圈	RING Retaining	1
20	815263	滚轮	ROLLER	1
20	8M0207770	滚轮@3	ROLLER @3	1
21	8155381	滚动销	PIN Roll	1
22	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
22	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
23	NSS	不单独销售-反向旋转标识	NOT SOLD SEPARATE Decal-Counter Rotation	1
24	NSS	标识贴-磨合期(不单独销售)	NOT SOLD SEPARATE Decal Break-In	1

图 133艉板支架 Transom Brackets

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
10	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0027784	螺母	NUT	4
11	82671117	螺母(.500-20)	NUT (.500-20)	4
12	99629A2	杠杆总成	LEVER ASSEMBLY	1
12	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	830899	张力弹簧	SPRING Tension	1
14	65830	尼龙衬套	NYLINER	2
15	830900	压缩弹簧	SPRING Compression	1
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99617	销	PIN	1
18	893709	销	PIN	1

图 134蒸汽分离器组件 VAPOR SEPARATOR COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	855432A1	盖板套件	COVER KIT	1
2	NSS	不单独销售弯头	NOT SOLD SEPARATE Elbow	1
3	8568431	直通接头	FITTING Straight STRAIGHT	1
4	19688	接头	FITTING	1
5	803878	密封件	SEAL	1
6	NSS	不单独销售泵出口配件包	NOT SOLD SEPARATE Fitting Kit-Pump Outlet	1
6	855437A2	泵出口接头套件	FITTING KIT Pump Outlet	1
7	NSS	O型圈（不单独销售）	NOT SOLD SEPARATE O Ring	1
8	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	7
9	855528	衬垫	GASKET	1
9	8M6002520	衬垫套件	GASKET KIT	1
10	855430A1	浮子套件	FLOAT KIT	1
10	8M6004920	浮子套件	FLOAT KIT	1
11	F10064	轴	SHAFT	1
12	855431	针阀	VALVE Needle	1
12	8M6004917	进气阀	VALVE-INLET	1
13	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
14	855427A1	泵套件	PUMP KIT	1
15	855428	套筒	SLEEVE	1
15	8M6000589	套筒	SLEEVE	1
16	855434A1	油杯套件	BOWL KIT	1
17	855433	密封件	SEAL	1
17	8554331	密封件	SEAL	1
18	855435A1	塞套件	PLUG KIT	1
19	8554245	弯头	ELBOW	2
20	18458A4	滤清器套件	FILTER KIT	1
20	18458Q4	燃油水分离滤清器	FILTER Fuel-Water Separating	1
21	828586	探头	PROBE	1
21	8M0204710	探头	PROBE	1

图 135水管 WATER HOSES

REF	零件编号	中文名称	英文名称	数量
1	8603001	接头	FITTING	1
2	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
3	77653101	软管(48英寸整卷)(裁切20英寸)	HOSE (48.00 Inches Bulk) (Cut to 20 Inches)	1
4	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
5	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
6	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
7	85833935	管材(15英寸整卷)(裁切7英寸)	TUBING (15.00 Inches Bulk) (Cut to 7 Inches)	1
7	85833939	软管(17英寸整卷)	HOSE (17.00 Inches Bulk)	1
8	8348084	滤网	STRAINER	1
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
10	85833935	管材(15英寸整卷)(裁切4.5英寸)	TUBING (15.00 Inches Bulk) Cut to (4-1/2 Inches)	1
10	85833939	软管(17英寸整卷)	HOSE (17.00 Inches Bulk)	1
11	291112	接头	FITTING	1
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
13	83476463	管材(32英寸整卷)(裁切18.5英寸)	TUBING (32.00 Inches Bulk) (Cut to 18-1/2 Inches)	1
14	859432	接头	FITTING	1
14	881866	接头	FITTING	1
15	85978568	管材(44英寸整卷)(裁切15英寸)(灰色)	TUBING (44.00 Inches Bulk) (Cut to 15 Inches)(Gray)	1
15	85978571	管材(52英寸整卷)	TUBING (52.00 Inches Bulk)	1
16	859431	接头	FITTING	1
16	8M0207782	直通接头	FITTING Straight	1
17	859596	传感器(0-50PSI)(棕褐色)	SENSOR (0-50 PSI) (TAN)	1
17	8M0157742	水压传感器	SENSOR Water Pressure	1
18	858954	卡箍(0.625英寸)	CLIP (.625)	1
19	875207	三通接头	TEE Fitting	1
20	85978568	管材(44英寸整卷)	TUBING (44.00 Inches Bulk)	1
20	85978571	管材(52英寸整卷)	TUBING (52.00 Inches Bulk)	1
21	859747	联轴器	COUPLER	1
21	8M0214971	耦合接头 (4 MM)	COUPLER Fitting (4 MM)	1
22	859732	堵头	PLUG	1
23	859731	适配管接头	FITTING Adapter	1
23	8M0214970	接头	FITTING	1
24	85978515	管材(5英寸)	TUBING (5.00 Inches)	1
25	858459	接头	FITTING	1
26	77653101	软管(48英寸整卷)(裁切9.75英寸)	HOSE (48.00 Inches Bulk) (Cut to 9-3/4 Inches)	1
27	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
28	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	2
29	814634	卡箍	CLAMP	1
30	77653101	软管 (48.00英寸散装) (裁切至15-1/2英寸)	HOSE (48.00 Inches Bulk) (Cut to 15-1/2 Inches)	1
31	77653101	软管 (48.00英寸散装) (裁切至11-3/4英寸)	HOSE (48.00 Inches Bulk) (Cut to 11-3/4 Inches)	1
32	16604	直通接头（0.125-27）	FITTING Straight (.125-27)	1
-	854008T00	动力头总成	POWERHEAD ASSEMBLY	1
