水星 Mercury 150 HP V6 CYL (2.5L) 0G590000 THRU 0G760299 - 爆炸图零件明细

两冲程 直喷 DFI OptiMax · USA - Cat.# 90-85429098 · 共 125 个部位 · 5824 条零件

1空气压缩机组件2空气处理器3空气处理器组件4下罩5曲轴、活塞及连杆6气缸体与端盖7气缸盖8驱动轴壳与排气管9双机连接杆套件10电气组件11排气歧管与排气板12飞轮/交流发电机13燃油泵14燃油导轨15齿轮箱（驱动轴）（标准/反向旋转）16齿轮箱螺旋桨轴-反向旋转17齿轮箱螺旋桨轴-标准旋转18仪表装置19机油喷射组件20动力升降组件 8M023119321动力升降组件金属马达壳22动力升降组件（塑料马达壳体）23动力升降倾斜电机24维修/支撑材料25启动电机26旋转支架与转向臂27油门杆与换挡轴28工具29顶罩30艉板支架31油气分离器组件32空气压缩机组件33顶罩（序列号0T409000及以上）34速度计传感系统35动力升降组件 8M023119336燃油轨37油气分离器组件38燃油轨组件39齿轮箱（驱动轴）（标准旋转）40空气软管41驱动轴壳与排气管42维修/支撑材料43PCM安装座 序列号1B490866及以上44服务/支持材料45机油喷射组件46油管47启动马达48甲板注油套件15969A3或15969A549衬垫组件-完整-动力头与下部单元50专用工具51电气板总成 序列号1B490865及以下52空气处理器53燃油软管54顶罩55下机罩56数字电气部件57曲轴、活塞及连杆58线圈板总成59气缸盖60齿轮箱（螺旋桨轴）（标准旋转）61水管62驱动轴壳体与排气管63防腐电极套件64气缸体与端盖65电气板总成 序列号1B490866及以上66齿轮箱（驱动轴）（标准/反向旋转）67空气压缩机组件68空气处理器/飞轮盖69线圈板总成70线圈板总成 序列号1B490866及以上71空气处理器组件72齿轮箱（驱动轴）（反向旋转）73蒸汽分离器组件74曲轴、活塞及连杆75动力升降电机(可拆卸泵壳)76油门杆与换挡轴77气缸体与端盖78空气压缩机组件 SN 1B884880及以下79动力升降组件(可拆卸泵壳)金属电机壳体80旋转支架与转向臂81空气处理器组件82水管83附件84齿轮箱（螺旋桨轴）（反向旋转）85飞轮/交流发电机86双机连接杆套件87飞轮与发电机88线圈板总成 序列号1B490865及以下89燃油软管90专用工具91油管92水泵套件(喷射型)93顶罩（序列号0T408999及以下）94旋转支架与转向臂95飞轮/交流发电机96排气歧管与排气板97动力升降组件金属马达壳98喷油组件99电气板总成100油门杆与换挡轴101空气压缩机组件 SN 1B884881及以上102动力升降倾斜电机103空气处理器104齿轮箱螺旋桨轴-标准旋转105燃油导轨106启动电机107工具108电气组件109附件110齿轮箱驱动轴-标准/反向旋转111燃油泵112气缸盖113数字电气部件114艉板支架115排气歧管与排气板116电气板总成117动力升降组件（塑料马达壳体）118动力升降组件(铸造泵壳)金属电机壳体119空气软管120下罩121视觉警示套件17334A2122齿轮箱螺旋桨轴-反向旋转123燃油泵124仪表装置125速度计传感系统
图 1空气压缩机组件 Air Compressor Components
空气压缩机组件 Air Compressor Components
REF零件编号中文名称英文名称数量
1831998A9空气压缩机总成COMPRESSOR ASSEMBLY Air1
18M0060053空气压缩机总成COMPRESSOR ASSEMBLY Air1
2828131A4端盖总成END CAP ASSEMBLY1
28M0050792端盖总成END CAP ASSEMBLY1
3NSS非单独销售挡圈NOT SOLD SEPARATE Retaining Ring1
482130020螺钉 (M6 x 20)SCREW (M6 x 20)4
589224O型圈O-RING1
6832804O型圈（2.739 x 0.070）O-RING (2.739 x .070)1
7833146A3连杆总成CONNECTING ROD ASSEMBLY1
7833146T06连杆总成CONNECTING ROD ASSEMBLY1
8828222A4活塞总成PISTON ASSEMBLY1
98348101锁环RING Lock2
10835088A10簧片阀板总成REED PLATE ASSEMBLY1
1167207O型圈（3.489 x 0.070）O-RING (3.489 x .070)2
12832804O型圈（2.739 x 0.070）O-RING (2.739 x .070)1
13828225密封件SEAL1
148350871气缸盖压缩机HEAD Compressor1
14835087A3压缩机缸盖总成HEAD ASSEMBLY Compressor1
158307532直通接头FITTING Straight1
1681893435螺钉(M8×35)SCREW (M8 x 35)4
168M0103814螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)4
1715133接头FITTING1
1814868接头FITTING2
1939072塞(1/8英寸黄铜)PLUG (1/8 Inch Brass)1
19390721黄铜管塞 (.125-27)PLUG Pipe (.125-27) Brass1
2016604直通接头（0.125-27）FITTING Straight (.125-27)1
2113536A12温度传感器总成SENSOR ASSEMBLY Temperature1
22137151固定座RETAINER1
2381893412螺钉（M8×12）SCREW (M8 x 12)1
24831985O型圈（0.468 x 0.078）O-RING (.468 x .078)1
258567441接头FITTING1
25856744接头FITTING1
2639072塞(1/8英寸黄铜)PLUG (1/8 Inch Brass)1
26390721黄铜管塞 (.125-27)PLUG Pipe (.125-27) Brass1
27835454直通接头FITTING Straight1
28NSS标贴(不单独销售)NOT SOLD SEPARATE Decal1
29855349护孔环GROMMET1
29855349002护孔环GROMMET1
-832804A1O型圈套件O-RING KIT1
-832804A03O型圈套件O-RING KIT1
图 2空气处理器 Air Handler
空气处理器 Air Handler
REF零件编号中文名称英文名称数量
1827325A1盖总成COVER ASSEMBLY1
2821555护孔环GROMMET2
28M0153609护孔环GROMMET2
3853333空气滤清器FILTER Air1
3853333T滤清器FILTER1
4853352盖板COVER1
5855590铆钉RIVET1
6854633固定座RETAINER1
764705接头FITTING1
8855613护孔环GROMMET1
98556131护孔环GROMMET1
10855633A4空气处理器总成AIR HANDLER ASSEMBLY1
10855633A15空气处理器总成AIR HANDLER ASSEMBLY1
11856139垫片SHIM1
118561391垫片SHIM1
12NSS不单独销售(挂档启动警告标贴)NOT SOLD SEPARATE Decal-Caution-Start in Gear1
138557561支架BRACKET1
13855756A1支架套件BRACKET KIT1
141993716螺钉(M6 x 16)SCREW (M6 x 16)4
158558432泵总成PUMP ASSEMBLY1
158M0240950燃油泵总成PUMP ASSY FUEL1
1613791卡箍(15.7)CLAMP (15.7)4
168M0214911卡箍@5CLAMP @54
171350385管材(33.00英寸整料)(5-1/2英寸)TUBING (33.00 Inches Bulk) (5-1/2 IN.)1
1885564361软管(18英寸)HOSE (18 IN.)1
1983312531绝缘套管INSULATING SLEEVE1
20855802弯头ELBOW1
20855802A1弯头ELBOW1
21805026A1接头FITTING1
22805062O型圈（.530 x .082）O-RING (.530 x .082)1
238554247接头FITTING1
248285581编码器ENCODER1
25418051螺钉 (#10-24 x 0.620)SCREW (#10-24 x .620)1
2656681垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)1
268M0204666垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)1
2797224J型卡箍(右舷上部)J CLIP (UPPER STBD.)2
28814634卡箍(下部)CLAMP (LOWER)1
29817504螺钉（0.250-20 x 1.500）不锈钢SCREW (.250-20 x 1.500) Stainless Steel12
30830756109软管(57.00英寸整料)(裁切至1-1/2英寸)HOSE (57.00 Inches Bulk) (Cut to 1-1/2 Inches)1
308M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
31830756109软管(57.00英寸整料)(裁切至5英寸)HOSE (57.00 Inches Bulk) (Cut to 5 Inches)1
318M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
32855896通风罐CANISTER Vent1
32855896T滤清器FILTER1
33816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)4
33816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)4
34860273连接器CONNECTOR1
35821583销PIN1
358215832特殊销（1.5英寸）PIN Special (1.5 Inches)1
3685557726EPA标签信息贴花DECAL EPA Label Information1
36855577A26REF SOB 09-18REF SOB 09-181
3761990扎带(14.00英寸)TIE STRAP (14.00 Inches)1
3888807A27拉线总成CABLE ASSEMBLY1
3929245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
398M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
4012038垫圈WASHER1
408M0207778垫圈（0.344×0.625×0.063英寸）WASHER .344 x .625 x.0631
-854008A98动力头总成POWERHEAD ASSEMBLY1
-804545T99动力头总成POWERHEAD ASSEMBLY1
图 3空气处理器组件 Air Handler Components
空气处理器组件 Air Handler Components
REF零件编号中文名称英文名称数量
-855633A4空气处理器总成AIR HANDLER ASSEMBLY1
-855633A15空气处理器总成AIR HANDLER ASSEMBLY1
1855420T02适配板套件ADAPTER PLATE KIT1
2146973衬垫GASKET1
3850058衬垫GASKET1
38500581衬垫GASKET1
4116455簧片阀组REED BLOCK6
4855952T2簧片阀组REED BLOCK6
555715螺钉(.250-20×0.880)SCREW (.250-20 x .880)12
6855762油泵PUMP Oil1
6855884P1油泵PUMP Oil1
78565421衬垫GASKET1
88552841支架BRACKET1
9855424接头FITTING3
108554241接头FITTING3
118554246接头FITTING1
11892267T02蒸汽分离器总成VAPOR SEPARATOR ASSEMBLY1
128554248接头(直通)FITTING (STRIAGHT)1
13855364衬套BUSHING6
14855362护孔环GROMMET6
14855362001护孔环GROMMET6
1581893440螺钉 (M8 x 40)SCREW (M8 x 40)6
16817274垫圈(0.344×1.00×0.063)不锈钢WASHER (.344 x 1.00 x .063) Stainless Steel6
17850248A1空气集气室套件PLENUM KIT Air1
188554242弯头ELBOW1
198554249弯头ELBOW1
1915133接头FITTING1
20850058衬垫GASKET1
208500581衬垫GASKET1
2113221A1温度传感器总成SENSOR ASSEMBLY Temperature1
2113221T01温度传感器SENSOR TEMP1
224005685螺钉（M4×10）SCREW (M4 x 10)3
2326995防松垫圈(#8不锈钢)LOCKWASHER (#8) Stainless Steel3
244001987螺钉(M4×16)SCREW (M4 x 16)12
25855422A1节气门体套件THROTTLE BODY KIT1
26855423O型圈O-RING1
2782130040螺钉(M6 x 40)SCREW (M6 x 40)4
图 4下罩 Bottom Cowl
下罩 Bottom Cowl
REF零件编号中文名称英文名称数量
1878587A1下罩总成BOTTOM COWL ASSEMBLY1
18M0107315底部罩盖-左舷COWL-BOTTOM, PORT1
2858743A2下罩总成BOTTOM COWL ASSEMBLY1
28M0113913右舷下罩BCOWL-LOWER STBD B1
38253181罩盖密封条(41英寸)SEAL Cowl (41.00 Inches)2
38M0109217罩盖密封条SEAL-COWL2
4878547T嵌件INSERT1
582130040螺钉(M6 x 40)SCREW (M6 x 40)8
6831209固定座RETAINER1
7858742怠速排气套BOOT Idle Exhaust1
8859251护孔环GROMMET1
88M0039078护孔环GROMMET1
9827948接头FITTING1
10855576垫圈WASHER1
11816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)6
12830756109软管(57英寸整卷)(裁切至5英寸长度)HOSE (57.00 Inches Bulk) (Cut To 5.00 Inch Length)1
128M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
13881535软管(32.00英寸)HOSE (32.00 Inches)1
149912688管材(36.00英寸散装)(26.00英寸)TUBING (36.00 Inches Bulk) (26.00 Inch)1
15817518三通TEE1
1682130020螺钉 (M6 x 20)SCREW (M6 x 20)2
178587411护孔环GROMMET1
17889724护孔环GROMMET1
18856990开关总成SWITCH ASSEMBLY1
188M0235192微调开关SWITCH TRIM1
19824868螺钉(M6×75)SCREW (M6 x 75)1
20821253F1前手柄黑色FRONT HANDLE Black1
20889740A02手柄套件HANDLE KIT1
2133589衬套BUSHING2
2248462O型圈 (.614 x .070)O-RING (.614 x .070)1
238219423棘爪PAWL1
2469057垫片(.281 x .734 x .063)WASHER (.281 x .734 x .063)1
25401366螺母(M6)不锈钢NUT (M6) Stainless Steel1
2613541公插头PLUG Male2
图 5曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods
曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods
REF零件编号中文名称英文名称数量
1880894T曲轴CRANKSHAFT1
28040992油封SEAL Oil1
38041002油封SEAL Oil1
4804101T轴承BEARING4
4804101T10轴承BEARING4
4804101T20轴承BEARING4
5804102T轴承BEARING5
5804102T10轴承BEARING5
5804102T20轴承BEARING5
5804102T30轴承BEARING5
6804103T轴承BEARING1
6804103T10轴承BEARING1
6804103T20轴承BEARING1
7880895A05活塞总成PISTON ASSEMBLY4
7880895A14活塞/连杆总成PISTON/CONN ROD4
7880895A12活塞总成PISTON ASSEMBLYAR
7880895A16活塞/连杆总成PISTON/CONN RODAR
8880896螺栓(M8 x 38)BOLT (M8 x 38)8
9880897T02活塞环组RING SET Piston4
9880898T02活塞环组RING SET PistonAR
10880899T轴承BEARING8
10880899T10轴承BEARING8
10880899T20轴承BEARING8
10880899T30轴承BEARING8
-858732A06衬垫套件GASKET SET1
-881421T04动力头总成POWERHEAD ASSEMBLY1
图 6气缸体与端盖 Cylinder Block and End Caps
气缸体与端盖 Cylinder Block and End Caps
REF零件编号中文名称英文名称数量
1828340A5气缸体CYLINDER BLOCK1
1828340A14气缸体CYLINDER BLOCK1
28181383动力头螺柱（1-3/4英寸）STUD Powerhead (1-3/4 IN.)6
28M0034455螺柱1.750STUD 1.7506
3670653双头螺柱（0.375×5.620英寸，5-1/2英寸）STUD (.375 x 5.620) (5-1/2 IN.)2
3670654螺柱(.375-16/.375-24 x 5.620)STUD (.375-16/.375-24 x 5.620)2
3784384双头螺栓(.375 x 6.870)(6-3/4英寸)STUD (.375 x 6.870) (6-3/4 IN.)2
38M0034454螺柱(.375-16/.375-24 x 6.87)STUD (.375-16/.375-24 x 6.87)2
443044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
567296销(轴承座圈)PIN (BEARING RACE)2
58M0036405销PIN2
611338衬垫GASKET2
7384071接头(1/2-14)FITTING (1/2-14) (1/2-14)1
8426231止回阀CHECK VALVE1
8426233止回阀CHECK VALVE1
9426981止回阀CHECK VALVE1
9426982止回阀CHECK VALVE1
1099130122管材(20英尺整卷)(裁切为19英寸)TUBING (20.00 Feet Bulk) (Cut to 19 Inches)1
10892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
11816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)10
11816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)10
12852760直通接头FITTING (STRAIGHT)2
13855622弯头接头FITTING (ELBOW)1
148267611弯头ELBOW (ELBOW)3
1585583445管材(16英寸)TUBING (16 IN.)2
1585583464管材 (34.00英寸整卷)TUBING (34.00 Inches Bulk)2
1585583445管材(20英寸)TUBING (20 IN.)1
1585583464管材 (34.00英寸整卷)TUBING (34.00 Inches Bulk)1
1685606064管材(36.00英寸整料)(24-1/2英寸)TUBING (36.00 Inches Bulk) (24-1/2 IN.)3
168M0054152管材(39.00英寸整卷)TUBING (39.00 Inches Bulk)3
17828547753导管(.750内径x3.00英尺整料)(裁切至7英寸)CONDUIT (.750 Inside Diameter x 3.00 Feet Bulk) (Cut to 7 Inches)1
18432781止回阀CHECK VALVE1
188781051止回阀CHECK VALVE1
19830756109软管(57.00英寸整料)(裁切至11-1/2英寸)HOSE (57.00 Inches Bulk) (Cut to 11-1/2 Inches)1
198M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
20822769连接器CONNECTOR1
2156762扎带(4.00英寸)TIE STRAP (4.00 Inches)6
2266717螺钉(.375-16 x 3.250)SCREW (.375-16 x 3.250)8
2374824螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)6
2426852尼龙帽CAP Nylon1
25856832螺丝 (.250-20 x 1.750)SCREW (.250-20 x 1.750)1
2664015螺母 (.250-20)NUT (.250-20)1
27832760A1上端盖总成END CAP ASSEMBLY Upper1
27832760T1端盖总成END CAP ASSEMBLY1
2854029O型圈(2.800 x .103)O-RING (2.800 x .103)1
2916756A4轴承套件BEARING KIT1
30NSS不单独销售 轴承座圈NOT SOLD SEPARATE Bearing Race1
3141953密封件SEAL1
3269034螺钉带锁紧垫圈(.312-18 x 1.00)SCREW AND LOCKWASHER (.312-18 x 1.00)4
3230225螺钉带锁紧垫圈(.312-18 x 1.00)SCREW WITH LOCKWASHER (.312-18 x 1.00)4
337809A1端盖总成END CAP ASSEMBLY1
337809T1端盖总成END CAP ASSEMBLY1
3462700O型圈(3.237 x .103)O-RING (3.237 x .103)1
3541953密封件SEAL2
3628636螺钉(.250-20 x .750)SCREW (.250-20 x .750)4
3726992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel4
38853882支架BRACKET1
388538821节气门位置指示器安装支架BRACKET Throttle Position Indicator Mount1
398519371节气门位置指示器杠杆LEVER Throttle Position Indicator1
4082130025螺钉(M6x25)SCREW (M6 x 25)3
418318701衬套BUSHING6
42834985护孔环GROMMET3
428M0190980护孔环GROMMET3
438M6005905节气门位置指示器(内侧)INDICATOR Throttle Position (Inside)1
44850882隔套SPACER1
458329522节气门位置指示器(外侧)INDICATOR Throttle Position (Outside)1
458M6005166TPITPI1
46850828螺钉(#10-32 X 2-3/4英寸)SCREW (#10-32 X 2-3/4 IN.)3
471938541油门连杆LINK Throttle1
478M0084738连杆总成LINK ASSY1
48NSS不单独销售序列号塞NOT SOLD SEPARATE Plug-Serial Number1
49816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
49816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
-814754A98衬垫套件GASKET SET1
-8M0046714衬垫套件GASKET SET1
-854008A98动力头总成POWERHEAD ASSEMBLY1
-804545T99动力头总成POWERHEAD ASSEMBLY1
图 7气缸盖 Cylinder Head
气缸盖 Cylinder Head
REF零件编号中文名称英文名称数量
1881310T2气缸盖总成CYLINDER HEAD ASSEMBLY1
1881310T08气缸盖总成基础款CYLINDER HEAD ASSEMBLY Basic1
2804110导向销PIN Guide16
3804111堵头PLUG4
4804112螺栓(M7 x 48)BOLT (M7 x 48)4
5804113定位销PIN Dowel4
6804114螺栓(M7×37)BOLT (M7 x 37)16
7881311螺栓(M10×145)BOLT (M10 x 145)10
8804116轴环COLLAR2
88M0070515定位销DOWEL PIN2
98041151衬垫GASKET1
1083124714螺栓BOLT4
11831246密封垫圈WASHER Sealing4
12881312螺栓(M8×55)BOLT (M8 x 55)5
13NSS阳极 (不单独销售)NOT SOLD SEPARATE Anode2
14804086护孔环GROMMET2
15804085盖板COVER2
15804085A01罩盖/阳极套件COVER/ANODE KIT2
168524741螺栓 (M6 x 20)BOLT (M6 x 20)2
17827207螺栓 (M8 x 25)BOLT (M8 x 25)4
18881284火花塞SPARK PLUG4
18881284QPG LFR6A-11 @10PG LFR6A-11 @104
19881429节温器THERMOSTAT1
198M6013864节温器THERMOSTAT1
20881430节温器盖COVER Thermostat1
208041271节温器盖THERMOSTAT COVER1
218248326螺丝(M6 x 25毫米)SCREW (M6 x 25 mm)2
22881313T1盖板套件COVER KIT1
23804119通气盖COVER Breather1
24804120螺钉(M4 x 8)SCREW (M4 x 8)8
25804123衬垫GASKET1
26855690护孔环GROMMET2
27858530螺栓 (M6 x 30)BOLT (M6 x 30)14
28859578A1油塞总成PLUG ASSEMBLY Oil1
288M0240831油塞OIL PLUG1
29NSSO型圈(不单独销售)NOT SOLD SEPARATE O-Ring1
30858752盖板COVER1
30858752001盖板COVER1
311993716螺钉(M6 x 16)SCREW (M6 x 16)5
-858732T01衬垫套件GASKET SET1
-858732T02动力头衬垫套件GASKET SET Powerhead1
-858732T02动力头衬垫套件GASKET SET Powerhead1
-881310T1气缸盖总成CYLINDER HEAD ASSEMBLY1
-881310T09气缸盖HEAD-CYLINDER1
-881421T01动力头总成POWERHEAD ASSEMBLY1
-881421T04动力头总成POWERHEAD ASSEMBLY1
-881421T02动力头总成POWERHEAD ASSEMBLY1
-881421T04动力头总成POWERHEAD ASSEMBLY1
图 8驱动轴壳与排气管 Driveshaft Housing and Exhaust Tube
驱动轴壳与排气管 Driveshaft Housing and Exhaust Tube
REF零件编号中文名称英文名称数量
18343A10驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
18343A11驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
18343T11ORD 1590-8343T10ORD 1590-8343T101
1813563A1驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
1813563T1传动轴壳体-黑色-加长型HOUSING Driveshaft - Black - X-Long1
1813563A2驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
1813563T2ORD 3503-813563T1ORD 3503-813563T11
256295双头螺柱(.437 x 2.69)STUD (.437 x 2.69)2
363474螺钉(.500-20 x 6.00)SCREW (.500-20 x 6.00)2
3898831螺钉(.500-20 x 6.220)SCREW (.500-20 x 6.220)2
488238A10接地线总成CABLE ASSEMBLY Ground1
577327支架MOUNT2
649339垫圈(.8125)WASHER (.8125)2
788238A10接地线总成CABLE ASSEMBLY Ground1
828040螺母(.500-20)NUT (.500-20)2
8898832螺母(.500-20)NUT (.500-20)2
941508螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel1
1045176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel2
1134933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
118M0204653螺母NUT2
1267076卡箍CLAMP2
128M0036782卡箍CLAMP2
1366727螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)4
1467077T黑色盖COVER Black2
148M4500752盖板COVER2
1467077F1灰色盖板COVER Gray2
1467077T黑色盖COVER Black2
1588417螺钉(#12-24×0.620)SCREW (#12-24 x .620)4
1635521螺母NUT4
1748926垫圈WASHER1
1834933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel1
188M0204653螺母NUT1
1920553垫圈(.406 x .734 x .063)WASHER (.406 x .734 x .063)4
2069254螺母NUT4
21828212怠速排气套BOOT Idle Exhaust1
218M0039081护套BOOT1
2264649堵头PLUG1
23991732衬垫GASKET1
23991734衬垫GASKET1
2466350下密封件SEAL (LOWER)1
2466350001密封件SEAL1
2518276排气管TUBE Exhaust1
2518276T排气管EXHAUST TUBE1
26177261上密封件SEAL (UPPER)1
268M0039076密封件SEAL1
27812834排气管延长段EXTENSION Exhaust1
27812834A2排气延长总成EXTENSION ASSEMBLY Exhaust1
2741942F3排气管延长段EXTENSION Exhaust1
27879288T71排气管延长段EXTENSION Exhaust1
2867295水管TUBE Water1
288M0042788长型水管TUBE-WATER-LONG1
2874729管TUBE1
288M0042790水管TUBE-WATER1
2978246衬垫GASKET1
29782461衬垫GASKET1
3018233A6隔板总成PLATE ASSEMBLY1
3018233A20传动轴壳体板总成PLATE ASSEMBLY Driveshaft Housing1
318147012密封件SEAL1
318M0043165密封件-27.00英寸SEAL-27.00 INCH1
3268011支架BRACKET1
33812832螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)12
33878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)12
3443044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
3538970密封件SEAL1
3690192螺钉(.250-20 x .750)不锈钢SCREW (.250-20 x .750) Stainless Steel6
3739072塞(1/8英寸黄铜)PLUG (1/8 Inch Brass)2
37390721黄铜管塞 (.125-27)PLUG Pipe (.125-27) Brass2
38183071衬垫GASKET1
38183076衬垫GASKET1
-814754A98衬垫套件GASKET SET1
-8M0046714衬垫套件GASKET SET1
图 9双机连接杆套件 Dual Engine Tie Bar Kit
双机连接杆套件 Dual Engine Tie Bar Kit
REF零件编号中文名称英文名称数量
-92876A9双机延长套件EXTENSION KIT Dual Engine1
171565A2管总成TUBE ASSEMBLY1
248462O型圈 (.614 x .070)O-RING (.614 x .070)1
341055支架MOUNT1
442100锁紧垫圈TAB WASHER2
537984螺母 (.875-14)NUT (.875-14)2
58M0041651螺母 (.875-14)NUT (.875-14)2
688404锁紧垫圈TAB WASHER2
738601螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250)4
817729A1支架BRACKET2
962055螺钉(.312-24 x 1.250)SCREW (.312-24 x 1.250)4
1017728锁紧垫圈TAB WASHER4
11140001螺钉(0.375-24×1.38)SCREW (.375-24 x 1.38)2
1234863螺母 (.375-24)NUT (.375-24)6
128M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass6
13979331转向眼环STEERING EYE2
138M0026167转向眼环STEERING EYE2
1423651衬套(1.625)SLEEVE (1.625)2
1597931管材(4.00英寸)TUBING (4.00 Inches)2
168149513联轴器(15.00英寸)COUPLER (15.00 Inches)1
168M0026098联轴器15英寸COUPLER 15 In.1
1742099螺母(.562-18)NUT (.562-18)1
18821169联轴器COUPLING1
1934931不锈钢垫圈(.406x.734x.063)WASHER (.406 x .734 x .063) Stainless Steel1
2094319螺钉(.375-24 x 1.5)SCREW (.375-24 x 1.5)1
图 10电气组件 Electrical Components
电气组件 Electrical Components
REF零件编号中文名称英文名称数量
1881363T盖板COVER1
1881363A01盖/支架套件COVER/BRACKET KIT1
2881364T2线束总成HARNESS ASSEMBLY1
2881364T04线束HARNESS1
2881364T1线束总成HARNESS ASSEMBLY1
2881364T04线束HARNESS1
3804291保险丝20安培FUSE 20 Ampere4
3832969T20迷你保险丝-黄色-20安FUSE Mini - Yellow - 20 Ampere4
48042911030安保险丝FUSE 30 Ampere4
48M005715930A保险丝FUSE-30A4
0891824010保险丝盖COVER Fuse4
0891824020保险丝盖COVER Fuse4
5804289保险丝拔取器PULLER Fuse1
6881362支架BRACKET1
78813511螺钉SCREW1
8881352T继电器RELAY1
88M0098898继电器RELAY1
982214M垫圈WASHER2
10881355锁紧垫圈LOCKWASHER2
1082212M锁紧垫圈LOCKWASHER2
11881354螺钉SCREW2
1196671M螺钉SCREW2
12804284护套BOOT2
12804284001护套BOOT2
13881350T继电器RELAY1
14881351螺钉SCREW1
15881353卡箍CLAMP1
168813511螺钉SCREW1
17881359T支架BRACKET1
17881363A01盖/支架套件COVER/BRACKET KIT1
18881361卡箍CLAMP1
19881360卡箍CLAMP1
20804270螺栓(M6×28)BOLT (M6 x 28)5
21881304护孔环GROMMET5
2282851M衬套BUSHING5
22804344003轴环COLLAR5
23881356T1继电器总成RELAY ASSEMBLY1
23882751A3升降继电器套件RELAY KIT Trim1
24881357引线LEAD WIRE1
25881358盖帽CAP1
268248324螺钉(M6 x 16)SCREW (M6 x 16)2
27825702螺栓 (M6 x 20)BOLT (M6 x 20)2
278257021螺栓 (M6 x 20)BOLT (M6 x 20)2
28804604螺栓 (M6 x 20)BOLT (M6 x 20)1
2988439A33正极电缆总成-蓄电池CABLE ASSEMBLY Positive - Battery1
3088439A10蓄电池负极电缆总成CABLE ASSEMBLY Negative - Battery1
31401388不锈钢螺母 (M8)NUT (M8) Stainless Steel1
3240011128不锈钢螺钉(M6x20)SCREW (M6 x 20) Stainless Steel1
328M0204741六角带垫大帽螺钉(M6x1.0x20)SCREW (M6 x 1.0 x 20) Hex Wash HD1
33858723T1适配器/升降线束总成HARNESS ASSEMBLY Adapter/Trim1
34858914T1升降马达适配器线束总成HARNESS ASSEMBLY Trim Motor Adaptor1
35858740T4遥控适配器线束总成HARNESS ASSEMBLY Adapter Assembly Remote1
3692753固定座RETAINER1
37859249T1连接器CONNECTOR1
38816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
398272822高压警告标贴DECAL Warning High Voltage1
40881865挂档启动警示标贴DECAL Caution-Start in Gear Start in Gear1
41828151A2升降继电器套件TRIM RELAY KIT1
41882751A3升降继电器套件RELAY KIT Trim1
42826802A24升降线束总成HARNESS ASSEMBLY Trim1
43828151A1继电器总成RELAY ASSEMBLY2
438M0207773调整继电器总成RELAY ASSEMBLY Trim2
44818967护孔环GROMMET1
448M0207785护孔环GROMMET1
45818968衬套BUSHING1
458M0214955衬套BUSHING1
46NSS标贴(不单独销售)NOT SOLD SEPARATE Decal1
47828102支架BRACKET1
478M0207771安装支架BRACKET Mounting1
48824868螺钉(M6×75)SCREW (M6 x 75)1
494002316垫圈(6.60 X 17.0 X 1.5不锈钢)WASHER (6.60 X 17.0 X 1.5SS)2
498M0214930垫圈6.60 x 17.0 x 1.5WASHER 6.60 x 17.0 x 1.52
50823807衬套BUSHING1
图 11排气歧管与排气板 Exhaust Manifold and Exhaust Plate
排气歧管与排气板 Exhaust Manifold and Exhaust Plate
REF零件编号中文名称英文名称数量
1190503衬垫GASKET1
28283431排气隔板PLATE Exhaust Divider1
2828343T3排气隔板PLATE Exhaust Divider1
3814754密封件(12.50英寸)SEAL (12.50 Inches)1
4826356螺钉带垫圈(.312-18 x 1.500)SCREW AND WASHER (.312-18 x 1.500)17
48263561螺钉带垫圈(.312-18 x 1.500)SCREW AND WASHER (.312-18 x 1.500)17
5855288螺丝(.312-18 x 1.00)SCREW (.312-18 x 1.00)2
5881190螺丝(.312-18 x 1.00)SCREW (.312-18 x 1.00)2
68348082滤网STRAINER1
783075780管材(28.00英寸整料)(裁切至4-1/2英寸)TUBING (28.00 Inches Bulk) (Cut to 4-1/2 Inches)1
78M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
868727190度弯头 (.250-18) - 黄铜FITTING (.250-18) 90 Degree - Brass1
977653112软管(59.00英寸整料)(21-1/2英寸)HOSE (59.00 Inches Bulk) (21-1/2 IN.)1
977653101软管（散装48.00英寸）HOSE (48.00 Inches Bulk)1
10816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)5
10816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)5
1168729盖板COVER1
118M0039767盖板COVER1
1274824螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)4
1369570螺钉(#10-16 x .750)SCREW (#10-16 x .750)1
1476451垫圈WASHER1
1514479隔膜DIAPHRAGM1
15144791隔膜DIAPHRAGM1
1616496导水板DEFLECTOR Water1
1716497A1安装板PLATE1
1878690衬垫GASKET2
1878690002衬垫GASKET2
1964878弹簧(黑色)SPRING (Black)1
2085303垫圈WASHER1
2114480提动阀POPPET1
2264872护孔环GROMMET1
2365848托架CARRIER1
24991763衬垫GASKET1
24991764衬垫GASKET1
25850814A1排气板总成PLATE ASSEMBLY Exhaust1
25850814T1排气板总成PLATE ASSEMBLY Exhaust1
2643044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
278147011密封件SEAL1
278M0043164密封件SEAL1
28680101支架BRACKET1
29812832螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)8
29878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)8
3089772连接器(.125-27)(直通)(背部)CONNECTOR (.125-27) (STRAIGHT)(BACK)1
3162910190度弯头(.125-27)(右舷顶部孔)FITTING Elbow - 90 Degree (.125-27) (STARBOARD-TOP HOLE)1
3289772连接器(.125-27)(直通)(右舷底部孔)CONNECTOR (.125-27) (STRAIGHT)(STARBOARD-BOTTOM HOLE)1
3319564护孔环GROMMET1
338M0179867护孔环GROMMET1
3419565护孔环GROMMET1
3419565002护孔环GROMMET1
3577653112软管(59.00英寸整料)(25英寸)HOSE (59.00 Inches Bulk) (25 IN.)1
3577653101软管（散装48.00英寸）HOSE (48.00 Inches Bulk)1
36852759软管HOSE1
3720553垫圈(.406 x .734 x .063)WASHER (.406 x .734 x .063)4
3869254螺母NUT6
3927132衬套BUSHING1
4066727螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)1
4168783螺钉(.312-18×2.50)SCREW (.312-18 x 2.50)1
4266725螺钉(.375-16×3.50)SCREW (.375-16 x 3.50)3
42898833螺钉(.375-16 x 3.500)SCREW (.375-16 x 3.500)3
43812905A5前支架总成BRACKET ASSEMBLY Front1
43812905T前支架BRACKET Front1
448055571螺钉(0.3125-18×0.50)SCREW (.3125-18 x .50)4
45187031垫圈WASHER4
4618778护孔环GROMMET4
4618778001护孔环GROMMET4
4718578A8支架总成(后部)BRACKET ASSEMBLY Rear1
4718578T09支架总成(后部)BRACKET ASSEMBLY Rear1
-814754A98衬垫套件GASKET SET1
-8M0046714衬垫套件GASKET SET1
-854008A98动力头总成POWERHEAD ASSEMBLY1
-804545T99动力头总成POWERHEAD ASSEMBLY1
图 12飞轮/交流发电机 Flywheel/Alternator
飞轮/交流发电机 Flywheel/Alternator
REF零件编号中文名称英文名称数量
18285072皮带BELT1
2834936A3飞轮FLYWHEEL1
2834936T6飞轮FLYWHEEL1
352901螺母(0.625-18)NUT (.625-18)1
468229垫圈(.641 x 1.250 x .190)WASHER (.641 x 1.250 x .190)1
433001垫圈WASHER1
545907黄色塞PLUG Yellow1
6834832交流发电机ALTERNATOR1
6857006T交流发电机ALTERNATOR1
7832080M2发电机支架BRACKET Alternator1
881893430螺钉 (M8 x 30)SCREW (M8 x 30)1
881893435螺钉(M8×35)SCREW (M8 x 35)1
9821583销PIN1
98215832特殊销（1.5英寸）PIN Special (1.5 Inches)1
10812618不锈钢螺钉(.312-18 x 1.00)带尼龙垫SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch3
1182446180螺钉(M10×80)SCREW (M10 x 80)1
12855798弹簧SPRING1
12855798001弹簧SPRING1
138502913皮带张紧器BELT TENSIONER1
13850291T3皮带张紧器BELT TENSIONER1
14855728双头螺栓(M10 X 54)STUD (M10 X 54)1
148557281螺柱STUD1
15826292螺母(M10)黄铜/镀镍NUT (M10) Brass/Nickel Plated1
16852385A1滑轮PULLEY1
168M6005030皮带轮总成PULLEY ASSY1
174010835螺钉(M10×35)六角法兰-不锈钢SCREW (M10 x 35) Hex Flange - Stainless Steel1
18856030A2衬套套装BUSHING KIT1
1985045O型圈(.551 x .070)O-RING (.551 x .070)2
20NLA不再供应No Longer Available1
2142139衬套BUSHING1
22857006T交流发电机ALTERNATOR1
22889955A03交流发电机套件ALTERNATOR KIT1
2340108100螺钉(M10×100)六角法兰-不锈钢SCREW (M10 x 100) Hex Flange - Stainless Steel1
238M0012503螺钉(M10×1.5)SCREW (M10 x 1.5)1
2440108120螺钉(M10×120)六角法兰-不锈钢SCREW (M10 x 120) Hex Flange - Stainless Steel1
2529395垫圈(0.390×1.00×0.06)WASHER (.390 x 1.00 x .06)3
258M0042641垫圈(0.390×1.00×0.06)WASHER (.390 x 1.00 x .06)3
26856975支架MOUNT3
27856972T支架BRACKET1
27858391T01支架BRACKET1
28845998垫圈(0.406×1.250×0.089)WASHER (.406 x 1.250 x .089)3
29856973T支架BRACKET1
29858393T01支架BRACKET1
30826292螺母(M10)黄铜/镀镍NUT (M10) Brass/Nickel Plated2
3182446155螺钉(M10×55)SCREW (M10 x 55)1
32856583T2拉线总成CABLE ASSEMBLY1
33821583销PIN1
338215832特殊销（1.5英寸）PIN Special (1.5 Inches)1
34856974T支架BRACKET1
34857142T支架BRACKET1
35812618不锈钢螺钉(.312-18 x 1.00)带尼龙垫SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch3
36855798弹簧SPRING1
36855798001弹簧SPRING1
37856815T2张紧臂总成ARM TENSIONER ASSEMBLY1
38856900螺柱(M10×85)STUD (M10 x 85)1
388M0034457螺柱(M10×85)STUD (M10 x 85)1
39826292螺母(M10)黄铜/镀镍NUT (M10) Brass/Nickel Plated1
40856894衬套BUSHING1
408568941衬套BUSHING1
414002320垫圈WASHER2
42852385A1滑轮PULLEY1
428M6005030皮带轮总成PULLEY ASSY1
434010835螺钉(M10×35)六角法兰-不锈钢SCREW (M10 x 35) Hex Flange - Stainless Steel1
图 13燃油泵 Fuel Pump
燃油泵 Fuel Pump
REF零件编号中文名称英文名称数量
1880890T1燃油泵PUMP Fuel1
2NSS不单独销售本体NOT SOLD SEPARATE Body1
3881544弹簧SPRING1
4881545柱塞PLUNGER1
5881546弹簧SPRING1
6881547隔膜DIAPHRAGM1
7881548销PIN1
8NSS不单独销售本体NOT SOLD SEPARATE Body1
9NSS膜片(不单独销售)NOT SOLD SEPARATE Diaphragm1
10NSS不单独销售本体NOT SOLD SEPARATE Body1
11881550螺钉SCREW3
12881333螺母NUT3
13804255O型圈O-RING1
138M0050719O型圈O-RING1
14879650卡箍CLAMP2
1456762扎带(4.00英寸)TIE STRAP (4.00 Inches)2
15804256螺栓 (M6 x 30)BOLT (M6 x 30)2
16881543软管HOSE1
16881543002油管TUBING1
17881542支架BRACKET1
188527768螺栓(M6 x 16)BOLT (M6 x 16)1
18811188T螺栓BOLT1
198528161螺母NUT1
1982382M螺母NUT1
20881538T1滤清器总成FILTER ASSEMBLY1
20881538T02燃油滤清器总成FILTER ASSY-FUEL1
21881540滤芯1.75英寸ELEMENT 1.75 Inches1
218M0168897燃油滤清器FUEL FILTER1
218M0101436滤芯1.50英寸ELEMENT 1.50 Inches1
218M0117705燃油滤清器FILTER-FUEL1
22826966MO型圈O-RING1
22826966TO型圈O RING1
23881541浮子FLOAT1
24881539杯套CUP1
248M0101437杯套CUP1
248M0137185燃油杯CUP FUEL1
25879650卡箍CLAMP2
2556762扎带(4.00英寸)TIE STRAP (4.00 Inches)2
26804260支架BRACKET1
27804112螺栓(M7 x 48)BOLT (M7 x 48)2
28804113定位销PIN Dowel2
2984292M垫圈WASHER2
30804257燃油转换杆LEVER Fuel Change1
31881334轴SHAFT1
32804259销PIN2
3282738M滚销PIN-ROLL2
33830757130管材(.312)(70英寸整卷)裁切至55英寸长度TUBING (.312) (70.00 Inches Bulk) Cut to 55.00 Inch Length.1
338M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
34816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
35822769连接器CONNECTOR1
36NSS盖帽(不单独销售)NOT SOLD SEPARATE Cap1
37828547T1导管(.500内径 x 3英尺整卷)CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk)1
-858732T01衬垫套件GASKET SET1
-858732T02动力头衬垫套件GASKET SET Powerhead1
-858732T02动力头衬垫套件GASKET SET Powerhead1
-881310T1气缸盖总成CYLINDER HEAD ASSEMBLY1
-881310T09气缸盖HEAD-CYLINDER1
图 14燃油导轨 Fuel Rails
燃油导轨 Fuel Rails
REF零件编号中文名称英文名称数量
1831998A9空气压缩机总成(参见空气压缩机部件分解图)COMPRESSOR ASSEMBLY Air (SEE BREAKDOWN ON AIR COMPRESSOR COMPONENTS)1
285593912螺钉（M6 x 12）SCREW (M6 x 12)5
38328231滑轮PULLEY1
38M0175171滑轮PULLEY1
44010825螺丝(M10 x 25)六角法兰-不锈钢SCREW (M10 x 25) Hex Flange - Stainless Steel2
58502511软管HOSE1
58502512软管HOSE1
685652329绝缘套管(15英寸)INSULATOR SLEEVE (15 IN.)1
7852379T5燃油导轨FUEL RAIL1
7852379T6燃油导轨FUEL RAIL1
88500653喷油器INJECTOR6
88M6001743空气喷射器总成INJECTOR ASSEMBLY Air6
9855697卡箍(16.2)CLAMP (16.2)4
98M0204696卡箍CLAMP4
1085564361软管(16英寸)HOSE (16 IN.)2
1192345螺柱STUD1
12854640特殊垫圈WASHER Special2
1335814螺母(.312-24)不锈钢NUT (.312-24) Stainless Steel1
1382670911螺母(.312-24)不锈钢NUT (.312-24) Stainless Steel1
14816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)8
14816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)8
15852378T5燃油导轨FUEL RAIL1
15852378T6燃油导轨FUEL RAIL1
16830756109软管(57.00英寸整料)(裁切至22-1/2英寸)HOSE (57.00 Inches Bulk) (Cut to 22-1/2 Inches)1
168M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
17826810止回阀CHECK VALVE1
1883075780管材(28英寸整卷)(裁切为2-1/2英寸)TUBING (28.00 Inches Bulk) (Cut to 2-1/2 Inches)1
188M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
1983476463管材(32英寸整卷)(裁切为28-1/2英寸)TUBING (32.00 Inches Bulk) (Cut to 28-1/2 Inches)1
20856880软管卡箍（15.3）CLAMP Hose (15.3)2
208M0214964卡箍CLAMP2
2185606064管材(36英寸整卷)(28-1/2英寸)TUBING (36.00 Inches Bulk) (28-1/2 IN.)1
218M0054152管材(39.00英寸整卷)TUBING (39.00 Inches Bulk)1
2282104510螺钉 (M5 x 10)SCREW (M5 x 10)4
2346997卡箍CLAMP4
24852961螺柱STUD4
248M0063255双头螺栓M10x92STUD M10x924
25826292螺母(M10)黄铜/镀镍NUT (M10) Brass/Nickel Plated4
26NSS不单独销售 软管(30英寸)NOT SOLD SEPARATE Hose (30 IN.)1
26856822A3软管(30英寸)HOSE (30 IN.)1
278558481软管HOSE1
27855848A1软管HOSE1
28828694A1杯形垫片总成WASHER ASSEMBLY Cupped6
29856880软管卡箍（15.3）CLAMP Hose (15.3)4
298M0214964卡箍CLAMP4
3085686953套管(27英寸整卷)(裁切为18英寸)SLEEVE (27.00 Inches Bulk) (Cut to 18 Inches)1
图 15齿轮箱（驱动轴）（标准/反向旋转） Gear Housing (Driveshaft)(Standard/Counter Rotation)
齿轮箱（驱动轴）（标准/反向旋转） Gear Housing (Driveshaft)(Standard/Counter Rotation)
REF零件编号中文名称英文名称数量
-9148A84齿轮箱总成(完整)GEAR HOUSING ASSEMBLY (Complete)1
-9148T84齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A90齿轮箱总成(完整)GEAR HOUSING ASSEMBLY (Complete)1
-9148T84齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A85齿轮箱总成(完整)GEAR HOUSING ASSEMBLY (Complete)1
-9148T85齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A91齿轮箱总成(完整)GEAR HOUSING ASSEMBLY (Complete)1
-9148T91ORD 1647-9148T85ORD 1647-9148T851
-9148A81齿轮箱总成(完整)GEAR HOUSING ASSEMBLY (Complete)1
-9148T81齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A87齿轮箱总成(完整)GEAR HOUSING ASSEMBLY (Complete)1
-9148T87ORD 1647-9148T81ORD 1647-9148T811
-9148A82齿轮箱总成(完整)GEAR HOUSING ASSEMBLY (Complete)1
-9148T82齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A88齿轮箱总成(完整)GEAR HOUSING ASSEMBLY (Complete)1
-9148T88ORD 1647-9148T82ORD 1647-9148T821
-9148A86齿轮箱总成(完整)GEAR HOUSING ASSEMBLY (Complete)1
-9148T86齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A92齿轮箱总成(完整)GEAR HOUSING ASSEMBLY (Complete)1
-9148T92ORD 1647-9148T86ORD 1647-9148T861
-9148A83齿轮箱总成(完整)GEAR HOUSING ASSEMBLY (Complete)1
-9148T83齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A89齿轮箱总成(完整)GEAR HOUSING ASSEMBLY (Complete)1
-9148T89齿轮箱壳体-CXL-灰色GEAR HSG-CXL-GRAY1
19148A93齿轮箱总成GEAR HOUSING ASSEMBLY1
19148T93基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
19148A94齿轮箱总成GEAR HOUSING ASSEMBLY1
19148T94ORD 1647-9148T93ORD 1647-9148T931
243044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
3786382螺柱(.437-14/.437-20 x 3.120)STUD (.437-14/.437-20 x 3.120)1
3189783螺柱(0.438×3.82英寸)STUD (.438 x 3.82 Inches)1
38M0034464螺柱STUD1
4579203双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
48M0133358双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
5562972螺柱(0.312-18/0.324-24×3.380)STUD (.312-18/.324-24 x 3.380)1
58M0034463螺柱(.312-24 x 3.38)STUD (.312-24 x 3.38)1
630667双头螺栓(.250-20/.250-28×3.125)STUD (.250-20/.250-28 x 3.125)2
6306671螺柱STUD2
767891填充块FILLER BLOCK1
78M0039169填充块FILLER BLOCK1
842647A1滚柱轴承总成BEARING ASSEMBLY Roller1
9826134阳极块ANODE2
9826134Q阳极块ANODE2
104000333螺钉(M6 x 40)SCREW (M6 x 40)1
118268336螺母 (M6)NUT (M6)1
11401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
1285822A10连接器总成CONNECTOR ASSEMBLY1
13NSS小齿轮(不单独销售)NOT SOLD SEPARATE Pinion Gear1
13441013齿轮 小齿轮2:1-14齿GEAR Pinion 2:1 - 14 Teeth1
1344101T3小齿轮GEAR Pinion1
1492721垫圈(.965×0.630)WASHER (.965 x .630)1
1535921螺母(0.625-18)NUT (.625-18)1
1642637A1垫片组SHIM SETAR
168M0063267垫片组SHIM SETAR
1779953A2螺丝套件(.375-16 x .250)SCREW KIT (.375-16 x .250)1
1779953Q04放油螺钉套件SCREW KIT Drain1
1819183纤维垫圈WASHER Fiber2
188M0187157蓝色密封件@15SEAL-BLUE @152
1967892A1磁吸式注油/放油塞套件FITTING KIT Magnetic, Plug Fill/Drain1
198M0058389放油螺钉套件SCREW KIT Drain1
20789022换档轴SHIFT SHAFT1
2177631A2衬套总成BUSHING ASSEMBLY1
2225439O型圈(.862×0.103)O-RING (.862 x .103)1
238164641油封SEAL Oil1
238M0246145油封OIL SEAL1
2477674垫圈(.35 x .75 x .12)WASHER (.35 x .75 x .12)1
25440001驱动轴DRIVESHAFT1
25897624T长驱动轴DRIVESHAFT Long1
25442091驱动轴DRIVESHAFT1
25897625T加长驱动轴DRIVESHAFT X-Long1
2636387A1轴承总成(滚子/外圈)BEARING ASSEMBLY Roller/Cup1
268M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
27NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
28824519固定座RETAINER1
288245191固定座RETAINER1
2942579A3水泵底座总成BASE ASSEMBLY Water Pump1
298M0077147带水泵底座总成BASE ASSY-W/P1
30NSS固定座(不单独销售)NOT SOLD SEPARATE Retainer1
31426311衬垫GASKET1
318M0204678衬垫GASKET1
3290011O型圈(2.175 x 0.175)O-RING (2.175 x .175)1
328M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
3389238油封SEAL Oil1
3416977油封SEAL Oil1
35856081衬垫GASKET1
358M0090319衬垫@5GASKET @51
36856091衬垫GASKET1
36858524衬垫GASKET1
3732435面板FACE PLATE1
378M0204677面板PLATE-FACE1
3896148A1水泵壳体总成BODY ASSEMBLY Water Pump1
3896148T1水泵壳体总成BODY ASSEMBLY Water Pump1
3948752嵌件INSERT1
3948752T嵌件INSERT1
4038970密封件SEAL1
41899841叶轮IMPELLER1
4189984T3叶轮IMPELLER1
4256654键KEY1
428M0214992键@5KEY @51
4396411螺钉(#14-8×2.25)SCREW (#14-8 x 2.25)1
438M0215009螺钉SCREW1
4429245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
448M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
4513438螺母(.250-28)NUT (.250-28)2
458267119螺母(.250-28)NUT (.250-28)2
4636001垫圈WASHER1
4713436螺母NUT1
4829804套筒SLEEVE1
4829804T套筒SLEEVE1
-814754A98衬垫套件GASKET SET1
-8M0046714衬垫套件GASKET SET1
-89238A2密封套件SEAL KIT1
-96148A5水泵维修套件REPAIR KIT Water Pump1
-96148A8水泵维修套件WATER PUMP REPAIR KIT1
图 16齿轮箱螺旋桨轴-反向旋转 Gear Housing Propeller Shaft - Counter Rotation
齿轮箱螺旋桨轴-反向旋转 Gear Housing Propeller Shaft - Counter Rotation
REF零件编号中文名称英文名称数量
-9148A86齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-9148T86齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A92齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-9148T92ORD 1647-9148T86ORD 1647-9148T861
-9148A83齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-9148T83齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A89齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-9148T89齿轮箱壳体-CXL-灰色GEAR HSG-CXL-GRAY1
09148T83齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
19148A93齿轮箱总成GEAR HOUSING ASSEMBLY1
19148T93基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
19148A94齿轮箱总成GEAR HOUSING ASSEMBLY1
19148T94ORD 1647-9148T93ORD 1647-9148T931
289594A1从动件总成FOLLOWER ASSEMBLY1
3789562换挡凸轮SHIFT CAM1
4828287杆ROD1
544491A1垫片组SHIM SETAR
58M0063266垫片组SHIM SETAR
6828830A2轴承适配器总成ADAPTER ASSEMBLY Bearing1
7814653滚针轴承总成BEARING ASSEMBLY Needle Rollers1
7814653T滚针轴承总成BEARING ASSEMBLY Needle Rollers1
8815481止推垫片THRUST WASHER1
9815480推力轴承BEARING Thrust1
10828702A2倒车齿轮总成-15/28齿GEAR ASSEMBLY Reverse - 15/281
10828704A2倒车齿轮总成-14/28齿GEAR ASSEMBLY Reverse - 14/281
1115844滚柱轴承总成BEARING ASSEMBLY Roller1
1230893弹簧SPRING1
13828288滑动离合器SLIDING CLUTCH1
13859340T离合器CLUTCH1
1430632十字销PIN Cross1
148M0100263十字销PIN Cross1
15828356定位销PIN Detent1
16828951螺旋桨轴PROPELLER SHAFT1
17828701A1前进齿轮总成-15/28齿GEAR ASSEMBLY Forward - 15/281
17828703A1前进齿轮总成-14/28齿GEAR ASSEMBLY Forward - 14/281
181761514垫片(0.206)SPACER SHIM (.206)AR
181761515垫片(0.208)SPACER SHIM (.208)AR
181761516垫片(0.210)SPACER SHIM (.210)AR
181761517垫片(0.212)SPACER SHIM (.212)AR
181761518垫片(0.214)SPACER SHIM (.214)AR
181761519垫片(0.216)SPACER SHIM (.216)AR
181761520垫片(0.218)SPACER SHIM (.218)AR
181761521垫片(0.220)SPACER SHIM (.220)AR
181761522垫片(0.222)SPACER SHIM (.222)AR
181761523垫片(0.224)SPACER SHIM (.224)AR
181761524垫片(0.226)SPACER SHIM (.226)AR
181761525垫片(0.228)SPACER SHIM (.228)AR
181761526垫片(0.230)SPACER SHIM (.230)AR
19815480推力轴承BEARING Thrust1
20815481止推垫片THRUST WASHER1
21828831A1轴承适配器总成ADAPTER ASSEMBLY Bearing1
21828831A3轴承适配器总成ADAPTER ASSEMBLY Bearing1
22814653滚针轴承总成BEARING ASSEMBLY Needle Rollers1
22814653T滚针轴承总成BEARING ASSEMBLY Needle Rollers1
2318448止推垫片THRUST WASHER2
2415842推力轴承BEARING Thrust2
258182911推力座圈RACE Thrust2
26814605定位器KEEPER2
2731534O型圈O-RING1
278M0214920O型圈O RING1
28818290A4轴承座总成CARRIER ASSEMBLY Bearing1
2930956滚针轴承BEARING Needle1
2930956T滚针轴承BEARING Needle1
3014077油封SEAL Oil1
3176868密封件SEAL1
318M0248882油封@5SEAL-OIL @51
32183231锁紧垫圈TAB WASHER1
3330281键KEY1
3479448固定座RETAINER1
348M2011027固定座RETAINER1
35316405平衡鳍板TRIM TAB1
358M0236553平衡鳍板TRIM TAB1
36806327螺钉(.437-14 x 1.750)SCREW (.437-14 x 1.750)1
368M0204686螺钉SCREW1
3765210螺钉(.375-16 x 1.00)SCREW (.375-16 x 1.00)1
3845176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel2
3934933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
398M0204653螺母NUT2
40NSS不单独销售-反向旋转标识NOT SOLD SEPARATE Decal-Counter Rotation1
41835467推力毂THRUST HUB1
41835467Q01止推垫片套件THRUST WASHER KIT1
42423511齿形锁紧垫圈LOCKWASHER Toothed1
4331211A2花键垫圈WASHER Splined1
4331211Q03垫圈总成WASHER ASSEMBLY1
4452707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
4452707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
45816629锁紧垫圈TAB WASHER1
45816629Q锁紧垫圈TAB WASHER1
-89238A2密封套件SEAL KIT1
-814754A98衬垫套件GASKET SET
-8M0046714衬垫套件GASKET SET
图 17齿轮箱螺旋桨轴-标准旋转 Gear Housing Propeller Shaft - Standard Rotation
齿轮箱螺旋桨轴-标准旋转 Gear Housing Propeller Shaft - Standard Rotation
REF零件编号中文名称英文名称数量
-9148A84齿轮箱总成GEAR HOUSING ASSEMBLY1
-9148T84齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A90齿轮箱总成GEAR HOUSING ASSEMBLY1
-9148T84齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A85齿轮箱总成GEAR HOUSING ASSEMBLY1
-9148T85齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A91齿轮箱总成GEAR HOUSING ASSEMBLY1
-9148T91ORD 1647-9148T85ORD 1647-9148T851
-9148A81齿轮箱总成GEAR HOUSING ASSEMBLY1
-9148T81齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A87齿轮箱总成GEAR HOUSING ASSEMBLY1
-9148T87ORD 1647-9148T81ORD 1647-9148T811
-9148A82齿轮箱总成GEAR HOUSING ASSEMBLY1
-9148T82齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A88齿轮箱总成GEAR HOUSING ASSEMBLY1
-9148T88ORD 1647-9148T82ORD 1647-9148T821
19148A93齿轮箱总成GEAR HOUSING ASSEMBLY1
19148T93基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
19148A94齿轮箱总成GEAR HOUSING ASSEMBLY1
19148T94ORD 1647-9148T93ORD 1647-9148T931
289594A1从动件总成FOLLOWER ASSEMBLY1
3789562换挡凸轮SHIFT CAM1
4828287杆ROD1
5828174A2齿轮组GEAR SET1
5878613A2前进齿轮总成 1.87:1 - 15/28齿GEAR ASSEMBLY Forward 1.87:1 - 15/281
5828176A2前进齿轮总成GEAR ASSEMBLY Forward1
5878615A2前进齿轮总成 2:1 - 14/28齿GEAR ASSEMBLY Forward 2:1 - 14/281
644491A1垫片组SHIM SETAR
68M0063266垫片组SHIM SETAR
730894A1圆锥轴承组BEARING SET Cup And Cone1
8NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
930895滚针轴承BEARING Needle1
930895T滚针轴承BEARING Needle1
10856823挡圈RING Retaining1
11828288滑动离合器SLIDING CLUTCH1
11859340T离合器CLUTCH1
1230632十字销PIN Cross1
128M0100263十字销PIN Cross1
13828356定位销PIN Detent1
1430893弹簧SPRING1
1594148螺旋桨轴PROPELLER SHAFT1
16828175A1倒车齿轮总成-15/28齿GEAR ASSEMBLY Reverse - 15/281
16828177A1倒车齿轮总成-14/28齿GEAR ASSEMBLY Reverse - 14/281
17824108隔套SPACER1
18681001止推环RING Thrust1
1988957滚珠轴承总成BEARING ASSEMBLY Ball1
1988957T滚珠轴承BEARING Ball1
2031534O型圈O-RING1
208M0214920O型圈O RING1
2143567A1轴承座总成CARRIER ASSEMBLY Bearing1
2143567T1轴承座总成CARRIER ASSEMBLY Bearing1
2230956滚针轴承BEARING Needle1
2230956T滚针轴承BEARING Needle1
2314077油封(内侧)SEAL Oil (INSIDE)1
2476868油封(外侧)SEAL (OUTSIDE)1
248M0248882油封@5SEAL-OIL @51
2530281键KEY1
2679447锁紧垫圈TAB WASHER1
2779448固定座RETAINER1
278M2011027固定座RETAINER1
28316405平衡鳍板TRIM TAB1
288M0236553平衡鳍板TRIM TAB1
2976214Q5阳极套件ANODE KIT1
30806327螺钉(.437-14 x 1.750)SCREW (.437-14 x 1.750)1
308M0204686螺钉SCREW1
3165210螺钉(.375-16 x 1.00)SCREW (.375-16 x 1.00)1
3245176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel2
3334933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
338M0204653螺母NUT2
34835467推力毂THRUST HUB1
34835467Q01止推垫片套件THRUST WASHER KIT1
35423511齿形锁紧垫圈LOCKWASHER Toothed1
3631211A2花键垫圈WASHER Splined1
3631211Q03垫圈总成WASHER ASSEMBLY1
3752707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
3752707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
38816629锁紧垫圈TAB WASHER1
38816629Q锁紧垫圈TAB WASHER1
-89238A2密封套件SEAL KIT1
-814754A98衬垫套件GASKET SET1
-8M0046714衬垫套件GASKET SET1
图 18仪表装置 Instrumentation
仪表装置 Instrumentation
REF零件编号中文名称英文名称数量
119674A1拉绳开关总成SWITCH ASSEMBLY Lanyard1
119674A07开关/拉绳套件SWITCH/LANYARD KIT1
218303螺钉 (.190-16 x 1.750) 不锈钢SCREW (.190-16 x 1.750) Stainless Steel2
3813679适配器ADAPTER1
415920A54拉绳总成LANYARD ASSEMBLY1
415920Q54拉绳总成LANYARD ASSEMBLY1
532866螺钉 (#10-32 x 2.00) 不锈钢SCREW (#10-32 x 2.00) Stainless Steel2
618321安装夹CLAMP Mounting1
724676垫圈 (.200 x .440 x .032)WASHER (.200 x .440 x .032)2
868219螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel4
979146固定座RETAINER3
10816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)16
10816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)16
11812497A2二极管总成DIODE ASSEMBLY1
11898289A72双拉绳二极管套件DIODE KIT-LANYARD Dual1
1211149A2线缆总成 (6.00英寸)CABLE ASSEMBLY (6.00 Inches)1
13835360A2警报仪表套件WARNING GAUGE KIT1
13859699A1警报仪表套件GAUGE KIT-WARNING1
14850020卡箍CLAMP1
15825361星形锁紧垫圈(#8)LOCKWASHER Star (#8)1
1626419黄铜螺母 (#8-32)NUT (#8-32) Brass2
1715163灯LAMP4
1879888灯泡插座SOCKET Light Bulb4
19835359A1电缆总成(20.00英尺)CABLE ASSEMBLY (20.00 Feet)1
图 19机油喷射组件 Oil Injection Components
机油喷射组件 Oil Injection Components
REF零件编号中文名称英文名称数量
112335A1支架套件BRACKET KIT1
212323A1绳索/挂钩套件CORD/HOOK KIT1
387421油箱TANK1
443298A2盖总成CAP ASSEMBLY1
5NSS不单独销售嵌件NOT SOLD SEPARATE Insert1
611332O型圈(2.225 x .210)O-RING (2.225 x .210)1
7816190A3外壳总成适配器HOUSING ASSEMBLY Adapter1
7816190A4机油收集器总成(无传感器)OIL PICK UP ASSEMBLY Without Sender1
811332O型圈(2.225 x .210)O-RING (2.225 x .210)1
999802管TUBE1
1099439软管(114.00英寸)HOSE (114.00 Inches)1
11833069A3油箱总成RESERVOIR ASSEMBLY Oil1
118M0062954储油罐RESERVOIR, OIL1
12NSS不单独销售标签-储液罐NOT SOLD SEPARATE Decal-Reservoir1
13855362护孔环GROMMET3
13855362001护孔环GROMMET3
1449436垫圈WASHER3
1560411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)1
16855364衬套BUSHING3
1769267螺钉 (.312-18 x 1.750)SCREW (.312-18 x 1.750)2
18833155护孔环GROMMET2
198502341衬套BUSHING2
2082381455管材(25英寸整卷)(裁切为20英寸)TUBING (25.00 Inches Bulk) (Cut to 20 Inches)1
21816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
21816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
2212886A8开关SWITCH1
2358376螺钉(.164-18 x .375)SCREW (.164-18 x .375)1
2472761不锈钢垫圈(.203 x .562 x .060)WASHER (.203 x .562 x .060) Stainless Steel1
258260841隔套SPACER1
26816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)7
26816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)7
27NSS不单独销售 塞NOT SOLD SEPARATE Plug1
28424254接头FITTING1
288M0207780接头FITTING1
29830756109软管(57.00英寸散装)(裁切至6英寸)HOSE (57.00 Inches Bulk) (Cut to 6 Inches)1
298M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
30855785燃油冷却器COOLER Fuel1
30855785A1燃油冷却器总成COOLER ASSEMBLY Fuel1
31855761止回阀CHECK VALVE1
318557611止回阀CHECK VALVE1
3213791卡箍(15.7)CLAMP (15.7)4
328M0214911卡箍@5CLAMP @54
3385682239管材(17英寸整卷)(裁切为3英寸)TUBING (17.00 Inches Bulk) (Cut to 3 Inches)1
34856822A3软管(带绝缘套管)(30英寸)HOSE (W/INSULATING SLEEVE) (30 IN.)1
图 20动力升降组件 8M0231193 Power Trim Components 8M0231193
动力升降组件 8M0231193 Power Trim Components 8M0231193
REF零件编号中文名称英文名称数量
-8M0231193动力升降总成POWER TRIM ASSEMBLY1
18M0225363电机套件MOTOR KIT1
28M0225369阀套件VALVE KIT1
38M0225371手动释放套件MANUAL RELEASE KIT1
48M0245633倾斜油缸套件TILT CYLINDER KIT1
58M0225370枢轴销套件PIVOT PIN KIT1
68M0244575减震杆套件SHOCK ROD KIT1
78M0244425销杆眼套件PIN ROD EYE KIT1
88M0232231螺钉螺母套件SCREW NUT KIT1
98M0225373记忆活塞套件MEMORY PISTON KIT1
108M0225368储液罐套件RESERVOIR KIT1
118M0174135储液罐塞总成PLUG RESERVOIR ASSEMBLY1
128M0237525泵套件PUMP KIT1
138M0225367升降杆套件TRIM ROD KIT1
148M0242846升降杆套件TRIM ROD KIT1
158M0225372重建套件REBUILD KIT1
图 21动力升降组件金属马达壳 Power Trim Components Metal Motor Housing
动力升降组件金属马达壳 Power Trim Components Metal Motor Housing
REF零件编号中文名称英文名称数量
-826729A2升降倾斜总成TRIM AND TILT ASSEMBLY1
1811604F歧管总成MANIFOLD ASSEMBLY1
256800管塞 (.0625-27)PLUG Pipe (.0625-27)9
3823552F气缸总成CYLINDER ASSEMBLY1
3880952A03ORD 8M0078330ORD 8M00783301
4823553配平活塞杆套件ROD KIT Trim Piston1
4823553T升降活塞杆ROD Trim Piston1
5811606导向套件GUIDE KIT1
5878239A02倾斜缸端盖套件END CAP KIT Tilt Cylinder1
6811607A1维修套件REPAIR KIT1
7811610A1止回阀套件CHECK VALVE KIT1
7823553T升降活塞杆ROD Trim Piston1
899638A1导向器总成GUIDE ASSEMBLY2
88M0021648端盖总成END CAP ASSEMBLY2
943397A6动力升降倾斜装置活塞/杆总成PISTON/ROD ASSEMBLY Power Trim1
9878413A1活塞总成PISTON ASSEMBLY1
943398A3动力升降倾斜装置活塞/杆总成PISTON/ROD ASSEMBLY Power Trim1
9878414T01活塞总成PISTON ASSEMBLY1
1012184A1升降过滤器总成TRIM FILTER ASSEMBLY1
11813442A2手动释放总成MANUAL RELEASE ASSEMBLY1
11893929A01安全阀套件VALVE KIT Relief1
12812844E型卡环E RING1
12815949001E形环E-RING1
13811612A2O型圈套件O-RING KIT1
13811612A3O型圈套件O-RING KIT1
14811617F泵PUMP1
14811617T1泵PUMP1
15811613塞子总成PLUG ASSEMBLY1
164000327螺钉 (M6 x 14)SCREW (M6 x 14)4
1743450垫圈WASHER4
174002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)4
18811611盖板COVER1
19828710驱动接头DRIVE JOINT1
20828708电机总成MOTOR ASSEMBLY1
20878265A4配平电机TRIM MOTOR1
21828709螺钉 (长)SCREW (LONG)2
21881768A1螺钉/垫圈套件SCREW/WASHER KIT2
21811616螺钉 (短)SCREW (SHORT)2
22811614轴总成SHAFT ASSEMBLY1
228M0142997倾斜轴套件TILT SHAFT KIT1
2356800管塞 (.0625-27)PLUG Pipe (.0625-27)2
2444431槽销PIN Groove1
24878267销PIN1
25821539三叶销PIN Trilobe1
26996251轴SHAFT1
2699625002轴SHAFT1
27818298A1阳极套件ANODE KIT1
27818298Q1阳极套件ANODE KIT1
284000330螺钉(M6x25)SCREW (M6 x 25)2
288M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
2929245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
298M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
304000377螺钉 (M10 x 30)SCREW (M10 x 30)6
314002319垫圈WASHER6
3226550卡箍CLAMP2
338128321螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
33878609螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
3469205C形垫圈C WASHER1
348M0084613C形垫圈C-WASHER1
35996301冲击板STRIKER PLATE2
358M0045383冲击板STRIKER PLATE2
3658643锁紧垫圈 (.375)LOCKWASHER (.375)2
3746335螺母 (.375-24)NUT (.375-24)2
38435301警示贴纸-动力微调DECAL Caution-Power Trim1
39828547353导管 (.350内径 x 3.00英尺 散装)CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk)1
40816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
40816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
图 22动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing
动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing
REF零件编号中文名称英文名称数量
-8M0168222动力升降总成POWER TRIM ASSEMBLY1
18M0142591电机套件MOTOR KIT1
282494830螺钉 (M6 x 30)SCREW (M6 x 30)2
3400256锁紧垫圈 (M6)LOCKWASHER (M6)2
48M0090403驱动联轴器COUPLING Drive1
58M0142996压力检查套件PO CHECK KIT1
68M0060141手动释放套件MANUAL RELEASE KIT1
78M0142997倾斜轴套件TILT SHAFT KIT1
8878267销PIN1
98M0142998倾斜油缸总成TILT CYLINDER ASSEMBLY1
98M0168220倾斜油缸总成TILT CYLINDER ASSEMBLY1
108M0142999倾斜油缸O型圈套件O RING KIT TILT CYLINDER1
118M0143000记忆活塞套件MEMORY PISTON KIT1
128M0142592升降杆套件 左舷TRIM ROD KIT Port1
138M0143001活塞总成PISTON ASSEMBLY1
148M0143003端盖总成END CAP ASSEMBLY1
15878264A1储液罐套件RESERVOIR KIT1
16811613塞子总成PLUG ASSEMBLY1
174000327螺钉 (M6 x 14)SCREW (M6 x 14)4
184002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)4
198M0143004泵套件PUMP KIT1
208M0148385动力升降倾斜装置维修包REPAIR KIT Power Trim1
21858771螺钉 (M10 x 30)SCREW (M10 x 30)6
224002319垫圈WASHER6
238M0094889销PIN1
238M0161312连杆销眼总成PIN ROD EYE ASSEMBLY1
248M0143005减震杆套件SHOCK ROD KIT1
248M0168219减震杆套件SHOCK ROD KIT1

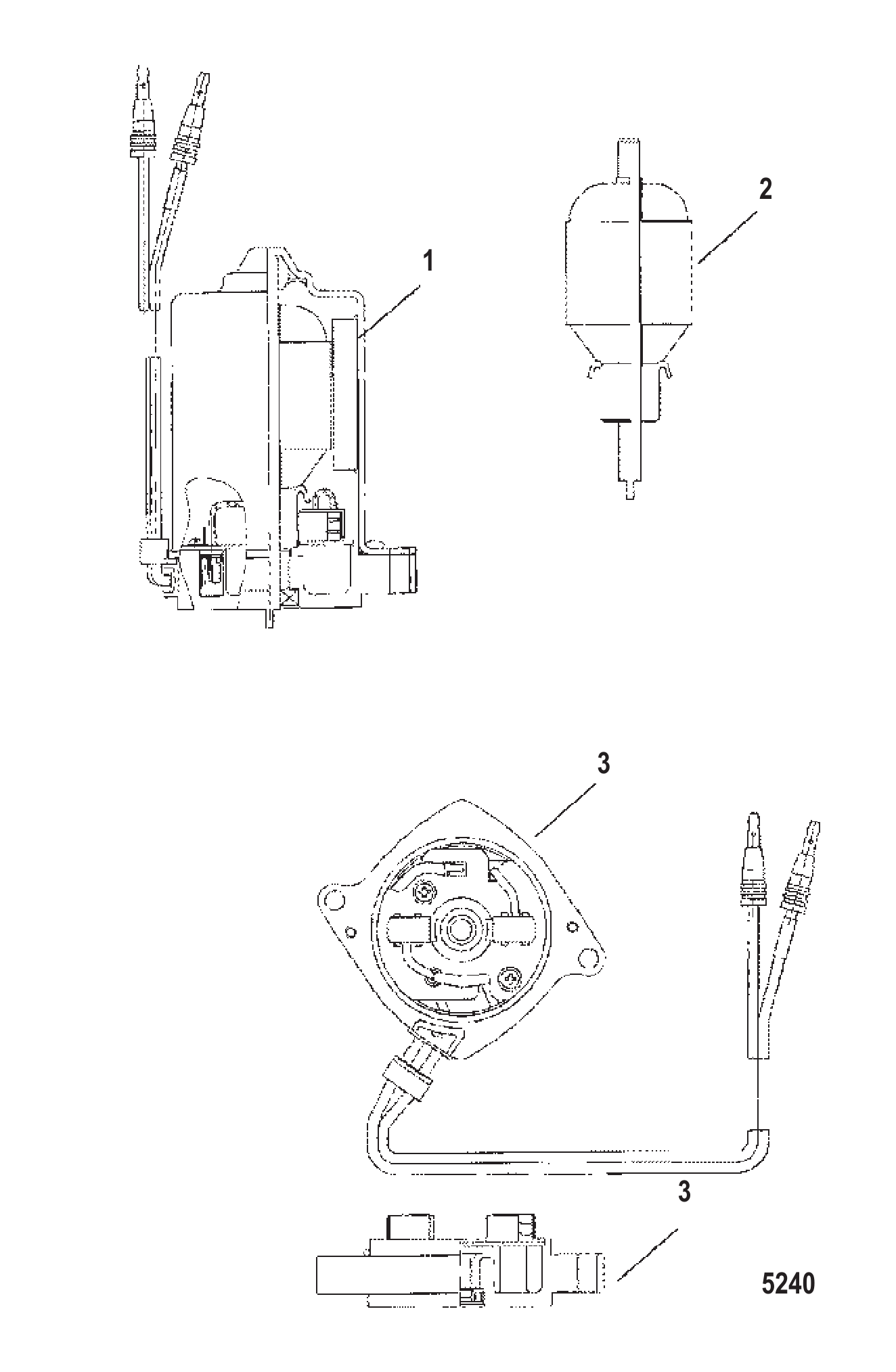

图 23动力升降倾斜电机 Power Trim Motor
动力升降倾斜电机 Power Trim Motor
REF零件编号中文名称英文名称数量
-828708电机总成MOTOR ASSEMBLY1
-878265A4配平电机TRIM MOTOR1
1828714A1电刷与密封套件BRUSH AND SEAL KIT1
2828713A1电枢套件ARMATURE KIT1
2828713T1电枢套件ARMATURE KIT1
3828715A1端架（总成）END FRAME (COMPLETE)1
图 24维修/支撑材料 Service/Support Material
维修/支撑材料 Service/Support Material
REF零件编号中文名称英文名称数量
088183801零件手册-115EFI(四冲程)PARTS MANUAL 115 EFI (4-Stroke) Parts Manual1
0881980维修手册SERVICE MANUAL1
0881980R03SM O/B 115 EFI 4SSM O/B 115 EFI 4S1
010225030用户手册OWNERS MANUAL1
0858610A31燃油软管总成HOSE ASSEMBLY Fuel1
08M0038610带注油球的燃油软管总成(9英尺)HOSE ASSEMBLY Fuel (9 Feet) With Primer Bulb1
0880177组合扳手工具(10毫米)SCRENCH TOOL (10 mm)1
0881828星形头工具套件STARBIT TOOL KIT1
0881649A01贴花套件DECAL SET1
0881649A05贴花套件DECAL SET1
0881840A01贴花套件DECAL SET1
0881840A03贴花套件DECAL SET1
0881840A03贴花套件DECAL SET1
0881840A05贴花套件DECAL SET1
0881650A01贴花套件DECAL SET1
0881650A03贴花套件DECAL SET1
0881650A03贴花套件DECAL SET1
0881702A01贴花套件DECAL SET1
0881839A01EPA标签信息贴花DECAL EPA Label Information1
0881839A02EPA标签信息贴花Decal EPA Label Information1
0881839A03EPA标签信息贴花DECAL EPA Label Information1
0816834A1转速表TACHOMETER1
0816932A1温度表TEMPERATURE GAUGE1
086306适配器ADAPTER1
086306A01适配器ADAPTER1
0817054A3水压表总成GAUGE ASSEMBLY Water Pressure1
0821400A2动力升降倾斜传感器套件SENDER KIT Power Trim1
08M0074845ORD 8M0098264ORD 8M00982641
092876A8转向安装套件ATTACHING KIT Steering1
092876A9双机延长套件EXTENSION KIT Dual Engine1
0883040A1转速表模块套件TACH MODULE KIT1
图 25启动电机 Starter Motor
启动电机 Starter Motor
REF零件编号中文名称英文名称数量
-881368T1启动电机总成STARTER MOTOR ASSEMBLY1
-881368T2启动电机总成STARTER MOTOR ASSEMBLY1
-881368T2启动电机总成STARTER MOTOR ASSEMBLY1
1804314T定子STATOR1
2804313T电枢ARMATURE1
3881369T1电刷支架总成HOLDER ASSEMBLY Brush1
4804316电刷组BRUSH SET1
5804317弹簧SPRING4
6881370T支架BRACKET1
7804337螺钉(M4×16)SCREW (M4 x 16)2
8804335贯穿螺栓(M6×120)THRU BOLT (M6 x 120)2
9804321T1齿轮套件GEAR KIT1
10804322离合器CLUTCH1
11804330垫圈套件WASHER KIT1
12804324支架BRACKET1
13804326齿圈RING GEAR1
14804327衬垫GASKET1
15804325轴承BEARING1
16804323小齿轮轴SHAFT Pinion1
17804329惰轮IDLER GEAR3
17804329001惰轮GEAR Idler3
18804328支架BRACKET1
19804331T盖板COVER1
20804336螺栓(M6×52)BOLT (M6 x 52)2
21804319小齿轮PINION1
22804320小齿轮止动组STOP SET Pinion1
23804332杠杆套件LEVER KIT1
24804334盖板COVER1
25881371T启动继电器RELAY Starter1
25881371T1启动继电器RELAY Starter1
25881371T1启动继电器RELAY Starter1
26804605螺栓(M8×45)BOLT (M8 x 45)3
27881373接线端子TERMINAL1
28881377锁紧垫圈LOCKWASHER1
2982382M螺母NUT1
30881372螺母NUT1
31881374盖板COVER1
图 26旋转支架与转向臂 Swivel Bracket and Steering Arm
旋转支架与转向臂 Swivel Bracket and Steering Arm
REF零件编号中文名称英文名称数量
1818904T1旋转支架SWIVEL BRACKET1
18M0220957旋转支架总成SWIVEL BRKT ASSY1
287735下油封SEAL Oil Lower1
3818764衬套BUSHING2
433504O型圈O-RING1
48M0214926O型圈 @10O RING @101
5816039隔套SPACER1
674036润滑脂接头FITTING Grease2
68M0169589润滑脂接头FITTING Grease2
7821207衬套BUSHING2
864014螺钉(.250-28x.500)SCREW (.250-28 x .500)2
999661A26旋转销总成SWIVEL PIN ASSEMBLY1
999661A35旋转销总成SWIVEL PIN ASSEMBLY1
1092876A10连杆总成LINK ROD ASSEMBLY1
1092876A12连杆总成LINK ROD ASSEMBLY1
11849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)1
12826709113不锈钢螺母 (.375-24)NUT (.375-24) Stainless Steel2
128M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass2
1337828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel2
1442961A1底部轭架总成YOKE ASSEMBLY Bottom1
1442961A06底部轭架总成YOKE ASSEMBLY Bottom1
1567684挡圈RING Retaining1
16816432止推垫片THRUST WASHER1
17NSS不单独销售 贴纸, 序列号覆膜NOT SOLD SEPARATE Decal, Serial Overlaminate1
1811288下轭缓冲垫BUMPER Bottom Yoke1
1811288001下轭缓冲垫BUMPER Bottom Yoke1
1988882上轭缓冲垫BUMPER Top Yoke1
图 27油门杆与换挡轴 Throttle Lever and Shift Shaft
油门杆与换挡轴 Throttle Lever and Shift Shaft
REF零件编号中文名称英文名称数量
1850389杠杆LEVER1
18M0040990节气门控制杆LEVER Throttle Control1
2818165螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
355164衬套BUSHING1
474759垫圈(0.391x0.880x0.125)不锈钢WASHER (.391 x .880 x .125) Stainless Steel1
537828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel1
664022螺钉(.250-20 x 2.125)SCREW (.250-20 x 2.125)1
764015螺母 (.250-20)NUT (.250-20)1
826852尼龙帽CAP Nylon1
942927嵌件INSERT1
1035459垫圈WASHER1
118268336螺母 (M6)NUT (M6)1
11401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
128503931凸轮CAM1
12856221A1凸轮套件CAM KIT1
13852970衬套BUSHING1
1482130040螺钉(M6 x 40)SCREW (M6 x 40)1
15932481衬套BUSHING2
158M0215006旋转衬套BUSHING Swivel2
168235694螺纹球头BALL Threaded1
17850815连接杆LINK1
178508152杆ROD1
1867748滚轮ROLLER1
19850286油门滚轮ROLLER Throttle1
198502861杠杆LEVER1
2040056107螺钉(M5×16)SCREW (M5 x 16)1
2189302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)1
2269432外锁紧垫圈(#10)LOCKWASHER External (#10)1
238142831锚支架BRACKET Anchor1
23814283T6锚支架总成BRACKET ASSEMBLY Anchor1
2498889闩锁LATCH1
2542975传动螺钉DRIVE SCREW2
2639519杯套CUP1
2752100耐磨板WEAR PLATE1
2838279闩锁LATCH1
288M0036768闩锁LATCH1
2935462垫圈(.2656 x .625 x .0625)不锈钢WASHER (.2656 x .625 x .0625) Stainless Steel1
3035045螺母(.250-28)NUT (.250-28)1
30826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
3128782螺钉(.312-18 x .880)不锈钢SCREW (.312-18 x .880) Stainless Steel3
32814284导向块GUIDE BLOCK1
3320099弹簧SPRING1
3467073A1连杆总成LINK ROD ASSEMBLY1
3579932A16换挡轴总成SHIFT SHAFT ASSEMBLY1
3579932A17换挡轴总成SHIFT SHAFT ASSEMBLY1
36NSS弹性销(不单独销售)NOT SOLD SEPARATE Roll Pin1
37NSS不单独销售-换挡轴上杆NOT SOLD SEPARATE Shift Shaft Lever-Upper1
3826856衬套BUSHING1
3929720波形垫圈WAVE WASHER1
4035462垫圈(.2656 x .625 x .0625)不锈钢WASHER (.2656 x .625 x .0625) Stainless Steel1
4135045螺母(.250-28)NUT (.250-28)1
41826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
42814281A2开关SWITCH1
428M0052931开关SWITCH1
4377478螺钉 (#6-32 x .875)SCREW (#6-32 x .875)2
4427882垫圈WASHER2
图 28工具 Tools
工具 Tools
REF零件编号中文名称英文名称数量
0881824001工具-故障指示灯TOOL Malfunction Indicator Lamp1
0881824002工具-定子线圈测试线束(6针)TOOL Stator Coil Test Harness (6-Pin)1
0881824004测试线束总成HARNESS ASSEMBLY Test1
0881824003工具-燃油压力表适配器TOOL Fuel Pressure Gauge Adapter1
08M0075272仪表适配器GAUGE ADAPTOR1
图 29顶罩 Top Cowl
顶罩 Top Cowl
REF零件编号中文名称英文名称数量
1827328T9顶盖总成TOP COWL ASSEMBLY1
1827328T10顶盖总成TOP COWL ASSEMBLY1
2821256T1黑色进气口INLET Air - Black1
2821256T03进气口INLET Air1
2821256T2银色进气口INLET Air - Silver1
382130016螺钉(M6 x 16)SCREW (M6 x 16)4
4859356A1隔音毯套装SOUND BLANKET KIT1
4859356A02隔音毯套装SOUND BLANKET KIT1
5NSS不单独销售 隔音毯NOT SOLD SEPARATE Sound Blanket1
6NSS不单独销售 隔音毯NOT SOLD SEPARATE Sound Blanket1
7NSS不单独销售 隔音毯NOT SOLD SEPARATE Sound Blanket2
8823865盖塞CAP PLUG2
9831207T10手柄HANDLE1
9831207A16罩盖锁手柄套件HANDLE KIT Cowl Latch1
10812707衬套BUSHING2
11831214隔套SPACER1
1212134波形垫圈WASHER Wave1
13F481777凸轮锁轴CAM Latch Shaft1
138M0001081凸轮CAM1
144002316垫圈(6.60 X 17.0 X 1.5不锈钢)WASHER (6.60 X 17.0 X 1.5SS)1
148M0214930垫圈6.60 x 17.0 x 1.5WASHER 6.60 x 17.0 x 1.51
151993716螺钉(M6 x 16)SCREW (M6 x 16)1
16821249M2前支架BRACKET Front3
168M0036792支架BRACKET3
17815477缓冲器锁扣BUMPER Latch3
1829245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel6
188M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel6
19401366螺母(M6)不锈钢NUT (M6) Stainless Steel6
208237951挡圈RING Retaining1
21815263滚轮ROLLER1
218M0207770滚轮@3ROLLER @31
228155381滚动销PIN Roll1
2329245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
238M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
24401366螺母(M6)不锈钢NUT (M6) Stainless Steel1
2547341A11手动启动绳柄套件ROPE AND HANDLE KIT Manual Starting1
2612066Q9绳索ROPE1
2612066Q10启动绳@2ROPE-STARTER@21
图 30艉板支架 Transom Brackets
艉板支架 Transom Brackets
REF零件编号中文名称英文名称数量
1828334T03艉板支架总成-右舷BRACKET ASSEMBLY Transom-Starboard1
2828333T08艉板支架总成-左舷BRACKET ASSEMBLY Transom-Port1
398727润滑脂接头FITTING Grease1
38M0169588润滑脂接头FITTING Grease1
4826125A1倾斜管TILT TUBE1
5826135尼龙锁紧螺母(1.00-14)NUT Lock (1.00-14) Nylon Insert1
645711O型圈 (.612 x .103)O-RING (.612 x .103)1
788750波浪垫圈 (1.62 x 1.05)WASHER Wave (1.62 x 1.05)2
8826164螺母 (.875-14)NUT (.875-14)1
88M0231351锁紧螺母NUT Lock1
9677551螺钉(.500-20×4.500)SCREW (.500-20 x 4.500)4
98M0149747螺钉SCREW4
1028421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
108M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
118M0027784螺母NUT4
1182671117螺母(.500-20)NUT (.500-20)4
1299629A2杠杆总成LEVER ASSEMBLY1
128M0115104倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
13830899张力弹簧SPRING Tension1
1465830尼龙衬套NYLINER2
15830900压缩弹簧SPRING Compression1
1699633旋钮KNOB1
1799615槽销PIN Groove1
1899617销PIN1
18893709销PIN1
图 31油气分离器组件 Vapor Separator Components
油气分离器组件 Vapor Separator Components
REF零件编号中文名称英文名称数量
1855432A1盖板套件COVER KIT1
2NSS不单独销售 弯头NOT SOLD SEPARATE Elbow1
38568431直通接头FITTING Straight STRAIGHT1
419688接头FITTING1
5803878密封件SEAL1
6NSS不单独销售 泵出口配件包NOT SOLD SEPARATE Fitting Kit-Pump Outlet1
6855437A2泵出口接头套件FITTING KIT Pump Outlet1
7NSSO型圈（不单独销售）NOT SOLD SEPARATE O Ring1
8808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)7
9855528衬垫GASKET1
98M6002520衬垫套件GASKET KIT1
10855430A1浮子套件FLOAT KIT1
108M6004920浮子套件FLOAT KIT1
11F10064轴SHAFT1
12855431针阀VALVE Needle1
128M6004917进气阀VALVE-INLET1
135902螺钉(#6-32 x .187)SCREW (#6-32 x .187)1
14855427A1泵套件PUMP KIT1
15855428套筒SLEEVE1
158M6000589套筒SLEEVE1
16855434A1油杯套件BOWL KIT1
17855433密封件SEAL1
178554331密封件SEAL1
18855435A1塞套件PLUG KIT1
198554245弯头ELBOW2
2018458A4滤清器套件FILTER KIT1
2018458Q4燃油水分离滤清器FILTER Fuel-Water Separating1
21828586探头PROBE1
218M0204710探头PROBE1
图 32空气压缩机组件 Air Compressor Components
空气压缩机组件 Air Compressor Components
REF零件编号中文名称英文名称数量
1831998A14空气压缩机总成（不含皮带轮）COMPRESSOR ASSEMBLY Air (Without Pulley)1
2NSS不单独销售本体NOT SOLD SEPARATE Body1
3828131A5端盖总成END CAP ASSEMBLY1
38M0050792端盖总成END CAP ASSEMBLY1
4NSS非单独销售挡圈NOT SOLD SEPARATE Retaining Ring1
589224O型圈O-RING1
6832804O型圈（2.739 x 0.070）O-RING (2.739 x .070)1
782130020螺钉 (M6 x 20)SCREW (M6 x 20)4
8833146A3连杆总成CONNECTING ROD ASSEMBLY1
8833146T06连杆总成CONNECTING ROD ASSEMBLY1
9NSS轴承（不单独销售）NOT SOLD SEPARATE Bearing1
10NSS轴承（不单独销售）NOT SOLD SEPARATE Bearing1
11828222A4活塞总成（含环和销）PISTON ASSEMBLY (W/RINGS AND PIN)1
12NSS刮油环（不单独销售）NOT SOLD SEPARATE Oil Scraper Ring1
13NSS顶环（不单独销售）NOT SOLD SEPARATE Top Ring1
14NSS油环（不单独销售）NOT SOLD SEPARATE Oil Ring1
15NSS活塞销（不单独销售）NOT SOLD SEPARATE Wrist Pin1
16NSS带活塞销的活塞（不单独销售）NOT SOLD SEPARATE Piston with Wrist Pin1
178348101锁环RING Lock2
18835088A10簧片阀板总成REED PLATE ASSEMBLY1
1967207O型圈（3.489 x 0.070）O-RING (3.489 x .070)2
20832804O型圈（2.739 x 0.070）O-RING (2.739 x .070)1
21828225密封件SEAL1
22835087A3压缩机缸盖总成HEAD ASSEMBLY Compressor1
228M0073890压缩机缸盖套件HEAD KIT Compressor1
238307532直通接头FITTING Straight1
2482446035螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)4
2513536A12温度传感器总成SENSOR ASSEMBLY Temperature1
26137151固定座RETAINER1
2781893412螺钉（M8×12）SCREW (M8 x 12)1
28831985O型圈（0.468 x 0.078）O-RING (.468 x .078)1
29390721黄铜管塞 (.125-27)PLUG Pipe (.125-27) Brass1
30151331接头FITTING1
3116604直通接头（0.125-27）FITTING Straight (.125-27)1
32851975弯头接头-45度-黄铜（0.125-27）FITTING Elbow - 45 Degree - Brass (.125-27)1
3314868接头FITTING1
34856744接头FITTING1
35NSS不单独销售 贴纸-墨西哥NOT SOLD SEPARATE Decal-Mexico1
36NSS不单独销售 贴纸-组装说明NOT SOLD SEPARATE Decal-Assembly Instructions1
374010825螺丝(M10 x 25)六角法兰-不锈钢SCREW (M10 x 25) Hex Flange - Stainless Steel2
38858762双头螺柱（0.312-18/0.312-24 x 4.190）STUD (.312-18/.312-24 x 4.190)1
38858762001双头螺柱（0.312-18/0.312-24 x 4.190）STUD (.312-18/.312-24 x 4.190)1
39854640特殊垫圈WASHER Special2
4035814螺母(.312-24)不锈钢NUT (.312-24) Stainless Steel1
4082670911螺母(.312-24)不锈钢NUT (.312-24) Stainless Steel1
418328231滑轮PULLEY1
418M0175171滑轮PULLEY1
4285593912螺钉（M6 x 12）SCREW (M6 x 12)5
43855349护孔环GROMMET1
43855349002护孔环GROMMET1
-832804A1O型圈套件O-RING KIT1
-832804A03O型圈套件O-RING KIT1
图 33顶罩（序列号0T409000及以上） TOP COWL (S/N-0T409000 AND UP)
顶罩（序列号0T409000及以上） TOP COWL (S/N-0T409000 AND UP)
REF零件编号中文名称英文名称数量
1850389杠杆LEVER1
2818165螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
355164衬套BUSHING1
474759垫圈(0.391x0.880x0.125)不锈钢WASHER (.391 x .880 x .125) Stainless Steel1
537828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel1
664022螺钉(.250-20 x 2.125)SCREW (.250-20 x 2.125)1
764015螺母 (.250-20)NUT (.250-20)1
826852尼龙帽CAP Nylon1
942927嵌件INSERT1
1035459垫圈WASHER1
118268336螺母 (M6)NUT (M6)1
11401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
128503931凸轮CAM1
12856221A1凸轮套件CAM KIT1
13852970衬套BUSHING1
1482130040螺钉(M6 x 40)SCREW (M6 x 40)1
15932481衬套BUSHING2
158M0215006旋转衬套BUSHING Swivel2
168235694螺纹球头BALL Threaded1
17850815连接杆LINK1
178508152杆ROD1
1867748滚轮ROLLER1
19850286油门滚轮ROLLER Throttle1
198502861杠杆LEVER1
2040056107螺钉(M5×16)SCREW (M5 x 16)1
2189302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)1
2269432外锁紧垫圈(#10)LOCKWASHER External (#10)1
238142831锚支架BRACKET Anchor1
23814283T6锚支架总成BRACKET ASSEMBLY Anchor1
2498889闩锁LATCH1
2542975传动螺钉DRIVE SCREW2
2639519杯套CUP1
2752100耐磨板WEAR PLATE1
2838279闩锁LATCH1
288M0036768闩锁LATCH1
2935462垫圈(.2656 x .625 x .0625)不锈钢WASHER (.2656 x .625 x .0625) Stainless Steel1
3035045螺母(.250-28)NUT (.250-28)1
30826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
3128782螺钉(.312-18 x .880)不锈钢SCREW (.312-18 x .880) Stainless Steel3
32814284导向块GUIDE BLOCK1
3320099弹簧SPRING1
3467073A1连杆总成LINK ROD ASSEMBLY1
3579932A16换挡轴总成SHIFT SHAFT ASSEMBLY1
3579932A17换挡轴总成SHIFT SHAFT ASSEMBLY1
36NSS弹性销(不单独销售)NOT SOLD SEPARATE Roll Pin1
37NSS不单独销售-换挡轴上杆NOT SOLD SEPARATE Shift Shaft Lever-Upper1
3826856衬套BUSHING1
3929720波形垫圈WAVE WASHER1
4035462垫圈(.2656 x .625 x .0625)不锈钢WASHER (.2656 x .625 x .0625) Stainless Steel1
4135045螺母(.250-28)NUT (.250-28)1
41826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
42814281A2开关SWITCH1
428M0052931开关SWITCH1
4377478螺钉 (#6-32 x .875)SCREW (#6-32 x .875)2
4427882垫圈WASHER2
图 34速度计传感系统 Speedometer Pickup System
速度计传感系统 Speedometer Pickup System
REF零件编号中文名称英文名称数量
-892440A08动力转向泵套件PUMP KIT Power Steering Pump Kit1
-892440A09动力转向泵套件PUMP KIT Power Steering Pump Kit1
-8M0131263动力转向泵套件(24英尺)PUMP KIT Power Steering (24 Feet)1
-892380A02标准转向舵机套件(40cc)STEERING HELM KIT Standard (40 cc)1
-8M0240080标准舵机套件40CMHELM KIT-STD 40CM1
-892557A02标准转向舵机套件(32cc)STEERING HELM KIT Standard (32 cc)1
-8M0240079标准舵机套件32CMHELM KIT-STD 32CM1
-892558A02标准转向舵机套件(50cc)STEERING HELM KIT Standard (50 cc)1
-8M0240081标准舵机套件50CMHELM KIT-STD 50CM1
-892450K01液压软管套件(1英尺)油缸至舵机HOSE KIT (1 Foot) Hydraulic, Cylinder to Helm1
-897982K01ORD 32-897982K02ORD 32-897982K021
-892450K02液压软管套件(2英尺)油缸至舵机HOSE KIT (2 Feet) Hydraulic, Cylinder to Helm1
-8M0167281软管套件2FTHOSE KIT 2FT1
-892450K03液压软管套件(3英尺)油缸至舵机HOSE KIT (3 Feet) Hydraulic, Cylinder to Helm1
-8M0167282软管套件3FTHOSE KIT 3 FT1
-892450K04液压软管套件(4英尺)油缸至舵机HOSE KIT (4 Feet) Hydraulic, Cylinder to Helm1
-8M0167283软管套件4FTHOSE KIT 4 FT1
-892450K05液压软管套件(5英尺)油缸至舵机HOSE KIT (5 Feet) Hydraulic, Cylinder to Helm1
-8M0167284软管套件5FTHOSE KIT 5 FT1
-892450K06液压软管套件(6英尺)油缸至舵机HOSE KIT (6 Feet) Hydraulic, Cylinder to Helm1
-8M0167285软管套件6FTHOSE KIT 6 FT1
-892450K07液压软管套件(7英尺)油缸至舵机HOSE KIT (7 Feet) Hydraulic, Cylinder to Helm1
-8M0167286软管套件7FTHOSE KIT 7 FT1
-892450K08液压软管套件(8英尺)油缸至舵机HOSE KIT (8 Feet) Hydraulic, Cylinder to Helm1
-8M0167287软管套件8FTHOSE KIT 8 FT1
-892450K10液压软管套件(10英尺)油缸至舵机HOSE KIT (10 Feet) Hydraulic, Cylinder to Helm1
-8M0167288软管套件10FTHOSE KIT 10 FT1
-892450K12液压软管套件(12英尺)油缸至舵机HOSE KIT (12 Feet) Hydraulic, Cylinder to Helm1
-8M0167289软管套件12FTHOSE KIT 12 FT1
-892450K14液压软管套件(14英尺)油缸至舵机HOSE KIT (14 Feet) Hydraulic, Cylinder to Helm1
-8M0167290软管套件 14英尺HOSE KIT 14 FT1
-892450K16液压软管套件(16英尺)油缸至舵机HOSE KIT (16 Feet) Hydraulic, Cylinder to Helm1
-8M0167291软管套件 16英尺HOSE KIT 16 FT1
-892450K18液压软管套件(18英尺)油缸至舵机HOSE KIT (18 Feet) Hydraulic, Cylinder to Helm1
-8M0167292软管套件 18英尺HOSE KIT 18 FT1
-892450K22液压软管套件(22英尺)油缸至舵机HOSE KIT (22 Feet) Hydraulic, Cylinder to Helm1
-8M0167294软管套件 22英尺HOSE KIT 22 FT1
-892450K24液压软管套件(24英尺)油缸至舵机HOSE KIT (24 Feet) Hydraulic, Cylinder to Helm1
-8M0167295软管套件 24英尺HOSE KIT 24 FT1
-892450K26液压软管套件(26英尺)油缸至舵机HOSE KIT (26 Feet) Hydraulic, Cylinder to Helm1
-8M0167296软管套件 26英尺HOSE KIT 26 FT1
-892450K30液压软管套件(30英尺)油缸至舵机HOSE KIT (30 Feet) Hydraulic, Cylinder to Helm1
-8M0167298软管套件 30英尺HOSE KIT 30 FT1
-892438K02动力转向软管套件 动力模块 (2英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (2 Feet) Hydraulic, Pump to Helm1
-8M0150604泵至舱壁/舵机套件 2英尺PUMP TO BULKHEAD/HELM KIT 2 Ft1
-892438K03动力转向软管套件 动力模块 (3英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (3 Feet) Hydraulic, Pump to Helm1
-8M0150605泵至舱壁/舵机套件 3英尺PUMP TO BULKHEAD/HELM KIT 3 Ft1
-892438K04动力转向软管套件 动力模块 (4英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (4 Feet) Hydraulic, Pump to Helm1
-8M0150606泵至舱壁/舵机套件 4英尺PUMP TO BULKHEAD/HELM KIT 4 Ft1
-892438K05动力转向软管套件 动力模块 (5英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (5 Feet) Hydraulic, Pump to Helm1
-8M0150607泵至舱壁/舵机套件 5英尺PUMP TO BULKHEAD/HELM KIT 5 Ft1
-892438K06软管套件 动力模块 (6英尺) 液压, 泵至舵机HOSE KIT Power Module (6 Feet) Hydraulic, Pump to Helm1
-8M0150608泵至舱壁/舵机套件 6英尺PUMP TO BULKHEAD/HELM KIT 6 Ft1
-892438K07软管套件 动力模块 (7英尺) 液压, 泵至舵机HOSE KIT Power Module (7 Feet) Hydraulic, Pump to Helm1
-8M0150610泵至舱壁/舵机套件 7英尺PUMP TO BULKHEAD/HELM KIT 7 Ft1
-892438K08软管套件 动力模块 (8英尺) 液压, 泵至舵机HOSE KIT Power Module (8 Feet) Hydraulic, Pump to Helm1
-8M0150612泵至舱壁/舵机套件 8英尺PUMP TO BULKHEAD/HELM KIT 8 Ft1
-892438K10动力转向软管套件 动力模块 (10英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (10 Feet) Hydraulic, Pump to Helm1
-8M0150613泵至舱壁/舵机套件 10英尺PUMP TO BULKHEAD/HELM KIT 10 Ft1
-892438K12动力转向软管套件 动力模块 (12英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (12 Feet) Hydraulic, Pump to Helm1
-8M0150614泵至舱壁/舵机套件 12英尺PUMP TO BULKHEAD/HELM KIT 12 Ft1
-892438K14动力转向软管套件 动力模块 (14英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (14 Feet) Hydraulic, Pump to Helm1
-8M0150615泵至舱壁/舵机套件 14英尺PUMP TO BULKHEAD/HELM KIT 14 Ft1
-892438K16动力转向软管套件 动力模块 (16英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (16 Feet) Hydraulic, Pump to Helm1
-8M0150616泵至舱壁/舵机套件 16英尺PUMP TO BULKHEAD/HELM KIT 16 Ft1
-892438K18动力转向软管套件 动力模块 (18英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (18 Feet) Hydraulic, Pump to Helm1
-8M0150617泵至舱壁/舵机套件 18英尺PUMP TO BULKHEAD/HELM KIT 18 Ft1
-892438K20动力转向软管套件 动力模块 (20英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (20 Feet) Hydraulic, Pump to Helm1
-8M0150618泵至舱壁/舵机套件 20英尺PUMP TO BULKHEAD/HELM KIT 20 ft1
-892438K22动力转向软管套件 动力模块 (22英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (22 Feet) Hydraulic, Pump to Helm1
-8M0150619泵至舱壁/舵机套件 22英尺PUMP TO BULKHEAD/HELM KIT 22 FT1
-892438K24动力转向软管套件 动力模块 (24英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (24 Feet) Hydraulic, Pump to Helm1
-8M0150620泵至舱壁/舵机套件 24英尺PUMP TO BULKHEAD/HELM KIT 24 FT1
-892825008液压软管 (8英尺) 舵机至压力罐HOSE (8 Feet) Hydraulic, Helm to Pressure Tank1
-892825010液压软管 (10英尺) 舵机至压力罐HOSE (10 Feet) Hydraulic, Helm to Pressure Tank1
-892825012液压软管 (12英尺) 舵机至压力罐HOSE (12 Feet) Hydraulic, Helm to Pressure Tank1
-892825014液压软管 (14英尺) 舵机至压力罐HOSE (14 Feet) Hydraulic, Helm to Pressure Tank1
-892825016液压软管 (16英尺) 舵机至压力罐HOSE (16 Feet) Hydraulic, Helm to Pressure Tank1
-892825018液压软管 (18英尺) 舵机至压力罐HOSE (18 Feet) Hydraulic, Helm to Pressure Tank1
-892825020液压软管 (20英尺) 舵机至压力罐HOSE (20 Feet) Hydraulic, Helm to Pressure Tank1
-892825022液压软管 (22英尺) 舵机至压力罐HOSE (22 Feet) Hydraulic, Helm to Pressure Tank1
-892825024液压软管 (24英尺) 舵机至压力罐HOSE (24 Feet) Hydraulic, Helm to Pressure Tank1
-892825026液压软管 (26英尺) 舵机至压力罐HOSE (26 Feet) Hydraulic, Helm to Pressure Tank1
-893395A01嵌入式安装板PLATE Flush Mount1
-875207三通接头TEE Fitting1
-892486K08模拟转换套件CONVERSION KIT Analog1
-889611K02附件电源线束套件(30英尺)HARNESS KIT Accessory Power (30 Feet)1
-899785K04附件电源线束总成(30英尺)HARNESS ASSEMBLY Accessory Power (30 Feet)1
-88334A2防腐电极套件MERCATHODE KIT1
-8M0180081防腐电极套件MERCATHODE KIT1
-825191A03索具软管套件HOSE KIT Rigging1
-880717A01齿轮箱螺丝/密封套件SCREW/SEAL KIT Gearcase1
-88439A50电池电缆组CABLE SET Battery1
-8M0210761电池电缆组(12英尺)CABLE SET (12 ft) Battery1
-44357Q2冲洗附件FLUSHING ATTACHMENT1
-44357T2冲洗附件FLUSHING ATTACHMENT1
-881150Q1双进水口冲洗套件FLUSH KIT Dual Water Pick Up1
-881150K1双进水口冲洗密封套件SEAL KIT Flush - Dual Water Pickup1
-897967100燃油管路 (100.00英尺)LINE Fuel (100.00 Feet)1
-8M0038563燃油管路 (100.00英尺)LINE Fuel (100.00 Feet)1
-899712A01连续性电缆套件CABLE KIT Continuity1
图 35动力升降组件 8M0231193 Power Trim Components 8M0231193
动力升降组件 8M0231193 Power Trim Components 8M0231193
REF零件编号中文名称英文名称数量
-8M0231193动力升降总成POWER TRIM ASSEMBLY1
18M0225363电机套件MOTOR KIT1
28M0225369阀套件VALVE KIT1
38M0225371手动释放套件MANUAL RELEASE KIT1
48M0245633倾斜油缸套件TILT CYLINDER KIT1
58M0225370枢轴销套件PIVOT PIN KIT1
68M0244575减震杆套件SHOCK ROD KIT1
78M0244425销杆眼套件PIN ROD EYE KIT1
88M0232231螺钉螺母套件SCREW NUT KIT1
98M0225373记忆活塞套件MEMORY PISTON KIT1
108M0225368储液罐套件RESERVOIR KIT1
118M0174135储液罐塞总成PLUG RESERVOIR ASSEMBLY1
128M0237525泵套件PUMP KIT1
138M0225367升降杆套件TRIM ROD KIT1
148M0242846升降杆套件TRIM ROD KIT1
158M0225372重建套件REBUILD KIT1
图 36燃油轨 FUEL RAILS
燃油轨 FUEL RAILS
REF零件编号中文名称英文名称数量
1831998A9空气压缩机总成(参见空气压缩机部件分解图)COMPRESSOR ASSEMBLY Air (SEE BREAKDOWN ON AIR COMPRESSOR COMPONENTS)1
285593912螺钉（M6 x 12）SCREW (M6 x 12)5
38328231滑轮PULLEY1
38M0175171滑轮PULLEY1
44010825螺丝(M10 x 25)六角法兰-不锈钢SCREW (M10 x 25) Hex Flange - Stainless Steel2
58502511软管HOSE1
58502512软管HOSE1
685652329绝缘套管(15英寸)INSULATOR SLEEVE (15 IN.)1
7852379T5燃油导轨FUEL RAIL1
7852379T6燃油导轨FUEL RAIL1
88500653喷油器INJECTOR6
88M6001743空气喷射器总成INJECTOR ASSEMBLY Air6
9855697卡箍(16.2)CLAMP (16.2)4
98M0204696卡箍CLAMP4
1085564361软管(16英寸)HOSE (16 IN.)2
1192345螺柱STUD1
12854640特殊垫圈WASHER Special2
1335814螺母(.312-24)不锈钢NUT (.312-24) Stainless Steel1
1382670911螺母(.312-24)不锈钢NUT (.312-24) Stainless Steel1
14816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)8
14816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)8
15852378T5燃油导轨FUEL RAIL1
15852378T6燃油导轨FUEL RAIL1
16830756109软管(57.00英寸整料)(裁切至22-1/2英寸)HOSE (57.00 Inches Bulk) (Cut to 22-1/2 Inches)1
168M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
17826810止回阀CHECK VALVE1
1883075780管材(28英寸整卷)(裁切为2-1/2英寸)TUBING (28.00 Inches Bulk) (Cut to 2-1/2 Inches)1
188M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
1983476463管材(32英寸整卷)(裁切为28-1/2英寸)TUBING (32.00 Inches Bulk) (Cut to 28-1/2 Inches)1
20856880软管卡箍（15.3）CLAMP Hose (15.3)2
208M0214964卡箍CLAMP2
2185606064管材(36英寸整卷)(28-1/2英寸)TUBING (36.00 Inches Bulk) (28-1/2 IN.)1
218M0054152管材(39.00英寸整卷)TUBING (39.00 Inches Bulk)1
2282104510螺钉 (M5 x 10)SCREW (M5 x 10)4
2346997卡箍CLAMP4
24852961螺柱STUD4
248M0063255双头螺栓M10x92STUD M10x924
25826292螺母(M10)黄铜/镀镍NUT (M10) Brass/Nickel Plated4
26NSS不单独销售 软管(30英寸)NOT SOLD SEPARATE Hose (30 IN.)1
26856822A3软管(30英寸)HOSE (30 IN.)1
278558481软管HOSE1
27855848A1软管HOSE1
28828694A1杯形垫片总成WASHER ASSEMBLY Cupped6
29856880软管卡箍（15.3）CLAMP Hose (15.3)4
298M0214964卡箍CLAMP4
3085686953套管(27英寸整卷)(裁切为18英寸)SLEEVE (27.00 Inches Bulk) (Cut to 18 Inches)1
图 37油气分离器组件 Vapor Separator Components
油气分离器组件 Vapor Separator Components
REF零件编号中文名称英文名称数量
1855432A1盖板套件COVER KIT1
2NSS不单独销售 弯头NOT SOLD SEPARATE Elbow1
38568431直通接头FITTING Straight STRAIGHT1
419688接头FITTING1
5803878密封件SEAL1
6NSS不单独销售 泵出口配件包NOT SOLD SEPARATE Fitting Kit-Pump Outlet1
6855437A2泵出口接头套件FITTING KIT Pump Outlet1
7NSSO型圈（不单独销售）NOT SOLD SEPARATE O Ring1
8808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)7
9855528衬垫GASKET1
98M6002520衬垫套件GASKET KIT1
10855430A1浮子套件FLOAT KIT1
108M6004920浮子套件FLOAT KIT1
11F10064轴SHAFT1
12855431针阀VALVE Needle1
128M6004917进气阀VALVE-INLET1
135902螺钉(#6-32 x .187)SCREW (#6-32 x .187)1
14855427A1泵套件PUMP KIT1
15855428套筒SLEEVE1
158M6000589套筒SLEEVE1
16855434A1油杯套件BOWL KIT1
17855433密封件SEAL1
178554331密封件SEAL1
18855435A1塞套件PLUG KIT1
198554245弯头ELBOW2
2018458A4滤清器套件FILTER KIT1
2018458Q4燃油水分离滤清器FILTER Fuel-Water Separating1
21828586探头PROBE1
218M0204710探头PROBE1
图 38燃油轨组件 Fuel Rail Components
燃油轨组件 Fuel Rail Components
REF零件编号中文名称英文名称数量
1855432A1盖板套件COVER KIT1
2NSS不单独销售 弯头NOT SOLD SEPARATE Elbow1
38568431直通接头FITTING Straight STRAIGHT1
419688接头FITTING1
5803878密封件SEAL1
6NSS不单独销售 泵出口配件包NOT SOLD SEPARATE Fitting Kit-Pump Outlet1
6855437A2泵出口接头套件FITTING KIT Pump Outlet1
7NSSO型圈（不单独销售）NOT SOLD SEPARATE O Ring1
8808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)7
9855528衬垫GASKET1
98M6002520衬垫套件GASKET KIT1
10855430A1浮子套件FLOAT KIT1
108M6004920浮子套件FLOAT KIT1
11F10064轴SHAFT1
12855431针阀VALVE Needle1
128M6004917进气阀VALVE-INLET1
135902螺钉(#6-32 x .187)SCREW (#6-32 x .187)1
14855427A1泵套件PUMP KIT1
15855428套筒SLEEVE1
158M6000589套筒SLEEVE1
16855434A1油杯套件BOWL KIT1
17855433密封件SEAL1
178554331密封件SEAL1
18855435A1塞套件PLUG KIT1
198554245弯头ELBOW2
2018458A4滤清器套件FILTER KIT1
2018458Q4燃油水分离滤清器FILTER Fuel-Water Separating1
21828586探头PROBE1
218M0204710探头PROBE1
图 39齿轮箱（驱动轴）（标准旋转） GEAR HOUSING (DRIVESHAFT)(STANDARD ROTATION)
齿轮箱（驱动轴）（标准旋转） GEAR HOUSING (DRIVESHAFT)(STANDARD ROTATION)
REF零件编号中文名称英文名称数量
1831998A9空气压缩机总成(参见空气压缩机部件分解图)COMPRESSOR ASSEMBLY Air (SEE BREAKDOWN ON AIR COMPRESSOR COMPONENTS)1
285593912螺钉（M6 x 12）SCREW (M6 x 12)5
38328231滑轮PULLEY1
38M0175171滑轮PULLEY1
44010825螺丝(M10 x 25)六角法兰-不锈钢SCREW (M10 x 25) Hex Flange - Stainless Steel2
58502511软管HOSE1
58502512软管HOSE1
685652329绝缘套管(15英寸)INSULATOR SLEEVE (15 IN.)1
7852379T5燃油导轨FUEL RAIL1
7852379T6燃油导轨FUEL RAIL1
88500653喷油器INJECTOR6
88M6001743空气喷射器总成INJECTOR ASSEMBLY Air6
9855697卡箍(16.2)CLAMP (16.2)4
98M0204696卡箍CLAMP4
1085564361软管(16英寸)HOSE (16 IN.)2
1192345螺柱STUD1
12854640特殊垫圈WASHER Special2
1335814螺母(.312-24)不锈钢NUT (.312-24) Stainless Steel1
1382670911螺母(.312-24)不锈钢NUT (.312-24) Stainless Steel1
14816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)8
14816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)8
15852378T5燃油导轨FUEL RAIL1
15852378T6燃油导轨FUEL RAIL1
16830756109软管(57.00英寸整料)(裁切至22-1/2英寸)HOSE (57.00 Inches Bulk) (Cut to 22-1/2 Inches)1
168M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
17826810止回阀CHECK VALVE1
1883075780管材(28英寸整卷)(裁切为2-1/2英寸)TUBING (28.00 Inches Bulk) (Cut to 2-1/2 Inches)1
188M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
1983476463管材(32英寸整卷)(裁切为28-1/2英寸)TUBING (32.00 Inches Bulk) (Cut to 28-1/2 Inches)1
20856880软管卡箍（15.3）CLAMP Hose (15.3)2
208M0214964卡箍CLAMP2
2185606064管材(36英寸整卷)(28-1/2英寸)TUBING (36.00 Inches Bulk) (28-1/2 IN.)1
218M0054152管材(39.00英寸整卷)TUBING (39.00 Inches Bulk)1
2282104510螺钉 (M5 x 10)SCREW (M5 x 10)4
2346997卡箍CLAMP4
24852961螺柱STUD4
248M0063255双头螺栓M10x92STUD M10x924
25826292螺母(M10)黄铜/镀镍NUT (M10) Brass/Nickel Plated4
26NSS不单独销售 软管(30英寸)NOT SOLD SEPARATE Hose (30 IN.)1
26856822A3软管(30英寸)HOSE (30 IN.)1
278558481软管HOSE1
27855848A1软管HOSE1
28828694A1杯形垫片总成WASHER ASSEMBLY Cupped6
29856880软管卡箍（15.3）CLAMP Hose (15.3)4
298M0214964卡箍CLAMP4
3085686953套管(27英寸整卷)(裁切为18英寸)SLEEVE (27.00 Inches Bulk) (Cut to 18 Inches)1
图 40空气软管 AIR HOSES
空气软管 AIR HOSES
REF零件编号中文名称英文名称数量
-855633A4空气处理器总成AIR HANDLER ASSEMBLY1
1855420T02适配板套件ADAPTER PLATE KIT1
2146973衬垫GASKET1
3850058衬垫GASKET1
38500581衬垫GASKET1
4116455簧片阀组REED BLOCK6
4855952T2簧片阀组REED BLOCK6
555715螺钉(.250-20×0.880)SCREW (.250-20 x .880)12
6855762油泵PUMP Oil1
6855884P1油泵PUMP Oil1
78565421衬垫GASKET1
88552841支架BRACKET1
9855424接头FITTING3
108554241接头FITTING3
118554246接头FITTING1
11892267T02蒸汽分离器总成VAPOR SEPARATOR ASSEMBLY1
128554248接头(直通)FITTING (STRIAGHT)1
13855364衬套BUSHING6
14855362护孔环GROMMET6
14855362001护孔环GROMMET6
1581893440螺钉 (M8 x 40)SCREW (M8 x 40)6
16817274垫圈(0.344×1.00×0.063)不锈钢WASHER (.344 x 1.00 x .063) Stainless Steel6
17850248A1空气集气室套件PLENUM KIT Air1
188554242弯头ELBOW1
198554249弯头ELBOW1
1915133接头FITTING1
20850058衬垫GASKET1
208500581衬垫GASKET1
2113221A1温度传感器总成SENSOR ASSEMBLY Temperature1
2113221T01温度传感器SENSOR TEMP1
224005685螺钉（M4×10）SCREW (M4 x 10)3
2326995防松垫圈(#8不锈钢)LOCKWASHER (#8) Stainless Steel3
244001987螺钉(M4×16)SCREW (M4 x 16)12
25855422A1节气门体套件THROTTLE BODY KIT1
26855423O型圈O-RING1
2782130040螺钉(M6 x 40)SCREW (M6 x 40)4
图 41驱动轴壳与排气管 Driveshaft Housing and Exhaust Tube
驱动轴壳与排气管 Driveshaft Housing and Exhaust Tube
REF零件编号中文名称英文名称数量
18343A10驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
18343A11驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
18343T11ORD 1590-8343T10ORD 1590-8343T101
1813563A1驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
1813563T1传动轴壳体-黑色-加长型HOUSING Driveshaft - Black - X-Long1
1813563A2驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
1813563T2ORD 3503-813563T1ORD 3503-813563T11
256295双头螺柱(.437 x 2.69)STUD (.437 x 2.69)2
363474螺钉(.500-20 x 6.00)SCREW (.500-20 x 6.00)2
3898831螺钉(.500-20 x 6.220)SCREW (.500-20 x 6.220)2
488238A10接地线总成CABLE ASSEMBLY Ground1
577327支架MOUNT2
649339垫圈(.8125)WASHER (.8125)2
788238A10接地线总成CABLE ASSEMBLY Ground1
828040螺母(.500-20)NUT (.500-20)2
8898832螺母(.500-20)NUT (.500-20)2
941508螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel1
1045176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel2
1134933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
118M0204653螺母NUT2
1267076卡箍CLAMP2
128M0036782卡箍CLAMP2
1366727螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)4
1467077T黑色盖COVER Black2
148M4500752盖板COVER2
1467077F1灰色盖板COVER Gray2
1467077T黑色盖COVER Black2
1588417螺钉(#12-24×0.620)SCREW (#12-24 x .620)4
1635521螺母NUT4
1748926垫圈WASHER1
1834933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel1
188M0204653螺母NUT1
1920553垫圈(.406 x .734 x .063)WASHER (.406 x .734 x .063)4
2069254螺母NUT4
21828212怠速排气套BOOT Idle Exhaust1
218M0039081护套BOOT1
2264649堵头PLUG1
23991732衬垫GASKET1
23991734衬垫GASKET1
2466350下密封件SEAL (LOWER)1
2466350001密封件SEAL1
2518276排气管TUBE Exhaust1
2518276T排气管EXHAUST TUBE1
26177261上密封件SEAL (UPPER)1
268M0039076密封件SEAL1
27812834排气管延长段EXTENSION Exhaust1
27812834A2排气延长总成EXTENSION ASSEMBLY Exhaust1
2741942F3排气管延长段EXTENSION Exhaust1
27879288T71排气管延长段EXTENSION Exhaust1
2867295水管TUBE Water1
288M0042788长型水管TUBE-WATER-LONG1
2874729管TUBE1
288M0042790水管TUBE-WATER1
2978246衬垫GASKET1
29782461衬垫GASKET1
3018233A6隔板总成PLATE ASSEMBLY1
3018233A20传动轴壳体板总成PLATE ASSEMBLY Driveshaft Housing1
318147012密封件SEAL1
318M0043165密封件-27.00英寸SEAL-27.00 INCH1
3268011支架BRACKET1
33812832螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)12
33878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)12
3443044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
3538970密封件SEAL1
3690192螺钉(.250-20 x .750)不锈钢SCREW (.250-20 x .750) Stainless Steel6
3739072塞(1/8英寸黄铜)PLUG (1/8 Inch Brass)2
37390721黄铜管塞 (.125-27)PLUG Pipe (.125-27) Brass2
38183071衬垫GASKET1
38183076衬垫GASKET1
-814754A98衬垫套件GASKET SET1
-8M0046714衬垫套件GASKET SET1
图 42维修/支撑材料 Service/Support Material
维修/支撑材料 Service/Support Material
REF零件编号中文名称英文名称数量
-896280006零件手册200/225/250/275四冲程VeradoPARTS MANUAL 200/225/250/275 4-Stroke Verado1
-896579T00维修手册SERVICE MANUAL1
-8M0082470MNL-SERV 200-300VMNL-SERV 200-300V1
-10238060安装手册INSTALLATION MANUAL1
-10237060用户手册OWNERS MANUAL1
-10237J60用户手册(西班牙语)OWNERS MANUAL Spanish1
-10237D60用户手册(法语)OWNERS MANUAL French1
-895269001产品指南PRODUCT GUIDE1
-895269002产品指南GUIDE-PRODUCT1
-895282A06EPA标签信息贴花DECAL EPA Label Information1
图 43PCM安装座 序列号1B490866及以上 PCM Mounting Serial Number 1B490866 and Up
PCM安装座 序列号1B490866及以上 PCM Mounting Serial Number 1B490866 and Up
REF零件编号中文名称英文名称数量
188334A2防腐电极套件MERCATHODE KIT1
242600A09防腐电极总成MERCATHODE ASSEMBLY1
322793螺丝(#9-14x0.875)SCREW (#9-14 x .875)2
430164垫圈(0.192x0.375x0.0312)不锈钢WASHER (.192 x .375 x .0312) Stainless Steel2
545076黄铜螺母(#10-32)NUT (#10-32) Brass4
672958A5电极总成ELECTRODE ASSEMBLY1
721836O型圈(.796 x .139)O-RING (.796 x .139)1
78M0204645O型圈(.796 x .139)O-RING (.796 x .139)1
887698螺丝(#10-16 x 1.250)不锈钢SCREW (#10-16 x 1.250) Stainless Steel2
972957A5阳极总成ANODE ASSEMBLY1
98M0181304阳极总成ANODE ASSY1
1021836O型圈(.796 x .139)O-RING (.796 x .139)1
108M0204645O型圈(.796 x .139)O-RING (.796 x .139)1
1187698螺丝(#10-16 x 1.250)不锈钢SCREW (#10-16 x 1.250) Stainless Steel2
1279091保险丝20安培FUSE 20 Ampere1
128M0207796保险丝20安培FUSE 20 AMP1
1395084A10电缆总成(5.00英寸)红色CABLE ASSEMBLY (5.00 Inches) Red1
138M0207788拉线总成CABLE ASSEMBLY1
1495084A13电缆总成(64.00英寸)CABLE ASSEMBLY (64.00 Inches)1
1579138A8电缆总成(72.00英寸)黑色CABLE ASSEMBLY (72.00 Inches) Black1
图 44服务/支持材料 SERVICE/SUPPORT MATERIAL
服务/支持材料 SERVICE/SUPPORT MATERIAL
REF零件编号中文名称英文名称数量
-896280006零件手册200/225/250/275四冲程VeradoPARTS MANUAL 200/225/250/275 4-Stroke Verado1
-896579T00维修手册SERVICE MANUAL1
-8M0082470MNL-SERV 200-300VMNL-SERV 200-300V1
-10238060安装手册INSTALLATION MANUAL1
-10237060用户手册OWNERS MANUAL1
-10237J60用户手册(西班牙语)OWNERS MANUAL Spanish1
-10237D60用户手册(法语)OWNERS MANUAL French1
-895269001产品指南PRODUCT GUIDE1
-895269002产品指南GUIDE-PRODUCT1
-895282A06EPA标签信息贴花DECAL EPA Label Information1
图 45机油喷射组件 Oil Injection Components
机油喷射组件 Oil Injection Components
REF零件编号中文名称英文名称数量
112335A1支架套件BRACKET KIT1
212323A1绳索/挂钩套件CORD/HOOK KIT1
387421油箱TANK1
443298A2盖总成CAP ASSEMBLY1
5NSS不单独销售嵌件NOT SOLD SEPARATE Insert1
611332O型圈(2.225 x .210)O-RING (2.225 x .210)1
7816190A3外壳总成适配器HOUSING ASSEMBLY Adapter1
7816190A4机油收集器总成(无传感器)OIL PICK UP ASSEMBLY Without Sender1
811332O型圈(2.225 x .210)O-RING (2.225 x .210)1
999802管TUBE1
1099439软管(114.00英寸)HOSE (114.00 Inches)1
11833069A3油箱总成RESERVOIR ASSEMBLY Oil1
118M0062954储油罐RESERVOIR, OIL1
12NSS不单独销售标签-储液罐NOT SOLD SEPARATE Decal-Reservoir1
13855362护孔环GROMMET3
13855362001护孔环GROMMET3
1449436垫圈WASHER3
1560411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)1
16855364衬套BUSHING3
1769267螺钉 (.312-18 x 1.750)SCREW (.312-18 x 1.750)2
18833155护孔环GROMMET2
198502341衬套BUSHING2
2082381455管材(25英寸整卷)(裁切为20英寸)TUBING (25.00 Inches Bulk) (Cut to 20 Inches)1
21816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
21816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
2212886A8开关SWITCH1
2358376螺钉(.164-18 x .375)SCREW (.164-18 x .375)1
2472761不锈钢垫圈(.203 x .562 x .060)WASHER (.203 x .562 x .060) Stainless Steel1
258260841隔套SPACER1
26816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)7
26816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)7
27NSS不单独销售 塞NOT SOLD SEPARATE Plug1
28424254接头FITTING1
288M0207780接头FITTING1
29830756109软管(57.00英寸散装)(裁切至6英寸)HOSE (57.00 Inches Bulk) (Cut to 6 Inches)1
298M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
30855785燃油冷却器COOLER Fuel1
30855785A1燃油冷却器总成COOLER ASSEMBLY Fuel1
31855761止回阀CHECK VALVE1
318557611止回阀CHECK VALVE1
3213791卡箍(15.7)CLAMP (15.7)4
328M0214911卡箍@5CLAMP @54
3385682239管材(17英寸整卷)(裁切为3英寸)TUBING (17.00 Inches Bulk) (Cut to 3 Inches)1
34856822A3软管(带绝缘套管)(30英寸)HOSE (W/INSULATING SLEEVE) (30 IN.)1
图 46油管 OIL LINES
油管 OIL LINES
REF零件编号中文名称英文名称数量
112335A1支架套件BRACKET KIT1
212323A1绳索/挂钩套件CORD/HOOK KIT1
387421油箱TANK1
443298A2盖总成CAP ASSEMBLY1
5NSS不单独销售嵌件NOT SOLD SEPARATE Insert1
611332O型圈(2.225 x .210)O-RING (2.225 x .210)1
7816190A3外壳总成适配器HOUSING ASSEMBLY Adapter1
7816190A4机油收集器总成(无传感器)OIL PICK UP ASSEMBLY Without Sender1
811332O型圈(2.225 x .210)O-RING (2.225 x .210)1
999802管TUBE1
1099439软管(114.00英寸)HOSE (114.00 Inches)1
11833069A3油箱总成RESERVOIR ASSEMBLY Oil1
118M0062954储油罐RESERVOIR, OIL1
12NSS不单独销售标签-储液罐NOT SOLD SEPARATE Decal-Reservoir1
13855362护孔环GROMMET3
13855362001护孔环GROMMET3
1449436垫圈WASHER3
1560411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)1
16855364衬套BUSHING3
1769267螺钉 (.312-18 x 1.750)SCREW (.312-18 x 1.750)2
18833155护孔环GROMMET2
198502341衬套BUSHING2
2082381455管材(25英寸整卷)(裁切为20英寸)TUBING (25.00 Inches Bulk) (Cut to 20 Inches)1
21816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
21816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
2212886A8开关SWITCH1
2358376螺钉(.164-18 x .375)SCREW (.164-18 x .375)1
2472761不锈钢垫圈(.203 x .562 x .060)WASHER (.203 x .562 x .060) Stainless Steel1
258260841隔套SPACER1
26816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)7
26816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)7
27NSS不单独销售 塞NOT SOLD SEPARATE Plug1
28424254接头FITTING1
288M0207780接头FITTING1
29830756109软管(57.00英寸散装)(裁切至6英寸)HOSE (57.00 Inches Bulk) (Cut to 6 Inches)1
298M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
30855785燃油冷却器COOLER Fuel1
30855785A1燃油冷却器总成COOLER ASSEMBLY Fuel1
31855761止回阀CHECK VALVE1
318557611止回阀CHECK VALVE1
3213791卡箍(15.7)CLAMP (15.7)4
328M0214911卡箍@5CLAMP @54
3385682239管材(17英寸整卷)(裁切为3英寸)TUBING (17.00 Inches Bulk) (Cut to 3 Inches)1
34856822A3软管(带绝缘套管)(30英寸)HOSE (W/INSULATING SLEEVE) (30 IN.)1
图 47启动马达 STARTER MOTOR
启动马达 STARTER MOTOR
REF零件编号中文名称英文名称数量
-NSS起动机总成(不单独销售)NOT SOLD SEPARATE Starter Motor Assembly1
1892339T01启动电机总成STARTER MOTOR ASSEMBLY1
2NSS螺钉组(不单独销售)NOT SOLD SEPARATE Screws2
3880805A1齿轮套件GEAR KIT1
4809463A1电磁阀组件SOLENOID KIT1
58M0065258电刷组BRUSH SET1
68M0034918轴环COLLAR2
78M0043276停机开关STOP1
8NSS高压警告贴纸(不单独销售)NOT SOLD SEPARATE Decal-Waring-High Voltage1
993388A1电缆总成(6.00英寸)黑色CABLE ASSEMBLY (6.00 Inches) Black1
1069035螺丝与锁紧垫圈(.250-20 x .625)不锈钢SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel1
1126993锁紧垫圈 (.312)LOCKWASHER (.312)1
118M0204647锁紧垫圈 (.312)LOCKWASHER (.312)1
12400213不锈钢螺母 (M8)NUT (M8) Stainless Steel1
13400255锁紧垫圈(M5)LOCKWASHER (M5)1
14400211不锈钢螺母(M5)NUT (M5) Stainless Steel1
图 48甲板注油套件15969A3或15969A5 Deck Oil Fill Kit 15969A3 or 15969A5
甲板注油套件15969A3或15969A5 Deck Oil Fill Kit 15969A3 or 15969A5
REF零件编号中文名称英文名称数量
1855432A1盖板套件COVER KIT1
2NSS不单独销售 弯头NOT SOLD SEPARATE Elbow1
38568431直通接头FITTING Straight STRAIGHT1
419688接头FITTING1
5803878密封件SEAL1
6NSS不单独销售 泵出口配件包NOT SOLD SEPARATE Fitting Kit-Pump Outlet1
6855437A2泵出口接头套件FITTING KIT Pump Outlet1
7NSSO型圈（不单独销售）NOT SOLD SEPARATE O Ring1
8808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)7
9855528衬垫GASKET1
98M6002520衬垫套件GASKET KIT1
10855430A1浮子套件FLOAT KIT1
108M6004920浮子套件FLOAT KIT1
11F10064轴SHAFT1
12855431针阀VALVE Needle1
128M6004917进气阀VALVE-INLET1
135902螺钉(#6-32 x .187)SCREW (#6-32 x .187)1
14855427A1泵套件PUMP KIT1
15855428套筒SLEEVE1
158M6000589套筒SLEEVE1
16855434A1油杯套件BOWL KIT1
17855433密封件SEAL1
178554331密封件SEAL1
18855435A1塞套件PLUG KIT1
198554245弯头ELBOW2
2018458A4滤清器套件FILTER KIT1
2018458Q4燃油水分离滤清器FILTER Fuel-Water Separating1
21828586探头PROBE1
218M0204710探头PROBE1
图 49衬垫组件-完整-动力头与下部单元 Gasket Set Components-Complete-Powerhead and Lower Unit
衬垫组件-完整-动力头与下部单元 Gasket Set Components-Complete-Powerhead and Lower Unit
REF零件编号中文名称英文名称数量
1855432A1盖板套件COVER KIT1
2NSS不单独销售 弯头NOT SOLD SEPARATE Elbow1
38568431直通接头FITTING Straight STRAIGHT1
419688接头FITTING1
5803878密封件SEAL1
6NSS不单独销售 泵出口配件包NOT SOLD SEPARATE Fitting Kit-Pump Outlet1
6855437A2泵出口接头套件FITTING KIT Pump Outlet1
7NSSO型圈（不单独销售）NOT SOLD SEPARATE O Ring1
8808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)7
9855528衬垫GASKET1
98M6002520衬垫套件GASKET KIT1
10855430A1浮子套件FLOAT KIT1
108M6004920浮子套件FLOAT KIT1
11F10064轴SHAFT1
12855431针阀VALVE Needle1
128M6004917进气阀VALVE-INLET1
135902螺钉(#6-32 x .187)SCREW (#6-32 x .187)1
14855427A1泵套件PUMP KIT1
15855428套筒SLEEVE1
158M6000589套筒SLEEVE1
16855434A1油杯套件BOWL KIT1
17855433密封件SEAL1
178554331密封件SEAL1
18855435A1塞套件PLUG KIT1
198554245弯头ELBOW2
2018458A4滤清器套件FILTER KIT1
2018458Q4燃油水分离滤清器FILTER Fuel-Water Separating1
21828586探头PROBE1
218M0204710探头PROBE1
图 50专用工具 TOOLS-SPECIAL
专用工具 TOOLS-SPECIAL
REF零件编号中文名称英文名称数量
1850389杠杆LEVER1
2818165螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
355164衬套BUSHING1
474759垫圈(0.391x0.880x0.125)不锈钢WASHER (.391 x .880 x .125) Stainless Steel1
537828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel1
664022螺钉(.250-20 x 2.125)SCREW (.250-20 x 2.125)1
764015螺母 (.250-20)NUT (.250-20)1
826852尼龙帽CAP Nylon1
942927嵌件INSERT1
1035459垫圈WASHER1
118268336螺母 (M6)NUT (M6)1
11401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
128503931凸轮CAM1
12856221A1凸轮套件CAM KIT1
13852970衬套BUSHING1
1482130040螺钉(M6 x 40)SCREW (M6 x 40)1
15932481衬套BUSHING2
158M0215006旋转衬套BUSHING Swivel2
168235694螺纹球头BALL Threaded1
17850815连接杆LINK1
178508152杆ROD1
1867748滚轮ROLLER1
19850286油门滚轮ROLLER Throttle1
198502861杠杆LEVER1
2040056107螺钉(M5×16)SCREW (M5 x 16)1
2189302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)1
2269432外锁紧垫圈(#10)LOCKWASHER External (#10)1
238142831锚支架BRACKET Anchor1
23814283T6锚支架总成BRACKET ASSEMBLY Anchor1
2498889闩锁LATCH1
2542975传动螺钉DRIVE SCREW2
2639519杯套CUP1
2752100耐磨板WEAR PLATE1
2838279闩锁LATCH1
288M0036768闩锁LATCH1
2935462垫圈(.2656 x .625 x .0625)不锈钢WASHER (.2656 x .625 x .0625) Stainless Steel1
3035045螺母(.250-28)NUT (.250-28)1
30826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
3128782螺钉(.312-18 x .880)不锈钢SCREW (.312-18 x .880) Stainless Steel3
32814284导向块GUIDE BLOCK1
3320099弹簧SPRING1
3467073A1连杆总成LINK ROD ASSEMBLY1
3579932A16换挡轴总成SHIFT SHAFT ASSEMBLY1
3579932A17换挡轴总成SHIFT SHAFT ASSEMBLY1
36NSS弹性销(不单独销售)NOT SOLD SEPARATE Roll Pin1
37NSS不单独销售-换挡轴上杆NOT SOLD SEPARATE Shift Shaft Lever-Upper1
3826856衬套BUSHING1
3929720波形垫圈WAVE WASHER1
4035462垫圈(.2656 x .625 x .0625)不锈钢WASHER (.2656 x .625 x .0625) Stainless Steel1
4135045螺母(.250-28)NUT (.250-28)1
41826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
42814281A2开关SWITCH1
428M0052931开关SWITCH1
4377478螺钉 (#6-32 x .875)SCREW (#6-32 x .875)2
4427882垫圈WASHER2
图 51电气板总成 序列号1B490865及以下 Electrical Plate Assembly Serial Number 1B490865 and Below
电气板总成 序列号1B490865及以下 Electrical Plate Assembly Serial Number 1B490865 and Below
REF零件编号中文名称英文名称数量
1855432A1盖板套件COVER KIT1
2NSS不单独销售 弯头NOT SOLD SEPARATE Elbow1
38568431直通接头FITTING Straight STRAIGHT1
419688接头FITTING1
5803878密封件SEAL1
6NSS不单独销售 泵出口配件包NOT SOLD SEPARATE Fitting Kit-Pump Outlet1
6855437A2泵出口接头套件FITTING KIT Pump Outlet1
7NSSO型圈（不单独销售）NOT SOLD SEPARATE O Ring1
8808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)7
9855528衬垫GASKET1
98M6002520衬垫套件GASKET KIT1
10855430A1浮子套件FLOAT KIT1
108M6004920浮子套件FLOAT KIT1
11F10064轴SHAFT1
12855431针阀VALVE Needle1
128M6004917进气阀VALVE-INLET1
135902螺钉(#6-32 x .187)SCREW (#6-32 x .187)1
14855427A1泵套件PUMP KIT1
15855428套筒SLEEVE1
158M6000589套筒SLEEVE1
16855434A1油杯套件BOWL KIT1
17855433密封件SEAL1
178554331密封件SEAL1
18855435A1塞套件PLUG KIT1
198554245弯头ELBOW2
2018458A4滤清器套件FILTER KIT1
2018458Q4燃油水分离滤清器FILTER Fuel-Water Separating1
21828586探头PROBE1
218M0204710探头PROBE1
图 52空气处理器 Air Handler
空气处理器 Air Handler
REF零件编号中文名称英文名称数量
1827325A1盖总成COVER ASSEMBLY1
2821555护孔环GROMMET2
28M0153609护孔环GROMMET2
3853333空气滤清器FILTER Air1
3853333T滤清器FILTER1
4853352盖板COVER1
5855590铆钉RIVET1
6854633固定座RETAINER1
764705接头FITTING1
8855613护孔环GROMMET1
98556131护孔环GROMMET1
10855633A4空气处理器总成AIR HANDLER ASSEMBLY1
10855633A15空气处理器总成AIR HANDLER ASSEMBLY1
11856139垫片SHIM1
118561391垫片SHIM1
12NSS不单独销售(挂档启动警告标贴)NOT SOLD SEPARATE Decal-Caution-Start in Gear1
138557561支架BRACKET1
13855756A1支架套件BRACKET KIT1
141993716螺钉(M6 x 16)SCREW (M6 x 16)4
158558432泵总成PUMP ASSEMBLY1
158M0240950燃油泵总成PUMP ASSY FUEL1
1613791卡箍(15.7)CLAMP (15.7)4
168M0214911卡箍@5CLAMP @54
171350385管材(33.00英寸整料)(5-1/2英寸)TUBING (33.00 Inches Bulk) (5-1/2 IN.)1
1885564361软管(18英寸)HOSE (18 IN.)1
1983312531绝缘套管INSULATING SLEEVE1
20855802弯头ELBOW1
20855802A1弯头ELBOW1
21805026A1接头FITTING1
22805062O型圈（.530 x .082）O-RING (.530 x .082)1
238554247接头FITTING1
248285581编码器ENCODER1
25418051螺钉 (#10-24 x 0.620)SCREW (#10-24 x .620)1
2656681垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)1
268M0204666垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)1
2797224J型卡箍(右舷上部)J CLIP (UPPER STBD.)2
28814634卡箍(下部)CLAMP (LOWER)1
29817504螺钉（0.250-20 x 1.500）不锈钢SCREW (.250-20 x 1.500) Stainless Steel12
30830756109软管(57.00英寸整料)(裁切至1-1/2英寸)HOSE (57.00 Inches Bulk) (Cut to 1-1/2 Inches)1
308M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
31830756109软管(57.00英寸整料)(裁切至5英寸)HOSE (57.00 Inches Bulk) (Cut to 5 Inches)1
318M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
32855896通风罐CANISTER Vent1
32855896T滤清器FILTER1
33816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)4
33816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)4
34860273连接器CONNECTOR1
35821583销PIN1
358215832特殊销（1.5英寸）PIN Special (1.5 Inches)1
3685557726EPA标签信息贴花DECAL EPA Label Information1
36855577A26REF SOB 09-18REF SOB 09-181
3761990扎带(14.00英寸)TIE STRAP (14.00 Inches)1
3888807A27拉线总成CABLE ASSEMBLY1
3929245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
398M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
4012038垫圈WASHER1
408M0207778垫圈（0.344×0.625×0.063英寸）WASHER .344 x .625 x.0631
-854008A98动力头总成POWERHEAD ASSEMBLY1
-804545T99动力头总成POWERHEAD ASSEMBLY1
图 53燃油软管 Fuel Hoses
燃油软管 Fuel Hoses
REF零件编号中文名称英文名称数量
-892440A08动力转向泵套件PUMP KIT Power Steering Pump Kit1
-892440A09动力转向泵套件PUMP KIT Power Steering Pump Kit1
-8M0131263动力转向泵套件(24英尺)PUMP KIT Power Steering (24 Feet)1
-892380A02标准转向舵机套件(40cc)STEERING HELM KIT Standard (40 cc)1
-8M0240080标准舵机套件40CMHELM KIT-STD 40CM1
-892557A02标准转向舵机套件(32cc)STEERING HELM KIT Standard (32 cc)1
-8M0240079标准舵机套件32CMHELM KIT-STD 32CM1
-892558A02标准转向舵机套件(50cc)STEERING HELM KIT Standard (50 cc)1
-8M0240081标准舵机套件50CMHELM KIT-STD 50CM1
-892450K01液压软管套件(1英尺)油缸至舵机HOSE KIT (1 Foot) Hydraulic, Cylinder to Helm1
-897982K01ORD 32-897982K02ORD 32-897982K021
-892450K02液压软管套件(2英尺)油缸至舵机HOSE KIT (2 Feet) Hydraulic, Cylinder to Helm1
-8M0167281软管套件2FTHOSE KIT 2FT1
-892450K03液压软管套件(3英尺)油缸至舵机HOSE KIT (3 Feet) Hydraulic, Cylinder to Helm1
-8M0167282软管套件3FTHOSE KIT 3 FT1
-892450K04液压软管套件(4英尺)油缸至舵机HOSE KIT (4 Feet) Hydraulic, Cylinder to Helm1
-8M0167283软管套件4FTHOSE KIT 4 FT1
-892450K05液压软管套件(5英尺)油缸至舵机HOSE KIT (5 Feet) Hydraulic, Cylinder to Helm1
-8M0167284软管套件5FTHOSE KIT 5 FT1
-892450K06液压软管套件(6英尺)油缸至舵机HOSE KIT (6 Feet) Hydraulic, Cylinder to Helm1
-8M0167285软管套件6FTHOSE KIT 6 FT1
-892450K07液压软管套件(7英尺)油缸至舵机HOSE KIT (7 Feet) Hydraulic, Cylinder to Helm1
-8M0167286软管套件7FTHOSE KIT 7 FT1
-892450K08液压软管套件(8英尺)油缸至舵机HOSE KIT (8 Feet) Hydraulic, Cylinder to Helm1
-8M0167287软管套件8FTHOSE KIT 8 FT1
-892450K10液压软管套件(10英尺)油缸至舵机HOSE KIT (10 Feet) Hydraulic, Cylinder to Helm1
-8M0167288软管套件10FTHOSE KIT 10 FT1
-892450K12液压软管套件(12英尺)油缸至舵机HOSE KIT (12 Feet) Hydraulic, Cylinder to Helm1
-8M0167289软管套件12FTHOSE KIT 12 FT1
-892450K14液压软管套件(14英尺)油缸至舵机HOSE KIT (14 Feet) Hydraulic, Cylinder to Helm1
-8M0167290软管套件 14英尺HOSE KIT 14 FT1
-892450K16液压软管套件(16英尺)油缸至舵机HOSE KIT (16 Feet) Hydraulic, Cylinder to Helm1
-8M0167291软管套件 16英尺HOSE KIT 16 FT1
-892450K18液压软管套件(18英尺)油缸至舵机HOSE KIT (18 Feet) Hydraulic, Cylinder to Helm1
-8M0167292软管套件 18英尺HOSE KIT 18 FT1
-892450K22液压软管套件(22英尺)油缸至舵机HOSE KIT (22 Feet) Hydraulic, Cylinder to Helm1
-8M0167294软管套件 22英尺HOSE KIT 22 FT1
-892450K24液压软管套件(24英尺)油缸至舵机HOSE KIT (24 Feet) Hydraulic, Cylinder to Helm1
-8M0167295软管套件 24英尺HOSE KIT 24 FT1
-892450K26液压软管套件(26英尺)油缸至舵机HOSE KIT (26 Feet) Hydraulic, Cylinder to Helm1
-8M0167296软管套件 26英尺HOSE KIT 26 FT1
-892450K30液压软管套件(30英尺)油缸至舵机HOSE KIT (30 Feet) Hydraulic, Cylinder to Helm1
-8M0167298软管套件 30英尺HOSE KIT 30 FT1
-892438K02动力转向软管套件 动力模块 (2英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (2 Feet) Hydraulic, Pump to Helm1
-8M0150604泵至舱壁/舵机套件 2英尺PUMP TO BULKHEAD/HELM KIT 2 Ft1
-892438K03动力转向软管套件 动力模块 (3英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (3 Feet) Hydraulic, Pump to Helm1
-8M0150605泵至舱壁/舵机套件 3英尺PUMP TO BULKHEAD/HELM KIT 3 Ft1
-892438K04动力转向软管套件 动力模块 (4英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (4 Feet) Hydraulic, Pump to Helm1
-8M0150606泵至舱壁/舵机套件 4英尺PUMP TO BULKHEAD/HELM KIT 4 Ft1
-892438K05动力转向软管套件 动力模块 (5英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (5 Feet) Hydraulic, Pump to Helm1
-8M0150607泵至舱壁/舵机套件 5英尺PUMP TO BULKHEAD/HELM KIT 5 Ft1
-892438K06软管套件 动力模块 (6英尺) 液压, 泵至舵机HOSE KIT Power Module (6 Feet) Hydraulic, Pump to Helm1
-8M0150608泵至舱壁/舵机套件 6英尺PUMP TO BULKHEAD/HELM KIT 6 Ft1
-892438K07软管套件 动力模块 (7英尺) 液压, 泵至舵机HOSE KIT Power Module (7 Feet) Hydraulic, Pump to Helm1
-8M0150610泵至舱壁/舵机套件 7英尺PUMP TO BULKHEAD/HELM KIT 7 Ft1
-892438K08软管套件 动力模块 (8英尺) 液压, 泵至舵机HOSE KIT Power Module (8 Feet) Hydraulic, Pump to Helm1
-8M0150612泵至舱壁/舵机套件 8英尺PUMP TO BULKHEAD/HELM KIT 8 Ft1
-892438K10动力转向软管套件 动力模块 (10英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (10 Feet) Hydraulic, Pump to Helm1
-8M0150613泵至舱壁/舵机套件 10英尺PUMP TO BULKHEAD/HELM KIT 10 Ft1
-892438K12动力转向软管套件 动力模块 (12英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (12 Feet) Hydraulic, Pump to Helm1
-8M0150614泵至舱壁/舵机套件 12英尺PUMP TO BULKHEAD/HELM KIT 12 Ft1
-892438K14动力转向软管套件 动力模块 (14英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (14 Feet) Hydraulic, Pump to Helm1
-8M0150615泵至舱壁/舵机套件 14英尺PUMP TO BULKHEAD/HELM KIT 14 Ft1
-892438K16动力转向软管套件 动力模块 (16英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (16 Feet) Hydraulic, Pump to Helm1
-8M0150616泵至舱壁/舵机套件 16英尺PUMP TO BULKHEAD/HELM KIT 16 Ft1
-892438K18动力转向软管套件 动力模块 (18英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (18 Feet) Hydraulic, Pump to Helm1
-8M0150617泵至舱壁/舵机套件 18英尺PUMP TO BULKHEAD/HELM KIT 18 Ft1
-892438K20动力转向软管套件 动力模块 (20英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (20 Feet) Hydraulic, Pump to Helm1
-8M0150618泵至舱壁/舵机套件 20英尺PUMP TO BULKHEAD/HELM KIT 20 ft1
-892438K22动力转向软管套件 动力模块 (22英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (22 Feet) Hydraulic, Pump to Helm1
-8M0150619泵至舱壁/舵机套件 22英尺PUMP TO BULKHEAD/HELM KIT 22 FT1
-892438K24动力转向软管套件 动力模块 (24英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (24 Feet) Hydraulic, Pump to Helm1
-8M0150620泵至舱壁/舵机套件 24英尺PUMP TO BULKHEAD/HELM KIT 24 FT1
-892825008液压软管 (8英尺) 舵机至压力罐HOSE (8 Feet) Hydraulic, Helm to Pressure Tank1
-892825010液压软管 (10英尺) 舵机至压力罐HOSE (10 Feet) Hydraulic, Helm to Pressure Tank1
-892825012液压软管 (12英尺) 舵机至压力罐HOSE (12 Feet) Hydraulic, Helm to Pressure Tank1
-892825014液压软管 (14英尺) 舵机至压力罐HOSE (14 Feet) Hydraulic, Helm to Pressure Tank1
-892825016液压软管 (16英尺) 舵机至压力罐HOSE (16 Feet) Hydraulic, Helm to Pressure Tank1
-892825018液压软管 (18英尺) 舵机至压力罐HOSE (18 Feet) Hydraulic, Helm to Pressure Tank1
-892825020液压软管 (20英尺) 舵机至压力罐HOSE (20 Feet) Hydraulic, Helm to Pressure Tank1
-892825022液压软管 (22英尺) 舵机至压力罐HOSE (22 Feet) Hydraulic, Helm to Pressure Tank1
-892825024液压软管 (24英尺) 舵机至压力罐HOSE (24 Feet) Hydraulic, Helm to Pressure Tank1
-892825026液压软管 (26英尺) 舵机至压力罐HOSE (26 Feet) Hydraulic, Helm to Pressure Tank1
-893395A01嵌入式安装板PLATE Flush Mount1
-875207三通接头TEE Fitting1
-892486K08模拟转换套件CONVERSION KIT Analog1
-889611K02附件电源线束套件(30英尺)HARNESS KIT Accessory Power (30 Feet)1
-899785K04附件电源线束总成(30英尺)HARNESS ASSEMBLY Accessory Power (30 Feet)1
-88334A2防腐电极套件MERCATHODE KIT1
-8M0180081防腐电极套件MERCATHODE KIT1
-825191A03索具软管套件HOSE KIT Rigging1
-880717A01齿轮箱螺丝/密封套件SCREW/SEAL KIT Gearcase1
-88439A50电池电缆组CABLE SET Battery1
-8M0210761电池电缆组(12英尺)CABLE SET (12 ft) Battery1
-44357Q2冲洗附件FLUSHING ATTACHMENT1
-44357T2冲洗附件FLUSHING ATTACHMENT1
-881150Q1双进水口冲洗套件FLUSH KIT Dual Water Pick Up1
-881150K1双进水口冲洗密封套件SEAL KIT Flush - Dual Water Pickup1
-897967100燃油管路 (100.00英尺)LINE Fuel (100.00 Feet)1
-8M0038563燃油管路 (100.00英尺)LINE Fuel (100.00 Feet)1
-899712A01连续性电缆套件CABLE KIT Continuity1
图 54顶罩 Top Cowl
顶罩 Top Cowl
REF零件编号中文名称英文名称数量
1885355T03顶盖总成TOP COWL ASSEMBLY1
1885355T02顶盖总成TOP COWL ASSEMBLY1
18M0050000顶罩-水星型COWL-TOP MARINER1
2885354T空气导流帽CAP Air Dam1
2885354T01空气导流帽-水星黑色款CAP, Air Dam Mercury, Black1
2895838T空气导流帽CAP Air Dam1
2895838T01空气导流帽-水星型CAP Air Dam - Mariner1
3888971前锁扣槽FRONT LATCH RECEIVER1
4885545上罩壳密封件SEAL Top Cowl1
48M0111178密封件SEAL1
5888951电缆CABLE1
58M0080461锁扣拉索CABLE Latch1
6888959铰链销PIN Hinge1
7888956手控锁杆LATCH Hand Lever1
8895373弹簧SPRING1
9888955锁扣连杆LINK Latch Connecting1
1026953开口销COTTER PIN2
1189302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)2
12888952联动臂LINKAGE ARM2
13888953弹簧SPRING2
14822417销PIN2
15888950020螺钉(M4x20毫米)(M4x1.75)SCREW (M4 x 20 mm) (M4 x 1.75)6
16888970左舷饰板(左)APPLIQUE Port (Port)1
16888970A01饰板套件APPLIQUE KIT1
16895839左舷饰板(左)APPLIQUE Port (Port)1
16895839A01饰板套件APPLIQUE KIT1
17888969右舷饰板(右)APPLIQUE Starboard (Starboard)1
17895840右舷饰板(右)APPLIQUE Starboard (Starboard)1
184010610不锈钢螺钉(M6x10)SCREW (M6 x 10) Stainless Steel2
-892564A05贴花套件DECAL SET1
-859271A05贴花套件DECAL SET1
-895252A05贴花套件DECAL SET1
-895253A05贴花套件DECAL SET1
-892571A05贴花套件DECAL SET1
-892571A07贴花套件(水星200)DECAL SET (Mariner 200)1
-892871A05贴花套件DECAL SET1
-892871A07贴花套件(水星225)DECAL SET (Mariner 225)1
-895254A05贴花套件DECAL SET1
-895254A07贴花套件(水星250)DECAL SET (Mariner 250)1
-895255A05贴花套件DECAL SET1
-895255A07贴花套件(水星275)DECAL SET (Mariner 275)1
图 55下机罩 BOTTOM COWL
下机罩 BOTTOM COWL
REF零件编号中文名称英文名称数量
1834814A1下机罩BOTTOM COWL1
1834814A2下机罩BOTTOM COWL1
2834815A1下机罩BOTTOM COWL1
28M0107322机罩-底部 右舷COWL-BOTTOM, STBD1
2834815A2下机罩BOTTOM COWL1
38253181罩盖密封条(41英寸)SEAL Cowl (41.00 Inches)2
38M0109217罩盖密封条SEAL-COWL2
4822024卡箍CLAMP1
5822023卡箍CLAMP1
692799螺钉(#10-16x1.12)SCREW (#10-16 x 1.12)2
782130040螺钉(M6 x 40)SCREW (M6 x 40)4
8831209固定座RETAINER1
9821908堵头PLUG1
10821915垫圈WASHER1
11821963止回阀CHECK VALVE1
118219631止回阀CHECK VALVE1
1230641O型圈(0.299x0.103)O-RING (.299 x .103)1
13821952接头FITTING1
14816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
14816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
158320782软管HOSE1
158M0039077成型软管HOSE-MOLDED1
16850896卡箍 (28.6)CLAMP (28.6)2
178320763接头FITTING1
18821904示流器接头FITTING Tell-Tale1
188M0077650示流器接头FITTING Tell-Tale1
19828216怠速排气套IDLE EXHAUST BOOT Exhaust1
19889847怠速排气套BOOT Idle Exhaust1
20817519A1排水单向阀总成CHECK VALVE ASSEMBLY Drain2
21850691开关SWITCH1
218M0235192微调开关SWITCH TRIM1
22824868螺钉(M6×75)SCREW (M6 x 75)1
23821253F1前手柄黑色FRONT HANDLE Black1
23889740A02手柄套件HANDLE KIT1
23821253F2前手柄FRONT HANDLE1
23889740A02手柄套件HANDLE KIT1
24335891衬套BUSHING2
2548462O型圈 (.614 x .070)O-RING (.614 x .070)1
268219423棘爪PAWL1
2769057垫片(.281 x .734 x .063)WASHER (.281 x .734 x .063)1
28401196螺母 (M6)NUT (M6)1
298214281螺钉(#10-16x0.625)SCREW (#10-16 x .625)1
30822873卡扣CLIP1
图 56数字电气部件 Digital Electric Parts
数字电气部件 Digital Electric Parts
REF零件编号中文名称英文名称数量
-892440A08动力转向泵套件PUMP KIT Power Steering Pump Kit1
-892440A09动力转向泵套件PUMP KIT Power Steering Pump Kit1
-8M0131263动力转向泵套件(24英尺)PUMP KIT Power Steering (24 Feet)1
-892380A02标准转向舵机套件(40cc)STEERING HELM KIT Standard (40 cc)1
-8M0240080标准舵机套件40CMHELM KIT-STD 40CM1
-892557A02标准转向舵机套件(32cc)STEERING HELM KIT Standard (32 cc)1
-8M0240079标准舵机套件32CMHELM KIT-STD 32CM1
-892558A02标准转向舵机套件(50cc)STEERING HELM KIT Standard (50 cc)1
-8M0240081标准舵机套件50CMHELM KIT-STD 50CM1
-892450K01液压软管套件(1英尺)油缸至舵机HOSE KIT (1 Foot) Hydraulic, Cylinder to Helm1
-897982K01ORD 32-897982K02ORD 32-897982K021
-892450K02液压软管套件(2英尺)油缸至舵机HOSE KIT (2 Feet) Hydraulic, Cylinder to Helm1
-8M0167281软管套件2FTHOSE KIT 2FT1
-892450K03液压软管套件(3英尺)油缸至舵机HOSE KIT (3 Feet) Hydraulic, Cylinder to Helm1
-8M0167282软管套件3FTHOSE KIT 3 FT1
-892450K04液压软管套件(4英尺)油缸至舵机HOSE KIT (4 Feet) Hydraulic, Cylinder to Helm1
-8M0167283软管套件4FTHOSE KIT 4 FT1
-892450K05液压软管套件(5英尺)油缸至舵机HOSE KIT (5 Feet) Hydraulic, Cylinder to Helm1
-8M0167284软管套件5FTHOSE KIT 5 FT1
-892450K06液压软管套件(6英尺)油缸至舵机HOSE KIT (6 Feet) Hydraulic, Cylinder to Helm1
-8M0167285软管套件6FTHOSE KIT 6 FT1
-892450K07液压软管套件(7英尺)油缸至舵机HOSE KIT (7 Feet) Hydraulic, Cylinder to Helm1
-8M0167286软管套件7FTHOSE KIT 7 FT1
-892450K08液压软管套件(8英尺)油缸至舵机HOSE KIT (8 Feet) Hydraulic, Cylinder to Helm1
-8M0167287软管套件8FTHOSE KIT 8 FT1
-892450K10液压软管套件(10英尺)油缸至舵机HOSE KIT (10 Feet) Hydraulic, Cylinder to Helm1
-8M0167288软管套件10FTHOSE KIT 10 FT1
-892450K12液压软管套件(12英尺)油缸至舵机HOSE KIT (12 Feet) Hydraulic, Cylinder to Helm1
-8M0167289软管套件12FTHOSE KIT 12 FT1
-892450K14液压软管套件(14英尺)油缸至舵机HOSE KIT (14 Feet) Hydraulic, Cylinder to Helm1
-8M0167290软管套件 14英尺HOSE KIT 14 FT1
-892450K16液压软管套件(16英尺)油缸至舵机HOSE KIT (16 Feet) Hydraulic, Cylinder to Helm1
-8M0167291软管套件 16英尺HOSE KIT 16 FT1
-892450K18液压软管套件(18英尺)油缸至舵机HOSE KIT (18 Feet) Hydraulic, Cylinder to Helm1
-8M0167292软管套件 18英尺HOSE KIT 18 FT1
-892450K22液压软管套件(22英尺)油缸至舵机HOSE KIT (22 Feet) Hydraulic, Cylinder to Helm1
-8M0167294软管套件 22英尺HOSE KIT 22 FT1
-892450K24液压软管套件(24英尺)油缸至舵机HOSE KIT (24 Feet) Hydraulic, Cylinder to Helm1
-8M0167295软管套件 24英尺HOSE KIT 24 FT1
-892450K26液压软管套件(26英尺)油缸至舵机HOSE KIT (26 Feet) Hydraulic, Cylinder to Helm1
-8M0167296软管套件 26英尺HOSE KIT 26 FT1
-892450K30液压软管套件(30英尺)油缸至舵机HOSE KIT (30 Feet) Hydraulic, Cylinder to Helm1
-8M0167298软管套件 30英尺HOSE KIT 30 FT1
-892438K02动力转向软管套件 动力模块 (2英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (2 Feet) Hydraulic, Pump to Helm1
-8M0150604泵至舱壁/舵机套件 2英尺PUMP TO BULKHEAD/HELM KIT 2 Ft1
-892438K03动力转向软管套件 动力模块 (3英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (3 Feet) Hydraulic, Pump to Helm1
-8M0150605泵至舱壁/舵机套件 3英尺PUMP TO BULKHEAD/HELM KIT 3 Ft1
-892438K04动力转向软管套件 动力模块 (4英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (4 Feet) Hydraulic, Pump to Helm1
-8M0150606泵至舱壁/舵机套件 4英尺PUMP TO BULKHEAD/HELM KIT 4 Ft1
-892438K05动力转向软管套件 动力模块 (5英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (5 Feet) Hydraulic, Pump to Helm1
-8M0150607泵至舱壁/舵机套件 5英尺PUMP TO BULKHEAD/HELM KIT 5 Ft1
-892438K06软管套件 动力模块 (6英尺) 液压, 泵至舵机HOSE KIT Power Module (6 Feet) Hydraulic, Pump to Helm1
-8M0150608泵至舱壁/舵机套件 6英尺PUMP TO BULKHEAD/HELM KIT 6 Ft1
-892438K07软管套件 动力模块 (7英尺) 液压, 泵至舵机HOSE KIT Power Module (7 Feet) Hydraulic, Pump to Helm1
-8M0150610泵至舱壁/舵机套件 7英尺PUMP TO BULKHEAD/HELM KIT 7 Ft1
-892438K08软管套件 动力模块 (8英尺) 液压, 泵至舵机HOSE KIT Power Module (8 Feet) Hydraulic, Pump to Helm1
-8M0150612泵至舱壁/舵机套件 8英尺PUMP TO BULKHEAD/HELM KIT 8 Ft1
-892438K10动力转向软管套件 动力模块 (10英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (10 Feet) Hydraulic, Pump to Helm1
-8M0150613泵至舱壁/舵机套件 10英尺PUMP TO BULKHEAD/HELM KIT 10 Ft1
-892438K12动力转向软管套件 动力模块 (12英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (12 Feet) Hydraulic, Pump to Helm1
-8M0150614泵至舱壁/舵机套件 12英尺PUMP TO BULKHEAD/HELM KIT 12 Ft1
-892438K14动力转向软管套件 动力模块 (14英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (14 Feet) Hydraulic, Pump to Helm1
-8M0150615泵至舱壁/舵机套件 14英尺PUMP TO BULKHEAD/HELM KIT 14 Ft1
-892438K16动力转向软管套件 动力模块 (16英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (16 Feet) Hydraulic, Pump to Helm1
-8M0150616泵至舱壁/舵机套件 16英尺PUMP TO BULKHEAD/HELM KIT 16 Ft1
-892438K18动力转向软管套件 动力模块 (18英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (18 Feet) Hydraulic, Pump to Helm1
-8M0150617泵至舱壁/舵机套件 18英尺PUMP TO BULKHEAD/HELM KIT 18 Ft1
-892438K20动力转向软管套件 动力模块 (20英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (20 Feet) Hydraulic, Pump to Helm1
-8M0150618泵至舱壁/舵机套件 20英尺PUMP TO BULKHEAD/HELM KIT 20 ft1
-892438K22动力转向软管套件 动力模块 (22英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (22 Feet) Hydraulic, Pump to Helm1
-8M0150619泵至舱壁/舵机套件 22英尺PUMP TO BULKHEAD/HELM KIT 22 FT1
-892438K24动力转向软管套件 动力模块 (24英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (24 Feet) Hydraulic, Pump to Helm1
-8M0150620泵至舱壁/舵机套件 24英尺PUMP TO BULKHEAD/HELM KIT 24 FT1
-892825008液压软管 (8英尺) 舵机至压力罐HOSE (8 Feet) Hydraulic, Helm to Pressure Tank1
-892825010液压软管 (10英尺) 舵机至压力罐HOSE (10 Feet) Hydraulic, Helm to Pressure Tank1
-892825012液压软管 (12英尺) 舵机至压力罐HOSE (12 Feet) Hydraulic, Helm to Pressure Tank1
-892825014液压软管 (14英尺) 舵机至压力罐HOSE (14 Feet) Hydraulic, Helm to Pressure Tank1
-892825016液压软管 (16英尺) 舵机至压力罐HOSE (16 Feet) Hydraulic, Helm to Pressure Tank1
-892825018液压软管 (18英尺) 舵机至压力罐HOSE (18 Feet) Hydraulic, Helm to Pressure Tank1
-892825020液压软管 (20英尺) 舵机至压力罐HOSE (20 Feet) Hydraulic, Helm to Pressure Tank1
-892825022液压软管 (22英尺) 舵机至压力罐HOSE (22 Feet) Hydraulic, Helm to Pressure Tank1
-892825024液压软管 (24英尺) 舵机至压力罐HOSE (24 Feet) Hydraulic, Helm to Pressure Tank1
-892825026液压软管 (26英尺) 舵机至压力罐HOSE (26 Feet) Hydraulic, Helm to Pressure Tank1
-893395A01嵌入式安装板PLATE Flush Mount1
-875207三通接头TEE Fitting1
-892486K08模拟转换套件CONVERSION KIT Analog1
-889611K02附件电源线束套件(30英尺)HARNESS KIT Accessory Power (30 Feet)1
-899785K04附件电源线束总成(30英尺)HARNESS ASSEMBLY Accessory Power (30 Feet)1
-88334A2防腐电极套件MERCATHODE KIT1
-8M0180081防腐电极套件MERCATHODE KIT1
-825191A03索具软管套件HOSE KIT Rigging1
-880717A01齿轮箱螺丝/密封套件SCREW/SEAL KIT Gearcase1
-88439A50电池电缆组CABLE SET Battery1
-8M0210761电池电缆组(12英尺)CABLE SET (12 ft) Battery1
-44357Q2冲洗附件FLUSHING ATTACHMENT1
-44357T2冲洗附件FLUSHING ATTACHMENT1
-881150Q1双进水口冲洗套件FLUSH KIT Dual Water Pick Up1
-881150K1双进水口冲洗密封套件SEAL KIT Flush - Dual Water Pickup1
-897967100燃油管路 (100.00英尺)LINE Fuel (100.00 Feet)1
-8M0038563燃油管路 (100.00英尺)LINE Fuel (100.00 Feet)1
-899712A01连续性电缆套件CABLE KIT Continuity1
图 57曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods
曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods
REF零件编号中文名称英文名称数量
1891644A04曲轴总成CRANKSHAFT ASSEMBLY1
2897498T01主轴承-绿色(曲轴上端)BEARING Main - Green Crankshaft-Upper12/AR
2897498T02主轴承-海军蓝(曲轴上端)BEARING Main - Navy Blue Crankshaft-Upper12/AR
2897498T03主轴承-白色(曲轴上端)BEARING Main - White Crankshaft-Upper12/AR
2897498T04主轴承-橙色(曲轴上端)BEARING Main - Orange Crankshaft-Upper12/AR
3892309T01推力轴承-绿色(曲轴下端)BEARING Thrust - Green Crankshaft-Lower2/AR
38M0117003轴承BEARING2/AR
3892309T02推力轴承-海军蓝(曲轴下端)BEARING Thrust - Navy Blue Crankshaft-Lower2/AR
38M0117001轴承BEARING2/AR
3892309T03推力轴承-白色(曲轴下端)BEARING Thrust - White Crankshaft-Lower2/AR
38M0117002轴承BEARING2/AR
3892309T04推力轴承-橙色(曲轴下端)BEARING Thrust - Orange Crankshaft-Lower2/AR
38M0117004轴承BEARING2/AR
48805251油封(主轴承顶部)SEAL Top Main Bearing1
48M0032912密封件SEAL1
5896883隔套SPACER1
6896882挡圈RING Retaining1
791800半圆键KEY Woodruff1
8885348飞轮螺栓盖CAP Flywheel Bolt1
9897796链条(凸轮轴驱动滚子链)CHAIN Roller Cam Drive1
98M0103398链条(凸轮轴驱动滚子链)CHAIN Roller Cam Drive1
10881210T02连杆总成CONNECTING ROD ASSEMBLY6
108M0103285连杆总成CONNECTING ROD ASSEMBLY6
11884441螺栓BOLT12
12892005A01连杆轴承-蓝色BEARING Connecting Rod - Blue12/AR
12892005A02连杆轴承-白色BEARING Connecting Rod - White12/AR
12892005A03连杆轴承-橙色BEARING Connecting Rod - Orange12/AR
13897737T01活塞总成PISTON ASSEMBLY6
13897737A04活塞/喷油嘴套件PISTON/OILJET KIT6
14881180A02活塞环组RING SET Piston6
15NSS活塞环-油环(不单独销售)NOT SOLD SEPARATE Piston Ring-Oil6
16NSS活塞环-第二道(不单独销售)NOT SOLD SEPARATE Piston Ring-2nd6
17NSS活塞销（不单独销售）NOT SOLD SEPARATE Piston Pin6
18881184卡簧CIRCLIP12
19888983T02飞轮FLYWHEEL1
19888983T03飞轮总成FLYWHEEL ASSEMBLY1
20880515螺栓(M20×68)BOLT (M20 x 68)1
208M0147042螺栓BOLT1
21880517垫圈WASHER1
218M0090010垫圈WASHER1
-880552A06动力头衬垫套件GASKET SET Powerhead1
-880552A07动力头衬垫套件GASKET SET Powerhead1
-895247A06动力头总成POWERHEAD ASSEMBLY1
-895247R06RM L6 GEN1 VERADORM L6 GEN1 VERADO1
图 58线圈板总成 Coil Plate Assembly
线圈板总成 Coil Plate Assembly
REF零件编号中文名称英文名称数量
1855432A1盖板套件COVER KIT1
2NSS不单独销售 弯头NOT SOLD SEPARATE Elbow1
38568431直通接头FITTING Straight STRAIGHT1
419688接头FITTING1
5803878密封件SEAL1
6NSS不单独销售 泵出口配件包NOT SOLD SEPARATE Fitting Kit-Pump Outlet1
6855437A2泵出口接头套件FITTING KIT Pump Outlet1
7NSSO型圈（不单独销售）NOT SOLD SEPARATE O Ring1
8808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)7
9855528衬垫GASKET1
98M6002520衬垫套件GASKET KIT1
10855430A1浮子套件FLOAT KIT1
108M6004920浮子套件FLOAT KIT1
11F10064轴SHAFT1
12855431针阀VALVE Needle1
128M6004917进气阀VALVE-INLET1
135902螺钉(#6-32 x .187)SCREW (#6-32 x .187)1
14855427A1泵套件PUMP KIT1
15855428套筒SLEEVE1
158M6000589套筒SLEEVE1
16855434A1油杯套件BOWL KIT1
17855433密封件SEAL1
178554331密封件SEAL1
18855435A1塞套件PLUG KIT1
198554245弯头ELBOW2
2018458A4滤清器套件FILTER KIT1
2018458Q4燃油水分离滤清器FILTER Fuel-Water Separating1
21828586探头PROBE1
218M0204710探头PROBE1
图 59气缸盖 CYLINDER HEAD
气缸盖 CYLINDER HEAD
REF零件编号中文名称英文名称数量
1852380A1气缸盖CYLINDER HEAD1
1852381A1气缸盖CYLINDER HEAD1
1852381T1气缸盖CYLINDER HEAD1
28525203衬垫GASKET2
3832971螺钉 (.375-16 x 3.00)SCREW (.375-16 x 3.00)24
474840定位销PIN Dowel4
562386衬垫GASKET2
58M0204714衬垫@4GASKET @42
68307371盖板COVER2
68M0039353盖板COVER2
7833072节温器 62°C（143°F）THERMOSTAT 62° Celsius (143° Fahrenheit)2
7833072003节温器 62°C (143°F)THERMOSTAT 62°C (143°F)2
882130025螺钉(M6x25)SCREW (M6 x 25)4
968727190度弯头 (.250-18) 黄铜(右舷)FITTING (.250-18) 90 Degree - Brass (Starboard)1
1068728接头(左舷)FITTING (Port)1
1177653112软管(59.00英寸整料)(21-1/2英寸)HOSE (59.00 Inches Bulk) (21-1/2 IN.)1
1177653101软管（散装48.00英寸）HOSE (48.00 Inches Bulk)1
1277653112软管(59.00英寸散装)(11-1/2英寸)HOSE (59.00 Inches Bulk) (11-1/2 IN.)1
1277653101软管（散装48.00英寸）HOSE (48.00 Inches Bulk)1
13816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)5
13816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)5
1413536A14温度传感器总成(右舷)SENSOR ASSEMBLY Temperature (Starboard)1
15137151固定座RETAINER1
1681893412螺钉（M8×12）SCREW (M8 x 12)1
-814754A98衬垫套件GASKET SET1
-8M0046714衬垫套件GASKET SET1
-854008A98动力头总成POWERHEAD ASSEMBLY1
-804545T99动力头总成POWERHEAD ASSEMBLY1
图 60齿轮箱（螺旋桨轴）（标准旋转） GEAR HOUSING (PROPSHAFT)(STANDARD ROTATION)
齿轮箱（螺旋桨轴）（标准旋转） GEAR HOUSING (PROPSHAFT)(STANDARD ROTATION)
REF零件编号中文名称英文名称数量
1831998A9空气压缩机总成(参见空气压缩机部件分解图)COMPRESSOR ASSEMBLY Air (SEE BREAKDOWN ON AIR COMPRESSOR COMPONENTS)1
285593912螺钉（M6 x 12）SCREW (M6 x 12)5
38328231滑轮PULLEY1
38M0175171滑轮PULLEY1
44010825螺丝(M10 x 25)六角法兰-不锈钢SCREW (M10 x 25) Hex Flange - Stainless Steel2
58502511软管HOSE1
58502512软管HOSE1
685652329绝缘套管(15英寸)INSULATOR SLEEVE (15 IN.)1
7852379T5燃油导轨FUEL RAIL1
7852379T6燃油导轨FUEL RAIL1
88500653喷油器INJECTOR6
88M6001743空气喷射器总成INJECTOR ASSEMBLY Air6
9855697卡箍(16.2)CLAMP (16.2)4
98M0204696卡箍CLAMP4
1085564361软管(16英寸)HOSE (16 IN.)2
1192345螺柱STUD1
12854640特殊垫圈WASHER Special2
1335814螺母(.312-24)不锈钢NUT (.312-24) Stainless Steel1
1382670911螺母(.312-24)不锈钢NUT (.312-24) Stainless Steel1
14816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)8
14816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)8
15852378T5燃油导轨FUEL RAIL1
15852378T6燃油导轨FUEL RAIL1
16830756109软管(57.00英寸整料)(裁切至22-1/2英寸)HOSE (57.00 Inches Bulk) (Cut to 22-1/2 Inches)1
168M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
17826810止回阀CHECK VALVE1
1883075780管材(28英寸整卷)(裁切为2-1/2英寸)TUBING (28.00 Inches Bulk) (Cut to 2-1/2 Inches)1
188M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
1983476463管材(32英寸整卷)(裁切为28-1/2英寸)TUBING (32.00 Inches Bulk) (Cut to 28-1/2 Inches)1
20856880软管卡箍（15.3）CLAMP Hose (15.3)2
208M0214964卡箍CLAMP2
2185606064管材(36英寸整卷)(28-1/2英寸)TUBING (36.00 Inches Bulk) (28-1/2 IN.)1
218M0054152管材(39.00英寸整卷)TUBING (39.00 Inches Bulk)1
2282104510螺钉 (M5 x 10)SCREW (M5 x 10)4
2346997卡箍CLAMP4
24852961螺柱STUD4
248M0063255双头螺栓M10x92STUD M10x924
25826292螺母(M10)黄铜/镀镍NUT (M10) Brass/Nickel Plated4
26NSS不单独销售 软管(30英寸)NOT SOLD SEPARATE Hose (30 IN.)1
26856822A3软管(30英寸)HOSE (30 IN.)1
278558481软管HOSE1
27855848A1软管HOSE1
28828694A1杯形垫片总成WASHER ASSEMBLY Cupped6
29856880软管卡箍（15.3）CLAMP Hose (15.3)4
298M0214964卡箍CLAMP4
3085686953套管(27英寸整卷)(裁切为18英寸)SLEEVE (27.00 Inches Bulk) (Cut to 18 Inches)1
图 61水管 Water Hoses
水管 Water Hoses
REF零件编号中文名称英文名称数量
-892440A08动力转向泵套件PUMP KIT Power Steering Pump Kit1
-892440A09动力转向泵套件PUMP KIT Power Steering Pump Kit1
-8M0131263动力转向泵套件(24英尺)PUMP KIT Power Steering (24 Feet)1
-892380A02标准转向舵机套件(40cc)STEERING HELM KIT Standard (40 cc)1
-8M0240080标准舵机套件40CMHELM KIT-STD 40CM1
-892557A02标准转向舵机套件(32cc)STEERING HELM KIT Standard (32 cc)1
-8M0240079标准舵机套件32CMHELM KIT-STD 32CM1
-892558A02标准转向舵机套件(50cc)STEERING HELM KIT Standard (50 cc)1
-8M0240081标准舵机套件50CMHELM KIT-STD 50CM1
-892450K01液压软管套件(1英尺)油缸至舵机HOSE KIT (1 Foot) Hydraulic, Cylinder to Helm1
-897982K01ORD 32-897982K02ORD 32-897982K021
-892450K02液压软管套件(2英尺)油缸至舵机HOSE KIT (2 Feet) Hydraulic, Cylinder to Helm1
-8M0167281软管套件2FTHOSE KIT 2FT1
-892450K03液压软管套件(3英尺)油缸至舵机HOSE KIT (3 Feet) Hydraulic, Cylinder to Helm1
-8M0167282软管套件3FTHOSE KIT 3 FT1
-892450K04液压软管套件(4英尺)油缸至舵机HOSE KIT (4 Feet) Hydraulic, Cylinder to Helm1
-8M0167283软管套件4FTHOSE KIT 4 FT1
-892450K05液压软管套件(5英尺)油缸至舵机HOSE KIT (5 Feet) Hydraulic, Cylinder to Helm1
-8M0167284软管套件5FTHOSE KIT 5 FT1
-892450K06液压软管套件(6英尺)油缸至舵机HOSE KIT (6 Feet) Hydraulic, Cylinder to Helm1
-8M0167285软管套件6FTHOSE KIT 6 FT1
-892450K07液压软管套件(7英尺)油缸至舵机HOSE KIT (7 Feet) Hydraulic, Cylinder to Helm1
-8M0167286软管套件7FTHOSE KIT 7 FT1
-892450K08液压软管套件(8英尺)油缸至舵机HOSE KIT (8 Feet) Hydraulic, Cylinder to Helm1
-8M0167287软管套件8FTHOSE KIT 8 FT1
-892450K10液压软管套件(10英尺)油缸至舵机HOSE KIT (10 Feet) Hydraulic, Cylinder to Helm1
-8M0167288软管套件10FTHOSE KIT 10 FT1
-892450K12液压软管套件(12英尺)油缸至舵机HOSE KIT (12 Feet) Hydraulic, Cylinder to Helm1
-8M0167289软管套件12FTHOSE KIT 12 FT1
-892450K14液压软管套件(14英尺)油缸至舵机HOSE KIT (14 Feet) Hydraulic, Cylinder to Helm1
-8M0167290软管套件 14英尺HOSE KIT 14 FT1
-892450K16液压软管套件(16英尺)油缸至舵机HOSE KIT (16 Feet) Hydraulic, Cylinder to Helm1
-8M0167291软管套件 16英尺HOSE KIT 16 FT1
-892450K18液压软管套件(18英尺)油缸至舵机HOSE KIT (18 Feet) Hydraulic, Cylinder to Helm1
-8M0167292软管套件 18英尺HOSE KIT 18 FT1
-892450K22液压软管套件(22英尺)油缸至舵机HOSE KIT (22 Feet) Hydraulic, Cylinder to Helm1
-8M0167294软管套件 22英尺HOSE KIT 22 FT1
-892450K24液压软管套件(24英尺)油缸至舵机HOSE KIT (24 Feet) Hydraulic, Cylinder to Helm1
-8M0167295软管套件 24英尺HOSE KIT 24 FT1
-892450K26液压软管套件(26英尺)油缸至舵机HOSE KIT (26 Feet) Hydraulic, Cylinder to Helm1
-8M0167296软管套件 26英尺HOSE KIT 26 FT1
-892450K30液压软管套件(30英尺)油缸至舵机HOSE KIT (30 Feet) Hydraulic, Cylinder to Helm1
-8M0167298软管套件 30英尺HOSE KIT 30 FT1
-892438K02动力转向软管套件 动力模块 (2英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (2 Feet) Hydraulic, Pump to Helm1
-8M0150604泵至舱壁/舵机套件 2英尺PUMP TO BULKHEAD/HELM KIT 2 Ft1
-892438K03动力转向软管套件 动力模块 (3英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (3 Feet) Hydraulic, Pump to Helm1
-8M0150605泵至舱壁/舵机套件 3英尺PUMP TO BULKHEAD/HELM KIT 3 Ft1
-892438K04动力转向软管套件 动力模块 (4英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (4 Feet) Hydraulic, Pump to Helm1
-8M0150606泵至舱壁/舵机套件 4英尺PUMP TO BULKHEAD/HELM KIT 4 Ft1
-892438K05动力转向软管套件 动力模块 (5英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (5 Feet) Hydraulic, Pump to Helm1
-8M0150607泵至舱壁/舵机套件 5英尺PUMP TO BULKHEAD/HELM KIT 5 Ft1
-892438K06软管套件 动力模块 (6英尺) 液压, 泵至舵机HOSE KIT Power Module (6 Feet) Hydraulic, Pump to Helm1
-8M0150608泵至舱壁/舵机套件 6英尺PUMP TO BULKHEAD/HELM KIT 6 Ft1
-892438K07软管套件 动力模块 (7英尺) 液压, 泵至舵机HOSE KIT Power Module (7 Feet) Hydraulic, Pump to Helm1
-8M0150610泵至舱壁/舵机套件 7英尺PUMP TO BULKHEAD/HELM KIT 7 Ft1
-892438K08软管套件 动力模块 (8英尺) 液压, 泵至舵机HOSE KIT Power Module (8 Feet) Hydraulic, Pump to Helm1
-8M0150612泵至舱壁/舵机套件 8英尺PUMP TO BULKHEAD/HELM KIT 8 Ft1
-892438K10动力转向软管套件 动力模块 (10英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (10 Feet) Hydraulic, Pump to Helm1
-8M0150613泵至舱壁/舵机套件 10英尺PUMP TO BULKHEAD/HELM KIT 10 Ft1
-892438K12动力转向软管套件 动力模块 (12英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (12 Feet) Hydraulic, Pump to Helm1
-8M0150614泵至舱壁/舵机套件 12英尺PUMP TO BULKHEAD/HELM KIT 12 Ft1
-892438K14动力转向软管套件 动力模块 (14英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (14 Feet) Hydraulic, Pump to Helm1
-8M0150615泵至舱壁/舵机套件 14英尺PUMP TO BULKHEAD/HELM KIT 14 Ft1
-892438K16动力转向软管套件 动力模块 (16英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (16 Feet) Hydraulic, Pump to Helm1
-8M0150616泵至舱壁/舵机套件 16英尺PUMP TO BULKHEAD/HELM KIT 16 Ft1
-892438K18动力转向软管套件 动力模块 (18英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (18 Feet) Hydraulic, Pump to Helm1
-8M0150617泵至舱壁/舵机套件 18英尺PUMP TO BULKHEAD/HELM KIT 18 Ft1
-892438K20动力转向软管套件 动力模块 (20英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (20 Feet) Hydraulic, Pump to Helm1
-8M0150618泵至舱壁/舵机套件 20英尺PUMP TO BULKHEAD/HELM KIT 20 ft1
-892438K22动力转向软管套件 动力模块 (22英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (22 Feet) Hydraulic, Pump to Helm1
-8M0150619泵至舱壁/舵机套件 22英尺PUMP TO BULKHEAD/HELM KIT 22 FT1
-892438K24动力转向软管套件 动力模块 (24英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (24 Feet) Hydraulic, Pump to Helm1
-8M0150620泵至舱壁/舵机套件 24英尺PUMP TO BULKHEAD/HELM KIT 24 FT1
-892825008液压软管 (8英尺) 舵机至压力罐HOSE (8 Feet) Hydraulic, Helm to Pressure Tank1
-892825010液压软管 (10英尺) 舵机至压力罐HOSE (10 Feet) Hydraulic, Helm to Pressure Tank1
-892825012液压软管 (12英尺) 舵机至压力罐HOSE (12 Feet) Hydraulic, Helm to Pressure Tank1
-892825014液压软管 (14英尺) 舵机至压力罐HOSE (14 Feet) Hydraulic, Helm to Pressure Tank1
-892825016液压软管 (16英尺) 舵机至压力罐HOSE (16 Feet) Hydraulic, Helm to Pressure Tank1
-892825018液压软管 (18英尺) 舵机至压力罐HOSE (18 Feet) Hydraulic, Helm to Pressure Tank1
-892825020液压软管 (20英尺) 舵机至压力罐HOSE (20 Feet) Hydraulic, Helm to Pressure Tank1
-892825022液压软管 (22英尺) 舵机至压力罐HOSE (22 Feet) Hydraulic, Helm to Pressure Tank1
-892825024液压软管 (24英尺) 舵机至压力罐HOSE (24 Feet) Hydraulic, Helm to Pressure Tank1
-892825026液压软管 (26英尺) 舵机至压力罐HOSE (26 Feet) Hydraulic, Helm to Pressure Tank1
-893395A01嵌入式安装板PLATE Flush Mount1
-875207三通接头TEE Fitting1
-892486K08模拟转换套件CONVERSION KIT Analog1
-889611K02附件电源线束套件(30英尺)HARNESS KIT Accessory Power (30 Feet)1
-899785K04附件电源线束总成(30英尺)HARNESS ASSEMBLY Accessory Power (30 Feet)1
-88334A2防腐电极套件MERCATHODE KIT1
-8M0180081防腐电极套件MERCATHODE KIT1
-825191A03索具软管套件HOSE KIT Rigging1
-880717A01齿轮箱螺丝/密封套件SCREW/SEAL KIT Gearcase1
-88439A50电池电缆组CABLE SET Battery1
-8M0210761电池电缆组(12英尺)CABLE SET (12 ft) Battery1
-44357Q2冲洗附件FLUSHING ATTACHMENT1
-44357T2冲洗附件FLUSHING ATTACHMENT1
-881150Q1双进水口冲洗套件FLUSH KIT Dual Water Pick Up1
-881150K1双进水口冲洗密封套件SEAL KIT Flush - Dual Water Pickup1
-897967100燃油管路 (100.00英尺)LINE Fuel (100.00 Feet)1
-8M0038563燃油管路 (100.00英尺)LINE Fuel (100.00 Feet)1
-899712A01连续性电缆套件CABLE KIT Continuity1
图 62驱动轴壳体与排气管 DRIVESHAFT HOUSING AND EXHAUST TUBE
驱动轴壳体与排气管 DRIVESHAFT HOUSING AND EXHAUST TUBE
REF零件编号中文名称英文名称数量
18343A10驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
18343T10驱动轴壳体总成-黑色-长型HOUSING ASSEMBLY Driveshaft - Black - Long1
18343A11驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
18343T11ORD 1590-8343T10ORD 1590-8343T101
1813563A1驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
1813563T1传动轴壳体-黑色-加长型HOUSING Driveshaft - Black - X-Long1
1813563A2驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
1813563T2ORD 3503-813563T1ORD 3503-813563T11
256295双头螺柱(.437 x 2.69)STUD (.437 x 2.69)2
363474螺钉(.500-20 x 6.00)SCREW (.500-20 x 6.00)2
3898831螺钉(.500-20 x 6.220)SCREW (.500-20 x 6.220)2
488238A10接地线总成CABLE ASSEMBLY Ground1
577327支架MOUNT2
649339垫圈(.8125)WASHER (.8125)2
788238A10接地线总成CABLE ASSEMBLY Ground1
828040螺母(.500-20)NUT (.500-20)2
8898832螺母(.500-20)NUT (.500-20)2
941508螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel1
1045176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel2
1134933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
118M0204653螺母NUT2
1267076卡箍CLAMP2
128M0036782卡箍CLAMP2
1366727螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)4
1467077T黑色盖COVER Black2
148M4500752盖板COVER2
1467077F1灰色盖板COVER Gray2
1467077T黑色盖COVER Black2
1588417螺钉(#12-24×0.620)SCREW (#12-24 x .620)4
1635521螺母NUT4
1748926垫圈WASHER1
1834933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel1
188M0204653螺母NUT1
1920553垫圈(.406 x .734 x .063)WASHER (.406 x .734 x .063)4
2069254螺母NUT4
21828212怠速排气套BOOT Idle Exhaust1
218M0039081护套BOOT1
2264649堵头PLUG1
23991732衬垫GASKET1
23991734衬垫GASKET1
2466350下密封件SEAL (LOWER)1
2466350001密封件SEAL1
2518276排气管TUBE Exhaust1
2518276T排气管EXHAUST TUBE1
26177261上密封件SEAL (UPPER)1
268M0039076密封件SEAL1
27812834排气管延长段EXTENSION Exhaust1
27812834A2排气延长总成EXTENSION ASSEMBLY Exhaust1
2741942F3排气管延长段EXTENSION Exhaust1
27879288T71排气管延长段EXTENSION Exhaust1
2867295水管TUBE Water1
288M0042788长型水管TUBE-WATER-LONG1
2874729管TUBE1
288M0042790水管TUBE-WATER1
2978246衬垫GASKET1
29782461衬垫GASKET1
3018233A6隔板总成PLATE ASSEMBLY1
3018233A20传动轴壳体板总成PLATE ASSEMBLY Driveshaft Housing1
318147012密封件SEAL1
318M0043165密封件-27.00英寸SEAL-27.00 INCH1
3268011支架BRACKET1
33812832螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)12
33878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)12
3443044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
3538970密封件SEAL1
3690192螺钉(.250-20 x .750)不锈钢SCREW (.250-20 x .750) Stainless Steel6
3739072塞(1/8英寸黄铜)PLUG (1/8 Inch Brass)2
37390721黄铜管塞 (.125-27)PLUG Pipe (.125-27) Brass2
38183071衬垫GASKET1
38183076衬垫GASKET1
-814754A98衬垫套件GASKET SET1
-8M0046714衬垫套件GASKET SET1
图 63防腐电极套件 Mercathode Kit
防腐电极套件 Mercathode Kit
REF零件编号中文名称英文名称数量
188334A2防腐电极套件MERCATHODE KIT1
18M0180081防腐电极套件MERCATHODE KIT1
242600A09防腐电极总成MERCATHODE ASSEMBLY1
322793螺丝(#9-14x0.875)SCREW (#9-14 x .875)2
430164垫圈(0.192x0.375x0.0312)不锈钢WASHER (.192 x .375 x .0312) Stainless Steel2
545076黄铜螺母(#10-32)NUT (#10-32) Brass4
672958A5电极总成ELECTRODE ASSEMBLY1
721836O型圈(.796 x .139)O-RING (.796 x .139)1
78M0204645O型圈(.796 x .139)O-RING (.796 x .139)1
887698螺丝(#10-16 x 1.250)不锈钢SCREW (#10-16 x 1.250) Stainless Steel2
972957A5阳极总成ANODE ASSEMBLY1
98M0181304阳极总成ANODE ASSY1
1021836O型圈(.796 x .139)O-RING (.796 x .139)1
108M0204645O型圈(.796 x .139)O-RING (.796 x .139)1
1187698螺丝(#10-16 x 1.250)不锈钢SCREW (#10-16 x 1.250) Stainless Steel2
1279091保险丝20安培FUSE 20 Ampere1
128M0207796保险丝20安培FUSE 20 AMP1
1395084A10电缆总成(5.00英寸)红色CABLE ASSEMBLY (5.00 Inches) Red1
138M0207788拉线总成CABLE ASSEMBLY1
1495084A13电缆总成(64.00英寸)CABLE ASSEMBLY (64.00 Inches)1
1579138A8电缆总成(72.00英寸)黑色CABLE ASSEMBLY (72.00 Inches) Black1
图 64气缸体与端盖 CYLINDER BLOCK AND END CAPS
气缸体与端盖 CYLINDER BLOCK AND END CAPS
REF零件编号中文名称英文名称数量
1828340A5气缸体CYLINDER BLOCK1
28181383动力头螺柱（1-3/4英寸）STUD Powerhead (1-3/4 IN.)6
28M0034455螺柱1.750STUD 1.7506
3670653双头螺柱（0.375×5.620英寸，5-1/2英寸）STUD (.375 x 5.620) (5-1/2 IN.)2
3670654螺柱(.375-16/.375-24 x 5.620)STUD (.375-16/.375-24 x 5.620)2
3784384双头螺栓(.375 x 6.870)(6-3/4英寸)STUD (.375 x 6.870) (6-3/4 IN.)2
38M0034454螺柱(.375-16/.375-24 x 6.87)STUD (.375-16/.375-24 x 6.87)2
443044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
567296销(轴承座圈)PIN (BEARING RACE)2
58M0036405销PIN2
611338衬垫GASKET2
7384071接头(1/2-14)FITTING (1/2-14) (1/2-14)1
8426231止回阀CHECK VALVE1
8426233止回阀CHECK VALVE1
9426981止回阀CHECK VALVE1
9426982止回阀CHECK VALVE1
1099130122管材(20英尺整卷)(裁切为19英寸)TUBING (20.00 Feet Bulk) (Cut to 19 Inches)1
10892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
11816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)10
11816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)10
12852760直通接头FITTING (STRAIGHT)2
13855622弯头接头FITTING (ELBOW)1
148267611弯头ELBOW (ELBOW)3
1585583445管材(16英寸)TUBING (16 IN.)2
1585583464管材 (34.00英寸整卷)TUBING (34.00 Inches Bulk)2
1585583445管材(20英寸)TUBING (20 IN.)1
1585583464管材 (34.00英寸整卷)TUBING (34.00 Inches Bulk)1
1685606064管材(36.00英寸整料)(24-1/2英寸)TUBING (36.00 Inches Bulk) (24-1/2 IN.)3
168M0054152管材(39.00英寸整卷)TUBING (39.00 Inches Bulk)3
17828547753导管(.750内径x3.00英尺整料)(裁切至7英寸)CONDUIT (.750 Inside Diameter x 3.00 Feet Bulk) (Cut to 7 Inches)1
18432781止回阀CHECK VALVE1
188781051止回阀CHECK VALVE1
19830756109软管(57.00英寸整料)(裁切至11-1/2英寸)HOSE (57.00 Inches Bulk) (Cut to 11-1/2 Inches)1
198M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
20822769连接器CONNECTOR1
2156762扎带(4.00英寸)TIE STRAP (4.00 Inches)6
2266717螺钉(.375-16 x 3.250)SCREW (.375-16 x 3.250)8
2374824螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)6
2426852尼龙帽CAP Nylon1
25856832螺丝 (.250-20 x 1.750)SCREW (.250-20 x 1.750)1
2664015螺母 (.250-20)NUT (.250-20)1
27832760A1上端盖总成END CAP ASSEMBLY Upper1
27832760T1端盖总成END CAP ASSEMBLY1
2854029O型圈(2.800 x .103)O-RING (2.800 x .103)1
2916756A4轴承套件BEARING KIT1
30NSS不单独销售 轴承座圈NOT SOLD SEPARATE Bearing Race1
3141953密封件SEAL1
3269034螺钉带锁紧垫圈(.312-18 x 1.00)SCREW AND LOCKWASHER (.312-18 x 1.00)4
3230225螺钉带锁紧垫圈(.312-18 x 1.00)SCREW WITH LOCKWASHER (.312-18 x 1.00)4
337809A1端盖总成END CAP ASSEMBLY1
337809T1端盖总成END CAP ASSEMBLY1
3462700O型圈(3.237 x .103)O-RING (3.237 x .103)1
3541953密封件SEAL2
3628636螺钉(.250-20 x .750)SCREW (.250-20 x .750)4
3726992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel4
38853882支架BRACKET1
388538821节气门位置指示器安装支架BRACKET Throttle Position Indicator Mount1
398519371节气门位置指示器杠杆LEVER Throttle Position Indicator1
4082130025螺钉(M6x25)SCREW (M6 x 25)3
418318701衬套BUSHING6
42834985护孔环GROMMET3
428M0190980护孔环GROMMET3
438M6005905节气门位置指示器(内侧)INDICATOR Throttle Position (Inside)1
44850882隔套SPACER1
458329522节气门位置指示器(外侧)INDICATOR Throttle Position (Outside)1
458M6005166TPITPI1
46850828螺钉(#10-32 X 2-3/4英寸)SCREW (#10-32 X 2-3/4 IN.)3
471938541油门连杆LINK Throttle1
478M0084738连杆总成LINK ASSY1
48NSS不单独销售序列号塞NOT SOLD SEPARATE Plug-Serial Number1
49816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
49816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
-814754A98衬垫套件GASKET SET1
-8M0046714衬垫套件GASKET SET1
-854008A98动力头总成POWERHEAD ASSEMBLY1
-804545T99动力头总成POWERHEAD ASSEMBLY1
图 65电气板总成 序列号1B490866及以上 Electrical Plate Assembly Serial Number 1B490866 and Up
电气板总成 序列号1B490866及以上 Electrical Plate Assembly Serial Number 1B490866 and Up
REF零件编号中文名称英文名称数量
1855432A1盖板套件COVER KIT1
2NSS不单独销售 弯头NOT SOLD SEPARATE Elbow1
38568431直通接头FITTING Straight STRAIGHT1
419688接头FITTING1
5803878密封件SEAL1
6NSS不单独销售 泵出口配件包NOT SOLD SEPARATE Fitting Kit-Pump Outlet1
6855437A2泵出口接头套件FITTING KIT Pump Outlet1
7NSSO型圈（不单独销售）NOT SOLD SEPARATE O Ring1
8808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)7
9855528衬垫GASKET1
98M6002520衬垫套件GASKET KIT1
10855430A1浮子套件FLOAT KIT1
108M6004920浮子套件FLOAT KIT1
11F10064轴SHAFT1
12855431针阀VALVE Needle1
128M6004917进气阀VALVE-INLET1
135902螺钉(#6-32 x .187)SCREW (#6-32 x .187)1
14855427A1泵套件PUMP KIT1
15855428套筒SLEEVE1
158M6000589套筒SLEEVE1
16855434A1油杯套件BOWL KIT1
17855433密封件SEAL1
178554331密封件SEAL1
18855435A1塞套件PLUG KIT1
198554245弯头ELBOW2
2018458A4滤清器套件FILTER KIT1
2018458Q4燃油水分离滤清器FILTER Fuel-Water Separating1
21828586探头PROBE1
218M0204710探头PROBE1
图 66齿轮箱（驱动轴）（标准/反向旋转） Gear Housing (Driveshaft)(Standard/Counter Rotation)
齿轮箱（驱动轴）（标准/反向旋转） Gear Housing (Driveshaft)(Standard/Counter Rotation)
REF零件编号中文名称英文名称数量
0880686T13齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
0880686T14齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
08M0236256GC L6 4S XLGC L6 4S XL1
0880686T16齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
08M0236259GC L6 4S XXLGC L6 4S XXL1
0880686T18齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
0880686T15齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
08M0236258GC L6 4S CXLGC L6 4S CXL1
0880686T17齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
08M0236260GC L6 4S CXXLGC L6 4S CXXL1
1880687T01基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
18M0056631基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
2821526001填充块FILLER BLOCK1
343044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
4826134Q阳极块ANODE1
54000333螺钉(M6 x 40)SCREW (M6 x 40)1
6401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
779953A04塞组件(.375-16×.250)PLUG ASSEMBLY (.375-16 x .250)1
8830749密封件SEAL1
88M0204693放油螺塞密封件SEAL Drain Plug1
976214T5阳极套件ANODE KIT1
976214Q5阳极套件ANODE KIT1
10806327螺钉(.437-14 x 1.750)SCREW (.437-14 x 1.750)1
108M0204686螺钉SCREW1
1185944975管材(72英寸整卷)裁切7英寸(按需使用)TUBING (72.00 Inches Bulk) Cut to 7 Inches (Use where Applicable)1
1185944975管材(72英寸整卷)裁切12英寸(按需使用)TUBING (72.00 Inches Bulk) Cut to 12 Inches (Use where Applicable)1
1185944975管材(72英寸整卷)裁切17英寸(按需使用)TUBING (72.00 Inches Bulk) Cut to 17 Inches (Use where Applicable)1
12881866接头FITTING1
13880703A1盖总成COVER ASSEMBLY1
138M0047129盖总成COVER ASSEMBLY1
148164641油封SEAL Oil1
148M0246145油封OIL SEAL1
15896522O型圈(799×.103)O-RING (799 x .103)1
1640011128不锈钢螺钉(M6x20)SCREW (M6 x 20) Stainless Steel4
168M0204741六角带垫大帽螺钉(M6x1.0x20)SCREW (M6 x 1.0 x 20) Hex Wash HD4
1777674垫圈(.35 x .75 x .12)WASHER (.35 x .75 x .12)1
18880729衬垫GASKET1
19824145换档轴SHIFT SHAFT1
20NSS不单独销售 小齿轮13齿NOT SOLD SEPARATE Pinion Gear 13 Teeth1
2135921螺母(0.625-18)NUT (.625-18)1
2292721垫圈(.965×0.630)WASHER (.965 x .630)1
2342647A1滚柱轴承总成BEARING ASSEMBLY Roller1
24888572驱动轴DRIVESHAFT1
24888573驱动轴DRIVESHAFT1
24888574驱动轴DRIVESHAFT1
25884327A02垫片/轴承组件SHIM/BEARING ASSEMBLY1
2638657A1垫片组SHIM ASSEMBLYAR
268M0063268垫片组SHIM SETAR
27NSS不单独销售 滚子轴承组件NOT SOLD SEPARATE Roller Bearing Assembly1
28NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
29NSS不单独销售 滚子轴承组件NOT SOLD SEPARATE Roller Bearing Assembly1
30NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
318245191固定座RETAINER1
32817275A09水泵壳体-总成HOUSING Water Pump-Complete1
33861415A1密封套件SEAL KIT1
3440011128不锈钢螺钉(M6x20)SCREW (M6 x 20) Stainless Steel4
348M0204741六角带垫大帽螺钉(M6x1.0x20)SCREW (M6 x 1.0 x 20) Hex Wash HD4
3543026T2叶轮IMPELLER1
368172761面板FACEPLATE1
368M0204709面板FACEPLATE1
37880719挡圈RING Retaining1
38888909A1油封座组件CARRIER ASSEMBLY Oil Seal1
388M0007131油封座组件CARRIER ASSEMBLY Oil Seal1
39896523O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
398M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
40NSS不单独销售 油封NOT SOLD SEPARATE Oil Seal1
41NSS不单独销售 油封NOT SOLD SEPARATE Oil Seal1
4243037键KEY1
428M0204723键KEY1
438172771水泵上垫片GASKET Water Pump, Upper1
44430331衬垫GASKET1
4543585联轴器COUPLING1
-830749A01齿轮箱密封套件SEAL KIT Gear Housing1
-43026Q06水泵叶轮维修套件REPAIR KIT Water Pump Impeller1
-8M0100526水泵叶轮维修套件REPAIR KIT Water Impeller1
-817275A08水泵上修包REPAIR KIT Water Pump-Upper1
图 67空气压缩机组件 AIR COMPRESSOR COMPONENTS
空气压缩机组件 AIR COMPRESSOR COMPONENTS
REF零件编号中文名称英文名称数量
1831998A9空气压缩机总成COMPRESSOR ASSEMBLY Air1
18M0060053空气压缩机总成COMPRESSOR ASSEMBLY Air1
2828131A4端盖总成END CAP ASSEMBLY1
28M0050792端盖总成END CAP ASSEMBLY1
3NSS非单独销售挡圈NOT SOLD SEPARATE Retaining Ring1
482130020螺钉 (M6 x 20)SCREW (M6 x 20)4
589224O型圈O-RING1
6832804O型圈（2.739 x 0.070）O-RING (2.739 x .070)1
7833146A3连杆总成CONNECTING ROD ASSEMBLY1
7833146T06连杆总成CONNECTING ROD ASSEMBLY1
8828222A4活塞总成PISTON ASSEMBLY1
98348101锁环RING Lock2
10835088A10簧片阀板总成REED PLATE ASSEMBLY1
1167207O型圈（3.489 x 0.070）O-RING (3.489 x .070)2
12832804O型圈（2.739 x 0.070）O-RING (2.739 x .070)1
13828225密封件SEAL1
148350871气缸盖压缩机HEAD Compressor1
14835087A3压缩机缸盖总成HEAD ASSEMBLY Compressor1
158307532直通接头FITTING Straight1
1681893435螺钉(M8×35)SCREW (M8 x 35)4
168M0103814螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)4
1715133接头FITTING1
1814868接头FITTING2
1939072塞(1/8英寸黄铜)PLUG (1/8 Inch Brass)1
19390721黄铜管塞 (.125-27)PLUG Pipe (.125-27) Brass1
2016604直通接头（0.125-27）FITTING Straight (.125-27)1
2113536A12温度传感器总成SENSOR ASSEMBLY Temperature1
22137151固定座RETAINER1
2381893412螺钉（M8×12）SCREW (M8 x 12)1
24831985O型圈（0.468 x 0.078）O-RING (.468 x .078)1
258567441接头FITTING1
25856744接头FITTING1
2639072塞(1/8英寸黄铜)PLUG (1/8 Inch Brass)1
26390721黄铜管塞 (.125-27)PLUG Pipe (.125-27) Brass1
27835454直通接头FITTING Straight1
28NSS标贴(不单独销售)NOT SOLD SEPARATE Decal1
29855349护孔环GROMMET1
29855349002护孔环GROMMET1
-832804A1O型圈套件O-RING KIT1
-832804A03O型圈套件O-RING KIT1
图 68空气处理器/飞轮盖 Air Handler/Flywheel Cover
空气处理器/飞轮盖 Air Handler/Flywheel Cover
REF零件编号中文名称英文名称数量
1855432A1盖板套件COVER KIT1
2NSS不单独销售 弯头NOT SOLD SEPARATE Elbow1
38568431直通接头FITTING Straight STRAIGHT1
419688接头FITTING1
5803878密封件SEAL1
6NSS不单独销售 泵出口配件包NOT SOLD SEPARATE Fitting Kit-Pump Outlet1
6855437A2泵出口接头套件FITTING KIT Pump Outlet1
7NSSO型圈（不单独销售）NOT SOLD SEPARATE O Ring1
8808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)7
9855528衬垫GASKET1
98M6002520衬垫套件GASKET KIT1
10855430A1浮子套件FLOAT KIT1
108M6004920浮子套件FLOAT KIT1
11F10064轴SHAFT1
12855431针阀VALVE Needle1
128M6004917进气阀VALVE-INLET1
135902螺钉(#6-32 x .187)SCREW (#6-32 x .187)1
14855427A1泵套件PUMP KIT1
15855428套筒SLEEVE1
158M6000589套筒SLEEVE1
16855434A1油杯套件BOWL KIT1
17855433密封件SEAL1
178554331密封件SEAL1
18855435A1塞套件PLUG KIT1
198554245弯头ELBOW2
2018458A4滤清器套件FILTER KIT1
2018458Q4燃油水分离滤清器FILTER Fuel-Water Separating1
21828586探头PROBE1
218M0204710探头PROBE1
图 69线圈板总成 COIL PLATE ASSEMBLY
线圈板总成 COIL PLATE ASSEMBLY
REF零件编号中文名称英文名称数量
1834814A1下机罩BOTTOM COWL1
1834814A2下机罩BOTTOM COWL1
2834815A1下机罩BOTTOM COWL1
28M0107322机罩-底部 右舷COWL-BOTTOM, STBD1
2834815A2下机罩BOTTOM COWL1
38253181罩盖密封条(41英寸)SEAL Cowl (41.00 Inches)2
38M0109217罩盖密封条SEAL-COWL2
4822024卡箍CLAMP1
5822023卡箍CLAMP1
692799螺钉(#10-16x1.12)SCREW (#10-16 x 1.12)2
782130040螺钉(M6 x 40)SCREW (M6 x 40)4
8831209固定座RETAINER1
9821908堵头PLUG1
10821915垫圈WASHER1
11821963止回阀CHECK VALVE1
118219631止回阀CHECK VALVE1
1230641O型圈(0.299x0.103)O-RING (.299 x .103)1
13821952接头FITTING1
14816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
14816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
158320782软管HOSE1
158M0039077成型软管HOSE-MOLDED1
16850896卡箍 (28.6)CLAMP (28.6)2
178320763接头FITTING1
18821904示流器接头FITTING Tell-Tale1
188M0077650示流器接头FITTING Tell-Tale1
19828216怠速排气套IDLE EXHAUST BOOT Exhaust1
19889847怠速排气套BOOT Idle Exhaust1
20817519A1排水单向阀总成CHECK VALVE ASSEMBLY Drain2
21850691开关SWITCH1
218M0235192微调开关SWITCH TRIM1
22824868螺钉(M6×75)SCREW (M6 x 75)1
23821253F1前手柄黑色FRONT HANDLE Black1
23889740A02手柄套件HANDLE KIT1
23821253F2前手柄FRONT HANDLE1
23889740A02手柄套件HANDLE KIT1
24335891衬套BUSHING2
2548462O型圈 (.614 x .070)O-RING (.614 x .070)1
268219423棘爪PAWL1
2769057垫片(.281 x .734 x .063)WASHER (.281 x .734 x .063)1
28401196螺母 (M6)NUT (M6)1
298214281螺钉(#10-16x0.625)SCREW (#10-16 x .625)1
30822873卡扣CLIP1
图 70线圈板总成 序列号1B490866及以上 Coil Plate Assembly Serial Number 1B490866 and Up
线圈板总成 序列号1B490866及以上 Coil Plate Assembly Serial Number 1B490866 and Up
REF零件编号中文名称英文名称数量
1855432A1盖板套件COVER KIT1
2NSS不单独销售 弯头NOT SOLD SEPARATE Elbow1
38568431直通接头FITTING Straight STRAIGHT1
419688接头FITTING1
5803878密封件SEAL1
6NSS不单独销售 泵出口配件包NOT SOLD SEPARATE Fitting Kit-Pump Outlet1
6855437A2泵出口接头套件FITTING KIT Pump Outlet1
7NSSO型圈（不单独销售）NOT SOLD SEPARATE O Ring1
8808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)7
9855528衬垫GASKET1
98M6002520衬垫套件GASKET KIT1
10855430A1浮子套件FLOAT KIT1
108M6004920浮子套件FLOAT KIT1
11F10064轴SHAFT1
12855431针阀VALVE Needle1
128M6004917进气阀VALVE-INLET1
135902螺钉(#6-32 x .187)SCREW (#6-32 x .187)1
14855427A1泵套件PUMP KIT1
15855428套筒SLEEVE1
158M6000589套筒SLEEVE1
16855434A1油杯套件BOWL KIT1
17855433密封件SEAL1
178554331密封件SEAL1
18855435A1塞套件PLUG KIT1
198554245弯头ELBOW2
2018458A4滤清器套件FILTER KIT1
2018458Q4燃油水分离滤清器FILTER Fuel-Water Separating1
21828586探头PROBE1
218M0204710探头PROBE1
图 71空气处理器组件 Air Handler Components
空气处理器组件 Air Handler Components
REF零件编号中文名称英文名称数量
-855633A4空气处理器总成AIR HANDLER ASSEMBLY1
-855633A15空气处理器总成AIR HANDLER ASSEMBLY1
1855420T02适配板套件ADAPTER PLATE KIT1
2146973衬垫GASKET1
3850058衬垫GASKET1
38500581衬垫GASKET1
4116455簧片阀组REED BLOCK6
4855952T2簧片阀组REED BLOCK6
555715螺钉(.250-20×0.880)SCREW (.250-20 x .880)12
6855762油泵PUMP Oil1
6855884P1油泵PUMP Oil1
78565421衬垫GASKET1
88552841支架BRACKET1
9855424接头FITTING3
108554241接头FITTING3
118554246接头FITTING1
11892267T02蒸汽分离器总成VAPOR SEPARATOR ASSEMBLY1
128554248接头(直通)FITTING (STRIAGHT)1
13855364衬套BUSHING6
14855362护孔环GROMMET6
14855362001护孔环GROMMET6
1581893440螺钉 (M8 x 40)SCREW (M8 x 40)6
16817274垫圈(0.344×1.00×0.063)不锈钢WASHER (.344 x 1.00 x .063) Stainless Steel6
17850248A1空气集气室套件PLENUM KIT Air1
188554242弯头ELBOW1
198554249弯头ELBOW1
1915133接头FITTING1
20850058衬垫GASKET1
208500581衬垫GASKET1
2113221A1温度传感器总成SENSOR ASSEMBLY Temperature1
2113221T01温度传感器SENSOR TEMP1
224005685螺钉（M4×10）SCREW (M4 x 10)3
2326995防松垫圈(#8不锈钢)LOCKWASHER (#8) Stainless Steel3
244001987螺钉(M4×16)SCREW (M4 x 16)12
25855422A1节气门体套件THROTTLE BODY KIT1
26855423O型圈O-RING1
2782130040螺钉(M6 x 40)SCREW (M6 x 40)4
图 72齿轮箱（驱动轴）（反向旋转） GEAR HOUSING (DRIVESHAFT)(COUNTER ROTATION)
齿轮箱（驱动轴）（反向旋转） GEAR HOUSING (DRIVESHAFT)(COUNTER ROTATION)
REF零件编号中文名称英文名称数量
1831998A9空气压缩机总成(参见空气压缩机部件分解图)COMPRESSOR ASSEMBLY Air (SEE BREAKDOWN ON AIR COMPRESSOR COMPONENTS)1
285593912螺钉（M6 x 12）SCREW (M6 x 12)5
38328231滑轮PULLEY1
38M0175171滑轮PULLEY1
44010825螺丝(M10 x 25)六角法兰-不锈钢SCREW (M10 x 25) Hex Flange - Stainless Steel2
58502511软管HOSE1
58502512软管HOSE1
685652329绝缘套管(15英寸)INSULATOR SLEEVE (15 IN.)1
7852379T5燃油导轨FUEL RAIL1
7852379T6燃油导轨FUEL RAIL1
88500653喷油器INJECTOR6
88M6001743空气喷射器总成INJECTOR ASSEMBLY Air6
9855697卡箍(16.2)CLAMP (16.2)4
98M0204696卡箍CLAMP4
1085564361软管(16英寸)HOSE (16 IN.)2
1192345螺柱STUD1
12854640特殊垫圈WASHER Special2
1335814螺母(.312-24)不锈钢NUT (.312-24) Stainless Steel1
1382670911螺母(.312-24)不锈钢NUT (.312-24) Stainless Steel1
14816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)8
14816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)8
15852378T5燃油导轨FUEL RAIL1
15852378T6燃油导轨FUEL RAIL1
16830756109软管(57.00英寸整料)(裁切至22-1/2英寸)HOSE (57.00 Inches Bulk) (Cut to 22-1/2 Inches)1
168M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
17826810止回阀CHECK VALVE1
1883075780管材(28英寸整卷)(裁切为2-1/2英寸)TUBING (28.00 Inches Bulk) (Cut to 2-1/2 Inches)1
188M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
1983476463管材(32英寸整卷)(裁切为28-1/2英寸)TUBING (32.00 Inches Bulk) (Cut to 28-1/2 Inches)1
20856880软管卡箍（15.3）CLAMP Hose (15.3)2
208M0214964卡箍CLAMP2
2185606064管材(36英寸整卷)(28-1/2英寸)TUBING (36.00 Inches Bulk) (28-1/2 IN.)1
218M0054152管材(39.00英寸整卷)TUBING (39.00 Inches Bulk)1
2282104510螺钉 (M5 x 10)SCREW (M5 x 10)4
2346997卡箍CLAMP4
24852961螺柱STUD4
248M0063255双头螺栓M10x92STUD M10x924
25826292螺母(M10)黄铜/镀镍NUT (M10) Brass/Nickel Plated4
26NSS不单独销售 软管(30英寸)NOT SOLD SEPARATE Hose (30 IN.)1
26856822A3软管(30英寸)HOSE (30 IN.)1
278558481软管HOSE1
27855848A1软管HOSE1
28828694A1杯形垫片总成WASHER ASSEMBLY Cupped6
29856880软管卡箍（15.3）CLAMP Hose (15.3)4
298M0214964卡箍CLAMP4
3085686953套管(27英寸整卷)(裁切为18英寸)SLEEVE (27.00 Inches Bulk) (Cut to 18 Inches)1
图 73蒸汽分离器组件 VAPOR SEPARATOR COMPONENTS
蒸汽分离器组件 VAPOR SEPARATOR COMPONENTS
REF零件编号中文名称英文名称数量
1855432A1盖板套件COVER KIT1
2NSS不单独销售 弯头NOT SOLD SEPARATE Elbow1
38568431直通接头FITTING Straight STRAIGHT1
419688接头FITTING1
5803878密封件SEAL1
6NSS不单独销售 泵出口配件包NOT SOLD SEPARATE Fitting Kit-Pump Outlet1
6855437A2泵出口接头套件FITTING KIT Pump Outlet1
7NSSO型圈（不单独销售）NOT SOLD SEPARATE O Ring1
8808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)7
9855528衬垫GASKET1
98M6002520衬垫套件GASKET KIT1
10855430A1浮子套件FLOAT KIT1
108M6004920浮子套件FLOAT KIT1
11F10064轴SHAFT1
12855431针阀VALVE Needle1
128M6004917进气阀VALVE-INLET1
135902螺钉(#6-32 x .187)SCREW (#6-32 x .187)1
14855427A1泵套件PUMP KIT1
15855428套筒SLEEVE1
158M6000589套筒SLEEVE1
16855434A1油杯套件BOWL KIT1
17855433密封件SEAL1
178554331密封件SEAL1
18855435A1塞套件PLUG KIT1
198554245弯头ELBOW2
2018458A4滤清器套件FILTER KIT1
2018458Q4燃油水分离滤清器FILTER Fuel-Water Separating1
21828586探头PROBE1
218M0204710探头PROBE1
图 74曲轴、活塞及连杆 CRANKSHAFT PISTONS AND CONNECTING RODS
曲轴、活塞及连杆 CRANKSHAFT PISTONS AND CONNECTING RODS
REF零件编号中文名称英文名称数量
1834814A1下机罩BOTTOM COWL1
1834814A2下机罩BOTTOM COWL1
2834815A1下机罩BOTTOM COWL1
28M0107322机罩-底部 右舷COWL-BOTTOM, STBD1
2834815A2下机罩BOTTOM COWL1
38253181罩盖密封条(41英寸)SEAL Cowl (41.00 Inches)2
38M0109217罩盖密封条SEAL-COWL2
4822024卡箍CLAMP1
5822023卡箍CLAMP1
692799螺钉(#10-16x1.12)SCREW (#10-16 x 1.12)2
782130040螺钉(M6 x 40)SCREW (M6 x 40)4
8831209固定座RETAINER1
9821908堵头PLUG1
10821915垫圈WASHER1
11821963止回阀CHECK VALVE1
118219631止回阀CHECK VALVE1
1230641O型圈(0.299x0.103)O-RING (.299 x .103)1
13821952接头FITTING1
14816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
14816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
158320782软管HOSE1
158M0039077成型软管HOSE-MOLDED1
16850896卡箍 (28.6)CLAMP (28.6)2
178320763接头FITTING1
18821904示流器接头FITTING Tell-Tale1
188M0077650示流器接头FITTING Tell-Tale1
19828216怠速排气套IDLE EXHAUST BOOT Exhaust1
19889847怠速排气套BOOT Idle Exhaust1
20817519A1排水单向阀总成CHECK VALVE ASSEMBLY Drain2
21850691开关SWITCH1
218M0235192微调开关SWITCH TRIM1
22824868螺钉(M6×75)SCREW (M6 x 75)1
23821253F1前手柄黑色FRONT HANDLE Black1
23889740A02手柄套件HANDLE KIT1
23821253F2前手柄FRONT HANDLE1
23889740A02手柄套件HANDLE KIT1
24335891衬套BUSHING2
2548462O型圈 (.614 x .070)O-RING (.614 x .070)1
268219423棘爪PAWL1
2769057垫片(.281 x .734 x .063)WASHER (.281 x .734 x .063)1
28401196螺母 (M6)NUT (M6)1
298214281螺钉(#10-16x0.625)SCREW (#10-16 x .625)1
30822873卡扣CLIP1
图 75动力升降电机(可拆卸泵壳) POWER TRIM MOTOR (REMOVABLE PUMP HOUSING)
动力升降电机(可拆卸泵壳) POWER TRIM MOTOR (REMOVABLE PUMP HOUSING)
REF零件编号中文名称英文名称数量
112335A1支架套件BRACKET KIT1
212323A1绳索/挂钩套件CORD/HOOK KIT1
387421油箱TANK1
443298A2盖总成CAP ASSEMBLY1
5NSS不单独销售嵌件NOT SOLD SEPARATE Insert1
611332O型圈(2.225 x .210)O-RING (2.225 x .210)1
7816190A3外壳总成适配器HOUSING ASSEMBLY Adapter1
7816190A4机油收集器总成(无传感器)OIL PICK UP ASSEMBLY Without Sender1
811332O型圈(2.225 x .210)O-RING (2.225 x .210)1
999802管TUBE1
1099439软管(114.00英寸)HOSE (114.00 Inches)1
11833069A3油箱总成RESERVOIR ASSEMBLY Oil1
118M0062954储油罐RESERVOIR, OIL1
12NSS不单独销售标签-储液罐NOT SOLD SEPARATE Decal-Reservoir1
13855362护孔环GROMMET3
13855362001护孔环GROMMET3
1449436垫圈WASHER3
1560411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)1
16855364衬套BUSHING3
1769267螺钉 (.312-18 x 1.750)SCREW (.312-18 x 1.750)2
18833155护孔环GROMMET2
198502341衬套BUSHING2
2082381455管材(25英寸整卷)(裁切为20英寸)TUBING (25.00 Inches Bulk) (Cut to 20 Inches)1
21816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
21816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
2212886A8开关SWITCH1
2358376螺钉(.164-18 x .375)SCREW (.164-18 x .375)1
2472761不锈钢垫圈(.203 x .562 x .060)WASHER (.203 x .562 x .060) Stainless Steel1
258260841隔套SPACER1
26816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)7
26816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)7
27NSS不单独销售 塞NOT SOLD SEPARATE Plug1
28424254接头FITTING1
288M0207780接头FITTING1
29830756109软管(57.00英寸散装)(裁切至6英寸)HOSE (57.00 Inches Bulk) (Cut to 6 Inches)1
298M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
30855785燃油冷却器COOLER Fuel1
30855785A1燃油冷却器总成COOLER ASSEMBLY Fuel1
31855761止回阀CHECK VALVE1
318557611止回阀CHECK VALVE1
3213791卡箍(15.7)CLAMP (15.7)4
328M0214911卡箍@5CLAMP @54
3385682239管材(17英寸整卷)(裁切为3英寸)TUBING (17.00 Inches Bulk) (Cut to 3 Inches)1
34856822A3软管(带绝缘套管)(30英寸)HOSE (W/INSULATING SLEEVE) (30 IN.)1
图 76油门杆与换挡轴 THROTTLE LEVER AND SHIFT SHAFT
油门杆与换挡轴 THROTTLE LEVER AND SHIFT SHAFT
REF零件编号中文名称英文名称数量
1850389杠杆LEVER1
2818165螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
355164衬套BUSHING1
474759垫圈(0.391x0.880x0.125)不锈钢WASHER (.391 x .880 x .125) Stainless Steel1
537828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel1
664022螺钉(.250-20 x 2.125)SCREW (.250-20 x 2.125)1
764015螺母 (.250-20)NUT (.250-20)1
826852尼龙帽CAP Nylon1
942927嵌件INSERT1
1035459垫圈WASHER1
118268336螺母 (M6)NUT (M6)1
11401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
128503931凸轮CAM1
12856221A1凸轮套件CAM KIT1
13852970衬套BUSHING1
1482130040螺钉(M6 x 40)SCREW (M6 x 40)1
15932481衬套BUSHING2
158M0215006旋转衬套BUSHING Swivel2
168235694螺纹球头BALL Threaded1
17850815连接杆LINK1
178508152杆ROD1
1867748滚轮ROLLER1
19850286油门滚轮ROLLER Throttle1
198502861杠杆LEVER1
2040056107螺钉(M5×16)SCREW (M5 x 16)1
2189302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)1
2269432外锁紧垫圈(#10)LOCKWASHER External (#10)1
238142831锚支架BRACKET Anchor1
23814283T6锚支架总成BRACKET ASSEMBLY Anchor1
2498889闩锁LATCH1
2542975传动螺钉DRIVE SCREW2
2639519杯套CUP1
2752100耐磨板WEAR PLATE1
2838279闩锁LATCH1
288M0036768闩锁LATCH1
2935462垫圈(.2656 x .625 x .0625)不锈钢WASHER (.2656 x .625 x .0625) Stainless Steel1
3035045螺母(.250-28)NUT (.250-28)1
30826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
3128782螺钉(.312-18 x .880)不锈钢SCREW (.312-18 x .880) Stainless Steel3
32814284导向块GUIDE BLOCK1
3320099弹簧SPRING1
3467073A1连杆总成LINK ROD ASSEMBLY1
3579932A16换挡轴总成SHIFT SHAFT ASSEMBLY1
3579932A17换挡轴总成SHIFT SHAFT ASSEMBLY1
36NSS弹性销(不单独销售)NOT SOLD SEPARATE Roll Pin1
37NSS不单独销售-换挡轴上杆NOT SOLD SEPARATE Shift Shaft Lever-Upper1
3826856衬套BUSHING1
3929720波形垫圈WAVE WASHER1
4035462垫圈(.2656 x .625 x .0625)不锈钢WASHER (.2656 x .625 x .0625) Stainless Steel1
4135045螺母(.250-28)NUT (.250-28)1
41826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
42814281A2开关SWITCH1
428M0052931开关SWITCH1
4377478螺钉 (#6-32 x .875)SCREW (#6-32 x .875)2
4427882垫圈WASHER2
图 77气缸体与端盖 Cylinder Block and End Caps
气缸体与端盖 Cylinder Block and End Caps
REF零件编号中文名称英文名称数量
1828340A5气缸体CYLINDER BLOCK1
1828340A14气缸体CYLINDER BLOCK1
28181383动力头螺柱（1-3/4英寸）STUD Powerhead (1-3/4 IN.)6
28M0034455螺柱1.750STUD 1.7506
3670653双头螺柱（0.375×5.620英寸，5-1/2英寸）STUD (.375 x 5.620) (5-1/2 IN.)2
3670654螺柱(.375-16/.375-24 x 5.620)STUD (.375-16/.375-24 x 5.620)2
3784384双头螺栓(.375 x 6.870)(6-3/4英寸)STUD (.375 x 6.870) (6-3/4 IN.)2
38M0034454螺柱(.375-16/.375-24 x 6.87)STUD (.375-16/.375-24 x 6.87)2
443044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
567296销(轴承座圈)PIN (BEARING RACE)2
58M0036405销PIN2
611338衬垫GASKET2
7384071接头(1/2-14)FITTING (1/2-14) (1/2-14)1
8426231止回阀CHECK VALVE1
8426233止回阀CHECK VALVE1
9426981止回阀CHECK VALVE1
9426982止回阀CHECK VALVE1
1099130122管材(20英尺整卷)(裁切为19英寸)TUBING (20.00 Feet Bulk) (Cut to 19 Inches)1
10892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
11816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)10
11816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)10
12852760直通接头FITTING (STRAIGHT)2
13855622弯头接头FITTING (ELBOW)1
148267611弯头ELBOW (ELBOW)3
1585583445管材(16英寸)TUBING (16 IN.)2
1585583464管材 (34.00英寸整卷)TUBING (34.00 Inches Bulk)2
1585583445管材(20英寸)TUBING (20 IN.)1
1585583464管材 (34.00英寸整卷)TUBING (34.00 Inches Bulk)1
1685606064管材(36.00英寸整料)(24-1/2英寸)TUBING (36.00 Inches Bulk) (24-1/2 IN.)3
168M0054152管材(39.00英寸整卷)TUBING (39.00 Inches Bulk)3
17828547753导管(.750内径x3.00英尺整料)(裁切至7英寸)CONDUIT (.750 Inside Diameter x 3.00 Feet Bulk) (Cut to 7 Inches)1
18432781止回阀CHECK VALVE1
188781051止回阀CHECK VALVE1
19830756109软管(57.00英寸整料)(裁切至11-1/2英寸)HOSE (57.00 Inches Bulk) (Cut to 11-1/2 Inches)1
198M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
20822769连接器CONNECTOR1
2156762扎带(4.00英寸)TIE STRAP (4.00 Inches)6
2266717螺钉(.375-16 x 3.250)SCREW (.375-16 x 3.250)8
2374824螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)6
2426852尼龙帽CAP Nylon1
25856832螺丝 (.250-20 x 1.750)SCREW (.250-20 x 1.750)1
2664015螺母 (.250-20)NUT (.250-20)1
27832760A1上端盖总成END CAP ASSEMBLY Upper1
27832760T1端盖总成END CAP ASSEMBLY1
2854029O型圈(2.800 x .103)O-RING (2.800 x .103)1
2916756A4轴承套件BEARING KIT1
30NSS不单独销售 轴承座圈NOT SOLD SEPARATE Bearing Race1
3141953密封件SEAL1
3269034螺钉带锁紧垫圈(.312-18 x 1.00)SCREW AND LOCKWASHER (.312-18 x 1.00)4
3230225螺钉带锁紧垫圈(.312-18 x 1.00)SCREW WITH LOCKWASHER (.312-18 x 1.00)4
337809A1端盖总成END CAP ASSEMBLY1
337809T1端盖总成END CAP ASSEMBLY1
3462700O型圈(3.237 x .103)O-RING (3.237 x .103)1
3541953密封件SEAL2
3628636螺钉(.250-20 x .750)SCREW (.250-20 x .750)4
3726992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel4
38853882支架BRACKET1
388538821节气门位置指示器安装支架BRACKET Throttle Position Indicator Mount1
398519371节气门位置指示器杠杆LEVER Throttle Position Indicator1
4082130025螺钉(M6x25)SCREW (M6 x 25)3
418318701衬套BUSHING6
42834985护孔环GROMMET3
428M0190980护孔环GROMMET3
438M6005905节气门位置指示器(内侧)INDICATOR Throttle Position (Inside)1
44850882隔套SPACER1
458329522节气门位置指示器(外侧)INDICATOR Throttle Position (Outside)1
458M6005166TPITPI1
46850828螺钉(#10-32 X 2-3/4英寸)SCREW (#10-32 X 2-3/4 IN.)3
471938541油门连杆LINK Throttle1
478M0084738连杆总成LINK ASSY1
48NSS不单独销售序列号塞NOT SOLD SEPARATE Plug-Serial Number1
49816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
49816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
-814754A98衬垫套件GASKET SET1
-8M0046714衬垫套件GASKET SET1
-854008A98动力头总成POWERHEAD ASSEMBLY1
-804545T99动力头总成POWERHEAD ASSEMBLY1
图 78空气压缩机组件 SN 1B884880及以下 Air Compressor Components SN 1B884880 and below
空气压缩机组件 SN 1B884880及以下 Air Compressor Components SN 1B884880 and below
REF零件编号中文名称英文名称数量
1855432A1盖板套件COVER KIT1
2NSS不单独销售 弯头NOT SOLD SEPARATE Elbow1
38568431直通接头FITTING Straight STRAIGHT1
419688接头FITTING1
5803878密封件SEAL1
6NSS不单独销售 泵出口配件包NOT SOLD SEPARATE Fitting Kit-Pump Outlet1
6855437A2泵出口接头套件FITTING KIT Pump Outlet1
7NSSO型圈（不单独销售）NOT SOLD SEPARATE O Ring1
8808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)7
9855528衬垫GASKET1
98M6002520衬垫套件GASKET KIT1
10855430A1浮子套件FLOAT KIT1
108M6004920浮子套件FLOAT KIT1
11F10064轴SHAFT1
12855431针阀VALVE Needle1
128M6004917进气阀VALVE-INLET1
135902螺钉(#6-32 x .187)SCREW (#6-32 x .187)1
14855427A1泵套件PUMP KIT1
15855428套筒SLEEVE1
158M6000589套筒SLEEVE1
16855434A1油杯套件BOWL KIT1
17855433密封件SEAL1
178554331密封件SEAL1
18855435A1塞套件PLUG KIT1
198554245弯头ELBOW2
2018458A4滤清器套件FILTER KIT1
2018458Q4燃油水分离滤清器FILTER Fuel-Water Separating1
21828586探头PROBE1
218M0204710探头PROBE1
图 79动力升降组件(可拆卸泵壳)金属电机壳体 POWER TRIM COMPONENTS (REMOVABLE PUMP HOUSING) Metal Motor Housing
动力升降组件(可拆卸泵壳)金属电机壳体 POWER TRIM COMPONENTS (REMOVABLE PUMP HOUSING) Metal Motor Housing
REF零件编号中文名称英文名称数量
112335A1支架套件BRACKET KIT1
212323A1绳索/挂钩套件CORD/HOOK KIT1
387421油箱TANK1
443298A2盖总成CAP ASSEMBLY1
5NSS不单独销售嵌件NOT SOLD SEPARATE Insert1
611332O型圈(2.225 x .210)O-RING (2.225 x .210)1
7816190A3外壳总成适配器HOUSING ASSEMBLY Adapter1
7816190A4机油收集器总成(无传感器)OIL PICK UP ASSEMBLY Without Sender1
811332O型圈(2.225 x .210)O-RING (2.225 x .210)1
999802管TUBE1
1099439软管(114.00英寸)HOSE (114.00 Inches)1
11833069A3油箱总成RESERVOIR ASSEMBLY Oil1
118M0062954储油罐RESERVOIR, OIL1
12NSS不单独销售标签-储液罐NOT SOLD SEPARATE Decal-Reservoir1
13855362护孔环GROMMET3
13855362001护孔环GROMMET3
1449436垫圈WASHER3
1560411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)1
16855364衬套BUSHING3
1769267螺钉 (.312-18 x 1.750)SCREW (.312-18 x 1.750)2
18833155护孔环GROMMET2
198502341衬套BUSHING2
2082381455管材(25英寸整卷)(裁切为20英寸)TUBING (25.00 Inches Bulk) (Cut to 20 Inches)1
21816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
21816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
2212886A8开关SWITCH1
2358376螺钉(.164-18 x .375)SCREW (.164-18 x .375)1
2472761不锈钢垫圈(.203 x .562 x .060)WASHER (.203 x .562 x .060) Stainless Steel1
258260841隔套SPACER1
26816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)7
26816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)7
27NSS不单独销售 塞NOT SOLD SEPARATE Plug1
28424254接头FITTING1
288M0207780接头FITTING1
29830756109软管(57.00英寸散装)(裁切至6英寸)HOSE (57.00 Inches Bulk) (Cut to 6 Inches)1
298M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
30855785燃油冷却器COOLER Fuel1
30855785A1燃油冷却器总成COOLER ASSEMBLY Fuel1
31855761止回阀CHECK VALVE1
318557611止回阀CHECK VALVE1
3213791卡箍(15.7)CLAMP (15.7)4
328M0214911卡箍@5CLAMP @54
3385682239管材(17英寸整卷)(裁切为3英寸)TUBING (17.00 Inches Bulk) (Cut to 3 Inches)1
34856822A3软管(带绝缘套管)(30英寸)HOSE (W/INSULATING SLEEVE) (30 IN.)1
图 80旋转支架与转向臂 Swivel Bracket and Steering Arm
旋转支架与转向臂 Swivel Bracket and Steering Arm
REF零件编号中文名称英文名称数量
18710A20旋转支架总成SWIVEL BRACKET ASSEMBLY1
18710A21旋转支架总成SWIVEL BRACKET ASSEMBLY1
18710T21灰色旋转支架总成SWIVEL BRACKET ASSEMBLY Gray1
233504O型圈O-RING1
28M0214926O型圈 @10O RING @101
3818764衬套BUSHING2
4816039隔套SPACER1
587735油封(下)SEAL Oil (LOWER)1
674036润滑脂接头FITTING Grease2
68M0169589润滑脂接头FITTING Grease2
7821207衬套BUSHING2
8816432止推垫片THRUST WASHER1
986580A1底部轭架总成YOKE ASSEMBLY Bottom1
9878182T轭架底部-不锈钢YOKE Bottom - Stainless Steel1
986580A2底部轭架总成YOKE ASSEMBLY Bottom1
986580A1底部轭架总成YOKE ASSEMBLY Bottom1
1067684挡圈RING Retaining1
11996301冲击板STRIKER PLATE2
118M0045383冲击板STRIKER PLATE2
1258643锁紧垫圈 (.375)LOCKWASHER (.375)2
1346335螺母 (.375-24)NUT (.375-24)2
1464014螺钉(0.250-28x0.500)(1/4-28x1/2英寸)SCREW (.250-28 x .500) (1/4-28 X 1/2 IN.)2
15NSS不单独销售-序列号覆膜标贴NOT SOLD SEPARATE Decal-Serial Overlaminate1
16821180A6调整传感器总成SENDER ASSEMBLY Trim1
168M0074846ORDER 8M0098273ORDER 8M00982731
17852368螺钉（#10-24 X 0.750）SCREW (#10-24 x .750)2
1826996锁紧垫圈(#10)(不锈钢)LOCKWASHER (#10) Stainless Steel2
1989302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)2
2067706A55转向臂转销总成SWIVEL PIN ASSEMBLY Steering Arm1
20826432A2转向臂旋转销总成-不锈钢SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel1
2067706A56转向臂转销总成SWIVEL PIN ASSEMBLY Steering Arm1
2067706A55转向臂转销总成SWIVEL PIN ASSEMBLY Steering Arm1
2178689螺钉(0.437-20x7.50)(7/16-20x7-1/2英寸)SCREW (.437-20 x 7.50) (7/16-20 X 7-1/2 IN.)2
218M0176309螺钉SCREW2
22888821缓冲垫BUMPER1
228M0000516上轭缓冲垫BUMPER Top Yoke1
2377326支架MOUNT2
2466921垫圈WASHER2
25814432垫圈WASHER2
2578688垫圈WASHER2
2634933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
268M0204653螺母NUT2
2792876A1转向连杆总成LINK ASSEMBLY Steering1
2792876A12连杆总成LINK ROD ASSEMBLY1
2814000螺钉(0.375-24x1.25)(3/8-24x1-1/4英寸)SCREW (.375-24 x 1.25) (3/8-24 X 1-1/4 IN.)1
28849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)1
2934863螺母 (.375-24)NUT (.375-24)2
298M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass2
3037828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel2
31816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
31816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
图 81空气处理器组件 AIR HANDLER COMPONENTS
空气处理器组件 AIR HANDLER COMPONENTS
REF零件编号中文名称英文名称数量
-855633A4空气处理器总成AIR HANDLER ASSEMBLY1
1855420T02适配板套件ADAPTER PLATE KIT1
2146973衬垫GASKET1
3850058衬垫GASKET1
38500581衬垫GASKET1
4116455簧片阀组REED BLOCK6
4855952T2簧片阀组REED BLOCK6
555715螺钉(.250-20×0.880)SCREW (.250-20 x .880)12
6855762油泵PUMP Oil1
6855884P1油泵PUMP Oil1
78565421衬垫GASKET1
88552841支架BRACKET1
9855424接头FITTING3
108554241接头FITTING3
118554246接头FITTING1
11892267T02蒸汽分离器总成VAPOR SEPARATOR ASSEMBLY1
128554248接头(直通)FITTING (STRIAGHT)1
13855364衬套BUSHING6
14855362护孔环GROMMET6
14855362001护孔环GROMMET6
1581893440螺钉 (M8 x 40)SCREW (M8 x 40)6
16817274垫圈(0.344×1.00×0.063)不锈钢WASHER (.344 x 1.00 x .063) Stainless Steel6
17850248A1空气集气室套件PLENUM KIT Air1
188554242弯头ELBOW1
198554249弯头ELBOW1
1915133接头FITTING1
20850058衬垫GASKET1
208500581衬垫GASKET1
2113221A1温度传感器总成SENSOR ASSEMBLY Temperature1
2113221T01温度传感器SENSOR TEMP1
224005685螺钉（M4×10）SCREW (M4 x 10)3
2326995防松垫圈(#8不锈钢)LOCKWASHER (#8) Stainless Steel3
244001987螺钉(M4×16)SCREW (M4 x 16)12
25855422A1节气门体套件THROTTLE BODY KIT1
26855423O型圈O-RING1
2782130040螺钉(M6 x 40)SCREW (M6 x 40)4
图 82水管 WATER HOSES
水管 WATER HOSES
REF零件编号中文名称英文名称数量
1855432A1盖板套件COVER KIT1
2NSS不单独销售 弯头NOT SOLD SEPARATE Elbow1
38568431直通接头FITTING Straight STRAIGHT1
419688接头FITTING1
5803878密封件SEAL1
6NSS不单独销售 泵出口配件包NOT SOLD SEPARATE Fitting Kit-Pump Outlet1
6855437A2泵出口接头套件FITTING KIT Pump Outlet1
7NSSO型圈（不单独销售）NOT SOLD SEPARATE O Ring1
8808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)7
9855528衬垫GASKET1
98M6002520衬垫套件GASKET KIT1
10855430A1浮子套件FLOAT KIT1
108M6004920浮子套件FLOAT KIT1
11F10064轴SHAFT1
12855431针阀VALVE Needle1
128M6004917进气阀VALVE-INLET1
135902螺钉(#6-32 x .187)SCREW (#6-32 x .187)1
14855427A1泵套件PUMP KIT1
15855428套筒SLEEVE1
158M6000589套筒SLEEVE1
16855434A1油杯套件BOWL KIT1
17855433密封件SEAL1
178554331密封件SEAL1
18855435A1塞套件PLUG KIT1
198554245弯头ELBOW2
2018458A4滤清器套件FILTER KIT1
2018458Q4燃油水分离滤清器FILTER Fuel-Water Separating1
21828586探头PROBE1
218M0204710探头PROBE1
图 83附件 ACCESSORIES
附件 ACCESSORIES
REF零件编号中文名称英文名称数量
-8M0080199动力转向泵套件(4英尺)PUMP KIT Power Steering (4 Feet)1
-8M0080200动力转向泵套件(12英尺)PUMP KIT Power Steering (12 Feet)1
-8M0131262动力转向泵套件(12英尺)PUMP KIT Power Steering (12 Feet)1
-8M0080201动力转向泵套件(24英尺)PUMP KIT Power Steering (24 Feet)1
-8M0131263动力转向泵套件(24英尺)PUMP KIT Power Steering (24 Feet)1
-892380A02标准转向舵机套件(40cc)STEERING HELM KIT Standard (40 cc)1
-8M0240080标准舵机套件40CMHELM KIT-STD 40CM1
-892557A02标准转向舵机套件(32cc)STEERING HELM KIT Standard (32 cc)1
-8M0240079标准舵机套件32CMHELM KIT-STD 32CM1
-892558A02标准转向舵机套件(50cc)STEERING HELM KIT Standard (50 cc)1
-8M0240081标准舵机套件50CMHELM KIT-STD 50CM1
-8M0046914液压软管套件(2英尺)油缸至舵机HOSE KIT Hydraulic (2 Feet) Cylinder to Helm1
-8M0167281软管套件2FTHOSE KIT 2FT1
-8M0046915液压软管套件(3英尺)油缸至舵机HOSE KIT Hydraulic (3 Feet) Cylinder to Helm1
-8M0167282软管套件3FTHOSE KIT 3 FT1
-8M0046916液压软管套件(4英尺)油缸至舵机HOSE KIT Hydraulic (4 Feet) Cylinder to Helm1
-8M0167283软管套件4FTHOSE KIT 4 FT1
-8M0046917液压软管套件(5英尺)油缸至舵机HOSE KIT Hydraulic (5 Feet) Cylinder to Helm1
-8M0167284软管套件5FTHOSE KIT 5 FT1
-8M0046918液压软管套件(6英尺)油缸至舵机HOSE KIT Hydraulic (6 Feet) Cylinder to Helm1
-8M0167285软管套件6FTHOSE KIT 6 FT1
-8M0046919液压软管套件(7英尺)油缸至舵机HOSE KIT Hydraulic (7 Feet) Cylinder to Helm1
-8M0167286软管套件7FTHOSE KIT 7 FT1
-8M0046920液压软管套件(8英尺)油缸至舵机HOSE KIT Hydraulic (8 Feet) Cylinder to Helm1
-8M0167287软管套件8FTHOSE KIT 8 FT1
-8M0046921液压软管套件(10英尺)油缸至舵机HOSE KIT Hydraulic (10 Feet) Cylinder to Helm1
-8M0167288软管套件10FTHOSE KIT 10 FT1
-8M0046922液压软管套件(12英尺)油缸至舵机HOSE KIT Hydraulic (12 Feet) Cylinder to Helm1
-8M0167289软管套件12FTHOSE KIT 12 FT1
-8M0046923液压软管套件(14英尺)油缸至舵机HOSE KIT Hydraulic (14 Feet) Cylinder to Helm1
-8M0167290软管套件 14英尺HOSE KIT 14 FT1
-8M0046924液压软管套件 (16英尺) 油缸至舵机HOSE KIT Hydraulic (16 Feet) Cylinder to Helm1
-8M0167291软管套件 16英尺HOSE KIT 16 FT1
-8M0046925液压软管套件 (18英尺) 油缸至舵机HOSE KIT Hydraulic (18 Feet) Cylinder to Helm1
-8M0167292软管套件 18英尺HOSE KIT 18 FT1
-8M0046927液压软管套件 (22英尺) 油缸至舵机HOSE KIT Hydraulic (22 Feet) Cylinder to Helm1
-8M0167294软管套件 22英尺HOSE KIT 22 FT1
-8M0046928液压软管套件 (24英尺) 油缸至舵机HOSE KIT Hydraulic (24 Feet) Cylinder to Helm1
-8M0167295软管套件 24英尺HOSE KIT 24 FT1
-8M0046929液压软管套件 (26英尺) 油缸至舵机HOSE KIT Hydraulic (26 Feet) Cylinder to Helm1
-8M0167296软管套件 26英尺HOSE KIT 26 FT1
-8M0046931液压软管套件 (30英尺) 油缸至舵机HOSE KIT Hydraulic (30 Feet) Cylinder to Helm1
-8M0167298软管套件 30英尺HOSE KIT 30 FT1
-892438K02动力转向软管套件 动力模块 (2英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (2 Feet) Hydraulic, Pump to Helm1
-8M0150604泵至舱壁/舵机套件 2英尺PUMP TO BULKHEAD/HELM KIT 2 Ft1
-892438K03动力转向软管套件 动力模块 (3英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (3 Feet) Hydraulic, Pump to Helm1
-8M0150605泵至舱壁/舵机套件 3英尺PUMP TO BULKHEAD/HELM KIT 3 Ft1
-892438K04动力转向软管套件 动力模块 (4英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (4 Feet) Hydraulic, Pump to Helm1
-8M0150606泵至舱壁/舵机套件 4英尺PUMP TO BULKHEAD/HELM KIT 4 Ft1
-892438K05动力转向软管套件 动力模块 (5英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (5 Feet) Hydraulic, Pump to Helm1
-8M0150607泵至舱壁/舵机套件 5英尺PUMP TO BULKHEAD/HELM KIT 5 Ft1
-892438K06软管套件 动力模块 (6英尺) 液压, 泵至舵机HOSE KIT Power Module (6 Feet) Hydraulic, Pump to Helm1
-8M0150608泵至舱壁/舵机套件 6英尺PUMP TO BULKHEAD/HELM KIT 6 Ft1
-892438K07软管套件 动力模块 (7英尺) 液压, 泵至舵机HOSE KIT Power Module (7 Feet) Hydraulic, Pump to Helm1
-8M0150610泵至舱壁/舵机套件 7英尺PUMP TO BULKHEAD/HELM KIT 7 Ft1
-892438K08软管套件 动力模块 (8英尺) 液压, 泵至舵机HOSE KIT Power Module (8 Feet) Hydraulic, Pump to Helm1
-8M0150612泵至舱壁/舵机套件 8英尺PUMP TO BULKHEAD/HELM KIT 8 Ft1
-892438K10动力转向软管套件 动力模块 (10英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (10 Feet) Hydraulic, Pump to Helm1
-8M0150613泵至舱壁/舵机套件 10英尺PUMP TO BULKHEAD/HELM KIT 10 Ft1
-892438K12动力转向软管套件 动力模块 (12英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (12 Feet) Hydraulic, Pump to Helm1
-8M0150614泵至舱壁/舵机套件 12英尺PUMP TO BULKHEAD/HELM KIT 12 Ft1
-892438K14动力转向软管套件 动力模块 (14英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (14 Feet) Hydraulic, Pump to Helm1
-8M0150615泵至舱壁/舵机套件 14英尺PUMP TO BULKHEAD/HELM KIT 14 Ft1
-892438K16动力转向软管套件 动力模块 (16英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (16 Feet) Hydraulic, Pump to Helm1
-8M0150616泵至舱壁/舵机套件 16英尺PUMP TO BULKHEAD/HELM KIT 16 Ft1
-892438K18动力转向软管套件 动力模块 (18英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (18 Feet) Hydraulic, Pump to Helm1
-8M0150617泵至舱壁/舵机套件 18英尺PUMP TO BULKHEAD/HELM KIT 18 Ft1
-892438K20动力转向软管套件 动力模块 (20英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (20 Feet) Hydraulic, Pump to Helm1
-8M0150618泵至舱壁/舵机套件 20英尺PUMP TO BULKHEAD/HELM KIT 20 ft1
-892438K22动力转向软管套件 动力模块 (22英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (22 Feet) Hydraulic, Pump to Helm1
-8M0150619泵至舱壁/舵机套件 22英尺PUMP TO BULKHEAD/HELM KIT 22 FT1
-892438K24动力转向软管套件 动力模块 (24英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (24 Feet) Hydraulic, Pump to Helm1
-8M0150620泵至舱壁/舵机套件 24英尺PUMP TO BULKHEAD/HELM KIT 24 FT1
-892825008液压软管 (8英尺) 舵机至压力罐HOSE (8 Feet) Hydraulic, Helm to Pressure Tank1
-892825010液压软管 (10英尺) 舵机至压力罐HOSE (10 Feet) Hydraulic, Helm to Pressure Tank1
-892825012液压软管 (12英尺) 舵机至压力罐HOSE (12 Feet) Hydraulic, Helm to Pressure Tank1
-892825014液压软管 (14英尺) 舵机至压力罐HOSE (14 Feet) Hydraulic, Helm to Pressure Tank1
-892825016液压软管 (16英尺) 舵机至压力罐HOSE (16 Feet) Hydraulic, Helm to Pressure Tank1
-892825018液压软管 (18英尺) 舵机至压力罐HOSE (18 Feet) Hydraulic, Helm to Pressure Tank1
-892825020液压软管 (20英尺) 舵机至压力罐HOSE (20 Feet) Hydraulic, Helm to Pressure Tank1
-892825022液压软管 (22英尺) 舵机至压力罐HOSE (22 Feet) Hydraulic, Helm to Pressure Tank1
-892825024液压软管 (24英尺) 舵机至压力罐HOSE (24 Feet) Hydraulic, Helm to Pressure Tank1
-892825026液压软管 (26英尺) 舵机至压力罐HOSE (26 Feet) Hydraulic, Helm to Pressure Tank1
-893395A01嵌入式安装板PLATE Flush Mount1
-875207三通接头TEE Fitting1
-892486K08模拟转换套件CONVERSION KIT Analog1
-899785K04附件电源线束总成(30英尺)HARNESS ASSEMBLY Accessory Power (30 Feet)1
-88334A2防腐电极套件MERCATHODE KIT1
-8M0180081防腐电极套件MERCATHODE KIT1
-825191A03索具软管套件HOSE KIT Rigging1
-880717A01齿轮箱螺丝/密封套件SCREW/SEAL KIT Gearcase1
-88439A50电池电缆组CABLE SET Battery1
-8M0210761电池电缆组(12英尺)CABLE SET (12 ft) Battery1
-44357Q2冲洗附件FLUSHING ATTACHMENT1
-881150Q1双进水口冲洗套件FLUSH KIT Dual Water Pick Up1
-8M0038563燃油管路 (100.00英尺)LINE Fuel (100.00 Feet)1
-899712A01连续性电缆套件CABLE KIT Continuity1
-8M0052924尾鳍SKEG1
-8M0052921水道堵塞套件PLUG KIT Water Passage1
-8M0075876发动机冲洗适配器套件ENGINE FLUSH ADAPTER KIT1
-8M0079968泵排水套件升级包PUMP DRAIN KIT Upgrade kit1
图 84齿轮箱（螺旋桨轴）（反向旋转） GEAR HOUSING (PROPSHAFT)(COUNTER ROTATION)
齿轮箱（螺旋桨轴）（反向旋转） GEAR HOUSING (PROPSHAFT)(COUNTER ROTATION)
REF零件编号中文名称英文名称数量
1831998A9空气压缩机总成(参见空气压缩机部件分解图)COMPRESSOR ASSEMBLY Air (SEE BREAKDOWN ON AIR COMPRESSOR COMPONENTS)1
285593912螺钉（M6 x 12）SCREW (M6 x 12)5
38328231滑轮PULLEY1
38M0175171滑轮PULLEY1
44010825螺丝(M10 x 25)六角法兰-不锈钢SCREW (M10 x 25) Hex Flange - Stainless Steel2
58502511软管HOSE1
58502512软管HOSE1
685652329绝缘套管(15英寸)INSULATOR SLEEVE (15 IN.)1
7852379T5燃油导轨FUEL RAIL1
7852379T6燃油导轨FUEL RAIL1
88500653喷油器INJECTOR6
88M6001743空气喷射器总成INJECTOR ASSEMBLY Air6
9855697卡箍(16.2)CLAMP (16.2)4
98M0204696卡箍CLAMP4
1085564361软管(16英寸)HOSE (16 IN.)2
1192345螺柱STUD1
12854640特殊垫圈WASHER Special2
1335814螺母(.312-24)不锈钢NUT (.312-24) Stainless Steel1
1382670911螺母(.312-24)不锈钢NUT (.312-24) Stainless Steel1
14816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)8
14816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)8
15852378T5燃油导轨FUEL RAIL1
15852378T6燃油导轨FUEL RAIL1
16830756109软管(57.00英寸整料)(裁切至22-1/2英寸)HOSE (57.00 Inches Bulk) (Cut to 22-1/2 Inches)1
168M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
17826810止回阀CHECK VALVE1
1883075780管材(28英寸整卷)(裁切为2-1/2英寸)TUBING (28.00 Inches Bulk) (Cut to 2-1/2 Inches)1
188M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
1983476463管材(32英寸整卷)(裁切为28-1/2英寸)TUBING (32.00 Inches Bulk) (Cut to 28-1/2 Inches)1
20856880软管卡箍（15.3）CLAMP Hose (15.3)2
208M0214964卡箍CLAMP2
2185606064管材(36英寸整卷)(28-1/2英寸)TUBING (36.00 Inches Bulk) (28-1/2 IN.)1
218M0054152管材(39.00英寸整卷)TUBING (39.00 Inches Bulk)1
2282104510螺钉 (M5 x 10)SCREW (M5 x 10)4
2346997卡箍CLAMP4
24852961螺柱STUD4
248M0063255双头螺栓M10x92STUD M10x924
25826292螺母(M10)黄铜/镀镍NUT (M10) Brass/Nickel Plated4
26NSS不单独销售 软管(30英寸)NOT SOLD SEPARATE Hose (30 IN.)1
26856822A3软管(30英寸)HOSE (30 IN.)1
278558481软管HOSE1
27855848A1软管HOSE1
28828694A1杯形垫片总成WASHER ASSEMBLY Cupped6
29856880软管卡箍（15.3）CLAMP Hose (15.3)4
298M0214964卡箍CLAMP4
3085686953套管(27英寸整卷)(裁切为18英寸)SLEEVE (27.00 Inches Bulk) (Cut to 18 Inches)1
图 85飞轮/交流发电机 Flywheel/Alternator
飞轮/交流发电机 Flywheel/Alternator
REF零件编号中文名称英文名称数量
18285072皮带BELT1
2834936A3飞轮FLYWHEEL1
2834936T6飞轮FLYWHEEL1
352901螺母(0.625-18)NUT (.625-18)1
468229垫圈(.641 x 1.250 x .190)WASHER (.641 x 1.250 x .190)1
433001垫圈WASHER1
545907黄色塞PLUG Yellow1
6834832交流发电机ALTERNATOR1
6857006T交流发电机ALTERNATOR1
7832080M2发电机支架BRACKET Alternator1
881893430螺钉 (M8 x 30)SCREW (M8 x 30)1
881893435螺钉(M8×35)SCREW (M8 x 35)1
9821583销PIN1
98215832特殊销（1.5英寸）PIN Special (1.5 Inches)1
10812618不锈钢螺钉(.312-18 x 1.00)带尼龙垫SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch3
1182446180螺钉(M10×80)SCREW (M10 x 80)1
12855798弹簧SPRING1
12855798001弹簧SPRING1
138502913皮带张紧器BELT TENSIONER1
13850291T3皮带张紧器BELT TENSIONER1
14855728双头螺栓(M10 X 54)STUD (M10 X 54)1
148557281螺柱STUD1
15826292螺母(M10)黄铜/镀镍NUT (M10) Brass/Nickel Plated1
16852385A1滑轮PULLEY1
168M6005030皮带轮总成PULLEY ASSY1
174010835螺钉(M10×35)六角法兰-不锈钢SCREW (M10 x 35) Hex Flange - Stainless Steel1
18856030A2衬套套装BUSHING KIT1
1985045O型圈(.551 x .070)O-RING (.551 x .070)2
20NLA不再供应No Longer Available1
2142139衬套BUSHING1
22857006T交流发电机ALTERNATOR1
22889955A03交流发电机套件ALTERNATOR KIT1
2340108100螺钉(M10×100)六角法兰-不锈钢SCREW (M10 x 100) Hex Flange - Stainless Steel1
238M0012503螺钉(M10×1.5)SCREW (M10 x 1.5)1
2440108120螺钉(M10×120)六角法兰-不锈钢SCREW (M10 x 120) Hex Flange - Stainless Steel1
2529395垫圈(0.390×1.00×0.06)WASHER (.390 x 1.00 x .06)3
258M0042641垫圈(0.390×1.00×0.06)WASHER (.390 x 1.00 x .06)3
26856975支架MOUNT3
27856972T支架BRACKET1
27858391T01支架BRACKET1
28845998垫圈(0.406×1.250×0.089)WASHER (.406 x 1.250 x .089)3
29856973T支架BRACKET1
29858393T01支架BRACKET1
30826292螺母(M10)黄铜/镀镍NUT (M10) Brass/Nickel Plated2
3182446155螺钉(M10×55)SCREW (M10 x 55)1
32856583T2拉线总成CABLE ASSEMBLY1
33821583销PIN1
338215832特殊销（1.5英寸）PIN Special (1.5 Inches)1
34856974T支架BRACKET1
34857142T支架BRACKET1
35812618不锈钢螺钉(.312-18 x 1.00)带尼龙垫SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch3
36855798弹簧SPRING1
36855798001弹簧SPRING1
37856815T2张紧臂总成ARM TENSIONER ASSEMBLY1
38856900螺柱(M10×85)STUD (M10 x 85)1
388M0034457螺柱(M10×85)STUD (M10 x 85)1
39826292螺母(M10)黄铜/镀镍NUT (M10) Brass/Nickel Plated1
40856894衬套BUSHING1
408568941衬套BUSHING1
414002320垫圈WASHER2
42852385A1滑轮PULLEY1
428M6005030皮带轮总成PULLEY ASSY1
434010835螺钉(M10×35)六角法兰-不锈钢SCREW (M10 x 35) Hex Flange - Stainless Steel1
图 86双机连接杆套件 Dual Engine Tie Bar Kit
双机连接杆套件 Dual Engine Tie Bar Kit
REF零件编号中文名称英文名称数量
-92876A9双机延长套件EXTENSION KIT Dual Engine1
171565A2管总成TUBE ASSEMBLY1
248462O型圈 (.614 x .070)O-RING (.614 x .070)1
341055支架MOUNT1
442100锁紧垫圈TAB WASHER2
537984螺母 (.875-14)NUT (.875-14)2
58M0041651螺母 (.875-14)NUT (.875-14)2
688404锁紧垫圈TAB WASHER2
738601螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250)4
817729A1支架BRACKET2
962055螺钉(.312-24 x 1.250)SCREW (.312-24 x 1.250)4
1017728锁紧垫圈TAB WASHER4
11140001螺钉(0.375-24×1.38)SCREW (.375-24 x 1.38)2
1234863螺母 (.375-24)NUT (.375-24)6
128M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass6
13979331转向眼环STEERING EYE2
138M0026167转向眼环STEERING EYE2
1423651衬套(1.625)SLEEVE (1.625)2
1597931管材(4.00英寸)TUBING (4.00 Inches)2
168149513联轴器(15.00英寸)COUPLER (15.00 Inches)1
168M0026098联轴器15英寸COUPLER 15 In.1
1742099螺母(.562-18)NUT (.562-18)1
18821169联轴器COUPLING1
1934931不锈钢垫圈(.406x.734x.063)WASHER (.406 x .734 x .063) Stainless Steel1
2094319螺钉(.375-24 x 1.5)SCREW (.375-24 x 1.5)1
图 87飞轮与发电机 Flywheel and Alternator
飞轮与发电机 Flywheel and Alternator
REF零件编号中文名称英文名称数量
-892440A08动力转向泵套件PUMP KIT Power Steering Pump Kit1
-892440A09动力转向泵套件PUMP KIT Power Steering Pump Kit1
-8M0131263动力转向泵套件(24英尺)PUMP KIT Power Steering (24 Feet)1
-892380A02标准转向舵机套件(40cc)STEERING HELM KIT Standard (40 cc)1
-8M0240080标准舵机套件40CMHELM KIT-STD 40CM1
-892557A02标准转向舵机套件(32cc)STEERING HELM KIT Standard (32 cc)1
-8M0240079标准舵机套件32CMHELM KIT-STD 32CM1
-892558A02标准转向舵机套件(50cc)STEERING HELM KIT Standard (50 cc)1
-8M0240081标准舵机套件50CMHELM KIT-STD 50CM1
-892450K01液压软管套件(1英尺)油缸至舵机HOSE KIT (1 Foot) Hydraulic, Cylinder to Helm1
-897982K01ORD 32-897982K02ORD 32-897982K021
-892450K02液压软管套件(2英尺)油缸至舵机HOSE KIT (2 Feet) Hydraulic, Cylinder to Helm1
-8M0167281软管套件2FTHOSE KIT 2FT1
-892450K03液压软管套件(3英尺)油缸至舵机HOSE KIT (3 Feet) Hydraulic, Cylinder to Helm1
-8M0167282软管套件3FTHOSE KIT 3 FT1
-892450K04液压软管套件(4英尺)油缸至舵机HOSE KIT (4 Feet) Hydraulic, Cylinder to Helm1
-8M0167283软管套件4FTHOSE KIT 4 FT1
-892450K05液压软管套件(5英尺)油缸至舵机HOSE KIT (5 Feet) Hydraulic, Cylinder to Helm1
-8M0167284软管套件5FTHOSE KIT 5 FT1
-892450K06液压软管套件(6英尺)油缸至舵机HOSE KIT (6 Feet) Hydraulic, Cylinder to Helm1
-8M0167285软管套件6FTHOSE KIT 6 FT1
-892450K07液压软管套件(7英尺)油缸至舵机HOSE KIT (7 Feet) Hydraulic, Cylinder to Helm1
-8M0167286软管套件7FTHOSE KIT 7 FT1
-892450K08液压软管套件(8英尺)油缸至舵机HOSE KIT (8 Feet) Hydraulic, Cylinder to Helm1
-8M0167287软管套件8FTHOSE KIT 8 FT1
-892450K10液压软管套件(10英尺)油缸至舵机HOSE KIT (10 Feet) Hydraulic, Cylinder to Helm1
-8M0167288软管套件10FTHOSE KIT 10 FT1
-892450K12液压软管套件(12英尺)油缸至舵机HOSE KIT (12 Feet) Hydraulic, Cylinder to Helm1
-8M0167289软管套件12FTHOSE KIT 12 FT1
-892450K14液压软管套件(14英尺)油缸至舵机HOSE KIT (14 Feet) Hydraulic, Cylinder to Helm1
-8M0167290软管套件 14英尺HOSE KIT 14 FT1
-892450K16液压软管套件(16英尺)油缸至舵机HOSE KIT (16 Feet) Hydraulic, Cylinder to Helm1
-8M0167291软管套件 16英尺HOSE KIT 16 FT1
-892450K18液压软管套件(18英尺)油缸至舵机HOSE KIT (18 Feet) Hydraulic, Cylinder to Helm1
-8M0167292软管套件 18英尺HOSE KIT 18 FT1
-892450K22液压软管套件(22英尺)油缸至舵机HOSE KIT (22 Feet) Hydraulic, Cylinder to Helm1
-8M0167294软管套件 22英尺HOSE KIT 22 FT1
-892450K24液压软管套件(24英尺)油缸至舵机HOSE KIT (24 Feet) Hydraulic, Cylinder to Helm1
-8M0167295软管套件 24英尺HOSE KIT 24 FT1
-892450K26液压软管套件(26英尺)油缸至舵机HOSE KIT (26 Feet) Hydraulic, Cylinder to Helm1
-8M0167296软管套件 26英尺HOSE KIT 26 FT1
-892450K30液压软管套件(30英尺)油缸至舵机HOSE KIT (30 Feet) Hydraulic, Cylinder to Helm1
-8M0167298软管套件 30英尺HOSE KIT 30 FT1
-892438K02动力转向软管套件 动力模块 (2英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (2 Feet) Hydraulic, Pump to Helm1
-8M0150604泵至舱壁/舵机套件 2英尺PUMP TO BULKHEAD/HELM KIT 2 Ft1
-892438K03动力转向软管套件 动力模块 (3英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (3 Feet) Hydraulic, Pump to Helm1
-8M0150605泵至舱壁/舵机套件 3英尺PUMP TO BULKHEAD/HELM KIT 3 Ft1
-892438K04动力转向软管套件 动力模块 (4英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (4 Feet) Hydraulic, Pump to Helm1
-8M0150606泵至舱壁/舵机套件 4英尺PUMP TO BULKHEAD/HELM KIT 4 Ft1
-892438K05动力转向软管套件 动力模块 (5英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (5 Feet) Hydraulic, Pump to Helm1
-8M0150607泵至舱壁/舵机套件 5英尺PUMP TO BULKHEAD/HELM KIT 5 Ft1
-892438K06软管套件 动力模块 (6英尺) 液压, 泵至舵机HOSE KIT Power Module (6 Feet) Hydraulic, Pump to Helm1
-8M0150608泵至舱壁/舵机套件 6英尺PUMP TO BULKHEAD/HELM KIT 6 Ft1
-892438K07软管套件 动力模块 (7英尺) 液压, 泵至舵机HOSE KIT Power Module (7 Feet) Hydraulic, Pump to Helm1
-8M0150610泵至舱壁/舵机套件 7英尺PUMP TO BULKHEAD/HELM KIT 7 Ft1
-892438K08软管套件 动力模块 (8英尺) 液压, 泵至舵机HOSE KIT Power Module (8 Feet) Hydraulic, Pump to Helm1
-8M0150612泵至舱壁/舵机套件 8英尺PUMP TO BULKHEAD/HELM KIT 8 Ft1
-892438K10动力转向软管套件 动力模块 (10英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (10 Feet) Hydraulic, Pump to Helm1
-8M0150613泵至舱壁/舵机套件 10英尺PUMP TO BULKHEAD/HELM KIT 10 Ft1
-892438K12动力转向软管套件 动力模块 (12英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (12 Feet) Hydraulic, Pump to Helm1
-8M0150614泵至舱壁/舵机套件 12英尺PUMP TO BULKHEAD/HELM KIT 12 Ft1
-892438K14动力转向软管套件 动力模块 (14英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (14 Feet) Hydraulic, Pump to Helm1
-8M0150615泵至舱壁/舵机套件 14英尺PUMP TO BULKHEAD/HELM KIT 14 Ft1
-892438K16动力转向软管套件 动力模块 (16英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (16 Feet) Hydraulic, Pump to Helm1
-8M0150616泵至舱壁/舵机套件 16英尺PUMP TO BULKHEAD/HELM KIT 16 Ft1
-892438K18动力转向软管套件 动力模块 (18英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (18 Feet) Hydraulic, Pump to Helm1
-8M0150617泵至舱壁/舵机套件 18英尺PUMP TO BULKHEAD/HELM KIT 18 Ft1
-892438K20动力转向软管套件 动力模块 (20英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (20 Feet) Hydraulic, Pump to Helm1
-8M0150618泵至舱壁/舵机套件 20英尺PUMP TO BULKHEAD/HELM KIT 20 ft1
-892438K22动力转向软管套件 动力模块 (22英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (22 Feet) Hydraulic, Pump to Helm1
-8M0150619泵至舱壁/舵机套件 22英尺PUMP TO BULKHEAD/HELM KIT 22 FT1
-892438K24动力转向软管套件 动力模块 (24英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (24 Feet) Hydraulic, Pump to Helm1
-8M0150620泵至舱壁/舵机套件 24英尺PUMP TO BULKHEAD/HELM KIT 24 FT1
-892825008液压软管 (8英尺) 舵机至压力罐HOSE (8 Feet) Hydraulic, Helm to Pressure Tank1
-892825010液压软管 (10英尺) 舵机至压力罐HOSE (10 Feet) Hydraulic, Helm to Pressure Tank1
-892825012液压软管 (12英尺) 舵机至压力罐HOSE (12 Feet) Hydraulic, Helm to Pressure Tank1
-892825014液压软管 (14英尺) 舵机至压力罐HOSE (14 Feet) Hydraulic, Helm to Pressure Tank1
-892825016液压软管 (16英尺) 舵机至压力罐HOSE (16 Feet) Hydraulic, Helm to Pressure Tank1
-892825018液压软管 (18英尺) 舵机至压力罐HOSE (18 Feet) Hydraulic, Helm to Pressure Tank1
-892825020液压软管 (20英尺) 舵机至压力罐HOSE (20 Feet) Hydraulic, Helm to Pressure Tank1
-892825022液压软管 (22英尺) 舵机至压力罐HOSE (22 Feet) Hydraulic, Helm to Pressure Tank1
-892825024液压软管 (24英尺) 舵机至压力罐HOSE (24 Feet) Hydraulic, Helm to Pressure Tank1
-892825026液压软管 (26英尺) 舵机至压力罐HOSE (26 Feet) Hydraulic, Helm to Pressure Tank1
-893395A01嵌入式安装板PLATE Flush Mount1
-875207三通接头TEE Fitting1
-892486K08模拟转换套件CONVERSION KIT Analog1
-889611K02附件电源线束套件(30英尺)HARNESS KIT Accessory Power (30 Feet)1
-899785K04附件电源线束总成(30英尺)HARNESS ASSEMBLY Accessory Power (30 Feet)1
-88334A2防腐电极套件MERCATHODE KIT1
-8M0180081防腐电极套件MERCATHODE KIT1
-825191A03索具软管套件HOSE KIT Rigging1
-880717A01齿轮箱螺丝/密封套件SCREW/SEAL KIT Gearcase1
-88439A50电池电缆组CABLE SET Battery1
-8M0210761电池电缆组(12英尺)CABLE SET (12 ft) Battery1
-44357Q2冲洗附件FLUSHING ATTACHMENT1
-44357T2冲洗附件FLUSHING ATTACHMENT1
-881150Q1双进水口冲洗套件FLUSH KIT Dual Water Pick Up1
-881150K1双进水口冲洗密封套件SEAL KIT Flush - Dual Water Pickup1
-897967100燃油管路 (100.00英尺)LINE Fuel (100.00 Feet)1
-8M0038563燃油管路 (100.00英尺)LINE Fuel (100.00 Feet)1
-899712A01连续性电缆套件CABLE KIT Continuity1
图 88线圈板总成 序列号1B490865及以下 Coil Plate Assembly Serial Number 1B490865 and Below
线圈板总成 序列号1B490865及以下 Coil Plate Assembly Serial Number 1B490865 and Below
REF零件编号中文名称英文名称数量
1855432A1盖板套件COVER KIT1
2NSS不单独销售 弯头NOT SOLD SEPARATE Elbow1
38568431直通接头FITTING Straight STRAIGHT1
419688接头FITTING1
5803878密封件SEAL1
6NSS不单独销售 泵出口配件包NOT SOLD SEPARATE Fitting Kit-Pump Outlet1
6855437A2泵出口接头套件FITTING KIT Pump Outlet1
7NSSO型圈（不单独销售）NOT SOLD SEPARATE O Ring1
8808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)7
9855528衬垫GASKET1
98M6002520衬垫套件GASKET KIT1
10855430A1浮子套件FLOAT KIT1
108M6004920浮子套件FLOAT KIT1
11F10064轴SHAFT1
12855431针阀VALVE Needle1
128M6004917进气阀VALVE-INLET1
135902螺钉(#6-32 x .187)SCREW (#6-32 x .187)1
14855427A1泵套件PUMP KIT1
15855428套筒SLEEVE1
158M6000589套筒SLEEVE1
16855434A1油杯套件BOWL KIT1
17855433密封件SEAL1
178554331密封件SEAL1
18855435A1塞套件PLUG KIT1
198554245弯头ELBOW2
2018458A4滤清器套件FILTER KIT1
2018458Q4燃油水分离滤清器FILTER Fuel-Water Separating1
21828586探头PROBE1
218M0204710探头PROBE1
图 89燃油软管 FUEL HOSES
燃油软管 FUEL HOSES
REF零件编号中文名称英文名称数量
18285072皮带BELT1
2834936A3飞轮FLYWHEEL1
2834936T6飞轮FLYWHEEL1
352901螺母(0.625-18)NUT (.625-18)1
468229垫圈(.641 x 1.250 x .190)WASHER (.641 x 1.250 x .190)1
433001垫圈WASHER1
545907黄色塞PLUG Yellow1
6834832交流发电机ALTERNATOR1
6857006T交流发电机ALTERNATOR1
7832080M2发电机支架BRACKET Alternator1
881893430螺钉 (M8 x 30)SCREW (M8 x 30)1
881893435螺钉(M8×35)SCREW (M8 x 35)1
9821583销PIN1
98215832特殊销（1.5英寸）PIN Special (1.5 Inches)1
10812618不锈钢螺钉(.312-18 x 1.00)带尼龙垫SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch3
1182446180螺钉(M10×80)SCREW (M10 x 80)1
12855798弹簧SPRING1
12855798001弹簧SPRING1
138502913皮带张紧器BELT TENSIONER1
13850291T3皮带张紧器BELT TENSIONER1
14855728双头螺栓(M10 X 54)STUD (M10 X 54)1
148557281螺柱STUD1
15826292螺母(M10)黄铜/镀镍NUT (M10) Brass/Nickel Plated1
16852385A1滑轮PULLEY1
168M6005030皮带轮总成PULLEY ASSY1
174010835螺钉(M10×35)六角法兰-不锈钢SCREW (M10 x 35) Hex Flange - Stainless Steel1
18856030A2衬套套装BUSHING KIT1
1985045O型圈(.551 x .070)O-RING (.551 x .070)2
20NLA不再供应No Longer Available1
2142139衬套BUSHING1
22857006T交流发电机ALTERNATOR1
22889955A03交流发电机套件ALTERNATOR KIT1
2340108100螺钉(M10×100)六角法兰-不锈钢SCREW (M10 x 100) Hex Flange - Stainless Steel1
238M0012503螺钉(M10×1.5)SCREW (M10 x 1.5)1
2440108120螺钉(M10×120)六角法兰-不锈钢SCREW (M10 x 120) Hex Flange - Stainless Steel1
2529395垫圈(0.390×1.00×0.06)WASHER (.390 x 1.00 x .06)3
258M0042641垫圈(0.390×1.00×0.06)WASHER (.390 x 1.00 x .06)3
26856975支架MOUNT3
27856972T支架BRACKET1
27858391T01支架BRACKET1
28845998垫圈(0.406×1.250×0.089)WASHER (.406 x 1.250 x .089)3
29856973T支架BRACKET1
29858393T01支架BRACKET1
30826292螺母(M10)黄铜/镀镍NUT (M10) Brass/Nickel Plated2
3182446155螺钉(M10×55)SCREW (M10 x 55)1
32856583T2拉线总成CABLE ASSEMBLY1
33821583销PIN1
338215832特殊销（1.5英寸）PIN Special (1.5 Inches)1
34856974T支架BRACKET1
34857142T支架BRACKET1
35812618不锈钢螺钉(.312-18 x 1.00)带尼龙垫SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch3
36855798弹簧SPRING1
36855798001弹簧SPRING1
37856815T2张紧臂总成ARM TENSIONER ASSEMBLY1
38856900螺柱(M10×85)STUD (M10 x 85)1
388M0034457螺柱(M10×85)STUD (M10 x 85)1
39826292螺母(M10)黄铜/镀镍NUT (M10) Brass/Nickel Plated1
40856894衬套BUSHING1
408568941衬套BUSHING1
414002320垫圈WASHER2
42852385A1滑轮PULLEY1
428M6005030皮带轮总成PULLEY ASSY1
434010835螺钉(M10×35)六角法兰-不锈钢SCREW (M10 x 35) Hex Flange - Stainless Steel1
图 90专用工具 Tools Special
专用工具 Tools Special
REF零件编号中文名称英文名称数量
1855432A1盖板套件COVER KIT1
2NSS不单独销售 弯头NOT SOLD SEPARATE Elbow1
38568431直通接头FITTING Straight STRAIGHT1
419688接头FITTING1
5803878密封件SEAL1
6NSS不单独销售 泵出口配件包NOT SOLD SEPARATE Fitting Kit-Pump Outlet1
6855437A2泵出口接头套件FITTING KIT Pump Outlet1
7NSSO型圈（不单独销售）NOT SOLD SEPARATE O Ring1
8808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)7
9855528衬垫GASKET1
98M6002520衬垫套件GASKET KIT1
10855430A1浮子套件FLOAT KIT1
108M6004920浮子套件FLOAT KIT1
11F10064轴SHAFT1
12855431针阀VALVE Needle1
128M6004917进气阀VALVE-INLET1
135902螺钉(#6-32 x .187)SCREW (#6-32 x .187)1
14855427A1泵套件PUMP KIT1
15855428套筒SLEEVE1
158M6000589套筒SLEEVE1
16855434A1油杯套件BOWL KIT1
17855433密封件SEAL1
178554331密封件SEAL1
18855435A1塞套件PLUG KIT1
198554245弯头ELBOW2
2018458A4滤清器套件FILTER KIT1
2018458Q4燃油水分离滤清器FILTER Fuel-Water Separating1
21828586探头PROBE1
218M0204710探头PROBE1
图 91油管 Oil Lines
油管 Oil Lines
REF零件编号中文名称英文名称数量
-892440A08动力转向泵套件PUMP KIT Power Steering Pump Kit1
-892440A09动力转向泵套件PUMP KIT Power Steering Pump Kit1
-8M0131263动力转向泵套件(24英尺)PUMP KIT Power Steering (24 Feet)1
-892380A02标准转向舵机套件(40cc)STEERING HELM KIT Standard (40 cc)1
-8M0240080标准舵机套件40CMHELM KIT-STD 40CM1
-892557A02标准转向舵机套件(32cc)STEERING HELM KIT Standard (32 cc)1
-8M0240079标准舵机套件32CMHELM KIT-STD 32CM1
-892558A02标准转向舵机套件(50cc)STEERING HELM KIT Standard (50 cc)1
-8M0240081标准舵机套件50CMHELM KIT-STD 50CM1
-892450K01液压软管套件(1英尺)油缸至舵机HOSE KIT (1 Foot) Hydraulic, Cylinder to Helm1
-897982K01ORD 32-897982K02ORD 32-897982K021
-892450K02液压软管套件(2英尺)油缸至舵机HOSE KIT (2 Feet) Hydraulic, Cylinder to Helm1
-8M0167281软管套件2FTHOSE KIT 2FT1
-892450K03液压软管套件(3英尺)油缸至舵机HOSE KIT (3 Feet) Hydraulic, Cylinder to Helm1
-8M0167282软管套件3FTHOSE KIT 3 FT1
-892450K04液压软管套件(4英尺)油缸至舵机HOSE KIT (4 Feet) Hydraulic, Cylinder to Helm1
-8M0167283软管套件4FTHOSE KIT 4 FT1
-892450K05液压软管套件(5英尺)油缸至舵机HOSE KIT (5 Feet) Hydraulic, Cylinder to Helm1
-8M0167284软管套件5FTHOSE KIT 5 FT1
-892450K06液压软管套件(6英尺)油缸至舵机HOSE KIT (6 Feet) Hydraulic, Cylinder to Helm1
-8M0167285软管套件6FTHOSE KIT 6 FT1
-892450K07液压软管套件(7英尺)油缸至舵机HOSE KIT (7 Feet) Hydraulic, Cylinder to Helm1
-8M0167286软管套件7FTHOSE KIT 7 FT1
-892450K08液压软管套件(8英尺)油缸至舵机HOSE KIT (8 Feet) Hydraulic, Cylinder to Helm1
-8M0167287软管套件8FTHOSE KIT 8 FT1
-892450K10液压软管套件(10英尺)油缸至舵机HOSE KIT (10 Feet) Hydraulic, Cylinder to Helm1
-8M0167288软管套件10FTHOSE KIT 10 FT1
-892450K12液压软管套件(12英尺)油缸至舵机HOSE KIT (12 Feet) Hydraulic, Cylinder to Helm1
-8M0167289软管套件12FTHOSE KIT 12 FT1
-892450K14液压软管套件(14英尺)油缸至舵机HOSE KIT (14 Feet) Hydraulic, Cylinder to Helm1
-8M0167290软管套件 14英尺HOSE KIT 14 FT1
-892450K16液压软管套件(16英尺)油缸至舵机HOSE KIT (16 Feet) Hydraulic, Cylinder to Helm1
-8M0167291软管套件 16英尺HOSE KIT 16 FT1
-892450K18液压软管套件(18英尺)油缸至舵机HOSE KIT (18 Feet) Hydraulic, Cylinder to Helm1
-8M0167292软管套件 18英尺HOSE KIT 18 FT1
-892450K22液压软管套件(22英尺)油缸至舵机HOSE KIT (22 Feet) Hydraulic, Cylinder to Helm1
-8M0167294软管套件 22英尺HOSE KIT 22 FT1
-892450K24液压软管套件(24英尺)油缸至舵机HOSE KIT (24 Feet) Hydraulic, Cylinder to Helm1
-8M0167295软管套件 24英尺HOSE KIT 24 FT1
-892450K26液压软管套件(26英尺)油缸至舵机HOSE KIT (26 Feet) Hydraulic, Cylinder to Helm1
-8M0167296软管套件 26英尺HOSE KIT 26 FT1
-892450K30液压软管套件(30英尺)油缸至舵机HOSE KIT (30 Feet) Hydraulic, Cylinder to Helm1
-8M0167298软管套件 30英尺HOSE KIT 30 FT1
-892438K02动力转向软管套件 动力模块 (2英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (2 Feet) Hydraulic, Pump to Helm1
-8M0150604泵至舱壁/舵机套件 2英尺PUMP TO BULKHEAD/HELM KIT 2 Ft1
-892438K03动力转向软管套件 动力模块 (3英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (3 Feet) Hydraulic, Pump to Helm1
-8M0150605泵至舱壁/舵机套件 3英尺PUMP TO BULKHEAD/HELM KIT 3 Ft1
-892438K04动力转向软管套件 动力模块 (4英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (4 Feet) Hydraulic, Pump to Helm1
-8M0150606泵至舱壁/舵机套件 4英尺PUMP TO BULKHEAD/HELM KIT 4 Ft1
-892438K05动力转向软管套件 动力模块 (5英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (5 Feet) Hydraulic, Pump to Helm1
-8M0150607泵至舱壁/舵机套件 5英尺PUMP TO BULKHEAD/HELM KIT 5 Ft1
-892438K06软管套件 动力模块 (6英尺) 液压, 泵至舵机HOSE KIT Power Module (6 Feet) Hydraulic, Pump to Helm1
-8M0150608泵至舱壁/舵机套件 6英尺PUMP TO BULKHEAD/HELM KIT 6 Ft1
-892438K07软管套件 动力模块 (7英尺) 液压, 泵至舵机HOSE KIT Power Module (7 Feet) Hydraulic, Pump to Helm1
-8M0150610泵至舱壁/舵机套件 7英尺PUMP TO BULKHEAD/HELM KIT 7 Ft1
-892438K08软管套件 动力模块 (8英尺) 液压, 泵至舵机HOSE KIT Power Module (8 Feet) Hydraulic, Pump to Helm1
-8M0150612泵至舱壁/舵机套件 8英尺PUMP TO BULKHEAD/HELM KIT 8 Ft1
-892438K10动力转向软管套件 动力模块 (10英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (10 Feet) Hydraulic, Pump to Helm1
-8M0150613泵至舱壁/舵机套件 10英尺PUMP TO BULKHEAD/HELM KIT 10 Ft1
-892438K12动力转向软管套件 动力模块 (12英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (12 Feet) Hydraulic, Pump to Helm1
-8M0150614泵至舱壁/舵机套件 12英尺PUMP TO BULKHEAD/HELM KIT 12 Ft1
-892438K14动力转向软管套件 动力模块 (14英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (14 Feet) Hydraulic, Pump to Helm1
-8M0150615泵至舱壁/舵机套件 14英尺PUMP TO BULKHEAD/HELM KIT 14 Ft1
-892438K16动力转向软管套件 动力模块 (16英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (16 Feet) Hydraulic, Pump to Helm1
-8M0150616泵至舱壁/舵机套件 16英尺PUMP TO BULKHEAD/HELM KIT 16 Ft1
-892438K18动力转向软管套件 动力模块 (18英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (18 Feet) Hydraulic, Pump to Helm1
-8M0150617泵至舱壁/舵机套件 18英尺PUMP TO BULKHEAD/HELM KIT 18 Ft1
-892438K20动力转向软管套件 动力模块 (20英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (20 Feet) Hydraulic, Pump to Helm1
-8M0150618泵至舱壁/舵机套件 20英尺PUMP TO BULKHEAD/HELM KIT 20 ft1
-892438K22动力转向软管套件 动力模块 (22英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (22 Feet) Hydraulic, Pump to Helm1
-8M0150619泵至舱壁/舵机套件 22英尺PUMP TO BULKHEAD/HELM KIT 22 FT1
-892438K24动力转向软管套件 动力模块 (24英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (24 Feet) Hydraulic, Pump to Helm1
-8M0150620泵至舱壁/舵机套件 24英尺PUMP TO BULKHEAD/HELM KIT 24 FT1
-892825008液压软管 (8英尺) 舵机至压力罐HOSE (8 Feet) Hydraulic, Helm to Pressure Tank1
-892825010液压软管 (10英尺) 舵机至压力罐HOSE (10 Feet) Hydraulic, Helm to Pressure Tank1
-892825012液压软管 (12英尺) 舵机至压力罐HOSE (12 Feet) Hydraulic, Helm to Pressure Tank1
-892825014液压软管 (14英尺) 舵机至压力罐HOSE (14 Feet) Hydraulic, Helm to Pressure Tank1
-892825016液压软管 (16英尺) 舵机至压力罐HOSE (16 Feet) Hydraulic, Helm to Pressure Tank1
-892825018液压软管 (18英尺) 舵机至压力罐HOSE (18 Feet) Hydraulic, Helm to Pressure Tank1
-892825020液压软管 (20英尺) 舵机至压力罐HOSE (20 Feet) Hydraulic, Helm to Pressure Tank1
-892825022液压软管 (22英尺) 舵机至压力罐HOSE (22 Feet) Hydraulic, Helm to Pressure Tank1
-892825024液压软管 (24英尺) 舵机至压力罐HOSE (24 Feet) Hydraulic, Helm to Pressure Tank1
-892825026液压软管 (26英尺) 舵机至压力罐HOSE (26 Feet) Hydraulic, Helm to Pressure Tank1
-893395A01嵌入式安装板PLATE Flush Mount1
-875207三通接头TEE Fitting1
-892486K08模拟转换套件CONVERSION KIT Analog1
-889611K02附件电源线束套件(30英尺)HARNESS KIT Accessory Power (30 Feet)1
-899785K04附件电源线束总成(30英尺)HARNESS ASSEMBLY Accessory Power (30 Feet)1
-88334A2防腐电极套件MERCATHODE KIT1
-8M0180081防腐电极套件MERCATHODE KIT1
-825191A03索具软管套件HOSE KIT Rigging1
-880717A01齿轮箱螺丝/密封套件SCREW/SEAL KIT Gearcase1
-88439A50电池电缆组CABLE SET Battery1
-8M0210761电池电缆组(12英尺)CABLE SET (12 ft) Battery1
-44357Q2冲洗附件FLUSHING ATTACHMENT1
-44357T2冲洗附件FLUSHING ATTACHMENT1
-881150Q1双进水口冲洗套件FLUSH KIT Dual Water Pick Up1
-881150K1双进水口冲洗密封套件SEAL KIT Flush - Dual Water Pickup1
-897967100燃油管路 (100.00英尺)LINE Fuel (100.00 Feet)1
-8M0038563燃油管路 (100.00英尺)LINE Fuel (100.00 Feet)1
-899712A01连续性电缆套件CABLE KIT Continuity1
图 92水泵套件(喷射型) Water Pump Kit Jet
水泵套件(喷射型) Water Pump Kit Jet
REF零件编号中文名称英文名称数量
188334A2防腐电极套件MERCATHODE KIT1
242600A09防腐电极总成MERCATHODE ASSEMBLY1
322793螺丝(#9-14x0.875)SCREW (#9-14 x .875)2
430164垫圈(0.192x0.375x0.0312)不锈钢WASHER (.192 x .375 x .0312) Stainless Steel2
545076黄铜螺母(#10-32)NUT (#10-32) Brass4
672958A5电极总成ELECTRODE ASSEMBLY1
721836O型圈(.796 x .139)O-RING (.796 x .139)1
78M0204645O型圈(.796 x .139)O-RING (.796 x .139)1
887698螺丝(#10-16 x 1.250)不锈钢SCREW (#10-16 x 1.250) Stainless Steel2
972957A5阳极总成ANODE ASSEMBLY1
98M0181304阳极总成ANODE ASSY1
1021836O型圈(.796 x .139)O-RING (.796 x .139)1
108M0204645O型圈(.796 x .139)O-RING (.796 x .139)1
1187698螺丝(#10-16 x 1.250)不锈钢SCREW (#10-16 x 1.250) Stainless Steel2
1279091保险丝20安培FUSE 20 Ampere1
128M0207796保险丝20安培FUSE 20 AMP1
1395084A10电缆总成(5.00英寸)红色CABLE ASSEMBLY (5.00 Inches) Red1
138M0207788拉线总成CABLE ASSEMBLY1
1495084A13电缆总成(64.00英寸)CABLE ASSEMBLY (64.00 Inches)1
1579138A8电缆总成(72.00英寸)黑色CABLE ASSEMBLY (72.00 Inches) Black1
图 93顶罩（序列号0T408999及以下） TOP COWL (S/N-0T408999 AND BELOW)
顶罩（序列号0T408999及以下） TOP COWL (S/N-0T408999 AND BELOW)
REF零件编号中文名称英文名称数量
1850389杠杆LEVER1
2818165螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
355164衬套BUSHING1
474759垫圈(0.391x0.880x0.125)不锈钢WASHER (.391 x .880 x .125) Stainless Steel1
537828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel1
664022螺钉(.250-20 x 2.125)SCREW (.250-20 x 2.125)1
764015螺母 (.250-20)NUT (.250-20)1
826852尼龙帽CAP Nylon1
942927嵌件INSERT1
1035459垫圈WASHER1
118268336螺母 (M6)NUT (M6)1
11401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
128503931凸轮CAM1
12856221A1凸轮套件CAM KIT1
13852970衬套BUSHING1
1482130040螺钉(M6 x 40)SCREW (M6 x 40)1
15932481衬套BUSHING2
158M0215006旋转衬套BUSHING Swivel2
168235694螺纹球头BALL Threaded1
17850815连接杆LINK1
178508152杆ROD1
1867748滚轮ROLLER1
19850286油门滚轮ROLLER Throttle1
198502861杠杆LEVER1
2040056107螺钉(M5×16)SCREW (M5 x 16)1
2189302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)1
2269432外锁紧垫圈(#10)LOCKWASHER External (#10)1
238142831锚支架BRACKET Anchor1
23814283T6锚支架总成BRACKET ASSEMBLY Anchor1
2498889闩锁LATCH1
2542975传动螺钉DRIVE SCREW2
2639519杯套CUP1
2752100耐磨板WEAR PLATE1
2838279闩锁LATCH1
288M0036768闩锁LATCH1
2935462垫圈(.2656 x .625 x .0625)不锈钢WASHER (.2656 x .625 x .0625) Stainless Steel1
3035045螺母(.250-28)NUT (.250-28)1
30826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
3128782螺钉(.312-18 x .880)不锈钢SCREW (.312-18 x .880) Stainless Steel3
32814284导向块GUIDE BLOCK1
3320099弹簧SPRING1
3467073A1连杆总成LINK ROD ASSEMBLY1
3579932A16换挡轴总成SHIFT SHAFT ASSEMBLY1
3579932A17换挡轴总成SHIFT SHAFT ASSEMBLY1
36NSS弹性销(不单独销售)NOT SOLD SEPARATE Roll Pin1
37NSS不单独销售-换挡轴上杆NOT SOLD SEPARATE Shift Shaft Lever-Upper1
3826856衬套BUSHING1
3929720波形垫圈WAVE WASHER1
4035462垫圈(.2656 x .625 x .0625)不锈钢WASHER (.2656 x .625 x .0625) Stainless Steel1
4135045螺母(.250-28)NUT (.250-28)1
41826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
42814281A2开关SWITCH1
428M0052931开关SWITCH1
4377478螺钉 (#6-32 x .875)SCREW (#6-32 x .875)2
4427882垫圈WASHER2
图 94旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM
旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM
REF零件编号中文名称英文名称数量
18710A20旋转支架总成SWIVEL BRACKET ASSEMBLY1
18710A21旋转支架总成SWIVEL BRACKET ASSEMBLY1
18710T21灰色旋转支架总成SWIVEL BRACKET ASSEMBLY Gray1
233504O型圈O-RING1
28M0214926O型圈 @10O RING @101
3818764衬套BUSHING2
4816039隔套SPACER1
587735油封(下)SEAL Oil (LOWER)1
674036润滑脂接头FITTING Grease2
68M0169589润滑脂接头FITTING Grease2
7821207衬套BUSHING2
8816432止推垫片THRUST WASHER1
986580A1底部轭架总成YOKE ASSEMBLY Bottom1
9878182T轭架底部-不锈钢YOKE Bottom - Stainless Steel1
986580A2底部轭架总成YOKE ASSEMBLY Bottom1
986580A1底部轭架总成YOKE ASSEMBLY Bottom1
1067684挡圈RING Retaining1
11996301冲击板STRIKER PLATE2
118M0045383冲击板STRIKER PLATE2
1258643锁紧垫圈 (.375)LOCKWASHER (.375)2
1346335螺母 (.375-24)NUT (.375-24)2
1464014螺钉(0.250-28x0.500)(1/4-28x1/2英寸)SCREW (.250-28 x .500) (1/4-28 X 1/2 IN.)2
15NSS不单独销售-序列号覆膜标贴NOT SOLD SEPARATE Decal-Serial Overlaminate1
16821180A6调整传感器总成SENDER ASSEMBLY Trim1
168M0074846ORDER 8M0098273ORDER 8M00982731
17852368螺钉（#10-24 X 0.750）SCREW (#10-24 x .750)2
1826996锁紧垫圈(#10)(不锈钢)LOCKWASHER (#10) Stainless Steel2
1989302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)2
2067706A55转向臂转销总成SWIVEL PIN ASSEMBLY Steering Arm1
20826432A2转向臂旋转销总成-不锈钢SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel1
2067706A56转向臂转销总成SWIVEL PIN ASSEMBLY Steering Arm1
2067706A55转向臂转销总成SWIVEL PIN ASSEMBLY Steering Arm1
2178689螺钉(0.437-20x7.50)(7/16-20x7-1/2英寸)SCREW (.437-20 x 7.50) (7/16-20 X 7-1/2 IN.)2
218M0176309螺钉SCREW2
22888821缓冲垫BUMPER1
228M0000516上轭缓冲垫BUMPER Top Yoke1
2377326支架MOUNT2
2466921垫圈WASHER2
25814432垫圈WASHER2
2578688垫圈WASHER2
2634933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
268M0204653螺母NUT2
2792876A1转向连杆总成LINK ASSEMBLY Steering1
2792876A12连杆总成LINK ROD ASSEMBLY1
2814000螺钉(0.375-24x1.25)(3/8-24x1-1/4英寸)SCREW (.375-24 x 1.25) (3/8-24 X 1-1/4 IN.)1
28849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)1
2934863螺母 (.375-24)NUT (.375-24)2
298M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass2
3037828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel2
31816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
31816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
图 95飞轮/交流发电机 FLYWHEEL/ALTERNATOR
飞轮/交流发电机 FLYWHEEL/ALTERNATOR
REF零件编号中文名称英文名称数量
18285072皮带BELT1
2834936A3飞轮FLYWHEEL1
2834936T6飞轮FLYWHEEL1
352901螺母(0.625-18)NUT (.625-18)1
468229垫圈(.641 x 1.250 x .190)WASHER (.641 x 1.250 x .190)1
433001垫圈WASHER1
545907黄色塞PLUG Yellow1
6834832交流发电机ALTERNATOR1
6857006T交流发电机ALTERNATOR1
7832080M2发电机支架BRACKET Alternator1
881893430螺钉 (M8 x 30)SCREW (M8 x 30)1
881893435螺钉(M8×35)SCREW (M8 x 35)1
9821583销PIN1
98215832特殊销（1.5英寸）PIN Special (1.5 Inches)1
10812618不锈钢螺钉(.312-18 x 1.00)带尼龙垫SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch3
1182446180螺钉(M10×80)SCREW (M10 x 80)1
12855798弹簧SPRING1
12855798001弹簧SPRING1
138502913皮带张紧器BELT TENSIONER1
13850291T3皮带张紧器BELT TENSIONER1
14855728双头螺栓(M10 X 54)STUD (M10 X 54)1
148557281螺柱STUD1
15826292螺母(M10)黄铜/镀镍NUT (M10) Brass/Nickel Plated1
16852385A1滑轮PULLEY1
168M6005030皮带轮总成PULLEY ASSY1
174010835螺钉(M10×35)六角法兰-不锈钢SCREW (M10 x 35) Hex Flange - Stainless Steel1
18856030A2衬套套装BUSHING KIT1
1985045O型圈(.551 x .070)O-RING (.551 x .070)2
20NLA不再供应No Longer Available1
2142139衬套BUSHING1
22857006T交流发电机ALTERNATOR1
22889955A03交流发电机套件ALTERNATOR KIT1
2340108100螺钉(M10×100)六角法兰-不锈钢SCREW (M10 x 100) Hex Flange - Stainless Steel1
238M0012503螺钉(M10×1.5)SCREW (M10 x 1.5)1
2440108120螺钉(M10×120)六角法兰-不锈钢SCREW (M10 x 120) Hex Flange - Stainless Steel1
2529395垫圈(0.390×1.00×0.06)WASHER (.390 x 1.00 x .06)3
258M0042641垫圈(0.390×1.00×0.06)WASHER (.390 x 1.00 x .06)3
26856975支架MOUNT3
27856972T支架BRACKET1
27858391T01支架BRACKET1
28845998垫圈(0.406×1.250×0.089)WASHER (.406 x 1.250 x .089)3
29856973T支架BRACKET1
29858393T01支架BRACKET1
30826292螺母(M10)黄铜/镀镍NUT (M10) Brass/Nickel Plated2
3182446155螺钉(M10×55)SCREW (M10 x 55)1
32856583T2拉线总成CABLE ASSEMBLY1
33821583销PIN1
338215832特殊销（1.5英寸）PIN Special (1.5 Inches)1
34856974T支架BRACKET1
34857142T支架BRACKET1
35812618不锈钢螺钉(.312-18 x 1.00)带尼龙垫SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch3
36855798弹簧SPRING1
36855798001弹簧SPRING1
37856815T2张紧臂总成ARM TENSIONER ASSEMBLY1
38856900螺柱(M10×85)STUD (M10 x 85)1
388M0034457螺柱(M10×85)STUD (M10 x 85)1
39826292螺母(M10)黄铜/镀镍NUT (M10) Brass/Nickel Plated1
40856894衬套BUSHING1
408568941衬套BUSHING1
414002320垫圈WASHER2
42852385A1滑轮PULLEY1
428M6005030皮带轮总成PULLEY ASSY1
434010835螺钉(M10×35)六角法兰-不锈钢SCREW (M10 x 35) Hex Flange - Stainless Steel1
图 96排气歧管与排气板 Exhaust Manifold and Exhaust Plate
排气歧管与排气板 Exhaust Manifold and Exhaust Plate
REF零件编号中文名称英文名称数量
1190503衬垫GASKET1
28283431排气隔板PLATE Exhaust Divider1
2828343T3排气隔板PLATE Exhaust Divider1
3814754密封件(12.50英寸)SEAL (12.50 Inches)1
4826356螺钉带垫圈(.312-18 x 1.500)SCREW AND WASHER (.312-18 x 1.500)17
48263561螺钉带垫圈(.312-18 x 1.500)SCREW AND WASHER (.312-18 x 1.500)17
5855288螺丝(.312-18 x 1.00)SCREW (.312-18 x 1.00)2
5881190螺丝(.312-18 x 1.00)SCREW (.312-18 x 1.00)2
68348082滤网STRAINER1
783075780管材(28.00英寸整料)(裁切至4-1/2英寸)TUBING (28.00 Inches Bulk) (Cut to 4-1/2 Inches)1
78M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
868727190度弯头 (.250-18) - 黄铜FITTING (.250-18) 90 Degree - Brass1
977653112软管(59.00英寸整料)(21-1/2英寸)HOSE (59.00 Inches Bulk) (21-1/2 IN.)1
977653101软管（散装48.00英寸）HOSE (48.00 Inches Bulk)1
10816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)5
10816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)5
1168729盖板COVER1
118M0039767盖板COVER1
1274824螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)4
1369570螺钉(#10-16 x .750)SCREW (#10-16 x .750)1
1476451垫圈WASHER1
1514479隔膜DIAPHRAGM1
15144791隔膜DIAPHRAGM1
1616496导水板DEFLECTOR Water1
1716497A1安装板PLATE1
1878690衬垫GASKET2
1878690002衬垫GASKET2
1964878弹簧(黑色)SPRING (Black)1
2085303垫圈WASHER1
2114480提动阀POPPET1
2264872护孔环GROMMET1
2365848托架CARRIER1
24991763衬垫GASKET1
24991764衬垫GASKET1
25850814A1排气板总成PLATE ASSEMBLY Exhaust1
25850814T1排气板总成PLATE ASSEMBLY Exhaust1
2643044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
278147011密封件SEAL1
278M0043164密封件SEAL1
28680101支架BRACKET1
29812832螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)8
29878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)8
3089772连接器(.125-27)(直通)(背部)CONNECTOR (.125-27) (STRAIGHT)(BACK)1
3162910190度弯头(.125-27)(右舷顶部孔)FITTING Elbow - 90 Degree (.125-27) (STARBOARD-TOP HOLE)1
3289772连接器(.125-27)(直通)(右舷底部孔)CONNECTOR (.125-27) (STRAIGHT)(STARBOARD-BOTTOM HOLE)1
3319564护孔环GROMMET1
338M0179867护孔环GROMMET1
3419565护孔环GROMMET1
3419565002护孔环GROMMET1
3577653112软管(59.00英寸整料)(25英寸)HOSE (59.00 Inches Bulk) (25 IN.)1
3577653101软管（散装48.00英寸）HOSE (48.00 Inches Bulk)1
36852759软管HOSE1
3720553垫圈(.406 x .734 x .063)WASHER (.406 x .734 x .063)4
3869254螺母NUT6
3927132衬套BUSHING1
4066727螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)1
4168783螺钉(.312-18×2.50)SCREW (.312-18 x 2.50)1
4266725螺钉(.375-16×3.50)SCREW (.375-16 x 3.50)3
42898833螺钉(.375-16 x 3.500)SCREW (.375-16 x 3.500)3
43812905A5前支架总成BRACKET ASSEMBLY Front1
43812905T前支架BRACKET Front1
448055571螺钉(0.3125-18×0.50)SCREW (.3125-18 x .50)4
45187031垫圈WASHER4
4618778护孔环GROMMET4
4618778001护孔环GROMMET4
4718578A8支架总成(后部)BRACKET ASSEMBLY Rear1
4718578T09支架总成(后部)BRACKET ASSEMBLY Rear1
-814754A98衬垫套件GASKET SET1
-8M0046714衬垫套件GASKET SET1
-854008A98动力头总成POWERHEAD ASSEMBLY1
-804545T99动力头总成POWERHEAD ASSEMBLY1
图 97动力升降组件金属马达壳 Power Trim Components Metal Motor Housing
动力升降组件金属马达壳 Power Trim Components Metal Motor Housing
REF零件编号中文名称英文名称数量
-826729A2升降倾斜总成TRIM AND TILT ASSEMBLY1
1811604F歧管总成MANIFOLD ASSEMBLY1
256800管塞 (.0625-27)PLUG Pipe (.0625-27)9
3823552F气缸总成CYLINDER ASSEMBLY1
3880952A03ORD 8M0078330ORD 8M00783301
4823553配平活塞杆套件ROD KIT Trim Piston1
4823553T升降活塞杆ROD Trim Piston1
5811606导向套件GUIDE KIT1
5878239A02倾斜缸端盖套件END CAP KIT Tilt Cylinder1
6811607A1维修套件REPAIR KIT1
7811610A1止回阀套件CHECK VALVE KIT1
7823553T升降活塞杆ROD Trim Piston1
899638A1导向器总成GUIDE ASSEMBLY2
88M0021648端盖总成END CAP ASSEMBLY2
943397A6动力升降倾斜装置活塞/杆总成PISTON/ROD ASSEMBLY Power Trim1
9878413A1活塞总成PISTON ASSEMBLY1
943398A3动力升降倾斜装置活塞/杆总成PISTON/ROD ASSEMBLY Power Trim1
9878414T01活塞总成PISTON ASSEMBLY1
1012184A1升降过滤器总成TRIM FILTER ASSEMBLY1
11813442A2手动释放总成MANUAL RELEASE ASSEMBLY1
11893929A01安全阀套件VALVE KIT Relief1
12812844E型卡环E RING1
12815949001E形环E-RING1
13811612A2O型圈套件O-RING KIT1
13811612A3O型圈套件O-RING KIT1
14811617F泵PUMP1
14811617T1泵PUMP1
15811613塞子总成PLUG ASSEMBLY1
164000327螺钉 (M6 x 14)SCREW (M6 x 14)4
1743450垫圈WASHER4
174002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)4
18811611盖板COVER1
19828710驱动接头DRIVE JOINT1
20828708电机总成MOTOR ASSEMBLY1
20878265A4配平电机TRIM MOTOR1
21828709螺钉 (长)SCREW (LONG)2
21881768A1螺钉/垫圈套件SCREW/WASHER KIT2
21811616螺钉 (短)SCREW (SHORT)2
22811614轴总成SHAFT ASSEMBLY1
228M0142997倾斜轴套件TILT SHAFT KIT1
2356800管塞 (.0625-27)PLUG Pipe (.0625-27)2
2444431槽销PIN Groove1
24878267销PIN1
25821539三叶销PIN Trilobe1
26996251轴SHAFT1
2699625002轴SHAFT1
27818298A1阳极套件ANODE KIT1
27818298Q1阳极套件ANODE KIT1
284000330螺钉(M6x25)SCREW (M6 x 25)2
288M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
2929245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
298M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
304000377螺钉 (M10 x 30)SCREW (M10 x 30)6
314002319垫圈WASHER6
3226550卡箍CLAMP2
338128321螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
33878609螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
3469205C形垫圈C WASHER1
348M0084613C形垫圈C-WASHER1
35996301冲击板STRIKER PLATE2
358M0045383冲击板STRIKER PLATE2
3658643锁紧垫圈 (.375)LOCKWASHER (.375)2
3746335螺母 (.375-24)NUT (.375-24)2
38435301警示贴纸-动力微调DECAL Caution-Power Trim1
39828547353导管 (.350内径 x 3.00英尺 散装)CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk)1
40816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
40816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
图 98喷油组件 OIL INJECTION COMPONENTS
喷油组件 OIL INJECTION COMPONENTS
REF零件编号中文名称英文名称数量
112335A1支架套件BRACKET KIT1
212323A1绳索/挂钩套件CORD/HOOK KIT1
387421油箱TANK1
443298A2盖总成CAP ASSEMBLY1
5NSS不单独销售嵌件NOT SOLD SEPARATE Insert1
611332O型圈(2.225 x .210)O-RING (2.225 x .210)1
7816190A3外壳总成适配器HOUSING ASSEMBLY Adapter1
7816190A4机油收集器总成(无传感器)OIL PICK UP ASSEMBLY Without Sender1
811332O型圈(2.225 x .210)O-RING (2.225 x .210)1
999802管TUBE1
1099439软管(114.00英寸)HOSE (114.00 Inches)1
11833069A3油箱总成RESERVOIR ASSEMBLY Oil1
118M0062954储油罐RESERVOIR, OIL1
12NSS不单独销售标签-储液罐NOT SOLD SEPARATE Decal-Reservoir1
13855362护孔环GROMMET3
13855362001护孔环GROMMET3
1449436垫圈WASHER3
1560411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)1
16855364衬套BUSHING3
1769267螺钉 (.312-18 x 1.750)SCREW (.312-18 x 1.750)2
18833155护孔环GROMMET2
198502341衬套BUSHING2
2082381455管材(25英寸整卷)(裁切为20英寸)TUBING (25.00 Inches Bulk) (Cut to 20 Inches)1
21816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
21816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
2212886A8开关SWITCH1
2358376螺钉(.164-18 x .375)SCREW (.164-18 x .375)1
2472761不锈钢垫圈(.203 x .562 x .060)WASHER (.203 x .562 x .060) Stainless Steel1
258260841隔套SPACER1
26816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)7
26816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)7
27NSS不单独销售 塞NOT SOLD SEPARATE Plug1
28424254接头FITTING1
288M0207780接头FITTING1
29830756109软管(57.00英寸散装)(裁切至6英寸)HOSE (57.00 Inches Bulk) (Cut to 6 Inches)1
298M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
30855785燃油冷却器COOLER Fuel1
30855785A1燃油冷却器总成COOLER ASSEMBLY Fuel1
31855761止回阀CHECK VALVE1
318557611止回阀CHECK VALVE1
3213791卡箍(15.7)CLAMP (15.7)4
328M0214911卡箍@5CLAMP @54
3385682239管材(17英寸整卷)(裁切为3英寸)TUBING (17.00 Inches Bulk) (Cut to 3 Inches)1
34856822A3软管(带绝缘套管)(30英寸)HOSE (W/INSULATING SLEEVE) (30 IN.)1
图 99电气板总成 Electrical Plate Assembly
电气板总成 Electrical Plate Assembly
REF零件编号中文名称英文名称数量
1855432A1盖板套件COVER KIT1
2NSS不单独销售 弯头NOT SOLD SEPARATE Elbow1
38568431直通接头FITTING Straight STRAIGHT1
419688接头FITTING1
5803878密封件SEAL1
6NSS不单独销售 泵出口配件包NOT SOLD SEPARATE Fitting Kit-Pump Outlet1
6855437A2泵出口接头套件FITTING KIT Pump Outlet1
7NSSO型圈（不单独销售）NOT SOLD SEPARATE O Ring1
8808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)7
9855528衬垫GASKET1
98M6002520衬垫套件GASKET KIT1
10855430A1浮子套件FLOAT KIT1
108M6004920浮子套件FLOAT KIT1
11F10064轴SHAFT1
12855431针阀VALVE Needle1
128M6004917进气阀VALVE-INLET1
135902螺钉(#6-32 x .187)SCREW (#6-32 x .187)1
14855427A1泵套件PUMP KIT1
15855428套筒SLEEVE1
158M6000589套筒SLEEVE1
16855434A1油杯套件BOWL KIT1
17855433密封件SEAL1
178554331密封件SEAL1
18855435A1塞套件PLUG KIT1
198554245弯头ELBOW2
2018458A4滤清器套件FILTER KIT1
2018458Q4燃油水分离滤清器FILTER Fuel-Water Separating1
21828586探头PROBE1
218M0204710探头PROBE1
图 100油门杆与换挡轴 Throttle Lever and Shift Shaft
油门杆与换挡轴 Throttle Lever and Shift Shaft
REF零件编号中文名称英文名称数量
1850389杠杆LEVER1
18M0040990节气门控制杆LEVER Throttle Control1
2818165螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
355164衬套BUSHING1
474759垫圈(0.391x0.880x0.125)不锈钢WASHER (.391 x .880 x .125) Stainless Steel1
537828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel1
664022螺钉(.250-20 x 2.125)SCREW (.250-20 x 2.125)1
764015螺母 (.250-20)NUT (.250-20)1
826852尼龙帽CAP Nylon1
942927嵌件INSERT1
1035459垫圈WASHER1
118268336螺母 (M6)NUT (M6)1
11401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
128503931凸轮CAM1
12856221A1凸轮套件CAM KIT1
13852970衬套BUSHING1
1482130040螺钉(M6 x 40)SCREW (M6 x 40)1
15932481衬套BUSHING2
158M0215006旋转衬套BUSHING Swivel2
168235694螺纹球头BALL Threaded1
17850815连接杆LINK1
178508152杆ROD1
1867748滚轮ROLLER1
19850286油门滚轮ROLLER Throttle1
198502861杠杆LEVER1
2040056107螺钉(M5×16)SCREW (M5 x 16)1
2189302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)1
2269432外锁紧垫圈(#10)LOCKWASHER External (#10)1
238142831锚支架BRACKET Anchor1
23814283T6锚支架总成BRACKET ASSEMBLY Anchor1
2498889闩锁LATCH1
2542975传动螺钉DRIVE SCREW2
2639519杯套CUP1
2752100耐磨板WEAR PLATE1
2838279闩锁LATCH1
288M0036768闩锁LATCH1
2935462垫圈(.2656 x .625 x .0625)不锈钢WASHER (.2656 x .625 x .0625) Stainless Steel1
3035045螺母(.250-28)NUT (.250-28)1
30826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
3128782螺钉(.312-18 x .880)不锈钢SCREW (.312-18 x .880) Stainless Steel3
32814284导向块GUIDE BLOCK1
3320099弹簧SPRING1
3467073A1连杆总成LINK ROD ASSEMBLY1
3579932A16换挡轴总成SHIFT SHAFT ASSEMBLY1
3579932A17换挡轴总成SHIFT SHAFT ASSEMBLY1
36NSS弹性销(不单独销售)NOT SOLD SEPARATE Roll Pin1
37NSS不单独销售-换挡轴上杆NOT SOLD SEPARATE Shift Shaft Lever-Upper1
3826856衬套BUSHING1
3929720波形垫圈WAVE WASHER1
4035462垫圈(.2656 x .625 x .0625)不锈钢WASHER (.2656 x .625 x .0625) Stainless Steel1
4135045螺母(.250-28)NUT (.250-28)1
41826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
42814281A2开关SWITCH1
428M0052931开关SWITCH1
4377478螺钉 (#6-32 x .875)SCREW (#6-32 x .875)2
4427882垫圈WASHER2
图 101空气压缩机组件 SN 1B884881及以上 Air Compressor Components SN 1B884881 and up
空气压缩机组件 SN 1B884881及以上 Air Compressor Components SN 1B884881 and up
REF零件编号中文名称英文名称数量
1855432A1盖板套件COVER KIT1
2NSS不单独销售 弯头NOT SOLD SEPARATE Elbow1
38568431直通接头FITTING Straight STRAIGHT1
419688接头FITTING1
5803878密封件SEAL1
6NSS不单独销售 泵出口配件包NOT SOLD SEPARATE Fitting Kit-Pump Outlet1
6855437A2泵出口接头套件FITTING KIT Pump Outlet1
7NSSO型圈（不单独销售）NOT SOLD SEPARATE O Ring1
8808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)7
9855528衬垫GASKET1
98M6002520衬垫套件GASKET KIT1
10855430A1浮子套件FLOAT KIT1
108M6004920浮子套件FLOAT KIT1
11F10064轴SHAFT1
12855431针阀VALVE Needle1
128M6004917进气阀VALVE-INLET1
135902螺钉(#6-32 x .187)SCREW (#6-32 x .187)1
14855427A1泵套件PUMP KIT1
15855428套筒SLEEVE1
158M6000589套筒SLEEVE1
16855434A1油杯套件BOWL KIT1
17855433密封件SEAL1
178554331密封件SEAL1
18855435A1塞套件PLUG KIT1
198554245弯头ELBOW2
2018458A4滤清器套件FILTER KIT1
2018458Q4燃油水分离滤清器FILTER Fuel-Water Separating1
21828586探头PROBE1
218M0204710探头PROBE1
图 102动力升降倾斜电机 Power Trim Motor
动力升降倾斜电机 Power Trim Motor
REF零件编号中文名称英文名称数量
-828708电机总成MOTOR ASSEMBLY1
-878265A4配平电机TRIM MOTOR1
1828714A1电刷与密封套件BRUSH AND SEAL KIT1
2828713A1电枢套件ARMATURE KIT1
2828713T1电枢套件ARMATURE KIT1
3828715A1端架（总成）END FRAME (COMPLETE)1
图 103空气处理器 AIR HANDLER
空气处理器 AIR HANDLER
REF零件编号中文名称英文名称数量
1827325A1盖总成COVER ASSEMBLY1
2821555护孔环GROMMET2
28M0153609护孔环GROMMET2
3853333空气滤清器FILTER Air1
3853333T滤清器FILTER1
4853352盖板COVER1
5855590铆钉RIVET1
6854633固定座RETAINER1
764705接头FITTING1
8855613护孔环GROMMET1
98556131护孔环GROMMET1
10855633A4空气处理器总成AIR HANDLER ASSEMBLY1
10855633A15空气处理器总成AIR HANDLER ASSEMBLY1
11856139垫片SHIM1
118561391垫片SHIM1
12NSS不单独销售(挂档启动警告标贴)NOT SOLD SEPARATE Decal-Caution-Start in Gear1
138557561支架BRACKET1
13855756A1支架套件BRACKET KIT1
141993716螺钉(M6 x 16)SCREW (M6 x 16)4
158558432泵总成PUMP ASSEMBLY1
158M0240950燃油泵总成PUMP ASSY FUEL1
1613791卡箍(15.7)CLAMP (15.7)4
168M0214911卡箍@5CLAMP @54
171350385管材(33.00英寸整料)(5-1/2英寸)TUBING (33.00 Inches Bulk) (5-1/2 IN.)1
1885564361软管(18英寸)HOSE (18 IN.)1
1983312531绝缘套管INSULATING SLEEVE1
20855802弯头ELBOW1
20855802A1弯头ELBOW1
21805026A1接头FITTING1
22805062O型圈（.530 x .082）O-RING (.530 x .082)1
238554247接头FITTING1
248285581编码器ENCODER1
25418051螺钉 (#10-24 x 0.620)SCREW (#10-24 x .620)1
2656681垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)1
268M0204666垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)1
2797224J型卡箍(右舷上部)J CLIP (UPPER STBD.)2
28814634卡箍(下部)CLAMP (LOWER)1
29817504螺钉（0.250-20 x 1.500）不锈钢SCREW (.250-20 x 1.500) Stainless Steel12
30830756109软管(57.00英寸整料)(裁切至1-1/2英寸)HOSE (57.00 Inches Bulk) (Cut to 1-1/2 Inches)1
308M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
31830756109软管(57.00英寸整料)(裁切至5英寸)HOSE (57.00 Inches Bulk) (Cut to 5 Inches)1
318M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
32855896通风罐CANISTER Vent1
32855896T滤清器FILTER1
33816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)4
33816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)4
34860273连接器CONNECTOR1
35821583销PIN1
358215832特殊销（1.5英寸）PIN Special (1.5 Inches)1
3685557726EPA标签信息贴花DECAL EPA Label Information1
36855577A26REF SOB 09-18REF SOB 09-181
3761990扎带(14.00英寸)TIE STRAP (14.00 Inches)1
3888807A27拉线总成CABLE ASSEMBLY1
3929245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
398M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
4012038垫圈WASHER1
408M0207778垫圈（0.344×0.625×0.063英寸）WASHER .344 x .625 x.0631
-854008A98动力头总成POWERHEAD ASSEMBLY1
-804545T99动力头总成POWERHEAD ASSEMBLY1
图 104齿轮箱螺旋桨轴-标准旋转 Gear Housing Propeller Shaft - Standard Rotation
齿轮箱螺旋桨轴-标准旋转 Gear Housing Propeller Shaft - Standard Rotation
REF零件编号中文名称英文名称数量
0880686T13齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
0880686T14齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
08M0236256GC L6 4S XLGC L6 4S XL1
0880686T16齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
08M0236259GC L6 4S XXLGC L6 4S XXL1
1880687T01基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
18M0056631基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
2NSS不单独销售 塞NOT SOLD SEPARATE Plug1
3892075换挡曲柄CRANK Shifter1
3896847A01换挡曲柄5/16枢轴销CRANK, Shifter 5/16 Pivot Pin1
419755T7阀芯总成SPOOL ASSEMBLY1
48M0235940阀芯总成SPOOL ASSY1
5NSS不单独销售线轴NOT SOLD SEPARATE Spool1
6469501开口销COTTER PIN1
7NSS不单独销售 调节套筒NOT SOLD SEPARATE Sleeve Adjusting1
8892595A02齿轮组(前进档与小齿轮)GEAR SET Forward And Pinion1
8892595A05前进/小齿轮组GEAR SET Forward/Pinion1
9884328A01垫片组SHIM SETAR
98M0063270垫片组SHIM SETAR
10884323T01滚柱轴承总成BEARING ASSEMBLY Roller1
108M0142836圆锥滚子轴承(外圈/内圈)BEARING Roller Taper (Cup/Cone)1
11NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
1223721挡圈RING Retaining1
128M0051043挡圈RING Retaining1
13892805止推垫片THRUST WASHER1
138M0053823止推垫圈(内径1.50×外径2.046)WASHER Thrust, (1.50 ID x 2.046 OD)1
14884325T01圆锥滚子轴承组件BEARING ASSEMBLY Roller-Tappered1
148M0142835圆锥滚子轴承(外圈/内圈)BEARING Roller Taper (Cup/Cone)1
15NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
16880714T离合器CLUTCH1
1730893弹簧SPRING1
18828356定位销PIN Detent1
19888530螺旋桨轴PROPELLER SHAFT1
2030632十字销PIN Cross1
208M0100263十字销PIN Cross1
21880695A01倒车齿轮总成GEAR ASSEMBLY Reverse1
218M0142891倒挡齿轮24齿GEAR Reverse, 24T1
22880699推力环THRUST RING1
23891919001止推隔套SPACER Thrust1
24880696A08轴承座总成CARRIER ASSEMBLY Bearing1
25891936A01垫片组SHIM SETAR
26884329T滚珠轴承BEARING Ball1
268M0142873滚珠轴承BEARING Ball1
27888483油封SEAL Oil1
278M0204700油封SEAL Oil1
28884330T01圆锥轴承组件BEARING ASSEMBLY Taper1
288M0148319圆锥滚子轴承(外圈/内圈)BEARING Roller Taper Cup/Cone1
29NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
30896600油封SEAL Oil1
308M0204700油封SEAL Oil1
31896524O型圈(3.850×.210)O-RING (3.850 x .210)1
318M0142840O型圈(3.85×0.210)O-RING (3.85 x 0.210)1
32880717A01螺丝/密封套件SCREW/SEAL KIT1
33830749密封件SEAL1
338M0204693放油螺塞密封件SEAL Drain Plug1
34880697键槽垫圈KEYED WASHER1
3579448固定座RETAINER1
358M2011027固定座RETAINER1
-830749A01齿轮箱密封套件SEAL KIT Gear Housing1
图 105燃油导轨 Fuel Rails
燃油导轨 Fuel Rails
REF零件编号中文名称英文名称数量
1831998A9空气压缩机总成(参见空气压缩机部件分解图)COMPRESSOR ASSEMBLY Air (SEE BREAKDOWN ON AIR COMPRESSOR COMPONENTS)1
285593912螺钉（M6 x 12）SCREW (M6 x 12)5
38328231滑轮PULLEY1
38M0175171滑轮PULLEY1
44010825螺丝(M10 x 25)六角法兰-不锈钢SCREW (M10 x 25) Hex Flange - Stainless Steel2
58502511软管HOSE1
58502512软管HOSE1
685652329绝缘套管(15英寸)INSULATOR SLEEVE (15 IN.)1
7852379T5燃油导轨FUEL RAIL1
7852379T6燃油导轨FUEL RAIL1
88500653喷油器INJECTOR6
88M6001743空气喷射器总成INJECTOR ASSEMBLY Air6
9855697卡箍(16.2)CLAMP (16.2)4
98M0204696卡箍CLAMP4
1085564361软管(16英寸)HOSE (16 IN.)2
1192345螺柱STUD1
12854640特殊垫圈WASHER Special2
1335814螺母(.312-24)不锈钢NUT (.312-24) Stainless Steel1
1382670911螺母(.312-24)不锈钢NUT (.312-24) Stainless Steel1
14816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)8
14816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)8
15852378T5燃油导轨FUEL RAIL1
15852378T6燃油导轨FUEL RAIL1
16830756109软管(57.00英寸整料)(裁切至22-1/2英寸)HOSE (57.00 Inches Bulk) (Cut to 22-1/2 Inches)1
168M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
17826810止回阀CHECK VALVE1
1883075780管材(28英寸整卷)(裁切为2-1/2英寸)TUBING (28.00 Inches Bulk) (Cut to 2-1/2 Inches)1
188M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
1983476463管材(32英寸整卷)(裁切为28-1/2英寸)TUBING (32.00 Inches Bulk) (Cut to 28-1/2 Inches)1
20856880软管卡箍（15.3）CLAMP Hose (15.3)2
208M0214964卡箍CLAMP2
2185606064管材(36英寸整卷)(28-1/2英寸)TUBING (36.00 Inches Bulk) (28-1/2 IN.)1
218M0054152管材(39.00英寸整卷)TUBING (39.00 Inches Bulk)1
2282104510螺钉 (M5 x 10)SCREW (M5 x 10)4
2346997卡箍CLAMP4
24852961螺柱STUD4
248M0063255双头螺栓M10x92STUD M10x924
25826292螺母(M10)黄铜/镀镍NUT (M10) Brass/Nickel Plated4
26NSS不单独销售 软管(30英寸)NOT SOLD SEPARATE Hose (30 IN.)1
26856822A3软管(30英寸)HOSE (30 IN.)1
278558481软管HOSE1
27855848A1软管HOSE1
28828694A1杯形垫片总成WASHER ASSEMBLY Cupped6
29856880软管卡箍（15.3）CLAMP Hose (15.3)4
298M0214964卡箍CLAMP4
3085686953套管(27英寸整卷)(裁切为18英寸)SLEEVE (27.00 Inches Bulk) (Cut to 18 Inches)1
图 106启动电机 Starter Motor
启动电机 Starter Motor
REF零件编号中文名称英文名称数量
-NSS起动机总成(不单独销售)NOT SOLD SEPARATE Starter Motor Assembly1
1892339T01启动电机总成STARTER MOTOR ASSEMBLY1
2NSS螺钉组(不单独销售)NOT SOLD SEPARATE Screws2
3880805A1齿轮套件GEAR KIT1
4809463A1电磁阀组件SOLENOID KIT1
58M0065258电刷组BRUSH SET1
68M0034918轴环COLLAR2
78M0043276停机开关STOP1
8NSS高压警告贴纸(不单独销售)NOT SOLD SEPARATE Decal-Waring-High Voltage1
993388A1电缆总成(6.00英寸)黑色CABLE ASSEMBLY (6.00 Inches) Black1
1069035螺丝与锁紧垫圈(.250-20 x .625)不锈钢SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel1
1126993锁紧垫圈 (.312)LOCKWASHER (.312)1
118M0204647锁紧垫圈 (.312)LOCKWASHER (.312)1
12400213不锈钢螺母 (M8)NUT (M8) Stainless Steel1
13400255锁紧垫圈(M5)LOCKWASHER (M5)1
14400211不锈钢螺母(M5)NUT (M5) Stainless Steel1
图 107工具 Tools
工具 Tools
REF零件编号中文名称英文名称数量
-895277001扳手工具(75毫米x30)带槽TOOL Wrench (75 mm x 30) Flute1
-809905001扭矩转换扳手WRENCH Torque Adapter1
-822778004动力调整适配器工具TOOL Adaptor Fitting-Power Trim1
-895343T02飞轮拉拔器工具TOOL Flywheel Puller1
-895346螺栓BOLT1
-896504A01舷外机吊装机构工具TOOL ASSEMBLY OB Lifting Mech1
-889675A0114针分流器工具TOOL Shunt 14-Pin1
-804998T齿轮油加注/排放工具DRAIN/FILL TOOL Gearlube1
-896661燃油滤清器工具TOOL Fuel Filter1
-889283A01燃油灌注工具包TOOL KIT Fuel Priming1
图 108电气组件 Electrical Components
电气组件 Electrical Components
REF零件编号中文名称英文名称数量
1850675电气安装板PLATE Electrical Mounting1
2850227点火线圈COIL Ignition6
2856991A1线圈套件COIL KIT6
3821945A63高压电缆总成CABLE ASSEMBLY Hi Tension1
463709A1护套/端子套件BOOT/TERMINAL KIT1
5855672火花塞SPARK PLUG6
5889597QNGK IZFR5G @4NGK IZFR5G @46
5855717火花塞SPARK PLUGOPT
58557171火花塞SPARK PLUGOPT
68506761隔套SPACER6
6850676F1隔套SPACER6
7850898螺丝 (.250-20 x 3.250)SCREW (.250-20 x 3.250)6
8825762MAP传感器SENSOR MAP1
982129114螺钉 (M6 x 14)SCREW (M6 x 14)2
109912688管材(36英寸整卷)(裁切为31英寸)TUBING (36.00 Inches Bulk) (Cut to 31 Inches)1
1160411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)4
1249436垫圈WASHER4
13833155护孔环GROMMET4
148502341衬套BUSHING4
1582129114螺钉 (M6 x 14)SCREW (M6 x 14)2
1635044垫圈(0.281×0.625×0.065)不锈钢WASHER (.281 x .625 x .065) Stainless Steel6
1756374螺母 (.250-20)NUT (.250-20)6
178267098螺母 (.250-20) 不锈钢NUT (.250-20) Stainless Steel6
18819514A14升降线束总成HARNESS ASSEMBLY Trim1
19828151A1继电器总成RELAY ASSEMBLY3
198M0207773调整继电器总成RELAY ASSEMBLY Trim3
20NSS微调继电器标识贴(不单独销售)NOT SOLD SEPARATE Decal-Trim Relay3
21828102支架BRACKET3
218M0207771安装支架BRACKET Mounting3
22818968衬套BUSHING3
228M0214955衬套BUSHING3
23818967护孔环GROMMET3
238M0207785护孔环GROMMET3
2482129125螺丝(M6 x 25毫米)SCREW (M6 x 25 mm)2
2482129135螺钉(M6x35)SCREW (M6 x 35)1
2591912衬套BUSHING1
26816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)2
26816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)2
27850681A2发动机线束总成HARNESS ASSEMBLY Engine1
27850681A6发动机线束HARNESS-ENGINE1
28856624A2线束总成HARNESS ASSEMBLY1
29812619黄色保险丝-20安培FUSE Yellow - 20 Ampere4
30NSS不单独销售 保险丝支架NOT SOLD SEPARATE Bracket-Fuse Holder1
31855634螺钉(M4x8)SCREW (M4 X 8)2
32856496A8发动机控制单元ECUECU Engine Control Unit1
32858891A20电控单元ECU1
32856496A9发动机控制单元ECUECU Engine Control Unit1
32858891A21电控单元ECU1
33830897垫PAD1
3482130025螺钉(M6x25)SCREW (M6 x 25)3
358318701衬套BUSHING6
36834985护孔环GROMMET3
368M0190980护孔环GROMMET3
3782129114螺钉 (M6 x 14)SCREW (M6 x 14)2
38853947卡扣CLIP1
398266241卡箍CLAMP1
40817626螺钉(#10-16×0.380)SCREW (#10-16 x .380)2
40878607螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)2
418331371电磁阀安装板PLATE Solenoid Mounting1
4282130012螺钉（M6 x 12）SCREW (M6 x 12)3
4382129114螺钉 (M6 x 14)SCREW (M6 x 14)2
44817109A2电磁阀总成(#10-32/.3125-18端子)SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)1
45822179护孔环GROMMET2
4682129125螺丝(M6 x 25毫米)SCREW (M6 x 25 mm)2
4793388A7线缆总成(黑色)CABLE ASSEMBLY (BLACK)1
4793388A14线缆总成(黄/黑)CABLE ASSEMBLY Yellow/Black1
48818968衬套BUSHING2
488M0214955衬套BUSHING2
4988439A25电缆总成 蓄电池-正极CABLE ASSEMBLY Battery - Positive1
5053166锁紧垫圈 (.312)LOCKWASHER (.312)2
5168292螺母(.312-18)NUT (.312-18)2
518M0204668螺母(.312-18)NUT (.312-18)2
5245076黄铜螺母(#10-32)NUT (#10-32) Brass2
5388807A16黑色电缆总成(4.00英寸)CABLE ASSEMBLY (4.00 Inches) Black1
54813938盖形螺母(#10-32)CAP NUT (#10-32)1
5578866绝缘体INSULATOR1
5645076黄铜螺母(#10-32)NUT (#10-32) Brass1
图 109附件 Accessories
附件 Accessories
REF零件编号中文名称英文名称数量
-892440A08动力转向泵套件PUMP KIT Power Steering Pump Kit1
-892440A09动力转向泵套件PUMP KIT Power Steering Pump Kit1
-8M0131263动力转向泵套件(24英尺)PUMP KIT Power Steering (24 Feet)1
-892380A02标准转向舵机套件(40cc)STEERING HELM KIT Standard (40 cc)1
-8M0240080标准舵机套件40CMHELM KIT-STD 40CM1
-892557A02标准转向舵机套件(32cc)STEERING HELM KIT Standard (32 cc)1
-8M0240079标准舵机套件32CMHELM KIT-STD 32CM1
-892558A02标准转向舵机套件(50cc)STEERING HELM KIT Standard (50 cc)1
-8M0240081标准舵机套件50CMHELM KIT-STD 50CM1
-892450K01液压软管套件(1英尺)油缸至舵机HOSE KIT (1 Foot) Hydraulic, Cylinder to Helm1
-897982K01ORD 32-897982K02ORD 32-897982K021
-892450K02液压软管套件(2英尺)油缸至舵机HOSE KIT (2 Feet) Hydraulic, Cylinder to Helm1
-8M0167281软管套件2FTHOSE KIT 2FT1
-892450K03液压软管套件(3英尺)油缸至舵机HOSE KIT (3 Feet) Hydraulic, Cylinder to Helm1
-8M0167282软管套件3FTHOSE KIT 3 FT1
-892450K04液压软管套件(4英尺)油缸至舵机HOSE KIT (4 Feet) Hydraulic, Cylinder to Helm1
-8M0167283软管套件4FTHOSE KIT 4 FT1
-892450K05液压软管套件(5英尺)油缸至舵机HOSE KIT (5 Feet) Hydraulic, Cylinder to Helm1
-8M0167284软管套件5FTHOSE KIT 5 FT1
-892450K06液压软管套件(6英尺)油缸至舵机HOSE KIT (6 Feet) Hydraulic, Cylinder to Helm1
-8M0167285软管套件6FTHOSE KIT 6 FT1
-892450K07液压软管套件(7英尺)油缸至舵机HOSE KIT (7 Feet) Hydraulic, Cylinder to Helm1
-8M0167286软管套件7FTHOSE KIT 7 FT1
-892450K08液压软管套件(8英尺)油缸至舵机HOSE KIT (8 Feet) Hydraulic, Cylinder to Helm1
-8M0167287软管套件8FTHOSE KIT 8 FT1
-892450K10液压软管套件(10英尺)油缸至舵机HOSE KIT (10 Feet) Hydraulic, Cylinder to Helm1
-8M0167288软管套件10FTHOSE KIT 10 FT1
-892450K12液压软管套件(12英尺)油缸至舵机HOSE KIT (12 Feet) Hydraulic, Cylinder to Helm1
-8M0167289软管套件12FTHOSE KIT 12 FT1
-892450K14液压软管套件(14英尺)油缸至舵机HOSE KIT (14 Feet) Hydraulic, Cylinder to Helm1
-8M0167290软管套件 14英尺HOSE KIT 14 FT1
-892450K16液压软管套件(16英尺)油缸至舵机HOSE KIT (16 Feet) Hydraulic, Cylinder to Helm1
-8M0167291软管套件 16英尺HOSE KIT 16 FT1
-892450K18液压软管套件(18英尺)油缸至舵机HOSE KIT (18 Feet) Hydraulic, Cylinder to Helm1
-8M0167292软管套件 18英尺HOSE KIT 18 FT1
-892450K22液压软管套件(22英尺)油缸至舵机HOSE KIT (22 Feet) Hydraulic, Cylinder to Helm1
-8M0167294软管套件 22英尺HOSE KIT 22 FT1
-892450K24液压软管套件(24英尺)油缸至舵机HOSE KIT (24 Feet) Hydraulic, Cylinder to Helm1
-8M0167295软管套件 24英尺HOSE KIT 24 FT1
-892450K26液压软管套件(26英尺)油缸至舵机HOSE KIT (26 Feet) Hydraulic, Cylinder to Helm1
-8M0167296软管套件 26英尺HOSE KIT 26 FT1
-892450K30液压软管套件(30英尺)油缸至舵机HOSE KIT (30 Feet) Hydraulic, Cylinder to Helm1
-8M0167298软管套件 30英尺HOSE KIT 30 FT1
-892438K02动力转向软管套件 动力模块 (2英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (2 Feet) Hydraulic, Pump to Helm1
-8M0150604泵至舱壁/舵机套件 2英尺PUMP TO BULKHEAD/HELM KIT 2 Ft1
-892438K03动力转向软管套件 动力模块 (3英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (3 Feet) Hydraulic, Pump to Helm1
-8M0150605泵至舱壁/舵机套件 3英尺PUMP TO BULKHEAD/HELM KIT 3 Ft1
-892438K04动力转向软管套件 动力模块 (4英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (4 Feet) Hydraulic, Pump to Helm1
-8M0150606泵至舱壁/舵机套件 4英尺PUMP TO BULKHEAD/HELM KIT 4 Ft1
-892438K05动力转向软管套件 动力模块 (5英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (5 Feet) Hydraulic, Pump to Helm1
-8M0150607泵至舱壁/舵机套件 5英尺PUMP TO BULKHEAD/HELM KIT 5 Ft1
-892438K06软管套件 动力模块 (6英尺) 液压, 泵至舵机HOSE KIT Power Module (6 Feet) Hydraulic, Pump to Helm1
-8M0150608泵至舱壁/舵机套件 6英尺PUMP TO BULKHEAD/HELM KIT 6 Ft1
-892438K07软管套件 动力模块 (7英尺) 液压, 泵至舵机HOSE KIT Power Module (7 Feet) Hydraulic, Pump to Helm1
-8M0150610泵至舱壁/舵机套件 7英尺PUMP TO BULKHEAD/HELM KIT 7 Ft1
-892438K08软管套件 动力模块 (8英尺) 液压, 泵至舵机HOSE KIT Power Module (8 Feet) Hydraulic, Pump to Helm1
-8M0150612泵至舱壁/舵机套件 8英尺PUMP TO BULKHEAD/HELM KIT 8 Ft1
-892438K10动力转向软管套件 动力模块 (10英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (10 Feet) Hydraulic, Pump to Helm1
-8M0150613泵至舱壁/舵机套件 10英尺PUMP TO BULKHEAD/HELM KIT 10 Ft1
-892438K12动力转向软管套件 动力模块 (12英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (12 Feet) Hydraulic, Pump to Helm1
-8M0150614泵至舱壁/舵机套件 12英尺PUMP TO BULKHEAD/HELM KIT 12 Ft1
-892438K14动力转向软管套件 动力模块 (14英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (14 Feet) Hydraulic, Pump to Helm1
-8M0150615泵至舱壁/舵机套件 14英尺PUMP TO BULKHEAD/HELM KIT 14 Ft1
-892438K16动力转向软管套件 动力模块 (16英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (16 Feet) Hydraulic, Pump to Helm1
-8M0150616泵至舱壁/舵机套件 16英尺PUMP TO BULKHEAD/HELM KIT 16 Ft1
-892438K18动力转向软管套件 动力模块 (18英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (18 Feet) Hydraulic, Pump to Helm1
-8M0150617泵至舱壁/舵机套件 18英尺PUMP TO BULKHEAD/HELM KIT 18 Ft1
-892438K20动力转向软管套件 动力模块 (20英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (20 Feet) Hydraulic, Pump to Helm1
-8M0150618泵至舱壁/舵机套件 20英尺PUMP TO BULKHEAD/HELM KIT 20 ft1
-892438K22动力转向软管套件 动力模块 (22英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (22 Feet) Hydraulic, Pump to Helm1
-8M0150619泵至舱壁/舵机套件 22英尺PUMP TO BULKHEAD/HELM KIT 22 FT1
-892438K24动力转向软管套件 动力模块 (24英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (24 Feet) Hydraulic, Pump to Helm1
-8M0150620泵至舱壁/舵机套件 24英尺PUMP TO BULKHEAD/HELM KIT 24 FT1
-892825008液压软管 (8英尺) 舵机至压力罐HOSE (8 Feet) Hydraulic, Helm to Pressure Tank1
-892825010液压软管 (10英尺) 舵机至压力罐HOSE (10 Feet) Hydraulic, Helm to Pressure Tank1
-892825012液压软管 (12英尺) 舵机至压力罐HOSE (12 Feet) Hydraulic, Helm to Pressure Tank1
-892825014液压软管 (14英尺) 舵机至压力罐HOSE (14 Feet) Hydraulic, Helm to Pressure Tank1
-892825016液压软管 (16英尺) 舵机至压力罐HOSE (16 Feet) Hydraulic, Helm to Pressure Tank1
-892825018液压软管 (18英尺) 舵机至压力罐HOSE (18 Feet) Hydraulic, Helm to Pressure Tank1
-892825020液压软管 (20英尺) 舵机至压力罐HOSE (20 Feet) Hydraulic, Helm to Pressure Tank1
-892825022液压软管 (22英尺) 舵机至压力罐HOSE (22 Feet) Hydraulic, Helm to Pressure Tank1
-892825024液压软管 (24英尺) 舵机至压力罐HOSE (24 Feet) Hydraulic, Helm to Pressure Tank1
-892825026液压软管 (26英尺) 舵机至压力罐HOSE (26 Feet) Hydraulic, Helm to Pressure Tank1
-893395A01嵌入式安装板PLATE Flush Mount1
-875207三通接头TEE Fitting1
-892486K08模拟转换套件CONVERSION KIT Analog1
-889611K02附件电源线束套件(30英尺)HARNESS KIT Accessory Power (30 Feet)1
-899785K04附件电源线束总成(30英尺)HARNESS ASSEMBLY Accessory Power (30 Feet)1
-88334A2防腐电极套件MERCATHODE KIT1
-8M0180081防腐电极套件MERCATHODE KIT1
-825191A03索具软管套件HOSE KIT Rigging1
-880717A01齿轮箱螺丝/密封套件SCREW/SEAL KIT Gearcase1
-88439A50电池电缆组CABLE SET Battery1
-8M0210761电池电缆组(12英尺)CABLE SET (12 ft) Battery1
-44357Q2冲洗附件FLUSHING ATTACHMENT1
-44357T2冲洗附件FLUSHING ATTACHMENT1
-881150Q1双进水口冲洗套件FLUSH KIT Dual Water Pick Up1
-881150K1双进水口冲洗密封套件SEAL KIT Flush - Dual Water Pickup1
-897967100燃油管路 (100.00英尺)LINE Fuel (100.00 Feet)1
-8M0038563燃油管路 (100.00英尺)LINE Fuel (100.00 Feet)1
-899712A01连续性电缆套件CABLE KIT Continuity1
图 110齿轮箱驱动轴-标准/反向旋转 Gear Housing Driveshaft - Standard/Counter Rotation
齿轮箱驱动轴-标准/反向旋转 Gear Housing Driveshaft - Standard/Counter Rotation
REF零件编号中文名称英文名称数量
1855432A1盖板套件COVER KIT1
2NSS不单独销售 弯头NOT SOLD SEPARATE Elbow1
38568431直通接头FITTING Straight STRAIGHT1
419688接头FITTING1
5803878密封件SEAL1
6NSS不单独销售 泵出口配件包NOT SOLD SEPARATE Fitting Kit-Pump Outlet1
6855437A2泵出口接头套件FITTING KIT Pump Outlet1
7NSSO型圈（不单独销售）NOT SOLD SEPARATE O Ring1
8808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)7
9855528衬垫GASKET1
98M6002520衬垫套件GASKET KIT1
10855430A1浮子套件FLOAT KIT1
108M6004920浮子套件FLOAT KIT1
11F10064轴SHAFT1
12855431针阀VALVE Needle1
128M6004917进气阀VALVE-INLET1
135902螺钉(#6-32 x .187)SCREW (#6-32 x .187)1
14855427A1泵套件PUMP KIT1
15855428套筒SLEEVE1
158M6000589套筒SLEEVE1
16855434A1油杯套件BOWL KIT1
17855433密封件SEAL1
178554331密封件SEAL1
18855435A1塞套件PLUG KIT1
198554245弯头ELBOW2
2018458A4滤清器套件FILTER KIT1
2018458Q4燃油水分离滤清器FILTER Fuel-Water Separating1
21828586探头PROBE1
218M0204710探头PROBE1
图 111燃油泵 Fuel Pump
燃油泵 Fuel Pump
REF零件编号中文名称英文名称数量
1NSS不单独销售 燃油泵NOT SOLD SEPARATE Fuel Pump1
214360A53燃油泵总成PUMP ASSEMBLY Fuel1
214360T75燃油泵总成PUMP ASSEMBLY Fuel1
342990A10膜片组件DIAPHAGM KIT2
3857005A1膜片组件DIAPHRAGM KIT2
4NSS膜片(不单独销售)NOT SOLD SEPARATE Diaphragm1
5NSSNOT SOLD SEPARATE Rubber Check Valve2
6NSS固定座(不单独销售)NOT SOLD SEPARATE Retainer2
7NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring1
8NSS盖帽(不单独销售)NOT SOLD SEPARATE Cap1
9NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring1
10NSS盖帽(不单独销售)NOT SOLD SEPARATE Cap1
11NSS膜片(不单独销售)NOT SOLD SEPARATE Diaphragm1
12987691衬垫GASKET1
128M0204705衬垫@2GASKET @21
13NSS增压垫片(不单独销售)NOT SOLD SEPARATE Gasket-Boost1
14NSS脉冲垫片(不单独销售)NOT SOLD SEPARATE Gasket-Pulse1
15987752安装板PLATE1
16996641弯头ELBOW2
1699664290度弯头接头(0.125-27x0.250)尼龙FITTING Elbow 90 Degree (.125-27 x .250) Nylon2
1782104540螺钉(M5 x 40)SCREW (M5 x 40)2
1782130050螺钉(M6 x 50)SCREW (M6 x 50)2
18144303底座BASE1
1978279弯头（45度）ELBOW (45 DEGREES)1
198M0207781弯头ELBOW1
20291111接头FITTING1
20291112接头FITTING1
2183075780管材(28.00英寸散装)TUBING (28.00 Inches Bulk)1
218M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
22816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)6
22816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)6
23856822A1管材(带绝缘套管)(7英寸)TUBING (W/INSULATING SLEEVE) (7 IN.)1
238M0064784成型脉冲软管HOSE,MOLDED,PULSE1
24856822A2软管套管总成(18.00英寸)HOSE AND SLEEVE ASSEMBLY (18.00 Inches)1
248M0043979软管套管总成HOSE AND SLEEVE ASSEMBLY1
25822769连接器CONNECTOR1
-814754A98衬垫套件GASKET SET1
-8M0046714衬垫套件GASKET SET1
-854008A98动力头总成POWERHEAD ASSEMBLY1
-804545T99动力头总成POWERHEAD ASSEMBLY1
图 112气缸盖 Cylinder Head
气缸盖 Cylinder Head
REF零件编号中文名称英文名称数量
1852380A1气缸盖CYLINDER HEAD1
1852381A1气缸盖CYLINDER HEAD1
1852381T1气缸盖CYLINDER HEAD1
28525203衬垫GASKET2
3832971螺钉 (.375-16 x 3.00)SCREW (.375-16 x 3.00)24
474840定位销PIN Dowel4
562386衬垫GASKET2
58M0204714衬垫@4GASKET @42
68307371盖板COVER2
68M0039353盖板COVER2
7833072节温器 62°C（143°F）THERMOSTAT 62° Celsius (143° Fahrenheit)2
7833072003节温器 62°C (143°F)THERMOSTAT 62°C (143°F)2
882130025螺钉(M6x25)SCREW (M6 x 25)4
968727190度弯头 (.250-18) 黄铜(右舷)FITTING (.250-18) 90 Degree - Brass (Starboard)1
1068728接头(左舷)FITTING (Port)1
1177653112软管(59.00英寸整料)(21-1/2英寸)HOSE (59.00 Inches Bulk) (21-1/2 IN.)1
1177653101软管（散装48.00英寸）HOSE (48.00 Inches Bulk)1
1277653112软管(59.00英寸散装)(11-1/2英寸)HOSE (59.00 Inches Bulk) (11-1/2 IN.)1
1277653101软管（散装48.00英寸）HOSE (48.00 Inches Bulk)1
13816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)5
13816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)5
1413536A14温度传感器总成(右舷)SENSOR ASSEMBLY Temperature (Starboard)1
15137151固定座RETAINER1
1681893412螺钉（M8×12）SCREW (M8 x 12)1
-814754A98衬垫套件GASKET SET1
-8M0046714衬垫套件GASKET SET1
-854008A98动力头总成POWERHEAD ASSEMBLY1
-804545T99动力头总成POWERHEAD ASSEMBLY1
图 113数字电气部件 DIGITAL ELECTRIC PARTS
数字电气部件 DIGITAL ELECTRIC PARTS
REF零件编号中文名称英文名称数量
1852380A1气缸盖CYLINDER HEAD1
1852381A1气缸盖CYLINDER HEAD1
1852381T1气缸盖CYLINDER HEAD1
28525203衬垫GASKET2
3832971螺钉 (.375-16 x 3.00)SCREW (.375-16 x 3.00)24
474840定位销PIN Dowel4
562386衬垫GASKET2
58M0204714衬垫@4GASKET @42
68307371盖板COVER2
68M0039353盖板COVER2
7833072节温器 62°C（143°F）THERMOSTAT 62° Celsius (143° Fahrenheit)2
7833072003节温器 62°C (143°F)THERMOSTAT 62°C (143°F)2
882130025螺钉(M6x25)SCREW (M6 x 25)4
968727190度弯头 (.250-18) 黄铜(右舷)FITTING (.250-18) 90 Degree - Brass (Starboard)1
1068728接头(左舷)FITTING (Port)1
1177653112软管(59.00英寸整料)(21-1/2英寸)HOSE (59.00 Inches Bulk) (21-1/2 IN.)1
1177653101软管（散装48.00英寸）HOSE (48.00 Inches Bulk)1
1277653112软管(59.00英寸散装)(11-1/2英寸)HOSE (59.00 Inches Bulk) (11-1/2 IN.)1
1277653101软管（散装48.00英寸）HOSE (48.00 Inches Bulk)1
13816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)5
13816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)5
1413536A14温度传感器总成(右舷)SENSOR ASSEMBLY Temperature (Starboard)1
15137151固定座RETAINER1
1681893412螺钉（M8×12）SCREW (M8 x 12)1
-814754A98衬垫套件GASKET SET1
-8M0046714衬垫套件GASKET SET1
-854008A98动力头总成POWERHEAD ASSEMBLY1
-804545T99动力头总成POWERHEAD ASSEMBLY1
图 114艉板支架 Transom Brackets
艉板支架 Transom Brackets
REF零件编号中文名称英文名称数量
1828334T03艉板支架总成-右舷BRACKET ASSEMBLY Transom-Starboard1
2828333T08艉板支架总成-左舷BRACKET ASSEMBLY Transom-Port1
398727润滑脂接头FITTING Grease1
38M0169588润滑脂接头FITTING Grease1
4826125A1倾斜管TILT TUBE1
5826135尼龙锁紧螺母(1.00-14)NUT Lock (1.00-14) Nylon Insert1
645711O型圈 (.612 x .103)O-RING (.612 x .103)1
788750波浪垫圈 (1.62 x 1.05)WASHER Wave (1.62 x 1.05)2
8826164螺母 (.875-14)NUT (.875-14)1
88M0231351锁紧螺母NUT Lock1
9677551螺钉(.500-20×4.500)SCREW (.500-20 x 4.500)4
98M0149747螺钉SCREW4
1028421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
108M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
118M0027784螺母NUT4
1182671117螺母(.500-20)NUT (.500-20)4
1299629A2杠杆总成LEVER ASSEMBLY1
128M0115104倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
13830899张力弹簧SPRING Tension1
1465830尼龙衬套NYLINER2
15830900压缩弹簧SPRING Compression1
1699633旋钮KNOB1
1799615槽销PIN Groove1
1899617销PIN1
18893709销PIN1
图 115排气歧管与排气板 EXHAUST MANIFOLD AND EXHAUST PLATE
排气歧管与排气板 EXHAUST MANIFOLD AND EXHAUST PLATE
REF零件编号中文名称英文名称数量
1190503衬垫GASKET1
28283431排气隔板PLATE Exhaust Divider1
2828343T3排气隔板PLATE Exhaust Divider1
3814754密封件(12.50英寸)SEAL (12.50 Inches)1
4826356螺钉带垫圈(.312-18 x 1.500)SCREW AND WASHER (.312-18 x 1.500)17
48263561螺钉带垫圈(.312-18 x 1.500)SCREW AND WASHER (.312-18 x 1.500)17
5855288螺丝(.312-18 x 1.00)SCREW (.312-18 x 1.00)2
5881190螺丝(.312-18 x 1.00)SCREW (.312-18 x 1.00)2
68348082滤网STRAINER1
783075780管材(28.00英寸整料)(裁切至4-1/2英寸)TUBING (28.00 Inches Bulk) (Cut to 4-1/2 Inches)1
78M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
868727190度弯头 (.250-18) - 黄铜FITTING (.250-18) 90 Degree - Brass1
977653112软管(59.00英寸整料)(21-1/2英寸)HOSE (59.00 Inches Bulk) (21-1/2 IN.)1
977653101软管（散装48.00英寸）HOSE (48.00 Inches Bulk)1
10816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)5
10816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)5
1168729盖板COVER1
118M0039767盖板COVER1
1274824螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)4
1369570螺钉(#10-16 x .750)SCREW (#10-16 x .750)1
1476451垫圈WASHER1
1514479隔膜DIAPHRAGM1
15144791隔膜DIAPHRAGM1
1616496导水板DEFLECTOR Water1
1716497A1安装板PLATE1
1878690衬垫GASKET2
1878690002衬垫GASKET2
1964878弹簧(黑色)SPRING (Black)1
2085303垫圈WASHER1
2114480提动阀POPPET1
2264872护孔环GROMMET1
2365848托架CARRIER1
24991763衬垫GASKET1
24991764衬垫GASKET1
25850814A1排气板总成PLATE ASSEMBLY Exhaust1
25850814T1排气板总成PLATE ASSEMBLY Exhaust1
2643044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
278147011密封件SEAL1
278M0043164密封件SEAL1
28680101支架BRACKET1
29812832螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)8
29878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)8
3089772连接器(.125-27)(直通)(背部)CONNECTOR (.125-27) (STRAIGHT)(BACK)1
3162910190度弯头(.125-27)(右舷顶部孔)FITTING Elbow - 90 Degree (.125-27) (STARBOARD-TOP HOLE)1
3289772连接器(.125-27)(直通)(右舷底部孔)CONNECTOR (.125-27) (STRAIGHT)(STARBOARD-BOTTOM HOLE)1
3319564护孔环GROMMET1
338M0179867护孔环GROMMET1
3419565护孔环GROMMET1
3419565002护孔环GROMMET1
3577653112软管(59.00英寸整料)(25英寸)HOSE (59.00 Inches Bulk) (25 IN.)1
3577653101软管（散装48.00英寸）HOSE (48.00 Inches Bulk)1
36852759软管HOSE1
3720553垫圈(.406 x .734 x .063)WASHER (.406 x .734 x .063)4
3869254螺母NUT6
3927132衬套BUSHING1
4066727螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)1
4168783螺钉(.312-18×2.50)SCREW (.312-18 x 2.50)1
4266725螺钉(.375-16×3.50)SCREW (.375-16 x 3.50)3
42898833螺钉(.375-16 x 3.500)SCREW (.375-16 x 3.500)3
43812905A5前支架总成BRACKET ASSEMBLY Front1
43812905T前支架BRACKET Front1
448055571螺钉(0.3125-18×0.50)SCREW (.3125-18 x .50)4
45187031垫圈WASHER4
4618778护孔环GROMMET4
4618778001护孔环GROMMET4
4718578A8支架总成(后部)BRACKET ASSEMBLY Rear1
4718578T09支架总成(后部)BRACKET ASSEMBLY Rear1
-814754A98衬垫套件GASKET SET1
-8M0046714衬垫套件GASKET SET1
-854008A98动力头总成POWERHEAD ASSEMBLY1
-804545T99动力头总成POWERHEAD ASSEMBLY1
图 116电气板总成 ELECTRICAL PLATE ASSEMBLY
电气板总成 ELECTRICAL PLATE ASSEMBLY
REF零件编号中文名称英文名称数量
18343A10驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
18343A11驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
18343T11ORD 1590-8343T10ORD 1590-8343T101
1813563A1驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
1813563T1传动轴壳体-黑色-加长型HOUSING Driveshaft - Black - X-Long1
1813563A2驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
1813563T2ORD 3503-813563T1ORD 3503-813563T11
256295双头螺柱(.437 x 2.69)STUD (.437 x 2.69)2
363474螺钉(.500-20 x 6.00)SCREW (.500-20 x 6.00)2
3898831螺钉(.500-20 x 6.220)SCREW (.500-20 x 6.220)2
488238A10接地线总成CABLE ASSEMBLY Ground1
577327支架MOUNT2
649339垫圈(.8125)WASHER (.8125)2
788238A10接地线总成CABLE ASSEMBLY Ground1
828040螺母(.500-20)NUT (.500-20)2
8898832螺母(.500-20)NUT (.500-20)2
941508螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel1
1045176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel2
1134933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
118M0204653螺母NUT2
1267076卡箍CLAMP2
128M0036782卡箍CLAMP2
1366727螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)4
1467077T黑色盖COVER Black2
148M4500752盖板COVER2
1467077F1灰色盖板COVER Gray2
1467077T黑色盖COVER Black2
1588417螺钉(#12-24×0.620)SCREW (#12-24 x .620)4
1635521螺母NUT4
1748926垫圈WASHER1
1834933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel1
188M0204653螺母NUT1
1920553垫圈(.406 x .734 x .063)WASHER (.406 x .734 x .063)4
2069254螺母NUT4
21828212怠速排气套BOOT Idle Exhaust1
218M0039081护套BOOT1
2264649堵头PLUG1
23991732衬垫GASKET1
23991734衬垫GASKET1
2466350下密封件SEAL (LOWER)1
2466350001密封件SEAL1
2518276排气管TUBE Exhaust1
2518276T排气管EXHAUST TUBE1
26177261上密封件SEAL (UPPER)1
268M0039076密封件SEAL1
27812834排气管延长段EXTENSION Exhaust1
27812834A2排气延长总成EXTENSION ASSEMBLY Exhaust1
2741942F3排气管延长段EXTENSION Exhaust1
27879288T71排气管延长段EXTENSION Exhaust1
2867295水管TUBE Water1
288M0042788长型水管TUBE-WATER-LONG1
2874729管TUBE1
288M0042790水管TUBE-WATER1
2978246衬垫GASKET1
29782461衬垫GASKET1
3018233A6隔板总成PLATE ASSEMBLY1
3018233A20传动轴壳体板总成PLATE ASSEMBLY Driveshaft Housing1
318147012密封件SEAL1
318M0043165密封件-27.00英寸SEAL-27.00 INCH1
3268011支架BRACKET1
33812832螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)12
33878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)12
3443044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
3538970密封件SEAL1
3690192螺钉(.250-20 x .750)不锈钢SCREW (.250-20 x .750) Stainless Steel6
3739072塞(1/8英寸黄铜)PLUG (1/8 Inch Brass)2
37390721黄铜管塞 (.125-27)PLUG Pipe (.125-27) Brass2
38183071衬垫GASKET1
38183076衬垫GASKET1
-814754A98衬垫套件GASKET SET1
-8M0046714衬垫套件GASKET SET1
图 117动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing
动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing
REF零件编号中文名称英文名称数量
-8M0168222动力升降总成POWER TRIM ASSEMBLY1
18M0142591电机套件MOTOR KIT1
282494830螺钉 (M6 x 30)SCREW (M6 x 30)2
3400256锁紧垫圈 (M6)LOCKWASHER (M6)2
48M0090403驱动联轴器COUPLING Drive1
58M0142996压力检查套件PO CHECK KIT1
68M0060141手动释放套件MANUAL RELEASE KIT1
78M0142997倾斜轴套件TILT SHAFT KIT1
8878267销PIN1
98M0142998倾斜油缸总成TILT CYLINDER ASSEMBLY1
98M0168220倾斜油缸总成TILT CYLINDER ASSEMBLY1
108M0142999倾斜油缸O型圈套件O RING KIT TILT CYLINDER1
118M0143000记忆活塞套件MEMORY PISTON KIT1
128M0142592升降杆套件 左舷TRIM ROD KIT Port1
138M0143001活塞总成PISTON ASSEMBLY1
148M0143003端盖总成END CAP ASSEMBLY1
15878264A1储液罐套件RESERVOIR KIT1
16811613塞子总成PLUG ASSEMBLY1
174000327螺钉 (M6 x 14)SCREW (M6 x 14)4
184002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)4
198M0143004泵套件PUMP KIT1
208M0148385动力升降倾斜装置维修包REPAIR KIT Power Trim1
21858771螺钉 (M10 x 30)SCREW (M10 x 30)6
224002319垫圈WASHER6
238M0094889销PIN1
238M0161312连杆销眼总成PIN ROD EYE ASSEMBLY1
248M0143005减震杆套件SHOCK ROD KIT1
248M0168219减震杆套件SHOCK ROD KIT1
图 118动力升降组件(铸造泵壳)金属电机壳体 POWER TRIM COMPONENTS (CAST PUMP HOUSING) Metal Motor Housing
动力升降组件(铸造泵壳)金属电机壳体 POWER TRIM COMPONENTS (CAST PUMP HOUSING) Metal Motor Housing
REF零件编号中文名称英文名称数量
112335A1支架套件BRACKET KIT1
212323A1绳索/挂钩套件CORD/HOOK KIT1
387421油箱TANK1
443298A2盖总成CAP ASSEMBLY1
5NSS不单独销售嵌件NOT SOLD SEPARATE Insert1
611332O型圈(2.225 x .210)O-RING (2.225 x .210)1
7816190A3外壳总成适配器HOUSING ASSEMBLY Adapter1
7816190A4机油收集器总成(无传感器)OIL PICK UP ASSEMBLY Without Sender1
811332O型圈(2.225 x .210)O-RING (2.225 x .210)1
999802管TUBE1
1099439软管(114.00英寸)HOSE (114.00 Inches)1
11833069A3油箱总成RESERVOIR ASSEMBLY Oil1
118M0062954储油罐RESERVOIR, OIL1
12NSS不单独销售标签-储液罐NOT SOLD SEPARATE Decal-Reservoir1
13855362护孔环GROMMET3
13855362001护孔环GROMMET3
1449436垫圈WASHER3
1560411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)1
16855364衬套BUSHING3
1769267螺钉 (.312-18 x 1.750)SCREW (.312-18 x 1.750)2
18833155护孔环GROMMET2
198502341衬套BUSHING2
2082381455管材(25英寸整卷)(裁切为20英寸)TUBING (25.00 Inches Bulk) (Cut to 20 Inches)1
21816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
21816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
2212886A8开关SWITCH1
2358376螺钉(.164-18 x .375)SCREW (.164-18 x .375)1
2472761不锈钢垫圈(.203 x .562 x .060)WASHER (.203 x .562 x .060) Stainless Steel1
258260841隔套SPACER1
26816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)7
26816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)7
27NSS不单独销售 塞NOT SOLD SEPARATE Plug1
28424254接头FITTING1
288M0207780接头FITTING1
29830756109软管(57.00英寸散装)(裁切至6英寸)HOSE (57.00 Inches Bulk) (Cut to 6 Inches)1
298M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
30855785燃油冷却器COOLER Fuel1
30855785A1燃油冷却器总成COOLER ASSEMBLY Fuel1
31855761止回阀CHECK VALVE1
318557611止回阀CHECK VALVE1
3213791卡箍(15.7)CLAMP (15.7)4
328M0214911卡箍@5CLAMP @54
3385682239管材(17英寸整卷)(裁切为3英寸)TUBING (17.00 Inches Bulk) (Cut to 3 Inches)1
34856822A3软管(带绝缘套管)(30英寸)HOSE (W/INSULATING SLEEVE) (30 IN.)1
图 119空气软管 Air Hoses
空气软管 Air Hoses
REF零件编号中文名称英文名称数量
-892440A08动力转向泵套件PUMP KIT Power Steering Pump Kit1
-892440A09动力转向泵套件PUMP KIT Power Steering Pump Kit1
-8M0131263动力转向泵套件(24英尺)PUMP KIT Power Steering (24 Feet)1
-892380A02标准转向舵机套件(40cc)STEERING HELM KIT Standard (40 cc)1
-8M0240080标准舵机套件40CMHELM KIT-STD 40CM1
-892557A02标准转向舵机套件(32cc)STEERING HELM KIT Standard (32 cc)1
-8M0240079标准舵机套件32CMHELM KIT-STD 32CM1
-892558A02标准转向舵机套件(50cc)STEERING HELM KIT Standard (50 cc)1
-8M0240081标准舵机套件50CMHELM KIT-STD 50CM1
-892450K01液压软管套件(1英尺)油缸至舵机HOSE KIT (1 Foot) Hydraulic, Cylinder to Helm1
-897982K01ORD 32-897982K02ORD 32-897982K021
-892450K02液压软管套件(2英尺)油缸至舵机HOSE KIT (2 Feet) Hydraulic, Cylinder to Helm1
-8M0167281软管套件2FTHOSE KIT 2FT1
-892450K03液压软管套件(3英尺)油缸至舵机HOSE KIT (3 Feet) Hydraulic, Cylinder to Helm1
-8M0167282软管套件3FTHOSE KIT 3 FT1
-892450K04液压软管套件(4英尺)油缸至舵机HOSE KIT (4 Feet) Hydraulic, Cylinder to Helm1
-8M0167283软管套件4FTHOSE KIT 4 FT1
-892450K05液压软管套件(5英尺)油缸至舵机HOSE KIT (5 Feet) Hydraulic, Cylinder to Helm1
-8M0167284软管套件5FTHOSE KIT 5 FT1
-892450K06液压软管套件(6英尺)油缸至舵机HOSE KIT (6 Feet) Hydraulic, Cylinder to Helm1
-8M0167285软管套件6FTHOSE KIT 6 FT1
-892450K07液压软管套件(7英尺)油缸至舵机HOSE KIT (7 Feet) Hydraulic, Cylinder to Helm1
-8M0167286软管套件7FTHOSE KIT 7 FT1
-892450K08液压软管套件(8英尺)油缸至舵机HOSE KIT (8 Feet) Hydraulic, Cylinder to Helm1
-8M0167287软管套件8FTHOSE KIT 8 FT1
-892450K10液压软管套件(10英尺)油缸至舵机HOSE KIT (10 Feet) Hydraulic, Cylinder to Helm1
-8M0167288软管套件10FTHOSE KIT 10 FT1
-892450K12液压软管套件(12英尺)油缸至舵机HOSE KIT (12 Feet) Hydraulic, Cylinder to Helm1
-8M0167289软管套件12FTHOSE KIT 12 FT1
-892450K14液压软管套件(14英尺)油缸至舵机HOSE KIT (14 Feet) Hydraulic, Cylinder to Helm1
-8M0167290软管套件 14英尺HOSE KIT 14 FT1
-892450K16液压软管套件(16英尺)油缸至舵机HOSE KIT (16 Feet) Hydraulic, Cylinder to Helm1
-8M0167291软管套件 16英尺HOSE KIT 16 FT1
-892450K18液压软管套件(18英尺)油缸至舵机HOSE KIT (18 Feet) Hydraulic, Cylinder to Helm1
-8M0167292软管套件 18英尺HOSE KIT 18 FT1
-892450K22液压软管套件(22英尺)油缸至舵机HOSE KIT (22 Feet) Hydraulic, Cylinder to Helm1
-8M0167294软管套件 22英尺HOSE KIT 22 FT1
-892450K24液压软管套件(24英尺)油缸至舵机HOSE KIT (24 Feet) Hydraulic, Cylinder to Helm1
-8M0167295软管套件 24英尺HOSE KIT 24 FT1
-892450K26液压软管套件(26英尺)油缸至舵机HOSE KIT (26 Feet) Hydraulic, Cylinder to Helm1
-8M0167296软管套件 26英尺HOSE KIT 26 FT1
-892450K30液压软管套件(30英尺)油缸至舵机HOSE KIT (30 Feet) Hydraulic, Cylinder to Helm1
-8M0167298软管套件 30英尺HOSE KIT 30 FT1
-892438K02动力转向软管套件 动力模块 (2英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (2 Feet) Hydraulic, Pump to Helm1
-8M0150604泵至舱壁/舵机套件 2英尺PUMP TO BULKHEAD/HELM KIT 2 Ft1
-892438K03动力转向软管套件 动力模块 (3英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (3 Feet) Hydraulic, Pump to Helm1
-8M0150605泵至舱壁/舵机套件 3英尺PUMP TO BULKHEAD/HELM KIT 3 Ft1
-892438K04动力转向软管套件 动力模块 (4英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (4 Feet) Hydraulic, Pump to Helm1
-8M0150606泵至舱壁/舵机套件 4英尺PUMP TO BULKHEAD/HELM KIT 4 Ft1
-892438K05动力转向软管套件 动力模块 (5英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (5 Feet) Hydraulic, Pump to Helm1
-8M0150607泵至舱壁/舵机套件 5英尺PUMP TO BULKHEAD/HELM KIT 5 Ft1
-892438K06软管套件 动力模块 (6英尺) 液压, 泵至舵机HOSE KIT Power Module (6 Feet) Hydraulic, Pump to Helm1
-8M0150608泵至舱壁/舵机套件 6英尺PUMP TO BULKHEAD/HELM KIT 6 Ft1
-892438K07软管套件 动力模块 (7英尺) 液压, 泵至舵机HOSE KIT Power Module (7 Feet) Hydraulic, Pump to Helm1
-8M0150610泵至舱壁/舵机套件 7英尺PUMP TO BULKHEAD/HELM KIT 7 Ft1
-892438K08软管套件 动力模块 (8英尺) 液压, 泵至舵机HOSE KIT Power Module (8 Feet) Hydraulic, Pump to Helm1
-8M0150612泵至舱壁/舵机套件 8英尺PUMP TO BULKHEAD/HELM KIT 8 Ft1
-892438K10动力转向软管套件 动力模块 (10英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (10 Feet) Hydraulic, Pump to Helm1
-8M0150613泵至舱壁/舵机套件 10英尺PUMP TO BULKHEAD/HELM KIT 10 Ft1
-892438K12动力转向软管套件 动力模块 (12英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (12 Feet) Hydraulic, Pump to Helm1
-8M0150614泵至舱壁/舵机套件 12英尺PUMP TO BULKHEAD/HELM KIT 12 Ft1
-892438K14动力转向软管套件 动力模块 (14英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (14 Feet) Hydraulic, Pump to Helm1
-8M0150615泵至舱壁/舵机套件 14英尺PUMP TO BULKHEAD/HELM KIT 14 Ft1
-892438K16动力转向软管套件 动力模块 (16英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (16 Feet) Hydraulic, Pump to Helm1
-8M0150616泵至舱壁/舵机套件 16英尺PUMP TO BULKHEAD/HELM KIT 16 Ft1
-892438K18动力转向软管套件 动力模块 (18英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (18 Feet) Hydraulic, Pump to Helm1
-8M0150617泵至舱壁/舵机套件 18英尺PUMP TO BULKHEAD/HELM KIT 18 Ft1
-892438K20动力转向软管套件 动力模块 (20英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (20 Feet) Hydraulic, Pump to Helm1
-8M0150618泵至舱壁/舵机套件 20英尺PUMP TO BULKHEAD/HELM KIT 20 ft1
-892438K22动力转向软管套件 动力模块 (22英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (22 Feet) Hydraulic, Pump to Helm1
-8M0150619泵至舱壁/舵机套件 22英尺PUMP TO BULKHEAD/HELM KIT 22 FT1
-892438K24动力转向软管套件 动力模块 (24英尺) 液压, 泵至舵机POWER STEERING HOSE KIT Power Module (24 Feet) Hydraulic, Pump to Helm1
-8M0150620泵至舱壁/舵机套件 24英尺PUMP TO BULKHEAD/HELM KIT 24 FT1
-892825008液压软管 (8英尺) 舵机至压力罐HOSE (8 Feet) Hydraulic, Helm to Pressure Tank1
-892825010液压软管 (10英尺) 舵机至压力罐HOSE (10 Feet) Hydraulic, Helm to Pressure Tank1
-892825012液压软管 (12英尺) 舵机至压力罐HOSE (12 Feet) Hydraulic, Helm to Pressure Tank1
-892825014液压软管 (14英尺) 舵机至压力罐HOSE (14 Feet) Hydraulic, Helm to Pressure Tank1
-892825016液压软管 (16英尺) 舵机至压力罐HOSE (16 Feet) Hydraulic, Helm to Pressure Tank1
-892825018液压软管 (18英尺) 舵机至压力罐HOSE (18 Feet) Hydraulic, Helm to Pressure Tank1
-892825020液压软管 (20英尺) 舵机至压力罐HOSE (20 Feet) Hydraulic, Helm to Pressure Tank1
-892825022液压软管 (22英尺) 舵机至压力罐HOSE (22 Feet) Hydraulic, Helm to Pressure Tank1
-892825024液压软管 (24英尺) 舵机至压力罐HOSE (24 Feet) Hydraulic, Helm to Pressure Tank1
-892825026液压软管 (26英尺) 舵机至压力罐HOSE (26 Feet) Hydraulic, Helm to Pressure Tank1
-893395A01嵌入式安装板PLATE Flush Mount1
-875207三通接头TEE Fitting1
-892486K08模拟转换套件CONVERSION KIT Analog1
-889611K02附件电源线束套件(30英尺)HARNESS KIT Accessory Power (30 Feet)1
-899785K04附件电源线束总成(30英尺)HARNESS ASSEMBLY Accessory Power (30 Feet)1
-88334A2防腐电极套件MERCATHODE KIT1
-8M0180081防腐电极套件MERCATHODE KIT1
-825191A03索具软管套件HOSE KIT Rigging1
-880717A01齿轮箱螺丝/密封套件SCREW/SEAL KIT Gearcase1
-88439A50电池电缆组CABLE SET Battery1
-8M0210761电池电缆组(12英尺)CABLE SET (12 ft) Battery1
-44357Q2冲洗附件FLUSHING ATTACHMENT1
-44357T2冲洗附件FLUSHING ATTACHMENT1
-881150Q1双进水口冲洗套件FLUSH KIT Dual Water Pick Up1
-881150K1双进水口冲洗密封套件SEAL KIT Flush - Dual Water Pickup1
-897967100燃油管路 (100.00英尺)LINE Fuel (100.00 Feet)1
-8M0038563燃油管路 (100.00英尺)LINE Fuel (100.00 Feet)1
-899712A01连续性电缆套件CABLE KIT Continuity1
图 120下罩 Bottom Cowl
下罩 Bottom Cowl
REF零件编号中文名称英文名称数量
1834814A1下机罩BOTTOM COWL1
1834814A2下机罩BOTTOM COWL1
2834815A1下机罩BOTTOM COWL1
28M0107322机罩-底部 右舷COWL-BOTTOM, STBD1
2834815A2下机罩BOTTOM COWL1
38253181罩盖密封条(41英寸)SEAL Cowl (41.00 Inches)2
38M0109217罩盖密封条SEAL-COWL2
4822024卡箍CLAMP1
5822023卡箍CLAMP1
692799螺钉(#10-16x1.12)SCREW (#10-16 x 1.12)2
782130040螺钉(M6 x 40)SCREW (M6 x 40)4
8831209固定座RETAINER1
9821908堵头PLUG1
10821915垫圈WASHER1
11821963止回阀CHECK VALVE1
118219631止回阀CHECK VALVE1
1230641O型圈(0.299x0.103)O-RING (.299 x .103)1
13821952接头FITTING1
14816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
14816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
158320782软管HOSE1
158M0039077成型软管HOSE-MOLDED1
16850896卡箍 (28.6)CLAMP (28.6)2
178320763接头FITTING1
18821904示流器接头FITTING Tell-Tale1
188M0077650示流器接头FITTING Tell-Tale1
19828216怠速排气套IDLE EXHAUST BOOT Exhaust1
19889847怠速排气套BOOT Idle Exhaust1
20817519A1排水单向阀总成CHECK VALVE ASSEMBLY Drain2
21850691开关SWITCH1
218M0235192微调开关SWITCH TRIM1
22824868螺钉(M6×75)SCREW (M6 x 75)1
23821253F1前手柄黑色FRONT HANDLE Black1
23889740A02手柄套件HANDLE KIT1
23821253F2前手柄FRONT HANDLE1
23889740A02手柄套件HANDLE KIT1
24335891衬套BUSHING2
2548462O型圈 (.614 x .070)O-RING (.614 x .070)1
268219423棘爪PAWL1
2769057垫片(.281 x .734 x .063)WASHER (.281 x .734 x .063)1
28401196螺母 (M6)NUT (M6)1
298214281螺钉(#10-16x0.625)SCREW (#10-16 x .625)1
30822873卡扣CLIP1
图 121视觉警示套件17334A2 Visual Warning Kit 17334A2
视觉警示套件17334A2 Visual Warning Kit 17334A2
REF零件编号中文名称英文名称数量
188334A2防腐电极套件MERCATHODE KIT1
242600A09防腐电极总成MERCATHODE ASSEMBLY1
322793螺丝(#9-14x0.875)SCREW (#9-14 x .875)2
430164垫圈(0.192x0.375x0.0312)不锈钢WASHER (.192 x .375 x .0312) Stainless Steel2
545076黄铜螺母(#10-32)NUT (#10-32) Brass4
672958A5电极总成ELECTRODE ASSEMBLY1
721836O型圈(.796 x .139)O-RING (.796 x .139)1
78M0204645O型圈(.796 x .139)O-RING (.796 x .139)1
887698螺丝(#10-16 x 1.250)不锈钢SCREW (#10-16 x 1.250) Stainless Steel2
972957A5阳极总成ANODE ASSEMBLY1
98M0181304阳极总成ANODE ASSY1
1021836O型圈(.796 x .139)O-RING (.796 x .139)1
108M0204645O型圈(.796 x .139)O-RING (.796 x .139)1
1187698螺丝(#10-16 x 1.250)不锈钢SCREW (#10-16 x 1.250) Stainless Steel2
1279091保险丝20安培FUSE 20 Ampere1
128M0207796保险丝20安培FUSE 20 AMP1
1395084A10电缆总成(5.00英寸)红色CABLE ASSEMBLY (5.00 Inches) Red1
138M0207788拉线总成CABLE ASSEMBLY1
1495084A13电缆总成(64.00英寸)CABLE ASSEMBLY (64.00 Inches)1
1579138A8电缆总成(72.00英寸)黑色CABLE ASSEMBLY (72.00 Inches) Black1
图 122齿轮箱螺旋桨轴-反向旋转 Gear Housing Propeller Shaft - Counter Rotation
齿轮箱螺旋桨轴-反向旋转 Gear Housing Propeller Shaft - Counter Rotation
REF零件编号中文名称英文名称数量
0880686T18齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
0880686T15齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
08M0236258GC L6 4S CXLGC L6 4S CXL1
0880686T17齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
08M0236260GC L6 4S CXXLGC L6 4S CXXL1
1880687T01基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
18M0056631基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
2NSS不单独销售 塞NOT SOLD SEPARATE Plug1
3892075换挡曲柄CRANK Shifter1
3896847A01换挡曲柄5/16枢轴销CRANK, Shifter 5/16 Pivot Pin1
419755T7阀芯总成SPOOL ASSEMBLY1
48M0235940阀芯总成SPOOL ASSY1
5NSS不单独销售线轴NOT SOLD SEPARATE Spool1
6469501开口销COTTER PIN1
7NSS不单独销售 调节套筒NOT SOLD SEPARATE Sleeve Adjusting1
8892809A02倒车齿轮总成GEAR ASSEMBLY Reverse1
9884323T01滚柱轴承总成BEARING ASSEMBLY Roller1
98M0142836圆锥滚子轴承(外圈/内圈)BEARING Roller Taper (Cup/Cone)1
10NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
1123721挡圈RING Retaining1
118M0051043挡圈RING Retaining1
12892805止推垫片THRUST WASHER1
128M0053823止推垫圈(内径1.50×外径2.046)WASHER Thrust, (1.50 ID x 2.046 OD)1
13884325T01圆锥滚子轴承组件BEARING ASSEMBLY Roller-Tappered1
138M0142835圆锥滚子轴承(外圈/内圈)BEARING Roller Taper (Cup/Cone)1
14NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
15884328A01垫片组SHIM SETAR
158M0063270垫片组SHIM SETAR
1630893弹簧SPRING1
17880714T离合器CLUTCH1
1830632十字销PIN Cross1
188M0100263十字销PIN Cross1
19828356定位销PIN Detent1
20888530螺旋桨轴PROPELLER SHAFT1
21880720A02前进/小齿轮组GEAR SET Forward/Pinion1
218M0119540前进齿轮套件GEAR KIT-FORWARD1
22880699推力环THRUST RING1
23815480推力轴承BEARING Thrust1
24880696A10轴承座总成CARRIER ASSEMBLY Bearing1
25896524O型圈(3.850×.210)O-RING (3.850 x .210)1
258M0142840O型圈(3.85×0.210)O-RING (3.85 x 0.210)1
26814653T滚针轴承总成BEARING ASSEMBLY Needle Rollers1
27880728轴承适配器ADAPTER Bearing1
278M0148384前进齿轮轴承适配器ADAPTER Bearing Forward Gear1
2847397A1垫片组SHIM SETAR
29891936A01垫片组SHIM SETAR
30884330T01圆锥轴承组件BEARING ASSEMBLY Taper1
308M0148319圆锥滚子轴承(外圈/内圈)BEARING Roller Taper Cup/Cone1
31NSS杯状件(不单独销售)NOT SOLD SEPARATE Cup1
32896600油封SEAL Oil1
328M0204700油封SEAL Oil1
33888483油封SEAL Oil1
338M0204700油封SEAL Oil1
34880717A01螺丝/密封套件SCREW/SEAL KIT1
35830749密封件SEAL1
358M0204693放油螺塞密封件SEAL Drain Plug1
36892818适配器ADAPTER1
368M0053183前进齿轮适配器ADAPTER Foward Gear1
37891919001止推隔套SPACER Thrust1
38880697键槽垫圈KEYED WASHER1
3979448固定座RETAINER1
398M2011027固定座RETAINER1
40NSS不单独销售-反向旋转标识NOT SOLD SEPARATE Decal-Counter Rotation1
-830749A01齿轮箱密封套件SEAL KIT Gear Housing1
图 123燃油泵 FUEL PUMP
燃油泵 FUEL PUMP
REF零件编号中文名称英文名称数量
1NSS不单独销售 燃油泵NOT SOLD SEPARATE Fuel Pump1
214360A53燃油泵总成PUMP ASSEMBLY Fuel1
214360T75燃油泵总成PUMP ASSEMBLY Fuel1
342990A10膜片组件DIAPHAGM KIT2
3857005A1膜片组件DIAPHRAGM KIT2
4NSS膜片(不单独销售)NOT SOLD SEPARATE Diaphragm1
5NSSNOT SOLD SEPARATE Rubber Check Valve2
6NSS固定座(不单独销售)NOT SOLD SEPARATE Retainer2
7NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring1
8NSS盖帽(不单独销售)NOT SOLD SEPARATE Cap1
9NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring1
10NSS盖帽(不单独销售)NOT SOLD SEPARATE Cap1
11NSS膜片(不单独销售)NOT SOLD SEPARATE Diaphragm1
12987691衬垫GASKET1
128M0204705衬垫@2GASKET @21
13NSS增压垫片(不单独销售)NOT SOLD SEPARATE Gasket-Boost1
14NSS脉冲垫片(不单独销售)NOT SOLD SEPARATE Gasket-Pulse1
15987752安装板PLATE1
16996641弯头ELBOW2
1699664290度弯头接头(0.125-27x0.250)尼龙FITTING Elbow 90 Degree (.125-27 x .250) Nylon2
1782104540螺钉(M5 x 40)SCREW (M5 x 40)2
1782130050螺钉(M6 x 50)SCREW (M6 x 50)2
18144303底座BASE1
1978279弯头（45度）ELBOW (45 DEGREES)1
198M0207781弯头ELBOW1
20291111接头FITTING1
20291112接头FITTING1
2183075780管材(28.00英寸散装)TUBING (28.00 Inches Bulk)1
218M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
22816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)6
22816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)6
23856822A1管材(带绝缘套管)(7英寸)TUBING (W/INSULATING SLEEVE) (7 IN.)1
238M0064784成型脉冲软管HOSE,MOLDED,PULSE1
24856822A2软管套管总成(18.00英寸)HOSE AND SLEEVE ASSEMBLY (18.00 Inches)1
248M0043979软管套管总成HOSE AND SLEEVE ASSEMBLY1
25822769连接器CONNECTOR1
-814754A98衬垫套件GASKET SET1
-8M0046714衬垫套件GASKET SET1
-854008A98动力头总成POWERHEAD ASSEMBLY1
-804545T99动力头总成POWERHEAD ASSEMBLY1
图 124仪表装置 Instrumentation
仪表装置 Instrumentation
REF零件编号中文名称英文名称数量
119674A1拉绳开关总成SWITCH ASSEMBLY Lanyard1
119674A07开关/拉绳套件SWITCH/LANYARD KIT1
218303螺钉 (.190-16 x 1.750) 不锈钢SCREW (.190-16 x 1.750) Stainless Steel2
3813679适配器ADAPTER1
415920A54拉绳总成LANYARD ASSEMBLY1
415920Q54拉绳总成LANYARD ASSEMBLY1
532866螺钉 (#10-32 x 2.00) 不锈钢SCREW (#10-32 x 2.00) Stainless Steel2
618321安装夹CLAMP Mounting1
724676垫圈 (.200 x .440 x .032)WASHER (.200 x .440 x .032)2
868219螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel4
979146固定座RETAINER3
10816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)16
10816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)16
11812497A2二极管总成DIODE ASSEMBLY1
11898289A72双拉绳二极管套件DIODE KIT-LANYARD Dual1
1211149A2线缆总成 (6.00英寸)CABLE ASSEMBLY (6.00 Inches)1
13835360A2警报仪表套件WARNING GAUGE KIT1
13859699A1警报仪表套件GAUGE KIT-WARNING1
14850020卡箍CLAMP1
15825361星形锁紧垫圈(#8)LOCKWASHER Star (#8)1
1626419黄铜螺母 (#8-32)NUT (#8-32) Brass2
1715163灯LAMP4
1879888灯泡插座SOCKET Light Bulb4
19835359A1电缆总成(20.00英尺)CABLE ASSEMBLY (20.00 Feet)1
图 125速度计传感系统 SPEEDOMETER PICKUP SYSTEM
速度计传感系统 SPEEDOMETER PICKUP SYSTEM
REF零件编号中文名称英文名称数量
-896280006零件手册200/225/250/275四冲程VeradoPARTS MANUAL 200/225/250/275 4-Stroke Verado1
-896579T00维修手册SERVICE MANUAL1
-8M0082470MNL-SERV 200-300VMNL-SERV 200-300V1
-10238060安装手册INSTALLATION MANUAL1
-10237060用户手册OWNERS MANUAL1
-10237J60用户手册(西班牙语)OWNERS MANUAL Spanish1
-10237D60用户手册(法语)OWNERS MANUAL French1
-895269001产品指南PRODUCT GUIDE1
-895269002产品指南GUIDE-PRODUCT1
-895282A06EPA标签信息贴花DECAL EPA Label Information1
