舟一会 ZHOUYIHUI 船外机

水星 Mercury XR-6 / MAGNUM III 0D082000 THRU 0G303045 - 爆炸图零件明细

两冲程 化油器 · USA - Cat.# 90-81609892 · 共 141 个部位 · 6010 条零件

1蓄能器2下机罩3化油器（WMH-21/22/23/24/25/28）4化油器（WMH-30/31/32/33/34）5化油器（WMH-12A/12B/13/13B/14A/15/16）6阻风板与油门杆7曲轴、活塞与连杆8气缸体与端盖9驱动轴壳体与排气管10双机延伸套件11排气歧管与排气板12飞轮/启动马达13燃油管路（用于 WMH-12A/B 至 WMH-28 化油器）14燃油管路（用于 WMH-30/31/32/33/34 化油器）15燃油泵16齿轮箱（驱动轴）17齿轮箱（驱动轴）- 反向旋转18齿轮箱（推进轴）19齿轮箱（推进轴）- 反向旋转20齿轮箱对照表21齿轮箱（驱动轴）（XR6/MAG III - 1.78:1 速比）22齿轮箱（推进轴）（XR6/MAG III - 1.78:1 速比）23点火线圈/电压调节器24仪表装置25喷射组件26喷泵总成27杂项零件/附件28喷油组件29动力转向组件（遥控）30动力升降组件 8M023119331动力升降组件（金属马达壳体）32动力升降组件（塑料马达壳体）33动力升降马达34簧片阀组与气缸盖35启动马达36转向连接套件37旋转支架与转向臂38油门杆与换挡轴39上罩与前护板40艉板支架41艉板安装动力转向套件42线束/启动电磁阀43喷泵总成44下罩45驱动轴壳体与排气管46点火线圈/电压调节器47齿轮箱(螺旋桨轴)(标准旋转)48燃油管路49工具50齿轮箱对照表51线束/启动继电器52旋转支架与转向臂53双缆连接套件54顶罩55线束/启动电磁阀56喷油组件57油门杆与换挡轴58动力转向组件（遥控）59化油器（WMH-30/31/32/33/34）60动力升降马达61燃油管路（用于 WMH-30/31/32/33/34 化油器）62附件63齿轮箱螺旋桨轴-反向旋转64动力升降组件金属马达壳65旋转支架与转向臂66驱动轴壳与排气管67排气歧管与排气板68上罩与前护板69仪表装置70齿轮箱(驱动轴)(标准/反向旋转)71齿轮箱螺旋桨轴-标准旋转72艉板支架（序列号0G590000及以上）73飞轮/启动马达74仪表装置75艉板安装动力转向套件76飞轮/启动电机77启动电机78化油器（WMH-12A/12B/13/13B/14A/15/16）79附件80燃油泵81化油器（WMH-21/22/23/24/25/28）82旋转支架与转向臂83艉板支架84机油喷射组件85动力升降组件 8M023119386齿轮箱（驱动轴）（标准/反向旋转）87气缸体与端盖88转向连接套件89蓄能器90专用工具91双机延伸套件92油门杆与换挡轴93排气歧管与排气板94曲轴、活塞与连杆95气缸体与端盖96双机延伸套件97气缸体与端盖98簧片阀组与气缸盖99杂项零件/附件100齿轮箱（驱动轴）101化油器102泄压系统103齿轮箱（推进轴）（XR6/MAG III - 1.78:1 速比）104曲轴、活塞及连杆105曲轴活塞与连杆106喷射组件107顶罩108化油器109点火线圈/电压调节器110转向连接套件111喷射组件112泄放系统113油门杆与换挡轴114维修/支撑材料115燃油泵116喷泵总成117杂项信息118燃油管路（用于 WMH-12A/B 至 WMH-28 化油器）119齿轮箱（推进轴）120簧片阀组与气缸盖121动力升降组件（金属马达壳体）122专用工具123齿轮箱(螺旋桨轴)(反向旋转)124齿轮箱（驱动轴）- 反向旋转125艉板支架（序列号0G589999及以下）126发动机衬垫套件127簧片阀组与气缸盖128齿轮箱（推进轴）- 反向旋转129排气歧管与排气板130艉板支架131驱动轴壳与排气管132齿轮箱（驱动轴）（XR6/MAG III - 1.78:1 速比）133齿轮箱图表（序列号0G437999及以下）134燃油管路135杂项信息136动力升降组件(铸造泵壳)金属电机壳137动力升降组件（塑料马达壳体）138阻风板与油门杆139动力升降倾斜电机140启动马达141下机罩
图 1蓄能器 ACCUMULATOR
蓄能器 ACCUMULATOR
REF零件编号中文名称英文名称数量
-811290蓄能器ACCUMULATOR1
1823059A1端架总成(含线束)END FRAME ASSEMBLY (W/WIRES)1
2823061A1电枢总成ARMATURE ASSEMBLY1
3823062泵总成PUMP ASSEMBLY1
4823063壳体/磁铁总成SHELL/MAGNET ASSEMBLY1
5823064螺栓套件BOLT KIT1
6823065控制器CONTROLLER1
7823066螺钉套件SCREW KIT1
8823067滤清器套件FILTER KIT1
9823068橡胶减震器RUBBER DAMPER1
10823070橡胶隔振器RUBBER ISOLATOR1
11823071储液罐衬垫GASKET Reservoir1
12823072螺钉套件SCREW KIT1
13823074O型圈O-RING1
14823075固定板PLATE Retaining1
15823077电源线束总成HARNESS ASSEMBLY Power1
16823078A1盖总成COVER ASSEMBLY1
17823080A1加注塞FILL PLUG1
18823082壳体总成HOUSING ASSEMBLY1
1979953螺钉(0.375-16x0.250)SCREW (.375-16 x .250)1
2019183纤维垫圈WASHER Fiber1
21823087接头FITTING1
22823069高压短管SHORT HIGH PRESSURE LINE1
23823073高压长管LONG HIGH PRESSURE LINE1
24811524低压短管SHORT LOW PRESSURE LINE1
25811525低压长管LONG LOW PRESSURE LINE1
图 2下机罩 BOTTOM COWL
下机罩 BOTTOM COWL
REF零件编号中文名称英文名称数量
19744A16底部罩盖总成 (黑色)BOTTOM COWL ASSEMBLY (BLACK)1
19744A17下罩壳总成(灰色)BOTTOM COWL ASSEMBLY Gray1
19744A16下罩总成BOTTOM COWL ASSEMBLY1
29745A5底部罩盖总成 (黑色)BOTTOM COWL ASSEMBLY (BLACK)1
29745A6底部罩盖总成 (灰色)BOTTOM COWL ASSEMBLY (GRAY)1
318701A1底部罩盖密封套件-(左舷/右舷)SEAL KIT BOTTOM COWLS-(PORT/STBD.)1
418699SCREW (.250-20 x 1.320) COWL (STARBOARD)4
5817519A1止回阀总成 排水 (左舷/右舷)CHECK VALVE ASSEMBLY Drain (PORT/STBD.)2
6813613接头 示警器-右舷FITTING TELLTALE-STARBOARD1
799127109管路 (57.00英寸 散装) 示警器-右舷LINE (57.00 Inches Bulk) TELLTALE-STARBOARD1
78M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
8816311捆扎带 (8.00英寸) (右舷)TIE STRAP (8.00 Inches) (STARBOARD)AR
8816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
9815296锁销 (适用处使用)(右舷)PIN Lock (USE WHERE APPLICABLE)(STARBOARD)1
1018286A13开关总成SWITCH ASSEMBLY1
108M0235192微调开关SWITCH TRIM1
11812443固定座RETAINER1
118M0032848开关固定座RETAINER Switch1
12815914T型接头 示警器T-FITTING TELLTALE1
137765377软管 (24.500英寸 散装)HOSE (24.500 Inches Bulk)1
1377653101软管（散装48.00英寸）HOSE (48.00 Inches Bulk)1
1419648A3手柄总成 (黑色)(左舷)HANDLE ASSEMBLY (BLACK)(PORT)1
1419648A2左舷手柄总成HANDLE ASSY PORT1
1419648A4手柄总成 (灰色)(左舷)HANDLE ASSEMBLY (GRAY)(PORT)1
1419648A2左舷手柄总成HANDLE ASSY PORT1
1519647A3手柄总成 (黑色)(右舷)HANDLE ASSEMBLY (BLACK)(STARBOARD)1
1519647A4手柄总成 (灰色)(右舷)HANDLE ASSEMBLY (GRAY)(STARBOARD)1
1519647A3手柄总成HANDLE ASSEMBLY1
1665830尼龙衬套NYLINER6
1799611波形垫圈WAVE WASHER3
1819369棘爪-右舷PAWL (STARBOARD)1
1919370棘爪-左舷PAWL (PORT)1
2069057垫片(.281 x .734 x .063)WASHER (.281 x .734 x .063)3
2126992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel2
2273286螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel2
2319749上夹箍 (无动力转向)CLAMP UPPER (W/O POWER STEERING)1
23197491上夹箍 (带动力转向)CLAMP UPPER (WITH POWER STEERING)1
24197481下卡箍CLAMP LOWER1
2592799螺钉(#10-16x1.12)SCREW (#10-16 x 1.12)2
2618872A1盖板总成(黑色)COVER ASSEMBLY (BLACK)1
2618872A2盖板总成(灰色)COVER ASSEMBLY (GRAY)1
2618872A1盖总成COVER ASSEMBLY1
27813692锁紧螺母LOCKNUT2
278136921锁紧螺母LOCKNUT2
28NSS不单独销售 前手柄NOT SOLD SEPARATE Front Handle1
29NSS不单独销售手柄NOT SOLD SEPARATE Handle1
30NSS不单独销售 锁柄NOT SOLD SEPARATE Lock-Handle1
31NSS螺丝(不单独销售)NOT SOLD SEPARATE Screw2
32NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring1
3318192螺钉(0.250-20x0.620)SCREW (.250-20 x .620)1
3419666衬套BUSHING1
3518727杆ROD1
368130763前手柄FRONT HANDLE1
368130764前手柄FRONT HANDLE1
图 3化油器（WMH-21/22/23/24/25/28） CARBURETOR (WMH-21/22/23/24/25/28)
化油器（WMH-21/22/23/24/25/28） CARBURETOR (WMH-21/22/23/24/25/28)
REF零件编号中文名称英文名称数量
1818650A16化油器 上部CARBURETOR Top1
1818650A17化油器 中部CARBURETOR Center1
1818650A18化油器 下部CARBURETOR Bottom1
1818650A10化油器 上部CARBURETOR Top1
1818650A11化油器 中部CARBURETOR Center1
1818650A12化油器 下部CARBURETOR Bottom1
1821684A1化油器 上部CARBURETOR Top1
1821684A2化油器 中部CARBURETOR Center1
1821684A3化油器 下部CARBURETOR Bottom1
1818650A7化油器 上部CARBURETOR Top1
1818650A8化油器 中部CARBURETOR Center1
1818650A9化油器 下部CARBURETOR Bottom1
1818650A4化油器 上部CARBURETOR Top1
1818650A5化油器 中部CARBURETOR Center1
1818650A6化油器 下部CARBURETOR Bottom1
2810779盖帽CAP6
3NSS不单独销售 怠速混合螺钉/弹簧NOT SOLD SEPARATE Idle Mixture Screw/Spring6
5677511衬垫GASKET3
6815633060量孔 (.060) (.056 - 150/135 - WMH-24)JET (.060) (.056 - 150/135 - WMH-24)6
6815633070量孔 (.070 - 135 - WMH-28)JET (.070 - 135 - WMH-28)6
67570量孔 .040 (175)JET .040 (175)6
6815633050量孔 (.050) (XR6/MAGNUMIII/200)JET (.050) (XR6/MAGNUMIII/200)6
7810721节气门杆 (上部/中部)LEVER Throttle (TOP/CENTER)2
7810722节气门杆 (下部)LEVER Throttle (BOTTOM)1
8811284隔套SPACER3
9810745垫圈WASHER3
10810744螺母NUT3
11NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring3
128423量孔 (.094) (.094 -150)JET (.094) (.094 -150)3
125815量孔 (.086) (XR6/MAGNUM III)JET (.086) (XR6/MAGNUM III)3
127335量孔 (.098) (175)JET (.098) (175)3
126247主量孔 (.090) (200/135 - WMH-24)JET Main (.090) (200/135 - WMH-24)3
136487主量孔 (.060) (135 - WMH-24)JET Main (.060) (135 - WMH-24)3
135213主量孔 (.056) (150/135 - WMH-28)JET Main (.056) (150/135 - WMH-28)3
136246量孔 (.048) (175)JET (.048) (175)3
136028量孔 (.050) (XR6/MAGNUM III)JET (.050) (XR6/MAGNUM III)3
135317量孔 (.046) (200)JET (.046) (200)3
14NSSNOT SOLD SEPARATE Gasket-Fuel Bowl3
15810738浮子总成FLOAT ASSEMBLY3
16F10064轴SHAFT3
17NSS不单独销售 浮子螺钉NOT SOLD SEPARATE Screw-Float3
18811690阀座套件VALVE SEAT KIT3
19NSS不单独销售 阀座垫片NOT SOLD SEPARATE Gasket-Valve Seat3
20823623燃油杯(顶部)BOWL Fuel (TOP)1
20823624燃油杯(中部/底部)BOWL Fuel (CENTER/BOTTOM)2
219596堵头PLUG15
22NSS不单独销售 动力/渐进喷口垫片NOT SOLD SEPARATE Gasket-Power/Progression JetAR
236487主喷口(.060)(150/135-WMH-24)JET Main (.060) (150/135 - WMH-24)6
234217主喷口(.062)(135-WMH-28)JET Main (.062) (135 - WMH-28)6
235225主喷口(.054)(XR6/MAGNUM III)JET Main (.054) (XR6/MAGNUM III)6
234216喷口(.064)(175/200)JET (.064) (175/200)6
24823629动力喷口(150/135-WMH-24)POWER JET (150/135 - WMH-24)6
24808584动力喷口(135-WMH-28)POWER JET (135 - WMH-28)6
24823625动力喷口(XR6/MAGNUM III)POWER JET (XR6/MAGNUM III)6
24823626动力喷口(175)POWER JET (175)6
24823627动力喷口(200)POWER JET (200)6
25NSS不单独销售 燃油杯螺钉NOT SOLD SEPARATE Screw-Fuel Bowl18
267900三通接头(顶部/中部)TEE FITTING (TOP/CENTER)2
277901弯头(底部)ELBOW (BOTTOM)1
-8107492化油器垫片套件GASKET KIT Carburetor1
-8116912化油器维修套件REPAIR KIT Carburetor1
-815791A92发动机垫片组GASKET SET Engine1
图 4化油器（WMH-30/31/32/33/34） CARBURETOR (WMH-30/31/32/33/34)
化油器（WMH-30/31/32/33/34） CARBURETOR (WMH-30/31/32/33/34)
REF零件编号中文名称英文名称数量
1818650A28化油器 上部CARBURETOR Top1
1818650A29化油器 中部CARBURETOR Center1
1818650A55化油器底部(30A)CARBURETOR Bottom (30A)1
1818650A31化油器 上部CARBURETOR Top1
1818650A32化油器 中部CARBURETOR Center1
1818650A56化油器底部(31A)CARBURETOR Bottom (31A)1
1818650A34化油器 上部CARBURETOR Top1
1818650A35化油器 中部CARBURETOR Center1
1818650A57化油器底部(32A)CARBURETOR Bottom (32A)1
1818650A37化油器 上部CARBURETOR Top1
1818650A38化油器 中部CARBURETOR Center1
1818650A58化油器底部(33A)CARBURETOR Bottom (33A)1
1818650A52化油器 上部CARBURETOR Top1
1818650A53化油器 中部CARBURETOR Center1
1818650A59化油器底部(34A)CARBURETOR Bottom (34A)1
2810779盖帽CAP6
3NSS不单独销售 怠速混合螺钉/弹簧NOT SOLD SEPARATE Idle Mixture Screw/Spring6
5677511衬垫GASKET3
6815633060喷口(.060)(.056-135)JET (.060) (.056 - 135)6
67570喷口.040(XR6/MAGNUM III)JET .040 (XR6/MAGNUM III)6
6815633050喷口(.050)(150/175/200)JET (.050) (150/175/200)6
7810721节气门杆 (上部/中部)LEVER Throttle (TOP/CENTER)2
7810722节流阀杆(底部-WMH系列)LEVER Throttle (BOTTOM - WMH-SERIES)1
78107221节流阀杆(底部-WMH-A系列)LEVER Throttle (BOTTOM - WMH-A SERIES)1
8811284隔套SPACER3
9810745垫圈WASHER3
10810744螺母NUT3
11NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring3
125815喷口(.086)(150)JET (.086) (150)3
126247主喷口(.090)(XR6/MAGNUM III)JET Main (.090) (XR6/MAGNUM III)3
123517喷口(.084)(135/175/200)JET (.084) (135/175/200)3
135225主喷口(.054)(135)JET Main (.054) (135)3
136359喷口(.052)(150)JET (.052) (150)3
136246量孔 (.048) (175)JET (.048) (175)3
137831燃油主喷口(.058)(XR6/MAGNUM III)JET Main Fuel (.058) (XR6/MAGNUM III)3
135317量孔 (.046) (200)JET (.046) (200)3
14NSSNOT SOLD SEPARATE Gasket-Fuel Bowl3
15810738浮子总成FLOAT ASSEMBLY3
16F10064轴SHAFT3
17NSS不单独销售 浮子螺钉NOT SOLD SEPARATE Screw-Float3
18811690阀座套件VALVE SEAT KIT3
19NSS不单独销售 阀座垫片NOT SOLD SEPARATE Gasket-Valve Seat3
20823623燃油杯(顶部)BOWL Fuel (TOP)1
20823624燃油杯(中部/底部)BOWL Fuel (CENTER/BOTTOM)2
219596堵头PLUG15
22NSS不单独销售 动力/渐进喷口垫片NOT SOLD SEPARATE Gasket-Power/Progression JetAR
234215燃油主喷口(.066)(135)JET Main Fuel (.066) (135)6
234217主喷口(.062)(150/XR6/MAGNUM III)JET Main (.062) (150/XR6/MAGNUM III)6
234216喷口(.064)(175)JET (.064) (175)6
234215燃油主喷口(.066)(200-顶部)JET Main Fuel (.066) (200 - TOP)2
234216喷口(.064)(200-中部/底部)JET (.064) (200 - CENTER/BOTTOM)4
24808584动力喷口POWER JET6
25808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)18
267900三通接头(顶部/中部)TEE FITTING (TOP/CENTER)2
277901弯头(底部)ELBOW (BOTTOM)1
-8107492化油器垫片套件GASKET KIT Carburetor1
-8116912化油器维修套件REPAIR KIT Carburetor1
-815791A92发动机垫片组GASKET SET Engine1
图 5化油器（WMH-12A/12B/13/13B/14A/15/16） CARBURETOR (WMH - 12A/12B/13/13B/14A/15/16)
化油器（WMH-12A/12B/13/13B/14A/15/16） CARBURETOR (WMH - 12A/12B/13/13B/14A/15/16)
REF零件编号中文名称英文名称数量
19672A50化油器 上部CARBURETOR Top1
19672A51化油器 中部CARBURETOR Center1
19672A52化油器 下部CARBURETOR Bottom1
19672A35化油器 上部CARBURETOR Top1
19672A36化油器 中部CARBURETOR Center1
19672A37化油器 下部CARBURETOR Bottom1
1813682A13化油器 上部CARBURETOR Top1
1813682A14化油器 中部CARBURETOR Center1
1813682A15化油器 下部CARBURETOR Bottom1
19672A41化油器 上部CARBURETOR Top1
19672A42化油器 中部CARBURETOR Center1
19672A43化油器 下部CARBURETOR Bottom1
19672A44化油器 上部CARBURETOR Top1
19672A45化油器 中部CARBURETOR Center1
19672A46化油器 下部CARBURETOR Bottom1
2810779盖帽CAP6
3NSS不单独销售 怠速混合螺钉/弹簧NOT SOLD SEPARATE Idle Mixture Screw/Spring6
4811803堵头固定件PLUG Retainer3
5677511衬垫GASKET3
6815633048量孔(.048)JET (.048)3
6815633070喷口(.070-175)JET (.070 - 175)3
6815633050喷口(.050)(XR6/MAGNUM III/200)JET (.050) (XR6/MAGNUM III/200)3
7810721节气门杆 (上部/中部)LEVER Throttle (TOP/CENTER)2
7810722节气门杆 (下部)LEVER Throttle (BOTTOM)1
8811284隔套SPACER3
9810745垫圈WASHER3
10810744螺母NUT3
11NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring3
126249主喷口(.096)JET Main (.096)3
125815喷口(.086)JET (.086)3
126201量孔(.080)JET (.080)3
126247主量孔(0.090)JET Main (.090)3
136246量孔(.048)JET (.048)3
135317量孔(.046)JET (.046)3
136359量孔(.052)JET (.052)3
14NSSNOT SOLD SEPARATE Gasket-Fuel Bowl3
15810738浮子总成FLOAT ASSEMBLY3
16NSSNOT SOLD SEPARATE Float Shaft3
17NSS不单独销售 浮子螺钉NOT SOLD SEPARATE Screw-Float3
18811690阀座套件VALVE SEAT KIT3
19NSS垫片(不单独销售)NOT SOLD SEPARATE Gasket3
20811687燃油杯(顶部)BOWL Fuel (TOP)1
20811688燃油杯(中部/底部)BOWL Fuel (CENTER/BOTTOM)2
219596堵头PLUG12
22NSS不单独销售 动力/渐进喷口垫片NOT SOLD SEPARATE Gasket-Power/Progression Jet12
235225主量孔(.054)JET Main (.054)6
234217主量孔(.062)JET Main (.062)6
234216量孔(.064)JET (.064)6
234215燃油主量孔(.066)JET Main Fuel (.066)6
24811689动力喷口POWER JET6
24811807动力喷口POWER JET6
24811925动力喷口POWER JET6
25NSS不单独销售 燃油杯螺钉NOT SOLD SEPARATE Screw-Fuel Bowl15
267900三通接头(顶部/中部)TEE FITTING (TOP/CENTER)2
277901弯头(底部)ELBOW (BOTTOM)1
-8107492化油器垫片套件GASKET KIT Carburetor1
-811691化油器维修套件REPAIR KIT Carburetor1
-815791A92发动机垫片组GASKET SET Engine1
图 6阻风板与油门杆 CHOKE PLATE AND THROTTLE LEVERS
阻风板与油门杆 CHOKE PLATE AND THROTTLE LEVERS
REF零件编号中文名称英文名称数量
1817495A1消音板总成PLATE ASSEMBLY Sound Attenuator1
2892211衬垫GASKET3
388489螺钉(.250-28 x 2.500)SCREW (.250-28 x 2.500)6
3884891螺钉(.250-28 x 2.500)带尼龙垫-不锈钢SCREW (.250-28 x 2.500) With Nylon Patch - Stainless Steel6
469057垫片(.281 x .734 x .063)WASHER (.281 x .734 x .063)6
5815784盖帽CAP3
618180油门连杆LINK Throttle1
718181连杆(带短轴)LINK (W/STUB SHAFT)3
6A825204A1节流连杆套件LINK KIT Throttle1
718181连杆(带短轴)LINK (W/STUB SHAFT)1
7A181811连杆(带球轴)LINK (W/BALL SHAFT)2
818178滚轮ROLLER1
987926螺钉(#10-32 x .500)SCREW (#10-32 x .500)3
1089302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)3
1169432外锁紧垫圈(#10)LOCKWASHER External (#10)3
-815791A92发动机垫片组GASKET SET Engine1
图 7曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS
曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS
REF零件编号中文名称英文名称数量
19536A4曲轴总成CRANKSHAFT ASSEMBLY1
267923球轴承(下部)BEARING Ball (LOWER)1
267923T滚珠轴承BEARING Ball1
367446环RING1
414513A2驱动齿轮段套件GEAR SEGMENT KIT Drive1
414513A09驱动齿轮段套件GEAR SEGMENT KIT Drive1
5813073螺钉(#6-32 x .620)内六角头SCREW (#6-32 x .620) Socket Head2
6813134螺母(#6-32)专用NUT (#6-32) Special2
754196A6托架总成CARRIER ASSEMBLY1
865800填料PACKING1
967377曲轴密封环RING Sealing CRANKSHAFT7
967377T密封环RING Sealing7
1016756A6轴承套件BEARING KIT2
117441A32活塞(右舷-标准)PISTON (STARBOARD-STANDARD)3
117441T32活塞PISTON3
117443A11活塞(右舷-0.015加大)PISTON (STARBOARD-.015 O.S.)AR
117445A11活塞(右舷-0.030加大)PISTON (STARBOARD-.030 OS.)AR
117445T11活塞PISTONAR
117442A32活塞(左舷-标准)PISTON (PORT-STANDARD)3
117442T32活塞PISTON3
117444A11活塞(左舷-0.015加大)PISTON (PORT-.015 O.S.)AR
117446A11活塞(左舷-0.030加大)PISTON (PORT-.030 O.S.)AR
119738A7活塞总成(右舷-标准)PISTON ASSEMBLY (STARBOARD-STANDARD)3
119738T9活塞总成标准型PISTON ASSEMBLY Standard3
119738A8活塞总成(右舷-0.015加大)PISTON ASSEMBLY (STARBOARD-.015 O.S.)AR
119738T10活塞总成0.015加大PISTON ASSEMBLY .015 OversizeAR
119737A7活塞总成(左舷-标准)PISTON ASSEMBLY (PORT-STANDARD)3
119737T9活塞总成标准型PISTON ASSEMBLY Standard3
119737A8活塞总成(左舷-0.015加大)PISTON ASSEMBLY (PORT-.015 O.S.)AR
119737A10活塞总成0.015加大PISTON ASSEMBLY .015 OversizeAR
119738A9活塞总成标准型(右舷-标准)PISTON ASSEMBLY Standard (STARBOARD-STANDARD)3
119738T9活塞总成标准型PISTON ASSEMBLY Standard3
119738A10活塞总成0.015加大(右舷-0.015加大)PISTON ASSEMBLY .015 Oversize (STARBOARD-.015 O.S.)AR
119738T10活塞总成0.015加大PISTON ASSEMBLY .015 OversizeAR
119737A9活塞总成标准型(左舷-标准)PISTON ASSEMBLY Standard (PORT-STANDARD)3
119737T9活塞总成标准型PISTON ASSEMBLY Standard3
119737A10活塞总成0.015加大(左舷-0.015加大)PISTON ASSEMBLY .015 Oversize (PORT-.015 O.S.)AR
1293481A12活塞环组-标准(标准)RING SET Piston - Standard (STANDARD)1
1278918A4活塞环组-0.015加大(0.015加大)RING SET Piston - .015 Oversize (.015 O.S.)AR
1285636A4活塞环组-0.030加大(0.030加大)RING SET Piston - .030 Oversize (.030 O.S.)AR
12815515A12活塞环组(标准)(1-1/2毫米)RING SET Piston (STD.) (1-1/2 MM)1
12815268A4活塞环组(0.015加大)(1-1/2毫米)RING SET Piston (.015 O.S.) (1-1/2 MM)AR
12822321A12活塞环套件-标准(标准)(2毫米)RING KIT Piston - Standard (STD.) (2MM)1
12822321A1活塞环套件-0.015加大(0.015加大)(2毫米)RING KIT Piston - .015 Oversize (.015 O.S.) (2MM)2
1352035锁环RING Lock12
13857196锁紧环LOCK RING12
14818141A2连杆套件CONNECTING ROD KIT6
14818141A13连杆总成CONNECTING ROD ASSEMBLY6
15763491螺钉(.312-24 x .875)SCREW (.312-24 x .875)12
16812876垫圈WASHER12
168M0012298止推垫片THRUST WASHER12
1717514A2轴承套件BEARING KIT6
178M0234886轴承保持架CAGE BEARING6
18822553滚针轴承BEARING Needle174
188M0204691滚针轴承@200BRG-NEEDLE @200174
-815791A92发动机垫片组GASKET SET Engine1
-812815A92动力头总成POWERHEAD ASSEMBLY1
-878365T00动力头总成POWERHEAD ASSEMBLY1
-812817A92动力头总成POWERHEAD ASSEMBLY1
-812817T97动力头总成POWERHEAD ASSEMBLY1
-823434A93动力头总成POWERHEAD ASSEMBLY1
-823434T97动力头总成POWERHEAD ASSEMBLY1
-823434A93动力头总成POWERHEAD ASSEMBLY1
-823434T97动力头总成POWERHEAD ASSEMBLY1
-812817A92动力头总成POWERHEAD ASSEMBLY1
-812817T97动力头总成POWERHEAD ASSEMBLY1
-813043A94动力头总成POWERHEAD ASSEMBLY1
-813043T97动力头总成POWERHEAD ASSEMBLY1
图 8气缸体与端盖 CYLINDER BLOCK AND END CAPS
气缸体与端盖 CYLINDER BLOCK AND END CAPS
REF零件编号中文名称英文名称数量
19765A13气缸体(135/150)CYLINDER BLOCK (135/150)1
19763A17气缸体(XR6/Magnum III)CYLINDER BLOCK (XR6/Magnum III)1
19763T17气缸体CYLINDER BLOCK1
19763A23气缸体(XR6/Magnum III)CYLINDER BLOCK (XR6/Magnum III)1
19763T23气缸体CYLINDER BLOCK1
19763A17气缸体(175)CYLINDER BLOCK (175)1
19763T17气缸体CYLINDER BLOCK1
19763A61气缸体(200)CYLINDER BLOCK (200)1
19763T61气缸体CYLINDER BLOCK1
19763A23气缸体(150 TRACKER)CYLINDER BLOCK ( 150 TRACKER)1
19763T23气缸体CYLINDER BLOCK1
276175双头螺柱(1-7/8")(旧款)STUD (1-7/8") (OLD DESIGN)4
2818138双头螺柱(1-3/4")STUD (1-3/4")2 or 6
28M0034455螺柱1.750STUD 1.7502 or 6
367065双头螺柱(5-1/2")STUD (5-1/2")2
3670654螺柱(.375-16/.375-24 x 5.620)STUD (.375-16/.375-24 x 5.620)2
378438双头螺柱(6-3/4")STUD (6-3/4")2
38M0034454螺柱(.375-16/.375-24 x 6.87)STUD (.375-16/.375-24 x 6.87)2
443044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
567296销(轴承座圈)PIN (BEARING RACE)2
58M0036405销PIN2
611338衬垫GASKET2
742249上盖COVER (UPPER)1
78M0088723启动器支架BRACKET-STARTER1
8828213螺钉(.312-18 x 1.500)六角法兰SCREW (.312-18 x 1.500) Hex Flange2
873657螺钉(.312-18 x 1.50)(配13-26993垫片)SCREW (.312-18 x 1.50) (Use with 13-26993 washer)2
926993锁紧垫圈(.312)(配10-73657螺钉)LOCKWASHER (.312) (Use with 10-73657 screw)4
98M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
1076867下盖COVER (LOWER)1
11815549螺钉(.312-18 x 2.00)SCREW (.312-18 x 2.00)2
11828214螺钉(.312-18 x 2.00)六角法兰SCREW (.312-18 x 2.00) Hex Flange2
11A99448衬套BUSHING1
1266717螺钉(.375-16 x 3.250)SCREW (.375-16 x 3.250)8
1274824螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)6
139642A1上端盖总成END CAP ASSEMBLY Upper1
13858521T1端盖总成END CAP ASSEMBLY1
1454029O型圈(2.800 x .103)O-RING (2.800 x .103)1
1516756A4轴承套件BEARING KIT1
1641953密封件SEAL1
1769034螺钉带锁紧垫圈(.312-18 x 1.00)SCREW AND LOCKWASHER (.312-18 x 1.00)4
1730225螺钉带锁紧垫圈(.312-18 x 1.00)SCREW WITH LOCKWASHER (.312-18 x 1.00)4
1963153J型卡扣J CLIP1
2015094双头螺柱(.190-32 x 1.870)STUD (.190-32 x 1.870)1
2115093双头螺柱(#10-32 x 1.00)STUD (#10-32 x 1.00)2
218M0034435螺柱STUD2
2267269隔套SPACER1
2349221垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)WASHER (.187 x .500 x .062) Neoprene3
238M0204663垫片@5WASHER @53
25816874蝶形螺母 (#10-32)WING NUT (#10-32)3
2642248支架BRACKET1
26422482支架BRACKET1
2749668螺钉(.250-20 x .750)SCREW (.250-20 x .750)2
287809A1端盖总成END CAP ASSEMBLY1
287809T1端盖总成END CAP ASSEMBLY1
2962700O型圈(3.237 x .103)O-RING (3.237 x .103)1
3041953密封件SEAL2
3128636螺钉(.250-20 x .750)SCREW (.250-20 x .750)4
3226992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel4
3364022螺钉(.250-20 x 2.125)SCREW (.250-20 x 2.125)1
3464015螺母 (.250-20)NUT (.250-20)1
3526852尼龙帽CAP Nylon1
3687076A10怠速控制器IDLE SPEED CONTROL1
3869020螺钉(#10-32 x .875)SCREW (#10-32 x .875)3
38690201螺钉(#10-32 x .875)SCREW (#10-32 x .875)3
3938833垫圈WASHER3
-815791A92发动机垫片组GASKET SET Engine1
-812815A92动力头总成POWERHEAD ASSEMBLY1
-878365T00动力头总成POWERHEAD ASSEMBLY1
-812817A92动力头总成POWERHEAD ASSEMBLY1
-812817T97动力头总成POWERHEAD ASSEMBLY1
-823434A93动力头总成POWERHEAD ASSEMBLY1
-823434T97动力头总成POWERHEAD ASSEMBLY1
-823434A93动力头总成POWERHEAD ASSEMBLY1
-823434T97动力头总成POWERHEAD ASSEMBLY1
-812817A92动力头总成POWERHEAD ASSEMBLY1
-812817T97动力头总成POWERHEAD ASSEMBLY1
-813043A94动力头总成POWERHEAD ASSEMBLY1
-813043T97动力头总成POWERHEAD ASSEMBLY1
图 9驱动轴壳体与排气管 DRIVESHAFT HOUSING AND EXHAUST TUBE
驱动轴壳体与排气管 DRIVESHAFT HOUSING AND EXHAUST TUBE
REF零件编号中文名称英文名称数量
18343A10传动轴壳体总成(黑色)HOUSING ASSEMBLY Driveshaft (BLACK)1
18343A11传动轴壳体总成(灰色)HOUSING ASSEMBLY Driveshaft (GRAY)1
18343T11ORD 1590-8343T10ORD 1590-8343T101
18343A12传动轴壳体总成(TRACKER)HOUSING ASSEMBLY Driveshaft (TRACKER)1
18343T12D型轴套-追踪者D SHAFT HSG-TRACK1
1813563A1传动轴壳体总成(黑色)HOUSING ASSEMBLY Driveshaft (BLACK)1
1813563T1传动轴壳体-黑色-加长型HOUSING Driveshaft - Black - X-Long1
1813563A2传动轴壳体总成(灰色)HOUSING ASSEMBLY Driveshaft (GRAY)1
1813563T2ORD 3503-813563T1ORD 3503-813563T11
18343A13传动轴壳体总成(JET)(黑色)HOUSING ASSEMBLY Driveshaft (JET) (BLACK)1
18343A14传动轴壳体总成(JET)(灰色)HOUSING ASSEMBLY Driveshaft (JET) (GRAY)1
18343A13驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
256295双头螺柱(.437 x 2.69)STUD (.437 x 2.69)2
463474螺钉(.500-20 x 6.00)SCREW (.500-20 x 6.00)2
4898831螺钉(.500-20 x 6.220)SCREW (.500-20 x 6.220)2
578249支架(加长型)(JET)MOUNT (LONG)(JET)2
577327支架MOUNT2
577327支架(TRACKER/XR6/MAGNUM III/超长型)MOUNT (TRACKER/XR6/MAGNUM III/X-LONG)2
649339垫圈(.8125)WASHER (.8125)2
728040螺母(.500-20)NUT (.500-20)2
7898832螺母(.500-20)NUT (.500-20)2
888238A1接地线总成CABLE ASSEMBLY Ground1
888238A10接地线总成CABLE ASSEMBLY Ground1
967076卡箍CLAMP2
98M0036782卡箍CLAMP2
1066727螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)4
1167077T黑色盖(黑色)COVER Black (BLACK)2
118M4500752盖板COVER2
1167077T6盖(灰色)COVER (GRAY)2
1167077F1灰色盖板COVER Gray2
1167077F2盖(TRACKER)COVER (TRACKER)2
118M4500752盖板COVER2
1288417螺钉(#12-24×0.620)SCREW (#12-24 x .620)4
1335521螺母NUT4
1488238A1接地线总成CABLE ASSEMBLY Ground1
1488238A10接地线总成CABLE ASSEMBLY Ground1
1541508螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel1
1648926垫圈WASHER1
1734933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel1
178M0204653螺母NUT1
1845176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel2
1934933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
198M0204653螺母NUT2
2064649堵头PLUG1
2118276排气管TUBE Exhaust1
2118276T排气管EXHAUST TUBE1
2266350下密封件SEAL (LOWER)1
2266350001密封件SEAL1
23177261上密封件SEAL (UPPER)1
238M0039076密封件SEAL1
2467295水管(加长型)(JET)TUBE Water (LONG)(JET)1
248M0042788长型水管TUBE-WATER-LONG1
2474729管(超长型)TUBE (X-LONG)1
248M0042790水管TUBE-WATER1
25991732衬垫GASKET1
25991734衬垫GASKET1
2618233A3隔板总成PLATE ASSEMBLY1
2618233A20传动轴壳体板总成PLATE ASSEMBLY Driveshaft Housing1
278147012密封件SEAL1
278M0043165密封件-27.00英寸SEAL-27.00 INCH1
2868011支架BRACKET1
29812832螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)12
29878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)12
3020033定位销PIN Dowel2
3043044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
3138970密封件SEAL1
3290192螺钉(.250-20 x .750)不锈钢SCREW (.250-20 x .750) Stainless Steel6
33183071衬垫GASKET1
33183076衬垫GASKET1
3420553垫圈(.406 x .734 x .063)WASHER (.406 x .734 x .063)4
3569254螺母NUT4
36812834排气管延长段EXTENSION Exhaust1
36812834A2排气延长总成EXTENSION ASSEMBLY Exhaust1
3641942F3排气管延长段(150/200)(JET)EXTENSION Exhaust (150/200)(JET)1
36879288T71排气管延长段EXTENSION Exhaust1
3778246衬垫GASKET1
37782461衬垫GASKET1
38814618护套BOOT1
-815791A92发动机垫片组GASKET SET Engine1
图 10双机延伸套件 DUAL ENGINE EXTENSION KIT
双机延伸套件 DUAL ENGINE EXTENSION KIT
REF零件编号中文名称英文名称数量
-92876A9双机延长套件EXTENSION KIT Dual Engine1
148462O型圈 (.614 x .070)O-RING (.614 x .070)1
271565A2管总成TUBE ASSEMBLY1
341055支架MOUNT1
442100锁紧垫圈TAB WASHER2
537984螺母 (.875-14)NUT (.875-14)2
58M0041651螺母 (.875-14)NUT (.875-14)2
688404锁紧垫圈TAB WASHER2
738601螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250)4
817729A1支架BRACKET2
962055螺钉(.312-24 x 1.250)SCREW (.312-24 x 1.250)4
1017728锁紧垫圈TAB WASHER4
1114000螺钉(.375-24x1.25)SCREW (.375-24 x 1.25)4
11849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)4
1234863螺母 (.375-24)NUT (.375-24)6
128M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass6
13979331转向眼环STEERING EYE2
138M0026167转向眼环STEERING EYE2
1423651衬套(1.625)SLEEVE (1.625)2
1597931管材(4.00英寸)TUBING (4.00 Inches)2
168149513联轴器(15.00英寸)COUPLER (15.00 Inches)1
168M0026098联轴器15英寸COUPLER 15 In.1
1742099螺母(.562-18)NUT (.562-18)1
18821169联轴器COUPLING1
1934931不锈钢垫圈(.406x.734x.063)WASHER (.406 x .734 x .063) Stainless Steel2
2094319螺钉(.375-24 x 1.5)SCREW (.375-24 x 1.5)1
图 11排气歧管与排气板 EXHAUST MANIFOLD AND EXHAUST PLATE
排气歧管与排气板 EXHAUST MANIFOLD AND EXHAUST PLATE
REF零件编号中文名称英文名称数量
1190503衬垫GASKET1
28185622分隔板PLATE Divider1
2827323A2分隔板DIVIDER PLATE1
3814754密封件(12.50英寸)SEAL (12.50 Inches)1
4814634卡箍CLAMP4
5826356螺钉带垫圈(.312-18 x 1.500)SCREW AND WASHER (.312-18 x 1.500)20
58263561螺钉带垫圈(.312-18 x 1.500)SCREW AND WASHER (.312-18 x 1.500)20
6814430管接头(.500-14)FITTING (.500-14)1
68144301接头FITTING1
792007管接头(.250-18)(90度)FITTING (.250-18) (90 DEGREES)1
792007190度弯头FITTING (90 Degree)1
8830756109软管(57.00英寸整卷)(裁切至23.5英寸)HOSE (57.00 Inches Bulk) (Cut to 23.5 Inches)1
88M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
9816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)2
9816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)2
1068729盖板COVER1
108M0039767盖板COVER1
1174824螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)4
1269570螺钉(#10-16 x .750)SCREW (#10-16 x .750)1
1376451垫圈WASHER1
1414479隔膜DIAPHRAGM1
14144791隔膜DIAPHRAGM1
1516496导水板DEFLECTOR Water1
1616497A1安装板PLATE1
1778690衬垫GASKET2
1778690002衬垫GASKET2
1864878弹簧(黑色)SPRING (Black)1
1985303垫圈WASHER1
2014480提动阀POPPET1
2164872护孔环GROMMET1
2265848托架CARRIER1
23991763衬垫GASKET1
23991764衬垫GASKET1
2418260A2排气板总成PLATE ASSEMBLY Exhaust1
2418260T2排气板总成PLATE ASSEMBLY Exhaust1
25897721连接器(.125-27)(直型)CONNECTOR (.125-27) (STRAIGHT)1
2589772Q1连接器(.125-27)CONNECTOR (.125-27)1
2620033定位销PIN Dowel2
2643044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
278147011密封件SEAL1
278M0043164密封件SEAL1
28680101支架BRACKET1
29812832螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)8
29878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)8
3020553垫圈(.406 x .734 x .063)WASHER (.406 x .734 x .063)6
3169254螺母NUT6
3227132衬套BUSHING1
3319564护孔环GROMMET1
338M0179867护孔环GROMMET1
34126021护孔环GROMMET1
3412602002护孔环GROMMET1
3419565护孔环GROMMET1
3419565002护孔环GROMMET1
3566727螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)1
3668783螺钉(.312-18×2.50)SCREW (.312-18 x 2.50)1
3766725螺钉(.375-16×3.50)SCREW (.375-16 x 3.50)3
37898833螺钉(.375-16 x 3.500)SCREW (.375-16 x 3.500)3
38812905A3支架总成BRACKET ASSEMBLY1
38812905T前支架BRACKET Front1
3990285螺钉 (.312-18 x .625)SCREW (.312-18 x .625)4
4056720垫圈(0.330×0.750×0.060)不锈钢WASHER (.330 x .750 x .060) Stainless Steel4
41187031垫圈WASHER4
4218778护孔环GROMMET4
4218778001护孔环GROMMET4
4318578A6支架总成(后部)BRACKET ASSEMBLY Rear1
4318578T09支架总成(后部)BRACKET ASSEMBLY Rear1
-815791A92发动机垫片组GASKET SET Engine1
-812815A92动力头总成POWERHEAD ASSEMBLY1
-878365T00动力头总成POWERHEAD ASSEMBLY1
-812817A92动力头总成POWERHEAD ASSEMBLY1
-812817T97动力头总成POWERHEAD ASSEMBLY1
-823434A93动力头总成POWERHEAD ASSEMBLY1
-823434T97动力头总成POWERHEAD ASSEMBLY1
-823434A93动力头总成POWERHEAD ASSEMBLY1
-823434T97动力头总成POWERHEAD ASSEMBLY1
-812817A92动力头总成POWERHEAD ASSEMBLY1
-812817T97动力头总成POWERHEAD ASSEMBLY1
-813043A94动力头总成POWERHEAD ASSEMBLY1
-813043T97动力头总成POWERHEAD ASSEMBLY1
图 12飞轮/启动马达 FLYWHEEL/STARTER MOTOR
飞轮/启动马达 FLYWHEEL/STARTER MOTOR
REF零件编号中文名称英文名称数量
118896A1盖板套件COVER KIT1
279022标记MARKER1
337572螺钉 (.190-32 x .380)SCREW (.190-32 x .380)2
472761不锈钢垫圈(.203 x .562 x .060)WASHER (.203 x .562 x .060) Stainless Steel2
589219堵头PLUG1
589219001堵头PLUG1
645907黄色塞PLUG Yellow1
752901螺母(0.625-18)NUT (.625-18)1
868229垫圈(.641 x 1.250 x .190)WASHER (.641 x 1.250 x .190)1
833001垫圈WASHER1
9817632A2飞轮FLYWHEEL1
9859238T16飞轮总成FLYWHEEL ASY1
9817632A12飞轮FLYWHEEL1
9859238T16飞轮总成FLYWHEEL ASY1
109610A19定子STATOR1
1190045螺钉(#10-32×1.375)SCREW (#10-32 x 1.375)4
1226996锁紧垫圈(#10)(不锈钢)LOCKWASHER (#10) Stainless Steel4
1396455A9触发板总成PLATE ASSEMBLY Trigger1
1479472启动电机总成STARTER MOTOR ASSEMBLY1
14893893启动马达STARTER MOTOR1
1556703轴环COLLAR2
158M0034918轴环COLLAR2
1668042橡胶止挡STOP Rubber2
168M0043376停机开关STOP2
1769035螺丝与锁紧垫圈(.250-20 x .625)不锈钢SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel1
1893388A1电缆总成(6.00英寸)黑色CABLE ASSEMBLY (6.00 Inches) Black1
1993388A7线缆总成(黑色)CABLE ASSEMBLY (BLACK)1
1993388A14线缆总成(黄/黑)CABLE ASSEMBLY Yellow/Black1
2026992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel1
2120890螺母 (.250-20)NUT (.250-20)1
图 13燃油管路（用于 WMH-12A/B 至 WMH-28 化油器） FUEL LINES (Use With WMH-12A/B thru WMH-28 Carburtors)
燃油管路（用于 WMH-12A/B 至 WMH-28 化油器） FUEL LINES (Use With WMH-12A/B thru WMH-28 Carburtors)
REF零件编号中文名称英文名称数量
1816856A3燃油接头总成-塑料CONNECTOR ASSEMBLY Fuel - Plastic1
269067螺钉(.250-20×1.375)SCREW (.250-20 x 1.375)1
3812782密封件SEAL1
49912980软管HOSEAR
48M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)AR
5816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
5816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
6818993三通接头CONNECTOR Tee1
718175软管HOSE1
8818994止回阀CHECK VALVE1
88189941止回阀CHECK VALVE1
982381325管材(10.00英寸散装)TUBING (10.00 Inches Bulk)1
982381335油管(15.00英寸 散装)TUBING (15.00 Inches Bulk)1
108162961燃油滤清器FILTER Fuel1
10816296Q2燃油滤清器FILTER Fuel1
11677511衬垫GASKET3
1227037双头螺栓(.250-28×1.125)STUD (.250-28 x 1.125)6
12270372双头螺栓(.250-28×1.125)STUD (.250-28 x 1.125)6
13830756109软管(57.00英寸散装)HOSE (57.00 Inches Bulk)1
138M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
1455715螺钉(.250-20×0.880)SCREW (.250-20 x .880)6
1526992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel6
1629598不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel6
179912878软管 (.187) (26.00英寸散装)HOSE (.187) (26.00 Inches Bulk)3
1899130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
18892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
1942859A2加浓阀总成VALVE ASSEMBLY Enrichner1
20633001卡箍CLAMP1
2173286螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel1
229912688管材 (36.00英寸散装)TUBING (36.00 Inches Bulk)2
2345915端子排TERMINAL BLOCK1
2448409螺钉 (#10-16 x .625) 不锈钢SCREW (#10-16 x .625) Stainless Steel1
2469079螺钉 (#10-16 x .440)SCREW (#10-16 x .440)1
25824001软管HOSE1
25830762软管HOSE1
-815791A92发动机垫片组GASKET SET Engine1
图 14燃油管路（用于 WMH-30/31/32/33/34 化油器） FUEL LINES (Use With WMH -30/31/32/33/34 Carburetors)
燃油管路（用于 WMH-30/31/32/33/34 化油器） FUEL LINES (Use With WMH -30/31/32/33/34 Carburetors)
REF零件编号中文名称英文名称数量
1816856A3燃油接头总成-塑料CONNECTOR ASSEMBLY Fuel - Plastic1
269067螺钉(.250-20×1.375)SCREW (.250-20 x 1.375)1
3812782密封件SEAL1
49912980软管HOSEAR
48M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)AR
5816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
5816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
6818993三通接头CONNECTOR Tee1
718175软管HOSE1
8818994止回阀CHECK VALVE1
88189941止回阀CHECK VALVE1
982381325管材(10.00英寸散装)TUBING (10.00 Inches Bulk)1
982381335油管(15.00英寸 散装)TUBING (15.00 Inches Bulk)1
10824001软管HOSE1
10830762软管HOSE1
118162961燃油滤清器FILTER Fuel1
11816296Q2燃油滤清器FILTER Fuel1
12830756109软管(57.00英寸散装)HOSE (57.00 Inches Bulk)1
128M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
13677511衬垫GASKET3
1427037双头螺栓(.250-28×1.125)STUD (.250-28 x 1.125)6
14270372双头螺栓(.250-28×1.125)STUD (.250-28 x 1.125)6
1526992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel6
1629598不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel6
1755715螺钉(.250-20×0.880)SCREW (.250-20 x .880)6
1842859A2加浓阀总成VALVE ASSEMBLY Enrichner1
19633001卡箍CLAMP1
2073286螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel1
219912688管材 (36.00英寸散装)TUBING (36.00 Inches Bulk)2
2299130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
22892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
2345915端子排TERMINAL BLOCK1
248128321螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
24878609螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
24817626螺钉(#10-16×0.380)SCREW (#10-16 x .380)1
24878607螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)1
-815791A92发动机垫片组GASKET SET Engine1
图 15燃油泵 FUEL PUMP
燃油泵 FUEL PUMP
REF零件编号中文名称英文名称数量
143113M燃油泵总成PUMP ASSEMBLY Fuel1
280606M隔膜DIAPHRAGM1
380611M板簧PLATE SPRING1
480610M弹簧SPRING1
580613M机体至底座衬垫GASKET BODY TO BASE1
580613衬垫GASKET1
641888M止回阀CHECK VALVE2
780614M盖体衬垫GASKET COVER TO BODY1
780614衬垫GASKET1
743095M盖体衬垫GASKET COVER TO BODY1
884141M隔膜DIAPHRAGM1
943096M盖板COVER1
980607M盖板COVER1
1082522M螺钉SCREW3
1182208M垫圈WASHER3
1182186M垫圈WASHER3
1241889M螺钉 (M3 x 5)SCREW (M3 x 5)2
1382537M螺母NUT2
1480757M燃油泵垫片GASKET FUEL PUMP1
1480757衬垫GASKET1
1582428M螺栓BOLT2
15827043M螺栓BOLT2
1682214M垫圈WASHER2
-96658M衬垫套件GASKET SET1
图 16齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)
齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)
REF零件编号中文名称英文名称数量
19148A47齿轮箱总成(基础款)(黑色)GEAR HOUSING ASSEMBLY (BASIC) (BLACK)1
19148A48齿轮箱总成(基础款)(灰色)GEAR HOUSING ASSEMBLY (BASIC) (GRAY)1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
19148A49齿轮箱总成(基础款)(追踪者)GEAR HOUSING ASSEMBLY (BASIC) (TRACKER)1
19148T49齿轮箱壳体-TR型GEAR HSG-BASIC-TR1
285822A10连接器总成(适用时使用)CONNECTOR ASSEMBLY (USE WHERE APPLICABLE)1
343044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
478638双头螺栓(.438×3.12)(长型)STUD (.438 x 3.12) (LONG)1
4786382螺柱(.437-14/.437-20 x 3.120)STUD (.437-14/.437-20 x 3.120)1
418978双头螺栓(.438×3.69)(加长型)STUD (.438 x 3.69) (X-LONG)1
48M0034464螺柱STUD1
5579201双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
58M0133358双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
656297双头螺栓(.312×3.38)STUD (.312 x 3.38)1
68M0034463螺柱(.312-24 x 3.38)STUD (.312-24 x 3.38)1
730667双头螺栓(.250-20/.250-28×3.125)STUD (.250-20/.250-28 x 3.125)2
7306671螺柱STUD2
842647A1滚柱轴承总成BEARING ASSEMBLY Roller1
943998衬套(旧设计)SLEEVE (OLD DESIGN)1
9A826134阳极块ANODE2
9A826134Q阳极块ANODE2
9B4000333螺钉(M6 x 40)SCREW (M6 x 40)1
9C8268336螺母 (M6)NUT (M6)1
9C401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
11440001驱动轴(长型)DRIVESHAFT (LONG)1
11897624T长驱动轴DRIVESHAFT Long1
11442091驱动轴(加长型)DRIVESHAFT (X-LONG)1
11897625T加长驱动轴DRIVESHAFT X-Long1
1116292驱动轴(20英寸)DRIVESHAFT (20")1
11815237驱动轴(25英寸)DRIVESHAFT (25")1
12N.S.S.不单独销售小齿轮(前进齿轮组部件)Not Sold Separate Pinion Gear (Part of Forward Gear Set)1
1392721垫圈(.965×0.630)WASHER (.965 x .630)1
14826375螺母(0.625-18)NUT (.625-18)1
1435921螺母(0.625-18)NUT (.625-18)1
1542637A1垫片组SHIM SETAR
158M0063267垫片组SHIM SETAR
1636387A1轴承总成(滚子/外圈)BEARING ASSEMBLY Roller/Cup1
168M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
17824519固定座RETAINER1
178245191固定座RETAINER1
1842579A3水泵底座总成BASE ASSEMBLY Water Pump1
188M0077147带水泵底座总成BASE ASSY-W/P1
19426311衬垫GASKET1
198M0204678衬垫GASKET1
2090011O型圈(2.175 x 0.175)O-RING (2.175 x .175)1
208M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
2189238油封SEAL Oil1
2216977油封SEAL Oil1
23856081衬垫GASKET1
238M0090319衬垫@5GASKET @51
24856091衬垫GASKET1
24858524衬垫GASKET1
2532435面板FACE PLATE1
258M0204677面板PLATE-FACE1
2696148A1水泵壳体总成BODY ASSEMBLY Water Pump1
2696148T1水泵壳体总成BODY ASSEMBLY Water Pump1
2748752嵌件INSERT1
2748752T嵌件INSERT1
2838970密封件SEAL1
29899841叶轮IMPELLER1
2989984T3叶轮IMPELLER1
3056654键KEY1
308M0214992键@5KEY @51
3196411螺钉(#14-8×2.25)SCREW (#14-8 x 2.25)1
318M0215009螺钉SCREW1
3229245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
328M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
3313438螺母(.250-28)NUT (.250-28)2
338267119螺母(.250-28)NUT (.250-28)2
3436001垫圈WASHER1
3513436螺母NUT1
3729804套筒SLEEVE1
3729804T套筒SLEEVE1
38789022换挡轴(不带E型环使用)SHIFT SHAFT (USE W/O E-RING)1
3878902轴SHAFT1
38789022换档轴SHIFT SHAFT1
3929641E型卡环E RING1
4125439O型圈(.862×0.103)O-RING (.862 x .103)1
4277631A2衬套总成BUSHING ASSEMBLY1
438164641油封SEAL Oil1
438M0246145油封OIL SEAL1
4477674垫圈(.35 x .75 x .12)WASHER (.35 x .75 x .12)1
4579953螺钉(0.375-16x0.250)SCREW (.375-16 x .250)1
4579953Q04放油螺钉套件SCREW KIT Drain1
4667892磁性螺钉SCREW Magnetic1
468M0058389放油螺钉套件SCREW KIT Drain1
4719183纤维垫圈WASHER Fiber2
478M0187157蓝色密封件@15SEAL-BLUE @152
-815791A92发动机垫片组GASKET SET Engine1
-96148A5水泵维修套件REPAIR KIT Water Pump1
-96148A8水泵维修套件WATER PUMP REPAIR KIT1
-89238A2密封套件SEAL KIT1
图 17齿轮箱（驱动轴）- 反向旋转 GEAR HOUSING (DRIVESHAFT) - COUNTER ROTATION
齿轮箱（驱动轴）- 反向旋转 GEAR HOUSING (DRIVESHAFT) - COUNTER ROTATION
REF零件编号中文名称英文名称数量
19148A47齿轮箱总成(基础款)(黑色)GEAR HOUSING ASSEMBLY (BASIC) (BLACK)1
19148A48齿轮箱总成(基础款)(灰色)GEAR HOUSING ASSEMBLY (BASIC) (GRAY)1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
285822A10连接器总成(适用时使用)CONNECTOR ASSEMBLY (USE WHERE APPLICABLE)1
343044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
418978双头螺栓(.438×3.69)STUD (.438 x 3.69)1
48M0034464螺柱STUD1
5579201双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
58M0133358双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
656297双头螺栓(.312×3.38)STUD (.312 x 3.38)1
68M0034463螺柱(.312-24 x 3.38)STUD (.312-24 x 3.38)1
730667双头螺栓(.250-20/.250-28×3.125)STUD (.250-20/.250-28 x 3.125)2
7306671螺柱STUD2
842647A1滚柱轴承总成BEARING ASSEMBLY Roller1
943998衬套(旧设计)SLEEVE (OLD DESIGN)1
9A826134阳极块ANODE2
9A826134Q阳极块ANODE2
9B4000333螺钉(M6 x 40)SCREW (M6 x 40)1
9C8268336螺母 (M6)NUT (M6)1
9C401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
11442091驱动轴DRIVESHAFT
11897625T加长驱动轴DRIVESHAFT X-Long
12N.S.S.不单独销售小齿轮(43-18572A1或43-18475A1部件)Not Sold Separate Pinion Gear (PART OF 43-18572A1 OR 43-18475A1)1
1392721垫圈(.965×0.630)WASHER (.965 x .630)1
14826375螺母(0.625-18)NUT (.625-18)1
1435921螺母(0.625-18)NUT (.625-18)1
1542637A1垫片组SHIM SETAR
158M0063267垫片组SHIM SETAR
1636387A1轴承总成(滚子/外圈)BEARING ASSEMBLY Roller/Cup1
168M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
17824519固定座RETAINER1
178245191固定座RETAINER1
1842579A3水泵底座总成BASE ASSEMBLY Water Pump1
188M0077147带水泵底座总成BASE ASSY-W/P1
19426311衬垫GASKET1
198M0204678衬垫GASKET1
2090011O型圈(2.175 x 0.175)O-RING (2.175 x .175)1
208M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
2189238油封SEAL Oil1
2216977油封SEAL Oil1
23856081衬垫GASKET1
238M0090319衬垫@5GASKET @51
24856091衬垫GASKET1
24858524衬垫GASKET1
2532435面板FACE PLATE1
258M0204677面板PLATE-FACE1
2696148A1水泵壳体总成BODY ASSEMBLY Water Pump1
2696148T1水泵壳体总成BODY ASSEMBLY Water Pump1
2748752嵌件INSERT1
2748752T嵌件INSERT1
2838970密封件SEAL1
29899841叶轮IMPELLER1
2989984T3叶轮IMPELLER1
3056654键KEY1
308M0214992键@5KEY @51
3196411螺钉(#14-8×2.25)SCREW (#14-8 x 2.25)1
318M0215009螺钉SCREW1
3229245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
328M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
3313438螺母(.250-28)NUT (.250-28)2
338267119螺母(.250-28)NUT (.250-28)2
3436001垫圈WASHER1
3513436螺母NUT1
3729804套筒SLEEVE1
3729804T套筒SLEEVE1
38789022换挡轴(不带E型环使用)SHIFT SHAFT (USE W/O E-RING)1
3878902轴SHAFT1
38789022换档轴SHIFT SHAFT1
3929641E型卡环E RING1
4019183纤维垫圈WASHER Fiber2
408M0187157蓝色密封件@15SEAL-BLUE @152
4125439O型圈(.862×0.103)O-RING (.862 x .103)1
4277631A2衬套总成BUSHING ASSEMBLY1
438164641油封SEAL Oil1
438M0246145油封OIL SEAL1
4477674垫圈(.35 x .75 x .12)WASHER (.35 x .75 x .12)1
4579953螺钉(0.375-16x0.250)SCREW (.375-16 x .250)1
4579953Q04放油螺钉套件SCREW KIT Drain1
4667892磁性螺钉SCREW Magnetic1
468M0058389放油螺钉套件SCREW KIT Drain1
-815791A92发动机垫片组GASKET SET Engine1
-96148A5水泵维修套件REPAIR KIT Water Pump1
-96148A8水泵维修套件WATER PUMP REPAIR KIT1
-89238A2密封套件SEAL KIT1
图 18齿轮箱（推进轴） GEAR HOUSING (PROPSHAFT)
齿轮箱（推进轴） GEAR HOUSING (PROPSHAFT)
REF零件编号中文名称英文名称数量
19148A47齿轮箱总成(基础款)(黑色)GEAR HOUSING ASSEMBLY (BASIC) (BLACK)1
19148A48齿轮箱总成(基础款)(灰色)GEAR HOUSING ASSEMBLY (BASIC) (GRAY)1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
19148A49齿轮箱总成(基础款)(追踪者)GEAR HOUSING ASSEMBLY (BASIC) (TRACKER)1
19148T49齿轮箱壳体-TR型GEAR HSG-BASIC-TR1
4989594A1从动件总成FOLLOWER ASSEMBLY1
4878956换挡凸轮SHIFT CAM1
48789562换挡凸轮SHIFT CAM1
5079911A1杆ROD1
5179910弹簧SPRING1
5278910垫圈WASHERAR
5378906销PIN1
538M0084245弹簧定位销PIN Spring Locator1
5447397A1垫片组(.002-3-5-10)SHIM SET (.002-3-5-10)AR
5578172A1圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
5644102A2前进齿轮总成(135/150)(含倒挡齿轮)GEAR ASSEMBLY Forward (135/150) (INCLS. REVERSE GEAR)1
5644102A7齿轮组(135/150)(不含倒挡齿轮)GEAR SET (135/150) (DOES NOT INCL. REVERSE GEAR)1
5616294A2高海拔齿轮组-2.3:1传动比GEAR SET HIGH ALTITUDE - 2.3:1 GEAR RATIO1
5616294A5齿轮组GEAR SET1
5644104A2前进齿轮总成(175/200/XR6/玛格南III)(含倒挡齿轮)GEAR ASSEMBLY Forward (175/200/XR6/MAGNUM III) (INCLS. REVERSE GEAR)1
5644104T2齿轮组GEAR SET1
5644104A8齿轮组(175/200/XR6/玛格南III)(不含倒挡齿轮)GEAR SET (175/200/XR6/MAGNUM III) (DEOS NOT INCLUDE REVERSE GEAR)1
57549281滚柱轴承BEARING Roller1
58823174离合器CLUTCH1
58823174TORD 8M0100493ORD 8M01004931
5978905十字销PIN Cross1
598M0084243十字销PIN Cross1
6078909定位销PIN Detent2
6178962弹簧SPRING2
6294148螺旋桨轴PROPELLER SHAFT1
63N.S.S.不单独销售倒挡齿轮(前进齿轮组部件)Not Sold Separate Reverse Gear (Part of Forward Gear Set1
63824987A2倒挡齿轮总成(135/150)GEAR ASSEMBLY Reverse (135/150)1
63824986A2倒挡齿轮总成(175/200/XR6/玛格南III)GEAR ASSEMBLY Reverse (175/200/XR6/MAG. III)1
63A824108隔套SPACER1
64681001止推环RING Thrust1
6588957A1滚珠轴承BEARING Ball1
6588957T滚珠轴承BEARING Ball1
6631534O型圈O-RING1
668M0214920O型圈O RING1
6743567A1轴承座总成CARRIER ASSEMBLY Bearing1
6743567T1轴承座总成CARRIER ASSEMBLY Bearing1
6830956滚针轴承BEARING Needle1
6830956T滚针轴承BEARING Needle1
6976868密封件SEAL2
698M0248882油封@5SEAL-OIL @52
7030281键KEY1
7179447锁紧垫圈TAB WASHER1
7279448固定座RETAINER1
728M2011027固定座RETAINER1
73316404平衡板(用于无阳极齿轮箱)TRIM TAB (USE WITH GEAR HOUSING W/O ANODES)1
7331640Q4平衡鳍板TRIM TAB1
73316405配平板(与带阳极齿轮箱配套使用)TRIM TAB (USE WITH GEAR HOUSING W/ANODES)1
738M0236553平衡鳍板TRIM TAB1
74806327螺钉(.437-14 x 1.750)(1-5/8")SCREW (.437-14 x 1.750) (1-5/8")1
748M0204686螺钉SCREW1
7567891填充块FILLER BLOCK1
758M0039169填充块FILLER BLOCK1
7634933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
768M0204653螺母NUT2
7765210螺钉(.375-16 x 1.00)SCREW (.375-16 x 1.00)1
7813171推力毂THRUST HUB1
78835467Q01止推垫片套件THRUST WASHER KIT1
7931211A2花键垫圈WASHER Splined1
7931211Q03垫圈总成WASHER ASSEMBLY1
80816629锁紧垫圈TAB WASHER1
80816629Q锁紧垫圈TAB WASHER1
8152707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
8152707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
82423511齿形锁紧垫圈LOCKWASHER Toothed1
8345176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel2
-815791A92发动机垫片组GASKET SET Engine1
-89238A2密封套件SEAL KIT1
图 19齿轮箱（推进轴）- 反向旋转 GEAR HOUSING (PROPSHAFT) - COUNTER ROTATION
齿轮箱（推进轴）- 反向旋转 GEAR HOUSING (PROPSHAFT) - COUNTER ROTATION
REF零件编号中文名称英文名称数量
19148A47齿轮箱总成(基础款)(黑色)GEAR HOUSING ASSEMBLY (BASIC) (BLACK)1
19148A48齿轮箱总成(基础款)(灰色)GEAR HOUSING ASSEMBLY (BASIC) (GRAY)1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
4778956换挡凸轮SHIFT CAM1
47789562换挡凸轮SHIFT CAM1
4889594A1从动件总成FOLLOWER ASSEMBLY1
49799111杆ROD1
4979911A1杆ROD1
5079910弹簧SPRING2
5178910垫圈WASHERAR
5278906销PIN1
528M0084245弹簧定位销PIN Spring Locator1
5314469轴承杯CUP Bearing1
5314469T轴承杯CUP Bearing1
5488957A1滚珠轴承BEARING Ball1
5488957T滚珠轴承BEARING Ball1
55N.S.S.倒车齿轮(不单独销售)(属于43-18572A1或43-18475A1部件)Not Sold Separate Reverse Gear (PART OF 43-18572A1 OR 43-18475A1)1
5615844滚柱轴承总成BEARING ASSEMBLY Roller1
5778909定位销PIN Detent2
58823174离合器CLUTCH1
58823174TORD 8M0100493ORD 8M01004931
5978905十字销PIN Cross1
598M0084243十字销PIN Cross1
6078962弹簧SPRING2
6118572A1前进齿轮总成(135/150)GEAR ASSEMBLY Forward (135/150)1
6118572T1齿轮组GEAR SET1
6118475A1前进齿轮总成(175/200)GEAR ASSEMBLY Forward (175/200)1
6118475T1齿轮组GEAR SET1
62176151调整垫片(.125)SPACER SHIM (.125)AR
62176152调整垫片(.127)SPACER SHIM (.127)AR
62176153调整垫片(.129)SPACER SHIM (.129)AR
62176154调整垫片(.131)SPACER SHIM (.131)AR
62176155调整垫片(.133)SPACER SHIM (.133)AR
62176156调整垫片(.135)SPACER SHIM (.135)AR
62176157调整垫片(.137)SPACER SHIM (.137)AR
62176158调整垫片(.139)SPACER SHIM (.139)AR
62176159调整垫片(.141)SPACER SHIM (.141)AR
621761510调整垫片(.143)SPACER SHIM (.143)AR
621761511调整垫片(.145)SPACER SHIM (.145)AR
621761512调整垫片(.147)SPACER SHIM (.147)AR
621761513调整垫片(.149)SPACER SHIM (.149)AR
6315841滚柱轴承BEARING Roller1
6417616推力环THRUST RING1
6531534O型圈O-RING1
658M0214920O型圈O RING1
6618447A2轴承适配器总成ADAPTER ASSEMBLY Bearing1
6618447T2适配器总成ADAPTOR ASSEMBLY1
6715843滚柱轴承BEARING Roller1
6715843T滚针轴承BEARING Needle1
6818448止推垫片THRUST WASHER2
6915842推力轴承BEARING Thrust2
7018446螺旋桨轴PROPELLER SHAFT1
71818896A2轴承座总成CARRIER ASSEMBLY Bearing1
71818896T2轴承座BEARING CARRIER1
7230956滚针轴承BEARING Needle1
7230956T滚针轴承BEARING Needle1
7376868密封件SEAL1
738M0248882油封@5SEAL-OIL @51
73A76868密封件SEAL1
73A8M0248882油封@5SEAL-OIL @51
74183231锁紧垫圈TAB WASHER1
7579448固定座RETAINER1
758M2011027固定座RETAINER1
7630281键KEY1
77316404平衡板(用于无阳极齿轮箱)TRIM TAB (USE WITH GEAR HOUSING W/O ANODES)1
7731640Q4平衡鳍板TRIM TAB1
77316405配平板(与带阳极齿轮箱配套使用)TRIM TAB (USE WITH GEAR HOUSING W/ANODES)1
778M0236553平衡鳍板TRIM TAB1
78806327螺钉(.437-14 x 1.750)SCREW (.437-14 x 1.750)1
788M0204686螺钉SCREW1
7967891填充块FILLER BLOCK1
798M0039169填充块FILLER BLOCK1
8045176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel2
8134933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
818M0204653螺母NUT2
8213171推力毂THRUST HUB1
82835467Q01止推垫片套件THRUST WASHER KIT1
8331211A2花键垫圈WASHER Splined1
8331211Q03垫圈总成WASHER ASSEMBLY1
84816629锁紧垫圈TAB WASHER1
84816629Q锁紧垫圈TAB WASHER1
8552707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
8552707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
86423511齿形锁紧垫圈LOCKWASHER Toothed1
8765210螺钉(.375-16 x 1.00)SCREW (.375-16 x 1.00)1
-815791A92发动机垫片组GASKET SET Engine1
-89238A2密封套件SEAL KIT1
图 20齿轮箱对照表 GEAR HOUSING CHART
齿轮箱对照表 GEAR HOUSING CHART
REF零件编号中文名称英文名称数量
-9148A18齿轮箱总成 标准旋转2:1速比(长型)(黑色)GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (LONG)(BLACK)1
-9148A19齿轮箱总成 标准旋转2:1速比(加长型)(黑色)GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (X-LONG)(BLACK)1
-9148T82齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A20齿轮箱总成 标准旋转2:1速比(长型)(灰色)GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (LONG)(GRAY)1
-9148T87ORD 1647-9148T81ORD 1647-9148T811
-9148A21齿轮箱总成 标准旋转2:1速比(加长型)(灰色)GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (X-LONG)(GRAY)1
-9148T88ORD 1647-9148T82ORD 1647-9148T821
-9148A40齿轮箱总成 2.3:1速比(高海拔)(黑色)GEAR HOUSING ASSEMBLY 2.3:1 Gear Ratio (HIGH ALTITUDE) (BLACK)1
-9148A78齿轮箱总成(速比2.3:1)GEAR HOUSING ASSEMBLY 2.3:1 Gear Ratio1
-9148A41齿轮箱总成 2.3:1速比(高海拔)(灰色)GEAR HOUSING ASSEMBLY 2.3:1 Gear Ratio (HIGH ALTITUDE) (GRAY)1
-9148A79齿轮箱总成(速比2.3:1)GEAR HOUSING ASSEMBLY 2.3:1 Gear Ratio1
-814247A3齿轮箱总成 1.78:1速比-黑色(黑色)GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Black (BLACK)1
-814247T3齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-814247A4齿轮箱总成 1.78:1速比-灰色(灰色)GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Gray (GRAY)1
-814247T4齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-9148A9齿轮箱总成 标准旋转1.87:1速比(加长型)追踪者GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (X-LONG) TRACKER1
-9148T85齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A10齿轮箱总成 标准旋转1.87:1速比(长型)(灰色)GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (LONG) (GRAY)1
-9148T84齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A13齿轮箱总成 标准旋转1.87:1速比(加长型)(灰色)GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (X-LONG) (GRAY)1
-9148T91ORD 1647-9148T85ORD 1647-9148T851
-9148A45齿轮箱总成 标准旋转1.87:1速比 追踪者GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio TRACKER1
-9148T84齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A27齿轮箱总成 反向旋转(加长型)(黑色)GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG) (BLACK)1
-9148T83齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A28齿轮箱总成 反向旋转(加长型)(灰色)GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG) (GRAY)1
-9148T89齿轮箱壳体-CXL-灰色GEAR HSG-CXL-GRAY1
-9148A30齿轮箱总成 反向旋转(加长型)(黑色)GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG) (BLACK)1
-9148T86齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A31齿轮箱总成 反向旋转(加长型)(灰色)GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG) (GRAY)1
-9148T92ORD 1647-9148T86ORD 1647-9148T861
-9148A65齿轮箱总成 标准旋转2:1速比(长型)(黑色)GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (LONG) (BLACK)1
-9148T81齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A67齿轮箱总成 标准旋转2:1速比(加长型)(黑色)GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (X-LONG) (BLACK)1
-9148T82齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A66齿轮箱总成 标准旋转2:1速比(长型)(灰色)GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (LONG) (GRAY)1
-9148T87ORD 1647-9148T81ORD 1647-9148T811
-9148A68齿轮箱总成 标准旋转2:1速比(加长型)(灰色)GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (X-LONG) (GRAY)1
-9148T88ORD 1647-9148T82ORD 1647-9148T821
-9148A78齿轮箱总成 2.3:1速比(高海拔)(黑色)GEAR HOUSING ASSEMBLY 2.3:1 Gear Ratio (HIGH ALTITUDE)(BLACK)1
-9148A79齿轮箱总成 2.3:1速比(高海拔)(灰色)GEAR HOUSING ASSEMBLY 2.3:1 Gear Ratio (HIGH ALTITUDE)(GRAY)1
-9148A69齿轮箱总成 标准旋转1.87:1速比(长型)(黑色)GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (LONG)(BLACK)1
-9148T84齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A72齿轮箱总成 标准旋转1.87:1速比(加长型)(黑色)GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (X-LONG) (BLACK)1
-9148T85齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A70齿轮箱总成 标准旋转1.87:1速比(长型)(灰色)GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (LONG) (GRAY)1
-9148T84齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A73齿轮箱总成 标准旋转1.87:1速比(加长型)(灰色)GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (X-LONG)(GRAY)1
-9148T91ORD 1647-9148T85ORD 1647-9148T851
-9148A71齿轮箱总成 标准旋转1.87:1速比 追踪者GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio TRACKER1
-9148T84齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A74齿轮箱总成 反向旋转(加长型)(黑色)GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG)(BLACK)1
-9148T83齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A75齿轮箱总成 反向旋转(加长型)(灰色)GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG)(GRAY)1
-9148T89齿轮箱壳体-CXL-灰色GEAR HSG-CXL-GRAY1
-9148A76齿轮箱总成 反向旋转(加长型)(黑色)GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG) (BLACK)1
-9148T86齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A77齿轮箱总成 反向旋转(加长型)(灰色)GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG)(GRAY)1
-9148T92ORD 1647-9148T86ORD 1647-9148T861
图 21齿轮箱（驱动轴）（XR6/MAG III - 1.78:1 速比） GEAR HSG (DRIVESHAFT)(XR6/MAG III - 1.78:1 RATIO)
齿轮箱（驱动轴）（XR6/MAG III - 1.78:1 速比） GEAR HSG (DRIVESHAFT)(XR6/MAG III - 1.78:1 RATIO)
REF零件编号中文名称英文名称数量
1814247A1齿轮箱总成 基础型-黑色GEAR HOUSING ASSEMBLY Basic - Black1
1814247A2齿轮箱总成 基础型-灰色GEAR HOUSING ASSEMBLY Basic - Gray1
1814247T2ORD 1674-814247T1ORD 1674-814247T11
285822A10连接器总成(适用时使用)CONNECTOR ASSEMBLY (USE WHERE APPLICABLE)1
2A43998衬套(旧设计)SLEEVE (OLD DESIGN)1
343044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
478638双头螺柱(.438 x 3.12)STUD (.438 x 3.12)1
4786382螺柱(.437-14/.437-20 x 3.120)STUD (.437-14/.437-20 x 3.120)1
5579201双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
58M0133358双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
656297双头螺栓(.312×3.38)STUD (.312 x 3.38)1
68M0034463螺柱(.312-24 x 3.38)STUD (.312-24 x 3.38)1
730667双头螺栓(.250-20/.250-28×3.125)STUD (.250-20/.250-28 x 3.125)2
7306671螺柱STUD2
835934A1滚柱轴承总成BEARING ASSEMBLY Roller1
979953螺钉(0.375-16x0.250)SCREW (.375-16 x .250)1
979953Q04放油螺钉套件SCREW KIT Drain1
1067892磁性螺钉SCREW Magnetic1
108M0058389放油螺钉套件SCREW KIT Drain1
11815168驱动轴DRIVESHAFT1
12N.S.S.小齿轮(不单独销售)(属于43-16279A2部件)Not Sold Separate Pinion Gear (PART OF 43-16279A2)1
1319183纤维垫圈WASHER Fiber2
138M0187157蓝色密封件@15SEAL-BLUE @152
14826375螺母(0.625-18)NUT (.625-18)1
1435921螺母(0.625-18)NUT (.625-18)1
1542637A1垫片组SHIM SETAR
158M0063267垫片组SHIM SETAR
1636387A1轴承总成(滚子/外圈)BEARING ASSEMBLY Roller/Cup1
168M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
17824519固定座RETAINER1
178245191固定座RETAINER1
1842579A3水泵底座总成BASE ASSEMBLY Water Pump1
188M0077147带水泵底座总成BASE ASSY-W/P1
19426311衬垫GASKET1
198M0204678衬垫GASKET1
2090011O型圈(2.175 x 0.175)O-RING (2.175 x .175)1
208M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
2189238油封SEAL Oil1
2216977油封SEAL Oil1
23856081衬垫GASKET1
238M0090319衬垫@5GASKET @51
24856091衬垫GASKET1
24858524衬垫GASKET1
2532435面板FACE PLATE1
258M0204677面板PLATE-FACE1
2696148A1水泵壳体总成BODY ASSEMBLY Water Pump1
2696148T1水泵壳体总成BODY ASSEMBLY Water Pump1
2748752嵌件INSERT1
2748752T嵌件INSERT1
2838970密封件SEAL1
29899841叶轮IMPELLER1
2989984T3叶轮IMPELLER1
3056654键KEY1
308M0214992键@5KEY @51
3196411螺钉(#14-8×2.25)SCREW (#14-8 x 2.25)1
318M0215009螺钉SCREW1
3229245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
328M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
3313438螺母(.250-28)NUT (.250-28)2
338267119螺母(.250-28)NUT (.250-28)2
3436001垫圈WASHER1
3513436螺母NUT1
3729804套筒SLEEVE1
3729804T套筒SLEEVE1
388152641换挡轴(不带E型环使用)SHIFT SHAFT (USE W/O E-RING)1
38815264换挡轴下段SHIFT SHAFT LOWER1
388152641换档轴SHIFT SHAFT1
3929641E型卡环E RING1
4025439O型圈(.862×0.103)O-RING (.862 x .103)1
4177631A2衬套总成BUSHING ASSEMBLY1
428164641油封SEAL Oil1
428M0246145油封OIL SEAL1
4377674垫圈(.35 x .75 x .12)换挡轴衬套WASHER (.35 x .75 x .12) SHIFT SHAFT BUSHING1
-815791A92发动机垫片组GASKET SET Engine1
-96148A5水泵维修套件REPAIR KIT Water Pump1
-96148A8水泵维修套件WATER PUMP REPAIR KIT1
-89238A2密封套件SEAL KIT1
图 22齿轮箱（推进轴）（XR6/MAG III - 1.78:1 速比） GEAR HSG (PROP SHAFT)(XR6/MAG III - 1.78:1 RATIO)
齿轮箱（推进轴）（XR6/MAG III - 1.78:1 速比） GEAR HSG (PROP SHAFT)(XR6/MAG III - 1.78:1 RATIO)
REF零件编号中文名称英文名称数量
1814247A1齿轮箱总成 基础型-黑色GEAR HOUSING ASSEMBLY Basic - Black1
1814247A2齿轮箱总成 基础型-灰色GEAR HOUSING ASSEMBLY Basic - Gray1
1814247T2ORD 1674-814247T1ORD 1674-814247T11
4476039换挡凸轮控制CAM Shift Control1
44760394换挡凸轮控制CAM Shift Control1
4512239A1凸轮从动件套件FOLLOWER KIT Cam1
45850315A1凸轮从动件套件FOLLOWER KIT Cam1
4630622弹簧SPRING1
4744491A1垫片组SHIM SETAR
478M0063266垫片组SHIM SETAR
4830894A1圆锥轴承组BEARING SET Cup And Cone1
4916279A2前进齿轮总成GEAR ASSEMBLY Forward1
5030895滚针轴承BEARING Needle1
5030895T滚针轴承BEARING Needle1
51822539离合器CLUTCH1
51822539T离合器CLUTCH1
5230632十字销PIN Cross1
528M0100263十字销PIN Cross1
5330893弹簧SPRING1
5412238T螺旋桨轴PROPELLER SHAFT1
55N.S.S.倒车齿轮(不单独销售)(属于43-16279A2部件)Not Sold Separate Reverse Gear (PART OF 43-16279A2)1
5676358止推垫片THRUST WASHER1
5729976O型圈O-RING1
5841529A2轴承座总成CARRIER ASSEMBLY Bearing1
5841529T2托架总成CARRIER ASSY1
5998727润滑脂接头FITTING Grease2
598M0169588润滑脂接头FITTING Grease2
6030956滚针轴承BEARING Needle1
6030956T滚针轴承BEARING Needle1
6176868密封件SEAL2
618M0248882油封@5SEAL-OIL @52
6230281键KEY1
6352700锁紧垫圈TAB WASHER1
6452699盖板COVER1
6567891填充块FILLER BLOCK1
658M0039169填充块FILLER BLOCK1
6665210螺钉(.375-16 x 1.00)SCREW (.375-16 x 1.00)1
68816629锁紧垫圈TAB WASHER1
68816629Q锁紧垫圈TAB WASHER1
6952707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
6952707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
70316404平衡鳍板TRIM TAB1
7031640Q4平衡鳍板TRIM TAB1
71806327螺钉(.437-14 x 1.750)SCREW (.437-14 x 1.750)1
718M0204686螺钉SCREW1
7245176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel2
7334933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
738M0204653螺母NUT2
7413191A1止推垫片THRUST WASHER1
7413191Q01止推垫片THRUST WASHER1
-815791A92发动机垫片组GASKET SET Engine1
-89238A2密封套件SEAL KIT1
图 23点火线圈/电压调节器 IGNITION COIL/VOLTAGE REGULATOR
点火线圈/电压调节器 IGNITION COIL/VOLTAGE REGULATOR
REF零件编号中文名称英文名称数量
1195872安装板MOUNTING PLATE1
233778螺柱STUD4
319661衬套BUSHING4
426992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel4
513438螺母(.250-28)NUT (.250-28)4
58267119螺母(.250-28)NUT (.250-28)4
688807A35拉线总成CABLE ASSEMBLY1
7815279T电压调节器REGULATOR Voltage2
78M0084173电压调节器VOLTAGE REGULATOR2
8818997A1电磁阀总成SOLENOID ASSEMBLY1
88M0185145电磁阀总成SOLENOID ASSEMBLY1
997861绝缘体INSULATOR2
1045561螺钉 (.250-20 x 1.12)SCREW (.250-20 x 1.12)3
10455611螺钉(.250-20 x 1.120)SCREW (.250-20 x 1.120)3
1135950垫圈 (.273 x .437 x .031) 不锈钢WASHER (.273 x .437 x .031) Stainless Steel3
12814101螺母 (.250-20) 不锈钢NUT (.250-20) Stainless Steel3
128M0207776螺母NUT3
1326419黄铜螺母 (#8-32)NUT (#8-32) Brass4
1494330螺母 (.250-20) 黄铜NUT (.250-20) Brass4
1569738A9线束总成 (2,4,6)HARNESS ASSEMBLY (2,4,6)1
1569739A6线束总成 (1,3,5)HARNESS ASSEMBLY (1,3,5)1
16816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
16816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
1743542盖板COVER2
187370A13点火线圈总成COIL ASSEMBLY Ignition6
188M0230859点火线圈总成COIL IGNITION ASY6
187370A19点火线圈总成COIL ASSEMBLY Ignition6
188M0230859点火线圈总成COIL IGNITION ASY6
1990048螺钉 (#10-32 x 2.125)SCREW (#10-32 x 2.125)12
2090078螺母 (#10-32)NUT (#10-32)14
21813715A9点火线缆套件CABLE KIT Ignition1
2263709A1护套/端子套件BOOT/TERMINAL KIT6
23136862火花塞 (NGK-BU8H)SPARK PLUG (NGK-BU8H)6
2313686QNGK BU8H @10NGK BU8H @106
2314103568火花塞 (NGK-BUZ8H - 加拿大/比利时)SPARK PLUG (NGK-BUZ8H - CANADA/BELGIUM)6
23896329885SP #L6VC @4SP #L6VC @46
2445076黄铜螺母(#10-32)NUT (#10-32) Brass12
2588807A13拉线总成CABLE ASSEMBLY8
2669022螺钉 (#10-32 x .500) 不锈钢SCREW (#10-32 x .500) Stainless Steel2
2787379A14电线总成 (2.750英寸)WIRE ASSEMBLY (2.750 Inches)1
2889302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)12
29826802A4线束总成HARNESS ASSEMBLY1
30828151继电器RELAY2
308M0207773调整继电器总成RELAY ASSEMBLY Trim2
31828102支架BRACKET2
318M0207771安装支架BRACKET Mounting2
3245561螺钉 (.250-20 x 1.12)SCREW (.250-20 x 1.12)2
32455611螺钉(.250-20 x 1.120)SCREW (.250-20 x 1.120)2
33818968衬套BUSHING2
338M0214955衬套BUSHING2
34818967护孔环GROMMET2
348M0207785护孔环GROMMET2
3535950垫圈 (.273 x .437 x .031) 不锈钢WASHER (.273 x .437 x .031) Stainless Steel2
36814101螺母 (.250-20) 不锈钢NUT (.250-20) Stainless Steel2
368M0207776螺母NUT2
图 24仪表装置 INSTRUMENTATION
仪表装置 INSTRUMENTATION
REF零件编号中文名称英文名称数量
119674A1拉绳开关总成SWITCH ASSEMBLY Lanyard1
218303螺钉 (.190-16 x 1.750) 不锈钢SCREW (.190-16 x 1.750) Stainless Steel2
3813679适配器ADAPTER1
415920A54拉绳总成LANYARD ASSEMBLY1
415920Q54拉绳总成LANYARD ASSEMBLY1
532866螺钉 (#10-32 x 2.00) 不锈钢SCREW (#10-32 x 2.00) Stainless Steel2
618321安装夹CLAMP Mounting1
724676垫圈 (.200 x .440 x .032)WASHER (.200 x .440 x .032)2
868219螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel4
979146固定座RETAINER3
10816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
10816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
11812497A2二极管总成DIODE ASSEMBLY1
11898289A72双拉绳二极管套件DIODE KIT-LANYARD Dual1
1211149A2线缆总成 (6.00英寸)CABLE ASSEMBLY (6.00 Inches)1
图 25喷射组件 JET COMPONENTS
喷射组件 JET COMPONENTS
REF零件编号中文名称英文名称数量
188447螺钉 (.190-32 x 1.62)SCREW (.190-32 x 1.62)3
238833垫圈WASHER3
394304隔套SPACER3
413381安装板PLATE1
5821889A20转速限制器REV LIMITER1
5821889A30转速限制器REV LIMITER1
6823147A5适配器线束总成 - 转速限制器HARNESS ASSEMBLY Adaptor - Rev Limiter1
7801402润滑脂套装GREASE KIT1
730500A2润滑脂套装GREASE KIT1
842579A3水泵底座总成BASE ASSEMBLY Water Pump1
88M0077147带水泵底座总成BASE ASSY-W/P1
9426311衬垫GASKET1
98M0204678衬垫GASKET1
1089238油封SEAL Oil1
1116977油封SEAL Oil1
12856081衬垫GASKET1
128M0090319衬垫@5GASKET @51
13856091衬垫GASKET1
13858524衬垫GASKET1
1432435面板FACE PLATE1
148M0204677面板PLATE-FACE1
1596148A1水泵壳体总成BODY ASSEMBLY Water Pump1
1596148T1水泵壳体总成BODY ASSEMBLY Water Pump1
1648752嵌件INSERT1
1648752T嵌件INSERT1
1738970密封件SEAL1
18899841叶轮IMPELLER1
1889984T3叶轮IMPELLER1
1956654键KEY1
198M0214992键@5KEY @51
2096411螺钉(#14-8×2.25)SCREW (#14-8 x 2.25)1
208M0215009螺钉SCREW1
2129245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
218M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
2213438螺母(.250-28)NUT (.250-28)2
228267119螺母(.250-28)NUT (.250-28)2
2319924275螺钉 (.312-18 x 2.75)SCREW (.312-18 x 2.75)1
2436001垫圈WASHER1
2529804套筒SLEEVE1
2529804T套筒SLEEVE1
-815791A92发动机垫片组GASKET SET Engine1
-96148A5水泵维修套件REPAIR KIT Water Pump1
-96148A8水泵维修套件WATER PUMP REPAIR KIT1
-89238A2密封套件SEAL KIT1
图 26喷泵总成 JET PUMP ASSEMBLY
喷泵总成 JET PUMP ASSEMBLY
REF零件编号中文名称英文名称数量
-801400150喷泵(黑色)JET PUMP (BLACK)1
-801401150喷泵(灰色)JET PUMP (GRAY)1
-855766150喷泵JET PUMP1
1801411150泵壳HOUSING Pump1
1A827490润滑油管HOSE Lube1
2801414150叶轮IMPELLER1
2803984T叶轮IMPELLER1
380141290进气壳体HOUSING Intake1
3A8271883衬套LINER1
4801413150驱动轴SHAFT Drive1
4A8271891套筒SLEEVE1
4B8271901螺母NUT1
5801405875键KEY1
6801404875叶轮垫片SHIM Impeller8
7801403875锁紧垫圈TAB WASHER1
8847568螺丝(.312-18 x 1.00)SCREW (.312-18 x 1.00)6
8812618不锈钢螺钉(.312-18 x 1.00)带尼龙垫SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch6
919923088螺钉(.250-20 x .875)SCREW (.250-20 x .875)4
1019923062螺钉(.250-20 x .625)SCREW (.250-20 x .625)2
1160411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)1
12801410电缆支架BRACKET Cable Support1
1367980螺母(.312-18)NUT (.312-18)1
1382670910不锈钢螺母(.312-18)NUT (.312-18) Stainless Steel1
14801407定位销PIN Dowel2
1578638双头螺柱(.438 x 3.12)STUD (.438 x 3.12)1
15786382螺柱(.437-14/.437-20 x 3.120)STUD (.437-14/.437-20 x 3.120)1
16579201双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
168M0133358双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
1769064螺栓(.312-18 x 2.750)BOLT (.312-18 x 2.750)1
1830667双头螺栓(.250-20/.250-28×3.125)STUD (.250-20/.250-28 x 3.125)2
18306671螺柱STUD2
1968299不锈钢螺钉(.375-16 x 3.00)SCREW (.375-16 x 3.00) Stainless Steel1
2045175垫圈(.406 x .750 x .104)WASHER (.406 x .750 x .104)1
208M0214963垫圈WASHER1
图 27杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES
杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES
REF零件编号中文名称英文名称数量
-81609892零件手册135/150/175/200/XR6/MAGNUM IIIPARTS MANUAL 135/150/175/200/XR6/MAGNUM III1
-813220A89贴花套装(黑色135/150/175)DECAL SET (BLACK 135/150/175)
-812563A92贴花套装(XR6)DECAL SET (XR6)
-808552A94贴花套件DECAL SET
-812563A93贴花套装(黑色200)DECAL SET (BLACK 200)
-813036A92贴花套装(灰色135/150)DECAL SET (GRAY 135/150)
-813034A92贴花套装(MAGNUM III)DECAL SET (MAGNUM III)
-813034A94贴花套件DECAL SET
-813037A92贴花套装(灰色175)DECAL SET (GRAY 175)
-813037A94贴花套件DECAL SET
-815630A90贴花套装(灰色200)DECAL SET (GRAY 200)
-813220A94贴花套装(黑色135)DECAL SET (BLACK 135)
-824103A94贴花套装(黑色150)DECAL SET (BLACK 150)
-824911A94贴花套装(黑色175)DECAL SET (BLACK 175)
-808552A94贴花套装(XR6)DECAL SET (XR6)
-812563A94贴花套装(黑色200加长)DECAL SET (BLACK 200 LONG)
-808562A94贴花套装(黑色200 XL/CXL)DECAL SET (BLACK 200 XL/CXL)
-813036A94贴花套装(灰色135)DECAL SET (GRAY 135)
-824104A94贴花套装(灰色150)DECAL SET (GRAY 150)
-824911A94贴花套装(灰色175)DECAL SET (GRAY 175)
-808552A94贴花套装(XR6)DECAL SET (XR6)
-812563A94贴花套装(黑色200加长)DECAL SET (BLACK 200 LONG)
-808562A94贴花套装(黑色200 XL/CXL)DECAL SET (BLACK 200 XL/CXL)
-813036A94贴花套装(灰色135)DECAL SET (GRAY 135)
-824104A94贴花套装(灰色150)DECAL SET (GRAY 150)
-813034A94贴花套装(MAGNUM III)DECAL SET (MAGNUM III)
-813037A94贴花套装(灰色175)DECAL SET (GRAY 175)
-815630A94贴花套装(灰色200加长)DECAL SET (GRAY 200 LONG)
-808563A94贴花套装(灰色200 XL/CXL)DECAL SET (GRAY 200 XL/CXL)
-824736A94贴花套装(TRACKER 150)DECAL SET (TRACKER 150)
-808620A94贴花套装(TRACKER 175)DECAL SET (TRACKER 175)
-808681A94贴花套装(TRACKER 200)DECAL SET (TRACKER 200)
-826331A95贴花套装(黑色105喷泵)DECAL SET (BLACK 105 JET)
-826332A95贴花套装(灰色105喷泵)DECAL SET (GRAY 105 JET)
-826333A95贴花套装（黑色140喷泵）DECAL SET (BLACK 140 JET)
-826334A95贴花套装（灰色140喷泵）DECAL SET (GRAY 140 JET)
-11149940用户手册（黑色）OWNERS MANUAL (BLACK)
-11142940用户手册（灰色）OWNERS MANUAL (GRAY)
-826598940用户手册（黑色喷泵）OWNERS MANUAL (BLACK JET)
-826603940用户手册（灰色喷泵）OWNERS MANUAL (GRAY JET)
图 28喷油组件 OIL INJECTION COMPONENTS
喷油组件 OIL INJECTION COMPONENTS
REF零件编号中文名称英文名称数量
112430A4传感器总成SENSOR ASSEMBLY1
28128321螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
2878609螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
341470A26报警模块总成WARNING MODULE ASSEMBLY1
438833垫圈WASHER3
569020螺钉(#10-32 x .875)SCREW (#10-32 x .875)3
5690201螺钉(#10-32 x .875)SCREW (#10-32 x .875)3
6815698油泵（135/150）PUMP Oil (135/150)1
6815698T油泵PUMP Oil1
6815699油泵总成（XR6/MAGNUM III/175/200）PUMP ASSEMBLY Oil (XR6/MAGNUM III/175/200)1
6815699T油泵总成PUMP ASSEMBLY Oil1
78141032蜗杆衬套BUSHING Worm1
811379O型圈O-RING1
941429A2轴承总成BEARING ASSEMBLY1
1014563从动齿轮GEAR Driven1
111938516连接杆LINK1
1242813螺钉（#10-32 X 0.380）SCREW (#10-32 X .380)1
1332228螺钉（#10-32 X 0.625）SCREW (#10-32 x .625)1
1341507螺钉（#10-32 X 1.120）SCREW (#10-32 x 1.120)1
1487421油箱TANK1
1543298A2盖总成CAP ASSEMBLY1
1611332O型圈(2.225 x .210)O-RING (2.225 x .210)1
17816190A3外壳总成适配器HOUSING ASSEMBLY Adapter1
17816190A4机油收集器总成(无传感器)OIL PICK UP ASSEMBLY Without Sender1
1811332O型圈(2.225 x .210)O-RING (2.225 x .210)1
1999802管TUBE1
2099439软管(114.00英寸)HOSE (114.00 Inches)1
2143278接头（曲轴箱）FITTING (CRANKCASE)1
218781051止回阀CHECK VALVE1
2212335A1支架套件BRACKET KIT1
2312323A1绳索/挂钩套件CORD/HOOK KIT1
24816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
24816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
25994433油箱RESERVOIR Oil1
25994436储液罐RESERVOIR1
2669020螺钉(#10-32 x .875)SCREW (#10-32 x .875)3
26690201螺钉(#10-32 x .875)SCREW (#10-32 x .875)3
2742118垫圈WASHER6
2842117护孔环GROMMET3
2942116衬套BUSHING3
3082381436油管（散装15.500英寸）（裁切至4.75英寸）TUBING (15.500 Inches Bulk) (Cut to 4.75 Inches)1
3082381455油管（25.00英寸散装）TUBING (25.00 Inches Bulk)1
3143300A9盖总成CAP ASSEMBLY1
3243307衬垫GASKET1
3243307T衬垫GASKET1
3399022A1浮子总成FLOAT ASSEMBLY1
338M0187298浮子总成FLOAT ASSY1
3499265压入式螺母PUSH NUT1
35415824卡箍CLAMP2
36415823卡箍CLAMP2
37830756109软管（散装57.00英寸）（裁切至5.25英寸）HOSE (57.00 Inches Bulk) (Cut to 5.25 Inches)1
378M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
3842425三通TEE1
-812815A92动力头总成POWERHEAD ASSEMBLY1
-878365T00动力头总成POWERHEAD ASSEMBLY1
-812817A92动力头总成POWERHEAD ASSEMBLY1
-812817T97动力头总成POWERHEAD ASSEMBLY1
-823434A93动力头总成POWERHEAD ASSEMBLY1
-823434T97动力头总成POWERHEAD ASSEMBLY1
-823434A93动力头总成POWERHEAD ASSEMBLY1
-823434T97动力头总成POWERHEAD ASSEMBLY1
-812817A92动力头总成POWERHEAD ASSEMBLY1
-812817T97动力头总成POWERHEAD ASSEMBLY1
-813043A94动力头总成POWERHEAD ASSEMBLY1
-813043T97动力头总成POWERHEAD ASSEMBLY1
图 29动力转向组件（遥控） POWER STEERING COMPONENTS (REMOTE)
动力转向组件（遥控） POWER STEERING COMPONENTS (REMOTE)
REF零件编号中文名称英文名称数量
117771支架MOUNT1
259702螺钉 (.250-28 x .875) 不锈钢SCREW (.250-28 x .875) Stainless Steel4
388404锁紧垫圈TAB WASHER4
478862A2密封套件SEAL KIT1
419624A1密封套件SEAL KIT1
571565A2管总成TUBE ASSEMBLY1
617776联轴器COUPLING1
7817040螺钉 (.375-24 x 2.75)SCREW (.375-24 x 2.75)1
834931不锈钢垫圈(.406x.734x.063)WASHER (.406 x .734 x .063) Stainless Steel1
990092螺钉SCREW1
9856722螺钉SCREW1
1034863螺母 (.375-24)NUT (.375-24)2
108M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass2
1142100锁紧垫圈TAB WASHER2
1237984螺母 (.875-14)NUT (.875-14)2
128M0041651螺母 (.875-14)NUT (.875-14)2
13811290蓄能器 (参见蓄能器分解图)ACCUMULATOR (See Accumulator for Breakdown)1
14817372支架BRACKET1
1516862螺钉 (.250-10 x 1.25)SCREW (.250-10 x 1.25)4
1629245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel4
168M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel4
174000383螺钉 (M10 x 70)SCREW (M10 x 70)2
184002319垫圈WASHER4
1913914螺母(M10)NUT (M10)2
1940140螺母(M10)NUT (M10)2
208112891执行器ACTUATOR1
20828588A2执行器套件ACTUATOR KIT1
2194319螺钉(.375-24 x 1.5)SCREW (.375-24 x 1.5)1
2217405隔套SPACER2
2334863螺母 (.375-24)NUT (.375-24)3
238M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass3
2414000螺钉(.375-24x1.25)SCREW (.375-24 x 1.25)1
24849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)1
2592876A4连杆总成LINK ROD ASSEMBLY1
2668300垫圈 (.88 x .39 x .06)WASHER (..88 x .39 x .06)1
274000330螺钉(M6x25)SCREW (M6 x 25)2
278M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
2843450垫圈WASHER2
284002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)2
298268336螺母 (M6)NUT (M6)2
29401386螺母(M6)不锈钢NUT (M6) Stainless Steel2
30811292卡箍CLAMP1
31818182螺钉SCREW2
32400263螺母 (M5)NUT (M5)2
33811291支架BRACKET1
3438601螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250)4
35197491卡箍CLAMP1
3618211继电器开关RELAY SWITCH1
3718244A1线束总成HARNESS ASSEMBLY1
3818124螺钉 (#10-32 x .750)SCREW (#10-32 x .750)1
3990329护孔环GROMMET1
40309772隔套SPACER1
41816994支架BRACKET1
4242118垫圈WASHER1
4329488螺母 (#10-32)NUT (#10-32)1
438M0204718螺母NUT1
4481563024贴花DECAL1
图 30动力升降组件 8M0231193 Power Trim Components 8M0231193
动力升降组件 8M0231193 Power Trim Components 8M0231193
REF零件编号中文名称英文名称数量
-8M0231193动力升降总成POWER TRIM ASSEMBLY1
18M0225363电机套件MOTOR KIT1
28M0225369阀套件VALVE KIT1
38M0225371手动释放套件MANUAL RELEASE KIT1
48M0245633倾斜油缸套件TILT CYLINDER KIT1
58M0225370枢轴销套件PIVOT PIN KIT1
68M0244575减震杆套件SHOCK ROD KIT1
78M0244425销杆眼套件PIN ROD EYE KIT1
88M0232231螺钉螺母套件SCREW NUT KIT1
98M0225373记忆活塞套件MEMORY PISTON KIT1
108M0225368储液罐套件RESERVOIR KIT1
118M0174135储液罐塞总成PLUG RESERVOIR ASSEMBLY1
128M0237525泵套件PUMP KIT1
138M0225367升降杆套件TRIM ROD KIT1
148M0242846升降杆套件TRIM ROD KIT1
158M0225372重建套件REBUILD KIT1
图 31动力升降组件（金属马达壳体） POWER TRIM COMPONENTS Metal Motor Housing
动力升降组件（金属马达壳体） POWER TRIM COMPONENTS Metal Motor Housing
REF零件编号中文名称英文名称数量
-818186A6动力升降总成POWER TRIM ASSEMBLY1
-826729A10ORD 8M0143217ORD 8M01432171
-826729A2升降倾斜总成TRIM AND TILT ASSEMBLY1
-855998A11动力调整套件POWER TRIM KIT1
1811604F歧管总成MANIFOLD ASSEMBLY1
256800管塞 (.0625-27)PLUG Pipe (.0625-27)9
3811605F倾斜油缸总成TILT CYLINDER ASSEMBLY1
3880952A03ORD 8M0078330ORD 8M00783301
4811608升降倾斜活塞杆套件 (螺栓型-参见备注)ROD KIT Trim And Tilt Piston (BOLT TYPE- SEE NOTE)1
5823553升降活塞杆套件 (螺母型)ROD KIT Trim Piston (NUT TYPE)1
5823553T升降活塞杆ROD Trim Piston1
6811606导向套件GUIDE KIT1
6878239A02倾斜缸端盖套件END CAP KIT Tilt Cylinder1
7811607A1维修套件REPAIR KIT1
8811610A1止回阀套件CHECK VALVE KIT1
8823553T升降活塞杆ROD Trim Piston1
999638A1导向器总成GUIDE ASSEMBLY2
98M0021648端盖总成END CAP ASSEMBLY2
1043397A6动力升降活塞/杆总成 (左舷)PISTON/ROD ASSEMBLY Power Trim (PORT)1
10878413A1活塞总成PISTON ASSEMBLY1
1043398A3动力升降活塞/杆总成 (右舷)PISTON/ROD ASSEMBLY Power Trim (STARBOARD)1
10878414T01活塞总成PISTON ASSEMBLY1
1112184A1升降过滤器总成TRIM FILTER ASSEMBLY1
12821539三叶销PIN Trilobe1
13813442A2手动释放总成MANUAL RELEASE ASSEMBLY1
13893929A01安全阀套件VALVE KIT Relief1
14812844E型卡环E RING1
14815949001E形环E-RING1
154000327螺钉 (M6 x 14)SCREW (M6 x 14)4
1643450垫圈WASHER4
164002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)4
17811611盖板COVER1
18811612A2O型圈套件O-RING KIT1
18811612A3O型圈套件O-RING KIT1
19811628升降电机 (参见动力升降电机分解图)TRIM MOTOR (See Breakdown on Power Trim Motor)1
19878265A6改装套件-配平RETROFIT KIT-TRIM1
19A828708电机总成 (参见动力升降电机分解图)MOTOR ASSEMBLY (See Breakdown on Power Trim Motor)1
19A878265A4配平电机TRIM MOTOR1
20811619驱动轴DRIVESHAFT1
20828710驱动接头DRIVE JOINT1
21996251轴SHAFT1
2199625002轴SHAFT1
22811615螺钉 (长)SCREW (LONG)2
22828709螺钉 (长)SCREW (LONG)2
22881768A1螺钉/垫圈套件SCREW/WASHER KIT2
22811616螺钉 (短)SCREW (SHORT)2
23811613塞子总成PLUG ASSEMBLY1
24811617F泵PUMP1
24811617T1泵PUMP1
25811614轴总成SHAFT ASSEMBLY1
258M0142997倾斜轴套件TILT SHAFT KIT1
2656800管塞 (.0625-27)PLUG Pipe (.0625-27)2
27818298A1阳极套件ANODE KIT1
27818298Q1阳极套件ANODE KIT1
284000330螺钉(M6x25)SCREW (M6 x 25)2
288M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
2929245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
298M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
30996301冲击板STRIKER PLATE2
308M0045383冲击板STRIKER PLATE2
3158643锁紧垫圈 (.375)LOCKWASHER (.375)2
3246335螺母 (.375-24)NUT (.375-24)2
3344431槽销PIN Groove1
33878267销PIN1
344000377螺钉 (M10 x 30)SCREW (M10 x 30)6
354002319垫圈WASHER6
3622875卡扣CLIP2
3626550卡箍CLAMP2
3769205C形垫圈C WASHER2
378M0084613C形垫圈C-WASHER2
38817626螺钉(#10-16×0.380)SCREW (#10-16 x .380)2
38878607螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)2
图 32动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing
动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing
REF零件编号中文名称英文名称数量
-8M0168222动力升降总成POWER TRIM ASSEMBLY1
18M0142591电机套件MOTOR KIT1
282494830螺钉 (M6 x 30)SCREW (M6 x 30)2
3400256锁紧垫圈 (M6)LOCKWASHER (M6)2
48M0090403驱动联轴器COUPLING Drive1
58M0142996压力检查套件PO CHECK KIT1
68M0060141手动释放套件MANUAL RELEASE KIT1
78M0142997倾斜轴套件TILT SHAFT KIT1
8878267销PIN1
98M0142998倾斜油缸总成TILT CYLINDER ASSEMBLY1
98M0168220倾斜油缸总成TILT CYLINDER ASSEMBLY1
108M0142999倾斜油缸O型圈套件O RING KIT TILT CYLINDER1
118M0143000记忆活塞套件MEMORY PISTON KIT1
128M0142592升降杆套件 左舷TRIM ROD KIT Port1
138M0143001活塞总成PISTON ASSEMBLY1
148M0143003端盖总成END CAP ASSEMBLY1
15878264A1储液罐套件RESERVOIR KIT1
16811613塞子总成PLUG ASSEMBLY1
174000327螺钉 (M6 x 14)SCREW (M6 x 14)4
184002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)4
198M0143004泵套件PUMP KIT1
208M0148385动力升降倾斜装置维修包REPAIR KIT Power Trim1
21858771螺钉 (M10 x 30)SCREW (M10 x 30)6
224002319垫圈WASHER6
238M0094889销PIN1
238M0161312连杆销眼总成PIN ROD EYE ASSEMBLY1
248M0143005减震杆套件SHOCK ROD KIT1
248M0168219减震杆套件SHOCK ROD KIT1

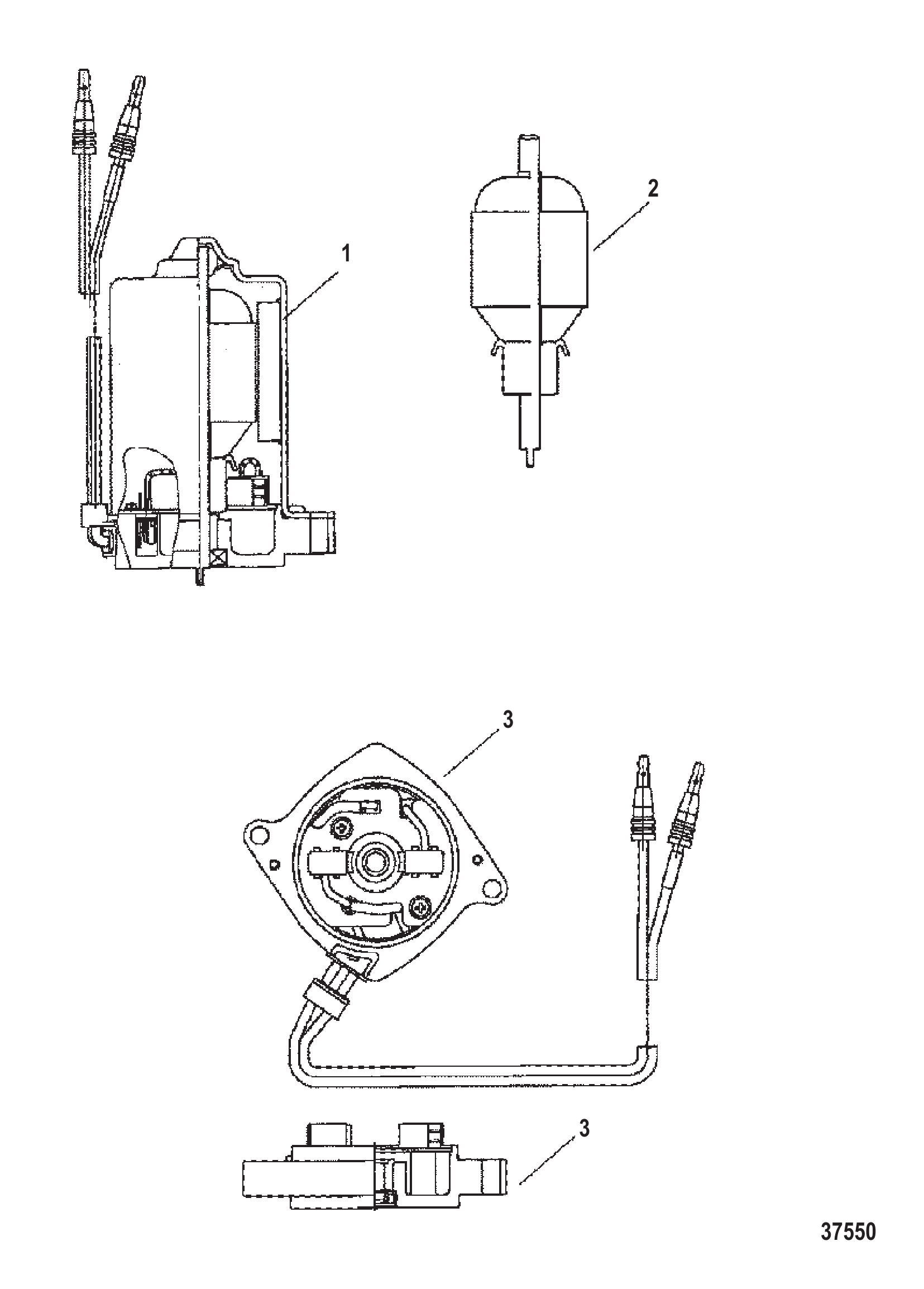

图 33动力升降马达 POWER TRIM MOTOR
动力升降马达 POWER TRIM MOTOR
REF零件编号中文名称英文名称数量
-811628配平电机TRIM MOTOR1
1811624机架与磁场套件FRAME AND FIELD KIT1
2811625电刷卡套件BRUSH CARD KIT1
3811623端架套件END FRAME KIT1
4811626密封套件SEAL KIT1
5811627电枢套件ARMATURE KIT1
5811628配平电机TRIM MOTOR1
-828708电机总成MOTOR ASSEMBLY1
-878265A4配平电机TRIM MOTOR1
6828714A1电刷与密封套件BRUSH AND SEAL KIT1
7828713A1电枢套件ARMATURE KIT1
7828713T1电枢套件ARMATURE KIT1
8828715A1端架（总成）END FRAME (COMPLETE)1

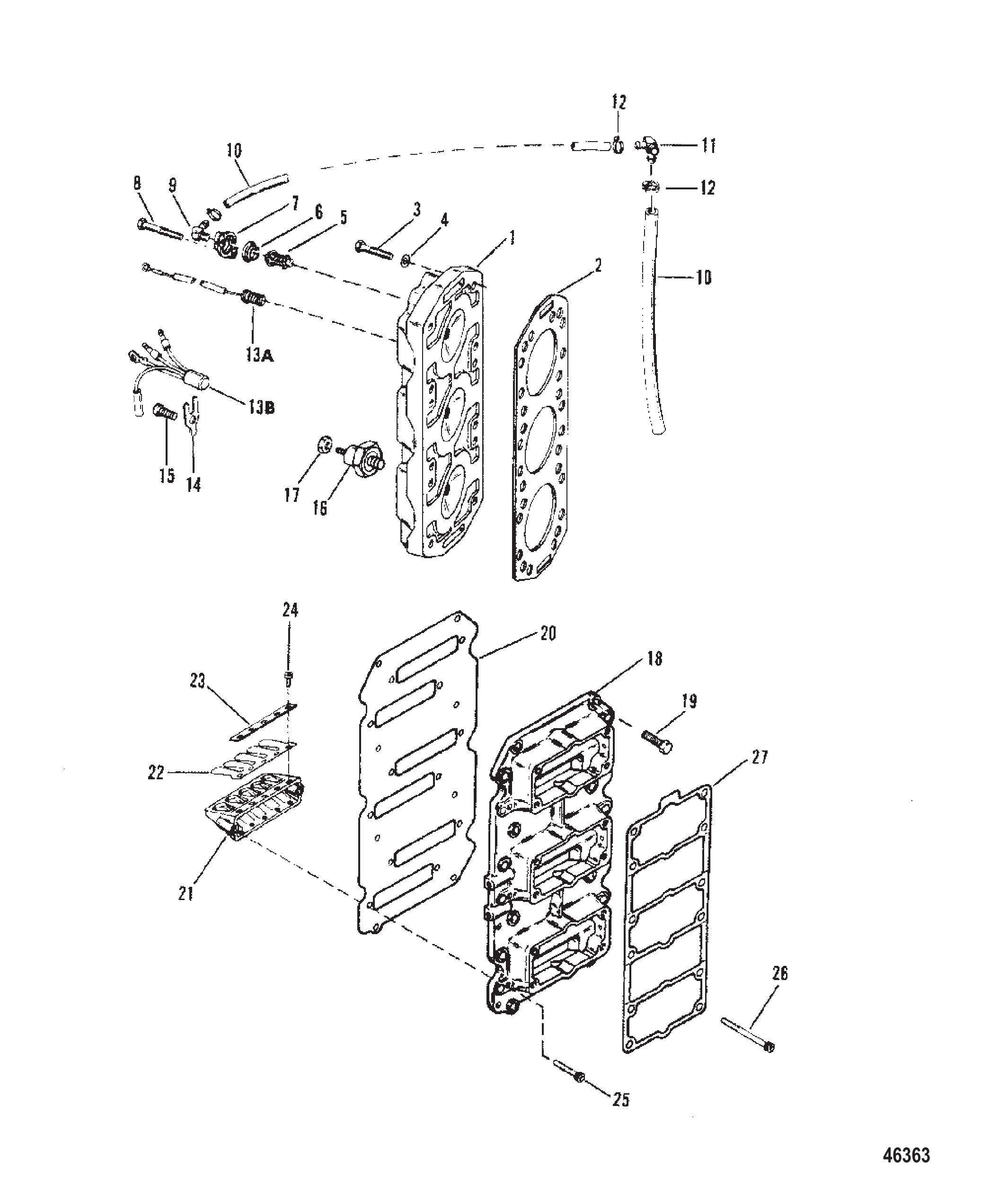

图 34簧片阀组与气缸盖 REED BLOCK AND CYLINDER HEAD
簧片阀组与气缸盖 REED BLOCK AND CYLINDER HEAD
REF零件编号中文名称英文名称数量
118787F1气缸盖CYLINDER HEAD2
1184888气缸盖CYLINDER HEAD2
18M0143213气缸盖HEAD CYLINDER2
118488F1气缸盖CYLINDER HEAD2
18M0143213气缸盖HEAD CYLINDER2
118488F1气缸盖CYLINDER HEAD2
18M0143213气缸盖HEAD CYLINDER2
118488F2气缸盖总成CYLINDER HEAD ASSEMBLY2
2187851衬垫GASKET2
218785T衬垫GASKET2
28228441衬垫GASKET2
2822844T05衬垫GASKET2
28228441衬垫GASKET2
2822844T05衬垫GASKET2
28228441衬垫GASKET2
2822844T05衬垫GASKET2
398534螺钉 (.375-16 x 2.30)SCREW (.375-16 x 2.30)24
425909垫圈 (.406 x .812 x .065) (适用时使用)WASHER (.406 x .812 x .065) (USE WHERE APPLICABLE)24
562386衬垫GASKET2
58M0204714衬垫@4GASKET @42
690390A1盖板套件COVER KIT2
775692节温器THERMOSTAT2
835386螺丝(.312-18 x 1.00)SCREW (.312-18 x 1.00)4
96872790度弯头 (.250-18) - 黄铜FITTING (.250-18) 90 Degree - Brass1
968727190度弯头 (.250-18) - 黄铜FITTING (.250-18) 90 Degree - Brass1
107765377软管 (24.500英寸 散装)HOSE (24.500 Inches Bulk)3
1077653101软管（散装48.00英寸）HOSE (48.00 Inches Bulk)3
1168728接头FITTING1
12816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
12816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
1397465温度传感器 (右舷)SENDER Temperature (STBD.)1
1443517A9隔板总成PLATE ASSEMBLY1
1528668螺钉 (.250-20 x .875) 不锈钢SCREW (.250-20 x .875) Stainless Steel8
16146972衬垫GASKET1
1763779定位销 (.250 x .625)PIN Dowel (.250 x .625)4
1875953簧片阀组REED BLOCK6
1975362A1簧片组件REED ASSEMBLY6
20961832簧片夹CLAMP Reed12
21823588螺钉 (#8-32 x .250)SCREW (#8-32 x .250)60
2255715螺钉(.250-20×0.880)SCREW (.250-20 x .880)6
2396529螺钉 (.250-20 x 2.00)SCREW (.250-20 x 2.00)6
24814612热空气阀 (旧设计)VALVE Thermal Air (OLD DESIGN)1
2523567卡扣CLIP1
2669205C形垫圈C WASHER1
268M0084613C形垫圈C-WASHER1
27812832螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)1
27878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)1
2813536A7温度传感器总成 (左舷) (2线)SENSOR ASSEMBLY Temperature (PORT) (2-WIRE)1
28A13536A6温度传感器总成 (左舷) (4线)SENSOR ASSEMBLY Temperature (PORT) (4-WIRE)1
29137151固定座RETAINER2
3098257螺钉 (.312-18 x .500)SCREW (.312-18 x .500)2
3156759倒钩接头FITTING Barbed4
3299130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
32892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
3342698止回阀 (压入式 13/16")CHECK VALVE (PRESS-IN 13/16")7
33426982止回阀CHECK VALVE7
3342623止回阀 (压入式 11/16")CHECK VALVE (PRESS-IN 11/16")1
33426233止回阀CHECK VALVE1
34822715弯头配件 (压入式)FITTING Elbow (PRESS-IN)6
3555098J型卡扣J CLIP1
358M0024808J型夹J-CLIP1
-815791A92发动机垫片组GASKET SET Engine1
-812815A92动力头总成POWERHEAD ASSEMBLY1
-878365T00动力头总成POWERHEAD ASSEMBLY1
-812817A92动力头总成POWERHEAD ASSEMBLY1
-812817T97动力头总成POWERHEAD ASSEMBLY1
-823434A93动力头总成POWERHEAD ASSEMBLY1
-823434T97动力头总成POWERHEAD ASSEMBLY1
-823434A93动力头总成POWERHEAD ASSEMBLY1
-823434T97动力头总成POWERHEAD ASSEMBLY1
-812817A92动力头总成POWERHEAD ASSEMBLY1
-812817T97动力头总成POWERHEAD ASSEMBLY1
-813043A94动力头总成POWERHEAD ASSEMBLY1
-813043T97动力头总成POWERHEAD ASSEMBLY1
图 35启动马达 STARTER MOTOR
启动马达 STARTER MOTOR
REF零件编号中文名称英文名称数量
-79472启动电机总成STARTER MOTOR ASSEMBLY1
190645驱动套件DRIVE KIT1
275661驱动小齿轮总成PINION ASSEMBLY Drive1
213310T1小齿轮总成PINION ASSEMBLY1
375660安装板PLATE1
474968螺栓BOLT2
6N.S.S.不单独出售垫圈(美国博世WA3122)Not Sold Separate Washer (AMERICAN BOSCH #WA3122)1
779216电枢ARMATURE1
875384电刷/弹簧套件BRUSH/SPRING KIT1
8898265016电刷/弹簧套件BRUSH/SPRING KIT1
961787支架HOLDER2
9898265014电刷支架HOLDER-BRUSH2
10N.S.S.不单独销售螺钉(AMERICAN BOSCH #02441-22-SC-30SM)Not Sold Separate Screw (AMERICAN BOSCH #02441-22-SC-30SM)2
1115386端盖END CAP1
1115386001端盖END CAP1
图 36转向连接套件 STEERING ATTACHING KIT
转向连接套件 STEERING ATTACHING KIT
REF零件编号中文名称英文名称数量
-92876A8转向安装包 (单)ATTACHING KIT Steering (SINGLE)1
141055A1支架总成BRACKET ASSEMBLY1
271565A2管总成TUBE ASSEMBLY1
348462O型圈 (.614 x .070)O-RING (.614 x .070)1
4821203锁紧垫圈LOCKWASHER2
537984螺母 (.875-14)NUT (.875-14)2
58M0041651螺母 (.875-14)NUT (.875-14)2
638601螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250)4
778968内锁紧垫圈 (.250)LOCKWASHER Internal (.250)4
888319联轴器COUPLING1
8850791T联轴器COUPLER1
973732螺钉 (.375-24 x 1.120)SCREW (.375-24 x 1.120)2
1034931不锈钢垫圈(.406x.734x.063)WASHER (.406 x .734 x .063) Stainless Steel2
1134863螺母 (.375-24)NUT (.375-24)3
118M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass3
图 37旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM
旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM
REF零件编号中文名称英文名称数量
18710A20旋转支架总成（黑色）SWIVEL BRACKET ASSEMBLY (BLACK)1
18710A21旋转支架总成（灰色）SWIVEL BRACKET ASSEMBLY (GRAY)1
18710T21灰色旋转支架总成SWIVEL BRACKET ASSEMBLY Gray1
18710A22旋转支架总成（追踪者）SWIVEL BRACKET ASSEMBLY (TRACKER)1
287735油封(下)SEAL Oil (LOWER)1
3818764衬套BUSHING2
4816039隔套SPACER1
533504O型圈O-RING1
58M0214926O型圈 @10O RING @101
674036润滑脂接头FITTING Grease2
68M0169589润滑脂接头FITTING Grease2
7821207衬套BUSHING2
8816432止推垫片THRUST WASHER1
978689螺钉（0.437-20 X 7.50）SCREW (.437-20 x 7.50)2
98M0176309螺钉SCREW2
1078687支架(加长型)(JET)MOUNT (LONG)(JET)2
1078687T支架MOUNT2
1077326支架（加长型-XR6/MAGNUM III/追踪者）MOUNT (X-LONG - XR6/MAGNUM III/TRACKER)2
1166921垫圈WASHER2
12814432垫圈WASHER2
1278688垫圈WASHER2
1334933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
138M0204653螺母NUT2
1492876A1转向连杆总成LINK ASSEMBLY Steering1
1492876A12连杆总成LINK ROD ASSEMBLY1
1514000螺钉(.375-24x1.25)SCREW (.375-24 x 1.25)1
15849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)1
1634863螺母 (.375-24)NUT (.375-24)2
168M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass2
1734931不锈钢垫圈(.406x.734x.063)WASHER (.406 x .734 x .063) Stainless Steel2
1867706A55转向臂旋转销总成（黑色）SWIVEL PIN ASSEMBLY Steering Arm (BLACK)1
18826432A2转向臂旋转销总成-不锈钢SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel1
1867706A56转向臂旋转销总成（灰色）SWIVEL PIN ASSEMBLY Steering Arm (GRAY)1
1867706A55转向臂转销总成SWIVEL PIN ASSEMBLY Steering Arm1
1867706A61旋转销总成（追踪者）SWIVEL PIN ASSEMBLY (TRACKER)1
1867706A55转向臂转销总成SWIVEL PIN ASSEMBLY Steering Arm1
1986580A1底部轭架总成（黑色）YOKE ASSEMBLY Bottom (BLACK)1
19878182T轭架底部-不锈钢YOKE Bottom - Stainless Steel1
1986580A2底部轭架总成（灰色）YOKE ASSEMBLY Bottom (GRAY)1
1986580A1底部轭架总成YOKE ASSEMBLY Bottom1
1986580F3底部轭架（追踪者）YOKE Bottom (TRACKER)1
1986580A1底部轭架总成YOKE ASSEMBLY Bottom1
2067684挡圈RING Retaining1
2154457J型卡扣J CLIP1
22888821缓冲垫BUMPER1
228M0000516上轭缓冲垫BUMPER Top Yoke1
2364014螺钉(.250-28x.500)SCREW (.250-28 x .500)2
24821180A6调整传感器总成SENDER ASSEMBLY Trim1
248M0074846ORDER 8M0098273ORDER 8M00982731
2556682螺钉（#10-24 X 0.750）SCREW (#10-24 x .750)2
25852368螺钉（#10-24 X 0.750）SCREW (#10-24 x .750)2
2626996锁紧垫圈(#10)(不锈钢)LOCKWASHER (#10) Stainless Steel2
2789302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)2

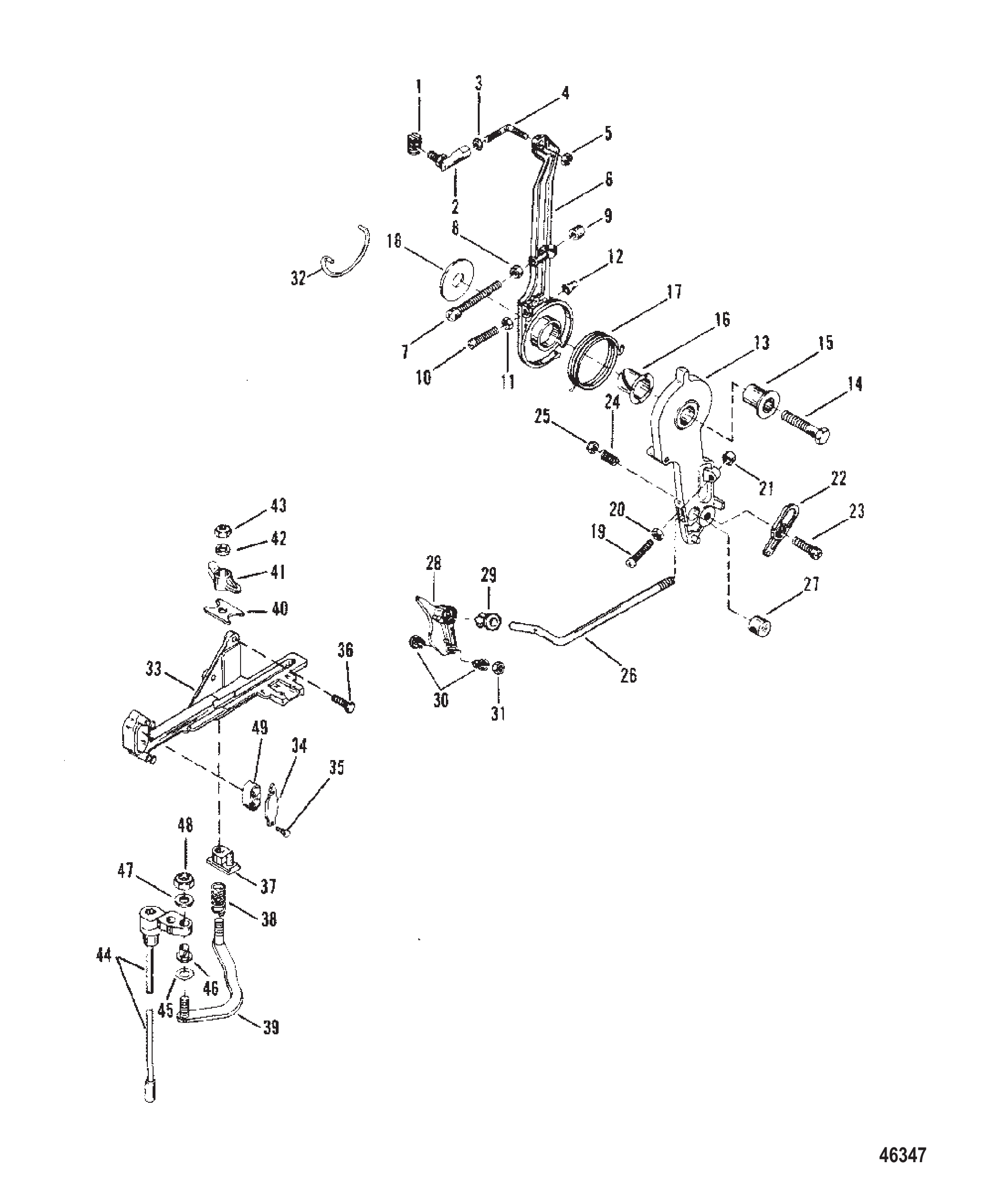

图 38油门杆与换挡轴 THROTTLE LEVER AND SHIFT SHAFT
油门杆与换挡轴 THROTTLE LEVER AND SHIFT SHAFT
REF零件编号中文名称英文名称数量
155171衬套BUSHING1
262459球头总成BALL JOINT ASSEMBLY1
262459T球头节总成BALL JOINT ASSY1
345076黄铜螺母(#10-32)NUT (#10-32) Brass1
476035杆ROD1
546438螺母 (#10-32)NUT (#10-32)1
641094A3杠杆总成 (设计I)LEVER ASSEMBLY (DESIGN I)1
6823705A1点火提前杠杆 (设计II)LEVER Spark Advance (DESIGN II)1
764022螺钉(.250-20 x 2.125)SCREW (.250-20 x 2.125)1
864015螺母 (.250-20)NUT (.250-20)1
926852尼龙帽CAP Nylon1
1093254旋转底座SWIVEL BASE1
1193421旋转球头SWIVEL BALL1
12823706连接杆LINK1
1374897枢轴PIVOT1
1374897T枢轴PIVOT1
1413627螺钉 (.190-32 x 1.250)SCREW (.190-32 x 1.250)1
1568219螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel1
1648039盖帽CAP1
17823235弹簧SPRING1
1846765垫圈 (.390 x 1.50 x .120)WASHER (.390 x 1.50 x .120)1
1964022螺钉(.250-20 x 2.125)SCREW (.250-20 x 2.125)1
2064015螺母 (.250-20)NUT (.250-20)1
2126852尼龙帽CAP Nylon1
2239483闩锁LATCH1
2369026螺钉 (.250-28 x .880)SCREW (.250-28 x .880)1
2420099弹簧SPRING1
2535045螺母(.250-28)NUT (.250-28)1
25826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
2641095杠杆LEVER1
26410952杠杆LEVER1
27818165螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
2855164衬套BUSHING1
2914638套筒BARREL1
30814929杆ROD1
31932481衬套BUSHING1
318M0215006旋转衬套BUSHING Swivel1
3235045螺母(.250-28)NUT (.250-28)1
32826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
3320353螺柱 (.250-28 x 1.750)STUD (.250-28 x 1.750)1
34815539T节气门凸轮CAM Throttle1
35814283A2支架总成BRACKET ASSEMBLY1
3639519杯套CUP1
3742975传动螺钉DRIVE SCREW2
3898889闩锁LATCH1
3953167螺钉 (.312-18 x .880)SCREW (.312-18 x .880)3
3953167T螺钉 0.312-18X 0.88SCREW .312-18X .883
4079932A11换挡轴总成 (长)SHIFT SHAFT ASSEMBLY (LONG)1
4079932A16换挡轴总成SHIFT SHAFT ASSEMBLY1
4079932A12换挡轴总成 (加长)SHIFT SHAFT ASSEMBLY (X-LONG)1
4079932A17换挡轴总成SHIFT SHAFT ASSEMBLY1
41814284导向块GUIDE BLOCK1
4220099弹簧SPRING1
4367073A1连杆总成LINK ROD ASSEMBLY1
4452100耐磨板WEAR PLATE1
4538279闩锁LATCH1
458M0036768闩锁LATCH1
4635462垫圈(.2656 x .625 x .0625)不锈钢WASHER (.2656 x .625 x .0625) Stainless Steel1
4735045螺母(.250-28)NUT (.250-28)1
47826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
4826600衬套BUSHING1
4929720波形垫圈WAVE WASHER1
5035462垫圈(.2656 x .625 x .0625)不锈钢WASHER (.2656 x .625 x .0625) Stainless Steel1
5135045螺母(.250-28)NUT (.250-28)1
51826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
52814281A1怠速稳定换挡套件IDLE STABILIZING SHIFT KIT1
5377478螺钉 (#6-32 x .875)SCREW (#6-32 x .875)2
5427882垫圈WASHER2
5517461A3电阻模块RESISTOR MODULE1
图 39上罩与前护板 TOP COWL AND FRONT SHIELD
上罩与前护板 TOP COWL AND FRONT SHIELD
REF零件编号中文名称英文名称数量
19742A88顶盖总成 (黑色)(无贴花)TOP COWL ASSEMBLY (BLACK)(Without Decals)1
19743A11顶盖总成 (银色)(无贴花)TOP COWL ASSEMBLY (SILVER)(Without Decals)1
19743T11顶罩TOP COWL1
19742A92顶盖总成 (XR6)(无贴花)TOP COWL ASSEMBLY (XR6)(Without Decals)1
19742T92顶盖总成-黑色TOP COWL ASY-BLK1
19742A93顶盖总成 (MAGNUM III -灰色)(无贴花)TOP COWL ASSEMBLY (MAGNUM III -GRAY)(Without Decals)1
19743T10顶罩TOP COWL1
19743A10顶盖总成 (MAGNUM III-银色)(无贴花)TOP COWL ASSEMBLY (MAGNUM III-SILVER)(Without Decals)1
19743T10顶罩TOP COWL1
19743A8顶盖总成 (150 TRACKER)(无贴花)TOP COWL ASSEMBLY (150 TRACKER)(Without Decals)1
19743A13顶盖总成 (175/200 TRACKER)(无贴花)TOP COWL ASSEMBLY (175/200 TRACKER)(Without Decals)1
2812784密封件SEAL1
3815478密封件SEAL1
4814823A1隔音套件SOUND BLANKT KIT1
4815225A1隔音毯套装SOUND BLANKET KIT1
5815227隔音毯SOUND BLANKET1
669267螺钉 (.312-18 x 1.750)SCREW (.312-18 x 1.750)2
770132垫圈(0.323×0.563×0.063)不锈钢WASHER (.323 x .563 x .063) Stainless Steel2
78M0042642垫圈(.323 x .562 x .063)WASHER (.323 x .562 x .063)2
873286螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel2
9815848螺母 (.312)NUT (.312)2
10184741支架BRACKET2
1118506护孔环GROMMET3
1118506001护孔环GROMMET3
1228636螺钉(.250-20 x .750)SCREW (.250-20 x .750)4
1356720垫圈(0.330×0.750×0.060)不锈钢WASHER (.330 x .750 x .060) Stainless Steel4
14813096挂钩HOOK2
14813096A2挂钩套件HOOK KIT2
1536001垫圈WASHER2
16813074滚轮ROLLER2
168M0207770滚轮@3ROLLER @32
1713194挡圈RING Retaining2
14813096A2挂钩套件HOOK KIT2
16815263滚轮ROLLER2
168M0207770滚轮@3ROLLER @32
178237951挡圈RING Retaining2
18816992螺钉SCREW8
19187021定位器LOCATOR1
2018173锁扣滚轮支架总成BRACKET ASSEMBLY Latch Roller1
20893763滚轮锁扣支架BRACKET Roller Latch1
21816838隔套SPACER1
2247341A1手动/应急启动绳和手柄套件 (用于手动启动)ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING)1
2247341A11手动启动绳柄套件ROPE AND HANDLE KIT Manual Starting1
2318755A1前护罩总成 (黑色)(无贴花)FRONT SHIELD ASSEMBLY (BLACK)(Without Decals)1
2318755A2前护罩总成 (灰色)(无贴花)FRONT SHIELD ASSEMBLY (GRAY)(Without Decals)1
2318755A4前护罩总成 (银色)(无贴花)FRONT SHIELD ASSEMBLY (SILVER)(Without Decals)1
2318755A3前护罩总成 (TRACKER)(无贴花)FRONT SHIELD ASSEMBLY (TRACKER)(Without Decals)1
2477137螺钉 (.190-16 x .620)SCREW (.190-16 x .620)4
2556681垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)4
258M0204666垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)4
26813562密封件SEAL1
图 40艉板支架 TRANSOM BRACKETS
艉板支架 TRANSOM BRACKETS
REF零件编号中文名称英文名称数量
18718F7艉板支架 (右舷) (黑色)BRACKET Transom (STARBOARD) (BLACK)1
18718F8艉板支架(右舷)(灰色)BRACKET Transom (STARBOARD) (GRAY)1
18718F10艉板支架(右舷)(追踪者)BRACKET Transom (STARBOARD) (TRACKER)1
28716A8艉板支架总成(左舷)(黑色)BRACKET ASSEMBLY Transom (PORT) (BLACK)1
28716A9艉板支架总成(左舷)(灰色)BRACKET ASSEMBLY Transom (PORT) (GRAY)1
28716A10艉板支架总成(左舷)(追踪者)BRACKET ASSEMBLY Transom (PORT) (TRACKER)1
398727润滑脂接头(左舷)FITTING Grease (PORT)1
38M0169588润滑脂接头FITTING Grease1
437984螺母 (.875-14)NUT (.875-14)1
48M0041651螺母 (.875-14)NUT (.875-14)1
599170A2倾斜管套件(碳钢)TUBE KIT Tilt (CARBON STEEL)AR
5826125A1倾斜管TILT TUBEAR
5826125A1倾斜管(不锈钢)TILT TUBE (STAINLESS STEEL)AR
6826135锁紧螺母(1.00-14)尼龙嵌件(黑色)NUT Lock (1.00-14) Nylon Insert (BLACK)1
690068F3螺母(1.00-14)(灰色)NUT (1.00-14) (GRAY)1
6859133螺母(1.00-14)NUT (1.00-14)1
690068F4螺母(1.00-14)(追踪者)NUT (1.00-14) (TRACKER)1
6859133螺母(1.00-14)NUT (1.00-14)1
745711O型圈 (.612 x .103)O-RING (.612 x .103)1
888750波浪垫圈 (1.62 x 1.05)WASHER Wave (1.62 x 1.05)2
9826164螺母 (.875-14)NUT (.875-14)1
98M0231351锁紧螺母NUT Lock1
10677551螺钉(.500-20×4.500)SCREW (.500-20 x 4.500)4
108M0149747螺钉SCREW4
1128421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
118M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
128M0027784螺母NUT4
1282671117螺母(.500-20)NUT (.500-20)4
1399629A2杠杆总成LEVER ASSEMBLY1
138M0115104倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
1499611波形垫圈WAVE WASHER1
1565830尼龙衬套NYLINER2
1699633旋钮KNOB1
1799615槽销PIN Groove1
1899622弹簧SPRING1
1999604槽销PIN Groove1
2096930A1螺栓总成BOLT ASSEMBLY1
2123161螺母 (.375-24)NUT (.375-24)1
22814207停机开关STOP1
-815791A92发动机垫片组GASKET SET Engine1
图 41艉板安装动力转向套件 TRANSOM MOUNT POWER STEERING KIT
艉板安装动力转向套件 TRANSOM MOUNT POWER STEERING KIT
REF零件编号中文名称英文名称数量
-17443A11动力转向套件POWER STEERING KIT1
1811290蓄能器ACCUMULATOR1
217772螺柱STUD3
34002319垫圈WASHER3
413914螺母(M10)NUT (M10)3
440140螺母(M10)NUT (M10)3
594319螺钉(.375-24 x 1.5)SCREW (.375-24 x 1.5)1
617405隔套SPACER2
734863螺母 (.375-24)NUT (.375-24)3
78M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass3
814000螺钉(.375-24x1.25)SCREW (.375-24 x 1.25)1
8849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)1
992876A4连杆总成LINK ROD ASSEMBLY1
1068300垫圈 (.88 x .39 x .06)WASHER (..88 x .39 x .06)1
118112891执行器ACTUATOR1
11828588A2执行器套件ACTUATOR KIT1
-811632维修套件REPAIR KIT1
-811632A1维修套件REPAIR KIT1
124000330螺钉(M6x25)SCREW (M6 x 25)2
128M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
1343450垫圈WASHER2
134002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)2
148268336螺母 (M6)NUT (M6)2
14401386螺母(M6)不锈钢NUT (M6) Stainless Steel2
15811292卡箍CLAMP1
16818182螺钉SCREW2
17400263螺母 (M5)NUT (M5)2
1881742755螺钉(M8x55)SCREW (M8 x 55)1
1966751垫片(0.250x0.390x0.630)不锈钢SPACER (.250 x .390 x .630) Stainless Steel1
198M0151156隔套SPACER1
20811291支架BRACKET1
2138601螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250)4
2288404锁紧垫圈TAB WASHER6
2318211继电器开关RELAY SWITCH1
2418244A1线束总成HARNESS ASSEMBLY1
2518124螺钉 (#10-32 x .750)SCREW (#10-32 x .750)1
2690329护孔环GROMMET1
27309772隔套SPACER1
28816994支架BRACKET1
2942118垫圈WASHER1
3029488螺母 (#10-32)NUT (#10-32)1
308M0204718螺母NUT1
31197491卡箍CLAMP1
3281563024贴花DECAL1
图 42线束/启动电磁阀 WIRING HARNESS/STARTER SOLENOID
线束/启动电磁阀 WIRING HARNESS/STARTER SOLENOID
REF零件编号中文名称英文名称数量
1434292点火板IGNITION PLATE1
27778A12开关盒总成SWITCHBOX ASSEMBLY2
313669螺钉(#12-24x2.00)SCREW (#12-24 x 2.00)2
494453衬套BUSHING2
562310A2拉线总成CABLE ASSEMBLY1
645076黄铜螺母(#10-32)NUT (#10-32) Brass20
760871A10线束总成WIRE ASSEMBLY2
8817626螺钉(#10-16×0.380)SCREW (#10-16 x .380)3
8878607螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)3
965999A3线缆总成(黑色)CABLE ASSEMBLY Black1
1069092螺钉(1.25)SCREW (1.25)3
1060411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)3
1126993锁紧垫圈 (.312)LOCKWASHER (.312)3
118M0204647锁紧垫圈 (.312)LOCKWASHER (.312)3
1236042垫圈WASHER6
1367264垫圈(橡胶)WASHER (Rubber)6
1467268衬套BUSHING3
1591865A1线缆总成(3英寸-白/黑)CABLE ASSEMBLY (3" - WHITE/BLACK)1
1588528A2线缆总成(6英寸-红/白)CABLE ASSEMBLY (6" - RED/WHITE)1
1688439A3正极电缆总成-蓄电池CABLE ASSEMBLY Positive - Battery1
1688439A4蓄电池负极电缆总成CABLE ASSEMBLY Battery - Negative1
1787926螺钉(#10-32 x .500)SCREW (#10-32 x .500)1
18814634卡箍(旧款)CLAMP (OLD DESIGN)1
19A826730A4发动机线束总成HARNESS ASSEMBLY Engine Wiring1
1996220A16发动机线束总成HARNESS ASSEMBLY Engine Wiring1
2079091保险丝20安培FUSE 20 Ampere1
208M0207796保险丝20安培FUSE 20 AMP1
22816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
22816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
2378866绝缘体INSULATOR1
2445076黄铜螺母(#10-32)NUT (#10-32) Brass4
2568258A4启动电磁阀总成(设计I型)SOLENOID ASSEMBLY Starter (DESIGN I)1
25853654A1电磁阀SOLENOID1
2645076黄铜螺母(#10-32)NUT (#10-32) Brass2
2753166锁紧垫圈 (.312)LOCKWASHER (.312)2
2868292螺母(.312-18)NUT (.312-18)2
288M0204668螺母(.312-18)NUT (.312-18)2
2945561螺钉 (.250-20 x 1.12)SCREW (.250-20 x 1.12)2
29455611螺钉(.250-20 x 1.120)SCREW (.250-20 x 1.120)2
2931716螺钉(0.250-20x0.620)SCREW (.250-20 x .620)2
3026992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel2
3165999A2线缆总成(黑色)CABLE ASSEMBLY Black1
32194372端子排TERMINAL BLOCK1
3338055螺钉(0.190-32x0.620)SCREW (.190-32 x .620)2
3489302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)2
3545076黄铜螺母(#10-32)NUT (#10-32) Brass2
36817109A2电磁阀总成(#10-32/.3125-18端子)SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)1
37818968衬套BUSHING2
378M0214955衬套BUSHING2
图 43喷泵总成 JET PUMP ASSEMBLY
喷泵总成 JET PUMP ASSEMBLY
REF零件编号中文名称英文名称数量
-801400150喷泵(黑色)JET PUMP (BLACK)1
-801401150喷泵(灰色)JET PUMP (GRAY)1
-855766150喷泵JET PUMP1
1801411150泵壳HOUSING Pump1
1A827490润滑油管HOSE Lube1
2801414150叶轮IMPELLER1
2803984T叶轮IMPELLER1
380141290进气壳体HOUSING Intake1
3A8271883衬套LINER1
4801413150驱动轴SHAFT Drive1
4A8271891套筒SLEEVE1
4B8271901螺母NUT1
5801405875键KEY1
6801404875叶轮垫片SHIM Impeller8
7801403875锁紧垫圈TAB WASHER1
8847568螺丝(.312-18 x 1.00)SCREW (.312-18 x 1.00)6
8812618不锈钢螺钉(.312-18 x 1.00)带尼龙垫SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch6
919923088螺钉(.250-20 x .875)SCREW (.250-20 x .875)4
1019923062螺钉(.250-20 x .625)SCREW (.250-20 x .625)2
1160411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)1
12801410电缆支架BRACKET Cable Support1
1367980螺母(.312-18)NUT (.312-18)1
1382670910不锈钢螺母(.312-18)NUT (.312-18) Stainless Steel1
14801407定位销PIN Dowel2
1578638双头螺柱(.438 x 3.12)STUD (.438 x 3.12)1
15786382螺柱(.437-14/.437-20 x 3.120)STUD (.437-14/.437-20 x 3.120)1
16579201双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
168M0133358双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
1769064螺栓(.312-18 x 2.750)BOLT (.312-18 x 2.750)1
1830667双头螺栓(.250-20/.250-28×3.125)STUD (.250-20/.250-28 x 3.125)2
18306671螺柱STUD2
1968299不锈钢螺钉(.375-16 x 3.00)SCREW (.375-16 x 3.00) Stainless Steel1
2045175垫圈(.406 x .750 x .104)WASHER (.406 x .750 x .104)1
208M0214963垫圈WASHER1
图 44下罩 Bottom Cowl
下罩 Bottom Cowl
REF零件编号中文名称英文名称数量
1878587A1下罩总成BOTTOM COWL ASSEMBLY1
2858743A2下罩总成BOTTOM COWL ASSEMBLY1
28M0113913右舷下罩BCOWL-LOWER STBD B1
38253181罩盖密封条(41英寸)SEAL Cowl (41.00 Inches)2
38M0109217罩盖密封条SEAL-COWL2
4878547T嵌件INSERT1
582130040螺钉(M6 x 40)SCREW (M6 x 40)8
6831209固定座RETAINER1
7858742怠速排气套BOOT Idle Exhaust1
8859251护孔环GROMMET1
88M0039078护孔环GROMMET1
9827948接头FITTING1
10855576垫圈WASHER1
11816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)6
12830756109软管(57英寸整卷)(裁切至5英寸长度)HOSE (57.00 Inches Bulk) (Cut To 5.00 Inch Length)1
128M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
13881535软管(32.00英寸)HOSE (32.00 Inches)1
149912688管材(36.00英寸散装)(26.00英寸)TUBING (36.00 Inches Bulk) (26.00 Inch)1
15817518三通TEE1
1682130020螺钉 (M6 x 20)SCREW (M6 x 20)2
178587411护孔环GROMMET1
17889724护孔环GROMMET1
18856990开关总成SWITCH ASSEMBLY1
188M0235192微调开关SWITCH TRIM1
19824868螺钉(M6×75)SCREW (M6 x 75)1
20821253F1前手柄黑色FRONT HANDLE Black1
20889740A02手柄套件HANDLE KIT1
2133589衬套BUSHING2
2248462O型圈 (.614 x .070)O-RING (.614 x .070)1
238219423棘爪PAWL1
2469057垫片(.281 x .734 x .063)WASHER (.281 x .734 x .063)1
25401366螺母(M6)不锈钢NUT (M6) Stainless Steel1
2613541公插头PLUG Male2
图 45驱动轴壳体与排气管 DRIVESHAFT HOUSING AND EXHAUST TUBE
驱动轴壳体与排气管 DRIVESHAFT HOUSING AND EXHAUST TUBE
REF零件编号中文名称英文名称数量
18343A10驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
18343A11驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
18343T11ORD 1590-8343T10ORD 1590-8343T101
1813563A1驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
1813563T1传动轴壳体-黑色-加长型HOUSING Driveshaft - Black - X-Long1
1813563A2驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
1813563T2ORD 3503-813563T1ORD 3503-813563T11
256295双头螺柱(.437 x 2.69)STUD (.437 x 2.69)2
363474螺钉(.500-20 x 6.00)SCREW (.500-20 x 6.00)2
3898831螺钉(.500-20 x 6.220)SCREW (.500-20 x 6.220)2
488238A10接地线总成CABLE ASSEMBLY Ground1
577327支架MOUNT2
649339垫圈(.8125)WASHER (.8125)2
788238A10接地线总成CABLE ASSEMBLY Ground1
828040螺母(.500-20)NUT (.500-20)2
8898832螺母(.500-20)NUT (.500-20)2
941508螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel1
1045176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel2
1134933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
118M0204653螺母NUT2
1267076卡箍CLAMP2
128M0036782卡箍CLAMP2
1366727螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)4
1467077T黑色盖COVER Black2
148M4500752盖板COVER2
1467077F1灰色盖板COVER Gray2
1467077T黑色盖COVER Black2
1588417螺钉(#12-24×0.620)SCREW (#12-24 x .620)4
1635521螺母NUT4
1748926垫圈WASHER1
1834933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel1
188M0204653螺母NUT1
1920553垫圈(.406 x .734 x .063)WASHER (.406 x .734 x .063)4
2069254螺母NUT4
21828212怠速排气套BOOT Idle Exhaust1
218M0039081护套BOOT1
2264649堵头PLUG1
23991732衬垫GASKET1
23991734衬垫GASKET1
2466350下密封件SEAL (LOWER)1
2466350001密封件SEAL1
2518276排气管TUBE Exhaust1
2518276T排气管EXHAUST TUBE1
26177261上密封件SEAL (UPPER)1
268M0039076密封件SEAL1
27812834排气管延长段EXTENSION Exhaust1
27812834A2排气延长总成EXTENSION ASSEMBLY Exhaust1
2741942F3排气管延长段EXTENSION Exhaust1
27879288T71排气管延长段EXTENSION Exhaust1
2867295水管TUBE Water1
288M0042788长型水管TUBE-WATER-LONG1
2874729管TUBE1
288M0042790水管TUBE-WATER1
2978246衬垫GASKET1
29782461衬垫GASKET1
3018233A3隔板总成PLATE ASSEMBLY1
3018233A20传动轴壳体板总成PLATE ASSEMBLY Driveshaft Housing1
318147012密封件SEAL1
318M0043165密封件-27.00英寸SEAL-27.00 INCH1
3268011支架BRACKET1
33812832螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)12
33878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)12
3443044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
3538970密封件SEAL1
3690192螺钉(.250-20 x .750)不锈钢SCREW (.250-20 x .750) Stainless Steel6
37183071衬垫GASKET1
37183076衬垫GASKET1
-815791A92发动机垫片组GASKET SET Engine1
图 46点火线圈/电压调节器 Ignition Coil/Voltage Regulator
点火线圈/电压调节器 Ignition Coil/Voltage Regulator
REF零件编号中文名称英文名称数量
1195871安装板PLATE MOUNTING1
230720电压调节器螺钉(.250-20 x 2.25)SCREW (.250-20 x 2.25) VOLTAGE REGULATOR4
326992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel4
419661衬套BUSHING4
518736A15电压调节器总成REGULATOR ASSEMBLY Voltage1
518736A21调节器总成REGULATOR ASSY1
618717密封件SEAL1
796158启动电磁阀SOLENOID Starter2
78M0185622电磁阀SOLENOID2
890192螺钉 (.250-20 x .750) 不锈钢 启动电磁阀SCREW (.250-20 x .750) Stainless Steel STARTER SOLENOID3
988807A6线束总成 (3.50英寸) 黑色 (3-1/2" - BLACK)CABLE ASSEMBLY (3.50 Inches) Black (3-1/2" - BLACK)1
1056374电磁阀螺钉螺母(.250-20)NUT (.250-20) SOLENOID SCREW3
108267098螺母 (.250-20) 不锈钢NUT (.250-20) Stainless Steel3
1126419螺母 (#8-32) 黄铜 电磁阀端子 (8-32)NUT (#8-32) Brass SOLENOID TERMINAL (8-32)4
1294330螺母 (.250-20) 黄铜 电磁阀端子 (1/4-20)NUT (.250-20) Brass SOLENOID TERMINAL (1/4-20)4
1397861绝缘体 启动电磁阀 (旧设计)INSULATOR STARTER SOLENOID (OLD DESIGN)2
1487379A14电线总成 (2.750英寸) (2-3/4" - RED)WIRE ASSEMBLY (2.750 Inches) (2-3/4" - RED)1
1488807A8线束总成 (3.50英寸) 黑色 (3-1/2" - BLACK)CABLE ASSEMBLY (3.50 Inches) Black (3-1/2" - BLACK)2
1588807A29电缆总成(9英寸-黑色)CABLE ASSEMBLY (9" - BLACK)1
1690077扎带TIE STRAPAR
16816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
1743542点火线圈盖COVER IGNITION COIL2
187370A13点火线圈总成COIL ASSEMBLY Ignition6
188M0230859点火线圈总成COIL IGNITION ASY6
1990048点火线圈盖螺钉(#10-32 x 2.125)SCREW (#10-32 x 2.125) IGNITION COIL COVER8
2090078盖板螺钉/接地线螺母(#10-32)NUT (#10-32) COVER SCREW/GROUND WIRE14
21813715A9高压点火线束套件CABLE KIT Ignition HIGH TENSION1
2263709A1高压电缆护套/端子套件BOOT/TERMINAL KIT HIGH TENSION CABLE6
2314103568火花塞SPARK PLUG6
23896329885SP #L6VC @4SP #L6VC @46
2445076螺母(#10-32)黄铜点火线圈端子NUT (#10-32) Brass IGNITION COIL TERMINAL12
2588807A13线束总成 (5-1/2" - BLACK)CABLE ASSEMBLY (5-1/2" - BLACK)6
2669022SCREW (#10-32 x .500) Stainless Steel GROUNDING WIRE2
2769739A7线圈至开关盒线束总成HARNESS ASSEMBLY COIL TO SWITCH BOX1
2854676双线固定夹RETAINER Two Wire2
29814423T线圈板盖COVER COIL PLATE1
30814343螺钉 (#10-32 x 2.380)SCREW (#10-32 x 2.380)4
图 47齿轮箱(螺旋桨轴)(标准旋转) GEAR HOUSING (PROP SHAFT)(STANDARD ROTATION)
齿轮箱(螺旋桨轴)(标准旋转) GEAR HOUSING (PROP SHAFT)(STANDARD ROTATION)
REF零件编号中文名称英文名称数量
19148T93基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
4989594A1从动件总成FOLLOWER ASSEMBLY1
50789562换挡凸轮SHIFT CAM1
51828287杆ROD1
52828174A2齿轮组GEAR SET1
52878613A2前进齿轮总成 1.87:1 - 15/28齿GEAR ASSEMBLY Forward 1.87:1 - 15/281
5344491A1垫片组(0.006-7-9-10-20)SHIM SET (.006-7-9-10-20)AR
538M0063266垫片组SHIM SETAR
5430894A1圆锥轴承组BEARING SET Cup And Cone1
5530895滚针轴承BEARING Needle1
5530895T滚针轴承BEARING Needle1
56854735T滑动离合器CLUTCH Sliding1
56859340T离合器CLUTCH1
5730632十字销PIN Cross1
578M0100263十字销PIN Cross1
58828356定位销PIN Detent1
5930893弹簧SPRING1
6094148螺旋桨轴PROPELLER SHAFT1
61828175A1倒车齿轮总成-15/28齿GEAR ASSEMBLY Reverse - 15/281
62824108隔套SPACER1
63681001止推环RING Thrust1
6488957滚珠轴承总成BEARING ASSEMBLY Ball1
6488957T滚珠轴承BEARING Ball1
6531534O型圈O-RING1
658M0214920O型圈O RING1
6643567A1轴承座总成CARRIER ASSEMBLY Bearing1
6643567T1轴承座总成CARRIER ASSEMBLY Bearing1
6730956滚针轴承BEARING Needle1
6730956T滚针轴承BEARING Needle1
6814077油封(内侧)SEAL Oil (INSIDE)1
6976868油封(外侧)SEAL (OUTSIDE)1
698M0248882油封@5SEAL-OIL @51
7030281键KEY1
7179447锁紧垫圈TAB WASHER1
7279448固定座RETAINER1
728M2011027固定座RETAINER1
73316405平衡鳍板TRIM TAB1
738M0236553平衡鳍板TRIM TAB1
7376214A5阳极套件ANODE KIT1
7376214Q5阳极套件ANODE KIT1
74806327螺钉(.437-14 x 1.750)SCREW (.437-14 x 1.750)1
748M0204686螺钉SCREW1
7565210螺钉(.375-16 x 1.00)SCREW (.375-16 x 1.00)1
7645176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel2
7734933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
778M0204653螺母NUT2
-815791A92发动机垫片组GASKET SET Engine1
-89238A2密封套件SEAL KIT1
图 48燃油管路 Fuel Lines
燃油管路 Fuel Lines
REF零件编号中文名称英文名称数量
1816856A3燃油接头总成-塑料CONNECTOR ASSEMBLY Fuel - Plastic1
269067燃油连接器螺钉(.250-20 x 1.375)SCREW (.250-20 x 1.375) FUEL CONNECTOR1
3812782密封件SEAL1
49912976油管TUBING1
48M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
5816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
5816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
6814964接头FITTING1
719688弯头接头FITTING (ELBOW)1
84301625油管(8.00英寸)TUBING (8.00 Inches)1
882381335油管(15.00英寸 散装)TUBING (15.00 Inches Bulk)1
999127109管路(57.00英寸 散装)LINE (57.00 Inches Bulk)4
98M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)4
10816296燃油滤清器FILTER Fuel1
10816296Q03燃油滤清器@3FILTER-FUEL @31
1167751衬垫GASKET3
1227037双头螺栓(.250-28×1.125)STUD (.250-28 x 1.125)6
12270372双头螺栓(.250-28×1.125)STUD (.250-28 x 1.125)6
1355098J型卡扣J CLIP1
138M0024808J型夹J-CLIP1
1455715螺钉(.250-20×0.880)SCREW (.250-20 x .880)6
1526992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel6
1629598不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel6
179912878软管 (.187) (26.00英寸散装)HOSE (.187) (26.00 Inches Bulk)3
1899130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
18892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
1942859A2加浓阀总成VALVE ASSEMBLY Enrichner1
20633001卡箍CLAMP1
2173286螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel1
229912688管材 (36.00英寸散装)TUBING (36.00 Inches Bulk)2
2345915端子排TERMINAL BLOCKAR
2448408螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)AR
2438055螺钉(0.190-32x0.620)SCREW (.190-32 x .620)AR
2462568螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)AR
2469079螺钉 (#10-16 x .440)SCREW (#10-16 x .440)AR
-815791A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1
-815809A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1
-815810A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1
图 49工具 Tools
工具 Tools
REF零件编号中文名称英文名称数量
0881824001工具-故障指示灯TOOL Malfunction Indicator Lamp1
0881824002工具-定子线圈测试线束(6针)TOOL Stator Coil Test Harness (6-Pin)1
0881824004测试线束总成HARNESS ASSEMBLY Test1
0881824003工具-燃油压力表适配器TOOL Fuel Pressure Gauge Adapter1
08M0075272仪表适配器GAUGE ADAPTOR1
图 50齿轮箱对照表 GEAR HOUSING CHART
齿轮箱对照表 GEAR HOUSING CHART
REF零件编号中文名称英文名称数量
0840470T9齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
0840470T27齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
0840470T8齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
0840306T6齿轮箱总成(含扭矩片)GEAR HOUSING ASSEMBLY Complete, With Torque Tab1
0840307T12齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
0840306T7齿轮箱总成(含扭矩片)GEAR HOUSING ASSEMBLY Complete, With Torque Tab1
0840307T13齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
0859399T22齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
08M0236198GC DSI XL 1.75GC DSI XL 1.751
0840307T10齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
0840307T11齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
0859399T23齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
08M0236209GC DSI CXL 1.75GC DSI CXL 1.751

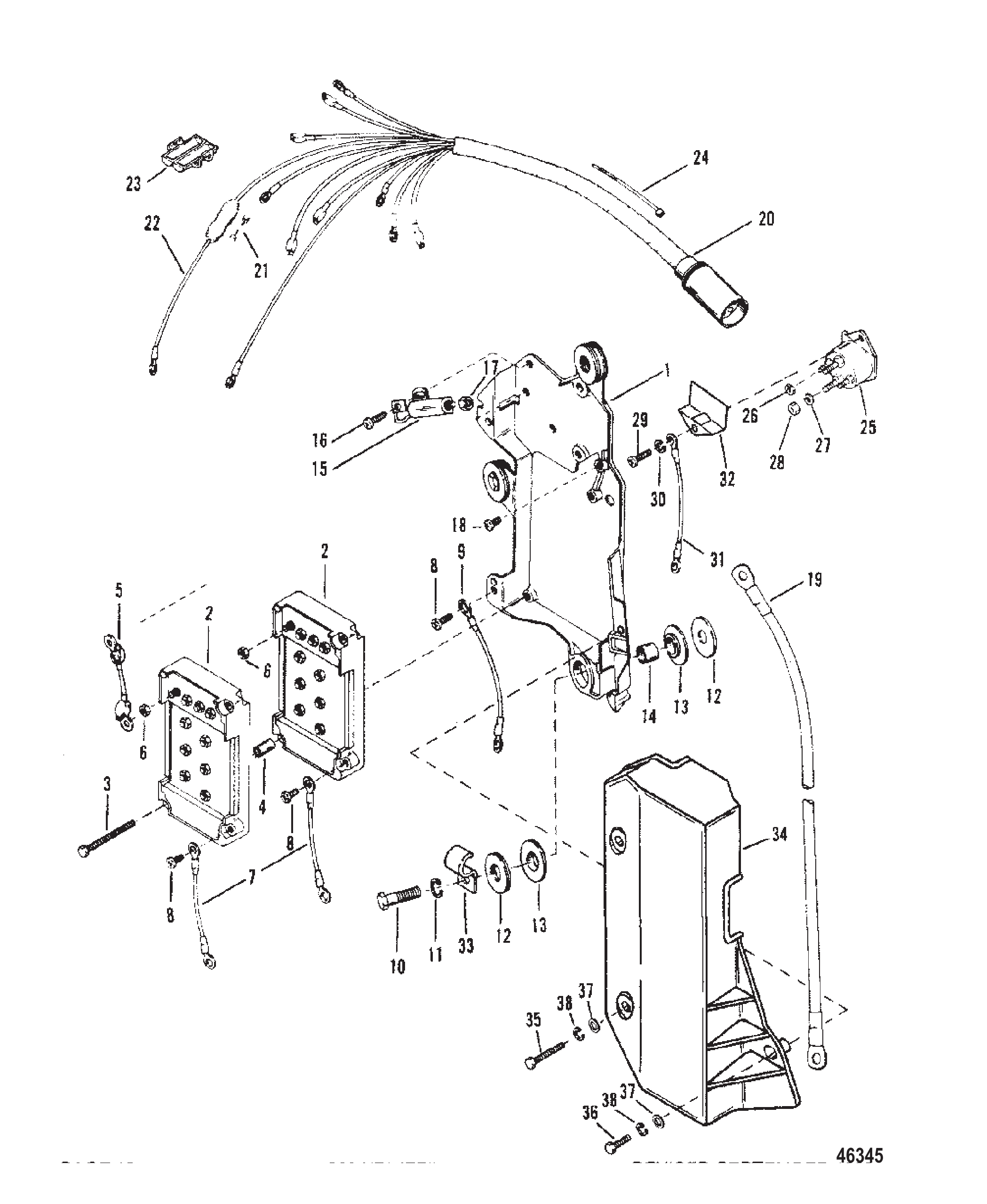

图 51线束/启动继电器 Wiring Harness/Starter Solenoid
线束/启动继电器 Wiring Harness/Starter Solenoid
REF零件编号中文名称英文名称数量
图 52旋转支架与转向臂 Swivel Bracket And Steering Arm
旋转支架与转向臂 Swivel Bracket And Steering Arm
REF零件编号中文名称英文名称数量
图 53双缆连接套件 Dual Cable Attaching Kit
双缆连接套件 Dual Cable Attaching Kit
REF零件编号中文名称英文名称数量
-92876A8转向安装套件ATTACHING KIT Steering1
141055A1支架总成BRACKET ASSEMBLY1
2715651转向拉索套管TUBE Steering Cable1
348462O型圈 (.614 x .070)O-RING (.614 x .070)1
4821203锁紧垫圈LOCKWASHER2
537984螺母 (.875-14)NUT (.875-14)2
58M0041651螺母 (.875-14)NUT (.875-14)2
638601螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250)4
778968内锁紧垫圈 (.250)LOCKWASHER Internal (.250)4
8850791T联轴器COUPLER1
973732螺钉 (.375-24 x 1.120)SCREW (.375-24 x 1.120)2
1037828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel2
11826709113不锈钢螺母 (.375-24)NUT (.375-24) Stainless Steel3
118M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass3
图 54顶罩 Top Cowl
顶罩 Top Cowl
REF零件编号中文名称英文名称数量
1827328T9顶盖总成TOP COWL ASSEMBLY1
1827328T10顶盖总成TOP COWL ASSEMBLY1
2821256T1黑色进气口INLET Air - Black1
2821256T03进气口INLET Air1
2821256T2银色进气口INLET Air - Silver1
382130016螺钉(M6 x 16)SCREW (M6 x 16)4
4859356A1隔音毯套装SOUND BLANKET KIT1
4859356A02隔音毯套装SOUND BLANKET KIT1
5NSS不单独销售 隔音毯NOT SOLD SEPARATE Sound Blanket1
6NSS不单独销售 隔音毯NOT SOLD SEPARATE Sound Blanket1
7NSS不单独销售 隔音毯NOT SOLD SEPARATE Sound Blanket2
8823865盖塞CAP PLUG2
9831207T10手柄HANDLE1
9831207A16罩盖锁手柄套件HANDLE KIT Cowl Latch1
10812707衬套BUSHING2
11831214隔套SPACER1
1212134波形垫圈WASHER Wave1
13F481777凸轮锁轴CAM Latch Shaft1
138M0001081凸轮CAM1
144002316垫圈(6.60 X 17.0 X 1.5不锈钢)WASHER (6.60 X 17.0 X 1.5SS)1
148M0214930垫圈6.60 x 17.0 x 1.5WASHER 6.60 x 17.0 x 1.51
151993716螺钉(M6 x 16)SCREW (M6 x 16)1
16821249M2前支架BRACKET Front3
168M0036792支架BRACKET3
17815477缓冲器锁扣BUMPER Latch3
1829245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel6
188M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel6
19401366螺母(M6)不锈钢NUT (M6) Stainless Steel6
208237951挡圈RING Retaining1
21815263滚轮ROLLER1
218M0207770滚轮@3ROLLER @31
228155381滚动销PIN Roll1
2329245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
238M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
24401366螺母(M6)不锈钢NUT (M6) Stainless Steel1
2547341A11手动启动绳柄套件ROPE AND HANDLE KIT Manual Starting1
2612066Q9绳索ROPE1
2612066Q10启动绳@2ROPE-STARTER@21
图 55线束/启动电磁阀 WIRING HARNESS/STARTER SOLENOID
线束/启动电磁阀 WIRING HARNESS/STARTER SOLENOID
REF零件编号中文名称英文名称数量
1434291点火板 点火IGNITION PLATE IGNITION1
27778A9开关盒总成SWITCHBOX ASSEMBLY2
27778A12开关盒总成SWITCHBOX ASSEMBLY2
313669开关盒至点火板螺钉(#12-24 x 2.00)SCREW (#12-24 x 2.00) SWITCH BOX TO IGNITION PLATE2
494453开关盒螺钉衬套BUSHING SWITCH BOX SCREW2
588528A2线缆总成(6英寸-红/白)CABLE ASSEMBLY (6" - RED/WHITE)1
645076螺母(#10-32)黄铜开关盒端子NUT (#10-32) Brass SWITCH BOX TERMINAL20
760871A10线束总成-开关盒WIRE ASSEMBLY SWITCH BOX2
862568螺丝(#10-16 x 0.375)导线固定SCREW (#10-16 x .375) WIRE ATTACHING3
965999A3CABLE ASSEMBLY Black BLACK1
1069092点火板螺钉(1.25)SCREW (1.25) IGNITION PLATE3
1060411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)3
1126993锁紧垫圈(.312)点火板螺钉LOCKWASHER (.312) IGNITION PLATE SCREW3
118M0204647锁紧垫圈 (.312)LOCKWASHER (.312)3
1236042垫圈 点火板螺钉WASHER IGNITION PLATE SCREW6
1367264垫圈 (橡胶) 点火板螺钉 (RUBBER)WASHER (Rubber) IGNITION PLATE SCREW (RUBBER)6
1467268衬套 点火板螺钉BUSHING IGNITION PLATE SCREW3
1533386A3开关总成SWITCH ASSEMLBY1
1638055螺钉(.190-32 x .620)水银开关至点火板SCREW (.190-32 x .620) MERCURY SWITCH TO IGNITION PLATE1
1745076螺母 (#10-32) 黄铜水银开关端子NUT (#10-32) Brass MERCURY SWITCH TERMINAL1
1887926螺钉(#10-32 x .500)导线固定SCREW (#10-32 x .500) LEAD ATTACHING1
1988439A3线束总成 正极 - 电池 POSITIVECABLE ASSEMBLY Positive - Battery POSITIVE1
1988439A2电缆总成 电池负极CABLE ASSEMBLY Battery - Negative NEGATIVE1
2096220A13发动机线束总成HARNESS ASSEMBLY ENGINE1
2096220A12线束总成HARNESS ASSEMBLY1
2179091保险丝20安培FUSE 20 Ampere1
218M0207796保险丝20安培FUSE 20 AMP1
2295084A2电缆总成-保险丝CABLE ASSEMBLY FUSE1
23134731保险丝座HOLDER Fuse1
2490077线束扎带TIE STRAP HARNESS AND CABLESAR
24816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
2515857启动电磁阀SOLENOID Starter1
25853654A1电磁阀SOLENOID1
2645076螺母 (#10-32) 黄铜 电磁阀端子 (10-32)NUT (#10-32) Brass SOLENOID TERMINALS (10-32)2
2753166锁紧垫圈 (.312) 电磁阀端子 (5/16")LOCKWASHER (.312) SOLENOID TERMINALS (5/16")2
2868292螺母 (.312-18) 电磁阀端子 (5/16-18)NUT (.312-18) SOLENOID TERMINALS (5/16-18)2
288M0204668螺母(.312-18)NUT (.312-18)2
2931716螺钉(.250-20 x .620)电磁阀至点火板SCREW (.250-20 x .620) SOLENOID TO IGNITION PLATE2
3026992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel2
3165999A2线束总成 黑色 上部支架 (BLACK)CABLE ASSEMBLY Black UPPER MOUNT (BLACK)1
3278866绝缘体 电磁阀 (旧设计)INSULATOR SOLENOID (OLD DESIGN)1
3347483J型卡扣J CLIP2
34814422T点火板盖COVER IGNITION PLATE1
3588447螺钉 (.190-32 x 1.62)SCREW (.190-32 x 1.62)2
3669020螺钉(#10-32 x .875)SCREW (#10-32 x .875)1
36690201螺钉(#10-32 x .875)SCREW (#10-32 x .875)1
3789302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)3
3826992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel3
图 56喷油组件 OIL INJECTION COMPONENTS
喷油组件 OIL INJECTION COMPONENTS
REF零件编号中文名称英文名称数量
112430A4传感器总成SENSOR ASSEMBLY1
248409螺钉(#10-16 x .625)不锈钢传感器固定(5/8")SCREW (#10-16 x .625) Stainless Steel SENSOR ATTACHING (5/8")1
3815699油泵总成PUMP ASSEMBLY Oil1
3815699T油泵总成PUMP ASSEMBLY Oil1
3A814103轴承(带密封)BEARING (W/SEAL)1
3A8141032蜗杆衬套BUSHING Worm1
411379油泵O型圈O-RING OIL PUMP1
541429A2驱动齿轮轴承总成BEARING ASSEMBLY DRIVE GEAR1
612726从动齿轮GEAR Driven1
614563从动齿轮GEAR Driven1
732228螺钉(#10-32 x .625)油泵至曲轴箱(5/8")SCREW (#10-32 x .625) OIL PUMP TO CRANKCASE (5/8")1
741507螺钉(#10-32 x 1.120)油泵至曲轴箱(1-1/8")SCREW (#10-32 x 1.120) OIL PUMP TO CRANKCASE (1-1/8")1
81938512油门连杆至油泵总成LINK ASSEMBLY THROTTLE LEVER TO OIL PUMP1
94301619油泵油管TUBING OIL PUMP1
982381335油管(15.00英寸 散装)TUBING (15.00 Inches Bulk)1
1099443T油箱RESERVOIR Oil1
10994436储液罐RESERVOIR1
11415823油管卡箍(大)CLAMP OIL HOSE (LARGE)2
124301736油箱至油泵油管TUBING OIL RESERVOIR TO OIL PUMP1
1282381455油管（25.00英寸散装）TUBING (25.00 Inches Bulk)1
1369020螺钉(#10-32 x .875)油箱固定(7/8")SCREW (#10-32 x .875) OIL RESERVOIR ATTACHING (7/8")3
13690201螺钉(#10-32 x .875)SCREW (#10-32 x .875)3
1442118油箱螺钉垫圈WASHER OIL RESERVOIR SCREW6
1542117油箱螺钉衬套GROMMET OIL RESERVOIR SCREW3
1642116油箱螺钉轴套BUSHING OIL RESERVOIR SCREW3
1799127109油管(57.00英寸散装)LINE (57.00 Inches Bulk) OIL1
178M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
1842425油管三通TEE OIL TUBING1
199072925油管(6-3/4")HOSE OIL (6-3/4")1
20NA不可用壳体总成NOT AVAILABLE HOUSING ASSEMBLY1
2199439油管(114.00英寸)HOSE (114.00 Inches) OIL1
2212540A3壳体HOUSING1
2312242A1闩锁LATCH1
2443278止回阀接头(曲轴箱)FITTING CHECK CALVE (CRANKCASE)1
248781051止回阀CHECK VALVE1
2587421油箱TANK1
2643298A2油箱盖总成CAP ASSEMBLY OIL TANK1
2711332O型圈(2.225 x .210)盖O-RING (2.225 x .210) CAP1
2843295A5壳体总成适配器HOUSING ASSEMBLY Adaptor1
28816190A4机油收集器总成(无传感器)OIL PICK UP ASSEMBLY Without Sender1
2911332O型圈(2.225 x .210)适配器壳体O-RING (2.225 x .210) ADAPTOR HOUSING1
3099802吸油管TUBE OIL PICK-UP1
3143300A1油箱盖总成CAP ASSEMBLY OIL RESERVOIR1
3143300A9盖总成CAP ASSEMBLY1
3243307油箱盖衬垫GASKET RESERVOIR CAP1
3243307T衬垫GASKET1
3399022A1浮子总成FLOAT ASSEMBLY1
338M0187298浮子总成FLOAT ASSY1
3499265压入式螺母PUSH NUT1
35415824油管卡箍(小)CLAMP OIL HOSE (SMALL)2
3690077扎带TIE STRAPAR
36816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
3712335A1支架套件BRACKET KIT1
3812323A1绳索/挂钩套件CORD/HOOK KIT1
图 57油门杆与换挡轴 Throttle Lever and Shift Shaft
油门杆与换挡轴 Throttle Lever and Shift Shaft
REF零件编号中文名称英文名称数量
174897PIVOT TRIGGER PLATE1
262459球头总成触发板BALL JOINT ASSEMBLY TRIGGER PLATE1
262459T球头节总成BALL JOINT ASSY1
345076螺母(#10-32)黄铜连杆NUT (#10-32) Brass LINK ROD1
476035触发板连杆ROD TRIGGER PLATE1
546438螺母(#10-32)球头NUT (#10-32) BALL JOINT1
641094A3点火提前杆总成LEVER ASSEMBLY SPARK ADVANCE1
764022螺丝(.250-20x2.125)点火提前杆-止动SCREW (.250-20 x 2.125) SPARK ADVANCE LEVER - STOP1
864015螺母(.250-20)点火提前止动螺丝NUT (.250-20) SPARK ADVANCE STOP SCREW1
926852尼龙帽点火提前杆止动螺丝CAP Nylon SPARK ADVANCE LEVER STOP SCREW1
1013627螺钉（0.190-32 x 1.250）点火提前杠杆-止动（1-1/4英寸）SCREW (.190-32 x 1.250) SPARK ADVANCE LEVER - STOP (1-1/4")1
1168219螺母(#10-32)不锈钢点火提前杆止动螺丝NUT (#10-32) Stainless Steel SPARK ADVANCE LEVER STOP SCREW1
1248039点火提前杆止动螺丝帽CAP SPARK ADVANCE LEVER STOP SCREW1
1341095T油门控制杆LEVER THROTTLE CONTROL1
13410952杠杆LEVER1
1455337螺钉（0.375-16 x 1.75）节气门杠杆/提前杠杆（1-3/4英寸）SCREW (.375-16 x 1.75) THROTTLE LEVER/ADVANCE LEVER (1-3/4")1
14818165螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
1555164油门杠杆衬套BUSHING THROTTLE LEVER1
1655171点火提前杆衬套BUSHING SPARK ADVANCE LEVER1
1768784节气门与点火提前杆弹簧SPRING THROTTLE AND SPARK ADVANCE LEVER1
1868410点火提前杆垫片WASHER SPARK ADVANCE LEVER1
1846765垫圈 (.390 x 1.50 x .120)WASHER (.390 x 1.50 x .120)1
1964022螺钉（0.250-20 x 2.125）节气门杠杆-止动（2-1/8英寸）SCREW (.250-20 x 2.125) THROTTLE LEVER - STOP (2-1/8")1
2064015螺母(.250-20)节气门杆止动螺丝NUT (.250-20) THROTTLE LEVER STOP SCREW1
2126852尼龙帽节气门杆止动螺丝CAP Nylon THROTTLE LEVER STOP SCREW1
2239483锁扣拉线LATCH CABLE1
2322486螺丝(.250-28x.880)拉线锁扣至节气门杆SCREW (.250-28 x .880) CABLE LATCH TO THROTTLE LEVER1
2369026螺钉 (.250-28 x .880)SCREW (.250-28 x .880)1
2420099拉线锁扣至节气门杆弹簧SPRING CABLE LATCH TO THROTTLE LEVER1
2520586螺母(.250-28)拉线锁扣螺丝NUT (.250-28) CABLE LATCH SCREW1
25826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
2614634节气门控制杆ROD THROTTLE CONTROL1
2714638节气门控制杆套筒BARREL THROTTLE CONTROL ROD1
28146351节气门凸轮CAM Throttle1
2993248衬套BUSHING1
298M0215006旋转衬套BUSHING Swivel1
3026856节气门凸轮衬套BUSHING THROTTLE CAM2
3135045螺母（0.250-28）节气门凸轮螺柱NUT (.250-28) THROTTLE CAM STUD1
31826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
3241050节气门复位弹簧SPRING THROTTLE RETURN1
3392032A2支架锚-控制电缆BRACKET ANCHOR - CTRL CABLES1
33814283A2支架总成BRACKET ASSEMBLY1
33814283A1控制线缆锚定支架BRACKET ANCHOR - CONTROL CABLES1
33814283A2支架总成BRACKET ASSEMBLY1
3498889控制线缆锁扣LATCH CONTROL CABLE1
3542975闩锁传动螺钉DRIVE SCREW LATCH2
3653167螺丝(.312-18x.880)锚定支架固定SCREW (.312-18 x .880) ANCHOR BRACKET ATTACHING3
3653167T螺钉 0.312-18X 0.88SCREW .312-18X .883
3737896连杆导向块GUIDE BLOCK LINK ROD1
37814284连杆导向块GUIDE BLOCK LINK ROD1
3820099连杆至导向块弹簧SPRING LINK ROD TO GUIDE BLOCK1
3967073A1连杆总成LINK ROD ASSEMBLY1
4052100连杆耐磨板WEAR PLATE LINK ROD1
4138279控制线缆闩锁紧固件LATCH CONTROL CABLE FASTENING1
418M0036768闩锁LATCH1
4235462垫圈(.2656x.625x.0625)不锈钢锁扣WASHER (.2656 x .625 x .0625) Stainless Steel LATCH1
4335045螺母（0.250-28）连杆NUT (.250-28) LINK ROD1
43826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
4479932A11换挡轴总成SHIFT SHAFT ASSEMBLY1
4479932A16换挡轴总成SHIFT SHAFT ASSEMBLY1
4529720连杆波形垫圈WAVE WASHER LINK ROD1
4626600尼龙衬套-连杆BUSHING NYLON - LINK ROD1
4735462垫圈(.2656 x .625 x .0625)不锈钢连杆WASHER (.2656 x .625 x .0625) Stainless Steel LINK ROD1
4835045螺母（0.250-28）连杆至换挡轴NUT (.250-28) LINK ROD TO SHIFT SHAFT1
48826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
4939519杯形保持器-锚杆CUP BARRELL RETAINER - ANCHOR BAR1
图 58动力转向组件（遥控） POWER STEERING COMPONENTS (REMOTE)
动力转向组件（遥控） POWER STEERING COMPONENTS (REMOTE)
REF零件编号中文名称英文名称数量
117771支架MOUNT1
259702螺钉 (.250-28 x .875) 不锈钢SCREW (.250-28 x .875) Stainless Steel4
388404锁紧垫圈TAB WASHER4
478862A2密封套件SEAL KIT1
419624A1密封套件SEAL KIT1
571565A2管总成TUBE ASSEMBLY1
617776联轴器COUPLING1
7817040螺钉 (.375-24 x 2.75)SCREW (.375-24 x 2.75)1
834931不锈钢垫圈(.406x.734x.063)WASHER (.406 x .734 x .063) Stainless Steel1
990092螺钉SCREW1
9856722螺钉SCREW1
1034863螺母 (.375-24)NUT (.375-24)2
108M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass2
1142100锁紧垫圈TAB WASHER2
1237984螺母 (.875-14)NUT (.875-14)2
128M0041651螺母 (.875-14)NUT (.875-14)2
13811290蓄能器 (参见蓄能器分解图)ACCUMULATOR (See Accumulator for Breakdown)1
14817372支架BRACKET1
1516862螺钉 (.250-10 x 1.25)SCREW (.250-10 x 1.25)4
1629245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel4
168M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel4
174000383螺钉 (M10 x 70)SCREW (M10 x 70)2
184002319垫圈WASHER4
1913914螺母(M10)NUT (M10)2
1940140螺母(M10)NUT (M10)2
208112891执行器ACTUATOR1
20828588A2执行器套件ACTUATOR KIT1
2194319螺钉(.375-24 x 1.5)SCREW (.375-24 x 1.5)1
2217405隔套SPACER2
2334863螺母 (.375-24)NUT (.375-24)3
238M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass3
2414000螺钉(.375-24x1.25)SCREW (.375-24 x 1.25)1
24849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)1
2592876A4连杆总成LINK ROD ASSEMBLY1
2668300垫圈 (.88 x .39 x .06)WASHER (..88 x .39 x .06)1
274000330螺钉(M6x25)SCREW (M6 x 25)2
278M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
2843450垫圈WASHER2
284002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)2
298268336螺母 (M6)NUT (M6)2
29401386螺母(M6)不锈钢NUT (M6) Stainless Steel2
30811292卡箍CLAMP1
31818182螺钉SCREW2
32400263螺母 (M5)NUT (M5)2
33811291支架BRACKET1
3438601螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250)4
35197491卡箍CLAMP1
3618211继电器开关RELAY SWITCH1
3718244A1线束总成HARNESS ASSEMBLY1
3818124螺钉 (#10-32 x .750)SCREW (#10-32 x .750)1
3990329护孔环GROMMET1
40309772隔套SPACER1
41816994支架BRACKET1
4242118垫圈WASHER1
4329488螺母 (#10-32)NUT (#10-32)1
438M0204718螺母NUT1
4481563024贴花DECAL1
图 59化油器（WMH-30/31/32/33/34） CARBURETOR (WMH-30/31/32/33/34)
化油器（WMH-30/31/32/33/34） CARBURETOR (WMH-30/31/32/33/34)
REF零件编号中文名称英文名称数量
1818650A28化油器 上部CARBURETOR Top1
1818650A29化油器 中部CARBURETOR Center1
1818650A55化油器底部(30A)CARBURETOR Bottom (30A)1
1818650A31化油器 上部CARBURETOR Top1
1818650A32化油器 中部CARBURETOR Center1
1818650A56化油器底部(31A)CARBURETOR Bottom (31A)1
1818650A34化油器 上部CARBURETOR Top1
1818650A35化油器 中部CARBURETOR Center1
1818650A57化油器底部(32A)CARBURETOR Bottom (32A)1
1818650A37化油器 上部CARBURETOR Top1
1818650A38化油器 中部CARBURETOR Center1
1818650A58化油器底部(33A)CARBURETOR Bottom (33A)1
1818650A52化油器 上部CARBURETOR Top1
1818650A53化油器 中部CARBURETOR Center1
1818650A59化油器底部(34A)CARBURETOR Bottom (34A)1
2810779盖帽CAP6
3NSS不单独销售 怠速混合螺钉/弹簧NOT SOLD SEPARATE Idle Mixture Screw/Spring6
5677511衬垫GASKET3
6815633060喷口(.060)(.056-135)JET (.060) (.056 - 135)6
67570喷口.040(XR6/MAGNUM III)JET .040 (XR6/MAGNUM III)6
6815633050喷口(.050)(150/175/200)JET (.050) (150/175/200)6
7810721节气门杆 (上部/中部)LEVER Throttle (TOP/CENTER)2
7810722节流阀杆(底部-WMH系列)LEVER Throttle (BOTTOM - WMH-SERIES)1
78107221节流阀杆(底部-WMH-A系列)LEVER Throttle (BOTTOM - WMH-A SERIES)1
8811284隔套SPACER3
9810745垫圈WASHER3
10810744螺母NUT3
11NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring3
125815喷口(.086)(150)JET (.086) (150)3
126247主喷口(.090)(XR6/MAGNUM III)JET Main (.090) (XR6/MAGNUM III)3
123517喷口(.084)(135/175/200)JET (.084) (135/175/200)3
135225主喷口(.054)(135)JET Main (.054) (135)3
136359喷口(.052)(150)JET (.052) (150)3
136246量孔 (.048) (175)JET (.048) (175)3
137831燃油主喷口(.058)(XR6/MAGNUM III)JET Main Fuel (.058) (XR6/MAGNUM III)3
135317量孔 (.046) (200)JET (.046) (200)3
14NSSNOT SOLD SEPARATE Gasket-Fuel Bowl3
15810738浮子总成FLOAT ASSEMBLY3
16F10064轴SHAFT3
17NSS不单独销售 浮子螺钉NOT SOLD SEPARATE Screw-Float3
18811690阀座套件VALVE SEAT KIT3
19NSS不单独销售 阀座垫片NOT SOLD SEPARATE Gasket-Valve Seat3
20823623燃油杯(顶部)BOWL Fuel (TOP)1
20823624燃油杯(中部/底部)BOWL Fuel (CENTER/BOTTOM)2
219596堵头PLUG15
22NSS不单独销售 动力/渐进喷口垫片NOT SOLD SEPARATE Gasket-Power/Progression JetAR
234215燃油主喷口(.066)(135)JET Main Fuel (.066) (135)6
234217主喷口(.062)(150/XR6/MAGNUM III)JET Main (.062) (150/XR6/MAGNUM III)6
234216喷口(.064)(175)JET (.064) (175)6
234215燃油主喷口(.066)(200-顶部)JET Main Fuel (.066) (200 - TOP)2
234216喷口(.064)(200-中部/底部)JET (.064) (200 - CENTER/BOTTOM)4
24808584动力喷口POWER JET6
25808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)18
267900三通接头(顶部/中部)TEE FITTING (TOP/CENTER)2
277901弯头(底部)ELBOW (BOTTOM)1
-8107492化油器垫片套件GASKET KIT Carburetor1
-8116912化油器维修套件REPAIR KIT Carburetor1
-815791A92发动机垫片组GASKET SET Engine1
图 60动力升降马达 POWER TRIM MOTOR
动力升降马达 POWER TRIM MOTOR
REF零件编号中文名称英文名称数量
-828708电机总成MOTOR ASSEMBLY1
1828714A1电刷与密封套件BRUSH AND SEAL KIT1
2828713A1电枢套件ARMATURE KIT1
2828713T1电枢套件ARMATURE KIT1
3828715A1端架（总成）END FRAME (COMPLETE)1
图 61燃油管路（用于 WMH-30/31/32/33/34 化油器） FUEL LINES (Use With WMH -30/31/32/33/34 Carburetors)
燃油管路（用于 WMH-30/31/32/33/34 化油器） FUEL LINES (Use With WMH -30/31/32/33/34 Carburetors)
REF零件编号中文名称英文名称数量
1816856A3燃油接头总成-塑料CONNECTOR ASSEMBLY Fuel - Plastic1
269067螺钉(.250-20×1.375)SCREW (.250-20 x 1.375)1
3812782密封件SEAL1
49912980软管HOSEAR
48M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)AR
5816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
5816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
6818993三通接头CONNECTOR Tee1
718175软管HOSE1
8818994止回阀CHECK VALVE1
88189941止回阀CHECK VALVE1
982381325管材(10.00英寸散装)TUBING (10.00 Inches Bulk)1
982381335油管(15.00英寸 散装)TUBING (15.00 Inches Bulk)1
10824001软管HOSE1
10830762软管HOSE1
118162961燃油滤清器FILTER Fuel1
11816296Q2燃油滤清器FILTER Fuel1
12830756109软管(57.00英寸散装)HOSE (57.00 Inches Bulk)1
128M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
13677511衬垫GASKET3
1427037双头螺栓(.250-28×1.125)STUD (.250-28 x 1.125)6
14270372双头螺栓(.250-28×1.125)STUD (.250-28 x 1.125)6
1526992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel6
1629598不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel6
1755715螺钉(.250-20×0.880)SCREW (.250-20 x .880)6
1842859A2加浓阀总成VALVE ASSEMBLY Enrichner1
19633001卡箍CLAMP1
2073286螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel1
219912688管材 (36.00英寸散装)TUBING (36.00 Inches Bulk)2
2299130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
22892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
2345915端子排TERMINAL BLOCK1
248128321螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
24878609螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
24817626螺钉(#10-16×0.380)SCREW (#10-16 x .380)1
24878607螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)1
-815791A92发动机垫片组GASKET SET Engine1
图 62附件 Accessories
附件 Accessories
REF零件编号中文名称英文名称数量
086306A01适配器ADAPTER1
0821400A2动力升降倾斜传感器套件SENDER KIT Power Trim1
08M0074845ORD 8M0098264ORD 8M00982641
092876A8转向安装套件ATTACHING KIT Steering1
092876A9双机延长套件EXTENSION KIT Dual Engine1
0883040A1转速表模块套件TACH MODULE KIT1
图 63齿轮箱螺旋桨轴-反向旋转 Gear Housing Propeller Shaft - Counter Rotation
齿轮箱螺旋桨轴-反向旋转 Gear Housing Propeller Shaft - Counter Rotation
REF零件编号中文名称英文名称数量
0840561T69齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
0840561T70齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
0840561T71齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
1849781A2基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
18M0084203齿轮箱-SM型GEAR HOUSING-SM1
289594A1从动件总成FOLLOWER ASSEMBLY1
3789562换挡凸轮SHIFT CAM1
479911A1杆ROD1
579910弹簧SPRING2
678906销PIN1
68M0084245弹簧定位销PIN Spring Locator1
778910垫圈WASHER2
814469T轴承杯CUP Bearing1
988957T滚珠轴承BEARING Ball1
10NSS倒车齿轮(不单独销售 属于43-15845A2部件)NOT SOLD SEPARATE Reverse Gear (PART OF 43-15845A2)1
1115844滚柱轴承总成BEARING ASSEMBLY Roller1
1242672T棘轮RATCHET1
1378909定位销PIN Detent2
1442671十字销PIN Cross1
1578962弹簧SPRING2
1615845A2齿轮组GEAR SET1
17176151调整垫片(.125)SPACER SHIM (.125)AR
17176152调整垫片(.127)SPACER SHIM (.127)AR
17176153调整垫片(.129)SPACER SHIM (.129)AR
17176154调整垫片(.131)SPACER SHIM (.131)AR
17176155调整垫片(.133)SPACER SHIM (.133)AR
17176156调整垫片(.135)SPACER SHIM (.135)AR
17176157调整垫片(.137)SPACER SHIM (.137)AR
17176158调整垫片(.139)SPACER SHIM (.139)AR
17176159调整垫片(.141)SPACER SHIM (.141)AR
171761510调整垫片(.143)SPACER SHIM (.143)AR
171761511调整垫片(.145)SPACER SHIM (.145)AR
171761512调整垫片(.147)SPACER SHIM (.147)AR
171761513调整垫片(.149)SPACER SHIM (.149)AR
1815841滚柱轴承BEARING Roller1
1917616推力环THRUST RING1
2031534O型圈O-RING1
208M0214920O型圈O RING1
2115838A2轴承适配器总成ADAPTER ASSEMBLY Bearing1
2215843T滚针轴承BEARING Needle1
2315834推力轴承BEARING Thrust2
24815495T螺旋桨轴PROPELLER SHAFT1
24840450A2螺旋桨轴PROPELLLER SHAFT1
24840450A03螺旋桨轴套件PROPELLER SHAFT KIT1
25847616T1轴承座CARRIER Bearing1
26817072滚柱轴承BEARING Roller1
27815565油封SEAL Oil2
28817071卡环RING Snap1
2967892A1磁吸式注油/放油塞套件FITTING KIT Magnetic, Plug Fill/Drain1
298M0058389放油螺钉套件SCREW KIT Drain1
30191833密封件SEAL1
308M0187157蓝色密封件@15SEAL-BLUE @151
3130281键KEY1
3279447锁紧垫圈TAB WASHER1
33158401盖板COVER1
34423511齿形锁紧垫圈LOCKWASHER Toothed1
3552707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
3641350螺钉(.437-14 x 2.50)不锈钢SCREW (.437-14 x 2.50) Stainless Steel1
3666024螺钉(.437-14 x 1.75)SCREW (.437-14 x 1.75)1
37822836垫圈(.445 x .805 x .108)WASHER (.445 x .805 x .108)2
38859116螺母(.437-20)NUT (.437-20)2
3930206螺钉(.375-16 x 1.00)不锈钢SCREW (.375-16 x 1.00) Stainless Steel1
3915929螺钉(.375-16 x 16 x 6.00)SCREW (.375-16 x 16 x 6.00)1
4076214T3阳极块ANODE1
4076214Q5阳极套件ANODE KIT1
4076214T1阳极块ANODE1
-89238A3齿轮箱密封套件SEAL KIT Gear Housing1
-90415A24螺柱套件STUD KIT1
-59579双头螺柱(.437-14/.437-20 x 2.812)STUD (.437-14/.437-20 x 2.812)1
-90415A25螺柱套件STUD KIT1
-840389K5轮毂套件HUB KIT1
-8M0183487重型螺旋桨轮毂套件HUB KIT-HD PROP1
-840382A1缓冲条套件SNUBBER STRIP KIT1
-840382A02缓冲条套件SNUBBER STRIP KIT1
图 64动力升降组件金属马达壳 Power Trim Components Metal Motor Housing
动力升降组件金属马达壳 Power Trim Components Metal Motor Housing
REF零件编号中文名称英文名称数量
-826729A2升降倾斜总成TRIM AND TILT ASSEMBLY1
1811604F歧管总成MANIFOLD ASSEMBLY1
256800管塞 (.0625-27)PLUG Pipe (.0625-27)9
3823552F气缸总成CYLINDER ASSEMBLY1
3880952A03ORD 8M0078330ORD 8M00783301
4823553配平活塞杆套件ROD KIT Trim Piston1
4823553T升降活塞杆ROD Trim Piston1
5811606导向套件GUIDE KIT1
5878239A02倾斜缸端盖套件END CAP KIT Tilt Cylinder1
6811607A1维修套件REPAIR KIT1
7811610A1止回阀套件CHECK VALVE KIT1
7823553T升降活塞杆ROD Trim Piston1
899638A1导向器总成GUIDE ASSEMBLY2
88M0021648端盖总成END CAP ASSEMBLY2
943397A6动力升降倾斜装置活塞/杆总成PISTON/ROD ASSEMBLY Power Trim1
9878413A1活塞总成PISTON ASSEMBLY1
943398A3动力升降倾斜装置活塞/杆总成PISTON/ROD ASSEMBLY Power Trim1
9878414T01活塞总成PISTON ASSEMBLY1
1012184A1升降过滤器总成TRIM FILTER ASSEMBLY1
11813442A2手动释放总成MANUAL RELEASE ASSEMBLY1
11893929A01安全阀套件VALVE KIT Relief1
12812844E型卡环E RING1
12815949001E形环E-RING1
13811612A2O型圈套件O-RING KIT1
13811612A3O型圈套件O-RING KIT1
14811617F泵PUMP1
14811617T1泵PUMP1
15811613塞子总成PLUG ASSEMBLY1
164000327螺钉 (M6 x 14)SCREW (M6 x 14)4
1743450垫圈WASHER4
174002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)4
18811611盖板COVER1
19828710驱动接头DRIVE JOINT1
20828708马达总成(动力配平马达分解件)MOTOR ASSEMBLY (BREAKDOWN ON PWER TRIM MOTOR)1
20878265A4配平电机TRIM MOTOR1
21828709螺钉SCREW2
21881768A1螺钉/垫圈套件SCREW/WASHER KIT2
21811616螺钉SCREW2
22811614轴总成SHAFT ASSEMBLY1
228M0142997倾斜轴套件TILT SHAFT KIT1
2356800管塞 (.0625-27)PLUG Pipe (.0625-27)2
2444431槽销PIN Groove1
24878267销PIN1
25821539三叶销PIN Trilobe1
26996251轴SHAFT1
2699625002轴SHAFT1
27818298A1阳极套件ANODE KIT1
27818298Q1阳极套件ANODE KIT1
284000330螺钉(M6x25)SCREW (M6 x 25)2
288M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
2929245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
298M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
304000377螺钉 (M10 x 30)SCREW (M10 x 30)6
314002319垫圈WASHER6
3226550卡箍CLAMP2
33817626螺钉(#10-16×0.380)SCREW (#10-16 x .380)2
33878607螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)2
3469205C形垫圈C WASHER2
348M0084613C形垫圈C-WASHER2
35996301冲击板STRIKER PLATE2
358M0045383冲击板STRIKER PLATE2
3658643锁紧垫圈 (.375)LOCKWASHER (.375)2
3746335螺母 (.375-24)NUT (.375-24)2
图 65旋转支架与转向臂 Swivel Bracket and Steering Arm
旋转支架与转向臂 Swivel Bracket and Steering Arm
REF零件编号中文名称英文名称数量
1818904T1旋转支架SWIVEL BRACKET1
287735下油封SEAL Oil Lower1
3818764衬套BUSHING2
433504O型圈O-RING1
48M0214926O型圈 @10O RING @101
5816039隔套SPACER1
674036润滑脂接头FITTING Grease2
68M0169589润滑脂接头FITTING Grease2
7821207衬套BUSHING2
864014螺钉(.250-28x.500)SCREW (.250-28 x .500)2
999661A26旋转销总成SWIVEL PIN ASSEMBLY1
999661A35旋转销总成SWIVEL PIN ASSEMBLY1
1092876A10连杆总成LINK ROD ASSEMBLY1
1092876A12连杆总成LINK ROD ASSEMBLY1
11849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)1
12826709113不锈钢螺母 (.375-24)NUT (.375-24) Stainless Steel2
128M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass2
1337828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel2
1442961A1底部轭架总成YOKE ASSEMBLY Bottom1
1442961A06底部轭架总成YOKE ASSEMBLY Bottom1
1567684挡圈RING Retaining1
16816432止推垫片THRUST WASHER1
17NSS不单独销售 贴纸, 序列号覆膜NOT SOLD SEPARATE Decal, Serial Overlaminate1
1811288下轭缓冲垫BUMPER Bottom Yoke1
1811288001下轭缓冲垫BUMPER Bottom Yoke1
1988882上轭缓冲垫BUMPER Top Yoke1
图 66驱动轴壳与排气管 Drive Shaft Housing And Exhaust Tube
驱动轴壳与排气管 Drive Shaft Housing And Exhaust Tube
REF零件编号中文名称英文名称数量
18343A7驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
256295驱动轴壳体/齿轮箱壳体双头螺柱(.437 x 2.69)STUD (.437 x 2.69) DRIVE SHAFT HSG./GEAR HSG.2
325067下安装座螺钉缓冲垫BUMPER LOWER MOUNT SCREW2
463474下安装座螺钉(.500-20 x 6.00)SCREW (.500-20 x 6.00) LOWER MOUNT2
4898831螺钉(.500-20 x 6.220)SCREW (.500-20 x 6.220)2
578249下支架MOUNT LOWER2
577327支架MOUNT2
649339下部安装螺钉垫圈(.8125)WASHER (.8125) LOWER MOUNT SCREW2
725096下安装螺丝螺母NUT LOWER MOUNT SCREW2
888238A1接地线总成CABLE ASSEMBLY Ground1
888238A10接地线总成CABLE ASSEMBLY Ground1
967076下安装夹CLAMP LOWER MOUNT2
98M0036782卡箍CLAMP2
1066727螺钉 (.312-18 x 1.250) 下部支架夹固定 (1-1/4")SCREW (.312-18 x 1.250) LOWER MOUNT CLAMP ATTACHING (1-1/4")4
1167077下安装夹盖COVER LOWER MOUNT CLAMP2
118M4500752盖板COVER2
1288417螺钉 (#12-24 x .620) 盖固定 (5/8")SCREW (#12-24 x .620) COVER ATTACHING (5/8")4
1335521螺母 尼龙-盖至夹螺钉NUT NYLON-COVER TO CLAMP SCREW4
1488238A2接地线总成CABLE ASSEMBLY Ground1
1488238A10接地线总成CABLE ASSEMBLY Ground1
1541508螺丝(.250-20 x .500)不锈钢接地线SCREW (.250-20 x .500) Stainless Steel GROUND WIRE1
1648926齿轮箱壳体螺柱垫圈WASHER GEAR HOUSING STUD1
1729489齿轮箱壳体螺柱盖形螺母NUT GEAR HOUSING STUD (CAP)1
1845176齿轮箱壳体螺柱不锈钢垫圈(.453 x .812 x .105)WASHER (.453 x .812 x .105) Stainless Steel GEAR HOUSING STUD2
1934933齿轮箱壳体螺柱不锈钢螺母(.437-20)NUT (.437-20) Stainless Steel GEAR HOUSING STUD2
198M0204653螺母NUT2
2064649驱动轴壳体塞PLUG DRIVE SHAFT HOUSING1
2189743排气管TUBE Exhaust1
2266350密封 排气管-下部SEAL EXHAUST TUBE-LOWER1
2266350001密封件SEAL1
2386027密封 排气管-上部SEAL EXHAUST TUBE-UPPER1
2467295水管 WATERTUBE Water WATER1
248M0042788长型水管TUBE-WATER-LONG1
25991731驱动轴壳体至板衬垫GASKET DRIVE SHAFT HOUSING TO PLATE1
25991734衬垫GASKET1
2641945A7驱动轴壳体板总成PLATE ASSEMBLY DRIVE SHAFT HOUSING1
27183982支架密封条SEAL BRACKET1
278M0043165密封件-27.00英寸SEAL-27.00 INCH1
2868011密封件固定支架BRACKET SEAL RETAINING1
29812832螺钉 (#10-16 x .500) 支架至板 (1/2")SCREW (#10-16 x .500) BRACKET TO PLATE (1/2")12
29878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)12
3020033定位销PIN Dowel LOCATING2
3043044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
3138970水管密封件SEAL WATER TUBE1
3290192延伸件至板不锈钢螺钉(.250-20 x .750)SCREW (.250-20 x .750) Stainless Steel EXTENSION TO PLATE6
33991771衬垫GASKET1
33991772衬垫GASKET1
3425970动力头螺柱垫圈WASHER POWER HEAD STUD4
3420553垫圈(.406 x .734 x .063)WASHER (.406 x .734 x .063)4
3569254动力头螺柱螺母NUT POWER HEAD STUD4
3641941扩散器 排气DIFFUSER EXHAUST1
3641941T排气扩散器DIFFUSER Exhaust1
3778246排气延长管衬垫GASKET EXHAUST EXTENSION1
37782461衬垫GASKET1
38814630塞 怠速泄压PLUG IDLE RELIEF1
-14697A87衬垫套件GASKET SET
图 67排气歧管与排气板 EXHAUST MANIFOLD AND EXHAUST PLATE
排气歧管与排气板 EXHAUST MANIFOLD AND EXHAUST PLATE
REF零件编号中文名称英文名称数量
1904841分隔板衬垫GASKET DIVIDER PLATE2
299169A1分隔板PLATE DIVIDER1
369668分隔板密封件SEAL DIVIDER PLATE1
3814754密封件(12.50英寸)SEAL (12.50 Inches)1
4193071排气歧管盖COVER EXHAUST MANIFOLD1
574824螺钉（0.312-18 x 1.250）盖和板至气缸体SCREW (.312-18 x 1.250) COVER AND PLATE TO CYLINDER BLOCK21
6194373接线板（3端子）TERMINAL BLOCK (3 TERMIALS)1
713716零件手册 7.5/9.8马力 接线板PARTS MANUAL 7.5 /9.8 H.P. TERMIAL BL0CK2
829245垫圈（0.281 x 0.500 x 0.060）不锈钢接线板螺钉WASHER (.281 x .500 x .060) Stainless Steel TERMIMAL BLOCK SCREW2
88M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
945076端子排黄铜螺母(#10-32)NUT (#10-32) Brass TERMINAL BLOCK3
10813938盖螺母（#10-32）接线板CAP NUT (#10-32) TERMINAL BLOCK3
1174824缸体盖板螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250) COVER TO CYLINDER BLOCK4
1269570膜片至板件螺钉(#10-16 x .750)SCREW (#10-16 x .750) DIAPHRAGM TO PLATE1
1376451膜片螺钉垫片WASHER DIAPHRAGM SCREW1
1414479隔膜DIAPHRAGM1
14144791隔膜DIAPHRAGM1
1516496导水板DEFLECTOR Water1
1616497A1安全阀板PLATE RELIEF VALVE1
1778690安全阀板衬垫GASKET RELIEF VALVE PLATE2
1778690002衬垫GASKET2
1864878弹簧（黑色）压缩弹出阀SPRING (Black) COMPERSSION POPPER VALVE1
1985303提升阀弹簧垫片WASHER POPPET SPRING1
2014480提升阀POPPET VALVE1
2164872提升阀衬套GROMMET POPPET VALVE1
2265848提升阀座CARRIER POPPET VALVE1
23991763排气板衬垫GASKET EXHAUST PLATE1
23991764衬垫GASKET1
2441944A5排气板总成PLATE ASSEMBLY EXHAUST1
2599664排气板弯头ELBOW EXHAUST PLATE1
2599664290度弯头接头(0.125-27x0.250)尼龙FITTING Elbow 90 Degree (.125-27 x .250) Nylon1
2620033排气板定位销PIN Dowel LOCATING - EXHAUST PLATE2
2643044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
27183982排气板密封件SEAL EXHAUST PLATE1
278M0043165密封件-27.00英寸SEAL-27.00 INCH1
28680101密封件固定支架BRACKET SEAL RETAINING1
29812832支架至排气板螺钉(#10-16 x .500)SCREW (#10-16 x .500) BRACKET TO EXHAUST PLATE6
29878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)6
3025970动力头螺柱垫圈WASHER POWERHEAD STUD6
3020553垫圈(.406 x .734 x .063)WASHER (.406 x .734 x .063)6
3169254螺母 动力头螺柱NUT POWWERHEAD STUD6
3227132排气板衬套BUSHING EXHAUST PLATE1
3319564护孔环GROMMET1
338M0179867护孔环GROMMET1
3412602排气板衬套GROMMET EXHAUST PLATE1
3412602002护孔环GROMMET1
3566727螺钉(.312-18 x 1.250)排气板固定SCREW (.312-18 x 1.250) EXHAUST PLATE ATTACHING1
3668783螺钉(.312-18 x 2.50)排气板固定SCREW (.312-18 x 2.50) EXHAUST PLATE ATTACHING1
3766725螺钉(.375-16 x 3.50)排气板固定SCREW (.375-16 x 3.50) EXHAUST PLATE ATTACHING3
37898833螺钉(.375-16 x 3.500)SCREW (.375-16 x 3.500)3
38812905A2前支架总成BRACKET ASSEMBLY FRONT1
38812905T前支架BRACKET Front1
3990285螺钉（0.312-18 x 0.625）前支架SCREW (.312-18 x .625) FRONT BRAKET4
40187031垫圈WASHER4
4118778护孔环GROMMET4
4118778001护孔环GROMMET4
4218578A3后支架总成BRACKET ASSEMBLY Rear REAR1
4218578T09支架总成(后部)BRACKET ASSEMBLY Rear1
4314462A1安全阀盖(旧设计)COVER RELIEF VALVE (OLD DESIGN)1
4368729泄压阀盖（新设计）COVER RELIEF VALVE (NEW DESIGN)1
438M0039767盖板COVER1
4492007接头（0.250-18）（90度）（新设计）FITTING (.250-18) (90 DEGREES) (NEW DESIGN)1
4492007190度弯头FITTING (90 Degree)1
4599127109管路（57.00英寸散装）（新设计）LINE (57.00 Inches Bulk) (NEW DESIGN)1
458M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
4690077扎带（新设计）TIE STRAP (NEW DESIGN)2
46816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)2
47814430接头（0.500-14）（新设计）FITTING (.500-14) (NEW DESIGN)1
478144301接头FITTING1
-14697A87衬垫套件GASKET SET1
图 68上罩与前护板 TOP COWL AND FRONT SHIELD
上罩与前护板 TOP COWL AND FRONT SHIELD
REF零件编号中文名称英文名称数量
-15132徽标（3英寸）EMBLEM (3")1
-151321徽标（6英寸）EMBLEM (6")2
19742A61顶盖总成TOP COWL ASSEMBLY1
19742T92顶盖总成-黑色TOP COWL ASY-BLK1
19742A19顶罩总成（纪念版）TOP COWL ASSEMBLY (ANNIVERSARY MODEL)1
19742T90顶盖总成-黑色TOP COWL ASY-BLK1
2812784密封件SEAL1
3815478密封件SEAL1
4815225隔音垫(侧)SOUND BLANKET (SIDE)2
5815226隔音垫(顶)SOUND BLANKET (TOP)1
5A815227隔音毯（前部）SOUND BLANKET (FRONT)1
617196A1进气口护罩（纪念版）SHIELD AIR INLET (ANNIVERSARY MODEL)2
711316快速螺母（纪念版）SPEED NUT (ANNIVERSARY MODEL)12
817238进气口密封（纪念版）SEAL AIR INLET (ANNIVERSARY MODEL)4
917194进气口护罩（左舷）（纪念版）SHIELD AIR INLET (PORT) (ANNIVERSARY MODEL)1
917195进气口护罩（右舷）（纪念版）SHIELD AIR INLET (STARBOARD) (ANNIVERSARY MODEL)1
10184741后支架BRACKET REAR2
1118506护孔环GROMMET3
1118506001护孔环GROMMET3
1228636螺钉(.250-20 x .750) 后支架SCREW (.250-20 x .750) REAR BRACKET12
1326992锁紧垫圈(.250)不锈钢 后支架螺钉LOCKWASHER (.250) Stainless Steel REAR BRACKET SCREW10
14813096挂钩HOOK2
14813096A2挂钩套件HOOK KIT2
1573286螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel2
16813074滚轮ROLLER2
168M0207770滚轮@3ROLLER @32
1713194挡圈RING Retaining2
18813553安装板PLATE1
1856720垫圈(0.330×0.750×0.060)不锈钢WASHER (.330 x .750 x .060) Stainless Steel1
19187021定位器LOCATOR1
2018173锁扣滚轮支架总成BRACKET ASSEMBLY Latch Roller1
20893763滚轮锁扣支架BRACKET Roller Latch1
21813552隔套SPACER1
21813076A2手柄套件HANDLE KIT1
2231984螺钉(0.312-18×1.375)SCREW (.312-18 x 1.375)2
23815848螺母 (.312)NUT (.312)2
2447341A1手动/应急启动绳和手柄套件 (用于手动启动)ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING)1
2447341A11手动启动绳柄套件ROPE AND HANDLE KIT Manual Starting1
2518755A1前护罩总成FRONT SHIELD ASSEMBLY1
26813562密封件SEAL1
2748409螺钉 (#10-16 x .625) 不锈钢SCREW (#10-16 x .625) Stainless Steel4
2856681垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)4
288M0204666垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)4
2970132垫圈(0.323×0.563×0.063)不锈钢WASHER (.323 x .563 x .063) Stainless Steel2
298M0042642垫圈(.323 x .562 x .063)WASHER (.323 x .562 x .063)2
-813096A1后锁扣套件REAR LATCH KIT1
图 69仪表装置 Instrumentation
仪表装置 Instrumentation
REF零件编号中文名称英文名称数量
115110A1转速表TACHOMETER1
279101T安装支架BRACKET MOUNTING1
372729楔形底座灯泡(14V - 1.9W)LIGHT BULB Wedge Base (14V - 1.9W)1
479888灯泡插座SOCKET Light Bulb1
526419螺母（#8-32）黄铜（8-32）NUT (#8-32) Brass (8-32)5
686322A7线束总成 (1.50英尺) 黑色 配平表 (BLACK - 1-1/2")CABLE ASSEMBLY (1.50 Feet) Black TRIM GAUGE (BLACK - 1-1/2")1
686323A5线束总成 (1.50英尺) 紫色 配平表 (PURPLE - 1-1/2")CABLE ASSEMBLY (1.50 Feet) Purple TRIM GAUGE (PURPLE - 1-1/2")1
715113A4配平表TRIM GAUGE1
7895292Q41动力升降倾斜指示器 黑面橙白刻度黑边框GAUGE Power Trim Indicator, Black Face, Orange/White Graduations, Black Bezel1
879480安装支架-微调表BRACKET MOUNTING - TRIM GAUGE1
972729灯泡 楔形底座(14V-1.9W)微调表LIGHT BULB Wedge Base (14V - 1.9W) TRIM GAUGE1
1079888灯泡插座 微调表SOCKET Light Bulb TRIM GAUGE1
1126419螺母 (#8-32) 黄铜 配平表端子 (8-32)NUT (#8-32) Brass TRIM GAUGE TERMINAL (8-32)5
1226427垫圈 配平表端子 (#8)WASHER TRIM GAUGE TERMINAL (#8)2
1386396A8转速表线束总成(5.00英尺)HARNESS ASSEMBLY Tachometer (5.00 Feet)1
1415166A1温度表TEMPERATURE GAUGE1
14895287Q41水温表套件(100-240℉)黑面橙白刻度黑框WATER TEMPERATURE GAUGE KIT (100-240 F) Black Face, Orange/White Graduations, Black Bezel1
1572729楔形底座灯泡(14V - 1.9W)LIGHT BULB Wedge Base (14V - 1.9W)1
1679888灯泡插座SOCKET Light Bulb1
1726427垫圈WASHER2
1879480支架BRACKET1
1926419黄铜螺母 (#8-32)NUT (#8-32) Brass5
2086323A2线束总成 (2.00英尺) 紫色 (PURPLE)CABLE ASSEMBLY (2.00 Feet) Purple (PURPLE)1
2061600A16线束总成 (17.00英寸) 黑色 (BLACK)CABLE ASSEMBLY (17.00 Inches) Black (BLACK)1
2088824A4线束总成 (45.00英寸) 米色 (TAN)CABLE ASSEMBLY (45.00 Inches) Tan (TAN)1
图 70齿轮箱(驱动轴)(标准/反向旋转) GEAR HOUSING (DRIVESHAFT)(STANDARD/COUNTER ROTATION)
齿轮箱(驱动轴)(标准/反向旋转) GEAR HOUSING (DRIVESHAFT)(STANDARD/COUNTER ROTATION)
REF零件编号中文名称英文名称数量
图 71齿轮箱螺旋桨轴-标准旋转 Gear Housing Propeller Shaft - Standard Rotation
齿轮箱螺旋桨轴-标准旋转 Gear Housing Propeller Shaft - Standard Rotation
REF零件编号中文名称英文名称数量
0840560T33齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
0840560T34齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
0840560T35齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
1849780A2基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
289594A1从动件总成FOLLOWER ASSEMBLY1
3789562换挡凸轮SHIFT CAM1
479911A1杆ROD1
579910弹簧SPRING2
678906销PIN1
778910垫圈WASHER2
847397A1垫片组SHIM SETAR
978172A1圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
10NSS不单独销售NOT SOLD SEPARATE1
1144104A7齿轮组(含小齿轮)GEAR SET (INCLUDES PINION)1
12549281滚柱轴承BEARING Roller1
1342672T棘轮RATCHET1
1478909定位销PIN Detent2
1542671十字销PIN Cross1
1678962弹簧SPRING2
17822820F1螺旋桨轴PROPELLER SHAFT1
17840451A2螺旋桨轴PROPELLER SHAFT1
18822824A1倒车齿轮总成GEAR ASSEMBLY Reverse1
19822823推力环THRUST RING1
2088957T滚珠轴承BEARING Ball1
21681001止推环RING Thrust1
2231534O型圈O-RING1
23848840T1轴承座总成CARRIER ASSEMBLY Bearing1
24817072滚柱轴承BEARING Roller1
25817071卡环RING Snap1
26815565油封SEAL Oil2
2767892A1磁吸式注油/放油塞套件FITTING KIT Magnetic, Plug Fill/Drain1
28191833密封件SEAL1
2979448固定座RETAINER1
3030281键KEY1
3179447锁紧垫圈TAB WASHER1
32423511齿形锁紧垫圈LOCKWASHER Toothed1
3352707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
3441350螺钉(.437-14 x 2.50)不锈钢SCREW (.437-14 x 2.50) Stainless Steel1
3466024螺钉(.437-14 x 1.75)SCREW (.437-14 x 1.75)1
3576214T3阳极块ANODE1
3576214Q5阳极套件ANODE KIT1
3576214T1阳极块ANODE1
36822836垫圈(.445 x .805 x .108)WASHER (.445 x .805 x .108)2
37859116螺母(.437-20)NUT (.437-20)2
3830206螺钉(.375-16 x 1.00)不锈钢SCREW (.375-16 x 1.00) Stainless Steel1
3815929螺钉(.375-16 x 16 x 6.00)SCREW (.375-16 x 16 x 6.00)1
-89238A3齿轮箱密封套件SEAL KIT Gear Housing1
-90415A24螺柱套件STUD KIT1
-90415A25螺柱套件STUD KIT1
-840389K5轮毂套件HUB KIT1
-840382A1缓冲条套件SNUBBER STRIP KIT1
图 72艉板支架（序列号0G590000及以上） Transom Brackets (S/N-0G590000 & Up)
艉板支架（序列号0G590000及以上） Transom Brackets (S/N-0G590000 & Up)
REF零件编号中文名称英文名称数量
1828334T03艉板支架总成-右舷BRACKET ASSEMBLY Transom-Starboard1
2828333T08艉板支架总成-左舷BRACKET ASSEMBLY Transom-Port1
398727润滑脂加注口接头FITTING Grease Port1
38M0169588润滑脂接头FITTING Grease1
4826125A1倾斜管TILT TUBE1
5826135尼龙锁紧螺母(1.00-14)NUT Lock (1.00-14) Nylon Insert1
645711O型圈 (.612 x .103)O-RING (.612 x .103)1
788750波浪垫圈 (1.62 x 1.05)WASHER Wave (1.62 x 1.05)2
8826164螺母 (.875-14)NUT (.875-14)1
88M0231351锁紧螺母NUT Lock1
9677551螺钉(.500-20×4.500)SCREW (.500-20 x 4.500)4
98M0149747螺钉SCREW4
1028421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
108M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
118M0027784螺母NUT4
1182671117螺母(.500-20)NUT (.500-20)4
1299629A2杠杆总成LEVER ASSEMBLY1
128M0115104倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
13830899张力弹簧SPRING Tension1
1465830尼龙衬套NYLINER2
15830900压缩弹簧SPRING Compression1
1699633旋钮KNOB1
1799615槽销PIN Groove1
1899617销PIN1
18893709销PIN1
-815791A92发动机垫片组GASKET SET Engine1
图 73飞轮/启动马达 FLYWHEEL/STARTER MOTOR
飞轮/启动马达 FLYWHEEL/STARTER MOTOR
REF零件编号中文名称英文名称数量
118896A1飞轮盖套件COVER KIT FLYWHEEL1
279022正时标记MARKER TIMING1
337572螺钉(0.190-32x0.380)正时标记SCREW (.190-32 x .380) TIMING MARKER2
472761垫圈(0.203x0.562x0.060)不锈钢正时标记螺钉WASHER (.203 x .562 x .060) Stainless Steel TIMING MARKER SCREW2
589219飞轮盖塞PLUG FLYWHEEL COVER1
589219001堵头PLUG1
645907飞轮黄色塞PLUG Yellow FLYWHEEL1
752901螺母(.625-18)飞轮NUT (.625-18) FLYWHEEL1
868229垫圈(0.641x1.250x0.190)飞轮WASHER (.641 x 1.250 x .190) FLYWHEEL1
833001垫圈WASHER1
99841A7飞轮FLYWHEEL1
9859238T16飞轮总成FLYWHEEL ASY1
1032417螺钉(.250-28 x .625)飞轮板SCREW (.250-28 x .625) FLYWHEEL PLATE8
1168997螺钉(.312-24 x .750)飞轮毂SCREW (.312-24 x .750) FLYWHEEL HUB8
129610A5定子STATOR1
1390045螺钉(#10-32 x 1.375)定子SCREW (#10-32 x 1.375) STATOR4
1426996锁紧垫圈(#10)不锈钢定子螺钉LOCKWASHER (#10) Stainless Steel STATOR SCREW4
1596455A9触发板总成PLATE ASSEMBLY Trigger1
1693388A1电缆总成(6.00英寸)黑色板至启动马达CABLE ASSEMBLY (6.00 Inches) Black PLATE TO STARTER MOTOR1
1779472启动电机总成STARTER MOTOR ASSEMBLY1
17893893启动马达STARTER MOTOR1
1856703启动电机轴环COLLAR STARTER MOTOR2
188M0034918轴环COLLAR2
1968042启动马达橡胶止动块STOP Rubber RUBBER-STARTER MOTOR2
198M0043376停机开关STOP2
2026992锁紧垫圈(.250) 不锈钢 起动机接线端LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL1
2120890螺母(.250-20) 起动机接线端NUT (.250-20) STARTER MOTOR TERMINAL1
2293388A2电磁阀至启动电机黑色电缆总成CABLE ASSEMBLY Black SOLENOID TO STARTER MOTOR1
2293388A14线缆总成(黄/黑)CABLE ASSEMBLY Yellow/Black1
2369035螺钉和锁紧垫圈 (.250-20 x .625) 不锈钢 电缆至启动马达SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel CABLE TO STARTER MOTOR1
图 74仪表装置 INSTRUMENTATION
仪表装置 INSTRUMENTATION
REF零件编号中文名称英文名称数量
115110A1转速表TACHOMETER1
279101T安装支架BRACKET MOUNTING1
372729楔形底座灯泡(14V - 1.9W)LIGHT BULB Wedge Base (14V - 1.9W)1
479888灯泡插座SOCKET Light Bulb1
526419螺母（#8-32）黄铜（8-32）NUT (#8-32) Brass (8-32)5
686322A7线束总成 (1.50英尺) 黑色 配平表 (BLACK - 1-1/2")CABLE ASSEMBLY (1.50 Feet) Black TRIM GAUGE (BLACK - 1-1/2")1
686323A5线束总成 (1.50英尺) 紫色 配平表 (PURPLE - 1-1/2")CABLE ASSEMBLY (1.50 Feet) Purple TRIM GAUGE (PURPLE - 1-1/2")1
715113A4配平表TRIM GAUGE1
7895292Q41动力升降倾斜指示器 黑面橙白刻度黑边框GAUGE Power Trim Indicator, Black Face, Orange/White Graduations, Black Bezel1
879480安装支架-微调表BRACKET MOUNTING - TRIM GAUGE1
972729灯泡 楔形底座(14V-1.9W)微调表LIGHT BULB Wedge Base (14V - 1.9W) TRIM GAUGE1
1079888灯泡插座 微调表SOCKET Light Bulb TRIM GAUGE1
1126419螺母 (#8-32) 黄铜 配平表端子 (8-32)NUT (#8-32) Brass TRIM GAUGE TERMINAL (8-32)5
1226427垫圈 配平表端子 (#8)WASHER TRIM GAUGE TERMINAL (#8)2
1386396A8转速表线束总成(5.00英尺)HARNESS ASSEMBLY Tachometer (5.00 Feet)1
1415166A1温度表TEMPERATURE GAUGE1
14895287Q41水温表套件(100-240℉)黑面橙白刻度黑框WATER TEMPERATURE GAUGE KIT (100-240 F) Black Face, Orange/White Graduations, Black Bezel1
1572729楔形底座灯泡(14V - 1.9W)LIGHT BULB Wedge Base (14V - 1.9W)1
1679888灯泡插座SOCKET Light Bulb1
1726427垫圈WASHER2
1879480支架BRACKET1
1926419黄铜螺母 (#8-32)NUT (#8-32) Brass5
2086323A2线束总成 (2.00英尺) 紫色 (PURPLE)CABLE ASSEMBLY (2.00 Feet) Purple (PURPLE)1
2061600A16线束总成 (17.00英寸) 黑色 (BLACK)CABLE ASSEMBLY (17.00 Inches) Black (BLACK)1
2088824A4线束总成 (45.00英寸) 米色 (TAN)CABLE ASSEMBLY (45.00 Inches) Tan (TAN)1
图 75艉板安装动力转向套件 TRANSOM MOUNT POWER STEERING KIT
艉板安装动力转向套件 TRANSOM MOUNT POWER STEERING KIT
REF零件编号中文名称英文名称数量
-17443A11动力转向套件POWER STEERING KIT1
1811290蓄能器ACCUMULATOR1
217772螺柱STUD3
34002319垫圈WASHER3
413914螺母(M10)NUT (M10)3
440140螺母(M10)NUT (M10)3
594319螺钉(.375-24 x 1.5)SCREW (.375-24 x 1.5)1
617405隔套SPACER2
734863螺母 (.375-24)NUT (.375-24)3
78M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass3
814000螺钉(.375-24x1.25)SCREW (.375-24 x 1.25)1
8849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)1
992876A4连杆总成LINK ROD ASSEMBLY1
1068300垫圈 (.88 x .39 x .06)WASHER (..88 x .39 x .06)1
118112891执行器ACTUATOR1
11828588A2执行器套件ACTUATOR KIT1
-811632维修套件REPAIR KIT1
-811632A1维修套件REPAIR KIT1
124000330螺钉(M6x25)SCREW (M6 x 25)2
128M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
1343450垫圈WASHER2
134002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)2
148268336螺母 (M6)NUT (M6)2
14401386螺母(M6)不锈钢NUT (M6) Stainless Steel2
15811292卡箍CLAMP1
16818182螺钉SCREW2
17400263螺母 (M5)NUT (M5)2
1881742755螺钉(M8x55)SCREW (M8 x 55)1
1966751垫片(0.250x0.390x0.630)不锈钢SPACER (.250 x .390 x .630) Stainless Steel1
198M0151156隔套SPACER1
20811291支架BRACKET1
2138601螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250)4
2288404锁紧垫圈TAB WASHER6
2318211继电器开关RELAY SWITCH1
2418244A1线束总成HARNESS ASSEMBLY1
2518124螺钉 (#10-32 x .750)SCREW (#10-32 x .750)1
2690329护孔环GROMMET1
27309772隔套SPACER1
28816994支架BRACKET1
2942118垫圈WASHER1
3029488螺母 (#10-32)NUT (#10-32)1
308M0204718螺母NUT1
31197491卡箍CLAMP1
3281563024贴花DECAL1
图 76飞轮/启动电机 Flywheel/Starter Motor
飞轮/启动电机 Flywheel/Starter Motor
REF零件编号中文名称英文名称数量
118896A1飞轮盖套件COVER KIT FLYWHEEL1
279022正时标记MARKER TIMING1
337572螺钉(0.190-32x0.380)正时标记SCREW (.190-32 x .380) TIMING MARKER2
472761垫圈(0.203x0.562x0.060)不锈钢正时标记螺钉WASHER (.203 x .562 x .060) Stainless Steel TIMING MARKER SCREW2
589219飞轮盖塞PLUG FLYWHEEL COVER1
589219001堵头PLUG1
645907飞轮黄色塞PLUG Yellow FLYWHEEL1
752901螺母(.625-18)飞轮NUT (.625-18) FLYWHEEL1
868229垫圈(0.641x1.250x0.190)飞轮WASHER (.641 x 1.250 x .190) FLYWHEEL1
833001垫圈WASHER1
99841A7飞轮FLYWHEEL1
9859238T16飞轮总成FLYWHEEL ASY1
1032417螺钉(.250-28 x .625)飞轮板SCREW (.250-28 x .625) FLYWHEEL PLATE8
1168997螺钉(.312-24 x .750)飞轮毂SCREW (.312-24 x .750) FLYWHEEL HUB8
129610A5定子STATOR1
1390045螺钉(#10-32 x 1.375)定子SCREW (#10-32 x 1.375) STATOR4
1426996锁紧垫圈(#10)不锈钢定子螺钉LOCKWASHER (#10) Stainless Steel STATOR SCREW4
1596455A9触发板总成PLATE ASSEMBLY Trigger1
1693388A1电缆总成(6.00英寸)黑色板至启动马达CABLE ASSEMBLY (6.00 Inches) Black PLATE TO STARTER MOTOR1
1779472启动电机总成STARTER MOTOR ASSEMBLY1
17893893启动马达STARTER MOTOR1
1856703启动电机轴环COLLAR STARTER MOTOR2
188M0034918轴环COLLAR2
1968042启动马达橡胶止动块STOP Rubber RUBBER-STARTER MOTOR2
198M0043376停机开关STOP2
2026992锁紧垫圈(.250) 不锈钢 起动机接线端LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL1
2120890螺母(.250-20) 起动机接线端NUT (.250-20) STARTER MOTOR TERMINAL1
2293388A2电磁阀至启动电机黑色电缆总成CABLE ASSEMBLY Black SOLENOID TO STARTER MOTOR1
2293388A14线缆总成(黄/黑)CABLE ASSEMBLY Yellow/Black1
2369035螺钉和锁紧垫圈 (.250-20 x .625) 不锈钢 电缆至启动马达SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel CABLE TO STARTER MOTOR1
图 77启动电机 Starter Motor
启动电机 Starter Motor
REF零件编号中文名称英文名称数量
图 78化油器（WMH-12A/12B/13/13B/14A/15/16） CARBURETOR (WMH - 12A/12B/13/13B/14A/15/16)
化油器（WMH-12A/12B/13/13B/14A/15/16） CARBURETOR (WMH - 12A/12B/13/13B/14A/15/16)
REF零件编号中文名称英文名称数量
19672A50化油器 上部CARBURETOR Top1
19672A51化油器 中部CARBURETOR Center1
19672A52化油器 下部CARBURETOR Bottom1
19672A35化油器 上部CARBURETOR Top1
19672A36化油器 中部CARBURETOR Center1
19672A37化油器 下部CARBURETOR Bottom1
1813682A13化油器 上部CARBURETOR Top1
1813682A14化油器 中部CARBURETOR Center1
1813682A15化油器 下部CARBURETOR Bottom1
19672A41化油器 上部CARBURETOR Top1
19672A42化油器 中部CARBURETOR Center1
19672A43化油器 下部CARBURETOR Bottom1
19672A44化油器 上部CARBURETOR Top1
19672A45化油器 中部CARBURETOR Center1
19672A46化油器 下部CARBURETOR Bottom1
2810779盖帽CAP6
3NSS不单独销售 怠速混合螺钉/弹簧NOT SOLD SEPARATE Idle Mixture Screw/Spring6
4811803堵头固定件PLUG Retainer3
5677511衬垫GASKET3
6815633048量孔(.048)JET (.048)3
6815633070喷口(.070-175)JET (.070 - 175)3
6815633050喷口(.050)(XR6/MAGNUM III/200)JET (.050) (XR6/MAGNUM III/200)3
7810721节气门杆 (上部/中部)LEVER Throttle (TOP/CENTER)2
7810722节气门杆 (下部)LEVER Throttle (BOTTOM)1
8811284隔套SPACER3
9810745垫圈WASHER3
10810744螺母NUT3
11NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring3
126249主喷口(.096)JET Main (.096)3
125815喷口(.086)JET (.086)3
126201量孔(.080)JET (.080)3
126247主量孔(0.090)JET Main (.090)3
136246量孔(.048)JET (.048)3
135317量孔(.046)JET (.046)3
136359量孔(.052)JET (.052)3
14NSSNOT SOLD SEPARATE Gasket-Fuel Bowl3
15810738浮子总成FLOAT ASSEMBLY3
16NSSNOT SOLD SEPARATE Float Shaft3
17NSS不单独销售 浮子螺钉NOT SOLD SEPARATE Screw-Float3
18811690阀座套件VALVE SEAT KIT3
19NSS垫片(不单独销售)NOT SOLD SEPARATE Gasket3
20811687燃油杯(顶部)BOWL Fuel (TOP)1
20811688燃油杯(中部/底部)BOWL Fuel (CENTER/BOTTOM)2
219596堵头PLUG12
22NSS不单独销售 动力/渐进喷口垫片NOT SOLD SEPARATE Gasket-Power/Progression Jet12
235225主量孔(.054)JET Main (.054)6
234217主量孔(.062)JET Main (.062)6
234216量孔(.064)JET (.064)6
234215燃油主量孔(.066)JET Main Fuel (.066)6
24811689动力喷口POWER JET6
24811807动力喷口POWER JET6
24811925动力喷口POWER JET6
25NSS不单独销售 燃油杯螺钉NOT SOLD SEPARATE Screw-Fuel Bowl15
267900三通接头(顶部/中部)TEE FITTING (TOP/CENTER)2
277901弯头(底部)ELBOW (BOTTOM)1
-8107492化油器垫片套件GASKET KIT Carburetor1
-811691化油器维修套件REPAIR KIT Carburetor1
-815791A92发动机垫片组GASKET SET Engine1
图 79附件 ACCESSORIES
附件 ACCESSORIES
REF零件编号中文名称英文名称数量
图 80燃油泵 FUEL PUMP
燃油泵 FUEL PUMP
REF零件编号中文名称英文名称数量
1880890T1燃油泵PUMP Fuel1
2NSS不单独销售本体NOT SOLD SEPARATE Body1
3881544弹簧SPRING1
4881545柱塞PLUNGER1
5881546弹簧SPRING1
6881547隔膜DIAPHRAGM1
7881548销PIN1
8NSS不单独销售本体NOT SOLD SEPARATE Body1
9NSS膜片(不单独销售)NOT SOLD SEPARATE Diaphragm1
10NSS不单独销售本体NOT SOLD SEPARATE Body1
11881550螺钉SCREW3
12881333螺母NUT3
13804255O型圈O-RING1
138M0050719O型圈O-RING1
14879650卡箍CLAMP2
1456762扎带(4.00英寸)TIE STRAP (4.00 Inches)2
15804256螺栓 (M6 x 30)BOLT (M6 x 30)2
16881543软管HOSE1
16881543002油管TUBING1
17881542支架BRACKET1
188527768螺栓(M6 x 16)BOLT (M6 x 16)1
18811188T螺栓BOLT1
198528161螺母NUT1
1982382M螺母NUT1
20881538T1滤清器总成FILTER ASSEMBLY1
20881538T02燃油滤清器总成FILTER ASSY-FUEL1
21881540滤芯1.75英寸ELEMENT 1.75 Inches1
218M0168897燃油滤清器FUEL FILTER1
218M0101436滤芯1.50英寸ELEMENT 1.50 Inches1
218M0117705燃油滤清器FILTER-FUEL1
22826966MO型圈O-RING1
22826966TO型圈O RING1
23881541浮子FLOAT1
24881539杯套CUP1
248M0101437杯套CUP1
248M0137185燃油杯CUP FUEL1
25879650卡箍CLAMP2
2556762扎带(4.00英寸)TIE STRAP (4.00 Inches)2
26804260支架BRACKET1
27804112螺栓(M7 x 48)BOLT (M7 x 48)2
28804113定位销PIN Dowel2
2984292M垫圈WASHER2
30804257燃油转换杆LEVER Fuel Change1
31881334轴SHAFT1
32804259销PIN2
3282738M滚销PIN-ROLL2
33830757130管材(.312)(70英寸整卷)裁切至55英寸长度TUBING (.312) (70.00 Inches Bulk) Cut to 55.00 Inch Length.1
338M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
34816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
35822769连接器CONNECTOR1
36NSS盖帽(不单独销售)NOT SOLD SEPARATE Cap1
37828547T1导管(.500内径 x 3英尺整卷)CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk)1
-858732T01衬垫套件GASKET SET1
-858732T02动力头衬垫套件GASKET SET Powerhead1
-858732T02动力头衬垫套件GASKET SET Powerhead1
-881310T1气缸盖总成CYLINDER HEAD ASSEMBLY1
-881310T09气缸盖HEAD-CYLINDER1
图 81化油器（WMH-21/22/23/24/25/28） CARBURETOR (WMH-21/22/23/24/25/28)
化油器（WMH-21/22/23/24/25/28） CARBURETOR (WMH-21/22/23/24/25/28)
REF零件编号中文名称英文名称数量
1818650A16化油器 上部CARBURETOR Top1
1818650A17化油器 中部CARBURETOR Center1
1818650A18化油器 下部CARBURETOR Bottom1
1818650A10化油器 上部CARBURETOR Top1
1818650A11化油器 中部CARBURETOR Center1
1818650A12化油器 下部CARBURETOR Bottom1
1821684A1化油器 上部CARBURETOR Top1
1821684A2化油器 中部CARBURETOR Center1
1821684A3化油器 下部CARBURETOR Bottom1
1818650A7化油器 上部CARBURETOR Top1
1818650A8化油器 中部CARBURETOR Center1
1818650A9化油器 下部CARBURETOR Bottom1
1818650A4化油器 上部CARBURETOR Top1
1818650A5化油器 中部CARBURETOR Center1
1818650A6化油器 下部CARBURETOR Bottom1
2810779盖帽CAP6
3NSS不单独销售 怠速混合螺钉/弹簧NOT SOLD SEPARATE Idle Mixture Screw/Spring6
5677511衬垫GASKET3
6815633060量孔 (.060) (.056 - 150/135 - WMH-24)JET (.060) (.056 - 150/135 - WMH-24)6
6815633070量孔 (.070 - 135 - WMH-28)JET (.070 - 135 - WMH-28)6
67570量孔 .040 (175)JET .040 (175)6
6815633050量孔 (.050) (XR6/MAGNUMIII/200)JET (.050) (XR6/MAGNUMIII/200)6
7810721节气门杆 (上部/中部)LEVER Throttle (TOP/CENTER)2
7810722节气门杆 (下部)LEVER Throttle (BOTTOM)1
8811284隔套SPACER3
9810745垫圈WASHER3
10810744螺母NUT3
11NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring3
128423量孔 (.094) (.094 -150)JET (.094) (.094 -150)3
125815量孔 (.086) (XR6/MAGNUM III)JET (.086) (XR6/MAGNUM III)3
127335量孔 (.098) (175)JET (.098) (175)3
126247主量孔 (.090) (200/135 - WMH-24)JET Main (.090) (200/135 - WMH-24)3
136487主量孔 (.060) (135 - WMH-24)JET Main (.060) (135 - WMH-24)3
135213主量孔 (.056) (150/135 - WMH-28)JET Main (.056) (150/135 - WMH-28)3
136246量孔 (.048) (175)JET (.048) (175)3
136028量孔 (.050) (XR6/MAGNUM III)JET (.050) (XR6/MAGNUM III)3
135317量孔 (.046) (200)JET (.046) (200)3
14NSSNOT SOLD SEPARATE Gasket-Fuel Bowl3
15810738浮子总成FLOAT ASSEMBLY3
16F10064轴SHAFT3
17NSS不单独销售 浮子螺钉NOT SOLD SEPARATE Screw-Float3
18811690阀座套件VALVE SEAT KIT3
19NSS不单独销售 阀座垫片NOT SOLD SEPARATE Gasket-Valve Seat3
20823623燃油杯(顶部)BOWL Fuel (TOP)1
20823624燃油杯(中部/底部)BOWL Fuel (CENTER/BOTTOM)2
219596堵头PLUG15
22NSS不单独销售 动力/渐进喷口垫片NOT SOLD SEPARATE Gasket-Power/Progression JetAR
236487主喷口(.060)(150/135-WMH-24)JET Main (.060) (150/135 - WMH-24)6
234217主喷口(.062)(135-WMH-28)JET Main (.062) (135 - WMH-28)6
235225主喷口(.054)(XR6/MAGNUM III)JET Main (.054) (XR6/MAGNUM III)6
234216喷口(.064)(175/200)JET (.064) (175/200)6
24823629动力喷口(150/135-WMH-24)POWER JET (150/135 - WMH-24)6
24808584动力喷口(135-WMH-28)POWER JET (135 - WMH-28)6
24823625动力喷口(XR6/MAGNUM III)POWER JET (XR6/MAGNUM III)6
24823626动力喷口(175)POWER JET (175)6
24823627动力喷口(200)POWER JET (200)6
25NSS不单独销售 燃油杯螺钉NOT SOLD SEPARATE Screw-Fuel Bowl18
267900三通接头(顶部/中部)TEE FITTING (TOP/CENTER)2
277901弯头(底部)ELBOW (BOTTOM)1
-8107492化油器垫片套件GASKET KIT Carburetor1
-8116912化油器维修套件REPAIR KIT Carburetor1
-815791A92发动机垫片组GASKET SET Engine1
图 82旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM
旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM
REF零件编号中文名称英文名称数量
1818904T1旋转支架SWIVEL BRACKET1
287735下油封SEAL Oil Lower1
3818764衬套BUSHING2
433504O型圈O-RING1
48M0214926O型圈 @10O RING @101
5816039隔套SPACER1
674036润滑脂接头FITTING Grease2
68M0169589润滑脂接头FITTING Grease2
7821207衬套BUSHING2
864014螺钉(.250-28x.500)SCREW (.250-28 x .500)2
999661A26旋转销总成SWIVEL PIN ASSEMBLY1
999661A35旋转销总成SWIVEL PIN ASSEMBLY1
1092876A10连杆总成LINK ROD ASSEMBLY1
1092876A12连杆总成LINK ROD ASSEMBLY1
11849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)1
12826709113不锈钢螺母 (.375-24)NUT (.375-24) Stainless Steel2
128M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass2
1337828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel2
1442961A1底部轭架总成YOKE ASSEMBLY Bottom1
1442961A06底部轭架总成YOKE ASSEMBLY Bottom1
1567684挡圈RING Retaining1
16816432止推垫片THRUST WASHER1
17NSS不单独销售 贴纸, 序列号覆膜NOT SOLD SEPARATE Decal, Serial Overlaminate1
1811288下轭缓冲垫BUMPER Bottom Yoke1
1811288001下轭缓冲垫BUMPER Bottom Yoke1
1988882上轭缓冲垫BUMPER Top Yoke1
图 83艉板支架 TRANSOM BRACKETS
艉板支架 TRANSOM BRACKETS
REF零件编号中文名称英文名称数量
18718A1艉板支架总成(右舷)BRACKET ASSEMBLY Transom (STARBOARD)1
28716A5艉板支架总成(左舷)BRACKET ASSEMBLY Transom (PORT)1
28716A8艉板支架总成BRACKET ASSEMBLY Transom1
398727润滑配件左舷艉板支架FITTING Grease PORT TRANSOM BRACKET1
38M0169588润滑脂接头FITTING Grease1
599170A1倾斜管TILT TUBE1
599170A2倾斜管套件TUBE KIT Tilt1
690068T倾斜管螺母（1英寸-14牙）NUT TILT TUBE (1"-14)1
6859133螺母(1.00-14)NUT (1.00-14)1
745711O-RING (.612 x .103) TILT TUBE1
888750波形垫圈(1.62 x 1.05)倾斜管WASHER Wave (1.62 x 1.05) TILT TUBE2
956041螺母 (.875-14) 倾斜管 (7/9-14)NUT (.875-14) TILT TUBE (7/9-14)1
9858869螺母 (.875-14)NUT (.875-14)1
10677551螺钉(.500-20 x 4.500)艉板支架至艉板SCREW (.500-20 x 4.500) TRANSOM BRACKET TO TRANSOM4
108M0149747螺钉SCREW4
1128421垫圈(1.5 x 3.05 x 0.13)不锈钢艉板支架螺栓WASHER (1.5 x 3.05 x 0.13) Stainless Steel TRANSOM BRACKET BOLT4
118M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
128M0027784艉板支架螺栓螺母NUT TRANSOM BRACKET BOLT4
1282671117螺母(.500-20)NUT (.500-20)4
1399629A2倾斜锁杆总成LEVER ASSEMBLY TILT LOCK1
138M0115104倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
1499611倾斜杆波形垫圈WAVE WASHER TILT LEVER1
1565830倾斜杆尼龙衬套NYLINER TILT LEVER2
1699633倾斜锁杆旋钮KNOB TILT LOCK LEVER1
1799615槽销PIN Groove1
1899622弹簧SPRING1
1999604槽销PIN Groove1
2096930A1倾斜锁螺栓总成BOLT ASSEMBLY TILT LOCK1
2123161螺栓螺母（3/8英寸-24牙）NUT (.375-24) BOLT1
22814207倾斜止动杆STOP TILT LEVER1
2337984螺母 (.875-14)NUT (.875-14)1
238M0041651螺母 (.875-14)NUT (.875-14)1
-14697A87衬垫套件GASKET SET
图 84机油喷射组件 Oil Injection Components
机油喷射组件 Oil Injection Components
REF零件编号中文名称英文名称数量
112430A4传感器总成SENSOR ASSEMBLY1
248409螺钉(#10-16 x .625)不锈钢传感器固定(5/8")SCREW (#10-16 x .625) Stainless Steel SENSOR ATTACHING (5/8")1
3815699油泵总成PUMP ASSEMBLY Oil1
3815699T油泵总成PUMP ASSEMBLY Oil1
3A814103轴承(带密封)BEARING (W/SEAL)1
3A8141032蜗杆衬套BUSHING Worm1
411379油泵O型圈O-RING OIL PUMP1
541429A2驱动齿轮轴承总成BEARING ASSEMBLY DRIVE GEAR1
612726从动齿轮GEAR Driven1
614563从动齿轮GEAR Driven1
732228螺钉(#10-32 x .625)油泵至曲轴箱(5/8")SCREW (#10-32 x .625) OIL PUMP TO CRANKCASE (5/8")1
741507螺钉(#10-32 x 1.120)油泵至曲轴箱(1-1/8")SCREW (#10-32 x 1.120) OIL PUMP TO CRANKCASE (1-1/8")1
81938512油门连杆至油泵总成LINK ASSEMBLY THROTTLE LEVER TO OIL PUMP1
94301619油泵油管TUBING OIL PUMP1
982381335油管(15.00英寸 散装)TUBING (15.00 Inches Bulk)1
1099443T油箱RESERVOIR Oil1
10994436储液罐RESERVOIR1
11415823油管卡箍(大)CLAMP OIL HOSE (LARGE)2
124301736油箱至油泵油管TUBING OIL RESERVOIR TO OIL PUMP1
1282381455油管（25.00英寸散装）TUBING (25.00 Inches Bulk)1
1369020螺钉(#10-32 x .875)油箱固定(7/8")SCREW (#10-32 x .875) OIL RESERVOIR ATTACHING (7/8")3
13690201螺钉(#10-32 x .875)SCREW (#10-32 x .875)3
1442118油箱螺钉垫圈WASHER OIL RESERVOIR SCREW6
1542117油箱螺钉衬套GROMMET OIL RESERVOIR SCREW3
1642116油箱螺钉轴套BUSHING OIL RESERVOIR SCREW3
1799127109油管(57.00英寸散装)LINE (57.00 Inches Bulk) OIL1
178M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
1842425油管三通TEE OIL TUBING1
199072925油管(6-3/4")HOSE OIL (6-3/4")1
20NA不可用壳体总成NOT AVAILABLE HOUSING ASSEMBLY1
2199439油管(114.00英寸)HOSE (114.00 Inches) OIL1
2212540A3壳体HOUSING1
2312242A1闩锁LATCH1
2443278止回阀接头(曲轴箱)FITTING CHECK CALVE (CRANKCASE)1
248781051止回阀CHECK VALVE1
2587421油箱TANK1
2643298A2油箱盖总成CAP ASSEMBLY OIL TANK1
2711332O型圈(2.225 x .210)盖O-RING (2.225 x .210) CAP1
2843295A5壳体总成适配器HOUSING ASSEMBLY Adaptor1
28816190A4机油收集器总成(无传感器)OIL PICK UP ASSEMBLY Without Sender1
2911332O型圈(2.225 x .210)适配器壳体O-RING (2.225 x .210) ADAPTOR HOUSING1
3099802吸油管TUBE OIL PICK-UP1
3143300A1油箱盖总成CAP ASSEMBLY OIL RESERVOIR1
3143300A9盖总成CAP ASSEMBLY1
3243307油箱盖衬垫GASKET RESERVOIR CAP1
3243307T衬垫GASKET1
3399022A1浮子总成FLOAT ASSEMBLY1
338M0187298浮子总成FLOAT ASSY1
3499265压入式螺母PUSH NUT1
35415824油管卡箍(小)CLAMP OIL HOSE (SMALL)2
3690077扎带TIE STRAPAR
36816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
3712335A1支架套件BRACKET KIT1
3812323A1绳索/挂钩套件CORD/HOOK KIT1
图 85动力升降组件 8M0231193 Power Trim Components 8M0231193
动力升降组件 8M0231193 Power Trim Components 8M0231193
REF零件编号中文名称英文名称数量
-8M0231193动力升降总成POWER TRIM ASSEMBLY1
18M0225363电机套件MOTOR KIT1
28M0225369阀套件VALVE KIT1
38M0225371手动释放套件MANUAL RELEASE KIT1
48M0245633倾斜油缸套件TILT CYLINDER KIT1
58M0225370枢轴销套件PIVOT PIN KIT1
68M0244575减震杆套件SHOCK ROD KIT1
78M0244425销杆眼套件PIN ROD EYE KIT1
88M0232231螺钉螺母套件SCREW NUT KIT1
98M0225373记忆活塞套件MEMORY PISTON KIT1
108M0225368储液罐套件RESERVOIR KIT1
118M0174135储液罐塞总成PLUG RESERVOIR ASSEMBLY1
128M0237525泵套件PUMP KIT1
138M0225367升降杆套件TRIM ROD KIT1
148M0242846升降杆套件TRIM ROD KIT1
158M0225372重建套件REBUILD KIT1
图 86齿轮箱（驱动轴）（标准/反向旋转） Gear Housing (Driveshaft)(Standard/Counter Rotation)
齿轮箱（驱动轴）（标准/反向旋转） Gear Housing (Driveshaft)(Standard/Counter Rotation)
REF零件编号中文名称英文名称数量
0840560T33齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
0840560T34齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
0840560T35齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
0840561T69齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
0840561T70齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
0840561T71齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
1849780A2基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
18M0083306齿轮箱-SM型GEAR HOUSING-SM1
1849781A2基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
18M0084203齿轮箱-SM型GEAR HOUSING-SM1
28479504盖板COVER2
334776O型圈O-RING2
4815904螺钉(#10-32 x .500)SCREW (#10-32 x .500)12
543044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
642647A1滚柱轴承总成BEARING ASSEMBLY Roller1
767891填充块FILLER BLOCK1
78M0039169填充块FILLER BLOCK1
8847949管塞PLUG Pipe1
9562972螺柱(0.312-18/0.324-24×3.380)STUD (.312-18/.324-24 x 3.380)1
98M0034463螺柱(.312-24 x 3.38)STUD (.312-24 x 3.38)1
1030667双头螺栓(.250-20/.250-28×3.125)STUD (.250-20/.250-28 x 3.125)2
10306671螺柱STUD2
11826134Q阳极块ANODE2
124000333螺钉(M6 x 40)SCREW (M6 x 40)1
13401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
1459579双头螺柱(.437-14/.437-20 x 2.812)STUD (.437-14/.437-20 x 2.812)5
1474732双头螺柱(7/16 X 7.11/16英寸)STUD (7/16 X 7.11/16 IN.)5
15NSSNOT SOLD SEPARATE Pinion gear1
1692721垫圈(.965×0.630)WASHER (.965 x .630)1
1735921螺母(0.625-18)NUT (.625-18)1
1879953Q2排水螺钉套件(.375-16 x .250)SCREW KIT (.375-16 x .250) Drain1
1879953Q04放油螺钉套件SCREW KIT Drain1
19191833密封件SEAL1
198M0187157蓝色密封件@15SEAL-BLUE @151
20789022换挡轴(下部)SHIFT SHAFT (LOWER)1
2177631A2衬套总成BUSHING ASSEMBLY1
2225439O型圈(.862×0.103)O-RING (.862 x .103)1
238164641油封SEAL Oil1
238M0246145油封OIL SEAL1
2477674垫圈(.35 x .75 x .12)WASHER (.35 x .75 x .12)1
25848449A4驱动轴总成DRIVESHAFT ASSEMBLY1
258M0192233驱动轴DRIVESHAFT1
25848449A5驱动轴总成DRIVESHAFT ASSEMBLY1
258M0192234驱动轴DRIVESHAFT1
25848449A6驱动轴总成DRIVESHAFT ASSEMBLY1
2638657A1垫片组SHIM ASSEMBLYAR
268M0063268垫片组SHIM SETAR
2748939A2圆锥滚子轴承BEARING Taper Roller1
278M0146553杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
28NSS不单独销售NOT SOLD SEPARATE1
2942637A1垫片组SHIM SETAR
298M0063267垫片组SHIM SETAR
3036387A1轴承总成(滚子/外圈)BEARING ASSEMBLY Roller/Cup1
308M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
31NSS不单独销售NOT SOLD SEPARATE1
328245191固定座RETAINER1
3344292A3水泵底座总成BASE ASSEMBLY Water Pump1
34426311衬垫GASKET1
348M0204678衬垫GASKET1
3590011O型圈(2.175 x 0.175)O-RING (2.175 x .175)1
358M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
3689238油封SEAL Oil1
3716977油封SEAL Oil1
3818051衬垫(下部)GASKET (LOWER)1
39858524衬垫(上部)GASKET (UPPER)1
4032435面板FACE PLATE1
408M0204677面板PLATE-FACE1
41847710T1水泵壳体总成BODY ASSEMBLY Water Pump1
4248752T嵌件INSERT1
4388397密封件SEAL1
44847685套筒SLEEVE1
4556654键KEY1
458M0214992键@5KEY @51
4689984T4叶轮IMPELLER1
4729245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
478M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
488267119螺母(.250-28)NUT (.250-28)2
4936001垫圈WASHER1
5013436螺母NUT1
5196411螺钉(#14-8×2.25)SCREW (#14-8 x 2.25)1
518M0215009螺钉SCREW1
-89238A3齿轮箱密封套件SEAL KIT Gear Housing1
-90415A24螺柱套件STUD KIT1
-59579双头螺柱(.437-14/.437-20 x 2.812)STUD (.437-14/.437-20 x 2.812)1
-90415A25螺柱套件STUD KIT1
图 87气缸体与端盖 Cylinder Block And End Caps
气缸体与端盖 Cylinder Block And End Caps
REF零件编号中文名称英文名称数量
18712A41气缸体CYLINDER BLOCK1
276175动力头螺柱STUD POWERHEAD6
367065动力头螺柱STUD POWERHEAD2
3670654螺柱(.375-16/.375-24 x 5.620)STUD (.375-16/.375-24 x 5.620)2
378438动力头螺柱STUD POWERHEAD2
38M0034454螺柱(.375-16/.375-24 x 6.87)STUD (.375-16/.375-24 x 6.87)2
420033定位销PIN Dowel LOCATING2
443044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
567296气缸体销(轴承座圈)PIN CYLINDER BLOCK (BEARING RACE)2
58M0036405销PIN2
611338密封垫片GASKET SEALING2
742249启动马达上盖COVER STARTER MOTOR (UPPER)1
78M0088723启动器支架BRACKET-STARTER1
873657盖至曲轴箱螺钉(.312-18 x 1.50)SCREW (.312-18 x 1.50) COVER TO CRANKCASE2
926993启动马达盖螺钉锁紧垫圈(0.312)LOCKWASHER (.312) STARTER MOTOR COVER SCREW4
98M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
1076867启动电机盖(下部)COVER STARTER MOTOR (LOWER)1
1177065盖至曲轴箱螺钉(.312-18 x 2)SCREW (.312-18 x 2) COVER TO CRANKCASE2
11815549螺钉(.312-18 x 2.00)SCREW (.312-18 x 2.00)2
1288801杯形塞PLUG CUPPED2
1299448衬套BUSHING1
1388807A20线束总成盖CABLE ASSEMBLY COVER1
1466717螺钉 (.375-16 x 3.250) 曲轴箱气缸体SCREW (.375-16 x 3.250) CRANKCASE CYLINDER BLOCK8
1474824曲轴箱至气缸体螺丝(.312-18 x 1.250)SCREW (.312-18 x 1.250) CRANKCASE TO CYLINDER BLOCK6
159608A1上端盖总成END CAP ASSEMBLY (UPPER)1
159608T1上盖总成CAP-ASSY-UPPER1
1654029端盖O型圈(2.800 x .103)O-RING (2.800 x .103) END CAP1
1793496端盖滚柱轴承BEARING Roller END CAP1
1793496T轴承BEARING1
1841953端盖密封件SEAL END CAP1
1969034螺钉与锁紧垫圈 (.312-18 x 1.00) 上端盖至气缸体 (1")SCREW AND LOCKWASHER (.312-18 x 1.00) UPPER END CAP TO CYLINDER BLOCK (1")4
1930225螺钉带锁紧垫圈(.312-18 x 1.00)SCREW WITH LOCKWASHER (.312-18 x 1.00)4
2024220螺钉 (.190-24 x .190) 定位 - 气缸体 (旧设计)SCREW (.190-24 x .190) SET - CYLINDER BLOCK (OLD DESIGN)2
2138407堵头(.500-14)PLUG (.500-14)1
2215094飞轮盖至气缸体双头螺柱(.190-32 x 1.870)STUD (.190-32 x 1.870) FLYWHEEL COVER TO CYLINDER BLOCK1
2315093飞轮盖至支架双头螺柱(#10-32 x 1.00)STUD (#10-32 x 1.00) FLYWHEEL COVER TO BRACKET2
238M0034435螺柱STUD2
2467269飞轮盖螺柱隔套SPACER FLYWHEEL COVER STUD1
25492211飞轮盖螺柱垫圈WASHER FLYWHEEL COVER STUD6
258M0204663垫片@5WASHER @56
2672761垫圈 (.203 x .562 x .060) 不锈钢 飞轮盖螺柱WASHER (.203 x .562 x .060) Stainless Steel FLYHWEEL COVER STUD3
2773651飞轮盖螺柱螺母NUT FLYWHEEL COVER STUD3
27816874蝶形螺母 (#10-32)WING NUT (#10-32)3
2842248飞轮罩支架BRACKET FLYWHEEL COVER1
28422482支架BRACKET1
2949668支架至曲轴箱螺钉(.250-20 x .750)SCREW (.250-20 x .750) BRACKET TO CRANKCASE2
307809A1下端盖总成END CAP ASSEMBLY (LOWER)1
307809T1端盖总成END CAP ASSEMBLY1
3162700O型圈 (3.237 x .103) 端盖 (3 3/4" 内径)O-RING (3.237 x .103) END CAP (3 3/4" I.D.)1
3241953端盖密封件SEAL END CAP2
3328636螺钉（0.250-20 x 0.750）下端盖至气缸体SCREW (.250-20 x .750) LOWER END CAP TO CYLINDER BLOCK4
3426992下端盖螺钉不锈钢锁紧垫圈(.250)LOCKWASHER (.250) Stainless Steel LOWER END CAP SCREW4
3564022调节螺钉(.250-20 x 2.125)-气缸体SCREW (.250-20 x 2.125) ADJUSTING - CYLINDER BLOCK1
3664015锁紧螺母(.250-20)-调节螺钉NUT (.250-20) JAM - ADJUSTING SCREW1
3726852调节螺钉尼龙帽CAP Nylon NYLON - ADJUSTING SCREW1
3816793卡箍CLAMP1
3973286螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel1
4087076A6怠速控制总成IDLE SPEED CONTROL ASSEMBLY1
4087076A10怠速控制器IDLE SPEED CONTROL1
4169020螺丝(#10-32 x .875)怠速控制SCREW (#10-32 x .875) IDLE SPEED CONTROL3
41690201螺钉(#10-32 x .875)SCREW (#10-32 x .875)3
4238833垫圈 怠速控制螺钉WASHER IDLE SPEED SONTROL SCREW3
43194372端子排TERMINAL BLOCK1
4448409螺钉 (#10-16 x .625) 不锈钢SCREW (#10-16 x .625) Stainless Steel2
4589302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)2
4645076黄铜螺母(#10-32)NUT (#10-32) Brass2
47813938盖形螺母(#10-32)CAP NUT (#10-32)2
4863153J型卡扣J CLIP1
-812827A89动力总成完整组件POWERHEAD ASSEMBLY COMPLETE1
-812827T89船用动力头POWERHEAD MARINE1
-14697A87衬垫套件GASKET SET
图 88转向连接套件 Steering Attaching Kit
转向连接套件 Steering Attaching Kit
REF零件编号中文名称英文名称数量
-92876A8转向安装套件ATTACHING KIT Steering1
141055A1支架总成BRACKET ASSEMBLY1
2715651转向拉索套管TUBE Steering Cable1
348462O型圈 (.614 x .070)O-RING (.614 x .070)1
4821203锁紧垫圈LOCKWASHER2
537984螺母 (.875-14)NUT (.875-14)2
58M0041651螺母 (.875-14)NUT (.875-14)2
638601螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250)4
778968内锁紧垫圈 (.250)LOCKWASHER Internal (.250)4
8850791T联轴器COUPLER1
973732螺钉 (.375-24 x 1.120)SCREW (.375-24 x 1.120)2
1037828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel2
11826709113不锈钢螺母 (.375-24)NUT (.375-24) Stainless Steel3
118M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass3
图 89蓄能器 ACCUMULATOR
蓄能器 ACCUMULATOR
REF零件编号中文名称英文名称数量
-811290蓄能器ACCUMULATOR1
1823059A1端架总成(含线束)END FRAME ASSEMBLY (W/WIRES)1
2823061A1电枢总成ARMATURE ASSEMBLY1
3823062泵总成PUMP ASSEMBLY1
4823063壳体/磁铁总成SHELL/MAGNET ASSEMBLY1
5823064螺栓套件BOLT KIT1
6823065控制器CONTROLLER1
7823066螺钉套件SCREW KIT1
8823067滤清器套件FILTER KIT1
9823068橡胶减震器RUBBER DAMPER1
10823070橡胶隔振器RUBBER ISOLATOR1
11823071储液罐衬垫GASKET Reservoir1
12823072螺钉套件SCREW KIT1
13823074O型圈O-RING1
14823075固定板PLATE Retaining1
15823077电源线束总成HARNESS ASSEMBLY Power1
16823078A1盖总成COVER ASSEMBLY1
17823080A1加注塞FILL PLUG1
18823082壳体总成HOUSING ASSEMBLY1
1979953螺钉(0.375-16x0.250)SCREW (.375-16 x .250)1
2019183纤维垫圈WASHER Fiber1
21823087接头FITTING1
22823069高压短管SHORT HIGH PRESSURE LINE1
23823073高压长管LONG HIGH PRESSURE LINE1
24811524低压短管SHORT LOW PRESSURE LINE1
25811525低压长管LONG LOW PRESSURE LINE1
图 90专用工具 Tools Special
专用工具 Tools Special
REF零件编号中文名称英文名称数量
图 91双机延伸套件 DUAL ENGINE EXTENSION KIT
双机延伸套件 DUAL ENGINE EXTENSION KIT
REF零件编号中文名称英文名称数量
-92876A9双机延长套件EXTENSION KIT Dual Engine1
148462O型圈 (.614 x .070)O-RING (.614 x .070)1
271565A2管总成TUBE ASSEMBLY1
341055支架MOUNT1
442100锁紧垫圈TAB WASHER2
537984螺母 (.875-14)NUT (.875-14)2
58M0041651螺母 (.875-14)NUT (.875-14)2
688404锁紧垫圈TAB WASHER2
738601螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250)4
817729A1支架BRACKET2
962055螺钉(.312-24 x 1.250)SCREW (.312-24 x 1.250)4
1017728锁紧垫圈TAB WASHER4
11140001螺钉(0.375-24×1.38)SCREW (.375-24 x 1.38)4
1234863螺母 (.375-24)NUT (.375-24)6
128M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass6
13979331转向眼环STEERING EYE2
138M0026167转向眼环STEERING EYE2
1423651衬套(1.625)SLEEVE (1.625)2
1597931管材(4.00英寸)TUBING (4.00 Inches)2
168149513联轴器(15.00英寸)COUPLER (15.00 Inches)1
168M0026098联轴器15英寸COUPLER 15 In.1
1742099螺母(.562-18)NUT (.562-18)1
18821169联轴器COUPLING1
1934931不锈钢垫圈(.406x.734x.063)WASHER (.406 x .734 x .063) Stainless Steel2
2094319螺钉(.375-24 x 1.5)SCREW (.375-24 x 1.5)1
图 92油门杆与换挡轴 THROTTLE LEVER AND SHIFT SHAFT
油门杆与换挡轴 THROTTLE LEVER AND SHIFT SHAFT
REF零件编号中文名称英文名称数量
174897PIVOT TRIGGER PLATE1
262459球头总成触发板BALL JOINT ASSEMBLY TRIGGER PLATE1
262459T球头节总成BALL JOINT ASSY1
345076螺母(#10-32)黄铜连杆NUT (#10-32) Brass LINK ROD1
476035触发板连杆ROD TRIGGER PLATE1
546438螺母(#10-32)球头NUT (#10-32) BALL JOINT1
641094A3点火提前杆总成LEVER ASSEMBLY SPARK ADVANCE1
764022螺丝(.250-20x2.125)点火提前杆-止动SCREW (.250-20 x 2.125) SPARK ADVANCE LEVER - STOP1
864015螺母(.250-20)点火提前止动螺丝NUT (.250-20) SPARK ADVANCE STOP SCREW1
926852尼龙帽点火提前杆止动螺丝CAP Nylon SPARK ADVANCE LEVER STOP SCREW1
1013627螺钉（0.190-32 x 1.250）点火提前杠杆-止动（1-1/4英寸）SCREW (.190-32 x 1.250) SPARK ADVANCE LEVER - STOP (1-1/4")1
1168219螺母(#10-32)不锈钢点火提前杆止动螺丝NUT (#10-32) Stainless Steel SPARK ADVANCE LEVER STOP SCREW1
1248039点火提前杆止动螺丝帽CAP SPARK ADVANCE LEVER STOP SCREW1
1341095T油门控制杆LEVER THROTTLE CONTROL1
13410952杠杆LEVER1
1455337螺钉（0.375-16 x 1.75）节气门杠杆/提前杠杆（1-3/4英寸）SCREW (.375-16 x 1.75) THROTTLE LEVER/ADVANCE LEVER (1-3/4")1
14818165螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
1555164油门杠杆衬套BUSHING THROTTLE LEVER1
1655171点火提前杆衬套BUSHING SPARK ADVANCE LEVER1
1768784节气门与点火提前杆弹簧SPRING THROTTLE AND SPARK ADVANCE LEVER1
1868410点火提前杆垫片WASHER SPARK ADVANCE LEVER1
1846765垫圈 (.390 x 1.50 x .120)WASHER (.390 x 1.50 x .120)1
1964022螺钉（0.250-20 x 2.125）节气门杠杆-止动（2-1/8英寸）SCREW (.250-20 x 2.125) THROTTLE LEVER - STOP (2-1/8")1
2064015螺母(.250-20)节气门杆止动螺丝NUT (.250-20) THROTTLE LEVER STOP SCREW1
2126852尼龙帽节气门杆止动螺丝CAP Nylon THROTTLE LEVER STOP SCREW1
2239483锁扣拉线LATCH CABLE1
2322486螺丝(.250-28x.880)拉线锁扣至节气门杆SCREW (.250-28 x .880) CABLE LATCH TO THROTTLE LEVER1
2369026螺钉 (.250-28 x .880)SCREW (.250-28 x .880)1
2420099拉线锁扣至节气门杆弹簧SPRING CABLE LATCH TO THROTTLE LEVER1
2520586螺母(.250-28)拉线锁扣螺丝NUT (.250-28) CABLE LATCH SCREW1
25826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
2614634节气门控制杆ROD THROTTLE CONTROL1
2714638节气门控制杆套筒BARREL THROTTLE CONTROL ROD1
28146351节气门凸轮CAM Throttle1
2993248衬套BUSHING1
298M0215006旋转衬套BUSHING Swivel1
3026856节气门凸轮衬套BUSHING THROTTLE CAM2
3135045螺母（0.250-28）节气门凸轮螺柱NUT (.250-28) THROTTLE CAM STUD1
31826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
3241050节气门复位弹簧SPRING THROTTLE RETURN1
3392032A2支架锚-控制电缆BRACKET ANCHOR - CTRL CABLES1
33814283A2支架总成BRACKET ASSEMBLY1
33814283A1控制线缆锚定支架BRACKET ANCHOR - CONTROL CABLES1
33814283A2支架总成BRACKET ASSEMBLY1
3498889控制线缆锁扣LATCH CONTROL CABLE1
3542975闩锁传动螺钉DRIVE SCREW LATCH2
3653167螺丝(.312-18x.880)锚定支架固定SCREW (.312-18 x .880) ANCHOR BRACKET ATTACHING3
3653167T螺钉 0.312-18X 0.88SCREW .312-18X .883
3737896连杆导向块GUIDE BLOCK LINK ROD1
37814284连杆导向块GUIDE BLOCK LINK ROD1
3820099连杆至导向块弹簧SPRING LINK ROD TO GUIDE BLOCK1
3967073A1连杆总成LINK ROD ASSEMBLY1
4052100连杆耐磨板WEAR PLATE LINK ROD1
4138279控制线缆闩锁紧固件LATCH CONTROL CABLE FASTENING1
418M0036768闩锁LATCH1
4235462垫圈(.2656x.625x.0625)不锈钢锁扣WASHER (.2656 x .625 x .0625) Stainless Steel LATCH1
4335045螺母（0.250-28）连杆NUT (.250-28) LINK ROD1
43826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
4479932A11换挡轴总成SHIFT SHAFT ASSEMBLY1
4479932A16换挡轴总成SHIFT SHAFT ASSEMBLY1
4529720连杆波形垫圈WAVE WASHER LINK ROD1
4626600尼龙衬套-连杆BUSHING NYLON - LINK ROD1
4735462垫圈(.2656 x .625 x .0625)不锈钢连杆WASHER (.2656 x .625 x .0625) Stainless Steel LINK ROD1
4835045螺母（0.250-28）连杆至换挡轴NUT (.250-28) LINK ROD TO SHIFT SHAFT1
48826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
4939519杯形保持器-锚杆CUP BARRELL RETAINER - ANCHOR BAR1
图 93排气歧管与排气板 Exhaust Manifold and Exhaust Plate
排气歧管与排气板 Exhaust Manifold and Exhaust Plate
REF零件编号中文名称英文名称数量
1904841分隔板衬垫GASKET DIVIDER PLATE2
299169A1分隔板PLATE DIVIDER1
369668分隔板密封件SEAL DIVIDER PLATE1
3814754密封件(12.50英寸)SEAL (12.50 Inches)1
4193071排气歧管盖COVER EXHAUST MANIFOLD1
574824螺钉（0.312-18 x 1.250）盖和板至气缸体SCREW (.312-18 x 1.250) COVER AND PLATE TO CYLINDER BLOCK21
6194373接线板（3端子）TERMINAL BLOCK (3 TERMIALS)1
713716零件手册 7.5/9.8马力 接线板PARTS MANUAL 7.5 /9.8 H.P. TERMIAL BL0CK2
829245垫圈（0.281 x 0.500 x 0.060）不锈钢接线板螺钉WASHER (.281 x .500 x .060) Stainless Steel TERMIMAL BLOCK SCREW2
88M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
945076端子排黄铜螺母(#10-32)NUT (#10-32) Brass TERMINAL BLOCK3
10813938盖螺母（#10-32）接线板CAP NUT (#10-32) TERMINAL BLOCK3
1174824缸体盖板螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250) COVER TO CYLINDER BLOCK4
1269570膜片至板件螺钉(#10-16 x .750)SCREW (#10-16 x .750) DIAPHRAGM TO PLATE1
1376451膜片螺钉垫片WASHER DIAPHRAGM SCREW1
1414479隔膜DIAPHRAGM1
14144791隔膜DIAPHRAGM1
1516496导水板DEFLECTOR Water1
1616497A1安全阀板PLATE RELIEF VALVE1
1778690安全阀板衬垫GASKET RELIEF VALVE PLATE2
1778690002衬垫GASKET2
1864878弹簧（黑色）压缩弹出阀SPRING (Black) COMPERSSION POPPER VALVE1
1985303提升阀弹簧垫片WASHER POPPET SPRING1
2014480提升阀POPPET VALVE1
2164872提升阀衬套GROMMET POPPET VALVE1
2265848提升阀座CARRIER POPPET VALVE1
23991763排气板衬垫GASKET EXHAUST PLATE1
23991764衬垫GASKET1
2441944A5排气板总成PLATE ASSEMBLY EXHAUST1
2599664排气板弯头ELBOW EXHAUST PLATE1
2599664290度弯头接头(0.125-27x0.250)尼龙FITTING Elbow 90 Degree (.125-27 x .250) Nylon1
2620033排气板定位销PIN Dowel LOCATING - EXHAUST PLATE2
2643044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
27183982排气板密封件SEAL EXHAUST PLATE1
278M0043165密封件-27.00英寸SEAL-27.00 INCH1
28680101密封件固定支架BRACKET SEAL RETAINING1
29812832支架至排气板螺钉(#10-16 x .500)SCREW (#10-16 x .500) BRACKET TO EXHAUST PLATE6
29878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)6
3025970动力头螺柱垫圈WASHER POWERHEAD STUD6
3020553垫圈(.406 x .734 x .063)WASHER (.406 x .734 x .063)6
3169254螺母 动力头螺柱NUT POWWERHEAD STUD6
3227132排气板衬套BUSHING EXHAUST PLATE1
3319564护孔环GROMMET1
338M0179867护孔环GROMMET1
3412602排气板衬套GROMMET EXHAUST PLATE1
3412602002护孔环GROMMET1
3566727螺钉(.312-18 x 1.250)排气板固定SCREW (.312-18 x 1.250) EXHAUST PLATE ATTACHING1
3668783螺钉(.312-18 x 2.50)排气板固定SCREW (.312-18 x 2.50) EXHAUST PLATE ATTACHING1
3766725螺钉(.375-16 x 3.50)排气板固定SCREW (.375-16 x 3.50) EXHAUST PLATE ATTACHING3
37898833螺钉(.375-16 x 3.500)SCREW (.375-16 x 3.500)3
38812905A2前支架总成BRACKET ASSEMBLY FRONT1
38812905T前支架BRACKET Front1
3990285螺钉（0.312-18 x 0.625）前支架SCREW (.312-18 x .625) FRONT BRAKET4
40187031垫圈WASHER4
4118778护孔环GROMMET4
4118778001护孔环GROMMET4
4218578A3后支架总成BRACKET ASSEMBLY Rear REAR1
4218578T09支架总成(后部)BRACKET ASSEMBLY Rear1
4314462A1安全阀盖(旧设计)COVER RELIEF VALVE (OLD DESIGN)1
4368729泄压阀盖（新设计）COVER RELIEF VALVE (NEW DESIGN)1
438M0039767盖板COVER1
4492007接头（0.250-18）（90度）（新设计）FITTING (.250-18) (90 DEGREES) (NEW DESIGN)1
4492007190度弯头FITTING (90 Degree)1
4599127109管路（57.00英寸散装）（新设计）LINE (57.00 Inches Bulk) (NEW DESIGN)1
458M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
4690077扎带（新设计）TIE STRAP (NEW DESIGN)2
46816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)2
47814430接头（0.500-14）（新设计）FITTING (.500-14) (NEW DESIGN)1
478144301接头FITTING1
-14697A87衬垫套件GASKET SET1
图 94曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS
曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS
REF零件编号中文名称英文名称数量
19536A4曲轴总成CRANKSHAFT ASSEMBLY1
267923球轴承(下部)BEARING Ball (LOWER)1
267923T滚珠轴承BEARING Ball1
367446环RING1
414513A2驱动齿轮段套件GEAR SEGMENT KIT Drive1
414513A09驱动齿轮段套件GEAR SEGMENT KIT Drive1
5813073螺钉(#6-32 x .620)内六角头SCREW (#6-32 x .620) Socket Head2
6813134螺母(#6-32)专用NUT (#6-32) Special2
754196A6托架总成CARRIER ASSEMBLY1
865800填料PACKING1
967377曲轴密封环RING Sealing CRANKSHAFT7
967377T密封环RING Sealing7
1016756A6轴承套件BEARING KIT2
117441A32活塞(右舷-标准)PISTON (STARBOARD-STANDARD)3
117441T32活塞PISTON3
117443A11活塞(右舷-0.015加大)PISTON (STARBOARD-.015 O.S.)AR
117445A11活塞(右舷-0.030加大)PISTON (STARBOARD-.030 OS.)AR
117445T11活塞PISTONAR
117442A32活塞(左舷-标准)PISTON (PORT-STANDARD)3
117442T32活塞PISTON3
117444A11活塞(左舷-0.015加大)PISTON (PORT-.015 O.S.)AR
117446A11活塞(左舷-0.030加大)PISTON (PORT-.030 O.S.)AR
119738A7活塞总成(右舷-标准)PISTON ASSEMBLY (STARBOARD-STANDARD)3
119738T9活塞总成标准型PISTON ASSEMBLY Standard3
119738A8活塞总成(右舷-0.015加大)PISTON ASSEMBLY (STARBOARD-.015 O.S.)AR
119738T10活塞总成0.015加大PISTON ASSEMBLY .015 OversizeAR
119737A7活塞总成(左舷-标准)PISTON ASSEMBLY (PORT-STANDARD)3
119737T9活塞总成标准型PISTON ASSEMBLY Standard3
119737A8活塞总成(左舷-0.015加大)PISTON ASSEMBLY (PORT-.015 O.S.)AR
119737A10活塞总成0.015加大PISTON ASSEMBLY .015 OversizeAR
119738A9活塞总成标准型(右舷-标准)PISTON ASSEMBLY Standard (STARBOARD-STANDARD)3
119738T9活塞总成标准型PISTON ASSEMBLY Standard3
119738A10活塞总成0.015加大(右舷-0.015加大)PISTON ASSEMBLY .015 Oversize (STARBOARD-.015 O.S.)AR
119738T10活塞总成0.015加大PISTON ASSEMBLY .015 OversizeAR
119737A9活塞总成标准型(左舷-标准)PISTON ASSEMBLY Standard (PORT-STANDARD)3
119737T9活塞总成标准型PISTON ASSEMBLY Standard3
119737A10活塞总成0.015加大(左舷-0.015加大)PISTON ASSEMBLY .015 Oversize (PORT-.015 O.S.)AR
1293481A12活塞环组-标准(标准)RING SET Piston - Standard (STANDARD)1
1278918A4活塞环组-0.015加大(0.015加大)RING SET Piston - .015 Oversize (.015 O.S.)AR
1285636A4活塞环组-0.030加大(0.030加大)RING SET Piston - .030 Oversize (.030 O.S.)AR
12815515A12活塞环组(标准)(1-1/2毫米)RING SET Piston (STD.) (1-1/2 MM)1
12815268A4活塞环组(0.015加大)(1-1/2毫米)RING SET Piston (.015 O.S.) (1-1/2 MM)AR
12822321A12活塞环套件-标准(标准)(2毫米)RING KIT Piston - Standard (STD.) (2MM)1
12822321A1活塞环套件-0.015加大(0.015加大)(2毫米)RING KIT Piston - .015 Oversize (.015 O.S.) (2MM)2
1352035锁环RING Lock12
13857196锁紧环LOCK RING12
14818141A2连杆套件CONNECTING ROD KIT6
14818141A13连杆总成CONNECTING ROD ASSEMBLY6
15763491螺钉(.312-24 x .875)SCREW (.312-24 x .875)12
16812876垫圈WASHER12
168M0012298止推垫片THRUST WASHER12
1717514A2轴承套件BEARING KIT6
178M0234886轴承保持架CAGE BEARING6
18822553滚针轴承BEARING Needle174
188M0204691滚针轴承@200BRG-NEEDLE @200174
-815791A92发动机垫片组GASKET SET Engine1
-812815A92动力头总成POWERHEAD ASSEMBLY1
-878365T00动力头总成POWERHEAD ASSEMBLY1
-812817A92动力头总成POWERHEAD ASSEMBLY1
-812817T97动力头总成POWERHEAD ASSEMBLY1
-823434A93动力头总成POWERHEAD ASSEMBLY1
-823434T97动力头总成POWERHEAD ASSEMBLY1
-823434A93动力头总成POWERHEAD ASSEMBLY1
-823434T97动力头总成POWERHEAD ASSEMBLY1
-812817A92动力头总成POWERHEAD ASSEMBLY1
-812817T97动力头总成POWERHEAD ASSEMBLY1
-813043A94动力头总成POWERHEAD ASSEMBLY1
-813043T97动力头总成POWERHEAD ASSEMBLY1
图 95气缸体与端盖 CYLINDER BLOCK AND END CAPS
气缸体与端盖 CYLINDER BLOCK AND END CAPS
REF零件编号中文名称英文名称数量
18712A41气缸体CYLINDER BLOCK1
276175动力头螺柱STUD POWERHEAD6
367065动力头螺柱STUD POWERHEAD2
3670654螺柱(.375-16/.375-24 x 5.620)STUD (.375-16/.375-24 x 5.620)2
378438动力头螺柱STUD POWERHEAD2
38M0034454螺柱(.375-16/.375-24 x 6.87)STUD (.375-16/.375-24 x 6.87)2
420033定位销PIN Dowel LOCATING2
443044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
567296气缸体销(轴承座圈)PIN CYLINDER BLOCK (BEARING RACE)2
58M0036405销PIN2
611338密封垫片GASKET SEALING2
742249启动马达上盖COVER STARTER MOTOR (UPPER)1
78M0088723启动器支架BRACKET-STARTER1
873657盖至曲轴箱螺钉(.312-18 x 1.50)SCREW (.312-18 x 1.50) COVER TO CRANKCASE2
926993启动马达盖螺钉锁紧垫圈(0.312)LOCKWASHER (.312) STARTER MOTOR COVER SCREW4
98M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
1076867启动电机盖(下部)COVER STARTER MOTOR (LOWER)1
1177065盖至曲轴箱螺钉(.312-18 x 2)SCREW (.312-18 x 2) COVER TO CRANKCASE2
11815549螺钉(.312-18 x 2.00)SCREW (.312-18 x 2.00)2
1288801杯形塞PLUG CUPPED2
1299448衬套BUSHING1
1388807A20线束总成盖CABLE ASSEMBLY COVER1
1466717螺钉 (.375-16 x 3.250) 曲轴箱气缸体SCREW (.375-16 x 3.250) CRANKCASE CYLINDER BLOCK8
1474824曲轴箱至气缸体螺丝(.312-18 x 1.250)SCREW (.312-18 x 1.250) CRANKCASE TO CYLINDER BLOCK6
159608A1上端盖总成END CAP ASSEMBLY (UPPER)1
159608T1上盖总成CAP-ASSY-UPPER1
1654029端盖O型圈(2.800 x .103)O-RING (2.800 x .103) END CAP1
1793496端盖滚柱轴承BEARING Roller END CAP1
1793496T轴承BEARING1
1841953端盖密封件SEAL END CAP1
1969034螺钉与锁紧垫圈 (.312-18 x 1.00) 上端盖至气缸体 (1")SCREW AND LOCKWASHER (.312-18 x 1.00) UPPER END CAP TO CYLINDER BLOCK (1")4
1930225螺钉带锁紧垫圈(.312-18 x 1.00)SCREW WITH LOCKWASHER (.312-18 x 1.00)4
2024220螺钉 (.190-24 x .190) 定位 - 气缸体 (旧设计)SCREW (.190-24 x .190) SET - CYLINDER BLOCK (OLD DESIGN)2
2138407堵头(.500-14)PLUG (.500-14)1
2215094飞轮盖至气缸体双头螺柱(.190-32 x 1.870)STUD (.190-32 x 1.870) FLYWHEEL COVER TO CYLINDER BLOCK1
2315093飞轮盖至支架双头螺柱(#10-32 x 1.00)STUD (#10-32 x 1.00) FLYWHEEL COVER TO BRACKET2
238M0034435螺柱STUD2
2467269飞轮盖螺柱隔套SPACER FLYWHEEL COVER STUD1
25492211飞轮盖螺柱垫圈WASHER FLYWHEEL COVER STUD6
258M0204663垫片@5WASHER @56
2672761垫圈 (.203 x .562 x .060) 不锈钢 飞轮盖螺柱WASHER (.203 x .562 x .060) Stainless Steel FLYHWEEL COVER STUD3
2773651飞轮盖螺柱螺母NUT FLYWHEEL COVER STUD3
27816874蝶形螺母 (#10-32)WING NUT (#10-32)3
2842248飞轮罩支架BRACKET FLYWHEEL COVER1
28422482支架BRACKET1
2949668支架至曲轴箱螺钉(.250-20 x .750)SCREW (.250-20 x .750) BRACKET TO CRANKCASE2
307809A1下端盖总成END CAP ASSEMBLY (LOWER)1
307809T1端盖总成END CAP ASSEMBLY1
3162700O型圈 (3.237 x .103) 端盖 (3 3/4" 内径)O-RING (3.237 x .103) END CAP (3 3/4" I.D.)1
3241953端盖密封件SEAL END CAP2
3328636螺钉（0.250-20 x 0.750）下端盖至气缸体SCREW (.250-20 x .750) LOWER END CAP TO CYLINDER BLOCK4
3426992下端盖螺钉不锈钢锁紧垫圈(.250)LOCKWASHER (.250) Stainless Steel LOWER END CAP SCREW4
3564022调节螺钉(.250-20 x 2.125)-气缸体SCREW (.250-20 x 2.125) ADJUSTING - CYLINDER BLOCK1
3664015锁紧螺母(.250-20)-调节螺钉NUT (.250-20) JAM - ADJUSTING SCREW1
3726852调节螺钉尼龙帽CAP Nylon NYLON - ADJUSTING SCREW1
3816793卡箍CLAMP1
3973286螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel1
4087076A6怠速控制总成IDLE SPEED CONTROL ASSEMBLY1
4087076A10怠速控制器IDLE SPEED CONTROL1
4169020螺丝(#10-32 x .875)怠速控制SCREW (#10-32 x .875) IDLE SPEED CONTROL3
41690201螺钉(#10-32 x .875)SCREW (#10-32 x .875)3
4238833垫圈 怠速控制螺钉WASHER IDLE SPEED SONTROL SCREW3
43194372端子排TERMINAL BLOCK1
4448409螺钉 (#10-16 x .625) 不锈钢SCREW (#10-16 x .625) Stainless Steel2
4589302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)2
4645076黄铜螺母(#10-32)NUT (#10-32) Brass2
47813938盖形螺母(#10-32)CAP NUT (#10-32)2
4863153J型卡扣J CLIP1
-812827A89动力总成完整组件POWERHEAD ASSEMBLY COMPLETE1
-812827T89船用动力头POWERHEAD MARINE1
-14697A87衬垫套件GASKET SET
图 96双机延伸套件 Dual Engine Extension Kit
双机延伸套件 Dual Engine Extension Kit
REF零件编号中文名称英文名称数量
-92876A9双机延长套件EXTENSION KIT Dual Engine1
148462O型圈 (.614 x .070)O-RING (.614 x .070)1
271565A2管总成TUBE ASSEMBLY1
341055支架MOUNT1
442100锁紧垫圈TAB WASHER2
537984螺母 (.875-14)NUT (.875-14)2
58M0041651螺母 (.875-14)NUT (.875-14)2
688404锁紧垫圈TAB WASHER2
738601螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250)4
817729A1支架BRACKET2
962055螺钉(.312-24 x 1.250)SCREW (.312-24 x 1.250)4
1017728锁紧垫圈TAB WASHER4
11140001螺钉(0.375-24×1.38)SCREW (.375-24 x 1.38)4
1234863螺母 (.375-24)NUT (.375-24)6
128M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass6
13979331转向眼环STEERING EYE2
138M0026167转向眼环STEERING EYE2
1423651衬套(1.625)SLEEVE (1.625)2
1597931管材(4.00英寸)TUBING (4.00 Inches)2
168149513联轴器(15.00英寸)COUPLER (15.00 Inches)1
168M0026098联轴器15英寸COUPLER 15 In.1
1742099螺母(.562-18)NUT (.562-18)1
18821169联轴器COUPLING1
1934931不锈钢垫圈(.406x.734x.063)WASHER (.406 x .734 x .063) Stainless Steel2
2094319螺钉(.375-24 x 1.5)SCREW (.375-24 x 1.5)1
图 97气缸体与端盖 Cylinder Block and End Caps
气缸体与端盖 Cylinder Block and End Caps
REF零件编号中文名称英文名称数量
18712A41气缸体CYLINDER BLOCK1
276175动力头螺柱STUD POWERHEAD6
367065动力头螺柱STUD POWERHEAD2
3670654螺柱(.375-16/.375-24 x 5.620)STUD (.375-16/.375-24 x 5.620)2
378438动力头螺柱STUD POWERHEAD2
38M0034454螺柱(.375-16/.375-24 x 6.87)STUD (.375-16/.375-24 x 6.87)2
420033定位销PIN Dowel LOCATING2
443044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
567296气缸体销(轴承座圈)PIN CYLINDER BLOCK (BEARING RACE)2
58M0036405销PIN2
611338密封垫片GASKET SEALING2
742249启动马达上盖COVER STARTER MOTOR (UPPER)1
78M0088723启动器支架BRACKET-STARTER1
873657盖至曲轴箱螺钉(.312-18 x 1.50)SCREW (.312-18 x 1.50) COVER TO CRANKCASE2
926993启动马达盖螺钉锁紧垫圈(0.312)LOCKWASHER (.312) STARTER MOTOR COVER SCREW4
98M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
1076867启动电机盖(下部)COVER STARTER MOTOR (LOWER)1
1177065盖至曲轴箱螺钉(.312-18 x 2)SCREW (.312-18 x 2) COVER TO CRANKCASE2
11815549螺钉(.312-18 x 2.00)SCREW (.312-18 x 2.00)2
1288801杯形塞PLUG CUPPED2
1299448衬套BUSHING1
1388807A20线束总成盖CABLE ASSEMBLY COVER1
1466717螺钉 (.375-16 x 3.250) 曲轴箱气缸体SCREW (.375-16 x 3.250) CRANKCASE CYLINDER BLOCK8
1474824曲轴箱至气缸体螺丝(.312-18 x 1.250)SCREW (.312-18 x 1.250) CRANKCASE TO CYLINDER BLOCK6
159608A1上端盖总成END CAP ASSEMBLY (UPPER)1
159608T1上盖总成CAP-ASSY-UPPER1
1654029端盖O型圈(2.800 x .103)O-RING (2.800 x .103) END CAP1
1793496端盖滚柱轴承BEARING Roller END CAP1
1793496T轴承BEARING1
1841953端盖密封件SEAL END CAP1
1969034螺钉与锁紧垫圈 (.312-18 x 1.00) 上端盖至气缸体 (1")SCREW AND LOCKWASHER (.312-18 x 1.00) UPPER END CAP TO CYLINDER BLOCK (1")4
1930225螺钉带锁紧垫圈(.312-18 x 1.00)SCREW WITH LOCKWASHER (.312-18 x 1.00)4
2024220螺钉 (.190-24 x .190) 定位 - 气缸体 (旧设计)SCREW (.190-24 x .190) SET - CYLINDER BLOCK (OLD DESIGN)2
2138407堵头(.500-14)PLUG (.500-14)1
2215094飞轮盖至气缸体双头螺柱(.190-32 x 1.870)STUD (.190-32 x 1.870) FLYWHEEL COVER TO CYLINDER BLOCK1
2315093飞轮盖至支架双头螺柱(#10-32 x 1.00)STUD (#10-32 x 1.00) FLYWHEEL COVER TO BRACKET2
238M0034435螺柱STUD2
2467269飞轮盖螺柱隔套SPACER FLYWHEEL COVER STUD1
25492211飞轮盖螺柱垫圈WASHER FLYWHEEL COVER STUD6
258M0204663垫片@5WASHER @56
2672761垫圈 (.203 x .562 x .060) 不锈钢 飞轮盖螺柱WASHER (.203 x .562 x .060) Stainless Steel FLYHWEEL COVER STUD3
2773651飞轮盖螺柱螺母NUT FLYWHEEL COVER STUD3
27816874蝶形螺母 (#10-32)WING NUT (#10-32)3
2842248飞轮罩支架BRACKET FLYWHEEL COVER1
28422482支架BRACKET1
2949668支架至曲轴箱螺钉(.250-20 x .750)SCREW (.250-20 x .750) BRACKET TO CRANKCASE2
307809A1下端盖总成END CAP ASSEMBLY (LOWER)1
307809T1端盖总成END CAP ASSEMBLY1
3162700O型圈 (3.237 x .103) 端盖 (3 3/4" 内径)O-RING (3.237 x .103) END CAP (3 3/4" I.D.)1
3241953端盖密封件SEAL END CAP2
3328636螺钉（0.250-20 x 0.750）下端盖至气缸体SCREW (.250-20 x .750) LOWER END CAP TO CYLINDER BLOCK4
3426992下端盖螺钉不锈钢锁紧垫圈(.250)LOCKWASHER (.250) Stainless Steel LOWER END CAP SCREW4
3564022调节螺钉(.250-20 x 2.125)-气缸体SCREW (.250-20 x 2.125) ADJUSTING - CYLINDER BLOCK1
3664015锁紧螺母(.250-20)-调节螺钉NUT (.250-20) JAM - ADJUSTING SCREW1
3726852调节螺钉尼龙帽CAP Nylon NYLON - ADJUSTING SCREW1
3816793卡箍CLAMP1
3973286螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel1
4087076A6怠速控制总成IDLE SPEED CONTROL ASSEMBLY1
4087076A10怠速控制器IDLE SPEED CONTROL1
4169020螺丝(#10-32 x .875)怠速控制SCREW (#10-32 x .875) IDLE SPEED CONTROL3
41690201螺钉(#10-32 x .875)SCREW (#10-32 x .875)3
4238833垫圈 怠速控制螺钉WASHER IDLE SPEED SONTROL SCREW3
43194372端子排TERMINAL BLOCK1
4448409螺钉 (#10-16 x .625) 不锈钢SCREW (#10-16 x .625) Stainless Steel2
4589302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)2
4645076黄铜螺母(#10-32)NUT (#10-32) Brass2
47813938盖形螺母(#10-32)CAP NUT (#10-32)2
4863153J型卡扣J CLIP1
-812827A89动力总成完整组件POWERHEAD ASSEMBLY COMPLETE1
-812827T89船用动力头POWERHEAD MARINE1
-14697A87衬垫套件GASKET SET
图 98簧片阀组与气缸盖 Reed Block And Cylinder Head
簧片阀组与气缸盖 Reed Block And Cylinder Head
REF零件编号中文名称英文名称数量
图 99杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES
杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES
REF零件编号中文名称英文名称数量
-814201200 XRI(EFI)(V-6)维修200 XRI (EFI) (V-6) Service1
-8140981维修手册SERVICE MANUAL1
-8162491维修手册SERVICE MANUAL1
-14697A87衬垫套件GASKET SET1
-813032A89贴花套件DECAL SET1
-814171A89纪念版贴花套装DECAL SET (ANNIVERSARY MODEL)1
-13492900用户指南OWNERS GUIDE1
图 100齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)
齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)
REF零件编号中文名称英文名称数量
19148A47齿轮箱总成(基础款)(黑色)GEAR HOUSING ASSEMBLY (BASIC) (BLACK)1
19148A48齿轮箱总成(基础款)(灰色)GEAR HOUSING ASSEMBLY (BASIC) (GRAY)1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
19148A49齿轮箱总成(基础款)(追踪者)GEAR HOUSING ASSEMBLY (BASIC) (TRACKER)1
19148T49齿轮箱壳体-TR型GEAR HSG-BASIC-TR1
285822A10连接器总成(适用时使用)CONNECTOR ASSEMBLY (USE WHERE APPLICABLE)1
343044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
478638双头螺栓(.438×3.12)(长型)STUD (.438 x 3.12) (LONG)1
4786382螺柱(.437-14/.437-20 x 3.120)STUD (.437-14/.437-20 x 3.120)1
418978双头螺栓(.438×3.69)(加长型)STUD (.438 x 3.69) (X-LONG)1
48M0034464螺柱STUD1
5579201双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
58M0133358双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
656297双头螺栓(.312×3.38)STUD (.312 x 3.38)1
68M0034463螺柱(.312-24 x 3.38)STUD (.312-24 x 3.38)1
730667双头螺栓(.250-20/.250-28×3.125)STUD (.250-20/.250-28 x 3.125)2
7306671螺柱STUD2
842647A1滚柱轴承总成BEARING ASSEMBLY Roller1
943998衬套(旧设计)SLEEVE (OLD DESIGN)1
9A826134阳极块ANODE2
9A826134Q阳极块ANODE2
9B4000333螺钉(M6 x 40)SCREW (M6 x 40)1
9C8268336螺母 (M6)NUT (M6)1
9C401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
11440001驱动轴(长型)DRIVESHAFT (LONG)1
11897624T长驱动轴DRIVESHAFT Long1
11442091驱动轴(加长型)DRIVESHAFT (X-LONG)1
11897625T加长驱动轴DRIVESHAFT X-Long1
1116292驱动轴(20英寸)DRIVESHAFT (20")1
11815237驱动轴(25英寸)DRIVESHAFT (25")1
12N.S.S.不单独销售小齿轮(前进齿轮组部件)Not Sold Separate Pinion Gear (Part of Forward Gear Set)1
1392721垫圈(.965×0.630)WASHER (.965 x .630)1
14826375螺母(0.625-18)NUT (.625-18)1
1435921螺母(0.625-18)NUT (.625-18)1
1542637A1垫片组SHIM SETAR
158M0063267垫片组SHIM SETAR
1636387A1轴承总成(滚子/外圈)BEARING ASSEMBLY Roller/Cup1
168M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
17824519固定座RETAINER1
178245191固定座RETAINER1
1842579A3水泵底座总成BASE ASSEMBLY Water Pump1
188M0077147带水泵底座总成BASE ASSY-W/P1
19426311衬垫GASKET1
198M0204678衬垫GASKET1
2090011O型圈(2.175 x 0.175)O-RING (2.175 x .175)1
208M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
2189238油封SEAL Oil1
2216977油封SEAL Oil1
23856081衬垫GASKET1
238M0090319衬垫@5GASKET @51
24856091衬垫GASKET1
24858524衬垫GASKET1
2532435面板FACE PLATE1
258M0204677面板PLATE-FACE1
2696148A1水泵壳体总成BODY ASSEMBLY Water Pump1
2696148T1水泵壳体总成BODY ASSEMBLY Water Pump1
2748752嵌件INSERT1
2748752T嵌件INSERT1
2838970密封件SEAL1
29899841叶轮IMPELLER1
2989984T3叶轮IMPELLER1
3056654键KEY1
308M0214992键@5KEY @51
3196411螺钉(#14-8×2.25)SCREW (#14-8 x 2.25)1
318M0215009螺钉SCREW1
3229245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
328M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
3313438螺母(.250-28)NUT (.250-28)2
338267119螺母(.250-28)NUT (.250-28)2
3436001垫圈WASHER1
3513436螺母NUT1
3729804套筒SLEEVE1
3729804T套筒SLEEVE1
38789022换挡轴(不带E型环使用)SHIFT SHAFT (USE W/O E-RING)1
3878902轴SHAFT1
38789022换档轴SHIFT SHAFT1
3929641E型卡环E RING1
4125439O型圈(.862×0.103)O-RING (.862 x .103)1
4277631A2衬套总成BUSHING ASSEMBLY1
438164641油封SEAL Oil1
438M0246145油封OIL SEAL1
4477674垫圈(.35 x .75 x .12)WASHER (.35 x .75 x .12)1
4579953螺钉(0.375-16x0.250)SCREW (.375-16 x .250)1
4579953Q04放油螺钉套件SCREW KIT Drain1
4667892磁性螺钉SCREW Magnetic1
468M0058389放油螺钉套件SCREW KIT Drain1
4719183纤维垫圈WASHER Fiber2
478M0187157蓝色密封件@15SEAL-BLUE @152
-815791A92发动机垫片组GASKET SET Engine1
-96148A5水泵维修套件REPAIR KIT Water Pump1
-96148A8水泵维修套件WATER PUMP REPAIR KIT1
-89238A2密封套件SEAL KIT1
图 101化油器 Carburetor
化油器 Carburetor
REF零件编号中文名称英文名称数量
19242A33化油器(上部)(WH-40)CARBURETOR (TOP) (WH-40)1
19242A34化油器(中部)(WH-40)CARBURETOR (CENTER) (WH-40)1
19242A35化油器(下部)(WH-40)CARBURETOR (BOTTOM) ( WH-40)1
17563A10化油器(上部)(WH-35)CARBURETOR (TOP) (WH-35)1
17563A11化油器(中部)(WH-35)CARBURETOR (CENTER) (WH-35)1
17563A12化油器(下部)(WH-35)CARBURATOR (BOTTOM) (WH-35)1
17563A13化油器(上部)(WH-38)CARBURETOR (TOP) (WH-38)1
17563A14化油器(中部)(WH-38)CARBURETOR (CENTER) (WH-38)1
17563A15化油器(下部)(WH-38)CARBURETOR (BOTTOM) (WH-38)1
26249主量孔(.096)燃油室(WH-32)(WH-38)JET Main (.096) FUEL BOWL(WH-32) (WH-38)6
28423量孔(.094)浮子室(WH-35)JET (.094) FUEL BOWL (.094) (WH-35)6
26680量孔(.078)燃油室(WH-40)JET (.078) FUEL BOWL (WH-40)6
3NSSNOT SOLD SEPARATE Gasket-Cover Plate3
46032盖板PLATE COVER3
5NSS盖板螺钉(不单独销售)NOT SOLD SEPARATE Screw-Cover Plate15
67822燃油室(WH-33)BOWL Fuel (WH-33)3
67823燃油杯(顶部)BOWL Fuel (TOP)1
67822燃油杯(中部/底部)BOWL Fuel (CENTER/BOTTOM)2
7NSS不单独销售 燃油杯螺钉NOT SOLD SEPARATE Screw-Fuel Bowl18
86025主量孔塞PLUG MAIN JET6
9NSS不单独出售主量孔垫片NOT SOLD SEPARATE Gasket-Main Jet6
104216主量孔(.064)(WH-33)JET (.064) MAIN FUEL (WH-33)6
106246主量孔(.048)(WH-32)JET (.048) MAIN FUEL (WH-32)6
106028主燃油量孔(.050)(WH-35)JET (.050) MAIN FUEL (WH-35)6
106359主燃油量孔(.052)(WH-38)JET (.052) MAIN FUEL (WH-38)6
106201主量孔(.080)(WH-40)JET (.080) MAIN FUEL (WH-40)6
11NSS不单独出售 浮子销螺钉NOT SOLD SEPARATE Screw-Float Pin6
12NSS不单独出售进油针阀座垫片NOT SOLD SEPARATE Gasket--Inlet Needle and Seat6
137824进油针阀总成NEEDLE/SEAT ASSEMBLY Inlet6
14NSS喷嘴座垫片(不单独销售)NOT SOLD SEPARATE Gasket-Nozzle Boss6
159267浮子FLOAT6
16NSS浮子杆销(不单独销售)NOT SOLD SEPARATE Pin-Float Lever6
17NSSNOT SOLD SEPARATE Gasket-Fuel Bowl3
184541怠速空气量孔螺钉SCREW IDLE AIR BLEED JET6
19NSS泄放量孔塞垫片(不单独销售)NOT SOLD SEPARATE Gasket-Bleed Jet Plug6
205213主量孔(.056)怠速空气量孔(WH-33)JET Main (.056) IKLE AIR BLEED (WH-33)6
207831主量孔(.058)怠速空气量孔(.058)(WH-32)JET Main Fuel (.058) IDLE AIR BLEED (.058) (WH-32)6
206487主量孔(.060)怠速空气量孔(WH-35)JET Main (.060) IKLE AIR BLEED (WH-35)6
205317怠速空气量孔(.046)(WH-38)JET (.046) IDLE AIR BLEED (WH-38)6
206246怠速空气量孔(.048)(WH-40)JET (.048) IDLE AIR BLEED (WH-40)6
216027节气门杠杆螺钉SCREW THROTTLE LEVER3
2267752节流阀杆LEVER THROTTLE3
23NSSNOT SOLD SEPARATE Spring-Throttle Return3
246031节气门杠杆垫片SPACER THROTTLE LEVER3
256022节流阀轴SHAFT THROTTLE3
26NSS节气门轴挡圈(不单独销售)NOT SOLD SEPARATE Ring-Retainer-Throttle Shaft3
276023节气门阀(WH-33)(WH-40)VALVE Throttle (WH-33) (WH-40)6
279496节气门阀(WH-32)VALVE Throttle (WH-32)6
279545节气门阀(WH-38)(WH-35)VALVE Throttle (WH-38) (WH-35)6
28NSSNOT SOLD SEPARATE Screw-Throttle Valve12
-6452衬垫套件GASKET KIT1
-8506化油器修理包(WH-33)(WH-40)REPAIR KIT Carburetor (WH-33) (WH-40)1
-7826修理包(WH-32)(WH-35)(WH-38)REPAIR KIT (WH-32)(WH-35)(WH-38)1
图 102泄压系统 BLEED SYSTEM
泄压系统 BLEED SYSTEM
REF零件编号中文名称英文名称数量
图 103齿轮箱（推进轴）（XR6/MAG III - 1.78:1 速比） GEAR HSG (PROP SHAFT)(XR6/MAG III - 1.78:1 RATIO)
齿轮箱（推进轴）（XR6/MAG III - 1.78:1 速比） GEAR HSG (PROP SHAFT)(XR6/MAG III - 1.78:1 RATIO)
REF零件编号中文名称英文名称数量
1814247A1齿轮箱总成 基础型-黑色GEAR HOUSING ASSEMBLY Basic - Black1
1814247A2齿轮箱总成 基础型-灰色GEAR HOUSING ASSEMBLY Basic - Gray1
1814247T2ORD 1674-814247T1ORD 1674-814247T11
4476039换挡凸轮控制CAM Shift Control1
44760394换挡凸轮控制CAM Shift Control1
4512239A1凸轮从动件套件FOLLOWER KIT Cam1
45850315A1凸轮从动件套件FOLLOWER KIT Cam1
4630622弹簧SPRING1
4744491A1垫片组SHIM SETAR
478M0063266垫片组SHIM SETAR
4830894A1圆锥轴承组BEARING SET Cup And Cone1
4916279A2前进齿轮总成GEAR ASSEMBLY Forward1
5030895滚针轴承BEARING Needle1
5030895T滚针轴承BEARING Needle1
51822539离合器CLUTCH1
51822539T离合器CLUTCH1
5230632十字销PIN Cross1
528M0100263十字销PIN Cross1
5330893弹簧SPRING1
5412238T螺旋桨轴PROPELLER SHAFT1
55N.S.S.倒车齿轮(不单独销售)(属于43-16279A2部件)Not Sold Separate Reverse Gear (PART OF 43-16279A2)1
5676358止推垫片THRUST WASHER1
5729976O型圈O-RING1
5841529A2轴承座总成CARRIER ASSEMBLY Bearing1
5841529T2托架总成CARRIER ASSY1
5998727润滑脂接头FITTING Grease2
598M0169588润滑脂接头FITTING Grease2
6030956滚针轴承BEARING Needle1
6030956T滚针轴承BEARING Needle1
6176868密封件SEAL2
618M0248882油封@5SEAL-OIL @52
6230281键KEY1
6352700锁紧垫圈TAB WASHER1
6452699盖板COVER1
6567891填充块FILLER BLOCK1
658M0039169填充块FILLER BLOCK1
6665210螺钉(.375-16 x 1.00)SCREW (.375-16 x 1.00)1
68816629锁紧垫圈TAB WASHER1
68816629Q锁紧垫圈TAB WASHER1
6952707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
6952707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
70316404平衡鳍板TRIM TAB1
7031640Q4平衡鳍板TRIM TAB1
71806327螺钉(.437-14 x 1.750)SCREW (.437-14 x 1.750)1
718M0204686螺钉SCREW1
7245176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel2
7334933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
738M0204653螺母NUT2
7413191A1止推垫片THRUST WASHER1
7413191Q01止推垫片THRUST WASHER1
-815791A92发动机垫片组GASKET SET Engine1
-89238A2密封套件SEAL KIT1
图 104曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods
曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods
REF零件编号中文名称英文名称数量
1880894T曲轴CRANKSHAFT1
28040992油封SEAL Oil1
38041002油封SEAL Oil1
4804101T轴承BEARING4
4804101T10轴承BEARING4
4804101T20轴承BEARING4
5804102T轴承BEARING5
5804102T10轴承BEARING5
5804102T20轴承BEARING5
5804102T30轴承BEARING5
6804103T轴承BEARING1
6804103T10轴承BEARING1
6804103T20轴承BEARING1
7880895A05活塞总成PISTON ASSEMBLY4
7880895A14活塞/连杆总成PISTON/CONN ROD4
7880895A12活塞总成PISTON ASSEMBLYAR
7880895A16活塞/连杆总成PISTON/CONN RODAR
8880896螺栓(M8 x 38)BOLT (M8 x 38)8
9880897T02活塞环组RING SET Piston4
9880898T02活塞环组RING SET PistonAR
10880899T轴承BEARING8
10880899T10轴承BEARING8
10880899T20轴承BEARING8
10880899T30轴承BEARING8
-858732A06衬垫套件GASKET SET1
-881421T04动力头总成POWERHEAD ASSEMBLY1
图 105曲轴活塞与连杆 Crankshaft Pistons And Connecting Rods
曲轴活塞与连杆 Crankshaft Pistons And Connecting Rods
REF零件编号中文名称英文名称数量
1880894T曲轴CRANKSHAFT1
28040992油封SEAL Oil1
38041002油封SEAL Oil1
4804101T轴承BEARING4
4804101T10轴承BEARING4
4804101T20轴承BEARING4
5804102T轴承BEARING5
5804102T10轴承BEARING5
5804102T20轴承BEARING5
5804102T30轴承BEARING5
6804103T轴承BEARING1
6804103T10轴承BEARING1
6804103T20轴承BEARING1
7880895T1活塞总成PISTON ASSEMBLY4
7880895A14活塞/连杆总成PISTON/CONN ROD4
7880895T10活塞总成PISTON ASSEMBLYAR
7880895A16活塞/连杆总成PISTON/CONN RODAR
8880896螺栓(M8 x 38)BOLT (M8 x 38)8
9880897T1活塞环组RING SET Piston4
9880897T02活塞环组RING SET Piston4
9880898T1活塞环组RING SET PistonAR
9880898T02活塞环组RING SET PistonAR
10880899T轴承BEARING8
10880899T10轴承BEARING8
10880899T20轴承BEARING8
10880899T30轴承BEARING8
-881421T01动力头总成POWERHEAD ASSEMBLY1
-881421T04动力头总成POWERHEAD ASSEMBLY1
-881421T02动力头总成POWERHEAD ASSEMBLY1
-881421T04动力头总成POWERHEAD ASSEMBLY1
图 106喷射组件 JET COMPONENTS
喷射组件 JET COMPONENTS
REF零件编号中文名称英文名称数量
188447螺钉 (.190-32 x 1.62)SCREW (.190-32 x 1.62)3
238833垫圈WASHER3
394304隔套SPACER3
413381安装板PLATE1
5821889A20转速限制器REV LIMITER1
5821889A30转速限制器REV LIMITER1
6823147A5适配器线束总成 - 转速限制器HARNESS ASSEMBLY Adaptor - Rev Limiter1
7801402润滑脂套装GREASE KIT1
730500A2润滑脂套装GREASE KIT1
842579A3水泵底座总成BASE ASSEMBLY Water Pump1
88M0077147带水泵底座总成BASE ASSY-W/P1
9426311衬垫GASKET1
98M0204678衬垫GASKET1
1089238油封SEAL Oil1
1116977油封SEAL Oil1
12856081衬垫GASKET1
128M0090319衬垫@5GASKET @51
13856091衬垫GASKET1
13858524衬垫GASKET1
1432435面板FACE PLATE1
148M0204677面板PLATE-FACE1
1596148A1水泵壳体总成BODY ASSEMBLY Water Pump1
1596148T1水泵壳体总成BODY ASSEMBLY Water Pump1
1648752嵌件INSERT1
1648752T嵌件INSERT1
1738970密封件SEAL1
18899841叶轮IMPELLER1
1889984T3叶轮IMPELLER1
1956654键KEY1
198M0214992键@5KEY @51
2096411螺钉(#14-8×2.25)SCREW (#14-8 x 2.25)1
208M0215009螺钉SCREW1
2129245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
218M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
2213438螺母(.250-28)NUT (.250-28)2
228267119螺母(.250-28)NUT (.250-28)2
2319924275螺钉 (.312-18 x 2.75)SCREW (.312-18 x 2.75)1
2436001垫圈WASHER1
2529804套筒SLEEVE1
2529804T套筒SLEEVE1
-815791A92发动机垫片组GASKET SET Engine1
-96148A5水泵维修套件REPAIR KIT Water Pump1
-96148A8水泵维修套件WATER PUMP REPAIR KIT1
-89238A2密封套件SEAL KIT1
图 107顶罩 TOP COWL
顶罩 TOP COWL
REF零件编号中文名称英文名称数量
1827328T9顶盖总成TOP COWL ASSEMBLY1
1827328T10顶盖总成TOP COWL ASSEMBLY1
2821256T1黑色进气口INLET Air - Black1
2821256T03进气口INLET Air1
2821256T2银色进气口INLET Air - Silver1
382130016螺钉(M6 x 16)SCREW (M6 x 16)4
4859356A1隔音毯套装SOUND BLANKET KIT1
4859356A02隔音毯套装SOUND BLANKET KIT1
5NSS不单独销售 隔音毯NOT SOLD SEPARATE Sound Blanket1
6NSS不单独销售 隔音毯NOT SOLD SEPARATE Sound Blanket1
7NSS不单独销售 隔音毯NOT SOLD SEPARATE Sound Blanket2
8823865盖塞CAP PLUG2
9831207T10手柄HANDLE1
9831207A16罩盖锁手柄套件HANDLE KIT Cowl Latch1
10812707衬套BUSHING2
11831214隔套SPACER1
1212134波形垫圈WASHER Wave1
13F481777凸轮锁轴CAM Latch Shaft1
138M0001081凸轮CAM1
144002316垫圈(6.60 X 17.0 X 1.5不锈钢)WASHER (6.60 X 17.0 X 1.5SS)1
148M0214930垫圈6.60 x 17.0 x 1.5WASHER 6.60 x 17.0 x 1.51
151993716螺钉(M6 x 16)SCREW (M6 x 16)1
16821249M2前支架BRACKET Front3
168M0036792支架BRACKET3
17815477缓冲器锁扣BUMPER Latch3
1829245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel6
188M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel6
19401366螺母(M6)不锈钢NUT (M6) Stainless Steel6
208237951挡圈RING Retaining1
21815263滚轮ROLLER1
218M0207770滚轮@3ROLLER @31
228155381滚动销PIN Roll1
2329245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
238M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
24401366螺母(M6)不锈钢NUT (M6) Stainless Steel1
2547341A11手动启动绳柄套件ROPE AND HANDLE KIT Manual Starting1
2612066Q9绳索ROPE1
2612066Q10启动绳@2ROPE-STARTER@21
图 108化油器 CARBURETOR
化油器 CARBURETOR
REF零件编号中文名称英文名称数量
19012A14化油器总成CARBURETOR ASSEMBLY1
19012A15化油器总成CARBURETOR ASSEMBLY1
19012A16化油器总成CARBURETOR ASSEMBLY1
19012A24化油器CARBURETOR1
19012A25化油器总成CARBURETOR ASSEMBLY1
19012A26化油器总成CARBURETOR ASSEMBLY1
19012A5化油器总成CARBURETOR ASSEMBLY1
19012A6化油器总成CARBURETOR ASSEMBLY1
19012A7化油器总成CARBURETOR ASSEMBLY1
19012A17化油器总成CARBURETOR ASSEMBLY1
19012A18化油器总成CARBURETOR ASSEMBLY1
19012A19化油器总成CARBURETOR ASSEMBLY1
2NSS不单独销售 燃油杯衬垫NOT SOLD SEPARATE GASKET-FUEL BOWL3
3NSS不单独销售 挡圈NOT SOLD SEPARATE RETAINING RING3
49589燃油杯BOWL Fuel1
49590燃油杯BOWL Fuel2
59591油门轴 (上/下)SHAFT Throttle (UPPER/LOWER)2
69592油门轴 (中段)SHAFT Throttle (MIDDLE)1
79593油门阀VALVE Throttle3
79609油门阀VALVE Throttle3
89594浮子FLOAT3
9NSS不单独销售 浮子轴NOT SOLD SEPARATE FLOAT SHAFT3
109595进油针阀VALVE Inlet Needle3
119596主量孔塞PLUG MAIN JET3
12NSS不单独销售 塞衬垫NOT SOLD SEPARATE GASKET-PLUG3
13NSS不单独销售 盖板衬垫NOT SOLD SEPARATE GASKET-COVER PLATE3
1415172法兰衬垫GASKET FLANGE3
15NSS不单独销售 油门阀螺钉NOT SOLD SEPARATE SCREW-THROTTLE VALVE6
169597盖板螺钉SCREW COVER PLATE6
175132燃油杯螺钉SCREW FUEL BOWL12
189598盖板COVER PLATE3
194216主量孔 (.064)JET (.064) MAIN FUEL3
196029主量孔 (.068)JET (.068) MAIN FUEL3
196207主量孔 (.072)JET (.072) MAIN FUEL3
208423通气孔 (.094)JET (.094) VENT (.094)3
21NSS不单独销售 喷油嘴衬垫NOT SOLD SEPARATE GASKET-NOZZLE WELL3
22NSS不单独销售 怠速针弹簧NOT SOLD SEPARATE SPRING-IDLE NEEDLE3
23NSS不单独销售 油门回位弹簧NOT SOLD SEPARATE SPRING-THROTTLE RETURN3
24NSS不单独销售 怠速空气弹簧NOT SOLD SEPARATE SPRING-IDLE AIR3
25NSS不单独销售 怠速针NOT SOLD SEPARATE IDLE NEEDLE3
26NSS不单独销售 怠速空气针NOT SOLD SEPARATE IDLE AIR NEEDLE3
-9602衬垫套件GASKET KIT
-9599维修套件REPAIR KIT
图 109点火线圈/电压调节器 IGNITION COIL/VOLTAGE REGULATOR
点火线圈/电压调节器 IGNITION COIL/VOLTAGE REGULATOR
REF零件编号中文名称英文名称数量
1195871安装板PLATE MOUNTING1
230720电压调节器螺钉(.250-20 x 2.25)SCREW (.250-20 x 2.25) VOLTAGE REGULATOR4
326992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel4
419661衬套BUSHING4
518736A15电压调节器总成REGULATOR ASSEMBLY Voltage1
518736A21调节器总成REGULATOR ASSY1
618717密封件SEAL1
796158启动电磁阀SOLENOID Starter2
78M0185622电磁阀SOLENOID2
890192螺钉 (.250-20 x .750) 不锈钢 启动电磁阀SCREW (.250-20 x .750) Stainless Steel STARTER SOLENOID3
988807A6线束总成 (3.50英寸) 黑色 (3-1/2" - BLACK)CABLE ASSEMBLY (3.50 Inches) Black (3-1/2" - BLACK)1
1056374电磁阀螺钉螺母(.250-20)NUT (.250-20) SOLENOID SCREW3
108267098螺母 (.250-20) 不锈钢NUT (.250-20) Stainless Steel3
1126419螺母 (#8-32) 黄铜 电磁阀端子 (8-32)NUT (#8-32) Brass SOLENOID TERMINAL (8-32)4
1294330螺母 (.250-20) 黄铜 电磁阀端子 (1/4-20)NUT (.250-20) Brass SOLENOID TERMINAL (1/4-20)4
1397861绝缘体 启动电磁阀 (旧设计)INSULATOR STARTER SOLENOID (OLD DESIGN)2
1487379A14电线总成 (2.750英寸) (2-3/4" - RED)WIRE ASSEMBLY (2.750 Inches) (2-3/4" - RED)1
1488807A8线束总成 (3.50英寸) 黑色 (3-1/2" - BLACK)CABLE ASSEMBLY (3.50 Inches) Black (3-1/2" - BLACK)2
1588807A29电缆总成(9英寸-黑色)CABLE ASSEMBLY (9" - BLACK)1
1690077扎带TIE STRAPAR
16816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
1743542点火线圈盖COVER IGNITION COIL2
187370A13点火线圈总成COIL ASSEMBLY Ignition6
188M0230859点火线圈总成COIL IGNITION ASY6
1990048点火线圈盖螺钉(#10-32 x 2.125)SCREW (#10-32 x 2.125) IGNITION COIL COVER8
2090078盖板螺钉/接地线螺母(#10-32)NUT (#10-32) COVER SCREW/GROUND WIRE14
21813715A9高压点火线束套件CABLE KIT Ignition HIGH TENSION1
2263709A1高压电缆护套/端子套件BOOT/TERMINAL KIT HIGH TENSION CABLE6
2314103568火花塞SPARK PLUG6
23896329885SP #L6VC @4SP #L6VC @46
2445076螺母(#10-32)黄铜点火线圈端子NUT (#10-32) Brass IGNITION COIL TERMINAL12
2588807A13线束总成 (5-1/2" - BLACK)CABLE ASSEMBLY (5-1/2" - BLACK)6
2669022SCREW (#10-32 x .500) Stainless Steel GROUNDING WIRE2
2769739A7线圈至开关盒线束总成HARNESS ASSEMBLY COIL TO SWITCH BOX1
2854676双线固定夹RETAINER Two Wire2
29814423T线圈板盖COVER COIL PLATE1
30814343螺钉 (#10-32 x 2.380)SCREW (#10-32 x 2.380)4
图 110转向连接套件 STEERING ATTACHING KIT
转向连接套件 STEERING ATTACHING KIT
REF零件编号中文名称英文名称数量
-92876A8转向安装套件ATTACHING KIT Steering1
141055A1支架总成BRACKET ASSEMBLY1
2715651转向拉索套管TUBE Steering Cable1
348462O型圈 (.614 x .070)O-RING (.614 x .070)1
4821203锁紧垫圈LOCKWASHER2
537984螺母 (.875-14)NUT (.875-14)2
58M0041651螺母 (.875-14)NUT (.875-14)2
638601螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250)4
778968内锁紧垫圈 (.250)LOCKWASHER Internal (.250)4
8850791T联轴器COUPLER1
973732螺钉 (.375-24 x 1.120)SCREW (.375-24 x 1.120)2
1037828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel2
11826709113不锈钢螺母 (.375-24)NUT (.375-24) Stainless Steel3
118M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass3
图 111喷射组件 Jet Components
喷射组件 Jet Components
REF零件编号中文名称英文名称数量
188447螺钉 (.190-32 x 1.62)SCREW (.190-32 x 1.62)3
238833垫圈WASHER3
394304隔套SPACER3
413381安装板PLATE1
5821889A20转速限制器REV LIMITER1
5821889A30转速限制器REV LIMITER1
6823147A5适配器线束总成 - 转速限制器HARNESS ASSEMBLY Adaptor - Rev Limiter1
7801402润滑脂套装GREASE KIT1
730500A2润滑脂套装GREASE KIT1
842579A3水泵底座总成BASE ASSEMBLY Water Pump1
88M0077147带水泵底座总成BASE ASSY-W/P1
9426311衬垫GASKET1
98M0204678衬垫GASKET1
1089238油封SEAL Oil1
1116977油封SEAL Oil1
12856081衬垫GASKET1
128M0090319衬垫@5GASKET @51
13856091衬垫GASKET1
13858524衬垫GASKET1
1432435面板FACE PLATE1
148M0204677面板PLATE-FACE1
1596148A1水泵壳体总成BODY ASSEMBLY Water Pump1
1596148T1水泵壳体总成BODY ASSEMBLY Water Pump1
1648752嵌件INSERT1
1648752T嵌件INSERT1
1738970密封件SEAL1
18899841叶轮IMPELLER1
1889984T3叶轮IMPELLER1
1956654键KEY1
198M0214992键@5KEY @51
2096411螺钉(#14-8×2.25)SCREW (#14-8 x 2.25)1
208M0215009螺钉SCREW1
2129245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
218M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
2213438螺母(.250-28)NUT (.250-28)2
228267119螺母(.250-28)NUT (.250-28)2
2319924275螺钉 (.312-18 x 2.75)SCREW (.312-18 x 2.75)1
2436001垫圈WASHER1
2529804套筒SLEEVE1
2529804T套筒SLEEVE1
-815791A92发动机垫片组GASKET SET Engine1
-96148A5水泵维修套件REPAIR KIT Water Pump1
-96148A8水泵维修套件WATER PUMP REPAIR KIT1
-89238A2密封套件SEAL KIT1
图 112泄放系统 Bleed System
泄放系统 Bleed System
REF零件编号中文名称英文名称数量
199130122泄放管(20.00英尺散装)TUBING (20.00 Feet Bulk) BLEED1
259169接头FITTING4
259169003三通接头FITTING Tee4
342698止回阀 (压入式 - 13/16"长)CHECK VALVE (PRESS-IN - 13/16" LONG)7
3426982止回阀CHECK VALVE7
442623止回阀 (压入式 - 11/16"长)CHECK VALVE (PRESS-IN - 11/16" LONG)1
4426233止回阀CHECK VALVE1
515133压入式接头FITTING (PRESS-IN)6
656759压入式倒钩接头FITTING Barbed (PRESS-IN)4
715026黄色弯头盖CAP ELBOW (YELLOW)4
818205三通TEE1
99912688管材 (36.00英寸散装)TUBING (36.00 Inches Bulk)1
1018206滤清器FILTER1
108M0207786滤清器FILTER1
图 113油门杆与换挡轴 Throttle Lever And Shift Shaft
油门杆与换挡轴 Throttle Lever And Shift Shaft
REF零件编号中文名称英文名称数量
图 114维修/支撑材料 Service/Support Material
维修/支撑材料 Service/Support Material
REF零件编号中文名称英文名称数量
088183801零件手册-115EFI(四冲程)PARTS MANUAL 115 EFI (4-Stroke) Parts Manual1
0881980维修手册SERVICE MANUAL1
0881980R03SM O/B 115 EFI 4SSM O/B 115 EFI 4S1
010225030用户手册OWNERS MANUAL1
0858610A31燃油软管总成HOSE ASSEMBLY Fuel1
08M0038610带注油球的燃油软管总成(9英尺)HOSE ASSEMBLY Fuel (9 Feet) With Primer Bulb1
0880177组合扳手工具(10毫米)SCRENCH TOOL (10 mm)1
0881828星形头工具套件STARBIT TOOL KIT1
0881649A01贴花套件DECAL SET1
0881649A05贴花套件DECAL SET1
0881840A01贴花套件DECAL SET1
0881840A03贴花套件DECAL SET1
0881840A03贴花套件DECAL SET1
0881840A05贴花套件DECAL SET1
0881650A01贴花套件DECAL SET1
0881650A03贴花套件DECAL SET1
0881650A03贴花套件DECAL SET1
0881702A01贴花套件DECAL SET1
0881839A01EPA标签信息贴花DECAL EPA Label Information1
0881839A02EPA标签信息贴花Decal EPA Label Information1
0881839A03EPA标签信息贴花DECAL EPA Label Information1
0816834A1转速表TACHOMETER1
0816932A1温度表TEMPERATURE GAUGE1
086306适配器ADAPTER1
086306A01适配器ADAPTER1
0817054A3水压表总成GAUGE ASSEMBLY Water Pressure1
0821400A2动力升降倾斜传感器套件SENDER KIT Power Trim1
08M0074845ORD 8M0098264ORD 8M00982641
092876A8转向安装套件ATTACHING KIT Steering1
092876A9双机延长套件EXTENSION KIT Dual Engine1
0883040A1转速表模块套件TACH MODULE KIT1
图 115燃油泵 Fuel Pump
燃油泵 Fuel Pump
REF零件编号中文名称英文名称数量
1880890T1燃油泵PUMP Fuel1
2NSS不单独销售本体NOT SOLD SEPARATE Body1
3881544弹簧SPRING1
4881545柱塞PLUNGER1
5881546弹簧SPRING1
6881547隔膜DIAPHRAGM1
7881548销PIN1
8NSS不单独销售本体NOT SOLD SEPARATE Body1
9NSS膜片(不单独销售)NOT SOLD SEPARATE Diaphragm1
10NSS不单独销售本体NOT SOLD SEPARATE Body1
11881550螺钉SCREW3
12881333螺母NUT3
13804255O型圈O-RING1
138M0050719O型圈O-RING1
14879650卡箍CLAMP2
1456762扎带(4.00英寸)TIE STRAP (4.00 Inches)2
15804256螺栓 (M6 x 30)BOLT (M6 x 30)2
16881543软管HOSE1
16881543002油管TUBING1
17881542支架BRACKET1
188527768螺栓(M6 x 16)BOLT (M6 x 16)1
18811188T螺栓BOLT1
198528161螺母NUT1
1982382M螺母NUT1
20881538T1滤清器总成FILTER ASSEMBLY1
20881538T02燃油滤清器总成FILTER ASSY-FUEL1
21881540滤芯1.75英寸ELEMENT 1.75 Inches1
218M0168897燃油滤清器FUEL FILTER1
218M0101436滤芯1.50英寸ELEMENT 1.50 Inches1
218M0117705燃油滤清器FILTER-FUEL1
22826966MO型圈O-RING1
22826966TO型圈O RING1
23881541浮子FLOAT1
24881539杯套CUP1
248M0101437杯套CUP1
248M0137185燃油杯CUP FUEL1
25879650卡箍CLAMP2
2556762扎带(4.00英寸)TIE STRAP (4.00 Inches)2
26804260支架BRACKET1
27804112螺栓(M7 x 48)BOLT (M7 x 48)2
28804113定位销PIN Dowel2
2984292M垫圈WASHER2
30804257燃油转换杆LEVER Fuel Change1
31881334轴SHAFT1
32804259销PIN2
3282738M滚销PIN-ROLL2
33830757130管材(.312)(70英寸整卷)裁切至55英寸长度TUBING (.312) (70.00 Inches Bulk) Cut to 55.00 Inch Length.1
338M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
34816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
35822769连接器CONNECTOR1
36NSS盖帽(不单独销售)NOT SOLD SEPARATE Cap1
37828547T1导管(.500内径 x 3英尺整卷)CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk)1
-858732T01衬垫套件GASKET SET1
-858732T02动力头衬垫套件GASKET SET Powerhead1
-858732T02动力头衬垫套件GASKET SET Powerhead1
-881310T1气缸盖总成CYLINDER HEAD ASSEMBLY1
-881310T09气缸盖HEAD-CYLINDER1
图 116喷泵总成 Jet Pump Assembly
喷泵总成 Jet Pump Assembly
REF零件编号中文名称英文名称数量
-801400150喷泵(黑色)JET PUMP (BLACK)1
-801401150喷泵(灰色)JET PUMP (GRAY)1
-855766150喷泵JET PUMP1
1801411150泵壳HOUSING Pump1
1A827490润滑油管HOSE Lube1
2801414150叶轮IMPELLER1
2803984T叶轮IMPELLER1
380141290进气壳体HOUSING Intake1
3A8271883衬套LINER1
4801413150驱动轴SHAFT Drive1
4A8271891套筒SLEEVE1
4B8271901螺母NUT1
5801405875键KEY1
6801404875叶轮垫片SHIM Impeller8
7801403875锁紧垫圈TAB WASHER1
8847568螺丝(.312-18 x 1.00)SCREW (.312-18 x 1.00)6
8812618不锈钢螺钉(.312-18 x 1.00)带尼龙垫SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch6
919923088螺钉(.250-20 x .875)SCREW (.250-20 x .875)4
1019923062螺钉(.250-20 x .625)SCREW (.250-20 x .625)2
1160411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)1
12801410电缆支架BRACKET Cable Support1
1367980螺母(.312-18)NUT (.312-18)1
1382670910不锈钢螺母(.312-18)NUT (.312-18) Stainless Steel1
14801407定位销PIN Dowel2
1578638双头螺柱(.438 x 3.12)STUD (.438 x 3.12)1
15786382螺柱(.437-14/.437-20 x 3.120)STUD (.437-14/.437-20 x 3.120)1
16579201双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
168M0133358双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
1769064螺栓(.312-18 x 2.750)BOLT (.312-18 x 2.750)1
1830667双头螺栓(.250-20/.250-28×3.125)STUD (.250-20/.250-28 x 3.125)2
18306671螺柱STUD2
1968299不锈钢螺钉(.375-16 x 3.00)SCREW (.375-16 x 3.00) Stainless Steel1
2045175垫圈(.406 x .750 x .104)WASHER (.406 x .750 x .104)1
208M0214963垫圈WASHER1
图 117杂项信息 Miscellaneous Information
杂项信息 Miscellaneous Information
REF零件编号中文名称英文名称数量
0803177零件手册150/175/200 EFI(2.5升)PARTS MANUAL 150/175/200 EFI (2.5L)1
010126990用户手册OWNERS MANUAL1
0824052R2维修手册SERVICE MANUAL1
0824052R3SM O/B V6 135-225SM O/B V6 135-2251
0808553A96贴花套件DECAL SET1
0808553A00贴花套件DECAL SET1
0809689A99贴花套件DECAL SET1
0804696A03贴花套件DECAL SET1
0808559A96贴花套件DECAL SET1
0855418A99贴花套件DECAL SET1
0809688A00贴花套件DECAL SET1
0808554A96贴花套件DECAL SET1
0812563A00贴花套件DECAL SET1
0808558A99贴花套件DECAL SET1
0808562A03贴花套件DECAL SET1
0813033A97贴花套件DECAL SET1
0813033A03贴花套件DECAL SET1
0809706A97贴花套件DECAL SET1
0809706A03贴花套件DECAL SET1
0808557A97贴花套件DECAL SET1
0808557A01贴花套件DECAL SET1
0855419A97贴花套件DECAL SET1
0855419A00贴花套件DECAL SET1
0808556A97贴花套件DECAL SET1
0808556A03贴花套件DECAL SET1
0808561A97贴花套件DECAL SET1
0808561A03贴花套件DECAL SET1
0824911A25条纹贴纸(25英尺卷-需6英尺)DECAL Striping (ROLL OF 25 FT. - NEED 6 FT.)1
0808591A96贴花套件DECAL SET1
0808680A96贴花套件DECAL SET1
0808621A96贴花套件DECAL SET1
0808602A96贴花套件DECAL SET1
0808652A96贴花套件DECAL SET1
0808641A96贴花套件DECAL SET1
085698511EPA标签信息贴花DECAL EPA Label Information1
0856985A11REF SOB 09-18REF SOB 09-181
图 118燃油管路（用于 WMH-12A/B 至 WMH-28 化油器） FUEL LINES (Use With WMH-12A/B thru WMH-28 Carburtors)
燃油管路（用于 WMH-12A/B 至 WMH-28 化油器） FUEL LINES (Use With WMH-12A/B thru WMH-28 Carburtors)
REF零件编号中文名称英文名称数量
1816856A3燃油接头总成-塑料CONNECTOR ASSEMBLY Fuel - Plastic1
269067螺钉(.250-20×1.375)SCREW (.250-20 x 1.375)1
3812782密封件SEAL1
49912980软管HOSEAR
48M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)AR
5816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
5816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
6818993三通接头CONNECTOR Tee1
718175软管HOSE1
8818994止回阀CHECK VALVE1
88189941止回阀CHECK VALVE1
982381325管材(10.00英寸散装)TUBING (10.00 Inches Bulk)1
982381335油管(15.00英寸 散装)TUBING (15.00 Inches Bulk)1
108162961燃油滤清器FILTER Fuel1
10816296Q2燃油滤清器FILTER Fuel1
11677511衬垫GASKET3
1227037双头螺栓(.250-28×1.125)STUD (.250-28 x 1.125)6
12270372双头螺栓(.250-28×1.125)STUD (.250-28 x 1.125)6
13830756109软管(57.00英寸散装)HOSE (57.00 Inches Bulk)1
138M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
1455715螺钉(.250-20×0.880)SCREW (.250-20 x .880)6
1526992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel6
1629598不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel6
179912878软管 (.187) (26.00英寸散装)HOSE (.187) (26.00 Inches Bulk)3
1899130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
18892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
1942859A2加浓阀总成VALVE ASSEMBLY Enrichner1
20633001卡箍CLAMP1
2173286螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel1
229912688管材 (36.00英寸散装)TUBING (36.00 Inches Bulk)2
2345915端子排TERMINAL BLOCK1
2448409螺钉 (#10-16 x .625) 不锈钢SCREW (#10-16 x .625) Stainless Steel1
2469079螺钉 (#10-16 x .440)SCREW (#10-16 x .440)1
25824001软管HOSE1
25830762软管HOSE1
-815791A92发动机垫片组GASKET SET Engine1
图 119齿轮箱（推进轴） GEAR HOUSING (PROPSHAFT)
齿轮箱（推进轴） GEAR HOUSING (PROPSHAFT)
REF零件编号中文名称英文名称数量
19148A47齿轮箱总成(基础款)(黑色)GEAR HOUSING ASSEMBLY (BASIC) (BLACK)1
19148A48齿轮箱总成(基础款)(灰色)GEAR HOUSING ASSEMBLY (BASIC) (GRAY)1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
19148A49齿轮箱总成(基础款)(追踪者)GEAR HOUSING ASSEMBLY (BASIC) (TRACKER)1
19148T49齿轮箱壳体-TR型GEAR HSG-BASIC-TR1
4989594A1从动件总成FOLLOWER ASSEMBLY1
4878956换挡凸轮SHIFT CAM1
48789562换挡凸轮SHIFT CAM1
5079911A1杆ROD1
5179910弹簧SPRING1
5278910垫圈WASHERAR
5378906销PIN1
538M0084245弹簧定位销PIN Spring Locator1
5447397A1垫片组(.002-3-5-10)SHIM SET (.002-3-5-10)AR
5578172A1圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
5644102A2前进齿轮总成(135/150)(含倒挡齿轮)GEAR ASSEMBLY Forward (135/150) (INCLS. REVERSE GEAR)1
5644102A7齿轮组(135/150)(不含倒挡齿轮)GEAR SET (135/150) (DOES NOT INCL. REVERSE GEAR)1
5616294A2高海拔齿轮组-2.3:1传动比GEAR SET HIGH ALTITUDE - 2.3:1 GEAR RATIO1
5616294A5齿轮组GEAR SET1
5644104A2前进齿轮总成(175/200/XR6/玛格南III)(含倒挡齿轮)GEAR ASSEMBLY Forward (175/200/XR6/MAGNUM III) (INCLS. REVERSE GEAR)1
5644104T2齿轮组GEAR SET1
5644104A8齿轮组(175/200/XR6/玛格南III)(不含倒挡齿轮)GEAR SET (175/200/XR6/MAGNUM III) (DEOS NOT INCLUDE REVERSE GEAR)1
57549281滚柱轴承BEARING Roller1
58823174离合器CLUTCH1
58823174TORD 8M0100493ORD 8M01004931
5978905十字销PIN Cross1
598M0084243十字销PIN Cross1
6078909定位销PIN Detent2
6178962弹簧SPRING2
6294148螺旋桨轴PROPELLER SHAFT1
63N.S.S.不单独销售倒挡齿轮(前进齿轮组部件)Not Sold Separate Reverse Gear (Part of Forward Gear Set1
63824987A2倒挡齿轮总成(135/150)GEAR ASSEMBLY Reverse (135/150)1
63824986A2倒挡齿轮总成(175/200/XR6/玛格南III)GEAR ASSEMBLY Reverse (175/200/XR6/MAG. III)1
63A824108隔套SPACER1
64681001止推环RING Thrust1
6588957A1滚珠轴承BEARING Ball1
6588957T滚珠轴承BEARING Ball1
6631534O型圈O-RING1
668M0214920O型圈O RING1
6743567A1轴承座总成CARRIER ASSEMBLY Bearing1
6743567T1轴承座总成CARRIER ASSEMBLY Bearing1
6830956滚针轴承BEARING Needle1
6830956T滚针轴承BEARING Needle1
6976868密封件SEAL2
698M0248882油封@5SEAL-OIL @52
7030281键KEY1
7179447锁紧垫圈TAB WASHER1
7279448固定座RETAINER1
728M2011027固定座RETAINER1
73316404平衡板(用于无阳极齿轮箱)TRIM TAB (USE WITH GEAR HOUSING W/O ANODES)1
7331640Q4平衡鳍板TRIM TAB1
73316405配平板(与带阳极齿轮箱配套使用)TRIM TAB (USE WITH GEAR HOUSING W/ANODES)1
738M0236553平衡鳍板TRIM TAB1
74806327螺钉(.437-14 x 1.750)(1-5/8")SCREW (.437-14 x 1.750) (1-5/8")1
748M0204686螺钉SCREW1
7567891填充块FILLER BLOCK1
758M0039169填充块FILLER BLOCK1
7634933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
768M0204653螺母NUT2
7765210螺钉(.375-16 x 1.00)SCREW (.375-16 x 1.00)1
7813171推力毂THRUST HUB1
78835467Q01止推垫片套件THRUST WASHER KIT1
7931211A2花键垫圈WASHER Splined1
7931211Q03垫圈总成WASHER ASSEMBLY1
80816629锁紧垫圈TAB WASHER1
80816629Q锁紧垫圈TAB WASHER1
8152707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
8152707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
82423511齿形锁紧垫圈LOCKWASHER Toothed1
8345176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel2
-815791A92发动机垫片组GASKET SET Engine1
-89238A2密封套件SEAL KIT1
图 120簧片阀组与气缸盖 REED BLOCK AND CYLINDER HEAD
簧片阀组与气缸盖 REED BLOCK AND CYLINDER HEAD
REF零件编号中文名称英文名称数量
115221A2气缸盖总成CYLINDER HEAD ASSEMBLY2
241246气缸盖衬垫GASKET CYLINDER HEAD2
241247T01衬垫GASKET2
398534螺钉 (0.375-16 x 2.30) 气缸盖（2英寸）SCREW (.375-16 x 2.30) CYLINDER HEAD (2")23
313450螺钉 (0.375-16 x 2.30) 气缸盖（专用）SCREW (.375-16 x 2.30) CYLINDER HEAD (SPECIAL)1
425909气缸盖螺钉垫圈 (.406 x .812 x .065)WASHER (.406 x .812 x .065) CYLINDER HEAD SCREW24
575692节温器THERMOSTAT2
662386节温器衬垫GASKET THERMOSTAT2
68M0204714衬垫@4GASKET @42
790390A1节温器盖套件COVER KIT THERMOSTAT2
835386螺钉 (0.312-18 x 1.00) 节温器盖（1英寸）SCREW (.312-18 x 1.00) THERMOSTAT COVER (1")4
96872790度黄铜弯头接头 (.250-18)（水管用）FITTING (.250-18) 90 Degree - Brass ELBOW - WATER HOSES1
968727190度弯头 (.250-18) - 黄铜FITTING (.250-18) 90 Degree - Brass1
107765377配水软管（散装24.500英寸）HOSE (24.500 Inches Bulk) WATER DISTRIBUTION2
1077653101软管（散装48.00英寸）HOSE (48.00 Inches Bulk)2
1168728节温器盖至水管接头FITTING THERMOSTAT COVER TO WATER HOSES1
1290077水管束带TIE STRAP WATER HOSESAR
12816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
1397465温度传感器（右舷）SENDER Temperature (STARBOARD)1
1313536A6温度传感器总成（左舷）SENSOR ASSEMBLY Temperature (PORT)1
1413715传感器固定座RETAINER SENSOR AND SENDER2
14137151固定座RETAINER2
1598257螺钉 (0.312-18 x 0.500) 固定座SCREW (.312-18 x .500) RETAINER2
1613192爆震传感器SENSOR Detonation1
16825164A1爆震传感器总成SENSOR ASSEMBLY Detonation1
1745076螺母 (#10-32) 黄铜爆震传感器NUT (#10-32) Brass DETONATION SENSOR1
1814593A4适配板总成ADAPTER PLATE ASSEMBLY1
1928668螺钉 (0.250-20 x 0.875) 不锈钢适配板SCREW (.250-20 x .875) Stainless Steel ADAPTOR PLATE8
20146971适配板垫片GASKET ADAPTOR PLATE1
2175953簧片阀组REED BLOCK6
2275362A1簧片组件REED ASSEMBLY6
2396183簧片夹CLAMP Reed12
23961832簧片夹CLAMP Reed12
2414783螺钉 (#8-32 x 0.187) 簧片至簧片座SCREW (#8-32 x .187) REEDS TO REED BLOCK60
24823588螺钉 (#8-32 x .250)SCREW (#8-32 x .250)60
2521558螺钉 (0.250-20 x 0.75) 簧片座固定（3/4英寸）SCREW (.250-20 x .75) REED BLOCK ATTACHING (3/4")6
2592160螺钉(.250-20 x .750)不锈钢SCREW (.250-20 x .750) Stainless Steel6
2690197螺钉 (0.250-20 x 1.125) 簧片座固定（2英寸）SCREW (.250-20 x 1.125) REED BLOCK ATTACHING (2")6
27167371适配板垫片GASKET ADAPTOR PLATE1
-14697A87衬垫套件GASKET SET
图 121动力升降组件（金属马达壳体） POWER TRIM COMPONENTS Metal Motor Housing
动力升降组件（金属马达壳体） POWER TRIM COMPONENTS Metal Motor Housing
REF零件编号中文名称英文名称数量
-826729A2升降倾斜总成TRIM AND TILT ASSEMBLY1
1811604F歧管总成MANIFOLD ASSEMBLY1
256800管塞 (.0625-27)PLUG Pipe (.0625-27)9
3823552F气缸总成CYLINDER ASSEMBLY1
3880952A03ORD 8M0078330ORD 8M00783301
4823553配平活塞杆套件ROD KIT Trim Piston1
4823553T升降活塞杆ROD Trim Piston1
5811606导向套件GUIDE KIT1
5878239A02倾斜缸端盖套件END CAP KIT Tilt Cylinder1
6811607A1维修套件REPAIR KIT1
7811610A1止回阀套件CHECK VALVE KIT1
7823553T升降活塞杆ROD Trim Piston1
899638A1导向器总成GUIDE ASSEMBLY2
88M0021648端盖总成END CAP ASSEMBLY2
943397A6动力升降倾斜装置活塞/杆总成PISTON/ROD ASSEMBLY Power Trim1
9878413A1活塞总成PISTON ASSEMBLY1
943398A3动力升降倾斜装置活塞/杆总成PISTON/ROD ASSEMBLY Power Trim1
9878414T01活塞总成PISTON ASSEMBLY1
1012184A1升降过滤器总成TRIM FILTER ASSEMBLY1
11813442A2手动释放总成MANUAL RELEASE ASSEMBLY1
11893929A01安全阀套件VALVE KIT Relief1
12812844E型卡环E RING1
12815949001E形环E-RING1
13811612A2O型圈套件O-RING KIT1
13811612A3O型圈套件O-RING KIT1
14811617F泵PUMP1
14811617T1泵PUMP1
15811613塞子总成PLUG ASSEMBLY1
164000327螺钉 (M6 x 14)SCREW (M6 x 14)4
1743450垫圈WASHER4
174002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)4
18811611盖板COVER1
19828710驱动接头DRIVE JOINT1
20828708马达总成(动力配平马达分解件)MOTOR ASSEMBLY (BREAKDOWN ON PWER TRIM MOTOR)1
20878265A4配平电机TRIM MOTOR1
21828709螺钉SCREW2
21881768A1螺钉/垫圈套件SCREW/WASHER KIT2
21811616螺钉SCREW2
22811614轴总成SHAFT ASSEMBLY1
228M0142997倾斜轴套件TILT SHAFT KIT1
2356800管塞 (.0625-27)PLUG Pipe (.0625-27)2
2444431槽销PIN Groove1
24878267销PIN1
25821539三叶销PIN Trilobe1
26996251轴SHAFT1
2699625002轴SHAFT1
27818298A1阳极套件ANODE KIT1
27818298Q1阳极套件ANODE KIT1
284000330螺钉(M6x25)SCREW (M6 x 25)2
288M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
2929245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
298M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
304000377螺钉 (M10 x 30)SCREW (M10 x 30)6
314002319垫圈WASHER6
3226550卡箍CLAMP2
33817626螺钉(#10-16×0.380)SCREW (#10-16 x .380)2
33878607螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)2
3469205C形垫圈C WASHER2
348M0084613C形垫圈C-WASHER2
35996301冲击板STRIKER PLATE2
358M0045383冲击板STRIKER PLATE2
3658643锁紧垫圈 (.375)LOCKWASHER (.375)2
3746335螺母 (.375-24)NUT (.375-24)2
图 122专用工具 TOOLS SPECIAL
专用工具 TOOLS SPECIAL
REF零件编号中文名称英文名称数量
-815366A3电池隔离器套件ISOLATOR KIT Battery1
-58222A1百分表工具DIAL INDICATOR TOOL1
-89045适配器ADAPTER1
-890451直流电压适配工具ADAPTER TOOL Direct Voltage1
-52344飞轮固定器工具(齿型)FLYWHEEL HOLDER TOOL Teeth Type1
-73687A2飞轮拉拔器套件PULLER KIT Flywheel1
-849154T1拉拔器总成PULLER ASSEMBLY1
-99750A1万用表MULTI METER1
-24161飞轮拉拔器盖工具CAP TOOL Flywheel Puller1
-52024A1开关总成SWITCH ASSEMBLY1
-59339维修用转速表SERVICE TACHOMETER1
-892647A01DMT万用表套件MULTI-METER KIT DMT1
-850439T1八腔测试仪TESTER Eight Chamber1
-63998A1单腔间隙工具GAP TOOL Single Chamber1
-850439火花测试器SPARK TESTER1
-850439T1八腔测试仪TESTER Eight Chamber1
-14443A1测试线束总成HARNESS ASSEMBLY Test1
-99379正时灯TIMING LIGHT1
-29287量规工具GAUGE TOOL1
-55919驱动头DRIVER HEAD1
-52344飞轮固定器工具(齿型)FLYWHEEL HOLDER TOOL Teeth Type1
-73687A2飞轮拉拔器套件PULLER KIT Flywheel1
-849154T1拉拔器总成PULLER ASSEMBLY1
-90455吊环LIFTING EYE1
-904551吊环LIFTING EYE1
-77109A3安装工具套件INSTALLER KIT1
-52952A1活塞销锁环拆卸工具REMOVAL TOOL Piston Pin Lock Ring1
-52952T1活塞销锁环拆卸工具REMOVAL TOOL Piston Pin Lock Ring1
-74607A3活塞销安装套件INSTALLER KIT Piston Pin1
-65494环压缩工具(2.0升)COMPRESSOR TOOL Ring (2.0L)1
-65494T环压缩工具COMPRESSOR TOOL Ring1
-818773活塞环压缩工具(2.5升)COMPRESSOR TOOL Piston Ring (2.5L)1
-818773T活塞环压缩工具(3.50)COMPRESSOR TOOL Piston Ring (3.50)1
-24697活塞环扩张工具EXPANDER TOOL Piston Ring1
-30591A1动力头支架工具STAND TOOL Powerhead1
-30591T1支架工具STAND TOOL1
-24161飞轮拉拔器盖工具CAP TOOL Flywheel Puller1
-66274扭矩扳手(0-150磅英寸)TORQUE WRENCH (0-150 lb-in)1
-37241通用拉拔板PULLER PLATE Universal1
-112301对正工具ALIGNMENT TOOL1
-99750A1万用表MULTI METER1
-52915A6测试仪表套件TEST GAUGE KIT1
-74951扳手SPANNER WRENCH1
-63209加热灯HEAT LAMP1
-44487A1调整杆导向器拆卸工具REMOVER TOOL Trim Rod Guide1
-44487T1调整杆导向器拆卸工具REMOVER TOOL Trim Rod Guide1
-44486A1调整杆拆卸工具REMOVAL TOOL Trim Rod1
图 123齿轮箱(螺旋桨轴)(反向旋转) GEAR HOUSING (PROP SHAFT)(COUNTER ROTATION)
齿轮箱(螺旋桨轴)(反向旋转) GEAR HOUSING (PROP SHAFT)(COUNTER ROTATION)
REF零件编号中文名称英文名称数量
19148T93基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
4989594A1从动件总成FOLLOWER ASSEMBLY1
50789562换挡凸轮SHIFT CAM1
51828287杆ROD1
5244491A1垫片组SHIM SETAR
528M0063266垫片组SHIM SETAR
53828830A2轴承适配器总成ADAPTER ASSEMBLY Bearing1
54814653滚针轴承总成BEARING ASSEMBLY Needle Rollers1
54814653T滚针轴承总成BEARING ASSEMBLY Needle Rollers1
55815481止推垫片THRUST WASHER1
56815480推力轴承BEARING Thrust1
57828702A2倒车齿轮总成-15/28齿GEAR ASSEMBLY Reverse - 15/281
5815844滚柱轴承总成BEARING ASSEMBLY Roller1
5930893弹簧SPRING1
60854735T滑动离合器CLUTCH Sliding1
60859340T离合器CLUTCH1
6130632十字销PIN Cross1
618M0100263十字销PIN Cross1
62828356定位销PIN Detent1
63828951螺旋桨轴PROPELLER SHAFT1
64828701A1前进齿轮总成-15/28齿GEAR ASSEMBLY Forward - 15/281
651761514垫片(0.206)SPACER SHIM (.206)AR
651761515垫片(0.208)SPACER SHIM (.208)AR
651761516垫片(0.210)SPACER SHIM (.210)AR
651761517垫片(0.212)SPACER SHIM (.212)AR
651761518垫片(0.214)SPACER SHIM (.214)AR
651761519垫片(0.216)SPACER SHIM (.216)AR
651761520垫片(0.218)SPACER SHIM (.218)AR
651761521垫片(0.220)SPACER SHIM (.220)AR
651761522垫片(0.222)SPACER SHIM (.222)AR
651761523垫片(0.224)SPACER SHIM (.224)AR
651761524垫片(0.226)SPACER SHIM (.226)AR
651761525垫片(0.228)SPACER SHIM (.228)AR
651761526垫片(0.230)SPACER SHIM (.230)AR
66815480推力轴承BEARING Thrust1
67815481止推垫片THRUST WASHER1
68828831A3轴承适配器总成ADAPTER ASSEMBLY Bearing1
69814653滚针轴承总成BEARING ASSEMBLY Needle Rollers1
69814653T滚针轴承总成BEARING ASSEMBLY Needle Rollers1
7018448止推垫片THRUST WASHER2
7115842推力轴承BEARING Thrust2
728182911推力座圈RACE Thrust2
73814605定位器KEEPER2
7431534O型圈O-RING1
748M0214920O型圈O RING1
75818290A4轴承座总成CARRIER ASSEMBLY Bearing1
7630956滚针轴承BEARING Needle1
7630956T滚针轴承BEARING Needle1
7714077油封(内侧)SEAL Oil (INSIDE)1
7876868油封(外侧)SEAL (OUTSIDE)1
788M0248882油封@5SEAL-OIL @51
79183231锁紧垫圈TAB WASHER1
8030281键KEY1
8179448固定座RETAINER1
818M2011027固定座RETAINER1
82316405平衡鳍板TRIM TAB1
828M0236553平衡鳍板TRIM TAB1
8276214A5阳极套件ANODE KIT1
8276214Q5阳极套件ANODE KIT1
83806327螺钉(.437-14 x 1.750)SCREW (.437-14 x 1.750)1
838M0204686螺钉SCREW1
8465210螺钉(.375-16 x 1.00)SCREW (.375-16 x 1.00)1
8545176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel2
8634933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
868M0204653螺母NUT2
-89238A2密封套件SEAL KIT1
图 124齿轮箱（驱动轴）- 反向旋转 GEAR HOUSING (DRIVESHAFT) - COUNTER ROTATION
齿轮箱（驱动轴）- 反向旋转 GEAR HOUSING (DRIVESHAFT) - COUNTER ROTATION
REF零件编号中文名称英文名称数量
19148A47齿轮箱总成(基础款)(黑色)GEAR HOUSING ASSEMBLY (BASIC) (BLACK)1
19148A48齿轮箱总成(基础款)(灰色)GEAR HOUSING ASSEMBLY (BASIC) (GRAY)1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
285822A10连接器总成(适用时使用)CONNECTOR ASSEMBLY (USE WHERE APPLICABLE)1
343044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
418978双头螺栓(.438×3.69)STUD (.438 x 3.69)1
48M0034464螺柱STUD1
5579201双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
58M0133358双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
656297双头螺栓(.312×3.38)STUD (.312 x 3.38)1
68M0034463螺柱(.312-24 x 3.38)STUD (.312-24 x 3.38)1
730667双头螺栓(.250-20/.250-28×3.125)STUD (.250-20/.250-28 x 3.125)2
7306671螺柱STUD2
842647A1滚柱轴承总成BEARING ASSEMBLY Roller1
943998衬套(旧设计)SLEEVE (OLD DESIGN)1
9A826134阳极块ANODE2
9A826134Q阳极块ANODE2
9B4000333螺钉(M6 x 40)SCREW (M6 x 40)1
9C8268336螺母 (M6)NUT (M6)1
9C401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
11442091驱动轴DRIVESHAFT
11897625T加长驱动轴DRIVESHAFT X-Long
12N.S.S.不单独销售小齿轮(43-18572A1或43-18475A1部件)Not Sold Separate Pinion Gear (PART OF 43-18572A1 OR 43-18475A1)1
1392721垫圈(.965×0.630)WASHER (.965 x .630)1
14826375螺母(0.625-18)NUT (.625-18)1
1435921螺母(0.625-18)NUT (.625-18)1
1542637A1垫片组SHIM SETAR
158M0063267垫片组SHIM SETAR
1636387A1轴承总成(滚子/外圈)BEARING ASSEMBLY Roller/Cup1
168M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
17824519固定座RETAINER1
178245191固定座RETAINER1
1842579A3水泵底座总成BASE ASSEMBLY Water Pump1
188M0077147带水泵底座总成BASE ASSY-W/P1
19426311衬垫GASKET1
198M0204678衬垫GASKET1
2090011O型圈(2.175 x 0.175)O-RING (2.175 x .175)1
208M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
2189238油封SEAL Oil1
2216977油封SEAL Oil1
23856081衬垫GASKET1
238M0090319衬垫@5GASKET @51
24856091衬垫GASKET1
24858524衬垫GASKET1
2532435面板FACE PLATE1
258M0204677面板PLATE-FACE1
2696148A1水泵壳体总成BODY ASSEMBLY Water Pump1
2696148T1水泵壳体总成BODY ASSEMBLY Water Pump1
2748752嵌件INSERT1
2748752T嵌件INSERT1
2838970密封件SEAL1
29899841叶轮IMPELLER1
2989984T3叶轮IMPELLER1
3056654键KEY1
308M0214992键@5KEY @51
3196411螺钉(#14-8×2.25)SCREW (#14-8 x 2.25)1
318M0215009螺钉SCREW1
3229245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
328M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
3313438螺母(.250-28)NUT (.250-28)2
338267119螺母(.250-28)NUT (.250-28)2
3436001垫圈WASHER1
3513436螺母NUT1
3729804套筒SLEEVE1
3729804T套筒SLEEVE1
38789022换挡轴(不带E型环使用)SHIFT SHAFT (USE W/O E-RING)1
3878902轴SHAFT1
38789022换档轴SHIFT SHAFT1
3929641E型卡环E RING1
4019183纤维垫圈WASHER Fiber2
408M0187157蓝色密封件@15SEAL-BLUE @152
4125439O型圈(.862×0.103)O-RING (.862 x .103)1
4277631A2衬套总成BUSHING ASSEMBLY1
438164641油封SEAL Oil1
438M0246145油封OIL SEAL1
4477674垫圈(.35 x .75 x .12)WASHER (.35 x .75 x .12)1
4579953螺钉(0.375-16x0.250)SCREW (.375-16 x .250)1
4579953Q04放油螺钉套件SCREW KIT Drain1
4667892磁性螺钉SCREW Magnetic1
468M0058389放油螺钉套件SCREW KIT Drain1
-815791A92发动机垫片组GASKET SET Engine1
-96148A5水泵维修套件REPAIR KIT Water Pump1
-96148A8水泵维修套件WATER PUMP REPAIR KIT1
-89238A2密封套件SEAL KIT1
图 125艉板支架（序列号0G589999及以下） Transom Brackets (S/N-0G589999 & Below)
艉板支架（序列号0G589999及以下） Transom Brackets (S/N-0G589999 & Below)
REF零件编号中文名称英文名称数量
18718F7艉板支架BRACKET Transom1
28716A8艉板支架总成BRACKET ASSEMBLY Transom1
18718F8艉板支架BRACKET Transom1
28716A9艉板支架总成BRACKET ASSEMBLY Transom1
398727润滑脂接头(左舷)FITTING Grease (PORT)1
38M0169588润滑脂接头FITTING Grease1
447525螺母 (.875-14) 底部NUT (.875-14) Bottom1
5826125A1倾斜管TILT TUBE1
6826135尼龙锁紧螺母(1.00-14)NUT Lock (1.00-14) Nylon Insert1
745711O型圈 (.612 x .103)O-RING (.612 x .103)1
888750波浪垫圈 (1.62 x 1.05)WASHER Wave (1.62 x 1.05)2
9826164螺母 (.875-14)NUT (.875-14)1
98M0231351锁紧螺母NUT Lock1
10677551螺钉(.500-20×4.500)SCREW (.500-20 x 4.500)4
108M0149747螺钉SCREW4
1128421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
118M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
128M0027784螺母NUT4
1282671117螺母(.500-20)NUT (.500-20)4
1399629A2杠杆总成LEVER ASSEMBLY1
138M0115104倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
1499611波形垫圈WAVE WASHER1
1565830尼龙衬套NYLINER2
1699633旋钮KNOB1
1799615槽销PIN Groove1
1899622弹簧SPRING1
1999604槽销PIN Groove1
2096930A1螺栓总成BOLT ASSEMBLY1
2123161螺母 (.375-24)NUT (.375-24)1
22814207停机开关STOP1
-815791A92发动机垫片组GASKET SET Engine1
图 126发动机衬垫套件 Engine Gasket Set Components
发动机衬垫套件 Engine Gasket Set Components
REF零件编号中文名称英文名称数量
-95220A5动力头衬垫套件GASKET SET Powerhead1
-95220A5动力头衬垫套件GASKET SET Powerhead1
-898101928衬垫套装-PHGASKET SET-PH1
-815076A2动力头衬垫套件GASKET SET Powerhead1
-8M0203727衬垫套件 P/HGASKET SET P/H1
-95299气缸盖衬垫GASKET Cylinder Head1
-95299001衬垫GASKET1
-822889缸头衬垫(3.3马力)GASKET Head (3.3 HP)1
-822891油封 缸头(3.3马力)SEAL Oil Head (3.3 HP)2
-95232油封 曲轴-顶部SEAL Oil Crankshaft-Top1
-95308油封 曲轴-底部SEAL Oil Crankshaft-Bottom1
-822897油封 曲轴-底部SEAL Oil Crankshaft-Bottom1
-815076驱动轴壳体衬垫GASKET Driveshaft Housing1
-815076002衬垫GASKET1
图 127簧片阀组与气缸盖 Reed Block and Cylinder Head
簧片阀组与气缸盖 Reed Block and Cylinder Head
REF零件编号中文名称英文名称数量
115221A2气缸盖总成CYLINDER HEAD ASSEMBLY2
241246气缸盖衬垫GASKET CYLINDER HEAD2
241247T01衬垫GASKET2
398534螺钉 (0.375-16 x 2.30) 气缸盖（2英寸）SCREW (.375-16 x 2.30) CYLINDER HEAD (2")23
313450螺钉 (0.375-16 x 2.30) 气缸盖（专用）SCREW (.375-16 x 2.30) CYLINDER HEAD (SPECIAL)1
425909气缸盖螺钉垫圈 (.406 x .812 x .065)WASHER (.406 x .812 x .065) CYLINDER HEAD SCREW24
575692节温器THERMOSTAT2
662386节温器衬垫GASKET THERMOSTAT2
68M0204714衬垫@4GASKET @42
790390A1节温器盖套件COVER KIT THERMOSTAT2
835386螺钉 (0.312-18 x 1.00) 节温器盖（1英寸）SCREW (.312-18 x 1.00) THERMOSTAT COVER (1")4
96872790度黄铜弯头接头 (.250-18)（水管用）FITTING (.250-18) 90 Degree - Brass ELBOW - WATER HOSES1
968727190度弯头 (.250-18) - 黄铜FITTING (.250-18) 90 Degree - Brass1
107765377配水软管（散装24.500英寸）HOSE (24.500 Inches Bulk) WATER DISTRIBUTION2
1077653101软管（散装48.00英寸）HOSE (48.00 Inches Bulk)2
1168728节温器盖至水管接头FITTING THERMOSTAT COVER TO WATER HOSES1
1290077水管束带TIE STRAP WATER HOSESAR
12816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
1397465温度传感器（右舷）SENDER Temperature (STARBOARD)1
1313536A6温度传感器总成（左舷）SENSOR ASSEMBLY Temperature (PORT)1
1413715传感器固定座RETAINER SENSOR AND SENDER2
14137151固定座RETAINER2
1598257螺钉 (0.312-18 x 0.500) 固定座SCREW (.312-18 x .500) RETAINER2
1613192爆震传感器SENSOR Detonation1
16825164A1爆震传感器总成SENSOR ASSEMBLY Detonation1
1745076螺母 (#10-32) 黄铜爆震传感器NUT (#10-32) Brass DETONATION SENSOR1
1814593A4适配板总成ADAPTER PLATE ASSEMBLY1
1928668螺钉 (0.250-20 x 0.875) 不锈钢适配板SCREW (.250-20 x .875) Stainless Steel ADAPTOR PLATE8
20146971适配板垫片GASKET ADAPTOR PLATE1
2175953簧片阀组REED BLOCK6
2275362A1簧片组件REED ASSEMBLY6
2396183簧片夹CLAMP Reed12
23961832簧片夹CLAMP Reed12
2414783螺钉 (#8-32 x 0.187) 簧片至簧片座SCREW (#8-32 x .187) REEDS TO REED BLOCK60
24823588螺钉 (#8-32 x .250)SCREW (#8-32 x .250)60
2521558螺钉 (0.250-20 x 0.75) 簧片座固定（3/4英寸）SCREW (.250-20 x .75) REED BLOCK ATTACHING (3/4")6
2592160螺钉(.250-20 x .750)不锈钢SCREW (.250-20 x .750) Stainless Steel6
2690197螺钉 (0.250-20 x 1.125) 簧片座固定（2英寸）SCREW (.250-20 x 1.125) REED BLOCK ATTACHING (2")6
27167371适配板垫片GASKET ADAPTOR PLATE1
-14697A87衬垫套件GASKET SET
图 128齿轮箱（推进轴）- 反向旋转 GEAR HOUSING (PROPSHAFT) - COUNTER ROTATION
齿轮箱（推进轴）- 反向旋转 GEAR HOUSING (PROPSHAFT) - COUNTER ROTATION
REF零件编号中文名称英文名称数量
19148A47齿轮箱总成(基础款)(黑色)GEAR HOUSING ASSEMBLY (BASIC) (BLACK)1
19148A48齿轮箱总成(基础款)(灰色)GEAR HOUSING ASSEMBLY (BASIC) (GRAY)1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
4778956换挡凸轮SHIFT CAM1
47789562换挡凸轮SHIFT CAM1
4889594A1从动件总成FOLLOWER ASSEMBLY1
49799111杆ROD1
4979911A1杆ROD1
5079910弹簧SPRING2
5178910垫圈WASHERAR
5278906销PIN1
528M0084245弹簧定位销PIN Spring Locator1
5314469轴承杯CUP Bearing1
5314469T轴承杯CUP Bearing1
5488957A1滚珠轴承BEARING Ball1
5488957T滚珠轴承BEARING Ball1
55N.S.S.倒车齿轮(不单独销售)(属于43-18572A1或43-18475A1部件)Not Sold Separate Reverse Gear (PART OF 43-18572A1 OR 43-18475A1)1
5615844滚柱轴承总成BEARING ASSEMBLY Roller1
5778909定位销PIN Detent2
58823174离合器CLUTCH1
58823174TORD 8M0100493ORD 8M01004931
5978905十字销PIN Cross1
598M0084243十字销PIN Cross1
6078962弹簧SPRING2
6118572A1前进齿轮总成(135/150)GEAR ASSEMBLY Forward (135/150)1
6118572T1齿轮组GEAR SET1
6118475A1前进齿轮总成(175/200)GEAR ASSEMBLY Forward (175/200)1
6118475T1齿轮组GEAR SET1
62176151调整垫片(.125)SPACER SHIM (.125)AR
62176152调整垫片(.127)SPACER SHIM (.127)AR
62176153调整垫片(.129)SPACER SHIM (.129)AR
62176154调整垫片(.131)SPACER SHIM (.131)AR
62176155调整垫片(.133)SPACER SHIM (.133)AR
62176156调整垫片(.135)SPACER SHIM (.135)AR
62176157调整垫片(.137)SPACER SHIM (.137)AR
62176158调整垫片(.139)SPACER SHIM (.139)AR
62176159调整垫片(.141)SPACER SHIM (.141)AR
621761510调整垫片(.143)SPACER SHIM (.143)AR
621761511调整垫片(.145)SPACER SHIM (.145)AR
621761512调整垫片(.147)SPACER SHIM (.147)AR
621761513调整垫片(.149)SPACER SHIM (.149)AR
6315841滚柱轴承BEARING Roller1
6417616推力环THRUST RING1
6531534O型圈O-RING1
658M0214920O型圈O RING1
6618447A2轴承适配器总成ADAPTER ASSEMBLY Bearing1
6618447T2适配器总成ADAPTOR ASSEMBLY1
6715843滚柱轴承BEARING Roller1
6715843T滚针轴承BEARING Needle1
6818448止推垫片THRUST WASHER2
6915842推力轴承BEARING Thrust2
7018446螺旋桨轴PROPELLER SHAFT1
71818896A2轴承座总成CARRIER ASSEMBLY Bearing1
71818896T2轴承座BEARING CARRIER1
7230956滚针轴承BEARING Needle1
7230956T滚针轴承BEARING Needle1
7376868密封件SEAL1
738M0248882油封@5SEAL-OIL @51
73A76868密封件SEAL1
73A8M0248882油封@5SEAL-OIL @51
74183231锁紧垫圈TAB WASHER1
7579448固定座RETAINER1
758M2011027固定座RETAINER1
7630281键KEY1
77316404平衡板(用于无阳极齿轮箱)TRIM TAB (USE WITH GEAR HOUSING W/O ANODES)1
7731640Q4平衡鳍板TRIM TAB1
77316405配平板(与带阳极齿轮箱配套使用)TRIM TAB (USE WITH GEAR HOUSING W/ANODES)1
778M0236553平衡鳍板TRIM TAB1
78806327螺钉(.437-14 x 1.750)SCREW (.437-14 x 1.750)1
788M0204686螺钉SCREW1
7967891填充块FILLER BLOCK1
798M0039169填充块FILLER BLOCK1
8045176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel2
8134933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
818M0204653螺母NUT2
8213171推力毂THRUST HUB1
82835467Q01止推垫片套件THRUST WASHER KIT1
8331211A2花键垫圈WASHER Splined1
8331211Q03垫圈总成WASHER ASSEMBLY1
84816629锁紧垫圈TAB WASHER1
84816629Q锁紧垫圈TAB WASHER1
8552707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
8552707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
86423511齿形锁紧垫圈LOCKWASHER Toothed1
8765210螺钉(.375-16 x 1.00)SCREW (.375-16 x 1.00)1
-815791A92发动机垫片组GASKET SET Engine1
-89238A2密封套件SEAL KIT1
图 129排气歧管与排气板 Exhaust Manifold And Exhaust Plate
排气歧管与排气板 Exhaust Manifold And Exhaust Plate
REF零件编号中文名称英文名称数量
1904841分隔板衬垫GASKET DIVIDER PLATE2
299169A1分隔板PLATE DIVIDER1
369668分隔板密封件SEAL DIVIDER PLATE1
3814754密封件(12.50英寸)SEAL (12.50 Inches)1
4193071排气歧管盖COVER EXHAUST MANIFOLD1
574824螺钉（0.312-18 x 1.250）盖和板至气缸体SCREW (.312-18 x 1.250) COVER AND PLATE TO CYLINDER BLOCK21
6194373接线板（3端子）TERMINAL BLOCK (3 TERMIALS)1
713716零件手册 7.5/9.8马力 接线板PARTS MANUAL 7.5 /9.8 H.P. TERMIAL BL0CK2
829245垫圈（0.281 x 0.500 x 0.060）不锈钢接线板螺钉WASHER (.281 x .500 x .060) Stainless Steel TERMIMAL BLOCK SCREW2
88M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
945076端子排黄铜螺母(#10-32)NUT (#10-32) Brass TERMINAL BLOCK3
10813938盖螺母（#10-32）接线板CAP NUT (#10-32) TERMINAL BLOCK3
1174824缸体盖板螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250) COVER TO CYLINDER BLOCK4
1269570膜片至板件螺钉(#10-16 x .750)SCREW (#10-16 x .750) DIAPHRAGM TO PLATE1
1376451膜片螺钉垫片WASHER DIAPHRAGM SCREW1
1414479隔膜DIAPHRAGM1
14144791隔膜DIAPHRAGM1
1516496导水板DEFLECTOR Water1
1616497A1安全阀板PLATE RELIEF VALVE1
1778690安全阀板衬垫GASKET RELIEF VALVE PLATE2
1778690002衬垫GASKET2
1864878弹簧（黑色）压缩弹出阀SPRING (Black) COMPERSSION POPPER VALVE1
1985303提升阀弹簧垫片WASHER POPPET SPRING1
2014480提升阀POPPET VALVE1
2164872提升阀衬套GROMMET POPPET VALVE1
2265848提升阀座CARRIER POPPET VALVE1
23991763排气板衬垫GASKET EXHAUST PLATE1
23991764衬垫GASKET1
2441944A5排气板总成PLATE ASSEMBLY EXHAUST1
2599664排气板弯头ELBOW EXHAUST PLATE1
2599664290度弯头接头(0.125-27x0.250)尼龙FITTING Elbow 90 Degree (.125-27 x .250) Nylon1
2620033排气板定位销PIN Dowel LOCATING - EXHAUST PLATE2
2643044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
27183982排气板密封件SEAL EXHAUST PLATE1
278M0043165密封件-27.00英寸SEAL-27.00 INCH1
28680101密封件固定支架BRACKET SEAL RETAINING1
29812832支架至排气板螺钉(#10-16 x .500)SCREW (#10-16 x .500) BRACKET TO EXHAUST PLATE6
29878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)6
3025970动力头螺柱垫圈WASHER POWERHEAD STUD6
3020553垫圈(.406 x .734 x .063)WASHER (.406 x .734 x .063)6
3169254螺母 动力头螺柱NUT POWWERHEAD STUD6
3227132排气板衬套BUSHING EXHAUST PLATE1
3319564护孔环GROMMET1
338M0179867护孔环GROMMET1
3412602排气板衬套GROMMET EXHAUST PLATE1
3412602002护孔环GROMMET1
3566727螺钉(.312-18 x 1.250)排气板固定SCREW (.312-18 x 1.250) EXHAUST PLATE ATTACHING1
3668783螺钉(.312-18 x 2.50)排气板固定SCREW (.312-18 x 2.50) EXHAUST PLATE ATTACHING1
3766725螺钉(.375-16 x 3.50)排气板固定SCREW (.375-16 x 3.50) EXHAUST PLATE ATTACHING3
37898833螺钉(.375-16 x 3.500)SCREW (.375-16 x 3.500)3
38812905A2前支架总成BRACKET ASSEMBLY FRONT1
38812905T前支架BRACKET Front1
3990285螺钉（0.312-18 x 0.625）前支架SCREW (.312-18 x .625) FRONT BRAKET4
40187031垫圈WASHER4
4118778护孔环GROMMET4
4118778001护孔环GROMMET4
4218578A3后支架总成BRACKET ASSEMBLY Rear REAR1
4218578T09支架总成(后部)BRACKET ASSEMBLY Rear1
4314462A1安全阀盖(旧设计)COVER RELIEF VALVE (OLD DESIGN)1
4368729泄压阀盖（新设计）COVER RELIEF VALVE (NEW DESIGN)1
438M0039767盖板COVER1
4492007接头（0.250-18）（90度）（新设计）FITTING (.250-18) (90 DEGREES) (NEW DESIGN)1
4492007190度弯头FITTING (90 Degree)1
4599127109管路（57.00英寸散装）（新设计）LINE (57.00 Inches Bulk) (NEW DESIGN)1
458M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
4690077扎带（新设计）TIE STRAP (NEW DESIGN)2
46816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)2
47814430接头（0.500-14）（新设计）FITTING (.500-14) (NEW DESIGN)1
478144301接头FITTING1
-14697A87衬垫套件GASKET SET1
图 130艉板支架 Transom Brackets
艉板支架 Transom Brackets
REF零件编号中文名称英文名称数量
18718A1艉板支架总成(右舷)BRACKET ASSEMBLY Transom (STARBOARD)1
28716A5艉板支架总成(左舷)BRACKET ASSEMBLY Transom (PORT)1
28716A8艉板支架总成BRACKET ASSEMBLY Transom1
398727润滑配件左舷艉板支架FITTING Grease PORT TRANSOM BRACKET1
38M0169588润滑脂接头FITTING Grease1
599170A1倾斜管TILT TUBE1
599170A2倾斜管套件TUBE KIT Tilt1
690068T倾斜管螺母（1英寸-14牙）NUT TILT TUBE (1"-14)1
6859133螺母(1.00-14)NUT (1.00-14)1
745711O-RING (.612 x .103) TILT TUBE1
888750波形垫圈(1.62 x 1.05)倾斜管WASHER Wave (1.62 x 1.05) TILT TUBE2
956041螺母 (.875-14) 倾斜管 (7/9-14)NUT (.875-14) TILT TUBE (7/9-14)1
9858869螺母 (.875-14)NUT (.875-14)1
10677551螺钉(.500-20 x 4.500)艉板支架至艉板SCREW (.500-20 x 4.500) TRANSOM BRACKET TO TRANSOM4
108M0149747螺钉SCREW4
1128421垫圈(1.5 x 3.05 x 0.13)不锈钢艉板支架螺栓WASHER (1.5 x 3.05 x 0.13) Stainless Steel TRANSOM BRACKET BOLT4
118M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
128M0027784艉板支架螺栓螺母NUT TRANSOM BRACKET BOLT4
1282671117螺母(.500-20)NUT (.500-20)4
1399629A2倾斜锁杆总成LEVER ASSEMBLY TILT LOCK1
138M0115104倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
1499611倾斜杆波形垫圈WAVE WASHER TILT LEVER1
1565830倾斜杆尼龙衬套NYLINER TILT LEVER2
1699633倾斜锁杆旋钮KNOB TILT LOCK LEVER1
1799615槽销PIN Groove1
1899622弹簧SPRING1
1999604槽销PIN Groove1
2096930A1倾斜锁螺栓总成BOLT ASSEMBLY TILT LOCK1
2123161螺栓螺母（3/8英寸-24牙）NUT (.375-24) BOLT1
22814207倾斜止动杆STOP TILT LEVER1
2337984螺母 (.875-14)NUT (.875-14)1
238M0041651螺母 (.875-14)NUT (.875-14)1
-14697A87衬垫套件GASKET SET
图 131驱动轴壳与排气管 Driveshaft Housing and Exhaust Tube
驱动轴壳与排气管 Driveshaft Housing and Exhaust Tube
REF零件编号中文名称英文名称数量
18343A10驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
18343A11驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
18343T11ORD 1590-8343T10ORD 1590-8343T101
1813563A1驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
1813563T1传动轴壳体-黑色-加长型HOUSING Driveshaft - Black - X-Long1
1813563A2驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
1813563T2ORD 3503-813563T1ORD 3503-813563T11
256295双头螺柱(.437 x 2.69)STUD (.437 x 2.69)2
363474螺钉(.500-20 x 6.00)SCREW (.500-20 x 6.00)2
3898831螺钉(.500-20 x 6.220)SCREW (.500-20 x 6.220)2
488238A10接地线总成CABLE ASSEMBLY Ground1
577327支架MOUNT2
649339垫圈(.8125)WASHER (.8125)2
788238A10接地线总成CABLE ASSEMBLY Ground1
828040螺母(.500-20)NUT (.500-20)2
8898832螺母(.500-20)NUT (.500-20)2
941508螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel1
1045176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel2
1134933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
118M0204653螺母NUT2
1267076卡箍CLAMP2
128M0036782卡箍CLAMP2
1366727螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)4
1467077T黑色盖COVER Black2
148M4500752盖板COVER2
1467077F1灰色盖板COVER Gray2
1467077T黑色盖COVER Black2
1588417螺钉(#12-24×0.620)SCREW (#12-24 x .620)4
1635521螺母NUT4
1748926垫圈WASHER1
1834933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel1
188M0204653螺母NUT1
1920553垫圈(.406 x .734 x .063)WASHER (.406 x .734 x .063)4
2069254螺母NUT4
21828212怠速排气套BOOT Idle Exhaust1
218M0039081护套BOOT1
2264649堵头PLUG1
23991732衬垫GASKET1
23991734衬垫GASKET1
2466350下密封件SEAL (LOWER)1
2466350001密封件SEAL1
2518276排气管TUBE Exhaust1
2518276T排气管EXHAUST TUBE1
26177261上密封件SEAL (UPPER)1
268M0039076密封件SEAL1
27812834排气管延长段EXTENSION Exhaust1
27812834A2排气延长总成EXTENSION ASSEMBLY Exhaust1
2741942F3排气管延长段EXTENSION Exhaust1
27879288T71排气管延长段EXTENSION Exhaust1
2867295水管TUBE Water1
288M0042788长型水管TUBE-WATER-LONG1
2874729管TUBE1
288M0042790水管TUBE-WATER1
2978246衬垫GASKET1
29782461衬垫GASKET1
3018233A3隔板总成PLATE ASSEMBLY1
3018233A20传动轴壳体板总成PLATE ASSEMBLY Driveshaft Housing1
318147012密封件SEAL1
318M0043165密封件-27.00英寸SEAL-27.00 INCH1
3268011支架BRACKET1
33812832螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)12
33878608螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)12
3443044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
3538970密封件SEAL1
3690192螺钉(.250-20 x .750)不锈钢SCREW (.250-20 x .750) Stainless Steel6
37183071衬垫GASKET1
37183076衬垫GASKET1
-815791A92发动机垫片组GASKET SET Engine1
图 132齿轮箱（驱动轴）（XR6/MAG III - 1.78:1 速比） GEAR HSG (DRIVESHAFT)(XR6/MAG III - 1.78:1 RATIO)
齿轮箱（驱动轴）（XR6/MAG III - 1.78:1 速比） GEAR HSG (DRIVESHAFT)(XR6/MAG III - 1.78:1 RATIO)
REF零件编号中文名称英文名称数量
1814247A1齿轮箱总成 基础型-黑色GEAR HOUSING ASSEMBLY Basic - Black1
1814247A2齿轮箱总成 基础型-灰色GEAR HOUSING ASSEMBLY Basic - Gray1
1814247T2ORD 1674-814247T1ORD 1674-814247T11
285822A10连接器总成(适用时使用)CONNECTOR ASSEMBLY (USE WHERE APPLICABLE)1
2A43998衬套(旧设计)SLEEVE (OLD DESIGN)1
343044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
478638双头螺柱(.438 x 3.12)STUD (.438 x 3.12)1
4786382螺柱(.437-14/.437-20 x 3.120)STUD (.437-14/.437-20 x 3.120)1
5579201双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
58M0133358双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
656297双头螺栓(.312×3.38)STUD (.312 x 3.38)1
68M0034463螺柱(.312-24 x 3.38)STUD (.312-24 x 3.38)1
730667双头螺栓(.250-20/.250-28×3.125)STUD (.250-20/.250-28 x 3.125)2
7306671螺柱STUD2
835934A1滚柱轴承总成BEARING ASSEMBLY Roller1
979953螺钉(0.375-16x0.250)SCREW (.375-16 x .250)1
979953Q04放油螺钉套件SCREW KIT Drain1
1067892磁性螺钉SCREW Magnetic1
108M0058389放油螺钉套件SCREW KIT Drain1
11815168驱动轴DRIVESHAFT1
12N.S.S.小齿轮(不单独销售)(属于43-16279A2部件)Not Sold Separate Pinion Gear (PART OF 43-16279A2)1
1319183纤维垫圈WASHER Fiber2
138M0187157蓝色密封件@15SEAL-BLUE @152
14826375螺母(0.625-18)NUT (.625-18)1
1435921螺母(0.625-18)NUT (.625-18)1
1542637A1垫片组SHIM SETAR
158M0063267垫片组SHIM SETAR
1636387A1轴承总成(滚子/外圈)BEARING ASSEMBLY Roller/Cup1
168M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
17824519固定座RETAINER1
178245191固定座RETAINER1
1842579A3水泵底座总成BASE ASSEMBLY Water Pump1
188M0077147带水泵底座总成BASE ASSY-W/P1
19426311衬垫GASKET1
198M0204678衬垫GASKET1
2090011O型圈(2.175 x 0.175)O-RING (2.175 x .175)1
208M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
2189238油封SEAL Oil1
2216977油封SEAL Oil1
23856081衬垫GASKET1
238M0090319衬垫@5GASKET @51
24856091衬垫GASKET1
24858524衬垫GASKET1
2532435面板FACE PLATE1
258M0204677面板PLATE-FACE1
2696148A1水泵壳体总成BODY ASSEMBLY Water Pump1
2696148T1水泵壳体总成BODY ASSEMBLY Water Pump1
2748752嵌件INSERT1
2748752T嵌件INSERT1
2838970密封件SEAL1
29899841叶轮IMPELLER1
2989984T3叶轮IMPELLER1
3056654键KEY1
308M0214992键@5KEY @51
3196411螺钉(#14-8×2.25)SCREW (#14-8 x 2.25)1
318M0215009螺钉SCREW1
3229245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
328M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
3313438螺母(.250-28)NUT (.250-28)2
338267119螺母(.250-28)NUT (.250-28)2
3436001垫圈WASHER1
3513436螺母NUT1
3729804套筒SLEEVE1
3729804T套筒SLEEVE1
388152641换挡轴(不带E型环使用)SHIFT SHAFT (USE W/O E-RING)1
38815264换挡轴下段SHIFT SHAFT LOWER1
388152641换档轴SHIFT SHAFT1
3929641E型卡环E RING1
4025439O型圈(.862×0.103)O-RING (.862 x .103)1
4177631A2衬套总成BUSHING ASSEMBLY1
428164641油封SEAL Oil1
428M0246145油封OIL SEAL1
4377674垫圈(.35 x .75 x .12)换挡轴衬套WASHER (.35 x .75 x .12) SHIFT SHAFT BUSHING1
-815791A92发动机垫片组GASKET SET Engine1
-96148A5水泵维修套件REPAIR KIT Water Pump1
-96148A8水泵维修套件WATER PUMP REPAIR KIT1
-89238A2密封套件SEAL KIT1
图 133齿轮箱图表（序列号0G437999及以下） Gear Housing Chart (S/N-0G437999 & Below)
齿轮箱图表（序列号0G437999及以下） Gear Housing Chart (S/N-0G437999 & Below)
REF零件编号中文名称英文名称数量
-9148A69齿轮箱总成 标准旋转 1.87:1 齿轮比GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio1
-9148A72齿轮箱总成 标准旋转 1.87:1 齿轮比GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio1
-9148T85齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A70齿轮箱总成 标准旋转 1.87:1 齿轮比GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio1
-9148T84齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A73齿轮箱总成 标准旋转 1.87:1 齿轮比GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio1
-9148T91ORD 1647-9148T85ORD 1647-9148T851
-9148A76齿轮箱总成 反向旋转GEAR HOUSING ASSEMBLY Counter Rotation1
-9148T86齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A77齿轮箱总成 反向旋转GEAR HOUSING ASSEMBLY Counter Rotation1
-9148T92ORD 1647-9148T86ORD 1647-9148T861
图 134燃油管路 FUEL LINES
燃油管路 FUEL LINES
REF零件编号中文名称英文名称数量
1816856A3燃油接头总成-塑料CONNECTOR ASSEMBLY Fuel - Plastic1
269067燃油连接器螺钉(.250-20 x 1.375)SCREW (.250-20 x 1.375) FUEL CONNECTOR1
3812782密封件SEAL1
49912976油管TUBING1
48M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
5816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
5816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
6814964接头FITTING1
719688弯头接头FITTING (ELBOW)1
84301625油管(8.00英寸)TUBING (8.00 Inches)1
882381335油管(15.00英寸 散装)TUBING (15.00 Inches Bulk)1
999127109管路(57.00英寸 散装)LINE (57.00 Inches Bulk)4
98M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)4
10816296燃油滤清器FILTER Fuel1
10816296Q03燃油滤清器@3FILTER-FUEL @31
1167751衬垫GASKET3
1227037双头螺栓(.250-28×1.125)STUD (.250-28 x 1.125)6
12270372双头螺栓(.250-28×1.125)STUD (.250-28 x 1.125)6
1355098J型卡扣J CLIP1
138M0024808J型夹J-CLIP1
1455715螺钉(.250-20×0.880)SCREW (.250-20 x .880)6
1526992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel6
1629598不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel6
179912878软管 (.187) (26.00英寸散装)HOSE (.187) (26.00 Inches Bulk)3
1899130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
18892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
1942859A2加浓阀总成VALVE ASSEMBLY Enrichner1
20633001卡箍CLAMP1
2173286螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel1
229912688管材 (36.00英寸散装)TUBING (36.00 Inches Bulk)2
2345915端子排TERMINAL BLOCKAR
2448408螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)AR
2438055螺钉(0.190-32x0.620)SCREW (.190-32 x .620)AR
2462568螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)AR
2469079螺钉 (#10-16 x .440)SCREW (#10-16 x .440)AR
-815791A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1
-815809A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1
-815810A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1
图 135杂项信息 MISCELLANEOUS INFORMATION
杂项信息 MISCELLANEOUS INFORMATION
REF零件编号中文名称英文名称数量
0803177零件手册150/175/200 EFI(2.5升)PARTS MANUAL 150/175/200 EFI (2.5L)1
010126990用户手册OWNERS MANUAL1
0824052R2维修手册SERVICE MANUAL1
0824052R3SM O/B V6 135-225SM O/B V6 135-2251
0808553A96贴花套件DECAL SET1
0808553A00贴花套件DECAL SET1
0809689A99贴花套件DECAL SET1
0804696A03贴花套件DECAL SET1
0808559A96贴花套件DECAL SET1
0855418A99贴花套件DECAL SET1
0809688A00贴花套件DECAL SET1
0808554A96贴花套件DECAL SET1
0812563A00贴花套件DECAL SET1
0808558A99贴花套件DECAL SET1
0808562A03贴花套件DECAL SET1
0813033A97贴花套件DECAL SET1
0813033A03贴花套件DECAL SET1
0809706A97贴花套件DECAL SET1
0809706A03贴花套件DECAL SET1
0808557A97贴花套件DECAL SET1
0808557A01贴花套件DECAL SET1
0855419A97贴花套件DECAL SET1
0855419A00贴花套件DECAL SET1
0808556A97贴花套件DECAL SET1
0808556A03贴花套件DECAL SET1
0808561A97贴花套件DECAL SET1
0808561A03贴花套件DECAL SET1
0824911A25条纹贴纸(25英尺卷-需6英尺)DECAL Striping (ROLL OF 25 FT. - NEED 6 FT.)1
0808591A96贴花套件DECAL SET1
0808680A96贴花套件DECAL SET1
0808621A96贴花套件DECAL SET1
0808602A96贴花套件DECAL SET1
0808652A96贴花套件DECAL SET1
0808641A96贴花套件DECAL SET1
085698511EPA标签信息贴花DECAL EPA Label Information1
0856985A11REF SOB 09-18REF SOB 09-181
图 136动力升降组件(铸造泵壳)金属电机壳 Power Trim Components (Cast Pump Housing) Metal Motor Housing
动力升降组件(铸造泵壳)金属电机壳 Power Trim Components (Cast Pump Housing) Metal Motor Housing
REF零件编号中文名称英文名称数量
-855998T1动力升降倾斜装置总成POWER TRIM Complete1
1878265A1电机套件MOTOR KIT1
1878265A4配平电机TRIM MOTOR1
2878405A1电枢ARMATURE1
2878265A1电机套件MOTOR KIT1
3878407A1端架END FRAME1
3878265A1电机套件MOTOR KIT1
44008830螺钉 (M6 x 30)SCREW (M6 x 30)2
482494830螺钉 (M6 x 30)SCREW (M6 x 30)2
5400256锁紧垫圈 (M6)LOCKWASHER (M6)2
6878245联轴器COUPLING1
68782451驱动轴DRIVESHAFT1
7878410A1压力检查套件PO CHECK KIT1
8813442A2手动释放总成MANUAL RELEASE ASSEMBLY1
8893929A01安全阀套件VALVE KIT Relief1
9878241A1轴套件SHAFT KIT1
98M0142997倾斜轴套件TILT SHAFT KIT1
10878267销PIN1
11878235A1倾斜油缸总成TILT CYLINDER ASSEMBLY1
11878235A03倾斜油缸套件CYLINDER KIT Tilt1
12878239A1导向套件GUIDE KIT1
12878239A02倾斜缸端盖套件END CAP KIT Tilt Cylinder1
13878409A1O型圈套件O-RING KIT1
138M0142999倾斜油缸O型圈套件O RING KIT TILT CYLINDER1
14878412A1减震杆套件SHOCK ROD KIT1
148M0168219减震杆套件SHOCK ROD KIT1
15878242A1记忆活塞总成PISTON ASSEMBLY Memory1
158M0143000记忆活塞套件MEMORY PISTON KIT1
16878406A1止回阀修理包REPAIR KIT Check Valve1
16878406A02止回阀修理包REPAIR KIT Check Valve1
17878414A1活塞总成PISTON ASSEMBLY1
17878414T01活塞总成PISTON ASSEMBLY1
18878413A1活塞总成PISTON ASSEMBLY1
19878243A1导向器总成GUIDE ASSEMBLY2
198M0021648端盖总成END CAP ASSEMBLY2
20878264A1储液罐套件RESERVOIR KIT1
21811613塞子总成PLUG ASSEMBLY1
224000327螺钉 (M6 x 14)SCREW (M6 x 14)4
2343450垫圈WASHER4
234002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)4
24878411A1泵套件PUMP KIT1
24892251A01泵套件PUMP KIT1
25878408A1动力升降倾斜装置维修包REPAIR KIT Power Trim1
26821539三叶销PIN Trilobe1
27858771螺钉 (M10 x 30)SCREW (M10 x 30)6
284002319垫圈WASHER6
29818298Q1阳极套件ANODE KIT1
304000330螺钉(M6x25)SCREW (M6 x 25)2
308M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
3129245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
318M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
32996251轴SHAFT1
3299625002轴SHAFT1
3369205C形垫圈C WASHER1
338M0084613C形垫圈C-WASHER1
3422875卡扣CLIP2
35878609螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
图 137动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing
动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing
REF零件编号中文名称英文名称数量
-8M0168222动力升降总成POWER TRIM ASSEMBLY1
18M0142591电机套件MOTOR KIT1
282494830螺钉 (M6 x 30)SCREW (M6 x 30)2
3400256锁紧垫圈 (M6)LOCKWASHER (M6)2
48M0090403驱动联轴器COUPLING Drive1
58M0142996压力检查套件PO CHECK KIT1
68M0060141手动释放套件MANUAL RELEASE KIT1
78M0142997倾斜轴套件TILT SHAFT KIT1
8878267销PIN1
98M0142998倾斜油缸总成TILT CYLINDER ASSEMBLY1
98M0168220倾斜油缸总成TILT CYLINDER ASSEMBLY1
108M0142999倾斜油缸O型圈套件O RING KIT TILT CYLINDER1
118M0143000记忆活塞套件MEMORY PISTON KIT1
128M0142592升降杆套件 左舷TRIM ROD KIT Port1
138M0143001活塞总成PISTON ASSEMBLY1
148M0143003端盖总成END CAP ASSEMBLY1
15878264A1储液罐套件RESERVOIR KIT1
16811613塞子总成PLUG ASSEMBLY1
174000327螺钉 (M6 x 14)SCREW (M6 x 14)4
184002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)4
198M0143004泵套件PUMP KIT1
208M0148385动力升降倾斜装置维修包REPAIR KIT Power Trim1
21858771螺钉 (M10 x 30)SCREW (M10 x 30)6
224002319垫圈WASHER6
238M0094889销PIN1
238M0161312连杆销眼总成PIN ROD EYE ASSEMBLY1
248M0143005减震杆套件SHOCK ROD KIT1
248M0168219减震杆套件SHOCK ROD KIT1
图 138阻风板与油门杆 CHOKE PLATE AND THROTTLE LEVERS
阻风板与油门杆 CHOKE PLATE AND THROTTLE LEVERS
REF零件编号中文名称英文名称数量
167245T上罩安装支架BRACKET COWL MOUNTING - UPPER1
267272罩壳安装支架衬套GROMMET COWL MOUNTING BRACKET2
390435罩壳安装支架(黑/灰)MOUNT COWL MOUNTING BRACKET BLACK/GRAY2
429245安装垫圈(0.281×0.500×0.060)不锈钢WASHER (.281 x .500 x .060) Stainless Steel MOUNT ATTACHING4
48M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel4
535888安装螺母(0.250-28)不锈钢NUT (.250-28) Stainless Steel MOUNT ATTACHING4
687076A4怠速控制总成IDLE SPEED CONTROL ASSEMBLY1
7799831阻风板PLATE CHOKE1
867274阻风板至化油器衬垫GASKET CHOKE PLATE TO CARBURETOR1
8672741衬垫GASKET1
968000螺丝(.250-28 x 1.00)阻风板至化油器SCREW (.250-28 x 1.00) CHOKE PLATE TO CARBURETOR6
1020583阻风板螺丝垫圈WASHER CHOKE PLATE SCREW6
1167275盖衬垫GASKET COVER1
11672751衬垫GASKET1
1267246T进气消音器盖COVER INDUCTION SILENCER1
1330720螺丝(.250-20 x 2.25)盖至阻风板SCREW (.250-20 x 2.25) COVER TO CHOKE PLATE2
1429245垫圈(.281 x .500 x .060)不锈钢盖螺丝WASHER (.281 x .500 x .060) Stainless Steel COVER SCREW2
148M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
1526992锁紧垫圈(.250)不锈钢盖螺丝LOCKWASHER (.250) Stainless Steel COVER SCREW2
1690585进气消音器盖塞PLUG INDUCTION SILENCER COVER1
1767760油门连杆LINK Throttle1
1867759节气门杆(上)LEVER Throttle UPPER1
1941049节气门杆(中)LEVER Throttle CENTER1
2067749下节流阀杆LEVER Throttle LOWER1
2115124油门杆至油门连杆螺钉(#10-32×0.750)SCREW (#10-32 x .750) THROTTLE LEVERS TO THROTTLE LINK3
2226996锁紧垫圈(#10)不锈钢节气门杆螺丝LOCKWASHER (#10) Stainless Steel THROTTLE LEVERS SCREW3
2356681垫圈(.203 x .500 x .032)节气门杆螺丝WASHER (.203 x .500 x .032) THROTTLE LEVERS SCREW3
238M0204666垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)3
2467297U型销节气门杆至节气门连杆PIN Clevis THROTTLE LEVERS TO THROTTLE LINK3
2589302垫圈(.203 x .406 x .040)U型销WASHER (.203 x .406 x .040) CLEVIS PIN3
2626953开口销U型销COTTER PIN CLEVIS PIN3
2767748下节气门杆滚轮ROLLER LOWER THROTTLE LEVER1
2869020螺丝(#10-32 x .875)怠速控制SCREW (#10-32 x .875) IDLE SPEED CONTROL2
28690201螺钉(#10-32 x .875)SCREW (#10-32 x .875)2
2938833怠速调节螺钉垫片WASHER IDLE SPEED CONTROL SCREW2
-90484A88衬垫套件GASKET SET
图 139动力升降倾斜电机 Power Trim Motor
动力升降倾斜电机 Power Trim Motor
REF零件编号中文名称英文名称数量
-828708电机总成MOTOR ASSEMBLY1
1828714A1电刷与密封套件BRUSH AND SEAL KIT1
2828713A1电枢套件ARMATURE KIT1
2828713T1电枢套件ARMATURE KIT1
3828715A1端架（总成）END FRAME (COMPLETE)1
图 140启动马达 STARTER MOTOR
启动马达 STARTER MOTOR
REF零件编号中文名称英文名称数量
-881368T1启动电机总成STARTER MOTOR ASSEMBLY1
-881368T2启动电机总成STARTER MOTOR ASSEMBLY1
1804314T定子STATOR1
2804313T电枢ARMATURE1
3881369T1电刷支架总成HOLDER ASSEMBLY Brush1
4804316电刷组BRUSH SET1
5804317弹簧SPRING4
6881370T支架BRACKET1
7804337螺钉(M4×16)SCREW (M4 x 16)2
8804335贯穿螺栓(M6×120)THRU BOLT (M6 x 120)2
9804321T1齿轮套件GEAR KIT1
10804322离合器CLUTCH1
11804330垫圈套件WASHER KIT1
12804324支架BRACKET1
13804326齿圈RING GEAR1
14804327衬垫GASKET1
15804325轴承BEARING1
16804323小齿轮轴SHAFT Pinion1
17804329惰轮IDLER GEAR3
17804329001惰轮GEAR Idler3
18804328支架BRACKET1
19804331T盖板COVER1
20804336螺栓(M6×52)BOLT (M6 x 52)2
21804319小齿轮PINION1
22804320小齿轮止动组STOP SET Pinion1
23804332杠杆套件LEVER KIT1
24804334盖板COVER1
25881371T启动继电器RELAY Starter1
25881371T1启动继电器RELAY Starter1
25881371T1启动继电器RELAY Starter1
26804605螺栓(M8×45)BOLT (M8 x 45)3
27881373接线端子TERMINAL1
28881377锁紧垫圈LOCKWASHER1
2982382M螺母NUT1
30881372螺母NUT1
31881374盖板COVER1
图 141下机罩 BOTTOM COWL
下机罩 BOTTOM COWL
REF零件编号中文名称英文名称数量
19744A16下罩壳总成(黑色)(无贴花)BOTTOM COWL ASSEMBLY (BLACK)(Without Decals)1
19744A17下罩壳总成(灰色)(无贴花)BOTTOM COWL ASSEMBLY Gray (Without Decals)1
19744A16下罩总成BOTTOM COWL ASSEMBLY1
19744A18下罩壳总成(追踪者)(无贴花)BOTTOM COWL ASSEMBLY (TRACKER)(Without Decals)1
19744A16下罩总成BOTTOM COWL ASSEMBLY1
29745A5下罩壳总成(黑色)(无贴花)BOTTOM COWL ASSEMBLY (BLACK)(Without Decals)1
29745A6下罩壳总成(灰色)(无贴花)BOTTOM COWL ASSEMBLY (GRAY)(Without Decals)1
29745A7下罩壳总成(追踪者)(无贴花)BOTTOM COWL ASSEMBLY (TRACKER)(Without Decals)1
318701A1密封套件SEAL KIT1
418699螺钉(.250-20 x 1.320)(右舷)SCREW (.250-20 x 1.320) (STARBOARD)4
5817519A1排水单向阀总成CHECK VALVE ASSEMBLY Drain2
6813613接头FITTING1
7830756109软管(57.00英寸散装)HOSE (57.00 Inches Bulk)1
78M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
8816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
8816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
1018286A40开关总成SWITCH ASSEMBLY1
108M0235192微调开关SWITCH TRIM1
118124431固定座RETAINER1
118M0032848开关固定座RETAINER Switch1
12815914三通接头T-FITTING1
137765377软管 (24.500英寸 散装)HOSE (24.500 Inches Bulk)1
1377653101软管（散装48.00英寸）HOSE (48.00 Inches Bulk)1
1419648A3手柄总成(黑色)HANDLE ASSEMBLY (BLACK)1
1419648A2左舷手柄总成HANDLE ASSY PORT1
1419648A4手柄总成(灰色)HANDLE ASSEMBLY (GRAY)1
1419648A2左舷手柄总成HANDLE ASSY PORT1
1419648A7手柄总成(追踪者型)HANDLE ASSEMBLY (TRACKER)1
1519647A3手柄总成(黑色)HANDLE ASSEMBLY (BLACK)1
1519647A4手柄总成(灰色)HANDLE ASSEMBLY (GRAY)1
1519647A3手柄总成HANDLE ASSEMBLY1
1519647A7手柄总成(追踪者型)HANDLE ASSEMBLY (TRACKER)1
1665830尼龙衬套NYLINER6
1799611波形垫圈WAVE WASHER3
1819369棘爪PAWL1
1919370棘爪PAWL1
2069057垫片(.281 x .734 x .063)WASHER (.281 x .734 x .063)3
2126992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel2
2273286螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel2
2319749卡箍CLAMP1
24197481卡箍CLAMP1
2592799螺钉(#10-16x1.12)SCREW (#10-16 x 1.12)2
2618872A1盖板总成(黑色)COVER ASSEMBLY (BLACK)1
2618872A2盖板总成(灰色)COVER ASSEMBLY (GRAY)1
2618872A1盖总成COVER ASSEMBLY1
2618872A4盖板总成(追踪者型)COVER ASSEMBLY (TRACKER)1
278136921锁紧螺母LOCKNUT2
288130764前手柄FRONT HANDLE1
29181921螺钉(.250-20 x .875)SCREW (.250-20 x .875)1
3019666衬套BUSHING1
3118727杆ROD1
