水星 Mercury XR-4 / MAGNUM II 0B242885 THRU 0C100860 - 爆炸图零件明细

两冲程化油器 · USA - Cat.# 90-18739 · 共 96 个部位 · 4527 条零件

1化油器总成 2阻风板与油门杆 3罩壳与前盖 4外罩安装支架 5曲轴、活塞与连杆 6气缸体与端盖 7驱动轴壳体与排气管 8排气歧管与排气板 9飞轮、启动电机与点火线圈 10燃油泵和化油器 11齿轮箱（驱动轴）（铸件号1655-9572C）12齿轮箱（驱动轴）（铸件号1674-814247C）13齿轮箱（螺旋桨轴）（铸件号1655-9572C）14齿轮箱（螺旋桨轴）（铸件号1674-814247C）15喷油组件 16动力升降组件 17动力升降泵 18簧片阀组与气缸盖 19维修/支撑材料 20启动电机总成 21旋转支架与转向臂 22转速表、配平表、温度表 23油门杆与换挡轴 24艉板支架 25线束、启动继电器与整流器 26化油器总成 27燃油泵和化油器 28气缸体与端盖 29下罩 30动力升降倾斜组件 31启动电机总成 32喷油组件 33动力转向组件 34外罩安装支架 35启动电机总成 36维修/支撑材料 37动力平衡电机(用于II型动力平衡系统)38齿轮箱（驱动轴）（铸件号1655-9572C）39燃油泵和化油器 40齿轮箱螺旋桨轴-XR4/Magnum II型 41油门杆与换挡轴 42驱动轴壳体与排气管 43曲轴、活塞及连杆 44齿轮箱（驱动轴）（铸件号1674-814247C）45动力升降组件 46齿轮箱（驱动-标准/反向旋转）47排气歧管与排气板 48簧片阀组与气缸盖 49点火线圈/电压调节器 50顶罩及前护板 51钥匙开关总成 52排气歧管与排气板 53转速表、配平表、温度表 54转向安装套件（XR4/ Magnum II）55罩壳与前盖 56燃油泵 57阻风门板及油门杆 58旋转支架与转向臂 59艉板支架 60曲轴、活塞与连杆 61齿轮箱螺旋桨轴-铸件号1674-814247C 62齿轮箱（驱动轴-铸件号1674-814247C）63齿轮箱螺旋桨轴-标准135/150/175/200 64旋转支架与转向臂 65化油器 66机油喷射组件 67线束/启动继电器 68油门杆与换挡轴 69驱动轴壳与排气管 70动力平衡组件（设计II）71气缸体与端盖 72曲轴（连杆锻件编号644-818141）73旋转支架(铸件号1499-8710-7)74艉板支架 75齿轮箱（螺旋桨轴）（铸件号1655-9572C）76飞轮/启动电机 77仪表装置 78动力升降倾斜泵 79齿轮箱（驱动轴-铸件号1655-9572C）80齿轮箱螺旋桨轴-铸件号1655-9572C 81飞轮、启动电机与点火线圈 82双机延伸套件 83齿轮箱螺旋桨轴-反旋转135/150/175/200型 84簧片阀组与气缸盖 85艉板支架 86齿轮箱（螺旋桨轴）（铸件号1674-814247C）87动力升降泵 88曲轴（连杆锻件编号636-8118）89旋转支架(铸件号1499-8710-6)90燃油管路 91驱动轴壳体 92动力平衡组件（设计I）93线束、启动继电器与整流器 94动力平衡泵（与设计I动力平衡泵配套使用）95化油器总成 96阻风板与油门杆

图 1化油器总成 CARBURETOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	9242A10	化油器(上)	CARBURETOR (TOP)	1
1	9242A11	化油器(中)	CARBURETOR (CENTER)	1
1	9242A12	化油器(下)	CARBURETOR (BOTTOM)	1
3	NSS		NOT SOLD SEPARATE GASKET, COVER PLATE	3
4	6032	盖板	PLATE COVER	3
5	NSS	不单独销售螺丝,盖板	NOT SOLD SEPARATE SCREW, COVER PLATE	15
6	7823	燃油杯(顶部)	BOWL Fuel (TOP)	1
6	7822	燃油杯(中部/底部)	BOWL Fuel (CENTER/BOTTOM)	2
7	NSS	不单独销售螺丝,燃油碗	NOT SOLD SEPARATE SCREW, FUEL BOWL	18
8	6025	主量孔塞	PLUG MAIN JET	6
9	NSS	主量孔垫片(不单独销售)	NOT SOLD SEPARATE GASKET, MAIN JET	6
10	4216	主量孔 (.064)	JET (.064) MAIN FUEL	4
10	4215	燃油主量孔(.066)	JET Main Fuel (.066)	2
11	NSS	不单独销售螺丝,浮子销	NOT SOLD SEPARATE SCREW, FLOAT PIN	6
12	NSS	不单独出售衬垫、进油针阀及阀座组件	NOT SOLD SEPARATE GASKET, INLET NEEDLE AND SEAT	6
13	7824	进油针阀总成	NEEDLE/SEAT ASSEMBLY Inlet	6
14	NSS	不单独销售垫片,喷嘴座	NOT SOLD SEPARATE GASKET, NOZZLE BOSS	6
15	9267	浮子	FLOAT	6
16	NSS	不单独销售销,浮子杆	NOT SOLD SEPARATE PIN, FLOAT LEVER	6
17	NSS	燃油碗垫片(不单独销售)	NOT SOLD SEPARATE GASKET, FUEL BOWL	3
18	4541	怠速空气量孔螺钉	SCREW IDLE AIR BLEED JET	6
19	NSS	不单独销售垫片,泄流量孔塞	NOT SOLD SEPARATE GASKET, BLEED JET PLUG	6
20	6030	怠速空气量孔(.070)	JET (.070) IDLE AIR BLEED	6
21	6027	节气门杠杆螺钉	SCREW THROTTLE LEVER	3
22	37752	油门标识贴	DECAL THROTTLE	3
23	NSS		NOT SOLD SEPARATE SPRING, THROTTLE RETURN	3
24	6031	节气门杠杆垫片	SPACER THROTTLE LEVER	3
25	6022	节流阀轴	SHAFT THROTTLE	3
26	NSS	节流阀轴环/挡圈（不单独销售）	NOT SOLD SEPARATE RING, RETAINER - THROTTLE SHAFT	3
27	9416	油门阀	VALVE Throttle	6
28	NSS		NOT SOLD SEPARATE SCREW, THROTTLE VALVE	12
-	6452	衬垫套件	GASKET KIT	1
-	8506	化油器维修套件	REPAIR KIT Carburetor	1

图 2阻风板与油门杆 CHOKE PLATE AND THROTTLE LEVERS

REF	零件编号	中文名称	英文名称	数量
1	67246T	进气消音器盖	COVER INDUCTION SILENCER	1
2	30720	螺丝(.250-20 x 2.25)盖至阻风板	SCREW (.250-20 x 2.25) COVER TO CHOKE PLATE	2
3	26992	锁紧垫圈(.250)不锈钢盖螺丝	LOCKWASHER (.250) Stainless Steel COVER SCREW	2
4	29245	垫圈(.281 x .500 x .060)不锈钢盖螺丝	WASHER (.281 x .500 x .060) Stainless Steel COVER SCREW	2
4	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
5	90585	进气消音器盖塞	PLUG INDUCTION SILENCER COVER	1
6	672751	盖衬垫	GASKET COVER	1
7	799831	阻风板	PLATE CHOKE	1
8	672741	阻风板至化油器衬垫	GASKET CHOKE PLATE TO CARBURETOR	1
9	68000	螺丝(.250-28 x 1.00)阻风板至化油器	SCREW (.250-28 x 1.00) CHOKE PLATE TO CARBURETOR	6
10	20583	阻风板螺丝垫圈	WASHER CHOKE PLATE SCREW	6
11	67760	油门连杆	LINK Throttle	1
12	67759	节气门杆(上)	LEVER Throttle UPPER	1
13	15124	油门杆至油门连杆螺钉(#10-32×0.750)	SCREW (#10-32 x .750) THROTTLE LEVERS TO THROTTLE LINK	3
14	26996	锁紧垫圈(#10)不锈钢节气门杆螺丝	LOCKWASHER (#10) Stainless Steel THROTTLE LEVERS SCREW	3
15	56681	垫圈(.203 x .500 x .032)节气门杆螺丝	WASHER (.203 x .500 x .032) THROTTLE LEVERS SCREW	3
15	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	3
16	41049	节气门杆(中)	LEVER Throttle CENTER	1
17	67749	下节流阀杆	LEVER Throttle LOWER	1
18	67748	下节气门杆滚轮	ROLLER LOWER THROTTLE LEVER	1
19	67297	销 U型油门杆至油门连杆	PIN Clevis THROTTLE LEVES TO THROTTLE LINK	3
20	89302	垫圈(.203 x .406 x .040)U型销	WASHER (.203 x .406 x .040) CLEVIS PIN	3
21	26953	开口销U型销	COTTER PIN CLEVIS PIN	3
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1

图 3罩壳与前盖 COWLS AND FRONT COVER

REF	零件编号	中文名称	英文名称	数量
1	7620A4	顶罩总成(黑色)	TOP COWL ASSEMBLY (BLACK)	1
1	7620A22	顶罩总成(灰色)	TOP COWL ASSEMBLY (GRAY)	1
1	7523A2	罩总成左舷 (BLACK)	COWL ASSEMBLY Port (BLACK)	1
1	7523A18	罩总成左舷 (GRAY)	COWL ASSEMBLY Port (GRAY)	1
2	67260	密封件	SEAL	1
3	67258	垫	PAD	1
4	88227	覆盖件	BLANKET	1
5	87987	上支架	BRACKET UPPER	2
5	879871	支架	BRACKET	2
6	879851	下支架	BRACKET LOWER	2
7	37562	不锈钢螺钉(.312-18 x 1.00)	SCREW (.312-18 x 1.00) Stainless Steel	8
8	68049	护罩	SHIELD	1
8	68048	护罩	SHIELD	1
9	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	4
10	7619A1	顶盖总成	TOP COWL ASSEMBLY	1
10	7619A5	顶盖总成	TOP COWL ASSEMBLY	1
10	7524A4	顶罩总成-右舷	TOP COWL ASSEMBLY Starboard	1
10	7524A1	顶罩总成-右舷	TOP COWL ASSEMBLY Starboard	1
11	88227	覆盖件	BLANKET	1
12	67257	密封件	SEAL	1
12	99444	密封件	SEAL	1
13	97461A2	锁扣 (左舷/右舷)	LATCH (PORT/STARBOARD)	1
14	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	6
15	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	6
16	7532A2	前罩总成	COVER ASSEMBLY Cowl - Front	1
16	7532A23	前罩总成	COVER ASSEMBLY Cowl - Front	1
17	90984	隔音毯	SOUND BLANKET	1
18	87907	挂钩	HOOK	1
19	70332	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
19	95700	螺钉(#10-16 x .50)	SCREW (#10-16 x .50)	1
16	5399A3	前盖(黑色)	FRONT COVER (BLACK)	1
16	5399A16	前盖(灰色)	FRONT COVER (GRAY)	1
17	67615	覆盖件	BLANKET	1
18	61158T	挂钩	HOOK	1
19	75162	螺钉	SCREW	1
20	67261	护罩	SHIELD	1
21	35519	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	2
22	62628	套筒	BARREL	2
23	46785A5	罩壳锁扣总成	LATCH ASSEMBLY Cowl	2
24	31312	螺钉（10-32×0.875）	SCREW (#10-32 x 0.875)	2
25	15222	杆件	BAR	2
26	62629	套筒	BARREL	2
27	62624	弹簧	SPRING	2
28	30164	垫圈(0.192x0.375x0.0312)不锈钢	WASHER (.192 x .375 x .0312) Stainless Steel	2
29	45812	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
29	859124	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
30	47341A1	手动/应急启动绳柄套件	ROPE AND HANDLE KIT Manual/Emergency Start (MANUAL STARTING)	1
30	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1

图 4外罩安装支架 COWL MOUNTING BRACKET

REF	零件编号	中文名称	英文名称	数量
1	76258A2	后罩支架（黑色）	BRACKET REAR COWL (BLACK)	1
1	76258A3	后罩支架（灰色）	BRACKET REAR COWL (GRAY)	1
2	76256	示流喷嘴	NOZZLE TELL TALE	1
3	67984	后罩支架密封垫	SEAL REAR COWL BRACKET TO COWL	1
4	67228	后罩支架密封垫	SEAL REAR COWL BRACKET TO COWL	1
5	67999	后罩支架密封垫	SEAL REAR COWL BRACKET TO COWL	2
6	99127109	管线（57英寸散装）示流管（截断至4英寸）	LINE (57.00 Inches Bulk) TELL TALE (Cut to 4 Inches)	2
6	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	2
7	90824	指示器软管三通	TEE TELL TALE HOSE	1
7	90824001	三通接头	TEE FITTING	1
8	73498	指示软管卡箍	CLAMP TELL TALE HOSE	AR
8	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
9	86386A1	罩壳支撑支架总成	BRACKET ASSEMBLY COWL SUPPORT	1
10	66687	螺钉 (#10-32 x 1.50) 后罩支架	SCREW (#10-32 x 1.50) REAR COWL BRACKET	4
11	85651	罩壳铰链壳体-左舷	HOUSING COWL HINGE - PORT	2
11	85650	罩壳铰链壳体-右舷	HOUSING COWL HINGE - STARBOARD	2
12	64278	螺钉 (0.250-28 x 1.00) 罩壳铰链壳体	SCREW (.250-28 x 1.00) COWL HINGE HOUSING	8
13	20583	罩壳铰链壳体螺钉垫圈	WASHER COWL HINGE HOUSING SCREW	8
14	35888	螺母 (0.250-28) 不锈钢罩壳铰链壳体螺钉	NUT (.250-28) Stainless Steel COWL HINGE HOUSING SCREW	8
15	90435	罩壳安装支架座	MOUNT COWL MOUNTING BRACKET	3
16	29245	垫圈 (0.281 x 0.500 x 0.060) 不锈钢罩壳安装支架座	WASHER (.281 x .500 x .060) Stainless Steel COWL MOUNTING BRACKET MOUNT	6
16	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
17	35888	螺母 (0.250-28) 不锈钢罩壳安装支架座	NUT (.250-28) Stainless Steel COWL MOUNTING BRACKET MOUNT	6
18	99424	机罩支架（下部）	BRACKET COWL MOUNTING (LOWER)	1
19	99447T	拉线固定器	RETAINER CABLE	1
19	99447	固定座	RETAINER	1
20	22411	电缆固定器螺钉（.190-24 x 1.00）	SCREW (.190-24 x 1.00) CABLE RETAINER	2
20	68918	螺丝（#10-24 x 1.00）	SCREW (#10-24 x 1.00)	2
21	67260	控制线密封套	SEAL CONTROL CABLES	1
22	67241	罩壳锁扣壳体	HOUSING COWL LATCH	1
23	92051	螺钉 (10-16 x 0.75) 罩壳锁扣壳体	SCREW (10-16 x .75) COWL LATCH HOUSING	2
24	87608	盖锁扣	LATCH Cowl	1
25	60295	罩壳锁扣弹簧	SPRING COWL LATCH	1
26	88622	电缆固定板	PLATE CABLE RETAINER	1
27	99391	油管固定器	RETAINER OIL LINES	1
28	69067	螺钉 (0.250-20 x 1.375) 下部支架	SCREW (.250-20 x 1.375) LOWER BRACKET	2
29	20346	下部支架螺钉垫圈（小）	WASHER LOWER BRACKET SCREW (SMALL)	4
29	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	4
30	57427	下部支架螺钉垫圈（大）	WASHER LOWER BRACKET SCREW (LARGE)	4
30	35280	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	4
31	88180	下部支架衬套	BUSHING LOWER BRACKET GROMMET	2
32	88033	下部支架护孔环	GROMMET LOWER BRACKET	2

图 5曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS

REF	零件编号	中文名称	英文名称	数量
1	8745A5	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	67923	曲轴下球轴承	BEARING Ball CRANKSHAFT (LOWER)	1
2	67923T	滚珠轴承	BEARING Ball	1
3	67446	球轴承挡圈	RING BALL BEARING	1
4	99727A1	驱动齿轮	GEAR Drive	1
5	54196A6	密封载体总成	CARRIER ASSEMBLY SEAL	1
6	65800	填料载体	PACKING CARRIER	1
7	67377	密封环（曲轴，0.124厚）	RING Sealing CRANKSHAFT (.124 THICK)	AR
7	67377T	密封环	RING Sealing	AR
7	78633	曲轴密封环(.139厚度)	RING SEALING - CRANKSHAFT (.139 THICK)	AR
8	93495	曲轴滚柱轴承	BEARING Roller CRANKSHAFT	2
8	93495T	滚柱轴承	BEARING Roller	2
9	67444	滚柱轴承挡圈	RING Retaining ROLLER BEARING	2
10	8666A3	活塞总成(右舷)	PISTON ASSEMBLY (STARBOARD)	3
10	8666T41	活塞总成	PISTON ASSEMBLY	3
10	8667A3	活塞总成(左舷)	PISTON ASSEMBLY (PORT)	3
10	8667T41	活塞总成	PISTON ASSEMBLY	3
11	78996A12	活塞环总成	RING ASSEMBLY Piston	1
11	813011A12	活塞环组	RING SET Piston	1
12	52035		RING Lock PISTON	12
12	857196	锁紧环	LOCK RING	12
13	8119A5	连杆总成	CONNECTING ROD ASSEMBLY	6
13	8119A6	连杆套件	CONN ROD KIT	6
14	93886	螺钉(0.312-28×0.875)连杆	SCREW (.312-28 x .875) CONNECTING ROD	12
15	47247	定位针垫圈	WASHER NEEDLE LOCATING	12
15	8M0032839	垫片@5	WASHER @5	12
16	17514A1	曲轴端轴承套件	BEARING KIT CRANKSHAFT END	6
16	8M0234886	轴承保持架	CAGE BEARING	6
17	67483	活塞端滚针轴承	BEARING Needle PISTON END	174
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1

图 6气缸体与端盖 CYLINDER BLOCK AND END CAPS

REF	零件编号	中文名称	英文名称	数量
1	8712A39	气缸体	CYLINDER BLOCK	1
2	76175	动力头螺柱	STUD POWERHEAD	6
3	67065	动力头螺柱	STUD POWERHEAD	2
3	670654	螺柱(.375-16/.375-24 x 5.620)	STUD (.375-16/.375-24 x 5.620)	2
3	78438	动力头螺柱	STUD POWERHEAD	2
3	8M0034454	螺柱(.375-16/.375-24 x 6.87)	STUD (.375-16/.375-24 x 6.87)	2
4	20033	定位销	PIN Dowel LOCATING	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	气缸体销(轴承座圈)	PIN CYLINDER BLOCK (BEARING RACE)	2
5	8M0036405	销	PIN	2
6	11338	密封垫片	GASKET SEALING	2
7	42249	启动马达上盖	COVER STARTER MOTOR (UPPER)	1
7	8M0088723	启动器支架	BRACKET-STARTER	1
8	73657	盖至曲轴箱螺钉(.312-18 x 1.50)	SCREW (.312-18 x 1.50) COVER TO CRANKCASE	2
9	26993	启动马达盖螺钉锁紧垫圈(0.312)	LOCKWASHER (.312) STARTER MOTOR COVER SCREW	4
9	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
10	76867	启动电机盖(下部)	COVER STARTER MOTOR (LOWER)	1
11	77065	盖至曲轴箱螺钉(.312-18 x 2)	SCREW (.312-18 x 2) COVER TO CRANKCASE	2
11	815549	螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00)	2
11A	99448	衬套	BUSHING	1
12	66717	曲轴箱至气缸体螺钉(.375-16 x 3.250)	SCREW (.375-16 x 3.250) CRANKCASE TO CYLINDER BLOCK	8
12	74824	曲轴箱至气缸体螺丝(.312-18 x 1.250)	SCREW (.312-18 x 1.250) CRANKCASE TO CYLINDER BLOCK	6
13	9608A1	上端盖总成	END CAP ASSEMBLY UPPER	1
13	9608T1	上盖总成	CAP-ASSY-UPPER	1
14	54029	端盖O型圈(2.800 x .103)	O-RING (2.800 x .103) END CAP	1
15	93496	端盖滚柱轴承	BEARING Roller END CAP	1
15	93496T	轴承	BEARING	1
16	41953	端盖密封件	SEAL END CAP	1
17	69034	上端盖至气缸体螺钉及锁紧垫圈(.312-18 x 1.00)	SCREW AND LOCKWASHER (.312-18 x 1.00) UPPER END CAP TO CYLINDER BLOCK	4
17	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	4
18	24220	气缸体定位螺钉(.190-24 x .190)	SCREW (.190-24 x .190) SET - CYLINDER BLOCK	2
19	38407	气缸体水套螺塞(.500-14)	PLUG (.500-14) CYLINDER BLOCK (WATER JACKET)	1
20	15094	飞轮盖至气缸体双头螺柱(.190-32 x 1.870)	STUD (.190-32 x 1.870) FLYWHEEL COVER TO CYLINDER BLOCK	1
21	15093	飞轮盖至支架双头螺柱(#10-32 x 1.00)	STUD (#10-32 x 1.00) FLYWHEEL COVER TO BRACKET	2
21	8M0034435	螺柱	STUD	2
22	67269	飞轮盖螺柱隔套	SPACER FLYWHEEL COVER STUD	1
23	492211	飞轮盖螺柱垫圈	WASHER FLYWHEEL COVER STUD	6
23	8M0204663	垫片@5	WASHER @5	6
24	72761	飞轮盖螺柱不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel FLYWHEEL COVER STUD	3
25	73651	飞轮盖螺柱螺母	NUT FLYWHEEL COVER STUD	3
25	816874	蝶形螺母 (#10-32)	WING NUT (#10-32)	3
26	42248	飞轮罩支架	BRACKET FLYWHEEL COVER	1
26	422482	支架	BRACKET	1
27	49668	支架至曲轴箱螺钉(.250-20 x .750)	SCREW (.250-20 x .750) BRACKET TO CRANKCASE	2
28	7809A1	下端盖总成	END CAP ASSEMBLY LOWER	1
28	7809T1	端盖总成	END CAP ASSEMBLY	1
29	62700	端盖O型圈(3.237 x .103)	O-RING (3.237 x .103) END CAP	1
30	41953	端盖密封件	SEAL END CAP	2
31	28636	螺钉（0.250-20 x 0.750）下端盖至气缸体	SCREW (.250-20 x .750) LOWER END CAP TO CYLINDER BLOCK	4
32	26992	下端盖螺钉不锈钢锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel LOWER END CAP SCREW	4
33	64022	调节螺钉(.250-20 x 2.125)-气缸体	SCREW (.250-20 x 2.125) ADJUSTING - CYLINDER BLOCK	1
34	64015	锁紧螺母(.250-20)-调节螺钉	NUT (.250-20) JAM - ADJUSTING SCREW	1
35	26852	尼龙调节螺钉帽	CAP Nylon ADJSUTING SCREW	1
36	194372	端子排	TERMINAL BLOCK	1
37	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	2
38	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
39	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
40	813938	盖形螺母(#10-32)	CAP NUT (#10-32)	2
41	87076A4	怠速控制总成	IDLE SPEED CONTROL ASSEMBLY	2
42	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	2
42	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	2
43	38833	垫圈	WASHER	2
44	63153	J型卡扣	J CLIP	1
-	66517	气缸体泄流限制器	RESTRICTOR BLEED - CYLINDER BLOCK	1
-	812818A89	动力总成完整组件	POWERHEAD ASSEMBLY COMPLETE	1
-	812818T89	船用动力头	POWERHEAD MARINE	1
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1

图 7驱动轴壳体与排气管 DRIVESHAFT HOUSING AND EXHAUST TUBE

REF	零件编号	中文名称	英文名称	数量
1	8343A7	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8343A8	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	9748A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	9748A2	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	56295	螺柱（0.437 x 2.69）驱动轴壳体/齿轮壳体	STUD (.437 x 2.69) DRIVESHAFT HSG./GEAR HSG.	2
3	25067	下安装座螺钉缓冲垫	BUMPER LOWER MOUNT SCREW	2
4	63474	下安装座螺钉(.500-20 x 6.00)	SCREW (.500-20 x 6.00) LOWER MOUNT	2
4	898831	螺钉(.500-20 x 6.220)	SCREW (.500-20 x 6.220)	2
5	78249	下支架	MOUNT LOWER	2
5	77327	支架	MOUNT	2
5	77327	下支架	MOUNT LOWER	2
6	49339	下部安装螺钉垫圈(.8125)	WASHER (.8125) LOWER MOUNT SCREW	2
7	25096	下安装螺丝螺母	NUT LOWER MOUNT SCREW	2
8	88238A1	接地线总成	CABLE ASSEMBLY Ground	1
8	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
9	67076	下安装夹	CLAMP LOWER MOUNT	2
9	8M0036782	卡箍	CLAMP	2
10	66727	螺钉（0.312-18 x 1.250）下安装夹	SCREW (.312-18 x 1.250) LOWER MOUNT CLAMP	4
11	67077	下安装夹盖	COVER LOWER MOUNT CLAMP	2
11	8M4500752	盖板	COVER	2
11	67077T6	下安装夹盖	COVER LOWER MOUNT CLAMP	2
11	67077F1	灰色盖板	COVER Gray	2
12	88417	盖固定螺钉(#12-24 x .620)	SCREW (#12-24 x .620) COVER ATTACHING	4
13	35521	盖至夹具螺钉尼龙螺母	NUT NYLON - COVER TO CLAMP SCREW	4
14	88238A2	接地线总成	CABLE ASSEMBLY Ground	1
14	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
15	41508	螺丝(.250-20 x .500)不锈钢接地线	SCREW (.250-20 x .500) Stainless Steel GROUND WIRE	1
16	73862	齿轮箱壳体螺柱垫圈	WASHER GEAR HOUSING STUD	1
17	29489	齿轮箱壳体螺柱盖形螺母	NUT GEAR HOUSING STUD (CAP)	1
18	45176	齿轮箱壳体螺柱不锈钢垫圈(.453 x .812 x .105)	WASHER (.453 x .812 x .105) Stainless Steel GEAR HOUSING STUD	2
19	34933	齿轮箱壳体螺柱不锈钢螺母(.437-20)	NUT (.437-20) Stainless Steel GEAR HOUSING STUD	2
19	8M0204653	螺母	NUT	2
20	64649	驱动轴壳体塞	PLUG DRIVESHAFT HOUSING	1
21	89743	排气管	TUBE Exhaust	1
22	66350	排气管下密封件	SEAL EXHAUST TUBE - LOWER	1
22	66350001	密封件	SEAL	1
23	86027	排气管上密封件	SEAL EXHAUST TUBE - UPPER	1
24	67295	水管	TUBE Water	1
24	8M0042788	长型水管	TUBE-WATER-LONG	1
24	74729	水管	TUBE WATER	1
24	8M0042790	水管	TUBE-WATER	1
25	991731	驱动轴壳体至板衬垫	GASKET DRIVESHAFT HOUSING TO PLATE	1
25	991734	衬垫	GASKET	1
26	41945A7	驱动轴壳体板总成	PLATE ASSEMBLY DRIVESHAFT HOUSING	1
27	183982	密封件	SEAL	1
27	8M0043165	密封件-27.00英寸	SEAL-27.00 INCH	1
28	68011	密封件固定支架	BRACKET SEAL RETAINING	1
29	48408	支架至板件螺钉(#10-16 x .500)	SCREW (#10-16 x .500) BRACKET TO PLATE	12
30	20033	定位销	PIN Dowel LOCATING	2
30	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
31	38970	水管密封件	SEAL WATER TUBE	1
32	90192	延伸件至板不锈钢螺钉(.250-20 x .750)	SCREW (.250-20 x .750) Stainless Steel EXTENSION TO PLATE	6
33	991771	衬垫	GASKET	1
33	991772	衬垫	GASKET	1
34	25970	动力头螺柱垫圈	WASHER POWER HEAD STUD	4
34	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	4
35	69254	动力头螺柱螺母	NUT POWER HEAD STUD	4
36	41942	排气延伸管	EXTENSION EXHAUST	1
36	879288T71	排气管延长段	EXTENSION Exhaust	1
37	78246	排气延长管衬垫	GASKET EXHAUST EXTENSION	1
37	782461	衬垫	GASKET	1
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1

图 8排气歧管与排气板 EXHAUST MANIFOLD AND EXHAUST PLATE

REF	零件编号	中文名称	英文名称	数量
1	904841	分隔板衬垫	GASKET DIVIDER PLATE	2
2	99169	分隔板	DIVIDER PLATE DIVIDER	1
2	99169A1	安装板	PLATE	1
3	69668	分隔板密封件	SEAL DIVIDER PLATE	1
3	814754	密封件(12.50英寸)	SEAL (12.50 Inches)	1
4	193071	排气歧管盖	COVER EXHAUST MANIFOLD	1
5	74824	螺钉（0.312-18 x 1.250）盖和板至气缸体	SCREW (.312-18 x 1.250) COVER AND PLATE TO CYLINDER BLOCK	21
6	194373	接线端子排(3位)	TERMINAL BLOCK (3 TERMINALS)	1
7	31716	螺钉（0.250-20 x 0.620）接线板	SCREW (.250-20 x .620) TERMINAL BLOCK	2
8	29245	端子排螺钉不锈钢垫片(.281 x .500 x .060)	WASHER (.281 x .500 x .060) Stainless Steel TERMINAL BLOCK SCREW	2
8	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
9	45076	端子排黄铜螺母(#10-32)	NUT (#10-32) Brass TERMINAL BLOCK	3
10	813938	盖形螺母(#10-32)	CAP NUT (#10-32)	3
11	74824	缸体盖板螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250) COVER TO CYLINDER BLOCK	4
12	69570	膜片至板件螺钉(#10-16 x .750)	SCREW (#10-16 x .750) DIAPHRAGM TO PLATE	1
13	76451	膜片螺钉垫片	WASHER DIAPHRAGM SCREW	1
14	14479	隔膜	DIAPHRAGM	1
14	144791	隔膜	DIAPHRAGM	1
15	16496	导水板	DEFLECTOR Water	1
16	16497A1	安全阀板	PLATE RELIEF VALVE	1
17	78690	安全阀板衬垫	GASKET RELIEF VALVE PLATE	2
17	78690002	衬垫	GASKET	2
18	64878	提升阀黑色压缩弹簧	SPRING (Black) COMPRESSION POPPET VALVE	1
19	85303	提升阀弹簧垫片	WASHER POPPET SPRING	1
20	14480	提升阀	POPPET VALVE	1
21	64872	提升阀衬套	GROMMET POPPET VALVE	1
22	65848	提升阀座	CARRIER POPPET VALVE	1
23	991762	排气板衬垫	GASKET EXHAUST PLATE	1
23	991764	衬垫	GASKET	1
24	41944A5	排气板总成	PLATE ASSEMBLY EXHAUST	1
25	99664	排气板弯头	ELBOW EXHAUST PLATE	1
25	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
26	20033	定位销-排气板	PIN Dowel LOCATING-EXHAUST PLATE	2
26	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
27	183982	排气板密封件	SEAL EXHAUST PLATE	1
27	8M0043165	密封件-27.00英寸	SEAL-27.00 INCH	1
28	68010	密封件固定支架	BRACKET SEAL RETAINING	1
28	680101	支架	BRACKET	1
29	48408	支架至排气板螺钉(#10-16 x .500)	SCREW (#10-16 x .500) BRACKET TO EXHAUST PLATE	6
30	25970	动力头螺柱垫圈	WASHER POWERHEAD STUD	6
30	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	6
31	69254	动力头螺柱螺母	NUT POWERHEAD STUD	6
32	27132	排气板衬套	BUSHING EXHAUST PLATE	1
33	19564	护孔环	GROMMET	1
33	8M0179867	护孔环	GROMMET	1
34	12602	排气板衬套	GROMMET EXHAUST PLATE	1
34	12602002	护孔环	GROMMET	1
35	66727	螺钉(.312-18 x 1.250)排气板固定	SCREW (.312-18 x 1.250) EXHAUST PLATE ATTACHING	1
36	68783	螺钉(.312-18 x 2.50)排气板固定	SCREW (.312-18 x 2.50) EXHAUST PLATE ATTACHING	1
37	66725	螺钉(.375-16 x 3.50)排气板固定	SCREW (.375-16 x 3.50) EXHAUST PLATE ATTACHING	3
37	898833	螺钉(.375-16 x 3.500)	SCREW (.375-16 x 3.500)	3
38	812905A2	前支架总成	BRACKET ASSEMBLY FRONT	1
38	812905T	前支架	BRACKET Front	1
39	90285	前支架螺钉(.312-18 x .625)	SCREW (.312-18 x .625) FRONT BRACKET	4
40	187031	垫圈	WASHER	4
41	18778	护孔环	GROMMET	4
41	18778001	护孔环	GROMMET	4
42	18578A3	后支架总成	BRACKET ASSEMBLY Rear REAR	1
42	18578T09	支架总成(后部)	BRACKET ASSEMBLY Rear	1
43	14462A1	安全阀盖(旧设计)	COVER RELIEF VALVE (OLD DESIGN)	1
43	68729	泄压阀盖（新设计）	COVER RELIEF VALVE (NEW DESIGN)	1
43	8M0039767	盖板	COVER	1
44	92007	接头（0.250-18）（90度）（新设计）	FITTING (.250-18) (90 DEG.) (NEW DESIGN)	1
44	920071	90度弯头	FITTING (90 Degree)	1
45	99127109	管路（57.00英寸散装）（新设计）	LINE (57.00 Inches Bulk) (NEW DESIGN)	1
45	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
46	90077	扎带（新设计）	TIE STRAP (NEW DESIGN)	2
46	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
47	814430	接头（0.500-14）（新设计）	FITTING (.500-14) (NEW DESIGN)	1
47	8144301	接头	FITTING	1
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1

图 9飞轮、启动电机与点火线圈 FLYWHEEL, STARTER MOTOR AND IGNITION COILS

REF	零件编号	中文名称	英文名称	数量
1	79918A1	盖板套件	COVER KIT	1
2	79022	标记	MARKER	1
3	37572	螺钉 (.190-32 x .380)	SCREW (.190-32 x .380)	2
4	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	2
5	89219	堵头	PLUG	1
5	89219001	堵头	PLUG	1
6	45907	黄色塞	PLUG Yellow	1
7	52901	螺母(0.625-18)	NUT (.625-18)	1
8	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
8	33001	垫圈	WASHER	1
9	NLA	飞轮（停产）	No Longer Available Flywheel	1
9	7555A8	飞轮	FLYWHEEL	1
9	859238A9	飞轮套件	FLYWHEEL KIT	1
9	817632A9	飞轮	FLYWHEEL	1
9	859238A9	飞轮套件	FLYWHEEL KIT	1
10	32417	螺钉(.250-28 x .625)	SCREW (.250-28 x .625)	8
11	68997	螺钉(.312-24 x .750)	SCREW (.312-24 x .750)	8
12	5454A7	定子总成	STATOR ASSEMBLY	1
12	5454A32	定子	STATOR	1
12	5454A35	定子	STATOR	1
13	75840	螺钉 (#10-24 x 0.880)	SCREW (#10-24 x .880)	4
13	76566	螺丝（#10-24 x 1.00）	SCREW (#10-24 x 1.00)	4
13	19926100	螺丝（#10-24 x 1.00）	SCREW (#10-24 x 1.00)	4
14	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	4
15	96455A9	触发板总成	PLATE ASSEMBLY Trigger	1
16	61001	J型卡扣	J CLIP	1
17	72467	启动电机总成	STARTER MOTOR ASSEMBLY	1
17	898265010	启动马达	STARTER MOTOR	1
17	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
17	893893	启动马达	STARTER MOTOR	1
17	77141	启动电机总成	STARTER MOTOR ASSEMBLY	1
17	893893	启动马达	STARTER MOTOR	1
17	64975	启动电机总成	STARTER MOTOR ASSEMBLY	1
17	898265010	启动马达	STARTER MOTOR	1
18	56703	轴环	COLLAR	2
18	8M0034918	轴环	COLLAR	2
19	68042	橡胶止挡	STOP Rubber	2
19	8M0043376	停机开关	STOP	2
20	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
21	20890	螺母 (.250-20)	NUT (.250-20)	1
22	93389A5	黄色线束总成（6.50英寸）	WIRE ASSEMBLY (6.50 Inches) Yellow	1
22	93388A2	线缆总成(黑色)	CABLE ASSEMBLY Black	1
22	93388A14	线缆总成(黄/黑)	CABLE ASSEMBLY Yellow/Black	1
23	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
24	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
25	5288A2	点火线圈总成	COIL ASSEMBLY Ignition	6
25	8M0166172	点火线圈	IGNITION COIL	6
25	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	6
25	8M0230859	点火线圈总成	COIL IGNITION ASY	6
26	67614	盖板	COVER	3
27	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	12
28	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	12
29	88807A6	黑色电缆总成 (3.50 英寸)	CABLE ASSEMBLY (3.50 Inches) Black	6
29	60466A1	线缆总成-黑色（2.50英寸）	CABLE ASSEMBLY Black (2.50 Inches)	6
30	68513	螺钉(#10-32x.375)不锈钢	SCREW (#10-32 x .375) Stainless Steel	6
31	813715A1	引线	LEAD WIRE	1
32	63709A1	护套/端子套件	BOOT/TERMINAL KIT	6
33	97180	火花塞	SPARK PLUG	6
33	896329827	SP #L76V @4	SP #L76V @4	6
33	136862	火花塞	SPARK PLUG	6
33	13686Q	NGK BU8H @10	NGK BU8H @10	6
34	69738A7	线圈至开关盒线束总成	HARNESS ASSEMBLY COIL TO SWITCH BOX	1
34	69739A2	线圈至开关盒线束总成	HARNESS ASSEMBLY COIL TO SWITCH BOX	1
35	30164	垫圈(0.192x0.375x0.0312)不锈钢	WASHER (.192 x .375 x .0312) Stainless Steel	12
36	56774	隔套	SPACER	AR

图 10燃油泵和化油器 FUEL PUMP AND CARBURETOR

REF	零件编号	中文名称	英文名称	数量
1	9242A10	化油器(上)	CARBURETOR (TOP)	1
2	9242A11	化油器(中)	CARBURETOR (CENTER)	1
3	9242A12	化油器(下)	CARBURETOR (BOTTOM)	1
4	6232	燃油入口接头(上/下)	FITTING FUEL INLET (UPPER/LOWER)	2
5	70007	45度燃油入口接头(中部)	FITTING 45 Degree FUEL INLET (MIDDLE)	1
6	904301	化油器衬垫	GASKET CARBURETOR	3
7	20184	化油器安装螺母(1/4-28X7/32)	NUT (1/4-28X7/32) CARBURETOR MOUNTING	12
7	8M0207775	螺母 @5	NUT @5	12
8	90077	化油器燃油管束带	TIE STRAP FUEL HOSE TO CARBURETOR	AR
8	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
9	42859A2	加浓阀总成	VALVE ASSEMBLY Enrichner	1
10	633001	加浓阀卡箍	CLAMP ENRICHNER VALVE	1
11	73286	螺钉(0.250-20×0.500)不锈钢阀门卡箍	SCREW (.250-20 x .500) Stainless Steel VALVE CLAMP	1
12	45915	端子排簧片块壳体	TERMINAL BLOCK REED BLOCK HOUSING	1
13	35519	端子块固定螺钉(#10-16 x .500)	SCREW (#10-16 x .500) TERMINAL BLOCK ATTACHING	1
14	99130122	上部化油器至阀门管路(20英尺散装,7-3/4英寸)	TUBING (20.00 Feet Bulk) TOP CARBURETOR TO VALVE (7-3/4")	1
14	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
15	9912688	化油器间连接管路(36英寸散装,4-1/4英寸)	TUBING (36.00 Inches Bulk) CARBURETOR TO CARBURETOR (4-1/4")	2
16	15930A15	燃油泵套件	PUMP KIT Fuel	1
17	42990A6	膜片组件	DIAPHRAGM KIT	1
17	857005A1	膜片组件	DIAPHRAGM KIT	1
18	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE CHECK VALVE, RUBBER	2
19	NSS		NOT SOLD SEPARATE GASKET, BOOST	1
20	NSS		NOT SOLD SEPARATE DIAPHRAGM	2
21	NSS		NOT SOLD SEPARATE GASKET, PULSE	1
22	NSS		NOT SOLD SEPARATE SPRING	1
23	NSS		NOT SOLD SEPARATE CAP	1
24	NSS		NOT SOLD SEPARATE CHECK VALVE	2
25	NSS		NOT SOLD SEPARATE RETAINER	2
26	NSS		NOT SOLD SEPARATE SPRING	1
27	NSS		NOT SOLD SEPARATE CAP	1
28	987691	底座衬垫	GASKET BASE	1
28	8M0204705	衬垫@2	GASKET @2	1
29	144303	燃油泵底座	BASE FUEL PUMP	1
30	98775A2	燃油泵板	PLATE FUEL PUMP	1
30	987752	安装板	PLATE	1
31	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
32	19688	接头	FITTING	1
33	16452	燃油泵螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) FUEL PUMP	2
34	4000310	燃油泵至曲轴箱螺钉(M5 x 40)	SCREW (M5 x 40) FUEL PUMP TO CRANKCASE	2
35	4002314	燃油泵螺钉垫圈	WASHER FUEL PUMP SCREW	2
36	14868	燃油泵弯头接头	FITTING FUEL PUMP (ELBOW)	1
37	19688	燃油泵弯头接头	FITTING FUEL PUMP (ELBOW)	1
38	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	1
38	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
39	16494	燃油滤清器	FILTER Fuel	1
39	816296Q03	燃油滤清器@3	FILTER-FUEL @3	1
40	15279	燃油滤清器卡箍	CLAMP FUEL FILTER	1
41	64705	脉冲软管接头	FITTING PULSE HOSE	1
42	9912976	油管	TUBING	2
42	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	2
43	424251	三通	TEE	2
43	424253	接头	FITTING	2
44	15781A1	燃油连接器	CONNECTOR Fuel	1
44	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
45	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
46	812782	密封件	SEAL	1
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1

图 11齿轮箱（驱动轴）（铸件号1655-9572C） GEAR HOUSING (DRIVESHAFT)(CASTING #1655-9572C)

REF	零件编号	中文名称	英文名称	数量
-	9572A3	齿轮箱总成(长型)(黑色)	GEAR HOUSING ASSEMBLY (LONG) (BLACK)	1
-	9572A4	齿轮箱总成(长型)(灰色)	GEAR HOUSING ASSEMBLY (LONG) (GRAY)	1
-	814247T4	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	9572A1	齿轮箱总成(黑色)	GEAR HOUSING ASSEMBLY (BLACK)	1
1	814247T8	齿轮箱	GEAR HSG	1
1	9572A2	齿轮箱总成(灰色)	GEAR HOUSING ASSEMBLY (GRAY)	1
1	814247T9	齿轮箱	GEAR HSG	1
2	85822A1		CONNECTOR ASSEMBLY SPEEDOMETER	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	20033	定位销齿轮箱定位	PIN Dowel GEAR HOUSING LOCATING	2
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	78638	齿轮箱螺柱(0.438×3.12)	STUD (.438 x 3.12) GEAR HOUSING	1
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
5	57920	双头螺栓(.44 x 2.06)齿轮箱	STUD (.44 x 2.06) GEAR HOUSING	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	56297	双头螺栓(.312 x 3.38)水泵	STUD (.312 x 3.38) WATER PUMP	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28 x 3.125)水泵	STUD (.250-20/.250-28 x 3.125) WATER PUMP	2
7	306671	螺柱	STUD	2
8	32898	驱动轴轴承	BEARING DRIVESHAFT	1
8	32898T	轴承	BEARING	1
9	79953		SCREW (.375-16 x .250) GREASE FILLER	1
9	79953Q04	放油螺钉套件	SCREW KIT Drain	1
10	67892		SCREW Magnetic DRAIN	1
10	8M0058389	放油螺钉套件	SCREW KIT Drain	1
11	15298	驱动轴	DRIVESHAFT	1
12	N.S.S.	小齿轮(不单独销售)(属于43-16279A2部件)	Not Sold Separate Pinion Gear (PART OF 43-16279A2)	1
13	20260	润滑脂加注与排放螺钉垫圈	WASHER GREASE FILLER AND DRAIN SCREW	2
13	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
14	35921	小齿轮至传动轴螺母(0.625-18)	NUT (.625-18) PINION GEAR TO DRIVESHAFT	1
15	42637A1	滚柱轴承至齿轮箱垫片组	SHIM SET ROLLER BEARING TO GEAR HOUSING	AR
15	8M0063267	垫片组	SHIM SET	AR
16	36387A1	传动轴滚柱/杯形轴承总成	BEARING ASSEMBLY Roller/Cup DRIVESHAFT	1
16	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
17	42633	传动轴轴承螺母	NUT DRIVESHAFT BEARING	1
17	8245191	固定座	RETAINER	1
18	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
19	42631	水泵至齿轮箱衬垫	GASKET WATER PUMP TO GEAR HOUSING	1
19	8M0204678	衬垫	GASKET	1
20	90011	O型圈(2.175×0.175)水泵	O-RING (2.175 x .175) WATER PUMP	1
20	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
20	38099	O型圈水泵(内径2.109)	O-RING WATER PUMP (2.109 I.D.)	1
21	89238	水泵油封	SEAL Oil WATER PUMP	1
22	16977	水泵油封	SEAL Oil WATER PUMP	1
23	85608	水泵下衬垫	GASKET LOWER - WATER PUMP	1
23	8M0090319	衬垫@5	GASKET @5	1
24	85609	水泵上衬垫	GASKET UPPER - WATER PUMP	1
24	858524	衬垫	GASKET	1
25	32435	水泵面板	FACE PLATE WATER PUMP	1
25	8M0204677	面板	PLATE-FACE	1
26	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
27	48752	水泵体嵌件	INSERT WATER PUMP BODY	1
27	48752T	嵌件	INSERT	1
28	38970	橡胶密封圈-进水管	SEAL RUBBER - WATER INLET TUBE	1
29	89984	水泵叶轮	IMPELLER WATER PUMP	1
29	89984T4	叶轮	IMPELLER	1
30	56654	叶轮驱动键	KEY IMPELLER DRIVE	1
30	8M0214992	键@5	KEY @5	1
31	96411	螺钉(#14-8×2.25)水泵	SCREW (#14-8 x 2.25) WATER PUMP	1
31	8M0215009	螺钉	SCREW	1
32	29245	垫圈(0.281×0.500×0.060)不锈钢水泵螺钉与螺柱	WASHER (.281 x .500 x .060) Stainless Steel WATER PUMP SCREW AND STUD	2
32	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
33	13438	螺母(0.250-28)水泵螺柱	NUT (.250-28) WATER PUMP STUD	2
33	8267119	螺母(.250-28)	NUT (.250-28)	2
34	36001	水泵螺柱垫圈	WASHER WATER PUMP STUD	1
35	13436	水泵螺柱螺母	NUT WATER PUMP STUD	1
36	30271	橡胶环（驱动轴）	RING Rubber RUBBER (DRIVESHAFT)	1
36	8M0214918	环@5	RING @5	1
37	29804	进水管导向套	SLEEVE GUIDE - WATER INLET TUBE	1
37	29804T	套筒	SLEEVE	1
38	15299	换挡轴-下部	SHAFT SHIFT - LOWER	1
39	29641	E型挡圈-换挡轴	E RING RETAINING - SHIFT SHAFT	1
40	25439		O-RING (.862 x .103) SHIFT SHAFT BUSHING	1
41	77631A2	换挡轴衬套总成	BUSHING ASSEMBLY SHIFT SHAFT	1
42	76384	换挡轴衬套油封	SEAL Oil SHIFT SHAFT BUSHING	1
42	8M0246145	油封	OIL SEAL	1
43	77674		WASHER (.35 x .75 x .12) RUBBER - SHIFT SHAFT BUSHING	1
-	42579A4	水泵修理包	REBUILD KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1

图 12齿轮箱（驱动轴）（铸件号1674-814247C） GEAR HOUSING (DRIVESHAFT) (CASTING #1674-814247C)

REF	零件编号	中文名称	英文名称	数量
-	814247A3	齿轮箱总成1.78:1速比-黑色	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Black	1
-	814247A4	齿轮箱总成 1.78:1 减速比 - 灰色	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Gray	1
-	814247T4	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	814247A1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic - Black	1
1	814247T1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	814247A2	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic - Gray	1
1	814247T2	ORD 1674-814247T1	ORD 1674-814247T1	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
2A	43998	套筒	SLEEVE	1
3	20033	定位销	PIN Dowel	2
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	78638	双头螺柱(.438 x 3.12)	STUD (.438 x 3.12)	1
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
5	57920	双头螺柱(.44 x 2.06)	STUD (.44 x 2.06)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	306671	螺柱	STUD	2
8	35934A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	79953		SCREW (.375-16 x .250) GREASE FILLER	1
9	79953Q04	放油螺钉套件	SCREW KIT Drain	1
10	67892		SCREW Magnetic DRAIN	1
10	8M0058389	放油螺钉套件	SCREW KIT Drain	1
11	815168	驱动轴	DRIVESHAFT	1
12	N.S.S.	小齿轮(不单独销售)(属于43-16279A2部件)	Not Sold Separate Pinion Gear (PART OF 43-16279A2)	1
13	19183	纤维垫圈	WASHER Fiber	2
13	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
14	35921	螺母(0.625-18)	NUT (.625-18)	1
15	42637A1	垫片组	SHIM SET	AR
15	8M0063267	垫片组	SHIM SET	AR
16	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
16	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
17	42633	螺母	NUT	1
17	8245191	固定座	RETAINER	1
18	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
19	426311	衬垫	GASKET	1
19	8M0204678	衬垫	GASKET	1
20	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
20	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
21	89238	油封	SEAL Oil	1
22	16977	油封	SEAL Oil	1
23	856081	下部衬垫	GASKET LOWER	1
23	8M0090319	衬垫@5	GASKET @5	1
24	856091	上衬垫	GASKET UPPER	1
24	858524	衬垫	GASKET	1
25	32435	面板	FACE PLATE	1
25	8M0204677	面板	PLATE-FACE	1
26	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
27	48752	嵌件	INSERT	1
27	48752T	嵌件	INSERT	1
28	38970	橡胶密封件	SEAL RUBBER	1
29	899841	叶轮	IMPELLER	1
29	89984T3	叶轮	IMPELLER	1
30	56654	键	KEY	1
30	8M0214992	键@5	KEY @5	1
31	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
31	8M0215009	螺钉	SCREW	1
32	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
33	13438	螺母(.250-28)	NUT (.250-28)	2
33	8267119	螺母(.250-28)	NUT (.250-28)	2
34	36001	垫圈	WASHER	1
35	13436	螺母	NUT	1
37	29804	套筒	SLEEVE	1
37	29804T	套筒	SLEEVE	1
38	815264	换挡轴下段	SHIFT SHAFT LOWER	1
38	8152641	换档轴	SHIFT SHAFT	1
39	29641	E型卡环	E RING	1
40	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
41	77631A2	衬套总成	BUSHING ASSEMBLY	1
42	816464	油封	SEAL Oil	1
42	8M0246145	油封	OIL SEAL	1
43	77674		WASHER (.35 x .75 x .12) RUBBER - SHIFT SHAFT BUSHING	1
-	89238A2	密封套件	SEAL KIT	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1

图 13齿轮箱（螺旋桨轴）（铸件号1655-9572C） GEAR HOUSING (PROPELLER SHAFT)(CASTING #1655-9572C)

REF	零件编号	中文名称	英文名称	数量
-	9572A3	齿轮箱总成(长型)(黑色)	GEAR HOUSING ASSEMBLY (LONG) (BLACK)	1
-	9572A4	齿轮箱总成(长型)(灰色)	GEAR HOUSING ASSEMBLY (LONG) (GRAY)	1
-	814247T4	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	9572A1	齿轮箱总成(黑色)	GEAR HOUSING ASSEMBLY (BLACK)	1
1	814247T8	齿轮箱	GEAR HSG	1
1	9572A2	齿轮箱总成(灰色)	GEAR HOUSING ASSEMBLY (GRAY)	1
1	814247T9	齿轮箱	GEAR HSG	1
44	76039	换挡凸轮控制	CAM Shift Control	1
44	760394	换挡凸轮控制	CAM Shift Control	1
45	12239A1	凸轮从动件套件	FOLLOWER KIT Cam	1
45	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
46	30622	凸轮从动件压缩弹簧	SPRING COMPRESSION - CAM FOLLOWER	1
47	44491A1	垫片组	SHIM SET	AR
47	8M0063266	垫片组	SHIM SET	AR
48	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
49	16279A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
50	30895	滚针轴承（前进齿轮）	BEARING Needle FORWARD GEAR	1
50	30895T	滚针轴承	BEARING Needle	1
51	12777	棘轮	RATCHET	1
51	822539T	离合器	CLUTCH	1
52	30632	十字离合器销	PIN Cross CLUTCH	1
52	8M0100263	十字销	PIN Cross	1
53	30893	十字销固定弹簧	SPRING RETAINING - CROSS PIN	1
54	12238T	螺旋桨轴	PROPELLER SHAFT	1
55	N.S.S.	倒车齿轮(不单独销售)(属于43-16279A2部件)	Not Sold Separate Reverse Gear (PART OF 43-16279A2)	1
56	76358	止推垫片轴承座	THRUST WASHER BEARING CARRIER	1
57	29976	轴承座O型圈	O-RING BEARING CARRIER	1
58	41529A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
58	41529T2	托架总成	CARRIER ASSY	1
59	98727	润滑脂接头	FITTING Grease	2
59	8M0169588	润滑脂接头	FITTING Grease	2
60	30956	滚针轴承-轴承座	BEARING Needle BEARING CARRIER	1
60	30956T	滚针轴承	BEARING Needle	1
61	76868	密封件	SEAL	2
61	8M0248882	油封@5	SEAL-OIL @5	2
62	30281		KEY LOCATING - BEARING CARRIER	1
63	52700	齿轮箱盖锁紧垫圈	TAB WASHER GEAR HOUSING COVER	1
64	52699	齿轮箱盖	COVER GEAR HOUSING	1
65	67891	填充块	FILLER BLOCK	1
65	8M0039169	填充块	FILLER BLOCK	1
66	30206	螺钉(.375-16 x 1.00)不锈钢	SCREW (.375-16 x 1.00) Stainless Steel	1
67	31211A2	花键垫圈	WASHER Splined	1
67	31211Q03	垫圈总成	WASHER ASSEMBLY	1
68	31210	锁紧垫圈	TAB WASHER	1
68	816629Q	锁紧垫圈	TAB WASHER	1
69	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
69	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
70	316404	平衡鳍板	TRIM TAB	1
70	31640Q4	平衡鳍板	TRIM TAB	1
71	15797	阳极板螺钉	SCREW ANODIC PLATE	1
72	45176	不锈钢垫圈(.453 x .812 x .105) 驱动轴壳体螺柱用	WASHER (.453 x .812 x .105) Stainless Steel DRIVESHAFT HOUSING STUDS	2
73	34933	不锈钢螺母(.437-20) 驱动轴壳体螺柱用	NUT (.437-20) Stainless Steel DRIVESHAFT HOUSING STUDS	2
73	8M0204653	螺母	NUT	2
74	13191A1	止推垫片	THRUST WASHER	1
74	13191Q01	止推垫片	THRUST WASHER	1
75	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
-	89238A2	密封套件	SEAL KIT	1
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1

图 14齿轮箱（螺旋桨轴）（铸件号1674-814247C） GEAR HOUSING (PROPELLER SHAFT) (CASTING #1674-814247C)

REF	零件编号	中文名称	英文名称	数量
-	814247A3	齿轮箱总成1.78:1速比-黑色	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Black	1
-	814247A4	齿轮箱总成 1.78:1 减速比 - 灰色	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Gray	1
-	814247T4	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	814247A1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic - Black	1
1	814247T1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	814247A2	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic - Gray	1
1	814247T2	ORD 1674-814247T1	ORD 1674-814247T1	1
44	76039	换挡凸轮控制	CAM Shift Control	1
44	760394	换挡凸轮控制	CAM Shift Control	1
45	12239A1	凸轮从动件套件	FOLLOWER KIT Cam	1
45	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
46	30622	弹簧	SPRING	1
47	44491A1	垫片组	SHIM SET	AR
47	8M0063266	垫片组	SHIM SET	AR
48	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
49	16279A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
50	30895	滚针轴承	BEARING Needle	1
50	30895T	滚针轴承	BEARING Needle	1
51	814756	离合器	CLUTCH	1
51	822539T	离合器	CLUTCH	1
52	30632	十字销	PIN Cross	1
52	8M0100263	十字销	PIN Cross	1
53	30893	弹簧	SPRING	1
54	12238T	螺旋桨轴	PROPELLER SHAFT	1
55	N.S.S.	倒车齿轮(不单独销售)(属于43-16279A2部件)	Not Sold Separate Reverse Gear (PART OF 43-16279A2)	1
56	76358	止推垫片	THRUST WASHER	1
57	29976	O型圈	O-RING	1
58	41529A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
58	41529T2	托架总成	CARRIER ASSY	1
59	98727	润滑脂接头	FITTING Grease	2
59	8M0169588	润滑脂接头	FITTING Grease	2
60	30956	滚针轴承	BEARING Needle	1
60	30956T	滚针轴承	BEARING Needle	1
61	76868	密封件	SEAL	2
61	8M0248882	油封@5	SEAL-OIL @5	2
62	30281	键	KEY	1
63	52700	锁紧垫圈	TAB WASHER	1
64	52699	盖板	COVER	1
65	67891	填充块	FILLER BLOCK	1
65	8M0039169	填充块	FILLER BLOCK	1
66	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
68	816629	锁紧垫圈	TAB WASHER	1
68	816629Q	锁紧垫圈	TAB WASHER	1
69	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
69	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
70	15300	阳极配平片	TRIM TAB Anodic	1
71	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
72	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
73	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
73	8M0204653	螺母	NUT	2
74	13191A1	止推垫片	THRUST WASHER	1
74	13191Q01	止推垫片	THRUST WASHER	1
-	89238A2	密封套件	SEAL KIT	1
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1

图 15喷油组件 OIL INJECTION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	8627A5	油箱总成	TANK ASSEMBLY Oil	1
2	99160	油箱护套（上部）	BOOT OIL TANK (UPPER)	1
3	44452A1	测试开关总成	TEST SWITCH ASSEMBLY	1
4	44437	测试开关盖	COVER TEST SWITCH	1
5	98895	油箱支架（上部）	BRACKET OIL TANK (UPPER)	1
6	4009430	油箱支架螺钉	SCREW OIL TANK BRACKET	2
7	42653A2	油箱盖总成	CAP ASSEMBLY OIL TANK	1
8	42999	盖衬垫	GASKET CAP	1
9	93254	旋转底座	SWIVEL BASE	1
10	93421	旋转球头	SWIVEL BALL	1
11	43359	罩杆	ROD Cowl	1
12	43406	罩杆夹	CAMP COWL ROD	1
13	26548	夹紧螺钉（#10 x 0.375）	SCREW (#10 x 0.375) CLAMP	1
14	22887	夹紧螺钉垫圈	WASHER CLAMP SCREW	1
15	12896	开关螺钉（#8-18 x 0.310）	SCREW (#8-18 x .310) SWITCH	1
16	12886A2	油箱开关总成	SWITCH ASSEMBLY OIL TANK	1
17	99161	油箱底座护套	BOOT OIL TANK BASE	1
18	42888	油箱底座支架	BRACKET Oil Tank Base	1
19	56291	护孔环	GROMMET	1
20	4011350	底座螺钉	SCREW BASE	2
21	4301736	油管	TUBING	3
22	73318	塑料三通	TEE Plastic	1
23	73498	卡箍	CLAMP	AR
24	42959T	油泵	PUMP Oil	1
25	62705	油泵O型圈	O-RING OIL PUMP	2
26	42945A1	油泵适配器总成	ADAPTER ASSEMBLY OIL PUMP	1
27	430201	从动齿轮	GEAR Driven	1
28	4009340	油泵螺钉	SCREW OIL PUMP	2
29	4301619	油泵至燃油泵油管	TUBING OIL PUMP TO FUEL PUMP	1
-	43004A86	衬垫套件	GASKET SET

图 16动力升降组件 POWER TRIM COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	99659A21	歧管总成	MANIFOLD ASSEMBLY	1
1	99659A22	歧管总成	MANIFOLD ASSEMBLY	1
2	99616	管塞歧管	PIPE PLUG MANIFOLD	11
3	41493A7	升降油缸总成	TRIM CYLINDER ASSEMBLY	1
3	41493A4	升降油缸总成	TRIM CYLINDER ASSEMBLY	1
4	41492A1	导向器总成	GUIDE ASSEMBLY	1
5	41478A1	维修套件	REPAIR KIT	1
6	41482A2	止回阀套件	CHECK VALVE KIT	1
7	99638A1	导向总成装饰杆	GUIDE ASSEMBLY TRIM ROD	2
8	43397A6		PISTON/ROD ASSEMBLY Power Trim PORT	1
9	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
10	43398A3		PISTON/ROD ASSEMBLY Power Trim STARBOARD	1
11	13794	沟槽销-升降油缸(上)	PIN Groove TRIM CYLINDER (UPPER)	1
12	99660A1	阀门总成	VALVE ASSEMBLY	1
13	4000327	螺钉(M6x14)-盖板	SCREW (M6 x 14) COVER	4
14	43450	盖板螺丝垫圈	WASHER COVER SCREW	4
15	99642	歧管盖	COVER MANIFOLD	1
16	48462A1	O型圈套件	O-RING KIT	1
17	99609A1	塞子总成	PLUG ASSEMBLY	1
18	99641A1	轴总成	SHAFT ASSEMBLY	1
19	99616	轴管塞	PIPE PLUG SHAFT	2
20	4008820	螺钉(M6x20)-泵与马达	SCREW (M6 x 20) PUMP AND MOTOR	2
21	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
22	99186T	泵与电机总成	PUMP AND MOTOR	1
23	99625		SHAFT UPPER	1
24	43396A1	阳极总成	ANODE ASSEMBLY	1
25	4000332	螺钉(M6x35)-阳极	SCREW (M6 x 35) ANODE	2
26	29245	垫圈(0.281x0.500x0.060)-不锈钢阳极螺钉	WASHER (.281 x .500 x .060) Stainless Steel ANODE SCREW	2
27	996301	撞板-升降轴	STRIKER PLATE TRIM SHAFT	2
28	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
29	46335	螺母 (.375-24)	NUT (.375-24)	2
30	99695A1	线束总成-动力升降控制	HARNESS ASSEMBLY Control POWER TRIM	1
31	87379A14	线束总成(2.750英寸)(红色)	WIRE ASSEMBLY (2.750 Inches) (RED)	1
31	88807A13	电缆总成(3-1/2"-黑色)	CABLE ASSEMBLY (3-1/2" - BLACK)	2
32	96158	启动电磁阀	SOLENOID Starter	2
33	40007106	螺丝(M5 x 13)启动电磁阀	SCREW (M5 x 13) STARTER SOLENOID	5
34	26419	螺母(#8-32)-黄铜电磁阀端子	NUT (#8-32) Brass SOLENOID TERMINAL	4
35	26992	锁紧垫圈 (.250) 不锈钢电磁阀端子	LOCKWASHER (.250) Stainless Steel SOLENOID TERMINAL	4
36	64015		NUT (.250-20) SOLENOID TERMINAL	4
37	4002314	启动电磁阀螺丝垫圈	WASHER STARTER SOLENOID SCREW	2
38	22875		CLIP PUMP WIRE	2
39	69205	C形垫圈线夹螺钉	C WASHER CLIP SCREW	2
40	69079	螺钉(#10-16x0.440)-夹子到艉板支架	SCREW (#10-16 x .440) CLIP TO TRANSOM BRACKET	2
41	44431	沟槽销-升降油缸(下)	PIN Groove TRIM CYLINDER (LOWER)	1
42	4000377		SCREW (M10 x 30) MANIFOLD	6
43	400258	锁紧垫圈(M10)-不锈钢歧管螺钉	LOCKWASHER (M10) Stainless Steel MANIFOLD SCREW	6

图 17动力升降泵 POWER TRIM PUMP

REF	零件编号	中文名称	英文名称	数量
-	99186T	泵与电机总成	PUMP AND MOTOR	1
1	12659	机架与磁场套件	FRAME AND FIELD KIT	1
2	12665	电刷弹簧套件	SPRING KIT Brush	1
3	13506	电刷卡套件	BRUSH CARD KIT	1
4	12662	泵与端架套件	PUMP AND END FRAME KIT	1
5	12663	泵密封套件	SEAL KIT Pump	1
6	12660	端架套件	END FRAME KIT	1
7	12661	电枢套件	ARMATURE KIT	1
8	12664	贯穿螺栓套件	THRU BOLT KIT	1

图 18簧片阀组与气缸盖 REED BLOCK AND CYLINDER HEAD

REF	零件编号	中文名称	英文名称	数量
1	184191	气缸盖	CYLINDER HEAD	2
1	15221A1	气缸盖总成(MARINER 135)	CYLINDER HEAD ASSEMBLY (MARINER 135)	2
2	96542	气缸盖衬垫	GASKET CYLINDER HEAD	2
3	98534	气缸盖螺钉 (.375-16 x 2.30)	SCREW (.375-16 x 2.30) CYLINDER HEAD	24
4	25909	气缸盖螺钉垫圈 (.406 x .812 x .065)	WASHER (.406 x .812 x .065) CYLINDER HEAD SCREW	24
5	62386	节温器衬垫	GASKET THERMOSTAT	2
6	90390A1	节温器盖套件	COVER KIT THERMOSTAT	2
7	75692	节温器	THERMOSTAT	2
8	35386	节温器盖螺钉 (.312-18 x 1.00)	SCREW (.312-18 x 1.00) THERMOSTAT COVER	4
9	68727	90度黄铜弯头接头 (.250-18)（水管用）	FITTING (.250-18) 90 Degree - Brass ELBOW - WATER HOSES	1
10	7765377	配水软管（散装24.500英寸）	HOSE (24.500 Inches Bulk) WATER DISTRIBUTION	2
11	68728	节温器盖至水管接头	FITTING THERMOSTAT COVER TO WATER HOSES	1
12	90077	水管束带	TIE STRAP WATER HOSES	AR
13	97465	温度传感器（右舷）	SENDER Temperature (STARBOARD)	1
14	99747A9	簧片阀壳体	HOUSING REED BLOCK	1
15	24878	簧片阀壳体螺钉 (.250-20 x 1.25)	SCREW (.250-20 x 1.25) REED BLOCK HOUSING	1
15	69093	簧片阀壳体螺钉 (.250-20 x 1.50)	SCREW (.250-20 x 1.50) REED BLOCK HOUSING	8
15	69067	簧片阀壳体螺钉 (.250-20 x 1.375)	SCREW (.250-20 x 1.375) REED BLOCK HOUSING	1
16	935361	簧片阀壳体衬垫	GASKET REED BLOCK HOUSING	1
17	65744	簧片阀衬垫	GASKET REED BLOCK	6
18	75953	簧片阀组	REED BLOCK	6
19	75362A1	簧片组件	REED ASSEMBLY	6
19	42705A1	簧片组(MARINER 135)	REED SET (MARINER 135)	6
20	96183	簧片夹	CLAMP Reed	12
21	57583	簧片至簧片阀螺钉 (#8-32 x .375)	SCREW (#8-32 x .375) REEDS TO REED BLOCK	60
22	65746	簧片阀固定螺钉 (.250-20 x .750)	SCREW (.250-20 x .750) REED BLOCK ATTACHING	12
23	27037	化油器安装螺柱 (.250-28 x 1.125)	STUD (.250-28 x 1.125) CARBURETOR MOUNTING	12
24	42658	止回阀	CHECK VALVE	5
25	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
26	65857	泄油软管连接器（压入式）	CONNECTOR BLEED HOSE (PRESS-IN)	1
27	64871A2	止回阀	CHECK VALVE	1
28	42657A1	止回阀	CHECK VALVE	1
29	15133	缸体泄放软管接头(90°)	FITTING BLEED HOSE TO CYLINDER BLOCK (90 )	5
30	13536A7	温度传感器总成（左舷）	SENSOR ASSEMBLY Temperature (PORT)	1
31	13715	固定夹(每SEA RAY配1个)	RETAINER (QTY. OF 1 W/SEA RAY)	2
32	98257	螺钉(.312-18 x .500)(每SEA RAY配1个)	SCREW (.312-18 x .500) (QTY. OF 1 W/SEA RAY)	2
33	187531	SEA RAY温度传感器	SENDER Temperature SEA RAY	1
34	88824A8	SEA RAY温度传感器线束总成	CABLE ASSEMBLY TEMPERATURE SENDER - SEA RAY	1
35	23567	卡箍(9/16英寸)	CLIP (9/16")	1
35	26404	管夹(1英寸)	CLAMP (1")	1
36	69205	C形垫圈	C WASHER	2
37	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2
38	64705	接头	FITTING	1
-	90484A88	衬垫套件	GASKET SET	1

图 19维修/支撑材料 Service/Support Material

REF	零件编号	中文名称	英文名称	数量
-	814840	零件手册 Mariner 40	PARTS MANUAL Mariner 40	1

图 20启动电机总成 STARTER MOTOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
-	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	90645	驱动套件	DRIVE KIT	1
2	75661	驱动小齿轮总成	PINION ASSEMBLY Drive	1
2	13310T1	小齿轮总成	PINION ASSEMBLY	1
3	75660	驱动端板	PLATE DRIVE END	1
4	74968	贯穿螺栓	BOLT THRU	2
6	N.S.S.	不单独出售垫圈(美国博世WA3122)	Not Sold Separate Washer (AMERICAN BOSCH #WA3122)	1
7	79216	电枢	ARMATURE	1
8	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
9	61787	电刷架	HOLDER BRUSH	2
9	898265014	电刷支架	HOLDER-BRUSH	2
10	68586	电刷及支架螺钉	SCREW BRUSH AND HOLDER	2
11	15386	换向器端盖	END CAP COMMUTATOR	1
11	15386001	端盖	END CAP	1

图 21旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM

REF	零件编号	中文名称	英文名称	数量
1	8710A4	旋转支架总成（黑色）	SWIVEL BRACKET ASSEMBLY (BLACK)	1
1	8710A13	旋转支架总成（灰色）	SWIVEL BRACKET ASSEMBLY (GRAY)	1
1	8710T21	灰色旋转支架总成	SWIVEL BRACKET ASSEMBLY Gray	1
2	87735		SEAL Oil SWIVEL BRACKET (LOWER)	1
3	67669		BUSHING SWIVEL BRACKET (LOWER AND UPPER)	2
3	818764	衬套	BUSHING	2
4	33466	旋转支架O型圈(上部)	O-RING SWIVEL BRACKET (UPPER)	1
5	67668	旋转支架垫片(上部)	SPACER SWIVEL BRACKET (UPPER)	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	99608	衬套	BUSHING	2
7	821207	衬套	BUSHING	2
8	67706A18	转向臂旋转销总成（黑色）	SWIVEL PIN ASSEMBLY Steering Arm (BLACK)	1
8	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
8	67706A17	转向臂旋转销总成（灰色）	SWIVEL PIN ASSEMBLY Steering Arm (GRAY)	1
8	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
9	78689	螺钉(0.437-20×7.50)转向臂至上支架	SCREW (.437-20 x 7.50) STEERING ARM TO UPPER MOUNT	2
9	8M0176309	螺钉	SCREW	2
10	77326	橡胶安装座-上部	MOUNT RUBBER - UPPER	2
11	66921	上支座螺栓垫圈	WASHER UPPER MOUNT BOLT	2
12	78688	上支座螺栓垫圈	WASHER UPPER MOUNT BOLT	2
13	34933	螺母（0.437-20）不锈钢上部安装螺栓	NUT (.437-20) Stainless Steel UPPER MOUNT BOLT	2
13	8M0204653	螺母	NUT	2
14	92876A1	转向连杆总成	LINK ASSEMBLY Steering	1
14	92876A12	连杆总成	LINK ROD ASSEMBLY	1
15	14000		SCREW (.375-24 x 1.25) STEERING LINK TO STEERING ARM	1
15	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
16	34863		NUT (.375-24) STEERING LINK SCREW	2
16	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
17	34931		WASHER (.406 x .734 x .063) Stainless Steel STEERING LINK TO STEERING ARM	2
18	78854		WAVE WASHER BOTTOM YOKE	1
19	86580A1	底部轭架总成（黑色）	YOKE ASSEMBLY Bottom (BLACK)	1
19	878182T	轭架底部-不锈钢	YOKE Bottom - Stainless Steel	1
19	86580A2	底部轭架总成（灰色）	YOKE ASSEMBLY Bottom (GRAY)	1
19	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
20	67684	卡环-底部轭架	RING Retaining BOTTOM YOKE	1
21	67670		WASHER THRUST - SWIVEL BRACKET	1
22	88882	上轭缓冲垫	BUMPER Top Yoke	1
23	95164A9	调整传感器总成	SENDER ASSEMBLY Trim	1
23	8M0074846	ORDER 8M0098273	ORDER 8M0098273	1
24	56682	螺丝(#10-24x.750)配平传感器	SCREW (#10-24 x .750) TRIM SENDER	2
24	852368	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
25	26996	配平传感器螺钉不锈钢锁紧垫圈(#10)	LOCKWASHER (#10) Stainless Steel TRIM SENDER SCREW	2
26	89302		WASHER (.203 x .406 x .040) TRIM SENDER SCREW	2
27	64014		SCREW (.250-28 x .500) SWIVEL BRACKET	2
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1

图 22转速表、配平表、温度表 TACHOMETER, TRIM GAUGE, TEMPERATURE GAUGE

REF	零件编号	中文名称	英文名称	数量
1	15110A1	转速表	TACHOMETER	1
2	79101	安装支架	BRACKET MOUNTING	1
2	79101T	支架	BRACKET	1
3	72729	楔形底座灯泡(14V - 1.9W)	LIGHT BULB Wedge Base (14V - 1.9W)	1
4	79888	灯泡插座	SOCKET Light Bulb	1
5	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	5
6	86322A7	电缆总成(1.50英尺)黑色微调表	CABLE ASSEMBLY (1.50 Feet) Black TRIM GAUGE	1
6	86323A5	电缆总成(1.50英尺)紫色微调表	CABLE ASSEMBLY (1.50 Feet) Purple TRIM GAUGE	1
7	15113A4	配平表	TRIM GAUGE	1
7	895292Q41	动力升降倾斜指示器黑面橙白刻度黑边框	GAUGE Power Trim Indicator, Black Face, Orange/White Graduations, Black Bezel	1
8	79480	安装支架-微调表	BRACKET MOUNTING - TRIM GAUGE	1
9	72729	灯泡楔形底座(14V-1.9W)微调表	LIGHT BULB Wedge Base (14V - 1.9W) TRIM GAUGE	1
10	79888	灯泡插座微调表	SOCKET Light Bulb TRIM GAUGE	1
11	26419	螺母(#8-32)黄铜微调表端子	NUT (#8-32) Brass TRIM GAUGE TERMINAL	5
12	26427	调整垫片（仪表端子）	WASHER TRIM GAUGE TERMINAL	2
13	86396A8	转速表线束总成(5.00英尺)	HARNESS ASSEMBLY Tachometer (5.00 Feet)	1
14	15166A1	温度表	TEMPERATURE GAUGE	1
14	895287Q41	水温表套件(100-240℉)黑面橙白刻度黑框	WATER TEMPERATURE GAUGE KIT (100-240 F) Black Face, Orange/White Graduations, Black Bezel	1
15	72729	楔形底座灯泡(14V - 1.9W)	LIGHT BULB Wedge Base (14V - 1.9W)	1
16	79888	灯泡插座	SOCKET Light Bulb	1
17	26427	垫圈	WASHER	2
18	79480	支架	BRACKET	1
19	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	5
20	86323A2	电缆总成(2英尺)紫色	CABLE ASSEMBLY (2.00 Feet) Purple	1
20	61600A16	电缆总成(17英寸)黑色	CABLE ASSEMBLY (17.00 Inches) Black	1
20	88824A4	电缆总成(45英寸)棕褐色	CABLE ASSEMBLY (45.00 Inches) Tan	1

图 23油门杆与换挡轴 THROTTLE LEVER AND SHIFT SHAFT

REF	零件编号	中文名称	英文名称	数量
1	74897		PIVOT TRIGGER PLATE	1
2	62459	球头总成触发板	BALL JOINT ASSEMBLY TRIGGER PLATE	1
2	62459T	球头节总成	BALL JOINT ASSY	1
3	45076	螺母(#10-32)黄铜连杆	NUT (#10-32) Brass LINK ROD	1
4	76035	触发板连杆	ROD TRIGGER PLATE	1
5	46438	螺母(#10-32)球头	NUT (#10-32) BALL JOINT	1
6	41094A3	点火提前杆总成	LEVER ASSEMBLY SPARK ADVANCE	1
7	64022	螺丝(.250-20x2.125)点火提前杆-止动	SCREW (.250-20 x 2.125) SPARK ADVANCE LEVER - STOP	1
8	64015	螺母(.250-20)点火提前止动螺丝	NUT (.250-20) SPARK ADVANCE STOP SCREW	1
9	26852	尼龙帽（火花提前杆止动螺钉）	CAP Nylon SPARK AADVANCE LEVER STOP SCREW	1
10	69560	螺钉（0.190-32 x 1.250）点火提前杠杆-止动	SCREW (.190-32 x 1.250) SPARK ADVANCE LEVER - STOP	1
11	68219	螺母(#10-32)不锈钢点火提前杆止动螺丝	NUT (#10-32) Stainless Steel SPARK ADVANCE LEVER STOP SCREW	1
12	48039	点火提前杆止动螺丝帽	CAP SPARK ADVANCE LEVER STOP SCREW	1
13	41095T	油门控制杆	LEVER THROTTLE CONTROL	1
13	410952	杠杆	LEVER	1
14	55337	螺钉（0.375-16 x 1.75）（油门杆/提前杆）	SCREW (.375-16 x 1.75) THROTTLE LEVER/ADVANCE LEVER	1
14	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
15	55164	油门杠杆衬套	BUSHING THROTTLE LEVER	1
16	55171	点火提前杆衬套	BUSHING SPARK ADVANCE LEVER	1
17	68784	节气门与点火提前杆弹簧	SPRING THROTTLE AND SPARK ADVANCE LEVER	1
18	68410	点火提前杆垫片	WASHER SPARK ADVANCE LEVER	1
18	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	1
19	64022	螺丝(.250-20x2.125)节气门杆-止动	SCREW (.250-20 x 2.125) THROTTLE LEVER - STOP	1
20	64015	螺母（0.250-20）（油门杆止动螺钉）	NUT (.250-20) THROTTLE LEVER STOP SCERW	1
21	26852	尼龙帽节气门杆止动螺丝	CAP Nylon THROTTLE LEVER STOP SCREW	1
22	39483	锁扣拉线	LATCH CABLE	1
23	22486	螺丝(.250-28x.880)拉线锁扣至节气门杆	SCREW (.250-28 x .880) CABLE LATCH TO THROTTLE LEVER	1
23	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
24	20099	拉线锁扣至节气门杆弹簧	SPRING CABLE LATCH TO THROTTLE LEVER	1
25	20586	螺母(.250-28)拉线锁扣螺丝	NUT (.250-28) CABLE LATCH SCREW	1
25	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
26	79949	节气门控制杆	ROD THROTTLE CONTROL	1
27	60572	节气门控制杆套筒	BARREL THROTTLE CONTROL ROD	2
27	8M0221994	筒形接头	BARREL FITTING	2
28	178861	节气门凸轮	CAM Throttle	1
29	20353	螺柱(.250-28x1.750)节气门凸轮固定	STUD (.250-28 x 1.750) THROTTLE CAM ATTACHING	1
30	26856	节气门凸轮衬套	BUSHING THROTTLE CAM	2
31	36069	节气门凸轮螺柱螺母	NUT THROTTLE CAM STUD	1
32	41050	节气门复位弹簧	SPRING THROTTLE RETURN	1
33	92032A2	控制线缆锚定支架	BRACKET ANCHOR - CONTROL CABLES	1
33	814283A2	支架总成	BRACKET ASSEMBLY	1
34	98889	控制线缆锁扣	LATCH CONTROL CABLE	1
35	42975	闩锁传动螺钉	DRIVE SCREW LATCH	2
36	53167	螺丝(.312-18x.880)锚定支架固定	SCREW (.312-18 x .880) ANCHOR BRACKET ATTACHING	3
36	53167T	螺钉 0.312-18X 0.88	SCREW .312-18X .88	3
37	37896	连杆导向块	GUIDE BLOCK LINK ROD	1
38	20099	连杆至导向块弹簧	SPRING LINK ROD TO GUIDE BLOCK	1
39	67073A1	连杆总成	LINK ROD ASSEMBLY	1
40	52100	连杆耐磨板	WEAR PLATE LINK ROD	1
41	38279	控制线缆闩锁紧固件	LATCH CONTROL CABLE FASTENING	1
41	8M0036768	闩锁	LATCH	1
42	35462	垫圈(.2656x.625x.0625)不锈钢锁扣	WASHER (.2656 x .625 x .0625) Stainless Steel LATCH	1
43	36069	连杆螺母	NUT LINK ROD	1
44	79932A7	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
44	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
45	29720	连杆波形垫圈	WAVE WASHER LINK ROD	1
46	26600	尼龙衬套-连杆	BUSHING NYLON - LINK ROD	1
47	35462	垫圈(.2656 x .625 x .0625)不锈钢连杆	WASHER (.2656 x .625 x .0625) Stainless Steel LINK ROD	1
48	36069	连杆至换挡轴螺母	NUT LINK ROD TO SHIFT SHAFT	1
49	39519	杯形套筒固定器-锚杆	CUP BARREL RETAINER - ANCHOR BAR	1

图 24艉板支架 TRANSOM BRACKET

REF	零件编号	中文名称	英文名称	数量
1	8718A1	艉板支架总成(右舷)(黑色)	BRACKET ASSEMBLY Transom (STARBOARD) (BLACK)	1
1	8718A2	艉板支架总成（右舷）（灰色）	BRACKET ASSEMBLY Transom (STARBOARD)(GRAY)	1
1	8718F8	艉板支架	BRACKET Transom	1
2	8716A1	艉板支架总成(左舷)(黑色)	BRACKET ASSEMBLY Transom (PORT) (BLACK)	1
2	8716A8	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	8716A2	艉板支架总成(左舷)(灰色)	BRACKET ASSEMBLY Transom (PORT) (GRAY)	1
2	8716A9	艉板支架总成	BRACKET ASSEMBLY Transom	1
3	98727	润滑配件左舷艉板支架	FITTING Grease PORT TRANSOM BRACKET	1
3	8M0169588	润滑脂接头	FITTING Grease	1
5	99170A1	倾斜管	TILT TUBE	1
5	99170A2	倾斜管套件	TUBE KIT Tilt	1
6	90068T	倾斜管螺母(1"-14)(黑色)	NUT TILT TUBE (1"-14) (BLACK)	1
6	859133	螺母(1.00-14)	NUT (1.00-14)	1
6	90068T6	倾斜管螺母(1"-14)(灰色)	NUT TILT TUBE (1"-14) (GRAY)	1
6	859133	螺母(1.00-14)	NUT (1.00-14)	1
7	45711		O-RING (.612 x .103) TILT TUBE	1
8	88750	波形垫圈(1.62 x 1.05)倾斜管	WASHER Wave (1.62 x 1.05) TILT TUBE	2
9	56041	螺母(.875-14)倾斜管	NUT (.875-14) TILT TUBE	1
9	858869	螺母 (.875-14)	NUT (.875-14)	1
10	677551	螺钉(.500-20 x 4.500)艉板支架至艉板	SCREW (.500-20 x 4.500) TRANSOM BRACKET TO TRANSOM	4
10	8M0149747	螺钉	SCREW	4
11	28421	垫圈(1.5 x 3.05 x 0.13)不锈钢艉板支架螺栓	WASHER (1.5 x 3.05 x 0.13) Stainless Steel TRANSOM BRACKET BOLT	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	8M0027784	艉板支架螺栓螺母	NUT TRANSOM BRACKET BOLT	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	99629A2	倾斜锁杆总成	LEVER ASSEMBLY TILT LOCK	1
13	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	99611	波形垫圈（倾斜杆）	WAVE WASHER TILTLEVER	1
15	65830	倾斜杆尼龙衬套	NYLINER TILT LEVER	2
16	99633	倾斜锁杆旋钮(黑色)	KNOB TILT LOCK LEVER (BLACK)	1
16	99633T6	倾斜锁杆旋钮(灰色)	KNOB TILT LOCK LEVER (GRAY)	1
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99622	弹簧	SPRING	1
19	99604	槽销	PIN Groove	1
20	96930A1	倾斜锁螺栓总成	BOLT ASSEMBLY TILT LOCK	1
21	23161	螺栓螺母（3/8英寸-24牙）	NUT (.375-24) BOLT	1
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1

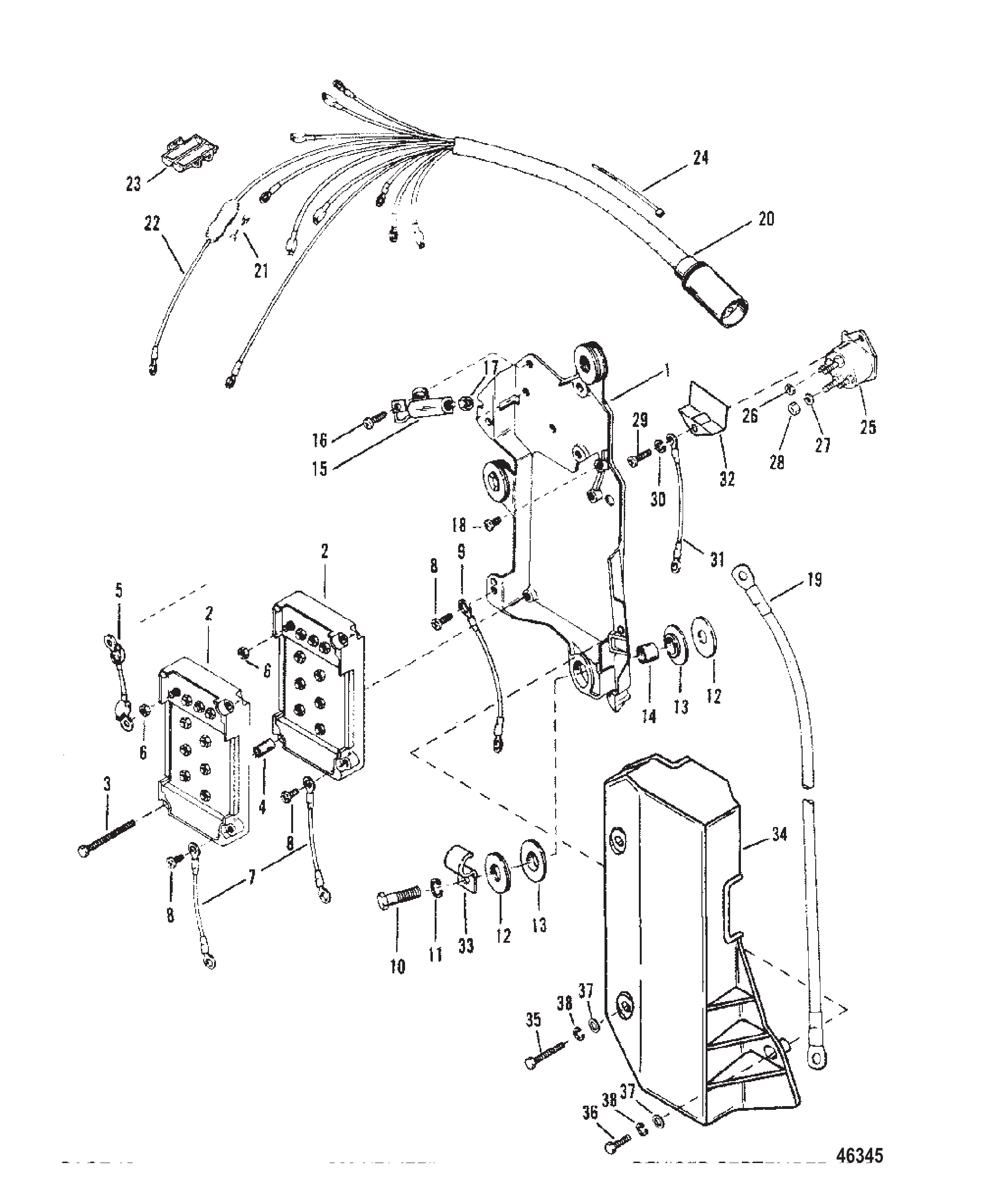

图 25线束、启动继电器与整流器 WIRING HARNESS, STARTER SOLENOID AND RECTIFIER

REF	零件编号	中文名称	英文名称	数量
1	43429	点火板	PLATE IGNITION	1
2	7778A6	开关盒总成	SWITCHBOX ASSEMBLY	2
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	开关盒至点火板螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) SWITCH BOX TO IGNITION PLATE	2
4	134731	保险丝座	HOLDER Fuse	1
5	94453	开关盒螺钉衬套	BUSHING SWITCH BOX SCREW	2
6	62310A2	开关盒间电缆总成	CABLE ASSEMBLY SWITCH BOX TO SWITCH BOX	1
7	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	20
8	60871A10	线束总成-开关盒	WIRE ASSEMBLY SWITCH BOX	2
9	62568	螺丝(#10-16 x 0.375)导线固定	SCREW (#10-16 x .375) WIRE ATTACHING	2
10	38055	电缆至点火板螺钉(.190-32 x .620)	SCREW (.190-32 x .620) CABLE TO IGNITION PLATE	1
11	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
12	69092	点火板螺钉(1.25)	SCREW (1.25) IGNITION PLATE	3
12	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
13	26993	锁紧垫圈(.312)点火板螺钉	LOCKWASHER (.312) IGNITION PLATE SCREW	3
13	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
14	36042	垫圈点火板螺钉	WASHER IGNITION PLATE SCREW	6
15	67264	橡胶垫圈点火板螺钉	WASHER (Rubber) IGNITION PLATE SCREW	6
16	67268	衬套点火板螺钉	BUSHING IGNITION PLATE SCREW	3
17	62351A1	整流器	RECTIFIER	1
17	8M0058226	整流器	RECTIFIER	1
18	38055	螺钉（0.190-32 x 0.620）（整流器至点火板）	SCREW (.190-32 x .620) RECTIFIER TO IGNITION PLATE	2
19	45076	螺母(#10-32)黄铜整流器端子	NUT (#10-32) Brass RECTIFIER TERMINALS	3
20	33386A3	开关总成	SWITCH ASSEMLBY	1
21	38055	螺钉(.190-32 x .620)水银开关至点火板	SCREW (.190-32 x .620) MERCURY SWITCH TO IGNITION PLATE	1
22	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
23	87926	螺钉(#10-32 x .500)导线固定	SCREW (#10-32 x .500) LEAD ATTACHING	1
24	88439A14	电缆总成电池正极	CABLE ASSEMBLY Battery - Positive POSITIVE	1
24	88439A2	电缆总成电池负极	CABLE ASSEMBLY Battery - Negative NEGATIVE	1
25	96220A4	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
26	79091	保险丝20安培	FUSE 20 Ampere	1
26	8M0207796	保险丝20安培	FUSE 20 AMP	1
27	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
28	73498	线束与电缆夹	CLAMP HARNESS AND CABLES	AR
28	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
29	15857	启动电磁阀	SOLENOID Starter	1
29	853654A1	电磁阀	SOLENOID	1
30	45076	螺母(#10-32)黄铜电磁阀端子	NUT (#10-32) Brass SOLENOID TERMINALS	2
31	53166	锁紧垫圈（.312）电磁阀端子	LOCKWASHER (.312) SOLENOID TERMINALS	2
32	68292	螺母（.312-18）电磁阀端子	NUT (.312-18) SOLENOID TERMINALS	2
32	8M0204668	螺母(.312-18)	NUT (.312-18)	2
33	31716	螺钉(.250-20 x .620)电磁阀至点火板	SCREW (.250-20 x .620) SOLENOID TO IGNITION PLATE	2
34	26992	锁紧垫圈(.250)不锈钢电磁阀至点火板螺钉	LOCKWASHER (.250) Stainless Steel SOLENOID TO IGNITION PLATE SCREW	2
35	65999A2	电缆总成黑色上部安装	CABLE ASSEMBLY Black UPPER MOUNT	1
36	97861	电磁阀绝缘体	INSULATOR SOLENOID	1
37	88825A7	电压调节器	VOLTAGE REGUALTOR	1
38	48409	螺钉(#10-16 x .625)不锈钢电压调节器	SCREW (#10-16 x .625) Stainless Steel VOLTAGE REGULATOR	2
39	13397A1	线束总成	HARNESS ASSEMBLY	1
40	45076	螺母(#10-32)黄铜电压调节器	NUT (#10-32) Brass VOLTAGE REGULATOR	2

图 26化油器总成 CARBURETOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7785A55	化油器总成(9-1)	CARBURETOR ASSEMBLY (9-1)	1
1	7785A56	化油器总成(9-2)	CARBURETOR ASSEMBLY (9-2)	1
1	7785A57	化油器总成(9-3)	CARBURETOR ASSEMBLY (9-3)	1
1	7785A58	化油器总成(9-4)	CARBURETOR ASSEMBLY (9-4)	1
1	7785A59	化油器总成(9-5)	CARBURETOR ASSEMBLY (9-5)	1
1	7785A60	化油器总成(9-6)	CARBURETOR ASSEMBLY (9-6)	1
1	7785A61	化油器总成(8-1)	CARBURETOR ASSEMBLY (8-1)	1
1	7785A62	化油器总成(8-2)	CARBURETOR ASSEMBLY (8-2)	1
1	7785A63	化油器总成(8-3)	CARBURETOR ASSEMBLY (8-3)	1
1	7785A64	化油器总成(8-4)	CARBURETOR ASSEMBLY (8-4)	1
1	7785A65	化油器总成(8-5)	CARBURETOR ASSEMBLY (8-5)	1
1	7785A66	化油器总成(8-6)	CARBURETOR ASSEMBLY (8-6)	1
2	6201	量孔(0.080)通风碗	JET (.080) VENT BOWL	6
3	NSS		NOT SOLD SEPARATE GASKET	6
4	9122	盖板	COVER PLATE	6
5	NSS		NOT SOLD SEPARATE SCREW	24
6	813274	喉管	VENTURI	6
6	9481	喉管	VENTURI	6
7	9478	燃油杯	BOWL Fuel	1
7	9478	燃油杯	BOWL Fuel	5
8	NSS		NOT SOLD SEPARATE SCREW	24
9	6199	主量孔塞	PLUG MAIN JET	6
10	NSS	主量孔垫片(不单独销售)	NOT SOLD SEPARATE GASKET, MAIN JET	6
11	6680	主量孔(0.078)燃油	JET (.078) MAIN FUEL	5
11	3517	主量孔(0.084)燃油	JET (.084) MAIN FUEL	1
11	6202	主量孔燃油	JET MAIN MAIN FUEL	1
11	3518	主量孔(0.082)燃油	JET (.082) MAIN FUEL	5
12	NSS	燃油碗垫片(不单独销售)	NOT SOLD SEPARATE GASKET, FUEL BOWL	6
13	813470	浮子	FLOAT	6
14	NSS	浮子销(不单独销售)	NOT SOLD SEPARATE FLOAT PIN	6
15	NSS	浮子杆(不单独销售)	NOT SOLD SEPARATE FLOAT LEVER	6
16	NSS	销(不单独销售)	NOT SOLD SEPARATE PIN	6
17	NSS	主喷嘴(不单独销售)	NOT SOLD SEPARATE MAIN NOZZLE	6
18	8318	进油针阀	NEEDLE Inlet	6
18	83181	阀座套件	VALVE SEAT KIT	6
19	NSS		NOT SOLD SEPARATE GASKET	6
20	9118	油门轴	SHAFT Throttle	1
20	9117	油门轴	SHAFT Throttle	5
21	814679	杠杆	LEVER	6
21	814677	油门杆	LEVER Throttle	1
22	NSS		NOT SOLD SEPARATE SCREW	6
23	NSS		NOT SOLD SEPARATE SPRING	6
24	NSS	隔套(不单独销售)	NOT SOLD SEPARATE SPACER	6
25	9480	油门阀	VALVE Throttle	6
26	NSS		NOT SOLD SEPARATE SCREW	12
27	886111	衬垫	GASKET	6
28	NSS	怠速空气量孔塞(不单独销售)	NOT SOLD SEPARATE PLUG, IDLE AIR JET	6
29	NSS		NOT SOLD SEPARATE GASKET	6
30	6487	主量孔(0.060)怠速	JET Main (.060) IDLE	6
30	7831	主量孔(0.058)怠速燃油	JET Main Fuel (.058) IDLE	6
-	9482	化油器维修套件	REPAIR KIT Carburetor	1
-	9062	化油器衬垫组	GASKET SET Carburetor	1
-	88605A89	衬垫套件	GASKET SET	1

图 27燃油泵和化油器 Fuel Pump and Carburetor

REF	零件编号	中文名称	英文名称	数量
1	9242A10	化油器(上)	CARBURETOR (TOP)	1
2	9242A11	化油器(中)	CARBURETOR (CENTER)	1
3	9242A12	化油器(下)	CARBURETOR (BOTTOM)	1
4	6232	燃油入口接头(上/下)	FITTING FUEL INLET (UPPER/LOWER)	2
5	70007	45度燃油入口接头(中部)	FITTING 45 Degree FUEL INLET (MIDDLE)	1
6	904301	化油器衬垫	GASKET CARBURETOR	3
7	20184	化油器安装螺母(1/4-28X7/32)	NUT (1/4-28X7/32) CARBURETOR MOUNTING	12
7	8M0207775	螺母 @5	NUT @5	12
8	90077	化油器燃油管束带	TIE STRAP FUEL HOSE TO CARBURETOR	AR
8	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
9	42859A2	加浓阀总成	VALVE ASSEMBLY Enrichner	1
10	633001	加浓阀卡箍	CLAMP ENRICHNER VALVE	1
11	73286	螺钉(0.250-20×0.500)不锈钢阀门卡箍	SCREW (.250-20 x .500) Stainless Steel VALVE CLAMP	1
12	45915	端子排簧片块壳体	TERMINAL BLOCK REED BLOCK HOUSING	1
13	35519	端子块固定螺钉(#10-16 x .500)	SCREW (#10-16 x .500) TERMINAL BLOCK ATTACHING	1
14	99130122	上部化油器至阀门管路(20英尺散装,7-3/4英寸)	TUBING (20.00 Feet Bulk) TOP CARBURETOR TO VALVE (7-3/4")	1
14	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
15	9912688	化油器间连接管路(36英寸散装,4-1/4英寸)	TUBING (36.00 Inches Bulk) CARBURETOR TO CARBURETOR (4-1/4")	2
16	15930A15	燃油泵套件	PUMP KIT Fuel	1
17	42990A6	膜片组件	DIAPHRAGM KIT	1
17	857005A1	膜片组件	DIAPHRAGM KIT	1
18	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE CHECK VALVE, RUBBER	2
19	NSS		NOT SOLD SEPARATE GASKET, BOOST	1
20	NSS		NOT SOLD SEPARATE DIAPHRAGM	2
21	NSS		NOT SOLD SEPARATE GASKET, PULSE	1
22	NSS		NOT SOLD SEPARATE SPRING	1
23	NSS		NOT SOLD SEPARATE CAP	1
24	NSS		NOT SOLD SEPARATE CHECK VALVE	2
25	NSS		NOT SOLD SEPARATE RETAINER	2
26	NSS		NOT SOLD SEPARATE SPRING	1
27	NSS		NOT SOLD SEPARATE CAP	1
28	987691	底座衬垫	GASKET BASE	1
28	8M0204705	衬垫@2	GASKET @2	1
29	144303	燃油泵底座	BASE FUEL PUMP	1
30	98775A2	燃油泵板	PLATE FUEL PUMP	1
30	987752	安装板	PLATE	1
31	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
32	19688	接头	FITTING	1
33	16452	燃油泵螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) FUEL PUMP	2
34	4000310	燃油泵至曲轴箱螺钉(M5 x 40)	SCREW (M5 x 40) FUEL PUMP TO CRANKCASE	2
35	4002314	燃油泵螺钉垫圈	WASHER FUEL PUMP SCREW	2
36	14868	燃油泵弯头接头	FITTING FUEL PUMP (ELBOW)	1
37	19688	燃油泵弯头接头	FITTING FUEL PUMP (ELBOW)	1
38	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	1
38	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
39	16494	燃油滤清器	FILTER Fuel	1
39	816296Q03	燃油滤清器@3	FILTER-FUEL @3	1
40	15279	燃油滤清器卡箍	CLAMP FUEL FILTER	1
41	64705	脉冲软管接头	FITTING PULSE HOSE	1
42	9912976	油管	TUBING	2
42	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	2
43	424251	三通	TEE	2
43	424253	接头	FITTING	2
44	15781A1	燃油连接器	CONNECTOR Fuel	1
44	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
45	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
46	812782	密封件	SEAL	1
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1

图 28气缸体与端盖 Cylinder Block and End Caps

REF	零件编号	中文名称	英文名称	数量
1	8712A41	气缸体	CYLINDER BLOCK	1
2	76175	动力头螺柱	STUD POWERHEAD	6
3	67065	动力头螺柱	STUD POWERHEAD	2
3	670654	螺柱(.375-16/.375-24 x 5.620)	STUD (.375-16/.375-24 x 5.620)	2
3	78438	动力头螺柱	STUD POWERHEAD	2
3	8M0034454	螺柱(.375-16/.375-24 x 6.87)	STUD (.375-16/.375-24 x 6.87)	2
4	20033	定位销	PIN Dowel LOCATING	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	气缸体销(轴承座圈)	PIN CYLINDER BLOCK (BEARING RACE)	2
5	8M0036405	销	PIN	2
6	11338	密封垫片	GASKET SEALING	2
7	42249	启动马达上盖	COVER STARTER MOTOR (UPPER)	1
7	8M0088723	启动器支架	BRACKET-STARTER	1
8	73657	盖至曲轴箱螺钉(.312-18 x 1.50)	SCREW (.312-18 x 1.50) COVER TO CRANKCASE	2
9	26993	启动马达盖螺钉锁紧垫圈(0.312)	LOCKWASHER (.312) STARTER MOTOR COVER SCREW	4
9	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
10	76867	启动电机盖(下部)	COVER STARTER MOTOR (LOWER)	1
11	77065	盖至曲轴箱螺钉(.312-18 x 2)	SCREW (.312-18 x 2) COVER TO CRANKCASE	2
11	815549	螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00)	2
12	88801	杯形塞	PLUG CUPPED	2
12	99448	衬套	BUSHING	1
13	88807A20	线束总成盖	CABLE ASSEMBLY COVER	1
14	66717	螺钉 (.375-16 x 3.250) 曲轴箱气缸体	SCREW (.375-16 x 3.250) CRANKCASE CYLINDER BLOCK	8
14	74824	曲轴箱至气缸体螺丝(.312-18 x 1.250)	SCREW (.312-18 x 1.250) CRANKCASE TO CYLINDER BLOCK	6
15	9608A1	上端盖总成	END CAP ASSEMBLY (UPPER)	1
15	9608T1	上盖总成	CAP-ASSY-UPPER	1
16	54029	端盖O型圈(2.800 x .103)	O-RING (2.800 x .103) END CAP	1
17	93496	端盖滚柱轴承	BEARING Roller END CAP	1
17	93496T	轴承	BEARING	1
18	41953	端盖密封件	SEAL END CAP	1
19	69034	螺钉与锁紧垫圈 (.312-18 x 1.00) 上端盖至气缸体 (1")	SCREW AND LOCKWASHER (.312-18 x 1.00) UPPER END CAP TO CYLINDER BLOCK (1")	4
19	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	4
20	24220	螺钉 (.190-24 x .190) 定位 - 气缸体 (旧设计)	SCREW (.190-24 x .190) SET - CYLINDER BLOCK (OLD DESIGN)	2
21	38407	堵头(.500-14)	PLUG (.500-14)	1
22	15094	飞轮盖至气缸体双头螺柱(.190-32 x 1.870)	STUD (.190-32 x 1.870) FLYWHEEL COVER TO CYLINDER BLOCK	1
23	15093	飞轮盖至支架双头螺柱(#10-32 x 1.00)	STUD (#10-32 x 1.00) FLYWHEEL COVER TO BRACKET	2
23	8M0034435	螺柱	STUD	2
24	67269	飞轮盖螺柱隔套	SPACER FLYWHEEL COVER STUD	1
25	492211	飞轮盖螺柱垫圈	WASHER FLYWHEEL COVER STUD	6
25	8M0204663	垫片@5	WASHER @5	6
26	72761	垫圈 (.203 x .562 x .060) 不锈钢飞轮盖螺柱	WASHER (.203 x .562 x .060) Stainless Steel FLYHWEEL COVER STUD	3
27	73651	飞轮盖螺柱螺母	NUT FLYWHEEL COVER STUD	3
27	816874	蝶形螺母 (#10-32)	WING NUT (#10-32)	3
28	42248	飞轮罩支架	BRACKET FLYWHEEL COVER	1
28	422482	支架	BRACKET	1
29	49668	支架至曲轴箱螺钉(.250-20 x .750)	SCREW (.250-20 x .750) BRACKET TO CRANKCASE	2
30	7809A1	下端盖总成	END CAP ASSEMBLY (LOWER)	1
30	7809T1	端盖总成	END CAP ASSEMBLY	1
31	62700	O型圈 (3.237 x .103) 端盖 (3 3/4" 内径)	O-RING (3.237 x .103) END CAP (3 3/4" I.D.)	1
32	41953	端盖密封件	SEAL END CAP	2
33	28636	螺钉（0.250-20 x 0.750）下端盖至气缸体	SCREW (.250-20 x .750) LOWER END CAP TO CYLINDER BLOCK	4
34	26992	下端盖螺钉不锈钢锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel LOWER END CAP SCREW	4
35	64022	调节螺钉(.250-20 x 2.125)-气缸体	SCREW (.250-20 x 2.125) ADJUSTING - CYLINDER BLOCK	1
36	64015	锁紧螺母(.250-20)-调节螺钉	NUT (.250-20) JAM - ADJUSTING SCREW	1
37	26852	调节螺钉尼龙帽	CAP Nylon NYLON - ADJUSTING SCREW	1
38	16793	卡箍	CLAMP	1
39	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
40	87076A6	怠速控制总成	IDLE SPEED CONTROL ASSEMBLY	1
40	87076A10	怠速控制器	IDLE SPEED CONTROL	1
41	69020	螺丝(#10-32 x .875)怠速控制	SCREW (#10-32 x .875) IDLE SPEED CONTROL	3
41	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
42	38833	垫圈怠速控制螺钉	WASHER IDLE SPEED SONTROL SCREW	3
43	194372	端子排	TERMINAL BLOCK	1
44	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	2
45	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
46	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
47	813938	盖形螺母(#10-32)	CAP NUT (#10-32)	2
48	63153	J型卡扣	J CLIP	1
-	812827A89	动力总成完整组件	POWERHEAD ASSEMBLY COMPLETE	1
-	812827T89	船用动力头	POWERHEAD MARINE	1
-	14697A87	衬垫套件	GASKET SET

图 29下罩 Bottom Cowl

REF	零件编号	中文名称	英文名称	数量
1	878587A1	下罩总成	BOTTOM COWL ASSEMBLY	1
2	858743A2	下罩总成	BOTTOM COWL ASSEMBLY	1
2	8M0113913	右舷下罩B	COWL-LOWER STBD B	1
3	8253181	罩盖密封条(41英寸)	SEAL Cowl (41.00 Inches)	2
3	8M0109217	罩盖密封条	SEAL-COWL	2
4	878547T	嵌件	INSERT	1
5	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	8
6	831209	固定座	RETAINER	1
7	858742	怠速排气套	BOOT Idle Exhaust	1
8	859251	护孔环	GROMMET	1
8	8M0039078	护孔环	GROMMET	1
9	827948	接头	FITTING	1
10	855576	垫圈	WASHER	1
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
12	830756109	软管(57英寸整卷)(裁切至5英寸长度)	HOSE (57.00 Inches Bulk) (Cut To 5.00 Inch Length)	1
12	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
13	881535	软管(32.00英寸)	HOSE (32.00 Inches)	1
14	9912688	管材(36.00英寸散装)(26.00英寸)	TUBING (36.00 Inches Bulk) (26.00 Inch)	1
15	817518	三通	TEE	1
16	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	2
17	8587411	护孔环	GROMMET	1
17	889724	护孔环	GROMMET	1
18	856990	开关总成	SWITCH ASSEMBLY	1
18	8M0235192	微调开关	SWITCH TRIM	1
19	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
20	821253F1	前手柄黑色	FRONT HANDLE Black	1
20	889740A02	手柄套件	HANDLE KIT	1
21	33589	衬套	BUSHING	2
22	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
23	8219423	棘爪	PAWL	1
24	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	1
25	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
26	13541	公插头	PLUG Male	2

图 30动力升降倾斜组件 Power Trim Components

REF	零件编号	中文名称	英文名称	数量
-	830250T3	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
1	811666A1	减震杆套件	SHOCK ROD KIT	1
1	8M0171821	减震杆套件	SHOCK ROD KIT	1
2	809872A2	O型圈维修包	O-RING KIT Rebuild	1
2	8M0171819	O型圈套件	O-RING KIT	1
3	810776A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
3	8M0171822	记忆活塞套件	MEMORY PISTON KIT	1
4	811669A1	气缸总成	CYLINDER ASSEMBLY	1
4	893916A01	气缸总成	CYLINDER ASSEMBLY	1
5	809873A1	配平限位阀套件	VALVE KIT Trim Limit	1
5	893905A02	阀套件	VALVE KIT	1
6	809874A1	泵总成	PUMP ASSEMBLY	1
6	893906A02	泵总成	PUMP ASSEMBLY	1
7	809885A2	电机套件	MOTOR KIT	1
7	893907A02	电机套件	MOTOR KIT	1
8	8134351	堵头	PLUG	1
9	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
9	893929A01	安全阀套件	VALVE KIT Relief	1
10	809875A1	歧管套件	MANIFOLD KIT	1
10	893909A02	歧管套件	MANIFOLD KIT	1
11	809876A1	电机螺钉套件	SCREW KIT Motor	1
12	88238A18	拉线总成	CABLE ASSEMBLY	1
13	809877A1	驱动轴/密封套件	DRIVESHAFT/SEAL KIT	1
14	809878A1	滤清器套件	FILTER KIT	1
14	893912A02	滤清器套件	FILTER KIT	1
15	809879A1	提升阀套件	POPPET KIT	1
15	893913A02	提升阀套件	POPPET KIT	1
-	809880A1	完整配平O型圈套件	O-RING KIT Complete Trim	1
-	893914A02	O型圈套件	O-RING KIT	1
16	821539	三叶销	PIN Trilobe	2
17	818898	锚销	PIN Anchor	1
18	996251	轴	SHAFT	1
18	99625002	轴	SHAFT	1
19	22740	卡扣	CLIP	2
20	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
21	69205	C形垫圈	C WASHER	1
21	8M0084613	C形垫圈	C-WASHER	1

图 31启动电机总成 STARTER MOTOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
-	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	90645	驱动套件	DRIVE KIT	1
2	75661	驱动小齿轮总成	PINION ASSEMBLY Drive	1
2	13310T1	小齿轮总成	PINION ASSEMBLY	1
3	75660	驱动端板	PLATE DRIVE END	1
4	74968	贯穿螺栓	BOLT THRU	2
6	N.S.S.	贯穿螺栓 (不单独销售)	Not Sold Separate THRU BOLT	1
7	79216	电枢	ARMATURE	1
8	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
9	61787	电刷架	HOLDER BRUSH	2
9	898265014	电刷支架	HOLDER-BRUSH	2
10	68586	电刷及支架螺钉	SCREW BRUSH AND HOLDER	2
11	15386	换向器端盖	END CAP COMMUTATOR	1
11	15386001	端盖	END CAP	1

图 32喷油组件 OIL INJECTION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	12430A4	传感器总成	SENSOR ASSEMBLY	1
2	48409	螺钉(#10-16 x .625)不锈钢传感器固定(5/8")	SCREW (#10-16 x .625) Stainless Steel SENSOR ATTACHING (5/8")	1
3	815699	油泵总成	PUMP ASSEMBLY Oil	1
3	815699T	油泵总成	PUMP ASSEMBLY Oil	1
3A	814103	轴承(带密封)	BEARING (W/SEAL)	1
3A	8141032	蜗杆衬套	BUSHING Worm	1
4	11379	油泵O型圈	O-RING OIL PUMP	1
5	41429A2	驱动齿轮轴承总成	BEARING ASSEMBLY DRIVE GEAR	1
6	12726	从动齿轮	GEAR Driven	1
6	14563	从动齿轮	GEAR Driven	1
7	32228	螺钉(#10-32 x .625)油泵至曲轴箱(5/8")	SCREW (#10-32 x .625) OIL PUMP TO CRANKCASE (5/8")	1
7	41507	螺钉(#10-32 x 1.120)油泵至曲轴箱(1-1/8")	SCREW (#10-32 x 1.120) OIL PUMP TO CRANKCASE (1-1/8")	1
8	1938512	油门连杆至油泵总成	LINK ASSEMBLY THROTTLE LEVER TO OIL PUMP	1
9	4301619	油泵油管	TUBING OIL PUMP	1
9	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	1
10	99443T	油箱	RESERVOIR Oil	1
10	994436	储液罐	RESERVOIR	1
11	415823	油管卡箍(大)	CLAMP OIL HOSE (LARGE)	2
12	4301736	油箱至油泵油管	TUBING OIL RESERVOIR TO OIL PUMP	1
12	82381455	油管（25.00英寸散装）	TUBING (25.00 Inches Bulk)	1
13	69020	螺钉(#10-32 x .875)油箱固定(7/8")	SCREW (#10-32 x .875) OIL RESERVOIR ATTACHING (7/8")	3
13	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
14	42118	油箱螺钉垫圈	WASHER OIL RESERVOIR SCREW	6
15	42117	油箱螺钉衬套	GROMMET OIL RESERVOIR SCREW	3
16	42116	油箱螺钉轴套	BUSHING OIL RESERVOIR SCREW	3
17	99127109	油管(57.00英寸散装)	LINE (57.00 Inches Bulk) OIL	1
17	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
18	42425	油管三通	TEE OIL TUBING	1
19	9072925	油管(6-3/4")	HOSE OIL (6-3/4")	1
20	NA	不可用壳体总成	NOT AVAILABLE HOUSING ASSEMBLY	1
21	99439	油管(114.00英寸)	HOSE (114.00 Inches) OIL	1
22	12540A3	壳体	HOUSING	1
23	12242A1	闩锁	LATCH	1
24	43278	止回阀接头(曲轴箱)	FITTING CHECK CALVE (CRANKCASE)	1
24	8781051	止回阀	CHECK VALVE	1
25	87421	油箱	TANK	1
26	43298A2	油箱盖总成	CAP ASSEMBLY OIL TANK	1
27	11332	O型圈(2.225 x .210)盖	O-RING (2.225 x .210) CAP	1
28	43295A5	壳体总成适配器	HOUSING ASSEMBLY Adaptor	1
28	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
29	11332	O型圈(2.225 x .210)适配器壳体	O-RING (2.225 x .210) ADAPTOR HOUSING	1
30	99802	吸油管	TUBE OIL PICK-UP	1
31	43300A1	油箱盖总成	CAP ASSEMBLY OIL RESERVOIR	1
31	43300A9	盖总成	CAP ASSEMBLY	1
32	43307	油箱盖衬垫	GASKET RESERVOIR CAP	1
32	43307T	衬垫	GASKET	1
33	99022A1	浮子总成	FLOAT ASSEMBLY	1
33	8M0187298	浮子总成	FLOAT ASSY	1
34	99265	压入式螺母	PUSH NUT	1
35	415824	油管卡箍(小)	CLAMP OIL HOSE (SMALL)	2
36	90077	扎带	TIE STRAP	AR
36	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
37	12335A1	支架套件	BRACKET KIT	1
38	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1

图 33动力转向组件 Power Steering Components

REF	零件编号	中文名称	英文名称	数量
1	17771	支架	MOUNT	1
2	59702	螺钉 (.250-28 x .875) 不锈钢	SCREW (.250-28 x .875) Stainless Steel	4
3	88404	锁紧垫圈	TAB WASHER	4
4	78862A2	密封套件	SEAL KIT	1
4	19624A1	密封套件	SEAL KIT	1
5	71565	导向套管	TUBE Cable Guide	1
6	17776	联轴器	COUPLING	1
7	817040	螺钉 (.375-24 x 2.75)	SCREW (.375-24 x 2.75)	1
8	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	1
9	90092	螺钉	SCREW	1
9	856722	螺钉	SCREW	1
10	34863	螺母 (.375-24)	NUT (.375-24)	2
10	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
11	42100	锁紧垫圈	TAB WASHER	2
12	37984	螺母 (.875-14)	NUT (.875-14)	2
12	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
13	811290	蓄能器	ACCUMULATOR	1
14	817372	支架	BRACKET	1
15	16862	螺钉 (.250-10 x 1.25)	SCREW (.250-10 x 1.25)	4
16	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
16	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
17	4000383	螺钉 (M10 x 70)	SCREW (M10 x 70)	2
18	4002319	垫圈	WASHER	4
19	13914	螺母(M10)	NUT (M10)	2
19	40140	螺母(M10)	NUT (M10)	2
20	811289	执行器	ACTUATOR	1
20	828588A2	执行器套件	ACTUATOR KIT	1
21	94319	螺钉(.375-24 x 1.5)	SCREW (.375-24 x 1.5)	1
22	17405	隔套	SPACER	2
23	34863	螺母 (.375-24)	NUT (.375-24)	3
23	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	3
24	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	1
24	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
25	92876A4	连杆总成	LINK ROD ASSEMBLY	1
26	68300	垫圈 (.88 x .39 x .06)	WASHER (..88 x .39 x .06)	1
27	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
27	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
28	43450	垫圈	WASHER	2
28	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	2
29	400634	螺母 (M6)	NUT (M6)	2
29	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
30	811292	卡箍	CLAMP	1
31	818182	螺钉	SCREW	2
32	400263	螺母 (M5)	NUT (M5)	2
33	811291	支架	BRACKET	1
34	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
35	197491	卡箍	CLAMP	1
36	18211	继电器开关	RELAY SWITCH	1
37	18244A1	线束总成	HARNESS ASSEMBLY	1
38	18124	螺钉 (#10-32 x .750)	SCREW (#10-32 x .750)	1
39	90329	护孔环	GROMMET	1
40	309772	隔套	SPACER	1
41	816994	支架	BRACKET	1
42	42118	垫圈	WASHER	1
43	29488	螺母 (#10-32)	NUT (#10-32)	1
43	8M0204718	螺母	NUT	1
44	81563024	贴花	DECAL	1

图 34外罩安装支架 COWL MOUNTING BRACKET

REF	零件编号	中文名称	英文名称	数量
1	76258A2	后罩支架（黑色）	BRACKET REAR COWL (BLACK)	1
1	76258A3	后罩支架（灰色）	BRACKET REAR COWL (GRAY)	1
2	76256	示流喷嘴	NOZZLE TELL TALE	1
3	67984	后罩支架密封垫	SEAL REAR COWL BRACKET TO COWL	1
4	67228	后罩支架密封垫	SEAL REAR COWL BRACKET TO COWL	1
5	67999	后罩支架密封垫	SEAL REAR COWL BRACKET TO COWL	2
6	99127109	管线（57英寸散装）示流管（截断至4英寸）	LINE (57.00 Inches Bulk) TELL TALE (Cut to 4 Inches)	2
6	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	2
7	90824	指示器软管三通	TEE TELL TALE HOSE	1
7	90824001	三通接头	TEE FITTING	1
8	73498	指示软管卡箍	CLAMP TELL TALE HOSE	AR
8	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
9	86386A1	罩壳支撑支架总成	BRACKET ASSEMBLY COWL SUPPORT	1
10	66687	螺钉 (#10-32 x 1.50) 后罩支架	SCREW (#10-32 x 1.50) REAR COWL BRACKET	4
11	85651	罩壳铰链壳体-左舷	HOUSING COWL HINGE - PORT	2
11	85650	罩壳铰链壳体-右舷	HOUSING COWL HINGE - STARBOARD	2
12	64278	螺钉 (0.250-28 x 1.00) 罩壳铰链壳体	SCREW (.250-28 x 1.00) COWL HINGE HOUSING	8
13	20583	罩壳铰链壳体螺钉垫圈	WASHER COWL HINGE HOUSING SCREW	8
14	35888	螺母 (0.250-28) 不锈钢罩壳铰链壳体螺钉	NUT (.250-28) Stainless Steel COWL HINGE HOUSING SCREW	8
15	90435	罩壳安装支架座	MOUNT COWL MOUNTING BRACKET	3
16	29245	垫圈 (0.281 x 0.500 x 0.060) 不锈钢罩壳安装支架座	WASHER (.281 x .500 x .060) Stainless Steel COWL MOUNTING BRACKET MOUNT	6
16	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
17	35888	螺母 (0.250-28) 不锈钢罩壳安装支架座	NUT (.250-28) Stainless Steel COWL MOUNTING BRACKET MOUNT	6
18	99424	机罩支架（下部）	BRACKET COWL MOUNTING (LOWER)	1
19	99447T	拉线固定器	RETAINER CABLE	1
19	99447	固定座	RETAINER	1
20	22411	电缆固定器螺钉（.190-24 x 1.00）	SCREW (.190-24 x 1.00) CABLE RETAINER	2
20	68918	螺丝（#10-24 x 1.00）	SCREW (#10-24 x 1.00)	2
21	67260	控制线密封套	SEAL CONTROL CABLES	1
22	67241	罩壳锁扣壳体	HOUSING COWL LATCH	1
23	92051	螺钉 (10-16 x 0.75) 罩壳锁扣壳体	SCREW (10-16 x .75) COWL LATCH HOUSING	2
24	87608	盖锁扣	LATCH Cowl	1
25	60295	罩壳锁扣弹簧	SPRING COWL LATCH	1
26	88622	电缆固定板	PLATE CABLE RETAINER	1
27	99391	油管固定器	RETAINER OIL LINES	1
28	69067	螺钉 (0.250-20 x 1.375) 下部支架	SCREW (.250-20 x 1.375) LOWER BRACKET	2
29	20346	下部支架螺钉垫圈（小）	WASHER LOWER BRACKET SCREW (SMALL)	4
29	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	4
30	57427	下部支架螺钉垫圈（大）	WASHER LOWER BRACKET SCREW (LARGE)	4
30	35280	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	4
31	88180	下部支架衬套	BUSHING LOWER BRACKET GROMMET	2
32	88033	下部支架护孔环	GROMMET LOWER BRACKET	2

图 35启动电机总成 Starter Motor Assembly

REF	零件编号	中文名称	英文名称	数量
-	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	90645	驱动套件	DRIVE KIT	1
2	75661	驱动小齿轮总成	PINION ASSEMBLY Drive	1
2	13310T1	小齿轮总成	PINION ASSEMBLY	1
3	75660	驱动端板	PLATE DRIVE END	1
4	74968	贯穿螺栓	BOLT THRU	2
6	N.S.S.	贯穿螺栓 (不单独销售)	Not Sold Separate THRU BOLT	1
7	79216	电枢	ARMATURE	1
8	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
9	61787	电刷架	HOLDER BRUSH	2
9	898265014	电刷支架	HOLDER-BRUSH	2
10	68586	电刷及支架螺钉	SCREW BRUSH AND HOLDER	2
11	15386	换向器端盖	END CAP COMMUTATOR	1
11	15386001	端盖	END CAP	1

图 36维修/支撑材料 Service/Support Material

零件编号	中文名称	英文名称	数量
88183801	零件手册-115EFI(四冲程)	PARTS MANUAL 115 EFI (4-Stroke) Parts Manual	1
881980	维修手册	SERVICE MANUAL	1
881980R03	SM O/B 115 EFI 4S	SM O/B 115 EFI 4S	1
10225030	用户手册	OWNERS MANUAL	1
858610A31	燃油软管总成	HOSE ASSEMBLY Fuel	1
8M0038610	带注油球的燃油软管总成(9英尺)	HOSE ASSEMBLY Fuel (9 Feet) With Primer Bulb	1
880177	组合扳手工具(10毫米)	SCRENCH TOOL (10 mm)	1
881828	星形头工具套件	STARBIT TOOL KIT	1
881649A01	贴花套件	DECAL SET	1
881649A05	贴花套件	DECAL SET	1
881840A01	贴花套件	DECAL SET	1
881840A03	贴花套件	DECAL SET	1
881840A03	贴花套件	DECAL SET	1
881840A05	贴花套件	DECAL SET	1
881650A01	贴花套件	DECAL SET	1
881650A03	贴花套件	DECAL SET	1
881650A03	贴花套件	DECAL SET	1
881702A01	贴花套件	DECAL SET	1
881839A01	EPA标签信息贴花	DECAL EPA Label Information	1
881839A02	EPA标签信息贴花	Decal EPA Label Information	1
881839A03	EPA标签信息贴花	DECAL EPA Label Information	1
816834A1	转速表	TACHOMETER	1
816932A1	温度表	TEMPERATURE GAUGE	1
86306	适配器	ADAPTER	1
86306A01	适配器	ADAPTER	1
817054A3	水压表总成	GAUGE ASSEMBLY Water Pressure	1
821400A2	动力升降倾斜传感器套件	SENDER KIT Power Trim	1
8M0074845	ORD 8M0098264	ORD 8M0098264	1
92876A8	转向安装套件	ATTACHING KIT Steering	1
92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
883040A1	转速表模块套件	TACH MODULE KIT	1

图 37动力平衡电机(用于II型动力平衡系统) Power Trim Motor (Use With Design II Power Trim System)

REF	零件编号	中文名称	英文名称	数量
-	811628	配平电机	TRIM MOTOR	1
1	811624	机架与磁场套件	FRAME AND FIELD KIT	1
2	811625	电刷卡套件	BRUSH CARD KIT	1
3	811623	端架套件	END FRAME KIT	1
4	811626	密封套件	SEAL KIT	1
5	811627	电枢套件	ARMATURE KIT	1
5	811628	配平电机	TRIM MOTOR	1

图 38齿轮箱（驱动轴）（铸件号1655-9572C） GEAR HOUSING (DRIVESHAFT)(CASTING #1655-9572C)

REF	零件编号	中文名称	英文名称	数量
-	9572A3	齿轮箱总成(长型)(黑色)	GEAR HOUSING ASSEMBLY (LONG) (BLACK)	1
-	9572A4	齿轮箱总成(长型)(灰色)	GEAR HOUSING ASSEMBLY (LONG) (GRAY)	1
-	814247T4	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	9572A1	齿轮箱总成(黑色)	GEAR HOUSING ASSEMBLY (BLACK)	1
1	814247T8	齿轮箱	GEAR HSG	1
1	9572A2	齿轮箱总成(灰色)	GEAR HOUSING ASSEMBLY (GRAY)	1
1	814247T9	齿轮箱	GEAR HSG	1
2	85822A1		CONNECTOR ASSEMBLY SPEEDOMETER	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	20033	定位销齿轮箱定位	PIN Dowel GEAR HOUSING LOCATING	2
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	78638	齿轮箱螺柱(0.438×3.12)	STUD (.438 x 3.12) GEAR HOUSING	1
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
5	57920	双头螺栓(.44 x 2.06)齿轮箱	STUD (.44 x 2.06) GEAR HOUSING	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	56297	双头螺栓(.312 x 3.38)水泵	STUD (.312 x 3.38) WATER PUMP	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28 x 3.125)水泵	STUD (.250-20/.250-28 x 3.125) WATER PUMP	2
7	306671	螺柱	STUD	2
8	32898	驱动轴轴承	BEARING DRIVESHAFT	1
8	32898T	轴承	BEARING	1
9	79953		SCREW (.375-16 x .250) GREASE FILLER	1
9	79953Q04	放油螺钉套件	SCREW KIT Drain	1
10	67892		SCREW Magnetic DRAIN	1
10	8M0058389	放油螺钉套件	SCREW KIT Drain	1
11	15298	驱动轴	DRIVESHAFT	1
12	N.S.S.	小齿轮(不单独销售)(属于43-16279A2部件)	Not Sold Separate Pinion Gear (PART OF 43-16279A2)	1
13	20260	润滑脂加注与排放螺钉垫圈	WASHER GREASE FILLER AND DRAIN SCREW	2
13	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
14	35921	小齿轮至传动轴螺母(0.625-18)	NUT (.625-18) PINION GEAR TO DRIVESHAFT	1
15	42637A1	滚柱轴承至齿轮箱垫片组	SHIM SET ROLLER BEARING TO GEAR HOUSING	AR
15	8M0063267	垫片组	SHIM SET	AR
16	36387A1	传动轴滚柱/杯形轴承总成	BEARING ASSEMBLY Roller/Cup DRIVESHAFT	1
16	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
17	42633	传动轴轴承螺母	NUT DRIVESHAFT BEARING	1
17	8245191	固定座	RETAINER	1
18	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
19	42631	水泵至齿轮箱衬垫	GASKET WATER PUMP TO GEAR HOUSING	1
19	8M0204678	衬垫	GASKET	1
20	90011	O型圈(2.175×0.175)水泵	O-RING (2.175 x .175) WATER PUMP	1
20	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
20	38099	O型圈水泵(内径2.109)	O-RING WATER PUMP (2.109 I.D.)	1
21	89238	水泵油封	SEAL Oil WATER PUMP	1
22	16977	水泵油封	SEAL Oil WATER PUMP	1
23	85608	水泵下衬垫	GASKET LOWER - WATER PUMP	1
23	8M0090319	衬垫@5	GASKET @5	1
24	85609	水泵上衬垫	GASKET UPPER - WATER PUMP	1
24	858524	衬垫	GASKET	1
25	32435	水泵面板	FACE PLATE WATER PUMP	1
25	8M0204677	面板	PLATE-FACE	1
26	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
27	48752	水泵体嵌件	INSERT WATER PUMP BODY	1
27	48752T	嵌件	INSERT	1
28	38970	橡胶密封圈-进水管	SEAL RUBBER - WATER INLET TUBE	1
29	89984	水泵叶轮	IMPELLER WATER PUMP	1
29	89984T4	叶轮	IMPELLER	1
30	56654	叶轮驱动键	KEY IMPELLER DRIVE	1
30	8M0214992	键@5	KEY @5	1
31	96411	螺钉(#14-8×2.25)水泵	SCREW (#14-8 x 2.25) WATER PUMP	1
31	8M0215009	螺钉	SCREW	1
32	29245	垫圈(0.281×0.500×0.060)不锈钢水泵螺钉与螺柱	WASHER (.281 x .500 x .060) Stainless Steel WATER PUMP SCREW AND STUD	2
32	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
33	13438	螺母(0.250-28)水泵螺柱	NUT (.250-28) WATER PUMP STUD	2
33	8267119	螺母(.250-28)	NUT (.250-28)	2
34	36001	水泵螺柱垫圈	WASHER WATER PUMP STUD	1
35	13436	水泵螺柱螺母	NUT WATER PUMP STUD	1
36	30271	橡胶环（驱动轴）	RING Rubber RUBBER (DRIVESHAFT)	1
36	8M0214918	环@5	RING @5	1
37	29804	进水管导向套	SLEEVE GUIDE - WATER INLET TUBE	1
37	29804T	套筒	SLEEVE	1
38	15299	换挡轴-下部	SHAFT SHIFT - LOWER	1
39	29641	E型挡圈-换挡轴	E RING RETAINING - SHIFT SHAFT	1
40	25439		O-RING (.862 x .103) SHIFT SHAFT BUSHING	1
41	77631A2	换挡轴衬套总成	BUSHING ASSEMBLY SHIFT SHAFT	1
42	76384	换挡轴衬套油封	SEAL Oil SHIFT SHAFT BUSHING	1
42	8M0246145	油封	OIL SEAL	1
43	77674		WASHER (.35 x .75 x .12) RUBBER - SHIFT SHAFT BUSHING	1
-	42579A4	水泵修理包	REBUILD KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1

图 39燃油泵和化油器 FUEL PUMP AND CARBURETOR

REF	零件编号	中文名称	英文名称	数量
1	9242A10	化油器(上)	CARBURETOR (TOP)	1
2	9242A11	化油器(中)	CARBURETOR (CENTER)	1
3	9242A12	化油器(下)	CARBURETOR (BOTTOM)	1
4	6232	燃油入口接头(上/下)	FITTING FUEL INLET (UPPER/LOWER)	2
5	70007	45度燃油入口接头(中部)	FITTING 45 Degree FUEL INLET (MIDDLE)	1
6	904301	化油器衬垫	GASKET CARBURETOR	3
7	20184	化油器安装螺母(1/4-28X7/32)	NUT (1/4-28X7/32) CARBURETOR MOUNTING	12
7	8M0207775	螺母 @5	NUT @5	12
8	90077	化油器燃油管束带	TIE STRAP FUEL HOSE TO CARBURETOR	AR
8	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
9	42859A2	加浓阀总成	VALVE ASSEMBLY Enrichner	1
10	633001	加浓阀卡箍	CLAMP ENRICHNER VALVE	1
11	73286	螺钉(0.250-20×0.500)不锈钢阀门卡箍	SCREW (.250-20 x .500) Stainless Steel VALVE CLAMP	1
12	45915	端子排簧片块壳体	TERMINAL BLOCK REED BLOCK HOUSING	1
13	35519	端子块固定螺钉(#10-16 x .500)	SCREW (#10-16 x .500) TERMINAL BLOCK ATTACHING	1
14	99130122	上部化油器至阀门管路(20英尺散装,7-3/4英寸)	TUBING (20.00 Feet Bulk) TOP CARBURETOR TO VALVE (7-3/4")	1
14	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
15	9912688	化油器间连接管路(36英寸散装,4-1/4英寸)	TUBING (36.00 Inches Bulk) CARBURETOR TO CARBURETOR (4-1/4")	2
16	15930A15	燃油泵套件	PUMP KIT Fuel	1
17	42990A6	膜片组件	DIAPHRAGM KIT	1
17	857005A1	膜片组件	DIAPHRAGM KIT	1
18	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE CHECK VALVE, RUBBER	2
19	NSS		NOT SOLD SEPARATE GASKET, BOOST	1
20	NSS		NOT SOLD SEPARATE DIAPHRAGM	2
21	NSS		NOT SOLD SEPARATE GASKET, PULSE	1
22	NSS		NOT SOLD SEPARATE SPRING	1
23	NSS		NOT SOLD SEPARATE CAP	1
24	NSS		NOT SOLD SEPARATE CHECK VALVE	2
25	NSS		NOT SOLD SEPARATE RETAINER	2
26	NSS		NOT SOLD SEPARATE SPRING	1
27	NSS		NOT SOLD SEPARATE CAP	1
28	987691	底座衬垫	GASKET BASE	1
28	8M0204705	衬垫@2	GASKET @2	1
29	144303	燃油泵底座	BASE FUEL PUMP	1
30	98775A2	燃油泵板	PLATE FUEL PUMP	1
30	987752	安装板	PLATE	1
31	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
32	19688	接头	FITTING	1
33	16452	燃油泵螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) FUEL PUMP	2
34	4000310	燃油泵至曲轴箱螺钉(M5 x 40)	SCREW (M5 x 40) FUEL PUMP TO CRANKCASE	2
35	4002314	燃油泵螺钉垫圈	WASHER FUEL PUMP SCREW	2
36	14868	燃油泵弯头接头	FITTING FUEL PUMP (ELBOW)	1
37	19688	燃油泵弯头接头	FITTING FUEL PUMP (ELBOW)	1
38	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	1
38	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
39	16494	燃油滤清器	FILTER Fuel	1
39	816296Q03	燃油滤清器@3	FILTER-FUEL @3	1
40	15279	燃油滤清器卡箍	CLAMP FUEL FILTER	1
41	64705	脉冲软管接头	FITTING PULSE HOSE	1
42	9912976	油管	TUBING	2
42	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	2
43	424251	三通	TEE	2
43	424253	接头	FITTING	2
44	15781A1	燃油连接器	CONNECTOR Fuel	1
44	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
45	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
46	812782	密封件	SEAL	1
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1

图 40齿轮箱螺旋桨轴-XR4/Magnum II型 Gear Housing Propeller Shaft - XR4/Magnum II

REF	零件编号	中文名称	英文名称	数量
-	814247A3	齿轮箱总成1.78:1速比-黑色	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Black	1
-	814247A4	齿轮箱总成 1.78:1 减速比 - 灰色	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Gray	1
-	814247T4	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	814247A3	齿轮箱总成1.78:1速比-黑色	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Black	1
-	814247A4	齿轮箱总成 1.78:1 减速比 - 灰色	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Gray	1
1	814247A8	齿轮箱总成(黑色)	GEAR HOUSING ASSEMBLY (BLACK)	1
1	814247T8	齿轮箱	GEAR HSG	1
1	814247A9	齿轮箱总成(灰色)	GEAR HOUSING ASSEMBLY (GRAY)	1
1	814247T9	齿轮箱	GEAR HSG	1
1	814247A1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic - Black	1
1	814247T1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	814247A2	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic - Gray	1
1	814247T2	ORD 1674-814247T1	ORD 1674-814247T1	1
44	76039	换挡凸轮控制	CAM Shift Control	1
44	760394	换挡凸轮控制	CAM Shift Control	1
45	12239A1	凸轮从动件套件	FOLLOWER KIT Cam	1
45	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
46	30622	凸轮从动件压缩弹簧	SPRING COMPRESSION - CAM FOLLOWER	1
47	44491A1	垫片组	SHIM SET	AR
47	8M0063266	垫片组	SHIM SET	AR
48	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
49	16279A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
50	30895	滚针轴承	BEARING Needle	1
50	30895T	滚针轴承	BEARING Needle	1
51	814756	离合器	CLUTCH	1
51	822539T	离合器	CLUTCH	1
52	30632	十字销	PIN Cross	1
52	8M0100263	十字销	PIN Cross	1
53	30893	弹簧	SPRING	1
54	12238T	螺旋桨轴	PROPELLER SHAFT	1
55	NSS	倒车齿轮(不单独销售)(43-16279A2部件)	NOT SOLD SEPARATE Reverse Gear (Part of 43-16279A2)	1
56	76358	止推垫片轴承座	THRUST WASHER BEARING CARRIER	1
57	29976	轴承座O型圈	O-RING BEARING CARRIER	1
58	41529A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
58	41529T2	托架总成	CARRIER ASSY	1
59	98727	润滑脂接头	FITTING Grease	2
59	8M0169588	润滑脂接头	FITTING Grease	2
60	30956	滚针轴承-轴承座	BEARING Needle BEARING CARRIER	1
60	30956T	滚针轴承	BEARING Needle	1
61	76868	密封件	SEAL	2
61	8M0248882	油封@5	SEAL-OIL @5	2
62	30281		KEY LOCATING - BEARING CARRIER	1
63	52700	齿轮箱盖锁紧垫圈	TAB WASHER GEAR HOUSING COVER	1
64	52699	齿轮箱盖	COVER GEAR HOUSING	1
65	67891	填充块	FILLER BLOCK	1
65	8M0039169	填充块	FILLER BLOCK	1
66	30206	螺钉(.375-16 x 1.00)不锈钢(内六角头)	SCREW (.375-16 x 1.00) Stainless Steel (SOCKET HEAD)	1
66	65210	螺钉(.375-16 x 1.00)(六角头)	SCREW (.375-16 x 1.00) (HEX HEAD)	1
68	816629	螺旋桨螺母锁紧垫圈	TAB WASHER PROPELLER NUT	1
68	816629Q	锁紧垫圈	TAB WASHER	1
69	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
69	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
70	15300	阳极配平片	TRIM TAB Anodic	1
71	15797	阳极板螺钉	SCREW ANODIC PLATE	1
70	31640A1	平衡板总成	TRIM TAB ASSEMBLY	2
70	31640Q4	平衡鳍板	TRIM TAB	2
71	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
72	45176	垫圈(.453 x .812 x .105)不锈钢驱动轴壳体螺柱	WASHER (.453 x .812 x .105) Stainless Steel DRIVE SHAFT HOUSING STUDS	2
73	34933	螺母(.437-20)不锈钢驱动轴壳体螺柱	NUT (.437-20) Stainless Steel DRIVE SHAFT HOUSING STUDS	2
73	8M0204653	螺母	NUT	2
74	13191A1	止推垫片	THRUST WASHER	1
74	13191Q01	止推垫片	THRUST WASHER	1
-	89238A2	密封套件	SEAL KIT	1
-	815791A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 41油门杆与换挡轴 THROTTLE LEVER AND SHIFT SHAFT

REF	零件编号	中文名称	英文名称	数量
1	74897		PIVOT TRIGGER PLATE	1
2	62459	球头总成触发板	BALL JOINT ASSEMBLY TRIGGER PLATE	1
2	62459T	球头节总成	BALL JOINT ASSY	1
3	45076	螺母(#10-32)黄铜连杆	NUT (#10-32) Brass LINK ROD	1
4	76035	触发板连杆	ROD TRIGGER PLATE	1
5	46438	螺母(#10-32)球头	NUT (#10-32) BALL JOINT	1
6	41094A3	点火提前杆总成	LEVER ASSEMBLY SPARK ADVANCE	1
7	64022	螺丝(.250-20x2.125)点火提前杆-止动	SCREW (.250-20 x 2.125) SPARK ADVANCE LEVER - STOP	1
8	64015	螺母(.250-20)点火提前止动螺丝	NUT (.250-20) SPARK ADVANCE STOP SCREW	1
9	26852	尼龙帽点火提前杆止动螺丝	CAP Nylon SPARK ADVANCE LEVER STOP SCREW	1
10	13627	螺钉（0.190-32 x 1.250）点火提前杠杆-止动（1-1/4英寸）	SCREW (.190-32 x 1.250) SPARK ADVANCE LEVER - STOP (1-1/4")	1
11	68219	螺母(#10-32)不锈钢点火提前杆止动螺丝	NUT (#10-32) Stainless Steel SPARK ADVANCE LEVER STOP SCREW	1
12	48039	点火提前杆止动螺丝帽	CAP SPARK ADVANCE LEVER STOP SCREW	1
13	41095T	油门控制杆	LEVER THROTTLE CONTROL	1
13	410952	杠杆	LEVER	1
14	55337	螺钉（0.375-16 x 1.75）节气门杠杆/提前杠杆（1-3/4英寸）	SCREW (.375-16 x 1.75) THROTTLE LEVER/ADVANCE LEVER (1-3/4")	1
14	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
15	55164	油门杠杆衬套	BUSHING THROTTLE LEVER	1
16	55171	点火提前杆衬套	BUSHING SPARK ADVANCE LEVER	1
17	68784	节气门与点火提前杆弹簧	SPRING THROTTLE AND SPARK ADVANCE LEVER	1
18	68410	点火提前杆垫片	WASHER SPARK ADVANCE LEVER	1
18	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	1
19	64022	螺钉（0.250-20 x 2.125）节气门杠杆-止动（2-1/8英寸）	SCREW (.250-20 x 2.125) THROTTLE LEVER - STOP (2-1/8")	1
20	64015	螺母(.250-20)节气门杆止动螺丝	NUT (.250-20) THROTTLE LEVER STOP SCREW	1
21	26852	尼龙帽节气门杆止动螺丝	CAP Nylon THROTTLE LEVER STOP SCREW	1
22	39483	锁扣拉线	LATCH CABLE	1
23	22486	螺丝(.250-28x.880)拉线锁扣至节气门杆	SCREW (.250-28 x .880) CABLE LATCH TO THROTTLE LEVER	1
23	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
24	20099	拉线锁扣至节气门杆弹簧	SPRING CABLE LATCH TO THROTTLE LEVER	1
25	20586	螺母(.250-28)拉线锁扣螺丝	NUT (.250-28) CABLE LATCH SCREW	1
25	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
26	14634	节气门控制杆	ROD THROTTLE CONTROL	1
27	14638	节气门控制杆套筒	BARREL THROTTLE CONTROL ROD	1
28	146351	节气门凸轮	CAM Throttle	1
29	93248	衬套	BUSHING	1
29	8M0215006	旋转衬套	BUSHING Swivel	1
30	26856	节气门凸轮衬套	BUSHING THROTTLE CAM	2
31	35045	螺母（0.250-28）节气门凸轮螺柱	NUT (.250-28) THROTTLE CAM STUD	1
31	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
32	41050	节气门复位弹簧	SPRING THROTTLE RETURN	1
33	92032A2	支架锚-控制电缆	BRACKET ANCHOR - CTRL CABLES	1
33	814283A2	支架总成	BRACKET ASSEMBLY	1
33	814283A1	控制线缆锚定支架	BRACKET ANCHOR - CONTROL CABLES	1
33	814283A2	支架总成	BRACKET ASSEMBLY	1
34	98889	控制线缆锁扣	LATCH CONTROL CABLE	1
35	42975	闩锁传动螺钉	DRIVE SCREW LATCH	2
36	53167	螺丝(.312-18x.880)锚定支架固定	SCREW (.312-18 x .880) ANCHOR BRACKET ATTACHING	3
36	53167T	螺钉 0.312-18X 0.88	SCREW .312-18X .88	3
37	37896	连杆导向块	GUIDE BLOCK LINK ROD	1
37	814284	连杆导向块	GUIDE BLOCK LINK ROD	1
38	20099	连杆至导向块弹簧	SPRING LINK ROD TO GUIDE BLOCK	1
39	67073A1	连杆总成	LINK ROD ASSEMBLY	1
40	52100	连杆耐磨板	WEAR PLATE LINK ROD	1
41	38279	控制线缆闩锁紧固件	LATCH CONTROL CABLE FASTENING	1
41	8M0036768	闩锁	LATCH	1
42	35462	垫圈(.2656x.625x.0625)不锈钢锁扣	WASHER (.2656 x .625 x .0625) Stainless Steel LATCH	1
43	35045	螺母（0.250-28）连杆	NUT (.250-28) LINK ROD	1
43	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
44	79932A11	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
44	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
45	29720	连杆波形垫圈	WAVE WASHER LINK ROD	1
46	26600	尼龙衬套-连杆	BUSHING NYLON - LINK ROD	1
47	35462	垫圈(.2656 x .625 x .0625)不锈钢连杆	WASHER (.2656 x .625 x .0625) Stainless Steel LINK ROD	1
48	35045	螺母（0.250-28）连杆至换挡轴	NUT (.250-28) LINK ROD TO SHIFT SHAFT	1
48	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
49	39519	杯形保持器-锚杆	CUP BARRELL RETAINER - ANCHOR BAR	1

图 42驱动轴壳体与排气管 DRIVESHAFT HOUSING AND EXHAUST TUBE

REF	零件编号	中文名称	英文名称	数量
1	8343A10	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8343A11	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8343T11	ORD 1590-8343T10	ORD 1590-8343T10	1
1	813563A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	813563T1	传动轴壳体-黑色-加长型	HOUSING Driveshaft - Black - X-Long	1
1	813563A2	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	813563T2	ORD 3503-813563T1	ORD 3503-813563T1	1
2	56295	双头螺柱(.437 x 2.69)	STUD (.437 x 2.69)	2
3	63474	螺钉(.500-20 x 6.00)	SCREW (.500-20 x 6.00)	2
3	898831	螺钉(.500-20 x 6.220)	SCREW (.500-20 x 6.220)	2
4	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
5	77327	支架	MOUNT	2
6	49339	垫圈(.8125)	WASHER (.8125)	2
7	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
8	28040	螺母(.500-20)	NUT (.500-20)	2
8	898832	螺母(.500-20)	NUT (.500-20)	2
9	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
10	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
11	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
11	8M0204653	螺母	NUT	2
12	67076	卡箍	CLAMP	2
12	8M0036782	卡箍	CLAMP	2
13	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
14	67077T	黑色盖	COVER Black	2
14	8M4500752	盖板	COVER	2
14	67077F1	灰色盖板	COVER Gray	2
14	67077T	黑色盖	COVER Black	2
15	88417	螺钉(#12-24×0.620)	SCREW (#12-24 x .620)	4
16	35521	螺母	NUT	4
17	48926	垫圈	WASHER	1
18	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	1
18	8M0204653	螺母	NUT	1
19	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	4
20	69254	螺母	NUT	4
21	828212	怠速排气套	BOOT Idle Exhaust	1
21	8M0039081	护套	BOOT	1
22	64649	堵头	PLUG	1
23	991732	衬垫	GASKET	1
23	991734	衬垫	GASKET	1
24	66350	下密封件	SEAL (LOWER)	1
24	66350001	密封件	SEAL	1
25	18276	排气管	TUBE Exhaust	1
25	18276T	排气管	EXHAUST TUBE	1
26	177261	上密封件	SEAL (UPPER)	1
26	8M0039076	密封件	SEAL	1
27	812834	排气管延长段	EXTENSION Exhaust	1
27	812834A2	排气延长总成	EXTENSION ASSEMBLY Exhaust	1
27	41942F3	排气管延长段	EXTENSION Exhaust	1
27	879288T71	排气管延长段	EXTENSION Exhaust	1
28	67295	水管	TUBE Water	1
28	8M0042788	长型水管	TUBE-WATER-LONG	1
28	74729	管	TUBE	1
28	8M0042790	水管	TUBE-WATER	1
29	78246	衬垫	GASKET	1
29	782461	衬垫	GASKET	1
30	18233A3	隔板总成	PLATE ASSEMBLY	1
30	18233A20	传动轴壳体板总成	PLATE ASSEMBLY Driveshaft Housing	1
31	8147012	密封件	SEAL	1
31	8M0043165	密封件-27.00英寸	SEAL-27.00 INCH	1
32	68011	支架	BRACKET	1
33	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
33	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
34	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
35	38970	密封件	SEAL	1
36	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	6
37	183071	衬垫	GASKET	1
37	183076	衬垫	GASKET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 43曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	8745A5	曲轴总成(含8个39-67377)	CRANKSHAFT ASSEMBLY (INCLUDES 8 OF 39-67377)	1
2	67923	曲轴下球轴承	BEARING Ball CRANKSHAFT (LOWER)	1
2	67923T	滚珠轴承	BEARING Ball	1
3	67446	球轴承挡圈	RING BALL BEARING	1
4	99727A1	驱动齿轮	GEAR Drive	1
5	54196A6	密封载体总成	CARRIER ASSEMBLY SEAL	1
6	65800	填料载体	PACKING CARRIER	1
7	67377	曲轴密封环(.124厚度)	RING Sealing SEALING - CRANKSHAFT (.124 THICK)	AR
7	67377T	密封环	RING Sealing	AR
7	78633	曲轴密封环(.139厚度)	RING SEALING - CRANKSHAFT (.139 THICK)	AR
8	88903	保持式滚柱轴承	BEARING Roller RETAINED BEARING	2
8	88903T	轴承座圈	RACE Bearing	2
9	67444	保持轴承挡圈	RING Retaining RETAINED BEARING	2
10	67445	保持式滚柱轴承	BEARING Roller RETAINED BEARING	2
8	93495	非保持式滚柱轴承	BEARING Roller LOOSE BEARING	2
8	93495T	滚柱轴承	BEARING Roller	2
9	67444	非保持轴承挡圈	RING Retaining LOOSE BEARING	2
11	7441A3	活塞总成(右舷-标准)	PISTON ASSEMBLY (STARBOARD-STANDARD)	3
11	7441T36	活塞-右舷-标准	PISTON-STBD-STD	3
11	7443A2	活塞总成(右舷-加大0.015)	PISTON ASSEMBLY (STARBOARD - .015 O.S.)	AR
11	7443A12	活塞-右舷-0.015	PISTON-STBD-.015	AR
11	7445A2	活塞总成(右舷-加大0.030)	PISTON ASSEMBLY (STARBOARD-.030 O.S.)	AR
11	7445A12	活塞-右舷-0.030	PISTON-STBD-.030	AR
11	7442A3	活塞总成(左舷-标准)	PISTON ASSEMBLY (PORT-STANDARD)	3
11	7442T36	活塞-左舷-标准	PISTON-PORT-STD	3
11	7444A2	活塞总成(左舷-0.015加大)	PISTON ASSEMBLY (PORT-.015 O.S.)	AR
11	7444A12	活塞-左舷-0.015	PISTON-PORT-.015	AR
11	7446A2	活塞总成(左舷-0.030加大)	PISTON ASSEMBLY (PORT-.030 O.S.)	AR
11	7446T12	活塞-左舷-0.030	PISTON-PORT-.030	AR
12	93481A12	活塞环组-标准(标准)	RING SET Piston - Standard (STANDARD)	1
12	78918A4	活塞环组-0.015加大(0.015加大)	RING SET Piston - .015 Oversize (.015 O.S.)	AR
12	85636A4	活塞环组-0.030加大(0.030加大)	RING SET Piston - .030 Oversize (.030 O.S.)	AR
13	52035	锁环	RING Lock	12
13	857196	锁紧环	LOCK RING	12
14	8119A5	连杆总成	CONNECTING ROD ASSEMBLY	6
14	8119A6	连杆套件	CONN ROD KIT	6
15	93886	螺钉(0.312-28×0.875)连杆	SCREW (.312-28 x .875) CONNECTING ROD	12
16	47247	定位针垫圈	WASHER NEEDLE LOCATING	12
16	8M0032839	垫片@5	WASHER @5	12
17	17514A1	轴承套件	BEARING KIT	6
17	8M0234886	轴承保持架	CAGE BEARING	6
18	67483	活塞端滚针轴承	BEARING Needle PISTON END	174

图 44齿轮箱（驱动轴）（铸件号1674-814247C） GEAR HOUSING (DRIVESHAFT) (CASTING #1674-814247C)

REF	零件编号	中文名称	英文名称	数量
-	814247A3	齿轮箱总成1.78:1速比-黑色	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Black	1
-	814247A4	齿轮箱总成 1.78:1 减速比 - 灰色	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Gray	1
-	814247T4	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	814247A1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic - Black	1
1	814247T1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	814247A2	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic - Gray	1
1	814247T2	ORD 1674-814247T1	ORD 1674-814247T1	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
2A	43998	套筒	SLEEVE	1
3	20033	定位销	PIN Dowel	2
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	78638	双头螺柱(.438 x 3.12)	STUD (.438 x 3.12)	1
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
5	57920	双头螺柱(.44 x 2.06)	STUD (.44 x 2.06)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	306671	螺柱	STUD	2
8	35934A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	79953		SCREW (.375-16 x .250) GREASE FILLER	1
9	79953Q04	放油螺钉套件	SCREW KIT Drain	1
10	67892		SCREW Magnetic DRAIN	1
10	8M0058389	放油螺钉套件	SCREW KIT Drain	1
11	815168	驱动轴	DRIVESHAFT	1
12	N.S.S.	小齿轮(不单独销售)(属于43-16279A2部件)	Not Sold Separate Pinion Gear (PART OF 43-16279A2)	1
13	19183	纤维垫圈	WASHER Fiber	2
13	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
14	35921	螺母(0.625-18)	NUT (.625-18)	1
15	42637A1	垫片组	SHIM SET	AR
15	8M0063267	垫片组	SHIM SET	AR
16	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
16	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
17	42633	螺母	NUT	1
17	8245191	固定座	RETAINER	1
18	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
19	426311	衬垫	GASKET	1
19	8M0204678	衬垫	GASKET	1
20	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
20	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
21	89238	油封	SEAL Oil	1
22	16977	油封	SEAL Oil	1
23	856081	下部衬垫	GASKET LOWER	1
23	8M0090319	衬垫@5	GASKET @5	1
24	856091	上衬垫	GASKET UPPER	1
24	858524	衬垫	GASKET	1
25	32435	面板	FACE PLATE	1
25	8M0204677	面板	PLATE-FACE	1
26	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
27	48752	嵌件	INSERT	1
27	48752T	嵌件	INSERT	1
28	38970	橡胶密封件	SEAL RUBBER	1
29	899841	叶轮	IMPELLER	1
29	89984T3	叶轮	IMPELLER	1
30	56654	键	KEY	1
30	8M0214992	键@5	KEY @5	1
31	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
31	8M0215009	螺钉	SCREW	1
32	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
33	13438	螺母(.250-28)	NUT (.250-28)	2
33	8267119	螺母(.250-28)	NUT (.250-28)	2
34	36001	垫圈	WASHER	1
35	13436	螺母	NUT	1
37	29804	套筒	SLEEVE	1
37	29804T	套筒	SLEEVE	1
38	815264	换挡轴下段	SHIFT SHAFT LOWER	1
38	8152641	换档轴	SHIFT SHAFT	1
39	29641	E型卡环	E RING	1
40	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
41	77631A2	衬套总成	BUSHING ASSEMBLY	1
42	816464	油封	SEAL Oil	1
42	8M0246145	油封	OIL SEAL	1
43	77674		WASHER (.35 x .75 x .12) RUBBER - SHIFT SHAFT BUSHING	1
-	89238A2	密封套件	SEAL KIT	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1

图 45动力升降组件 POWER TRIM COMPONENTS

REF	零件编号	中文名称	英文名称	数量
-	830250T3	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
1	811666A1	减震杆套件	SHOCK ROD KIT	1
1	8M0171821	减震杆套件	SHOCK ROD KIT	1
2	809872A2	O型圈维修包	O-RING KIT Rebuild	1
2	8M0171819	O型圈套件	O-RING KIT	1
3	810776A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
3	8M0171822	记忆活塞套件	MEMORY PISTON KIT	1
4	811669A1	气缸总成	CYLINDER ASSEMBLY	1
4	893916A01	气缸总成	CYLINDER ASSEMBLY	1
5	809873A1	配平限位阀套件	VALVE KIT Trim Limit	1
5	893905A02	阀套件	VALVE KIT	1
6	809874A1	泵总成	PUMP ASSEMBLY	1
6	893906A02	泵总成	PUMP ASSEMBLY	1
7	809885A2	电机套件	MOTOR KIT	1
7	893907A02	电机套件	MOTOR KIT	1
8	8134351	堵头	PLUG	1
9	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
9	893929A01	安全阀套件	VALVE KIT Relief	1
10	809875A1	歧管套件	MANIFOLD KIT	1
10	893909A02	歧管套件	MANIFOLD KIT	1
11	809876A1	电机螺钉套件	SCREW KIT Motor	1
12	88238A18	拉线总成	CABLE ASSEMBLY	1
13	809877A1	驱动轴/密封套件	DRIVESHAFT/SEAL KIT	1
14	809878A1	滤清器套件	FILTER KIT	1
14	893912A02	滤清器套件	FILTER KIT	1
15	809879A1	提升阀套件	POPPET KIT	1
15	893913A02	提升阀套件	POPPET KIT	1
-	809880A1	完整配平O型圈套件	O-RING KIT Complete Trim	1
-	893914A02	O型圈套件	O-RING KIT	1
16	821539	三叶销	PIN Trilobe	2
17	818898	锚销	PIN Anchor	1
18	996251	轴	SHAFT	1
18	99625002	轴	SHAFT	1
19	22740	卡扣	CLIP	2
20	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
21	69205	C形垫圈	C WASHER	1
21	8M0084613	C形垫圈	C-WASHER	1

图 46齿轮箱（驱动-标准/反向旋转） Gear Housing (Drive-Standard/Counter Rotation)

REF	零件编号	中文名称	英文名称	数量
-	9148A8	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148A9	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T85	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A10	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A13	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T91	ORD 1647-9148T85	ORD 1647-9148T85	1
-	9148A30	齿轮箱总成反向旋转	GEAR HOUSING ASSEMBLY Counter Rotation	1
-	9148T86	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A31	齿轮箱总成反向旋转	GEAR HOUSING ASSEMBLY Counter Rotation	1
-	9148T92	ORD 1647-9148T86	ORD 1647-9148T86	1
1	9148A11	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A12	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
2	85822A1		CONNECTOR ASSEMBLY SPEEDOMETER	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	20033	定位销齿轮箱定位	PIN Dowel GEAR HOUSING LOCATING	2
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	78638	齿轮箱螺柱(0.438×3.12)	STUD (.438 x 3.12) GEAR HOUSING	1
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
4	18978	齿轮箱螺柱(0.438×3.69)	STUD (.438 x 3.69) GEAR HOUSING	1
4	8M0034464	螺柱	STUD	1
5	57920	齿轮箱螺柱(0.44×2.06)	STUD (.44 x 2.06) GER HOUSING	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	56297	双头螺栓(.312 x 3.38)水泵	STUD (.312 x 3.38) WATER PUMP	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28 x 3.125)水泵	STUD (.250-20/.250-28 x 3.125) WATER PUMP	2
7	306671	螺柱	STUD	2
8	42647A1	传动轴滚柱轴承总成	BEARING ASSEMBLY Roller DRIVESHAFT	1
9	43998	润滑套筒	SLEEVE LUBRICATION	1
11	44000	驱动轴	DRIVESHAFT	1
11	897624T	长驱动轴	DRIVESHAFT Long	1
11	44209	驱动轴	DRIVESHAFT	1
11	897625T	加长驱动轴	DRIVESHAFT X-Long	1
12	N.S.S.	不单独出售小齿轮(43-44104A2或43-18475A1部件)	Not Sold Separate Pinion Gear-Part of 43-44104A2 or 43-18475A1	1
13	92721	垫圈(.965 x .630)小齿轮	WASHER (.965 x .630) PINION GEAR	1
14	35921	小齿轮至传动轴螺母(0.625-18)	NUT (.625-18) PINION GEAR TO DRIVESHAFT	1
15	42637A1	垫片组	SHIM SET	AR
15	8M0063267	垫片组	SHIM SET	AR
16	36387A1	传动轴滚柱/杯形轴承总成	BEARING ASSEMBLY Roller/Cup DRIVESHAFT	1
16	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
17	42633	传动轴轴承螺母	NUT DRIVESHAFT BEARING	1
17	8245191	固定座	RETAINER	1
18	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
19	426311	水泵至齿轮箱衬垫	GASKET WATER PUMP TO GEAR HSG	1
19	8M0204678	衬垫	GASKET	1
20	90011	O型圈(2.175×0.175)水泵	O-RING (2.175 x .175) WATER PUMP	1
20	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
20	38099	O型圈水泵(内径2.109)	O-RING WATER PUMP (2.109 I.D.)	1
21	89238	水泵油封	SEAL Oil WATER PUMP	1
22	16977	水泵油封	SEAL Oil WATER PUMP	1
23	856081	水泵下衬垫	GASKET LOWER - WATER PUMP	1
23	8M0090319	衬垫@5	GASKET @5	1
24	856091	水泵上衬垫	GASKET UPPER - WATER PUMP	1
24	858524	衬垫	GASKET	1
25	32435	水泵面板	FACE PLATE WATER PUMP	1
25	8M0204677	面板	PLATE-FACE	1
26	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
27	48752	水泵体嵌件	INSERT WATER PUMP BODY	1
27	48752T	嵌件	INSERT	1
28	38970	橡胶密封圈-进水管	SEAL RUBBER - WATER INLET TUBE	1
29	89984	水泵叶轮	IMPELLER WATER PUMP	1
29	89984T4	叶轮	IMPELLER	1
30	56654	叶轮驱动键	KEY IMPELLER DRIVE	1
30	8M0214992	键@5	KEY @5	1
31	96411	螺钉(#14-8×2.25)水泵	SCREW (#14-8 x 2.25) WATER PUMP	1
31	8M0215009	螺钉	SCREW	1
32	29245	垫圈(0.281×0.500×0.060)不锈钢水泵螺钉与螺柱	WASHER (.281 x .500 x .060) Stainless Steel WATER PUMP SCREW AND STUD	2
32	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
33	13438	螺母(0.250-28)水泵螺柱	NUT (.250-28) WATER PUMP STUD	2
33	8267119	螺母(.250-28)	NUT (.250-28)	2
34	36001	水泵螺柱垫圈	WASHER WATER PUMP STUD	1
35	13436	水泵螺柱螺母	NUT WATER PUMP STUD	1
36	30271	传动轴橡胶环	RING Rubber DRIVESHAFT	1
36	8M0214918	环@5	RING @5	1
37	29804	进水管导向套	SLEEVE GUIDE - WATER INLET TUBE	1
37	29804T	套筒	SLEEVE	1
38	78902	换挡轴-下部	SHAFT SHIFT - LOWER	1
38	789022	换档轴	SHIFT SHAFT	1
39	29641	换挡轴E型挡圈	E RING RETIANING - SHIFT SHAFT	1
40	78907	挡圈	RING Retaining	1
41	25439		O-RING (.862 x .103) SHIFT SHAFT BUSHING	1
42	77631A2	换挡轴衬套总成	BUSHING ASSEMBLY SHIFT SHAFT	1
43	76384	换挡轴衬套油封	SEAL Oil SHIFT SHAFT BUSHING	1
43	8M0246145	油封	OIL SEAL	1
44	77674		WASHER (.35 x .75 x .12) RUBBER - SHIFT SHAFT BUSHING	1
45	79953		SCREW (.375-16 x .250) GREASE FILLER	1
45	79953Q04	放油螺钉套件	SCREW KIT Drain	1
46	67892		SCREW Magnetic DRAIN	1
46	8M0058389	放油螺钉套件	SCREW KIT Drain	1
47	19183	纤维垫圈-润滑脂加注与排放螺钉	WASHER Fiber GREASE FILLER AND DRAIN SCREW	2
47	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
-	42579A4	水泵修理包	REBUILD KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1

图 47排气歧管与排气板 Exhaust Manifold and Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	904841	分隔板衬垫	GASKET DIVIDER PLATE	2
2	99169A1	分隔板	PLATE DIVIDER	1
3	69668	分隔板密封件	SEAL DIVIDER PLATE	1
3	814754	密封件(12.50英寸)	SEAL (12.50 Inches)	1
4	193071	排气歧管盖	COVER EXHAUST MANIFOLD	1
5	74824	螺钉（0.312-18 x 1.250）盖和板至气缸体	SCREW (.312-18 x 1.250) COVER AND PLATE TO CYLINDER BLOCK	21
6	194373	接线板（3端子）	TERMINAL BLOCK (3 TERMIALS)	1
7	13716	零件手册 7.5/9.8马力接线板	PARTS MANUAL 7.5 /9.8 H.P. TERMIAL BL0CK	2
8	29245	垫圈（0.281 x 0.500 x 0.060）不锈钢接线板螺钉	WASHER (.281 x .500 x .060) Stainless Steel TERMIMAL BLOCK SCREW	2
8	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
9	45076	端子排黄铜螺母(#10-32)	NUT (#10-32) Brass TERMINAL BLOCK	3
10	813938	盖螺母（#10-32）接线板	CAP NUT (#10-32) TERMINAL BLOCK	3
11	74824	缸体盖板螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250) COVER TO CYLINDER BLOCK	4
12	69570	膜片至板件螺钉(#10-16 x .750)	SCREW (#10-16 x .750) DIAPHRAGM TO PLATE	1
13	76451	膜片螺钉垫片	WASHER DIAPHRAGM SCREW	1
14	14479	隔膜	DIAPHRAGM	1
14	144791	隔膜	DIAPHRAGM	1
15	16496	导水板	DEFLECTOR Water	1
16	16497A1	安全阀板	PLATE RELIEF VALVE	1
17	78690	安全阀板衬垫	GASKET RELIEF VALVE PLATE	2
17	78690002	衬垫	GASKET	2
18	64878	弹簧（黑色）压缩弹出阀	SPRING (Black) COMPERSSION POPPER VALVE	1
19	85303	提升阀弹簧垫片	WASHER POPPET SPRING	1
20	14480	提升阀	POPPET VALVE	1
21	64872	提升阀衬套	GROMMET POPPET VALVE	1
22	65848	提升阀座	CARRIER POPPET VALVE	1
23	991763	排气板衬垫	GASKET EXHAUST PLATE	1
23	991764	衬垫	GASKET	1
24	41944A5	排气板总成	PLATE ASSEMBLY EXHAUST	1
25	99664	排气板弯头	ELBOW EXHAUST PLATE	1
25	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
26	20033	排气板定位销	PIN Dowel LOCATING - EXHAUST PLATE	2
26	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
27	183982	排气板密封件	SEAL EXHAUST PLATE	1
27	8M0043165	密封件-27.00英寸	SEAL-27.00 INCH	1
28	680101	密封件固定支架	BRACKET SEAL RETAINING	1
29	812832	支架至排气板螺钉(#10-16 x .500)	SCREW (#10-16 x .500) BRACKET TO EXHAUST PLATE	6
29	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	6
30	25970	动力头螺柱垫圈	WASHER POWERHEAD STUD	6
30	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	6
31	69254	螺母动力头螺柱	NUT POWWERHEAD STUD	6
32	27132	排气板衬套	BUSHING EXHAUST PLATE	1
33	19564	护孔环	GROMMET	1
33	8M0179867	护孔环	GROMMET	1
34	12602	排气板衬套	GROMMET EXHAUST PLATE	1
34	12602002	护孔环	GROMMET	1
35	66727	螺钉(.312-18 x 1.250)排气板固定	SCREW (.312-18 x 1.250) EXHAUST PLATE ATTACHING	1
36	68783	螺钉(.312-18 x 2.50)排气板固定	SCREW (.312-18 x 2.50) EXHAUST PLATE ATTACHING	1
37	66725	螺钉(.375-16 x 3.50)排气板固定	SCREW (.375-16 x 3.50) EXHAUST PLATE ATTACHING	3
37	898833	螺钉(.375-16 x 3.500)	SCREW (.375-16 x 3.500)	3
38	812905A2	前支架总成	BRACKET ASSEMBLY FRONT	1
38	812905T	前支架	BRACKET Front	1
39	90285	螺钉（0.312-18 x 0.625）前支架	SCREW (.312-18 x .625) FRONT BRAKET	4
40	187031	垫圈	WASHER	4
41	18778	护孔环	GROMMET	4
41	18778001	护孔环	GROMMET	4
42	18578A3	后支架总成	BRACKET ASSEMBLY Rear REAR	1
42	18578T09	支架总成(后部)	BRACKET ASSEMBLY Rear	1
43	14462A1	安全阀盖(旧设计)	COVER RELIEF VALVE (OLD DESIGN)	1
43	68729	泄压阀盖（新设计）	COVER RELIEF VALVE (NEW DESIGN)	1
43	8M0039767	盖板	COVER	1
44	92007	接头（0.250-18）（90度）（新设计）	FITTING (.250-18) (90 DEGREES) (NEW DESIGN)	1
44	920071	90度弯头	FITTING (90 Degree)	1
45	99127109	管路（57.00英寸散装）（新设计）	LINE (57.00 Inches Bulk) (NEW DESIGN)	1
45	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
46	90077	扎带（新设计）	TIE STRAP (NEW DESIGN)	2
46	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
47	814430	接头（0.500-14）（新设计）	FITTING (.500-14) (NEW DESIGN)	1
47	8144301	接头	FITTING	1
-	14697A87	衬垫套件	GASKET SET	1

图 48簧片阀组与气缸盖 REED BLOCK AND CYLINDER HEAD

REF	零件编号	中文名称	英文名称	数量
1	15221A2	气缸盖总成	CYLINDER HEAD ASSEMBLY	2
2	41246	气缸盖衬垫	GASKET CYLINDER HEAD	2
2	41247T01	衬垫	GASKET	2
3	98534	螺钉 (0.375-16 x 2.30) 气缸盖（2英寸）	SCREW (.375-16 x 2.30) CYLINDER HEAD (2")	23
3	13450	螺钉 (0.375-16 x 2.30) 气缸盖（专用）	SCREW (.375-16 x 2.30) CYLINDER HEAD (SPECIAL)	1
4	25909	气缸盖螺钉垫圈 (.406 x .812 x .065)	WASHER (.406 x .812 x .065) CYLINDER HEAD SCREW	24
5	75692	节温器	THERMOSTAT	2
6	62386	节温器衬垫	GASKET THERMOSTAT	2
6	8M0204714	衬垫@4	GASKET @4	2
7	90390A1	节温器盖套件	COVER KIT THERMOSTAT	2
8	35386	螺钉 (0.312-18 x 1.00) 节温器盖（1英寸）	SCREW (.312-18 x 1.00) THERMOSTAT COVER (1")	4
9	68727	90度黄铜弯头接头 (.250-18)（水管用）	FITTING (.250-18) 90 Degree - Brass ELBOW - WATER HOSES	1
9	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
10	7765377	配水软管（散装24.500英寸）	HOSE (24.500 Inches Bulk) WATER DISTRIBUTION	2
10	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	2
11	68728	节温器盖至水管接头	FITTING THERMOSTAT COVER TO WATER HOSES	1
12	90077	水管束带	TIE STRAP WATER HOSES	AR
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
13	97465	温度传感器（右舷）	SENDER Temperature (STARBOARD)	1
13	13536A6	温度传感器总成（左舷）	SENSOR ASSEMBLY Temperature (PORT)	1
14	13715	传感器固定座	RETAINER SENSOR AND SENDER	2
14	137151	固定座	RETAINER	2
15	98257	螺钉 (0.312-18 x 0.500) 固定座	SCREW (.312-18 x .500) RETAINER	2
16	13192	爆震传感器	SENSOR Detonation	1
16	825164A1	爆震传感器总成	SENSOR ASSEMBLY Detonation	1
17	45076	螺母 (#10-32) 黄铜爆震传感器	NUT (#10-32) Brass DETONATION SENSOR	1
18	14593A4	适配板总成	ADAPTER PLATE ASSEMBLY	1
19	28668	螺钉 (0.250-20 x 0.875) 不锈钢适配板	SCREW (.250-20 x .875) Stainless Steel ADAPTOR PLATE	8
20	146971	适配板垫片	GASKET ADAPTOR PLATE	1
21	75953	簧片阀组	REED BLOCK	6
22	75362A1	簧片组件	REED ASSEMBLY	6
23	96183	簧片夹	CLAMP Reed	12
23	961832	簧片夹	CLAMP Reed	12
24	14783	螺钉 (#8-32 x 0.187) 簧片至簧片座	SCREW (#8-32 x .187) REEDS TO REED BLOCK	60
24	823588	螺钉 (#8-32 x .250)	SCREW (#8-32 x .250)	60
25	21558	螺钉 (0.250-20 x 0.75) 簧片座固定（3/4英寸）	SCREW (.250-20 x .75) REED BLOCK ATTACHING (3/4")	6
25	92160	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	6
26	90197	螺钉 (0.250-20 x 1.125) 簧片座固定（2英寸）	SCREW (.250-20 x 1.125) REED BLOCK ATTACHING (2")	6
27	167371	适配板垫片	GASKET ADAPTOR PLATE	1
-	14697A87	衬垫套件	GASKET SET

图 49点火线圈/电压调节器 Ignition Coil/Voltage Regulator

REF	零件编号	中文名称	英文名称	数量
1	195871	安装板	PLATE MOUNTING	1
2	30720	电压调节器螺钉(.250-20 x 2.25)	SCREW (.250-20 x 2.25) VOLTAGE REGULATOR	4
3	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
4	19661	衬套	BUSHING	4
5	18736A15	电压调节器总成	REGULATOR ASSEMBLY Voltage	1
5	18736A21	调节器总成	REGULATOR ASSY	1
6	18717	密封件	SEAL	1
7	96158	启动电磁阀	SOLENOID Starter	2
7	8M0185622	电磁阀	SOLENOID	2
8	90192	螺钉 (.250-20 x .750) 不锈钢启动电磁阀	SCREW (.250-20 x .750) Stainless Steel STARTER SOLENOID	3
9	88807A6	线束总成 (3.50英寸) 黑色 (3-1/2" - BLACK)	CABLE ASSEMBLY (3.50 Inches) Black (3-1/2" - BLACK)	1
10	56374	电磁阀螺钉螺母(.250-20)	NUT (.250-20) SOLENOID SCREW	3
10	8267098	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	3
11	26419	螺母 (#8-32) 黄铜电磁阀端子 (8-32)	NUT (#8-32) Brass SOLENOID TERMINAL (8-32)	4
12	94330	螺母 (.250-20) 黄铜电磁阀端子 (1/4-20)	NUT (.250-20) Brass SOLENOID TERMINAL (1/4-20)	4
13	97861	绝缘体启动电磁阀 (旧设计)	INSULATOR STARTER SOLENOID (OLD DESIGN)	2
14	87379A14	电线总成 (2.750英寸) (2-3/4" - RED)	WIRE ASSEMBLY (2.750 Inches) (2-3/4" - RED)	1
14	88807A8	线束总成 (3.50英寸) 黑色 (3-1/2" - BLACK)	CABLE ASSEMBLY (3.50 Inches) Black (3-1/2" - BLACK)	2
15	88807A29	电缆总成(9英寸-黑色)	CABLE ASSEMBLY (9" - BLACK)	1
16	90077	扎带	TIE STRAP	AR
16	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
17	43542	点火线圈盖	COVER IGNITION COIL	2
18	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	6
18	8M0230859	点火线圈总成	COIL IGNITION ASY	6
19	90048	点火线圈盖螺钉(#10-32 x 2.125)	SCREW (#10-32 x 2.125) IGNITION COIL COVER	8
20	90078	盖板螺钉/接地线螺母(#10-32)	NUT (#10-32) COVER SCREW/GROUND WIRE	14
21	813715A9	高压点火线束套件	CABLE KIT Ignition HIGH TENSION	1
22	63709A1	高压电缆护套/端子套件	BOOT/TERMINAL KIT HIGH TENSION CABLE	6
23	14103568	火花塞	SPARK PLUG	6
23	896329885	SP #L6VC @4	SP #L6VC @4	6
24	45076	螺母(#10-32)黄铜点火线圈端子	NUT (#10-32) Brass IGNITION COIL TERMINAL	12
25	88807A13	线束总成 (5-1/2" - BLACK)	CABLE ASSEMBLY (5-1/2" - BLACK)	6
26	69022		SCREW (#10-32 x .500) Stainless Steel GROUNDING WIRE	2
27	69739A7	线圈至开关盒线束总成	HARNESS ASSEMBLY COIL TO SWITCH BOX	1
28	54676	双线固定夹	RETAINER Two Wire	2
29	814423T	线圈板盖	COVER COIL PLATE	1
30	814343	螺钉 (#10-32 x 2.380)	SCREW (#10-32 x 2.380)	4

图 50顶罩及前护板 Top Cowl and Front Shield

REF	零件编号	中文名称	英文名称	数量
-	15132	徽标（3英寸）	EMBLEM (3")	1
-	151321	徽标（6英寸）	EMBLEM (6")	2
1	9742A61	顶盖总成	TOP COWL ASSEMBLY	1
1	9742T92	顶盖总成-黑色	TOP COWL ASY-BLK	1
1	9742A19	顶罩总成（纪念版）	TOP COWL ASSEMBLY (ANNIVERSARY MODEL)	1
1	9742T90	顶盖总成-黑色	TOP COWL ASY-BLK	1
2	812784	密封件	SEAL	1
3	815478	密封件	SEAL	1
4	815225	隔音垫(侧)	SOUND BLANKET (SIDE)	2
5	815226	隔音垫(顶)	SOUND BLANKET (TOP)	1
5A	815227	隔音毯（前部）	SOUND BLANKET (FRONT)	1
6	17196A1	进气口护罩（纪念版）	SHIELD AIR INLET (ANNIVERSARY MODEL)	2
7	11316	快速螺母（纪念版）	SPEED NUT (ANNIVERSARY MODEL)	12
8	17238	进气口密封（纪念版）	SEAL AIR INLET (ANNIVERSARY MODEL)	4
9	17194	进气口护罩（左舷）（纪念版）	SHIELD AIR INLET (PORT) (ANNIVERSARY MODEL)	1
9	17195	进气口护罩（右舷）（纪念版）	SHIELD AIR INLET (STARBOARD) (ANNIVERSARY MODEL)	1
10	184741	后支架	BRACKET REAR	2
11	18506	护孔环	GROMMET	3
11	18506001	护孔环	GROMMET	3
12	28636	螺钉(.250-20 x .750) 后支架	SCREW (.250-20 x .750) REAR BRACKET	12
13	26992	锁紧垫圈(.250)不锈钢后支架螺钉	LOCKWASHER (.250) Stainless Steel REAR BRACKET SCREW	10
14	813096	挂钩	HOOK	2
14	813096A2	挂钩套件	HOOK KIT	2
15	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	2
16	813074	滚轮	ROLLER	2
16	8M0207770	滚轮@3	ROLLER @3	2
17	13194	挡圈	RING Retaining	2
18	813553	安装板	PLATE	1
18	56720	垫圈(0.330×0.750×0.060)不锈钢	WASHER (.330 x .750 x .060) Stainless Steel	1
19	187021	定位器	LOCATOR	1
20	18173	锁扣滚轮支架总成	BRACKET ASSEMBLY Latch Roller	1
20	893763	滚轮锁扣支架	BRACKET Roller Latch	1
21	813552	隔套	SPACER	1
21	813076A2	手柄套件	HANDLE KIT	1
22	31984	螺钉(0.312-18×1.375)	SCREW (.312-18 x 1.375)	2
23	815848	螺母 (.312)	NUT (.312)	2
24	47341A1	手动/应急启动绳和手柄套件 (用于手动启动)	ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING)	1
24	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
25	18755A1	前护罩总成	FRONT SHIELD ASSEMBLY	1
26	813562	密封件	SEAL	1
27	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	4
28	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	4
28	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	4
29	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
29	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2
-	813096A1	后锁扣套件	REAR LATCH KIT	1

图 51钥匙开关总成 Key Switch Assembly

REF	零件编号	中文名称	英文名称	数量
1	816626A20	钥匙开关线束总成(20英尺)	HARNESS ASSEMBLY Key Switch (20.00 Feet)	1
2	90468A1	钥匙盖总成	COVER ASSEMBLY Key	2
3	76424	支架	BRACKET	1
4	55422	双头螺柱 (#10-32 x 2.00)	STUD (#10-32 x 2.00)	2
5	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	2
6	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
7	816479A3	板组件套件	PLATE KIT	2
8	88107A5	钥匙开关套件	SWITCH KIT Key	1
9	879755	特殊螺母-黑色尼龙	NUT Special - Black Nylon	1
10	816492A1	音响报警器总成	ALARM ASSEMBLY Audio Warning	1
10	8M0210763	报警器	ALARM	1
11	8127111	垫片(0.375)	SPACER (.375)	2
11	812711	隔套(0.250)	SPACER (.250)	2
-	894911	点火钥匙(1A)	KEY Ignition (1A)	1
-	894912	点火钥匙(1B)	KEY Ignition (1B)	1
-	894913	点火钥匙(1C)	KEY Ignition (1C)	1
-	894914	点火钥匙(1D)	KEY Ignition (1D)	1
-	894915	点火钥匙(1E)	KEY Ignition (1E)	1
-	894916	点火钥匙(1F)	KEY Ignition (1F)	1
-	894917	点火钥匙(2A)	KEY Ignition (2A)	1
-	894918	点火钥匙(2B)	KEY Ignition (2B)	1
-	894919	点火钥匙(2C)	KEY Ignition (2C)	1
-	8949110	点火钥匙(2D)	KEY Ignition (2D)	1
-	8949111	点火钥匙(2E)	KEY Ignition (2E)	1
-	8949112	点火钥匙(2F)	KEY Ignition (2F)	1

图 52排气歧管与排气板 EXHAUST MANIFOLD AND EXHAUST PLATE

REF	零件编号	中文名称	英文名称	数量
1	904841	分隔板衬垫	GASKET DIVIDER PLATE	2
2	99169A1	分隔板	PLATE DIVIDER	1
3	69668	分隔板密封件	SEAL DIVIDER PLATE	1
3	814754	密封件(12.50英寸)	SEAL (12.50 Inches)	1
4	193071	排气歧管盖	COVER EXHAUST MANIFOLD	1
5	74824	螺钉（0.312-18 x 1.250）盖和板至气缸体	SCREW (.312-18 x 1.250) COVER AND PLATE TO CYLINDER BLOCK	21
6	194373	接线板（3端子）	TERMINAL BLOCK (3 TERMIALS)	1
7	13716	零件手册 7.5/9.8马力接线板	PARTS MANUAL 7.5 /9.8 H.P. TERMIAL BL0CK	2
8	29245	垫圈（0.281 x 0.500 x 0.060）不锈钢接线板螺钉	WASHER (.281 x .500 x .060) Stainless Steel TERMIMAL BLOCK SCREW	2
8	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
9	45076	端子排黄铜螺母(#10-32)	NUT (#10-32) Brass TERMINAL BLOCK	3
10	813938	盖螺母（#10-32）接线板	CAP NUT (#10-32) TERMINAL BLOCK	3
11	74824	缸体盖板螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250) COVER TO CYLINDER BLOCK	4
12	69570	膜片至板件螺钉(#10-16 x .750)	SCREW (#10-16 x .750) DIAPHRAGM TO PLATE	1
13	76451	膜片螺钉垫片	WASHER DIAPHRAGM SCREW	1
14	14479	隔膜	DIAPHRAGM	1
14	144791	隔膜	DIAPHRAGM	1
15	16496	导水板	DEFLECTOR Water	1
16	16497A1	安全阀板	PLATE RELIEF VALVE	1
17	78690	安全阀板衬垫	GASKET RELIEF VALVE PLATE	2
17	78690002	衬垫	GASKET	2
18	64878	弹簧（黑色）压缩弹出阀	SPRING (Black) COMPERSSION POPPER VALVE	1
19	85303	提升阀弹簧垫片	WASHER POPPET SPRING	1
20	14480	提升阀	POPPET VALVE	1
21	64872	提升阀衬套	GROMMET POPPET VALVE	1
22	65848	提升阀座	CARRIER POPPET VALVE	1
23	991763	排气板衬垫	GASKET EXHAUST PLATE	1
23	991764	衬垫	GASKET	1
24	41944A5	排气板总成	PLATE ASSEMBLY EXHAUST	1
25	99664	排气板弯头	ELBOW EXHAUST PLATE	1
25	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
26	20033	排气板定位销	PIN Dowel LOCATING - EXHAUST PLATE	2
26	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
27	183982	排气板密封件	SEAL EXHAUST PLATE	1
27	8M0043165	密封件-27.00英寸	SEAL-27.00 INCH	1
28	680101	密封件固定支架	BRACKET SEAL RETAINING	1
29	812832	支架至排气板螺钉(#10-16 x .500)	SCREW (#10-16 x .500) BRACKET TO EXHAUST PLATE	6
29	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	6
30	25970	动力头螺柱垫圈	WASHER POWERHEAD STUD	6
30	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	6
31	69254	螺母动力头螺柱	NUT POWWERHEAD STUD	6
32	27132	排气板衬套	BUSHING EXHAUST PLATE	1
33	19564	护孔环	GROMMET	1
33	8M0179867	护孔环	GROMMET	1
34	12602	排气板衬套	GROMMET EXHAUST PLATE	1
34	12602002	护孔环	GROMMET	1
35	66727	螺钉(.312-18 x 1.250)排气板固定	SCREW (.312-18 x 1.250) EXHAUST PLATE ATTACHING	1
36	68783	螺钉(.312-18 x 2.50)排气板固定	SCREW (.312-18 x 2.50) EXHAUST PLATE ATTACHING	1
37	66725	螺钉(.375-16 x 3.50)排气板固定	SCREW (.375-16 x 3.50) EXHAUST PLATE ATTACHING	3
37	898833	螺钉(.375-16 x 3.500)	SCREW (.375-16 x 3.500)	3
38	812905A2	前支架总成	BRACKET ASSEMBLY FRONT	1
38	812905T	前支架	BRACKET Front	1
39	90285	螺钉（0.312-18 x 0.625）前支架	SCREW (.312-18 x .625) FRONT BRAKET	4
40	187031	垫圈	WASHER	4
41	18778	护孔环	GROMMET	4
41	18778001	护孔环	GROMMET	4
42	18578A3	后支架总成	BRACKET ASSEMBLY Rear REAR	1
42	18578T09	支架总成(后部)	BRACKET ASSEMBLY Rear	1
43	14462A1	安全阀盖(旧设计)	COVER RELIEF VALVE (OLD DESIGN)	1
43	68729	泄压阀盖（新设计）	COVER RELIEF VALVE (NEW DESIGN)	1
43	8M0039767	盖板	COVER	1
44	92007	接头（0.250-18）（90度）（新设计）	FITTING (.250-18) (90 DEGREES) (NEW DESIGN)	1
44	920071	90度弯头	FITTING (90 Degree)	1
45	99127109	管路（57.00英寸散装）（新设计）	LINE (57.00 Inches Bulk) (NEW DESIGN)	1
45	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
46	90077	扎带（新设计）	TIE STRAP (NEW DESIGN)	2
46	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
47	814430	接头（0.500-14）（新设计）	FITTING (.500-14) (NEW DESIGN)	1
47	8144301	接头	FITTING	1
-	14697A87	衬垫套件	GASKET SET	1

图 53转速表、配平表、温度表 TACHOMETER, TRIM GAUGE, TEMPERATURE GAUGE

REF	零件编号	中文名称	英文名称	数量
1	15110A1	转速表	TACHOMETER	1
2	79101	安装支架	BRACKET MOUNTING	1
2	79101T	支架	BRACKET	1
3	72729	楔形底座灯泡(14V - 1.9W)	LIGHT BULB Wedge Base (14V - 1.9W)	1
4	79888	灯泡插座	SOCKET Light Bulb	1
5	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	5
6	86322A7	电缆总成(1.50英尺)黑色微调表	CABLE ASSEMBLY (1.50 Feet) Black TRIM GAUGE	1
6	86323A5	电缆总成(1.50英尺)紫色微调表	CABLE ASSEMBLY (1.50 Feet) Purple TRIM GAUGE	1
7	15113A4	配平表	TRIM GAUGE	1
7	895292Q41	动力升降倾斜指示器黑面橙白刻度黑边框	GAUGE Power Trim Indicator, Black Face, Orange/White Graduations, Black Bezel	1
8	79480	安装支架-微调表	BRACKET MOUNTING - TRIM GAUGE	1
9	72729	灯泡楔形底座(14V-1.9W)微调表	LIGHT BULB Wedge Base (14V - 1.9W) TRIM GAUGE	1
10	79888	灯泡插座微调表	SOCKET Light Bulb TRIM GAUGE	1
11	26419	螺母(#8-32)黄铜微调表端子	NUT (#8-32) Brass TRIM GAUGE TERMINAL	5
12	26427	调整垫片（仪表端子）	WASHER TRIM GAUGE TERMINAL	2
13	86396A8	转速表线束总成(5.00英尺)	HARNESS ASSEMBLY Tachometer (5.00 Feet)	1
14	15166A1	温度表	TEMPERATURE GAUGE	1
14	895287Q41	水温表套件(100-240℉)黑面橙白刻度黑框	WATER TEMPERATURE GAUGE KIT (100-240 F) Black Face, Orange/White Graduations, Black Bezel	1
15	72729	楔形底座灯泡(14V - 1.9W)	LIGHT BULB Wedge Base (14V - 1.9W)	1
16	79888	灯泡插座	SOCKET Light Bulb	1
17	26427	垫圈	WASHER	2
18	79480	支架	BRACKET	1
19	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	5
20	86323A2	电缆总成(2英尺)紫色	CABLE ASSEMBLY (2.00 Feet) Purple	1
20	61600A16	电缆总成(17英寸)黑色	CABLE ASSEMBLY (17.00 Inches) Black	1
20	88824A4	电缆总成(45英寸)棕褐色	CABLE ASSEMBLY (45.00 Inches) Tan	1

图 54转向安装套件（XR4/ Magnum II） Steering Attaching Kit (XR4/ Magnum II)

REF	零件编号	中文名称	英文名称	数量
-	92876A3	转向安装包 (单)	ATTACHING KIT Steering (SINGLE)	1
1	41055	转向管支架	MOUNT STEERING TUBE	1
2	88319	转向连杆联轴器	COUPLING STEERING LINK	1
2	850791T	联轴器	COUPLER	1
3	73732	螺钉(0.375-24×1.120)联轴器	SCREW (.375-24 x 1.120) COUPLING	2
4	34863	螺母(0.375-24)联轴器螺钉	NUT (.375-24) COUPLING SCREW	3
4	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	3
5	59702	螺钉(0.250-28×0.875)不锈钢支架固定	SCREW (.250-28 x .875) Stainless Steel MOUNT ATTACHING	4
6	88404	锁紧垫圈-支架螺钉	TAB WASHER MOUNT SCREW	2
7	71565	转向电缆导管	TUBE Cable Guide STEERING	1
8	37984	螺母(0.875-14)转向管	NUT (.875-14) STEERING TUBE	2
8	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
9	42100	锁紧垫圈-转向管螺母	TAB WASHER STEERING TUBE NUT	2
10	78862A2	密封套件	SEAL KIT	1
10	19624A1	密封套件	SEAL KIT	1
11	42101	隔套	SPACER	2

图 55罩壳与前盖 COWLS AND FRONT COVER

REF	零件编号	中文名称	英文名称	数量
1	7620A4	顶部罩壳总成左舷（黑色）	TOP COWL ASSEMBLY PORT (BLACK)	1
1	7620A22	顶部罩壳总成左舷（灰色）	TOP COWL ASSEMBLY PORT (GRAY)	1
1	9447A18	顶罩总成左舷(牡蛎色)	TOP COWL ASSEMBLY PORT (OYSTER)	1
2	67260	控制电缆密封件	SEAL CONTROL CABLE	1
3	67258	罩垫总成至前盖	PAD COWL ASSEMBLY TO FRONT COVER	1
4	88227	隔音毯-罩	BLANKET SOUND - COWL	1
4A	193681	密封件(3.20英寸)左舷罩(牡蛎色)	SEAL (3.20 Inch) PORT COWL (OYSTER)	1
5	87987	罩安装支架-(上)	BRACKET COWL ATTACHING - (UPPER)	2
5	879871	支架	BRACKET	2
6	87985	罩安装支架-(下)	BRACKET COWL ATTACHING - (LOWER)	2
6	879851	支架	BRACKET	2
7	37562	螺丝(.312-18 x 1.00)不锈钢上下支架	SCREW (.312-18 x 1.00) Stainless Steel UPPER AND LOWER BRACKETS	8
8	68049	进气罩-右舷	SHIELD INLET -COWL (STARBOARD)	1
8	68048	进气罩-左舷(黑/灰)	SHIELD INLET - COWL (PORT) (BLACK/GRAY)	1
8	680491	进气罩-右舷(牡蛎色)	SHIELD INLET - COWL (STARBOARD) - (OYSTER)	1
8	680481	进气罩-左舷(牡蛎色)	SHIELD INLET - COWL (PORT) (OYSTER)	1
9	48409	螺丝(#10-16 x .625)不锈钢罩至护罩	SCREW (#10-16 x .625) Stainless Steel SHIELD TO COWL	4
10	7619A1	顶罩总成右舷(黑色)	TOP COWL ASSEMBLY STARBOARD (BLACK)	1
10	7619A5	顶罩总成右舷(灰色)	TOP COWL ASSEMBLY STARBOARD (GRAY)	1
10	9452A3	顶罩总成右舷(牡蛎色)	TOP COWL ASSEMBLY STARBOARD (OYSTER)	1
11	88227	隔音毯-罩	BLANKET SOUND - COWL	1
12	67260	线束密封件	SEAL HARNESS	1
12A	193681	密封件(3.20英寸)右舷罩(牡蛎色)	SEAL (3.20 Inch) STARBOARD COWL (OYSTER)	1
13	62628	保持筒-罩锁扣	BARREL RETAINING - COWL LATCH	2
14	46785A5	罩壳锁扣总成	LATCH ASSEMBLY Cowl	2
15	31312	螺丝(#10-32 x 0.875)筒至罩锁扣	SCREW (#10-32 x 0.875) BARREL TO COWL LATCH	2
16	15222	调节杆-罩锁扣	BAR ADJUSTING - COWL LATCH	2
17	62629	罩锁扣保持筒	BARREL RETAINING COWL LATCH	2
18	62624	罩壳锁扣弹簧	SPRING COWL LATCH	2
19	30164	垫圈(.192 x .375 x .0312)不锈钢弹簧至调节杆	WASHER (.192 x .375 x .0312) Stainless Steel SPRING TO ADJUSTING BAR	2
20	45812	螺母(#10-32)不锈钢弹簧至调节杆	NUT (#10-32) Stainless Steel SPRING TO ADUSTING BAR	2
20	859124	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
21	7532A2	前罩总成(黑色)	COVER ASSEMBLY Cowl - Front (BLACK)	1
21	7532A23	前罩总成(灰色)	COVER ASSEMBLY Cowl - Front (GRAY)	1
21	7532A32	前罩总成(牡蛎色)	COVER ASSEMBLY Cowl - Front (OYSTER)	1
21	7532A23	前罩总成	COVER ASSEMBLY Cowl - Front	1
22	67615	隔音毯-前罩盖	BLANKET SOUND - COWL FRONT COVER	1
23	87907	前罩盖挂钩	HOOK COWL FRONT COVER	1
24	70332	螺丝(#10-16 x .500)挂钩至前罩盖	SCREW (#10-16 x .500) HOOK TO COWL FRONT COVER	1
24	95700	螺钉(#10-16 x .50)	SCREW (#10-16 x .50)	1
25	47341A1	手动/应急启动绳柄套件	ROPE AND HANDLE KIT Manual/Emergency Start	1
25	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1

图 56燃油泵 Fuel Pump

REF	零件编号	中文名称	英文名称	数量
1	880890T1	燃油泵	PUMP Fuel	1
2	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
3	881544	弹簧	SPRING	1
4	881545	柱塞	PLUNGER	1
5	881546	弹簧	SPRING	1
6	881547	隔膜	DIAPHRAGM	1
7	881548	销	PIN	1
8	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
9	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
10	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
11	881550	螺钉	SCREW	3
12	881333	螺母	NUT	3
13	804255	O型圈	O-RING	1
13	8M0050719	O型圈	O-RING	1
14	879650	卡箍	CLAMP	2
14	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	2
15	804256	螺栓 (M6 x 30)	BOLT (M6 x 30)	2
16	881543	软管	HOSE	1
16	881543002	油管	TUBING	1
17	881542	支架	BRACKET	1
18	8527768	螺栓(M6 x 16)	BOLT (M6 x 16)	1
18	811188T	螺栓	BOLT	1
19	8528161	螺母	NUT	1
19	82382M	螺母	NUT	1
20	881538T1	滤清器总成	FILTER ASSEMBLY	1
20	881538T02	燃油滤清器总成	FILTER ASSY-FUEL	1
21	881540	滤芯1.75英寸	ELEMENT 1.75 Inches	1
21	8M0168897	燃油滤清器	FUEL FILTER	1
21	8M0101436	滤芯1.50英寸	ELEMENT 1.50 Inches	1
21	8M0117705	燃油滤清器	FILTER-FUEL	1
22	826966M	O型圈	O-RING	1
22	826966T	O型圈	O RING	1
23	881541	浮子	FLOAT	1
24	881539	杯套	CUP	1
24	8M0101437	杯套	CUP	1
24	8M0137185	燃油杯	CUP FUEL	1
25	879650	卡箍	CLAMP	2
25	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	2
26	804260	支架	BRACKET	1
27	804112	螺栓(M7 x 48)	BOLT (M7 x 48)	2
28	804113	定位销	PIN Dowel	2
29	84292M	垫圈	WASHER	2
30	804257	燃油转换杆	LEVER Fuel Change	1
31	881334	轴	SHAFT	1
32	804259	销	PIN	2
32	82738M	滚销	PIN-ROLL	2
33	830757130	管材(.312)(70英寸整卷)裁切至55英寸长度	TUBING (.312) (70.00 Inches Bulk) Cut to 55.00 Inch Length.	1
33	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
34	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
35	822769	连接器	CONNECTOR	1
36	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
37	828547T1	导管(.500内径 x 3英尺整卷)	CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk)	1
-	858732T01	衬垫套件	GASKET SET	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	881310T1	气缸盖总成	CYLINDER HEAD ASSEMBLY	1
-	881310T09	气缸盖	HEAD-CYLINDER	1

图 57阻风门板及油门杆 Choke Plate and Throttle Levers

REF	零件编号	中文名称	英文名称	数量
1	67245T	上罩安装支架	BRACKET COWL MOUNTING - UPPER	1
2	67272	罩壳安装支架衬套	GROMMET COWL MOUNTING BRACKET	2
3	90435	罩壳安装支架(黑/灰)	MOUNT COWL MOUNTING BRACKET BLACK/GRAY	2
4	29245	安装垫圈(0.281×0.500×0.060)不锈钢	WASHER (.281 x .500 x .060) Stainless Steel MOUNT ATTACHING	4
4	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
5	35888	安装螺母(0.250-28)不锈钢	NUT (.250-28) Stainless Steel MOUNT ATTACHING	4
6	87076A4	怠速控制总成	IDLE SPEED CONTROL ASSEMBLY	1
7	799831	阻风板	PLATE CHOKE	1
8	67274	阻风板至化油器衬垫	GASKET CHOKE PLATE TO CARBURETOR	1
8	672741	衬垫	GASKET	1
9	68000	螺丝(.250-28 x 1.00)阻风板至化油器	SCREW (.250-28 x 1.00) CHOKE PLATE TO CARBURETOR	6
10	20583	阻风板螺丝垫圈	WASHER CHOKE PLATE SCREW	6
11	67275	盖衬垫	GASKET COVER	1
11	672751	衬垫	GASKET	1
12	67246T	进气消音器盖	COVER INDUCTION SILENCER	1
13	30720	螺丝(.250-20 x 2.25)盖至阻风板	SCREW (.250-20 x 2.25) COVER TO CHOKE PLATE	2
14	29245	垫圈(.281 x .500 x .060)不锈钢盖螺丝	WASHER (.281 x .500 x .060) Stainless Steel COVER SCREW	2
14	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	26992	锁紧垫圈(.250)不锈钢盖螺丝	LOCKWASHER (.250) Stainless Steel COVER SCREW	2
16	90585	进气消音器盖塞	PLUG INDUCTION SILENCER COVER	1
17	67760	油门连杆	LINK Throttle	1
18	67759	节气门杆(上)	LEVER Throttle UPPER	1
19	41049	节气门杆(中)	LEVER Throttle CENTER	1
20	67749	下节流阀杆	LEVER Throttle LOWER	1
21	15124	油门杆至油门连杆螺钉(#10-32×0.750)	SCREW (#10-32 x .750) THROTTLE LEVERS TO THROTTLE LINK	3
22	26996	锁紧垫圈(#10)不锈钢节气门杆螺丝	LOCKWASHER (#10) Stainless Steel THROTTLE LEVERS SCREW	3
23	56681	垫圈(.203 x .500 x .032)节气门杆螺丝	WASHER (.203 x .500 x .032) THROTTLE LEVERS SCREW	3
23	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	3
24	67297	U型销节气门杆至节气门连杆	PIN Clevis THROTTLE LEVERS TO THROTTLE LINK	3
25	89302	垫圈(.203 x .406 x .040)U型销	WASHER (.203 x .406 x .040) CLEVIS PIN	3
26	26953	开口销U型销	COTTER PIN CLEVIS PIN	3
27	67748	下节气门杆滚轮	ROLLER LOWER THROTTLE LEVER	1
28	69020	螺丝(#10-32 x .875)怠速控制	SCREW (#10-32 x .875) IDLE SPEED CONTROL	2
28	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	2
29	38833	怠速调节螺钉垫片	WASHER IDLE SPEED CONTROL SCREW	2
-	90484A88	衬垫套件	GASKET SET

图 58旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM

REF	零件编号	中文名称	英文名称	数量
1	818904T1	旋转支架	SWIVEL BRACKET	1
2	87735	下油封	SEAL Oil Lower	1
3	818764	衬套	BUSHING	2
4	33504	O型圈	O-RING	1
4	8M0214926	O型圈 @10	O RING @10	1
5	816039	隔套	SPACER	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
9	99661A26	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	99661A35	旋转销总成	SWIVEL PIN ASSEMBLY	1
10	92876A10	连杆总成	LINK ROD ASSEMBLY	1
10	92876A12	连杆总成	LINK ROD ASSEMBLY	1
11	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
12	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
13	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
14	42961A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
14	42961A06	底部轭架总成	YOKE ASSEMBLY Bottom	1
15	67684	挡圈	RING Retaining	1
16	816432	止推垫片	THRUST WASHER	1
17	NSS	不单独销售贴纸, 序列号覆膜	NOT SOLD SEPARATE Decal, Serial Overlaminate	1
18	11288	下轭缓冲垫	BUMPER Bottom Yoke	1
18	11288001	下轭缓冲垫	BUMPER Bottom Yoke	1
19	88882	上轭缓冲垫	BUMPER Top Yoke	1

图 59艉板支架 Transom Brackets

REF	零件编号	中文名称	英文名称	数量
1	8718A1	艉板支架总成(右舷)	BRACKET ASSEMBLY Transom (STARBOARD)	1
2	8716A5	艉板支架总成(左舷)	BRACKET ASSEMBLY Transom (PORT)	1
2	8716A8	艉板支架总成	BRACKET ASSEMBLY Transom	1
3	98727	润滑配件左舷艉板支架	FITTING Grease PORT TRANSOM BRACKET	1
3	8M0169588	润滑脂接头	FITTING Grease	1
5	99170A1	倾斜管	TILT TUBE	1
5	99170A2	倾斜管套件	TUBE KIT Tilt	1
6	90068T	倾斜管螺母（1英寸-14牙）	NUT TILT TUBE (1"-14)	1
6	859133	螺母(1.00-14)	NUT (1.00-14)	1
7	45711		O-RING (.612 x .103) TILT TUBE	1
8	88750	波形垫圈(1.62 x 1.05)倾斜管	WASHER Wave (1.62 x 1.05) TILT TUBE	2
9	56041	螺母 (.875-14) 倾斜管 (7/9-14)	NUT (.875-14) TILT TUBE (7/9-14)	1
9	858869	螺母 (.875-14)	NUT (.875-14)	1
10	677551	螺钉(.500-20 x 4.500)艉板支架至艉板	SCREW (.500-20 x 4.500) TRANSOM BRACKET TO TRANSOM	4
10	8M0149747	螺钉	SCREW	4
11	28421	垫圈(1.5 x 3.05 x 0.13)不锈钢艉板支架螺栓	WASHER (1.5 x 3.05 x 0.13) Stainless Steel TRANSOM BRACKET BOLT	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	8M0027784	艉板支架螺栓螺母	NUT TRANSOM BRACKET BOLT	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	99629A2	倾斜锁杆总成	LEVER ASSEMBLY TILT LOCK	1
13	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	99611	倾斜杆波形垫圈	WAVE WASHER TILT LEVER	1
15	65830	倾斜杆尼龙衬套	NYLINER TILT LEVER	2
16	99633	倾斜锁杆旋钮	KNOB TILT LOCK LEVER	1
17	99615	槽销	PIN Groove	1
18	99622	弹簧	SPRING	1
19	99604	槽销	PIN Groove	1
20	96930A1	倾斜锁螺栓总成	BOLT ASSEMBLY TILT LOCK	1
21	23161	螺栓螺母（3/8英寸-24牙）	NUT (.375-24) BOLT	1
22	814207	倾斜止动杆	STOP TILT LEVER	1
23	37984	螺母 (.875-14)	NUT (.875-14)	1
23	8M0041651	螺母 (.875-14)	NUT (.875-14)	1
-	14697A87	衬垫套件	GASKET SET

图 60曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS

REF	零件编号	中文名称	英文名称	数量
1	8745A5	曲轴总成(含8个39-67377)	CRANKSHAFT ASSEMBLY (INCLUDES 8 OF 39-67377)	1
2	67923	曲轴下球轴承	BEARING Ball CRANKSHAFT (LOWER)	1
2	67923T	滚珠轴承	BEARING Ball	1
3	67446	球轴承挡圈	RING BALL BEARING	1
4	99727A1	驱动齿轮	GEAR Drive	1
5	54196A6	密封载体总成	CARRIER ASSEMBLY SEAL	1
6	65800	填料载体	PACKING CARRIER	1
7	67377	曲轴密封环(.124厚度)	RING Sealing SEALING - CRANKSHAFT (.124 THICK)	AR
7	67377T	密封环	RING Sealing	AR
7	78633	曲轴密封环(.139厚度)	RING SEALING - CRANKSHAFT (.139 THICK)	AR
8	88903	保持式滚柱轴承	BEARING Roller RETAINED BEARING	2
8	88903T	轴承座圈	RACE Bearing	2
9	67444	保持轴承挡圈	RING Retaining RETAINED BEARING	2
10	67445	保持式滚柱轴承	BEARING Roller RETAINED BEARING	2
8	93495	非保持式滚柱轴承	BEARING Roller LOOSE BEARING	2
8	93495T	滚柱轴承	BEARING Roller	2
9	67444	非保持轴承挡圈	RING Retaining LOOSE BEARING	2
11	7441A3	活塞总成(右舷-标准)	PISTON ASSEMBLY (STARBOARD-STANDARD)	3
11	7441T36	活塞-右舷-标准	PISTON-STBD-STD	3
11	7443A2	活塞总成(右舷-加大0.015)	PISTON ASSEMBLY (STARBOARD - .015 O.S.)	AR
11	7443A12	活塞-右舷-0.015	PISTON-STBD-.015	AR
11	7445A2	活塞总成(右舷-加大0.030)	PISTON ASSEMBLY (STARBOARD-.030 O.S.)	AR
11	7445A12	活塞-右舷-0.030	PISTON-STBD-.030	AR
11	7442A3	活塞总成(左舷-标准)	PISTON ASSEMBLY (PORT-STANDARD)	3
11	7442T36	活塞-左舷-标准	PISTON-PORT-STD	3
11	7444A2	活塞总成(左舷-0.015加大)	PISTON ASSEMBLY (PORT-.015 O.S.)	AR
11	7444A12	活塞-左舷-0.015	PISTON-PORT-.015	AR
11	7446A2	活塞总成(左舷-0.030加大)	PISTON ASSEMBLY (PORT-.030 O.S.)	AR
11	7446T12	活塞-左舷-0.030	PISTON-PORT-.030	AR
12	93481A12	活塞环组-标准(标准)	RING SET Piston - Standard (STANDARD)	1
12	78918A4	活塞环组-0.015加大(0.015加大)	RING SET Piston - .015 Oversize (.015 O.S.)	AR
12	85636A4	活塞环组-0.030加大(0.030加大)	RING SET Piston - .030 Oversize (.030 O.S.)	AR
13	52035	锁环	RING Lock	12
13	857196	锁紧环	LOCK RING	12
14	8119A5	连杆总成	CONNECTING ROD ASSEMBLY	6
14	8119A6	连杆套件	CONN ROD KIT	6
15	93886	螺钉(0.312-28×0.875)连杆	SCREW (.312-28 x .875) CONNECTING ROD	12
16	47247	定位针垫圈	WASHER NEEDLE LOCATING	12
16	8M0032839	垫片@5	WASHER @5	12
17	17514A1	轴承套件	BEARING KIT	6
17	8M0234886	轴承保持架	CAGE BEARING	6
18	67483	活塞端滚针轴承	BEARING Needle PISTON END	174

图 61齿轮箱螺旋桨轴-铸件号1674-814247C Gear Housing Propeller Shaft - Casting # is 1674-814247C

REF	零件编号	中文名称	英文名称	数量
-	814247A3	齿轮箱总成（1.78:1传动比 - 黑色）（完整）	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Black (Complete)	1
-	814247A4	齿轮箱总成（1.78:1传动比 - 灰色）（完整）	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Gray (Complete)	1
-	814247T4	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	814247A1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic - Black	1
1	814247T1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	814247A2	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic - Gray	1
1	814247T2	ORD 1674-814247T1	ORD 1674-814247T1	1
44	76039	换挡凸轮控制	CAM Shift Control	1
44	760394	换挡凸轮控制	CAM Shift Control	1
45	12239A1	凸轮从动件套件	FOLLOWER KIT Cam	1
45	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
46	30622	弹簧	SPRING	1
47	44491A1	垫片组	SHIM SET	AR
47	8M0063266	垫片组	SHIM SET	AR
48	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
49	16279A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
50	30895	滚针轴承	BEARING Needle	1
50	30895T	滚针轴承	BEARING Needle	1
51	814756	离合器	CLUTCH	1
51	822539T	离合器	CLUTCH	1
52	30632	十字销	PIN Cross	1
52	8M0100263	十字销	PIN Cross	1
53	30893	弹簧	SPRING	1
54	12238T	螺旋桨轴	PROPELLER SHAFT	1
55	NSS		NOT SOLD SEPARATE REVERSE GEAR (PART OF 43-16279A2)	1
56	76358	止推垫片	THRUST WASHER	1
57	29976	O型圈	O-RING	1
58	41529A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
58	41529T2	托架总成	CARRIER ASSY	1
59	98727	润滑脂接头	FITTING Grease	2
59	8M0169588	润滑脂接头	FITTING Grease	2
60	30956	滚针轴承	BEARING Needle	1
60	30956T	滚针轴承	BEARING Needle	1
61	76868	密封件	SEAL	2
61	8M0248882	油封@5	SEAL-OIL @5	2
62	30281	键	KEY	1
63	52700	锁紧垫圈	TAB WASHER	1
64	52699	盖板	COVER	1
65	67891	填充块	FILLER BLOCK	1
65	8M0039169	填充块	FILLER BLOCK	1
66	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
68	816629	锁紧垫圈	TAB WASHER	1
68	816629Q	锁紧垫圈	TAB WASHER	1
69	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
69	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
70	31640A1	平衡板总成	TRIM TAB ASSEMBLY	2
70	31640Q4	平衡鳍板	TRIM TAB	2
71	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
72	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
73	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
73	8M0204653	螺母	NUT	2
74	13191A1	止推垫片	THRUST WASHER	1
74	13191Q01	止推垫片	THRUST WASHER	1
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1
-	89238A2	密封套件	SEAL KIT	1

图 62齿轮箱（驱动轴-铸件号1674-814247C） Gear Housing (Driveshaft-Casting # is1674-814247C)

REF	零件编号	中文名称	英文名称	数量
-	814247A3	齿轮箱总成（1.78:1传动比 - 黑色）（完整）	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Black (Complete)	1
-	814247A4	齿轮箱总成（1.78:1传动比 - 灰色）（完整）	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Gray (Complete)	1
-	814247T4	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	814247A1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic - Black	1
1	814247T1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	814247A2	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic - Gray	1
1	814247T2	ORD 1674-814247T1	ORD 1674-814247T1	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
2A	43998	套筒	SLEEVE	1
3	20033	定位销	PIN Dowel	2
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	78638	双头螺柱(.438 x 3.12)	STUD (.438 x 3.12)	1
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
5	57920	双头螺柱(.44 x 2.06)	STUD (.44 x 2.06)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	306671	螺柱	STUD	2
8	35934A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	79953		SCREW (.375-16 x .250) GREASE FILLER	1
9	79953Q04	放油螺钉套件	SCREW KIT Drain	1
10	67892		SCREW Magnetic DRAIN	1
10	8M0058389	放油螺钉套件	SCREW KIT Drain	1
11	815168	驱动轴	DRIVESHAFT	1
12	NSS	不单独出售小齿轮（43-16279A2部件）	NOT SOLD SEPARATE PINION GEAR (PART OF 43-16279A2)	1
13	19183	纤维垫圈	WASHER Fiber	2
13	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
14	35921	螺母(0.625-18)	NUT (.625-18)	1
15	42637A1	垫片组	SHIM SET	AR
15	8M0063267	垫片组	SHIM SET	AR
16	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
16	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
17	42633	螺母	NUT	1
17	8245191	固定座	RETAINER	1
18	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
19	426311	衬垫	GASKET	1
19	8M0204678	衬垫	GASKET	1
20	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
20	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
21	89238	油封	SEAL Oil	1
22	16977	油封	SEAL Oil	1
23	856081	下部衬垫	GASKET LOWER	1
23	8M0090319	衬垫@5	GASKET @5	1
24	856091	上衬垫	GASKET UPPER	1
24	858524	衬垫	GASKET	1
25	32435	面板	FACE PLATE	1
25	8M0204677	面板	PLATE-FACE	1
26	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
27	48752	嵌件	INSERT	1
27	48752T	嵌件	INSERT	1
28	38970	橡胶密封件	SEAL RUBBER	1
29	899841	叶轮	IMPELLER	1
29	89984T3	叶轮	IMPELLER	1
30	56654	键	KEY	1
30	8M0214992	键@5	KEY @5	1
31	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
31	8M0215009	螺钉	SCREW	1
32	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
33	13438	螺母(.250-28)	NUT (.250-28)	2
33	8267119	螺母(.250-28)	NUT (.250-28)	2
34	36001	垫圈	WASHER	1
35	13436	螺母	NUT	1
37	29804	套筒	SLEEVE	1
37	29804T	套筒	SLEEVE	1
38	815264	换档轴	SHIFT SHAFT	1
38	8152641	换档轴	SHIFT SHAFT	1
39	29641	E型卡环	E RING	1
40	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
41	77631A2	衬套总成	BUSHING ASSEMBLY	1
42	816464	油封	SEAL Oil	1
42	8M0246145	油封	OIL SEAL	1
43	77674	垫圈（0.35 x 0.75 x 0.12）橡胶（换挡轴衬套）	WASHER (.35 x .75 x .12) RUBBER -SHIFT SHAFT BUSHING	1
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1
-	89238A2	密封套件	SEAL KIT	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1

图 63齿轮箱螺旋桨轴-标准135/150/175/200 Gear Housing Propeller Shaft - Standard-135/150/175/200

REF	零件编号	中文名称	英文名称	数量
-	9148A18	齿轮箱总成标准旋转2:1速比(长型)(黑色)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (LONG) (BLACK)	1
-	9148A19	齿轮箱总成标准旋转2:1速比(加长型)(黑色)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (X-LONG)(BLACK)	1
-	9148T82	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A20	齿轮箱总成标准旋转2:1速比(长型)(灰色)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (LONG)(GRAY)	1
-	9148T87	ORD 1647-9148T81	ORD 1647-9148T81	1
-	9148A21	齿轮箱总成标准旋转2:1速比(加长型)(灰色)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (X-LONG) (GRAY)	1
-	9148T88	ORD 1647-9148T82	ORD 1647-9148T82	1
-	9148A8	齿轮箱总成标准旋转1.87:1速比(长型)(黑色)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (LONG)(BLACK)	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A9	齿轮箱总成标准旋转1.87:1速比(加长)(黑色)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (X-LONG)(BLACK)	1
-	9148T85	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A10	齿轮箱总成标准旋转1.87:1速比(长型)(灰色)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (LONG)(GRAY)	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A13	齿轮箱总成标准旋转1.87:1速比(加长型)(灰色)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (X-LONG)(GRAY)	1
-	9148T91	ORD 1647-9148T85	ORD 1647-9148T85	1
1	9148A11	齿轮箱总成(黑色)(基本型)	GEAR HOUSING ASSEMBLY (BLACK)(BASIC)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A12	齿轮箱总成(灰色)(基本型)	GEAR HOUSING ASSEMBLY (GRAY) (BASIC)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
48	78956	换挡凸轮	SHIFT CAM	1
48	789562	换挡凸轮	SHIFT CAM	1
49	89594A1	凸轮从动件总成	FOLLOWER ASSEMBLY CAM	1
50	816520	离合器作动杆	ROD CLUTCH ACTUATOR	1
50	79911A1	杆	ROD	1
51	79910	压缩弹簧	SPRING COMPRESSION	1
52	78910	压缩弹簧垫圈	WASHER COMPRESSION SPRING	AR
53	78906		PIN SPRING LOCATOR	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	47397A1	轴承外圈垫片组(.002-3-5-10)	SHIM SET BEARING OUTER RACE (.002-3-5-10)	AR
55	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
56	44102A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
56	44104A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
56	44104T2	齿轮组	GEAR SET	1
57	73363	滚柱轴承(5/8")	BEARING Roller (5/8")	2
57	73363T	轴承	BEARING	2
57	549281	滚柱轴承(1")	BEARING Roller (1")	1
58	78959	棘轮滑动离合器	RATCHET SLIDING CLUTCH	1
58	823174T	ORD 8M0100493	ORD 8M0100493	1
59	78905	棘轮到螺旋桨轴十字销	PIN Cross RATCHET TO PROPELLER SHAFT	1
59	8M0084243	十字销	PIN Cross	1
60	78909	棘轮定位销	PIN Detent RATCHET	2
61	78962	十字销固定弹簧	SPRING RETAINING-CROSS PIN	2
62	94148	螺旋桨轴	PROPELLER SHAFT	1
63	NSS	倒车齿轮(不单独销售)(43-44102A2或43-44104A2部件)	NOT SOLD SEPARATE Reverse Gear (Part of 43-44102A2 or 43-44104A2)	1
64	681001	止推环轴承座	RING Thrust BEARING CARRIER	1
65	88957A1	倒车档滚珠轴承	BEARING Ball BALL - REVERSE GEAR	1
65	88957T	滚珠轴承	BEARING Ball	1
66	31534	轴承座O型圈	O-RING BEARING CARRIER	1
66	8M0214920	O型圈	O RING	1
67	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	30956	滚针轴承-轴承座	BEARING Needle BEARING CARRIER	1
68	30956T	滚针轴承	BEARING Needle	1
69	76868	轴承座密封	SEAL BEARING CARRIER	2
69	8M0248882	油封@5	SEAL-OIL @5	2
70	30281		KEY LOCATING - BEARING CARRIER	1
71	79447	齿轮箱盖锁紧垫圈	TAB WASHER GEAR HOUSING COVER	1
72	79448	齿轮箱固定座	RETAINER GEAR HOUSING	1
72	8M2011027	固定座	RETAINER	1
73	31640A1		TRIM TAB ASSEMBLY GEAR HOUSING	1
73	31640Q4	平衡鳍板	TRIM TAB	1
74	66024		SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING	1
75	67891	填充块	FILLER BLOCK	1
75	8M0039169	填充块	FILLER BLOCK	1
76	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
76	8M0204653	螺母	NUT	2
77	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
77	74727	螺钉(.375-16 x 6.00)	SCREW (.375-16 x 6.00)	1
78	13171	推力毂	THRUST HUB	1
78	835467Q01	止推垫片套件	THRUST WASHER KIT	1
79	31211A2	花键垫圈	WASHER Splined	1
79	31211Q03	垫圈总成	WASHER ASSEMBLY	1
80	816629	锁紧垫圈	TAB WASHER	1
80	816629Q	锁紧垫圈	TAB WASHER	1
81	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
81	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
82	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
83	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
-	89238A2	密封套件	SEAL KIT	1
-	815791A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 64旋转支架与转向臂 Swivel Bracket and Steering Arm

REF	零件编号	中文名称	英文名称	数量
1	818904T1	旋转支架	SWIVEL BRACKET	1
2	87735	下油封	SEAL Oil Lower	1
3	818764	衬套	BUSHING	2
4	33504	O型圈	O-RING	1
4	8M0214926	O型圈 @10	O RING @10	1
5	816039	隔套	SPACER	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
9	99661A26	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	99661A35	旋转销总成	SWIVEL PIN ASSEMBLY	1
10	92876A10	连杆总成	LINK ROD ASSEMBLY	1
10	92876A12	连杆总成	LINK ROD ASSEMBLY	1
11	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
12	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
13	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
14	42961A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
14	42961A06	底部轭架总成	YOKE ASSEMBLY Bottom	1
15	67684	挡圈	RING Retaining	1
16	816432	止推垫片	THRUST WASHER	1
17	NSS	不单独销售贴纸, 序列号覆膜	NOT SOLD SEPARATE Decal, Serial Overlaminate	1
18	11288	下轭缓冲垫	BUMPER Bottom Yoke	1
18	11288001	下轭缓冲垫	BUMPER Bottom Yoke	1
19	88882	上轭缓冲垫	BUMPER Top Yoke	1

图 65化油器 Carburetor

REF	零件编号	中文名称	英文名称	数量
1	9242A33	化油器(上部)(WH-40)	CARBURETOR (TOP) (WH-40)	1
1	9242A34	化油器(中部)(WH-40)	CARBURETOR (CENTER) (WH-40)	1
1	9242A35	化油器(下部)(WH-40)	CARBURETOR (BOTTOM) ( WH-40)	1
1	7563A10	化油器(上部)(WH-35)	CARBURETOR (TOP) (WH-35)	1
1	7563A11	化油器(中部)(WH-35)	CARBURETOR (CENTER) (WH-35)	1
1	7563A12	化油器(下部)(WH-35)	CARBURATOR (BOTTOM) (WH-35)	1
1	7563A13	化油器(上部)(WH-38)	CARBURETOR (TOP) (WH-38)	1
1	7563A14	化油器(中部)(WH-38)	CARBURETOR (CENTER) (WH-38)	1
1	7563A15	化油器(下部)(WH-38)	CARBURETOR (BOTTOM) (WH-38)	1
2	6249	主量孔(.096)燃油室(WH-32)(WH-38)	JET Main (.096) FUEL BOWL(WH-32) (WH-38)	6
2	8423	量孔(.094)浮子室(WH-35)	JET (.094) FUEL BOWL (.094) (WH-35)	6
2	6680	量孔(.078)燃油室(WH-40)	JET (.078) FUEL BOWL (WH-40)	6
3	NSS		NOT SOLD SEPARATE Gasket-Cover Plate	3
4	6032	盖板	PLATE COVER	3
5	NSS	盖板螺钉(不单独销售)	NOT SOLD SEPARATE Screw-Cover Plate	15
6	7822	燃油室(WH-33)	BOWL Fuel (WH-33)	3
6	7823	燃油杯(顶部)	BOWL Fuel (TOP)	1
6	7822	燃油杯(中部/底部)	BOWL Fuel (CENTER/BOTTOM)	2
7	NSS	不单独销售燃油杯螺钉	NOT SOLD SEPARATE Screw-Fuel Bowl	18
8	6025	主量孔塞	PLUG MAIN JET	6
9	NSS	不单独出售主量孔垫片	NOT SOLD SEPARATE Gasket-Main Jet	6
10	4216	主量孔(.064)(WH-33)	JET (.064) MAIN FUEL (WH-33)	6
10	6246	主量孔(.048)(WH-32)	JET (.048) MAIN FUEL (WH-32)	6
10	6028	主燃油量孔(.050)(WH-35)	JET (.050) MAIN FUEL (WH-35)	6
10	6359	主燃油量孔(.052)(WH-38)	JET (.052) MAIN FUEL (WH-38)	6
10	6201	主量孔(.080)(WH-40)	JET (.080) MAIN FUEL (WH-40)	6
11	NSS	不单独出售浮子销螺钉	NOT SOLD SEPARATE Screw-Float Pin	6
12	NSS	不单独出售进油针阀座垫片	NOT SOLD SEPARATE Gasket--Inlet Needle and Seat	6
13	7824	进油针阀总成	NEEDLE/SEAT ASSEMBLY Inlet	6
14	NSS	喷嘴座垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Nozzle Boss	6
15	9267	浮子	FLOAT	6
16	NSS	浮子杆销(不单独销售)	NOT SOLD SEPARATE Pin-Float Lever	6
17	NSS		NOT SOLD SEPARATE Gasket-Fuel Bowl	3
18	4541	怠速空气量孔螺钉	SCREW IDLE AIR BLEED JET	6
19	NSS	泄放量孔塞垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Bleed Jet Plug	6
20	5213	主量孔(.056)怠速空气量孔(WH-33)	JET Main (.056) IKLE AIR BLEED (WH-33)	6
20	7831	主量孔(.058)怠速空气量孔(.058)(WH-32)	JET Main Fuel (.058) IDLE AIR BLEED (.058) (WH-32)	6
20	6487	主量孔(.060)怠速空气量孔(WH-35)	JET Main (.060) IKLE AIR BLEED (WH-35)	6
20	5317	怠速空气量孔(.046)(WH-38)	JET (.046) IDLE AIR BLEED (WH-38)	6
20	6246	怠速空气量孔(.048)(WH-40)	JET (.048) IDLE AIR BLEED (WH-40)	6
21	6027	节气门杠杆螺钉	SCREW THROTTLE LEVER	3
22	67752	节流阀杆	LEVER THROTTLE	3
23	NSS		NOT SOLD SEPARATE Spring-Throttle Return	3
24	6031	节气门杠杆垫片	SPACER THROTTLE LEVER	3
25	6022	节流阀轴	SHAFT THROTTLE	3
26	NSS	节气门轴挡圈(不单独销售)	NOT SOLD SEPARATE Ring-Retainer-Throttle Shaft	3
27	6023	节气门阀(WH-33)(WH-40)	VALVE Throttle (WH-33) (WH-40)	6
27	9496	节气门阀(WH-32)	VALVE Throttle (WH-32)	6
27	9545	节气门阀(WH-38)(WH-35)	VALVE Throttle (WH-38) (WH-35)	6
28	NSS		NOT SOLD SEPARATE Screw-Throttle Valve	12
-	6452	衬垫套件	GASKET KIT	1
-	8506	化油器修理包(WH-33)(WH-40)	REPAIR KIT Carburetor (WH-33) (WH-40)	1
-	7826	修理包(WH-32)(WH-35)(WH-38)	REPAIR KIT (WH-32)(WH-35)(WH-38)	1

图 66机油喷射组件 Oil Injection Components

REF	零件编号	中文名称	英文名称	数量
1	12430A4	传感器总成	SENSOR ASSEMBLY	1
2	48409	螺钉(#10-16 x .625)不锈钢传感器固定(5/8")	SCREW (#10-16 x .625) Stainless Steel SENSOR ATTACHING (5/8")	1
3	815699	油泵总成	PUMP ASSEMBLY Oil	1
3	815699T	油泵总成	PUMP ASSEMBLY Oil	1
3A	814103	轴承(带密封)	BEARING (W/SEAL)	1
3A	8141032	蜗杆衬套	BUSHING Worm	1
4	11379	油泵O型圈	O-RING OIL PUMP	1
5	41429A2	驱动齿轮轴承总成	BEARING ASSEMBLY DRIVE GEAR	1
6	12726	从动齿轮	GEAR Driven	1
6	14563	从动齿轮	GEAR Driven	1
7	32228	螺钉(#10-32 x .625)油泵至曲轴箱(5/8")	SCREW (#10-32 x .625) OIL PUMP TO CRANKCASE (5/8")	1
7	41507	螺钉(#10-32 x 1.120)油泵至曲轴箱(1-1/8")	SCREW (#10-32 x 1.120) OIL PUMP TO CRANKCASE (1-1/8")	1
8	1938512	油门连杆至油泵总成	LINK ASSEMBLY THROTTLE LEVER TO OIL PUMP	1
9	4301619	油泵油管	TUBING OIL PUMP	1
9	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	1
10	99443T	油箱	RESERVOIR Oil	1
10	994436	储液罐	RESERVOIR	1
11	415823	油管卡箍(大)	CLAMP OIL HOSE (LARGE)	2
12	4301736	油箱至油泵油管	TUBING OIL RESERVOIR TO OIL PUMP	1
12	82381455	油管（25.00英寸散装）	TUBING (25.00 Inches Bulk)	1
13	69020	螺钉(#10-32 x .875)油箱固定(7/8")	SCREW (#10-32 x .875) OIL RESERVOIR ATTACHING (7/8")	3
13	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
14	42118	油箱螺钉垫圈	WASHER OIL RESERVOIR SCREW	6
15	42117	油箱螺钉衬套	GROMMET OIL RESERVOIR SCREW	3
16	42116	油箱螺钉轴套	BUSHING OIL RESERVOIR SCREW	3
17	99127109	油管(57.00英寸散装)	LINE (57.00 Inches Bulk) OIL	1
17	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
18	42425	油管三通	TEE OIL TUBING	1
19	9072925	油管(6-3/4")	HOSE OIL (6-3/4")	1
20	NA	不可用壳体总成	NOT AVAILABLE HOUSING ASSEMBLY	1
21	99439	油管(114.00英寸)	HOSE (114.00 Inches) OIL	1
22	12540A3	壳体	HOUSING	1
23	12242A1	闩锁	LATCH	1
24	43278	止回阀接头(曲轴箱)	FITTING CHECK CALVE (CRANKCASE)	1
24	8781051	止回阀	CHECK VALVE	1
25	87421	油箱	TANK	1
26	43298A2	油箱盖总成	CAP ASSEMBLY OIL TANK	1
27	11332	O型圈(2.225 x .210)盖	O-RING (2.225 x .210) CAP	1
28	43295A5	壳体总成适配器	HOUSING ASSEMBLY Adaptor	1
28	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
29	11332	O型圈(2.225 x .210)适配器壳体	O-RING (2.225 x .210) ADAPTOR HOUSING	1
30	99802	吸油管	TUBE OIL PICK-UP	1
31	43300A1	油箱盖总成	CAP ASSEMBLY OIL RESERVOIR	1
31	43300A9	盖总成	CAP ASSEMBLY	1
32	43307	油箱盖衬垫	GASKET RESERVOIR CAP	1
32	43307T	衬垫	GASKET	1
33	99022A1	浮子总成	FLOAT ASSEMBLY	1
33	8M0187298	浮子总成	FLOAT ASSY	1
34	99265	压入式螺母	PUSH NUT	1
35	415824	油管卡箍(小)	CLAMP OIL HOSE (SMALL)	2
36	90077	扎带	TIE STRAP	AR
36	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
37	12335A1	支架套件	BRACKET KIT	1
38	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1

图 67线束/启动继电器 Wiring Harness/Starter Solenoid

REF	零件编号	中文名称	英文名称	数量

图 68油门杆与换挡轴 Throttle Lever and Shift Shaft

REF	零件编号	中文名称	英文名称	数量
1	74897		PIVOT TRIGGER PLATE	1
2	62459	球头总成触发板	BALL JOINT ASSEMBLY TRIGGER PLATE	1
2	62459T	球头节总成	BALL JOINT ASSY	1
3	45076	螺母(#10-32)黄铜连杆	NUT (#10-32) Brass LINK ROD	1
4	76035	触发板连杆	ROD TRIGGER PLATE	1
5	46438	螺母(#10-32)球头	NUT (#10-32) BALL JOINT	1
6	41094A3	点火提前杆总成	LEVER ASSEMBLY SPARK ADVANCE	1
7	64022	螺丝(.250-20x2.125)点火提前杆-止动	SCREW (.250-20 x 2.125) SPARK ADVANCE LEVER - STOP	1
8	64015	螺母(.250-20)点火提前止动螺丝	NUT (.250-20) SPARK ADVANCE STOP SCREW	1
9	26852	尼龙帽点火提前杆止动螺丝	CAP Nylon SPARK ADVANCE LEVER STOP SCREW	1
10	13627	螺钉（0.190-32 x 1.250）点火提前杠杆-止动（1-1/4英寸）	SCREW (.190-32 x 1.250) SPARK ADVANCE LEVER - STOP (1-1/4")	1
11	68219	螺母(#10-32)不锈钢点火提前杆止动螺丝	NUT (#10-32) Stainless Steel SPARK ADVANCE LEVER STOP SCREW	1
12	48039	点火提前杆止动螺丝帽	CAP SPARK ADVANCE LEVER STOP SCREW	1
13	41095T	油门控制杆	LEVER THROTTLE CONTROL	1
13	410952	杠杆	LEVER	1
14	55337	螺钉（0.375-16 x 1.75）节气门杠杆/提前杠杆（1-3/4英寸）	SCREW (.375-16 x 1.75) THROTTLE LEVER/ADVANCE LEVER (1-3/4")	1
14	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
15	55164	油门杠杆衬套	BUSHING THROTTLE LEVER	1
16	55171	点火提前杆衬套	BUSHING SPARK ADVANCE LEVER	1
17	68784	节气门与点火提前杆弹簧	SPRING THROTTLE AND SPARK ADVANCE LEVER	1
18	68410	点火提前杆垫片	WASHER SPARK ADVANCE LEVER	1
18	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	1
19	64022	螺钉（0.250-20 x 2.125）节气门杠杆-止动（2-1/8英寸）	SCREW (.250-20 x 2.125) THROTTLE LEVER - STOP (2-1/8")	1
20	64015	螺母(.250-20)节气门杆止动螺丝	NUT (.250-20) THROTTLE LEVER STOP SCREW	1
21	26852	尼龙帽节气门杆止动螺丝	CAP Nylon THROTTLE LEVER STOP SCREW	1
22	39483	锁扣拉线	LATCH CABLE	1
23	22486	螺丝(.250-28x.880)拉线锁扣至节气门杆	SCREW (.250-28 x .880) CABLE LATCH TO THROTTLE LEVER	1
23	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
24	20099	拉线锁扣至节气门杆弹簧	SPRING CABLE LATCH TO THROTTLE LEVER	1
25	20586	螺母(.250-28)拉线锁扣螺丝	NUT (.250-28) CABLE LATCH SCREW	1
25	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
26	14634	节气门控制杆	ROD THROTTLE CONTROL	1
27	14638	节气门控制杆套筒	BARREL THROTTLE CONTROL ROD	1
28	146351	节气门凸轮	CAM Throttle	1
29	93248	衬套	BUSHING	1
29	8M0215006	旋转衬套	BUSHING Swivel	1
30	26856	节气门凸轮衬套	BUSHING THROTTLE CAM	2
31	35045	螺母（0.250-28）节气门凸轮螺柱	NUT (.250-28) THROTTLE CAM STUD	1
31	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
32	41050	节气门复位弹簧	SPRING THROTTLE RETURN	1
33	92032A2	支架锚-控制电缆	BRACKET ANCHOR - CTRL CABLES	1
33	814283A2	支架总成	BRACKET ASSEMBLY	1
33	814283A1	控制线缆锚定支架	BRACKET ANCHOR - CONTROL CABLES	1
33	814283A2	支架总成	BRACKET ASSEMBLY	1
34	98889	控制线缆锁扣	LATCH CONTROL CABLE	1
35	42975	闩锁传动螺钉	DRIVE SCREW LATCH	2
36	53167	螺丝(.312-18x.880)锚定支架固定	SCREW (.312-18 x .880) ANCHOR BRACKET ATTACHING	3
36	53167T	螺钉 0.312-18X 0.88	SCREW .312-18X .88	3
37	37896	连杆导向块	GUIDE BLOCK LINK ROD	1
37	814284	连杆导向块	GUIDE BLOCK LINK ROD	1
38	20099	连杆至导向块弹簧	SPRING LINK ROD TO GUIDE BLOCK	1
39	67073A1	连杆总成	LINK ROD ASSEMBLY	1
40	52100	连杆耐磨板	WEAR PLATE LINK ROD	1
41	38279	控制线缆闩锁紧固件	LATCH CONTROL CABLE FASTENING	1
41	8M0036768	闩锁	LATCH	1
42	35462	垫圈(.2656x.625x.0625)不锈钢锁扣	WASHER (.2656 x .625 x .0625) Stainless Steel LATCH	1
43	35045	螺母（0.250-28）连杆	NUT (.250-28) LINK ROD	1
43	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
44	79932A11	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
44	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
45	29720	连杆波形垫圈	WAVE WASHER LINK ROD	1
46	26600	尼龙衬套-连杆	BUSHING NYLON - LINK ROD	1
47	35462	垫圈(.2656 x .625 x .0625)不锈钢连杆	WASHER (.2656 x .625 x .0625) Stainless Steel LINK ROD	1
48	35045	螺母（0.250-28）连杆至换挡轴	NUT (.250-28) LINK ROD TO SHIFT SHAFT	1
48	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
49	39519	杯形保持器-锚杆	CUP BARRELL RETAINER - ANCHOR BAR	1

图 69驱动轴壳与排气管 Driveshaft Housing and Exhaust Tube

REF	零件编号	中文名称	英文名称	数量
1	8343A10	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8343A11	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8343T11	ORD 1590-8343T10	ORD 1590-8343T10	1
1	813563A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	813563T1	传动轴壳体-黑色-加长型	HOUSING Driveshaft - Black - X-Long	1
1	813563A2	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	813563T2	ORD 3503-813563T1	ORD 3503-813563T1	1
2	56295	双头螺柱(.437 x 2.69)	STUD (.437 x 2.69)	2
3	63474	螺钉(.500-20 x 6.00)	SCREW (.500-20 x 6.00)	2
3	898831	螺钉(.500-20 x 6.220)	SCREW (.500-20 x 6.220)	2
4	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
5	77327	支架	MOUNT	2
6	49339	垫圈(.8125)	WASHER (.8125)	2
7	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
8	28040	螺母(.500-20)	NUT (.500-20)	2
8	898832	螺母(.500-20)	NUT (.500-20)	2
9	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
10	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
11	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
11	8M0204653	螺母	NUT	2
12	67076	卡箍	CLAMP	2
12	8M0036782	卡箍	CLAMP	2
13	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
14	67077T	黑色盖	COVER Black	2
14	8M4500752	盖板	COVER	2
14	67077F1	灰色盖板	COVER Gray	2
14	67077T	黑色盖	COVER Black	2
15	88417	螺钉(#12-24×0.620)	SCREW (#12-24 x .620)	4
16	35521	螺母	NUT	4
17	48926	垫圈	WASHER	1
18	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	1
18	8M0204653	螺母	NUT	1
19	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	4
20	69254	螺母	NUT	4
21	828212	怠速排气套	BOOT Idle Exhaust	1
21	8M0039081	护套	BOOT	1
22	64649	堵头	PLUG	1
23	991732	衬垫	GASKET	1
23	991734	衬垫	GASKET	1
24	66350	下密封件	SEAL (LOWER)	1
24	66350001	密封件	SEAL	1
25	18276	排气管	TUBE Exhaust	1
25	18276T	排气管	EXHAUST TUBE	1
26	177261	上密封件	SEAL (UPPER)	1
26	8M0039076	密封件	SEAL	1
27	812834	排气管延长段	EXTENSION Exhaust	1
27	812834A2	排气延长总成	EXTENSION ASSEMBLY Exhaust	1
27	41942F3	排气管延长段	EXTENSION Exhaust	1
27	879288T71	排气管延长段	EXTENSION Exhaust	1
28	67295	水管	TUBE Water	1
28	8M0042788	长型水管	TUBE-WATER-LONG	1
28	74729	管	TUBE	1
28	8M0042790	水管	TUBE-WATER	1
29	78246	衬垫	GASKET	1
29	782461	衬垫	GASKET	1
30	18233A3	隔板总成	PLATE ASSEMBLY	1
30	18233A20	传动轴壳体板总成	PLATE ASSEMBLY Driveshaft Housing	1
31	8147012	密封件	SEAL	1
31	8M0043165	密封件-27.00英寸	SEAL-27.00 INCH	1
32	68011	支架	BRACKET	1
33	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
33	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
34	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
35	38970	密封件	SEAL	1
36	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	6
37	183071	衬垫	GASKET	1
37	183076	衬垫	GASKET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 70动力平衡组件（设计II） Power Trim Components (Design II)

REF	零件编号	中文名称	英文名称	数量
-	818186A3	动力配平总成	POWER TRIM ASSEMBLY COMPLETE	1
1	811604T	歧管总成	MANIFOLD ASSEMBLY	1
1	811604F	歧管总成	MANIFOLD ASSEMBLY	1
2	99616	管塞	PIPE PLUG	9
2	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	9
3	811605T	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
3	880952A03	ORD 8M0078330	ORD 8M0078330	1
4	811608	连杆套件-升降倾斜活塞(螺栓型)	ROD KIT Trim And Tilt Piston (BOLT TYPE)	1
5	811609	连杆-倾斜活塞(螺母型)	ROD Trim Piston (NUT TYPE)	1
5	823553T	升降活塞杆	ROD Trim Piston	1
6	811606	导向套件	GUIDE KIT	1
6	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
7	811607A1	维修套件	REPAIR KIT	1
8	811610A1	止回阀套件	CHECK VALVE KIT	1
8	823553T	升降活塞杆	ROD Trim Piston	1
9	99638A1	导向器总成	GUIDE ASSEMBLY	2
9	8M0021648	端盖总成	END CAP ASSEMBLY	2
10	43397A6	动力升降活塞/杆总成 (左舷)	PISTON/ROD ASSEMBLY Power Trim (PORT)	1
10	878413A1	活塞总成	PISTON ASSEMBLY	1
10	43398A3	动力升降活塞/杆总成 (右舷)	PISTON/ROD ASSEMBLY Power Trim (STARBOARD)	1
10	878414T01	活塞总成	PISTON ASSEMBLY	1
11	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
12	19603	槽销	PIN Groove	1
12	821539	三叶销	PIN Trilobe	1
13	811618	阀总成	VALVE ASSEMBY	1
13	893929A01	安全阀套件	VALVE KIT Relief	1
14	812844	E型卡环	E RING	1
14	815949001	E形环	E-RING	1
15	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
16	43450	垫圈	WASHER	4
16	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
17	811611	盖板	COVER	1
18	811612A1	O型圈套件	O-RING KIT	1
18	811612A3	O型圈套件	O-RING KIT	1
19	811613	塞子总成	PLUG ASSEMBLY	1
20	811614	轴总成	SHAFT ASSEMBLY	1
20	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
21	99616	管塞	PIPE PLUG	2
21	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
22	811628	配平电机	TRIM MOTOR	1
22	878265A6	改装套件-配平	RETROFIT KIT-TRIM	1
23	811615	螺钉 (长)	SCREW (LONG)	2
23	811616	螺钉 (短)	SCREW (SHORT)	2
24	811617T	泵	PUMP	1
24	811617T1	泵	PUMP	1
25	811619	驱动轴	DRIVESHAFT	1
26	99625	轴	SHAFT	1
26	99625002	轴	SHAFT	1
27	43396A2	阳极总成	ANODE ASSEMBLY	1
27	818298Q1	阳极套件	ANODE KIT	1
28	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
28	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
29	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
29	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
30	996301	冲击板	STRIKER PLATE	2
30	8M0045383	冲击板	STRIKER PLATE	2
31	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
32	46335	螺母 (.375-24)	NUT (.375-24)	2
33	44431	槽销	PIN Groove	1
33	878267	销	PIN	1
34	814609A1	线束总成-动力升降控制	HARNESS ASSEMBLY Control POWER TRIM	1
35	88808A22	电缆总成(6-3/8"-红色)	CABLE ASSEMBLY (6-3/8" - RED)	1
35	88808A23	电缆总成(24"-红色)	CABLE ASSEMBLY (24" - RED)	1
35	87379A14	电线总成 (2.750英寸)	WIRE ASSEMBLY (2.750 Inches)	1
36	22875		CLIP PUMP WIRE	2
37	69205	C形垫圈线夹螺钉	C WASHER CLIP SCREW	2
37	8M0084613	C形垫圈	C-WASHER	2
38	69079	螺钉(#10-16x0.440)-夹子到艉板支架	SCREW (#10-16 x .440) CLIP TO TRANSOM BRACKET	2
39	4000377		SCREW (M10 x 30) MANIFOLD	6
40	400258	锁紧垫圈(M10)-不锈钢歧管螺钉	LOCKWASHER (M10) Stainless Steel MANIFOLD SCREW	6

图 71气缸体与端盖 CYLINDER BLOCK AND END CAPS

REF	零件编号	中文名称	英文名称	数量
1	8712A41	气缸体	CYLINDER BLOCK	1
2	76175	动力头螺柱	STUD POWERHEAD	6
3	67065	动力头螺柱	STUD POWERHEAD	2
3	670654	螺柱(.375-16/.375-24 x 5.620)	STUD (.375-16/.375-24 x 5.620)	2
3	78438	动力头螺柱	STUD POWERHEAD	2
3	8M0034454	螺柱(.375-16/.375-24 x 6.87)	STUD (.375-16/.375-24 x 6.87)	2
4	20033	定位销	PIN Dowel LOCATING	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	气缸体销(轴承座圈)	PIN CYLINDER BLOCK (BEARING RACE)	2
5	8M0036405	销	PIN	2
6	11338	密封垫片	GASKET SEALING	2
7	42249	启动马达上盖	COVER STARTER MOTOR (UPPER)	1
7	8M0088723	启动器支架	BRACKET-STARTER	1
8	73657	盖至曲轴箱螺钉(.312-18 x 1.50)	SCREW (.312-18 x 1.50) COVER TO CRANKCASE	2
9	26993	启动马达盖螺钉锁紧垫圈(0.312)	LOCKWASHER (.312) STARTER MOTOR COVER SCREW	4
9	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
10	76867	启动电机盖(下部)	COVER STARTER MOTOR (LOWER)	1
11	77065	盖至曲轴箱螺钉(.312-18 x 2)	SCREW (.312-18 x 2) COVER TO CRANKCASE	2
11	815549	螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00)	2
12	88801	杯形塞	PLUG CUPPED	2
12	99448	衬套	BUSHING	1
13	88807A20	线束总成盖	CABLE ASSEMBLY COVER	1
14	66717	螺钉 (.375-16 x 3.250) 曲轴箱气缸体	SCREW (.375-16 x 3.250) CRANKCASE CYLINDER BLOCK	8
14	74824	曲轴箱至气缸体螺丝(.312-18 x 1.250)	SCREW (.312-18 x 1.250) CRANKCASE TO CYLINDER BLOCK	6
15	9608A1	上端盖总成	END CAP ASSEMBLY (UPPER)	1
15	9608T1	上盖总成	CAP-ASSY-UPPER	1
16	54029	端盖O型圈(2.800 x .103)	O-RING (2.800 x .103) END CAP	1
17	93496	端盖滚柱轴承	BEARING Roller END CAP	1
17	93496T	轴承	BEARING	1
18	41953	端盖密封件	SEAL END CAP	1
19	69034	螺钉与锁紧垫圈 (.312-18 x 1.00) 上端盖至气缸体 (1")	SCREW AND LOCKWASHER (.312-18 x 1.00) UPPER END CAP TO CYLINDER BLOCK (1")	4
19	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	4
20	24220	螺钉 (.190-24 x .190) 定位 - 气缸体 (旧设计)	SCREW (.190-24 x .190) SET - CYLINDER BLOCK (OLD DESIGN)	2
21	38407	堵头(.500-14)	PLUG (.500-14)	1
22	15094	飞轮盖至气缸体双头螺柱(.190-32 x 1.870)	STUD (.190-32 x 1.870) FLYWHEEL COVER TO CYLINDER BLOCK	1
23	15093	飞轮盖至支架双头螺柱(#10-32 x 1.00)	STUD (#10-32 x 1.00) FLYWHEEL COVER TO BRACKET	2
23	8M0034435	螺柱	STUD	2
24	67269	飞轮盖螺柱隔套	SPACER FLYWHEEL COVER STUD	1
25	492211	飞轮盖螺柱垫圈	WASHER FLYWHEEL COVER STUD	6
25	8M0204663	垫片@5	WASHER @5	6
26	72761	垫圈 (.203 x .562 x .060) 不锈钢飞轮盖螺柱	WASHER (.203 x .562 x .060) Stainless Steel FLYHWEEL COVER STUD	3
27	73651	飞轮盖螺柱螺母	NUT FLYWHEEL COVER STUD	3
27	816874	蝶形螺母 (#10-32)	WING NUT (#10-32)	3
28	42248	飞轮罩支架	BRACKET FLYWHEEL COVER	1
28	422482	支架	BRACKET	1
29	49668	支架至曲轴箱螺钉(.250-20 x .750)	SCREW (.250-20 x .750) BRACKET TO CRANKCASE	2
30	7809A1	下端盖总成	END CAP ASSEMBLY (LOWER)	1
30	7809T1	端盖总成	END CAP ASSEMBLY	1
31	62700	O型圈 (3.237 x .103) 端盖 (3 3/4" 内径)	O-RING (3.237 x .103) END CAP (3 3/4" I.D.)	1
32	41953	端盖密封件	SEAL END CAP	2
33	28636	螺钉（0.250-20 x 0.750）下端盖至气缸体	SCREW (.250-20 x .750) LOWER END CAP TO CYLINDER BLOCK	4
34	26992	下端盖螺钉不锈钢锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel LOWER END CAP SCREW	4
35	64022	调节螺钉(.250-20 x 2.125)-气缸体	SCREW (.250-20 x 2.125) ADJUSTING - CYLINDER BLOCK	1
36	64015	锁紧螺母(.250-20)-调节螺钉	NUT (.250-20) JAM - ADJUSTING SCREW	1
37	26852	调节螺钉尼龙帽	CAP Nylon NYLON - ADJUSTING SCREW	1
38	16793	卡箍	CLAMP	1
39	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
40	87076A6	怠速控制总成	IDLE SPEED CONTROL ASSEMBLY	1
40	87076A10	怠速控制器	IDLE SPEED CONTROL	1
41	69020	螺丝(#10-32 x .875)怠速控制	SCREW (#10-32 x .875) IDLE SPEED CONTROL	3
41	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
42	38833	垫圈怠速控制螺钉	WASHER IDLE SPEED SONTROL SCREW	3
43	194372	端子排	TERMINAL BLOCK	1
44	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	2
45	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
46	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
47	813938	盖形螺母(#10-32)	CAP NUT (#10-32)	2
48	63153	J型卡扣	J CLIP	1
-	812827A89	动力总成完整组件	POWERHEAD ASSEMBLY COMPLETE	1
-	812827T89	船用动力头	POWERHEAD MARINE	1
-	14697A87	衬垫套件	GASKET SET

图 72曲轴（连杆锻件编号644-818141） Crankshaft (Connecting Rod Forging # is 644-818141)

REF	零件编号	中文名称	英文名称	数量
1	9536A4	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	67923	球轴承(下部)	BEARING Ball (LOWER)	1
2	67923T	滚珠轴承	BEARING Ball	1
3	67446	环	RING	1
4	14513A2	驱动齿轮段套件	GEAR SEGMENT KIT Drive	2
4	14513A09	驱动齿轮段套件	GEAR SEGMENT KIT Drive	2
5	813073	螺钉(#6-32 x .620)内六角头	SCREW (#6-32 x .620) Socket Head	2
6	813134	螺母(#6-32)专用	NUT (#6-32) Special	2
7	54196A6	托架总成	CARRIER ASSEMBLY	1
8	65800	填料	PACKING	1
9	67377	密封环-曲轴	RING Sealing SEALING - CRANKSHAFT	8
9	67377T	密封环	RING Sealing	8
10	16756A1	滚子轴承总成-曲轴	BEARING ASSEMBLY Roller CRANKSHAFT	2
10	16756A6	轴承套件	BEARING KIT	2
11	7441A32	活塞(右舷-标准)	PISTON (STARBOARD-STANDARD)	3
11	7441T32	活塞	PISTON	3
11	7443A11	活塞(右舷-0.015加大)	PISTON (STARBOARD-.015 O.S.)	AR
11	7445A11	活塞(右舷-0.030加大)	PISTON (STARBOARD-.030 OS.)	AR
11	7445T11	活塞	PISTON	AR
11	7442A32	活塞(左舷-标准)	PISTON (PORT-STANDARD)	3
11	7442T32	活塞	PISTON	3
11	7444A11	活塞(左舷-0.015加大)	PISTON (PORT-.015 O.S.)	AR
11	7446A11	活塞(左舷-0.030加大)	PISTON (PORT-.030 O.S.)	AR
11	9738A7	活塞总成(右舷-标准)	PISTON ASSEMBLY (STARBOARD-STANDARD)	3
11	9738T9	活塞总成标准型	PISTON ASSEMBLY Standard	3
11	9738A8	活塞总成(右舷-0.015加大)	PISTON ASSEMBLY (STARBOARD-.015 O.S.)	AR
11	9738T10	活塞总成0.015加大	PISTON ASSEMBLY .015 Oversize	AR
11	9737A7	活塞总成(左舷-标准)	PISTON ASSEMBLY (PORT-STANDARD)	3
11	9737T9	活塞总成标准型	PISTON ASSEMBLY Standard	3
11	9737A8	活塞总成(左舷-0.015加大)	PISTON ASSEMBLY (PORT-.015 O.S.)	AR
11	9737A10	活塞总成0.015加大	PISTON ASSEMBLY .015 Oversize	AR
12	93481A12	活塞环组-标准(标准)	RING SET Piston - Standard (STANDARD)	1
12	78918A4	活塞环组-0.015加大(0.015加大)	RING SET Piston - .015 Oversize (.015 O.S.)	AR
12	85636A4	活塞环组-0.030加大(0.030加大)	RING SET Piston - .030 Oversize (.030 O.S.)	AR
12	815515A12	活塞环组(标准)	RING SET Piston (STANDARD)	1
12	815268A4	活塞环组(.015加大)	RING SET Piston (.015 O.S.)	AR
13	52035	锁环	RING Lock	12
13	857196	锁紧环	LOCK RING	12
14	818141A2	连杆套件	CONNECTING ROD KIT	6
14	818141A13	连杆总成	CONNECTING ROD ASSEMBLY	6
15	763491	螺钉(0.312-24×0.875)连杆	SCREW (.312-24 x .875) CONNECTING ROD	12
16	812876	定位针垫圈	WASHER NEEDLE LOCATING	12
16	8M0012298	止推垫片	THRUST WASHER	12
17	17514A1	轴承套件	BEARING KIT	6
17	8M0234886	轴承保持架	CAGE BEARING	6
18	674831	活塞端滚针轴承	BEARING Needle PISTON END	174
18	8M0204691	滚针轴承@200	BRG-NEEDLE @200	174
-	815791A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 73旋转支架(铸件号1499-8710-7) Swivel Bracket (Casting #1499-8710-7)

REF	零件编号	中文名称	英文名称	数量
1	8710A20	旋转支架总成（黑色）	SWIVEL BRACKET ASSEMBLY (BLACK)	1
1	8710A21	旋转支架总成（灰色）	SWIVEL BRACKET ASSEMBLY (GRAY)	1
1	8710T21	灰色旋转支架总成	SWIVEL BRACKET ASSEMBLY Gray	1
2	87735		SEAL Oil SWIVEL BRACKET (LOWER)	1
3	67669	旋转支架衬套-上下部	BUSHING SWIVEL BRACKET-LOWER AND UPPER	2
3	818764	衬套	BUSHING	2
4	816039	隔套	SPACER	1
5	33504	O型圈	O-RING	1
5	8M0214926	O型圈 @10	O RING @10	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	99608	转轴支架衬套	BUSHING SWIVEL BRACKET	2
7	821207	衬套	BUSHING	2
8	816432	止推垫片	THRUST WASHER	1
9	78689	螺钉(0.437-20×7.50)转向臂至上支架	SCREW (.437-20 x 7.50) STEERING ARM TO UPPER MOUNT	2
9	8M0176309	螺钉	SCREW	2
10	78687	橡胶支架-上部(长型)	MOUNT RUBBER-UPPER (LONG)	2
10	78687T	支架	MOUNT	2
10	77326	支架(加长型)(用于XR4/MAGNUM II)	MOUNT (X-LONG) (USE ON XR4/MAGNUM II)	2
11	66921	上支座螺栓垫圈	WASHER UPPER MOUNT BOLT	2
12	814432	上支座螺栓垫圈	WASHER UPPER MOUNT BOLT	2
12	78688	垫圈	WASHER	2
13	34933	螺母（0.437-20）不锈钢上部安装螺栓	NUT (.437-20) Stainless Steel UPPER MOUNT BOLT	2
13	8M0204653	螺母	NUT	2
14	92876A1	转向连杆总成	LINK ASSEMBLY Steering	1
14	92876A12	连杆总成	LINK ROD ASSEMBLY	1
15	14000		SCREW (.375-24 x 1.25) STEERING LINK TO STEERING ARM	1
15	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
16	34863		NUT (.375-24) STEERING LINK SCREW	2
16	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
17	34931		WASHER (.406 x .734 x .063) Stainless Steel STEERING LINK TO STEERING ARM	2
18	67706A35	旋转销总成(黑色)	SWIVEL PIN ASSEMBLY (BLACK)	1
18	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
18	67706A36	旋转销总成(灰色)	SWIVEL PIN ASSEMBLY (GRAY)	1
18	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
19	86580A1	底部轭架总成（黑色）	YOKE ASSEMBLY Bottom (BLACK)	1
19	878182T	轭架底部-不锈钢	YOKE Bottom - Stainless Steel	1
19	86580A2	底部轭架总成（灰色）	YOKE ASSEMBLY Bottom (GRAY)	1
19	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
20	67684	卡环-底部轭架	RING Retaining BOTTOM YOKE	1
21	88882	缓冲垫-顶部轭架	BUMPER Top Yoke TOP YOKE	1
22	64014		SCREW (.250-28 x .500) SWIVEL BRACKET	2
23	54457	J型卡扣	J CLIP
24	95164A9	调整传感器总成	SENDER ASSEMBLY Trim	1
24	8M0074846	ORDER 8M0098273	ORDER 8M0098273	1
25	56682	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
25	852368	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
26	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
27	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2

图 74艉板支架 TRANSOM BRACKET

REF	零件编号	中文名称	英文名称	数量
1	828334F1	艉板支架	BRACKET Transom	1
2	828333A3	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	828333T07	艉板支架总成-左舷	BRACKET ASSEMBLY Transom - Port	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	99170A2	倾斜管套件	TUBE KIT Tilt	1
4	826125A1	倾斜管	TILT TUBE	1
4	826125A1	倾斜管	TILT TUBE	1
5	859133	螺母(1.00-14)	NUT (1.00-14)	1
5	82671327	螺母(1.0-14)	NUT (1.0-14)	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	858869	螺母 (.875-14)	NUT (.875-14)	1
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	54012	垫圈(0.530×0.870×0.105不锈钢)	WASHER (.530 x .870 x .105) Stainless Steel	4
10	8M0204665	垫圈(0.530×0.880×0.104 630不锈钢)	WASHER (.530 x .880 x .104) 630 Stainless Steel	4
11	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	830899	张力弹簧	SPRING Tension	1
14	821176T1	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	8M0109798	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
15	65830	尼龙衬套	NYLINER	2
16	830900	压缩弹簧	SPRING Compression	1
17	99633	旋钮	KNOB	1
18	99615	槽销	PIN Groove	1
19	99617	销	PIN	1
19	893709	销	PIN	1
20	818771T1	锚支架	BRACKET Anchor	1
20	8M0086406	锚支架	BRACKET Anchor	1
21	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
22	4002319	垫圈	WASHER	6
23	40114	螺母(M10 x 1.5)	NUT (M10 x 1.5)	1
24	818298Q1	阳极套件	ANODE KIT	1
25	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
25	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
26	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
26	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2

图 75齿轮箱（螺旋桨轴）（铸件号1655-9572C） GEAR HOUSING (PROPELLER SHAFT)(CASTING #1655-9572C)

REF	零件编号	中文名称	英文名称	数量
-	9572A3	齿轮箱总成(长型)(黑色)	GEAR HOUSING ASSEMBLY (LONG) (BLACK)	1
-	9572A4	齿轮箱总成(长型)(灰色)	GEAR HOUSING ASSEMBLY (LONG) (GRAY)	1
-	814247T4	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	9572A1	齿轮箱总成(黑色)	GEAR HOUSING ASSEMBLY (BLACK)	1
1	814247T8	齿轮箱	GEAR HSG	1
1	9572A2	齿轮箱总成(灰色)	GEAR HOUSING ASSEMBLY (GRAY)	1
1	814247T9	齿轮箱	GEAR HSG	1
44	76039	换挡凸轮控制	CAM Shift Control	1
44	760394	换挡凸轮控制	CAM Shift Control	1
45	12239A1	凸轮从动件套件	FOLLOWER KIT Cam	1
45	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
46	30622	凸轮从动件压缩弹簧	SPRING COMPRESSION - CAM FOLLOWER	1
47	44491A1	垫片组	SHIM SET	AR
47	8M0063266	垫片组	SHIM SET	AR
48	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
49	16279A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
50	30895	滚针轴承（前进齿轮）	BEARING Needle FORWARD GEAR	1
50	30895T	滚针轴承	BEARING Needle	1
51	12777	棘轮	RATCHET	1
51	822539T	离合器	CLUTCH	1
52	30632	十字离合器销	PIN Cross CLUTCH	1
52	8M0100263	十字销	PIN Cross	1
53	30893	十字销固定弹簧	SPRING RETAINING - CROSS PIN	1
54	12238T	螺旋桨轴	PROPELLER SHAFT	1
55	N.S.S.	倒车齿轮(不单独销售)(属于43-16279A2部件)	Not Sold Separate Reverse Gear (PART OF 43-16279A2)	1
56	76358	止推垫片轴承座	THRUST WASHER BEARING CARRIER	1
57	29976	轴承座O型圈	O-RING BEARING CARRIER	1
58	41529A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
58	41529T2	托架总成	CARRIER ASSY	1
59	98727	润滑脂接头	FITTING Grease	2
59	8M0169588	润滑脂接头	FITTING Grease	2
60	30956	滚针轴承-轴承座	BEARING Needle BEARING CARRIER	1
60	30956T	滚针轴承	BEARING Needle	1
61	76868	密封件	SEAL	2
61	8M0248882	油封@5	SEAL-OIL @5	2
62	30281		KEY LOCATING - BEARING CARRIER	1
63	52700	齿轮箱盖锁紧垫圈	TAB WASHER GEAR HOUSING COVER	1
64	52699	齿轮箱盖	COVER GEAR HOUSING	1
65	67891	填充块	FILLER BLOCK	1
65	8M0039169	填充块	FILLER BLOCK	1
66	30206	螺钉(.375-16 x 1.00)不锈钢	SCREW (.375-16 x 1.00) Stainless Steel	1
67	31211A2	花键垫圈	WASHER Splined	1
67	31211Q03	垫圈总成	WASHER ASSEMBLY	1
68	31210	锁紧垫圈	TAB WASHER	1
68	816629Q	锁紧垫圈	TAB WASHER	1
69	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
69	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
70	316404	平衡鳍板	TRIM TAB	1
70	31640Q4	平衡鳍板	TRIM TAB	1
71	15797	阳极板螺钉	SCREW ANODIC PLATE	1
72	45176	不锈钢垫圈(.453 x .812 x .105) 驱动轴壳体螺柱用	WASHER (.453 x .812 x .105) Stainless Steel DRIVESHAFT HOUSING STUDS	2
73	34933	不锈钢螺母(.437-20) 驱动轴壳体螺柱用	NUT (.437-20) Stainless Steel DRIVESHAFT HOUSING STUDS	2
73	8M0204653	螺母	NUT	2
74	13191A1	止推垫片	THRUST WASHER	1
74	13191Q01	止推垫片	THRUST WASHER	1
75	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
-	89238A2	密封套件	SEAL KIT	1
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1

图 76飞轮/启动电机 Flywheel/Starter Motor

REF	零件编号	中文名称	英文名称	数量
1	18896A1	飞轮盖套件	COVER KIT FLYWHEEL	1
2	79022	正时标记	MARKER TIMING	1
3	37572	螺钉(0.190-32x0.380)正时标记	SCREW (.190-32 x .380) TIMING MARKER	2
4	72761	垫圈(0.203x0.562x0.060)不锈钢正时标记螺钉	WASHER (.203 x .562 x .060) Stainless Steel TIMING MARKER SCREW	2
5	89219	飞轮盖塞	PLUG FLYWHEEL COVER	1
5	89219001	堵头	PLUG	1
6	45907	飞轮黄色塞	PLUG Yellow FLYWHEEL	1
7	52901	螺母(.625-18)飞轮	NUT (.625-18) FLYWHEEL	1
8	68229	垫圈(0.641x1.250x0.190)飞轮	WASHER (.641 x 1.250 x .190) FLYWHEEL	1
8	33001	垫圈	WASHER	1
9	9841A7	飞轮	FLYWHEEL	1
9	859238T16	飞轮总成	FLYWHEEL ASY	1
10	32417	螺钉(.250-28 x .625)飞轮板	SCREW (.250-28 x .625) FLYWHEEL PLATE	8
11	68997	螺钉(.312-24 x .750)飞轮毂	SCREW (.312-24 x .750) FLYWHEEL HUB	8
12	9610A5	定子	STATOR	1
13	90045	螺钉(#10-32 x 1.375)定子	SCREW (#10-32 x 1.375) STATOR	4
14	26996	锁紧垫圈(#10)不锈钢定子螺钉	LOCKWASHER (#10) Stainless Steel STATOR SCREW	4
15	96455A9	触发板总成	PLATE ASSEMBLY Trigger	1
16	93388A1	电缆总成(6.00英寸)黑色板至启动马达	CABLE ASSEMBLY (6.00 Inches) Black PLATE TO STARTER MOTOR	1
17	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
17	893893	启动马达	STARTER MOTOR	1
18	56703	启动电机轴环	COLLAR STARTER MOTOR	2
18	8M0034918	轴环	COLLAR	2
19	68042	启动马达橡胶止动块	STOP Rubber RUBBER-STARTER MOTOR	2
19	8M0043376	停机开关	STOP	2
20	26992	锁紧垫圈(.250) 不锈钢起动机接线端	LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL	1
21	20890	螺母(.250-20) 起动机接线端	NUT (.250-20) STARTER MOTOR TERMINAL	1
22	93388A2	电磁阀至启动电机黑色电缆总成	CABLE ASSEMBLY Black SOLENOID TO STARTER MOTOR	1
22	93388A14	线缆总成(黄/黑)	CABLE ASSEMBLY Yellow/Black	1
23	69035	螺钉和锁紧垫圈 (.250-20 x .625) 不锈钢电缆至启动马达	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel CABLE TO STARTER MOTOR	1

图 77仪表装置 Instrumentation

REF	零件编号	中文名称	英文名称	数量
1	15110A1	转速表	TACHOMETER	1
2	79101T	安装支架	BRACKET MOUNTING	1
3	72729	楔形底座灯泡(14V - 1.9W)	LIGHT BULB Wedge Base (14V - 1.9W)	1
4	79888	灯泡插座	SOCKET Light Bulb	1
5	26419	螺母（#8-32）黄铜（8-32）	NUT (#8-32) Brass (8-32)	5
6	86322A7	线束总成 (1.50英尺) 黑色配平表 (BLACK - 1-1/2")	CABLE ASSEMBLY (1.50 Feet) Black TRIM GAUGE (BLACK - 1-1/2")	1
6	86323A5	线束总成 (1.50英尺) 紫色配平表 (PURPLE - 1-1/2")	CABLE ASSEMBLY (1.50 Feet) Purple TRIM GAUGE (PURPLE - 1-1/2")	1
7	15113A4	配平表	TRIM GAUGE	1
7	895292Q41	动力升降倾斜指示器黑面橙白刻度黑边框	GAUGE Power Trim Indicator, Black Face, Orange/White Graduations, Black Bezel	1
8	79480	安装支架-微调表	BRACKET MOUNTING - TRIM GAUGE	1
9	72729	灯泡楔形底座(14V-1.9W)微调表	LIGHT BULB Wedge Base (14V - 1.9W) TRIM GAUGE	1
10	79888	灯泡插座微调表	SOCKET Light Bulb TRIM GAUGE	1
11	26419	螺母 (#8-32) 黄铜配平表端子 (8-32)	NUT (#8-32) Brass TRIM GAUGE TERMINAL (8-32)	5
12	26427	垫圈配平表端子 (#8)	WASHER TRIM GAUGE TERMINAL (#8)	2
13	86396A8	转速表线束总成(5.00英尺)	HARNESS ASSEMBLY Tachometer (5.00 Feet)	1
14	15166A1	温度表	TEMPERATURE GAUGE	1
14	895287Q41	水温表套件(100-240℉)黑面橙白刻度黑框	WATER TEMPERATURE GAUGE KIT (100-240 F) Black Face, Orange/White Graduations, Black Bezel	1
15	72729	楔形底座灯泡(14V - 1.9W)	LIGHT BULB Wedge Base (14V - 1.9W)	1
16	79888	灯泡插座	SOCKET Light Bulb	1
17	26427	垫圈	WASHER	2
18	79480	支架	BRACKET	1
19	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	5
20	86323A2	线束总成 (2.00英尺) 紫色 (PURPLE)	CABLE ASSEMBLY (2.00 Feet) Purple (PURPLE)	1
20	61600A16	线束总成 (17.00英寸) 黑色 (BLACK)	CABLE ASSEMBLY (17.00 Inches) Black (BLACK)	1
20	88824A4	线束总成 (45.00英寸) 米色 (TAN)	CABLE ASSEMBLY (45.00 Inches) Tan (TAN)	1

图 78动力升降倾斜泵 Power Trim Pump

REF	零件编号	中文名称	英文名称	数量
-	99186T	泵与电机总成	PUMP AND MOTOR	1
1	12659	机架与磁场套件	FRAME AND FIELD KIT	1
1	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
2	12665	电刷弹簧套件	SPRING KIT Brush	1
3	13506	电刷卡套件	BRUSH CARD KIT	1
3	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
4	12662	泵与端架套件	PUMP AND END FRAME KIT	1
4	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
5	12663	泵密封套件	SEAL KIT Pump	1
5	126631	泵密封套件	SEAL KIT Pump	1
6	12660	端架套件	END FRAME KIT	1
6	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
7	12661	电枢套件	ARMATURE KIT	1
7	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
8	12664	贯穿螺栓套件	THRU BOLT KIT	1

图 79齿轮箱（驱动轴-铸件号1655-9572C） Gear Housing (Driveshaft-Casting # is 1655-9572C)

REF	零件编号	中文名称	英文名称	数量
-	9572A3	齿轮箱总成（长型）（黑色）	GEAR HOUSING ASSEMBLY (LONG)(BLACK)	1
-	9572A4	齿轮箱总成（长型）（灰色）	GEAR HOUSING ASSEMBLY (LONG)(GRAY)	1
-	814247T4	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	9572A1	齿轮箱总成(黑色)	GEAR HOUSING ASSEMBLY (BLACK)	1
1	814247T8	齿轮箱	GEAR HSG	1
1	9572A2	齿轮箱总成(灰色)	GEAR HOUSING ASSEMBLY (GRAY)	1
1	814247T9	齿轮箱	GEAR HSG	1
2	85822A1		CONNECTOR ASSEMBLY SPEEDOMETER	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	20033	定位销齿轮箱定位	PIN Dowel GEAR HOUSING LOCATING	2
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	78638	齿轮箱螺柱(0.438×3.12)	STUD (.438 x 3.12) GEAR HOUSING	1
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
5	57920	双头螺栓(.44 x 2.06)齿轮箱	STUD (.44 x 2.06) GEAR HOUSING	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	56297	双头螺栓(.312 x 3.38)水泵	STUD (.312 x 3.38) WATER PUMP	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28 x 3.125)水泵	STUD (.250-20/.250-28 x 3.125) WATER PUMP	2
7	306671	螺柱	STUD	2
8	32898	轴承	BEARING	1
8	32898T	轴承	BEARING	1
9	79953		SCREW (.375-16 x .250) GREASE FILLER	1
9	79953Q04	放油螺钉套件	SCREW KIT Drain	1
10	67892		SCREW Magnetic DRAIN	1
10	8M0058389	放油螺钉套件	SCREW KIT Drain	1
11	15298	驱动轴注油嘴	DRIVESHAFT GREASE FILLER	1
12	NSS	不单独出售小齿轮（43-16279A2部件）	NOT SOLD SEPARATE PINION GEAR (PART OF 43-16279A2)	1
13	20260	润滑脂加注与排放螺钉垫圈	WASHER GREASE FILLER AND DRAIN SCREW	2
13	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
14	35921	螺母(0.625-18)	NUT (.625-18)	1
15	42637A1	垫片组	SHIM SET	AR
15	8M0063267	垫片组	SHIM SET	AR
16	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
16	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
17	42633	传动轴轴承螺母	NUT DRIVESHAFT BEARING	1
17	8245191	固定座	RETAINER	1
18	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
19	42631	衬垫	GASKET	1
19	8M0204678	衬垫	GASKET	1
20	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
20	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
20	38099	O型圈（内径2.109）	O-RING (2.109 I.D.)	1
21	89238	油封	SEAL Oil	1
22	16977	油封	SEAL Oil	1
23	85608	下部衬垫	GASKET LOWER	1
23	8M0090319	衬垫@5	GASKET @5	1
24	85609	上衬垫	GASKET UPPER	1
24	858524	衬垫	GASKET	1
25	32435	面板	FACE PLATE	1
25	8M0204677	面板	PLATE-FACE	1
26	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
27	48752	水泵体嵌件	INSERT WATER PUMP BODY	1
27	48752T	嵌件	INSERT	1
28	38970	橡胶密封件	SEAL RUBBER	1
29	89984	水泵叶轮	IMPELLER WATER PUMP	1
29	89984T4	叶轮	IMPELLER	1
30	56654	叶轮驱动键	KEY IMPELLER DRIVE	1
30	8M0214992	键@5	KEY @5	1
31	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
31	8M0215009	螺钉	SCREW	1
32	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
33	13438	螺母(.250-28)	NUT (.250-28)	2
33	8267119	螺母(.250-28)	NUT (.250-28)	2
34	36001	垫圈	WASHER	1
35	13436	螺母	NUT	1
36	30271	橡胶环	RING Rubber RUBBER	1
36	8M0214918	环@5	RING @5	1
37	29804	导向套	SLEEVE GUIDE	1
37	29804T	套筒	SLEEVE	1
38	15299	换挡轴（下部）	SHAFT SHIFT-LOWER	1
39	29641	E型卡环	E RING	1
40	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
41	77631A2	衬套总成	BUSHING ASSEMBLY	1
42	76384	油封	SEAL Oil	1
42	8M0246145	油封	OIL SEAL	1
43	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1
-	42579A4	水泵修理包	REBUILD KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1

图 80齿轮箱螺旋桨轴-铸件号1655-9572C Gear Housing Propeller Shaft - Casting # is 1655-9572C

REF	零件编号	中文名称	英文名称	数量
-	9572A3	齿轮箱总成（长型）（黑色）	GEAR HOUSING ASSEMBLY (LONG)(BLACK)	1
-	9572A4	齿轮箱总成（长型）（灰色）	GEAR HOUSING ASSEMBLY (LONG)(GRAY)	1
-	814247T4	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	9572A1	齿轮箱总成(黑色)	GEAR HOUSING ASSEMBLY (BLACK)	1
1	814247T8	齿轮箱	GEAR HSG	1
1	9572A2	齿轮箱总成(灰色)	GEAR HOUSING ASSEMBLY (GRAY)	1
1	814247T9	齿轮箱	GEAR HSG	1
44	76039	换挡凸轮控制	CAM Shift Control	1
44	760394	换挡凸轮控制	CAM Shift Control	1
45	12239A1	凸轮从动件套件	FOLLOWER KIT Cam	1
45	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
46	30622	弹簧	SPRING	1
47	44491A1	垫片组	SHIM SET	AR
47	8M0063266	垫片组	SHIM SET	AR
48	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
49	16279A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
50	30895	滚针轴承	BEARING Needle	1
50	30895T	滚针轴承	BEARING Needle	1
51	12777	棘轮	RATCHET	1
51	822539T	离合器	CLUTCH	1
52	30632	十字销	PIN Cross	1
52	8M0100263	十字销	PIN Cross	1
53	30893	弹簧	SPRING	1
54	12238T	螺旋桨轴	PROPELLER SHAFT	1
55	NSS		NOT SOLD SEPARATE REVERSE GEAR (PART OF 43-16279A2)	1
56	76358	止推垫片	THRUST WASHER	1
57	29976	O型圈	O-RING	1
58	41529A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
58	41529T2	托架总成	CARRIER ASSY	1
59	98727	润滑脂接头	FITTING Grease	2
59	8M0169588	润滑脂接头	FITTING Grease	2
60	30956	滚针轴承	BEARING Needle	1
60	30956T	滚针轴承	BEARING Needle	1
61	76868	密封件	SEAL	2
61	8M0248882	油封@5	SEAL-OIL @5	2
62	30281	键	KEY	1
63	52700	锁紧垫圈	TAB WASHER	1
64	52699	盖板	COVER	1
65	67891	填充块	FILLER BLOCK	1
65	8M0039169	填充块	FILLER BLOCK	1
66	30206	螺钉(.375-16 x 1.00)不锈钢	SCREW (.375-16 x 1.00) Stainless Steel	1
67	31211A2	花键垫圈	WASHER Splined	1
67	31211Q03	垫圈总成	WASHER ASSEMBLY	1
68	31210	锁紧垫圈	TAB WASHER	1
68	816629Q	锁紧垫圈	TAB WASHER	1
69	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
69	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
70	15300	阳极配平片	TRIM TAB Anodic	1
71	15797	螺钉	SCREW	1
72	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
73	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
73	8M0204653	螺母	NUT	2
74	13191A1	止推垫片	THRUST WASHER	1
74	13191Q01	止推垫片	THRUST WASHER	1
75	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1
-	89238A2	密封套件	SEAL KIT	1

图 81飞轮、启动电机与点火线圈 FLYWHEEL, STARTER MOTOR AND IGNITION COILS

REF	零件编号	中文名称	英文名称	数量
1	79918A1	飞轮盖套件	COVER KIT FLYWHEEL	1
2	79022	正时标记	MARKER TIMING	1
3	37572	螺钉(0.190-32x0.380)正时标记	SCREW (.190-32 x .380) TIMING MARKER	2
4	72761	垫圈(0.203x0.562x0.060)不锈钢正时标记螺钉	WASHER (.203 x .562 x .060) Stainless Steel TIMING MARKER SCREW	2
5	89219	飞轮盖塞	PLUG FLYWHEEL COVER	1
5	89219001	堵头	PLUG	1
6	45907	飞轮黄色塞	PLUG Yellow FLYWHEEL	1
7	52901	螺母(.625-18)飞轮	NUT (.625-18) FLYWHEEL	1
8	68229	垫圈(0.641x1.250x0.190)飞轮	WASHER (.641 x 1.250 x .190) FLYWHEEL	1
8	33001	垫圈	WASHER	1
9	7555A8	飞轮	FLYWHEEL	1
9	859238A9	飞轮套件	FLYWHEEL KIT	1
9	7555A17	飞轮	FLYWHEEL	1
9	859238A9	飞轮套件	FLYWHEEL KIT	1
10	32417	螺钉(.250-28 x .625)飞轮板	SCREW (.250-28 x .625) FLYWHEEL PLATE	8
11	68997	螺钉(.312-24 x .750)飞轮毂	SCREW (.312-24 x .750) FLYWHEEL HUB	8
12	5454A32	定子(配15安培电压调节器)	STATOR (USE WITH VOLTAGE REGULATOR-15AMP)	1
12	5454A35	定子(配15安培电压调节器)	STATOR (USE WITH VOLTAGE REGULATOR-15AMP)	1
13	76566	定子螺钉(#10-24 x 1.00)	SCREW (#10-24 x 1.00) STATOR	4
13	19926100	螺丝（#10-24 x 1.00）	SCREW (#10-24 x 1.00)	4
15	96455A9	触发板总成	PLATE ASSEMBLY Trigger	1
17	79472	启动电机总成(8齿小齿轮)	STARTER MOTOR ASSEMBLY (8 TOOTH PINION)	1
17	893893	启动马达	STARTER MOTOR	1
18	56703	启动电机轴环	COLLAR STARTER MOTOR	2
18	8M0034918	轴环	COLLAR	2
19	68042	启动电机橡胶止动块	STOP Rubber RUBBER - STARTER MOTOR	2
19	8M0043376	停机开关	STOP	2
20	26992	锁紧垫圈(.250) 不锈钢起动机接线端	LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL	1
21	20890	螺母(.250-20) 起动机接线端	NUT (.250-20) STARTER MOTOR TERMINAL	1
22	93388A2	电磁阀至启动电机黑色电缆总成	CABLE ASSEMBLY Black SOLENOID TO STARTER MOTOR	1
22	93388A14	线缆总成(黄/黑)	CABLE ASSEMBLY Yellow/Black	1
23	69035	螺钉和锁紧垫圈 (.250-20 x .625) 不锈钢电缆至启动马达	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel CABLE TO STARTER MOTOR	1
24	93388A1	电缆总成(6.00英寸)黑色板至启动马达	CABLE ASSEMBLY (6.00 Inches) Black PLATE TO STARTER MOTOR	1
25	7370A13	点火线圈总成	COIL ASSEMBLY Ignition IGNITION	6
25	8M0230859	点火线圈总成	COIL IGNITION ASY	6
26	67614	点火线圈盖	COVER IGNITION COIL	3
27	88447	点火线圈盖螺钉(.190-32 x 1.62)	SCREW (.190-32 x 1.62) IGNITION COIL COVER	12
28	45076	螺母(#10-32)黄铜点火线圈端子	NUT (#10-32) Brass IGNITION COIL TERMINAL	12
29	88807A6	点火线圈黑色电缆总成(3.50英寸)	CABLE ASSEMBLY (3.50 Inches) Black IGNITION COIL	6
30	68513	接地带不锈钢螺钉(#10-32 x .375)	SCREW (#10-32 x .375) Stainless Steel GROUND STRAP	6
31	99215A25	高压导线总成	LEAD ASSEMBLY HIGH TENSION	6
31	813715A1	引线	LEAD WIRE	6
32	63709A1	高压电缆护套/端子套件	BOOT/TERMINAL KIT HIGH TENSION CABLE	6
33	136862	火花塞	SPARK PLUG	6
33	13686Q	NGK BU8H @10	NGK BU8H @10	6
34	69738A1	线圈至开关盒线束总成(#2,4&6)	HARNESS ASSEMBLY COIL TO SWITCH BOX (#2, 4 & 6)	1
34	69738A7	线束总成	HARNESS ASSEMBLY	1
34	69739A2	线圈至开关盒线束总成(#1,3&5)	HARNESS ASSEMBLY COIL TO SWITCH BOX (#1, 3 & 5)	1
35	30164	点火线圈盖螺钉不锈钢垫圈(.192 x .375 x .0312)	WASHER (.192 x .375 x .0312) Stainless Steel IGNITION COIL COVER SCREW	12

图 82双机延伸套件 Dual Engine Extension Kit

REF	零件编号	中文名称	英文名称	数量
-	92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
1	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
2	71565A2	管总成	TUBE ASSEMBLY	1
3	41055	支架	MOUNT	1
4	42100	锁紧垫圈	TAB WASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	88404	锁紧垫圈	TAB WASHER	2
7	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
8	17729A1	支架	BRACKET	2
9	62055	螺钉(.312-24 x 1.250)	SCREW (.312-24 x 1.250)	4
10	17728	锁紧垫圈	TAB WASHER	4
11	140001	螺钉(0.375-24×1.38)	SCREW (.375-24 x 1.38)	4
12	34863	螺母 (.375-24)	NUT (.375-24)	6
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	6
13	979331	转向眼环	STEERING EYE	2
13	8M0026167	转向眼环	STEERING EYE	2
14	23651	衬套(1.625)	SLEEVE (1.625)	2
15	97931	管材(4.00英寸)	TUBING (4.00 Inches)	2
16	8149513	联轴器(15.00英寸)	COUPLER (15.00 Inches)	1
16	8M0026098	联轴器15英寸	COUPLER 15 In.	1
17	42099	螺母(.562-18)	NUT (.562-18)	1
18	821169	联轴器	COUPLING	1
19	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	2
20	94319	螺钉(.375-24 x 1.5)	SCREW (.375-24 x 1.5)	1

图 83齿轮箱螺旋桨轴-反旋转135/150/175/200型 Gear Housing Propeller Shaft - Counter-135/150/175/200

REF	零件编号	中文名称	英文名称	数量
-	9148A27	齿轮箱总成反转向(加长型)	GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG)	1
-	9148A28	齿轮箱总成反转向(加长型)	GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG)	1
-	9148T89	齿轮箱壳体-CXL-灰色	GEAR HSG-CXL-GRAY	1
-	9148A30	齿轮箱总成反向旋转(加长型)(黑色)	GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG)(BLACK)	1
-	9148T86	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A31	齿轮箱总成反转向(加长型)	GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG)	1
-	9148T92	ORD 1647-9148T86	ORD 1647-9148T86	1
1	9148A11	齿轮箱总成(黑色)(基本型)	GEAR HOUSING ASSEMBLY (BLACK)(BASIC)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A12	齿轮箱总成(灰色)(基础款)	GEAR HOUSING ASSEMBLY (GRAY)(BASIC)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
47	78956	换挡凸轮	SHIFT CAM	1
47	789562	换挡凸轮	SHIFT CAM	1
48	89594A1	凸轮从动件总成	FOLLOWER ASSEMBLY CAM	1
49	79911	离合器作动杆	ROD CLUTCH ACTUATOR	1
49	79911A1	杆	ROD	1
50	79910	压缩弹簧	SPRING COMPRESSION	2
51	78910	弹簧垫圈	WASHER SPRING	AR
52	78906		PIN SPRING LOCATOR	1
52	8M0084245	弹簧定位销	PIN Spring Locator	1
53	14469	轴承杯	CUP Bearing	1
53	14469T	轴承杯	CUP Bearing	1
54	88957A1	滚珠轴承	BEARING Ball	1
54	88957T	滚珠轴承	BEARING Ball	1
55	NSS	倒车齿轮(不单独销售)(43-18572A1或43-18475A1部件)	NOT SOLD SEPARATE Reverse Gear (PART OF 43-18572A1 or 43-18475A1)	1
56	15844	滚柱轴承总成	BEARING ASSEMBLY Roller	1
57	78909	棘轮定位销	PIN Detent RATCHET	2
58	78959	棘轮滑动离合器	RATCHET SLIDING CLUTCH	1
58	823174T	ORD 8M0100493	ORD 8M0100493	1
59	78905	十字棘轮销	PIN Cross RATCHET	1
59	8M0084243	十字销	PIN Cross	1
60	78962	十字销固定弹簧	SPRING RETAINING - CROSS PIN	2
61	18572A1	前进齿轮总成	GEAR ASSEMBLY Forward	1
61	18572T1	齿轮组	GEAR SET	1
61	18475A1	前进齿轮总成	GEAR ASSEMBLY Forward	1
61	18475T1	齿轮组	GEAR SET	1
62	176151	调整垫片(.125)	SPACER SHIM (.125)	AR
62	176152	调整垫片(.127)	SPACER SHIM (.127)	AR
62	176153	调整垫片(.129)	SPACER SHIM (.129)	AR
62	176154	调整垫片(.131)	SPACER SHIM (.131)	AR
62	176155	调整垫片(.133)	SPACER SHIM (.133)	AR
62	176156	调整垫片(.135)	SPACER SHIM (.135)	AR
62	176157	调整垫片(.137)	SPACER SHIM (.137)	AR
62	176158	调整垫片(.139)	SPACER SHIM (.139)	AR
62	176159	调整垫片(.141)	SPACER SHIM (.141)	AR
62	1761510	调整垫片(.143)	SPACER SHIM (.143)	AR
62	1761511	调整垫片(.145)	SPACER SHIM (.145)	AR
62	1761512	调整垫片(.147)	SPACER SHIM (.147)	AR
62	1761513	调整垫片(.149)	SPACER SHIM (.149)	AR
63	15841	滚柱轴承	BEARING Roller	1
64	17616	推力环	THRUST RING	1
65	31534	轴承座O型圈	O-RING BEARING CARRIER	1
65	8M0214920	O型圈	O RING	1
66	18447A2	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
66	18447T2	适配器总成	ADAPTOR ASSEMBLY	1
67	15843	滚柱轴承	BEARING Roller	1
67	15843T	滚针轴承	BEARING Needle	1
68	18448	止推垫片	THRUST WASHER	2
69	15842	推力轴承	BEARING Thrust	2
70	18446	螺旋桨轴	PROPELLER SHAFT	1
71	18444A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
71	818896T2	轴承座	BEARING CARRIER	1
72	30956	滚针轴承-轴承座	BEARING Needle BEARING CARRIER	2
72	30956T	滚针轴承	BEARING Needle	2
73	76868	密封件	SEAL	2
73	8M0248882	油封@5	SEAL-OIL @5	2
74	79447	齿轮箱盖锁紧垫圈	TAB WASHER GEAR HOUSING COVER	1
75	79448	齿轮箱固定座	RETAINER GEAR HOUSING	1
75	8M2011027	固定座	RETAINER	1
76	30281		KEY LOCATING - BEARING CARRIER	1
77	31640A1		TRIM TAB ASSEMBLY GEAR HOUSING	1
77	31640Q4	平衡鳍板	TRIM TAB	1
78	66024		SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING	1
79	67891	填充块	FILLER BLOCK	1
79	8M0039169	填充块	FILLER BLOCK	1
80	45176	垫圈(.453 x .812 x .105)不锈钢驱动轴壳体螺柱	WASHER (.453 x .812 x .105) Stainless Steel DRIVE SHAFT HOUSING STUDS	2
81	34933	螺母(.437-20)不锈钢驱动轴壳体螺柱	NUT (.437-20) Stainless Steel DRIVE SHAFT HOUSING STUDS	2
81	8M0204653	螺母	NUT	2
82	13171	推力毂	THRUST HUB	1
82	835467Q01	止推垫片套件	THRUST WASHER KIT	1
83	31211A2	螺旋桨螺母花键垫圈	WASHER Splined PROPELLER NUT	1
83	31211Q03	垫圈总成	WASHER ASSEMBLY	1
84	816629	螺旋桨螺母锁紧垫圈	TAB WASHER PROPELLER NUT	1
84	816629Q	锁紧垫圈	TAB WASHER	1
85	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
85	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
86	423511	螺旋桨轴齿形锁紧垫圈	LOCKWASHER Toothed PROPELLER SHAFT	1
87	65210	螺钉(.375-16 x 1.00)齿轮箱	SCREW (.375-16 x 1.00) GEAR HOUSING	1
-	89238A2	密封套件	SEAL KIT	1

图 84簧片阀组与气缸盖 Reed Block and Cylinder Head

REF	零件编号	中文名称	英文名称	数量
1	15221A2	气缸盖总成	CYLINDER HEAD ASSEMBLY	2
2	41246	气缸盖衬垫	GASKET CYLINDER HEAD	2
2	41247T01	衬垫	GASKET	2
3	98534	螺钉 (0.375-16 x 2.30) 气缸盖（2英寸）	SCREW (.375-16 x 2.30) CYLINDER HEAD (2")	23
3	13450	螺钉 (0.375-16 x 2.30) 气缸盖（专用）	SCREW (.375-16 x 2.30) CYLINDER HEAD (SPECIAL)	1
4	25909	气缸盖螺钉垫圈 (.406 x .812 x .065)	WASHER (.406 x .812 x .065) CYLINDER HEAD SCREW	24
5	75692	节温器	THERMOSTAT	2
6	62386	节温器衬垫	GASKET THERMOSTAT	2
6	8M0204714	衬垫@4	GASKET @4	2
7	90390A1	节温器盖套件	COVER KIT THERMOSTAT	2
8	35386	螺钉 (0.312-18 x 1.00) 节温器盖（1英寸）	SCREW (.312-18 x 1.00) THERMOSTAT COVER (1")	4
9	68727	90度黄铜弯头接头 (.250-18)（水管用）	FITTING (.250-18) 90 Degree - Brass ELBOW - WATER HOSES	1
9	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
10	7765377	配水软管（散装24.500英寸）	HOSE (24.500 Inches Bulk) WATER DISTRIBUTION	2
10	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	2
11	68728	节温器盖至水管接头	FITTING THERMOSTAT COVER TO WATER HOSES	1
12	90077	水管束带	TIE STRAP WATER HOSES	AR
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
13	97465	温度传感器（右舷）	SENDER Temperature (STARBOARD)	1
13	13536A6	温度传感器总成（左舷）	SENSOR ASSEMBLY Temperature (PORT)	1
14	13715	传感器固定座	RETAINER SENSOR AND SENDER	2
14	137151	固定座	RETAINER	2
15	98257	螺钉 (0.312-18 x 0.500) 固定座	SCREW (.312-18 x .500) RETAINER	2
16	13192	爆震传感器	SENSOR Detonation	1
16	825164A1	爆震传感器总成	SENSOR ASSEMBLY Detonation	1
17	45076	螺母 (#10-32) 黄铜爆震传感器	NUT (#10-32) Brass DETONATION SENSOR	1
18	14593A4	适配板总成	ADAPTER PLATE ASSEMBLY	1
19	28668	螺钉 (0.250-20 x 0.875) 不锈钢适配板	SCREW (.250-20 x .875) Stainless Steel ADAPTOR PLATE	8
20	146971	适配板垫片	GASKET ADAPTOR PLATE	1
21	75953	簧片阀组	REED BLOCK	6
22	75362A1	簧片组件	REED ASSEMBLY	6
23	96183	簧片夹	CLAMP Reed	12
23	961832	簧片夹	CLAMP Reed	12
24	14783	螺钉 (#8-32 x 0.187) 簧片至簧片座	SCREW (#8-32 x .187) REEDS TO REED BLOCK	60
24	823588	螺钉 (#8-32 x .250)	SCREW (#8-32 x .250)	60
25	21558	螺钉 (0.250-20 x 0.75) 簧片座固定（3/4英寸）	SCREW (.250-20 x .75) REED BLOCK ATTACHING (3/4")	6
25	92160	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	6
26	90197	螺钉 (0.250-20 x 1.125) 簧片座固定（2英寸）	SCREW (.250-20 x 1.125) REED BLOCK ATTACHING (2")	6
27	167371	适配板垫片	GASKET ADAPTOR PLATE	1
-	14697A87	衬垫套件	GASKET SET

图 85艉板支架 Transom Bracket

REF	零件编号	中文名称	英文名称	数量
1	828334F1	艉板支架	BRACKET Transom	1
2	828333A3	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	828333T07	艉板支架总成-左舷	BRACKET ASSEMBLY Transom - Port	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	99170A2	倾斜管套件	TUBE KIT Tilt	1
4	826125A1	倾斜管	TILT TUBE	1
4	826125A1	倾斜管	TILT TUBE	1
5	859133	螺母(1.00-14)	NUT (1.00-14)	1
5	82671327	螺母(1.0-14)	NUT (1.0-14)	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	858869	螺母 (.875-14)	NUT (.875-14)	1
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	54012	垫圈(0.530×0.870×0.105不锈钢)	WASHER (.530 x .870 x .105) Stainless Steel	4
10	8M0204665	垫圈(0.530×0.880×0.104 630不锈钢)	WASHER (.530 x .880 x .104) 630 Stainless Steel	4
11	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	830899	张力弹簧	SPRING Tension	1
14	821176T1	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	8M0109798	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
15	65830	尼龙衬套	NYLINER	2
16	830900	压缩弹簧	SPRING Compression	1
17	99633	旋钮	KNOB	1
18	99615	槽销	PIN Groove	1
19	99617	销	PIN	1
19	893709	销	PIN	1
20	818771T1	锚支架	BRACKET Anchor	1
20	8M0086406	锚支架	BRACKET Anchor	1
21	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
22	4002319	垫圈	WASHER	6
23	40114	螺母(M10 x 1.5)	NUT (M10 x 1.5)	1
24	818298Q1	阳极套件	ANODE KIT	1
25	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
25	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
26	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
26	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2

图 86齿轮箱（螺旋桨轴）（铸件号1674-814247C） GEAR HOUSING (PROPELLER SHAFT) (CASTING #1674-814247C)

REF	零件编号	中文名称	英文名称	数量
-	814247A3	齿轮箱总成1.78:1速比-黑色	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Black	1
-	814247A4	齿轮箱总成 1.78:1 减速比 - 灰色	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Gray	1
-	814247T4	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	814247A1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic - Black	1
1	814247T1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	814247A2	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic - Gray	1
1	814247T2	ORD 1674-814247T1	ORD 1674-814247T1	1
44	76039	换挡凸轮控制	CAM Shift Control	1
44	760394	换挡凸轮控制	CAM Shift Control	1
45	12239A1	凸轮从动件套件	FOLLOWER KIT Cam	1
45	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
46	30622	弹簧	SPRING	1
47	44491A1	垫片组	SHIM SET	AR
47	8M0063266	垫片组	SHIM SET	AR
48	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
49	16279A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
50	30895	滚针轴承	BEARING Needle	1
50	30895T	滚针轴承	BEARING Needle	1
51	814756	离合器	CLUTCH	1
51	822539T	离合器	CLUTCH	1
52	30632	十字销	PIN Cross	1
52	8M0100263	十字销	PIN Cross	1
53	30893	弹簧	SPRING	1
54	12238T	螺旋桨轴	PROPELLER SHAFT	1
55	N.S.S.	倒车齿轮(不单独销售)(属于43-16279A2部件)	Not Sold Separate Reverse Gear (PART OF 43-16279A2)	1
56	76358	止推垫片	THRUST WASHER	1
57	29976	O型圈	O-RING	1
58	41529A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
58	41529T2	托架总成	CARRIER ASSY	1
59	98727	润滑脂接头	FITTING Grease	2
59	8M0169588	润滑脂接头	FITTING Grease	2
60	30956	滚针轴承	BEARING Needle	1
60	30956T	滚针轴承	BEARING Needle	1
61	76868	密封件	SEAL	2
61	8M0248882	油封@5	SEAL-OIL @5	2
62	30281	键	KEY	1
63	52700	锁紧垫圈	TAB WASHER	1
64	52699	盖板	COVER	1
65	67891	填充块	FILLER BLOCK	1
65	8M0039169	填充块	FILLER BLOCK	1
66	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
68	816629	锁紧垫圈	TAB WASHER	1
68	816629Q	锁紧垫圈	TAB WASHER	1
69	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
69	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
70	15300	阳极配平片	TRIM TAB Anodic	1
71	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
72	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
73	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
73	8M0204653	螺母	NUT	2
74	13191A1	止推垫片	THRUST WASHER	1
74	13191Q01	止推垫片	THRUST WASHER	1
-	89238A2	密封套件	SEAL KIT	1
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1

图 87动力升降泵 POWER TRIM PUMP

REF	零件编号	中文名称	英文名称	数量
-	99186T	泵与电机总成	PUMP AND MOTOR	1
1	12659	机架与磁场套件	FRAME AND FIELD KIT	1
1	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
2	12665	电刷弹簧套件	SPRING KIT Brush	1
3	13506	电刷卡套件	BRUSH CARD KIT	1
3	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
4	12662	泵与端架套件	PUMP AND END FRAME KIT	1
4	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
5	12663	泵密封套件	SEAL KIT Pump	1
5	126631	泵密封套件	SEAL KIT Pump	1
6	12660	端架套件	END FRAME KIT	1
6	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
7	12661	电枢套件	ARMATURE KIT	1
7	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
8	12664	贯穿螺栓套件	THRU BOLT KIT	1

图 88曲轴（连杆锻件编号636-8118） Crankshaft (Connecting Rod Forging # is 636-8118)

REF	零件编号	中文名称	英文名称	数量
1	9536A4	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	67923	曲轴下球轴承	BEARING Ball CRANKSHAFT (LOWER)	1
2	67923T	滚珠轴承	BEARING Ball	1
3	67446	球轴承挡圈	RING BALL BEARING	1
4	14513A2	驱动齿轮段套件	GEAR SEGMENT KIT Drive	2
4	14513A09	驱动齿轮段套件	GEAR SEGMENT KIT Drive	2
5	813073	螺钉(#6-32 x .620)内六角头	SCREW (#6-32 x .620) Socket Head	2
6	813134	螺母(#6-32)专用	NUT (#6-32) Special	2
7	54196A6	密封载体总成	CARRIER ASSEMBLY SEAL	1
8	65800	填料载体	PACKING CARRIER	1
9	67377	密封环-曲轴	RING Sealing SEALING - CRANKSHAFT	8
9	67377T	密封环	RING Sealing	8
10	16756A1	滚子轴承总成-曲轴	BEARING ASSEMBLY Roller CRANKSHAFT	2
10	16756A6	轴承套件	BEARING KIT	2
11	7441A3	活塞总成(右舷-标准)	PISTON ASSEMBLY (STARBOARD-STANDARD)	3
11	7441T36	活塞-右舷-标准	PISTON-STBD-STD	3
11	7443A2	活塞总成(右舷-0.015加大)	PISTON ASSEMBLY (STARBOARD-.015 O.S.)	AR
11	7443A12	活塞-右舷-0.015	PISTON-STBD-.015	AR
11	7445A2	活塞总成(右舷-0.030加大)	PISTON ASSEMBLY (STARBOARD-.030 OS.)	AR
11	7445A12	活塞-右舷-0.030	PISTON-STBD-.030	AR
11	7442A3	活塞总成(左舷-标准)	PISTON ASSEMBLY (PORT-STANDARD)	3
11	7442T36	活塞-左舷-标准	PISTON-PORT-STD	3
11	7444A2	活塞总成(左舷-0.015加大)	PISTON ASSEMBLY (PORT-.015 O.S.)	AR
11	7444A12	活塞-左舷-0.015	PISTON-PORT-.015	AR
11	7446A2	活塞总成(左舷-0.030加大)	PISTON ASSEMBLY (PORT-.030 O.S.)	AR
11	7446T12	活塞-左舷-0.030	PISTON-PORT-.030	AR
11	8666A22	活塞总成(右舷-标准)	PISTON ASSEMBLY (STARBOARD-STANDARD)	3
11	8666T42	活塞总成-右舷-标准	PIST.ASY.STBD.STD	3
11	8666A36	活塞总成-右舷(0.015加大)	PISTON ASSEMBLY Starboard (015 O.S.)	AR
11	8666A43	活塞总成-右舷-0.015	PIST.ASY STBD.015	AR
11	8667A22	活塞总成(左舷-标准)	PISTON ASSEMBLY (PORT-STANDARD)	3
11	8667T42	活塞总成-左舷-标准	PIST.ASY.PORT.STD	3
11	8667A36	活塞总成-左舷(0.015加大)	PISTON ASSEMBLY Port (.015 O.S.)	AR
11	8667A43	活塞总成-左舷-0.015	PIST.ASY PORT.015	AR
11	9738A2	活塞总成(右舷-标准)	PISTON ASSEMBLY (STARBOARD-STANDARD)	3
11	9738T4	活塞-右舷-标准	PISTON-STBD-STD	3
11	9738A3	活塞总成(右舷-0.015加大)	PISTON ASSEMBLY (STARBOARD-.015 O.S.)	AR
11	9738A5	活塞-右舷-0.015	PISTON-STBD-.015	AR
11	9737A2	活塞总成(左舷-标准)	PISTON ASSEMBLY (PORT-STANDARD)	3
11	9737T4	活塞-左舷-标准	PISTON-PORT-STD	3
11	9737A3	活塞总成(左舷-0.015加大)	PISTON ASSEMBLY (PORT-.015 O.S.)	AR
11	9737A5	活塞-左舷-0.015	PISTON-PORT-.015	AR
12	93481A12	活塞环组-标准(标准)	RING SET Piston - Standard (STANDARD)	1
12	78918A4	活塞环组-0.015加大(0.015加大)	RING SET Piston - .015 Oversize (.015 O.S.)	AR
12	85636A4	活塞环组-0.030加大(0.030加大)	RING SET Piston - .030 Oversize (.030 O.S.)	AR
12	18487A12	活塞环组(标准)	RING SET Piston (STANDARD)	1
12	815267A4	活塞环组(.015加大)	RING SET Piston (.015 O.S.)	AR
12	815515A12	活塞环组(标准)	RING SET Piston (STANDARD)	1
12	815268A4	活塞环组(.015加大)	RING SET Piston (.015 O.S.)	AR
13	52035	锁环	RING Lock	12
13	857196	锁紧环	LOCK RING	12
14	8119A5	连杆总成	CONNECTING ROD ASSEMBLY	6
14	8119A6	连杆套件	CONN ROD KIT	6
15	93886	螺钉(0.312-28×0.875)连杆	SCREW (.312-28 x .875) CONNECTING ROD	12
16	47247	定位针垫圈	WASHER NEEDLE LOCATING	12
16	8M0032839	垫片@5	WASHER @5	12
17	17514A1	轴承套件	BEARING KIT	6
17	8M0234886	轴承保持架	CAGE BEARING	6
18	67483	活塞端滚针轴承	BEARING Needle PISTON END	174
-	815791A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 89旋转支架(铸件号1499-8710-6) Swivel Bracket (Casting #1499-8710-6)

REF	零件编号	中文名称	英文名称	数量
1	8710A17	旋转支架总成（黑色）	SWIVEL BRACKET ASSEMBLY (BLACK)	1
1	8710A18	旋转支架总成（灰色）	SWIVEL BRACKET ASSEMBLY (GRAY)	1
1	8710T21	灰色旋转支架总成	SWIVEL BRACKET ASSEMBLY Gray	1
2	87735		SEAL Oil SWIVEL BRACKET (LOWER)	1
3	67669	旋转支架衬套-上下部	BUSHING SWIVEL BRACKET-LOWER AND UPPER	2
3	818764	衬套	BUSHING	2
4	33466	上部O型圈	O-RING UPPER	1
5	67668	上部隔套	SPACER UPPER	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	99608	转轴支架衬套	BUSHING SWIVEL BRACKET	2
7	821207	衬套	BUSHING	2
8	67706A35	旋转销总成(黑色)	SWIVEL PIN ASSEMBLY (BLACK)	1
8	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
8	67706A36	旋转销总成(灰色)	SWIVEL PIN ASSEMBLY (GRAY)	1
8	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
9	78689	螺钉(0.437-20×7.50)转向臂至上支架	SCREW (.437-20 x 7.50) STEERING ARM TO UPPER MOUNT	2
9	8M0176309	螺钉	SCREW	2
10	78687	橡胶支架-上部(长型)	MOUNT RUBBER-UPPER (LONG)	2
10	78687T	支架	MOUNT	2
10	77326	支架(加长型)(用于XR4/MAGNUM II)	MOUNT (X-LONG) (USE ON XR4/MAGNUM II)	2
11	66921	上支座螺栓垫圈	WASHER UPPER MOUNT BOLT	2
12	814432	上支座螺栓垫圈	WASHER UPPER MOUNT BOLT	2
12	78688	垫圈	WASHER	2
13	34933	螺母（0.437-20）不锈钢上部安装螺栓	NUT (.437-20) Stainless Steel UPPER MOUNT BOLT	2
13	8M0204653	螺母	NUT	2
14	92876A1	转向连杆总成	LINK ASSEMBLY Steering	1
14	92876A12	连杆总成	LINK ROD ASSEMBLY	1
15	14000		SCREW (.375-24 x 1.25) STEERING LINK TO STEERING ARM	1
15	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
16	34863		NUT (.375-24) STEERING LINK SCREW	2
16	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
17	34931		WASHER (.406 x .734 x .063) Stainless Steel STEERING LINK TO STEERING ARM	2
18	78854		WAVE WASHER BOTTOM YOKE	1
19	86580A1	底部轭架总成（黑色）	YOKE ASSEMBLY Bottom (BLACK)	1
19	878182T	轭架底部-不锈钢	YOKE Bottom - Stainless Steel	1
19	86580A2	底部轭架总成（灰色）	YOKE ASSEMBLY Bottom (GRAY)	1
19	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
20	67684	卡环-底部轭架	RING Retaining BOTTOM YOKE	1
21	67670	垫圈	WASHER	1
22	88882	缓冲垫-顶部轭架	BUMPER Top Yoke TOP YOKE	1
23	64014		SCREW (.250-28 x .500) SWIVEL BRACKET	2
24	54457	J型卡扣	J CLIP	1
-	815791A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 90燃油管路 Fuel Lines

REF	零件编号	中文名称	英文名称	数量
1	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
2	69067	燃油连接器螺钉(.250-20 x 1.375)	SCREW (.250-20 x 1.375) FUEL CONNECTOR	1
3	812782	密封件	SEAL	1
4	9912976	油管	TUBING	1
4	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
5	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
5	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
6	814964	接头	FITTING	1
7	19688	弯头接头	FITTING (ELBOW)	1
8	4301625	油管(8.00英寸)	TUBING (8.00 Inches)	1
8	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	1
9	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	4
9	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	4
10	816296	燃油滤清器	FILTER Fuel	1
10	816296Q03	燃油滤清器@3	FILTER-FUEL @3	1
11	67751	衬垫	GASKET	3
12	27037	双头螺栓(.250-28×1.125)	STUD (.250-28 x 1.125)	6
12	270372	双头螺栓(.250-28×1.125)	STUD (.250-28 x 1.125)	6
13	55098	J型卡扣	J CLIP	1
13	8M0024808	J型夹	J-CLIP	1
14	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	6
15	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	6
16	29598	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	6
17	9912878	软管 (.187) (26.00英寸散装)	HOSE (.187) (26.00 Inches Bulk)	3
18	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
18	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
19	42859A2	加浓阀总成	VALVE ASSEMBLY Enrichner	1
20	633001	卡箍	CLAMP	1
21	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
22	9912688	管材 (36.00英寸散装)	TUBING (36.00 Inches Bulk)	2
23	45915	端子排	TERMINAL BLOCK	AR
24	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	AR
24	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	AR
24	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	AR
24	69079	螺钉 (#10-16 x .440)	SCREW (#10-16 x .440)	AR
-	815791A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 91驱动轴壳体 Driveshaft Housing

REF	零件编号	中文名称	英文名称	数量
1	858576T03	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	903501	双头螺柱(M10×100)	STUD (M10 x 100)	1
2	9035015	双头螺柱(M10×227)	STUD (M10 x 227)	1
3	9035012	双头螺柱(M10×63)	STUD (M10 x 63)	4
3	9035016	双头螺柱(M10×190)	STUD (M10 x 190)	4
3	8M0034462	双头螺柱(M10×190)	STUD (M10 x 190)	4
4	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	5
4	8M0214963	垫圈	WASHER	5
5	40140	螺母(M10)	NUT (M10)	5
6	85822A15	速度计传感器总成	PICKUP ASSEMBLY Speedometer	1
7	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	1
7	433351	90度接头-带防振密封	CONNECTOR 90 Degree - With Vibraseal	1
8	85822	直通接头	CONNECTOR Straight	1
8	85822T	直通接头	CONNECTOR Straight	1
9	44343T1	支架	MOUNT	2
10	42973	螺栓(M12×154)	BOLT (M12 x 154)	2
10	898835001	螺钉(M12 x 154)	SCREW (M12 x 154)	2
11	30119	垫圈(外径0.875英寸)	WASHER (.875 Inch Outside Diameter)	2
12	43528	螺母(M12)	NUT (M12)	2
12	8M0204662	螺母	NUT	2
13	88238A10	接地线总成	CABLE ASSEMBLY Ground	2
14	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
15	858916T	卡箍	CLAMP	2
16	4010725	螺钉 (M8 x 25)	SCREW (M8 x 25)	4
17	858745	盖帽	CAP	4
17	8M0142713	支撑盖帽	CAP Chap Support	4
18	859550	衬套	BUSHING	1
19	24873	定位销	PIN Alignment	1
20	855622	接头	FITTING	1
21	12092A3	隔套套件	SPACER KIT	1
22	43043	定位销-带孔(0.375×0.625)	PIN Dowel - With Hole (.375 x .625)	1
22	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
22	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
23	813745	隔套	SPACER	1
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2

图 92动力平衡组件（设计I） Power Trim Components (Design I)

REF	零件编号	中文名称	英文名称	数量
1	99659A21	歧管总成 (黑色)	MANIFOLD ASSEMBLY (BLACK)	1
1	99659A22	歧管总成 (灰色)	MANIFOLD ASSEMBLY (GRAY)	1
2	99616	管塞歧管	PIPE PLUG MANIFOLD	11
2	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	11
3	41493A7	配平油缸总成 (黑色)	TRIM CYLINDER ASSEMBLY (BLACK)	1
3	41493A4	配平油缸总成 (灰色)	TRIM CYLINDER ASSEMBLY (GRAY)	1
3	41493A7	升降油缸总成	TRIM CYLINDER ASSEMBLY	1
3A	811600	导向套件	GUIDE KIT	1
4	41492A1	导向器总成	GUIDE ASSEMBLY	1
5	41478A1	维修套件	REPAIR KIT	1
6	41482A2	止回阀套件	CHECK VALVE KIT	1
7	99638A1	导向总成装饰杆	GUIDE ASSEMBLY TRIM ROD	2
7	8M0021648	端盖总成	END CAP ASSEMBLY	2
8	43397A6		PISTON/ROD ASSEMBLY Power Trim PORT	1
8	878413A1	活塞总成	PISTON ASSEMBLY	1
9	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
10	43398A3		PISTON/ROD ASSEMBLY Power Trim STARBOARD	1
10	878414T01	活塞总成	PISTON ASSEMBLY	1
11	13794	开槽销微调油缸(上部-无头)	PIN Groove TRIM CYLINDER (UPPER - W/O HEAD)	1
11	821539	三叶销	PIN Trilobe	1
11	19603	开槽销(带头)	PIN Groove (W/ HEAD)	1
11	821539	三叶销	PIN Trilobe	1
12	812843A1	阀门总成	VALVE ASSEMBLY	1
12	893929A01	安全阀套件	VALVE KIT Relief	1
12A	812844	E型卡环	E RING	1
12A	815949001	E形环	E-RING	1
13	4000327	螺钉(M6x14)-盖板	SCREW (M6 x 14) COVER	4
14	43450	盖板螺丝垫圈	WASHER COVER SCREW	4
14	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
15	99642	歧管盖	COVER MANIFOLD	1
16	48462A2	O型圈套件	O-RING KIT	1
16	48462A4	O型圈套件	O RING KIT	1
17	99609A1	塞子总成	PLUG ASSEMBLY	1
18	99641A1	轴总成	SHAFT ASSEMBLY	1
18	99641A02	轴总成	SHAFT ASSY	1
19	99616	轴管塞	PIPE PLUG SHAFT	2
19	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
20	4008820	螺钉(M6x20)-泵与马达	SCREW (M6 x 20) PUMP AND MOTOR	2
21	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
22	99186T	泵与电机总成	PUMP AND MOTOR	1
22	826729A10	ORD 8M0143217	ORD 8M0143217	1
23	99625		SHAFT UPPER	1
23	99625002	轴	SHAFT	1
24	43396A2	阳极总成	ANODE ASSEMBLY	1
24	818298Q1	阳极套件	ANODE KIT	1
25	4000330	螺钉(M6 x 25)阳极	SCREW (M6 x 25) ANODE	2
25	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
26	29245	垫圈(0.281x0.500x0.060)-不锈钢阳极螺钉	WASHER (.281 x .500 x .060) Stainless Steel ANODE SCREW	2
26	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
27	996301	撞板-升降轴	STRIKER PLATE TRIM SHAFT	2
27	8M0045383	冲击板	STRIKER PLATE	2
28	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
29	46335	螺母 (.375-24)	NUT (.375-24)	2
30	814609A1	线束总成-动力升降控制	HARNESS ASSEMBLY Control POWER TRIM	1
31	88808A22	电缆总成(6-3/8"-红色)	CABLE ASSEMBLY (6-3/8" - RED)	1
31	88808A23	电缆总成(24"-红色)	CABLE ASSEMBLY (24" - RED)	1
31	87379A14	线束总成(2.750英寸)(红色)	WIRE ASSEMBLY (2.750 Inches) (RED)	1
32	22875		CLIP PUMP WIRE	2
33	69205	C形垫圈线夹螺钉	C WASHER CLIP SCREW	2
33	8M0084613	C形垫圈	C-WASHER	2
34	69079	螺钉(#10-16x0.440)-夹子到艉板支架	SCREW (#10-16 x .440) CLIP TO TRANSOM BRACKET	2
35	44431	沟槽销-升降油缸(下)	PIN Groove TRIM CYLINDER (LOWER)	1
35	878267	销	PIN	1
36	4000377		SCREW (M10 x 30) MANIFOLD	6
37	400258	锁紧垫圈(M10)-不锈钢歧管螺钉	LOCKWASHER (M10) Stainless Steel MANIFOLD SCREW	6

图 93线束、启动继电器与整流器 WIRING HARNESS, STARTER SOLENOID AND RECTIFIER

REF	零件编号	中文名称	英文名称	数量
1	43429	点火板	PLATE IGNITION	1
2	7778A6	开关盒总成	SWITCHBOX ASSEMBLY	2
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	开关盒至点火板螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) SWITCH BOX TO IGNITION PLATE	2
4	94304	开关盒螺钉垫片(早期型号)	SPACER SWITCH BOX SCREW (EARLY MODELS)	2
5	94453	开关盒螺钉衬套	BUSHING SWITCH BOX SCREW	2
6	62310A2	开关盒间电缆总成	CABLE ASSEMBLY SWITCH BOX TO SWITCH BOX	1
7	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	20
8	60871A10	线束总成-开关盒	WIRE ASSEMBLY SWITCH BOX	2
9	62568	螺丝(#10-16 x 0.375)导线固定	SCREW (#10-16 x .375) WIRE ATTACHING	2
10	38055	电缆至点火板螺钉(.190-32 x .620)	SCREW (.190-32 x .620) CABLE TO IGNITION PLATE	1
11	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
12	69092	点火板螺钉(1.25)	SCREW (1.25) IGNITION PLATE	3
12	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
13	26993	锁紧垫圈(.312)点火板螺钉	LOCKWASHER (.312) IGNITION PLATE SCREW	3
13	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
14	36042	垫圈点火板螺钉	WASHER IGNITION PLATE SCREW	6
15	67264	橡胶垫圈点火板螺钉	WASHER (Rubber) IGNITION PLATE SCREW	6
16	67268	衬套点火板螺钉	BUSHING IGNITION PLATE SCREW	3
17	62351A1	整流器	RECTIFIER	1
17	8M0058226	整流器	RECTIFIER	1
18	38055	螺钉(.190-32 x .620)水银开关至点火板	SCREW (.190-32 x .620) MERCURY SWITCH TO IGNITION PLATE	2
19	45076	螺母(#10-32)黄铜整流器端子	NUT (#10-32) Brass RECTIFIER TERMINALS	3
20	33386A3	开关总成	SWITCH ASSEMLBY	1
21	38055	螺钉(.190-32 x .620)水银开关至点火板	SCREW (.190-32 x .620) MERCURY SWITCH TO IGNITION PLATE	1
22	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
23	87926	螺钉(#10-32 x .500)导线固定	SCREW (#10-32 x .500) LEAD ATTACHING	1
24	88439A14	电缆总成电池正极	CABLE ASSEMBLY Battery - Positive POSITIVE	1
24	88439A2	电缆总成电池负极	CABLE ASSEMBLY Battery - Negative NEGATIVE	1
25	96220A4	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
26	79091	保险丝20安培	FUSE 20 Ampere	1
26	8M0207796	保险丝20安培	FUSE 20 AMP	1
27	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
28	73498	线束与电缆夹	CLAMP HARNESS AND CABLES	3
28	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	3
29	96054	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
29	8M0185149	启动电磁阀	SOLENOID START	1
30	26419	螺母（#8-32）黄铜电磁阀端子	NUT (#8-32) Brass SOLENOID TERMINALS	2
31	26992	锁紧垫圈(.250)不锈钢电磁阀端子(1/4")	LOCKWASHER (.250) Stainless Steel SOLENOID TERMINALS (1/4")	2
32	94330	螺母（.250-20）黄铜电磁阀端子	NUT (.250-20) Brass SOLENOID TERMINALS	2
29	15857	启动电磁阀	SOLENOID Starter	1
29	853654A1	电磁阀	SOLENOID	1
30	45076	螺母(#10-32)黄铜电磁阀端子	NUT (#10-32) Brass SOLENOID TERMINALS	2
31	53166	锁紧垫圈（.312）电磁阀端子	LOCKWASHER (.312) SOLENOID TERMINALS	2
32	68292	螺母（.312-18）电磁阀端子	NUT (.312-18) SOLENOID TERMINALS	2
32	8M0204668	螺母(.312-18)	NUT (.312-18)	2
33	31716	螺钉(.250-20 x .620)电磁阀至点火板	SCREW (.250-20 x .620) SOLENOID TO IGNITION PLATE	2
34	26992	锁紧垫圈(.250)不锈钢电磁阀至点火板螺钉	LOCKWASHER (.250) Stainless Steel SOLENOID TO IGNITION PLATE SCREW	2
35	65999A2	电缆总成黑色上部安装	CABLE ASSEMBLY Black UPPER MOUNT	1
36	97861	电磁阀绝缘体	INSULATOR SOLENOID	1
37	88825A7	电压调节器	VOLTAGE REGUALTOR	1
38	48409	螺钉(#10-16 x .625)不锈钢电压调节器	SCREW (#10-16 x .625) Stainless Steel VOLTAGE REGULATOR	1
39	13397A1	线束总成	HARNESS ASSEMBLY	1
40	45076	螺母(#10-32)黄铜电压调节器	NUT (#10-32) Brass VOLTAGE REGULATOR	2
41	134731	保险丝座	HOLDER Fuse	1

图 94动力平衡泵（与设计I动力平衡泵配套使用） Power Trim Pump (Use With Design I Power Trim Pump)

REF	零件编号	中文名称	英文名称	数量
-	99186T	泵与电机总成	PUMP AND MOTOR	1
1	12659	机架与磁场套件	FRAME AND FIELD KIT	1
1	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
2	12665	电刷弹簧套件	SPRING KIT Brush	1
3	13506	电刷卡套件	BRUSH CARD KIT	1
3	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
4	12662	泵与端架套件	PUMP AND END FRAME KIT	1
4	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
5	126631	泵密封套件	SEAL KIT Pump	1
6	12660	端架套件	END FRAME KIT	1
6	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
7	12661	电枢套件	ARMATURE KIT	1
7	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
8	12664	贯穿螺栓套件	THRU BOLT KIT	1

图 95化油器总成 Carburetor Assembly

REF	零件编号	中文名称	英文名称	数量
1	9242A10	化油器(上)	CARBURETOR (TOP)	1
1	9242A11	化油器(中)	CARBURETOR (CENTER)	1
1	9242A12	化油器(下)	CARBURETOR (BOTTOM)	1
3	NSS		NOT SOLD SEPARATE GASKET, COVER PLATE	3
4	6032	盖板	PLATE COVER	3
5	NSS	不单独销售螺丝,盖板	NOT SOLD SEPARATE SCREW, COVER PLATE	15
6	7823	燃油杯(顶部)	BOWL Fuel (TOP)	1
6	7822	燃油杯(中部/底部)	BOWL Fuel (CENTER/BOTTOM)	2
7	NSS	不单独销售螺丝,燃油碗	NOT SOLD SEPARATE SCREW, FUEL BOWL	18
8	6025	主量孔塞	PLUG MAIN JET	6
9	NSS	主量孔垫片(不单独销售)	NOT SOLD SEPARATE GASKET, MAIN JET	6
10	4216	主量孔 (.064)	JET (.064) MAIN FUEL	4
10	4215	燃油主量孔(.066)	JET Main Fuel (.066)	2
11	NSS	不单独销售螺丝,浮子销	NOT SOLD SEPARATE SCREW, FLOAT PIN	6
12	NSS	不单独出售衬垫、进油针阀及阀座组件	NOT SOLD SEPARATE GASKET, INLET NEEDLE AND SEAT	6
13	7824	进油针阀总成	NEEDLE/SEAT ASSEMBLY Inlet	6
14	NSS	不单独销售垫片,喷嘴座	NOT SOLD SEPARATE GASKET, NOZZLE BOSS	6
15	9267	浮子	FLOAT	6
16	NSS	不单独销售销,浮子杆	NOT SOLD SEPARATE PIN, FLOAT LEVER	6
17	NSS	燃油碗垫片(不单独销售)	NOT SOLD SEPARATE GASKET, FUEL BOWL	3
18	4541	怠速空气量孔螺钉	SCREW IDLE AIR BLEED JET	6
19	NSS	不单独销售垫片,泄流量孔塞	NOT SOLD SEPARATE GASKET, BLEED JET PLUG	6
20	6030	怠速空气量孔(.070)	JET (.070) IDLE AIR BLEED	6
21	6027	节气门杠杆螺钉	SCREW THROTTLE LEVER	3
22	37752	油门标识贴	DECAL THROTTLE	3
23	NSS		NOT SOLD SEPARATE SPRING, THROTTLE RETURN	3
24	6031	节气门杠杆垫片	SPACER THROTTLE LEVER	3
25	6022	节流阀轴	SHAFT THROTTLE	3
26	NSS	节流阀轴环/挡圈（不单独销售）	NOT SOLD SEPARATE RING, RETAINER - THROTTLE SHAFT	3
27	9416	油门阀	VALVE Throttle	6
28	NSS		NOT SOLD SEPARATE SCREW, THROTTLE VALVE	12
-	6452	衬垫套件	GASKET KIT	1
-	8506	化油器维修套件	REPAIR KIT Carburetor	1

图 96阻风板与油门杆 CHOKE PLATE AND THROTTLE LEVERS

REF	零件编号	中文名称	英文名称	数量
1	67245T	上罩安装支架	BRACKET COWL MOUNTING - UPPER	1
2	67272	罩壳安装支架衬套	GROMMET COWL MOUNTING BRACKET	2
3	90435	罩壳安装支架(黑/灰)	MOUNT COWL MOUNTING BRACKET BLACK/GRAY	2
4	29245	安装垫圈(0.281×0.500×0.060)不锈钢	WASHER (.281 x .500 x .060) Stainless Steel MOUNT ATTACHING	4
4	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
5	35888	安装螺母(0.250-28)不锈钢	NUT (.250-28) Stainless Steel MOUNT ATTACHING	4
6	87076A4	怠速控制总成	IDLE SPEED CONTROL ASSEMBLY	1
7	799831	阻风板	PLATE CHOKE	1
8	67274	阻风板至化油器衬垫	GASKET CHOKE PLATE TO CARBURETOR	1
8	672741	衬垫	GASKET	1
9	68000	螺丝(.250-28 x 1.00)阻风板至化油器	SCREW (.250-28 x 1.00) CHOKE PLATE TO CARBURETOR	6
10	20583	阻风板螺丝垫圈	WASHER CHOKE PLATE SCREW	6
11	67275	盖衬垫	GASKET COVER	1
11	672751	衬垫	GASKET	1
12	67246T	进气消音器盖	COVER INDUCTION SILENCER	1
13	30720	螺丝(.250-20 x 2.25)盖至阻风板	SCREW (.250-20 x 2.25) COVER TO CHOKE PLATE	2
14	29245	垫圈(.281 x .500 x .060)不锈钢盖螺丝	WASHER (.281 x .500 x .060) Stainless Steel COVER SCREW	2
14	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	26992	锁紧垫圈(.250)不锈钢盖螺丝	LOCKWASHER (.250) Stainless Steel COVER SCREW	2
16	90585	进气消音器盖塞	PLUG INDUCTION SILENCER COVER	1
17	67760	油门连杆	LINK Throttle	1
18	67759	节气门杆(上)	LEVER Throttle UPPER	1
19	41049	节气门杆(中)	LEVER Throttle CENTER	1
20	67749	下节流阀杆	LEVER Throttle LOWER	1
21	15124	油门杆至油门连杆螺钉(#10-32×0.750)	SCREW (#10-32 x .750) THROTTLE LEVERS TO THROTTLE LINK	3
22	26996	锁紧垫圈(#10)不锈钢节气门杆螺丝	LOCKWASHER (#10) Stainless Steel THROTTLE LEVERS SCREW	3
23	56681	垫圈(.203 x .500 x .032)节气门杆螺丝	WASHER (.203 x .500 x .032) THROTTLE LEVERS SCREW	3
23	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	3
24	67297	U型销节气门杆至节气门连杆	PIN Clevis THROTTLE LEVERS TO THROTTLE LINK	3
25	89302	垫圈(.203 x .406 x .040)U型销	WASHER (.203 x .406 x .040) CLEVIS PIN	3
26	26953	开口销U型销	COTTER PIN CLEVIS PIN	3
27	67748	下节气门杆滚轮	ROLLER LOWER THROTTLE LEVER	1
28	69020	螺丝(#10-32 x .875)怠速控制	SCREW (#10-32 x .875) IDLE SPEED CONTROL	2
28	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	2
29	38833	怠速调节螺钉垫片	WASHER IDLE SPEED CONTROL SCREW	2
-	90484A88	衬垫套件	GASKET SET
