水星 Mercury V-200 5239232 THRU 0C100860 - 爆炸图零件明细

两冲程化油器 · Cat.# 90-821303 · 共 158 个部位 · 6822 条零件

1下机罩 2喷泵总成 3附件 4油门杆与换挡轴 5喷射组件 6维修/支撑材料 7动力转向组件（遥控）8杂项信息 9动力升降组件（塑料马达壳体）10蓄能器 11气缸盖 12启动电机 13驱动轴壳体与排气管 14艉板支架（序列号0G589999及以下）15齿轮箱（推进轴）（XR6/MAG III - 1.78:1 速比）16顶罩 17齿轮箱（驱动轴）18排气歧管与排气板 19齿轮箱（驱动轴）（XR6/MAG III - 1.78:1 速比）20旋转支架与转向臂 21齿轮箱（推进轴）22排气歧管与排气板 23罩壳与前盖 24上罩与前护板 25飞轮/启动马达 26齿轮箱（推进轴）- 反向旋转 27专用工具 28仪表装置 29仪表组(水星和马林纳)30飞轮、启动电机及点火线圈 31阻风门板与节气门杆（序列号-C239553及以上）32化油器总成 33燃油管路 34驱动轴壳与排气管 35齿轮箱图表（序列号0G437999及以下）36齿轮箱(螺旋桨轴)(反向旋转)37燃油泵 38动力升降组件(铸造泵壳)金属电机壳 39艉板安装动力转向套件 40顶罩 41启动马达 42动力升降泵(Eaton矩形电机)43艉板支架 44工具 45旋转支架 46齿轮箱（驱动轴）- 反向旋转 47气缸体与端盖 48曲轴、活塞及连杆 49仪表装置 50气缸体与端盖 51气缸体与端盖 52杂项零件/附件 53点火线圈/电压调节器 54艉板支架（序列号0G590000及以上）55齿轮箱(螺旋桨轴)(标准旋转)56旋转支架与转向臂 57燃油泵 58曲轴活塞与连杆 59双机延伸套件 60泄放系统 61线束/启动电磁阀 62动力升降组件 63杂项信息 64燃油泵和化油器 65齿轮箱螺旋桨轴-标准旋转 66簧片阀组与气缸盖 67化油器 68化油器（WMH-30/31/32/33/34）69喷射组件 70转向连接套件 71齿轮箱对照表 72杂项零件与附件 73阻风板与油门杆 74驱动轴壳与排气管 75附件 76齿轮箱(螺旋桨轴)(标准旋转)77动力升降倾斜电机 78齿轮箱(驱动-标准/反旋转)79簧片阀组与气缸盖 80化油器（WMH-12A/12B/13/13B/14A/15/16）81齿轮箱螺旋桨轴-反向旋转 82点火线圈/电压调节器 83专用工具 84外罩安装支架 85齿轮箱（驱动轴）（标准/反向旋转）86阻风门板与节气门杆（序列号-C239552及以下）87喷油组件 88双机延伸套件 89发动机衬垫套件 90齿轮箱(驱动轴)(标准/反向旋转)91艉板支架 92动力升降马达 93机油喷射组件 94动力升降组件金属马达壳 95化油器 96燃油管路（用于 WMH-12A/B 至 WMH-28 化油器）97动力升降组件（金属马达壳体）98动力升降倾斜泵 99钥匙开关(反旋转发动机用)100转向连接套件 101线束/启动继电器 102动力升降倾斜组件 103油门杆与换挡轴 104排气歧管与排气板 105燃油管路 106化油器（WMH-21/22/23/24/25/28）107曲轴、活塞与连杆 108飞轮/启动电机 109齿轮箱(螺旋桨轴)(反转)110旋转支架与转向臂 111喷泵总成 112动力升降泵(Prestolite圆形电机)113油门杆与换挡轴 114泄压系统 115下罩 116动力升降组件 8M0231193 117簧片阀组与气缸盖 118燃油管路（用于 WMH-30/31/32/33/34 化油器）119化油器 120阻风门板和联动机构(I型设计)121阻风门板和节气门杆(II型设计)122罩壳与前盖 123外罩安装支架 124曲轴、活塞及连杆 125气缸体与端盖 126气缸盖 127驱动轴壳与排气管 128排气歧管与排气板 129管件与软管 130飞轮、启动电机及点火线圈 131燃油泵（设计I型）132燃油泵（设计II型）133燃油泵（设计III型）（方形燃油泵）134齿轮箱(驱动轴)(带驱动轴螺母)135齿轮箱（驱动轴-无传动轴螺母）136齿轮箱螺旋桨轴-无驱动轴螺母 137齿轮箱螺旋桨轴-带驱动轴螺母 138液压泵 139液压泵（序列号-Mercury-5363917及以下）140液压泵和安装支架 141仪表装置 142机油喷射组件 143动力升降倾斜组件 144动力升降泵(Eaton矩形电机)145动力升降泵(Prestolite圆形电机)146簧片阀组 147安全阀系统 148维修/支撑材料 149启动电机（8齿小齿轮）150启动电机（9齿小齿轮）151旋转支架 152旋转支架（Merc序列号-USA-5464485/AUS-8061769及以下）153油门杆与换挡轴 154艉板支架（Merc-6073192/Mariner-6055033及以上）155艉板支架（Merc序列号-USA-5464485/AUS-8061769及以下）156艉板支架（ME-5464486-6073191/MA-5624878-6055032）157配平油缸（序列号-USA-5464485/AUS-8061769及以下）158线束、启动继电器与整流器

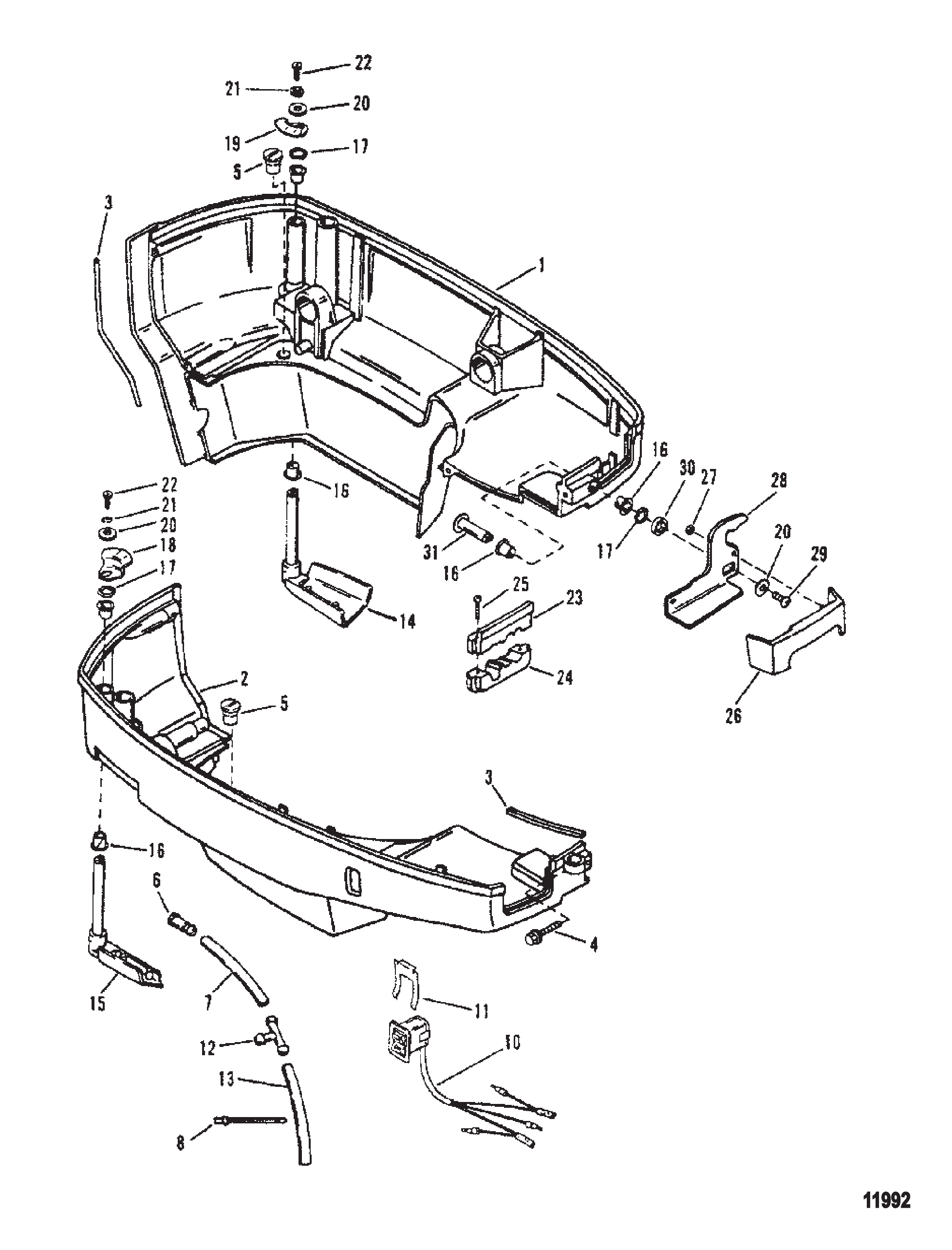

图 1下机罩 BOTTOM COWL

REF	零件编号	中文名称	英文名称	数量
1	9744A16	黑色下罩总成	BOTTOM COWL ASSEMBLY Black	1
1	9744A17	下罩壳总成(灰色)	BOTTOM COWL ASSEMBLY Gray	1
1	9744A16	下罩总成	BOTTOM COWL ASSEMBLY	1
1	9744A18	Tracker下罩总成	BOTTOM COWL ASSEMBLY Tracker	1
1	9744A16	下罩总成	BOTTOM COWL ASSEMBLY	1
2	9745A5	黑色下罩总成	BOTTOM COWL ASSEMBLY Black	1
2	9745A6	下罩壳总成(灰色)	BOTTOM COWL ASSEMBLY Gray	1
2	9745A7	Tracker下罩总成	BOTTOM COWL ASSEMBLY Tracker	1
3	18701A1		SEAL KIT Bottom Cowls	1
4	18699	罩盖螺钉（0.250-20×1.320英寸）	SCREW (.250-20 x 1.320) Cowl	4
5	817519A1	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	2
6	813613	示踪接头	FITTING Tell Tale	1
7	99127109		LINE (57.00 Inches Bulk) Tell Tale	1
7	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
8	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
8	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
10	18286A40	开关总成	SWITCH ASSEMBLY	1
10	8M0235192	微调开关	SWITCH TRIM	1
11	8124431	固定座	RETAINER	1
11	8M0032848	开关固定座	RETAINER Switch	1
12	815914	示踪三通接头	T-FITTING Tell Tale	1
13	7765377	软管 (24.500英寸散装)	HOSE (24.500 Inches Bulk)	1
13	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
14	19648A3	手柄总成黑色	HANDLE ASSEMBLY Black	1
14	19648A2	左舷手柄总成	HANDLE ASSY PORT	1
14	19648A4	灰色手柄总成	HANDLE ASSEMBLY Gray	1
14	19648A2	左舷手柄总成	HANDLE ASSY PORT	1
14	19648A7	Tracker手柄总成	HANDLE ASSEMBLY Tracker	1
15	19647A3	手柄总成黑色	HANDLE ASSEMBLY Black	1
15	19647A4	灰色手柄总成	HANDLE ASSEMBLY Gray	1
15	19647A3	手柄总成	HANDLE ASSEMBLY	1
15	19647A7	Tracker手柄总成	HANDLE ASSEMBLY Tracker	1
16	65830	尼龙衬套	NYLINER	6
17	99611	波形垫圈	WAVE WASHER	3
18	19369	棘爪	PAWL	1
19	19370	棘爪	PAWL	1
20	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	3
21	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
22	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	2
23	19749		CLAMP Upper	1
24	197481	卡箍-下部	CLAMP Lower	1
25	92799	螺钉(#10-16x1.12)	SCREW (#10-16 x 1.12)	2
26	18872A1	盖板总成黑色	COVER ASSEMBLY Black	1
26	18872A2	盖板总成灰色	COVER ASSEMBLY Gray	1
26	18872A1	盖总成	COVER ASSEMBLY	1
26	18872A4	Tracker盖板总成	COVER ASSEMBLY Tracker	1
27	8136921	锁紧螺母	LOCKNUT	2
28	8130764	前手柄	FRONT HANDLE	1
29	181921	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	1
30	19666	衬套	BUSHING	1
31	18727	杆	ROD	1

图 2喷泵总成 JET PUMP ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
-	801400150	喷泵(黑色)	JET PUMP (BLACK)	1
-	801401150	喷泵(灰色)	JET PUMP (GRAY)	1
-	855766150	喷泵	JET PUMP	1
1	801411150	泵壳	HOUSING Pump	1
1A	827490	润滑油管	HOSE Lube	1
2	801414150	叶轮	IMPELLER	1
2	803984T	叶轮	IMPELLER	1
3	80141290	进气壳体	HOUSING Intake	1
3A	8271883	衬套	LINER	1
4	801413150	驱动轴	SHAFT Drive	1
4A	8271891	套筒	SLEEVE	1
4B	8271901	螺母	NUT	1
5	801405875	键	KEY	1
6	801404875	叶轮垫片	SHIM Impeller	8
7	801403875	锁紧垫圈	TAB WASHER	1
8	847568	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	6
8	812618	不锈钢螺钉(.312-18 x 1.00)带尼龙垫	SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch	6
9	19923088	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	4
10	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	2
11	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
12	801410	电缆支架	BRACKET Cable Support	1
13	67980	螺母(.312-18)	NUT (.312-18)	1
13	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	1
14	801407	定位销	PIN Dowel	2
15	78638	双头螺柱(.438 x 3.12)	STUD (.438 x 3.12)	1
15	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
16	579201	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
16	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
17	69064	螺栓(.312-18 x 2.750)	BOLT (.312-18 x 2.750)	1
18	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
18	306671	螺柱	STUD	2
19	68299	不锈钢螺钉(.375-16 x 3.00)	SCREW (.375-16 x 3.00) Stainless Steel	1
20	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
20	8M0214963	垫圈	WASHER	1

图 3附件 Accessories

零件编号	中文名称	英文名称	数量
86306A01	适配器	ADAPTER	1
821400A2	动力升降倾斜传感器套件	SENDER KIT Power Trim	1
8M0074845	ORD 8M0098264	ORD 8M0098264	1
92876A8	转向安装套件	ATTACHING KIT Steering	1

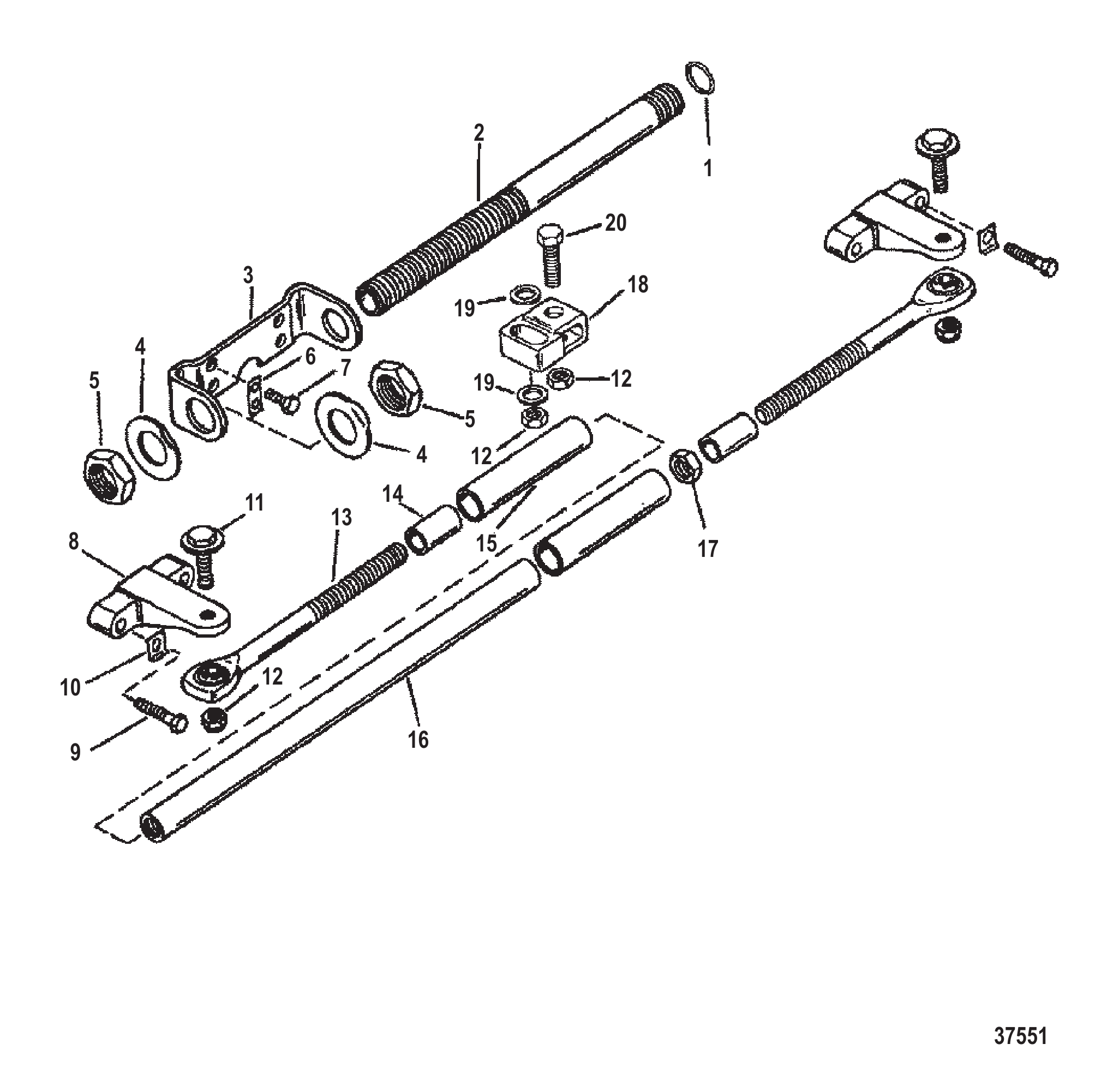

92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
883040A1	转速表模块套件	TACH MODULE KIT	1

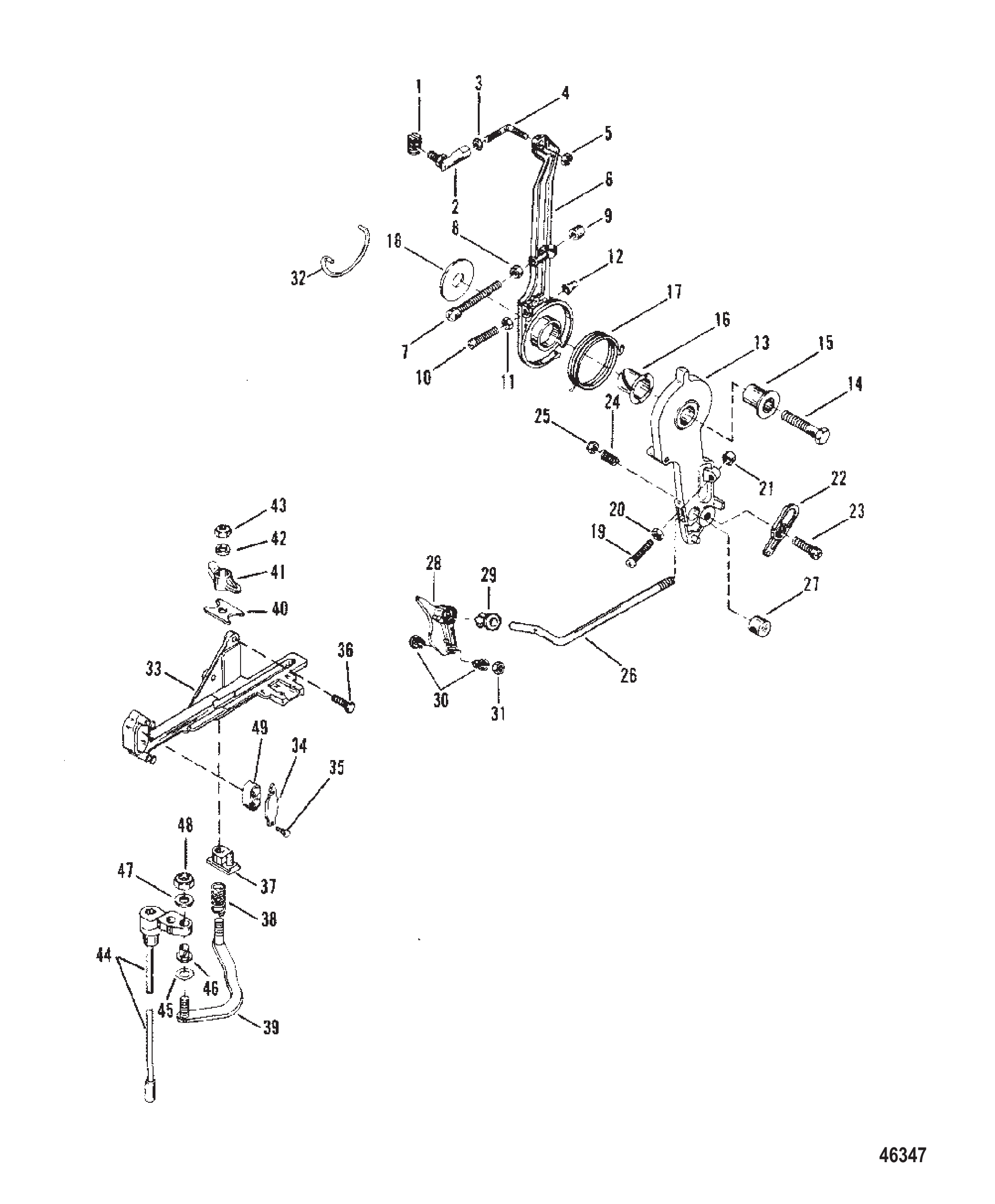

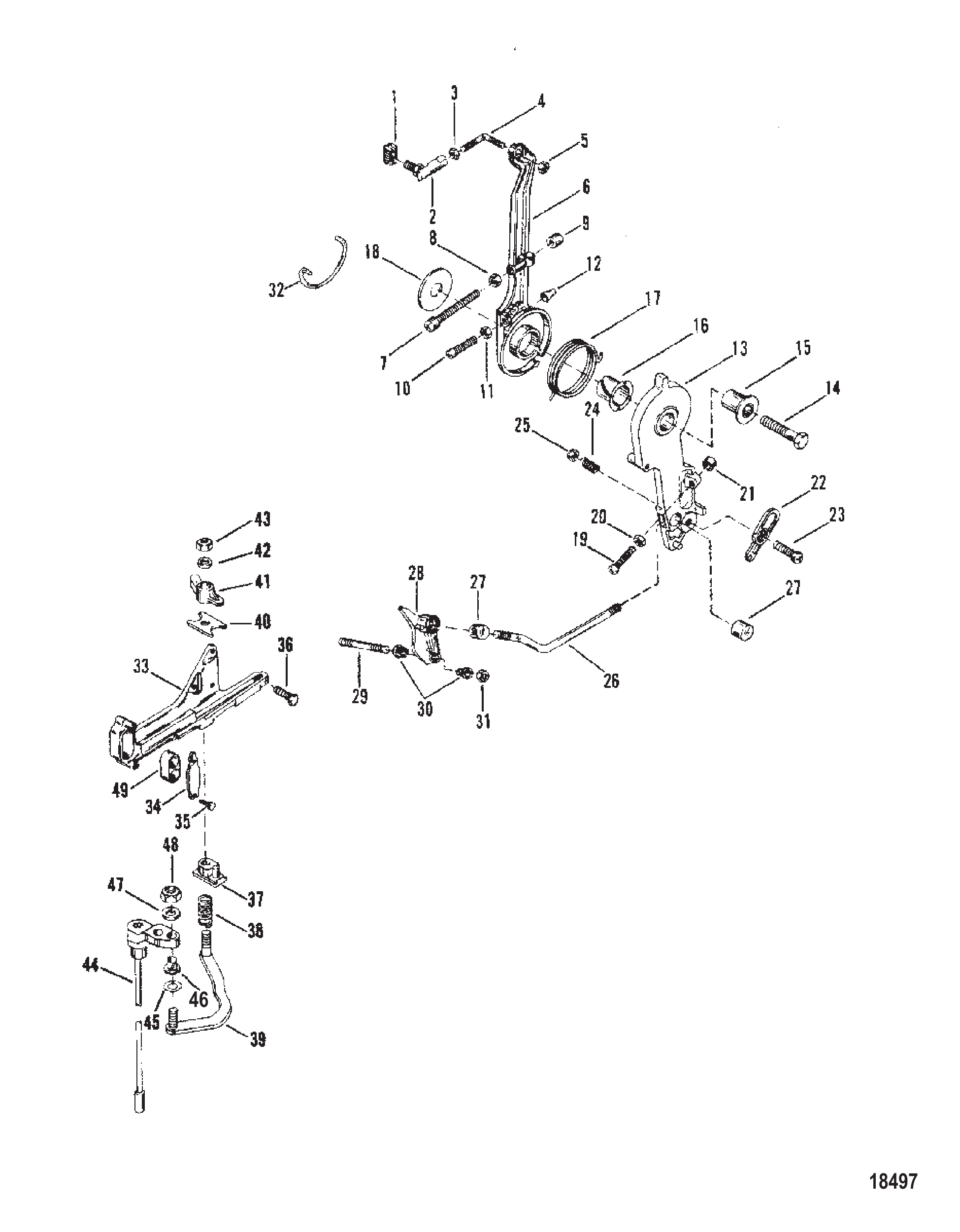

图 4油门杆与换挡轴 Throttle Lever And Shift Shaft

REF	零件编号	中文名称	英文名称	数量

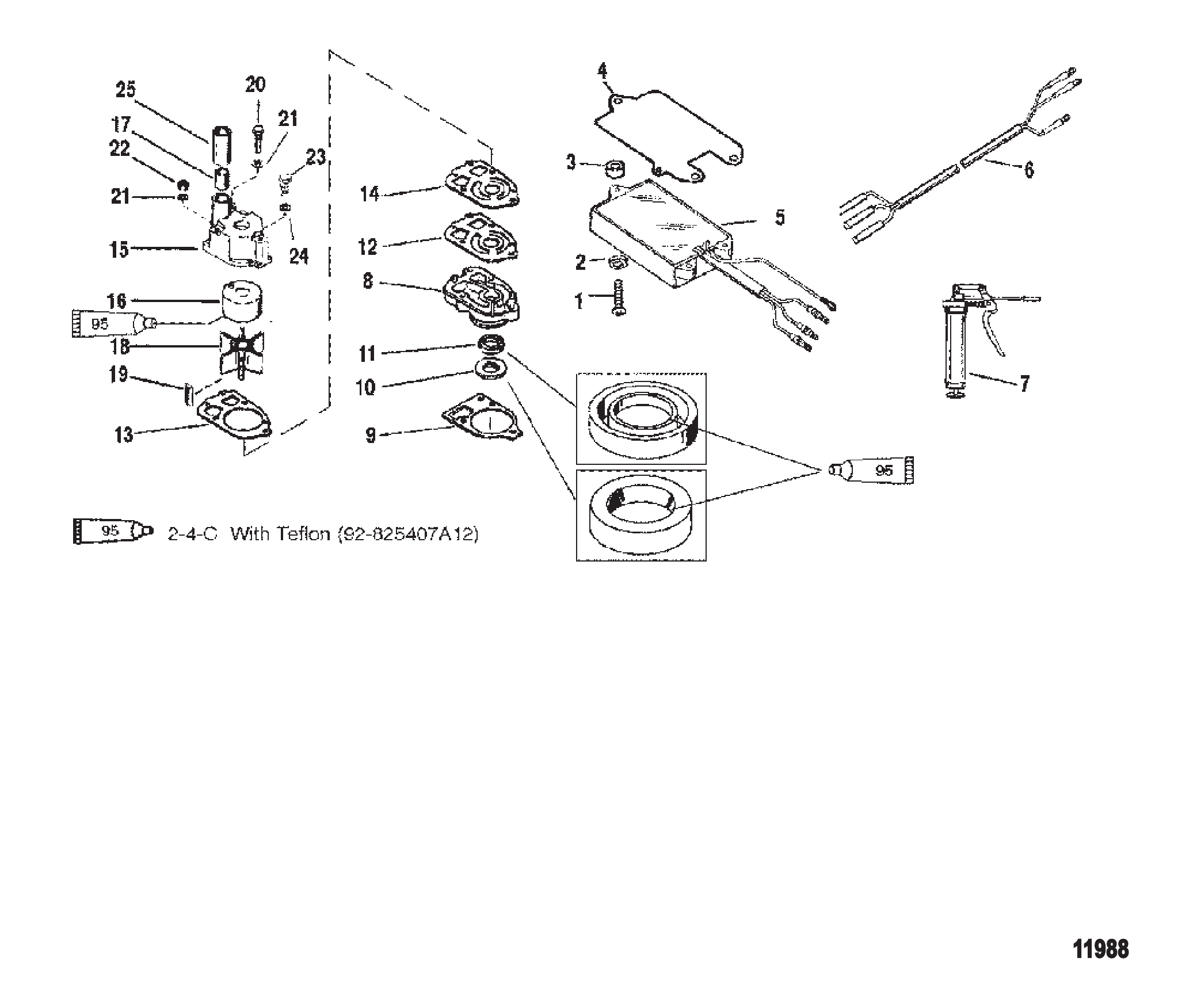

图 5喷射组件 Jet Components

REF	零件编号	中文名称	英文名称	数量
1	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	3
2	38833	垫圈	WASHER	3
3	94304	隔套	SPACER	3
4	13381	安装板	PLATE	1
5	821889A20	转速限制器	REV LIMITER	1
5	821889A30	转速限制器	REV LIMITER	1
6	823147A5	适配器线束总成 - 转速限制器	HARNESS ASSEMBLY Adaptor - Rev Limiter	1
7	801402	润滑脂套装	GREASE KIT	1
7	30500A2	润滑脂套装	GREASE KIT	1
8	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
8	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
9	426311	衬垫	GASKET	1
9	8M0204678	衬垫	GASKET	1
10	89238	油封	SEAL Oil	1
11	16977	油封	SEAL Oil	1
12	856081	衬垫	GASKET	1
12	8M0090319	衬垫@5	GASKET @5	1
13	856091	衬垫	GASKET	1
13	858524	衬垫	GASKET	1
14	32435	面板	FACE PLATE	1
14	8M0204677	面板	PLATE-FACE	1
15	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
15	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
16	48752	嵌件	INSERT	1
16	48752T	嵌件	INSERT	1
17	38970	密封件	SEAL	1
18	899841	叶轮	IMPELLER	1
18	89984T3	叶轮	IMPELLER	1
19	56654	键	KEY	1
19	8M0214992	键@5	KEY @5	1
20	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
20	8M0215009	螺钉	SCREW	1
21	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
21	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
22	13438	螺母(.250-28)	NUT (.250-28)	2
22	8267119	螺母(.250-28)	NUT (.250-28)	2
23	19924275	螺钉 (.312-18 x 2.75)	SCREW (.312-18 x 2.75)	1
24	36001	垫圈	WASHER	1
25	29804	套筒	SLEEVE	1
25	29804T	套筒	SLEEVE	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1

图 6维修/支撑材料 Service/Support Material

零件编号	中文名称	英文名称	数量
88183801	零件手册-115EFI(四冲程)	PARTS MANUAL 115 EFI (4-Stroke) Parts Manual	1
881980	维修手册	SERVICE MANUAL	1
881980R03	SM O/B 115 EFI 4S	SM O/B 115 EFI 4S	1
10225030	用户手册	OWNERS MANUAL	1
858610A31	燃油软管总成	HOSE ASSEMBLY Fuel	1
8M0038610	带注油球的燃油软管总成(9英尺)	HOSE ASSEMBLY Fuel (9 Feet) With Primer Bulb	1
880177	组合扳手工具(10毫米)	SCRENCH TOOL (10 mm)	1
881828	星形头工具套件	STARBIT TOOL KIT	1
881649A01	贴花套件	DECAL SET	1
881649A05	贴花套件	DECAL SET	1
881840A01	贴花套件	DECAL SET	1
881840A03	贴花套件	DECAL SET	1
881840A03	贴花套件	DECAL SET	1
881840A05	贴花套件	DECAL SET	1
881650A01	贴花套件	DECAL SET	1
881650A03	贴花套件	DECAL SET	1
881650A03	贴花套件	DECAL SET	1
881702A01	贴花套件	DECAL SET	1
881839A01	EPA标签信息贴花	DECAL EPA Label Information	1
881839A02	EPA标签信息贴花	Decal EPA Label Information	1
881839A03	EPA标签信息贴花	DECAL EPA Label Information	1
816834A1	转速表	TACHOMETER	1
816932A1	温度表	TEMPERATURE GAUGE	1
86306	适配器	ADAPTER	1
86306A01	适配器	ADAPTER	1
817054A3	水压表总成	GAUGE ASSEMBLY Water Pressure	1
821400A2	动力升降倾斜传感器套件	SENDER KIT Power Trim	1
8M0074845	ORD 8M0098264	ORD 8M0098264	1
92876A8	转向安装套件	ATTACHING KIT Steering	1
92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
883040A1	转速表模块套件	TACH MODULE KIT	1

图 7动力转向组件（遥控） POWER STEERING COMPONENTS (REMOTE)

REF	零件编号	中文名称	英文名称	数量
1	17771	支架	MOUNT	1
2	59702	螺钉 (.250-28 x .875) 不锈钢	SCREW (.250-28 x .875) Stainless Steel	4
3	88404	锁紧垫圈	TAB WASHER	4
4	78862A2	密封套件	SEAL KIT	1
4	19624A1	密封套件	SEAL KIT	1
5	71565A2	管总成	TUBE ASSEMBLY	1
6	17776	联轴器	COUPLING	1
7	817040	螺钉 (.375-24 x 2.75)	SCREW (.375-24 x 2.75)	1
8	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	1
9	90092	螺钉	SCREW	1
9	856722	螺钉	SCREW	1
10	34863	螺母 (.375-24)	NUT (.375-24)	2
10	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
11	42100	锁紧垫圈	TAB WASHER	2
12	37984	螺母 (.875-14)	NUT (.875-14)	2
12	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
13	811290	蓄能器 (参见蓄能器分解图)	ACCUMULATOR (See Accumulator for Breakdown)	1
14	817372	支架	BRACKET	1
15	16862	螺钉 (.250-10 x 1.25)	SCREW (.250-10 x 1.25)	4
16	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
16	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
17	4000383	螺钉 (M10 x 70)	SCREW (M10 x 70)	2
18	4002319	垫圈	WASHER	4
19	13914	螺母(M10)	NUT (M10)	2
19	40140	螺母(M10)	NUT (M10)	2
20	8112891	执行器	ACTUATOR	1
20	828588A2	执行器套件	ACTUATOR KIT	1
21	94319	螺钉(.375-24 x 1.5)	SCREW (.375-24 x 1.5)	1
22	17405	隔套	SPACER	2
23	34863	螺母 (.375-24)	NUT (.375-24)	3
23	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	3
24	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	1
24	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
25	92876A4	连杆总成	LINK ROD ASSEMBLY	1
26	68300	垫圈 (.88 x .39 x .06)	WASHER (..88 x .39 x .06)	1
27	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
27	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
28	43450	垫圈	WASHER	2
28	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	2
29	8268336	螺母 (M6)	NUT (M6)	2
29	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
30	811292	卡箍	CLAMP	1
31	818182	螺钉	SCREW	2
32	400263	螺母 (M5)	NUT (M5)	2
33	811291	支架	BRACKET	1
34	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
35	197491	卡箍	CLAMP	1
36	18211	继电器开关	RELAY SWITCH	1
37	18244A1	线束总成	HARNESS ASSEMBLY	1
38	18124	螺钉 (#10-32 x .750)	SCREW (#10-32 x .750)	1
39	90329	护孔环	GROMMET	1
40	309772	隔套	SPACER	1
41	816994	支架	BRACKET	1
42	42118	垫圈	WASHER	1
43	29488	螺母 (#10-32)	NUT (#10-32)	1
43	8M0204718	螺母	NUT	1
44	81563024	贴花	DECAL	1

图 8杂项信息 MISCELLANEOUS INFORMATION

零件编号	中文名称	英文名称	数量
803177	零件手册150/175/200 EFI(2.5升)	PARTS MANUAL 150/175/200 EFI (2.5L)	1
10126990	用户手册	OWNERS MANUAL	1
824052R2	维修手册	SERVICE MANUAL	1
824052R3	SM O/B V6 135-225	SM O/B V6 135-225	1
808553A96	贴花套件	DECAL SET	1
808553A00	贴花套件	DECAL SET	1
809689A99	贴花套件	DECAL SET	1
804696A03	贴花套件	DECAL SET	1
808559A96	贴花套件	DECAL SET	1
855418A99	贴花套件	DECAL SET	1
809688A00	贴花套件	DECAL SET	1
808554A96	贴花套件	DECAL SET	1
812563A00	贴花套件	DECAL SET	1
808558A99	贴花套件	DECAL SET	1
808562A03	贴花套件	DECAL SET	1
813033A97	贴花套件	DECAL SET	1
813033A03	贴花套件	DECAL SET	1
809706A97	贴花套件	DECAL SET	1
809706A03	贴花套件	DECAL SET	1
808557A97	贴花套件	DECAL SET	1
808557A01	贴花套件	DECAL SET	1
855419A97	贴花套件	DECAL SET	1
855419A00	贴花套件	DECAL SET	1
808556A97	贴花套件	DECAL SET	1
808556A03	贴花套件	DECAL SET	1
808561A97	贴花套件	DECAL SET	1
808561A03	贴花套件	DECAL SET	1
824911A25	条纹贴纸(25英尺卷-需6英尺)	DECAL Striping (ROLL OF 25 FT. - NEED 6 FT.)	1
808591A96	贴花套件	DECAL SET	1
808680A96	贴花套件	DECAL SET	1
808621A96	贴花套件	DECAL SET	1
808602A96	贴花套件	DECAL SET	1
808652A96	贴花套件	DECAL SET	1
808641A96	贴花套件	DECAL SET	1
85698511	EPA标签信息贴花	DECAL EPA Label Information	1
856985A11	REF SOB 09-18	REF SOB 09-18	1

图 9动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	8M0168222	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0142591	电机套件	MOTOR KIT	1
2	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
3	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
4	8M0090403	驱动联轴器	COUPLING Drive	1
5	8M0142996	压力检查套件	PO CHECK KIT	1
6	8M0060141	手动释放套件	MANUAL RELEASE KIT	1
7	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
8	878267	销	PIN	1
9	8M0142998	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
9	8M0168220	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
10	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
11	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
12	8M0142592	升降杆套件左舷	TRIM ROD KIT Port	1
13	8M0143001	活塞总成	PISTON ASSEMBLY	1
14	8M0143003	端盖总成	END CAP ASSEMBLY	1
15	878264A1	储液罐套件	RESERVOIR KIT	1
16	811613	塞子总成	PLUG ASSEMBLY	1
17	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
18	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
19	8M0143004	泵套件	PUMP KIT	1
20	8M0148385	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
21	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
22	4002319	垫圈	WASHER	6
23	8M0094889	销	PIN	1
23	8M0161312	连杆销眼总成	PIN ROD EYE ASSEMBLY	1
24	8M0143005	减震杆套件	SHOCK ROD KIT	1
24	8M0168219	减震杆套件	SHOCK ROD KIT	1

图 10蓄能器 ACCUMULATOR

REF	零件编号	中文名称	英文名称	数量
-	811290	蓄能器	ACCUMULATOR	1
1	823059A1	端架总成(含线束)	END FRAME ASSEMBLY (W/WIRES)	1
2	823061A1	电枢总成	ARMATURE ASSEMBLY	1
3	823062	泵总成	PUMP ASSEMBLY	1
4	823063	壳体/磁铁总成	SHELL/MAGNET ASSEMBLY	1
5	823064	螺栓套件	BOLT KIT	1
6	823065	控制器	CONTROLLER	1
7	823066	螺钉套件	SCREW KIT	1
8	823067	滤清器套件	FILTER KIT	1
9	823068	橡胶减震器	RUBBER DAMPER	1
10	823070	橡胶隔振器	RUBBER ISOLATOR	1
11	823071	储液罐衬垫	GASKET Reservoir	1
12	823072	螺钉套件	SCREW KIT	1
13	823074	O型圈	O-RING	1
14	823075	固定板	PLATE Retaining	1
15	823077	电源线束总成	HARNESS ASSEMBLY Power	1
16	823078A1	盖总成	COVER ASSEMBLY	1
17	823080A1	加注塞	FILL PLUG	1
18	823082	壳体总成	HOUSING ASSEMBLY	1
19	79953	螺钉(0.375-16x0.250)	SCREW (.375-16 x .250)	1
20	19183	纤维垫圈	WASHER Fiber	1
21	823087	接头	FITTING	1
22	823069	高压短管	SHORT HIGH PRESSURE LINE	1
23	823073	高压长管	LONG HIGH PRESSURE LINE	1
24	811524	低压短管	SHORT LOW PRESSURE LINE	1
25	811525	低压长管	LONG LOW PRESSURE LINE	1

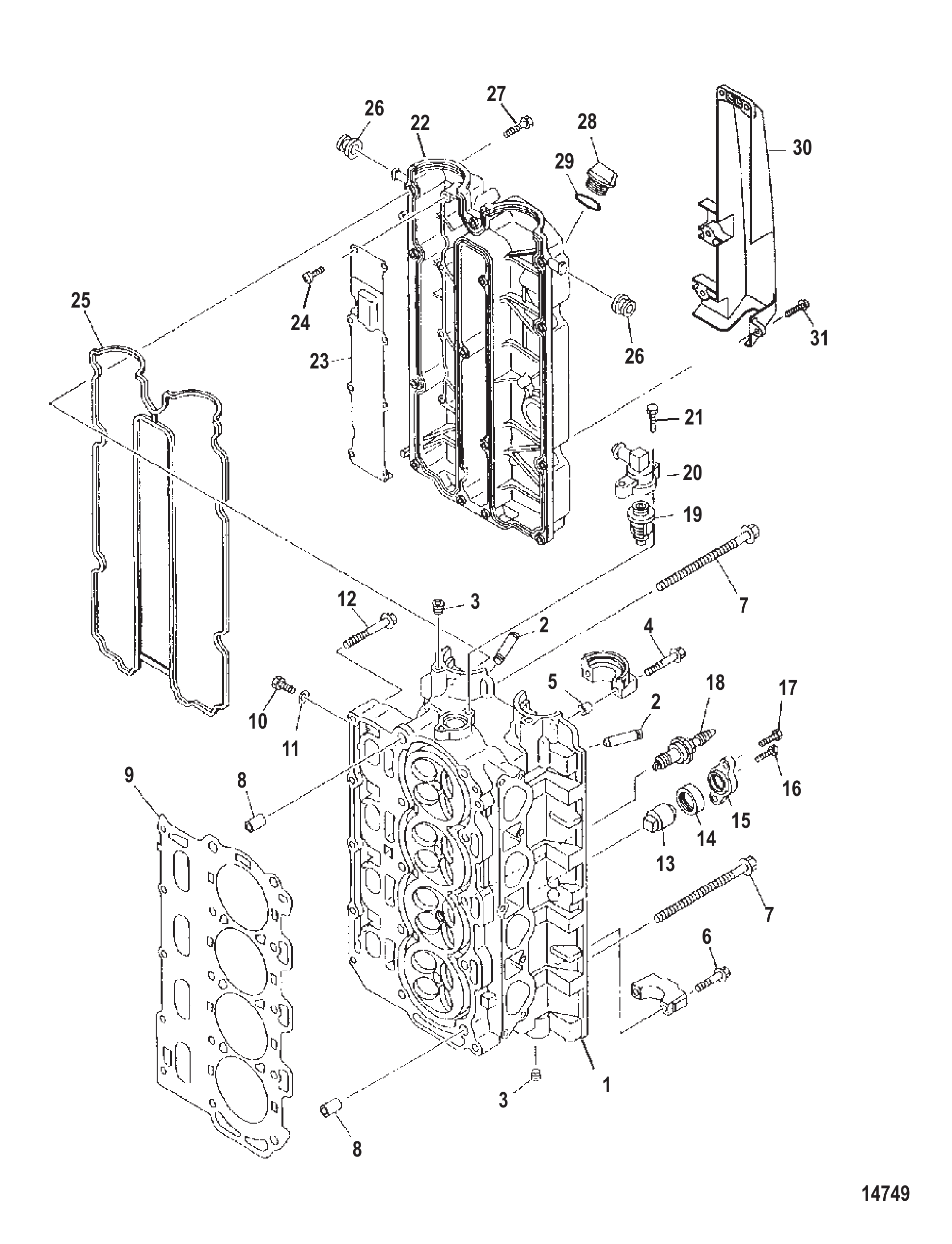

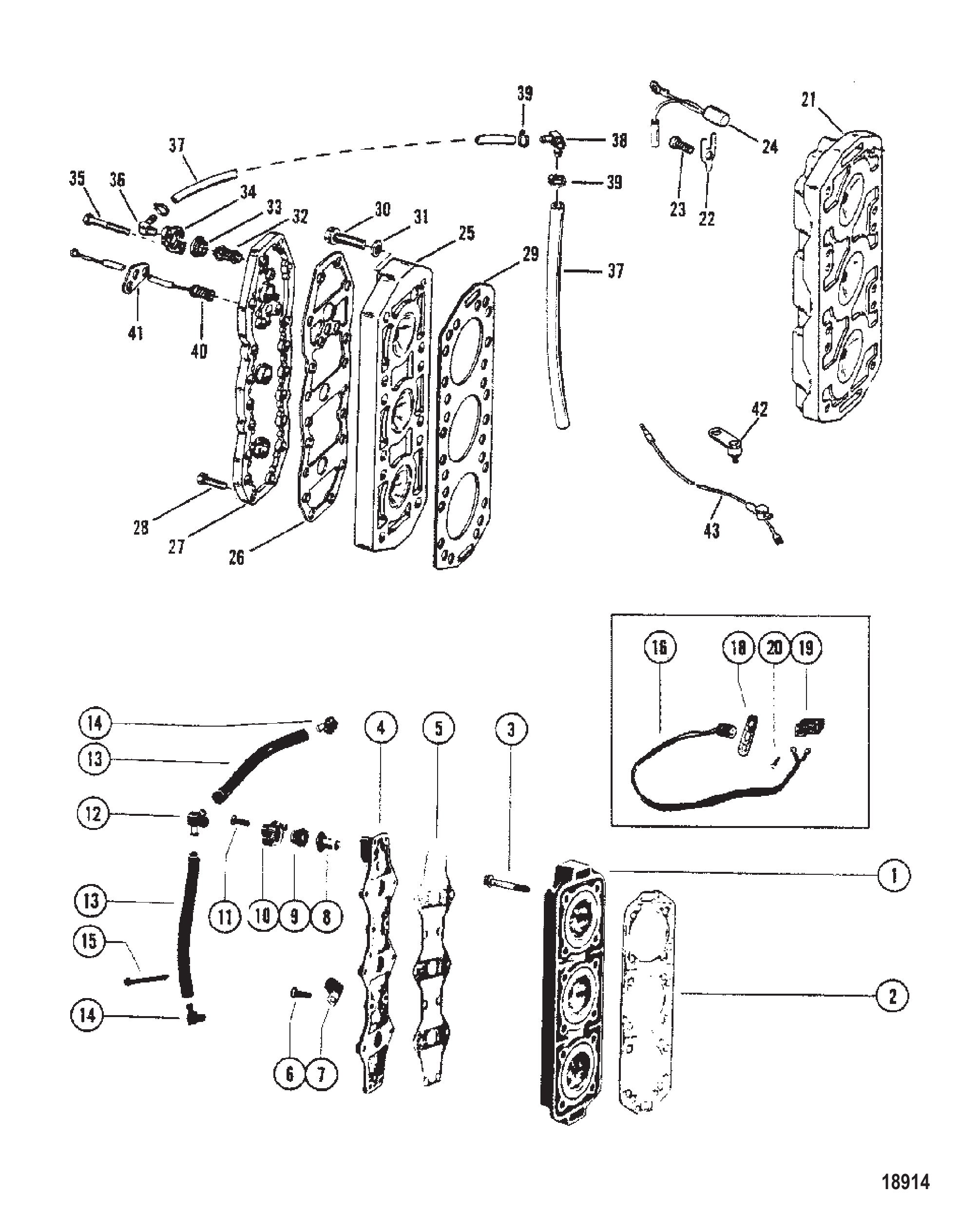

图 11气缸盖 Cylinder Head

REF	零件编号	中文名称	英文名称	数量
1	881310T2	气缸盖总成	CYLINDER HEAD ASSEMBLY	1
2	804110	导向销	PIN Guide	16
3	804111	堵头	PLUG	4
4	804112	螺栓(M7 x 48)	BOLT (M7 x 48)	4
5	804113	定位销	PIN Dowel	4
6	804114	螺栓(M7×37)	BOLT (M7 x 37)	16
7	881311	螺栓(M10×145)	BOLT (M10 x 145)	10
8	804116	轴环	COLLAR	2
8	8M0070515	定位销	DOWEL PIN	2
9	8041151	衬垫	GASKET	1
10	83124714	螺栓	BOLT	4
11	831246	密封垫圈	WASHER Sealing	4
12	881312	螺栓(M8×55)	BOLT (M8 x 55)	5
13	NSS	阳极 (不单独销售)	NOT SOLD SEPARATE Anode	2
14	804086	护孔环	GROMMET	2
15	804085	盖板	COVER	2
15	804085A01	罩盖/阳极套件	COVER/ANODE KIT	2
16	8524741	螺栓 (M6 x 20)	BOLT (M6 x 20)	2
17	827207	螺栓 (M8 x 25)	BOLT (M8 x 25)	4
18	881284	火花塞	SPARK PLUG	4
18	881284Q	PG LFR6A-11 @10	PG LFR6A-11 @10	4
19	881429	节温器	THERMOSTAT	1
19	8M6013864	节温器	THERMOSTAT	1
20	881430	节温器盖	COVER Thermostat	1
20	8041271	节温器盖	THERMOSTAT COVER	1
21	8248326	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
22	881313T1	盖板套件	COVER KIT	1
23	804119	通气盖	COVER Breather	1
24	804120	螺钉(M4 x 8)	SCREW (M4 x 8)	8
25	804123	衬垫	GASKET	1
26	855690	护孔环	GROMMET	2
27	858530	螺栓 (M6 x 30)	BOLT (M6 x 30)	14
28	859578A1	油塞总成	PLUG ASSEMBLY Oil	1
28	8M0240831	油塞	OIL PLUG	1
29	NSS	O型圈(不单独销售)	NOT SOLD SEPARATE O-Ring	1
30	858752	盖板	COVER	1
30	858752001	盖板	COVER	1
31	1993716	螺钉(M6 x 16)	SCREW (M6 x 16)	5
-	858732T01	衬垫套件	GASKET SET	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	881310T1	气缸盖总成	CYLINDER HEAD ASSEMBLY	1
-	881310T09	气缸盖	HEAD-CYLINDER	1
-	881421T01	动力头总成	POWERHEAD ASSEMBLY	1
-	881421T04	动力头总成	POWERHEAD ASSEMBLY	1
-	881421T02	动力头总成	POWERHEAD ASSEMBLY	1
-	881421T04	动力头总成	POWERHEAD ASSEMBLY	1

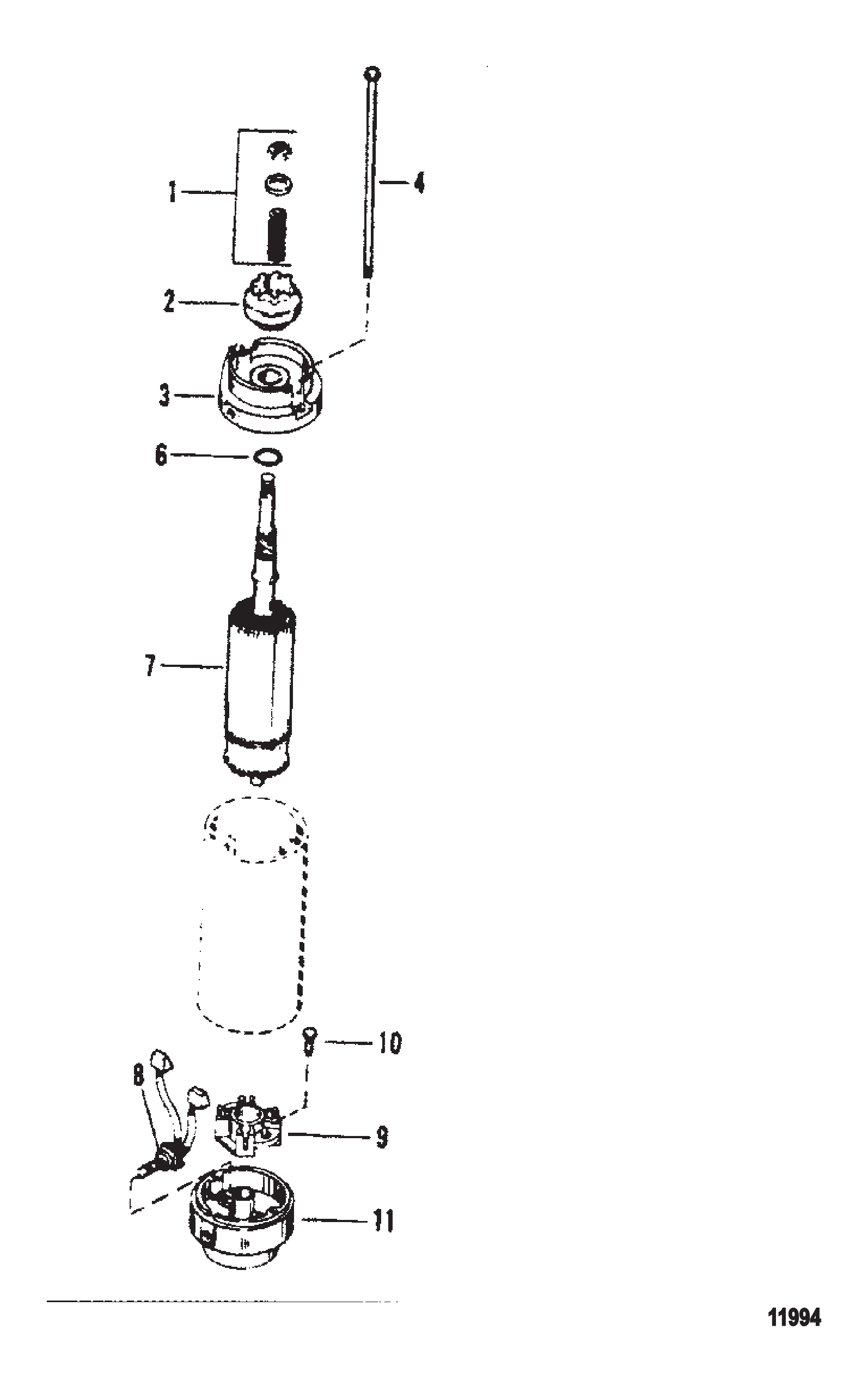

图 12启动电机 Starter Motor

REF	零件编号	中文名称	英文名称	数量

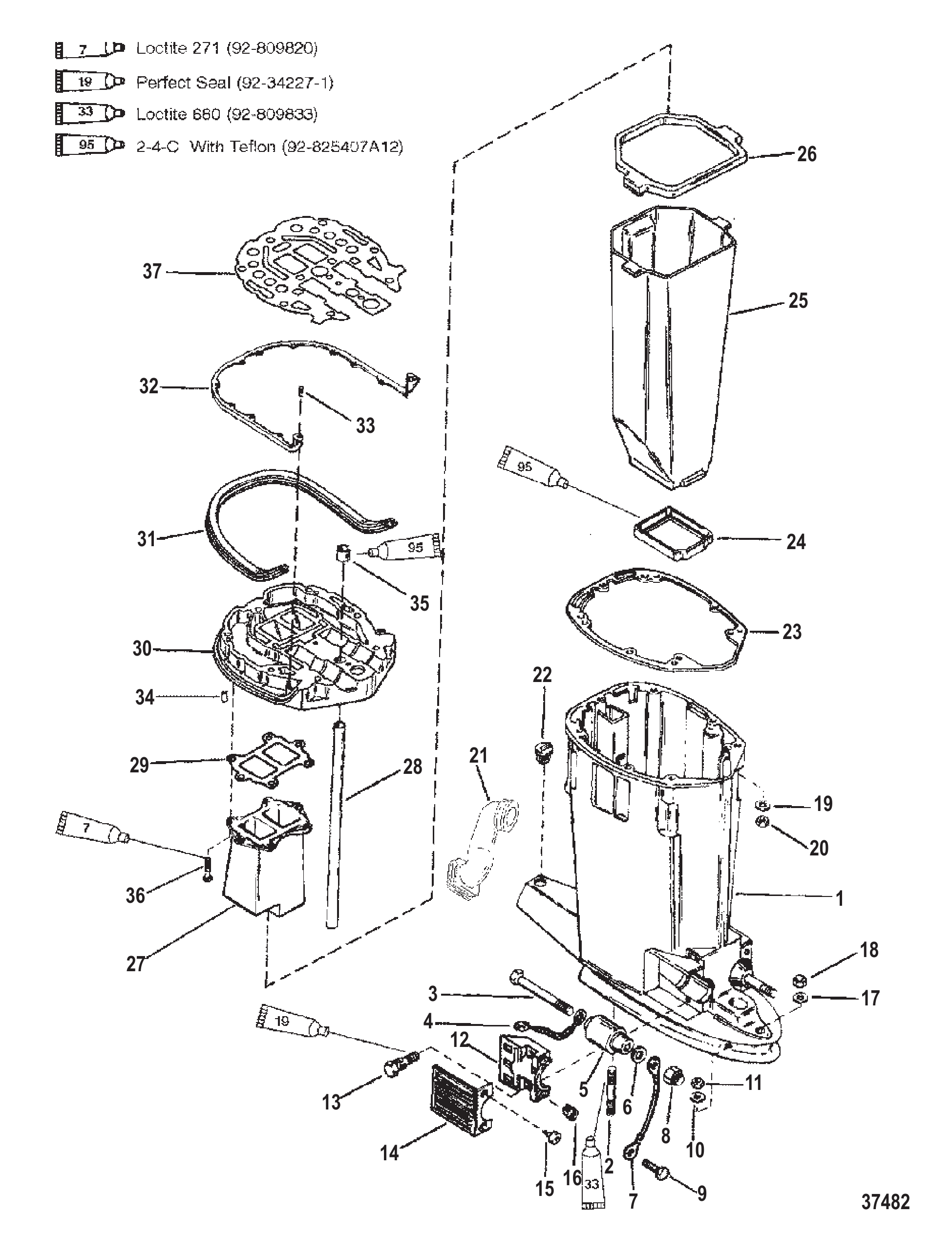

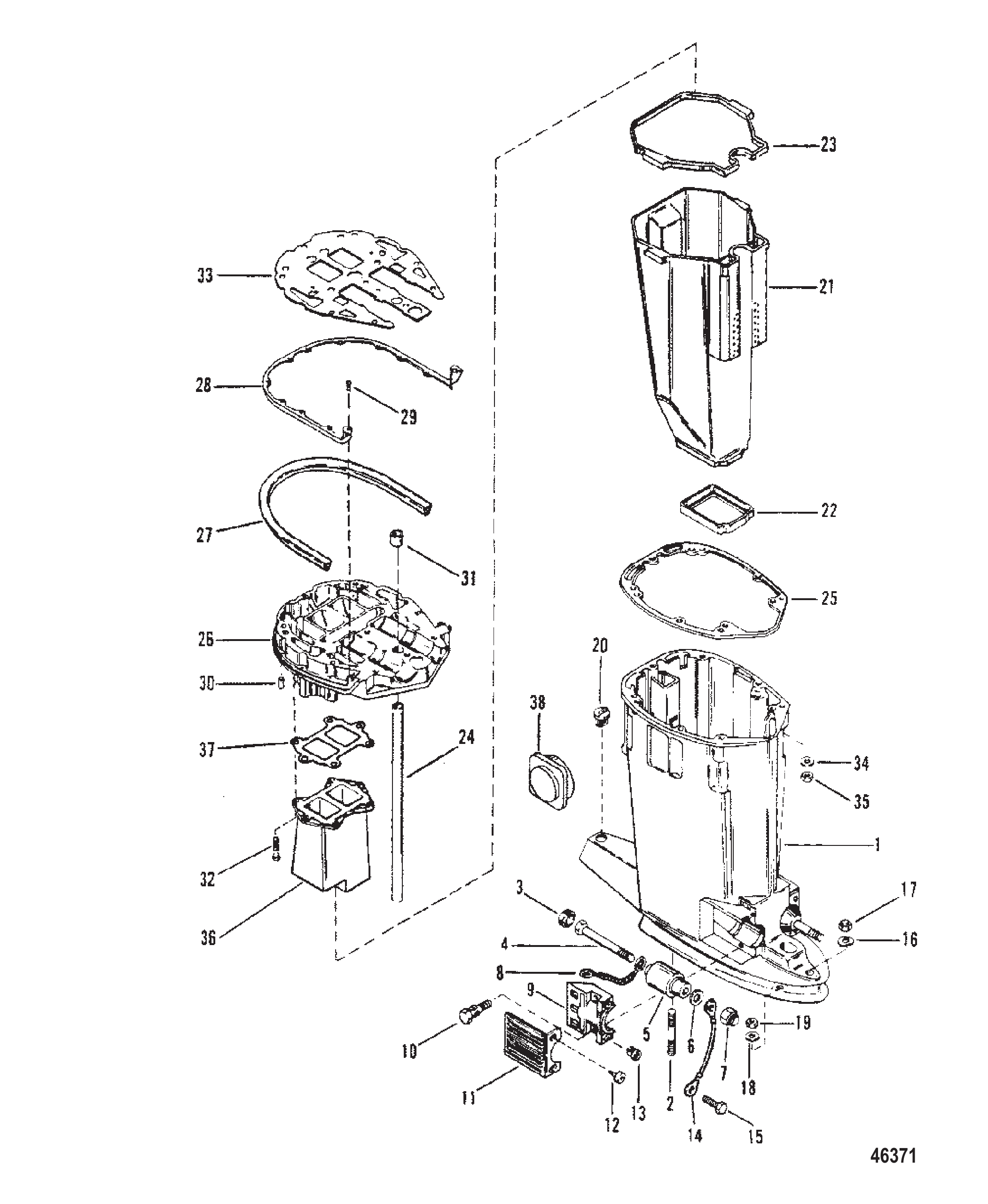

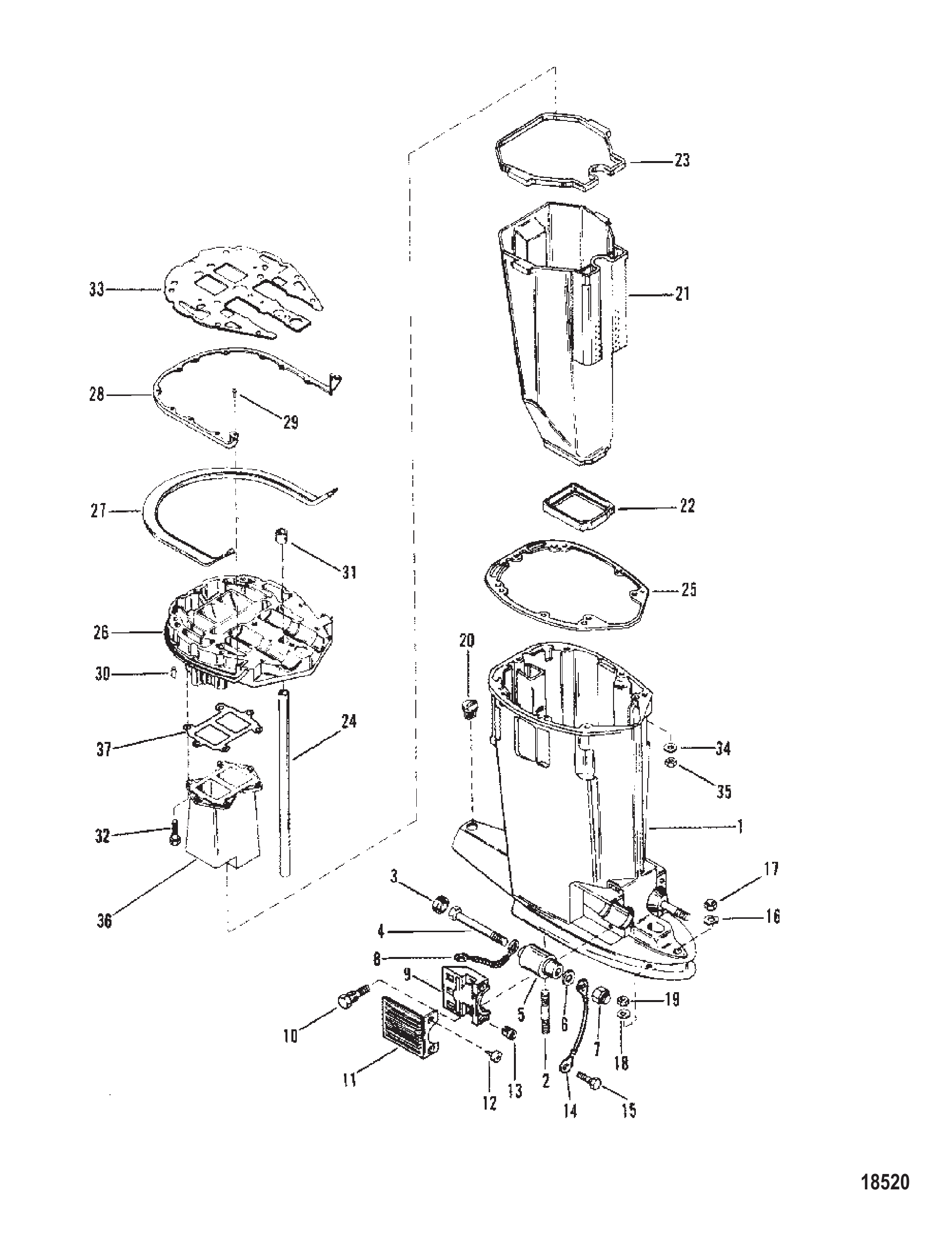

图 13驱动轴壳体与排气管 DRIVESHAFT HOUSING AND EXHAUST TUBE

REF	零件编号	中文名称	英文名称	数量
1	8343A10	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8343A11	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8343T11	ORD 1590-8343T10	ORD 1590-8343T10	1
1	813563A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	813563T1	传动轴壳体-黑色-加长型	HOUSING Driveshaft - Black - X-Long	1
1	813563A2	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	813563T2	ORD 3503-813563T1	ORD 3503-813563T1	1
2	56295	双头螺柱(.437 x 2.69)	STUD (.437 x 2.69)	2
3	63474	螺钉(.500-20 x 6.00)	SCREW (.500-20 x 6.00)	2
3	898831	螺钉(.500-20 x 6.220)	SCREW (.500-20 x 6.220)	2
4	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
5	77327	支架	MOUNT	2
6	49339	垫圈(.8125)	WASHER (.8125)	2
7	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
8	28040	螺母(.500-20)	NUT (.500-20)	2
8	898832	螺母(.500-20)	NUT (.500-20)	2
9	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
10	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
11	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
11	8M0204653	螺母	NUT	2
12	67076	卡箍	CLAMP	2
12	8M0036782	卡箍	CLAMP	2
13	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
14	67077T	黑色盖	COVER Black	2
14	8M4500752	盖板	COVER	2
14	67077F1	灰色盖板	COVER Gray	2
14	67077T	黑色盖	COVER Black	2
15	88417	螺钉(#12-24×0.620)	SCREW (#12-24 x .620)	4
16	35521	螺母	NUT	4
17	48926	垫圈	WASHER	1
18	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	1
18	8M0204653	螺母	NUT	1
19	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	4
20	69254	螺母	NUT	4
21	828212	怠速排气套	BOOT Idle Exhaust	1
21	8M0039081	护套	BOOT	1
22	64649	堵头	PLUG	1
23	991732	衬垫	GASKET	1
23	991734	衬垫	GASKET	1
24	66350	下密封件	SEAL (LOWER)	1
24	66350001	密封件	SEAL	1
25	18276	排气管	TUBE Exhaust	1
25	18276T	排气管	EXHAUST TUBE	1
26	177261	上密封件	SEAL (UPPER)	1
26	8M0039076	密封件	SEAL	1
27	812834	排气管延长段	EXTENSION Exhaust	1
27	812834A2	排气延长总成	EXTENSION ASSEMBLY Exhaust	1
27	41942F3	排气管延长段	EXTENSION Exhaust	1
27	879288T71	排气管延长段	EXTENSION Exhaust	1
28	67295	水管	TUBE Water	1
28	8M0042788	长型水管	TUBE-WATER-LONG	1
28	74729	管	TUBE	1
28	8M0042790	水管	TUBE-WATER	1
29	78246	衬垫	GASKET	1
29	782461	衬垫	GASKET	1
30	18233A3	隔板总成	PLATE ASSEMBLY	1
30	18233A20	传动轴壳体板总成	PLATE ASSEMBLY Driveshaft Housing	1
31	8147012	密封件	SEAL	1
31	8M0043165	密封件-27.00英寸	SEAL-27.00 INCH	1
32	68011	支架	BRACKET	1
33	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
33	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
34	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
35	38970	密封件	SEAL	1
36	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	6
37	183071	衬垫	GASKET	1
37	183076	衬垫	GASKET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

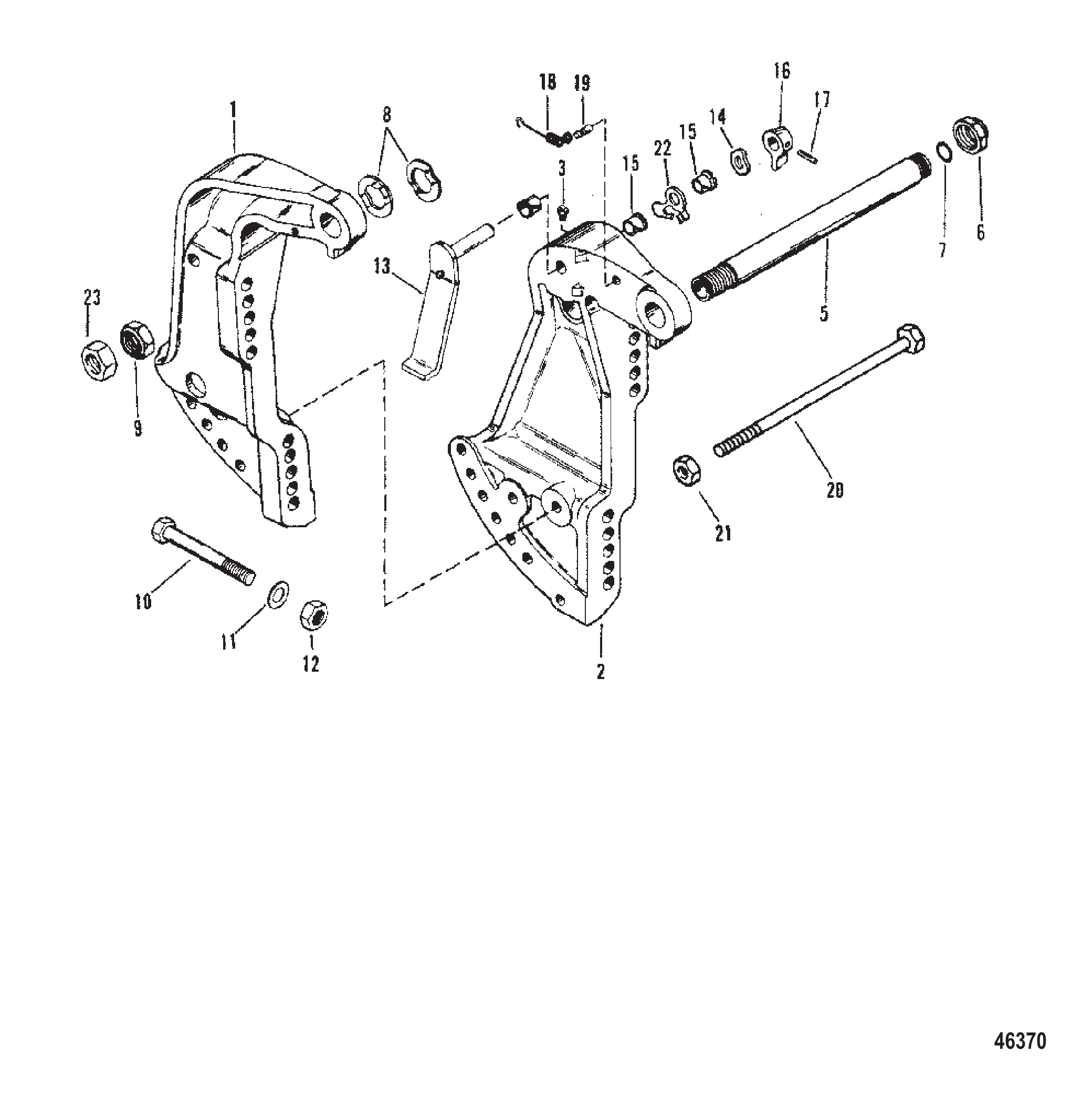

图 14艉板支架（序列号0G589999及以下） Transom Brackets (S/N-0G589999 & Below)

REF	零件编号	中文名称	英文名称	数量
1	8718F7	艉板支架	BRACKET Transom	1
2	8716A8	艉板支架总成	BRACKET ASSEMBLY Transom	1
1	8718F8	艉板支架	BRACKET Transom	1
2	8716A9	艉板支架总成	BRACKET ASSEMBLY Transom	1
3	98727	润滑脂接头(左舷)	FITTING Grease (PORT)	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	47525	螺母 (.875-14) 底部	NUT (.875-14) Bottom	1
5	826125A1	倾斜管	TILT TUBE	1
6	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
7	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
8	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
9	826164	螺母 (.875-14)	NUT (.875-14)	1
9	8M0231351	锁紧螺母	NUT Lock	1
10	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
10	8M0149747	螺钉	SCREW	4
11	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	8M0027784	螺母	NUT	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	99629A2	杠杆总成	LEVER ASSEMBLY	1
13	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	99611	波形垫圈	WAVE WASHER	1
15	65830	尼龙衬套	NYLINER	2
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99622	弹簧	SPRING	1
19	99604	槽销	PIN Groove	1
20	96930A1	螺栓总成	BOLT ASSEMBLY	1
21	23161	螺母 (.375-24)	NUT (.375-24)	1
22	814207	停机开关	STOP	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 15齿轮箱（推进轴）（XR6/MAG III - 1.78:1 速比） GEAR HSG (PROP SHAFT)(XR6/MAG III - 1.78:1 RATIO)

REF	零件编号	中文名称	英文名称	数量
1	814247A1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic - Black	1
1	814247A2	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic - Gray	1
1	814247T2	ORD 1674-814247T1	ORD 1674-814247T1	1
44	76039	换挡凸轮控制	CAM Shift Control	1
44	760394	换挡凸轮控制	CAM Shift Control	1
45	12239A1	凸轮从动件套件	FOLLOWER KIT Cam	1
45	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
46	30622	弹簧	SPRING	1
47	44491A1	垫片组	SHIM SET	AR
47	8M0063266	垫片组	SHIM SET	AR
48	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
49	16279A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
50	30895	滚针轴承	BEARING Needle	1
50	30895T	滚针轴承	BEARING Needle	1
51	822539	离合器	CLUTCH	1
51	822539T	离合器	CLUTCH	1
52	30632	十字销	PIN Cross	1
52	8M0100263	十字销	PIN Cross	1
53	30893	弹簧	SPRING	1
54	12238T	螺旋桨轴	PROPELLER SHAFT	1
55	N.S.S.	倒车齿轮(不单独销售)(属于43-16279A2部件)	Not Sold Separate Reverse Gear (PART OF 43-16279A2)	1
56	76358	止推垫片	THRUST WASHER	1
57	29976	O型圈	O-RING	1
58	41529A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
58	41529T2	托架总成	CARRIER ASSY	1
59	98727	润滑脂接头	FITTING Grease	2
59	8M0169588	润滑脂接头	FITTING Grease	2
60	30956	滚针轴承	BEARING Needle	1
60	30956T	滚针轴承	BEARING Needle	1
61	76868	密封件	SEAL	2
61	8M0248882	油封@5	SEAL-OIL @5	2
62	30281	键	KEY	1
63	52700	锁紧垫圈	TAB WASHER	1
64	52699	盖板	COVER	1
65	67891	填充块	FILLER BLOCK	1
65	8M0039169	填充块	FILLER BLOCK	1
66	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
68	816629	锁紧垫圈	TAB WASHER	1
68	816629Q	锁紧垫圈	TAB WASHER	1
69	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
69	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
70	316404	平衡鳍板	TRIM TAB	1
70	31640Q4	平衡鳍板	TRIM TAB	1
71	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
71	8M0204686	螺钉	SCREW	1
72	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
73	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
73	8M0204653	螺母	NUT	2
74	13191A1	止推垫片	THRUST WASHER	1
74	13191Q01	止推垫片	THRUST WASHER	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	89238A2	密封套件	SEAL KIT	1

图 16顶罩 Top Cowl

REF	零件编号	中文名称	英文名称	数量
1	827328T9	顶盖总成	TOP COWL ASSEMBLY	1
1	827328T10	顶盖总成	TOP COWL ASSEMBLY	1
2	821256T1	黑色进气口	INLET Air - Black	1
2	821256T03	进气口	INLET Air	1
2	821256T2	银色进气口	INLET Air - Silver	1
3	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	4
4	859356A1	隔音毯套装	SOUND BLANKET KIT	1
4	859356A02	隔音毯套装	SOUND BLANKET KIT	1
5	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	1
6	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	1
7	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	2
8	823865	盖塞	CAP PLUG	2
9	831207T10	手柄	HANDLE	1
9	831207A16	罩盖锁手柄套件	HANDLE KIT Cowl Latch	1
10	812707	衬套	BUSHING	2
11	831214	隔套	SPACER	1
12	12134	波形垫圈	WASHER Wave	1
13	F481777	凸轮锁轴	CAM Latch Shaft	1
13	8M0001081	凸轮	CAM	1
14	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
14	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
15	1993716	螺钉(M6 x 16)	SCREW (M6 x 16)	1
16	821249M2	前支架	BRACKET Front	3
16	8M0036792	支架	BRACKET	3
17	815477	缓冲器锁扣	BUMPER Latch	3
18	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
18	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
19	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	6
20	8237951	挡圈	RING Retaining	1
21	815263	滚轮	ROLLER	1
21	8M0207770	滚轮@3	ROLLER @3	1
22	8155381	滚动销	PIN Roll	1
23	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
23	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
24	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
25	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
26	12066Q9	绳索	ROPE	1
26	12066Q10	启动绳@2	ROPE-STARTER@2	1

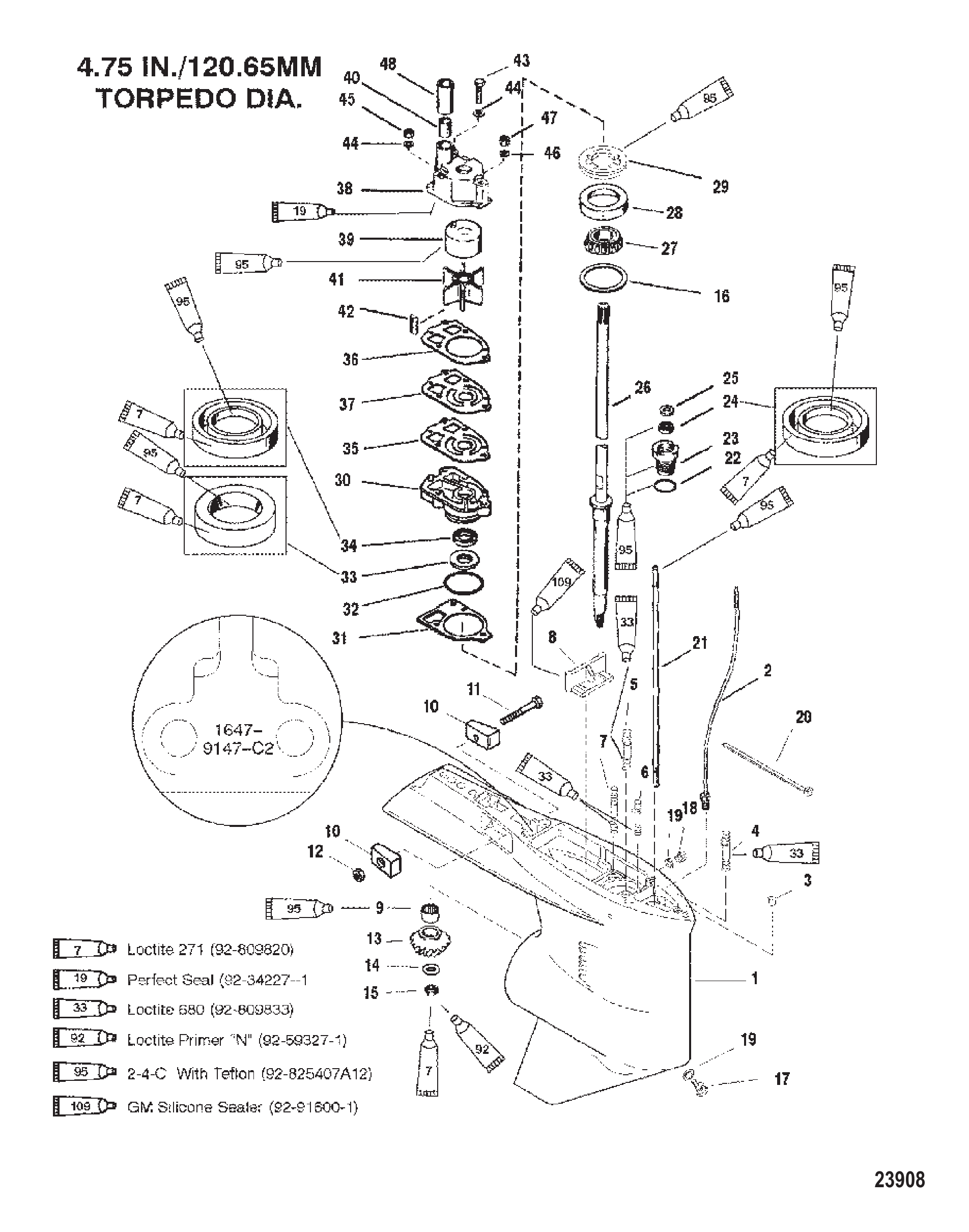

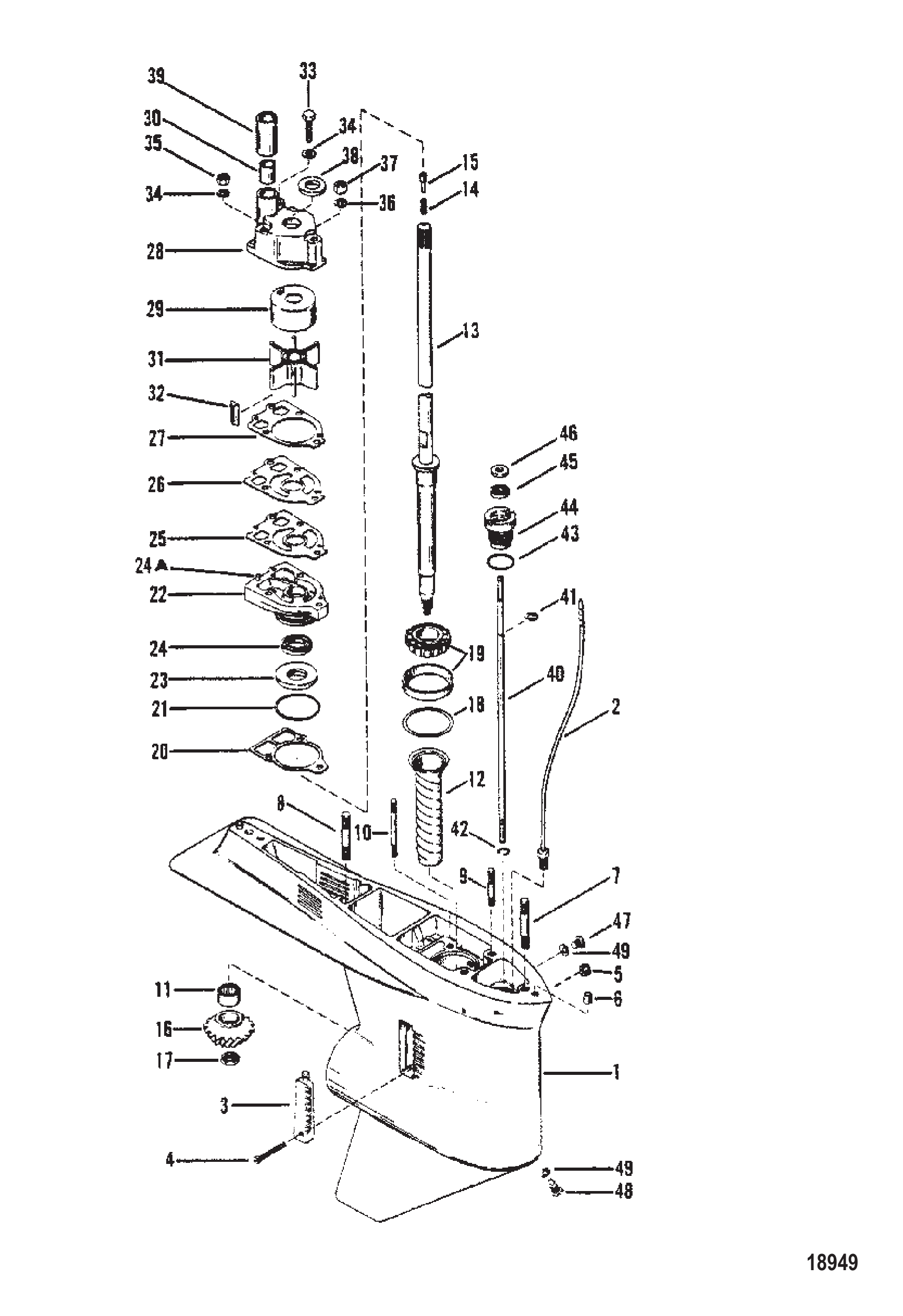

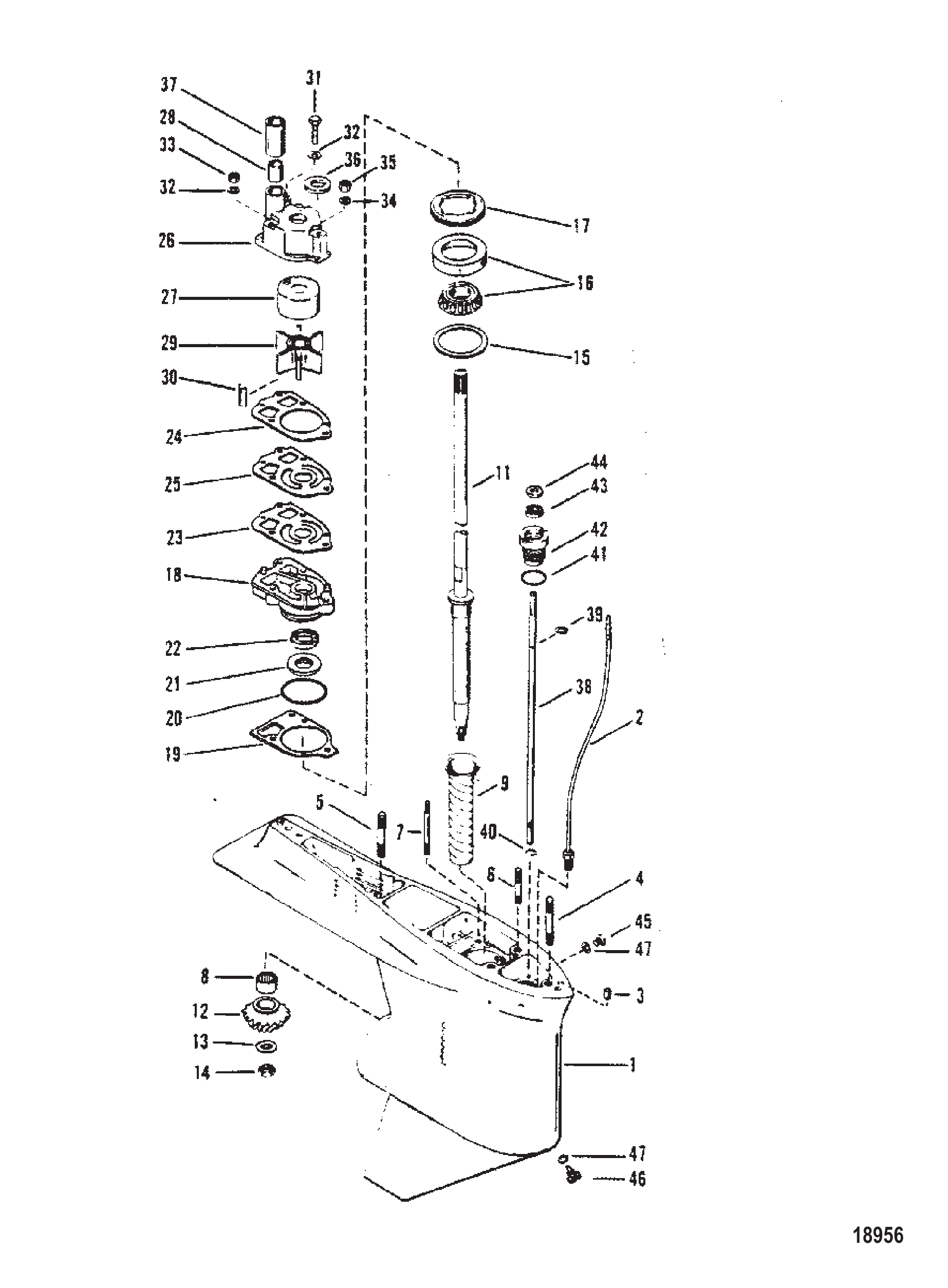

图 17齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)

REF	零件编号	中文名称	英文名称	数量
-	9148A18	齿轮箱总成标准旋转2:1速比(长型)(黑色)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (LONG) (BLACK)	1
-	9148A19	齿轮箱总成标准旋转2:1速比(加长型)(黑色)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (X-LONG) (BLACK)	1
-	9148T82	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A20	齿轮箱总成标准旋转2:1速比(长型)(灰色)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (LONG) (GRAY)	1
-	9148T87	ORD 1647-9148T81	ORD 1647-9148T81	1
-	9148A21	齿轮箱总成标准旋转2:1速比(加长型)(灰色)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (X-LONG) (GRAY)	1
-	9148T88	ORD 1647-9148T82	ORD 1647-9148T82	1
-	9148A36	齿轮箱总成（长型）（OYSTER）	GEAR HOUSING ASSEMBLY (LONG) (OYSTER)	1
-	9148T87	ORD 1647-9148T81	ORD 1647-9148T81	1
-	9148A25	齿轮箱总成（加长型）（OYSTER）	GEAR HOUSING ASSEMBLY (X-LONG) (OYSTER)	1
-	9148T88	ORD 1647-9148T82	ORD 1647-9148T82	1
1	9148A11	齿轮箱总成(黑色-基础款)	GEAR HOUSING ASSEMBLY (BLACK-BASIC)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A12	齿轮箱总成(灰色-基础款)	GEAR HOUSING ASSEMBLY (GRAY-BASIC)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A24	齿轮箱总成（OYSTER-基础型）	GEAR HOUSING ASSEMBLY (OYSTER-BASIC)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
2	85822A1		CONNECTOR ASSEMBLY SPEEDOMETER	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	20033	定位销齿轮箱定位	PIN Dowel GEAR HOUSING LOCATING	2
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	78638	双头螺栓(.438 x 3.12)齿轮箱(长型)	STUD (.438 x 3.12) GEAR HOUSING (LONG)	1
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
4	78639	齿轮箱螺柱(9英寸-加长型)	STUD GEAR HOUSING (9") - (EXTRA LONG)	1
5	57920	齿轮箱螺柱(0.44×2.06)(长型)	STUD (.44 x 2.06) GEAR HOUSING (LONG)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	74730	齿轮箱螺柱(7-1/16英寸-加长型)	STUD GEAR HOUSING (7-1/16") - (EXTRA LONG)	2
6	56297	双头螺栓(.312 x 3.38)水泵	STUD (.312 x 3.38) WATER PUMP	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28 x 3.125)水泵	STUD (.250-20/.250-28 x 3.125) WATER PUMP	2
7	306671	螺柱	STUD	2
8	42647A1	轴承总成滚柱驱动轴	BEARING ASSEMBLY Roller DRIVE SHAFT	1
9	43998	润滑套筒	SLEEVE LUBRICATION	1
11	44000	驱动轴(长型)	DRIVESHAFT (LONG)	1
11	897624T	长驱动轴	DRIVESHAFT Long	1
11	44209	传动轴(加长型)	DRIVESHAFT (EXTRA LONG)	1
11	897625T	加长驱动轴	DRIVESHAFT X-Long	1
12	N.S.S.	不单独出售小齿轮(43-44102A2部件)	Not Sold Separate Pinion Gear (PART OF 43-44102A2)	1
13	92721	垫圈(.965 x .630)小齿轮	WASHER (.965 x .630) PINION GEAR	1
14	35921	螺母(.625-18)小齿轮至驱动轴	NUT (.625-18) PINION GEAR TO DRIVE SHAFT	1
15	42637A1	滚柱轴承至齿轮箱垫片组	SHIM SET ROLLER BEARING TO GEAR HOUSING	AR
15	8M0063267	垫片组	SHIM SET	AR
16	36387A1	轴承总成滚柱/杯形驱动轴	BEARING ASSEMBLY Roller/Cup DRIVE SHAFT	1
16	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
17	42633	驱动轴轴承螺母	NUT DRIVE SHAFT BEARING	1
17	8245191	固定座	RETAINER	1
18	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
19	42631	水泵至齿轮箱衬垫	GASKET WATER PUMP TO GEAR HSG	1
19	8M0204678	衬垫	GASKET	1
20	90011	O型圈(2.175×0.175)水泵	O-RING (2.175 x .175) WATER PUMP	1
20	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
20	38099	O型圈水泵(内径2.109)	O-RING WATER PUMP (2.109 I.D.)	1
21	89238	水泵油封	SEAL Oil WATER PUMP	1
22	16977	水泵油封	SEAL Oil WATER PUMP	1
23	85608	水泵下衬垫	GASKET LOWER - WATER PUMP	1
23	8M0090319	衬垫@5	GASKET @5	1
24	85609	水泵上衬垫	GASKET UPPER - WATER PUMP	1
24	858524	衬垫	GASKET	1
25	32435	水泵端面板	FACE PLATE FACE - WATER PUMP	1
25	8M0204677	面板	PLATE-FACE	1
26	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
27	48752	水泵体嵌件	INSERT WATER PUMP BODY	1
27	48752T	嵌件	INSERT	1
28	38970	橡胶密封圈-进水管	SEAL RUBBER - WATER INLET TUBE	1
29	89984	水泵叶轮	IMPELLER WATER PUMP	1
29	89984T4	叶轮	IMPELLER	1
30	56654	叶轮驱动键	KEY IMPELLER DRIVE	1
30	8M0214992	键@5	KEY @5	1
31	96411	螺钉(#14-8×2.25)水泵	SCREW (#14-8 x 2.25) WATER PUMP	1
31	8M0215009	螺钉	SCREW	1
32	29245	垫圈(0.281×0.500×0.060)不锈钢水泵螺钉与螺柱	WASHER (.281 x .500 x .060) Stainless Steel WATER PUMP SCREW AND STUD	2
32	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
33	13438	螺母(0.250-28)水泵螺柱	NUT (.250-28) WATER PUMP STUD	2
33	8267119	螺母(.250-28)	NUT (.250-28)	2
34	36001	水泵螺柱垫圈	WASHER WATER PUMP STUD	1
35	13436	水泵螺柱螺母	NUT WATER PUMP STUD	1
36	30271	橡胶环(驱动轴)	RING Rubber RUBBER (DRIVE SHAFT)	1
36	8M0214918	环@5	RING @5	1
37	29804	进水管导向套	SLEEVE GUIDE - WATER INLET TUBE	1
37	29804T	套筒	SLEEVE	1
38	78902	换挡轴-下部	SHAFT SHIFT - LOWER	1
38	789022	换档轴	SHIFT SHAFT	1
39	29641	E型挡圈-换挡轴	E RING RETAINING - SHIFT SHAFT	1
40	78907	挡圈	RING Retaining	1
41	25439		O-RING (.862 x .103) SHIFT SHAFT BUSHING	1
42	77631A2	换挡轴衬套总成	BUSHING ASSEMBLY SHIFT SHAFT	1
43	76384	换挡轴衬套油封	SEAL Oil SHIFT SHAFT BUSHING	1
43	8M0246145	油封	OIL SEAL	1
44	77674		WASHER (.35 x .75 x .12) RUBBER - SHIFT SHAFT BUSHING	1
45	79953		SCREW (.375-16 x .250) GREASE FILLER	1
45	79953Q04	放油螺钉套件	SCREW KIT Drain	1
46	67892		SCREW Magnetic DRAIN	1
46	8M0058389	放油螺钉套件	SCREW KIT Drain	1
47	20260	润滑脂加注与排放螺钉垫圈	WASHER GREASE FILLER AND DRAIN SCREW	2
47	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
-	42579A4	水泵修理包	REBUILD KIT Water Pump
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT
-	89238A2	密封套件	SEAL KIT
-	90484A88	衬垫套件	GASKET SET

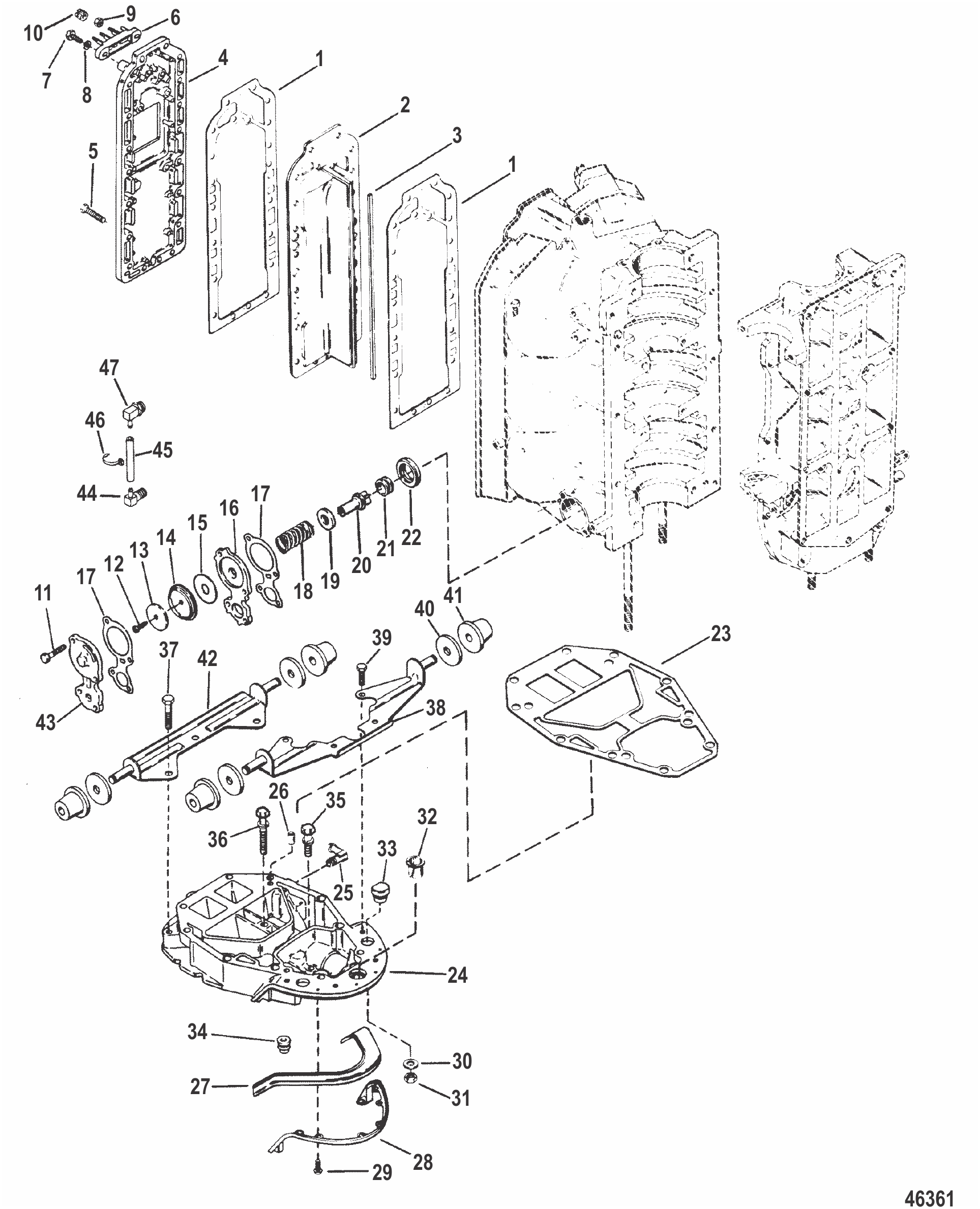

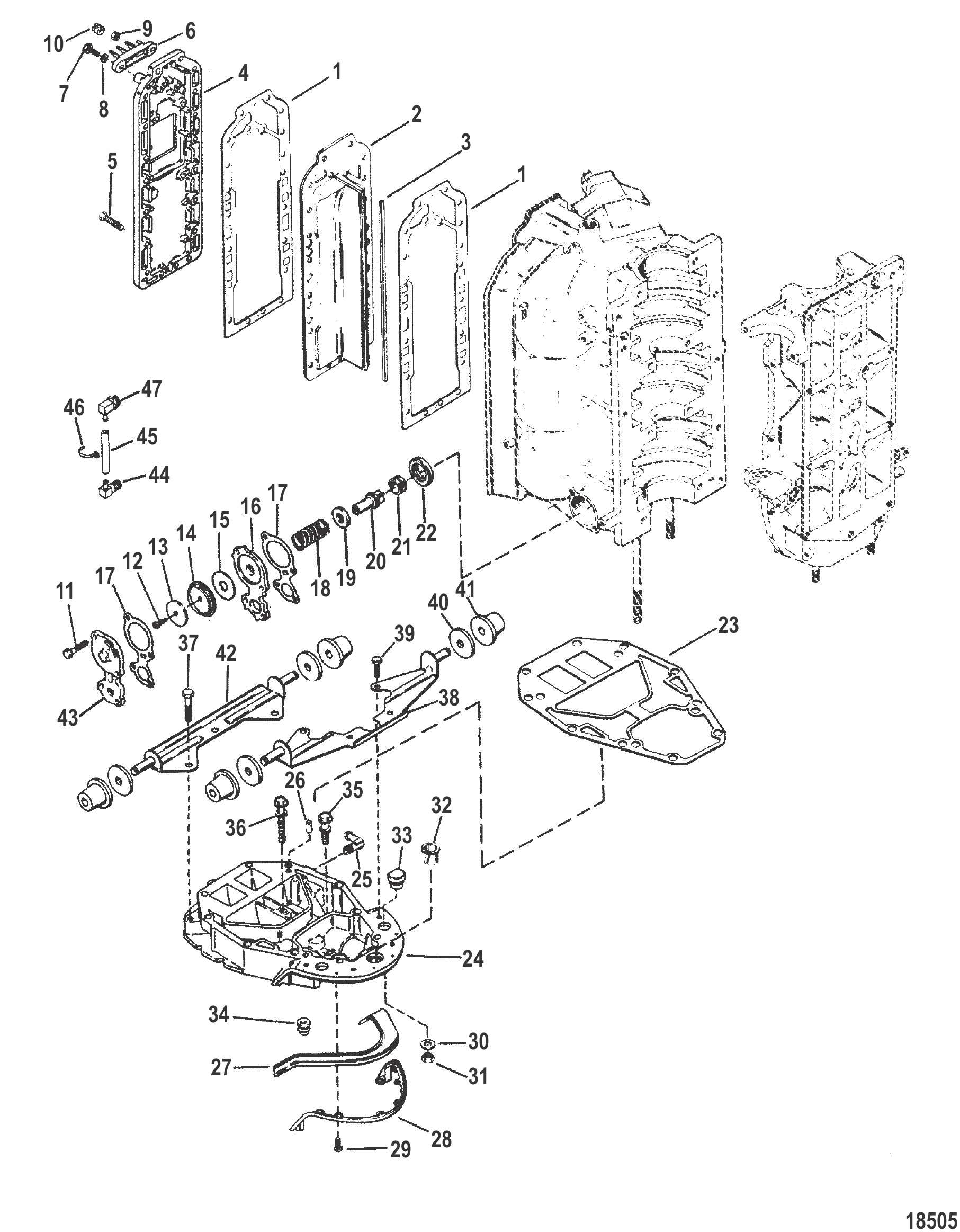

图 18排气歧管与排气板 Exhaust Manifold And Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	904841	分隔板衬垫	GASKET DIVIDER PLATE	2
2	99169A1	分隔板	PLATE DIVIDER	1
3	69668	分隔板密封件	SEAL DIVIDER PLATE	1
3	814754	密封件(12.50英寸)	SEAL (12.50 Inches)	1
4	193071	排气歧管盖	COVER EXHAUST MANIFOLD	1
5	74824	螺钉（0.312-18 x 1.250）盖和板至气缸体	SCREW (.312-18 x 1.250) COVER AND PLATE TO CYLINDER BLOCK	21
6	194373	接线板（3端子）	TERMINAL BLOCK (3 TERMIALS)	1
7	13716	零件手册 7.5/9.8马力接线板	PARTS MANUAL 7.5 /9.8 H.P. TERMIAL BL0CK	2
8	29245	垫圈（0.281 x 0.500 x 0.060）不锈钢接线板螺钉	WASHER (.281 x .500 x .060) Stainless Steel TERMIMAL BLOCK SCREW	2
8	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
9	45076	端子排黄铜螺母(#10-32)	NUT (#10-32) Brass TERMINAL BLOCK	3
10	813938	盖螺母（#10-32）接线板	CAP NUT (#10-32) TERMINAL BLOCK	3
11	74824	缸体盖板螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250) COVER TO CYLINDER BLOCK	4
12	69570	膜片至板件螺钉(#10-16 x .750)	SCREW (#10-16 x .750) DIAPHRAGM TO PLATE	1
13	76451	膜片螺钉垫片	WASHER DIAPHRAGM SCREW	1
14	14479	隔膜	DIAPHRAGM	1
14	144791	隔膜	DIAPHRAGM	1
15	16496	导水板	DEFLECTOR Water	1
16	16497A1	安全阀板	PLATE RELIEF VALVE	1
17	78690	安全阀板衬垫	GASKET RELIEF VALVE PLATE	2
17	78690002	衬垫	GASKET	2
18	64878	弹簧（黑色）压缩弹出阀	SPRING (Black) COMPERSSION POPPER VALVE	1
19	85303	提升阀弹簧垫片	WASHER POPPET SPRING	1
20	14480	提升阀	POPPET VALVE	1
21	64872	提升阀衬套	GROMMET POPPET VALVE	1
22	65848	提升阀座	CARRIER POPPET VALVE	1
23	991763	排气板衬垫	GASKET EXHAUST PLATE	1
23	991764	衬垫	GASKET	1
24	41944A5	排气板总成	PLATE ASSEMBLY EXHAUST	1
25	99664	排气板弯头	ELBOW EXHAUST PLATE	1
25	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
26	20033	排气板定位销	PIN Dowel LOCATING - EXHAUST PLATE	2
26	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
27	183982	排气板密封件	SEAL EXHAUST PLATE	1
27	8M0043165	密封件-27.00英寸	SEAL-27.00 INCH	1
28	680101	密封件固定支架	BRACKET SEAL RETAINING	1
29	812832	支架至排气板螺钉(#10-16 x .500)	SCREW (#10-16 x .500) BRACKET TO EXHAUST PLATE	6
29	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	6
30	25970	动力头螺柱垫圈	WASHER POWERHEAD STUD	6
30	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	6
31	69254	螺母动力头螺柱	NUT POWWERHEAD STUD	6
32	27132	排气板衬套	BUSHING EXHAUST PLATE	1
33	19564	护孔环	GROMMET	1
33	8M0179867	护孔环	GROMMET	1
34	12602	排气板衬套	GROMMET EXHAUST PLATE	1
34	12602002	护孔环	GROMMET	1
35	66727	螺钉(.312-18 x 1.250)排气板固定	SCREW (.312-18 x 1.250) EXHAUST PLATE ATTACHING	1
36	68783	螺钉(.312-18 x 2.50)排气板固定	SCREW (.312-18 x 2.50) EXHAUST PLATE ATTACHING	1
37	66725	螺钉(.375-16 x 3.50)排气板固定	SCREW (.375-16 x 3.50) EXHAUST PLATE ATTACHING	3
37	898833	螺钉(.375-16 x 3.500)	SCREW (.375-16 x 3.500)	3
38	812905A2	前支架总成	BRACKET ASSEMBLY FRONT	1
38	812905T	前支架	BRACKET Front	1
39	90285	螺钉（0.312-18 x 0.625）前支架	SCREW (.312-18 x .625) FRONT BRAKET	4
40	187031	垫圈	WASHER	4
41	18778	护孔环	GROMMET	4
41	18778001	护孔环	GROMMET	4
42	18578A3	后支架总成	BRACKET ASSEMBLY Rear REAR	1
42	18578T09	支架总成(后部)	BRACKET ASSEMBLY Rear	1
43	14462A1	安全阀盖(旧设计)	COVER RELIEF VALVE (OLD DESIGN)	1
43	68729	泄压阀盖（新设计）	COVER RELIEF VALVE (NEW DESIGN)	1
43	8M0039767	盖板	COVER	1
44	92007	接头（0.250-18）（90度）（新设计）	FITTING (.250-18) (90 DEGREES) (NEW DESIGN)	1
44	920071	90度弯头	FITTING (90 Degree)	1
45	99127109	管路（57.00英寸散装）（新设计）	LINE (57.00 Inches Bulk) (NEW DESIGN)	1
45	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
46	90077	扎带（新设计）	TIE STRAP (NEW DESIGN)	2
46	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
47	814430	接头（0.500-14）（新设计）	FITTING (.500-14) (NEW DESIGN)	1
47	8144301	接头	FITTING	1
-	14697A87	衬垫套件	GASKET SET	1

图 19齿轮箱（驱动轴）（XR6/MAG III - 1.78:1 速比） GEAR HSG (DRIVESHAFT)(XR6/MAG III - 1.78:1 RATIO)

REF	零件编号	中文名称	英文名称	数量
1	814247A1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic - Black	1
1	814247A2	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic - Gray	1
1	814247T2	ORD 1674-814247T1	ORD 1674-814247T1	1
2	85822A10	连接器总成(适用时使用)	CONNECTOR ASSEMBLY (USE WHERE APPLICABLE)	1
2A	43998	衬套(旧设计)	SLEEVE (OLD DESIGN)	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	78638	双头螺柱(.438 x 3.12)	STUD (.438 x 3.12)	1
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
5	579201	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	306671	螺柱	STUD	2
8	35934A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	79953	螺钉(0.375-16x0.250)	SCREW (.375-16 x .250)	1
9	79953Q04	放油螺钉套件	SCREW KIT Drain	1
10	67892	磁性螺钉	SCREW Magnetic	1
10	8M0058389	放油螺钉套件	SCREW KIT Drain	1
11	815168	驱动轴	DRIVESHAFT	1
12	N.S.S.	小齿轮(不单独销售)(属于43-16279A2部件)	Not Sold Separate Pinion Gear (PART OF 43-16279A2)	1
13	19183	纤维垫圈	WASHER Fiber	2
13	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
14	826375	螺母(0.625-18)	NUT (.625-18)	1
14	35921	螺母(0.625-18)	NUT (.625-18)	1
15	42637A1	垫片组	SHIM SET	AR
15	8M0063267	垫片组	SHIM SET	AR
16	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
16	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
17	824519	固定座	RETAINER	1
17	8245191	固定座	RETAINER	1
18	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
19	426311	衬垫	GASKET	1
19	8M0204678	衬垫	GASKET	1
20	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
20	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
21	89238	油封	SEAL Oil	1
22	16977	油封	SEAL Oil	1
23	856081	衬垫	GASKET	1
23	8M0090319	衬垫@5	GASKET @5	1
24	856091	衬垫	GASKET	1
24	858524	衬垫	GASKET	1
25	32435	面板	FACE PLATE	1
25	8M0204677	面板	PLATE-FACE	1
26	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
27	48752	嵌件	INSERT	1
27	48752T	嵌件	INSERT	1
28	38970	密封件	SEAL	1
29	899841	叶轮	IMPELLER	1
29	89984T3	叶轮	IMPELLER	1
30	56654	键	KEY	1
30	8M0214992	键@5	KEY @5	1
31	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
31	8M0215009	螺钉	SCREW	1
32	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
33	13438	螺母(.250-28)	NUT (.250-28)	2
33	8267119	螺母(.250-28)	NUT (.250-28)	2
34	36001	垫圈	WASHER	1
35	13436	螺母	NUT	1
37	29804	套筒	SLEEVE	1
37	29804T	套筒	SLEEVE	1
38	8152641	换挡轴(不带E型环使用)	SHIFT SHAFT (USE W/O E-RING)	1
38	815264	换挡轴下段	SHIFT SHAFT LOWER	1
38	8152641	换档轴	SHIFT SHAFT	1
39	29641	E型卡环	E RING	1
40	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
41	77631A2	衬套总成	BUSHING ASSEMBLY	1
42	8164641	油封	SEAL Oil	1
42	8M0246145	油封	OIL SEAL	1
43	77674	垫圈(.35 x .75 x .12)换挡轴衬套	WASHER (.35 x .75 x .12) SHIFT SHAFT BUSHING	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1

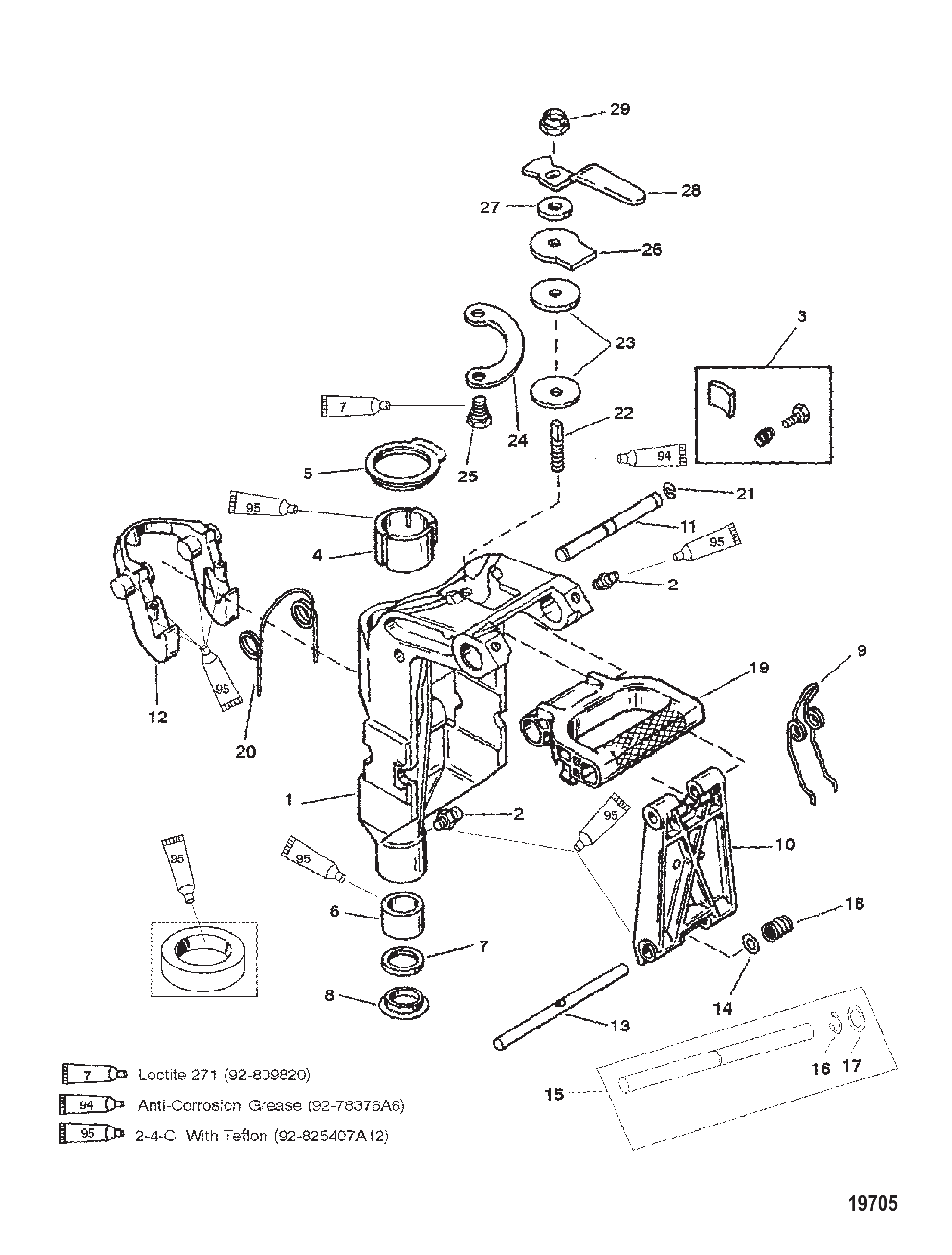

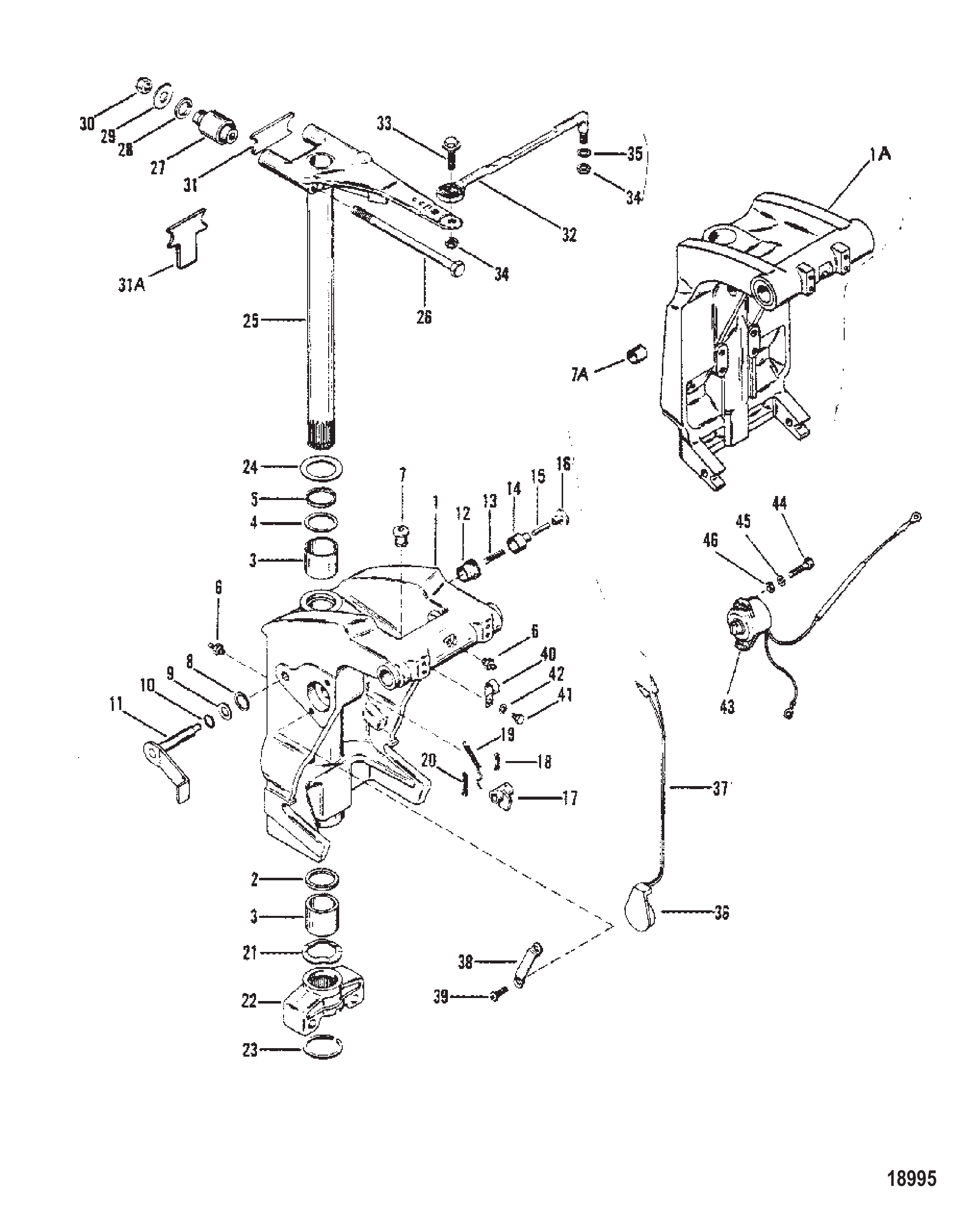

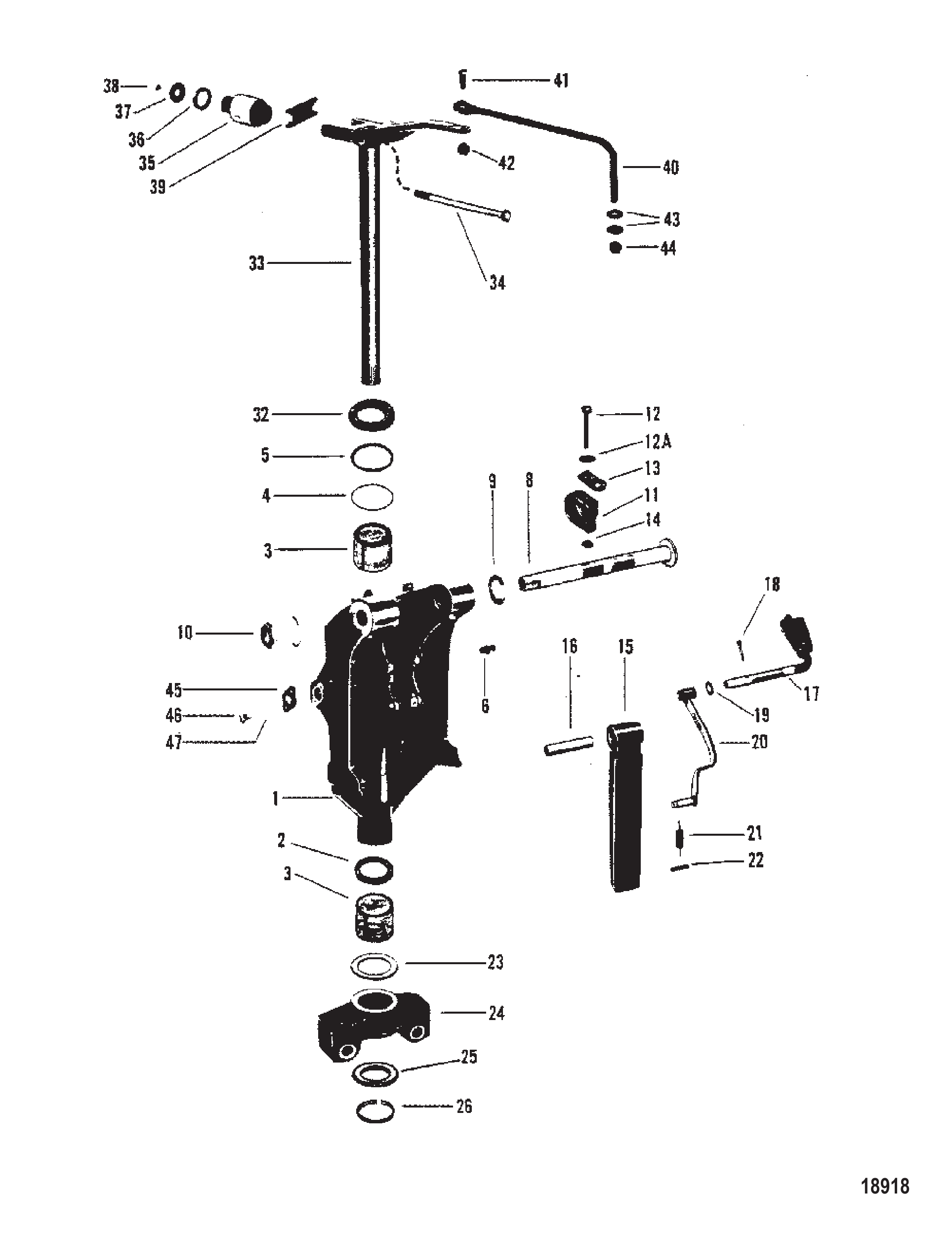

图 20旋转支架与转向臂 Swivel Bracket And Steering Arm

REF	零件编号	中文名称	英文名称	数量

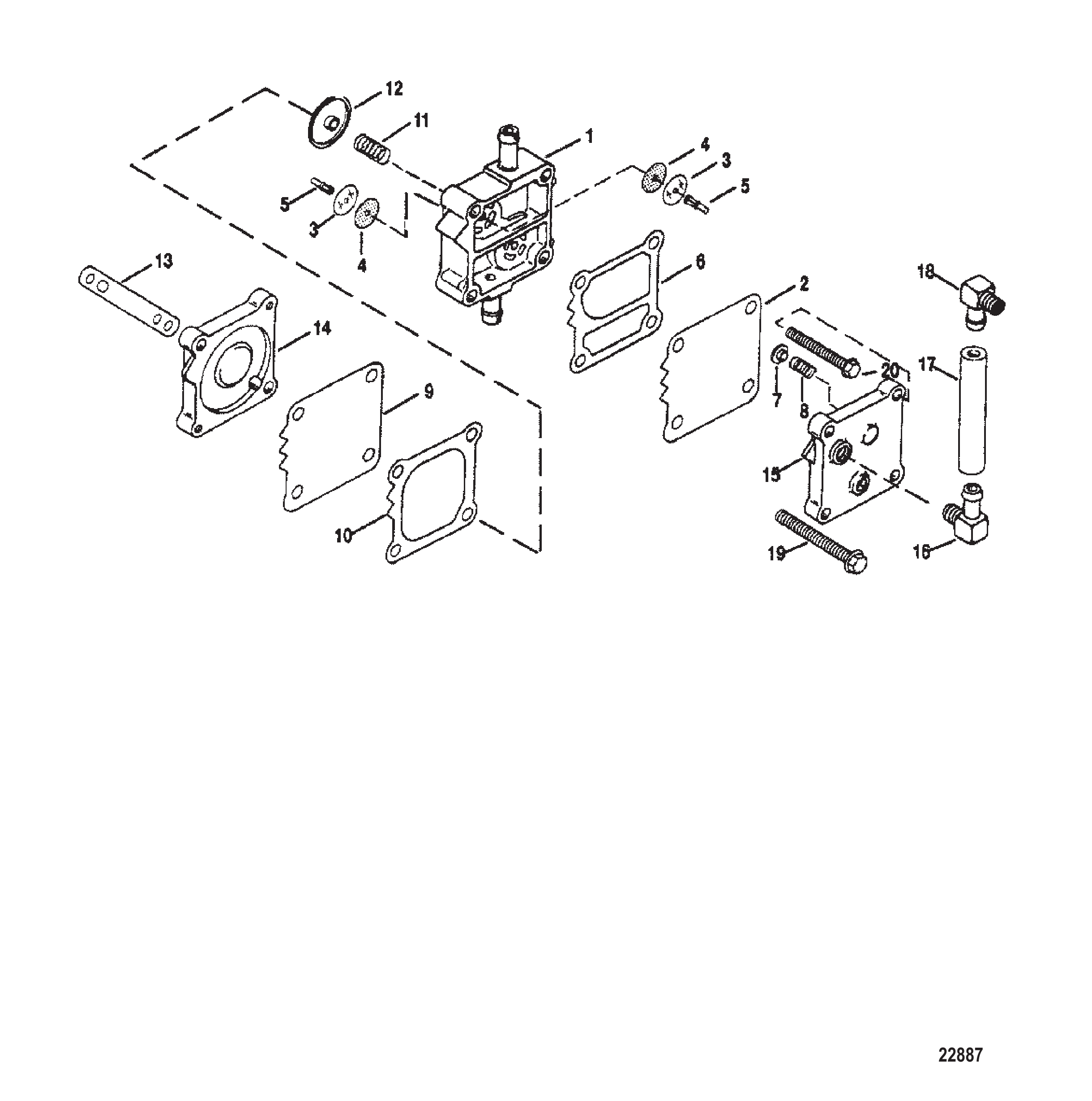

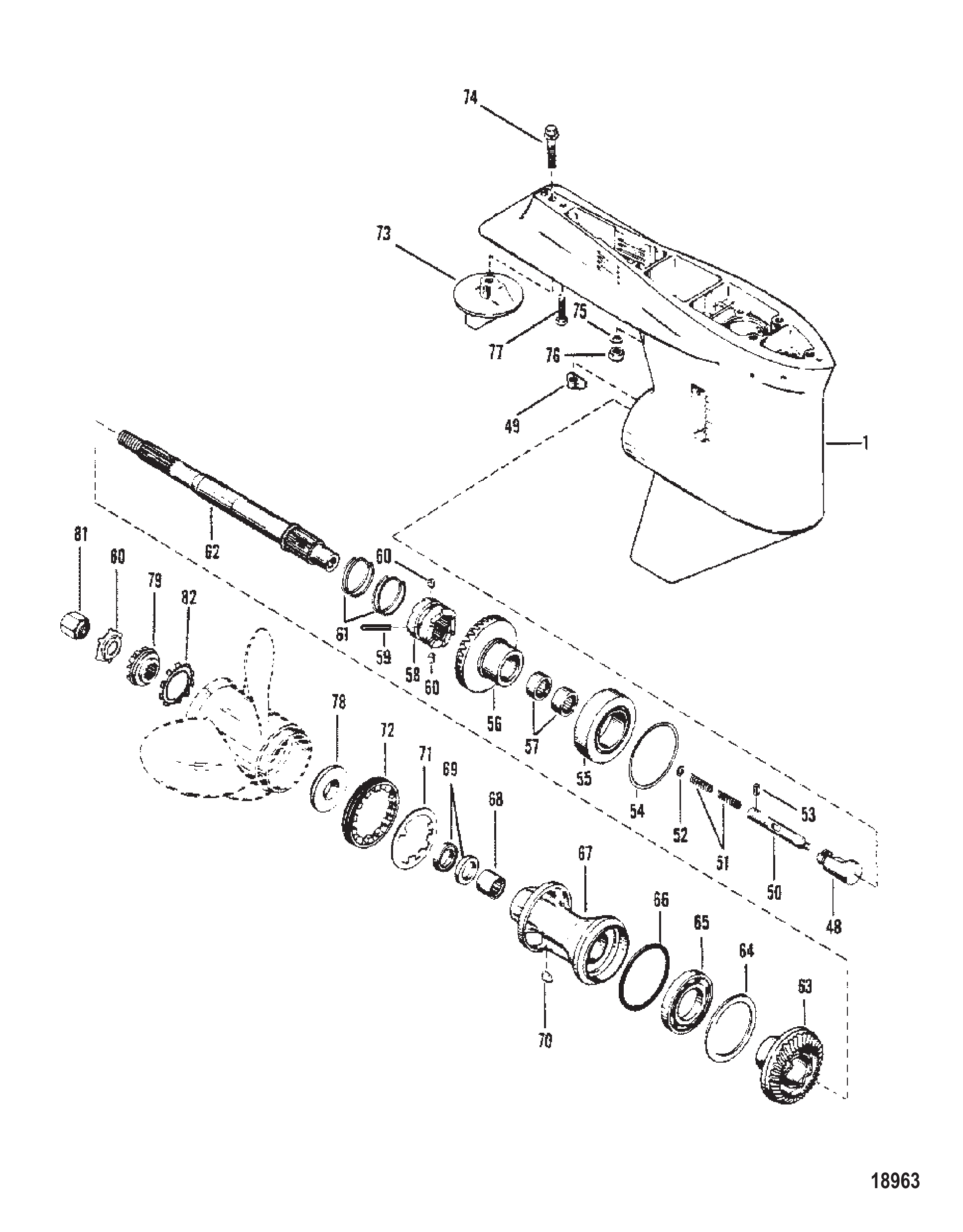

图 21齿轮箱（推进轴） GEAR HOUSING (PROPSHAFT)

REF	零件编号	中文名称	英文名称	数量
1	9148A47	齿轮箱总成(基础款)(黑色)	GEAR HOUSING ASSEMBLY (BASIC) (BLACK)	1
1	9148A48	齿轮箱总成(基础款)(灰色)	GEAR HOUSING ASSEMBLY (BASIC) (GRAY)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A49	齿轮箱总成(基础款)(追踪者)	GEAR HOUSING ASSEMBLY (BASIC) (TRACKER)	1
1	9148T49	齿轮箱壳体-TR型	GEAR HSG-BASIC-TR	1
49	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
48	78956	换挡凸轮	SHIFT CAM	1
48	789562	换挡凸轮	SHIFT CAM	1
50	79911A1	杆	ROD	1
51	79910	弹簧	SPRING	1
52	78910	垫圈	WASHER	AR
53	78906	销	PIN	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	47397A1	垫片组(.002-3-5-10)	SHIM SET (.002-3-5-10)	AR
55	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
56	44102A2	前进齿轮总成(135/150)(含倒挡齿轮)	GEAR ASSEMBLY Forward (135/150) (INCLS. REVERSE GEAR)	1
56	44102A7	齿轮组(135/150)(不含倒挡齿轮)	GEAR SET (135/150) (DOES NOT INCL. REVERSE GEAR)	1
56	16294A2	高海拔齿轮组-2.3:1传动比	GEAR SET HIGH ALTITUDE - 2.3:1 GEAR RATIO	1
56	16294A5	齿轮组	GEAR SET	1
56	44104A2	前进齿轮总成(175/200/XR6/玛格南III)(含倒挡齿轮)	GEAR ASSEMBLY Forward (175/200/XR6/MAGNUM III) (INCLS. REVERSE GEAR)	1
56	44104T2	齿轮组	GEAR SET	1
56	44104A8	齿轮组(175/200/XR6/玛格南III)(不含倒挡齿轮)	GEAR SET (175/200/XR6/MAGNUM III) (DEOS NOT INCLUDE REVERSE GEAR)	1
57	549281	滚柱轴承	BEARING Roller	1
58	823174	离合器	CLUTCH	1
58	823174T	ORD 8M0100493	ORD 8M0100493	1
59	78905	十字销	PIN Cross	1
59	8M0084243	十字销	PIN Cross	1
60	78909	定位销	PIN Detent	2
61	78962	弹簧	SPRING	2
62	94148	螺旋桨轴	PROPELLER SHAFT	1
63	N.S.S.	不单独销售倒挡齿轮(前进齿轮组部件)	Not Sold Separate Reverse Gear (Part of Forward Gear Set	1
63	824987A2	倒挡齿轮总成(135/150)	GEAR ASSEMBLY Reverse (135/150)	1
63	824986A2	倒挡齿轮总成(175/200/XR6/玛格南III)	GEAR ASSEMBLY Reverse (175/200/XR6/MAG. III)	1
63A	824108	隔套	SPACER	1
64	681001	止推环	RING Thrust	1
65	88957A1	滚珠轴承	BEARING Ball	1
65	88957T	滚珠轴承	BEARING Ball	1
66	31534	O型圈	O-RING	1
66	8M0214920	O型圈	O RING	1
67	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	30956	滚针轴承	BEARING Needle	1
68	30956T	滚针轴承	BEARING Needle	1
69	76868	密封件	SEAL	2
69	8M0248882	油封@5	SEAL-OIL @5	2
70	30281	键	KEY	1
71	79447	锁紧垫圈	TAB WASHER	1
72	79448	固定座	RETAINER	1
72	8M2011027	固定座	RETAINER	1
73	316404	平衡板(用于无阳极齿轮箱)	TRIM TAB (USE WITH GEAR HOUSING W/O ANODES)	1
73	31640Q4	平衡鳍板	TRIM TAB	1
73	316405	配平板(与带阳极齿轮箱配套使用)	TRIM TAB (USE WITH GEAR HOUSING W/ANODES)	1
73	8M0236553	平衡鳍板	TRIM TAB	1
74	806327	螺钉(.437-14 x 1.750)(1-5/8")	SCREW (.437-14 x 1.750) (1-5/8")	1
74	8M0204686	螺钉	SCREW	1
75	67891	填充块	FILLER BLOCK	1
75	8M0039169	填充块	FILLER BLOCK	1
76	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
76	8M0204653	螺母	NUT	2
77	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
78	13171	推力毂	THRUST HUB	1
78	835467Q01	止推垫片套件	THRUST WASHER KIT	1
79	31211A2	花键垫圈	WASHER Splined	1
79	31211Q03	垫圈总成	WASHER ASSEMBLY	1
80	816629	锁紧垫圈	TAB WASHER	1
80	816629Q	锁紧垫圈	TAB WASHER	1
81	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
81	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
82	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
83	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	89238A2	密封套件	SEAL KIT	1

图 22排气歧管与排气板 EXHAUST MANIFOLD AND EXHAUST PLATE

REF	零件编号	中文名称	英文名称	数量
1	904841	分隔板衬垫	GASKET DIVIDER PLATE	2
2	99169A1	分隔板	PLATE DIVIDER	1
3	69668	分隔板密封件	SEAL DIVIDER PLATE	1
3	814754	密封件(12.50英寸)	SEAL (12.50 Inches)	1
4	193071	排气歧管盖	COVER EXHAUST MANIFOLD	1
5	74824	螺钉（0.312-18 x 1.250）盖和板至气缸体	SCREW (.312-18 x 1.250) COVER AND PLATE TO CYLINDER BLOCK	21
6	194373	接线板（3端子）	TERMINAL BLOCK (3 TERMIALS)	1
7	13716	零件手册 7.5/9.8马力接线板	PARTS MANUAL 7.5 /9.8 H.P. TERMIAL BL0CK	2
8	29245	垫圈（0.281 x 0.500 x 0.060）不锈钢接线板螺钉	WASHER (.281 x .500 x .060) Stainless Steel TERMIMAL BLOCK SCREW	2
8	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
9	45076	端子排黄铜螺母(#10-32)	NUT (#10-32) Brass TERMINAL BLOCK	3
10	813938	盖螺母（#10-32）接线板	CAP NUT (#10-32) TERMINAL BLOCK	3
11	74824	缸体盖板螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250) COVER TO CYLINDER BLOCK	4
12	69570	膜片至板件螺钉(#10-16 x .750)	SCREW (#10-16 x .750) DIAPHRAGM TO PLATE	1
13	76451	膜片螺钉垫片	WASHER DIAPHRAGM SCREW	1
14	14479	隔膜	DIAPHRAGM	1
14	144791	隔膜	DIAPHRAGM	1
15	16496	导水板	DEFLECTOR Water	1
16	16497A1	安全阀板	PLATE RELIEF VALVE	1
17	78690	安全阀板衬垫	GASKET RELIEF VALVE PLATE	2
17	78690002	衬垫	GASKET	2
18	64878	弹簧（黑色）压缩弹出阀	SPRING (Black) COMPERSSION POPPER VALVE	1
19	85303	提升阀弹簧垫片	WASHER POPPET SPRING	1
20	14480	提升阀	POPPET VALVE	1
21	64872	提升阀衬套	GROMMET POPPET VALVE	1
22	65848	提升阀座	CARRIER POPPET VALVE	1
23	991763	排气板衬垫	GASKET EXHAUST PLATE	1
23	991764	衬垫	GASKET	1
24	41944A5	排气板总成	PLATE ASSEMBLY EXHAUST	1
25	99664	排气板弯头	ELBOW EXHAUST PLATE	1
25	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
26	20033	排气板定位销	PIN Dowel LOCATING - EXHAUST PLATE	2
26	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
27	183982	排气板密封件	SEAL EXHAUST PLATE	1
27	8M0043165	密封件-27.00英寸	SEAL-27.00 INCH	1
28	680101	密封件固定支架	BRACKET SEAL RETAINING	1
29	812832	支架至排气板螺钉(#10-16 x .500)	SCREW (#10-16 x .500) BRACKET TO EXHAUST PLATE	6
29	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	6
30	25970	动力头螺柱垫圈	WASHER POWERHEAD STUD	6
30	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	6
31	69254	螺母动力头螺柱	NUT POWWERHEAD STUD	6
32	27132	排气板衬套	BUSHING EXHAUST PLATE	1
33	19564	护孔环	GROMMET	1
33	8M0179867	护孔环	GROMMET	1
34	12602	排气板衬套	GROMMET EXHAUST PLATE	1
34	12602002	护孔环	GROMMET	1
35	66727	螺钉(.312-18 x 1.250)排气板固定	SCREW (.312-18 x 1.250) EXHAUST PLATE ATTACHING	1
36	68783	螺钉(.312-18 x 2.50)排气板固定	SCREW (.312-18 x 2.50) EXHAUST PLATE ATTACHING	1
37	66725	螺钉(.375-16 x 3.50)排气板固定	SCREW (.375-16 x 3.50) EXHAUST PLATE ATTACHING	3
37	898833	螺钉(.375-16 x 3.500)	SCREW (.375-16 x 3.500)	3
38	812905A2	前支架总成	BRACKET ASSEMBLY FRONT	1
38	812905T	前支架	BRACKET Front	1
39	90285	螺钉（0.312-18 x 0.625）前支架	SCREW (.312-18 x .625) FRONT BRAKET	4
40	187031	垫圈	WASHER	4
41	18778	护孔环	GROMMET	4
41	18778001	护孔环	GROMMET	4
42	18578A3	后支架总成	BRACKET ASSEMBLY Rear REAR	1
42	18578T09	支架总成(后部)	BRACKET ASSEMBLY Rear	1
43	14462A1	安全阀盖(旧设计)	COVER RELIEF VALVE (OLD DESIGN)	1
43	68729	泄压阀盖（新设计）	COVER RELIEF VALVE (NEW DESIGN)	1
43	8M0039767	盖板	COVER	1
44	92007	接头（0.250-18）（90度）（新设计）	FITTING (.250-18) (90 DEGREES) (NEW DESIGN)	1
44	920071	90度弯头	FITTING (90 Degree)	1
45	99127109	管路（57.00英寸散装）（新设计）	LINE (57.00 Inches Bulk) (NEW DESIGN)	1
45	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
46	90077	扎带（新设计）	TIE STRAP (NEW DESIGN)	2
46	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
47	814430	接头（0.500-14）（新设计）	FITTING (.500-14) (NEW DESIGN)	1
47	8144301	接头	FITTING	1
-	14697A87	衬垫套件	GASKET SET	1

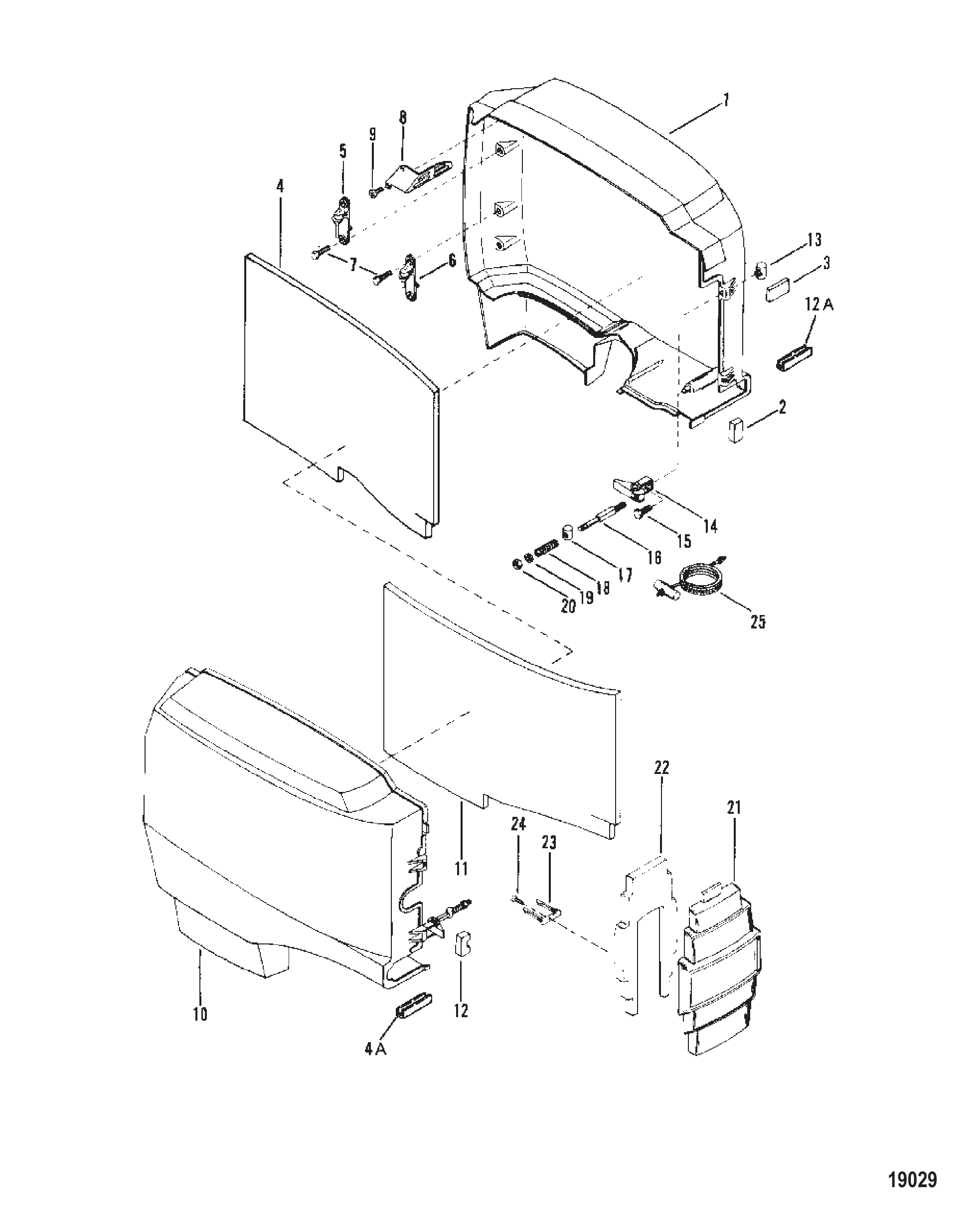

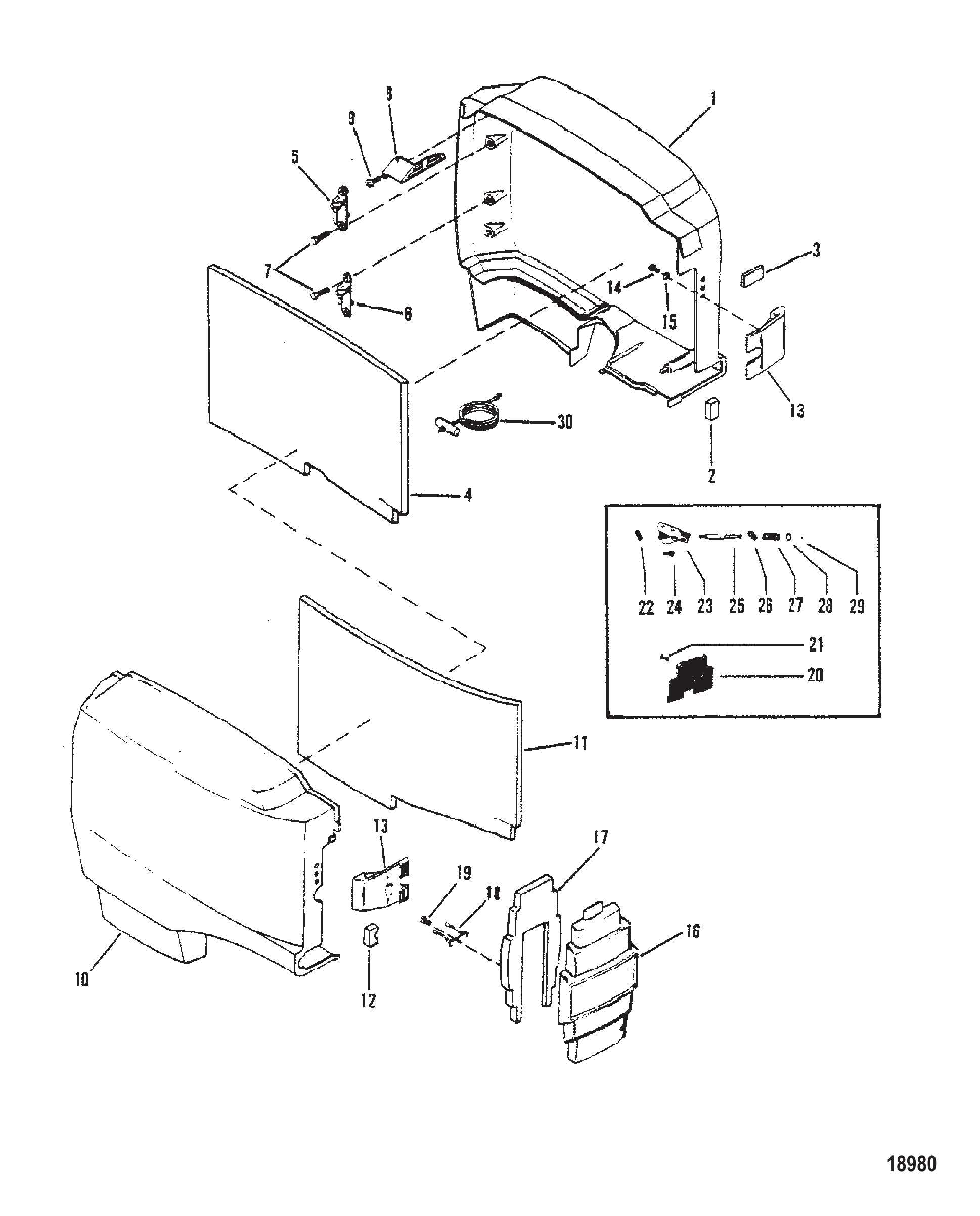

图 23罩壳与前盖 Cowls and Front Cover

REF	零件编号	中文名称	英文名称	数量
1	7620A4	顶部罩壳总成左舷（黑色）	TOP COWL ASSEMBLY PORT (BLACK)	1
1	7620A22	顶部罩壳总成左舷（灰色）	TOP COWL ASSEMBLY PORT (GRAY)	1
1	9447A18	顶罩总成左舷(牡蛎色)	TOP COWL ASSEMBLY PORT (OYSTER)	1
2	67260	控制电缆密封件	SEAL CONTROL CABLE	1
3	67258	罩垫总成至前盖	PAD COWL ASSEMBLY TO FRONT COVER	1
4	88227	隔音毯-罩	BLANKET SOUND - COWL	1
4A	193681	密封件(3.20英寸)左舷罩(牡蛎色)	SEAL (3.20 Inch) PORT COWL (OYSTER)	1
5	87987	罩安装支架-(上)	BRACKET COWL ATTACHING - (UPPER)	2
5	879871	支架	BRACKET	2
6	87985	罩安装支架-(下)	BRACKET COWL ATTACHING - (LOWER)	2
6	879851	支架	BRACKET	2
7	37562	螺丝(.312-18 x 1.00)不锈钢上下支架	SCREW (.312-18 x 1.00) Stainless Steel UPPER AND LOWER BRACKETS	8
8	68049	进气罩-右舷	SHIELD INLET -COWL (STARBOARD)	1
8	68048	进气罩-左舷(黑/灰)	SHIELD INLET - COWL (PORT) (BLACK/GRAY)	1
8	680491	进气罩-右舷(牡蛎色)	SHIELD INLET - COWL (STARBOARD) - (OYSTER)	1
8	680481	进气罩-左舷(牡蛎色)	SHIELD INLET - COWL (PORT) (OYSTER)	1
9	48409	螺丝(#10-16 x .625)不锈钢罩至护罩	SCREW (#10-16 x .625) Stainless Steel SHIELD TO COWL	4
10	7619A1	顶罩总成右舷(黑色)	TOP COWL ASSEMBLY STARBOARD (BLACK)	1
10	7619A5	顶罩总成右舷(灰色)	TOP COWL ASSEMBLY STARBOARD (GRAY)	1
10	9452A3	顶罩总成右舷(牡蛎色)	TOP COWL ASSEMBLY STARBOARD (OYSTER)	1
11	88227	隔音毯-罩	BLANKET SOUND - COWL	1
12	67260	线束密封件	SEAL HARNESS	1
12A	193681	密封件(3.20英寸)右舷罩(牡蛎色)	SEAL (3.20 Inch) STARBOARD COWL (OYSTER)	1
13	62628	保持筒-罩锁扣	BARREL RETAINING - COWL LATCH	2
14	46785A5	罩壳锁扣总成	LATCH ASSEMBLY Cowl	2
15	31312	螺丝(#10-32 x 0.875)筒至罩锁扣	SCREW (#10-32 x 0.875) BARREL TO COWL LATCH	2
16	15222	调节杆-罩锁扣	BAR ADJUSTING - COWL LATCH	2
17	62629	罩锁扣保持筒	BARREL RETAINING COWL LATCH	2
18	62624	罩壳锁扣弹簧	SPRING COWL LATCH	2
19	30164	垫圈(.192 x .375 x .0312)不锈钢弹簧至调节杆	WASHER (.192 x .375 x .0312) Stainless Steel SPRING TO ADJUSTING BAR	2
20	45812	螺母(#10-32)不锈钢弹簧至调节杆	NUT (#10-32) Stainless Steel SPRING TO ADUSTING BAR	2
20	859124	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
21	7532A2	前罩总成(黑色)	COVER ASSEMBLY Cowl - Front (BLACK)	1
21	7532A23	前罩总成(灰色)	COVER ASSEMBLY Cowl - Front (GRAY)	1
21	7532A32	前罩总成(牡蛎色)	COVER ASSEMBLY Cowl - Front (OYSTER)	1
21	7532A23	前罩总成	COVER ASSEMBLY Cowl - Front	1
22	67615	隔音毯-前罩盖	BLANKET SOUND - COWL FRONT COVER	1
23	87907	前罩盖挂钩	HOOK COWL FRONT COVER	1
24	70332	螺丝(#10-16 x .500)挂钩至前罩盖	SCREW (#10-16 x .500) HOOK TO COWL FRONT COVER	1
24	95700	螺钉(#10-16 x .50)	SCREW (#10-16 x .50)	1
25	47341A1	手动/应急启动绳柄套件	ROPE AND HANDLE KIT Manual/Emergency Start	1
25	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1

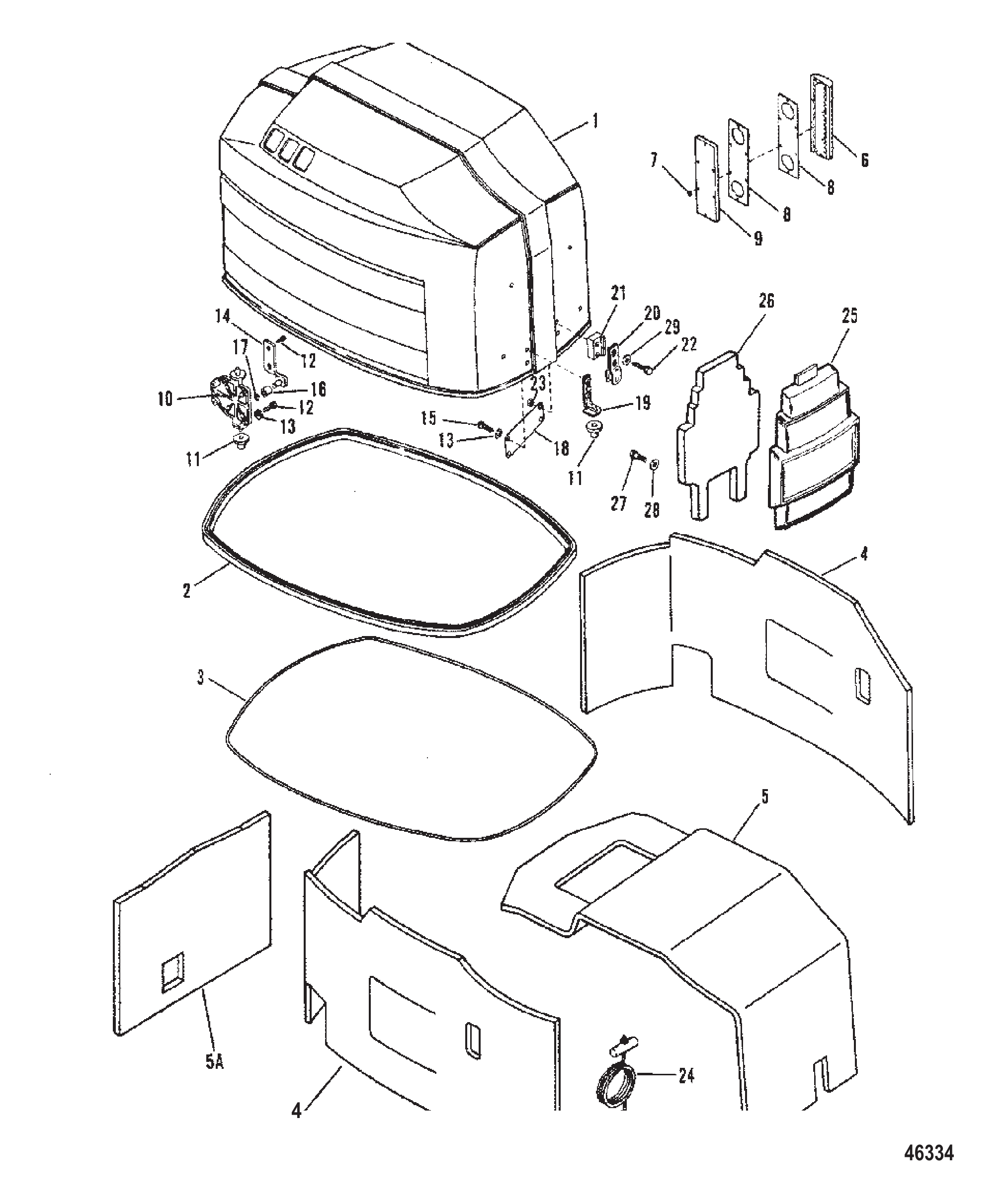

图 24上罩与前护板 TOP COWL AND FRONT SHIELD

REF	零件编号	中文名称	英文名称	数量
-	15132	徽标（3英寸）	EMBLEM (3")	1
-	151321	徽标（6英寸）	EMBLEM (6")	2
1	9742A61	顶盖总成	TOP COWL ASSEMBLY	1
1	9742T92	顶盖总成-黑色	TOP COWL ASY-BLK	1
1	9742A19	顶罩总成（纪念版）	TOP COWL ASSEMBLY (ANNIVERSARY MODEL)	1
1	9742T90	顶盖总成-黑色	TOP COWL ASY-BLK	1
2	812784	密封件	SEAL	1
3	815478	密封件	SEAL	1
4	815225	隔音垫(侧)	SOUND BLANKET (SIDE)	2
5	815226	隔音垫(顶)	SOUND BLANKET (TOP)	1
5A	815227	隔音毯（前部）	SOUND BLANKET (FRONT)	1
6	17196A1	进气口护罩（纪念版）	SHIELD AIR INLET (ANNIVERSARY MODEL)	2
7	11316	快速螺母（纪念版）	SPEED NUT (ANNIVERSARY MODEL)	12
8	17238	进气口密封（纪念版）	SEAL AIR INLET (ANNIVERSARY MODEL)	4
9	17194	进气口护罩（左舷）（纪念版）	SHIELD AIR INLET (PORT) (ANNIVERSARY MODEL)	1
9	17195	进气口护罩（右舷）（纪念版）	SHIELD AIR INLET (STARBOARD) (ANNIVERSARY MODEL)	1
10	184741	后支架	BRACKET REAR	2
11	18506	护孔环	GROMMET	3
11	18506001	护孔环	GROMMET	3
12	28636	螺钉(.250-20 x .750) 后支架	SCREW (.250-20 x .750) REAR BRACKET	12
13	26992	锁紧垫圈(.250)不锈钢后支架螺钉	LOCKWASHER (.250) Stainless Steel REAR BRACKET SCREW	10
14	813096	挂钩	HOOK	2
14	813096A2	挂钩套件	HOOK KIT	2
15	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	2
16	813074	滚轮	ROLLER	2
16	8M0207770	滚轮@3	ROLLER @3	2
17	13194	挡圈	RING Retaining	2
18	813553	安装板	PLATE	1
18	56720	垫圈(0.330×0.750×0.060)不锈钢	WASHER (.330 x .750 x .060) Stainless Steel	1
19	187021	定位器	LOCATOR	1
20	18173	锁扣滚轮支架总成	BRACKET ASSEMBLY Latch Roller	1
20	893763	滚轮锁扣支架	BRACKET Roller Latch	1
21	813552	隔套	SPACER	1
21	813076A2	手柄套件	HANDLE KIT	1
22	31984	螺钉(0.312-18×1.375)	SCREW (.312-18 x 1.375)	2
23	815848	螺母 (.312)	NUT (.312)	2
24	47341A1	手动/应急启动绳和手柄套件 (用于手动启动)	ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING)	1
24	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
25	18755A1	前护罩总成	FRONT SHIELD ASSEMBLY	1
26	813562	密封件	SEAL	1
27	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	4
28	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	4
28	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	4
29	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
29	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2
-	813096A1	后锁扣套件	REAR LATCH KIT	1

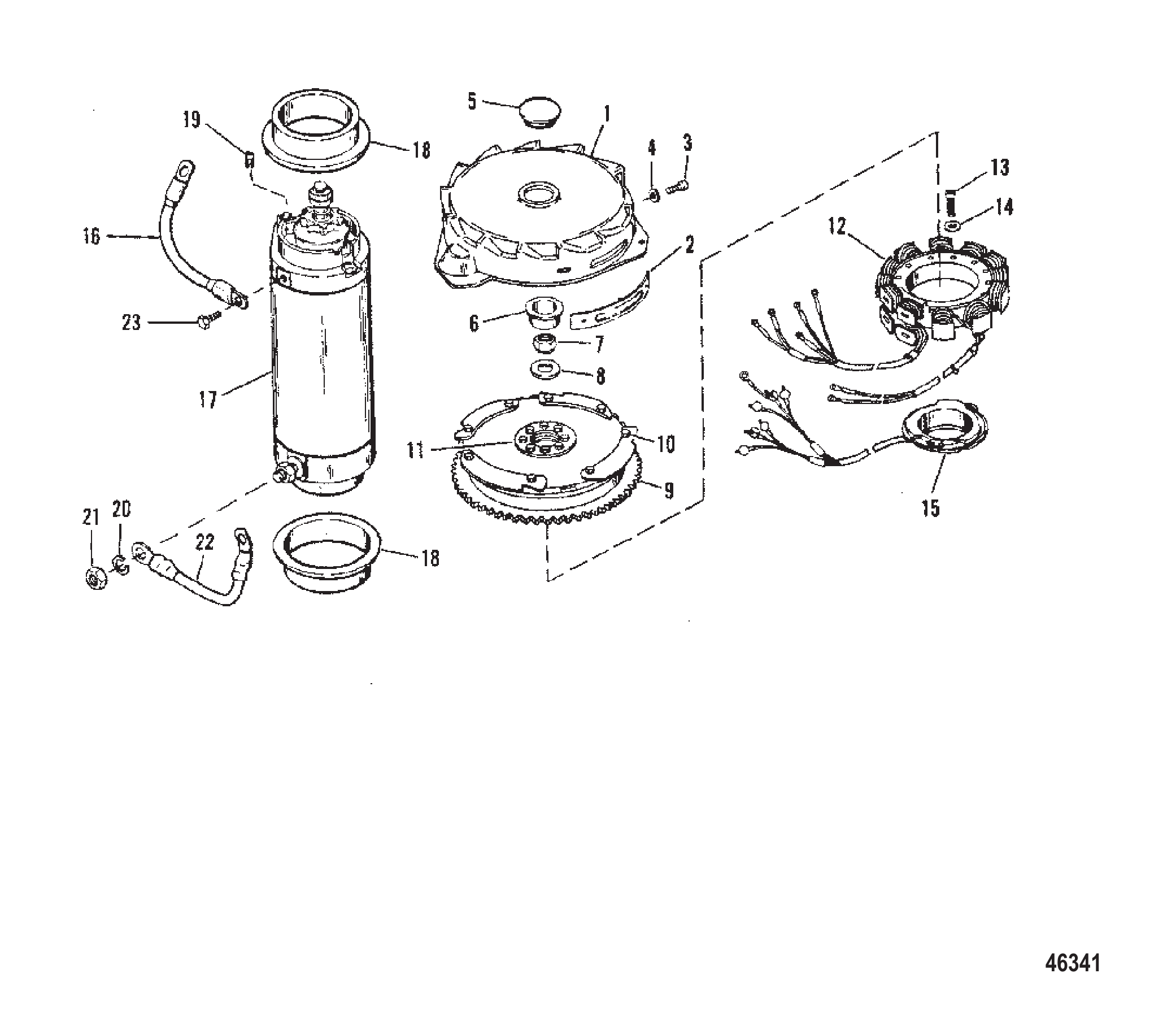

图 25飞轮/启动马达 FLYWHEEL/STARTER MOTOR

REF	零件编号	中文名称	英文名称	数量
1	18896A1	飞轮盖套件	COVER KIT FLYWHEEL	1
2	79022	正时标记	MARKER TIMING	1
3	37572	螺钉(0.190-32x0.380)正时标记	SCREW (.190-32 x .380) TIMING MARKER	2
4	72761	垫圈(0.203x0.562x0.060)不锈钢正时标记螺钉	WASHER (.203 x .562 x .060) Stainless Steel TIMING MARKER SCREW	2
5	89219	飞轮盖塞	PLUG FLYWHEEL COVER	1
5	89219001	堵头	PLUG	1
6	45907	飞轮黄色塞	PLUG Yellow FLYWHEEL	1
7	52901	螺母(.625-18)飞轮	NUT (.625-18) FLYWHEEL	1
8	68229	垫圈(0.641x1.250x0.190)飞轮	WASHER (.641 x 1.250 x .190) FLYWHEEL	1
8	33001	垫圈	WASHER	1
9	9841A7	飞轮	FLYWHEEL	1
9	859238T16	飞轮总成	FLYWHEEL ASY	1
10	32417	螺钉(.250-28 x .625)飞轮板	SCREW (.250-28 x .625) FLYWHEEL PLATE	8
11	68997	螺钉(.312-24 x .750)飞轮毂	SCREW (.312-24 x .750) FLYWHEEL HUB	8
12	9610A5	定子	STATOR	1
13	90045	螺钉(#10-32 x 1.375)定子	SCREW (#10-32 x 1.375) STATOR	4
14	26996	锁紧垫圈(#10)不锈钢定子螺钉	LOCKWASHER (#10) Stainless Steel STATOR SCREW	4
15	96455A9	触发板总成	PLATE ASSEMBLY Trigger	1
16	93388A1	电缆总成(6.00英寸)黑色板至启动马达	CABLE ASSEMBLY (6.00 Inches) Black PLATE TO STARTER MOTOR	1
17	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
17	893893	启动马达	STARTER MOTOR	1
18	56703	启动电机轴环	COLLAR STARTER MOTOR	2
18	8M0034918	轴环	COLLAR	2
19	68042	启动马达橡胶止动块	STOP Rubber RUBBER-STARTER MOTOR	2
19	8M0043376	停机开关	STOP	2
20	26992	锁紧垫圈(.250) 不锈钢起动机接线端	LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL	1
21	20890	螺母(.250-20) 起动机接线端	NUT (.250-20) STARTER MOTOR TERMINAL	1
22	93388A2	电磁阀至启动电机黑色电缆总成	CABLE ASSEMBLY Black SOLENOID TO STARTER MOTOR	1
22	93388A14	线缆总成(黄/黑)	CABLE ASSEMBLY Yellow/Black	1
23	69035	螺钉和锁紧垫圈 (.250-20 x .625) 不锈钢电缆至启动马达	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel CABLE TO STARTER MOTOR	1

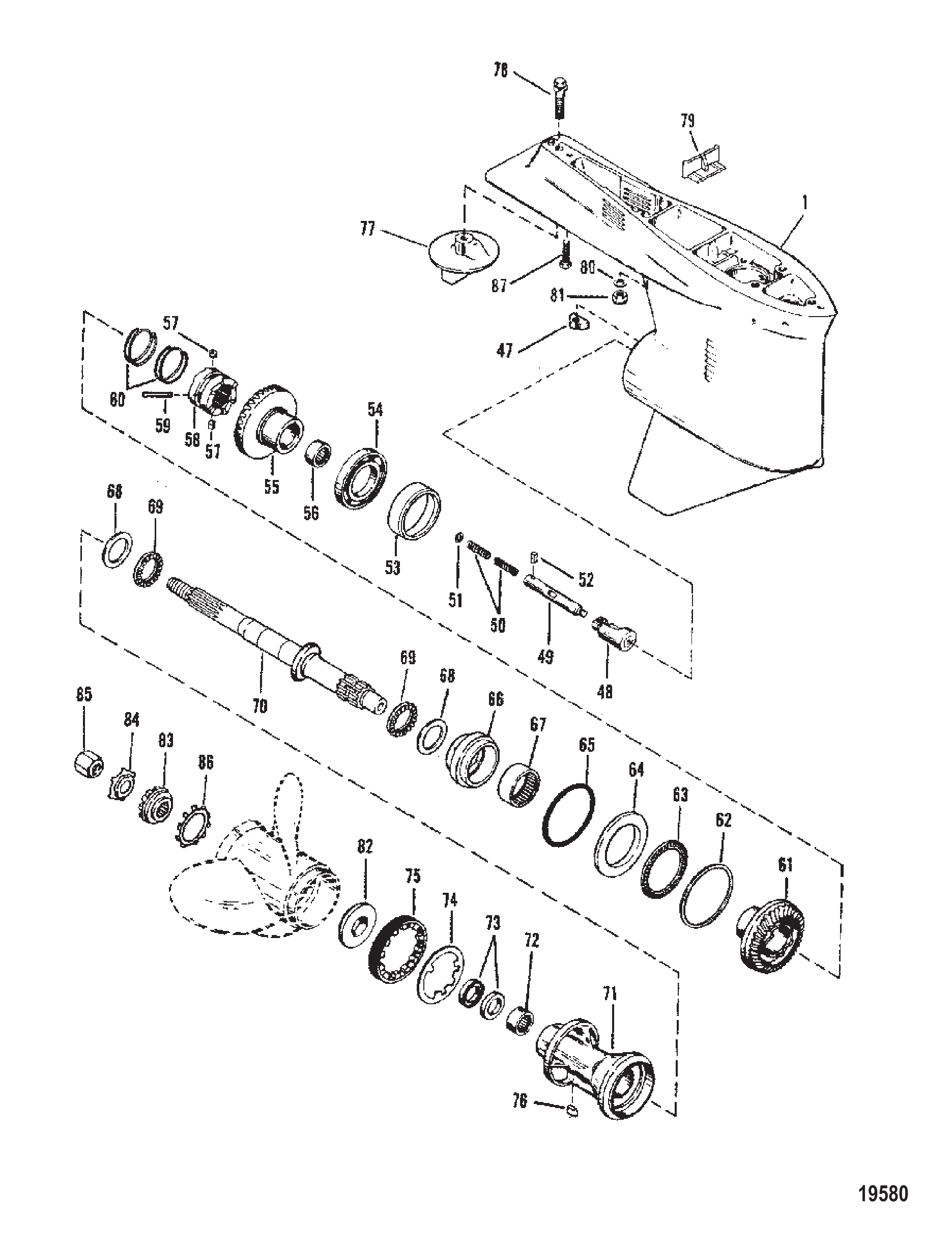

图 26齿轮箱（推进轴）- 反向旋转 GEAR HOUSING (PROPSHAFT) - COUNTER ROTATION

REF	零件编号	中文名称	英文名称	数量
1	9148A47	齿轮箱总成(基础款)(黑色)	GEAR HOUSING ASSEMBLY (BASIC) (BLACK)	1
1	9148A48	齿轮箱总成(基础款)(灰色)	GEAR HOUSING ASSEMBLY (BASIC) (GRAY)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
47	78956	换挡凸轮	SHIFT CAM	1
47	789562	换挡凸轮	SHIFT CAM	1
48	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
49	799111	杆	ROD	1
49	79911A1	杆	ROD	1
50	79910	弹簧	SPRING	2
51	78910	垫圈	WASHER	AR
52	78906	销	PIN	1
52	8M0084245	弹簧定位销	PIN Spring Locator	1
53	14469	轴承杯	CUP Bearing	1
53	14469T	轴承杯	CUP Bearing	1
54	88957A1	滚珠轴承	BEARING Ball	1
54	88957T	滚珠轴承	BEARING Ball	1
55	N.S.S.	倒车齿轮(不单独销售)(属于43-18572A1或43-18475A1部件)	Not Sold Separate Reverse Gear (PART OF 43-18572A1 OR 43-18475A1)	1
56	15844	滚柱轴承总成	BEARING ASSEMBLY Roller	1
57	78909	定位销	PIN Detent	2
58	823174	离合器	CLUTCH	1
58	823174T	ORD 8M0100493	ORD 8M0100493	1
59	78905	十字销	PIN Cross	1
59	8M0084243	十字销	PIN Cross	1
60	78962	弹簧	SPRING	2
61	18572A1	前进齿轮总成(135/150)	GEAR ASSEMBLY Forward (135/150)	1
61	18572T1	齿轮组	GEAR SET	1
61	18475A1	前进齿轮总成(175/200)	GEAR ASSEMBLY Forward (175/200)	1
61	18475T1	齿轮组	GEAR SET	1
62	176151	调整垫片(.125)	SPACER SHIM (.125)	AR
62	176152	调整垫片(.127)	SPACER SHIM (.127)	AR
62	176153	调整垫片(.129)	SPACER SHIM (.129)	AR
62	176154	调整垫片(.131)	SPACER SHIM (.131)	AR
62	176155	调整垫片(.133)	SPACER SHIM (.133)	AR
62	176156	调整垫片(.135)	SPACER SHIM (.135)	AR
62	176157	调整垫片(.137)	SPACER SHIM (.137)	AR
62	176158	调整垫片(.139)	SPACER SHIM (.139)	AR
62	176159	调整垫片(.141)	SPACER SHIM (.141)	AR
62	1761510	调整垫片(.143)	SPACER SHIM (.143)	AR
62	1761511	调整垫片(.145)	SPACER SHIM (.145)	AR
62	1761512	调整垫片(.147)	SPACER SHIM (.147)	AR
62	1761513	调整垫片(.149)	SPACER SHIM (.149)	AR
63	15841	滚柱轴承	BEARING Roller	1
64	17616	推力环	THRUST RING	1
65	31534	O型圈	O-RING	1
65	8M0214920	O型圈	O RING	1
66	18447A2	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
66	18447T2	适配器总成	ADAPTOR ASSEMBLY	1
67	15843	滚柱轴承	BEARING Roller	1
67	15843T	滚针轴承	BEARING Needle	1
68	18448	止推垫片	THRUST WASHER	2
69	15842	推力轴承	BEARING Thrust	2
70	18446	螺旋桨轴	PROPELLER SHAFT	1
71	818896A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
71	818896T2	轴承座	BEARING CARRIER	1
72	30956	滚针轴承	BEARING Needle	1
72	30956T	滚针轴承	BEARING Needle	1
73	76868	密封件	SEAL	1
73	8M0248882	油封@5	SEAL-OIL @5	1
73A	76868	密封件	SEAL	1
73A	8M0248882	油封@5	SEAL-OIL @5	1
74	183231	锁紧垫圈	TAB WASHER	1
75	79448	固定座	RETAINER	1
75	8M2011027	固定座	RETAINER	1
76	30281	键	KEY	1
77	316404	平衡板(用于无阳极齿轮箱)	TRIM TAB (USE WITH GEAR HOUSING W/O ANODES)	1
77	31640Q4	平衡鳍板	TRIM TAB	1
77	316405	配平板(与带阳极齿轮箱配套使用)	TRIM TAB (USE WITH GEAR HOUSING W/ANODES)	1
77	8M0236553	平衡鳍板	TRIM TAB	1
78	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
78	8M0204686	螺钉	SCREW	1
79	67891	填充块	FILLER BLOCK	1
79	8M0039169	填充块	FILLER BLOCK	1
80	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
81	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
81	8M0204653	螺母	NUT	2
82	13171	推力毂	THRUST HUB	1
82	835467Q01	止推垫片套件	THRUST WASHER KIT	1
83	31211A2	花键垫圈	WASHER Splined	1
83	31211Q03	垫圈总成	WASHER ASSEMBLY	1
84	816629	锁紧垫圈	TAB WASHER	1
84	816629Q	锁紧垫圈	TAB WASHER	1
85	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
85	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
86	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
87	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	89238A2	密封套件	SEAL KIT	1

图 27专用工具 TOOLS SPECIAL

REF	零件编号	中文名称	英文名称	数量
-	815366A3	电池隔离器套件	ISOLATOR KIT Battery	1
-	58222A1	百分表工具	DIAL INDICATOR TOOL	1
-	89045	适配器	ADAPTER	1
-	890451	直流电压适配工具	ADAPTER TOOL Direct Voltage	1
-	52344	飞轮固定器工具(齿型)	FLYWHEEL HOLDER TOOL Teeth Type	1
-	73687A2	飞轮拉拔器套件	PULLER KIT Flywheel	1
-	849154T1	拉拔器总成	PULLER ASSEMBLY	1
-	99750A1	万用表	MULTI METER	1
-	24161	飞轮拉拔器盖工具	CAP TOOL Flywheel Puller	1
-	52024A1	开关总成	SWITCH ASSEMBLY	1
-	59339	维修用转速表	SERVICE TACHOMETER	1
-	892647A01	DMT万用表套件	MULTI-METER KIT DMT	1
-	850439T1	八腔测试仪	TESTER Eight Chamber	1
-	63998A1	单腔间隙工具	GAP TOOL Single Chamber	1
-	850439	火花测试器	SPARK TESTER	1
-	850439T1	八腔测试仪	TESTER Eight Chamber	1
-	14443A1	测试线束总成	HARNESS ASSEMBLY Test	1
-	99379	正时灯	TIMING LIGHT	1
-	29287	量规工具	GAUGE TOOL	1
-	55919	驱动头	DRIVER HEAD	1
-	52344	飞轮固定器工具(齿型)	FLYWHEEL HOLDER TOOL Teeth Type	1
-	73687A2	飞轮拉拔器套件	PULLER KIT Flywheel	1
-	849154T1	拉拔器总成	PULLER ASSEMBLY	1
-	90455	吊环	LIFTING EYE	1
-	904551	吊环	LIFTING EYE	1
-	77109A3	安装工具套件	INSTALLER KIT	1
-	52952A1	活塞销锁环拆卸工具	REMOVAL TOOL Piston Pin Lock Ring	1
-	52952T1	活塞销锁环拆卸工具	REMOVAL TOOL Piston Pin Lock Ring	1
-	74607A3	活塞销安装套件	INSTALLER KIT Piston Pin	1
-	65494	环压缩工具(2.0升)	COMPRESSOR TOOL Ring (2.0L)	1
-	65494T	环压缩工具	COMPRESSOR TOOL Ring	1
-	818773	活塞环压缩工具(2.5升)	COMPRESSOR TOOL Piston Ring (2.5L)	1
-	818773T	活塞环压缩工具(3.50)	COMPRESSOR TOOL Piston Ring (3.50)	1
-	24697	活塞环扩张工具	EXPANDER TOOL Piston Ring	1
-	30591A1	动力头支架工具	STAND TOOL Powerhead	1
-	30591T1	支架工具	STAND TOOL	1
-	24161	飞轮拉拔器盖工具	CAP TOOL Flywheel Puller	1
-	66274	扭矩扳手(0-150磅英寸)	TORQUE WRENCH (0-150 lb-in)	1
-	37241	通用拉拔板	PULLER PLATE Universal	1
-	112301	对正工具	ALIGNMENT TOOL	1
-	99750A1	万用表	MULTI METER	1
-	52915A6	测试仪表套件	TEST GAUGE KIT	1
-	74951	扳手	SPANNER WRENCH	1
-	63209	加热灯	HEAT LAMP	1
-	44487A1	调整杆导向器拆卸工具	REMOVER TOOL Trim Rod Guide	1
-	44487T1	调整杆导向器拆卸工具	REMOVER TOOL Trim Rod Guide	1
-	44486A1	调整杆拆卸工具	REMOVAL TOOL Trim Rod	1

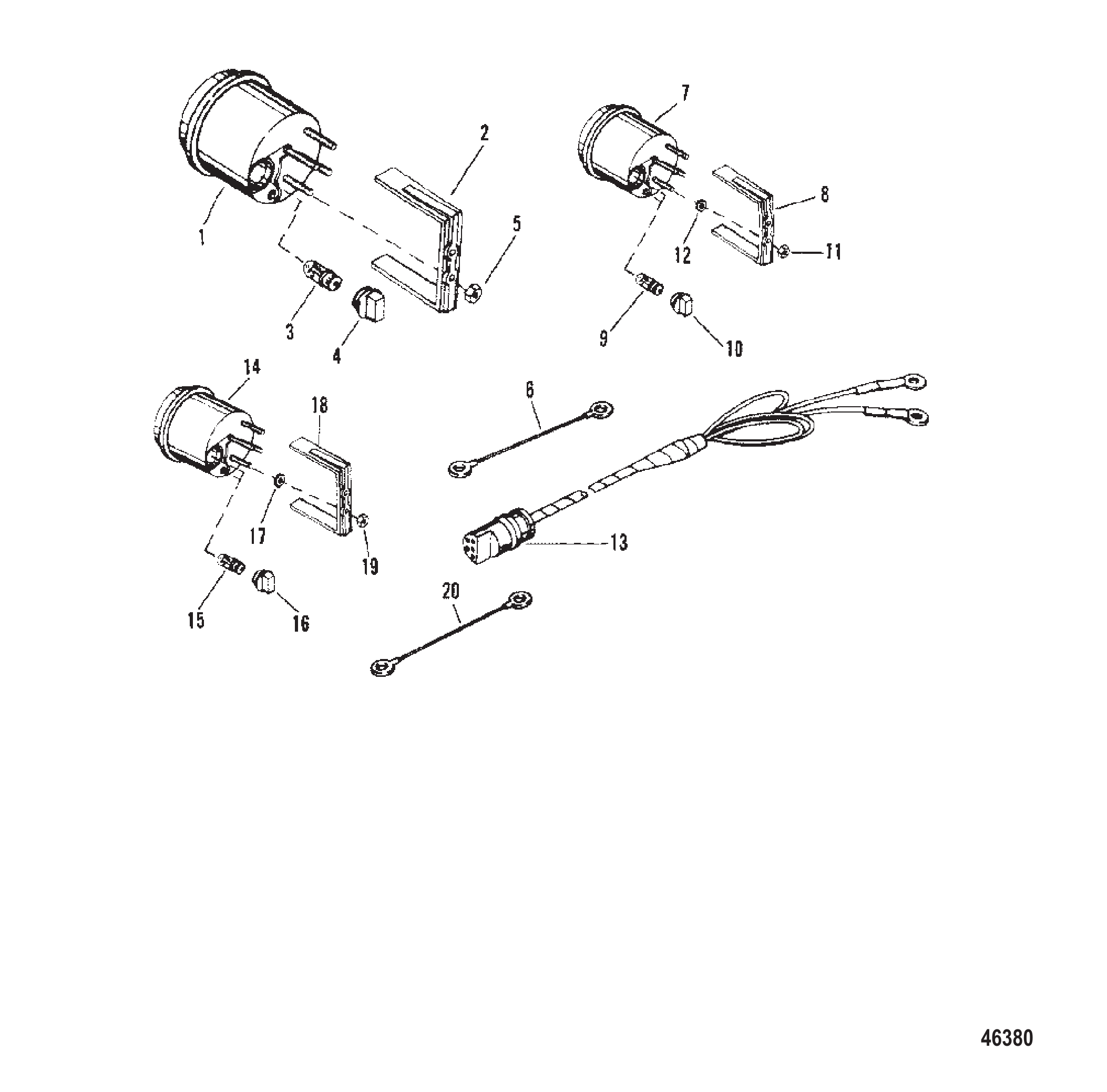

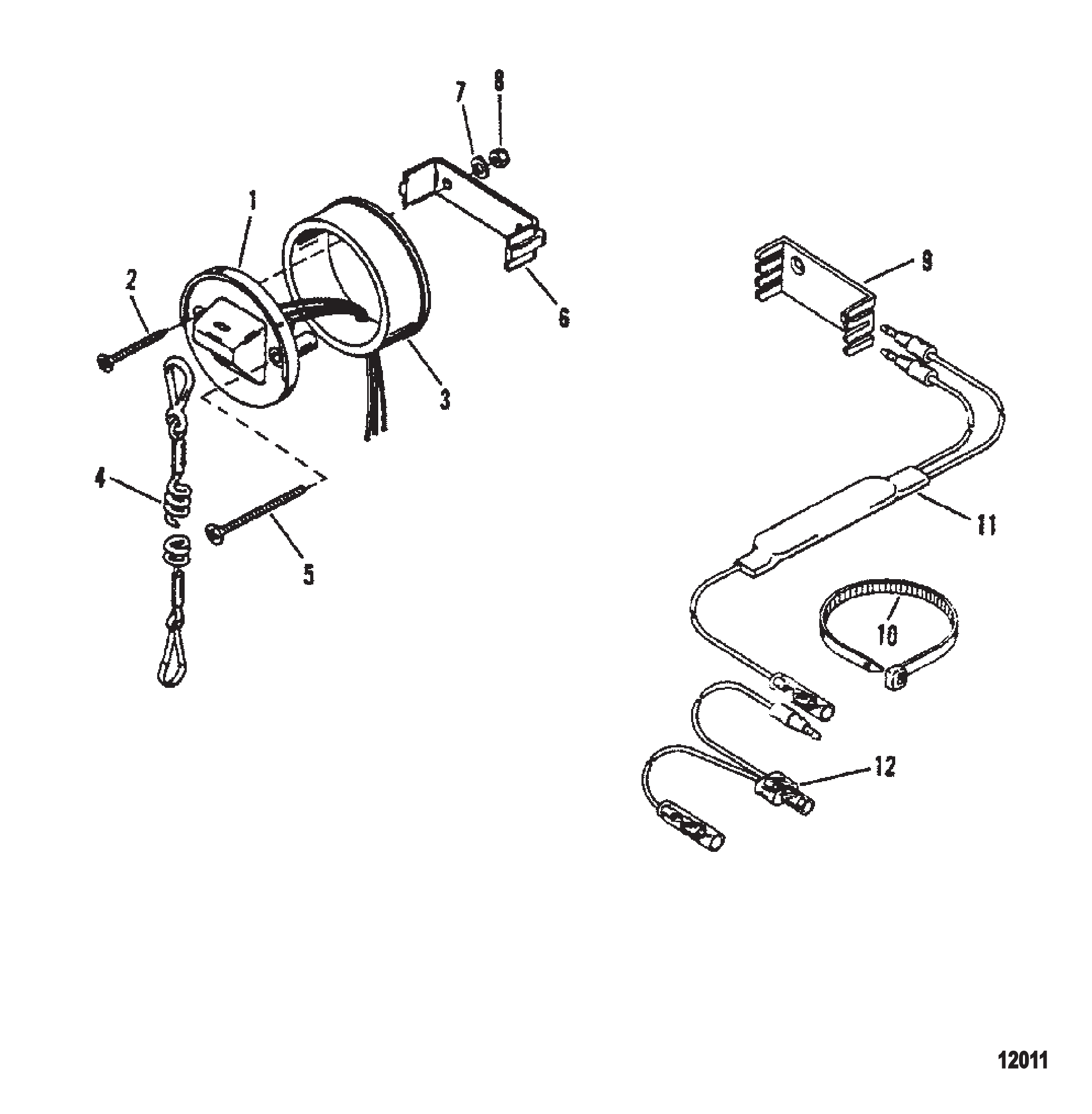

图 28仪表装置 Instrumentation

REF	零件编号	中文名称	英文名称	数量
1	15110A1	转速表	TACHOMETER	1
2	79101T	安装支架	BRACKET MOUNTING	1
3	72729	楔形底座灯泡(14V - 1.9W)	LIGHT BULB Wedge Base (14V - 1.9W)	1
4	79888	灯泡插座	SOCKET Light Bulb	1
5	26419	螺母（#8-32）黄铜（8-32）	NUT (#8-32) Brass (8-32)	5
6	86322A7	线束总成 (1.50英尺) 黑色配平表 (BLACK - 1-1/2")	CABLE ASSEMBLY (1.50 Feet) Black TRIM GAUGE (BLACK - 1-1/2")	1
6	86323A5	线束总成 (1.50英尺) 紫色配平表 (PURPLE - 1-1/2")	CABLE ASSEMBLY (1.50 Feet) Purple TRIM GAUGE (PURPLE - 1-1/2")	1
7	15113A4	配平表	TRIM GAUGE	1
7	895292Q41	动力升降倾斜指示器黑面橙白刻度黑边框	GAUGE Power Trim Indicator, Black Face, Orange/White Graduations, Black Bezel	1
8	79480	安装支架-微调表	BRACKET MOUNTING - TRIM GAUGE	1
9	72729	灯泡楔形底座(14V-1.9W)微调表	LIGHT BULB Wedge Base (14V - 1.9W) TRIM GAUGE	1
10	79888	灯泡插座微调表	SOCKET Light Bulb TRIM GAUGE	1
11	26419	螺母 (#8-32) 黄铜配平表端子 (8-32)	NUT (#8-32) Brass TRIM GAUGE TERMINAL (8-32)	5
12	26427	垫圈配平表端子 (#8)	WASHER TRIM GAUGE TERMINAL (#8)	2
13	86396A8	转速表线束总成(5.00英尺)	HARNESS ASSEMBLY Tachometer (5.00 Feet)	1
14	15166A1	温度表	TEMPERATURE GAUGE	1
14	895287Q41	水温表套件(100-240℉)黑面橙白刻度黑框	WATER TEMPERATURE GAUGE KIT (100-240 F) Black Face, Orange/White Graduations, Black Bezel	1
15	72729	楔形底座灯泡(14V - 1.9W)	LIGHT BULB Wedge Base (14V - 1.9W)	1
16	79888	灯泡插座	SOCKET Light Bulb	1
17	26427	垫圈	WASHER	2
18	79480	支架	BRACKET	1
19	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	5
20	86323A2	线束总成 (2.00英尺) 紫色 (PURPLE)	CABLE ASSEMBLY (2.00 Feet) Purple (PURPLE)	1
20	61600A16	线束总成 (17.00英寸) 黑色 (BLACK)	CABLE ASSEMBLY (17.00 Inches) Black (BLACK)	1
20	88824A4	线束总成 (45.00英寸) 米色 (TAN)	CABLE ASSEMBLY (45.00 Inches) Tan (TAN)	1

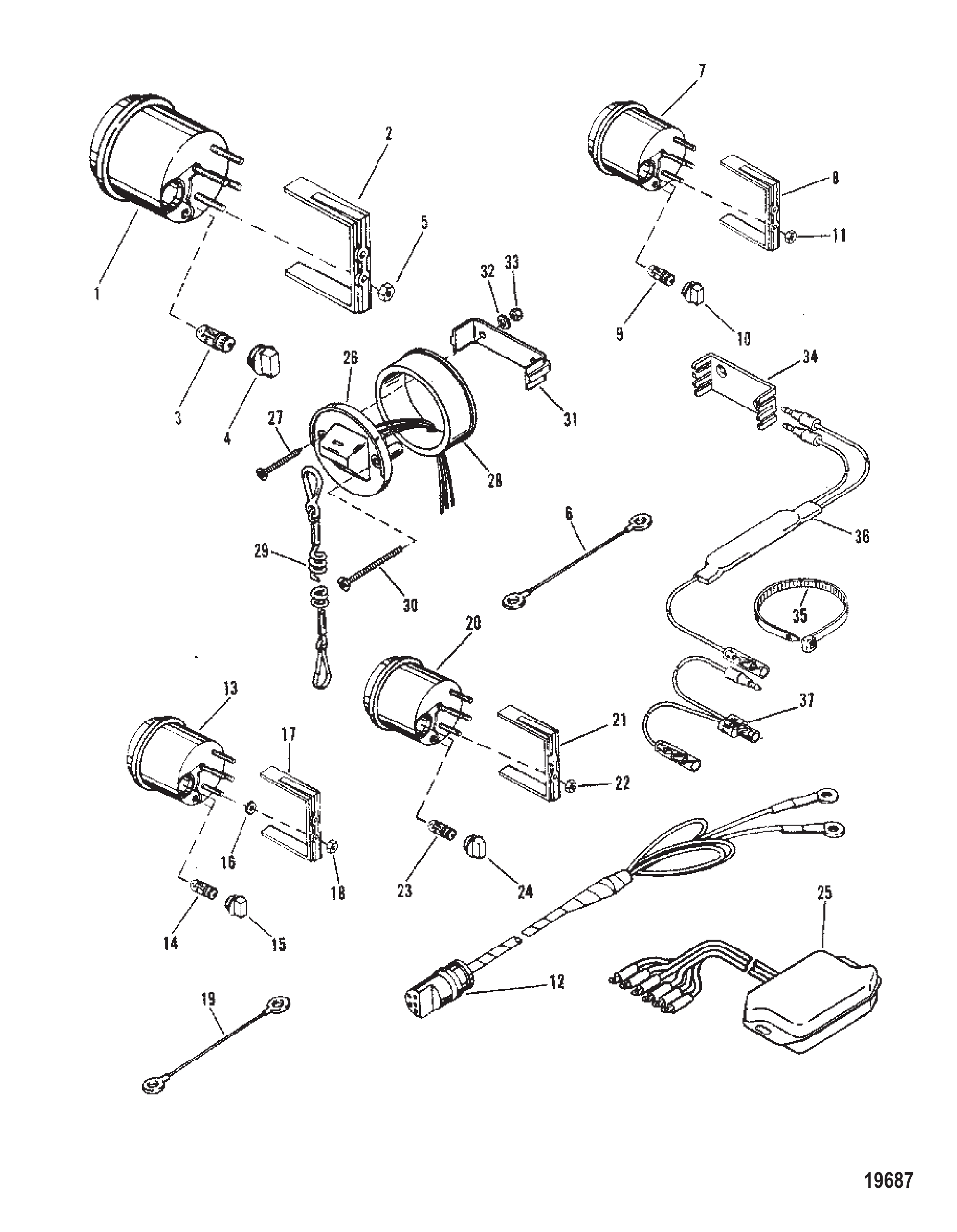

图 29仪表组(水星和马林纳) Instrumentation (Mercury and Mariner)

REF	零件编号	中文名称	英文名称	数量
1	15110A1	转速表	TACHOMETER	1
2	79101T	安装支架	BRACKET MOUNTING	1
3	72729	楔形底座灯泡(14V - 1.9W)	LIGHT BULB Wedge Base (14V - 1.9W)	1
4	79888	灯泡插座	SOCKET Light Bulb	1
5	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	5
6	86322A7	配平表电缆总成(1.50英尺)黑色	CABLE ASSEMBLY (1.50 Feet) Black TRIM GUAGE	1
6	86323A5	配平表电缆总成(1.50英尺)紫色	CABLE ASSEMBLY (1.50 Feet) Purple TRIM GUAGE	1
7	15113A4	配平表	TRIM GAUGE	1
7	895292Q41	动力升降倾斜指示器黑面橙白刻度黑边框	GAUGE Power Trim Indicator, Black Face, Orange/White Graduations, Black Bezel	1
8	79480	安装支架-微调表	BRACKET MOUNTING - TRIM GAUGE	1
9	72729	灯泡楔形底座(14V-1.9W)微调表	LIGHT BULB Wedge Base (14V - 1.9W) TRIM GAUGE	1
10	79888	灯泡插座微调表	SOCKET Light Bulb TRIM GAUGE	1
11	26419	螺母(#8-32)黄铜微调表端子	NUT (#8-32) Brass TRIM GAUGE TERMINAL	5
12	86396A8	转速表线束总成(5.00英尺)	HARNESS ASSEMBLY Tachometer (5.00 Feet)	1
13	15166A1	温度表	TEMPERATURE GAUGE	1
13	895287Q41	水温表套件(100-240℉)黑面橙白刻度黑框	WATER TEMPERATURE GAUGE KIT (100-240 F) Black Face, Orange/White Graduations, Black Bezel	1
14	72729	楔形底座灯泡(14V - 1.9W)	LIGHT BULB Wedge Base (14V - 1.9W)	1
15	79888	灯泡插座	SOCKET Light Bulb	1
16	26427	垫圈	WASHER	2
17	79480	支架	BRACKET	1
18	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	5
19	86323A2	电缆总成(2英尺)紫色	CABLE ASSEMBLY (2.00 Feet) Purple	1
19	61600A16	电缆总成(17英寸)黑色	CABLE ASSEMBLY (17.00 Inches) Black	1
19	88824A4	电缆总成(45英寸)棕褐色	CABLE ASSEMBLY (45.00 Inches) Tan	1
20	15115A2	同步器量表	SYNCHRONIZER GAUGE	1
20	895294Q41	双机同步指示表（黑面橙白刻度黑框）	GAUGE Dual Engine Synchronizer, Black Face, Orange/White Graduation, Black Bezel	1
21	79480	支架	BRACKET	5
22	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	5
23	72729	楔形底座灯泡(14V - 1.9W)	LIGHT BULB Wedge Base (14V - 1.9W)	1
24	79888	灯泡插座	SOCKET Light Bulb	1
25	14502	同步驱动器	DRIVER SYNCHRONIZED	1
25	145022	同步器驱动器	DRIVER Synchronizer	1
26	19674A1	拉绳开关总成	SWITCH ASSEMBLY Lanyard	1
26	19674A07	开关/拉绳套件	SWITCH/LANYARD KIT	1
27	18303	螺钉 (.190-16 x 1.750) 不锈钢	SCREW (.190-16 x 1.750) Stainless Steel	2
28	813679	适配器	ADAPTER	1
29	15920A54	拉绳总成	LANYARD ASSEMBLY	1
29	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
30	32866	螺钉 (#10-32 x 2.00) 不锈钢	SCREW (#10-32 x 2.00) Stainless Steel	2
31	18321	安装夹	CLAMP Mounting	2
32	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	2
33	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4
34	79146	固定座	RETAINER	3
32	90077	扎带	TIE STRAP	9
32	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	9
36	812497A2	二极管总成	DIODE ASSEMBLY	1
36	898289A72	双拉绳二极管套件	DIODE KIT-LANYARD Dual	1
37	11149A2	线缆总成 (6.00英寸)	CABLE ASSEMBLY (6.00 Inches)	1

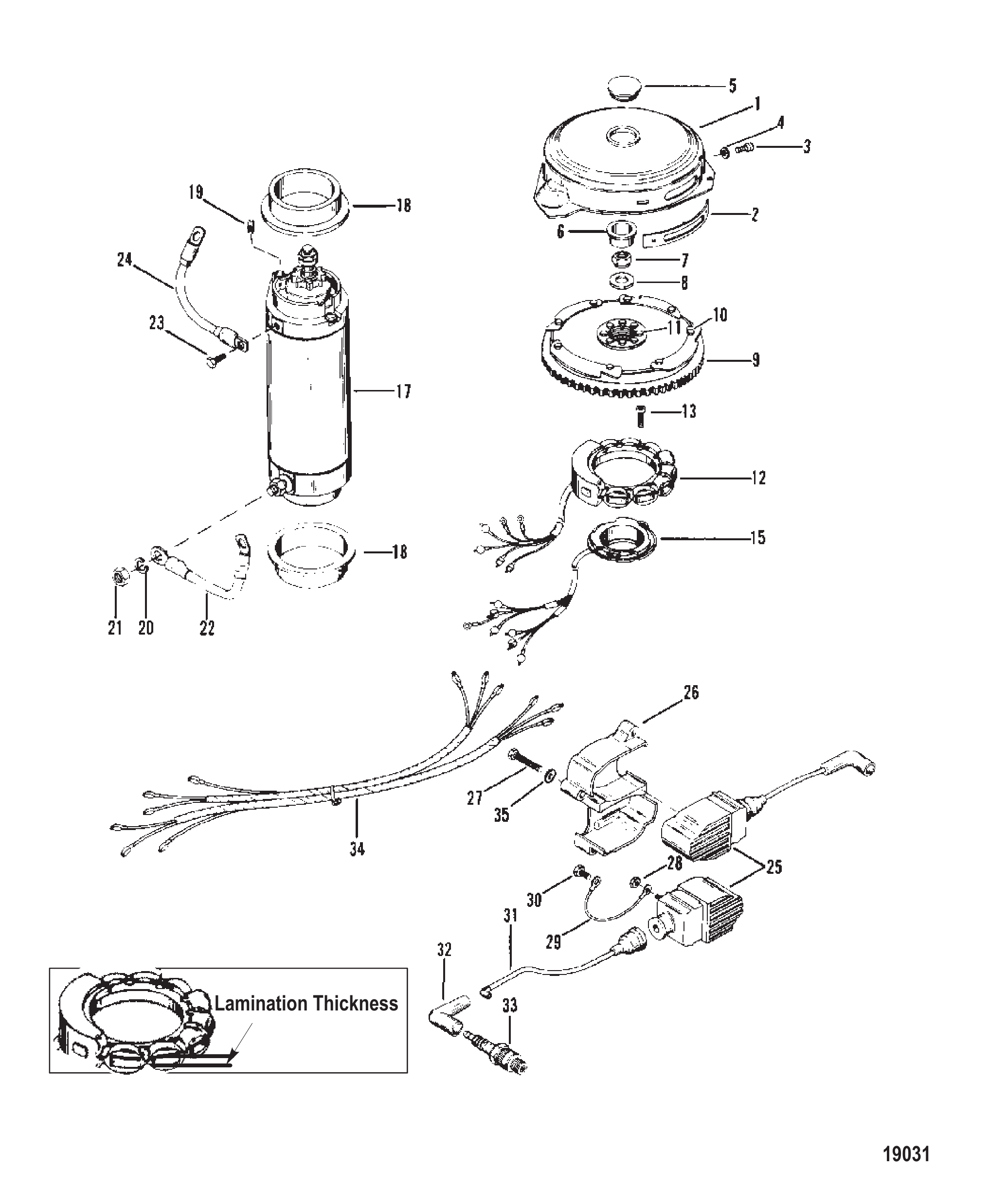

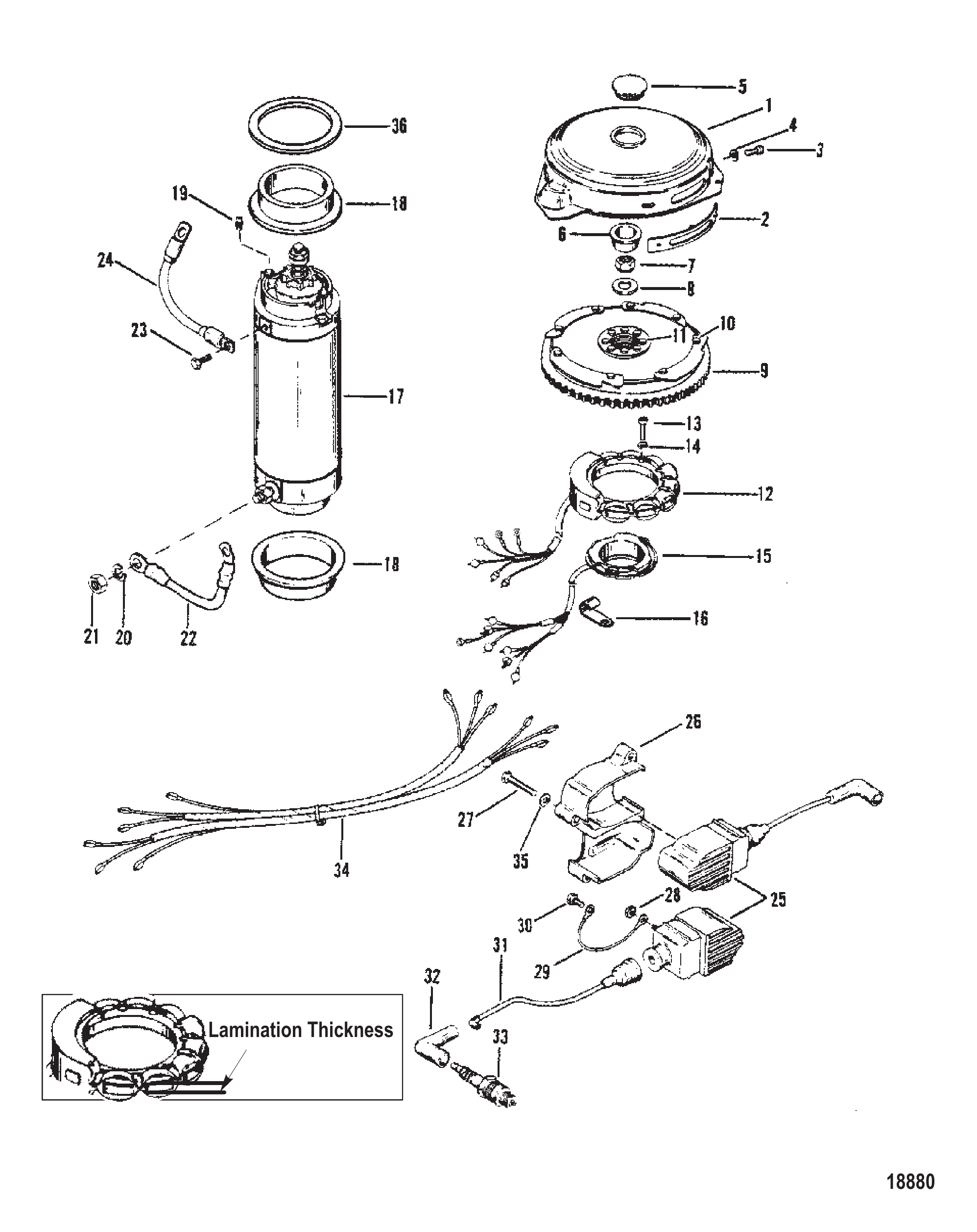

图 30飞轮、启动电机及点火线圈 Flywheel, Starter Motor and Ignition Coils

REF	零件编号	中文名称	英文名称	数量
1	79918A1	飞轮盖套件	COVER KIT FLYWHEEL	1
2	79022	正时标记	MARKER TIMING	1
3	37572	螺钉(0.190-32x0.380)正时标记	SCREW (.190-32 x .380) TIMING MARKER	2
4	72761	垫圈(0.203x0.562x0.060)不锈钢正时标记螺钉	WASHER (.203 x .562 x .060) Stainless Steel TIMING MARKER SCREW	2
5	89219	飞轮盖塞	PLUG FLYWHEEL COVER	1
5	89219001	堵头	PLUG	1
6	45907	飞轮黄色塞	PLUG Yellow FLYWHEEL	1
7	52901	螺母(.625-18)飞轮	NUT (.625-18) FLYWHEEL	1
8	68229	垫圈(0.641x1.250x0.190)飞轮	WASHER (.641 x 1.250 x .190) FLYWHEEL	1
8	33001	垫圈	WASHER	1
9	7555A8	飞轮	FLYWHEEL	1
9	859238A9	飞轮套件	FLYWHEEL KIT	1
9	7555A17	飞轮	FLYWHEEL	1
9	859238A9	飞轮套件	FLYWHEEL KIT	1
10	32417	螺钉(.250-28 x .625)飞轮板	SCREW (.250-28 x .625) FLYWHEEL PLATE	8
11	68997	螺钉(.312-24 x .750)飞轮毂	SCREW (.312-24 x .750) FLYWHEEL HUB	8
12	5454A32	定子(配15安培电压调节器)	STATOR (USE WITH VOLTAGE REGULATOR-15AMP)	1
12	5454A35	定子(配15安培电压调节器)	STATOR (USE WITH VOLTAGE REGULATOR-15AMP)	1
13	76566	定子螺钉(#10-24 x 1.00)	SCREW (#10-24 x 1.00) STATOR	4
13	19926100	螺丝（#10-24 x 1.00）	SCREW (#10-24 x 1.00)	4
15	96455A9	触发板总成	PLATE ASSEMBLY Trigger	1
17	79472	启动电机总成(8齿小齿轮)	STARTER MOTOR ASSEMBLY (8 TOOTH PINION)	1
17	893893	启动马达	STARTER MOTOR	1
18	56703	启动电机轴环	COLLAR STARTER MOTOR	2
18	8M0034918	轴环	COLLAR	2
19	68042	启动电机橡胶止动块	STOP Rubber RUBBER - STARTER MOTOR	2
19	8M0043376	停机开关	STOP	2
20	26992	锁紧垫圈(.250) 不锈钢起动机接线端	LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL	1
21	20890	螺母(.250-20) 起动机接线端	NUT (.250-20) STARTER MOTOR TERMINAL	1
22	93388A2	电磁阀至启动电机黑色电缆总成	CABLE ASSEMBLY Black SOLENOID TO STARTER MOTOR	1
22	93388A14	线缆总成(黄/黑)	CABLE ASSEMBLY Yellow/Black	1
23	69035	螺钉和锁紧垫圈 (.250-20 x .625) 不锈钢电缆至启动马达	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel CABLE TO STARTER MOTOR	1
24	93388A1	电缆总成(6.00英寸)黑色板至启动马达	CABLE ASSEMBLY (6.00 Inches) Black PLATE TO STARTER MOTOR	1
25	7370A13	点火线圈总成	COIL ASSEMBLY Ignition IGNITION	6
25	8M0230859	点火线圈总成	COIL IGNITION ASY	6
26	67614	点火线圈盖	COVER IGNITION COIL	3
27	88447	点火线圈盖螺钉(.190-32 x 1.62)	SCREW (.190-32 x 1.62) IGNITION COIL COVER	12
28	45076	螺母(#10-32)黄铜点火线圈端子	NUT (#10-32) Brass IGNITION COIL TERMINAL	12
29	88807A6	点火线圈黑色电缆总成(3.50英寸)	CABLE ASSEMBLY (3.50 Inches) Black IGNITION COIL	6
30	68513	接地带不锈钢螺钉(#10-32 x .375)	SCREW (#10-32 x .375) Stainless Steel GROUND STRAP	6
31	99215A25	高压导线总成	LEAD ASSEMBLY HIGH TENSION	6
31	813715A1	引线	LEAD WIRE	6
32	63709A1	高压电缆护套/端子套件	BOOT/TERMINAL KIT HIGH TENSION CABLE	6
33	136862	火花塞	SPARK PLUG	6
33	13686Q	NGK BU8H @10	NGK BU8H @10	6
34	69738A1	线圈至开关盒线束总成(#2,4&6)	HARNESS ASSEMBLY COIL TO SWITCH BOX (#2, 4 & 6)	1
34	69738A7	线束总成	HARNESS ASSEMBLY	1
34	69739A2	线圈至开关盒线束总成(#1,3&5)	HARNESS ASSEMBLY COIL TO SWITCH BOX (#1, 3 & 5)	1
35	30164	点火线圈盖螺钉不锈钢垫圈(.192 x .375 x .0312)	WASHER (.192 x .375 x .0312) Stainless Steel IGNITION COIL COVER SCREW	12

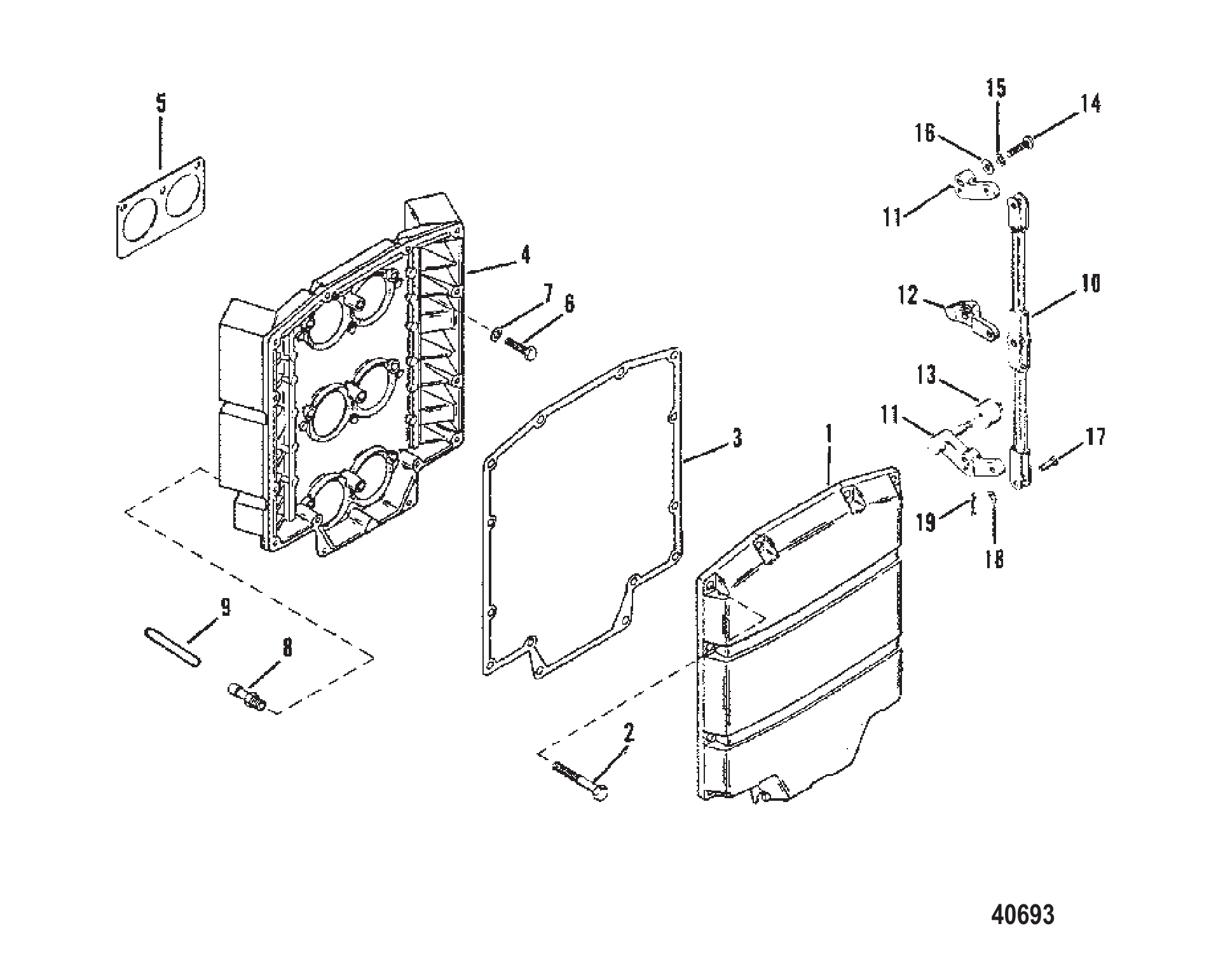

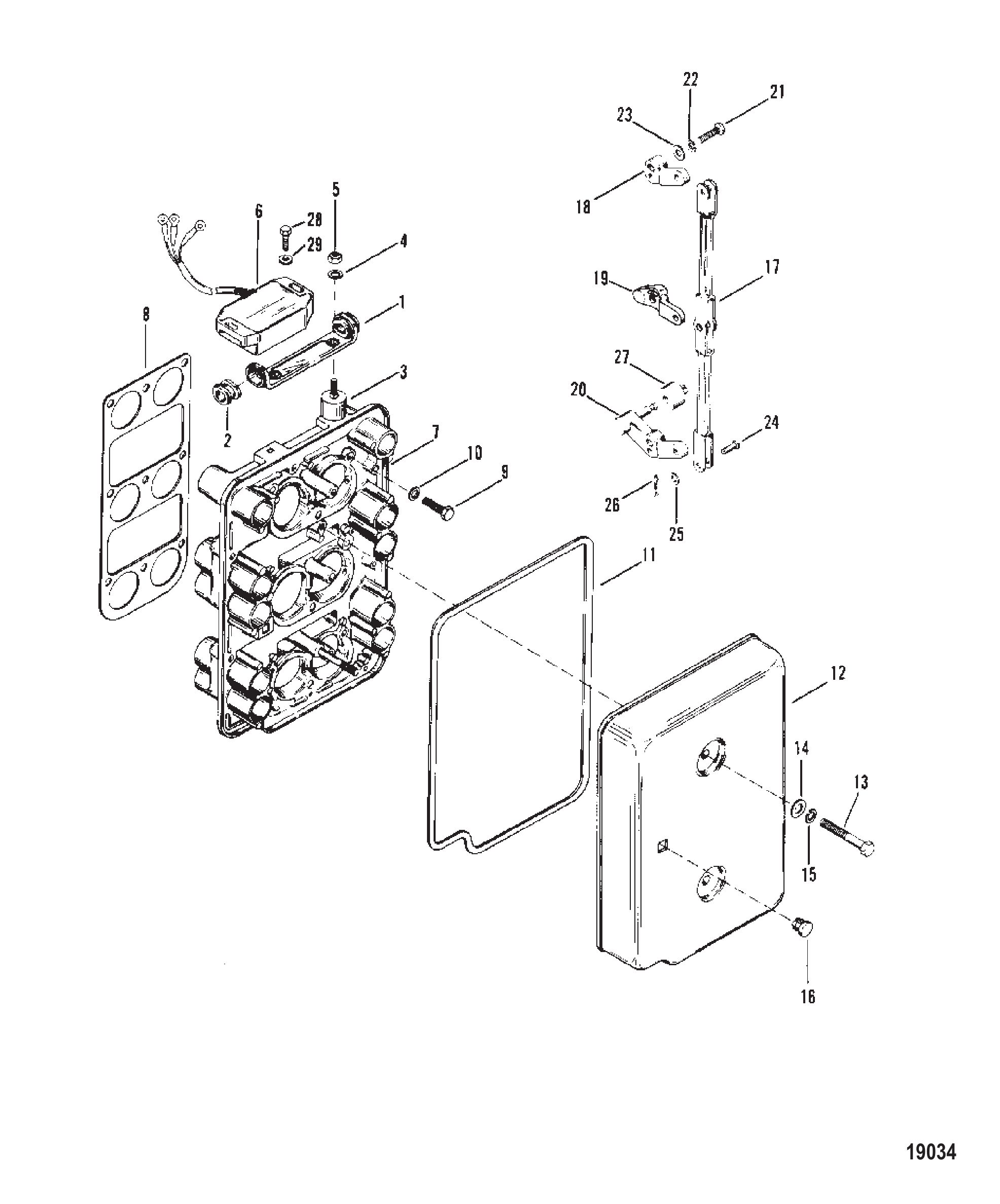

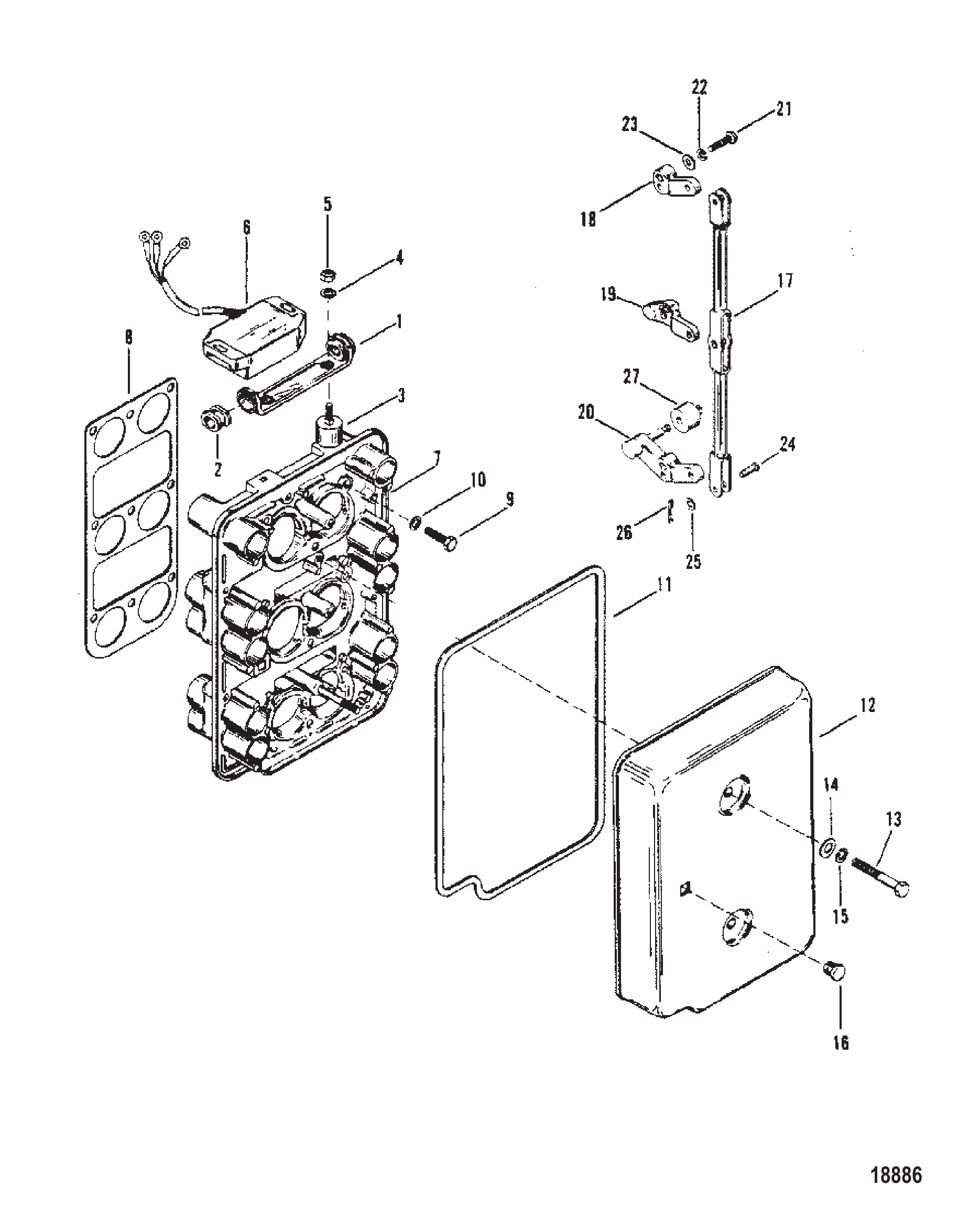

图 31阻风门板与节气门杆（序列号-C239553及以上） CHOKE PLATE AND THROTTLE LEVERS (S/N-C239553 AND UP)

REF	零件编号	中文名称	英文名称	数量
1	18866T	消音器盖	COVER SOUND ATTENUATOR	1
2	92051	螺钉（10-16 x 0.75）	SCREW (10-16 x .75)	14
3	188891	消音器衬垫	GASKET SOUND ATTENUATOR	1
4	188672	消音板	PLATE Sound Attenuator	1
5	892211	板至化油器衬垫	GASKET PLATE TO CARBURETOR	3
6	68000	螺钉（0.250-28 x 1.00）消音器	SCREW (.250-28 x 1.00) SOUND ATTENUATOR	6
7	20583	消音器螺钉垫圈	WASHER SOUND ATTENUATOR SCREW	6
8	64871A2	止回阀	CHECK VALVE	1
9	15026	盖帽	CAP	1
10	87604	油门连杆	LINK Throttle	1
11	93332A1	节气门杠杆总成	LEVER ASSEMBLY Throttle	1
12	41048	油门杆	LEVER Throttle	1
13	67748	下节气门杆滚轮	ROLLER LOWER THROTTLE LEVER	1
14	15124	油门杆至油门连杆螺钉(#10-32×0.750)	SCREW (#10-32 x .750) THROTTLE LEVERS TO THROTTLE LINK	3
15	26996	锁紧垫圈(#10)不锈钢节气门杆螺丝	LOCKWASHER (#10) Stainless Steel THROTTLE LEVERS SCREW	3
16	56681	垫圈(.203 x .500 x .032)节气门杆螺丝	WASHER (.203 x .500 x .032) THROTTLE LEVERS SCREW	3
17	67297	U型销节气门杆至节气门连杆	PIN Clevis THROTTLE LEVERS TO THROTTLE LINK	3
18	89302	垫圈(.203 x .406 x .040)U型销	WASHER (.203 x .406 x .040) CLEVIS PIN	3
19	26953	开口销U型销	COTTER PIN CLEVIS PIN	3

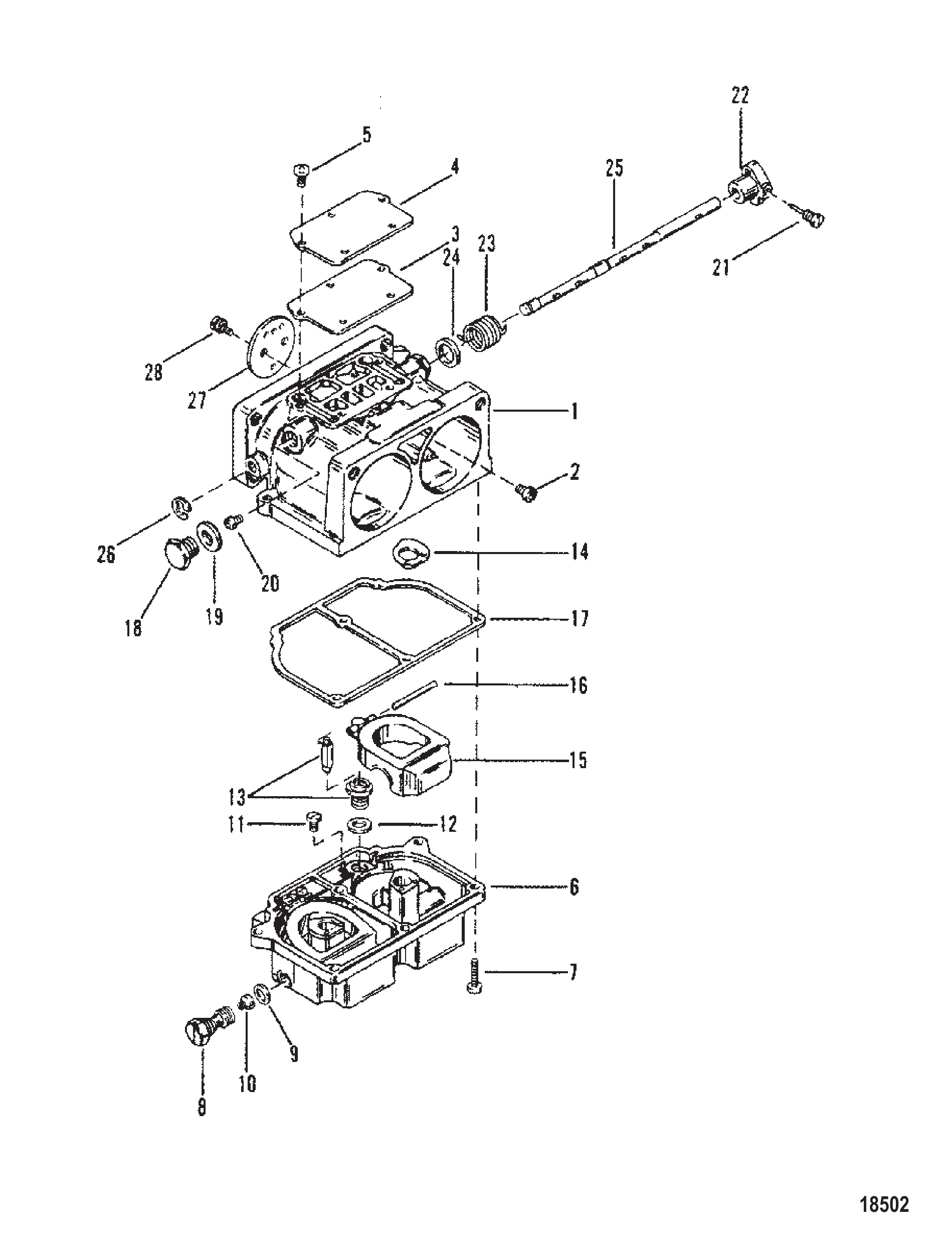

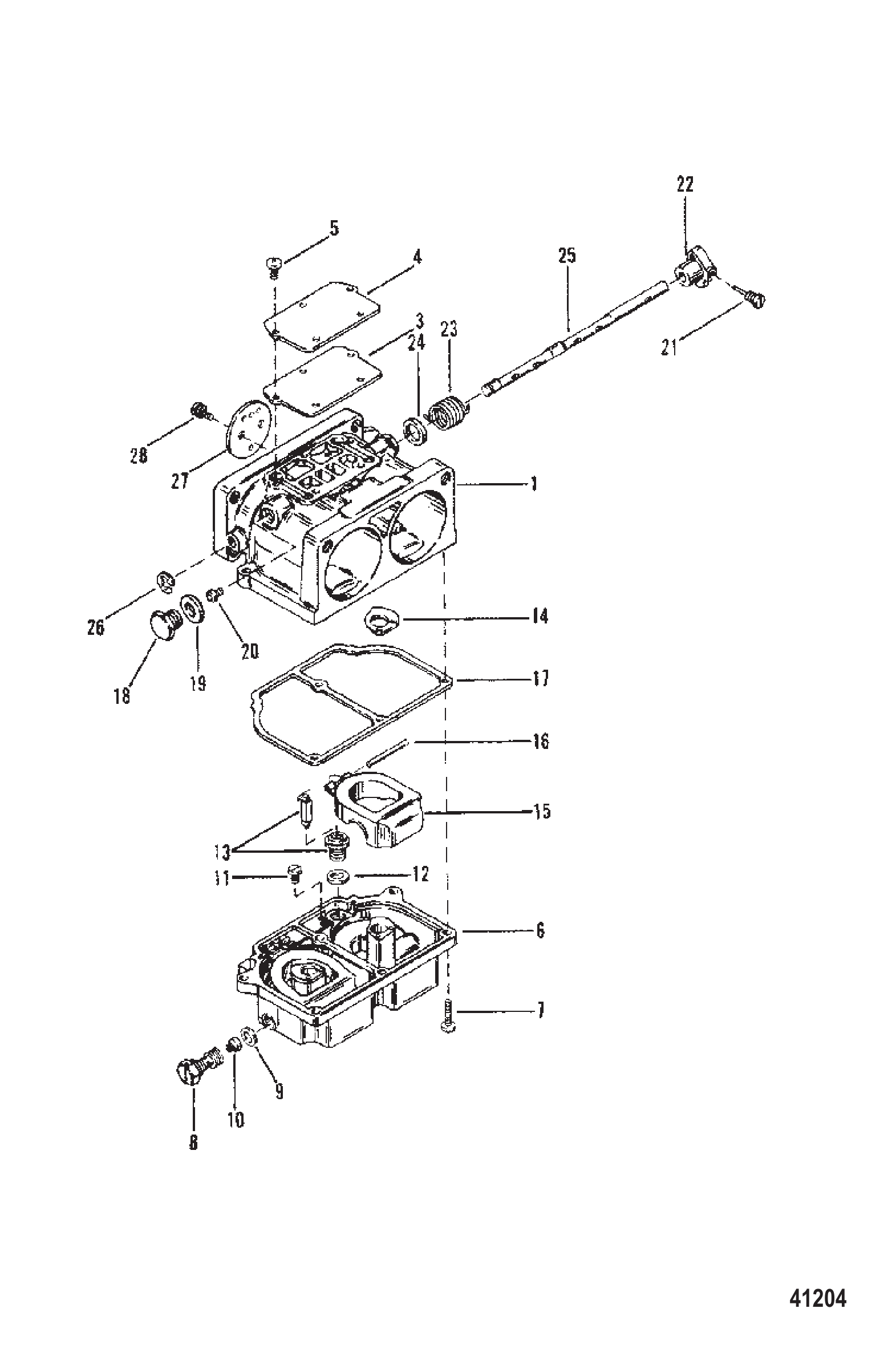

图 32化油器总成 CARBURETOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	9242A10	化油器(上)	CARBURETOR (TOP)	1
1	9242A11	化油器(中)	CARBURETOR (CENTER)	1
1	9242A12	化油器(下)	CARBURETOR (BOTTOM)	1
3	NSS		NOT SOLD SEPARATE GASKET, COVER PLATE	3
4	6032	盖板	PLATE COVER	3
5	NSS	不单独销售螺丝,盖板	NOT SOLD SEPARATE SCREW, COVER PLATE	15
6	7823	燃油杯(顶部)	BOWL Fuel (TOP)	1
6	7822	燃油杯(中部/底部)	BOWL Fuel (CENTER/BOTTOM)	2
7	NSS	不单独销售螺丝,燃油碗	NOT SOLD SEPARATE SCREW, FUEL BOWL	18
8	6025	主量孔塞	PLUG MAIN JET	6
9	NSS	主量孔垫片(不单独销售)	NOT SOLD SEPARATE GASKET, MAIN JET	6
10	4216	主量孔 (.064)	JET (.064) MAIN FUEL	4
10	4215	燃油主量孔(.066)	JET Main Fuel (.066)	2
11	NSS	不单独销售螺丝,浮子销	NOT SOLD SEPARATE SCREW, FLOAT PIN	6
12	NSS	不单独出售衬垫、进油针阀及阀座组件	NOT SOLD SEPARATE GASKET, INLET NEEDLE AND SEAT	6
13	7824	进油针阀总成	NEEDLE/SEAT ASSEMBLY Inlet	6
14	NSS	不单独销售垫片,喷嘴座	NOT SOLD SEPARATE GASKET, NOZZLE BOSS	6
15	9267	浮子	FLOAT	6
16	NSS	不单独销售销,浮子杆	NOT SOLD SEPARATE PIN, FLOAT LEVER	6
17	NSS	燃油碗垫片(不单独销售)	NOT SOLD SEPARATE GASKET, FUEL BOWL	3
18	4541	怠速空气量孔螺钉	SCREW IDLE AIR BLEED JET	6
19	NSS	不单独销售垫片,泄流量孔塞	NOT SOLD SEPARATE GASKET, BLEED JET PLUG	6
20	6030	怠速空气量孔(.070)	JET (.070) IDLE AIR BLEED	6
21	6027	节气门杠杆螺钉	SCREW THROTTLE LEVER	3
22	37752	油门标识贴	DECAL THROTTLE	3
23	NSS		NOT SOLD SEPARATE SPRING, THROTTLE RETURN	3
24	6031	节气门杠杆垫片	SPACER THROTTLE LEVER	3
25	6022	节流阀轴	SHAFT THROTTLE	3
26	NSS	节流阀轴环/挡圈（不单独销售）	NOT SOLD SEPARATE RING, RETAINER - THROTTLE SHAFT	3
27	9416	油门阀	VALVE Throttle	6
28	NSS		NOT SOLD SEPARATE SCREW, THROTTLE VALVE	12
-	6452	衬垫套件	GASKET KIT	1
-	8506	化油器维修套件	REPAIR KIT Carburetor	1

图 33燃油管路 FUEL LINES

REF	零件编号	中文名称	英文名称	数量
1	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
2	69067	燃油连接器螺钉(.250-20 x 1.375)	SCREW (.250-20 x 1.375) FUEL CONNECTOR	1
3	812782	密封件	SEAL	1
4	9912976	油管	TUBING	1
4	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
5	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
5	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
6	814964	接头	FITTING	1
7	19688	弯头接头	FITTING (ELBOW)	1
8	4301625	油管(8.00英寸)	TUBING (8.00 Inches)	1
8	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	1
9	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	4
9	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	4
10	816296	燃油滤清器	FILTER Fuel	1
10	816296Q03	燃油滤清器@3	FILTER-FUEL @3	1
11	67751	衬垫	GASKET	3
12	27037	双头螺栓(.250-28×1.125)	STUD (.250-28 x 1.125)	6
12	270372	双头螺栓(.250-28×1.125)	STUD (.250-28 x 1.125)	6
13	55098	J型卡扣	J CLIP	1
13	8M0024808	J型夹	J-CLIP	1
14	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	6
15	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	6
16	29598	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	6
17	9912878	软管 (.187) (26.00英寸散装)	HOSE (.187) (26.00 Inches Bulk)	3
18	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
18	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
19	42859A2	加浓阀总成	VALVE ASSEMBLY Enrichner	1
20	633001	卡箍	CLAMP	1
21	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
22	9912688	管材 (36.00英寸散装)	TUBING (36.00 Inches Bulk)	2
23	45915	端子排	TERMINAL BLOCK	AR
24	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	AR
24	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	AR
24	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	AR
24	69079	螺钉 (#10-16 x .440)	SCREW (#10-16 x .440)	AR
-	815791A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 34驱动轴壳与排气管 Driveshaft Housing and Exhaust Tube

REF	零件编号	中文名称	英文名称	数量
1	8343A10	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8343A11	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8343T11	ORD 1590-8343T10	ORD 1590-8343T10	1
1	813563A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	813563T1	传动轴壳体-黑色-加长型	HOUSING Driveshaft - Black - X-Long	1
1	813563A2	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	813563T2	ORD 3503-813563T1	ORD 3503-813563T1	1
2	56295	双头螺柱(.437 x 2.69)	STUD (.437 x 2.69)	2
3	63474	螺钉(.500-20 x 6.00)	SCREW (.500-20 x 6.00)	2
3	898831	螺钉(.500-20 x 6.220)	SCREW (.500-20 x 6.220)	2
4	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
5	77327	支架	MOUNT	2
6	49339	垫圈(.8125)	WASHER (.8125)	2
7	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
8	28040	螺母(.500-20)	NUT (.500-20)	2
8	898832	螺母(.500-20)	NUT (.500-20)	2
9	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
10	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
11	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
11	8M0204653	螺母	NUT	2
12	67076	卡箍	CLAMP	2
12	8M0036782	卡箍	CLAMP	2
13	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
14	67077T	黑色盖	COVER Black	2
14	8M4500752	盖板	COVER	2
14	67077F1	灰色盖板	COVER Gray	2
14	67077T	黑色盖	COVER Black	2
15	88417	螺钉(#12-24×0.620)	SCREW (#12-24 x .620)	4
16	35521	螺母	NUT	4
17	48926	垫圈	WASHER	1
18	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	1
18	8M0204653	螺母	NUT	1
19	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	4
20	69254	螺母	NUT	4
21	828212	怠速排气套	BOOT Idle Exhaust	1
21	8M0039081	护套	BOOT	1
22	64649	堵头	PLUG	1
23	991732	衬垫	GASKET	1
23	991734	衬垫	GASKET	1
24	66350	下密封件	SEAL (LOWER)	1
24	66350001	密封件	SEAL	1
25	18276	排气管	TUBE Exhaust	1
25	18276T	排气管	EXHAUST TUBE	1
26	177261	上密封件	SEAL (UPPER)	1
26	8M0039076	密封件	SEAL	1
27	812834	排气管延长段	EXTENSION Exhaust	1
27	812834A2	排气延长总成	EXTENSION ASSEMBLY Exhaust	1
27	41942F3	排气管延长段	EXTENSION Exhaust	1
27	879288T71	排气管延长段	EXTENSION Exhaust	1
28	67295	水管	TUBE Water	1
28	8M0042788	长型水管	TUBE-WATER-LONG	1
28	74729	管	TUBE	1
28	8M0042790	水管	TUBE-WATER	1
29	78246	衬垫	GASKET	1
29	782461	衬垫	GASKET	1
30	18233A3	隔板总成	PLATE ASSEMBLY	1
30	18233A20	传动轴壳体板总成	PLATE ASSEMBLY Driveshaft Housing	1
31	8147012	密封件	SEAL	1
31	8M0043165	密封件-27.00英寸	SEAL-27.00 INCH	1
32	68011	支架	BRACKET	1
33	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
33	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
34	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
35	38970	密封件	SEAL	1
36	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	6
37	183071	衬垫	GASKET	1
37	183076	衬垫	GASKET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 35齿轮箱图表（序列号0G437999及以下） Gear Housing Chart (S/N-0G437999 & Below)

REF	零件编号	中文名称	英文名称	数量
-	9148A69	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148A72	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T85	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A70	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A73	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T91	ORD 1647-9148T85	ORD 1647-9148T85	1
-	9148A76	齿轮箱总成反向旋转	GEAR HOUSING ASSEMBLY Counter Rotation	1
-	9148T86	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A77	齿轮箱总成反向旋转	GEAR HOUSING ASSEMBLY Counter Rotation	1
-	9148T92	ORD 1647-9148T86	ORD 1647-9148T86	1

图 36齿轮箱(螺旋桨轴)(反向旋转) GEAR HOUSING (PROP SHAFT)(COUNTER ROTATION)

REF	零件编号	中文名称	英文名称	数量
1	9148T93	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
49	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
50	789562	换挡凸轮	SHIFT CAM	1
51	828287	杆	ROD	1
52	44491A1	垫片组	SHIM SET	AR
52	8M0063266	垫片组	SHIM SET	AR
53	828830A2	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
54	814653	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
54	814653T	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
55	815481	止推垫片	THRUST WASHER	1
56	815480	推力轴承	BEARING Thrust	1
57	828702A2	倒车齿轮总成-15/28齿	GEAR ASSEMBLY Reverse - 15/28	1
58	15844	滚柱轴承总成	BEARING ASSEMBLY Roller	1
59	30893	弹簧	SPRING	1
60	854735T	滑动离合器	CLUTCH Sliding	1
60	859340T	离合器	CLUTCH	1
61	30632	十字销	PIN Cross	1
61	8M0100263	十字销	PIN Cross	1
62	828356	定位销	PIN Detent	1
63	828951	螺旋桨轴	PROPELLER SHAFT	1
64	828701A1	前进齿轮总成-15/28齿	GEAR ASSEMBLY Forward - 15/28	1
65	1761514	垫片(0.206)	SPACER SHIM (.206)	AR
65	1761515	垫片(0.208)	SPACER SHIM (.208)	AR
65	1761516	垫片(0.210)	SPACER SHIM (.210)	AR
65	1761517	垫片(0.212)	SPACER SHIM (.212)	AR
65	1761518	垫片(0.214)	SPACER SHIM (.214)	AR
65	1761519	垫片(0.216)	SPACER SHIM (.216)	AR
65	1761520	垫片(0.218)	SPACER SHIM (.218)	AR
65	1761521	垫片(0.220)	SPACER SHIM (.220)	AR
65	1761522	垫片(0.222)	SPACER SHIM (.222)	AR
65	1761523	垫片(0.224)	SPACER SHIM (.224)	AR
65	1761524	垫片(0.226)	SPACER SHIM (.226)	AR
65	1761525	垫片(0.228)	SPACER SHIM (.228)	AR
65	1761526	垫片(0.230)	SPACER SHIM (.230)	AR
66	815480	推力轴承	BEARING Thrust	1
67	815481	止推垫片	THRUST WASHER	1
68	828831A3	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
69	814653	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
69	814653T	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
70	18448	止推垫片	THRUST WASHER	2
71	15842	推力轴承	BEARING Thrust	2
72	8182911	推力座圈	RACE Thrust	2
73	814605	定位器	KEEPER	2
74	31534	O型圈	O-RING	1
74	8M0214920	O型圈	O RING	1
75	818290A4	轴承座总成	CARRIER ASSEMBLY Bearing	1
76	30956	滚针轴承	BEARING Needle	1
76	30956T	滚针轴承	BEARING Needle	1
77	14077	油封(内侧)	SEAL Oil (INSIDE)	1
78	76868	油封(外侧)	SEAL (OUTSIDE)	1
78	8M0248882	油封@5	SEAL-OIL @5	1
79	183231	锁紧垫圈	TAB WASHER	1
80	30281	键	KEY	1
81	79448	固定座	RETAINER	1
81	8M2011027	固定座	RETAINER	1
82	316405	平衡鳍板	TRIM TAB	1
82	8M0236553	平衡鳍板	TRIM TAB	1
82	76214A5	阳极套件	ANODE KIT	1
82	76214Q5	阳极套件	ANODE KIT	1
83	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
83	8M0204686	螺钉	SCREW	1
84	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
85	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
86	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
86	8M0204653	螺母	NUT	2
-	89238A2	密封套件	SEAL KIT	1

图 37燃油泵 FUEL PUMP

REF	零件编号	中文名称	英文名称	数量
1	880890T1	燃油泵	PUMP Fuel	1
2	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
3	881544	弹簧	SPRING	1
4	881545	柱塞	PLUNGER	1
5	881546	弹簧	SPRING	1
6	881547	隔膜	DIAPHRAGM	1
7	881548	销	PIN	1
8	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
9	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
10	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
11	881550	螺钉	SCREW	3
12	881333	螺母	NUT	3
13	804255	O型圈	O-RING	1
13	8M0050719	O型圈	O-RING	1
14	879650	卡箍	CLAMP	2
14	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	2
15	804256	螺栓 (M6 x 30)	BOLT (M6 x 30)	2
16	881543	软管	HOSE	1
16	881543002	油管	TUBING	1
17	881542	支架	BRACKET	1
18	8527768	螺栓(M6 x 16)	BOLT (M6 x 16)	1
18	811188T	螺栓	BOLT	1
19	8528161	螺母	NUT	1
19	82382M	螺母	NUT	1
20	881538T1	滤清器总成	FILTER ASSEMBLY	1
20	881538T02	燃油滤清器总成	FILTER ASSY-FUEL	1
21	881540	滤芯1.75英寸	ELEMENT 1.75 Inches	1
21	8M0168897	燃油滤清器	FUEL FILTER	1
21	8M0101436	滤芯1.50英寸	ELEMENT 1.50 Inches	1
21	8M0117705	燃油滤清器	FILTER-FUEL	1
22	826966M	O型圈	O-RING	1
22	826966T	O型圈	O RING	1
23	881541	浮子	FLOAT	1
24	881539	杯套	CUP	1
24	8M0101437	杯套	CUP	1
24	8M0137185	燃油杯	CUP FUEL	1
25	879650	卡箍	CLAMP	2
25	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	2
26	804260	支架	BRACKET	1
27	804112	螺栓(M7 x 48)	BOLT (M7 x 48)	2
28	804113	定位销	PIN Dowel	2
29	84292M	垫圈	WASHER	2
30	804257	燃油转换杆	LEVER Fuel Change	1
31	881334	轴	SHAFT	1
32	804259	销	PIN	2
32	82738M	滚销	PIN-ROLL	2
33	830757130	管材(.312)(70英寸整卷)裁切至55英寸长度	TUBING (.312) (70.00 Inches Bulk) Cut to 55.00 Inch Length.	1
33	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
34	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
35	822769	连接器	CONNECTOR	1
36	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
37	828547T1	导管(.500内径 x 3英尺整卷)	CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk)	1
-	858732T01	衬垫套件	GASKET SET	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	881310T1	气缸盖总成	CYLINDER HEAD ASSEMBLY	1
-	881310T09	气缸盖	HEAD-CYLINDER	1

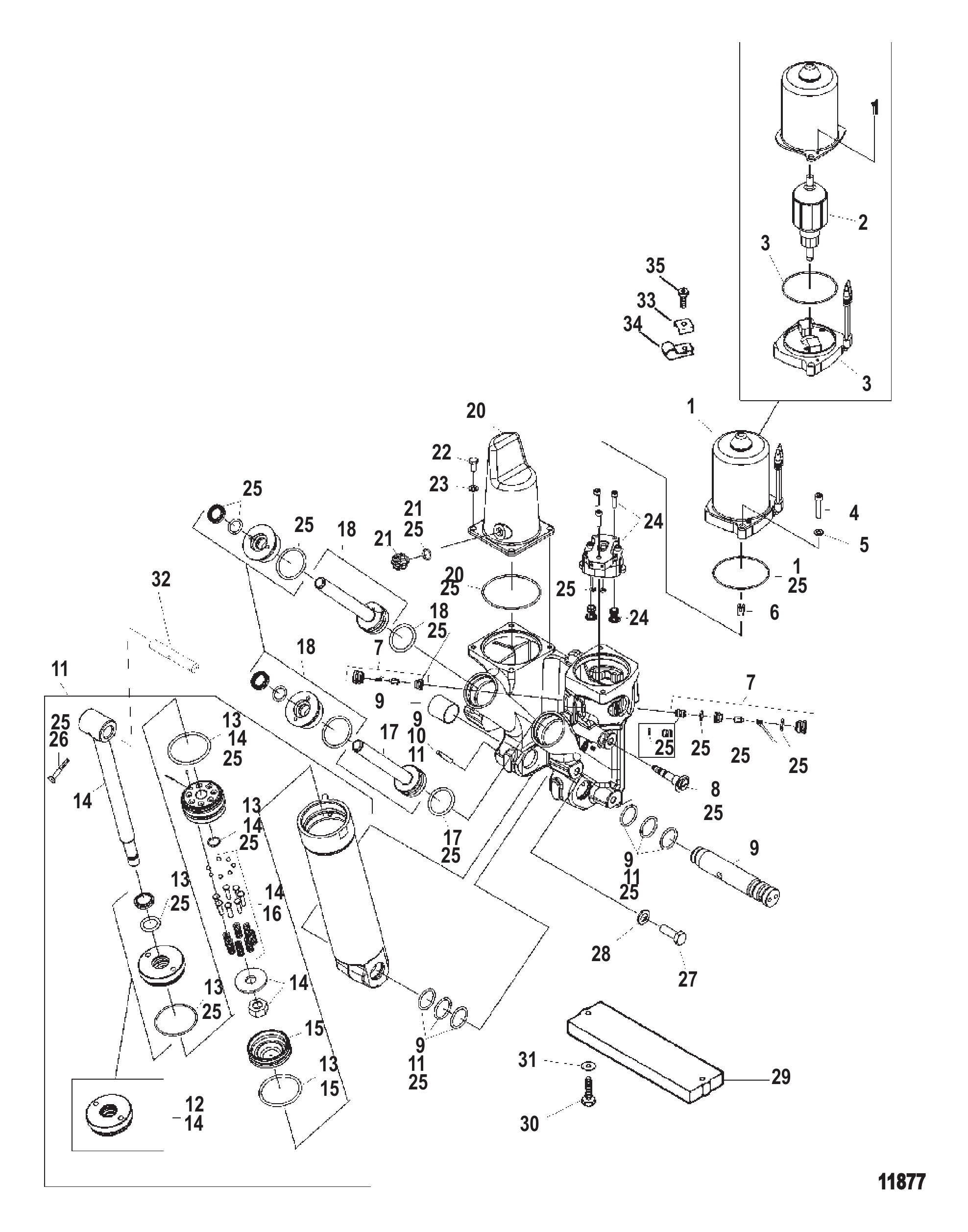

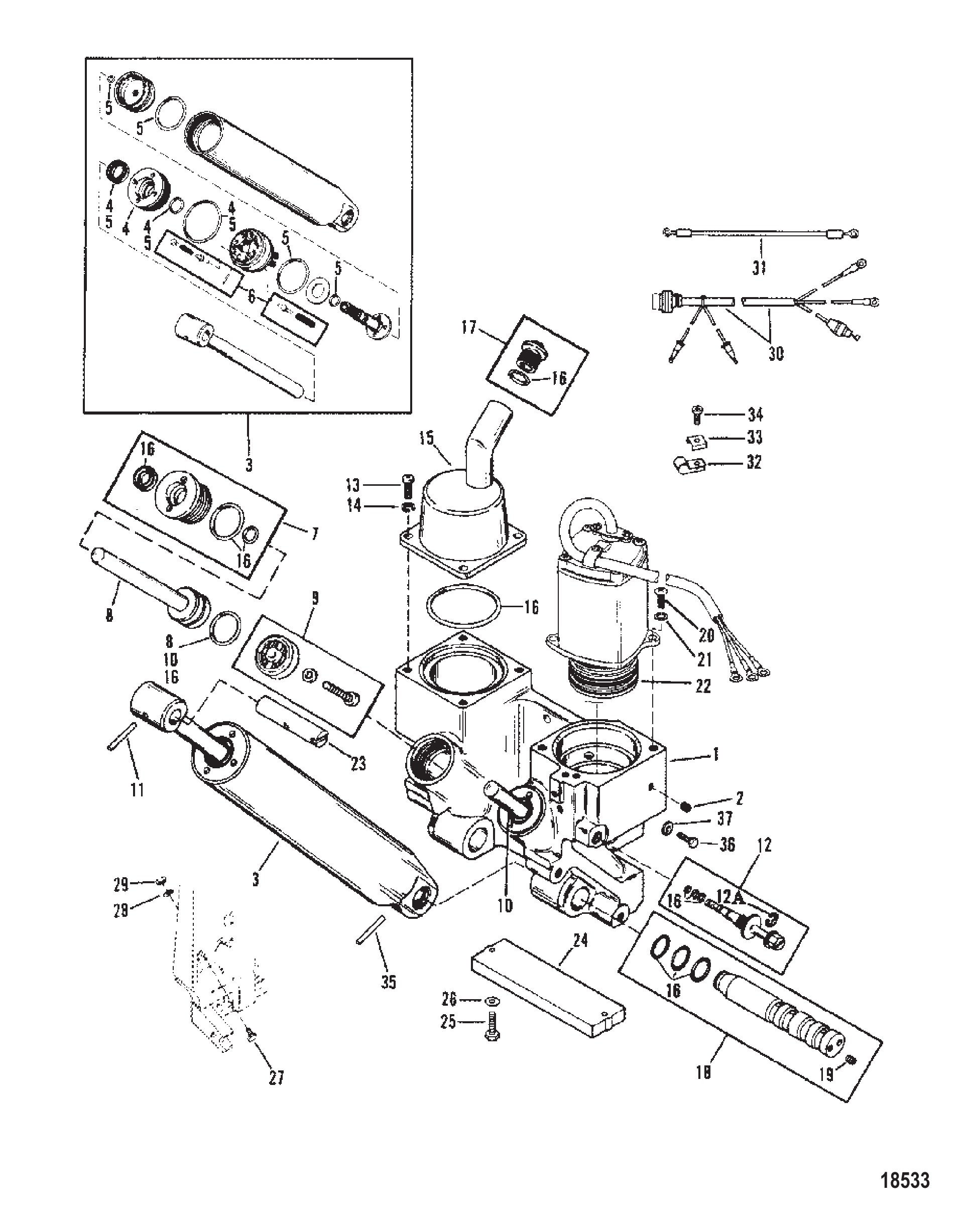

图 38动力升降组件(铸造泵壳)金属电机壳 Power Trim Components (Cast Pump Housing) Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	855998T1	动力升降倾斜装置总成	POWER TRIM Complete	1
1	878265A1	电机套件	MOTOR KIT	1
1	878265A4	配平电机	TRIM MOTOR	1
2	878405A1	电枢	ARMATURE	1
2	878265A1	电机套件	MOTOR KIT	1
3	878407A1	端架	END FRAME	1
3	878265A1	电机套件	MOTOR KIT	1
4	4008830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
4	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
5	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
6	878245	联轴器	COUPLING	1
6	8782451	驱动轴	DRIVESHAFT	1
7	878410A1	压力检查套件	PO CHECK KIT	1
8	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
8	893929A01	安全阀套件	VALVE KIT Relief	1
9	878241A1	轴套件	SHAFT KIT	1
9	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
10	878267	销	PIN	1
11	878235A1	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
11	878235A03	倾斜油缸套件	CYLINDER KIT Tilt	1
12	878239A1	导向套件	GUIDE KIT	1
12	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
13	878409A1	O型圈套件	O-RING KIT	1
13	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
14	878412A1	减震杆套件	SHOCK ROD KIT	1
14	8M0168219	减震杆套件	SHOCK ROD KIT	1
15	878242A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
15	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
16	878406A1	止回阀修理包	REPAIR KIT Check Valve	1
16	878406A02	止回阀修理包	REPAIR KIT Check Valve	1
17	878414A1	活塞总成	PISTON ASSEMBLY	1
17	878414T01	活塞总成	PISTON ASSEMBLY	1
18	878413A1	活塞总成	PISTON ASSEMBLY	1
19	878243A1	导向器总成	GUIDE ASSEMBLY	2
19	8M0021648	端盖总成	END CAP ASSEMBLY	2
20	878264A1	储液罐套件	RESERVOIR KIT	1
21	811613	塞子总成	PLUG ASSEMBLY	1
22	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
23	43450	垫圈	WASHER	4
23	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
24	878411A1	泵套件	PUMP KIT	1
24	892251A01	泵套件	PUMP KIT	1
25	878408A1	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
26	821539	三叶销	PIN Trilobe	1
27	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
28	4002319	垫圈	WASHER	6
29	818298Q1	阳极套件	ANODE KIT	1
30	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
30	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
31	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
31	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	996251	轴	SHAFT	1
32	99625002	轴	SHAFT	1
33	69205	C形垫圈	C WASHER	1
33	8M0084613	C形垫圈	C-WASHER	1
34	22875	卡扣	CLIP	2
35	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1

图 39艉板安装动力转向套件 TRANSOM MOUNT POWER STEERING KIT

REF	零件编号	中文名称	英文名称	数量
-	17443A11	动力转向套件	POWER STEERING KIT	1
1	811290	蓄能器	ACCUMULATOR	1
2	17772	螺柱	STUD	3
3	4002319	垫圈	WASHER	3
4	13914	螺母(M10)	NUT (M10)	3
4	40140	螺母(M10)	NUT (M10)	3
5	94319	螺钉(.375-24 x 1.5)	SCREW (.375-24 x 1.5)	1
6	17405	隔套	SPACER	2
7	34863	螺母 (.375-24)	NUT (.375-24)	3
7	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	3
8	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	1
8	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
9	92876A4	连杆总成	LINK ROD ASSEMBLY	1
10	68300	垫圈 (.88 x .39 x .06)	WASHER (..88 x .39 x .06)	1
11	8112891	执行器	ACTUATOR	1
11	828588A2	执行器套件	ACTUATOR KIT	1
-	811632	维修套件	REPAIR KIT	1
-	811632A1	维修套件	REPAIR KIT	1
12	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
12	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
13	43450	垫圈	WASHER	2
13	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	2
14	8268336	螺母 (M6)	NUT (M6)	2
14	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
15	811292	卡箍	CLAMP	1
16	818182	螺钉	SCREW	2
17	400263	螺母 (M5)	NUT (M5)	2
18	81742755	螺钉(M8x55)	SCREW (M8 x 55)	1
19	66751	垫片(0.250x0.390x0.630)不锈钢	SPACER (.250 x .390 x .630) Stainless Steel	1
19	8M0151156	隔套	SPACER	1
20	811291	支架	BRACKET	1
21	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
22	88404	锁紧垫圈	TAB WASHER	6
23	18211	继电器开关	RELAY SWITCH	1
24	18244A1	线束总成	HARNESS ASSEMBLY	1
25	18124	螺钉 (#10-32 x .750)	SCREW (#10-32 x .750)	1
26	90329	护孔环	GROMMET	1
27	309772	隔套	SPACER	1
28	816994	支架	BRACKET	1
29	42118	垫圈	WASHER	1
30	29488	螺母 (#10-32)	NUT (#10-32)	1
30	8M0204718	螺母	NUT	1
31	197491	卡箍	CLAMP	1
32	81563024	贴花	DECAL	1

图 40顶罩 TOP COWL

REF	零件编号	中文名称	英文名称	数量
1	827328T9	顶盖总成	TOP COWL ASSEMBLY	1
1	827328T10	顶盖总成	TOP COWL ASSEMBLY	1
2	821256T1	黑色进气口	INLET Air - Black	1
2	821256T03	进气口	INLET Air	1
2	821256T2	银色进气口	INLET Air - Silver	1
3	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	4
4	859356A1	隔音毯套装	SOUND BLANKET KIT	1
4	859356A02	隔音毯套装	SOUND BLANKET KIT	1
5	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	1
6	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	1
7	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	2
8	823865	盖塞	CAP PLUG	2
9	831207T10	手柄	HANDLE	1
9	831207A16	罩盖锁手柄套件	HANDLE KIT Cowl Latch	1
10	812707	衬套	BUSHING	2
11	831214	隔套	SPACER	1
12	12134	波形垫圈	WASHER Wave	1
13	F481777	凸轮锁轴	CAM Latch Shaft	1
13	8M0001081	凸轮	CAM	1
14	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
14	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
15	1993716	螺钉(M6 x 16)	SCREW (M6 x 16)	1
16	821249M2	前支架	BRACKET Front	3
16	8M0036792	支架	BRACKET	3
17	815477	缓冲器锁扣	BUMPER Latch	3
18	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
18	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
19	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	6
20	8237951	挡圈	RING Retaining	1
21	815263	滚轮	ROLLER	1
21	8M0207770	滚轮@3	ROLLER @3	1
22	8155381	滚动销	PIN Roll	1
23	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
23	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
24	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
25	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
26	12066Q9	绳索	ROPE	1
26	12066Q10	启动绳@2	ROPE-STARTER@2	1

图 41启动马达 STARTER MOTOR

REF	零件编号	中文名称	英文名称	数量
-	881368T1	启动电机总成	STARTER MOTOR ASSEMBLY	1
-	881368T2	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	804314T	定子	STATOR	1
2	804313T	电枢	ARMATURE	1
3	881369T1	电刷支架总成	HOLDER ASSEMBLY Brush	1
4	804316	电刷组	BRUSH SET	1
5	804317	弹簧	SPRING	4
6	881370T	支架	BRACKET	1
7	804337	螺钉(M4×16)	SCREW (M4 x 16)	2
8	804335	贯穿螺栓(M6×120)	THRU BOLT (M6 x 120)	2
9	804321T1	齿轮套件	GEAR KIT	1
10	804322	离合器	CLUTCH	1
11	804330	垫圈套件	WASHER KIT	1
12	804324	支架	BRACKET	1
13	804326	齿圈	RING GEAR	1
14	804327	衬垫	GASKET	1
15	804325	轴承	BEARING	1
16	804323	小齿轮轴	SHAFT Pinion	1
17	804329	惰轮	IDLER GEAR	3
17	804329001	惰轮	GEAR Idler	3
18	804328	支架	BRACKET	1
19	804331T	盖板	COVER	1
20	804336	螺栓(M6×52)	BOLT (M6 x 52)	2
21	804319	小齿轮	PINION	1
22	804320	小齿轮止动组	STOP SET Pinion	1
23	804332	杠杆套件	LEVER KIT	1
24	804334	盖板	COVER	1
25	881371T	启动继电器	RELAY Starter	1
25	881371T1	启动继电器	RELAY Starter	1
25	881371T1	启动继电器	RELAY Starter	1
26	804605	螺栓(M8×45)	BOLT (M8 x 45)	3
27	881373	接线端子	TERMINAL	1
28	881377	锁紧垫圈	LOCKWASHER	1
29	82382M	螺母	NUT	1
30	881372	螺母	NUT	1
31	881374	盖板	COVER	1

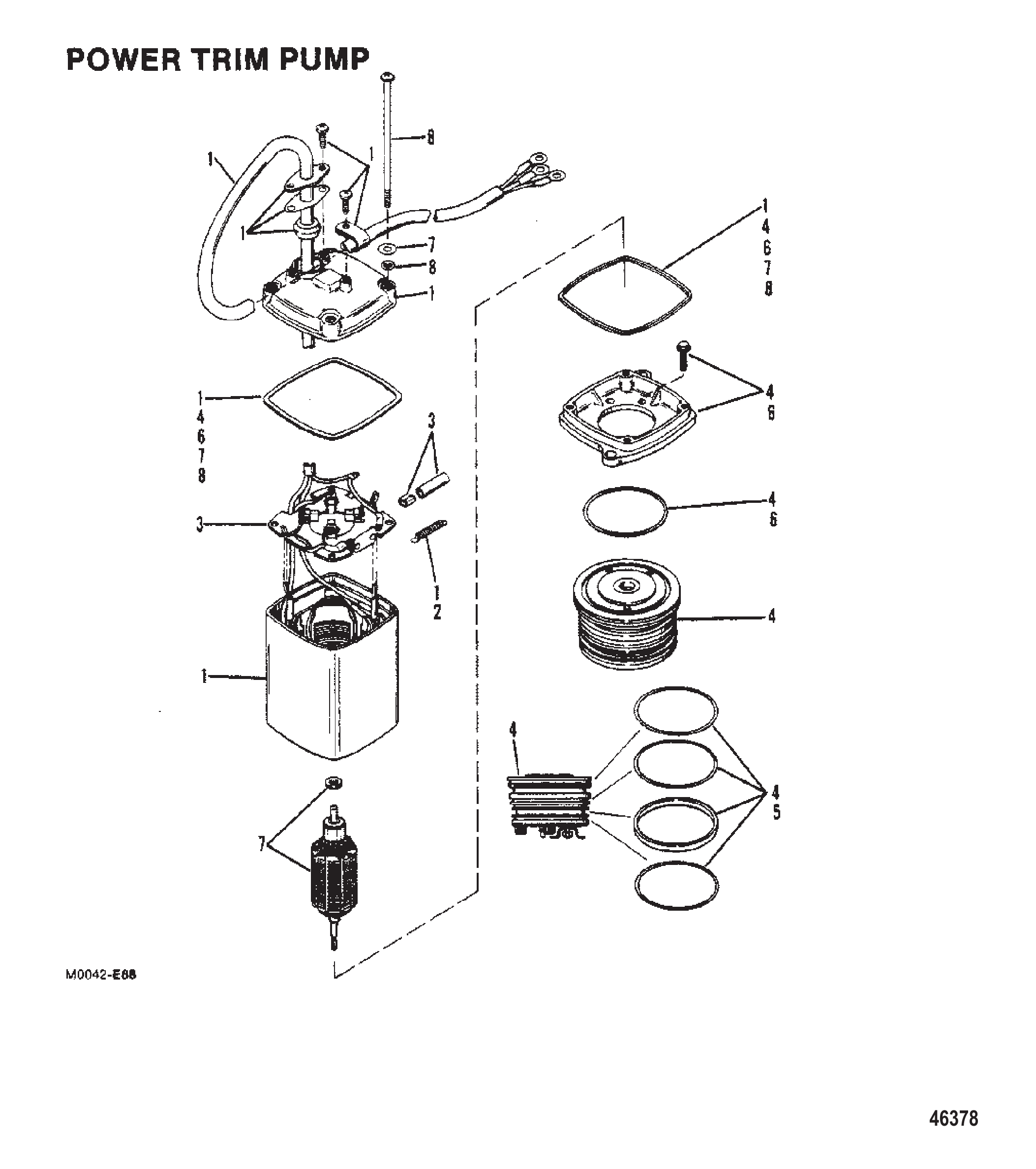

图 42动力升降泵(Eaton矩形电机) Power Trim Pump (Eaton Rectangular Motor)

REF	零件编号	中文名称	英文名称	数量
-	99186T	泵与电机总成	PUMP AND MOTOR	1
1	12659	机架与磁场套件	FRAME AND FIELD KIT	1
1	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
2	12665	电刷弹簧套件	SPRING KIT Brush	1
3	13506	电刷卡套件	BRUSH CARD KIT	1
3	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
4	12662	泵与端架套件	PUMP AND END FRAME KIT	1
4	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
5	12663	泵密封套件	SEAL KIT Pump	1
5	126631	泵密封套件	SEAL KIT Pump	1
6	12660	端架套件	END FRAME KIT	1
6	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
7	12661	电枢套件	ARMATURE KIT	1
7	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
8	12664	贯穿螺栓套件	THRU BOLT KIT	1

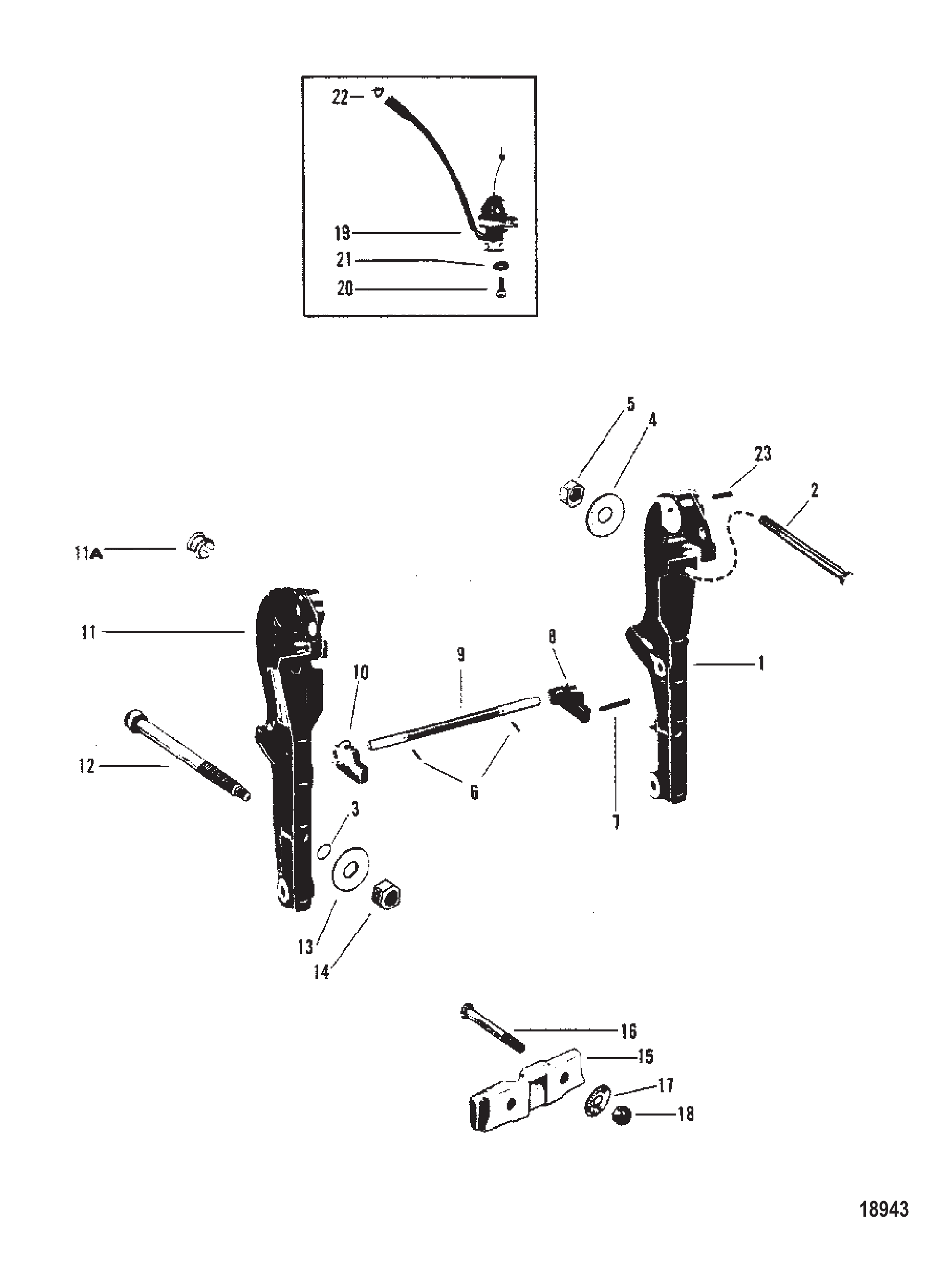

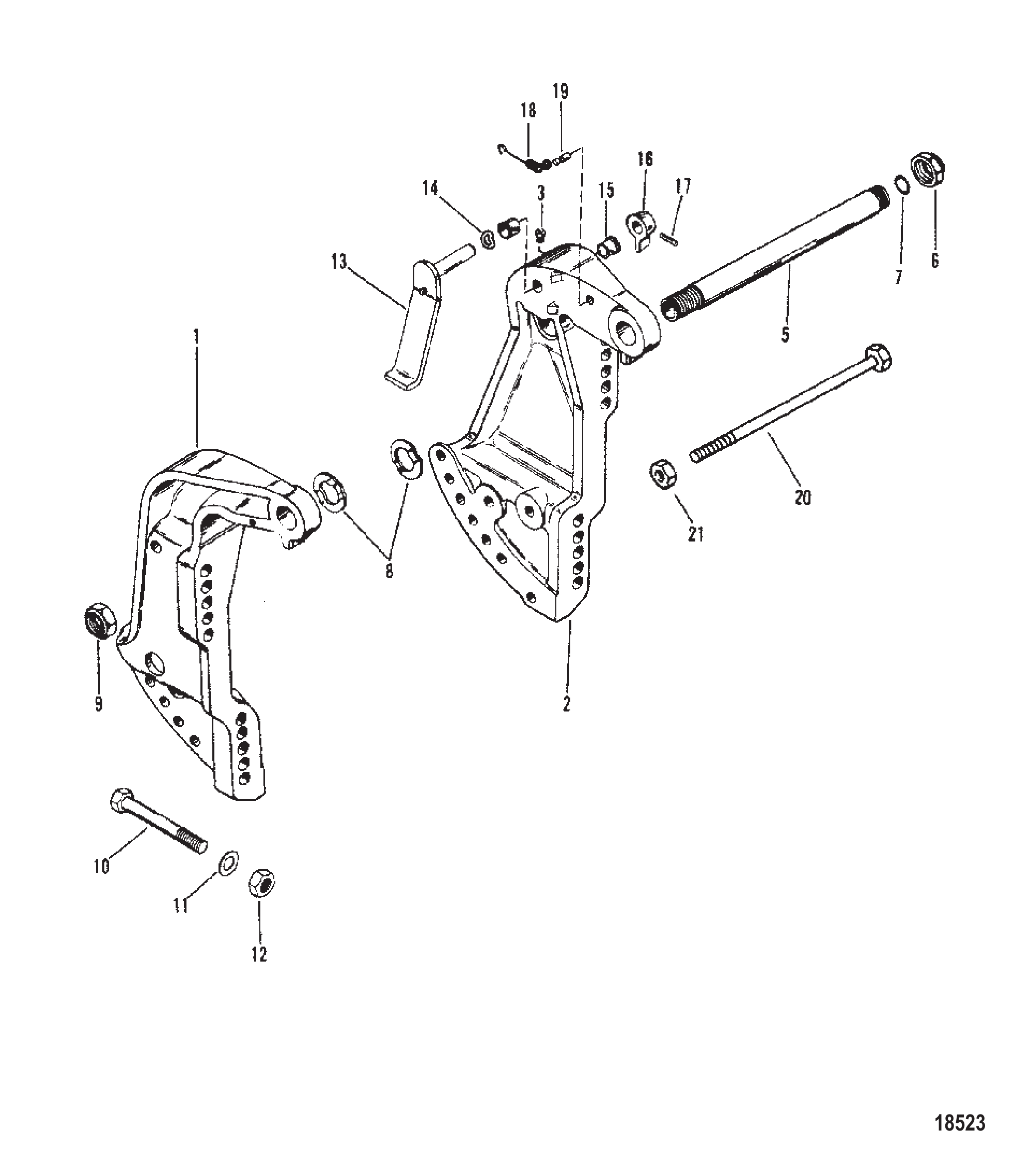

图 43艉板支架 Transom Brackets

REF	零件编号	中文名称	英文名称	数量
1	8718A1	艉板支架总成(右舷)	BRACKET ASSEMBLY Transom (STARBOARD)	1
2	8716A5	艉板支架总成(左舷)	BRACKET ASSEMBLY Transom (PORT)	1
2	8716A8	艉板支架总成	BRACKET ASSEMBLY Transom	1
3	98727	润滑配件左舷艉板支架	FITTING Grease PORT TRANSOM BRACKET	1
3	8M0169588	润滑脂接头	FITTING Grease	1
5	99170A1	倾斜管	TILT TUBE	1
5	99170A2	倾斜管套件	TUBE KIT Tilt	1
6	90068T	倾斜管螺母（1英寸-14牙）	NUT TILT TUBE (1"-14)	1
6	859133	螺母(1.00-14)	NUT (1.00-14)	1
7	45711		O-RING (.612 x .103) TILT TUBE	1
8	88750	波形垫圈(1.62 x 1.05)倾斜管	WASHER Wave (1.62 x 1.05) TILT TUBE	2
9	56041	螺母 (.875-14) 倾斜管 (7/9-14)	NUT (.875-14) TILT TUBE (7/9-14)	1
9	858869	螺母 (.875-14)	NUT (.875-14)	1
10	677551	螺钉(.500-20 x 4.500)艉板支架至艉板	SCREW (.500-20 x 4.500) TRANSOM BRACKET TO TRANSOM	4
10	8M0149747	螺钉	SCREW	4
11	28421	垫圈(1.5 x 3.05 x 0.13)不锈钢艉板支架螺栓	WASHER (1.5 x 3.05 x 0.13) Stainless Steel TRANSOM BRACKET BOLT	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	8M0027784	艉板支架螺栓螺母	NUT TRANSOM BRACKET BOLT	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	99629A2	倾斜锁杆总成	LEVER ASSEMBLY TILT LOCK	1
13	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	99611	倾斜杆波形垫圈	WAVE WASHER TILT LEVER	1
15	65830	倾斜杆尼龙衬套	NYLINER TILT LEVER	2
16	99633	倾斜锁杆旋钮	KNOB TILT LOCK LEVER	1
17	99615	槽销	PIN Groove	1
18	99622	弹簧	SPRING	1
19	99604	槽销	PIN Groove	1
20	96930A1	倾斜锁螺栓总成	BOLT ASSEMBLY TILT LOCK	1
21	23161	螺栓螺母（3/8英寸-24牙）	NUT (.375-24) BOLT	1
22	814207	倾斜止动杆	STOP TILT LEVER	1
23	37984	螺母 (.875-14)	NUT (.875-14)	1
23	8M0041651	螺母 (.875-14)	NUT (.875-14)	1
-	14697A87	衬垫套件	GASKET SET

图 44工具 Tools

REF	零件编号	中文名称	英文名称	数量
-	824785A1	衬套和密封安装工具	INSTALLER TOOL Bushing And Seal	1
-	13664	轴承座安装工具, 6/15马力	INSTALLER TOOL Bearing Carrier, 6/15 Hp	1
-	83165M	轴承拉拔器总成	PULLER ASSEMBLY Bearing	1
-	83165T	拉拔器总成	PULLER ASSEMBLY	1
-	31229A7	轴承拉拔器套件	PULLER KIT Bearing	1
-	824787	衬套拆卸工具	REMOVAL TOOL Bushing	1
-	36392	化油器量具	GAUGE TOOL Carburetor	1
-	29287	量规工具	GAUGE TOOL	1
-	824788A1	轴承拆卸工具	REMOVAL TOOL Bearing	1
-	824790A1	驱动轴衬套安装工具	INSTALLATION TOOL Driveshaft Bushing	1
-	83163M	飞轮固定工具	HOLDER TOOL Flywheel	1
-	8M0161873	固定工具	HOLDER TOOL	1
-	24937A1	固定工具	HOLDER TOOL	1
-	8M0161873	固定工具	HOLDER TOOL	1
-	24937A1	固定工具	HOLDER TOOL	1
-	83164M	飞轮拉拔器	FLYWHEEL PULLER	1
-	8M0227579	飞轮拉拔器	FLYWHEEL PULLER	1
-	13655	心轴	MANDREL	1
-	13655T	心轴	MANDREL	1
-	99750A1	万用表	MULTI METER	1
-	13663A1	活塞销安装工具	INSTALLER TOOL Piston Pin	1
-	13663T1	活塞销安装工具	INSTALLER TOOL Piston Pin	1
-	24697	活塞环扩张工具	EXPANDER TOOL Piston Ring	1
-	13662A1	动力头支架工具	STAND TOOL Powerhead	1
-	13662T1	动力头支架工具	STAND TOOL Powerhead	1
-	37241	通用拉拔板	PULLER PLATE Universal	1
-	59339	维修用转速表	SERVICE TACHOMETER	1
-	892647A01	DMT万用表套件	MULTI-METER KIT DMT	1
-	34569A1	滑动锤拉拔器总成	PULLER ASSEMBLY Slide Hammer	1
-	24283	卡簧钳	PLIERS Snap Ring	1
-	850439T1	八腔测试仪	TESTER Eight Chamber (EIGHT CHAMBER)	1
-	63998A1	单腔间隙工具	GAP TOOL Single Chamber (SINGLE CHAMBER)	1
-	99379	正时灯	TIMING LIGHT	1
-	66274	扭矩扳手(0-150磅英寸)	TORQUE WRENCH (0-150 lb-in)	1
-	37241	通用拉拔板	PULLER PLATE Universal	1
-	NSS	不单独销售膨胀杆(Snap On #CG-40-4)	NOT SOLD SEPARATE Expanding Rod (Snap On #CG-40-4)	1
-	NSS	不单独销售夹头(Snap On #CG-40-15)	NOT SOLD SEPARATE Collet (Snap On #CG-40-15)	1
-	NSS	非单独销售膨胀杆(Snap-On #CG40A6)	NOT SOLD SEPARATE Expanding Rod (Snap-On #CG40A6)	1

图 45旋转支架 Swivel Bracket

REF	零件编号	中文名称	英文名称	数量
1	8831A6	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A13	旋转支架-黑色	SWIVEL BRKT-BLACK	1
1	8831A7	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A14	ORD 3402-8831A13	ORD 3402-8831A13	1
1	8831A5	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A13	旋转支架-黑色	SWIVEL BRKT-BLACK	1
1	8831A8	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831T08	旋转支架-黑色	BRKT-SWIVEL-BLACK	1
1	8831A9	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A8	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A10	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A8	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
2	74036	润滑脂接头	FITTING Grease	3
2	8M0169589	润滑脂接头	FITTING Grease	3
3	42124A2	副驾驶板总成	PLATE ASSEMBLY Co-Pilot	1
4	421402	轴承	BEARING	1
5	420801	推力轴承-上	BEARING Thrust - Upper	1
5	42080T01	轴承	BEARING	1
6	42139	衬套	BUSHING	1
7	42077	密封件	SEAL	1
8	42373	止推垫片	THRUST WASHER	1
9	421301	弹簧	SPRING	1
10	420824	支架	BRACKET	1
10	42082T04	支架	BRACKET	1
11	420811	销	PIN	1
12	421411	倒挡锁钩	HOOK Reverse Lock	1
12	8M0075731	倒挡钩	HOOK Reverse	1
13	42083	枢轴销	PIN Pivot	1
13	830741A1	枢轴销总成	PIN ASSEMBLY Pivot	1
14	8M0027716	垫圈 (0.390 x 0.600 x 0.032) 不锈钢	WASHER (.390 x .600 x .032) Stainless Steel	1
15	830741A1	枢轴销总成	PIN ASSEMBLY Pivot	1
16	NSS	不单独销售	NOT SOLD SEPARATE	1
17	8M0027716	垫圈 (0.390 x 0.600 x 0.032) 不锈钢	WASHER (.390 x .600 x .032) Stainless Steel	1
18	42128	弹簧	SPRING	1
19	42085F4	提手	CARRYING HANDLE	1
19	420852	手柄-黑色	HANDLE-BLACK	1
19	42085F2	提手	CARRYING HANDLE	1
19	42085F5	提手	CARRYING HANDLE	1
19	42085F3	提手	CARRYING HANDLE	1
19	420852	手柄-黑色	HANDLE-BLACK	1
20	42127	弹簧	SPRING	1
21	13194	挡圈	RING Retaining	2
22	821961	杆	ROD	1
23	8165621	圆盘	DISC	2
24	821958A1	板组件套件	PLATE KIT	1
25	82130014	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
26	821957	制动板	BRAKE PLATE	1
27	29330	垫圈	WASHER	1
28	821959	手柄	HANDLE	1
29	34863	螺母 (.375-24)	NUT (.375-24)	1
29	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
-	8237011	副驾驶贴花	DECAL Co-Pilot	1

图 46齿轮箱（驱动轴）- 反向旋转 GEAR HOUSING (DRIVESHAFT) - COUNTER ROTATION

REF	零件编号	中文名称	英文名称	数量
1	9148A47	齿轮箱总成(基础款)(黑色)	GEAR HOUSING ASSEMBLY (BASIC) (BLACK)	1
1	9148A48	齿轮箱总成(基础款)(灰色)	GEAR HOUSING ASSEMBLY (BASIC) (GRAY)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
2	85822A10	连接器总成(适用时使用)	CONNECTOR ASSEMBLY (USE WHERE APPLICABLE)	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	18978	双头螺栓(.438×3.69)	STUD (.438 x 3.69)	1
4	8M0034464	螺柱	STUD	1
5	579201	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	306671	螺柱	STUD	2
8	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	43998	衬套(旧设计)	SLEEVE (OLD DESIGN)	1
9A	826134	阳极块	ANODE	2
9A	826134Q	阳极块	ANODE	2
9B	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
9C	8268336	螺母 (M6)	NUT (M6)	1
9C	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
11	442091	驱动轴	DRIVESHAFT
11	897625T	加长驱动轴	DRIVESHAFT X-Long
12	N.S.S.	不单独销售小齿轮(43-18572A1或43-18475A1部件)	Not Sold Separate Pinion Gear (PART OF 43-18572A1 OR 43-18475A1)	1
13	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
14	826375	螺母(0.625-18)	NUT (.625-18)	1
14	35921	螺母(0.625-18)	NUT (.625-18)	1
15	42637A1	垫片组	SHIM SET	AR
15	8M0063267	垫片组	SHIM SET	AR
16	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
16	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
17	824519	固定座	RETAINER	1
17	8245191	固定座	RETAINER	1
18	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
19	426311	衬垫	GASKET	1
19	8M0204678	衬垫	GASKET	1
20	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
20	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
21	89238	油封	SEAL Oil	1
22	16977	油封	SEAL Oil	1
23	856081	衬垫	GASKET	1
23	8M0090319	衬垫@5	GASKET @5	1
24	856091	衬垫	GASKET	1
24	858524	衬垫	GASKET	1
25	32435	面板	FACE PLATE	1
25	8M0204677	面板	PLATE-FACE	1
26	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
27	48752	嵌件	INSERT	1
27	48752T	嵌件	INSERT	1
28	38970	密封件	SEAL	1
29	899841	叶轮	IMPELLER	1
29	89984T3	叶轮	IMPELLER	1
30	56654	键	KEY	1
30	8M0214992	键@5	KEY @5	1
31	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
31	8M0215009	螺钉	SCREW	1
32	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
33	13438	螺母(.250-28)	NUT (.250-28)	2
33	8267119	螺母(.250-28)	NUT (.250-28)	2
34	36001	垫圈	WASHER	1
35	13436	螺母	NUT	1
37	29804	套筒	SLEEVE	1
37	29804T	套筒	SLEEVE	1
38	789022	换挡轴(不带E型环使用)	SHIFT SHAFT (USE W/O E-RING)	1
38	78902	轴	SHAFT	1
38	789022	换档轴	SHIFT SHAFT	1
39	29641	E型卡环	E RING	1
40	19183	纤维垫圈	WASHER Fiber	2
40	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
41	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
42	77631A2	衬套总成	BUSHING ASSEMBLY	1
43	8164641	油封	SEAL Oil	1
43	8M0246145	油封	OIL SEAL	1
44	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
45	79953	螺钉(0.375-16x0.250)	SCREW (.375-16 x .250)	1
45	79953Q04	放油螺钉套件	SCREW KIT Drain	1
46	67892	磁性螺钉	SCREW Magnetic	1
46	8M0058389	放油螺钉套件	SCREW KIT Drain	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1

图 47气缸体与端盖 Cylinder Block And End Caps

REF	零件编号	中文名称	英文名称	数量
1	8712A41	气缸体	CYLINDER BLOCK	1
2	76175	动力头螺柱	STUD POWERHEAD	6
3	67065	动力头螺柱	STUD POWERHEAD	2
3	670654	螺柱(.375-16/.375-24 x 5.620)	STUD (.375-16/.375-24 x 5.620)	2
3	78438	动力头螺柱	STUD POWERHEAD	2
3	8M0034454	螺柱(.375-16/.375-24 x 6.87)	STUD (.375-16/.375-24 x 6.87)	2
4	20033	定位销	PIN Dowel LOCATING	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	气缸体销(轴承座圈)	PIN CYLINDER BLOCK (BEARING RACE)	2
5	8M0036405	销	PIN	2
6	11338	密封垫片	GASKET SEALING	2
7	42249	启动马达上盖	COVER STARTER MOTOR (UPPER)	1
7	8M0088723	启动器支架	BRACKET-STARTER	1
8	73657	盖至曲轴箱螺钉(.312-18 x 1.50)	SCREW (.312-18 x 1.50) COVER TO CRANKCASE	2
9	26993	启动马达盖螺钉锁紧垫圈(0.312)	LOCKWASHER (.312) STARTER MOTOR COVER SCREW	4
9	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
10	76867	启动电机盖(下部)	COVER STARTER MOTOR (LOWER)	1
11	77065	盖至曲轴箱螺钉(.312-18 x 2)	SCREW (.312-18 x 2) COVER TO CRANKCASE	2
11	815549	螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00)	2
12	88801	杯形塞	PLUG CUPPED	2
12	99448	衬套	BUSHING	1
13	88807A20	线束总成盖	CABLE ASSEMBLY COVER	1
14	66717	螺钉 (.375-16 x 3.250) 曲轴箱气缸体	SCREW (.375-16 x 3.250) CRANKCASE CYLINDER BLOCK	8
14	74824	曲轴箱至气缸体螺丝(.312-18 x 1.250)	SCREW (.312-18 x 1.250) CRANKCASE TO CYLINDER BLOCK	6
15	9608A1	上端盖总成	END CAP ASSEMBLY (UPPER)	1
15	9608T1	上盖总成	CAP-ASSY-UPPER	1
16	54029	端盖O型圈(2.800 x .103)	O-RING (2.800 x .103) END CAP	1
17	93496	端盖滚柱轴承	BEARING Roller END CAP	1
17	93496T	轴承	BEARING	1
18	41953	端盖密封件	SEAL END CAP	1
19	69034	螺钉与锁紧垫圈 (.312-18 x 1.00) 上端盖至气缸体 (1")	SCREW AND LOCKWASHER (.312-18 x 1.00) UPPER END CAP TO CYLINDER BLOCK (1")	4
19	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	4
20	24220	螺钉 (.190-24 x .190) 定位 - 气缸体 (旧设计)	SCREW (.190-24 x .190) SET - CYLINDER BLOCK (OLD DESIGN)	2
21	38407	堵头(.500-14)	PLUG (.500-14)	1
22	15094	飞轮盖至气缸体双头螺柱(.190-32 x 1.870)	STUD (.190-32 x 1.870) FLYWHEEL COVER TO CYLINDER BLOCK	1
23	15093	飞轮盖至支架双头螺柱(#10-32 x 1.00)	STUD (#10-32 x 1.00) FLYWHEEL COVER TO BRACKET	2
23	8M0034435	螺柱	STUD	2
24	67269	飞轮盖螺柱隔套	SPACER FLYWHEEL COVER STUD	1
25	492211	飞轮盖螺柱垫圈	WASHER FLYWHEEL COVER STUD	6
25	8M0204663	垫片@5	WASHER @5	6
26	72761	垫圈 (.203 x .562 x .060) 不锈钢飞轮盖螺柱	WASHER (.203 x .562 x .060) Stainless Steel FLYHWEEL COVER STUD	3
27	73651	飞轮盖螺柱螺母	NUT FLYWHEEL COVER STUD	3
27	816874	蝶形螺母 (#10-32)	WING NUT (#10-32)	3
28	42248	飞轮罩支架	BRACKET FLYWHEEL COVER	1
28	422482	支架	BRACKET	1
29	49668	支架至曲轴箱螺钉(.250-20 x .750)	SCREW (.250-20 x .750) BRACKET TO CRANKCASE	2
30	7809A1	下端盖总成	END CAP ASSEMBLY (LOWER)	1
30	7809T1	端盖总成	END CAP ASSEMBLY	1
31	62700	O型圈 (3.237 x .103) 端盖 (3 3/4" 内径)	O-RING (3.237 x .103) END CAP (3 3/4" I.D.)	1
32	41953	端盖密封件	SEAL END CAP	2
33	28636	螺钉（0.250-20 x 0.750）下端盖至气缸体	SCREW (.250-20 x .750) LOWER END CAP TO CYLINDER BLOCK	4
34	26992	下端盖螺钉不锈钢锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel LOWER END CAP SCREW	4
35	64022	调节螺钉(.250-20 x 2.125)-气缸体	SCREW (.250-20 x 2.125) ADJUSTING - CYLINDER BLOCK	1
36	64015	锁紧螺母(.250-20)-调节螺钉	NUT (.250-20) JAM - ADJUSTING SCREW	1
37	26852	调节螺钉尼龙帽	CAP Nylon NYLON - ADJUSTING SCREW	1
38	16793	卡箍	CLAMP	1
39	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
40	87076A6	怠速控制总成	IDLE SPEED CONTROL ASSEMBLY	1
40	87076A10	怠速控制器	IDLE SPEED CONTROL	1
41	69020	螺丝(#10-32 x .875)怠速控制	SCREW (#10-32 x .875) IDLE SPEED CONTROL	3
41	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
42	38833	垫圈怠速控制螺钉	WASHER IDLE SPEED SONTROL SCREW	3
43	194372	端子排	TERMINAL BLOCK	1
44	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	2
45	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
46	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
47	813938	盖形螺母(#10-32)	CAP NUT (#10-32)	2
48	63153	J型卡扣	J CLIP	1
-	812827A89	动力总成完整组件	POWERHEAD ASSEMBLY COMPLETE	1
-	812827T89	船用动力头	POWERHEAD MARINE	1
-	14697A87	衬垫套件	GASKET SET

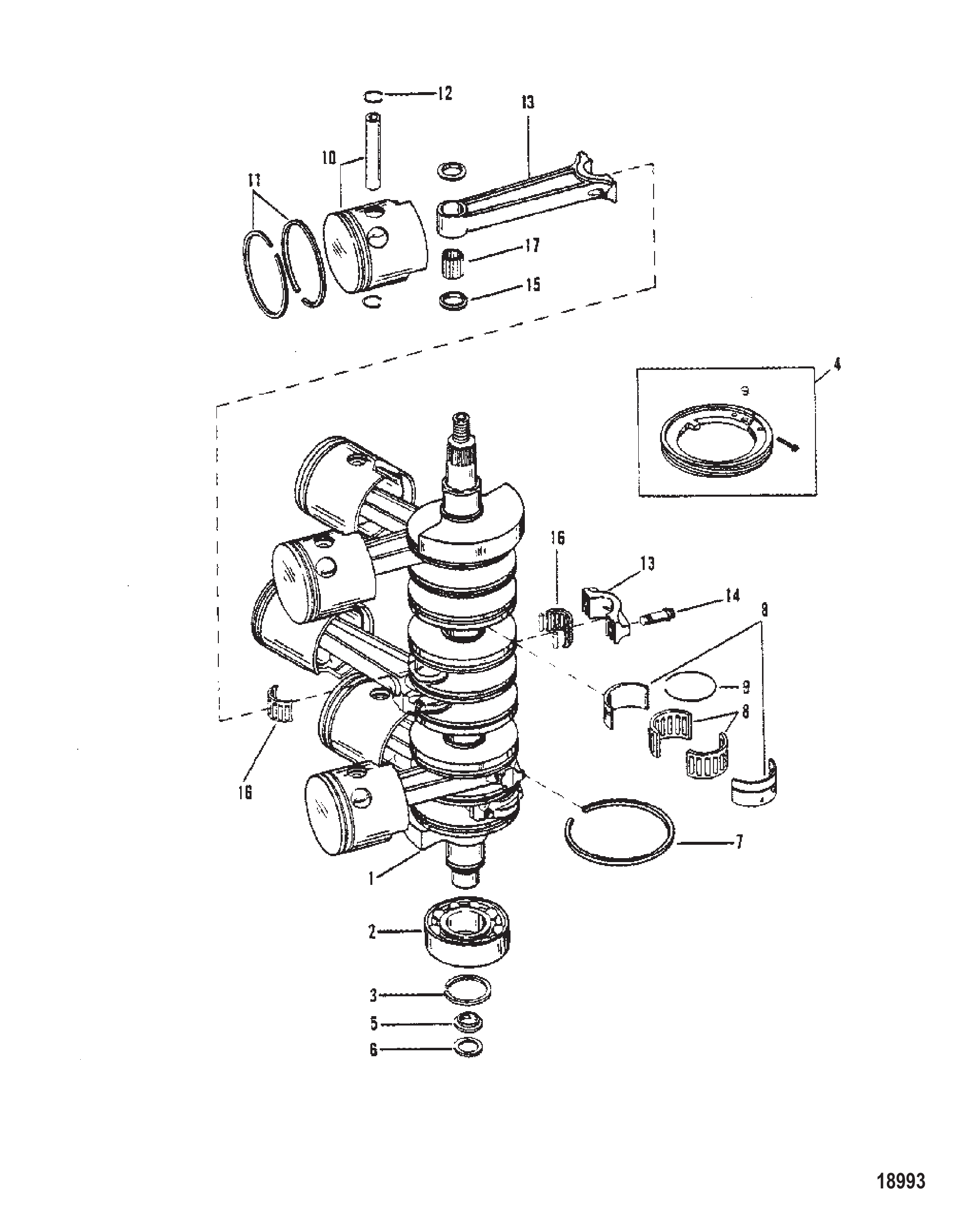

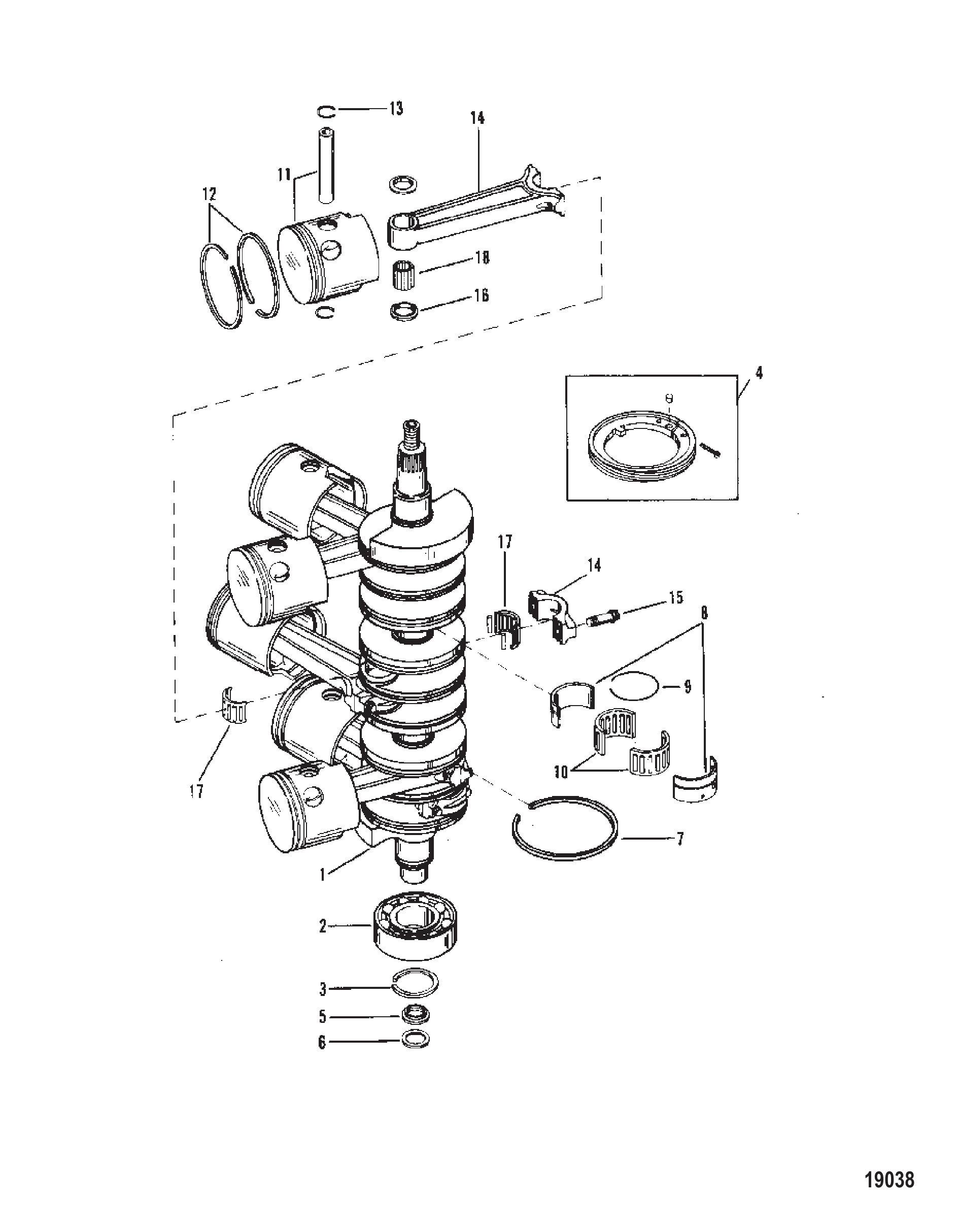

图 48曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	8745A5	曲轴总成(含8个39-67377)	CRANKSHAFT ASSEMBLY (INCLUDES 8 OF 39-67377)	1
2	67923	曲轴下球轴承	BEARING Ball CRANKSHAFT (LOWER)	1
2	67923T	滚珠轴承	BEARING Ball	1
3	67446	球轴承挡圈	RING BALL BEARING	1
4	99727A1	驱动齿轮	GEAR Drive	1
5	54196A6	密封载体总成	CARRIER ASSEMBLY SEAL	1
6	65800	填料载体	PACKING CARRIER	1
7	67377	曲轴密封环(.124厚度)	RING Sealing SEALING - CRANKSHAFT (.124 THICK)	AR
7	67377T	密封环	RING Sealing	AR
7	78633	曲轴密封环(.139厚度)	RING SEALING - CRANKSHAFT (.139 THICK)	AR
8	88903	保持式滚柱轴承	BEARING Roller RETAINED BEARING	2
8	88903T	轴承座圈	RACE Bearing	2
9	67444	保持轴承挡圈	RING Retaining RETAINED BEARING	2
10	67445	保持式滚柱轴承	BEARING Roller RETAINED BEARING	2
8	93495	非保持式滚柱轴承	BEARING Roller LOOSE BEARING	2
8	93495T	滚柱轴承	BEARING Roller	2
9	67444	非保持轴承挡圈	RING Retaining LOOSE BEARING	2
11	7441A3	活塞总成(右舷-标准)	PISTON ASSEMBLY (STARBOARD-STANDARD)	3
11	7441T36	活塞-右舷-标准	PISTON-STBD-STD	3
11	7443A2	活塞总成(右舷-加大0.015)	PISTON ASSEMBLY (STARBOARD - .015 O.S.)	AR
11	7443A12	活塞-右舷-0.015	PISTON-STBD-.015	AR
11	7445A2	活塞总成(右舷-加大0.030)	PISTON ASSEMBLY (STARBOARD-.030 O.S.)	AR
11	7445A12	活塞-右舷-0.030	PISTON-STBD-.030	AR
11	7442A3	活塞总成(左舷-标准)	PISTON ASSEMBLY (PORT-STANDARD)	3
11	7442T36	活塞-左舷-标准	PISTON-PORT-STD	3
11	7444A2	活塞总成(左舷-0.015加大)	PISTON ASSEMBLY (PORT-.015 O.S.)	AR
11	7444A12	活塞-左舷-0.015	PISTON-PORT-.015	AR
11	7446A2	活塞总成(左舷-0.030加大)	PISTON ASSEMBLY (PORT-.030 O.S.)	AR
11	7446T12	活塞-左舷-0.030	PISTON-PORT-.030	AR
12	93481A12	活塞环组-标准(标准)	RING SET Piston - Standard (STANDARD)	1
12	78918A4	活塞环组-0.015加大(0.015加大)	RING SET Piston - .015 Oversize (.015 O.S.)	AR
12	85636A4	活塞环组-0.030加大(0.030加大)	RING SET Piston - .030 Oversize (.030 O.S.)	AR
13	52035	锁环	RING Lock	12
13	857196	锁紧环	LOCK RING	12
14	8119A5	连杆总成	CONNECTING ROD ASSEMBLY	6
14	8119A6	连杆套件	CONN ROD KIT	6
15	93886	螺钉(0.312-28×0.875)连杆	SCREW (.312-28 x .875) CONNECTING ROD	12
16	47247	定位针垫圈	WASHER NEEDLE LOCATING	12
16	8M0032839	垫片@5	WASHER @5	12
17	17514A1	轴承套件	BEARING KIT	6
17	8M0234886	轴承保持架	CAGE BEARING	6
18	67483	活塞端滚针轴承	BEARING Needle PISTON END	174

图 49仪表装置 INSTRUMENTATION

REF	零件编号	中文名称	英文名称	数量
1	15110A1	转速表	TACHOMETER	1
2	79101T	安装支架	BRACKET MOUNTING	1
3	72729	楔形底座灯泡(14V - 1.9W)	LIGHT BULB Wedge Base (14V - 1.9W)	1
4	79888	灯泡插座	SOCKET Light Bulb	1
5	26419	螺母（#8-32）黄铜（8-32）	NUT (#8-32) Brass (8-32)	5
6	86322A7	线束总成 (1.50英尺) 黑色配平表 (BLACK - 1-1/2")	CABLE ASSEMBLY (1.50 Feet) Black TRIM GAUGE (BLACK - 1-1/2")	1
6	86323A5	线束总成 (1.50英尺) 紫色配平表 (PURPLE - 1-1/2")	CABLE ASSEMBLY (1.50 Feet) Purple TRIM GAUGE (PURPLE - 1-1/2")	1
7	15113A4	配平表	TRIM GAUGE	1
7	895292Q41	动力升降倾斜指示器黑面橙白刻度黑边框	GAUGE Power Trim Indicator, Black Face, Orange/White Graduations, Black Bezel	1
8	79480	安装支架-微调表	BRACKET MOUNTING - TRIM GAUGE	1
9	72729	灯泡楔形底座(14V-1.9W)微调表	LIGHT BULB Wedge Base (14V - 1.9W) TRIM GAUGE	1
10	79888	灯泡插座微调表	SOCKET Light Bulb TRIM GAUGE	1
11	26419	螺母 (#8-32) 黄铜配平表端子 (8-32)	NUT (#8-32) Brass TRIM GAUGE TERMINAL (8-32)	5
12	26427	垫圈配平表端子 (#8)	WASHER TRIM GAUGE TERMINAL (#8)	2
13	86396A8	转速表线束总成(5.00英尺)	HARNESS ASSEMBLY Tachometer (5.00 Feet)	1
14	15166A1	温度表	TEMPERATURE GAUGE	1
14	895287Q41	水温表套件(100-240℉)黑面橙白刻度黑框	WATER TEMPERATURE GAUGE KIT (100-240 F) Black Face, Orange/White Graduations, Black Bezel	1
15	72729	楔形底座灯泡(14V - 1.9W)	LIGHT BULB Wedge Base (14V - 1.9W)	1
16	79888	灯泡插座	SOCKET Light Bulb	1
17	26427	垫圈	WASHER	2
18	79480	支架	BRACKET	1
19	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	5
20	86323A2	线束总成 (2.00英尺) 紫色 (PURPLE)	CABLE ASSEMBLY (2.00 Feet) Purple (PURPLE)	1
20	61600A16	线束总成 (17.00英寸) 黑色 (BLACK)	CABLE ASSEMBLY (17.00 Inches) Black (BLACK)	1
20	88824A4	线束总成 (45.00英寸) 米色 (TAN)	CABLE ASSEMBLY (45.00 Inches) Tan (TAN)	1

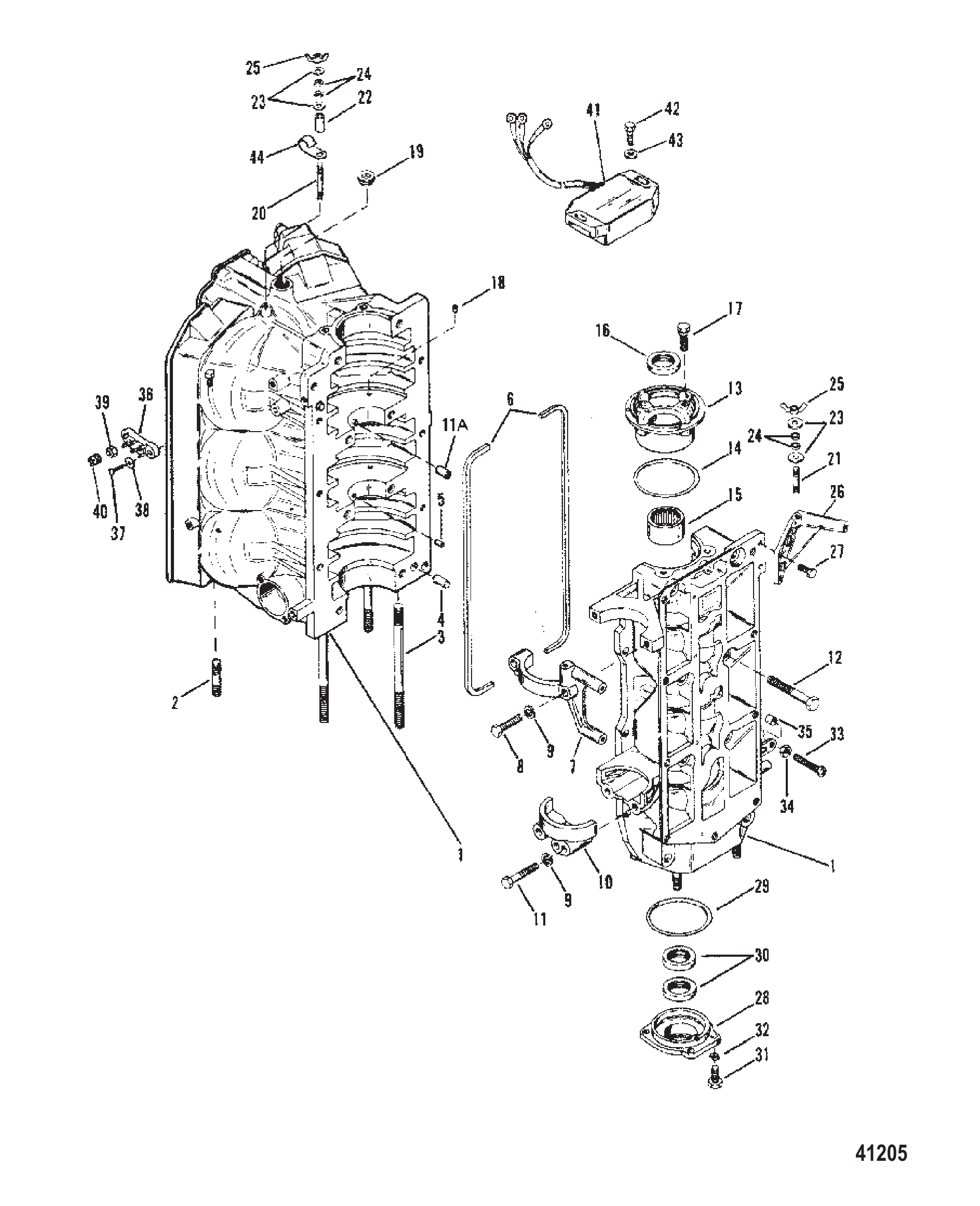

图 50气缸体与端盖 Cylinder Block and End Caps

REF	零件编号	中文名称	英文名称	数量
1	8712A41	气缸体	CYLINDER BLOCK	1
2	76175	动力头螺柱	STUD POWERHEAD	6
3	67065	动力头螺柱	STUD POWERHEAD	2
3	670654	螺柱(.375-16/.375-24 x 5.620)	STUD (.375-16/.375-24 x 5.620)	2
3	78438	动力头螺柱	STUD POWERHEAD	2
3	8M0034454	螺柱(.375-16/.375-24 x 6.87)	STUD (.375-16/.375-24 x 6.87)	2
4	20033	定位销	PIN Dowel LOCATING	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	气缸体销(轴承座圈)	PIN CYLINDER BLOCK (BEARING RACE)	2
5	8M0036405	销	PIN	2
6	11338	密封垫片	GASKET SEALING	2
7	42249	启动马达上盖	COVER STARTER MOTOR (UPPER)	1
7	8M0088723	启动器支架	BRACKET-STARTER	1
8	73657	盖至曲轴箱螺钉(.312-18 x 1.50)	SCREW (.312-18 x 1.50) COVER TO CRANKCASE	2
9	26993	启动马达盖螺钉锁紧垫圈(0.312)	LOCKWASHER (.312) STARTER MOTOR COVER SCREW	4
9	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
10	76867	启动电机盖(下部)	COVER STARTER MOTOR (LOWER)	1
11	77065	盖至曲轴箱螺钉(.312-18 x 2)	SCREW (.312-18 x 2) COVER TO CRANKCASE	2
11	815549	螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00)	2
12	88801	杯形塞	PLUG CUPPED	2
12	99448	衬套	BUSHING	1
13	88807A20	线束总成盖	CABLE ASSEMBLY COVER	1
14	66717	螺钉 (.375-16 x 3.250) 曲轴箱气缸体	SCREW (.375-16 x 3.250) CRANKCASE CYLINDER BLOCK	8
14	74824	曲轴箱至气缸体螺丝(.312-18 x 1.250)	SCREW (.312-18 x 1.250) CRANKCASE TO CYLINDER BLOCK	6
15	9608A1	上端盖总成	END CAP ASSEMBLY (UPPER)	1
15	9608T1	上盖总成	CAP-ASSY-UPPER	1
16	54029	端盖O型圈(2.800 x .103)	O-RING (2.800 x .103) END CAP	1
17	93496	端盖滚柱轴承	BEARING Roller END CAP	1
17	93496T	轴承	BEARING	1
18	41953	端盖密封件	SEAL END CAP	1
19	69034	螺钉与锁紧垫圈 (.312-18 x 1.00) 上端盖至气缸体 (1")	SCREW AND LOCKWASHER (.312-18 x 1.00) UPPER END CAP TO CYLINDER BLOCK (1")	4
19	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	4
20	24220	螺钉 (.190-24 x .190) 定位 - 气缸体 (旧设计)	SCREW (.190-24 x .190) SET - CYLINDER BLOCK (OLD DESIGN)	2
21	38407	堵头(.500-14)	PLUG (.500-14)	1
22	15094	飞轮盖至气缸体双头螺柱(.190-32 x 1.870)	STUD (.190-32 x 1.870) FLYWHEEL COVER TO CYLINDER BLOCK	1
23	15093	飞轮盖至支架双头螺柱(#10-32 x 1.00)	STUD (#10-32 x 1.00) FLYWHEEL COVER TO BRACKET	2
23	8M0034435	螺柱	STUD	2
24	67269	飞轮盖螺柱隔套	SPACER FLYWHEEL COVER STUD	1
25	492211	飞轮盖螺柱垫圈	WASHER FLYWHEEL COVER STUD	6
25	8M0204663	垫片@5	WASHER @5	6
26	72761	垫圈 (.203 x .562 x .060) 不锈钢飞轮盖螺柱	WASHER (.203 x .562 x .060) Stainless Steel FLYHWEEL COVER STUD	3
27	73651	飞轮盖螺柱螺母	NUT FLYWHEEL COVER STUD	3
27	816874	蝶形螺母 (#10-32)	WING NUT (#10-32)	3
28	42248	飞轮罩支架	BRACKET FLYWHEEL COVER	1
28	422482	支架	BRACKET	1
29	49668	支架至曲轴箱螺钉(.250-20 x .750)	SCREW (.250-20 x .750) BRACKET TO CRANKCASE	2
30	7809A1	下端盖总成	END CAP ASSEMBLY (LOWER)	1
30	7809T1	端盖总成	END CAP ASSEMBLY	1
31	62700	O型圈 (3.237 x .103) 端盖 (3 3/4" 内径)	O-RING (3.237 x .103) END CAP (3 3/4" I.D.)	1
32	41953	端盖密封件	SEAL END CAP	2
33	28636	螺钉（0.250-20 x 0.750）下端盖至气缸体	SCREW (.250-20 x .750) LOWER END CAP TO CYLINDER BLOCK	4
34	26992	下端盖螺钉不锈钢锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel LOWER END CAP SCREW	4
35	64022	调节螺钉(.250-20 x 2.125)-气缸体	SCREW (.250-20 x 2.125) ADJUSTING - CYLINDER BLOCK	1
36	64015	锁紧螺母(.250-20)-调节螺钉	NUT (.250-20) JAM - ADJUSTING SCREW	1
37	26852	调节螺钉尼龙帽	CAP Nylon NYLON - ADJUSTING SCREW	1
38	16793	卡箍	CLAMP	1
39	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
40	87076A6	怠速控制总成	IDLE SPEED CONTROL ASSEMBLY	1
40	87076A10	怠速控制器	IDLE SPEED CONTROL	1
41	69020	螺丝(#10-32 x .875)怠速控制	SCREW (#10-32 x .875) IDLE SPEED CONTROL	3
41	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
42	38833	垫圈怠速控制螺钉	WASHER IDLE SPEED SONTROL SCREW	3
43	194372	端子排	TERMINAL BLOCK	1
44	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	2
45	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
46	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
47	813938	盖形螺母(#10-32)	CAP NUT (#10-32)	2
48	63153	J型卡扣	J CLIP	1
-	812827A89	动力总成完整组件	POWERHEAD ASSEMBLY COMPLETE	1
-	812827T89	船用动力头	POWERHEAD MARINE	1
-	14697A87	衬垫套件	GASKET SET

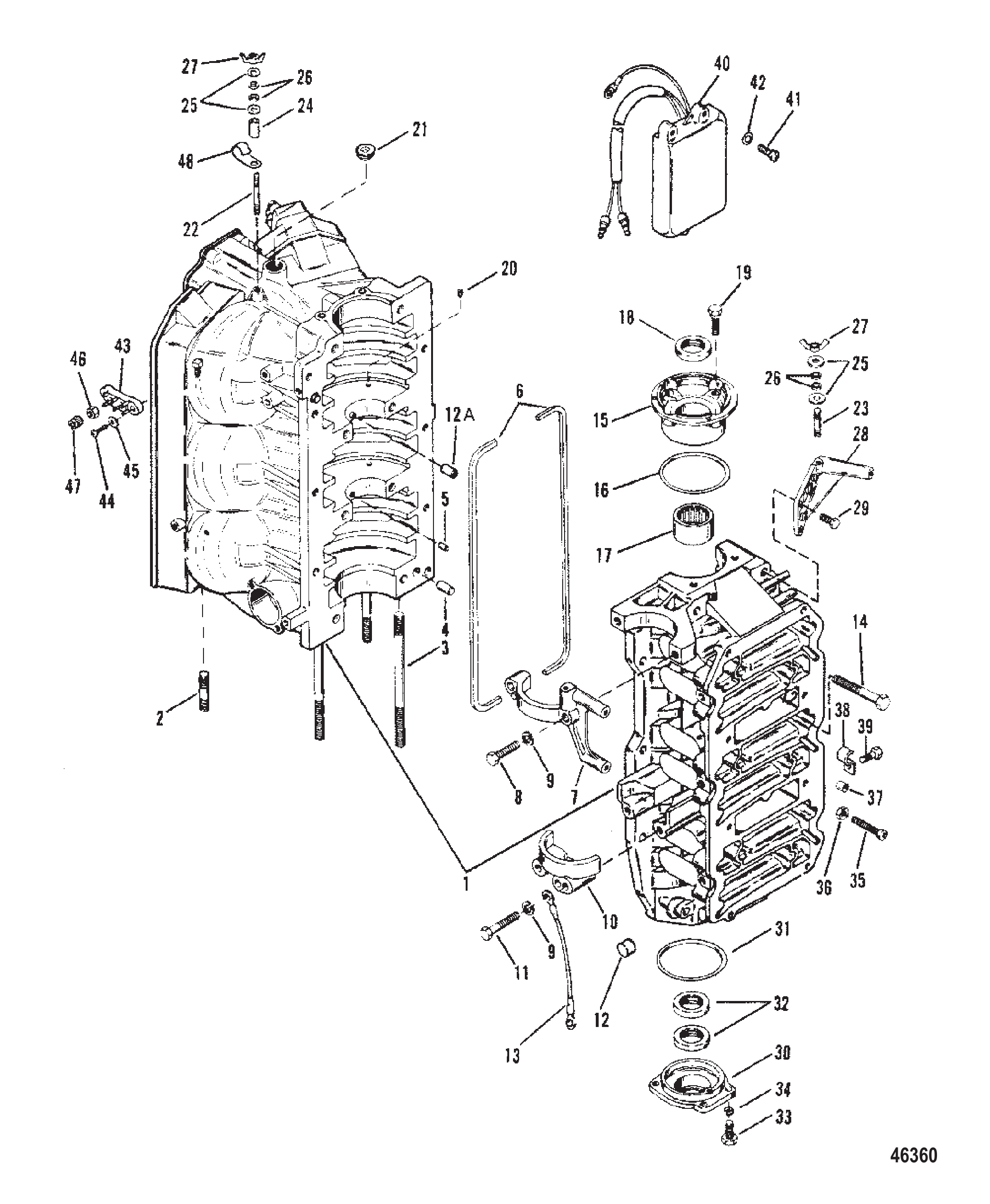

图 51气缸体与端盖 CYLINDER BLOCK AND END CAPS

REF	零件编号	中文名称	英文名称	数量
1	8712A41	气缸体	CYLINDER BLOCK	1
2	76175	动力头螺柱	STUD POWERHEAD	6
3	67065	动力头螺柱	STUD POWERHEAD	2
3	670654	螺柱(.375-16/.375-24 x 5.620)	STUD (.375-16/.375-24 x 5.620)	2
3	78438	动力头螺柱	STUD POWERHEAD	2
3	8M0034454	螺柱(.375-16/.375-24 x 6.87)	STUD (.375-16/.375-24 x 6.87)	2
4	20033	定位销	PIN Dowel LOCATING	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	气缸体销(轴承座圈)	PIN CYLINDER BLOCK (BEARING RACE)	2
5	8M0036405	销	PIN	2
6	11338	密封垫片	GASKET SEALING	2
7	42249	启动马达上盖	COVER STARTER MOTOR (UPPER)	1
7	8M0088723	启动器支架	BRACKET-STARTER	1
8	73657	盖至曲轴箱螺钉(.312-18 x 1.50)	SCREW (.312-18 x 1.50) COVER TO CRANKCASE	2
9	26993	启动马达盖螺钉锁紧垫圈(0.312)	LOCKWASHER (.312) STARTER MOTOR COVER SCREW	4
9	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
10	76867	启动电机盖(下部)	COVER STARTER MOTOR (LOWER)	1
11	77065	盖至曲轴箱螺钉(.312-18 x 2)	SCREW (.312-18 x 2) COVER TO CRANKCASE	2
11	815549	螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00)	2
12	88801	杯形塞	PLUG CUPPED	2
12	99448	衬套	BUSHING	1
13	88807A20	线束总成盖	CABLE ASSEMBLY COVER	1
14	66717	螺钉 (.375-16 x 3.250) 曲轴箱气缸体	SCREW (.375-16 x 3.250) CRANKCASE CYLINDER BLOCK	8
14	74824	曲轴箱至气缸体螺丝(.312-18 x 1.250)	SCREW (.312-18 x 1.250) CRANKCASE TO CYLINDER BLOCK	6
15	9608A1	上端盖总成	END CAP ASSEMBLY (UPPER)	1
15	9608T1	上盖总成	CAP-ASSY-UPPER	1
16	54029	端盖O型圈(2.800 x .103)	O-RING (2.800 x .103) END CAP	1
17	93496	端盖滚柱轴承	BEARING Roller END CAP	1
17	93496T	轴承	BEARING	1
18	41953	端盖密封件	SEAL END CAP	1
19	69034	螺钉与锁紧垫圈 (.312-18 x 1.00) 上端盖至气缸体 (1")	SCREW AND LOCKWASHER (.312-18 x 1.00) UPPER END CAP TO CYLINDER BLOCK (1")	4
19	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	4
20	24220	螺钉 (.190-24 x .190) 定位 - 气缸体 (旧设计)	SCREW (.190-24 x .190) SET - CYLINDER BLOCK (OLD DESIGN)	2
21	38407	堵头(.500-14)	PLUG (.500-14)	1
22	15094	飞轮盖至气缸体双头螺柱(.190-32 x 1.870)	STUD (.190-32 x 1.870) FLYWHEEL COVER TO CYLINDER BLOCK	1
23	15093	飞轮盖至支架双头螺柱(#10-32 x 1.00)	STUD (#10-32 x 1.00) FLYWHEEL COVER TO BRACKET	2
23	8M0034435	螺柱	STUD	2
24	67269	飞轮盖螺柱隔套	SPACER FLYWHEEL COVER STUD	1
25	492211	飞轮盖螺柱垫圈	WASHER FLYWHEEL COVER STUD	6
25	8M0204663	垫片@5	WASHER @5	6
26	72761	垫圈 (.203 x .562 x .060) 不锈钢飞轮盖螺柱	WASHER (.203 x .562 x .060) Stainless Steel FLYHWEEL COVER STUD	3
27	73651	飞轮盖螺柱螺母	NUT FLYWHEEL COVER STUD	3
27	816874	蝶形螺母 (#10-32)	WING NUT (#10-32)	3
28	42248	飞轮罩支架	BRACKET FLYWHEEL COVER	1
28	422482	支架	BRACKET	1
29	49668	支架至曲轴箱螺钉(.250-20 x .750)	SCREW (.250-20 x .750) BRACKET TO CRANKCASE	2
30	7809A1	下端盖总成	END CAP ASSEMBLY (LOWER)	1
30	7809T1	端盖总成	END CAP ASSEMBLY	1
31	62700	O型圈 (3.237 x .103) 端盖 (3 3/4" 内径)	O-RING (3.237 x .103) END CAP (3 3/4" I.D.)	1
32	41953	端盖密封件	SEAL END CAP	2
33	28636	螺钉（0.250-20 x 0.750）下端盖至气缸体	SCREW (.250-20 x .750) LOWER END CAP TO CYLINDER BLOCK	4
34	26992	下端盖螺钉不锈钢锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel LOWER END CAP SCREW	4
35	64022	调节螺钉(.250-20 x 2.125)-气缸体	SCREW (.250-20 x 2.125) ADJUSTING - CYLINDER BLOCK	1
36	64015	锁紧螺母(.250-20)-调节螺钉	NUT (.250-20) JAM - ADJUSTING SCREW	1
37	26852	调节螺钉尼龙帽	CAP Nylon NYLON - ADJUSTING SCREW	1
38	16793	卡箍	CLAMP	1
39	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
40	87076A6	怠速控制总成	IDLE SPEED CONTROL ASSEMBLY	1
40	87076A10	怠速控制器	IDLE SPEED CONTROL	1
41	69020	螺丝(#10-32 x .875)怠速控制	SCREW (#10-32 x .875) IDLE SPEED CONTROL	3
41	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
42	38833	垫圈怠速控制螺钉	WASHER IDLE SPEED SONTROL SCREW	3
43	194372	端子排	TERMINAL BLOCK	1
44	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	2
45	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
46	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
47	813938	盖形螺母(#10-32)	CAP NUT (#10-32)	2
48	63153	J型卡扣	J CLIP	1
-	812827A89	动力总成完整组件	POWERHEAD ASSEMBLY COMPLETE	1
-	812827T89	船用动力头	POWERHEAD MARINE	1
-	14697A87	衬垫套件	GASKET SET

图 52杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES

REF	零件编号	中文名称	英文名称	数量
-	814201	200 XRI(EFI)(V-6)维修	200 XRI (EFI) (V-6) Service	1
-	8140981	维修手册	SERVICE MANUAL	1
-	8162491	维修手册	SERVICE MANUAL	1
-	14697A87	衬垫套件	GASKET SET	1
-	813032A89	贴花套件	DECAL SET	1
-	814171A89	纪念版贴花套装	DECAL SET (ANNIVERSARY MODEL)	1
-	13492900	用户指南	OWNERS GUIDE	1

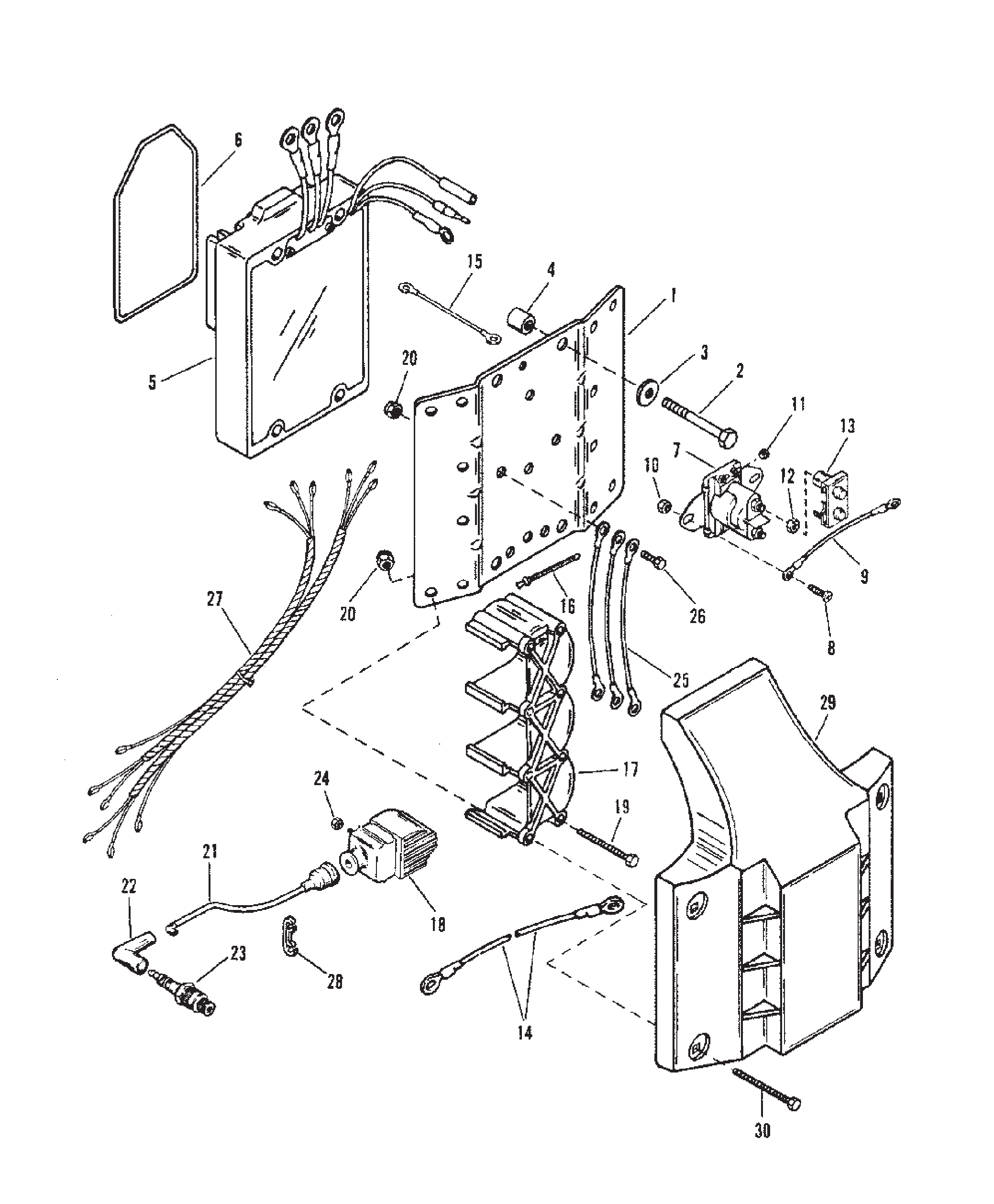

图 53点火线圈/电压调节器 Ignition Coil/Voltage Regulator

REF	零件编号	中文名称	英文名称	数量
1	195871	安装板	PLATE MOUNTING	1
2	30720	电压调节器螺钉(.250-20 x 2.25)	SCREW (.250-20 x 2.25) VOLTAGE REGULATOR	4
3	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
4	19661	衬套	BUSHING	4
5	18736A15	电压调节器总成	REGULATOR ASSEMBLY Voltage	1
5	18736A21	调节器总成	REGULATOR ASSY	1
6	18717	密封件	SEAL	1
7	96158	启动电磁阀	SOLENOID Starter	2
7	8M0185622	电磁阀	SOLENOID	2
8	90192	螺钉 (.250-20 x .750) 不锈钢启动电磁阀	SCREW (.250-20 x .750) Stainless Steel STARTER SOLENOID	3
9	88807A6	线束总成 (3.50英寸) 黑色 (3-1/2" - BLACK)	CABLE ASSEMBLY (3.50 Inches) Black (3-1/2" - BLACK)	1
10	56374	电磁阀螺钉螺母(.250-20)	NUT (.250-20) SOLENOID SCREW	3
10	8267098	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	3
11	26419	螺母 (#8-32) 黄铜电磁阀端子 (8-32)	NUT (#8-32) Brass SOLENOID TERMINAL (8-32)	4
12	94330	螺母 (.250-20) 黄铜电磁阀端子 (1/4-20)	NUT (.250-20) Brass SOLENOID TERMINAL (1/4-20)	4
13	97861	绝缘体启动电磁阀 (旧设计)	INSULATOR STARTER SOLENOID (OLD DESIGN)	2
14	87379A14	电线总成 (2.750英寸) (2-3/4" - RED)	WIRE ASSEMBLY (2.750 Inches) (2-3/4" - RED)	1
14	88807A8	线束总成 (3.50英寸) 黑色 (3-1/2" - BLACK)	CABLE ASSEMBLY (3.50 Inches) Black (3-1/2" - BLACK)	2
15	88807A29	电缆总成(9英寸-黑色)	CABLE ASSEMBLY (9" - BLACK)	1
16	90077	扎带	TIE STRAP	AR
16	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
17	43542	点火线圈盖	COVER IGNITION COIL	2
18	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	6
18	8M0230859	点火线圈总成	COIL IGNITION ASY	6
19	90048	点火线圈盖螺钉(#10-32 x 2.125)	SCREW (#10-32 x 2.125) IGNITION COIL COVER	8
20	90078	盖板螺钉/接地线螺母(#10-32)	NUT (#10-32) COVER SCREW/GROUND WIRE	14
21	813715A9	高压点火线束套件	CABLE KIT Ignition HIGH TENSION	1
22	63709A1	高压电缆护套/端子套件	BOOT/TERMINAL KIT HIGH TENSION CABLE	6
23	14103568	火花塞	SPARK PLUG	6
23	896329885	SP #L6VC @4	SP #L6VC @4	6
24	45076	螺母(#10-32)黄铜点火线圈端子	NUT (#10-32) Brass IGNITION COIL TERMINAL	12
25	88807A13	线束总成 (5-1/2" - BLACK)	CABLE ASSEMBLY (5-1/2" - BLACK)	6
26	69022		SCREW (#10-32 x .500) Stainless Steel GROUNDING WIRE	2
27	69739A7	线圈至开关盒线束总成	HARNESS ASSEMBLY COIL TO SWITCH BOX	1
28	54676	双线固定夹	RETAINER Two Wire	2
29	814423T	线圈板盖	COVER COIL PLATE	1
30	814343	螺钉 (#10-32 x 2.380)	SCREW (#10-32 x 2.380)	4

图 54艉板支架（序列号0G590000及以上） Transom Brackets (S/N-0G590000 & Up)

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂加注口接头	FITTING Grease Port	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
10	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0027784	螺母	NUT	4
11	82671117	螺母(.500-20)	NUT (.500-20)	4
12	99629A2	杠杆总成	LEVER ASSEMBLY	1
12	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	830899	张力弹簧	SPRING Tension	1
14	65830	尼龙衬套	NYLINER	2
15	830900	压缩弹簧	SPRING Compression	1
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99617	销	PIN	1
18	893709	销	PIN	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 55齿轮箱(螺旋桨轴)(标准旋转) GEAR HOUSING (PROPELLER SHAFT) (STANDARD ROTATION)

REF	零件编号	中文名称	英文名称	数量
-	9148A8	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148A9	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T85	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A10	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A13	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T91	ORD 1647-9148T85	ORD 1647-9148T85	1
1	9148A11	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A12	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
48	78956	换挡凸轮	SHIFT CAM	1
48	789562	换挡凸轮	SHIFT CAM	1
49	89594A1	凸轮从动件总成	FOLLOWER ASSEMBLY CAM	1
50	79911	离合器作动杆	ROD CLUTCH ACTUATOR	1
50	79911A1	杆	ROD	1
51	79910	压缩弹簧	SPRING COMPRESSION	2
52	78910	压缩弹簧垫圈	WASHER COOMPRESSION SPRING	AR
53	78906		PIN SPRING LOCATOR	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	47397A1	轴承外圈垫片组(.002-3-5-10)	SHIM SET BEARING OUTER RACE (.002-3-5-10)	AR
55	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
56	44104A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
56	44104T2	齿轮组	GEAR SET	1
57	73363	前进档滚柱轴承	BEARING Roller FORWARD GEAR	2
57	73363T	轴承	BEARING	2
57	43999	前进档滚柱轴承	BEARING Roller FORWARD GEAR	2
58	78959	棘轮滑动离合器	RATCHET SLIDING CLUTCH	1
58	823174T	ORD 8M0100493	ORD 8M0100493	1
59	78905	棘轮到螺旋桨轴十字销	PIN Cross RATCHET TO PROPELLER SHAFT	1
59	8M0084243	十字销	PIN Cross	1
60	78909	棘轮定位销	PIN Detent RATCHET	2
61	78962	十字销固定弹簧	SPRING RETAINING - CROSS PIN	2
62	94148	螺旋桨轴	PROPELLER SHAFT	1
63	N.S.S.	不单独出售倒车齿轮(属于43-44104A2部件)	Not Sold Separate REVERSE GEAR (PART OF 43-44104A2)	1
64	68100	止推环	RING THRUST	1
64	681001	止推环	RING Thrust	1
65	88957A1	倒档齿轮滚珠轴承	BEARING Ball REVERSE GEAR	1
65	88957T	滚珠轴承	BEARING Ball	1
66	31534	轴承座O型圈	O-RING BEARING CARRIER	1
66	8M0214920	O型圈	O RING	1
67	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	30956	滚针轴承-轴承座	BEARING Needle BEARING CARRIER	1
68	30956T	滚针轴承	BEARING Needle	1
69	76868	轴承座密封	SEAL BEARING CARRIER	2
69	8M0248882	油封@5	SEAL-OIL @5	2
70	30281	轴承座定位键	KEY LOCATING, BEARING CARRIER	1
71	79447	齿轮箱盖锁紧垫圈	TAB WASHER GEAR HOUSING COVER	1
72	79448	齿轮箱固定座	RETAINER GEAR HOUSING	1
72	8M2011027	固定座	RETAINER	1
73	31640A1		TRIM TAB ASSEMBLY GEAR HOUSING	1
73	31640Q4	平衡鳍板	TRIM TAB	1
74	66024		SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING	1
75	67891	填充块	FILLER BLOCK	1
75	8M0039169	填充块	FILLER BLOCK	1
76	34933	不锈钢螺母(.437-20) 驱动轴壳体螺柱用	NUT (.437-20) Stainless Steel DRIVESHAFT HOUSING STUDS	2
76	8M0204653	螺母	NUT	2
77	65210	螺钉(.375-16 x 1.00)齿轮箱	SCREW (.375-16 x 1.00) GEAR HOUSING	1
77	74727	螺钉(0.375-16x6.00)齿轮箱	SCREW (.375-16 x 6.00) GEAR HOUSING	1
78	13171	推力毂	THRUST HUB	1
78	835467Q01	止推垫片套件	THRUST WASHER KIT	1
79	31211A2	螺旋桨螺母花键垫圈	WASHER Splined PROPELLER NUT	1
79	31211Q03	垫圈总成	WASHER ASSEMBLY	1
80	31210	螺旋桨螺母锁紧垫圈	TAB WASHER PROPELLER NUT	1
80	816629Q	锁紧垫圈	TAB WASHER	1
81	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
81	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
82	423511	螺旋桨轴齿形锁紧垫圈	LOCKWASHER Toothed PROPELLER SHAFT	1
83	45176	不锈钢垫圈(.453 x .812 x .105) 驱动轴壳体螺柱用	WASHER (.453 x .812 x .105) Stainless Steel DRIVESHAFT HOUSING STUDS	2
-	89238A2	密封套件	SEAL KIT	1
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1

图 56旋转支架与转向臂 Swivel Bracket and Steering Arm

REF	零件编号	中文名称	英文名称	数量
1	818904T1	旋转支架	SWIVEL BRACKET	1
2	87735	下油封	SEAL Oil Lower	1
3	818764	衬套	BUSHING	2
4	33504	O型圈	O-RING	1
4	8M0214926	O型圈 @10	O RING @10	1
5	816039	隔套	SPACER	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
9	99661A26	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	99661A35	旋转销总成	SWIVEL PIN ASSEMBLY	1
10	92876A10	连杆总成	LINK ROD ASSEMBLY	1
10	92876A12	连杆总成	LINK ROD ASSEMBLY	1
11	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
12	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
13	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
14	42961A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
14	42961A06	底部轭架总成	YOKE ASSEMBLY Bottom	1
15	67684	挡圈	RING Retaining	1
16	816432	止推垫片	THRUST WASHER	1
17	NSS	不单独销售贴纸, 序列号覆膜	NOT SOLD SEPARATE Decal, Serial Overlaminate	1
18	11288	下轭缓冲垫	BUMPER Bottom Yoke	1
18	11288001	下轭缓冲垫	BUMPER Bottom Yoke	1
19	88882	上轭缓冲垫	BUMPER Top Yoke	1

图 57燃油泵 Fuel Pump

REF	零件编号	中文名称	英文名称	数量
1	880890T1	燃油泵	PUMP Fuel	1
2	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
3	881544	弹簧	SPRING	1
4	881545	柱塞	PLUNGER	1
5	881546	弹簧	SPRING	1
6	881547	隔膜	DIAPHRAGM	1
7	881548	销	PIN	1
8	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
9	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
10	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
11	881550	螺钉	SCREW	3
12	881333	螺母	NUT	3
13	804255	O型圈	O-RING	1
13	8M0050719	O型圈	O-RING	1
14	879650	卡箍	CLAMP	2
14	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	2
15	804256	螺栓 (M6 x 30)	BOLT (M6 x 30)	2
16	881543	软管	HOSE	1
16	881543002	油管	TUBING	1
17	881542	支架	BRACKET	1
18	8527768	螺栓(M6 x 16)	BOLT (M6 x 16)	1
18	811188T	螺栓	BOLT	1
19	8528161	螺母	NUT	1
19	82382M	螺母	NUT	1
20	881538T1	滤清器总成	FILTER ASSEMBLY	1
20	881538T02	燃油滤清器总成	FILTER ASSY-FUEL	1
21	881540	滤芯1.75英寸	ELEMENT 1.75 Inches	1
21	8M0168897	燃油滤清器	FUEL FILTER	1
21	8M0101436	滤芯1.50英寸	ELEMENT 1.50 Inches	1
21	8M0117705	燃油滤清器	FILTER-FUEL	1
22	826966M	O型圈	O-RING	1
22	826966T	O型圈	O RING	1
23	881541	浮子	FLOAT	1
24	881539	杯套	CUP	1
24	8M0101437	杯套	CUP	1
24	8M0137185	燃油杯	CUP FUEL	1
25	879650	卡箍	CLAMP	2
25	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	2
26	804260	支架	BRACKET	1
27	804112	螺栓(M7 x 48)	BOLT (M7 x 48)	2
28	804113	定位销	PIN Dowel	2
29	84292M	垫圈	WASHER	2
30	804257	燃油转换杆	LEVER Fuel Change	1
31	881334	轴	SHAFT	1
32	804259	销	PIN	2
32	82738M	滚销	PIN-ROLL	2
33	830757130	管材(.312)(70英寸整卷)裁切至55英寸长度	TUBING (.312) (70.00 Inches Bulk) Cut to 55.00 Inch Length.	1
33	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
34	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
35	822769	连接器	CONNECTOR	1
36	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
37	828547T1	导管(.500内径 x 3英尺整卷)	CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk)	1
-	858732T01	衬垫套件	GASKET SET	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	881310T1	气缸盖总成	CYLINDER HEAD ASSEMBLY	1
-	881310T09	气缸盖	HEAD-CYLINDER	1

图 58曲轴活塞与连杆 Crankshaft Pistons And Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	880894T	曲轴	CRANKSHAFT	1
2	8040992	油封	SEAL Oil	1
3	8041002	油封	SEAL Oil	1
4	804101T	轴承	BEARING	4
4	804101T10	轴承	BEARING	4
4	804101T20	轴承	BEARING	4
5	804102T	轴承	BEARING	5
5	804102T10	轴承	BEARING	5
5	804102T20	轴承	BEARING	5
5	804102T30	轴承	BEARING	5
6	804103T	轴承	BEARING	1
6	804103T10	轴承	BEARING	1
6	804103T20	轴承	BEARING	1
7	880895T1	活塞总成	PISTON ASSEMBLY	4
7	880895A14	活塞/连杆总成	PISTON/CONN ROD	4
7	880895T10	活塞总成	PISTON ASSEMBLY	AR
7	880895A16	活塞/连杆总成	PISTON/CONN ROD	AR
8	880896	螺栓(M8 x 38)	BOLT (M8 x 38)	8
9	880897T1	活塞环组	RING SET Piston	4
9	880897T02	活塞环组	RING SET Piston	4
9	880898T1	活塞环组	RING SET Piston	AR
9	880898T02	活塞环组	RING SET Piston	AR
10	880899T	轴承	BEARING	8
10	880899T10	轴承	BEARING	8
10	880899T20	轴承	BEARING	8
10	880899T30	轴承	BEARING	8
-	881421T01	动力头总成	POWERHEAD ASSEMBLY	1
-	881421T04	动力头总成	POWERHEAD ASSEMBLY	1
-	881421T02	动力头总成	POWERHEAD ASSEMBLY	1
-	881421T04	动力头总成	POWERHEAD ASSEMBLY	1

图 59双机延伸套件 DUAL ENGINE EXTENSION KIT

REF	零件编号	中文名称	英文名称	数量
-	92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
1	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
2	71565A2	管总成	TUBE ASSEMBLY	1
3	41055	支架	MOUNT	1
4	42100	锁紧垫圈	TAB WASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	88404	锁紧垫圈	TAB WASHER	2
7	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
8	17729A1	支架	BRACKET	2
9	62055	螺钉(.312-24 x 1.250)	SCREW (.312-24 x 1.250)	4
10	17728	锁紧垫圈	TAB WASHER	4
11	140001	螺钉(0.375-24×1.38)	SCREW (.375-24 x 1.38)	4
12	34863	螺母 (.375-24)	NUT (.375-24)	6
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	6
13	979331	转向眼环	STEERING EYE	2
13	8M0026167	转向眼环	STEERING EYE	2
14	23651	衬套(1.625)	SLEEVE (1.625)	2
15	97931	管材(4.00英寸)	TUBING (4.00 Inches)	2
16	8149513	联轴器(15.00英寸)	COUPLER (15.00 Inches)	1
16	8M0026098	联轴器15英寸	COUPLER 15 In.	1
17	42099	螺母(.562-18)	NUT (.562-18)	1
18	821169	联轴器	COUPLING	1
19	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	2
20	94319	螺钉(.375-24 x 1.5)	SCREW (.375-24 x 1.5)	1

图 60泄放系统 Bleed System

REF	零件编号	中文名称	英文名称	数量
1	99130122	泄放管(20.00英尺散装)	TUBING (20.00 Feet Bulk) BLEED	1
2	59169	接头	FITTING	4
2	59169003	三通接头	FITTING Tee	4
3	42698	止回阀 (压入式 - 13/16"长)	CHECK VALVE (PRESS-IN - 13/16" LONG)	7
3	426982	止回阀	CHECK VALVE	7
4	42623	止回阀 (压入式 - 11/16"长)	CHECK VALVE (PRESS-IN - 11/16" LONG)	1
4	426233	止回阀	CHECK VALVE	1
5	15133	压入式接头	FITTING (PRESS-IN)	6
6	56759	压入式倒钩接头	FITTING Barbed (PRESS-IN)	4
7	15026	黄色弯头盖	CAP ELBOW (YELLOW)	4
8	18205	三通	TEE	1
9	9912688	管材 (36.00英寸散装)	TUBING (36.00 Inches Bulk)	1
10	18206	滤清器	FILTER	1
10	8M0207786	滤清器	FILTER	1

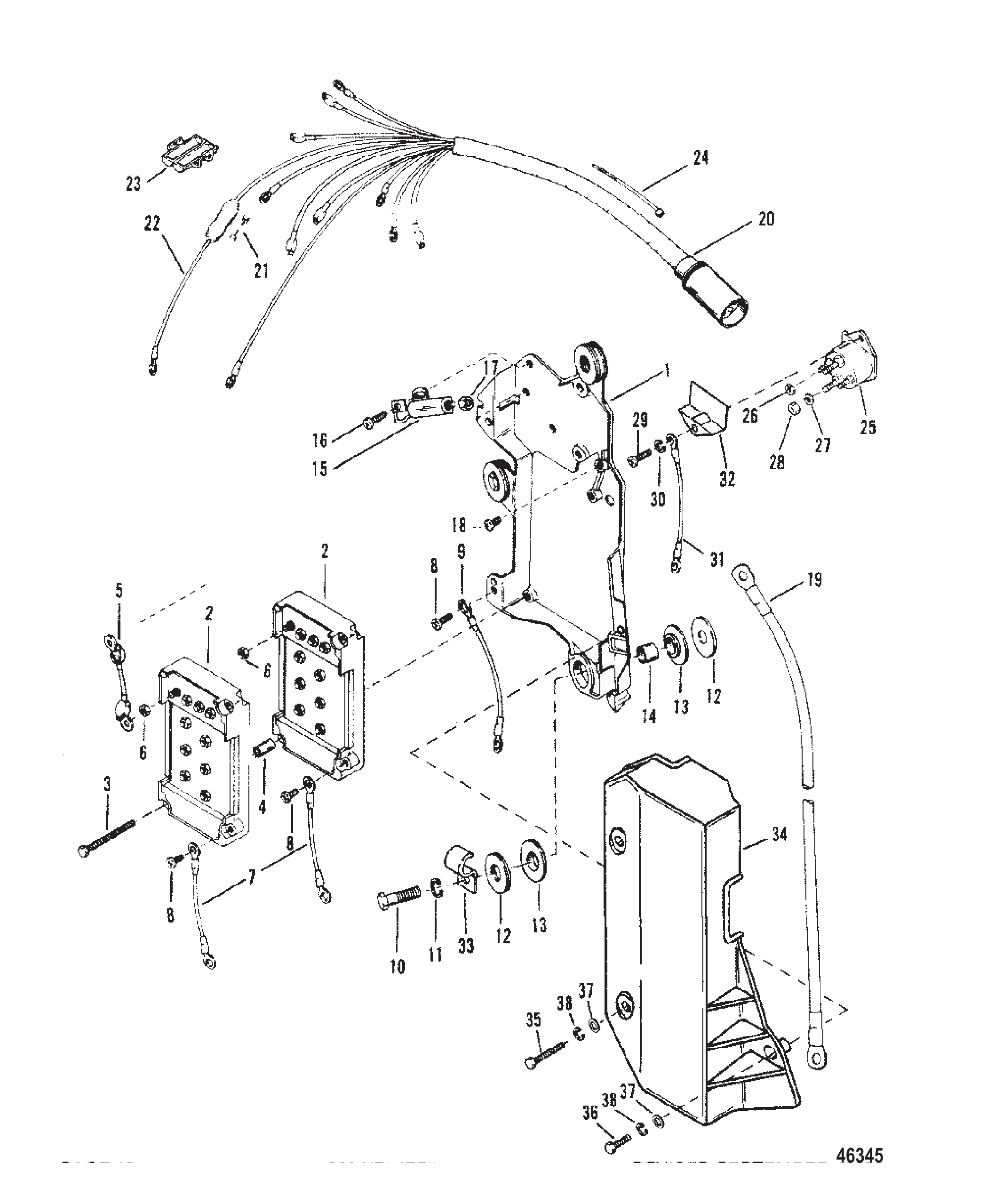

图 61线束/启动电磁阀 WIRING HARNESS/STARTER SOLENOID

REF	零件编号	中文名称	英文名称	数量
1	434291	点火板点火	IGNITION PLATE IGNITION	1
2	7778A9	开关盒总成	SWITCHBOX ASSEMBLY	2
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	开关盒至点火板螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) SWITCH BOX TO IGNITION PLATE	2
4	94453	开关盒螺钉衬套	BUSHING SWITCH BOX SCREW	2
5	88528A2	线缆总成(6英寸-红/白)	CABLE ASSEMBLY (6" - RED/WHITE)	1
6	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	20
7	60871A10	线束总成-开关盒	WIRE ASSEMBLY SWITCH BOX	2
8	62568	螺丝(#10-16 x 0.375)导线固定	SCREW (#10-16 x .375) WIRE ATTACHING	3
9	65999A3		CABLE ASSEMBLY Black BLACK	1
10	69092	点火板螺钉(1.25)	SCREW (1.25) IGNITION PLATE	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈(.312)点火板螺钉	LOCKWASHER (.312) IGNITION PLATE SCREW	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈点火板螺钉	WASHER IGNITION PLATE SCREW	6
13	67264	垫圈 (橡胶) 点火板螺钉 (RUBBER)	WASHER (Rubber) IGNITION PLATE SCREW (RUBBER)	6
14	67268	衬套点火板螺钉	BUSHING IGNITION PLATE SCREW	3
15	33386A3	开关总成	SWITCH ASSEMLBY	1
16	38055	螺钉(.190-32 x .620)水银开关至点火板	SCREW (.190-32 x .620) MERCURY SWITCH TO IGNITION PLATE	1
17	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
18	87926	螺钉(#10-32 x .500)导线固定	SCREW (#10-32 x .500) LEAD ATTACHING	1
19	88439A3	线束总成正极 - 电池 POSITIVE	CABLE ASSEMBLY Positive - Battery POSITIVE	1
19	88439A2	电缆总成电池负极	CABLE ASSEMBLY Battery - Negative NEGATIVE	1
20	96220A13	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
20	96220A12	线束总成	HARNESS ASSEMBLY	1
21	79091	保险丝20安培	FUSE 20 Ampere	1
21	8M0207796	保险丝20安培	FUSE 20 AMP	1
22	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
23	134731	保险丝座	HOLDER Fuse	1
24	90077	线束扎带	TIE STRAP HARNESS AND CABLES	AR
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
25	15857	启动电磁阀	SOLENOID Starter	1
25	853654A1	电磁阀	SOLENOID	1
26	45076	螺母 (#10-32) 黄铜电磁阀端子 (10-32)	NUT (#10-32) Brass SOLENOID TERMINALS (10-32)	2
27	53166	锁紧垫圈 (.312) 电磁阀端子 (5/16")	LOCKWASHER (.312) SOLENOID TERMINALS (5/16")	2
28	68292	螺母 (.312-18) 电磁阀端子 (5/16-18)	NUT (.312-18) SOLENOID TERMINALS (5/16-18)	2
28	8M0204668	螺母(.312-18)	NUT (.312-18)	2
29	31716	螺钉(.250-20 x .620)电磁阀至点火板	SCREW (.250-20 x .620) SOLENOID TO IGNITION PLATE	2
30	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
31	65999A2	线束总成黑色上部支架 (BLACK)	CABLE ASSEMBLY Black UPPER MOUNT (BLACK)	1
32	78866	绝缘体电磁阀 (旧设计)	INSULATOR SOLENOID (OLD DESIGN)	1
33	47483	J型卡扣	J CLIP	2
34	814422T	点火板盖	COVER IGNITION PLATE	1
35	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	2
36	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
36	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	1
37	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
38	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	3

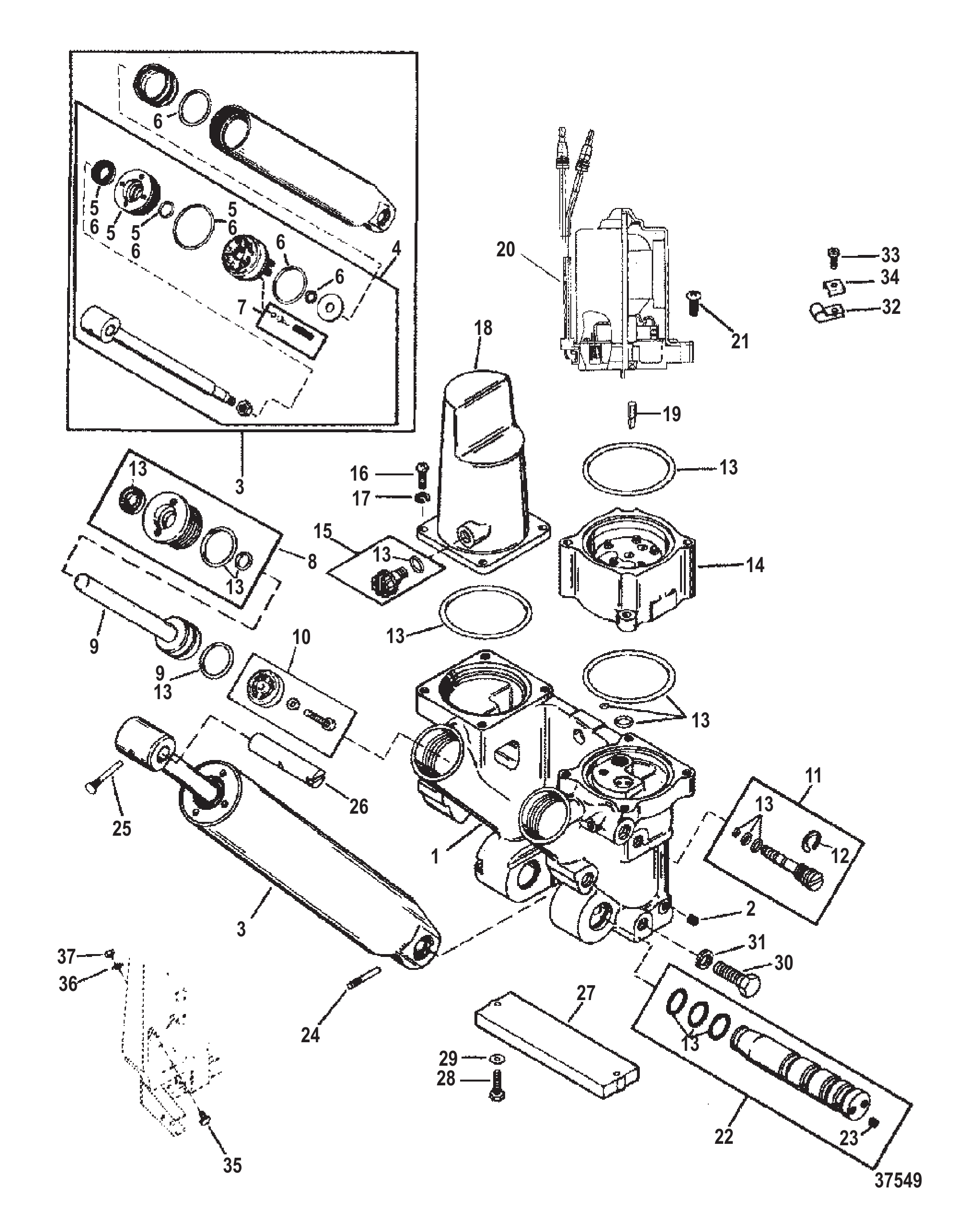

图 62动力升降组件 POWER TRIM COMPONENTS

REF	零件编号	中文名称	英文名称	数量
-	830250T3	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
1	811666A1	减震杆套件	SHOCK ROD KIT	1
1	8M0171821	减震杆套件	SHOCK ROD KIT	1
2	809872A2	O型圈维修包	O-RING KIT Rebuild	1
2	8M0171819	O型圈套件	O-RING KIT	1
3	810776A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
3	8M0171822	记忆活塞套件	MEMORY PISTON KIT	1
4	811669A1	气缸总成	CYLINDER ASSEMBLY	1
4	893916A01	气缸总成	CYLINDER ASSEMBLY	1
5	809873A1	配平限位阀套件	VALVE KIT Trim Limit	1
5	893905A02	阀套件	VALVE KIT	1
6	809874A1	泵总成	PUMP ASSEMBLY	1
6	893906A02	泵总成	PUMP ASSEMBLY	1
7	809885A2	电机套件	MOTOR KIT	1
7	893907A02	电机套件	MOTOR KIT	1
8	8134351	堵头	PLUG	1
9	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
9	893929A01	安全阀套件	VALVE KIT Relief	1
10	809875A1	歧管套件	MANIFOLD KIT	1
10	893909A02	歧管套件	MANIFOLD KIT	1
11	809876A1	电机螺钉套件	SCREW KIT Motor	1
12	88238A18	拉线总成	CABLE ASSEMBLY	1
13	809877A1	驱动轴/密封套件	DRIVESHAFT/SEAL KIT	1
14	809878A1	滤清器套件	FILTER KIT	1
14	893912A02	滤清器套件	FILTER KIT	1
15	809879A1	提升阀套件	POPPET KIT	1
15	893913A02	提升阀套件	POPPET KIT	1
-	809880A1	完整配平O型圈套件	O-RING KIT Complete Trim	1
-	893914A02	O型圈套件	O-RING KIT	1
16	821539	三叶销	PIN Trilobe	2
17	818898	锚销	PIN Anchor	1
18	996251	轴	SHAFT	1
18	99625002	轴	SHAFT	1
19	22740	卡扣	CLIP	2
20	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
21	69205	C形垫圈	C WASHER	1
21	8M0084613	C形垫圈	C-WASHER	1

图 63杂项信息 Miscellaneous Information

零件编号	中文名称	英文名称	数量
803177	零件手册150/175/200 EFI(2.5升)	PARTS MANUAL 150/175/200 EFI (2.5L)	1
10126990	用户手册	OWNERS MANUAL	1
824052R2	维修手册	SERVICE MANUAL	1
824052R3	SM O/B V6 135-225	SM O/B V6 135-225	1
808553A96	贴花套件	DECAL SET	1
808553A00	贴花套件	DECAL SET	1
809689A99	贴花套件	DECAL SET	1
804696A03	贴花套件	DECAL SET	1
808559A96	贴花套件	DECAL SET	1
855418A99	贴花套件	DECAL SET	1
809688A00	贴花套件	DECAL SET	1
808554A96	贴花套件	DECAL SET	1
812563A00	贴花套件	DECAL SET	1
808558A99	贴花套件	DECAL SET	1
808562A03	贴花套件	DECAL SET	1
813033A97	贴花套件	DECAL SET	1
813033A03	贴花套件	DECAL SET	1
809706A97	贴花套件	DECAL SET	1
809706A03	贴花套件	DECAL SET	1
808557A97	贴花套件	DECAL SET	1
808557A01	贴花套件	DECAL SET	1
855419A97	贴花套件	DECAL SET	1
855419A00	贴花套件	DECAL SET	1
808556A97	贴花套件	DECAL SET	1
808556A03	贴花套件	DECAL SET	1
808561A97	贴花套件	DECAL SET	1
808561A03	贴花套件	DECAL SET	1
824911A25	条纹贴纸(25英尺卷-需6英尺)	DECAL Striping (ROLL OF 25 FT. - NEED 6 FT.)	1
808591A96	贴花套件	DECAL SET	1
808680A96	贴花套件	DECAL SET	1
808621A96	贴花套件	DECAL SET	1
808602A96	贴花套件	DECAL SET	1
808652A96	贴花套件	DECAL SET	1
808641A96	贴花套件	DECAL SET	1
85698511	EPA标签信息贴花	DECAL EPA Label Information	1
856985A11	REF SOB 09-18	REF SOB 09-18	1

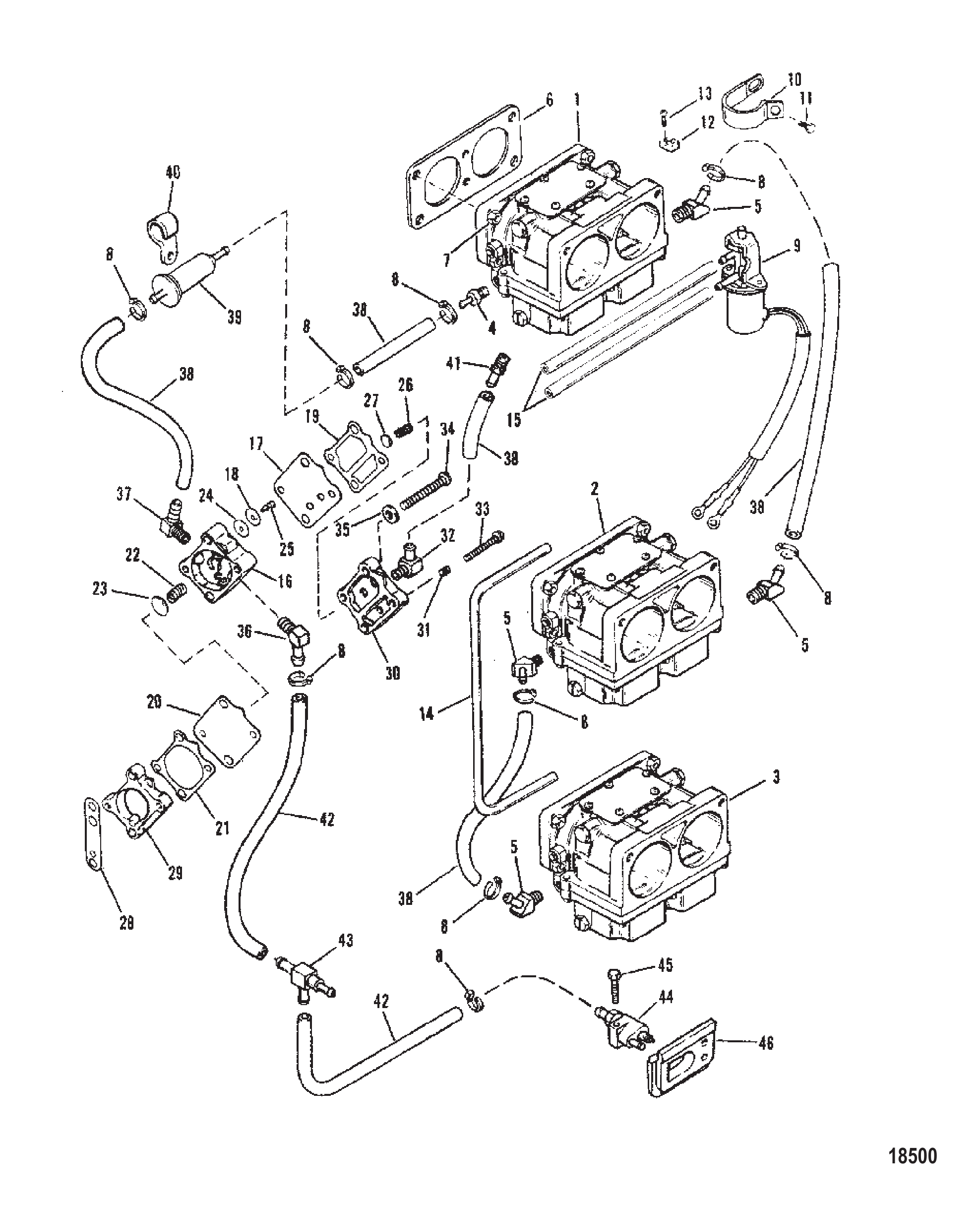

图 64燃油泵和化油器 FUEL PUMP AND CARBURETOR

REF	零件编号	中文名称	英文名称	数量
1	9242A10	化油器(上)	CARBURETOR (TOP)	1
2	9242A11	化油器(中)	CARBURETOR (CENTER)	1
3	9242A12	化油器(下)	CARBURETOR (BOTTOM)	1
4	6232	燃油入口接头(上/下)	FITTING FUEL INLET (UPPER/LOWER)	2
5	70007	45度燃油入口接头(中部)	FITTING 45 Degree FUEL INLET (MIDDLE)	1
6	904301	化油器衬垫	GASKET CARBURETOR	3
7	20184	化油器安装螺母(1/4-28X7/32)	NUT (1/4-28X7/32) CARBURETOR MOUNTING	12
7	8M0207775	螺母 @5	NUT @5	12
8	90077	化油器燃油管束带	TIE STRAP FUEL HOSE TO CARBURETOR	AR
8	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
9	42859A2	加浓阀总成	VALVE ASSEMBLY Enrichner	1
10	633001	加浓阀卡箍	CLAMP ENRICHNER VALVE	1
11	73286	螺钉(0.250-20×0.500)不锈钢阀门卡箍	SCREW (.250-20 x .500) Stainless Steel VALVE CLAMP	1
12	45915	端子排簧片块壳体	TERMINAL BLOCK REED BLOCK HOUSING	1
13	35519	端子块固定螺钉(#10-16 x .500)	SCREW (#10-16 x .500) TERMINAL BLOCK ATTACHING	1
14	99130122	上部化油器至阀门管路(20英尺散装,7-3/4英寸)	TUBING (20.00 Feet Bulk) TOP CARBURETOR TO VALVE (7-3/4")	1
14	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
15	9912688	化油器间连接管路(36英寸散装,4-1/4英寸)	TUBING (36.00 Inches Bulk) CARBURETOR TO CARBURETOR (4-1/4")	2
16	15930A15	燃油泵套件	PUMP KIT Fuel	1
17	42990A6	膜片组件	DIAPHRAGM KIT	1
17	857005A1	膜片组件	DIAPHRAGM KIT	1
18	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE CHECK VALVE, RUBBER	2
19	NSS		NOT SOLD SEPARATE GASKET, BOOST	1
20	NSS		NOT SOLD SEPARATE DIAPHRAGM	2
21	NSS		NOT SOLD SEPARATE GASKET, PULSE	1
22	NSS		NOT SOLD SEPARATE SPRING	1
23	NSS		NOT SOLD SEPARATE CAP	1
24	NSS		NOT SOLD SEPARATE CHECK VALVE	2
25	NSS		NOT SOLD SEPARATE RETAINER	2
26	NSS		NOT SOLD SEPARATE SPRING	1
27	NSS		NOT SOLD SEPARATE CAP	1
28	987691	底座衬垫	GASKET BASE	1
28	8M0204705	衬垫@2	GASKET @2	1
29	144303	燃油泵底座	BASE FUEL PUMP	1
30	98775A2	燃油泵板	PLATE FUEL PUMP	1
30	987752	安装板	PLATE	1
31	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
32	19688	接头	FITTING	1
33	16452	燃油泵螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) FUEL PUMP	2
34	4000310	燃油泵至曲轴箱螺钉(M5 x 40)	SCREW (M5 x 40) FUEL PUMP TO CRANKCASE	2
35	4002314	燃油泵螺钉垫圈	WASHER FUEL PUMP SCREW	2
36	14868	燃油泵弯头接头	FITTING FUEL PUMP (ELBOW)	1
37	19688	燃油泵弯头接头	FITTING FUEL PUMP (ELBOW)	1
38	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	1
38	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
39	16494	燃油滤清器	FILTER Fuel	1
39	816296Q03	燃油滤清器@3	FILTER-FUEL @3	1
40	15279	燃油滤清器卡箍	CLAMP FUEL FILTER	1
41	64705	脉冲软管接头	FITTING PULSE HOSE	1
42	9912976	油管	TUBING	2
42	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	2
43	424251	三通	TEE	2
43	424253	接头	FITTING	2
44	15781A1	燃油连接器	CONNECTOR Fuel	1
44	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
45	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
46	812782	密封件	SEAL	1
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1

图 65齿轮箱螺旋桨轴-标准旋转 Gear Housing Propeller Shaft - Standard Rotation

REF	零件编号	中文名称	英文名称	数量
-	9148A18	齿轮箱总成标准旋转2:1速比(长型)(黑色)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (LONG) (BLACK)	1
-	9148A19	齿轮箱总成标准旋转2:1速比(加长型)(黑色)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (X-LONG) (BLACK)	1
-	9148A20	齿轮箱总成标准旋转2:1速比(长型)(灰色)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (LONG) (GRAY)	1
-	9148A21	齿轮箱总成标准旋转2:1速比(加长型)(灰色)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (X-LONG) (GRAY)	1
-	9148A23	齿轮箱总成(长型)	GEAR HOUSING ASSEMBLY (LONG)	1
-	9148A38	齿轮箱总成(加长型)	GEAR HOUSING ASSEMBLY (X-LONG)	1
1	9148A11	齿轮箱总成基础型(黑色)	GEAR HOUSING ASSEMBLY BASIC (BLACK)	1
1	9148A12	齿轮箱总成基础型(灰色)	GEAR HOUSING ASSEMBLY BASIC (GRAY)	1
48	78956	换挡凸轮	SHIFT CAM	1
49	89594A1	凸轮从动件总成	FOLLOWER ASSEMBLY CAM	1
50	79911	离合器作动杆	ROD CLUTCH ACTUATOR	1
51	79910	压缩弹簧	SPRING COMPRESSION	2
52	78910	压缩弹簧垫圈	WASHER COMPRESSION SPRING	AR
53	78906		PIN SPRING LOCATOR	1
54	47397A1	轴承外圈垫片组(.002-3-5-10)	SHIM SET BEARING OUTER RACE (.002-3-5-10)	AR
55	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
56	44102A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
57	73363	前进档滚柱轴承	BEARING Roller FORWARD GEAR	2
58	78959	棘轮滑动离合器	RATCHET SLIDING CLUTCH	1
59	78905	棘轮到螺旋桨轴十字销	PIN Cross RATCHET TO PROPELLER SHAFT	1
60	78909	棘轮定位销	PIN Detent RATCHET	2
61	78962	十字销固定弹簧	SPRING RETAINING - CROSS PIN	2
62	94148	螺旋桨轴	PROPELLER SHAFT	1
63	N.S.S.	倒车齿轮不单独销售(43-44102A2部件)	Not Sold Separate Reverse Gear (PART OF 43-44102A2)	1
64	68100	止推环	RING THRUST	1
65	88957A1	倒车档滚珠轴承	BEARING Ball BALL - REVERSE GEAR	1
66	31534	轴承座O型圈	O-RING BEARING CARRIER	1
67	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	30956	滚针轴承-轴承座	BEARING Needle BEARING CARRIER	1
69	76868	轴承座密封	SEAL BEARING CARRIER	2
70	30281		KEY LOCATING - BEARING CARRIER	1
71	79447	齿轮箱盖锁紧垫圈	TAB WASHER GEAR HOUSING COVER	1
72	79448	齿轮箱固定座	RETAINER GEAR HOUSING	1
73	31640A1		TRIM TAB ASSEMBLY GEAR HOUSING	1
74	66024		SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING	1
75	67891	填充块	FILLER BLOCK	1
76	34933	螺母(.437-20)不锈钢驱动轴壳体螺柱	NUT (.437-20) Stainless Steel DRIVE SHAFT HOUSING STUDS	2
77	65210	螺钉(0.375-16x1.00)齿轮箱(长型)	SCREW (.375-16 x 1.00) GEAR HOUSING (LONG)	1
77	74727	螺钉(0.375-16x6.00)齿轮箱(加长型)	SCREW (.375-16 x 6.00) GEAR HOUSING (X-LONG)	1
78	13171	推力毂	THRUST HUB	1
79	31211A2	螺旋桨螺母花键垫圈	WASHER Splined PROPELLER NUT	1
80	31210	螺旋桨螺母锁紧垫圈	TAB WASHER PROPELLER NUT	1
81	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
82	423511	螺旋桨轴齿形锁紧垫圈	LOCKWASHER Toothed PROPELLER SHAFT	1
83	45176	垫圈(.453 x .812 x .105)不锈钢驱动轴壳体螺柱	WASHER (.453 x .812 x .105) Stainless Steel DRIVE SHAFT HOUSING STUDS	2
-	89238A2	密封套件	SEAL KIT	1
-	90484A88	衬垫套件	GASKET SET	1

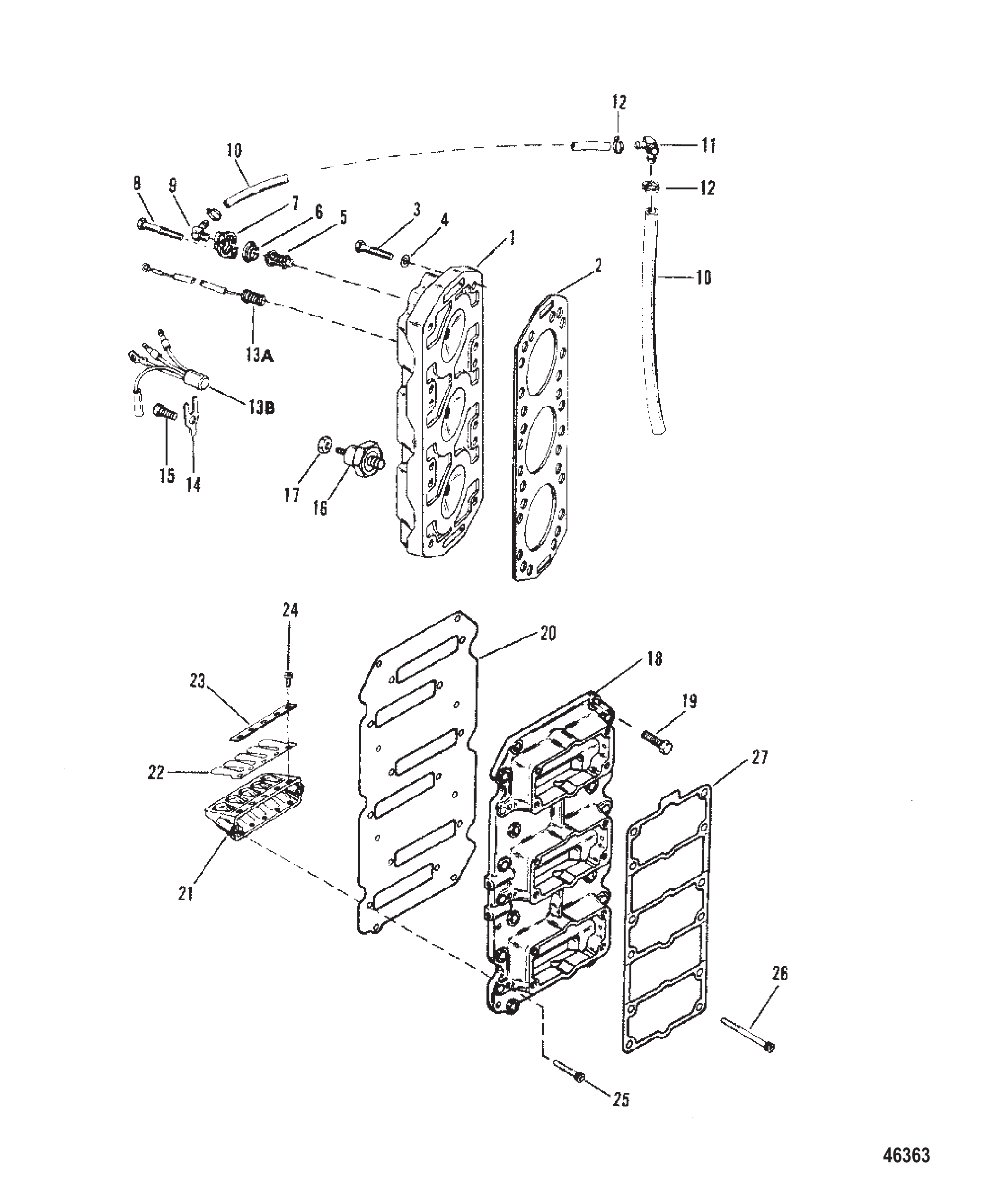

图 66簧片阀组与气缸盖 REED BLOCK AND CYLINDER HEAD

REF	零件编号	中文名称	英文名称	数量
1	15221A2	气缸盖总成	CYLINDER HEAD ASSEMBLY	2
2	41246	气缸盖衬垫	GASKET CYLINDER HEAD	2
2	41247T01	衬垫	GASKET	2
3	98534	螺钉 (0.375-16 x 2.30) 气缸盖（2英寸）	SCREW (.375-16 x 2.30) CYLINDER HEAD (2")	23
3	13450	螺钉 (0.375-16 x 2.30) 气缸盖（专用）	SCREW (.375-16 x 2.30) CYLINDER HEAD (SPECIAL)	1
4	25909	气缸盖螺钉垫圈 (.406 x .812 x .065)	WASHER (.406 x .812 x .065) CYLINDER HEAD SCREW	24
5	75692	节温器	THERMOSTAT	2
6	62386	节温器衬垫	GASKET THERMOSTAT	2
6	8M0204714	衬垫@4	GASKET @4	2
7	90390A1	节温器盖套件	COVER KIT THERMOSTAT	2
8	35386	螺钉 (0.312-18 x 1.00) 节温器盖（1英寸）	SCREW (.312-18 x 1.00) THERMOSTAT COVER (1")	4
9	68727	90度黄铜弯头接头 (.250-18)（水管用）	FITTING (.250-18) 90 Degree - Brass ELBOW - WATER HOSES	1
9	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
10	7765377	配水软管（散装24.500英寸）	HOSE (24.500 Inches Bulk) WATER DISTRIBUTION	2
10	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	2
11	68728	节温器盖至水管接头	FITTING THERMOSTAT COVER TO WATER HOSES	1
12	90077	水管束带	TIE STRAP WATER HOSES	AR
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
13	97465	温度传感器（右舷）	SENDER Temperature (STARBOARD)	1
13	13536A6	温度传感器总成（左舷）	SENSOR ASSEMBLY Temperature (PORT)	1
14	13715	传感器固定座	RETAINER SENSOR AND SENDER	2
14	137151	固定座	RETAINER	2
15	98257	螺钉 (0.312-18 x 0.500) 固定座	SCREW (.312-18 x .500) RETAINER	2
16	13192	爆震传感器	SENSOR Detonation	1
16	825164A1	爆震传感器总成	SENSOR ASSEMBLY Detonation	1
17	45076	螺母 (#10-32) 黄铜爆震传感器	NUT (#10-32) Brass DETONATION SENSOR	1
18	14593A4	适配板总成	ADAPTER PLATE ASSEMBLY	1
19	28668	螺钉 (0.250-20 x 0.875) 不锈钢适配板	SCREW (.250-20 x .875) Stainless Steel ADAPTOR PLATE	8
20	146971	适配板垫片	GASKET ADAPTOR PLATE	1
21	75953	簧片阀组	REED BLOCK	6
22	75362A1	簧片组件	REED ASSEMBLY	6
23	96183	簧片夹	CLAMP Reed	12
23	961832	簧片夹	CLAMP Reed	12
24	14783	螺钉 (#8-32 x 0.187) 簧片至簧片座	SCREW (#8-32 x .187) REEDS TO REED BLOCK	60
24	823588	螺钉 (#8-32 x .250)	SCREW (#8-32 x .250)	60
25	21558	螺钉 (0.250-20 x 0.75) 簧片座固定（3/4英寸）	SCREW (.250-20 x .75) REED BLOCK ATTACHING (3/4")	6
25	92160	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	6
26	90197	螺钉 (0.250-20 x 1.125) 簧片座固定（2英寸）	SCREW (.250-20 x 1.125) REED BLOCK ATTACHING (2")	6
27	167371	适配板垫片	GASKET ADAPTOR PLATE	1
-	14697A87	衬垫套件	GASKET SET

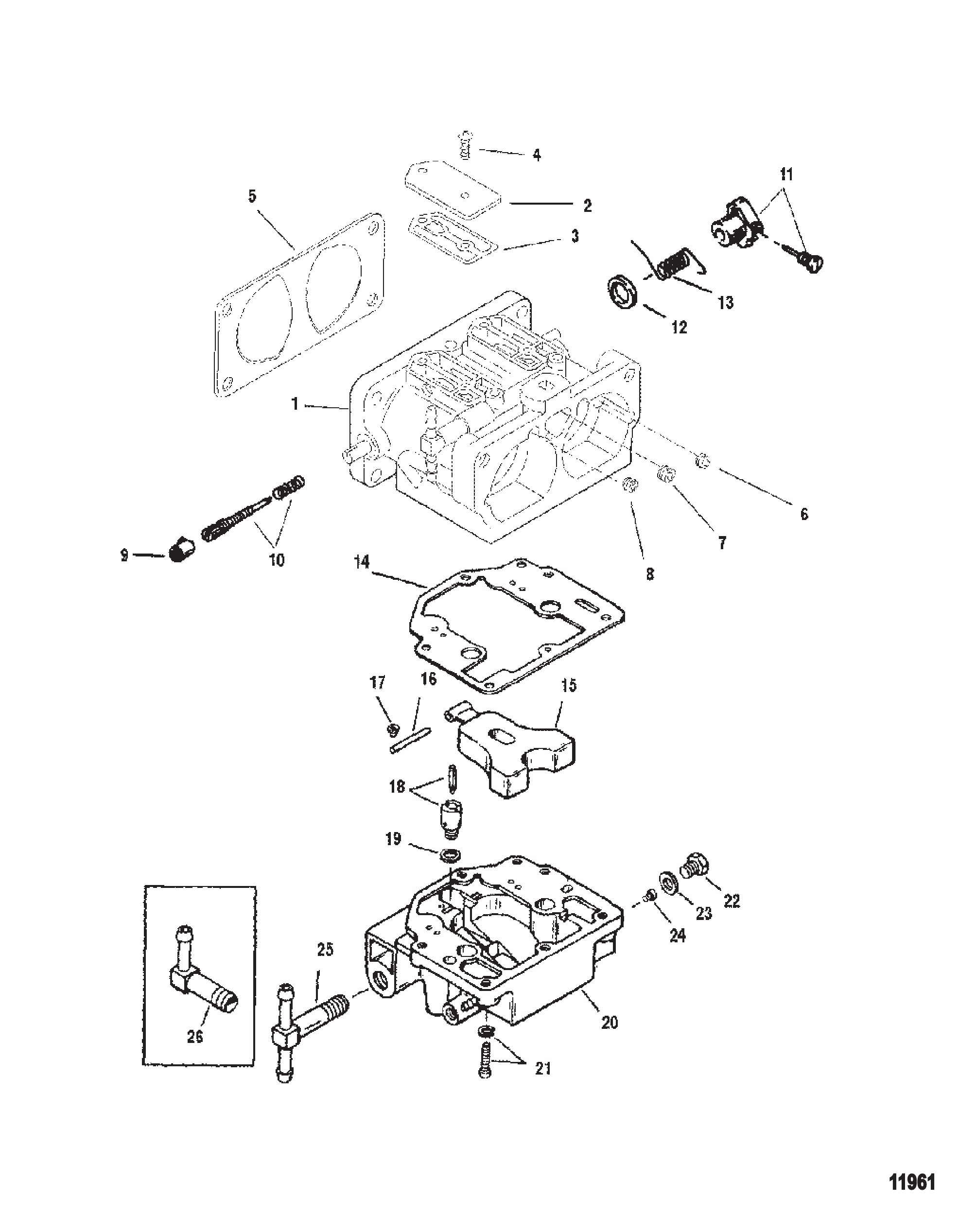

图 67化油器 Carburetor

REF	零件编号	中文名称	英文名称	数量
1	9242A33	化油器(上部)(WH-40)	CARBURETOR (TOP) (WH-40)	1
1	9242A34	化油器(中部)(WH-40)	CARBURETOR (CENTER) (WH-40)	1
1	9242A35	化油器(下部)(WH-40)	CARBURETOR (BOTTOM) ( WH-40)	1
1	7563A10	化油器(上部)(WH-35)	CARBURETOR (TOP) (WH-35)	1
1	7563A11	化油器(中部)(WH-35)	CARBURETOR (CENTER) (WH-35)	1
1	7563A12	化油器(下部)(WH-35)	CARBURATOR (BOTTOM) (WH-35)	1
1	7563A13	化油器(上部)(WH-38)	CARBURETOR (TOP) (WH-38)	1
1	7563A14	化油器(中部)(WH-38)	CARBURETOR (CENTER) (WH-38)	1
1	7563A15	化油器(下部)(WH-38)	CARBURETOR (BOTTOM) (WH-38)	1
2	6249	主量孔(.096)燃油室(WH-32)(WH-38)	JET Main (.096) FUEL BOWL(WH-32) (WH-38)	6
2	8423	量孔(.094)浮子室(WH-35)	JET (.094) FUEL BOWL (.094) (WH-35)	6
2	6680	量孔(.078)燃油室(WH-40)	JET (.078) FUEL BOWL (WH-40)	6
3	NSS		NOT SOLD SEPARATE Gasket-Cover Plate	3
4	6032	盖板	PLATE COVER	3
5	NSS	盖板螺钉(不单独销售)	NOT SOLD SEPARATE Screw-Cover Plate	15
6	7822	燃油室(WH-33)	BOWL Fuel (WH-33)	3
6	7823	燃油杯(顶部)	BOWL Fuel (TOP)	1
6	7822	燃油杯(中部/底部)	BOWL Fuel (CENTER/BOTTOM)	2
7	NSS	不单独销售燃油杯螺钉	NOT SOLD SEPARATE Screw-Fuel Bowl	18
8	6025	主量孔塞	PLUG MAIN JET	6
9	NSS	不单独出售主量孔垫片	NOT SOLD SEPARATE Gasket-Main Jet	6
10	4216	主量孔(.064)(WH-33)	JET (.064) MAIN FUEL (WH-33)	6
10	6246	主量孔(.048)(WH-32)	JET (.048) MAIN FUEL (WH-32)	6
10	6028	主燃油量孔(.050)(WH-35)	JET (.050) MAIN FUEL (WH-35)	6
10	6359	主燃油量孔(.052)(WH-38)	JET (.052) MAIN FUEL (WH-38)	6
10	6201	主量孔(.080)(WH-40)	JET (.080) MAIN FUEL (WH-40)	6
11	NSS	不单独出售浮子销螺钉	NOT SOLD SEPARATE Screw-Float Pin	6
12	NSS	不单独出售进油针阀座垫片	NOT SOLD SEPARATE Gasket--Inlet Needle and Seat	6
13	7824	进油针阀总成	NEEDLE/SEAT ASSEMBLY Inlet	6
14	NSS	喷嘴座垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Nozzle Boss	6
15	9267	浮子	FLOAT	6
16	NSS	浮子杆销(不单独销售)	NOT SOLD SEPARATE Pin-Float Lever	6
17	NSS		NOT SOLD SEPARATE Gasket-Fuel Bowl	3
18	4541	怠速空气量孔螺钉	SCREW IDLE AIR BLEED JET	6
19	NSS	泄放量孔塞垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Bleed Jet Plug	6
20	5213	主量孔(.056)怠速空气量孔(WH-33)	JET Main (.056) IKLE AIR BLEED (WH-33)	6
20	7831	主量孔(.058)怠速空气量孔(.058)(WH-32)	JET Main Fuel (.058) IDLE AIR BLEED (.058) (WH-32)	6
20	6487	主量孔(.060)怠速空气量孔(WH-35)	JET Main (.060) IKLE AIR BLEED (WH-35)	6
20	5317	怠速空气量孔(.046)(WH-38)	JET (.046) IDLE AIR BLEED (WH-38)	6
20	6246	怠速空气量孔(.048)(WH-40)	JET (.048) IDLE AIR BLEED (WH-40)	6
21	6027	节气门杠杆螺钉	SCREW THROTTLE LEVER	3
22	67752	节流阀杆	LEVER THROTTLE	3
23	NSS		NOT SOLD SEPARATE Spring-Throttle Return	3
24	6031	节气门杠杆垫片	SPACER THROTTLE LEVER	3
25	6022	节流阀轴	SHAFT THROTTLE	3
26	NSS	节气门轴挡圈(不单独销售)	NOT SOLD SEPARATE Ring-Retainer-Throttle Shaft	3
27	6023	节气门阀(WH-33)(WH-40)	VALVE Throttle (WH-33) (WH-40)	6
27	9496	节气门阀(WH-32)	VALVE Throttle (WH-32)	6
27	9545	节气门阀(WH-38)(WH-35)	VALVE Throttle (WH-38) (WH-35)	6
28	NSS		NOT SOLD SEPARATE Screw-Throttle Valve	12
-	6452	衬垫套件	GASKET KIT	1
-	8506	化油器修理包(WH-33)(WH-40)	REPAIR KIT Carburetor (WH-33) (WH-40)	1
-	7826	修理包(WH-32)(WH-35)(WH-38)	REPAIR KIT (WH-32)(WH-35)(WH-38)	1

图 68化油器（WMH-30/31/32/33/34） CARBURETOR (WMH-30/31/32/33/34)

REF	零件编号	中文名称	英文名称	数量
1	818650A28	化油器上部	CARBURETOR Top	1
1	818650A29	化油器中部	CARBURETOR Center	1
1	818650A55	化油器底部(30A)	CARBURETOR Bottom (30A)	1
1	818650A31	化油器上部	CARBURETOR Top	1
1	818650A32	化油器中部	CARBURETOR Center	1
1	818650A56	化油器底部(31A)	CARBURETOR Bottom (31A)	1
1	818650A34	化油器上部	CARBURETOR Top	1
1	818650A35	化油器中部	CARBURETOR Center	1
1	818650A57	化油器底部(32A)	CARBURETOR Bottom (32A)	1
1	818650A37	化油器上部	CARBURETOR Top	1
1	818650A38	化油器中部	CARBURETOR Center	1
1	818650A58	化油器底部(33A)	CARBURETOR Bottom (33A)	1
1	818650A52	化油器上部	CARBURETOR Top	1
1	818650A53	化油器中部	CARBURETOR Center	1
1	818650A59	化油器底部(34A)	CARBURETOR Bottom (34A)	1
2	810779	盖帽	CAP	6
3	NSS	不单独销售怠速混合螺钉/弹簧	NOT SOLD SEPARATE Idle Mixture Screw/Spring	6
5	677511	衬垫	GASKET	3
6	815633060	喷口(.060)(.056-135)	JET (.060) (.056 - 135)	6
6	7570	喷口.040(XR6/MAGNUM III)	JET .040 (XR6/MAGNUM III)	6
6	815633050	喷口(.050)(150/175/200)	JET (.050) (150/175/200)	6
7	810721	节气门杆 (上部/中部)	LEVER Throttle (TOP/CENTER)	2
7	810722	节流阀杆(底部-WMH系列)	LEVER Throttle (BOTTOM - WMH-SERIES)	1
7	8107221	节流阀杆(底部-WMH-A系列)	LEVER Throttle (BOTTOM - WMH-A SERIES)	1
8	811284	隔套	SPACER	3
9	810745	垫圈	WASHER	3
10	810744	螺母	NUT	3
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	3
12	5815	喷口(.086)(150)	JET (.086) (150)	3
12	6247	主喷口(.090)(XR6/MAGNUM III)	JET Main (.090) (XR6/MAGNUM III)	3
12	3517	喷口(.084)(135/175/200)	JET (.084) (135/175/200)	3
13	5225	主喷口(.054)(135)	JET Main (.054) (135)	3
13	6359	喷口(.052)(150)	JET (.052) (150)	3
13	6246	量孔 (.048) (175)	JET (.048) (175)	3
13	7831	燃油主喷口(.058)(XR6/MAGNUM III)	JET Main Fuel (.058) (XR6/MAGNUM III)	3
13	5317	量孔 (.046) (200)	JET (.046) (200)	3
14	NSS		NOT SOLD SEPARATE Gasket-Fuel Bowl	3
15	810738	浮子总成	FLOAT ASSEMBLY	3
16	F10064	轴	SHAFT	3
17	NSS	不单独销售浮子螺钉	NOT SOLD SEPARATE Screw-Float	3
18	811690	阀座套件	VALVE SEAT KIT	3
19	NSS	不单独销售阀座垫片	NOT SOLD SEPARATE Gasket-Valve Seat	3
20	823623	燃油杯(顶部)	BOWL Fuel (TOP)	1
20	823624	燃油杯(中部/底部)	BOWL Fuel (CENTER/BOTTOM)	2
21	9596	堵头	PLUG	15
22	NSS	不单独销售动力/渐进喷口垫片	NOT SOLD SEPARATE Gasket-Power/Progression Jet	AR
23	4215	燃油主喷口(.066)(135)	JET Main Fuel (.066) (135)	6
23	4217	主喷口(.062)(150/XR6/MAGNUM III)	JET Main (.062) (150/XR6/MAGNUM III)	6
23	4216	喷口(.064)(175)	JET (.064) (175)	6
23	4215	燃油主喷口(.066)(200-顶部)	JET Main Fuel (.066) (200 - TOP)	2
23	4216	喷口(.064)(200-中部/底部)	JET (.064) (200 - CENTER/BOTTOM)	4
24	808584	动力喷口	POWER JET	6
25	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	18
26	7900	三通接头(顶部/中部)	TEE FITTING (TOP/CENTER)	2
27	7901	弯头(底部)	ELBOW (BOTTOM)	1
-	8107492	化油器垫片套件	GASKET KIT Carburetor	1
-	8116912	化油器维修套件	REPAIR KIT Carburetor	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 69喷射组件 JET COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	3
2	38833	垫圈	WASHER	3
3	94304	隔套	SPACER	3
4	13381	安装板	PLATE	1
5	821889A20	转速限制器	REV LIMITER	1
5	821889A30	转速限制器	REV LIMITER	1
6	823147A5	适配器线束总成 - 转速限制器	HARNESS ASSEMBLY Adaptor - Rev Limiter	1
7	801402	润滑脂套装	GREASE KIT	1
7	30500A2	润滑脂套装	GREASE KIT	1
8	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
8	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
9	426311	衬垫	GASKET	1
9	8M0204678	衬垫	GASKET	1
10	89238	油封	SEAL Oil	1
11	16977	油封	SEAL Oil	1
12	856081	衬垫	GASKET	1
12	8M0090319	衬垫@5	GASKET @5	1
13	856091	衬垫	GASKET	1
13	858524	衬垫	GASKET	1
14	32435	面板	FACE PLATE	1
14	8M0204677	面板	PLATE-FACE	1
15	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
15	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
16	48752	嵌件	INSERT	1
16	48752T	嵌件	INSERT	1
17	38970	密封件	SEAL	1
18	899841	叶轮	IMPELLER	1
18	89984T3	叶轮	IMPELLER	1
19	56654	键	KEY	1
19	8M0214992	键@5	KEY @5	1
20	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
20	8M0215009	螺钉	SCREW	1
21	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
21	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
22	13438	螺母(.250-28)	NUT (.250-28)	2
22	8267119	螺母(.250-28)	NUT (.250-28)	2
23	19924275	螺钉 (.312-18 x 2.75)	SCREW (.312-18 x 2.75)	1
24	36001	垫圈	WASHER	1
25	29804	套筒	SLEEVE	1
25	29804T	套筒	SLEEVE	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1

图 70转向连接套件 Steering Attaching Kit

REF	零件编号	中文名称	英文名称	数量
-	92876A8	转向安装套件	ATTACHING KIT Steering	1
1	41055A1	支架总成	BRACKET ASSEMBLY	1
2	715651	转向拉索套管	TUBE Steering Cable	1
3	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
4	821203	锁紧垫圈	LOCKWASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
7	78968	内锁紧垫圈 (.250)	LOCKWASHER Internal (.250)	4
8	850791T	联轴器	COUPLER	1
9	73732	螺钉 (.375-24 x 1.120)	SCREW (.375-24 x 1.120)	2
10	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
11	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	3
11	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	3

图 71齿轮箱对照表 GEAR HOUSING CHART

零件编号	中文名称	英文名称	数量
840470T9	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
840470T27	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
840470T8	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
840306T6	齿轮箱总成(含扭矩片)	GEAR HOUSING ASSEMBLY Complete, With Torque Tab	1
840307T12	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
840306T7	齿轮箱总成(含扭矩片)	GEAR HOUSING ASSEMBLY Complete, With Torque Tab	1
840307T13	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
859399T22	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
8M0236198	GC DSI XL 1.75	GC DSI XL 1.75	1
840307T10	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
840307T11	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
859399T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
8M0236209	GC DSI CXL 1.75	GC DSI CXL 1.75	1

图 72杂项零件与附件 MISCELLANEOUS PARTS AND ACCESSORIES

REF	零件编号	中文名称	英文名称	数量
-	814180	零件手册200马力(V-6)	PARTS MANUAL 200 H.P. (V-6)	1
-	8140981	维修手册	SERVICE MANUAL	1
-	89221A88	衬垫套件	GASKET SET	1
-	11143900	用户指南	OWNERS GUIDE	1
-	11142900	用户指南	OWNERS GUIDE	1
-	812563A94	贴花套件	DECAL SET	1
-	808562A94	贴花套件	DECAL SET	1
-	813038A89	贴花套装(红/橙)	DECAL SET (RED/ORANGE)	1
-	813038A90	贴花套装(银色)	DECAL SET (SILVER)	1

图 73阻风板与油门杆 CHOKE PLATE AND THROTTLE LEVERS

REF	零件编号	中文名称	英文名称	数量
1	67245T	上罩安装支架	BRACKET COWL MOUNTING - UPPER	1
2	67272	罩壳安装支架衬套	GROMMET COWL MOUNTING BRACKET	2
3	90435	罩壳安装支架(黑/灰)	MOUNT COWL MOUNTING BRACKET BLACK/GRAY	2
4	29245	安装垫圈(0.281×0.500×0.060)不锈钢	WASHER (.281 x .500 x .060) Stainless Steel MOUNT ATTACHING	4
4	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
5	35888	安装螺母(0.250-28)不锈钢	NUT (.250-28) Stainless Steel MOUNT ATTACHING	4
6	87076A4	怠速控制总成	IDLE SPEED CONTROL ASSEMBLY	1
7	799831	阻风板	PLATE CHOKE	1
8	67274	阻风板至化油器衬垫	GASKET CHOKE PLATE TO CARBURETOR	1
8	672741	衬垫	GASKET	1
9	68000	螺丝(.250-28 x 1.00)阻风板至化油器	SCREW (.250-28 x 1.00) CHOKE PLATE TO CARBURETOR	6
10	20583	阻风板螺丝垫圈	WASHER CHOKE PLATE SCREW	6
11	67275	盖衬垫	GASKET COVER	1
11	672751	衬垫	GASKET	1
12	67246T	进气消音器盖	COVER INDUCTION SILENCER	1
13	30720	螺丝(.250-20 x 2.25)盖至阻风板	SCREW (.250-20 x 2.25) COVER TO CHOKE PLATE	2
14	29245	垫圈(.281 x .500 x .060)不锈钢盖螺丝	WASHER (.281 x .500 x .060) Stainless Steel COVER SCREW	2
14	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	26992	锁紧垫圈(.250)不锈钢盖螺丝	LOCKWASHER (.250) Stainless Steel COVER SCREW	2
16	90585	进气消音器盖塞	PLUG INDUCTION SILENCER COVER	1
17	67760	油门连杆	LINK Throttle	1
18	67759	节气门杆(上)	LEVER Throttle UPPER	1
19	41049	节气门杆(中)	LEVER Throttle CENTER	1
20	67749	下节流阀杆	LEVER Throttle LOWER	1
21	15124	油门杆至油门连杆螺钉(#10-32×0.750)	SCREW (#10-32 x .750) THROTTLE LEVERS TO THROTTLE LINK	3
22	26996	锁紧垫圈(#10)不锈钢节气门杆螺丝	LOCKWASHER (#10) Stainless Steel THROTTLE LEVERS SCREW	3
23	56681	垫圈(.203 x .500 x .032)节气门杆螺丝	WASHER (.203 x .500 x .032) THROTTLE LEVERS SCREW	3
23	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	3
24	67297	U型销节气门杆至节气门连杆	PIN Clevis THROTTLE LEVERS TO THROTTLE LINK	3
25	89302	垫圈(.203 x .406 x .040)U型销	WASHER (.203 x .406 x .040) CLEVIS PIN	3
26	26953	开口销U型销	COTTER PIN CLEVIS PIN	3
27	67748	下节气门杆滚轮	ROLLER LOWER THROTTLE LEVER	1
28	69020	螺丝(#10-32 x .875)怠速控制	SCREW (#10-32 x .875) IDLE SPEED CONTROL	2
28	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	2
29	38833	怠速调节螺钉垫片	WASHER IDLE SPEED CONTROL SCREW	2
-	90484A88	衬垫套件	GASKET SET

图 74驱动轴壳与排气管 Drive Shaft Housing And Exhaust Tube

REF	零件编号	中文名称	英文名称	数量
1	8343A7	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	56295	驱动轴壳体/齿轮箱壳体双头螺柱(.437 x 2.69)	STUD (.437 x 2.69) DRIVE SHAFT HSG./GEAR HSG.	2
3	25067	下安装座螺钉缓冲垫	BUMPER LOWER MOUNT SCREW	2
4	63474	下安装座螺钉(.500-20 x 6.00)	SCREW (.500-20 x 6.00) LOWER MOUNT	2
4	898831	螺钉(.500-20 x 6.220)	SCREW (.500-20 x 6.220)	2
5	78249	下支架	MOUNT LOWER	2
5	77327	支架	MOUNT	2
6	49339	下部安装螺钉垫圈(.8125)	WASHER (.8125) LOWER MOUNT SCREW	2
7	25096	下安装螺丝螺母	NUT LOWER MOUNT SCREW	2
8	88238A1	接地线总成	CABLE ASSEMBLY Ground	1
8	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
9	67076	下安装夹	CLAMP LOWER MOUNT	2
9	8M0036782	卡箍	CLAMP	2
10	66727	螺钉 (.312-18 x 1.250) 下部支架夹固定 (1-1/4")	SCREW (.312-18 x 1.250) LOWER MOUNT CLAMP ATTACHING (1-1/4")	4
11	67077	下安装夹盖	COVER LOWER MOUNT CLAMP	2
11	8M4500752	盖板	COVER	2
12	88417	螺钉 (#12-24 x .620) 盖固定 (5/8")	SCREW (#12-24 x .620) COVER ATTACHING (5/8")	4
13	35521	螺母尼龙-盖至夹螺钉	NUT NYLON-COVER TO CLAMP SCREW	4
14	88238A2	接地线总成	CABLE ASSEMBLY Ground	1
14	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
15	41508	螺丝(.250-20 x .500)不锈钢接地线	SCREW (.250-20 x .500) Stainless Steel GROUND WIRE	1
16	48926	齿轮箱壳体螺柱垫圈	WASHER GEAR HOUSING STUD	1
17	29489	齿轮箱壳体螺柱盖形螺母	NUT GEAR HOUSING STUD (CAP)	1
18	45176	齿轮箱壳体螺柱不锈钢垫圈(.453 x .812 x .105)	WASHER (.453 x .812 x .105) Stainless Steel GEAR HOUSING STUD	2
19	34933	齿轮箱壳体螺柱不锈钢螺母(.437-20)	NUT (.437-20) Stainless Steel GEAR HOUSING STUD	2
19	8M0204653	螺母	NUT	2
20	64649	驱动轴壳体塞	PLUG DRIVE SHAFT HOUSING	1
21	89743	排气管	TUBE Exhaust	1
22	66350	密封排气管-下部	SEAL EXHAUST TUBE-LOWER	1
22	66350001	密封件	SEAL	1
23	86027	密封排气管-上部	SEAL EXHAUST TUBE-UPPER	1
24	67295	水管 WATER	TUBE Water WATER	1
24	8M0042788	长型水管	TUBE-WATER-LONG	1
25	991731	驱动轴壳体至板衬垫	GASKET DRIVE SHAFT HOUSING TO PLATE	1
25	991734	衬垫	GASKET	1
26	41945A7	驱动轴壳体板总成	PLATE ASSEMBLY DRIVE SHAFT HOUSING	1
27	183982	支架密封条	SEAL BRACKET	1
27	8M0043165	密封件-27.00英寸	SEAL-27.00 INCH	1
28	68011	密封件固定支架	BRACKET SEAL RETAINING	1
29	812832	螺钉 (#10-16 x .500) 支架至板 (1/2")	SCREW (#10-16 x .500) BRACKET TO PLATE (1/2")	12
29	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
30	20033	定位销	PIN Dowel LOCATING	2
30	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
31	38970	水管密封件	SEAL WATER TUBE	1
32	90192	延伸件至板不锈钢螺钉(.250-20 x .750)	SCREW (.250-20 x .750) Stainless Steel EXTENSION TO PLATE	6
33	991771	衬垫	GASKET	1
33	991772	衬垫	GASKET	1
34	25970	动力头螺柱垫圈	WASHER POWER HEAD STUD	4
34	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	4
35	69254	动力头螺柱螺母	NUT POWER HEAD STUD	4
36	41941	扩散器排气	DIFFUSER EXHAUST	1
36	41941T	排气扩散器	DIFFUSER Exhaust	1
37	78246	排气延长管衬垫	GASKET EXHAUST EXTENSION	1
37	782461	衬垫	GASKET	1
38	814630	塞怠速泄压	PLUG IDLE RELIEF	1
-	14697A87	衬垫套件	GASKET SET

图 75附件 ACCESSORIES

REF	零件编号	中文名称	英文名称	数量

图 76齿轮箱(螺旋桨轴)(标准旋转) GEAR HOUSING (PROP SHAFT)(STANDARD ROTATION)

REF	零件编号	中文名称	英文名称	数量
1	9148T93	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
49	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
50	789562	换挡凸轮	SHIFT CAM	1
51	828287	杆	ROD	1
52	828174A2	齿轮组	GEAR SET	1
52	878613A2	前进齿轮总成 1.87:1 - 15/28齿	GEAR ASSEMBLY Forward 1.87:1 - 15/28	1
53	44491A1	垫片组(0.006-7-9-10-20)	SHIM SET (.006-7-9-10-20)	AR
53	8M0063266	垫片组	SHIM SET	AR
54	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
55	30895	滚针轴承	BEARING Needle	1
55	30895T	滚针轴承	BEARING Needle	1
56	854735T	滑动离合器	CLUTCH Sliding	1
56	859340T	离合器	CLUTCH	1
57	30632	十字销	PIN Cross	1
57	8M0100263	十字销	PIN Cross	1
58	828356	定位销	PIN Detent	1
59	30893	弹簧	SPRING	1
60	94148	螺旋桨轴	PROPELLER SHAFT	1
61	828175A1	倒车齿轮总成-15/28齿	GEAR ASSEMBLY Reverse - 15/28	1
62	824108	隔套	SPACER	1
63	681001	止推环	RING Thrust	1
64	88957	滚珠轴承总成	BEARING ASSEMBLY Ball	1
64	88957T	滚珠轴承	BEARING Ball	1
65	31534	O型圈	O-RING	1
65	8M0214920	O型圈	O RING	1
66	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
66	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	30956	滚针轴承	BEARING Needle	1
67	30956T	滚针轴承	BEARING Needle	1
68	14077	油封(内侧)	SEAL Oil (INSIDE)	1
69	76868	油封(外侧)	SEAL (OUTSIDE)	1
69	8M0248882	油封@5	SEAL-OIL @5	1
70	30281	键	KEY	1
71	79447	锁紧垫圈	TAB WASHER	1
72	79448	固定座	RETAINER	1
72	8M2011027	固定座	RETAINER	1
73	316405	平衡鳍板	TRIM TAB	1
73	8M0236553	平衡鳍板	TRIM TAB	1
73	76214A5	阳极套件	ANODE KIT	1
73	76214Q5	阳极套件	ANODE KIT	1
74	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
74	8M0204686	螺钉	SCREW	1
75	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
76	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
77	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
77	8M0204653	螺母	NUT	2
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	89238A2	密封套件	SEAL KIT	1

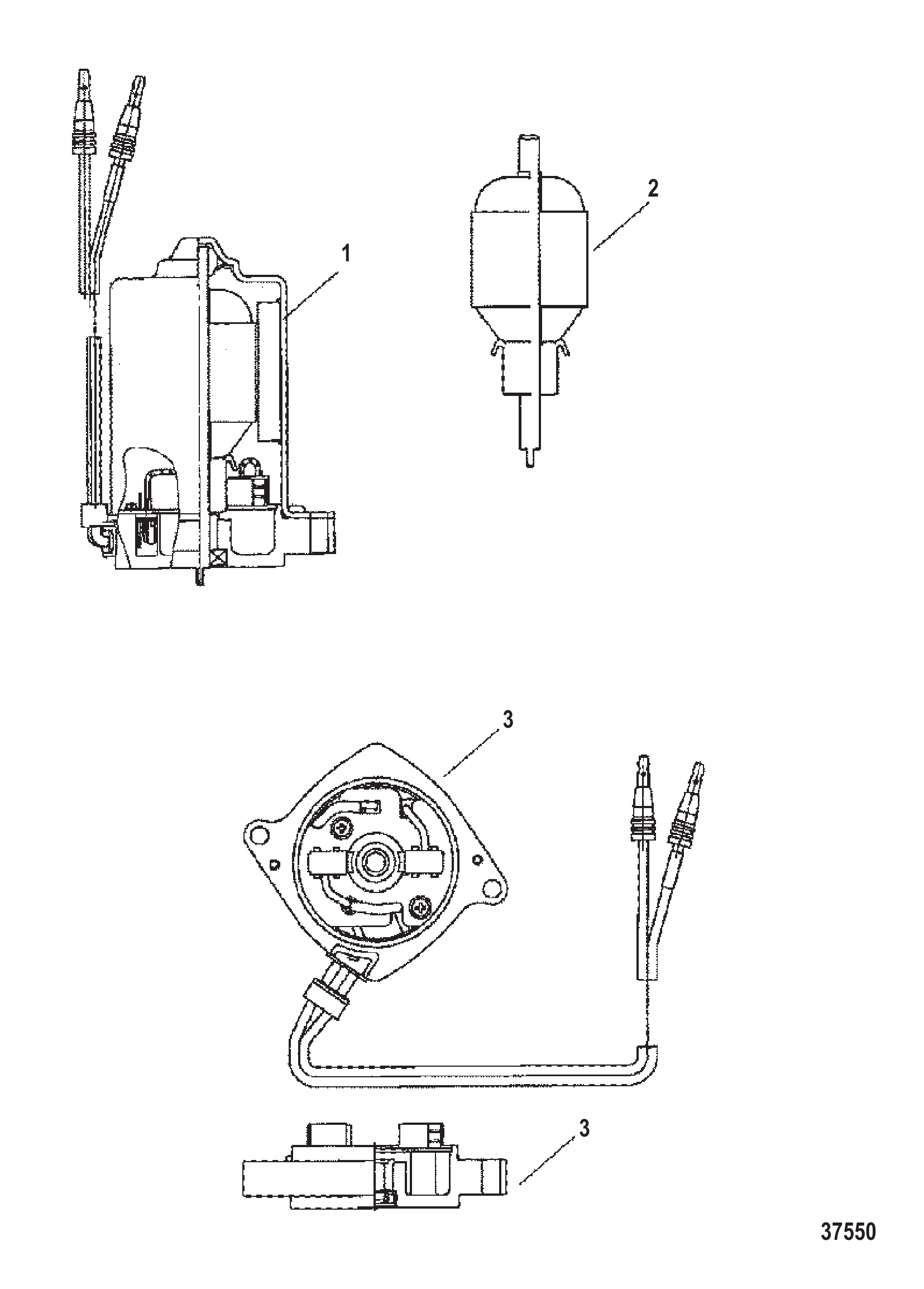

图 77动力升降倾斜电机 Power Trim Motor

REF	零件编号	中文名称	英文名称	数量
-	828708	电机总成	MOTOR ASSEMBLY	1
1	828714A1	电刷与密封套件	BRUSH AND SEAL KIT	1
2	828713A1	电枢套件	ARMATURE KIT	1
2	828713T1	电枢套件	ARMATURE KIT	1
3	828715A1	端架（总成）	END FRAME (COMPLETE)	1

图 78齿轮箱(驱动-标准/反旋转) GEAR HOUSING (DRIVE-STANDARD/COUNTER ROTATION)

REF	零件编号	中文名称	英文名称	数量
-	9148A8	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148A9	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T85	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A10	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A13	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T91	ORD 1647-9148T85	ORD 1647-9148T85	1
-	9148A30	齿轮箱总成反向旋转	GEAR HOUSING ASSEMBLY Counter Rotation	1
-	9148T86	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A31	齿轮箱总成反向旋转	GEAR HOUSING ASSEMBLY Counter Rotation	1
-	9148T92	ORD 1647-9148T86	ORD 1647-9148T86	1
1	9148A11	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A12	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
2	85822A1		CONNECTOR ASSEMBLY SPEEDOMETER	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	20033	定位销齿轮箱定位	PIN Dowel GEAR HOUSING LOCATING	2
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	78638	齿轮箱螺柱(0.438×3.12)	STUD (.438 x 3.12) GEAR HOUSING	1
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
4	18978	齿轮箱螺柱(0.438×3.69)	STUD (.438 x 3.69) GEAR HOUSING	1
4	8M0034464	螺柱	STUD	1
5	57920	齿轮箱螺柱(0.44×2.06)	STUD (.44 x 2.06) GER HOUSING	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	56297	双头螺栓(.312 x 3.38)水泵	STUD (.312 x 3.38) WATER PUMP	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28 x 3.125)水泵	STUD (.250-20/.250-28 x 3.125) WATER PUMP	2
7	306671	螺柱	STUD	2
8	42647A1	传动轴滚柱轴承总成	BEARING ASSEMBLY Roller DRIVESHAFT	1
9	43998	润滑套筒	SLEEVE LUBRICATION	1
11	44000	驱动轴	DRIVESHAFT	1
11	897624T	长驱动轴	DRIVESHAFT Long	1
11	44209	驱动轴	DRIVESHAFT	1
11	897625T	加长驱动轴	DRIVESHAFT X-Long	1
12	N.S.S.	不单独出售小齿轮(43-44104A2或43-18475A1部件)	Not Sold Separate Pinion Gear-Part of 43-44104A2 or 43-18475A1	1
13	92721	垫圈(.965 x .630)小齿轮	WASHER (.965 x .630) PINION GEAR	1
14	35921	小齿轮至传动轴螺母(0.625-18)	NUT (.625-18) PINION GEAR TO DRIVESHAFT	1
15	42637A1	垫片组	SHIM SET	AR
15	8M0063267	垫片组	SHIM SET	AR
16	36387A1	传动轴滚柱/杯形轴承总成	BEARING ASSEMBLY Roller/Cup DRIVESHAFT	1
16	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
17	42633	传动轴轴承螺母	NUT DRIVESHAFT BEARING	1
17	8245191	固定座	RETAINER	1
18	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
19	426311	水泵至齿轮箱衬垫	GASKET WATER PUMP TO GEAR HSG	1
19	8M0204678	衬垫	GASKET	1
20	90011	O型圈(2.175×0.175)水泵	O-RING (2.175 x .175) WATER PUMP	1
20	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
20	38099	O型圈水泵(内径2.109)	O-RING WATER PUMP (2.109 I.D.)	1
21	89238	水泵油封	SEAL Oil WATER PUMP	1
22	16977	水泵油封	SEAL Oil WATER PUMP	1
23	856081	水泵下衬垫	GASKET LOWER - WATER PUMP	1
23	8M0090319	衬垫@5	GASKET @5	1
24	856091	水泵上衬垫	GASKET UPPER - WATER PUMP	1
24	858524	衬垫	GASKET	1
25	32435	水泵面板	FACE PLATE WATER PUMP	1
25	8M0204677	面板	PLATE-FACE	1
26	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
27	48752	水泵体嵌件	INSERT WATER PUMP BODY	1
27	48752T	嵌件	INSERT	1
28	38970	橡胶密封圈-进水管	SEAL RUBBER - WATER INLET TUBE	1
29	89984	水泵叶轮	IMPELLER WATER PUMP	1
29	89984T4	叶轮	IMPELLER	1
30	56654	叶轮驱动键	KEY IMPELLER DRIVE	1
30	8M0214992	键@5	KEY @5	1
31	96411	螺钉(#14-8×2.25)水泵	SCREW (#14-8 x 2.25) WATER PUMP	1
31	8M0215009	螺钉	SCREW	1
32	29245	垫圈(0.281×0.500×0.060)不锈钢水泵螺钉与螺柱	WASHER (.281 x .500 x .060) Stainless Steel WATER PUMP SCREW AND STUD	2
32	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
33	13438	螺母(0.250-28)水泵螺柱	NUT (.250-28) WATER PUMP STUD	2
33	8267119	螺母(.250-28)	NUT (.250-28)	2
34	36001	水泵螺柱垫圈	WASHER WATER PUMP STUD	1
35	13436	水泵螺柱螺母	NUT WATER PUMP STUD	1
36	30271	传动轴橡胶环	RING Rubber DRIVESHAFT	1
36	8M0214918	环@5	RING @5	1
37	29804	进水管导向套	SLEEVE GUIDE - WATER INLET TUBE	1
37	29804T	套筒	SLEEVE	1
38	78902	换挡轴-下部	SHAFT SHIFT - LOWER	1
38	789022	换档轴	SHIFT SHAFT	1
39	29641	换挡轴E型挡圈	E RING RETIANING - SHIFT SHAFT	1
40	78907	挡圈	RING Retaining	1
41	25439		O-RING (.862 x .103) SHIFT SHAFT BUSHING	1
42	77631A2	换挡轴衬套总成	BUSHING ASSEMBLY SHIFT SHAFT	1
43	76384	换挡轴衬套油封	SEAL Oil SHIFT SHAFT BUSHING	1
43	8M0246145	油封	OIL SEAL	1
44	77674		WASHER (.35 x .75 x .12) RUBBER - SHIFT SHAFT BUSHING	1
45	79953		SCREW (.375-16 x .250) GREASE FILLER	1
45	79953Q04	放油螺钉套件	SCREW KIT Drain	1
46	67892		SCREW Magnetic DRAIN	1
46	8M0058389	放油螺钉套件	SCREW KIT Drain	1
47	19183	纤维垫圈-润滑脂加注与排放螺钉	WASHER Fiber GREASE FILLER AND DRAIN SCREW	2
47	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
-	42579A4	水泵修理包	REBUILD KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1

图 79簧片阀组与气缸盖 Reed Block and Cylinder Head

REF	零件编号	中文名称	英文名称	数量
1	15221A2	气缸盖总成	CYLINDER HEAD ASSEMBLY	2
2	41246	气缸盖衬垫	GASKET CYLINDER HEAD	2
2	41247T01	衬垫	GASKET	2
3	98534	螺钉 (0.375-16 x 2.30) 气缸盖（2英寸）	SCREW (.375-16 x 2.30) CYLINDER HEAD (2")	23
3	13450	螺钉 (0.375-16 x 2.30) 气缸盖（专用）	SCREW (.375-16 x 2.30) CYLINDER HEAD (SPECIAL)	1
4	25909	气缸盖螺钉垫圈 (.406 x .812 x .065)	WASHER (.406 x .812 x .065) CYLINDER HEAD SCREW	24
5	75692	节温器	THERMOSTAT	2
6	62386	节温器衬垫	GASKET THERMOSTAT	2
6	8M0204714	衬垫@4	GASKET @4	2
7	90390A1	节温器盖套件	COVER KIT THERMOSTAT	2
8	35386	螺钉 (0.312-18 x 1.00) 节温器盖（1英寸）	SCREW (.312-18 x 1.00) THERMOSTAT COVER (1")	4
9	68727	90度黄铜弯头接头 (.250-18)（水管用）	FITTING (.250-18) 90 Degree - Brass ELBOW - WATER HOSES	1
9	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
10	7765377	配水软管（散装24.500英寸）	HOSE (24.500 Inches Bulk) WATER DISTRIBUTION	2
10	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	2
11	68728	节温器盖至水管接头	FITTING THERMOSTAT COVER TO WATER HOSES	1
12	90077	水管束带	TIE STRAP WATER HOSES	AR
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
13	97465	温度传感器（右舷）	SENDER Temperature (STARBOARD)	1
13	13536A6	温度传感器总成（左舷）	SENSOR ASSEMBLY Temperature (PORT)	1
14	13715	传感器固定座	RETAINER SENSOR AND SENDER	2
14	137151	固定座	RETAINER	2
15	98257	螺钉 (0.312-18 x 0.500) 固定座	SCREW (.312-18 x .500) RETAINER	2
16	13192	爆震传感器	SENSOR Detonation	1
16	825164A1	爆震传感器总成	SENSOR ASSEMBLY Detonation	1
17	45076	螺母 (#10-32) 黄铜爆震传感器	NUT (#10-32) Brass DETONATION SENSOR	1
18	14593A4	适配板总成	ADAPTER PLATE ASSEMBLY	1
19	28668	螺钉 (0.250-20 x 0.875) 不锈钢适配板	SCREW (.250-20 x .875) Stainless Steel ADAPTOR PLATE	8
20	146971	适配板垫片	GASKET ADAPTOR PLATE	1
21	75953	簧片阀组	REED BLOCK	6
22	75362A1	簧片组件	REED ASSEMBLY	6
23	96183	簧片夹	CLAMP Reed	12
23	961832	簧片夹	CLAMP Reed	12
24	14783	螺钉 (#8-32 x 0.187) 簧片至簧片座	SCREW (#8-32 x .187) REEDS TO REED BLOCK	60
24	823588	螺钉 (#8-32 x .250)	SCREW (#8-32 x .250)	60
25	21558	螺钉 (0.250-20 x 0.75) 簧片座固定（3/4英寸）	SCREW (.250-20 x .75) REED BLOCK ATTACHING (3/4")	6
25	92160	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	6
26	90197	螺钉 (0.250-20 x 1.125) 簧片座固定（2英寸）	SCREW (.250-20 x 1.125) REED BLOCK ATTACHING (2")	6
27	167371	适配板垫片	GASKET ADAPTOR PLATE	1
-	14697A87	衬垫套件	GASKET SET

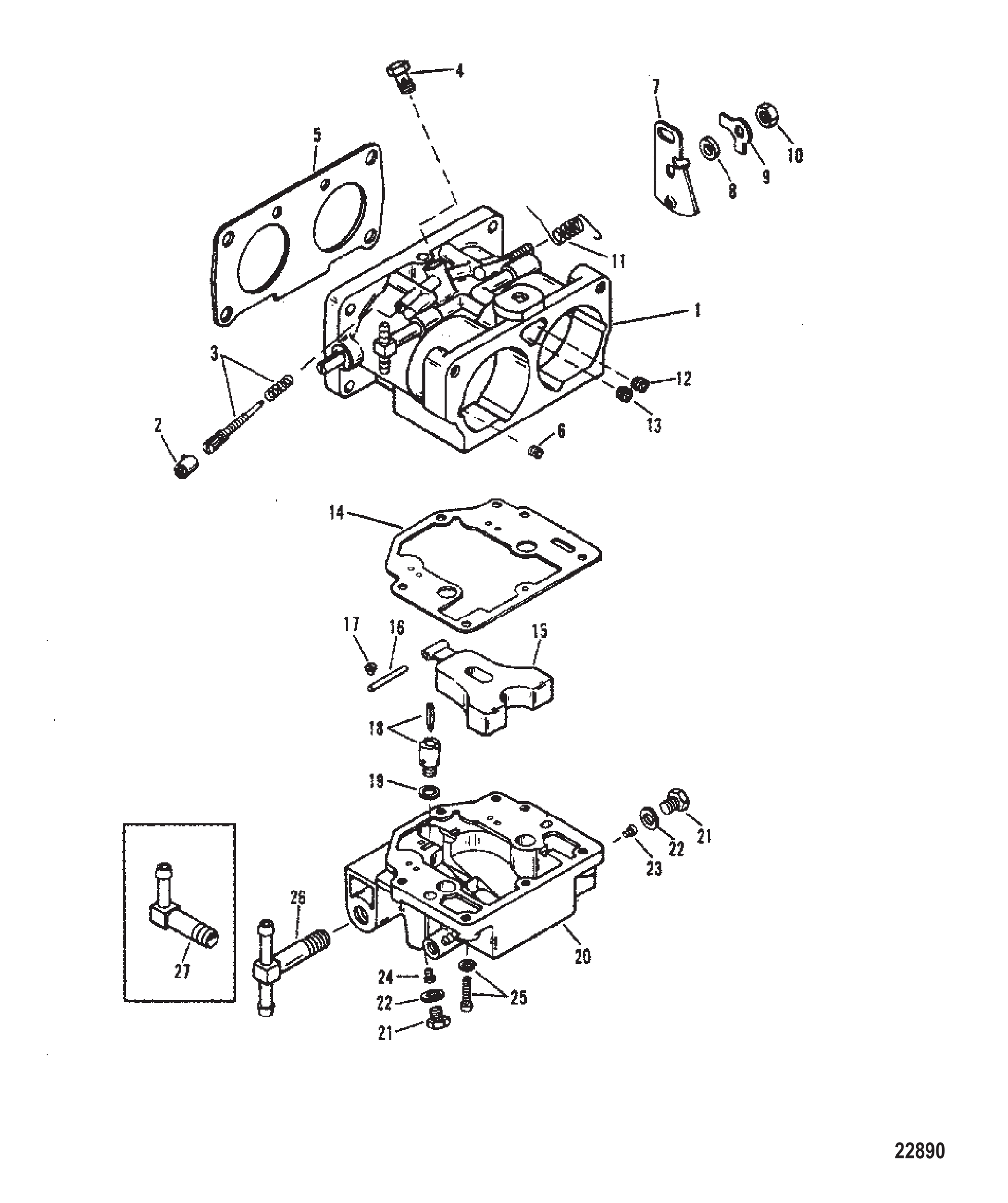

图 80化油器（WMH-12A/12B/13/13B/14A/15/16） CARBURETOR (WMH - 12A/12B/13/13B/14A/15/16)

REF	零件编号	中文名称	英文名称	数量
1	9672A50	化油器上部	CARBURETOR Top	1
1	9672A51	化油器中部	CARBURETOR Center	1
1	9672A52	化油器下部	CARBURETOR Bottom	1
1	9672A35	化油器上部	CARBURETOR Top	1
1	9672A36	化油器中部	CARBURETOR Center	1
1	9672A37	化油器下部	CARBURETOR Bottom	1
1	813682A13	化油器上部	CARBURETOR Top	1
1	813682A14	化油器中部	CARBURETOR Center	1
1	813682A15	化油器下部	CARBURETOR Bottom	1
1	9672A41	化油器上部	CARBURETOR Top	1
1	9672A42	化油器中部	CARBURETOR Center	1
1	9672A43	化油器下部	CARBURETOR Bottom	1
1	9672A44	化油器上部	CARBURETOR Top	1
1	9672A45	化油器中部	CARBURETOR Center	1
1	9672A46	化油器下部	CARBURETOR Bottom	1
2	810779	盖帽	CAP	6
3	NSS	不单独销售怠速混合螺钉/弹簧	NOT SOLD SEPARATE Idle Mixture Screw/Spring	6
4	811803	堵头固定件	PLUG Retainer	3
5	677511	衬垫	GASKET	3
6	815633048	量孔(.048)	JET (.048)	3
6	815633070	喷口(.070-175)	JET (.070 - 175)	3
6	815633050	喷口(.050)(XR6/MAGNUM III/200)	JET (.050) (XR6/MAGNUM III/200)	3
7	810721	节气门杆 (上部/中部)	LEVER Throttle (TOP/CENTER)	2
7	810722	节气门杆 (下部)	LEVER Throttle (BOTTOM)	1
8	811284	隔套	SPACER	3
9	810745	垫圈	WASHER	3
10	810744	螺母	NUT	3
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	3
12	6249	主喷口(.096)	JET Main (.096)	3
12	5815	喷口(.086)	JET (.086)	3
12	6201	量孔(.080)	JET (.080)	3
12	6247	主量孔(0.090)	JET Main (.090)	3
13	6246	量孔(.048)	JET (.048)	3
13	5317	量孔(.046)	JET (.046)	3
13	6359	量孔(.052)	JET (.052)	3
14	NSS		NOT SOLD SEPARATE Gasket-Fuel Bowl	3
15	810738	浮子总成	FLOAT ASSEMBLY	3
16	NSS		NOT SOLD SEPARATE Float Shaft	3
17	NSS	不单独销售浮子螺钉	NOT SOLD SEPARATE Screw-Float	3
18	811690	阀座套件	VALVE SEAT KIT	3
19	NSS	垫片(不单独销售)	NOT SOLD SEPARATE Gasket	3
20	811687	燃油杯(顶部)	BOWL Fuel (TOP)	1
20	811688	燃油杯(中部/底部)	BOWL Fuel (CENTER/BOTTOM)	2
21	9596	堵头	PLUG	12
22	NSS	不单独销售动力/渐进喷口垫片	NOT SOLD SEPARATE Gasket-Power/Progression Jet	12
23	5225	主量孔(.054)	JET Main (.054)	6
23	4217	主量孔(.062)	JET Main (.062)	6
23	4216	量孔(.064)	JET (.064)	6
23	4215	燃油主量孔(.066)	JET Main Fuel (.066)	6
24	811689	动力喷口	POWER JET	6
24	811807	动力喷口	POWER JET	6
24	811925	动力喷口	POWER JET	6
25	NSS	不单独销售燃油杯螺钉	NOT SOLD SEPARATE Screw-Fuel Bowl	15
26	7900	三通接头(顶部/中部)	TEE FITTING (TOP/CENTER)	2
27	7901	弯头(底部)	ELBOW (BOTTOM)	1
-	8107492	化油器垫片套件	GASKET KIT Carburetor	1
-	811691	化油器维修套件	REPAIR KIT Carburetor	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 81齿轮箱螺旋桨轴-反向旋转 Gear Housing Propeller Shaft - Counter Rotation

REF	零件编号	中文名称	英文名称	数量
-	9148A27	齿轮箱总成反向旋转(加长型)(黑色)	GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG) (BLACK)	1
-	9148A28	齿轮箱总成反向旋转(加长型)(灰色)	GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG) (GRAY)	1
1	9148A11	齿轮箱总成基础型(黑色)	GEAR HOUSING ASSEMBLY BASIC (BLACK)	1
1	9148A12	齿轮箱总成基础型(灰色)	GEAR HOUSING ASSEMBLY BASIC (GRAY)	1
47	78956	换挡凸轮	SHIFT CAM	1
48	89594A1	凸轮从动件总成	FOLLOWER ASSEMBLY CAM	1
49	79911	离合器作动杆	ROD CLUTCH ACTUATOR	1
50	79910	压缩弹簧	SPRING COMPRESSION	2
51	78910	弹簧垫圈	WASHER SPRING	AR
52	78906		PIN SPRING LOCATOR	1
53	14469	轴承杯	CUP Bearing	1
54	88957A1	滚珠轴承	BEARING Ball	1
55	N.S.S.	倒车齿轮不单独销售(43-18572A1部件)	Not Sold Separate Reverse Gear (PART OF 43-18572A1)	1
56	15844	滚柱轴承总成	BEARING ASSEMBLY Roller	1
57	78909	棘轮定位销	PIN Detent RATCHET	2
58	78959	棘轮滑动离合器	RATCHET SLIDING CLUTCH	1
59	78905	十字棘轮销	PIN Cross RATCHET	1
60	78962	十字销固定弹簧	SPRING RETAINING - CROSS PIN	2
61	18572A1	前进齿轮总成	GEAR ASSEMBLY Forward	1
62	176151	调整垫片(.125)	SPACER SHIM (.125)	AR
62	176152	调整垫片(.127)	SPACER SHIM (.127)	AR
62	176153	调整垫片(.129)	SPACER SHIM (.129)	AR
62	176154	调整垫片(.131)	SPACER SHIM (.131)	AR
62	176155	调整垫片(.133)	SPACER SHIM (.133)	AR
62	176156	调整垫片(.135)	SPACER SHIM (.135)	AR
62	176157	调整垫片(.137)	SPACER SHIM (.137)	AR
62	176158	调整垫片(.139)	SPACER SHIM (.139)	AR
62	176159	调整垫片(.141)	SPACER SHIM (.141)	AR
62	1761510	调整垫片(.143)	SPACER SHIM (.143)	AR
62	1761511	调整垫片(.145)	SPACER SHIM (.145)	AR
62	1761512	调整垫片(.147)	SPACER SHIM (.147)	AR
62	1761513	调整垫片(.149)	SPACER SHIM (.149)	AR
63	15841	滚柱轴承	BEARING Roller	1
64	17616	推力环	THRUST RING	1
65	31534	轴承座O型圈	O-RING BEARING CARRIER	1
66	18447A2	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
67	15843	滚柱轴承	BEARING Roller	1
68	18448	止推垫片	THRUST WASHER	2
69	15842	推力轴承	BEARING Thrust	2
70	18446	螺旋桨轴	PROPELLER SHAFT	1
71	18444A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
72	30956	滚针轴承-轴承座	BEARING Needle BEARING CARRIER	2
73	76868	轴承座密封	SEAL BEARING CARRIER	2
74	79447	齿轮箱盖锁紧垫圈	TAB WASHER GEAR HOUSING COVER	1
75	79448	齿轮箱固定座	RETAINER GEAR HOUSING	1
76	30281		KEY LOCATING - BEARING CARRIER	1
77	31640A1		TRIM TAB ASSEMBLY GEAR HOUSING	1
78	66024		SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING	1
79	67891	填充块	FILLER BLOCK	1
80	45176	垫圈(.453 x .812 x .105)不锈钢驱动轴壳体螺柱	WASHER (.453 x .812 x .105) Stainless Steel DRIVE SHAFT HOUSING STUDS	2
81	34933	螺母(.437-20)不锈钢驱动轴壳体螺柱	NUT (.437-20) Stainless Steel DRIVE SHAFT HOUSING STUDS	2
82	13171	推力毂	THRUST HUB	1
83	31211A2	螺旋桨螺母花键垫圈	WASHER Splined PROPELLER NUT	1
84	31210	螺旋桨螺母锁紧垫圈	TAB WASHER PROPELLER NUT	1
85	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
86	423511	螺旋桨轴齿形锁紧垫圈	LOCKWASHER Toothed PROPELLER SHAFT	1
87	74727	螺钉(0.375-16x6.00)齿轮箱	SCREW (.375-16 x 6.00) GEAR HOUSING	1

图 82点火线圈/电压调节器 IGNITION COIL/VOLTAGE REGULATOR

REF	零件编号	中文名称	英文名称	数量
1	195871	安装板	PLATE MOUNTING	1
2	30720	电压调节器螺钉(.250-20 x 2.25)	SCREW (.250-20 x 2.25) VOLTAGE REGULATOR	4
3	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
4	19661	衬套	BUSHING	4
5	18736A15	电压调节器总成	REGULATOR ASSEMBLY Voltage	1
5	18736A21	调节器总成	REGULATOR ASSY	1
6	18717	密封件	SEAL	1
7	96158	启动电磁阀	SOLENOID Starter	2
7	8M0185622	电磁阀	SOLENOID	2
8	90192	螺钉 (.250-20 x .750) 不锈钢启动电磁阀	SCREW (.250-20 x .750) Stainless Steel STARTER SOLENOID	3
9	88807A6	线束总成 (3.50英寸) 黑色 (3-1/2" - BLACK)	CABLE ASSEMBLY (3.50 Inches) Black (3-1/2" - BLACK)	1
10	56374	电磁阀螺钉螺母(.250-20)	NUT (.250-20) SOLENOID SCREW	3
10	8267098	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	3
11	26419	螺母 (#8-32) 黄铜电磁阀端子 (8-32)	NUT (#8-32) Brass SOLENOID TERMINAL (8-32)	4
12	94330	螺母 (.250-20) 黄铜电磁阀端子 (1/4-20)	NUT (.250-20) Brass SOLENOID TERMINAL (1/4-20)	4
13	97861	绝缘体启动电磁阀 (旧设计)	INSULATOR STARTER SOLENOID (OLD DESIGN)	2
14	87379A14	电线总成 (2.750英寸) (2-3/4" - RED)	WIRE ASSEMBLY (2.750 Inches) (2-3/4" - RED)	1
14	88807A8	线束总成 (3.50英寸) 黑色 (3-1/2" - BLACK)	CABLE ASSEMBLY (3.50 Inches) Black (3-1/2" - BLACK)	2
15	88807A29	电缆总成(9英寸-黑色)	CABLE ASSEMBLY (9" - BLACK)	1
16	90077	扎带	TIE STRAP	AR
16	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
17	43542	点火线圈盖	COVER IGNITION COIL	2
18	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	6
18	8M0230859	点火线圈总成	COIL IGNITION ASY	6
19	90048	点火线圈盖螺钉(#10-32 x 2.125)	SCREW (#10-32 x 2.125) IGNITION COIL COVER	8
20	90078	盖板螺钉/接地线螺母(#10-32)	NUT (#10-32) COVER SCREW/GROUND WIRE	14
21	813715A9	高压点火线束套件	CABLE KIT Ignition HIGH TENSION	1
22	63709A1	高压电缆护套/端子套件	BOOT/TERMINAL KIT HIGH TENSION CABLE	6
23	14103568	火花塞	SPARK PLUG	6
23	896329885	SP #L6VC @4	SP #L6VC @4	6
24	45076	螺母(#10-32)黄铜点火线圈端子	NUT (#10-32) Brass IGNITION COIL TERMINAL	12
25	88807A13	线束总成 (5-1/2" - BLACK)	CABLE ASSEMBLY (5-1/2" - BLACK)	6
26	69022		SCREW (#10-32 x .500) Stainless Steel GROUNDING WIRE	2
27	69739A7	线圈至开关盒线束总成	HARNESS ASSEMBLY COIL TO SWITCH BOX	1
28	54676	双线固定夹	RETAINER Two Wire	2
29	814423T	线圈板盖	COVER COIL PLATE	1
30	814343	螺钉 (#10-32 x 2.380)	SCREW (#10-32 x 2.380)	4

图 83专用工具 Tools Special

REF	零件编号	中文名称	英文名称	数量

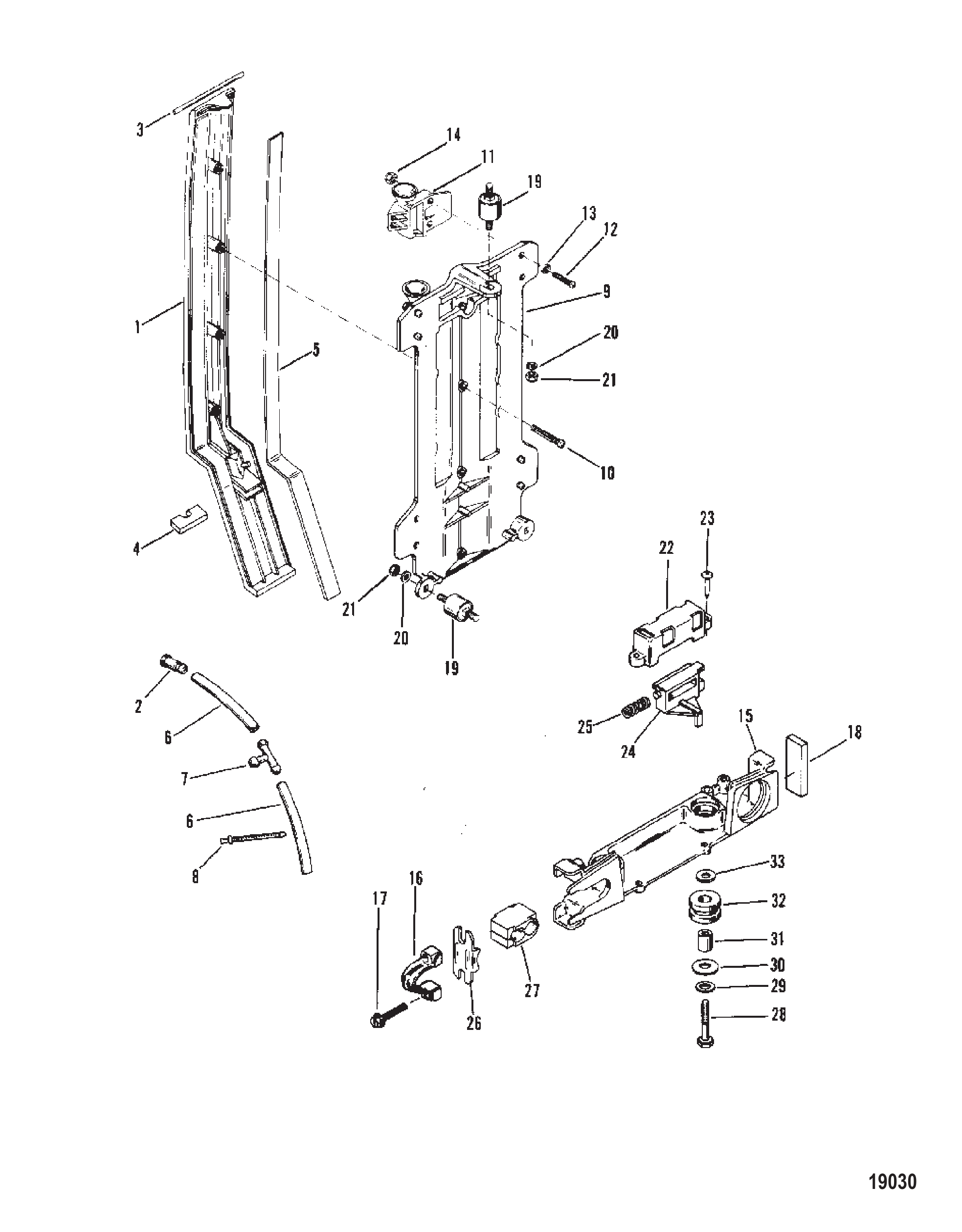

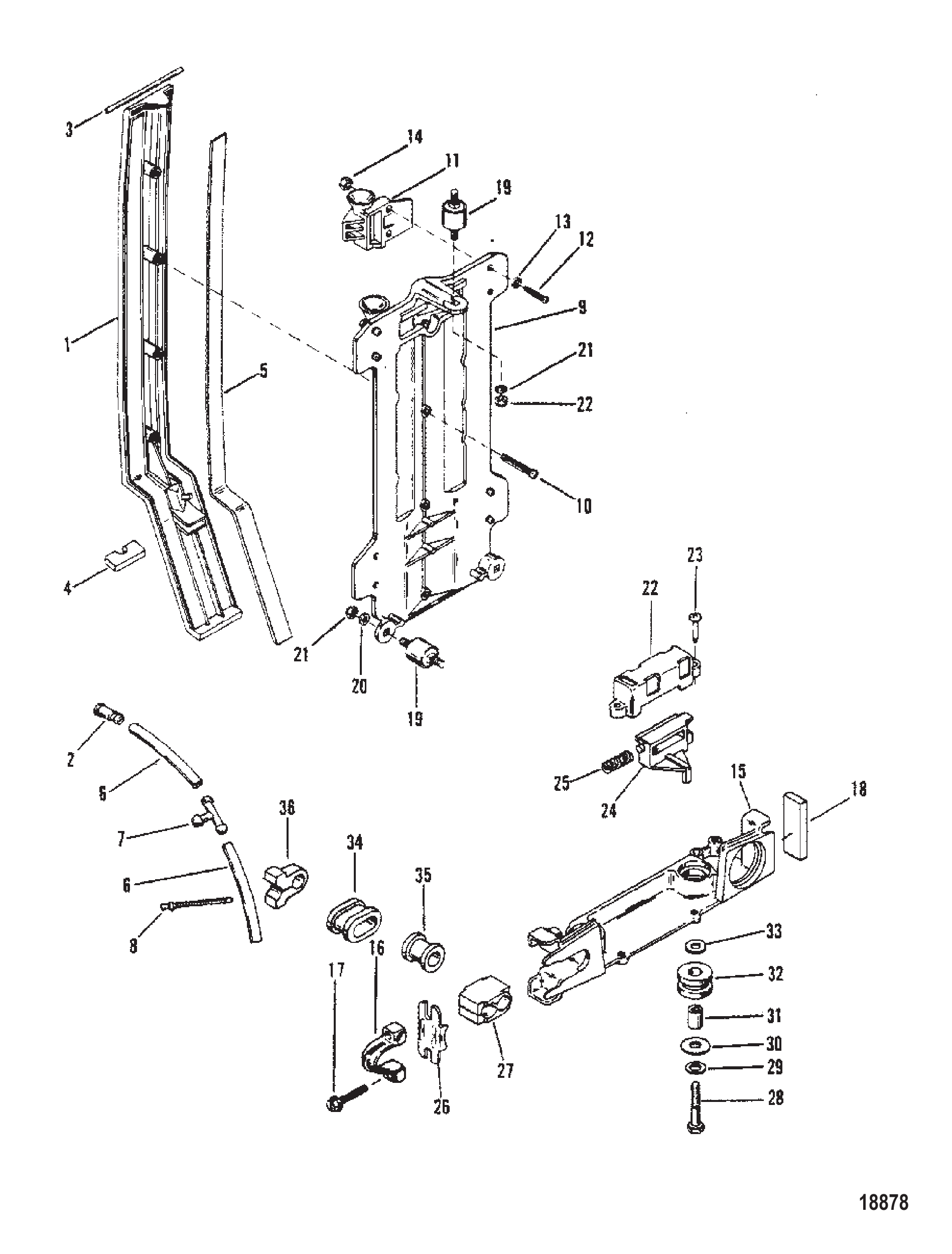

图 84外罩安装支架 Cowl Mounting Brackets

REF	零件编号	中文名称	英文名称	数量
1	76258A2	后罩支架（黑色）	BRACKET REAR COWL (BLACK)	1
1	76258A3	后罩支架（灰色）	BRACKET REAR COWL (GRAY)	1
1	76258A4	后罩支架（OYSTER）	BRACKET REAR COWL (OYSTER)	1
1	76258A3	支架	BRACKET	1
2	76256	指示喷嘴（黑/灰）	NOZZLE TELL TALE (BLACK/GRAY)	1
2	762561	指示喷嘴（OYSTER）	NOZZLE TELL TALE (OYSTER)	1
3	67984	后罩支架密封垫	SEAL REAR COWL BRACKET TO COWL	1
4	67228	后罩支架密封垫	SEAL REAR COWL BRACKET TO COWL	1
5	67999	后罩支架密封垫	SEAL REAR COWL BRACKET TO COWL	2
6	34395A1	指示软管（4英寸）	HOSE TELL TALE (4")	2
6	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	2
7	90824	指示器软管三通	TEE TELL TALE HOSE	1
7	90824001	三通接头	TEE FITTING	1
8	73498	指示软管卡箍	CLAMP TELL TALE HOSE	2
8	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
9	86386A1	罩壳支撑支架总成	BRACKET ASSEMBLY COWL SUPPORT	1
10	66687	螺钉 (#10-32 x 1.50) 后罩支架	SCREW (#10-32 x 1.50) REAR COWL BRACKET	4
11	85651	罩壳铰链壳体-左舷	HOUSING COWL HINGE - PORT	2
11	85650	罩壳铰链壳体-右舷	HOUSING COWL HINGE - STARBOARD	2
12	64278	螺钉 (0.250-28 x 1.00) 罩壳铰链壳体	SCREW (.250-28 x 1.00) COWL HINGE HOUSING	8
13	20583	罩壳铰链壳体螺钉垫圈	WASHER COWL HINGE HOUSING SCREW	8
14	35888	螺母 (0.250-28) 不锈钢罩壳铰链壳体螺钉	NUT (.250-28) Stainless Steel COWL HINGE HOUSING SCREW	8
15	99424	罩壳安装支架-下部（黑色）	BRACKET COWLING MOUNTING - LOWER (BLACK)	1
15	99424T6	罩壳安装支架-下部（灰色）	BRACKET COWLING MOUNTING - LOWER (GRAY)	1
15	99424T10	罩壳安装支架-下部（OYSTER）	BRACKET COWLING MOUNTING - LOWER (OYSTER)	1
15	99424T6	支架	BRACKET	1
16	99447T	拉线固定器	RETAINER CABLE	1
16	99447	固定座	RETAINER	1
17	22411	电缆固定器螺钉（.190-24 x 1.00）	SCREW (.190-24 x 1.00) CABLE RETAINER	2
17	68918	螺丝（#10-24 x 1.00）	SCREW (#10-24 x 1.00)	2
18	67260	控制线密封套	SEAL CONTROL CABLES	1
19	90435	罩壳安装支架座	MOUNT COWL MOUNTING BRACKET	3
20	29245	垫圈 (0.281 x 0.500 x 0.060) 不锈钢罩壳安装支架座	WASHER (.281 x .500 x .060) Stainless Steel COWL MOUNTING BRACKET MOUNT	6
20	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
21	35888	螺母 (0.250-28) 不锈钢罩壳安装支架座	NUT (.250-28) Stainless Steel COWL MOUNTING BRACKET MOUNT	6
22	67241	罩壳锁扣壳体	HOUSING COWL LATCH	1
23	92051	螺钉 (10-16 x 0.75) 罩壳锁扣壳体	SCREW (10-16 x .75) COWL LATCH HOUSING	2
24	87608	盖锁扣	LATCH Cowl	1
25	60295	罩壳锁扣弹簧	SPRING COWL LATCH	1
26	88622	电缆固定板	PLATE CABLE RETAINER	1
27	99391	油管固定座（喷油系统）	RETAINER OIL LINES (OIL INJECTION)	1
28	69067	螺钉 (0.250-20 x 1.375) 下部支架	SCREW (.250-20 x 1.375) LOWER BRACKET	2
29	20346	下部支架螺钉垫圈（小）	WASHER LOWER BRACKET SCREW (SMALL)	4
29	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	4
30	57427	下部支架螺钉垫圈（大）	WASHER LOWER BRACKET SCREW (LARGE)	4
30	35280	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	4
31	88180	下部支架衬套	BUSHING LOWER BRACKET GROMMET	2
32	88033	下部支架护孔环	GROMMET LOWER BRACKET	2
33	28927	下部支架螺钉垫圈	WASHER LOWER BRACKET SCREW	2
33	26907	垫圈	WASHER	2

图 85齿轮箱（驱动轴）（标准/反向旋转） Gear Housing (Driveshaft)(Standard/Counter Rotation)

REF	零件编号	中文名称	英文名称	数量
1	9148T93	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
4	189783	螺柱(0.438×3.82英寸)	STUD (.438 x 3.82 Inches)	1
4	8M0034464	螺柱	STUD	1
5	579203	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	562972	螺柱(0.312-18/0.324-24×3.380)	STUD (.312-18/.324-24 x 3.380)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	306671	螺柱	STUD	2
8	67891	填充块	FILLER BLOCK	1
8	8M0039169	填充块	FILLER BLOCK	1
9	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
10	826134	阳极块	ANODE	2
10	826134Q	阳极块	ANODE	2
11	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
12	8268336	螺母 (M6)	NUT (M6)	1
12	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
13	NSS	小齿轮(不单独销售属于43-828174A2或43-828701A1部件)	NOT SOLD SEPARATE Pinion Gear (Part of 43-828174A2 or 43-828701A1)	1
14	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
15	35921	螺母(0.625-18)	NUT (.625-18)	1
16	42637A1	垫片组	SHIM SET	AR
16	8M0063267	垫片组	SHIM SET	AR
17	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
17	8M0058389	放油螺钉套件	SCREW KIT Drain	1
18	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	1
18	79953Q04	放油螺钉套件	SCREW KIT Drain	1
19	19183	纤维垫圈	WASHER Fiber	2
19	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
20	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	1
21	789022	换档轴	SHIFT SHAFT	1
22	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
23	77631A2	衬套总成	BUSHING ASSEMBLY	1
24	8164641	油封	SEAL Oil	1
24	8M0246145	油封	OIL SEAL	1
25	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
26	440001	驱动轴	DRIVESHAFT	1
26	897624T	长驱动轴	DRIVESHAFT Long	1
26	442091	驱动轴	DRIVESHAFT	1
26	897625T	加长驱动轴	DRIVESHAFT X-Long	1
27	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
27	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
28	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
29	824519	固定座	RETAINER	1
29	8245191	固定座	RETAINER	1
30	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
30	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
31	426311	衬垫	GASKET	1
31	8M0204678	衬垫	GASKET	1
32	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
32	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
33	89238	油封	SEAL Oil	1
34	16977	油封	SEAL Oil	1
35	856081	衬垫	GASKET	1
35	8M0090319	衬垫@5	GASKET @5	1
36	856091	衬垫	GASKET	1
36	858524	衬垫	GASKET	1
37	32435	面板	FACE PLATE	1
37	8M0204677	面板	PLATE-FACE	1
38	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
38	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
39	48752T	嵌件	INSERT	1
40	38970	密封件	SEAL	1
41	899843	叶轮	IMPELLER	1
41	89984T3	叶轮	IMPELLER	1
42	56654	键	KEY	1
42	8M0214992	键@5	KEY @5	1
43	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
43	8M0215009	螺钉	SCREW	1
44	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
44	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
45	13438	螺母(.250-28)	NUT (.250-28)	2
45	8267119	螺母(.250-28)	NUT (.250-28)	2
46	36001	垫圈	WASHER	1
47	13436	螺母	NUT	1
48	29804	套筒	SLEEVE	1
48	29804T	套筒	SLEEVE	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1

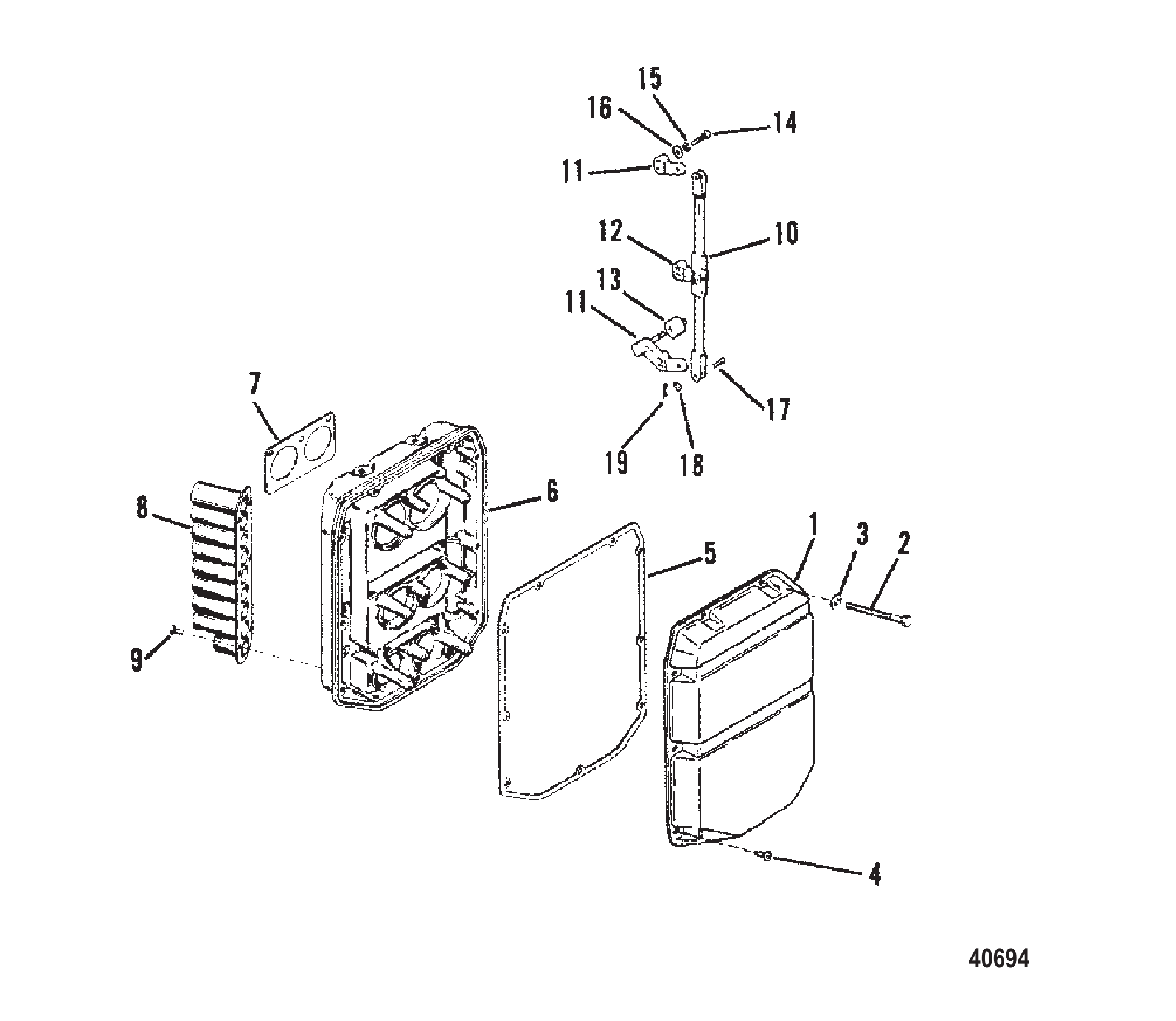

图 86阻风门板与节气门杆（序列号-C239552及以下） CHOKE PLATE AND THROTTLE LEVERS (S/N-C239552 AND BELOW)

REF	零件编号	中文名称	英文名称	数量
1	18734	消音器盖	COVER SOUND ATTENUATOR	1
2	68000	螺钉（0.250-28 x 1.00）消音器	SCREW (.250-28 x 1.00) SOUND ATTENUATOR	6
3	20583	消音器螺钉垫圈	WASHER SOUND ATTENUATOR SCREW	6
4	48408	螺钉（#10-16 x 0.500）盖至消音器	SCREW (#10-16 x .500) COVER TO SOUND ATTENUATOR	9
5	877361	盖衬垫	GASKET COVER	1
6	194261	消音器板	PLATE SOUND ATTENUATOR	1
7	892211	消音器至化油器衬垫	GASKET SOUND ATTENUATOR TO CARBURETOR	3
8	43440T	进气消音器	INLET SOUND ATTENUATOR	2
9	48408	螺钉（#10-16 x 0.500）进气至消音器	SCREW (#10-16 x .500) INLET TO SOUND ATTENUATOR	12
10	87604	油门连杆	LINK Throttle	1
11	93332A1	节气门杠杆总成	LEVER ASSEMBLY Throttle	1
12	41048	油门杆	LEVER Throttle	1
13	67748	下节气门杆滚轮	ROLLER LOWER THROTTLE LEVER	1
14	15124	螺钉 (#10-32 x .750)	SCREW (#10-32 x .750)	3
15	26996	锁紧垫圈(#10)不锈钢节气门杆螺丝	LOCKWASHER (#10) Stainless Steel THROTTLE LEVERS SCREW	3
16	56681	垫圈(.203 x .500 x .032)节气门杆螺丝	WASHER (.203 x .500 x .032) THROTTLE LEVERS SCREW	3
17	67297	U型销节气门杆至节气门连杆	PIN Clevis THROTTLE LEVERS TO THROTTLE LINK	3
18	89302	垫圈(.203 x .406 x .040)U型销	WASHER (.203 x .406 x .040) CLEVIS PIN	3
19	26953	开口销U型销	COTTER PIN CLEVIS PIN	3
-	89221A88	衬垫套件	GASKET SET

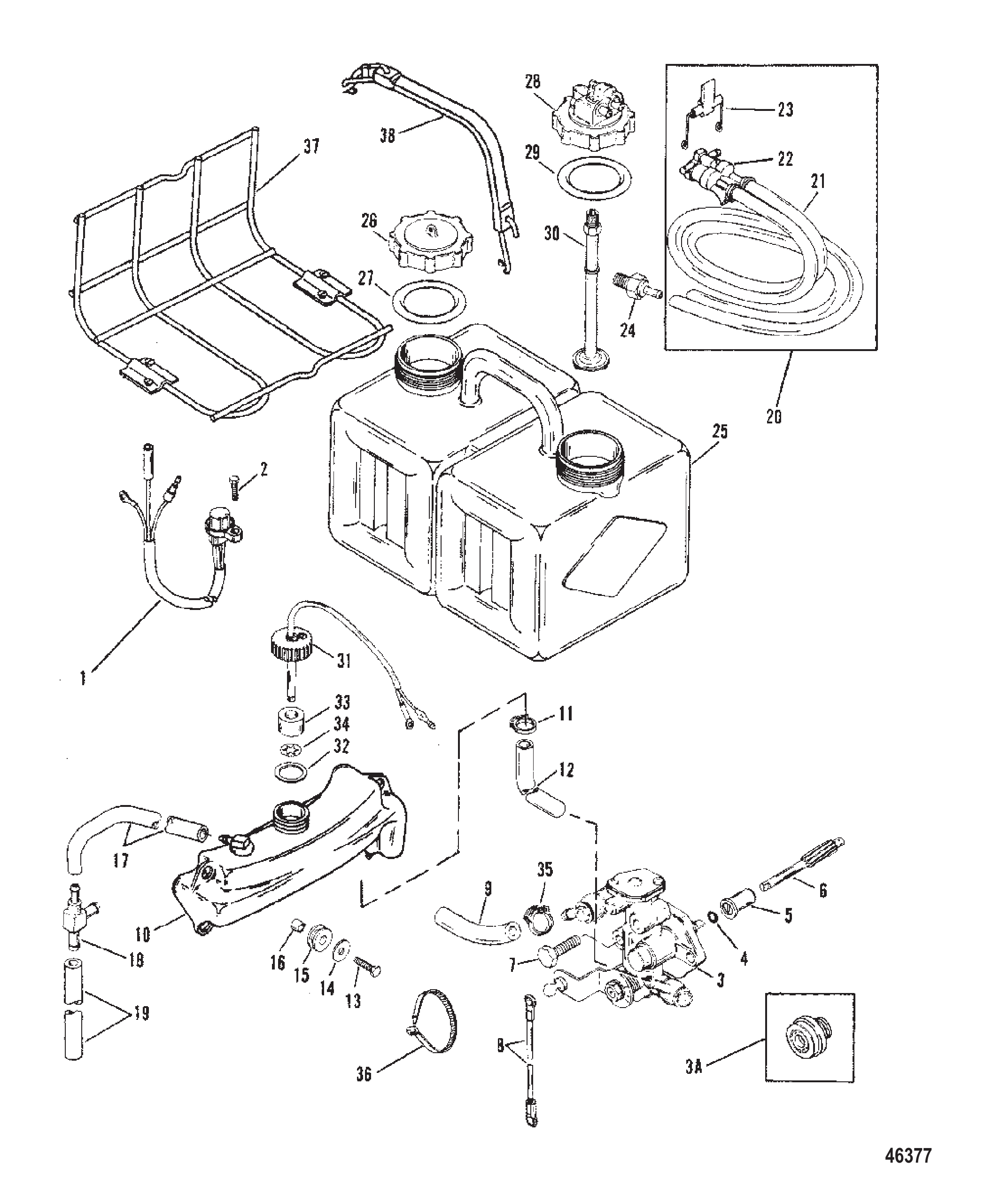

图 87喷油组件 OIL INJECTION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	12430A4	传感器总成	SENSOR ASSEMBLY	1
2	48409	螺钉(#10-16 x .625)不锈钢传感器固定(5/8")	SCREW (#10-16 x .625) Stainless Steel SENSOR ATTACHING (5/8")	1
3	815699	油泵总成	PUMP ASSEMBLY Oil	1
3	815699T	油泵总成	PUMP ASSEMBLY Oil	1
3A	814103	轴承(带密封)	BEARING (W/SEAL)	1
3A	8141032	蜗杆衬套	BUSHING Worm	1
4	11379	油泵O型圈	O-RING OIL PUMP	1
5	41429A2	驱动齿轮轴承总成	BEARING ASSEMBLY DRIVE GEAR	1
6	12726	从动齿轮	GEAR Driven	1
6	14563	从动齿轮	GEAR Driven	1
7	32228	螺钉(#10-32 x .625)油泵至曲轴箱(5/8")	SCREW (#10-32 x .625) OIL PUMP TO CRANKCASE (5/8")	1
7	41507	螺钉(#10-32 x 1.120)油泵至曲轴箱(1-1/8")	SCREW (#10-32 x 1.120) OIL PUMP TO CRANKCASE (1-1/8")	1
8	1938512	油门连杆至油泵总成	LINK ASSEMBLY THROTTLE LEVER TO OIL PUMP	1
9	4301619	油泵油管	TUBING OIL PUMP	1
9	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	1
10	99443T	油箱	RESERVOIR Oil	1
10	994436	储液罐	RESERVOIR	1
11	415823	油管卡箍(大)	CLAMP OIL HOSE (LARGE)	2
12	4301736	油箱至油泵油管	TUBING OIL RESERVOIR TO OIL PUMP	1
12	82381455	油管（25.00英寸散装）	TUBING (25.00 Inches Bulk)	1
13	69020	螺钉(#10-32 x .875)油箱固定(7/8")	SCREW (#10-32 x .875) OIL RESERVOIR ATTACHING (7/8")	3
13	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
14	42118	油箱螺钉垫圈	WASHER OIL RESERVOIR SCREW	6
15	42117	油箱螺钉衬套	GROMMET OIL RESERVOIR SCREW	3
16	42116	油箱螺钉轴套	BUSHING OIL RESERVOIR SCREW	3
17	99127109	油管(57.00英寸散装)	LINE (57.00 Inches Bulk) OIL	1
17	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
18	42425	油管三通	TEE OIL TUBING	1
19	9072925	油管(6-3/4")	HOSE OIL (6-3/4")	1
20	NA	不可用壳体总成	NOT AVAILABLE HOUSING ASSEMBLY	1
21	99439	油管(114.00英寸)	HOSE (114.00 Inches) OIL	1
22	12540A3	壳体	HOUSING	1
23	12242A1	闩锁	LATCH	1
24	43278	止回阀接头(曲轴箱)	FITTING CHECK CALVE (CRANKCASE)	1
24	8781051	止回阀	CHECK VALVE	1
25	87421	油箱	TANK	1
26	43298A2	油箱盖总成	CAP ASSEMBLY OIL TANK	1
27	11332	O型圈(2.225 x .210)盖	O-RING (2.225 x .210) CAP	1
28	43295A5	壳体总成适配器	HOUSING ASSEMBLY Adaptor	1
28	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
29	11332	O型圈(2.225 x .210)适配器壳体	O-RING (2.225 x .210) ADAPTOR HOUSING	1
30	99802	吸油管	TUBE OIL PICK-UP	1
31	43300A1	油箱盖总成	CAP ASSEMBLY OIL RESERVOIR	1
31	43300A9	盖总成	CAP ASSEMBLY	1
32	43307	油箱盖衬垫	GASKET RESERVOIR CAP	1
32	43307T	衬垫	GASKET	1
33	99022A1	浮子总成	FLOAT ASSEMBLY	1
33	8M0187298	浮子总成	FLOAT ASSY	1
34	99265	压入式螺母	PUSH NUT	1
35	415824	油管卡箍(小)	CLAMP OIL HOSE (SMALL)	2
36	90077	扎带	TIE STRAP	AR
36	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
37	12335A1	支架套件	BRACKET KIT	1
38	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1

图 88双机延伸套件 Dual Engine Extension Kit

REF	零件编号	中文名称	英文名称	数量
-	92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
1	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
2	71565A2	管总成	TUBE ASSEMBLY	1
3	41055	支架	MOUNT	1
4	42100	锁紧垫圈	TAB WASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	88404	锁紧垫圈	TAB WASHER	2
7	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
8	17729A1	支架	BRACKET	2
9	62055	螺钉(.312-24 x 1.250)	SCREW (.312-24 x 1.250)	4
10	17728	锁紧垫圈	TAB WASHER	4
11	140001	螺钉(0.375-24×1.38)	SCREW (.375-24 x 1.38)	4
12	34863	螺母 (.375-24)	NUT (.375-24)	6
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	6
13	979331	转向眼环	STEERING EYE	2
13	8M0026167	转向眼环	STEERING EYE	2
14	23651	衬套(1.625)	SLEEVE (1.625)	2
15	97931	管材(4.00英寸)	TUBING (4.00 Inches)	2
16	8149513	联轴器(15.00英寸)	COUPLER (15.00 Inches)	1
16	8M0026098	联轴器15英寸	COUPLER 15 In.	1
17	42099	螺母(.562-18)	NUT (.562-18)	1
18	821169	联轴器	COUPLING	1
19	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	2
20	94319	螺钉(.375-24 x 1.5)	SCREW (.375-24 x 1.5)	1

图 89发动机衬垫套件 Engine Gasket Set Components

REF	零件编号	中文名称	英文名称	数量
-	16115A1	动力头衬垫套件	GASKET SET Powerhead	1
-	16115A03	衬垫套件	GASKET SET	1
0	16259	化油器浮子室O型圈	O-RING Carburetor Float Bowl	1
0	16262	化油器放油螺钉垫片	GASKET Carburetor Drain Screw	1
0	16327	化油器衬垫	GASKET Carburetor	1
0	812939	气缸盖衬垫	GASKET Cylinder Head	1
0	812939015	衬垫	GASKET	1
0	16703	油壳密封件	SEAL Oil Housing	2
0	8M0101649	密封件	SEAL	2
0	16704	壳体衬垫	GASKET Housing	1
0	8M0152378	曲轴箱衬垫	GASKET Crankcase	1
0	16051	曲轴油封	SEAL Oil Crankshaft	2
0	16115	驱动轴壳体衬垫	GASKET Driveshaft Housing	1
0	812947001	衬垫	GASKET	1

图 90齿轮箱(驱动轴)(标准/反向旋转) GEAR HOUSING (DRIVESHAFT)(STANDARD/COUNTER ROTATION)

REF	零件编号	中文名称	英文名称	数量
1	9148T93	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
4	189783	螺柱(0.438×3.82英寸)	STUD (.438 x 3.82 Inches)	1
4	8M0034464	螺柱	STUD	1
5	579203	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	562972	螺柱(0.312-18/0.324-24×3.380)	STUD (.312-18/.324-24 x 3.380)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	306671	螺柱	STUD	2
8	67891	填充块	FILLER BLOCK	1
8	8M0039169	填充块	FILLER BLOCK	1
9	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
10	826134	阳极块	ANODE	2
10	826134Q	阳极块	ANODE	2
11	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
12	8268336	螺母 (M6)	NUT (M6)	1
12	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
13	NSS	小齿轮(不单独销售属于43-828174A2或43-828701A1部件)	NOT SOLD SEPARATE Pinion Gear (Part of 43-828174A2 or 43-828701A1)	1
14	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
15	35921	螺母(0.625-18)	NUT (.625-18)	1
16	42637A1	垫片组	SHIM SET	AR
16	8M0063267	垫片组	SHIM SET	AR
17	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
17	8M0058389	放油螺钉套件	SCREW KIT Drain	1
18	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	1
18	79953Q04	放油螺钉套件	SCREW KIT Drain	1
19	19183	纤维垫圈	WASHER Fiber	2
19	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
20	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	1
21	789022	换档轴	SHIFT SHAFT	1
22	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
23	77631A2	衬套总成	BUSHING ASSEMBLY	1
24	8164641	油封	SEAL Oil	1
24	8M0246145	油封	OIL SEAL	1
25	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
26	440001	驱动轴	DRIVESHAFT	1
26	897624T	长驱动轴	DRIVESHAFT Long	1
26	442091	驱动轴	DRIVESHAFT	1
26	897625T	加长驱动轴	DRIVESHAFT X-Long	1
27	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
27	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
28	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
29	824519	固定座	RETAINER	1
29	8245191	固定座	RETAINER	1
30	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
30	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
31	426311	衬垫	GASKET	1
31	8M0204678	衬垫	GASKET	1
32	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
32	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
33	89238	油封	SEAL Oil	1
34	16977	油封	SEAL Oil	1
35	856081	衬垫	GASKET	1
35	8M0090319	衬垫@5	GASKET @5	1
36	856091	衬垫	GASKET	1
36	858524	衬垫	GASKET	1
37	32435	面板	FACE PLATE	1
37	8M0204677	面板	PLATE-FACE	1
38	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
38	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
39	48752T	嵌件	INSERT	1
40	38970	密封件	SEAL	1
41	899843	叶轮	IMPELLER	1
41	89984T3	叶轮	IMPELLER	1
42	56654	键	KEY	1
42	8M0214992	键@5	KEY @5	1
43	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
43	8M0215009	螺钉	SCREW	1
44	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
44	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
45	13438	螺母(.250-28)	NUT (.250-28)	2
45	8267119	螺母(.250-28)	NUT (.250-28)	2
46	36001	垫圈	WASHER	1
47	13436	螺母	NUT	1
48	29804	套筒	SLEEVE	1
48	29804T	套筒	SLEEVE	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1

图 91艉板支架 TRANSOM BRACKETS

REF	零件编号	中文名称	英文名称	数量
1	8718A1	艉板支架总成(右舷)	BRACKET ASSEMBLY Transom (STARBOARD)	1
2	8716A5	艉板支架总成(左舷)	BRACKET ASSEMBLY Transom (PORT)	1
2	8716A8	艉板支架总成	BRACKET ASSEMBLY Transom	1
3	98727	润滑配件左舷艉板支架	FITTING Grease PORT TRANSOM BRACKET	1
3	8M0169588	润滑脂接头	FITTING Grease	1
5	99170A1	倾斜管	TILT TUBE	1
5	99170A2	倾斜管套件	TUBE KIT Tilt	1
6	90068T	倾斜管螺母（1英寸-14牙）	NUT TILT TUBE (1"-14)	1
6	859133	螺母(1.00-14)	NUT (1.00-14)	1
7	45711		O-RING (.612 x .103) TILT TUBE	1
8	88750	波形垫圈(1.62 x 1.05)倾斜管	WASHER Wave (1.62 x 1.05) TILT TUBE	2
9	56041	螺母 (.875-14) 倾斜管 (7/9-14)	NUT (.875-14) TILT TUBE (7/9-14)	1
9	858869	螺母 (.875-14)	NUT (.875-14)	1
10	677551	螺钉(.500-20 x 4.500)艉板支架至艉板	SCREW (.500-20 x 4.500) TRANSOM BRACKET TO TRANSOM	4
10	8M0149747	螺钉	SCREW	4
11	28421	垫圈(1.5 x 3.05 x 0.13)不锈钢艉板支架螺栓	WASHER (1.5 x 3.05 x 0.13) Stainless Steel TRANSOM BRACKET BOLT	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	8M0027784	艉板支架螺栓螺母	NUT TRANSOM BRACKET BOLT	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	99629A2	倾斜锁杆总成	LEVER ASSEMBLY TILT LOCK	1
13	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	99611	倾斜杆波形垫圈	WAVE WASHER TILT LEVER	1
15	65830	倾斜杆尼龙衬套	NYLINER TILT LEVER	2
16	99633	倾斜锁杆旋钮	KNOB TILT LOCK LEVER	1
17	99615	槽销	PIN Groove	1
18	99622	弹簧	SPRING	1
19	99604	槽销	PIN Groove	1
20	96930A1	倾斜锁螺栓总成	BOLT ASSEMBLY TILT LOCK	1
21	23161	螺栓螺母（3/8英寸-24牙）	NUT (.375-24) BOLT	1
22	814207	倾斜止动杆	STOP TILT LEVER	1
23	37984	螺母 (.875-14)	NUT (.875-14)	1
23	8M0041651	螺母 (.875-14)	NUT (.875-14)	1
-	14697A87	衬垫套件	GASKET SET

图 92动力升降马达 POWER TRIM MOTOR

REF	零件编号	中文名称	英文名称	数量
-	828708	电机总成	MOTOR ASSEMBLY	1
1	828714A1	电刷与密封套件	BRUSH AND SEAL KIT	1
2	828713A1	电枢套件	ARMATURE KIT	1
2	828713T1	电枢套件	ARMATURE KIT	1
3	828715A1	端架（总成）	END FRAME (COMPLETE)	1

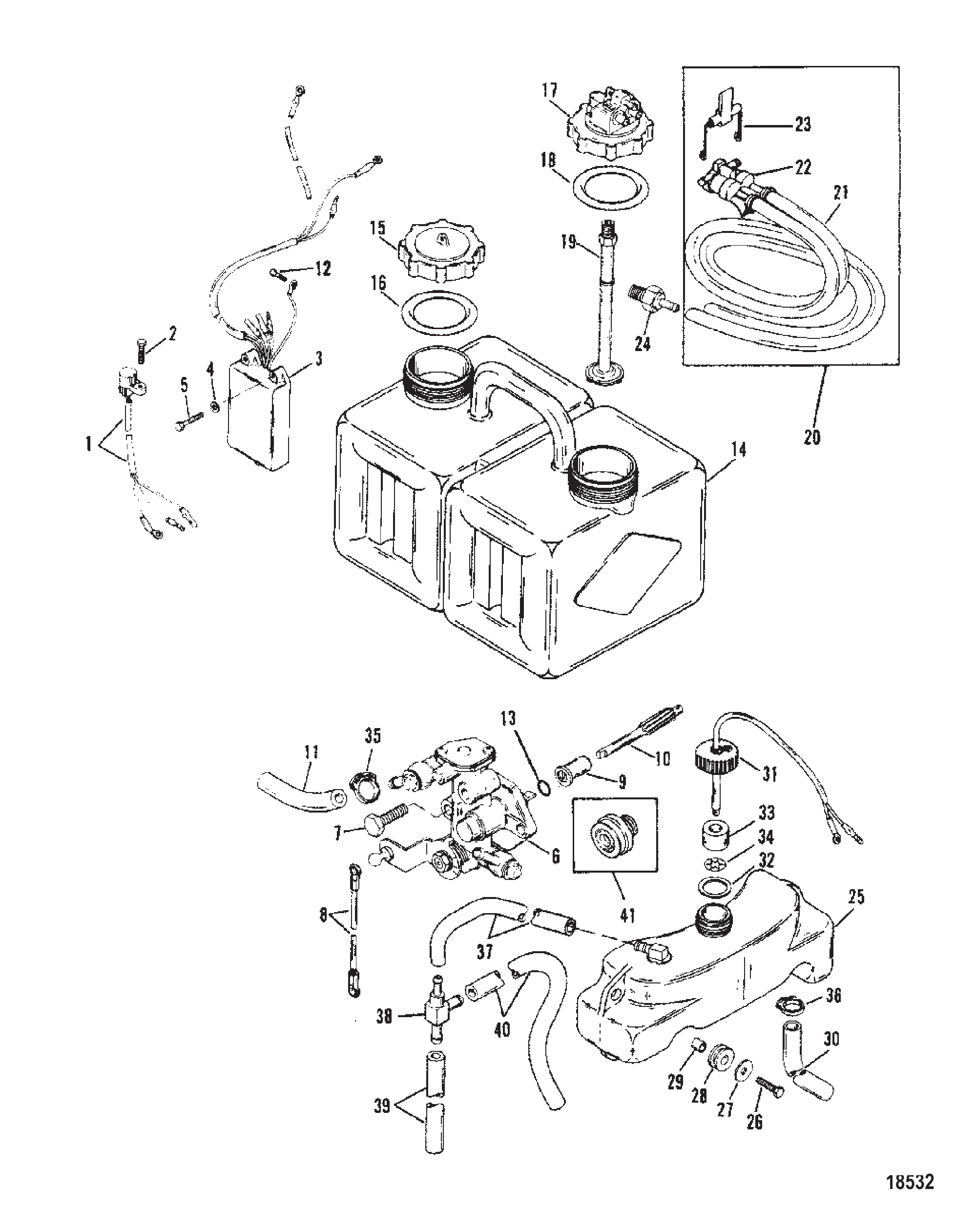

图 93机油喷射组件 Oil Injection Components

REF	零件编号	中文名称	英文名称	数量
1	12430A4	传感器总成	SENSOR ASSEMBLY	1
2	48409	螺钉(#10-16 x .625)不锈钢传感器固定(5/8")	SCREW (#10-16 x .625) Stainless Steel SENSOR ATTACHING (5/8")	1
3	815699	油泵总成	PUMP ASSEMBLY Oil	1
3	815699T	油泵总成	PUMP ASSEMBLY Oil	1
3A	814103	轴承(带密封)	BEARING (W/SEAL)	1
3A	8141032	蜗杆衬套	BUSHING Worm	1
4	11379	油泵O型圈	O-RING OIL PUMP	1
5	41429A2	驱动齿轮轴承总成	BEARING ASSEMBLY DRIVE GEAR	1
6	12726	从动齿轮	GEAR Driven	1
6	14563	从动齿轮	GEAR Driven	1
7	32228	螺钉(#10-32 x .625)油泵至曲轴箱(5/8")	SCREW (#10-32 x .625) OIL PUMP TO CRANKCASE (5/8")	1
7	41507	螺钉(#10-32 x 1.120)油泵至曲轴箱(1-1/8")	SCREW (#10-32 x 1.120) OIL PUMP TO CRANKCASE (1-1/8")	1
8	1938512	油门连杆至油泵总成	LINK ASSEMBLY THROTTLE LEVER TO OIL PUMP	1
9	4301619	油泵油管	TUBING OIL PUMP	1
9	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	1
10	99443T	油箱	RESERVOIR Oil	1
10	994436	储液罐	RESERVOIR	1
11	415823	油管卡箍(大)	CLAMP OIL HOSE (LARGE)	2
12	4301736	油箱至油泵油管	TUBING OIL RESERVOIR TO OIL PUMP	1
12	82381455	油管（25.00英寸散装）	TUBING (25.00 Inches Bulk)	1
13	69020	螺钉(#10-32 x .875)油箱固定(7/8")	SCREW (#10-32 x .875) OIL RESERVOIR ATTACHING (7/8")	3
13	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
14	42118	油箱螺钉垫圈	WASHER OIL RESERVOIR SCREW	6
15	42117	油箱螺钉衬套	GROMMET OIL RESERVOIR SCREW	3
16	42116	油箱螺钉轴套	BUSHING OIL RESERVOIR SCREW	3
17	99127109	油管(57.00英寸散装)	LINE (57.00 Inches Bulk) OIL	1
17	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
18	42425	油管三通	TEE OIL TUBING	1
19	9072925	油管(6-3/4")	HOSE OIL (6-3/4")	1
20	NA	不可用壳体总成	NOT AVAILABLE HOUSING ASSEMBLY	1
21	99439	油管(114.00英寸)	HOSE (114.00 Inches) OIL	1
22	12540A3	壳体	HOUSING	1
23	12242A1	闩锁	LATCH	1
24	43278	止回阀接头(曲轴箱)	FITTING CHECK CALVE (CRANKCASE)	1
24	8781051	止回阀	CHECK VALVE	1
25	87421	油箱	TANK	1
26	43298A2	油箱盖总成	CAP ASSEMBLY OIL TANK	1
27	11332	O型圈(2.225 x .210)盖	O-RING (2.225 x .210) CAP	1
28	43295A5	壳体总成适配器	HOUSING ASSEMBLY Adaptor	1
28	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
29	11332	O型圈(2.225 x .210)适配器壳体	O-RING (2.225 x .210) ADAPTOR HOUSING	1
30	99802	吸油管	TUBE OIL PICK-UP	1
31	43300A1	油箱盖总成	CAP ASSEMBLY OIL RESERVOIR	1
31	43300A9	盖总成	CAP ASSEMBLY	1
32	43307	油箱盖衬垫	GASKET RESERVOIR CAP	1
32	43307T	衬垫	GASKET	1
33	99022A1	浮子总成	FLOAT ASSEMBLY	1
33	8M0187298	浮子总成	FLOAT ASSY	1
34	99265	压入式螺母	PUSH NUT	1
35	415824	油管卡箍(小)	CLAMP OIL HOSE (SMALL)	2
36	90077	扎带	TIE STRAP	AR
36	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
37	12335A1	支架套件	BRACKET KIT	1
38	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1

图 94动力升降组件金属马达壳 Power Trim Components Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	826729A2	升降倾斜总成	TRIM AND TILT ASSEMBLY	1
1	811604F	歧管总成	MANIFOLD ASSEMBLY	1
2	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	9
3	823552F	气缸总成	CYLINDER ASSEMBLY	1
3	880952A03	ORD 8M0078330	ORD 8M0078330	1
4	823553	配平活塞杆套件	ROD KIT Trim Piston	1
4	823553T	升降活塞杆	ROD Trim Piston	1
5	811606	导向套件	GUIDE KIT	1
5	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
6	811607A1	维修套件	REPAIR KIT	1
7	811610A1	止回阀套件	CHECK VALVE KIT	1
7	823553T	升降活塞杆	ROD Trim Piston	1
8	99638A1	导向器总成	GUIDE ASSEMBLY	2
8	8M0021648	端盖总成	END CAP ASSEMBLY	2
9	43397A6	动力升降倾斜装置活塞/杆总成	PISTON/ROD ASSEMBLY Power Trim	1
9	878413A1	活塞总成	PISTON ASSEMBLY	1
9	43398A3	动力升降倾斜装置活塞/杆总成	PISTON/ROD ASSEMBLY Power Trim	1
9	878414T01	活塞总成	PISTON ASSEMBLY	1
10	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
11	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
11	893929A01	安全阀套件	VALVE KIT Relief	1
12	812844	E型卡环	E RING	1
12	815949001	E形环	E-RING	1
13	811612A2	O型圈套件	O-RING KIT	1
13	811612A3	O型圈套件	O-RING KIT	1
14	811617F	泵	PUMP	1
14	811617T1	泵	PUMP	1
15	811613	塞子总成	PLUG ASSEMBLY	1
16	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
17	43450	垫圈	WASHER	4
17	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
18	811611	盖板	COVER	1
19	828710	驱动接头	DRIVE JOINT	1
20	828708	马达总成(动力配平马达分解件)	MOTOR ASSEMBLY (BREAKDOWN ON PWER TRIM MOTOR)	1
20	878265A4	配平电机	TRIM MOTOR	1
21	828709	螺钉	SCREW	2
21	881768A1	螺钉/垫圈套件	SCREW/WASHER KIT	2
21	811616	螺钉	SCREW	2
22	811614	轴总成	SHAFT ASSEMBLY	1
22	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
23	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
24	44431	槽销	PIN Groove	1
24	878267	销	PIN	1
25	821539	三叶销	PIN Trilobe	1
26	996251	轴	SHAFT	1
26	99625002	轴	SHAFT	1
27	818298A1	阳极套件	ANODE KIT	1
27	818298Q1	阳极套件	ANODE KIT	1
28	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
28	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
29	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
29	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
30	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
31	4002319	垫圈	WASHER	6
32	26550	卡箍	CLAMP	2
33	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	2
33	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2
34	69205	C形垫圈	C WASHER	2
34	8M0084613	C形垫圈	C-WASHER	2
35	996301	冲击板	STRIKER PLATE	2
35	8M0045383	冲击板	STRIKER PLATE	2
36	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
37	46335	螺母 (.375-24)	NUT (.375-24)	2

图 95化油器 CARBURETOR

REF	零件编号	中文名称	英文名称	数量
1	9242A33	化油器(上部)(WH-40)	CARBURETOR (TOP) (WH-40)	1
1	9242A34	化油器(中部)(WH-40)	CARBURETOR (CENTER) (WH-40)	1
1	9242A35	化油器(下部)(WH-40)	CARBURETOR (BOTTOM) ( WH-40)	1
1	7563A10	化油器(上部)(WH-35)	CARBURETOR (TOP) (WH-35)	1
1	7563A11	化油器(中部)(WH-35)	CARBURETOR (CENTER) (WH-35)	1
1	7563A12	化油器(下部)(WH-35)	CARBURATOR (BOTTOM) (WH-35)	1
1	7563A13	化油器(上部)(WH-38)	CARBURETOR (TOP) (WH-38)	1
1	7563A14	化油器(中部)(WH-38)	CARBURETOR (CENTER) (WH-38)	1
1	7563A15	化油器(下部)(WH-38)	CARBURETOR (BOTTOM) (WH-38)	1
2	6249	主量孔(.096)燃油室(WH-32)(WH-38)	JET Main (.096) FUEL BOWL(WH-32) (WH-38)	6
2	8423	量孔(.094)浮子室(WH-35)	JET (.094) FUEL BOWL (.094) (WH-35)	6
2	6680	量孔(.078)燃油室(WH-40)	JET (.078) FUEL BOWL (WH-40)	6
3	NSS		NOT SOLD SEPARATE Gasket-Cover Plate	3
4	6032	盖板	PLATE COVER	3
5	NSS	盖板螺钉(不单独销售)	NOT SOLD SEPARATE Screw-Cover Plate	15
6	7822	燃油室(WH-33)	BOWL Fuel (WH-33)	3
6	7823	燃油杯(顶部)	BOWL Fuel (TOP)	1
6	7822	燃油杯(中部/底部)	BOWL Fuel (CENTER/BOTTOM)	2
7	NSS	不单独销售燃油杯螺钉	NOT SOLD SEPARATE Screw-Fuel Bowl	18
8	6025	主量孔塞	PLUG MAIN JET	6
9	NSS	不单独出售主量孔垫片	NOT SOLD SEPARATE Gasket-Main Jet	6
10	4216	主量孔(.064)(WH-33)	JET (.064) MAIN FUEL (WH-33)	6
10	6246	主量孔(.048)(WH-32)	JET (.048) MAIN FUEL (WH-32)	6
10	6028	主燃油量孔(.050)(WH-35)	JET (.050) MAIN FUEL (WH-35)	6
10	6359	主燃油量孔(.052)(WH-38)	JET (.052) MAIN FUEL (WH-38)	6
10	6201	主量孔(.080)(WH-40)	JET (.080) MAIN FUEL (WH-40)	6
11	NSS	不单独出售浮子销螺钉	NOT SOLD SEPARATE Screw-Float Pin	6
12	NSS	不单独出售进油针阀座垫片	NOT SOLD SEPARATE Gasket--Inlet Needle and Seat	6
13	7824	进油针阀总成	NEEDLE/SEAT ASSEMBLY Inlet	6
14	NSS	喷嘴座垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Nozzle Boss	6
15	9267	浮子	FLOAT	6
16	NSS	浮子杆销(不单独销售)	NOT SOLD SEPARATE Pin-Float Lever	6
17	NSS		NOT SOLD SEPARATE Gasket-Fuel Bowl	3
18	4541	怠速空气量孔螺钉	SCREW IDLE AIR BLEED JET	6
19	NSS	泄放量孔塞垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Bleed Jet Plug	6
20	5213	主量孔(.056)怠速空气量孔(WH-33)	JET Main (.056) IKLE AIR BLEED (WH-33)	6
20	7831	主量孔(.058)怠速空气量孔(.058)(WH-32)	JET Main Fuel (.058) IDLE AIR BLEED (.058) (WH-32)	6
20	6487	主量孔(.060)怠速空气量孔(WH-35)	JET Main (.060) IKLE AIR BLEED (WH-35)	6
20	5317	怠速空气量孔(.046)(WH-38)	JET (.046) IDLE AIR BLEED (WH-38)	6
20	6246	怠速空气量孔(.048)(WH-40)	JET (.048) IDLE AIR BLEED (WH-40)	6
21	6027	节气门杠杆螺钉	SCREW THROTTLE LEVER	3
22	67752	节流阀杆	LEVER THROTTLE	3
23	NSS		NOT SOLD SEPARATE Spring-Throttle Return	3
24	6031	节气门杠杆垫片	SPACER THROTTLE LEVER	3
25	6022	节流阀轴	SHAFT THROTTLE	3
26	NSS	节气门轴挡圈(不单独销售)	NOT SOLD SEPARATE Ring-Retainer-Throttle Shaft	3
27	6023	节气门阀(WH-33)(WH-40)	VALVE Throttle (WH-33) (WH-40)	6
27	9496	节气门阀(WH-32)	VALVE Throttle (WH-32)	6
27	9545	节气门阀(WH-38)(WH-35)	VALVE Throttle (WH-38) (WH-35)	6
28	NSS		NOT SOLD SEPARATE Screw-Throttle Valve	12
-	6452	衬垫套件	GASKET KIT	1
-	8506	化油器修理包(WH-33)(WH-40)	REPAIR KIT Carburetor (WH-33) (WH-40)	1
-	7826	修理包(WH-32)(WH-35)(WH-38)	REPAIR KIT (WH-32)(WH-35)(WH-38)	1

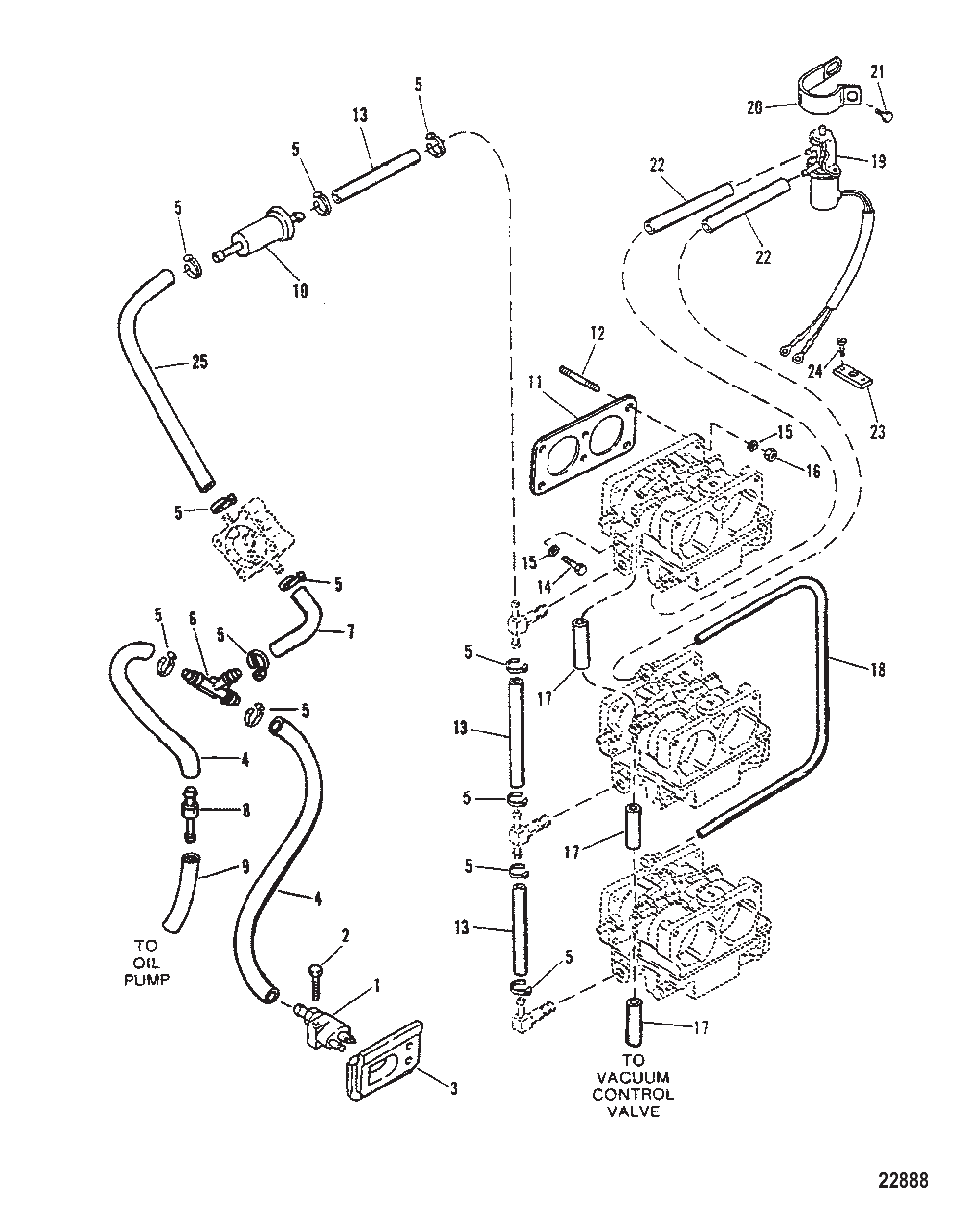

图 96燃油管路（用于 WMH-12A/B 至 WMH-28 化油器） FUEL LINES (Use With WMH-12A/B thru WMH-28 Carburtors)

REF	零件编号	中文名称	英文名称	数量
1	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
2	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
3	812782	密封件	SEAL	1
4	9912980	软管	HOSE	AR
4	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	AR
5	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
5	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
6	818993	三通接头	CONNECTOR Tee	1
7	18175	软管	HOSE	1
8	818994	止回阀	CHECK VALVE	1
8	8189941	止回阀	CHECK VALVE	1
9	82381325	管材(10.00英寸散装)	TUBING (10.00 Inches Bulk)	1
9	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	1
10	8162961	燃油滤清器	FILTER Fuel	1
10	816296Q2	燃油滤清器	FILTER Fuel	1
11	677511	衬垫	GASKET	3
12	27037	双头螺栓(.250-28×1.125)	STUD (.250-28 x 1.125)	6
12	270372	双头螺栓(.250-28×1.125)	STUD (.250-28 x 1.125)	6
13	830756109	软管(57.00英寸散装)	HOSE (57.00 Inches Bulk)	1
13	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
14	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	6
15	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	6
16	29598	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	6
17	9912878	软管 (.187) (26.00英寸散装)	HOSE (.187) (26.00 Inches Bulk)	3
18	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
18	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
19	42859A2	加浓阀总成	VALVE ASSEMBLY Enrichner	1
20	633001	卡箍	CLAMP	1
21	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
22	9912688	管材 (36.00英寸散装)	TUBING (36.00 Inches Bulk)	2
23	45915	端子排	TERMINAL BLOCK	1
24	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	1
24	69079	螺钉 (#10-16 x .440)	SCREW (#10-16 x .440)	1
25	824001	软管	HOSE	1
25	830762	软管	HOSE	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 97动力升降组件（金属马达壳体） POWER TRIM COMPONENTS Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	826729A2	升降倾斜总成	TRIM AND TILT ASSEMBLY	1
1	811604F	歧管总成	MANIFOLD ASSEMBLY	1
2	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	9
3	823552F	气缸总成	CYLINDER ASSEMBLY	1
3	880952A03	ORD 8M0078330	ORD 8M0078330	1
4	823553	配平活塞杆套件	ROD KIT Trim Piston	1
4	823553T	升降活塞杆	ROD Trim Piston	1
5	811606	导向套件	GUIDE KIT	1
5	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
6	811607A1	维修套件	REPAIR KIT	1
7	811610A1	止回阀套件	CHECK VALVE KIT	1
7	823553T	升降活塞杆	ROD Trim Piston	1
8	99638A1	导向器总成	GUIDE ASSEMBLY	2
8	8M0021648	端盖总成	END CAP ASSEMBLY	2
9	43397A6	动力升降倾斜装置活塞/杆总成	PISTON/ROD ASSEMBLY Power Trim	1
9	878413A1	活塞总成	PISTON ASSEMBLY	1
9	43398A3	动力升降倾斜装置活塞/杆总成	PISTON/ROD ASSEMBLY Power Trim	1
9	878414T01	活塞总成	PISTON ASSEMBLY	1
10	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
11	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
11	893929A01	安全阀套件	VALVE KIT Relief	1
12	812844	E型卡环	E RING	1
12	815949001	E形环	E-RING	1
13	811612A2	O型圈套件	O-RING KIT	1
13	811612A3	O型圈套件	O-RING KIT	1
14	811617F	泵	PUMP	1
14	811617T1	泵	PUMP	1
15	811613	塞子总成	PLUG ASSEMBLY	1
16	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
17	43450	垫圈	WASHER	4
17	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
18	811611	盖板	COVER	1
19	828710	驱动接头	DRIVE JOINT	1
20	828708	马达总成(动力配平马达分解件)	MOTOR ASSEMBLY (BREAKDOWN ON PWER TRIM MOTOR)	1
20	878265A4	配平电机	TRIM MOTOR	1
21	828709	螺钉	SCREW	2
21	881768A1	螺钉/垫圈套件	SCREW/WASHER KIT	2
21	811616	螺钉	SCREW	2
22	811614	轴总成	SHAFT ASSEMBLY	1
22	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
23	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
24	44431	槽销	PIN Groove	1
24	878267	销	PIN	1
25	821539	三叶销	PIN Trilobe	1
26	996251	轴	SHAFT	1
26	99625002	轴	SHAFT	1
27	818298A1	阳极套件	ANODE KIT	1
27	818298Q1	阳极套件	ANODE KIT	1
28	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
28	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
29	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
29	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
30	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
31	4002319	垫圈	WASHER	6
32	26550	卡箍	CLAMP	2
33	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	2
33	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2
34	69205	C形垫圈	C WASHER	2
34	8M0084613	C形垫圈	C-WASHER	2
35	996301	冲击板	STRIKER PLATE	2
35	8M0045383	冲击板	STRIKER PLATE	2
36	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
37	46335	螺母 (.375-24)	NUT (.375-24)	2

图 98动力升降倾斜泵 Power Trim Pump

REF	零件编号	中文名称	英文名称	数量
-	99186T	泵与电机总成	PUMP AND MOTOR	1
1	12659	机架与磁场套件	FRAME AND FIELD KIT	1
1	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
2	12665	电刷弹簧套件	SPRING KIT Brush	1
3	13506	电刷卡套件	BRUSH CARD KIT	1
3	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
4	12662	泵与端架套件	PUMP AND END FRAME KIT	1
4	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
5	12663	泵密封套件	SEAL KIT Pump	1
5	126631	泵密封套件	SEAL KIT Pump	1
6	12660	端架套件	END FRAME KIT	1
6	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
7	12661	电枢套件	ARMATURE KIT	1
7	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
8	12664	贯穿螺栓套件	THRU BOLT KIT	1

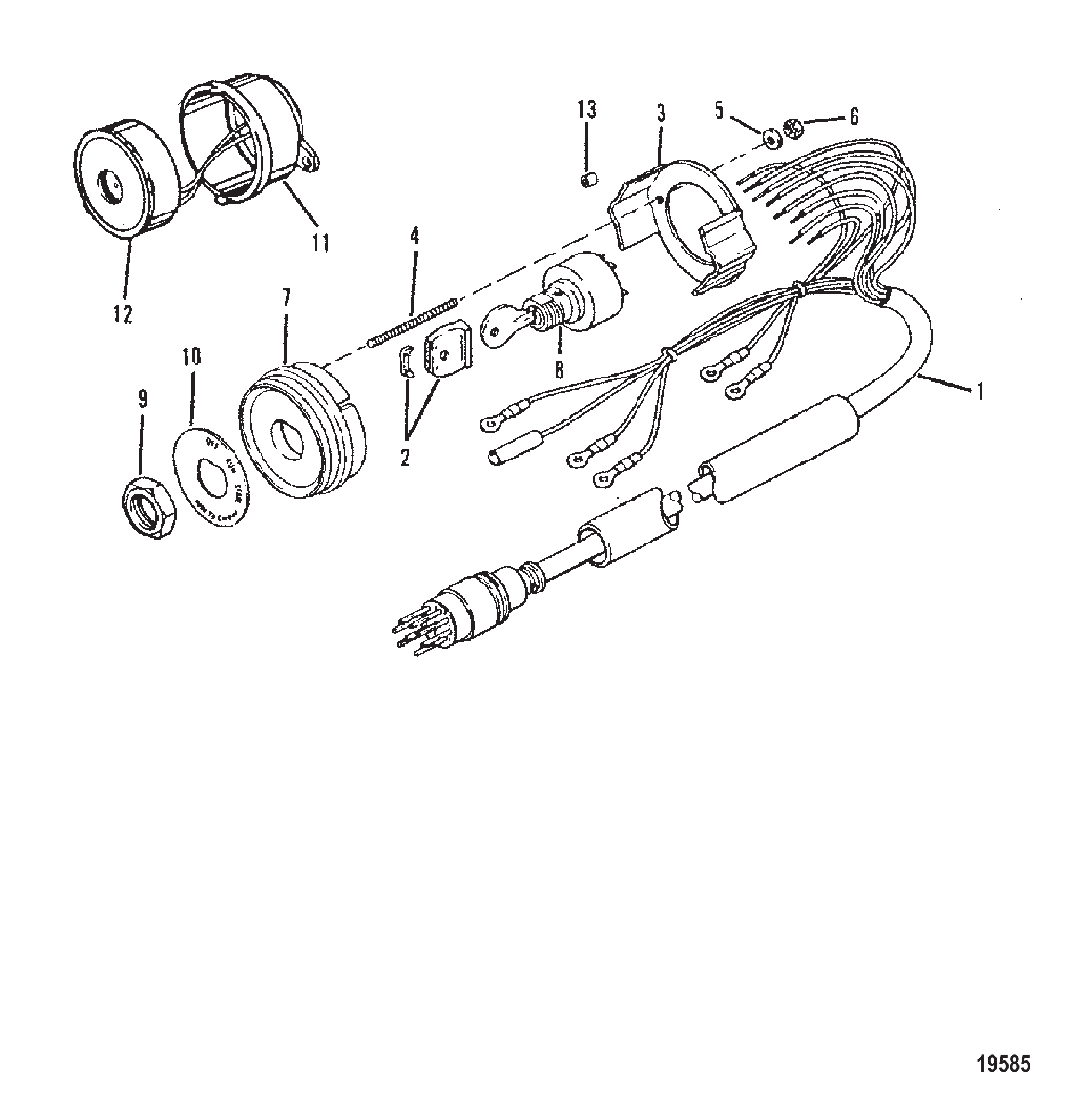

图 99钥匙开关(反旋转发动机用) Key Switch (Counter Rotation Engines)

REF	零件编号	中文名称	英文名称	数量
1	17925A20	钥匙开关总成(20英尺)	KEY SWITCH ASSEMBLY (20')	1
2	90468A1	点火开关钥匙盖总成	COVER ASSEMBLY Key IGNITION SWITCH KEYS	2
3	76424	点火开关支架	BRACKET IGNITION SWITCH	1
4	55422	开关安装螺柱(#10-32 x 2.00)	STUD (#10-32 x 2.00) SWITCH ATTACHING	2
5	24676	开关安装螺柱垫圈(.200 x .440 x .032)	WASHER (.200 x .440 x .032) SWITCH ATTACHING STUD	2
6	68219	开关安装螺柱螺母(#10-32)不锈钢	NUT (#10-32) Stainless Steel SWITCH ATTACHING STUD	1
7	89976	开关安装板	PLATE SWITCH MOUNT	1
8	88107	点火钥匙开关(钥匙见下方)	KEY SWITCH IGNITION (SEE BELOW FOR KEYS)	1
9	93543	点火开关专用螺母-镀铬黄铜	NUT Special - Chrome Brass IGNITION SWITCH	1
10	90311	开关板插片(关-运行-启动)(按压阻风门)	INSERT Switch Plate (Off-Run-Start)(Push to Choke) SWITCH PLATE	1
11	68878A2	警报喇叭总成	HORN ASSEMBLY Alarm	1
12	68879	警报喇叭盖	COVER ALARM HORN	1
13	8127111	垫片(0.375)	SPACER (.375)	2
13	812711	隔套(0.250)	SPACER (.250)	2
-	894911	点火钥匙(1A)	KEY Ignition (1A)	1
-	894912	点火钥匙(1B)	KEY Ignition (1B)	1
-	894913	点火钥匙(1C)	KEY Ignition (1C)	1
-	894914	点火钥匙(1D)	KEY Ignition (1D)	1
-	894915	点火钥匙(1E)	KEY Ignition (1E)	1
-	894916	点火钥匙(1F)	KEY Ignition (1F)	1
-	894917	点火钥匙(2A)	KEY Ignition (2A)	1
-	894918	点火钥匙(2B)	KEY Ignition (2B)	1
-	894919	点火钥匙(2C)	KEY Ignition (2C)	1
-	8949110	点火钥匙(2D)	KEY Ignition (2D)	1
-	8949111	点火钥匙(2E)	KEY Ignition (2E)	1
-	8949112	点火钥匙(2F)	KEY Ignition (2F)	1

图 100转向连接套件 STEERING ATTACHING KIT

REF	零件编号	中文名称	英文名称	数量
-	92876A8	转向安装套件	ATTACHING KIT Steering	1
1	41055A1	支架总成	BRACKET ASSEMBLY	1
2	715651	转向拉索套管	TUBE Steering Cable	1
3	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
4	821203	锁紧垫圈	LOCKWASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
7	78968	内锁紧垫圈 (.250)	LOCKWASHER Internal (.250)	4
8	850791T	联轴器	COUPLER	1
9	73732	螺钉 (.375-24 x 1.120)	SCREW (.375-24 x 1.120)	2
10	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
11	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	3
11	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	3

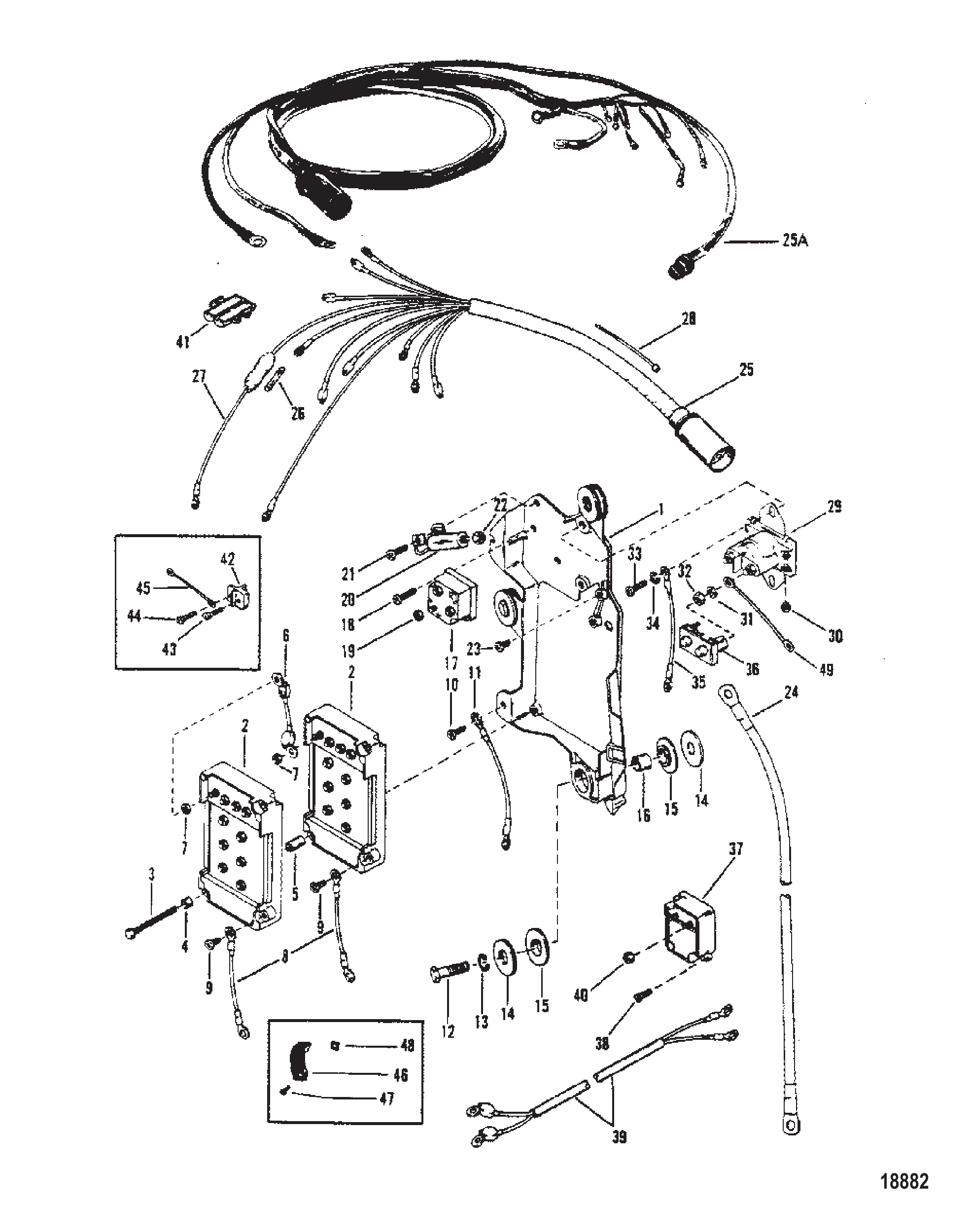

图 101线束/启动继电器 Wiring Harness/Starter Solenoid

REF	零件编号	中文名称	英文名称	数量

图 102动力升降倾斜组件 Power Trim Components

REF	零件编号	中文名称	英文名称	数量
-	830250T3	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
1	811666A1	减震杆套件	SHOCK ROD KIT	1
1	8M0171821	减震杆套件	SHOCK ROD KIT	1
2	809872A2	O型圈维修包	O-RING KIT Rebuild	1
2	8M0171819	O型圈套件	O-RING KIT	1
3	810776A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
3	8M0171822	记忆活塞套件	MEMORY PISTON KIT	1
4	811669A1	气缸总成	CYLINDER ASSEMBLY	1
4	893916A01	气缸总成	CYLINDER ASSEMBLY	1
5	809873A1	配平限位阀套件	VALVE KIT Trim Limit	1
5	893905A02	阀套件	VALVE KIT	1
6	809874A1	泵总成	PUMP ASSEMBLY	1
6	893906A02	泵总成	PUMP ASSEMBLY	1
7	809885A2	电机套件	MOTOR KIT	1
7	893907A02	电机套件	MOTOR KIT	1
8	8134351	堵头	PLUG	1
9	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
9	893929A01	安全阀套件	VALVE KIT Relief	1
10	809875A1	歧管套件	MANIFOLD KIT	1
10	893909A02	歧管套件	MANIFOLD KIT	1
11	809876A1	电机螺钉套件	SCREW KIT Motor	1
12	88238A18	拉线总成	CABLE ASSEMBLY	1
13	809877A1	驱动轴/密封套件	DRIVESHAFT/SEAL KIT	1
14	809878A1	滤清器套件	FILTER KIT	1
14	893912A02	滤清器套件	FILTER KIT	1
15	809879A1	提升阀套件	POPPET KIT	1
15	893913A02	提升阀套件	POPPET KIT	1
-	809880A1	完整配平O型圈套件	O-RING KIT Complete Trim	1
-	893914A02	O型圈套件	O-RING KIT	1
16	821539	三叶销	PIN Trilobe	2
17	818898	锚销	PIN Anchor	1
18	996251	轴	SHAFT	1
18	99625002	轴	SHAFT	1
19	22740	卡扣	CLIP	2
20	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
21	69205	C形垫圈	C WASHER	1
21	8M0084613	C形垫圈	C-WASHER	1

图 103油门杆与换挡轴 Throttle Lever and Shift Shaft

REF	零件编号	中文名称	英文名称	数量
1	74897		PIVOT TRIGGER PLATE	1
2	62459	球头总成触发板	BALL JOINT ASSEMBLY TRIGGER PLATE	1
2	62459T	球头节总成	BALL JOINT ASSY	1
3	45076	螺母(#10-32)黄铜连杆	NUT (#10-32) Brass LINK ROD	1
4	76035	触发板连杆	ROD TRIGGER PLATE	1
5	46438	螺母(#10-32)球头	NUT (#10-32) BALL JOINT	1
6	41094A3	点火提前杆总成	LEVER ASSEMBLY SPARK ADVANCE	1
7	64022	螺丝(.250-20x2.125)点火提前杆-止动	SCREW (.250-20 x 2.125) SPARK ADVANCE LEVER - STOP	1
8	64015	螺母(.250-20)点火提前止动螺丝	NUT (.250-20) SPARK ADVANCE STOP SCREW	1
9	26852	尼龙帽点火提前杆止动螺丝	CAP Nylon SPARK ADVANCE LEVER STOP SCREW	1
10	13627	螺钉（0.190-32 x 1.250）点火提前杠杆-止动（1-1/4英寸）	SCREW (.190-32 x 1.250) SPARK ADVANCE LEVER - STOP (1-1/4")	1
11	68219	螺母(#10-32)不锈钢点火提前杆止动螺丝	NUT (#10-32) Stainless Steel SPARK ADVANCE LEVER STOP SCREW	1
12	48039	点火提前杆止动螺丝帽	CAP SPARK ADVANCE LEVER STOP SCREW	1
13	41095T	油门控制杆	LEVER THROTTLE CONTROL	1
13	410952	杠杆	LEVER	1
14	55337	螺钉（0.375-16 x 1.75）节气门杠杆/提前杠杆（1-3/4英寸）	SCREW (.375-16 x 1.75) THROTTLE LEVER/ADVANCE LEVER (1-3/4")	1
14	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
15	55164	油门杠杆衬套	BUSHING THROTTLE LEVER	1
16	55171	点火提前杆衬套	BUSHING SPARK ADVANCE LEVER	1
17	68784	节气门与点火提前杆弹簧	SPRING THROTTLE AND SPARK ADVANCE LEVER	1
18	68410	点火提前杆垫片	WASHER SPARK ADVANCE LEVER	1
18	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	1
19	64022	螺钉（0.250-20 x 2.125）节气门杠杆-止动（2-1/8英寸）	SCREW (.250-20 x 2.125) THROTTLE LEVER - STOP (2-1/8")	1
20	64015	螺母(.250-20)节气门杆止动螺丝	NUT (.250-20) THROTTLE LEVER STOP SCREW	1
21	26852	尼龙帽节气门杆止动螺丝	CAP Nylon THROTTLE LEVER STOP SCREW	1
22	39483	锁扣拉线	LATCH CABLE	1
23	22486	螺丝(.250-28x.880)拉线锁扣至节气门杆	SCREW (.250-28 x .880) CABLE LATCH TO THROTTLE LEVER	1
23	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
24	20099	拉线锁扣至节气门杆弹簧	SPRING CABLE LATCH TO THROTTLE LEVER	1
25	20586	螺母(.250-28)拉线锁扣螺丝	NUT (.250-28) CABLE LATCH SCREW	1
25	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
26	14634	节气门控制杆	ROD THROTTLE CONTROL	1
27	14638	节气门控制杆套筒	BARREL THROTTLE CONTROL ROD	1
28	146351	节气门凸轮	CAM Throttle	1
29	93248	衬套	BUSHING	1
29	8M0215006	旋转衬套	BUSHING Swivel	1
30	26856	节气门凸轮衬套	BUSHING THROTTLE CAM	2
31	35045	螺母（0.250-28）节气门凸轮螺柱	NUT (.250-28) THROTTLE CAM STUD	1
31	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
32	41050	节气门复位弹簧	SPRING THROTTLE RETURN	1
33	92032A2	支架锚-控制电缆	BRACKET ANCHOR - CTRL CABLES	1
33	814283A2	支架总成	BRACKET ASSEMBLY	1
33	814283A1	控制线缆锚定支架	BRACKET ANCHOR - CONTROL CABLES	1
33	814283A2	支架总成	BRACKET ASSEMBLY	1
34	98889	控制线缆锁扣	LATCH CONTROL CABLE	1
35	42975	闩锁传动螺钉	DRIVE SCREW LATCH	2
36	53167	螺丝(.312-18x.880)锚定支架固定	SCREW (.312-18 x .880) ANCHOR BRACKET ATTACHING	3
36	53167T	螺钉 0.312-18X 0.88	SCREW .312-18X .88	3
37	37896	连杆导向块	GUIDE BLOCK LINK ROD	1
37	814284	连杆导向块	GUIDE BLOCK LINK ROD	1
38	20099	连杆至导向块弹簧	SPRING LINK ROD TO GUIDE BLOCK	1
39	67073A1	连杆总成	LINK ROD ASSEMBLY	1
40	52100	连杆耐磨板	WEAR PLATE LINK ROD	1
41	38279	控制线缆闩锁紧固件	LATCH CONTROL CABLE FASTENING	1
41	8M0036768	闩锁	LATCH	1
42	35462	垫圈(.2656x.625x.0625)不锈钢锁扣	WASHER (.2656 x .625 x .0625) Stainless Steel LATCH	1
43	35045	螺母（0.250-28）连杆	NUT (.250-28) LINK ROD	1
43	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
44	79932A11	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
44	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
45	29720	连杆波形垫圈	WAVE WASHER LINK ROD	1
46	26600	尼龙衬套-连杆	BUSHING NYLON - LINK ROD	1
47	35462	垫圈(.2656 x .625 x .0625)不锈钢连杆	WASHER (.2656 x .625 x .0625) Stainless Steel LINK ROD	1
48	35045	螺母（0.250-28）连杆至换挡轴	NUT (.250-28) LINK ROD TO SHIFT SHAFT	1
48	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
49	39519	杯形保持器-锚杆	CUP BARRELL RETAINER - ANCHOR BAR	1

图 104排气歧管与排气板 Exhaust Manifold and Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	904841	分隔板衬垫	GASKET DIVIDER PLATE	2
2	99169A1	分隔板	PLATE DIVIDER	1
3	69668	分隔板密封件	SEAL DIVIDER PLATE	1
3	814754	密封件(12.50英寸)	SEAL (12.50 Inches)	1
4	193071	排气歧管盖	COVER EXHAUST MANIFOLD	1
5	74824	螺钉（0.312-18 x 1.250）盖和板至气缸体	SCREW (.312-18 x 1.250) COVER AND PLATE TO CYLINDER BLOCK	21
6	194373	接线板（3端子）	TERMINAL BLOCK (3 TERMIALS)	1
7	13716	零件手册 7.5/9.8马力接线板	PARTS MANUAL 7.5 /9.8 H.P. TERMIAL BL0CK	2
8	29245	垫圈（0.281 x 0.500 x 0.060）不锈钢接线板螺钉	WASHER (.281 x .500 x .060) Stainless Steel TERMIMAL BLOCK SCREW	2
8	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
9	45076	端子排黄铜螺母(#10-32)	NUT (#10-32) Brass TERMINAL BLOCK	3
10	813938	盖螺母（#10-32）接线板	CAP NUT (#10-32) TERMINAL BLOCK	3
11	74824	缸体盖板螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250) COVER TO CYLINDER BLOCK	4
12	69570	膜片至板件螺钉(#10-16 x .750)	SCREW (#10-16 x .750) DIAPHRAGM TO PLATE	1
13	76451	膜片螺钉垫片	WASHER DIAPHRAGM SCREW	1
14	14479	隔膜	DIAPHRAGM	1
14	144791	隔膜	DIAPHRAGM	1
15	16496	导水板	DEFLECTOR Water	1
16	16497A1	安全阀板	PLATE RELIEF VALVE	1
17	78690	安全阀板衬垫	GASKET RELIEF VALVE PLATE	2
17	78690002	衬垫	GASKET	2
18	64878	弹簧（黑色）压缩弹出阀	SPRING (Black) COMPERSSION POPPER VALVE	1
19	85303	提升阀弹簧垫片	WASHER POPPET SPRING	1
20	14480	提升阀	POPPET VALVE	1
21	64872	提升阀衬套	GROMMET POPPET VALVE	1
22	65848	提升阀座	CARRIER POPPET VALVE	1
23	991763	排气板衬垫	GASKET EXHAUST PLATE	1
23	991764	衬垫	GASKET	1
24	41944A5	排气板总成	PLATE ASSEMBLY EXHAUST	1
25	99664	排气板弯头	ELBOW EXHAUST PLATE	1
25	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
26	20033	排气板定位销	PIN Dowel LOCATING - EXHAUST PLATE	2
26	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
27	183982	排气板密封件	SEAL EXHAUST PLATE	1
27	8M0043165	密封件-27.00英寸	SEAL-27.00 INCH	1
28	680101	密封件固定支架	BRACKET SEAL RETAINING	1
29	812832	支架至排气板螺钉(#10-16 x .500)	SCREW (#10-16 x .500) BRACKET TO EXHAUST PLATE	6
29	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	6
30	25970	动力头螺柱垫圈	WASHER POWERHEAD STUD	6
30	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	6
31	69254	螺母动力头螺柱	NUT POWWERHEAD STUD	6
32	27132	排气板衬套	BUSHING EXHAUST PLATE	1
33	19564	护孔环	GROMMET	1
33	8M0179867	护孔环	GROMMET	1
34	12602	排气板衬套	GROMMET EXHAUST PLATE	1
34	12602002	护孔环	GROMMET	1
35	66727	螺钉(.312-18 x 1.250)排气板固定	SCREW (.312-18 x 1.250) EXHAUST PLATE ATTACHING	1
36	68783	螺钉(.312-18 x 2.50)排气板固定	SCREW (.312-18 x 2.50) EXHAUST PLATE ATTACHING	1
37	66725	螺钉(.375-16 x 3.50)排气板固定	SCREW (.375-16 x 3.50) EXHAUST PLATE ATTACHING	3
37	898833	螺钉(.375-16 x 3.500)	SCREW (.375-16 x 3.500)	3
38	812905A2	前支架总成	BRACKET ASSEMBLY FRONT	1
38	812905T	前支架	BRACKET Front	1
39	90285	螺钉（0.312-18 x 0.625）前支架	SCREW (.312-18 x .625) FRONT BRAKET	4
40	187031	垫圈	WASHER	4
41	18778	护孔环	GROMMET	4
41	18778001	护孔环	GROMMET	4
42	18578A3	后支架总成	BRACKET ASSEMBLY Rear REAR	1
42	18578T09	支架总成(后部)	BRACKET ASSEMBLY Rear	1
43	14462A1	安全阀盖(旧设计)	COVER RELIEF VALVE (OLD DESIGN)	1
43	68729	泄压阀盖（新设计）	COVER RELIEF VALVE (NEW DESIGN)	1
43	8M0039767	盖板	COVER	1
44	92007	接头（0.250-18）（90度）（新设计）	FITTING (.250-18) (90 DEGREES) (NEW DESIGN)	1
44	920071	90度弯头	FITTING (90 Degree)	1
45	99127109	管路（57.00英寸散装）（新设计）	LINE (57.00 Inches Bulk) (NEW DESIGN)	1
45	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
46	90077	扎带（新设计）	TIE STRAP (NEW DESIGN)	2
46	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
47	814430	接头（0.500-14）（新设计）	FITTING (.500-14) (NEW DESIGN)	1
47	8144301	接头	FITTING	1
-	14697A87	衬垫套件	GASKET SET	1

图 105燃油管路 Fuel Lines

REF	零件编号	中文名称	英文名称	数量
1	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
2	69067	燃油连接器螺钉(.250-20 x 1.375)	SCREW (.250-20 x 1.375) FUEL CONNECTOR	1
3	812782	密封件	SEAL	1
4	9912976	油管	TUBING	1
4	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
5	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
5	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
6	814964	接头	FITTING	1
7	19688	弯头接头	FITTING (ELBOW)	1
8	4301625	油管(8.00英寸)	TUBING (8.00 Inches)	1
8	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	1
9	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	4
9	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	4
10	816296	燃油滤清器	FILTER Fuel	1
10	816296Q03	燃油滤清器@3	FILTER-FUEL @3	1
11	67751	衬垫	GASKET	3
12	27037	双头螺栓(.250-28×1.125)	STUD (.250-28 x 1.125)	6
12	270372	双头螺栓(.250-28×1.125)	STUD (.250-28 x 1.125)	6
13	55098	J型卡扣	J CLIP	1
13	8M0024808	J型夹	J-CLIP	1
14	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	6
15	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	6
16	29598	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	6
17	9912878	软管 (.187) (26.00英寸散装)	HOSE (.187) (26.00 Inches Bulk)	3
18	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
18	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
19	42859A2	加浓阀总成	VALVE ASSEMBLY Enrichner	1
20	633001	卡箍	CLAMP	1
21	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
22	9912688	管材 (36.00英寸散装)	TUBING (36.00 Inches Bulk)	2
23	45915	端子排	TERMINAL BLOCK	AR
24	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	AR
24	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	AR
24	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	AR
24	69079	螺钉 (#10-16 x .440)	SCREW (#10-16 x .440)	AR
-	815791A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 106化油器（WMH-21/22/23/24/25/28） CARBURETOR (WMH-21/22/23/24/25/28)

REF	零件编号	中文名称	英文名称	数量
1	818650A16	化油器上部	CARBURETOR Top	1
1	818650A17	化油器中部	CARBURETOR Center	1
1	818650A18	化油器下部	CARBURETOR Bottom	1
1	818650A10	化油器上部	CARBURETOR Top	1
1	818650A11	化油器中部	CARBURETOR Center	1
1	818650A12	化油器下部	CARBURETOR Bottom	1
1	821684A1	化油器上部	CARBURETOR Top	1
1	821684A2	化油器中部	CARBURETOR Center	1
1	821684A3	化油器下部	CARBURETOR Bottom	1
1	818650A7	化油器上部	CARBURETOR Top	1
1	818650A8	化油器中部	CARBURETOR Center	1
1	818650A9	化油器下部	CARBURETOR Bottom	1
1	818650A4	化油器上部	CARBURETOR Top	1
1	818650A5	化油器中部	CARBURETOR Center	1
1	818650A6	化油器下部	CARBURETOR Bottom	1
2	810779	盖帽	CAP	6
3	NSS	不单独销售怠速混合螺钉/弹簧	NOT SOLD SEPARATE Idle Mixture Screw/Spring	6
5	677511	衬垫	GASKET	3
6	815633060	量孔 (.060) (.056 - 150/135 - WMH-24)	JET (.060) (.056 - 150/135 - WMH-24)	6
6	815633070	量孔 (.070 - 135 - WMH-28)	JET (.070 - 135 - WMH-28)	6
6	7570	量孔 .040 (175)	JET .040 (175)	6
6	815633050	量孔 (.050) (XR6/MAGNUMIII/200)	JET (.050) (XR6/MAGNUMIII/200)	6
7	810721	节气门杆 (上部/中部)	LEVER Throttle (TOP/CENTER)	2
7	810722	节气门杆 (下部)	LEVER Throttle (BOTTOM)	1
8	811284	隔套	SPACER	3
9	810745	垫圈	WASHER	3
10	810744	螺母	NUT	3
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	3
12	8423	量孔 (.094) (.094 -150)	JET (.094) (.094 -150)	3
12	5815	量孔 (.086) (XR6/MAGNUM III)	JET (.086) (XR6/MAGNUM III)	3
12	7335	量孔 (.098) (175)	JET (.098) (175)	3
12	6247	主量孔 (.090) (200/135 - WMH-24)	JET Main (.090) (200/135 - WMH-24)	3
13	6487	主量孔 (.060) (135 - WMH-24)	JET Main (.060) (135 - WMH-24)	3
13	5213	主量孔 (.056) (150/135 - WMH-28)	JET Main (.056) (150/135 - WMH-28)	3
13	6246	量孔 (.048) (175)	JET (.048) (175)	3
13	6028	量孔 (.050) (XR6/MAGNUM III)	JET (.050) (XR6/MAGNUM III)	3
13	5317	量孔 (.046) (200)	JET (.046) (200)	3
14	NSS		NOT SOLD SEPARATE Gasket-Fuel Bowl	3
15	810738	浮子总成	FLOAT ASSEMBLY	3
16	F10064	轴	SHAFT	3
17	NSS	不单独销售浮子螺钉	NOT SOLD SEPARATE Screw-Float	3
18	811690	阀座套件	VALVE SEAT KIT	3
19	NSS	不单独销售阀座垫片	NOT SOLD SEPARATE Gasket-Valve Seat	3
20	823623	燃油杯(顶部)	BOWL Fuel (TOP)	1
20	823624	燃油杯(中部/底部)	BOWL Fuel (CENTER/BOTTOM)	2
21	9596	堵头	PLUG	15
22	NSS	不单独销售动力/渐进喷口垫片	NOT SOLD SEPARATE Gasket-Power/Progression Jet	AR
23	6487	主喷口(.060)(150/135-WMH-24)	JET Main (.060) (150/135 - WMH-24)	6
23	4217	主喷口(.062)(135-WMH-28)	JET Main (.062) (135 - WMH-28)	6
23	5225	主喷口(.054)(XR6/MAGNUM III)	JET Main (.054) (XR6/MAGNUM III)	6
23	4216	喷口(.064)(175/200)	JET (.064) (175/200)	6
24	823629	动力喷口(150/135-WMH-24)	POWER JET (150/135 - WMH-24)	6
24	808584	动力喷口(135-WMH-28)	POWER JET (135 - WMH-28)	6
24	823625	动力喷口(XR6/MAGNUM III)	POWER JET (XR6/MAGNUM III)	6
24	823626	动力喷口(175)	POWER JET (175)	6
24	823627	动力喷口(200)	POWER JET (200)	6
25	NSS	不单独销售燃油杯螺钉	NOT SOLD SEPARATE Screw-Fuel Bowl	18
26	7900	三通接头(顶部/中部)	TEE FITTING (TOP/CENTER)	2
27	7901	弯头(底部)	ELBOW (BOTTOM)	1
-	8107492	化油器垫片套件	GASKET KIT Carburetor	1
-	8116912	化油器维修套件	REPAIR KIT Carburetor	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 107曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS

REF	零件编号	中文名称	英文名称	数量
1	8745A5	曲轴总成(含8个39-67377)	CRANKSHAFT ASSEMBLY (INCLUDES 8 OF 39-67377)	1
2	67923	曲轴下球轴承	BEARING Ball CRANKSHAFT (LOWER)	1
2	67923T	滚珠轴承	BEARING Ball	1
3	67446	球轴承挡圈	RING BALL BEARING	1
4	99727A1	驱动齿轮	GEAR Drive	1
5	54196A6	密封载体总成	CARRIER ASSEMBLY SEAL	1
6	65800	填料载体	PACKING CARRIER	1
7	67377	曲轴密封环(.124厚度)	RING Sealing SEALING - CRANKSHAFT (.124 THICK)	AR
7	67377T	密封环	RING Sealing	AR
7	78633	曲轴密封环(.139厚度)	RING SEALING - CRANKSHAFT (.139 THICK)	AR
8	88903	保持式滚柱轴承	BEARING Roller RETAINED BEARING	2
8	88903T	轴承座圈	RACE Bearing	2
9	67444	保持轴承挡圈	RING Retaining RETAINED BEARING	2
10	67445	保持式滚柱轴承	BEARING Roller RETAINED BEARING	2
8	93495	非保持式滚柱轴承	BEARING Roller LOOSE BEARING	2
8	93495T	滚柱轴承	BEARING Roller	2
9	67444	非保持轴承挡圈	RING Retaining LOOSE BEARING	2
11	7441A3	活塞总成(右舷-标准)	PISTON ASSEMBLY (STARBOARD-STANDARD)	3
11	7441T36	活塞-右舷-标准	PISTON-STBD-STD	3
11	7443A2	活塞总成(右舷-加大0.015)	PISTON ASSEMBLY (STARBOARD - .015 O.S.)	AR
11	7443A12	活塞-右舷-0.015	PISTON-STBD-.015	AR
11	7445A2	活塞总成(右舷-加大0.030)	PISTON ASSEMBLY (STARBOARD-.030 O.S.)	AR
11	7445A12	活塞-右舷-0.030	PISTON-STBD-.030	AR
11	7442A3	活塞总成(左舷-标准)	PISTON ASSEMBLY (PORT-STANDARD)	3
11	7442T36	活塞-左舷-标准	PISTON-PORT-STD	3
11	7444A2	活塞总成(左舷-0.015加大)	PISTON ASSEMBLY (PORT-.015 O.S.)	AR
11	7444A12	活塞-左舷-0.015	PISTON-PORT-.015	AR
11	7446A2	活塞总成(左舷-0.030加大)	PISTON ASSEMBLY (PORT-.030 O.S.)	AR
11	7446T12	活塞-左舷-0.030	PISTON-PORT-.030	AR
12	93481A12	活塞环组-标准(标准)	RING SET Piston - Standard (STANDARD)	1
12	78918A4	活塞环组-0.015加大(0.015加大)	RING SET Piston - .015 Oversize (.015 O.S.)	AR
12	85636A4	活塞环组-0.030加大(0.030加大)	RING SET Piston - .030 Oversize (.030 O.S.)	AR
13	52035	锁环	RING Lock	12
13	857196	锁紧环	LOCK RING	12
14	8119A5	连杆总成	CONNECTING ROD ASSEMBLY	6
14	8119A6	连杆套件	CONN ROD KIT	6
15	93886	螺钉(0.312-28×0.875)连杆	SCREW (.312-28 x .875) CONNECTING ROD	12
16	47247	定位针垫圈	WASHER NEEDLE LOCATING	12
16	8M0032839	垫片@5	WASHER @5	12
17	17514A1	轴承套件	BEARING KIT	6
17	8M0234886	轴承保持架	CAGE BEARING	6
18	67483	活塞端滚针轴承	BEARING Needle PISTON END	174

图 108飞轮/启动电机 Flywheel/Starter Motor

REF	零件编号	中文名称	英文名称	数量
1	18896A1	飞轮盖套件	COVER KIT FLYWHEEL	1
2	79022	正时标记	MARKER TIMING	1
3	37572	螺钉(0.190-32x0.380)正时标记	SCREW (.190-32 x .380) TIMING MARKER	2
4	72761	垫圈(0.203x0.562x0.060)不锈钢正时标记螺钉	WASHER (.203 x .562 x .060) Stainless Steel TIMING MARKER SCREW	2
5	89219	飞轮盖塞	PLUG FLYWHEEL COVER	1
5	89219001	堵头	PLUG	1
6	45907	飞轮黄色塞	PLUG Yellow FLYWHEEL	1
7	52901	螺母(.625-18)飞轮	NUT (.625-18) FLYWHEEL	1
8	68229	垫圈(0.641x1.250x0.190)飞轮	WASHER (.641 x 1.250 x .190) FLYWHEEL	1
8	33001	垫圈	WASHER	1
9	9841A7	飞轮	FLYWHEEL	1
9	859238T16	飞轮总成	FLYWHEEL ASY	1
10	32417	螺钉(.250-28 x .625)飞轮板	SCREW (.250-28 x .625) FLYWHEEL PLATE	8
11	68997	螺钉(.312-24 x .750)飞轮毂	SCREW (.312-24 x .750) FLYWHEEL HUB	8
12	9610A5	定子	STATOR	1
13	90045	螺钉(#10-32 x 1.375)定子	SCREW (#10-32 x 1.375) STATOR	4
14	26996	锁紧垫圈(#10)不锈钢定子螺钉	LOCKWASHER (#10) Stainless Steel STATOR SCREW	4
15	96455A9	触发板总成	PLATE ASSEMBLY Trigger	1
16	93388A1	电缆总成(6.00英寸)黑色板至启动马达	CABLE ASSEMBLY (6.00 Inches) Black PLATE TO STARTER MOTOR	1
17	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
17	893893	启动马达	STARTER MOTOR	1
18	56703	启动电机轴环	COLLAR STARTER MOTOR	2
18	8M0034918	轴环	COLLAR	2
19	68042	启动马达橡胶止动块	STOP Rubber RUBBER-STARTER MOTOR	2
19	8M0043376	停机开关	STOP	2
20	26992	锁紧垫圈(.250) 不锈钢起动机接线端	LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL	1
21	20890	螺母(.250-20) 起动机接线端	NUT (.250-20) STARTER MOTOR TERMINAL	1
22	93388A2	电磁阀至启动电机黑色电缆总成	CABLE ASSEMBLY Black SOLENOID TO STARTER MOTOR	1
22	93388A14	线缆总成(黄/黑)	CABLE ASSEMBLY Yellow/Black	1
23	69035	螺钉和锁紧垫圈 (.250-20 x .625) 不锈钢电缆至启动马达	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel CABLE TO STARTER MOTOR	1

图 109齿轮箱(螺旋桨轴)(反转) GEAR HOUSING (PROPELLER SHAFT) (COUNTER ROTATION)

REF	零件编号	中文名称	英文名称	数量
-	9148A30	齿轮箱总成反向旋转	GEAR HOUSING ASSEMBLY Counter Rotation	1
-	9148A31	齿轮箱总成反向旋转	GEAR HOUSING ASSEMBLY Counter Rotation	1
-	9148T92	ORD 1647-9148T86	ORD 1647-9148T86	1
1	9148A11	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A12	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
47	78956	换挡凸轮	SHIFT CAM	1
47	789562	换挡凸轮	SHIFT CAM	1
48	89594A1	凸轮从动件总成	FOLLOWER ASSEMBLY CAM	1
49	79911	离合器作动杆	ROD CLUTCH ACTUATOR	1
49	79911A1	杆	ROD	1
50	79910	压缩弹簧	SPRING COMPRESSION	2
51	78910	弹簧垫圈	WASHER SPRING	AR
52	78906		PIN SPRING LOCATOR	1
52	8M0084245	弹簧定位销	PIN Spring Locator	1
53	14469	轴承杯	CUP Bearing	1
53	14469T	轴承杯	CUP Bearing	1
54	88957A1	滚珠轴承	BEARING Ball	1
54	88957T	滚珠轴承	BEARING Ball	1
55	N.S.S.	不单独出售倒车齿轮(属于43-18475A1部件)	Not Sold Separate REVERSE GEAR(PART OF 43-18475A1)	1
56	15844	滚柱轴承总成	BEARING ASSEMBLY Roller	1
57	78909	棘轮定位销	PIN Detent RATCHET	2
58	78959	棘轮滑动离合器	RATCHET SLIDING CLUTCH	1
58	823174T	ORD 8M0100493	ORD 8M0100493	1
59	78905	十字棘轮销	PIN Cross RATCHET	1
59	8M0084243	十字销	PIN Cross	1
60	78962	十字销固定弹簧	SPRING RETAINING - CROSS PIN	2
61	18475A1	前进齿轮总成	GEAR ASSEMBLY Forward	1
61	18475T1	齿轮组	GEAR SET	1
62	176151	调整垫片(.125)	SPACER SHIM (.125)	AR
62	176152	调整垫片(.127)	SPACER SHIM (.127)	AR
62	176153	调整垫片(.129)	SPACER SHIM (.129)	AR
62	176154	调整垫片(.131)	SPACER SHIM (.131)	AR
62	176155	调整垫片(.133)	SPACER SHIM (.133)	AR
62	176156	调整垫片(.135)	SPACER SHIM (.135)	AR
62	176157	调整垫片(.137)	SPACER SHIM (.137)	AR
62	176158	调整垫片(.139)	SPACER SHIM (.139)	AR
62	176159	调整垫片(.141)	SPACER SHIM (.141)	AR
62	1761510	调整垫片(.143)	SPACER SHIM (.143)	AR
62	1761511	调整垫片(.145)	SPACER SHIM (.145)	AR
62	1761512	调整垫片(.147)	SPACER SHIM (.147)	AR
62	1761513	调整垫片(.149)	SPACER SHIM (.149)	AR
63	15841	滚柱轴承	BEARING Roller	1
64	17616	推力环	THRUST RING	1
65	31534	轴承座O型圈	O-RING BEARING CARRIER	1
65	8M0214920	O型圈	O RING	1
66	18447A2	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
66	18447T2	适配器总成	ADAPTOR ASSEMBLY	1
67	15843	滚柱轴承	BEARING Roller	1
67	15843T	滚针轴承	BEARING Needle	1
68	18448	止推垫片	THRUST WASHER	2
69	15842	推力轴承	BEARING Thrust	2
70	18446	螺旋桨轴	PROPELLER SHAFT	1
71	18444A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
71	818896T2	轴承座	BEARING CARRIER	1
72	30956	滚针轴承-轴承座	BEARING Needle BEARING CARRIER	2
72	30956T	滚针轴承	BEARING Needle	2
73	76868	轴承座密封	SEAL BEARING CARRIER	2
73	8M0248882	油封@5	SEAL-OIL @5	2
74	79447	齿轮箱盖锁紧垫圈	TAB WASHER GEAR HOUSING COVER	1
75	79448	齿轮箱固定座	RETAINER GEAR HOUSING	1
75	8M2011027	固定座	RETAINER	1
76	30281		KEY LOCATING - BEARING CARRIER	1
77	31640A1		TRIM TAB ASSEMBLY GEAR HOUSING	1
77	31640Q4	平衡鳍板	TRIM TAB	1
78	66024		SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING	1
79	67891	填充块	FILLER BLOCK	1
79	8M0039169	填充块	FILLER BLOCK	1
80	45176	不锈钢垫圈(.453 x .812 x .105) 驱动轴壳体螺柱用	WASHER (.453 x .812 x .105) Stainless Steel DRIVESHAFT HOUSING STUDS	2
81	34933	不锈钢螺母(.437-20) 驱动轴壳体螺柱用	NUT (.437-20) Stainless Steel DRIVESHAFT HOUSING STUDS	2
81	8M0204653	螺母	NUT	2
82	13171	推力毂	THRUST HUB	1
82	835467Q01	止推垫片套件	THRUST WASHER KIT	1
83	31211A2	螺旋桨螺母花键垫圈	WASHER Splined PROPELLER NUT	1
83	31211Q03	垫圈总成	WASHER ASSEMBLY	1
84	31210	螺旋桨螺母锁紧垫圈	TAB WASHER PROPELLER NUT	1
84	816629Q	锁紧垫圈	TAB WASHER	1
85	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
85	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
86	423511	螺旋桨轴齿形锁紧垫圈	LOCKWASHER Toothed PROPELLER SHAFT	1
87	74727	螺钉(0.375-16x6.00)齿轮箱	SCREW (.375-16 x 6.00) GEAR HOUSING	1
-	89238A2	密封套件	SEAL KIT	1

图 110旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM

REF	零件编号	中文名称	英文名称	数量
1	818904T1	旋转支架	SWIVEL BRACKET	1
2	87735	下油封	SEAL Oil Lower	1
3	818764	衬套	BUSHING	2
4	33504	O型圈	O-RING	1
4	8M0214926	O型圈 @10	O RING @10	1
5	816039	隔套	SPACER	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
9	99661A26	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	99661A35	旋转销总成	SWIVEL PIN ASSEMBLY	1
10	92876A10	连杆总成	LINK ROD ASSEMBLY	1
10	92876A12	连杆总成	LINK ROD ASSEMBLY	1
11	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
12	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
13	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
14	42961A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
14	42961A06	底部轭架总成	YOKE ASSEMBLY Bottom	1
15	67684	挡圈	RING Retaining	1
16	816432	止推垫片	THRUST WASHER	1
17	NSS	不单独销售贴纸, 序列号覆膜	NOT SOLD SEPARATE Decal, Serial Overlaminate	1
18	11288	下轭缓冲垫	BUMPER Bottom Yoke	1
18	11288001	下轭缓冲垫	BUMPER Bottom Yoke	1
19	88882	上轭缓冲垫	BUMPER Top Yoke	1

图 111喷泵总成 Jet Pump Assembly

REF	零件编号	中文名称	英文名称	数量
-	801400150	喷泵(黑色)	JET PUMP (BLACK)	1
-	801401150	喷泵(灰色)	JET PUMP (GRAY)	1
-	855766150	喷泵	JET PUMP	1
1	801411150	泵壳	HOUSING Pump	1
1A	827490	润滑油管	HOSE Lube	1
2	801414150	叶轮	IMPELLER	1
2	803984T	叶轮	IMPELLER	1
3	80141290	进气壳体	HOUSING Intake	1
3A	8271883	衬套	LINER	1
4	801413150	驱动轴	SHAFT Drive	1
4A	8271891	套筒	SLEEVE	1
4B	8271901	螺母	NUT	1
5	801405875	键	KEY	1
6	801404875	叶轮垫片	SHIM Impeller	8
7	801403875	锁紧垫圈	TAB WASHER	1
8	847568	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	6
8	812618	不锈钢螺钉(.312-18 x 1.00)带尼龙垫	SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch	6
9	19923088	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	4
10	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	2
11	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
12	801410	电缆支架	BRACKET Cable Support	1
13	67980	螺母(.312-18)	NUT (.312-18)	1
13	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	1
14	801407	定位销	PIN Dowel	2
15	78638	双头螺柱(.438 x 3.12)	STUD (.438 x 3.12)	1
15	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
16	579201	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
16	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
17	69064	螺栓(.312-18 x 2.750)	BOLT (.312-18 x 2.750)	1
18	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
18	306671	螺柱	STUD	2
19	68299	不锈钢螺钉(.375-16 x 3.00)	SCREW (.375-16 x 3.00) Stainless Steel	1
20	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
20	8M0214963	垫圈	WASHER	1

图 112动力升降泵(Prestolite圆形电机) Power Trim Pump (Prestolite Round Motor)

REF	零件编号	中文名称	英文名称	数量
-	99186	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
1	8995	泵总成	PUMP ASSEMBLY	1
1	826729A10	ORD 8M0143217	ORD 8M0143217	1
2	8996	O型圈套件	O-RING KIT	1
3	8986	电枢	ARMATURE	1
4	8987	机架与磁场	FRAME AND FIELD	1
4	99186	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
5	8992	缸盖O型圈	O-RING HEAD	1
6	8993	电刷弹簧套件	SPRING KIT BRUSH	1
7	8988	换向器端盖	HEAD COMMUTATOR END	1
8	8989	电刷套件	BRUSH KIT	1
9	8994	贯穿螺栓套件	THRU BOLT KIT	1
10	8985	导线夹	CLAMP LEAD WIRE	1
11	8990	螺母密封垫	NUT PACKING	1
12	8991	O型圈螺母密封	O-RING PACKING NUT	1

图 113油门杆与换挡轴 THROTTLE LEVER AND SHIFT SHAFT

REF	零件编号	中文名称	英文名称	数量
1	74897		PIVOT TRIGGER PLATE	1
2	62459	球头总成触发板	BALL JOINT ASSEMBLY TRIGGER PLATE	1
2	62459T	球头节总成	BALL JOINT ASSY	1
3	45076	螺母(#10-32)黄铜连杆	NUT (#10-32) Brass LINK ROD	1
4	76035	触发板连杆	ROD TRIGGER PLATE	1
5	46438	螺母(#10-32)球头	NUT (#10-32) BALL JOINT	1
6	41094A3	点火提前杆总成	LEVER ASSEMBLY SPARK ADVANCE	1
7	64022	螺丝(.250-20x2.125)点火提前杆-止动	SCREW (.250-20 x 2.125) SPARK ADVANCE LEVER - STOP	1
8	64015	螺母(.250-20)点火提前止动螺丝	NUT (.250-20) SPARK ADVANCE STOP SCREW	1
9	26852	尼龙帽点火提前杆止动螺丝	CAP Nylon SPARK ADVANCE LEVER STOP SCREW	1
10	13627	螺钉（0.190-32 x 1.250）点火提前杠杆-止动（1-1/4英寸）	SCREW (.190-32 x 1.250) SPARK ADVANCE LEVER - STOP (1-1/4")	1
11	68219	螺母(#10-32)不锈钢点火提前杆止动螺丝	NUT (#10-32) Stainless Steel SPARK ADVANCE LEVER STOP SCREW	1
12	48039	点火提前杆止动螺丝帽	CAP SPARK ADVANCE LEVER STOP SCREW	1
13	41095T	油门控制杆	LEVER THROTTLE CONTROL	1
13	410952	杠杆	LEVER	1
14	55337	螺钉（0.375-16 x 1.75）节气门杠杆/提前杠杆（1-3/4英寸）	SCREW (.375-16 x 1.75) THROTTLE LEVER/ADVANCE LEVER (1-3/4")	1
14	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
15	55164	油门杠杆衬套	BUSHING THROTTLE LEVER	1
16	55171	点火提前杆衬套	BUSHING SPARK ADVANCE LEVER	1
17	68784	节气门与点火提前杆弹簧	SPRING THROTTLE AND SPARK ADVANCE LEVER	1
18	68410	点火提前杆垫片	WASHER SPARK ADVANCE LEVER	1
18	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	1
19	64022	螺钉（0.250-20 x 2.125）节气门杠杆-止动（2-1/8英寸）	SCREW (.250-20 x 2.125) THROTTLE LEVER - STOP (2-1/8")	1
20	64015	螺母(.250-20)节气门杆止动螺丝	NUT (.250-20) THROTTLE LEVER STOP SCREW	1
21	26852	尼龙帽节气门杆止动螺丝	CAP Nylon THROTTLE LEVER STOP SCREW	1
22	39483	锁扣拉线	LATCH CABLE	1
23	22486	螺丝(.250-28x.880)拉线锁扣至节气门杆	SCREW (.250-28 x .880) CABLE LATCH TO THROTTLE LEVER	1
23	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
24	20099	拉线锁扣至节气门杆弹簧	SPRING CABLE LATCH TO THROTTLE LEVER	1
25	20586	螺母(.250-28)拉线锁扣螺丝	NUT (.250-28) CABLE LATCH SCREW	1
25	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
26	14634	节气门控制杆	ROD THROTTLE CONTROL	1
27	14638	节气门控制杆套筒	BARREL THROTTLE CONTROL ROD	1
28	146351	节气门凸轮	CAM Throttle	1
29	93248	衬套	BUSHING	1
29	8M0215006	旋转衬套	BUSHING Swivel	1
30	26856	节气门凸轮衬套	BUSHING THROTTLE CAM	2
31	35045	螺母（0.250-28）节气门凸轮螺柱	NUT (.250-28) THROTTLE CAM STUD	1
31	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
32	41050	节气门复位弹簧	SPRING THROTTLE RETURN	1
33	92032A2	支架锚-控制电缆	BRACKET ANCHOR - CTRL CABLES	1
33	814283A2	支架总成	BRACKET ASSEMBLY	1
33	814283A1	控制线缆锚定支架	BRACKET ANCHOR - CONTROL CABLES	1
33	814283A2	支架总成	BRACKET ASSEMBLY	1
34	98889	控制线缆锁扣	LATCH CONTROL CABLE	1
35	42975	闩锁传动螺钉	DRIVE SCREW LATCH	2
36	53167	螺丝(.312-18x.880)锚定支架固定	SCREW (.312-18 x .880) ANCHOR BRACKET ATTACHING	3
36	53167T	螺钉 0.312-18X 0.88	SCREW .312-18X .88	3
37	37896	连杆导向块	GUIDE BLOCK LINK ROD	1
37	814284	连杆导向块	GUIDE BLOCK LINK ROD	1
38	20099	连杆至导向块弹簧	SPRING LINK ROD TO GUIDE BLOCK	1
39	67073A1	连杆总成	LINK ROD ASSEMBLY	1
40	52100	连杆耐磨板	WEAR PLATE LINK ROD	1
41	38279	控制线缆闩锁紧固件	LATCH CONTROL CABLE FASTENING	1
41	8M0036768	闩锁	LATCH	1
42	35462	垫圈(.2656x.625x.0625)不锈钢锁扣	WASHER (.2656 x .625 x .0625) Stainless Steel LATCH	1
43	35045	螺母（0.250-28）连杆	NUT (.250-28) LINK ROD	1
43	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
44	79932A11	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
44	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
45	29720	连杆波形垫圈	WAVE WASHER LINK ROD	1
46	26600	尼龙衬套-连杆	BUSHING NYLON - LINK ROD	1
47	35462	垫圈(.2656 x .625 x .0625)不锈钢连杆	WASHER (.2656 x .625 x .0625) Stainless Steel LINK ROD	1
48	35045	螺母（0.250-28）连杆至换挡轴	NUT (.250-28) LINK ROD TO SHIFT SHAFT	1
48	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
49	39519	杯形保持器-锚杆	CUP BARRELL RETAINER - ANCHOR BAR	1

图 114泄压系统 BLEED SYSTEM

REF	零件编号	中文名称	英文名称	数量

图 115下罩 Bottom Cowl

REF	零件编号	中文名称	英文名称	数量
1	878587A1	下罩总成	BOTTOM COWL ASSEMBLY	1
2	858743A2	下罩总成	BOTTOM COWL ASSEMBLY	1
2	8M0113913	右舷下罩B	COWL-LOWER STBD B	1
3	8253181	罩盖密封条(41英寸)	SEAL Cowl (41.00 Inches)	2
3	8M0109217	罩盖密封条	SEAL-COWL	2
4	878547T	嵌件	INSERT	1
5	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	8
6	831209	固定座	RETAINER	1
7	858742	怠速排气套	BOOT Idle Exhaust	1
8	859251	护孔环	GROMMET	1
8	8M0039078	护孔环	GROMMET	1
9	827948	接头	FITTING	1
10	855576	垫圈	WASHER	1
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
12	830756109	软管(57英寸整卷)(裁切至5英寸长度)	HOSE (57.00 Inches Bulk) (Cut To 5.00 Inch Length)	1
12	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
13	881535	软管(32.00英寸)	HOSE (32.00 Inches)	1
14	9912688	管材(36.00英寸散装)(26.00英寸)	TUBING (36.00 Inches Bulk) (26.00 Inch)	1
15	817518	三通	TEE	1
16	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	2
17	8587411	护孔环	GROMMET	1
17	889724	护孔环	GROMMET	1
18	856990	开关总成	SWITCH ASSEMBLY	1
18	8M0235192	微调开关	SWITCH TRIM	1
19	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
20	821253F1	前手柄黑色	FRONT HANDLE Black	1
20	889740A02	手柄套件	HANDLE KIT	1
21	33589	衬套	BUSHING	2
22	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
23	8219423	棘爪	PAWL	1
24	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	1
25	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
26	13541	公插头	PLUG Male	2

图 116动力升降组件 8M0231193 Power Trim Components 8M0231193

REF	零件编号	中文名称	英文名称	数量
-	8M0231193	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0225363	电机套件	MOTOR KIT	1
2	8M0225369	阀套件	VALVE KIT	1
3	8M0225371	手动释放套件	MANUAL RELEASE KIT	1
4	8M0245633	倾斜油缸套件	TILT CYLINDER KIT	1
5	8M0225370	枢轴销套件	PIVOT PIN KIT	1
6	8M0244575	减震杆套件	SHOCK ROD KIT	1
7	8M0244425	销杆眼套件	PIN ROD EYE KIT	1
8	8M0232231	螺钉螺母套件	SCREW NUT KIT	1
9	8M0225373	记忆活塞套件	MEMORY PISTON KIT	1
10	8M0225368	储液罐套件	RESERVOIR KIT	1
11	8M0174135	储液罐塞总成	PLUG RESERVOIR ASSEMBLY	1
12	8M0237525	泵套件	PUMP KIT	1
13	8M0225367	升降杆套件	TRIM ROD KIT	1
14	8M0242846	升降杆套件	TRIM ROD KIT	1
15	8M0225372	重建套件	REBUILD KIT	1

图 117簧片阀组与气缸盖 Reed Block And Cylinder Head

REF	零件编号	中文名称	英文名称	数量

图 118燃油管路（用于 WMH-30/31/32/33/34 化油器） FUEL LINES (Use With WMH -30/31/32/33/34 Carburetors)

REF	零件编号	中文名称	英文名称	数量
1	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
2	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
3	812782	密封件	SEAL	1
4	9912980	软管	HOSE	AR
4	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	AR
5	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
5	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
6	818993	三通接头	CONNECTOR Tee	1
7	18175	软管	HOSE	1
8	818994	止回阀	CHECK VALVE	1
8	8189941	止回阀	CHECK VALVE	1
9	82381325	管材(10.00英寸散装)	TUBING (10.00 Inches Bulk)	1
9	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	1
10	824001	软管	HOSE	1
10	830762	软管	HOSE	1
11	8162961	燃油滤清器	FILTER Fuel	1
11	816296Q2	燃油滤清器	FILTER Fuel	1
12	830756109	软管(57.00英寸散装)	HOSE (57.00 Inches Bulk)	1
12	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
13	677511	衬垫	GASKET	3
14	27037	双头螺栓(.250-28×1.125)	STUD (.250-28 x 1.125)	6
14	270372	双头螺栓(.250-28×1.125)	STUD (.250-28 x 1.125)	6
15	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	6
16	29598	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	6
17	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	6
18	42859A2	加浓阀总成	VALVE ASSEMBLY Enrichner	1
19	633001	卡箍	CLAMP	1
20	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
21	9912688	管材 (36.00英寸散装)	TUBING (36.00 Inches Bulk)	2
22	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
22	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
23	45915	端子排	TERMINAL BLOCK	1
24	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
24	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
24	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	1
24	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 119化油器 Carburetor

REF	零件编号	中文名称	英文名称	数量
1	828272A1	化油器上部	CARBURETOR Top	1
1	828272A2	化油器中部	CARBURETOR Center	1
1	828272T38	化油器	CARBURETOR	1
1	828272A3	化油器下部	CARBURETOR Bottom	1
1	828272T39	化油器	CARBURETOR	1
1	828272A4	化油器上部	CARBURETOR Top	1
1	828272T40	化油器	CARBURETOR	1
1	828272A5	化油器中部	CARBURETOR Center	1
1	828272T41	化油器	CARBURETOR	1
1	828272A6	化油器下部	CARBURETOR Bottom	1
1	828272T42	化油器	CARBURETOR	1
1	828272A7	化油器上部	CARBURETOR Top	1
1	828272T43	化油器	CARBURETOR	1
1	828272A8	化油器中部	CARBURETOR Center	1
1	828272T44	化油器	CARBURETOR	1
1	828272A9	化油器下部	CARBURETOR Bottom	1
1	828272A45	化油器下部	CARBURETOR Bottom	1
1	828272A10	化油器上部	CARBURETOR Top	1
1	828272T46	化油器	CARBURETOR	1
1	828272A11	化油器中部	CARBURETOR Center	1
1	828272T47	化油器	CARBURETOR	1
1	828272A12	化油器下部	CARBURETOR Bottom	1
1	828272T48	化油器	CARBURETOR	1
1	828272A13	化油器上部	CARBURETOR Top	1
1	828272T49	化油器	CARBURETOR	1
1	828272A14	化油器中部	CARBURETOR Center	1
1	828272T50	化油器	CARBURETOR	1
1	828272A15	化油器下部	CARBURETOR Bottom	1
1	828272T51	化油器	CARBURETOR	1
1	828272A37	化油器上部	CARBURETOR Top	1
1	828272T37	化油器	CARBURETOR	1
1	828272A38	化油器中部	CARBURETOR Center	1
1	828272T38	化油器	CARBURETOR	1
1	828272A39	化油器下部	CARBURETOR Bottom	1
1	828272T39	化油器	CARBURETOR	1
1	828272A40	化油器上部	CARBURETOR Top	1
1	828272T40	化油器	CARBURETOR	1
1	828272A41	化油器中部	CARBURETOR Center	1
1	828272T41	化油器	CARBURETOR	1
1	828272A42	化油器下部	CARBURETOR Bottom	1
1	828272T42	化油器	CARBURETOR	1
1	828272A43	化油器上部	CARBURETOR Top	1
1	828272T43	化油器	CARBURETOR	1
1	828272A44	化油器中部	CARBURETOR Center	1
1	828272T44	化油器	CARBURETOR	1
1	828272A45	化油器下部	CARBURETOR Bottom	1
1	828272A46	化油器上部	CARBURETOR Top	1
1	828272T46	化油器	CARBURETOR	1
1	828272A47	化油器中部	CARBURETOR Center	1
1	828272T47	化油器	CARBURETOR	1
1	828272A48	化油器下部	CARBURETOR Bottom	1
1	828272T48	化油器	CARBURETOR	1
1	828272A49	化油器上部	CARBURETOR Top	1
1	828272T49	化油器	CARBURETOR	1
1	828272A50	化油器中部	CARBURETOR Center	1
1	828272T50	化油器	CARBURETOR	1
1	828272A51	化油器下部	CARBURETOR Bottom	1
1	828272T51	化油器	CARBURETOR	1
2	809743	盖板	COVER	6
3	809758	衬垫	GASKET	6
4	8087391	螺钉	SCREW	12
5	828292	衬垫	GASKET	3
6	3026	量孔（0.036）	JET (.036)	2
6	7570	量孔 0.040	JET .040	1
6	3251	量孔（0.034）	JET (.034)	1
6	3251	量孔（0.034）	JET (.034)	1
6	815633038	量孔（0.038）	JET (.038)	1
6	815633042	怠速空气孔喷嘴	JET Idle Air Vent	2
6	815633048	量孔(.048)	JET (.048)	1
6	810741	量孔（0.030）	JET (.030)	2
6	815633038	量孔（0.038）	JET (.038)	1
6	815633052	量孔(.052)	JET (.052)	1
6	815633028	量孔（0.028）	JET (.028)	1
6	3252	量孔（0.032）	JET (.032)	1
-	8107493	化油器衬垫组	GASKET SET Carburetor	1
-	8116913	化油器维修套件	REPAIR KIT Carburetor	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 120阻风门板和联动机构(I型设计) Choke Plate and Choke Linkage (Design I)

REF	零件编号	中文名称	英文名称	数量
1	54293A10	阻风门电磁阀总成	SOLENOID ASSEMBLY Choke	1
2	39349	螺钉(.312-18×0.75)不锈钢	SCREW (.312-18 x .750) Stainless Steel	2
3	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
3	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
4	56074A11	柱塞连杆	PLUNGER AND LINK	1
5	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	1
6	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
7	67245T	支架	BRACKET	1
8	67272	护孔环	GROMMET	2
9	90435	支架	MOUNT	2
10	21249	垫圈	WASHER	4
11	20361	螺母(.250-28)	NUT (.250-28)	4
11	8267089	螺母(.250-28)	NUT (.250-28)	4
12	672741	衬垫	GASKET	2
13	99390A4	阻风门板总成	PLATE ASSEMBLY Choke	1
14	68000	螺钉(.250-28 x 1.00)	SCREW (.250-28 x 1.00)	6
15	33071	螺柱（2-9/16英寸）	STUD (2-9/16")	2
16	672751	衬垫	GASKET	1
17	67246T	盖板	COVER	1
18	21631	垫圈（0.255×0.625×0.0312）	WASHER (.255 x .625 x .0312)	2
18	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
19	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
20	26001	螺母	NUT	2
21	89041	固定座	RETAINER	3
22	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	3
23	73861A1	阻风门轴总成	SHAFT ASSEMBLY Choke	3
24	76040	阻风门片	SHUTTER Choke	6
25	75898	螺钉	SCREW	12
26	90401	阻风门轴杆	LEVER Choke Shaft	3
27	88578	弹簧	SPRING	3
28	73860	手动阻风门拉杆	ROD Choke - Manual	1
29	67273	护孔环	GROMMET	2
30	67247	旋钮	KNOB	1
31	67262	螺钉	SCREW	1
32	67249	阻风门拉杆	ROD Choke	1
33	88522	弹簧	SPRING	1
34	90585	堵头	PLUG	1
35	87076A4	怠速控制总成	IDLE SPEED CONTROL ASSEMBLY	1

图 121阻风门板和节气门杆(II型设计) Choke Plate and Throttle Levers (Design II)

REF	零件编号	中文名称	英文名称	数量
1	67245T	上罩安装支架	BRACKET COWL MOUNTING - UPPER	1
2	67272	护孔环	GROMMET	2
3	90435	支架	MOUNT	2
4	21249	垫圈	WASHER	4
5	35888	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	4
6	87076A4	怠速控制总成	IDLE SPEED CONTROL ASSEMBLY	1
7	799831	安装板	PLATE	1
8	672741	衬垫	GASKET	1
9	68000	螺钉(.250-28 x 1.00)	SCREW (.250-28 x 1.00)	6
10	20583	垫圈	WASHER	6
11	672751	衬垫	GASKET	1
12	67246T	盖板	COVER	1
13	30720	螺钉(0.250-20×2.25)	SCREW (.250-20 x 2.25)	2
14	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
14	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
16	90585	堵头	PLUG	1
17	67760	油门连杆	LINK Throttle	1
18	67759	油门杆	LEVER Throttle	2
18	67759	油门杆	LEVER Throttle	1
19	41049	油门杆	LEVER Throttle	1
20	67749	下节流阀杆	LEVER Throttle LOWER	1
21	15124	螺钉 (#10-32 x .750)	SCREW (#10-32 x .750)	3
22	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	3
23	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	3
24	67297	U型销	PIN Clevis	3
25	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
26	26953	开口销	COTTER PIN	3
27	67748	滚轮	ROLLER	1
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1
-	79583A81	衬垫套件	GASKET SET	1
-	NLA	衬垫套装（停产）	No Longer Available Gasket Set	1

图 122罩壳与前盖 Cowls and Front Cover

REF	零件编号	中文名称	英文名称	数量
1	7620A4	顶罩总成(黑色)	TOP COWL ASSEMBLY (BLACK)	1
1	7620A22	顶罩总成(灰色)	TOP COWL ASSEMBLY (GRAY)	1
1	7523A2	罩总成左舷 (BLACK)	COWL ASSEMBLY Port (BLACK)	1
1	7523A18	罩总成左舷 (GRAY)	COWL ASSEMBLY Port (GRAY)	1
2	67260	密封件	SEAL	1
3	67258	垫	PAD	1
4	88227	覆盖件	BLANKET	1
5	87987	上支架	BRACKET UPPER	2
5	879871	支架	BRACKET	2
6	879851	下支架	BRACKET LOWER	2
7	37562	不锈钢螺钉(.312-18 x 1.00)	SCREW (.312-18 x 1.00) Stainless Steel	8
8	68049	护罩	SHIELD	1
8	68048	护罩	SHIELD	1
9	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	4
10	7619A1	顶盖总成	TOP COWL ASSEMBLY	1
10	7619A5	顶盖总成	TOP COWL ASSEMBLY	1
10	7524A4	顶罩总成-右舷	TOP COWL ASSEMBLY Starboard	1
10	7524A1	顶罩总成-右舷	TOP COWL ASSEMBLY Starboard	1
11	88227	覆盖件	BLANKET	1
12	67257	密封件	SEAL	1
12	99444	密封件	SEAL	1
13	97461A2	锁扣 (左舷/右舷)	LATCH (PORT/STARBOARD)	1
14	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	6
15	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	6
16	7532A2	前罩总成	COVER ASSEMBLY Cowl - Front	1
16	7532A23	前罩总成	COVER ASSEMBLY Cowl - Front	1
17	90984	隔音毯	SOUND BLANKET	1
18	87907	挂钩	HOOK	1
19	70332	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
19	95700	螺钉(#10-16 x .50)	SCREW (#10-16 x .50)	1
16	5399A3	前盖(黑色)	FRONT COVER (BLACK)	1
16	5399A16	前盖(灰色)	FRONT COVER (GRAY)	1
17	67615	覆盖件	BLANKET	1
18	61158T	挂钩	HOOK	1
19	75162	螺钉	SCREW	1
20	67261	护罩	SHIELD	1
21	35519	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	2
22	62628	套筒	BARREL	2
23	46785A5	罩壳锁扣总成	LATCH ASSEMBLY Cowl	2
24	31312	螺钉（10-32×0.875）	SCREW (#10-32 x 0.875)	2
25	15222	杆件	BAR	2
26	62629	套筒	BARREL	2
27	62624	弹簧	SPRING	2
28	30164	垫圈(0.192x0.375x0.0312)不锈钢	WASHER (.192 x .375 x .0312) Stainless Steel	2
29	45812	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
29	859124	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
30	47341A1	手动/应急启动绳柄套件	ROPE AND HANDLE KIT Manual/Emergency Start (MANUAL STARTING)	1
30	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1

图 123外罩安装支架 Cowl Mounting Brackets

REF	零件编号	中文名称	英文名称	数量
1	76258A2	支架	BRACKET	1
1	76258A3	支架	BRACKET	1
1	76258A4	支架	BRACKET	1
1	76258A3	支架	BRACKET	1
2	76256	喷嘴	NOZZLE	1
2	762561	喷嘴	NOZZLE	1
2	52889	喷嘴	NOZZLE	1
3	67984	密封件	SEAL	1
4	67228	密封件	SEAL	1
5	67999	密封件	SEAL	2
6	99127109	示警管(57英寸散装)	LINE (57.00 Inches Bulk) TELL TALE	2
6	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	2
7	90824	三通	TEE	1
7	90824001	三通接头	TEE FITTING	1
8	61990	扎带(14.00英寸)	TIE STRAP (14.00 Inches)	2
9	86386A1	支架总成	BRACKET ASSEMBLY	1
10	66687	螺钉（10-32×1.50）	SCREW (#10-32 x 1.50)	4
11	85651	壳体	HOUSING	2
11	85650	壳体	HOUSING	2
12	31294	螺钉(1英寸)	SCREW (1")	8
12	64278	螺钉(.250-28 x 1.00)	SCREW (.250-28 x 1.00)	8
13	20583	垫圈	WASHER	8
14	20361	螺母(.250-28)	NUT (.250-28)	8
14	8267089	螺母(.250-28)	NUT (.250-28)	8
15	88623A1	支架	BRACKET	1
15	92009T	支架	BRACKET	1
15	99424	支架	BRACKET	1
15	99424T6	支架	BRACKET	1
15	99424T10	支架	BRACKET	1
15	99424T6	支架	BRACKET	1
16	88621	固定座	RETAINER	1
16	99447T	固定座	RETAINER	1
16	99447	固定座	RETAINER	1
17	89900	螺丝（#10-24 x 1.00）	SCREW (#10-24 x 1.00)	2
18	67260	密封件	SEAL	1
19	90435	支架	MOUNT	3
20	21249	垫圈	WASHER	6
21	20361	螺母(.250-28)	NUT (.250-28)	6
21	8267089	螺母(.250-28)	NUT (.250-28)	6
22	67241	壳体	HOUSING	1
23	92051	螺钉（10-16 x 0.75）	SCREW (10-16 x .75)	2
24	76264	闩锁	LATCH	1
24	87608	盖锁扣	LATCH Cowl	1
25	60295	弹簧	SPRING	1
26	88622	安装板	PLATE	1
27	99391	固定座	RETAINER	1
28	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	2
29	20346	垫圈(小)	WASHER (SMALL)	4
29	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	4
30	35280	垫圈（0.255 x 0.620 x 0.030）不锈钢（大号）	WASHER (.255 x .620 x .030) Stainless Steel (LARGE)	4
31	88180	衬套	BUSHING	2
32	88033	护孔环	GROMMET	2
33	28927	垫圈	WASHER	2
33	26907	垫圈	WASHER	2
34	67272	护孔环	GROMMET	2
35	87743	护孔环	GROMMET	1
36	67739	密封件	SEAL	1

图 124曲轴、活塞及连杆 Crankshaft, Pistons, and Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	8745T5	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	67923T	球轴承(下部)	BEARING Ball (LOWER)	1
3	67446	环	RING	1
4	99727A1	驱动齿轮	GEAR Drive	1
5	54196A6	托架总成	CARRIER ASSEMBLY	1
6	65800	填料	PACKING	1
7	67377	密封环	RING Sealing SEALING	AR
7	67377T	密封环	RING Sealing	AR
7	78633	密封圈	RING SEALING	AR
8	93495T	滚柱轴承	BEARING Roller	2
8	88903T	轴承座圈	RACE Bearing	2
8	67445	滚柱轴承	BEARING Roller	2
9	67444	挡圈	RING Retaining	2
10	8666T41	活塞总成	PISTON ASSEMBLY	3
10	NLA	不再提供活塞	No Longer Available Piston	AR
10	8667T41	活塞总成	PISTON ASSEMBLY	3
10	NLA	不再提供活塞	No Longer Available Piston	AR
11	813011A12	活塞环组	RING SET Piston	1
11	NLA	不再提供活塞环	No Longer Available Piston Ring	3
12	52035	锁环	RING Lock	12
12	857196	锁紧环	LOCK RING	12
13	8119A5	连杆总成	CONNECTING ROD ASSEMBLY	6
13	8119A6	连杆套件	CONN ROD KIT	6
14	93886	螺钉(.312-28x.875)	SCREW (.312-28 x .875)	12
14	76349	螺钉（0.312-24×1.00）	SCREW (.312-24 x 1.00)	12
15	47247	垫圈	WASHER	12
15	8M0032839	垫片@5	WASHER @5	12
16	17514A1	轴承套件	BEARING KIT	6
16	8M0234886	轴承保持架	CAGE BEARING	6
17	67483	滚针轴承	BEARING Needle	174
-	89221A88	衬垫套件	GASKET SET	1
-	89221A80	衬垫套件	GASKET SET	1

图 125气缸体与端盖 Cylinder Block and End Caps

REF	零件编号	中文名称	英文名称	数量
1	8712A39	气缸体	CYLINDER BLOCK	1
2	76175	动力头螺柱	STUD POWERHEAD	6
3	67065	动力头螺柱	STUD POWERHEAD	2
3	670654	螺柱(.375-16/.375-24 x 5.620)	STUD (.375-16/.375-24 x 5.620)	2
3	78438	动力头螺柱	STUD POWERHEAD	2
3	8M0034454	螺柱(.375-16/.375-24 x 6.87)	STUD (.375-16/.375-24 x 6.87)	2
4	20033	定位销	PIN Dowel LOCATING	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	气缸体销(轴承座圈)	PIN CYLINDER BLOCK (BEARING RACE)	2
5	8M0036405	销	PIN	2
6	11338	密封垫片	GASKET SEALING	2
7	42249	启动马达上盖	COVER STARTER MOTOR (UPPER)	1
7	8M0088723	启动器支架	BRACKET-STARTER	1
8	73657	盖至曲轴箱螺钉(.312-18 x 1.50)	SCREW (.312-18 x 1.50) COVER TO CRANKCASE	2
9	26993	启动马达盖螺钉锁紧垫圈(0.312)	LOCKWASHER (.312) STARTER MOTOR COVER SCREW	4
9	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
10	76867	启动电机盖(下部)	COVER STARTER MOTOR (LOWER)	1
11	77065	盖至曲轴箱螺钉(.312-18 x 2)	SCREW (.312-18 x 2) COVER TO CRANKCASE	2
11	815549	螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00)	2
11A	99448	衬套	BUSHING	1
12	66717	曲轴箱至气缸体螺钉(.375-16 x 3.250)	SCREW (.375-16 x 3.250) CRANKCASE TO CYLINDER BLOCK	8
12	74824	曲轴箱至气缸体螺丝(.312-18 x 1.250)	SCREW (.312-18 x 1.250) CRANKCASE TO CYLINDER BLOCK	6
13	9608A1	上端盖总成	END CAP ASSEMBLY UPPER	1
13	9608T1	上盖总成	CAP-ASSY-UPPER	1
14	54029	端盖O型圈(2.800 x .103)	O-RING (2.800 x .103) END CAP	1
15	93496	端盖滚柱轴承	BEARING Roller END CAP	1
15	93496T	轴承	BEARING	1
16	41953	端盖密封件	SEAL END CAP	1
17	69034	上端盖至气缸体螺钉及锁紧垫圈(.312-18 x 1.00)	SCREW AND LOCKWASHER (.312-18 x 1.00) UPPER END CAP TO CYLINDER BLOCK	4
17	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	4
18	24220	气缸体定位螺钉(.190-24 x .190)	SCREW (.190-24 x .190) SET - CYLINDER BLOCK	2
19	38407	气缸体水套螺塞(.500-14)	PLUG (.500-14) CYLINDER BLOCK (WATER JACKET)	1
20	15094	飞轮盖至气缸体双头螺柱(.190-32 x 1.870)	STUD (.190-32 x 1.870) FLYWHEEL COVER TO CYLINDER BLOCK	1
21	15093	飞轮盖至支架双头螺柱(#10-32 x 1.00)	STUD (#10-32 x 1.00) FLYWHEEL COVER TO BRACKET	2
21	8M0034435	螺柱	STUD	2
22	67269	飞轮盖螺柱隔套	SPACER FLYWHEEL COVER STUD	1
23	492211	飞轮盖螺柱垫圈	WASHER FLYWHEEL COVER STUD	6
23	8M0204663	垫片@5	WASHER @5	6
24	72761	飞轮盖螺柱不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel FLYWHEEL COVER STUD	3
25	73651	飞轮盖螺柱螺母	NUT FLYWHEEL COVER STUD	3
25	816874	蝶形螺母 (#10-32)	WING NUT (#10-32)	3
26	42248	飞轮罩支架	BRACKET FLYWHEEL COVER	1
26	422482	支架	BRACKET	1
27	49668	支架至曲轴箱螺钉(.250-20 x .750)	SCREW (.250-20 x .750) BRACKET TO CRANKCASE	2
28	7809A1	下端盖总成	END CAP ASSEMBLY LOWER	1
28	7809T1	端盖总成	END CAP ASSEMBLY	1
29	62700	端盖O型圈(3.237 x .103)	O-RING (3.237 x .103) END CAP	1
30	41953	端盖密封件	SEAL END CAP	2
31	28636	螺钉（0.250-20 x 0.750）下端盖至气缸体	SCREW (.250-20 x .750) LOWER END CAP TO CYLINDER BLOCK	4
32	26992	下端盖螺钉不锈钢锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel LOWER END CAP SCREW	4
33	64022	调节螺钉(.250-20 x 2.125)-气缸体	SCREW (.250-20 x 2.125) ADJUSTING - CYLINDER BLOCK	1
34	64015	锁紧螺母(.250-20)-调节螺钉	NUT (.250-20) JAM - ADJUSTING SCREW	1
35	26852	尼龙调节螺钉帽	CAP Nylon ADJSUTING SCREW	1
36	194372	端子排	TERMINAL BLOCK	1
37	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	2
38	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
39	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
40	813938	盖形螺母(#10-32)	CAP NUT (#10-32)	2
41	87076A4	怠速控制总成	IDLE SPEED CONTROL ASSEMBLY	2
42	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	2
42	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	2
43	38833	垫圈	WASHER	2
44	63153	J型卡扣	J CLIP	1
-	66517	气缸体泄流限制器	RESTRICTOR BLEED - CYLINDER BLOCK	1
-	812818A89	动力总成完整组件	POWERHEAD ASSEMBLY COMPLETE	1
-	812818T89	船用动力头	POWERHEAD MARINE	1
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1

图 126气缸盖 Cylinder Head

REF	零件编号	中文名称	英文名称	数量
1	79715	气缸盖	CYLINDER HEAD	2
2	79583	衬垫	GASKET	2
2	795831	衬垫	GASKET	2
3	66863	螺钉(3/8-16 x 2.50)(2-1/2")	SCREW (3/8-16 x 2.50) (2-1/2")	24
3	668631	螺钉（.375-16 x 2.500）	SCREW (.375-16 x 2.500)	24
4	7270A1	盖板	COVER	2
5	65788	衬垫	GASKET	2
6	35386	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	26
6	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	26
7	47483	J型卡扣	J CLIP	2
8	75692	节温器	THERMOSTAT	2
9	62386	衬垫	GASKET	2
9	8M0204714	衬垫@4	GASKET @4	2
10	90390A1	盖板套件	COVER KIT	2
11	66023	法兰头螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00) Flange Head	2
11	815549	螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00)	2
11	35386	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	2
12	68728	接头	FITTING	1
13	7765377	软管 (24.500英寸散装)	HOSE (24.500 Inches Bulk)	1
13	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
14	68727	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	2
14	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	2
15	61990	扎带(14.00英寸)	TIE STRAP (14.00 Inches)	AR
16	78799	温度传感器(19.50英寸)	SENDER Temperature (19.50 Inch)	1
18	71162	盖板	COVER	1
19	45915	端子排	TERMINAL BLOCK	1
20	69079	螺钉 (#10-16 x .440)	SCREW (#10-16 x .440)	2
21	15221A2	气缸盖总成	CYLINDER HEAD ASSEMBLY	1
21	15221A5	气缸盖总成	CYLINDER HEAD ASSEMBLY	1
22	13715	固定座	RETAINER	2
22	137151	固定座	RETAINER	2
23	98257	螺钉 (.312-18 x .500)	SCREW (.312-18 x .500)	2
24	13536A7	温度传感器总成	SENSOR ASSEMBLY Temperature	1
25	96532	气缸盖	CYLINDER HEAD	2
26	96278	衬垫	GASKET	2
27	96283T	盖板	COVER	2
27	96283	盖板	COVER	2
28	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	40
29	412461	衬垫	GASKET	2
29	41247T01	衬垫	GASKET	2
30	98534	螺钉 (.375-16 x 2.30)	SCREW (.375-16 x 2.30)	24
31	25909	垫圈(.406 x .812 x .065)	WASHER (.406 x .812 x .065)	24
32	75692	节温器	THERMOSTAT	2
33	62386	衬垫	GASKET	2
33	8M0204714	衬垫@4	GASKET @4	2
34	90390A1	盖板套件	COVER KIT	2
35	815549	螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00)	2
35	35386	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	2
36	68727	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
36	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
37	7765377	软管 (24.500英寸散装)	HOSE (24.500 Inches Bulk)	2
37	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	2
38	68728	接头	FITTING	1
39	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
39	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
40	97465	温度传感器	SENDER Temperature	1
41	96282	盖板	COVER	1
42	187531	温度传感器	SENDER Temperature	1
43	88824A8	拉线总成	CABLE ASSEMBLY	1
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1
-	79583A81	衬垫套件	GASKET SET	1
-	NLA	衬垫套装（停产）	No Longer Available Gasket Set	1

图 127驱动轴壳与排气管 Driveshaft Housing and Exhaust Tube

REF	零件编号	中文名称	英文名称	数量
1	8343A7	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8343A8	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	9748A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	9748A2	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	56295	螺柱（0.437 x 2.69）驱动轴壳体/齿轮壳体	STUD (.437 x 2.69) DRIVESHAFT HSG./GEAR HSG.	2
3	25067	下安装座螺钉缓冲垫	BUMPER LOWER MOUNT SCREW	2
4	63474	下安装座螺钉(.500-20 x 6.00)	SCREW (.500-20 x 6.00) LOWER MOUNT	2
4	898831	螺钉(.500-20 x 6.220)	SCREW (.500-20 x 6.220)	2
5	78249	下支架	MOUNT LOWER	2
5	77327	支架	MOUNT	2
5	77327	下支架	MOUNT LOWER	2
6	49339	下部安装螺钉垫圈(.8125)	WASHER (.8125) LOWER MOUNT SCREW	2
7	25096	下安装螺丝螺母	NUT LOWER MOUNT SCREW	2
8	88238A1	接地线总成	CABLE ASSEMBLY Ground	1
8	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
9	67076	下安装夹	CLAMP LOWER MOUNT	2
9	8M0036782	卡箍	CLAMP	2
10	66727	螺钉（0.312-18 x 1.250）下安装夹	SCREW (.312-18 x 1.250) LOWER MOUNT CLAMP	4
11	67077	下安装夹盖	COVER LOWER MOUNT CLAMP	2
11	8M4500752	盖板	COVER	2
11	67077T6	下安装夹盖	COVER LOWER MOUNT CLAMP	2
11	67077F1	灰色盖板	COVER Gray	2
12	88417	盖固定螺钉(#12-24 x .620)	SCREW (#12-24 x .620) COVER ATTACHING	4
13	35521	盖至夹具螺钉尼龙螺母	NUT NYLON - COVER TO CLAMP SCREW	4
14	88238A2	接地线总成	CABLE ASSEMBLY Ground	1
14	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
15	41508	螺丝(.250-20 x .500)不锈钢接地线	SCREW (.250-20 x .500) Stainless Steel GROUND WIRE	1
16	73862	齿轮箱壳体螺柱垫圈	WASHER GEAR HOUSING STUD	1
17	29489	齿轮箱壳体螺柱盖形螺母	NUT GEAR HOUSING STUD (CAP)	1
18	45176	齿轮箱壳体螺柱不锈钢垫圈(.453 x .812 x .105)	WASHER (.453 x .812 x .105) Stainless Steel GEAR HOUSING STUD	2
19	34933	齿轮箱壳体螺柱不锈钢螺母(.437-20)	NUT (.437-20) Stainless Steel GEAR HOUSING STUD	2
19	8M0204653	螺母	NUT	2
20	64649	驱动轴壳体塞	PLUG DRIVESHAFT HOUSING	1
21	89743	排气管	TUBE Exhaust	1
22	66350	排气管下密封件	SEAL EXHAUST TUBE - LOWER	1
22	66350001	密封件	SEAL	1
23	86027	排气管上密封件	SEAL EXHAUST TUBE - UPPER	1
24	67295	水管	TUBE Water	1
24	8M0042788	长型水管	TUBE-WATER-LONG	1
24	74729	水管	TUBE WATER	1
24	8M0042790	水管	TUBE-WATER	1
25	991731	驱动轴壳体至板衬垫	GASKET DRIVESHAFT HOUSING TO PLATE	1
25	991734	衬垫	GASKET	1
26	41945A7	驱动轴壳体板总成	PLATE ASSEMBLY DRIVESHAFT HOUSING	1
27	183982	密封件	SEAL	1
27	8M0043165	密封件-27.00英寸	SEAL-27.00 INCH	1
28	68011	密封件固定支架	BRACKET SEAL RETAINING	1
29	48408	支架至板件螺钉(#10-16 x .500)	SCREW (#10-16 x .500) BRACKET TO PLATE	12
30	20033	定位销	PIN Dowel LOCATING	2
30	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
31	38970	水管密封件	SEAL WATER TUBE	1
32	90192	延伸件至板不锈钢螺钉(.250-20 x .750)	SCREW (.250-20 x .750) Stainless Steel EXTENSION TO PLATE	6
33	991771	衬垫	GASKET	1
33	991772	衬垫	GASKET	1
34	25970	动力头螺柱垫圈	WASHER POWER HEAD STUD	4
34	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	4
35	69254	动力头螺柱螺母	NUT POWER HEAD STUD	4
36	41942	排气延伸管	EXTENSION EXHAUST	1
36	879288T71	排气管延长段	EXTENSION Exhaust	1
37	78246	排气延长管衬垫	GASKET EXHAUST EXTENSION	1
37	782461	衬垫	GASKET	1
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1

图 128排气歧管与排气板 Exhaust Manifold and Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	904841	分隔板衬垫	GASKET DIVIDER PLATE	2
2	99169	分隔板	DIVIDER PLATE DIVIDER	1
2	99169A1	安装板	PLATE	1
3	69668	分隔板密封件	SEAL DIVIDER PLATE	1
3	814754	密封件(12.50英寸)	SEAL (12.50 Inches)	1
4	193071	排气歧管盖	COVER EXHAUST MANIFOLD	1
5	74824	螺钉（0.312-18 x 1.250）盖和板至气缸体	SCREW (.312-18 x 1.250) COVER AND PLATE TO CYLINDER BLOCK	21
6	194373	接线端子排(3位)	TERMINAL BLOCK (3 TERMINALS)	1
7	31716	螺钉（0.250-20 x 0.620）接线板	SCREW (.250-20 x .620) TERMINAL BLOCK	2
8	29245	端子排螺钉不锈钢垫片(.281 x .500 x .060)	WASHER (.281 x .500 x .060) Stainless Steel TERMINAL BLOCK SCREW	2
8	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
9	45076	端子排黄铜螺母(#10-32)	NUT (#10-32) Brass TERMINAL BLOCK	3
10	813938	盖形螺母(#10-32)	CAP NUT (#10-32)	3
11	74824	缸体盖板螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250) COVER TO CYLINDER BLOCK	4
12	69570	膜片至板件螺钉(#10-16 x .750)	SCREW (#10-16 x .750) DIAPHRAGM TO PLATE	1
13	76451	膜片螺钉垫片	WASHER DIAPHRAGM SCREW	1
14	14479	隔膜	DIAPHRAGM	1
14	144791	隔膜	DIAPHRAGM	1
15	16496	导水板	DEFLECTOR Water	1
16	16497A1	安全阀板	PLATE RELIEF VALVE	1
17	78690	安全阀板衬垫	GASKET RELIEF VALVE PLATE	2
17	78690002	衬垫	GASKET	2
18	64878	提升阀黑色压缩弹簧	SPRING (Black) COMPRESSION POPPET VALVE	1
19	85303	提升阀弹簧垫片	WASHER POPPET SPRING	1
20	14480	提升阀	POPPET VALVE	1
21	64872	提升阀衬套	GROMMET POPPET VALVE	1
22	65848	提升阀座	CARRIER POPPET VALVE	1
23	991762	排气板衬垫	GASKET EXHAUST PLATE	1
23	991764	衬垫	GASKET	1
24	41944A5	排气板总成	PLATE ASSEMBLY EXHAUST	1
25	99664	排气板弯头	ELBOW EXHAUST PLATE	1
25	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
26	20033	定位销-排气板	PIN Dowel LOCATING-EXHAUST PLATE	2
26	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
27	183982	排气板密封件	SEAL EXHAUST PLATE	1
27	8M0043165	密封件-27.00英寸	SEAL-27.00 INCH	1
28	68010	密封件固定支架	BRACKET SEAL RETAINING	1
28	680101	支架	BRACKET	1
29	48408	支架至排气板螺钉(#10-16 x .500)	SCREW (#10-16 x .500) BRACKET TO EXHAUST PLATE	6
30	25970	动力头螺柱垫圈	WASHER POWERHEAD STUD	6
30	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	6
31	69254	动力头螺柱螺母	NUT POWERHEAD STUD	6
32	27132	排气板衬套	BUSHING EXHAUST PLATE	1
33	19564	护孔环	GROMMET	1
33	8M0179867	护孔环	GROMMET	1
34	12602	排气板衬套	GROMMET EXHAUST PLATE	1
34	12602002	护孔环	GROMMET	1
35	66727	螺钉(.312-18 x 1.250)排气板固定	SCREW (.312-18 x 1.250) EXHAUST PLATE ATTACHING	1
36	68783	螺钉(.312-18 x 2.50)排气板固定	SCREW (.312-18 x 2.50) EXHAUST PLATE ATTACHING	1
37	66725	螺钉(.375-16 x 3.50)排气板固定	SCREW (.375-16 x 3.50) EXHAUST PLATE ATTACHING	3
37	898833	螺钉(.375-16 x 3.500)	SCREW (.375-16 x 3.500)	3
38	812905A2	前支架总成	BRACKET ASSEMBLY FRONT	1
38	812905T	前支架	BRACKET Front	1
39	90285	前支架螺钉(.312-18 x .625)	SCREW (.312-18 x .625) FRONT BRACKET	4
40	187031	垫圈	WASHER	4
41	18778	护孔环	GROMMET	4
41	18778001	护孔环	GROMMET	4
42	18578A3	后支架总成	BRACKET ASSEMBLY Rear REAR	1
42	18578T09	支架总成(后部)	BRACKET ASSEMBLY Rear	1
43	14462A1	安全阀盖(旧设计)	COVER RELIEF VALVE (OLD DESIGN)	1
43	68729	泄压阀盖（新设计）	COVER RELIEF VALVE (NEW DESIGN)	1
43	8M0039767	盖板	COVER	1
44	92007	接头（0.250-18）（90度）（新设计）	FITTING (.250-18) (90 DEG.) (NEW DESIGN)	1
44	920071	90度弯头	FITTING (90 Degree)	1
45	99127109	管路（57.00英寸散装）（新设计）	LINE (57.00 Inches Bulk) (NEW DESIGN)	1
45	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
46	90077	扎带（新设计）	TIE STRAP (NEW DESIGN)	2
46	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
47	814430	接头（0.500-14）（新设计）	FITTING (.500-14) (NEW DESIGN)	1
47	8144301	接头	FITTING	1
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1

图 129管件与软管 Fittings and Hoses

REF	零件编号	中文名称	英文名称	数量
1	426585	止回阀	CHECK VALVE	6
2	9938779	软管	HOSE	AR
3	15133	接头	FITTING	6
4	23567	卡扣	CLIP	2
5	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2
6	69205	C形垫圈	C WASHER	2
6	8M0084613	C形垫圈	C-WASHER	2
7	428671	止回阀	CHECK VALVE	1
7	64871A2	止回阀	CHECK VALVE	1
8	79790	接头	FITTING	1
9	NLA	已停产垫圈	No Longer Available Washer	1
10	NLA	不再提供软管-簧片座	No Longer Available Hose-Reed Block	AR
11	9938779	软管(.077内径)	HOSE (.077 I.D.)	AR
11	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	AR
11	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	AR
12	9072925	软管	HOSE	AR
13	996642	接头弯头 90度 (.125-27 x .250) 尼龙簧片座	FITTING Elbow 90 Degree (.125-27 x .250) Nylon REED BLOCK	2
14	8585531	连接器簧片座	CONNECTOR REED BLOCK	1
15	782792	45度弯头接头(1.25)簧片阀组(45度)	FITTING Elbow 45 Degree (1.25) REED BLOCK (45 DEGREES)	1
15	8M0207781	弯头	ELBOW	1
16	NLA	停用弯头-簧片阀组(1/16"倒钩-90度)	No Longer Available Elbow-Reed block (1/16" Barb - 90 Degree)	1
17	NLA	停用三通-簧片阀组(1/16"倒钩)	No Longer Available Tee-Reed Block (1/16" Barb)	1
18	426233	止回阀	CHECK VALVE	1
18	426982	止回阀	CHECK VALVE	6
19	426585	止回阀(螺纹/直通)	CHECK VALVE (THREADED/STRAIGHT)	AR
20	15133	泄压软管压入式接头	FITTING BLEED HOSE PRESS- IN)	6
21	56759	倒钩式泄压软管接头(压入)	FITTING Barbed BLEED HOSE (PRESS-IN)	2 OR 4
22	54090	脉冲软管弯头	ELBOW PULSE HOSE	2
23	591692	三通泄压软管接头	FITTING Tee BLEED HOSE	6
23	59169003	三通接头	FITTING Tee	6
24	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
24	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
25	9072925	软管	HOSE	1
26	99751	脉冲软管黄铜接头(.0625-27)(90度)	FITTING (.0625-27) Brass PULSE HOSE (90 DEGREES)	2
26	997511	弯头	ELBOW	2
27	426233	止回阀	CHECK VALVE	1
27	426982	止回阀	CHECK VALVE	7
28	15133	泄压软管接头(压入)	FITTING BLEED HOSE (PRESS-IN)	6
29	56759	倒钩式泄压软管接头(压入)	FITTING Barbed BLEED HOSE (PRESS-IN)	4

图 130飞轮、启动电机及点火线圈 Flywheel, Starter Motor and Ignition Coils

REF	零件编号	中文名称	英文名称	数量
1	79918A1	盖板套件	COVER KIT	1
2	79022	标记	MARKER	1
3	37572	螺钉 (.190-32 x .380)	SCREW (.190-32 x .380)	2
4	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	2
5	89219	堵头	PLUG	1
5	89219001	堵头	PLUG	1
6	45907	黄色塞	PLUG Yellow	1
7	52901	螺母(0.625-18)	NUT (.625-18)	1
8	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
8	33001	垫圈	WASHER	1
9	NLA	飞轮（停产）	No Longer Available Flywheel	1
9	7555A8	飞轮	FLYWHEEL	1
9	859238A9	飞轮套件	FLYWHEEL KIT	1
9	817632A9	飞轮	FLYWHEEL	1
9	859238A9	飞轮套件	FLYWHEEL KIT	1
10	32417	螺钉(.250-28 x .625)	SCREW (.250-28 x .625)	8
11	68997	螺钉(.312-24 x .750)	SCREW (.312-24 x .750)	8
12	5454A7	定子总成	STATOR ASSEMBLY	1
12	5454A32	定子	STATOR	1
12	5454A35	定子	STATOR	1
13	75840	螺钉 (#10-24 x 0.880)	SCREW (#10-24 x .880)	4
13	76566	螺丝（#10-24 x 1.00）	SCREW (#10-24 x 1.00)	4
13	19926100	螺丝（#10-24 x 1.00）	SCREW (#10-24 x 1.00)	4
14	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	4
15	96455A9	触发板总成	PLATE ASSEMBLY Trigger	1
16	61001	J型卡扣	J CLIP	1
17	72467	启动电机总成	STARTER MOTOR ASSEMBLY	1
17	898265010	启动马达	STARTER MOTOR	1
17	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
17	893893	启动马达	STARTER MOTOR	1
17	77141	启动电机总成	STARTER MOTOR ASSEMBLY	1
17	893893	启动马达	STARTER MOTOR	1
17	64975	启动电机总成	STARTER MOTOR ASSEMBLY	1
17	898265010	启动马达	STARTER MOTOR	1
18	56703	轴环	COLLAR	2
18	8M0034918	轴环	COLLAR	2
19	68042	橡胶止挡	STOP Rubber	2
19	8M0043376	停机开关	STOP	2
20	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
21	20890	螺母 (.250-20)	NUT (.250-20)	1
22	93389A5	黄色线束总成（6.50英寸）	WIRE ASSEMBLY (6.50 Inches) Yellow	1
22	93388A2	线缆总成(黑色)	CABLE ASSEMBLY Black	1
22	93388A14	线缆总成(黄/黑)	CABLE ASSEMBLY Yellow/Black	1
23	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
24	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
25	5288A2	点火线圈总成	COIL ASSEMBLY Ignition	6
25	8M0166172	点火线圈	IGNITION COIL	6
25	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	6
25	8M0230859	点火线圈总成	COIL IGNITION ASY	6
26	67614	盖板	COVER	3
27	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	12
28	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	12
29	88807A6	黑色电缆总成 (3.50 英寸)	CABLE ASSEMBLY (3.50 Inches) Black	6
29	60466A1	线缆总成-黑色（2.50英寸）	CABLE ASSEMBLY Black (2.50 Inches)	6
30	68513	螺钉(#10-32x.375)不锈钢	SCREW (#10-32 x .375) Stainless Steel	6
31	813715A1	引线	LEAD WIRE	1
32	63709A1	护套/端子套件	BOOT/TERMINAL KIT	6
33	97180	火花塞	SPARK PLUG	6
33	896329827	SP #L76V @4	SP #L76V @4	6
33	136862	火花塞	SPARK PLUG	6
33	13686Q	NGK BU8H @10	NGK BU8H @10	6
34	69738A7	线圈至开关盒线束总成	HARNESS ASSEMBLY COIL TO SWITCH BOX	1
34	69739A2	线圈至开关盒线束总成	HARNESS ASSEMBLY COIL TO SWITCH BOX	1
35	30164	垫圈(0.192x0.375x0.0312)不锈钢	WASHER (.192 x .375 x .0312) Stainless Steel	12
36	56774	隔套	SPACER	AR

图 131燃油泵（设计I型） Fuel Pump (Design I)

REF	零件编号	中文名称	英文名称	数量
2	6232	燃油入口接头（上下）	FITTING FUEL INLET - UPPER AND LOWER	2
3	70007	45度燃油进口接头-中部	FITTING 45 Degree FUEL INLET - MIDDLE	1
4	677511	衬垫	GASKET	3
4	90430	衬垫	GASKET	3
4	904301	衬垫	GASKET	3
5	20184	化油器安装螺母(1/4-28X7/32)	NUT (1/4-28X7/32) CARBURETOR MOUNTING	12
5	8M0207775	螺母 @5	NUT @5	12
6	99127109	化油器至燃油泵管路（57英寸散装）	LINE (57.00 Inches Bulk) CARBURETOR TO FUEL PUMP	3
6	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	3
7	68424	燃油管卡箍	CLAMP FUEL HOSE	3
8	66530A7	燃油泵总成	PUMP ASSEMBLY Fuel	1
8	13453A1	燃油泵总成	PUMP ASSEMBLY Fuel	1
9	30430A8	止回阀总成	CHECK VALVE ASSEMBLY	1
10	89031A2	膜片总成	DIAPHRAGM ASSEMBLY	1
11	NSS	垫片(不单独销售)	NOT SOLD SEPARATE Gasket	1
12	NSS	垫片(不单独销售)	NOT SOLD SEPARATE Gasket	1
13	NSS	垫片(不单独销售)	NOT SOLD SEPARATE Gasket	2
14	NSS	垫片(不单独销售)	NOT SOLD SEPARATE Gasket	2
15	59072	滤网	SCREEN	1
16	35480	O型圈（1.237×0.103）	O-RING (1.237 x .103)	1
17	NSS	垫片(不单独销售)	NOT SOLD SEPARATE Gasket	1
18	23004	固定座	RETAINER	1
19	43725	螺钉（#6-32 x 0.380）	SCREW (#6-32 x .380)	2
20	67623	底座	BASE	1
21	79826	脉冲室	PULSE CHAMBER	1
21	86449	腔体	CHAMBER	1
22	91078A1	燃油滤清器盖总成	COVER ASSEMBLY FUEL FILTER	1
23	89766	不锈钢螺钉（10-32×0.620）	SCREW (#10-32 x .620) Stainless Steel	1
24	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	5
25	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	5
26	67620	燃油出口接头	FITTING FUEL OUTLET	1
27	86207	弹簧	SPRING	1
28	86026	固定座	RETAINER	1
29	86252	盖帽	CAP	1
30	68424	卡箍	CLAMP	5
31	17254A8	燃油管路总成	LINE ASSEMBLY Fuel	1
31	877682Q8	燃油软管总成	HOSE ASSEMBLY Fuel	1
31	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	1
31	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
31A	92007	管接头(.250-18)(90度)	FITTING (.250-18) (90 DEGREES)	1
31A	920071	90度弯头	FITTING (90 Degree)	1
31B	92037	密封件	SEAL	1
31C	69224	螺钉(1-1/4英寸)	SCREW (1-1/4")	1
31D	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
32	30185A3	燃油卡口总成	BAYONET ASSEMBLY Fuel	1
32	30185Q3	油箱端快速断开总成-卡口式	QUICK DISCONNECT ASSEMBLY Tank End - Bayonet Style	1
32	30186	适配器	ADAPTER	1
33	30187	阀杆	STEM	1
33	30185Q3	油箱端快速断开总成-卡口式	QUICK DISCONNECT ASSEMBLY Tank End - Bayonet Style	1
34	20415	O型圈	O-RING	1
34	16524	燃油接头O型圈	O-RING Fuel Connector	1
35	30189	弹簧	SPRING	1
36	30188	垫圈	WASHER	1
47	89808	弹簧	SPRING	1
48	64705	直通接头	FITTING (STRAIGHT)	1
48	29085	45度弯管接头	FITTING Elbow (45 Degree)	1
48	8M0123050	45度弯管接头	FITTING Elbow (45 Degree)	1
-	89221A88	衬垫套件	GASKET SET	1
-	89221A80	衬垫套件	GASKET SET	1
-	89031A2	膜片总成	DIAPHRAGM ASSEMBLY	1

图 132燃油泵（设计II型） Fuel Pump (Design II)

REF	零件编号	中文名称	英文名称	数量
1	42859A2	加浓阀总成	VALVE ASSEMBLY Enrichner	1
2	63300	卡箍	CLAMP	1
2	633003	卡箍	CLAMP	1
3	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
4	70007	45度弯头	FITTING 45 Degree	AR
4	7900	三通接头	TEE FITTING	AR
4	7901	弯头	ELBOW	AR
7	67751	衬垫	GASKET	3
8	20184	螺母（1/4-28X7/32）	NUT (1/4-28X7/32)	12
8	8M0207775	螺母 @5	NUT @5	12
9	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	3
9	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	3
10	68424	卡箍	CLAMP	AR
11	88853A1	燃油泵总成	PUMP ASSEMBLY Fuel	1
12A	26618	销	PIN	1
12B	42657A1	止回阀	CHECK VALVE	1
12B	42657A3	止回阀	CHECK VALVE	1
12	30430A11	止回阀套件	CHECK VALVE KIT	1
13	90363A1	膜片组件	DIAPHRAGM KIT	1
11	13453A2	燃油泵总成	PUMP ASSEMBLY Fuel	1
12	30430A12	止回阀套件	CHECK VALVE KIT	1
13	89031A4	隔膜	DIAPHRAGM	1
14	NSS	垫片(不单独销售)	NOT SOLD SEPARATE Gasket	1
15	NSS	垫片(不单独销售)	NOT SOLD SEPARATE Gasket	1
16	NSS	垫片(不单独销售)	NOT SOLD SEPARATE Gasket	2
17	NSS	垫片(不单独销售)	NOT SOLD SEPARATE Gasket	2
18	59072	滤网	SCREEN	1
19	35480	O型圈（1.237×0.103）	O-RING (1.237 x .103)	1
20	NSS		NOT SOLD SEPARATE GAsket	1
21	70007	45度接头	FITTING 45 Degree (45 DEGREES)	1
22	23004	固定座	RETAINER	1
23	43723	螺钉（6-32×0.500）	SCREW (#6-32 x .500)	2
24	90728	底座	BASE	1
25	88848	脉冲室	PULSE CHAMBER	1
26	41519	盖板	COVER	1
26	91078A1	盖总成	COVER ASSEMBLY	1
27	89766	不锈钢螺钉（10-32×0.620）	SCREW (#10-32 x .620) Stainless Steel	1
28	73013	螺钉 10-32 x 1.50	SCREW 10-32 x 1.50	5
29	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	5
30	19688	接头	FITTING	1
31	86207	弹簧	SPRING	1
32	86026	固定座	RETAINER	1
33	86252	盖帽	CAP	1
34	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	1
34	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
34	89020	燃油管	LINE Fuel	1
35	92007	接头(.250-18)	FITTING (.250-18)	1
35	920071	90度弯头	FITTING (90 Degree)	1
35	63981	接头	FITTING	1
35	63187	倒钩接头(.250-18)	FITTING Barb (.250-18)	1
36	30186	适配器	ADAPTER	1
37	30187	阀杆	STEM	1
37	30185Q3	油箱端快速断开总成-卡口式	QUICK DISCONNECT ASSEMBLY Tank End - Bayonet Style	1
38	20415	O型圈	O-RING	1
38	16524	燃油接头O型圈	O-RING Fuel Connector	1
39	30189	弹簧	SPRING	1
40	30188	垫圈	WASHER	1
41	76596	螺丝(.250-20 x 1.250)	SCREW (.250-20 x 1.250)	2
42	42859A2	加浓阀总成	VALVE ASSEMBLY Enrichner	1
43	90275	连接器(底部)	CONNECTOR (BOTTOM)	1
44	67902	连接器(侧面)	CONNECTOR (SIDE)	1
45	90345	支架	BRACKET	1
46	89075	螺钉	SCREW	2
47	98253	螺钉(0.250-20x0.500)	SCREW (.250-20 x .500)	2
48	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
49	45915	端子排	TERMINAL BLOCK	1
50	69079	螺钉 (#10-16 x .440)	SCREW (#10-16 x .440)	2
51	9938779	软管	HOSE	1
52	9912688	管材 (36.00英寸散装)	TUBING (36.00 Inches Bulk)	2
53	92037	密封件	SEAL	1
54	816296	燃油滤清器	FILTER Fuel	1
54	816296Q03	燃油滤清器@3	FILTER-FUEL @3	1
55	26404	卡箍	CLAMP	1
56	69205	C形垫圈	C WASHER	1
56	8M0084613	C形垫圈	C-WASHER	1
57	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	1
58	78291	螺钉(0.190-24 x 0.500)	SCREW (.190-24 x .500)	1
-	89221A88	衬垫套件	GASKET SET	1
-	89221A80	衬垫套件	GASKET SET	1
-	90363A1	膜片组件	DIAPHRAGM KIT	1
-	89031A4	隔膜	DIAPHRAGM	1

图 133燃油泵（设计III型）（方形燃油泵） Fuel Pump (Design III) (Square Fuel Pump)

REF	零件编号	中文名称	英文名称	数量
4	70007	45度接头(中部)	FITTING 45 Degree (MIDDLE)	1
5	7900	三通接头(中部)	TEE FITTING (MIDDLE)	1
6	7901	弯头(上/下部)	ELBOW (UPPER/LOWER)	2
7	67751	衬垫	GASKET	3
8	20184	螺母（1/4-28X7/32）	NUT (1/4-28X7/32)	12
8	8M0207775	螺母 @5	NUT @5	12
9	42859A2	加浓阀总成	VALVE ASSEMBLY Enrichner	1
10	633001	卡箍	CLAMP	1
11	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
12	45915	端子排	TERMINAL BLOCK	2
13	35519	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	2
14	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
14	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
15	9912688	管材 (36.00英寸散装)	TUBING (36.00 Inches Bulk)	2
16	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	4
16	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	4
17	15930A15	燃油泵套件	PUMP KIT Fuel	1
18	42990A9	膜片组件	DIAPHRAGM KIT	1
18	857005A1	膜片组件	DIAPHRAGM KIT	1
19	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve-Rubber	2
20	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
21	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
22	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
23	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
24	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
25	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
26	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
27	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
28	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
29	987691	衬垫	GASKET	1
29	8M0204705	衬垫@2	GASKET @2	1
30	14868	接头	FITTING	1
31	19688	接头	FITTING	1
32	144303	底座	BASE	1
33	98775A3	安装板	PLATE	1
33	987752	安装板	PLATE	1
34	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
35	15979	接头	FITTING	1
36	16452	螺钉(#12-24x2.00)	SCREW (#12-24 x 2.00)	2
37	4000310	螺钉(M5 x 40)	SCREW (M5 x 40)	2
38	4002314	垫圈	WASHER	2
39	9072925	软管	HOSE	1
40	99751	黄铜接头(.0625-27)(90度)	FITTING (.0625-27) Brass (90 DEGREES)	1
40	997511	弯头	ELBOW	1
41	9912976	油管	TUBING	2
41	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	2
42	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
42	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
43	14866	弯头	ELBOW	1
44	30186	适配器	ADAPTER	1
45	30187	阀杆	STEM	1
45	30185Q3	油箱端快速断开总成-卡口式	QUICK DISCONNECT ASSEMBLY Tank End - Bayonet Style	1
46	30189	弹簧	SPRING	1
47	20415	O型圈	O-RING	1
47	16524	燃油接头O型圈	O-RING Fuel Connector	1
48	30188	垫圈	WASHER	1
49	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
50	92037	密封件	SEAL	1
51	424251	三通	TEE	1
51	424253	接头	FITTING	1
52	816296	燃油滤清器	FILTER Fuel	1
52	816296Q03	燃油滤清器@3	FILTER-FUEL @3	1
-	89221A88	衬垫套件	GASKET SET	1
-	42990A9	膜片组件	DIAPHRAGM KIT	1
-	857005A1	膜片组件	DIAPHRAGM KIT	1

图 134齿轮箱(驱动轴)(带驱动轴螺母) Gear Housing (Driveshaft)(With a Driveshaft Nut)

REF	零件编号	中文名称	英文名称	数量
0	9148A8	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
0	9148A10	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
0	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
0	9148A9	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
0	9148T85	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
0	9148A13	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
0	9148T91	ORD 1647-9148T85	ORD 1647-9148T85	1
1	9148A11	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A12	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
2	85822A1	连接器总成	CONNECTOR ASSEMBLY	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	20033	定位销	PIN Dowel	2
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	78638	双头螺柱(.438 x 3.12)	STUD (.438 x 3.12)	1
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
4	78639	螺柱	STUD	1
5	57920	双头螺柱(.44 x 2.06)	STUD (.44 x 2.06)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	74730	螺柱	STUD	2
6	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	306671	螺柱	STUD	2
8	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	43998	套筒	SLEEVE	1
11	440001	驱动轴	DRIVESHAFT	1
11	897624T	长驱动轴	DRIVESHAFT Long	1
11	44209	驱动轴	DRIVESHAFT	1
11	897625T	加长驱动轴	DRIVESHAFT X-Long	1
12	NSS	小齿轮(不单独销售)	NOT SOLD SEPARATE Pinion Gear	1
13	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
14	35921	螺母(0.625-18)	NUT (.625-18)	1
15	42637A1	垫片组	SHIM SET	AR
15	8M0063267	垫片组	SHIM SET	AR
16	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
16	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
17	42633	螺母	NUT	1
17	8245191	固定座	RETAINER	1
18	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
19	426311	衬垫	GASKET	1
19	8M0204678	衬垫	GASKET	1
20	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
20	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
20	38099	O型圈	O-RING	1
21	89238	油封	SEAL Oil	1
22	16977	油封	SEAL Oil	1
23	856081	衬垫	GASKET	1
23	8M0090319	衬垫@5	GASKET @5	1
24	856091	衬垫	GASKET	1
24	858524	衬垫	GASKET	1
25	32435	面板	FACE PLATE	1
25	8M0204677	面板	PLATE-FACE	1
26	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
27	48752	嵌件	INSERT	1
27	48752T	嵌件	INSERT	1
28	38970	密封件	SEAL	1
29	89984	叶轮	IMPELLER	1
29	89984T4	叶轮	IMPELLER	1
30	56654	键	KEY	1
30	8M0214992	键@5	KEY @5	1
31	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
31	8M0215009	螺钉	SCREW	1
32	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	3
32	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	3
33	13438	螺母(.250-28)	NUT (.250-28)	2
33	8267119	螺母(.250-28)	NUT (.250-28)	2
34	36001	垫圈	WASHER	1
35	13436	螺母	NUT	1
36	30271	橡胶环	RING Rubber	1
36	8M0214918	环@5	RING @5	1
37	29804	套筒	SLEEVE	1
37	29804T	套筒	SLEEVE	1
38	78902	轴	SHAFT	1
38	789022	换档轴	SHIFT SHAFT	1
39	29641	E型卡环	E RING	1
40	78907	挡圈	RING Retaining	1
41	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
42	77631A2	衬套总成	BUSHING ASSEMBLY	1
43	816464	油封	SEAL Oil	1
43	8M0246145	油封	OIL SEAL	1
44	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
45	79953	螺钉(0.375-16x0.250)	SCREW (.375-16 x .250)	1
45	79953Q04	放油螺钉套件	SCREW KIT Drain	1
46	67892	磁性螺钉	SCREW Magnetic	1
46	8M0058389	放油螺钉套件	SCREW KIT Drain	1
47	19183	纤维垫圈	WASHER Fiber	2
47	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
-	89221A88	衬垫套件	GASKET SET	1
-	89221A80	衬垫套件	GASKET SET	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1

图 135齿轮箱（驱动轴-无传动轴螺母） Gear Housing (Drive - Without a Driveshaft Nut)

REF	零件编号	中文名称	英文名称	数量
0	9148A8	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
0	9148A10	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
0	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
0	9148A9	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
0	9148T85	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
0	9148A13	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
0	9148T91	ORD 1647-9148T85	ORD 1647-9148T85	1
1	7350A4	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8688T9	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	7350A62	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8688T10	齿轮箱基础型-GR	GEAR HSG-BASIC-GR	1
2	85822A1	连接器总成	CONNECTOR ASSEMBLY	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	66885	嵌件	INSERT	1
3	66884	嵌件	INSERT	1
4	76156	螺钉(#10-32 x 1.88)	SCREW (#10-32 x 1.88)	1
5	45812	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
5	859124	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
6	20033	定位销	PIN Dowel	2
6	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
7	78638	双头螺柱(.438 x 3.12)	STUD (.438 x 3.12)	1
7	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
7	78639	螺柱	STUD	1
8	57920	双头螺柱(.44 x 2.06)	STUD (.44 x 2.06)	2
8	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
8	74730	螺柱	STUD	2
9	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
9	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
10	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
10	306671	螺柱	STUD	2
11	35934A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
12	98621	螺钉(.375-16 x .750)	SCREW (.375-16 x .750)	1
13	98682A1	驱动轴	DRIVESHAFT	1
13	41509A2	驱动轴总成	DRIVESHAFT ASSEMBLY	1
14	34576	弹簧	SPRING	1
15	30545	销	PIN	1
16	NSS	小齿轮(不单独销售)	NOT SOLD SEPARATE Pinion Gear	1
17	35921	螺母(0.625-18)	NUT (.625-18)	1
18	57007A1	垫片	SHIM	AR
19	53079A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
20	856101	衬垫	GASKET	1
20	8M0214962	衬垫@5	GASKET @5	1
21	33145	O型圈(1.984x0.139)	O-RING (1.984 x .139)	1
21	8M0214923	O型圈(1.98x1.39)	O-RING (1.98 x 1.39)	1
22	96146A6	水泵底座总成	BASE ASSEMBLY Water Pump	1
23	89238	油封	SEAL Oil	1
24	16977	油封	SEAL Oil	1
24A	35973	定位销	PIN Dowel	1
25	856081	衬垫	GASKET	1
25	8M0090319	衬垫@5	GASKET @5	1
26	32435	面板	FACE PLATE	1
26	8M0204677	面板	PLATE-FACE	1
27	856091	衬垫	GASKET	1
27	858524	衬垫	GASKET	1
28	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
28	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
29	48752	嵌件	INSERT	1
29	48752T	嵌件	INSERT	1
30	38970	密封件	SEAL	1
31	89984	叶轮	IMPELLER	1
31	89984T4	叶轮	IMPELLER	1
32	56654	键	KEY	1
32	8M0214992	键@5	KEY @5	1
33	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
33	8M0215009	螺钉	SCREW	1
34	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	3
34	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	3
35	35888	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	2
36	36001	垫圈	WASHER	1
37	45592	螺母(.312-24)	NUT (.312-24)	1
37	826709111	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
38	30271	橡胶环	RING Rubber	1
38	8M0214918	环@5	RING @5	1
39	29804	套筒	SLEEVE	1
39	29804T	套筒	SLEEVE	1
40	78902	轴	SHAFT	1
40	789022	换档轴	SHIFT SHAFT	1
41	29641	E型卡环	E RING	1
42	78907	挡圈	RING Retaining	1
43	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
44	77631A2	衬套总成	BUSHING ASSEMBLY	1
45	816464	油封	SEAL Oil	1
45	8M0246145	油封	OIL SEAL	1
46	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
47	79953	螺钉(0.375-16x0.250)	SCREW (.375-16 x .250)	1
47	79953Q04	放油螺钉套件	SCREW KIT Drain	1
48	67892	磁性螺钉	SCREW Magnetic	1
48	8M0058389	放油螺钉套件	SCREW KIT Drain	1
49	19183	纤维垫圈	WASHER Fiber	2
49	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
-	89221A88	衬垫套件	GASKET SET	1
-	89221A80	衬垫套件	GASKET SET	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	55682A1	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 136齿轮箱螺旋桨轴-无驱动轴螺母 Gear Housing Propeller Shaft - Without a Driveshaft Nut

REF	零件编号	中文名称	英文名称	数量
0	9148A8	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
0	9148A10	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
0	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
0	9148A9	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
0	9148T85	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
0	9148A13	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
0	9148T91	ORD 1647-9148T85	ORD 1647-9148T85	1
1	7350A4	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8688T9	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	7350A62	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	8688T10	齿轮箱基础型-GR	GEAR HSG-BASIC-GR	1
50	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
51	78956	换挡凸轮	SHIFT CAM	1
51	789562	换挡凸轮	SHIFT CAM	1
52	79911	杆	ROD	1
52	79911A1	杆	ROD	1
53	79910	弹簧	SPRING	2
54	78910	垫圈	WASHER	AR
55	78906	销	PIN	1
55	8M0084245	弹簧定位销	PIN Spring Locator	1
56	47397A1	垫片组	SHIM SET	AR
57	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
58	43491A1	前进齿轮总成	GEAR ASSEMBLY Forward	1
58	43491T1	齿轮总成	GEAR ASSY	1
59	73363	滚柱轴承	BEARING Roller	2
59	73363T	轴承	BEARING	2
60	78959	棘轮	RATCHET	1
60	823174T	ORD 8M0100493	ORD 8M0100493	1
61	78905	十字销	PIN Cross	1
61	8M0084243	十字销	PIN Cross	1
62	78909	定位销	PIN Detent	2
63	78962	弹簧	SPRING	2
64	94148	螺旋桨轴	PROPELLER SHAFT	1
65	NSS	倒车齿轮(不单独销售)	NOT SOLD SEPARATE Reverse Gear	1
66	681001	止推环	RING Thrust	1
67	88957A1	滚珠轴承	BEARING Ball	1
67	88957T	滚珠轴承	BEARING Ball	1
68	31534	O型圈	O-RING	1
68	8M0214920	O型圈	O RING	1
69	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
69	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
70	30956	滚针轴承	BEARING Needle	1
70	30956T	滚针轴承	BEARING Needle	1
71	76868	密封件	SEAL	1
71	8M0248882	油封@5	SEAL-OIL @5	1
72	70081	油封	SEAL Oil	1
72	8M0205729	密封件	SEAL	1
73	30281	键	KEY	1
74	79447	锁紧垫圈	TAB WASHER	1
75	79448	固定座	RETAINER	1
75	8M2011027	固定座	RETAINER	1
76	31640A1	平衡板总成	TRIM TAB ASSEMBLY	1
76	31640Q4	平衡鳍板	TRIM TAB	1
77	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
78	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
79	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
79	8M0204653	螺母	NUT	2
80	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
80	74727	螺钉(.375-16 x 6.00)	SCREW (.375-16 x 6.00)	1
81	13171	推力毂	THRUST HUB	1
81	835467Q01	止推垫片套件	THRUST WASHER KIT	1
82	31211A2	花键垫圈	WASHER Splined	1
82	31211Q03	垫圈总成	WASHER ASSEMBLY	1
83	31210	锁紧垫圈	TAB WASHER	1
83	816629Q	锁紧垫圈	TAB WASHER	1
84	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
84	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
-	89221A88	衬垫套件	GASKET SET	1
-	89221A80	衬垫套件	GASKET SET	1
-	55682A1	齿轮箱密封套件	SEAL KIT Gear Housing	1

图 137齿轮箱螺旋桨轴-带驱动轴螺母 Gear Housing Propeller Shaft - With a Driveshaft Nut

REF	零件编号	中文名称	英文名称	数量
0	9148A8	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
0	9148A10	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
0	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
0	9148A9	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
0	9148T85	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
0	9148A13	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
0	9148T91	ORD 1647-9148T85	ORD 1647-9148T85	1
1	9148A11	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A12	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
48	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
49	78956	换挡凸轮	SHIFT CAM	1
49	789562	换挡凸轮	SHIFT CAM	1
50	79911	杆	ROD	1
50	79911A1	杆	ROD	1
51	79910	弹簧	SPRING	2
52	78910	垫圈	WASHER	AR
53	78906	销	PIN	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	47397A1	垫片组	SHIM SET	AR
55	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
56	44104A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
56	44104T2	齿轮组	GEAR SET	1
57	43999	滚柱轴承	BEARING Roller	2
57	73363	滚柱轴承	BEARING Roller	2
57	73363T	轴承	BEARING	2
58	78959	棘轮	RATCHET	1
58	823174T	ORD 8M0100493	ORD 8M0100493	1
59	78905	十字销	PIN Cross	1
59	8M0084243	十字销	PIN Cross	1
60	78909	定位销	PIN Detent	2
61	78962	弹簧	SPRING	2
62	94148	螺旋桨轴	PROPELLER SHAFT	1
63	NSS	倒车齿轮(不单独销售)	NOT SOLD SEPARATE Reverse Gear	1
64	681001	止推环	RING Thrust	1
65	88957A1	滚珠轴承	BEARING Ball	1
65	88957T	滚珠轴承	BEARING Ball	1
66	31534	O型圈	O-RING	1
66	8M0214920	O型圈	O RING	1
67	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	30956	滚针轴承	BEARING Needle	1
68	30956T	滚针轴承	BEARING Needle	1
69	76868	密封件	SEAL	2
69	8M0248882	油封@5	SEAL-OIL @5	2
70	30281	键	KEY	1
71	79447	锁紧垫圈	TAB WASHER	1
72	79448	固定座	RETAINER	1
72	8M2011027	固定座	RETAINER	1
73	31640A1	平衡板总成	TRIM TAB ASSEMBLY	1
73	31640Q4	平衡鳍板	TRIM TAB	1
74	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
75	45716	螺钉(#10-32 x .9375)	SCREW (#10-32 x .9375)	2
76	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
76	8M0204653	螺母	NUT	2
77	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
77	74727	螺钉(.375-16 x 6.00)	SCREW (.375-16 x 6.00)	1
78	13171	推力毂	THRUST HUB	1
78	835467Q01	止推垫片套件	THRUST WASHER KIT	1
79	31211A2	花键垫圈	WASHER Splined	1
79	31211Q03	垫圈总成	WASHER ASSEMBLY	1
80	31210	锁紧垫圈	TAB WASHER	1
80	816629Q	锁紧垫圈	TAB WASHER	1
81	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
81	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
82	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
-	89238A2	密封套件	SEAL KIT	1

图 138液压泵 Hydraulic Pump

REF	零件编号	中文名称	英文名称	数量
-	92459A4	液压泵总成	PUMP ASSEMBLY Hydraulic	1
1	89492	适配器	ADAPTER	1
1	89492T	ORD 823653A 9	ORD 823653A 9	1
2	89493	联轴器	COUPLING	1
2	803852	联轴器	COUPLING	1
3	89494	手动释放装置	MANUAL RELEASE	AR
3	96598A1	手动释放装置	MANUAL RELEASE	AR
3	96598	手动释放装置	MANUAL RELEASE	AR
3	96598A1	手动释放装置	MANUAL RELEASE	AR
4	89495	水泵(含螺钉)	PUMP (INCLUDES SCREWS)	1
4	823653A9	液压泵维修包	PUMP KIT-HYD	1
5	89496	滤清器	FILTER	2
6	89498	O型圈	O-RING	1
7	89497	O型圈	O-RING	1
8	89499	量油尺	DIPSTICK	1
9	90587	储液罐	RESERVOIR	1
9	90587T	储液罐	RESERVOIR	1
10	90588	螺钉(含O型圈)	SCREW (INCLUDES O-RING)	1
11	90589	贯穿螺柱	THRU STUD	1
11	90590	贯穿螺柱	THRU STUD	1
-	87828	马达	MOTOR	1
-	17649A02	倾斜马达维修包	MOTOR KIT-TRIM	1
12	89484	端架	END FRAME	1
13	89485	电枢	ARMATURE	1
14	89482	垫圈	WASHER	1
15	89486	磁场与框架组件	FIELD AND FRAME	1
16	89487	电刷架	BRUSH CARD	1
16	17649A1	马达	MOTOR	1
17	89488	端架	END FRAME	1
18	89483	贯穿螺栓	THRU BOLT	1
18	89489	贯穿螺栓	THRU BOLT	1
19	89481	螺母	NUT	6
-	812501A1	安全阀修理包	REPAIR KIT Relief Valve	1
-	99073A1	大修包	REPAIR KIT Overhaul	1
-	99073A2	倾斜装置重建包	REBUILD KIT-TRIM	1

图 139液压泵（序列号-Mercury-5363917及以下） Hydraulic Pump (S/N-Mercury-5363917 & Below)

REF	零件编号	中文名称	英文名称	数量
1	67914A2	液压泵总成	PUMP ASSEMBLY Hydraulic	1
2	48171	O型圈(0.364 x 0.070)	O-RING (.364. x .070)	4
3	69582A2	控制阀总成	VALVE ASSEMBLY Control	1
2	48171	O型圈(0.364 x 0.070)	O-RING (.364. x .070)	4
4	56500	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	2
4	69697	螺钉(.250-28 x 1.50)	SCREW (.250-28 x 1.50)	2
5	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
6	67458A7	电磁阀(含25-69756 O型圈)	SOLENOID (INCLUDES 25-69756 O-RING)	1
7	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	2
8	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
9	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	1
10	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
11	67740	软管	HOSE	1
11	67742	软管	HOSE	1
12	79139A2	跳线总成	WIRE ASSEMBLY Jumper	1
12	55992	跳线	WIRE Jumper	1
13	32979	电池引线	LEAD Battery	1
13	32988	电池引线	LEAD Battery	1
14	87762A2	平衡泵支架套件	BRACKET KIT Trim Pump Mounting	1
14	87762A04	平衡泵支架总成	BRACKET ASSEMBLY Trim Pump Mounting	1
15	69698	螺栓(.375-24 x 3.500)	BOLT (.375-24 x 3.500)	2
16	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
17	46335	螺母 (.375-24)	NUT (.375-24)	2
18	71976	安装板	MOUNTING PLATE	1
19	37562	不锈钢螺钉(.312-18 x 1.00)	SCREW (.312-18 x 1.00) Stainless Steel	4
20	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	5
20	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	5
21	68292	螺母(.312-18)	NUT (.312-18)	4
21	8M0204668	螺母(.312-18)	NUT (.312-18)	4
22	39349	螺钉(.312-18×0.75)不锈钢	SCREW (.312-18 x .750) Stainless Steel	1
23	68259A1	线束总成	HARNESS ASSEMBLY	1
24	68260A1	线束总成	HARNESS ASSEMBLY	1
25	22627	卡扣	CLIP	1
26	37655	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	1
27	69205	C形垫圈	C WASHER	1
27	8M0084613	C形垫圈	C-WASHER	1
28	68037	支架	BRACKET	1
29	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	1
30	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
31	63813	端子排	TERMINAL BLOCK	1
31	638131	端子排	TERMINAL BLOCK	1
32	37655	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	2
33	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2
34	68036	绑带	STRAP	1
35	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	2
36	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
37	29598	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	4
38	36901	缓冲垫	BUMPER	2
39	68258A4	启动电磁阀总成	SOLENOID ASSEMBLY Starter	2
39	853654A1	电磁阀	SOLENOID	2
40	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	4
41	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4
42	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
42	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
43	68292	螺母(.312-18)	NUT (.312-18)	4
43	8M0204668	螺母(.312-18)	NUT (.312-18)	4
44	46265	护套	BOOT	4
45	75343	卡箍	CLAMP	1

图 140液压泵和安装支架 Hydraulic Pump and Mounting Brackets

REF	零件编号	中文名称	英文名称	数量
1	92459A4	液压泵总成	PUMP ASSEMBLY Hydraulic	1
2	90318	支架	BRACKET	1
3	90285	螺钉 (.312-18 x .625)	SCREW (.312-18 x .625)	1
4	56720	垫圈(0.330×0.750×0.060)不锈钢	WASHER (.330 x .750 x .060) Stainless Steel	1
5	29488	螺母 (#10-32)	NUT (#10-32)	2
5	8M0204718	螺母	NUT	2
6	45915	端子排	TERMINAL BLOCK	1
7	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2
8	32988	电池引线	LEAD Battery	1
8	79138A4	拉线总成	CABLE ASSEMBLY	1
12	87379A2	电线	WIRE	1
12	61600A9	电线	WIRE	1
13	74023A1	线束总成	HARNESS ASSEMBLY	1
14	88075	固定座	RETAINER	1
15	68258A4	启动电磁阀总成	SOLENOID ASSEMBLY Starter	2
15	853654A1	电磁阀	SOLENOID	2
16	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	4
17	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	4
18	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4
19	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
19	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
20	68292	螺母(.312-18)	NUT (.312-18)	4
20	8M0204668	螺母(.312-18)	NUT (.312-18)	4
21A	46265	护套	BOOT	4
24	32979	电池引线	LEAD Battery	1
24	79139A9	电池电缆总成	CABLE ASSEMBLY Battery	1
28	87760	安装板	PLATE	1
28	87760T	安装板	MOUNTING PLATE	1
29	39349	螺钉(.312-18×0.75)不锈钢	SCREW (.312-18 x .750) Stainless Steel	1
30	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
30	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
31	90271	螺钉(.375-16×0.62)	SCREW (.375-16 x .62)	2
32	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
33	87762	支架	BRACKET	1
34	69698	螺栓(.375-24 x 3.500)	BOLT (.375-24 x 3.500)	2
35	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
36	46335	螺母 (.375-24)	NUT (.375-24)	2
37	89029	适配器	ADAPTER	1
37	77366	接头	FITTING	1
38	67740	软管	HOSE	1
38	67742	软管	HOSE	1
39	89017A1	配平传感器线束总成	HARNESS ASSEMBLY Trim Sender	1
40	75343	卡箍	CLAMP	1

图 141仪表装置 Instrumentation

REF	零件编号	中文名称	英文名称	数量
1	19674A1	拉绳开关总成	SWITCH ASSEMBLY Lanyard	1
2	18303	螺钉 (.190-16 x 1.750) 不锈钢	SCREW (.190-16 x 1.750) Stainless Steel	2
3	813679	适配器	ADAPTER	1
4	15920A54	拉绳总成	LANYARD ASSEMBLY	1
4	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
5	32866	螺钉 (#10-32 x 2.00) 不锈钢	SCREW (#10-32 x 2.00) Stainless Steel	2
6	18321	安装夹	CLAMP Mounting	1
7	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	2
8	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4
9	79146	固定座	RETAINER	3
10	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
10	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
11	812497A2	二极管总成	DIODE ASSEMBLY	1
11	898289A72	双拉绳二极管套件	DIODE KIT-LANYARD Dual	1
12	11149A2	线缆总成 (6.00英寸)	CABLE ASSEMBLY (6.00 Inches)	1

图 142机油喷射组件 Oil Injection Components

REF	零件编号	中文名称	英文名称	数量
1	12430A1	传感器总成	SENSOR ASSEMBLY	1
2	48409	螺钉(#10-16 x .625)不锈钢传感器固定	SCREW (#10-16 x .625) Stainless Steel SENSOR ATTACHING	1
3	41470A15	报警模块总成	WARNING MODULE ASSEMBLY	1
3	41470A26	报警模块总成	WARNING MODULE ASSEMBLY	1
4	38833	警告模块螺钉垫圈	WASHER WARNING MODULE SCREW	3
5	69020	螺钉(#10-32 x .875)警告模块至气缸体	SCREW (#10-32 x .875) WARNING MODULE TO CYLINDER BLOCK	3
5	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
6	41032	油泵总成	PUMP ASSEMBLY Oil	1
6	815698T	油泵	PUMP Oil	1
7	32228	油泵至曲轴箱螺钉 (#10-32 x .625)	SCREW (#10-32 x .625) OIL PUMP TO CRANKCASE	1
7	41507	油泵至曲轴箱螺钉 (#10-32 x 1.120)	SCREW (#10-32 x 1.120) OIL PUMP TO CRANKCASE	1
8	193856	节气门连杆至油泵	LINK THROTTLE LEVER TO OIL PUMP	1
9	41429A1	驱动齿轮轴承总成	BEARING ASSEMBLY DRIVE GEAR	1
9	41429A2	轴承总成	BEARING ASSEMBLY	1
10	12726	从动齿轮	GEAR Driven	1
10	14563	从动齿轮	GEAR Driven	1
11	4301619	油泵至三通油管	TUBING OIL PUMP TO TEE	1
11	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	1
12	42813	警告模块导线螺钉 (#10-32 X .380)	SCREW (#10-32 X .380) WARNING MODULE LEAD	1
13	11379	油泵O型圈	O-RING OIL PUMP	1
14	87421	油箱	TANK	1
15	43298A2	油箱盖总成	CAP ASSEMBLY OIL TANK	1
16	11332	O型圈(2.225 x .210)盖	O-RING (2.225 x .210) CAP	1
17	43295A5	壳体总成适配器	HOUSING ASSEMBLY Adaptor	1
17	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
18	11332	O型圈(2.225 x .210)适配器壳体	O-RING (2.225 x .210) ADAPTOR HOUSING	1
19	99802	吸油管	TUBE OIL PICK-UP	1
20	12540A2	飞轮壳体总成	HOUSING ASSEMBLY Flywheel	1
20	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
21	99439	油管(114.00英寸)	HOSE (114.00 Inches) OIL	1
22	12540A3	壳体	HOUSING	1
23	12242A1	闩锁	LATCH	1
24	43278	止回阀接头（曲轴箱）	FITTING CHECK VALVE (CRANKCASE)	1
24	8781051	止回阀	CHECK VALVE	1
25	99443	油箱	RESERVOIR Oil	1
25	994436	储液罐	RESERVOIR	1
26	69020	油箱固定螺钉 (#10-32 x .875)	SCREW (#10-32 x .875) OIL RESERVOIR ATTACHING	3
26	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
27	42118	油箱螺钉垫圈	WASHER OIL RESERVOIR SCREW	6
28	42117	油箱螺钉衬套	GROMMET OIL RESERVOIR SCREW	3
29	42116	油箱螺钉轴套	BUSHING OIL RESERVOIR SCREW	3
30	4301736	油箱至油泵油管 (5-1/4")	TUBING OIL RESERVOIR TO OIL PUMP (5-1/4")	1
30	82381455	油管（25.00英寸散装）	TUBING (25.00 Inches Bulk)	1
31	43300A1	油箱盖总成	CAP ASSEMBLY OIL RESERVOIR	1
31	43300A9	盖总成	CAP ASSEMBLY	1
32	43307	油箱盖衬垫	GASKET RESERVOIR CAP	1
32	43307T	衬垫	GASKET	1
33	99022A1	浮子总成	FLOAT ASSEMBLY	1
33	8M0187298	浮子总成	FLOAT ASSY	1
34	99265	压入式螺母	PUSH NUT	1
35	415821	油管卡箍(小)	CLAMP OIL HOSE (SMALL)	2
36	415823	油管卡箍(大)	CLAMP OIL HOSE (LARGE)	2
37	99127109	油管(57.00英寸散装)	LINE (57.00 Inches Bulk) OIL	1
37	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
38	42425	油管三通	TEE OIL TUBING	1
39	9072925	油管(6-3/4")	HOSE OIL (6-3/4")	1
40	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	1
40	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
41	814103	轴承	BEARING	1
41	8141032	蜗杆衬套	BUSHING Worm	1

图 143动力升降倾斜组件 Power Trim Components

REF	零件编号	中文名称	英文名称	数量
1	99659A21	歧管总成 (黑色)	MANIFOLD ASSEMBLY (BLACK)	1
1	99659A22	歧管总成 (灰色)	MANIFOLD ASSEMBLY (GRAY)	1
2	99616	管塞歧管	PIPE PLUG MANIFOLD	11
2	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	11
3	41493A7	配平油缸总成 (黑色)	TRIM CYLINDER ASSEMBLY (BLACK)	1
3	41493A4	配平油缸总成 (灰色)	TRIM CYLINDER ASSEMBLY (GRAY)	1
3	41493A7	升降油缸总成	TRIM CYLINDER ASSEMBLY	1
4	41492A1	导向器总成	GUIDE ASSEMBLY	1
5	41478A1	维修套件	REPAIR KIT	1
6	41482A2	止回阀套件	CHECK VALVE KIT	1
7	99638A1	导向总成装饰杆	GUIDE ASSEMBLY TRIM ROD	2
7	8M0021648	端盖总成	END CAP ASSEMBLY	2
8	43397A6		PISTON/ROD ASSEMBLY Power Trim PORT	1
8	878413A1	活塞总成	PISTON ASSEMBLY	1
9	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
10	43398A3		PISTON/ROD ASSEMBLY Power Trim STARBOARD	1
10	878414T01	活塞总成	PISTON ASSEMBLY	1
11	13794	沟槽销-升降油缸(上)	PIN Groove TRIM CYLINDER (UPPER)	1
11	821539	三叶销	PIN Trilobe	1
12	812843A1	阀门总成	VALVE ASSEMBLY	1
12	893929A01	安全阀套件	VALVE KIT Relief	1
12A	812844	E型卡环	E RING	1
12A	815949001	E形环	E-RING	1
13	4000327	螺钉(M6x14)-盖板	SCREW (M6 x 14) COVER	4
14	43450	盖板螺丝垫圈	WASHER COVER SCREW	4
14	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
15	99642	歧管盖	COVER MANIFOLD	1
16	48462A2	O型圈套件	O-RING KIT	1
16	48462A4	O型圈套件	O RING KIT	1
17	99609A1	塞子总成	PLUG ASSEMBLY	1
18	99641A1	轴总成	SHAFT ASSEMBLY	1
18	99641A02	轴总成	SHAFT ASSY	1
19	99616	轴管塞	PIPE PLUG SHAFT	2
19	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
20	4008820	螺钉(M6x20)-泵与马达	SCREW (M6 x 20) PUMP AND MOTOR	2
21	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
22	99186T	泵与电机总成	PUMP AND MOTOR	1
22	826729A10	ORD 8M0143217	ORD 8M0143217	1
23	99625		SHAFT UPPER	1
23	99625002	轴	SHAFT	1
24	43396A2	阳极总成	ANODE ASSEMBLY	1
24	818298Q1	阳极套件	ANODE KIT	1
25	4000332	螺钉(M6x35)-阳极	SCREW (M6 x 35) ANODE	2
26	29245	垫圈(0.281x0.500x0.060)-不锈钢阳极螺钉	WASHER (.281 x .500 x .060) Stainless Steel ANODE SCREW	2
26	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
27	996301	撞板-升降轴	STRIKER PLATE TRIM SHAFT	2
27	8M0045383	冲击板	STRIKER PLATE	2
28	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
29	46335	螺母 (.375-24)	NUT (.375-24)	2
30	17201A5	线束总成-动力升降控制	HARNESS ASSEMBLY Control POWER TRIM	1
31	88808A22	电缆总成(6-3/8"-红色)	CABLE ASSEMBLY (6-3/8" - RED)	1
31	87379A14	线束总成(2.750英寸)(红色)	WIRE ASSEMBLY (2.750 Inches) (RED)	1
32	22875		CLIP PUMP WIRE	2
33	69205	C形垫圈线夹螺钉	C WASHER CLIP SCREW	2
33	8M0084613	C形垫圈	C-WASHER	2
34	69079	螺钉(#10-16x0.440)-夹子到艉板支架	SCREW (#10-16 x .440) CLIP TO TRANSOM BRACKET	2
35	44431	沟槽销-升降油缸(下)	PIN Groove TRIM CYLINDER (LOWER)	1
35	878267	销	PIN	1
36	4000377		SCREW (M10 x 30) MANIFOLD	6
37	400258	锁紧垫圈(M10)-不锈钢歧管螺钉	LOCKWASHER (M10) Stainless Steel MANIFOLD SCREW	6

图 144动力升降泵(Eaton矩形电机) Power Trim Pump (Eaton Rectangular Motor)

REF	零件编号	中文名称	英文名称	数量
-	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
1	12659	机架与磁场套件	FRAME AND FIELD KIT	1
1	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
2	12665	电刷弹簧套件	SPRING KIT Brush	1
3	13506	电刷卡套件	BRUSH CARD KIT	1
3	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
4	12662	泵与端架套件	PUMP AND END FRAME KIT	1
4	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
5	126631	泵密封套件	SEAL KIT Pump	1
6	12660	端架套件	END FRAME KIT	1
6	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
7	12661	电枢套件	ARMATURE KIT	1
7	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
8	12664	贯穿螺栓套件	THRU BOLT KIT	1

图 145动力升降泵(Prestolite圆形电机) Power Trim Pump (Prestolite Round Motor)

REF	零件编号	中文名称	英文名称	数量
-	99186	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
1	8995	泵总成	PUMP ASSEMBLY	1
1	826729A10	ORD 8M0143217	ORD 8M0143217	1
2	8996	O型圈套件	O-RING KIT	1
3	8986	电枢	ARMATURE	1
4	NLA	已停产定子框架	No Longer Available Frame & Field	1
5	8992	O型圈	O-RING	1
6	8993	弹簧套件	SPRING KIT	1
7	8988	气缸盖	HEAD	1
8	8989	电刷套件	BRUSH KIT	1
9	8994	贯穿螺栓套件	THRU BOLT KIT	1
10	8985	卡箍	CLAMP	1
11	NLA	已停产螺母	No Longer Available Nut	1
12	8991	O型圈	O-RING	1

图 146簧片阀组 Reed Block

REF	零件编号	中文名称	英文名称	数量
20	99747A2	壳体	HOUSING	1
20	99747A9	壳体	HOUSING	1
21	24878	螺丝(.250-20 x 1.25)	SCREW (.250-20 x 1.25)	1
21	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
21	69093	螺钉（.250-20 x 1.50）	SCREW (.250-20 x 1.50)	8
22	935361	簧片阀壳体衬垫	GASKET REED BLOCK HOUSING	1
23	657443	簧片阀衬垫	GASKET REED BLOCK	6
24	75953	簧片阀组	REED BLOCK	6
26A	67298	簧片止挡	STOP Reed	12
27A	76497	簧片至簧片座螺钉	SCREW REEDS TO REED BLOCK	60
25	75362A1	簧片组件	REED ASSEMBLY	6
26	96183	簧片夹	CLAMP Reed	12
26	961832	簧片夹	CLAMP Reed	12
27	57583	簧片至簧片阀螺钉 (#8-32 x .375)	SCREW (#8-32 x .375) REEDS TO REED BLOCK	60
27	57583T	螺丝#8-32×3/8	SCREW #8-32x3/8	60
28	65746	簧片座螺钉(.250-20 x .750)	SCREW (.250-20 x .750) REED BLOCK	12
29	27037	化油器安装螺柱 (.250-28 x 1.125)	STUD (.250-28 x 1.125) CARBURETOR MOUNTING	12
29	270372	双头螺栓(.250-28×1.125)	STUD (.250-28 x 1.125)	12
30	42658	止回阀	CHECK VALVE	5 OR 6
30	426585	止回阀	CHECK VALVE	5 OR 6
31	15133	90度接头	FITTING (90 DEG.)	5 OR 6
32	99130122	泄油管路（散装20.00英尺）	TUBING (20.00 Feet Bulk) BLEED LINE	1
32	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
32	9938779	泄放软管	HOSE BLEED	1
34	65857		CONNECTOR (Press-In)	1
34	56759	倒钩接头	FITTING Barbed	1
34	79790	接头	FITTING	1
35	64871A2	止回阀	CHECK VALVE	1
35	42867	止回阀	CHECK VALVE	1
35	428671	止回阀	CHECK VALVE	1
36	23567	卡扣	CLIP	2
37	62568	螺钉 (#10-16 x .375) 夹子	SCREW (#10-16 x .375) CLAMP	2
38	69205	C形垫圈	C WASHER	2
38	8M0084613	C形垫圈	C-WASHER	2
39	73473	垫圈	WASHER	1
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1
-	79583A81	衬垫套件	GASKET SET	1

图 147安全阀系统 Relief Valve System

REF	零件编号	中文名称	英文名称	数量
3	68729	盖板	COVER	1
4	78690	衬垫	GASKET	2
4	78690002	衬垫	GASKET	2
5	65664	安全阀板总成	PLATE ASSEMBLY Relief Valve	1
6	65663A1	盖板	COVER	1
6	8M0237835	罩盖总成	COVER ASSY	1
7	65664A1	隔板总成	PLATE ASSEMBLY	1
8	88907	安全阀板衬垫	GASKET RELIEF VALVE PLATE	2
8	88907003	衬垫	GASKET	2
9	38837	盖板螺钉（0.312-18×1.12）	SCREW (.312-18 x 1.12) COVER	2
10	64877	隔膜	DIAPHRAGM	1
10	648771	隔膜	DIAPHRAGM	1
11	76451	垫圈	WASHER	1
12	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
13	64878	弹簧(黑色)	SPRING (Black)	1
14	86596	提升阀	POPPET VALVE	1
15	65848	托架	CARRIER	1
16	64872	护孔环	GROMMET	1
17	14462A1	盖板	COVER	1
18	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
19	78690	衬垫	GASKET	2
19	78690002	衬垫	GASKET	2
20	16497A1	安装板	PLATE	1
21	14479	隔膜	DIAPHRAGM	1
21	144791	隔膜	DIAPHRAGM	1
22	16496	导水板	DEFLECTOR Water	1
23	76451	垫圈	WASHER	1
24	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
25	64878	弹簧(黑色)	SPRING (Black)	1
26	14480	提动阀	POPPET	1
27	65848	托架	CARRIER	1
28	64872	护孔环	GROMMET	1
29	85303	垫圈	WASHER	1
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1
-	79583A81	衬垫套件	GASKET SET	1
-	NLA	衬垫套装（停产）	No Longer Available Gasket Set	1

图 148维修/支撑材料 Service/Support Material

REF	零件编号	中文名称	英文名称	数量
-	814116	零件手册 175马力 (V-6)	PARTS MANUAL 175 H.P. (V-6)	1
-	8140981	维修手册	SERVICE MANUAL	1
-	8162491	维修手册	SERVICE MANUAL	1
-	11338A88	发动机大修垫片套装	GASKET SET Engine Overhaul	1
-	813220A89	贴花套装水星	DECAL SET MERCURY	1
-	11143890	用户指南水星	OWNERS GUIDE MERCURY	1
-	813037A89	贴花套装水手	DECAL SET MARINER	1
-	813037A94	贴花套件	DECAL SET	1
-	11142890	用户指南水手	OWNERS GUIDE MARINER	1
-	813041A89	贴花套装海射线	DECAL SET SEA RAY	AR
-	18110890	用户指南海射线	OWNERS GUIDE SEA RAY	AR

图 149启动电机（8齿小齿轮） Starter Motor (8 Tooth Pinion)

REF	零件编号	中文名称	英文名称	数量
-	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	90645	驱动套件	DRIVE KIT	1
2	75661	驱动小齿轮总成	PINION ASSEMBLY Drive	1
2	13310T1	小齿轮总成	PINION ASSEMBLY	1
3	75660	安装板	PLATE	1
4	74968	螺栓	BOLT	2
6	N.S.S.	不单独出售垫圈(美国博世WA3122)	Not Sold Separate Washer (AMERICAN BOSCH #WA3122)	1
7	79216	电枢	ARMATURE	1
7	75658	电枢	ARMATURE	1
8	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
9	61787	支架	HOLDER	2
9	898265014	电刷支架	HOLDER-BRUSH	2
10	N.S.S.	不单独销售螺钉(AMER.BOSCH #02441-22-SC-302M)	Not Sold Separate Screw (AMER.BOSCH #02441-22-SC-302M)	2
11	15386	端盖	END CAP	1
11	15386001	端盖	END CAP	1

图 150启动电机（9齿小齿轮） Starter Motor (9 Tooth Pinion)

REF	零件编号	中文名称	英文名称	数量
-	86976	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	90646	驱动套件	DRIVE KIT	1
2	86177	小齿轮	PINION	1
2	898265015	小齿轮	PINION	1
3	75660	安装板	PLATE	1
4	74968	螺栓	BOLT	2
6	N.S.S.	不单独销售垫圈(AMERICAN BOSCH #WA3122)	Not Sold Separate Washer Washer (AMERICAN BOSCH #WA3122)	1
7	86178	电枢	ARMATURE	1
8	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
9	61787	支架	HOLDER	2
9	898265014	电刷支架	HOLDER-BRUSH	2
10	N.S.S.	不单独销售螺钉(AMER.BOSCH #02441-22-SC-30SM)	Not Sold Separate Screw (AMER.BOSCH #02441-22-SC-30SM)	2
11	15386	端盖	END CAP	1
11	15386001	端盖	END CAP	1

图 151旋转支架 Swivel Bracket

REF	零件编号	中文名称	英文名称	数量
1	NLA	已停产旋转支架	No Longer Available Swivel Bracket	1
1A	8710T20	黑色旋转支架总成	SWIVEL BRACKET ASSEMBLY Black	1
1A	8M0102865	黑色旋转支架总成	SWIVEL BRACKET ASSEMBLY Black	1
1A	8710T21	灰色旋转支架总成	SWIVEL BRACKET ASSEMBLY Gray	1
1A	8710T20	黑色旋转支架总成	SWIVEL BRACKET ASSEMBLY Black	1
2	87735	油封	SEAL Oil	1
3	818764	衬套	BUSHING	2
4	33466	O型圈	O-RING	1
5	67668	隔套	SPACER	1
6	74036	润滑脂接头	FITTING Grease	4
6	8M0169589	润滑脂接头	FITTING Grease	4
7A	821207	衬套	BUSHING	1
7	88341	护孔环	GROMMET	2
8	85023	油封	SEAL Oil	2
9	87161	垫圈	WASHER	2
10	48171	O型圈(0.364 x 0.070)	O-RING (.364. x .070)	2
11	85030A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
11	85028A2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
12	86600	衬套	BUSHING	1
13	85367	弹簧	SPRING	1
14	41052	柱塞	PLUNGER	1
15	88876	螺柱	STUD	1
16	86603	旋钮	KNOB	1
17	864751	联轴器	COUPLING	1
18	87200	开口销	COTTER PIN	2
19	88049	弹簧	SPRING	1
20	93861	开口销	COTTER PIN	1
21	78854	波形垫圈	WAVE WASHER	1
22	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
22	878182T	轭架底部-不锈钢	YOKE Bottom - Stainless Steel	1
22	86580A2	底部轭架总成	YOKE ASSEMBLY Bottom	1
22	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
23	67684	挡圈	RING Retaining	1
24	67670	垫圈	WASHER	1
25	840792A1	旋转销总成	SWIVEL PIN ASSEMBLY	1
25	840792A2	旋转销总成	SWIVEL PIN ASSEMBLY	1
25	840792A1	旋转销总成	SWIVEL PIN ASSEMBLY	1
25	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
25	826432A2	转向臂旋转销总成-不锈钢	SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel	1
25	67706A56	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
25	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
26	78689	螺钉（0.437-20 X 7.50）	SCREW (.437-20 x 7.50)	2
26	8M0176309	螺钉	SCREW	2
27	78687T	上支架	MOUNT (UPPER)	2
27	77326	支架	MOUNT	2
28	66921	垫圈	WASHER	2
29	814432	垫圈	WASHER	2
29	78688	垫圈	WASHER	2
30	82671015	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
30	8M0204653	螺母	NUT	2
31	NLA	停用缓冲器	No Longer Available Bumper	1
31A	88882	上轭缓冲垫	BUMPER Top Yoke	1
32	92876A10	连杆总成	LINK ROD ASSEMBLY	1
32	92876A12	连杆总成	LINK ROD ASSEMBLY	1
33	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	1
33	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
34	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
34	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
35	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	2
36	86485A5	调整传感器总成	SENDER ASSEMBLY Trim	1
37	65017A15	线束总成	HARNESS ASSEMBLY	1
36	86485A6	倾斜开关总成	TILT SWITCH ASSEMBLY	1
37	65017A14	线束总成	HARNESS ASSEMBLY	1
38	88342	绑带	STRAP	2
39	87926	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	4
40	54457	J型卡扣	J CLIP	1
41	98256	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	1
42	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
42	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
43	821180A6	调整传感器总成	SENDER ASSEMBLY Trim	1
43	8M0074846	ORDER 8M0098273	ORDER 8M0098273	1
44	852368	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
45	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
46	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
-	89221A88	衬垫套件	GASKET SET	1
-	89221A80	衬垫套件	GASKET SET	1

图 152旋转支架（Merc序列号-USA-5464485/AUS-8061769及以下） Swivel Bracket (Merc S/N-USA-5464485/AUS-8061769 & Below )

REF	零件编号	中文名称	英文名称	数量
1	NLA	已停产旋转支架	No Longer Available Swivel Bracket	1
2	87735	油封	SEAL Oil	1
3	818764	衬套	BUSHING	2
4	33466	O型圈	O-RING	1
5	67668	隔套	SPACER	1
6	74036	润滑脂接头	FITTING Grease	3
6	8M0169589	润滑脂接头	FITTING Grease	3
8	NLA	停用倾斜管	No Longer Available Tilt Tube	1
9	NLA	停用垫片	No Longer Available Shim	2
10	858869	螺母 (.875-14)	NUT (.875-14)	1
11	NLA	停用卡箍	No Longer Available Clamp	1
12	NLA	螺丝(已停产)	No Longer Available Screw	1
12A	30164	垫圈(0.192x0.375x0.0312)不锈钢	WASHER (.192 x .375 x .0312) Stainless Steel	1
13	75275	卡箍	CLAMP	1
14	NLA	已停产螺母	No Longer Available Nut	1
15	NLA	停用支架	No Longer Available Brace	1
16	NLA	停用销	No Longer Available Pin	1
17	NLA	停用手柄	No Longer Available Handle	1
18	25191	开口销	COTTER PIN	2
19	36001	垫圈	WASHER	1
20	NLA	停用连杆	No Longer Available Link	1
21	NLA	停用弹簧	No Longer Available Spring	1
22	NLA	停用销	No Longer Available Pin	1
23	78854	波形垫圈	WAVE WASHER	1
24	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
24	878182T	轭架底部-不锈钢	YOKE Bottom - Stainless Steel	1
25	NLA	停用垫圈(适用时使用)	No Longer Available Washer (Use where Applicable	1
26	67684	挡圈	RING Retaining	1
32	67670	垫圈	WASHER	1
33	840792A1	旋转销总成	SWIVEL PIN ASSEMBLY	1
34	78689	螺钉（0.437-20 X 7.50）	SCREW (.437-20 x 7.50)	2
34	8M0176309	螺钉	SCREW	2
35	78687T	支架	MOUNT	2
35	77326	支架	MOUNT	2
35	77326	支架	MOUNT	2
36	66921	垫圈	WASHER	2
37	814432	垫圈	WASHER	2
37	78688	垫圈	WASHER	2
38	82671015	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
38	8M0204653	螺母	NUT	2
39	NLA	停用缓冲器	No Longer Available Bumper	1
40	NLA	停用转向连杆	No Longer Available Steering Link	1
41	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	1
41	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
42	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	1
42	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
43	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	2
44	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	1
44	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
45	NLA	停用盖板	No Longer Available Cover	2
46	28635	不锈钢螺丝(.250-20 x .620)	SCREW (.250-20 x .620) Stainless Steel	4
47	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4

图 153油门杆与换挡轴 Throttle Lever and Shift Shaft

REF	零件编号	中文名称	英文名称	数量
1	74897		PIVOT TRIGGER PLATE	1
2	62459	球头总成触发板	BALL JOINT ASSEMBLY TRIGGER PLATE	1
2	62459T	球头节总成	BALL JOINT ASSY	1
3	45076	螺母(#10-32)黄铜连杆	NUT (#10-32) Brass LINK ROD	1
4	76035	触发板连杆	ROD TRIGGER PLATE	1
5	46438	螺母(#10-32)球头	NUT (#10-32) BALL JOINT	1
6	41094A3	点火提前杆总成	LEVER ASSEMBLY SPARK ADVANCE	1
7	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
8	64015	螺母 (.250-20)	NUT (.250-20)	1
9	26852	尼龙帽	CAP Nylon	1
10	69560	螺钉（0.190-32 x 1.250）点火提前杠杆-止动	SCREW (.190-32 x 1.250) SPARK ADVANCE LEVER - STOP	1
11	68219	螺母(#10-32)不锈钢点火提前杆止动螺丝	NUT (#10-32) Stainless Steel SPARK ADVANCE LEVER STOP SCREW	1
12	48039	盖帽	CAP	1
13	41095T	油门控制杆	LEVER THROTTLE CONTROL	1
13	410952	杠杆	LEVER	1
14	55337	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
14	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
15	55164	油门杠杆衬套	BUSHING THROTTLE LEVER	1
16	55171	衬套	BUSHING	1
17	68784	弹簧	SPRING	1
18	68410	垫圈	WASHER	1
18	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	1
19	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
20	64015	螺母 (.250-20)	NUT (.250-20)	1
21	26852	尼龙帽	CAP Nylon	1
22	39483	锁扣拉线	LATCH CABLE	1
23	22486	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
23	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
24	20099	弹簧	SPRING	1
25	20586	螺母(.250-28)	NUT (.250-28)	1
25	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
26	79949	节气门控制杆	ROD THROTTLE CONTROL	1
27	60572	套筒	BARREL	2
27	8M0221994	筒形接头	BARREL FITTING	2
28	95791	节气门凸轮	CAM Throttle	1
29	20353	螺柱(.250-28x1.750)节气门凸轮固定	STUD (.250-28 x 1.750) THROTTLE CAM ATTACHING	1
30	26856	节气门凸轮衬套	BUSHING THROTTLE CAM	2
31	36069	节气门凸轮螺柱螺母	NUT THROTTLE CAM STUD	1
32	41050	节气门复位弹簧	SPRING THROTTLE RETURN	1
33	92032A2	控制线缆锚定支架	BRACKET ANCHOR-CONTROL CABLES	1
33	814283A2	支架总成	BRACKET ASSEMBLY	1
34	98889	控制线缆锁扣	LATCH CONTROL CABLE	1
35	42975	传动螺钉	DRIVE SCREW	2
36	53167	螺钉 (.312-18 x .880)	SCREW (.312-18 x .880)	3
36	53167T	螺钉 0.312-18X 0.88	SCREW .312-18X .88	3
37	37896	连杆导向块	GUIDE BLOCK LINK ROD	1
38	20099	弹簧	SPRING	1
39	67073A1	连杆总成	LINK ROD ASSEMBLY	1
40	52100	连杆耐磨板	WEAR PLATE LINK ROD	1
41	38279	闩锁	LATCH	1
41	8M0036768	闩锁	LATCH	1
42	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
43	36069	螺母	NUT	1
44	79932A11	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
44	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
44	79932A12	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
44	79932A17	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
45	29720	波形垫圈	WAVE WASHER	1
46	26600	尼龙衬套	BUSHING NYLON	1
47	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
48	36069	螺母	NUT	1
49	39519	杯套	CUP	1

图 154艉板支架（Merc-6073192/Mariner-6055033及以上） Transom Brackets (Merc-6073192/Mariner-6055033 & Up)

REF	零件编号	中文名称	英文名称	数量
1	8718A1	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	8716A1	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	8716A8	艉板支架总成	BRACKET ASSEMBLY Transom	1
1	8718A2	艉板支架总成	BRACKET ASSEMBLY Transom	1
1	8718F8	艉板支架	BRACKET Transom	1
2	8716A6	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	8716A9	艉板支架总成	BRACKET ASSEMBLY Transom	1
3	98727	润滑脂接头(左舷)	FITTING Grease (PORT)	1
3	8M0169588	润滑脂接头	FITTING Grease	1
5	99170A1	倾斜管	TILT TUBE	1
5	99170A2	倾斜管套件	TUBE KIT Tilt	1
6	90068T	螺母	NUT	1
6	859133	螺母(1.00-14)	NUT (1.00-14)	1
6	90068T6	螺母	NUT	1
6	859133	螺母(1.00-14)	NUT (1.00-14)	1
7	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	2
8	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
9	56041	螺母 (.875-14)	NUT (.875-14)	1
9	858869	螺母 (.875-14)	NUT (.875-14)	1
10	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
10	8M0149747	螺钉	SCREW	4
11	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	8M0027784	螺母	NUT	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	99629A2	杠杆总成	LEVER ASSEMBLY	1
13	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	99611	波形垫圈	WAVE WASHER	1
15	65830	尼龙衬套	NYLINER	2
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99622	弹簧	SPRING	1
19	99604	槽销	PIN Groove	1
20	96930A1	螺栓总成	BOLT ASSEMBLY	1
21	23161	螺母 (.375-24)	NUT (.375-24)	1
-	89221A88	衬垫套件	GASKET SET	1

图 155艉板支架（Merc序列号-USA-5464485/AUS-8061769及以下） Transom Brackets (Merc S/N-USA-5464485/AUS-8061769 & Below )

REF	零件编号	中文名称	英文名称	数量
1	7076	艉板支架-左舷	BRACKET Transom - Port	1
2	677552	螺钉(0.500-20 x 6.500)	SCREW (.500-20 x 6.500)	2
3	75320	O型圈	O-RING	2
4	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
4	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
5	35000	螺母(0.500-20)不锈钢	NUT (.500-20) Stainless Steel	2
6	25810	销	PIN	2
7	75319	滚动销	PIN Roll	1
8	75293	左舷配平限位块	STOP Trim - Port	1
9	75292	轴	SHAFT	1
10	67718	右舷配平限位块	STOP Trim - Starboard	1
11	NLA	停用右舷配平限位器	No Longer Available Trim Stop-Starboard	1
11A	79279	卡箍	CLAMP	1
12	67666	连接器	CONNECTOR	1
12	67667	连接器	CONNECTOR	1
13	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
13	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
14	35000	螺母(0.500-20)不锈钢	NUT (.500-20) Stainless Steel	2
15	76990	垫	PAD	1
16	76841	螺钉 (.500-20 x 3.500)	SCREW (.500-20 x 3.500)	2
17	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
17	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
18	35000	螺母(0.500-20)不锈钢	NUT (.500-20) Stainless Steel	2
19	75290A1	倾斜传感器总成	SENDER ASSEMBLY Tilt	1
20	37656	螺钉(#10-32 x .620)	SCREW (#10-32 x .620)	4
21	30164	垫圈(0.192x0.375x0.0312)不锈钢	WASHER (.192 x .375 x .0312) Stainless Steel	4
22	75343	卡箍	CLAMP	1
23	75688	定位销	PIN Locating	1

图 156艉板支架（ME-5464486-6073191/MA-5624878-6055032） Transom Bracket (ME-5464486-6073191/MA-5624878-6055032)

REF	零件编号	中文名称	英文名称	数量
1	7476T1	艉板支架	BRACKET Transom	1
2	7478T1	艉板支架	BRACKET Transom	1
1	7476T6	艉板支架	BRACKET Transom	1
2	7478T6	艉板支架	BRACKET Transom	1
3	677552	螺钉(0.500-20 x 6.500)	SCREW (.500-20 x 6.500)	2
4	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	2
4	8M0149747	螺钉	SCREW	2
5	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
5	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
6	35000	螺母(0.500-20)不锈钢	NUT (.500-20) Stainless Steel	4
7	87180	螺栓(0.500-20 x 11.00)	BOLT (.500-20 x 11.00)	1
8	20220	螺母(.500-20)	NUT (.500-20)	1
8	82671317	螺母(.500-20)	NUT (.500-20)	1
9	99170A1	倾斜管	TILT TUBE	1
9	99170A2	倾斜管套件	TUBE KIT Tilt	1
10	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
11	56041	螺母 (.875-14)	NUT (.875-14)	1
11	858869	螺母 (.875-14)	NUT (.875-14)	1
11	90068T	螺母	NUT	1
11	859133	螺母(1.00-14)	NUT (1.00-14)	1
11	90068T6	螺母	NUT	1
11	859133	螺母(1.00-14)	NUT (1.00-14)	1
12	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
13	85026T	安装板	PLATE	2
14	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
16	85035T	隔套	SPACER	1
16	8M0237541	艉板隔套	SPACER Transom	1
17	70732	螺钉 (.250-20 x 2.00)	SCREW (.250-20 x 2.00)	4
18	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
18	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
19	89949A1	隔板总成	PLATE ASSEMBLY	1
20	89996	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	4
20	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	4
21	88512	卡箍	CLAMP	4
22	88829	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	4
23	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	4
24	79610A6	配平油缸总成(79879A1修理包)	TRIM CYLINDER ASSEMBLY (79879A1 REPAIR KIT)	1
25	86489	衬套	BUSHING	2
-	79879A1	维修套件	REPAIR KIT	1
26	85022	垫圈(2.00 x 1.06 x 0.060)	WASHER (2.00 x 1.06 x .060)	2
27	30316	弹簧	SPRING	2
28	85020	枢轴销	PIN Pivot	2
28	85020T	枢轴销	PIN Pivot	2
29	85024	轴	SHAFT	1
30	86637	轴承	BEARING	2
31	91862	销	PIN	1
32	89024A1	软管	HOSE	1
32	89023A2	软管	HOSE	1
33	12602	护孔环	GROMMET	2
33	12602002	护孔环	GROMMET	2
34	87207	连接器	CONNECTOR	1
35	87871	盖板	COVER	1
35	87871T	盖板	COVER	1
36	87775	衬垫	GASKET	1
37	45507	护孔环	GROMMET	1
38	36070	螺钉(#10-32×1.25)	SCREW (#10-32 x 1.250)	4
38	32866	螺钉 (#10-32 x 2.00) 不锈钢	SCREW (#10-32 x 2.00) Stainless Steel	4
39	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	4
40	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4

图 157配平油缸（序列号-USA-5464485/AUS-8061769及以下） Trim Cylinder (S/N-USA-5464485/AUS-8061769 & Below)

REF	零件编号	中文名称	英文名称	数量
1	79114A4	升降油缸总成	TRIM CYLINDER ASSEMBLY	2
2	67694	销	PIN	2
3	67701	轴	SHAFT	1
4	67745	垫圈	WASHER	2
5	67756	螺钉	SCREW	2
6	NLA	已停产垫圈	No Longer Available Washer	2
7	67698T	隔套	SPACER	1
8	67700	盖板	COVER	1
9	35049	螺钉 (0.250-20 x 2.75)	SCREW (.250-20 x 2.75)	2
10	20665	螺钉(.190-24 x .50)	SCREW (.190-24 x .50)	1
11	67671	隔套	SPACER	2
12	67696	歧管	MANIFOLD	1
13	67683	右舷液压管	TUBE Hydraulic (STARBOARD)	1
14	67681	液压管(右舷-下)	TUBE Hydraulic (STARBOARD-DOWN)	1
15	67678	液压管（右舷-上）	TUBE Hydraulic (STARBOARD - UP)	1
16	67682	液压管（左舷）	TUBE Hydraulic (PORT)	1
17	67680	液压管(左舷-上)	TUBE Hydraulic (PORT - UP)	1
18	67679	液压管（左舷-下）	TUBE Hydraulic (PORT - DOWN)	1
19	20094	半圆键	KEY Woodruff	1

图 158线束、启动继电器与整流器 Wiring Harness, Starter Solenoid & Rectifier

REF	零件编号	中文名称	英文名称	数量
1	43429	安装板	PLATE	1
2	7778A9	开关盒总成	SWITCHBOX ASSEMBLY	2
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	螺钉(#12-24x2.00)	SCREW (#12-24 x 2.00)	2
3	90815	螺钉(#12-24x2.250)	SCREW (#12-24 x 2.250)	2
4	94304	隔套(早期型号)	SPACER (EARLY MODELS)	2
5	94453	衬套	BUSHING	2
6	62310A2	拉线总成	CABLE ASSEMBLY	1
7	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	20
8	60871A10	线束总成	WIRE ASSEMBLY	2
9	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2
10	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	1
11	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
12	69092	螺钉(1.25)	SCREW (1.25)	3
12	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
13	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
13	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
14	36042	垫圈	WASHER	6
15	67264	垫圈(橡胶)	WASHER (Rubber)	6
16	67268	衬套	BUSHING	3
17	816770	整流器	RECTIFIER	1
17	8M0058226	整流器	RECTIFIER	1
18	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
19	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	3
20	58124A21	水银开关	MERCURY SWITCH	1
20	33386A3	开关总成	SWITCH ASSEMLBY	1
21	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	1
22	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	1
23	87926	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	1
24	88439A14	电缆总成蓄电池-正极	CABLE ASSEMBLY Battery - Positive	1
24	88439A2	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
25A	87294A1	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
25	96220A4	线束总成	HARNESS ASSEMBLY	1
26	79091	保险丝20安培	FUSE 20 Ampere	1
26	8M0207796	保险丝20安培	FUSE 20 AMP	1
27	95084A2	拉线总成	CABLE ASSEMBLY	1
28	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
28	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
29	96054	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
29	8M0185149	启动电磁阀	SOLENOID START	1
30	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	2
31	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
32	94330	螺母 (.250-20) 黄铜	NUT (.250-20) Brass	2
29	68258A4	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
29	853654A1	电磁阀	SOLENOID	1
30	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
31	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
32	68292	螺母(.312-18)	NUT (.312-18)	2
32	8M0204668	螺母(.312-18)	NUT (.312-18)	2
33	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
34	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
35	65999A2	线缆总成(黑色)	CABLE ASSEMBLY Black	1
36	97861	绝缘体	INSULATOR	1
37	88825A7	电压调节器	VOLTAGE REGUALTOR	1
38	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	2
39	13397A1	线束总成	HARNESS ASSEMBLY	1
40	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
41	134731	保险丝座	HOLDER Fuse	1
42	66986	端子排	TERMINAL BLOCK	1
43	22523	螺钉(0.190-32×0.75)	SCREW (.190-32 x .75)	1
44	22028	螺钉 (#10-32 x 0.50)	SCREW (#10-32 x .50)	1
45	62189A1	线束总成（橙色）	WIRE ASSEMBLY (ORANGE)	2
46	67237	固定座	RETAINER	1
47	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
48	92012	护孔环	GROMMET	1
48	8M0079730	密封圈套件	GROMMET KIT	1
49	60466A10	接地线总成	CABLE ASSEMBLY Ground	1
49	62824A1	拉线总成	CABLE ASSEMBLY	1
