水星 Mercury V-175 0D082000 THRU 0G303045 - 爆炸图零件明细

两冲程 化油器 · USA - Cat.# 90-81609892 · 共 171 个部位 · 7477 条零件

1化油器总成2排气歧管与排气板3旋转支架与转向臂4驱动轴壳体与排气管5燃油泵和化油器6仪表装置7附件8钥匙开关总成9飞轮与启动电机10簧片阀组与气缸盖11液压泵和安装支架12液压泵总成13专用工具14喷泵总成15排气歧管与排气板16下机罩17点火线圈/电压调节器18泄压系统19气缸体与端盖20动力转向组件21启动电机总成22齿轮箱螺旋桨轴-反旋转135/150/175/200型23齿轮箱螺旋桨轴-标准135/150/175/20024飞轮/启动电机25曲轴、活塞及连杆26曲轴（连杆锻件编号636-8118）27阻风门板及油门杆28动力平衡组件（设计I）29点火线圈/电压调节器30油门杆与换挡轴31喷射组件32动力转向组件（遥控）33顶罩及前护板34动力升降倾斜组件35齿轮箱图表（序列号0G437999及以下）36气缸体与端盖37仪表装置38驱动轴壳体39杂项信息40杂项零件/附件41双机延伸套件42阻风板与油门杆43启动马达44动力升降组件金属马达壳45化油器46仪表组(水星和马林纳)47齿轮箱（推进轴）48化油器49旋转支架(铸件号1499-8710-6)50启动电机51顶罩52顶罩53齿轮箱(螺旋桨轴)(标准旋转)54动力平衡电机(用于II型动力平衡系统)55动力平衡组件（设计II）56转向安装套件（XR4/ Magnum II）57喷射组件58旋转支架(铸件号1499-8710-7)59附件60齿轮箱（驱动-标准/反向旋转）61燃油管路62排气歧管与排气板63动力升降组件（金属马达壳体）64钥匙开关总成65喷油组件66飞轮、启动电机及点火线圈67下罩68动力平衡泵（与设计I动力平衡泵配套使用）69线束/启动继电器70线束、启动电磁阀及整流器71驱动轴壳与排气管72气缸盖73艉板支架74簧片阀组与气缸盖75驱动轴壳体和排气管76动力升降倾斜电机77转向连接套件78艉板支架（序列号0G589999及以下）79双机延伸套件80油门杆与换挡轴81化油器（WMH-30/31/32/33/34）82齿轮箱对照表83气缸体与端盖84齿轮箱（驱动轴）（XR6/MAG III - 1.78:1 速比）85艉板安装动力转向套件86化油器（WMH-21/22/23/24/25/28）87专用工具88喷泵总成89齿轮箱螺旋桨轴-XR4/Magnum II型90动力升降马达91动力升降倾斜泵92齿轮箱(驱动轴)(标准/反向旋转)93燃油泵94齿轮箱(螺旋桨轴)(标准旋转)95旋转支架与转向臂96簧片阀组与气缸盖97动力升降组件 8M023119398齿轮箱（推进轴）- 反向旋转99外罩安装支架100机油喷射组件101燃油管路102齿轮箱(螺旋桨轴)(反向旋转)103燃油泵104燃油管路（用于 WMH-12A/B 至 WMH-28 化油器）105齿轮箱（驱动轴）- 反向旋转106曲轴活塞与连杆107曲轴（连杆锻件编号644-818141）108杂项信息109上罩与前护板110动力升降泵(Prestolite圆形电机)111燃油管路（用于 WMH-30/31/32/33/34 化油器）112曲轴、活塞与连杆113油门杆与换挡轴114蓄能器115齿轮箱（推进轴）（XR6/MAG III - 1.78:1 速比）116动力升降组件（塑料马达壳体）117齿轮箱（驱动轴）118动力升降泵(Eaton矩形电机)119旋转支架与转向臂120线束/启动电磁阀121转向连接套件122齿轮箱(驱动-标准/反旋转)123维修/支撑材料124泄放系统125化油器（WMH-12A/12B/13/13B/14A/15/16）126飞轮/启动马达127齿轮箱(螺旋桨轴)(反转)128艉板支架129艉板支架（序列号0G590000及以上）130蓄能器131下机罩132化油器（WMH-21/22/23/24/25/28）133化油器（WMH-30/31/32/33/34）134化油器（WMH-12A/12B/13/13B/14A/15/16）135阻风板与油门杆136曲轴、活塞与连杆137气缸体与端盖138驱动轴壳体与排气管139双机延伸套件140排气歧管与排气板141飞轮/启动马达142燃油管路（用于 WMH-12A/B 至 WMH-28 化油器）143燃油管路（用于 WMH-30/31/32/33/34 化油器）144燃油泵145齿轮箱（驱动轴）146齿轮箱（驱动轴）- 反向旋转147齿轮箱（推进轴）148齿轮箱（推进轴）- 反向旋转149齿轮箱对照表150齿轮箱（驱动轴）（XR6/MAG III - 1.78:1 速比）151齿轮箱（推进轴）（XR6/MAG III - 1.78:1 速比）152点火线圈/电压调节器153仪表装置154喷射组件155喷泵总成156杂项零件/附件157喷油组件158动力转向组件（遥控）159动力升降组件 8M0231193160动力升降组件（金属马达壳体）161动力升降组件（塑料马达壳体）162动力升降马达163簧片阀组与气缸盖164启动马达165转向连接套件166旋转支架与转向臂167油门杆与换挡轴168上罩与前护板169艉板支架170艉板安装动力转向套件171线束/启动电磁阀

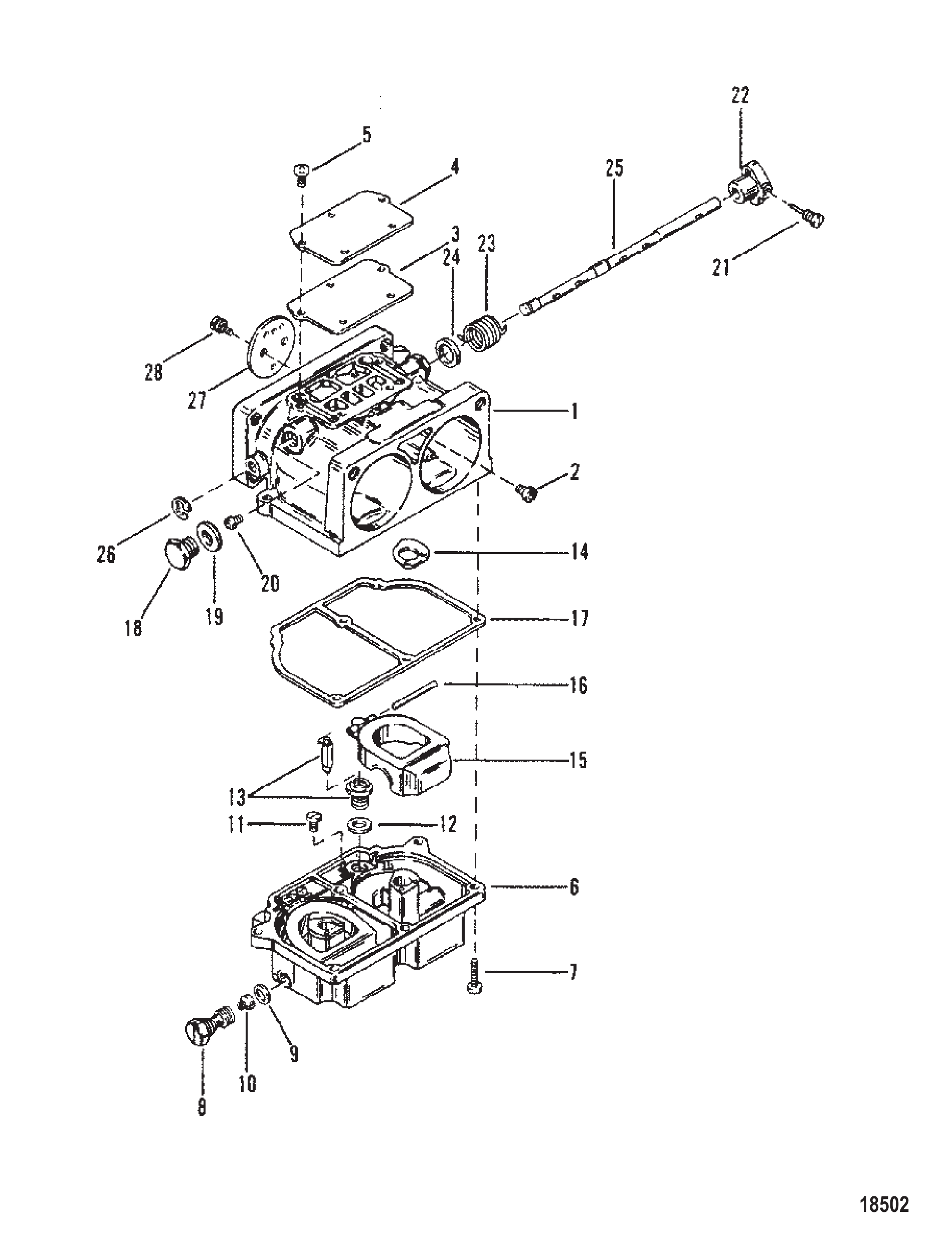

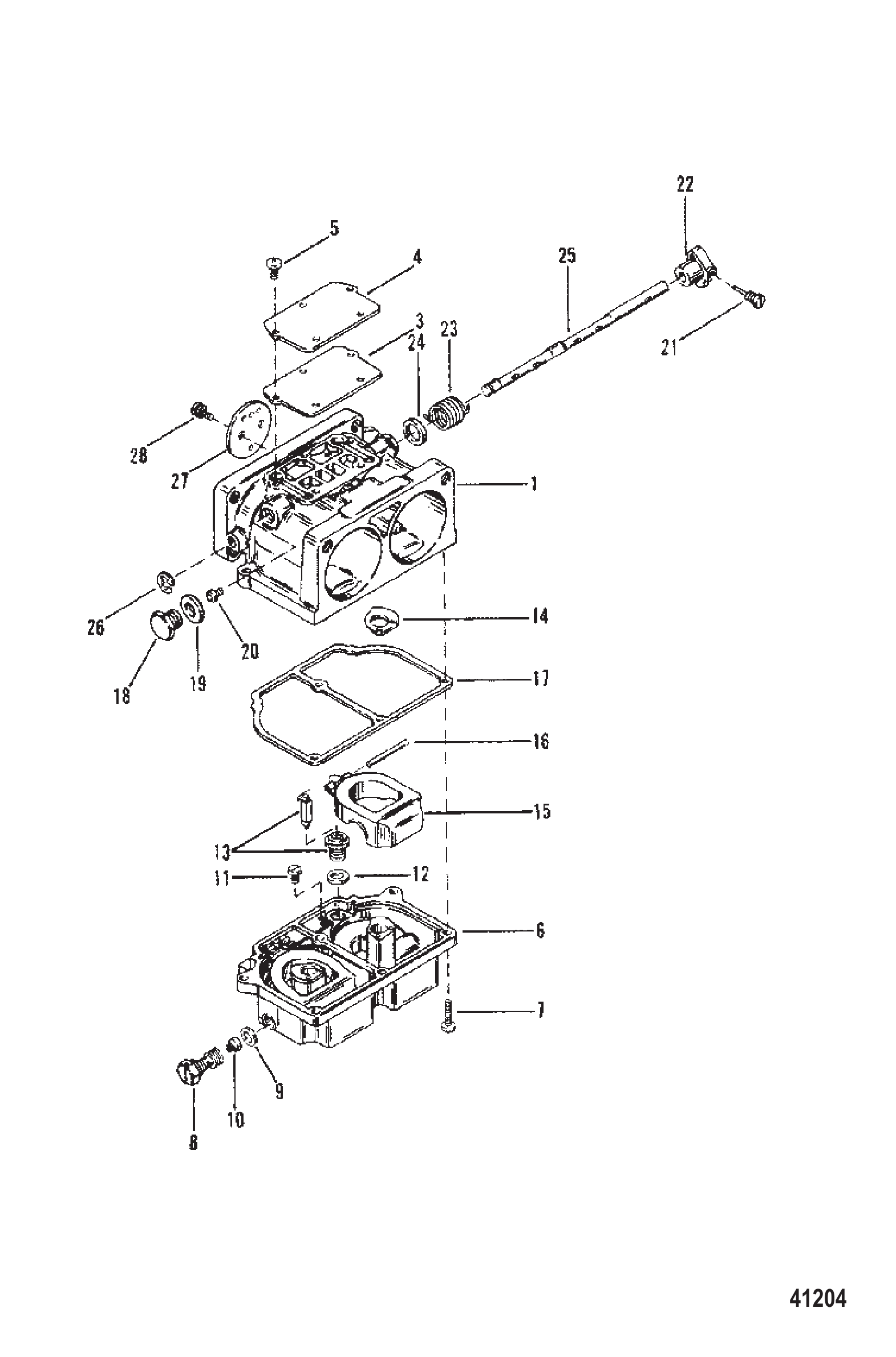

图 1化油器总成 CARBURETOR ASSEMBLY
化油器总成 CARBURETOR ASSEMBLY
REF零件编号中文名称英文名称数量
19242A10化油器(上)CARBURETOR (TOP)1
19242A11化油器(中)CARBURETOR (CENTER)1
19242A12化油器(下)CARBURETOR (BOTTOM)1
3NSSNOT SOLD SEPARATE GASKET, COVER PLATE3
46032盖板PLATE COVER3
5NSS不单独销售螺丝,盖板NOT SOLD SEPARATE SCREW, COVER PLATE15
67823燃油杯(顶部)BOWL Fuel (TOP)1
67822燃油杯(中部/底部)BOWL Fuel (CENTER/BOTTOM)2
7NSS不单独销售螺丝,燃油碗NOT SOLD SEPARATE SCREW, FUEL BOWL18
86025主量孔塞PLUG MAIN JET6
9NSS主量孔垫片(不单独销售)NOT SOLD SEPARATE GASKET, MAIN JET6
104216主量孔 (.064)JET (.064) MAIN FUEL4
104215燃油主量孔(.066)JET Main Fuel (.066)2
11NSS不单独销售螺丝,浮子销NOT SOLD SEPARATE SCREW, FLOAT PIN6
12NSS不单独出售 衬垫、进油针阀及阀座组件NOT SOLD SEPARATE GASKET, INLET NEEDLE AND SEAT6
137824进油针阀总成NEEDLE/SEAT ASSEMBLY Inlet6
14NSS不单独销售垫片,喷嘴座NOT SOLD SEPARATE GASKET, NOZZLE BOSS6
159267浮子FLOAT6
16NSS不单独销售销,浮子杆NOT SOLD SEPARATE PIN, FLOAT LEVER6
17NSS燃油碗垫片(不单独销售)NOT SOLD SEPARATE GASKET, FUEL BOWL3
184541怠速空气量孔螺钉SCREW IDLE AIR BLEED JET6
19NSS不单独销售垫片,泄流量孔塞NOT SOLD SEPARATE GASKET, BLEED JET PLUG6
206030怠速空气量孔(.070)JET (.070) IDLE AIR BLEED6
216027节气门杠杆螺钉SCREW THROTTLE LEVER3
2237752油门标识贴DECAL THROTTLE3
23NSSNOT SOLD SEPARATE SPRING, THROTTLE RETURN3
246031节气门杠杆垫片SPACER THROTTLE LEVER3
256022节流阀轴SHAFT THROTTLE3
26NSS节流阀轴环/挡圈（不单独销售）NOT SOLD SEPARATE RING, RETAINER - THROTTLE SHAFT3
279416油门阀VALVE Throttle6
28NSSNOT SOLD SEPARATE SCREW, THROTTLE VALVE12
-6452衬垫套件GASKET KIT1
-8506化油器维修套件REPAIR KIT Carburetor1

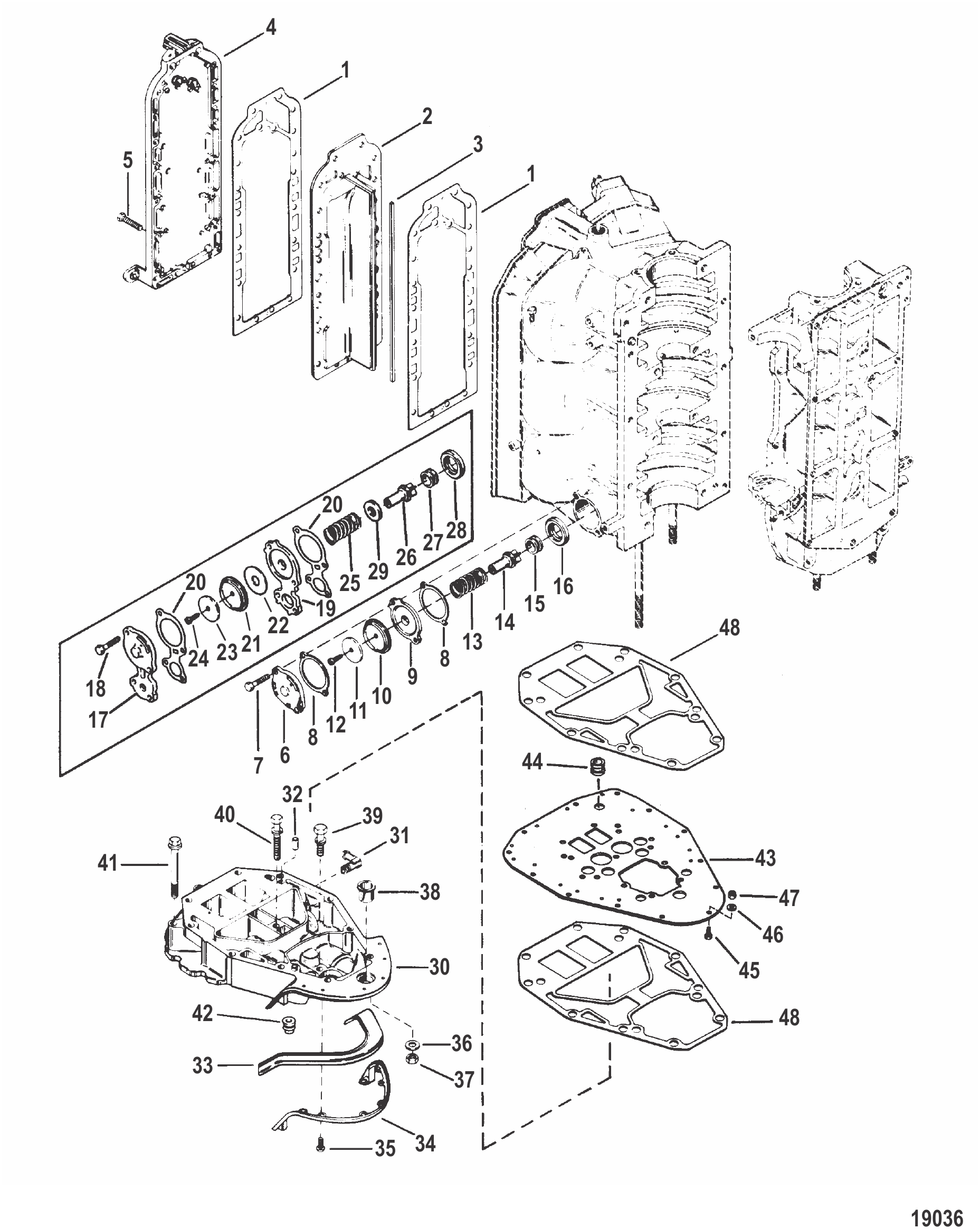

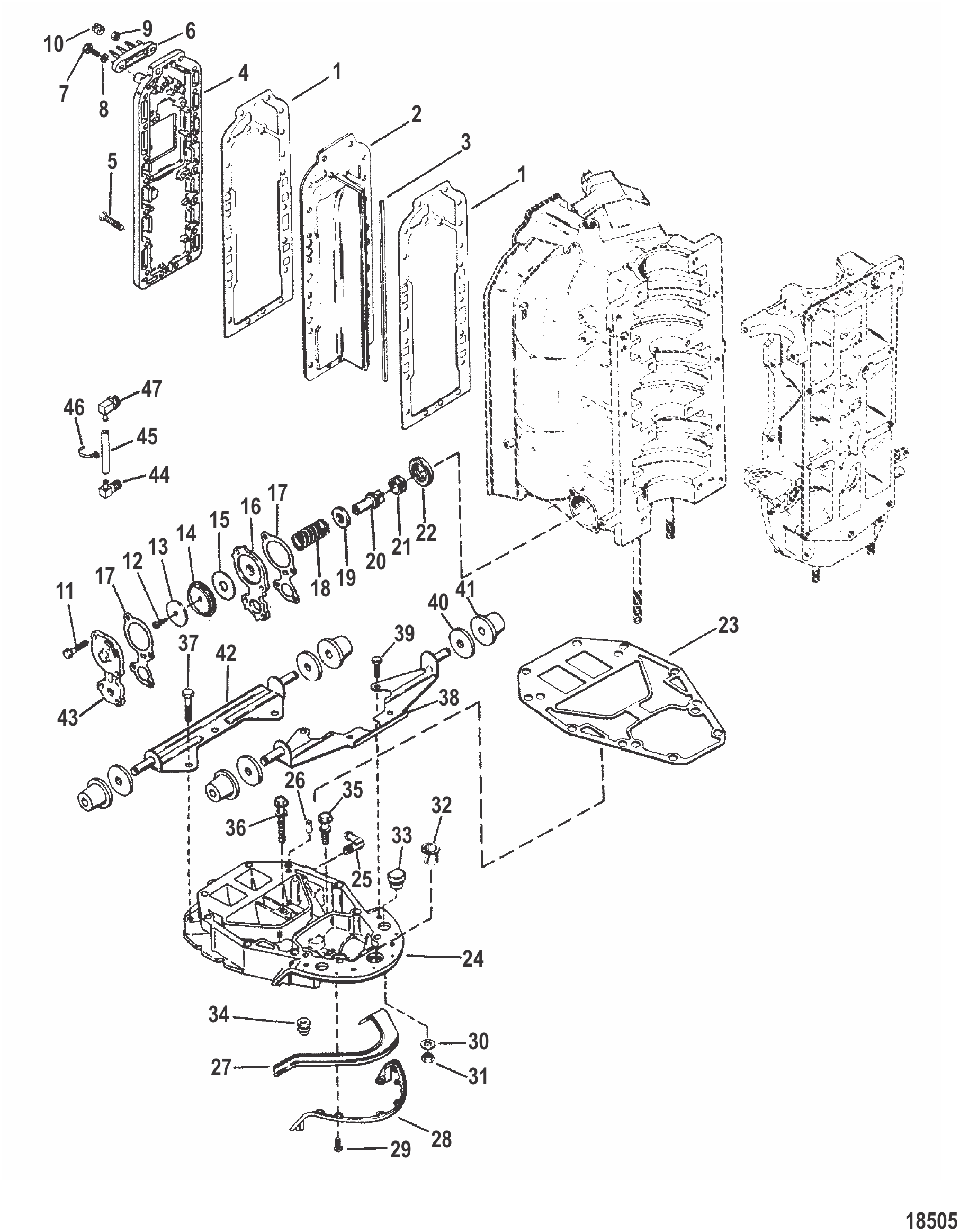

图 2排气歧管与排气板 EXHAUST MANIFOLD AND EXHAUST PLATE
排气歧管与排气板 EXHAUST MANIFOLD AND EXHAUST PLATE
REF零件编号中文名称英文名称数量
190484分隔板衬垫GASKET DIVIDER PLATE2
287321分隔板PLATE DIVIDER1
287321T安装板PLATE1
369668分隔板密封件SEAL DIVIDER PLATE1
3814754密封件(12.50英寸)SEAL (12.50 Inches)1
495067排气歧管盖COVER EXHAUST MANIFOLD1
574824螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)21
665663A1泄压阀盖(旧设计)COVER RELIEF VALVE - (OLD DESIGN)1
68M0237835罩盖总成COVER ASSY1
738837螺钉(.312-18 x 1.12)盖至气缸体(旧设计)SCREW (.312-18 x 1.12) COVER TO CYLINDER BLOCK (OLD DESIGN)2
888907泄压阀板衬垫(旧设计)GASKET RELIEF VALVE PLATE - (OLD DESIGN)2
888907003衬垫GASKET2
965664A1泄压阀板总成(旧设计)PLATE ASSEMBLY RELIEF VALVE - (OLD DESIGN)1
1064877隔膜(旧设计)DIAPHRAGM (OLD DESIGN)1
10648771隔膜DIAPHRAGM1
1176451隔膜螺钉垫圈(旧设计)WASHER DIAPHRAGM SCREW - (OLD DESIGN)1
1269570螺钉(#10-16 x .750)隔膜至板(旧设计)SCREW (#10-16 x .750) DIAPHRAGM TO PLATE (- (OLD DESIGN)1
1364878弹簧(黑色)提升阀压缩(旧设计)SPRING (Black) COMPRESSION POPPET VALVE - (OLD DESIGN)1
1486596提升阀(旧设计)POPPET VALVE VALVE - (OLD DESIGN)1
1564872提升阀衬套(旧设计)GROMMET POPPET VALVE - (OLD DESIGN)1
1665848提升阀座(旧设计)CARRIER POPPET VALVE - (OLD DESIGN)1
1714462A1泄压阀盖(新设计)COVER RELIEF VALVE - (NEW DESIGN)1
1874824螺钉(.312-18 x 1.250)盖至气缸体(新设计)SCREW (.312-18 x 1.250) COVER TO CYLINDER BLOCK (NEW DESIGN)4
1916497A1泄压阀板(新设计)PLATE RELIEF VALVE - (NEW DESIGN)1
2078690泄压阀板衬垫(新设计)GASKET RELIEF VALVE PLATE - (NEW DESIGN)2
2078690002衬垫GASKET2
2114479隔膜(新设计)DIAPHRAGM (NEW DESIGN)1
21144791隔膜DIAPHRAGM1
2216496导水板(新设计)DEFLECTOR Water (NEW DESIGN)1
2376451隔膜螺钉垫圈(新设计)WASHER DIAPHRAGM SCREW - (NEW DESIGN)1
2469570螺钉(#10-16 x .750)隔膜至板(新设计)SCREW (#10-16 x .750) DIAPHRAGM TO PLATE (NEW DESIGN)1
2564878弹簧(黑色)提升阀压缩(新设计)SPRING (Black) COMPRESSION POPPET VALVE - (NEW DESIGN)1
2614480提升阀(新设计)POPPET VALVE - (NEW DESIGN)1
2764872提升阀衬套(新设计)GROMMET POPPET VALVE - (NEW DESIGN)1
2865848提升阀座(新设计)CARRIER POPPET VALVE - (NEW DESIGN)1
2985303提升阀弹簧垫圈(新设计)WASHER POPPET SPRING - (NEW DESIGN)1
3043029A2排气板总成(黑灰)PLATE ASSEMBLY EXHAUST (BLACK & GRAY)1
3043029A5隔板总成PLATE ASSEMBLY1
3043029A4排气板总成(牡蛎色)PLATE ASSEMBLY EXHAUST (OYSTER)1
3043029A5隔板总成PLATE ASSEMBLY1
3199664排气板弯头ELBOW EXHAUST PLATE1
3199664290度弯头接头(0.125-27x0.250)尼龙FITTING Elbow 90 Degree (.125-27 x .250) Nylon1
3220033排气板定位销PIN Dowel LOCATING - EXHAUST PLATE2
3243044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
33707482排气板密封件(黑灰)SEAL EXHAUST PLATE (BLACK & GRAY)1
3468010密封件固定支架(黑灰)BRACKET SEAL RETAINING (BLACK & GRAY)1
34680101支架BRACKET1
3548408螺钉(#10-16 x .500)支架至排气板(黑灰)SCREW (#10-16 x .500) BRACKET TO EXHAUST PLATE (BLACK & GRAY)8
3625970动力头螺柱垫圈WASHER POWERHEAD STUD6
3620553垫圈(.406 x .734 x .063)WASHER (.406 x .734 x .063)6
3769254动力头螺柱螺母NUT POWERHEAD STUD6
3827132排气板衬套BUSHING EXHAUST PLATE1
3966727螺钉(.312-18 x 1.250)排气板固定SCREW (.312-18 x 1.250) EXHAUST PLATE ATTACHING1
4068783螺钉(.312-18 x 2.50)排气板固定SCREW (.312-18 x 2.50) EXHAUST PLATE ATTACHING1
4166725螺钉(.375-16 x 3.50)排气板固定SCREW (.375-16 x 3.50) EXHAUST PLATE ATTACHING3
41898833螺钉(.375-16 x 3.500)SCREW (.375-16 x 3.500)3
4212602排气板衬套GROMMET EXHAUST PLATE1
4212602002护孔环GROMMET1
4318103罩壳安装板(牡蛎色)PLATE COWL MOUNTING (OYSTER)1
43181032安装板PLATE1
4493221衬套(牡蛎色)GROMMET (OYSTER)1
4493221002护孔环GROMMET1
4528636螺钉(.250-20 x .750)(牡蛎色)SCREW (.250-20 x .750) (OYSTER)13
4629245垫圈(.281 x .500 x .060)不锈钢(牡蛎色)WASHER (.281 x .500 x .060) Stainless Steel (OYSTER)13
468M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel13
4756374螺母(.250-20)(牡蛎色)NUT (.250-20) (OYSTER)13
478267098螺母 (.250-20) 不锈钢NUT (.250-20) Stainless Steel13
4899776排气板衬垫(2件装/牡蛎色)GASKET EXHAUST PLATE (QTY. OF 2 W/OYSTER)1
48997761衬垫GASKET1
-90484A88衬垫套件GASKET SET1
-803062T1提升阀套件POPPET VALVE KIT1

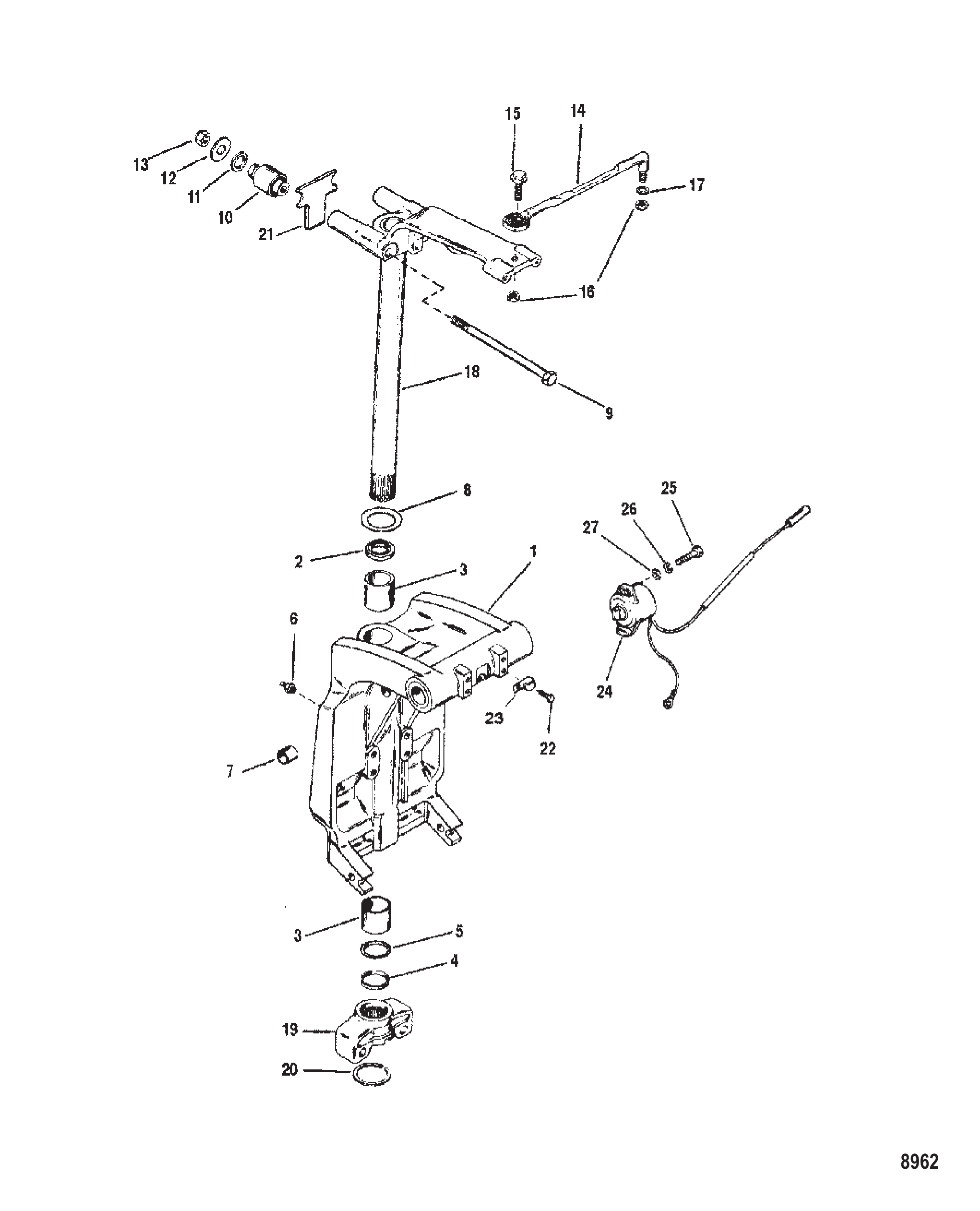

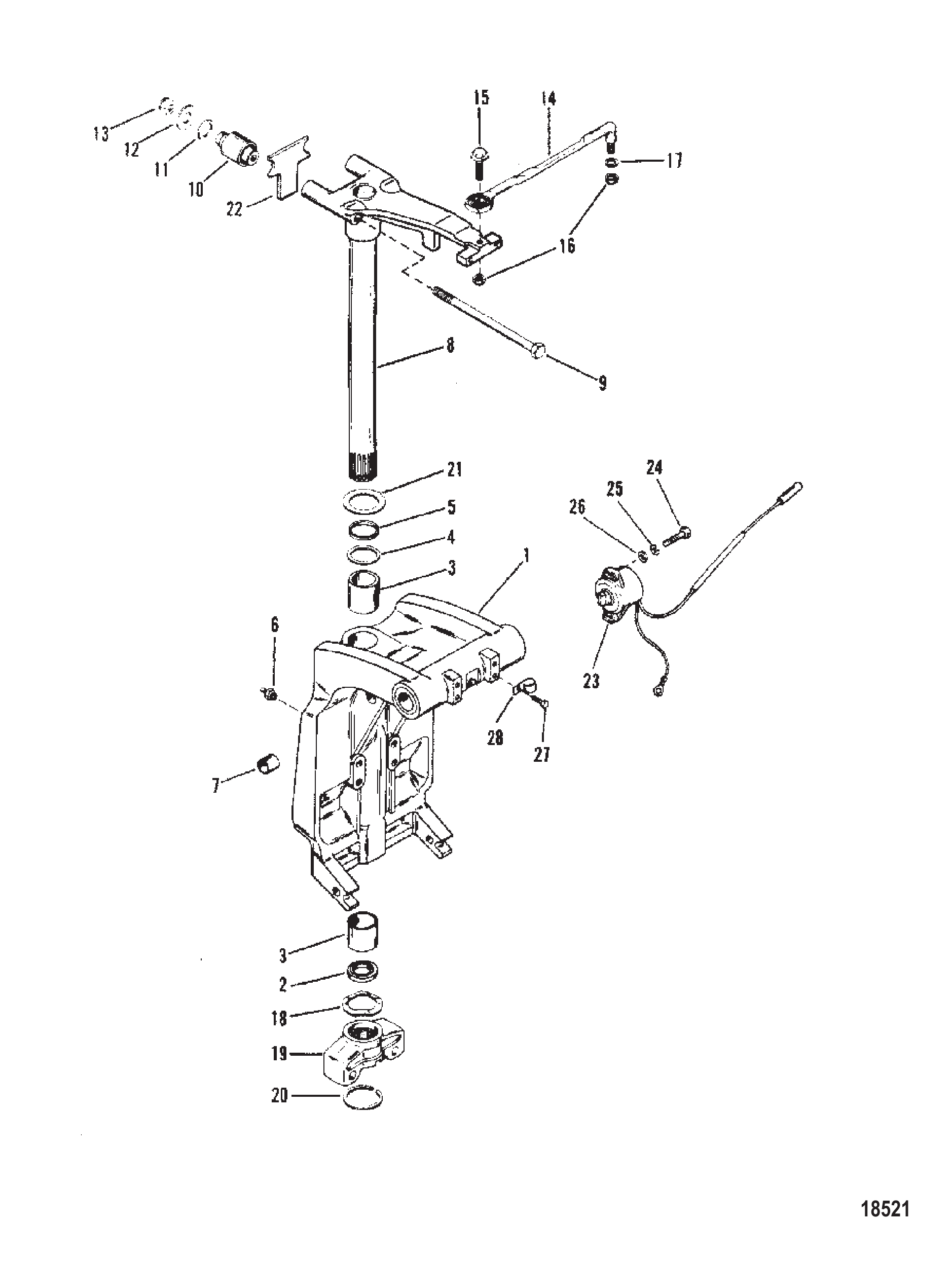

图 3旋转支架与转向臂 Swivel Bracket and Steering Arm
旋转支架与转向臂 Swivel Bracket and Steering Arm
REF零件编号中文名称英文名称数量
1818904T1旋转支架SWIVEL BRACKET1
287735下油封SEAL Oil Lower1
3818764衬套BUSHING2
433504O型圈O-RING1
48M0214926O型圈 @10O RING @101
5816039隔套SPACER1
674036润滑脂接头FITTING Grease2
68M0169589润滑脂接头FITTING Grease2
7821207衬套BUSHING2
864014螺钉(.250-28x.500)SCREW (.250-28 x .500)2
999661A26旋转销总成SWIVEL PIN ASSEMBLY1
999661A35旋转销总成SWIVEL PIN ASSEMBLY1
1092876A10连杆总成LINK ROD ASSEMBLY1
1092876A12连杆总成LINK ROD ASSEMBLY1
11849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)1
12826709113不锈钢螺母 (.375-24)NUT (.375-24) Stainless Steel2
128M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass2
1337828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel2
1442961A1底部轭架总成YOKE ASSEMBLY Bottom1
1442961A06底部轭架总成YOKE ASSEMBLY Bottom1
1567684挡圈RING Retaining1
16816432止推垫片THRUST WASHER1
17NSS不单独销售 贴纸, 序列号覆膜NOT SOLD SEPARATE Decal, Serial Overlaminate1
1811288下轭缓冲垫BUMPER Bottom Yoke1
1811288001下轭缓冲垫BUMPER Bottom Yoke1
1988882上轭缓冲垫BUMPER Top Yoke1

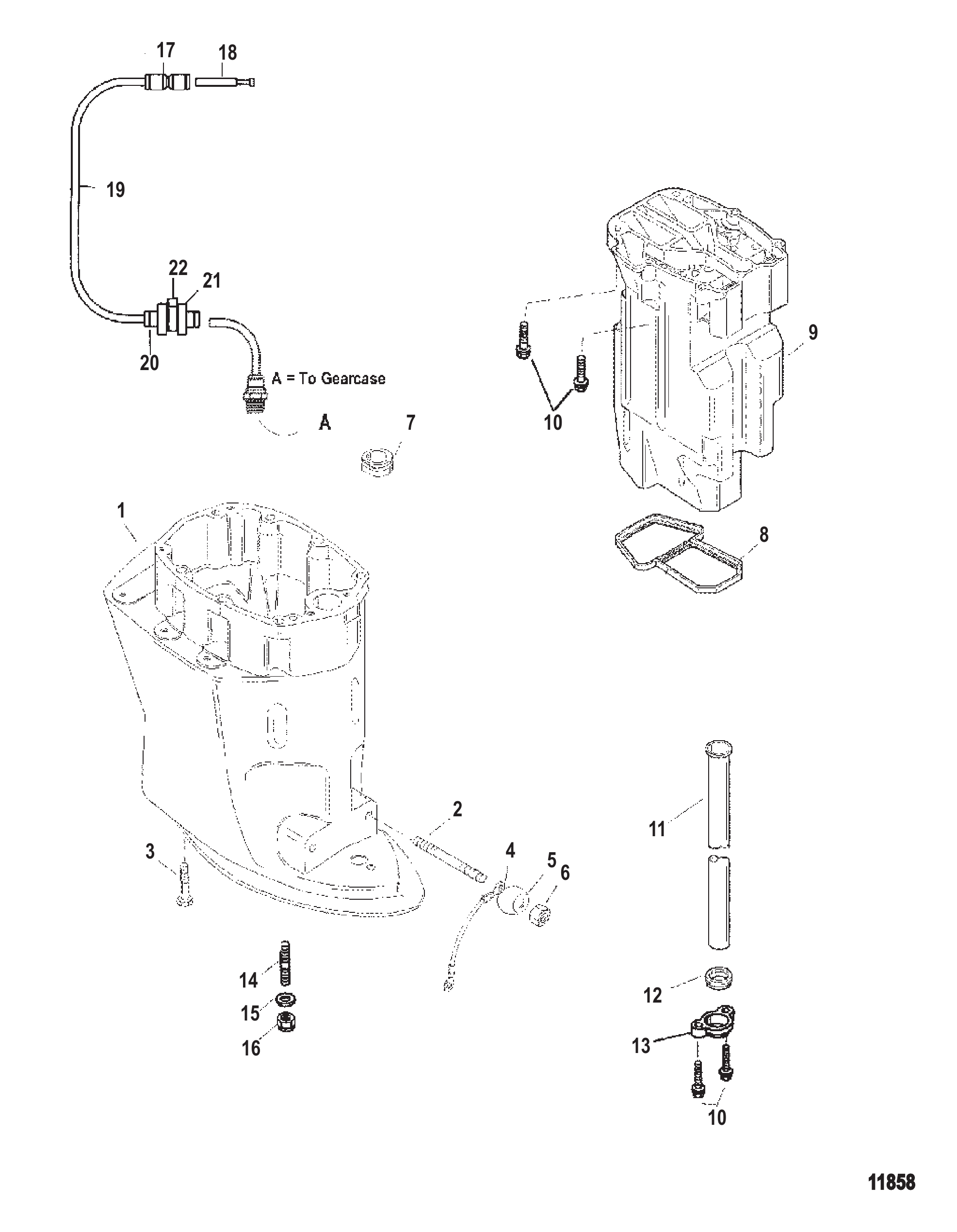

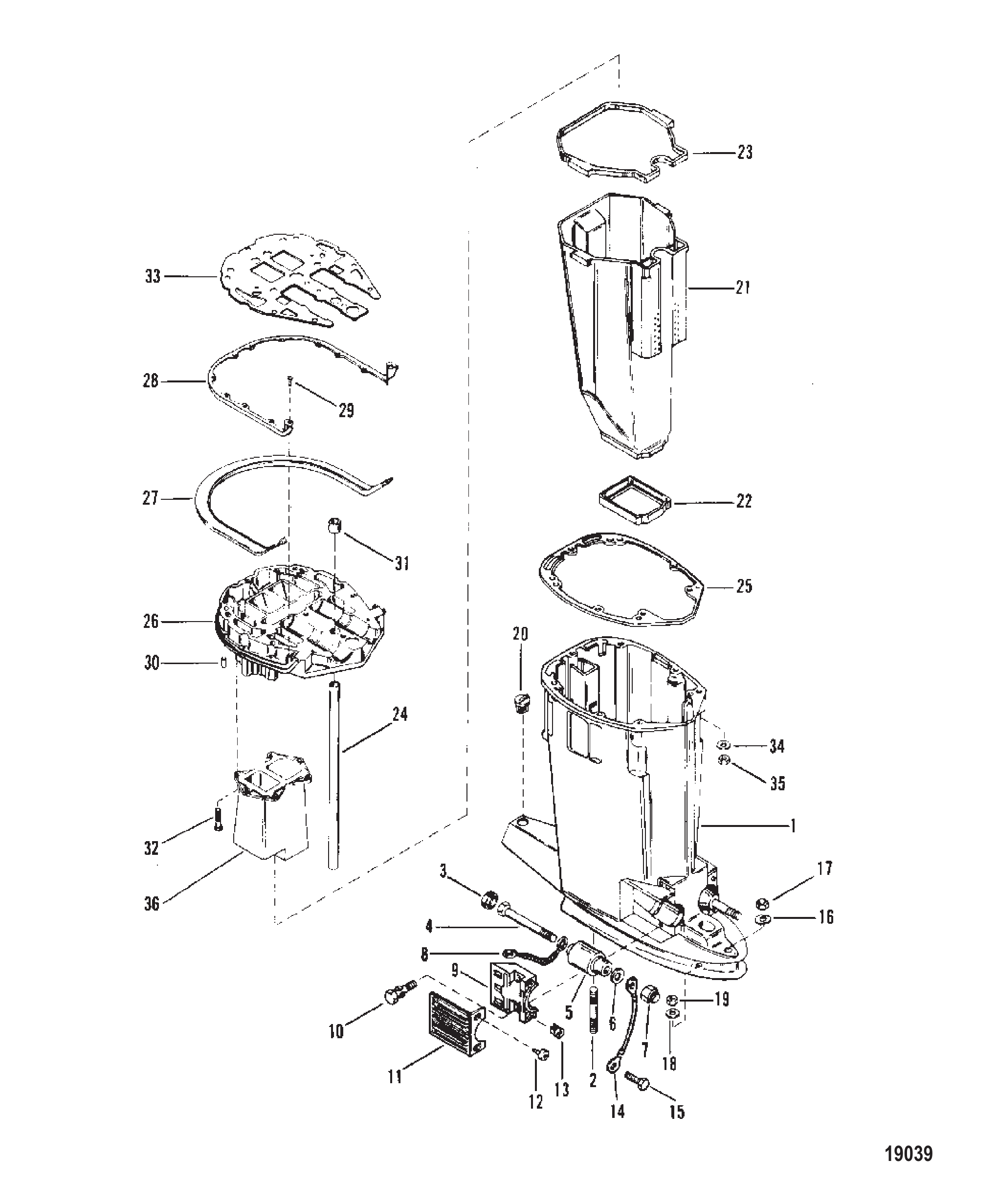

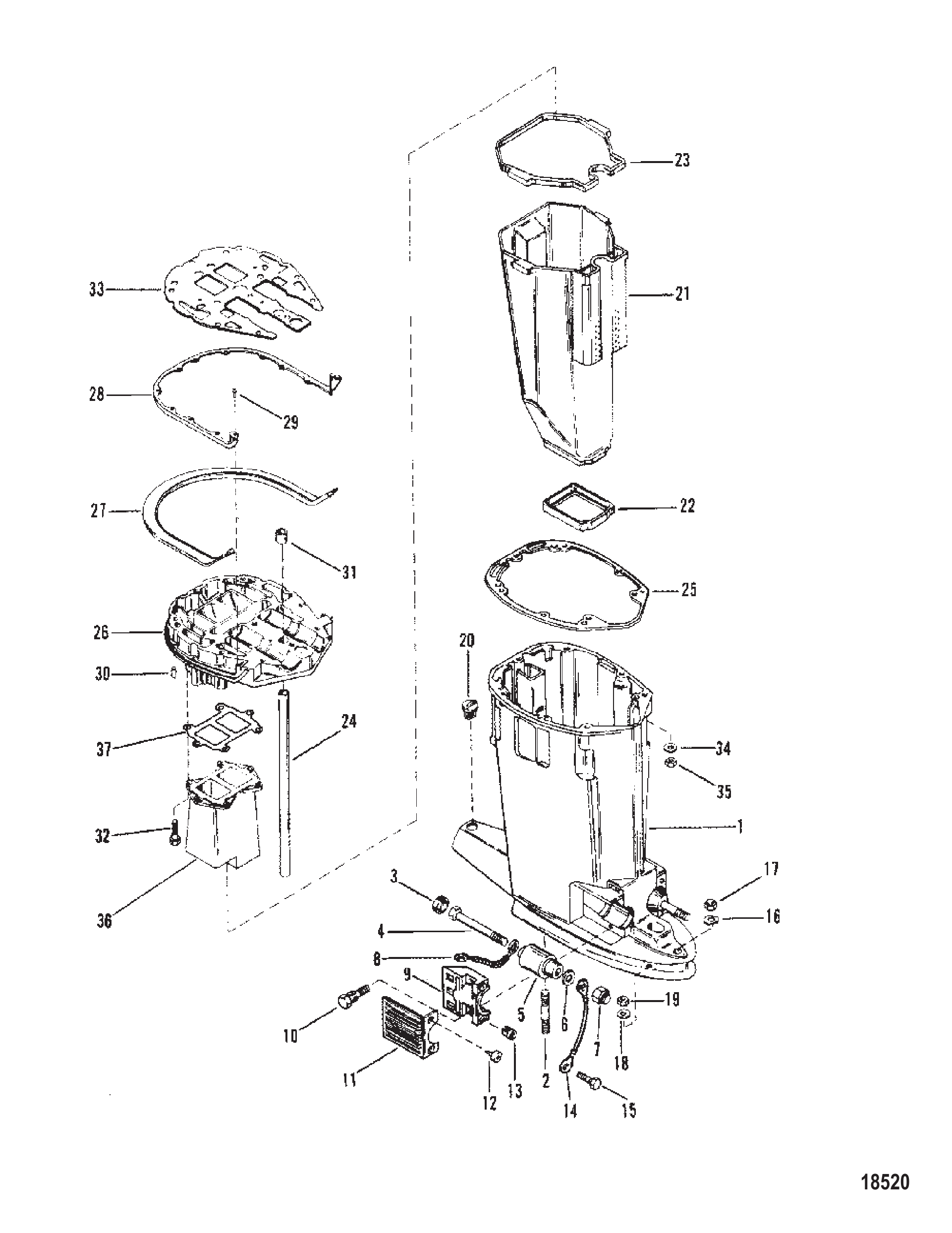

图 4驱动轴壳体与排气管 DRIVESHAFT HOUSING AND EXHAUST TUBE
驱动轴壳体与排气管 DRIVESHAFT HOUSING AND EXHAUST TUBE
REF零件编号中文名称英文名称数量
18343A7传动轴壳体总成(黑色)HOUSING ASSEMBLY Driveshaft (BLACK)1
18343A8传动轴壳体总成(灰色)HOUSING ASSEMBLY Driveshaft (GRAY)1
18343A9驱动轴壳体总成(OYSTER)HOUSING ASSEMBLY Driveshaft (OYSTER)1
18343A8驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
256295驱动轴壳体/齿轮箱壳体双头螺柱(长型)(.437 x 2.69)STUD (.437 x 2.69) DRIVE SHAFT HSG./GEAR HSG. (LONG)2
274732驱动轴壳体/齿轮箱壳体双头螺柱(加长型)STUD DRIVE SHAFT HSG./GEAR HSG. (EXTRA LONG)2
325067下安装座螺钉缓冲垫BUMPER LOWER MOUNT SCREW2
463474下安装座螺钉(.500-20 x 6.00)SCREW (.500-20 x 6.00) LOWER MOUNT2
4898831螺钉(.500-20 x 6.220)SCREW (.500-20 x 6.220)2
578249下支架MOUNT LOWER2
577327支架MOUNT2
649339下部安装螺钉垫圈(.8125)WASHER (.8125) LOWER MOUNT SCREW2
725096下安装座螺钉螺母NUT LOWER MOUNST SCREW2
888238A1接地线总成CABLE ASSEMBLY Ground1
888238A10接地线总成CABLE ASSEMBLY Ground1
967076下安装夹CLAMP LOWER MOUNT2
98M0036782卡箍CLAMP2
1066727下安装座夹具固定螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250) LOWER MOUNT CLAMP ATTACHING4
1167077下部安装夹盖（黑色）COVER LOWER MOUNT CLAMP (BLACK)2
118M4500752盖板COVER2
1167077T6下安装座夹具盖(灰色)COVER LOWER MOUNT CLAMP (GRAY)2
1167077F1灰色盖板COVER Gray2
1167077T10下安装座夹具盖(OYSTER)COVER LOWER MOUNT CLAMP (OYSTER)2
1167077F1灰色盖板COVER Gray2
1288417盖固定螺钉(#12-24 x .620)SCREW (#12-24 x .620) COVER ATTACHING4
1335521盖至夹具螺钉尼龙螺母NUT NYLON - COVER TO CLAMP SCREW4
1488238A2接地线总成CABLE ASSEMBLY Ground1
1488238A10接地线总成CABLE ASSEMBLY Ground1
1541508螺丝(.250-20 x .500)不锈钢接地线SCREW (.250-20 x .500) Stainless Steel GROUND WIRE1
1673862齿轮箱壳体螺柱垫圈WASHER GEAR HOUSING STUD1
1729489齿轮箱壳体螺柱盖形螺母NUT GEAR HOUSIG STUD (CAP)1
1845176齿轮箱壳体螺柱不锈钢垫圈(.453 x .812 x .105)WASHER (.453 x .812 x .105) Stainless Steel GEAR HOUSING STUD2
1934933齿轮箱壳体螺柱不锈钢螺母(.437-20)NUT (.437-20) Stainless Steel GEAR HOUSING STUD2
198M0204653螺母NUT2
2064649驱动轴壳体堵头(黑灰)PLUG DRIVE SHAFT HOUSING (BLACK & GRAY)1
20646491驱动轴壳体堵头(OYSTER)PLUG DRIVE SHAFT HOUSING (OYSTER)1
2189743排气管TUBE Exhaust1
2266350排气管下密封件SEAL EXHAUST TUBE - LOWER1
2266350001密封件SEAL1
2386027排气管上密封件SEAL EXHAUST TUBE - UPPER1
2467295长轴型水管TUBE Water WATER (LONG SHAFT)1
248M0042788长型水管TUBE-WATER-LONG1
2474729加长轴型水管TUBE WATER (EXTRA LONG SHAFT)1
248M0042790水管TUBE-WATER1
2599173驱动轴壳体至板衬垫GASKET DRIVE SHAFT HOUSING TO PLATE1
25991734衬垫GASKET1
2641945A6驱动轴壳体板总成PLATE ASSEMBLY DRIVE SHAFT HOUSING1
27707482支架密封件(黑灰)SEAL BRACKET (BLACK & GRAY)1
2868011密封件固定支架(黑灰)BRACKET SEAL RETAINING (BLACK & GRAY)1
2948408支架至板螺钉(黑灰)(#10-16 x .500)SCREW (#10-16 x .500) BRACKET TO PLATE (BLACK & GRAY)12
3020033定位销PIN Dowel LOCATING2
3043044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
3138970水管密封件SEAL WATER TUBE1
3290192延伸件至板不锈钢螺钉(.250-20 x .750)SCREW (.250-20 x .750) Stainless Steel EXTENSION TO PLATE6
3399177驱动轴壳体板至排气板衬垫GASKET DRIVE SHAFT HOUSING PLATE TO EXHAUST PLATE1
33991772衬垫GASKET1
3425970动力头螺柱垫圈WASHER POWER HEAD STUD4
3420553垫圈(.406 x .734 x .063)WASHER (.406 x .734 x .063)4
3569254动力头螺柱螺母NUT POWER HEAD STUD4
3641942排气延伸管EXTENSION EXHAUST1
36879288T71排气管延长段EXTENSION Exhaust1
3678148A1隔套总成(加长型)SPACER ASSEMBLY (EXTRA LONG)1
3620033隔套定位销(加长型)PIN Dowel LOCATING - SPACER - (EXTRA LONG)2
3643044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
-90484A88衬垫套件GASKET SET

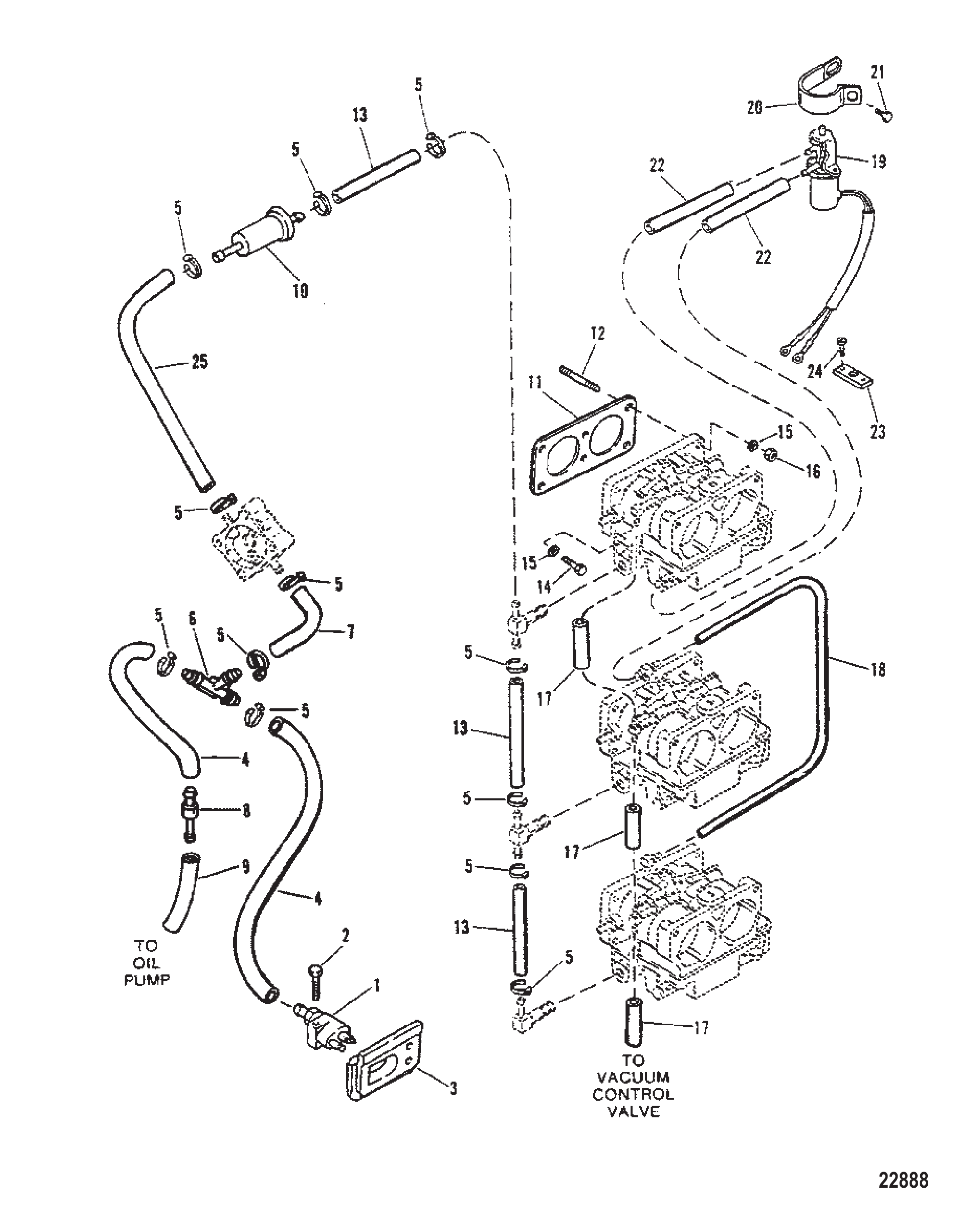

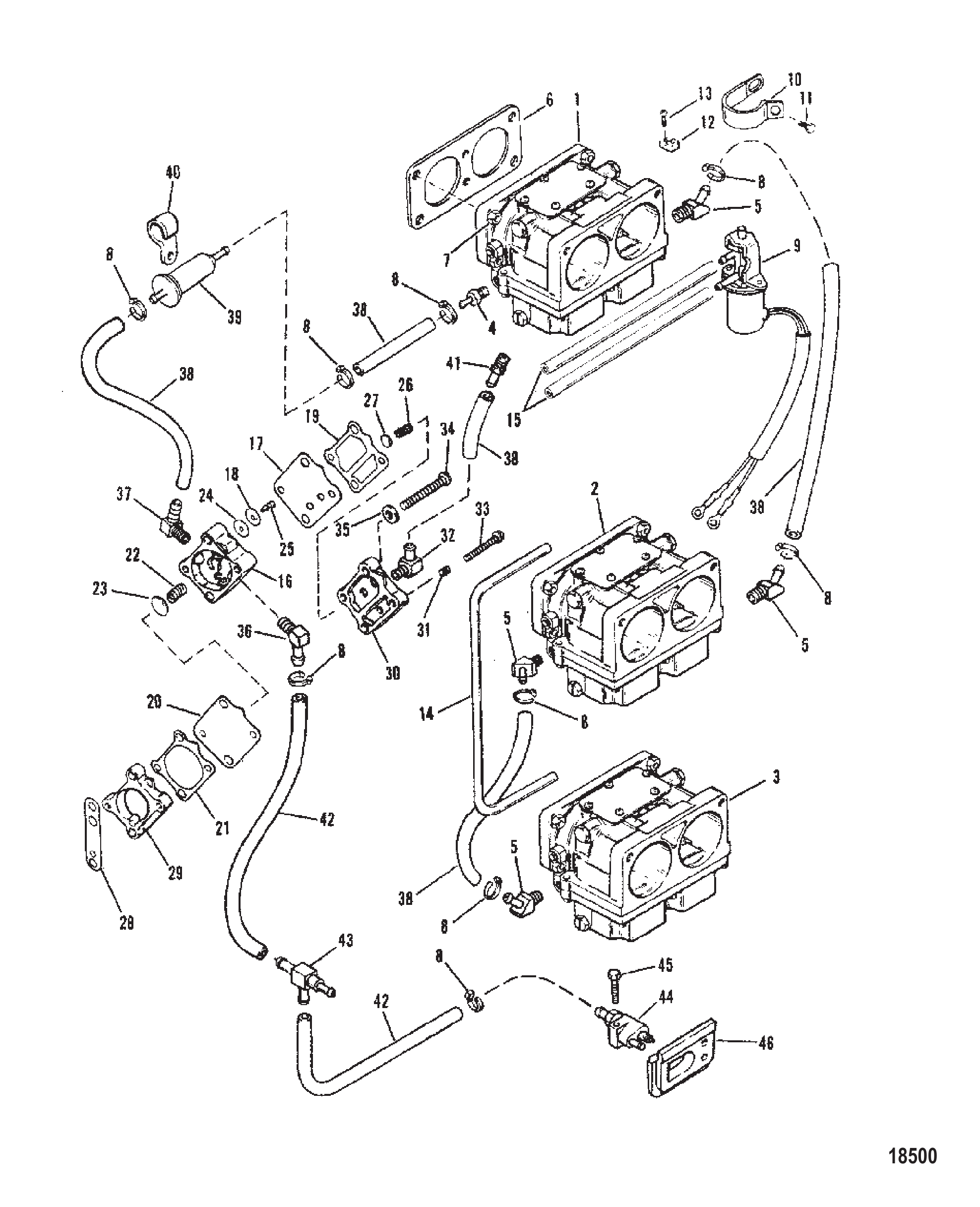

图 5燃油泵和化油器 FUEL PUMP AND CARBURETOR
燃油泵和化油器 FUEL PUMP AND CARBURETOR
REF零件编号中文名称英文名称数量
19242A10化油器(上)CARBURETOR (TOP)1
29242A11化油器(中)CARBURETOR (CENTER)1
39242A12化油器(下)CARBURETOR (BOTTOM)1
46232燃油入口接头(上/下)FITTING FUEL INLET (UPPER/LOWER)2
57000745度燃油入口接头(中部)FITTING 45 Degree FUEL INLET (MIDDLE)1
6904301化油器衬垫GASKET CARBURETOR3
720184化油器安装螺母(1/4-28X7/32)NUT (1/4-28X7/32) CARBURETOR MOUNTING12
78M0207775螺母 @5NUT @512
890077化油器燃油管束带TIE STRAP FUEL HOSE TO CARBURETORAR
8816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
942859A2加浓阀总成VALVE ASSEMBLY Enrichner1
10633001加浓阀卡箍CLAMP ENRICHNER VALVE1
1173286螺钉(0.250-20×0.500)不锈钢阀门卡箍SCREW (.250-20 x .500) Stainless Steel VALVE CLAMP1
1245915端子排簧片块壳体TERMINAL BLOCK REED BLOCK HOUSING1
1335519端子块固定螺钉(#10-16 x .500)SCREW (#10-16 x .500) TERMINAL BLOCK ATTACHING1
1499130122上部化油器至阀门管路(20英尺散装,7-3/4英寸)TUBING (20.00 Feet Bulk) TOP CARBURETOR TO VALVE (7-3/4")1
14892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
159912688化油器间连接管路(36英寸散装,4-1/4英寸)TUBING (36.00 Inches Bulk) CARBURETOR TO CARBURETOR (4-1/4")2
1615930A15燃油泵套件PUMP KIT Fuel1
1742990A6膜片组件DIAPHRAGM KIT1
17857005A1膜片组件DIAPHRAGM KIT1
18NSS橡胶止回阀(不单独销售)NOT SOLD SEPARATE CHECK VALVE, RUBBER2
19NSSNOT SOLD SEPARATE GASKET, BOOST1
20NSSNOT SOLD SEPARATE DIAPHRAGM2
21NSSNOT SOLD SEPARATE GASKET, PULSE1
22NSSNOT SOLD SEPARATE SPRING1
23NSSNOT SOLD SEPARATE CAP1
24NSSNOT SOLD SEPARATE CHECK VALVE2
25NSSNOT SOLD SEPARATE RETAINER2
26NSSNOT SOLD SEPARATE SPRING1
27NSSNOT SOLD SEPARATE CAP1
28987691底座衬垫GASKET BASE1
288M0204705衬垫@2GASKET @21
29144303燃油泵底座BASE FUEL PUMP1
3098775A2燃油泵板PLATE FUEL PUMP1
30987752安装板PLATE1
3156800管塞 (.0625-27)PLUG Pipe (.0625-27)1
3219688接头FITTING1
3316452燃油泵螺钉(#12-24 x 2.00)SCREW (#12-24 x 2.00) FUEL PUMP2
344000310燃油泵至曲轴箱螺钉(M5 x 40)SCREW (M5 x 40) FUEL PUMP TO CRANKCASE2
354002314燃油泵螺钉垫圈WASHER FUEL PUMP SCREW2
3614868燃油泵弯头接头FITTING FUEL PUMP (ELBOW)1
3719688燃油泵弯头接头FITTING FUEL PUMP (ELBOW)1
3899127109管路(57.00英寸 散装)LINE (57.00 Inches Bulk)1
388M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
3916494燃油滤清器FILTER Fuel1
39816296Q03燃油滤清器@3FILTER-FUEL @31
4015279燃油滤清器卡箍CLAMP FUEL FILTER1
4164705脉冲软管接头FITTING PULSE HOSE1
429912976油管TUBING2
428M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)2
43424251三通TEE2
43424253接头FITTING2
4415781A1燃油连接器CONNECTOR Fuel1
44816856Q3燃油接头总成CONNECTOR ASSEMBLY Fuel1
4569067螺钉(.250-20×1.375)SCREW (.250-20 x 1.375)1
46812782密封件SEAL1
-11338A88发动机大修垫片套装GASKET SET Engine Overhaul1

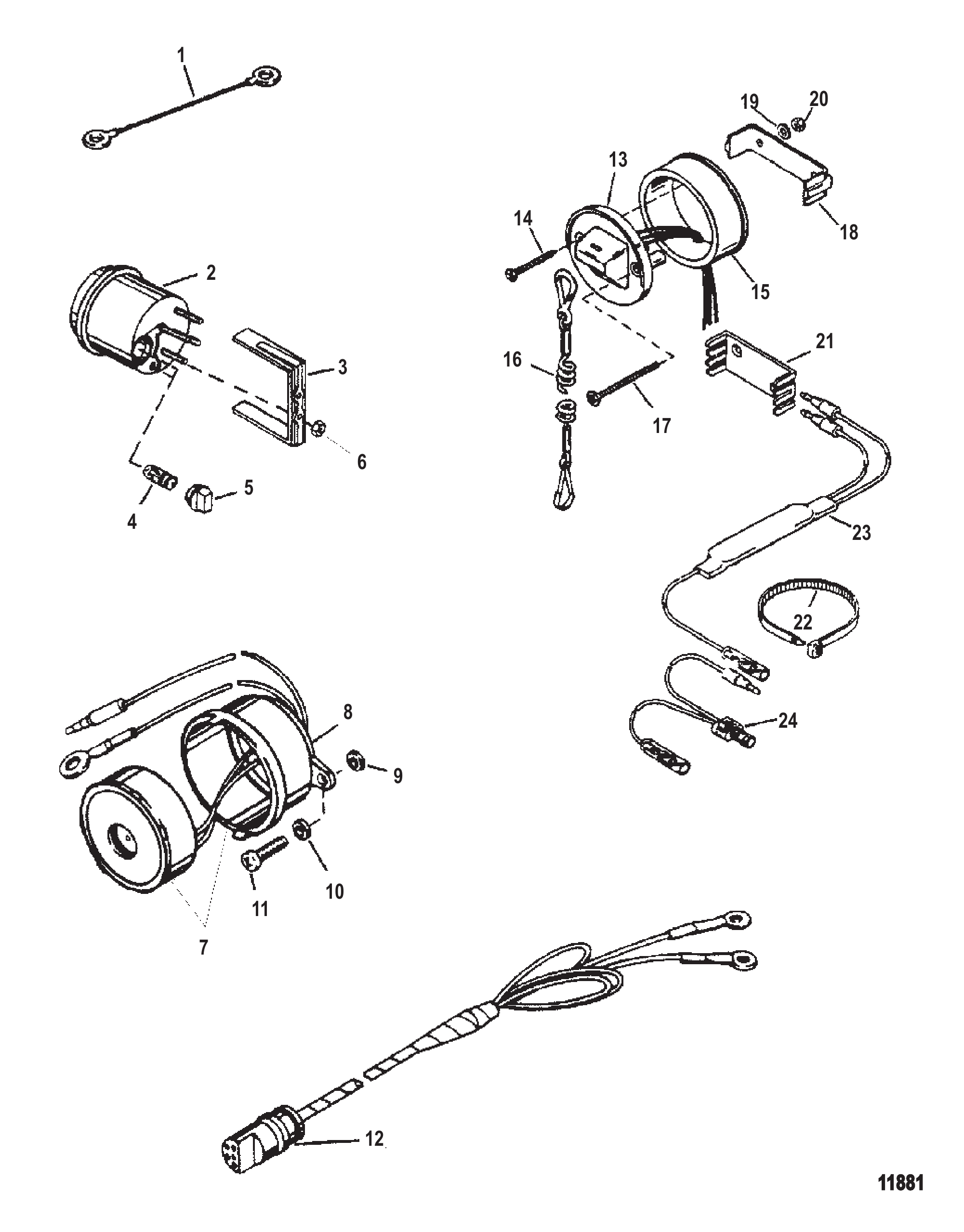

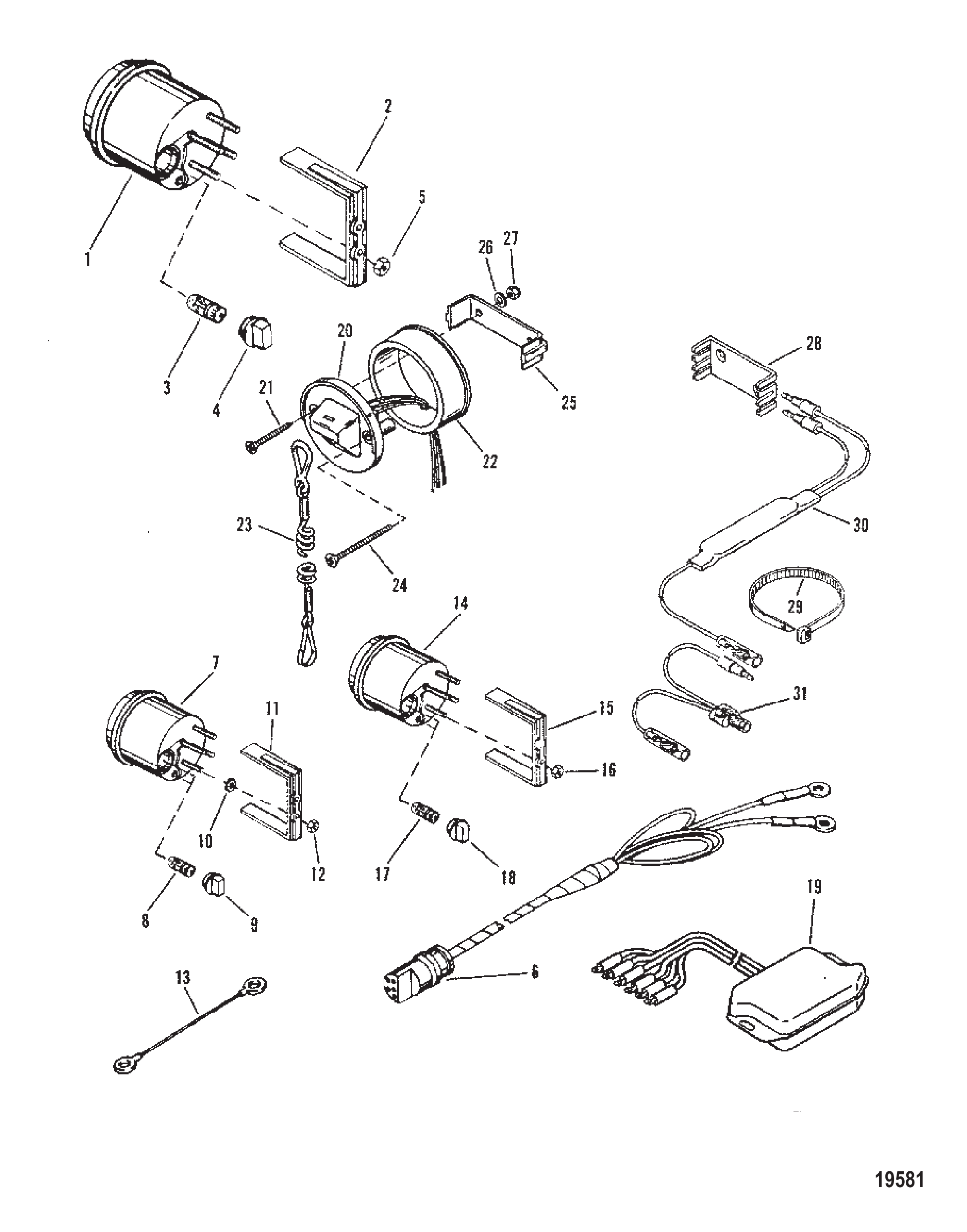

图 6仪表装置 Instrumentation

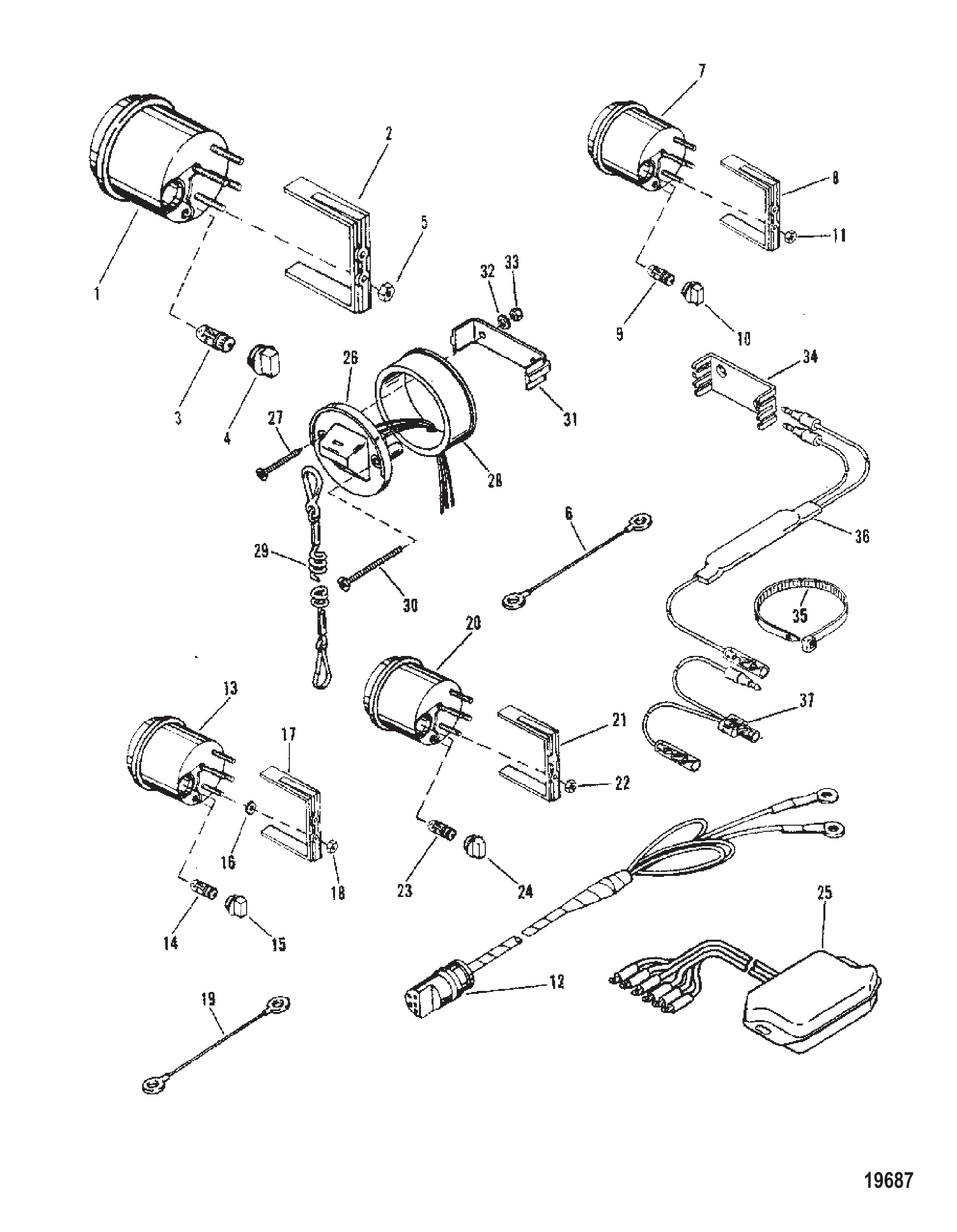

仪表装置 Instrumentation
REF零件编号中文名称英文名称数量
186322A7线缆总成(1.50英尺)黑色CABLE ASSEMBLY (1.50 Feet) Black1
186323A5线缆总成(1.50英尺)紫色CABLE ASSEMBLY (1.50 Feet) Purple1
2825338A3动力升降倾斜仪表 白面黑刻度黑边框GAUGE Power Trim, White Face, Black Graduation, Black Bezel1
2895292Q41动力升降倾斜指示器 黑面橙白刻度黑边框GAUGE Power Trim Indicator, Black Face, Orange/White Graduations, Black Bezel1
379480支架BRACKET1
472729楔形底座灯泡(14V - 1.9W)LIGHT BULB Wedge Base (14V - 1.9W)1
579888灯泡插座SOCKET Light Bulb1
626419黄铜螺母 (#8-32)NUT (#8-32) Brass5
768878A6蜂鸣报警器总成HORN ASSEMBLY Buzzer Alarm1
868879盖板COVER1
979697隔套SPACER2
98M0084588隔套SPACER2
1026427垫圈WASHER4
1135401螺钉(#10 x 1.00)SCREW (#10 x 1.00)2
1286396A8转速表线束总成(5.00英尺)HARNESS ASSEMBLY Tachometer (5.00 Feet)1
1319674A1拉绳开关总成SWITCH ASSEMBLY Lanyard1
1319674A07开关/拉绳套件SWITCH/LANYARD KIT1
1418303螺钉 (.190-16 x 1.750) 不锈钢SCREW (.190-16 x 1.750) Stainless Steel2
15813679适配器ADAPTER1
1615920Q54拉绳总成LANYARD ASSEMBLY1
1732866螺钉 (#10-32 x 2.00) 不锈钢SCREW (#10-32 x 2.00) Stainless Steel2
1818321安装夹CLAMP Mounting1
1924676垫圈 (.200 x .440 x .032)WASHER (.200 x .440 x .032)2
2068219螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel4
2179146固定座RETAINER3
22816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
23812497A2二极管总成DIODE ASSEMBLY1
23898289A72双拉绳二极管套件DIODE KIT-LANYARD Dual1
2411149A2线缆总成 (6.00英寸)CABLE ASSEMBLY (6.00 Inches)1
图 7附件 Accessories
附件 Accessories
REF零件编号中文名称英文名称数量
086306A01适配器ADAPTER1
0821400A2动力升降倾斜传感器套件SENDER KIT Power Trim1
08M0074845ORD 8M0098264ORD 8M00982641
092876A8转向安装套件ATTACHING KIT Steering1
092876A9双机延长套件EXTENSION KIT Dual Engine1
0883040A1转速表模块套件TACH MODULE KIT1
图 8钥匙开关总成 KEY SWITCH ASSEMBLY

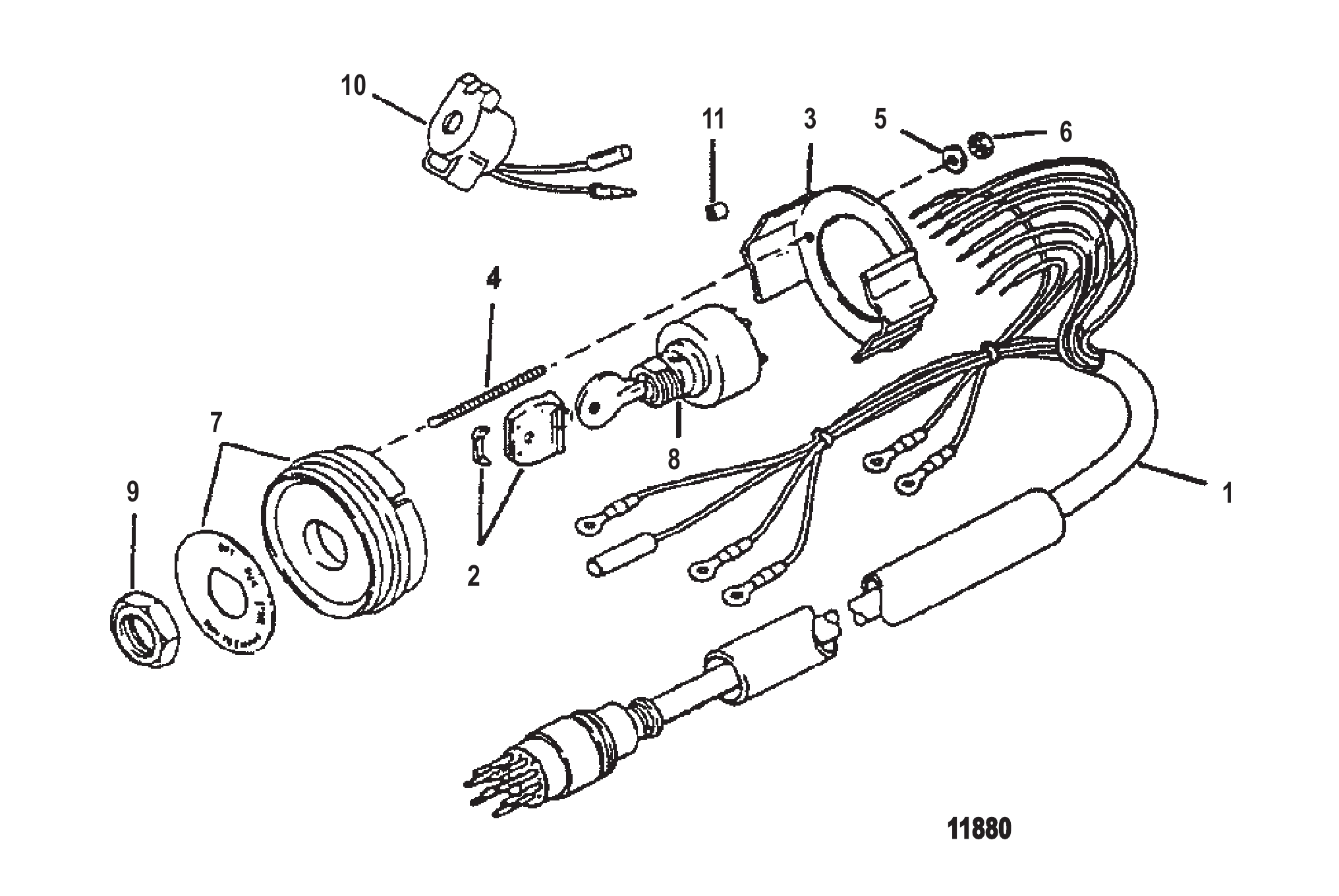

钥匙开关总成 KEY SWITCH ASSEMBLY
REF零件编号中文名称英文名称数量
1816626A20钥匙开关线束总成(20英尺)HARNESS ASSEMBLY Key Switch (20.00 Feet)1
290468A1钥匙盖总成COVER ASSEMBLY Key2
376424支架BRACKET1
455422双头螺柱 (#10-32 x 2.00)STUD (#10-32 x 2.00)2
524676垫圈 (.200 x .440 x .032)WASHER (.200 x .440 x .032)2
668219螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel2
7816479A3板组件套件PLATE KIT2
888107A5钥匙开关套件SWITCH KIT Key1
9879755特殊螺母-黑色尼龙NUT Special - Black Nylon1
10816492A1音响报警器总成ALARM ASSEMBLY Audio Warning1
108M0210763报警器ALARM1
118127111垫片(0.375)SPACER (.375)2
11812711隔套(0.250)SPACER (.250)2
-894911点火钥匙(1A)KEY Ignition (1A)1
-894912点火钥匙(1B)KEY Ignition (1B)1
-894913点火钥匙(1C)KEY Ignition (1C)1
-894914点火钥匙(1D)KEY Ignition (1D)1
-894915点火钥匙(1E)KEY Ignition (1E)1
-894916点火钥匙(1F)KEY Ignition (1F)1
-894917点火钥匙(2A)KEY Ignition (2A)1
-894918点火钥匙(2B)KEY Ignition (2B)1
-894919点火钥匙(2C)KEY Ignition (2C)1
-8949110点火钥匙(2D)KEY Ignition (2D)1
-8949111点火钥匙(2E)KEY Ignition (2E)1
-8949112点火钥匙(2F)KEY Ignition (2F)1

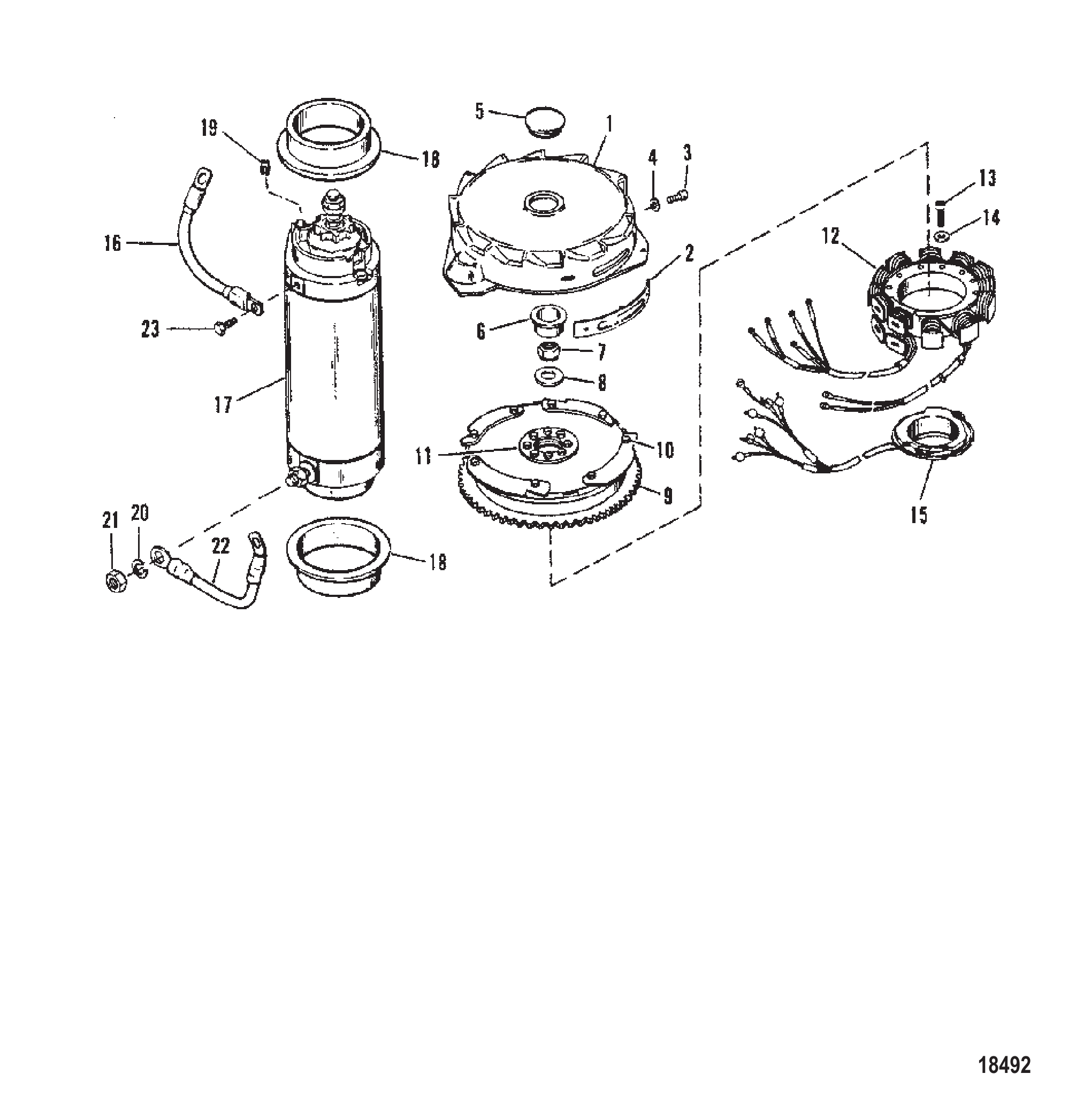

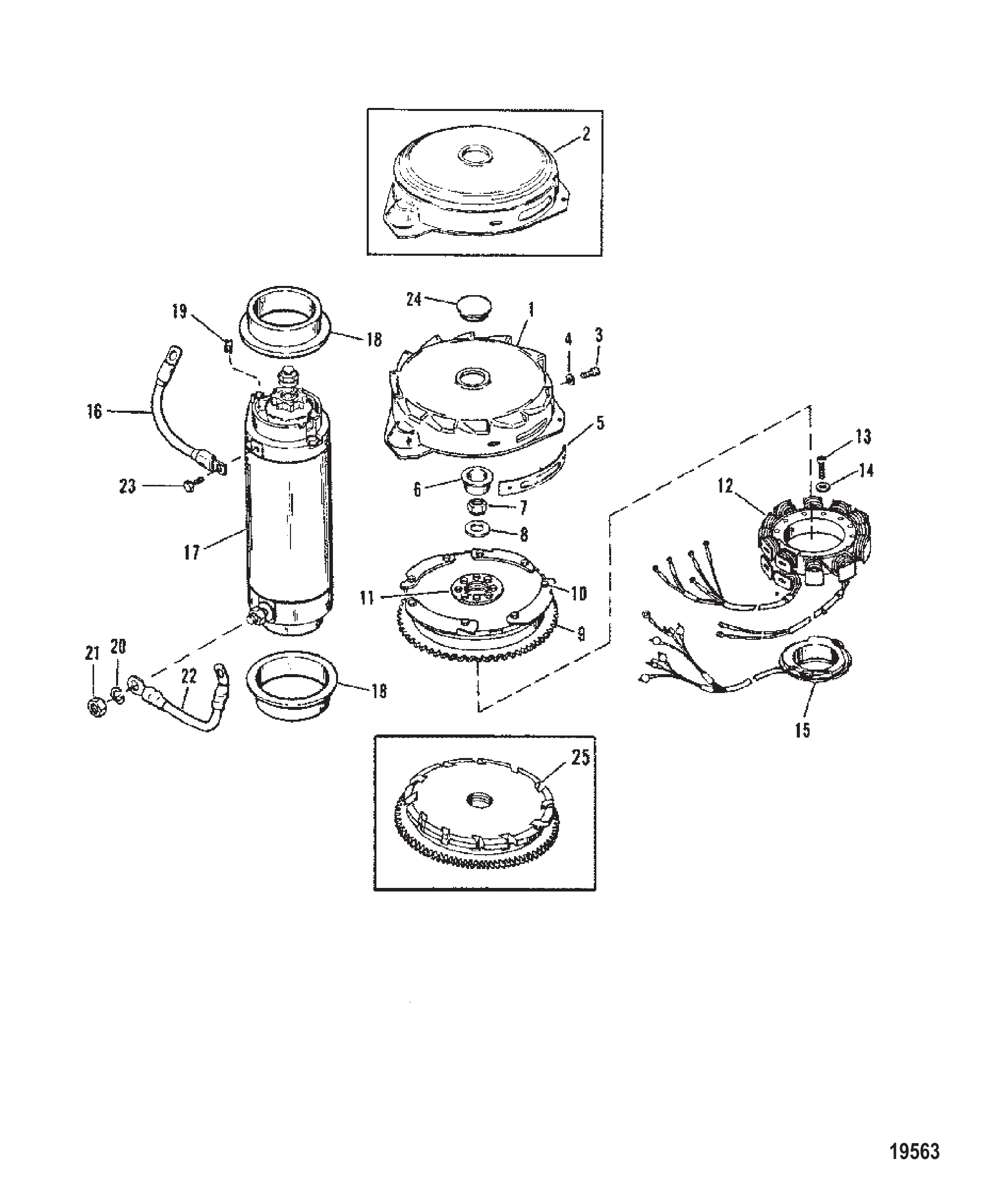

图 9飞轮与启动电机 Flywheel and Starter Motor

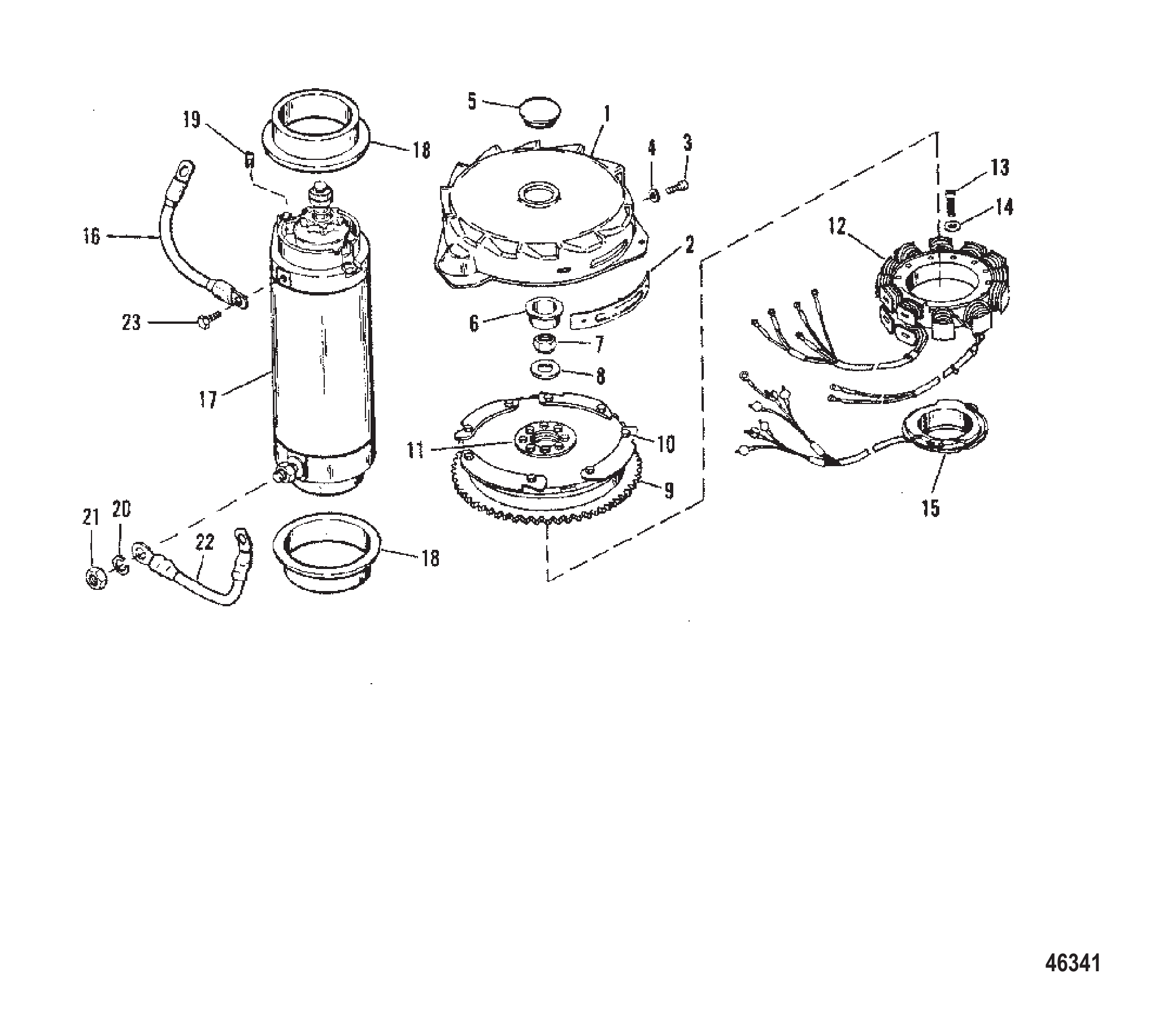

飞轮与启动电机 Flywheel and Starter Motor
REF零件编号中文名称英文名称数量
118896A1飞轮盖套件COVER KIT FLYWHEEL1
279022正时标记MARKER TIMING MARKER1
337572螺钉(0.190-32x0.380)正时标记SCREW (.190-32 x .380) TIMING MARKER2
472761垫圈(0.203x0.562x0.060)不锈钢正时标记螺钉WASHER (.203 x .562 x .060) Stainless Steel TIMING MARKER SCREW2
589219飞轮盖塞PLUG FLYWHEEL COVER1
589219001堵头PLUG1
645907飞轮黄色塞PLUG Yellow FLYWHEEL1
752901螺母(.625-18)飞轮NUT (.625-18) FLYWHEEL1
868229垫圈(0.641x1.250x0.190)飞轮WASHER (.641 x 1.250 x .190) FLYWHEEL1
833001垫圈WASHER1
99841A2飞轮FLYWHEEL1
9859238T16飞轮总成FLYWHEEL ASY1
1032417螺钉(.250-28 x .625)飞轮板SCREW (.250-28 x .625) FLYWHEEL PLATE1
1168997螺钉(.312-24 x .750)飞轮毂SCREW (.312-24 x .750) FLYWHEEL HUB8
129610A5定子STATOR8
1390045螺钉(#10-32 x 1.375)定子SCREW (#10-32 x 1.375) STATOR4
1426996锁紧垫圈(#10)不锈钢定子螺钉LOCKWASHER (#10) Stainless Steel STATOR SCREW4
1596455A9触发板总成PLATE ASSEMBLY Trigger1
1693388A1电缆总成(6.00英寸)黑色CABLE ASSEMBLY (6.00 Inches) Black1
1779472启动电机总成STARTER MOTOR ASSEMBLY1
17893893启动马达STARTER MOTOR1
1856703启动电机轴环COLLAR STARTER MOTOR2
188M0034918轴环COLLAR2
1968042启动电机橡胶止动块STOP Rubber RUBBER - STARTER MOTOR2
198M0043376停机开关STOP2
2026992锁紧垫圈(.250) 不锈钢 起动机接线端LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL1
2120890螺母(.250-20) 起动机接线端NUT (.250-20) STARTER MOTOR TERMINAL1
2293388A2黑色电缆总成CABLE ASSEMBLY Black (BLACK)1
2293388A14线缆总成(黄/黑)CABLE ASSEMBLY Yellow/Black1
2369035螺钉和锁紧垫圈 (.250-20 x .625) 不锈钢 电缆至启动马达SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel CABLE TO STARTER MOTOR1

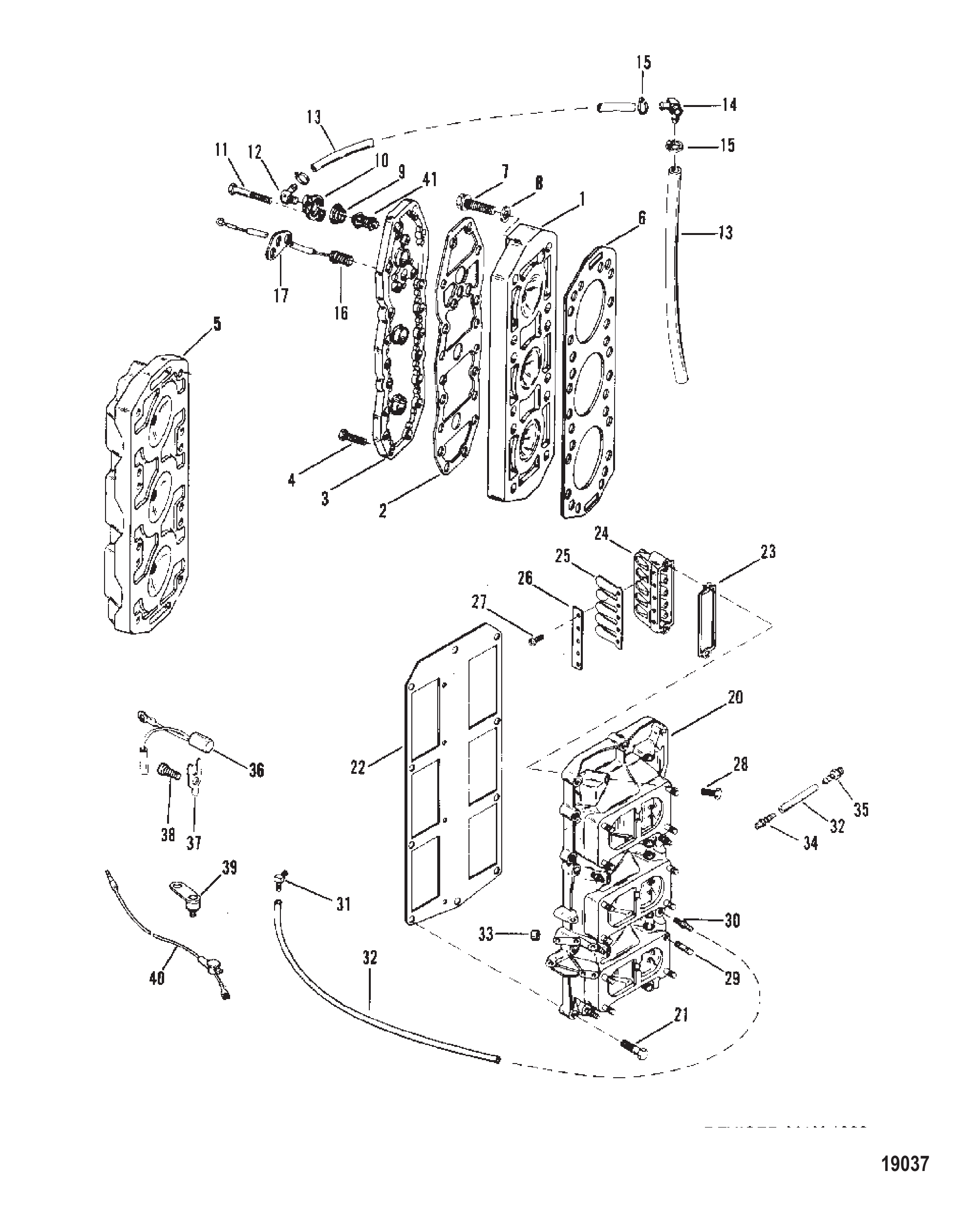

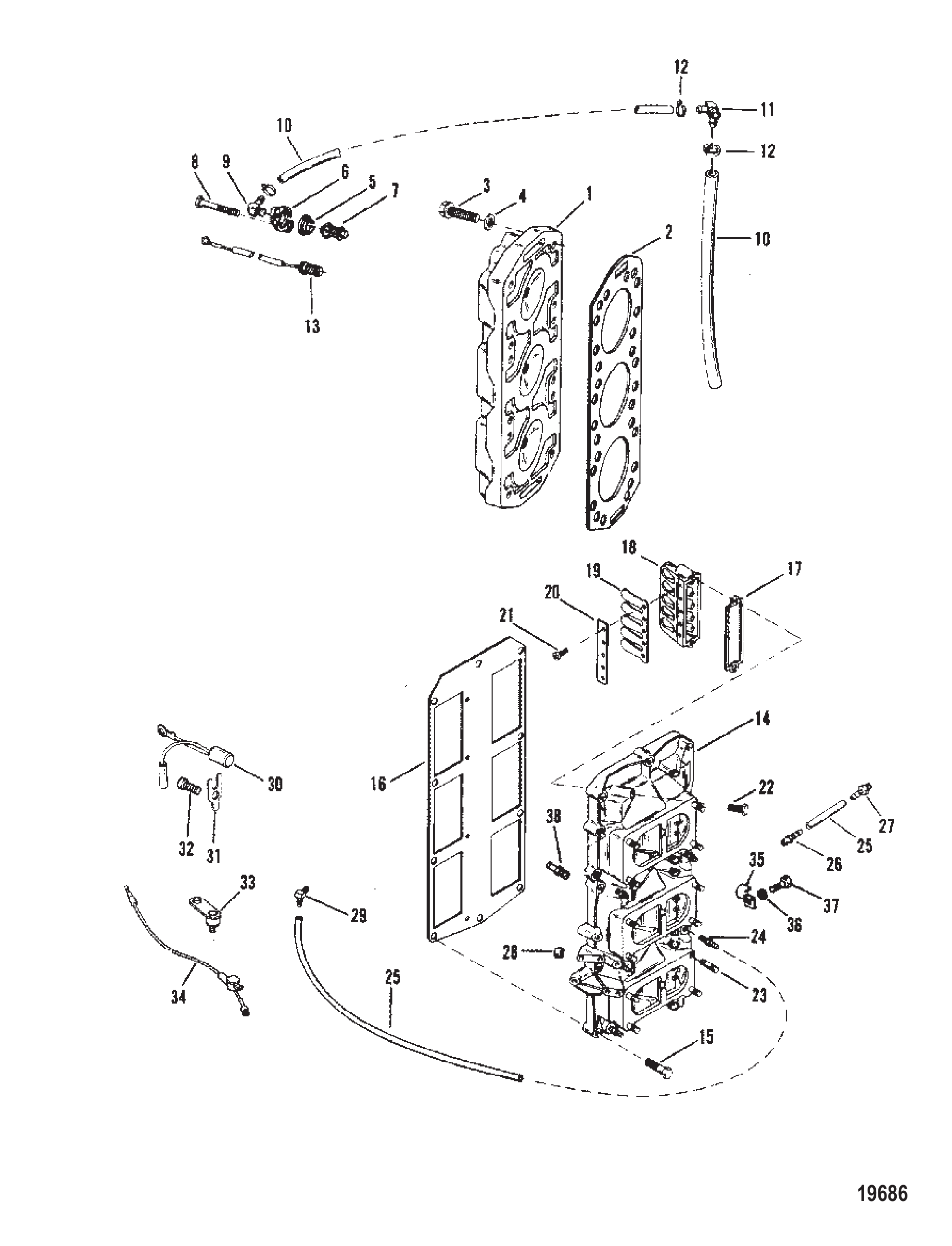

图 10簧片阀组与气缸盖 Reed Block and Cylinder Head
簧片阀组与气缸盖 Reed Block and Cylinder Head
REF零件编号中文名称英文名称数量
196423气缸盖（两件式设计）CYLINDER HEAD (2 PIECE DESIGN)2
296278气缸盖衬垫（两件式设计）GASKET CYLINDER COVER - (2 PIECE DESIGN)2
396283T气缸盖（两件式设计）COVER CYLINDER - (2 PIECE DESIGN)2
396283盖板COVER2
474824气缸盖螺钉 (.312-18 x 1.250)（两件式设计）SCREW (.312-18 x 1.250) CYLINDER COVER - (2 PIECE DESIGN)40
5184191气缸盖（一件式设计）CYLINDER HEAD (1 PIECE DESIGN)2
518419F1气缸盖CYLINDER HEAD2
696542气缸盖衬垫GASKET CYLINDER HEAD2
696281T01衬垫GASKET2
798534气缸盖螺钉 (.375-16 x 2.30)SCREW (.375-16 x 2.30) CYLINDER HEAD24
825909气缸盖螺钉垫圈 (.406 x .812 x .065)WASHER (.406 x .812 x .065) CYLINDER HEAD SCREW24
962386衬垫GASKET2
98M0204714衬垫@4GASKET @42
1090390A1节温器盖套件COVER KIT THERMOSTAT2
1177065节温器盖螺钉 (.312-18 x 2)SCREW (.312-18 x 2) THERMOSTAT COVER2
11815549螺钉(.312-18 x 2.00)SCREW (.312-18 x 2.00)2
1135386节温器盖螺钉 (.312-18 x 1.00)SCREW (.312-18 x 1.00) THERMOSTAT COVER2
126872790度黄铜弯头接头 (.250-18)（水管用）FITTING (.250-18) 90 Degree - Brass ELBOW - WATER HOSES1
1268727190度弯头 (.250-18) - 黄铜FITTING (.250-18) 90 Degree - Brass1
137765377配水软管（散装24.500英寸）HOSE (24.500 Inches Bulk) WATER DISTRIBUTION2
1377653101软管（散装48.00英寸）HOSE (48.00 Inches Bulk)2
1468728节温器盖至水管接头FITTING THE THERMOSTAT COVER TO WATER HOSES1
1573498水管卡箍CLAMP WATER HOSES4
15816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)4
1697465温度传感器（右舷）SENDER Temperature (STARBOARD)1
1796282温度传感器盖COVER TEMPERATURE SENDER1
2099747A2簧片阀壳体HOUSING REED BLOCK1
2099747A9簧片阀壳体HOUSING REED BLOCK1
2124878簧片阀壳体螺钉 (.250-20 x 1.25)SCREW (.250-20 x 1.25) REED BLOCK HOUSING1
2169093簧片阀壳体螺钉 (.250-20 x 1.50)SCREW (.250-20 x 1.50) REED BLOCK HOUSING8
2169067簧片阀壳体螺钉 (.250-20 x 1.375)SCREW (.250-20 x 1.375) REED BLOCK HOUSING1
2293536簧片阀壳体衬垫GASKET REED BLOCK HOUSING1
22935361衬垫GASKET1
2365744簧片阀衬垫GASKET REED BLOCK6
23657443衬垫GASKET6
2475953簧片阀组REED BLOCK6
2575362A1簧片组件REED ASSEMBLY6
2696183簧片夹CLAMP Reed12
26961832簧片夹CLAMP Reed12
2757583簧片至簧片阀螺钉 (#8-32 x .375)SCREW (#8-32 x .375) REEDS TO REED BLOCK60
2757583T螺丝#8-32×3/8SCREW #8-32x3/860
2865746簧片阀固定螺钉 (.250-20 x .750)SCREW (.250-20 x .750) REED BLOCK ATTACHING12
2927037化油器安装螺柱 (.250-28 x 1.125)STUD (.250-28 x 1.125) CARBURETOR MOUNTING12
29270372双头螺栓(.250-28×1.125)STUD (.250-28 x 1.125)12
3042658簧片阀壳体泄油软管止回阀CHECK VALVE BLEED HOSE TO REED BLOCK HOUSING5
30426585止回阀CHECK VALVE5
3115133气缸体泄油软管接头（90度）FITTING BLEED HOSE TO CYLINDER BLOCK (90 DEGREES)5
3299130122泄油管路（散装20.00英尺）TUBING (20.00 Feet Bulk) BLEED LINE1
32892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
3342657A1止回阀CHECK VALVE1
3342657A3止回阀CHECK VALVE1
3465857泄油软管连接器（压入式）CONNECTOR BLEED HOSE (PRESS-IN)1
3456759倒钩接头FITTING Barbed1
3564871A2止回阀CHECK VALVE1
3613536A7温度传感器总成SENSOR ASSEMBLY Temperature1
3713715固定座RETAINER2
37137151固定座RETAINER2
3898257螺钉 (.312-18 x .500)SCREW (.312-18 x .500)2
39187531温度传感器（OYSTER）SENDER Temperature (OYSTER)1
4088824A8温度传感器线束总成（OYSTER）CABLE ASSEMBLY TEMPERATURE SENDER - (OYSTER)1
4175692节温器THERMOSTAT2
-90484A88衬垫套件GASKET SET

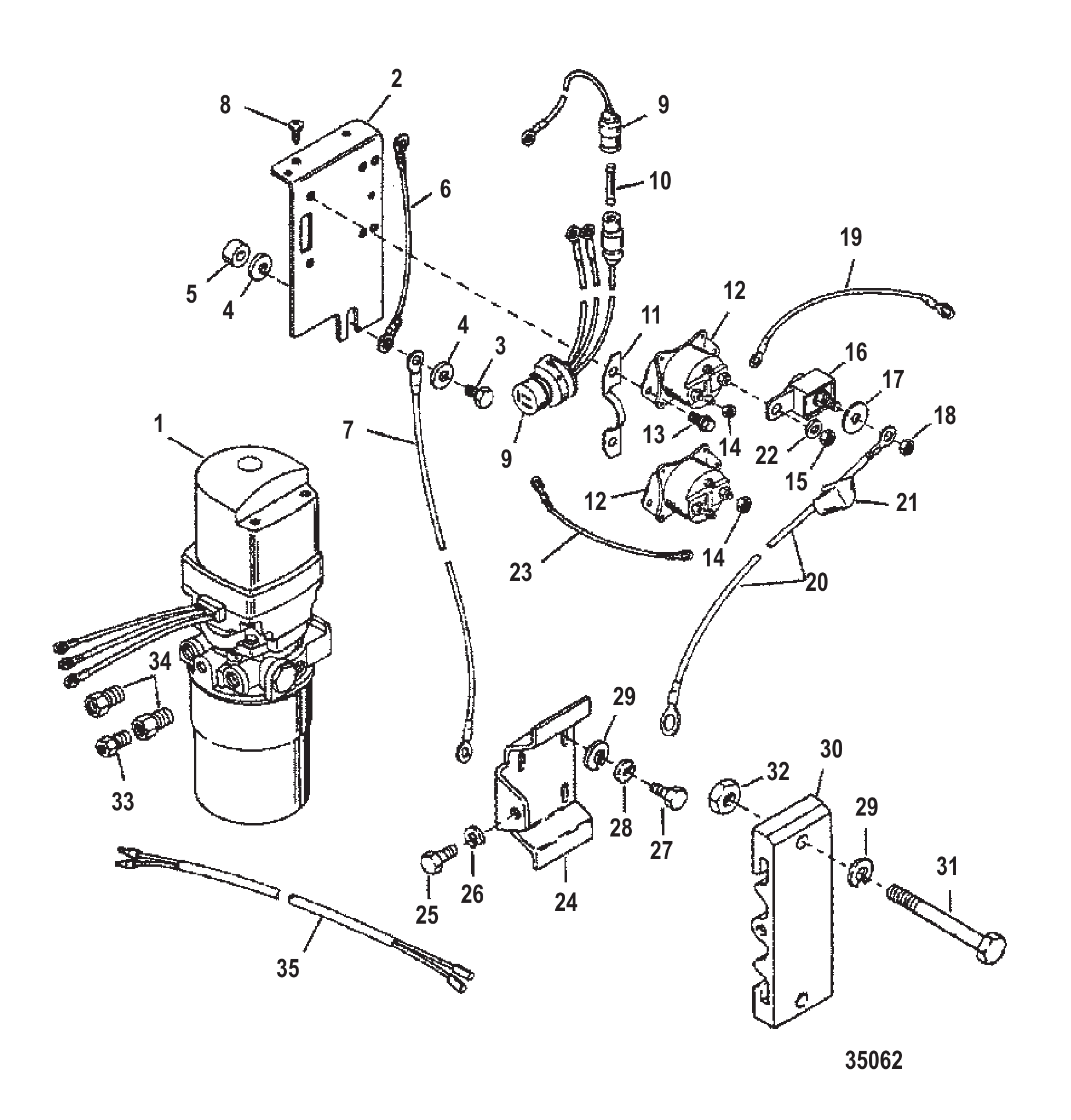

图 11液压泵和安装支架 Hydraulic Pump and Mounting Brackets
液压泵和安装支架 Hydraulic Pump and Mounting Brackets
REF零件编号中文名称英文名称数量
-846859A4液压泵总成(完整)PUMP ASSEMBLY Hydraulic (COMPLETE)1
1818161A4液压泵总成PUMP ASSEMBLY Hydraulic1
18M0051203配平泵总成PUMP ASSY-TRIM1
2818567支架BRACKET1
338837螺钉(.312-18×1.12)SCREW (.312-18 x 1.12)1
457792垫圈WASHER2
534948隔套SPACER1
665999A12接地线总成CABLE ASSEMBLY Ground1
779138A9电缆总成(6英尺)黑色-负极CABLE ASSEMBLY (6.00 Feet) Black-Negative1
892051螺钉（10-16 x 0.75）SCREW (10-16 x .75)2
979147A5线束总成HARNESS ASSEMBLY1
1079091保险丝20安培FUSE 20 Ampere1
108M0207796保险丝20安培FUSE 20 AMP1
1188075固定座RETAINER1
12853654A1电磁阀SOLENOID2
1341508螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel4
1420110螺母 (#10-32)NUT (#10-32)4
1526484螺母(.312-18)NUT (.312-18)4
158M0204646螺母(.312-18)NUT (.312-18)4
1679023A10保险丝总成110安培FUSE ASSEMBLY 110 Ampere1
1679023T10保险丝总成110安培FUSE ASSEMBLY 110 Ampere1
1796457酚醛垫圈(.27×.81×.062)WASHER Phenolic (.27 x .81 x .062)1
1821825螺母(.250-28)NUT (.250-28)1
1965999A11拉线总成CABLE ASSEMBLY1
2079139A12电缆总成红色-正极CABLE ASSEMBLY Red-Positive1
2146265护套BOOT4
2222753垫圈WASHER4
2379139A26电缆总成(红色)CABLE ASSEMBLY Red1
2487760安装板PLATE1
2487760T安装板MOUNTING PLATE1
2539349螺钉(.312-18×0.75)不锈钢SCREW (.312-18 x .750) Stainless Steel1
2626993锁紧垫圈 (.312)LOCKWASHER (.312)1
268M0204647锁紧垫圈 (.312)LOCKWASHER (.312)1
2790271螺钉(.375-16×0.62)SCREW (.375-16 x .62)2
2858643锁紧垫圈 (.375)LOCKWASHER (.375)2
2945175垫圈(.406 x .750 x .104)WASHER (.406 x .750 x .104)4
298M0214963垫圈WASHER4
3087762支架BRACKET1
3163826螺钉(.375-16 x 2.50)SCREW (.375-16 x 2.50)2
3268411螺母（.375-16）NUT (.375-16)2
3282670912螺母(.375-16)不锈钢NUT (.375-16) Stainless Steel2
33818200接头FITTING1
3477366接头FITTING2
3565017A14线束总成HARNESS ASSEMBLY1

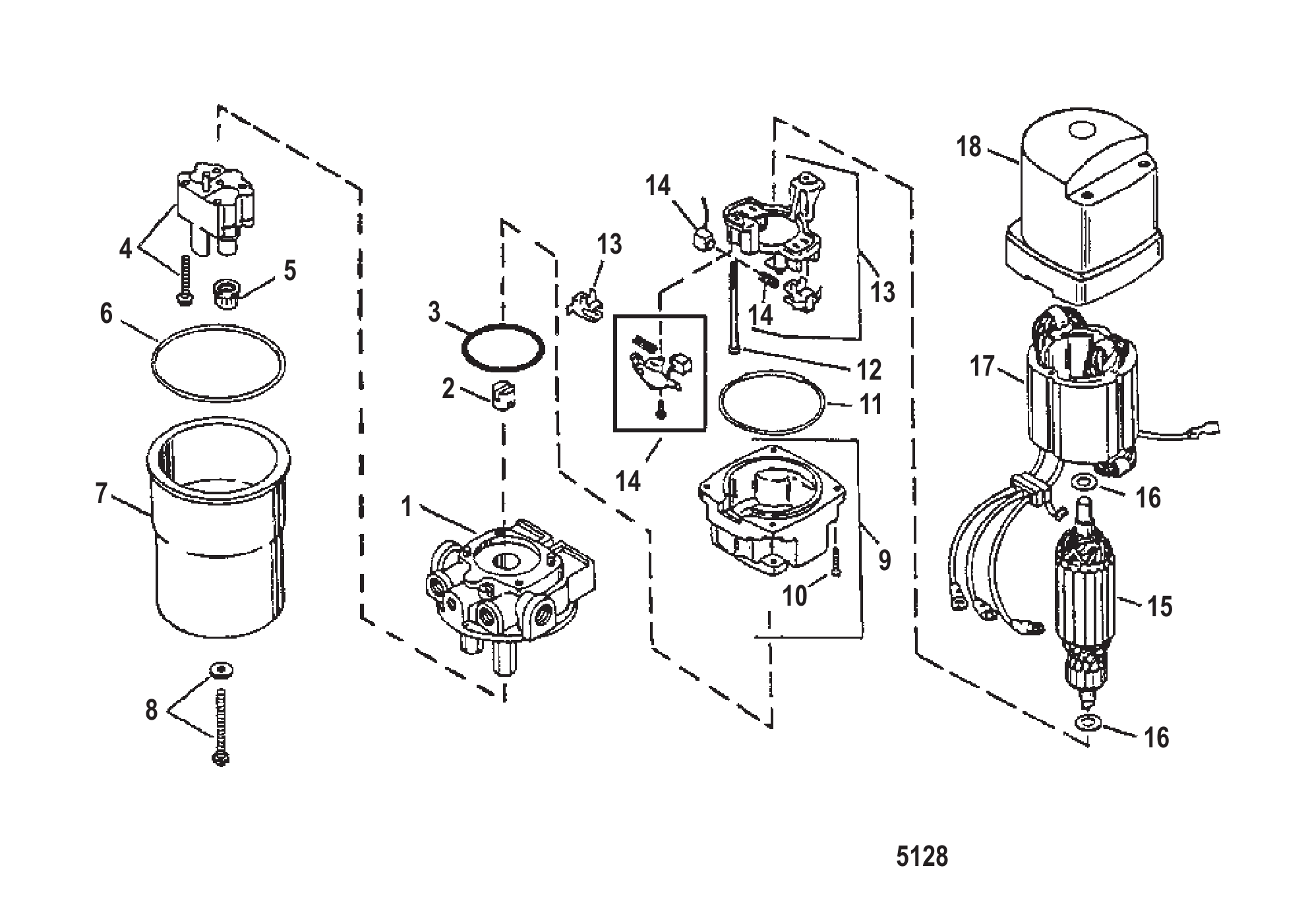

图 12液压泵总成 Hydraulic Pump Assembly
液压泵总成 Hydraulic Pump Assembly
REF零件编号中文名称英文名称数量
-818161A4液压泵总成PUMP ASSEMBLY Hydraulic1
1811491适配器ADAPTER1
18M0084543适配器ADAPTER1
289493联轴器COUPLING1
2803852联轴器COUPLING1
389498O型圈O-RING1
4811492水泵(含螺钉)PUMP (INCLUDES SCREWS)1
4811492T泵总成PUMP ASSEMBLY1
589496滤清器FILTER2
689497O型圈O-RING1
741219储液罐RESERVOIR1
741219T储液罐RESERVOIR1
8811493螺钉套件SCREW KIT1
-17649马达MOTOR1
-891736T电机总成MOTOR ASSEMBLY1
917632端盖总成END CAP ASSEMBLY1
917632T端盖总成END CAP ASSEMBLY1
1017626螺钉SCREW4
10891736T电机总成MOTOR ASSEMBLY4
1117625O型圈O-RING1
11891736T电机总成MOTOR ASSEMBLY1
1217621螺钉SCREW2
12891736T电机总成MOTOR ASSEMBLY2
1317633支架套件HOLDER KIT1
13891736T电机总成MOTOR ASSEMBLY1
1417631A1电刷套件BRUSH KIT1
14891736T电机总成MOTOR ASSEMBLY1
1517623电枢ARMATURE1
15891736T电机总成MOTOR ASSEMBLY1
1617653垫圈WASHER2
16891736T电机总成MOTOR ASSEMBLY2
1717624磁场框架总成FIELD AND FRAME ASSEMBLY1
17891736T电机总成MOTOR ASSEMBLY1
1817622盖总成COVER ASSEMBLY1
18891736T电机总成MOTOR ASSEMBLY1
-812498A1安全阀套件VALVE KIT Relief1
图 13专用工具 TOOLS SPECIAL
专用工具 TOOLS SPECIAL
REF零件编号中文名称英文名称数量
-815366A3电池隔离器套件ISOLATOR KIT Battery1
-58222A1百分表工具DIAL INDICATOR TOOL1
-89045适配器ADAPTER1
-890451直流电压适配工具ADAPTER TOOL Direct Voltage1
-52344飞轮固定器工具(齿型)FLYWHEEL HOLDER TOOL Teeth Type1
-73687A2飞轮拉拔器套件PULLER KIT Flywheel1
-849154T1拉拔器总成PULLER ASSEMBLY1
-99750A1万用表MULTI METER1
-24161飞轮拉拔器盖工具CAP TOOL Flywheel Puller1
-52024A1开关总成SWITCH ASSEMBLY1
-59339维修用转速表SERVICE TACHOMETER1
-892647A01DMT万用表套件MULTI-METER KIT DMT1
-850439T1八腔测试仪TESTER Eight Chamber1
-63998A1单腔间隙工具GAP TOOL Single Chamber1
-850439火花测试器SPARK TESTER1
-850439T1八腔测试仪TESTER Eight Chamber1
-14443A1测试线束总成HARNESS ASSEMBLY Test1
-99379正时灯TIMING LIGHT1
-29287量规工具GAUGE TOOL1
-55919驱动头DRIVER HEAD1
-52344飞轮固定器工具(齿型)FLYWHEEL HOLDER TOOL Teeth Type1
-73687A2飞轮拉拔器套件PULLER KIT Flywheel1
-849154T1拉拔器总成PULLER ASSEMBLY1
-90455吊环LIFTING EYE1
-904551吊环LIFTING EYE1
-77109A3安装工具套件INSTALLER KIT1
-52952A1活塞销锁环拆卸工具REMOVAL TOOL Piston Pin Lock Ring1
-52952T1活塞销锁环拆卸工具REMOVAL TOOL Piston Pin Lock Ring1
-74607A3活塞销安装套件INSTALLER KIT Piston Pin1
-65494环压缩工具(2.0升)COMPRESSOR TOOL Ring (2.0L)1
-65494T环压缩工具COMPRESSOR TOOL Ring1
-818773活塞环压缩工具(2.5升)COMPRESSOR TOOL Piston Ring (2.5L)1
-818773T活塞环压缩工具(3.50)COMPRESSOR TOOL Piston Ring (3.50)1
-24697活塞环扩张工具EXPANDER TOOL Piston Ring1
-30591A1动力头支架工具STAND TOOL Powerhead1
-30591T1支架工具STAND TOOL1
-24161飞轮拉拔器盖工具CAP TOOL Flywheel Puller1
-66274扭矩扳手(0-150磅英寸)TORQUE WRENCH (0-150 lb-in)1
-37241通用拉拔板PULLER PLATE Universal1
-112301对正工具ALIGNMENT TOOL1
-99750A1万用表MULTI METER1
-52915A6测试仪表套件TEST GAUGE KIT1
-74951扳手SPANNER WRENCH1
-63209加热灯HEAT LAMP1
-44487A1调整杆导向器拆卸工具REMOVER TOOL Trim Rod Guide1
-44487T1调整杆导向器拆卸工具REMOVER TOOL Trim Rod Guide1
-44486A1调整杆拆卸工具REMOVAL TOOL Trim Rod1

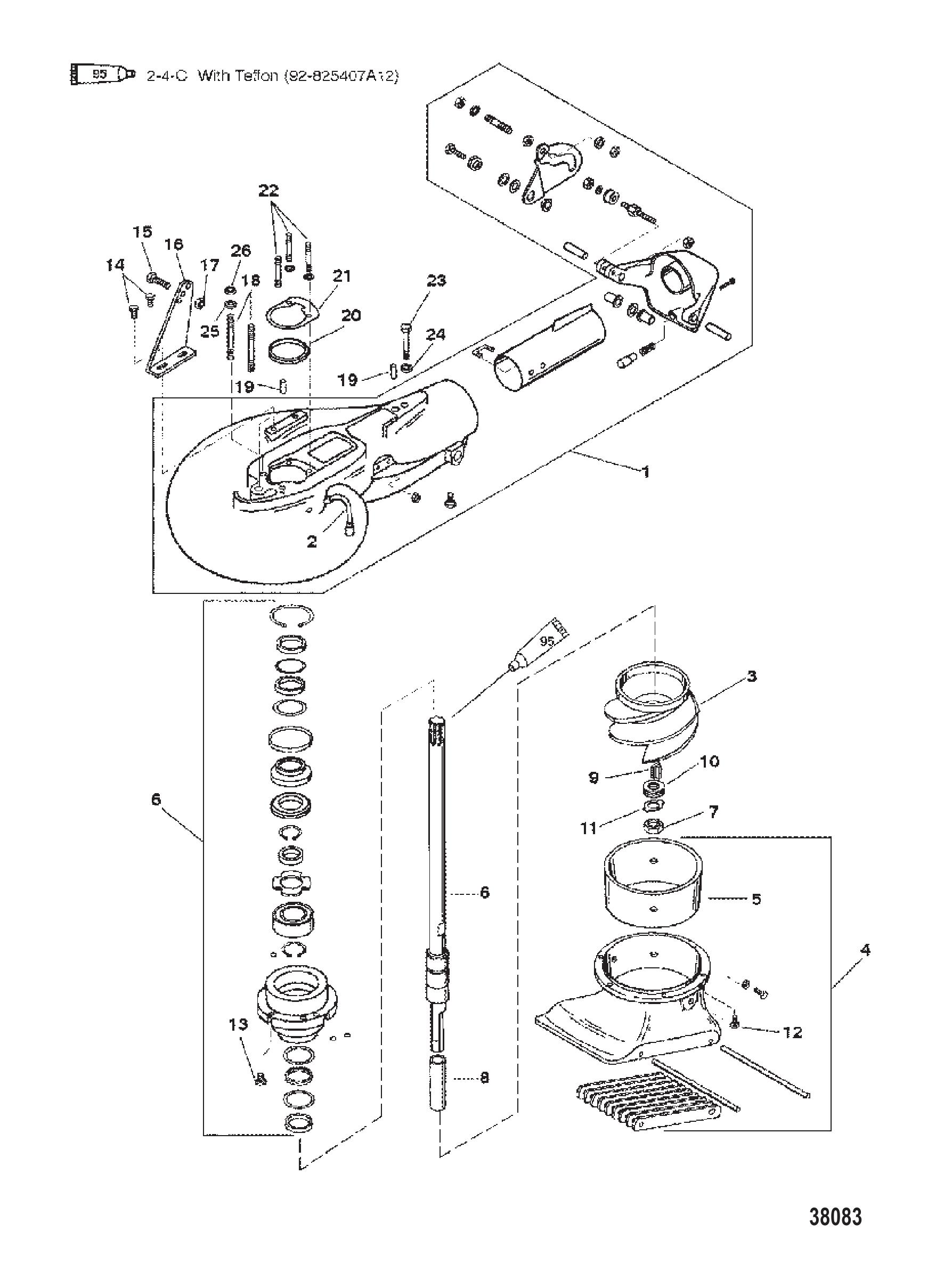

图 14喷泵总成 JET PUMP ASSEMBLY
喷泵总成 JET PUMP ASSEMBLY
REF零件编号中文名称英文名称数量
-80140040喷泵总成JET PUMP ASSEMBLY1
-80140140喷泵总成JET PUMP ASSEMBLY1
180141140泵壳HOUSING Pump1
2827490润滑油管HOSE Lube1
380141440叶轮IMPELLER1
3855708T40叶轮IMPELLER1
480141240进气壳体HOUSING Intake1
58271881衬套LINER1
5827188T1衬套LINER1
680141340驱动轴DRIVESHAFT1
7827190螺母NUT1
8827189套筒SLEEVE1
9801405625叶轮键KEY Impeller1
10801404625叶轮垫片SHIM Impeller8
11801403625锁紧垫圈TAB WASHER1
1290192螺钉(.250-20 x .750)不锈钢SCREW (.250-20 x .750) Stainless Steel6
1319923088螺钉(.250-20 x .875)SCREW (.250-20 x .875)4
1419923062螺钉(.250-20 x .625)SCREW (.250-20 x .625)2
1560411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)1
16801410电缆支架BRACKET Cable Support1
1767980螺母(.312-18)NUT (.312-18)1
1782670910不锈钢螺母(.312-18)NUT (.312-18) Stainless Steel1
18808718螺柱STUD2
19801406定位销PIN Dowel2
20801418水泵支撑环RING SUPPORT Water Pump1
21801408水泵底座衬垫GASKET Water Pump Base1
2233778螺柱 (1/4 x 2-5/8英寸)STUD (1/4 X 2-5/8 IN.)3
2368299不锈钢螺钉(.375-16 x 3.00)SCREW (.375-16 x 3.00) Stainless Steel1
2445175垫圈(.406 x .750 x .104)WASHER (.406 x .750 x .104)1
248M0214963垫圈WASHER1
2565791垫圈WASHER2
2634933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
268M0204653螺母NUT2
图 15排气歧管与排气板 Exhaust Manifold And Exhaust Plate
排气歧管与排气板 Exhaust Manifold And Exhaust Plate
REF零件编号中文名称英文名称数量
190484分隔板衬垫GASKET DIVIDER PLATE2
287321分隔板PLATE DIVIDER1
287321T安装板PLATE1
369668分隔板密封件SEAL DIVIDER PLATE1
3814754密封件(12.50英寸)SEAL (12.50 Inches)1
495067排气歧管盖COVER EXHAUST MANIFOLD1
574824螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)21
665663A1泄压阀盖(旧设计)COVER RELIEF VALVE - (OLD DESIGN)1
68M0237835罩盖总成COVER ASSY1
738837螺钉(.312-18 x 1.12)盖至气缸体(旧设计)SCREW (.312-18 x 1.12) COVER TO CYLINDER BLOCK (OLD DESIGN)2
888907泄压阀板衬垫(旧设计)GASKET RELIEF VALVE PLATE - (OLD DESIGN)2
888907003衬垫GASKET2
965664A1泄压阀板总成(旧设计)PLATE ASSEMBLY RELIEF VALVE - (OLD DESIGN)1
1064877隔膜(旧设计)DIAPHRAGM (OLD DESIGN)1
10648771隔膜DIAPHRAGM1
1176451隔膜螺钉垫圈(旧设计)WASHER DIAPHRAGM SCREW - (OLD DESIGN)1
1269570螺钉(#10-16 x .750)隔膜至板(旧设计)SCREW (#10-16 x .750) DIAPHRAGM TO PLATE (- (OLD DESIGN)1
1364878弹簧(黑色)提升阀压缩(旧设计)SPRING (Black) COMPRESSION POPPET VALVE - (OLD DESIGN)1
1486596提升阀(旧设计)POPPET VALVE VALVE - (OLD DESIGN)1
1564872提升阀衬套(旧设计)GROMMET POPPET VALVE - (OLD DESIGN)1
1665848提升阀座(旧设计)CARRIER POPPET VALVE - (OLD DESIGN)1
1714462A1泄压阀盖(新设计)COVER RELIEF VALVE - (NEW DESIGN)1
1874824螺钉(.312-18 x 1.250)盖至气缸体(新设计)SCREW (.312-18 x 1.250) COVER TO CYLINDER BLOCK (NEW DESIGN)4
1916497A1泄压阀板(新设计)PLATE RELIEF VALVE - (NEW DESIGN)1
2078690泄压阀板衬垫(新设计)GASKET RELIEF VALVE PLATE - (NEW DESIGN)2
2078690002衬垫GASKET2
2114479隔膜(新设计)DIAPHRAGM (NEW DESIGN)1
21144791隔膜DIAPHRAGM1
2216496导水板(新设计)DEFLECTOR Water (NEW DESIGN)1
2376451隔膜螺钉垫圈(新设计)WASHER DIAPHRAGM SCREW - (NEW DESIGN)1
2469570螺钉(#10-16 x .750)隔膜至板(新设计)SCREW (#10-16 x .750) DIAPHRAGM TO PLATE (NEW DESIGN)1
2564878弹簧(黑色)提升阀压缩(新设计)SPRING (Black) COMPRESSION POPPET VALVE - (NEW DESIGN)1
2614480提升阀(新设计)POPPET VALVE - (NEW DESIGN)1
2764872提升阀衬套(新设计)GROMMET POPPET VALVE - (NEW DESIGN)1
2865848提升阀座(新设计)CARRIER POPPET VALVE - (NEW DESIGN)1
2985303提升阀弹簧垫圈(新设计)WASHER POPPET SPRING - (NEW DESIGN)1
3043029A2排气板总成(黑灰)PLATE ASSEMBLY EXHAUST (BLACK & GRAY)1
3043029A5隔板总成PLATE ASSEMBLY1
3043029A4排气板总成(牡蛎色)PLATE ASSEMBLY EXHAUST (OYSTER)1
3043029A5隔板总成PLATE ASSEMBLY1
3199664排气板弯头ELBOW EXHAUST PLATE1
3199664290度弯头接头(0.125-27x0.250)尼龙FITTING Elbow 90 Degree (.125-27 x .250) Nylon1
3220033排气板定位销PIN Dowel LOCATING - EXHAUST PLATE2
3243044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
33707482排气板密封件(黑灰)SEAL EXHAUST PLATE (BLACK & GRAY)1
3468010密封件固定支架(黑灰)BRACKET SEAL RETAINING (BLACK & GRAY)1
34680101支架BRACKET1
3548408螺钉(#10-16 x .500)支架至排气板(黑灰)SCREW (#10-16 x .500) BRACKET TO EXHAUST PLATE (BLACK & GRAY)8
3625970动力头螺柱垫圈WASHER POWERHEAD STUD6
3620553垫圈(.406 x .734 x .063)WASHER (.406 x .734 x .063)6
3769254动力头螺柱螺母NUT POWERHEAD STUD6
3827132排气板衬套BUSHING EXHAUST PLATE1
3966727螺钉(.312-18 x 1.250)排气板固定SCREW (.312-18 x 1.250) EXHAUST PLATE ATTACHING1
4068783螺钉(.312-18 x 2.50)排气板固定SCREW (.312-18 x 2.50) EXHAUST PLATE ATTACHING1
4166725螺钉(.375-16 x 3.50)排气板固定SCREW (.375-16 x 3.50) EXHAUST PLATE ATTACHING3
41898833螺钉(.375-16 x 3.500)SCREW (.375-16 x 3.500)3
4212602排气板衬套GROMMET EXHAUST PLATE1
4212602002护孔环GROMMET1
4318103罩壳安装板(牡蛎色)PLATE COWL MOUNTING (OYSTER)1
43181032安装板PLATE1
4493221衬套(牡蛎色)GROMMET (OYSTER)1
4493221002护孔环GROMMET1
4528636螺钉(.250-20 x .750)(牡蛎色)SCREW (.250-20 x .750) (OYSTER)13
4629245垫圈(.281 x .500 x .060)不锈钢(牡蛎色)WASHER (.281 x .500 x .060) Stainless Steel (OYSTER)13
468M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel13
4756374螺母(.250-20)(牡蛎色)NUT (.250-20) (OYSTER)13
478267098螺母 (.250-20) 不锈钢NUT (.250-20) Stainless Steel13
4899776排气板衬垫(2件装/牡蛎色)GASKET EXHAUST PLATE (QTY. OF 2 W/OYSTER)1
48997761衬垫GASKET1
-90484A88衬垫套件GASKET SET1
-803062T1提升阀套件POPPET VALVE KIT1

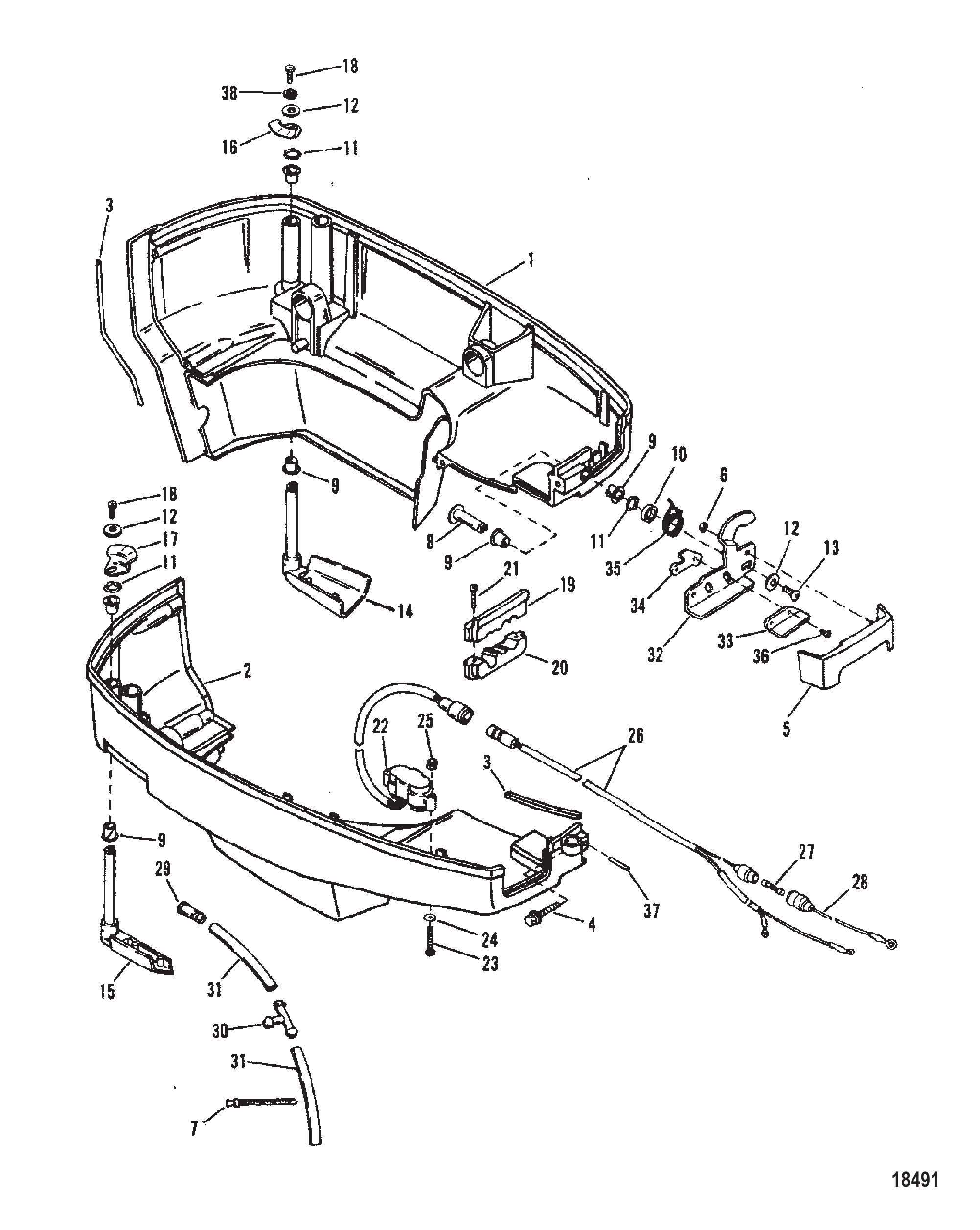

图 16下机罩 BOTTOM COWL
下机罩 BOTTOM COWL
REF零件编号中文名称英文名称数量
1878587A1下罩总成BOTTOM COWL ASSEMBLY1
2858743A2下罩总成BOTTOM COWL ASSEMBLY1
28M0113913右舷下罩BCOWL-LOWER STBD B1
38253181罩盖密封条(41英寸)SEAL Cowl (41.00 Inches)2
38M0109217罩盖密封条SEAL-COWL2
4878547T嵌件INSERT1
582130040螺钉(M6 x 40)SCREW (M6 x 40)8
6831209固定座RETAINER1
7858742怠速排气套BOOT Idle Exhaust1
8859251护孔环GROMMET1
88M0039078护孔环GROMMET1
9827948接头FITTING1
10855576垫圈WASHER1
11816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)6
12830756109软管(57英寸整卷)(裁切至5英寸长度)HOSE (57.00 Inches Bulk) (Cut To 5.00 Inch Length)1
128M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
13881535软管(32.00英寸)HOSE (32.00 Inches)1
149912688管材(36.00英寸散装)(26.00英寸)TUBING (36.00 Inches Bulk) (26.00 Inch)1
15817518三通TEE1
1682130020螺钉 (M6 x 20)SCREW (M6 x 20)2
178587411护孔环GROMMET1
17889724护孔环GROMMET1
18856990开关总成SWITCH ASSEMBLY1
188M0235192微调开关SWITCH TRIM1
19824868螺钉(M6×75)SCREW (M6 x 75)1
20821253F1前手柄黑色FRONT HANDLE Black1
20889740A02手柄套件HANDLE KIT1
2133589衬套BUSHING2
2248462O型圈 (.614 x .070)O-RING (.614 x .070)1
238219423棘爪PAWL1
2469057垫片(.281 x .734 x .063)WASHER (.281 x .734 x .063)1
25401366螺母(M6)不锈钢NUT (M6) Stainless Steel1
2613541公插头PLUG Male2

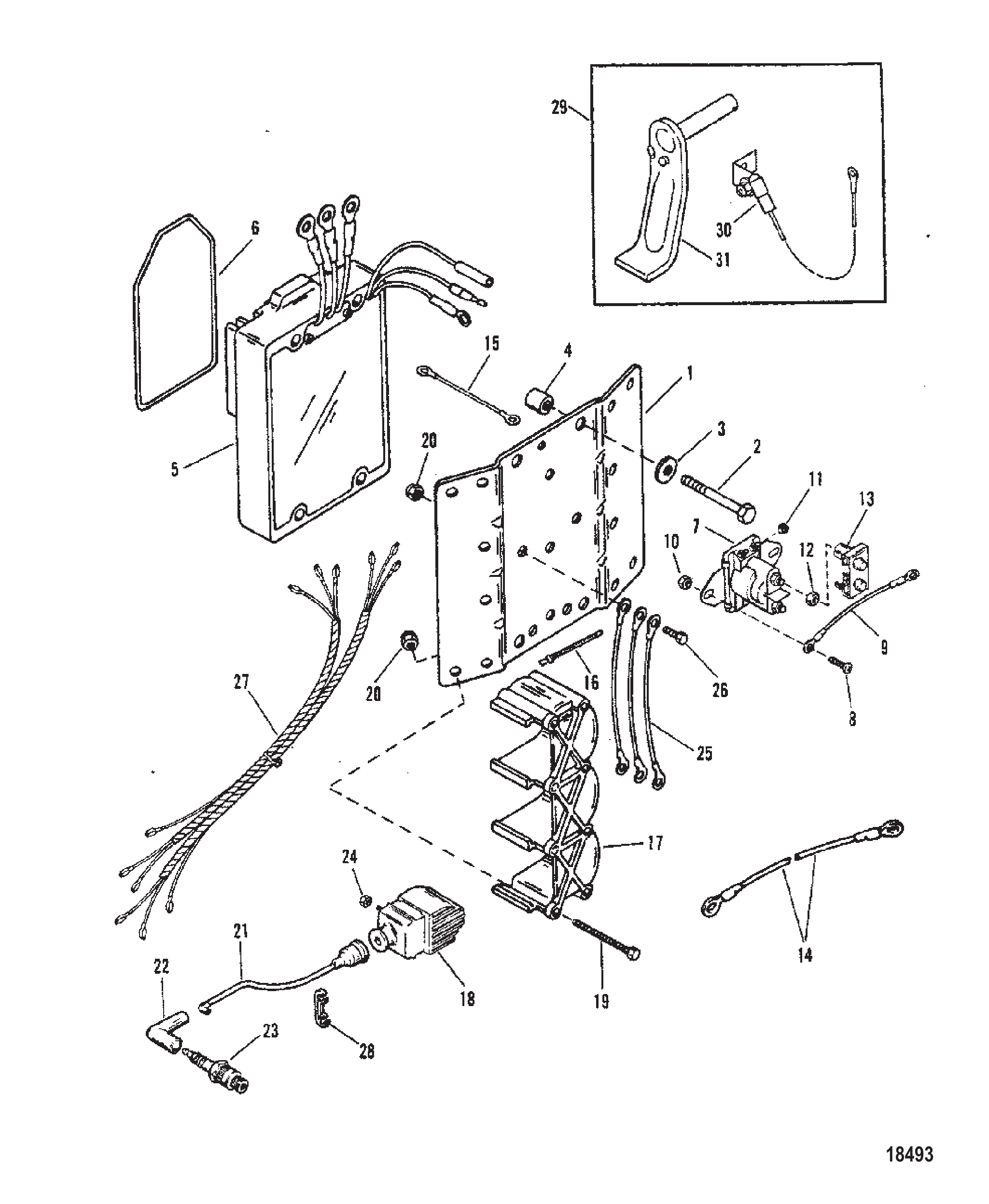

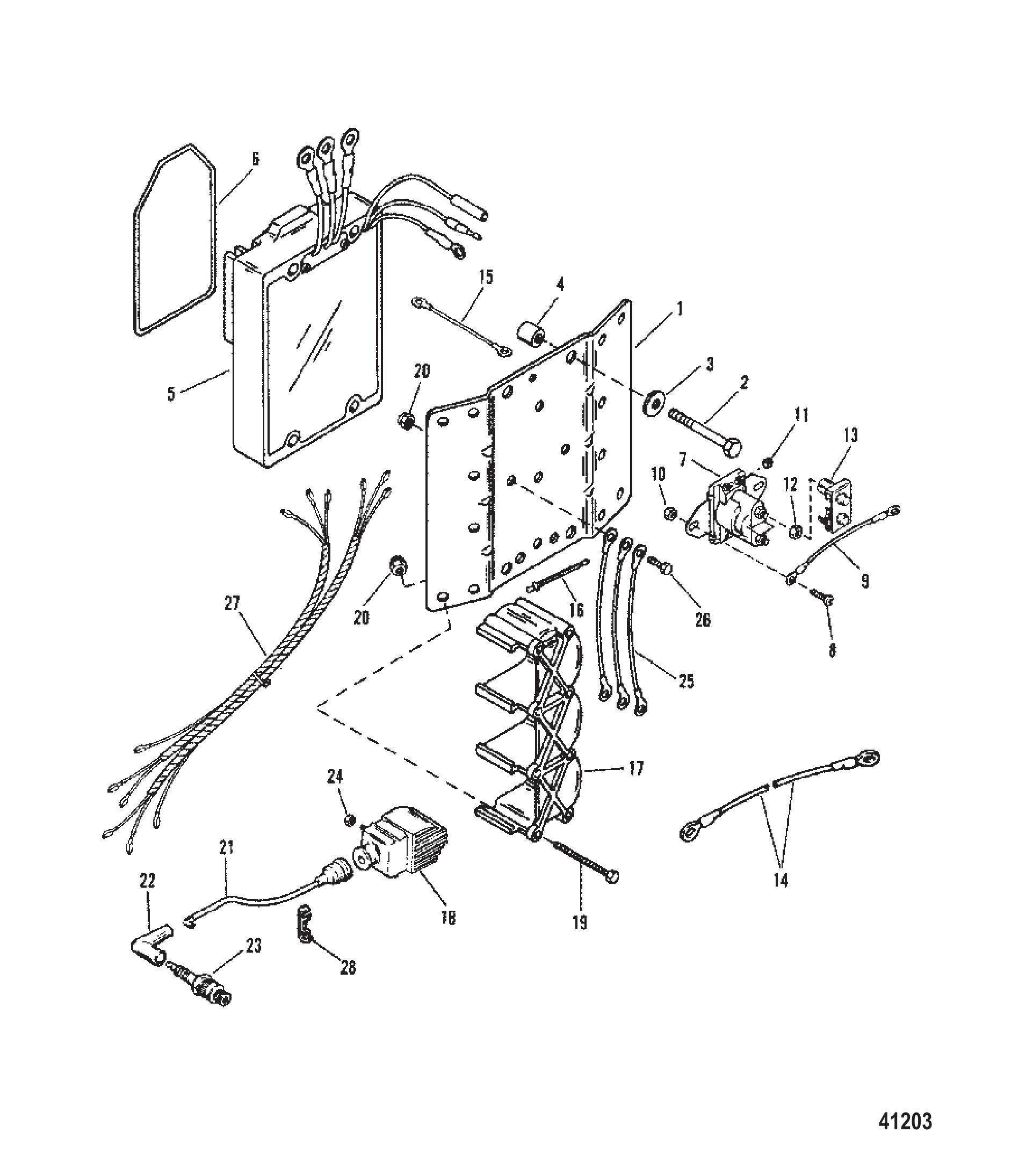

图 17点火线圈/电压调节器 IGNITION COIL/VOLTAGE REGULATOR
点火线圈/电压调节器 IGNITION COIL/VOLTAGE REGULATOR
REF零件编号中文名称英文名称数量
119587安装板PLATE MOUNTING1
230720电压调节器螺钉(.250-20 x 2.25)SCREW (.250-20 x 2.25) VOLTAGE REGULATOR4
326992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel4
419661衬套BUSHING4
518736A8电压调节器总成REGULATOR ASSEMBLY Voltage1
518736A21调节器总成REGULATOR ASSY1
618717密封件SEAL1
796158启动电磁阀SOLENOID Starter2
78M0185622电磁阀SOLENOID2
828635启动电磁阀不锈钢螺钉(.250-20 x .620)SCREW (.250-20 x .620) Stainless Steel STARTER SOLENOID3
988807A6黑色电缆总成 (3.50 英寸)CABLE ASSEMBLY (3.50 Inches) Black1
1056374电磁阀螺钉螺母(.250-20)NUT (.250-20) SOLENOID SCREW3
108267098螺母 (.250-20) 不锈钢NUT (.250-20) Stainless Steel3
1126419螺母(#8-32)-黄铜电磁阀端子NUT (#8-32) Brass SOLENOID TERMINAL4
1294330螺母 (.250-20) 黄铜电磁阀端子NUT (.250-20) Brass SOLENOID TERMINAL4
1397861绝缘体-启动电磁阀INSULATOR STARTER SOLENOID2
1488807A8黑色电缆总成 (3.50 英寸)CABLE ASSEMBLY (3.50 Inches) Black2
1588807A29电缆总成(9英寸-黑色)CABLE ASSEMBLY (9" - BLACK)1
1690077扎带TIE STRAPAR
16816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
1743542点火线圈盖COVER IGNITION COIL2
187370A13点火线圈总成COIL ASSEMBLY Ignition6
188M0230859点火线圈总成COIL IGNITION ASY6
1990048点火线圈盖螺钉(#10-32 x 2.125)SCREW (#10-32 x 2.125) IGNITION COIL COVER12
2090078盖板螺钉/接地线螺母(#10-32)NUT (#10-32) COVER SCREW/GROUND WIRE14
21813715A9高压点火线束套件CABLE KIT Ignition HIGH TENSION1
2263709A1高压电缆护套/端子套件BOOT/TERMINAL KIT HIGH TENSION CABLE6
23136862火花塞SPARK PLUG6
2313686QNGK BU8H @10NGK BU8H @106
2445076螺母(#10-32)黄铜点火线圈端子NUT (#10-32) Brass IGNITION COIL TERMINAL12
2588807A13拉线总成CABLE ASSEMBLY6
2669022SCREW (#10-32 x .500) Stainless Steel GROUNDING WIRE2
2769738A9线圈至开关盒线束总成HARNESS ASSEMBLY COIL TO SWITCH BOX1
2769739A6线圈至开关盒线束总成HARNESS ASSEMBLY COIL TO SWITCH BOX1
2854676双线固定夹RETAINER Two Wire2
图 18泄压系统 BLEED SYSTEM
泄压系统 BLEED SYSTEM
REF零件编号中文名称英文名称数量

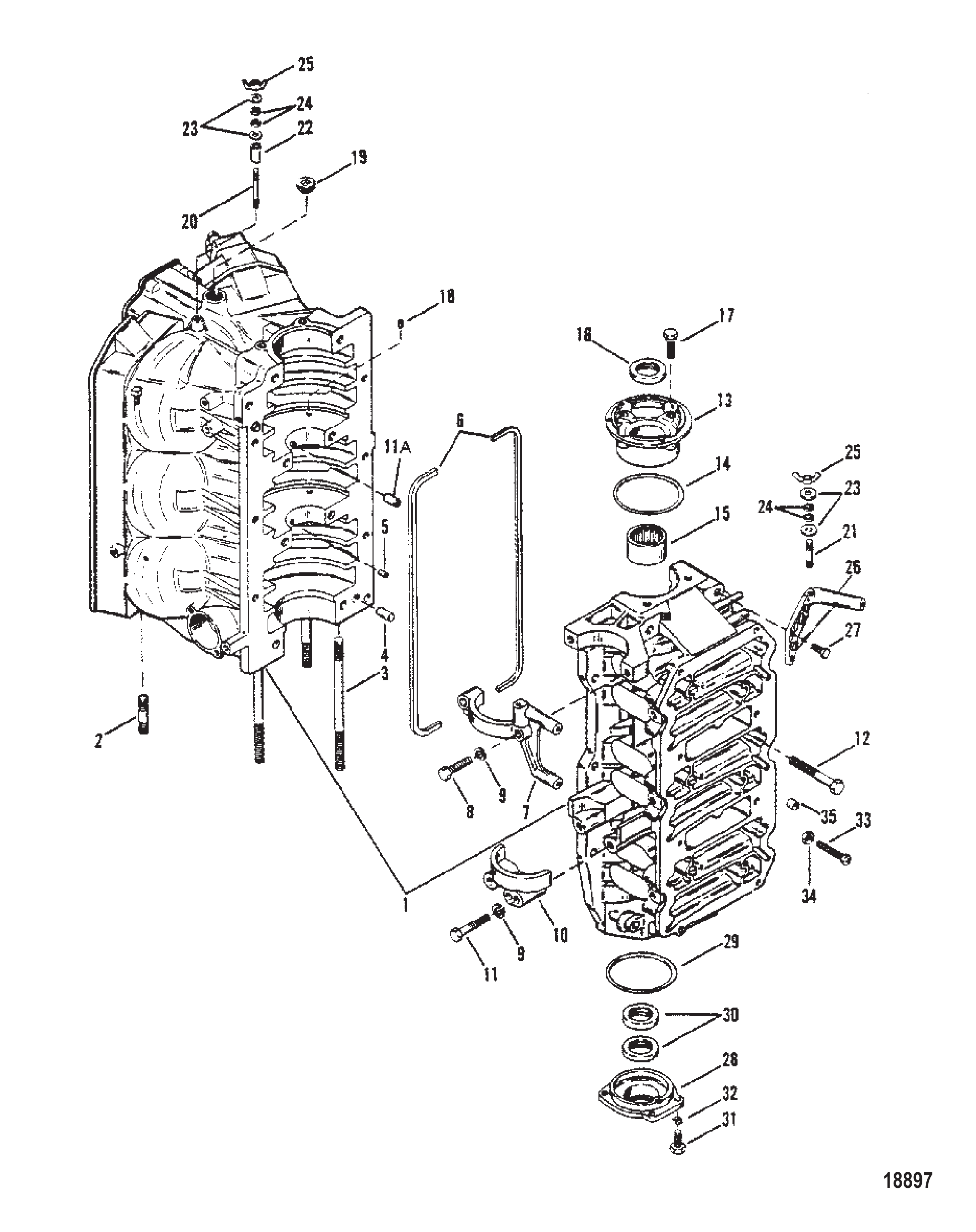

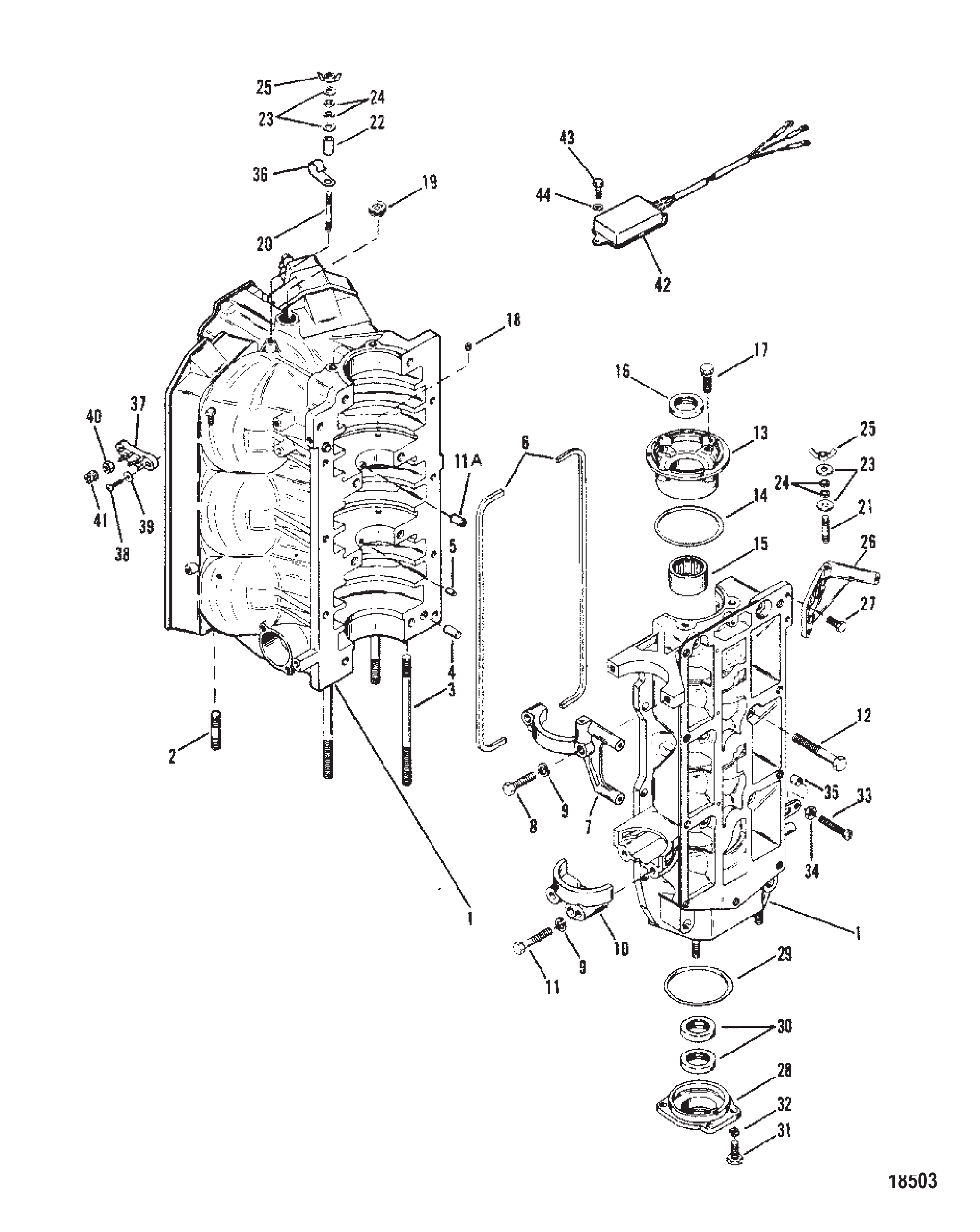

图 19气缸体与端盖 Cylinder Block And End Caps
气缸体与端盖 Cylinder Block And End Caps
REF零件编号中文名称英文名称数量
18711A19气缸体CYLINDER BLOCK1
276175动力头螺柱(1-7/8英寸)STUD POWERHEAD (1-7/8")6
367065动力头螺柱(5-1/2英寸)STUD POWERHEAD (5-1/2")2
3670654螺柱(.375-16/.375-24 x 5.620)STUD (.375-16/.375-24 x 5.620)2
378438动力头螺柱(6-3/4英寸)STUD POWERHEAD (6-3/4")2
38M0034454螺柱(.375-16/.375-24 x 6.87)STUD (.375-16/.375-24 x 6.87)2
420033定位销PIN Dowel LOCATING2
443044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
567296气缸体销(轴承座圈)PIN CYLINDER BLOCK (BEARING RACE)2
58M0036405销PIN2
611338密封垫片GASKET SEALING2
742249启动马达上盖COVER STARTER MOTOR (UPPER)1
78M0088723启动器支架BRACKET-STARTER1
873657盖至曲轴箱螺钉(.312-18 x 1.50)SCREW (.312-18 x 1.50) COVER TO CRANKCASE2
926993启动马达盖螺钉锁紧垫圈(0.312)LOCKWASHER (.312) STARTER MOTOR COVER SCREW4
98M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
1076867启动电机盖(下部)COVER STARTER MOTOR (LOWER)1
1177065盖至曲轴箱螺钉(.312-18 x 2)SCREW (.312-18 x 2) COVER TO CRANKCASE2
11815549螺钉(.312-18 x 2.00)SCREW (.312-18 x 2.00)2
11A99448衬套BUSHING1
1266717曲轴箱至气缸体螺钉(.375-16 x 3.250)SCREW (.375-16 x 3.250) CRANKCASE TO CYLINDER BLOCK8
1274824曲轴箱至气缸体螺丝(.312-18 x 1.250)SCREW (.312-18 x 1.250) CRANKCASE TO CYLINDER BLOCK6
138454A1上端盖总成END CAP ASSEMBLY UPPER1
138454T1端盖总成END CAP ASSY1
1454029端盖O型圈(2.800 x .103)O-RING (2.800 x .103) END CAP1
1574248BEARING Roller END CAP (1.50 I.D.)1
1574248T轴承BEARING1
1641953端盖密封件SEAL END CAP1
138454A2上端盖总成END CAP ASSEMBLY UPPER1
138454T2端盖总成END CAP ASSY1
1454029端盖O型圈(2.800 x .103)O-RING (2.800 x .103) END CAP1
1593496BEARING Roller END CAP (1.37 I.D.)1
1593496T轴承BEARING1
1641953端盖密封件SEAL END CAP1
1769034上端盖至气缸体螺钉及锁紧垫圈(.312-18 x 1.00)SCREW AND LOCKWASHER (.312-18 x 1.00) UPPER END CAP TO CYLINDER BLOCK4
1730225螺钉带锁紧垫圈(.312-18 x 1.00)SCREW WITH LOCKWASHER (.312-18 x 1.00)4
1824220气缸体定位螺钉(.190-24 x .190)SCREW (.190-24 x .190) SET - CYLINDER BLOCK2
1938407气缸体水套螺塞(.500-14)PLUG (.500-14) CYLINDER BLOCK (WATER JACKET)1
2015094飞轮盖至气缸体双头螺柱(.190-32 x 1.870)STUD (.190-32 x 1.870) FLYWHEEL COVER TO CYLINDER BLOCK1
2115093飞轮盖至支架双头螺柱(#10-32 x 1.00)STUD (#10-32 x 1.00) FLYWHEEL COVER TO BRACKET2
218M0034435螺柱STUD2
2267269飞轮盖螺柱隔套SPACER FLYWHEEL COVER STUD1
23492211飞轮盖螺柱垫圈WASHER FLYWHEEL COVER STUD6
238M0204663垫片@5WASHER @56
2472761飞轮盖螺柱不锈钢垫圈(.203 x .562 x .060)WASHER (.203 x .562 x .060) Stainless Steel FLYWHEEL COVER STUD6
2573651飞轮盖螺柱螺母NUT FLYWHEEL COVER STUD3
25816874蝶形螺母 (#10-32)WING NUT (#10-32)3
2642248飞轮罩支架BRACKET FLYWHEEL COVER1
26422482支架BRACKET1
2749668支架至曲轴箱螺钉(.250-20 x .750)SCREW (.250-20 x .750) BRACKET TO CRANKCASE2
287809A1下端盖总成END CAP ASSEMBLY LOWER1
287809T1端盖总成END CAP ASSEMBLY1
2962700端盖O型圈(3.237 x .103)O-RING (3.237 x .103) END CAP1
3041953端盖密封件SEAL END CAP2
3128636下端盖至气缸体螺钉(.250-20 x .750)SCREW (.250-20 x .750) LOWER END CAP TP CYLINDER BLOCK4
3226992下端盖螺钉不锈钢锁紧垫圈(.250)LOCKWASHER (.250) Stainless Steel LOWER END CAP SCREW4
3364022气缸体调节螺钉(.250-20 x 2.125)SCREW (.250-20 x 2.125) SDJUSTING - CYLINDER BLOCK1
3464015锁紧螺母(.250-20)-调节螺钉NUT (.250-20) JAM - ADJUSTING SCREW1
3526852调节螺钉尼龙帽CAP Nylon NYLON - ADJUSTING SCREW1
3566517气缸体泄流限制器RESTRICTOR BLEED - CYLINDER BLOCK1
-90484A88衬垫套件GASKET SET1
-41282A88动力头总成POWERHEAD ASSEMBLY1
-41282T88PH 135/150PH 135/1501
图 20动力转向组件 Power Steering Components
动力转向组件 Power Steering Components
REF零件编号中文名称英文名称数量
117771支架MOUNT1
259702螺钉 (.250-28 x .875) 不锈钢SCREW (.250-28 x .875) Stainless Steel4
388404锁紧垫圈TAB WASHER4
478862A2密封套件SEAL KIT1
419624A1密封套件SEAL KIT1
571565导向套管TUBE Cable Guide1
617776联轴器COUPLING1
7817040螺钉 (.375-24 x 2.75)SCREW (.375-24 x 2.75)1
834931不锈钢垫圈(.406x.734x.063)WASHER (.406 x .734 x .063) Stainless Steel1
990092螺钉SCREW1
9856722螺钉SCREW1
1034863螺母 (.375-24)NUT (.375-24)2
108M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass2
1142100锁紧垫圈TAB WASHER2
1237984螺母 (.875-14)NUT (.875-14)2
128M0041651螺母 (.875-14)NUT (.875-14)2
13811290蓄能器ACCUMULATOR1
14817372支架BRACKET1
1516862螺钉 (.250-10 x 1.25)SCREW (.250-10 x 1.25)4
1629245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel4
168M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel4
174000383螺钉 (M10 x 70)SCREW (M10 x 70)2
184002319垫圈WASHER4
1913914螺母(M10)NUT (M10)2
1940140螺母(M10)NUT (M10)2
20811289执行器ACTUATOR1
20828588A2执行器套件ACTUATOR KIT1
2194319螺钉(.375-24 x 1.5)SCREW (.375-24 x 1.5)1
2217405隔套SPACER2
2334863螺母 (.375-24)NUT (.375-24)3
238M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass3
2414000螺钉(.375-24x1.25)SCREW (.375-24 x 1.25)1
24849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)1
2592876A4连杆总成LINK ROD ASSEMBLY1
2668300垫圈 (.88 x .39 x .06)WASHER (..88 x .39 x .06)1
274000330螺钉(M6x25)SCREW (M6 x 25)2
278M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
2843450垫圈WASHER2
284002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)2
29400634螺母 (M6)NUT (M6)2
29401386螺母(M6)不锈钢NUT (M6) Stainless Steel2
30811292卡箍CLAMP1
31818182螺钉SCREW2
32400263螺母 (M5)NUT (M5)2
33811291支架BRACKET1
3438601螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250)4
35197491卡箍CLAMP1
3618211继电器开关RELAY SWITCH1
3718244A1线束总成HARNESS ASSEMBLY1
3818124螺钉 (#10-32 x .750)SCREW (#10-32 x .750)1
3990329护孔环GROMMET1
40309772隔套SPACER1
41816994支架BRACKET1
4242118垫圈WASHER1
4329488螺母 (#10-32)NUT (#10-32)1
438M0204718螺母NUT1
4481563024贴花DECAL1

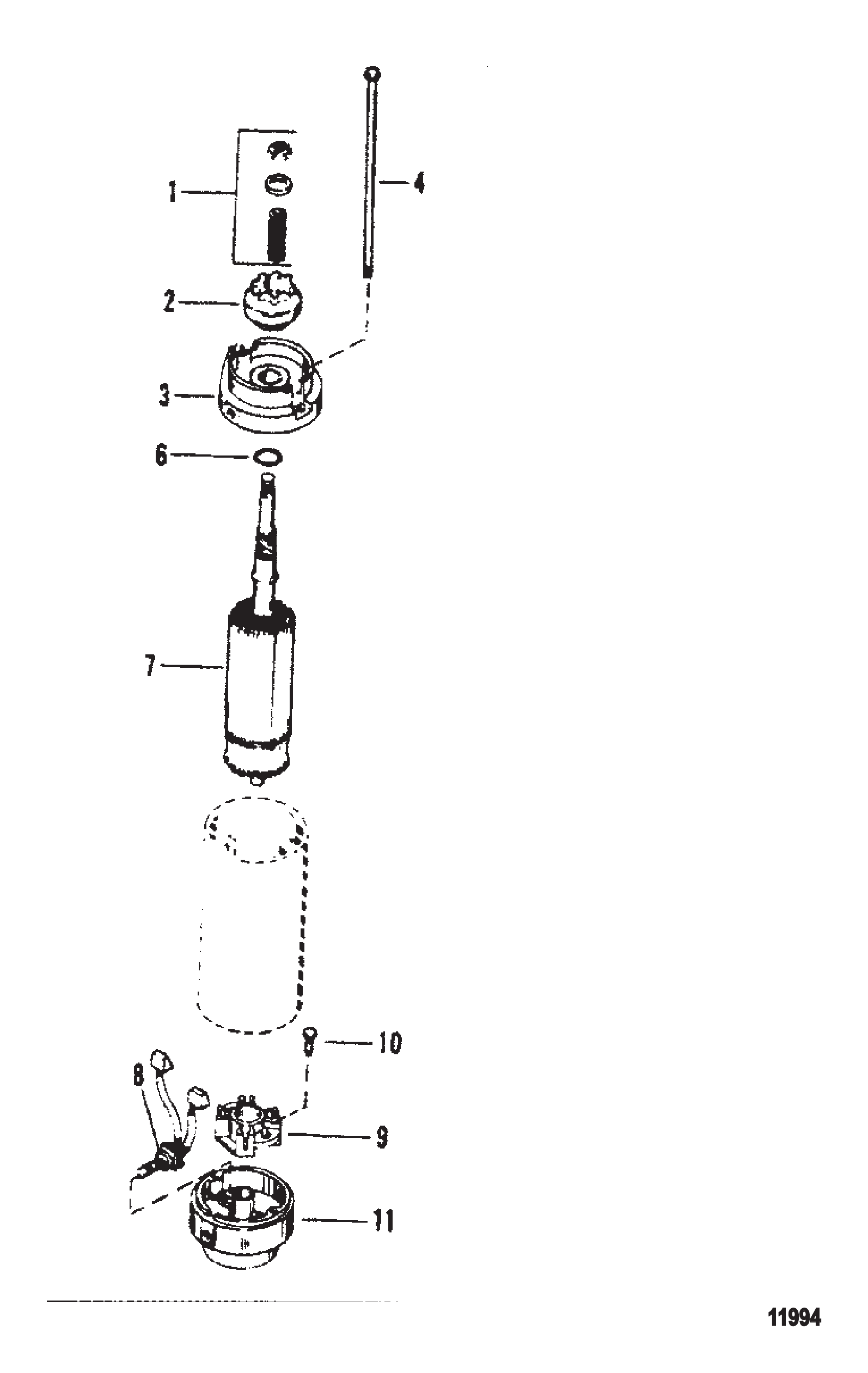

图 21启动电机总成 Starter Motor Assembly

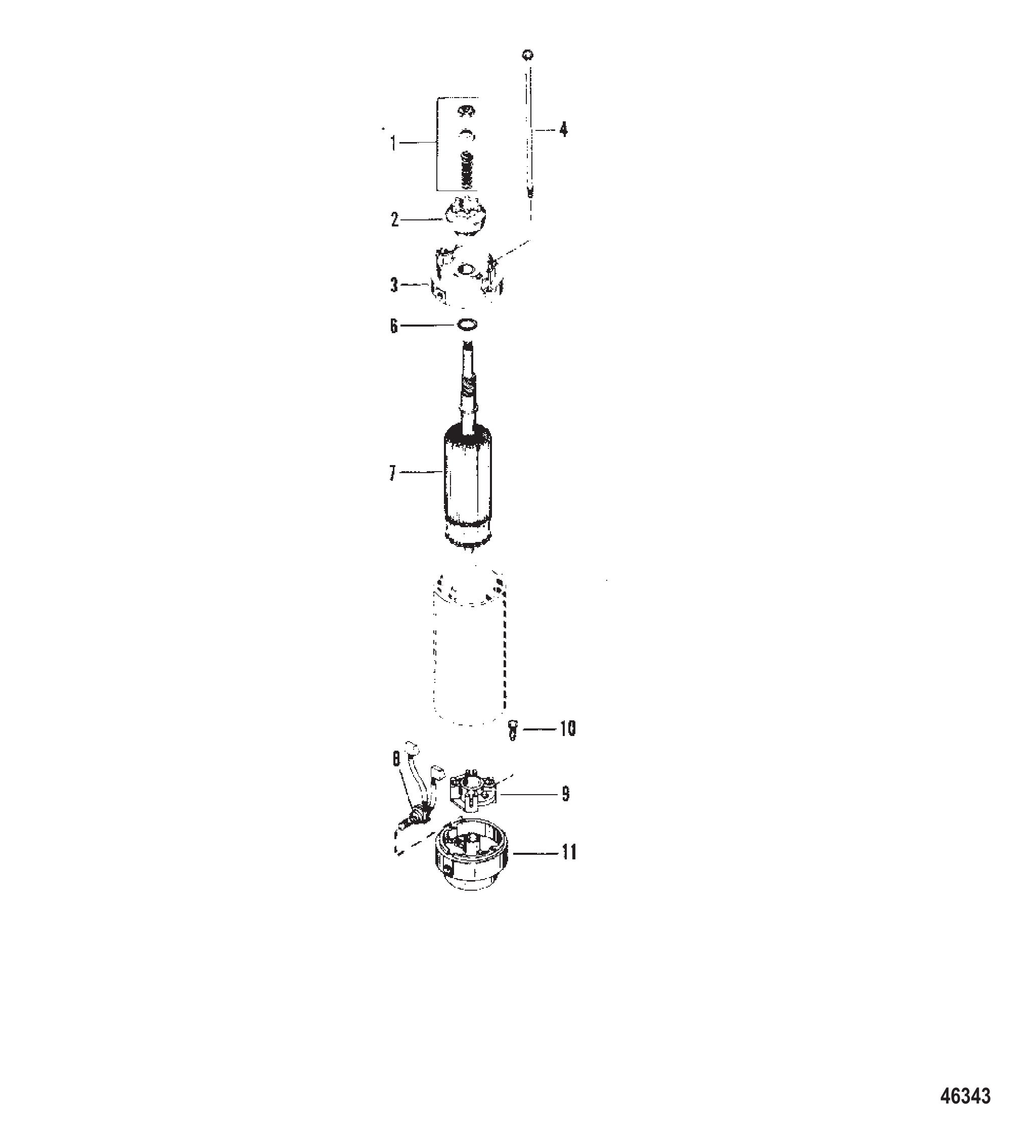

启动电机总成 Starter Motor Assembly
REF零件编号中文名称英文名称数量
-79472启动电机总成STARTER MOTOR ASSEMBLY1
190645驱动套件DRIVE KIT1
275661驱动小齿轮总成PINION ASSEMBLY Drive1
213310T1小齿轮总成PINION ASSEMBLY1
375660驱动端板PLATE DRIVE END1
474968贯穿螺栓BOLT THRU2
6N.S.S.贯穿螺栓 (不单独销售)Not Sold Separate THRU BOLT1
779216电枢ARMATURE1
875384电刷/弹簧套件BRUSH/SPRING KIT1
8898265016电刷/弹簧套件BRUSH/SPRING KIT1
961787电刷架HOLDER BRUSH2
9898265014电刷支架HOLDER-BRUSH2
1068586电刷及支架螺钉SCREW BRUSH AND HOLDER2
1115386换向器端盖END CAP COMMUTATOR1
1115386001端盖END CAP1
图 22齿轮箱螺旋桨轴-反旋转135/150/175/200型 Gear Housing Propeller Shaft - Counter-135/150/175/200

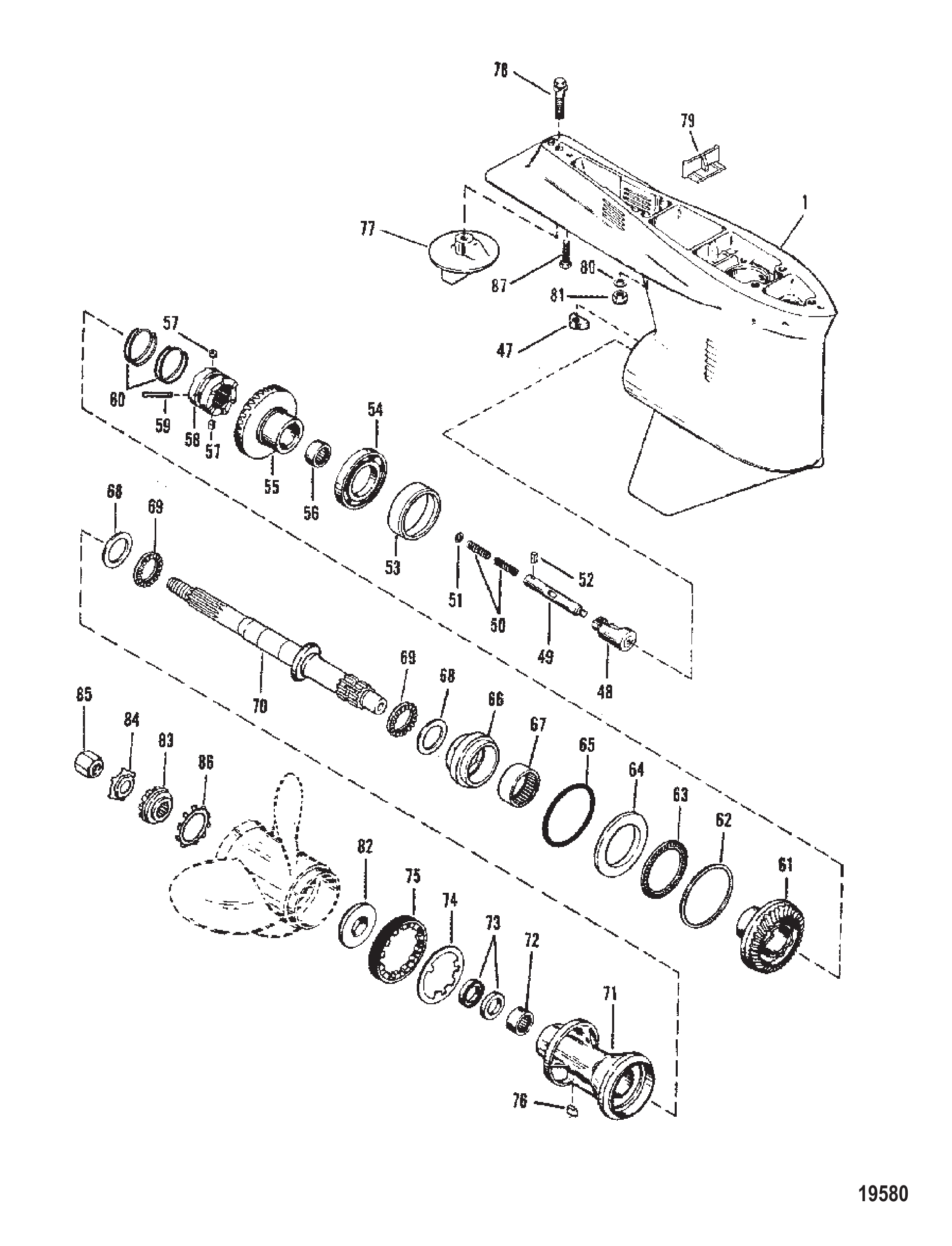

齿轮箱螺旋桨轴-反旋转135/150/175/200型 Gear Housing Propeller Shaft - Counter-135/150/175/200
REF零件编号中文名称英文名称数量
-9148A27齿轮箱总成 反转向(加长型)GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG)1
-9148A28齿轮箱总成 反转向(加长型)GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG)1
-9148T89齿轮箱壳体-CXL-灰色GEAR HSG-CXL-GRAY1
-9148A30齿轮箱总成 反向旋转(加长型)(黑色)GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG)(BLACK)1
-9148T86齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A31齿轮箱总成 反转向(加长型)GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG)1
-9148T92ORD 1647-9148T86ORD 1647-9148T861
19148A11齿轮箱总成(黑色)(基本型)GEAR HOUSING ASSEMBLY (BLACK)(BASIC)1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
19148A12齿轮箱总成(灰色)(基础款)GEAR HOUSING ASSEMBLY (GRAY)(BASIC)1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
4778956换挡凸轮SHIFT CAM1
47789562换挡凸轮SHIFT CAM1
4889594A1凸轮从动件总成FOLLOWER ASSEMBLY CAM1
4979911离合器作动杆ROD CLUTCH ACTUATOR1
4979911A1杆ROD1
5079910压缩弹簧SPRING COMPRESSION2
5178910弹簧垫圈WASHER SPRINGAR
5278906PIN SPRING LOCATOR1
528M0084245弹簧定位销PIN Spring Locator1
5314469轴承杯CUP Bearing1
5314469T轴承杯CUP Bearing1
5488957A1滚珠轴承BEARING Ball1
5488957T滚珠轴承BEARING Ball1
55NSS倒车齿轮(不单独销售)(43-18572A1或43-18475A1部件)NOT SOLD SEPARATE Reverse Gear (PART OF 43-18572A1 or 43-18475A1)1
5615844滚柱轴承总成BEARING ASSEMBLY Roller1
5778909棘轮定位销PIN Detent RATCHET2
5878959棘轮滑动离合器RATCHET SLIDING CLUTCH1
58823174TORD 8M0100493ORD 8M01004931
5978905十字棘轮销PIN Cross RATCHET1
598M0084243十字销PIN Cross1
6078962十字销固定弹簧SPRING RETAINING - CROSS PIN2
6118572A1前进齿轮总成GEAR ASSEMBLY Forward1
6118572T1齿轮组GEAR SET1
6118475A1前进齿轮总成GEAR ASSEMBLY Forward1
6118475T1齿轮组GEAR SET1
62176151调整垫片(.125)SPACER SHIM (.125)AR
62176152调整垫片(.127)SPACER SHIM (.127)AR
62176153调整垫片(.129)SPACER SHIM (.129)AR
62176154调整垫片(.131)SPACER SHIM (.131)AR
62176155调整垫片(.133)SPACER SHIM (.133)AR
62176156调整垫片(.135)SPACER SHIM (.135)AR
62176157调整垫片(.137)SPACER SHIM (.137)AR
62176158调整垫片(.139)SPACER SHIM (.139)AR
62176159调整垫片(.141)SPACER SHIM (.141)AR
621761510调整垫片(.143)SPACER SHIM (.143)AR
621761511调整垫片(.145)SPACER SHIM (.145)AR
621761512调整垫片(.147)SPACER SHIM (.147)AR
621761513调整垫片(.149)SPACER SHIM (.149)AR
6315841滚柱轴承BEARING Roller1
6417616推力环THRUST RING1
6531534轴承座O型圈O-RING BEARING CARRIER1
658M0214920O型圈O RING1
6618447A2轴承适配器总成ADAPTER ASSEMBLY Bearing1
6618447T2适配器总成ADAPTOR ASSEMBLY1
6715843滚柱轴承BEARING Roller1
6715843T滚针轴承BEARING Needle1
6818448止推垫片THRUST WASHER2
6915842推力轴承BEARING Thrust2
7018446螺旋桨轴PROPELLER SHAFT1
7118444A1轴承座总成CARRIER ASSEMBLY Bearing1
71818896T2轴承座BEARING CARRIER1
7230956滚针轴承-轴承座BEARING Needle BEARING CARRIER2
7230956T滚针轴承BEARING Needle2
7376868密封件SEAL2
738M0248882油封@5SEAL-OIL @52
7479447齿轮箱盖锁紧垫圈TAB WASHER GEAR HOUSING COVER1
7579448齿轮箱固定座RETAINER GEAR HOUSING1
758M2011027固定座RETAINER1
7630281KEY LOCATING - BEARING CARRIER1
7731640A1TRIM TAB ASSEMBLY GEAR HOUSING1
7731640Q4平衡鳍板TRIM TAB1
7866024SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING1
7967891填充块FILLER BLOCK1
798M0039169填充块FILLER BLOCK1
8045176垫圈(.453 x .812 x .105)不锈钢驱动轴壳体螺柱WASHER (.453 x .812 x .105) Stainless Steel DRIVE SHAFT HOUSING STUDS2
8134933螺母(.437-20)不锈钢驱动轴壳体螺柱NUT (.437-20) Stainless Steel DRIVE SHAFT HOUSING STUDS2
818M0204653螺母NUT2
8213171推力毂THRUST HUB1
82835467Q01止推垫片套件THRUST WASHER KIT1
8331211A2螺旋桨螺母花键垫圈WASHER Splined PROPELLER NUT1
8331211Q03垫圈总成WASHER ASSEMBLY1
84816629螺旋桨螺母锁紧垫圈TAB WASHER PROPELLER NUT1
84816629Q锁紧垫圈TAB WASHER1
8552707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
8552707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
86423511螺旋桨轴齿形锁紧垫圈LOCKWASHER Toothed PROPELLER SHAFT1
8765210螺钉(.375-16 x 1.00)齿轮箱SCREW (.375-16 x 1.00) GEAR HOUSING1
-89238A2密封套件SEAL KIT1
图 23齿轮箱螺旋桨轴-标准135/150/175/200 Gear Housing Propeller Shaft - Standard-135/150/175/200
齿轮箱螺旋桨轴-标准135/150/175/200 Gear Housing Propeller Shaft - Standard-135/150/175/200
REF零件编号中文名称英文名称数量
-9148A18齿轮箱总成 标准旋转2:1速比(长型)(黑色)GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (LONG) (BLACK)1
-9148A19齿轮箱总成 标准旋转2:1速比(加长型)(黑色)GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (X-LONG)(BLACK)1
-9148T82齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A20齿轮箱总成 标准旋转2:1速比(长型)(灰色)GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (LONG)(GRAY)1
-9148T87ORD 1647-9148T81ORD 1647-9148T811
-9148A21齿轮箱总成 标准旋转2:1速比(加长型)(灰色)GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (X-LONG) (GRAY)1
-9148T88ORD 1647-9148T82ORD 1647-9148T821
-9148A8齿轮箱总成 标准旋转1.87:1速比(长型)(黑色)GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (LONG)(BLACK)1
-9148T84齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A9齿轮箱总成 标准旋转1.87:1速比(加长)(黑色)GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (X-LONG)(BLACK)1
-9148T85齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A10齿轮箱总成 标准旋转1.87:1速比(长型)(灰色)GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (LONG)(GRAY)1
-9148T84齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A13齿轮箱总成 标准旋转1.87:1速比(加长型)(灰色)GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (X-LONG)(GRAY)1
-9148T91ORD 1647-9148T85ORD 1647-9148T851
19148A11齿轮箱总成(黑色)(基本型)GEAR HOUSING ASSEMBLY (BLACK)(BASIC)1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
19148A12齿轮箱总成(灰色)(基本型)GEAR HOUSING ASSEMBLY (GRAY) (BASIC)1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
4878956换挡凸轮SHIFT CAM1
48789562换挡凸轮SHIFT CAM1
4989594A1凸轮从动件总成FOLLOWER ASSEMBLY CAM1
50816520离合器作动杆ROD CLUTCH ACTUATOR1
5079911A1杆ROD1
5179910压缩弹簧SPRING COMPRESSION1
5278910压缩弹簧垫圈WASHER COMPRESSION SPRINGAR
5378906PIN SPRING LOCATOR1
538M0084245弹簧定位销PIN Spring Locator1
5447397A1轴承外圈垫片组(.002-3-5-10)SHIM SET BEARING OUTER RACE (.002-3-5-10)AR
5578172A1圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
5644102A2前进齿轮总成GEAR ASSEMBLY Forward1
5644104A2前进齿轮总成GEAR ASSEMBLY Forward1
5644104T2齿轮组GEAR SET1
5773363滚柱轴承(5/8")BEARING Roller (5/8")2
5773363T轴承BEARING2
57549281滚柱轴承(1")BEARING Roller (1")1
5878959棘轮滑动离合器RATCHET SLIDING CLUTCH1
58823174TORD 8M0100493ORD 8M01004931
5978905棘轮到螺旋桨轴十字销PIN Cross RATCHET TO PROPELLER SHAFT1
598M0084243十字销PIN Cross1
6078909棘轮定位销PIN Detent RATCHET2
6178962十字销固定弹簧SPRING RETAINING-CROSS PIN2
6294148螺旋桨轴PROPELLER SHAFT1
63NSS倒车齿轮(不单独销售)(43-44102A2或43-44104A2部件)NOT SOLD SEPARATE Reverse Gear (Part of 43-44102A2 or 43-44104A2)1
64681001止推环 轴承座RING Thrust BEARING CARRIER1
6588957A1倒车档滚珠轴承BEARING Ball BALL - REVERSE GEAR1
6588957T滚珠轴承BEARING Ball1
6631534轴承座O型圈O-RING BEARING CARRIER1
668M0214920O型圈O RING1
6743567A1轴承座总成CARRIER ASSEMBLY Bearing1
6743567T1轴承座总成CARRIER ASSEMBLY Bearing1
6830956滚针轴承-轴承座BEARING Needle BEARING CARRIER1
6830956T滚针轴承BEARING Needle1
6976868轴承座密封SEAL BEARING CARRIER2
698M0248882油封@5SEAL-OIL @52
7030281KEY LOCATING - BEARING CARRIER1
7179447齿轮箱盖锁紧垫圈TAB WASHER GEAR HOUSING COVER1
7279448齿轮箱固定座RETAINER GEAR HOUSING1
728M2011027固定座RETAINER1
7331640A1TRIM TAB ASSEMBLY GEAR HOUSING1
7331640Q4平衡鳍板TRIM TAB1
7466024SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING1
7567891填充块FILLER BLOCK1
758M0039169填充块FILLER BLOCK1
7634933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
768M0204653螺母NUT2
7765210螺钉(.375-16 x 1.00)SCREW (.375-16 x 1.00)1
7774727螺钉(.375-16 x 6.00)SCREW (.375-16 x 6.00)1
7813171推力毂THRUST HUB1
78835467Q01止推垫片套件THRUST WASHER KIT1
7931211A2花键垫圈WASHER Splined1
7931211Q03垫圈总成WASHER ASSEMBLY1
80816629锁紧垫圈TAB WASHER1
80816629Q锁紧垫圈TAB WASHER1
8152707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
8152707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
82423511齿形锁紧垫圈LOCKWASHER Toothed1
8345176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel2
-89238A2密封套件SEAL KIT1
-815791A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1
-815809A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1
-815810A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1

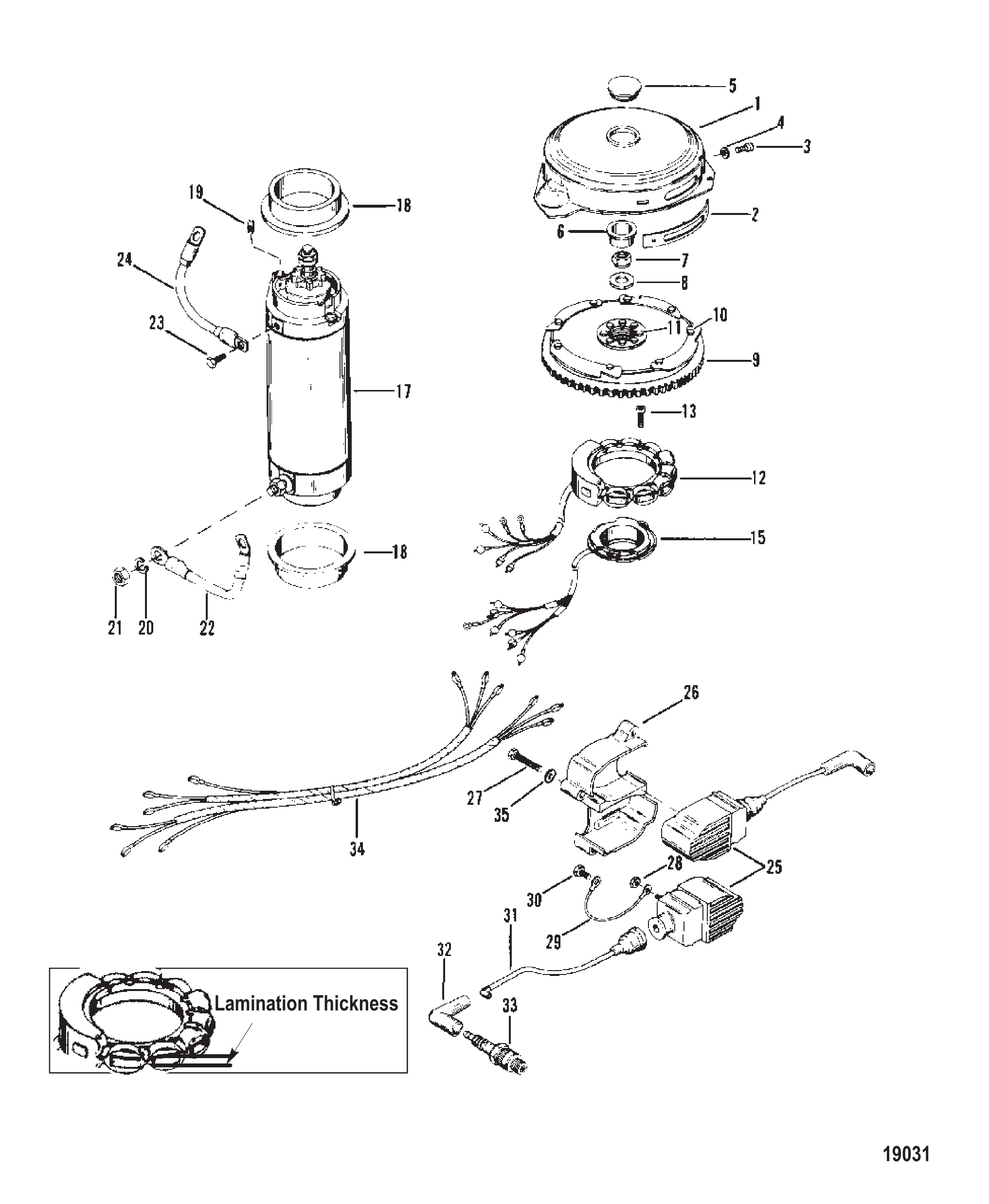

图 24飞轮/启动电机 Flywheel/Starter Motor
飞轮/启动电机 Flywheel/Starter Motor
REF零件编号中文名称英文名称数量
118896A1飞轮盖套件COVER KIT FLYWHEEL1
279022正时标记MARKER TIMING1
337572螺钉(0.190-32x0.380)正时标记SCREW (.190-32 x .380) TIMING MARKER2
472761垫圈(0.203x0.562x0.060)不锈钢正时标记螺钉WASHER (.203 x .562 x .060) Stainless Steel TIMING MARKER SCREW2
589219飞轮盖塞PLUG FLYWHEEL COVER1
589219001堵头PLUG1
645907飞轮黄色塞PLUG Yellow FLYWHEEL1
752901螺母(.625-18)飞轮NUT (.625-18) FLYWHEEL1
868229垫圈(0.641x1.250x0.190)飞轮WASHER (.641 x 1.250 x .190) FLYWHEEL1
833001垫圈WASHER1
99841A7飞轮FLYWHEEL1
9859238T16飞轮总成FLYWHEEL ASY1
1032417螺钉(.250-28 x .625)飞轮板SCREW (.250-28 x .625) FLYWHEEL PLATE8
1168997螺钉(.312-24 x .750)飞轮毂SCREW (.312-24 x .750) FLYWHEEL HUB8
129610A5定子STATOR1
1390045螺钉(#10-32 x 1.375)定子SCREW (#10-32 x 1.375) STATOR4
1426996锁紧垫圈(#10)不锈钢定子螺钉LOCKWASHER (#10) Stainless Steel STATOR SCREW4
1596455A9触发板总成PLATE ASSEMBLY Trigger1
1693388A1电缆总成(6.00英寸)黑色板至启动马达CABLE ASSEMBLY (6.00 Inches) Black PLATE TO STARTER MOTOR1
1779472启动电机总成STARTER MOTOR ASSEMBLY1
17893893启动马达STARTER MOTOR1
1856703启动电机轴环COLLAR STARTER MOTOR2
188M0034918轴环COLLAR2
1968042启动马达橡胶止动块STOP Rubber RUBBER-STARTER MOTOR2
198M0043376停机开关STOP2
2026992锁紧垫圈(.250) 不锈钢 起动机接线端LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL1
2120890螺母(.250-20) 起动机接线端NUT (.250-20) STARTER MOTOR TERMINAL1
2293388A2电磁阀至启动电机黑色电缆总成CABLE ASSEMBLY Black SOLENOID TO STARTER MOTOR1
2293388A14线缆总成(黄/黑)CABLE ASSEMBLY Yellow/Black1
2369035螺钉和锁紧垫圈 (.250-20 x .625) 不锈钢 电缆至启动马达SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel CABLE TO STARTER MOTOR1

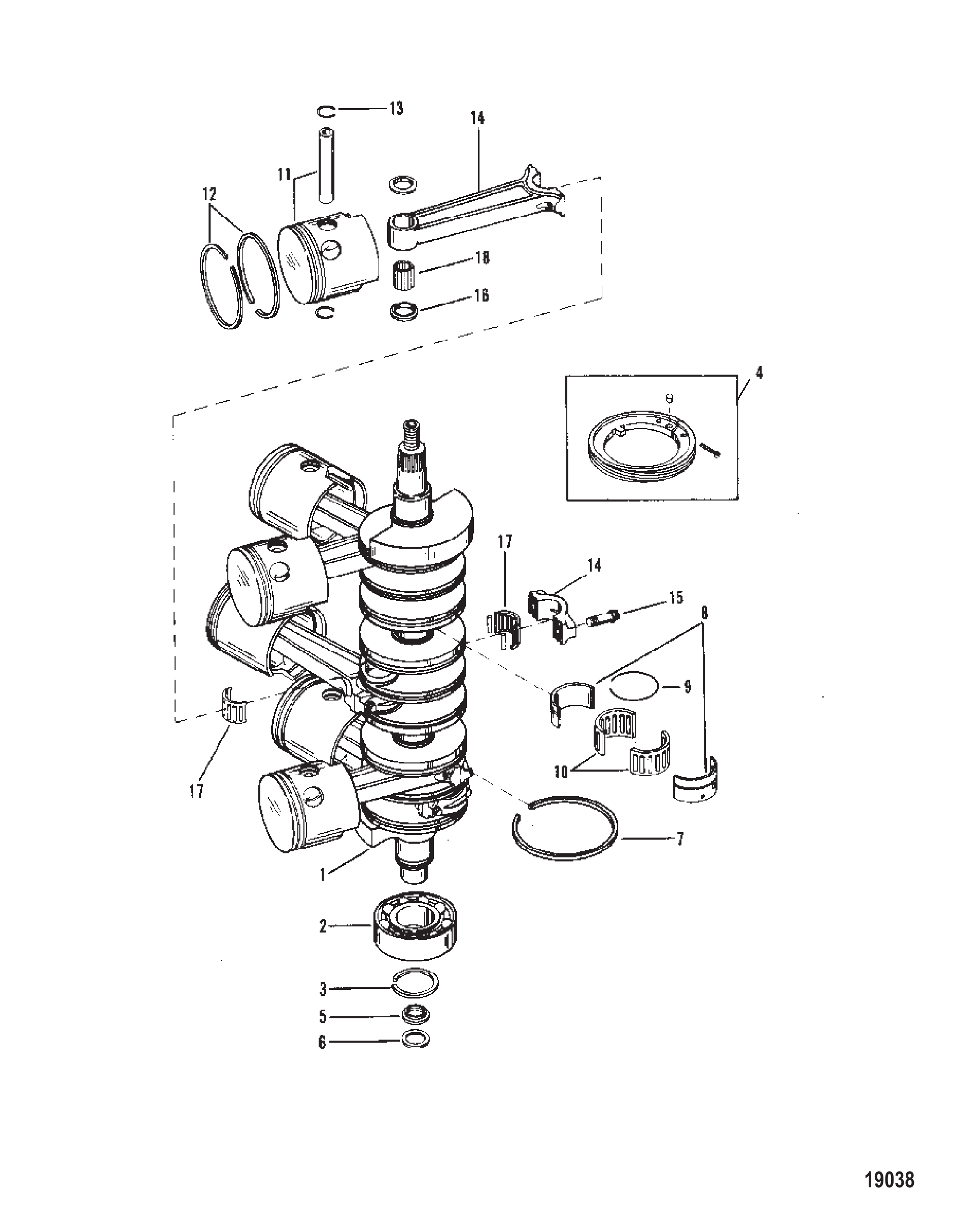

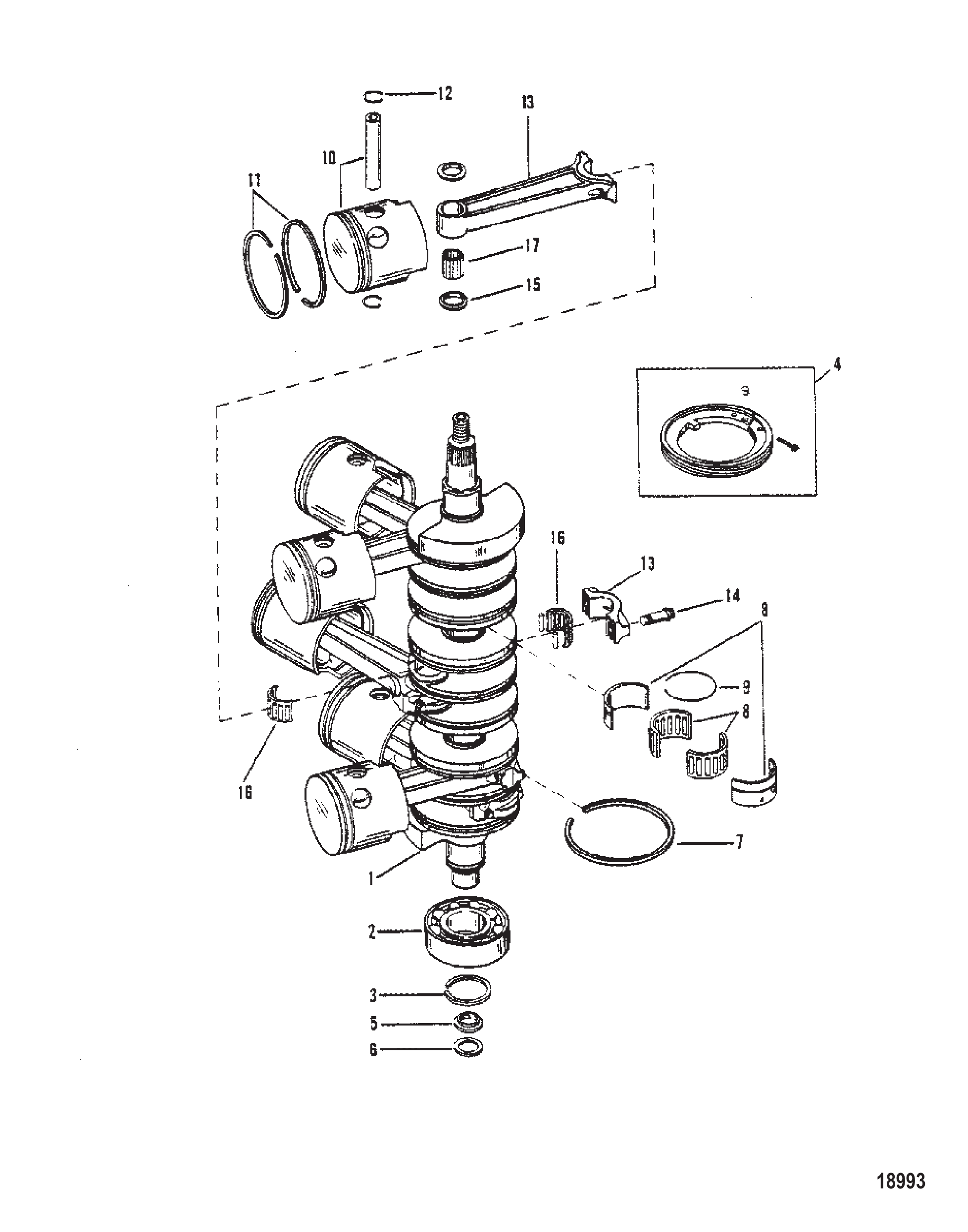

图 25曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods
曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods
REF零件编号中文名称英文名称数量
18745A5曲轴总成(含8个39-67377)CRANKSHAFT ASSEMBLY (INCLUDES 8 OF 39-67377)1
267923曲轴下球轴承BEARING Ball CRANKSHAFT (LOWER)1
267923T滚珠轴承BEARING Ball1
367446球轴承挡圈RING BALL BEARING1
499727A1驱动齿轮GEAR Drive1
554196A6密封载体总成CARRIER ASSEMBLY SEAL1
665800填料载体PACKING CARRIER1
767377曲轴密封环(.124厚度)RING Sealing SEALING - CRANKSHAFT (.124 THICK)AR
767377T密封环RING SealingAR
778633曲轴密封环(.139厚度)RING SEALING - CRANKSHAFT (.139 THICK)AR
888903保持式滚柱轴承BEARING Roller RETAINED BEARING2
888903T轴承座圈RACE Bearing2
967444保持轴承挡圈RING Retaining RETAINED BEARING2
1067445保持式滚柱轴承BEARING Roller RETAINED BEARING2
893495非保持式滚柱轴承BEARING Roller LOOSE BEARING2
893495T滚柱轴承BEARING Roller2
967444非保持轴承挡圈RING Retaining LOOSE BEARING2
117441A3活塞总成(右舷-标准)PISTON ASSEMBLY (STARBOARD-STANDARD)3
117441T36活塞-右舷-标准PISTON-STBD-STD3
117443A2活塞总成(右舷-加大0.015)PISTON ASSEMBLY (STARBOARD - .015 O.S.)AR
117443A12活塞-右舷-0.015PISTON-STBD-.015AR
117445A2活塞总成(右舷-加大0.030)PISTON ASSEMBLY (STARBOARD-.030 O.S.)AR
117445A12活塞-右舷-0.030PISTON-STBD-.030AR
117442A3活塞总成(左舷-标准)PISTON ASSEMBLY (PORT-STANDARD)3
117442T36活塞-左舷-标准PISTON-PORT-STD3
117444A2活塞总成(左舷-0.015加大)PISTON ASSEMBLY (PORT-.015 O.S.)AR
117444A12活塞-左舷-0.015PISTON-PORT-.015AR
117446A2活塞总成(左舷-0.030加大)PISTON ASSEMBLY (PORT-.030 O.S.)AR
117446T12活塞-左舷-0.030PISTON-PORT-.030AR
1293481A12活塞环组-标准(标准)RING SET Piston - Standard (STANDARD)1
1278918A4活塞环组-0.015加大(0.015加大)RING SET Piston - .015 Oversize (.015 O.S.)AR
1285636A4活塞环组-0.030加大(0.030加大)RING SET Piston - .030 Oversize (.030 O.S.)AR
1352035锁环RING Lock12
13857196锁紧环LOCK RING12
148119A5连杆总成CONNECTING ROD ASSEMBLY6
148119A6连杆套件CONN ROD KIT6
1593886螺钉(0.312-28×0.875)连杆SCREW (.312-28 x .875) CONNECTING ROD12
1647247定位针垫圈WASHER NEEDLE LOCATING12
168M0032839垫片@5WASHER @512
1717514A1轴承套件BEARING KIT6
178M0234886轴承保持架CAGE BEARING6
1867483活塞端滚针轴承BEARING Needle PISTON END174

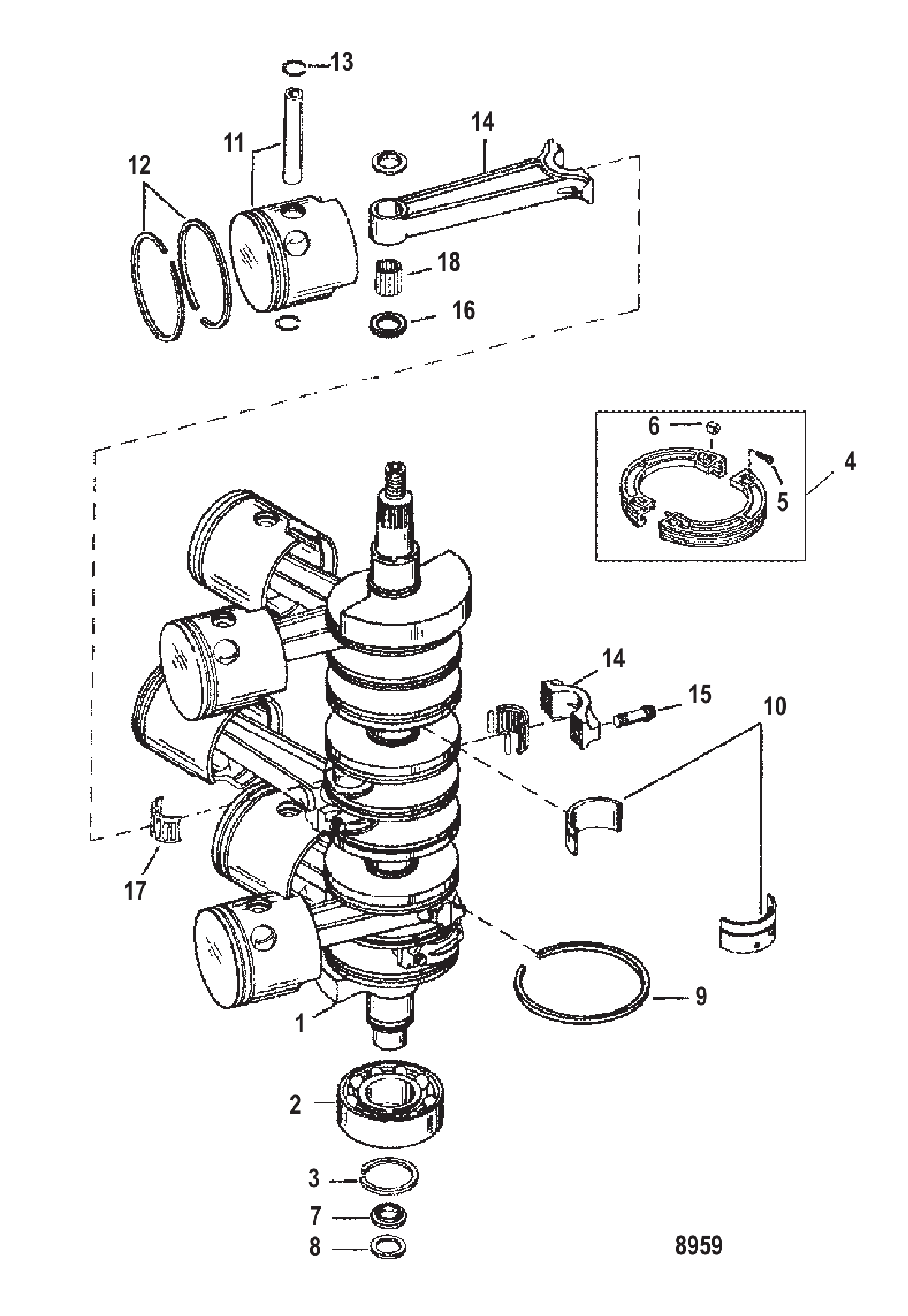

图 26曲轴（连杆锻件编号636-8118） Crankshaft (Connecting Rod Forging # is 636-8118)
曲轴（连杆锻件编号636-8118） Crankshaft (Connecting Rod Forging # is 636-8118)
REF零件编号中文名称英文名称数量
19536A4曲轴总成CRANKSHAFT ASSEMBLY1
267923曲轴下球轴承BEARING Ball CRANKSHAFT (LOWER)1
267923T滚珠轴承BEARING Ball1
367446球轴承挡圈RING BALL BEARING1
414513A2驱动齿轮段套件GEAR SEGMENT KIT Drive2
414513A09驱动齿轮段套件GEAR SEGMENT KIT Drive2
5813073螺钉(#6-32 x .620)内六角头SCREW (#6-32 x .620) Socket Head2
6813134螺母(#6-32)专用NUT (#6-32) Special2
754196A6密封载体总成CARRIER ASSEMBLY SEAL1
865800填料载体PACKING CARRIER1
967377密封环-曲轴RING Sealing SEALING - CRANKSHAFT8
967377T密封环RING Sealing8
1016756A1滚子轴承总成-曲轴BEARING ASSEMBLY Roller CRANKSHAFT2
1016756A6轴承套件BEARING KIT2
117441A3活塞总成(右舷-标准)PISTON ASSEMBLY (STARBOARD-STANDARD)3
117441T36活塞-右舷-标准PISTON-STBD-STD3
117443A2活塞总成(右舷-0.015加大)PISTON ASSEMBLY (STARBOARD-.015 O.S.)AR
117443A12活塞-右舷-0.015PISTON-STBD-.015AR
117445A2活塞总成(右舷-0.030加大)PISTON ASSEMBLY (STARBOARD-.030 OS.)AR
117445A12活塞-右舷-0.030PISTON-STBD-.030AR
117442A3活塞总成(左舷-标准)PISTON ASSEMBLY (PORT-STANDARD)3
117442T36活塞-左舷-标准PISTON-PORT-STD3
117444A2活塞总成(左舷-0.015加大)PISTON ASSEMBLY (PORT-.015 O.S.)AR
117444A12活塞-左舷-0.015PISTON-PORT-.015AR
117446A2活塞总成(左舷-0.030加大)PISTON ASSEMBLY (PORT-.030 O.S.)AR
117446T12活塞-左舷-0.030PISTON-PORT-.030AR
118666A22活塞总成(右舷-标准)PISTON ASSEMBLY (STARBOARD-STANDARD)3
118666T42活塞总成-右舷-标准PIST.ASY.STBD.STD3
118666A36活塞总成-右舷(0.015加大)PISTON ASSEMBLY Starboard (015 O.S.)AR
118666A43活塞总成-右舷-0.015PIST.ASY STBD.015AR
118667A22活塞总成(左舷-标准)PISTON ASSEMBLY (PORT-STANDARD)3
118667T42活塞总成-左舷-标准PIST.ASY.PORT.STD3
118667A36活塞总成-左舷(0.015加大)PISTON ASSEMBLY Port (.015 O.S.)AR
118667A43活塞总成-左舷-0.015PIST.ASY PORT.015AR
119738A2活塞总成(右舷-标准)PISTON ASSEMBLY (STARBOARD-STANDARD)3
119738T4活塞-右舷-标准PISTON-STBD-STD3
119738A3活塞总成(右舷-0.015加大)PISTON ASSEMBLY (STARBOARD-.015 O.S.)AR
119738A5活塞-右舷-0.015PISTON-STBD-.015AR
119737A2活塞总成(左舷-标准)PISTON ASSEMBLY (PORT-STANDARD)3
119737T4活塞-左舷-标准PISTON-PORT-STD3
119737A3活塞总成(左舷-0.015加大)PISTON ASSEMBLY (PORT-.015 O.S.)AR
119737A5活塞-左舷-0.015PISTON-PORT-.015AR
1293481A12活塞环组-标准(标准)RING SET Piston - Standard (STANDARD)1
1278918A4活塞环组-0.015加大(0.015加大)RING SET Piston - .015 Oversize (.015 O.S.)AR
1285636A4活塞环组-0.030加大(0.030加大)RING SET Piston - .030 Oversize (.030 O.S.)AR
1218487A12活塞环组(标准)RING SET Piston (STANDARD)1
12815267A4活塞环组(.015加大)RING SET Piston (.015 O.S.)AR
12815515A12活塞环组(标准)RING SET Piston (STANDARD)1
12815268A4活塞环组(.015加大)RING SET Piston (.015 O.S.)AR
1352035锁环RING Lock12
13857196锁紧环LOCK RING12
148119A5连杆总成CONNECTING ROD ASSEMBLY6
148119A6连杆套件CONN ROD KIT6
1593886螺钉(0.312-28×0.875)连杆SCREW (.312-28 x .875) CONNECTING ROD12
1647247定位针垫圈WASHER NEEDLE LOCATING12
168M0032839垫片@5WASHER @512
1717514A1轴承套件BEARING KIT6
178M0234886轴承保持架CAGE BEARING6
1867483活塞端滚针轴承BEARING Needle PISTON END174
-815791A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1
-815809A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1
-815810A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1

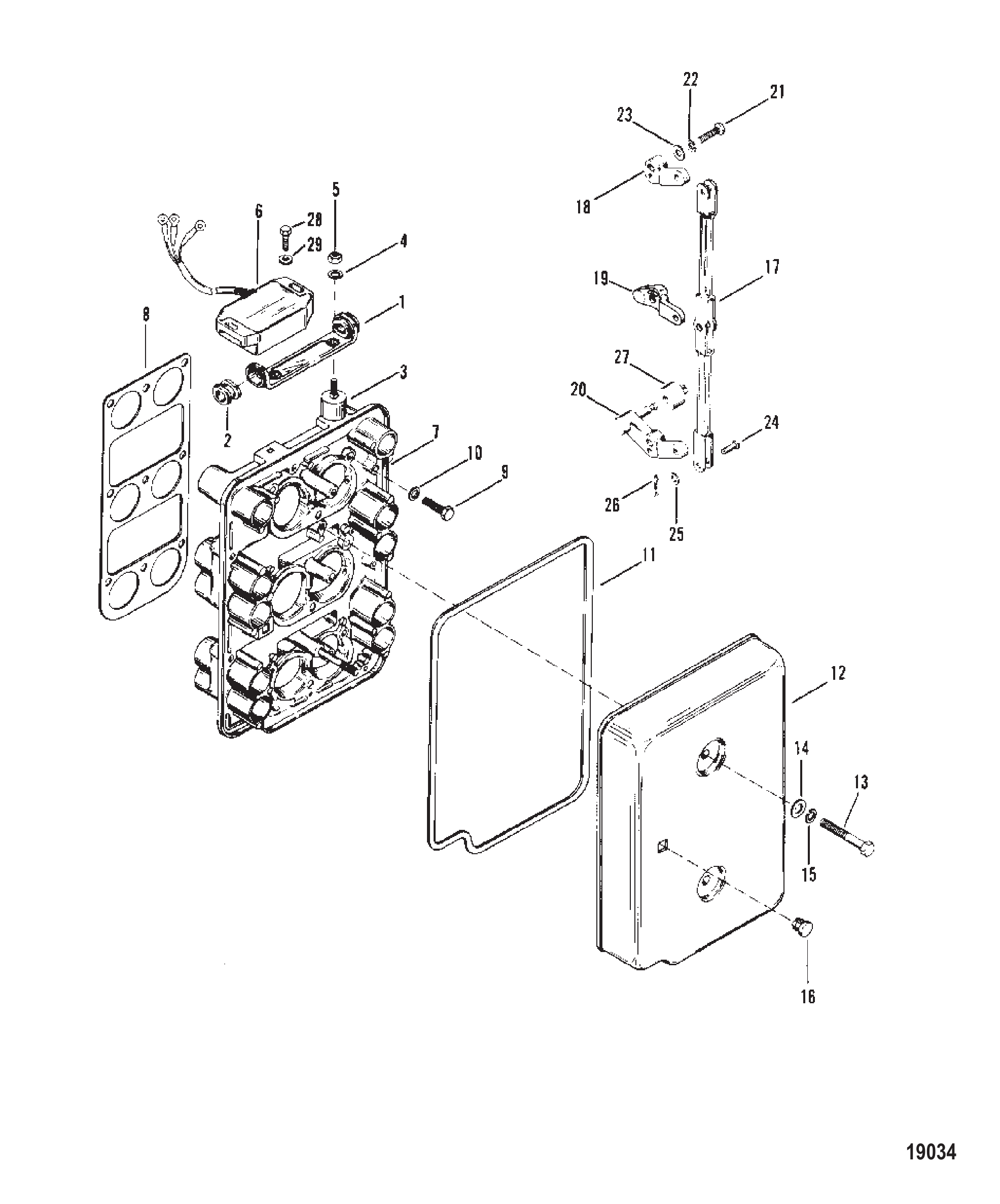

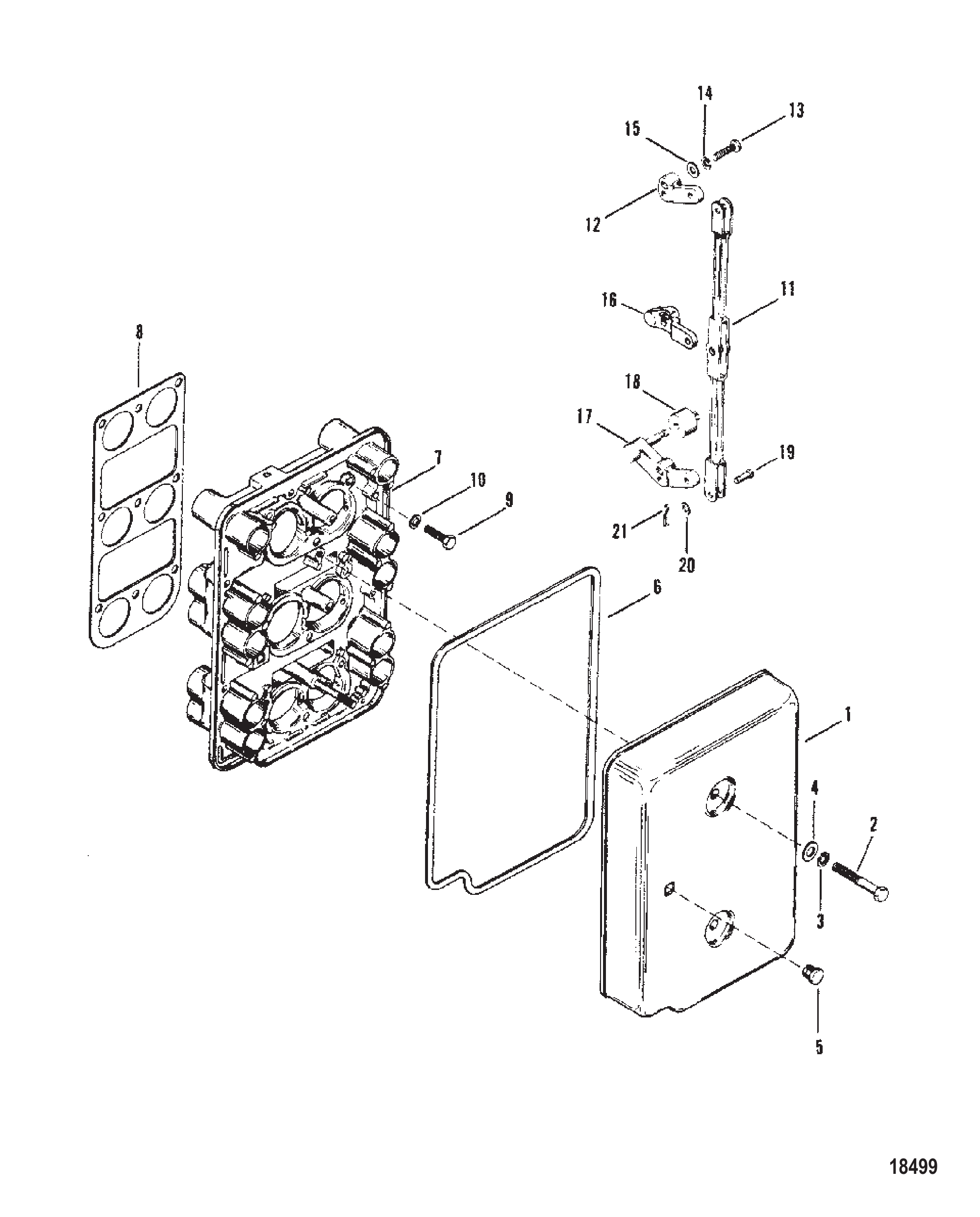

图 27阻风门板及油门杆 Choke Plate and Throttle Levers
阻风门板及油门杆 Choke Plate and Throttle Levers
REF零件编号中文名称英文名称数量
167245T上罩安装支架BRACKET COWL MOUNTING - UPPER1
267272罩壳安装支架衬套GROMMET COWL MOUNTING BRACKET2
390435罩壳安装支架(黑/灰)MOUNT COWL MOUNTING BRACKET BLACK/GRAY2
429245安装垫圈(0.281×0.500×0.060)不锈钢WASHER (.281 x .500 x .060) Stainless Steel MOUNT ATTACHING4
48M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel4
535888安装螺母(0.250-28)不锈钢NUT (.250-28) Stainless Steel MOUNT ATTACHING4
687076A4怠速控制总成IDLE SPEED CONTROL ASSEMBLY1
7799831阻风板PLATE CHOKE1
867274阻风板至化油器衬垫GASKET CHOKE PLATE TO CARBURETOR1
8672741衬垫GASKET1
968000螺丝(.250-28 x 1.00)阻风板至化油器SCREW (.250-28 x 1.00) CHOKE PLATE TO CARBURETOR6
1020583阻风板螺丝垫圈WASHER CHOKE PLATE SCREW6
1167275盖衬垫GASKET COVER1
11672751衬垫GASKET1
1267246T进气消音器盖COVER INDUCTION SILENCER1
1330720螺丝(.250-20 x 2.25)盖至阻风板SCREW (.250-20 x 2.25) COVER TO CHOKE PLATE2
1429245垫圈(.281 x .500 x .060)不锈钢盖螺丝WASHER (.281 x .500 x .060) Stainless Steel COVER SCREW2
148M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
1526992锁紧垫圈(.250)不锈钢盖螺丝LOCKWASHER (.250) Stainless Steel COVER SCREW2
1690585进气消音器盖塞PLUG INDUCTION SILENCER COVER1
1767760油门连杆LINK Throttle1
1867759节气门杆(上)LEVER Throttle UPPER1
1941049节气门杆(中)LEVER Throttle CENTER1
2067749下节流阀杆LEVER Throttle LOWER1
2115124油门杆至油门连杆螺钉(#10-32×0.750)SCREW (#10-32 x .750) THROTTLE LEVERS TO THROTTLE LINK3
2226996锁紧垫圈(#10)不锈钢节气门杆螺丝LOCKWASHER (#10) Stainless Steel THROTTLE LEVERS SCREW3
2356681垫圈(.203 x .500 x .032)节气门杆螺丝WASHER (.203 x .500 x .032) THROTTLE LEVERS SCREW3
238M0204666垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)3
2467297U型销节气门杆至节气门连杆PIN Clevis THROTTLE LEVERS TO THROTTLE LINK3
2589302垫圈(.203 x .406 x .040)U型销WASHER (.203 x .406 x .040) CLEVIS PIN3
2626953开口销U型销COTTER PIN CLEVIS PIN3
2767748下节气门杆滚轮ROLLER LOWER THROTTLE LEVER1
2869020螺丝(#10-32 x .875)怠速控制SCREW (#10-32 x .875) IDLE SPEED CONTROL2
28690201螺钉(#10-32 x .875)SCREW (#10-32 x .875)2
2938833怠速调节螺钉垫片WASHER IDLE SPEED CONTROL SCREW2
-90484A88衬垫套件GASKET SET

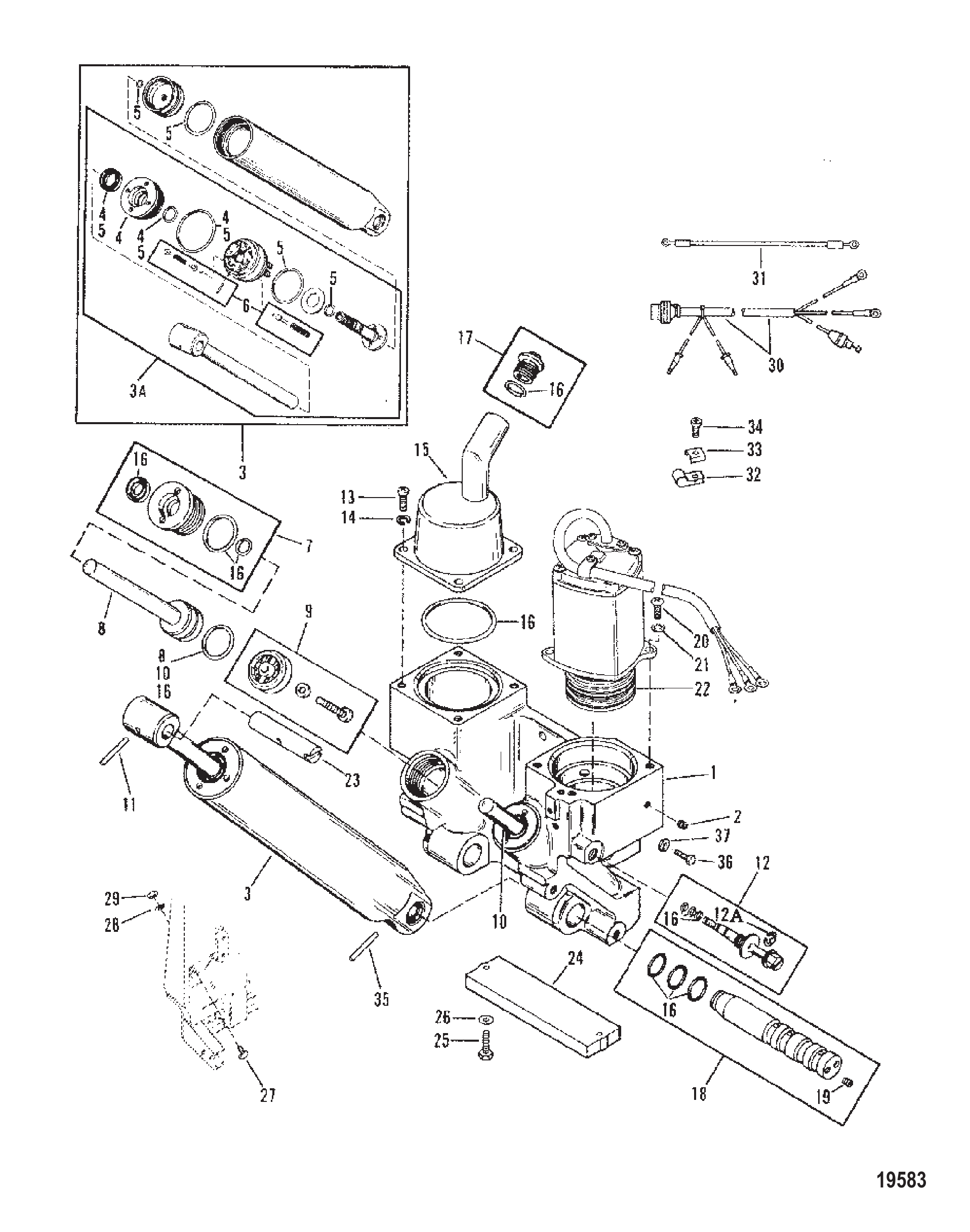

图 28动力平衡组件（设计I） Power Trim Components (Design I)
动力平衡组件（设计I） Power Trim Components (Design I)
REF零件编号中文名称英文名称数量
199659A21歧管总成 (黑色)MANIFOLD ASSEMBLY (BLACK)1
199659A22歧管总成 (灰色)MANIFOLD ASSEMBLY (GRAY)1
299616管塞歧管PIPE PLUG MANIFOLD11
256800管塞 (.0625-27)PLUG Pipe (.0625-27)11
341493A7配平油缸总成 (黑色)TRIM CYLINDER ASSEMBLY (BLACK)1
341493A4配平油缸总成 (灰色)TRIM CYLINDER ASSEMBLY (GRAY)1
341493A7升降油缸总成TRIM CYLINDER ASSEMBLY1
3A811600导向套件GUIDE KIT1
441492A1导向器总成GUIDE ASSEMBLY1
541478A1维修套件REPAIR KIT1
641482A2止回阀套件CHECK VALVE KIT1
799638A1导向总成装饰杆GUIDE ASSEMBLY TRIM ROD2
78M0021648端盖总成END CAP ASSEMBLY2
843397A6PISTON/ROD ASSEMBLY Power Trim PORT1
8878413A1活塞总成PISTON ASSEMBLY1
912184A1升降过滤器总成TRIM FILTER ASSEMBLY1
1043398A3PISTON/ROD ASSEMBLY Power Trim STARBOARD1
10878414T01活塞总成PISTON ASSEMBLY1
1113794开槽销 微调油缸(上部-无头)PIN Groove TRIM CYLINDER (UPPER - W/O HEAD)1
11821539三叶销PIN Trilobe1
1119603开槽销(带头)PIN Groove (W/ HEAD)1
11821539三叶销PIN Trilobe1
12812843A1阀门总成VALVE ASSEMBLY1
12893929A01安全阀套件VALVE KIT Relief1
12A812844E型卡环E RING1
12A815949001E形环E-RING1
134000327螺钉(M6x14)-盖板SCREW (M6 x 14) COVER4
1443450盖板螺丝垫圈WASHER COVER SCREW4
144002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)4
1599642歧管盖COVER MANIFOLD1
1648462A2O型圈套件O-RING KIT1
1648462A4O型圈套件O RING KIT1
1799609A1塞子总成PLUG ASSEMBLY1
1899641A1轴总成SHAFT ASSEMBLY1
1899641A02轴总成SHAFT ASSY1
1999616轴管塞PIPE PLUG SHAFT2
1956800管塞 (.0625-27)PLUG Pipe (.0625-27)2
204008820螺钉(M6x20)-泵与马达SCREW (M6 x 20) PUMP AND MOTOR2
21400256锁紧垫圈 (M6)LOCKWASHER (M6)2
2299186T泵与电机总成PUMP AND MOTOR1
22826729A10ORD 8M0143217ORD 8M01432171
2399625SHAFT UPPER1
2399625002轴SHAFT1
2443396A2阳极总成ANODE ASSEMBLY1
24818298Q1阳极套件ANODE KIT1
254000330螺钉(M6 x 25)阳极SCREW (M6 x 25) ANODE2
258M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
2629245垫圈(0.281x0.500x0.060)-不锈钢阳极螺钉WASHER (.281 x .500 x .060) Stainless Steel ANODE SCREW2
268M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
27996301撞板-升降轴STRIKER PLATE TRIM SHAFT2
278M0045383冲击板STRIKER PLATE2
2858643锁紧垫圈 (.375)LOCKWASHER (.375)2
2946335螺母 (.375-24)NUT (.375-24)2
30814609A1线束总成-动力升降控制HARNESS ASSEMBLY Control POWER TRIM1
3188808A22电缆总成(6-3/8"-红色)CABLE ASSEMBLY (6-3/8" - RED)1
3188808A23电缆总成(24"-红色)CABLE ASSEMBLY (24" - RED)1
3187379A14线束总成(2.750英寸)(红色)WIRE ASSEMBLY (2.750 Inches) (RED)1
3222875CLIP PUMP WIRE2
3369205C形垫圈线夹螺钉C WASHER CLIP SCREW2
338M0084613C形垫圈C-WASHER2
3469079螺钉(#10-16x0.440)-夹子到艉板支架SCREW (#10-16 x .440) CLIP TO TRANSOM BRACKET2
3544431沟槽销-升降油缸(下)PIN Groove TRIM CYLINDER (LOWER)1
35878267销PIN1
364000377SCREW (M10 x 30) MANIFOLD6
37400258锁紧垫圈(M10)-不锈钢歧管螺钉LOCKWASHER (M10) Stainless Steel MANIFOLD SCREW6
图 29点火线圈/电压调节器 Ignition Coil/Voltage Regulator
点火线圈/电压调节器 Ignition Coil/Voltage Regulator
REF零件编号中文名称英文名称数量
119587安装板PLATE MOUNTING1
230720电压调节器螺钉(.250-20 x 2.25)SCREW (.250-20 x 2.25) VOLTAGE REGULATOR4
326992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel4
419661衬套BUSHING4
518736A8电压调节器总成REGULATOR ASSEMBLY Voltage1
518736A21调节器总成REGULATOR ASSY1
618717密封件SEAL1
796158启动电磁阀SOLENOID Starter2
78M0185622电磁阀SOLENOID2
828635启动电磁阀不锈钢螺钉(.250-20 x .620)SCREW (.250-20 x .620) Stainless Steel STARTER SOLENOID3
988807A6黑色电缆总成 (3.50 英寸)CABLE ASSEMBLY (3.50 Inches) Black1
1056374电磁阀螺钉螺母(.250-20)NUT (.250-20) SOLENOID SCREW3
108267098螺母 (.250-20) 不锈钢NUT (.250-20) Stainless Steel3
1126419螺母(#8-32)-黄铜电磁阀端子NUT (#8-32) Brass SOLENOID TERMINAL4
1294330螺母 (.250-20) 黄铜电磁阀端子NUT (.250-20) Brass SOLENOID TERMINAL4
1397861绝缘体-启动电磁阀INSULATOR STARTER SOLENOID2
1488807A8黑色电缆总成 (3.50 英寸)CABLE ASSEMBLY (3.50 Inches) Black2
1588807A29电缆总成(9英寸-黑色)CABLE ASSEMBLY (9" - BLACK)1
1690077扎带TIE STRAPAR
16816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
1743542点火线圈盖COVER IGNITION COIL2
187370A13点火线圈总成COIL ASSEMBLY Ignition6
188M0230859点火线圈总成COIL IGNITION ASY6
1990048点火线圈盖螺钉(#10-32 x 2.125)SCREW (#10-32 x 2.125) IGNITION COIL COVER12
2090078盖板螺钉/接地线螺母(#10-32)NUT (#10-32) COVER SCREW/GROUND WIRE14
21813715A9高压点火线束套件CABLE KIT Ignition HIGH TENSION1
2263709A1高压电缆护套/端子套件BOOT/TERMINAL KIT HIGH TENSION CABLE6
23136862火花塞SPARK PLUG6
2313686QNGK BU8H @10NGK BU8H @106
2445076螺母(#10-32)黄铜点火线圈端子NUT (#10-32) Brass IGNITION COIL TERMINAL12
2588807A13拉线总成CABLE ASSEMBLY6
2669022SCREW (#10-32 x .500) Stainless Steel GROUNDING WIRE2
2769738A9线圈至开关盒线束总成HARNESS ASSEMBLY COIL TO SWITCH BOX1
2769739A6线圈至开关盒线束总成HARNESS ASSEMBLY COIL TO SWITCH BOX1
2854676双线固定夹RETAINER Two Wire2

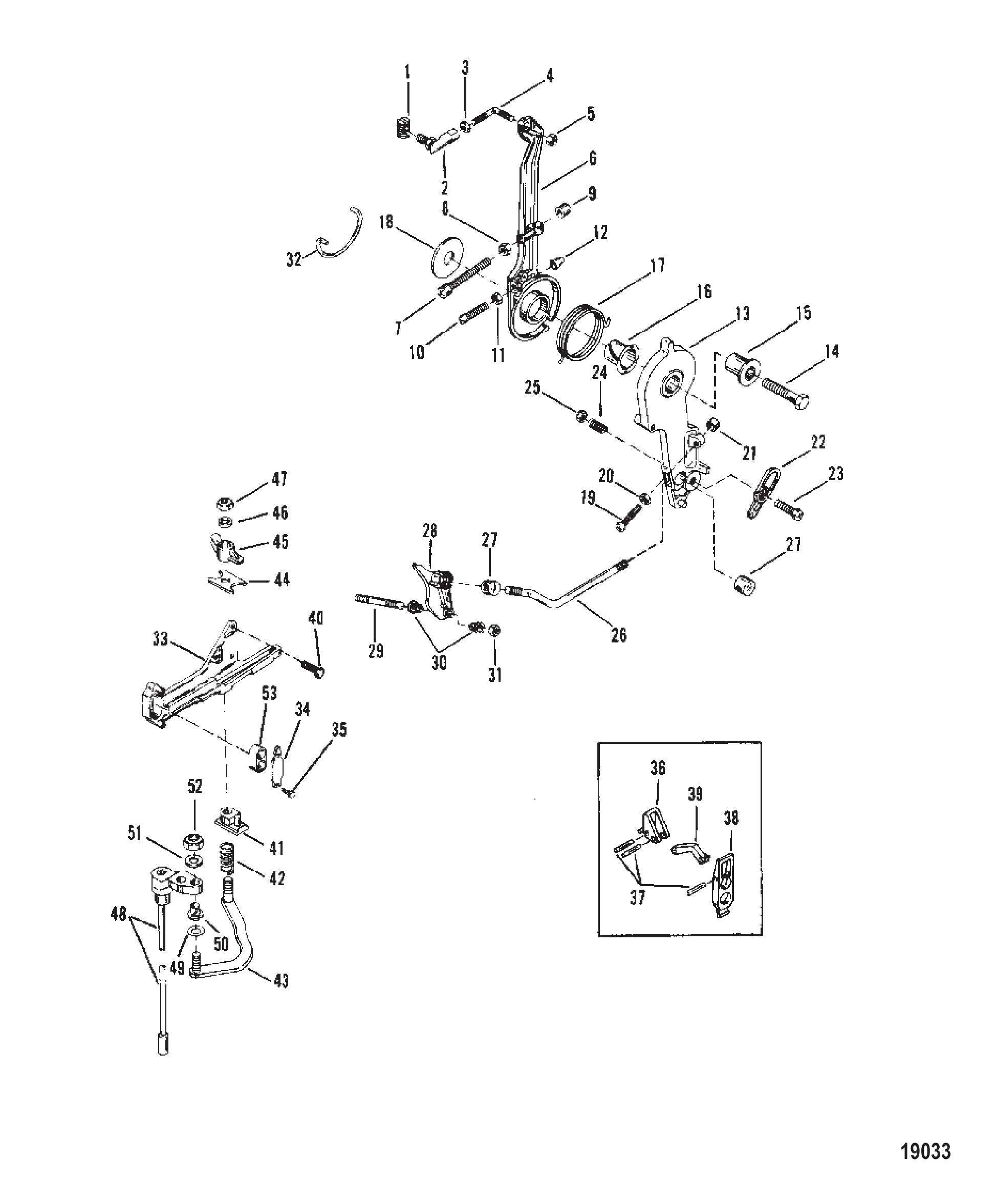

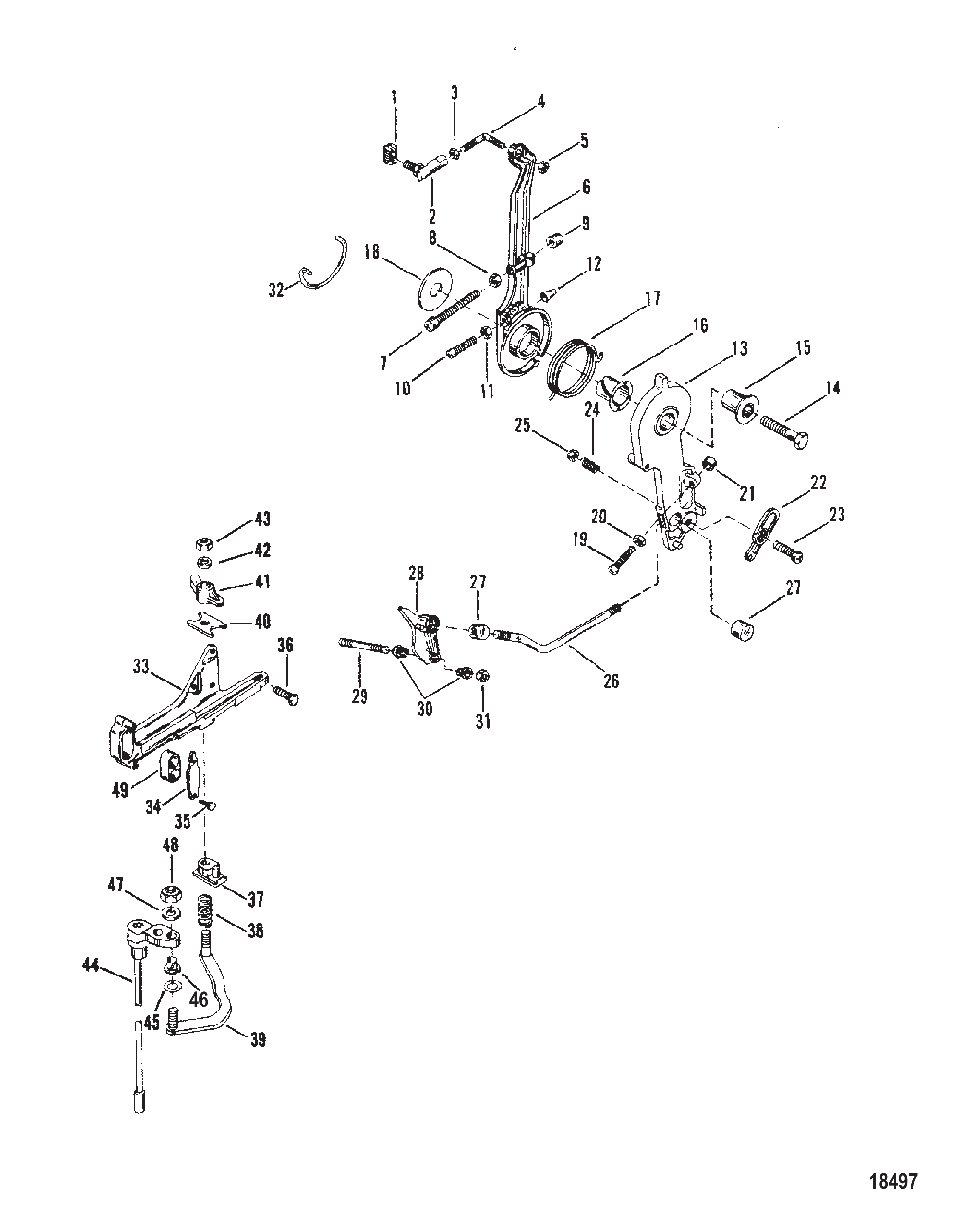

图 30油门杆与换挡轴 Throttle Lever and Shift Shaft
油门杆与换挡轴 Throttle Lever and Shift Shaft
REF零件编号中文名称英文名称数量
174897PIVOT TRIGGER PLATE1
262459球头总成触发板BALL JOINT ASSEMBLY TRIGGER PLATE1
262459T球头节总成BALL JOINT ASSY1
345076螺母(#10-32)黄铜连杆NUT (#10-32) Brass LINK ROD1
476035触发板连杆ROD TRIGGER PLATE1
546438螺母(#10-32)球头NUT (#10-32) BALL JOINT1
641094A3点火提前杆总成LEVER ASSEMBLY SPARK ADVANCE1
764022螺丝(.250-20x2.125)点火提前杆-止动SCREW (.250-20 x 2.125) SPARK ADVANCE LEVER - STOP1
864015螺母(.250-20)点火提前止动螺丝NUT (.250-20) SPARK ADVANCE STOP SCREW1
926852尼龙帽点火提前杆止动螺丝CAP Nylon SPARK ADVANCE LEVER STOP SCREW1
1069560螺丝(.190-32x1.250)点火提前杆-止动SCREW (.190-32 x 1.250) SPARK ADVANCE LEVER -STOP1
1168219螺母(#10-32)不锈钢点火提前杆止动螺丝NUT (#10-32) Stainless Steel SPARK ADVANCE LEVER STOP SCREW1
1248039点火提前杆止动螺丝帽CAP SPARK ADVANCE LEVER STOP SCREW1
1341095T油门控制杆LEVER THROTTLE CONTROL1
13410952杠杆LEVER1
1455337螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
14818165螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
1555164油门杠杆衬套BUSHING THROTTLE LEVER1
1655171点火提前杆衬套BUSHING SPARK ADVANCE LEVER1
1768784节气门与点火提前杆弹簧SPRING THROTTLE AND SPARK ADVANCE LEVER1
1868410点火提前杆垫片WASHER SPARK ADVANCE LEVER1
1846765垫圈 (.390 x 1.50 x .120)WASHER (.390 x 1.50 x .120)1
1964022螺丝(.250-20x2.125)节气门杆-止动SCREW (.250-20 x 2.125) THROTTLE LEVER - STOP1
2064015螺母(.250-20)节气门杆止动螺丝NUT (.250-20) THROTTLE LEVER STOP SCREW1
2126852尼龙帽节气门杆止动螺丝CAP Nylon THROTTLE LEVER STOP SCREW1
2239483锁扣拉线LATCH CABLE1
2322486螺丝(.250-28x.880)拉线锁扣至节气门杆SCREW (.250-28 x .880) CABLE LATCH TO THROTTLE LEVER1
2369026螺钉 (.250-28 x .880)SCREW (.250-28 x .880)1
2420099拉线锁扣至节气门杆弹簧SPRING CABLE LATCH TO THROTTLE LEVER1
2520586螺母(.250-28)拉线锁扣螺丝NUT (.250-28) CABLE LATCH SCREW1
25826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
2679949节气门控制杆ROD THROTTLE CONTROL1
2760572节气门控制杆套筒BARREL THROTTLE CONTROL ROD2
278M0221994筒形接头BARREL FITTING2
2895791节气门凸轮CAM Throttle1
2920353螺柱(.250-28x1.750)节气门凸轮固定STUD (.250-28 x 1.750) THROTTLE CAM ATTACHING1
3026856节气门凸轮衬套BUSHING THROTTLE CAM2
3136069节气门凸轮螺柱螺母NUT THROTTLE CAM STUD1
3241050节气门复位弹簧SPRING THROTTLE RETURN1
3392032A2控制线缆锚定支架BRACKET ANCHOR - CONTROL CABLES1
33814283A2支架总成BRACKET ASSEMBLY1
3498889控制线缆锁扣LATCH CONTROL CABLE1
3542975闩锁传动螺钉DRIVE SCREW LATCH2
3639618尼龙杆-换挡拉线锁定LEVER NYLON - SHIFT CABLE LOCKING1
3687609A1杠杆套件LEVER KIT1
3747175杆与盖固定销PIN LEVER AND COVER FASTENING3
3890211尼龙盖-换挡拉线COVER NYLON - SHIFT CABLE1
3965799T连杆-锁定杆到盖板LINK LOCKING LEVER TO COVER1
3987609A1杠杆套件LEVER KIT1
4053167螺丝(.312-18x.880)锚定支架固定SCREW (.312-18 x .880) ANCHOR BRACKET ATTACHING3
4053167T螺钉 0.312-18X 0.88SCREW .312-18X .883
4137896连杆导向块GUIDE BLOCK LINK ROD1
4220099连杆至导向块弹簧SPRING LINK ROD TO GUIDE BLOCK1
4367073A1连杆总成LINK ROD ASSEMBLY1
4452100连杆耐磨板WEAR PLATE LINK ROD1
4538279锁扣控制拉线固定-锚定支架LATCH CONTROL CABLE FASTENING-ANCHOR BRACKET1
458M0036768闩锁LATCH1
4635462垫圈(.2656x.625x.0625)不锈钢锁扣WASHER (.2656 x .625 x .0625) Stainless Steel LATCH1
4736069连杆螺母NUT LINK ROD1
4879932A7换挡轴总成 (长)SHIFT SHAFT ASSEMBLY (LONG)1
4879932A16换挡轴总成SHIFT SHAFT ASSEMBLY1
4879932A8换挡轴总成(加长型)SHIFT SHAFT ASSEMBLY (EXTRA LONG)1
4879932A17换挡轴总成SHIFT SHAFT ASSEMBLY1
4929720连杆波形垫圈WAVE WASHER LINK ROD1
5026600尼龙衬套-连杆BUSHING NYLON - LINK ROD1
5135462垫圈(.2656 x .625 x .0625)不锈钢连杆WASHER (.2656 x .625 x .0625) Stainless Steel LINK ROD1
5236069连杆至换挡轴螺母NUT LINK ROD TO SHIFT SHAFT1
5339519杯形套筒固定器-锚杆CUP BARREL RETAINER - ANCHOR BAR1

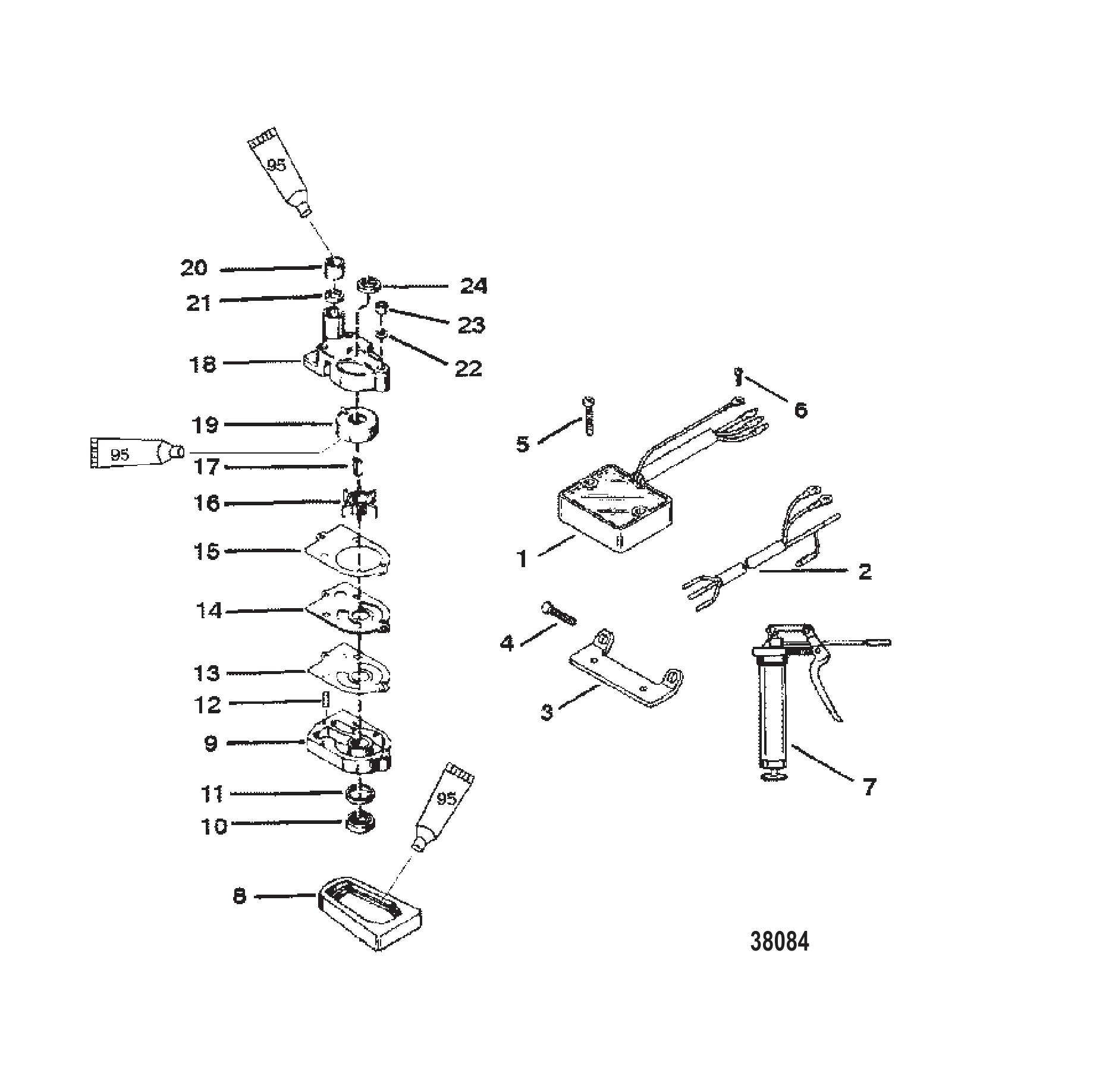

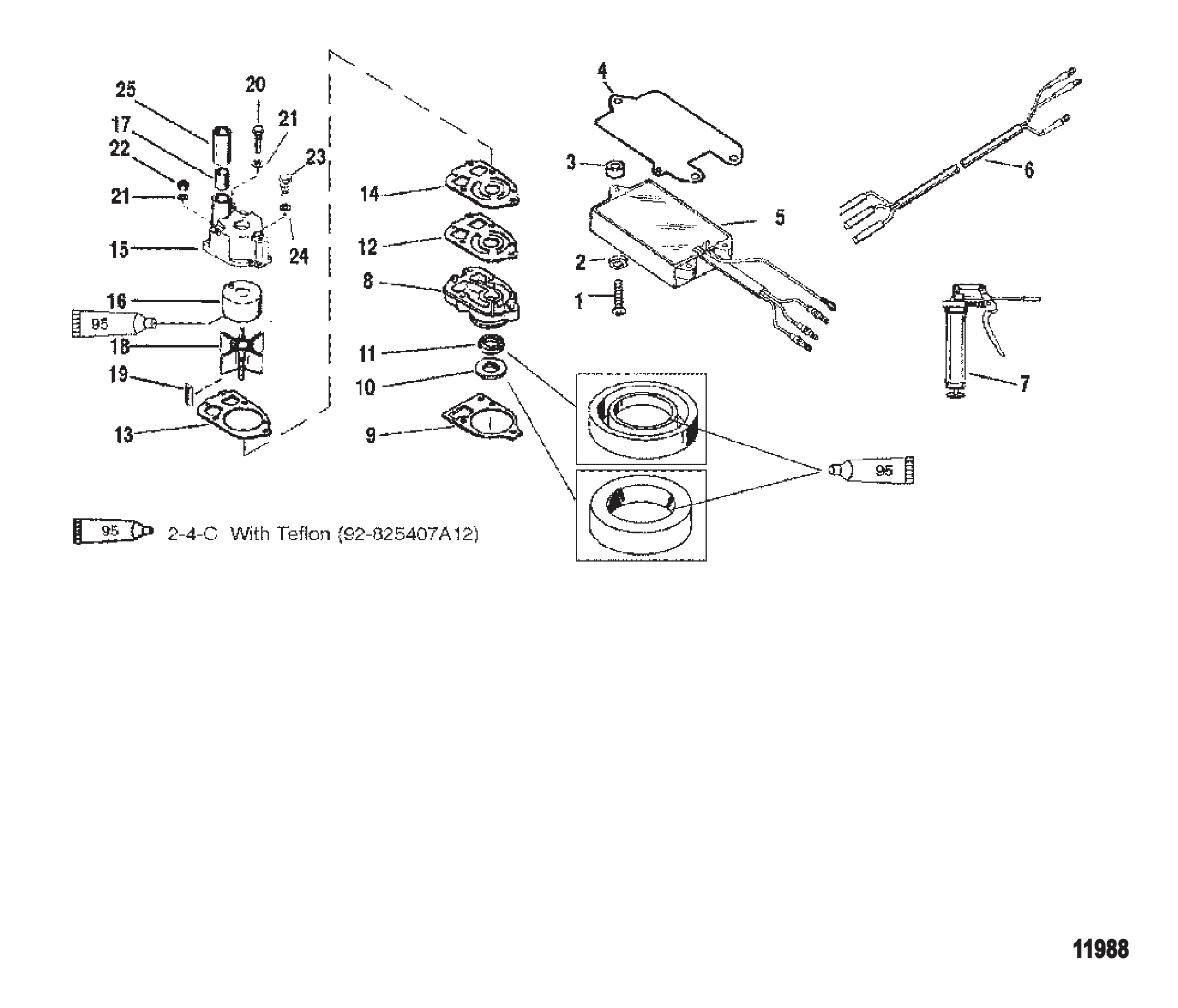

图 31喷射组件 JET COMPONENTS
喷射组件 JET COMPONENTS
REF零件编号中文名称英文名称数量
1821889A31转速限制器REV LIMITER1
2823147A3转速限制器线束总成HARNESS ASSEMBLY Rev Limiter1
3826580支架BRACKET1
476213螺钉(.250-20 x 1.120)SCREW (.250-20 x 1.120)2
540011109螺钉 (M5 x 25) 不锈钢SCREW (M5 x 25) Stainless Steel2
662568螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)1
7801402润滑脂套装GREASE KIT1
730500A2润滑脂套装GREASE KIT1
837721密封件SEAL1
837721001密封件@2SEAL @21
977177A1水泵底座总成BASE ASSEMBLY Water Pump1
1079831油封SEAL Oil1
1190562密封件(1.254 x .312)SEAL (1.254 x .312)1
1235973定位销PIN Dowel2
1319553衬垫GASKET1
1454705面板FACE PLATE1
1432768面板FACEPLATE1
1519551衬垫GASKET1
1689983叶轮IMPELLER1
1689983T叶轮IMPELLER1
1756662键KEY1
178M0032837键@5KEY @51
1877822A1水泵壳体总成BODY ASSEMBLY Water Pump1
1948753嵌件INSERT1
2038452密封件SEAL1
2138453垫圈WASHER1
2229245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel3
228M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel3
2313438螺母(.250-28)NUT (.250-28)3
238267119螺母(.250-28)NUT (.250-28)3
2420273O型圈 (驱动轴)O-RING (DRIVE SHAFT)1
-85491A90衬垫套件GASKET SET1
-79831A1密封套件SEAL KIT1
-77177A3水泵套件WATER PUMP KIT1
图 32动力转向组件（遥控） POWER STEERING COMPONENTS (REMOTE)
动力转向组件（遥控） POWER STEERING COMPONENTS (REMOTE)
REF零件编号中文名称英文名称数量
117771支架MOUNT1
259702螺钉 (.250-28 x .875) 不锈钢SCREW (.250-28 x .875) Stainless Steel4
388404锁紧垫圈TAB WASHER4
478862A2密封套件SEAL KIT1
419624A1密封套件SEAL KIT1
571565A2管总成TUBE ASSEMBLY1
617776联轴器COUPLING1
7817040螺钉 (.375-24 x 2.75)SCREW (.375-24 x 2.75)1
834931不锈钢垫圈(.406x.734x.063)WASHER (.406 x .734 x .063) Stainless Steel1
990092螺钉SCREW1
9856722螺钉SCREW1
1034863螺母 (.375-24)NUT (.375-24)2
108M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass2
1142100锁紧垫圈TAB WASHER2
1237984螺母 (.875-14)NUT (.875-14)2
128M0041651螺母 (.875-14)NUT (.875-14)2
13811290蓄能器 (参见蓄能器分解图)ACCUMULATOR (See Accumulator for Breakdown)1
14817372支架BRACKET1
1516862螺钉 (.250-10 x 1.25)SCREW (.250-10 x 1.25)4
1629245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel4
168M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel4
174000383螺钉 (M10 x 70)SCREW (M10 x 70)2
184002319垫圈WASHER4
1913914螺母(M10)NUT (M10)2
1940140螺母(M10)NUT (M10)2
208112891执行器ACTUATOR1
20828588A2执行器套件ACTUATOR KIT1
2194319螺钉(.375-24 x 1.5)SCREW (.375-24 x 1.5)1
2217405隔套SPACER2
2334863螺母 (.375-24)NUT (.375-24)3
238M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass3
2414000螺钉(.375-24x1.25)SCREW (.375-24 x 1.25)1
24849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)1
2592876A4连杆总成LINK ROD ASSEMBLY1
2668300垫圈 (.88 x .39 x .06)WASHER (..88 x .39 x .06)1
274000330螺钉(M6x25)SCREW (M6 x 25)2
278M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
2843450垫圈WASHER2
284002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)2
298268336螺母 (M6)NUT (M6)2
29401386螺母(M6)不锈钢NUT (M6) Stainless Steel2
30811292卡箍CLAMP1
31818182螺钉SCREW2
32400263螺母 (M5)NUT (M5)2
33811291支架BRACKET1
3438601螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250)4
35197491卡箍CLAMP1
3618211继电器开关RELAY SWITCH1
3718244A1线束总成HARNESS ASSEMBLY1
3818124螺钉 (#10-32 x .750)SCREW (#10-32 x .750)1
3990329护孔环GROMMET1
40309772隔套SPACER1
41816994支架BRACKET1
4242118垫圈WASHER1
4329488螺母 (#10-32)NUT (#10-32)1
438M0204718螺母NUT1
4481563024贴花DECAL1

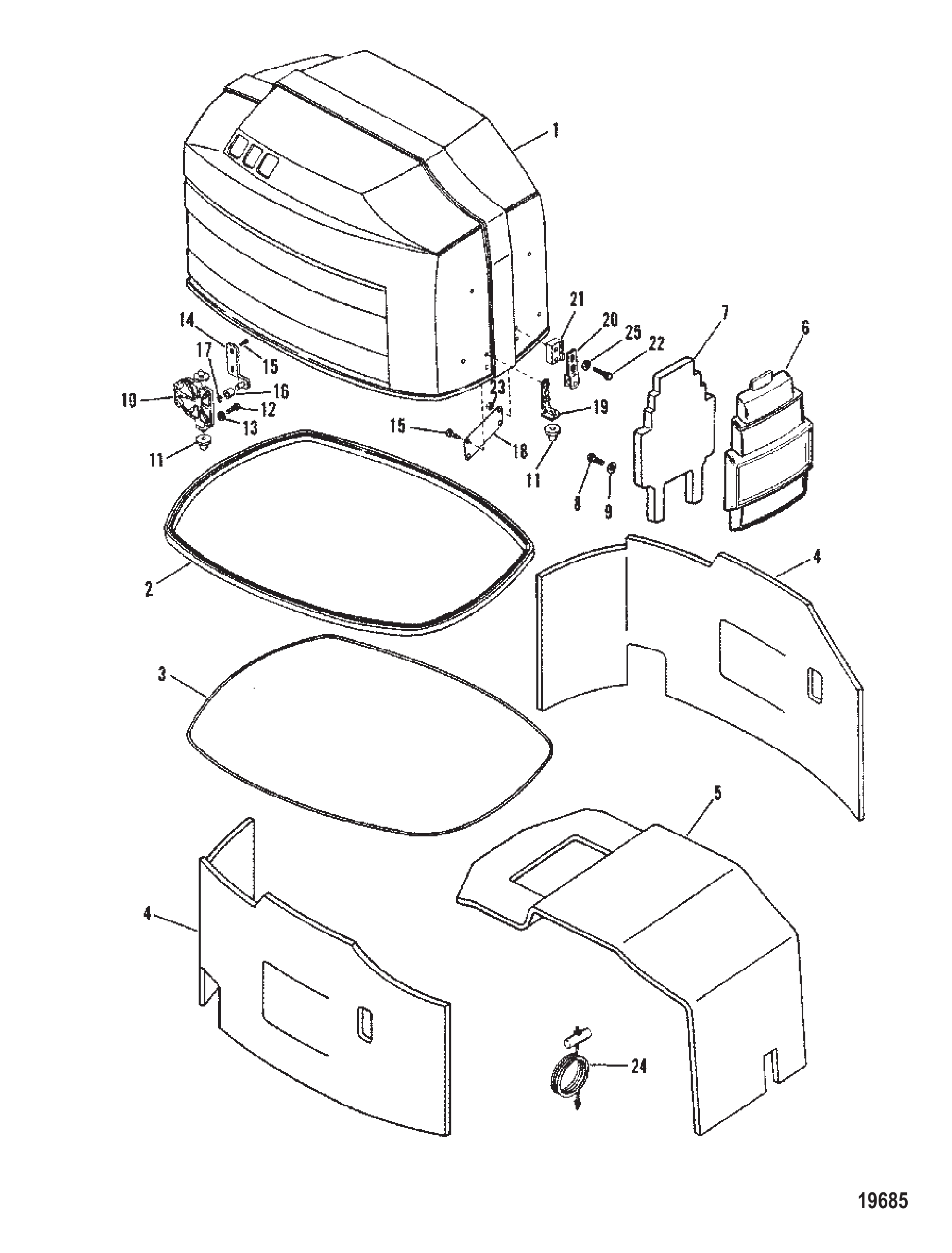

图 33顶罩及前护板 Top Cowl and Front Shield
顶罩及前护板 Top Cowl and Front Shield
REF零件编号中文名称英文名称数量
-17996徽标EMBLEM2
-179061左舷/右舷徽标-SEA RAYEMBLEM PORT/STARBOARD-SEA RAY2
19742A16顶罩总成(黑色)TOP COWL ASSEMBLY (BLACK)1
19742T88顶罩总成(黑色)TOP COWL ASSY BLK1
19742A17顶罩总成(灰色)TOP COWL ASSEMBLY (GRAY)1
19743T11顶罩TOP COWL1
2812784密封件SEAL1
3813566密封件SEAL1
3815478密封件SEAL1
4813670隔音垫(侧)SOUND BLANKET (SIDE)1
4814823隔音毯SOUND BLANKET1
5813671隔音垫(顶)SOUND BLANKET (TOP)2
5814837隔音毯SOUND BLANKET2
618755A1前护罩总成(黑色)FRONT SHIELD ASSEMBLY (BLACK)1
618755A2前护罩总成(灰色)FRONT SHIELD ASSEMBLY (GRAY)1
7813562密封件SEAL1
848409螺钉 (#10-16 x .625) 不锈钢SCREW (#10-16 x .625) Stainless Steel4
942118垫圈WASHER4
10184741后支架BRACKET REAR2
1118506护孔环GROMMET3
1118506001护孔环GROMMET3
1228636螺钉(.250-20 x .750) 后支架SCREW (.250-20 x .750) REAR BRACKET8
1326992锁紧垫圈(.250)不锈钢 后支架螺钉LOCKWASHER (.250) Stainless Steel REAR BRACKET SCREW8
14813096挂钩HOOK2
14813096A2挂钩套件HOOK KIT2
1573286螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel8
16813074滚轮ROLLER2
168M0207770滚轮@3ROLLER @32
1713194挡圈RING Retaining2
18813553安装板PLATE1
1856720垫圈(0.330×0.750×0.060)不锈钢WASHER (.330 x .750 x .060) Stainless Steel1
19187021定位器LOCATOR1
2018173锁扣滚轮支架总成BRACKET ASSEMBLY Latch Roller1
20893763滚轮锁扣支架BRACKET Roller Latch1
21813552隔套SPACER1
21813076A2手柄套件HANDLE KIT1
2231984螺钉(0.312-18×1.375)SCREW (.312-18 x 1.375)2
2367980螺母(.312-18)NUT (.312-18)2
2382670910不锈钢螺母(.312-18)NUT (.312-18) Stainless Steel2
2447341A1手动/应急启动绳和手柄套件 (用于手动启动)ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING)1
2447341A11手动启动绳柄套件ROPE AND HANDLE KIT Manual Starting1
2570132垫圈(0.323×0.563×0.063)不锈钢WASHER (.323 x .563 x .063) Stainless Steel2
258M0042642垫圈(.323 x .562 x .063)WASHER (.323 x .562 x .063)2
-813096A1后锁扣套件REAR LATCH KIT1
图 34动力升降倾斜组件 Power Trim Components
动力升降倾斜组件 Power Trim Components
REF零件编号中文名称英文名称数量
-830250T3动力升降泵总成PUMP ASSEMBLY Power Trim1
1811666A1减震杆套件SHOCK ROD KIT1
18M0171821减震杆套件SHOCK ROD KIT1
2809872A2O型圈维修包O-RING KIT Rebuild1
28M0171819O型圈套件O-RING KIT1
3810776A1记忆活塞总成PISTON ASSEMBLY Memory1
38M0171822记忆活塞套件MEMORY PISTON KIT1
4811669A1气缸总成CYLINDER ASSEMBLY1
4893916A01气缸总成CYLINDER ASSEMBLY1
5809873A1配平限位阀套件VALVE KIT Trim Limit1
5893905A02阀套件VALVE KIT1
6809874A1泵总成PUMP ASSEMBLY1
6893906A02泵总成PUMP ASSEMBLY1
7809885A2电机套件MOTOR KIT1
7893907A02电机套件MOTOR KIT1
88134351堵头PLUG1
9813442A2手动释放总成MANUAL RELEASE ASSEMBLY1
9893929A01安全阀套件VALVE KIT Relief1
10809875A1歧管套件MANIFOLD KIT1
10893909A02歧管套件MANIFOLD KIT1
11809876A1电机螺钉套件SCREW KIT Motor1
1288238A18拉线总成CABLE ASSEMBLY1
13809877A1驱动轴/密封套件DRIVESHAFT/SEAL KIT1
14809878A1滤清器套件FILTER KIT1
14893912A02滤清器套件FILTER KIT1
15809879A1提升阀套件POPPET KIT1
15893913A02提升阀套件POPPET KIT1
-809880A1完整配平O型圈套件O-RING KIT Complete Trim1
-893914A02O型圈套件O-RING KIT1
16821539三叶销PIN Trilobe2
17818898锚销PIN Anchor1
18996251轴SHAFT1
1899625002轴SHAFT1
1922740卡扣CLIP2
20878609螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
2169205C形垫圈C WASHER1
218M0084613C形垫圈C-WASHER1
图 35齿轮箱图表（序列号0G437999及以下） Gear Housing Chart (S/N-0G437999 & Below)
齿轮箱图表（序列号0G437999及以下） Gear Housing Chart (S/N-0G437999 & Below)
REF零件编号中文名称英文名称数量
-9148A69齿轮箱总成 标准旋转 1.87:1 齿轮比GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio1
-9148A72齿轮箱总成 标准旋转 1.87:1 齿轮比GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio1
-9148T85齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A70齿轮箱总成 标准旋转 1.87:1 齿轮比GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio1
-9148T84齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A73齿轮箱总成 标准旋转 1.87:1 齿轮比GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio1
-9148T91ORD 1647-9148T85ORD 1647-9148T851
-9148A76齿轮箱总成 反向旋转GEAR HOUSING ASSEMBLY Counter Rotation1
-9148T86齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A77齿轮箱总成 反向旋转GEAR HOUSING ASSEMBLY Counter Rotation1
-9148T92ORD 1647-9148T86ORD 1647-9148T861
图 36气缸体与端盖 CYLINDER BLOCK AND END CAPS
气缸体与端盖 CYLINDER BLOCK AND END CAPS
REF零件编号中文名称英文名称数量
18711A19气缸体CYLINDER BLOCK1
276175动力头螺柱(1-7/8英寸)STUD POWERHEAD (1-7/8")6
367065动力头螺柱(5-1/2英寸)STUD POWERHEAD (5-1/2")2
3670654螺柱(.375-16/.375-24 x 5.620)STUD (.375-16/.375-24 x 5.620)2
378438动力头螺柱(6-3/4英寸)STUD POWERHEAD (6-3/4")2
38M0034454螺柱(.375-16/.375-24 x 6.87)STUD (.375-16/.375-24 x 6.87)2
420033定位销PIN Dowel LOCATING2
443044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
567296气缸体销(轴承座圈)PIN CYLINDER BLOCK (BEARING RACE)2
58M0036405销PIN2
611338密封垫片GASKET SEALING2
742249启动马达上盖COVER STARTER MOTOR (UPPER)1
78M0088723启动器支架BRACKET-STARTER1
873657盖至曲轴箱螺钉(.312-18 x 1.50)SCREW (.312-18 x 1.50) COVER TO CRANKCASE2
926993启动马达盖螺钉锁紧垫圈(0.312)LOCKWASHER (.312) STARTER MOTOR COVER SCREW4
98M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
1076867启动电机盖(下部)COVER STARTER MOTOR (LOWER)1
1177065盖至曲轴箱螺钉(.312-18 x 2)SCREW (.312-18 x 2) COVER TO CRANKCASE2
11815549螺钉(.312-18 x 2.00)SCREW (.312-18 x 2.00)2
11A99448衬套BUSHING1
1266717曲轴箱至气缸体螺钉(.375-16 x 3.250)SCREW (.375-16 x 3.250) CRANKCASE TO CYLINDER BLOCK8
1274824曲轴箱至气缸体螺丝(.312-18 x 1.250)SCREW (.312-18 x 1.250) CRANKCASE TO CYLINDER BLOCK6
138454A1上端盖总成END CAP ASSEMBLY UPPER1
138454T1端盖总成END CAP ASSY1
1454029端盖O型圈(2.800 x .103)O-RING (2.800 x .103) END CAP1
1574248BEARING Roller END CAP (1.50 I.D.)1
1574248T轴承BEARING1
1641953端盖密封件SEAL END CAP1
138454A2上端盖总成END CAP ASSEMBLY UPPER1
138454T2端盖总成END CAP ASSY1
1454029端盖O型圈(2.800 x .103)O-RING (2.800 x .103) END CAP1
1593496BEARING Roller END CAP (1.37 I.D.)1
1593496T轴承BEARING1
1641953端盖密封件SEAL END CAP1
1769034上端盖至气缸体螺钉及锁紧垫圈(.312-18 x 1.00)SCREW AND LOCKWASHER (.312-18 x 1.00) UPPER END CAP TO CYLINDER BLOCK4
1730225螺钉带锁紧垫圈(.312-18 x 1.00)SCREW WITH LOCKWASHER (.312-18 x 1.00)4
1824220气缸体定位螺钉(.190-24 x .190)SCREW (.190-24 x .190) SET - CYLINDER BLOCK2
1938407气缸体水套螺塞(.500-14)PLUG (.500-14) CYLINDER BLOCK (WATER JACKET)1
2015094飞轮盖至气缸体双头螺柱(.190-32 x 1.870)STUD (.190-32 x 1.870) FLYWHEEL COVER TO CYLINDER BLOCK1
2115093飞轮盖至支架双头螺柱(#10-32 x 1.00)STUD (#10-32 x 1.00) FLYWHEEL COVER TO BRACKET2
218M0034435螺柱STUD2
2267269飞轮盖螺柱隔套SPACER FLYWHEEL COVER STUD1
23492211飞轮盖螺柱垫圈WASHER FLYWHEEL COVER STUD6
238M0204663垫片@5WASHER @56
2472761飞轮盖螺柱不锈钢垫圈(.203 x .562 x .060)WASHER (.203 x .562 x .060) Stainless Steel FLYWHEEL COVER STUD6
2573651飞轮盖螺柱螺母NUT FLYWHEEL COVER STUD3
25816874蝶形螺母 (#10-32)WING NUT (#10-32)3
2642248飞轮罩支架BRACKET FLYWHEEL COVER1
26422482支架BRACKET1
2749668支架至曲轴箱螺钉(.250-20 x .750)SCREW (.250-20 x .750) BRACKET TO CRANKCASE2
287809A1下端盖总成END CAP ASSEMBLY LOWER1
287809T1端盖总成END CAP ASSEMBLY1
2962700端盖O型圈(3.237 x .103)O-RING (3.237 x .103) END CAP1
3041953端盖密封件SEAL END CAP2
3128636下端盖至气缸体螺钉(.250-20 x .750)SCREW (.250-20 x .750) LOWER END CAP TP CYLINDER BLOCK4
3226992下端盖螺钉不锈钢锁紧垫圈(.250)LOCKWASHER (.250) Stainless Steel LOWER END CAP SCREW4
3364022气缸体调节螺钉(.250-20 x 2.125)SCREW (.250-20 x 2.125) SDJUSTING - CYLINDER BLOCK1
3464015锁紧螺母(.250-20)-调节螺钉NUT (.250-20) JAM - ADJUSTING SCREW1
3526852调节螺钉尼龙帽CAP Nylon NYLON - ADJUSTING SCREW1
3566517气缸体泄流限制器RESTRICTOR BLEED - CYLINDER BLOCK1
-90484A88衬垫套件GASKET SET1
-41282A88动力头总成POWERHEAD ASSEMBLY1
-41282T88PH 135/150PH 135/1501
图 37仪表装置 INSTRUMENTATION
仪表装置 INSTRUMENTATION
REF零件编号中文名称英文名称数量
186322A7线缆总成(1.50英尺)黑色CABLE ASSEMBLY (1.50 Feet) Black1
186323A5线缆总成(1.50英尺)紫色CABLE ASSEMBLY (1.50 Feet) Purple1
2825338A3动力升降倾斜仪表 白面黑刻度黑边框GAUGE Power Trim, White Face, Black Graduation, Black Bezel1
2895292Q41动力升降倾斜指示器 黑面橙白刻度黑边框GAUGE Power Trim Indicator, Black Face, Orange/White Graduations, Black Bezel1
379480支架BRACKET1
472729楔形底座灯泡(14V - 1.9W)LIGHT BULB Wedge Base (14V - 1.9W)1
579888灯泡插座SOCKET Light Bulb1
626419黄铜螺母 (#8-32)NUT (#8-32) Brass5
768878A6蜂鸣报警器总成HORN ASSEMBLY Buzzer Alarm1
868879盖板COVER1
979697隔套SPACER2
98M0084588隔套SPACER2
1026427垫圈WASHER4
1135401螺钉(#10 x 1.00)SCREW (#10 x 1.00)2
1286396A8转速表线束总成(5.00英尺)HARNESS ASSEMBLY Tachometer (5.00 Feet)1
1319674A1拉绳开关总成SWITCH ASSEMBLY Lanyard1
1319674A07开关/拉绳套件SWITCH/LANYARD KIT1
1418303螺钉 (.190-16 x 1.750) 不锈钢SCREW (.190-16 x 1.750) Stainless Steel2
15813679适配器ADAPTER1
1615920Q54拉绳总成LANYARD ASSEMBLY1
1732866螺钉 (#10-32 x 2.00) 不锈钢SCREW (#10-32 x 2.00) Stainless Steel2
1818321安装夹CLAMP Mounting1
1924676垫圈 (.200 x .440 x .032)WASHER (.200 x .440 x .032)2
2068219螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel4
2179146固定座RETAINER3
22816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
23812497A2二极管总成DIODE ASSEMBLY1
23898289A72双拉绳二极管套件DIODE KIT-LANYARD Dual1
2411149A2线缆总成 (6.00英寸)CABLE ASSEMBLY (6.00 Inches)1
图 38驱动轴壳体 Driveshaft Housing
驱动轴壳体 Driveshaft Housing
REF零件编号中文名称英文名称数量
1858576T03驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
2903501双头螺柱(M10×100)STUD (M10 x 100)1
29035015双头螺柱(M10×227)STUD (M10 x 227)1
39035012双头螺柱(M10×63)STUD (M10 x 63)4
39035016双头螺柱(M10×190)STUD (M10 x 190)4
38M0034462双头螺柱(M10×190)STUD (M10 x 190)4
4856774垫圈(0.406×0.750×0.105)不锈钢WASHER (.406 x .750 x .105) Stainless Steel5
48M0214963垫圈WASHER5
540140螺母(M10)NUT (M10)5
685822A15速度计传感器总成PICKUP ASSEMBLY Speedometer1
74333590度接头(.125-27)尼龙CONNECTOR 90 Degree (.125-27) Nylon1
743335190度接头-带防振密封CONNECTOR 90 Degree - With Vibraseal1
885822直通接头CONNECTOR Straight1
885822T直通接头CONNECTOR Straight1
944343T1支架MOUNT2
1042973螺栓(M12×154)BOLT (M12 x 154)2
10898835001螺钉(M12 x 154)SCREW (M12 x 154)2
1130119垫圈(外径0.875英寸)WASHER (.875 Inch Outside Diameter)2
1243528螺母(M12)NUT (M12)2
128M0204662螺母NUT2
1388238A10接地线总成CABLE ASSEMBLY Ground2
1441508螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel1
15858916T卡箍CLAMP2
164010725螺钉 (M8 x 25)SCREW (M8 x 25)4
17858745盖帽CAP4
178M0142713支撑盖帽CAP Chap Support4
18859550衬套BUSHING1
1924873定位销PIN Alignment1
20855622接头FITTING1
2112092A3隔套套件SPACER KIT1
2243043定位销-带孔(0.375×0.625)PIN Dowel - With Hole (.375 x .625)1
228M0084244定位销 0.375x0.620PIN Dowel, .375 x .6201
2243044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)1
23813745隔套SPACER1
24816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)2

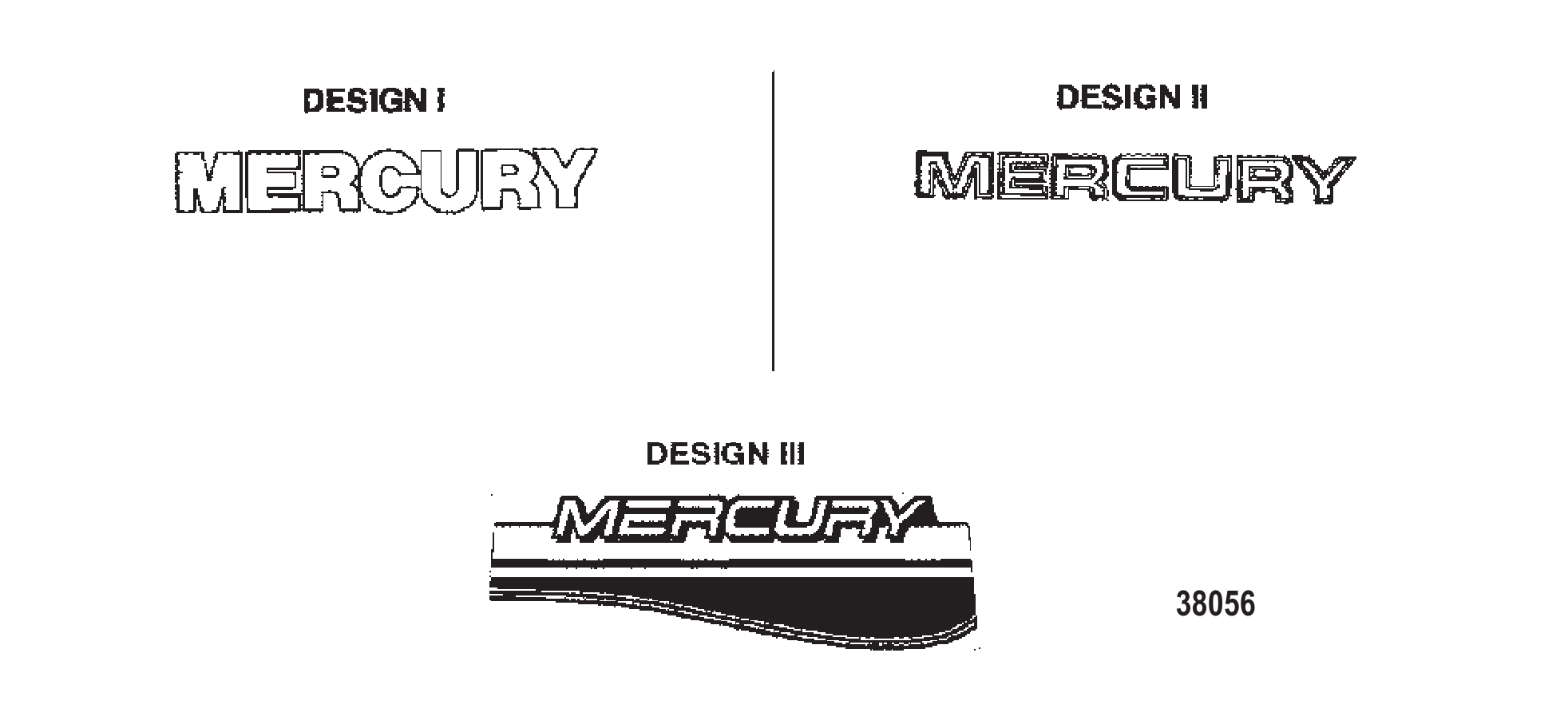

图 39杂项信息 MISCELLANEOUS INFORMATION
杂项信息 MISCELLANEOUS INFORMATION
REF零件编号中文名称英文名称数量
0814698零件手册 40马力/30喷射型PARTS MANUAL 40 HP/30 JET1
0814323A90贴花套件DECAL SET1
0814323A94贴花套件DECAL SET1
0814323A96贴花套件DECAL SET1
0814323A96贴花套件DECAL SET1
0822166A92贴花套件DECAL SET1
0810462A94贴花套件DECAL SET1
0810462A97贴花套件DECAL SET1
0810462A97贴花套件DECAL SET1
0826324A95贴花套件DECAL SET1
0826324A97贴花套件DECAL SET1
0826324A97贴花套件DECAL SET1
0815626A93贴花套件DECAL SET1
0824732A94贴花套件DECAL SET1
0824732A96贴花套件DECAL SET1
0826323A95贴花套件DECAL SET1
0826323A96贴花套件DECAL SET1
0826323A96贴花套件DECAL SET1
010118970用户手册OWNERS MANUAL1
010134970用户手册OWNERS MANUAL1
010160970用户手册OWNERS MANUAL1
图 40杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES
杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES
REF零件编号中文名称英文名称数量
-811286零件手册(6/8/9.9/15马力)PARTS MANUAL 6/8/9.9/15 Hp
-12048930用户指南(黑色)OWNERS GUIDE (BLACK)
-14138930用户指南(灰色)OWNERS GUIDE (GRAY)
-14012A89贴花套装(9.9/210帆动力)DECAL SET (9.9/210 SAILPOWER)
-12836A89贴花套装(黑色-6至9.9马力)DECAL SET (BLACK- 6 THRU 9.9)
-13478A88贴花套装(黑色-15马力)DECAL SET (BLACK-15)
-810458A92贴花套装(灰色-6至15马力)DECAL SET (GRAY- 6 THRU 15)
-822787A93贴花套装(灰色-8帆伴侣)DECAL SET (GRAY 8 SAILMATE)
-808560A03贴花套件DECAL SET
-808522A94贴花套装(黑色-6马力)DECAL SET (BLACK-6)
-808522A00贴花套件DECAL SET
-808526A94贴花套装(黑色-8马力)DECAL SET (BLACK -8)
-808526A00贴花套件DECAL SET
-12836A94贴花套装(黑色-9.9马力)DECAL SET (BLACK- 9.9)
-12836A00贴花套件DECAL SET
-808523A94贴花套装(9.9帆动力)DECAL SET (9.9 SAILPOWER)
-808523A96贴花套件DECAL SET
-13478A94贴花套装(黑色-15马力)DECAL SET (BLACK-15)
-13478A00贴花套件DECAL SET
-808524A94贴花套装(灰色-6马力)DECAL SET (GRAY-6)
-808524A03贴花套件DECAL SET
-808545A94贴花套装(灰色-8马力)DECAL SET (GRAY-8)
-808545A03贴花套件DECAL SET
-808560A94贴花套装(8帆伴侣)DECAL SET (8 SAILMATE)
-808560A03贴花套件DECAL SET
-808525A94贴花套装(灰色-9.9马力)DECAL SET (GRAY-9.9)
-808525A03贴花套件DECAL SET
-808546A94贴花套装(灰色-15马力)DECAL SET (GRAY-15)
-808546A03贴花套件DECAL SET

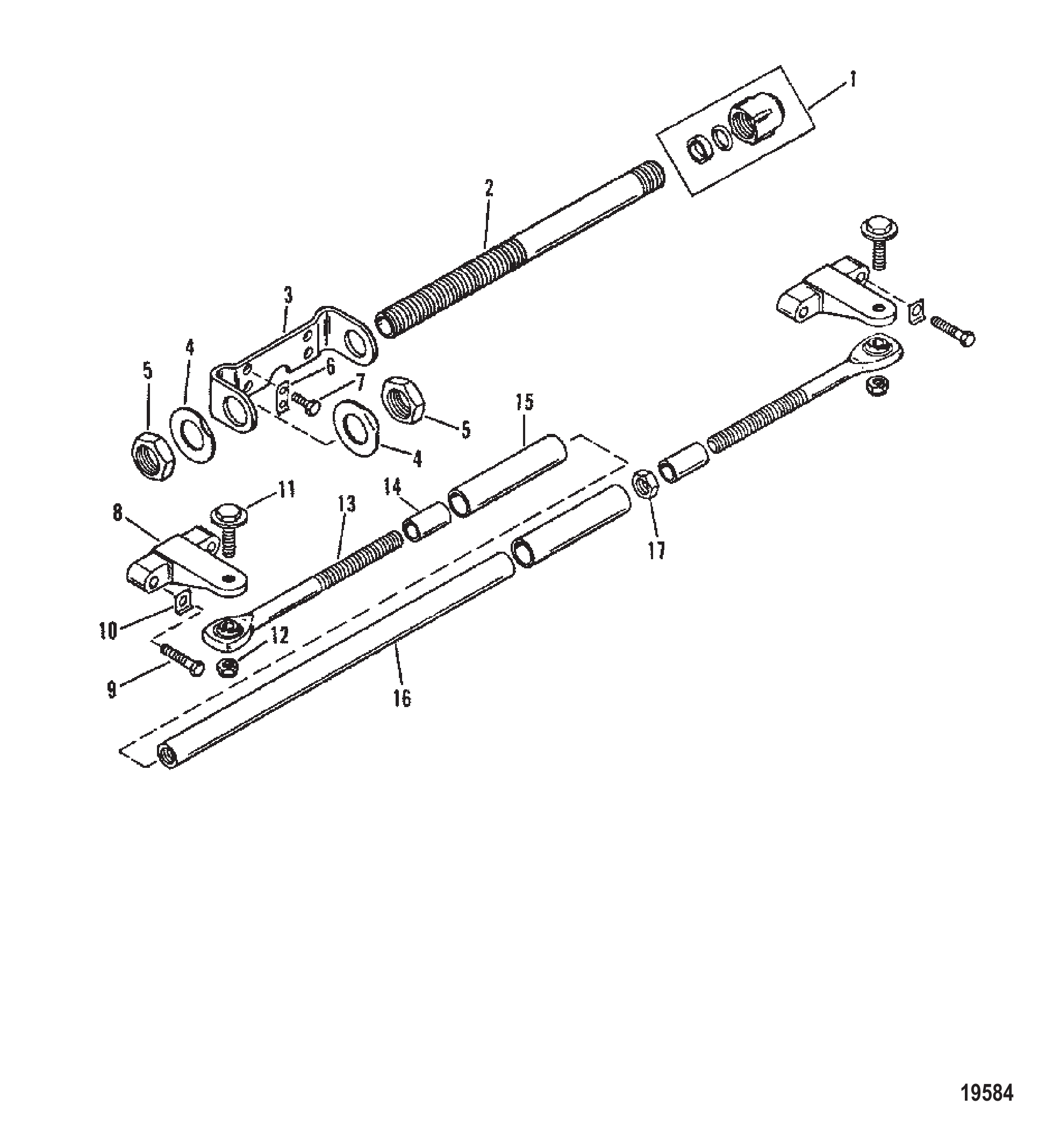

图 41双机延伸套件 Dual Engine Extension Kit
双机延伸套件 Dual Engine Extension Kit
REF零件编号中文名称英文名称数量
-92876A6双机延伸套件DUAL ENGINE EXTENSION KIT1
178862A2密封套件SEAL KIT1
119624A1密封套件SEAL KIT1
271565电缆导向管TUBE Cable Guide CABLE GUIDE1
341055支架MOUNT1
442100锁紧垫圈TAB WASHER2
537984螺母 (.875-14)NUT (.875-14)2
58M0041651螺母 (.875-14)NUT (.875-14)2
688404锁紧垫圈TAB WASHER2
738601螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250)4
8177291支架BRACKET2
817729A1支架BRACKET2
962055螺钉(.312-24 x 1.250)SCREW (.312-24 x 1.250)4
1017728锁紧垫圈TAB WASHER4
1114000螺钉(.375-24x1.25)SCREW (.375-24 x 1.25)4
11849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)4
1234863螺母 (.375-24)NUT (.375-24)4
128M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass4
1397933A1转向眼环STEERING EYE2
1423651衬套(1.625)SLEEVE (1.625)2
1597931管材(4.00英寸)TUBING (4.00 Inches)2
16979322管TUBE1
168M0026098联轴器15英寸COUPLER 15 In.1
1742099螺母(.562-18)NUT (.562-18)1
图 42阻风板与油门杆 CHOKE PLATE AND THROTTLE LEVERS
阻风板与油门杆 CHOKE PLATE AND THROTTLE LEVERS
REF零件编号中文名称英文名称数量
167245T上罩安装支架BRACKET COWL MOUNTING - UPPER1
267272罩壳安装支架衬套GROMMET COWL MOUNTING BRACKET2
390435罩壳安装支架(黑/灰)MOUNT COWL MOUNTING BRACKET BLACK/GRAY2
429245安装垫圈(0.281×0.500×0.060)不锈钢WASHER (.281 x .500 x .060) Stainless Steel MOUNT ATTACHING4
48M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel4
535888安装螺母(0.250-28)不锈钢NUT (.250-28) Stainless Steel MOUNT ATTACHING4
687076A4怠速控制总成IDLE SPEED CONTROL ASSEMBLY1
7799831阻风板PLATE CHOKE1
867274阻风板至化油器衬垫GASKET CHOKE PLATE TO CARBURETOR1
8672741衬垫GASKET1
968000螺丝(.250-28 x 1.00)阻风板至化油器SCREW (.250-28 x 1.00) CHOKE PLATE TO CARBURETOR6
1020583阻风板螺丝垫圈WASHER CHOKE PLATE SCREW6
1167275盖衬垫GASKET COVER1
11672751衬垫GASKET1
1267246T进气消音器盖COVER INDUCTION SILENCER1
1330720螺丝(.250-20 x 2.25)盖至阻风板SCREW (.250-20 x 2.25) COVER TO CHOKE PLATE2
1429245垫圈(.281 x .500 x .060)不锈钢盖螺丝WASHER (.281 x .500 x .060) Stainless Steel COVER SCREW2
148M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
1526992锁紧垫圈(.250)不锈钢盖螺丝LOCKWASHER (.250) Stainless Steel COVER SCREW2
1690585进气消音器盖塞PLUG INDUCTION SILENCER COVER1
1767760油门连杆LINK Throttle1
1867759节气门杆(上)LEVER Throttle UPPER1
1941049节气门杆(中)LEVER Throttle CENTER1
2067749下节流阀杆LEVER Throttle LOWER1
2115124油门杆至油门连杆螺钉(#10-32×0.750)SCREW (#10-32 x .750) THROTTLE LEVERS TO THROTTLE LINK3
2226996锁紧垫圈(#10)不锈钢节气门杆螺丝LOCKWASHER (#10) Stainless Steel THROTTLE LEVERS SCREW3
2356681垫圈(.203 x .500 x .032)节气门杆螺丝WASHER (.203 x .500 x .032) THROTTLE LEVERS SCREW3
238M0204666垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)3
2467297U型销节气门杆至节气门连杆PIN Clevis THROTTLE LEVERS TO THROTTLE LINK3
2589302垫圈(.203 x .406 x .040)U型销WASHER (.203 x .406 x .040) CLEVIS PIN3
2626953开口销U型销COTTER PIN CLEVIS PIN3
2767748下节气门杆滚轮ROLLER LOWER THROTTLE LEVER1
2869020螺丝(#10-32 x .875)怠速控制SCREW (#10-32 x .875) IDLE SPEED CONTROL2
28690201螺钉(#10-32 x .875)SCREW (#10-32 x .875)2
2938833怠速调节螺钉垫片WASHER IDLE SPEED CONTROL SCREW2
-90484A88衬垫套件GASKET SET
图 43启动马达 STARTER MOTOR
启动马达 STARTER MOTOR
REF零件编号中文名称英文名称数量
-881368T1启动电机总成STARTER MOTOR ASSEMBLY1
-881368T2启动电机总成STARTER MOTOR ASSEMBLY1
1804314T定子STATOR1
2804313T电枢ARMATURE1
3881369T1电刷支架总成HOLDER ASSEMBLY Brush1
4804316电刷组BRUSH SET1
5804317弹簧SPRING4
6881370T支架BRACKET1
7804337螺钉(M4×16)SCREW (M4 x 16)2
8804335贯穿螺栓(M6×120)THRU BOLT (M6 x 120)2
9804321T1齿轮套件GEAR KIT1
10804322离合器CLUTCH1
11804330垫圈套件WASHER KIT1
12804324支架BRACKET1
13804326齿圈RING GEAR1
14804327衬垫GASKET1
15804325轴承BEARING1
16804323小齿轮轴SHAFT Pinion1
17804329惰轮IDLER GEAR3
17804329001惰轮GEAR Idler3
18804328支架BRACKET1
19804331T盖板COVER1
20804336螺栓(M6×52)BOLT (M6 x 52)2
21804319小齿轮PINION1
22804320小齿轮止动组STOP SET Pinion1
23804332杠杆套件LEVER KIT1
24804334盖板COVER1
25881371T启动继电器RELAY Starter1
25881371T1启动继电器RELAY Starter1
25881371T1启动继电器RELAY Starter1
26804605螺栓(M8×45)BOLT (M8 x 45)3
27881373接线端子TERMINAL1
28881377锁紧垫圈LOCKWASHER1
2982382M螺母NUT1
30881372螺母NUT1
31881374盖板COVER1

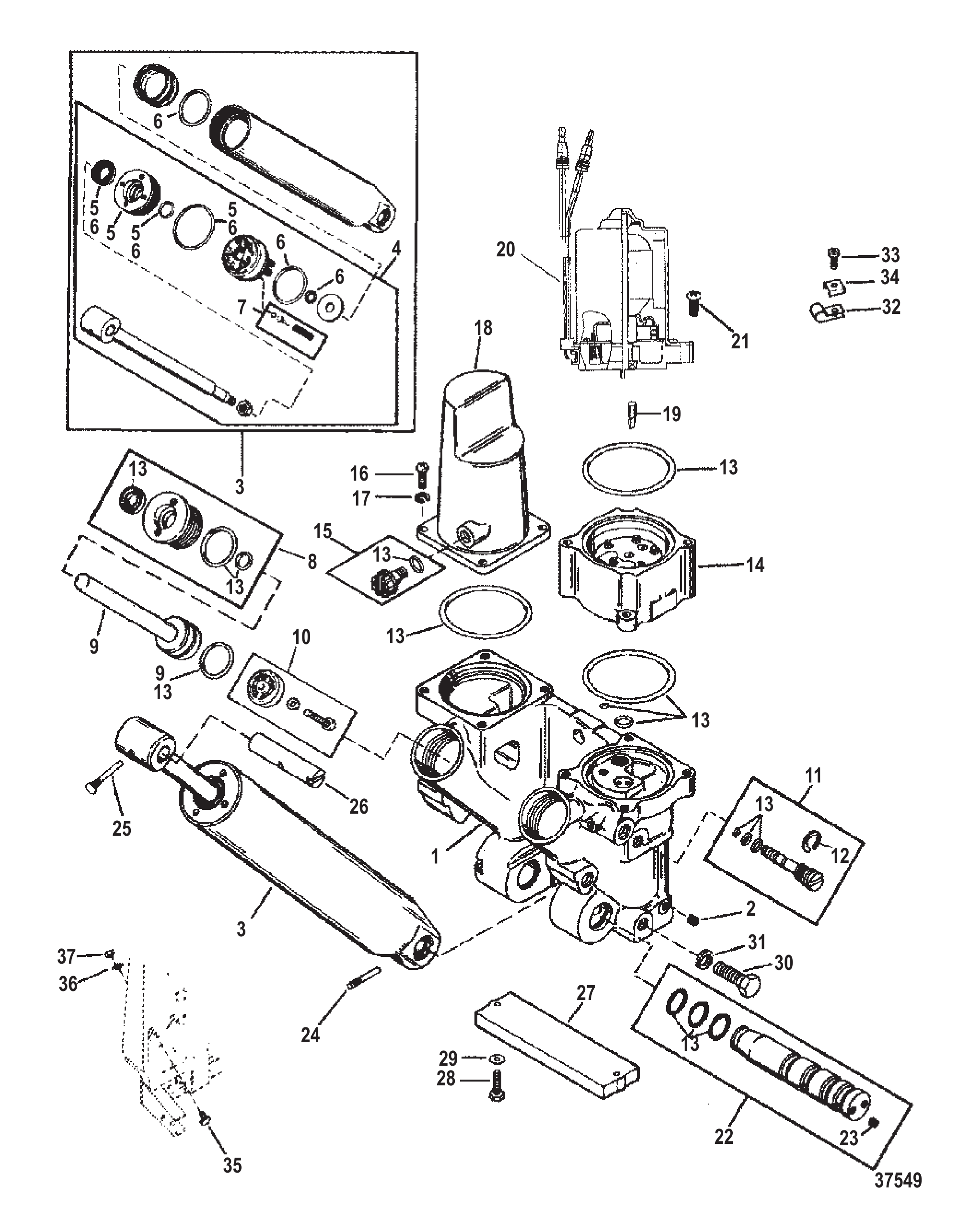

图 44动力升降组件金属马达壳 Power Trim Components Metal Motor Housing
动力升降组件金属马达壳 Power Trim Components Metal Motor Housing
REF零件编号中文名称英文名称数量
-826729A2升降倾斜总成TRIM AND TILT ASSEMBLY1
1811604F歧管总成MANIFOLD ASSEMBLY1
256800管塞 (.0625-27)PLUG Pipe (.0625-27)9
3823552F气缸总成CYLINDER ASSEMBLY1
3880952A03ORD 8M0078330ORD 8M00783301
4823553配平活塞杆套件ROD KIT Trim Piston1
4823553T升降活塞杆ROD Trim Piston1
5811606导向套件GUIDE KIT1
5878239A02倾斜缸端盖套件END CAP KIT Tilt Cylinder1
6811607A1维修套件REPAIR KIT1
7811610A1止回阀套件CHECK VALVE KIT1
7823553T升降活塞杆ROD Trim Piston1
899638A1导向器总成GUIDE ASSEMBLY2
88M0021648端盖总成END CAP ASSEMBLY2
943397A6动力升降倾斜装置活塞/杆总成PISTON/ROD ASSEMBLY Power Trim1
9878413A1活塞总成PISTON ASSEMBLY1
943398A3动力升降倾斜装置活塞/杆总成PISTON/ROD ASSEMBLY Power Trim1
9878414T01活塞总成PISTON ASSEMBLY1
1012184A1升降过滤器总成TRIM FILTER ASSEMBLY1
11813442A2手动释放总成MANUAL RELEASE ASSEMBLY1
11893929A01安全阀套件VALVE KIT Relief1
12812844E型卡环E RING1
12815949001E形环E-RING1
13811612A2O型圈套件O-RING KIT1
13811612A3O型圈套件O-RING KIT1
14811617F泵PUMP1
14811617T1泵PUMP1
15811613塞子总成PLUG ASSEMBLY1
164000327螺钉 (M6 x 14)SCREW (M6 x 14)4
1743450垫圈WASHER4
174002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)4
18811611盖板COVER1
19828710驱动接头DRIVE JOINT1
20828708马达总成(动力配平马达分解件)MOTOR ASSEMBLY (BREAKDOWN ON PWER TRIM MOTOR)1
20878265A4配平电机TRIM MOTOR1
21828709螺钉SCREW2
21881768A1螺钉/垫圈套件SCREW/WASHER KIT2
21811616螺钉SCREW2
22811614轴总成SHAFT ASSEMBLY1
228M0142997倾斜轴套件TILT SHAFT KIT1
2356800管塞 (.0625-27)PLUG Pipe (.0625-27)2
2444431槽销PIN Groove1
24878267销PIN1
25821539三叶销PIN Trilobe1
26996251轴SHAFT1
2699625002轴SHAFT1
27818298A1阳极套件ANODE KIT1
27818298Q1阳极套件ANODE KIT1
284000330螺钉(M6x25)SCREW (M6 x 25)2
288M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
2929245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
298M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
304000377螺钉 (M10 x 30)SCREW (M10 x 30)6
314002319垫圈WASHER6
3226550卡箍CLAMP2
33817626螺钉(#10-16×0.380)SCREW (#10-16 x .380)2
33878607螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)2
3469205C形垫圈C WASHER2
348M0084613C形垫圈C-WASHER2
35996301冲击板STRIKER PLATE2
358M0045383冲击板STRIKER PLATE2
3658643锁紧垫圈 (.375)LOCKWASHER (.375)2
3746335螺母 (.375-24)NUT (.375-24)2
图 45化油器 Carburetor
化油器 Carburetor
REF零件编号中文名称英文名称数量
19242A33化油器(上部)(WH-40)CARBURETOR (TOP) (WH-40)1
19242A34化油器(中部)(WH-40)CARBURETOR (CENTER) (WH-40)1
19242A35化油器(下部)(WH-40)CARBURETOR (BOTTOM) ( WH-40)1
17563A10化油器(上部)(WH-35)CARBURETOR (TOP) (WH-35)1
17563A11化油器(中部)(WH-35)CARBURETOR (CENTER) (WH-35)1
17563A12化油器(下部)(WH-35)CARBURATOR (BOTTOM) (WH-35)1
17563A13化油器(上部)(WH-38)CARBURETOR (TOP) (WH-38)1
17563A14化油器(中部)(WH-38)CARBURETOR (CENTER) (WH-38)1
17563A15化油器(下部)(WH-38)CARBURETOR (BOTTOM) (WH-38)1
26249主量孔(.096)燃油室(WH-32)(WH-38)JET Main (.096) FUEL BOWL(WH-32) (WH-38)6
28423量孔(.094)浮子室(WH-35)JET (.094) FUEL BOWL (.094) (WH-35)6
26680量孔(.078)燃油室(WH-40)JET (.078) FUEL BOWL (WH-40)6
3NSSNOT SOLD SEPARATE Gasket-Cover Plate3
46032盖板PLATE COVER3
5NSS盖板螺钉(不单独销售)NOT SOLD SEPARATE Screw-Cover Plate15
67822燃油室(WH-33)BOWL Fuel (WH-33)3
67823燃油杯(顶部)BOWL Fuel (TOP)1
67822燃油杯(中部/底部)BOWL Fuel (CENTER/BOTTOM)2
7NSS不单独销售 燃油杯螺钉NOT SOLD SEPARATE Screw-Fuel Bowl18
86025主量孔塞PLUG MAIN JET6
9NSS不单独出售主量孔垫片NOT SOLD SEPARATE Gasket-Main Jet6
104216主量孔(.064)(WH-33)JET (.064) MAIN FUEL (WH-33)6
106246主量孔(.048)(WH-32)JET (.048) MAIN FUEL (WH-32)6
106028主燃油量孔(.050)(WH-35)JET (.050) MAIN FUEL (WH-35)6
106359主燃油量孔(.052)(WH-38)JET (.052) MAIN FUEL (WH-38)6
106201主量孔(.080)(WH-40)JET (.080) MAIN FUEL (WH-40)6
11NSS不单独出售 浮子销螺钉NOT SOLD SEPARATE Screw-Float Pin6
12NSS不单独出售进油针阀座垫片NOT SOLD SEPARATE Gasket--Inlet Needle and Seat6
137824进油针阀总成NEEDLE/SEAT ASSEMBLY Inlet6
14NSS喷嘴座垫片(不单独销售)NOT SOLD SEPARATE Gasket-Nozzle Boss6
159267浮子FLOAT6
16NSS浮子杆销(不单独销售)NOT SOLD SEPARATE Pin-Float Lever6
17NSSNOT SOLD SEPARATE Gasket-Fuel Bowl3
184541怠速空气量孔螺钉SCREW IDLE AIR BLEED JET6
19NSS泄放量孔塞垫片(不单独销售)NOT SOLD SEPARATE Gasket-Bleed Jet Plug6
205213主量孔(.056)怠速空气量孔(WH-33)JET Main (.056) IKLE AIR BLEED (WH-33)6
207831主量孔(.058)怠速空气量孔(.058)(WH-32)JET Main Fuel (.058) IDLE AIR BLEED (.058) (WH-32)6
206487主量孔(.060)怠速空气量孔(WH-35)JET Main (.060) IKLE AIR BLEED (WH-35)6
205317怠速空气量孔(.046)(WH-38)JET (.046) IDLE AIR BLEED (WH-38)6
206246怠速空气量孔(.048)(WH-40)JET (.048) IDLE AIR BLEED (WH-40)6
216027节气门杠杆螺钉SCREW THROTTLE LEVER3
2267752节流阀杆LEVER THROTTLE3
23NSSNOT SOLD SEPARATE Spring-Throttle Return3
246031节气门杠杆垫片SPACER THROTTLE LEVER3
256022节流阀轴SHAFT THROTTLE3
26NSS节气门轴挡圈(不单独销售)NOT SOLD SEPARATE Ring-Retainer-Throttle Shaft3
276023节气门阀(WH-33)(WH-40)VALVE Throttle (WH-33) (WH-40)6
279496节气门阀(WH-32)VALVE Throttle (WH-32)6
279545节气门阀(WH-38)(WH-35)VALVE Throttle (WH-38) (WH-35)6
28NSSNOT SOLD SEPARATE Screw-Throttle Valve12
-6452衬垫套件GASKET KIT1
-8506化油器修理包(WH-33)(WH-40)REPAIR KIT Carburetor (WH-33) (WH-40)1
-7826修理包(WH-32)(WH-35)(WH-38)REPAIR KIT (WH-32)(WH-35)(WH-38)1
图 46仪表组(水星和马林纳) INSTRUMENTATION (MERCURY AND MARINER)
仪表组(水星和马林纳) INSTRUMENTATION (MERCURY AND MARINER)
REF零件编号中文名称英文名称数量
115110A1转速表TACHOMETER1
279101T安装支架BRACKET MOUNTING1
372729楔形底座灯泡(14V - 1.9W)LIGHT BULB Wedge Base (14V - 1.9W)1
479888灯泡插座SOCKET Light Bulb1
526419黄铜螺母 (#8-32)NUT (#8-32) Brass5
686322A7配平表电缆总成(1.50英尺)黑色CABLE ASSEMBLY (1.50 Feet) Black TRIM GUAGE1
686323A5配平表电缆总成(1.50英尺)紫色CABLE ASSEMBLY (1.50 Feet) Purple TRIM GUAGE1
715113A4配平表TRIM GAUGE1
7895292Q41动力升降倾斜指示器 黑面橙白刻度黑边框GAUGE Power Trim Indicator, Black Face, Orange/White Graduations, Black Bezel1
879480安装支架-微调表BRACKET MOUNTING - TRIM GAUGE1
972729灯泡 楔形底座(14V-1.9W)微调表LIGHT BULB Wedge Base (14V - 1.9W) TRIM GAUGE1
1079888灯泡插座 微调表SOCKET Light Bulb TRIM GAUGE1
1126419螺母(#8-32)黄铜 微调表端子NUT (#8-32) Brass TRIM GAUGE TERMINAL5
1286396A8转速表线束总成(5.00英尺)HARNESS ASSEMBLY Tachometer (5.00 Feet)1
1315166A1温度表TEMPERATURE GAUGE1
13895287Q41水温表套件(100-240℉)黑面橙白刻度黑框WATER TEMPERATURE GAUGE KIT (100-240 F) Black Face, Orange/White Graduations, Black Bezel1
1472729楔形底座灯泡(14V - 1.9W)LIGHT BULB Wedge Base (14V - 1.9W)1
1579888灯泡插座SOCKET Light Bulb1
1626427垫圈WASHER2
1779480支架BRACKET1
1826419黄铜螺母 (#8-32)NUT (#8-32) Brass5
1986323A2电缆总成(2英尺)紫色CABLE ASSEMBLY (2.00 Feet) Purple1
1961600A16电缆总成(17英寸)黑色CABLE ASSEMBLY (17.00 Inches) Black1
1988824A4电缆总成(45英寸)棕褐色CABLE ASSEMBLY (45.00 Inches) Tan1
2015115A2同步器量表SYNCHRONIZER GAUGE1
20895294Q41双机同步指示表（黑面橙白刻度黑框）GAUGE Dual Engine Synchronizer, Black Face, Orange/White Graduation, Black Bezel1
2179480支架BRACKET5
2226419黄铜螺母 (#8-32)NUT (#8-32) Brass5
2372729楔形底座灯泡(14V - 1.9W)LIGHT BULB Wedge Base (14V - 1.9W)1
2479888灯泡插座SOCKET Light Bulb1
2514502同步驱动器DRIVER SYNCHRONIZED1
25145022同步器驱动器DRIVER Synchronizer1
2619674A1拉绳开关总成SWITCH ASSEMBLY Lanyard1
2619674A07开关/拉绳套件SWITCH/LANYARD KIT1
2718303螺钉 (.190-16 x 1.750) 不锈钢SCREW (.190-16 x 1.750) Stainless Steel2
28813679适配器ADAPTER1
2915920A54拉绳总成LANYARD ASSEMBLY1
2915920Q54拉绳总成LANYARD ASSEMBLY1
3032866螺钉 (#10-32 x 2.00) 不锈钢SCREW (#10-32 x 2.00) Stainless Steel2
3118321安装夹CLAMP Mounting2
3224676垫圈 (.200 x .440 x .032)WASHER (.200 x .440 x .032)2
3368219螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel4
3479146固定座RETAINER3
3290077扎带TIE STRAP9
32816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)9
36812497A2二极管总成DIODE ASSEMBLY1
36898289A72双拉绳二极管套件DIODE KIT-LANYARD Dual1
3711149A2线缆总成 (6.00英寸)CABLE ASSEMBLY (6.00 Inches)1

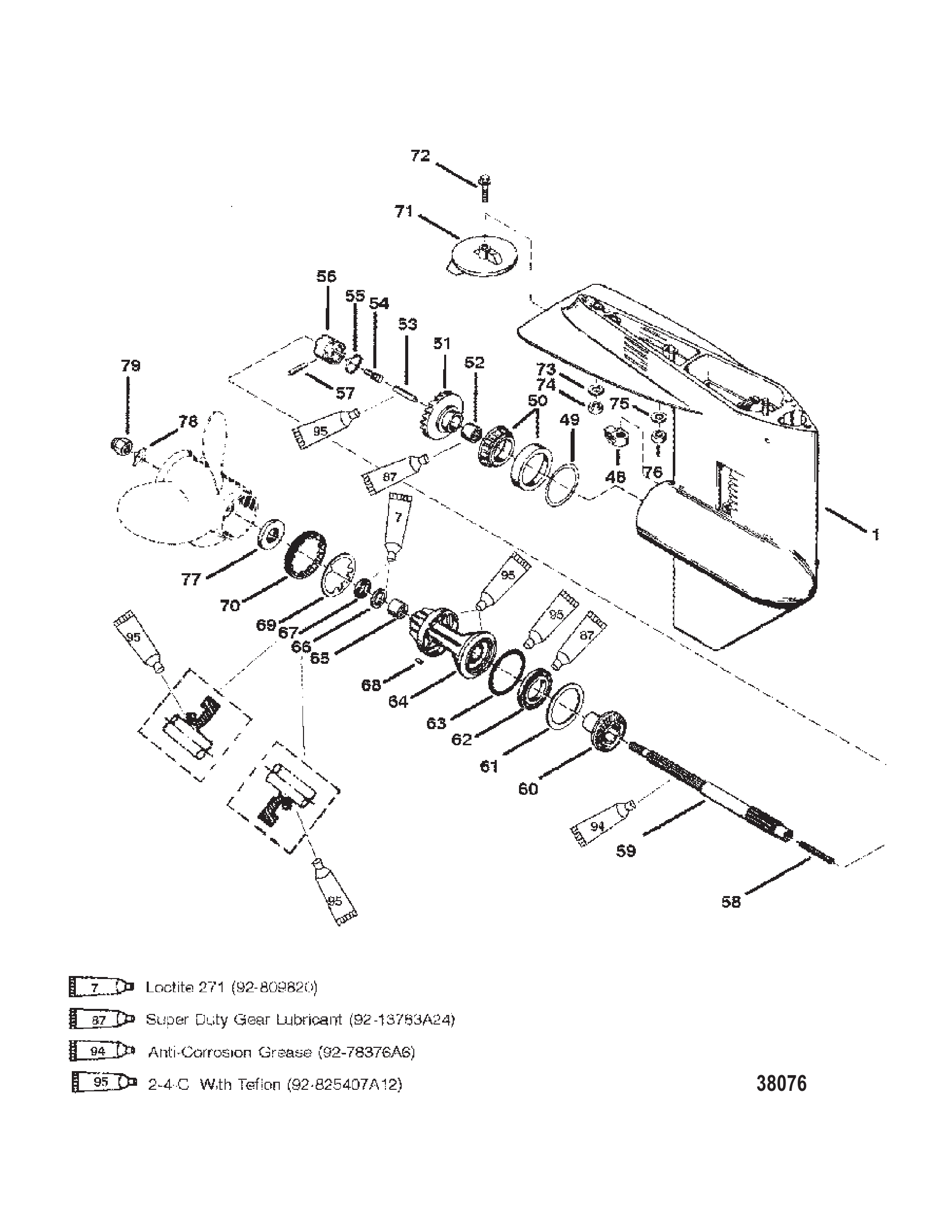

图 47齿轮箱（推进轴） GEAR HOUSING (PROPSHAFT)
齿轮箱（推进轴） GEAR HOUSING (PROPSHAFT)
REF零件编号中文名称英文名称数量
-9539A4齿轮箱总成GEAR HOUSING ASSEMBLY1
-9539A6齿轮箱总成GEAR HUSING ASSEMBLY1
-9539A5齿轮箱总成GEAR HOUSING ASSEMBLY1
-9539A7齿轮箱总成GEAR HOUSING ASSEMBLY1
-9539A15齿轮箱总成GEAR HOUSING ASSEMBLY1
-9539T15齿轮箱短-BLGEAR HSG SHORT-BL1
-9539A16齿轮箱总成GEAR HOUSING ASSEMBLY1
-9539A18齿轮箱总成GEAR HOUSING ASSEMBLY1
-9539T18齿轮箱长-BLAGEAR HSG-LONG-BLA1
-9539A19齿轮箱总成GEAR HOUSING ASSEMBLY1
-9539T18齿轮箱长-BLAGEAR HSG-LONG-BLA1
-9539A12齿轮箱总成GEAR HOUSING ASSEMBLY1
-9539T12齿轮箱长-TRAGEAR HSG-LONG-TRA1
19539A1齿轮箱总成GEAR HOUSING ASSEMBLY1
19539T1齿轮箱GEAR HOUSING1
19539A8齿轮箱总成GEAR HOUSING ASSEMBLY1
19539T8ORD 1643-9539T 1ORD 1643-9539T 11
19539A13齿轮箱总成GEAR HOUSING ASSEMBLY1
19539T13ORD 1643-9539T 1ORD 1643-9539T 11
4876039换挡凸轮控制CAM Shift Control1
48760394换挡凸轮控制CAM Shift Control1
4938374A1垫片组(.002-3-5-10)SHIM SET (.002-3-5-10)AR
5038356A1轴承套件BEARING SET1
5155608A4前进齿轮总成GEAR ASSEMBLY Forward1
5155608T4前进齿轮总成GEAR ASSY-FORWARD1
5221739滚柱轴承BEARING Roller1
5338441凸轮从动件FOLLOWER Cam1
5420843滑块SLIDE1
5538114弹簧SPRING1
5692911棘轮RATCHET1
5692911T离合器CLUTCH1
5738113十字销PIN Cross1
578M0020942十字销@2PIN-CROSS @21
5839845弹簧SPRING1
58815418弹簧SPRING1
5975365螺旋桨轴PROPELLER SHAFT1
6079158倒挡齿轮GEAR Reverse1
6079158T倒挡齿轮GEAR-REVERSE1
6132004垫圈WASHER1
6220839滚珠轴承BEARING Ball1
6220839T滚珠轴承BEARING Ball1
6331986O型圈O-RING1
6469386A1轴承座总成CARRIER ASSEMBLY Bearing1
6469386T1轴承座总成CARRIER ASSY-BRG1
6521700滚针轴承BEARING Needle1
6669188油封SEAL Oil1
668M0205511油封SEAL Oil1
6769189油封SEAL Oil1
678M0203757油封SEAL Oil1
6830281键KEY1
6953012锁紧垫圈TAB WASHER1
7087763螺母NUT1
71316404平衡鳍板TRIM TAB1
7131640Q4平衡鳍板TRIM TAB1
7266024螺钉(.437-14 x 1.75)SCREW (.437-14 x 1.75)1
7345175垫圈(.406 x .750 x .104)WASHER (.406 x .750 x .104)1
738M0214963垫圈WASHER1
7434863螺母 (.375-24)NUT (.375-24)1
748M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass1
7565791垫圈 (7/16英寸)WASHER (7/16 IN.)1
7634933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel1
768M0204653螺母NUT1
7773345A1止推垫片THRUST WASHER1
7876281锁紧垫圈TAB WASHER1
788M0214942锁紧垫片WASHER Tab1
7969578A1螺旋桨螺母套件PROP NUT KIT1
7969578Q1螺旋桨螺母套件PROP NUT KIT1
-85491A90衬垫套件GASKET SET1
-79831A1密封套件SEAL KIT1
图 48化油器 CARBURETOR
化油器 CARBURETOR
REF零件编号中文名称英文名称数量
19242A33化油器(上部)(WH-40)CARBURETOR (TOP) (WH-40)1
19242A34化油器(中部)(WH-40)CARBURETOR (CENTER) (WH-40)1
19242A35化油器(下部)(WH-40)CARBURETOR (BOTTOM) ( WH-40)1
17563A10化油器(上部)(WH-35)CARBURETOR (TOP) (WH-35)1
17563A11化油器(中部)(WH-35)CARBURETOR (CENTER) (WH-35)1
17563A12化油器(下部)(WH-35)CARBURATOR (BOTTOM) (WH-35)1
17563A13化油器(上部)(WH-38)CARBURETOR (TOP) (WH-38)1
17563A14化油器(中部)(WH-38)CARBURETOR (CENTER) (WH-38)1
17563A15化油器(下部)(WH-38)CARBURETOR (BOTTOM) (WH-38)1
26249主量孔(.096)燃油室(WH-32)(WH-38)JET Main (.096) FUEL BOWL(WH-32) (WH-38)6
28423量孔(.094)浮子室(WH-35)JET (.094) FUEL BOWL (.094) (WH-35)6
26680量孔(.078)燃油室(WH-40)JET (.078) FUEL BOWL (WH-40)6
3NSSNOT SOLD SEPARATE Gasket-Cover Plate3
46032盖板PLATE COVER3
5NSS盖板螺钉(不单独销售)NOT SOLD SEPARATE Screw-Cover Plate15
67822燃油室(WH-33)BOWL Fuel (WH-33)3
67823燃油杯(顶部)BOWL Fuel (TOP)1
67822燃油杯(中部/底部)BOWL Fuel (CENTER/BOTTOM)2
7NSS不单独销售 燃油杯螺钉NOT SOLD SEPARATE Screw-Fuel Bowl18
86025主量孔塞PLUG MAIN JET6
9NSS不单独出售主量孔垫片NOT SOLD SEPARATE Gasket-Main Jet6
104216主量孔(.064)(WH-33)JET (.064) MAIN FUEL (WH-33)6
106246主量孔(.048)(WH-32)JET (.048) MAIN FUEL (WH-32)6
106028主燃油量孔(.050)(WH-35)JET (.050) MAIN FUEL (WH-35)6
106359主燃油量孔(.052)(WH-38)JET (.052) MAIN FUEL (WH-38)6
106201主量孔(.080)(WH-40)JET (.080) MAIN FUEL (WH-40)6
11NSS不单独出售 浮子销螺钉NOT SOLD SEPARATE Screw-Float Pin6
12NSS不单独出售进油针阀座垫片NOT SOLD SEPARATE Gasket--Inlet Needle and Seat6
137824进油针阀总成NEEDLE/SEAT ASSEMBLY Inlet6
14NSS喷嘴座垫片(不单独销售)NOT SOLD SEPARATE Gasket-Nozzle Boss6
159267浮子FLOAT6
16NSS浮子杆销(不单独销售)NOT SOLD SEPARATE Pin-Float Lever6
17NSSNOT SOLD SEPARATE Gasket-Fuel Bowl3
184541怠速空气量孔螺钉SCREW IDLE AIR BLEED JET6
19NSS泄放量孔塞垫片(不单独销售)NOT SOLD SEPARATE Gasket-Bleed Jet Plug6
205213主量孔(.056)怠速空气量孔(WH-33)JET Main (.056) IKLE AIR BLEED (WH-33)6
207831主量孔(.058)怠速空气量孔(.058)(WH-32)JET Main Fuel (.058) IDLE AIR BLEED (.058) (WH-32)6
206487主量孔(.060)怠速空气量孔(WH-35)JET Main (.060) IKLE AIR BLEED (WH-35)6
205317怠速空气量孔(.046)(WH-38)JET (.046) IDLE AIR BLEED (WH-38)6
206246怠速空气量孔(.048)(WH-40)JET (.048) IDLE AIR BLEED (WH-40)6
216027节气门杠杆螺钉SCREW THROTTLE LEVER3
2267752节流阀杆LEVER THROTTLE3
23NSSNOT SOLD SEPARATE Spring-Throttle Return3
246031节气门杠杆垫片SPACER THROTTLE LEVER3
256022节流阀轴SHAFT THROTTLE3
26NSS节气门轴挡圈(不单独销售)NOT SOLD SEPARATE Ring-Retainer-Throttle Shaft3
276023节气门阀(WH-33)(WH-40)VALVE Throttle (WH-33) (WH-40)6
279496节气门阀(WH-32)VALVE Throttle (WH-32)6
279545节气门阀(WH-38)(WH-35)VALVE Throttle (WH-38) (WH-35)6
28NSSNOT SOLD SEPARATE Screw-Throttle Valve12
-6452衬垫套件GASKET KIT1
-8506化油器修理包(WH-33)(WH-40)REPAIR KIT Carburetor (WH-33) (WH-40)1
-7826修理包(WH-32)(WH-35)(WH-38)REPAIR KIT (WH-32)(WH-35)(WH-38)1

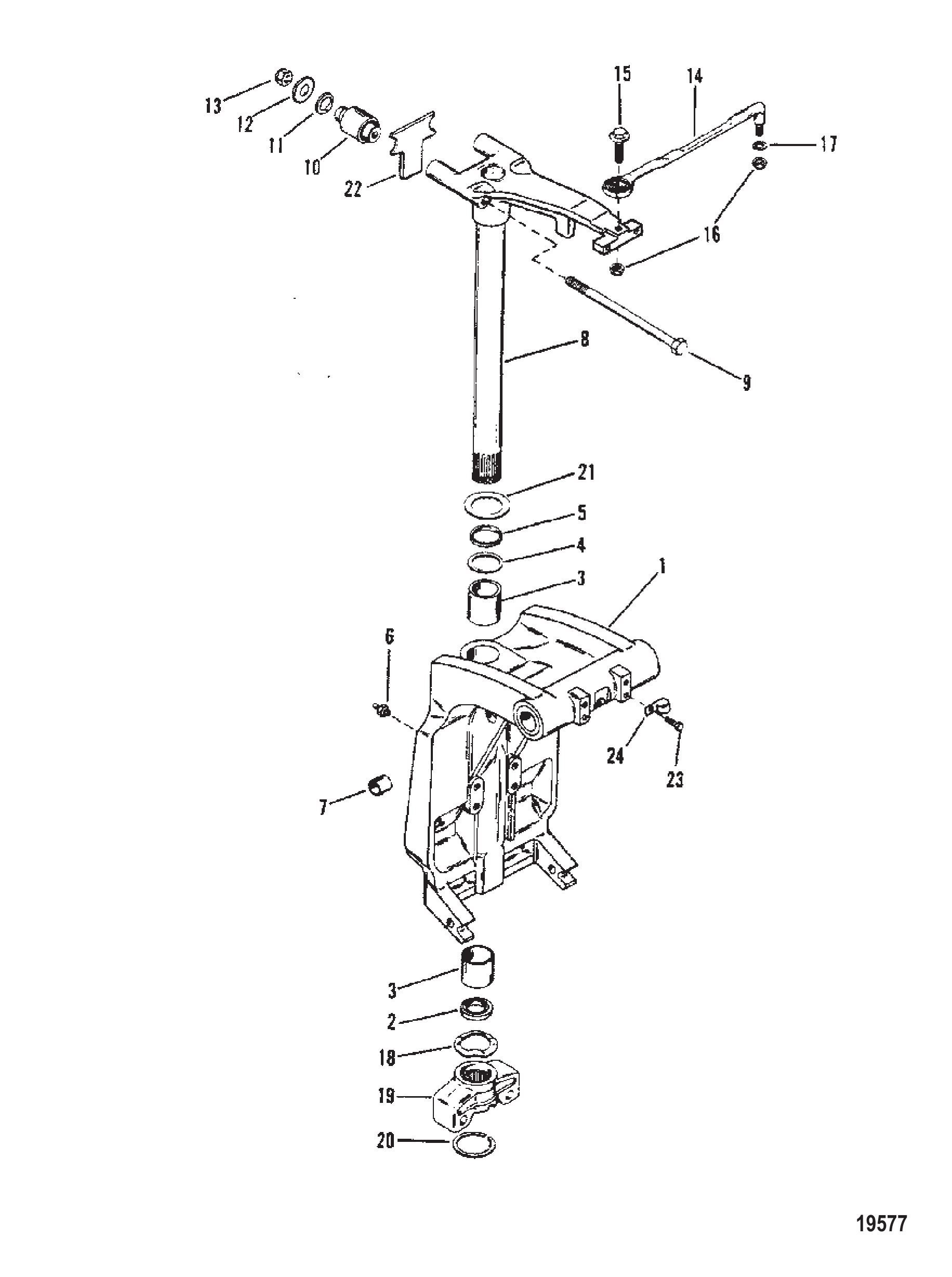

图 49旋转支架(铸件号1499-8710-6) Swivel Bracket (Casting #1499-8710-6)
旋转支架(铸件号1499-8710-6) Swivel Bracket (Casting #1499-8710-6)
REF零件编号中文名称英文名称数量
18710A17旋转支架总成（黑色）SWIVEL BRACKET ASSEMBLY (BLACK)1
18710A18旋转支架总成（灰色）SWIVEL BRACKET ASSEMBLY (GRAY)1
18710T21灰色旋转支架总成SWIVEL BRACKET ASSEMBLY Gray1
287735SEAL Oil SWIVEL BRACKET (LOWER)1
367669旋转支架衬套-上下部BUSHING SWIVEL BRACKET-LOWER AND UPPER2
3818764衬套BUSHING2
433466上部O型圈O-RING UPPER1
567668上部隔套SPACER UPPER1
674036润滑脂接头FITTING Grease2
68M0169589润滑脂接头FITTING Grease2
799608转轴支架衬套BUSHING SWIVEL BRACKET2
7821207衬套BUSHING2
867706A35旋转销总成(黑色)SWIVEL PIN ASSEMBLY (BLACK)1
867706A55转向臂转销总成SWIVEL PIN ASSEMBLY Steering Arm1
867706A36旋转销总成(灰色)SWIVEL PIN ASSEMBLY (GRAY)1
867706A55转向臂转销总成SWIVEL PIN ASSEMBLY Steering Arm1
978689螺钉(0.437-20×7.50)转向臂至上支架SCREW (.437-20 x 7.50) STEERING ARM TO UPPER MOUNT2
98M0176309螺钉SCREW2
1078687橡胶支架-上部(长型)MOUNT RUBBER-UPPER (LONG)2
1078687T支架MOUNT2
1077326支架(加长型)(用于XR4/MAGNUM II)MOUNT (X-LONG) (USE ON XR4/MAGNUM II)2
1166921上支座螺栓垫圈WASHER UPPER MOUNT BOLT2
12814432上支座螺栓垫圈WASHER UPPER MOUNT BOLT2
1278688垫圈WASHER2
1334933螺母（0.437-20）不锈钢上部安装螺栓NUT (.437-20) Stainless Steel UPPER MOUNT BOLT2
138M0204653螺母NUT2
1492876A1转向连杆总成LINK ASSEMBLY Steering1
1492876A12连杆总成LINK ROD ASSEMBLY1
1514000SCREW (.375-24 x 1.25) STEERING LINK TO STEERING ARM1
15849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)1
1634863NUT (.375-24) STEERING LINK SCREW2
168M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass2
1734931WASHER (.406 x .734 x .063) Stainless Steel STEERING LINK TO STEERING ARM2
1878854WAVE WASHER BOTTOM YOKE1
1986580A1底部轭架总成（黑色）YOKE ASSEMBLY Bottom (BLACK)1
19878182T轭架底部-不锈钢YOKE Bottom - Stainless Steel1
1986580A2底部轭架总成（灰色）YOKE ASSEMBLY Bottom (GRAY)1
1986580A1底部轭架总成YOKE ASSEMBLY Bottom1
2067684卡环-底部轭架RING Retaining BOTTOM YOKE1
2167670垫圈WASHER1
2288882缓冲垫-顶部轭架BUMPER Top Yoke TOP YOKE1
2364014SCREW (.250-28 x .500) SWIVEL BRACKET2
2454457J型卡扣J CLIP1
-815791A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1
-815809A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1
-815810A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1
图 50启动电机 Starter Motor
启动电机 Starter Motor
REF零件编号中文名称英文名称数量
图 51顶罩 Top Cowl
顶罩 Top Cowl
REF零件编号中文名称英文名称数量
1827328T9顶盖总成TOP COWL ASSEMBLY1
1827328T10顶盖总成TOP COWL ASSEMBLY1
2821256T1黑色进气口INLET Air - Black1
2821256T03进气口INLET Air1
2821256T2银色进气口INLET Air - Silver1
382130016螺钉(M6 x 16)SCREW (M6 x 16)4
4859356A1隔音毯套装SOUND BLANKET KIT1
4859356A02隔音毯套装SOUND BLANKET KIT1
5NSS不单独销售 隔音毯NOT SOLD SEPARATE Sound Blanket1
6NSS不单独销售 隔音毯NOT SOLD SEPARATE Sound Blanket1
7NSS不单独销售 隔音毯NOT SOLD SEPARATE Sound Blanket2
8823865盖塞CAP PLUG2
9831207T10手柄HANDLE1
9831207A16罩盖锁手柄套件HANDLE KIT Cowl Latch1
10812707衬套BUSHING2
11831214隔套SPACER1
1212134波形垫圈WASHER Wave1
13F481777凸轮锁轴CAM Latch Shaft1
138M0001081凸轮CAM1
144002316垫圈(6.60 X 17.0 X 1.5不锈钢)WASHER (6.60 X 17.0 X 1.5SS)1
148M0214930垫圈6.60 x 17.0 x 1.5WASHER 6.60 x 17.0 x 1.51
151993716螺钉(M6 x 16)SCREW (M6 x 16)1
16821249M2前支架BRACKET Front3
168M0036792支架BRACKET3
17815477缓冲器锁扣BUMPER Latch3
1829245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel6
188M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel6
19401366螺母(M6)不锈钢NUT (M6) Stainless Steel6
208237951挡圈RING Retaining1
21815263滚轮ROLLER1
218M0207770滚轮@3ROLLER @31
228155381滚动销PIN Roll1
2329245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
238M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
24401366螺母(M6)不锈钢NUT (M6) Stainless Steel1
2547341A11手动启动绳柄套件ROPE AND HANDLE KIT Manual Starting1
2612066Q9绳索ROPE1
2612066Q10启动绳@2ROPE-STARTER@21
图 52顶罩 TOP COWL
顶罩 TOP COWL
REF零件编号中文名称英文名称数量
1827328T9顶盖总成TOP COWL ASSEMBLY1
1827328T10顶盖总成TOP COWL ASSEMBLY1
2821256T1黑色进气口INLET Air - Black1
2821256T03进气口INLET Air1
2821256T2银色进气口INLET Air - Silver1
382130016螺钉(M6 x 16)SCREW (M6 x 16)4
4859356A1隔音毯套装SOUND BLANKET KIT1
4859356A02隔音毯套装SOUND BLANKET KIT1
5NSS不单独销售 隔音毯NOT SOLD SEPARATE Sound Blanket1
6NSS不单独销售 隔音毯NOT SOLD SEPARATE Sound Blanket1
7NSS不单独销售 隔音毯NOT SOLD SEPARATE Sound Blanket2
8823865盖塞CAP PLUG2
9831207T10手柄HANDLE1
9831207A16罩盖锁手柄套件HANDLE KIT Cowl Latch1
10812707衬套BUSHING2
11831214隔套SPACER1
1212134波形垫圈WASHER Wave1
13F481777凸轮锁轴CAM Latch Shaft1
138M0001081凸轮CAM1
144002316垫圈(6.60 X 17.0 X 1.5不锈钢)WASHER (6.60 X 17.0 X 1.5SS)1
148M0214930垫圈6.60 x 17.0 x 1.5WASHER 6.60 x 17.0 x 1.51
151993716螺钉(M6 x 16)SCREW (M6 x 16)1
16821249M2前支架BRACKET Front3
168M0036792支架BRACKET3
17815477缓冲器锁扣BUMPER Latch3
1829245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel6
188M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel6
19401366螺母(M6)不锈钢NUT (M6) Stainless Steel6
208237951挡圈RING Retaining1
21815263滚轮ROLLER1
218M0207770滚轮@3ROLLER @31
228155381滚动销PIN Roll1
2329245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
238M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel1
24401366螺母(M6)不锈钢NUT (M6) Stainless Steel1
2547341A11手动启动绳柄套件ROPE AND HANDLE KIT Manual Starting1
2612066Q9绳索ROPE1
2612066Q10启动绳@2ROPE-STARTER@21
图 53齿轮箱(螺旋桨轴)(标准旋转) GEAR HOUSING (PROPELLER SHAFT) (STANDARD ROTATION)
齿轮箱(螺旋桨轴)(标准旋转) GEAR HOUSING (PROPELLER SHAFT) (STANDARD ROTATION)
REF零件编号中文名称英文名称数量
-9148A8齿轮箱总成 标准旋转 1.87:1 齿轮比GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio1
-9148A9齿轮箱总成 标准旋转 1.87:1 齿轮比GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio1
-9148T85齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A10齿轮箱总成 标准旋转 1.87:1 齿轮比GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio1
-9148T84齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A13齿轮箱总成 标准旋转 1.87:1 齿轮比GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio1
-9148T91ORD 1647-9148T85ORD 1647-9148T851
19148A11齿轮箱总成GEAR HOUSING ASSEMBLY1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
19148A12齿轮箱总成GEAR HOUSING ASSEMBLY1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
4878956换挡凸轮SHIFT CAM1
48789562换挡凸轮SHIFT CAM1
4989594A1凸轮从动件总成FOLLOWER ASSEMBLY CAM1
5079911离合器作动杆ROD CLUTCH ACTUATOR1
5079911A1杆ROD1
5179910压缩弹簧SPRING COMPRESSION2
5278910压缩弹簧垫圈WASHER COOMPRESSION SPRINGAR
5378906PIN SPRING LOCATOR1
538M0084245弹簧定位销PIN Spring Locator1
5447397A1轴承外圈垫片组(.002-3-5-10)SHIM SET BEARING OUTER RACE (.002-3-5-10)AR
5578172A1圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
5644104A2前进齿轮总成GEAR ASSEMBLY Forward1
5644104T2齿轮组GEAR SET1
5773363前进档滚柱轴承BEARING Roller FORWARD GEAR2
5773363T轴承BEARING2
5743999前进档滚柱轴承BEARING Roller FORWARD GEAR2
5878959棘轮滑动离合器RATCHET SLIDING CLUTCH1
58823174TORD 8M0100493ORD 8M01004931
5978905棘轮到螺旋桨轴十字销PIN Cross RATCHET TO PROPELLER SHAFT1
598M0084243十字销PIN Cross1
6078909棘轮定位销PIN Detent RATCHET2
6178962十字销固定弹簧SPRING RETAINING - CROSS PIN2
6294148螺旋桨轴PROPELLER SHAFT1
63N.S.S.不单独出售 倒车齿轮(属于43-44104A2部件)Not Sold Separate REVERSE GEAR (PART OF 43-44104A2)1
6468100止推环RING THRUST1
64681001止推环RING Thrust1
6588957A1倒档齿轮滚珠轴承BEARING Ball REVERSE GEAR1
6588957T滚珠轴承BEARING Ball1
6631534轴承座O型圈O-RING BEARING CARRIER1
668M0214920O型圈O RING1
6743567A1轴承座总成CARRIER ASSEMBLY Bearing1
6743567T1轴承座总成CARRIER ASSEMBLY Bearing1
6830956滚针轴承-轴承座BEARING Needle BEARING CARRIER1
6830956T滚针轴承BEARING Needle1
6976868轴承座密封SEAL BEARING CARRIER2
698M0248882油封@5SEAL-OIL @52
7030281轴承座定位键KEY LOCATING, BEARING CARRIER1
7179447齿轮箱盖锁紧垫圈TAB WASHER GEAR HOUSING COVER1
7279448齿轮箱固定座RETAINER GEAR HOUSING1
728M2011027固定座RETAINER1
7331640A1TRIM TAB ASSEMBLY GEAR HOUSING1
7331640Q4平衡鳍板TRIM TAB1
7466024SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING1
7567891填充块FILLER BLOCK1
758M0039169填充块FILLER BLOCK1
7634933不锈钢螺母(.437-20) 驱动轴壳体螺柱用NUT (.437-20) Stainless Steel DRIVESHAFT HOUSING STUDS2
768M0204653螺母NUT2
7765210螺钉(.375-16 x 1.00)齿轮箱SCREW (.375-16 x 1.00) GEAR HOUSING1
7774727螺钉(0.375-16x6.00)齿轮箱SCREW (.375-16 x 6.00) GEAR HOUSING1
7813171推力毂THRUST HUB1
78835467Q01止推垫片套件THRUST WASHER KIT1
7931211A2螺旋桨螺母花键垫圈WASHER Splined PROPELLER NUT1
7931211Q03垫圈总成WASHER ASSEMBLY1
8031210螺旋桨螺母锁紧垫圈TAB WASHER PROPELLER NUT1
80816629Q锁紧垫圈TAB WASHER1
8152707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
8152707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
82423511螺旋桨轴齿形锁紧垫圈LOCKWASHER Toothed PROPELLER SHAFT1
8345176不锈钢垫圈(.453 x .812 x .105) 驱动轴壳体螺柱用WASHER (.453 x .812 x .105) Stainless Steel DRIVESHAFT HOUSING STUDS2
-89238A2密封套件SEAL KIT1
-11338A88发动机大修垫片套装GASKET SET Engine Overhaul1
图 54动力平衡电机(用于II型动力平衡系统) Power Trim Motor (Use With Design II Power Trim System)
动力平衡电机(用于II型动力平衡系统) Power Trim Motor (Use With Design II Power Trim System)
REF零件编号中文名称英文名称数量
-811628配平电机TRIM MOTOR1
1811624机架与磁场套件FRAME AND FIELD KIT1
2811625电刷卡套件BRUSH CARD KIT1
3811623端架套件END FRAME KIT1
4811626密封套件SEAL KIT1
5811627电枢套件ARMATURE KIT1
5811628配平电机TRIM MOTOR1

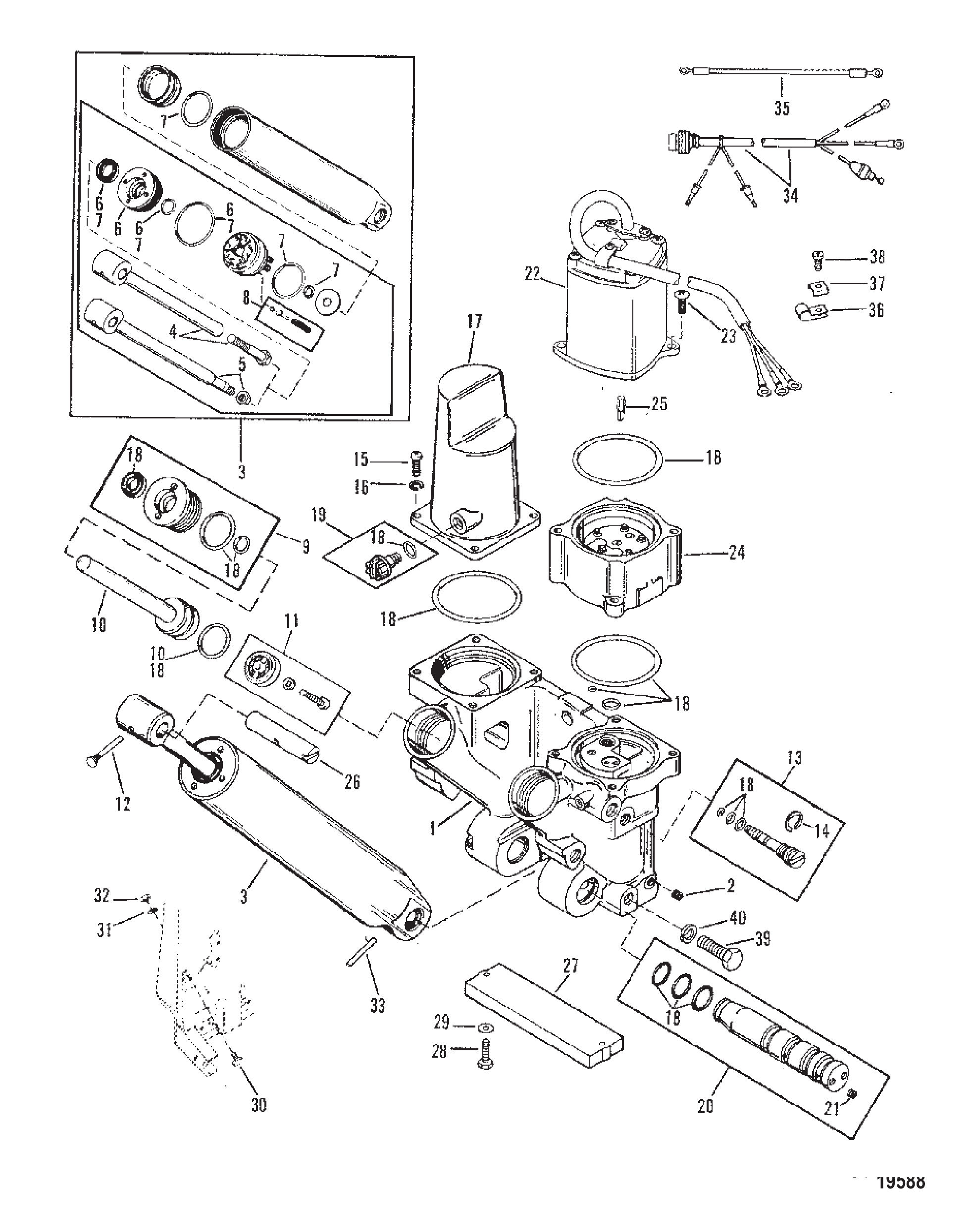

图 55动力平衡组件（设计II） Power Trim Components (Design II)
动力平衡组件（设计II） Power Trim Components (Design II)
REF零件编号中文名称英文名称数量
-818186A3动力配平总成POWER TRIM ASSEMBLY COMPLETE1
1811604T歧管总成MANIFOLD ASSEMBLY1
1811604F歧管总成MANIFOLD ASSEMBLY1
299616管塞PIPE PLUG9
256800管塞 (.0625-27)PLUG Pipe (.0625-27)9
3811605T倾斜油缸总成TILT CYLINDER ASSEMBLY1
3880952A03ORD 8M0078330ORD 8M00783301
4811608连杆套件-升降倾斜活塞(螺栓型)ROD KIT Trim And Tilt Piston (BOLT TYPE)1
5811609连杆-倾斜活塞(螺母型)ROD Trim Piston (NUT TYPE)1
5823553T升降活塞杆ROD Trim Piston1
6811606导向套件GUIDE KIT1
6878239A02倾斜缸端盖套件END CAP KIT Tilt Cylinder1
7811607A1维修套件REPAIR KIT1
8811610A1止回阀套件CHECK VALVE KIT1
8823553T升降活塞杆ROD Trim Piston1
999638A1导向器总成GUIDE ASSEMBLY2
98M0021648端盖总成END CAP ASSEMBLY2
1043397A6动力升降活塞/杆总成 (左舷)PISTON/ROD ASSEMBLY Power Trim (PORT)1
10878413A1活塞总成PISTON ASSEMBLY1
1043398A3动力升降活塞/杆总成 (右舷)PISTON/ROD ASSEMBLY Power Trim (STARBOARD)1
10878414T01活塞总成PISTON ASSEMBLY1
1112184A1升降过滤器总成TRIM FILTER ASSEMBLY1
1219603槽销PIN Groove1
12821539三叶销PIN Trilobe1
13811618阀总成VALVE ASSEMBY1
13893929A01安全阀套件VALVE KIT Relief1
14812844E型卡环E RING1
14815949001E形环E-RING1
154000327螺钉 (M6 x 14)SCREW (M6 x 14)4
1643450垫圈WASHER4
164002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)4
17811611盖板COVER1
18811612A1O型圈套件O-RING KIT1
18811612A3O型圈套件O-RING KIT1
19811613塞子总成PLUG ASSEMBLY1
20811614轴总成SHAFT ASSEMBLY1
208M0142997倾斜轴套件TILT SHAFT KIT1
2199616管塞PIPE PLUG2
2156800管塞 (.0625-27)PLUG Pipe (.0625-27)2
22811628配平电机TRIM MOTOR1
22878265A6改装套件-配平RETROFIT KIT-TRIM1
23811615螺钉 (长)SCREW (LONG)2
23811616螺钉 (短)SCREW (SHORT)2
24811617T泵PUMP1
24811617T1泵PUMP1
25811619驱动轴DRIVESHAFT1
2699625轴SHAFT1
2699625002轴SHAFT1
2743396A2阳极总成ANODE ASSEMBLY1
27818298Q1阳极套件ANODE KIT1
284000330螺钉(M6x25)SCREW (M6 x 25)2
288M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
2929245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
298M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
30996301冲击板STRIKER PLATE2
308M0045383冲击板STRIKER PLATE2
3158643锁紧垫圈 (.375)LOCKWASHER (.375)2
3246335螺母 (.375-24)NUT (.375-24)2
3344431槽销PIN Groove1
33878267销PIN1
34814609A1线束总成-动力升降控制HARNESS ASSEMBLY Control POWER TRIM1
3588808A22电缆总成(6-3/8"-红色)CABLE ASSEMBLY (6-3/8" - RED)1
3588808A23电缆总成(24"-红色)CABLE ASSEMBLY (24" - RED)1
3587379A14电线总成 (2.750英寸)WIRE ASSEMBLY (2.750 Inches)1
3622875CLIP PUMP WIRE2
3769205C形垫圈线夹螺钉C WASHER CLIP SCREW2
378M0084613C形垫圈C-WASHER2
3869079螺钉(#10-16x0.440)-夹子到艉板支架SCREW (#10-16 x .440) CLIP TO TRANSOM BRACKET2
394000377SCREW (M10 x 30) MANIFOLD6
40400258锁紧垫圈(M10)-不锈钢歧管螺钉LOCKWASHER (M10) Stainless Steel MANIFOLD SCREW6

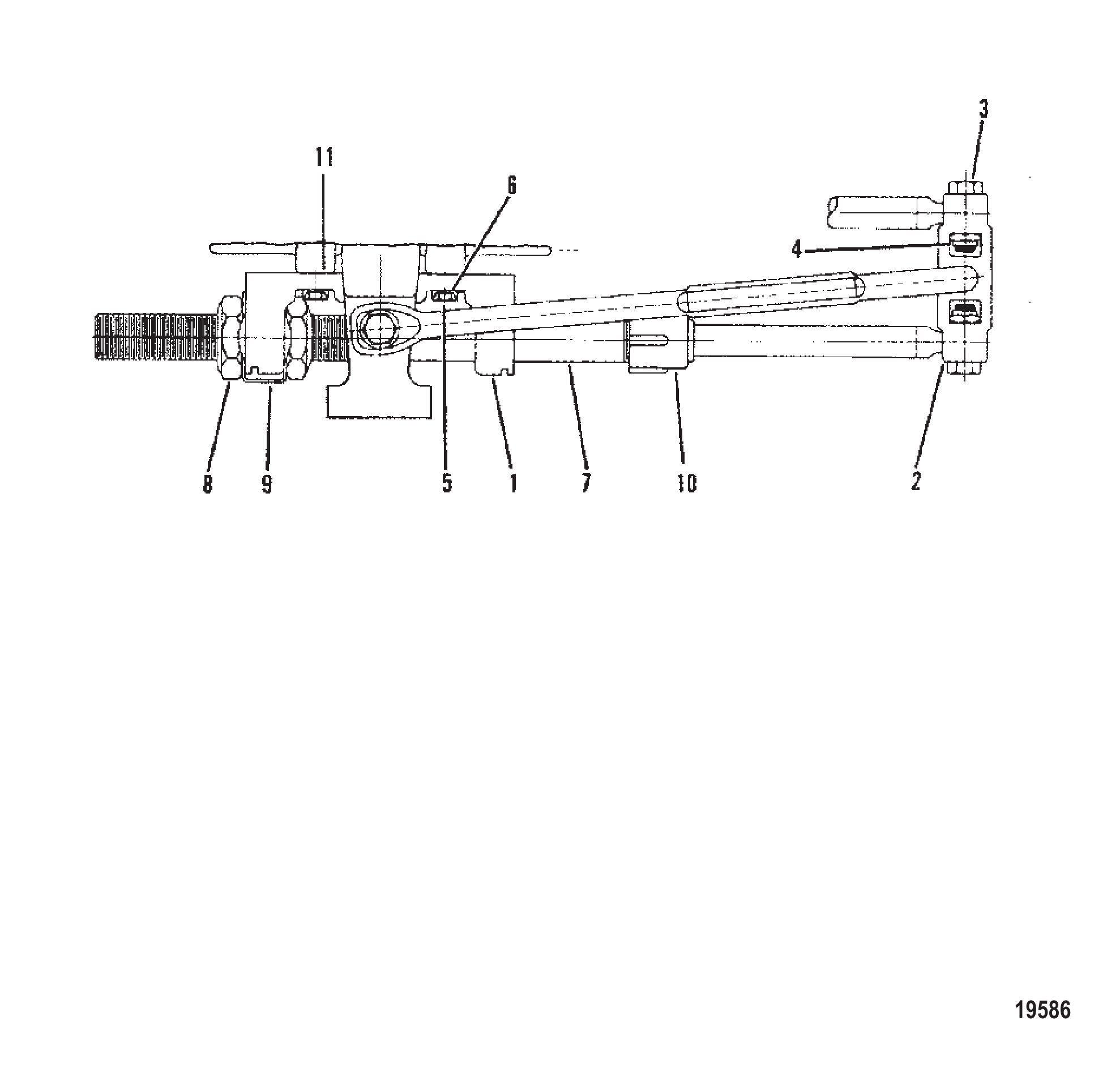

图 56转向安装套件（XR4/ Magnum II） Steering Attaching Kit (XR4/ Magnum II)
转向安装套件（XR4/ Magnum II） Steering Attaching Kit (XR4/ Magnum II)
REF零件编号中文名称英文名称数量
-92876A3转向安装包 (单)ATTACHING KIT Steering (SINGLE)1
141055转向管支架MOUNT STEERING TUBE1
288319转向连杆联轴器COUPLING STEERING LINK1
2850791T联轴器COUPLER1
373732螺钉(0.375-24×1.120)联轴器SCREW (.375-24 x 1.120) COUPLING2
434863螺母(0.375-24)联轴器螺钉NUT (.375-24) COUPLING SCREW3
48M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass3
559702螺钉(0.250-28×0.875)不锈钢支架固定SCREW (.250-28 x .875) Stainless Steel MOUNT ATTACHING4
688404锁紧垫圈-支架螺钉TAB WASHER MOUNT SCREW2
771565转向电缆导管TUBE Cable Guide STEERING1
837984螺母(0.875-14)转向管NUT (.875-14) STEERING TUBE2
88M0041651螺母 (.875-14)NUT (.875-14)2
942100锁紧垫圈-转向管螺母TAB WASHER STEERING TUBE NUT2
1078862A2密封套件SEAL KIT1
1019624A1密封套件SEAL KIT1
1142101隔套SPACER2
图 57喷射组件 Jet Components
喷射组件 Jet Components
REF零件编号中文名称英文名称数量
1821889A31转速限制器REV LIMITER1
2823147A3转速限制器线束总成HARNESS ASSEMBLY Rev Limiter1
3826580支架BRACKET1
476213螺钉(.250-20 x 1.120)SCREW (.250-20 x 1.120)2
540011109螺钉 (M5 x 25) 不锈钢SCREW (M5 x 25) Stainless Steel2
662568螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)1
7801402润滑脂套装GREASE KIT1
730500A2润滑脂套装GREASE KIT1
837721密封件SEAL1
837721001密封件@2SEAL @21
977177A1水泵底座总成BASE ASSEMBLY Water Pump1
1079831油封SEAL Oil1
1190562密封件(1.254 x .312)SEAL (1.254 x .312)1
1235973定位销PIN Dowel2
1319553衬垫GASKET1
1454705面板FACE PLATE1
1432768面板FACEPLATE1
1519551衬垫GASKET1
1689983叶轮IMPELLER1
1689983T叶轮IMPELLER1
1756662键KEY1
178M0032837键@5KEY @51
1877822A1水泵壳体总成BODY ASSEMBLY Water Pump1
1948753嵌件INSERT1
2038452密封件SEAL1
2138453垫圈WASHER1
2229245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel3
228M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel3
2313438螺母(.250-28)NUT (.250-28)3
238267119螺母(.250-28)NUT (.250-28)3
2420273O型圈 (驱动轴)O-RING (DRIVE SHAFT)1
-85491A90衬垫套件GASKET SET1
-79831A1密封套件SEAL KIT1
-77177A3水泵套件WATER PUMP KIT1
图 58旋转支架(铸件号1499-8710-7) Swivel Bracket (Casting #1499-8710-7)
旋转支架(铸件号1499-8710-7) Swivel Bracket (Casting #1499-8710-7)
REF零件编号中文名称英文名称数量
18710A20旋转支架总成（黑色）SWIVEL BRACKET ASSEMBLY (BLACK)1
18710A21旋转支架总成（灰色）SWIVEL BRACKET ASSEMBLY (GRAY)1
18710T21灰色旋转支架总成SWIVEL BRACKET ASSEMBLY Gray1
287735SEAL Oil SWIVEL BRACKET (LOWER)1
367669旋转支架衬套-上下部BUSHING SWIVEL BRACKET-LOWER AND UPPER2
3818764衬套BUSHING2
4816039隔套SPACER1
533504O型圈O-RING1
58M0214926O型圈 @10O RING @101
674036润滑脂接头FITTING Grease2
68M0169589润滑脂接头FITTING Grease2
799608转轴支架衬套BUSHING SWIVEL BRACKET2
7821207衬套BUSHING2
8816432止推垫片THRUST WASHER1
978689螺钉(0.437-20×7.50)转向臂至上支架SCREW (.437-20 x 7.50) STEERING ARM TO UPPER MOUNT2
98M0176309螺钉SCREW2
1078687橡胶支架-上部(长型)MOUNT RUBBER-UPPER (LONG)2
1078687T支架MOUNT2
1077326支架(加长型)(用于XR4/MAGNUM II)MOUNT (X-LONG) (USE ON XR4/MAGNUM II)2
1166921上支座螺栓垫圈WASHER UPPER MOUNT BOLT2
12814432上支座螺栓垫圈WASHER UPPER MOUNT BOLT2
1278688垫圈WASHER2
1334933螺母（0.437-20）不锈钢上部安装螺栓NUT (.437-20) Stainless Steel UPPER MOUNT BOLT2
138M0204653螺母NUT2
1492876A1转向连杆总成LINK ASSEMBLY Steering1
1492876A12连杆总成LINK ROD ASSEMBLY1
1514000SCREW (.375-24 x 1.25) STEERING LINK TO STEERING ARM1
15849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)1
1634863NUT (.375-24) STEERING LINK SCREW2
168M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass2
1734931WASHER (.406 x .734 x .063) Stainless Steel STEERING LINK TO STEERING ARM2
1867706A35旋转销总成(黑色)SWIVEL PIN ASSEMBLY (BLACK)1
1867706A55转向臂转销总成SWIVEL PIN ASSEMBLY Steering Arm1
1867706A36旋转销总成(灰色)SWIVEL PIN ASSEMBLY (GRAY)1
1867706A55转向臂转销总成SWIVEL PIN ASSEMBLY Steering Arm1
1986580A1底部轭架总成（黑色）YOKE ASSEMBLY Bottom (BLACK)1
19878182T轭架底部-不锈钢YOKE Bottom - Stainless Steel1
1986580A2底部轭架总成（灰色）YOKE ASSEMBLY Bottom (GRAY)1
1986580A1底部轭架总成YOKE ASSEMBLY Bottom1
2067684卡环-底部轭架RING Retaining BOTTOM YOKE1
2188882缓冲垫-顶部轭架BUMPER Top Yoke TOP YOKE1
2264014SCREW (.250-28 x .500) SWIVEL BRACKET2
2354457J型卡扣J CLIP
2495164A9调整传感器总成SENDER ASSEMBLY Trim1
248M0074846ORDER 8M0098273ORDER 8M00982731
2556682螺钉（#10-24 X 0.750）SCREW (#10-24 x .750)2
25852368螺钉（#10-24 X 0.750）SCREW (#10-24 x .750)2
2626996锁紧垫圈(#10)(不锈钢)LOCKWASHER (#10) Stainless Steel2
2789302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)2
图 59附件 ACCESSORIES
附件 ACCESSORIES
REF零件编号中文名称英文名称数量
图 60齿轮箱（驱动-标准/反向旋转） Gear Housing (Drive-Standard/Counter Rotation)
齿轮箱（驱动-标准/反向旋转） Gear Housing (Drive-Standard/Counter Rotation)
REF零件编号中文名称英文名称数量
-9148A8齿轮箱总成 标准旋转 1.87:1 齿轮比GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio1
-9148A9齿轮箱总成 标准旋转 1.87:1 齿轮比GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio1
-9148T85齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A10齿轮箱总成 标准旋转 1.87:1 齿轮比GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio1
-9148T84齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A13齿轮箱总成 标准旋转 1.87:1 齿轮比GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio1
-9148T91ORD 1647-9148T85ORD 1647-9148T851
-9148A30齿轮箱总成 反向旋转GEAR HOUSING ASSEMBLY Counter Rotation1
-9148T86齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A31齿轮箱总成 反向旋转GEAR HOUSING ASSEMBLY Counter Rotation1
-9148T92ORD 1647-9148T86ORD 1647-9148T861
19148A11齿轮箱总成GEAR HOUSING ASSEMBLY1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
19148A12齿轮箱总成GEAR HOUSING ASSEMBLY1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
285822A1CONNECTOR ASSEMBLY SPEEDOMETER1
285822A10连接器总成CONNECTOR ASSEMBLY1
320033定位销 齿轮箱定位PIN Dowel GEAR HOUSING LOCATING2
343044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
478638齿轮箱螺柱(0.438×3.12)STUD (.438 x 3.12) GEAR HOUSING1
4786382螺柱(.437-14/.437-20 x 3.120)STUD (.437-14/.437-20 x 3.120)1
418978齿轮箱螺柱(0.438×3.69)STUD (.438 x 3.69) GEAR HOUSING1
48M0034464螺柱STUD1
557920齿轮箱螺柱(0.44×2.06)STUD (.44 x 2.06) GER HOUSING2
58M0133358双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
656297双头螺栓(.312 x 3.38)水泵STUD (.312 x 3.38) WATER PUMP1
68M0034463螺柱(.312-24 x 3.38)STUD (.312-24 x 3.38)1
730667双头螺栓(.250-20/.250-28 x 3.125)水泵STUD (.250-20/.250-28 x 3.125) WATER PUMP2
7306671螺柱STUD2
842647A1传动轴滚柱轴承总成BEARING ASSEMBLY Roller DRIVESHAFT1
943998润滑套筒SLEEVE LUBRICATION1
1144000驱动轴DRIVESHAFT1
11897624T长驱动轴DRIVESHAFT Long1
1144209驱动轴DRIVESHAFT1
11897625T加长驱动轴DRIVESHAFT X-Long1
12N.S.S.不单独出售小齿轮(43-44104A2或43-18475A1部件)Not Sold Separate Pinion Gear-Part of 43-44104A2 or 43-18475A11
1392721垫圈(.965 x .630)小齿轮WASHER (.965 x .630) PINION GEAR1
1435921小齿轮至传动轴螺母(0.625-18)NUT (.625-18) PINION GEAR TO DRIVESHAFT1
1542637A1垫片组SHIM SETAR
158M0063267垫片组SHIM SETAR
1636387A1传动轴滚柱/杯形轴承总成BEARING ASSEMBLY Roller/Cup DRIVESHAFT1
168M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
1742633传动轴轴承螺母NUT DRIVESHAFT BEARING1
178245191固定座RETAINER1
1842579A3水泵底座总成BASE ASSEMBLY Water Pump1
188M0077147带水泵底座总成BASE ASSY-W/P1
19426311水泵至齿轮箱衬垫GASKET WATER PUMP TO GEAR HSG1
198M0204678衬垫GASKET1
2090011O型圈(2.175×0.175)水泵O-RING (2.175 x .175) WATER PUMP1
208M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
2038099O型圈水泵(内径2.109)O-RING WATER PUMP (2.109 I.D.)1
2189238水泵油封SEAL Oil WATER PUMP1
2216977水泵油封SEAL Oil WATER PUMP1
23856081水泵下衬垫GASKET LOWER - WATER PUMP1
238M0090319衬垫@5GASKET @51
24856091水泵上衬垫GASKET UPPER - WATER PUMP1
24858524衬垫GASKET1
2532435水泵面板FACE PLATE WATER PUMP1
258M0204677面板PLATE-FACE1
2696148A1水泵壳体总成BODY ASSEMBLY Water Pump1
2696148T1水泵壳体总成BODY ASSEMBLY Water Pump1
2748752水泵体嵌件INSERT WATER PUMP BODY1
2748752T嵌件INSERT1
2838970橡胶密封圈-进水管SEAL RUBBER - WATER INLET TUBE1
2989984水泵叶轮IMPELLER WATER PUMP1
2989984T4叶轮IMPELLER1
3056654叶轮驱动键KEY IMPELLER DRIVE1
308M0214992键@5KEY @51
3196411螺钉(#14-8×2.25)水泵SCREW (#14-8 x 2.25) WATER PUMP1
318M0215009螺钉SCREW1
3229245垫圈(0.281×0.500×0.060)不锈钢水泵螺钉与螺柱WASHER (.281 x .500 x .060) Stainless Steel WATER PUMP SCREW AND STUD2
328M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
3313438螺母(0.250-28)水泵螺柱NUT (.250-28) WATER PUMP STUD2
338267119螺母(.250-28)NUT (.250-28)2
3436001水泵螺柱垫圈WASHER WATER PUMP STUD1
3513436水泵螺柱螺母NUT WATER PUMP STUD1
3630271传动轴橡胶环RING Rubber DRIVESHAFT1
368M0214918环@5RING @51
3729804进水管导向套SLEEVE GUIDE - WATER INLET TUBE1
3729804T套筒SLEEVE1
3878902换挡轴-下部SHAFT SHIFT - LOWER1
38789022换档轴SHIFT SHAFT1
3929641换挡轴E型挡圈E RING RETIANING - SHIFT SHAFT1
4078907挡圈RING Retaining1
4125439O-RING (.862 x .103) SHIFT SHAFT BUSHING1
4277631A2换挡轴衬套总成BUSHING ASSEMBLY SHIFT SHAFT1
4376384换挡轴衬套油封SEAL Oil SHIFT SHAFT BUSHING1
438M0246145油封OIL SEAL1
4477674WASHER (.35 x .75 x .12) RUBBER - SHIFT SHAFT BUSHING1
4579953SCREW (.375-16 x .250) GREASE FILLER1
4579953Q04放油螺钉套件SCREW KIT Drain1
4667892SCREW Magnetic DRAIN1
468M0058389放油螺钉套件SCREW KIT Drain1
4719183纤维垫圈-润滑脂加注与排放螺钉WASHER Fiber GREASE FILLER AND DRAIN SCREW2
478M0187157蓝色密封件@15SEAL-BLUE @152
-42579A4水泵修理包REBUILD KIT Water Pump1
-96148A8水泵维修套件WATER PUMP REPAIR KIT1
-89238A2密封套件SEAL KIT1
-11338A88发动机大修垫片套装GASKET SET Engine Overhaul1
图 61燃油管路 Fuel Lines
燃油管路 Fuel Lines
REF零件编号中文名称英文名称数量
1816856A3燃油接头总成-塑料CONNECTOR ASSEMBLY Fuel - Plastic1
269067燃油连接器螺钉(.250-20 x 1.375)SCREW (.250-20 x 1.375) FUEL CONNECTOR1
3812782密封件SEAL1
49912976油管TUBING1
48M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
5816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
5816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
6814964接头FITTING1
719688弯头接头FITTING (ELBOW)1
84301625油管(8.00英寸)TUBING (8.00 Inches)1
882381335油管(15.00英寸 散装)TUBING (15.00 Inches Bulk)1
999127109管路(57.00英寸 散装)LINE (57.00 Inches Bulk)4
98M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)4
10816296燃油滤清器FILTER Fuel1
10816296Q03燃油滤清器@3FILTER-FUEL @31
1167751衬垫GASKET3
1227037双头螺栓(.250-28×1.125)STUD (.250-28 x 1.125)6
12270372双头螺栓(.250-28×1.125)STUD (.250-28 x 1.125)6
1355098J型卡扣J CLIP1
138M0024808J型夹J-CLIP1
1455715螺钉(.250-20×0.880)SCREW (.250-20 x .880)6
1526992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel6
1629598不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel6
179912878软管 (.187) (26.00英寸散装)HOSE (.187) (26.00 Inches Bulk)3
1899130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
18892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
1942859A2加浓阀总成VALVE ASSEMBLY Enrichner1
20633001卡箍CLAMP1
2173286螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel1
229912688管材 (36.00英寸散装)TUBING (36.00 Inches Bulk)2
2345915端子排TERMINAL BLOCKAR
2448408螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)AR
2438055螺钉(0.190-32x0.620)SCREW (.190-32 x .620)AR
2462568螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)AR
2469079螺钉 (#10-16 x .440)SCREW (#10-16 x .440)AR
-815791A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1
-815809A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1
-815810A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1
图 62排气歧管与排气板 Exhaust Manifold and Exhaust Plate
排气歧管与排气板 Exhaust Manifold and Exhaust Plate
REF零件编号中文名称英文名称数量
190484分隔板衬垫GASKET DIVIDER PLATE2
287321分隔板PLATE DIVIDER1
287321T安装板PLATE1
369668分隔板密封件SEAL DIVIDER PLATE1
3814754密封件(12.50英寸)SEAL (12.50 Inches)1
495067排气歧管盖COVER EXHAUST MANIFOLD1
574824螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)21
665663A1泄压阀盖(旧设计)COVER RELIEF VALVE - (OLD DESIGN)1
68M0237835罩盖总成COVER ASSY1
738837螺钉(.312-18 x 1.12)盖至气缸体(旧设计)SCREW (.312-18 x 1.12) COVER TO CYLINDER BLOCK (OLD DESIGN)2
888907泄压阀板衬垫(旧设计)GASKET RELIEF VALVE PLATE - (OLD DESIGN)2
888907003衬垫GASKET2
965664A1泄压阀板总成(旧设计)PLATE ASSEMBLY RELIEF VALVE - (OLD DESIGN)1
1064877隔膜(旧设计)DIAPHRAGM (OLD DESIGN)1
10648771隔膜DIAPHRAGM1
1176451隔膜螺钉垫圈(旧设计)WASHER DIAPHRAGM SCREW - (OLD DESIGN)1
1269570螺钉(#10-16 x .750)隔膜至板(旧设计)SCREW (#10-16 x .750) DIAPHRAGM TO PLATE (- (OLD DESIGN)1
1364878弹簧(黑色)提升阀压缩(旧设计)SPRING (Black) COMPRESSION POPPET VALVE - (OLD DESIGN)1
1486596提升阀(旧设计)POPPET VALVE VALVE - (OLD DESIGN)1
1564872提升阀衬套(旧设计)GROMMET POPPET VALVE - (OLD DESIGN)1
1665848提升阀座(旧设计)CARRIER POPPET VALVE - (OLD DESIGN)1
1714462A1泄压阀盖(新设计)COVER RELIEF VALVE - (NEW DESIGN)1
1874824螺钉(.312-18 x 1.250)盖至气缸体(新设计)SCREW (.312-18 x 1.250) COVER TO CYLINDER BLOCK (NEW DESIGN)4
1916497A1泄压阀板(新设计)PLATE RELIEF VALVE - (NEW DESIGN)1
2078690泄压阀板衬垫(新设计)GASKET RELIEF VALVE PLATE - (NEW DESIGN)2
2078690002衬垫GASKET2
2114479隔膜(新设计)DIAPHRAGM (NEW DESIGN)1
21144791隔膜DIAPHRAGM1
2216496导水板(新设计)DEFLECTOR Water (NEW DESIGN)1
2376451隔膜螺钉垫圈(新设计)WASHER DIAPHRAGM SCREW - (NEW DESIGN)1
2469570螺钉(#10-16 x .750)隔膜至板(新设计)SCREW (#10-16 x .750) DIAPHRAGM TO PLATE (NEW DESIGN)1
2564878弹簧(黑色)提升阀压缩(新设计)SPRING (Black) COMPRESSION POPPET VALVE - (NEW DESIGN)1
2614480提升阀(新设计)POPPET VALVE - (NEW DESIGN)1
2764872提升阀衬套(新设计)GROMMET POPPET VALVE - (NEW DESIGN)1
2865848提升阀座(新设计)CARRIER POPPET VALVE - (NEW DESIGN)1
2985303提升阀弹簧垫圈(新设计)WASHER POPPET SPRING - (NEW DESIGN)1
3043029A2排气板总成(黑灰)PLATE ASSEMBLY EXHAUST (BLACK & GRAY)1
3043029A5隔板总成PLATE ASSEMBLY1
3043029A4排气板总成(牡蛎色)PLATE ASSEMBLY EXHAUST (OYSTER)1
3043029A5隔板总成PLATE ASSEMBLY1
3199664排气板弯头ELBOW EXHAUST PLATE1
3199664290度弯头接头(0.125-27x0.250)尼龙FITTING Elbow 90 Degree (.125-27 x .250) Nylon1
3220033排气板定位销PIN Dowel LOCATING - EXHAUST PLATE2
3243044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
33707482排气板密封件(黑灰)SEAL EXHAUST PLATE (BLACK & GRAY)1
3468010密封件固定支架(黑灰)BRACKET SEAL RETAINING (BLACK & GRAY)1
34680101支架BRACKET1
3548408螺钉(#10-16 x .500)支架至排气板(黑灰)SCREW (#10-16 x .500) BRACKET TO EXHAUST PLATE (BLACK & GRAY)8
3625970动力头螺柱垫圈WASHER POWERHEAD STUD6
3620553垫圈(.406 x .734 x .063)WASHER (.406 x .734 x .063)6
3769254动力头螺柱螺母NUT POWERHEAD STUD6
3827132排气板衬套BUSHING EXHAUST PLATE1
3966727螺钉(.312-18 x 1.250)排气板固定SCREW (.312-18 x 1.250) EXHAUST PLATE ATTACHING1
4068783螺钉(.312-18 x 2.50)排气板固定SCREW (.312-18 x 2.50) EXHAUST PLATE ATTACHING1
4166725螺钉(.375-16 x 3.50)排气板固定SCREW (.375-16 x 3.50) EXHAUST PLATE ATTACHING3
41898833螺钉(.375-16 x 3.500)SCREW (.375-16 x 3.500)3
4212602排气板衬套GROMMET EXHAUST PLATE1
4212602002护孔环GROMMET1
4318103罩壳安装板(牡蛎色)PLATE COWL MOUNTING (OYSTER)1
43181032安装板PLATE1
4493221衬套(牡蛎色)GROMMET (OYSTER)1
4493221002护孔环GROMMET1
4528636螺钉(.250-20 x .750)(牡蛎色)SCREW (.250-20 x .750) (OYSTER)13
4629245垫圈(.281 x .500 x .060)不锈钢(牡蛎色)WASHER (.281 x .500 x .060) Stainless Steel (OYSTER)13
468M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel13
4756374螺母(.250-20)(牡蛎色)NUT (.250-20) (OYSTER)13
478267098螺母 (.250-20) 不锈钢NUT (.250-20) Stainless Steel13
4899776排气板衬垫(2件装/牡蛎色)GASKET EXHAUST PLATE (QTY. OF 2 W/OYSTER)1
48997761衬垫GASKET1
-90484A88衬垫套件GASKET SET1
-803062T1提升阀套件POPPET VALVE KIT1
图 63动力升降组件（金属马达壳体） POWER TRIM COMPONENTS Metal Motor Housing
动力升降组件（金属马达壳体） POWER TRIM COMPONENTS Metal Motor Housing
REF零件编号中文名称英文名称数量
-826729A2升降倾斜总成TRIM AND TILT ASSEMBLY1
1811604F歧管总成MANIFOLD ASSEMBLY1
256800管塞 (.0625-27)PLUG Pipe (.0625-27)9
3823552F气缸总成CYLINDER ASSEMBLY1
3880952A03ORD 8M0078330ORD 8M00783301
4823553配平活塞杆套件ROD KIT Trim Piston1
4823553T升降活塞杆ROD Trim Piston1
5811606导向套件GUIDE KIT1
5878239A02倾斜缸端盖套件END CAP KIT Tilt Cylinder1
6811607A1维修套件REPAIR KIT1
7811610A1止回阀套件CHECK VALVE KIT1
7823553T升降活塞杆ROD Trim Piston1
899638A1导向器总成GUIDE ASSEMBLY2
88M0021648端盖总成END CAP ASSEMBLY2
943397A6动力升降倾斜装置活塞/杆总成PISTON/ROD ASSEMBLY Power Trim1
9878413A1活塞总成PISTON ASSEMBLY1
943398A3动力升降倾斜装置活塞/杆总成PISTON/ROD ASSEMBLY Power Trim1
9878414T01活塞总成PISTON ASSEMBLY1
1012184A1升降过滤器总成TRIM FILTER ASSEMBLY1
11813442A2手动释放总成MANUAL RELEASE ASSEMBLY1
11893929A01安全阀套件VALVE KIT Relief1
12812844E型卡环E RING1
12815949001E形环E-RING1
13811612A2O型圈套件O-RING KIT1
13811612A3O型圈套件O-RING KIT1
14811617F泵PUMP1
14811617T1泵PUMP1
15811613塞子总成PLUG ASSEMBLY1
164000327螺钉 (M6 x 14)SCREW (M6 x 14)4
1743450垫圈WASHER4
174002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)4
18811611盖板COVER1
19828710驱动接头DRIVE JOINT1
20828708马达总成(动力配平马达分解件)MOTOR ASSEMBLY (BREAKDOWN ON PWER TRIM MOTOR)1
20878265A4配平电机TRIM MOTOR1
21828709螺钉SCREW2
21881768A1螺钉/垫圈套件SCREW/WASHER KIT2
21811616螺钉SCREW2
22811614轴总成SHAFT ASSEMBLY1
228M0142997倾斜轴套件TILT SHAFT KIT1
2356800管塞 (.0625-27)PLUG Pipe (.0625-27)2
2444431槽销PIN Groove1
24878267销PIN1
25821539三叶销PIN Trilobe1
26996251轴SHAFT1
2699625002轴SHAFT1
27818298A1阳极套件ANODE KIT1
27818298Q1阳极套件ANODE KIT1
284000330螺钉(M6x25)SCREW (M6 x 25)2
288M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
2929245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
298M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
304000377螺钉 (M10 x 30)SCREW (M10 x 30)6
314002319垫圈WASHER6
3226550卡箍CLAMP2
33817626螺钉(#10-16×0.380)SCREW (#10-16 x .380)2
33878607螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)2
3469205C形垫圈C WASHER2
348M0084613C形垫圈C-WASHER2
35996301冲击板STRIKER PLATE2
358M0045383冲击板STRIKER PLATE2
3658643锁紧垫圈 (.375)LOCKWASHER (.375)2
3746335螺母 (.375-24)NUT (.375-24)2
图 64钥匙开关总成 Key Switch Assembly
钥匙开关总成 Key Switch Assembly
REF零件编号中文名称英文名称数量
1816626A20钥匙开关线束总成(20英尺)HARNESS ASSEMBLY Key Switch (20.00 Feet)1
290468A1钥匙盖总成COVER ASSEMBLY Key2
376424支架BRACKET1
455422双头螺柱 (#10-32 x 2.00)STUD (#10-32 x 2.00)2
524676垫圈 (.200 x .440 x .032)WASHER (.200 x .440 x .032)2
668219螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel2
7816479A3板组件套件PLATE KIT2
888107A5钥匙开关套件SWITCH KIT Key1
9879755特殊螺母-黑色尼龙NUT Special - Black Nylon1
10816492A1音响报警器总成ALARM ASSEMBLY Audio Warning1
108M0210763报警器ALARM1
118127111垫片(0.375)SPACER (.375)2
11812711隔套(0.250)SPACER (.250)2
-894911点火钥匙(1A)KEY Ignition (1A)1
-894912点火钥匙(1B)KEY Ignition (1B)1
-894913点火钥匙(1C)KEY Ignition (1C)1
-894914点火钥匙(1D)KEY Ignition (1D)1
-894915点火钥匙(1E)KEY Ignition (1E)1
-894916点火钥匙(1F)KEY Ignition (1F)1
-894917点火钥匙(2A)KEY Ignition (2A)1
-894918点火钥匙(2B)KEY Ignition (2B)1
-894919点火钥匙(2C)KEY Ignition (2C)1
-8949110点火钥匙(2D)KEY Ignition (2D)1
-8949111点火钥匙(2E)KEY Ignition (2E)1
-8949112点火钥匙(2F)KEY Ignition (2F)1
图 65喷油组件 OIL INJECTION COMPONENTS
喷油组件 OIL INJECTION COMPONENTS
REF零件编号中文名称英文名称数量
1830889A4油箱总成TANK ASSEMBLY1
2NSS不单独销售标签-储液罐NOT SOLD SEPARATE Decal-Reservoir1
358376螺钉(.164-18 x .375)SCREW (.164-18 x .375)1
472761不锈钢垫圈(.203 x .562 x .060)WASHER (.203 x .562 x .060) Stainless Steel1
5814449A3盖总成CAP ASSEMBLY1
642999衬垫GASKET1
642999T衬垫GASKET1
7856156A2开关总成SWITCH ASSEMBLY1
7856156T02开关总成SWITCH ASSEMBLY1
881893435螺钉(M8×35)SCREW (M8 x 35)3
88M0103814螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)3
9817274垫圈(0.344×1.00×0.063)不锈钢WASHER (.344 x 1.00 x .063) Stainless Steel3
10855362护孔环GROMMET3
10855362001护孔环GROMMET3
11855364衬套BUSHING3
-8742A20遥控机油箱总成TANK ASSEMBLY Remote Oil1
-8742A22遥控机油箱总成TANK ASSEMBLY Remote Oil1
1287421油箱TANK1
13816190A3外壳总成适配器HOUSING ASSEMBLY Adapter1
13816190A4机油收集器总成(无传感器)OIL PICK UP ASSEMBLY Without Sender1
1411332O型圈(2.225 x .210)O-RING (2.225 x .210)1
1543298A2盖总成CAP ASSEMBLY2
16NSS不单独销售嵌件NOT SOLD SEPARATE Insert1
1711332O型圈(2.225 x .210)O-RING (2.225 x .210)1
1899802管TUBE1
1999439软管(114.00英寸)HOSE (114.00 Inches)1
2012335A1支架套件BRACKET KIT1
2112323A1绳索/挂钩套件CORD/HOOK KIT1
图 66飞轮、启动电机及点火线圈 Flywheel, Starter Motor and Ignition Coils
飞轮、启动电机及点火线圈 Flywheel, Starter Motor and Ignition Coils
REF零件编号中文名称英文名称数量
179918A1飞轮盖套件COVER KIT FLYWHEEL1
279022正时标记MARKER TIMING1
337572螺钉(0.190-32x0.380)正时标记SCREW (.190-32 x .380) TIMING MARKER2
472761垫圈(0.203x0.562x0.060)不锈钢正时标记螺钉WASHER (.203 x .562 x .060) Stainless Steel TIMING MARKER SCREW2
589219飞轮盖塞PLUG FLYWHEEL COVER1
589219001堵头PLUG1
645907飞轮黄色塞PLUG Yellow FLYWHEEL1
752901螺母(.625-18)飞轮NUT (.625-18) FLYWHEEL1
868229垫圈(0.641x1.250x0.190)飞轮WASHER (.641 x 1.250 x .190) FLYWHEEL1
833001垫圈WASHER1
97555A8飞轮FLYWHEEL1
9859238A9飞轮套件FLYWHEEL KIT1
97555A17飞轮FLYWHEEL1
9859238A9飞轮套件FLYWHEEL KIT1
1032417螺钉(.250-28 x .625)飞轮板SCREW (.250-28 x .625) FLYWHEEL PLATE8
1168997螺钉(.312-24 x .750)飞轮毂SCREW (.312-24 x .750) FLYWHEEL HUB8
125454A32定子(配15安培电压调节器)STATOR (USE WITH VOLTAGE REGULATOR-15AMP)1
125454A35定子(配15安培电压调节器)STATOR (USE WITH VOLTAGE REGULATOR-15AMP)1
1376566定子螺钉(#10-24 x 1.00)SCREW (#10-24 x 1.00) STATOR4
1319926100螺丝（#10-24 x 1.00）SCREW (#10-24 x 1.00)4
1596455A9触发板总成PLATE ASSEMBLY Trigger1
1779472启动电机总成(8齿小齿轮)STARTER MOTOR ASSEMBLY (8 TOOTH PINION)1
17893893启动马达STARTER MOTOR1
1856703启动电机轴环COLLAR STARTER MOTOR2
188M0034918轴环COLLAR2
1968042启动电机橡胶止动块STOP Rubber RUBBER - STARTER MOTOR2
198M0043376停机开关STOP2
2026992锁紧垫圈(.250) 不锈钢 起动机接线端LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL1
2120890螺母(.250-20) 起动机接线端NUT (.250-20) STARTER MOTOR TERMINAL1
2293388A2电磁阀至启动电机黑色电缆总成CABLE ASSEMBLY Black SOLENOID TO STARTER MOTOR1
2293388A14线缆总成(黄/黑)CABLE ASSEMBLY Yellow/Black1
2369035螺钉和锁紧垫圈 (.250-20 x .625) 不锈钢 电缆至启动马达SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel CABLE TO STARTER MOTOR1
2493388A1电缆总成(6.00英寸)黑色板至启动马达CABLE ASSEMBLY (6.00 Inches) Black PLATE TO STARTER MOTOR1
257370A13点火线圈总成COIL ASSEMBLY Ignition IGNITION6
258M0230859点火线圈总成COIL IGNITION ASY6
2667614点火线圈盖COVER IGNITION COIL3
2788447点火线圈盖螺钉(.190-32 x 1.62)SCREW (.190-32 x 1.62) IGNITION COIL COVER12
2845076螺母(#10-32)黄铜点火线圈端子NUT (#10-32) Brass IGNITION COIL TERMINAL12
2988807A6点火线圈黑色电缆总成(3.50英寸)CABLE ASSEMBLY (3.50 Inches) Black IGNITION COIL6
3068513接地带不锈钢螺钉(#10-32 x .375)SCREW (#10-32 x .375) Stainless Steel GROUND STRAP6
3199215A25高压导线总成LEAD ASSEMBLY HIGH TENSION6
31813715A1引线LEAD WIRE6
3263709A1高压电缆护套/端子套件BOOT/TERMINAL KIT HIGH TENSION CABLE6
33136862火花塞SPARK PLUG6
3313686QNGK BU8H @10NGK BU8H @106
3469738A1线圈至开关盒线束总成(#2,4&6)HARNESS ASSEMBLY COIL TO SWITCH BOX (#2, 4 & 6)1
3469738A7线束总成HARNESS ASSEMBLY1
3469739A2线圈至开关盒线束总成(#1,3&5)HARNESS ASSEMBLY COIL TO SWITCH BOX (#1, 3 & 5)1
3530164点火线圈盖螺钉不锈钢垫圈(.192 x .375 x .0312)WASHER (.192 x .375 x .0312) Stainless Steel IGNITION COIL COVER SCREW12
图 67下罩 Bottom Cowl
下罩 Bottom Cowl
REF零件编号中文名称英文名称数量
1878587A1下罩总成BOTTOM COWL ASSEMBLY1
2858743A2下罩总成BOTTOM COWL ASSEMBLY1
28M0113913右舷下罩BCOWL-LOWER STBD B1
38253181罩盖密封条(41英寸)SEAL Cowl (41.00 Inches)2
38M0109217罩盖密封条SEAL-COWL2
4878547T嵌件INSERT1
582130040螺钉(M6 x 40)SCREW (M6 x 40)8
6831209固定座RETAINER1
7858742怠速排气套BOOT Idle Exhaust1
8859251护孔环GROMMET1
88M0039078护孔环GROMMET1
9827948接头FITTING1
10855576垫圈WASHER1
11816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)6
12830756109软管(57英寸整卷)(裁切至5英寸长度)HOSE (57.00 Inches Bulk) (Cut To 5.00 Inch Length)1
128M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
13881535软管(32.00英寸)HOSE (32.00 Inches)1
149912688管材(36.00英寸散装)(26.00英寸)TUBING (36.00 Inches Bulk) (26.00 Inch)1
15817518三通TEE1
1682130020螺钉 (M6 x 20)SCREW (M6 x 20)2
178587411护孔环GROMMET1
17889724护孔环GROMMET1
18856990开关总成SWITCH ASSEMBLY1
188M0235192微调开关SWITCH TRIM1
19824868螺钉(M6×75)SCREW (M6 x 75)1
20821253F1前手柄黑色FRONT HANDLE Black1
20889740A02手柄套件HANDLE KIT1
2133589衬套BUSHING2
2248462O型圈 (.614 x .070)O-RING (.614 x .070)1
238219423棘爪PAWL1
2469057垫片(.281 x .734 x .063)WASHER (.281 x .734 x .063)1
25401366螺母(M6)不锈钢NUT (M6) Stainless Steel1
2613541公插头PLUG Male2
图 68动力平衡泵（与设计I动力平衡泵配套使用） Power Trim Pump (Use With Design I Power Trim Pump)
动力平衡泵（与设计I动力平衡泵配套使用） Power Trim Pump (Use With Design I Power Trim Pump)
REF零件编号中文名称英文名称数量
-99186T泵与电机总成PUMP AND MOTOR1
112659机架与磁场套件FRAME AND FIELD KIT1
1991861动力升降泵总成PUMP ASSEMBLY Power Trim1
212665电刷弹簧套件SPRING KIT Brush1
313506电刷卡套件BRUSH CARD KIT1
3991861动力升降泵总成PUMP ASSEMBLY Power Trim1
412662泵与端架套件PUMP AND END FRAME KIT1
4991861动力升降泵总成PUMP ASSEMBLY Power Trim1
5126631泵密封套件SEAL KIT Pump1
612660端架套件END FRAME KIT1
6991861动力升降泵总成PUMP ASSEMBLY Power Trim1
712661电枢套件ARMATURE KIT1
7991861动力升降泵总成PUMP ASSEMBLY Power Trim1
812664贯穿螺栓套件THRU BOLT KIT1

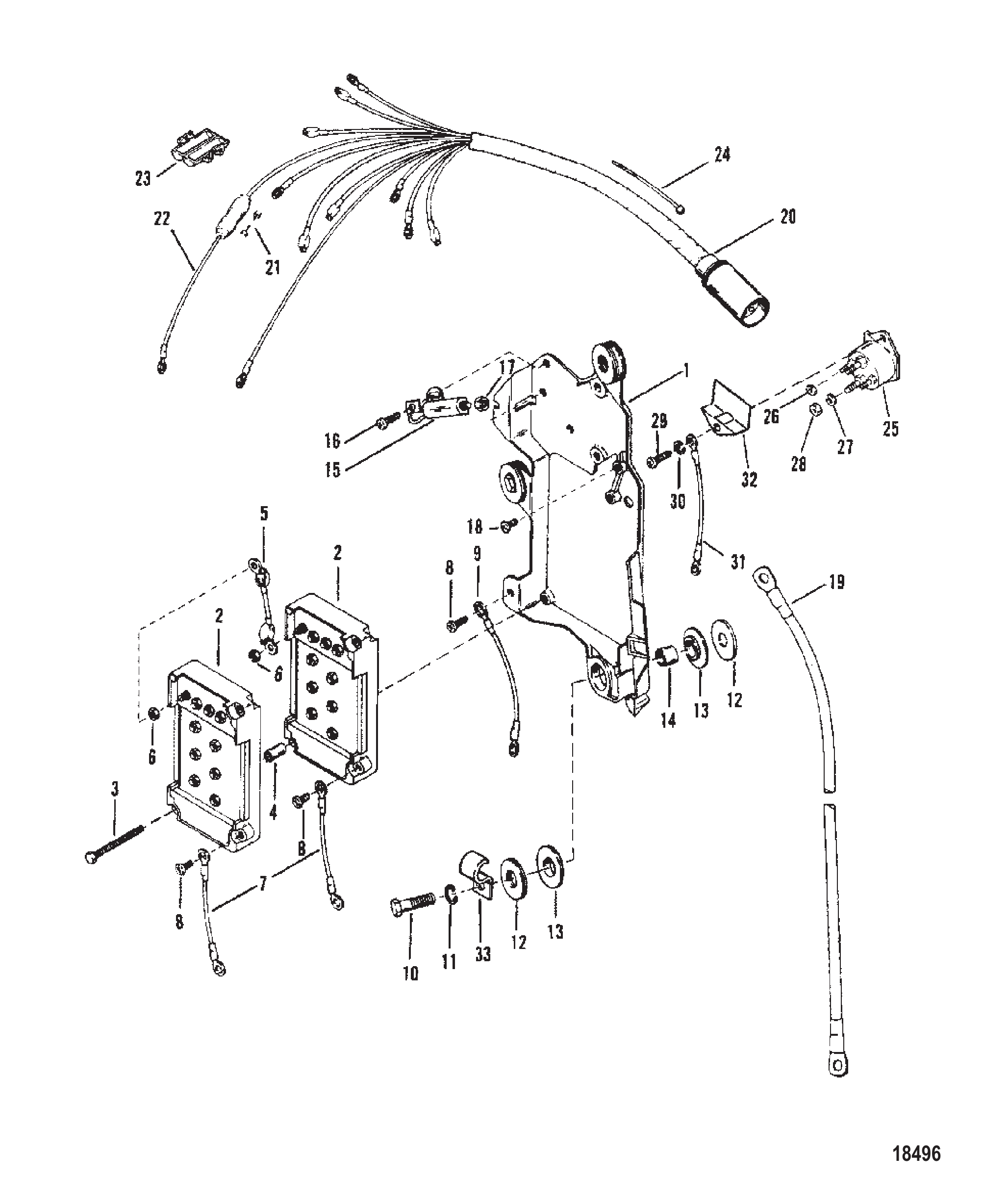

图 69线束/启动继电器 Wiring Harness/Starter Solenoid
线束/启动继电器 Wiring Harness/Starter Solenoid
REF零件编号中文名称英文名称数量
143429点火板PLATE IGNITION1
27778A9开关盒总成SWITCHBOX ASSEMBLY2
27778A12开关盒总成SWITCHBOX ASSEMBLY2
313669开关盒至点火板螺钉(#12-24 x 2.00)SCREW (#12-24 x 2.00) SWITCH BOX TO IGNITION PLATE2
494453开关盒螺钉衬套BUSHING SWITCH BOX SCREW2
562310A2开关盒间电缆总成CABLE ASSEMBLY SWITCH BOX TO SWITCH BOX1
645076螺母(#10-32)黄铜开关盒端子NUT (#10-32) Brass SWITCH BOX TERMINAL20
760871A10线束总成-开关盒WIRE ASSEMBLY SWITCH BOX2
862568螺丝(#10-16 x 0.375)导线固定SCREW (#10-16 x .375) WIRE ATTACHING3
965999A3线缆总成(黑色)CABLE ASSEMBLY Black1
1069092点火板螺钉(1.25)SCREW (1.25) IGNITION PLATE3
1060411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)3
1126993锁紧垫圈(.312)点火板螺钉LOCKWASHER (.312) IGNITION PLATE SCREW3
118M0204647锁紧垫圈 (.312)LOCKWASHER (.312)3
1236042垫圈 点火板螺钉WASHER IGNITION PLATE SCREW6
1367264橡胶垫圈 点火板螺钉WASHER (Rubber) IGNITION PLATE SCREW6
1467268衬套 点火板螺钉BUSHING IGNITION PLATE SCREW3
1533386A3开关总成SWITCH ASSEMLBY1
1638055螺钉(0.190-32x0.620)SCREW (.190-32 x .620)1
1745076螺母 (#10-32) 黄铜水银开关端子NUT (#10-32) Brass MERCURY SWITCH TERMINAL1
1887926螺钉(#10-32 x .500)导线固定SCREW (#10-32 x .500) LEAD ATTACHING1
1988439A3电缆总成 正极-蓄电池 MERCURY/MARINERCABLE ASSEMBLY Positive - Battery MERCURY/MARINER1
1988439A2电缆总成 蓄电池-负极 MERCURY/MARINERCABLE ASSEMBLY Battery - Negative NEGATIVE - MERCURY/MARINER1
2096220A12发动机线束总成HARNESS ASSEMBLY ENGINE1
2179091保险丝20安培FUSE 20 Ampere1
218M0207796保险丝20安培FUSE 20 AMP1
2295084A2电缆总成-保险丝CABLE ASSEMBLY FUSE1
23134731保险丝座HOLDER Fuse1
2490077线束扎带TIE STRAP HARNESS AND CABLESAR
24816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
2515857启动电磁阀SOLENOID Starter1
25853654A1电磁阀SOLENOID1
2645076螺母(#10-32)黄铜 电磁阀端子NUT (#10-32) Brass SOLENOID TERMINALS2
2753166锁紧垫圈（.312）电磁阀端子LOCKWASHER (.312) SOLENOID TERMINALS2
2868292螺母（.312-18）电磁阀端子NUT (.312-18) SOLENOID TERMINALS2
288M0204668螺母(.312-18)NUT (.312-18)2
2931716螺钉(.250-20 x .620)电磁阀至点火板SCREW (.250-20 x .620) SOLENOID TO IGNITION PLATE2
3026992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel2
3165999A2电缆总成 黑色 上部安装CABLE ASSEMBLY Black UPPER MOUNT1
3278866电磁阀绝缘体INSULATOR SOLENOID1
3347483J型卡扣J CLIP2

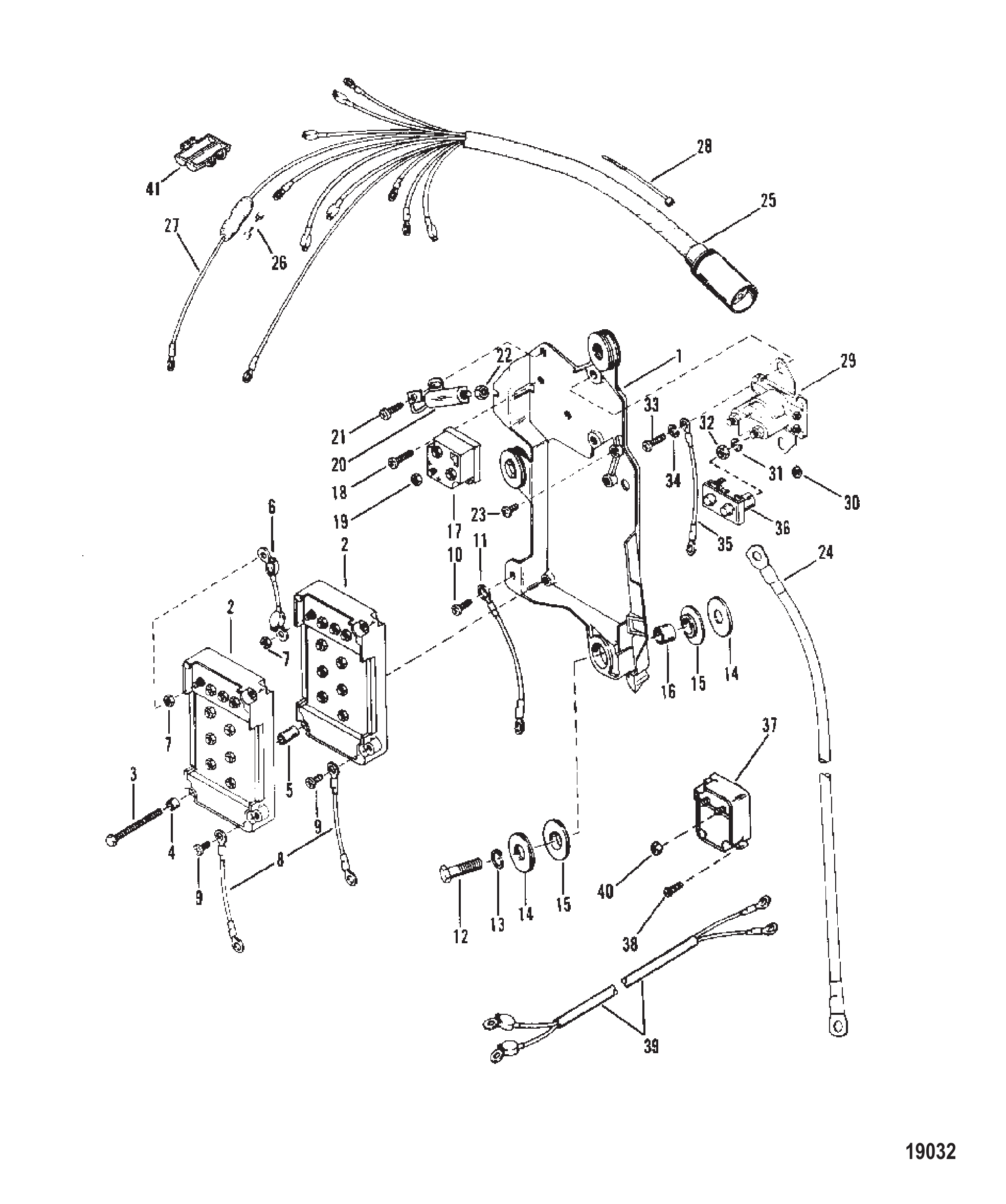

图 70线束、启动电磁阀及整流器 Wiring Harness, Starter Solenoid and Rectifier
线束、启动电磁阀及整流器 Wiring Harness, Starter Solenoid and Rectifier
REF零件编号中文名称英文名称数量
143429点火板PLATE IGNITION1
27778A6开关盒总成SWITCHBOX ASSEMBLY2
27778A12开关盒总成SWITCHBOX ASSEMBLY2
313669开关盒至点火板螺钉(#12-24 x 2.00)SCREW (#12-24 x 2.00) SWITCH BOX TO IGNITION PLATE2
494304开关盒螺钉垫片(早期型号)SPACER SWITCH BOX SCREW (EARLY MODELS)2
594453开关盒螺钉衬套BUSHING SWITCH BOX SCREW2
662310A2开关盒间电缆总成CABLE ASSEMBLY SWITCH BOX TO SWITCH BOX1
745076螺母(#10-32)黄铜开关盒端子NUT (#10-32) Brass SWITCH BOX TERMINAL20
860871A10线束总成-开关盒WIRE ASSEMBLY SWITCH BOX2
962568螺丝(#10-16 x 0.375)导线固定SCREW (#10-16 x .375) WIRE ATTACHING2
1038055电缆至点火板螺钉(.190-32 x .620)SCREW (.190-32 x .620) CABLE TO IGNITION PLATE1
1165999A3线缆总成(黑色)CABLE ASSEMBLY Black1
1269092点火板螺钉(1.25)SCREW (1.25) IGNITION PLATE3
1260411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)3
1326993锁紧垫圈(.312)点火板螺钉LOCKWASHER (.312) IGNITION PLATE SCREW3
138M0204647锁紧垫圈 (.312)LOCKWASHER (.312)3
1436042垫圈 点火板螺钉WASHER IGNITION PLATE SCREW6
1567264橡胶垫圈 点火板螺钉WASHER (Rubber) IGNITION PLATE SCREW6
1667268衬套 点火板螺钉BUSHING IGNITION PLATE SCREW3
1762351A1整流器RECTIFIER1
178M0058226整流器RECTIFIER1
1838055螺钉(.190-32 x .620)水银开关至点火板SCREW (.190-32 x .620) MERCURY SWITCH TO IGNITION PLATE2
1945076螺母(#10-32)黄铜整流器端子NUT (#10-32) Brass RECTIFIER TERMINALS3
2033386A3开关总成SWITCH ASSEMLBY1
2138055螺钉(.190-32 x .620)水银开关至点火板SCREW (.190-32 x .620) MERCURY SWITCH TO IGNITION PLATE1
2245076螺母 (#10-32) 黄铜水银开关端子NUT (#10-32) Brass MERCURY SWITCH TERMINAL1
2387926螺钉(#10-32 x .500)导线固定SCREW (#10-32 x .500) LEAD ATTACHING1
2488439A14电缆总成 电池正极CABLE ASSEMBLY Battery - Positive POSITIVE1
2488439A2电缆总成 电池负极CABLE ASSEMBLY Battery - Negative NEGATIVE1
2596220A4发动机线束总成HARNESS ASSEMBLY ENGINE1
2679091保险丝20安培FUSE 20 Ampere1
268M0207796保险丝20安培FUSE 20 AMP1
2795084A2电缆总成-保险丝CABLE ASSEMBLY FUSE1
2873498线束与电缆夹CLAMP HARNESS AND CABLES3
28816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)3
2996054启动电磁阀总成SOLENOID ASSEMBLY Starter1
298M0185149启动电磁阀SOLENOID START1
3026419螺母（#8-32）黄铜电磁阀端子NUT (#8-32) Brass SOLENOID TERMINALS2
3126992锁紧垫圈(.250)不锈钢 电磁阀端子(1/4")LOCKWASHER (.250) Stainless Steel SOLENOID TERMINALS (1/4")2
3294330螺母（.250-20）黄铜电磁阀端子NUT (.250-20) Brass SOLENOID TERMINALS2
2915857启动电磁阀SOLENOID Starter1
29853654A1电磁阀SOLENOID1
3045076螺母(#10-32)黄铜 电磁阀端子NUT (#10-32) Brass SOLENOID TERMINALS2
3153166锁紧垫圈（.312）电磁阀端子LOCKWASHER (.312) SOLENOID TERMINALS2
3268292螺母（.312-18）电磁阀端子NUT (.312-18) SOLENOID TERMINALS2
328M0204668螺母(.312-18)NUT (.312-18)2
3331716螺钉(.250-20 x .620)电磁阀至点火板SCREW (.250-20 x .620) SOLENOID TO IGNITION PLATE2
3426992锁紧垫圈(.250)不锈钢 电磁阀至点火板螺钉LOCKWASHER (.250) Stainless Steel SOLENOID TO IGNITION PLATE SCREW2
3565999A2电缆总成 黑色 上部安装CABLE ASSEMBLY Black UPPER MOUNT1
3697861电磁阀绝缘体INSULATOR SOLENOID1
3788825A7电压调节器VOLTAGE REGUALTOR1
3848409螺钉(#10-16 x .625)不锈钢 电压调节器SCREW (#10-16 x .625) Stainless Steel VOLTAGE REGULATOR1
3913397A1线束总成HARNESS ASSEMBLY1
4045076螺母(#10-32)黄铜 电压调节器NUT (#10-32) Brass VOLTAGE REGULATOR2
41134731保险丝座HOLDER Fuse1
图 71驱动轴壳与排气管 Drive Shaft Housing And Exhaust Tube
驱动轴壳与排气管 Drive Shaft Housing And Exhaust Tube
REF零件编号中文名称英文名称数量
1848939T3驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
1849778T2驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
1849778A2驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
2816055双头螺柱(.500 x 4.50)STUD (.500 x 4.50)2
34009135螺钉(M12 x 35)SCREW (M12 x 35)2
3892860螺钉(M12 x 35)SCREW (M12 x 35)2
488238A10接地线总成CABLE ASSEMBLY Ground1
5816056垫圈WASHER2
682670817螺母(.500-20)NUT (.500-20)2
6898832螺母(.500-20)NUT (.500-20)2
78331231护孔环GROMMET1
88329321密封件SEAL1
9833116A9排气管总成TUBE ASSEMBLY Exhaust1
1081893435螺钉(M8×35)SCREW (M8 x 35)6
108M0103814螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)6
118329411水管TUBE Water1
118M0042785水管TUBE-WATER1
118329412水管TUBE Water1
118M0042786水管TUBE Water1
12832940密封件SEAL1
12832940001密封件SEAL1
138329391卡箍CLAMP1
14848843双头螺柱(M12 x 65)STUD (M12 x 65)4
148M0045821螺柱STUD4
14856983双头螺柱(M12 x 52)STUD (M12 x 52)4
148M0008031双头螺柱(M12 x 1.75 x 52)STUD (M12 x 1.75 x 52)4
154002321垫圈(12.80 mm x 24.0 mm x 2.4 mm)不锈钢WASHER (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel4
164013812螺母(M12)不锈钢NUT (M12) Stainless Steel4
17859747联轴器COUPLER1
178M0214971耦合接头 (4 MM)COUPLER Fitting (4 MM)1
18859732堵头PLUG1
1985944971管材(52.00英寸)黑色TUBING (52.00 Inches) Black1
1985944975管材(72.00英寸散装)TUBING (72.00 Inches Bulk)1
20859448接头FITTING1
20859448T接头FITTING1
21821555护孔环GROMMET1
218M0153609护孔环GROMMET1
22850181捆扎带(11.750英寸)TIE STRAP (11.750 Inches)1

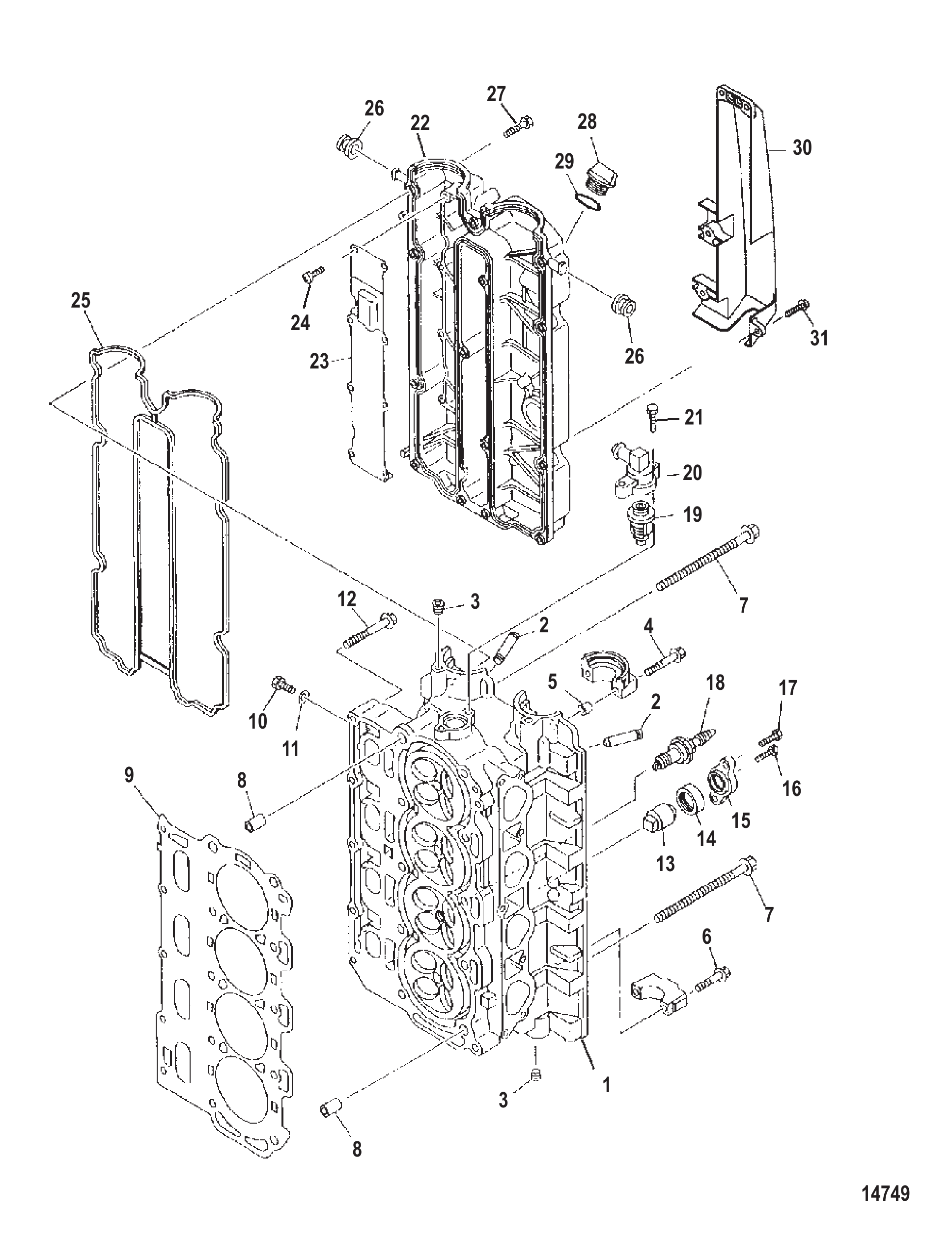

图 72气缸盖 Cylinder Head
气缸盖 Cylinder Head
REF零件编号中文名称英文名称数量
1881310T2气缸盖总成CYLINDER HEAD ASSEMBLY1
2804110导向销PIN Guide16
3804111堵头PLUG4
4804112螺栓(M7 x 48)BOLT (M7 x 48)4
5804113定位销PIN Dowel4
6804114螺栓(M7×37)BOLT (M7 x 37)16
7881311螺栓(M10×145)BOLT (M10 x 145)10
8804116轴环COLLAR2
88M0070515定位销DOWEL PIN2
98041151衬垫GASKET1
1083124714螺栓BOLT4
11831246密封垫圈WASHER Sealing4
12881312螺栓(M8×55)BOLT (M8 x 55)5
13NSS阳极 (不单独销售)NOT SOLD SEPARATE Anode2
14804086护孔环GROMMET2
15804085盖板COVER2
15804085A01罩盖/阳极套件COVER/ANODE KIT2
168524741螺栓 (M6 x 20)BOLT (M6 x 20)2
17827207螺栓 (M8 x 25)BOLT (M8 x 25)4
18881284火花塞SPARK PLUG4
18881284QPG LFR6A-11 @10PG LFR6A-11 @104
19881429节温器THERMOSTAT1
198M6013864节温器THERMOSTAT1
20881430节温器盖COVER Thermostat1
208041271节温器盖THERMOSTAT COVER1
218248326螺丝(M6 x 25毫米)SCREW (M6 x 25 mm)2
22881313T1盖板套件COVER KIT1
23804119通气盖COVER Breather1
24804120螺钉(M4 x 8)SCREW (M4 x 8)8
25804123衬垫GASKET1
26855690护孔环GROMMET2
27858530螺栓 (M6 x 30)BOLT (M6 x 30)14
28859578A1油塞总成PLUG ASSEMBLY Oil1
288M0240831油塞OIL PLUG1
29NSSO型圈(不单独销售)NOT SOLD SEPARATE O-Ring1
30858752盖板COVER1
30858752001盖板COVER1
311993716螺钉(M6 x 16)SCREW (M6 x 16)5
-858732T01衬垫套件GASKET SET1
-858732T02动力头衬垫套件GASKET SET Powerhead1
-858732T02动力头衬垫套件GASKET SET Powerhead1
-881310T1气缸盖总成CYLINDER HEAD ASSEMBLY1
-881310T09气缸盖HEAD-CYLINDER1
-881421T01动力头总成POWERHEAD ASSEMBLY1
-881421T04动力头总成POWERHEAD ASSEMBLY1
-881421T02动力头总成POWERHEAD ASSEMBLY1
-881421T04动力头总成POWERHEAD ASSEMBLY1

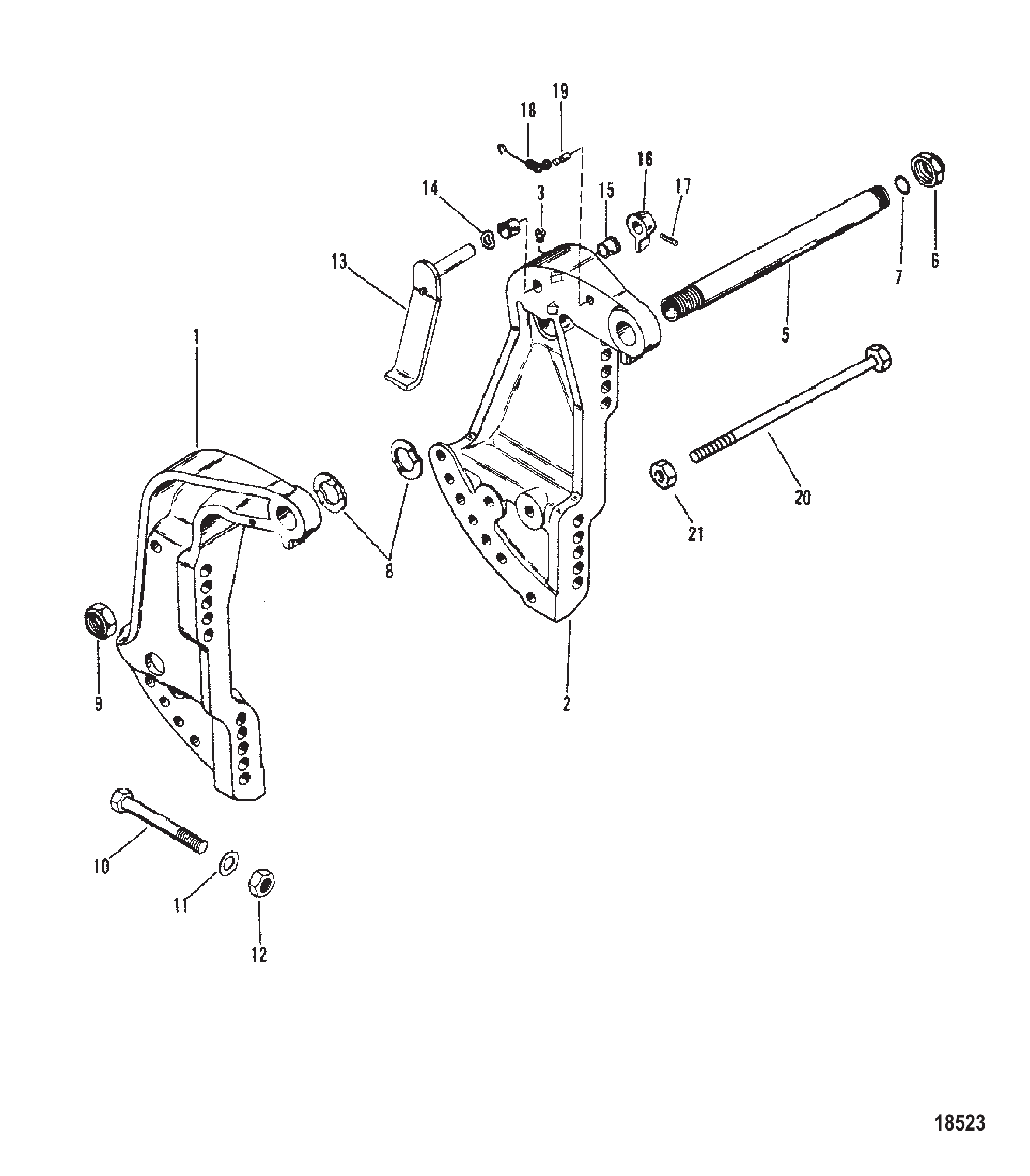

图 73艉板支架 Transom Brackets
艉板支架 Transom Brackets
REF零件编号中文名称英文名称数量
18718A1艉板支架总成(右舷)(黑色)BRACKET ASSEMBLY Transom (STARBOARD) (BLACK)1
28716A1艉板支架总成(左舷)(黑色)BRACKET ASSEMBLY Transom (PORT) (BLACK)1
28716A8艉板支架总成BRACKET ASSEMBLY Transom1
18718A2艉板支架总成(右舷)(灰色)BRACKET ASSEMBLY Transom (STARBOARD) (GRAY)1
18718F8艉板支架BRACKET Transom1
28716A2艉板支架总成(左舷)(灰色)BRACKET ASSEMBLY Transom (PORT) (GRAY)1
28716A9艉板支架总成BRACKET ASSEMBLY Transom1
18718A3艉板支架总成(右舷)(牡蛎色)BRACKET ASSEMBLY Transom (STARBOARD) (OYSTER)1
18718F8艉板支架BRACKET Transom1
28716A3艉板支架总成(左舷)(牡蛎色)BRACKET ASSEMBLY Transom (PORT) (OYSTER)1
28716A9艉板支架总成BRACKET ASSEMBLY Transom1
398727润滑配件左舷艉板支架FITTING Grease PORT TRANSOM BRACKET1
38M0169588润滑脂接头FITTING Grease1
599170A1倾斜管TILT TUBE1
599170A2倾斜管套件TUBE KIT Tilt1
634862螺母(1.00-14)倾斜管NUT (1.00-14) TILT TUBE1
6859133螺母(1.00-14)NUT (1.00-14)1
745711O-RING (.612 x .103) TILT TUBE1
888750波形垫圈(1.62 x 1.05)倾斜管WASHER Wave (1.62 x 1.05) TILT TUBE2
956041螺母(.875-14)倾斜管NUT (.875-14) TILT TUBE1
9858869螺母 (.875-14)NUT (.875-14)1
10677551螺钉(.500-20 x 4.500)艉板支架至艉板SCREW (.500-20 x 4.500) TRANSOM BRACKET TO TRANSOM4
108M0149747螺钉SCREW4
1128421垫圈(1.5 x 3.05 x 0.13)不锈钢艉板支架螺栓WASHER (1.5 x 3.05 x 0.13) Stainless Steel TRANSOM BRACKET BOLT4
118M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
1124501艉板支架螺栓垫圈(上部-牡蛎色)WASHER TRANSOM BRACKET BOLT (UPPER-OYSTER)2
128M0027784艉板支架螺栓螺母NUT TRANSOM BRACKET BOLT4
1282671117螺母(.500-20)NUT (.500-20)4
1399629A2倾斜锁杆总成LEVER ASSEMBLY TILT LOCK1
138M0115104倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
1499611倾斜杆波形垫圈WAVE WASHER TILT LEVER1
1565830倾斜杆尼龙衬套NYLINER TILT LEVER2
1699633倾斜锁杆旋钮(黑色)KNOB TILT LOCK LEVER (BLACK)1
1699633T6倾斜锁杆旋钮(灰色)KNOB TILT LOCK LEVER (GRAY)1
1699633旋钮KNOB1
1699633T10倾斜锁杆旋钮(牡蛎色)KNOB TILT LOCK LEVER (OYSTER)1
1699633旋钮KNOB1
1799615槽销PIN Groove1
1899622弹簧SPRING1
1999604槽销PIN Groove1
2096930A1倾斜锁螺栓总成BOLT ASSEMBLY TILT LOCK1
2123161螺栓螺母（3/8英寸-24牙）NUT (.375-24) BOLT1
-90484A88衬垫套件GASKET SET
图 74簧片阀组与气缸盖 Reed Block And Cylinder Head
簧片阀组与气缸盖 Reed Block And Cylinder Head
REF零件编号中文名称英文名称数量
196423气缸盖（两件式设计）CYLINDER HEAD (2 PIECE DESIGN)2
296278气缸盖衬垫（两件式设计）GASKET CYLINDER COVER - (2 PIECE DESIGN)2
396283T气缸盖（两件式设计）COVER CYLINDER - (2 PIECE DESIGN)2
396283盖板COVER2
474824气缸盖螺钉 (.312-18 x 1.250)（两件式设计）SCREW (.312-18 x 1.250) CYLINDER COVER - (2 PIECE DESIGN)40
5184191气缸盖（一件式设计）CYLINDER HEAD (1 PIECE DESIGN)2
518419F1气缸盖CYLINDER HEAD2
696542气缸盖衬垫GASKET CYLINDER HEAD2
696281T01衬垫GASKET2
798534气缸盖螺钉 (.375-16 x 2.30)SCREW (.375-16 x 2.30) CYLINDER HEAD24
825909气缸盖螺钉垫圈 (.406 x .812 x .065)WASHER (.406 x .812 x .065) CYLINDER HEAD SCREW24
962386衬垫GASKET2
98M0204714衬垫@4GASKET @42
1090390A1节温器盖套件COVER KIT THERMOSTAT2
1177065节温器盖螺钉 (.312-18 x 2)SCREW (.312-18 x 2) THERMOSTAT COVER2
11815549螺钉(.312-18 x 2.00)SCREW (.312-18 x 2.00)2
1135386节温器盖螺钉 (.312-18 x 1.00)SCREW (.312-18 x 1.00) THERMOSTAT COVER2
126872790度黄铜弯头接头 (.250-18)（水管用）FITTING (.250-18) 90 Degree - Brass ELBOW - WATER HOSES1
1268727190度弯头 (.250-18) - 黄铜FITTING (.250-18) 90 Degree - Brass1
137765377配水软管（散装24.500英寸）HOSE (24.500 Inches Bulk) WATER DISTRIBUTION2
1377653101软管（散装48.00英寸）HOSE (48.00 Inches Bulk)2
1468728节温器盖至水管接头FITTING THE THERMOSTAT COVER TO WATER HOSES1
1573498水管卡箍CLAMP WATER HOSES4
15816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)4
1697465温度传感器（右舷）SENDER Temperature (STARBOARD)1
1796282温度传感器盖COVER TEMPERATURE SENDER1
2099747A2簧片阀壳体HOUSING REED BLOCK1
2099747A9簧片阀壳体HOUSING REED BLOCK1
2124878簧片阀壳体螺钉 (.250-20 x 1.25)SCREW (.250-20 x 1.25) REED BLOCK HOUSING1
2169093簧片阀壳体螺钉 (.250-20 x 1.50)SCREW (.250-20 x 1.50) REED BLOCK HOUSING8
2169067簧片阀壳体螺钉 (.250-20 x 1.375)SCREW (.250-20 x 1.375) REED BLOCK HOUSING1
2293536簧片阀壳体衬垫GASKET REED BLOCK HOUSING1
22935361衬垫GASKET1
2365744簧片阀衬垫GASKET REED BLOCK6
23657443衬垫GASKET6
2475953簧片阀组REED BLOCK6
2575362A1簧片组件REED ASSEMBLY6
2696183簧片夹CLAMP Reed12
26961832簧片夹CLAMP Reed12
2757583簧片至簧片阀螺钉 (#8-32 x .375)SCREW (#8-32 x .375) REEDS TO REED BLOCK60
2757583T螺丝#8-32×3/8SCREW #8-32x3/860
2865746簧片阀固定螺钉 (.250-20 x .750)SCREW (.250-20 x .750) REED BLOCK ATTACHING12
2927037化油器安装螺柱 (.250-28 x 1.125)STUD (.250-28 x 1.125) CARBURETOR MOUNTING12
29270372双头螺栓(.250-28×1.125)STUD (.250-28 x 1.125)12
3042658簧片阀壳体泄油软管止回阀CHECK VALVE BLEED HOSE TO REED BLOCK HOUSING5
30426585止回阀CHECK VALVE5
3115133气缸体泄油软管接头（90度）FITTING BLEED HOSE TO CYLINDER BLOCK (90 DEGREES)5
3299130122泄油管路（散装20.00英尺）TUBING (20.00 Feet Bulk) BLEED LINE1
32892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
3342657A1止回阀CHECK VALVE1
3342657A3止回阀CHECK VALVE1
3465857泄油软管连接器（压入式）CONNECTOR BLEED HOSE (PRESS-IN)1
3456759倒钩接头FITTING Barbed1
3564871A2止回阀CHECK VALVE1
3613536A7温度传感器总成SENSOR ASSEMBLY Temperature1
3713715固定座RETAINER2
37137151固定座RETAINER2
3898257螺钉 (.312-18 x .500)SCREW (.312-18 x .500)2
39187531温度传感器（OYSTER）SENDER Temperature (OYSTER)1
4088824A8温度传感器线束总成（OYSTER）CABLE ASSEMBLY TEMPERATURE SENDER - (OYSTER)1
4175692节温器THERMOSTAT2
-90484A88衬垫套件GASKET SET
图 75驱动轴壳体和排气管 Driveshaft Housing and Exhaust tube
驱动轴壳体和排气管 Driveshaft Housing and Exhaust tube
REF零件编号中文名称英文名称数量
18343A7传动轴壳体总成(黑色)HOUSING ASSEMBLY Driveshaft (BLACK)1
18343A8传动轴壳体总成(灰色)HOUSING ASSEMBLY Driveshaft (GRAY)1
18343A9驱动轴壳体总成(OYSTER)HOUSING ASSEMBLY Driveshaft (OYSTER)1
18343A8驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
256295驱动轴壳体/齿轮箱壳体双头螺柱(长型)(.437 x 2.69)STUD (.437 x 2.69) DRIVE SHAFT HSG./GEAR HSG. (LONG)2
274732驱动轴壳体/齿轮箱壳体双头螺柱(加长型)STUD DRIVE SHAFT HSG./GEAR HSG. (EXTRA LONG)2
325067下安装座螺钉缓冲垫BUMPER LOWER MOUNT SCREW2
463474下安装座螺钉(.500-20 x 6.00)SCREW (.500-20 x 6.00) LOWER MOUNT2
4898831螺钉(.500-20 x 6.220)SCREW (.500-20 x 6.220)2
578249下支架MOUNT LOWER2
577327支架MOUNT2
649339下部安装螺钉垫圈(.8125)WASHER (.8125) LOWER MOUNT SCREW2
725096下安装座螺钉螺母NUT LOWER MOUNST SCREW2
888238A1接地线总成CABLE ASSEMBLY Ground1
888238A10接地线总成CABLE ASSEMBLY Ground1
967076下安装夹CLAMP LOWER MOUNT2
98M0036782卡箍CLAMP2
1066727下安装座夹具固定螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250) LOWER MOUNT CLAMP ATTACHING4
1167077下部安装夹盖（黑色）COVER LOWER MOUNT CLAMP (BLACK)2
118M4500752盖板COVER2
1167077T6下安装座夹具盖(灰色)COVER LOWER MOUNT CLAMP (GRAY)2
1167077F1灰色盖板COVER Gray2
1167077T10下安装座夹具盖(OYSTER)COVER LOWER MOUNT CLAMP (OYSTER)2
1167077F1灰色盖板COVER Gray2
1288417盖固定螺钉(#12-24 x .620)SCREW (#12-24 x .620) COVER ATTACHING4
1335521盖至夹具螺钉尼龙螺母NUT NYLON - COVER TO CLAMP SCREW4
1488238A2接地线总成CABLE ASSEMBLY Ground1
1488238A10接地线总成CABLE ASSEMBLY Ground1
1541508螺丝(.250-20 x .500)不锈钢接地线SCREW (.250-20 x .500) Stainless Steel GROUND WIRE1
1673862齿轮箱壳体螺柱垫圈WASHER GEAR HOUSING STUD1
1729489齿轮箱壳体螺柱盖形螺母NUT GEAR HOUSIG STUD (CAP)1
1845176齿轮箱壳体螺柱不锈钢垫圈(.453 x .812 x .105)WASHER (.453 x .812 x .105) Stainless Steel GEAR HOUSING STUD2
1934933齿轮箱壳体螺柱不锈钢螺母(.437-20)NUT (.437-20) Stainless Steel GEAR HOUSING STUD2
198M0204653螺母NUT2
2064649驱动轴壳体堵头(黑灰)PLUG DRIVE SHAFT HOUSING (BLACK & GRAY)1
20646491驱动轴壳体堵头(OYSTER)PLUG DRIVE SHAFT HOUSING (OYSTER)1
2189743排气管TUBE Exhaust1
2266350排气管下密封件SEAL EXHAUST TUBE - LOWER1
2266350001密封件SEAL1
2386027排气管上密封件SEAL EXHAUST TUBE - UPPER1
2467295长轴型水管TUBE Water WATER (LONG SHAFT)1
248M0042788长型水管TUBE-WATER-LONG1
2474729加长轴型水管TUBE WATER (EXTRA LONG SHAFT)1
248M0042790水管TUBE-WATER1
2599173驱动轴壳体至板衬垫GASKET DRIVE SHAFT HOUSING TO PLATE1
25991734衬垫GASKET1
2641945A6驱动轴壳体板总成PLATE ASSEMBLY DRIVE SHAFT HOUSING1
27707482支架密封件(黑灰)SEAL BRACKET (BLACK & GRAY)1
2868011密封件固定支架(黑灰)BRACKET SEAL RETAINING (BLACK & GRAY)1
2948408支架至板螺钉(黑灰)(#10-16 x .500)SCREW (#10-16 x .500) BRACKET TO PLATE (BLACK & GRAY)12
3020033定位销PIN Dowel LOCATING2
3043044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
3138970水管密封件SEAL WATER TUBE1
3290192延伸件至板不锈钢螺钉(.250-20 x .750)SCREW (.250-20 x .750) Stainless Steel EXTENSION TO PLATE6
3399177驱动轴壳体板至排气板衬垫GASKET DRIVE SHAFT HOUSING PLATE TO EXHAUST PLATE1
33991772衬垫GASKET1
3425970动力头螺柱垫圈WASHER POWER HEAD STUD4
3420553垫圈(.406 x .734 x .063)WASHER (.406 x .734 x .063)4
3569254动力头螺柱螺母NUT POWER HEAD STUD4
3641942排气延伸管EXTENSION EXHAUST1
36879288T71排气管延长段EXTENSION Exhaust1
3678148A1隔套总成(加长型)SPACER ASSEMBLY (EXTRA LONG)1
3620033隔套定位销(加长型)PIN Dowel LOCATING - SPACER - (EXTRA LONG)2
3643044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
-90484A88衬垫套件GASKET SET

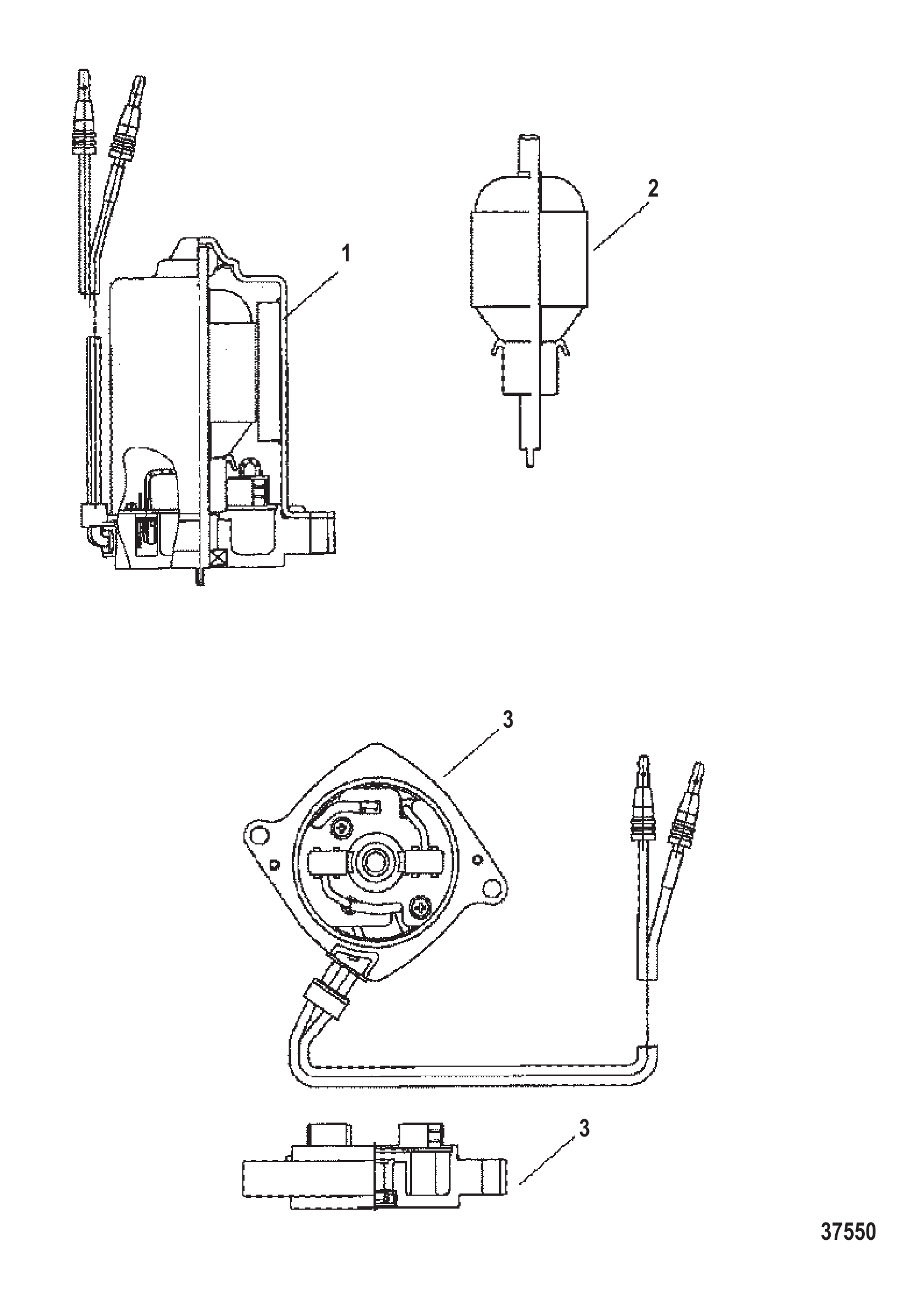

图 76动力升降倾斜电机 Power Trim Motor
动力升降倾斜电机 Power Trim Motor
REF零件编号中文名称英文名称数量
-828708电机总成MOTOR ASSEMBLY1
1828714A1电刷与密封套件BRUSH AND SEAL KIT1
2828713A1电枢套件ARMATURE KIT1
2828713T1电枢套件ARMATURE KIT1
3828715A1端架（总成）END FRAME (COMPLETE)1

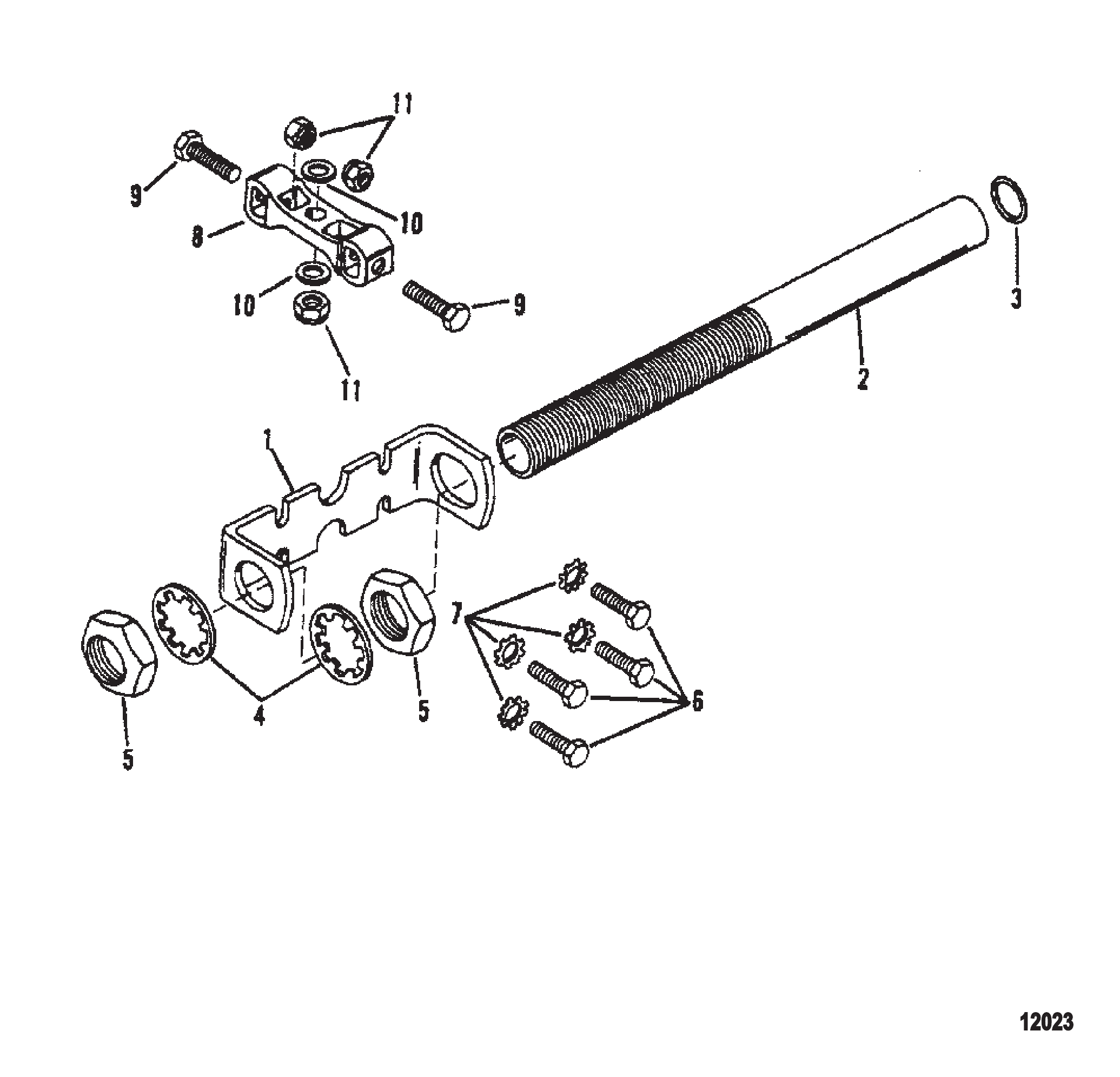

图 77转向连接套件 Steering Attaching Kit
转向连接套件 Steering Attaching Kit
REF零件编号中文名称英文名称数量
-92876A8转向安装套件ATTACHING KIT Steering1
141055A1支架总成BRACKET ASSEMBLY1
2715651转向拉索套管TUBE Steering Cable1
348462O型圈 (.614 x .070)O-RING (.614 x .070)1
4821203锁紧垫圈LOCKWASHER2
537984螺母 (.875-14)NUT (.875-14)2
58M0041651螺母 (.875-14)NUT (.875-14)2
638601螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250)4
778968内锁紧垫圈 (.250)LOCKWASHER Internal (.250)4
8850791T联轴器COUPLER1
973732螺钉 (.375-24 x 1.120)SCREW (.375-24 x 1.120)2
1037828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel2
11826709113不锈钢螺母 (.375-24)NUT (.375-24) Stainless Steel3
118M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass3
图 78艉板支架（序列号0G589999及以下） Transom Brackets (S/N-0G589999 & Below)
艉板支架（序列号0G589999及以下） Transom Brackets (S/N-0G589999 & Below)
REF零件编号中文名称英文名称数量
18718F7艉板支架BRACKET Transom1
28716A8艉板支架总成BRACKET ASSEMBLY Transom1
18718F8艉板支架BRACKET Transom1
28716A9艉板支架总成BRACKET ASSEMBLY Transom1
398727润滑脂接头(左舷)FITTING Grease (PORT)1
38M0169588润滑脂接头FITTING Grease1
447525螺母 (.875-14) 底部NUT (.875-14) Bottom1
5826125A1倾斜管TILT TUBE1
6826135尼龙锁紧螺母(1.00-14)NUT Lock (1.00-14) Nylon Insert1
745711O型圈 (.612 x .103)O-RING (.612 x .103)1
888750波浪垫圈 (1.62 x 1.05)WASHER Wave (1.62 x 1.05)2
9826164螺母 (.875-14)NUT (.875-14)1
98M0231351锁紧螺母NUT Lock1
10677551螺钉(.500-20×4.500)SCREW (.500-20 x 4.500)4
108M0149747螺钉SCREW4
1128421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
118M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
128M0027784螺母NUT4
1282671117螺母(.500-20)NUT (.500-20)4
1399629A2杠杆总成LEVER ASSEMBLY1
138M0115104倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
1499611波形垫圈WAVE WASHER1
1565830尼龙衬套NYLINER2
1699633旋钮KNOB1
1799615槽销PIN Groove1
1899622弹簧SPRING1
1999604槽销PIN Groove1
2096930A1螺栓总成BOLT ASSEMBLY1
2123161螺母 (.375-24)NUT (.375-24)1
22814207停机开关STOP1
-815791A92发动机垫片组GASKET SET Engine1
图 79双机延伸套件 DUAL ENGINE EXTENSION KIT
双机延伸套件 DUAL ENGINE EXTENSION KIT
REF零件编号中文名称英文名称数量
-92876A6双机延伸套件DUAL ENGINE EXTENSION KIT1
178862A2密封套件SEAL KIT1
119624A1密封套件SEAL KIT1
271565电缆导向管TUBE Cable Guide CABLE GUIDE1
341055支架MOUNT1
442100锁紧垫圈TAB WASHER2
537984螺母 (.875-14)NUT (.875-14)2
58M0041651螺母 (.875-14)NUT (.875-14)2
688404锁紧垫圈TAB WASHER2
738601螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250)4
8177291支架BRACKET2
817729A1支架BRACKET2
962055螺钉(.312-24 x 1.250)SCREW (.312-24 x 1.250)4
1017728锁紧垫圈TAB WASHER4
1114000螺钉(.375-24x1.25)SCREW (.375-24 x 1.25)4
11849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)4
1234863螺母 (.375-24)NUT (.375-24)4
128M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass4
1397933A1转向眼环STEERING EYE2
1423651衬套(1.625)SLEEVE (1.625)2
1597931管材(4.00英寸)TUBING (4.00 Inches)2
16979322管TUBE1
168M0026098联轴器15英寸COUPLER 15 In.1
1742099螺母(.562-18)NUT (.562-18)1
图 80油门杆与换挡轴 Throttle Lever And Shift Shaft
油门杆与换挡轴 Throttle Lever And Shift Shaft
REF零件编号中文名称英文名称数量
174897PIVOT TRIGGER PLATE1
262459球头总成触发板BALL JOINT ASSEMBLY TRIGGER PLATE1
262459T球头节总成BALL JOINT ASSY1
345076螺母(#10-32)黄铜连杆NUT (#10-32) Brass LINK ROD1
476035触发板连杆ROD TRIGGER PLATE1
546438螺母(#10-32)球头NUT (#10-32) BALL JOINT1
641094A3点火提前杆总成LEVER ASSEMBLY SPARK ADVANCE1
764022螺丝(.250-20x2.125)点火提前杆-止动SCREW (.250-20 x 2.125) SPARK ADVANCE LEVER - STOP1
864015螺母(.250-20)点火提前止动螺丝NUT (.250-20) SPARK ADVANCE STOP SCREW1
926852尼龙帽点火提前杆止动螺丝CAP Nylon SPARK ADVANCE LEVER STOP SCREW1
1069560螺丝(.190-32x1.250)点火提前杆-止动SCREW (.190-32 x 1.250) SPARK ADVANCE LEVER -STOP1
1168219螺母(#10-32)不锈钢点火提前杆止动螺丝NUT (#10-32) Stainless Steel SPARK ADVANCE LEVER STOP SCREW1
1248039点火提前杆止动螺丝帽CAP SPARK ADVANCE LEVER STOP SCREW1
1341095T油门控制杆LEVER THROTTLE CONTROL1
13410952杠杆LEVER1
1455337螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
14818165螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
1555164油门杠杆衬套BUSHING THROTTLE LEVER1
1655171点火提前杆衬套BUSHING SPARK ADVANCE LEVER1
1768784节气门与点火提前杆弹簧SPRING THROTTLE AND SPARK ADVANCE LEVER1
1868410点火提前杆垫片WASHER SPARK ADVANCE LEVER1
1846765垫圈 (.390 x 1.50 x .120)WASHER (.390 x 1.50 x .120)1
1964022螺丝(.250-20x2.125)节气门杆-止动SCREW (.250-20 x 2.125) THROTTLE LEVER - STOP1
2064015螺母(.250-20)节气门杆止动螺丝NUT (.250-20) THROTTLE LEVER STOP SCREW1
2126852尼龙帽节气门杆止动螺丝CAP Nylon THROTTLE LEVER STOP SCREW1
2239483锁扣拉线LATCH CABLE1
2322486螺丝(.250-28x.880)拉线锁扣至节气门杆SCREW (.250-28 x .880) CABLE LATCH TO THROTTLE LEVER1
2369026螺钉 (.250-28 x .880)SCREW (.250-28 x .880)1
2420099拉线锁扣至节气门杆弹簧SPRING CABLE LATCH TO THROTTLE LEVER1
2520586螺母(.250-28)拉线锁扣螺丝NUT (.250-28) CABLE LATCH SCREW1
25826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
2679949节气门控制杆ROD THROTTLE CONTROL1
2760572节气门控制杆套筒BARREL THROTTLE CONTROL ROD2
278M0221994筒形接头BARREL FITTING2
2895791节气门凸轮CAM Throttle1
2920353螺柱(.250-28x1.750)节气门凸轮固定STUD (.250-28 x 1.750) THROTTLE CAM ATTACHING1
3026856节气门凸轮衬套BUSHING THROTTLE CAM2
3136069节气门凸轮螺柱螺母NUT THROTTLE CAM STUD1
3241050节气门复位弹簧SPRING THROTTLE RETURN1
3392032A2控制线缆锚定支架BRACKET ANCHOR - CONTROL CABLES1
33814283A2支架总成BRACKET ASSEMBLY1
3498889控制线缆锁扣LATCH CONTROL CABLE1
3542975闩锁传动螺钉DRIVE SCREW LATCH2
3639618尼龙杆-换挡拉线锁定LEVER NYLON - SHIFT CABLE LOCKING1
3687609A1杠杆套件LEVER KIT1
3747175杆与盖固定销PIN LEVER AND COVER FASTENING3
3890211尼龙盖-换挡拉线COVER NYLON - SHIFT CABLE1
3965799T连杆-锁定杆到盖板LINK LOCKING LEVER TO COVER1
3987609A1杠杆套件LEVER KIT1
4053167螺丝(.312-18x.880)锚定支架固定SCREW (.312-18 x .880) ANCHOR BRACKET ATTACHING3
4053167T螺钉 0.312-18X 0.88SCREW .312-18X .883
4137896连杆导向块GUIDE BLOCK LINK ROD1
4220099连杆至导向块弹簧SPRING LINK ROD TO GUIDE BLOCK1
4367073A1连杆总成LINK ROD ASSEMBLY1
4452100连杆耐磨板WEAR PLATE LINK ROD1
4538279锁扣控制拉线固定-锚定支架LATCH CONTROL CABLE FASTENING-ANCHOR BRACKET1
458M0036768闩锁LATCH1
4635462垫圈(.2656x.625x.0625)不锈钢锁扣WASHER (.2656 x .625 x .0625) Stainless Steel LATCH1
4736069连杆螺母NUT LINK ROD1
4879932A7换挡轴总成 (长)SHIFT SHAFT ASSEMBLY (LONG)1
4879932A16换挡轴总成SHIFT SHAFT ASSEMBLY1
4879932A8换挡轴总成(加长型)SHIFT SHAFT ASSEMBLY (EXTRA LONG)1
4879932A17换挡轴总成SHIFT SHAFT ASSEMBLY1
4929720连杆波形垫圈WAVE WASHER LINK ROD1
5026600尼龙衬套-连杆BUSHING NYLON - LINK ROD1
5135462垫圈(.2656 x .625 x .0625)不锈钢连杆WASHER (.2656 x .625 x .0625) Stainless Steel LINK ROD1
5236069连杆至换挡轴螺母NUT LINK ROD TO SHIFT SHAFT1
5339519杯形套筒固定器-锚杆CUP BARREL RETAINER - ANCHOR BAR1
图 81化油器（WMH-30/31/32/33/34） CARBURETOR (WMH-30/31/32/33/34)
化油器（WMH-30/31/32/33/34） CARBURETOR (WMH-30/31/32/33/34)
REF零件编号中文名称英文名称数量
1818650A28化油器 上部CARBURETOR Top1
1818650A29化油器 中部CARBURETOR Center1
1818650A55化油器底部(30A)CARBURETOR Bottom (30A)1
1818650A31化油器 上部CARBURETOR Top1
1818650A32化油器 中部CARBURETOR Center1
1818650A56化油器底部(31A)CARBURETOR Bottom (31A)1
1818650A34化油器 上部CARBURETOR Top1
1818650A35化油器 中部CARBURETOR Center1
1818650A57化油器底部(32A)CARBURETOR Bottom (32A)1
1818650A37化油器 上部CARBURETOR Top1
1818650A38化油器 中部CARBURETOR Center1
1818650A58化油器底部(33A)CARBURETOR Bottom (33A)1
1818650A52化油器 上部CARBURETOR Top1
1818650A53化油器 中部CARBURETOR Center1
1818650A59化油器底部(34A)CARBURETOR Bottom (34A)1
2810779盖帽CAP6
3NSS不单独销售 怠速混合螺钉/弹簧NOT SOLD SEPARATE Idle Mixture Screw/Spring6
5677511衬垫GASKET3
6815633060喷口(.060)(.056-135)JET (.060) (.056 - 135)6
67570喷口.040(XR6/MAGNUM III)JET .040 (XR6/MAGNUM III)6
6815633050喷口(.050)(150/175/200)JET (.050) (150/175/200)6
7810721节气门杆 (上部/中部)LEVER Throttle (TOP/CENTER)2
7810722节流阀杆(底部-WMH系列)LEVER Throttle (BOTTOM - WMH-SERIES)1
78107221节流阀杆(底部-WMH-A系列)LEVER Throttle (BOTTOM - WMH-A SERIES)1
8811284隔套SPACER3
9810745垫圈WASHER3
10810744螺母NUT3
11NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring3
125815喷口(.086)(150)JET (.086) (150)3
126247主喷口(.090)(XR6/MAGNUM III)JET Main (.090) (XR6/MAGNUM III)3
123517喷口(.084)(135/175/200)JET (.084) (135/175/200)3
135225主喷口(.054)(135)JET Main (.054) (135)3
136359喷口(.052)(150)JET (.052) (150)3
136246量孔 (.048) (175)JET (.048) (175)3
137831燃油主喷口(.058)(XR6/MAGNUM III)JET Main Fuel (.058) (XR6/MAGNUM III)3
135317量孔 (.046) (200)JET (.046) (200)3
14NSSNOT SOLD SEPARATE Gasket-Fuel Bowl3
15810738浮子总成FLOAT ASSEMBLY3
16F10064轴SHAFT3
17NSS不单独销售 浮子螺钉NOT SOLD SEPARATE Screw-Float3
18811690阀座套件VALVE SEAT KIT3
19NSS不单独销售 阀座垫片NOT SOLD SEPARATE Gasket-Valve Seat3
20823623燃油杯(顶部)BOWL Fuel (TOP)1
20823624燃油杯(中部/底部)BOWL Fuel (CENTER/BOTTOM)2
219596堵头PLUG15
22NSS不单独销售 动力/渐进喷口垫片NOT SOLD SEPARATE Gasket-Power/Progression JetAR
234215燃油主喷口(.066)(135)JET Main Fuel (.066) (135)6
234217主喷口(.062)(150/XR6/MAGNUM III)JET Main (.062) (150/XR6/MAGNUM III)6
234216喷口(.064)(175)JET (.064) (175)6
234215燃油主喷口(.066)(200-顶部)JET Main Fuel (.066) (200 - TOP)2
234216喷口(.064)(200-中部/底部)JET (.064) (200 - CENTER/BOTTOM)4
24808584动力喷口POWER JET6
25808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)18
267900三通接头(顶部/中部)TEE FITTING (TOP/CENTER)2
277901弯头(底部)ELBOW (BOTTOM)1
-8107492化油器垫片套件GASKET KIT Carburetor1
-8116912化油器维修套件REPAIR KIT Carburetor1
-815791A92发动机垫片组GASKET SET Engine1
图 82齿轮箱对照表 GEAR HOUSING CHART
齿轮箱对照表 GEAR HOUSING CHART
REF零件编号中文名称英文名称数量
0840470T9齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
0840470T27齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
0840470T8齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
0840306T6齿轮箱总成(含扭矩片)GEAR HOUSING ASSEMBLY Complete, With Torque Tab1
0840307T12齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
0840306T7齿轮箱总成(含扭矩片)GEAR HOUSING ASSEMBLY Complete, With Torque Tab1
0840307T13齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
0859399T22齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
08M0236198GC DSI XL 1.75GC DSI XL 1.751
0840307T10齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
0840307T11齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
0859399T23齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
08M0236209GC DSI CXL 1.75GC DSI CXL 1.751
图 83气缸体与端盖 Cylinder Block and End Caps
气缸体与端盖 Cylinder Block and End Caps
REF零件编号中文名称英文名称数量
18711A19气缸体CYLINDER BLOCK1
276175动力头螺柱(1-7/8英寸)STUD POWERHEAD (1-7/8")6
367065动力头螺柱(5-1/2英寸)STUD POWERHEAD (5-1/2")2
3670654螺柱(.375-16/.375-24 x 5.620)STUD (.375-16/.375-24 x 5.620)2
378438动力头螺柱(6-3/4英寸)STUD POWERHEAD (6-3/4")2
38M0034454螺柱(.375-16/.375-24 x 6.87)STUD (.375-16/.375-24 x 6.87)2
420033定位销PIN Dowel LOCATING2
443044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
567296气缸体销(轴承座圈)PIN CYLINDER BLOCK (BEARING RACE)2
58M0036405销PIN2
611338密封垫片GASKET SEALING2
742249启动马达上盖COVER STARTER MOTOR (UPPER)1
78M0088723启动器支架BRACKET-STARTER1
873657盖至曲轴箱螺钉(.312-18 x 1.50)SCREW (.312-18 x 1.50) COVER TO CRANKCASE2
926993启动马达盖螺钉锁紧垫圈(0.312)LOCKWASHER (.312) STARTER MOTOR COVER SCREW4
98M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
1076867启动电机盖(下部)COVER STARTER MOTOR (LOWER)1
1177065盖至曲轴箱螺钉(.312-18 x 2)SCREW (.312-18 x 2) COVER TO CRANKCASE2
11815549螺钉(.312-18 x 2.00)SCREW (.312-18 x 2.00)2
11A99448衬套BUSHING1
1266717曲轴箱至气缸体螺钉(.375-16 x 3.250)SCREW (.375-16 x 3.250) CRANKCASE TO CYLINDER BLOCK8
1274824曲轴箱至气缸体螺丝(.312-18 x 1.250)SCREW (.312-18 x 1.250) CRANKCASE TO CYLINDER BLOCK6
138454A1上端盖总成END CAP ASSEMBLY UPPER1
138454T1端盖总成END CAP ASSY1
1454029端盖O型圈(2.800 x .103)O-RING (2.800 x .103) END CAP1
1574248BEARING Roller END CAP (1.50 I.D.)1
1574248T轴承BEARING1
1641953端盖密封件SEAL END CAP1
138454A2上端盖总成END CAP ASSEMBLY UPPER1
138454T2端盖总成END CAP ASSY1
1454029端盖O型圈(2.800 x .103)O-RING (2.800 x .103) END CAP1
1593496BEARING Roller END CAP (1.37 I.D.)1
1593496T轴承BEARING1
1641953端盖密封件SEAL END CAP1
1769034上端盖至气缸体螺钉及锁紧垫圈(.312-18 x 1.00)SCREW AND LOCKWASHER (.312-18 x 1.00) UPPER END CAP TO CYLINDER BLOCK4
1730225螺钉带锁紧垫圈(.312-18 x 1.00)SCREW WITH LOCKWASHER (.312-18 x 1.00)4
1824220气缸体定位螺钉(.190-24 x .190)SCREW (.190-24 x .190) SET - CYLINDER BLOCK2
1938407气缸体水套螺塞(.500-14)PLUG (.500-14) CYLINDER BLOCK (WATER JACKET)1
2015094飞轮盖至气缸体双头螺柱(.190-32 x 1.870)STUD (.190-32 x 1.870) FLYWHEEL COVER TO CYLINDER BLOCK1
2115093飞轮盖至支架双头螺柱(#10-32 x 1.00)STUD (#10-32 x 1.00) FLYWHEEL COVER TO BRACKET2
218M0034435螺柱STUD2
2267269飞轮盖螺柱隔套SPACER FLYWHEEL COVER STUD1
23492211飞轮盖螺柱垫圈WASHER FLYWHEEL COVER STUD6
238M0204663垫片@5WASHER @56
2472761飞轮盖螺柱不锈钢垫圈(.203 x .562 x .060)WASHER (.203 x .562 x .060) Stainless Steel FLYWHEEL COVER STUD6
2573651飞轮盖螺柱螺母NUT FLYWHEEL COVER STUD3
25816874蝶形螺母 (#10-32)WING NUT (#10-32)3
2642248飞轮罩支架BRACKET FLYWHEEL COVER1
26422482支架BRACKET1
2749668支架至曲轴箱螺钉(.250-20 x .750)SCREW (.250-20 x .750) BRACKET TO CRANKCASE2
287809A1下端盖总成END CAP ASSEMBLY LOWER1
287809T1端盖总成END CAP ASSEMBLY1
2962700端盖O型圈(3.237 x .103)O-RING (3.237 x .103) END CAP1
3041953端盖密封件SEAL END CAP2
3128636下端盖至气缸体螺钉(.250-20 x .750)SCREW (.250-20 x .750) LOWER END CAP TP CYLINDER BLOCK4
3226992下端盖螺钉不锈钢锁紧垫圈(.250)LOCKWASHER (.250) Stainless Steel LOWER END CAP SCREW4
3364022气缸体调节螺钉(.250-20 x 2.125)SCREW (.250-20 x 2.125) SDJUSTING - CYLINDER BLOCK1
3464015锁紧螺母(.250-20)-调节螺钉NUT (.250-20) JAM - ADJUSTING SCREW1
3526852调节螺钉尼龙帽CAP Nylon NYLON - ADJUSTING SCREW1
3566517气缸体泄流限制器RESTRICTOR BLEED - CYLINDER BLOCK1
-90484A88衬垫套件GASKET SET1
-41282A88动力头总成POWERHEAD ASSEMBLY1
-41282T88PH 135/150PH 135/1501

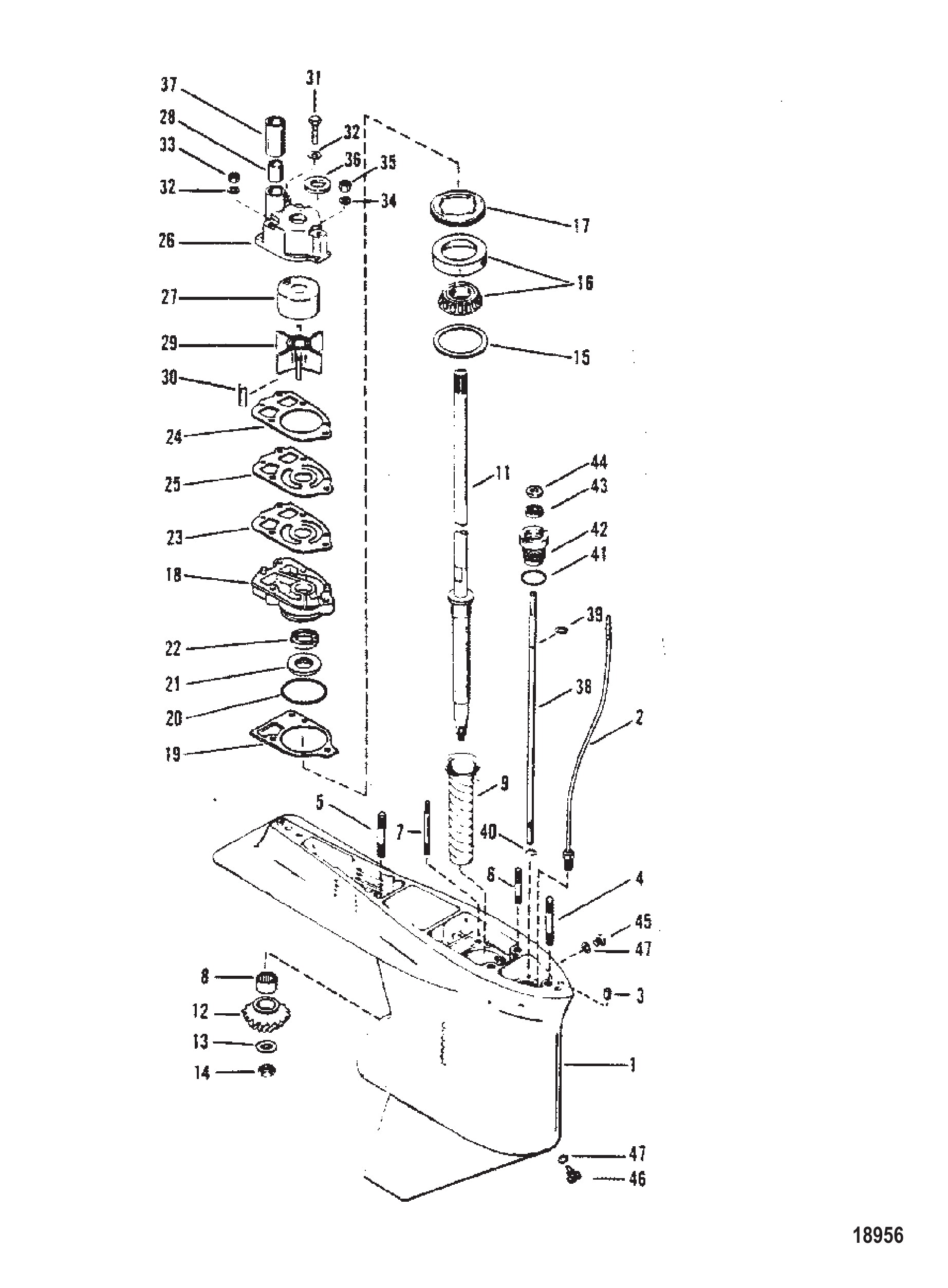

图 84齿轮箱（驱动轴）（XR6/MAG III - 1.78:1 速比） GEAR HSG (DRIVESHAFT)(XR6/MAG III - 1.78:1 RATIO)
齿轮箱（驱动轴）（XR6/MAG III - 1.78:1 速比） GEAR HSG (DRIVESHAFT)(XR6/MAG III - 1.78:1 RATIO)
REF零件编号中文名称英文名称数量
1814247A1齿轮箱总成 基础型-黑色GEAR HOUSING ASSEMBLY Basic - Black1
1814247A2齿轮箱总成 基础型-灰色GEAR HOUSING ASSEMBLY Basic - Gray1
1814247T2ORD 1674-814247T1ORD 1674-814247T11
285822A10连接器总成(适用时使用)CONNECTOR ASSEMBLY (USE WHERE APPLICABLE)1
2A43998衬套(旧设计)SLEEVE (OLD DESIGN)1
343044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
478638双头螺柱(.438 x 3.12)STUD (.438 x 3.12)1
4786382螺柱(.437-14/.437-20 x 3.120)STUD (.437-14/.437-20 x 3.120)1
5579201双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
58M0133358双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
656297双头螺栓(.312×3.38)STUD (.312 x 3.38)1
68M0034463螺柱(.312-24 x 3.38)STUD (.312-24 x 3.38)1
730667双头螺栓(.250-20/.250-28×3.125)STUD (.250-20/.250-28 x 3.125)2
7306671螺柱STUD2
835934A1滚柱轴承总成BEARING ASSEMBLY Roller1
979953螺钉(0.375-16x0.250)SCREW (.375-16 x .250)1
979953Q04放油螺钉套件SCREW KIT Drain1
1067892磁性螺钉SCREW Magnetic1
108M0058389放油螺钉套件SCREW KIT Drain1
11815168驱动轴DRIVESHAFT1
12N.S.S.小齿轮(不单独销售)(属于43-16279A2部件)Not Sold Separate Pinion Gear (PART OF 43-16279A2)1
1319183纤维垫圈WASHER Fiber2
138M0187157蓝色密封件@15SEAL-BLUE @152
14826375螺母(0.625-18)NUT (.625-18)1
1435921螺母(0.625-18)NUT (.625-18)1
1542637A1垫片组SHIM SETAR
158M0063267垫片组SHIM SETAR
1636387A1轴承总成(滚子/外圈)BEARING ASSEMBLY Roller/Cup1
168M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
17824519固定座RETAINER1
178245191固定座RETAINER1
1842579A3水泵底座总成BASE ASSEMBLY Water Pump1
188M0077147带水泵底座总成BASE ASSY-W/P1
19426311衬垫GASKET1
198M0204678衬垫GASKET1
2090011O型圈(2.175 x 0.175)O-RING (2.175 x .175)1
208M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
2189238油封SEAL Oil1
2216977油封SEAL Oil1
23856081衬垫GASKET1
238M0090319衬垫@5GASKET @51
24856091衬垫GASKET1
24858524衬垫GASKET1
2532435面板FACE PLATE1
258M0204677面板PLATE-FACE1
2696148A1水泵壳体总成BODY ASSEMBLY Water Pump1
2696148T1水泵壳体总成BODY ASSEMBLY Water Pump1
2748752嵌件INSERT1
2748752T嵌件INSERT1
2838970密封件SEAL1
29899841叶轮IMPELLER1
2989984T3叶轮IMPELLER1
3056654键KEY1
308M0214992键@5KEY @51
3196411螺钉(#14-8×2.25)SCREW (#14-8 x 2.25)1
318M0215009螺钉SCREW1
3229245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
328M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
3313438螺母(.250-28)NUT (.250-28)2
338267119螺母(.250-28)NUT (.250-28)2
3436001垫圈WASHER1
3513436螺母NUT1
3729804套筒SLEEVE1
3729804T套筒SLEEVE1
388152641换挡轴(不带E型环使用)SHIFT SHAFT (USE W/O E-RING)1
38815264换挡轴下段SHIFT SHAFT LOWER1
388152641换档轴SHIFT SHAFT1
3929641E型卡环E RING1
4025439O型圈(.862×0.103)O-RING (.862 x .103)1
4177631A2衬套总成BUSHING ASSEMBLY1
428164641油封SEAL Oil1
428M0246145油封OIL SEAL1
4377674垫圈(.35 x .75 x .12)换挡轴衬套WASHER (.35 x .75 x .12) SHIFT SHAFT BUSHING1
-815791A92发动机垫片组GASKET SET Engine1
-96148A5水泵维修套件REPAIR KIT Water Pump1
-96148A8水泵维修套件WATER PUMP REPAIR KIT1
-89238A2密封套件SEAL KIT1
图 85艉板安装动力转向套件 TRANSOM MOUNT POWER STEERING KIT
艉板安装动力转向套件 TRANSOM MOUNT POWER STEERING KIT
REF零件编号中文名称英文名称数量
-17443A11动力转向套件POWER STEERING KIT1
1811290蓄能器ACCUMULATOR1
217772螺柱STUD3
34002319垫圈WASHER3
413914螺母(M10)NUT (M10)3
440140螺母(M10)NUT (M10)3
594319螺钉(.375-24 x 1.5)SCREW (.375-24 x 1.5)1
617405隔套SPACER2
734863螺母 (.375-24)NUT (.375-24)3
78M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass3
814000螺钉(.375-24x1.25)SCREW (.375-24 x 1.25)1
8849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)1
992876A4连杆总成LINK ROD ASSEMBLY1
1068300垫圈 (.88 x .39 x .06)WASHER (..88 x .39 x .06)1
118112891执行器ACTUATOR1
11828588A2执行器套件ACTUATOR KIT1
-811632维修套件REPAIR KIT1
-811632A1维修套件REPAIR KIT1
124000330螺钉(M6x25)SCREW (M6 x 25)2
128M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
1343450垫圈WASHER2
134002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)2
148268336螺母 (M6)NUT (M6)2
14401386螺母(M6)不锈钢NUT (M6) Stainless Steel2
15811292卡箍CLAMP1
16818182螺钉SCREW2
17400263螺母 (M5)NUT (M5)2
1881742755螺钉(M8x55)SCREW (M8 x 55)1
1966751垫片(0.250x0.390x0.630)不锈钢SPACER (.250 x .390 x .630) Stainless Steel1
198M0151156隔套SPACER1
20811291支架BRACKET1
2138601螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250)4
2288404锁紧垫圈TAB WASHER6
2318211继电器开关RELAY SWITCH1
2418244A1线束总成HARNESS ASSEMBLY1
2518124螺钉 (#10-32 x .750)SCREW (#10-32 x .750)1
2690329护孔环GROMMET1
27309772隔套SPACER1
28816994支架BRACKET1
2942118垫圈WASHER1
3029488螺母 (#10-32)NUT (#10-32)1
308M0204718螺母NUT1
31197491卡箍CLAMP1
3281563024贴花DECAL1
图 86化油器（WMH-21/22/23/24/25/28） CARBURETOR (WMH-21/22/23/24/25/28)
化油器（WMH-21/22/23/24/25/28） CARBURETOR (WMH-21/22/23/24/25/28)
REF零件编号中文名称英文名称数量
1818650A16化油器 上部CARBURETOR Top1
1818650A17化油器 中部CARBURETOR Center1
1818650A18化油器 下部CARBURETOR Bottom1
1818650A10化油器 上部CARBURETOR Top1
1818650A11化油器 中部CARBURETOR Center1
1818650A12化油器 下部CARBURETOR Bottom1
1821684A1化油器 上部CARBURETOR Top1
1821684A2化油器 中部CARBURETOR Center1
1821684A3化油器 下部CARBURETOR Bottom1
1818650A7化油器 上部CARBURETOR Top1
1818650A8化油器 中部CARBURETOR Center1
1818650A9化油器 下部CARBURETOR Bottom1
1818650A4化油器 上部CARBURETOR Top1
1818650A5化油器 中部CARBURETOR Center1
1818650A6化油器 下部CARBURETOR Bottom1
2810779盖帽CAP6
3NSS不单独销售 怠速混合螺钉/弹簧NOT SOLD SEPARATE Idle Mixture Screw/Spring6
5677511衬垫GASKET3
6815633060量孔 (.060) (.056 - 150/135 - WMH-24)JET (.060) (.056 - 150/135 - WMH-24)6
6815633070量孔 (.070 - 135 - WMH-28)JET (.070 - 135 - WMH-28)6
67570量孔 .040 (175)JET .040 (175)6
6815633050量孔 (.050) (XR6/MAGNUMIII/200)JET (.050) (XR6/MAGNUMIII/200)6
7810721节气门杆 (上部/中部)LEVER Throttle (TOP/CENTER)2
7810722节气门杆 (下部)LEVER Throttle (BOTTOM)1
8811284隔套SPACER3
9810745垫圈WASHER3
10810744螺母NUT3
11NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring3
128423量孔 (.094) (.094 -150)JET (.094) (.094 -150)3
125815量孔 (.086) (XR6/MAGNUM III)JET (.086) (XR6/MAGNUM III)3
127335量孔 (.098) (175)JET (.098) (175)3
126247主量孔 (.090) (200/135 - WMH-24)JET Main (.090) (200/135 - WMH-24)3
136487主量孔 (.060) (135 - WMH-24)JET Main (.060) (135 - WMH-24)3
135213主量孔 (.056) (150/135 - WMH-28)JET Main (.056) (150/135 - WMH-28)3
136246量孔 (.048) (175)JET (.048) (175)3
136028量孔 (.050) (XR6/MAGNUM III)JET (.050) (XR6/MAGNUM III)3
135317量孔 (.046) (200)JET (.046) (200)3
14NSSNOT SOLD SEPARATE Gasket-Fuel Bowl3
15810738浮子总成FLOAT ASSEMBLY3
16F10064轴SHAFT3
17NSS不单独销售 浮子螺钉NOT SOLD SEPARATE Screw-Float3
18811690阀座套件VALVE SEAT KIT3
19NSS不单独销售 阀座垫片NOT SOLD SEPARATE Gasket-Valve Seat3
20823623燃油杯(顶部)BOWL Fuel (TOP)1
20823624燃油杯(中部/底部)BOWL Fuel (CENTER/BOTTOM)2
219596堵头PLUG15
22NSS不单独销售 动力/渐进喷口垫片NOT SOLD SEPARATE Gasket-Power/Progression JetAR
236487主喷口(.060)(150/135-WMH-24)JET Main (.060) (150/135 - WMH-24)6
234217主喷口(.062)(135-WMH-28)JET Main (.062) (135 - WMH-28)6
235225主喷口(.054)(XR6/MAGNUM III)JET Main (.054) (XR6/MAGNUM III)6
234216喷口(.064)(175/200)JET (.064) (175/200)6
24823629动力喷口(150/135-WMH-24)POWER JET (150/135 - WMH-24)6
24808584动力喷口(135-WMH-28)POWER JET (135 - WMH-28)6
24823625动力喷口(XR6/MAGNUM III)POWER JET (XR6/MAGNUM III)6
24823626动力喷口(175)POWER JET (175)6
24823627动力喷口(200)POWER JET (200)6
25NSS不单独销售 燃油杯螺钉NOT SOLD SEPARATE Screw-Fuel Bowl18
267900三通接头(顶部/中部)TEE FITTING (TOP/CENTER)2
277901弯头(底部)ELBOW (BOTTOM)1
-8107492化油器垫片套件GASKET KIT Carburetor1
-8116912化油器维修套件REPAIR KIT Carburetor1
-815791A92发动机垫片组GASKET SET Engine1
图 87专用工具 Tools Special
专用工具 Tools Special
REF零件编号中文名称英文名称数量
图 88喷泵总成 Jet Pump Assembly
喷泵总成 Jet Pump Assembly
REF零件编号中文名称英文名称数量
-80140040喷泵总成JET PUMP ASSEMBLY1
-80140140喷泵总成JET PUMP ASSEMBLY1
180141140泵壳HOUSING Pump1
2827490润滑油管HOSE Lube1
380141440叶轮IMPELLER1
3855708T40叶轮IMPELLER1
480141240进气壳体HOUSING Intake1
58271881衬套LINER1
5827188T1衬套LINER1
680141340驱动轴DRIVESHAFT1
7827190螺母NUT1
8827189套筒SLEEVE1
9801405625叶轮键KEY Impeller1
10801404625叶轮垫片SHIM Impeller8
11801403625锁紧垫圈TAB WASHER1
1290192螺钉(.250-20 x .750)不锈钢SCREW (.250-20 x .750) Stainless Steel6
1319923088螺钉(.250-20 x .875)SCREW (.250-20 x .875)4
1419923062螺钉(.250-20 x .625)SCREW (.250-20 x .625)2
1560411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)1
16801410电缆支架BRACKET Cable Support1
1767980螺母(.312-18)NUT (.312-18)1
1782670910不锈钢螺母(.312-18)NUT (.312-18) Stainless Steel1
18808718螺柱STUD2
19801406定位销PIN Dowel2
20801418水泵支撑环RING SUPPORT Water Pump1
21801408水泵底座衬垫GASKET Water Pump Base1
2233778螺柱 (1/4 x 2-5/8英寸)STUD (1/4 X 2-5/8 IN.)3
2368299不锈钢螺钉(.375-16 x 3.00)SCREW (.375-16 x 3.00) Stainless Steel1
2445175垫圈(.406 x .750 x .104)WASHER (.406 x .750 x .104)1
248M0214963垫圈WASHER1
2565791垫圈WASHER2
2634933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
268M0204653螺母NUT2

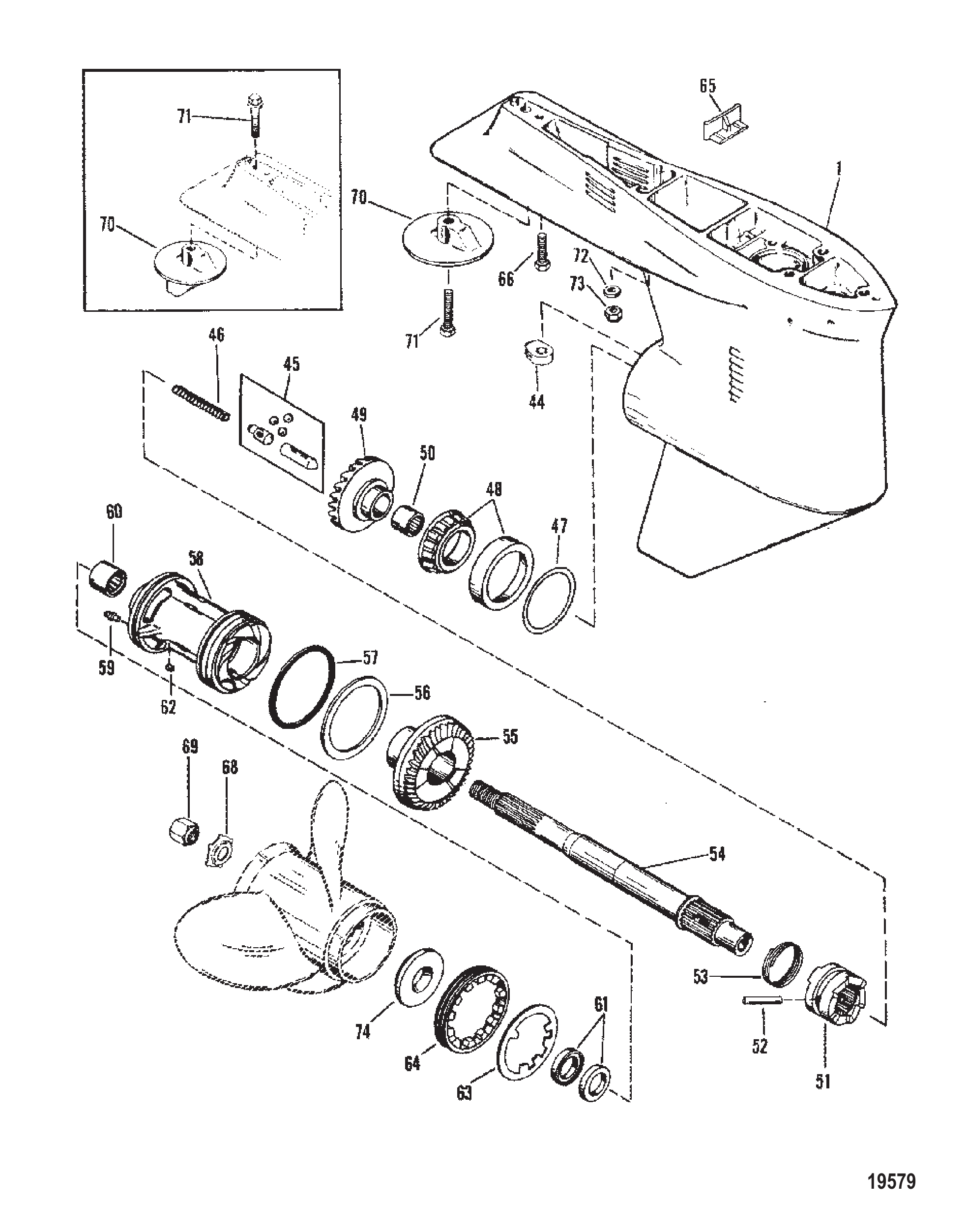

图 89齿轮箱螺旋桨轴-XR4/Magnum II型 Gear Housing Propeller Shaft - XR4/Magnum II
齿轮箱螺旋桨轴-XR4/Magnum II型 Gear Housing Propeller Shaft - XR4/Magnum II
REF零件编号中文名称英文名称数量
-814247A3齿轮箱总成1.78:1速比-黑色GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Black1
-814247A4齿轮箱总成 1.78:1 减速比 - 灰色GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Gray1
-814247T4齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-814247A3齿轮箱总成1.78:1速比-黑色GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Black1
-814247A4齿轮箱总成 1.78:1 减速比 - 灰色GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Gray1
1814247A8齿轮箱总成(黑色)GEAR HOUSING ASSEMBLY (BLACK)1
1814247T8齿轮箱GEAR HSG1
1814247A9齿轮箱总成(灰色)GEAR HOUSING ASSEMBLY (GRAY)1
1814247T9齿轮箱GEAR HSG1
1814247A1齿轮箱总成 基础型-黑色GEAR HOUSING ASSEMBLY Basic - Black1
1814247T1齿轮箱总成基础型-黑色GEAR HOUSING ASSEMBLY Basic-Black1
1814247A2齿轮箱总成 基础型-灰色GEAR HOUSING ASSEMBLY Basic - Gray1
1814247T2ORD 1674-814247T1ORD 1674-814247T11
4476039换挡凸轮控制CAM Shift Control1
44760394换挡凸轮控制CAM Shift Control1
4512239A1凸轮从动件套件FOLLOWER KIT Cam1
45850315A1凸轮从动件套件FOLLOWER KIT Cam1
4630622凸轮从动件压缩弹簧SPRING COMPRESSION - CAM FOLLOWER1
4744491A1垫片组SHIM SETAR
478M0063266垫片组SHIM SETAR
4830894A1圆锥轴承组BEARING SET Cup And Cone1
4916279A2前进齿轮总成GEAR ASSEMBLY Forward1
5030895滚针轴承BEARING Needle1
5030895T滚针轴承BEARING Needle1
51814756离合器CLUTCH1
51822539T离合器CLUTCH1
5230632十字销PIN Cross1
528M0100263十字销PIN Cross1
5330893弹簧SPRING1
5412238T螺旋桨轴PROPELLER SHAFT1
55NSS倒车齿轮(不单独销售)(43-16279A2部件)NOT SOLD SEPARATE Reverse Gear (Part of 43-16279A2)1
5676358止推垫片轴承座THRUST WASHER BEARING CARRIER1
5729976轴承座O型圈O-RING BEARING CARRIER1
5841529A2轴承座总成CARRIER ASSEMBLY Bearing1
5841529T2托架总成CARRIER ASSY1
5998727润滑脂接头FITTING Grease2
598M0169588润滑脂接头FITTING Grease2
6030956滚针轴承-轴承座BEARING Needle BEARING CARRIER1
6030956T滚针轴承BEARING Needle1
6176868密封件SEAL2
618M0248882油封@5SEAL-OIL @52
6230281KEY LOCATING - BEARING CARRIER1
6352700齿轮箱盖锁紧垫圈TAB WASHER GEAR HOUSING COVER1
6452699齿轮箱盖COVER GEAR HOUSING1
6567891填充块FILLER BLOCK1
658M0039169填充块FILLER BLOCK1
6630206螺钉(.375-16 x 1.00)不锈钢(内六角头)SCREW (.375-16 x 1.00) Stainless Steel (SOCKET HEAD)1
6665210螺钉(.375-16 x 1.00)(六角头)SCREW (.375-16 x 1.00) (HEX HEAD)1
68816629螺旋桨螺母锁紧垫圈TAB WASHER PROPELLER NUT1
68816629Q锁紧垫圈TAB WASHER1
6952707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
6952707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
7015300阳极配平片TRIM TAB Anodic1
7115797阳极板螺钉SCREW ANODIC PLATE1
7031640A1平衡板总成TRIM TAB ASSEMBLY2
7031640Q4平衡鳍板TRIM TAB2
7166024螺钉(.437-14 x 1.75)SCREW (.437-14 x 1.75)1
7245176垫圈(.453 x .812 x .105)不锈钢驱动轴壳体螺柱WASHER (.453 x .812 x .105) Stainless Steel DRIVE SHAFT HOUSING STUDS2
7334933螺母(.437-20)不锈钢驱动轴壳体螺柱NUT (.437-20) Stainless Steel DRIVE SHAFT HOUSING STUDS2
738M0204653螺母NUT2
7413191A1止推垫片THRUST WASHER1
7413191Q01止推垫片THRUST WASHER1
-89238A2密封套件SEAL KIT1
-815791A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1
-815809A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1
-815810A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1
图 90动力升降马达 POWER TRIM MOTOR
动力升降马达 POWER TRIM MOTOR
REF零件编号中文名称英文名称数量
-828708电机总成MOTOR ASSEMBLY1
1828714A1电刷与密封套件BRUSH AND SEAL KIT1
2828713A1电枢套件ARMATURE KIT1
2828713T1电枢套件ARMATURE KIT1
3828715A1端架（总成）END FRAME (COMPLETE)1
图 91动力升降倾斜泵 Power Trim Pump
动力升降倾斜泵 Power Trim Pump
REF零件编号中文名称英文名称数量
-99186T泵与电机总成PUMP AND MOTOR1
112659机架与磁场套件FRAME AND FIELD KIT1
1991861动力升降泵总成PUMP ASSEMBLY Power Trim1
212665电刷弹簧套件SPRING KIT Brush1
313506电刷卡套件BRUSH CARD KIT1
3991861动力升降泵总成PUMP ASSEMBLY Power Trim1
412662泵与端架套件PUMP AND END FRAME KIT1
4991861动力升降泵总成PUMP ASSEMBLY Power Trim1
512663泵密封套件SEAL KIT Pump1
5126631泵密封套件SEAL KIT Pump1
612660端架套件END FRAME KIT1
6991861动力升降泵总成PUMP ASSEMBLY Power Trim1
712661电枢套件ARMATURE KIT1
7991861动力升降泵总成PUMP ASSEMBLY Power Trim1
812664贯穿螺栓套件THRU BOLT KIT1
图 92齿轮箱(驱动轴)(标准/反向旋转) GEAR HOUSING (DRIVESHAFT)(STANDARD/COUNTER ROTATION)
齿轮箱(驱动轴)(标准/反向旋转) GEAR HOUSING (DRIVESHAFT)(STANDARD/COUNTER ROTATION)
REF零件编号中文名称英文名称数量
图 93燃油泵 FUEL PUMP
燃油泵 FUEL PUMP
REF零件编号中文名称英文名称数量
1880890T1燃油泵PUMP Fuel1
2NSS不单独销售本体NOT SOLD SEPARATE Body1
3881544弹簧SPRING1
4881545柱塞PLUNGER1
5881546弹簧SPRING1
6881547隔膜DIAPHRAGM1
7881548销PIN1
8NSS不单独销售本体NOT SOLD SEPARATE Body1
9NSS膜片(不单独销售)NOT SOLD SEPARATE Diaphragm1
10NSS不单独销售本体NOT SOLD SEPARATE Body1
11881550螺钉SCREW3
12881333螺母NUT3
13804255O型圈O-RING1
138M0050719O型圈O-RING1
14879650卡箍CLAMP2
1456762扎带(4.00英寸)TIE STRAP (4.00 Inches)2
15804256螺栓 (M6 x 30)BOLT (M6 x 30)2
16881543软管HOSE1
16881543002油管TUBING1
17881542支架BRACKET1
188527768螺栓(M6 x 16)BOLT (M6 x 16)1
18811188T螺栓BOLT1
198528161螺母NUT1
1982382M螺母NUT1
20881538T1滤清器总成FILTER ASSEMBLY1
20881538T02燃油滤清器总成FILTER ASSY-FUEL1
21881540滤芯1.75英寸ELEMENT 1.75 Inches1
218M0168897燃油滤清器FUEL FILTER1
218M0101436滤芯1.50英寸ELEMENT 1.50 Inches1
218M0117705燃油滤清器FILTER-FUEL1
22826966MO型圈O-RING1
22826966TO型圈O RING1
23881541浮子FLOAT1
24881539杯套CUP1
248M0101437杯套CUP1
248M0137185燃油杯CUP FUEL1
25879650卡箍CLAMP2
2556762扎带(4.00英寸)TIE STRAP (4.00 Inches)2
26804260支架BRACKET1
27804112螺栓(M7 x 48)BOLT (M7 x 48)2
28804113定位销PIN Dowel2
2984292M垫圈WASHER2
30804257燃油转换杆LEVER Fuel Change1
31881334轴SHAFT1
32804259销PIN2
3282738M滚销PIN-ROLL2
33830757130管材(.312)(70英寸整卷)裁切至55英寸长度TUBING (.312) (70.00 Inches Bulk) Cut to 55.00 Inch Length.1
338M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
34816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
35822769连接器CONNECTOR1
36NSS盖帽(不单独销售)NOT SOLD SEPARATE Cap1
37828547T1导管(.500内径 x 3英尺整卷)CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk)1
-858732T01衬垫套件GASKET SET1
-858732T02动力头衬垫套件GASKET SET Powerhead1
-858732T02动力头衬垫套件GASKET SET Powerhead1
-881310T1气缸盖总成CYLINDER HEAD ASSEMBLY1
-881310T09气缸盖HEAD-CYLINDER1
图 94齿轮箱(螺旋桨轴)(标准旋转) GEAR HOUSING (PROP SHAFT)(STANDARD ROTATION)
齿轮箱(螺旋桨轴)(标准旋转) GEAR HOUSING (PROP SHAFT)(STANDARD ROTATION)
REF零件编号中文名称英文名称数量
19148T93基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
4989594A1从动件总成FOLLOWER ASSEMBLY1
50789562换挡凸轮SHIFT CAM1
51828287杆ROD1
52828174A2齿轮组GEAR SET1
52878613A2前进齿轮总成 1.87:1 - 15/28齿GEAR ASSEMBLY Forward 1.87:1 - 15/281
5344491A1垫片组(0.006-7-9-10-20)SHIM SET (.006-7-9-10-20)AR
538M0063266垫片组SHIM SETAR
5430894A1圆锥轴承组BEARING SET Cup And Cone1
5530895滚针轴承BEARING Needle1
5530895T滚针轴承BEARING Needle1
56854735T滑动离合器CLUTCH Sliding1
56859340T离合器CLUTCH1
5730632十字销PIN Cross1
578M0100263十字销PIN Cross1
58828356定位销PIN Detent1
5930893弹簧SPRING1
6094148螺旋桨轴PROPELLER SHAFT1
61828175A1倒车齿轮总成-15/28齿GEAR ASSEMBLY Reverse - 15/281
62824108隔套SPACER1
63681001止推环RING Thrust1
6488957滚珠轴承总成BEARING ASSEMBLY Ball1
6488957T滚珠轴承BEARING Ball1
6531534O型圈O-RING1
658M0214920O型圈O RING1
6643567A1轴承座总成CARRIER ASSEMBLY Bearing1
6643567T1轴承座总成CARRIER ASSEMBLY Bearing1
6730956滚针轴承BEARING Needle1
6730956T滚针轴承BEARING Needle1
6814077油封(内侧)SEAL Oil (INSIDE)1
6976868油封(外侧)SEAL (OUTSIDE)1
698M0248882油封@5SEAL-OIL @51
7030281键KEY1
7179447锁紧垫圈TAB WASHER1
7279448固定座RETAINER1
728M2011027固定座RETAINER1
73316405平衡鳍板TRIM TAB1
738M0236553平衡鳍板TRIM TAB1
7376214A5阳极套件ANODE KIT1
7376214Q5阳极套件ANODE KIT1
74806327螺钉(.437-14 x 1.750)SCREW (.437-14 x 1.750)1
748M0204686螺钉SCREW1
7565210螺钉(.375-16 x 1.00)SCREW (.375-16 x 1.00)1
7645176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel2
7734933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
778M0204653螺母NUT2
-815791A92发动机垫片组GASKET SET Engine1
-89238A2密封套件SEAL KIT1
图 95旋转支架与转向臂 Swivel Bracket And Steering Arm
旋转支架与转向臂 Swivel Bracket And Steering Arm
REF零件编号中文名称英文名称数量
图 96簧片阀组与气缸盖 REED BLOCK AND CYLINDER HEAD
簧片阀组与气缸盖 REED BLOCK AND CYLINDER HEAD
REF零件编号中文名称英文名称数量
196423气缸盖（两件式设计）CYLINDER HEAD (2 PIECE DESIGN)2
296278气缸盖衬垫（两件式设计）GASKET CYLINDER COVER - (2 PIECE DESIGN)2
396283T气缸盖（两件式设计）COVER CYLINDER - (2 PIECE DESIGN)2
396283盖板COVER2
474824气缸盖螺钉 (.312-18 x 1.250)（两件式设计）SCREW (.312-18 x 1.250) CYLINDER COVER - (2 PIECE DESIGN)40
5184191气缸盖（一件式设计）CYLINDER HEAD (1 PIECE DESIGN)2
518419F1气缸盖CYLINDER HEAD2
696542气缸盖衬垫GASKET CYLINDER HEAD2
696281T01衬垫GASKET2
798534气缸盖螺钉 (.375-16 x 2.30)SCREW (.375-16 x 2.30) CYLINDER HEAD24
825909气缸盖螺钉垫圈 (.406 x .812 x .065)WASHER (.406 x .812 x .065) CYLINDER HEAD SCREW24
962386衬垫GASKET2
98M0204714衬垫@4GASKET @42
1090390A1节温器盖套件COVER KIT THERMOSTAT2
1177065节温器盖螺钉 (.312-18 x 2)SCREW (.312-18 x 2) THERMOSTAT COVER2
11815549螺钉(.312-18 x 2.00)SCREW (.312-18 x 2.00)2
1135386节温器盖螺钉 (.312-18 x 1.00)SCREW (.312-18 x 1.00) THERMOSTAT COVER2
126872790度黄铜弯头接头 (.250-18)（水管用）FITTING (.250-18) 90 Degree - Brass ELBOW - WATER HOSES1
1268727190度弯头 (.250-18) - 黄铜FITTING (.250-18) 90 Degree - Brass1
137765377配水软管（散装24.500英寸）HOSE (24.500 Inches Bulk) WATER DISTRIBUTION2
1377653101软管（散装48.00英寸）HOSE (48.00 Inches Bulk)2
1468728节温器盖至水管接头FITTING THE THERMOSTAT COVER TO WATER HOSES1
1573498水管卡箍CLAMP WATER HOSES4
15816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)4
1697465温度传感器（右舷）SENDER Temperature (STARBOARD)1
1796282温度传感器盖COVER TEMPERATURE SENDER1
2099747A2簧片阀壳体HOUSING REED BLOCK1
2099747A9簧片阀壳体HOUSING REED BLOCK1
2124878簧片阀壳体螺钉 (.250-20 x 1.25)SCREW (.250-20 x 1.25) REED BLOCK HOUSING1
2169093簧片阀壳体螺钉 (.250-20 x 1.50)SCREW (.250-20 x 1.50) REED BLOCK HOUSING8
2169067簧片阀壳体螺钉 (.250-20 x 1.375)SCREW (.250-20 x 1.375) REED BLOCK HOUSING1
2293536簧片阀壳体衬垫GASKET REED BLOCK HOUSING1
22935361衬垫GASKET1
2365744簧片阀衬垫GASKET REED BLOCK6
23657443衬垫GASKET6
2475953簧片阀组REED BLOCK6
2575362A1簧片组件REED ASSEMBLY6
2696183簧片夹CLAMP Reed12
26961832簧片夹CLAMP Reed12
2757583簧片至簧片阀螺钉 (#8-32 x .375)SCREW (#8-32 x .375) REEDS TO REED BLOCK60
2757583T螺丝#8-32×3/8SCREW #8-32x3/860
2865746簧片阀固定螺钉 (.250-20 x .750)SCREW (.250-20 x .750) REED BLOCK ATTACHING12
2927037化油器安装螺柱 (.250-28 x 1.125)STUD (.250-28 x 1.125) CARBURETOR MOUNTING12
29270372双头螺栓(.250-28×1.125)STUD (.250-28 x 1.125)12
3042658簧片阀壳体泄油软管止回阀CHECK VALVE BLEED HOSE TO REED BLOCK HOUSING5
30426585止回阀CHECK VALVE5
3115133气缸体泄油软管接头（90度）FITTING BLEED HOSE TO CYLINDER BLOCK (90 DEGREES)5
3299130122泄油管路（散装20.00英尺）TUBING (20.00 Feet Bulk) BLEED LINE1
32892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
3342657A1止回阀CHECK VALVE1
3342657A3止回阀CHECK VALVE1
3465857泄油软管连接器（压入式）CONNECTOR BLEED HOSE (PRESS-IN)1
3456759倒钩接头FITTING Barbed1
3564871A2止回阀CHECK VALVE1
3613536A7温度传感器总成SENSOR ASSEMBLY Temperature1
3713715固定座RETAINER2
37137151固定座RETAINER2
3898257螺钉 (.312-18 x .500)SCREW (.312-18 x .500)2
39187531温度传感器（OYSTER）SENDER Temperature (OYSTER)1
4088824A8温度传感器线束总成（OYSTER）CABLE ASSEMBLY TEMPERATURE SENDER - (OYSTER)1
4175692节温器THERMOSTAT2
-90484A88衬垫套件GASKET SET
图 97动力升降组件 8M0231193 Power Trim Components 8M0231193
动力升降组件 8M0231193 Power Trim Components 8M0231193
REF零件编号中文名称英文名称数量
-8M0231193动力升降总成POWER TRIM ASSEMBLY1
18M0225363电机套件MOTOR KIT1
28M0225369阀套件VALVE KIT1
38M0225371手动释放套件MANUAL RELEASE KIT1
48M0245633倾斜油缸套件TILT CYLINDER KIT1
58M0225370枢轴销套件PIVOT PIN KIT1
68M0244575减震杆套件SHOCK ROD KIT1
78M0244425销杆眼套件PIN ROD EYE KIT1
88M0232231螺钉螺母套件SCREW NUT KIT1
98M0225373记忆活塞套件MEMORY PISTON KIT1
108M0225368储液罐套件RESERVOIR KIT1
118M0174135储液罐塞总成PLUG RESERVOIR ASSEMBLY1
128M0237525泵套件PUMP KIT1
138M0225367升降杆套件TRIM ROD KIT1
148M0242846升降杆套件TRIM ROD KIT1
158M0225372重建套件REBUILD KIT1
图 98齿轮箱（推进轴）- 反向旋转 GEAR HOUSING (PROPSHAFT) - COUNTER ROTATION
齿轮箱（推进轴）- 反向旋转 GEAR HOUSING (PROPSHAFT) - COUNTER ROTATION
REF零件编号中文名称英文名称数量
19148A47齿轮箱总成(基础款)(黑色)GEAR HOUSING ASSEMBLY (BASIC) (BLACK)1
19148A48齿轮箱总成(基础款)(灰色)GEAR HOUSING ASSEMBLY (BASIC) (GRAY)1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
4778956换挡凸轮SHIFT CAM1
47789562换挡凸轮SHIFT CAM1
4889594A1从动件总成FOLLOWER ASSEMBLY1
49799111杆ROD1
4979911A1杆ROD1
5079910弹簧SPRING2
5178910垫圈WASHERAR
5278906销PIN1
528M0084245弹簧定位销PIN Spring Locator1
5314469轴承杯CUP Bearing1
5314469T轴承杯CUP Bearing1
5488957A1滚珠轴承BEARING Ball1
5488957T滚珠轴承BEARING Ball1
55N.S.S.倒车齿轮(不单独销售)(属于43-18572A1或43-18475A1部件)Not Sold Separate Reverse Gear (PART OF 43-18572A1 OR 43-18475A1)1
5615844滚柱轴承总成BEARING ASSEMBLY Roller1
5778909定位销PIN Detent2
58823174离合器CLUTCH1
58823174TORD 8M0100493ORD 8M01004931
5978905十字销PIN Cross1
598M0084243十字销PIN Cross1
6078962弹簧SPRING2
6118572A1前进齿轮总成(135/150)GEAR ASSEMBLY Forward (135/150)1
6118572T1齿轮组GEAR SET1
6118475A1前进齿轮总成(175/200)GEAR ASSEMBLY Forward (175/200)1
6118475T1齿轮组GEAR SET1
62176151调整垫片(.125)SPACER SHIM (.125)AR
62176152调整垫片(.127)SPACER SHIM (.127)AR
62176153调整垫片(.129)SPACER SHIM (.129)AR
62176154调整垫片(.131)SPACER SHIM (.131)AR
62176155调整垫片(.133)SPACER SHIM (.133)AR
62176156调整垫片(.135)SPACER SHIM (.135)AR
62176157调整垫片(.137)SPACER SHIM (.137)AR
62176158调整垫片(.139)SPACER SHIM (.139)AR
62176159调整垫片(.141)SPACER SHIM (.141)AR
621761510调整垫片(.143)SPACER SHIM (.143)AR
621761511调整垫片(.145)SPACER SHIM (.145)AR
621761512调整垫片(.147)SPACER SHIM (.147)AR
621761513调整垫片(.149)SPACER SHIM (.149)AR
6315841滚柱轴承BEARING Roller1
6417616推力环THRUST RING1
6531534O型圈O-RING1
658M0214920O型圈O RING1
6618447A2轴承适配器总成ADAPTER ASSEMBLY Bearing1
6618447T2适配器总成ADAPTOR ASSEMBLY1
6715843滚柱轴承BEARING Roller1
6715843T滚针轴承BEARING Needle1
6818448止推垫片THRUST WASHER2
6915842推力轴承BEARING Thrust2
7018446螺旋桨轴PROPELLER SHAFT1
71818896A2轴承座总成CARRIER ASSEMBLY Bearing1
71818896T2轴承座BEARING CARRIER1
7230956滚针轴承BEARING Needle1
7230956T滚针轴承BEARING Needle1
7376868密封件SEAL1
738M0248882油封@5SEAL-OIL @51
73A76868密封件SEAL1
73A8M0248882油封@5SEAL-OIL @51
74183231锁紧垫圈TAB WASHER1
7579448固定座RETAINER1
758M2011027固定座RETAINER1
7630281键KEY1
77316404平衡板(用于无阳极齿轮箱)TRIM TAB (USE WITH GEAR HOUSING W/O ANODES)1
7731640Q4平衡鳍板TRIM TAB1
77316405配平板(与带阳极齿轮箱配套使用)TRIM TAB (USE WITH GEAR HOUSING W/ANODES)1
778M0236553平衡鳍板TRIM TAB1
78806327螺钉(.437-14 x 1.750)SCREW (.437-14 x 1.750)1
788M0204686螺钉SCREW1
7967891填充块FILLER BLOCK1
798M0039169填充块FILLER BLOCK1
8045176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel2
8134933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
818M0204653螺母NUT2
8213171推力毂THRUST HUB1
82835467Q01止推垫片套件THRUST WASHER KIT1
8331211A2花键垫圈WASHER Splined1
8331211Q03垫圈总成WASHER ASSEMBLY1
84816629锁紧垫圈TAB WASHER1
84816629Q锁紧垫圈TAB WASHER1
8552707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
8552707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
86423511齿形锁紧垫圈LOCKWASHER Toothed1
8765210螺钉(.375-16 x 1.00)SCREW (.375-16 x 1.00)1
-815791A92发动机垫片组GASKET SET Engine1
-89238A2密封套件SEAL KIT1

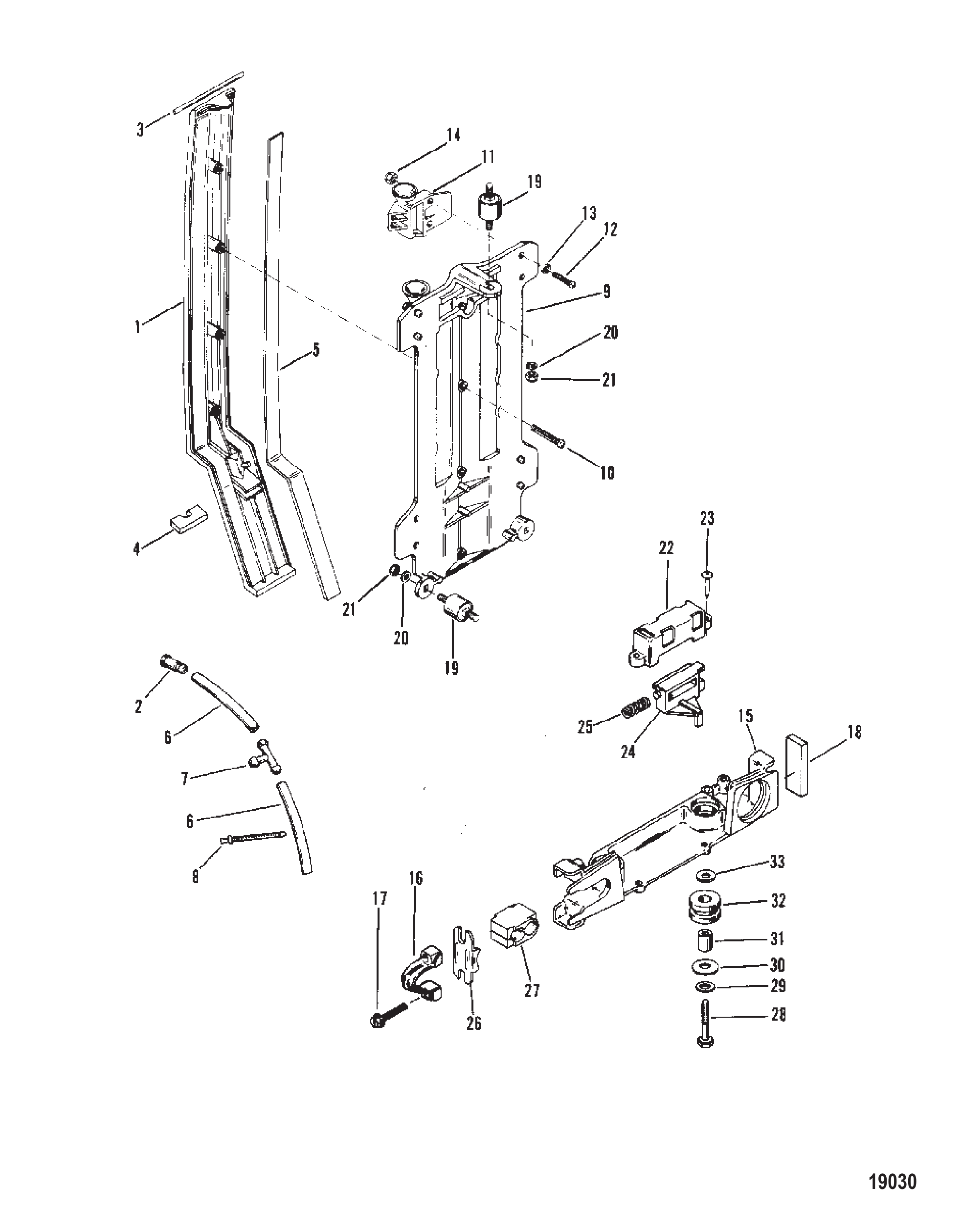

图 99外罩安装支架 Cowl Mounting Brackets
外罩安装支架 Cowl Mounting Brackets
REF零件编号中文名称英文名称数量
176258A2后罩支架（黑色）BRACKET REAR COWL (BLACK)1
176258A3后罩支架（灰色）BRACKET REAR COWL (GRAY)1
176258A4后罩支架（OYSTER）BRACKET REAR COWL (OYSTER)1
176258A3支架BRACKET1
276256指示喷嘴（黑/灰）NOZZLE TELL TALE (BLACK/GRAY)1
2762561指示喷嘴（OYSTER）NOZZLE TELL TALE (OYSTER)1
367984后罩支架密封垫SEAL REAR COWL BRACKET TO COWL1
467228后罩支架密封垫SEAL REAR COWL BRACKET TO COWL1
567999后罩支架密封垫SEAL REAR COWL BRACKET TO COWL2
634395A1指示软管（4英寸）HOSE TELL TALE (4")2
68M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)2
790824指示器软管三通TEE TELL TALE HOSE1
790824001三通接头TEE FITTING1
873498指示软管卡箍CLAMP TELL TALE HOSE2
8816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)2
986386A1罩壳支撑支架总成BRACKET ASSEMBLY COWL SUPPORT1
1066687螺钉 (#10-32 x 1.50) 后罩支架SCREW (#10-32 x 1.50) REAR COWL BRACKET4
1185651罩壳铰链壳体-左舷HOUSING COWL HINGE - PORT2
1185650罩壳铰链壳体-右舷HOUSING COWL HINGE - STARBOARD2
1264278螺钉 (0.250-28 x 1.00) 罩壳铰链壳体SCREW (.250-28 x 1.00) COWL HINGE HOUSING8
1320583罩壳铰链壳体螺钉垫圈WASHER COWL HINGE HOUSING SCREW8
1435888螺母 (0.250-28) 不锈钢罩壳铰链壳体螺钉NUT (.250-28) Stainless Steel COWL HINGE HOUSING SCREW8
1599424罩壳安装支架-下部（黑色）BRACKET COWLING MOUNTING - LOWER (BLACK)1
1599424T6罩壳安装支架-下部（灰色）BRACKET COWLING MOUNTING - LOWER (GRAY)1
1599424T10罩壳安装支架-下部（OYSTER）BRACKET COWLING MOUNTING - LOWER (OYSTER)1
1599424T6支架BRACKET1
1699447T拉线固定器RETAINER CABLE1
1699447固定座RETAINER1
1722411电缆固定器螺钉（.190-24 x 1.00）SCREW (.190-24 x 1.00) CABLE RETAINER2
1768918螺丝（#10-24 x 1.00）SCREW (#10-24 x 1.00)2
1867260控制线密封套SEAL CONTROL CABLES1
1990435罩壳安装支架座MOUNT COWL MOUNTING BRACKET3
2029245垫圈 (0.281 x 0.500 x 0.060) 不锈钢罩壳安装支架座WASHER (.281 x .500 x .060) Stainless Steel COWL MOUNTING BRACKET MOUNT6
208M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel6
2135888螺母 (0.250-28) 不锈钢罩壳安装支架座NUT (.250-28) Stainless Steel COWL MOUNTING BRACKET MOUNT6
2267241罩壳锁扣壳体HOUSING COWL LATCH1
2392051螺钉 (10-16 x 0.75) 罩壳锁扣壳体SCREW (10-16 x .75) COWL LATCH HOUSING2
2487608盖锁扣LATCH Cowl1
2560295罩壳锁扣弹簧SPRING COWL LATCH1
2688622电缆固定板PLATE CABLE RETAINER1
2799391油管固定座（喷油系统）RETAINER OIL LINES (OIL INJECTION)1
2869067螺钉 (0.250-20 x 1.375) 下部支架SCREW (.250-20 x 1.375) LOWER BRACKET2
2920346下部支架螺钉垫圈（小）WASHER LOWER BRACKET SCREW (SMALL)4
2969057垫片(.281 x .734 x .063)WASHER (.281 x .734 x .063)4
3057427下部支架螺钉垫圈（大）WASHER LOWER BRACKET SCREW (LARGE)4
3035280垫圈(.255 x .620 x .030) 不锈钢WASHER (.255 x .620 x .030) Stainless Steel4
3188180下部支架衬套BUSHING LOWER BRACKET GROMMET2
3288033下部支架护孔环GROMMET LOWER BRACKET2
3328927下部支架螺钉垫圈WASHER LOWER BRACKET SCREW2
3326907垫圈WASHER2
图 100机油喷射组件 Oil Injection Components
机油喷射组件 Oil Injection Components
REF零件编号中文名称英文名称数量
1830889A4油箱总成TANK ASSEMBLY1
2NSS不单独销售标签-储液罐NOT SOLD SEPARATE Decal-Reservoir1
358376螺钉(.164-18 x .375)SCREW (.164-18 x .375)1
472761不锈钢垫圈(.203 x .562 x .060)WASHER (.203 x .562 x .060) Stainless Steel1
5814449A3盖总成CAP ASSEMBLY1
642999衬垫GASKET1
642999T衬垫GASKET1
7856156A2开关总成SWITCH ASSEMBLY1
7856156T02开关总成SWITCH ASSEMBLY1
881893435螺钉(M8×35)SCREW (M8 x 35)3
88M0103814螺钉 (M8 x 35 毫米)SCREW (M8 x 35 MM)3
9817274垫圈(0.344×1.00×0.063)不锈钢WASHER (.344 x 1.00 x .063) Stainless Steel3
10855362护孔环GROMMET3
10855362001护孔环GROMMET3
11855364衬套BUSHING3
-8742A20遥控机油箱总成TANK ASSEMBLY Remote Oil1
-8742A22遥控机油箱总成TANK ASSEMBLY Remote Oil1
1287421油箱TANK1
13816190A3外壳总成适配器HOUSING ASSEMBLY Adapter1
13816190A4机油收集器总成(无传感器)OIL PICK UP ASSEMBLY Without Sender1
1411332O型圈(2.225 x .210)O-RING (2.225 x .210)1
1543298A2盖总成CAP ASSEMBLY2
16NSS不单独销售嵌件NOT SOLD SEPARATE Insert1
1711332O型圈(2.225 x .210)O-RING (2.225 x .210)1
1899802管TUBE1
1999439软管(114.00英寸)HOSE (114.00 Inches)1
2012335A1支架套件BRACKET KIT1
2112323A1绳索/挂钩套件CORD/HOOK KIT1
图 101燃油管路 FUEL LINES
燃油管路 FUEL LINES
REF零件编号中文名称英文名称数量
1816856A3燃油接头总成-塑料CONNECTOR ASSEMBLY Fuel - Plastic1
269067燃油连接器螺钉(.250-20 x 1.375)SCREW (.250-20 x 1.375) FUEL CONNECTOR1
3812782密封件SEAL1
49912976油管TUBING1
48M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
5816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
5816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
6814964接头FITTING1
719688弯头接头FITTING (ELBOW)1
84301625油管(8.00英寸)TUBING (8.00 Inches)1
882381335油管(15.00英寸 散装)TUBING (15.00 Inches Bulk)1
999127109管路(57.00英寸 散装)LINE (57.00 Inches Bulk)4
98M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)4
10816296燃油滤清器FILTER Fuel1
10816296Q03燃油滤清器@3FILTER-FUEL @31
1167751衬垫GASKET3
1227037双头螺栓(.250-28×1.125)STUD (.250-28 x 1.125)6
12270372双头螺栓(.250-28×1.125)STUD (.250-28 x 1.125)6
1355098J型卡扣J CLIP1
138M0024808J型夹J-CLIP1
1455715螺钉(.250-20×0.880)SCREW (.250-20 x .880)6
1526992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel6
1629598不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel6
179912878软管 (.187) (26.00英寸散装)HOSE (.187) (26.00 Inches Bulk)3
1899130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
18892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
1942859A2加浓阀总成VALVE ASSEMBLY Enrichner1
20633001卡箍CLAMP1
2173286螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel1
229912688管材 (36.00英寸散装)TUBING (36.00 Inches Bulk)2
2345915端子排TERMINAL BLOCKAR
2448408螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)AR
2438055螺钉(0.190-32x0.620)SCREW (.190-32 x .620)AR
2462568螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)AR
2469079螺钉 (#10-16 x .440)SCREW (#10-16 x .440)AR
-815791A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1
-815809A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1
-815810A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1
图 102齿轮箱(螺旋桨轴)(反向旋转) GEAR HOUSING (PROP SHAFT)(COUNTER ROTATION)
齿轮箱(螺旋桨轴)(反向旋转) GEAR HOUSING (PROP SHAFT)(COUNTER ROTATION)
REF零件编号中文名称英文名称数量
19148T93基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
4989594A1从动件总成FOLLOWER ASSEMBLY1
50789562换挡凸轮SHIFT CAM1
51828287杆ROD1
5244491A1垫片组SHIM SETAR
528M0063266垫片组SHIM SETAR
53828830A2轴承适配器总成ADAPTER ASSEMBLY Bearing1
54814653滚针轴承总成BEARING ASSEMBLY Needle Rollers1
54814653T滚针轴承总成BEARING ASSEMBLY Needle Rollers1
55815481止推垫片THRUST WASHER1
56815480推力轴承BEARING Thrust1
57828702A2倒车齿轮总成-15/28齿GEAR ASSEMBLY Reverse - 15/281
5815844滚柱轴承总成BEARING ASSEMBLY Roller1
5930893弹簧SPRING1
60854735T滑动离合器CLUTCH Sliding1
60859340T离合器CLUTCH1
6130632十字销PIN Cross1
618M0100263十字销PIN Cross1
62828356定位销PIN Detent1
63828951螺旋桨轴PROPELLER SHAFT1
64828701A1前进齿轮总成-15/28齿GEAR ASSEMBLY Forward - 15/281
651761514垫片(0.206)SPACER SHIM (.206)AR
651761515垫片(0.208)SPACER SHIM (.208)AR
651761516垫片(0.210)SPACER SHIM (.210)AR
651761517垫片(0.212)SPACER SHIM (.212)AR
651761518垫片(0.214)SPACER SHIM (.214)AR
651761519垫片(0.216)SPACER SHIM (.216)AR
651761520垫片(0.218)SPACER SHIM (.218)AR
651761521垫片(0.220)SPACER SHIM (.220)AR
651761522垫片(0.222)SPACER SHIM (.222)AR
651761523垫片(0.224)SPACER SHIM (.224)AR
651761524垫片(0.226)SPACER SHIM (.226)AR
651761525垫片(0.228)SPACER SHIM (.228)AR
651761526垫片(0.230)SPACER SHIM (.230)AR
66815480推力轴承BEARING Thrust1
67815481止推垫片THRUST WASHER1
68828831A3轴承适配器总成ADAPTER ASSEMBLY Bearing1
69814653滚针轴承总成BEARING ASSEMBLY Needle Rollers1
69814653T滚针轴承总成BEARING ASSEMBLY Needle Rollers1
7018448止推垫片THRUST WASHER2
7115842推力轴承BEARING Thrust2
728182911推力座圈RACE Thrust2
73814605定位器KEEPER2
7431534O型圈O-RING1
748M0214920O型圈O RING1
75818290A4轴承座总成CARRIER ASSEMBLY Bearing1
7630956滚针轴承BEARING Needle1
7630956T滚针轴承BEARING Needle1
7714077油封(内侧)SEAL Oil (INSIDE)1
7876868油封(外侧)SEAL (OUTSIDE)1
788M0248882油封@5SEAL-OIL @51
79183231锁紧垫圈TAB WASHER1
8030281键KEY1
8179448固定座RETAINER1
818M2011027固定座RETAINER1
82316405平衡鳍板TRIM TAB1
828M0236553平衡鳍板TRIM TAB1
8276214A5阳极套件ANODE KIT1
8276214Q5阳极套件ANODE KIT1
83806327螺钉(.437-14 x 1.750)SCREW (.437-14 x 1.750)1
838M0204686螺钉SCREW1
8465210螺钉(.375-16 x 1.00)SCREW (.375-16 x 1.00)1
8545176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel2
8634933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
868M0204653螺母NUT2
-89238A2密封套件SEAL KIT1
图 103燃油泵 Fuel Pump
燃油泵 Fuel Pump
REF零件编号中文名称英文名称数量
1880890T1燃油泵PUMP Fuel1
2NSS不单独销售本体NOT SOLD SEPARATE Body1
3881544弹簧SPRING1
4881545柱塞PLUNGER1
5881546弹簧SPRING1
6881547隔膜DIAPHRAGM1
7881548销PIN1
8NSS不单独销售本体NOT SOLD SEPARATE Body1
9NSS膜片(不单独销售)NOT SOLD SEPARATE Diaphragm1
10NSS不单独销售本体NOT SOLD SEPARATE Body1
11881550螺钉SCREW3
12881333螺母NUT3
13804255O型圈O-RING1
138M0050719O型圈O-RING1
14879650卡箍CLAMP2
1456762扎带(4.00英寸)TIE STRAP (4.00 Inches)2
15804256螺栓 (M6 x 30)BOLT (M6 x 30)2
16881543软管HOSE1
16881543002油管TUBING1
17881542支架BRACKET1
188527768螺栓(M6 x 16)BOLT (M6 x 16)1
18811188T螺栓BOLT1
198528161螺母NUT1
1982382M螺母NUT1
20881538T1滤清器总成FILTER ASSEMBLY1
20881538T02燃油滤清器总成FILTER ASSY-FUEL1
21881540滤芯1.75英寸ELEMENT 1.75 Inches1
218M0168897燃油滤清器FUEL FILTER1
218M0101436滤芯1.50英寸ELEMENT 1.50 Inches1
218M0117705燃油滤清器FILTER-FUEL1
22826966MO型圈O-RING1
22826966TO型圈O RING1
23881541浮子FLOAT1
24881539杯套CUP1
248M0101437杯套CUP1
248M0137185燃油杯CUP FUEL1
25879650卡箍CLAMP2
2556762扎带(4.00英寸)TIE STRAP (4.00 Inches)2
26804260支架BRACKET1
27804112螺栓(M7 x 48)BOLT (M7 x 48)2
28804113定位销PIN Dowel2
2984292M垫圈WASHER2
30804257燃油转换杆LEVER Fuel Change1
31881334轴SHAFT1
32804259销PIN2
3282738M滚销PIN-ROLL2
33830757130管材(.312)(70英寸整卷)裁切至55英寸长度TUBING (.312) (70.00 Inches Bulk) Cut to 55.00 Inch Length.1
338M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)1
34816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)1
35822769连接器CONNECTOR1
36NSS盖帽(不单独销售)NOT SOLD SEPARATE Cap1
37828547T1导管(.500内径 x 3英尺整卷)CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk)1
-858732T01衬垫套件GASKET SET1
-858732T02动力头衬垫套件GASKET SET Powerhead1
-858732T02动力头衬垫套件GASKET SET Powerhead1
-881310T1气缸盖总成CYLINDER HEAD ASSEMBLY1
-881310T09气缸盖HEAD-CYLINDER1
图 104燃油管路（用于 WMH-12A/B 至 WMH-28 化油器） FUEL LINES (Use With WMH-12A/B thru WMH-28 Carburtors)
燃油管路（用于 WMH-12A/B 至 WMH-28 化油器） FUEL LINES (Use With WMH-12A/B thru WMH-28 Carburtors)
REF零件编号中文名称英文名称数量
1816856A3燃油接头总成-塑料CONNECTOR ASSEMBLY Fuel - Plastic1
269067螺钉(.250-20×1.375)SCREW (.250-20 x 1.375)1
3812782密封件SEAL1
49912980软管HOSEAR
48M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)AR
5816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
5816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
6818993三通接头CONNECTOR Tee1
718175软管HOSE1
8818994止回阀CHECK VALVE1
88189941止回阀CHECK VALVE1
982381325管材(10.00英寸散装)TUBING (10.00 Inches Bulk)1
982381335油管(15.00英寸 散装)TUBING (15.00 Inches Bulk)1
108162961燃油滤清器FILTER Fuel1
10816296Q2燃油滤清器FILTER Fuel1
11677511衬垫GASKET3
1227037双头螺栓(.250-28×1.125)STUD (.250-28 x 1.125)6
12270372双头螺栓(.250-28×1.125)STUD (.250-28 x 1.125)6
13830756109软管(57.00英寸散装)HOSE (57.00 Inches Bulk)1
138M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
1455715螺钉(.250-20×0.880)SCREW (.250-20 x .880)6
1526992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel6
1629598不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel6
179912878软管 (.187) (26.00英寸散装)HOSE (.187) (26.00 Inches Bulk)3
1899130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
18892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
1942859A2加浓阀总成VALVE ASSEMBLY Enrichner1
20633001卡箍CLAMP1
2173286螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel1
229912688管材 (36.00英寸散装)TUBING (36.00 Inches Bulk)2
2345915端子排TERMINAL BLOCK1
2448409螺钉 (#10-16 x .625) 不锈钢SCREW (#10-16 x .625) Stainless Steel1
2469079螺钉 (#10-16 x .440)SCREW (#10-16 x .440)1
25824001软管HOSE1
25830762软管HOSE1
-815791A92发动机垫片组GASKET SET Engine1
图 105齿轮箱（驱动轴）- 反向旋转 GEAR HOUSING (DRIVESHAFT) - COUNTER ROTATION
齿轮箱（驱动轴）- 反向旋转 GEAR HOUSING (DRIVESHAFT) - COUNTER ROTATION
REF零件编号中文名称英文名称数量
19148A47齿轮箱总成(基础款)(黑色)GEAR HOUSING ASSEMBLY (BASIC) (BLACK)1
19148A48齿轮箱总成(基础款)(灰色)GEAR HOUSING ASSEMBLY (BASIC) (GRAY)1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
285822A10连接器总成(适用时使用)CONNECTOR ASSEMBLY (USE WHERE APPLICABLE)1
343044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
418978双头螺栓(.438×3.69)STUD (.438 x 3.69)1
48M0034464螺柱STUD1
5579201双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
58M0133358双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
656297双头螺栓(.312×3.38)STUD (.312 x 3.38)1
68M0034463螺柱(.312-24 x 3.38)STUD (.312-24 x 3.38)1
730667双头螺栓(.250-20/.250-28×3.125)STUD (.250-20/.250-28 x 3.125)2
7306671螺柱STUD2
842647A1滚柱轴承总成BEARING ASSEMBLY Roller1
943998衬套(旧设计)SLEEVE (OLD DESIGN)1
9A826134阳极块ANODE2
9A826134Q阳极块ANODE2
9B4000333螺钉(M6 x 40)SCREW (M6 x 40)1
9C8268336螺母 (M6)NUT (M6)1
9C401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
11442091驱动轴DRIVESHAFT
11897625T加长驱动轴DRIVESHAFT X-Long
12N.S.S.不单独销售小齿轮(43-18572A1或43-18475A1部件)Not Sold Separate Pinion Gear (PART OF 43-18572A1 OR 43-18475A1)1
1392721垫圈(.965×0.630)WASHER (.965 x .630)1
14826375螺母(0.625-18)NUT (.625-18)1
1435921螺母(0.625-18)NUT (.625-18)1
1542637A1垫片组SHIM SETAR
158M0063267垫片组SHIM SETAR
1636387A1轴承总成(滚子/外圈)BEARING ASSEMBLY Roller/Cup1
168M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
17824519固定座RETAINER1
178245191固定座RETAINER1
1842579A3水泵底座总成BASE ASSEMBLY Water Pump1
188M0077147带水泵底座总成BASE ASSY-W/P1
19426311衬垫GASKET1
198M0204678衬垫GASKET1
2090011O型圈(2.175 x 0.175)O-RING (2.175 x .175)1
208M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
2189238油封SEAL Oil1
2216977油封SEAL Oil1
23856081衬垫GASKET1
238M0090319衬垫@5GASKET @51
24856091衬垫GASKET1
24858524衬垫GASKET1
2532435面板FACE PLATE1
258M0204677面板PLATE-FACE1
2696148A1水泵壳体总成BODY ASSEMBLY Water Pump1
2696148T1水泵壳体总成BODY ASSEMBLY Water Pump1
2748752嵌件INSERT1
2748752T嵌件INSERT1
2838970密封件SEAL1
29899841叶轮IMPELLER1
2989984T3叶轮IMPELLER1
3056654键KEY1
308M0214992键@5KEY @51
3196411螺钉(#14-8×2.25)SCREW (#14-8 x 2.25)1
318M0215009螺钉SCREW1
3229245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
328M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
3313438螺母(.250-28)NUT (.250-28)2
338267119螺母(.250-28)NUT (.250-28)2
3436001垫圈WASHER1
3513436螺母NUT1
3729804套筒SLEEVE1
3729804T套筒SLEEVE1
38789022换挡轴(不带E型环使用)SHIFT SHAFT (USE W/O E-RING)1
3878902轴SHAFT1
38789022换档轴SHIFT SHAFT1
3929641E型卡环E RING1
4019183纤维垫圈WASHER Fiber2
408M0187157蓝色密封件@15SEAL-BLUE @152
4125439O型圈(.862×0.103)O-RING (.862 x .103)1
4277631A2衬套总成BUSHING ASSEMBLY1
438164641油封SEAL Oil1
438M0246145油封OIL SEAL1
4477674垫圈(.35 x .75 x .12)WASHER (.35 x .75 x .12)1
4579953螺钉(0.375-16x0.250)SCREW (.375-16 x .250)1
4579953Q04放油螺钉套件SCREW KIT Drain1
4667892磁性螺钉SCREW Magnetic1
468M0058389放油螺钉套件SCREW KIT Drain1
-815791A92发动机垫片组GASKET SET Engine1
-96148A5水泵维修套件REPAIR KIT Water Pump1
-96148A8水泵维修套件WATER PUMP REPAIR KIT1
-89238A2密封套件SEAL KIT1
图 106曲轴活塞与连杆 Crankshaft Pistons And Connecting Rods
曲轴活塞与连杆 Crankshaft Pistons And Connecting Rods
REF零件编号中文名称英文名称数量
1880894T曲轴CRANKSHAFT1
28040992油封SEAL Oil1
38041002油封SEAL Oil1
4804101T轴承BEARING4
4804101T10轴承BEARING4
4804101T20轴承BEARING4
5804102T轴承BEARING5
5804102T10轴承BEARING5
5804102T20轴承BEARING5
5804102T30轴承BEARING5
6804103T轴承BEARING1
6804103T10轴承BEARING1
6804103T20轴承BEARING1
7880895T1活塞总成PISTON ASSEMBLY4
7880895A14活塞/连杆总成PISTON/CONN ROD4
7880895T10活塞总成PISTON ASSEMBLYAR
7880895A16活塞/连杆总成PISTON/CONN RODAR
8880896螺栓(M8 x 38)BOLT (M8 x 38)8
9880897T1活塞环组RING SET Piston4
9880897T02活塞环组RING SET Piston4
9880898T1活塞环组RING SET PistonAR
9880898T02活塞环组RING SET PistonAR
10880899T轴承BEARING8
10880899T10轴承BEARING8
10880899T20轴承BEARING8
10880899T30轴承BEARING8
-881421T01动力头总成POWERHEAD ASSEMBLY1
-881421T04动力头总成POWERHEAD ASSEMBLY1
-881421T02动力头总成POWERHEAD ASSEMBLY1
-881421T04动力头总成POWERHEAD ASSEMBLY1
图 107曲轴（连杆锻件编号644-818141） Crankshaft (Connecting Rod Forging # is 644-818141)
曲轴（连杆锻件编号644-818141） Crankshaft (Connecting Rod Forging # is 644-818141)
REF零件编号中文名称英文名称数量
19536A4曲轴总成CRANKSHAFT ASSEMBLY1
267923球轴承(下部)BEARING Ball (LOWER)1
267923T滚珠轴承BEARING Ball1
367446环RING1
414513A2驱动齿轮段套件GEAR SEGMENT KIT Drive2
414513A09驱动齿轮段套件GEAR SEGMENT KIT Drive2
5813073螺钉(#6-32 x .620)内六角头SCREW (#6-32 x .620) Socket Head2
6813134螺母(#6-32)专用NUT (#6-32) Special2
754196A6托架总成CARRIER ASSEMBLY1
865800填料PACKING1
967377密封环-曲轴RING Sealing SEALING - CRANKSHAFT8
967377T密封环RING Sealing8
1016756A1滚子轴承总成-曲轴BEARING ASSEMBLY Roller CRANKSHAFT2
1016756A6轴承套件BEARING KIT2
117441A32活塞(右舷-标准)PISTON (STARBOARD-STANDARD)3
117441T32活塞PISTON3
117443A11活塞(右舷-0.015加大)PISTON (STARBOARD-.015 O.S.)AR
117445A11活塞(右舷-0.030加大)PISTON (STARBOARD-.030 OS.)AR
117445T11活塞PISTONAR
117442A32活塞(左舷-标准)PISTON (PORT-STANDARD)3
117442T32活塞PISTON3
117444A11活塞(左舷-0.015加大)PISTON (PORT-.015 O.S.)AR
117446A11活塞(左舷-0.030加大)PISTON (PORT-.030 O.S.)AR
119738A7活塞总成(右舷-标准)PISTON ASSEMBLY (STARBOARD-STANDARD)3
119738T9活塞总成标准型PISTON ASSEMBLY Standard3
119738A8活塞总成(右舷-0.015加大)PISTON ASSEMBLY (STARBOARD-.015 O.S.)AR
119738T10活塞总成0.015加大PISTON ASSEMBLY .015 OversizeAR
119737A7活塞总成(左舷-标准)PISTON ASSEMBLY (PORT-STANDARD)3
119737T9活塞总成标准型PISTON ASSEMBLY Standard3
119737A8活塞总成(左舷-0.015加大)PISTON ASSEMBLY (PORT-.015 O.S.)AR
119737A10活塞总成0.015加大PISTON ASSEMBLY .015 OversizeAR
1293481A12活塞环组-标准(标准)RING SET Piston - Standard (STANDARD)1
1278918A4活塞环组-0.015加大(0.015加大)RING SET Piston - .015 Oversize (.015 O.S.)AR
1285636A4活塞环组-0.030加大(0.030加大)RING SET Piston - .030 Oversize (.030 O.S.)AR
12815515A12活塞环组(标准)RING SET Piston (STANDARD)1
12815268A4活塞环组(.015加大)RING SET Piston (.015 O.S.)AR
1352035锁环RING Lock12
13857196锁紧环LOCK RING12
14818141A2连杆套件CONNECTING ROD KIT6
14818141A13连杆总成CONNECTING ROD ASSEMBLY6
15763491螺钉(0.312-24×0.875)连杆SCREW (.312-24 x .875) CONNECTING ROD12
16812876定位针垫圈WASHER NEEDLE LOCATING12
168M0012298止推垫片THRUST WASHER12
1717514A1轴承套件BEARING KIT6
178M0234886轴承保持架CAGE BEARING6
18674831活塞端滚针轴承BEARING Needle PISTON END174
188M0204691滚针轴承@200BRG-NEEDLE @200174
-815791A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1
-815809A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1
-815810A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1
图 108杂项信息 Miscellaneous Information
杂项信息 Miscellaneous Information
REF零件编号中文名称英文名称数量
0814698零件手册 40马力/30喷射型PARTS MANUAL 40 HP/30 JET1
0814323A90贴花套件DECAL SET1
0814323A94贴花套件DECAL SET1
0814323A96贴花套件DECAL SET1
0814323A96贴花套件DECAL SET1
0822166A92贴花套件DECAL SET1
0810462A94贴花套件DECAL SET1
0810462A97贴花套件DECAL SET1
0810462A97贴花套件DECAL SET1
0826324A95贴花套件DECAL SET1
0826324A97贴花套件DECAL SET1
0826324A97贴花套件DECAL SET1
0815626A93贴花套件DECAL SET1
0824732A94贴花套件DECAL SET1
0824732A96贴花套件DECAL SET1
0826323A95贴花套件DECAL SET1
0826323A96贴花套件DECAL SET1
0826323A96贴花套件DECAL SET1
010118970用户手册OWNERS MANUAL1
010134970用户手册OWNERS MANUAL1
010160970用户手册OWNERS MANUAL1
图 109上罩与前护板 TOP COWL AND FRONT SHIELD
上罩与前护板 TOP COWL AND FRONT SHIELD
REF零件编号中文名称英文名称数量
-17996徽标EMBLEM2
-179061左舷/右舷徽标-SEA RAYEMBLEM PORT/STARBOARD-SEA RAY2
19742A16顶罩总成(黑色)TOP COWL ASSEMBLY (BLACK)1
19742T88顶罩总成(黑色)TOP COWL ASSY BLK1
19742A17顶罩总成(灰色)TOP COWL ASSEMBLY (GRAY)1
19743T11顶罩TOP COWL1
2812784密封件SEAL1
3813566密封件SEAL1
3815478密封件SEAL1
4813670隔音垫(侧)SOUND BLANKET (SIDE)1
4814823隔音毯SOUND BLANKET1
5813671隔音垫(顶)SOUND BLANKET (TOP)2
5814837隔音毯SOUND BLANKET2
618755A1前护罩总成(黑色)FRONT SHIELD ASSEMBLY (BLACK)1
618755A2前护罩总成(灰色)FRONT SHIELD ASSEMBLY (GRAY)1
7813562密封件SEAL1
848409螺钉 (#10-16 x .625) 不锈钢SCREW (#10-16 x .625) Stainless Steel4
942118垫圈WASHER4
10184741后支架BRACKET REAR2
1118506护孔环GROMMET3
1118506001护孔环GROMMET3
1228636螺钉(.250-20 x .750) 后支架SCREW (.250-20 x .750) REAR BRACKET8
1326992锁紧垫圈(.250)不锈钢 后支架螺钉LOCKWASHER (.250) Stainless Steel REAR BRACKET SCREW8
14813096挂钩HOOK2
14813096A2挂钩套件HOOK KIT2
1573286螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel8
16813074滚轮ROLLER2
168M0207770滚轮@3ROLLER @32
1713194挡圈RING Retaining2
18813553安装板PLATE1
1856720垫圈(0.330×0.750×0.060)不锈钢WASHER (.330 x .750 x .060) Stainless Steel1
19187021定位器LOCATOR1
2018173锁扣滚轮支架总成BRACKET ASSEMBLY Latch Roller1
20893763滚轮锁扣支架BRACKET Roller Latch1
21813552隔套SPACER1
21813076A2手柄套件HANDLE KIT1
2231984螺钉(0.312-18×1.375)SCREW (.312-18 x 1.375)2
2367980螺母(.312-18)NUT (.312-18)2
2382670910不锈钢螺母(.312-18)NUT (.312-18) Stainless Steel2
2447341A1手动/应急启动绳和手柄套件 (用于手动启动)ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING)1
2447341A11手动启动绳柄套件ROPE AND HANDLE KIT Manual Starting1
2570132垫圈(0.323×0.563×0.063)不锈钢WASHER (.323 x .563 x .063) Stainless Steel2
258M0042642垫圈(.323 x .562 x .063)WASHER (.323 x .562 x .063)2
-813096A1后锁扣套件REAR LATCH KIT1
图 110动力升降泵(Prestolite圆形电机) Power Trim Pump (Prestolite Round Motor)
动力升降泵(Prestolite圆形电机) Power Trim Pump (Prestolite Round Motor)
REF零件编号中文名称英文名称数量
-99186动力升降泵总成PUMP ASSEMBLY Power Trim1
18995泵总成PUMP ASSEMBLY1
1826729A10ORD 8M0143217ORD 8M01432171
28996O型圈套件O-RING KIT1
38986电枢ARMATURE1
48987机架与磁场FRAME AND FIELD1
499186动力升降泵总成PUMP ASSEMBLY Power Trim1
58992缸盖O型圈O-RING HEAD1
68993电刷弹簧套件SPRING KIT BRUSH1
78988换向器端盖HEAD COMMUTATOR END1
88989电刷套件BRUSH KIT1
98994贯穿螺栓套件THRU BOLT KIT1
108985导线夹CLAMP LEAD WIRE1
118990螺母密封垫NUT PACKING1
128991O型圈螺母密封O-RING PACKING NUT1
图 111燃油管路（用于 WMH-30/31/32/33/34 化油器） FUEL LINES (Use With WMH -30/31/32/33/34 Carburetors)
燃油管路（用于 WMH-30/31/32/33/34 化油器） FUEL LINES (Use With WMH -30/31/32/33/34 Carburetors)
REF零件编号中文名称英文名称数量
1816856A3燃油接头总成-塑料CONNECTOR ASSEMBLY Fuel - Plastic1
269067螺钉(.250-20×1.375)SCREW (.250-20 x 1.375)1
3812782密封件SEAL1
49912980软管HOSEAR
48M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)AR
5816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
5816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
6818993三通接头CONNECTOR Tee1
718175软管HOSE1
8818994止回阀CHECK VALVE1
88189941止回阀CHECK VALVE1
982381325管材(10.00英寸散装)TUBING (10.00 Inches Bulk)1
982381335油管(15.00英寸 散装)TUBING (15.00 Inches Bulk)1
10824001软管HOSE1
10830762软管HOSE1
118162961燃油滤清器FILTER Fuel1
11816296Q2燃油滤清器FILTER Fuel1
12830756109软管(57.00英寸散装)HOSE (57.00 Inches Bulk)1
128M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
13677511衬垫GASKET3
1427037双头螺栓(.250-28×1.125)STUD (.250-28 x 1.125)6
14270372双头螺栓(.250-28×1.125)STUD (.250-28 x 1.125)6
1526992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel6
1629598不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel6
1755715螺钉(.250-20×0.880)SCREW (.250-20 x .880)6
1842859A2加浓阀总成VALVE ASSEMBLY Enrichner1
19633001卡箍CLAMP1
2073286螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel1
219912688管材 (36.00英寸散装)TUBING (36.00 Inches Bulk)2
2299130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
22892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
2345915端子排TERMINAL BLOCK1
248128321螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
24878609螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
24817626螺钉(#10-16×0.380)SCREW (#10-16 x .380)1
24878607螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)1
-815791A92发动机垫片组GASKET SET Engine1
图 112曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS
曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS
REF零件编号中文名称英文名称数量
18745A5曲轴总成(含8个39-67377)CRANKSHAFT ASSEMBLY (INCLUDES 8 OF 39-67377)1
267923曲轴下球轴承BEARING Ball CRANKSHAFT (LOWER)1
267923T滚珠轴承BEARING Ball1
367446球轴承挡圈RING BALL BEARING1
499727A1驱动齿轮GEAR Drive1
554196A6密封载体总成CARRIER ASSEMBLY SEAL1
665800填料载体PACKING CARRIER1
767377曲轴密封环(.124厚度)RING Sealing SEALING - CRANKSHAFT (.124 THICK)AR
767377T密封环RING SealingAR
778633曲轴密封环(.139厚度)RING SEALING - CRANKSHAFT (.139 THICK)AR
888903保持式滚柱轴承BEARING Roller RETAINED BEARING2
888903T轴承座圈RACE Bearing2
967444保持轴承挡圈RING Retaining RETAINED BEARING2
1067445保持式滚柱轴承BEARING Roller RETAINED BEARING2
893495非保持式滚柱轴承BEARING Roller LOOSE BEARING2
893495T滚柱轴承BEARING Roller2
967444非保持轴承挡圈RING Retaining LOOSE BEARING2
117441A3活塞总成(右舷-标准)PISTON ASSEMBLY (STARBOARD-STANDARD)3
117441T36活塞-右舷-标准PISTON-STBD-STD3
117443A2活塞总成(右舷-加大0.015)PISTON ASSEMBLY (STARBOARD - .015 O.S.)AR
117443A12活塞-右舷-0.015PISTON-STBD-.015AR
117445A2活塞总成(右舷-加大0.030)PISTON ASSEMBLY (STARBOARD-.030 O.S.)AR
117445A12活塞-右舷-0.030PISTON-STBD-.030AR
117442A3活塞总成(左舷-标准)PISTON ASSEMBLY (PORT-STANDARD)3
117442T36活塞-左舷-标准PISTON-PORT-STD3
117444A2活塞总成(左舷-0.015加大)PISTON ASSEMBLY (PORT-.015 O.S.)AR
117444A12活塞-左舷-0.015PISTON-PORT-.015AR
117446A2活塞总成(左舷-0.030加大)PISTON ASSEMBLY (PORT-.030 O.S.)AR
117446T12活塞-左舷-0.030PISTON-PORT-.030AR
1293481A12活塞环组-标准(标准)RING SET Piston - Standard (STANDARD)1
1278918A4活塞环组-0.015加大(0.015加大)RING SET Piston - .015 Oversize (.015 O.S.)AR
1285636A4活塞环组-0.030加大(0.030加大)RING SET Piston - .030 Oversize (.030 O.S.)AR
1352035锁环RING Lock12
13857196锁紧环LOCK RING12
148119A5连杆总成CONNECTING ROD ASSEMBLY6
148119A6连杆套件CONN ROD KIT6
1593886螺钉(0.312-28×0.875)连杆SCREW (.312-28 x .875) CONNECTING ROD12
1647247定位针垫圈WASHER NEEDLE LOCATING12
168M0032839垫片@5WASHER @512
1717514A1轴承套件BEARING KIT6
178M0234886轴承保持架CAGE BEARING6
1867483活塞端滚针轴承BEARING Needle PISTON END174
图 113油门杆与换挡轴 THROTTLE LEVER AND SHIFT SHAFT
油门杆与换挡轴 THROTTLE LEVER AND SHIFT SHAFT
REF零件编号中文名称英文名称数量
174897PIVOT TRIGGER PLATE1
262459球头总成触发板BALL JOINT ASSEMBLY TRIGGER PLATE1
262459T球头节总成BALL JOINT ASSY1
345076螺母(#10-32)黄铜连杆NUT (#10-32) Brass LINK ROD1
476035触发板连杆ROD TRIGGER PLATE1
546438螺母(#10-32)球头NUT (#10-32) BALL JOINT1
641094A3点火提前杆总成LEVER ASSEMBLY SPARK ADVANCE1
764022螺丝(.250-20x2.125)点火提前杆-止动SCREW (.250-20 x 2.125) SPARK ADVANCE LEVER - STOP1
864015螺母(.250-20)点火提前止动螺丝NUT (.250-20) SPARK ADVANCE STOP SCREW1
926852尼龙帽点火提前杆止动螺丝CAP Nylon SPARK ADVANCE LEVER STOP SCREW1
1069560螺丝(.190-32x1.250)点火提前杆-止动SCREW (.190-32 x 1.250) SPARK ADVANCE LEVER -STOP1
1168219螺母(#10-32)不锈钢点火提前杆止动螺丝NUT (#10-32) Stainless Steel SPARK ADVANCE LEVER STOP SCREW1
1248039点火提前杆止动螺丝帽CAP SPARK ADVANCE LEVER STOP SCREW1
1341095T油门控制杆LEVER THROTTLE CONTROL1
13410952杠杆LEVER1
1455337螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
14818165螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
1555164油门杠杆衬套BUSHING THROTTLE LEVER1
1655171点火提前杆衬套BUSHING SPARK ADVANCE LEVER1
1768784节气门与点火提前杆弹簧SPRING THROTTLE AND SPARK ADVANCE LEVER1
1868410点火提前杆垫片WASHER SPARK ADVANCE LEVER1
1846765垫圈 (.390 x 1.50 x .120)WASHER (.390 x 1.50 x .120)1
1964022螺丝(.250-20x2.125)节气门杆-止动SCREW (.250-20 x 2.125) THROTTLE LEVER - STOP1
2064015螺母(.250-20)节气门杆止动螺丝NUT (.250-20) THROTTLE LEVER STOP SCREW1
2126852尼龙帽节气门杆止动螺丝CAP Nylon THROTTLE LEVER STOP SCREW1
2239483锁扣拉线LATCH CABLE1
2322486螺丝(.250-28x.880)拉线锁扣至节气门杆SCREW (.250-28 x .880) CABLE LATCH TO THROTTLE LEVER1
2369026螺钉 (.250-28 x .880)SCREW (.250-28 x .880)1
2420099拉线锁扣至节气门杆弹簧SPRING CABLE LATCH TO THROTTLE LEVER1
2520586螺母(.250-28)拉线锁扣螺丝NUT (.250-28) CABLE LATCH SCREW1
25826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
2679949节气门控制杆ROD THROTTLE CONTROL1
2760572节气门控制杆套筒BARREL THROTTLE CONTROL ROD2
278M0221994筒形接头BARREL FITTING2
2895791节气门凸轮CAM Throttle1
2920353螺柱(.250-28x1.750)节气门凸轮固定STUD (.250-28 x 1.750) THROTTLE CAM ATTACHING1
3026856节气门凸轮衬套BUSHING THROTTLE CAM2
3136069节气门凸轮螺柱螺母NUT THROTTLE CAM STUD1
3241050节气门复位弹簧SPRING THROTTLE RETURN1
3392032A2控制线缆锚定支架BRACKET ANCHOR - CONTROL CABLES1
33814283A2支架总成BRACKET ASSEMBLY1
3498889控制线缆锁扣LATCH CONTROL CABLE1
3542975闩锁传动螺钉DRIVE SCREW LATCH2
3639618尼龙杆-换挡拉线锁定LEVER NYLON - SHIFT CABLE LOCKING1
3687609A1杠杆套件LEVER KIT1
3747175杆与盖固定销PIN LEVER AND COVER FASTENING3
3890211尼龙盖-换挡拉线COVER NYLON - SHIFT CABLE1
3965799T连杆-锁定杆到盖板LINK LOCKING LEVER TO COVER1
3987609A1杠杆套件LEVER KIT1
4053167螺丝(.312-18x.880)锚定支架固定SCREW (.312-18 x .880) ANCHOR BRACKET ATTACHING3
4053167T螺钉 0.312-18X 0.88SCREW .312-18X .883
4137896连杆导向块GUIDE BLOCK LINK ROD1
4220099连杆至导向块弹簧SPRING LINK ROD TO GUIDE BLOCK1
4367073A1连杆总成LINK ROD ASSEMBLY1
4452100连杆耐磨板WEAR PLATE LINK ROD1
4538279锁扣控制拉线固定-锚定支架LATCH CONTROL CABLE FASTENING-ANCHOR BRACKET1
458M0036768闩锁LATCH1
4635462垫圈(.2656x.625x.0625)不锈钢锁扣WASHER (.2656 x .625 x .0625) Stainless Steel LATCH1
4736069连杆螺母NUT LINK ROD1
4879932A7换挡轴总成 (长)SHIFT SHAFT ASSEMBLY (LONG)1
4879932A16换挡轴总成SHIFT SHAFT ASSEMBLY1
4879932A8换挡轴总成(加长型)SHIFT SHAFT ASSEMBLY (EXTRA LONG)1
4879932A17换挡轴总成SHIFT SHAFT ASSEMBLY1
4929720连杆波形垫圈WAVE WASHER LINK ROD1
5026600尼龙衬套-连杆BUSHING NYLON - LINK ROD1
5135462垫圈(.2656 x .625 x .0625)不锈钢连杆WASHER (.2656 x .625 x .0625) Stainless Steel LINK ROD1
5236069连杆至换挡轴螺母NUT LINK ROD TO SHIFT SHAFT1
5339519杯形套筒固定器-锚杆CUP BARREL RETAINER - ANCHOR BAR1
图 114蓄能器 ACCUMULATOR
蓄能器 ACCUMULATOR
REF零件编号中文名称英文名称数量
-811290蓄能器ACCUMULATOR1
1823059A1端架总成(含线束)END FRAME ASSEMBLY (W/WIRES)1
2823061A1电枢总成ARMATURE ASSEMBLY1
3823062泵总成PUMP ASSEMBLY1
4823063壳体/磁铁总成SHELL/MAGNET ASSEMBLY1
5823064螺栓套件BOLT KIT1
6823065控制器CONTROLLER1
7823066螺钉套件SCREW KIT1
8823067滤清器套件FILTER KIT1
9823068橡胶减震器RUBBER DAMPER1
10823070橡胶隔振器RUBBER ISOLATOR1
11823071储液罐衬垫GASKET Reservoir1
12823072螺钉套件SCREW KIT1
13823074O型圈O-RING1
14823075固定板PLATE Retaining1
15823077电源线束总成HARNESS ASSEMBLY Power1
16823078A1盖总成COVER ASSEMBLY1
17823080A1加注塞FILL PLUG1
18823082壳体总成HOUSING ASSEMBLY1
1979953螺钉(0.375-16x0.250)SCREW (.375-16 x .250)1
2019183纤维垫圈WASHER Fiber1
21823087接头FITTING1
22823069高压短管SHORT HIGH PRESSURE LINE1
23823073高压长管LONG HIGH PRESSURE LINE1
24811524低压短管SHORT LOW PRESSURE LINE1
25811525低压长管LONG LOW PRESSURE LINE1
图 115齿轮箱（推进轴）（XR6/MAG III - 1.78:1 速比） GEAR HSG (PROP SHAFT)(XR6/MAG III - 1.78:1 RATIO)
齿轮箱（推进轴）（XR6/MAG III - 1.78:1 速比） GEAR HSG (PROP SHAFT)(XR6/MAG III - 1.78:1 RATIO)
REF零件编号中文名称英文名称数量
1814247A1齿轮箱总成 基础型-黑色GEAR HOUSING ASSEMBLY Basic - Black1
1814247A2齿轮箱总成 基础型-灰色GEAR HOUSING ASSEMBLY Basic - Gray1
1814247T2ORD 1674-814247T1ORD 1674-814247T11
4476039换挡凸轮控制CAM Shift Control1
44760394换挡凸轮控制CAM Shift Control1
4512239A1凸轮从动件套件FOLLOWER KIT Cam1
45850315A1凸轮从动件套件FOLLOWER KIT Cam1
4630622弹簧SPRING1
4744491A1垫片组SHIM SETAR
478M0063266垫片组SHIM SETAR
4830894A1圆锥轴承组BEARING SET Cup And Cone1
4916279A2前进齿轮总成GEAR ASSEMBLY Forward1
5030895滚针轴承BEARING Needle1
5030895T滚针轴承BEARING Needle1
51822539离合器CLUTCH1
51822539T离合器CLUTCH1
5230632十字销PIN Cross1
528M0100263十字销PIN Cross1
5330893弹簧SPRING1
5412238T螺旋桨轴PROPELLER SHAFT1
55N.S.S.倒车齿轮(不单独销售)(属于43-16279A2部件)Not Sold Separate Reverse Gear (PART OF 43-16279A2)1
5676358止推垫片THRUST WASHER1
5729976O型圈O-RING1
5841529A2轴承座总成CARRIER ASSEMBLY Bearing1
5841529T2托架总成CARRIER ASSY1
5998727润滑脂接头FITTING Grease2
598M0169588润滑脂接头FITTING Grease2
6030956滚针轴承BEARING Needle1
6030956T滚针轴承BEARING Needle1
6176868密封件SEAL2
618M0248882油封@5SEAL-OIL @52
6230281键KEY1
6352700锁紧垫圈TAB WASHER1
6452699盖板COVER1
6567891填充块FILLER BLOCK1
658M0039169填充块FILLER BLOCK1
6665210螺钉(.375-16 x 1.00)SCREW (.375-16 x 1.00)1
68816629锁紧垫圈TAB WASHER1
68816629Q锁紧垫圈TAB WASHER1
6952707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
6952707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
70316404平衡鳍板TRIM TAB1
7031640Q4平衡鳍板TRIM TAB1
71806327螺钉(.437-14 x 1.750)SCREW (.437-14 x 1.750)1
718M0204686螺钉SCREW1
7245176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel2
7334933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
738M0204653螺母NUT2
7413191A1止推垫片THRUST WASHER1
7413191Q01止推垫片THRUST WASHER1
-815791A92发动机垫片组GASKET SET Engine1
-89238A2密封套件SEAL KIT1
图 116动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing
动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing
REF零件编号中文名称英文名称数量
-8M0168222动力升降总成POWER TRIM ASSEMBLY1
18M0142591电机套件MOTOR KIT1
282494830螺钉 (M6 x 30)SCREW (M6 x 30)2
3400256锁紧垫圈 (M6)LOCKWASHER (M6)2
48M0090403驱动联轴器COUPLING Drive1
58M0142996压力检查套件PO CHECK KIT1
68M0060141手动释放套件MANUAL RELEASE KIT1
78M0142997倾斜轴套件TILT SHAFT KIT1
8878267销PIN1
98M0142998倾斜油缸总成TILT CYLINDER ASSEMBLY1
98M0168220倾斜油缸总成TILT CYLINDER ASSEMBLY1
108M0142999倾斜油缸O型圈套件O RING KIT TILT CYLINDER1
118M0143000记忆活塞套件MEMORY PISTON KIT1
128M0142592升降杆套件 左舷TRIM ROD KIT Port1
138M0143001活塞总成PISTON ASSEMBLY1
148M0143003端盖总成END CAP ASSEMBLY1
15878264A1储液罐套件RESERVOIR KIT1
16811613塞子总成PLUG ASSEMBLY1
174000327螺钉 (M6 x 14)SCREW (M6 x 14)4
184002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)4
198M0143004泵套件PUMP KIT1
208M0148385动力升降倾斜装置维修包REPAIR KIT Power Trim1
21858771螺钉 (M10 x 30)SCREW (M10 x 30)6
224002319垫圈WASHER6
238M0094889销PIN1
238M0161312连杆销眼总成PIN ROD EYE ASSEMBLY1
248M0143005减震杆套件SHOCK ROD KIT1
248M0168219减震杆套件SHOCK ROD KIT1
图 117齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)
齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)
REF零件编号中文名称英文名称数量
-9148A18齿轮箱总成 标准旋转2:1速比(长型)(黑色)GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (LONG) (BLACK)1
-9148A19齿轮箱总成 标准旋转2:1速比(加长型)(黑色)GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (X-LONG) (BLACK)1
-9148T82齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A20齿轮箱总成 标准旋转2:1速比(长型)(灰色)GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (LONG) (GRAY)1
-9148T87ORD 1647-9148T81ORD 1647-9148T811
-9148A21齿轮箱总成 标准旋转2:1速比(加长型)(灰色)GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (X-LONG) (GRAY)1
-9148T88ORD 1647-9148T82ORD 1647-9148T821
-9148A36齿轮箱总成（长型）（OYSTER）GEAR HOUSING ASSEMBLY (LONG) (OYSTER)1
-9148T87ORD 1647-9148T81ORD 1647-9148T811
-9148A25齿轮箱总成（加长型）（OYSTER）GEAR HOUSING ASSEMBLY (X-LONG) (OYSTER)1
-9148T88ORD 1647-9148T82ORD 1647-9148T821
19148A11齿轮箱总成(黑色-基础款)GEAR HOUSING ASSEMBLY (BLACK-BASIC)1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
19148A12齿轮箱总成(灰色-基础款)GEAR HOUSING ASSEMBLY (GRAY-BASIC)1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
19148A24齿轮箱总成（OYSTER-基础型）GEAR HOUSING ASSEMBLY (OYSTER-BASIC)1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
285822A1CONNECTOR ASSEMBLY SPEEDOMETER1
285822A10连接器总成CONNECTOR ASSEMBLY1
320033定位销 齿轮箱定位PIN Dowel GEAR HOUSING LOCATING2
343044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
478638双头螺栓(.438 x 3.12)齿轮箱(长型)STUD (.438 x 3.12) GEAR HOUSING (LONG)1
4786382螺柱(.437-14/.437-20 x 3.120)STUD (.437-14/.437-20 x 3.120)1
478639齿轮箱螺柱(9英寸-加长型)STUD GEAR HOUSING (9") - (EXTRA LONG)1
557920齿轮箱螺柱(0.44×2.06)(长型)STUD (.44 x 2.06) GEAR HOUSING (LONG)2
58M0133358双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
574730齿轮箱螺柱(7-1/16英寸-加长型)STUD GEAR HOUSING (7-1/16") - (EXTRA LONG)2
656297双头螺栓(.312 x 3.38)水泵STUD (.312 x 3.38) WATER PUMP1
68M0034463螺柱(.312-24 x 3.38)STUD (.312-24 x 3.38)1
730667双头螺栓(.250-20/.250-28 x 3.125)水泵STUD (.250-20/.250-28 x 3.125) WATER PUMP2
7306671螺柱STUD2
842647A1轴承总成 滚柱 驱动轴BEARING ASSEMBLY Roller DRIVE SHAFT1
943998润滑套筒SLEEVE LUBRICATION1
1144000驱动轴(长型)DRIVESHAFT (LONG)1
11897624T长驱动轴DRIVESHAFT Long1
1144209传动轴(加长型)DRIVESHAFT (EXTRA LONG)1
11897625T加长驱动轴DRIVESHAFT X-Long1
12N.S.S.不单独出售小齿轮(43-44102A2部件)Not Sold Separate Pinion Gear (PART OF 43-44102A2)1
1392721垫圈(.965 x .630)小齿轮WASHER (.965 x .630) PINION GEAR1
1435921螺母(.625-18)小齿轮至驱动轴NUT (.625-18) PINION GEAR TO DRIVE SHAFT1
1542637A1滚柱轴承至齿轮箱垫片组SHIM SET ROLLER BEARING TO GEAR HOUSINGAR
158M0063267垫片组SHIM SETAR
1636387A1轴承总成 滚柱/杯形 驱动轴BEARING ASSEMBLY Roller/Cup DRIVE SHAFT1
168M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
1742633驱动轴轴承螺母NUT DRIVE SHAFT BEARING1
178245191固定座RETAINER1
1842579A3水泵底座总成BASE ASSEMBLY Water Pump1
188M0077147带水泵底座总成BASE ASSY-W/P1
1942631水泵至齿轮箱衬垫GASKET WATER PUMP TO GEAR HSG1
198M0204678衬垫GASKET1
2090011O型圈(2.175×0.175)水泵O-RING (2.175 x .175) WATER PUMP1
208M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
2038099O型圈水泵(内径2.109)O-RING WATER PUMP (2.109 I.D.)1
2189238水泵油封SEAL Oil WATER PUMP1
2216977水泵油封SEAL Oil WATER PUMP1
2385608水泵下衬垫GASKET LOWER - WATER PUMP1
238M0090319衬垫@5GASKET @51
2485609水泵上衬垫GASKET UPPER - WATER PUMP1
24858524衬垫GASKET1
2532435水泵端面板FACE PLATE FACE - WATER PUMP1
258M0204677面板PLATE-FACE1
2696148A1水泵壳体总成BODY ASSEMBLY Water Pump1
2696148T1水泵壳体总成BODY ASSEMBLY Water Pump1
2748752水泵体嵌件INSERT WATER PUMP BODY1
2748752T嵌件INSERT1
2838970橡胶密封圈-进水管SEAL RUBBER - WATER INLET TUBE1
2989984水泵叶轮IMPELLER WATER PUMP1
2989984T4叶轮IMPELLER1
3056654叶轮驱动键KEY IMPELLER DRIVE1
308M0214992键@5KEY @51
3196411螺钉(#14-8×2.25)水泵SCREW (#14-8 x 2.25) WATER PUMP1
318M0215009螺钉SCREW1
3229245垫圈(0.281×0.500×0.060)不锈钢水泵螺钉与螺柱WASHER (.281 x .500 x .060) Stainless Steel WATER PUMP SCREW AND STUD2
328M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
3313438螺母(0.250-28)水泵螺柱NUT (.250-28) WATER PUMP STUD2
338267119螺母(.250-28)NUT (.250-28)2
3436001水泵螺柱垫圈WASHER WATER PUMP STUD1
3513436水泵螺柱螺母NUT WATER PUMP STUD1
3630271橡胶环(驱动轴)RING Rubber RUBBER (DRIVE SHAFT)1
368M0214918环@5RING @51
3729804进水管导向套SLEEVE GUIDE - WATER INLET TUBE1
3729804T套筒SLEEVE1
3878902换挡轴-下部SHAFT SHIFT - LOWER1
38789022换档轴SHIFT SHAFT1
3929641E型挡圈-换挡轴E RING RETAINING - SHIFT SHAFT1
4078907挡圈RING Retaining1
4125439O-RING (.862 x .103) SHIFT SHAFT BUSHING1
4277631A2换挡轴衬套总成BUSHING ASSEMBLY SHIFT SHAFT1
4376384换挡轴衬套油封SEAL Oil SHIFT SHAFT BUSHING1
438M0246145油封OIL SEAL1
4477674WASHER (.35 x .75 x .12) RUBBER - SHIFT SHAFT BUSHING1
4579953SCREW (.375-16 x .250) GREASE FILLER1
4579953Q04放油螺钉套件SCREW KIT Drain1
4667892SCREW Magnetic DRAIN1
468M0058389放油螺钉套件SCREW KIT Drain1
4720260润滑脂加注与排放螺钉垫圈WASHER GREASE FILLER AND DRAIN SCREW2
478M0187157蓝色密封件@15SEAL-BLUE @152
-42579A4水泵修理包REBUILD KIT Water Pump
-96148A8水泵维修套件WATER PUMP REPAIR KIT
-89238A2密封套件SEAL KIT
-90484A88衬垫套件GASKET SET
图 118动力升降泵(Eaton矩形电机) Power Trim Pump (Eaton Rectangular Motor)
动力升降泵(Eaton矩形电机) Power Trim Pump (Eaton Rectangular Motor)
REF零件编号中文名称英文名称数量
-99186T泵与电机总成PUMP AND MOTOR1
112659机架与磁场套件FRAME AND FIELD KIT1
1991861动力升降泵总成PUMP ASSEMBLY Power Trim1
212665电刷弹簧套件SPRING KIT Brush1
313506电刷卡套件BRUSH CARD KIT1
3991861动力升降泵总成PUMP ASSEMBLY Power Trim1
412662泵与端架套件PUMP AND END FRAME KIT1
4991861动力升降泵总成PUMP ASSEMBLY Power Trim1
512663泵密封套件SEAL KIT Pump1
5126631泵密封套件SEAL KIT Pump1
612660端架套件END FRAME KIT1
6991861动力升降泵总成PUMP ASSEMBLY Power Trim1
712661电枢套件ARMATURE KIT1
7991861动力升降泵总成PUMP ASSEMBLY Power Trim1
812664贯穿螺栓套件THRU BOLT KIT1
图 119旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM
旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM
REF零件编号中文名称英文名称数量
1818904T1旋转支架SWIVEL BRACKET1
287735下油封SEAL Oil Lower1
3818764衬套BUSHING2
433504O型圈O-RING1
48M0214926O型圈 @10O RING @101
5816039隔套SPACER1
674036润滑脂接头FITTING Grease2
68M0169589润滑脂接头FITTING Grease2
7821207衬套BUSHING2
864014螺钉(.250-28x.500)SCREW (.250-28 x .500)2
999661A26旋转销总成SWIVEL PIN ASSEMBLY1
999661A35旋转销总成SWIVEL PIN ASSEMBLY1
1092876A10连杆总成LINK ROD ASSEMBLY1
1092876A12连杆总成LINK ROD ASSEMBLY1
11849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)1
12826709113不锈钢螺母 (.375-24)NUT (.375-24) Stainless Steel2
128M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass2
1337828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel2
1442961A1底部轭架总成YOKE ASSEMBLY Bottom1
1442961A06底部轭架总成YOKE ASSEMBLY Bottom1
1567684挡圈RING Retaining1
16816432止推垫片THRUST WASHER1
17NSS不单独销售 贴纸, 序列号覆膜NOT SOLD SEPARATE Decal, Serial Overlaminate1
1811288下轭缓冲垫BUMPER Bottom Yoke1
1811288001下轭缓冲垫BUMPER Bottom Yoke1
1988882上轭缓冲垫BUMPER Top Yoke1
图 120线束/启动电磁阀 WIRING HARNESS/STARTER SOLENOID
线束/启动电磁阀 WIRING HARNESS/STARTER SOLENOID
REF零件编号中文名称英文名称数量
143429点火板PLATE IGNITION1
27778A9开关盒总成SWITCHBOX ASSEMBLY2
27778A12开关盒总成SWITCHBOX ASSEMBLY2
313669开关盒至点火板螺钉(#12-24 x 2.00)SCREW (#12-24 x 2.00) SWITCH BOX TO IGNITION PLATE2
494453开关盒螺钉衬套BUSHING SWITCH BOX SCREW2
562310A2开关盒间电缆总成CABLE ASSEMBLY SWITCH BOX TO SWITCH BOX1
645076螺母(#10-32)黄铜开关盒端子NUT (#10-32) Brass SWITCH BOX TERMINAL20
760871A10线束总成-开关盒WIRE ASSEMBLY SWITCH BOX2
862568螺丝(#10-16 x 0.375)导线固定SCREW (#10-16 x .375) WIRE ATTACHING3
965999A3线缆总成(黑色)CABLE ASSEMBLY Black1
1069092点火板螺钉(1.25)SCREW (1.25) IGNITION PLATE3
1060411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)3
1126993锁紧垫圈(.312)点火板螺钉LOCKWASHER (.312) IGNITION PLATE SCREW3
118M0204647锁紧垫圈 (.312)LOCKWASHER (.312)3
1236042垫圈 点火板螺钉WASHER IGNITION PLATE SCREW6
1367264橡胶垫圈 点火板螺钉WASHER (Rubber) IGNITION PLATE SCREW6
1467268衬套 点火板螺钉BUSHING IGNITION PLATE SCREW3
1533386A3开关总成SWITCH ASSEMLBY1
1638055螺钉(0.190-32x0.620)SCREW (.190-32 x .620)1
1745076螺母 (#10-32) 黄铜水银开关端子NUT (#10-32) Brass MERCURY SWITCH TERMINAL1
1887926螺钉(#10-32 x .500)导线固定SCREW (#10-32 x .500) LEAD ATTACHING1
1988439A3电缆总成 正极-蓄电池 MERCURY/MARINERCABLE ASSEMBLY Positive - Battery MERCURY/MARINER1
1988439A2电缆总成 蓄电池-负极 MERCURY/MARINERCABLE ASSEMBLY Battery - Negative NEGATIVE - MERCURY/MARINER1
2096220A12发动机线束总成HARNESS ASSEMBLY ENGINE1
2179091保险丝20安培FUSE 20 Ampere1
218M0207796保险丝20安培FUSE 20 AMP1
2295084A2电缆总成-保险丝CABLE ASSEMBLY FUSE1
23134731保险丝座HOLDER Fuse1
2490077线束扎带TIE STRAP HARNESS AND CABLESAR
24816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
2515857启动电磁阀SOLENOID Starter1
25853654A1电磁阀SOLENOID1
2645076螺母(#10-32)黄铜 电磁阀端子NUT (#10-32) Brass SOLENOID TERMINALS2
2753166锁紧垫圈（.312）电磁阀端子LOCKWASHER (.312) SOLENOID TERMINALS2
2868292螺母（.312-18）电磁阀端子NUT (.312-18) SOLENOID TERMINALS2
288M0204668螺母(.312-18)NUT (.312-18)2
2931716螺钉(.250-20 x .620)电磁阀至点火板SCREW (.250-20 x .620) SOLENOID TO IGNITION PLATE2
3026992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel2
3165999A2电缆总成 黑色 上部安装CABLE ASSEMBLY Black UPPER MOUNT1
3278866电磁阀绝缘体INSULATOR SOLENOID1
3347483J型卡扣J CLIP2
图 121转向连接套件 STEERING ATTACHING KIT
转向连接套件 STEERING ATTACHING KIT
REF零件编号中文名称英文名称数量
-92876A8转向安装套件ATTACHING KIT Steering1
141055A1支架总成BRACKET ASSEMBLY1
2715651转向拉索套管TUBE Steering Cable1
348462O型圈 (.614 x .070)O-RING (.614 x .070)1
4821203锁紧垫圈LOCKWASHER2
537984螺母 (.875-14)NUT (.875-14)2
58M0041651螺母 (.875-14)NUT (.875-14)2
638601螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250)4
778968内锁紧垫圈 (.250)LOCKWASHER Internal (.250)4
8850791T联轴器COUPLER1
973732螺钉 (.375-24 x 1.120)SCREW (.375-24 x 1.120)2
1037828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel2
11826709113不锈钢螺母 (.375-24)NUT (.375-24) Stainless Steel3
118M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass3
图 122齿轮箱(驱动-标准/反旋转) GEAR HOUSING (DRIVE-STANDARD/COUNTER ROTATION)
齿轮箱(驱动-标准/反旋转) GEAR HOUSING (DRIVE-STANDARD/COUNTER ROTATION)
REF零件编号中文名称英文名称数量
-9148A8齿轮箱总成 标准旋转 1.87:1 齿轮比GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio1
-9148A9齿轮箱总成 标准旋转 1.87:1 齿轮比GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio1
-9148T85齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A10齿轮箱总成 标准旋转 1.87:1 齿轮比GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio1
-9148T84齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A13齿轮箱总成 标准旋转 1.87:1 齿轮比GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio1
-9148T91ORD 1647-9148T85ORD 1647-9148T851
-9148A30齿轮箱总成 反向旋转GEAR HOUSING ASSEMBLY Counter Rotation1
-9148T86齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A31齿轮箱总成 反向旋转GEAR HOUSING ASSEMBLY Counter Rotation1
-9148T92ORD 1647-9148T86ORD 1647-9148T861
19148A11齿轮箱总成GEAR HOUSING ASSEMBLY1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
19148A12齿轮箱总成GEAR HOUSING ASSEMBLY1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
285822A1CONNECTOR ASSEMBLY SPEEDOMETER1
285822A10连接器总成CONNECTOR ASSEMBLY1
320033定位销 齿轮箱定位PIN Dowel GEAR HOUSING LOCATING2
343044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
478638齿轮箱螺柱(0.438×3.12)STUD (.438 x 3.12) GEAR HOUSING1
4786382螺柱(.437-14/.437-20 x 3.120)STUD (.437-14/.437-20 x 3.120)1
418978齿轮箱螺柱(0.438×3.69)STUD (.438 x 3.69) GEAR HOUSING1
48M0034464螺柱STUD1
557920齿轮箱螺柱(0.44×2.06)STUD (.44 x 2.06) GER HOUSING2
58M0133358双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
656297双头螺栓(.312 x 3.38)水泵STUD (.312 x 3.38) WATER PUMP1
68M0034463螺柱(.312-24 x 3.38)STUD (.312-24 x 3.38)1
730667双头螺栓(.250-20/.250-28 x 3.125)水泵STUD (.250-20/.250-28 x 3.125) WATER PUMP2
7306671螺柱STUD2
842647A1传动轴滚柱轴承总成BEARING ASSEMBLY Roller DRIVESHAFT1
943998润滑套筒SLEEVE LUBRICATION1
1144000驱动轴DRIVESHAFT1
11897624T长驱动轴DRIVESHAFT Long1
1144209驱动轴DRIVESHAFT1
11897625T加长驱动轴DRIVESHAFT X-Long1
12N.S.S.不单独出售小齿轮(43-44104A2或43-18475A1部件)Not Sold Separate Pinion Gear-Part of 43-44104A2 or 43-18475A11
1392721垫圈(.965 x .630)小齿轮WASHER (.965 x .630) PINION GEAR1
1435921小齿轮至传动轴螺母(0.625-18)NUT (.625-18) PINION GEAR TO DRIVESHAFT1
1542637A1垫片组SHIM SETAR
158M0063267垫片组SHIM SETAR
1636387A1传动轴滚柱/杯形轴承总成BEARING ASSEMBLY Roller/Cup DRIVESHAFT1
168M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
1742633传动轴轴承螺母NUT DRIVESHAFT BEARING1
178245191固定座RETAINER1
1842579A3水泵底座总成BASE ASSEMBLY Water Pump1
188M0077147带水泵底座总成BASE ASSY-W/P1
19426311水泵至齿轮箱衬垫GASKET WATER PUMP TO GEAR HSG1
198M0204678衬垫GASKET1
2090011O型圈(2.175×0.175)水泵O-RING (2.175 x .175) WATER PUMP1
208M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
2038099O型圈水泵(内径2.109)O-RING WATER PUMP (2.109 I.D.)1
2189238水泵油封SEAL Oil WATER PUMP1
2216977水泵油封SEAL Oil WATER PUMP1
23856081水泵下衬垫GASKET LOWER - WATER PUMP1
238M0090319衬垫@5GASKET @51
24856091水泵上衬垫GASKET UPPER - WATER PUMP1
24858524衬垫GASKET1
2532435水泵面板FACE PLATE WATER PUMP1
258M0204677面板PLATE-FACE1
2696148A1水泵壳体总成BODY ASSEMBLY Water Pump1
2696148T1水泵壳体总成BODY ASSEMBLY Water Pump1
2748752水泵体嵌件INSERT WATER PUMP BODY1
2748752T嵌件INSERT1
2838970橡胶密封圈-进水管SEAL RUBBER - WATER INLET TUBE1
2989984水泵叶轮IMPELLER WATER PUMP1
2989984T4叶轮IMPELLER1
3056654叶轮驱动键KEY IMPELLER DRIVE1
308M0214992键@5KEY @51
3196411螺钉(#14-8×2.25)水泵SCREW (#14-8 x 2.25) WATER PUMP1
318M0215009螺钉SCREW1
3229245垫圈(0.281×0.500×0.060)不锈钢水泵螺钉与螺柱WASHER (.281 x .500 x .060) Stainless Steel WATER PUMP SCREW AND STUD2
328M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
3313438螺母(0.250-28)水泵螺柱NUT (.250-28) WATER PUMP STUD2
338267119螺母(.250-28)NUT (.250-28)2
3436001水泵螺柱垫圈WASHER WATER PUMP STUD1
3513436水泵螺柱螺母NUT WATER PUMP STUD1
3630271传动轴橡胶环RING Rubber DRIVESHAFT1
368M0214918环@5RING @51
3729804进水管导向套SLEEVE GUIDE - WATER INLET TUBE1
3729804T套筒SLEEVE1
3878902换挡轴-下部SHAFT SHIFT - LOWER1
38789022换档轴SHIFT SHAFT1
3929641换挡轴E型挡圈E RING RETIANING - SHIFT SHAFT1
4078907挡圈RING Retaining1
4125439O-RING (.862 x .103) SHIFT SHAFT BUSHING1
4277631A2换挡轴衬套总成BUSHING ASSEMBLY SHIFT SHAFT1
4376384换挡轴衬套油封SEAL Oil SHIFT SHAFT BUSHING1
438M0246145油封OIL SEAL1
4477674WASHER (.35 x .75 x .12) RUBBER - SHIFT SHAFT BUSHING1
4579953SCREW (.375-16 x .250) GREASE FILLER1
4579953Q04放油螺钉套件SCREW KIT Drain1
4667892SCREW Magnetic DRAIN1
468M0058389放油螺钉套件SCREW KIT Drain1
4719183纤维垫圈-润滑脂加注与排放螺钉WASHER Fiber GREASE FILLER AND DRAIN SCREW2
478M0187157蓝色密封件@15SEAL-BLUE @152
-42579A4水泵修理包REBUILD KIT Water Pump1
-96148A8水泵维修套件WATER PUMP REPAIR KIT1
-89238A2密封套件SEAL KIT1
-11338A88发动机大修垫片套装GASKET SET Engine Overhaul1
图 123维修/支撑材料 Service/Support Material
维修/支撑材料 Service/Support Material
REF零件编号中文名称英文名称数量
088183801零件手册-115EFI(四冲程)PARTS MANUAL 115 EFI (4-Stroke) Parts Manual1
0881980维修手册SERVICE MANUAL1
0881980R03SM O/B 115 EFI 4SSM O/B 115 EFI 4S1
010225030用户手册OWNERS MANUAL1
0858610A31燃油软管总成HOSE ASSEMBLY Fuel1
08M0038610带注油球的燃油软管总成(9英尺)HOSE ASSEMBLY Fuel (9 Feet) With Primer Bulb1
0880177组合扳手工具(10毫米)SCRENCH TOOL (10 mm)1
0881828星形头工具套件STARBIT TOOL KIT1
0881649A01贴花套件DECAL SET1
0881649A05贴花套件DECAL SET1
0881840A01贴花套件DECAL SET1
0881840A03贴花套件DECAL SET1
0881840A03贴花套件DECAL SET1
0881840A05贴花套件DECAL SET1
0881650A01贴花套件DECAL SET1
0881650A03贴花套件DECAL SET1
0881650A03贴花套件DECAL SET1
0881702A01贴花套件DECAL SET1
0881839A01EPA标签信息贴花DECAL EPA Label Information1
0881839A02EPA标签信息贴花Decal EPA Label Information1
0881839A03EPA标签信息贴花DECAL EPA Label Information1
0816834A1转速表TACHOMETER1
0816932A1温度表TEMPERATURE GAUGE1
086306适配器ADAPTER1
086306A01适配器ADAPTER1
0817054A3水压表总成GAUGE ASSEMBLY Water Pressure1
0821400A2动力升降倾斜传感器套件SENDER KIT Power Trim1
08M0074845ORD 8M0098264ORD 8M00982641
092876A8转向安装套件ATTACHING KIT Steering1
092876A9双机延长套件EXTENSION KIT Dual Engine1
0883040A1转速表模块套件TACH MODULE KIT1
图 124泄放系统 Bleed System
泄放系统 Bleed System
REF零件编号中文名称英文名称数量
199130122泄放管(20.00英尺散装)TUBING (20.00 Feet Bulk) BLEED1
259169接头FITTING4
259169003三通接头FITTING Tee4
342698止回阀 (压入式 - 13/16"长)CHECK VALVE (PRESS-IN - 13/16" LONG)7
3426982止回阀CHECK VALVE7
442623止回阀 (压入式 - 11/16"长)CHECK VALVE (PRESS-IN - 11/16" LONG)1
4426233止回阀CHECK VALVE1
515133压入式接头FITTING (PRESS-IN)6
656759压入式倒钩接头FITTING Barbed (PRESS-IN)4
715026黄色弯头盖CAP ELBOW (YELLOW)4
818205三通TEE1
99912688管材 (36.00英寸散装)TUBING (36.00 Inches Bulk)1
1018206滤清器FILTER1
108M0207786滤清器FILTER1
图 125化油器（WMH-12A/12B/13/13B/14A/15/16） CARBURETOR (WMH - 12A/12B/13/13B/14A/15/16)
化油器（WMH-12A/12B/13/13B/14A/15/16） CARBURETOR (WMH - 12A/12B/13/13B/14A/15/16)
REF零件编号中文名称英文名称数量
19672A50化油器 上部CARBURETOR Top1
19672A51化油器 中部CARBURETOR Center1
19672A52化油器 下部CARBURETOR Bottom1
19672A35化油器 上部CARBURETOR Top1
19672A36化油器 中部CARBURETOR Center1
19672A37化油器 下部CARBURETOR Bottom1
1813682A13化油器 上部CARBURETOR Top1
1813682A14化油器 中部CARBURETOR Center1
1813682A15化油器 下部CARBURETOR Bottom1
19672A41化油器 上部CARBURETOR Top1
19672A42化油器 中部CARBURETOR Center1
19672A43化油器 下部CARBURETOR Bottom1
19672A44化油器 上部CARBURETOR Top1
19672A45化油器 中部CARBURETOR Center1
19672A46化油器 下部CARBURETOR Bottom1
2810779盖帽CAP6
3NSS不单独销售 怠速混合螺钉/弹簧NOT SOLD SEPARATE Idle Mixture Screw/Spring6
4811803堵头固定件PLUG Retainer3
5677511衬垫GASKET3
6815633048量孔(.048)JET (.048)3
6815633070喷口(.070-175)JET (.070 - 175)3
6815633050喷口(.050)(XR6/MAGNUM III/200)JET (.050) (XR6/MAGNUM III/200)3
7810721节气门杆 (上部/中部)LEVER Throttle (TOP/CENTER)2
7810722节气门杆 (下部)LEVER Throttle (BOTTOM)1
8811284隔套SPACER3
9810745垫圈WASHER3
10810744螺母NUT3
11NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring3
126249主喷口(.096)JET Main (.096)3
125815喷口(.086)JET (.086)3
126201量孔(.080)JET (.080)3
126247主量孔(0.090)JET Main (.090)3
136246量孔(.048)JET (.048)3
135317量孔(.046)JET (.046)3
136359量孔(.052)JET (.052)3
14NSSNOT SOLD SEPARATE Gasket-Fuel Bowl3
15810738浮子总成FLOAT ASSEMBLY3
16NSSNOT SOLD SEPARATE Float Shaft3
17NSS不单独销售 浮子螺钉NOT SOLD SEPARATE Screw-Float3
18811690阀座套件VALVE SEAT KIT3
19NSS垫片(不单独销售)NOT SOLD SEPARATE Gasket3
20811687燃油杯(顶部)BOWL Fuel (TOP)1
20811688燃油杯(中部/底部)BOWL Fuel (CENTER/BOTTOM)2
219596堵头PLUG12
22NSS不单独销售 动力/渐进喷口垫片NOT SOLD SEPARATE Gasket-Power/Progression Jet12
235225主量孔(.054)JET Main (.054)6
234217主量孔(.062)JET Main (.062)6
234216量孔(.064)JET (.064)6
234215燃油主量孔(.066)JET Main Fuel (.066)6
24811689动力喷口POWER JET6
24811807动力喷口POWER JET6
24811925动力喷口POWER JET6
25NSS不单独销售 燃油杯螺钉NOT SOLD SEPARATE Screw-Fuel Bowl15
267900三通接头(顶部/中部)TEE FITTING (TOP/CENTER)2
277901弯头(底部)ELBOW (BOTTOM)1
-8107492化油器垫片套件GASKET KIT Carburetor1
-811691化油器维修套件REPAIR KIT Carburetor1
-815791A92发动机垫片组GASKET SET Engine1
图 126飞轮/启动马达 FLYWHEEL/STARTER MOTOR
飞轮/启动马达 FLYWHEEL/STARTER MOTOR
REF零件编号中文名称英文名称数量
118896A1飞轮盖套件COVER KIT FLYWHEEL1
279022正时标记MARKER TIMING1
337572螺钉(0.190-32x0.380)正时标记SCREW (.190-32 x .380) TIMING MARKER2
472761垫圈(0.203x0.562x0.060)不锈钢正时标记螺钉WASHER (.203 x .562 x .060) Stainless Steel TIMING MARKER SCREW2
589219飞轮盖塞PLUG FLYWHEEL COVER1
589219001堵头PLUG1
645907飞轮黄色塞PLUG Yellow FLYWHEEL1
752901螺母(.625-18)飞轮NUT (.625-18) FLYWHEEL1
868229垫圈(0.641x1.250x0.190)飞轮WASHER (.641 x 1.250 x .190) FLYWHEEL1
833001垫圈WASHER1
99841A7飞轮FLYWHEEL1
9859238T16飞轮总成FLYWHEEL ASY1
1032417螺钉(.250-28 x .625)飞轮板SCREW (.250-28 x .625) FLYWHEEL PLATE8
1168997螺钉(.312-24 x .750)飞轮毂SCREW (.312-24 x .750) FLYWHEEL HUB8
129610A5定子STATOR1
1390045螺钉(#10-32 x 1.375)定子SCREW (#10-32 x 1.375) STATOR4
1426996锁紧垫圈(#10)不锈钢定子螺钉LOCKWASHER (#10) Stainless Steel STATOR SCREW4
1596455A9触发板总成PLATE ASSEMBLY Trigger1
1693388A1电缆总成(6.00英寸)黑色板至启动马达CABLE ASSEMBLY (6.00 Inches) Black PLATE TO STARTER MOTOR1
1779472启动电机总成STARTER MOTOR ASSEMBLY1
17893893启动马达STARTER MOTOR1
1856703启动电机轴环COLLAR STARTER MOTOR2
188M0034918轴环COLLAR2
1968042启动马达橡胶止动块STOP Rubber RUBBER-STARTER MOTOR2
198M0043376停机开关STOP2
2026992锁紧垫圈(.250) 不锈钢 起动机接线端LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL1
2120890螺母(.250-20) 起动机接线端NUT (.250-20) STARTER MOTOR TERMINAL1
2293388A2电磁阀至启动电机黑色电缆总成CABLE ASSEMBLY Black SOLENOID TO STARTER MOTOR1
2293388A14线缆总成(黄/黑)CABLE ASSEMBLY Yellow/Black1
2369035螺钉和锁紧垫圈 (.250-20 x .625) 不锈钢 电缆至启动马达SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel CABLE TO STARTER MOTOR1
图 127齿轮箱(螺旋桨轴)(反转) GEAR HOUSING (PROPELLER SHAFT) (COUNTER ROTATION)
齿轮箱(螺旋桨轴)(反转) GEAR HOUSING (PROPELLER SHAFT) (COUNTER ROTATION)
REF零件编号中文名称英文名称数量
-9148A30齿轮箱总成 反向旋转GEAR HOUSING ASSEMBLY Counter Rotation1
-9148A31齿轮箱总成 反向旋转GEAR HOUSING ASSEMBLY Counter Rotation1
-9148T92ORD 1647-9148T86ORD 1647-9148T861
19148A11齿轮箱总成GEAR HOUSING ASSEMBLY1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
19148A12齿轮箱总成GEAR HOUSING ASSEMBLY1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
4778956换挡凸轮SHIFT CAM1
47789562换挡凸轮SHIFT CAM1
4889594A1凸轮从动件总成FOLLOWER ASSEMBLY CAM1
4979911离合器作动杆ROD CLUTCH ACTUATOR1
4979911A1杆ROD1
5079910压缩弹簧SPRING COMPRESSION2
5178910弹簧垫圈WASHER SPRINGAR
5278906PIN SPRING LOCATOR1
528M0084245弹簧定位销PIN Spring Locator1
5314469轴承杯CUP Bearing1
5314469T轴承杯CUP Bearing1
5488957A1滚珠轴承BEARING Ball1
5488957T滚珠轴承BEARING Ball1
55N.S.S.不单独出售 倒车齿轮(属于43-18475A1部件)Not Sold Separate REVERSE GEAR(PART OF 43-18475A1)1
5615844滚柱轴承总成BEARING ASSEMBLY Roller1
5778909棘轮定位销PIN Detent RATCHET2
5878959棘轮滑动离合器RATCHET SLIDING CLUTCH1
58823174TORD 8M0100493ORD 8M01004931
5978905十字棘轮销PIN Cross RATCHET1
598M0084243十字销PIN Cross1
6078962十字销固定弹簧SPRING RETAINING - CROSS PIN2
6118475A1前进齿轮总成GEAR ASSEMBLY Forward1
6118475T1齿轮组GEAR SET1
62176151调整垫片(.125)SPACER SHIM (.125)AR
62176152调整垫片(.127)SPACER SHIM (.127)AR
62176153调整垫片(.129)SPACER SHIM (.129)AR
62176154调整垫片(.131)SPACER SHIM (.131)AR
62176155调整垫片(.133)SPACER SHIM (.133)AR
62176156调整垫片(.135)SPACER SHIM (.135)AR
62176157调整垫片(.137)SPACER SHIM (.137)AR
62176158调整垫片(.139)SPACER SHIM (.139)AR
62176159调整垫片(.141)SPACER SHIM (.141)AR
621761510调整垫片(.143)SPACER SHIM (.143)AR
621761511调整垫片(.145)SPACER SHIM (.145)AR
621761512调整垫片(.147)SPACER SHIM (.147)AR
621761513调整垫片(.149)SPACER SHIM (.149)AR
6315841滚柱轴承BEARING Roller1
6417616推力环THRUST RING1
6531534轴承座O型圈O-RING BEARING CARRIER1
658M0214920O型圈O RING1
6618447A2轴承适配器总成ADAPTER ASSEMBLY Bearing1
6618447T2适配器总成ADAPTOR ASSEMBLY1
6715843滚柱轴承BEARING Roller1
6715843T滚针轴承BEARING Needle1
6818448止推垫片THRUST WASHER2
6915842推力轴承BEARING Thrust2
7018446螺旋桨轴PROPELLER SHAFT1
7118444A1轴承座总成CARRIER ASSEMBLY Bearing1
71818896T2轴承座BEARING CARRIER1
7230956滚针轴承-轴承座BEARING Needle BEARING CARRIER2
7230956T滚针轴承BEARING Needle2
7376868轴承座密封SEAL BEARING CARRIER2
738M0248882油封@5SEAL-OIL @52
7479447齿轮箱盖锁紧垫圈TAB WASHER GEAR HOUSING COVER1
7579448齿轮箱固定座RETAINER GEAR HOUSING1
758M2011027固定座RETAINER1
7630281KEY LOCATING - BEARING CARRIER1
7731640A1TRIM TAB ASSEMBLY GEAR HOUSING1
7731640Q4平衡鳍板TRIM TAB1
7866024SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING1
7967891填充块FILLER BLOCK1
798M0039169填充块FILLER BLOCK1
8045176不锈钢垫圈(.453 x .812 x .105) 驱动轴壳体螺柱用WASHER (.453 x .812 x .105) Stainless Steel DRIVESHAFT HOUSING STUDS2
8134933不锈钢螺母(.437-20) 驱动轴壳体螺柱用NUT (.437-20) Stainless Steel DRIVESHAFT HOUSING STUDS2
818M0204653螺母NUT2
8213171推力毂THRUST HUB1
82835467Q01止推垫片套件THRUST WASHER KIT1
8331211A2螺旋桨螺母花键垫圈WASHER Splined PROPELLER NUT1
8331211Q03垫圈总成WASHER ASSEMBLY1
8431210螺旋桨螺母锁紧垫圈TAB WASHER PROPELLER NUT1
84816629Q锁紧垫圈TAB WASHER1
8552707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
8552707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
86423511螺旋桨轴齿形锁紧垫圈LOCKWASHER Toothed PROPELLER SHAFT1
8774727螺钉(0.375-16x6.00)齿轮箱SCREW (.375-16 x 6.00) GEAR HOUSING1
-89238A2密封套件SEAL KIT1
图 128艉板支架 TRANSOM BRACKETS
艉板支架 TRANSOM BRACKETS
REF零件编号中文名称英文名称数量
18718A1艉板支架总成(右舷)(黑色)BRACKET ASSEMBLY Transom (STARBOARD) (BLACK)1
28716A1艉板支架总成(左舷)(黑色)BRACKET ASSEMBLY Transom (PORT) (BLACK)1
28716A8艉板支架总成BRACKET ASSEMBLY Transom1
18718A2艉板支架总成(右舷)(灰色)BRACKET ASSEMBLY Transom (STARBOARD) (GRAY)1
18718F8艉板支架BRACKET Transom1
28716A2艉板支架总成(左舷)(灰色)BRACKET ASSEMBLY Transom (PORT) (GRAY)1
28716A9艉板支架总成BRACKET ASSEMBLY Transom1
18718A3艉板支架总成(右舷)(牡蛎色)BRACKET ASSEMBLY Transom (STARBOARD) (OYSTER)1
18718F8艉板支架BRACKET Transom1
28716A3艉板支架总成(左舷)(牡蛎色)BRACKET ASSEMBLY Transom (PORT) (OYSTER)1
28716A9艉板支架总成BRACKET ASSEMBLY Transom1
398727润滑配件左舷艉板支架FITTING Grease PORT TRANSOM BRACKET1
38M0169588润滑脂接头FITTING Grease1
599170A1倾斜管TILT TUBE1
599170A2倾斜管套件TUBE KIT Tilt1
634862螺母(1.00-14)倾斜管NUT (1.00-14) TILT TUBE1
6859133螺母(1.00-14)NUT (1.00-14)1
745711O-RING (.612 x .103) TILT TUBE1
888750波形垫圈(1.62 x 1.05)倾斜管WASHER Wave (1.62 x 1.05) TILT TUBE2
956041螺母(.875-14)倾斜管NUT (.875-14) TILT TUBE1
9858869螺母 (.875-14)NUT (.875-14)1
10677551螺钉(.500-20 x 4.500)艉板支架至艉板SCREW (.500-20 x 4.500) TRANSOM BRACKET TO TRANSOM4
108M0149747螺钉SCREW4
1128421垫圈(1.5 x 3.05 x 0.13)不锈钢艉板支架螺栓WASHER (1.5 x 3.05 x 0.13) Stainless Steel TRANSOM BRACKET BOLT4
118M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
1124501艉板支架螺栓垫圈(上部-牡蛎色)WASHER TRANSOM BRACKET BOLT (UPPER-OYSTER)2
128M0027784艉板支架螺栓螺母NUT TRANSOM BRACKET BOLT4
1282671117螺母(.500-20)NUT (.500-20)4
1399629A2倾斜锁杆总成LEVER ASSEMBLY TILT LOCK1
138M0115104倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
1499611倾斜杆波形垫圈WAVE WASHER TILT LEVER1
1565830倾斜杆尼龙衬套NYLINER TILT LEVER2
1699633倾斜锁杆旋钮(黑色)KNOB TILT LOCK LEVER (BLACK)1
1699633T6倾斜锁杆旋钮(灰色)KNOB TILT LOCK LEVER (GRAY)1
1699633旋钮KNOB1
1699633T10倾斜锁杆旋钮(牡蛎色)KNOB TILT LOCK LEVER (OYSTER)1
1699633旋钮KNOB1
1799615槽销PIN Groove1
1899622弹簧SPRING1
1999604槽销PIN Groove1
2096930A1倾斜锁螺栓总成BOLT ASSEMBLY TILT LOCK1
2123161螺栓螺母（3/8英寸-24牙）NUT (.375-24) BOLT1
-90484A88衬垫套件GASKET SET
图 129艉板支架（序列号0G590000及以上） Transom Brackets (S/N-0G590000 & Up)
艉板支架（序列号0G590000及以上） Transom Brackets (S/N-0G590000 & Up)
REF零件编号中文名称英文名称数量
1828334T03艉板支架总成-右舷BRACKET ASSEMBLY Transom-Starboard1
2828333T08艉板支架总成-左舷BRACKET ASSEMBLY Transom-Port1
398727润滑脂加注口接头FITTING Grease Port1
38M0169588润滑脂接头FITTING Grease1
4826125A1倾斜管TILT TUBE1
5826135尼龙锁紧螺母(1.00-14)NUT Lock (1.00-14) Nylon Insert1
645711O型圈 (.612 x .103)O-RING (.612 x .103)1
788750波浪垫圈 (1.62 x 1.05)WASHER Wave (1.62 x 1.05)2
8826164螺母 (.875-14)NUT (.875-14)1
88M0231351锁紧螺母NUT Lock1
9677551螺钉(.500-20×4.500)SCREW (.500-20 x 4.500)4
98M0149747螺钉SCREW4
1028421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
108M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
118M0027784螺母NUT4
1182671117螺母(.500-20)NUT (.500-20)4
1299629A2杠杆总成LEVER ASSEMBLY1
128M0115104倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
13830899张力弹簧SPRING Tension1
1465830尼龙衬套NYLINER2
15830900压缩弹簧SPRING Compression1
1699633旋钮KNOB1
1799615槽销PIN Groove1
1899617销PIN1
18893709销PIN1
-815791A92发动机垫片组GASKET SET Engine1
图 130蓄能器 ACCUMULATOR
蓄能器 ACCUMULATOR
REF零件编号中文名称英文名称数量
-811290蓄能器ACCUMULATOR1
1823059A1端架总成(含线束)END FRAME ASSEMBLY (W/WIRES)1
2823061A1电枢总成ARMATURE ASSEMBLY1
3823062泵总成PUMP ASSEMBLY1
4823063壳体/磁铁总成SHELL/MAGNET ASSEMBLY1
5823064螺栓套件BOLT KIT1
6823065控制器CONTROLLER1
7823066螺钉套件SCREW KIT1
8823067滤清器套件FILTER KIT1
9823068橡胶减震器RUBBER DAMPER1
10823070橡胶隔振器RUBBER ISOLATOR1
11823071储液罐衬垫GASKET Reservoir1
12823072螺钉套件SCREW KIT1
13823074O型圈O-RING1
14823075固定板PLATE Retaining1
15823077电源线束总成HARNESS ASSEMBLY Power1
16823078A1盖总成COVER ASSEMBLY1
17823080A1加注塞FILL PLUG1
18823082壳体总成HOUSING ASSEMBLY1
1979953螺钉(0.375-16x0.250)SCREW (.375-16 x .250)1
2019183纤维垫圈WASHER Fiber1
21823087接头FITTING1
22823069高压短管SHORT HIGH PRESSURE LINE1
23823073高压长管LONG HIGH PRESSURE LINE1
24811524低压短管SHORT LOW PRESSURE LINE1
25811525低压长管LONG LOW PRESSURE LINE1
图 131下机罩 BOTTOM COWL
下机罩 BOTTOM COWL
REF零件编号中文名称英文名称数量
19744A2左舷底罩总成(黑色)BOTTOM COWL ASSEMBLY PORT (BLACK)1
19744A3左舷底罩总成(灰色)BOTTOM COWL ASSEMBLY PORT (GRAY)1
19744A16下罩总成BOTTOM COWL ASSEMBLY1
29745A1右舷底罩总成(黑色)BOTTOM COWL ASSEMBLY STARBOARD (BLACK)1
29745A2右舷底罩总成(灰色)BOTTOM COWL ASSEMBLY STARBOARD (GRAY)1
318701A1底罩密封套件SEAL KIT BOTTOM COWLS1
418699螺钉(.250-20 x 1.320) 罩壳(标准)SCREW (.250-20 x 1.320) COWL (STANDARD)4
518872A1盖板总成(黑色)COVER ASSEMBLY (BLACK)1
518872A2盖板总成(灰色)COVER ASSEMBLY (GRAY)1
518872A1盖总成COVER ASSEMBLY1
6813692锁紧螺母LOCKNUT2
68136921锁紧螺母LOCKNUT2
790077扎带TIE STRAPAR
7816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
818727杆ROD1
965830尼龙衬套NYLINER6
1019666衬套BUSHING1
1199611波形垫圈WAVE WASHER3
1269057垫片(.281 x .734 x .063)WASHER (.281 x .734 x .063)3
1318192螺钉(0.250-20x0.620)SCREW (.250-20 x .620)1
1419648A3左舷手柄总成(黑色)HANDLE ASSEMBLY PORT (BLACK)1
1419648A2左舷手柄总成HANDLE ASSY PORT1
1419648A4左舷手柄总成(灰色)HANDLE ASSEMBLY PORT (GRAY)1
1419648A2左舷手柄总成HANDLE ASSY PORT1
1519647A3右舷手柄总成(黑色)HANDLE ASSEMBLY STARBOARD (BLACK)1
1519647A4右舷手柄总成(灰色)HANDLE ASSEMBLY STARBOARD (GRAY)1
1519647A3手柄总成HANDLE ASSEMBLY1
1619370左舷棘爪PAWL PORT1
1719369右舷棘爪PAWL STARBOARD1
1890047螺钉SCREW2
1919749上卡箍CLAMP UPPER1
20197481下卡箍CLAMP LOWER1
2192799螺钉(#10-16x1.12)SCREW (#10-16 x 1.12)2
2216636A1配平线束总成HARNESS ASSEMBLY TRIM1
2372202螺钉(#10-32 x 1.25)SCREW (#10-32 x 1.25)2
2456681垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)2
248M0204666垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)2
2529488螺母 (#10-32)NUT (#10-32)2
258M0204718螺母NUT2
2616639A1线束总成HARNESS ASSEMBLY1
2779091保险丝20安培FUSE 20 Ampere1
278M0207796保险丝20安培FUSE 20 AMP1
2895084A2电缆总成-保险丝CABLE ASSEMBLY FUSE1
29813613示警器接头FITTING TELLTALE1
3090824示警器三通TEE TELLTALE1
3090824001三通接头TEE FITTING1
3199127109示警器管线(57.00英寸散装)LINE (57.00 Inches Bulk) TELLTALE1
318M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
328130761前手柄总成FRONT HANDLE ASSEMBLY1
328130762前手柄总成FRONT HANDLE ASSEMBLY1
33813925手柄锁HANDLE LOCK1
33813076A2手柄套件HANDLE KIT1
34813926手柄HANDLE1
34813076A2手柄套件HANDLE KIT1
358139291弹簧SPRING1
35813076A2手柄套件HANDLE KIT1
3669079螺钉 (#10-16 x .440)SCREW (#10-16 x .440)2
37813930锁止销PIN Lock1
37815296锁止销PIN Lock1
3826992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel2
-813096A1后锁扣套件REAR LATCH KIT1
图 132化油器（WMH-21/22/23/24/25/28） CARBURETOR (WMH-21/22/23/24/25/28)
化油器（WMH-21/22/23/24/25/28） CARBURETOR (WMH-21/22/23/24/25/28)
REF零件编号中文名称英文名称数量
1818650A16化油器 上部CARBURETOR Top1
1818650A17化油器 中部CARBURETOR Center1
1818650A18化油器 下部CARBURETOR Bottom1
1818650A10化油器 上部CARBURETOR Top1
1818650A11化油器 中部CARBURETOR Center1
1818650A12化油器 下部CARBURETOR Bottom1
1821684A1化油器 上部CARBURETOR Top1
1821684A2化油器 中部CARBURETOR Center1
1821684A3化油器 下部CARBURETOR Bottom1
1818650A7化油器 上部CARBURETOR Top1
1818650A8化油器 中部CARBURETOR Center1
1818650A9化油器 下部CARBURETOR Bottom1
1818650A4化油器 上部CARBURETOR Top1
1818650A5化油器 中部CARBURETOR Center1
1818650A6化油器 下部CARBURETOR Bottom1
2810779盖帽CAP6
3NSS不单独销售 怠速混合螺钉/弹簧NOT SOLD SEPARATE Idle Mixture Screw/Spring6
5677511衬垫GASKET3
6815633060量孔 (.060) (.056 - 150/135 - WMH-24)JET (.060) (.056 - 150/135 - WMH-24)6
6815633070量孔 (.070 - 135 - WMH-28)JET (.070 - 135 - WMH-28)6
67570量孔 .040 (175)JET .040 (175)6
6815633050量孔 (.050) (XR6/MAGNUMIII/200)JET (.050) (XR6/MAGNUMIII/200)6
7810721节气门杆 (上部/中部)LEVER Throttle (TOP/CENTER)2
7810722节气门杆 (下部)LEVER Throttle (BOTTOM)1
8811284隔套SPACER3
9810745垫圈WASHER3
10810744螺母NUT3
11NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring3
128423量孔 (.094) (.094 -150)JET (.094) (.094 -150)3
125815量孔 (.086) (XR6/MAGNUM III)JET (.086) (XR6/MAGNUM III)3
127335量孔 (.098) (175)JET (.098) (175)3
126247主量孔 (.090) (200/135 - WMH-24)JET Main (.090) (200/135 - WMH-24)3
136487主量孔 (.060) (135 - WMH-24)JET Main (.060) (135 - WMH-24)3
135213主量孔 (.056) (150/135 - WMH-28)JET Main (.056) (150/135 - WMH-28)3
136246量孔 (.048) (175)JET (.048) (175)3
136028量孔 (.050) (XR6/MAGNUM III)JET (.050) (XR6/MAGNUM III)3
135317量孔 (.046) (200)JET (.046) (200)3
14NSSNOT SOLD SEPARATE Gasket-Fuel Bowl3
15810738浮子总成FLOAT ASSEMBLY3
16F10064轴SHAFT3
17NSS不单独销售 浮子螺钉NOT SOLD SEPARATE Screw-Float3
18811690阀座套件VALVE SEAT KIT3
19NSS不单独销售 阀座垫片NOT SOLD SEPARATE Gasket-Valve Seat3
20823623燃油杯(顶部)BOWL Fuel (TOP)1
20823624燃油杯(中部/底部)BOWL Fuel (CENTER/BOTTOM)2
219596堵头PLUG15
22NSS不单独销售 动力/渐进喷口垫片NOT SOLD SEPARATE Gasket-Power/Progression JetAR
236487主喷口(.060)(150/135-WMH-24)JET Main (.060) (150/135 - WMH-24)6
234217主喷口(.062)(135-WMH-28)JET Main (.062) (135 - WMH-28)6
235225主喷口(.054)(XR6/MAGNUM III)JET Main (.054) (XR6/MAGNUM III)6
234216喷口(.064)(175/200)JET (.064) (175/200)6
24823629动力喷口(150/135-WMH-24)POWER JET (150/135 - WMH-24)6
24808584动力喷口(135-WMH-28)POWER JET (135 - WMH-28)6
24823625动力喷口(XR6/MAGNUM III)POWER JET (XR6/MAGNUM III)6
24823626动力喷口(175)POWER JET (175)6
24823627动力喷口(200)POWER JET (200)6
25NSS不单独销售 燃油杯螺钉NOT SOLD SEPARATE Screw-Fuel Bowl18
267900三通接头(顶部/中部)TEE FITTING (TOP/CENTER)2
277901弯头(底部)ELBOW (BOTTOM)1
-8107492化油器垫片套件GASKET KIT Carburetor1
-8116912化油器维修套件REPAIR KIT Carburetor1
-815791A92发动机垫片组GASKET SET Engine1
图 133化油器（WMH-30/31/32/33/34） CARBURETOR (WMH-30/31/32/33/34)
化油器（WMH-30/31/32/33/34） CARBURETOR (WMH-30/31/32/33/34)
REF零件编号中文名称英文名称数量
1818650A28化油器 上部CARBURETOR Top1
1818650A29化油器 中部CARBURETOR Center1
1818650A55化油器底部(30A)CARBURETOR Bottom (30A)1
1818650A31化油器 上部CARBURETOR Top1
1818650A32化油器 中部CARBURETOR Center1
1818650A56化油器底部(31A)CARBURETOR Bottom (31A)1
1818650A34化油器 上部CARBURETOR Top1
1818650A35化油器 中部CARBURETOR Center1
1818650A57化油器底部(32A)CARBURETOR Bottom (32A)1
1818650A37化油器 上部CARBURETOR Top1
1818650A38化油器 中部CARBURETOR Center1
1818650A58化油器底部(33A)CARBURETOR Bottom (33A)1
1818650A52化油器 上部CARBURETOR Top1
1818650A53化油器 中部CARBURETOR Center1
1818650A59化油器底部(34A)CARBURETOR Bottom (34A)1
2810779盖帽CAP6
3NSS不单独销售 怠速混合螺钉/弹簧NOT SOLD SEPARATE Idle Mixture Screw/Spring6
5677511衬垫GASKET3
6815633060喷口(.060)(.056-135)JET (.060) (.056 - 135)6
67570喷口.040(XR6/MAGNUM III)JET .040 (XR6/MAGNUM III)6
6815633050喷口(.050)(150/175/200)JET (.050) (150/175/200)6
7810721节气门杆 (上部/中部)LEVER Throttle (TOP/CENTER)2
7810722节流阀杆(底部-WMH系列)LEVER Throttle (BOTTOM - WMH-SERIES)1
78107221节流阀杆(底部-WMH-A系列)LEVER Throttle (BOTTOM - WMH-A SERIES)1
8811284隔套SPACER3
9810745垫圈WASHER3
10810744螺母NUT3
11NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring3
125815喷口(.086)(150)JET (.086) (150)3
126247主喷口(.090)(XR6/MAGNUM III)JET Main (.090) (XR6/MAGNUM III)3
123517喷口(.084)(135/175/200)JET (.084) (135/175/200)3
135225主喷口(.054)(135)JET Main (.054) (135)3
136359喷口(.052)(150)JET (.052) (150)3
136246量孔 (.048) (175)JET (.048) (175)3
137831燃油主喷口(.058)(XR6/MAGNUM III)JET Main Fuel (.058) (XR6/MAGNUM III)3
135317量孔 (.046) (200)JET (.046) (200)3
14NSSNOT SOLD SEPARATE Gasket-Fuel Bowl3
15810738浮子总成FLOAT ASSEMBLY3
16F10064轴SHAFT3
17NSS不单独销售 浮子螺钉NOT SOLD SEPARATE Screw-Float3
18811690阀座套件VALVE SEAT KIT3
19NSS不单独销售 阀座垫片NOT SOLD SEPARATE Gasket-Valve Seat3
20823623燃油杯(顶部)BOWL Fuel (TOP)1
20823624燃油杯(中部/底部)BOWL Fuel (CENTER/BOTTOM)2
219596堵头PLUG15
22NSS不单独销售 动力/渐进喷口垫片NOT SOLD SEPARATE Gasket-Power/Progression JetAR
234215燃油主喷口(.066)(135)JET Main Fuel (.066) (135)6
234217主喷口(.062)(150/XR6/MAGNUM III)JET Main (.062) (150/XR6/MAGNUM III)6
234216喷口(.064)(175)JET (.064) (175)6
234215燃油主喷口(.066)(200-顶部)JET Main Fuel (.066) (200 - TOP)2
234216喷口(.064)(200-中部/底部)JET (.064) (200 - CENTER/BOTTOM)4
24808584动力喷口POWER JET6
25808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)18
267900三通接头(顶部/中部)TEE FITTING (TOP/CENTER)2
277901弯头(底部)ELBOW (BOTTOM)1
-8107492化油器垫片套件GASKET KIT Carburetor1
-8116912化油器维修套件REPAIR KIT Carburetor1
-815791A92发动机垫片组GASKET SET Engine1
图 134化油器（WMH-12A/12B/13/13B/14A/15/16） CARBURETOR (WMH - 12A/12B/13/13B/14A/15/16)
化油器（WMH-12A/12B/13/13B/14A/15/16） CARBURETOR (WMH - 12A/12B/13/13B/14A/15/16)
REF零件编号中文名称英文名称数量
19672A50化油器 上部CARBURETOR Top1
19672A51化油器 中部CARBURETOR Center1
19672A52化油器 下部CARBURETOR Bottom1
19672A35化油器 上部CARBURETOR Top1
19672A36化油器 中部CARBURETOR Center1
19672A37化油器 下部CARBURETOR Bottom1
1813682A13化油器 上部CARBURETOR Top1
1813682A14化油器 中部CARBURETOR Center1
1813682A15化油器 下部CARBURETOR Bottom1
19672A41化油器 上部CARBURETOR Top1
19672A42化油器 中部CARBURETOR Center1
19672A43化油器 下部CARBURETOR Bottom1
19672A44化油器 上部CARBURETOR Top1
19672A45化油器 中部CARBURETOR Center1
19672A46化油器 下部CARBURETOR Bottom1
2810779盖帽CAP6
3NSS不单独销售 怠速混合螺钉/弹簧NOT SOLD SEPARATE Idle Mixture Screw/Spring6
4811803堵头固定件PLUG Retainer3
5677511衬垫GASKET3
6815633048量孔(.048)JET (.048)3
6815633070喷口(.070-175)JET (.070 - 175)3
6815633050喷口(.050)(XR6/MAGNUM III/200)JET (.050) (XR6/MAGNUM III/200)3
7810721节气门杆 (上部/中部)LEVER Throttle (TOP/CENTER)2
7810722节气门杆 (下部)LEVER Throttle (BOTTOM)1
8811284隔套SPACER3
9810745垫圈WASHER3
10810744螺母NUT3
11NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring3
126249主喷口(.096)JET Main (.096)3
125815喷口(.086)JET (.086)3
126201量孔(.080)JET (.080)3
126247主量孔(0.090)JET Main (.090)3
136246量孔(.048)JET (.048)3
135317量孔(.046)JET (.046)3
136359量孔(.052)JET (.052)3
14NSSNOT SOLD SEPARATE Gasket-Fuel Bowl3
15810738浮子总成FLOAT ASSEMBLY3
16NSSNOT SOLD SEPARATE Float Shaft3
17NSS不单独销售 浮子螺钉NOT SOLD SEPARATE Screw-Float3
18811690阀座套件VALVE SEAT KIT3
19NSS垫片(不单独销售)NOT SOLD SEPARATE Gasket3
20811687燃油杯(顶部)BOWL Fuel (TOP)1
20811688燃油杯(中部/底部)BOWL Fuel (CENTER/BOTTOM)2
219596堵头PLUG12
22NSS不单独销售 动力/渐进喷口垫片NOT SOLD SEPARATE Gasket-Power/Progression Jet12
235225主量孔(.054)JET Main (.054)6
234217主量孔(.062)JET Main (.062)6
234216量孔(.064)JET (.064)6
234215燃油主量孔(.066)JET Main Fuel (.066)6
24811689动力喷口POWER JET6
24811807动力喷口POWER JET6
24811925动力喷口POWER JET6
25NSS不单独销售 燃油杯螺钉NOT SOLD SEPARATE Screw-Fuel Bowl15
267900三通接头(顶部/中部)TEE FITTING (TOP/CENTER)2
277901弯头(底部)ELBOW (BOTTOM)1
-8107492化油器垫片套件GASKET KIT Carburetor1
-811691化油器维修套件REPAIR KIT Carburetor1
-815791A92发动机垫片组GASKET SET Engine1
图 135阻风板与油门杆 CHOKE PLATE AND THROTTLE LEVERS
阻风板与油门杆 CHOKE PLATE AND THROTTLE LEVERS
REF零件编号中文名称英文名称数量
167246T进气消音器盖COVER INDUCTION SILENCER1
230720螺丝(.250-20 x 2.25)盖至阻风板SCREW (.250-20 x 2.25) COVER TO CHOKE PLATE2
326992锁紧垫圈(.250)不锈钢盖螺丝LOCKWASHER (.250) Stainless Steel COVER SCREW2
429245垫圈(.281 x .500 x .060)不锈钢盖螺丝WASHER (.281 x .500 x .060) Stainless Steel COVER SCREW2
48M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
590585进气消音器盖塞PLUG INDUCTION SILENCER COVER1
6672751盖衬垫GASKET COVER1
7799831阻风板PLATE CHOKE1
8672741阻风板至化油器衬垫GASKET CHOKE PLATE TO CARBURETOR1
968000螺丝(.250-28 x 1.00)阻风板至化油器SCREW (.250-28 x 1.00) CHOKE PLATE TO CARBURETOR6
1020583阻风板螺丝垫圈WASHER CHOKE PLATE SCREW6
1167760油门连杆LINK Throttle1
1267759节气门杆(上)LEVER Throttle UPPER1
1315124螺钉 (#10-32 x .750)SCREW (#10-32 x .750)3
1426996锁紧垫圈(#10)不锈钢节气门杆螺丝LOCKWASHER (#10) Stainless Steel THROTTLE LEVERS SCREW3
1556681垫圈(.203 x .500 x .032)节气门杆螺丝WASHER (.203 x .500 x .032) THROTTLE LEVERS SCREW3
158M0204666垫圈 (.203 x .500 x .032)WASHER (.203 x .500 x .032)3
1641049节气门杆(中)LEVER Throttle CENTER1
1767749下节流阀杆LEVER Throttle LOWER1
1867748下节气门杆滚轮ROLLER LOWER THROTTLE LEVER1
1967297U型销节气门杆至节气门连杆PIN Clevis THROTTLE LEVERS TO THROTTLE LINK3
2089302垫圈(.203 x .406 x .040)U型销WASHER (.203 x .406 x .040) CLEVIS PIN3
2126953开口销U型销COTTER PIN CLEVIS PIN3
-90484A88衬垫套件GASKET SET1
图 136曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS
曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS
REF零件编号中文名称英文名称数量
18745A5曲轴总成(含8个39-67377)CRANKSHAFT ASSEMBLY (INCLUDES 8 OF 39-67377)1
18745T5曲轴总成CRANKSHAFT ASSEMBLY1
267923曲轴下球轴承BEARING Ball CRANKSHAFT (LOWER)1
267923T滚珠轴承BEARING Ball1
367446球轴承挡圈RING BALL BEARING1
499727A1驱动齿轮GEAR Drive1
554196A6密封载体总成CARRIER ASSEMBLY SEAL1
665800填料载体PACKING CARRIER1
767377曲轴密封环(.124厚度)RING Sealing SEALING - CRANKSHAFT (.124 THICK)AR
767377T密封环RING SealingAR
778633曲轴密封环(.139厚度)RING SEALING - CRANKSHAFT (.139 THICK)AR
893495曲轴滚柱轴承BEARING Roller CRANKSHAFT2
893495T滚柱轴承BEARING Roller2
967444轴承挡圈RING Retaining BEARING2
107441A3活塞总成(右舷)-标准PISTON ASSEMBLY (STARBOARD) - STANDARD3
107441T36活塞-右舷-标准PISTON-STBD-STD3
107443A2活塞总成(右舷)-0.015加大PISTON ASSEMBLY (STARBOARD) - .015 OVERSIZEAR
107443A12活塞-右舷-0.015PISTON-STBD-.015AR
107445A2活塞总成(右舷)-0.030加大PISTON ASSEMBLY (STARBOARD) - .030 OVERSIZEAR
107445A12活塞-右舷-0.030PISTON-STBD-.030AR
107442A3活塞总成(左舷)-标准PISTON ASSEMBLY (PORT) - STANDARD3
107442T36活塞-左舷-标准PISTON-PORT-STD3
107444A2活塞总成(左舷)-0.015加大PISTON ASSEMBLY (PORT) - .015 OVERSIZEAR
107444A12活塞-左舷-0.015PISTON-PORT-.015AR
107446A2活塞总成(左舷)-0.030加大PISTON ASSEMBLY (PORT) - .030 OVERSIZEAR
107446T12活塞-左舷-0.030PISTON-PORT-.030AR
1193481A12活塞环组-标准(标准)RING SET Piston - Standard (STANDARD)1
1178918A4活塞环组-0.015加大RING SET Piston - .015 Oversize (.015 Oversize)1
1185636A4活塞环组-0.030加大RING SET Piston - .030 Oversize (.030 OVERSIZE)1
1252035RING Lock PISTON12
12857196锁紧环LOCK RING12
138119A5连杆总成CONNECTING ROD ASSEMBLY6
138119A6连杆套件CONN ROD KIT6
1493886螺钉(0.312-28×0.875)连杆SCREW (.312-28 x .875) CONNECTING ROD12
1547247定位针垫圈WASHER NEEDLE LOCATING12
158M0032839垫片@5WASHER @512
1667526A1滚柱轴承总成BEARING ASSEMBLY Roller6
168M0234886轴承保持架CAGE BEARING6
1767483活塞端滚针轴承BEARING Needle PISTON END174
-90484A88衬垫套件GASKET SET1
图 137气缸体与端盖 CYLINDER BLOCK AND END CAPS
气缸体与端盖 CYLINDER BLOCK AND END CAPS
REF零件编号中文名称英文名称数量
18711A19气缸体CYLINDER BLOCK1
18711T19气缸体CYLINDER BLOCK1
276175动力头螺柱(1-7/8英寸)STUD POWERHEAD (1-7/8")6
367065动力头螺柱(5-1/2英寸)STUD POWERHEAD (5-1/2")2
3670654螺柱(.375-16/.375-24 x 5.620)STUD (.375-16/.375-24 x 5.620)2
378438动力头螺柱(6-3/4英寸)STUD POWERHEAD (6-3/4")2
38M0034454螺柱(.375-16/.375-24 x 6.87)STUD (.375-16/.375-24 x 6.87)2
420033定位销PIN Dowel LOCATING2
443044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
567296气缸体销(轴承座圈)PIN CYLINDER BLOCK (BEARING RACE)2
58M0036405销PIN2
611338密封垫片GASKET SEALING2
742249启动马达上盖COVER STARTER MOTOR (UPPER)1
78M0088723启动器支架BRACKET-STARTER1
873657盖至曲轴箱螺钉(.312-18 x 1.50)SCREW (.312-18 x 1.50) COVER TO CRANKCASE2
926993启动马达盖螺钉锁紧垫圈(0.312)LOCKWASHER (.312) STARTER MOTOR COVER SCREW4
98M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
1076867启动电机盖(下部)COVER STARTER MOTOR (LOWER)1
1177065盖至曲轴箱螺钉(.312-18 x 2)SCREW (.312-18 x 2) COVER TO CRANKCASE2
11815549螺钉(.312-18 x 2.00)SCREW (.312-18 x 2.00)2
11A99448衬套BUSHING1
1266717螺钉(.375-16 x 3.250)SCREW (.375-16 x 3.250)8
1274824螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)6
139608A1上端盖总成END CAP ASSEMBLY UPPER1
139608T1上盖总成CAP-ASSY-UPPER1
1454029端盖O型圈(2.800 x .103)O-RING (2.800 x .103) END CAP1
1593496端盖滚柱轴承BEARING Roller END CAP1
1593496T轴承BEARING1
1641953端盖密封件SEAL END CAP1
1769034螺钉带锁紧垫圈(.312-18 x 1.00)SCREW AND LOCKWASHER (.312-18 x 1.00)4
1730225螺钉带锁紧垫圈(.312-18 x 1.00)SCREW WITH LOCKWASHER (.312-18 x 1.00)4
1824220气缸体定位螺钉(.190-24 x .190)SCREW (.190-24 x .190) SET - CYLINDER BLOCK2
1938407缸体水套塞(.500-14)(旧设计)PLUG (.500-14) CYLINDER BLOCK (WATER JACKET) (OLD DESIGN)1
2015094双头螺柱(.190-32 x 1.870)STUD (.190-32 x 1.870)1
2115093双头螺柱(#10-32 x 1.00)STUD (#10-32 x 1.00)2
218M0034435螺柱STUD2
2267269飞轮盖螺柱隔套SPACER FLYWHEEL COVER STUD1
23492211飞轮盖螺柱垫圈WASHER FLYWHEEL COVER STUD6
238M0204663垫片@5WASHER @56
2472761飞轮盖螺柱不锈钢垫圈(.203 x .562 x .060)WASHER (.203 x .562 x .060) Stainless Steel FLYWHEEL COVER STUD3
2573651飞轮盖螺柱螺母NUT FLYWHEEL COVER STUD3
25816874蝶形螺母 (#10-32)WING NUT (#10-32)3
2642248飞轮罩支架BRACKET FLYWHEEL COVER1
26422482支架BRACKET1
2749668支架至曲轴箱螺钉(.250-20 x .750)SCREW (.250-20 x .750) BRACKET TO CRANKCASE2
287809A1下端盖总成END CAP ASSEMBLY LOWER1
287809T1端盖总成END CAP ASSEMBLY1
2962700端盖O型圈(3.237 x .103)O-RING (3.237 x .103) END CAP1
3041953端盖密封件SEAL END CAP2
3128636螺钉(.250-20 x .750)SCREW (.250-20 x .750)4
3226992下端盖螺钉不锈钢锁紧垫圈(.250)LOCKWASHER (.250) Stainless Steel LOWER END CAP SCREW4
3364022调节螺丝(.250-20 x 2.125)缸体SCREW (.250-20 x 2.125) ADJUSTING-CYLINDER BLOCK1
3464015锁紧螺母(.250-20)-调节螺钉NUT (.250-20) JAM - ADJUSTING SCREW1
3526852调节螺钉尼龙帽CAP Nylon NYLON - ADJUSTING SCREW1
-66517气缸体泄流限制器RESTRICTOR BLEED - CYLINDER BLOCK1
3663153J型卡扣J CLIP1
37194372端子排TERMINAL BLOCK1
3848409螺钉 (#10-16 x .625) 不锈钢SCREW (#10-16 x .625) Stainless Steel2
3989302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)2
4045076黄铜螺母(#10-32)NUT (#10-32) Brass2
41813938盖形螺母(#10-32)CAP NUT (#10-32)2
4287076A4怠速控制总成IDLE SPEED CONTROL ASSEMBLY1
4369020螺丝(#10-32 x .875)怠速控制SCREW (#10-32 x .875) IDLE SPEED CONTROL2
43690201螺钉(#10-32 x .875)SCREW (#10-32 x .875)2
4438833怠速调节螺钉垫片WASHER IDLE SPEED CONTROL SCREW2
-812815A89动力头总成POWERHEAD ASSEMBLY1
-812815T89船用动力头POWERHEAD MARINE1
-813922A89动力头总成POWERHEAD ASSEMBLY1
-90484A88衬垫套件GASKET SET1
图 138驱动轴壳体与排气管 DRIVESHAFT HOUSING AND EXHAUST TUBE
驱动轴壳体与排气管 DRIVESHAFT HOUSING AND EXHAUST TUBE
REF零件编号中文名称英文名称数量
18343A7驱动轴壳体总成-长型(黑色)HOUSING ASSEMBLY Driveshaft LONG (BLACK)1
18343A8驱动轴壳体总成-长型(灰色)HOUSING ASSEMBLY Driveshaft LONG (GRAY)1
19748A1驱动轴壳体总成-加长型(黑色)HOUSING ASSEMBLY Driveshaft X-LONG (BLACK)1
19748A2驱动轴壳体总成-加长型(灰色)HOUSING ASSEMBLY Driveshaft X-LONG (GRAY)1
256295驱动轴壳体/齿轮箱壳体双头螺柱(.437 x 2.69)STUD (.437 x 2.69) DRIVE SHAFT HSG./GEAR HSG.2
325067下安装座螺钉缓冲垫BUMPER LOWER MOUNT SCREW2
463474下安装座螺钉(.500-20 x 6.00)SCREW (.500-20 x 6.00) LOWER MOUNT2
4898831螺钉(.500-20 x 6.220)SCREW (.500-20 x 6.220)2
578249下支架(长型)MOUNT LOWER (LONG)2
577327支架MOUNT2
577327下支架(加长型)MOUNT LOWER (X-LONG)2
649339下部安装螺钉垫圈(.8125)WASHER (.8125) LOWER MOUNT SCREW2
725096下安装螺丝螺母NUT LOWER MOUNT SCREW2
888238A1接地线总成CABLE ASSEMBLY Ground1
888238A10接地线总成CABLE ASSEMBLY Ground1
967076下安装夹CLAMP LOWER MOUNT2
98M0036782卡箍CLAMP2
1066727下安装座夹具固定螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250) LOWER MOUNT CLAMP ATTACHING4
1167077下部安装夹盖（黑色）COVER LOWER MOUNT CLAMP (BLACK)2
118M4500752盖板COVER2
1167077T6下安装座夹具盖(灰色)COVER LOWER MOUNT CLAMP (GRAY)2
1167077F1灰色盖板COVER Gray2
1288417盖固定螺钉(#12-24 x .620)SCREW (#12-24 x .620) COVER ATTACHING4
1335521盖至夹具螺钉尼龙螺母NUT NYLON - COVER TO CLAMP SCREW4
1488238A2接地线总成CABLE ASSEMBLY Ground1
1488238A10接地线总成CABLE ASSEMBLY Ground1
1541508螺丝(.250-20 x .500)不锈钢接地线SCREW (.250-20 x .500) Stainless Steel GROUND WIRE1
1673862齿轮箱壳体螺柱垫圈WASHER GEAR HOUSING STUD1
1729489齿轮箱壳体螺柱盖形螺母NUT GEAR HOUSING STUD (CAP)1
1845176齿轮箱壳体螺柱不锈钢垫圈(.453 x .812 x .105)WASHER (.453 x .812 x .105) Stainless Steel GEAR HOUSING STUD2
1934933齿轮箱壳体螺柱不锈钢螺母(.437-20)NUT (.437-20) Stainless Steel GEAR HOUSING STUD2
198M0204653螺母NUT2
2064649驱动轴壳体塞PLUG DRIVE SHAFT HOUSING1
2189743排气管TUBE Exhaust1
2266350排气管下密封件SEAL EXHAUST TUBE - LOWER1
2266350001密封件SEAL1
2386027排气管上密封件SEAL EXHAUST TUBE - UPPER1
2467295长轴型水管TUBE Water WATER (LONG SHAFT)1
248M0042788长型水管TUBE-WATER-LONG1
2474729加长轴型水管TUBE WATER (EXTRA LONG SHAFT)1
248M0042790水管TUBE-WATER1
25991731驱动轴壳体至板衬垫GASKET DRIVE SHAFT HOUSING TO PLATE1
25991734衬垫GASKET1
2641945A7驱动轴壳体板总成PLATE ASSEMBLY DRIVE SHAFT HOUSING1
27183982支架密封条SEAL BRACKET1
278M0043165密封件-27.00英寸SEAL-27.00 INCH1
2868011密封件固定支架BRACKET SEAL RETAINING1
2948408支架至板件螺钉(#10-16 x .500)SCREW (#10-16 x .500) BRACKET TO PLATE12
3020033定位销PIN Dowel LOCATING2
3043044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
3138970水管密封件SEAL WATER TUBE1
3290192延伸件至板不锈钢螺钉(.250-20 x .750)SCREW (.250-20 x .750) Stainless Steel EXTENSION TO PLATE6
33991771衬垫GASKET1
33991772衬垫GASKET1
3425970动力头螺柱垫圈WASHER POWER HEAD STUD4
3420553垫圈(.406 x .734 x .063)WASHER (.406 x .734 x .063)4
3569254动力头螺柱螺母NUT POWER HEAD STUD4
3641942排气延伸管EXTENSION EXHAUST1
36879288T71排气管延长段EXTENSION Exhaust1
3778246排气延长管衬垫GASKET EXHAUST EXTENSION1
37782461衬垫GASKET1
-90484A88衬垫套件GASKET SET1
图 139双机延伸套件 DUAL ENGINE EXTENSION KIT
双机延伸套件 DUAL ENGINE EXTENSION KIT
REF零件编号中文名称英文名称数量
-92876A6双机延伸套件DUAL ENGINE EXTENSION KIT1
178862A2密封套件SEAL KIT1
119624A1密封套件SEAL KIT1
271565电缆导向管TUBE Cable Guide CABLE GUIDE1
341055支架MOUNT1
442100锁紧垫圈TAB WASHER2
537984螺母 (.875-14)NUT (.875-14)2
58M0041651螺母 (.875-14)NUT (.875-14)2
688404锁紧垫圈TAB WASHER2
738601螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250)4
8177291支架BRACKET2
817729A1支架BRACKET2
962055螺钉(.312-24 x 1.250)SCREW (.312-24 x 1.250)4
1017728锁紧垫圈TAB WASHER4
1114000螺钉(.375-24x1.25)SCREW (.375-24 x 1.25)4
11849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)4
1234863螺母 (.375-24)NUT (.375-24)4
128M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass4
1397933A1转向眼环STEERING EYE2
1423651衬套(1.625)SLEEVE (1.625)2
1597931管材(4.00英寸)TUBING (4.00 Inches)2
16979322管TUBE1
168M0026098联轴器15英寸COUPLER 15 In.1
1742099螺母(.562-18)NUT (.562-18)1
图 140排气歧管与排气板 EXHAUST MANIFOLD AND EXHAUST PLATE
排气歧管与排气板 EXHAUST MANIFOLD AND EXHAUST PLATE
REF零件编号中文名称英文名称数量
1904841分隔板衬垫GASKET DIVIDER PLATE2
287321分隔板PLATE DIVIDER1
287321T安装板PLATE1
369668分隔板密封件SEAL DIVIDER PLATE1
3814754密封件(12.50英寸)SEAL (12.50 Inches)1
4193071排气歧管盖COVER EXHAUST MANIFOLD1
574824螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)21
6194373接线端子排(3位)TERMINAL BLOCK (3 TERMINALS)1
728636端子排螺钉(.250-20 x .750)SCREW (.250-20 x .750) TERMINAL BLOCK2
829245端子排螺钉不锈钢垫片(.281 x .500 x .060)WASHER (.281 x .500 x .060) Stainless Steel TERMINAL BLOCK SCREW2
88M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
945076端子排黄铜螺母(#10-32)NUT (#10-32) Brass TERMINAL BLOCK3
10813938盖形螺母(#10-32)CAP NUT (#10-32)3
1174824缸体盖板螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250) COVER TO CYLINDER BLOCK4
1269570膜片至板件螺钉(#10-16 x .750)SCREW (#10-16 x .750) DIAPHRAGM TO PLATE1
1376451膜片螺钉垫片WASHER DIAPHRAGM SCREW1
1414479隔膜DIAPHRAGM1
14144791隔膜DIAPHRAGM1
1516496导水板DEFLECTOR Water1
1616497A1安全阀板PLATE RELIEF VALVE1
1778690安全阀板衬垫GASKET RELIEF VALVE PLATE2
1778690002衬垫GASKET2
1864878提升阀黑色压缩弹簧SPRING (Black) COMPRESSION POPPET VALVE1
1985303提升阀弹簧垫片WASHER POPPET SPRING1
2014480提升阀POPPET VALVE1
2164872提升阀衬套GROMMET POPPET VALVE1
2265848提升阀座CARRIER POPPET1
23997761排气板衬垫GASKET EXHAUST PLATE1
2443029A5排气板总成PLATE ASSEMBLY EXHAUST1
2599664排气板弯头ELBOW EXHAUST PLATE1
2599664290度弯头接头(0.125-27x0.250)尼龙FITTING Elbow 90 Degree (.125-27 x .250) Nylon1
2620033排气板定位销PIN Dowel LOCATING - EXHAUST PLATE2
2643044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
27183982排气板密封件SEAL EXHAUST PLATE1
278M0043165密封件-27.00英寸SEAL-27.00 INCH1
2868010密封件固定支架BRACKET SEAL RETAINING1
28680101支架BRACKET1
2948408支架至排气板螺钉(#10-16 x .500)SCREW (#10-16 x .500) BRACKET TO EXHAUST PLATE6
3025970动力头螺柱垫圈WASHER POWERHEAD STUD6
3020553垫圈(.406 x .734 x .063)WASHER (.406 x .734 x .063)6
3169254动力头螺柱螺母NUT POWERHEAD STUD6
3227132排气板衬套BUSHING EXHAUST PLATE1
3319564护孔环GROMMET1
338M0179867护孔环GROMMET1
3412602排气板衬套GROMMET EXHAUST PLATE1
3412602002护孔环GROMMET1
3566727螺钉(.312-18 x 1.250)排气板固定SCREW (.312-18 x 1.250) EXHAUST PLATE ATTACHING1
3668783螺钉(.312-18 x 2.50)排气板固定SCREW (.312-18 x 2.50) EXHAUST PLATE ATTACHING1
3766725螺钉(.375-16 x 3.50)排气板固定SCREW (.375-16 x 3.50) EXHAUST PLATE ATTACHING3
37898833螺钉(.375-16 x 3.500)SCREW (.375-16 x 3.500)3
38812905A1前支架总成BRACKET ASSEMBLY FRONT1
38812905T前支架BRACKET Front1
3990285前支架螺钉(.312-18 x .625)SCREW (.312-18 x .625) FRONT BRACKET4
40187031垫圈WASHER4
4118778护孔环GROMMET4
4118778001护孔环GROMMET4
4218578A2后支架总成BRACKET ASSEMBLY Rear REAR1
4218578T09支架总成(后部)BRACKET ASSEMBLY Rear1
4314462A1安全阀盖(旧设计)COVER RELIEF VALVE (OLD DESIGN)1
4368729安全阀盖-新设计COVER RELIEF VALVE - NEW DESIGN1
438M0039767盖板COVER1
4492007接头(.250-18)新设计FITTING (.250-18) NEW DESIGN1
4492007190度弯头FITTING (90 Degree)1
4599127109管路(57.00英寸散装)新设计LINE (57.00 Inches Bulk) NEW DESIGN1
458M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
4690077捆扎带新设计TIE STRAP NEW DESIGN2
46816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)2
47814430接头(.500-14)新设计FITTING (.500-14) NEW DESIGN1
478144301接头FITTING1
图 141飞轮/启动马达 FLYWHEEL/STARTER MOTOR
飞轮/启动马达 FLYWHEEL/STARTER MOTOR
REF零件编号中文名称英文名称数量
118896A1飞轮盖套件COVER KIT FLYWHEEL1
279918A1盖板套件(无百叶窗)COVER KIT (NON-LOUVERED)1
337572螺钉(0.190-32x0.380)正时标记SCREW (.190-32 x .380) TIMING MARKER2
472761垫圈(0.203x0.562x0.060)不锈钢正时标记螺钉WASHER (.203 x .562 x .060) Stainless Steel TIMING MARKER SCREW2
579022正时标记MARKER TIMING1
645907飞轮黄色塞PLUG Yellow FLYWHEEL1
752901螺母(.625-18)飞轮NUT (.625-18) FLYWHEEL1
868229垫圈(0.641x1.250x0.190)飞轮WASHER (.641 x 1.250 x .190) FLYWHEEL1
833001垫圈WASHER1
99841A7飞轮(配合参考号1使用)FLYWHEEL (USE WITH REF. NO. 1)1
9859238T16飞轮总成FLYWHEEL ASY1
97555A17飞轮(配合参考号2使用)FLYWHEEL (USE WITH REF. NO. 2)1
9859238A9飞轮套件FLYWHEEL KIT1
1032417螺钉(.250-28 x .625)飞轮板SCREW (.250-28 x .625) FLYWHEEL PLATE8
1168997螺钉(.312-24 x .750)飞轮毂SCREW (.312-24 x .750) FLYWHEEL HUB8
129610A5定子(40安培)STATOR (40 AMP)1
125454A35定子(16安培)STATOR (16 AMP)1
129873A4定子(16安培-见备注)STATOR (16 AMP - SEE NOTE)1
1390045螺钉(#10-32 x 1.375)定子SCREW (#10-32 x 1.375) STATOR4
1399452定子螺钉SCREW STATOR4
1390028螺钉（#10-32 x 1.125）SCREW (#10-32 x 1.125)4
13817044螺钉SCREW4
1426996锁紧垫圈(#10)不锈钢定子螺钉LOCKWASHER (#10) Stainless Steel STATOR SCREW4
1426996锁紧垫圈(#10)(不锈钢)LOCKWASHER (#10) Stainless Steel4
1596455A9触发板总成PLATE ASSEMBLY Trigger1
1693388A1电缆总成(6.00英寸)黑色CABLE ASSEMBLY (6.00 Inches) Black1
1779472启动电机总成STARTER MOTOR ASSEMBLY1
17893893启动马达STARTER MOTOR1
1856703启动电机轴环COLLAR STARTER MOTOR2
188M0034918轴环COLLAR2
1968042启动电机橡胶止动块STOP Rubber RUBBER - STARTER MOTOR2
198M0043376停机开关STOP2
2026992锁紧垫圈(.250) 不锈钢 起动机接线端LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL1
2120890螺母(.250-20) 起动机接线端NUT (.250-20) STARTER MOTOR TERMINAL1
2293388A2线缆总成(黑色)CABLE ASSEMBLY Black1
2293388A14线缆总成(黄/黑)CABLE ASSEMBLY Yellow/Black1
2369035螺钉和锁紧垫圈 (.250-20 x .625) 不锈钢 电缆至启动马达SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel CABLE TO STARTER MOTOR1
2489219堵头PLUG1
2489219001堵头PLUG1
25817632A2飞轮(配合参考号1使用)FLYWHEEL (USE WITH REF. NO. 1)1
25859238T16飞轮总成FLYWHEEL ASY1
25817632A9飞轮(配合参考号2使用)FLYWHEEL (USE WITH REF. NO. 2)1
25859238A9飞轮套件FLYWHEEL KIT1
图 142燃油管路（用于 WMH-12A/B 至 WMH-28 化油器） FUEL LINES (Use With WMH-12A/B thru WMH-28 Carburtors)
燃油管路（用于 WMH-12A/B 至 WMH-28 化油器） FUEL LINES (Use With WMH-12A/B thru WMH-28 Carburtors)
REF零件编号中文名称英文名称数量
1816856A3燃油接头总成-塑料CONNECTOR ASSEMBLY Fuel - Plastic1
269067螺钉(.250-20×1.375)SCREW (.250-20 x 1.375)1
3812782密封件SEAL1
49912980软管HOSEAR
48M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)AR
5816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
5816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
6818993三通接头CONNECTOR Tee1
718175软管HOSE1
8818994止回阀CHECK VALVE1
88189941止回阀CHECK VALVE1
982381325管材(10.00英寸散装)TUBING (10.00 Inches Bulk)1
982381335油管(15.00英寸 散装)TUBING (15.00 Inches Bulk)1
108162961燃油滤清器FILTER Fuel1
10816296Q2燃油滤清器FILTER Fuel1
11677511衬垫GASKET3
1227037双头螺栓(.250-28×1.125)STUD (.250-28 x 1.125)6
12270372双头螺栓(.250-28×1.125)STUD (.250-28 x 1.125)6
13830756109软管(57.00英寸散装)HOSE (57.00 Inches Bulk)1
138M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
1455715螺钉(.250-20×0.880)SCREW (.250-20 x .880)6
1526992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel6
1629598不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel6
179912878软管 (.187) (26.00英寸散装)HOSE (.187) (26.00 Inches Bulk)3
1899130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
18892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
1942859A2加浓阀总成VALVE ASSEMBLY Enrichner1
20633001卡箍CLAMP1
2173286螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel1
229912688管材 (36.00英寸散装)TUBING (36.00 Inches Bulk)2
2345915端子排TERMINAL BLOCK1
2448409螺钉 (#10-16 x .625) 不锈钢SCREW (#10-16 x .625) Stainless Steel1
2469079螺钉 (#10-16 x .440)SCREW (#10-16 x .440)1
25824001软管HOSE1
25830762软管HOSE1
-815791A92发动机垫片组GASKET SET Engine1
图 143燃油管路（用于 WMH-30/31/32/33/34 化油器） FUEL LINES (Use With WMH -30/31/32/33/34 Carburetors)
燃油管路（用于 WMH-30/31/32/33/34 化油器） FUEL LINES (Use With WMH -30/31/32/33/34 Carburetors)
REF零件编号中文名称英文名称数量
1816856A3燃油接头总成-塑料CONNECTOR ASSEMBLY Fuel - Plastic1
269067螺钉(.250-20×1.375)SCREW (.250-20 x 1.375)1
3812782密封件SEAL1
49912980软管HOSEAR
48M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)AR
5816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
5816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
6818993三通接头CONNECTOR Tee1
718175软管HOSE1
8818994止回阀CHECK VALVE1
88189941止回阀CHECK VALVE1
982381325管材(10.00英寸散装)TUBING (10.00 Inches Bulk)1
982381335油管(15.00英寸 散装)TUBING (15.00 Inches Bulk)1
10824001软管HOSE1
10830762软管HOSE1
118162961燃油滤清器FILTER Fuel1
11816296Q2燃油滤清器FILTER Fuel1
12830756109软管(57.00英寸散装)HOSE (57.00 Inches Bulk)1
128M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
13677511衬垫GASKET3
1427037双头螺栓(.250-28×1.125)STUD (.250-28 x 1.125)6
14270372双头螺栓(.250-28×1.125)STUD (.250-28 x 1.125)6
1526992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel6
1629598不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel6
1755715螺钉(.250-20×0.880)SCREW (.250-20 x .880)6
1842859A2加浓阀总成VALVE ASSEMBLY Enrichner1
19633001卡箍CLAMP1
2073286螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel1
219912688管材 (36.00英寸散装)TUBING (36.00 Inches Bulk)2
2299130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
22892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)1
2345915端子排TERMINAL BLOCK1
248128321螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
24878609螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
24817626螺钉(#10-16×0.380)SCREW (#10-16 x .380)1
24878607螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)1
-815791A92发动机垫片组GASKET SET Engine1
图 144燃油泵 FUEL PUMP
燃油泵 FUEL PUMP
REF零件编号中文名称英文名称数量
115930A15燃油泵套件PUMP KIT Fuel1
242990A6膜片组件DIAPHRAGM KIT1
2857005A1膜片组件DIAPHRAGM KIT1
3NSSNOT SOLD SEPARATE Check Valve, Rubber2
4NSS止回阀(不单独销售)NOT SOLD SEPARATE Check Valve2
5NSS固定座(不单独销售)NOT SOLD SEPARATE Retainer2
6NSS增压垫片(不单独销售)NOT SOLD SEPARATE Gasket-Boost1
7NSS盖帽(不单独销售)NOT SOLD SEPARATE Cap1
8NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring1
9NSS膜片(不单独销售)NOT SOLD SEPARATE Diaphragm2
10NSS脉冲垫片(不单独销售)NOT SOLD SEPARATE Gasket-Pulse1
11NSS弹簧(不单独销售)NOT SOLD SEPARATE Spring1
12NSS盖帽(不单独销售)NOT SOLD SEPARATE Cap1
13987691底座衬垫GASKET BASE1
138M0204705衬垫@2GASKET @21
14144303燃油泵底座BASE FUEL PUMP1
1598775A3燃油泵板PLATE FUEL PUMP1
15987752安装板PLATE1
1656800管塞 (.0625-27)PLUG Pipe (.0625-27)1
1715979接头FITTING1
1816452燃油泵螺钉(#12-24 x 2.00)SCREW (#12-24 x 2.00) FUEL PUMP2
194000310燃油泵至曲轴箱螺钉(M5 x 40)SCREW (M5 x 40) FUEL PUMP TO CRANKCASE2
204002314燃油泵螺钉垫圈WASHER FUEL PUMP SCREW2
219072925软管HOSE1
2299751脉冲软管黄铜接头(.0625-27)FITTING (.0625-27) Brass PULSE HOSE1
22997511弯头ELBOW1
-815791A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1
-815809A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1
-815810A90衬垫套件GASKET SET1
-815791A92发动机垫片组GASKET SET Engine1
图 145齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)
齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)
REF零件编号中文名称英文名称数量
19148A47齿轮箱总成(基础款)(黑色)GEAR HOUSING ASSEMBLY (BASIC) (BLACK)1
19148A48齿轮箱总成(基础款)(灰色)GEAR HOUSING ASSEMBLY (BASIC) (GRAY)1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
19148A49齿轮箱总成(基础款)(追踪者)GEAR HOUSING ASSEMBLY (BASIC) (TRACKER)1
19148T49齿轮箱壳体-TR型GEAR HSG-BASIC-TR1
285822A10连接器总成(适用时使用)CONNECTOR ASSEMBLY (USE WHERE APPLICABLE)1
343044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
478638双头螺栓(.438×3.12)(长型)STUD (.438 x 3.12) (LONG)1
4786382螺柱(.437-14/.437-20 x 3.120)STUD (.437-14/.437-20 x 3.120)1
418978双头螺栓(.438×3.69)(加长型)STUD (.438 x 3.69) (X-LONG)1
48M0034464螺柱STUD1
5579201双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
58M0133358双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
656297双头螺栓(.312×3.38)STUD (.312 x 3.38)1
68M0034463螺柱(.312-24 x 3.38)STUD (.312-24 x 3.38)1
730667双头螺栓(.250-20/.250-28×3.125)STUD (.250-20/.250-28 x 3.125)2
7306671螺柱STUD2
842647A1滚柱轴承总成BEARING ASSEMBLY Roller1
943998衬套(旧设计)SLEEVE (OLD DESIGN)1
9A826134阳极块ANODE2
9A826134Q阳极块ANODE2
9B4000333螺钉(M6 x 40)SCREW (M6 x 40)1
9C8268336螺母 (M6)NUT (M6)1
9C401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
11440001驱动轴(长型)DRIVESHAFT (LONG)1
11897624T长驱动轴DRIVESHAFT Long1
11442091驱动轴(加长型)DRIVESHAFT (X-LONG)1
11897625T加长驱动轴DRIVESHAFT X-Long1
1116292驱动轴(20英寸)DRIVESHAFT (20")1
11815237驱动轴(25英寸)DRIVESHAFT (25")1
12N.S.S.不单独销售小齿轮(前进齿轮组部件)Not Sold Separate Pinion Gear (Part of Forward Gear Set)1
1392721垫圈(.965×0.630)WASHER (.965 x .630)1
14826375螺母(0.625-18)NUT (.625-18)1
1435921螺母(0.625-18)NUT (.625-18)1
1542637A1垫片组SHIM SETAR
158M0063267垫片组SHIM SETAR
1636387A1轴承总成(滚子/外圈)BEARING ASSEMBLY Roller/Cup1
168M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
17824519固定座RETAINER1
178245191固定座RETAINER1
1842579A3水泵底座总成BASE ASSEMBLY Water Pump1
188M0077147带水泵底座总成BASE ASSY-W/P1
19426311衬垫GASKET1
198M0204678衬垫GASKET1
2090011O型圈(2.175 x 0.175)O-RING (2.175 x .175)1
208M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
2189238油封SEAL Oil1
2216977油封SEAL Oil1
23856081衬垫GASKET1
238M0090319衬垫@5GASKET @51
24856091衬垫GASKET1
24858524衬垫GASKET1
2532435面板FACE PLATE1
258M0204677面板PLATE-FACE1
2696148A1水泵壳体总成BODY ASSEMBLY Water Pump1
2696148T1水泵壳体总成BODY ASSEMBLY Water Pump1
2748752嵌件INSERT1
2748752T嵌件INSERT1
2838970密封件SEAL1
29899841叶轮IMPELLER1
2989984T3叶轮IMPELLER1
3056654键KEY1
308M0214992键@5KEY @51
3196411螺钉(#14-8×2.25)SCREW (#14-8 x 2.25)1
318M0215009螺钉SCREW1
3229245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
328M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
3313438螺母(.250-28)NUT (.250-28)2
338267119螺母(.250-28)NUT (.250-28)2
3436001垫圈WASHER1
3513436螺母NUT1
3729804套筒SLEEVE1
3729804T套筒SLEEVE1
38789022换挡轴(不带E型环使用)SHIFT SHAFT (USE W/O E-RING)1
3878902轴SHAFT1
38789022换档轴SHIFT SHAFT1
3929641E型卡环E RING1
4125439O型圈(.862×0.103)O-RING (.862 x .103)1
4277631A2衬套总成BUSHING ASSEMBLY1
438164641油封SEAL Oil1
438M0246145油封OIL SEAL1
4477674垫圈(.35 x .75 x .12)WASHER (.35 x .75 x .12)1
4579953螺钉(0.375-16x0.250)SCREW (.375-16 x .250)1
4579953Q04放油螺钉套件SCREW KIT Drain1
4667892磁性螺钉SCREW Magnetic1
468M0058389放油螺钉套件SCREW KIT Drain1
4719183纤维垫圈WASHER Fiber2
478M0187157蓝色密封件@15SEAL-BLUE @152
-815791A92发动机垫片组GASKET SET Engine1
-96148A5水泵维修套件REPAIR KIT Water Pump1
-96148A8水泵维修套件WATER PUMP REPAIR KIT1
-89238A2密封套件SEAL KIT1
图 146齿轮箱（驱动轴）- 反向旋转 GEAR HOUSING (DRIVESHAFT) - COUNTER ROTATION
齿轮箱（驱动轴）- 反向旋转 GEAR HOUSING (DRIVESHAFT) - COUNTER ROTATION
REF零件编号中文名称英文名称数量
19148A47齿轮箱总成(基础款)(黑色)GEAR HOUSING ASSEMBLY (BASIC) (BLACK)1
19148A48齿轮箱总成(基础款)(灰色)GEAR HOUSING ASSEMBLY (BASIC) (GRAY)1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
285822A10连接器总成(适用时使用)CONNECTOR ASSEMBLY (USE WHERE APPLICABLE)1
343044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
418978双头螺栓(.438×3.69)STUD (.438 x 3.69)1
48M0034464螺柱STUD1
5579201双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
58M0133358双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
656297双头螺栓(.312×3.38)STUD (.312 x 3.38)1
68M0034463螺柱(.312-24 x 3.38)STUD (.312-24 x 3.38)1
730667双头螺栓(.250-20/.250-28×3.125)STUD (.250-20/.250-28 x 3.125)2
7306671螺柱STUD2
842647A1滚柱轴承总成BEARING ASSEMBLY Roller1
943998衬套(旧设计)SLEEVE (OLD DESIGN)1
9A826134阳极块ANODE2
9A826134Q阳极块ANODE2
9B4000333螺钉(M6 x 40)SCREW (M6 x 40)1
9C8268336螺母 (M6)NUT (M6)1
9C401386螺母(M6)不锈钢NUT (M6) Stainless Steel1
11442091驱动轴DRIVESHAFT
11897625T加长驱动轴DRIVESHAFT X-Long
12N.S.S.不单独销售小齿轮(43-18572A1或43-18475A1部件)Not Sold Separate Pinion Gear (PART OF 43-18572A1 OR 43-18475A1)1
1392721垫圈(.965×0.630)WASHER (.965 x .630)1
14826375螺母(0.625-18)NUT (.625-18)1
1435921螺母(0.625-18)NUT (.625-18)1
1542637A1垫片组SHIM SETAR
158M0063267垫片组SHIM SETAR
1636387A1轴承总成(滚子/外圈)BEARING ASSEMBLY Roller/Cup1
168M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
17824519固定座RETAINER1
178245191固定座RETAINER1
1842579A3水泵底座总成BASE ASSEMBLY Water Pump1
188M0077147带水泵底座总成BASE ASSY-W/P1
19426311衬垫GASKET1
198M0204678衬垫GASKET1
2090011O型圈(2.175 x 0.175)O-RING (2.175 x .175)1
208M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
2189238油封SEAL Oil1
2216977油封SEAL Oil1
23856081衬垫GASKET1
238M0090319衬垫@5GASKET @51
24856091衬垫GASKET1
24858524衬垫GASKET1
2532435面板FACE PLATE1
258M0204677面板PLATE-FACE1
2696148A1水泵壳体总成BODY ASSEMBLY Water Pump1
2696148T1水泵壳体总成BODY ASSEMBLY Water Pump1
2748752嵌件INSERT1
2748752T嵌件INSERT1
2838970密封件SEAL1
29899841叶轮IMPELLER1
2989984T3叶轮IMPELLER1
3056654键KEY1
308M0214992键@5KEY @51
3196411螺钉(#14-8×2.25)SCREW (#14-8 x 2.25)1
318M0215009螺钉SCREW1
3229245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
328M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
3313438螺母(.250-28)NUT (.250-28)2
338267119螺母(.250-28)NUT (.250-28)2
3436001垫圈WASHER1
3513436螺母NUT1
3729804套筒SLEEVE1
3729804T套筒SLEEVE1
38789022换挡轴(不带E型环使用)SHIFT SHAFT (USE W/O E-RING)1
3878902轴SHAFT1
38789022换档轴SHIFT SHAFT1
3929641E型卡环E RING1
4019183纤维垫圈WASHER Fiber2
408M0187157蓝色密封件@15SEAL-BLUE @152
4125439O型圈(.862×0.103)O-RING (.862 x .103)1
4277631A2衬套总成BUSHING ASSEMBLY1
438164641油封SEAL Oil1
438M0246145油封OIL SEAL1
4477674垫圈(.35 x .75 x .12)WASHER (.35 x .75 x .12)1
4579953螺钉(0.375-16x0.250)SCREW (.375-16 x .250)1
4579953Q04放油螺钉套件SCREW KIT Drain1
4667892磁性螺钉SCREW Magnetic1
468M0058389放油螺钉套件SCREW KIT Drain1
-815791A92发动机垫片组GASKET SET Engine1
-96148A5水泵维修套件REPAIR KIT Water Pump1
-96148A8水泵维修套件WATER PUMP REPAIR KIT1
-89238A2密封套件SEAL KIT1
图 147齿轮箱（推进轴） GEAR HOUSING (PROPSHAFT)
齿轮箱（推进轴） GEAR HOUSING (PROPSHAFT)
REF零件编号中文名称英文名称数量
19148A47齿轮箱总成(基础款)(黑色)GEAR HOUSING ASSEMBLY (BASIC) (BLACK)1
19148A48齿轮箱总成(基础款)(灰色)GEAR HOUSING ASSEMBLY (BASIC) (GRAY)1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
19148A49齿轮箱总成(基础款)(追踪者)GEAR HOUSING ASSEMBLY (BASIC) (TRACKER)1
19148T49齿轮箱壳体-TR型GEAR HSG-BASIC-TR1
4989594A1从动件总成FOLLOWER ASSEMBLY1
4878956换挡凸轮SHIFT CAM1
48789562换挡凸轮SHIFT CAM1
5079911A1杆ROD1
5179910弹簧SPRING1
5278910垫圈WASHERAR
5378906销PIN1
538M0084245弹簧定位销PIN Spring Locator1
5447397A1垫片组(.002-3-5-10)SHIM SET (.002-3-5-10)AR
5578172A1圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
5644102A2前进齿轮总成(135/150)(含倒挡齿轮)GEAR ASSEMBLY Forward (135/150) (INCLS. REVERSE GEAR)1
5644102A7齿轮组(135/150)(不含倒挡齿轮)GEAR SET (135/150) (DOES NOT INCL. REVERSE GEAR)1
5616294A2高海拔齿轮组-2.3:1传动比GEAR SET HIGH ALTITUDE - 2.3:1 GEAR RATIO1
5616294A5齿轮组GEAR SET1
5644104A2前进齿轮总成(175/200/XR6/玛格南III)(含倒挡齿轮)GEAR ASSEMBLY Forward (175/200/XR6/MAGNUM III) (INCLS. REVERSE GEAR)1
5644104T2齿轮组GEAR SET1
5644104A8齿轮组(175/200/XR6/玛格南III)(不含倒挡齿轮)GEAR SET (175/200/XR6/MAGNUM III) (DEOS NOT INCLUDE REVERSE GEAR)1
57549281滚柱轴承BEARING Roller1
58823174离合器CLUTCH1
58823174TORD 8M0100493ORD 8M01004931
5978905十字销PIN Cross1
598M0084243十字销PIN Cross1
6078909定位销PIN Detent2
6178962弹簧SPRING2
6294148螺旋桨轴PROPELLER SHAFT1
63N.S.S.不单独销售倒挡齿轮(前进齿轮组部件)Not Sold Separate Reverse Gear (Part of Forward Gear Set1
63824987A2倒挡齿轮总成(135/150)GEAR ASSEMBLY Reverse (135/150)1
63824986A2倒挡齿轮总成(175/200/XR6/玛格南III)GEAR ASSEMBLY Reverse (175/200/XR6/MAG. III)1
63A824108隔套SPACER1
64681001止推环RING Thrust1
6588957A1滚珠轴承BEARING Ball1
6588957T滚珠轴承BEARING Ball1
6631534O型圈O-RING1
668M0214920O型圈O RING1
6743567A1轴承座总成CARRIER ASSEMBLY Bearing1
6743567T1轴承座总成CARRIER ASSEMBLY Bearing1
6830956滚针轴承BEARING Needle1
6830956T滚针轴承BEARING Needle1
6976868密封件SEAL2
698M0248882油封@5SEAL-OIL @52
7030281键KEY1
7179447锁紧垫圈TAB WASHER1
7279448固定座RETAINER1
728M2011027固定座RETAINER1
73316404平衡板(用于无阳极齿轮箱)TRIM TAB (USE WITH GEAR HOUSING W/O ANODES)1
7331640Q4平衡鳍板TRIM TAB1
73316405配平板(与带阳极齿轮箱配套使用)TRIM TAB (USE WITH GEAR HOUSING W/ANODES)1
738M0236553平衡鳍板TRIM TAB1
74806327螺钉(.437-14 x 1.750)(1-5/8")SCREW (.437-14 x 1.750) (1-5/8")1
748M0204686螺钉SCREW1
7567891填充块FILLER BLOCK1
758M0039169填充块FILLER BLOCK1
7634933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
768M0204653螺母NUT2
7765210螺钉(.375-16 x 1.00)SCREW (.375-16 x 1.00)1
7813171推力毂THRUST HUB1
78835467Q01止推垫片套件THRUST WASHER KIT1
7931211A2花键垫圈WASHER Splined1
7931211Q03垫圈总成WASHER ASSEMBLY1
80816629锁紧垫圈TAB WASHER1
80816629Q锁紧垫圈TAB WASHER1
8152707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
8152707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
82423511齿形锁紧垫圈LOCKWASHER Toothed1
8345176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel2
-815791A92发动机垫片组GASKET SET Engine1
-89238A2密封套件SEAL KIT1
图 148齿轮箱（推进轴）- 反向旋转 GEAR HOUSING (PROPSHAFT) - COUNTER ROTATION
齿轮箱（推进轴）- 反向旋转 GEAR HOUSING (PROPSHAFT) - COUNTER ROTATION
REF零件编号中文名称英文名称数量
19148A47齿轮箱总成(基础款)(黑色)GEAR HOUSING ASSEMBLY (BASIC) (BLACK)1
19148A48齿轮箱总成(基础款)(灰色)GEAR HOUSING ASSEMBLY (BASIC) (GRAY)1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
4778956换挡凸轮SHIFT CAM1
47789562换挡凸轮SHIFT CAM1
4889594A1从动件总成FOLLOWER ASSEMBLY1
49799111杆ROD1
4979911A1杆ROD1
5079910弹簧SPRING2
5178910垫圈WASHERAR
5278906销PIN1
528M0084245弹簧定位销PIN Spring Locator1
5314469轴承杯CUP Bearing1
5314469T轴承杯CUP Bearing1
5488957A1滚珠轴承BEARING Ball1
5488957T滚珠轴承BEARING Ball1
55N.S.S.倒车齿轮(不单独销售)(属于43-18572A1或43-18475A1部件)Not Sold Separate Reverse Gear (PART OF 43-18572A1 OR 43-18475A1)1
5615844滚柱轴承总成BEARING ASSEMBLY Roller1
5778909定位销PIN Detent2
58823174离合器CLUTCH1
58823174TORD 8M0100493ORD 8M01004931
5978905十字销PIN Cross1
598M0084243十字销PIN Cross1
6078962弹簧SPRING2
6118572A1前进齿轮总成(135/150)GEAR ASSEMBLY Forward (135/150)1
6118572T1齿轮组GEAR SET1
6118475A1前进齿轮总成(175/200)GEAR ASSEMBLY Forward (175/200)1
6118475T1齿轮组GEAR SET1
62176151调整垫片(.125)SPACER SHIM (.125)AR
62176152调整垫片(.127)SPACER SHIM (.127)AR
62176153调整垫片(.129)SPACER SHIM (.129)AR
62176154调整垫片(.131)SPACER SHIM (.131)AR
62176155调整垫片(.133)SPACER SHIM (.133)AR
62176156调整垫片(.135)SPACER SHIM (.135)AR
62176157调整垫片(.137)SPACER SHIM (.137)AR
62176158调整垫片(.139)SPACER SHIM (.139)AR
62176159调整垫片(.141)SPACER SHIM (.141)AR
621761510调整垫片(.143)SPACER SHIM (.143)AR
621761511调整垫片(.145)SPACER SHIM (.145)AR
621761512调整垫片(.147)SPACER SHIM (.147)AR
621761513调整垫片(.149)SPACER SHIM (.149)AR
6315841滚柱轴承BEARING Roller1
6417616推力环THRUST RING1
6531534O型圈O-RING1
658M0214920O型圈O RING1
6618447A2轴承适配器总成ADAPTER ASSEMBLY Bearing1
6618447T2适配器总成ADAPTOR ASSEMBLY1
6715843滚柱轴承BEARING Roller1
6715843T滚针轴承BEARING Needle1
6818448止推垫片THRUST WASHER2
6915842推力轴承BEARING Thrust2
7018446螺旋桨轴PROPELLER SHAFT1
71818896A2轴承座总成CARRIER ASSEMBLY Bearing1
71818896T2轴承座BEARING CARRIER1
7230956滚针轴承BEARING Needle1
7230956T滚针轴承BEARING Needle1
7376868密封件SEAL1
738M0248882油封@5SEAL-OIL @51
73A76868密封件SEAL1
73A8M0248882油封@5SEAL-OIL @51
74183231锁紧垫圈TAB WASHER1
7579448固定座RETAINER1
758M2011027固定座RETAINER1
7630281键KEY1
77316404平衡板(用于无阳极齿轮箱)TRIM TAB (USE WITH GEAR HOUSING W/O ANODES)1
7731640Q4平衡鳍板TRIM TAB1
77316405配平板(与带阳极齿轮箱配套使用)TRIM TAB (USE WITH GEAR HOUSING W/ANODES)1
778M0236553平衡鳍板TRIM TAB1
78806327螺钉(.437-14 x 1.750)SCREW (.437-14 x 1.750)1
788M0204686螺钉SCREW1
7967891填充块FILLER BLOCK1
798M0039169填充块FILLER BLOCK1
8045176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel2
8134933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
818M0204653螺母NUT2
8213171推力毂THRUST HUB1
82835467Q01止推垫片套件THRUST WASHER KIT1
8331211A2花键垫圈WASHER Splined1
8331211Q03垫圈总成WASHER ASSEMBLY1
84816629锁紧垫圈TAB WASHER1
84816629Q锁紧垫圈TAB WASHER1
8552707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
8552707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
86423511齿形锁紧垫圈LOCKWASHER Toothed1
8765210螺钉(.375-16 x 1.00)SCREW (.375-16 x 1.00)1
-815791A92发动机垫片组GASKET SET Engine1
-89238A2密封套件SEAL KIT1
图 149齿轮箱对照表 GEAR HOUSING CHART
齿轮箱对照表 GEAR HOUSING CHART
REF零件编号中文名称英文名称数量
-9148A18齿轮箱总成 标准旋转2:1速比(长型)(黑色)GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (LONG)(BLACK)1
-9148A19齿轮箱总成 标准旋转2:1速比(加长型)(黑色)GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (X-LONG)(BLACK)1
-9148T82齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A20齿轮箱总成 标准旋转2:1速比(长型)(灰色)GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (LONG)(GRAY)1
-9148T87ORD 1647-9148T81ORD 1647-9148T811
-9148A21齿轮箱总成 标准旋转2:1速比(加长型)(灰色)GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (X-LONG)(GRAY)1
-9148T88ORD 1647-9148T82ORD 1647-9148T821
-9148A40齿轮箱总成 2.3:1速比(高海拔)(黑色)GEAR HOUSING ASSEMBLY 2.3:1 Gear Ratio (HIGH ALTITUDE) (BLACK)1
-9148A78齿轮箱总成(速比2.3:1)GEAR HOUSING ASSEMBLY 2.3:1 Gear Ratio1
-9148A41齿轮箱总成 2.3:1速比(高海拔)(灰色)GEAR HOUSING ASSEMBLY 2.3:1 Gear Ratio (HIGH ALTITUDE) (GRAY)1
-9148A79齿轮箱总成(速比2.3:1)GEAR HOUSING ASSEMBLY 2.3:1 Gear Ratio1
-814247A3齿轮箱总成 1.78:1速比-黑色(黑色)GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Black (BLACK)1
-814247T3齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-814247A4齿轮箱总成 1.78:1速比-灰色(灰色)GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Gray (GRAY)1
-814247T4齿轮箱总成(完整)GEAR HOUSING ASSEMBLY Complete1
-9148A9齿轮箱总成 标准旋转1.87:1速比(加长型)追踪者GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (X-LONG) TRACKER1
-9148T85齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A10齿轮箱总成 标准旋转1.87:1速比(长型)(灰色)GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (LONG) (GRAY)1
-9148T84齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A13齿轮箱总成 标准旋转1.87:1速比(加长型)(灰色)GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (X-LONG) (GRAY)1
-9148T91ORD 1647-9148T85ORD 1647-9148T851
-9148A45齿轮箱总成 标准旋转1.87:1速比 追踪者GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio TRACKER1
-9148T84齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A27齿轮箱总成 反向旋转(加长型)(黑色)GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG) (BLACK)1
-9148T83齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A28齿轮箱总成 反向旋转(加长型)(灰色)GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG) (GRAY)1
-9148T89齿轮箱壳体-CXL-灰色GEAR HSG-CXL-GRAY1
-9148A30齿轮箱总成 反向旋转(加长型)(黑色)GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG) (BLACK)1
-9148T86齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A31齿轮箱总成 反向旋转(加长型)(灰色)GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG) (GRAY)1
-9148T92ORD 1647-9148T86ORD 1647-9148T861
-9148A65齿轮箱总成 标准旋转2:1速比(长型)(黑色)GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (LONG) (BLACK)1
-9148T81齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A67齿轮箱总成 标准旋转2:1速比(加长型)(黑色)GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (X-LONG) (BLACK)1
-9148T82齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A66齿轮箱总成 标准旋转2:1速比(长型)(灰色)GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (LONG) (GRAY)1
-9148T87ORD 1647-9148T81ORD 1647-9148T811
-9148A68齿轮箱总成 标准旋转2:1速比(加长型)(灰色)GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (X-LONG) (GRAY)1
-9148T88ORD 1647-9148T82ORD 1647-9148T821
-9148A78齿轮箱总成 2.3:1速比(高海拔)(黑色)GEAR HOUSING ASSEMBLY 2.3:1 Gear Ratio (HIGH ALTITUDE)(BLACK)1
-9148A79齿轮箱总成 2.3:1速比(高海拔)(灰色)GEAR HOUSING ASSEMBLY 2.3:1 Gear Ratio (HIGH ALTITUDE)(GRAY)1
-9148A69齿轮箱总成 标准旋转1.87:1速比(长型)(黑色)GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (LONG)(BLACK)1
-9148T84齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A72齿轮箱总成 标准旋转1.87:1速比(加长型)(黑色)GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (X-LONG) (BLACK)1
-9148T85齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A70齿轮箱总成 标准旋转1.87:1速比(长型)(灰色)GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (LONG) (GRAY)1
-9148T84齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A73齿轮箱总成 标准旋转1.87:1速比(加长型)(灰色)GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (X-LONG)(GRAY)1
-9148T91ORD 1647-9148T85ORD 1647-9148T851
-9148A71齿轮箱总成 标准旋转1.87:1速比 追踪者GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio TRACKER1
-9148T84齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A74齿轮箱总成 反向旋转(加长型)(黑色)GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG)(BLACK)1
-9148T83齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A75齿轮箱总成 反向旋转(加长型)(灰色)GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG)(GRAY)1
-9148T89齿轮箱壳体-CXL-灰色GEAR HSG-CXL-GRAY1
-9148A76齿轮箱总成 反向旋转(加长型)(黑色)GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG) (BLACK)1
-9148T86齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)1
-9148A77齿轮箱总成 反向旋转(加长型)(灰色)GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG)(GRAY)1
-9148T92ORD 1647-9148T86ORD 1647-9148T861
图 150齿轮箱（驱动轴）（XR6/MAG III - 1.78:1 速比） GEAR HSG (DRIVESHAFT)(XR6/MAG III - 1.78:1 RATIO)
齿轮箱（驱动轴）（XR6/MAG III - 1.78:1 速比） GEAR HSG (DRIVESHAFT)(XR6/MAG III - 1.78:1 RATIO)
REF零件编号中文名称英文名称数量
1814247A1齿轮箱总成 基础型-黑色GEAR HOUSING ASSEMBLY Basic - Black1
1814247A2齿轮箱总成 基础型-灰色GEAR HOUSING ASSEMBLY Basic - Gray1
1814247T2ORD 1674-814247T1ORD 1674-814247T11
285822A10连接器总成(适用时使用)CONNECTOR ASSEMBLY (USE WHERE APPLICABLE)1
2A43998衬套(旧设计)SLEEVE (OLD DESIGN)1
343044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
478638双头螺柱(.438 x 3.12)STUD (.438 x 3.12)1
4786382螺柱(.437-14/.437-20 x 3.120)STUD (.437-14/.437-20 x 3.120)1
5579201双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
58M0133358双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
656297双头螺栓(.312×3.38)STUD (.312 x 3.38)1
68M0034463螺柱(.312-24 x 3.38)STUD (.312-24 x 3.38)1
730667双头螺栓(.250-20/.250-28×3.125)STUD (.250-20/.250-28 x 3.125)2
7306671螺柱STUD2
835934A1滚柱轴承总成BEARING ASSEMBLY Roller1
979953螺钉(0.375-16x0.250)SCREW (.375-16 x .250)1
979953Q04放油螺钉套件SCREW KIT Drain1
1067892磁性螺钉SCREW Magnetic1
108M0058389放油螺钉套件SCREW KIT Drain1
11815168驱动轴DRIVESHAFT1
12N.S.S.小齿轮(不单独销售)(属于43-16279A2部件)Not Sold Separate Pinion Gear (PART OF 43-16279A2)1
1319183纤维垫圈WASHER Fiber2
138M0187157蓝色密封件@15SEAL-BLUE @152
14826375螺母(0.625-18)NUT (.625-18)1
1435921螺母(0.625-18)NUT (.625-18)1
1542637A1垫片组SHIM SETAR
158M0063267垫片组SHIM SETAR
1636387A1轴承总成(滚子/外圈)BEARING ASSEMBLY Roller/Cup1
168M0146566杯/锥轴承总成BEARING ASSEMBLY Cup/Cone1
17824519固定座RETAINER1
178245191固定座RETAINER1
1842579A3水泵底座总成BASE ASSEMBLY Water Pump1
188M0077147带水泵底座总成BASE ASSY-W/P1
19426311衬垫GASKET1
198M0204678衬垫GASKET1
2090011O型圈(2.175 x 0.175)O-RING (2.175 x .175)1
208M0142854O型圈(2.175 x 0.103)O-RING (2.175 x .103)1
2189238油封SEAL Oil1
2216977油封SEAL Oil1
23856081衬垫GASKET1
238M0090319衬垫@5GASKET @51
24856091衬垫GASKET1
24858524衬垫GASKET1
2532435面板FACE PLATE1
258M0204677面板PLATE-FACE1
2696148A1水泵壳体总成BODY ASSEMBLY Water Pump1
2696148T1水泵壳体总成BODY ASSEMBLY Water Pump1
2748752嵌件INSERT1
2748752T嵌件INSERT1
2838970密封件SEAL1
29899841叶轮IMPELLER1
2989984T3叶轮IMPELLER1
3056654键KEY1
308M0214992键@5KEY @51
3196411螺钉(#14-8×2.25)SCREW (#14-8 x 2.25)1
318M0215009螺钉SCREW1
3229245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
328M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
3313438螺母(.250-28)NUT (.250-28)2
338267119螺母(.250-28)NUT (.250-28)2
3436001垫圈WASHER1
3513436螺母NUT1
3729804套筒SLEEVE1
3729804T套筒SLEEVE1
388152641换挡轴(不带E型环使用)SHIFT SHAFT (USE W/O E-RING)1
38815264换挡轴下段SHIFT SHAFT LOWER1
388152641换档轴SHIFT SHAFT1
3929641E型卡环E RING1
4025439O型圈(.862×0.103)O-RING (.862 x .103)1
4177631A2衬套总成BUSHING ASSEMBLY1
428164641油封SEAL Oil1
428M0246145油封OIL SEAL1
4377674垫圈(.35 x .75 x .12)换挡轴衬套WASHER (.35 x .75 x .12) SHIFT SHAFT BUSHING1
-815791A92发动机垫片组GASKET SET Engine1
-96148A5水泵维修套件REPAIR KIT Water Pump1
-96148A8水泵维修套件WATER PUMP REPAIR KIT1
-89238A2密封套件SEAL KIT1
图 151齿轮箱（推进轴）（XR6/MAG III - 1.78:1 速比） GEAR HSG (PROP SHAFT)(XR6/MAG III - 1.78:1 RATIO)
齿轮箱（推进轴）（XR6/MAG III - 1.78:1 速比） GEAR HSG (PROP SHAFT)(XR6/MAG III - 1.78:1 RATIO)
REF零件编号中文名称英文名称数量
1814247A1齿轮箱总成 基础型-黑色GEAR HOUSING ASSEMBLY Basic - Black1
1814247A2齿轮箱总成 基础型-灰色GEAR HOUSING ASSEMBLY Basic - Gray1
1814247T2ORD 1674-814247T1ORD 1674-814247T11
4476039换挡凸轮控制CAM Shift Control1
44760394换挡凸轮控制CAM Shift Control1
4512239A1凸轮从动件套件FOLLOWER KIT Cam1
45850315A1凸轮从动件套件FOLLOWER KIT Cam1
4630622弹簧SPRING1
4744491A1垫片组SHIM SETAR
478M0063266垫片组SHIM SETAR
4830894A1圆锥轴承组BEARING SET Cup And Cone1
4916279A2前进齿轮总成GEAR ASSEMBLY Forward1
5030895滚针轴承BEARING Needle1
5030895T滚针轴承BEARING Needle1
51822539离合器CLUTCH1
51822539T离合器CLUTCH1
5230632十字销PIN Cross1
528M0100263十字销PIN Cross1
5330893弹簧SPRING1
5412238T螺旋桨轴PROPELLER SHAFT1
55N.S.S.倒车齿轮(不单独销售)(属于43-16279A2部件)Not Sold Separate Reverse Gear (PART OF 43-16279A2)1
5676358止推垫片THRUST WASHER1
5729976O型圈O-RING1
5841529A2轴承座总成CARRIER ASSEMBLY Bearing1
5841529T2托架总成CARRIER ASSY1
5998727润滑脂接头FITTING Grease2
598M0169588润滑脂接头FITTING Grease2
6030956滚针轴承BEARING Needle1
6030956T滚针轴承BEARING Needle1
6176868密封件SEAL2
618M0248882油封@5SEAL-OIL @52
6230281键KEY1
6352700锁紧垫圈TAB WASHER1
6452699盖板COVER1
6567891填充块FILLER BLOCK1
658M0039169填充块FILLER BLOCK1
6665210螺钉(.375-16 x 1.00)SCREW (.375-16 x 1.00)1
68816629锁紧垫圈TAB WASHER1
68816629Q锁紧垫圈TAB WASHER1
6952707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
6952707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
70316404平衡鳍板TRIM TAB1
7031640Q4平衡鳍板TRIM TAB1
71806327螺钉(.437-14 x 1.750)SCREW (.437-14 x 1.750)1
718M0204686螺钉SCREW1
7245176垫圈(.453 x .812 x .105)不锈钢WASHER (.453 x .812 x .105) Stainless Steel2
7334933螺母(.437-20)不锈钢NUT (.437-20) Stainless Steel2
738M0204653螺母NUT2
7413191A1止推垫片THRUST WASHER1
7413191Q01止推垫片THRUST WASHER1
-815791A92发动机垫片组GASKET SET Engine1
-89238A2密封套件SEAL KIT1
图 152点火线圈/电压调节器 IGNITION COIL/VOLTAGE REGULATOR
点火线圈/电压调节器 IGNITION COIL/VOLTAGE REGULATOR
REF零件编号中文名称英文名称数量
119587安装板PLATE MOUNTING1
1195872安装板MOUNTING PLATE1
230720电压调节器螺钉(.250-20 x 2.25)SCREW (.250-20 x 2.25) VOLTAGE REGULATOR4
326992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel4
419661衬套BUSHING4
518736A8电压调节器总成REGULATOR ASSEMBLY Voltage1
518736A21调节器总成REGULATOR ASSY1
618717密封件SEAL1
796158启动电磁阀SOLENOID Starter2
78M0185622电磁阀SOLENOID2
828635启动电磁阀不锈钢螺钉(.250-20 x .620)SCREW (.250-20 x .620) Stainless Steel STARTER SOLENOID3
988807A6黑色电缆总成 (3.50 英寸)CABLE ASSEMBLY (3.50 Inches) Black1
1056374电磁阀螺钉螺母(.250-20)NUT (.250-20) SOLENOID SCREW3
108267098螺母 (.250-20) 不锈钢NUT (.250-20) Stainless Steel3
1126419螺母(#8-32)-黄铜电磁阀端子NUT (#8-32) Brass SOLENOID TERMINAL4
1294330螺母 (.250-20) 黄铜电磁阀端子NUT (.250-20) Brass SOLENOID TERMINAL4
1397861绝缘体-启动电磁阀INSULATOR STARTER SOLENOID2
1487379A25线束总成(4.750英寸)(红色)WIRE ASSEMBLY (4.750 Inches) (RED)1
1488807A8黑色电缆总成 (3.50 英寸)CABLE ASSEMBLY (3.50 Inches) Black2
1588807A29拉线总成CABLE ASSEMBLY1
1690077扎带TIE STRAPAR
16816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
1743542点火线圈盖COVER IGNITION COIL2
187370A13点火线圈总成COIL ASSEMBLY Ignition6
188M0230859点火线圈总成COIL IGNITION ASY6
1990048点火线圈盖螺钉(#10-32 x 2.125)SCREW (#10-32 x 2.125) IGNITION COIL COVER12
2090078盖板螺钉/接地线螺母(#10-32)NUT (#10-32) COVER SCREW/GROUND WIRE14
21813715A9高压点火线束套件CABLE KIT Ignition HIGH TENSION1
2263709A1高压电缆护套/端子套件BOOT/TERMINAL KIT HIGH TENSION CABLE6
23136862火花塞SPARK PLUG6
2313686QNGK BU8H @10NGK BU8H @106
2445076螺母(#10-32)黄铜点火线圈端子NUT (#10-32) Brass IGNITION COIL TERMINAL12
2588807A13拉线总成CABLE ASSEMBLY6
2669022接地线不锈钢螺钉(#10-32 x .500)SCREW (#10-32 x .500) Stainless Steel GROUND WIRE2
2769738A9线束总成HARNESS ASSEMBLY1
2769739A6线束总成HARNESS ASSEMBLY1
2854676双线固定夹RETAINER Two Wire2
29814407A3倾斜开关套件SWITCH KIT Tilt1
30814407A2动力艇倾斜开关TILT SWITCH POWERBOAT1
3199629A3动力艇倾斜杆总成LEVER ASSEMBLY Tilt POWERBOAT1
图 153仪表装置 INSTRUMENTATION
仪表装置 INSTRUMENTATION
REF零件编号中文名称英文名称数量
115110A1转速表TACHOMETER1
1895283Q43转速表套件(0-6000 RPM)黑面橙白刻度黑边框TACHOMETER KIT (0-6000 RPM) Black Face, Orange/White Graduations, Black Bezel1
279101T安装支架BRACKET MOUNTING1
372729楔形底座灯泡(14V - 1.9W)LIGHT BULB Wedge Base (14V - 1.9W)1
479888灯泡插座SOCKET Light Bulb1
526419黄铜螺母 (#8-32)NUT (#8-32) Brass5
686396A8转速表线束总成(5.00英尺)HARNESS ASSEMBLY Tachometer (5.00 Feet)1
715166A1温度表TEMPERATURE GAUGE1
7895287Q41水温表套件(100-240℉)黑面橙白刻度黑框WATER TEMPERATURE GAUGE KIT (100-240 F) Black Face, Orange/White Graduations, Black Bezel1
872729楔形底座灯泡(14V - 1.9W)LIGHT BULB Wedge Base (14V - 1.9W)1
979888灯泡插座SOCKET Light Bulb1
1026427垫圈WASHER2
1179480支架BRACKET1
1226419黄铜螺母 (#8-32)NUT (#8-32) Brass5
1386323A2电缆总成(2英尺)紫色CABLE ASSEMBLY (2.00 Feet) Purple1
1361600A16电缆总成(17英寸)黑色CABLE ASSEMBLY (17.00 Inches) Black1
1388824A4电缆总成(45英寸)棕褐色CABLE ASSEMBLY (45.00 Inches) Tan1
1415115A2同步器量表SYNCHRONIZER GAUGE1
14895294Q41双机同步指示表（黑面橙白刻度黑框）GAUGE Dual Engine Synchronizer, Black Face, Orange/White Graduation, Black Bezel1
1579480支架BRACKET1
1626419黄铜螺母 (#8-32)NUT (#8-32) Brass5
1772729楔形底座灯泡(14V - 1.9W)LIGHT BULB Wedge Base (14V - 1.9W)1
1879888灯泡插座SOCKET Light Bulb1
1914502同步器驱动器DRIVER SYNCHRONIZER1
19145022同步器驱动器DRIVER Synchronizer1
2019674A1拉绳开关总成SWITCH ASSEMBLY Lanyard1
2019674A07开关/拉绳套件SWITCH/LANYARD KIT1
2118303螺钉 (.190-16 x 1.750) 不锈钢SCREW (.190-16 x 1.750) Stainless Steel2
22813679适配器ADAPTER1
2315920A54拉绳总成LANYARD ASSEMBLY1
2315920Q54拉绳总成LANYARD ASSEMBLY1
2432866螺钉 (#10-32 x 2.00) 不锈钢SCREW (#10-32 x 2.00) Stainless Steel2
2518321安装夹CLAMP Mounting1
2624676垫圈 (.200 x .440 x .032)WASHER (.200 x .440 x .032)2
2768219螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel4
2879146固定座RETAINER3
29816311捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
29816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
30812497A2二极管总成DIODE ASSEMBLY1
30898289A72双拉绳二极管套件DIODE KIT-LANYARD Dual1
3111149A2线缆总成 (6.00英寸)CABLE ASSEMBLY (6.00 Inches)1
3111149A3电缆总成(3英寸)CABLE ASSEMBLY (3")1
图 154喷射组件 JET COMPONENTS
喷射组件 JET COMPONENTS
REF零件编号中文名称英文名称数量
188447螺钉 (.190-32 x 1.62)SCREW (.190-32 x 1.62)3
238833垫圈WASHER3
394304隔套SPACER3
413381安装板PLATE1
5821889A20转速限制器REV LIMITER1
5821889A30转速限制器REV LIMITER1
6823147A5适配器线束总成 - 转速限制器HARNESS ASSEMBLY Adaptor - Rev Limiter1
7801402润滑脂套装GREASE KIT1
730500A2润滑脂套装GREASE KIT1
842579A3水泵底座总成BASE ASSEMBLY Water Pump1
88M0077147带水泵底座总成BASE ASSY-W/P1
9426311衬垫GASKET1
98M0204678衬垫GASKET1
1089238油封SEAL Oil1
1116977油封SEAL Oil1
12856081衬垫GASKET1
128M0090319衬垫@5GASKET @51
13856091衬垫GASKET1
13858524衬垫GASKET1
1432435面板FACE PLATE1
148M0204677面板PLATE-FACE1
1596148A1水泵壳体总成BODY ASSEMBLY Water Pump1
1596148T1水泵壳体总成BODY ASSEMBLY Water Pump1
1648752嵌件INSERT1
1648752T嵌件INSERT1
1738970密封件SEAL1
18899841叶轮IMPELLER1
1889984T3叶轮IMPELLER1
1956654键KEY1
198M0214992键@5KEY @51
2096411螺钉(#14-8×2.25)SCREW (#14-8 x 2.25)1
208M0215009螺钉SCREW1
2129245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
218M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
2213438螺母(.250-28)NUT (.250-28)2
228267119螺母(.250-28)NUT (.250-28)2
2319924275螺钉 (.312-18 x 2.75)SCREW (.312-18 x 2.75)1
2436001垫圈WASHER1
2529804套筒SLEEVE1
2529804T套筒SLEEVE1
-815791A92发动机垫片组GASKET SET Engine1
-96148A5水泵维修套件REPAIR KIT Water Pump1
-96148A8水泵维修套件WATER PUMP REPAIR KIT1
-89238A2密封套件SEAL KIT1
图 155喷泵总成 JET PUMP ASSEMBLY
喷泵总成 JET PUMP ASSEMBLY
REF零件编号中文名称英文名称数量
-801400150喷泵(黑色)JET PUMP (BLACK)1
-801401150喷泵(灰色)JET PUMP (GRAY)1
-855766150喷泵JET PUMP1
1801411150泵壳HOUSING Pump1
1A827490润滑油管HOSE Lube1
2801414150叶轮IMPELLER1
2803984T叶轮IMPELLER1
380141290进气壳体HOUSING Intake1
3A8271883衬套LINER1
4801413150驱动轴SHAFT Drive1
4A8271891套筒SLEEVE1
4B8271901螺母NUT1
5801405875键KEY1
6801404875叶轮垫片SHIM Impeller8
7801403875锁紧垫圈TAB WASHER1
8847568螺丝(.312-18 x 1.00)SCREW (.312-18 x 1.00)6
8812618不锈钢螺钉(.312-18 x 1.00)带尼龙垫SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch6
919923088螺钉(.250-20 x .875)SCREW (.250-20 x .875)4
1019923062螺钉(.250-20 x .625)SCREW (.250-20 x .625)2
1160411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)1
12801410电缆支架BRACKET Cable Support1
1367980螺母(.312-18)NUT (.312-18)1
1382670910不锈钢螺母(.312-18)NUT (.312-18) Stainless Steel1
14801407定位销PIN Dowel2
1578638双头螺柱(.438 x 3.12)STUD (.438 x 3.12)1
15786382螺柱(.437-14/.437-20 x 3.120)STUD (.437-14/.437-20 x 3.120)1
16579201双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
168M0133358双头螺栓(.437-14/.437-20×2.060)STUD (.437-14/.437-20 x 2.060)2
1769064螺栓(.312-18 x 2.750)BOLT (.312-18 x 2.750)1
1830667双头螺栓(.250-20/.250-28×3.125)STUD (.250-20/.250-28 x 3.125)2
18306671螺柱STUD2
1968299不锈钢螺钉(.375-16 x 3.00)SCREW (.375-16 x 3.00) Stainless Steel1
2045175垫圈(.406 x .750 x .104)WASHER (.406 x .750 x .104)1
208M0214963垫圈WASHER1
图 156杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES
杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES
REF零件编号中文名称英文名称数量
-81609892零件手册135/150/175/200/XR6/MAGNUM IIIPARTS MANUAL 135/150/175/200/XR6/MAGNUM III1
-813220A89贴花套装(黑色135/150/175)DECAL SET (BLACK 135/150/175)
-812563A92贴花套装(XR6)DECAL SET (XR6)
-808552A94贴花套件DECAL SET
-812563A93贴花套装(黑色200)DECAL SET (BLACK 200)
-813036A92贴花套装(灰色135/150)DECAL SET (GRAY 135/150)
-813034A92贴花套装(MAGNUM III)DECAL SET (MAGNUM III)
-813034A94贴花套件DECAL SET
-813037A92贴花套装(灰色175)DECAL SET (GRAY 175)
-813037A94贴花套件DECAL SET
-815630A90贴花套装(灰色200)DECAL SET (GRAY 200)
-813220A94贴花套装(黑色135)DECAL SET (BLACK 135)
-824103A94贴花套装(黑色150)DECAL SET (BLACK 150)
-824911A94贴花套装(黑色175)DECAL SET (BLACK 175)
-808552A94贴花套装(XR6)DECAL SET (XR6)
-812563A94贴花套装(黑色200加长)DECAL SET (BLACK 200 LONG)
-808562A94贴花套装(黑色200 XL/CXL)DECAL SET (BLACK 200 XL/CXL)
-813036A94贴花套装(灰色135)DECAL SET (GRAY 135)
-824104A94贴花套装(灰色150)DECAL SET (GRAY 150)
-824911A94贴花套装(灰色175)DECAL SET (GRAY 175)
-808552A94贴花套装(XR6)DECAL SET (XR6)
-812563A94贴花套装(黑色200加长)DECAL SET (BLACK 200 LONG)
-808562A94贴花套装(黑色200 XL/CXL)DECAL SET (BLACK 200 XL/CXL)
-813036A94贴花套装(灰色135)DECAL SET (GRAY 135)
-824104A94贴花套装(灰色150)DECAL SET (GRAY 150)
-813034A94贴花套装(MAGNUM III)DECAL SET (MAGNUM III)
-813037A94贴花套装(灰色175)DECAL SET (GRAY 175)
-815630A94贴花套装(灰色200加长)DECAL SET (GRAY 200 LONG)
-808563A94贴花套装(灰色200 XL/CXL)DECAL SET (GRAY 200 XL/CXL)
-824736A94贴花套装(TRACKER 150)DECAL SET (TRACKER 150)
-808620A94贴花套装(TRACKER 175)DECAL SET (TRACKER 175)
-808681A94贴花套装(TRACKER 200)DECAL SET (TRACKER 200)
-826331A95贴花套装(黑色105喷泵)DECAL SET (BLACK 105 JET)
-826332A95贴花套装(灰色105喷泵)DECAL SET (GRAY 105 JET)
-826333A95贴花套装（黑色140喷泵）DECAL SET (BLACK 140 JET)
-826334A95贴花套装（灰色140喷泵）DECAL SET (GRAY 140 JET)
-11149940用户手册（黑色）OWNERS MANUAL (BLACK)
-11142940用户手册（灰色）OWNERS MANUAL (GRAY)
-826598940用户手册（黑色喷泵）OWNERS MANUAL (BLACK JET)
-826603940用户手册（灰色喷泵）OWNERS MANUAL (GRAY JET)
图 157喷油组件 OIL INJECTION COMPONENTS
喷油组件 OIL INJECTION COMPONENTS
REF零件编号中文名称英文名称数量
112430A1传感器总成SENSOR ASSEMBLY1
112430A4传感器总成SENSOR ASSEMBLY1
248409螺钉(#10-16 x .625)不锈钢传感器固定SCREW (#10-16 x .625) Stainless Steel SENSOR ATTACHING1
341470A15报警模块总成WARNING MODULE ASSEMBLY1
341470A26报警模块总成WARNING MODULE ASSEMBLY1
438833警告模块螺钉垫圈WASHER WARNING MODULE SCREW3
569020螺钉(#10-32 x .875)SCREW (#10-32 x .875)3
5690201螺钉(#10-32 x .875)SCREW (#10-32 x .875)3
641032油泵总成PUMP ASSEMBLY Oil1
6815698T油泵PUMP Oil1
732228油泵至曲轴箱螺钉 (#10-32 x .625)SCREW (#10-32 x .625) OIL PUMP TO CRANKCASE1
741507油泵至曲轴箱螺钉 (#10-32 x 1.120)SCREW (#10-32 x 1.120) OIL PUMP TO CRANKCASE1
8193856节气门连杆至油泵LINK THROTTLE LEVER TO OIL PUMP1
941429A1驱动齿轮轴承总成BEARING ASSEMBLY DRIVE GEAR1
941429A2轴承总成BEARING ASSEMBLY1
1012726从动齿轮GEAR Driven1
1014563从动齿轮GEAR Driven1
114301619油泵至三通油管TUBING OIL PUMP TO TEE1
1182381335油管(15.00英寸 散装)TUBING (15.00 Inches Bulk)1
1211379油泵O型圈O-RING OIL PUMP1
1342813警告模块导线螺钉 (#10-32 X .380)SCREW (#10-32 X .380) WARNING MODULE LEAD1
1487421油箱TANK1
1543298A2油箱盖总成CAP ASSEMBLY OIL TANK1
1611332O型圈(2.225 x .210)油泵O-RING (2.225 x .210) OIL PUMP1
1743295A5壳体总成适配器HOUSING ASSEMBLY Adaptor1
17816190A4机油收集器总成(无传感器)OIL PICK UP ASSEMBLY Without Sender1
1811332O型圈(2.225 x .210)盖O-RING (2.225 x .210) CAP1
1999802吸油管TUBE OIL PICK-UP1
20NLA已停产快速断开套件(需单独订购零件)No Longer Available Quick Disconnect Kit (Order parts separately)1
2199439油管(114.00英寸)HOSE (114.00 Inches) OIL1
2212540A3壳体HOUSING1
2312242A1闩锁LATCH1
2499443油箱RESERVOIR Oil1
24994436储液罐RESERVOIR1
2569020油箱固定螺钉 (#10-32 x .875)SCREW (#10-32 x .875) OIL RESERVOIR ATTACHING3
25690201螺钉(#10-32 x .875)SCREW (#10-32 x .875)3
2642118油箱螺钉垫圈WASHER OIL RESERVOIR SCREW6
2742117油箱螺钉衬套GROMMET OIL RESERVOIR SCREW3
2842116油箱螺钉轴套BUSHING OIL RESERVOIR SCREW3
294301736油箱至油泵油管 (5-1/4")TUBING OIL RESERVOIR TO OIL PUMP (5-1/4")1
2982381455油管（25.00英寸散装）TUBING (25.00 Inches Bulk)1
3043300A1油箱盖总成CAP ASSEMBLY OIL RESERVOIR1
3043300A9盖总成CAP ASSEMBLY1
3143307油箱盖衬垫GASKET RESERVOIR CAP1
3143307T衬垫GASKET1
3299022A1浮子总成FLOAT ASSEMBLY1
328M0187298浮子总成FLOAT ASSY1
3399265压入式螺母PUSH NUT1
34415821油管卡箍(小)CLAMP OIL HOSE (SMALL)2
35415823油管卡箍(大)CLAMP OIL HOSE (LARGE)2
3699127109油管(57.00英寸散装)LINE (57.00 Inches Bulk) OIL1
368M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
3742425油管三通TEE OIL TUBING1
389072925油管(6-3/4")HOSE OIL (6-3/4")1
3999127109管路(57.00英寸 散装)LINE (57.00 Inches Bulk)1
398M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
4043278止回阀接头（曲轴箱）FITTING CHECK VALVE (CRANKCASE)1
408781051止回阀CHECK VALVE1
图 158动力转向组件（遥控） POWER STEERING COMPONENTS (REMOTE)
动力转向组件（遥控） POWER STEERING COMPONENTS (REMOTE)
REF零件编号中文名称英文名称数量
117771支架MOUNT1
259702螺钉 (.250-28 x .875) 不锈钢SCREW (.250-28 x .875) Stainless Steel4
388404锁紧垫圈TAB WASHER4
478862A2密封套件SEAL KIT1
419624A1密封套件SEAL KIT1
571565A2管总成TUBE ASSEMBLY1
617776联轴器COUPLING1
7817040螺钉 (.375-24 x 2.75)SCREW (.375-24 x 2.75)1
834931不锈钢垫圈(.406x.734x.063)WASHER (.406 x .734 x .063) Stainless Steel1
990092螺钉SCREW1
9856722螺钉SCREW1
1034863螺母 (.375-24)NUT (.375-24)2
108M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass2
1142100锁紧垫圈TAB WASHER2
1237984螺母 (.875-14)NUT (.875-14)2
128M0041651螺母 (.875-14)NUT (.875-14)2
13811290蓄能器 (参见蓄能器分解图)ACCUMULATOR (See Accumulator for Breakdown)1
14817372支架BRACKET1
1516862螺钉 (.250-10 x 1.25)SCREW (.250-10 x 1.25)4
1629245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel4
168M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel4
174000383螺钉 (M10 x 70)SCREW (M10 x 70)2
184002319垫圈WASHER4
1913914螺母(M10)NUT (M10)2
1940140螺母(M10)NUT (M10)2
208112891执行器ACTUATOR1
20828588A2执行器套件ACTUATOR KIT1
2194319螺钉(.375-24 x 1.5)SCREW (.375-24 x 1.5)1
2217405隔套SPACER2
2334863螺母 (.375-24)NUT (.375-24)3
238M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass3
2414000螺钉(.375-24x1.25)SCREW (.375-24 x 1.25)1
24849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)1
2592876A4连杆总成LINK ROD ASSEMBLY1
2668300垫圈 (.88 x .39 x .06)WASHER (..88 x .39 x .06)1
274000330螺钉(M6x25)SCREW (M6 x 25)2
278M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
2843450垫圈WASHER2
284002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)2
298268336螺母 (M6)NUT (M6)2
29401386螺母(M6)不锈钢NUT (M6) Stainless Steel2
30811292卡箍CLAMP1
31818182螺钉SCREW2
32400263螺母 (M5)NUT (M5)2
33811291支架BRACKET1
3438601螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250)4
35197491卡箍CLAMP1
3618211继电器开关RELAY SWITCH1
3718244A1线束总成HARNESS ASSEMBLY1
3818124螺钉 (#10-32 x .750)SCREW (#10-32 x .750)1
3990329护孔环GROMMET1
40309772隔套SPACER1
41816994支架BRACKET1
4242118垫圈WASHER1
4329488螺母 (#10-32)NUT (#10-32)1
438M0204718螺母NUT1
4481563024贴花DECAL1
图 159动力升降组件 8M0231193 Power Trim Components 8M0231193
动力升降组件 8M0231193 Power Trim Components 8M0231193
REF零件编号中文名称英文名称数量
-8M0231193动力升降总成POWER TRIM ASSEMBLY1
18M0225363电机套件MOTOR KIT1
28M0225369阀套件VALVE KIT1
38M0225371手动释放套件MANUAL RELEASE KIT1
48M0245633倾斜油缸套件TILT CYLINDER KIT1
58M0225370枢轴销套件PIVOT PIN KIT1
68M0244575减震杆套件SHOCK ROD KIT1
78M0244425销杆眼套件PIN ROD EYE KIT1
88M0232231螺钉螺母套件SCREW NUT KIT1
98M0225373记忆活塞套件MEMORY PISTON KIT1
108M0225368储液罐套件RESERVOIR KIT1
118M0174135储液罐塞总成PLUG RESERVOIR ASSEMBLY1
128M0237525泵套件PUMP KIT1
138M0225367升降杆套件TRIM ROD KIT1
148M0242846升降杆套件TRIM ROD KIT1
158M0225372重建套件REBUILD KIT1
图 160动力升降组件（金属马达壳体） POWER TRIM COMPONENTS Metal Motor Housing
动力升降组件（金属马达壳体） POWER TRIM COMPONENTS Metal Motor Housing
REF零件编号中文名称英文名称数量
-818186A6动力升降总成POWER TRIM ASSEMBLY1
-826729A10ORD 8M0143217ORD 8M01432171
-826729A2升降倾斜总成TRIM AND TILT ASSEMBLY1
-855998A11动力调整套件POWER TRIM KIT1
1811604F歧管总成MANIFOLD ASSEMBLY1
256800管塞 (.0625-27)PLUG Pipe (.0625-27)9
3811605F倾斜油缸总成TILT CYLINDER ASSEMBLY1
3880952A03ORD 8M0078330ORD 8M00783301
4811608升降倾斜活塞杆套件 (螺栓型-参见备注)ROD KIT Trim And Tilt Piston (BOLT TYPE- SEE NOTE)1
5823553升降活塞杆套件 (螺母型)ROD KIT Trim Piston (NUT TYPE)1
5823553T升降活塞杆ROD Trim Piston1
6811606导向套件GUIDE KIT1
6878239A02倾斜缸端盖套件END CAP KIT Tilt Cylinder1
7811607A1维修套件REPAIR KIT1
8811610A1止回阀套件CHECK VALVE KIT1
8823553T升降活塞杆ROD Trim Piston1
999638A1导向器总成GUIDE ASSEMBLY2
98M0021648端盖总成END CAP ASSEMBLY2
1043397A6动力升降活塞/杆总成 (左舷)PISTON/ROD ASSEMBLY Power Trim (PORT)1
10878413A1活塞总成PISTON ASSEMBLY1
1043398A3动力升降活塞/杆总成 (右舷)PISTON/ROD ASSEMBLY Power Trim (STARBOARD)1
10878414T01活塞总成PISTON ASSEMBLY1
1112184A1升降过滤器总成TRIM FILTER ASSEMBLY1
12821539三叶销PIN Trilobe1
13813442A2手动释放总成MANUAL RELEASE ASSEMBLY1
13893929A01安全阀套件VALVE KIT Relief1
14812844E型卡环E RING1
14815949001E形环E-RING1
154000327螺钉 (M6 x 14)SCREW (M6 x 14)4
1643450垫圈WASHER4
164002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)4
17811611盖板COVER1
18811612A2O型圈套件O-RING KIT1
18811612A3O型圈套件O-RING KIT1
19811628升降电机 (参见动力升降电机分解图)TRIM MOTOR (See Breakdown on Power Trim Motor)1
19878265A6改装套件-配平RETROFIT KIT-TRIM1
19A828708电机总成 (参见动力升降电机分解图)MOTOR ASSEMBLY (See Breakdown on Power Trim Motor)1
19A878265A4配平电机TRIM MOTOR1
20811619驱动轴DRIVESHAFT1
20828710驱动接头DRIVE JOINT1
21996251轴SHAFT1
2199625002轴SHAFT1
22811615螺钉 (长)SCREW (LONG)2
22828709螺钉 (长)SCREW (LONG)2
22881768A1螺钉/垫圈套件SCREW/WASHER KIT2
22811616螺钉 (短)SCREW (SHORT)2
23811613塞子总成PLUG ASSEMBLY1
24811617F泵PUMP1
24811617T1泵PUMP1
25811614轴总成SHAFT ASSEMBLY1
258M0142997倾斜轴套件TILT SHAFT KIT1
2656800管塞 (.0625-27)PLUG Pipe (.0625-27)2
27818298A1阳极套件ANODE KIT1
27818298Q1阳极套件ANODE KIT1
284000330螺钉(M6x25)SCREW (M6 x 25)2
288M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
2929245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
298M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
30996301冲击板STRIKER PLATE2
308M0045383冲击板STRIKER PLATE2
3158643锁紧垫圈 (.375)LOCKWASHER (.375)2
3246335螺母 (.375-24)NUT (.375-24)2
3344431槽销PIN Groove1
33878267销PIN1
344000377螺钉 (M10 x 30)SCREW (M10 x 30)6
354002319垫圈WASHER6
3622875卡扣CLIP2
3626550卡箍CLAMP2
3769205C形垫圈C WASHER2
378M0084613C形垫圈C-WASHER2
38817626螺钉(#10-16×0.380)SCREW (#10-16 x .380)2
38878607螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)2
图 161动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing
动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing
REF零件编号中文名称英文名称数量
-8M0168222动力升降总成POWER TRIM ASSEMBLY1
18M0142591电机套件MOTOR KIT1
282494830螺钉 (M6 x 30)SCREW (M6 x 30)2
3400256锁紧垫圈 (M6)LOCKWASHER (M6)2
48M0090403驱动联轴器COUPLING Drive1
58M0142996压力检查套件PO CHECK KIT1
68M0060141手动释放套件MANUAL RELEASE KIT1
78M0142997倾斜轴套件TILT SHAFT KIT1
8878267销PIN1
98M0142998倾斜油缸总成TILT CYLINDER ASSEMBLY1
98M0168220倾斜油缸总成TILT CYLINDER ASSEMBLY1
108M0142999倾斜油缸O型圈套件O RING KIT TILT CYLINDER1
118M0143000记忆活塞套件MEMORY PISTON KIT1
128M0142592升降杆套件 左舷TRIM ROD KIT Port1
138M0143001活塞总成PISTON ASSEMBLY1
148M0143003端盖总成END CAP ASSEMBLY1
15878264A1储液罐套件RESERVOIR KIT1
16811613塞子总成PLUG ASSEMBLY1
174000327螺钉 (M6 x 14)SCREW (M6 x 14)4
184002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)4
198M0143004泵套件PUMP KIT1
208M0148385动力升降倾斜装置维修包REPAIR KIT Power Trim1
21858771螺钉 (M10 x 30)SCREW (M10 x 30)6
224002319垫圈WASHER6
238M0094889销PIN1
238M0161312连杆销眼总成PIN ROD EYE ASSEMBLY1
248M0143005减震杆套件SHOCK ROD KIT1
248M0168219减震杆套件SHOCK ROD KIT1
图 162动力升降马达 POWER TRIM MOTOR
动力升降马达 POWER TRIM MOTOR
REF零件编号中文名称英文名称数量
-811628配平电机TRIM MOTOR1
1811624机架与磁场套件FRAME AND FIELD KIT1
2811625电刷卡套件BRUSH CARD KIT1
3811623端架套件END FRAME KIT1
4811626密封套件SEAL KIT1
5811627电枢套件ARMATURE KIT1
5811628配平电机TRIM MOTOR1
-828708电机总成MOTOR ASSEMBLY1
-878265A4配平电机TRIM MOTOR1
6828714A1电刷与密封套件BRUSH AND SEAL KIT1
7828713A1电枢套件ARMATURE KIT1
7828713T1电枢套件ARMATURE KIT1
8828715A1端架（总成）END FRAME (COMPLETE)1
图 163簧片阀组与气缸盖 REED BLOCK AND CYLINDER HEAD
簧片阀组与气缸盖 REED BLOCK AND CYLINDER HEAD
REF零件编号中文名称英文名称数量
1184191气缸盖CYLINDER HEAD2
115221A1气缸盖总成(MARINER 135)CYLINDER HEAD ASSEMBLY (MARINER 135)2
296542气缸盖衬垫GASKET CYLINDER HEAD2
398534气缸盖螺钉 (.375-16 x 2.30)SCREW (.375-16 x 2.30) CYLINDER HEAD24
425909气缸盖螺钉垫圈 (.406 x .812 x .065)WASHER (.406 x .812 x .065) CYLINDER HEAD SCREW24
562386节温器衬垫GASKET THERMOSTAT2
690390A1节温器盖套件COVER KIT THERMOSTAT2
775692节温器THERMOSTAT2
835386节温器盖螺钉 (.312-18 x 1.00)SCREW (.312-18 x 1.00) THERMOSTAT COVER4
96872790度黄铜弯头接头 (.250-18)（水管用）FITTING (.250-18) 90 Degree - Brass ELBOW - WATER HOSES1
107765377配水软管（散装24.500英寸）HOSE (24.500 Inches Bulk) WATER DISTRIBUTION2
1168728节温器盖至水管接头FITTING THERMOSTAT COVER TO WATER HOSES1
1290077水管束带TIE STRAP WATER HOSESAR
1397465温度传感器（右舷）SENDER Temperature (STARBOARD)1
1499747A9簧片阀壳体HOUSING REED BLOCK1
1524878簧片阀壳体螺钉 (.250-20 x 1.25)SCREW (.250-20 x 1.25) REED BLOCK HOUSING1
1569093簧片阀壳体螺钉 (.250-20 x 1.50)SCREW (.250-20 x 1.50) REED BLOCK HOUSING8
1569067簧片阀壳体螺钉 (.250-20 x 1.375)SCREW (.250-20 x 1.375) REED BLOCK HOUSING1
16935361簧片阀壳体衬垫GASKET REED BLOCK HOUSING1
1765744簧片阀衬垫GASKET REED BLOCK6
1875953簧片阀组REED BLOCK6
1975362A1簧片组件REED ASSEMBLY6
1942705A1簧片组(MARINER 135)REED SET (MARINER 135)6
2096183簧片夹CLAMP Reed12
2157583簧片至簧片阀螺钉 (#8-32 x .375)SCREW (#8-32 x .375) REEDS TO REED BLOCK60
2265746簧片阀固定螺钉 (.250-20 x .750)SCREW (.250-20 x .750) REED BLOCK ATTACHING12
2327037化油器安装螺柱 (.250-28 x 1.125)STUD (.250-28 x 1.125) CARBURETOR MOUNTING12
2442658止回阀CHECK VALVE5
2599130122油管(20.00英尺 散装)TUBING (20.00 Feet Bulk)1
2665857泄油软管连接器（压入式）CONNECTOR BLEED HOSE (PRESS-IN)1
2764871A2止回阀CHECK VALVE1
2842657A1止回阀CHECK VALVE1
2915133缸体泄放软管接头(90°)FITTING BLEED HOSE TO CYLINDER BLOCK (90 )5
3013536A7温度传感器总成（左舷）SENSOR ASSEMBLY Temperature (PORT)1
3113715固定夹(每SEA RAY配1个)RETAINER (QTY. OF 1 W/SEA RAY)2
3298257螺钉(.312-18 x .500)(每SEA RAY配1个)SCREW (.312-18 x .500) (QTY. OF 1 W/SEA RAY)2
33187531SEA RAY温度传感器SENDER Temperature SEA RAY1
3488824A8SEA RAY温度传感器线束总成CABLE ASSEMBLY TEMPERATURE SENDER - SEA RAY1
3523567卡箍(9/16英寸)CLIP (9/16")1
3526404管夹(1英寸)CLAMP (1")1
3669205C形垫圈C WASHER2
3762568螺钉（#10-16 x 0.375）SCREW (#10-16 x .375)2
3864705接头FITTING1
-90484A88衬垫套件GASKET SET1
图 164启动马达 STARTER MOTOR
启动马达 STARTER MOTOR
REF零件编号中文名称英文名称数量
-79472启动电机总成STARTER MOTOR ASSEMBLY1
190645驱动套件DRIVE KIT1
275661驱动小齿轮总成PINION ASSEMBLY Drive1
213310T1小齿轮总成PINION ASSEMBLY1
375660驱动端板PLATE DRIVE END1
474968贯穿螺栓BOLT THRU2
6N.S.S.不单独出售垫圈(美国博世WA3122)Not Sold Separate Washer (AMERICAN BOSCH #WA3122)1
779216电枢ARMATURE1
875384电刷/弹簧套件BRUSH/SPRING KIT1
8898265016电刷/弹簧套件BRUSH/SPRING KIT1
961787电刷架HOLDER BRUSH2
9898265014电刷支架HOLDER-BRUSH2
1068586电刷及支架螺钉SCREW BRUSH AND HOLDER2
1115386换向器端盖END CAP COMMUTATOR1
1115386001端盖END CAP1
图 165转向连接套件 STEERING ATTACHING KIT
转向连接套件 STEERING ATTACHING KIT
REF零件编号中文名称英文名称数量
-92876A8转向安装包 (单)ATTACHING KIT Steering (SINGLE)1
141055A1支架总成BRACKET ASSEMBLY1
271565A2管总成TUBE ASSEMBLY1
348462O型圈 (.614 x .070)O-RING (.614 x .070)1
4821203锁紧垫圈LOCKWASHER2
537984螺母 (.875-14)NUT (.875-14)2
58M0041651螺母 (.875-14)NUT (.875-14)2
638601螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250)4
778968内锁紧垫圈 (.250)LOCKWASHER Internal (.250)4
888319联轴器COUPLING1
8850791T联轴器COUPLER1
973732螺钉 (.375-24 x 1.120)SCREW (.375-24 x 1.120)2
1034931不锈钢垫圈(.406x.734x.063)WASHER (.406 x .734 x .063) Stainless Steel2
1134863螺母 (.375-24)NUT (.375-24)3
118M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass3
图 166旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM
旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM
REF零件编号中文名称英文名称数量
18710A17旋转支架总成（黑色）SWIVEL BRACKET ASSEMBLY (BLACK)1
18M0102865黑色旋转支架总成SWIVEL BRACKET ASSEMBLY Black1
18710A18旋转支架总成（灰色）SWIVEL BRACKET ASSEMBLY (GRAY)1
18710T21灰色旋转支架总成SWIVEL BRACKET ASSEMBLY Gray1
287735SEAL Oil SWIVEL BRACKET (LOWER)1
367669衬套 旋转支架 - 下部和上部BUSHING SWIVEL BRACKET - LOWER AND UPPER2
3818764衬套BUSHING2
433466O形环 旋转支架 - 上部O-RING SWIVEL BRACKET - UPPER1
567668垫片 旋转支架 - 上部SPACER SWIVEL BRACKET - UPPER1
674036润滑脂接头FITTING Grease2
68M0169589润滑脂接头FITTING Grease2
799608转轴支架衬套BUSHING SWIVEL BRACKET2
7821207衬套BUSHING2
867706A30黑色旋转销总成SWIVEL PIN ASSEMBLY Black1
867706A55转向臂转销总成SWIVEL PIN ASSEMBLY Steering Arm1
867706A31灰色旋转销总成SWIVEL PIN ASSEMBLY Gray1
867706A55转向臂转销总成SWIVEL PIN ASSEMBLY Steering Arm1
978689螺钉(0.437-20×7.50)转向臂至上支架SCREW (.437-20 x 7.50) STEERING ARM TO UPPER MOUNT2
98M0176309螺钉SCREW2
1078687上橡胶支架(长型)MOUNT RUBBER - UPPER (LONG)2
1078687T支架MOUNT2
1077326上橡胶支架(加长型)MOUNT RUBBER - UPPER (X-LONG)2
1166921上支座螺栓垫圈WASHER UPPER MOUNT BOLT2
1278688上支座螺栓垫圈WASHER UPPER MOUNT BOLT2
1334933螺母（0.437-20）不锈钢上部安装螺栓NUT (.437-20) Stainless Steel UPPER MOUNT BOLT2
138M0204653螺母NUT2
1492876A1转向连杆总成LINK ASSEMBLY Steering1
1492876A12连杆总成LINK ROD ASSEMBLY1
1514000SCREW (.375-24 x 1.25) STEERING LINK TO STEERING ARM1
15849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)1
1634863NUT (.375-24) STEERING LINK SCREW2
168M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass2
1734931WASHER (.406 x .734 x .063) Stainless Steel STEERING LINK TO STEERING ARM2
1878854WAVE WASHER BOTTOM YOKE1
1986580A1底部轭架总成YOKE ASSEMBLY Bottom1
19878182T轭架底部-不锈钢YOKE Bottom - Stainless Steel1
1986580A2底部轭架总成YOKE ASSEMBLY Bottom1
1986580A1底部轭架总成YOKE ASSEMBLY Bottom1
2067684卡环-底部轭架RING Retaining BOTTOM YOKE1
2167670WASHER THRUST - SWIVEL BRACKET1
2288882缓冲垫-顶部轭架BUMPER Top Yoke TOP YOKE1
2395164A9调整传感器总成SENDER ASSEMBLY Trim1
238M0074846ORDER 8M0098273ORDER 8M00982731
2456682螺丝(#10-24x.750)配平传感器SCREW (#10-24 x .750) TRIM SENDER2
24852368螺钉（#10-24 X 0.750）SCREW (#10-24 x .750)2
2526996配平传感器螺钉不锈钢锁紧垫圈(#10)LOCKWASHER (#10) Stainless Steel TRIM SENDER SCREW2
2689302WASHER (.203 x .406 x .040) TRIM SENDER SCREW2
2764014SCREW (.250-28 x .500) SWIVEL BRACKET2
2854457J型卡扣J CLIP1
图 167油门杆与换挡轴 THROTTLE LEVER AND SHIFT SHAFT
油门杆与换挡轴 THROTTLE LEVER AND SHIFT SHAFT
REF零件编号中文名称英文名称数量
174897PIVOT TRIGGER PLATE1
174897T枢轴PIVOT1
262459球头总成触发板BALL JOINT ASSEMBLY TRIGGER PLATE1
262459T球头节总成BALL JOINT ASSY1
345076螺母(#10-32)黄铜连杆NUT (#10-32) Brass LINK ROD1
476035触发板连杆ROD TRIGGER PLATE1
546438螺母(#10-32)球头NUT (#10-32) BALL JOINT1
641094A3点火提前杆总成LEVER ASSEMBLY SPARK ADVANCE1
764022螺丝(.250-20x2.125)点火提前杆-止动SCREW (.250-20 x 2.125) SPARK ADVANCE LEVER - STOP1
864015螺母(.250-20)点火提前止动螺丝NUT (.250-20) SPARK ADVANCE STOP SCREW1
926852尼龙帽点火提前杆止动螺丝CAP Nylon SPARK ADVANCE LEVER STOP SCREW1
1069560螺钉(.190-32 x 1.250) 点火提前杆止动SCREW (.190-32 x 1.250) SPARK ADVANCE LEVER-STOP1
1168219螺母(#10-32)不锈钢点火提前杆止动螺丝NUT (#10-32) Stainless Steel SPARK ADVANCE LEVER STOP SCREW1
1248039点火提前杆止动螺丝帽CAP SPARK ADVANCE LEVER STOP SCREW1
1341095T油门控制杆LEVER THROTTLE CONTROL1
13410952杠杆LEVER1
1455337螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
14818165螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
1555164油门杠杆衬套BUSHING THROTTLE LEVER1
1655171点火提前杆衬套BUSHING SPARK ADVANCE LEVER1
1768784节气门与点火提前杆弹簧SPRING THROTTLE AND SPARK ADVANCE LEVER1
1868410点火提前杆垫片WASHER SPARK ADVANCE LEVER1
1846765垫圈 (.390 x 1.50 x .120)WASHER (.390 x 1.50 x .120)1
1964022螺钉(.250-20 x 2.125) 节气门杆止动SCREW (.250-20 x 2.125) THROTTLE LEVER-STOP1
2064015螺母(.250-20)节气门杆止动螺丝NUT (.250-20) THROTTLE LEVER STOP SCREW1
2126852尼龙帽节气门杆止动螺丝CAP Nylon THROTTLE LEVER STOP SCREW1
2239483锁扣拉线LATCH CABLE1
2322486螺丝(.250-28x.880)拉线锁扣至节气门杆SCREW (.250-28 x .880) CABLE LATCH TO THROTTLE LEVER1
2369026螺钉 (.250-28 x .880)SCREW (.250-28 x .880)1
2420099拉线锁扣至节气门杆弹簧SPRING CABLE LATCH TO THROTTLE LEVER1
2520586螺母(.250-28)拉线锁扣螺丝NUT (.250-28) CABLE LATCH SCREW1
25826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel1
2679949节气门控制杆ROD THROTTLE CONTROL1
2760572节气门控制杆套筒BARREL THROTTLE CONTROL ROD2
278M0221994筒形接头BARREL FITTING2
2895791节气门凸轮CAM Throttle1
28178861节气门凸轮CAM Throttle1
28148251节气门凸轮(MARINER 135)CAM Throttle (MARINER 135)1
2920353螺柱(.250-28x1.750)节气门凸轮固定STUD (.250-28 x 1.750) THROTTLE CAM ATTACHING1
3026856节气门凸轮衬套BUSHING THROTTLE CAM2
3136069节气门凸轮螺柱螺母NUT THROTTLE CAM STUD1
3241050节气门复位弹簧SPRING THROTTLE RETURN1
3392032A2控制线缆锚定支架BRACKET ANCHOR-CONTROL CABLES1
33814283A2支架总成BRACKET ASSEMBLY1
3498889控制线缆锁扣LATCH CONTROL CABLE1
3542975闩锁传动螺钉DRIVE SCREW LATCH2
3653167螺丝(.312-18x.880)锚定支架固定SCREW (.312-18 x .880) ANCHOR BRACKET ATTACHING3
3653167T螺钉 0.312-18X 0.88SCREW .312-18X .883
3737896连杆导向块GUIDE BLOCK LINK ROD1
3820099连杆至导向块弹簧SPRING LINK ROD TO GUIDE BLOCK1
3967073A1连杆总成LINK ROD ASSEMBLY1
4052100连杆耐磨板WEAR PLATE LINK ROD1
4138279闩锁LATCH1
418M0036768闩锁LATCH1
4235462垫圈(.2656x.625x.0625)不锈钢锁扣WASHER (.2656 x .625 x .0625) Stainless Steel LATCH1
4336069连杆螺母NUT LINK ROD1
4479932A11换挡轴总成 (长)SHIFT SHAFT ASSEMBLY (LONG)1
4479932A16换挡轴总成SHIFT SHAFT ASSEMBLY1
4479932A12换挡轴总成 (加长)SHIFT SHAFT ASSEMBLY (X-LONG)1
4479932A17换挡轴总成SHIFT SHAFT ASSEMBLY1
4529720连杆波形垫圈WAVE WASHER LINK ROD1
4626600尼龙衬套-连杆BUSHING NYLON - LINK ROD1
4735462垫圈(.2656 x .625 x .0625)不锈钢连杆WASHER (.2656 x .625 x .0625) Stainless Steel LINK ROD1
4836069连杆至换挡轴螺母NUT LINK ROD TO SHIFT SHAFT1
4939519杯形套筒固定器-锚杆CUP BARREL RETAINER - ANCHOR BAR1
图 168上罩与前护板 TOP COWL AND FRONT SHIELD
上罩与前护板 TOP COWL AND FRONT SHIELD
REF零件编号中文名称英文名称数量
-17996徽标EMBLEM2
-179061左舷/右舷徽标-SEA RAYEMBLEM PORT/STARBOARD-SEA RAY2
19742A16顶罩总成(黑色)TOP COWL ASSEMBLY (BLACK)1
19742T88顶罩总成(黑色)TOP COWL ASSY BLK1
19742A17顶罩总成(灰色)TOP COWL ASSEMBLY (GRAY)1
19743T11顶罩TOP COWL1
2812784密封件SEAL1
3813566密封件SEAL1
3815478密封件SEAL1
4813670隔音垫(侧)SOUND BLANKET (SIDE)1
4814823隔音毯SOUND BLANKET1
5813671隔音垫(顶)SOUND BLANKET (TOP)2
5814837隔音毯SOUND BLANKET2
618755A1前护罩总成(黑色)FRONT SHIELD ASSEMBLY (BLACK)1
618755A2前护罩总成(灰色)FRONT SHIELD ASSEMBLY (GRAY)1
7813562密封件SEAL1
848409螺钉 (#10-16 x .625) 不锈钢SCREW (#10-16 x .625) Stainless Steel4
942118垫圈WASHER4
10184741后支架BRACKET REAR2
1118506护孔环GROMMET3
1118506001护孔环GROMMET3
1228636螺钉(.250-20 x .750) 后支架SCREW (.250-20 x .750) REAR BRACKET8
1326992锁紧垫圈(.250)不锈钢 后支架螺钉LOCKWASHER (.250) Stainless Steel REAR BRACKET SCREW8
14813096挂钩HOOK2
14813096A2挂钩套件HOOK KIT2
1573286螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel8
16813074滚轮ROLLER2
168M0207770滚轮@3ROLLER @32
1713194挡圈RING Retaining2
18813553安装板PLATE1
1856720垫圈(0.330×0.750×0.060)不锈钢WASHER (.330 x .750 x .060) Stainless Steel1
19187021定位器LOCATOR1
2018173锁扣滚轮支架总成BRACKET ASSEMBLY Latch Roller1
20893763滚轮锁扣支架BRACKET Roller Latch1
21813552隔套SPACER1
21813076A2手柄套件HANDLE KIT1
2231984螺钉(0.312-18×1.375)SCREW (.312-18 x 1.375)2
2367980螺母(.312-18)NUT (.312-18)2
2382670910不锈钢螺母(.312-18)NUT (.312-18) Stainless Steel2
2447341A1手动/应急启动绳和手柄套件 (用于手动启动)ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING)1
2447341A11手动启动绳柄套件ROPE AND HANDLE KIT Manual Starting1
2570132垫圈(0.323×0.563×0.063)不锈钢WASHER (.323 x .563 x .063) Stainless Steel2
258M0042642垫圈(.323 x .562 x .063)WASHER (.323 x .562 x .063)2
-813096A1后锁扣套件REAR LATCH KIT1
图 169艉板支架 TRANSOM BRACKETS
艉板支架 TRANSOM BRACKETS
REF零件编号中文名称英文名称数量
18718A1艉板支架总成(右舷)(黑色)BRACKET ASSEMBLY Transom (STARBOARD) (BLACK)1
18718F7艉板支架BRACKET Transom1
18718A2艉板支架总成(右舷)(灰色)BRACKET ASSEMBLY Transom (STARBOARD) (GRAY)1
18718F8艉板支架BRACKET Transom1
28716A5艉板支架总成(左舷)(黑色)BRACKET ASSEMBLY Transom (PORT) (BLACK)1
28716A8艉板支架总成BRACKET ASSEMBLY Transom1
28716A6艉板支架总成（左舷）（灰色）BRACKET ASSEMBLY Transom (PORT)(GRAY)1
28716A9艉板支架总成BRACKET ASSEMBLY Transom1
398727润滑配件左舷艉板支架FITTING Grease PORT TRANSOM BRACKET1
38M0169588润滑脂接头FITTING Grease1
599170A1倾斜管TILT TUBE1
599170A2倾斜管套件TUBE KIT Tilt1
690068T倾斜管螺母(1"-14)(黑色)NUT TILT TUBE (1"-14) (BLACK)1
6859133螺母(1.00-14)NUT (1.00-14)1
690068T6倾斜管螺母(1"-14)(灰色)NUT TILT TUBE (1"-14) (GRAY)1
6859133螺母(1.00-14)NUT (1.00-14)1
745711O-RING (.612 x .103) TILT TUBE1
888750波形垫圈(1.62 x 1.05)倾斜管WASHER Wave (1.62 x 1.05) TILT TUBE2
956041螺母(.875-14)倾斜管NUT (.875-14) TILT TUBE1
9858869螺母 (.875-14)NUT (.875-14)1
10677551螺钉(.500-20 x 4.500)艉板支架至艉板SCREW (.500-20 x 4.500) TRANSOM BRACKET TO TRANSOM4
108M0149747螺钉SCREW4
1128421垫圈(1.5 x 3.05 x 0.13)不锈钢艉板支架螺栓WASHER (1.5 x 3.05 x 0.13) Stainless Steel TRANSOM BRACKET BOLT4
118M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
1124501艉板支架螺栓垫圈WASHER TRANSOM BRACKET BOLT2
128M0027784艉板支架螺栓螺母NUT TRANSOM BRACKET BOLT4
1282671117螺母(.500-20)NUT (.500-20)4
1399629A2倾斜锁杆总成LEVER ASSEMBLY TILT LOCK1
138M0115104倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
1499611倾斜杆波形垫圈WAVE WASHER TILT LEVER1
1565830倾斜杆尼龙衬套NYLINER TILT LEVER2
1699633倾斜锁杆旋钮(黑色)KNOB TILT LOCK LEVER (BLACK)1
1699633T6倾斜锁杆旋钮(灰色)KNOB TILT LOCK LEVER (GRAY)1
1699633旋钮KNOB1
1799615槽销PIN Groove1
1899622弹簧SPRING1
1999604槽销PIN Groove1
2096930A1倾斜锁螺栓总成BOLT ASSEMBLY TILT LOCK1
2123161螺栓螺母（3/8英寸-24牙）NUT (.375-24) BOLT1
图 170艉板安装动力转向套件 TRANSOM MOUNT POWER STEERING KIT
艉板安装动力转向套件 TRANSOM MOUNT POWER STEERING KIT
REF零件编号中文名称英文名称数量
-17443A11动力转向套件POWER STEERING KIT1
1811290蓄能器ACCUMULATOR1
217772螺柱STUD3
34002319垫圈WASHER3
413914螺母(M10)NUT (M10)3
440140螺母(M10)NUT (M10)3
594319螺钉(.375-24 x 1.5)SCREW (.375-24 x 1.5)1
617405隔套SPACER2
734863螺母 (.375-24)NUT (.375-24)3
78M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass3
814000螺钉(.375-24x1.25)SCREW (.375-24 x 1.25)1
8849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)1
992876A4连杆总成LINK ROD ASSEMBLY1
1068300垫圈 (.88 x .39 x .06)WASHER (..88 x .39 x .06)1
118112891执行器ACTUATOR1
11828588A2执行器套件ACTUATOR KIT1
-811632维修套件REPAIR KIT1
-811632A1维修套件REPAIR KIT1
124000330螺钉(M6x25)SCREW (M6 x 25)2
128M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
1343450垫圈WASHER2
134002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)2
148268336螺母 (M6)NUT (M6)2
14401386螺母(M6)不锈钢NUT (M6) Stainless Steel2
15811292卡箍CLAMP1
16818182螺钉SCREW2
17400263螺母 (M5)NUT (M5)2
1881742755螺钉(M8x55)SCREW (M8 x 55)1
1966751垫片(0.250x0.390x0.630)不锈钢SPACER (.250 x .390 x .630) Stainless Steel1
198M0151156隔套SPACER1
20811291支架BRACKET1
2138601螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250)4
2288404锁紧垫圈TAB WASHER6
2318211继电器开关RELAY SWITCH1
2418244A1线束总成HARNESS ASSEMBLY1
2518124螺钉 (#10-32 x .750)SCREW (#10-32 x .750)1
2690329护孔环GROMMET1
27309772隔套SPACER1
28816994支架BRACKET1
2942118垫圈WASHER1
3029488螺母 (#10-32)NUT (#10-32)1
308M0204718螺母NUT1
31197491卡箍CLAMP1
3281563024贴花DECAL1
图 171线束/启动电磁阀 WIRING HARNESS/STARTER SOLENOID
线束/启动电磁阀 WIRING HARNESS/STARTER SOLENOID
REF零件编号中文名称英文名称数量
143429点火板PLATE IGNITION1
27778A9开关盒总成SWITCHBOX ASSEMBLY2
27778A12开关盒总成SWITCHBOX ASSEMBLY2
313669开关盒至点火板螺钉(#12-24 x 2.00)SCREW (#12-24 x 2.00) SWITCH BOX TO IGNITION PLATE2
494453开关盒螺钉衬套BUSHING SWITCH BOX SCREW2
562310A2开关盒间电缆总成CABLE ASSEMBLY SWITCH BOX TO SWITCH BOX1
645076螺母(#10-32)黄铜开关盒端子NUT (#10-32) Brass SWITCH BOX TERMINAL20
760871A10线束总成-开关盒WIRE ASSEMBLY SWITCH BOX2
862568螺丝(#10-16 x 0.375)导线固定SCREW (#10-16 x .375) WIRE ATTACHING3
965999A3线缆总成(黑色)CABLE ASSEMBLY Black1
1069092点火板螺钉(1.25)SCREW (1.25) IGNITION PLATE3
1060411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)3
1126993锁紧垫圈(.312)点火板螺钉LOCKWASHER (.312) IGNITION PLATE SCREW3
118M0204647锁紧垫圈 (.312)LOCKWASHER (.312)3
1236042垫圈 点火板螺钉WASHER IGNITION PLATE SCREW6
1367264橡胶垫圈 点火板螺钉WASHER (Rubber) IGNITION PLATE SCREW6
1467268衬套 点火板螺钉BUSHING IGNITION PLATE SCREW3
1533386A3开关总成SWITCH ASSEMLBY1
1638055螺钉(0.190-32x0.620)SCREW (.190-32 x .620)1
1745076螺母 (#10-32) 黄铜水银开关端子NUT (#10-32) Brass MERCURY SWITCH TERMINAL1
1887926螺钉(#10-32 x .500)导线固定SCREW (#10-32 x .500) LEAD ATTACHING1
1988439A3电缆总成 正极-蓄电池 MERCURY/MARINERCABLE ASSEMBLY Positive - Battery MERCURY/MARINER1
1988439A2电缆总成 蓄电池-负极 MERCURY/MARINERCABLE ASSEMBLY Battery - Negative NEGATIVE - MERCURY/MARINER1
2096220A12发动机线束总成HARNESS ASSEMBLY ENGINE1
2179091保险丝20安培FUSE 20 Ampere1
218M0207796保险丝20安培FUSE 20 AMP1
2295084A2电缆总成-保险丝CABLE ASSEMBLY FUSE1
23134731保险丝座HOLDER Fuse1
2490077线束扎带TIE STRAP HARNESS AND CABLESAR
24816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
2515857启动电磁阀SOLENOID Starter1
25853654A1电磁阀SOLENOID1
2645076螺母(#10-32)黄铜 电磁阀端子NUT (#10-32) Brass SOLENOID TERMINALS2
2753166锁紧垫圈（.312）电磁阀端子LOCKWASHER (.312) SOLENOID TERMINALS2
2868292螺母（.312-18）电磁阀端子NUT (.312-18) SOLENOID TERMINALS2
288M0204668螺母(.312-18)NUT (.312-18)2
2931716螺钉(.250-20 x .620)电磁阀至点火板SCREW (.250-20 x .620) SOLENOID TO IGNITION PLATE2
3026992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel2
3165999A2电缆总成 黑色 上部安装CABLE ASSEMBLY Black UPPER MOUNT1
3278866电磁阀绝缘体INSULATOR SOLENOID1
3347483J型卡扣J CLIP2
