水星 Mercury V-150 0G960500 THRU 1B226999 - 爆炸图零件明细

两冲程化油器 · USA - Cat.# 90-80317000 · 共 174 个部位 · 7510 条零件

1135马拉松/2升/XD马拉松组件 2动力转向组件（遥控）3簧片阀组与气缸盖 4专用工具 5动力升降组件(铸造泵壳)金属电机壳 6双缆连接套件 7曲轴（连杆锻件编号636-8118）8艉板支架 9蓄能器 10驱动轴壳与排气管 11燃油管路（用于 WMH-12A/B 至 WMH-28 化油器）12艉板支架（序列号0G589999及以下）13机油喷射组件 14气缸体与端盖 15维修/支撑材料 16线束/启动继电器 17齿轮箱螺旋桨轴 18飞轮/启动电机 19簧片阀组与气缸盖 20外罩安装支架 21杂项信息 22附件 23转向连接套件 24齿轮箱（驱动轴）- 反向旋转 25线束/启动电磁阀 26齿轮箱螺旋桨轴-反旋转135/150/175/200型 27喷射组件 28顶罩 29钥匙开关(反旋转发动机用)30排气歧管与排气板 31启动电机 32驱动轴壳体 33旋转支架(铸件号1499-8710-6)34化油器总成 35燃油泵 36动力升降倾斜组件 37动力升降倾斜泵 38双机延伸套件 39杂项零件/附件 40仪表组(水星和马林纳)41动力升降组件（塑料马达壳体）42齿轮箱（推进轴）- 反向旋转 43油门杆与换挡轴 44动力转向组件 45燃油管路（用于 WMH-30/31/32/33/34 化油器）46曲轴活塞与连杆 47化油器（WMH-30/31/32/33/34）48罩壳与前盖 49顶罩及前护板 50旋转支架与转向臂 51齿轮箱图表（序列号0G437999及以下）52附件 53簧片阀组与气缸盖 54双机延伸套件 55杂项信息 56燃油泵 57燃油泵（方形燃油泵）58动力升降组件金属马达壳 59齿轮箱螺旋桨轴-标准135/150/175/200 60动力平衡组件（设计II）61气缸体与端盖 62化油器 63动力升降组件（金属马达壳体）64转向安装套件（XR4/ Magnum II）65下罩 66齿轮箱螺旋桨轴-反向旋转 67齿轮箱螺旋桨轴-XR4/Magnum II型 68旋转支架与转向臂 69阻风板与油门杆 70齿轮箱(螺旋桨轴)(反向旋转)71旋转支架(铸件号1499-8710-7)72齿轮箱对照表 73喷射组件 74燃油泵和化油器 75化油器（WMH-12A/12B/13/13B/14A/15/16）76齿轮箱(驱动轴)(标准/反向旋转)77动力平衡泵（与设计I动力平衡泵配套使用）78专用工具 79动力升降倾斜电机 80齿轮箱（驱动轴）81动力升降组件 8M0231193 82点火线圈/电压调节器 83外罩（牡蛎桶式）84动力升降泵(Eaton矩形电机)85喷油组件 86飞轮、启动电机及点火线圈 87排气歧管与排气板 88泄放系统 89驱动轴壳与排气管 90旋转支架与转向臂 91齿轮箱（驱动轴）（XR6/MAG III - 1.78:1 速比）92化油器 93上罩与前护板 94齿轮箱（推进轴）（XR6/MAG III - 1.78:1 速比）95工具 96阻风门板及油门杆 97齿轮箱(螺旋桨轴)(标准旋转)98动力升降马达 99顶罩 100仪表装置 101艉板安装动力转向套件 102艉板支架 103动力升降泵(Prestolite圆形电机)104油门杆与换挡轴 105点火线圈/电压调节器 106气缸体与端盖 107线束、启动电磁阀及整流器 108曲轴、活塞与连杆 109启动电机总成 110齿轮箱（推进轴）111动力平衡组件（设计I）112曲轴（连杆锻件编号644-818141）113齿轮箱螺旋桨轴-标准旋转 114齿轮箱（驱动轴）115燃油泵（旧设计燃油泵）116齿轮箱（驱动轴）（标准/反向旋转）117飞轮与启动电机 118下机罩 119发动机衬垫套件 120燃油管路 121喷泵总成 122艉板支架（序列号0G590000及以上）123排气歧管与排气板 124动力平衡电机(用于II型动力平衡系统)125化油器（WMH-21/22/23/24/25/28）126启动马达 127齿轮箱（驱动-标准/反向旋转）128驱动轴壳体与排气管 129喷泵总成 130钥匙开关总成 131燃油管路 132泄压系统 133飞轮/启动马达 134曲轴、活塞及连杆 135转向连接套件 136仪表装置 137油门杆与换挡轴 138附件 139缓冲板与节气门杠杆 140泄放系统 141下罩 142化油器 143CDM安装座 144曲轴、活塞及连杆 145气缸体与端盖 146驱动轴壳与排气管 147双缆连接套件 148双机连接杆套件 149发动机衬垫套件 150排气歧管与排气板 151飞轮/启动电机 152燃油管路 153燃油泵 154齿轮箱（驱动轴）（标准/反向旋转）155齿轮箱螺旋桨轴-反向旋转 156齿轮箱螺旋桨轴-标准旋转 157仪表装置 158喷射组件 159喷泵总成 160机油喷射组件 161动力升降组件(铸造泵壳)金属电机壳 162动力升降组件（可拆卸泵壳）金属电机壳 163动力升降组件 8M0231193 164动力升降组件（塑料马达壳体）165动力升降电机（可拆卸泵壳）166簧片阀组与气缸盖 167维修/支撑材料 168电磁阀安装座 169启动电机 170旋转支架与转向臂 171油门杆与换挡轴 172工具 173顶罩 174艉板支架

图 1135马拉松/2升/XD马拉松组件 135 Marathon/2 Litre/XD Marathon Components

REF	零件编号	中文名称	英文名称	数量
-	41770A84	动力头总成（用于两件式气缸盖）	POWERHEAD ASSEMBLY (USE W/2 PIECE CYLINDER HEAD)	1
-	41770A88	动力头总成（用于一件式气缸盖）	POWERHEAD ASSEMBLY (USE W/1 PIECE CYLINDER HEAD)	1
-	8745A5	曲轴总成	CRANKSHAFT ASSEMBLY	1
-	8745T5	曲轴总成	CRANKSHAFT ASSEMBLY	1
-	93495	曲轴滚柱轴承	BEARING Roller CRANKSHAFT	2
-	93495T	滚柱轴承	BEARING Roller	2
-	8454A2	上端盖总成	END CAP ASSEMBLY UPPER	1
-	8454T2	端盖总成	END CAP ASSY	1
-	93496	滚柱轴承	BEARING Roller	1
-	93496T	轴承	BEARING	1
-	42705A1	簧片组	REED SET	6
-	7441A9	右舷活塞总成	PISTON ASSEMBLY STARBOARD	3
-	7441T36	活塞-右舷-标准	PISTON-STBD-STD	3
-	7442A9	活塞总成端口	PISTON ASSEMBLY PORT	3
-	7442T36	活塞-左舷-标准	PISTON-PORT-STD	3
-	43488	活塞销固定环	RING Retaining PISTON PIN	12
-	96532	气缸盖（两件式设计）	CYLINDER HEAD (2 PIECE DESIGN)	2
-	13619A1	气缸盖总成（一件式设计）	CYLINDER HEAD ASSEMBLY (1 PIECE DESIGN)	2
-	15221A5	气缸盖总成	CYLINDER HEAD ASSEMBLY	2
-	9148A22	齿轮箱总成完整组件(长型)(黑色)	GEAR HOUSING ASSEMBLY COMPLETE (LONG) (BLACK)	1
-	9148A23	齿轮箱总成完整组件(长型)(灰色)	GEAR HOUSING ASSEMBLY COMPLETE (LONG) (GRAY)	1
-	9148A22	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
-	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
-	76868	密封件	SEAL	2
-	8M0248882	油封@5	SEAL-OIL @5	2
-	96148A3	水泵总成	PUMP ASSEMBLY Water	1
-	53168	水泵衬套	INSERT WATER PUMP	1
-	45048	面板	FACE PLATE	1
-	148251	节气门凸轮	CAM Throttle	1
-	11898A88	动力头总成	POWERHEAD ASSEMBLY	1
-	41941	扩散器	DIFFUSER	1
-	41941T	排气扩散器	DIFFUSER Exhaust	1
-	93772A2	稳定器	STABILIZER	1
-	99169	分隔板	DIVIDER PLATE	1
-	99169A1	安装板	PLATE	1
-	7620A21	左舷顶盖总成	TOP COWL ASSEMBLY PORT	1
-	7619A4	顶罩总成(右舷)	TOP COWL ASSEMBLY STARBOARD	1
-	773761	护罩	SHIELD	2
-	12147	抽芯铆钉	POP RIVET	14
-	27882	垫圈	WASHER	14
-	88227	覆盖件	BLANKET	2
-	11898A88	动力头总成	POWERHEAD ASSEMBLY	1
-	41941	扩散器	DIFFUSER	1
-	41941T	排气扩散器	DIFFUSER Exhaust	1
-	93772A2	稳定器	STABILIZER	1
-	99169	分隔板	DIVIDER PLATE	1
-	99169A1	安装板	PLATE	1

图 2动力转向组件（遥控） POWER STEERING COMPONENTS (REMOTE)

REF	零件编号	中文名称	英文名称	数量
1	17771	支架	MOUNT	1
2	59702	螺钉 (.250-28 x .875) 不锈钢	SCREW (.250-28 x .875) Stainless Steel	4
3	88404	锁紧垫圈	TAB WASHER	4
4	78862A2	密封套件	SEAL KIT	1
4	19624A1	密封套件	SEAL KIT	1
5	71565A2	管总成	TUBE ASSEMBLY	1
6	17776	联轴器	COUPLING	1
7	817040	螺钉 (.375-24 x 2.75)	SCREW (.375-24 x 2.75)	1
8	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	1
9	90092	螺钉	SCREW	1
9	856722	螺钉	SCREW	1
10	34863	螺母 (.375-24)	NUT (.375-24)	2
10	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
11	42100	锁紧垫圈	TAB WASHER	2
12	37984	螺母 (.875-14)	NUT (.875-14)	2
12	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
13	811290	蓄能器 (参见蓄能器分解图)	ACCUMULATOR (See Accumulator for Breakdown)	1
14	817372	支架	BRACKET	1
15	16862	螺钉 (.250-10 x 1.25)	SCREW (.250-10 x 1.25)	4
16	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
16	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
17	4000383	螺钉 (M10 x 70)	SCREW (M10 x 70)	2
18	4002319	垫圈	WASHER	4
19	13914	螺母(M10)	NUT (M10)	2
19	40140	螺母(M10)	NUT (M10)	2
20	8112891	执行器	ACTUATOR	1
20	828588A2	执行器套件	ACTUATOR KIT	1
21	94319	螺钉(.375-24 x 1.5)	SCREW (.375-24 x 1.5)	1
22	17405	隔套	SPACER	2
23	34863	螺母 (.375-24)	NUT (.375-24)	3
23	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	3
24	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	1
24	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
25	92876A4	连杆总成	LINK ROD ASSEMBLY	1
26	68300	垫圈 (.88 x .39 x .06)	WASHER (..88 x .39 x .06)	1
27	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
27	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
28	43450	垫圈	WASHER	2
28	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	2
29	8268336	螺母 (M6)	NUT (M6)	2
29	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
30	811292	卡箍	CLAMP	1
31	818182	螺钉	SCREW	2
32	400263	螺母 (M5)	NUT (M5)	2
33	811291	支架	BRACKET	1
34	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
35	197491	卡箍	CLAMP	1
36	18211	继电器开关	RELAY SWITCH	1
37	18244A1	线束总成	HARNESS ASSEMBLY	1
38	18124	螺钉 (#10-32 x .750)	SCREW (#10-32 x .750)	1
39	90329	护孔环	GROMMET	1
40	309772	隔套	SPACER	1
41	816994	支架	BRACKET	1
42	42118	垫圈	WASHER	1
43	29488	螺母 (#10-32)	NUT (#10-32)	1
43	8M0204718	螺母	NUT	1
44	81563024	贴花	DECAL	1

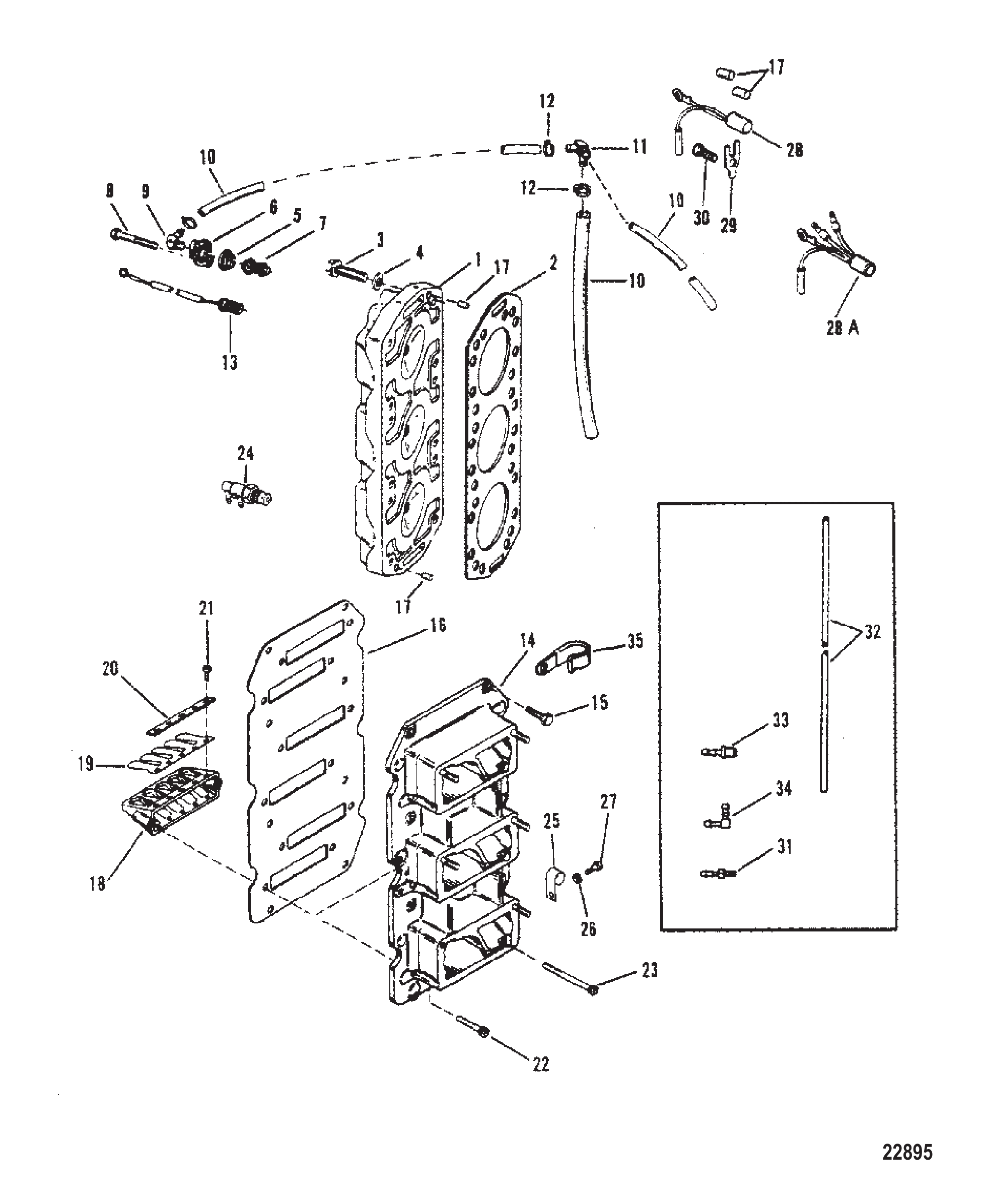

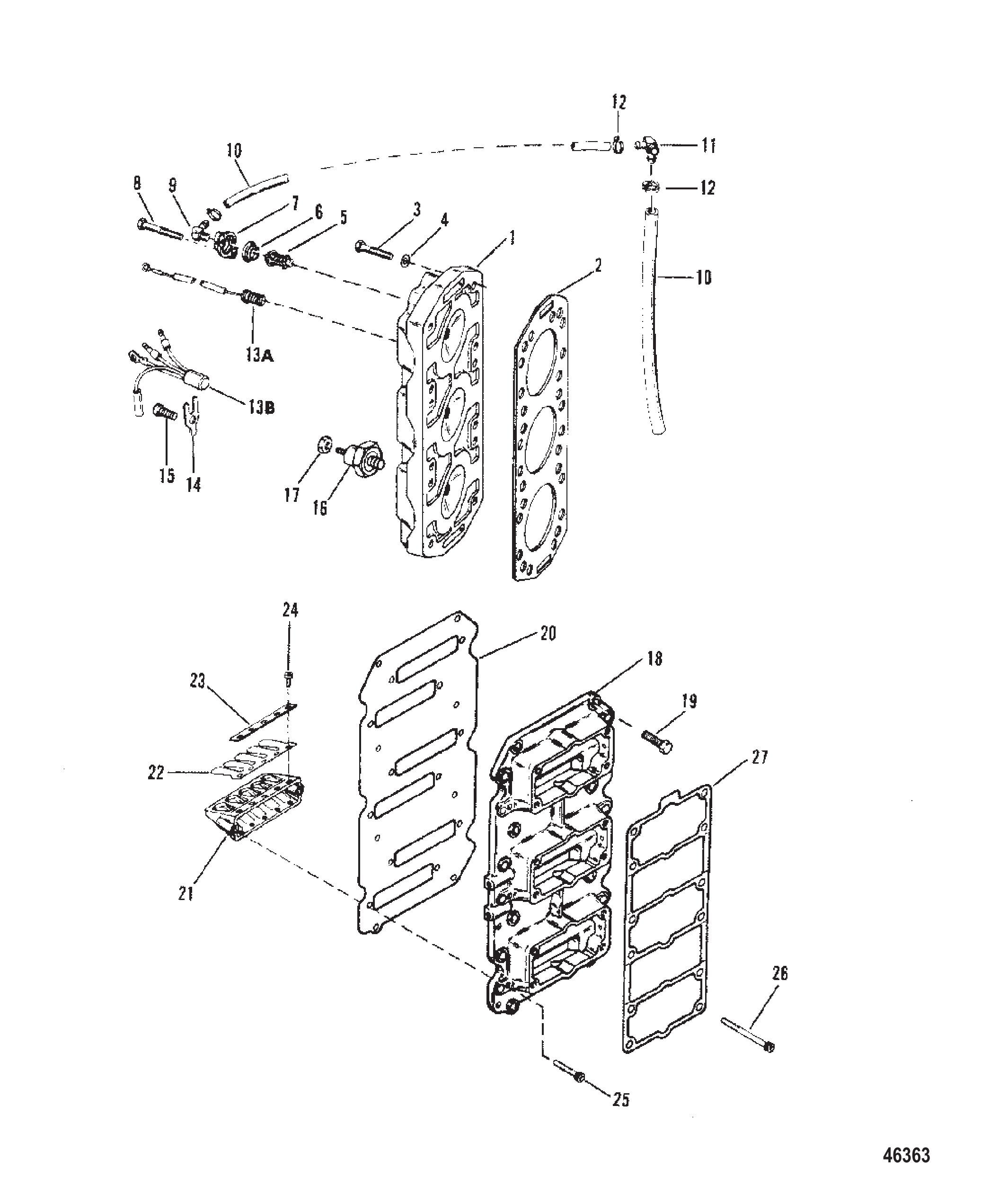

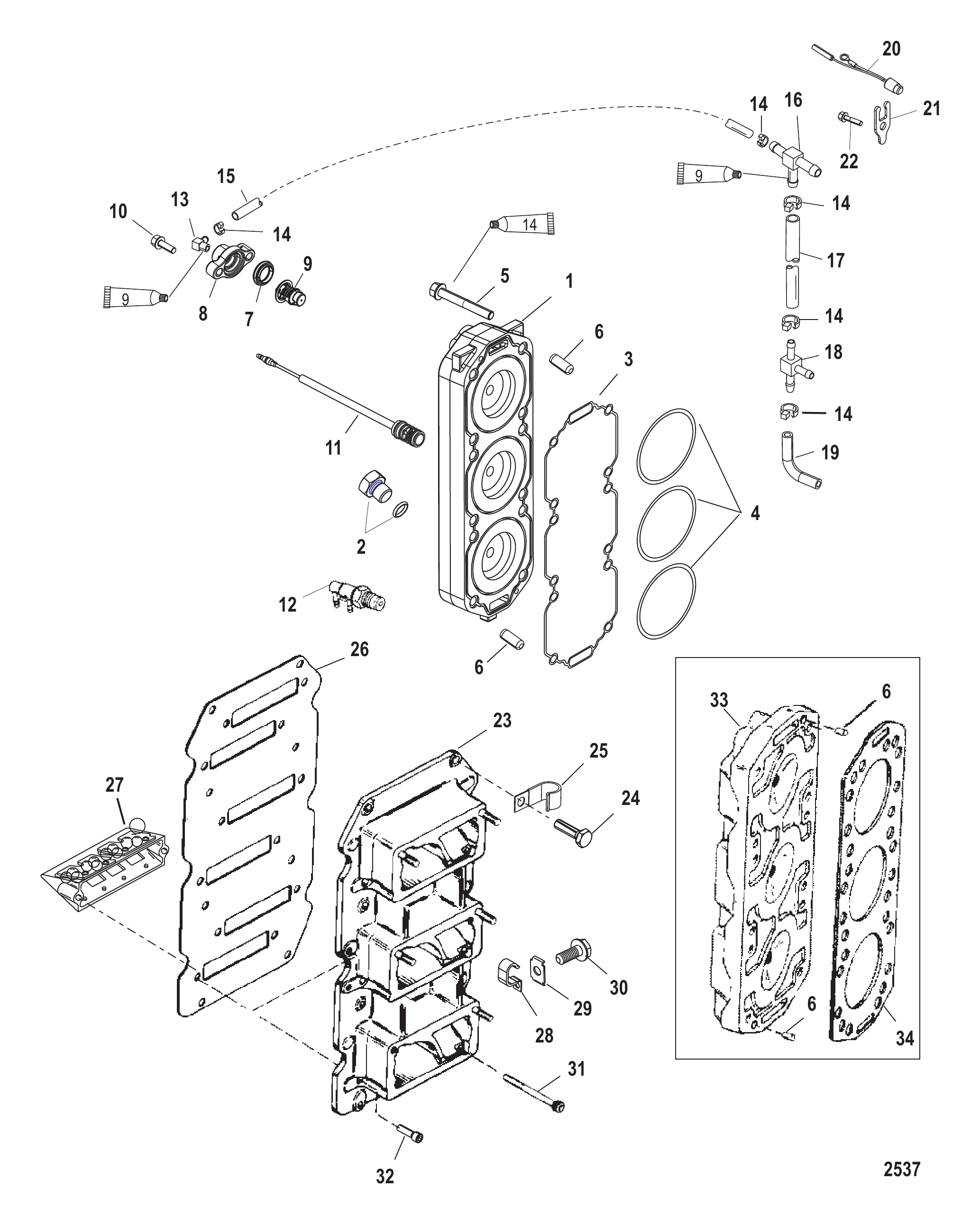

图 3簧片阀组与气缸盖 REED BLOCK AND CYLINDER HEAD

REF	零件编号	中文名称	英文名称	数量
1	18787F1	气缸盖	CYLINDER HEAD	2
1	184888	气缸盖	CYLINDER HEAD	2
1	8M0143213	气缸盖	HEAD CYLINDER	2
1	18488F1	气缸盖	CYLINDER HEAD	2
1	8M0143213	气缸盖	HEAD CYLINDER	2
1	18488F1	气缸盖	CYLINDER HEAD	2
1	8M0143213	气缸盖	HEAD CYLINDER	2
1	18488F2	气缸盖总成	CYLINDER HEAD ASSEMBLY	2
2	187851	衬垫	GASKET	2
2	18785T	衬垫	GASKET	2
2	8228441	衬垫	GASKET	2
2	822844T05	衬垫	GASKET	2
2	8228441	衬垫	GASKET	2
2	822844T05	衬垫	GASKET	2
2	8228441	衬垫	GASKET	2
2	822844T05	衬垫	GASKET	2
3	98534	螺钉 (.375-16 x 2.30)	SCREW (.375-16 x 2.30)	24
4	25909	垫圈 (.406 x .812 x .065) (适用时使用)	WASHER (.406 x .812 x .065) (USE WHERE APPLICABLE)	24
5	62386	衬垫	GASKET	2
5	8M0204714	衬垫@4	GASKET @4	2
6	90390A1	盖板套件	COVER KIT	2
7	75692	节温器	THERMOSTAT	2
8	35386	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	4
9	68727	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
9	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
10	7765377	软管 (24.500英寸散装)	HOSE (24.500 Inches Bulk)	3
10	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	3
11	68728	接头	FITTING	1
12	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
13	97465	温度传感器 (右舷)	SENDER Temperature (STBD.)	1
14	43517A9	隔板总成	PLATE ASSEMBLY	1
15	28668	螺钉 (.250-20 x .875) 不锈钢	SCREW (.250-20 x .875) Stainless Steel	8
16	146972	衬垫	GASKET	1
17	63779	定位销 (.250 x .625)	PIN Dowel (.250 x .625)	4
18	75953	簧片阀组	REED BLOCK	6
19	75362A1	簧片组件	REED ASSEMBLY	6
20	961832	簧片夹	CLAMP Reed	12
21	823588	螺钉 (#8-32 x .250)	SCREW (#8-32 x .250)	60
22	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	6
23	96529	螺钉 (.250-20 x 2.00)	SCREW (.250-20 x 2.00)	6
24	814612	热空气阀 (旧设计)	VALVE Thermal Air (OLD DESIGN)	1
25	23567	卡扣	CLIP	1
26	69205	C形垫圈	C WASHER	1
26	8M0084613	C形垫圈	C-WASHER	1
27	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
27	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
28	13536A7	温度传感器总成 (左舷) (2线)	SENSOR ASSEMBLY Temperature (PORT) (2-WIRE)	1
28A	13536A6	温度传感器总成 (左舷) (4线)	SENSOR ASSEMBLY Temperature (PORT) (4-WIRE)	1
29	137151	固定座	RETAINER	2
30	98257	螺钉 (.312-18 x .500)	SCREW (.312-18 x .500)	2
31	56759	倒钩接头	FITTING Barbed	4
32	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
32	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
33	42698	止回阀 (压入式 13/16")	CHECK VALVE (PRESS-IN 13/16")	7
33	426982	止回阀	CHECK VALVE	7
33	42623	止回阀 (压入式 11/16")	CHECK VALVE (PRESS-IN 11/16")	1
33	426233	止回阀	CHECK VALVE	1
34	822715	弯头配件 (压入式)	FITTING Elbow (PRESS-IN)	6
35	55098	J型卡扣	J CLIP	1
35	8M0024808	J型夹	J-CLIP	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	812815A92	动力头总成	POWERHEAD ASSEMBLY	1
-	878365T00	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A94	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 4专用工具 TOOLS SPECIAL

REF	零件编号	中文名称	英文名称	数量
-	815366A3	电池隔离器套件	ISOLATOR KIT Battery	1
-	58222A1	百分表工具	DIAL INDICATOR TOOL	1
-	89045	适配器	ADAPTER	1
-	890451	直流电压适配工具	ADAPTER TOOL Direct Voltage	1
-	52344	飞轮固定器工具(齿型)	FLYWHEEL HOLDER TOOL Teeth Type	1
-	73687A2	飞轮拉拔器套件	PULLER KIT Flywheel	1
-	849154T1	拉拔器总成	PULLER ASSEMBLY	1
-	99750A1	万用表	MULTI METER	1
-	24161	飞轮拉拔器盖工具	CAP TOOL Flywheel Puller	1
-	52024A1	开关总成	SWITCH ASSEMBLY	1
-	59339	维修用转速表	SERVICE TACHOMETER	1
-	892647A01	DMT万用表套件	MULTI-METER KIT DMT	1
-	850439T1	八腔测试仪	TESTER Eight Chamber	1
-	63998A1	单腔间隙工具	GAP TOOL Single Chamber	1
-	850439	火花测试器	SPARK TESTER	1
-	850439T1	八腔测试仪	TESTER Eight Chamber	1
-	14443A1	测试线束总成	HARNESS ASSEMBLY Test	1
-	99379	正时灯	TIMING LIGHT	1
-	29287	量规工具	GAUGE TOOL	1
-	55919	驱动头	DRIVER HEAD	1
-	52344	飞轮固定器工具(齿型)	FLYWHEEL HOLDER TOOL Teeth Type	1
-	73687A2	飞轮拉拔器套件	PULLER KIT Flywheel	1
-	849154T1	拉拔器总成	PULLER ASSEMBLY	1
-	90455	吊环	LIFTING EYE	1
-	904551	吊环	LIFTING EYE	1
-	77109A3	安装工具套件	INSTALLER KIT	1
-	52952A1	活塞销锁环拆卸工具	REMOVAL TOOL Piston Pin Lock Ring	1
-	52952T1	活塞销锁环拆卸工具	REMOVAL TOOL Piston Pin Lock Ring	1
-	74607A3	活塞销安装套件	INSTALLER KIT Piston Pin	1
-	65494	环压缩工具(2.0升)	COMPRESSOR TOOL Ring (2.0L)	1
-	65494T	环压缩工具	COMPRESSOR TOOL Ring	1
-	818773	活塞环压缩工具(2.5升)	COMPRESSOR TOOL Piston Ring (2.5L)	1
-	818773T	活塞环压缩工具(3.50)	COMPRESSOR TOOL Piston Ring (3.50)	1
-	24697	活塞环扩张工具	EXPANDER TOOL Piston Ring	1
-	30591A1	动力头支架工具	STAND TOOL Powerhead	1
-	30591T1	支架工具	STAND TOOL	1
-	24161	飞轮拉拔器盖工具	CAP TOOL Flywheel Puller	1
-	66274	扭矩扳手(0-150磅英寸)	TORQUE WRENCH (0-150 lb-in)	1
-	37241	通用拉拔板	PULLER PLATE Universal	1
-	112301	对正工具	ALIGNMENT TOOL	1
-	99750A1	万用表	MULTI METER	1
-	52915A6	测试仪表套件	TEST GAUGE KIT	1
-	74951	扳手	SPANNER WRENCH	1
-	63209	加热灯	HEAT LAMP	1
-	44487A1	调整杆导向器拆卸工具	REMOVER TOOL Trim Rod Guide	1
-	44487T1	调整杆导向器拆卸工具	REMOVER TOOL Trim Rod Guide	1
-	44486A1	调整杆拆卸工具	REMOVAL TOOL Trim Rod	1

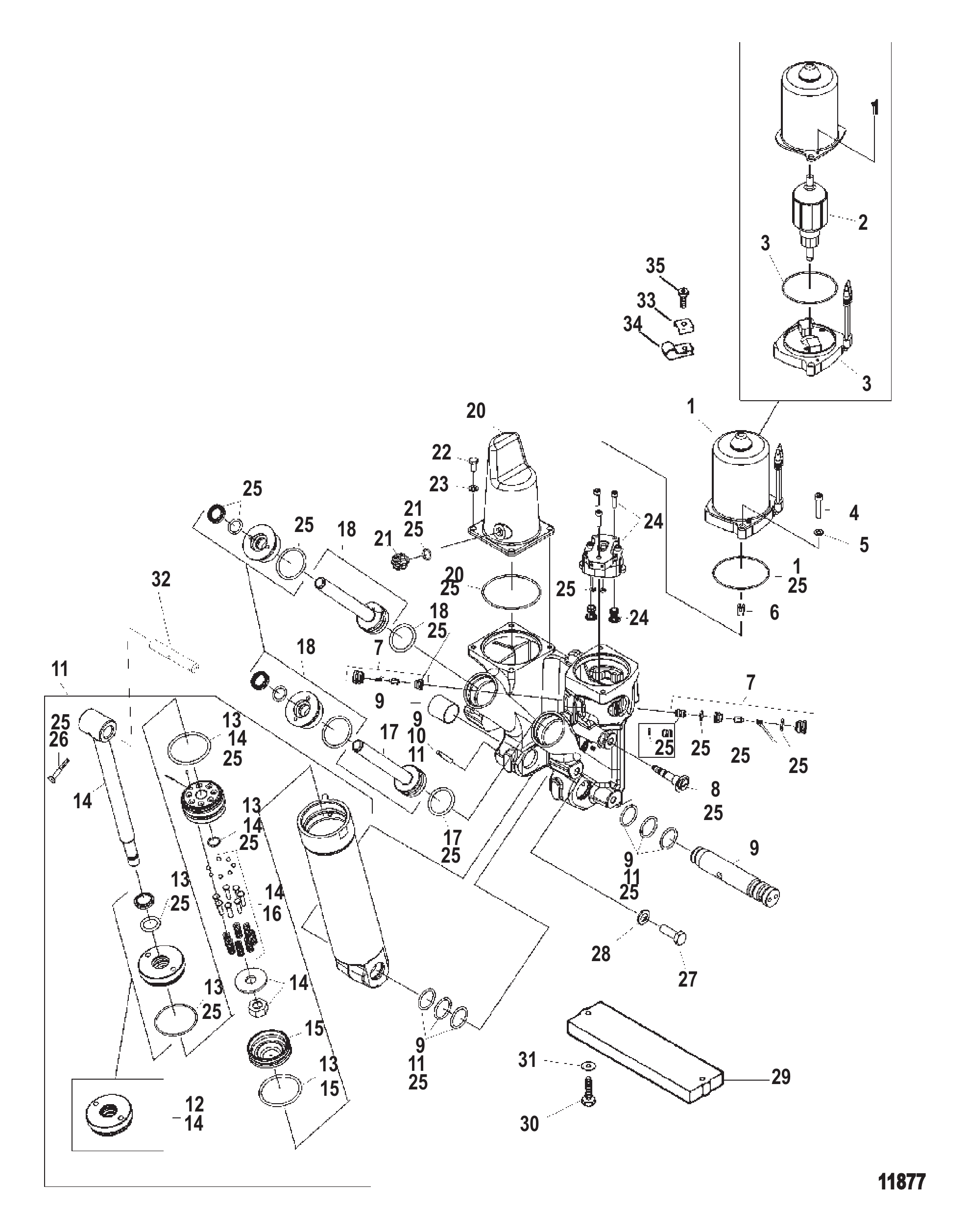

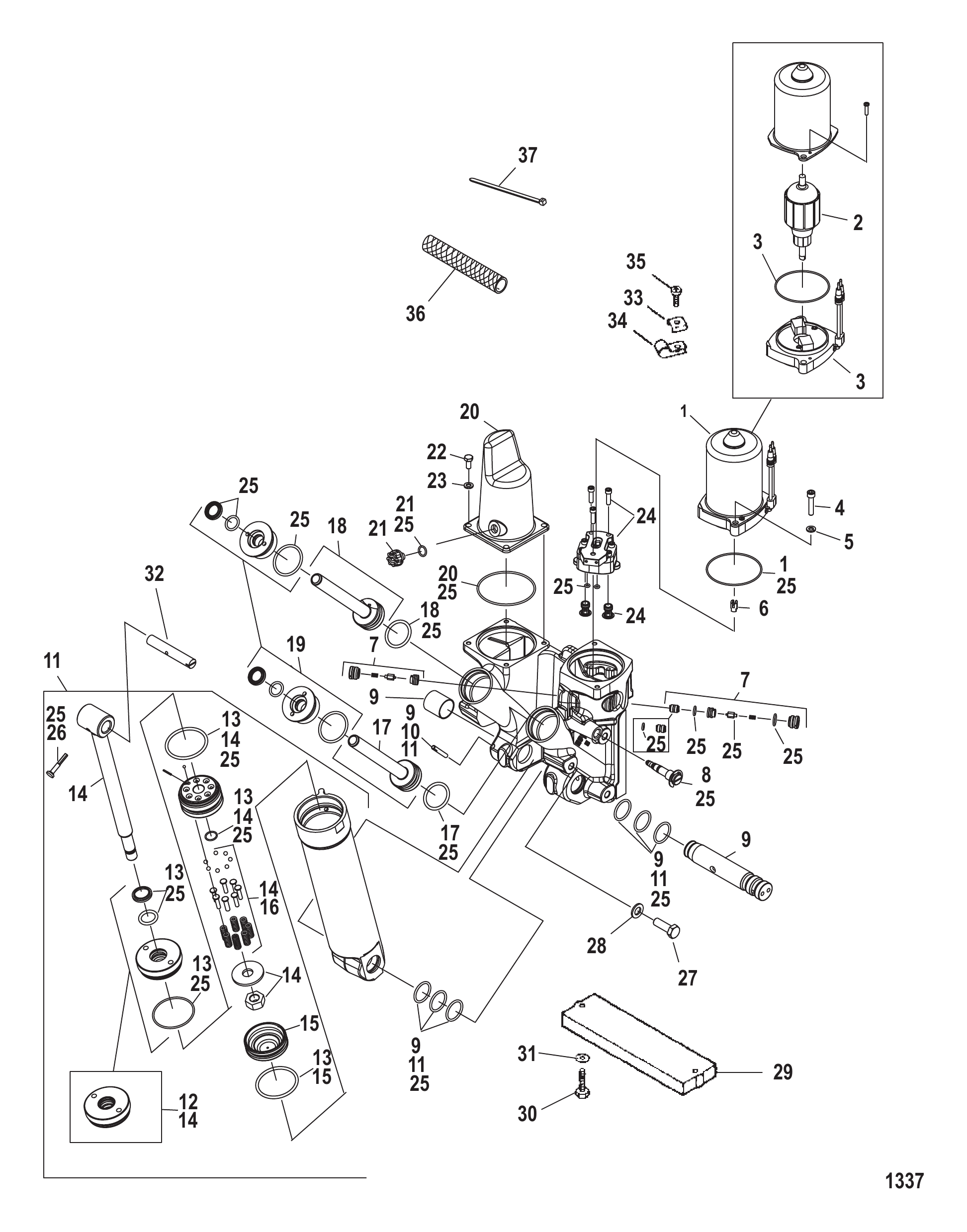

图 5动力升降组件(铸造泵壳)金属电机壳 Power Trim Components (Cast Pump Housing) Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	855998T1	动力升降倾斜装置总成	POWER TRIM Complete	1
1	878265A1	电机套件	MOTOR KIT	1
1	878265A4	配平电机	TRIM MOTOR	1
2	878405A1	电枢	ARMATURE	1
2	878265A1	电机套件	MOTOR KIT	1
3	878407A1	端架	END FRAME	1
3	878265A1	电机套件	MOTOR KIT	1
4	4008830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
4	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
5	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
6	878245	联轴器	COUPLING	1
6	8782451	驱动轴	DRIVESHAFT	1
7	878410A1	压力检查套件	PO CHECK KIT	1
8	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
8	893929A01	安全阀套件	VALVE KIT Relief	1
9	878241A1	轴套件	SHAFT KIT	1
9	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
10	878267	销	PIN	1
11	878235A1	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
11	878235A03	倾斜油缸套件	CYLINDER KIT Tilt	1
12	878239A1	导向套件	GUIDE KIT	1
12	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
13	878409A1	O型圈套件	O-RING KIT	1
13	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
14	878412A1	减震杆套件	SHOCK ROD KIT	1
14	8M0168219	减震杆套件	SHOCK ROD KIT	1
15	878242A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
15	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
16	878406A1	止回阀修理包	REPAIR KIT Check Valve	1
16	878406A02	止回阀修理包	REPAIR KIT Check Valve	1
17	878414A1	活塞总成	PISTON ASSEMBLY	1
17	878414T01	活塞总成	PISTON ASSEMBLY	1
18	878413A1	活塞总成	PISTON ASSEMBLY	1
19	878243A1	导向器总成	GUIDE ASSEMBLY	2
19	8M0021648	端盖总成	END CAP ASSEMBLY	2
20	878264A1	储液罐套件	RESERVOIR KIT	1
21	811613	塞子总成	PLUG ASSEMBLY	1
22	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
23	43450	垫圈	WASHER	4
23	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
24	878411A1	泵套件	PUMP KIT	1
24	892251A01	泵套件	PUMP KIT	1
25	878408A1	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
26	821539	三叶销	PIN Trilobe	1
27	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
28	4002319	垫圈	WASHER	6
29	818298Q1	阳极套件	ANODE KIT	1
30	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
30	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
31	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
31	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	996251	轴	SHAFT	1
32	99625002	轴	SHAFT	1
33	69205	C形垫圈	C WASHER	1
33	8M0084613	C形垫圈	C-WASHER	1
34	22875	卡扣	CLIP	2
35	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1

图 6双缆连接套件 Dual Cable Attaching Kit

REF	零件编号	中文名称	英文名称	数量
-	92876A8	转向安装套件	ATTACHING KIT Steering	1
1	41055A1	支架总成	BRACKET ASSEMBLY	1
2	715651	转向拉索套管	TUBE Steering Cable	1
3	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
4	821203	锁紧垫圈	LOCKWASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
7	78968	内锁紧垫圈 (.250)	LOCKWASHER Internal (.250)	4
8	850791T	联轴器	COUPLER	1
9	73732	螺钉 (.375-24 x 1.120)	SCREW (.375-24 x 1.120)	2
10	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
11	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	3
11	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	3

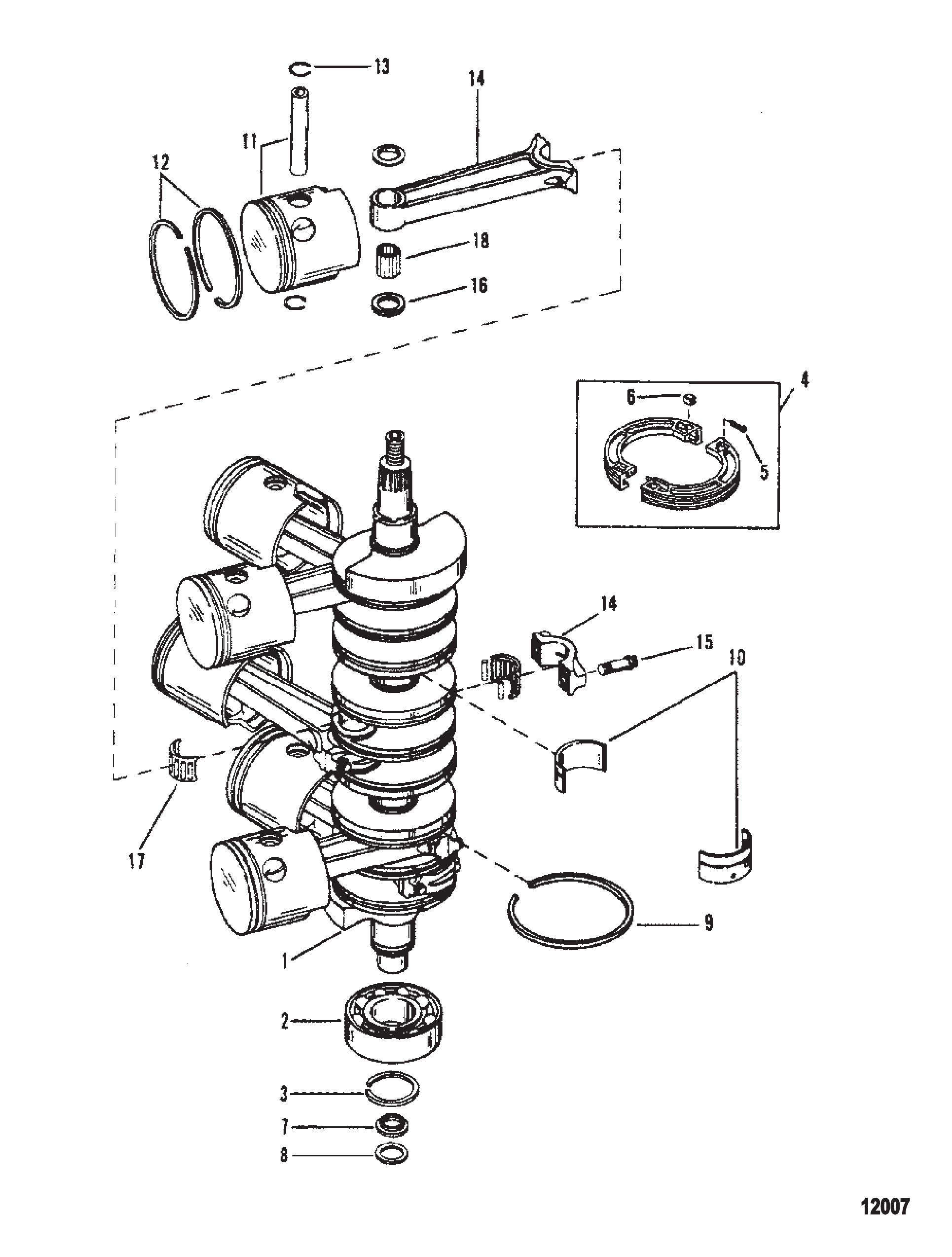

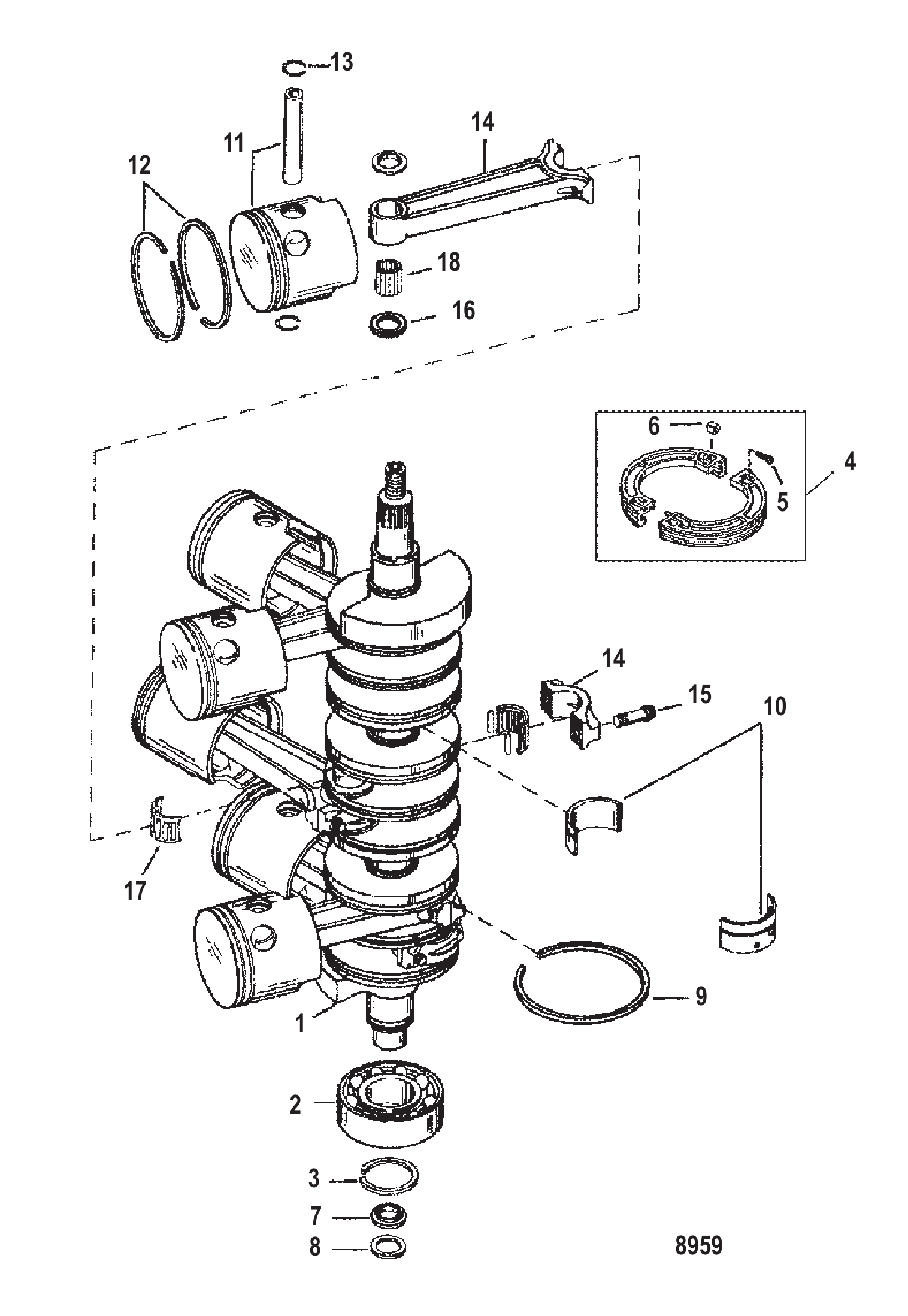

图 7曲轴（连杆锻件编号636-8118） Crankshaft (Connecting Rod Forging # is 636-8118)

REF	零件编号	中文名称	英文名称	数量
1	9536A4	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	67923	曲轴下球轴承	BEARING Ball CRANKSHAFT (LOWER)	1
2	67923T	滚珠轴承	BEARING Ball	1
3	67446	球轴承挡圈	RING BALL BEARING	1
4	14513A2	驱动齿轮段套件	GEAR SEGMENT KIT Drive	2
4	14513A09	驱动齿轮段套件	GEAR SEGMENT KIT Drive	2
5	813073	螺钉(#6-32 x .620)内六角头	SCREW (#6-32 x .620) Socket Head	2
6	813134	螺母(#6-32)专用	NUT (#6-32) Special	2
7	54196A6	密封载体总成	CARRIER ASSEMBLY SEAL	1
8	65800	填料载体	PACKING CARRIER	1
9	67377	密封环-曲轴	RING Sealing SEALING - CRANKSHAFT	8
9	67377T	密封环	RING Sealing	8
10	16756A1	滚子轴承总成-曲轴	BEARING ASSEMBLY Roller CRANKSHAFT	2
10	16756A6	轴承套件	BEARING KIT	2
11	7441A3	活塞总成(右舷-标准)	PISTON ASSEMBLY (STARBOARD-STANDARD)	3
11	7441T36	活塞-右舷-标准	PISTON-STBD-STD	3
11	7443A2	活塞总成(右舷-0.015加大)	PISTON ASSEMBLY (STARBOARD-.015 O.S.)	AR
11	7443A12	活塞-右舷-0.015	PISTON-STBD-.015	AR
11	7445A2	活塞总成(右舷-0.030加大)	PISTON ASSEMBLY (STARBOARD-.030 OS.)	AR
11	7445A12	活塞-右舷-0.030	PISTON-STBD-.030	AR
11	7442A3	活塞总成(左舷-标准)	PISTON ASSEMBLY (PORT-STANDARD)	3
11	7442T36	活塞-左舷-标准	PISTON-PORT-STD	3
11	7444A2	活塞总成(左舷-0.015加大)	PISTON ASSEMBLY (PORT-.015 O.S.)	AR
11	7444A12	活塞-左舷-0.015	PISTON-PORT-.015	AR
11	7446A2	活塞总成(左舷-0.030加大)	PISTON ASSEMBLY (PORT-.030 O.S.)	AR
11	7446T12	活塞-左舷-0.030	PISTON-PORT-.030	AR
11	8666A22	活塞总成(右舷-标准)	PISTON ASSEMBLY (STARBOARD-STANDARD)	3
11	8666T42	活塞总成-右舷-标准	PIST.ASY.STBD.STD	3
11	8666A36	活塞总成-右舷(0.015加大)	PISTON ASSEMBLY Starboard (015 O.S.)	AR
11	8666A43	活塞总成-右舷-0.015	PIST.ASY STBD.015	AR
11	8667A22	活塞总成(左舷-标准)	PISTON ASSEMBLY (PORT-STANDARD)	3
11	8667T42	活塞总成-左舷-标准	PIST.ASY.PORT.STD	3
11	8667A36	活塞总成-左舷(0.015加大)	PISTON ASSEMBLY Port (.015 O.S.)	AR
11	8667A43	活塞总成-左舷-0.015	PIST.ASY PORT.015	AR
11	9738A2	活塞总成(右舷-标准)	PISTON ASSEMBLY (STARBOARD-STANDARD)	3
11	9738T4	活塞-右舷-标准	PISTON-STBD-STD	3
11	9738A3	活塞总成(右舷-0.015加大)	PISTON ASSEMBLY (STARBOARD-.015 O.S.)	AR
11	9738A5	活塞-右舷-0.015	PISTON-STBD-.015	AR
11	9737A2	活塞总成(左舷-标准)	PISTON ASSEMBLY (PORT-STANDARD)	3
11	9737T4	活塞-左舷-标准	PISTON-PORT-STD	3
11	9737A3	活塞总成(左舷-0.015加大)	PISTON ASSEMBLY (PORT-.015 O.S.)	AR
11	9737A5	活塞-左舷-0.015	PISTON-PORT-.015	AR
12	93481A12	活塞环组-标准(标准)	RING SET Piston - Standard (STANDARD)	1
12	78918A4	活塞环组-0.015加大(0.015加大)	RING SET Piston - .015 Oversize (.015 O.S.)	AR
12	85636A4	活塞环组-0.030加大(0.030加大)	RING SET Piston - .030 Oversize (.030 O.S.)	AR
12	18487A12	活塞环组(标准)	RING SET Piston (STANDARD)	1
12	815267A4	活塞环组(.015加大)	RING SET Piston (.015 O.S.)	AR
12	815515A12	活塞环组(标准)	RING SET Piston (STANDARD)	1
12	815268A4	活塞环组(.015加大)	RING SET Piston (.015 O.S.)	AR
13	52035	锁环	RING Lock	12
13	857196	锁紧环	LOCK RING	12
14	8119A5	连杆总成	CONNECTING ROD ASSEMBLY	6
14	8119A6	连杆套件	CONN ROD KIT	6
15	93886	螺钉(0.312-28×0.875)连杆	SCREW (.312-28 x .875) CONNECTING ROD	12
16	47247	定位针垫圈	WASHER NEEDLE LOCATING	12
16	8M0032839	垫片@5	WASHER @5	12
17	17514A1	轴承套件	BEARING KIT	6
17	8M0234886	轴承保持架	CAGE BEARING	6
18	67483	活塞端滚针轴承	BEARING Needle PISTON END	174
-	815791A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

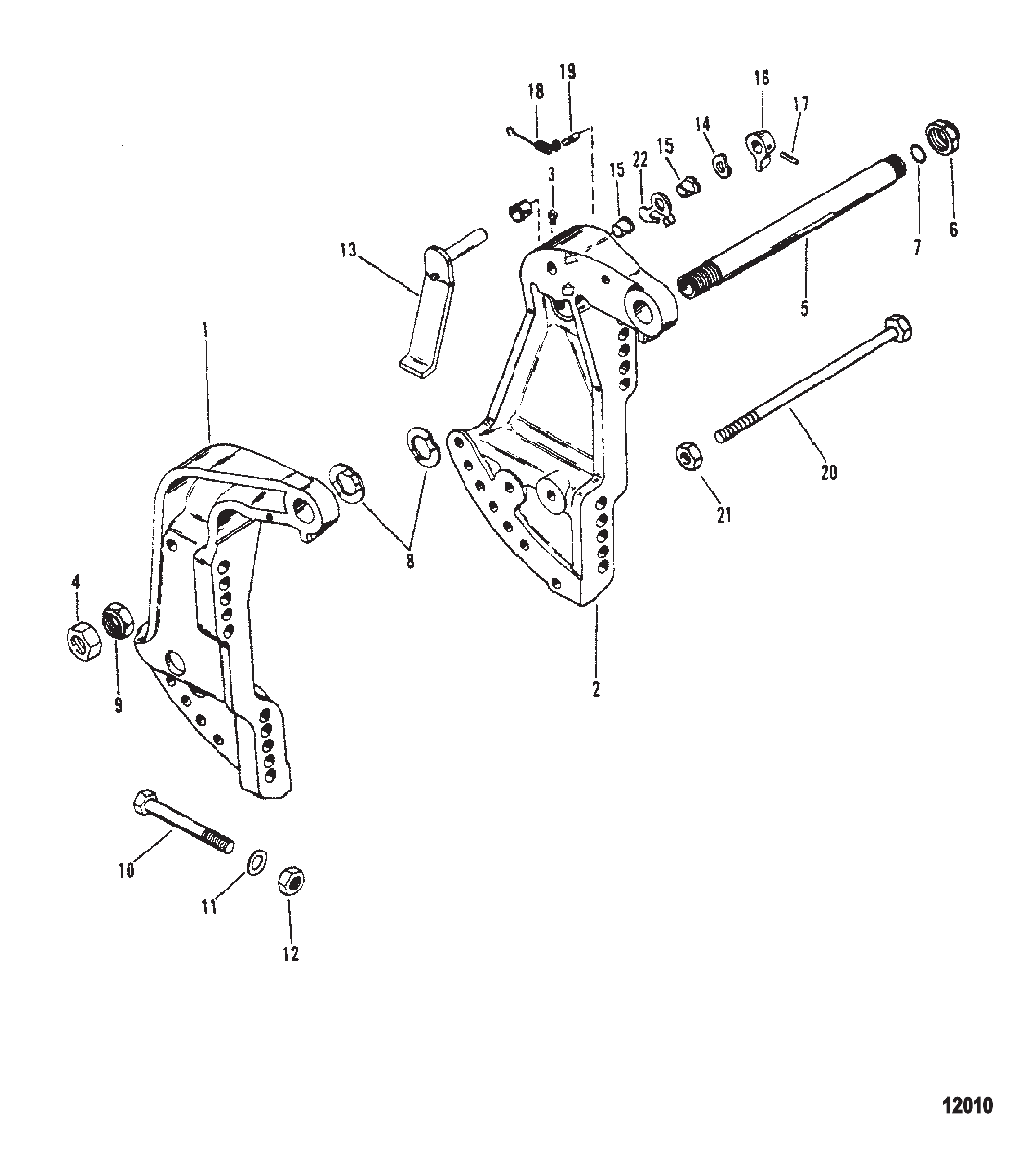

图 8艉板支架 TRANSOM BRACKETS

REF	零件编号	中文名称	英文名称	数量
1	8718F7	艉板支架 (右舷) (黑色)	BRACKET Transom (STARBOARD) (BLACK)	1
1	8718F8	艉板支架(右舷)(灰色)	BRACKET Transom (STARBOARD) (GRAY)	1
1	8718F10	艉板支架(右舷)(追踪者)	BRACKET Transom (STARBOARD) (TRACKER)	1
2	8716A8	艉板支架总成(左舷)(黑色)	BRACKET ASSEMBLY Transom (PORT) (BLACK)	1
2	8716A9	艉板支架总成(左舷)(灰色)	BRACKET ASSEMBLY Transom (PORT) (GRAY)	1
2	8716A10	艉板支架总成(左舷)(追踪者)	BRACKET ASSEMBLY Transom (PORT) (TRACKER)	1
3	98727	润滑脂接头(左舷)	FITTING Grease (PORT)	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	37984	螺母 (.875-14)	NUT (.875-14)	1
4	8M0041651	螺母 (.875-14)	NUT (.875-14)	1
5	99170A2	倾斜管套件(碳钢)	TUBE KIT Tilt (CARBON STEEL)	AR
5	826125A1	倾斜管	TILT TUBE	AR
5	826125A1	倾斜管(不锈钢)	TILT TUBE (STAINLESS STEEL)	AR
6	826135	锁紧螺母(1.00-14)尼龙嵌件(黑色)	NUT Lock (1.00-14) Nylon Insert (BLACK)	1
6	90068F3	螺母(1.00-14)(灰色)	NUT (1.00-14) (GRAY)	1
6	859133	螺母(1.00-14)	NUT (1.00-14)	1
6	90068F4	螺母(1.00-14)(追踪者)	NUT (1.00-14) (TRACKER)	1
6	859133	螺母(1.00-14)	NUT (1.00-14)	1
7	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
8	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
9	826164	螺母 (.875-14)	NUT (.875-14)	1
9	8M0231351	锁紧螺母	NUT Lock	1
10	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
10	8M0149747	螺钉	SCREW	4
11	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	8M0027784	螺母	NUT	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	99629A2	杠杆总成	LEVER ASSEMBLY	1
13	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	99611	波形垫圈	WAVE WASHER	1
15	65830	尼龙衬套	NYLINER	2
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99622	弹簧	SPRING	1
19	99604	槽销	PIN Groove	1
20	96930A1	螺栓总成	BOLT ASSEMBLY	1
21	23161	螺母 (.375-24)	NUT (.375-24)	1
22	814207	停机开关	STOP	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 9蓄能器 ACCUMULATOR

REF	零件编号	中文名称	英文名称	数量
-	811290	蓄能器	ACCUMULATOR	1
1	823059A1	端架总成(含线束)	END FRAME ASSEMBLY (W/WIRES)	1
2	823061A1	电枢总成	ARMATURE ASSEMBLY	1
3	823062	泵总成	PUMP ASSEMBLY	1
4	823063	壳体/磁铁总成	SHELL/MAGNET ASSEMBLY	1
5	823064	螺栓套件	BOLT KIT	1
6	823065	控制器	CONTROLLER	1
7	823066	螺钉套件	SCREW KIT	1
8	823067	滤清器套件	FILTER KIT	1
9	823068	橡胶减震器	RUBBER DAMPER	1
10	823070	橡胶隔振器	RUBBER ISOLATOR	1
11	823071	储液罐衬垫	GASKET Reservoir	1
12	823072	螺钉套件	SCREW KIT	1
13	823074	O型圈	O-RING	1
14	823075	固定板	PLATE Retaining	1
15	823077	电源线束总成	HARNESS ASSEMBLY Power	1
16	823078A1	盖总成	COVER ASSEMBLY	1
17	823080A1	加注塞	FILL PLUG	1
18	823082	壳体总成	HOUSING ASSEMBLY	1
19	79953	螺钉(0.375-16x0.250)	SCREW (.375-16 x .250)	1
20	19183	纤维垫圈	WASHER Fiber	1
21	823087	接头	FITTING	1
22	823069	高压短管	SHORT HIGH PRESSURE LINE	1
23	823073	高压长管	LONG HIGH PRESSURE LINE	1
24	811524	低压短管	SHORT LOW PRESSURE LINE	1
25	811525	低压长管	LONG LOW PRESSURE LINE	1

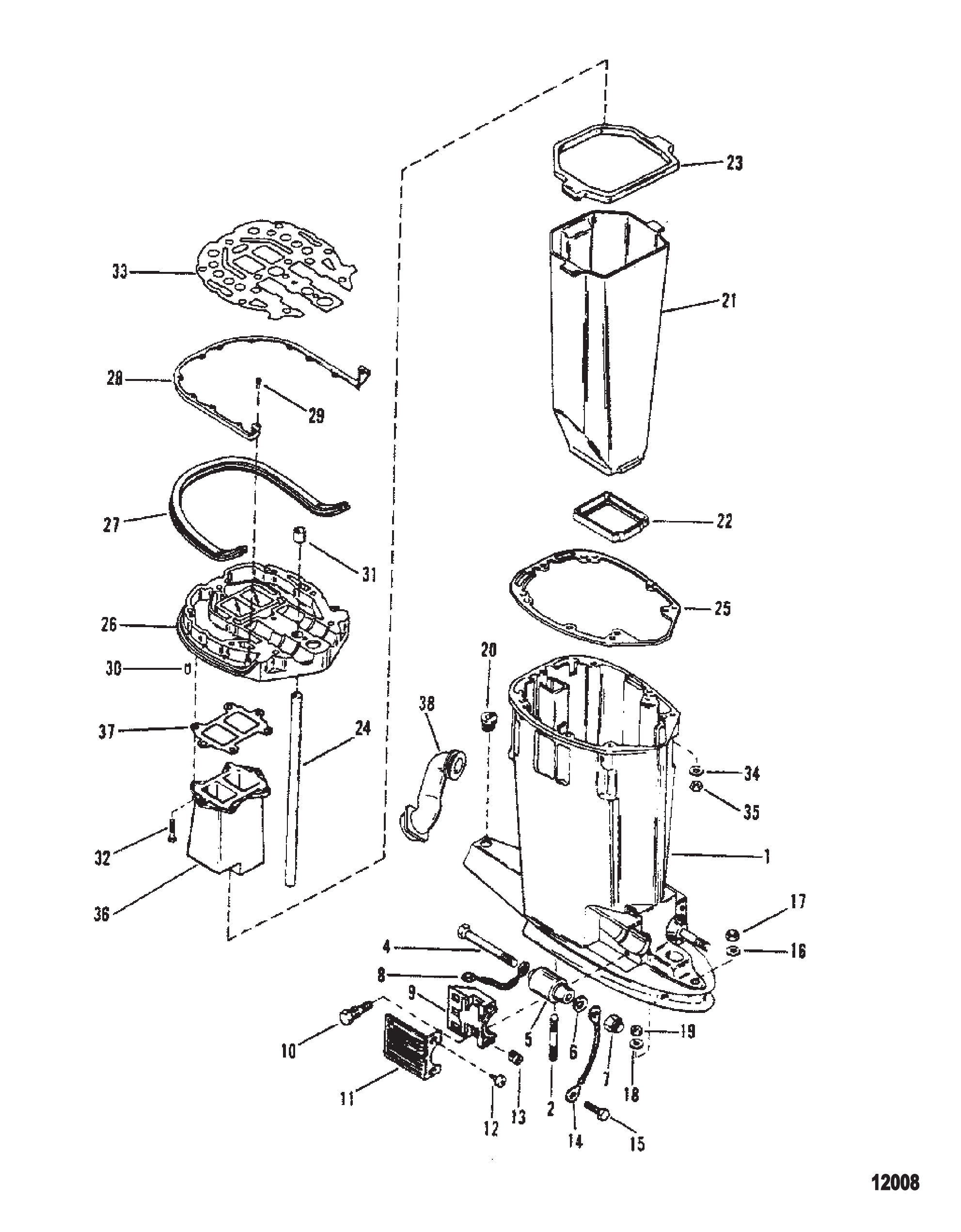

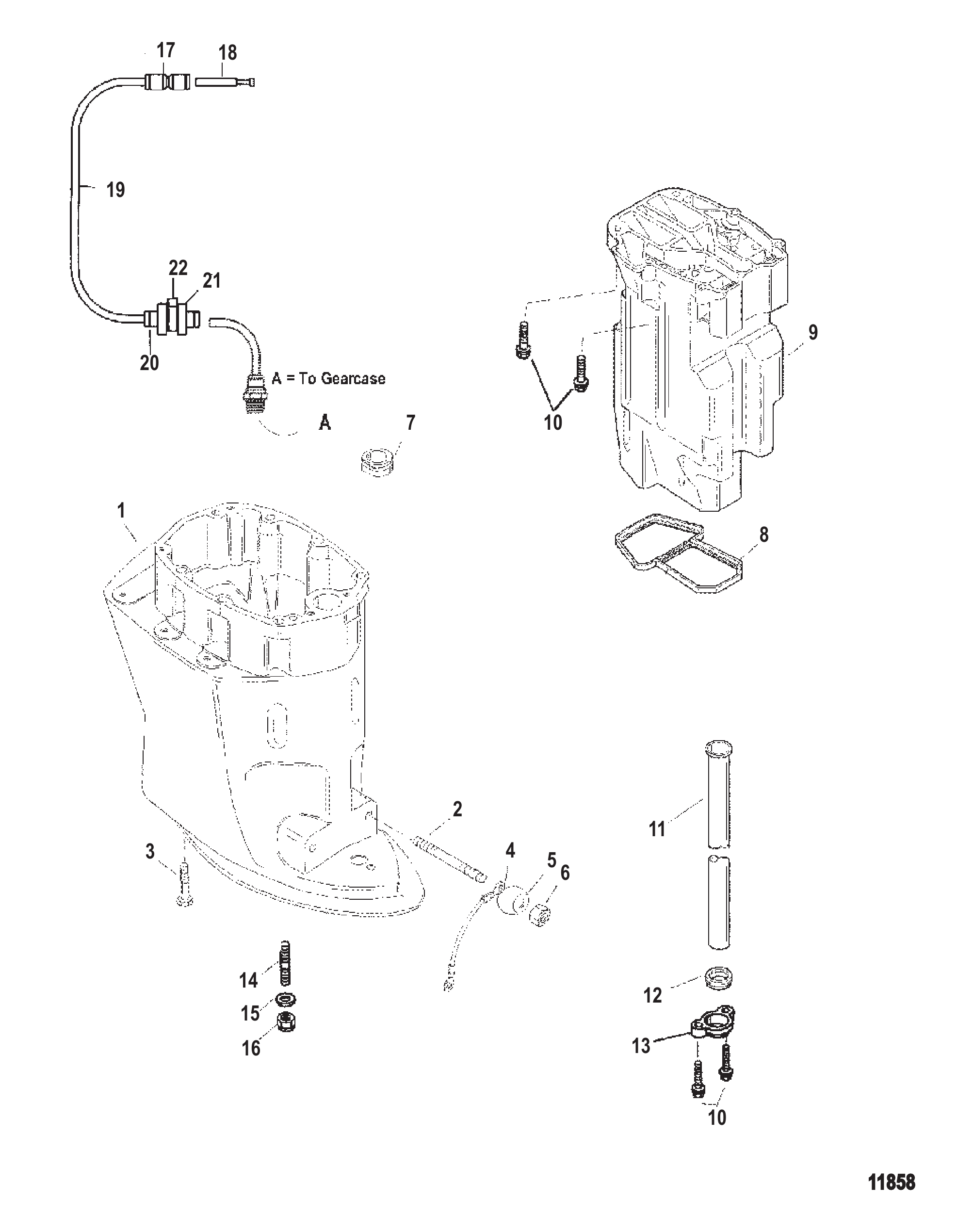

图 10驱动轴壳与排气管 Drive Shaft Housing And Exhaust Tube

REF	零件编号	中文名称	英文名称	数量
1	848939T3	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	849778T2	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	849778A2	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	816055	双头螺柱(.500 x 4.50)	STUD (.500 x 4.50)	2
3	4009135	螺钉(M12 x 35)	SCREW (M12 x 35)	2
3	892860	螺钉(M12 x 35)	SCREW (M12 x 35)	2
4	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
5	816056	垫圈	WASHER	2
6	82670817	螺母(.500-20)	NUT (.500-20)	2
6	898832	螺母(.500-20)	NUT (.500-20)	2
7	8331231	护孔环	GROMMET	1
8	8329321	密封件	SEAL	1
9	833116A9	排气管总成	TUBE ASSEMBLY Exhaust	1
10	81893435	螺钉(M8×35)	SCREW (M8 x 35)	6
10	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	6
11	8329411	水管	TUBE Water	1
11	8M0042785	水管	TUBE-WATER	1
11	8329412	水管	TUBE Water	1
11	8M0042786	水管	TUBE Water	1
12	832940	密封件	SEAL	1
12	832940001	密封件	SEAL	1
13	8329391	卡箍	CLAMP	1
14	848843	双头螺柱(M12 x 65)	STUD (M12 x 65)	4
14	8M0045821	螺柱	STUD	4
14	856983	双头螺柱(M12 x 52)	STUD (M12 x 52)	4
14	8M0008031	双头螺柱(M12 x 1.75 x 52)	STUD (M12 x 1.75 x 52)	4
15	4002321	垫圈(12.80 mm x 24.0 mm x 2.4 mm)不锈钢	WASHER (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel	4
16	4013812	螺母(M12)不锈钢	NUT (M12) Stainless Steel	4
17	859747	联轴器	COUPLER	1
17	8M0214971	耦合接头 (4 MM)	COUPLER Fitting (4 MM)	1
18	859732	堵头	PLUG	1
19	85944971	管材(52.00英寸)黑色	TUBING (52.00 Inches) Black	1
19	85944975	管材(72.00英寸散装)	TUBING (72.00 Inches Bulk)	1
20	859448	接头	FITTING	1
20	859448T	接头	FITTING	1
21	821555	护孔环	GROMMET	1
21	8M0153609	护孔环	GROMMET	1
22	850181	捆扎带(11.750英寸)	TIE STRAP (11.750 Inches)	1

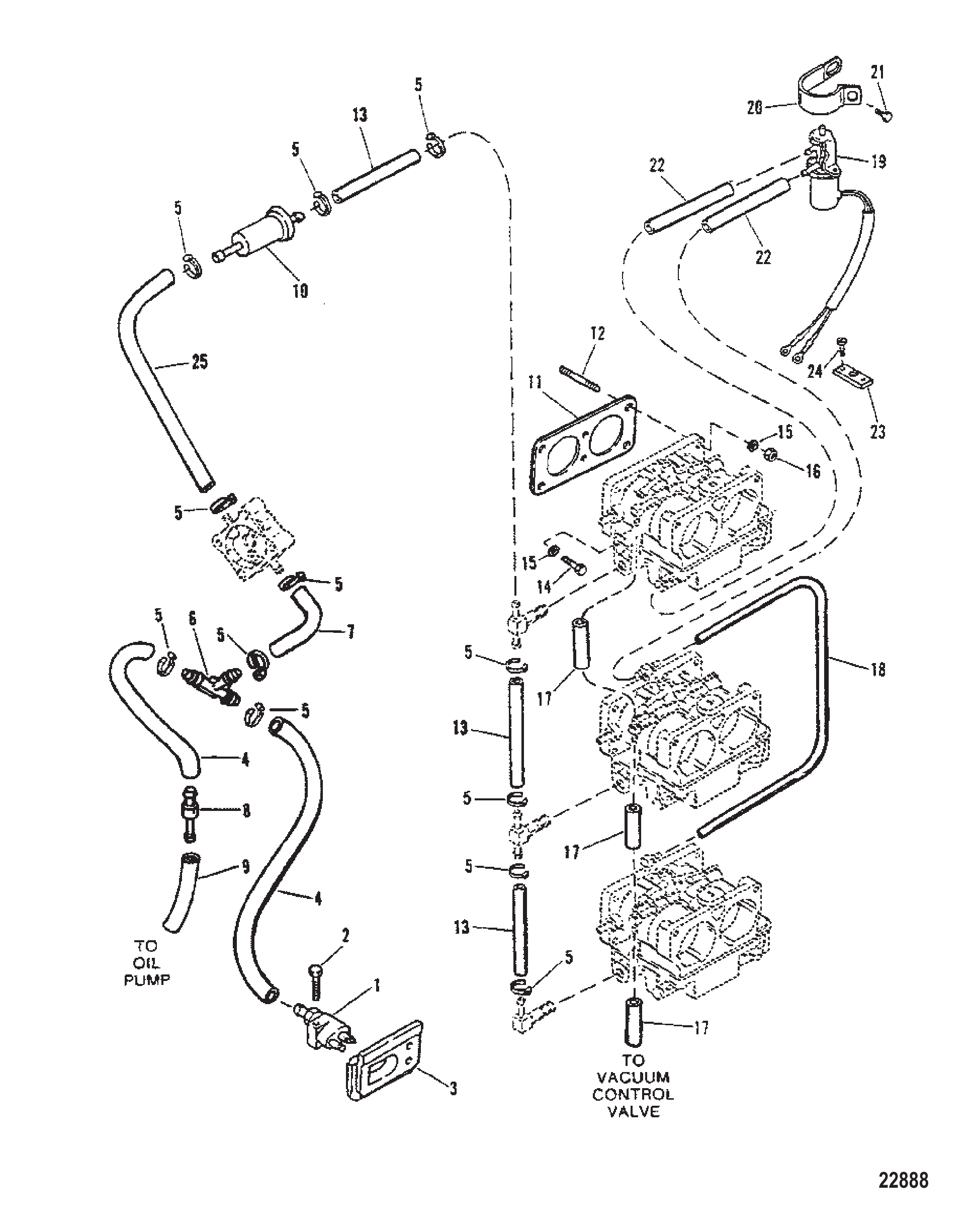

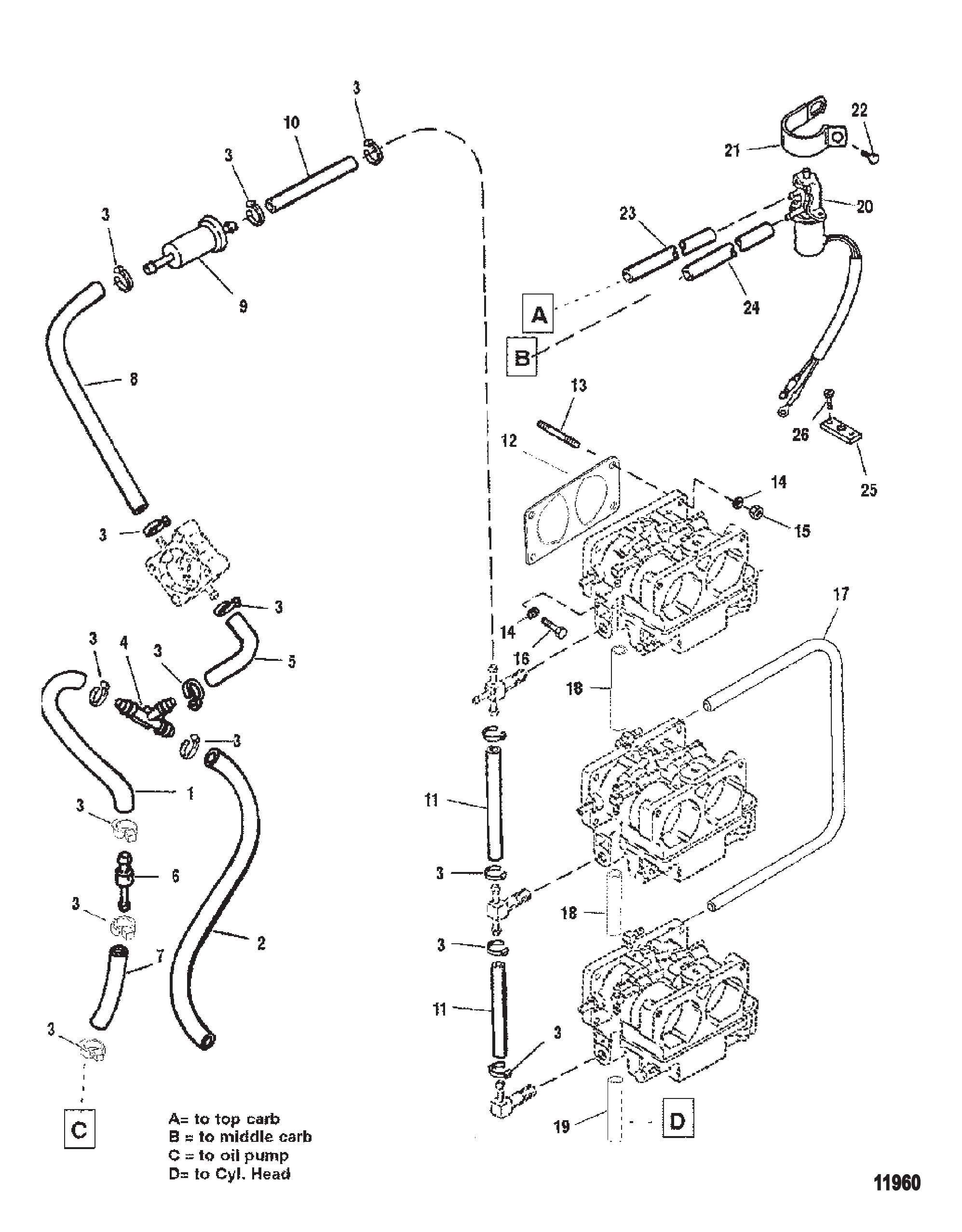

图 11燃油管路（用于 WMH-12A/B 至 WMH-28 化油器） FUEL LINES (Use With WMH-12A/B thru WMH-28 Carburtors)

REF	零件编号	中文名称	英文名称	数量
1	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
2	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
3	812782	密封件	SEAL	1
4	9912980	软管	HOSE	AR
4	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	AR
5	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
5	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
6	818993	三通接头	CONNECTOR Tee	1
7	18175	软管	HOSE	1
8	818994	止回阀	CHECK VALVE	1
8	8189941	止回阀	CHECK VALVE	1
9	82381325	管材(10.00英寸散装)	TUBING (10.00 Inches Bulk)	1
9	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	1
10	8162961	燃油滤清器	FILTER Fuel	1
10	816296Q2	燃油滤清器	FILTER Fuel	1
11	677511	衬垫	GASKET	3
12	27037	双头螺栓(.250-28×1.125)	STUD (.250-28 x 1.125)	6
12	270372	双头螺栓(.250-28×1.125)	STUD (.250-28 x 1.125)	6
13	830756109	软管(57.00英寸散装)	HOSE (57.00 Inches Bulk)	1
13	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
14	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	6
15	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	6
16	29598	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	6
17	9912878	软管 (.187) (26.00英寸散装)	HOSE (.187) (26.00 Inches Bulk)	3
18	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
18	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
19	42859A2	加浓阀总成	VALVE ASSEMBLY Enrichner	1
20	633001	卡箍	CLAMP	1
21	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
22	9912688	管材 (36.00英寸散装)	TUBING (36.00 Inches Bulk)	2
23	45915	端子排	TERMINAL BLOCK	1
24	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	1
24	69079	螺钉 (#10-16 x .440)	SCREW (#10-16 x .440)	1
25	824001	软管	HOSE	1
25	830762	软管	HOSE	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 12艉板支架（序列号0G589999及以下） Transom Brackets (S/N-0G589999 & Below)

REF	零件编号	中文名称	英文名称	数量
1	8718F7	艉板支架	BRACKET Transom	1
2	8716A8	艉板支架总成	BRACKET ASSEMBLY Transom	1
1	8718F8	艉板支架	BRACKET Transom	1
2	8716A9	艉板支架总成	BRACKET ASSEMBLY Transom	1
3	98727	润滑脂接头(左舷)	FITTING Grease (PORT)	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	47525	螺母 (.875-14) 底部	NUT (.875-14) Bottom	1
5	826125A1	倾斜管	TILT TUBE	1
6	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
7	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
8	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
9	826164	螺母 (.875-14)	NUT (.875-14)	1
9	8M0231351	锁紧螺母	NUT Lock	1
10	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
10	8M0149747	螺钉	SCREW	4
11	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	8M0027784	螺母	NUT	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	99629A2	杠杆总成	LEVER ASSEMBLY	1
13	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	99611	波形垫圈	WAVE WASHER	1
15	65830	尼龙衬套	NYLINER	2
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99622	弹簧	SPRING	1
19	99604	槽销	PIN Groove	1
20	96930A1	螺栓总成	BOLT ASSEMBLY	1
21	23161	螺母 (.375-24)	NUT (.375-24)	1
22	814207	停机开关	STOP	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

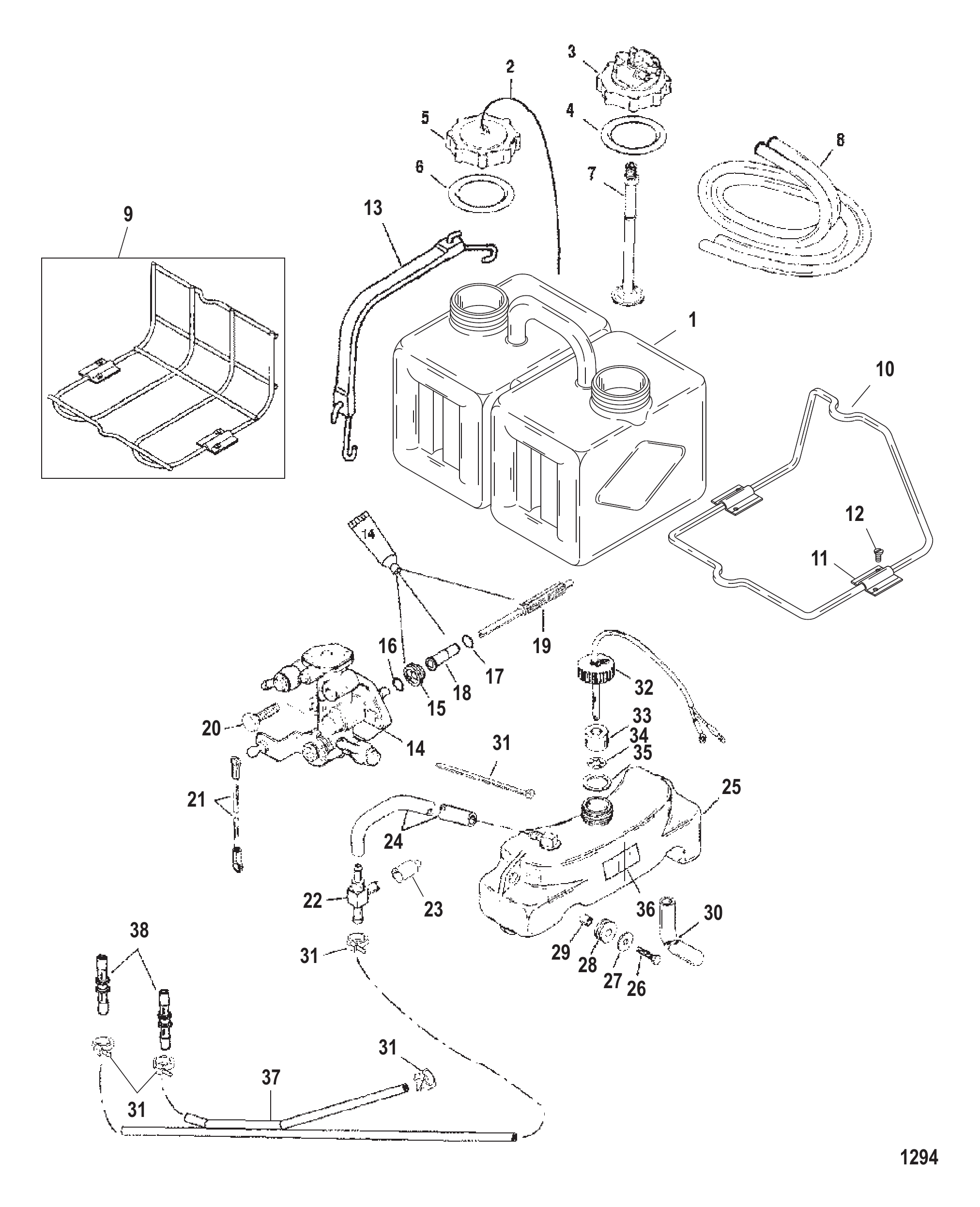

图 13机油喷射组件 Oil Injection Components

REF	零件编号	中文名称	英文名称	数量
1	830889A4	油箱总成	TANK ASSEMBLY	1
2	NSS	不单独销售标签-储液罐	NOT SOLD SEPARATE Decal-Reservoir	1
3	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
4	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
5	814449A3	盖总成	CAP ASSEMBLY	1
6	42999	衬垫	GASKET	1
6	42999T	衬垫	GASKET	1
7	856156A2	开关总成	SWITCH ASSEMBLY	1
7	856156T02	开关总成	SWITCH ASSEMBLY	1
8	81893435	螺钉(M8×35)	SCREW (M8 x 35)	3
8	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
9	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	3
10	855362	护孔环	GROMMET	3
10	855362001	护孔环	GROMMET	3
11	855364	衬套	BUSHING	3
-	8742A20	遥控机油箱总成	TANK ASSEMBLY Remote Oil	1
-	8742A22	遥控机油箱总成	TANK ASSEMBLY Remote Oil	1
12	87421	油箱	TANK	1
13	816190A3	外壳总成适配器	HOUSING ASSEMBLY Adapter	1
13	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
14	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
15	43298A2	盖总成	CAP ASSEMBLY	2
16	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
17	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
18	99802	管	TUBE	1
19	99439	软管(114.00英寸)	HOSE (114.00 Inches)	1
20	12335A1	支架套件	BRACKET KIT	1
21	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1

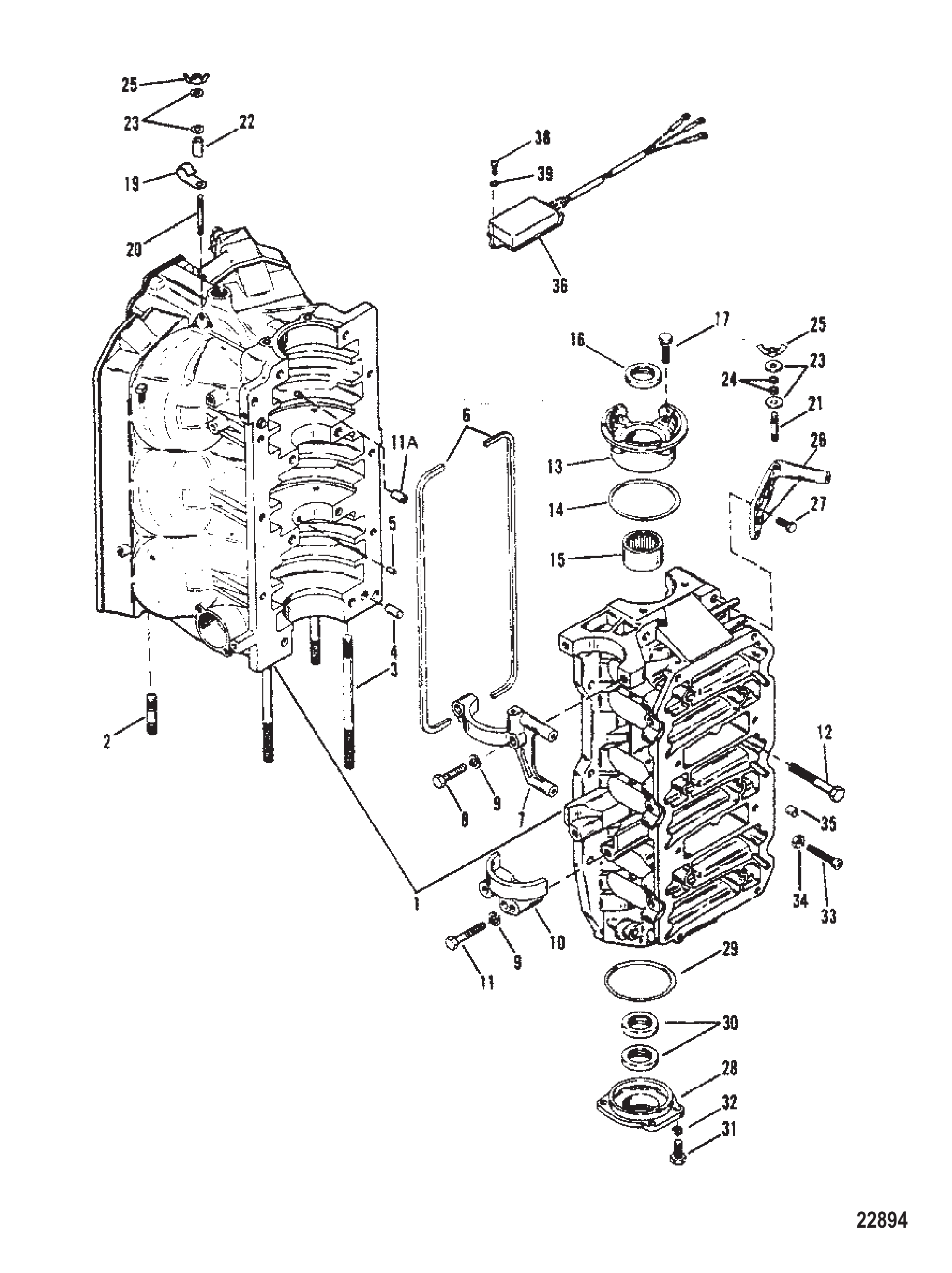

图 14气缸体与端盖 Cylinder Block And End Caps

REF	零件编号	中文名称	英文名称	数量
1	9765A13	气缸体(135/150)	CYLINDER BLOCK (135/150)	1
1	9763A17	气缸体(XR6/Magnum III)	CYLINDER BLOCK (XR6/Magnum III)	1
1	9763T17	气缸体	CYLINDER BLOCK	1
1	9763A23	气缸体(XR6/Magnum III)	CYLINDER BLOCK (XR6/Magnum III)	1
1	9763T23	气缸体	CYLINDER BLOCK	1
1	9763A17	气缸体(175)	CYLINDER BLOCK (175)	1
1	9763T17	气缸体	CYLINDER BLOCK	1
1	9763A61	气缸体(200)	CYLINDER BLOCK (200)	1
1	9763T61	气缸体	CYLINDER BLOCK	1
1	9763A23	气缸体(150 TRACKER)	CYLINDER BLOCK ( 150 TRACKER)	1
1	9763T23	气缸体	CYLINDER BLOCK	1
2	76175	双头螺柱(1-7/8")(旧款)	STUD (1-7/8") (OLD DESIGN)	4
2	818138	双头螺柱(1-3/4")	STUD (1-3/4")	2 or 6
2	8M0034455	螺柱1.750	STUD 1.750	2 or 6
3	67065	双头螺柱(5-1/2")	STUD (5-1/2")	2
3	670654	螺柱(.375-16/.375-24 x 5.620)	STUD (.375-16/.375-24 x 5.620)	2
3	78438	双头螺柱(6-3/4")	STUD (6-3/4")	2
3	8M0034454	螺柱(.375-16/.375-24 x 6.87)	STUD (.375-16/.375-24 x 6.87)	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	销(轴承座圈)	PIN (BEARING RACE)	2
5	8M0036405	销	PIN	2
6	11338	衬垫	GASKET	2
7	42249	上盖	COVER (UPPER)	1
7	8M0088723	启动器支架	BRACKET-STARTER	1
8	828213	螺钉(.312-18 x 1.500)六角法兰	SCREW (.312-18 x 1.500) Hex Flange	2
8	73657	螺钉(.312-18 x 1.50)(配13-26993垫片)	SCREW (.312-18 x 1.50) (Use with 13-26993 washer)	2
9	26993	锁紧垫圈(.312)(配10-73657螺钉)	LOCKWASHER (.312) (Use with 10-73657 screw)	4
9	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
10	76867	下盖	COVER (LOWER)	1
11	815549	螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00)	2
11	828214	螺钉(.312-18 x 2.00)六角法兰	SCREW (.312-18 x 2.00) Hex Flange	2
11A	99448	衬套	BUSHING	1
12	66717	螺钉(.375-16 x 3.250)	SCREW (.375-16 x 3.250)	8
12	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	6
13	9642A1	上端盖总成	END CAP ASSEMBLY Upper	1
13	858521T1	端盖总成	END CAP ASSEMBLY	1
14	54029	O型圈(2.800 x .103)	O-RING (2.800 x .103)	1
15	16756A4	轴承套件	BEARING KIT	1
16	41953	密封件	SEAL	1
17	69034	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW AND LOCKWASHER (.312-18 x 1.00)	4
17	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	4
19	63153	J型卡扣	J CLIP	1
20	15094	双头螺柱(.190-32 x 1.870)	STUD (.190-32 x 1.870)	1
21	15093	双头螺柱(#10-32 x 1.00)	STUD (#10-32 x 1.00)	2
21	8M0034435	螺柱	STUD	2
22	67269	隔套	SPACER	1
23	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	3
23	8M0204663	垫片@5	WASHER @5	3
25	816874	蝶形螺母 (#10-32)	WING NUT (#10-32)	3
26	42248	支架	BRACKET	1
26	422482	支架	BRACKET	1
27	49668	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	2
28	7809A1	端盖总成	END CAP ASSEMBLY	1
28	7809T1	端盖总成	END CAP ASSEMBLY	1
29	62700	O型圈(3.237 x .103)	O-RING (3.237 x .103)	1
30	41953	密封件	SEAL	2
31	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
32	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
33	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
34	64015	螺母 (.250-20)	NUT (.250-20)	1
35	26852	尼龙帽	CAP Nylon	1
36	87076A10	怠速控制器	IDLE SPEED CONTROL	1
38	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
38	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
39	38833	垫圈	WASHER	3
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	812815A92	动力头总成	POWERHEAD ASSEMBLY	1
-	878365T00	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A94	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 15维修/支撑材料 Service/Support Material

零件编号	中文名称	英文名称	数量
88183801	零件手册-115EFI(四冲程)	PARTS MANUAL 115 EFI (4-Stroke) Parts Manual	1
881980	维修手册	SERVICE MANUAL	1
881980R03	SM O/B 115 EFI 4S	SM O/B 115 EFI 4S	1
10225030	用户手册	OWNERS MANUAL	1
858610A31	燃油软管总成	HOSE ASSEMBLY Fuel	1
8M0038610	带注油球的燃油软管总成(9英尺)	HOSE ASSEMBLY Fuel (9 Feet) With Primer Bulb	1
880177	组合扳手工具(10毫米)	SCRENCH TOOL (10 mm)	1
881828	星形头工具套件	STARBIT TOOL KIT	1
881649A01	贴花套件	DECAL SET	1
881649A05	贴花套件	DECAL SET	1
881840A01	贴花套件	DECAL SET	1
881840A03	贴花套件	DECAL SET	1
881840A03	贴花套件	DECAL SET	1
881840A05	贴花套件	DECAL SET	1
881650A01	贴花套件	DECAL SET	1
881650A03	贴花套件	DECAL SET	1
881650A03	贴花套件	DECAL SET	1
881702A01	贴花套件	DECAL SET	1
881839A01	EPA标签信息贴花	DECAL EPA Label Information	1
881839A02	EPA标签信息贴花	Decal EPA Label Information	1
881839A03	EPA标签信息贴花	DECAL EPA Label Information	1
816834A1	转速表	TACHOMETER	1
816932A1	温度表	TEMPERATURE GAUGE	1
86306	适配器	ADAPTER	1
86306A01	适配器	ADAPTER	1
817054A3	水压表总成	GAUGE ASSEMBLY Water Pressure	1
821400A2	动力升降倾斜传感器套件	SENDER KIT Power Trim	1
8M0074845	ORD 8M0098264	ORD 8M0098264	1
92876A8	转向安装套件	ATTACHING KIT Steering	1
92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
883040A1	转速表模块套件	TACH MODULE KIT	1

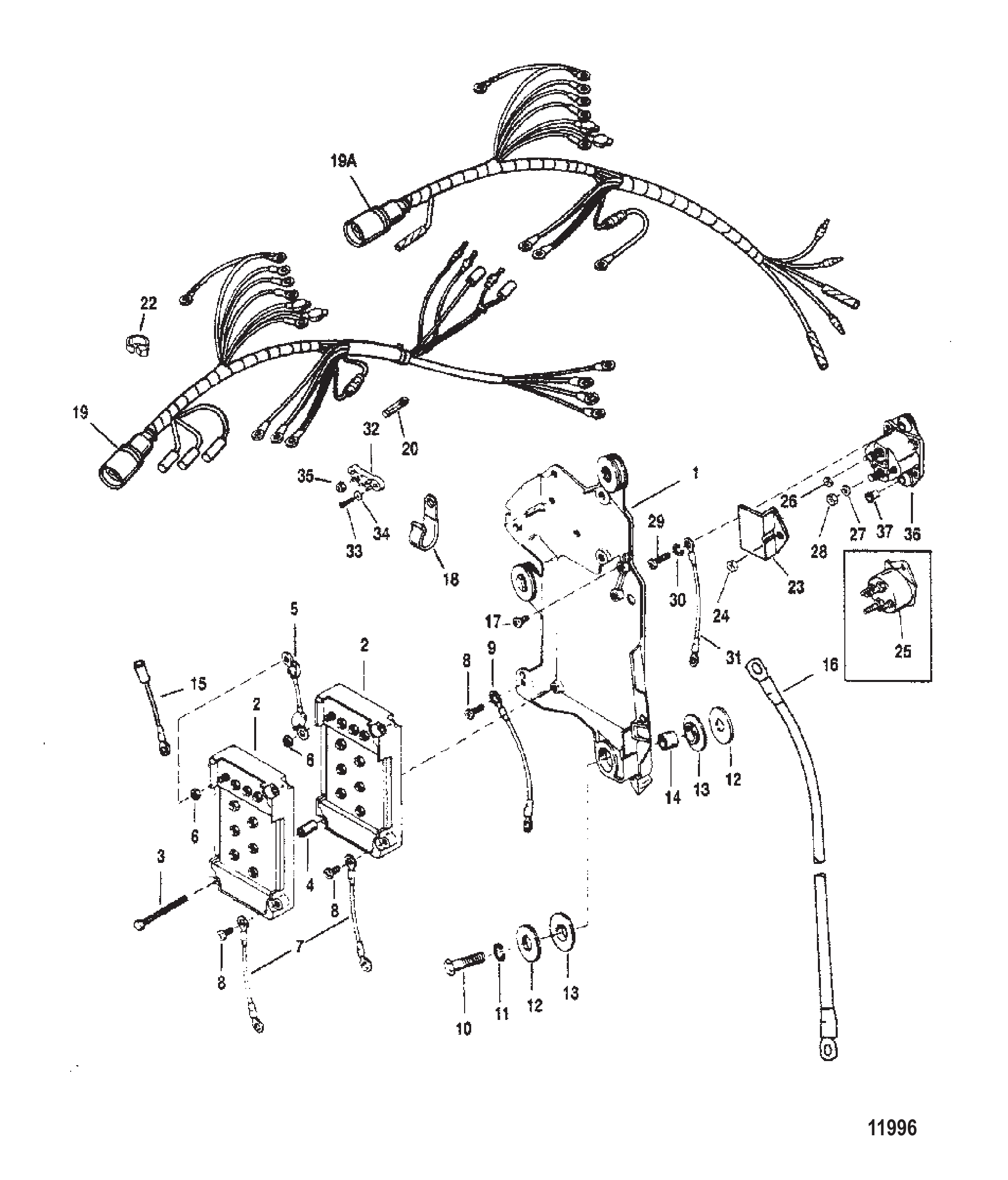

图 16线束/启动继电器 Wiring Harness/Starter Solenoid

REF	零件编号	中文名称	英文名称	数量
1	434292	点火板	IGNITION PLATE	1
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	螺钉(#12-24x2.00)	SCREW (#12-24 x 2.00)	2
4	94453	衬套	BUSHING	2
5	62310A2	拉线总成	CABLE ASSEMBLY	1
6	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	20
7	60871A10	线束总成	WIRE ASSEMBLY	2
8	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	3
8	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	3
9	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
10	69092	螺钉(1.25)	SCREW (1.25)	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈	WASHER	6
13	67264	垫圈(橡胶)	WASHER (Rubber)	6
14	67268	衬套	BUSHING	3
15	91865A1	线缆总成(3英寸-白/黑)	CABLE ASSEMBLY (3" - WHITE/BLACK)	1
15	88528A2	线缆总成(6英寸-红/白)	CABLE ASSEMBLY (6" - RED/WHITE)	1
16	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
16	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
17	87926	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	1
18	814634	卡箍(旧款)	CLAMP (OLD DESIGN)	1
19A	826730A4	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
19	96220A16	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
20	79091	保险丝20安培	FUSE 20 Ampere	1
20	8M0207796	保险丝20安培	FUSE 20 AMP	1
22	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
22	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
23	78866	绝缘体	INSULATOR	1
24	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	4
25	68258A4	启动电磁阀总成(设计I型)	SOLENOID ASSEMBLY Starter (DESIGN I)	1
25	853654A1	电磁阀	SOLENOID	1
26	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
27	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
28	68292	螺母(.312-18)	NUT (.312-18)	2
28	8M0204668	螺母(.312-18)	NUT (.312-18)	2
29	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	2
29	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
29	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
30	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
31	65999A2	线缆总成(黑色)	CABLE ASSEMBLY Black	1
32	194372	端子排	TERMINAL BLOCK	1
33	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
34	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
35	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
36	817109A2	电磁阀总成(#10-32/.3125-18端子)	SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)	1
37	818968	衬套	BUSHING	2
37	8M0214955	衬套	BUSHING	2

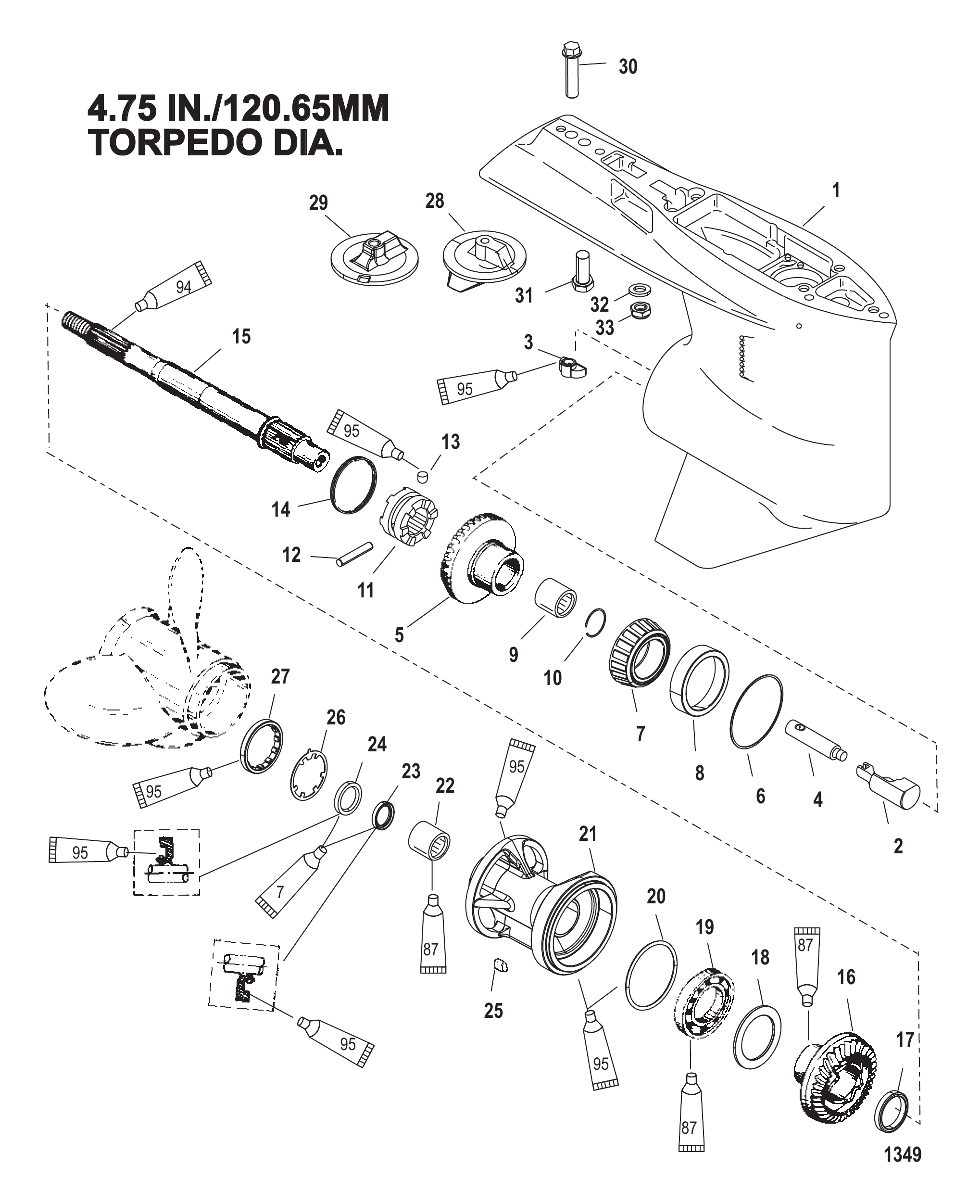

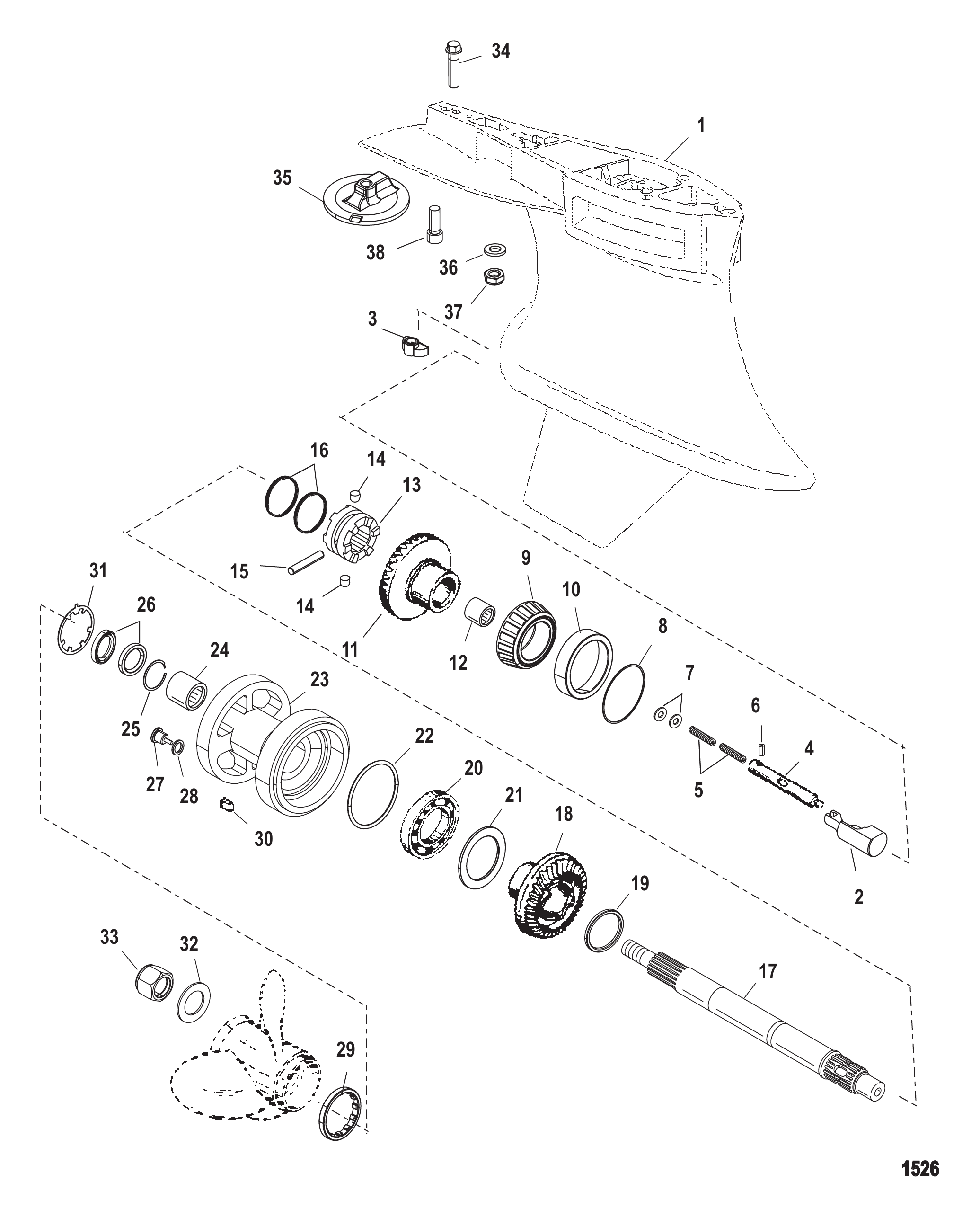

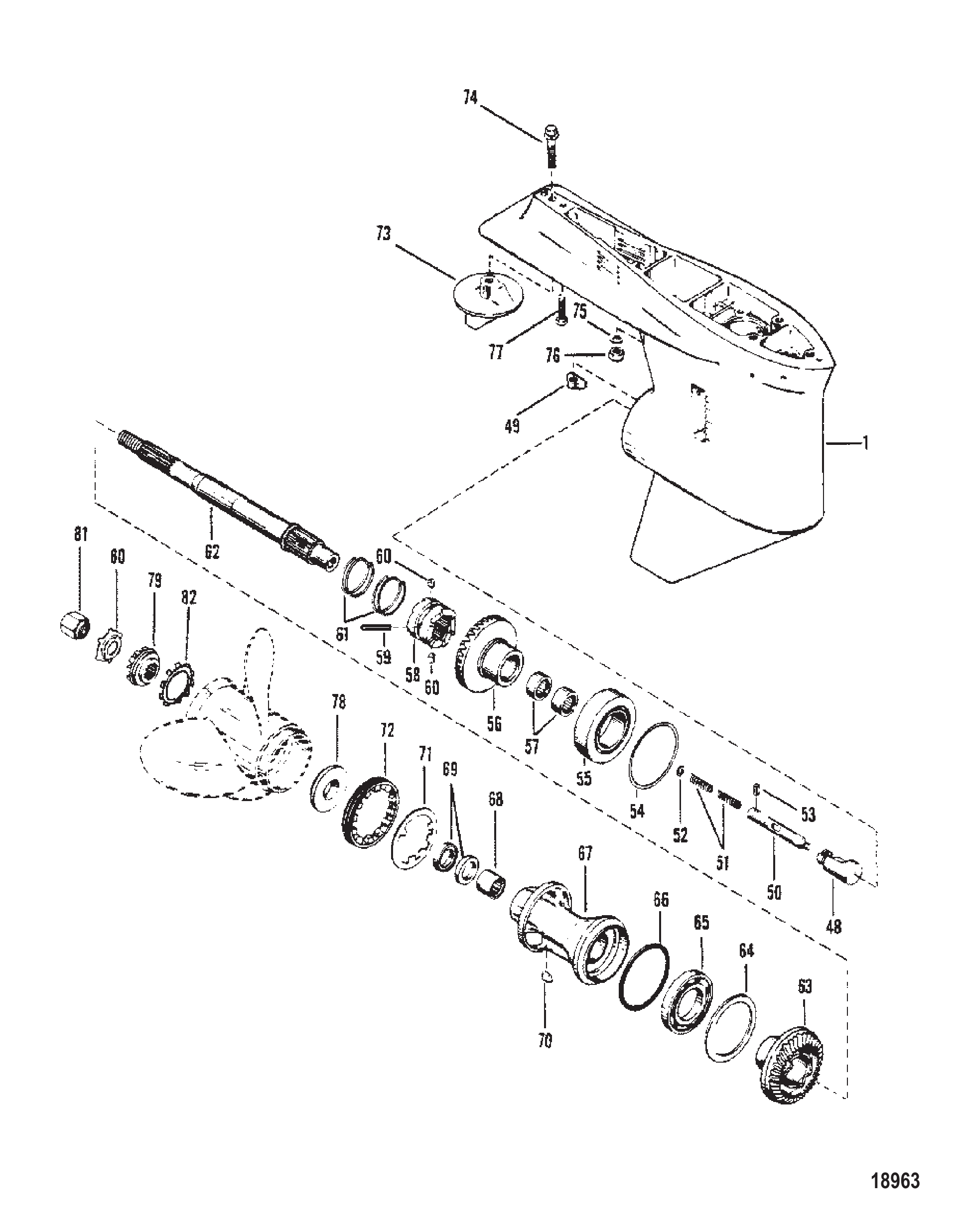

图 17齿轮箱螺旋桨轴 Gear Housing Propeller Shaft

REF	零件编号	中文名称	英文名称	数量
-	9148A18	齿轮箱总成标准旋转2:1速比(长型)(黑色)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (LONG) (BLACK)	1
-	9148A19	齿轮箱总成标准旋转2:1速比(加长型)(黑色)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (X-LONG) (BLACK)	1
-	9148T82	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A20	齿轮箱总成标准旋转2:1速比(长型)(灰色)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (LONG) (GRAY)	1
-	9148T87	ORD 1647-9148T81	ORD 1647-9148T81	1
-	9148A21	齿轮箱总成标准旋转2:1速比(加长型)(灰色)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (X-LONG) (GRAY)	1
-	9148T88	ORD 1647-9148T82	ORD 1647-9148T82	1
-	9148A36	齿轮箱总成（长型）（OYSTER）	GEAR HOUSING ASSEMBLY (LONG) (OYSTER)	1
-	9148T87	ORD 1647-9148T81	ORD 1647-9148T81	1
-	9148A25	齿轮箱总成（加长型）（OYSTER）	GEAR HOUSING ASSEMBLY (X-LONG) (OYSTER)	1
-	9148T88	ORD 1647-9148T82	ORD 1647-9148T82	1
1	9148A11	齿轮箱总成(黑色-基础款)	GEAR HOUSING ASSEMBLY (BLACK-BASIC)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A12	齿轮箱总成(灰色-基础款)	GEAR HOUSING ASSEMBLY (GRAY-BASIC)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A24	齿轮箱总成（OYSTER-基础型）	GEAR HOUSING ASSEMBLY (OYSTER-BASIC)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
48	89594A1	凸轮从动件总成	FOLLOWER ASSEMBLY CAM	1
49	78956	换挡凸轮	SHIFT CAM	1
49	789562	换挡凸轮	SHIFT CAM	1
50	79911	离合器作动杆	ROD CLUTCH ACTUATOR	1
50	79911A1	杆	ROD	1
51	79910	压缩弹簧	SPRING COMPRESSION	2
52	78910	压缩弹簧垫圈	WASHER COMPRESSION SPRING	AR
53	78906		PIN SPRING LOCATOR	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	47397A1	轴承外圈垫片组(.002-3-5-10)	SHIM SET BEARING OUTER RACE (.002-3-5-10)	AR
55	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
56	44102A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
57	73363	前进档滚柱轴承	BEARING Roller FORWARD GEAR	2
57	73363T	轴承	BEARING	2
58	78959	棘轮滑动离合器	RATCHET SLIDING CLUTCH	1
58	823174T	ORD 8M0100493	ORD 8M0100493	1
59	78905	棘轮到螺旋桨轴十字销	PIN Cross RATCHET TO PROPELLER SHAFT	1
59	8M0084243	十字销	PIN Cross	1
60	78909	棘轮定位销	PIN Detent RATCHET	2
61	78962	十字销固定弹簧	SPRING RETAINING - CROSS PIN	2
62	94148	螺旋桨轴	PROPELLER SHAFT	1
63	N.S.S.	倒车齿轮不单独销售(43-44102A2部件)	Not Sold Separate Reverse Gear (PART OF 43-44102A2)	1
64	68100	止推轴承座环（齿轮箱用）	RING THRUST-BEARING CARRIER TO GEAR HOUSING	1
64	681001	止推环	RING Thrust	1
65	88957A1	倒车档滚珠轴承	BEARING Ball BALL - REVERSE GEAR	1
65	88957T	滚珠轴承	BEARING Ball	1
66	31534	轴承座O型圈	O-RING BEARING CARRIER	1
66	8M0214920	O型圈	O RING	1
67	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	30956	滚针轴承-轴承座	BEARING Needle BEARING CARRIER	1
68	30956T	滚针轴承	BEARING Needle	1
69	76868	轴承座密封	SEAL BEARING CARRIER	2
69	8M0248882	油封@5	SEAL-OIL @5	2
70	30281		KEY LOCATING - BEARING CARRIER	1
71	79447	齿轮箱盖锁紧垫圈	TAB WASHER GEAR HOUSING COVER	1
72	79448	齿轮箱固定座	RETAINER GEAR HOUSING	1
72	8M2011027	固定座	RETAINER	1
73	31640A1		TRIM TAB ASSEMBLY GEAR HOUSING	1
73	31640Q4	平衡鳍板	TRIM TAB	1
74	66024		SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING	1
75	45176	垫圈(.453 x .812 x .105)不锈钢驱动轴壳体螺柱	WASHER (.453 x .812 x .105) Stainless Steel DRIVE SHAFT HOUSING STUDS	2
76	34933	螺母(.437-20)不锈钢驱动轴壳体螺柱	NUT (.437-20) Stainless Steel DRIVE SHAFT HOUSING STUDS	2
76	8M0204653	螺母	NUT	2
77	65210	螺钉(0.375-16x1.00)齿轮箱(长型)	SCREW (.375-16 x 1.00) GEAR HOUSING (LONG)	1
77	74727	螺钉 (0.375-16 x 6.00) 齿轮箱（超长型）	SCREW (.375-16 x 6.00) GEAR HOUSING (EXTRA LONG)	1
78	13171	推力毂	THRUST HUB	1
78	835467Q01	止推垫片套件	THRUST WASHER KIT	1
79	31211A2	螺旋桨螺母花键垫圈	WASHER Splined PROPELLER NUT	1
79	31211Q03	垫圈总成	WASHER ASSEMBLY	1
80	31210	螺旋桨螺母锁紧垫圈	TAB WASHER PROPELLER NUT	1
80	816629Q	锁紧垫圈	TAB WASHER	1
81	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
81	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
82	423511	螺旋桨轴齿形锁紧垫圈	LOCKWASHER Toothed PROPELLER SHAFT	1
-	89238A2	密封套件	SEAL KIT

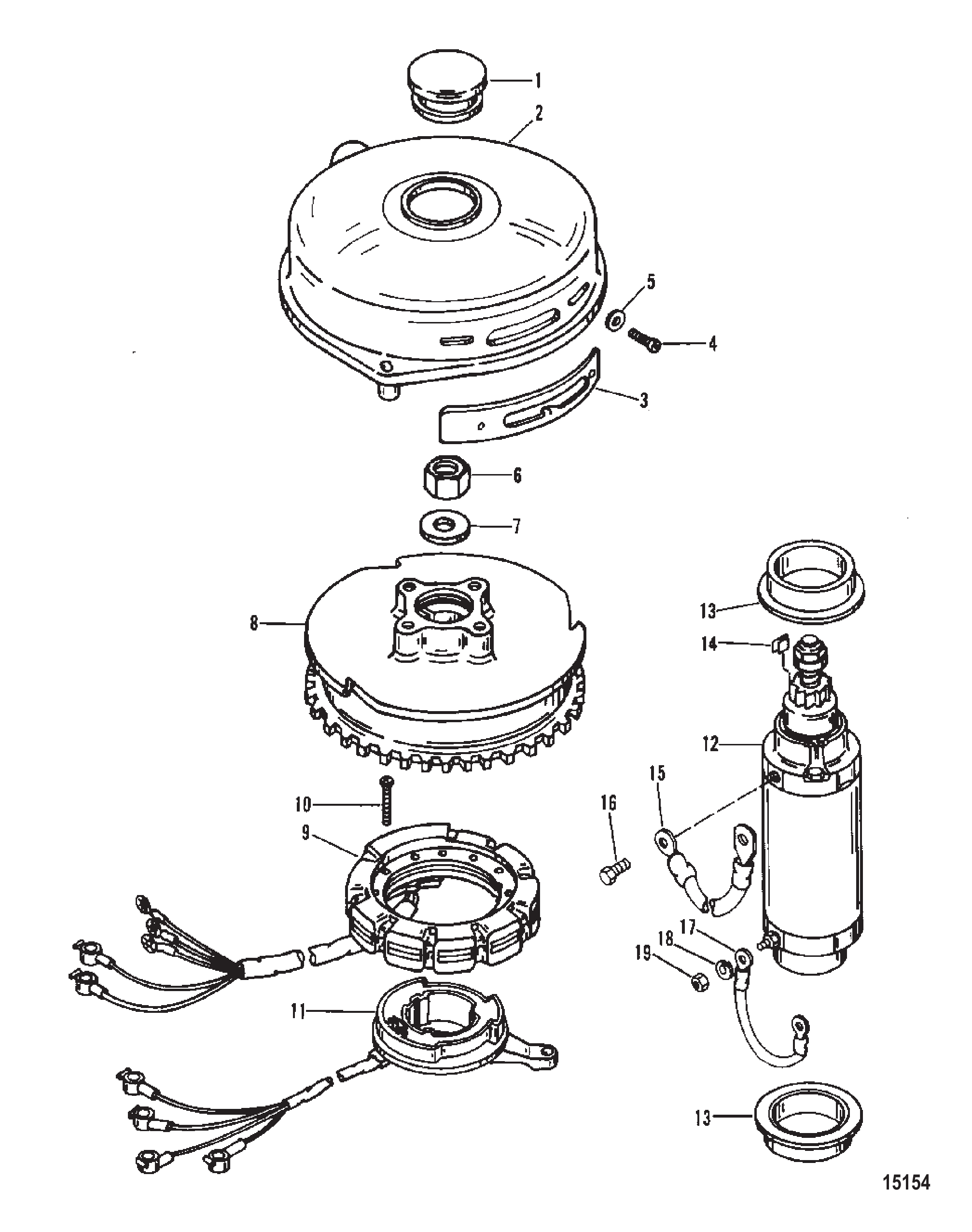

图 18飞轮/启动电机 Flywheel/Starter Motor

REF	零件编号	中文名称	英文名称	数量
1	18896A1	盖板套件	COVER KIT	1
2	79022	标记	MARKER	1
3	37572	螺钉 (.190-32 x .380)	SCREW (.190-32 x .380)	2
4	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	2
5	89219	堵头	PLUG	1
5	89219001	堵头	PLUG	1
6	45907	黄色塞	PLUG Yellow	1
7	52901	螺母(0.625-18)	NUT (.625-18)	1
8	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
8	33001	垫圈	WASHER	1
9	817632A2	飞轮	FLYWHEEL	1
9	859238T16	飞轮总成	FLYWHEEL ASY	1
9	817632A12	飞轮	FLYWHEEL	1
9	859238T16	飞轮总成	FLYWHEEL ASY	1
10	9610A19	定子	STATOR	1
11	90045	螺钉(#10-32×1.375)	SCREW (#10-32 x 1.375)	4
12	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	4
13	96455A9	触发板总成	PLATE ASSEMBLY Trigger	1
14	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
14	893893	启动马达	STARTER MOTOR	1
15	56703	轴环	COLLAR	2
15	8M0034918	轴环	COLLAR	2
16	68042	橡胶止挡	STOP Rubber	2
16	8M0043376	停机开关	STOP	2
17	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
18	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
19	93388A7	线缆总成(黑色)	CABLE ASSEMBLY (BLACK)	1
19	93388A14	线缆总成(黄/黑)	CABLE ASSEMBLY Yellow/Black	1
20	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
21	20890	螺母 (.250-20)	NUT (.250-20)	1

图 19簧片阀组与气缸盖 Reed Block And Cylinder Head

REF	零件编号	中文名称	英文名称	数量

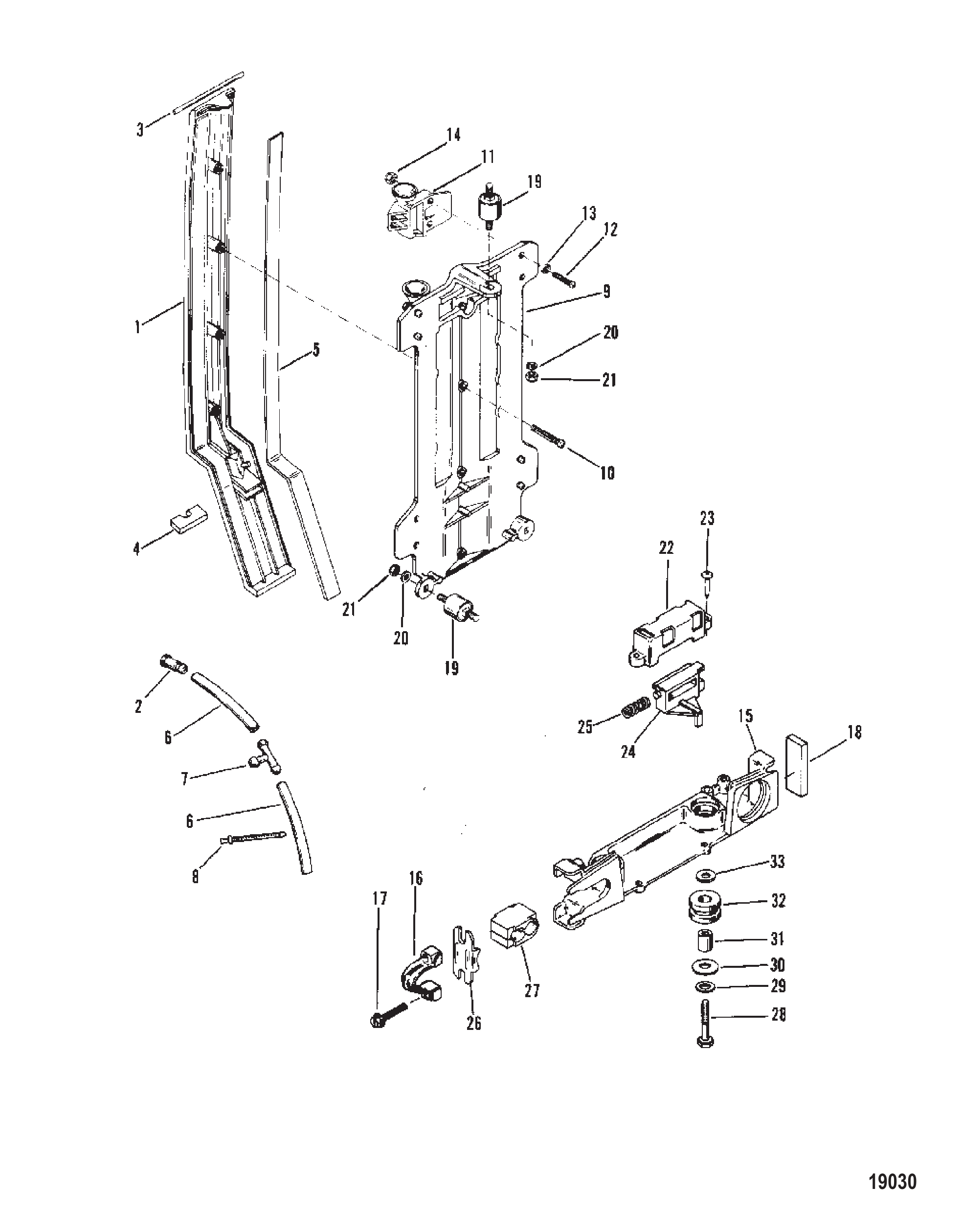

图 20外罩安装支架 Cowl Mounting Brackets

REF	零件编号	中文名称	英文名称	数量
1	76258A2	后罩支架（黑色）	BRACKET REAR COWL (BLACK)	1
1	76258A3	后罩支架（灰色）	BRACKET REAR COWL (GRAY)	1
1	76258A4	后罩支架（OYSTER）	BRACKET REAR COWL (OYSTER)	1
1	76258A3	支架	BRACKET	1
2	76256	指示喷嘴（黑/灰）	NOZZLE TELL TALE (BLACK/GRAY)	1
2	762561	指示喷嘴（OYSTER）	NOZZLE TELL TALE (OYSTER)	1
3	67984	后罩支架密封垫	SEAL REAR COWL BRACKET TO COWL	1
4	67228	后罩支架密封垫	SEAL REAR COWL BRACKET TO COWL	1
5	67999	后罩支架密封垫	SEAL REAR COWL BRACKET TO COWL	2
6	34395A1	指示软管（4英寸）	HOSE TELL TALE (4")	2
6	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	2
7	90824	指示器软管三通	TEE TELL TALE HOSE	1
7	90824001	三通接头	TEE FITTING	1
8	73498	指示软管卡箍	CLAMP TELL TALE HOSE	2
8	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
9	86386A1	罩壳支撑支架总成	BRACKET ASSEMBLY COWL SUPPORT	1
10	66687	螺钉 (#10-32 x 1.50) 后罩支架	SCREW (#10-32 x 1.50) REAR COWL BRACKET	4
11	85651	罩壳铰链壳体-左舷	HOUSING COWL HINGE - PORT	2
11	85650	罩壳铰链壳体-右舷	HOUSING COWL HINGE - STARBOARD	2
12	64278	螺钉 (0.250-28 x 1.00) 罩壳铰链壳体	SCREW (.250-28 x 1.00) COWL HINGE HOUSING	8
13	20583	罩壳铰链壳体螺钉垫圈	WASHER COWL HINGE HOUSING SCREW	8
14	35888	螺母 (0.250-28) 不锈钢罩壳铰链壳体螺钉	NUT (.250-28) Stainless Steel COWL HINGE HOUSING SCREW	8
15	99424	罩壳安装支架-下部（黑色）	BRACKET COWLING MOUNTING - LOWER (BLACK)	1
15	99424T6	罩壳安装支架-下部（灰色）	BRACKET COWLING MOUNTING - LOWER (GRAY)	1
15	99424T10	罩壳安装支架-下部（OYSTER）	BRACKET COWLING MOUNTING - LOWER (OYSTER)	1
15	99424T6	支架	BRACKET	1
16	99447T	拉线固定器	RETAINER CABLE	1
16	99447	固定座	RETAINER	1
17	22411	电缆固定器螺钉（.190-24 x 1.00）	SCREW (.190-24 x 1.00) CABLE RETAINER	2
17	68918	螺丝（#10-24 x 1.00）	SCREW (#10-24 x 1.00)	2
18	67260	控制线密封套	SEAL CONTROL CABLES	1
19	90435	罩壳安装支架座	MOUNT COWL MOUNTING BRACKET	3
20	29245	垫圈 (0.281 x 0.500 x 0.060) 不锈钢罩壳安装支架座	WASHER (.281 x .500 x .060) Stainless Steel COWL MOUNTING BRACKET MOUNT	6
20	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
21	35888	螺母 (0.250-28) 不锈钢罩壳安装支架座	NUT (.250-28) Stainless Steel COWL MOUNTING BRACKET MOUNT	6
22	67241	罩壳锁扣壳体	HOUSING COWL LATCH	1
23	92051	螺钉 (10-16 x 0.75) 罩壳锁扣壳体	SCREW (10-16 x .75) COWL LATCH HOUSING	2
24	87608	盖锁扣	LATCH Cowl	1
25	60295	罩壳锁扣弹簧	SPRING COWL LATCH	1
26	88622	电缆固定板	PLATE CABLE RETAINER	1
27	99391	油管固定座（喷油系统）	RETAINER OIL LINES (OIL INJECTION)	1
28	69067	螺钉 (0.250-20 x 1.375) 下部支架	SCREW (.250-20 x 1.375) LOWER BRACKET	2
29	20346	下部支架螺钉垫圈（小）	WASHER LOWER BRACKET SCREW (SMALL)	4
29	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	4
30	57427	下部支架螺钉垫圈（大）	WASHER LOWER BRACKET SCREW (LARGE)	4
30	35280	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	4
31	88180	下部支架衬套	BUSHING LOWER BRACKET GROMMET	2
32	88033	下部支架护孔环	GROMMET LOWER BRACKET	2
33	28927	下部支架螺钉垫圈	WASHER LOWER BRACKET SCREW	2
33	26907	垫圈	WASHER	2

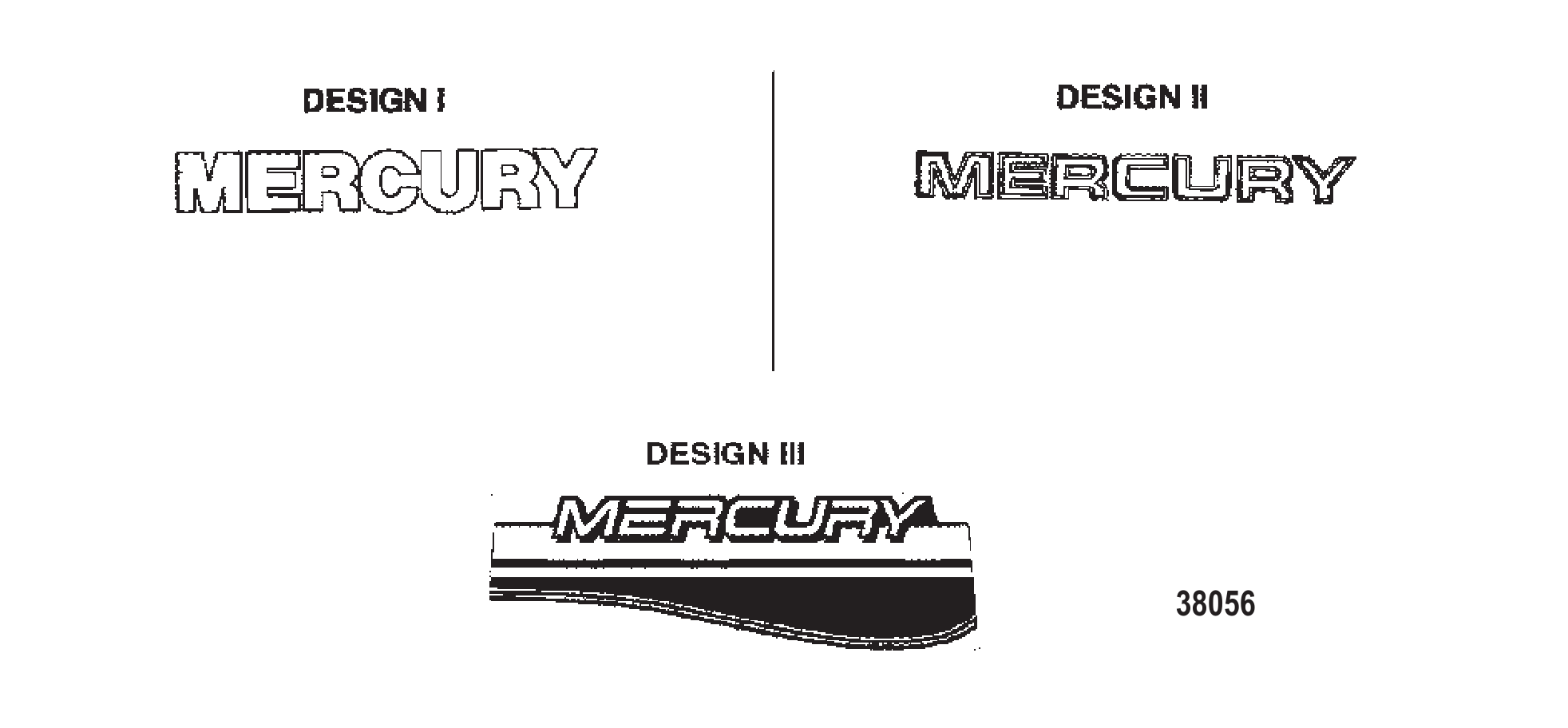

图 21杂项信息 MISCELLANEOUS INFORMATION

零件编号	中文名称	英文名称	数量
814698	零件手册 40马力/30喷射型	PARTS MANUAL 40 HP/30 JET	1
814323A90	贴花套件	DECAL SET	1
814323A94	贴花套件	DECAL SET	1
814323A96	贴花套件	DECAL SET	1
814323A96	贴花套件	DECAL SET	1
822166A92	贴花套件	DECAL SET	1
810462A94	贴花套件	DECAL SET	1
810462A97	贴花套件	DECAL SET	1
810462A97	贴花套件	DECAL SET	1
826324A95	贴花套件	DECAL SET	1
826324A97	贴花套件	DECAL SET	1
826324A97	贴花套件	DECAL SET	1
815626A93	贴花套件	DECAL SET	1
824732A94	贴花套件	DECAL SET	1
824732A96	贴花套件	DECAL SET	1
826323A95	贴花套件	DECAL SET	1
826323A96	贴花套件	DECAL SET	1
826323A96	贴花套件	DECAL SET	1
10118970	用户手册	OWNERS MANUAL	1
10134970	用户手册	OWNERS MANUAL	1
10160970	用户手册	OWNERS MANUAL	1

图 22附件 Accessories

零件编号	中文名称	英文名称	数量
86306A01	适配器	ADAPTER	1
821400A2	动力升降倾斜传感器套件	SENDER KIT Power Trim	1
8M0074845	ORD 8M0098264	ORD 8M0098264	1
92876A8	转向安装套件	ATTACHING KIT Steering	1

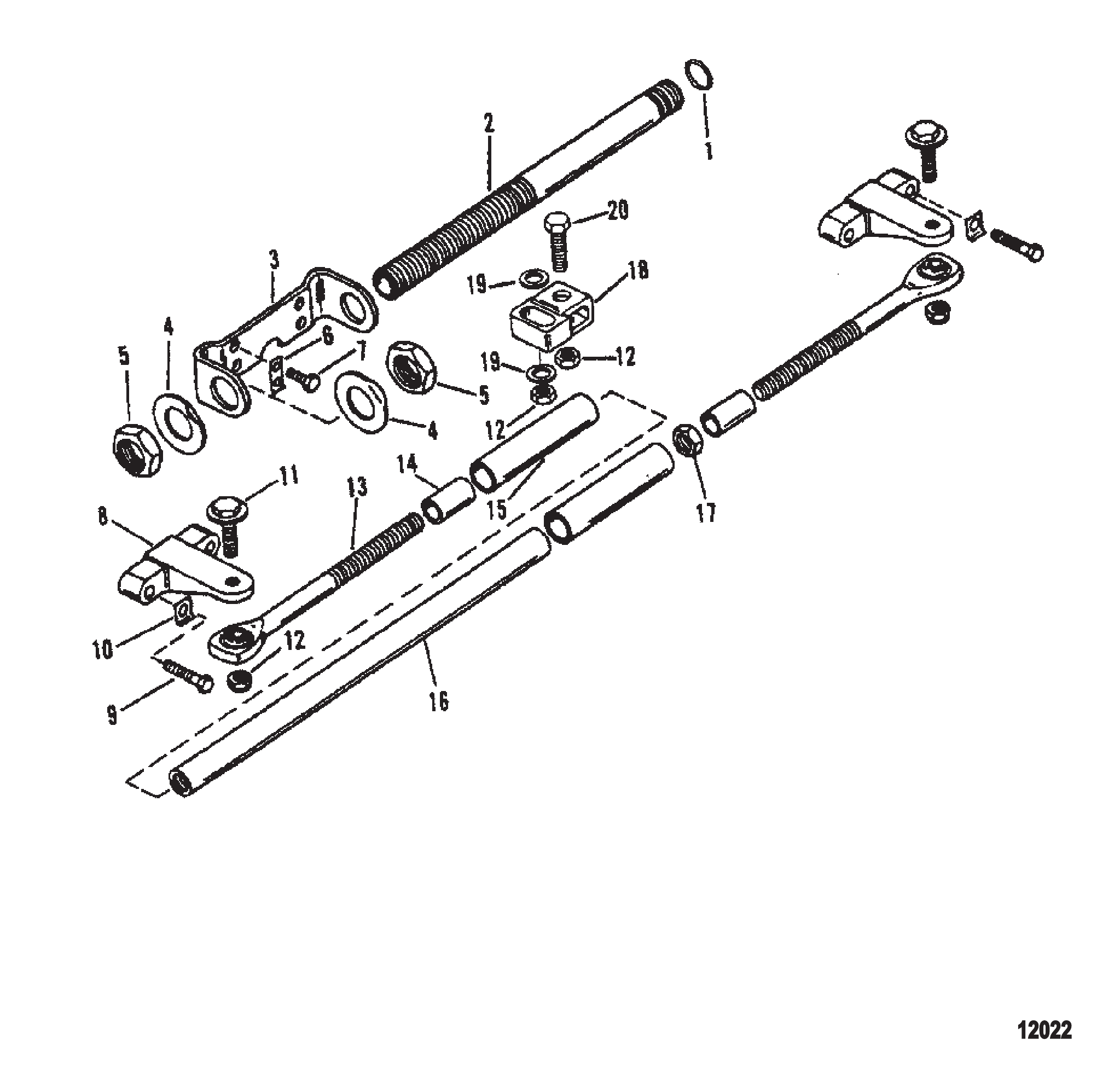

92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
883040A1	转速表模块套件	TACH MODULE KIT	1

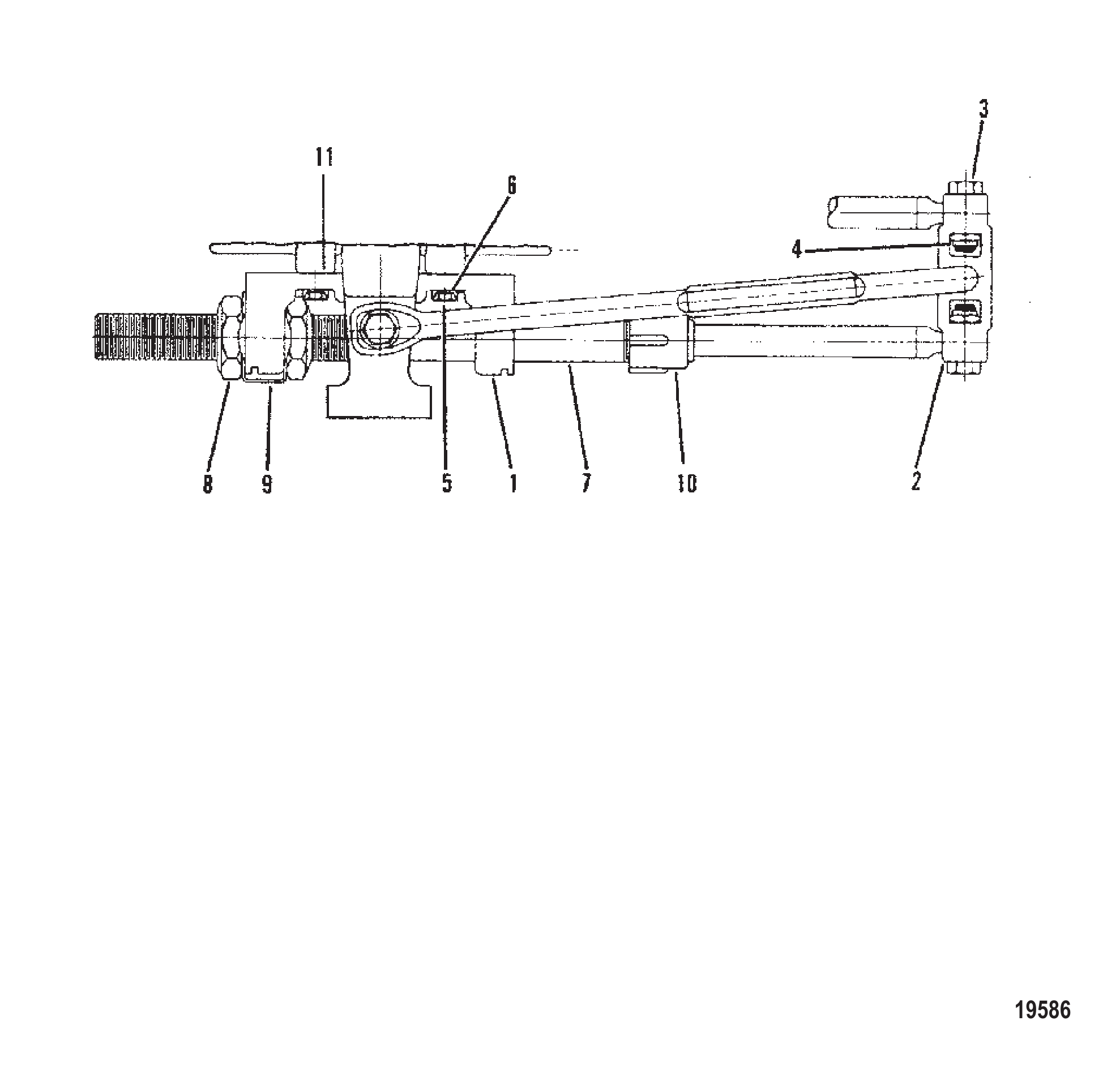

图 23转向连接套件 Steering Attaching Kit

REF	零件编号	中文名称	英文名称	数量
-	92876A8	转向安装套件	ATTACHING KIT Steering	1
1	41055A1	支架总成	BRACKET ASSEMBLY	1
2	715651	转向拉索套管	TUBE Steering Cable	1
3	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
4	821203	锁紧垫圈	LOCKWASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
7	78968	内锁紧垫圈 (.250)	LOCKWASHER Internal (.250)	4
8	850791T	联轴器	COUPLER	1
9	73732	螺钉 (.375-24 x 1.120)	SCREW (.375-24 x 1.120)	2
10	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
11	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	3
11	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	3

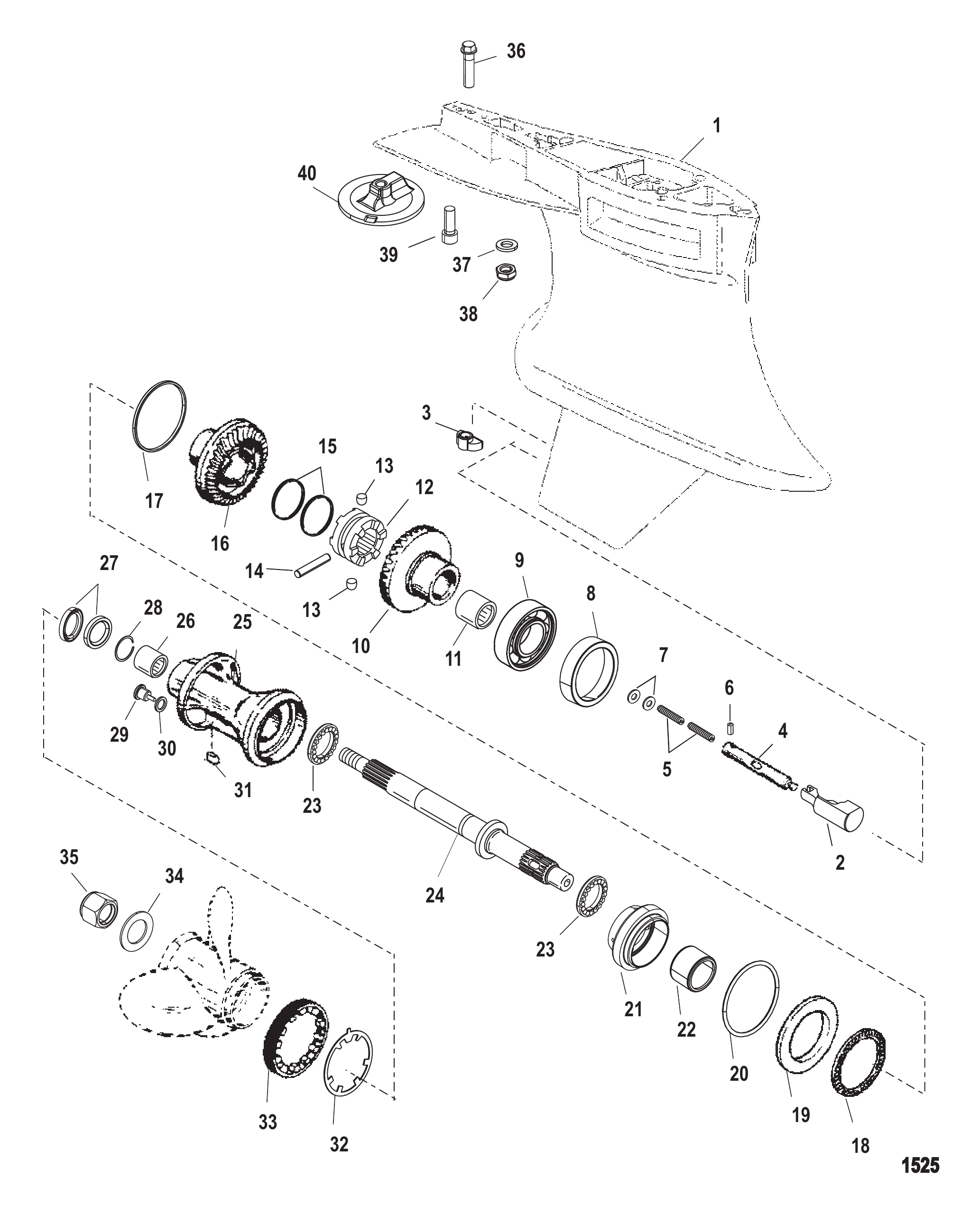

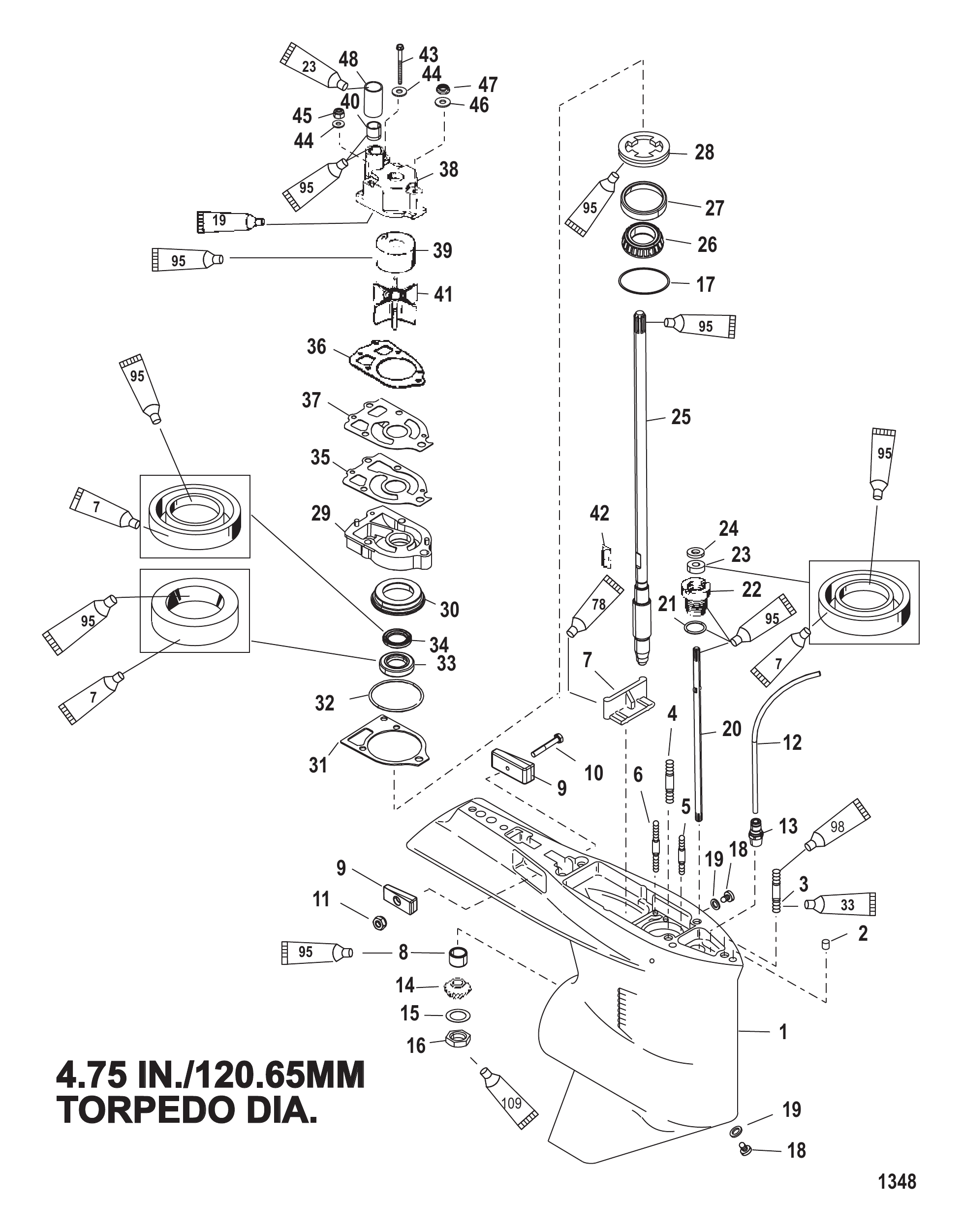

图 24齿轮箱（驱动轴）- 反向旋转 GEAR HOUSING (DRIVESHAFT) - COUNTER ROTATION

REF	零件编号	中文名称	英文名称	数量
1	9148A47	齿轮箱总成(基础款)(黑色)	GEAR HOUSING ASSEMBLY (BASIC) (BLACK)	1
1	9148A48	齿轮箱总成(基础款)(灰色)	GEAR HOUSING ASSEMBLY (BASIC) (GRAY)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
2	85822A10	连接器总成(适用时使用)	CONNECTOR ASSEMBLY (USE WHERE APPLICABLE)	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	18978	双头螺栓(.438×3.69)	STUD (.438 x 3.69)	1
4	8M0034464	螺柱	STUD	1
5	579201	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	306671	螺柱	STUD	2
8	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	43998	衬套(旧设计)	SLEEVE (OLD DESIGN)	1
9A	826134	阳极块	ANODE	2
9A	826134Q	阳极块	ANODE	2
9B	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
9C	8268336	螺母 (M6)	NUT (M6)	1
9C	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
11	442091	驱动轴	DRIVESHAFT
11	897625T	加长驱动轴	DRIVESHAFT X-Long
12	N.S.S.	不单独销售小齿轮(43-18572A1或43-18475A1部件)	Not Sold Separate Pinion Gear (PART OF 43-18572A1 OR 43-18475A1)	1
13	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
14	826375	螺母(0.625-18)	NUT (.625-18)	1
14	35921	螺母(0.625-18)	NUT (.625-18)	1
15	42637A1	垫片组	SHIM SET	AR
15	8M0063267	垫片组	SHIM SET	AR
16	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
16	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
17	824519	固定座	RETAINER	1
17	8245191	固定座	RETAINER	1
18	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
19	426311	衬垫	GASKET	1
19	8M0204678	衬垫	GASKET	1
20	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
20	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
21	89238	油封	SEAL Oil	1
22	16977	油封	SEAL Oil	1
23	856081	衬垫	GASKET	1
23	8M0090319	衬垫@5	GASKET @5	1
24	856091	衬垫	GASKET	1
24	858524	衬垫	GASKET	1
25	32435	面板	FACE PLATE	1
25	8M0204677	面板	PLATE-FACE	1
26	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
27	48752	嵌件	INSERT	1
27	48752T	嵌件	INSERT	1
28	38970	密封件	SEAL	1
29	899841	叶轮	IMPELLER	1
29	89984T3	叶轮	IMPELLER	1
30	56654	键	KEY	1
30	8M0214992	键@5	KEY @5	1
31	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
31	8M0215009	螺钉	SCREW	1
32	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
33	13438	螺母(.250-28)	NUT (.250-28)	2
33	8267119	螺母(.250-28)	NUT (.250-28)	2
34	36001	垫圈	WASHER	1
35	13436	螺母	NUT	1
37	29804	套筒	SLEEVE	1
37	29804T	套筒	SLEEVE	1
38	789022	换挡轴(不带E型环使用)	SHIFT SHAFT (USE W/O E-RING)	1
38	78902	轴	SHAFT	1
38	789022	换档轴	SHIFT SHAFT	1
39	29641	E型卡环	E RING	1
40	19183	纤维垫圈	WASHER Fiber	2
40	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
41	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
42	77631A2	衬套总成	BUSHING ASSEMBLY	1
43	8164641	油封	SEAL Oil	1
43	8M0246145	油封	OIL SEAL	1
44	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
45	79953	螺钉(0.375-16x0.250)	SCREW (.375-16 x .250)	1
45	79953Q04	放油螺钉套件	SCREW KIT Drain	1
46	67892	磁性螺钉	SCREW Magnetic	1
46	8M0058389	放油螺钉套件	SCREW KIT Drain	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1

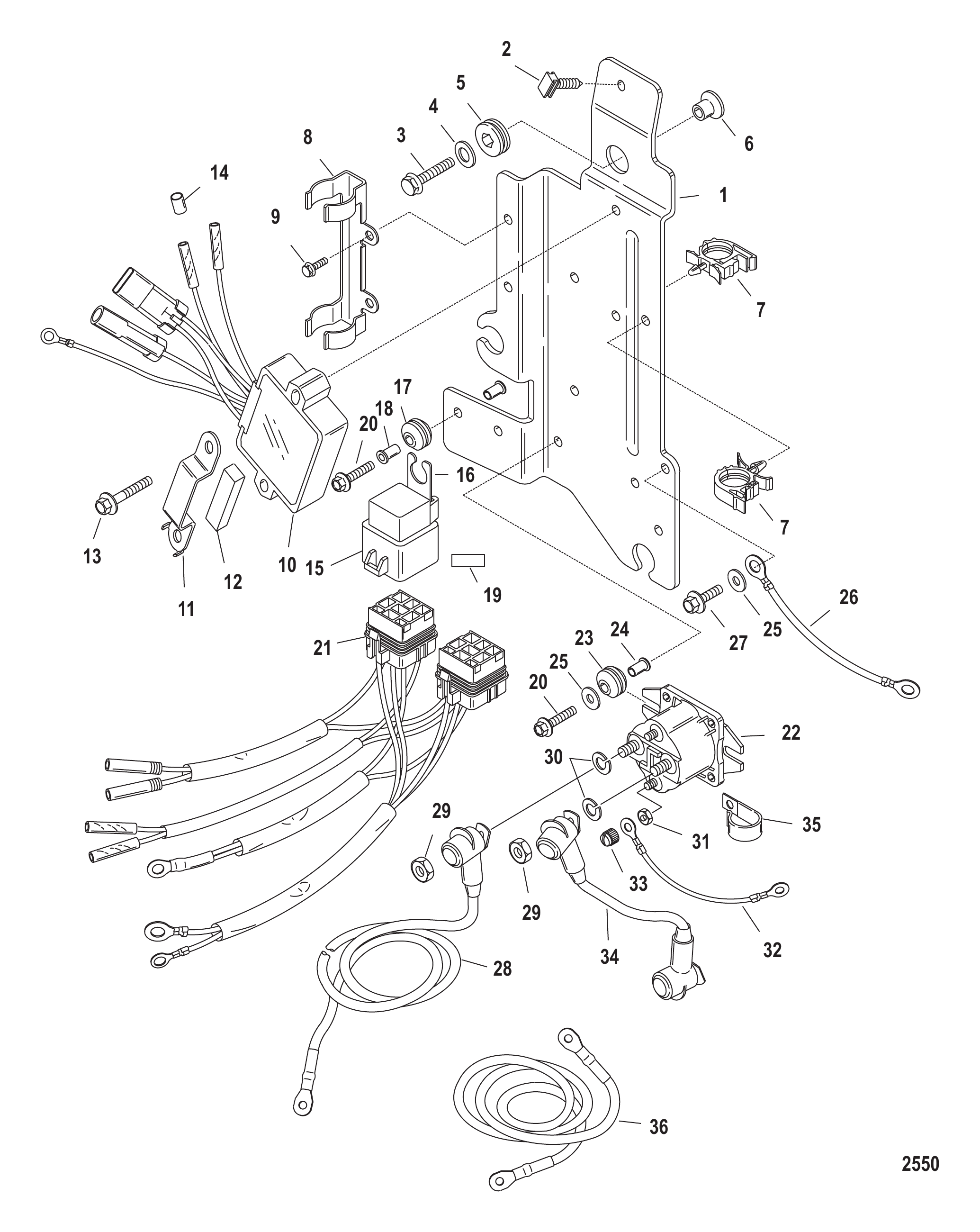

图 25线束/启动电磁阀 WIRING HARNESS/STARTER SOLENOID

REF	零件编号	中文名称	英文名称	数量
1	434292	点火板	IGNITION PLATE	1
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	螺钉(#12-24x2.00)	SCREW (#12-24 x 2.00)	2
4	94453	衬套	BUSHING	2
5	62310A2	拉线总成	CABLE ASSEMBLY	1
6	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	20
7	60871A10	线束总成	WIRE ASSEMBLY	2
8	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	3
8	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	3
9	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
10	69092	螺钉(1.25)	SCREW (1.25)	3
10	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
11	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
11	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
12	36042	垫圈	WASHER	6
13	67264	垫圈(橡胶)	WASHER (Rubber)	6
14	67268	衬套	BUSHING	3
15	91865A1	线缆总成(3英寸-白/黑)	CABLE ASSEMBLY (3" - WHITE/BLACK)	1
15	88528A2	线缆总成(6英寸-红/白)	CABLE ASSEMBLY (6" - RED/WHITE)	1
16	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
16	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
17	87926	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	1
18	814634	卡箍(旧款)	CLAMP (OLD DESIGN)	1
19A	826730A4	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
19	96220A16	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
20	79091	保险丝20安培	FUSE 20 Ampere	1
20	8M0207796	保险丝20安培	FUSE 20 AMP	1
22	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
22	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
23	78866	绝缘体	INSULATOR	1
24	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	4
25	68258A4	启动电磁阀总成(设计I型)	SOLENOID ASSEMBLY Starter (DESIGN I)	1
25	853654A1	电磁阀	SOLENOID	1
26	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
27	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
28	68292	螺母(.312-18)	NUT (.312-18)	2
28	8M0204668	螺母(.312-18)	NUT (.312-18)	2
29	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	2
29	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
29	31716	螺钉(0.250-20x0.620)	SCREW (.250-20 x .620)	2
30	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
31	65999A2	线缆总成(黑色)	CABLE ASSEMBLY Black	1
32	194372	端子排	TERMINAL BLOCK	1
33	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	2
34	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
35	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
36	817109A2	电磁阀总成(#10-32/.3125-18端子)	SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)	1
37	818968	衬套	BUSHING	2
37	8M0214955	衬套	BUSHING	2

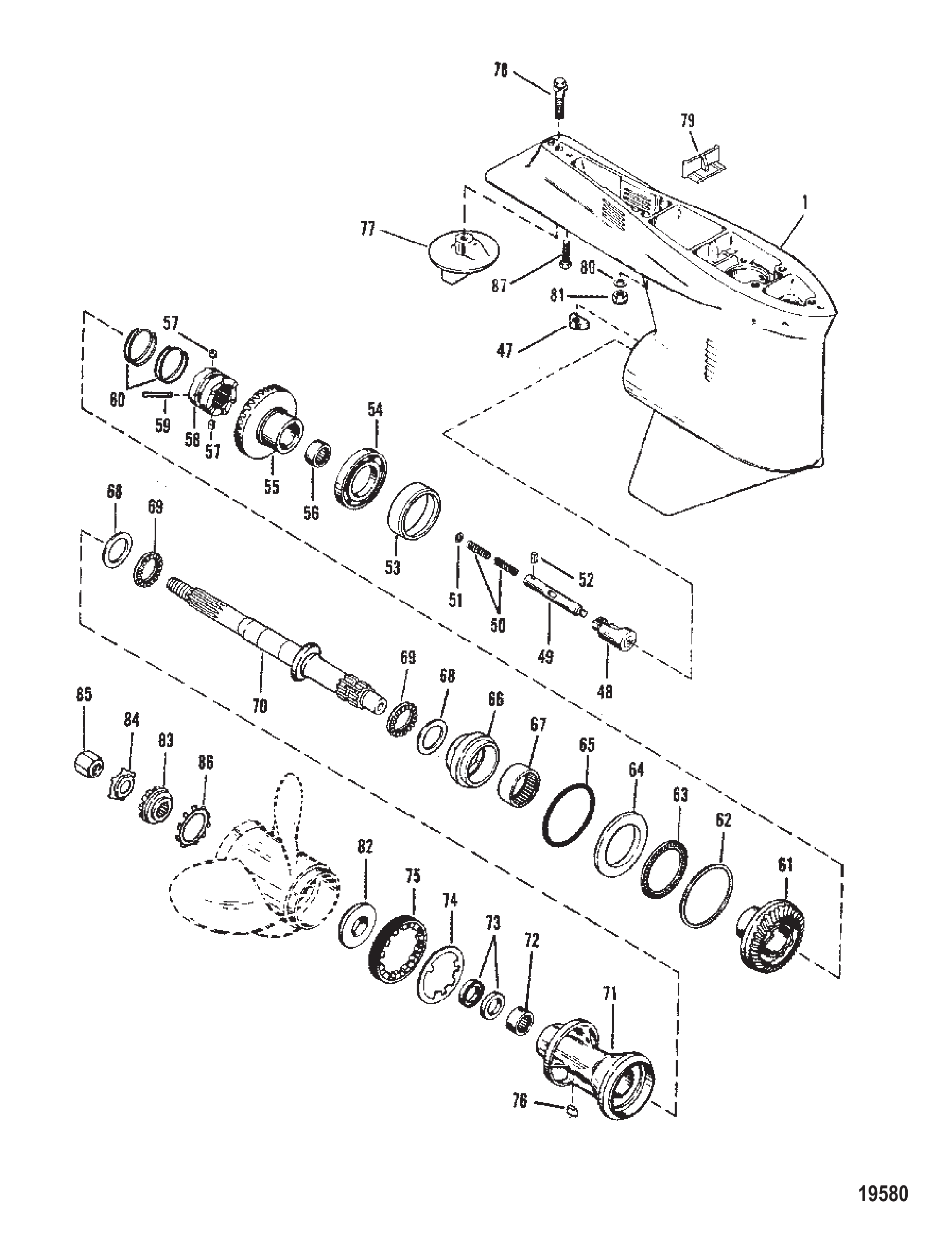

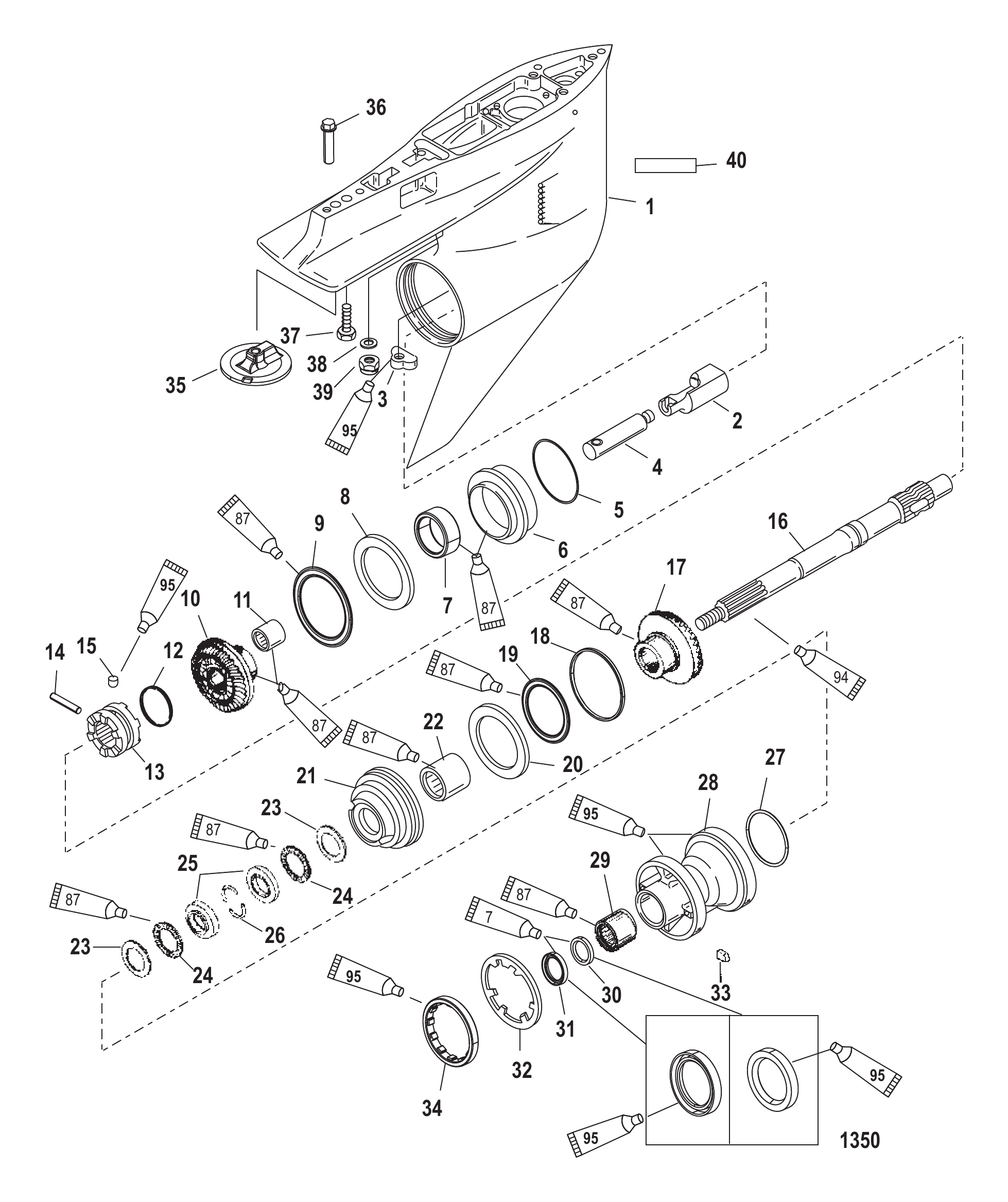

图 26齿轮箱螺旋桨轴-反旋转135/150/175/200型 Gear Housing Propeller Shaft - Counter-135/150/175/200

REF	零件编号	中文名称	英文名称	数量
-	9148A27	齿轮箱总成反转向(加长型)	GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG)	1
-	9148A28	齿轮箱总成反转向(加长型)	GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG)	1
-	9148T89	齿轮箱壳体-CXL-灰色	GEAR HSG-CXL-GRAY	1
-	9148A30	齿轮箱总成反向旋转(加长型)(黑色)	GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG)(BLACK)	1
-	9148T86	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A31	齿轮箱总成反转向(加长型)	GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG)	1
-	9148T92	ORD 1647-9148T86	ORD 1647-9148T86	1
1	9148A11	齿轮箱总成(黑色)(基本型)	GEAR HOUSING ASSEMBLY (BLACK)(BASIC)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A12	齿轮箱总成(灰色)(基础款)	GEAR HOUSING ASSEMBLY (GRAY)(BASIC)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
47	78956	换挡凸轮	SHIFT CAM	1
47	789562	换挡凸轮	SHIFT CAM	1
48	89594A1	凸轮从动件总成	FOLLOWER ASSEMBLY CAM	1
49	79911	离合器作动杆	ROD CLUTCH ACTUATOR	1
49	79911A1	杆	ROD	1
50	79910	压缩弹簧	SPRING COMPRESSION	2
51	78910	弹簧垫圈	WASHER SPRING	AR
52	78906		PIN SPRING LOCATOR	1
52	8M0084245	弹簧定位销	PIN Spring Locator	1
53	14469	轴承杯	CUP Bearing	1
53	14469T	轴承杯	CUP Bearing	1
54	88957A1	滚珠轴承	BEARING Ball	1
54	88957T	滚珠轴承	BEARING Ball	1
55	NSS	倒车齿轮(不单独销售)(43-18572A1或43-18475A1部件)	NOT SOLD SEPARATE Reverse Gear (PART OF 43-18572A1 or 43-18475A1)	1
56	15844	滚柱轴承总成	BEARING ASSEMBLY Roller	1
57	78909	棘轮定位销	PIN Detent RATCHET	2
58	78959	棘轮滑动离合器	RATCHET SLIDING CLUTCH	1
58	823174T	ORD 8M0100493	ORD 8M0100493	1
59	78905	十字棘轮销	PIN Cross RATCHET	1
59	8M0084243	十字销	PIN Cross	1
60	78962	十字销固定弹簧	SPRING RETAINING - CROSS PIN	2
61	18572A1	前进齿轮总成	GEAR ASSEMBLY Forward	1
61	18572T1	齿轮组	GEAR SET	1
61	18475A1	前进齿轮总成	GEAR ASSEMBLY Forward	1
61	18475T1	齿轮组	GEAR SET	1
62	176151	调整垫片(.125)	SPACER SHIM (.125)	AR
62	176152	调整垫片(.127)	SPACER SHIM (.127)	AR
62	176153	调整垫片(.129)	SPACER SHIM (.129)	AR
62	176154	调整垫片(.131)	SPACER SHIM (.131)	AR
62	176155	调整垫片(.133)	SPACER SHIM (.133)	AR
62	176156	调整垫片(.135)	SPACER SHIM (.135)	AR
62	176157	调整垫片(.137)	SPACER SHIM (.137)	AR
62	176158	调整垫片(.139)	SPACER SHIM (.139)	AR
62	176159	调整垫片(.141)	SPACER SHIM (.141)	AR
62	1761510	调整垫片(.143)	SPACER SHIM (.143)	AR
62	1761511	调整垫片(.145)	SPACER SHIM (.145)	AR
62	1761512	调整垫片(.147)	SPACER SHIM (.147)	AR
62	1761513	调整垫片(.149)	SPACER SHIM (.149)	AR
63	15841	滚柱轴承	BEARING Roller	1
64	17616	推力环	THRUST RING	1
65	31534	轴承座O型圈	O-RING BEARING CARRIER	1
65	8M0214920	O型圈	O RING	1
66	18447A2	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
66	18447T2	适配器总成	ADAPTOR ASSEMBLY	1
67	15843	滚柱轴承	BEARING Roller	1
67	15843T	滚针轴承	BEARING Needle	1
68	18448	止推垫片	THRUST WASHER	2
69	15842	推力轴承	BEARING Thrust	2
70	18446	螺旋桨轴	PROPELLER SHAFT	1
71	18444A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
71	818896T2	轴承座	BEARING CARRIER	1
72	30956	滚针轴承-轴承座	BEARING Needle BEARING CARRIER	2
72	30956T	滚针轴承	BEARING Needle	2
73	76868	密封件	SEAL	2
73	8M0248882	油封@5	SEAL-OIL @5	2
74	79447	齿轮箱盖锁紧垫圈	TAB WASHER GEAR HOUSING COVER	1
75	79448	齿轮箱固定座	RETAINER GEAR HOUSING	1
75	8M2011027	固定座	RETAINER	1
76	30281		KEY LOCATING - BEARING CARRIER	1
77	31640A1		TRIM TAB ASSEMBLY GEAR HOUSING	1
77	31640Q4	平衡鳍板	TRIM TAB	1
78	66024		SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING	1
79	67891	填充块	FILLER BLOCK	1
79	8M0039169	填充块	FILLER BLOCK	1
80	45176	垫圈(.453 x .812 x .105)不锈钢驱动轴壳体螺柱	WASHER (.453 x .812 x .105) Stainless Steel DRIVE SHAFT HOUSING STUDS	2
81	34933	螺母(.437-20)不锈钢驱动轴壳体螺柱	NUT (.437-20) Stainless Steel DRIVE SHAFT HOUSING STUDS	2
81	8M0204653	螺母	NUT	2
82	13171	推力毂	THRUST HUB	1
82	835467Q01	止推垫片套件	THRUST WASHER KIT	1
83	31211A2	螺旋桨螺母花键垫圈	WASHER Splined PROPELLER NUT	1
83	31211Q03	垫圈总成	WASHER ASSEMBLY	1
84	816629	螺旋桨螺母锁紧垫圈	TAB WASHER PROPELLER NUT	1
84	816629Q	锁紧垫圈	TAB WASHER	1
85	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
85	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
86	423511	螺旋桨轴齿形锁紧垫圈	LOCKWASHER Toothed PROPELLER SHAFT	1
87	65210	螺钉(.375-16 x 1.00)齿轮箱	SCREW (.375-16 x 1.00) GEAR HOUSING	1
-	89238A2	密封套件	SEAL KIT	1

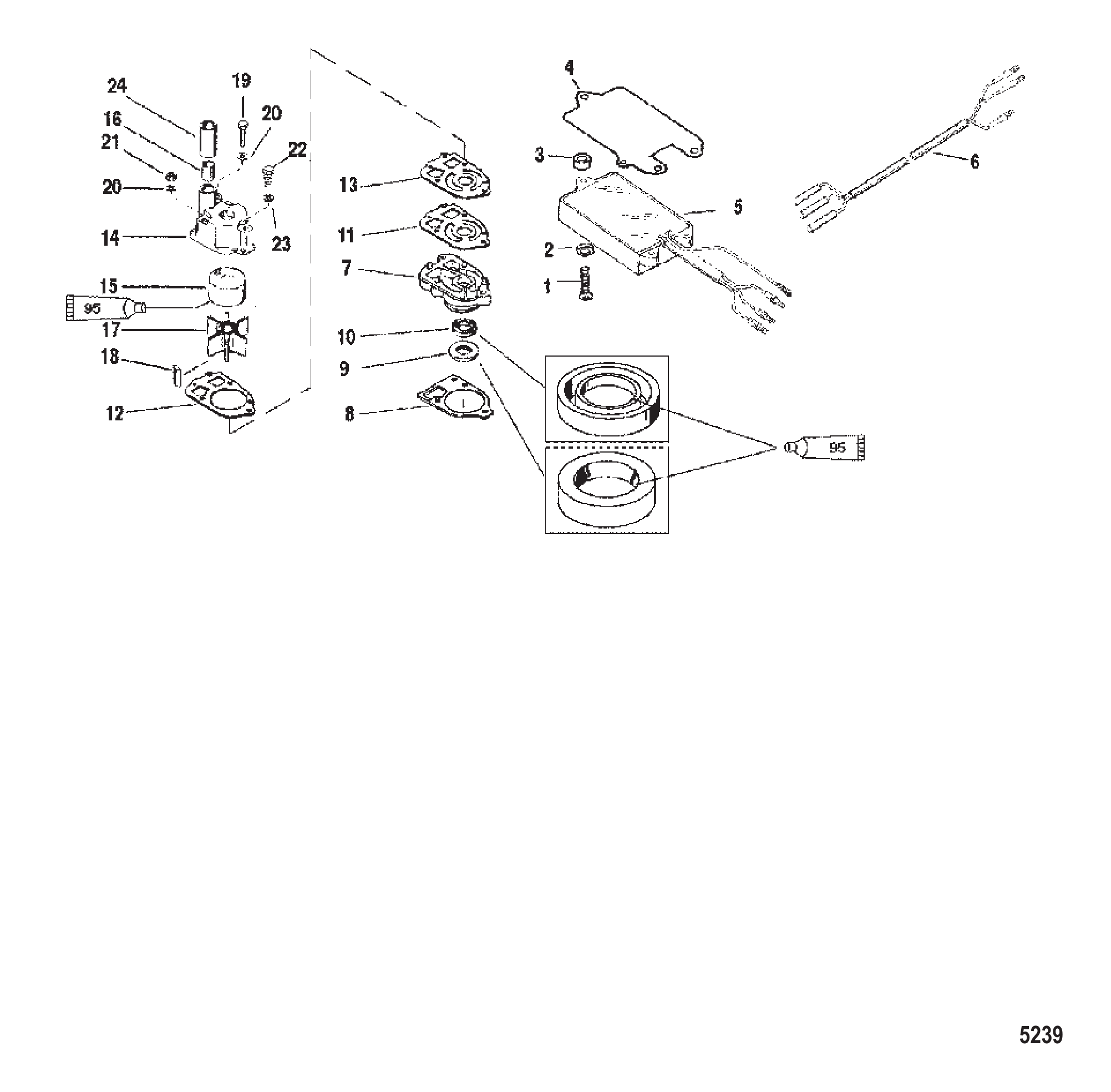

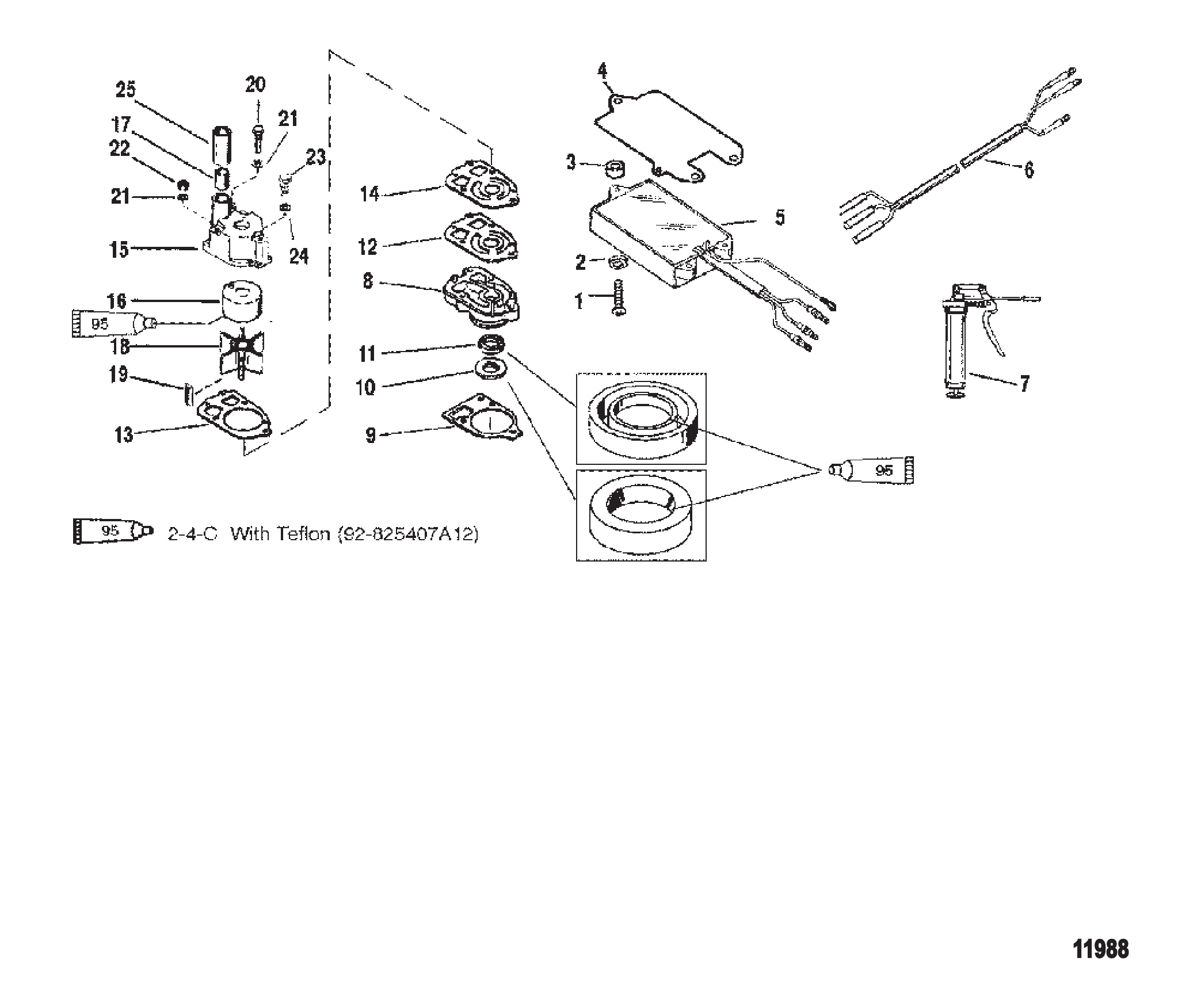

图 27喷射组件 JET COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	3
2	38833	垫圈	WASHER	3
3	94304	隔套	SPACER	3
4	13381	安装板	PLATE	1
5	821889A20	转速限制器	REV LIMITER	1
5	821889A30	转速限制器	REV LIMITER	1
6	823147A5	适配器线束总成 - 转速限制器	HARNESS ASSEMBLY Adaptor - Rev Limiter	1
7	801402	润滑脂套装	GREASE KIT	1
7	30500A2	润滑脂套装	GREASE KIT	1
8	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
8	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
9	426311	衬垫	GASKET	1
9	8M0204678	衬垫	GASKET	1
10	89238	油封	SEAL Oil	1
11	16977	油封	SEAL Oil	1
12	856081	衬垫	GASKET	1
12	8M0090319	衬垫@5	GASKET @5	1
13	856091	衬垫	GASKET	1
13	858524	衬垫	GASKET	1
14	32435	面板	FACE PLATE	1
14	8M0204677	面板	PLATE-FACE	1
15	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
15	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
16	48752	嵌件	INSERT	1
16	48752T	嵌件	INSERT	1
17	38970	密封件	SEAL	1
18	899841	叶轮	IMPELLER	1
18	89984T3	叶轮	IMPELLER	1
19	56654	键	KEY	1
19	8M0214992	键@5	KEY @5	1
20	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
20	8M0215009	螺钉	SCREW	1
21	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
21	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
22	13438	螺母(.250-28)	NUT (.250-28)	2
22	8267119	螺母(.250-28)	NUT (.250-28)	2
23	19924275	螺钉 (.312-18 x 2.75)	SCREW (.312-18 x 2.75)	1
24	36001	垫圈	WASHER	1
25	29804	套筒	SLEEVE	1
25	29804T	套筒	SLEEVE	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1

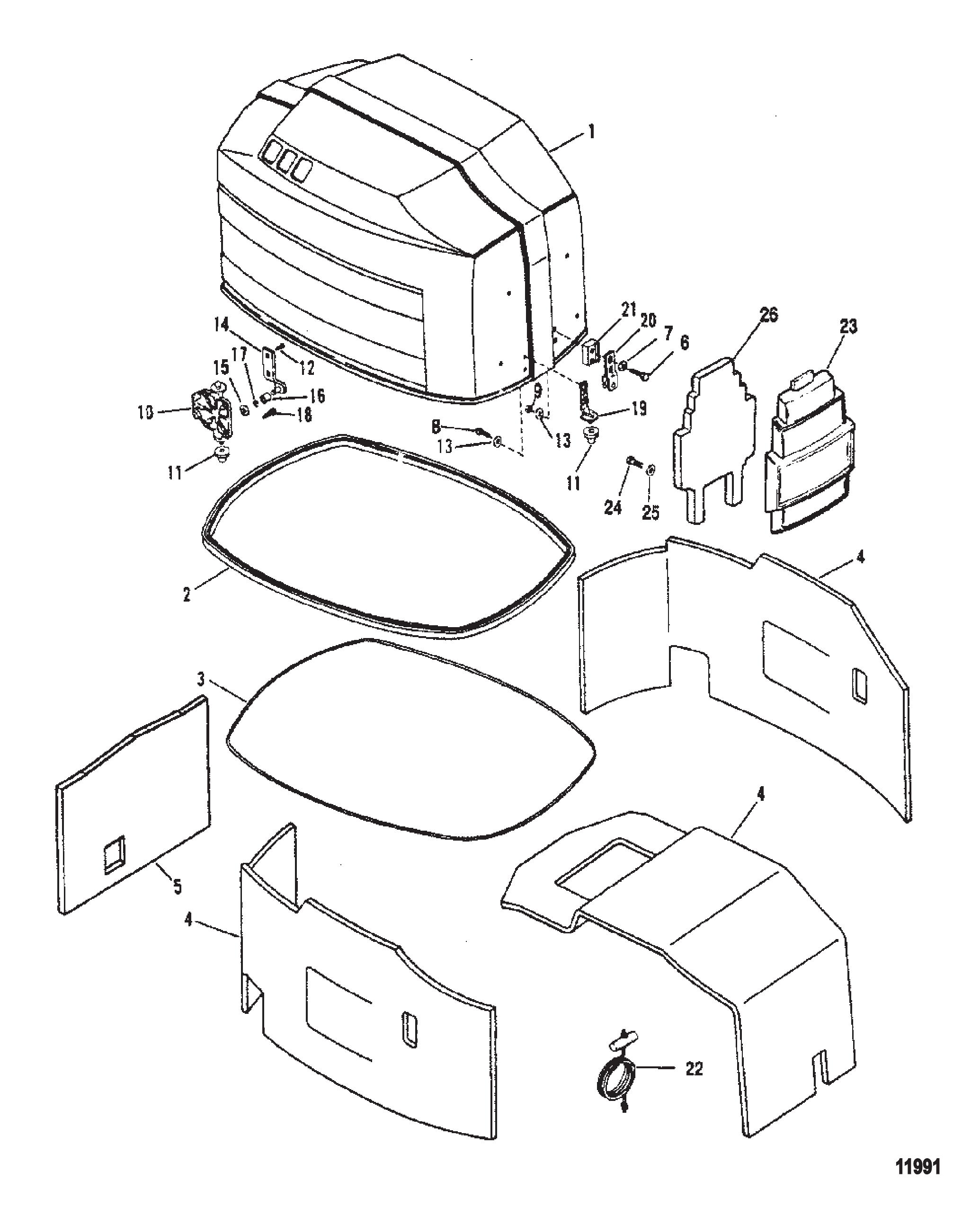

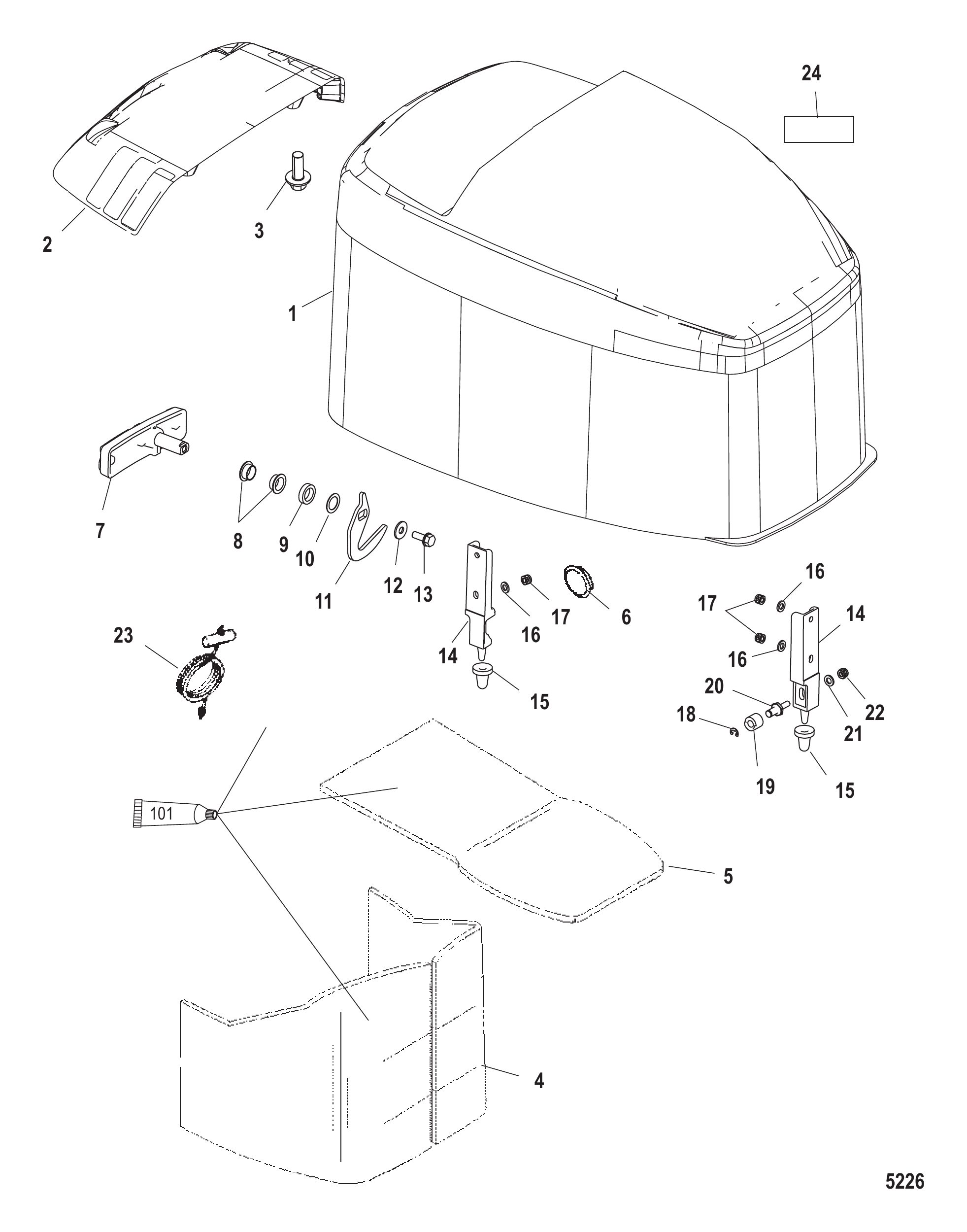

图 28顶罩 TOP COWL

REF	零件编号	中文名称	英文名称	数量
1	827328T9	顶盖总成	TOP COWL ASSEMBLY	1
1	827328T10	顶盖总成	TOP COWL ASSEMBLY	1
2	821256T1	黑色进气口	INLET Air - Black	1
2	821256T03	进气口	INLET Air	1
2	821256T2	银色进气口	INLET Air - Silver	1
3	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	4
4	859356A1	隔音毯套装	SOUND BLANKET KIT	1
4	859356A02	隔音毯套装	SOUND BLANKET KIT	1
5	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	1
6	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	1
7	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	2
8	823865	盖塞	CAP PLUG	2
9	831207T10	手柄	HANDLE	1
9	831207A16	罩盖锁手柄套件	HANDLE KIT Cowl Latch	1
10	812707	衬套	BUSHING	2
11	831214	隔套	SPACER	1
12	12134	波形垫圈	WASHER Wave	1
13	F481777	凸轮锁轴	CAM Latch Shaft	1
13	8M0001081	凸轮	CAM	1
14	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
14	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
15	1993716	螺钉(M6 x 16)	SCREW (M6 x 16)	1
16	821249M2	前支架	BRACKET Front	3
16	8M0036792	支架	BRACKET	3
17	815477	缓冲器锁扣	BUMPER Latch	3
18	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
18	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
19	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	6
20	8237951	挡圈	RING Retaining	1
21	815263	滚轮	ROLLER	1
21	8M0207770	滚轮@3	ROLLER @3	1
22	8155381	滚动销	PIN Roll	1
23	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
23	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
24	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
25	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
26	12066Q9	绳索	ROPE	1
26	12066Q10	启动绳@2	ROPE-STARTER@2	1

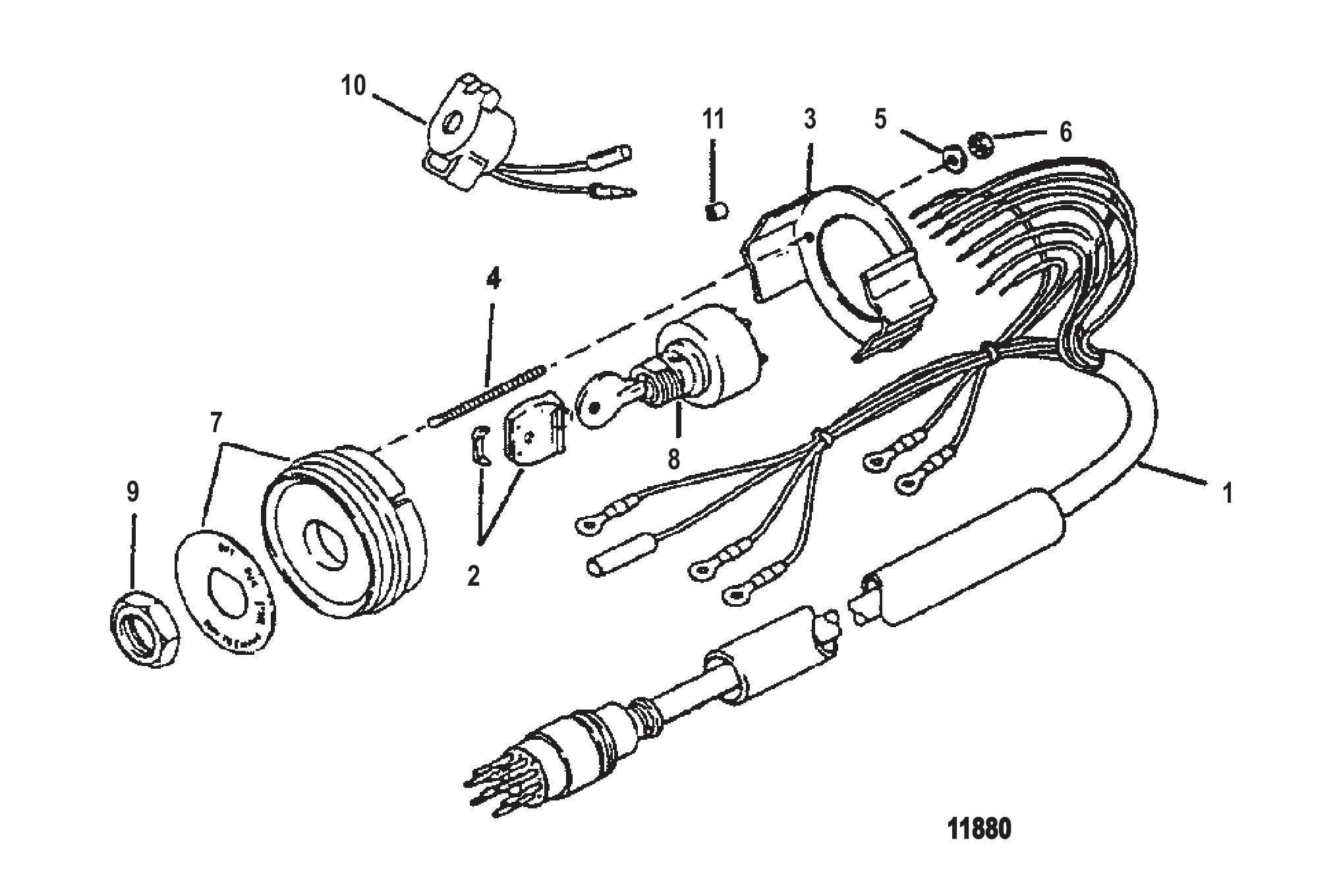

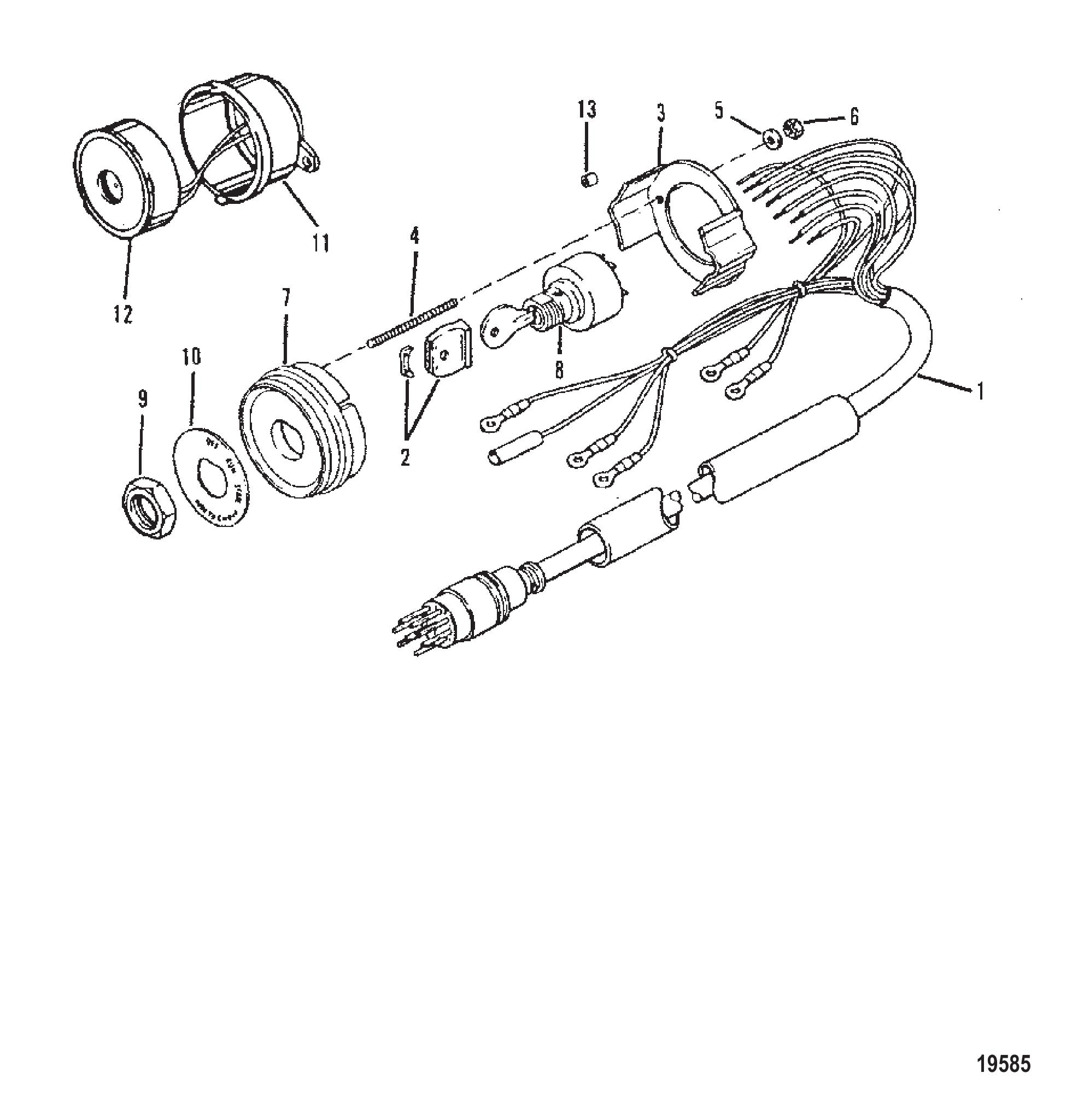

图 29钥匙开关(反旋转发动机用) Key Switch (Counter Rotation Engines)

REF	零件编号	中文名称	英文名称	数量
1	17925A20	钥匙开关总成(20英尺)	KEY SWITCH ASSEMBLY (20')	1
2	90468A1	点火开关钥匙盖总成	COVER ASSEMBLY Key IGNITION SWITCH KEYS	2
3	76424	点火开关支架	BRACKET IGNITION SWITCH	1
4	55422	开关安装螺柱(#10-32 x 2.00)	STUD (#10-32 x 2.00) SWITCH ATTACHING	2
5	24676	开关安装螺柱垫圈(.200 x .440 x .032)	WASHER (.200 x .440 x .032) SWITCH ATTACHING STUD	2
6	68219	开关安装螺柱螺母(#10-32)不锈钢	NUT (#10-32) Stainless Steel SWITCH ATTACHING STUD	1
7	89976	开关安装板	PLATE SWITCH MOUNT	1
8	88107	点火钥匙开关(钥匙见下方)	KEY SWITCH IGNITION (SEE BELOW FOR KEYS)	1
9	93543	点火开关专用螺母-镀铬黄铜	NUT Special - Chrome Brass IGNITION SWITCH	1
10	90311	开关板插片(关-运行-启动)(按压阻风门)	INSERT Switch Plate (Off-Run-Start)(Push to Choke) SWITCH PLATE	1
11	68878A2	警报喇叭总成	HORN ASSEMBLY Alarm	1
12	68879	警报喇叭盖	COVER ALARM HORN	1
13	8127111	垫片(0.375)	SPACER (.375)	2
13	812711	隔套(0.250)	SPACER (.250)	2
-	894911	点火钥匙(1A)	KEY Ignition (1A)	1
-	894912	点火钥匙(1B)	KEY Ignition (1B)	1
-	894913	点火钥匙(1C)	KEY Ignition (1C)	1
-	894914	点火钥匙(1D)	KEY Ignition (1D)	1
-	894915	点火钥匙(1E)	KEY Ignition (1E)	1
-	894916	点火钥匙(1F)	KEY Ignition (1F)	1
-	894917	点火钥匙(2A)	KEY Ignition (2A)	1
-	894918	点火钥匙(2B)	KEY Ignition (2B)	1
-	894919	点火钥匙(2C)	KEY Ignition (2C)	1
-	8949110	点火钥匙(2D)	KEY Ignition (2D)	1
-	8949111	点火钥匙(2E)	KEY Ignition (2E)	1
-	8949112	点火钥匙(2F)	KEY Ignition (2F)	1

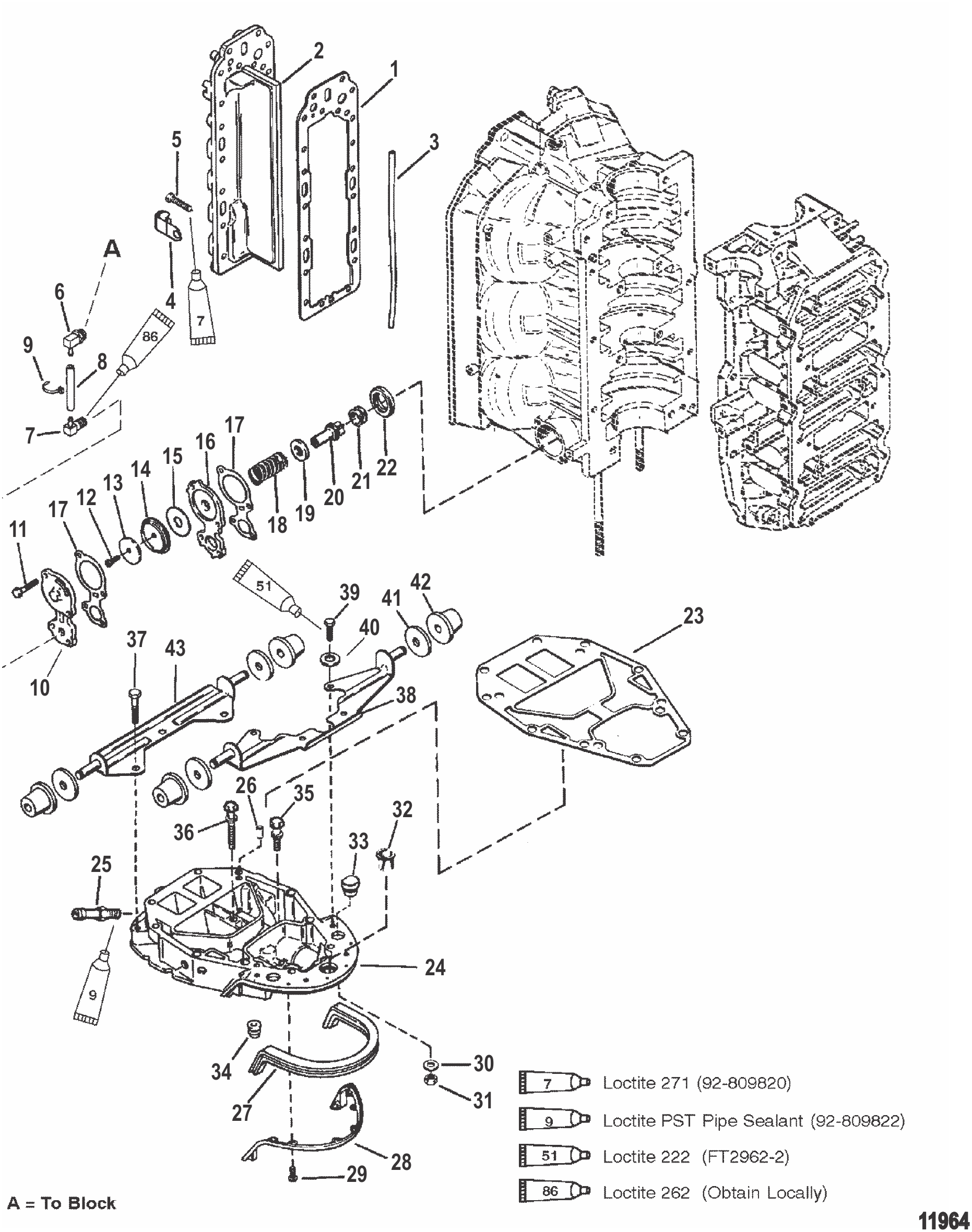

图 30排气歧管与排气板 Exhaust Manifold And Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	190503	衬垫	GASKET	1
2	8185622	分隔板	PLATE Divider	1
2	827323A2	分隔板	DIVIDER PLATE	1
3	814754	密封件(12.50英寸)	SEAL (12.50 Inches)	1
4	814634	卡箍	CLAMP	4
5	826356	螺钉带垫圈(.312-18 x 1.500)	SCREW AND WASHER (.312-18 x 1.500)	20
5	8263561	螺钉带垫圈(.312-18 x 1.500)	SCREW AND WASHER (.312-18 x 1.500)	20
6	814430	管接头(.500-14)	FITTING (.500-14)	1
6	8144301	接头	FITTING	1
7	92007	管接头(.250-18)(90度)	FITTING (.250-18) (90 DEGREES)	1
7	920071	90度弯头	FITTING (90 Degree)	1
8	830756109	软管(57.00英寸整卷)(裁切至23.5英寸)	HOSE (57.00 Inches Bulk) (Cut to 23.5 Inches)	1
8	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
9	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
10	68729	盖板	COVER	1
10	8M0039767	盖板	COVER	1
11	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
12	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
13	76451	垫圈	WASHER	1
14	14479	隔膜	DIAPHRAGM	1
14	144791	隔膜	DIAPHRAGM	1
15	16496	导水板	DEFLECTOR Water	1
16	16497A1	安装板	PLATE	1
17	78690	衬垫	GASKET	2
17	78690002	衬垫	GASKET	2
18	64878	弹簧(黑色)	SPRING (Black)	1
19	85303	垫圈	WASHER	1
20	14480	提动阀	POPPET	1
21	64872	护孔环	GROMMET	1
22	65848	托架	CARRIER	1
23	991763	衬垫	GASKET	1
23	991764	衬垫	GASKET	1
24	18260A2	排气板总成	PLATE ASSEMBLY Exhaust	1
24	18260T2	排气板总成	PLATE ASSEMBLY Exhaust	1
25	897721	连接器(.125-27)(直型)	CONNECTOR (.125-27) (STRAIGHT)	1
25	89772Q1	连接器(.125-27)	CONNECTOR (.125-27)	1
26	20033	定位销	PIN Dowel	2
26	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
27	8147011	密封件	SEAL	1
27	8M0043164	密封件	SEAL	1
28	680101	支架	BRACKET	1
29	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	8
29	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	8
30	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	6
31	69254	螺母	NUT	6
32	27132	衬套	BUSHING	1
33	19564	护孔环	GROMMET	1
33	8M0179867	护孔环	GROMMET	1
34	126021	护孔环	GROMMET	1
34	12602002	护孔环	GROMMET	1
34	19565	护孔环	GROMMET	1
34	19565002	护孔环	GROMMET	1
35	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
36	68783	螺钉(.312-18×2.50)	SCREW (.312-18 x 2.50)	1
37	66725	螺钉(.375-16×3.50)	SCREW (.375-16 x 3.50)	3
37	898833	螺钉(.375-16 x 3.500)	SCREW (.375-16 x 3.500)	3
38	812905A3	支架总成	BRACKET ASSEMBLY	1
38	812905T	前支架	BRACKET Front	1
39	90285	螺钉 (.312-18 x .625)	SCREW (.312-18 x .625)	4
40	56720	垫圈(0.330×0.750×0.060)不锈钢	WASHER (.330 x .750 x .060) Stainless Steel	4
41	187031	垫圈	WASHER	4
42	18778	护孔环	GROMMET	4
42	18778001	护孔环	GROMMET	4
43	18578A6	支架总成(后部)	BRACKET ASSEMBLY Rear	1
43	18578T09	支架总成(后部)	BRACKET ASSEMBLY Rear	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	812815A92	动力头总成	POWERHEAD ASSEMBLY	1
-	878365T00	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A94	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

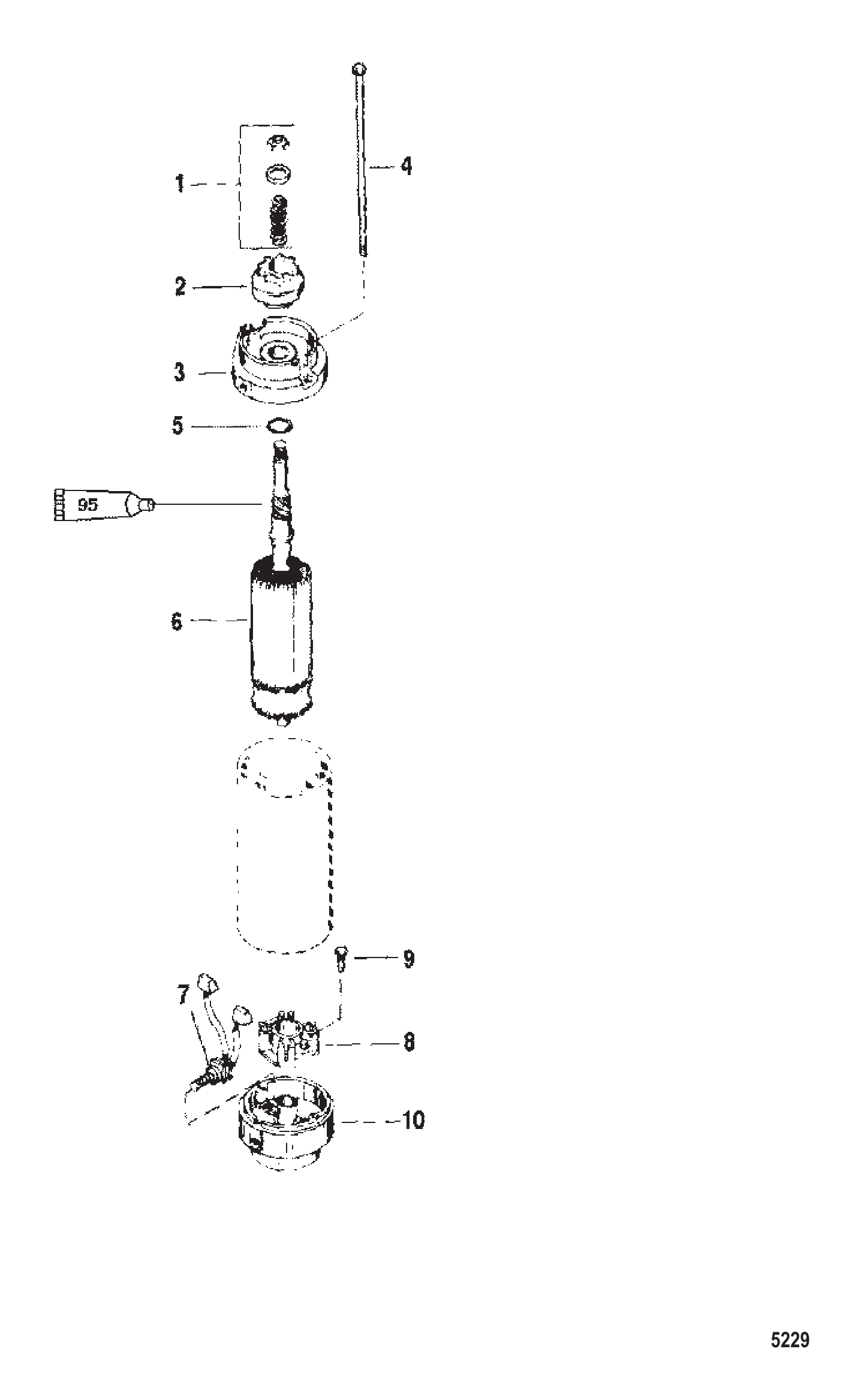

图 31启动电机 Starter Motor

REF	零件编号	中文名称	英文名称	数量

图 32驱动轴壳体 Driveshaft Housing

REF	零件编号	中文名称	英文名称	数量
1	858576T03	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	903501	双头螺柱(M10×100)	STUD (M10 x 100)	1
2	9035015	双头螺柱(M10×227)	STUD (M10 x 227)	1
3	9035012	双头螺柱(M10×63)	STUD (M10 x 63)	4
3	9035016	双头螺柱(M10×190)	STUD (M10 x 190)	4
3	8M0034462	双头螺柱(M10×190)	STUD (M10 x 190)	4
4	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	5
4	8M0214963	垫圈	WASHER	5
5	40140	螺母(M10)	NUT (M10)	5
6	85822A15	速度计传感器总成	PICKUP ASSEMBLY Speedometer	1
7	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	1
7	433351	90度接头-带防振密封	CONNECTOR 90 Degree - With Vibraseal	1
8	85822	直通接头	CONNECTOR Straight	1
8	85822T	直通接头	CONNECTOR Straight	1
9	44343T1	支架	MOUNT	2
10	42973	螺栓(M12×154)	BOLT (M12 x 154)	2
10	898835001	螺钉(M12 x 154)	SCREW (M12 x 154)	2
11	30119	垫圈(外径0.875英寸)	WASHER (.875 Inch Outside Diameter)	2
12	43528	螺母(M12)	NUT (M12)	2
12	8M0204662	螺母	NUT	2
13	88238A10	接地线总成	CABLE ASSEMBLY Ground	2
14	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
15	858916T	卡箍	CLAMP	2
16	4010725	螺钉 (M8 x 25)	SCREW (M8 x 25)	4
17	858745	盖帽	CAP	4
17	8M0142713	支撑盖帽	CAP Chap Support	4
18	859550	衬套	BUSHING	1
19	24873	定位销	PIN Alignment	1
20	855622	接头	FITTING	1
21	12092A3	隔套套件	SPACER KIT	1
22	43043	定位销-带孔(0.375×0.625)	PIN Dowel - With Hole (.375 x .625)	1
22	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
22	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
23	813745	隔套	SPACER	1
24	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2

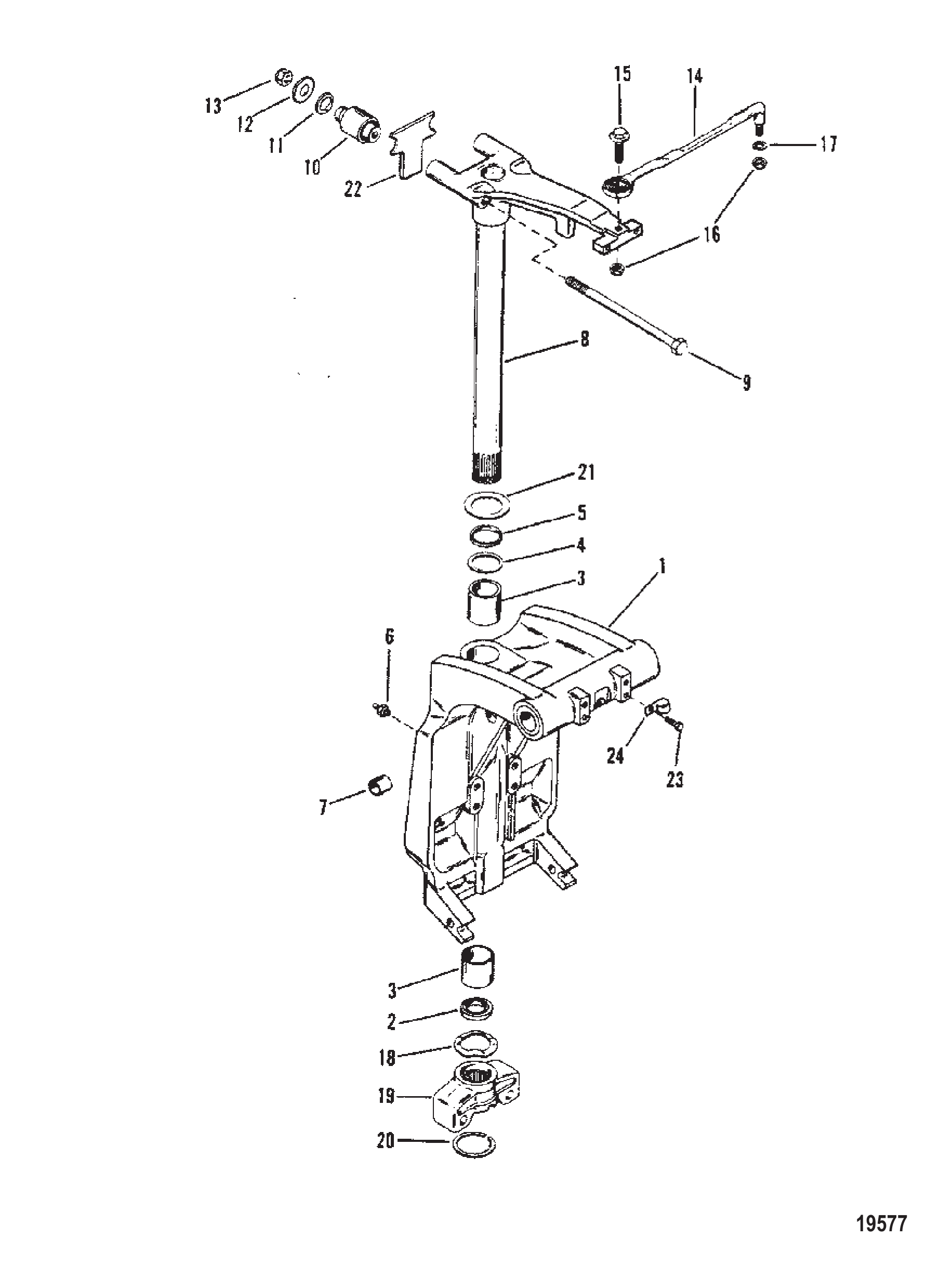

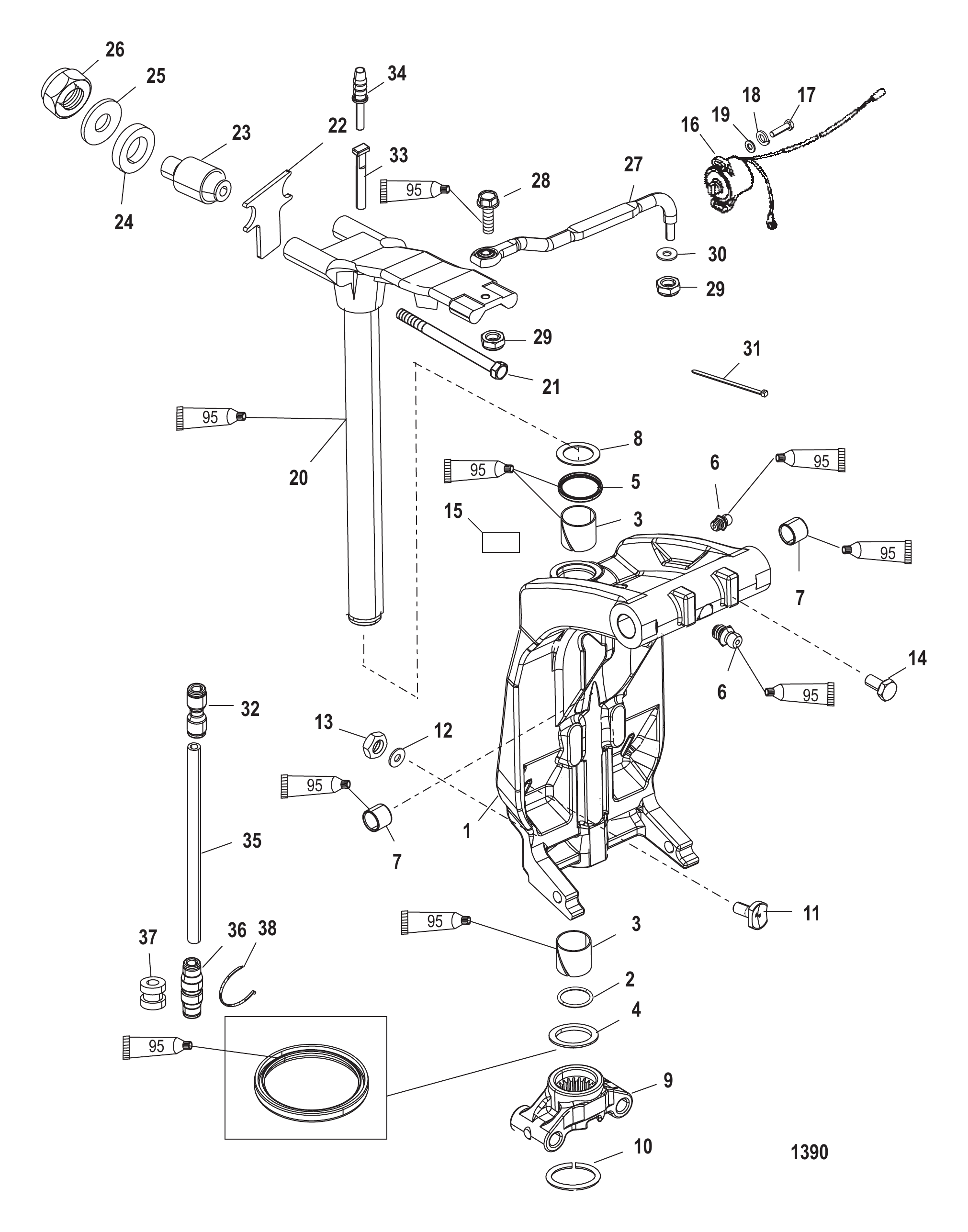

图 33旋转支架(铸件号1499-8710-6) Swivel Bracket (Casting #1499-8710-6)

REF	零件编号	中文名称	英文名称	数量
1	8710A17	旋转支架总成（黑色）	SWIVEL BRACKET ASSEMBLY (BLACK)	1
1	8710A18	旋转支架总成（灰色）	SWIVEL BRACKET ASSEMBLY (GRAY)	1
1	8710T21	灰色旋转支架总成	SWIVEL BRACKET ASSEMBLY Gray	1
2	87735		SEAL Oil SWIVEL BRACKET (LOWER)	1
3	67669	旋转支架衬套-上下部	BUSHING SWIVEL BRACKET-LOWER AND UPPER	2
3	818764	衬套	BUSHING	2
4	33466	上部O型圈	O-RING UPPER	1
5	67668	上部隔套	SPACER UPPER	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	99608	转轴支架衬套	BUSHING SWIVEL BRACKET	2
7	821207	衬套	BUSHING	2
8	67706A35	旋转销总成(黑色)	SWIVEL PIN ASSEMBLY (BLACK)	1
8	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
8	67706A36	旋转销总成(灰色)	SWIVEL PIN ASSEMBLY (GRAY)	1
8	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
9	78689	螺钉(0.437-20×7.50)转向臂至上支架	SCREW (.437-20 x 7.50) STEERING ARM TO UPPER MOUNT	2
9	8M0176309	螺钉	SCREW	2
10	78687	橡胶支架-上部(长型)	MOUNT RUBBER-UPPER (LONG)	2
10	78687T	支架	MOUNT	2
10	77326	支架(加长型)(用于XR4/MAGNUM II)	MOUNT (X-LONG) (USE ON XR4/MAGNUM II)	2
11	66921	上支座螺栓垫圈	WASHER UPPER MOUNT BOLT	2
12	814432	上支座螺栓垫圈	WASHER UPPER MOUNT BOLT	2
12	78688	垫圈	WASHER	2
13	34933	螺母（0.437-20）不锈钢上部安装螺栓	NUT (.437-20) Stainless Steel UPPER MOUNT BOLT	2
13	8M0204653	螺母	NUT	2
14	92876A1	转向连杆总成	LINK ASSEMBLY Steering	1
14	92876A12	连杆总成	LINK ROD ASSEMBLY	1
15	14000		SCREW (.375-24 x 1.25) STEERING LINK TO STEERING ARM	1
15	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
16	34863		NUT (.375-24) STEERING LINK SCREW	2
16	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
17	34931		WASHER (.406 x .734 x .063) Stainless Steel STEERING LINK TO STEERING ARM	2
18	78854		WAVE WASHER BOTTOM YOKE	1
19	86580A1	底部轭架总成（黑色）	YOKE ASSEMBLY Bottom (BLACK)	1
19	878182T	轭架底部-不锈钢	YOKE Bottom - Stainless Steel	1
19	86580A2	底部轭架总成（灰色）	YOKE ASSEMBLY Bottom (GRAY)	1
19	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
20	67684	卡环-底部轭架	RING Retaining BOTTOM YOKE	1
21	67670	垫圈	WASHER	1
22	88882	缓冲垫-顶部轭架	BUMPER Top Yoke TOP YOKE	1
23	64014		SCREW (.250-28 x .500) SWIVEL BRACKET	2
24	54457	J型卡扣	J CLIP	1
-	815791A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

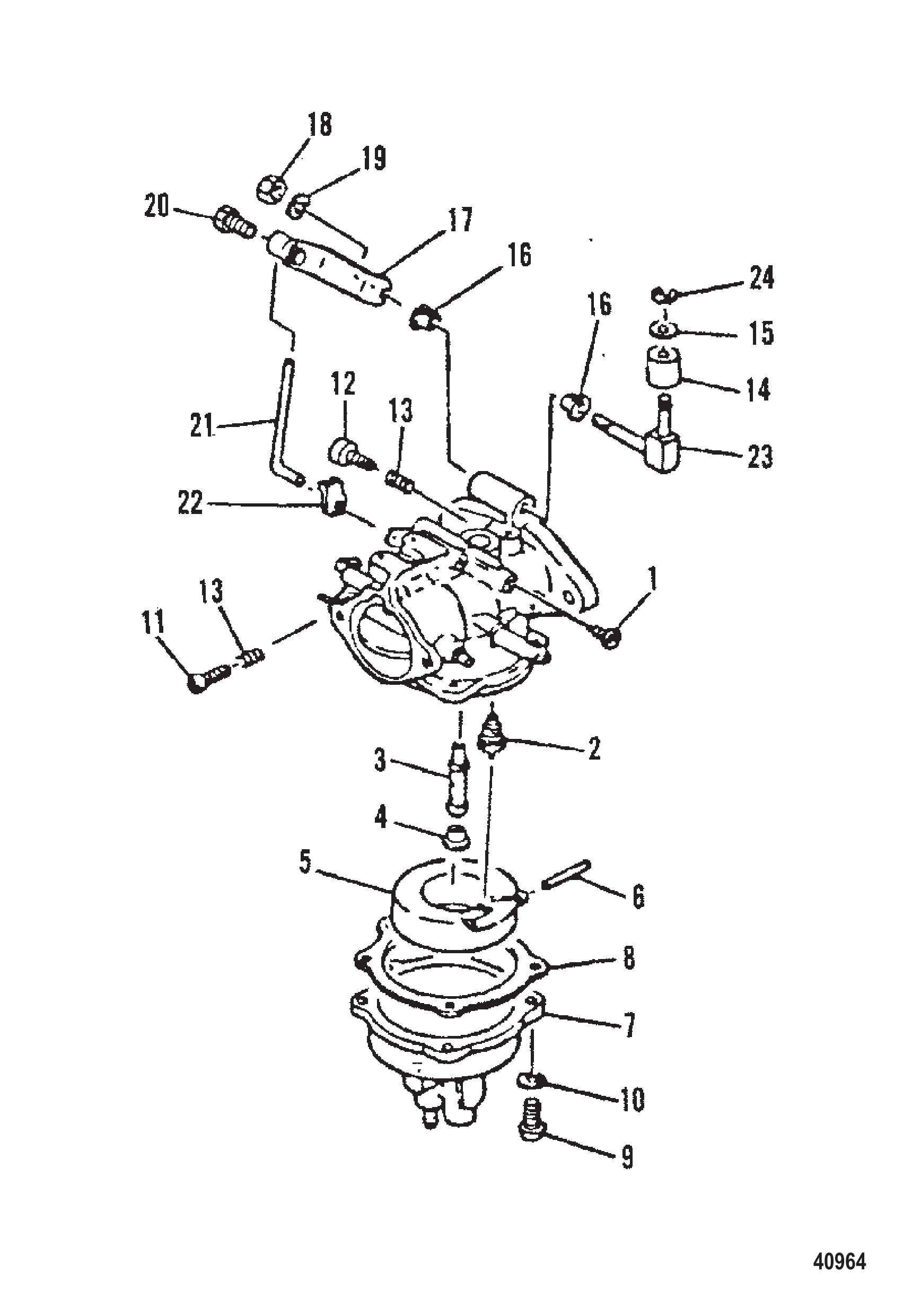

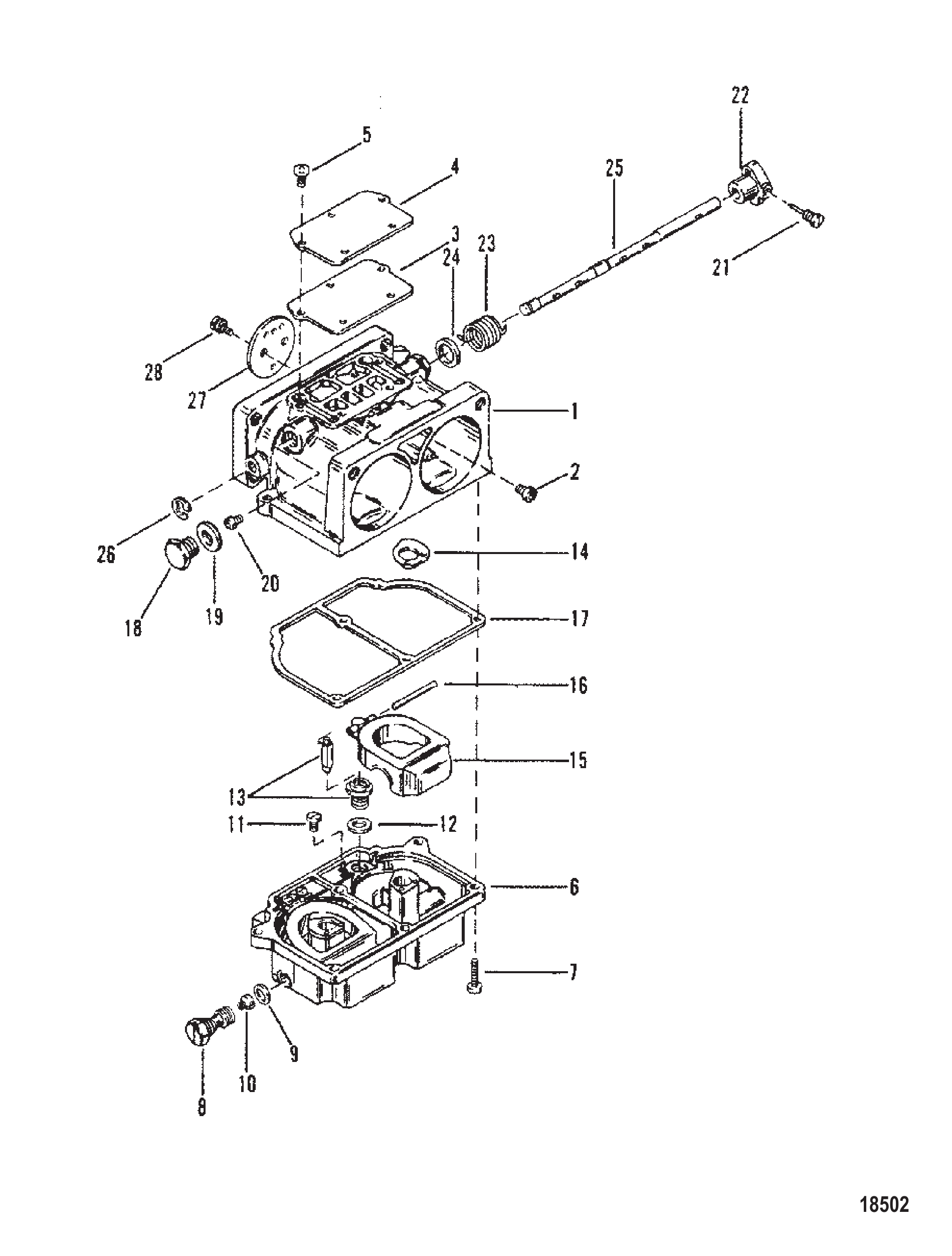

图 34化油器总成 Carburetor Assembly

REF	零件编号	中文名称	英文名称	数量
1	9503A20	化油器 (6)(WMC-66)	CARBURETOR (6)(WMC-66)	1
1	9503T21	化油器 (WMC-78A) (6)	CARBURETOR (WMC-78A) (6)	1
1	9266A21	化油器 (8)(WMC-74)	CARBURETOR (8)(WMC-74)	1
1	9266T22	化油器	CARBURETOR	1
1	9266T22	化油器 (8)(WMC-79A)	CARBURETOR (8)(WMC-79A)	1
1	8846T20	化油器 (WMC-61)	CARBURETOR (WMC-61)	1
1	8846T28	化油器 (WMC-102)	CARBURETOR (WMC-102)	1
1	8846T25	化油器 (WMC-80A) (9.9)	CARBURETOR (WMC-80A) (9.9)	1
1	8846T28	化油器 (WMC-102)	CARBURETOR (WMC-102)	1
1	9726T11	化油器 (15)(WMC-63)	CARBURETOR (15)(WMC-63)	1
1	9726T18	化油器(WMC-83)	CARBURETOR (WMC-83)	1
1	9726T15	化油器 (WMC-77) (15)	CARBURETOR (WMC-77) (15)	1
1	9726T18	化油器(WMC-83)	CARBURETOR (WMC-83)	1
1	9726T18	化油器 (WMC-83) (15)	CARBURETOR (WMC-83) (15)	1
2	9473	油门阀	VALVE Throttle	1
2	815133	油门阀	VALVE Throttle	1
2	94731	油门阀	VALVE Throttle	1
2	823716	油门阀	VALVE Throttle	1
3	804707	轴	SHAFT	1
4	8M0138645	螺钉	SCREW	1
5	804996	弹簧	SPRING	1
6	813022	油门轴	SHAFT Throttle	1
6	19267	油门轴	SHAFT Throttle	1
7	F10167	环	RING	1
8	9164	燃油杯	BOWL Fuel	1
9	824401	浮子杆	LEVER Float	1
10	91691	浮子	FLOAT	1
11	F10064	轴	SHAFT	1
12	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
13	803861	进油针阀	VALVE Inlet Needle	1
14	5315	主燃油喷嘴 (.042)	JET Main Fuel (.042)	1
14	5317	量孔(.046)	JET (.046)	1
14	6246	量孔(.048)	JET (.048)	1
14	6207	量孔(.072)	JET (.072)	1
15	9171	堵头	PLUG	1
16	813618	盖板	COVER	1
16	823648	膜片盖	COVER Diaphragm	1
17	9697	螺钉	SCREW	4
18	15827A1	本体	BODY	1
18	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
19	9643	螺钉	SCREW	5
20	9699	安装板	PLATE	1
21	44426	衬垫	GASKET	1
22	9696	螺钉	SCREW	2
23	96371	燃油泵盖	COVER Fuel Pump	1
23	9637	盖板	COVER	1
24	9633	衬垫	GASKET	1
25	9762	堵头	PLUG	1
26	192061	化油器衬垫	GASKET Carburetor	1
27	9635	膜片/衬垫	DIAPHRAGM/GASKET	1
28	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
29	8237072	维修套件	REPAIR KIT	1
-	42364A92	发动机垫片组	GASKET SET Engine	1

图 35燃油泵 Fuel Pump

REF	零件编号	中文名称	英文名称	数量
1	880890T1	燃油泵	PUMP Fuel	1
2	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
3	881544	弹簧	SPRING	1
4	881545	柱塞	PLUNGER	1
5	881546	弹簧	SPRING	1
6	881547	隔膜	DIAPHRAGM	1
7	881548	销	PIN	1
8	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
9	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
10	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
11	881550	螺钉	SCREW	3
12	881333	螺母	NUT	3
13	804255	O型圈	O-RING	1
13	8M0050719	O型圈	O-RING	1
14	879650	卡箍	CLAMP	2
14	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	2
15	804256	螺栓 (M6 x 30)	BOLT (M6 x 30)	2
16	881543	软管	HOSE	1
16	881543002	油管	TUBING	1
17	881542	支架	BRACKET	1
18	8527768	螺栓(M6 x 16)	BOLT (M6 x 16)	1
18	811188T	螺栓	BOLT	1
19	8528161	螺母	NUT	1
19	82382M	螺母	NUT	1
20	881538T1	滤清器总成	FILTER ASSEMBLY	1
20	881538T02	燃油滤清器总成	FILTER ASSY-FUEL	1
21	881540	滤芯1.75英寸	ELEMENT 1.75 Inches	1
21	8M0168897	燃油滤清器	FUEL FILTER	1
21	8M0101436	滤芯1.50英寸	ELEMENT 1.50 Inches	1
21	8M0117705	燃油滤清器	FILTER-FUEL	1
22	826966M	O型圈	O-RING	1
22	826966T	O型圈	O RING	1
23	881541	浮子	FLOAT	1
24	881539	杯套	CUP	1
24	8M0101437	杯套	CUP	1
24	8M0137185	燃油杯	CUP FUEL	1
25	879650	卡箍	CLAMP	2
25	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	2
26	804260	支架	BRACKET	1
27	804112	螺栓(M7 x 48)	BOLT (M7 x 48)	2
28	804113	定位销	PIN Dowel	2
29	84292M	垫圈	WASHER	2
30	804257	燃油转换杆	LEVER Fuel Change	1
31	881334	轴	SHAFT	1
32	804259	销	PIN	2
32	82738M	滚销	PIN-ROLL	2
33	830757130	管材(.312)(70英寸整卷)裁切至55英寸长度	TUBING (.312) (70.00 Inches Bulk) Cut to 55.00 Inch Length.	1
33	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
34	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
35	822769	连接器	CONNECTOR	1
36	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
37	828547T1	导管(.500内径 x 3英尺整卷)	CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk)	1
-	858732T01	衬垫套件	GASKET SET	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	881310T1	气缸盖总成	CYLINDER HEAD ASSEMBLY	1
-	881310T09	气缸盖	HEAD-CYLINDER	1

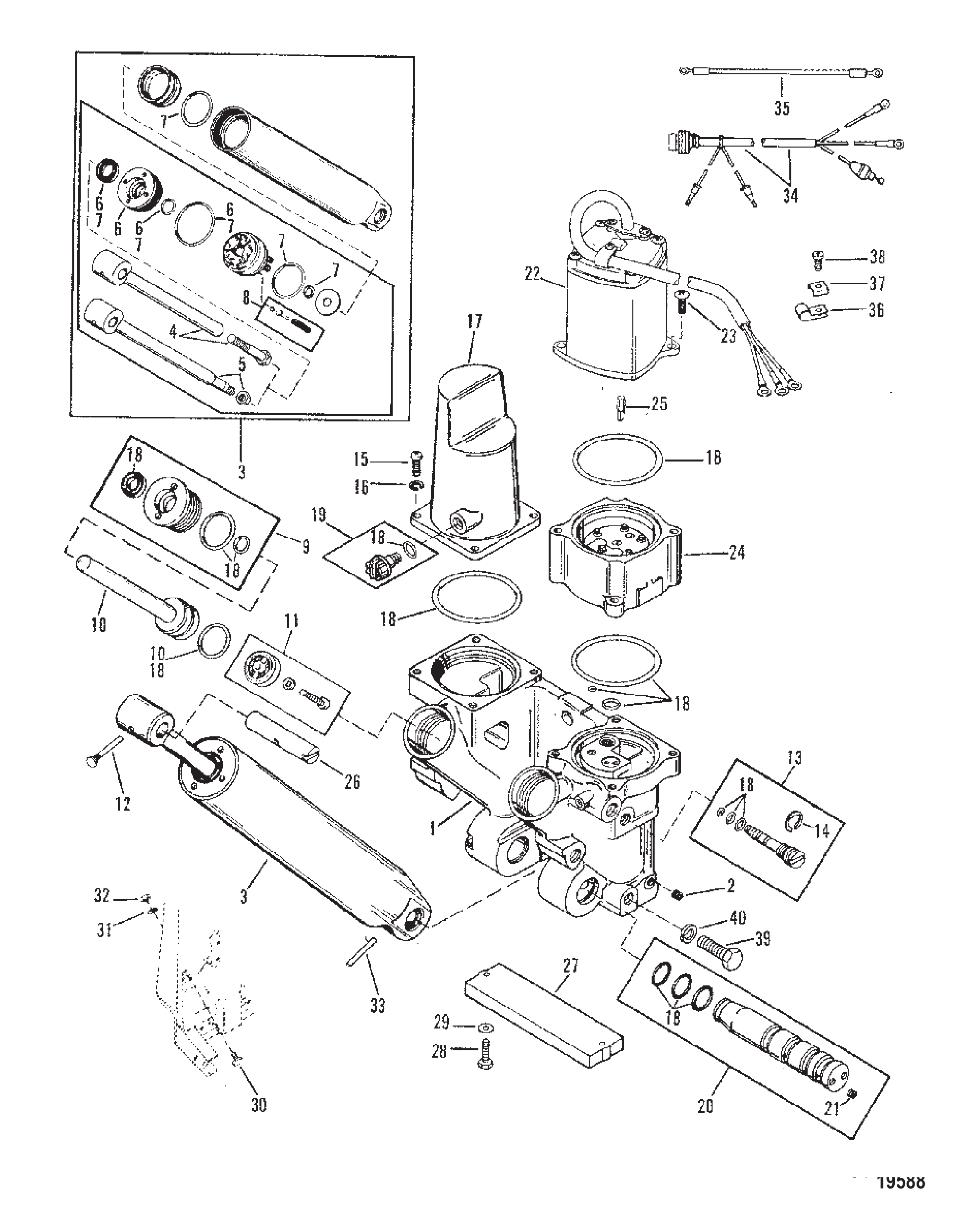

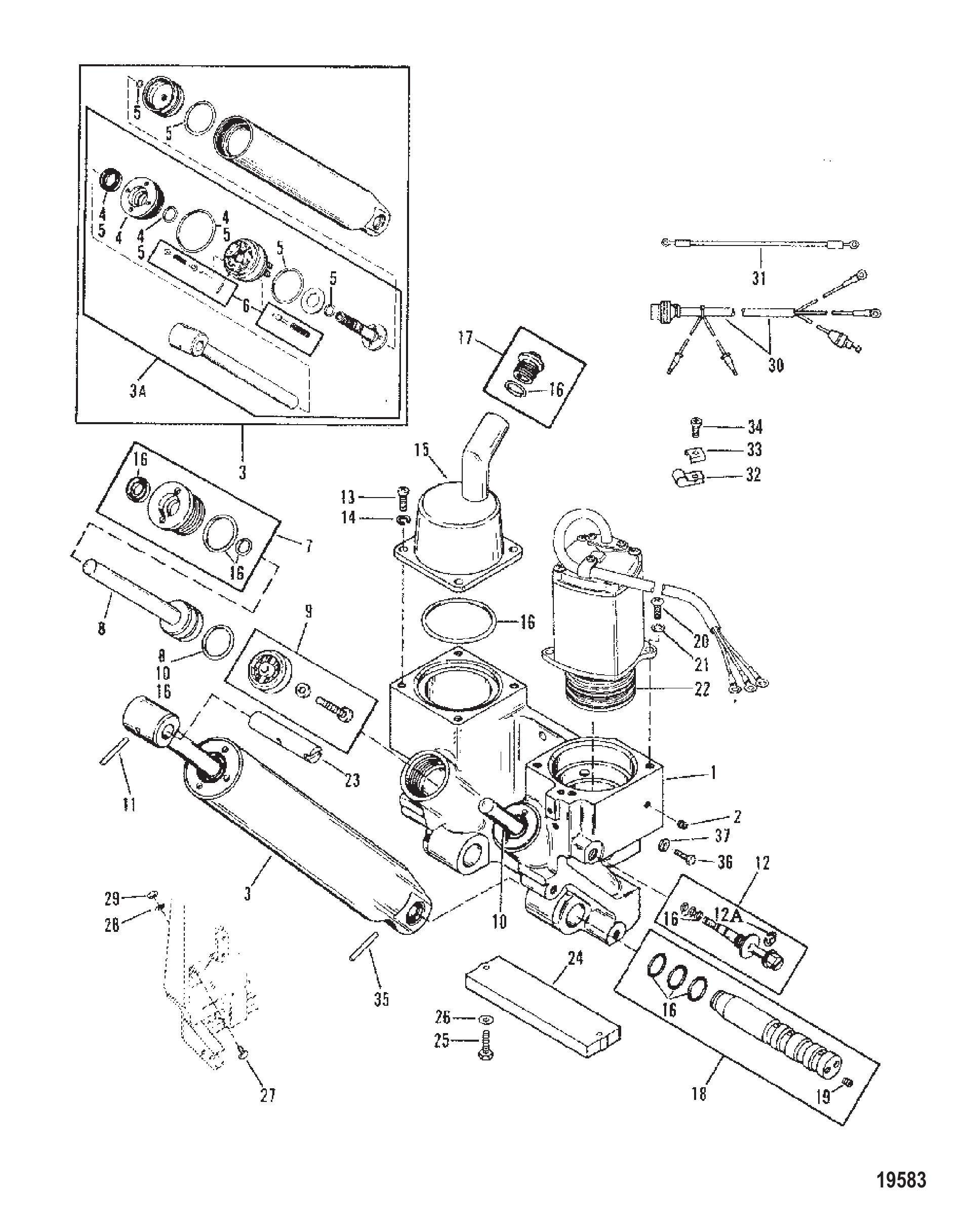

图 36动力升降倾斜组件 Power Trim Components

REF	零件编号	中文名称	英文名称	数量
-	830250T3	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
1	811666A1	减震杆套件	SHOCK ROD KIT	1
1	8M0171821	减震杆套件	SHOCK ROD KIT	1
2	809872A2	O型圈维修包	O-RING KIT Rebuild	1
2	8M0171819	O型圈套件	O-RING KIT	1
3	810776A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
3	8M0171822	记忆活塞套件	MEMORY PISTON KIT	1
4	811669A1	气缸总成	CYLINDER ASSEMBLY	1
4	893916A01	气缸总成	CYLINDER ASSEMBLY	1
5	809873A1	配平限位阀套件	VALVE KIT Trim Limit	1
5	893905A02	阀套件	VALVE KIT	1
6	809874A1	泵总成	PUMP ASSEMBLY	1
6	893906A02	泵总成	PUMP ASSEMBLY	1
7	809885A2	电机套件	MOTOR KIT	1
7	893907A02	电机套件	MOTOR KIT	1
8	8134351	堵头	PLUG	1
9	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
9	893929A01	安全阀套件	VALVE KIT Relief	1
10	809875A1	歧管套件	MANIFOLD KIT	1
10	893909A02	歧管套件	MANIFOLD KIT	1
11	809876A1	电机螺钉套件	SCREW KIT Motor	1
12	88238A18	拉线总成	CABLE ASSEMBLY	1
13	809877A1	驱动轴/密封套件	DRIVESHAFT/SEAL KIT	1
14	809878A1	滤清器套件	FILTER KIT	1
14	893912A02	滤清器套件	FILTER KIT	1
15	809879A1	提升阀套件	POPPET KIT	1
15	893913A02	提升阀套件	POPPET KIT	1
-	809880A1	完整配平O型圈套件	O-RING KIT Complete Trim	1
-	893914A02	O型圈套件	O-RING KIT	1
16	821539	三叶销	PIN Trilobe	2
17	818898	锚销	PIN Anchor	1
18	996251	轴	SHAFT	1
18	99625002	轴	SHAFT	1
19	22740	卡扣	CLIP	2
20	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
21	69205	C形垫圈	C WASHER	1
21	8M0084613	C形垫圈	C-WASHER	1

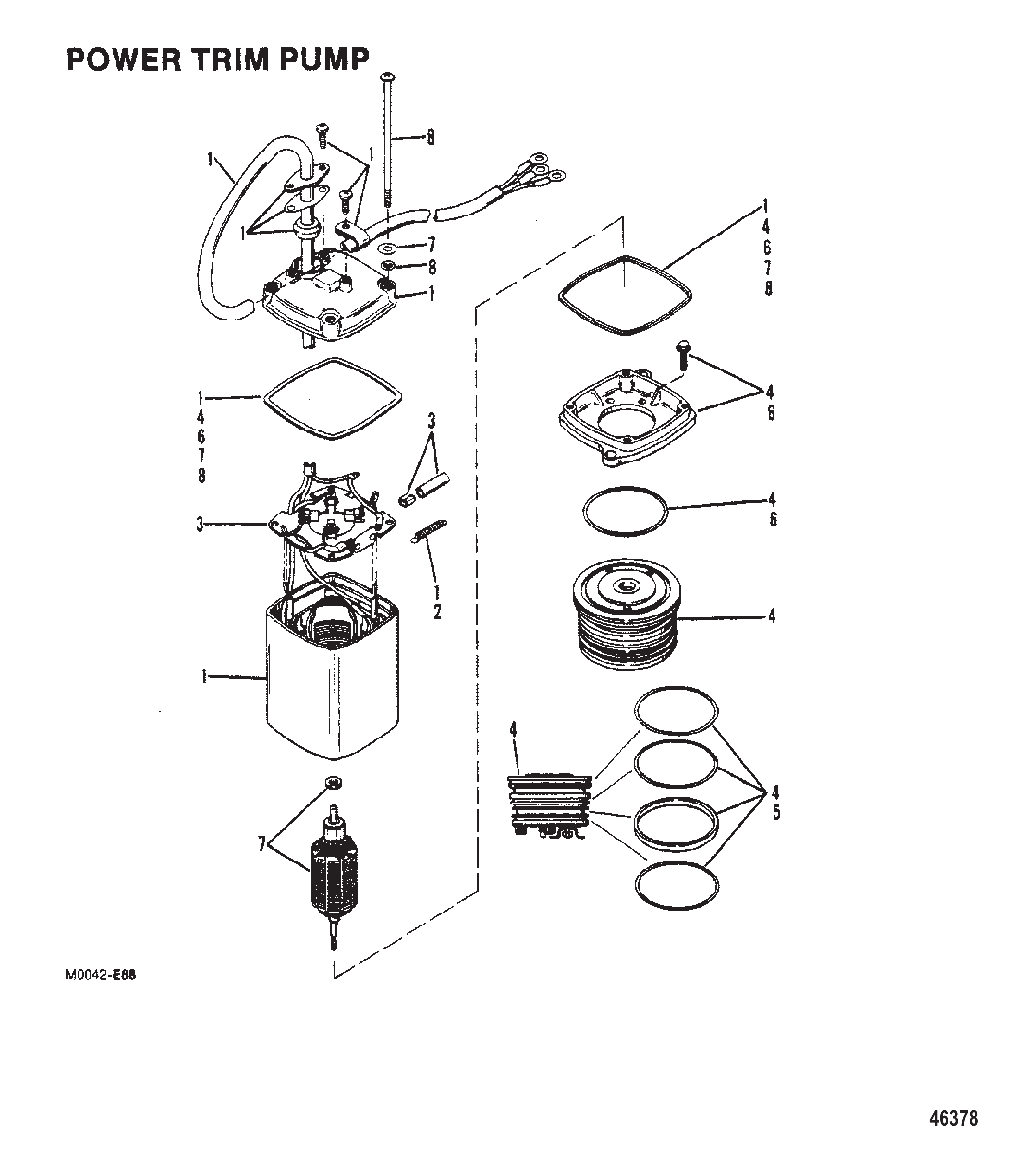

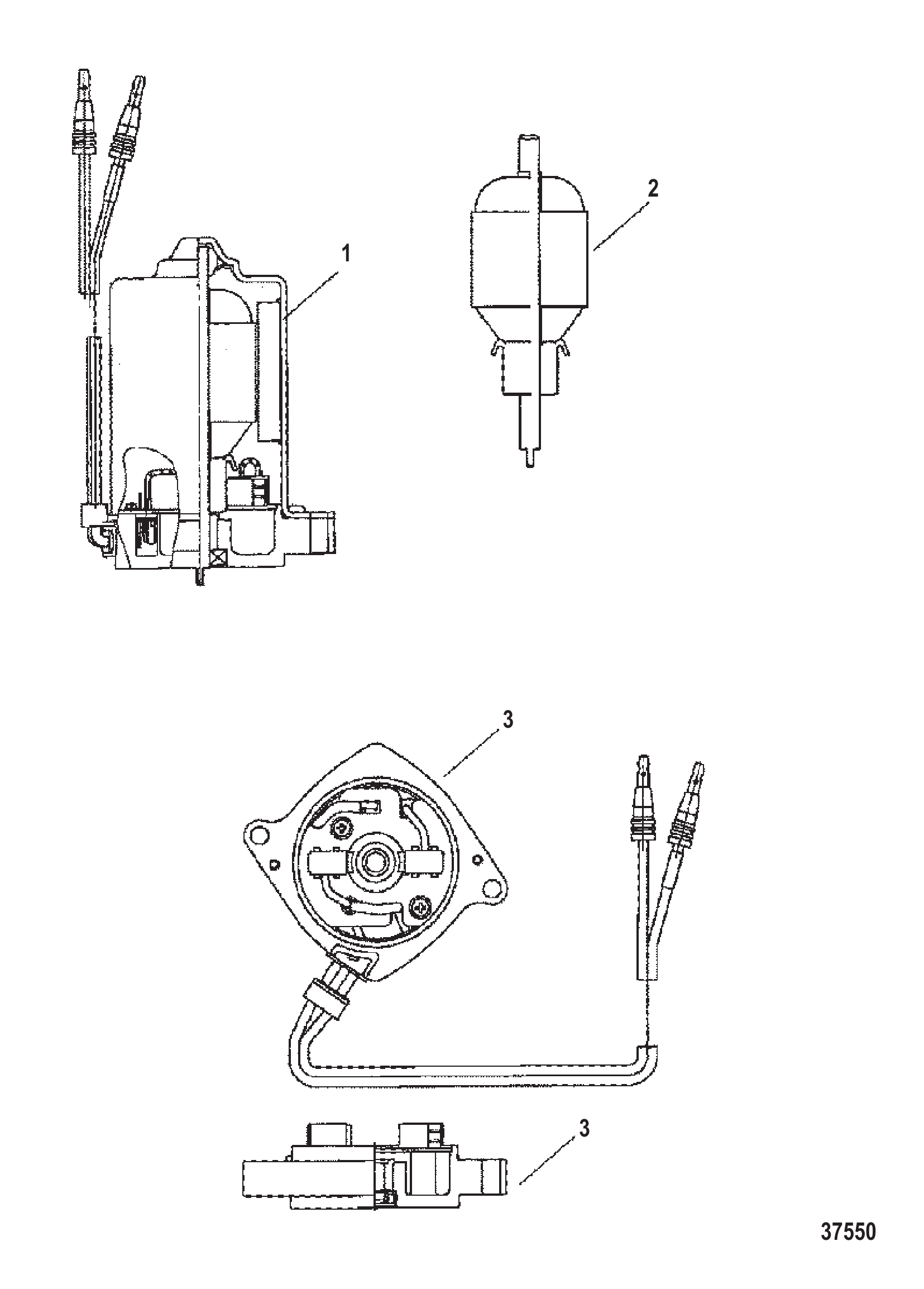

图 37动力升降倾斜泵 Power Trim Pump

REF	零件编号	中文名称	英文名称	数量
-	99186T	泵与电机总成	PUMP AND MOTOR	1
1	12659	机架与磁场套件	FRAME AND FIELD KIT	1
1	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
2	12665	电刷弹簧套件	SPRING KIT Brush	1
3	13506	电刷卡套件	BRUSH CARD KIT	1
3	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
4	12662	泵与端架套件	PUMP AND END FRAME KIT	1
4	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
5	12663	泵密封套件	SEAL KIT Pump	1
5	126631	泵密封套件	SEAL KIT Pump	1
6	12660	端架套件	END FRAME KIT	1
6	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
7	12661	电枢套件	ARMATURE KIT	1
7	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
8	12664	贯穿螺栓套件	THRU BOLT KIT	1

图 38双机延伸套件 Dual Engine Extension Kit

REF	零件编号	中文名称	英文名称	数量
-	92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
1	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
2	71565A2	管总成	TUBE ASSEMBLY	1
3	41055	支架	MOUNT	1
4	42100	锁紧垫圈	TAB WASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	88404	锁紧垫圈	TAB WASHER	2
7	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
8	17729A1	支架	BRACKET	2
9	62055	螺钉(.312-24 x 1.250)	SCREW (.312-24 x 1.250)	4
10	17728	锁紧垫圈	TAB WASHER	4
11	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	4
11	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	4
12	34863	螺母 (.375-24)	NUT (.375-24)	6
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	6
13	979331	转向眼环	STEERING EYE	2
13	8M0026167	转向眼环	STEERING EYE	2
14	23651	衬套(1.625)	SLEEVE (1.625)	2
15	97931	管材(4.00英寸)	TUBING (4.00 Inches)	2
16	8149513	联轴器(15.00英寸)	COUPLER (15.00 Inches)	1
16	8M0026098	联轴器15英寸	COUPLER 15 In.	1
17	42099	螺母(.562-18)	NUT (.562-18)	1
18	821169	联轴器	COUPLING	1
19	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	2
20	94319	螺钉(.375-24 x 1.5)	SCREW (.375-24 x 1.5)	1

图 39杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES

REF	零件编号	中文名称	英文名称
-	811286	零件手册(6/8/9.9/15马力)	PARTS MANUAL 6/8/9.9/15 Hp
-	12048930	用户指南(黑色)	OWNERS GUIDE (BLACK)
-	14138930	用户指南(灰色)	OWNERS GUIDE (GRAY)
-	14012A89	贴花套装(9.9/210帆动力)	DECAL SET (9.9/210 SAILPOWER)
-	12836A89	贴花套装(黑色-6至9.9马力)	DECAL SET (BLACK- 6 THRU 9.9)
-	13478A88	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	810458A92	贴花套装(灰色-6至15马力)	DECAL SET (GRAY- 6 THRU 15)
-	822787A93	贴花套装(灰色-8帆伴侣)	DECAL SET (GRAY 8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808522A94	贴花套装(黑色-6马力)	DECAL SET (BLACK-6)
-	808522A00	贴花套件	DECAL SET
-	808526A94	贴花套装(黑色-8马力)	DECAL SET (BLACK -8)
-	808526A00	贴花套件	DECAL SET
-	12836A94	贴花套装(黑色-9.9马力)	DECAL SET (BLACK- 9.9)
-	12836A00	贴花套件	DECAL SET
-	808523A94	贴花套装(9.9帆动力)	DECAL SET (9.9 SAILPOWER)
-	808523A96	贴花套件	DECAL SET
-	13478A94	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	13478A00	贴花套件	DECAL SET
-	808524A94	贴花套装(灰色-6马力)	DECAL SET (GRAY-6)
-	808524A03	贴花套件	DECAL SET
-	808545A94	贴花套装(灰色-8马力)	DECAL SET (GRAY-8)
-	808545A03	贴花套件	DECAL SET
-	808560A94	贴花套装(8帆伴侣)	DECAL SET (8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808525A94	贴花套装(灰色-9.9马力)	DECAL SET (GRAY-9.9)
-	808525A03	贴花套件	DECAL SET
-	808546A94	贴花套装(灰色-15马力)	DECAL SET (GRAY-15)
-	808546A03	贴花套件	DECAL SET

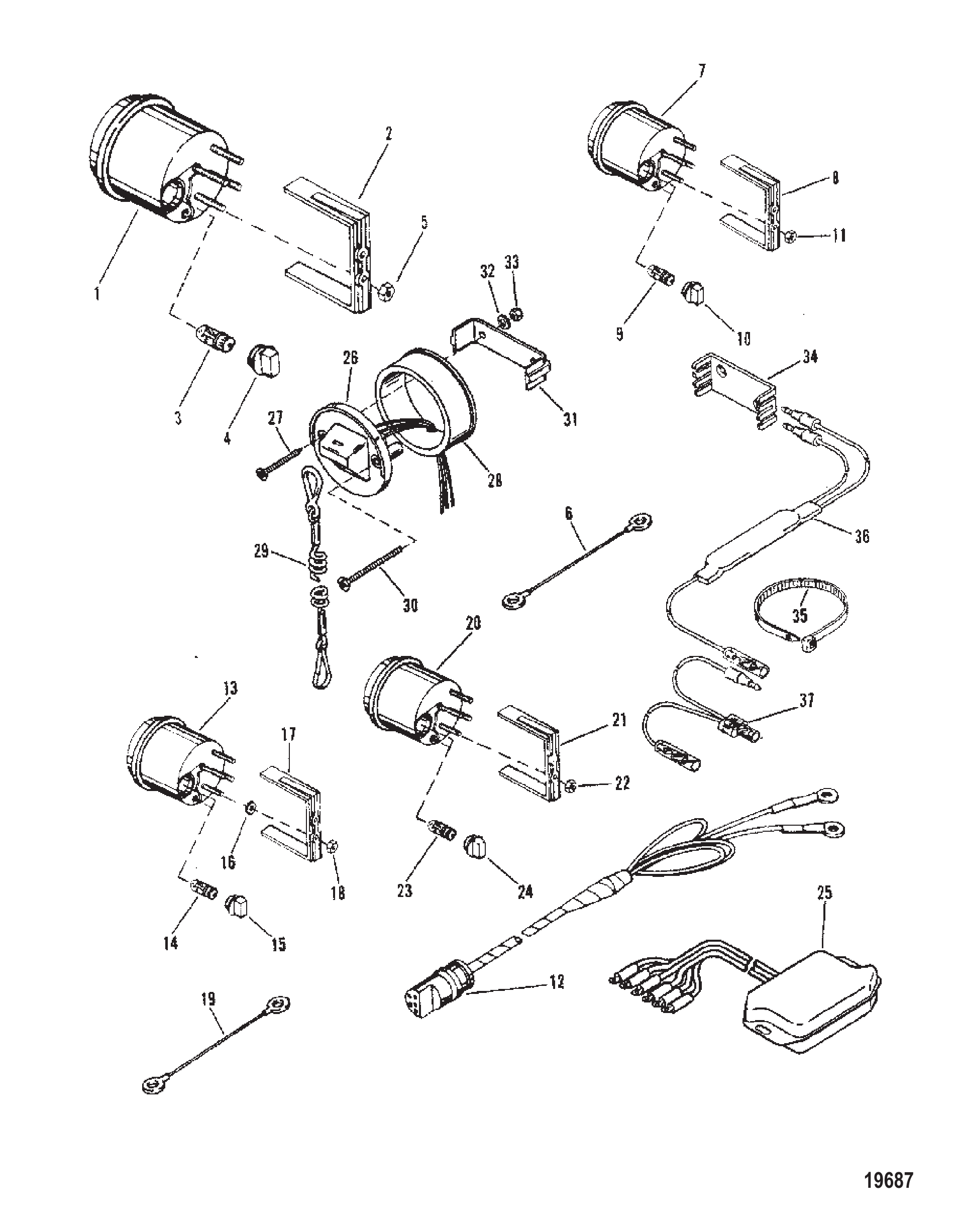

图 40仪表组(水星和马林纳) Instrumentation (Mercury and Mariner)

REF	零件编号	中文名称	英文名称	数量
1	15110A1	转速表 (6K)	TACHOMETER (6K)	1
2	79101	安装支架	BRACKET MOUNTING	1
3	72729	楔形底座灯泡(14V - 1.9W)	LIGHT BULB Wedge Base (14V - 1.9W)	1
4	79888	灯泡插座	SOCKET Light Bulb	1
5	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	5
6	86322A7	电缆总成(1.50英尺)黑色微调表	CABLE ASSEMBLY (1.50 Feet) Black TRIM GAUGE	1
6	86323A5	电缆总成(1.50英尺)紫色微调表	CABLE ASSEMBLY (1.50 Feet) Purple TRIM GAUGE	1
7	15113A4	配平表	TRIM GAUGE	1
8	79480	安装支架-微调表	BRACKET MOUNTING - TRIM GAUGE	1
9	72729	灯泡楔形底座(14V-1.9W)微调表	LIGHT BULB Wedge Base (14V - 1.9W) TRIM GAUGE	1
10	79888	灯泡插座微调表	SOCKET Light Bulb TRIM GAUGE	1
11	26419	螺母(#8-32)黄铜微调表端子	NUT (#8-32) Brass TRIM GAUGE TERMINAL	5
12	86396A8	转速表线束总成(5.00英尺)	HARNESS ASSEMBLY Tachometer (5.00 Feet)	1
13	15166A1	温度表	TEMPERATURE GAUGE	1
14	72729	楔形底座灯泡(14V - 1.9W)	LIGHT BULB Wedge Base (14V - 1.9W)	1
15	79888	灯泡插座	SOCKET Light Bulb	1
16	26427	垫圈	WASHER	2
17	79480	支架	BRACKET	1
18	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	5
19	86323A2	电缆总成(2英尺)紫色	CABLE ASSEMBLY (2.00 Feet) Purple	1
19	61600A16	电缆总成(17英寸)黑色	CABLE ASSEMBLY (17.00 Inches) Black	1
19	88824A4	电缆总成(45英寸)棕褐色	CABLE ASSEMBLY (45.00 Inches) Tan	1
20	15115A2	同步器量表	SYNCHRONIZER GAUGE	1
21	79480	支架	BRACKET	1
22	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	5
23	72729	楔形底座灯泡(14V - 1.9W)	LIGHT BULB Wedge Base (14V - 1.9W)	1
24	79888	灯泡插座	SOCKET Light Bulb	1
25	14502	同步器驱动器	DRIVER SYNCHRONIZER	1
26	19674A1	拉绳开关总成	SWITCH ASSEMBLY Lanyard	1
27	18303	螺钉 (.190-16 x 1.750) 不锈钢	SCREW (.190-16 x 1.750) Stainless Steel	2
28	813679	适配器	ADAPTER	1
29	15920A54	拉绳总成	LANYARD ASSEMBLY	1
30	32866	螺钉 (#10-32 x 2.00) 不锈钢	SCREW (#10-32 x 2.00) Stainless Steel	2
31	18321	安装夹	CLAMP Mounting	1
32	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	2
33	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4
34	79146	固定座	RETAINER	3
35	90077	扎带	TIE STRAP	9
36	812497A2	二极管总成	DIODE ASSEMBLY	1
37	11149A2	线缆总成 (6.00英寸)	CABLE ASSEMBLY (6.00 Inches)	1

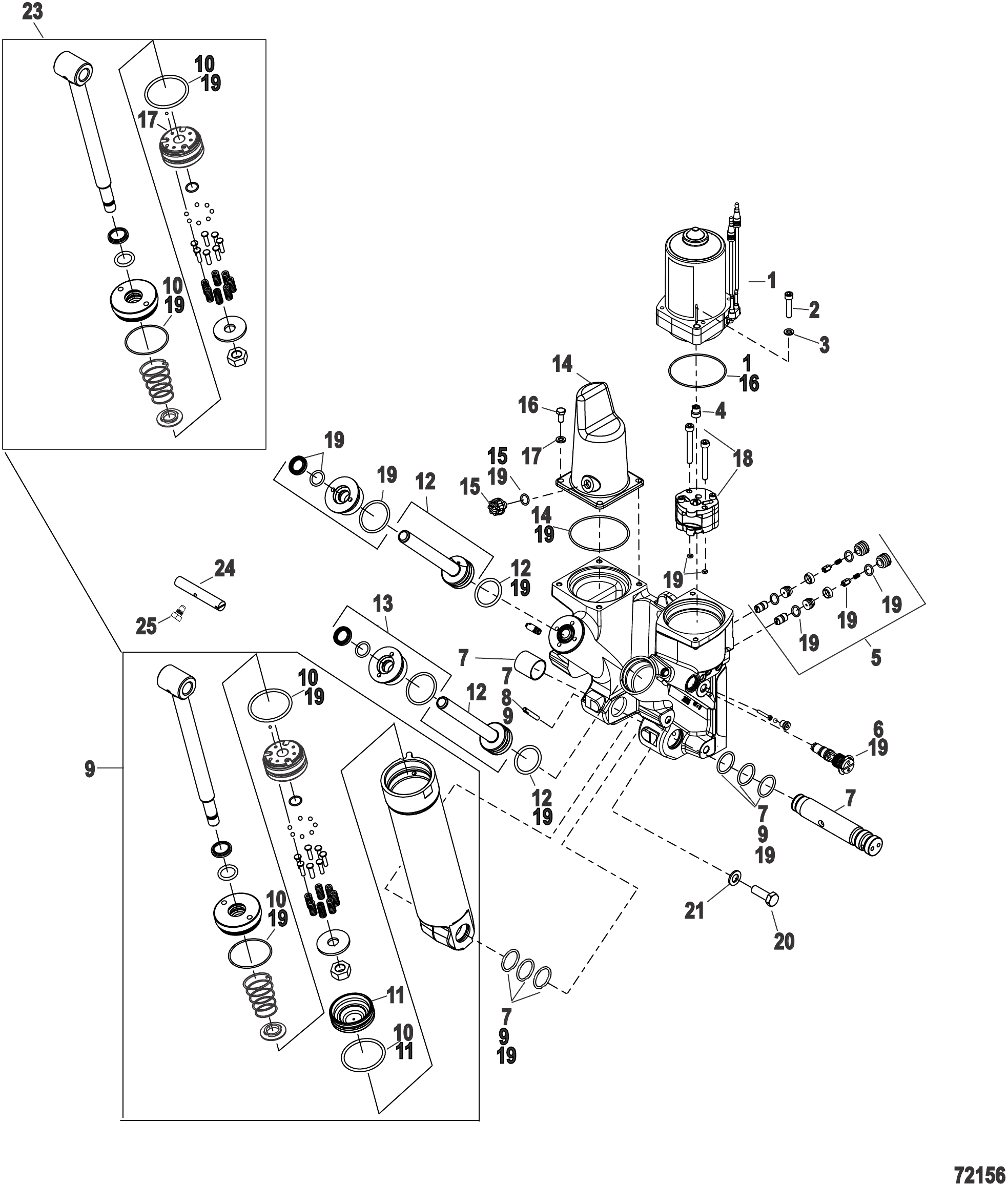

图 41动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	8M0168222	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0142591	电机套件	MOTOR KIT	1
2	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
3	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
4	8M0090403	驱动联轴器	COUPLING Drive	1
5	8M0142996	压力检查套件	PO CHECK KIT	1
6	8M0060141	手动释放套件	MANUAL RELEASE KIT	1
7	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
8	878267	销	PIN	1
9	8M0142998	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
9	8M0168220	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
10	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
11	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
12	8M0142592	升降杆套件左舷	TRIM ROD KIT Port	1
13	8M0143001	活塞总成	PISTON ASSEMBLY	1
14	8M0143003	端盖总成	END CAP ASSEMBLY	1
15	878264A1	储液罐套件	RESERVOIR KIT	1
16	811613	塞子总成	PLUG ASSEMBLY	1
17	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
18	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
19	8M0143004	泵套件	PUMP KIT	1
20	8M0148385	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
21	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
22	4002319	垫圈	WASHER	6
23	8M0094889	销	PIN	1
23	8M0161312	连杆销眼总成	PIN ROD EYE ASSEMBLY	1
24	8M0143005	减震杆套件	SHOCK ROD KIT	1
24	8M0168219	减震杆套件	SHOCK ROD KIT	1

图 42齿轮箱（推进轴）- 反向旋转 GEAR HOUSING (PROPSHAFT) - COUNTER ROTATION

REF	零件编号	中文名称	英文名称	数量
1	9148A47	齿轮箱总成(基础款)(黑色)	GEAR HOUSING ASSEMBLY (BASIC) (BLACK)	1
1	9148A48	齿轮箱总成(基础款)(灰色)	GEAR HOUSING ASSEMBLY (BASIC) (GRAY)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
47	78956	换挡凸轮	SHIFT CAM	1
47	789562	换挡凸轮	SHIFT CAM	1
48	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
49	799111	杆	ROD	1
49	79911A1	杆	ROD	1
50	79910	弹簧	SPRING	2
51	78910	垫圈	WASHER	AR
52	78906	销	PIN	1
52	8M0084245	弹簧定位销	PIN Spring Locator	1
53	14469	轴承杯	CUP Bearing	1
53	14469T	轴承杯	CUP Bearing	1
54	88957A1	滚珠轴承	BEARING Ball	1
54	88957T	滚珠轴承	BEARING Ball	1
55	N.S.S.	倒车齿轮(不单独销售)(属于43-18572A1或43-18475A1部件)	Not Sold Separate Reverse Gear (PART OF 43-18572A1 OR 43-18475A1)	1
56	15844	滚柱轴承总成	BEARING ASSEMBLY Roller	1
57	78909	定位销	PIN Detent	2
58	823174	离合器	CLUTCH	1
58	823174T	ORD 8M0100493	ORD 8M0100493	1
59	78905	十字销	PIN Cross	1
59	8M0084243	十字销	PIN Cross	1
60	78962	弹簧	SPRING	2
61	18572A1	前进齿轮总成(135/150)	GEAR ASSEMBLY Forward (135/150)	1
61	18572T1	齿轮组	GEAR SET	1
61	18475A1	前进齿轮总成(175/200)	GEAR ASSEMBLY Forward (175/200)	1
61	18475T1	齿轮组	GEAR SET	1
62	176151	调整垫片(.125)	SPACER SHIM (.125)	AR
62	176152	调整垫片(.127)	SPACER SHIM (.127)	AR
62	176153	调整垫片(.129)	SPACER SHIM (.129)	AR
62	176154	调整垫片(.131)	SPACER SHIM (.131)	AR
62	176155	调整垫片(.133)	SPACER SHIM (.133)	AR
62	176156	调整垫片(.135)	SPACER SHIM (.135)	AR
62	176157	调整垫片(.137)	SPACER SHIM (.137)	AR
62	176158	调整垫片(.139)	SPACER SHIM (.139)	AR
62	176159	调整垫片(.141)	SPACER SHIM (.141)	AR
62	1761510	调整垫片(.143)	SPACER SHIM (.143)	AR
62	1761511	调整垫片(.145)	SPACER SHIM (.145)	AR
62	1761512	调整垫片(.147)	SPACER SHIM (.147)	AR
62	1761513	调整垫片(.149)	SPACER SHIM (.149)	AR
63	15841	滚柱轴承	BEARING Roller	1
64	17616	推力环	THRUST RING	1
65	31534	O型圈	O-RING	1
65	8M0214920	O型圈	O RING	1
66	18447A2	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
66	18447T2	适配器总成	ADAPTOR ASSEMBLY	1
67	15843	滚柱轴承	BEARING Roller	1
67	15843T	滚针轴承	BEARING Needle	1
68	18448	止推垫片	THRUST WASHER	2
69	15842	推力轴承	BEARING Thrust	2
70	18446	螺旋桨轴	PROPELLER SHAFT	1
71	818896A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
71	818896T2	轴承座	BEARING CARRIER	1
72	30956	滚针轴承	BEARING Needle	1
72	30956T	滚针轴承	BEARING Needle	1
73	76868	密封件	SEAL	1
73	8M0248882	油封@5	SEAL-OIL @5	1
73A	76868	密封件	SEAL	1
73A	8M0248882	油封@5	SEAL-OIL @5	1
74	183231	锁紧垫圈	TAB WASHER	1
75	79448	固定座	RETAINER	1
75	8M2011027	固定座	RETAINER	1
76	30281	键	KEY	1
77	316404	平衡板(用于无阳极齿轮箱)	TRIM TAB (USE WITH GEAR HOUSING W/O ANODES)	1
77	31640Q4	平衡鳍板	TRIM TAB	1
77	316405	配平板(与带阳极齿轮箱配套使用)	TRIM TAB (USE WITH GEAR HOUSING W/ANODES)	1
77	8M0236553	平衡鳍板	TRIM TAB	1
78	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
78	8M0204686	螺钉	SCREW	1
79	67891	填充块	FILLER BLOCK	1
79	8M0039169	填充块	FILLER BLOCK	1
80	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
81	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
81	8M0204653	螺母	NUT	2
82	13171	推力毂	THRUST HUB	1
82	835467Q01	止推垫片套件	THRUST WASHER KIT	1
83	31211A2	花键垫圈	WASHER Splined	1
83	31211Q03	垫圈总成	WASHER ASSEMBLY	1
84	816629	锁紧垫圈	TAB WASHER	1
84	816629Q	锁紧垫圈	TAB WASHER	1
85	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
85	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
86	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
87	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	89238A2	密封套件	SEAL KIT	1

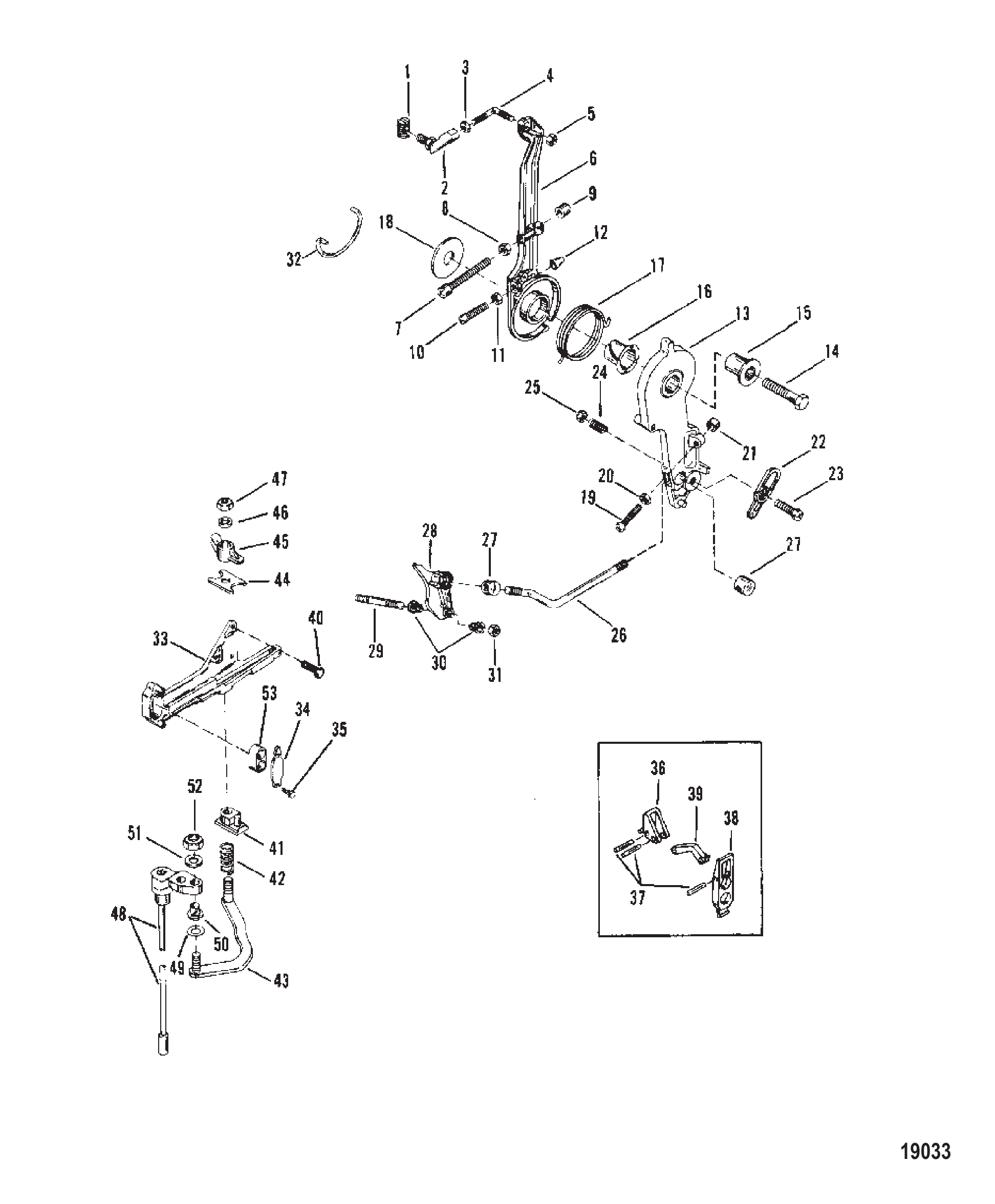

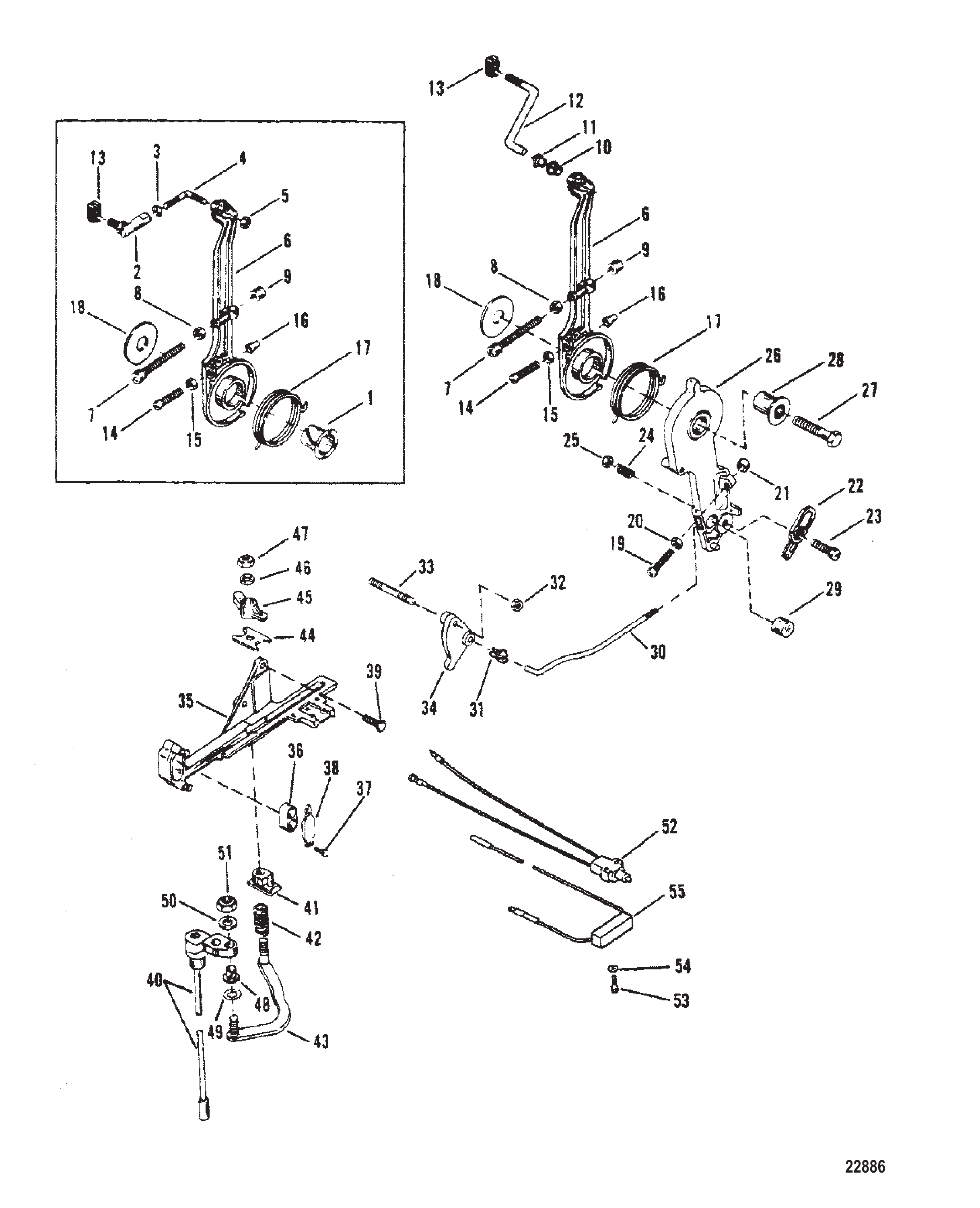

图 43油门杆与换挡轴 Throttle Lever And Shift Shaft

REF	零件编号	中文名称	英文名称	数量
1	74897		PIVOT TRIGGER PLATE	1
2	62459	球头总成触发板	BALL JOINT ASSEMBLY TRIGGER PLATE	1
2	62459T	球头节总成	BALL JOINT ASSY	1
3	45076	螺母(#10-32)黄铜连杆	NUT (#10-32) Brass LINK ROD	1
4	76035	触发板连杆	ROD TRIGGER PLATE	1
5	46438	螺母(#10-32)球头	NUT (#10-32) BALL JOINT	1
6	41094A3	点火提前杆总成	LEVER ASSEMBLY SPARK ADVANCE	1
7	64022	螺丝(.250-20x2.125)点火提前杆-止动	SCREW (.250-20 x 2.125) SPARK ADVANCE LEVER - STOP	1
8	64015	螺母(.250-20)点火提前止动螺丝	NUT (.250-20) SPARK ADVANCE STOP SCREW	1
9	26852	尼龙帽点火提前杆止动螺丝	CAP Nylon SPARK ADVANCE LEVER STOP SCREW	1
10	69560	螺丝(.190-32x1.250)点火提前杆-止动	SCREW (.190-32 x 1.250) SPARK ADVANCE LEVER -STOP	1
11	68219	螺母(#10-32)不锈钢点火提前杆止动螺丝	NUT (#10-32) Stainless Steel SPARK ADVANCE LEVER STOP SCREW	1
12	48039	点火提前杆止动螺丝帽	CAP SPARK ADVANCE LEVER STOP SCREW	1
13	41095T	油门控制杆	LEVER THROTTLE CONTROL	1
13	410952	杠杆	LEVER	1
14	55337	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
14	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
15	55164	油门杠杆衬套	BUSHING THROTTLE LEVER	1
16	55171	点火提前杆衬套	BUSHING SPARK ADVANCE LEVER	1
17	68784	节气门与点火提前杆弹簧	SPRING THROTTLE AND SPARK ADVANCE LEVER	1
18	68410	点火提前杆垫片	WASHER SPARK ADVANCE LEVER	1
18	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	1
19	64022	螺丝(.250-20x2.125)节气门杆-止动	SCREW (.250-20 x 2.125) THROTTLE LEVER - STOP	1
20	64015	螺母(.250-20)节气门杆止动螺丝	NUT (.250-20) THROTTLE LEVER STOP SCREW	1
21	26852	尼龙帽节气门杆止动螺丝	CAP Nylon THROTTLE LEVER STOP SCREW	1
22	39483	锁扣拉线	LATCH CABLE	1
23	22486	螺丝(.250-28x.880)拉线锁扣至节气门杆	SCREW (.250-28 x .880) CABLE LATCH TO THROTTLE LEVER	1
23	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
24	20099	拉线锁扣至节气门杆弹簧	SPRING CABLE LATCH TO THROTTLE LEVER	1
25	20586	螺母(.250-28)拉线锁扣螺丝	NUT (.250-28) CABLE LATCH SCREW	1
25	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
26	79949	节气门控制杆	ROD THROTTLE CONTROL	1
27	60572	节气门控制杆套筒	BARREL THROTTLE CONTROL ROD	2
27	8M0221994	筒形接头	BARREL FITTING	2
28	95791	节气门凸轮	CAM Throttle	1
29	20353	螺柱(.250-28x1.750)节气门凸轮固定	STUD (.250-28 x 1.750) THROTTLE CAM ATTACHING	1
30	26856	节气门凸轮衬套	BUSHING THROTTLE CAM	2
31	36069	节气门凸轮螺柱螺母	NUT THROTTLE CAM STUD	1
32	41050	节气门复位弹簧	SPRING THROTTLE RETURN	1
33	92032A2	控制线缆锚定支架	BRACKET ANCHOR - CONTROL CABLES	1
33	814283A2	支架总成	BRACKET ASSEMBLY	1
34	98889	控制线缆锁扣	LATCH CONTROL CABLE	1
35	42975	闩锁传动螺钉	DRIVE SCREW LATCH	2
36	39618	尼龙杆-换挡拉线锁定	LEVER NYLON - SHIFT CABLE LOCKING	1
36	87609A1	杠杆套件	LEVER KIT	1
37	47175	杆与盖固定销	PIN LEVER AND COVER FASTENING	3
38	90211	尼龙盖-换挡拉线	COVER NYLON - SHIFT CABLE	1
39	65799T	连杆-锁定杆到盖板	LINK LOCKING LEVER TO COVER	1
39	87609A1	杠杆套件	LEVER KIT	1
40	53167	螺丝(.312-18x.880)锚定支架固定	SCREW (.312-18 x .880) ANCHOR BRACKET ATTACHING	3
40	53167T	螺钉 0.312-18X 0.88	SCREW .312-18X .88	3
41	37896	连杆导向块	GUIDE BLOCK LINK ROD	1
42	20099	连杆至导向块弹簧	SPRING LINK ROD TO GUIDE BLOCK	1
43	67073A1	连杆总成	LINK ROD ASSEMBLY	1
44	52100	连杆耐磨板	WEAR PLATE LINK ROD	1
45	38279	锁扣控制拉线固定-锚定支架	LATCH CONTROL CABLE FASTENING-ANCHOR BRACKET	1
45	8M0036768	闩锁	LATCH	1
46	35462	垫圈(.2656x.625x.0625)不锈钢锁扣	WASHER (.2656 x .625 x .0625) Stainless Steel LATCH	1
47	36069	连杆螺母	NUT LINK ROD	1
48	79932A7	换挡轴总成 (长)	SHIFT SHAFT ASSEMBLY (LONG)	1
48	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
48	79932A8	换挡轴总成(加长型)	SHIFT SHAFT ASSEMBLY (EXTRA LONG)	1
48	79932A17	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
49	29720	连杆波形垫圈	WAVE WASHER LINK ROD	1
50	26600	尼龙衬套-连杆	BUSHING NYLON - LINK ROD	1
51	35462	垫圈(.2656 x .625 x .0625)不锈钢连杆	WASHER (.2656 x .625 x .0625) Stainless Steel LINK ROD	1
52	36069	连杆至换挡轴螺母	NUT LINK ROD TO SHIFT SHAFT	1
53	39519	杯形套筒固定器-锚杆	CUP BARREL RETAINER - ANCHOR BAR	1

图 44动力转向组件 Power Steering Components

REF	零件编号	中文名称	英文名称	数量
1	17771	支架	MOUNT	1
2	59702	螺钉 (.250-28 x .875) 不锈钢	SCREW (.250-28 x .875) Stainless Steel	4
3	88404	锁紧垫圈	TAB WASHER	4
4	78862A2	密封套件	SEAL KIT	1
4	19624A1	密封套件	SEAL KIT	1
5	71565	导向套管	TUBE Cable Guide	1
6	17776	联轴器	COUPLING	1
7	817040	螺钉 (.375-24 x 2.75)	SCREW (.375-24 x 2.75)	1
8	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	1
9	90092	螺钉	SCREW	1
9	856722	螺钉	SCREW	1
10	34863	螺母 (.375-24)	NUT (.375-24)	2
10	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
11	42100	锁紧垫圈	TAB WASHER	2
12	37984	螺母 (.875-14)	NUT (.875-14)	2
12	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
13	811290	蓄能器	ACCUMULATOR	1
14	817372	支架	BRACKET	1
15	16862	螺钉 (.250-10 x 1.25)	SCREW (.250-10 x 1.25)	4
16	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
16	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
17	4000383	螺钉 (M10 x 70)	SCREW (M10 x 70)	2
18	4002319	垫圈	WASHER	4
19	13914	螺母(M10)	NUT (M10)	2
19	40140	螺母(M10)	NUT (M10)	2
20	811289	执行器	ACTUATOR	1
20	828588A2	执行器套件	ACTUATOR KIT	1
21	94319	螺钉(.375-24 x 1.5)	SCREW (.375-24 x 1.5)	1
22	17405	隔套	SPACER	2
23	34863	螺母 (.375-24)	NUT (.375-24)	3
23	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	3
24	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	1
24	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
25	92876A4	连杆总成	LINK ROD ASSEMBLY	1
26	68300	垫圈 (.88 x .39 x .06)	WASHER (..88 x .39 x .06)	1
27	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
27	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
28	43450	垫圈	WASHER	2
28	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	2
29	400634	螺母 (M6)	NUT (M6)	2
29	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
30	811292	卡箍	CLAMP	1
31	818182	螺钉	SCREW	2
32	400263	螺母 (M5)	NUT (M5)	2
33	811291	支架	BRACKET	1
34	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
35	197491	卡箍	CLAMP	1
36	18211	继电器开关	RELAY SWITCH	1
37	18244A1	线束总成	HARNESS ASSEMBLY	1
38	18124	螺钉 (#10-32 x .750)	SCREW (#10-32 x .750)	1
39	90329	护孔环	GROMMET	1
40	309772	隔套	SPACER	1
41	816994	支架	BRACKET	1
42	42118	垫圈	WASHER	1
43	29488	螺母 (#10-32)	NUT (#10-32)	1
43	8M0204718	螺母	NUT	1
44	81563024	贴花	DECAL	1

图 45燃油管路（用于 WMH-30/31/32/33/34 化油器） FUEL LINES (Use With WMH -30/31/32/33/34 Carburetors)

REF	零件编号	中文名称	英文名称	数量
1	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
2	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	1
3	812782	密封件	SEAL	1
4	9912980	软管	HOSE	AR
4	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	AR
5	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
5	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
6	818993	三通接头	CONNECTOR Tee	1
7	18175	软管	HOSE	1
8	818994	止回阀	CHECK VALVE	1
8	8189941	止回阀	CHECK VALVE	1
9	82381325	管材(10.00英寸散装)	TUBING (10.00 Inches Bulk)	1
9	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	1
10	824001	软管	HOSE	1
10	830762	软管	HOSE	1
11	8162961	燃油滤清器	FILTER Fuel	1
11	816296Q2	燃油滤清器	FILTER Fuel	1
12	830756109	软管(57.00英寸散装)	HOSE (57.00 Inches Bulk)	1
12	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
13	677511	衬垫	GASKET	3
14	27037	双头螺栓(.250-28×1.125)	STUD (.250-28 x 1.125)	6
14	270372	双头螺栓(.250-28×1.125)	STUD (.250-28 x 1.125)	6
15	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	6
16	29598	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	6
17	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	6
18	42859A2	加浓阀总成	VALVE ASSEMBLY Enrichner	1
19	633001	卡箍	CLAMP	1
20	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
21	9912688	管材 (36.00英寸散装)	TUBING (36.00 Inches Bulk)	2
22	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
22	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
23	45915	端子排	TERMINAL BLOCK	1
24	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
24	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
24	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	1
24	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 46曲轴活塞与连杆 Crankshaft Pistons And Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	880894T	曲轴	CRANKSHAFT	1
2	8040992	油封	SEAL Oil	1
3	8041002	油封	SEAL Oil	1
4	804101T	轴承	BEARING	4
4	804101T10	轴承	BEARING	4
4	804101T20	轴承	BEARING	4
5	804102T	轴承	BEARING	5
5	804102T10	轴承	BEARING	5
5	804102T20	轴承	BEARING	5
5	804102T30	轴承	BEARING	5
6	804103T	轴承	BEARING	1
6	804103T10	轴承	BEARING	1
6	804103T20	轴承	BEARING	1
7	880895T1	活塞总成	PISTON ASSEMBLY	4
7	880895A14	活塞/连杆总成	PISTON/CONN ROD	4
7	880895T10	活塞总成	PISTON ASSEMBLY	AR
7	880895A16	活塞/连杆总成	PISTON/CONN ROD	AR
8	880896	螺栓(M8 x 38)	BOLT (M8 x 38)	8
9	880897T1	活塞环组	RING SET Piston	4
9	880897T02	活塞环组	RING SET Piston	4
9	880898T1	活塞环组	RING SET Piston	AR
9	880898T02	活塞环组	RING SET Piston	AR
10	880899T	轴承	BEARING	8
10	880899T10	轴承	BEARING	8
10	880899T20	轴承	BEARING	8
10	880899T30	轴承	BEARING	8
-	881421T01	动力头总成	POWERHEAD ASSEMBLY	1
-	881421T04	动力头总成	POWERHEAD ASSEMBLY	1
-	881421T02	动力头总成	POWERHEAD ASSEMBLY	1
-	881421T04	动力头总成	POWERHEAD ASSEMBLY	1

图 47化油器（WMH-30/31/32/33/34） CARBURETOR (WMH-30/31/32/33/34)

REF	零件编号	中文名称	英文名称	数量
1	818650A28	化油器上部	CARBURETOR Top	1
1	818650A29	化油器中部	CARBURETOR Center	1
1	818650A55	化油器底部(30A)	CARBURETOR Bottom (30A)	1
1	818650A31	化油器上部	CARBURETOR Top	1
1	818650A32	化油器中部	CARBURETOR Center	1
1	818650A56	化油器底部(31A)	CARBURETOR Bottom (31A)	1
1	818650A34	化油器上部	CARBURETOR Top	1
1	818650A35	化油器中部	CARBURETOR Center	1
1	818650A57	化油器底部(32A)	CARBURETOR Bottom (32A)	1
1	818650A37	化油器上部	CARBURETOR Top	1
1	818650A38	化油器中部	CARBURETOR Center	1
1	818650A58	化油器底部(33A)	CARBURETOR Bottom (33A)	1
1	818650A52	化油器上部	CARBURETOR Top	1
1	818650A53	化油器中部	CARBURETOR Center	1
1	818650A59	化油器底部(34A)	CARBURETOR Bottom (34A)	1
2	810779	盖帽	CAP	6
3	NSS	不单独销售怠速混合螺钉/弹簧	NOT SOLD SEPARATE Idle Mixture Screw/Spring	6
5	677511	衬垫	GASKET	3
6	815633060	喷口(.060)(.056-135)	JET (.060) (.056 - 135)	6
6	7570	喷口.040(XR6/MAGNUM III)	JET .040 (XR6/MAGNUM III)	6
6	815633050	喷口(.050)(150/175/200)	JET (.050) (150/175/200)	6
7	810721	节气门杆 (上部/中部)	LEVER Throttle (TOP/CENTER)	2
7	810722	节流阀杆(底部-WMH系列)	LEVER Throttle (BOTTOM - WMH-SERIES)	1
7	8107221	节流阀杆(底部-WMH-A系列)	LEVER Throttle (BOTTOM - WMH-A SERIES)	1
8	811284	隔套	SPACER	3
9	810745	垫圈	WASHER	3
10	810744	螺母	NUT	3
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	3
12	5815	喷口(.086)(150)	JET (.086) (150)	3
12	6247	主喷口(.090)(XR6/MAGNUM III)	JET Main (.090) (XR6/MAGNUM III)	3
12	3517	喷口(.084)(135/175/200)	JET (.084) (135/175/200)	3
13	5225	主喷口(.054)(135)	JET Main (.054) (135)	3
13	6359	喷口(.052)(150)	JET (.052) (150)	3
13	6246	量孔 (.048) (175)	JET (.048) (175)	3
13	7831	燃油主喷口(.058)(XR6/MAGNUM III)	JET Main Fuel (.058) (XR6/MAGNUM III)	3
13	5317	量孔 (.046) (200)	JET (.046) (200)	3
14	NSS		NOT SOLD SEPARATE Gasket-Fuel Bowl	3
15	810738	浮子总成	FLOAT ASSEMBLY	3
16	F10064	轴	SHAFT	3
17	NSS	不单独销售浮子螺钉	NOT SOLD SEPARATE Screw-Float	3
18	811690	阀座套件	VALVE SEAT KIT	3
19	NSS	不单独销售阀座垫片	NOT SOLD SEPARATE Gasket-Valve Seat	3
20	823623	燃油杯(顶部)	BOWL Fuel (TOP)	1
20	823624	燃油杯(中部/底部)	BOWL Fuel (CENTER/BOTTOM)	2
21	9596	堵头	PLUG	15
22	NSS	不单独销售动力/渐进喷口垫片	NOT SOLD SEPARATE Gasket-Power/Progression Jet	AR
23	4215	燃油主喷口(.066)(135)	JET Main Fuel (.066) (135)	6
23	4217	主喷口(.062)(150/XR6/MAGNUM III)	JET Main (.062) (150/XR6/MAGNUM III)	6
23	4216	喷口(.064)(175)	JET (.064) (175)	6
23	4215	燃油主喷口(.066)(200-顶部)	JET Main Fuel (.066) (200 - TOP)	2
23	4216	喷口(.064)(200-中部/底部)	JET (.064) (200 - CENTER/BOTTOM)	4
24	808584	动力喷口	POWER JET	6
25	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	18
26	7900	三通接头(顶部/中部)	TEE FITTING (TOP/CENTER)	2
27	7901	弯头(底部)	ELBOW (BOTTOM)	1
-	8107492	化油器垫片套件	GASKET KIT Carburetor	1
-	8116912	化油器维修套件	REPAIR KIT Carburetor	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

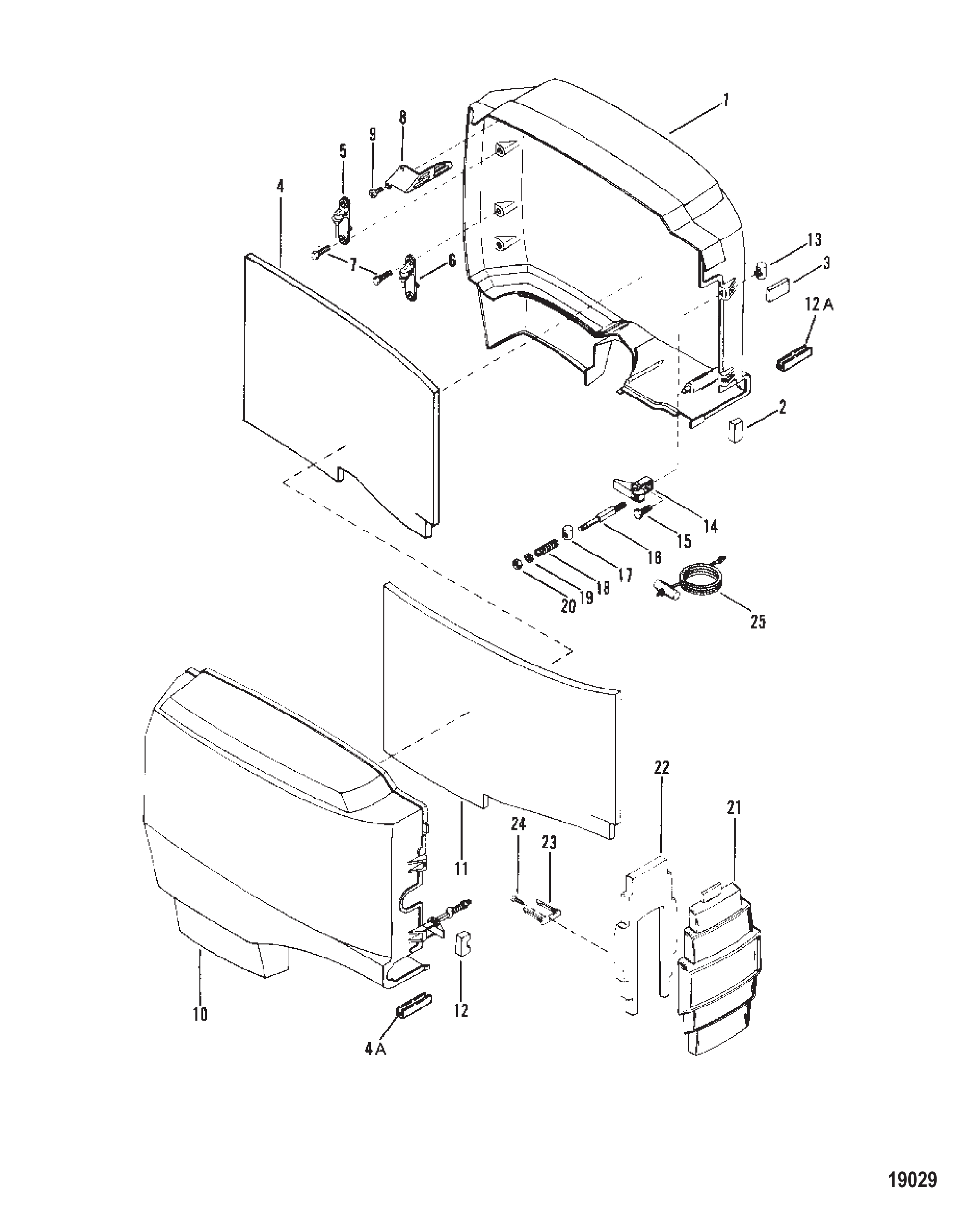

图 48罩壳与前盖 Cowls and Front Cover

REF	零件编号	中文名称	英文名称	数量
1	7620A4	顶部罩壳总成左舷（黑色）	TOP COWL ASSEMBLY PORT (BLACK)	1
1	7620A22	顶部罩壳总成左舷（灰色）	TOP COWL ASSEMBLY PORT (GRAY)	1
1	9447A18	顶罩总成左舷(牡蛎色)	TOP COWL ASSEMBLY PORT (OYSTER)	1
2	67260	控制电缆密封件	SEAL CONTROL CABLE	1
3	67258	罩垫总成至前盖	PAD COWL ASSEMBLY TO FRONT COVER	1
4	88227	隔音毯-罩	BLANKET SOUND - COWL	1
4A	193681	密封件(3.20英寸)左舷罩(牡蛎色)	SEAL (3.20 Inch) PORT COWL (OYSTER)	1
5	87987	罩安装支架-(上)	BRACKET COWL ATTACHING - (UPPER)	2
5	879871	支架	BRACKET	2
6	87985	罩安装支架-(下)	BRACKET COWL ATTACHING - (LOWER)	2
6	879851	支架	BRACKET	2
7	37562	螺丝(.312-18 x 1.00)不锈钢上下支架	SCREW (.312-18 x 1.00) Stainless Steel UPPER AND LOWER BRACKETS	8
8	68049	进气罩-右舷	SHIELD INLET -COWL (STARBOARD)	1
8	68048	进气罩-左舷(黑/灰)	SHIELD INLET - COWL (PORT) (BLACK/GRAY)	1
8	680491	进气罩-右舷(牡蛎色)	SHIELD INLET - COWL (STARBOARD) - (OYSTER)	1
8	680481	进气罩-左舷(牡蛎色)	SHIELD INLET - COWL (PORT) (OYSTER)	1
9	48409	螺丝(#10-16 x .625)不锈钢罩至护罩	SCREW (#10-16 x .625) Stainless Steel SHIELD TO COWL	4
10	7619A1	顶罩总成右舷(黑色)	TOP COWL ASSEMBLY STARBOARD (BLACK)	1
10	7619A5	顶罩总成右舷(灰色)	TOP COWL ASSEMBLY STARBOARD (GRAY)	1
10	9452A3	顶罩总成右舷(牡蛎色)	TOP COWL ASSEMBLY STARBOARD (OYSTER)	1
11	88227	隔音毯-罩	BLANKET SOUND - COWL	1
12	67260	线束密封件	SEAL HARNESS	1
12A	193681	密封件(3.20英寸)右舷罩(牡蛎色)	SEAL (3.20 Inch) STARBOARD COWL (OYSTER)	1
13	62628	保持筒-罩锁扣	BARREL RETAINING - COWL LATCH	2
14	46785A5	罩壳锁扣总成	LATCH ASSEMBLY Cowl	2
15	31312	螺丝(#10-32 x 0.875)筒至罩锁扣	SCREW (#10-32 x 0.875) BARREL TO COWL LATCH	2
16	15222	调节杆-罩锁扣	BAR ADJUSTING - COWL LATCH	2
17	62629	罩锁扣保持筒	BARREL RETAINING COWL LATCH	2
18	62624	罩壳锁扣弹簧	SPRING COWL LATCH	2
19	30164	垫圈(.192 x .375 x .0312)不锈钢弹簧至调节杆	WASHER (.192 x .375 x .0312) Stainless Steel SPRING TO ADJUSTING BAR	2
20	45812	螺母(#10-32)不锈钢弹簧至调节杆	NUT (#10-32) Stainless Steel SPRING TO ADUSTING BAR	2
20	859124	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
21	7532A2	前罩总成(黑色)	COVER ASSEMBLY Cowl - Front (BLACK)	1
21	7532A23	前罩总成(灰色)	COVER ASSEMBLY Cowl - Front (GRAY)	1
21	7532A32	前罩总成(牡蛎色)	COVER ASSEMBLY Cowl - Front (OYSTER)	1
21	7532A23	前罩总成	COVER ASSEMBLY Cowl - Front	1
22	67615	隔音毯-前罩盖	BLANKET SOUND - COWL FRONT COVER	1
23	87907	前罩盖挂钩	HOOK COWL FRONT COVER	1
24	70332	螺丝(#10-16 x .500)挂钩至前罩盖	SCREW (#10-16 x .500) HOOK TO COWL FRONT COVER	1
24	95700	螺钉(#10-16 x .50)	SCREW (#10-16 x .50)	1
25	47341A1	手动/应急启动绳柄套件	ROPE AND HANDLE KIT Manual/Emergency Start	1
25	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1

图 49顶罩及前护板 Top Cowl and Front Shield

REF	零件编号	中文名称	英文名称	数量
1	9742A88	顶盖总成 (黑色)(无贴花)	TOP COWL ASSEMBLY (BLACK)(Without Decals)	1
1	9743A11	顶盖总成 (银色)(无贴花)	TOP COWL ASSEMBLY (SILVER)(Without Decals)	1
1	9743T11	顶罩	TOP COWL	1
1	9742A92	顶盖总成 (XR6)(无贴花)	TOP COWL ASSEMBLY (XR6)(Without Decals)	1
1	9742T92	顶盖总成-黑色	TOP COWL ASY-BLK	1
1	9742A93	顶盖总成 (MAGNUM III -灰色)(无贴花)	TOP COWL ASSEMBLY (MAGNUM III -GRAY)(Without Decals)	1
1	9743T10	顶罩	TOP COWL	1
1	9743A10	顶盖总成 (MAGNUM III-银色)(无贴花)	TOP COWL ASSEMBLY (MAGNUM III-SILVER)(Without Decals)	1
1	9743T10	顶罩	TOP COWL	1
1	9743A8	顶盖总成 (150 TRACKER)(无贴花)	TOP COWL ASSEMBLY (150 TRACKER)(Without Decals)	1
1	9743A13	顶盖总成 (175/200 TRACKER)(无贴花)	TOP COWL ASSEMBLY (175/200 TRACKER)(Without Decals)	1
2	812784	密封件	SEAL	1
3	815478	密封件	SEAL	1
4	814823A1	隔音套件	SOUND BLANKT KIT	1
4	815225A1	隔音毯套装	SOUND BLANKET KIT	1
5	815227	隔音毯	SOUND BLANKET	1
6	69267	螺钉 (.312-18 x 1.750)	SCREW (.312-18 x 1.750)	2
7	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
7	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2
8	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	2
9	815848	螺母 (.312)	NUT (.312)	2
10	184741	支架	BRACKET	2
11	18506	护孔环	GROMMET	3
11	18506001	护孔环	GROMMET	3
12	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
13	56720	垫圈(0.330×0.750×0.060)不锈钢	WASHER (.330 x .750 x .060) Stainless Steel	4
14	813096	挂钩	HOOK	2
14	813096A2	挂钩套件	HOOK KIT	2
15	36001	垫圈	WASHER	2
16	813074	滚轮	ROLLER	2
16	8M0207770	滚轮@3	ROLLER @3	2
17	13194	挡圈	RING Retaining	2
14	813096A2	挂钩套件	HOOK KIT	2
16	815263	滚轮	ROLLER	2
16	8M0207770	滚轮@3	ROLLER @3	2
17	8237951	挡圈	RING Retaining	2
18	816992	螺钉	SCREW	8
19	187021	定位器	LOCATOR	1
20	18173	锁扣滚轮支架总成	BRACKET ASSEMBLY Latch Roller	1
20	893763	滚轮锁扣支架	BRACKET Roller Latch	1
21	816838	隔套	SPACER	1
22	47341A1	手动/应急启动绳和手柄套件 (用于手动启动)	ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING)	1
22	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
23	18755A1	前护罩总成 (黑色)(无贴花)	FRONT SHIELD ASSEMBLY (BLACK)(Without Decals)	1
23	18755A2	前护罩总成 (灰色)(无贴花)	FRONT SHIELD ASSEMBLY (GRAY)(Without Decals)	1
23	18755A4	前护罩总成 (银色)(无贴花)	FRONT SHIELD ASSEMBLY (SILVER)(Without Decals)	1
23	18755A3	前护罩总成 (TRACKER)(无贴花)	FRONT SHIELD ASSEMBLY (TRACKER)(Without Decals)	1
24	77137	螺钉 (.190-16 x .620)	SCREW (.190-16 x .620)	4
25	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	4
25	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	4
26	813562	密封件	SEAL	1

图 50旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM

REF	零件编号	中文名称	英文名称	数量
1	818904T1	旋转支架	SWIVEL BRACKET	1
2	87735	下油封	SEAL Oil Lower	1
3	818764	衬套	BUSHING	2
4	33504	O型圈	O-RING	1
4	8M0214926	O型圈 @10	O RING @10	1
5	816039	隔套	SPACER	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
9	99661A26	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	99661A35	旋转销总成	SWIVEL PIN ASSEMBLY	1
10	92876A10	连杆总成	LINK ROD ASSEMBLY	1
10	92876A12	连杆总成	LINK ROD ASSEMBLY	1
11	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
12	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
13	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
14	42961A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
14	42961A06	底部轭架总成	YOKE ASSEMBLY Bottom	1
15	67684	挡圈	RING Retaining	1
16	816432	止推垫片	THRUST WASHER	1
17	NSS	不单独销售贴纸, 序列号覆膜	NOT SOLD SEPARATE Decal, Serial Overlaminate	1
18	11288	下轭缓冲垫	BUMPER Bottom Yoke	1
18	11288001	下轭缓冲垫	BUMPER Bottom Yoke	1
19	88882	上轭缓冲垫	BUMPER Top Yoke	1

图 51齿轮箱图表（序列号0G437999及以下） Gear Housing Chart (S/N-0G437999 & Below)

REF	零件编号	中文名称	英文名称	数量
-	9148A69	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148A72	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T85	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A70	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A73	齿轮箱总成标准旋转 1.87:1 齿轮比	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio	1
-	9148T91	ORD 1647-9148T85	ORD 1647-9148T85	1
-	9148A76	齿轮箱总成反向旋转	GEAR HOUSING ASSEMBLY Counter Rotation	1
-	9148T86	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A77	齿轮箱总成反向旋转	GEAR HOUSING ASSEMBLY Counter Rotation	1
-	9148T92	ORD 1647-9148T86	ORD 1647-9148T86	1

图 52附件 ACCESSORIES

REF	零件编号	中文名称	英文名称	数量

图 53簧片阀组与气缸盖 Reed Block and Cylinder Head

REF	零件编号	中文名称	英文名称	数量
1	18787F1	气缸盖	CYLINDER HEAD	2
1	184888	气缸盖	CYLINDER HEAD	2
1	8M0143213	气缸盖	HEAD CYLINDER	2
1	18488F1	气缸盖	CYLINDER HEAD	2
1	8M0143213	气缸盖	HEAD CYLINDER	2
1	18488F1	气缸盖	CYLINDER HEAD	2
1	8M0143213	气缸盖	HEAD CYLINDER	2
1	18488F2	气缸盖总成	CYLINDER HEAD ASSEMBLY	2
2	187851	衬垫	GASKET	2
2	18785T	衬垫	GASKET	2
2	8228441	衬垫	GASKET	2
2	822844T05	衬垫	GASKET	2
2	8228441	衬垫	GASKET	2
2	822844T05	衬垫	GASKET	2
2	8228441	衬垫	GASKET	2
2	822844T05	衬垫	GASKET	2
3	98534	螺钉 (.375-16 x 2.30)	SCREW (.375-16 x 2.30)	24
4	25909	垫圈 (.406 x .812 x .065) (适用时使用)	WASHER (.406 x .812 x .065) (USE WHERE APPLICABLE)	24
5	62386	衬垫	GASKET	2
5	8M0204714	衬垫@4	GASKET @4	2
6	90390A1	盖板套件	COVER KIT	2
7	75692	节温器	THERMOSTAT	2
8	35386	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	4
9	68727	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
9	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
10	7765377	软管 (24.500英寸散装)	HOSE (24.500 Inches Bulk)	3
10	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	3
11	68728	接头	FITTING	1
12	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
12	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
13	97465	温度传感器 (右舷)	SENDER Temperature (STBD.)	1
14	43517A9	隔板总成	PLATE ASSEMBLY	1
15	28668	螺钉 (.250-20 x .875) 不锈钢	SCREW (.250-20 x .875) Stainless Steel	8
16	146972	衬垫	GASKET	1
17	63779	定位销 (.250 x .625)	PIN Dowel (.250 x .625)	4
18	75953	簧片阀组	REED BLOCK	6
19	75362A1	簧片组件	REED ASSEMBLY	6
20	961832	簧片夹	CLAMP Reed	12
21	823588	螺钉 (#8-32 x .250)	SCREW (#8-32 x .250)	60
22	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	6
23	96529	螺钉 (.250-20 x 2.00)	SCREW (.250-20 x 2.00)	6
24	814612	热空气阀 (旧设计)	VALVE Thermal Air (OLD DESIGN)	1
25	23567	卡扣	CLIP	1
26	69205	C形垫圈	C WASHER	1
26	8M0084613	C形垫圈	C-WASHER	1
27	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
27	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
28	13536A7	温度传感器总成 (左舷) (2线)	SENSOR ASSEMBLY Temperature (PORT) (2-WIRE)	1
28A	13536A6	温度传感器总成 (左舷) (4线)	SENSOR ASSEMBLY Temperature (PORT) (4-WIRE)	1
29	137151	固定座	RETAINER	2
30	98257	螺钉 (.312-18 x .500)	SCREW (.312-18 x .500)	2
31	56759	倒钩接头	FITTING Barbed	4
32	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
32	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
33	42698	止回阀 (压入式 13/16")	CHECK VALVE (PRESS-IN 13/16")	7
33	426982	止回阀	CHECK VALVE	7
33	42623	止回阀 (压入式 11/16")	CHECK VALVE (PRESS-IN 11/16")	1
33	426233	止回阀	CHECK VALVE	1
34	822715	弯头配件 (压入式)	FITTING Elbow (PRESS-IN)	6
35	55098	J型卡扣	J CLIP	1
35	8M0024808	J型夹	J-CLIP	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	812815A92	动力头总成	POWERHEAD ASSEMBLY	1
-	878365T00	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A94	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 54双机延伸套件 DUAL ENGINE EXTENSION KIT

REF	零件编号	中文名称	英文名称	数量
-	92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
1	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
2	71565A2	管总成	TUBE ASSEMBLY	1
3	41055	支架	MOUNT	1
4	42100	锁紧垫圈	TAB WASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	88404	锁紧垫圈	TAB WASHER	2
7	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
8	17729A1	支架	BRACKET	2
9	62055	螺钉(.312-24 x 1.250)	SCREW (.312-24 x 1.250)	4
10	17728	锁紧垫圈	TAB WASHER	4
11	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	4
11	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	4
12	34863	螺母 (.375-24)	NUT (.375-24)	6
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	6
13	979331	转向眼环	STEERING EYE	2
13	8M0026167	转向眼环	STEERING EYE	2
14	23651	衬套(1.625)	SLEEVE (1.625)	2
15	97931	管材(4.00英寸)	TUBING (4.00 Inches)	2
16	8149513	联轴器(15.00英寸)	COUPLER (15.00 Inches)	1
16	8M0026098	联轴器15英寸	COUPLER 15 In.	1
17	42099	螺母(.562-18)	NUT (.562-18)	1
18	821169	联轴器	COUPLING	1
19	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	2
20	94319	螺钉(.375-24 x 1.5)	SCREW (.375-24 x 1.5)	1

图 55杂项信息 Miscellaneous Information

零件编号	中文名称	英文名称	数量
814698	零件手册 40马力/30喷射型	PARTS MANUAL 40 HP/30 JET	1
814323A90	贴花套件	DECAL SET	1
814323A94	贴花套件	DECAL SET	1
814323A96	贴花套件	DECAL SET	1
814323A96	贴花套件	DECAL SET	1
822166A92	贴花套件	DECAL SET	1
810462A94	贴花套件	DECAL SET	1
810462A97	贴花套件	DECAL SET	1
810462A97	贴花套件	DECAL SET	1
826324A95	贴花套件	DECAL SET	1
826324A97	贴花套件	DECAL SET	1
826324A97	贴花套件	DECAL SET	1
815626A93	贴花套件	DECAL SET	1
824732A94	贴花套件	DECAL SET	1
824732A96	贴花套件	DECAL SET	1
826323A95	贴花套件	DECAL SET	1
826323A96	贴花套件	DECAL SET	1
826323A96	贴花套件	DECAL SET	1
10118970	用户手册	OWNERS MANUAL	1
10134970	用户手册	OWNERS MANUAL	1
10160970	用户手册	OWNERS MANUAL	1

图 56燃油泵 FUEL PUMP

REF	零件编号	中文名称	英文名称	数量
1	880890T1	燃油泵	PUMP Fuel	1
2	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
3	881544	弹簧	SPRING	1
4	881545	柱塞	PLUNGER	1
5	881546	弹簧	SPRING	1
6	881547	隔膜	DIAPHRAGM	1
7	881548	销	PIN	1
8	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
9	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
10	NSS	不单独销售本体	NOT SOLD SEPARATE Body	1
11	881550	螺钉	SCREW	3
12	881333	螺母	NUT	3
13	804255	O型圈	O-RING	1
13	8M0050719	O型圈	O-RING	1
14	879650	卡箍	CLAMP	2
14	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	2
15	804256	螺栓 (M6 x 30)	BOLT (M6 x 30)	2
16	881543	软管	HOSE	1
16	881543002	油管	TUBING	1
17	881542	支架	BRACKET	1
18	8527768	螺栓(M6 x 16)	BOLT (M6 x 16)	1
18	811188T	螺栓	BOLT	1
19	8528161	螺母	NUT	1
19	82382M	螺母	NUT	1
20	881538T1	滤清器总成	FILTER ASSEMBLY	1
20	881538T02	燃油滤清器总成	FILTER ASSY-FUEL	1
21	881540	滤芯1.75英寸	ELEMENT 1.75 Inches	1
21	8M0168897	燃油滤清器	FUEL FILTER	1
21	8M0101436	滤芯1.50英寸	ELEMENT 1.50 Inches	1
21	8M0117705	燃油滤清器	FILTER-FUEL	1
22	826966M	O型圈	O-RING	1
22	826966T	O型圈	O RING	1
23	881541	浮子	FLOAT	1
24	881539	杯套	CUP	1
24	8M0101437	杯套	CUP	1
24	8M0137185	燃油杯	CUP FUEL	1
25	879650	卡箍	CLAMP	2
25	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	2
26	804260	支架	BRACKET	1
27	804112	螺栓(M7 x 48)	BOLT (M7 x 48)	2
28	804113	定位销	PIN Dowel	2
29	84292M	垫圈	WASHER	2
30	804257	燃油转换杆	LEVER Fuel Change	1
31	881334	轴	SHAFT	1
32	804259	销	PIN	2
32	82738M	滚销	PIN-ROLL	2
33	830757130	管材(.312)(70英寸整卷)裁切至55英寸长度	TUBING (.312) (70.00 Inches Bulk) Cut to 55.00 Inch Length.	1
33	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
34	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
35	822769	连接器	CONNECTOR	1
36	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
37	828547T1	导管(.500内径 x 3英尺整卷)	CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk)	1
-	858732T01	衬垫套件	GASKET SET	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	858732T02	动力头衬垫套件	GASKET SET Powerhead	1
-	881310T1	气缸盖总成	CYLINDER HEAD ASSEMBLY	1
-	881310T09	气缸盖	HEAD-CYLINDER	1

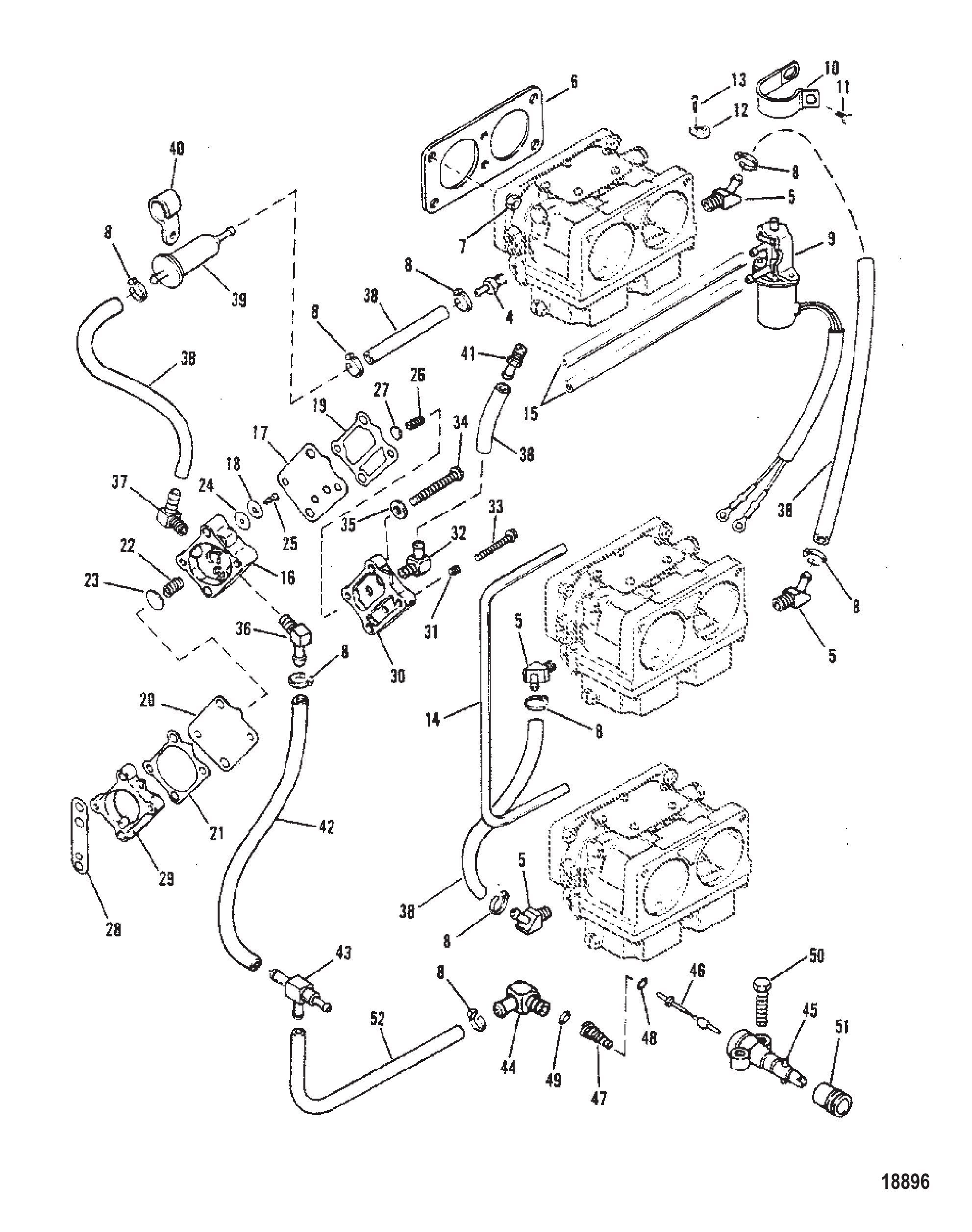

图 57燃油泵（方形燃油泵） Fuel Pump (Square Fuel Pump)

REF	零件编号	中文名称	英文名称	数量
4	6232	燃油入口接头	FITTING FUEL INLET	1
5	70007	45度燃油入口接头	FITTING 45 Degree FUEL INLET	4
6	90430	化油器衬垫	GASKET CARBURETOR	3
6	904301	衬垫	GASKET	3
7	20184	化油器安装螺母(1/4-28X7/32)	NUT (1/4-28X7/32) CARBURETOR MOUNTING	12
7	8M0207775	螺母 @5	NUT @5	12
8	73498	化油器燃油管卡箍	CLAMP FUEL HOSE TO CARBURETOR	AR
8	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
9	42859A2	加浓阀总成	VALVE ASSEMBLY Enrichner	1
10	633001	加浓阀卡箍	CLAMP ENRICHNER VALVE	1
11	69079	阀门卡箍螺钉(#10-16 x .440)	SCREW (#10-16 x .440) VALVE CLAMP	1
12	45915	端子排簧片块壳体	TERMINAL BLOCK REED BLOCK HOUSING	2
13	35519	端子块固定螺钉(#10-16 x .500)	SCREW (#10-16 x .500) TERMINAL BLOCK ATTACHING	2
14	99130122	上部化油器至阀门管路(20英尺散装,7-3/4英寸)	TUBING (20.00 Feet Bulk) TOP CARBURETOR TO VALVE (7-3/4")	1
14	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
15	9912688	化油器间连接管路(36英寸散装,4-1/4英寸)	TUBING (36.00 Inches Bulk) CARBURETOR TO CARBURETOR (4-1/4")	2
16	15930A15	燃油泵套件	PUMP KIT Fuel	1
17	42990A3	膜片组件	DIAPHRAGM KIT	1
17	857005A1	膜片组件	DIAPHRAGM KIT	1
18	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve-Rubber	2
19	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
20	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
21	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
22	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
23	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
24	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
25	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
26	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
27	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
28	98769	底座衬垫	GASKET BASE	1
28	8M0204705	衬垫@2	GASKET @2	1
29	144303	燃油泵底座	BASE FUEL PUMP	1
30	98775A2	燃油泵板	PLATE FUEL PUMP	1
30	987752	安装板	PLATE	1
31	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
32	64704	接头	FITTING	1
32	19688	接头	FITTING	1
33	16452	燃油泵螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) FUEL PUMP	2
34	4000310	燃油泵至曲轴箱螺钉(M5 x 40)	SCREW (M5 x 40) FUEL PUMP TO CRANKCASE	2
35	4002314	燃油泵螺钉垫圈	WASHER FUEL PUMP SCREW	2
36	14868	燃油泵弯头接头	FITTING FUEL PUMP (ELBOW)	1
37	64704	燃油泵弯头接头	FITTING FUEL PUMP (ELBOW)	1
37	19688	接头	FITTING	1
38	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	1
38	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
39	16494	燃油滤清器	FILTER Fuel	1
39	816296Q03	燃油滤清器@3	FILTER-FUEL @3	1
40	15279	燃油滤清器卡箍	CLAMP FUEL FILTER	1
41	64705	脉冲软管接头	FITTING PULSE HOSE	1
42	9912976	油管	TUBING	1
42	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
43	424251	三通	TEE	1
43	424253	接头	FITTING	1
44	36221	燃油管路至适配器弯头	ELBOW FUEL LINE TO ADAPTOR	1
45	30186	止回转接器总成	ADAPTER CHECK UNIT	1
46	30187	适配器阀杆止回单元	STEM CHECK UNIT ADAPTOR	1
46	30185Q3	油箱端快速断开总成-卡口式	QUICK DISCONNECT ASSEMBLY Tank End - Bayonet Style	1
47	30189	适配器至阀杆弹簧	SPRING ADAPTOR TO STEM	1
48	20415	适配器阀杆O型圈	O-RING ADAPTOR STEM	1
48	16524	燃油接头O型圈	O-RING Fuel Connector	1
49	30188	适配器垫片	WASHER ADAPTOR	1
50	69067	适配器至下罩螺钉(.250-20 x 1.375)	SCREW (.250-20 x 1.375) ADAPTOR TO BOTTOM COWL	1
51	92037	燃油连接器密封件	SEAL FUEL CONNECTOR	1
52	9912976	油管	TUBING	1
52	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
-	90484A88	衬垫套件	GASKET SET

图 58动力升降组件金属马达壳 Power Trim Components Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	818186A6	动力升降总成	POWER TRIM ASSEMBLY	1
-	826729A10	ORD 8M0143217	ORD 8M0143217	1
-	826729A2	升降倾斜总成	TRIM AND TILT ASSEMBLY	1
-	855998A11	动力调整套件	POWER TRIM KIT	1
1	811604F	歧管总成	MANIFOLD ASSEMBLY	1
2	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	9
3	811605F	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
3	880952A03	ORD 8M0078330	ORD 8M0078330	1
4	811608	升降倾斜活塞杆套件 (螺栓型-参见备注)	ROD KIT Trim And Tilt Piston (BOLT TYPE- SEE NOTE)	1
5	823553	升降活塞杆套件 (螺母型)	ROD KIT Trim Piston (NUT TYPE)	1
5	823553T	升降活塞杆	ROD Trim Piston	1
6	811606	导向套件	GUIDE KIT	1
6	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
7	811607A1	维修套件	REPAIR KIT	1
8	811610A1	止回阀套件	CHECK VALVE KIT	1
8	823553T	升降活塞杆	ROD Trim Piston	1
9	99638A1	导向器总成	GUIDE ASSEMBLY	2
9	8M0021648	端盖总成	END CAP ASSEMBLY	2
10	43397A6	动力升降活塞/杆总成 (左舷)	PISTON/ROD ASSEMBLY Power Trim (PORT)	1
10	878413A1	活塞总成	PISTON ASSEMBLY	1
10	43398A3	动力升降活塞/杆总成 (右舷)	PISTON/ROD ASSEMBLY Power Trim (STARBOARD)	1
10	878414T01	活塞总成	PISTON ASSEMBLY	1
11	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
12	821539	三叶销	PIN Trilobe	1
13	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
13	893929A01	安全阀套件	VALVE KIT Relief	1
14	812844	E型卡环	E RING	1
14	815949001	E形环	E-RING	1
15	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
16	43450	垫圈	WASHER	4
16	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
17	811611	盖板	COVER	1
18	811612A2	O型圈套件	O-RING KIT	1
18	811612A3	O型圈套件	O-RING KIT	1
19	811628	升降电机 (参见动力升降电机分解图)	TRIM MOTOR (See Breakdown on Power Trim Motor)	1
19	878265A6	改装套件-配平	RETROFIT KIT-TRIM	1
19A	828708	电机总成 (参见动力升降电机分解图)	MOTOR ASSEMBLY (See Breakdown on Power Trim Motor)	1
19A	878265A4	配平电机	TRIM MOTOR	1
20	811619	驱动轴	DRIVESHAFT	1
20	828710	驱动接头	DRIVE JOINT	1
21	996251	轴	SHAFT	1
21	99625002	轴	SHAFT	1
22	811615	螺钉 (长)	SCREW (LONG)	2
22	828709	螺钉 (长)	SCREW (LONG)	2
22	881768A1	螺钉/垫圈套件	SCREW/WASHER KIT	2
22	811616	螺钉 (短)	SCREW (SHORT)	2
23	811613	塞子总成	PLUG ASSEMBLY	1
24	811617F	泵	PUMP	1
24	811617T1	泵	PUMP	1
25	811614	轴总成	SHAFT ASSEMBLY	1
25	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
26	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
27	818298A1	阳极套件	ANODE KIT	1
27	818298Q1	阳极套件	ANODE KIT	1
28	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
28	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
29	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
29	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
30	996301	冲击板	STRIKER PLATE	2
30	8M0045383	冲击板	STRIKER PLATE	2
31	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
32	46335	螺母 (.375-24)	NUT (.375-24)	2
33	44431	槽销	PIN Groove	1
33	878267	销	PIN	1
34	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
35	4002319	垫圈	WASHER	6
36	22875	卡扣	CLIP	2
36	26550	卡箍	CLAMP	2
37	69205	C形垫圈	C WASHER	2
37	8M0084613	C形垫圈	C-WASHER	2
38	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	2
38	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2

图 59齿轮箱螺旋桨轴-标准135/150/175/200 Gear Housing Propeller Shaft - Standard-135/150/175/200

REF	零件编号	中文名称	英文名称	数量
-	9148A18	齿轮箱总成标准旋转2:1速比(长型)(黑色)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (LONG) (BLACK)	1
-	9148A19	齿轮箱总成标准旋转2:1速比(加长型)(黑色)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (X-LONG)(BLACK)	1
-	9148T82	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A20	齿轮箱总成标准旋转2:1速比(长型)(灰色)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (LONG)(GRAY)	1
-	9148T87	ORD 1647-9148T81	ORD 1647-9148T81	1
-	9148A21	齿轮箱总成标准旋转2:1速比(加长型)(灰色)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (X-LONG) (GRAY)	1
-	9148T88	ORD 1647-9148T82	ORD 1647-9148T82	1
-	9148A8	齿轮箱总成标准旋转1.87:1速比(长型)(黑色)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (LONG)(BLACK)	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A9	齿轮箱总成标准旋转1.87:1速比(加长)(黑色)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (X-LONG)(BLACK)	1
-	9148T85	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A10	齿轮箱总成标准旋转1.87:1速比(长型)(灰色)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (LONG)(GRAY)	1
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A13	齿轮箱总成标准旋转1.87:1速比(加长型)(灰色)	GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (X-LONG)(GRAY)	1
-	9148T91	ORD 1647-9148T85	ORD 1647-9148T85	1
1	9148A11	齿轮箱总成(黑色)(基本型)	GEAR HOUSING ASSEMBLY (BLACK)(BASIC)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A12	齿轮箱总成(灰色)(基本型)	GEAR HOUSING ASSEMBLY (GRAY) (BASIC)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
48	78956	换挡凸轮	SHIFT CAM	1
48	789562	换挡凸轮	SHIFT CAM	1
49	89594A1	凸轮从动件总成	FOLLOWER ASSEMBLY CAM	1
50	816520	离合器作动杆	ROD CLUTCH ACTUATOR	1
50	79911A1	杆	ROD	1
51	79910	压缩弹簧	SPRING COMPRESSION	1
52	78910	压缩弹簧垫圈	WASHER COMPRESSION SPRING	AR
53	78906		PIN SPRING LOCATOR	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	47397A1	轴承外圈垫片组(.002-3-5-10)	SHIM SET BEARING OUTER RACE (.002-3-5-10)	AR
55	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
56	44102A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
56	44104A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
56	44104T2	齿轮组	GEAR SET	1
57	73363	滚柱轴承(5/8")	BEARING Roller (5/8")	2
57	73363T	轴承	BEARING	2
57	549281	滚柱轴承(1")	BEARING Roller (1")	1
58	78959	棘轮滑动离合器	RATCHET SLIDING CLUTCH	1
58	823174T	ORD 8M0100493	ORD 8M0100493	1
59	78905	棘轮到螺旋桨轴十字销	PIN Cross RATCHET TO PROPELLER SHAFT	1
59	8M0084243	十字销	PIN Cross	1
60	78909	棘轮定位销	PIN Detent RATCHET	2
61	78962	十字销固定弹簧	SPRING RETAINING-CROSS PIN	2
62	94148	螺旋桨轴	PROPELLER SHAFT	1
63	NSS	倒车齿轮(不单独销售)(43-44102A2或43-44104A2部件)	NOT SOLD SEPARATE Reverse Gear (Part of 43-44102A2 or 43-44104A2)	1
64	681001	止推环轴承座	RING Thrust BEARING CARRIER	1
65	88957A1	倒车档滚珠轴承	BEARING Ball BALL - REVERSE GEAR	1
65	88957T	滚珠轴承	BEARING Ball	1
66	31534	轴承座O型圈	O-RING BEARING CARRIER	1
66	8M0214920	O型圈	O RING	1
67	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	30956	滚针轴承-轴承座	BEARING Needle BEARING CARRIER	1
68	30956T	滚针轴承	BEARING Needle	1
69	76868	轴承座密封	SEAL BEARING CARRIER	2
69	8M0248882	油封@5	SEAL-OIL @5	2
70	30281		KEY LOCATING - BEARING CARRIER	1
71	79447	齿轮箱盖锁紧垫圈	TAB WASHER GEAR HOUSING COVER	1
72	79448	齿轮箱固定座	RETAINER GEAR HOUSING	1
72	8M2011027	固定座	RETAINER	1
73	31640A1		TRIM TAB ASSEMBLY GEAR HOUSING	1
73	31640Q4	平衡鳍板	TRIM TAB	1
74	66024		SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING	1
75	67891	填充块	FILLER BLOCK	1
75	8M0039169	填充块	FILLER BLOCK	1
76	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
76	8M0204653	螺母	NUT	2
77	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
77	74727	螺钉(.375-16 x 6.00)	SCREW (.375-16 x 6.00)	1
78	13171	推力毂	THRUST HUB	1
78	835467Q01	止推垫片套件	THRUST WASHER KIT	1
79	31211A2	花键垫圈	WASHER Splined	1
79	31211Q03	垫圈总成	WASHER ASSEMBLY	1
80	816629	锁紧垫圈	TAB WASHER	1
80	816629Q	锁紧垫圈	TAB WASHER	1
81	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
81	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
82	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
83	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
-	89238A2	密封套件	SEAL KIT	1
-	815791A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 60动力平衡组件（设计II） Power Trim Components (Design II)

REF	零件编号	中文名称	英文名称	数量
-	818186A3	动力配平总成	POWER TRIM ASSEMBLY COMPLETE	1
1	811604T	歧管总成	MANIFOLD ASSEMBLY	1
1	811604F	歧管总成	MANIFOLD ASSEMBLY	1
2	99616	管塞	PIPE PLUG	9
2	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	9
3	811605T	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
3	880952A03	ORD 8M0078330	ORD 8M0078330	1
4	811608	连杆套件-升降倾斜活塞(螺栓型)	ROD KIT Trim And Tilt Piston (BOLT TYPE)	1
5	811609	连杆-倾斜活塞(螺母型)	ROD Trim Piston (NUT TYPE)	1
5	823553T	升降活塞杆	ROD Trim Piston	1
6	811606	导向套件	GUIDE KIT	1
6	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
7	811607A1	维修套件	REPAIR KIT	1
8	811610A1	止回阀套件	CHECK VALVE KIT	1
8	823553T	升降活塞杆	ROD Trim Piston	1
9	99638A1	导向器总成	GUIDE ASSEMBLY	2
9	8M0021648	端盖总成	END CAP ASSEMBLY	2
10	43397A6	动力升降活塞/杆总成 (左舷)	PISTON/ROD ASSEMBLY Power Trim (PORT)	1
10	878413A1	活塞总成	PISTON ASSEMBLY	1
10	43398A3	动力升降活塞/杆总成 (右舷)	PISTON/ROD ASSEMBLY Power Trim (STARBOARD)	1
10	878414T01	活塞总成	PISTON ASSEMBLY	1
11	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
12	19603	槽销	PIN Groove	1
12	821539	三叶销	PIN Trilobe	1
13	811618	阀总成	VALVE ASSEMBY	1
13	893929A01	安全阀套件	VALVE KIT Relief	1
14	812844	E型卡环	E RING	1
14	815949001	E形环	E-RING	1
15	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
16	43450	垫圈	WASHER	4
16	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
17	811611	盖板	COVER	1
18	811612A1	O型圈套件	O-RING KIT	1
18	811612A3	O型圈套件	O-RING KIT	1
19	811613	塞子总成	PLUG ASSEMBLY	1
20	811614	轴总成	SHAFT ASSEMBLY	1
20	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
21	99616	管塞	PIPE PLUG	2
21	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
22	811628	配平电机	TRIM MOTOR	1
22	878265A6	改装套件-配平	RETROFIT KIT-TRIM	1
23	811615	螺钉 (长)	SCREW (LONG)	2
23	811616	螺钉 (短)	SCREW (SHORT)	2
24	811617T	泵	PUMP	1
24	811617T1	泵	PUMP	1
25	811619	驱动轴	DRIVESHAFT	1
26	99625	轴	SHAFT	1
26	99625002	轴	SHAFT	1
27	43396A2	阳极总成	ANODE ASSEMBLY	1
27	818298Q1	阳极套件	ANODE KIT	1
28	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
28	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
29	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
29	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
30	996301	冲击板	STRIKER PLATE	2
30	8M0045383	冲击板	STRIKER PLATE	2
31	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
32	46335	螺母 (.375-24)	NUT (.375-24)	2
33	44431	槽销	PIN Groove	1
33	878267	销	PIN	1
34	814609A1	线束总成-动力升降控制	HARNESS ASSEMBLY Control POWER TRIM	1
35	88808A22	电缆总成(6-3/8"-红色)	CABLE ASSEMBLY (6-3/8" - RED)	1
35	88808A23	电缆总成(24"-红色)	CABLE ASSEMBLY (24" - RED)	1
35	87379A14	电线总成 (2.750英寸)	WIRE ASSEMBLY (2.750 Inches)	1
36	22875		CLIP PUMP WIRE	2
37	69205	C形垫圈线夹螺钉	C WASHER CLIP SCREW	2
37	8M0084613	C形垫圈	C-WASHER	2
38	69079	螺钉(#10-16x0.440)-夹子到艉板支架	SCREW (#10-16 x .440) CLIP TO TRANSOM BRACKET	2
39	4000377		SCREW (M10 x 30) MANIFOLD	6
40	400258	锁紧垫圈(M10)-不锈钢歧管螺钉	LOCKWASHER (M10) Stainless Steel MANIFOLD SCREW	6

图 61气缸体与端盖 CYLINDER BLOCK AND END CAPS

REF	零件编号	中文名称	英文名称	数量
1	9765A13	气缸体(135/150)	CYLINDER BLOCK (135/150)	1
1	9763A17	气缸体(XR6/Magnum III)	CYLINDER BLOCK (XR6/Magnum III)	1
1	9763T17	气缸体	CYLINDER BLOCK	1
1	9763A23	气缸体(XR6/Magnum III)	CYLINDER BLOCK (XR6/Magnum III)	1
1	9763T23	气缸体	CYLINDER BLOCK	1
1	9763A17	气缸体(175)	CYLINDER BLOCK (175)	1
1	9763T17	气缸体	CYLINDER BLOCK	1
1	9763A61	气缸体(200)	CYLINDER BLOCK (200)	1
1	9763T61	气缸体	CYLINDER BLOCK	1
1	9763A23	气缸体(150 TRACKER)	CYLINDER BLOCK ( 150 TRACKER)	1
1	9763T23	气缸体	CYLINDER BLOCK	1
2	76175	双头螺柱(1-7/8")(旧款)	STUD (1-7/8") (OLD DESIGN)	4
2	818138	双头螺柱(1-3/4")	STUD (1-3/4")	2 or 6
2	8M0034455	螺柱1.750	STUD 1.750	2 or 6
3	67065	双头螺柱(5-1/2")	STUD (5-1/2")	2
3	670654	螺柱(.375-16/.375-24 x 5.620)	STUD (.375-16/.375-24 x 5.620)	2
3	78438	双头螺柱(6-3/4")	STUD (6-3/4")	2
3	8M0034454	螺柱(.375-16/.375-24 x 6.87)	STUD (.375-16/.375-24 x 6.87)	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	销(轴承座圈)	PIN (BEARING RACE)	2
5	8M0036405	销	PIN	2
6	11338	衬垫	GASKET	2
7	42249	上盖	COVER (UPPER)	1
7	8M0088723	启动器支架	BRACKET-STARTER	1
8	828213	螺钉(.312-18 x 1.500)六角法兰	SCREW (.312-18 x 1.500) Hex Flange	2
8	73657	螺钉(.312-18 x 1.50)(配13-26993垫片)	SCREW (.312-18 x 1.50) (Use with 13-26993 washer)	2
9	26993	锁紧垫圈(.312)(配10-73657螺钉)	LOCKWASHER (.312) (Use with 10-73657 screw)	4
9	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
10	76867	下盖	COVER (LOWER)	1
11	815549	螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00)	2
11	828214	螺钉(.312-18 x 2.00)六角法兰	SCREW (.312-18 x 2.00) Hex Flange	2
11A	99448	衬套	BUSHING	1
12	66717	螺钉(.375-16 x 3.250)	SCREW (.375-16 x 3.250)	8
12	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	6
13	9642A1	上端盖总成	END CAP ASSEMBLY Upper	1
13	858521T1	端盖总成	END CAP ASSEMBLY	1
14	54029	O型圈(2.800 x .103)	O-RING (2.800 x .103)	1
15	16756A4	轴承套件	BEARING KIT	1
16	41953	密封件	SEAL	1
17	69034	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW AND LOCKWASHER (.312-18 x 1.00)	4
17	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	4
19	63153	J型卡扣	J CLIP	1
20	15094	双头螺柱(.190-32 x 1.870)	STUD (.190-32 x 1.870)	1
21	15093	双头螺柱(#10-32 x 1.00)	STUD (#10-32 x 1.00)	2
21	8M0034435	螺柱	STUD	2
22	67269	隔套	SPACER	1
23	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	3
23	8M0204663	垫片@5	WASHER @5	3
25	816874	蝶形螺母 (#10-32)	WING NUT (#10-32)	3
26	42248	支架	BRACKET	1
26	422482	支架	BRACKET	1
27	49668	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	2
28	7809A1	端盖总成	END CAP ASSEMBLY	1
28	7809T1	端盖总成	END CAP ASSEMBLY	1
29	62700	O型圈(3.237 x .103)	O-RING (3.237 x .103)	1
30	41953	密封件	SEAL	2
31	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
32	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
33	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
34	64015	螺母 (.250-20)	NUT (.250-20)	1
35	26852	尼龙帽	CAP Nylon	1
36	87076A10	怠速控制器	IDLE SPEED CONTROL	1
38	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
38	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
39	38833	垫圈	WASHER	3
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	812815A92	动力头总成	POWERHEAD ASSEMBLY	1
-	878365T00	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A94	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 62化油器 Carburetor

REF	零件编号	中文名称	英文名称	数量
1	9242A33	化油器(上部)(WH-40)	CARBURETOR (TOP) (WH-40)	1
1	9242A34	化油器(中部)(WH-40)	CARBURETOR (CENTER) (WH-40)	1
1	9242A35	化油器(下部)(WH-40)	CARBURETOR (BOTTOM) ( WH-40)	1
1	7563A10	化油器(上部)(WH-35)	CARBURETOR (TOP) (WH-35)	1
1	7563A11	化油器(中部)(WH-35)	CARBURETOR (CENTER) (WH-35)	1
1	7563A12	化油器(下部)(WH-35)	CARBURATOR (BOTTOM) (WH-35)	1
1	7563A13	化油器(上部)(WH-38)	CARBURETOR (TOP) (WH-38)	1
1	7563A14	化油器(中部)(WH-38)	CARBURETOR (CENTER) (WH-38)	1
1	7563A15	化油器(下部)(WH-38)	CARBURETOR (BOTTOM) (WH-38)	1
2	6249	主量孔(.096)燃油室(WH-32)(WH-38)	JET Main (.096) FUEL BOWL(WH-32) (WH-38)	6
2	8423	量孔(.094)浮子室(WH-35)	JET (.094) FUEL BOWL (.094) (WH-35)	6
2	6680	量孔(.078)燃油室(WH-40)	JET (.078) FUEL BOWL (WH-40)	6
3	NSS		NOT SOLD SEPARATE Gasket-Cover Plate	3
4	6032	盖板	PLATE COVER	3
5	NSS	盖板螺钉(不单独销售)	NOT SOLD SEPARATE Screw-Cover Plate	15
6	7822	燃油室(WH-33)	BOWL Fuel (WH-33)	3
6	7823	燃油杯(顶部)	BOWL Fuel (TOP)	1
6	7822	燃油杯(中部/底部)	BOWL Fuel (CENTER/BOTTOM)	2
7	NSS	不单独销售燃油杯螺钉	NOT SOLD SEPARATE Screw-Fuel Bowl	18
8	6025	主量孔塞	PLUG MAIN JET	6
9	NSS	不单独出售主量孔垫片	NOT SOLD SEPARATE Gasket-Main Jet	6
10	4216	主量孔(.064)(WH-33)	JET (.064) MAIN FUEL (WH-33)	6
10	6246	主量孔(.048)(WH-32)	JET (.048) MAIN FUEL (WH-32)	6
10	6028	主燃油量孔(.050)(WH-35)	JET (.050) MAIN FUEL (WH-35)	6
10	6359	主燃油量孔(.052)(WH-38)	JET (.052) MAIN FUEL (WH-38)	6
10	6201	主量孔(.080)(WH-40)	JET (.080) MAIN FUEL (WH-40)	6
11	NSS	不单独出售浮子销螺钉	NOT SOLD SEPARATE Screw-Float Pin	6
12	NSS	不单独出售进油针阀座垫片	NOT SOLD SEPARATE Gasket--Inlet Needle and Seat	6
13	7824	进油针阀总成	NEEDLE/SEAT ASSEMBLY Inlet	6
14	NSS	喷嘴座垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Nozzle Boss	6
15	9267	浮子	FLOAT	6
16	NSS	浮子杆销(不单独销售)	NOT SOLD SEPARATE Pin-Float Lever	6
17	NSS		NOT SOLD SEPARATE Gasket-Fuel Bowl	3
18	4541	怠速空气量孔螺钉	SCREW IDLE AIR BLEED JET	6
19	NSS	泄放量孔塞垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Bleed Jet Plug	6
20	5213	主量孔(.056)怠速空气量孔(WH-33)	JET Main (.056) IKLE AIR BLEED (WH-33)	6
20	7831	主量孔(.058)怠速空气量孔(.058)(WH-32)	JET Main Fuel (.058) IDLE AIR BLEED (.058) (WH-32)	6
20	6487	主量孔(.060)怠速空气量孔(WH-35)	JET Main (.060) IKLE AIR BLEED (WH-35)	6
20	5317	怠速空气量孔(.046)(WH-38)	JET (.046) IDLE AIR BLEED (WH-38)	6
20	6246	怠速空气量孔(.048)(WH-40)	JET (.048) IDLE AIR BLEED (WH-40)	6
21	6027	节气门杠杆螺钉	SCREW THROTTLE LEVER	3
22	67752	节流阀杆	LEVER THROTTLE	3
23	NSS		NOT SOLD SEPARATE Spring-Throttle Return	3
24	6031	节气门杠杆垫片	SPACER THROTTLE LEVER	3
25	6022	节流阀轴	SHAFT THROTTLE	3
26	NSS	节气门轴挡圈(不单独销售)	NOT SOLD SEPARATE Ring-Retainer-Throttle Shaft	3
27	6023	节气门阀(WH-33)(WH-40)	VALVE Throttle (WH-33) (WH-40)	6
27	9496	节气门阀(WH-32)	VALVE Throttle (WH-32)	6
27	9545	节气门阀(WH-38)(WH-35)	VALVE Throttle (WH-38) (WH-35)	6
28	NSS		NOT SOLD SEPARATE Screw-Throttle Valve	12
-	6452	衬垫套件	GASKET KIT	1
-	8506	化油器修理包(WH-33)(WH-40)	REPAIR KIT Carburetor (WH-33) (WH-40)	1
-	7826	修理包(WH-32)(WH-35)(WH-38)	REPAIR KIT (WH-32)(WH-35)(WH-38)	1

图 63动力升降组件（金属马达壳体） POWER TRIM COMPONENTS Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	818186A6	动力升降总成	POWER TRIM ASSEMBLY	1
-	826729A10	ORD 8M0143217	ORD 8M0143217	1
-	826729A2	升降倾斜总成	TRIM AND TILT ASSEMBLY	1
-	855998A11	动力调整套件	POWER TRIM KIT	1
1	811604F	歧管总成	MANIFOLD ASSEMBLY	1
2	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	9
3	811605F	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
3	880952A03	ORD 8M0078330	ORD 8M0078330	1
4	811608	升降倾斜活塞杆套件 (螺栓型-参见备注)	ROD KIT Trim And Tilt Piston (BOLT TYPE- SEE NOTE)	1
5	823553	升降活塞杆套件 (螺母型)	ROD KIT Trim Piston (NUT TYPE)	1
5	823553T	升降活塞杆	ROD Trim Piston	1
6	811606	导向套件	GUIDE KIT	1
6	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
7	811607A1	维修套件	REPAIR KIT	1
8	811610A1	止回阀套件	CHECK VALVE KIT	1
8	823553T	升降活塞杆	ROD Trim Piston	1
9	99638A1	导向器总成	GUIDE ASSEMBLY	2
9	8M0021648	端盖总成	END CAP ASSEMBLY	2
10	43397A6	动力升降活塞/杆总成 (左舷)	PISTON/ROD ASSEMBLY Power Trim (PORT)	1
10	878413A1	活塞总成	PISTON ASSEMBLY	1
10	43398A3	动力升降活塞/杆总成 (右舷)	PISTON/ROD ASSEMBLY Power Trim (STARBOARD)	1
10	878414T01	活塞总成	PISTON ASSEMBLY	1
11	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
12	821539	三叶销	PIN Trilobe	1
13	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
13	893929A01	安全阀套件	VALVE KIT Relief	1
14	812844	E型卡环	E RING	1
14	815949001	E形环	E-RING	1
15	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
16	43450	垫圈	WASHER	4
16	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
17	811611	盖板	COVER	1
18	811612A2	O型圈套件	O-RING KIT	1
18	811612A3	O型圈套件	O-RING KIT	1
19	811628	升降电机 (参见动力升降电机分解图)	TRIM MOTOR (See Breakdown on Power Trim Motor)	1
19	878265A6	改装套件-配平	RETROFIT KIT-TRIM	1
19A	828708	电机总成 (参见动力升降电机分解图)	MOTOR ASSEMBLY (See Breakdown on Power Trim Motor)	1
19A	878265A4	配平电机	TRIM MOTOR	1
20	811619	驱动轴	DRIVESHAFT	1
20	828710	驱动接头	DRIVE JOINT	1
21	996251	轴	SHAFT	1
21	99625002	轴	SHAFT	1
22	811615	螺钉 (长)	SCREW (LONG)	2
22	828709	螺钉 (长)	SCREW (LONG)	2
22	881768A1	螺钉/垫圈套件	SCREW/WASHER KIT	2
22	811616	螺钉 (短)	SCREW (SHORT)	2
23	811613	塞子总成	PLUG ASSEMBLY	1
24	811617F	泵	PUMP	1
24	811617T1	泵	PUMP	1
25	811614	轴总成	SHAFT ASSEMBLY	1
25	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
26	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
27	818298A1	阳极套件	ANODE KIT	1
27	818298Q1	阳极套件	ANODE KIT	1
28	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
28	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
29	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
29	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
30	996301	冲击板	STRIKER PLATE	2
30	8M0045383	冲击板	STRIKER PLATE	2
31	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
32	46335	螺母 (.375-24)	NUT (.375-24)	2
33	44431	槽销	PIN Groove	1
33	878267	销	PIN	1
34	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
35	4002319	垫圈	WASHER	6
36	22875	卡扣	CLIP	2
36	26550	卡箍	CLAMP	2
37	69205	C形垫圈	C WASHER	2
37	8M0084613	C形垫圈	C-WASHER	2
38	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	2
38	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2

图 64转向安装套件（XR4/ Magnum II） Steering Attaching Kit (XR4/ Magnum II)

REF	零件编号	中文名称	英文名称	数量
-	92876A3	转向安装包 (单)	ATTACHING KIT Steering (SINGLE)	1
1	41055	转向管支架	MOUNT STEERING TUBE	1
2	88319	转向连杆联轴器	COUPLING STEERING LINK	1
2	850791T	联轴器	COUPLER	1
3	73732	螺钉(0.375-24×1.120)联轴器	SCREW (.375-24 x 1.120) COUPLING	2
4	34863	螺母(0.375-24)联轴器螺钉	NUT (.375-24) COUPLING SCREW	3
4	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	3
5	59702	螺钉(0.250-28×0.875)不锈钢支架固定	SCREW (.250-28 x .875) Stainless Steel MOUNT ATTACHING	4
6	88404	锁紧垫圈-支架螺钉	TAB WASHER MOUNT SCREW	2
7	71565	转向电缆导管	TUBE Cable Guide STEERING	1
8	37984	螺母(0.875-14)转向管	NUT (.875-14) STEERING TUBE	2
8	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
9	42100	锁紧垫圈-转向管螺母	TAB WASHER STEERING TUBE NUT	2
10	78862A2	密封套件	SEAL KIT	1
10	19624A1	密封套件	SEAL KIT	1
11	42101	隔套	SPACER	2

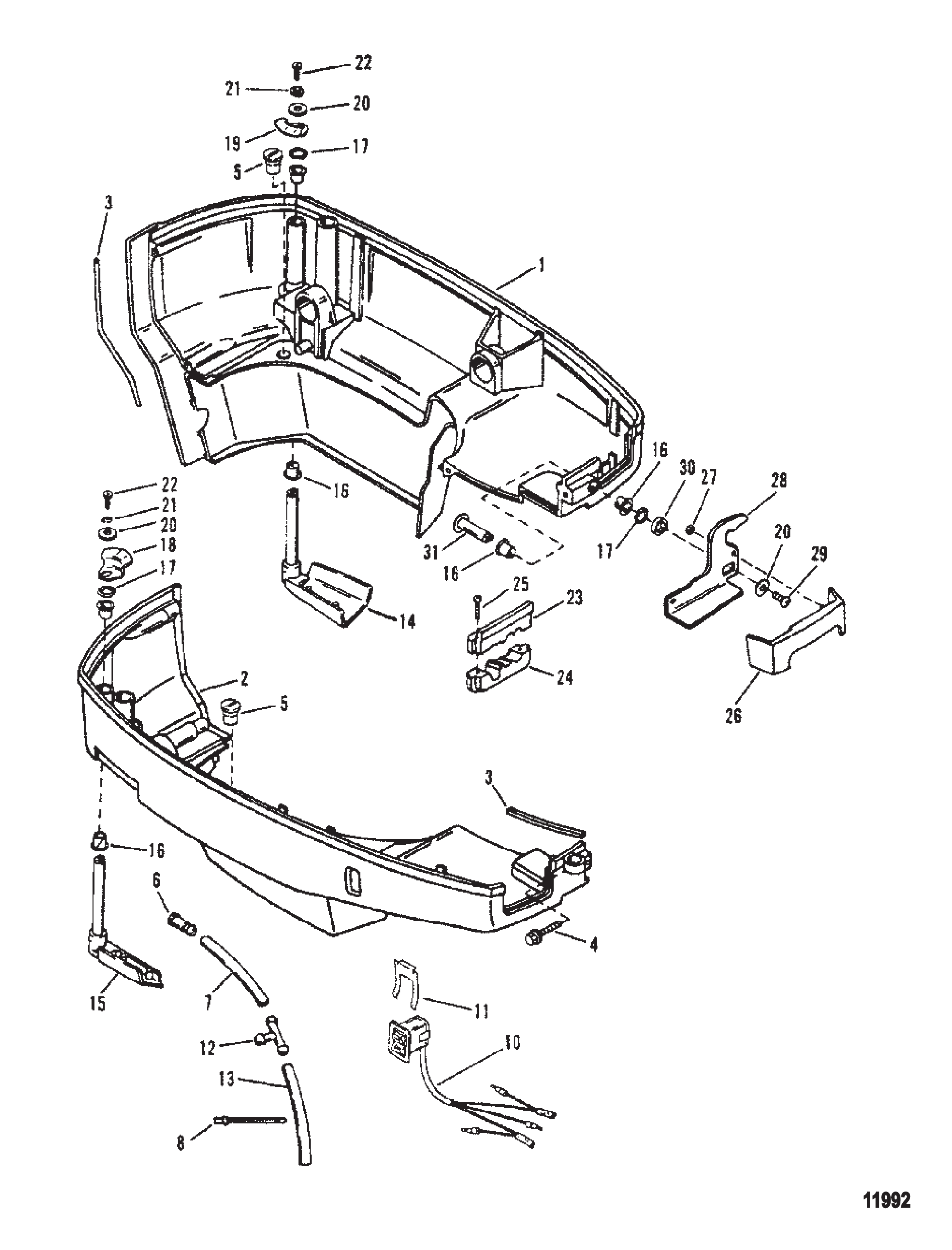

图 65下罩 Bottom Cowl

REF	零件编号	中文名称	英文名称	数量
1	878587A1	下罩总成	BOTTOM COWL ASSEMBLY	1
2	858743A2	下罩总成	BOTTOM COWL ASSEMBLY	1
2	8M0113913	右舷下罩B	COWL-LOWER STBD B	1
3	8253181	罩盖密封条(41英寸)	SEAL Cowl (41.00 Inches)	2
3	8M0109217	罩盖密封条	SEAL-COWL	2
4	878547T	嵌件	INSERT	1
5	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	8
6	831209	固定座	RETAINER	1
7	858742	怠速排气套	BOOT Idle Exhaust	1
8	859251	护孔环	GROMMET	1
8	8M0039078	护孔环	GROMMET	1
9	827948	接头	FITTING	1
10	855576	垫圈	WASHER	1
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
12	830756109	软管(57英寸整卷)(裁切至5英寸长度)	HOSE (57.00 Inches Bulk) (Cut To 5.00 Inch Length)	1
12	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
13	881535	软管(32.00英寸)	HOSE (32.00 Inches)	1
14	9912688	管材(36.00英寸散装)(26.00英寸)	TUBING (36.00 Inches Bulk) (26.00 Inch)	1
15	817518	三通	TEE	1
16	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	2
17	8587411	护孔环	GROMMET	1
17	889724	护孔环	GROMMET	1
18	856990	开关总成	SWITCH ASSEMBLY	1
18	8M0235192	微调开关	SWITCH TRIM	1
19	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
20	821253F1	前手柄黑色	FRONT HANDLE Black	1
20	889740A02	手柄套件	HANDLE KIT	1
21	33589	衬套	BUSHING	2
22	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
23	8219423	棘爪	PAWL	1
24	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	1
25	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
26	13541	公插头	PLUG Male	2

图 66齿轮箱螺旋桨轴-反向旋转 Gear Housing Propeller Shaft - Counter Rotation

REF	零件编号	中文名称	英文名称	数量
0	840561T69	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	840561T70	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	840561T71	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	849781A2	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	8M0084203	齿轮箱-SM型	GEAR HOUSING-SM	1
2	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
3	789562	换挡凸轮	SHIFT CAM	1
4	79911A1	杆	ROD	1
5	79910	弹簧	SPRING	2
6	78906	销	PIN	1
6	8M0084245	弹簧定位销	PIN Spring Locator	1
7	78910	垫圈	WASHER	2
8	14469T	轴承杯	CUP Bearing	1
9	88957T	滚珠轴承	BEARING Ball	1
10	NSS	倒车齿轮(不单独销售属于43-15845A2部件)	NOT SOLD SEPARATE Reverse Gear (PART OF 43-15845A2)	1
11	15844	滚柱轴承总成	BEARING ASSEMBLY Roller	1
12	42672T	棘轮	RATCHET	1
13	78909	定位销	PIN Detent	2
14	42671	十字销	PIN Cross	1
15	78962	弹簧	SPRING	2
16	15845A2	齿轮组	GEAR SET	1
17	176151	调整垫片(.125)	SPACER SHIM (.125)	AR
17	176152	调整垫片(.127)	SPACER SHIM (.127)	AR
17	176153	调整垫片(.129)	SPACER SHIM (.129)	AR
17	176154	调整垫片(.131)	SPACER SHIM (.131)	AR
17	176155	调整垫片(.133)	SPACER SHIM (.133)	AR
17	176156	调整垫片(.135)	SPACER SHIM (.135)	AR
17	176157	调整垫片(.137)	SPACER SHIM (.137)	AR
17	176158	调整垫片(.139)	SPACER SHIM (.139)	AR
17	176159	调整垫片(.141)	SPACER SHIM (.141)	AR
17	1761510	调整垫片(.143)	SPACER SHIM (.143)	AR
17	1761511	调整垫片(.145)	SPACER SHIM (.145)	AR
17	1761512	调整垫片(.147)	SPACER SHIM (.147)	AR
17	1761513	调整垫片(.149)	SPACER SHIM (.149)	AR
18	15841	滚柱轴承	BEARING Roller	1
19	17616	推力环	THRUST RING	1
20	31534	O型圈	O-RING	1
20	8M0214920	O型圈	O RING	1
21	15838A2	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
22	15843T	滚针轴承	BEARING Needle	1
23	15834	推力轴承	BEARING Thrust	2
24	815495T	螺旋桨轴	PROPELLER SHAFT	1
24	840450A2	螺旋桨轴	PROPELLLER SHAFT	1
24	840450A03	螺旋桨轴套件	PROPELLER SHAFT KIT	1
25	847616T1	轴承座	CARRIER Bearing	1
26	817072	滚柱轴承	BEARING Roller	1
27	815565	油封	SEAL Oil	2
28	817071	卡环	RING Snap	1
29	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
29	8M0058389	放油螺钉套件	SCREW KIT Drain	1
30	191833	密封件	SEAL	1
30	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
31	30281	键	KEY	1
32	79447	锁紧垫圈	TAB WASHER	1
33	158401	盖板	COVER	1
34	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
35	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
36	41350	螺钉(.437-14 x 2.50)不锈钢	SCREW (.437-14 x 2.50) Stainless Steel	1
36	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
37	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	2
38	859116	螺母(.437-20)	NUT (.437-20)	2
39	30206	螺钉(.375-16 x 1.00)不锈钢	SCREW (.375-16 x 1.00) Stainless Steel	1
39	15929	螺钉(.375-16 x 16 x 6.00)	SCREW (.375-16 x 16 x 6.00)	1
40	76214T3	阳极块	ANODE	1
40	76214Q5	阳极套件	ANODE KIT	1
40	76214T1	阳极块	ANODE	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	90415A24	螺柱套件	STUD KIT	1
-	59579	双头螺柱(.437-14/.437-20 x 2.812)	STUD (.437-14/.437-20 x 2.812)	1
-	90415A25	螺柱套件	STUD KIT	1
-	840389K5	轮毂套件	HUB KIT	1
-	8M0183487	重型螺旋桨轮毂套件	HUB KIT-HD PROP	1
-	840382A1	缓冲条套件	SNUBBER STRIP KIT	1
-	840382A02	缓冲条套件	SNUBBER STRIP KIT	1

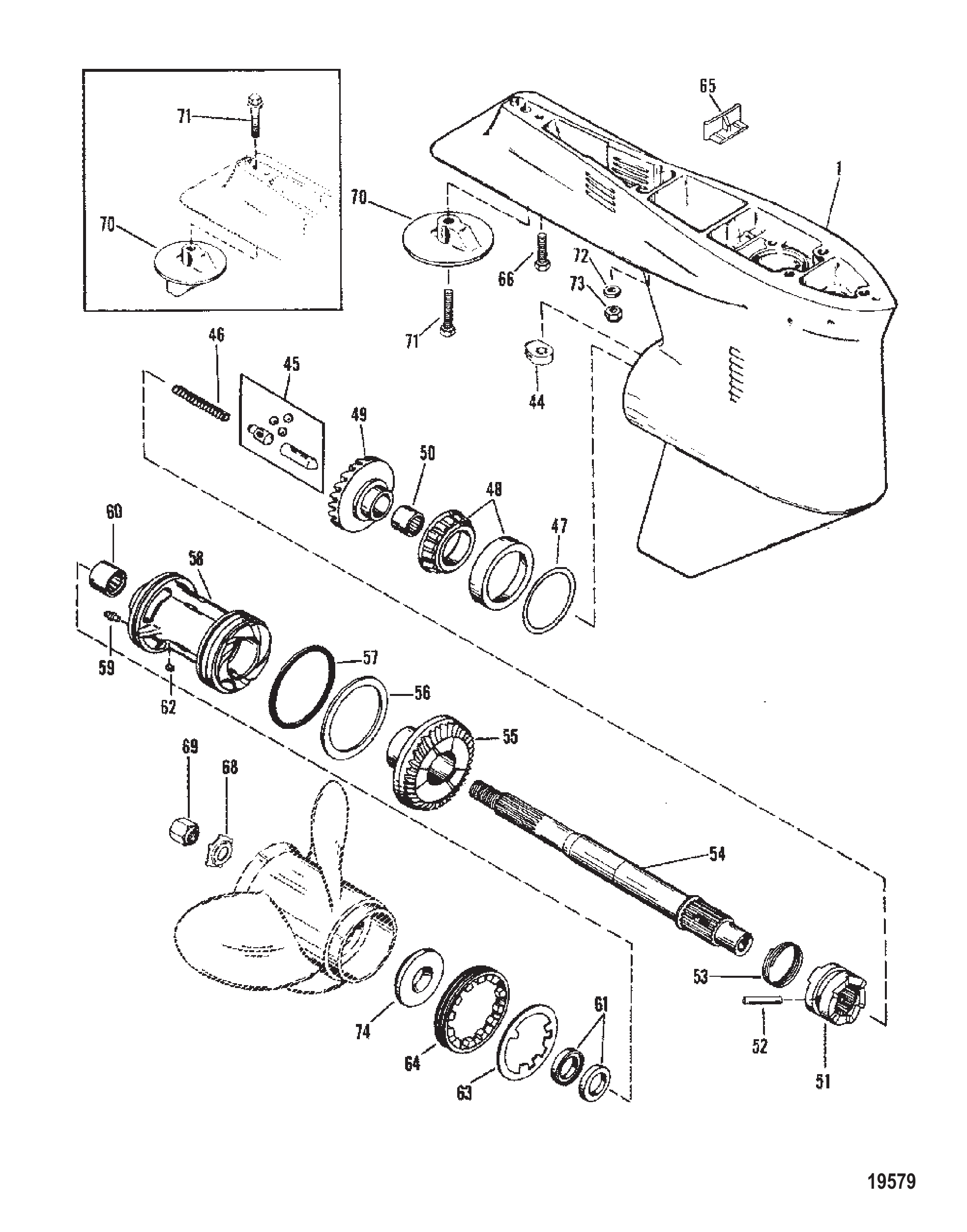

图 67齿轮箱螺旋桨轴-XR4/Magnum II型 Gear Housing Propeller Shaft - XR4/Magnum II

REF	零件编号	中文名称	英文名称	数量
-	814247A3	齿轮箱总成1.78:1速比-黑色	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Black	1
-	814247A4	齿轮箱总成 1.78:1 减速比 - 灰色	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Gray	1
-	814247T4	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	814247A3	齿轮箱总成1.78:1速比-黑色	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Black	1
-	814247A4	齿轮箱总成 1.78:1 减速比 - 灰色	GEAR HOUSING ASSEMBLY 1.78:1 Gear Ratio - Gray	1
1	814247A8	齿轮箱总成(黑色)	GEAR HOUSING ASSEMBLY (BLACK)	1
1	814247T8	齿轮箱	GEAR HSG	1
1	814247A9	齿轮箱总成(灰色)	GEAR HOUSING ASSEMBLY (GRAY)	1
1	814247T9	齿轮箱	GEAR HSG	1
1	814247A1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic - Black	1
1	814247T1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	814247A2	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic - Gray	1
1	814247T2	ORD 1674-814247T1	ORD 1674-814247T1	1
44	76039	换挡凸轮控制	CAM Shift Control	1
44	760394	换挡凸轮控制	CAM Shift Control	1
45	12239A1	凸轮从动件套件	FOLLOWER KIT Cam	1
45	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
46	30622	凸轮从动件压缩弹簧	SPRING COMPRESSION - CAM FOLLOWER	1
47	44491A1	垫片组	SHIM SET	AR
47	8M0063266	垫片组	SHIM SET	AR
48	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
49	16279A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
50	30895	滚针轴承	BEARING Needle	1
50	30895T	滚针轴承	BEARING Needle	1
51	814756	离合器	CLUTCH	1
51	822539T	离合器	CLUTCH	1
52	30632	十字销	PIN Cross	1
52	8M0100263	十字销	PIN Cross	1
53	30893	弹簧	SPRING	1
54	12238T	螺旋桨轴	PROPELLER SHAFT	1
55	NSS	倒车齿轮(不单独销售)(43-16279A2部件)	NOT SOLD SEPARATE Reverse Gear (Part of 43-16279A2)	1
56	76358	止推垫片轴承座	THRUST WASHER BEARING CARRIER	1
57	29976	轴承座O型圈	O-RING BEARING CARRIER	1
58	41529A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
58	41529T2	托架总成	CARRIER ASSY	1
59	98727	润滑脂接头	FITTING Grease	2
59	8M0169588	润滑脂接头	FITTING Grease	2
60	30956	滚针轴承-轴承座	BEARING Needle BEARING CARRIER	1
60	30956T	滚针轴承	BEARING Needle	1
61	76868	密封件	SEAL	2
61	8M0248882	油封@5	SEAL-OIL @5	2
62	30281		KEY LOCATING - BEARING CARRIER	1
63	52700	齿轮箱盖锁紧垫圈	TAB WASHER GEAR HOUSING COVER	1
64	52699	齿轮箱盖	COVER GEAR HOUSING	1
65	67891	填充块	FILLER BLOCK	1
65	8M0039169	填充块	FILLER BLOCK	1
66	30206	螺钉(.375-16 x 1.00)不锈钢(内六角头)	SCREW (.375-16 x 1.00) Stainless Steel (SOCKET HEAD)	1
66	65210	螺钉(.375-16 x 1.00)(六角头)	SCREW (.375-16 x 1.00) (HEX HEAD)	1
68	816629	螺旋桨螺母锁紧垫圈	TAB WASHER PROPELLER NUT	1
68	816629Q	锁紧垫圈	TAB WASHER	1
69	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
69	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
70	15300	阳极配平片	TRIM TAB Anodic	1
71	15797	阳极板螺钉	SCREW ANODIC PLATE	1
70	31640A1	平衡板总成	TRIM TAB ASSEMBLY	2
70	31640Q4	平衡鳍板	TRIM TAB	2
71	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
72	45176	垫圈(.453 x .812 x .105)不锈钢驱动轴壳体螺柱	WASHER (.453 x .812 x .105) Stainless Steel DRIVE SHAFT HOUSING STUDS	2
73	34933	螺母(.437-20)不锈钢驱动轴壳体螺柱	NUT (.437-20) Stainless Steel DRIVE SHAFT HOUSING STUDS	2
73	8M0204653	螺母	NUT	2
74	13191A1	止推垫片	THRUST WASHER	1
74	13191Q01	止推垫片	THRUST WASHER	1
-	89238A2	密封套件	SEAL KIT	1
-	815791A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 68旋转支架与转向臂 Swivel Bracket and Steering Arm

REF	零件编号	中文名称	英文名称	数量
1	818904T1	旋转支架	SWIVEL BRACKET	1
2	87735	下油封	SEAL Oil Lower	1
3	818764	衬套	BUSHING	2
4	33504	O型圈	O-RING	1
4	8M0214926	O型圈 @10	O RING @10	1
5	816039	隔套	SPACER	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
9	99661A26	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	99661A35	旋转销总成	SWIVEL PIN ASSEMBLY	1
10	92876A10	连杆总成	LINK ROD ASSEMBLY	1
10	92876A12	连杆总成	LINK ROD ASSEMBLY	1
11	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
12	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
13	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
14	42961A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
14	42961A06	底部轭架总成	YOKE ASSEMBLY Bottom	1
15	67684	挡圈	RING Retaining	1
16	816432	止推垫片	THRUST WASHER	1
17	NSS	不单独销售贴纸, 序列号覆膜	NOT SOLD SEPARATE Decal, Serial Overlaminate	1
18	11288	下轭缓冲垫	BUMPER Bottom Yoke	1
18	11288001	下轭缓冲垫	BUMPER Bottom Yoke	1
19	88882	上轭缓冲垫	BUMPER Top Yoke	1

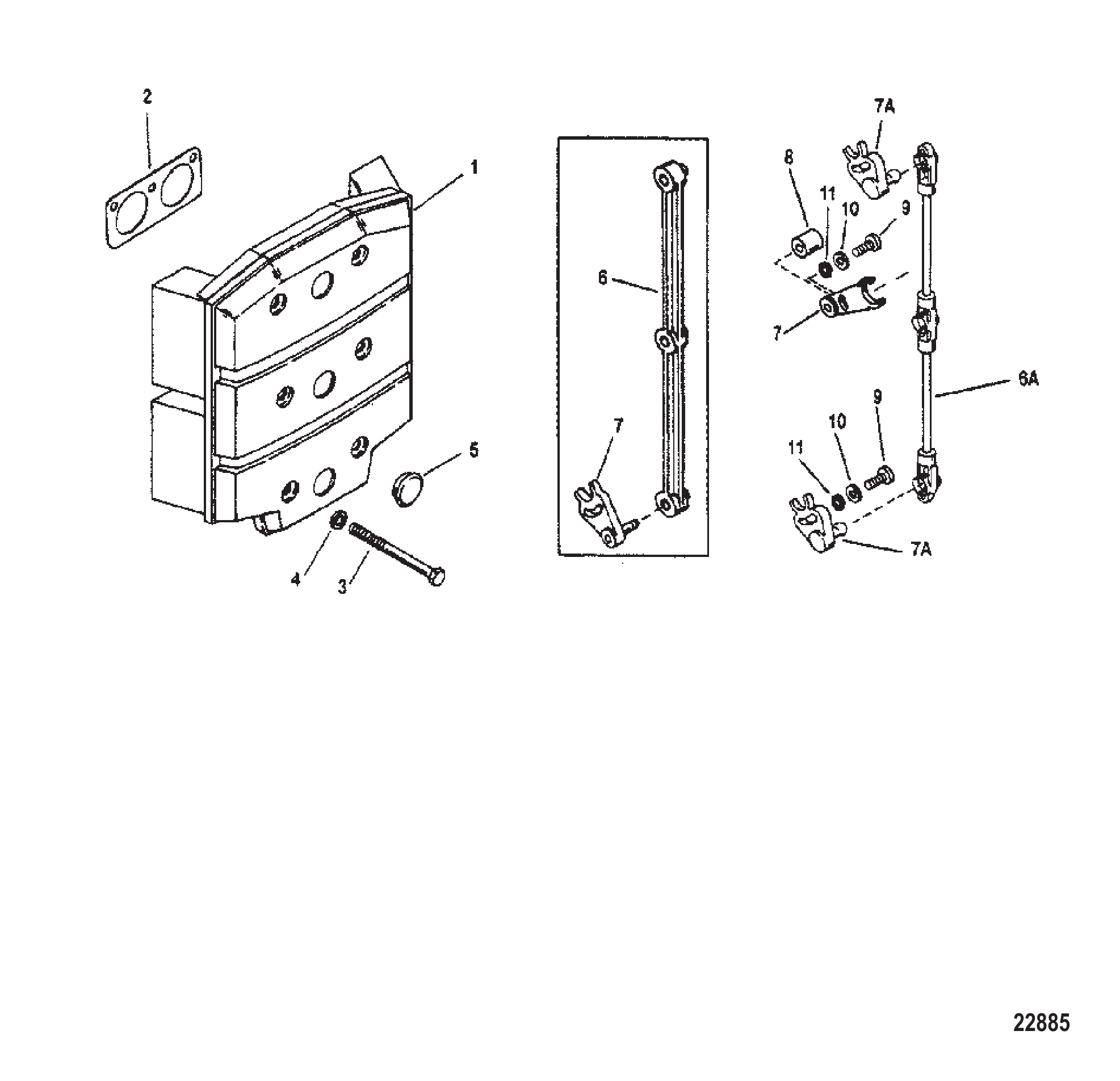

图 69阻风板与油门杆 CHOKE PLATE AND THROTTLE LEVERS

REF	零件编号	中文名称	英文名称	数量
1	817495A1	消音板总成	PLATE ASSEMBLY Sound Attenuator	1
2	892211	衬垫	GASKET	3
3	88489	螺钉(.250-28 x 2.500)	SCREW (.250-28 x 2.500)	6
3	884891	螺钉(.250-28 x 2.500)带尼龙垫-不锈钢	SCREW (.250-28 x 2.500) With Nylon Patch - Stainless Steel	6
4	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	6
5	815784	盖帽	CAP	3
6	18180	油门连杆	LINK Throttle	1
7	18181	连杆(带短轴)	LINK (W/STUB SHAFT)	3
6A	825204A1	节流连杆套件	LINK KIT Throttle	1
7	18181	连杆(带短轴)	LINK (W/STUB SHAFT)	1
7A	181811	连杆(带球轴)	LINK (W/BALL SHAFT)	2
8	18178	滚轮	ROLLER	1
9	87926	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	3
10	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
11	69432	外锁紧垫圈(#10)	LOCKWASHER External (#10)	3
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 70齿轮箱(螺旋桨轴)(反向旋转) GEAR HOUSING (PROP SHAFT)(COUNTER ROTATION)

REF	零件编号	中文名称	英文名称	数量
1	9148T93	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
49	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
50	789562	换挡凸轮	SHIFT CAM	1
51	828287	杆	ROD	1
52	44491A1	垫片组	SHIM SET	AR
52	8M0063266	垫片组	SHIM SET	AR
53	828830A2	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
54	814653	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
54	814653T	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
55	815481	止推垫片	THRUST WASHER	1
56	815480	推力轴承	BEARING Thrust	1
57	828702A2	倒车齿轮总成-15/28齿	GEAR ASSEMBLY Reverse - 15/28	1
58	15844	滚柱轴承总成	BEARING ASSEMBLY Roller	1
59	30893	弹簧	SPRING	1
60	854735T	滑动离合器	CLUTCH Sliding	1
60	859340T	离合器	CLUTCH	1
61	30632	十字销	PIN Cross	1
61	8M0100263	十字销	PIN Cross	1
62	828356	定位销	PIN Detent	1
63	828951	螺旋桨轴	PROPELLER SHAFT	1
64	828701A1	前进齿轮总成-15/28齿	GEAR ASSEMBLY Forward - 15/28	1
65	1761514	垫片(0.206)	SPACER SHIM (.206)	AR
65	1761515	垫片(0.208)	SPACER SHIM (.208)	AR
65	1761516	垫片(0.210)	SPACER SHIM (.210)	AR
65	1761517	垫片(0.212)	SPACER SHIM (.212)	AR
65	1761518	垫片(0.214)	SPACER SHIM (.214)	AR
65	1761519	垫片(0.216)	SPACER SHIM (.216)	AR
65	1761520	垫片(0.218)	SPACER SHIM (.218)	AR
65	1761521	垫片(0.220)	SPACER SHIM (.220)	AR
65	1761522	垫片(0.222)	SPACER SHIM (.222)	AR
65	1761523	垫片(0.224)	SPACER SHIM (.224)	AR
65	1761524	垫片(0.226)	SPACER SHIM (.226)	AR
65	1761525	垫片(0.228)	SPACER SHIM (.228)	AR
65	1761526	垫片(0.230)	SPACER SHIM (.230)	AR
66	815480	推力轴承	BEARING Thrust	1
67	815481	止推垫片	THRUST WASHER	1
68	828831A3	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
69	814653	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
69	814653T	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
70	18448	止推垫片	THRUST WASHER	2
71	15842	推力轴承	BEARING Thrust	2
72	8182911	推力座圈	RACE Thrust	2
73	814605	定位器	KEEPER	2
74	31534	O型圈	O-RING	1
74	8M0214920	O型圈	O RING	1
75	818290A4	轴承座总成	CARRIER ASSEMBLY Bearing	1
76	30956	滚针轴承	BEARING Needle	1
76	30956T	滚针轴承	BEARING Needle	1
77	14077	油封(内侧)	SEAL Oil (INSIDE)	1
78	76868	油封(外侧)	SEAL (OUTSIDE)	1
78	8M0248882	油封@5	SEAL-OIL @5	1
79	183231	锁紧垫圈	TAB WASHER	1
80	30281	键	KEY	1
81	79448	固定座	RETAINER	1
81	8M2011027	固定座	RETAINER	1
82	316405	平衡鳍板	TRIM TAB	1
82	8M0236553	平衡鳍板	TRIM TAB	1
82	76214A5	阳极套件	ANODE KIT	1
82	76214Q5	阳极套件	ANODE KIT	1
83	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
83	8M0204686	螺钉	SCREW	1
84	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
85	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
86	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
86	8M0204653	螺母	NUT	2
-	89238A2	密封套件	SEAL KIT	1

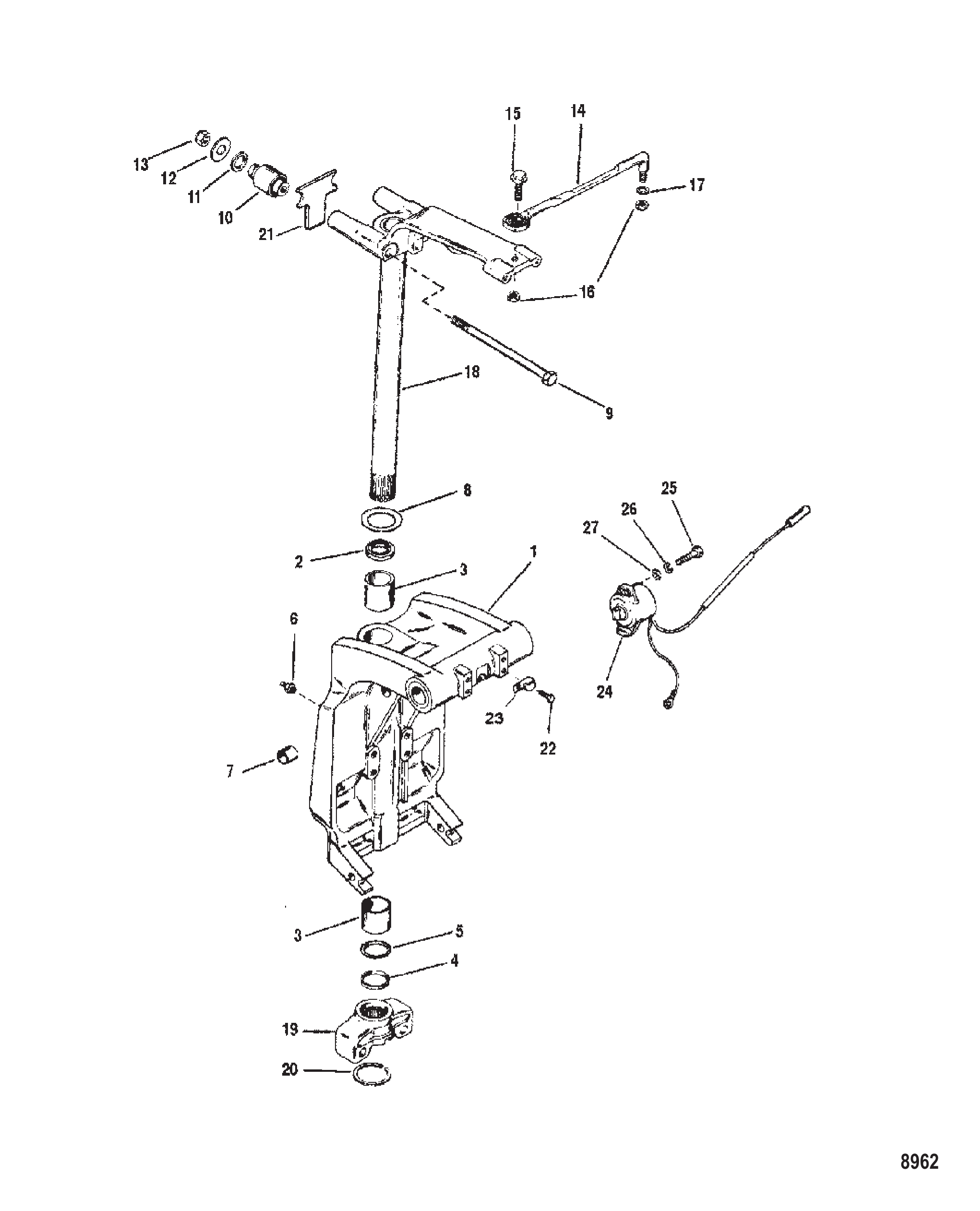

图 71旋转支架(铸件号1499-8710-7) Swivel Bracket (Casting #1499-8710-7)

REF	零件编号	中文名称	英文名称	数量
1	8710A20	旋转支架总成（黑色）	SWIVEL BRACKET ASSEMBLY (BLACK)	1
1	8710A21	旋转支架总成（灰色）	SWIVEL BRACKET ASSEMBLY (GRAY)	1
1	8710T21	灰色旋转支架总成	SWIVEL BRACKET ASSEMBLY Gray	1
2	87735		SEAL Oil SWIVEL BRACKET (LOWER)	1
3	67669	旋转支架衬套-上下部	BUSHING SWIVEL BRACKET-LOWER AND UPPER	2
3	818764	衬套	BUSHING	2
4	816039	隔套	SPACER	1
5	33504	O型圈	O-RING	1
5	8M0214926	O型圈 @10	O RING @10	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	99608	转轴支架衬套	BUSHING SWIVEL BRACKET	2
7	821207	衬套	BUSHING	2
8	816432	止推垫片	THRUST WASHER	1
9	78689	螺钉(0.437-20×7.50)转向臂至上支架	SCREW (.437-20 x 7.50) STEERING ARM TO UPPER MOUNT	2
9	8M0176309	螺钉	SCREW	2
10	78687	橡胶支架-上部(长型)	MOUNT RUBBER-UPPER (LONG)	2
10	78687T	支架	MOUNT	2
10	77326	支架(加长型)(用于XR4/MAGNUM II)	MOUNT (X-LONG) (USE ON XR4/MAGNUM II)	2
11	66921	上支座螺栓垫圈	WASHER UPPER MOUNT BOLT	2
12	814432	上支座螺栓垫圈	WASHER UPPER MOUNT BOLT	2
12	78688	垫圈	WASHER	2
13	34933	螺母（0.437-20）不锈钢上部安装螺栓	NUT (.437-20) Stainless Steel UPPER MOUNT BOLT	2
13	8M0204653	螺母	NUT	2
14	92876A1	转向连杆总成	LINK ASSEMBLY Steering	1
14	92876A12	连杆总成	LINK ROD ASSEMBLY	1
15	14000		SCREW (.375-24 x 1.25) STEERING LINK TO STEERING ARM	1
15	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
16	34863		NUT (.375-24) STEERING LINK SCREW	2
16	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
17	34931		WASHER (.406 x .734 x .063) Stainless Steel STEERING LINK TO STEERING ARM	2
18	67706A35	旋转销总成(黑色)	SWIVEL PIN ASSEMBLY (BLACK)	1
18	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
18	67706A36	旋转销总成(灰色)	SWIVEL PIN ASSEMBLY (GRAY)	1
18	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
19	86580A1	底部轭架总成（黑色）	YOKE ASSEMBLY Bottom (BLACK)	1
19	878182T	轭架底部-不锈钢	YOKE Bottom - Stainless Steel	1
19	86580A2	底部轭架总成（灰色）	YOKE ASSEMBLY Bottom (GRAY)	1
19	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
20	67684	卡环-底部轭架	RING Retaining BOTTOM YOKE	1
21	88882	缓冲垫-顶部轭架	BUMPER Top Yoke TOP YOKE	1
22	64014		SCREW (.250-28 x .500) SWIVEL BRACKET	2
23	54457	J型卡扣	J CLIP
24	95164A9	调整传感器总成	SENDER ASSEMBLY Trim	1
24	8M0074846	ORDER 8M0098273	ORDER 8M0098273	1
25	56682	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
25	852368	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
26	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
27	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2

图 72齿轮箱对照表 GEAR HOUSING CHART

零件编号	中文名称	英文名称	数量
840470T9	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
840470T27	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
840470T8	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
840306T6	齿轮箱总成(含扭矩片)	GEAR HOUSING ASSEMBLY Complete, With Torque Tab	1
840307T12	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
840306T7	齿轮箱总成(含扭矩片)	GEAR HOUSING ASSEMBLY Complete, With Torque Tab	1
840307T13	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
859399T22	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
8M0236198	GC DSI XL 1.75	GC DSI XL 1.75	1
840307T10	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
840307T11	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
859399T23	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
8M0236209	GC DSI CXL 1.75	GC DSI CXL 1.75	1

图 73喷射组件 Jet Components

REF	零件编号	中文名称	英文名称	数量
1	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	3
2	38833	垫圈	WASHER	3
3	94304	隔套	SPACER	3
4	13381	安装板	PLATE	1
5	821889A20	转速限制器	REV LIMITER	1
5	821889A30	转速限制器	REV LIMITER	1
6	823147A5	适配器线束总成 - 转速限制器	HARNESS ASSEMBLY Adaptor - Rev Limiter	1
7	801402	润滑脂套装	GREASE KIT	1
7	30500A2	润滑脂套装	GREASE KIT	1
8	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
8	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
9	426311	衬垫	GASKET	1
9	8M0204678	衬垫	GASKET	1
10	89238	油封	SEAL Oil	1
11	16977	油封	SEAL Oil	1
12	856081	衬垫	GASKET	1
12	8M0090319	衬垫@5	GASKET @5	1
13	856091	衬垫	GASKET	1
13	858524	衬垫	GASKET	1
14	32435	面板	FACE PLATE	1
14	8M0204677	面板	PLATE-FACE	1
15	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
15	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
16	48752	嵌件	INSERT	1
16	48752T	嵌件	INSERT	1
17	38970	密封件	SEAL	1
18	899841	叶轮	IMPELLER	1
18	89984T3	叶轮	IMPELLER	1
19	56654	键	KEY	1
19	8M0214992	键@5	KEY @5	1
20	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
20	8M0215009	螺钉	SCREW	1
21	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
21	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
22	13438	螺母(.250-28)	NUT (.250-28)	2
22	8267119	螺母(.250-28)	NUT (.250-28)	2
23	19924275	螺钉 (.312-18 x 2.75)	SCREW (.312-18 x 2.75)	1
24	36001	垫圈	WASHER	1
25	29804	套筒	SLEEVE	1
25	29804T	套筒	SLEEVE	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1

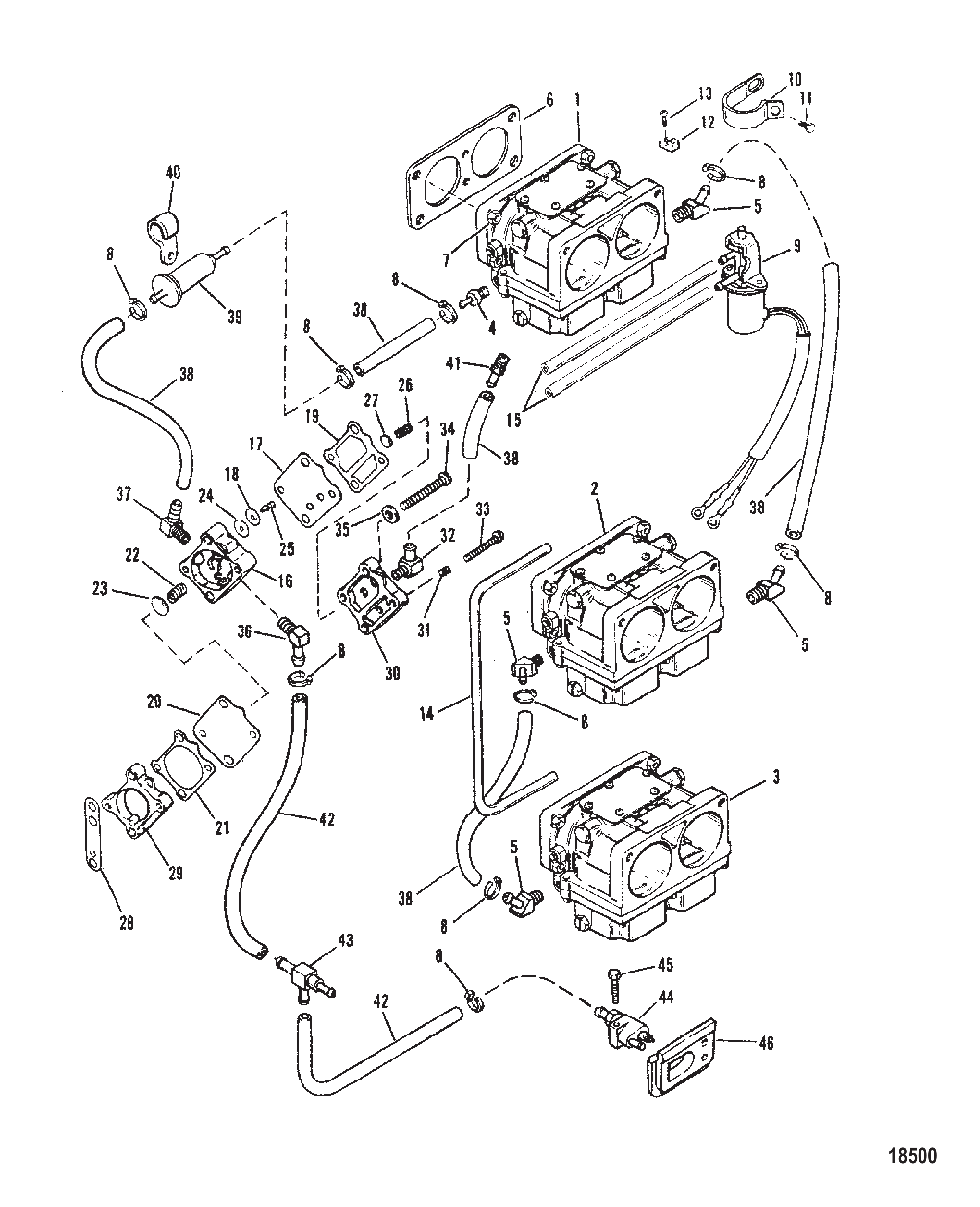

图 74燃油泵和化油器 Fuel Pump and Carburetor

REF	零件编号	中文名称	英文名称	数量
1	7563A10	化油器(上部) WH-35	CARBURETOR (TOP) WH-35	1
1	9242A33	化油器(上部) WH-40	CARBURETOR (TOP) WH-40	1
1	7563A13	化油器(上部) WH-38	CARBURETOR (TOP) WH-38	1
1	9242A48	化油器(上部) WH-48	CARBURETOR (TOP) WH-48	1
2	7563A11	化油器(中部) WH-35	CARBURETOR (CENTER) WH-35	1
2	9242A34	化油器(中部) WH-40	CARBURETOR (CENTER) WH-40	1
2	7563A14	化油器(中部) WH-38	CARBURETOR (CENTER) WH-38	1
2	9242A49	化油器(中部) WH-48	CARBURETOR (CENTER) WH-48	1
3	7563A12	化油器(下部) WH-35	CARBURATOR (BOTTOM) WH-35	1
3	9242A35	化油器(下部) WH-40	CARBURETOR (BOTTOM) WH-40	1
3	7563A15	化油器(下部) WH-38	CARBURETOR (BOTTOM) WH-38	1
3	9242A50	化油器(下部) WH-48	CARBURETOR (BOTTOM) WH-48	1
4	6232	燃油入口接头	FITTING FUEL INLET	1
5	70007	45度燃油入口接头	FITTING 45 Degree FUEL INLET	4
6	904301	化油器衬垫	GASKET CARBURETOR	3
7	20184	化油器安装螺母(1/4-28X7/32)	NUT (1/4-28X7/32) CARBURETOR MOUNTING	12
8	90077	化油器燃油管束带	TIE STRAP FUEL HOSE TO CARBURETOR	AR
9	42859A2	加浓阀总成	VALVE ASSEMBLY Enrichner ENRICHNER	1
10	633001	加浓阀卡箍	CLAMP ENRICHNER VALVE	1
11	73286	螺钉(0.250-20×0.500)不锈钢阀门卡箍	SCREW (.250-20 x .500) Stainless Steel VALVE CLAMP	1
12	45915	端子排簧片块壳体	TERMINAL BLOCK REED BLOCK HOUSING	1
13	35519	端子块固定螺钉(#10-16 x .500)	SCREW (#10-16 x .500) TERMINAL BLOCK ATTACHING	1
14	99130122	上部化油器至阀门管路(20英尺散装,7-3/4英寸)	TUBING (20.00 Feet Bulk) TOP CARBURETOR TO VALVE (7-3/4")	1
15	9912688	化油器间连接管路(36英寸散装,4-1/4英寸)	TUBING (36.00 Inches Bulk) CARBURETOR TO CARBURETOR (4-1/4")	2
16	15930A15	燃油泵套件	PUMP KIT Fuel	1
17	42990A3	膜片组件	DIAPHRAGM KIT	1
18	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve-Ruber	2
19	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
20	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
21	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
22	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
23	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
24	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
25	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
26	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
27	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
28	987691	底座衬垫	GASKET BASE	1
29	144303	燃油泵底座	BASE FUEL PUMP	1
30	98775A2	燃油泵板	PLATE FUEL PUMP	1
31	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
32	19688	接头	FITTING	1
33	16452	燃油泵螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) FUEL PUMP	2
34	4000310	燃油泵至曲轴箱螺钉(M5 x 40)	SCREW (M5 x 40) FUEL PUMP TO CRANKCASE	2
35	4002314	燃油泵螺钉垫圈	WASHER FUEL PUMP SCREW	2
36	14868	燃油泵弯头接头	FITTING FUEL PUMP (ELBOW)	1
37	19688	燃油泵弯头接头	FITTING FUEL PUMP (ELBOW)	1
38	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	1
39	16494	燃油滤清器	FILTER Fuel	1
41	64705	脉冲软管接头	FITTING PULSE HOSE	1
42	9912976	油管	TUBING	2
43	424251	三通	TEE	1
44	15781A1	燃油连接器	CONNECTOR Fuel	1
45	69067	燃油连接器螺钉(.250-20 x 1.375)	SCREW (.250-20 x 1.375) FUEL CONNECTOR	1
46	812782	密封件	SEAL	1
-	90484A88	衬垫套件	GASKET SET	1

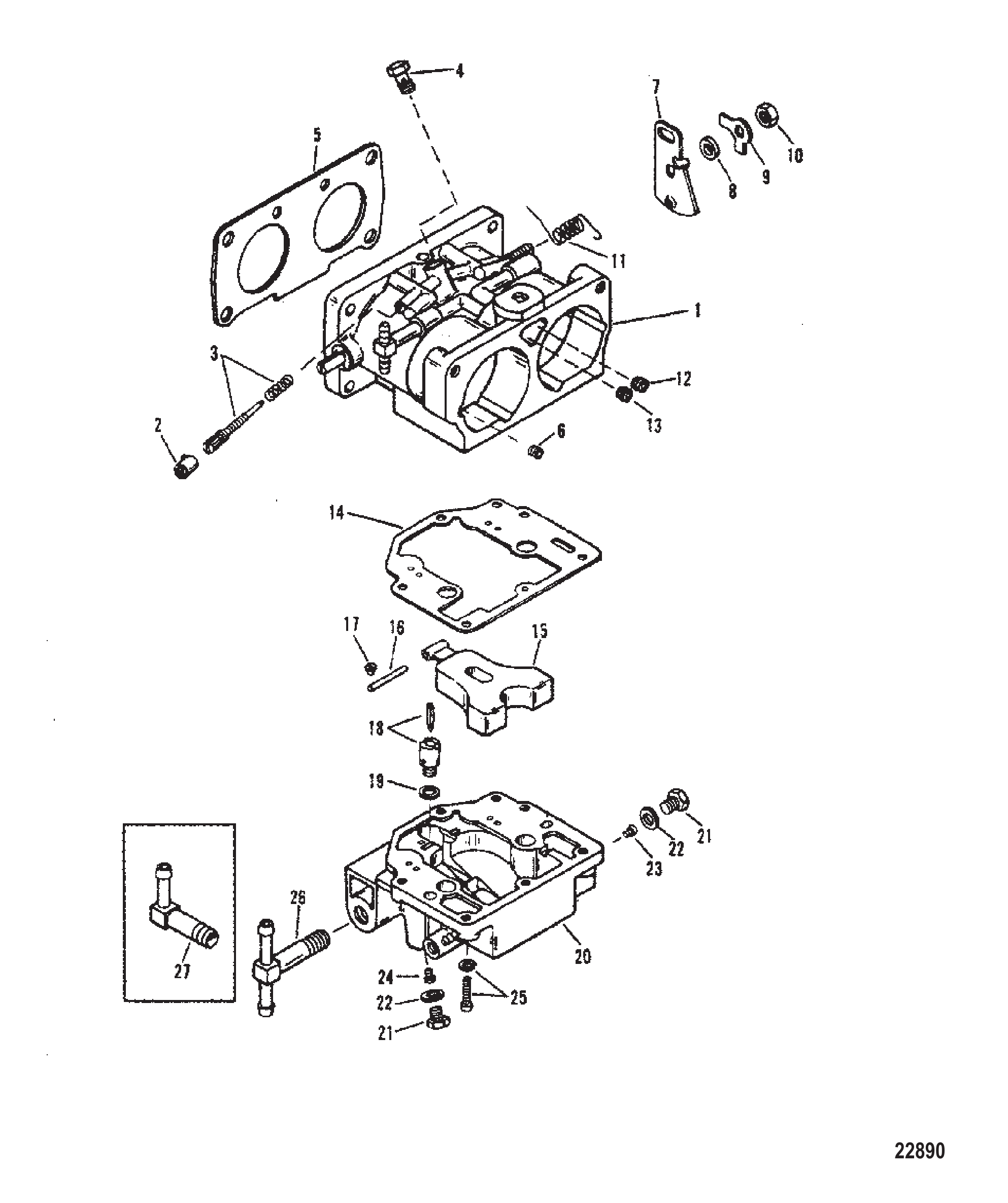

图 75化油器（WMH-12A/12B/13/13B/14A/15/16） CARBURETOR (WMH - 12A/12B/13/13B/14A/15/16)

REF	零件编号	中文名称	英文名称	数量
1	9672A50	化油器上部	CARBURETOR Top	1
1	9672A51	化油器中部	CARBURETOR Center	1
1	9672A52	化油器下部	CARBURETOR Bottom	1
1	9672A35	化油器上部	CARBURETOR Top	1
1	9672A36	化油器中部	CARBURETOR Center	1
1	9672A37	化油器下部	CARBURETOR Bottom	1
1	813682A13	化油器上部	CARBURETOR Top	1
1	813682A14	化油器中部	CARBURETOR Center	1
1	813682A15	化油器下部	CARBURETOR Bottom	1
1	9672A41	化油器上部	CARBURETOR Top	1
1	9672A42	化油器中部	CARBURETOR Center	1
1	9672A43	化油器下部	CARBURETOR Bottom	1
1	9672A44	化油器上部	CARBURETOR Top	1
1	9672A45	化油器中部	CARBURETOR Center	1
1	9672A46	化油器下部	CARBURETOR Bottom	1
2	810779	盖帽	CAP	6
3	NSS	不单独销售怠速混合螺钉/弹簧	NOT SOLD SEPARATE Idle Mixture Screw/Spring	6
4	811803	堵头固定件	PLUG Retainer	3
5	677511	衬垫	GASKET	3
6	815633048	量孔(.048)	JET (.048)	3
6	815633070	喷口(.070-175)	JET (.070 - 175)	3
6	815633050	喷口(.050)(XR6/MAGNUM III/200)	JET (.050) (XR6/MAGNUM III/200)	3
7	810721	节气门杆 (上部/中部)	LEVER Throttle (TOP/CENTER)	2
7	810722	节气门杆 (下部)	LEVER Throttle (BOTTOM)	1
8	811284	隔套	SPACER	3
9	810745	垫圈	WASHER	3
10	810744	螺母	NUT	3
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	3
12	6249	主喷口(.096)	JET Main (.096)	3
12	5815	喷口(.086)	JET (.086)	3
12	6201	量孔(.080)	JET (.080)	3
12	6247	主量孔(0.090)	JET Main (.090)	3
13	6246	量孔(.048)	JET (.048)	3
13	5317	量孔(.046)	JET (.046)	3
13	6359	量孔(.052)	JET (.052)	3
14	NSS		NOT SOLD SEPARATE Gasket-Fuel Bowl	3
15	810738	浮子总成	FLOAT ASSEMBLY	3
16	NSS		NOT SOLD SEPARATE Float Shaft	3
17	NSS	不单独销售浮子螺钉	NOT SOLD SEPARATE Screw-Float	3
18	811690	阀座套件	VALVE SEAT KIT	3
19	NSS	垫片(不单独销售)	NOT SOLD SEPARATE Gasket	3
20	811687	燃油杯(顶部)	BOWL Fuel (TOP)	1
20	811688	燃油杯(中部/底部)	BOWL Fuel (CENTER/BOTTOM)	2
21	9596	堵头	PLUG	12
22	NSS	不单独销售动力/渐进喷口垫片	NOT SOLD SEPARATE Gasket-Power/Progression Jet	12
23	5225	主量孔(.054)	JET Main (.054)	6
23	4217	主量孔(.062)	JET Main (.062)	6
23	4216	量孔(.064)	JET (.064)	6
23	4215	燃油主量孔(.066)	JET Main Fuel (.066)	6
24	811689	动力喷口	POWER JET	6
24	811807	动力喷口	POWER JET	6
24	811925	动力喷口	POWER JET	6
25	NSS	不单独销售燃油杯螺钉	NOT SOLD SEPARATE Screw-Fuel Bowl	15
26	7900	三通接头(顶部/中部)	TEE FITTING (TOP/CENTER)	2
27	7901	弯头(底部)	ELBOW (BOTTOM)	1
-	8107492	化油器垫片套件	GASKET KIT Carburetor	1
-	811691	化油器维修套件	REPAIR KIT Carburetor	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

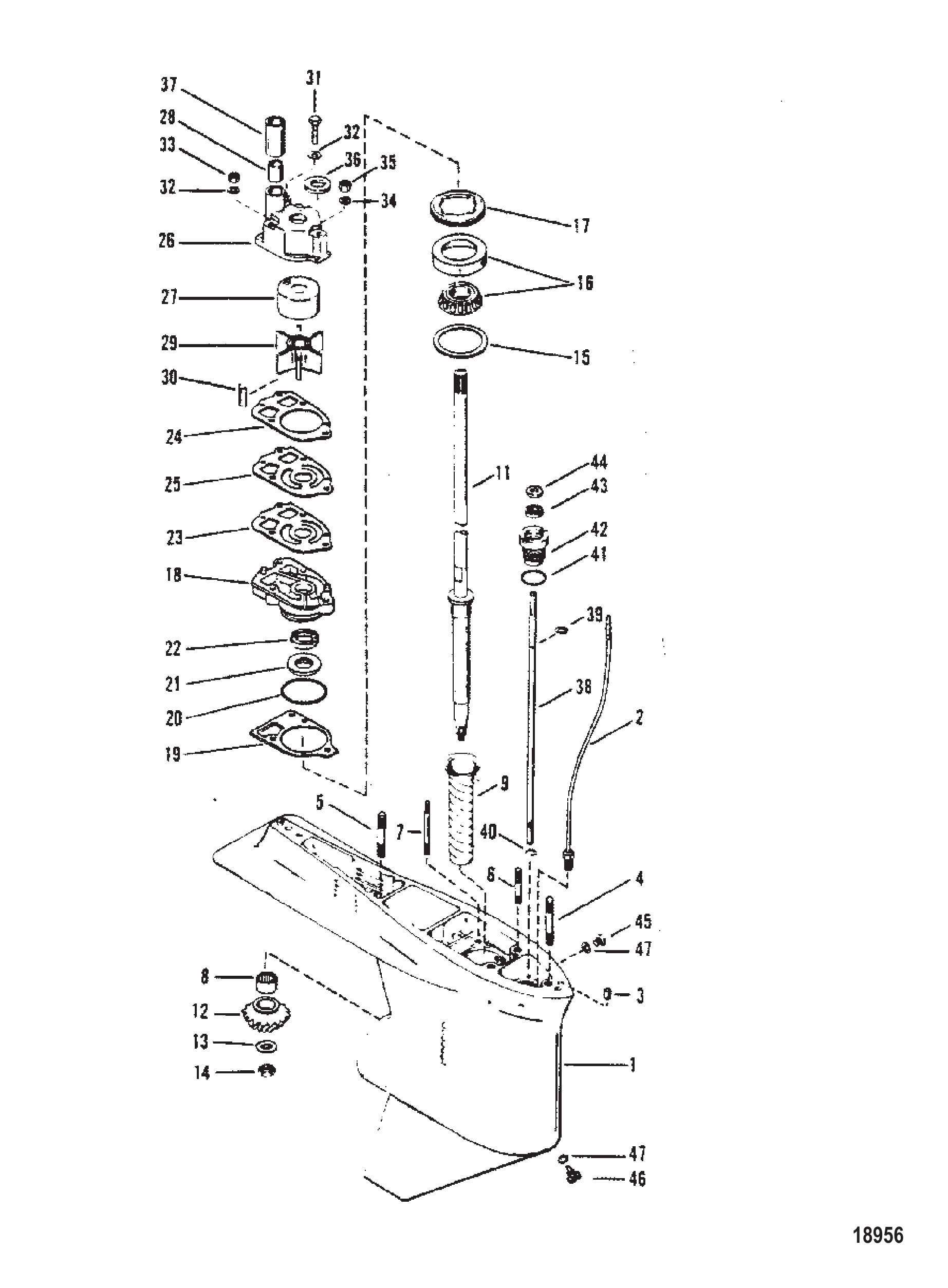

图 76齿轮箱(驱动轴)(标准/反向旋转) GEAR HOUSING (DRIVESHAFT)(STANDARD/COUNTER ROTATION)

REF	零件编号	中文名称	英文名称	数量

图 77动力平衡泵（与设计I动力平衡泵配套使用） Power Trim Pump (Use With Design I Power Trim Pump)

REF	零件编号	中文名称	英文名称	数量
-	99186T	泵与电机总成	PUMP AND MOTOR	1
1	12659	机架与磁场套件	FRAME AND FIELD KIT	1
1	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
2	12665	电刷弹簧套件	SPRING KIT Brush	1
3	13506	电刷卡套件	BRUSH CARD KIT	1
3	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
4	12662	泵与端架套件	PUMP AND END FRAME KIT	1
4	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
5	126631	泵密封套件	SEAL KIT Pump	1
6	12660	端架套件	END FRAME KIT	1
6	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
7	12661	电枢套件	ARMATURE KIT	1
7	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
8	12664	贯穿螺栓套件	THRU BOLT KIT	1

图 78专用工具 Tools Special

REF	零件编号	中文名称	英文名称	数量

图 79动力升降倾斜电机 Power Trim Motor

REF	零件编号	中文名称	英文名称	数量
-	828708	电机总成	MOTOR ASSEMBLY	1
1	828714A1	电刷与密封套件	BRUSH AND SEAL KIT	1
2	828713A1	电枢套件	ARMATURE KIT	1
2	828713T1	电枢套件	ARMATURE KIT	1
3	828715A1	端架（总成）	END FRAME (COMPLETE)	1

图 80齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)

REF	零件编号	中文名称	英文名称	数量
1	9148A47	齿轮箱总成(基础款)(黑色)	GEAR HOUSING ASSEMBLY (BASIC) (BLACK)	1
1	9148A48	齿轮箱总成(基础款)(灰色)	GEAR HOUSING ASSEMBLY (BASIC) (GRAY)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A49	齿轮箱总成(基础款)(追踪者)	GEAR HOUSING ASSEMBLY (BASIC) (TRACKER)	1
1	9148T49	齿轮箱壳体-TR型	GEAR HSG-BASIC-TR	1
2	85822A10	连接器总成(适用时使用)	CONNECTOR ASSEMBLY (USE WHERE APPLICABLE)	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	78638	双头螺栓(.438×3.12)(长型)	STUD (.438 x 3.12) (LONG)	1
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
4	18978	双头螺栓(.438×3.69)(加长型)	STUD (.438 x 3.69) (X-LONG)	1
4	8M0034464	螺柱	STUD	1
5	579201	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	306671	螺柱	STUD	2
8	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	43998	衬套(旧设计)	SLEEVE (OLD DESIGN)	1
9A	826134	阳极块	ANODE	2
9A	826134Q	阳极块	ANODE	2
9B	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
9C	8268336	螺母 (M6)	NUT (M6)	1
9C	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
11	440001	驱动轴(长型)	DRIVESHAFT (LONG)	1
11	897624T	长驱动轴	DRIVESHAFT Long	1
11	442091	驱动轴(加长型)	DRIVESHAFT (X-LONG)	1
11	897625T	加长驱动轴	DRIVESHAFT X-Long	1
11	16292	驱动轴(20英寸)	DRIVESHAFT (20")	1
11	815237	驱动轴(25英寸)	DRIVESHAFT (25")	1
12	N.S.S.	不单独销售小齿轮(前进齿轮组部件)	Not Sold Separate Pinion Gear (Part of Forward Gear Set)	1
13	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
14	826375	螺母(0.625-18)	NUT (.625-18)	1
14	35921	螺母(0.625-18)	NUT (.625-18)	1
15	42637A1	垫片组	SHIM SET	AR
15	8M0063267	垫片组	SHIM SET	AR
16	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
16	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
17	824519	固定座	RETAINER	1
17	8245191	固定座	RETAINER	1
18	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
19	426311	衬垫	GASKET	1
19	8M0204678	衬垫	GASKET	1
20	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
20	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
21	89238	油封	SEAL Oil	1
22	16977	油封	SEAL Oil	1
23	856081	衬垫	GASKET	1
23	8M0090319	衬垫@5	GASKET @5	1
24	856091	衬垫	GASKET	1
24	858524	衬垫	GASKET	1
25	32435	面板	FACE PLATE	1
25	8M0204677	面板	PLATE-FACE	1
26	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
27	48752	嵌件	INSERT	1
27	48752T	嵌件	INSERT	1
28	38970	密封件	SEAL	1
29	899841	叶轮	IMPELLER	1
29	89984T3	叶轮	IMPELLER	1
30	56654	键	KEY	1
30	8M0214992	键@5	KEY @5	1
31	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
31	8M0215009	螺钉	SCREW	1
32	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
33	13438	螺母(.250-28)	NUT (.250-28)	2
33	8267119	螺母(.250-28)	NUT (.250-28)	2
34	36001	垫圈	WASHER	1
35	13436	螺母	NUT	1
37	29804	套筒	SLEEVE	1
37	29804T	套筒	SLEEVE	1
38	789022	换挡轴(不带E型环使用)	SHIFT SHAFT (USE W/O E-RING)	1
38	78902	轴	SHAFT	1
38	789022	换档轴	SHIFT SHAFT	1
39	29641	E型卡环	E RING	1
41	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
42	77631A2	衬套总成	BUSHING ASSEMBLY	1
43	8164641	油封	SEAL Oil	1
43	8M0246145	油封	OIL SEAL	1
44	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
45	79953	螺钉(0.375-16x0.250)	SCREW (.375-16 x .250)	1
45	79953Q04	放油螺钉套件	SCREW KIT Drain	1
46	67892	磁性螺钉	SCREW Magnetic	1
46	8M0058389	放油螺钉套件	SCREW KIT Drain	1
47	19183	纤维垫圈	WASHER Fiber	2
47	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1

图 81动力升降组件 8M0231193 Power Trim Components 8M0231193

REF	零件编号	中文名称	英文名称	数量
-	8M0231193	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0225363	电机套件	MOTOR KIT	1
2	8M0225369	阀套件	VALVE KIT	1
3	8M0225371	手动释放套件	MANUAL RELEASE KIT	1
4	8M0245633	倾斜油缸套件	TILT CYLINDER KIT	1
5	8M0225370	枢轴销套件	PIVOT PIN KIT	1
6	8M0244575	减震杆套件	SHOCK ROD KIT	1
7	8M0244425	销杆眼套件	PIN ROD EYE KIT	1
8	8M0232231	螺钉螺母套件	SCREW NUT KIT	1
9	8M0225373	记忆活塞套件	MEMORY PISTON KIT	1
10	8M0225368	储液罐套件	RESERVOIR KIT	1
11	8M0174135	储液罐塞总成	PLUG RESERVOIR ASSEMBLY	1
12	8M0237525	泵套件	PUMP KIT	1
13	8M0225367	升降杆套件	TRIM ROD KIT	1
14	8M0242846	升降杆套件	TRIM ROD KIT	1
15	8M0225372	重建套件	REBUILD KIT	1

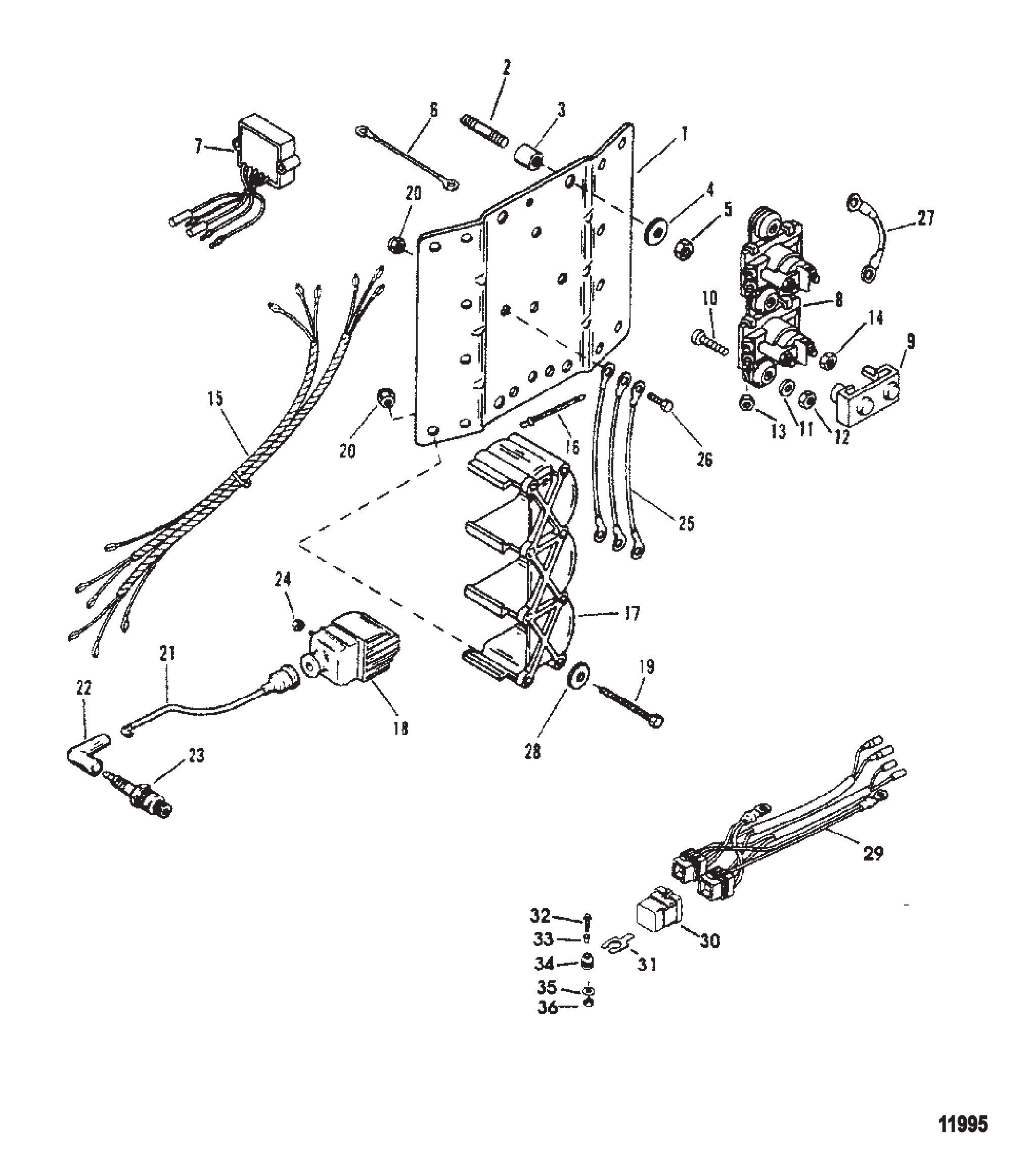

图 82点火线圈/电压调节器 IGNITION COIL/VOLTAGE REGULATOR

REF	零件编号	中文名称	英文名称	数量
1	195872	安装板	MOUNTING PLATE	1
2	33778	螺柱	STUD	4
3	19661	衬套	BUSHING	4
4	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
5	13438	螺母(.250-28)	NUT (.250-28)	4
5	8267119	螺母(.250-28)	NUT (.250-28)	4
6	88807A35	拉线总成	CABLE ASSEMBLY	1
7	815279T	电压调节器	REGULATOR Voltage	2
7	8M0084173	电压调节器	VOLTAGE REGULATOR	2
8	818997A1	电磁阀总成	SOLENOID ASSEMBLY	1
8	8M0185145	电磁阀总成	SOLENOID ASSEMBLY	1
9	97861	绝缘体	INSULATOR	2
10	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	3
10	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	3
11	35950	垫圈 (.273 x .437 x .031) 不锈钢	WASHER (.273 x .437 x .031) Stainless Steel	3
12	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	3
12	8M0207776	螺母	NUT	3
13	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	4
14	94330	螺母 (.250-20) 黄铜	NUT (.250-20) Brass	4
15	69738A9	线束总成 (2,4,6)	HARNESS ASSEMBLY (2,4,6)	1
15	69739A6	线束总成 (1,3,5)	HARNESS ASSEMBLY (1,3,5)	1
16	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
16	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
17	43542	盖板	COVER	2
18	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	6
18	8M0230859	点火线圈总成	COIL IGNITION ASY	6
18	7370A19	点火线圈总成	COIL ASSEMBLY Ignition	6
18	8M0230859	点火线圈总成	COIL IGNITION ASY	6
19	90048	螺钉 (#10-32 x 2.125)	SCREW (#10-32 x 2.125)	12
20	90078	螺母 (#10-32)	NUT (#10-32)	14
21	813715A9	点火线缆套件	CABLE KIT Ignition	1
22	63709A1	护套/端子套件	BOOT/TERMINAL KIT	6
23	136862	火花塞 (NGK-BU8H)	SPARK PLUG (NGK-BU8H)	6
23	13686Q	NGK BU8H @10	NGK BU8H @10	6
23	14103568	火花塞 (NGK-BUZ8H - 加拿大/比利时)	SPARK PLUG (NGK-BUZ8H - CANADA/BELGIUM)	6
23	896329885	SP #L6VC @4	SP #L6VC @4	6
24	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	12
25	88807A13	拉线总成	CABLE ASSEMBLY	8
26	69022	螺钉 (#10-32 x .500) 不锈钢	SCREW (#10-32 x .500) Stainless Steel	2
27	87379A14	电线总成 (2.750英寸)	WIRE ASSEMBLY (2.750 Inches)	1
28	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	12
29	826802A4	线束总成	HARNESS ASSEMBLY	1
30	828151	继电器	RELAY	2
30	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
31	828102	支架	BRACKET	2
31	8M0207771	安装支架	BRACKET Mounting	2
32	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	2
32	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
33	818968	衬套	BUSHING	2
33	8M0214955	衬套	BUSHING	2
34	818967	护孔环	GROMMET	2
34	8M0207785	护孔环	GROMMET	2
35	35950	垫圈 (.273 x .437 x .031) 不锈钢	WASHER (.273 x .437 x .031) Stainless Steel	2
36	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	2
36	8M0207776	螺母	NUT	2

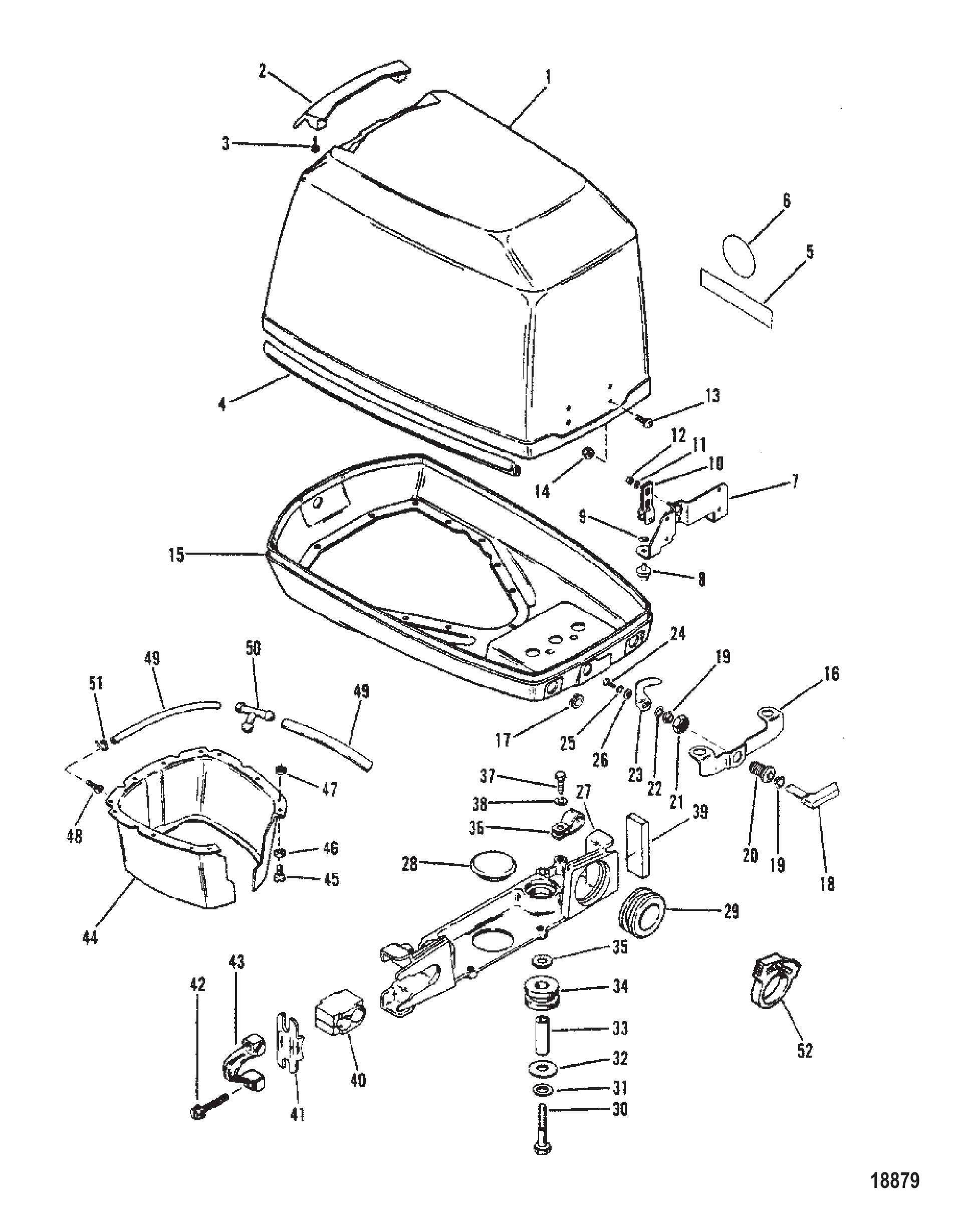

图 83外罩（牡蛎桶式） Cowls (Oyster Bucket Style)

REF	零件编号	中文名称	英文名称	数量
1	9735A2	顶盖总成	TOP COWL ASSEMBLY	1
2	18036A1	百叶窗总成	LOUVER ASSEMBLY	1
3	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	3
4	17973	密封件	SEAL	1
5	17996	徽标	EMBLEM	2
6	179061	徽标	EMBLEM	2
7	18189A1	罩锁支架总成（前）	BRACKET ASSEMBLY COWL LATCH (FRONT)	1
7	18190A1	罩锁支架总成（后）	BRACKET ASSEMBLY COWL LATCH (REAR)	1
8	18170A1	导架	GUIDE MOUNT	4
9	18193	导架夹	CLIP GUIDE MOUNT	4
10	18173	锁滚轮支架总成	BRACKET ASSEMBLY Latch Roller ROLLER	2
10	893763	滚轮锁扣支架	BRACKET Roller Latch	2
11	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
12	67980	螺母(.312-18)	NUT (.312-18)	4
12	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	4
13	18192	支架螺钉（.250-20 x .620）	SCREW (.250-20 x .620) BRACKET	8
14	56374	支架螺钉螺母（.250-20）	NUT (.250-20) BRACKET SCREW	8
14	8267098	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	8
15	9734T10	下机罩	BOTTOM COWL	1
16	18183	罩锁支架	BRACKET COWL LATCH	2
17	18182	护孔环	GROMMET	2
18	18168A1	锁手柄总成	LATCH HANDLE ASSEMBLY	2
19	71984	衬套	BUSHING	4
19	812707	衬套	BUSHING	4
20	18172	罩锁衬套	BUSHING COWL LATCH	2
21	18304	螺母	NUT	2
22	69708	波形垫圈	WAVE WASHER	2
23	18169	罩锁钩	HOOK COWL LATCH	2
24	28635	不锈钢螺丝(.250-20 x .620)	SCREW (.250-20 x .620) Stainless Steel	2
25	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
26	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
26	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
27	994241	下罩支架	BRACKET LOWER COWL	1
28	18219	堵头	PLUG	1
29	13467	衬套（内径0.88）	GROMMET (.88 Inside Diameter)	1
30	70732	螺钉 (.250-20 x 2.00)	SCREW (.250-20 x 2.00)	2
31	20346	垫圈	WASHER	4
31	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	4
32	35280	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	4
33	18194	衬套	BUSHING	2
34	88033	护孔环	GROMMET	4
35	28927	垫圈	WASHER	2
35	26907	垫圈	WASHER	2
36	18479	卡箍	CLAMP	1
37	28635	不锈钢螺丝(.250-20 x .620)	SCREW (.250-20 x .620) Stainless Steel	1
38	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
39	67260	控制线密封套	SEAL CONTROL CABLES	1
40	99391	油管固定器	RETAINER OIL LINES	1
41	88622	电缆固定板	PLATE CABLE RETAINER	1
42	22411	电缆固定器螺钉（.190-24 x 1.00）	SCREW (.190-24 x 1.00) CABLE RETAINER	2
42	68918	螺丝（#10-24 x 1.00）	SCREW (#10-24 x 1.00)	2
43	99447T	拉线固定器	RETAINER CABLE	1
43	99447	固定座	RETAINER	1
44	18037T10	配平罩盖	TRIM COVER COWL	1
45	18124	配平罩盖至板螺钉（#10-32 x .750）	SCREW (#10-32 x .750) TRIM COVER TO PLATE	12
46	89302	配平罩盖螺钉垫圈（.203 x .406 x .040）	WASHER (.203 x .406 x .040) TRIM COVER SCREW	6
47	29488	配平罩盖螺钉螺母（#10-32）	NUT (#10-32) TRIM COVER SCREW	12
47	8M0204718	螺母	NUT	12
48	18195	指示器接头	FITTING TELL TALE	1
49	99127109	示警管(57英寸散装)	LINE (57.00 Inches Bulk) TELL TALE	2
49	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	2
50	90824	指示器软管三通	TEE TELL TALE HOSE	1
50	90824001	三通接头	TEE FITTING	1
51	73498	卡箍	CLAMP	AR
51	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
52	4158210	尼龙卡箍	CLAMP Nylon	1

图 84动力升降泵(Eaton矩形电机) Power Trim Pump (Eaton Rectangular Motor)

REF	零件编号	中文名称	英文名称	数量
-	99186T	泵与电机总成	PUMP AND MOTOR	1
1	12659	机架与磁场套件	FRAME AND FIELD KIT	1
1	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
2	12665	电刷弹簧套件	SPRING KIT Brush	1
3	13506	电刷卡套件	BRUSH CARD KIT	1
3	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
4	12662	泵与端架套件	PUMP AND END FRAME KIT	1
4	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
5	12663	泵密封套件	SEAL KIT Pump	1
5	126631	泵密封套件	SEAL KIT Pump	1
6	12660	端架套件	END FRAME KIT	1
6	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
7	12661	电枢套件	ARMATURE KIT	1
7	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
8	12664	贯穿螺栓套件	THRU BOLT KIT	1

图 85喷油组件 OIL INJECTION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	830889A4	油箱总成	TANK ASSEMBLY	1
2	NSS	不单独销售标签-储液罐	NOT SOLD SEPARATE Decal-Reservoir	1
3	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
4	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
5	814449A3	盖总成	CAP ASSEMBLY	1
6	42999	衬垫	GASKET	1
6	42999T	衬垫	GASKET	1
7	856156A2	开关总成	SWITCH ASSEMBLY	1
7	856156T02	开关总成	SWITCH ASSEMBLY	1
8	81893435	螺钉(M8×35)	SCREW (M8 x 35)	3
8	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	3
9	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	3
10	855362	护孔环	GROMMET	3
10	855362001	护孔环	GROMMET	3
11	855364	衬套	BUSHING	3
-	8742A20	遥控机油箱总成	TANK ASSEMBLY Remote Oil	1
-	8742A22	遥控机油箱总成	TANK ASSEMBLY Remote Oil	1
12	87421	油箱	TANK	1
13	816190A3	外壳总成适配器	HOUSING ASSEMBLY Adapter	1
13	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
14	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
15	43298A2	盖总成	CAP ASSEMBLY	2
16	NSS	不单独销售嵌件	NOT SOLD SEPARATE Insert	1
17	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
18	99802	管	TUBE	1
19	99439	软管(114.00英寸)	HOSE (114.00 Inches)	1
20	12335A1	支架套件	BRACKET KIT	1
21	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1

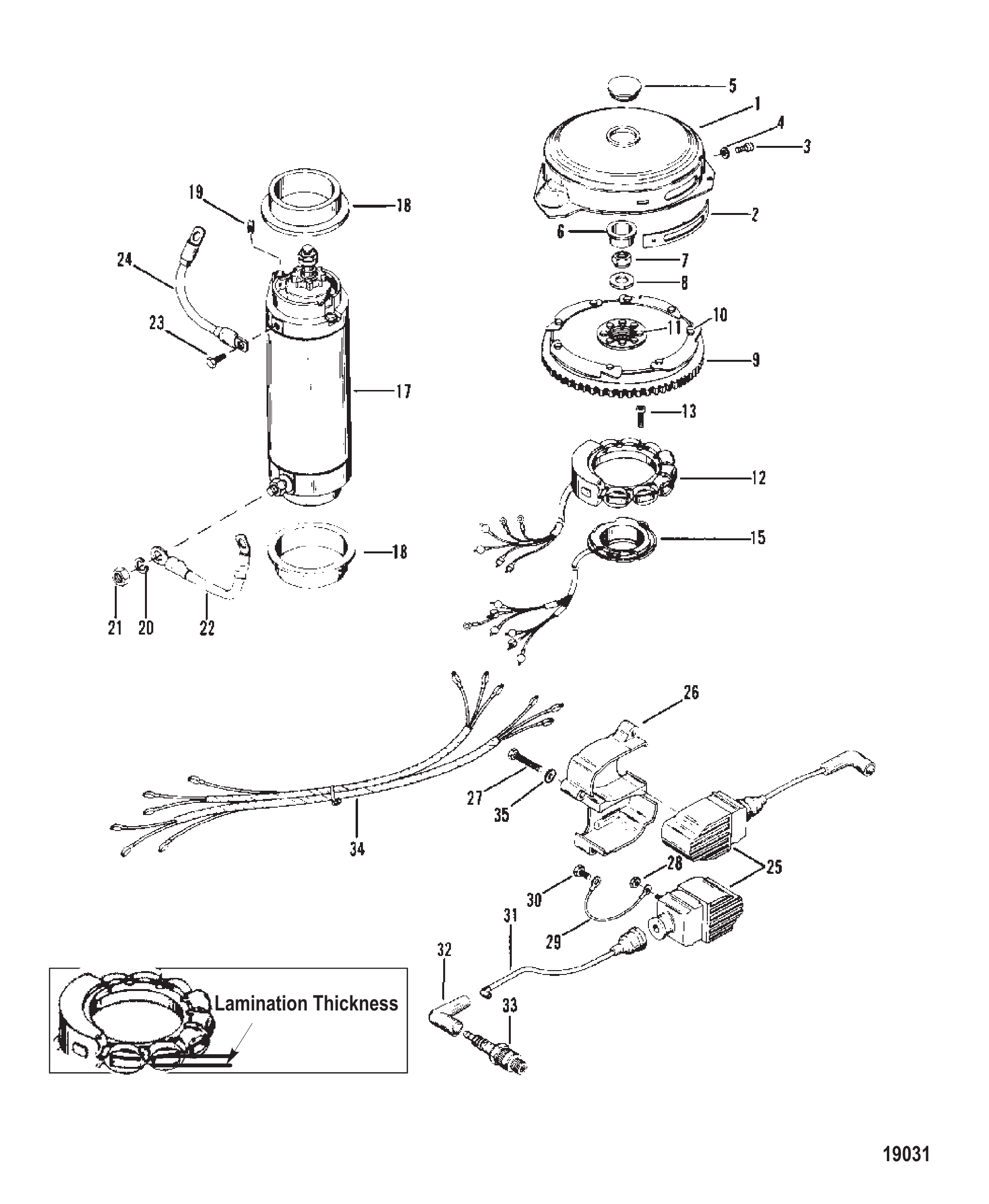

图 86飞轮、启动电机及点火线圈 Flywheel, Starter Motor and Ignition Coils

REF	零件编号	中文名称	英文名称	数量
1	79918A1	飞轮盖套件	COVER KIT FLYWHEEL	1
2	79022	正时标记	MARKER TIMING	1
3	37572	螺钉(0.190-32x0.380)正时标记	SCREW (.190-32 x .380) TIMING MARKER	2
4	72761	垫圈(0.203x0.562x0.060)不锈钢正时标记螺钉	WASHER (.203 x .562 x .060) Stainless Steel TIMING MARKER SCREW	2
5	89219	飞轮盖塞	PLUG FLYWHEEL COVER	1
5	89219001	堵头	PLUG	1
6	45907	飞轮黄色塞	PLUG Yellow FLYWHEEL	1
7	52901	螺母(.625-18)飞轮	NUT (.625-18) FLYWHEEL	1
8	68229	垫圈(0.641x1.250x0.190)飞轮	WASHER (.641 x 1.250 x .190) FLYWHEEL	1
8	33001	垫圈	WASHER	1
9	7555A8	飞轮	FLYWHEEL	1
9	859238A9	飞轮套件	FLYWHEEL KIT	1
9	7555A17	飞轮	FLYWHEEL	1
9	859238A9	飞轮套件	FLYWHEEL KIT	1
10	32417	螺钉(.250-28 x .625)飞轮板	SCREW (.250-28 x .625) FLYWHEEL PLATE	8
11	68997	螺钉(.312-24 x .750)飞轮毂	SCREW (.312-24 x .750) FLYWHEEL HUB	8
12	5454A32	定子(配15安培电压调节器)	STATOR (USE WITH VOLTAGE REGULATOR-15AMP)	1
12	5454A35	定子(配15安培电压调节器)	STATOR (USE WITH VOLTAGE REGULATOR-15AMP)	1
13	76566	定子螺钉(#10-24 x 1.00)	SCREW (#10-24 x 1.00) STATOR	4
13	19926100	螺丝（#10-24 x 1.00）	SCREW (#10-24 x 1.00)	4
15	96455A9	触发板总成	PLATE ASSEMBLY Trigger	1
17	79472	启动电机总成(8齿小齿轮)	STARTER MOTOR ASSEMBLY (8 TOOTH PINION)	1
17	893893	启动马达	STARTER MOTOR	1
18	56703	启动电机轴环	COLLAR STARTER MOTOR	2
18	8M0034918	轴环	COLLAR	2
19	68042	启动电机橡胶止动块	STOP Rubber RUBBER - STARTER MOTOR	2
19	8M0043376	停机开关	STOP	2
20	26992	锁紧垫圈(.250) 不锈钢起动机接线端	LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL	1
21	20890	螺母(.250-20) 起动机接线端	NUT (.250-20) STARTER MOTOR TERMINAL	1
22	93388A2	电磁阀至启动电机黑色电缆总成	CABLE ASSEMBLY Black SOLENOID TO STARTER MOTOR	1
22	93388A14	线缆总成(黄/黑)	CABLE ASSEMBLY Yellow/Black	1
23	69035	螺钉和锁紧垫圈 (.250-20 x .625) 不锈钢电缆至启动马达	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel CABLE TO STARTER MOTOR	1
24	93388A1	电缆总成(6.00英寸)黑色板至启动马达	CABLE ASSEMBLY (6.00 Inches) Black PLATE TO STARTER MOTOR	1
25	7370A13	点火线圈总成	COIL ASSEMBLY Ignition IGNITION	6
25	8M0230859	点火线圈总成	COIL IGNITION ASY	6
26	67614	点火线圈盖	COVER IGNITION COIL	3
27	88447	点火线圈盖螺钉(.190-32 x 1.62)	SCREW (.190-32 x 1.62) IGNITION COIL COVER	12
28	45076	螺母(#10-32)黄铜点火线圈端子	NUT (#10-32) Brass IGNITION COIL TERMINAL	12
29	88807A6	点火线圈黑色电缆总成(3.50英寸)	CABLE ASSEMBLY (3.50 Inches) Black IGNITION COIL	6
30	68513	接地带不锈钢螺钉(#10-32 x .375)	SCREW (#10-32 x .375) Stainless Steel GROUND STRAP	6
31	99215A25	高压导线总成	LEAD ASSEMBLY HIGH TENSION	6
31	813715A1	引线	LEAD WIRE	6
32	63709A1	高压电缆护套/端子套件	BOOT/TERMINAL KIT HIGH TENSION CABLE	6
33	136862	火花塞	SPARK PLUG	6
33	13686Q	NGK BU8H @10	NGK BU8H @10	6
34	69738A1	线圈至开关盒线束总成(#2,4&6)	HARNESS ASSEMBLY COIL TO SWITCH BOX (#2, 4 & 6)	1
34	69738A7	线束总成	HARNESS ASSEMBLY	1
34	69739A2	线圈至开关盒线束总成(#1,3&5)	HARNESS ASSEMBLY COIL TO SWITCH BOX (#1, 3 & 5)	1
35	30164	点火线圈盖螺钉不锈钢垫圈(.192 x .375 x .0312)	WASHER (.192 x .375 x .0312) Stainless Steel IGNITION COIL COVER SCREW	12

图 87排气歧管与排气板 EXHAUST MANIFOLD AND EXHAUST PLATE

REF	零件编号	中文名称	英文名称	数量
1	190503	衬垫	GASKET	1
2	8185622	分隔板	PLATE Divider	1
2	827323A2	分隔板	DIVIDER PLATE	1
3	814754	密封件(12.50英寸)	SEAL (12.50 Inches)	1
4	814634	卡箍	CLAMP	4
5	826356	螺钉带垫圈(.312-18 x 1.500)	SCREW AND WASHER (.312-18 x 1.500)	20
5	8263561	螺钉带垫圈(.312-18 x 1.500)	SCREW AND WASHER (.312-18 x 1.500)	20
6	814430	管接头(.500-14)	FITTING (.500-14)	1
6	8144301	接头	FITTING	1
7	92007	管接头(.250-18)(90度)	FITTING (.250-18) (90 DEGREES)	1
7	920071	90度弯头	FITTING (90 Degree)	1
8	830756109	软管(57.00英寸整卷)(裁切至23.5英寸)	HOSE (57.00 Inches Bulk) (Cut to 23.5 Inches)	1
8	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
9	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
10	68729	盖板	COVER	1
10	8M0039767	盖板	COVER	1
11	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
12	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
13	76451	垫圈	WASHER	1
14	14479	隔膜	DIAPHRAGM	1
14	144791	隔膜	DIAPHRAGM	1
15	16496	导水板	DEFLECTOR Water	1
16	16497A1	安装板	PLATE	1
17	78690	衬垫	GASKET	2
17	78690002	衬垫	GASKET	2
18	64878	弹簧(黑色)	SPRING (Black)	1
19	85303	垫圈	WASHER	1
20	14480	提动阀	POPPET	1
21	64872	护孔环	GROMMET	1
22	65848	托架	CARRIER	1
23	991763	衬垫	GASKET	1
23	991764	衬垫	GASKET	1
24	18260A2	排气板总成	PLATE ASSEMBLY Exhaust	1
24	18260T2	排气板总成	PLATE ASSEMBLY Exhaust	1
25	897721	连接器(.125-27)(直型)	CONNECTOR (.125-27) (STRAIGHT)	1
25	89772Q1	连接器(.125-27)	CONNECTOR (.125-27)	1
26	20033	定位销	PIN Dowel	2
26	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
27	8147011	密封件	SEAL	1
27	8M0043164	密封件	SEAL	1
28	680101	支架	BRACKET	1
29	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	8
29	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	8
30	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	6
31	69254	螺母	NUT	6
32	27132	衬套	BUSHING	1
33	19564	护孔环	GROMMET	1
33	8M0179867	护孔环	GROMMET	1
34	126021	护孔环	GROMMET	1
34	12602002	护孔环	GROMMET	1
34	19565	护孔环	GROMMET	1
34	19565002	护孔环	GROMMET	1
35	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
36	68783	螺钉(.312-18×2.50)	SCREW (.312-18 x 2.50)	1
37	66725	螺钉(.375-16×3.50)	SCREW (.375-16 x 3.50)	3
37	898833	螺钉(.375-16 x 3.500)	SCREW (.375-16 x 3.500)	3
38	812905A3	支架总成	BRACKET ASSEMBLY	1
38	812905T	前支架	BRACKET Front	1
39	90285	螺钉 (.312-18 x .625)	SCREW (.312-18 x .625)	4
40	56720	垫圈(0.330×0.750×0.060)不锈钢	WASHER (.330 x .750 x .060) Stainless Steel	4
41	187031	垫圈	WASHER	4
42	18778	护孔环	GROMMET	4
42	18778001	护孔环	GROMMET	4
43	18578A6	支架总成(后部)	BRACKET ASSEMBLY Rear	1
43	18578T09	支架总成(后部)	BRACKET ASSEMBLY Rear	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	812815A92	动力头总成	POWERHEAD ASSEMBLY	1
-	878365T00	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A94	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

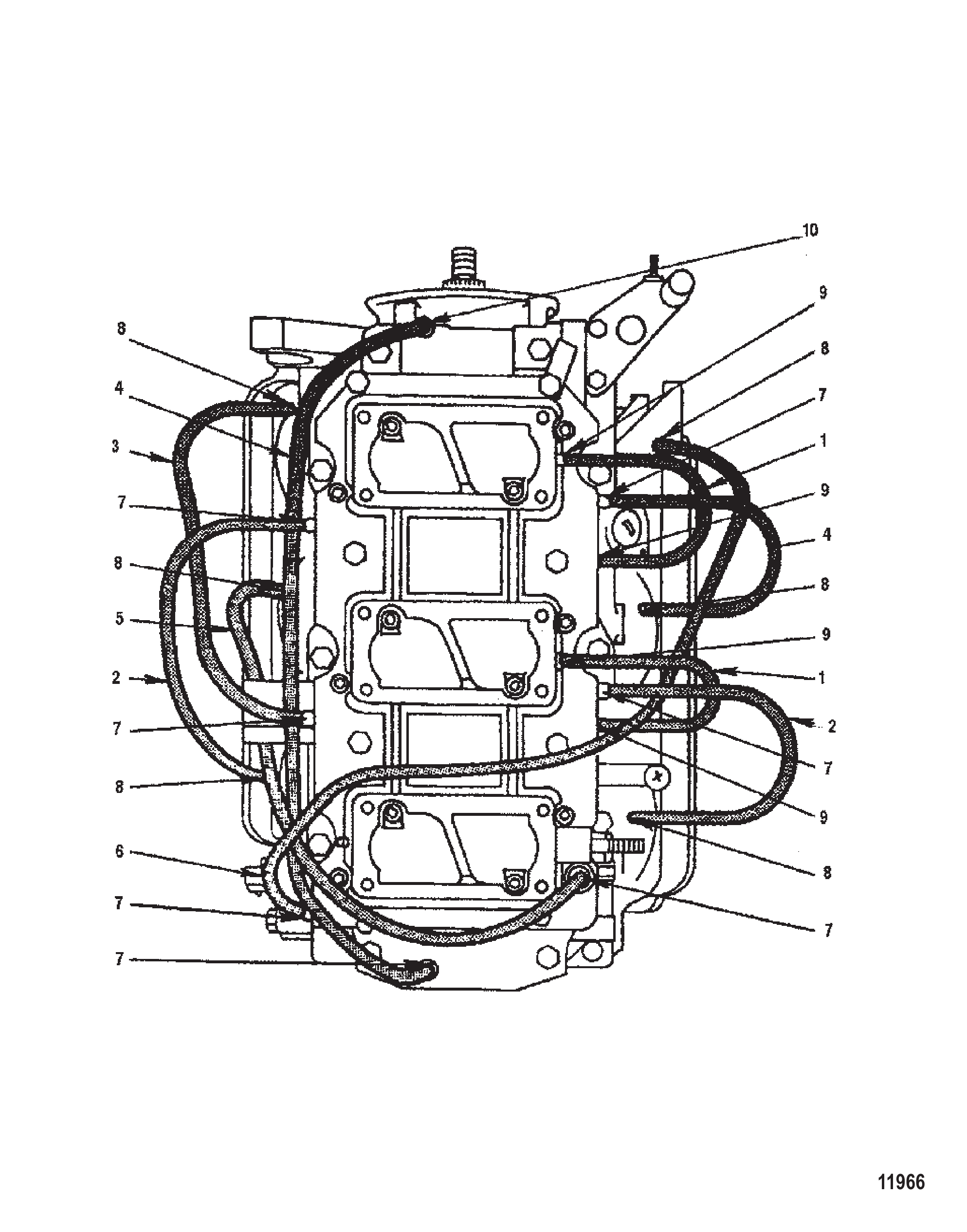

图 88泄放系统 Bleed System

REF	零件编号	中文名称	英文名称	数量
1	99130122	泄放管(20.00英尺散装)	TUBING (20.00 Feet Bulk) BLEED	1
2	59169	接头	FITTING	4
2	59169003	三通接头	FITTING Tee	4
3	42698	止回阀 (压入式 - 13/16"长)	CHECK VALVE (PRESS-IN - 13/16" LONG)	7
3	426982	止回阀	CHECK VALVE	7
4	42623	止回阀 (压入式 - 11/16"长)	CHECK VALVE (PRESS-IN - 11/16" LONG)	1
4	426233	止回阀	CHECK VALVE	1
5	15133	压入式接头	FITTING (PRESS-IN)	6
6	56759	压入式倒钩接头	FITTING Barbed (PRESS-IN)	4
7	15026	黄色弯头盖	CAP ELBOW (YELLOW)	4
8	18205	三通	TEE	1
9	9912688	管材 (36.00英寸散装)	TUBING (36.00 Inches Bulk)	1
10	18206	滤清器	FILTER	1
10	8M0207786	滤清器	FILTER	1

图 89驱动轴壳与排气管 Driveshaft Housing and Exhaust Tube

REF	零件编号	中文名称	英文名称	数量
1	8343A10	传动轴壳体总成(黑色)	HOUSING ASSEMBLY Driveshaft (BLACK)	1
1	8343A11	传动轴壳体总成(灰色)	HOUSING ASSEMBLY Driveshaft (GRAY)	1
1	8343T11	ORD 1590-8343T10	ORD 1590-8343T10	1
1	8343A12	传动轴壳体总成(TRACKER)	HOUSING ASSEMBLY Driveshaft (TRACKER)	1
1	8343T12	D型轴套-追踪者	D SHAFT HSG-TRACK	1
1	813563A1	传动轴壳体总成(黑色)	HOUSING ASSEMBLY Driveshaft (BLACK)	1
1	813563T1	传动轴壳体-黑色-加长型	HOUSING Driveshaft - Black - X-Long	1
1	813563A2	传动轴壳体总成(灰色)	HOUSING ASSEMBLY Driveshaft (GRAY)	1
1	813563T2	ORD 3503-813563T1	ORD 3503-813563T1	1
1	8343A13	传动轴壳体总成(JET)(黑色)	HOUSING ASSEMBLY Driveshaft (JET) (BLACK)	1
1	8343A14	传动轴壳体总成(JET)(灰色)	HOUSING ASSEMBLY Driveshaft (JET) (GRAY)	1
1	8343A13	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	56295	双头螺柱(.437 x 2.69)	STUD (.437 x 2.69)	2
4	63474	螺钉(.500-20 x 6.00)	SCREW (.500-20 x 6.00)	2
4	898831	螺钉(.500-20 x 6.220)	SCREW (.500-20 x 6.220)	2
5	78249	支架(加长型)(JET)	MOUNT (LONG)(JET)	2
5	77327	支架	MOUNT	2
5	77327	支架(TRACKER/XR6/MAGNUM III/超长型)	MOUNT (TRACKER/XR6/MAGNUM III/X-LONG)	2
6	49339	垫圈(.8125)	WASHER (.8125)	2
7	28040	螺母(.500-20)	NUT (.500-20)	2
7	898832	螺母(.500-20)	NUT (.500-20)	2
8	88238A1	接地线总成	CABLE ASSEMBLY Ground	1
8	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
9	67076	卡箍	CLAMP	2
9	8M0036782	卡箍	CLAMP	2
10	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
11	67077T	黑色盖(黑色)	COVER Black (BLACK)	2
11	8M4500752	盖板	COVER	2
11	67077T6	盖(灰色)	COVER (GRAY)	2
11	67077F1	灰色盖板	COVER Gray	2
11	67077F2	盖(TRACKER)	COVER (TRACKER)	2
11	8M4500752	盖板	COVER	2
12	88417	螺钉(#12-24×0.620)	SCREW (#12-24 x .620)	4
13	35521	螺母	NUT	4
14	88238A1	接地线总成	CABLE ASSEMBLY Ground	1
14	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
15	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
16	48926	垫圈	WASHER	1
17	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	1
17	8M0204653	螺母	NUT	1
18	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
19	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
19	8M0204653	螺母	NUT	2
20	64649	堵头	PLUG	1
21	18276	排气管	TUBE Exhaust	1
21	18276T	排气管	EXHAUST TUBE	1
22	66350	下密封件	SEAL (LOWER)	1
22	66350001	密封件	SEAL	1
23	177261	上密封件	SEAL (UPPER)	1
23	8M0039076	密封件	SEAL	1
24	67295	水管(加长型)(JET)	TUBE Water (LONG)(JET)	1
24	8M0042788	长型水管	TUBE-WATER-LONG	1
24	74729	管(超长型)	TUBE (X-LONG)	1
24	8M0042790	水管	TUBE-WATER	1
25	991732	衬垫	GASKET	1
25	991734	衬垫	GASKET	1
26	18233A3	隔板总成	PLATE ASSEMBLY	1
26	18233A20	传动轴壳体板总成	PLATE ASSEMBLY Driveshaft Housing	1
27	8147012	密封件	SEAL	1
27	8M0043165	密封件-27.00英寸	SEAL-27.00 INCH	1
28	68011	支架	BRACKET	1
29	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
29	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
30	20033	定位销	PIN Dowel	2
30	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
31	38970	密封件	SEAL	1
32	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	6
33	183071	衬垫	GASKET	1
33	183076	衬垫	GASKET	1
34	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	4
35	69254	螺母	NUT	4
36	812834	排气管延长段	EXTENSION Exhaust	1
36	812834A2	排气延长总成	EXTENSION ASSEMBLY Exhaust	1
36	41942F3	排气管延长段(150/200)(JET)	EXTENSION Exhaust (150/200)(JET)	1
36	879288T71	排气管延长段	EXTENSION Exhaust	1
37	78246	衬垫	GASKET	1
37	782461	衬垫	GASKET	1
38	814618	护套	BOOT	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 90旋转支架与转向臂 Swivel Bracket And Steering Arm

REF	零件编号	中文名称	英文名称	数量

图 91齿轮箱（驱动轴）（XR6/MAG III - 1.78:1 速比） GEAR HSG (DRIVESHAFT)(XR6/MAG III - 1.78:1 RATIO)

REF	零件编号	中文名称	英文名称	数量
1	814247A1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic - Black	1
1	814247A2	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic - Gray	1
1	814247T2	ORD 1674-814247T1	ORD 1674-814247T1	1
2	85822A10	连接器总成(适用时使用)	CONNECTOR ASSEMBLY (USE WHERE APPLICABLE)	1
2A	43998	衬套(旧设计)	SLEEVE (OLD DESIGN)	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	78638	双头螺柱(.438 x 3.12)	STUD (.438 x 3.12)	1
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
5	579201	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	306671	螺柱	STUD	2
8	35934A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	79953	螺钉(0.375-16x0.250)	SCREW (.375-16 x .250)	1
9	79953Q04	放油螺钉套件	SCREW KIT Drain	1
10	67892	磁性螺钉	SCREW Magnetic	1
10	8M0058389	放油螺钉套件	SCREW KIT Drain	1
11	815168	驱动轴	DRIVESHAFT	1
12	N.S.S.	小齿轮(不单独销售)(属于43-16279A2部件)	Not Sold Separate Pinion Gear (PART OF 43-16279A2)	1
13	19183	纤维垫圈	WASHER Fiber	2
13	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
14	826375	螺母(0.625-18)	NUT (.625-18)	1
14	35921	螺母(0.625-18)	NUT (.625-18)	1
15	42637A1	垫片组	SHIM SET	AR
15	8M0063267	垫片组	SHIM SET	AR
16	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
16	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
17	824519	固定座	RETAINER	1
17	8245191	固定座	RETAINER	1
18	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
19	426311	衬垫	GASKET	1
19	8M0204678	衬垫	GASKET	1
20	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
20	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
21	89238	油封	SEAL Oil	1
22	16977	油封	SEAL Oil	1
23	856081	衬垫	GASKET	1
23	8M0090319	衬垫@5	GASKET @5	1
24	856091	衬垫	GASKET	1
24	858524	衬垫	GASKET	1
25	32435	面板	FACE PLATE	1
25	8M0204677	面板	PLATE-FACE	1
26	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
27	48752	嵌件	INSERT	1
27	48752T	嵌件	INSERT	1
28	38970	密封件	SEAL	1
29	899841	叶轮	IMPELLER	1
29	89984T3	叶轮	IMPELLER	1
30	56654	键	KEY	1
30	8M0214992	键@5	KEY @5	1
31	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
31	8M0215009	螺钉	SCREW	1
32	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
33	13438	螺母(.250-28)	NUT (.250-28)	2
33	8267119	螺母(.250-28)	NUT (.250-28)	2
34	36001	垫圈	WASHER	1
35	13436	螺母	NUT	1
37	29804	套筒	SLEEVE	1
37	29804T	套筒	SLEEVE	1
38	8152641	换挡轴(不带E型环使用)	SHIFT SHAFT (USE W/O E-RING)	1
38	815264	换挡轴下段	SHIFT SHAFT LOWER	1
38	8152641	换档轴	SHIFT SHAFT	1
39	29641	E型卡环	E RING	1
40	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
41	77631A2	衬套总成	BUSHING ASSEMBLY	1
42	8164641	油封	SEAL Oil	1
42	8M0246145	油封	OIL SEAL	1
43	77674	垫圈(.35 x .75 x .12)换挡轴衬套	WASHER (.35 x .75 x .12) SHIFT SHAFT BUSHING	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1

图 92化油器 CARBURETOR

REF	零件编号	中文名称	英文名称	数量
1	9242A33	化油器(上部)(WH-40)	CARBURETOR (TOP) (WH-40)	1
1	9242A34	化油器(中部)(WH-40)	CARBURETOR (CENTER) (WH-40)	1
1	9242A35	化油器(下部)(WH-40)	CARBURETOR (BOTTOM) ( WH-40)	1
1	7563A10	化油器(上部)(WH-35)	CARBURETOR (TOP) (WH-35)	1
1	7563A11	化油器(中部)(WH-35)	CARBURETOR (CENTER) (WH-35)	1
1	7563A12	化油器(下部)(WH-35)	CARBURATOR (BOTTOM) (WH-35)	1
1	7563A13	化油器(上部)(WH-38)	CARBURETOR (TOP) (WH-38)	1
1	7563A14	化油器(中部)(WH-38)	CARBURETOR (CENTER) (WH-38)	1
1	7563A15	化油器(下部)(WH-38)	CARBURETOR (BOTTOM) (WH-38)	1
2	6249	主量孔(.096)燃油室(WH-32)(WH-38)	JET Main (.096) FUEL BOWL(WH-32) (WH-38)	6
2	8423	量孔(.094)浮子室(WH-35)	JET (.094) FUEL BOWL (.094) (WH-35)	6
2	6680	量孔(.078)燃油室(WH-40)	JET (.078) FUEL BOWL (WH-40)	6
3	NSS		NOT SOLD SEPARATE Gasket-Cover Plate	3
4	6032	盖板	PLATE COVER	3
5	NSS	盖板螺钉(不单独销售)	NOT SOLD SEPARATE Screw-Cover Plate	15
6	7822	燃油室(WH-33)	BOWL Fuel (WH-33)	3
6	7823	燃油杯(顶部)	BOWL Fuel (TOP)	1
6	7822	燃油杯(中部/底部)	BOWL Fuel (CENTER/BOTTOM)	2
7	NSS	不单独销售燃油杯螺钉	NOT SOLD SEPARATE Screw-Fuel Bowl	18
8	6025	主量孔塞	PLUG MAIN JET	6
9	NSS	不单独出售主量孔垫片	NOT SOLD SEPARATE Gasket-Main Jet	6
10	4216	主量孔(.064)(WH-33)	JET (.064) MAIN FUEL (WH-33)	6
10	6246	主量孔(.048)(WH-32)	JET (.048) MAIN FUEL (WH-32)	6
10	6028	主燃油量孔(.050)(WH-35)	JET (.050) MAIN FUEL (WH-35)	6
10	6359	主燃油量孔(.052)(WH-38)	JET (.052) MAIN FUEL (WH-38)	6
10	6201	主量孔(.080)(WH-40)	JET (.080) MAIN FUEL (WH-40)	6
11	NSS	不单独出售浮子销螺钉	NOT SOLD SEPARATE Screw-Float Pin	6
12	NSS	不单独出售进油针阀座垫片	NOT SOLD SEPARATE Gasket--Inlet Needle and Seat	6
13	7824	进油针阀总成	NEEDLE/SEAT ASSEMBLY Inlet	6
14	NSS	喷嘴座垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Nozzle Boss	6
15	9267	浮子	FLOAT	6
16	NSS	浮子杆销(不单独销售)	NOT SOLD SEPARATE Pin-Float Lever	6
17	NSS		NOT SOLD SEPARATE Gasket-Fuel Bowl	3
18	4541	怠速空气量孔螺钉	SCREW IDLE AIR BLEED JET	6
19	NSS	泄放量孔塞垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Bleed Jet Plug	6
20	5213	主量孔(.056)怠速空气量孔(WH-33)	JET Main (.056) IKLE AIR BLEED (WH-33)	6
20	7831	主量孔(.058)怠速空气量孔(.058)(WH-32)	JET Main Fuel (.058) IDLE AIR BLEED (.058) (WH-32)	6
20	6487	主量孔(.060)怠速空气量孔(WH-35)	JET Main (.060) IKLE AIR BLEED (WH-35)	6
20	5317	怠速空气量孔(.046)(WH-38)	JET (.046) IDLE AIR BLEED (WH-38)	6
20	6246	怠速空气量孔(.048)(WH-40)	JET (.048) IDLE AIR BLEED (WH-40)	6
21	6027	节气门杠杆螺钉	SCREW THROTTLE LEVER	3
22	67752	节流阀杆	LEVER THROTTLE	3
23	NSS		NOT SOLD SEPARATE Spring-Throttle Return	3
24	6031	节气门杠杆垫片	SPACER THROTTLE LEVER	3
25	6022	节流阀轴	SHAFT THROTTLE	3
26	NSS	节气门轴挡圈(不单独销售)	NOT SOLD SEPARATE Ring-Retainer-Throttle Shaft	3
27	6023	节气门阀(WH-33)(WH-40)	VALVE Throttle (WH-33) (WH-40)	6
27	9496	节气门阀(WH-32)	VALVE Throttle (WH-32)	6
27	9545	节气门阀(WH-38)(WH-35)	VALVE Throttle (WH-38) (WH-35)	6
28	NSS		NOT SOLD SEPARATE Screw-Throttle Valve	12
-	6452	衬垫套件	GASKET KIT	1
-	8506	化油器修理包(WH-33)(WH-40)	REPAIR KIT Carburetor (WH-33) (WH-40)	1
-	7826	修理包(WH-32)(WH-35)(WH-38)	REPAIR KIT (WH-32)(WH-35)(WH-38)	1

图 93上罩与前护板 TOP COWL AND FRONT SHIELD

REF	零件编号	中文名称	英文名称	数量
1	9742A88	顶盖总成 (黑色)(无贴花)	TOP COWL ASSEMBLY (BLACK)(Without Decals)	1
1	9743A11	顶盖总成 (银色)(无贴花)	TOP COWL ASSEMBLY (SILVER)(Without Decals)	1
1	9743T11	顶罩	TOP COWL	1
1	9742A92	顶盖总成 (XR6)(无贴花)	TOP COWL ASSEMBLY (XR6)(Without Decals)	1
1	9742T92	顶盖总成-黑色	TOP COWL ASY-BLK	1
1	9742A93	顶盖总成 (MAGNUM III -灰色)(无贴花)	TOP COWL ASSEMBLY (MAGNUM III -GRAY)(Without Decals)	1
1	9743T10	顶罩	TOP COWL	1
1	9743A10	顶盖总成 (MAGNUM III-银色)(无贴花)	TOP COWL ASSEMBLY (MAGNUM III-SILVER)(Without Decals)	1
1	9743T10	顶罩	TOP COWL	1
1	9743A8	顶盖总成 (150 TRACKER)(无贴花)	TOP COWL ASSEMBLY (150 TRACKER)(Without Decals)	1
1	9743A13	顶盖总成 (175/200 TRACKER)(无贴花)	TOP COWL ASSEMBLY (175/200 TRACKER)(Without Decals)	1
2	812784	密封件	SEAL	1
3	815478	密封件	SEAL	1
4	814823A1	隔音套件	SOUND BLANKT KIT	1
4	815225A1	隔音毯套装	SOUND BLANKET KIT	1
5	815227	隔音毯	SOUND BLANKET	1
6	69267	螺钉 (.312-18 x 1.750)	SCREW (.312-18 x 1.750)	2
7	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
7	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2
8	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	2
9	815848	螺母 (.312)	NUT (.312)	2
10	184741	支架	BRACKET	2
11	18506	护孔环	GROMMET	3
11	18506001	护孔环	GROMMET	3
12	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
13	56720	垫圈(0.330×0.750×0.060)不锈钢	WASHER (.330 x .750 x .060) Stainless Steel	4
14	813096	挂钩	HOOK	2
14	813096A2	挂钩套件	HOOK KIT	2
15	36001	垫圈	WASHER	2
16	813074	滚轮	ROLLER	2
16	8M0207770	滚轮@3	ROLLER @3	2
17	13194	挡圈	RING Retaining	2
14	813096A2	挂钩套件	HOOK KIT	2
16	815263	滚轮	ROLLER	2
16	8M0207770	滚轮@3	ROLLER @3	2
17	8237951	挡圈	RING Retaining	2
18	816992	螺钉	SCREW	8
19	187021	定位器	LOCATOR	1
20	18173	锁扣滚轮支架总成	BRACKET ASSEMBLY Latch Roller	1
20	893763	滚轮锁扣支架	BRACKET Roller Latch	1
21	816838	隔套	SPACER	1
22	47341A1	手动/应急启动绳和手柄套件 (用于手动启动)	ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING)	1
22	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
23	18755A1	前护罩总成 (黑色)(无贴花)	FRONT SHIELD ASSEMBLY (BLACK)(Without Decals)	1
23	18755A2	前护罩总成 (灰色)(无贴花)	FRONT SHIELD ASSEMBLY (GRAY)(Without Decals)	1
23	18755A4	前护罩总成 (银色)(无贴花)	FRONT SHIELD ASSEMBLY (SILVER)(Without Decals)	1
23	18755A3	前护罩总成 (TRACKER)(无贴花)	FRONT SHIELD ASSEMBLY (TRACKER)(Without Decals)	1
24	77137	螺钉 (.190-16 x .620)	SCREW (.190-16 x .620)	4
25	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	4
25	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	4
26	813562	密封件	SEAL	1

图 94齿轮箱（推进轴）（XR6/MAG III - 1.78:1 速比） GEAR HSG (PROP SHAFT)(XR6/MAG III - 1.78:1 RATIO)

REF	零件编号	中文名称	英文名称	数量
1	814247A1	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic - Black	1
1	814247A2	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic - Gray	1
1	814247T2	ORD 1674-814247T1	ORD 1674-814247T1	1
44	76039	换挡凸轮控制	CAM Shift Control	1
44	760394	换挡凸轮控制	CAM Shift Control	1
45	12239A1	凸轮从动件套件	FOLLOWER KIT Cam	1
45	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
46	30622	弹簧	SPRING	1
47	44491A1	垫片组	SHIM SET	AR
47	8M0063266	垫片组	SHIM SET	AR
48	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
49	16279A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
50	30895	滚针轴承	BEARING Needle	1
50	30895T	滚针轴承	BEARING Needle	1
51	822539	离合器	CLUTCH	1
51	822539T	离合器	CLUTCH	1
52	30632	十字销	PIN Cross	1
52	8M0100263	十字销	PIN Cross	1
53	30893	弹簧	SPRING	1
54	12238T	螺旋桨轴	PROPELLER SHAFT	1
55	N.S.S.	倒车齿轮(不单独销售)(属于43-16279A2部件)	Not Sold Separate Reverse Gear (PART OF 43-16279A2)	1
56	76358	止推垫片	THRUST WASHER	1
57	29976	O型圈	O-RING	1
58	41529A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
58	41529T2	托架总成	CARRIER ASSY	1
59	98727	润滑脂接头	FITTING Grease	2
59	8M0169588	润滑脂接头	FITTING Grease	2
60	30956	滚针轴承	BEARING Needle	1
60	30956T	滚针轴承	BEARING Needle	1
61	76868	密封件	SEAL	2
61	8M0248882	油封@5	SEAL-OIL @5	2
62	30281	键	KEY	1
63	52700	锁紧垫圈	TAB WASHER	1
64	52699	盖板	COVER	1
65	67891	填充块	FILLER BLOCK	1
65	8M0039169	填充块	FILLER BLOCK	1
66	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
68	816629	锁紧垫圈	TAB WASHER	1
68	816629Q	锁紧垫圈	TAB WASHER	1
69	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
69	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
70	316404	平衡鳍板	TRIM TAB	1
70	31640Q4	平衡鳍板	TRIM TAB	1
71	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
71	8M0204686	螺钉	SCREW	1
72	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
73	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
73	8M0204653	螺母	NUT	2
74	13191A1	止推垫片	THRUST WASHER	1
74	13191Q01	止推垫片	THRUST WASHER	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	89238A2	密封套件	SEAL KIT	1

图 95工具 Tools

REF	零件编号	中文名称	英文名称	数量
-	824785A1	衬套和密封安装工具	INSTALLER TOOL Bushing And Seal	1
-	13664	轴承座安装工具, 6/15马力	INSTALLER TOOL Bearing Carrier, 6/15 Hp	1
-	83165M	轴承拉拔器总成	PULLER ASSEMBLY Bearing	1
-	83165T	拉拔器总成	PULLER ASSEMBLY	1
-	31229A7	轴承拉拔器套件	PULLER KIT Bearing	1
-	824787	衬套拆卸工具	REMOVAL TOOL Bushing	1
-	36392	化油器量具	GAUGE TOOL Carburetor	1
-	29287	量规工具	GAUGE TOOL	1
-	824788A1	轴承拆卸工具	REMOVAL TOOL Bearing	1
-	824790A1	驱动轴衬套安装工具	INSTALLATION TOOL Driveshaft Bushing	1
-	83163M	飞轮固定工具	HOLDER TOOL Flywheel	1
-	8M0161873	固定工具	HOLDER TOOL	1
-	24937A1	固定工具	HOLDER TOOL	1
-	8M0161873	固定工具	HOLDER TOOL	1
-	24937A1	固定工具	HOLDER TOOL	1
-	83164M	飞轮拉拔器	FLYWHEEL PULLER	1
-	8M0227579	飞轮拉拔器	FLYWHEEL PULLER	1
-	13655	心轴	MANDREL	1
-	13655T	心轴	MANDREL	1
-	99750A1	万用表	MULTI METER	1
-	13663A1	活塞销安装工具	INSTALLER TOOL Piston Pin	1
-	13663T1	活塞销安装工具	INSTALLER TOOL Piston Pin	1
-	24697	活塞环扩张工具	EXPANDER TOOL Piston Ring	1
-	13662A1	动力头支架工具	STAND TOOL Powerhead	1
-	13662T1	动力头支架工具	STAND TOOL Powerhead	1
-	37241	通用拉拔板	PULLER PLATE Universal	1
-	59339	维修用转速表	SERVICE TACHOMETER	1
-	892647A01	DMT万用表套件	MULTI-METER KIT DMT	1
-	34569A1	滑动锤拉拔器总成	PULLER ASSEMBLY Slide Hammer	1
-	24283	卡簧钳	PLIERS Snap Ring	1
-	850439T1	八腔测试仪	TESTER Eight Chamber (EIGHT CHAMBER)	1
-	63998A1	单腔间隙工具	GAP TOOL Single Chamber (SINGLE CHAMBER)	1
-	99379	正时灯	TIMING LIGHT	1
-	66274	扭矩扳手(0-150磅英寸)	TORQUE WRENCH (0-150 lb-in)	1
-	37241	通用拉拔板	PULLER PLATE Universal	1
-	NSS	不单独销售膨胀杆(Snap On #CG-40-4)	NOT SOLD SEPARATE Expanding Rod (Snap On #CG-40-4)	1
-	NSS	不单独销售夹头(Snap On #CG-40-15)	NOT SOLD SEPARATE Collet (Snap On #CG-40-15)	1
-	NSS	非单独销售膨胀杆(Snap-On #CG40A6)	NOT SOLD SEPARATE Expanding Rod (Snap-On #CG40A6)	1

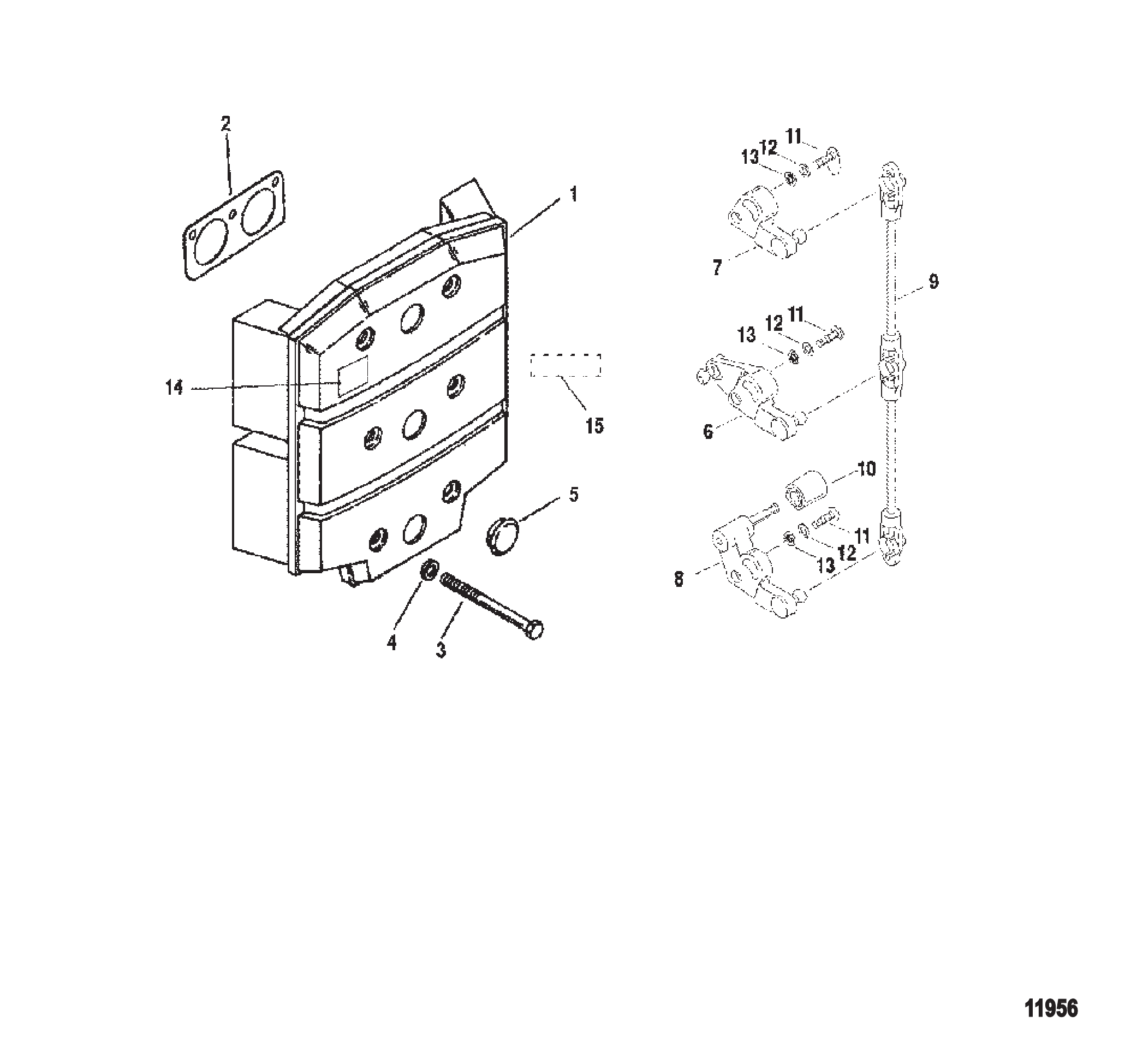

图 96阻风门板及油门杆 Choke Plate and Throttle Levers

REF	零件编号	中文名称	英文名称	数量
1	817495A1	消音板总成	PLATE ASSEMBLY Sound Attenuator	1
2	892211	衬垫	GASKET	3
3	88489	螺钉(.250-28 x 2.500)	SCREW (.250-28 x 2.500)	6
3	884891	螺钉(.250-28 x 2.500)带尼龙垫-不锈钢	SCREW (.250-28 x 2.500) With Nylon Patch - Stainless Steel	6
4	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	6
5	815784	盖帽	CAP	3
6	18180	油门连杆	LINK Throttle	1
7	18181	连杆(带短轴)	LINK (W/STUB SHAFT)	3
6A	825204A1	节流连杆套件	LINK KIT Throttle	1
7	18181	连杆(带短轴)	LINK (W/STUB SHAFT)	1
7A	181811	连杆(带球轴)	LINK (W/BALL SHAFT)	2
8	18178	滚轮	ROLLER	1
9	87926	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	3
10	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
11	69432	外锁紧垫圈(#10)	LOCKWASHER External (#10)	3
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 97齿轮箱(螺旋桨轴)(标准旋转) GEAR HOUSING (PROP SHAFT)(STANDARD ROTATION)

REF	零件编号	中文名称	英文名称	数量
1	9148T93	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
49	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
50	789562	换挡凸轮	SHIFT CAM	1
51	828287	杆	ROD	1
52	828174A2	齿轮组	GEAR SET	1
52	878613A2	前进齿轮总成 1.87:1 - 15/28齿	GEAR ASSEMBLY Forward 1.87:1 - 15/28	1
53	44491A1	垫片组(0.006-7-9-10-20)	SHIM SET (.006-7-9-10-20)	AR
53	8M0063266	垫片组	SHIM SET	AR
54	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
55	30895	滚针轴承	BEARING Needle	1
55	30895T	滚针轴承	BEARING Needle	1
56	854735T	滑动离合器	CLUTCH Sliding	1
56	859340T	离合器	CLUTCH	1
57	30632	十字销	PIN Cross	1
57	8M0100263	十字销	PIN Cross	1
58	828356	定位销	PIN Detent	1
59	30893	弹簧	SPRING	1
60	94148	螺旋桨轴	PROPELLER SHAFT	1
61	828175A1	倒车齿轮总成-15/28齿	GEAR ASSEMBLY Reverse - 15/28	1
62	824108	隔套	SPACER	1
63	681001	止推环	RING Thrust	1
64	88957	滚珠轴承总成	BEARING ASSEMBLY Ball	1
64	88957T	滚珠轴承	BEARING Ball	1
65	31534	O型圈	O-RING	1
65	8M0214920	O型圈	O RING	1
66	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
66	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	30956	滚针轴承	BEARING Needle	1
67	30956T	滚针轴承	BEARING Needle	1
68	14077	油封(内侧)	SEAL Oil (INSIDE)	1
69	76868	油封(外侧)	SEAL (OUTSIDE)	1
69	8M0248882	油封@5	SEAL-OIL @5	1
70	30281	键	KEY	1
71	79447	锁紧垫圈	TAB WASHER	1
72	79448	固定座	RETAINER	1
72	8M2011027	固定座	RETAINER	1
73	316405	平衡鳍板	TRIM TAB	1
73	8M0236553	平衡鳍板	TRIM TAB	1
73	76214A5	阳极套件	ANODE KIT	1
73	76214Q5	阳极套件	ANODE KIT	1
74	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
74	8M0204686	螺钉	SCREW	1
75	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
76	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
77	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
77	8M0204653	螺母	NUT	2
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	89238A2	密封套件	SEAL KIT	1

图 98动力升降马达 POWER TRIM MOTOR

REF	零件编号	中文名称	英文名称	数量
-	811628	配平电机	TRIM MOTOR	1
1	811624	机架与磁场套件	FRAME AND FIELD KIT	1
2	811625	电刷卡套件	BRUSH CARD KIT	1
3	811623	端架套件	END FRAME KIT	1
4	811626	密封套件	SEAL KIT	1
5	811627	电枢套件	ARMATURE KIT	1
5	811628	配平电机	TRIM MOTOR	1
-	828708	电机总成	MOTOR ASSEMBLY	1
-	878265A4	配平电机	TRIM MOTOR	1
6	828714A1	电刷与密封套件	BRUSH AND SEAL KIT	1
7	828713A1	电枢套件	ARMATURE KIT	1
7	828713T1	电枢套件	ARMATURE KIT	1
8	828715A1	端架（总成）	END FRAME (COMPLETE)	1

图 99顶罩 Top Cowl

REF	零件编号	中文名称	英文名称	数量
1	827328T9	顶盖总成	TOP COWL ASSEMBLY	1
1	827328T10	顶盖总成	TOP COWL ASSEMBLY	1
2	821256T1	黑色进气口	INLET Air - Black	1
2	821256T03	进气口	INLET Air	1
2	821256T2	银色进气口	INLET Air - Silver	1
3	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	4
4	859356A1	隔音毯套装	SOUND BLANKET KIT	1
4	859356A02	隔音毯套装	SOUND BLANKET KIT	1
5	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	1
6	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	1
7	NSS	不单独销售隔音毯	NOT SOLD SEPARATE Sound Blanket	2
8	823865	盖塞	CAP PLUG	2
9	831207T10	手柄	HANDLE	1
9	831207A16	罩盖锁手柄套件	HANDLE KIT Cowl Latch	1
10	812707	衬套	BUSHING	2
11	831214	隔套	SPACER	1
12	12134	波形垫圈	WASHER Wave	1
13	F481777	凸轮锁轴	CAM Latch Shaft	1
13	8M0001081	凸轮	CAM	1
14	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
14	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
15	1993716	螺钉(M6 x 16)	SCREW (M6 x 16)	1
16	821249M2	前支架	BRACKET Front	3
16	8M0036792	支架	BRACKET	3
17	815477	缓冲器锁扣	BUMPER Latch	3
18	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
18	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
19	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	6
20	8237951	挡圈	RING Retaining	1
21	815263	滚轮	ROLLER	1
21	8M0207770	滚轮@3	ROLLER @3	1
22	8155381	滚动销	PIN Roll	1
23	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
23	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
24	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
25	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
26	12066Q9	绳索	ROPE	1
26	12066Q10	启动绳@2	ROPE-STARTER@2	1

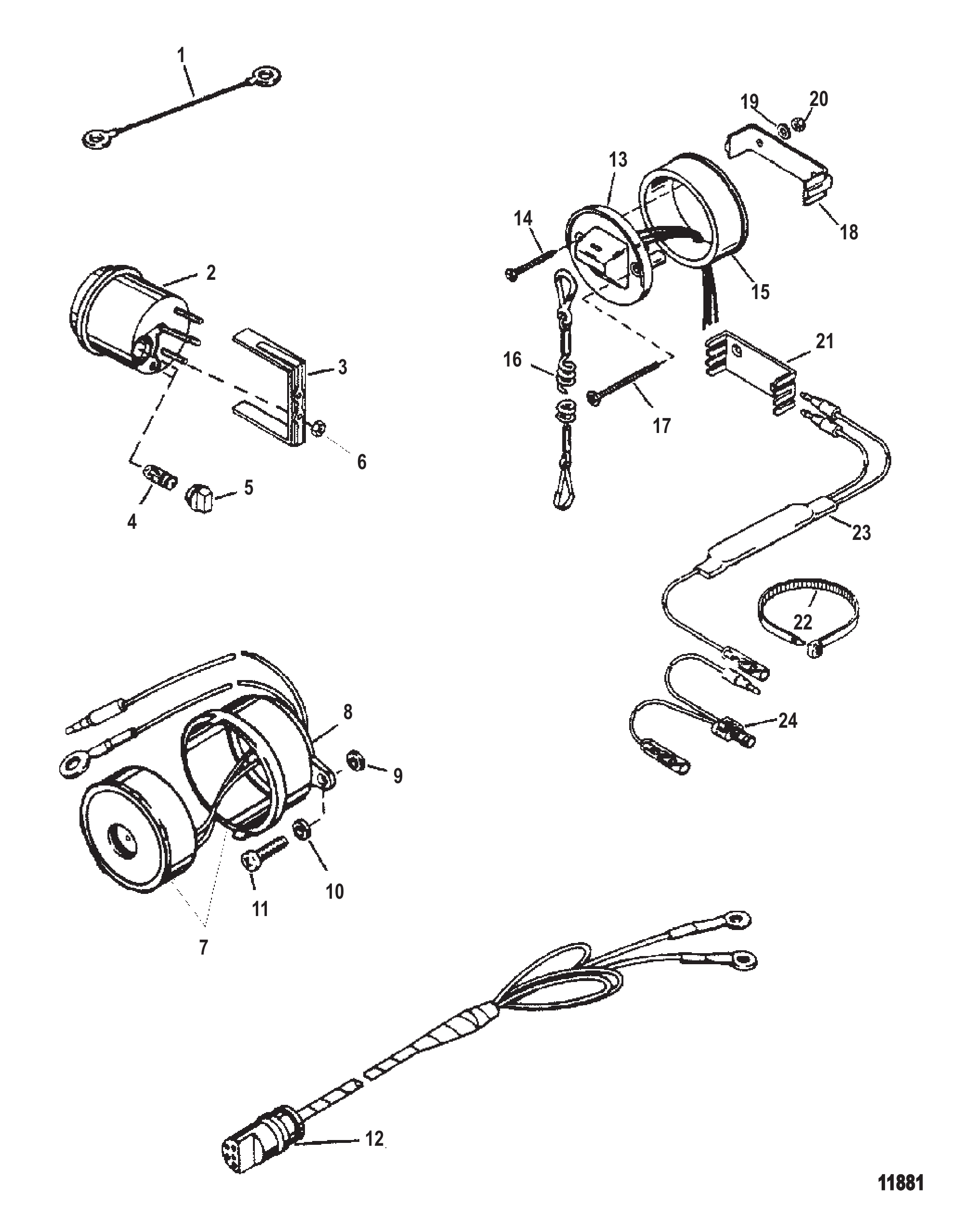

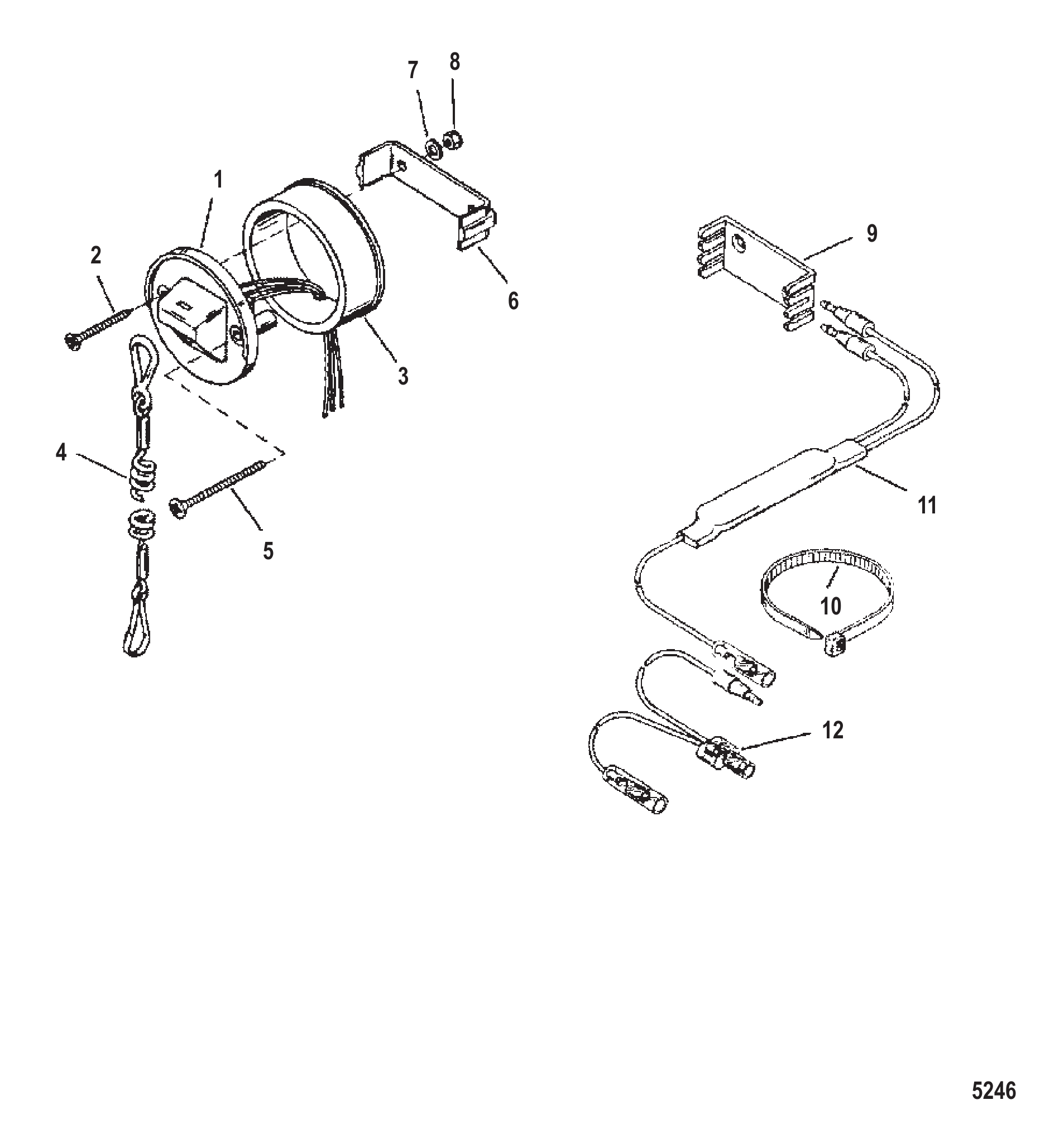

图 100仪表装置 Instrumentation

REF	零件编号	中文名称	英文名称	数量
1	86322A7	线缆总成(1.50英尺)黑色	CABLE ASSEMBLY (1.50 Feet) Black	1
1	86323A5	线缆总成(1.50英尺)紫色	CABLE ASSEMBLY (1.50 Feet) Purple	1
2	825338A3	动力升降倾斜仪表白面黑刻度黑边框	GAUGE Power Trim, White Face, Black Graduation, Black Bezel	1
2	895292Q41	动力升降倾斜指示器黑面橙白刻度黑边框	GAUGE Power Trim Indicator, Black Face, Orange/White Graduations, Black Bezel	1
3	79480	支架	BRACKET	1
4	72729	楔形底座灯泡(14V - 1.9W)	LIGHT BULB Wedge Base (14V - 1.9W)	1
5	79888	灯泡插座	SOCKET Light Bulb	1
6	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	5
7	68878A6	蜂鸣报警器总成	HORN ASSEMBLY Buzzer Alarm	1
8	68879	盖板	COVER	1
9	79697	隔套	SPACER	2
9	8M0084588	隔套	SPACER	2
10	26427	垫圈	WASHER	4
11	35401	螺钉(#10 x 1.00)	SCREW (#10 x 1.00)	2
12	86396A8	转速表线束总成(5.00英尺)	HARNESS ASSEMBLY Tachometer (5.00 Feet)	1
13	19674A1	拉绳开关总成	SWITCH ASSEMBLY Lanyard	1
13	19674A07	开关/拉绳套件	SWITCH/LANYARD KIT	1
14	18303	螺钉 (.190-16 x 1.750) 不锈钢	SCREW (.190-16 x 1.750) Stainless Steel	2
15	813679	适配器	ADAPTER	1
16	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
17	32866	螺钉 (#10-32 x 2.00) 不锈钢	SCREW (#10-32 x 2.00) Stainless Steel	2
18	18321	安装夹	CLAMP Mounting	1
19	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	2
20	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4
21	79146	固定座	RETAINER	3
22	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
23	812497A2	二极管总成	DIODE ASSEMBLY	1
23	898289A72	双拉绳二极管套件	DIODE KIT-LANYARD Dual	1
24	11149A2	线缆总成 (6.00英寸)	CABLE ASSEMBLY (6.00 Inches)	1

图 101艉板安装动力转向套件 TRANSOM MOUNT POWER STEERING KIT

REF	零件编号	中文名称	英文名称	数量
-	17443A11	动力转向套件	POWER STEERING KIT	1
1	811290	蓄能器	ACCUMULATOR	1
2	17772	螺柱	STUD	3
3	4002319	垫圈	WASHER	3
4	13914	螺母(M10)	NUT (M10)	3
4	40140	螺母(M10)	NUT (M10)	3
5	94319	螺钉(.375-24 x 1.5)	SCREW (.375-24 x 1.5)	1
6	17405	隔套	SPACER	2
7	34863	螺母 (.375-24)	NUT (.375-24)	3
7	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	3
8	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	1
8	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
9	92876A4	连杆总成	LINK ROD ASSEMBLY	1
10	68300	垫圈 (.88 x .39 x .06)	WASHER (..88 x .39 x .06)	1
11	8112891	执行器	ACTUATOR	1
11	828588A2	执行器套件	ACTUATOR KIT	1
-	811632	维修套件	REPAIR KIT	1
-	811632A1	维修套件	REPAIR KIT	1
12	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
12	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
13	43450	垫圈	WASHER	2
13	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	2
14	8268336	螺母 (M6)	NUT (M6)	2
14	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
15	811292	卡箍	CLAMP	1
16	818182	螺钉	SCREW	2
17	400263	螺母 (M5)	NUT (M5)	2
18	81742755	螺钉(M8x55)	SCREW (M8 x 55)	1
19	66751	垫片(0.250x0.390x0.630)不锈钢	SPACER (.250 x .390 x .630) Stainless Steel	1
19	8M0151156	隔套	SPACER	1
20	811291	支架	BRACKET	1
21	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
22	88404	锁紧垫圈	TAB WASHER	6
23	18211	继电器开关	RELAY SWITCH	1
24	18244A1	线束总成	HARNESS ASSEMBLY	1
25	18124	螺钉 (#10-32 x .750)	SCREW (#10-32 x .750)	1
26	90329	护孔环	GROMMET	1
27	309772	隔套	SPACER	1
28	816994	支架	BRACKET	1
29	42118	垫圈	WASHER	1
30	29488	螺母 (#10-32)	NUT (#10-32)	1
30	8M0204718	螺母	NUT	1
31	197491	卡箍	CLAMP	1
32	81563024	贴花	DECAL	1

图 102艉板支架 Transom Brackets

REF	零件编号	中文名称	英文名称	数量
1	8718F7	艉板支架 (右舷) (黑色)	BRACKET Transom (STARBOARD) (BLACK)	1
1	8718F8	艉板支架(右舷)(灰色)	BRACKET Transom (STARBOARD) (GRAY)	1
1	8718F10	艉板支架(右舷)(追踪者)	BRACKET Transom (STARBOARD) (TRACKER)	1
2	8716A8	艉板支架总成(左舷)(黑色)	BRACKET ASSEMBLY Transom (PORT) (BLACK)	1
2	8716A9	艉板支架总成(左舷)(灰色)	BRACKET ASSEMBLY Transom (PORT) (GRAY)	1
2	8716A10	艉板支架总成(左舷)(追踪者)	BRACKET ASSEMBLY Transom (PORT) (TRACKER)	1
3	98727	润滑脂接头(左舷)	FITTING Grease (PORT)	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	37984	螺母 (.875-14)	NUT (.875-14)	1
4	8M0041651	螺母 (.875-14)	NUT (.875-14)	1
5	99170A2	倾斜管套件(碳钢)	TUBE KIT Tilt (CARBON STEEL)	AR
5	826125A1	倾斜管	TILT TUBE	AR
5	826125A1	倾斜管(不锈钢)	TILT TUBE (STAINLESS STEEL)	AR
6	826135	锁紧螺母(1.00-14)尼龙嵌件(黑色)	NUT Lock (1.00-14) Nylon Insert (BLACK)	1
6	90068F3	螺母(1.00-14)(灰色)	NUT (1.00-14) (GRAY)	1
6	859133	螺母(1.00-14)	NUT (1.00-14)	1
6	90068F4	螺母(1.00-14)(追踪者)	NUT (1.00-14) (TRACKER)	1
6	859133	螺母(1.00-14)	NUT (1.00-14)	1
7	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
8	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
9	826164	螺母 (.875-14)	NUT (.875-14)	1
9	8M0231351	锁紧螺母	NUT Lock	1
10	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
10	8M0149747	螺钉	SCREW	4
11	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	8M0027784	螺母	NUT	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	99629A2	杠杆总成	LEVER ASSEMBLY	1
13	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	99611	波形垫圈	WAVE WASHER	1
15	65830	尼龙衬套	NYLINER	2
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99622	弹簧	SPRING	1
19	99604	槽销	PIN Groove	1
20	96930A1	螺栓总成	BOLT ASSEMBLY	1
21	23161	螺母 (.375-24)	NUT (.375-24)	1
22	814207	停机开关	STOP	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 103动力升降泵(Prestolite圆形电机) Power Trim Pump (Prestolite Round Motor)

REF	零件编号	中文名称	英文名称	数量
-	99186	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
1	8995	泵总成	PUMP ASSEMBLY	1
1	826729A10	ORD 8M0143217	ORD 8M0143217	1
2	8996	O型圈套件	O-RING KIT	1
3	8986	电枢	ARMATURE	1
4	8987	机架与磁场	FRAME AND FIELD	1
4	99186	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
5	8992	缸盖O型圈	O-RING HEAD	1
6	8993	电刷弹簧套件	SPRING KIT BRUSH	1
7	8988	换向器端盖	HEAD COMMUTATOR END	1
8	8989	电刷套件	BRUSH KIT	1
9	8994	贯穿螺栓套件	THRU BOLT KIT	1
10	8985	导线夹	CLAMP LEAD WIRE	1
11	8990	螺母密封垫	NUT PACKING	1
12	8991	O型圈螺母密封	O-RING PACKING NUT	1

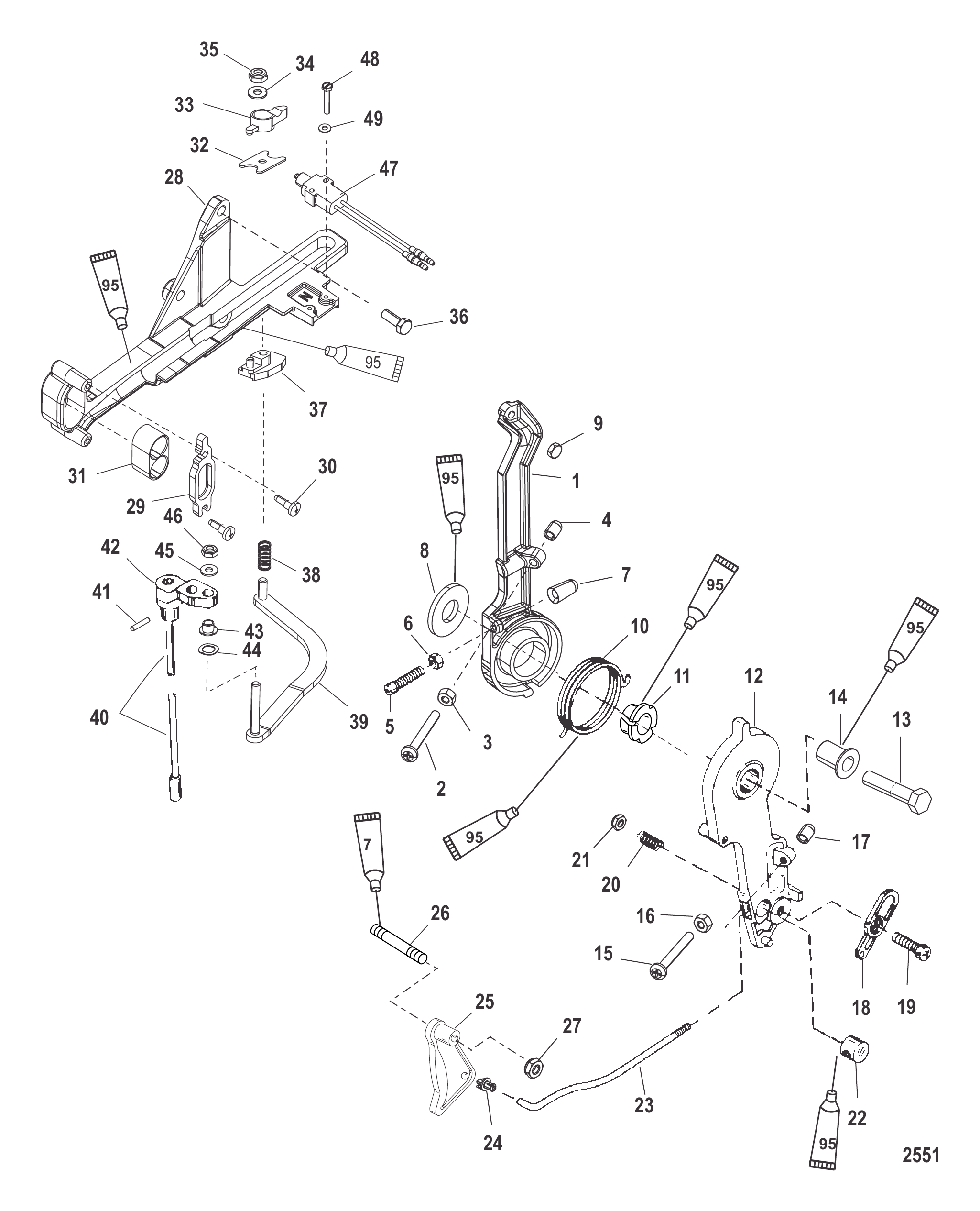

图 104油门杆与换挡轴 THROTTLE LEVER AND SHIFT SHAFT

REF	零件编号	中文名称	英文名称	数量
1	55171	衬套	BUSHING	1
2	62459	球头总成	BALL JOINT ASSEMBLY	1
2	62459T	球头节总成	BALL JOINT ASSY	1
3	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	1
4	76035	杆	ROD	1
5	46438	螺母 (#10-32)	NUT (#10-32)	1
6	41094A3	杠杆总成 (设计I)	LEVER ASSEMBLY (DESIGN I)	1
6	823705A1	点火提前杠杆 (设计II)	LEVER Spark Advance (DESIGN II)	1
7	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
8	64015	螺母 (.250-20)	NUT (.250-20)	1
9	26852	尼龙帽	CAP Nylon	1
10	93254	旋转底座	SWIVEL BASE	1
11	93421	旋转球头	SWIVEL BALL	1
12	823706	连接杆	LINK	1
13	74897	枢轴	PIVOT	1
13	74897T	枢轴	PIVOT	1
14	13627	螺钉 (.190-32 x 1.250)	SCREW (.190-32 x 1.250)	1
15	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
16	48039	盖帽	CAP	1
17	823235	弹簧	SPRING	1
18	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	1
19	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
20	64015	螺母 (.250-20)	NUT (.250-20)	1
21	26852	尼龙帽	CAP Nylon	1
22	39483	闩锁	LATCH	1
23	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
24	20099	弹簧	SPRING	1
25	35045	螺母(.250-28)	NUT (.250-28)	1
25	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
26	41095	杠杆	LEVER	1
26	410952	杠杆	LEVER	1
27	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
28	55164	衬套	BUSHING	1
29	14638	套筒	BARREL	1
30	814929	杆	ROD	1
31	932481	衬套	BUSHING	1
31	8M0215006	旋转衬套	BUSHING Swivel	1
32	35045	螺母(.250-28)	NUT (.250-28)	1
32	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
33	20353	螺柱 (.250-28 x 1.750)	STUD (.250-28 x 1.750)	1
34	815539T	节气门凸轮	CAM Throttle	1
35	814283A2	支架总成	BRACKET ASSEMBLY	1
36	39519	杯套	CUP	1
37	42975	传动螺钉	DRIVE SCREW	2
38	98889	闩锁	LATCH	1
39	53167	螺钉 (.312-18 x .880)	SCREW (.312-18 x .880)	3
39	53167T	螺钉 0.312-18X 0.88	SCREW .312-18X .88	3
40	79932A11	换挡轴总成 (长)	SHIFT SHAFT ASSEMBLY (LONG)	1
40	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
40	79932A12	换挡轴总成 (加长)	SHIFT SHAFT ASSEMBLY (X-LONG)	1
40	79932A17	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
41	814284	导向块	GUIDE BLOCK	1
42	20099	弹簧	SPRING	1
43	67073A1	连杆总成	LINK ROD ASSEMBLY	1
44	52100	耐磨板	WEAR PLATE	1
45	38279	闩锁	LATCH	1
45	8M0036768	闩锁	LATCH	1
46	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
47	35045	螺母(.250-28)	NUT (.250-28)	1
47	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
48	26600	衬套	BUSHING	1
49	29720	波形垫圈	WAVE WASHER	1
50	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
51	35045	螺母(.250-28)	NUT (.250-28)	1
51	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
52	814281A1	怠速稳定换挡套件	IDLE STABILIZING SHIFT KIT	1
53	77478	螺钉 (#6-32 x .875)	SCREW (#6-32 x .875)	2
54	27882	垫圈	WASHER	2
55	17461A3	电阻模块	RESISTOR MODULE	1

图 105点火线圈/电压调节器 Ignition Coil/Voltage Regulator

REF	零件编号	中文名称	英文名称	数量
1	195872	安装板	MOUNTING PLATE	1
2	33778	螺柱	STUD	4
3	19661	衬套	BUSHING	4
4	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
5	13438	螺母(.250-28)	NUT (.250-28)	4
5	8267119	螺母(.250-28)	NUT (.250-28)	4
6	88807A35	拉线总成	CABLE ASSEMBLY	1
7	815279T	电压调节器	REGULATOR Voltage	2
7	8M0084173	电压调节器	VOLTAGE REGULATOR	2
8	818997A1	电磁阀总成	SOLENOID ASSEMBLY	1
8	8M0185145	电磁阀总成	SOLENOID ASSEMBLY	1
9	97861	绝缘体	INSULATOR	2
10	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	3
10	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	3
11	35950	垫圈 (.273 x .437 x .031) 不锈钢	WASHER (.273 x .437 x .031) Stainless Steel	3
12	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	3
12	8M0207776	螺母	NUT	3
13	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	4
14	94330	螺母 (.250-20) 黄铜	NUT (.250-20) Brass	4
15	69738A9	线束总成 (2,4,6)	HARNESS ASSEMBLY (2,4,6)	1
15	69739A6	线束总成 (1,3,5)	HARNESS ASSEMBLY (1,3,5)	1
16	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
16	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
17	43542	盖板	COVER	2
18	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	6
18	8M0230859	点火线圈总成	COIL IGNITION ASY	6
18	7370A19	点火线圈总成	COIL ASSEMBLY Ignition	6
18	8M0230859	点火线圈总成	COIL IGNITION ASY	6
19	90048	螺钉 (#10-32 x 2.125)	SCREW (#10-32 x 2.125)	12
20	90078	螺母 (#10-32)	NUT (#10-32)	14
21	813715A9	点火线缆套件	CABLE KIT Ignition	1
22	63709A1	护套/端子套件	BOOT/TERMINAL KIT	6
23	136862	火花塞 (NGK-BU8H)	SPARK PLUG (NGK-BU8H)	6
23	13686Q	NGK BU8H @10	NGK BU8H @10	6
23	14103568	火花塞 (NGK-BUZ8H - 加拿大/比利时)	SPARK PLUG (NGK-BUZ8H - CANADA/BELGIUM)	6
23	896329885	SP #L6VC @4	SP #L6VC @4	6
24	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	12
25	88807A13	拉线总成	CABLE ASSEMBLY	8
26	69022	螺钉 (#10-32 x .500) 不锈钢	SCREW (#10-32 x .500) Stainless Steel	2
27	87379A14	电线总成 (2.750英寸)	WIRE ASSEMBLY (2.750 Inches)	1
28	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	12
29	826802A4	线束总成	HARNESS ASSEMBLY	1
30	828151	继电器	RELAY	2
30	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
31	828102	支架	BRACKET	2
31	8M0207771	安装支架	BRACKET Mounting	2
32	45561	螺钉 (.250-20 x 1.12)	SCREW (.250-20 x 1.12)	2
32	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
33	818968	衬套	BUSHING	2
33	8M0214955	衬套	BUSHING	2
34	818967	护孔环	GROMMET	2
34	8M0207785	护孔环	GROMMET	2
35	35950	垫圈 (.273 x .437 x .031) 不锈钢	WASHER (.273 x .437 x .031) Stainless Steel	2
36	814101	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	2
36	8M0207776	螺母	NUT	2

图 106气缸体与端盖 Cylinder Block and End Caps

REF	零件编号	中文名称	英文名称	数量
1	9765A13	气缸体(135/150)	CYLINDER BLOCK (135/150)	1
1	9763A17	气缸体(XR6/Magnum III)	CYLINDER BLOCK (XR6/Magnum III)	1
1	9763T17	气缸体	CYLINDER BLOCK	1
1	9763A23	气缸体(XR6/Magnum III)	CYLINDER BLOCK (XR6/Magnum III)	1
1	9763T23	气缸体	CYLINDER BLOCK	1
1	9763A17	气缸体(175)	CYLINDER BLOCK (175)	1
1	9763T17	气缸体	CYLINDER BLOCK	1
1	9763A61	气缸体(200)	CYLINDER BLOCK (200)	1
1	9763T61	气缸体	CYLINDER BLOCK	1
1	9763A23	气缸体(150 TRACKER)	CYLINDER BLOCK ( 150 TRACKER)	1
1	9763T23	气缸体	CYLINDER BLOCK	1
2	76175	双头螺柱(1-7/8")(旧款)	STUD (1-7/8") (OLD DESIGN)	4
2	818138	双头螺柱(1-3/4")	STUD (1-3/4")	2 or 6
2	8M0034455	螺柱1.750	STUD 1.750	2 or 6
3	67065	双头螺柱(5-1/2")	STUD (5-1/2")	2
3	670654	螺柱(.375-16/.375-24 x 5.620)	STUD (.375-16/.375-24 x 5.620)	2
3	78438	双头螺柱(6-3/4")	STUD (6-3/4")	2
3	8M0034454	螺柱(.375-16/.375-24 x 6.87)	STUD (.375-16/.375-24 x 6.87)	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	销(轴承座圈)	PIN (BEARING RACE)	2
5	8M0036405	销	PIN	2
6	11338	衬垫	GASKET	2
7	42249	上盖	COVER (UPPER)	1
7	8M0088723	启动器支架	BRACKET-STARTER	1
8	828213	螺钉(.312-18 x 1.500)六角法兰	SCREW (.312-18 x 1.500) Hex Flange	2
8	73657	螺钉(.312-18 x 1.50)(配13-26993垫片)	SCREW (.312-18 x 1.50) (Use with 13-26993 washer)	2
9	26993	锁紧垫圈(.312)(配10-73657螺钉)	LOCKWASHER (.312) (Use with 10-73657 screw)	4
9	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
10	76867	下盖	COVER (LOWER)	1
11	815549	螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00)	2
11	828214	螺钉(.312-18 x 2.00)六角法兰	SCREW (.312-18 x 2.00) Hex Flange	2
11A	99448	衬套	BUSHING	1
12	66717	螺钉(.375-16 x 3.250)	SCREW (.375-16 x 3.250)	8
12	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	6
13	9642A1	上端盖总成	END CAP ASSEMBLY Upper	1
13	858521T1	端盖总成	END CAP ASSEMBLY	1
14	54029	O型圈(2.800 x .103)	O-RING (2.800 x .103)	1
15	16756A4	轴承套件	BEARING KIT	1
16	41953	密封件	SEAL	1
17	69034	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW AND LOCKWASHER (.312-18 x 1.00)	4
17	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	4
19	63153	J型卡扣	J CLIP	1
20	15094	双头螺柱(.190-32 x 1.870)	STUD (.190-32 x 1.870)	1
21	15093	双头螺柱(#10-32 x 1.00)	STUD (#10-32 x 1.00)	2
21	8M0034435	螺柱	STUD	2
22	67269	隔套	SPACER	1
23	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	3
23	8M0204663	垫片@5	WASHER @5	3
25	816874	蝶形螺母 (#10-32)	WING NUT (#10-32)	3
26	42248	支架	BRACKET	1
26	422482	支架	BRACKET	1
27	49668	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	2
28	7809A1	端盖总成	END CAP ASSEMBLY	1
28	7809T1	端盖总成	END CAP ASSEMBLY	1
29	62700	O型圈(3.237 x .103)	O-RING (3.237 x .103)	1
30	41953	密封件	SEAL	2
31	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
32	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
33	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
34	64015	螺母 (.250-20)	NUT (.250-20)	1
35	26852	尼龙帽	CAP Nylon	1
36	87076A10	怠速控制器	IDLE SPEED CONTROL	1
38	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
38	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
39	38833	垫圈	WASHER	3
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	812815A92	动力头总成	POWERHEAD ASSEMBLY	1
-	878365T00	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A94	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

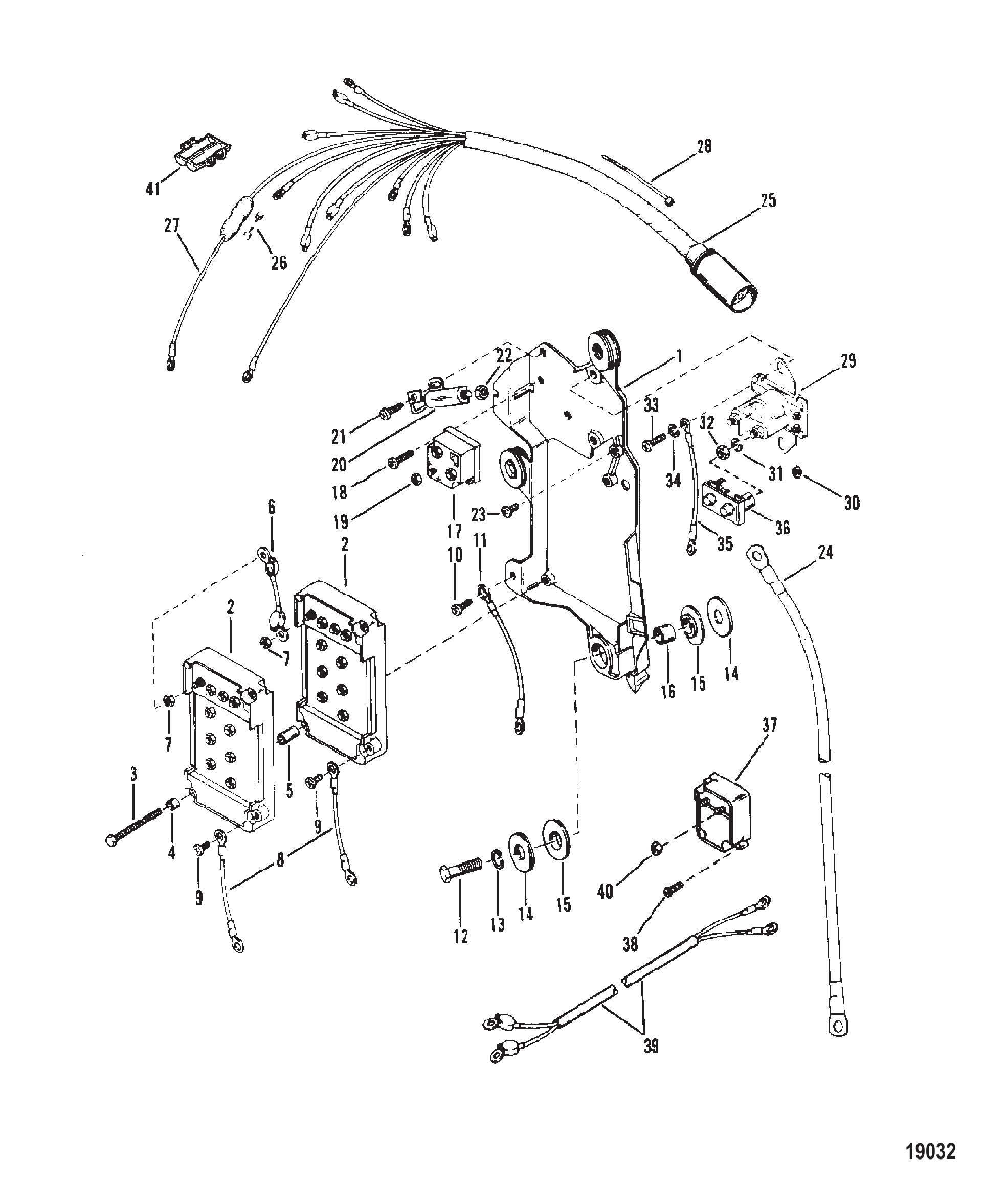

图 107线束、启动电磁阀及整流器 Wiring Harness, Starter Solenoid and Rectifier

REF	零件编号	中文名称	英文名称	数量
1	43429	点火板	PLATE IGNITION	1
2	7778A6	开关盒总成	SWITCHBOX ASSEMBLY	2
2	7778A12	开关盒总成	SWITCHBOX ASSEMBLY	2
3	13669	开关盒至点火板螺钉(#12-24 x 2.00)	SCREW (#12-24 x 2.00) SWITCH BOX TO IGNITION PLATE	2
4	94304	开关盒螺钉垫片(早期型号)	SPACER SWITCH BOX SCREW (EARLY MODELS)	2
5	94453	开关盒螺钉衬套	BUSHING SWITCH BOX SCREW	2
6	62310A2	开关盒间电缆总成	CABLE ASSEMBLY SWITCH BOX TO SWITCH BOX	1
7	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	20
8	60871A10	线束总成-开关盒	WIRE ASSEMBLY SWITCH BOX	2
9	62568	螺丝(#10-16 x 0.375)导线固定	SCREW (#10-16 x .375) WIRE ATTACHING	2
10	38055	电缆至点火板螺钉(.190-32 x .620)	SCREW (.190-32 x .620) CABLE TO IGNITION PLATE	1
11	65999A3	线缆总成(黑色)	CABLE ASSEMBLY Black	1
12	69092	点火板螺钉(1.25)	SCREW (1.25) IGNITION PLATE	3
12	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
13	26993	锁紧垫圈(.312)点火板螺钉	LOCKWASHER (.312) IGNITION PLATE SCREW	3
13	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	3
14	36042	垫圈点火板螺钉	WASHER IGNITION PLATE SCREW	6
15	67264	橡胶垫圈点火板螺钉	WASHER (Rubber) IGNITION PLATE SCREW	6
16	67268	衬套点火板螺钉	BUSHING IGNITION PLATE SCREW	3
17	62351A1	整流器	RECTIFIER	1
17	8M0058226	整流器	RECTIFIER	1
18	38055	螺钉(.190-32 x .620)水银开关至点火板	SCREW (.190-32 x .620) MERCURY SWITCH TO IGNITION PLATE	2
19	45076	螺母(#10-32)黄铜整流器端子	NUT (#10-32) Brass RECTIFIER TERMINALS	3
20	33386A3	开关总成	SWITCH ASSEMLBY	1
21	38055	螺钉(.190-32 x .620)水银开关至点火板	SCREW (.190-32 x .620) MERCURY SWITCH TO IGNITION PLATE	1
22	45076	螺母 (#10-32) 黄铜水银开关端子	NUT (#10-32) Brass MERCURY SWITCH TERMINAL	1
23	87926	螺钉(#10-32 x .500)导线固定	SCREW (#10-32 x .500) LEAD ATTACHING	1
24	88439A14	电缆总成电池正极	CABLE ASSEMBLY Battery - Positive POSITIVE	1
24	88439A2	电缆总成电池负极	CABLE ASSEMBLY Battery - Negative NEGATIVE	1
25	96220A4	发动机线束总成	HARNESS ASSEMBLY ENGINE	1
26	79091	保险丝20安培	FUSE 20 Ampere	1
26	8M0207796	保险丝20安培	FUSE 20 AMP	1
27	95084A2	电缆总成-保险丝	CABLE ASSEMBLY FUSE	1
28	73498	线束与电缆夹	CLAMP HARNESS AND CABLES	3
28	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	3
29	96054	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
29	8M0185149	启动电磁阀	SOLENOID START	1
30	26419	螺母（#8-32）黄铜电磁阀端子	NUT (#8-32) Brass SOLENOID TERMINALS	2
31	26992	锁紧垫圈(.250)不锈钢电磁阀端子(1/4")	LOCKWASHER (.250) Stainless Steel SOLENOID TERMINALS (1/4")	2
32	94330	螺母（.250-20）黄铜电磁阀端子	NUT (.250-20) Brass SOLENOID TERMINALS	2
29	15857	启动电磁阀	SOLENOID Starter	1
29	853654A1	电磁阀	SOLENOID	1
30	45076	螺母(#10-32)黄铜电磁阀端子	NUT (#10-32) Brass SOLENOID TERMINALS	2
31	53166	锁紧垫圈（.312）电磁阀端子	LOCKWASHER (.312) SOLENOID TERMINALS	2
32	68292	螺母（.312-18）电磁阀端子	NUT (.312-18) SOLENOID TERMINALS	2
32	8M0204668	螺母(.312-18)	NUT (.312-18)	2
33	31716	螺钉(.250-20 x .620)电磁阀至点火板	SCREW (.250-20 x .620) SOLENOID TO IGNITION PLATE	2
34	26992	锁紧垫圈(.250)不锈钢电磁阀至点火板螺钉	LOCKWASHER (.250) Stainless Steel SOLENOID TO IGNITION PLATE SCREW	2
35	65999A2	电缆总成黑色上部安装	CABLE ASSEMBLY Black UPPER MOUNT	1
36	97861	电磁阀绝缘体	INSULATOR SOLENOID	1
37	88825A7	电压调节器	VOLTAGE REGUALTOR	1
38	48409	螺钉(#10-16 x .625)不锈钢电压调节器	SCREW (#10-16 x .625) Stainless Steel VOLTAGE REGULATOR	1
39	13397A1	线束总成	HARNESS ASSEMBLY	1
40	45076	螺母(#10-32)黄铜电压调节器	NUT (#10-32) Brass VOLTAGE REGULATOR	2
41	134731	保险丝座	HOLDER Fuse	1

图 108曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS

REF	零件编号	中文名称	英文名称	数量
1	9536A4	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	67923	球轴承(下部)	BEARING Ball (LOWER)	1
2	67923T	滚珠轴承	BEARING Ball	1
3	67446	环	RING	1
4	14513A2	驱动齿轮段套件	GEAR SEGMENT KIT Drive	1
4	14513A09	驱动齿轮段套件	GEAR SEGMENT KIT Drive	1
5	813073	螺钉(#6-32 x .620)内六角头	SCREW (#6-32 x .620) Socket Head	2
6	813134	螺母(#6-32)专用	NUT (#6-32) Special	2
7	54196A6	托架总成	CARRIER ASSEMBLY	1
8	65800	填料	PACKING	1
9	67377	曲轴密封环	RING Sealing CRANKSHAFT	7
9	67377T	密封环	RING Sealing	7
10	16756A6	轴承套件	BEARING KIT	2
11	7441A32	活塞(右舷-标准)	PISTON (STARBOARD-STANDARD)	3
11	7441T32	活塞	PISTON	3
11	7443A11	活塞(右舷-0.015加大)	PISTON (STARBOARD-.015 O.S.)	AR
11	7445A11	活塞(右舷-0.030加大)	PISTON (STARBOARD-.030 OS.)	AR
11	7445T11	活塞	PISTON	AR
11	7442A32	活塞(左舷-标准)	PISTON (PORT-STANDARD)	3
11	7442T32	活塞	PISTON	3
11	7444A11	活塞(左舷-0.015加大)	PISTON (PORT-.015 O.S.)	AR
11	7446A11	活塞(左舷-0.030加大)	PISTON (PORT-.030 O.S.)	AR
11	9738A7	活塞总成(右舷-标准)	PISTON ASSEMBLY (STARBOARD-STANDARD)	3
11	9738T9	活塞总成标准型	PISTON ASSEMBLY Standard	3
11	9738A8	活塞总成(右舷-0.015加大)	PISTON ASSEMBLY (STARBOARD-.015 O.S.)	AR
11	9738T10	活塞总成0.015加大	PISTON ASSEMBLY .015 Oversize	AR
11	9737A7	活塞总成(左舷-标准)	PISTON ASSEMBLY (PORT-STANDARD)	3
11	9737T9	活塞总成标准型	PISTON ASSEMBLY Standard	3
11	9737A8	活塞总成(左舷-0.015加大)	PISTON ASSEMBLY (PORT-.015 O.S.)	AR
11	9737A10	活塞总成0.015加大	PISTON ASSEMBLY .015 Oversize	AR
11	9738A9	活塞总成标准型(右舷-标准)	PISTON ASSEMBLY Standard (STARBOARD-STANDARD)	3
11	9738T9	活塞总成标准型	PISTON ASSEMBLY Standard	3
11	9738A10	活塞总成0.015加大(右舷-0.015加大)	PISTON ASSEMBLY .015 Oversize (STARBOARD-.015 O.S.)	AR
11	9738T10	活塞总成0.015加大	PISTON ASSEMBLY .015 Oversize	AR
11	9737A9	活塞总成标准型(左舷-标准)	PISTON ASSEMBLY Standard (PORT-STANDARD)	3
11	9737T9	活塞总成标准型	PISTON ASSEMBLY Standard	3
11	9737A10	活塞总成0.015加大(左舷-0.015加大)	PISTON ASSEMBLY .015 Oversize (PORT-.015 O.S.)	AR
12	93481A12	活塞环组-标准(标准)	RING SET Piston - Standard (STANDARD)	1
12	78918A4	活塞环组-0.015加大(0.015加大)	RING SET Piston - .015 Oversize (.015 O.S.)	AR
12	85636A4	活塞环组-0.030加大(0.030加大)	RING SET Piston - .030 Oversize (.030 O.S.)	AR
12	815515A12	活塞环组(标准)(1-1/2毫米)	RING SET Piston (STD.) (1-1/2 MM)	1
12	815268A4	活塞环组(0.015加大)(1-1/2毫米)	RING SET Piston (.015 O.S.) (1-1/2 MM)	AR
12	822321A12	活塞环套件-标准(标准)(2毫米)	RING KIT Piston - Standard (STD.) (2MM)	1
12	822321A1	活塞环套件-0.015加大(0.015加大)(2毫米)	RING KIT Piston - .015 Oversize (.015 O.S.) (2MM)	2
13	52035	锁环	RING Lock	12
13	857196	锁紧环	LOCK RING	12
14	818141A2	连杆套件	CONNECTING ROD KIT	6
14	818141A13	连杆总成	CONNECTING ROD ASSEMBLY	6
15	763491	螺钉(.312-24 x .875)	SCREW (.312-24 x .875)	12
16	812876	垫圈	WASHER	12
16	8M0012298	止推垫片	THRUST WASHER	12
17	17514A2	轴承套件	BEARING KIT	6
17	8M0234886	轴承保持架	CAGE BEARING	6
18	822553	滚针轴承	BEARING Needle	174
18	8M0204691	滚针轴承@200	BRG-NEEDLE @200	174
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	812815A92	动力头总成	POWERHEAD ASSEMBLY	1
-	878365T00	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A94	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 109启动电机总成 Starter Motor Assembly

REF	零件编号	中文名称	英文名称	数量
-	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	90645	驱动套件	DRIVE KIT	1
2	75661	驱动小齿轮总成	PINION ASSEMBLY Drive	1
2	13310T1	小齿轮总成	PINION ASSEMBLY	1
3	75660	驱动端板	PLATE DRIVE END	1
4	74968	贯穿螺栓	BOLT THRU	2
6	N.S.S.	贯穿螺栓 (不单独销售)	Not Sold Separate THRU BOLT	1
7	79216	电枢	ARMATURE	1
8	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
9	61787	电刷架	HOLDER BRUSH	2
9	898265014	电刷支架	HOLDER-BRUSH	2
10	68586	电刷及支架螺钉	SCREW BRUSH AND HOLDER	2
11	15386	换向器端盖	END CAP COMMUTATOR	1
11	15386001	端盖	END CAP	1

图 110齿轮箱（推进轴） GEAR HOUSING (PROPSHAFT)

REF	零件编号	中文名称	英文名称	数量
1	9148A47	齿轮箱总成(基础款)(黑色)	GEAR HOUSING ASSEMBLY (BASIC) (BLACK)	1
1	9148A48	齿轮箱总成(基础款)(灰色)	GEAR HOUSING ASSEMBLY (BASIC) (GRAY)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A49	齿轮箱总成(基础款)(追踪者)	GEAR HOUSING ASSEMBLY (BASIC) (TRACKER)	1
1	9148T49	齿轮箱壳体-TR型	GEAR HSG-BASIC-TR	1
49	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
48	78956	换挡凸轮	SHIFT CAM	1
48	789562	换挡凸轮	SHIFT CAM	1
50	79911A1	杆	ROD	1
51	79910	弹簧	SPRING	1
52	78910	垫圈	WASHER	AR
53	78906	销	PIN	1
53	8M0084245	弹簧定位销	PIN Spring Locator	1
54	47397A1	垫片组(.002-3-5-10)	SHIM SET (.002-3-5-10)	AR
55	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
56	44102A2	前进齿轮总成(135/150)(含倒挡齿轮)	GEAR ASSEMBLY Forward (135/150) (INCLS. REVERSE GEAR)	1
56	44102A7	齿轮组(135/150)(不含倒挡齿轮)	GEAR SET (135/150) (DOES NOT INCL. REVERSE GEAR)	1
56	16294A2	高海拔齿轮组-2.3:1传动比	GEAR SET HIGH ALTITUDE - 2.3:1 GEAR RATIO	1
56	16294A5	齿轮组	GEAR SET	1
56	44104A2	前进齿轮总成(175/200/XR6/玛格南III)(含倒挡齿轮)	GEAR ASSEMBLY Forward (175/200/XR6/MAGNUM III) (INCLS. REVERSE GEAR)	1
56	44104T2	齿轮组	GEAR SET	1
56	44104A8	齿轮组(175/200/XR6/玛格南III)(不含倒挡齿轮)	GEAR SET (175/200/XR6/MAGNUM III) (DEOS NOT INCLUDE REVERSE GEAR)	1
57	549281	滚柱轴承	BEARING Roller	1
58	823174	离合器	CLUTCH	1
58	823174T	ORD 8M0100493	ORD 8M0100493	1
59	78905	十字销	PIN Cross	1
59	8M0084243	十字销	PIN Cross	1
60	78909	定位销	PIN Detent	2
61	78962	弹簧	SPRING	2
62	94148	螺旋桨轴	PROPELLER SHAFT	1
63	N.S.S.	不单独销售倒挡齿轮(前进齿轮组部件)	Not Sold Separate Reverse Gear (Part of Forward Gear Set	1
63	824987A2	倒挡齿轮总成(135/150)	GEAR ASSEMBLY Reverse (135/150)	1
63	824986A2	倒挡齿轮总成(175/200/XR6/玛格南III)	GEAR ASSEMBLY Reverse (175/200/XR6/MAG. III)	1
63A	824108	隔套	SPACER	1
64	681001	止推环	RING Thrust	1
65	88957A1	滚珠轴承	BEARING Ball	1
65	88957T	滚珠轴承	BEARING Ball	1
66	31534	O型圈	O-RING	1
66	8M0214920	O型圈	O RING	1
67	43567A1	轴承座总成	CARRIER ASSEMBLY Bearing	1
67	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
68	30956	滚针轴承	BEARING Needle	1
68	30956T	滚针轴承	BEARING Needle	1
69	76868	密封件	SEAL	2
69	8M0248882	油封@5	SEAL-OIL @5	2
70	30281	键	KEY	1
71	79447	锁紧垫圈	TAB WASHER	1
72	79448	固定座	RETAINER	1
72	8M2011027	固定座	RETAINER	1
73	316404	平衡板(用于无阳极齿轮箱)	TRIM TAB (USE WITH GEAR HOUSING W/O ANODES)	1
73	31640Q4	平衡鳍板	TRIM TAB	1
73	316405	配平板(与带阳极齿轮箱配套使用)	TRIM TAB (USE WITH GEAR HOUSING W/ANODES)	1
73	8M0236553	平衡鳍板	TRIM TAB	1
74	806327	螺钉(.437-14 x 1.750)(1-5/8")	SCREW (.437-14 x 1.750) (1-5/8")	1
74	8M0204686	螺钉	SCREW	1
75	67891	填充块	FILLER BLOCK	1
75	8M0039169	填充块	FILLER BLOCK	1
76	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
76	8M0204653	螺母	NUT	2
77	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
78	13171	推力毂	THRUST HUB	1
78	835467Q01	止推垫片套件	THRUST WASHER KIT	1
79	31211A2	花键垫圈	WASHER Splined	1
79	31211Q03	垫圈总成	WASHER ASSEMBLY	1
80	816629	锁紧垫圈	TAB WASHER	1
80	816629Q	锁紧垫圈	TAB WASHER	1
81	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
81	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
82	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
83	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	89238A2	密封套件	SEAL KIT	1

图 111动力平衡组件（设计I） Power Trim Components (Design I)

REF	零件编号	中文名称	英文名称	数量
1	99659A21	歧管总成 (黑色)	MANIFOLD ASSEMBLY (BLACK)	1
1	99659A22	歧管总成 (灰色)	MANIFOLD ASSEMBLY (GRAY)	1
2	99616	管塞歧管	PIPE PLUG MANIFOLD	11
2	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	11
3	41493A7	配平油缸总成 (黑色)	TRIM CYLINDER ASSEMBLY (BLACK)	1
3	41493A4	配平油缸总成 (灰色)	TRIM CYLINDER ASSEMBLY (GRAY)	1
3	41493A7	升降油缸总成	TRIM CYLINDER ASSEMBLY	1
3A	811600	导向套件	GUIDE KIT	1
4	41492A1	导向器总成	GUIDE ASSEMBLY	1
5	41478A1	维修套件	REPAIR KIT	1
6	41482A2	止回阀套件	CHECK VALVE KIT	1
7	99638A1	导向总成装饰杆	GUIDE ASSEMBLY TRIM ROD	2
7	8M0021648	端盖总成	END CAP ASSEMBLY	2
8	43397A6		PISTON/ROD ASSEMBLY Power Trim PORT	1
8	878413A1	活塞总成	PISTON ASSEMBLY	1
9	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
10	43398A3		PISTON/ROD ASSEMBLY Power Trim STARBOARD	1
10	878414T01	活塞总成	PISTON ASSEMBLY	1
11	13794	开槽销微调油缸(上部-无头)	PIN Groove TRIM CYLINDER (UPPER - W/O HEAD)	1
11	821539	三叶销	PIN Trilobe	1
11	19603	开槽销(带头)	PIN Groove (W/ HEAD)	1
11	821539	三叶销	PIN Trilobe	1
12	812843A1	阀门总成	VALVE ASSEMBLY	1
12	893929A01	安全阀套件	VALVE KIT Relief	1
12A	812844	E型卡环	E RING	1
12A	815949001	E形环	E-RING	1
13	4000327	螺钉(M6x14)-盖板	SCREW (M6 x 14) COVER	4
14	43450	盖板螺丝垫圈	WASHER COVER SCREW	4
14	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
15	99642	歧管盖	COVER MANIFOLD	1
16	48462A2	O型圈套件	O-RING KIT	1
16	48462A4	O型圈套件	O RING KIT	1
17	99609A1	塞子总成	PLUG ASSEMBLY	1
18	99641A1	轴总成	SHAFT ASSEMBLY	1
18	99641A02	轴总成	SHAFT ASSY	1
19	99616	轴管塞	PIPE PLUG SHAFT	2
19	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
20	4008820	螺钉(M6x20)-泵与马达	SCREW (M6 x 20) PUMP AND MOTOR	2
21	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
22	99186T	泵与电机总成	PUMP AND MOTOR	1
22	826729A10	ORD 8M0143217	ORD 8M0143217	1
23	99625		SHAFT UPPER	1
23	99625002	轴	SHAFT	1
24	43396A2	阳极总成	ANODE ASSEMBLY	1
24	818298Q1	阳极套件	ANODE KIT	1
25	4000330	螺钉(M6 x 25)阳极	SCREW (M6 x 25) ANODE	2
25	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
26	29245	垫圈(0.281x0.500x0.060)-不锈钢阳极螺钉	WASHER (.281 x .500 x .060) Stainless Steel ANODE SCREW	2
26	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
27	996301	撞板-升降轴	STRIKER PLATE TRIM SHAFT	2
27	8M0045383	冲击板	STRIKER PLATE	2
28	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
29	46335	螺母 (.375-24)	NUT (.375-24)	2
30	814609A1	线束总成-动力升降控制	HARNESS ASSEMBLY Control POWER TRIM	1
31	88808A22	电缆总成(6-3/8"-红色)	CABLE ASSEMBLY (6-3/8" - RED)	1
31	88808A23	电缆总成(24"-红色)	CABLE ASSEMBLY (24" - RED)	1
31	87379A14	线束总成(2.750英寸)(红色)	WIRE ASSEMBLY (2.750 Inches) (RED)	1
32	22875		CLIP PUMP WIRE	2
33	69205	C形垫圈线夹螺钉	C WASHER CLIP SCREW	2
33	8M0084613	C形垫圈	C-WASHER	2
34	69079	螺钉(#10-16x0.440)-夹子到艉板支架	SCREW (#10-16 x .440) CLIP TO TRANSOM BRACKET	2
35	44431	沟槽销-升降油缸(下)	PIN Groove TRIM CYLINDER (LOWER)	1
35	878267	销	PIN	1
36	4000377		SCREW (M10 x 30) MANIFOLD	6
37	400258	锁紧垫圈(M10)-不锈钢歧管螺钉	LOCKWASHER (M10) Stainless Steel MANIFOLD SCREW	6

图 112曲轴（连杆锻件编号644-818141） Crankshaft (Connecting Rod Forging # is 644-818141)

REF	零件编号	中文名称	英文名称	数量
1	9536A4	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	67923	球轴承(下部)	BEARING Ball (LOWER)	1
2	67923T	滚珠轴承	BEARING Ball	1
3	67446	环	RING	1
4	14513A2	驱动齿轮段套件	GEAR SEGMENT KIT Drive	2
4	14513A09	驱动齿轮段套件	GEAR SEGMENT KIT Drive	2
5	813073	螺钉(#6-32 x .620)内六角头	SCREW (#6-32 x .620) Socket Head	2
6	813134	螺母(#6-32)专用	NUT (#6-32) Special	2
7	54196A6	托架总成	CARRIER ASSEMBLY	1
8	65800	填料	PACKING	1
9	67377	密封环-曲轴	RING Sealing SEALING - CRANKSHAFT	8
9	67377T	密封环	RING Sealing	8
10	16756A1	滚子轴承总成-曲轴	BEARING ASSEMBLY Roller CRANKSHAFT	2
10	16756A6	轴承套件	BEARING KIT	2
11	7441A32	活塞(右舷-标准)	PISTON (STARBOARD-STANDARD)	3
11	7441T32	活塞	PISTON	3
11	7443A11	活塞(右舷-0.015加大)	PISTON (STARBOARD-.015 O.S.)	AR
11	7445A11	活塞(右舷-0.030加大)	PISTON (STARBOARD-.030 OS.)	AR
11	7445T11	活塞	PISTON	AR
11	7442A32	活塞(左舷-标准)	PISTON (PORT-STANDARD)	3
11	7442T32	活塞	PISTON	3
11	7444A11	活塞(左舷-0.015加大)	PISTON (PORT-.015 O.S.)	AR
11	7446A11	活塞(左舷-0.030加大)	PISTON (PORT-.030 O.S.)	AR
11	9738A7	活塞总成(右舷-标准)	PISTON ASSEMBLY (STARBOARD-STANDARD)	3
11	9738T9	活塞总成标准型	PISTON ASSEMBLY Standard	3
11	9738A8	活塞总成(右舷-0.015加大)	PISTON ASSEMBLY (STARBOARD-.015 O.S.)	AR
11	9738T10	活塞总成0.015加大	PISTON ASSEMBLY .015 Oversize	AR
11	9737A7	活塞总成(左舷-标准)	PISTON ASSEMBLY (PORT-STANDARD)	3
11	9737T9	活塞总成标准型	PISTON ASSEMBLY Standard	3
11	9737A8	活塞总成(左舷-0.015加大)	PISTON ASSEMBLY (PORT-.015 O.S.)	AR
11	9737A10	活塞总成0.015加大	PISTON ASSEMBLY .015 Oversize	AR
12	93481A12	活塞环组-标准(标准)	RING SET Piston - Standard (STANDARD)	1
12	78918A4	活塞环组-0.015加大(0.015加大)	RING SET Piston - .015 Oversize (.015 O.S.)	AR
12	85636A4	活塞环组-0.030加大(0.030加大)	RING SET Piston - .030 Oversize (.030 O.S.)	AR
12	815515A12	活塞环组(标准)	RING SET Piston (STANDARD)	1
12	815268A4	活塞环组(.015加大)	RING SET Piston (.015 O.S.)	AR
13	52035	锁环	RING Lock	12
13	857196	锁紧环	LOCK RING	12
14	818141A2	连杆套件	CONNECTING ROD KIT	6
14	818141A13	连杆总成	CONNECTING ROD ASSEMBLY	6
15	763491	螺钉(0.312-24×0.875)连杆	SCREW (.312-24 x .875) CONNECTING ROD	12
16	812876	定位针垫圈	WASHER NEEDLE LOCATING	12
16	8M0012298	止推垫片	THRUST WASHER	12
17	17514A1	轴承套件	BEARING KIT	6
17	8M0234886	轴承保持架	CAGE BEARING	6
18	674831	活塞端滚针轴承	BEARING Needle PISTON END	174
18	8M0204691	滚针轴承@200	BRG-NEEDLE @200	174
-	815791A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 113齿轮箱螺旋桨轴-标准旋转 Gear Housing Propeller Shaft - Standard Rotation

REF	零件编号	中文名称	英文名称	数量
0	840560T33	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	840560T34	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	840560T35	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	849780A2	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
3	789562	换挡凸轮	SHIFT CAM	1
4	79911A1	杆	ROD	1
5	79910	弹簧	SPRING	2
6	78906	销	PIN	1
7	78910	垫圈	WASHER	2
8	47397A1	垫片组	SHIM SET	AR
9	78172A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
10	NSS	不单独销售	NOT SOLD SEPARATE	1
11	44104A7	齿轮组(含小齿轮)	GEAR SET (INCLUDES PINION)	1
12	549281	滚柱轴承	BEARING Roller	1
13	42672T	棘轮	RATCHET	1
14	78909	定位销	PIN Detent	2
15	42671	十字销	PIN Cross	1
16	78962	弹簧	SPRING	2
17	822820F1	螺旋桨轴	PROPELLER SHAFT	1
17	840451A2	螺旋桨轴	PROPELLER SHAFT	1
18	822824A1	倒车齿轮总成	GEAR ASSEMBLY Reverse	1
19	822823	推力环	THRUST RING	1
20	88957T	滚珠轴承	BEARING Ball	1
21	681001	止推环	RING Thrust	1
22	31534	O型圈	O-RING	1
23	848840T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
24	817072	滚柱轴承	BEARING Roller	1
25	817071	卡环	RING Snap	1
26	815565	油封	SEAL Oil	2
27	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
28	191833	密封件	SEAL	1
29	79448	固定座	RETAINER	1
30	30281	键	KEY	1
31	79447	锁紧垫圈	TAB WASHER	1
32	423511	齿形锁紧垫圈	LOCKWASHER Toothed	1
33	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
34	41350	螺钉(.437-14 x 2.50)不锈钢	SCREW (.437-14 x 2.50) Stainless Steel	1
34	66024	螺钉(.437-14 x 1.75)	SCREW (.437-14 x 1.75)	1
35	76214T3	阳极块	ANODE	1
35	76214Q5	阳极套件	ANODE KIT	1
35	76214T1	阳极块	ANODE	1
36	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	2
37	859116	螺母(.437-20)	NUT (.437-20)	2
38	30206	螺钉(.375-16 x 1.00)不锈钢	SCREW (.375-16 x 1.00) Stainless Steel	1
38	15929	螺钉(.375-16 x 16 x 6.00)	SCREW (.375-16 x 16 x 6.00)	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	90415A24	螺柱套件	STUD KIT	1
-	90415A25	螺柱套件	STUD KIT	1
-	840389K5	轮毂套件	HUB KIT	1
-	840382A1	缓冲条套件	SNUBBER STRIP KIT	1

图 114齿轮箱（驱动轴） Gear Housing (Driveshaft)

REF	零件编号	中文名称	英文名称	数量
1	9148A47	齿轮箱总成(基础款)(黑色)	GEAR HOUSING ASSEMBLY (BASIC) (BLACK)	1
1	9148A48	齿轮箱总成(基础款)(灰色)	GEAR HOUSING ASSEMBLY (BASIC) (GRAY)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A49	齿轮箱总成(基础款)(追踪者)	GEAR HOUSING ASSEMBLY (BASIC) (TRACKER)	1
1	9148T49	齿轮箱壳体-TR型	GEAR HSG-BASIC-TR	1
2	85822A10	连接器总成(适用时使用)	CONNECTOR ASSEMBLY (USE WHERE APPLICABLE)	1
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	78638	双头螺栓(.438×3.12)(长型)	STUD (.438 x 3.12) (LONG)	1
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
4	18978	双头螺栓(.438×3.69)(加长型)	STUD (.438 x 3.69) (X-LONG)	1
4	8M0034464	螺柱	STUD	1
5	579201	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	56297	双头螺栓(.312×3.38)	STUD (.312 x 3.38)	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	306671	螺柱	STUD	2
8	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	43998	衬套(旧设计)	SLEEVE (OLD DESIGN)	1
9A	826134	阳极块	ANODE	2
9A	826134Q	阳极块	ANODE	2
9B	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
9C	8268336	螺母 (M6)	NUT (M6)	1
9C	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
11	440001	驱动轴(长型)	DRIVESHAFT (LONG)	1
11	897624T	长驱动轴	DRIVESHAFT Long	1
11	442091	驱动轴(加长型)	DRIVESHAFT (X-LONG)	1
11	897625T	加长驱动轴	DRIVESHAFT X-Long	1
11	16292	驱动轴(20英寸)	DRIVESHAFT (20")	1
11	815237	驱动轴(25英寸)	DRIVESHAFT (25")	1
12	N.S.S.	不单独销售小齿轮(前进齿轮组部件)	Not Sold Separate Pinion Gear (Part of Forward Gear Set)	1
13	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
14	826375	螺母(0.625-18)	NUT (.625-18)	1
14	35921	螺母(0.625-18)	NUT (.625-18)	1
15	42637A1	垫片组	SHIM SET	AR
15	8M0063267	垫片组	SHIM SET	AR
16	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
16	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
17	824519	固定座	RETAINER	1
17	8245191	固定座	RETAINER	1
18	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
19	426311	衬垫	GASKET	1
19	8M0204678	衬垫	GASKET	1
20	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
20	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
21	89238	油封	SEAL Oil	1
22	16977	油封	SEAL Oil	1
23	856081	衬垫	GASKET	1
23	8M0090319	衬垫@5	GASKET @5	1
24	856091	衬垫	GASKET	1
24	858524	衬垫	GASKET	1
25	32435	面板	FACE PLATE	1
25	8M0204677	面板	PLATE-FACE	1
26	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
27	48752	嵌件	INSERT	1
27	48752T	嵌件	INSERT	1
28	38970	密封件	SEAL	1
29	899841	叶轮	IMPELLER	1
29	89984T3	叶轮	IMPELLER	1
30	56654	键	KEY	1
30	8M0214992	键@5	KEY @5	1
31	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
31	8M0215009	螺钉	SCREW	1
32	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
33	13438	螺母(.250-28)	NUT (.250-28)	2
33	8267119	螺母(.250-28)	NUT (.250-28)	2
34	36001	垫圈	WASHER	1
35	13436	螺母	NUT	1
37	29804	套筒	SLEEVE	1
37	29804T	套筒	SLEEVE	1
38	789022	换挡轴(不带E型环使用)	SHIFT SHAFT (USE W/O E-RING)	1
38	78902	轴	SHAFT	1
38	789022	换档轴	SHIFT SHAFT	1
39	29641	E型卡环	E RING	1
41	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
42	77631A2	衬套总成	BUSHING ASSEMBLY	1
43	8164641	油封	SEAL Oil	1
43	8M0246145	油封	OIL SEAL	1
44	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
45	79953	螺钉(0.375-16x0.250)	SCREW (.375-16 x .250)	1
45	79953Q04	放油螺钉套件	SCREW KIT Drain	1
46	67892	磁性螺钉	SCREW Magnetic	1
46	8M0058389	放油螺钉套件	SCREW KIT Drain	1
47	19183	纤维垫圈	WASHER Fiber	2
47	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1

图 115燃油泵（旧设计燃油泵） Fuel Pump (Old Design Fuel Pump)

REF	零件编号	中文名称	英文名称	数量
1	7563A10	化油器(上部)-(WH-35)	CARBURETOR (TOP) - (WH-35)	1
2	7563A11	化油器(中部)-(WH-35)	CARBURETOR (CENTER) - (WH-35)	1
3	7563A12	化油器(底部)-(WH-35)	CARBURATOR (BOTTOM) - (WH-35)	1
1	9242A33	化油器(上部)-(WH-40)	CARBURETOR (TOP) - (WH-40)	1
2	9242A34	化油器(中部)-(WH-40)	CARBURETOR (CENTER) - (WH-40)	1
3	9242A35	化油器(底部)-(WH-40)	CARBURETOR (BOTTOM) - (WH-40)	1
1	7563A13	化油器(上部)-(WH-38)	CARBURETOR (TOP) - (WH-38)	1
2	7563A14	化油器(中部)-(WH-38)	CARBURETOR (CENTER) - (WH-38)	1
3	7563A15	化油器(底部)-(WH-38)	CARBURETOR (BOTTOM) - (WH-38)	1
4	6232	燃油入口接头	FITTING FUEL INLET	1
5	70007	45度燃油入口接头	FITTING 45 Degree FUEL INLET	4
6	90430	化油器衬垫	GASKET CARBURETOR	3
6	904301	衬垫	GASKET	3
7	20184	化油器安装螺母(1/4-28X7/32)	NUT (1/4-28X7/32) CARBURETOR MOUNTING	12
7	8M0207775	螺母 @5	NUT @5	12
8	73498	化油器燃油管卡箍	CLAMP FUEL HOSE TO CARBURETOR	AR
8	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
9	42859A2	加浓阀总成	VALVE ASSEMBLY Enrichner ENRICHNER	1
10	633001	加浓阀卡箍	CLAMP ENRICHNER VALVE	1
11	69079	阀门卡箍螺钉(#10-16 x .440)	SCREW (#10-16 x .440) VALVE CLAMP	1
12	45915	端子排簧片块壳体	TERMINAL BLOCK REED BLOCK HOUSING	2
13	35519	端子块固定螺钉(#10-16 x .500)	SCREW (#10-16 x .500) TERMINAL BLOCK ATTACHING	2
14	99130122	上部化油器至阀门管路(20英尺散装,7-3/4英寸)	TUBING (20.00 Feet Bulk) TOP CARBURETOR TO VALVE (7-3/4")	1
14	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
15	9912688	化油器间连接管路(36英寸散装,4-1/4英寸)	TUBING (36.00 Inches Bulk) CARBURETOR TO CARBURETOR (4-1/4")	2
18	13453A1	燃油泵总成	PUMP ASSEMBLY Fuel	1
19	30430A8	止回阀总成	CHECK VALVE ASSEMBLY	1
20	89031A2	膜片总成	DIAPHRAGM ASSEMBLY	1
21	NSS	垫片(不单独销售)	NOT SOLD SEPARATE Gasket	1
22	NSS	不单独销售衬垫-脉冲室	NOT SOLD SEPARATE Gasket-Pulse Chamber	1
23	NSS		NOT SOLD SEPARATE Gasket-Fuel Pump	2
24	NSS		NOT SOLD SEPARATE Gasket-Check Valve to Housing	2
25	59072	燃油入口滤网	SCREEN FUEL INLET	1
26	35480	O型圈(1.237 x .103)燃油入口盖	O-RING (1.237 x .103) FUEL INLET COVER	1
27	NSS	不单独销售-盖板安装螺钉垫片	NOT SOLD SEPARATE Gasket-Cover Attaching Screw	1
28	91078A1	燃油滤清器盖总成	COVER ASSEMBLY FUEL FILTER	1
29	89766	螺钉(#10-32 x .620)不锈钢燃油滤清器盖	SCREW (#10-32 x .620) Stainless Steel FUEL FILTER COVER	1
30	70007	45度燃油进油管接头	FITTING 45 Degree INLET FUEL LINE	1
31	73013	燃油泵螺钉（10-32 x 1.50）	SCREW 10-32 x 1.50 FUEL PUMP	5
32	26996	锁紧垫圈(#10)不锈钢燃油泵螺钉	LOCKWASHER (#10) Stainless Steel FUEL PUMP SCREW	5
33	23004	止回阀固定座	RETAINER CHECK VALVE	1
34	43723	固定器安装螺钉(#6-32 x .500)	SCREW (#6-32 x .500) RETAINER ATTACHING	2
35	67623	燃油泵底座	BASE FUEL PUMP	1
36	86449	燃油泵脉冲室	CHAMBER PULSE - FUEL PUMP	1
37	86207	压缩弹簧	SPRING COMPRESSION	1
38	86026	固定弹簧	RETAINER SPRING	1
39	86252	弹簧端帽	CAP SPRING END	1
40	99127109	进油管路(57英寸散装)	LINE (57.00 Inches Bulk) INLET	1
40	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
41	92007	燃油管90度接头(.250-18)	FITTING (.250-18) FUEL LINE (90 DEGREES)	1
41	920071	90度弯头	FITTING (90 Degree)	1
42	92037	适配器密封件	SEAL ADAPTOR	1
43	30186	止回转接器总成	ADAPTER CHECK UNIT	1
44	69067	适配器至支架螺钉(.250-20 x 1.375)	SCREW (.250-20 x 1.375) ADAPTOR TO BRACKET	1
46	30187	适配器阀杆止回单元	STEM CHECK UNIT ADAPTOR	1
46	30185Q3	油箱端快速断开总成-卡口式	QUICK DISCONNECT ASSEMBLY Tank End - Bayonet Style	1
47	20415	适配器阀杆O型圈	O-RING ADAPTOR STEM	1
47	16524	燃油接头O型圈	O-RING Fuel Connector	1
48	30189	适配器阀杆弹簧	SPRING ADAPTOR STEM	1
49	30188	适配器垫片	WASHER ADAPTOR	1
50	64704	燃油泵接头	FITTING FUEL PUMP	1
50	19688	接头	FITTING	1
51	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	1
51	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
52	16494	燃油滤清器	FILTER Fuel	1
52	816296Q03	燃油滤清器@3	FILTER-FUEL @3	1
53	26404	燃油滤清器卡箍	CLAMP FUEL FILTER	1
54	78291	卡箍螺钉(.190-24 x .500)	SCREW (.190-24 x .500) CLAMP	1
55	26996	卡箍螺钉不锈钢锁紧垫圈(#10)	LOCKWASHER (#10) Stainless Steel CLAMP SCREW	1
56	69205	卡箍螺钉C型垫圈	C WASHER CLAMP SCREW	1
56	8M0084613	C形垫圈	C-WASHER	1
57	42425	三通	TEE	1
-	90484A88	衬垫套件	GASKET SET

图 116齿轮箱（驱动轴）（标准/反向旋转） Gear Housing (Driveshaft)(Standard/Counter Rotation)

REF	零件编号	中文名称	英文名称	数量
0	840560T33	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	840560T34	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	840560T35	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	840561T69	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	840561T70	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
0	840561T71	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
1	849780A2	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	8M0083306	齿轮箱-SM型	GEAR HOUSING-SM	1
1	849781A2	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	8M0084203	齿轮箱-SM型	GEAR HOUSING-SM	1
2	8479504	盖板	COVER	2
3	34776	O型圈	O-RING	2
4	815904	螺钉(#10-32 x .500)	SCREW (#10-32 x .500)	12
5	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
6	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
7	67891	填充块	FILLER BLOCK	1
7	8M0039169	填充块	FILLER BLOCK	1
8	847949	管塞	PLUG Pipe	1
9	562972	螺柱(0.312-18/0.324-24×3.380)	STUD (.312-18/.324-24 x 3.380)	1
9	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
10	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
10	306671	螺柱	STUD	2
11	826134Q	阳极块	ANODE	2
12	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
13	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
14	59579	双头螺柱(.437-14/.437-20 x 2.812)	STUD (.437-14/.437-20 x 2.812)	5
14	74732	双头螺柱(7/16 X 7.11/16英寸)	STUD (7/16 X 7.11/16 IN.)	5
15	NSS		NOT SOLD SEPARATE Pinion gear	1
16	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
17	35921	螺母(0.625-18)	NUT (.625-18)	1
18	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	1
18	79953Q04	放油螺钉套件	SCREW KIT Drain	1
19	191833	密封件	SEAL	1
19	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
20	789022	换挡轴(下部)	SHIFT SHAFT (LOWER)	1
21	77631A2	衬套总成	BUSHING ASSEMBLY	1
22	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
23	8164641	油封	SEAL Oil	1
23	8M0246145	油封	OIL SEAL	1
24	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
25	848449A4	驱动轴总成	DRIVESHAFT ASSEMBLY	1
25	8M0192233	驱动轴	DRIVESHAFT	1
25	848449A5	驱动轴总成	DRIVESHAFT ASSEMBLY	1
25	8M0192234	驱动轴	DRIVESHAFT	1
25	848449A6	驱动轴总成	DRIVESHAFT ASSEMBLY	1
26	38657A1	垫片组	SHIM ASSEMBLY	AR
26	8M0063268	垫片组	SHIM SET	AR
27	48939A2	圆锥滚子轴承	BEARING Taper Roller	1
27	8M0146553	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
28	NSS	不单独销售	NOT SOLD SEPARATE	1
29	42637A1	垫片组	SHIM SET	AR
29	8M0063267	垫片组	SHIM SET	AR
30	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
30	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
31	NSS	不单独销售	NOT SOLD SEPARATE	1
32	8245191	固定座	RETAINER	1
33	44292A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
34	426311	衬垫	GASKET	1
34	8M0204678	衬垫	GASKET	1
35	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
35	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
36	89238	油封	SEAL Oil	1
37	16977	油封	SEAL Oil	1
38	18051	衬垫(下部)	GASKET (LOWER)	1
39	858524	衬垫(上部)	GASKET (UPPER)	1
40	32435	面板	FACE PLATE	1
40	8M0204677	面板	PLATE-FACE	1
41	847710T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
42	48752T	嵌件	INSERT	1
43	88397	密封件	SEAL	1
44	847685	套筒	SLEEVE	1
45	56654	键	KEY	1
45	8M0214992	键@5	KEY @5	1
46	89984T4	叶轮	IMPELLER	1
47	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
47	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
48	8267119	螺母(.250-28)	NUT (.250-28)	2
49	36001	垫圈	WASHER	1
50	13436	螺母	NUT	1
51	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
51	8M0215009	螺钉	SCREW	1
-	89238A3	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	90415A24	螺柱套件	STUD KIT	1
-	59579	双头螺柱(.437-14/.437-20 x 2.812)	STUD (.437-14/.437-20 x 2.812)	1
-	90415A25	螺柱套件	STUD KIT	1

图 117飞轮与启动电机 Flywheel and Starter Motor

REF	零件编号	中文名称	英文名称	数量
1	45907	飞轮黄色塞	PLUG Yellow FLYWHEEL	1
2	42956A1	飞轮盖总成	COVER ASSEMBLY FLYWHEEL	1
3	79022	正时标记	MARKER TIMING	1
4	37572	螺钉(0.190-32x0.380)正时标记	SCREW (.190-32 x .380) TIMING MARKER	2
5	72761	垫圈(0.203x0.562x0.060)不锈钢正时标记螺钉	WASHER (.203 x .562 x .060) Stainless Steel TIMING MARKER SCREW	2
6	42979	螺母(M16)飞轮	NUT (M16) FLYWHEEL	1
7	68229	垫圈(0.641x1.250x0.190)飞轮	WASHER (.641 x 1.250 x .190) FLYWHEEL	1
8	9008A16	飞轮总成	FLYWHEEL ASSEMBLY	1
9	8778A10	定子总成	STATOR ASSEMBLY	1
10	4007325	螺钉(M5x25)定子	SCREW (M5 x 25) STATOR	4
11	99021A3	触发器总成	TRIGGER ASSEMBLY	1
12	66015	启动电机总成	STARTER MOTOR ASSEMBLY	1
13	56703	启动电机轴环	COLLAR STARTER MOTOR	2
14	57247	启动电机橡胶止动块	STOP RUBBER-STARTER MOTOR	2
15	93388A1	电缆总成(6.00英寸) 黑色起动机至安装板	CABLE ASSEMBLY (6.00 Inches) Black STARTER MOTOR TO PLATE	1
16	69035	螺钉与锁紧垫圈(.250-20 x .625) 不锈钢导线至起动机	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel WIRE TO STARTER MOTOR	1
17	88439A20	起动机导线(黑色)	WIRE STARTER MOTOR (BLACK)	1
18	26992	锁紧垫圈(.250) 不锈钢起动机接线端	LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL	1
19	64015	螺母(.250-20) 起动机接线端	NUT (.250-20) STARTER MOTOR TERMINAL	1

图 118下机罩 BOTTOM COWL

REF	零件编号	中文名称	英文名称	数量
1	878587A1	下罩总成	BOTTOM COWL ASSEMBLY	1
2	858743A2	下罩总成	BOTTOM COWL ASSEMBLY	1
2	8M0113913	右舷下罩B	COWL-LOWER STBD B	1
3	8253181	罩盖密封条(41英寸)	SEAL Cowl (41.00 Inches)	2
3	8M0109217	罩盖密封条	SEAL-COWL	2
4	878547T	嵌件	INSERT	1
5	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	8
6	831209	固定座	RETAINER	1
7	858742	怠速排气套	BOOT Idle Exhaust	1
8	859251	护孔环	GROMMET	1
8	8M0039078	护孔环	GROMMET	1
9	827948	接头	FITTING	1
10	855576	垫圈	WASHER	1
11	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	6
12	830756109	软管(57英寸整卷)(裁切至5英寸长度)	HOSE (57.00 Inches Bulk) (Cut To 5.00 Inch Length)	1
12	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
13	881535	软管(32.00英寸)	HOSE (32.00 Inches)	1
14	9912688	管材(36.00英寸散装)(26.00英寸)	TUBING (36.00 Inches Bulk) (26.00 Inch)	1
15	817518	三通	TEE	1
16	82130020	螺钉 (M6 x 20)	SCREW (M6 x 20)	2
17	8587411	护孔环	GROMMET	1
17	889724	护孔环	GROMMET	1
18	856990	开关总成	SWITCH ASSEMBLY	1
18	8M0235192	微调开关	SWITCH TRIM	1
19	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
20	821253F1	前手柄黑色	FRONT HANDLE Black	1
20	889740A02	手柄套件	HANDLE KIT	1
21	33589	衬套	BUSHING	2
22	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
23	8219423	棘爪	PAWL	1
24	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	1
25	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
26	13541	公插头	PLUG Male	2

图 119发动机衬垫套件 Engine Gasket Set Components

REF	零件编号	中文名称	英文名称	数量
-	95220A5	动力头衬垫套件	GASKET SET Powerhead	1
-	95220A5	动力头衬垫套件	GASKET SET Powerhead	1
-	898101928	衬垫套装-PH	GASKET SET-PH	1
-	815076A2	动力头衬垫套件	GASKET SET Powerhead	1
-	8M0203727	衬垫套件 P/H	GASKET SET P/H	1
-	95299	气缸盖衬垫	GASKET Cylinder Head	1
-	95299001	衬垫	GASKET	1
-	822889	缸头衬垫(3.3马力)	GASKET Head (3.3 HP)	1
-	822891	油封缸头(3.3马力)	SEAL Oil Head (3.3 HP)	2
-	95232	油封曲轴-顶部	SEAL Oil Crankshaft-Top	1
-	95308	油封曲轴-底部	SEAL Oil Crankshaft-Bottom	1
-	822897	油封曲轴-底部	SEAL Oil Crankshaft-Bottom	1
-	815076	驱动轴壳体衬垫	GASKET Driveshaft Housing	1
-	815076002	衬垫	GASKET	1

图 120燃油管路 Fuel Lines

REF	零件编号	中文名称	英文名称	数量
1	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
2	69067	燃油连接器螺钉(.250-20 x 1.375)	SCREW (.250-20 x 1.375) FUEL CONNECTOR	1
3	812782	密封件	SEAL	1
4	9912976	油管	TUBING	1
4	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
5	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
5	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
6	814964	接头	FITTING	1
7	19688	弯头接头	FITTING (ELBOW)	1
8	4301625	油管(8.00英寸)	TUBING (8.00 Inches)	1
8	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	1
9	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	4
9	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	4
10	816296	燃油滤清器	FILTER Fuel	1
10	816296Q03	燃油滤清器@3	FILTER-FUEL @3	1
11	67751	衬垫	GASKET	3
12	27037	双头螺栓(.250-28×1.125)	STUD (.250-28 x 1.125)	6
12	270372	双头螺栓(.250-28×1.125)	STUD (.250-28 x 1.125)	6
13	55098	J型卡扣	J CLIP	1
13	8M0024808	J型夹	J-CLIP	1
14	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	6
15	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	6
16	29598	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	6
17	9912878	软管 (.187) (26.00英寸散装)	HOSE (.187) (26.00 Inches Bulk)	3
18	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
18	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
19	42859A2	加浓阀总成	VALVE ASSEMBLY Enrichner	1
20	633001	卡箍	CLAMP	1
21	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
22	9912688	管材 (36.00英寸散装)	TUBING (36.00 Inches Bulk)	2
23	45915	端子排	TERMINAL BLOCK	AR
24	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	AR
24	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	AR
24	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	AR
24	69079	螺钉 (#10-16 x .440)	SCREW (#10-16 x .440)	AR
-	815791A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 121喷泵总成 JET PUMP ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
-	801400150	喷泵(黑色)	JET PUMP (BLACK)	1
-	801401150	喷泵(灰色)	JET PUMP (GRAY)	1
-	855766150	喷泵	JET PUMP	1
1	801411150	泵壳	HOUSING Pump	1
1A	827490	润滑油管	HOSE Lube	1
2	801414150	叶轮	IMPELLER	1
2	803984T	叶轮	IMPELLER	1
3	80141290	进气壳体	HOUSING Intake	1
3A	8271883	衬套	LINER	1
4	801413150	驱动轴	SHAFT Drive	1
4A	8271891	套筒	SLEEVE	1
4B	8271901	螺母	NUT	1
5	801405875	键	KEY	1
6	801404875	叶轮垫片	SHIM Impeller	8
7	801403875	锁紧垫圈	TAB WASHER	1
8	847568	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	6
8	812618	不锈钢螺钉(.312-18 x 1.00)带尼龙垫	SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch	6
9	19923088	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	4
10	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	2
11	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
12	801410	电缆支架	BRACKET Cable Support	1
13	67980	螺母(.312-18)	NUT (.312-18)	1
13	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	1
14	801407	定位销	PIN Dowel	2
15	78638	双头螺柱(.438 x 3.12)	STUD (.438 x 3.12)	1
15	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
16	579201	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
16	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
17	69064	螺栓(.312-18 x 2.750)	BOLT (.312-18 x 2.750)	1
18	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
18	306671	螺柱	STUD	2
19	68299	不锈钢螺钉(.375-16 x 3.00)	SCREW (.375-16 x 3.00) Stainless Steel	1
20	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
20	8M0214963	垫圈	WASHER	1

图 122艉板支架（序列号0G590000及以上） Transom Brackets (S/N-0G590000 & Up)

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂加注口接头	FITTING Grease Port	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
10	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0027784	螺母	NUT	4
11	82671117	螺母(.500-20)	NUT (.500-20)	4
12	99629A2	杠杆总成	LEVER ASSEMBLY	1
12	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	830899	张力弹簧	SPRING Tension	1
14	65830	尼龙衬套	NYLINER	2
15	830900	压缩弹簧	SPRING Compression	1
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99617	销	PIN	1
18	893709	销	PIN	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 123排气歧管与排气板 Exhaust Manifold and Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	190503	衬垫	GASKET	1
2	8185622	分隔板	PLATE Divider	1
2	827323A2	分隔板	DIVIDER PLATE	1
3	814754	密封件(12.50英寸)	SEAL (12.50 Inches)	1
4	814634	卡箍	CLAMP	4
5	826356	螺钉带垫圈(.312-18 x 1.500)	SCREW AND WASHER (.312-18 x 1.500)	20
5	8263561	螺钉带垫圈(.312-18 x 1.500)	SCREW AND WASHER (.312-18 x 1.500)	20
6	814430	管接头(.500-14)	FITTING (.500-14)	1
6	8144301	接头	FITTING	1
7	92007	管接头(.250-18)(90度)	FITTING (.250-18) (90 DEGREES)	1
7	920071	90度弯头	FITTING (90 Degree)	1
8	830756109	软管(57.00英寸整卷)(裁切至23.5英寸)	HOSE (57.00 Inches Bulk) (Cut to 23.5 Inches)	1
8	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
9	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
10	68729	盖板	COVER	1
10	8M0039767	盖板	COVER	1
11	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
12	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
13	76451	垫圈	WASHER	1
14	14479	隔膜	DIAPHRAGM	1
14	144791	隔膜	DIAPHRAGM	1
15	16496	导水板	DEFLECTOR Water	1
16	16497A1	安装板	PLATE	1
17	78690	衬垫	GASKET	2
17	78690002	衬垫	GASKET	2
18	64878	弹簧(黑色)	SPRING (Black)	1
19	85303	垫圈	WASHER	1
20	14480	提动阀	POPPET	1
21	64872	护孔环	GROMMET	1
22	65848	托架	CARRIER	1
23	991763	衬垫	GASKET	1
23	991764	衬垫	GASKET	1
24	18260A2	排气板总成	PLATE ASSEMBLY Exhaust	1
24	18260T2	排气板总成	PLATE ASSEMBLY Exhaust	1
25	897721	连接器(.125-27)(直型)	CONNECTOR (.125-27) (STRAIGHT)	1
25	89772Q1	连接器(.125-27)	CONNECTOR (.125-27)	1
26	20033	定位销	PIN Dowel	2
26	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
27	8147011	密封件	SEAL	1
27	8M0043164	密封件	SEAL	1
28	680101	支架	BRACKET	1
29	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	8
29	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	8
30	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	6
31	69254	螺母	NUT	6
32	27132	衬套	BUSHING	1
33	19564	护孔环	GROMMET	1
33	8M0179867	护孔环	GROMMET	1
34	126021	护孔环	GROMMET	1
34	12602002	护孔环	GROMMET	1
34	19565	护孔环	GROMMET	1
34	19565002	护孔环	GROMMET	1
35	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
36	68783	螺钉(.312-18×2.50)	SCREW (.312-18 x 2.50)	1
37	66725	螺钉(.375-16×3.50)	SCREW (.375-16 x 3.50)	3
37	898833	螺钉(.375-16 x 3.500)	SCREW (.375-16 x 3.500)	3
38	812905A3	支架总成	BRACKET ASSEMBLY	1
38	812905T	前支架	BRACKET Front	1
39	90285	螺钉 (.312-18 x .625)	SCREW (.312-18 x .625)	4
40	56720	垫圈(0.330×0.750×0.060)不锈钢	WASHER (.330 x .750 x .060) Stainless Steel	4
41	187031	垫圈	WASHER	4
42	18778	护孔环	GROMMET	4
42	18778001	护孔环	GROMMET	4
43	18578A6	支架总成(后部)	BRACKET ASSEMBLY Rear	1
43	18578T09	支架总成(后部)	BRACKET ASSEMBLY Rear	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	812815A92	动力头总成	POWERHEAD ASSEMBLY	1
-	878365T00	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A94	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 124动力平衡电机(用于II型动力平衡系统) Power Trim Motor (Use With Design II Power Trim System)

REF	零件编号	中文名称	英文名称	数量
-	811628	配平电机	TRIM MOTOR	1
1	811624	机架与磁场套件	FRAME AND FIELD KIT	1
2	811625	电刷卡套件	BRUSH CARD KIT	1
3	811623	端架套件	END FRAME KIT	1
4	811626	密封套件	SEAL KIT	1
5	811627	电枢套件	ARMATURE KIT	1
5	811628	配平电机	TRIM MOTOR	1

图 125化油器（WMH-21/22/23/24/25/28） CARBURETOR (WMH-21/22/23/24/25/28)

REF	零件编号	中文名称	英文名称	数量
1	818650A16	化油器上部	CARBURETOR Top	1
1	818650A17	化油器中部	CARBURETOR Center	1
1	818650A18	化油器下部	CARBURETOR Bottom	1
1	818650A10	化油器上部	CARBURETOR Top	1
1	818650A11	化油器中部	CARBURETOR Center	1
1	818650A12	化油器下部	CARBURETOR Bottom	1
1	821684A1	化油器上部	CARBURETOR Top	1
1	821684A2	化油器中部	CARBURETOR Center	1
1	821684A3	化油器下部	CARBURETOR Bottom	1
1	818650A7	化油器上部	CARBURETOR Top	1
1	818650A8	化油器中部	CARBURETOR Center	1
1	818650A9	化油器下部	CARBURETOR Bottom	1
1	818650A4	化油器上部	CARBURETOR Top	1
1	818650A5	化油器中部	CARBURETOR Center	1
1	818650A6	化油器下部	CARBURETOR Bottom	1
2	810779	盖帽	CAP	6
3	NSS	不单独销售怠速混合螺钉/弹簧	NOT SOLD SEPARATE Idle Mixture Screw/Spring	6
5	677511	衬垫	GASKET	3
6	815633060	量孔 (.060) (.056 - 150/135 - WMH-24)	JET (.060) (.056 - 150/135 - WMH-24)	6
6	815633070	量孔 (.070 - 135 - WMH-28)	JET (.070 - 135 - WMH-28)	6
6	7570	量孔 .040 (175)	JET .040 (175)	6
6	815633050	量孔 (.050) (XR6/MAGNUMIII/200)	JET (.050) (XR6/MAGNUMIII/200)	6
7	810721	节气门杆 (上部/中部)	LEVER Throttle (TOP/CENTER)	2
7	810722	节气门杆 (下部)	LEVER Throttle (BOTTOM)	1
8	811284	隔套	SPACER	3
9	810745	垫圈	WASHER	3
10	810744	螺母	NUT	3
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	3
12	8423	量孔 (.094) (.094 -150)	JET (.094) (.094 -150)	3
12	5815	量孔 (.086) (XR6/MAGNUM III)	JET (.086) (XR6/MAGNUM III)	3
12	7335	量孔 (.098) (175)	JET (.098) (175)	3
12	6247	主量孔 (.090) (200/135 - WMH-24)	JET Main (.090) (200/135 - WMH-24)	3
13	6487	主量孔 (.060) (135 - WMH-24)	JET Main (.060) (135 - WMH-24)	3
13	5213	主量孔 (.056) (150/135 - WMH-28)	JET Main (.056) (150/135 - WMH-28)	3
13	6246	量孔 (.048) (175)	JET (.048) (175)	3
13	6028	量孔 (.050) (XR6/MAGNUM III)	JET (.050) (XR6/MAGNUM III)	3
13	5317	量孔 (.046) (200)	JET (.046) (200)	3
14	NSS		NOT SOLD SEPARATE Gasket-Fuel Bowl	3
15	810738	浮子总成	FLOAT ASSEMBLY	3
16	F10064	轴	SHAFT	3
17	NSS	不单独销售浮子螺钉	NOT SOLD SEPARATE Screw-Float	3
18	811690	阀座套件	VALVE SEAT KIT	3
19	NSS	不单独销售阀座垫片	NOT SOLD SEPARATE Gasket-Valve Seat	3
20	823623	燃油杯(顶部)	BOWL Fuel (TOP)	1
20	823624	燃油杯(中部/底部)	BOWL Fuel (CENTER/BOTTOM)	2
21	9596	堵头	PLUG	15
22	NSS	不单独销售动力/渐进喷口垫片	NOT SOLD SEPARATE Gasket-Power/Progression Jet	AR
23	6487	主喷口(.060)(150/135-WMH-24)	JET Main (.060) (150/135 - WMH-24)	6
23	4217	主喷口(.062)(135-WMH-28)	JET Main (.062) (135 - WMH-28)	6
23	5225	主喷口(.054)(XR6/MAGNUM III)	JET Main (.054) (XR6/MAGNUM III)	6
23	4216	喷口(.064)(175/200)	JET (.064) (175/200)	6
24	823629	动力喷口(150/135-WMH-24)	POWER JET (150/135 - WMH-24)	6
24	808584	动力喷口(135-WMH-28)	POWER JET (135 - WMH-28)	6
24	823625	动力喷口(XR6/MAGNUM III)	POWER JET (XR6/MAGNUM III)	6
24	823626	动力喷口(175)	POWER JET (175)	6
24	823627	动力喷口(200)	POWER JET (200)	6
25	NSS	不单独销售燃油杯螺钉	NOT SOLD SEPARATE Screw-Fuel Bowl	18
26	7900	三通接头(顶部/中部)	TEE FITTING (TOP/CENTER)	2
27	7901	弯头(底部)	ELBOW (BOTTOM)	1
-	8107492	化油器垫片套件	GASKET KIT Carburetor	1
-	8116912	化油器维修套件	REPAIR KIT Carburetor	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 126启动马达 STARTER MOTOR

REF	零件编号	中文名称	英文名称	数量
-	881368T1	启动电机总成	STARTER MOTOR ASSEMBLY	1
-	881368T2	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	804314T	定子	STATOR	1
2	804313T	电枢	ARMATURE	1
3	881369T1	电刷支架总成	HOLDER ASSEMBLY Brush	1
4	804316	电刷组	BRUSH SET	1
5	804317	弹簧	SPRING	4
6	881370T	支架	BRACKET	1
7	804337	螺钉(M4×16)	SCREW (M4 x 16)	2
8	804335	贯穿螺栓(M6×120)	THRU BOLT (M6 x 120)	2
9	804321T1	齿轮套件	GEAR KIT	1
10	804322	离合器	CLUTCH	1
11	804330	垫圈套件	WASHER KIT	1
12	804324	支架	BRACKET	1
13	804326	齿圈	RING GEAR	1
14	804327	衬垫	GASKET	1
15	804325	轴承	BEARING	1
16	804323	小齿轮轴	SHAFT Pinion	1
17	804329	惰轮	IDLER GEAR	3
17	804329001	惰轮	GEAR Idler	3
18	804328	支架	BRACKET	1
19	804331T	盖板	COVER	1
20	804336	螺栓(M6×52)	BOLT (M6 x 52)	2
21	804319	小齿轮	PINION	1
22	804320	小齿轮止动组	STOP SET Pinion	1
23	804332	杠杆套件	LEVER KIT	1
24	804334	盖板	COVER	1
25	881371T	启动继电器	RELAY Starter	1
25	881371T1	启动继电器	RELAY Starter	1
25	881371T1	启动继电器	RELAY Starter	1
26	804605	螺栓(M8×45)	BOLT (M8 x 45)	3
27	881373	接线端子	TERMINAL	1
28	881377	锁紧垫圈	LOCKWASHER	1
29	82382M	螺母	NUT	1
30	881372	螺母	NUT	1
31	881374	盖板	COVER	1

图 127齿轮箱（驱动-标准/反向旋转） Gear Housing (Drive-Standard/Counter Rotation)

REF	零件编号	中文名称	英文名称	数量
-	9148A18	齿轮箱总成标准旋转2:1速比(长型)(黑色)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (LONG) (BLACK)	1
-	9148T81	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A19	齿轮箱总成标准旋转2:1速比(加长型)(黑色)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (X-LONG) (BLACK)	1
-	9148T82	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A20	齿轮箱总成标准旋转2:1速比(长型)(灰色)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (LONG) (GRAY)	1
-	9148T87	ORD 1647-9148T81	ORD 1647-9148T81	1
-	9148A21	齿轮箱总成标准旋转2:1速比(加长型)(灰色)	GEAR HOUSING ASSEMBLY Standard Rotation 2:1 Gear Ratio (X-LONG) (GRAY)	1
-	9148T88	ORD 1647-9148T82	ORD 1647-9148T82	1
-	9148A23	齿轮箱总成(长型)	GEAR HOUSING ASSEMBLY (LONG)	1
-	9148A22	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9148A38	齿轮箱总成(加长型)	GEAR HOUSING ASSEMBLY (X-LONG)	1
-	9148A27	齿轮箱总成反向旋转(加长型)(黑色)	GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG) (BLACK)	1
-	9148T83	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148A28	齿轮箱总成反向旋转(加长型)(灰色)	GEAR HOUSING ASSEMBLY Counter Rotation (X-LONG) (GRAY)	1
-	9148T89	齿轮箱壳体-CXL-灰色	GEAR HSG-CXL-GRAY	1
1	9148A11	齿轮箱总成(黑色-基础款)	GEAR HOUSING ASSEMBLY (BLACK-BASIC)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9148A12	齿轮箱总成(灰色-基础款)	GEAR HOUSING ASSEMBLY (GRAY-BASIC)	1
1	9148T47	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
2	85822A1		CONNECTOR ASSEMBLY SPEEDOMETER	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	20033	定位销齿轮箱定位	PIN Dowel GEAR HOUSING LOCATING	2
3	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
4	78638	双头螺栓(.438 x 3.12)齿轮箱(长型)	STUD (.438 x 3.12) GEAR HOUSING (LONG)	1
4	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
4	18978	双头螺栓(.438 x 3.69)齿轮箱(加长)	STUD (.438 x 3.69) GEAR HOUSING (X-LONG)	1
4	8M0034464	螺柱	STUD	1
5	57920	双头螺栓(.44 x 2.06)齿轮箱	STUD (.44 x 2.06) GEAR HOUSING	2
5	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
6	56297	双头螺栓(.312 x 3.38)水泵	STUD (.312 x 3.38) WATER PUMP	1
6	8M0034463	螺柱(.312-24 x 3.38)	STUD (.312-24 x 3.38)	1
7	30667	双头螺栓(.250-20/.250-28 x 3.125)水泵	STUD (.250-20/.250-28 x 3.125) WATER PUMP	2
7	306671	螺柱	STUD	2
8	42647A1	轴承总成滚柱驱动轴	BEARING ASSEMBLY Roller DRIVE SHAFT	1
9	43998	润滑套筒	SLEEVE LUBRICATION	1
11	44000	驱动轴(长型)	DRIVESHAFT (LONG)	1
11	897624T	长驱动轴	DRIVESHAFT Long	1
11	44209	驱动轴(加长型)	DRIVESHAFT (X-LONG)	1
11	897625T	加长驱动轴	DRIVESHAFT X-Long	1
12	N.S.S.	小齿轮(不单独销售)(43-44102A2或43-18572A1部件)	Not Sold Separate Pinion Gear (PART OF 43-44102A2 or 43-18572A1)	1
13	92721	垫圈(.965 x .630)小齿轮	WASHER (.965 x .630) PINION GEAR	1
14	35921	螺母(.625-18)小齿轮至驱动轴	NUT (.625-18) PINION GEAR TO DRIVE SHAFT	1
15	42637A1	垫片组	SHIM SET	AR
15	8M0063267	垫片组	SHIM SET	AR
16	36387A1	轴承总成滚柱/杯形驱动轴	BEARING ASSEMBLY Roller/Cup DRIVE SHAFT	1
16	8M0146566	杯/锥轴承总成	BEARING ASSEMBLY Cup/Cone	1
17	42633	驱动轴轴承螺母	NUT DRIVE SHAFT BEARING	1
17	8245191	固定座	RETAINER	1
18	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
19	426311	水泵至齿轮箱衬垫	GASKET WATER PUMP TO GEAR HOUSING	1
19	8M0204678	衬垫	GASKET	1
20	90011	O型圈(2.175×0.175)水泵	O-RING (2.175 x .175) WATER PUMP	1
20	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
20	38099	O型圈水泵(内径2.109)	O-RING WATER PUMP (2.109 I.D.)	1
21	89238	水泵油封	SEAL Oil WATER PUMP	1
22	16977	水泵油封	SEAL Oil WATER PUMP	1
23	856081	水泵下衬垫	GASKET LOWER - WATER PUMP	1
23	8M0090319	衬垫@5	GASKET @5	1
24	856091	水泵上衬垫	GASKET UPPER - WATER PUMP	1
24	858524	衬垫	GASKET	1
25	32435	水泵面板	FACE PLATE WATER PUMP	1
25	8M0204677	面板	PLATE-FACE	1
25	45048	水泵面板	FACE PLATE WATER PUMP	1
26	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	96148A3	水泵总成	PUMP ASSEMBLY Water	1
27	48752	水泵体嵌件	INSERT WATER PUMP BODY	1
27	48752T	嵌件	INSERT	1
27	53168	水泵衬套	INSERT WATER PUMP	1
28	38970	橡胶密封圈-进水管	SEAL RUBBER - WATER INLET TUBE	1
28	38970	橡胶密封圈-进水管	SEAL RUBBER - WATER INLET TUBE	1
29	89984	水泵叶轮	IMPELLER WATER PUMP	1
29	89984T4	叶轮	IMPELLER	1
30	56654	叶轮驱动键	KEY IMPELLER DRIVE	1
30	8M0214992	键@5	KEY @5	1
31	96411	螺钉(#14-8×2.25)水泵	SCREW (#14-8 x 2.25) WATER PUMP	1
31	8M0215009	螺钉	SCREW	1
32	29245	垫圈(0.281×0.500×0.060)不锈钢水泵螺钉与螺柱	WASHER (.281 x .500 x .060) Stainless Steel WATER PUMP SCREW AND STUD	2
32	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
33	13438	螺母(0.250-28)水泵螺柱	NUT (.250-28) WATER PUMP STUD	2
33	8267119	螺母(.250-28)	NUT (.250-28)	2
34	36001	水泵螺柱垫圈	WASHER WATER PUMP STUD	1
35	13436	水泵螺柱螺母	NUT WATER PUMP STUD	1
36	30271	橡胶环(驱动轴)	RING Rubber RUBBER (DRIVE SHAFT)	1
36	8M0214918	环@5	RING @5	1
37	29804	进水管导向套	SLEEVE GUIDE - WATER INLET TUBE	1
37	29804T	套筒	SLEEVE	1
38	78902	换挡轴-下部	SHAFT SHIFT - LOWER	1
38	789022	换档轴	SHIFT SHAFT	1
39	29641	E型挡圈-换挡轴	E RING RETAINING - SHIFT SHAFT	1
40	78907	挡圈	RING Retaining	1
41	25439		O-RING (.862 x .103) SHIFT SHAFT BUSHING	1
42	77631A2	换挡轴衬套总成	BUSHING ASSEMBLY SHIFT SHAFT	1
43	76384	换挡轴衬套油封	SEAL Oil SHIFT SHAFT BUSHING	1
43	8M0246145	油封	OIL SEAL	1
44	77674		WASHER (.35 x .75 x .12) RUBBER - SHIFT SHAFT BUSHING	1
45	79953		SCREW (.375-16 x .250) GREASE FILLER	1
45	79953Q04	放油螺钉套件	SCREW KIT Drain	1
46	67892		SCREW Magnetic DRAIN	1
46	8M0058389	放油螺钉套件	SCREW KIT Drain	1
47	19183	纤维垫圈-润滑脂加注与排放螺钉	WASHER Fiber GREASE FILLER AND DRAIN SCREW	2
47	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
-	42579A4	水泵修理包	REBUILD KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1
-	90484A88	衬垫套件	GASKET SET	1

图 128驱动轴壳体与排气管 DRIVESHAFT HOUSING AND EXHAUST TUBE

REF	零件编号	中文名称	英文名称	数量
1	8343A10	传动轴壳体总成(黑色)	HOUSING ASSEMBLY Driveshaft (BLACK)	1
1	8343A11	传动轴壳体总成(灰色)	HOUSING ASSEMBLY Driveshaft (GRAY)	1
1	8343T11	ORD 1590-8343T10	ORD 1590-8343T10	1
1	8343A12	传动轴壳体总成(TRACKER)	HOUSING ASSEMBLY Driveshaft (TRACKER)	1
1	8343T12	D型轴套-追踪者	D SHAFT HSG-TRACK	1
1	813563A1	传动轴壳体总成(黑色)	HOUSING ASSEMBLY Driveshaft (BLACK)	1
1	813563T1	传动轴壳体-黑色-加长型	HOUSING Driveshaft - Black - X-Long	1
1	813563A2	传动轴壳体总成(灰色)	HOUSING ASSEMBLY Driveshaft (GRAY)	1
1	813563T2	ORD 3503-813563T1	ORD 3503-813563T1	1
1	8343A13	传动轴壳体总成(JET)(黑色)	HOUSING ASSEMBLY Driveshaft (JET) (BLACK)	1
1	8343A14	传动轴壳体总成(JET)(灰色)	HOUSING ASSEMBLY Driveshaft (JET) (GRAY)	1
1	8343A13	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	56295	双头螺柱(.437 x 2.69)	STUD (.437 x 2.69)	2
4	63474	螺钉(.500-20 x 6.00)	SCREW (.500-20 x 6.00)	2
4	898831	螺钉(.500-20 x 6.220)	SCREW (.500-20 x 6.220)	2
5	78249	支架(加长型)(JET)	MOUNT (LONG)(JET)	2
5	77327	支架	MOUNT	2
5	77327	支架(TRACKER/XR6/MAGNUM III/超长型)	MOUNT (TRACKER/XR6/MAGNUM III/X-LONG)	2
6	49339	垫圈(.8125)	WASHER (.8125)	2
7	28040	螺母(.500-20)	NUT (.500-20)	2
7	898832	螺母(.500-20)	NUT (.500-20)	2
8	88238A1	接地线总成	CABLE ASSEMBLY Ground	1
8	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
9	67076	卡箍	CLAMP	2
9	8M0036782	卡箍	CLAMP	2
10	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
11	67077T	黑色盖(黑色)	COVER Black (BLACK)	2
11	8M4500752	盖板	COVER	2
11	67077T6	盖(灰色)	COVER (GRAY)	2
11	67077F1	灰色盖板	COVER Gray	2
11	67077F2	盖(TRACKER)	COVER (TRACKER)	2
11	8M4500752	盖板	COVER	2
12	88417	螺钉(#12-24×0.620)	SCREW (#12-24 x .620)	4
13	35521	螺母	NUT	4
14	88238A1	接地线总成	CABLE ASSEMBLY Ground	1
14	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
15	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
16	48926	垫圈	WASHER	1
17	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	1
17	8M0204653	螺母	NUT	1
18	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
19	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
19	8M0204653	螺母	NUT	2
20	64649	堵头	PLUG	1
21	18276	排气管	TUBE Exhaust	1
21	18276T	排气管	EXHAUST TUBE	1
22	66350	下密封件	SEAL (LOWER)	1
22	66350001	密封件	SEAL	1
23	177261	上密封件	SEAL (UPPER)	1
23	8M0039076	密封件	SEAL	1
24	67295	水管(加长型)(JET)	TUBE Water (LONG)(JET)	1
24	8M0042788	长型水管	TUBE-WATER-LONG	1
24	74729	管(超长型)	TUBE (X-LONG)	1
24	8M0042790	水管	TUBE-WATER	1
25	991732	衬垫	GASKET	1
25	991734	衬垫	GASKET	1
26	18233A3	隔板总成	PLATE ASSEMBLY	1
26	18233A20	传动轴壳体板总成	PLATE ASSEMBLY Driveshaft Housing	1
27	8147012	密封件	SEAL	1
27	8M0043165	密封件-27.00英寸	SEAL-27.00 INCH	1
28	68011	支架	BRACKET	1
29	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
29	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
30	20033	定位销	PIN Dowel	2
30	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
31	38970	密封件	SEAL	1
32	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	6
33	183071	衬垫	GASKET	1
33	183076	衬垫	GASKET	1
34	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	4
35	69254	螺母	NUT	4
36	812834	排气管延长段	EXTENSION Exhaust	1
36	812834A2	排气延长总成	EXTENSION ASSEMBLY Exhaust	1
36	41942F3	排气管延长段(150/200)(JET)	EXTENSION Exhaust (150/200)(JET)	1
36	879288T71	排气管延长段	EXTENSION Exhaust	1
37	78246	衬垫	GASKET	1
37	782461	衬垫	GASKET	1
38	814618	护套	BOOT	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 129喷泵总成 Jet Pump Assembly

REF	零件编号	中文名称	英文名称	数量
-	801400150	喷泵(黑色)	JET PUMP (BLACK)	1
-	801401150	喷泵(灰色)	JET PUMP (GRAY)	1
-	855766150	喷泵	JET PUMP	1
1	801411150	泵壳	HOUSING Pump	1
1A	827490	润滑油管	HOSE Lube	1
2	801414150	叶轮	IMPELLER	1
2	803984T	叶轮	IMPELLER	1
3	80141290	进气壳体	HOUSING Intake	1
3A	8271883	衬套	LINER	1
4	801413150	驱动轴	SHAFT Drive	1
4A	8271891	套筒	SLEEVE	1
4B	8271901	螺母	NUT	1
5	801405875	键	KEY	1
6	801404875	叶轮垫片	SHIM Impeller	8
7	801403875	锁紧垫圈	TAB WASHER	1
8	847568	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	6
8	812618	不锈钢螺钉(.312-18 x 1.00)带尼龙垫	SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch	6
9	19923088	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	4
10	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	2
11	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
12	801410	电缆支架	BRACKET Cable Support	1
13	67980	螺母(.312-18)	NUT (.312-18)	1
13	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	1
14	801407	定位销	PIN Dowel	2
15	78638	双头螺柱(.438 x 3.12)	STUD (.438 x 3.12)	1
15	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
16	579201	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
16	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
17	69064	螺栓(.312-18 x 2.750)	BOLT (.312-18 x 2.750)	1
18	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
18	306671	螺柱	STUD	2
19	68299	不锈钢螺钉(.375-16 x 3.00)	SCREW (.375-16 x 3.00) Stainless Steel	1
20	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
20	8M0214963	垫圈	WASHER	1

图 130钥匙开关总成 Key Switch Assembly

REF	零件编号	中文名称	英文名称	数量
1	816626A20	钥匙开关线束总成(20英尺)	HARNESS ASSEMBLY Key Switch (20.00 Feet)	1
2	90468A1	钥匙盖总成	COVER ASSEMBLY Key	2
3	76424	支架	BRACKET	1
4	55422	双头螺柱 (#10-32 x 2.00)	STUD (#10-32 x 2.00)	2
5	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	2
6	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
7	816479A3	板组件套件	PLATE KIT	2
8	88107A5	钥匙开关套件	SWITCH KIT Key	1
9	879755	特殊螺母-黑色尼龙	NUT Special - Black Nylon	1
10	816492A1	音响报警器总成	ALARM ASSEMBLY Audio Warning	1
10	8M0210763	报警器	ALARM	1
11	8127111	垫片(0.375)	SPACER (.375)	2
11	812711	隔套(0.250)	SPACER (.250)	2
-	894911	点火钥匙(1A)	KEY Ignition (1A)	1
-	894912	点火钥匙(1B)	KEY Ignition (1B)	1
-	894913	点火钥匙(1C)	KEY Ignition (1C)	1
-	894914	点火钥匙(1D)	KEY Ignition (1D)	1
-	894915	点火钥匙(1E)	KEY Ignition (1E)	1
-	894916	点火钥匙(1F)	KEY Ignition (1F)	1
-	894917	点火钥匙(2A)	KEY Ignition (2A)	1
-	894918	点火钥匙(2B)	KEY Ignition (2B)	1
-	894919	点火钥匙(2C)	KEY Ignition (2C)	1
-	8949110	点火钥匙(2D)	KEY Ignition (2D)	1
-	8949111	点火钥匙(2E)	KEY Ignition (2E)	1
-	8949112	点火钥匙(2F)	KEY Ignition (2F)	1

图 131燃油管路 FUEL LINES

REF	零件编号	中文名称	英文名称	数量
1	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
2	69067	燃油连接器螺钉(.250-20 x 1.375)	SCREW (.250-20 x 1.375) FUEL CONNECTOR	1
3	812782	密封件	SEAL	1
4	9912976	油管	TUBING	1
4	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
5	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
5	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
6	814964	接头	FITTING	1
7	19688	弯头接头	FITTING (ELBOW)	1
8	4301625	油管(8.00英寸)	TUBING (8.00 Inches)	1
8	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	1
9	99127109	管路(57.00英寸散装)	LINE (57.00 Inches Bulk)	4
9	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	4
10	816296	燃油滤清器	FILTER Fuel	1
10	816296Q03	燃油滤清器@3	FILTER-FUEL @3	1
11	67751	衬垫	GASKET	3
12	27037	双头螺栓(.250-28×1.125)	STUD (.250-28 x 1.125)	6
12	270372	双头螺栓(.250-28×1.125)	STUD (.250-28 x 1.125)	6
13	55098	J型卡扣	J CLIP	1
13	8M0024808	J型夹	J-CLIP	1
14	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	6
15	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	6
16	29598	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	6
17	9912878	软管 (.187) (26.00英寸散装)	HOSE (.187) (26.00 Inches Bulk)	3
18	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
18	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
19	42859A2	加浓阀总成	VALVE ASSEMBLY Enrichner	1
20	633001	卡箍	CLAMP	1
21	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
22	9912688	管材 (36.00英寸散装)	TUBING (36.00 Inches Bulk)	2
23	45915	端子排	TERMINAL BLOCK	AR
24	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	AR
24	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	AR
24	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	AR
24	69079	螺钉 (#10-16 x .440)	SCREW (#10-16 x .440)	AR
-	815791A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815809A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	815810A90	衬垫套件	GASKET SET	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 132泄压系统 BLEED SYSTEM

REF	零件编号	中文名称	英文名称	数量

图 133飞轮/启动马达 FLYWHEEL/STARTER MOTOR

REF	零件编号	中文名称	英文名称	数量
1	18896A1	盖板套件	COVER KIT	1
2	79022	标记	MARKER	1
3	37572	螺钉 (.190-32 x .380)	SCREW (.190-32 x .380)	2
4	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	2
5	89219	堵头	PLUG	1
5	89219001	堵头	PLUG	1
6	45907	黄色塞	PLUG Yellow	1
7	52901	螺母(0.625-18)	NUT (.625-18)	1
8	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
8	33001	垫圈	WASHER	1
9	817632A2	飞轮	FLYWHEEL	1
9	859238T16	飞轮总成	FLYWHEEL ASY	1
9	817632A12	飞轮	FLYWHEEL	1
9	859238T16	飞轮总成	FLYWHEEL ASY	1
10	9610A19	定子	STATOR	1
11	90045	螺钉(#10-32×1.375)	SCREW (#10-32 x 1.375)	4
12	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	4
13	96455A9	触发板总成	PLATE ASSEMBLY Trigger	1
14	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
14	893893	启动马达	STARTER MOTOR	1
15	56703	轴环	COLLAR	2
15	8M0034918	轴环	COLLAR	2
16	68042	橡胶止挡	STOP Rubber	2
16	8M0043376	停机开关	STOP	2
17	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
18	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
19	93388A7	线缆总成(黑色)	CABLE ASSEMBLY (BLACK)	1
19	93388A14	线缆总成(黄/黑)	CABLE ASSEMBLY Yellow/Black	1
20	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
21	20890	螺母 (.250-20)	NUT (.250-20)	1

图 134曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	9536A4	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	67923	球轴承(下部)	BEARING Ball (LOWER)	1
2	67923T	滚珠轴承	BEARING Ball	1
3	67446	环	RING	1
4	14513A2	驱动齿轮段套件	GEAR SEGMENT KIT Drive	1
4	14513A09	驱动齿轮段套件	GEAR SEGMENT KIT Drive	1
5	813073	螺钉(#6-32 x .620)内六角头	SCREW (#6-32 x .620) Socket Head	2
6	813134	螺母(#6-32)专用	NUT (#6-32) Special	2
7	54196A6	托架总成	CARRIER ASSEMBLY	1
8	65800	填料	PACKING	1
9	67377	曲轴密封环	RING Sealing CRANKSHAFT	7
9	67377T	密封环	RING Sealing	7
10	16756A6	轴承套件	BEARING KIT	2
11	7441A32	活塞(右舷-标准)	PISTON (STARBOARD-STANDARD)	3
11	7441T32	活塞	PISTON	3
11	7443A11	活塞(右舷-0.015加大)	PISTON (STARBOARD-.015 O.S.)	AR
11	7445A11	活塞(右舷-0.030加大)	PISTON (STARBOARD-.030 OS.)	AR
11	7445T11	活塞	PISTON	AR
11	7442A32	活塞(左舷-标准)	PISTON (PORT-STANDARD)	3
11	7442T32	活塞	PISTON	3
11	7444A11	活塞(左舷-0.015加大)	PISTON (PORT-.015 O.S.)	AR
11	7446A11	活塞(左舷-0.030加大)	PISTON (PORT-.030 O.S.)	AR
11	9738A7	活塞总成(右舷-标准)	PISTON ASSEMBLY (STARBOARD-STANDARD)	3
11	9738T9	活塞总成标准型	PISTON ASSEMBLY Standard	3
11	9738A8	活塞总成(右舷-0.015加大)	PISTON ASSEMBLY (STARBOARD-.015 O.S.)	AR
11	9738T10	活塞总成0.015加大	PISTON ASSEMBLY .015 Oversize	AR
11	9737A7	活塞总成(左舷-标准)	PISTON ASSEMBLY (PORT-STANDARD)	3
11	9737T9	活塞总成标准型	PISTON ASSEMBLY Standard	3
11	9737A8	活塞总成(左舷-0.015加大)	PISTON ASSEMBLY (PORT-.015 O.S.)	AR
11	9737A10	活塞总成0.015加大	PISTON ASSEMBLY .015 Oversize	AR
11	9738A9	活塞总成标准型(右舷-标准)	PISTON ASSEMBLY Standard (STARBOARD-STANDARD)	3
11	9738T9	活塞总成标准型	PISTON ASSEMBLY Standard	3
11	9738A10	活塞总成0.015加大(右舷-0.015加大)	PISTON ASSEMBLY .015 Oversize (STARBOARD-.015 O.S.)	AR
11	9738T10	活塞总成0.015加大	PISTON ASSEMBLY .015 Oversize	AR
11	9737A9	活塞总成标准型(左舷-标准)	PISTON ASSEMBLY Standard (PORT-STANDARD)	3
11	9737T9	活塞总成标准型	PISTON ASSEMBLY Standard	3
11	9737A10	活塞总成0.015加大(左舷-0.015加大)	PISTON ASSEMBLY .015 Oversize (PORT-.015 O.S.)	AR
12	93481A12	活塞环组-标准(标准)	RING SET Piston - Standard (STANDARD)	1
12	78918A4	活塞环组-0.015加大(0.015加大)	RING SET Piston - .015 Oversize (.015 O.S.)	AR
12	85636A4	活塞环组-0.030加大(0.030加大)	RING SET Piston - .030 Oversize (.030 O.S.)	AR
12	815515A12	活塞环组(标准)(1-1/2毫米)	RING SET Piston (STD.) (1-1/2 MM)	1
12	815268A4	活塞环组(0.015加大)(1-1/2毫米)	RING SET Piston (.015 O.S.) (1-1/2 MM)	AR
12	822321A12	活塞环套件-标准(标准)(2毫米)	RING KIT Piston - Standard (STD.) (2MM)	1
12	822321A1	活塞环套件-0.015加大(0.015加大)(2毫米)	RING KIT Piston - .015 Oversize (.015 O.S.) (2MM)	2
13	52035	锁环	RING Lock	12
13	857196	锁紧环	LOCK RING	12
14	818141A2	连杆套件	CONNECTING ROD KIT	6
14	818141A13	连杆总成	CONNECTING ROD ASSEMBLY	6
15	763491	螺钉(.312-24 x .875)	SCREW (.312-24 x .875)	12
16	812876	垫圈	WASHER	12
16	8M0012298	止推垫片	THRUST WASHER	12
17	17514A2	轴承套件	BEARING KIT	6
17	8M0234886	轴承保持架	CAGE BEARING	6
18	822553	滚针轴承	BEARING Needle	174
18	8M0204691	滚针轴承@200	BRG-NEEDLE @200	174
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	812815A92	动力头总成	POWERHEAD ASSEMBLY	1
-	878365T00	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A94	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 135转向连接套件 STEERING ATTACHING KIT

REF	零件编号	中文名称	英文名称	数量
-	92876A8	转向安装套件	ATTACHING KIT Steering	1
1	41055A1	支架总成	BRACKET ASSEMBLY	1
2	715651	转向拉索套管	TUBE Steering Cable	1
3	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
4	821203	锁紧垫圈	LOCKWASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
7	78968	内锁紧垫圈 (.250)	LOCKWASHER Internal (.250)	4
8	850791T	联轴器	COUPLER	1
9	73732	螺钉 (.375-24 x 1.120)	SCREW (.375-24 x 1.120)	2
10	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
11	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	3
11	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	3

图 136仪表装置 INSTRUMENTATION

REF	零件编号	中文名称	英文名称	数量
1	86322A7	线缆总成(1.50英尺)黑色	CABLE ASSEMBLY (1.50 Feet) Black	1
1	86323A5	线缆总成(1.50英尺)紫色	CABLE ASSEMBLY (1.50 Feet) Purple	1
2	825338A3	动力升降倾斜仪表白面黑刻度黑边框	GAUGE Power Trim, White Face, Black Graduation, Black Bezel	1
2	895292Q41	动力升降倾斜指示器黑面橙白刻度黑边框	GAUGE Power Trim Indicator, Black Face, Orange/White Graduations, Black Bezel	1
3	79480	支架	BRACKET	1
4	72729	楔形底座灯泡(14V - 1.9W)	LIGHT BULB Wedge Base (14V - 1.9W)	1
5	79888	灯泡插座	SOCKET Light Bulb	1
6	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	5
7	68878A6	蜂鸣报警器总成	HORN ASSEMBLY Buzzer Alarm	1
8	68879	盖板	COVER	1
9	79697	隔套	SPACER	2
9	8M0084588	隔套	SPACER	2
10	26427	垫圈	WASHER	4
11	35401	螺钉(#10 x 1.00)	SCREW (#10 x 1.00)	2
12	86396A8	转速表线束总成(5.00英尺)	HARNESS ASSEMBLY Tachometer (5.00 Feet)	1
13	19674A1	拉绳开关总成	SWITCH ASSEMBLY Lanyard	1
13	19674A07	开关/拉绳套件	SWITCH/LANYARD KIT	1
14	18303	螺钉 (.190-16 x 1.750) 不锈钢	SCREW (.190-16 x 1.750) Stainless Steel	2
15	813679	适配器	ADAPTER	1
16	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
17	32866	螺钉 (#10-32 x 2.00) 不锈钢	SCREW (#10-32 x 2.00) Stainless Steel	2
18	18321	安装夹	CLAMP Mounting	1
19	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	2
20	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4
21	79146	固定座	RETAINER	3
22	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
23	812497A2	二极管总成	DIODE ASSEMBLY	1
23	898289A72	双拉绳二极管套件	DIODE KIT-LANYARD Dual	1
24	11149A2	线缆总成 (6.00英寸)	CABLE ASSEMBLY (6.00 Inches)	1

图 137油门杆与换挡轴 Throttle Lever and Shift Shaft

REF	零件编号	中文名称	英文名称	数量
1	55171	衬套	BUSHING	1
2	62459	球头总成	BALL JOINT ASSEMBLY	1
2	62459T	球头节总成	BALL JOINT ASSY	1
3	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	1
4	76035	杆	ROD	1
5	46438	螺母 (#10-32)	NUT (#10-32)	1
6	41094A3	杠杆总成 (设计I)	LEVER ASSEMBLY (DESIGN I)	1
6	823705A1	点火提前杠杆 (设计II)	LEVER Spark Advance (DESIGN II)	1
7	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
8	64015	螺母 (.250-20)	NUT (.250-20)	1
9	26852	尼龙帽	CAP Nylon	1
10	93254	旋转底座	SWIVEL BASE	1
11	93421	旋转球头	SWIVEL BALL	1
12	823706	连接杆	LINK	1
13	74897	枢轴	PIVOT	1
13	74897T	枢轴	PIVOT	1
14	13627	螺钉 (.190-32 x 1.250)	SCREW (.190-32 x 1.250)	1
15	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
16	48039	盖帽	CAP	1
17	823235	弹簧	SPRING	1
18	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	1
19	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
20	64015	螺母 (.250-20)	NUT (.250-20)	1
21	26852	尼龙帽	CAP Nylon	1
22	39483	闩锁	LATCH	1
23	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
24	20099	弹簧	SPRING	1
25	35045	螺母(.250-28)	NUT (.250-28)	1
25	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
26	41095	杠杆	LEVER	1
26	410952	杠杆	LEVER	1
27	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
28	55164	衬套	BUSHING	1
29	14638	套筒	BARREL	1
30	814929	杆	ROD	1
31	932481	衬套	BUSHING	1
31	8M0215006	旋转衬套	BUSHING Swivel	1
32	35045	螺母(.250-28)	NUT (.250-28)	1
32	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
33	20353	螺柱 (.250-28 x 1.750)	STUD (.250-28 x 1.750)	1
34	815539T	节气门凸轮	CAM Throttle	1
35	814283A2	支架总成	BRACKET ASSEMBLY	1
36	39519	杯套	CUP	1
37	42975	传动螺钉	DRIVE SCREW	2
38	98889	闩锁	LATCH	1
39	53167	螺钉 (.312-18 x .880)	SCREW (.312-18 x .880)	3
39	53167T	螺钉 0.312-18X 0.88	SCREW .312-18X .88	3
40	79932A11	换挡轴总成 (长)	SHIFT SHAFT ASSEMBLY (LONG)	1
40	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
40	79932A12	换挡轴总成 (加长)	SHIFT SHAFT ASSEMBLY (X-LONG)	1
40	79932A17	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
41	814284	导向块	GUIDE BLOCK	1
42	20099	弹簧	SPRING	1
43	67073A1	连杆总成	LINK ROD ASSEMBLY	1
44	52100	耐磨板	WEAR PLATE	1
45	38279	闩锁	LATCH	1
45	8M0036768	闩锁	LATCH	1
46	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
47	35045	螺母(.250-28)	NUT (.250-28)	1
47	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
48	26600	衬套	BUSHING	1
49	29720	波形垫圈	WAVE WASHER	1
50	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
51	35045	螺母(.250-28)	NUT (.250-28)	1
51	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
52	814281A1	怠速稳定换挡套件	IDLE STABILIZING SHIFT KIT	1
53	77478	螺钉 (#6-32 x .875)	SCREW (#6-32 x .875)	2
54	27882	垫圈	WASHER	2
55	17461A3	电阻模块	RESISTOR MODULE	1

图 138附件 Accessories

REF	零件编号	中文名称	英文名称	数量
-	15969A3	甲板加油套件	DECK FILL KIT Oil	1
-	44357A2	冲洗附件	FLUSHING ATTACHMENT	1
-	44357Q2	冲洗附件	FLUSHING ATTACHMENT	1
-	827927A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
-	877680Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
-	827927A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
-	877680Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
-	17146A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
-	877681Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
-	17146A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
-	877681Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
-	822379A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
-	877683Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
-	88334A2	防腐电极套件	MERCATHODE KIT	1
-	8M0180081	防腐电极套件	MERCATHODE KIT	1
-	86300A5	防腐电极监测器	MERCATHODE MONITOR	1
-	41729A3	软管延长套件	HOSE EXTENSION KIT	1
-	18286A18	微调开关套件(10.00英尺)带或不带舵柄	SWITCH KIT Trim (10.00 Feet) With Or With Out Tiller	1
-	17334A2	视觉警报系统低油位/过热	VISUAL WARNING SYSTEM Low Oil/Overheat	1

图 139缓冲板与节气门杠杆 Attenuator Plate and Throttle Levers

REF	零件编号	中文名称	英文名称	数量
1	817495A1	消音板总成	PLATE ASSEMBLY Sound Attenuator	1
2	892211	衬垫	GASKET	3
3	88489	螺钉(.250-28 x 2.500)	SCREW (.250-28 x 2.500)	6
3	884891	螺钉(.250-28 x 2.500)带尼龙垫-不锈钢	SCREW (.250-28 x 2.500) With Nylon Patch - Stainless Steel	6
4	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	6
5	815784	盖帽	CAP	3
6	828277A1	连杆套件	LINKAGE KIT	1
7	8M0203923	油门杆	THROTTLE LEVER Throttle Level	1
8	8M0203922	油门杆	THROTTLE LEVER Throttle Level	1
9	NSS	油门连杆(不单独销售)	NOT SOLD SEPARATE Throtlle Link	1
10	18178	滚轮	ROLLER	1
11	15124	螺钉 (#10-32 x .750)	SCREW (#10-32 x .750)	3
12	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
13	69432	外锁紧垫圈(#10)	LOCKWASHER External (#10)	3
14	NSS	警示贴纸-空气箱(不单独销售)	NOT SOLD SEPARATE Decal-Caution Airbox	1
15	85557712	EPA标签信息贴花	DECAL EPA Label Information	1
15	855577A12	REF SOB 09-18	REF SOB 09-18	1
15	85557713	EPA标签信息贴花	DECAL EPA Label Information	1
15	855577A13	REF SOB 09-18	REF SOB 09-18	1
15	855920	EPA标签信息贴花	DECAL EPA Label Information	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 140泄放系统 Bleed System

REF	零件编号	中文名称	英文名称	数量
1	99130122	管材(20.00英尺整料)(裁切为9.00英寸)	TUBING (20.00 Feet Bulk) (Cut to 9.00 Inch Length)	2
2	99130122	管材(20.00英尺散装)(裁切至12.50英寸长度)	TUBING (20.00 Feet Bulk) (Cut to 12.50 Inch Length)	2
2	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
3	99130122	管材 (20.00英尺散装) (裁切至14.00英寸)	TUBING (20.00 Feet Bulk) (Cut to 14.00 Inch Length)	1
3	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
4	99130122	管材(20.00英尺散装)(裁切至19.00英寸长度)	TUBING (20.00 Feet Bulk) (Cut to 19.00 Inch Length)	2
4	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
5	99130122	管材(20.00英尺散装)(裁切至24.00英寸长度)	TUBING (20.00 Feet Bulk) (Cut to 24.00 Inch Length)	1
5	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
6	99130122	管材(20.00英尺散装)(裁切至26英寸长度)	TUBING (20.00 Feet Bulk) (Cut to 26 Inch Length)	1
6	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
7	426981	止回阀	CHECK VALVE	7
7	426982	止回阀	CHECK VALVE	7
8	822715	弯头接头	FITTING Elbow	6
9	56759	倒钩接头	FITTING Barbed	4
10	426231	止回阀	CHECK VALVE	1
10	426233	止回阀	CHECK VALVE	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	812815A97	动力头总成	POWERHEAD ASSEMBLY	1
-	878365T00	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 141下罩 Bottom Cowl

REF	零件编号	中文名称	英文名称	数量
1	9744A16	下罩壳总成(黑色)(无贴花)	BOTTOM COWL ASSEMBLY (BLACK)(Without Decals)	1
1	9744A17	下罩壳总成(灰色)(无贴花)	BOTTOM COWL ASSEMBLY Gray (Without Decals)	1
1	9744A16	下罩总成	BOTTOM COWL ASSEMBLY	1
1	9744A18	下罩壳总成(追踪者)(无贴花)	BOTTOM COWL ASSEMBLY (TRACKER)(Without Decals)	1
1	9744A16	下罩总成	BOTTOM COWL ASSEMBLY	1
2	9745A5	下罩壳总成(黑色)(无贴花)	BOTTOM COWL ASSEMBLY (BLACK)(Without Decals)	1
2	9745A6	下罩壳总成(灰色)(无贴花)	BOTTOM COWL ASSEMBLY (GRAY)(Without Decals)	1
2	9745A7	下罩壳总成(追踪者)(无贴花)	BOTTOM COWL ASSEMBLY (TRACKER)(Without Decals)	1
3	18701A1	密封套件	SEAL KIT	1
4	18699	螺钉(.250-20 x 1.320)(右舷)	SCREW (.250-20 x 1.320) (STARBOARD)	4
5	817519A1	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	2
6	813613	接头	FITTING	1
7	830756109	软管(57.00英寸散装)	HOSE (57.00 Inches Bulk)	1
7	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
8	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
8	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
10	18286A40	开关总成	SWITCH ASSEMBLY	1
10	8M0235192	微调开关	SWITCH TRIM	1
11	8124431	固定座	RETAINER	1
11	8M0032848	开关固定座	RETAINER Switch	1
12	815914	三通接头	T-FITTING	1
13	7765377	软管 (24.500英寸散装)	HOSE (24.500 Inches Bulk)	1
13	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
14	19648A3	手柄总成(黑色)	HANDLE ASSEMBLY (BLACK)	1
14	19648A2	左舷手柄总成	HANDLE ASSY PORT	1
14	19648A4	手柄总成(灰色)	HANDLE ASSEMBLY (GRAY)	1
14	19648A2	左舷手柄总成	HANDLE ASSY PORT	1
14	19648A7	手柄总成(追踪者型)	HANDLE ASSEMBLY (TRACKER)	1
15	19647A3	手柄总成(黑色)	HANDLE ASSEMBLY (BLACK)	1
15	19647A4	手柄总成(灰色)	HANDLE ASSEMBLY (GRAY)	1
15	19647A3	手柄总成	HANDLE ASSEMBLY	1
15	19647A7	手柄总成(追踪者型)	HANDLE ASSEMBLY (TRACKER)	1
16	65830	尼龙衬套	NYLINER	6
17	99611	波形垫圈	WAVE WASHER	3
18	19369	棘爪	PAWL	1
19	19370	棘爪	PAWL	1
20	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	3
21	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
22	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	2
23	19749	卡箍	CLAMP	1
24	197481	卡箍	CLAMP	1
25	92799	螺钉(#10-16x1.12)	SCREW (#10-16 x 1.12)	2
26	18872A1	盖板总成(黑色)	COVER ASSEMBLY (BLACK)	1
26	18872A2	盖板总成(灰色)	COVER ASSEMBLY (GRAY)	1
26	18872A1	盖总成	COVER ASSEMBLY	1
26	18872A4	盖板总成(追踪者型)	COVER ASSEMBLY (TRACKER)	1
27	8136921	锁紧螺母	LOCKNUT	2
28	8130764	前手柄	FRONT HANDLE	1
29	181921	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	1
30	19666	衬套	BUSHING	1
31	18727	杆	ROD	1

图 142化油器 Carburetor

REF	零件编号	中文名称	英文名称	数量
0-1	7952M	化油器总成	CARBURETOR ASSEMBLY	1
1	80578M	低速量孔(#60)	JET LOW SPEED (#60)	1
2	80593M	进油阀/阀座组件	VALVE/SEAT KIT Inlet	1
3	80576M	主喷嘴	NOZZLE MAIN	1
4	80582M	主量孔(#140)	JET MAIN (#140)	1
4	82580M	主量孔板(#145)	PLATE MAIN (#145)	1
5	80591M	浮子	FLOAT	1
6	80592M	浮子销	PIN FLOAT	1
6	84765M	浮子螺母	NUT FLOAT	1
6	11794M	销	PIN	1
7	83200M	浮子室	FLOAT BOWL
8	80590M	浮子室衬垫	GASKET FLOAT BOWL	1
9	82515M	螺钉	SCREW	4
10	82206M	锁紧垫圈	LOCKWASHER	4
11	82623M	怠速调节螺钉	SCREW IDLE SPEED	1
11	83509M	螺钉（M4×10）	SCREW (M4 x 10)	1
12	80573M	怠速混合气螺钉	SCREW IDLE MIXTURE	1
13	80575M	弹簧	SPRING	2
14	84454M	节气门轴衬套	BUSHING THROTTLE SHAFT	1
15	82209M	垫圈	WASHER	1
16	81941M	节气门轴衬套	BUSHING THROTTLE SHAFT	2
17	80622M	节流阀杆	LEVER THROTTLE	1
18	82379M	螺母	NUT	1
18	83763M	螺母	NUT	1
19	82208M	锁紧垫圈	WASHER LOCK	1
19	82186M	垫圈	WASHER	1
20	81558M	节气门杆定位螺钉	SET SCREW THROTTLE LEVER	1
20	83112M	螺钉	SCREW	1
21	83160M	节气门连杆	LINK ROD THROTTLE LEVER	1
22	81191M	支架	BRACKET	1
22	16333	卡扣拉杆	ROD Snap	1
23	84772M	节气门臂	ARM Throttle	1
23	811037M	节气门摇臂	THROTTLE ARM	1
24	82328M	卡环	RING Snap	1
-	84773M	化油器维修套件	REPAIR KIT Carburetor	1
-	811038M	化油器修理包	REPAIR KIT-CARB	1
-	92575M	衬垫套件	GASKET SET	1

图 143CDM安装座 CDM Mounting

REF	零件编号	中文名称	英文名称	数量
1	858425T2	线束总成	HARNESS ASSEMBLY	1
2	NSS	盖板(不单独销售)	NOT SOLD SEPARATE Cover	1
3	83296930	迷你保险丝 - 绿色 - 30安培	FUSE Mini - Green - 30 Ampere	AR
3	83296920	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	AR
3	832969T20	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	AR
4	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	3
5	828991	卡扣	CLIP	2
5	828991T	卡扣	CLIP	2
6	8571621	CDM安装板	PLATE CDM Mounting	1
7	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
8	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	1
8	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	1
9	49436	垫圈	WASHER	4
10	833155	护孔环	GROMMET	4
11	8502341	衬套	BUSHING	4
12	82129116	螺钉(M6 x 16)	SCREW (M6 x 16)	15
13	856583A3	拉线总成	CABLE ASSEMBLY	2
14	827509T7	CDM模块总成	CDM MODULE ASSEMBLY	6
-	857124A1	高压线总成	CABLE ASSEMBLY Hi-Tension	6
-	857074A1	护套/端子套件	BOOT/TERMINAL KIT	6
15	14814548	火花塞(NGK # BPZ8HS-10)	SPARK PLUG (NGK # BPZ8HS-10)	6
15	938	SP #QL78YC @4	SP #QL78YC @4	6
16	857163T1	CDM线束总成	HARNESS ASSEMBLY CDM	1
17	858414A1	编织电缆总成	CABLE ASSEMBLY Braided	1
18	828791	卡扣	CLIP	1
19	857166T1	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
20	13541	公插头	PLUG Male	1

图 144曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	9536A4	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	67923	球轴承(下部)	BEARING Ball (LOWER)	1
2	67923T	滚珠轴承	BEARING Ball	1
3	67446	环	RING	1
4	14513A2	驱动齿轮段套件	GEAR SEGMENT KIT Drive	1
4	14513A09	驱动齿轮段套件	GEAR SEGMENT KIT Drive	1
5	813073	螺钉(#6-32 x .620)内六角头	SCREW (#6-32 x .620) Socket Head	2
6	813134	螺母(#6-32)专用	NUT (#6-32) Special	2
7	54196A6	托架总成	CARRIER ASSEMBLY	1
8	65800	填料	PACKING	1
9	67377	曲轴密封环	RING Sealing CRANKSHAFT	7
9	67377T	密封环	RING Sealing	7
10	16756A6	轴承套件	BEARING KIT	2
11	7441A32	活塞(右舷-标准)	PISTON (STARBOARD-STANDARD)	3
11	7441T32	活塞	PISTON	3
11	7443A11	活塞(右舷-0.015加大)	PISTON (STARBOARD-.015 O.S.)	AR
11	7445A11	活塞(右舷-0.030加大)	PISTON (STARBOARD-.030 OS.)	AR
11	7445T11	活塞	PISTON	AR
11	7442A32	活塞(左舷-标准)	PISTON (PORT-STANDARD)	3
11	7442T32	活塞	PISTON	3
11	7444A11	活塞(左舷-0.015加大)	PISTON (PORT-.015 O.S.)	AR
11	7446A11	活塞(左舷-0.030加大)	PISTON (PORT-.030 O.S.)	AR
11	9738A7	活塞总成(右舷-标准)	PISTON ASSEMBLY (STARBOARD-STANDARD)	3
11	9738T9	活塞总成标准型	PISTON ASSEMBLY Standard	3
11	9738A8	活塞总成(右舷-0.015加大)	PISTON ASSEMBLY (STARBOARD-.015 O.S.)	AR
11	9738T10	活塞总成0.015加大	PISTON ASSEMBLY .015 Oversize	AR
11	9737A7	活塞总成(左舷-标准)	PISTON ASSEMBLY (PORT-STANDARD)	3
11	9737T9	活塞总成标准型	PISTON ASSEMBLY Standard	3
11	9737A8	活塞总成(左舷-0.015加大)	PISTON ASSEMBLY (PORT-.015 O.S.)	AR
11	9737A10	活塞总成0.015加大	PISTON ASSEMBLY .015 Oversize	AR
11	9738A9	活塞总成标准型(右舷-标准)	PISTON ASSEMBLY Standard (STARBOARD-STANDARD)	3
11	9738T9	活塞总成标准型	PISTON ASSEMBLY Standard	3
11	9738A10	活塞总成0.015加大(右舷-0.015加大)	PISTON ASSEMBLY .015 Oversize (STARBOARD-.015 O.S.)	AR
11	9738T10	活塞总成0.015加大	PISTON ASSEMBLY .015 Oversize	AR
11	9737A9	活塞总成标准型(左舷-标准)	PISTON ASSEMBLY Standard (PORT-STANDARD)	3
11	9737T9	活塞总成标准型	PISTON ASSEMBLY Standard	3
11	9737A10	活塞总成0.015加大(左舷-0.015加大)	PISTON ASSEMBLY .015 Oversize (PORT-.015 O.S.)	AR
12	93481A12	活塞环组-标准(标准)	RING SET Piston - Standard (STANDARD)	1
12	78918A4	活塞环组-0.015加大(0.015加大)	RING SET Piston - .015 Oversize (.015 O.S.)	AR
12	85636A4	活塞环组-0.030加大(0.030加大)	RING SET Piston - .030 Oversize (.030 O.S.)	AR
12	815515A12	活塞环组(标准)(1-1/2毫米)	RING SET Piston (STD.) (1-1/2 MM)	1
12	815268A4	活塞环组(0.015加大)(1-1/2毫米)	RING SET Piston (.015 O.S.) (1-1/2 MM)	AR
12	822321A12	活塞环套件-标准(标准)(2毫米)	RING KIT Piston - Standard (STD.) (2MM)	1
12	822321A1	活塞环套件-0.015加大(0.015加大)(2毫米)	RING KIT Piston - .015 Oversize (.015 O.S.) (2MM)	2
13	52035	锁环	RING Lock	12
13	857196	锁紧环	LOCK RING	12
14	818141A2	连杆套件	CONNECTING ROD KIT	6
14	818141A13	连杆总成	CONNECTING ROD ASSEMBLY	6
15	763491	螺钉(.312-24 x .875)	SCREW (.312-24 x .875)	12
16	812876	垫圈	WASHER	12
16	8M0012298	止推垫片	THRUST WASHER	12
17	17514A2	轴承套件	BEARING KIT	6
17	8M0234886	轴承保持架	CAGE BEARING	6
18	822553	滚针轴承	BEARING Needle	174
18	8M0204691	滚针轴承@200	BRG-NEEDLE @200	174
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	812815A92	动力头总成	POWERHEAD ASSEMBLY	1
-	878365T00	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A94	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 145气缸体与端盖 Cylinder Block and End Caps

REF	零件编号	中文名称	英文名称	数量
1	9765A13	气缸体(135/150)	CYLINDER BLOCK (135/150)	1
1	9763A17	气缸体(XR6/Magnum III)	CYLINDER BLOCK (XR6/Magnum III)	1
1	9763T17	气缸体	CYLINDER BLOCK	1
1	9763A23	气缸体(XR6/Magnum III)	CYLINDER BLOCK (XR6/Magnum III)	1
1	9763T23	气缸体	CYLINDER BLOCK	1
1	9763A17	气缸体(175)	CYLINDER BLOCK (175)	1
1	9763T17	气缸体	CYLINDER BLOCK	1
1	9763A61	气缸体(200)	CYLINDER BLOCK (200)	1
1	9763T61	气缸体	CYLINDER BLOCK	1
1	9763A23	气缸体(150 TRACKER)	CYLINDER BLOCK ( 150 TRACKER)	1
1	9763T23	气缸体	CYLINDER BLOCK	1
2	76175	双头螺柱(1-7/8")(旧款)	STUD (1-7/8") (OLD DESIGN)	4
2	818138	双头螺柱(1-3/4")	STUD (1-3/4")	2 or 6
2	8M0034455	螺柱1.750	STUD 1.750	2 or 6
3	67065	双头螺柱(5-1/2")	STUD (5-1/2")	2
3	670654	螺柱(.375-16/.375-24 x 5.620)	STUD (.375-16/.375-24 x 5.620)	2
3	78438	双头螺柱(6-3/4")	STUD (6-3/4")	2
3	8M0034454	螺柱(.375-16/.375-24 x 6.87)	STUD (.375-16/.375-24 x 6.87)	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	销(轴承座圈)	PIN (BEARING RACE)	2
5	8M0036405	销	PIN	2
6	11338	衬垫	GASKET	2
7	42249	上盖	COVER (UPPER)	1
7	8M0088723	启动器支架	BRACKET-STARTER	1
8	828213	螺钉(.312-18 x 1.500)六角法兰	SCREW (.312-18 x 1.500) Hex Flange	2
8	73657	螺钉(.312-18 x 1.50)(配13-26993垫片)	SCREW (.312-18 x 1.50) (Use with 13-26993 washer)	2
9	26993	锁紧垫圈(.312)(配10-73657螺钉)	LOCKWASHER (.312) (Use with 10-73657 screw)	4
9	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
10	76867	下盖	COVER (LOWER)	1
11	815549	螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00)	2
11	828214	螺钉(.312-18 x 2.00)六角法兰	SCREW (.312-18 x 2.00) Hex Flange	2
11A	99448	衬套	BUSHING	1
12	66717	螺钉(.375-16 x 3.250)	SCREW (.375-16 x 3.250)	8
12	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	6
13	9642A1	上端盖总成	END CAP ASSEMBLY Upper	1
13	858521T1	端盖总成	END CAP ASSEMBLY	1
14	54029	O型圈(2.800 x .103)	O-RING (2.800 x .103)	1
15	16756A4	轴承套件	BEARING KIT	1
16	41953	密封件	SEAL	1
17	69034	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW AND LOCKWASHER (.312-18 x 1.00)	4
17	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	4
19	63153	J型卡扣	J CLIP	1
20	15094	双头螺柱(.190-32 x 1.870)	STUD (.190-32 x 1.870)	1
21	15093	双头螺柱(#10-32 x 1.00)	STUD (#10-32 x 1.00)	2
21	8M0034435	螺柱	STUD	2
22	67269	隔套	SPACER	1
23	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	3
23	8M0204663	垫片@5	WASHER @5	3
25	816874	蝶形螺母 (#10-32)	WING NUT (#10-32)	3
26	42248	支架	BRACKET	1
26	422482	支架	BRACKET	1
27	49668	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	2
28	7809A1	端盖总成	END CAP ASSEMBLY	1
28	7809T1	端盖总成	END CAP ASSEMBLY	1
29	62700	O型圈(3.237 x .103)	O-RING (3.237 x .103)	1
30	41953	密封件	SEAL	2
31	28636	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	4
32	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
33	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
34	64015	螺母 (.250-20)	NUT (.250-20)	1
35	26852	尼龙帽	CAP Nylon	1
36	87076A10	怠速控制器	IDLE SPEED CONTROL	1
38	69020	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
38	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
39	38833	垫圈	WASHER	3
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	812815A92	动力头总成	POWERHEAD ASSEMBLY	1
-	878365T00	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A94	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 146驱动轴壳与排气管 Driveshaft Housing and Exhaust Tube

REF	零件编号	中文名称	英文名称	数量
1	8343A10	传动轴壳体总成(黑色)	HOUSING ASSEMBLY Driveshaft (BLACK)	1
1	8343A11	传动轴壳体总成(灰色)	HOUSING ASSEMBLY Driveshaft (GRAY)	1
1	8343T11	ORD 1590-8343T10	ORD 1590-8343T10	1
1	8343A12	传动轴壳体总成(TRACKER)	HOUSING ASSEMBLY Driveshaft (TRACKER)	1
1	8343T12	D型轴套-追踪者	D SHAFT HSG-TRACK	1
1	813563A1	传动轴壳体总成(黑色)	HOUSING ASSEMBLY Driveshaft (BLACK)	1
1	813563T1	传动轴壳体-黑色-加长型	HOUSING Driveshaft - Black - X-Long	1
1	813563A2	传动轴壳体总成(灰色)	HOUSING ASSEMBLY Driveshaft (GRAY)	1
1	813563T2	ORD 3503-813563T1	ORD 3503-813563T1	1
1	8343A13	传动轴壳体总成(JET)(黑色)	HOUSING ASSEMBLY Driveshaft (JET) (BLACK)	1
1	8343A14	传动轴壳体总成(JET)(灰色)	HOUSING ASSEMBLY Driveshaft (JET) (GRAY)	1
1	8343A13	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	56295	双头螺柱(.437 x 2.69)	STUD (.437 x 2.69)	2
4	63474	螺钉(.500-20 x 6.00)	SCREW (.500-20 x 6.00)	2
4	898831	螺钉(.500-20 x 6.220)	SCREW (.500-20 x 6.220)	2
5	78249	支架(加长型)(JET)	MOUNT (LONG)(JET)	2
5	77327	支架	MOUNT	2
5	77327	支架(TRACKER/XR6/MAGNUM III/超长型)	MOUNT (TRACKER/XR6/MAGNUM III/X-LONG)	2
6	49339	垫圈(.8125)	WASHER (.8125)	2
7	28040	螺母(.500-20)	NUT (.500-20)	2
7	898832	螺母(.500-20)	NUT (.500-20)	2
8	88238A1	接地线总成	CABLE ASSEMBLY Ground	1
8	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
9	67076	卡箍	CLAMP	2
9	8M0036782	卡箍	CLAMP	2
10	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
11	67077T	黑色盖(黑色)	COVER Black (BLACK)	2
11	8M4500752	盖板	COVER	2
11	67077T6	盖(灰色)	COVER (GRAY)	2
11	67077F1	灰色盖板	COVER Gray	2
11	67077F2	盖(TRACKER)	COVER (TRACKER)	2
11	8M4500752	盖板	COVER	2
12	88417	螺钉(#12-24×0.620)	SCREW (#12-24 x .620)	4
13	35521	螺母	NUT	4
14	88238A1	接地线总成	CABLE ASSEMBLY Ground	1
14	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
15	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
16	48926	垫圈	WASHER	1
17	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	1
17	8M0204653	螺母	NUT	1
18	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
19	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
19	8M0204653	螺母	NUT	2
20	64649	堵头	PLUG	1
21	18276	排气管	TUBE Exhaust	1
21	18276T	排气管	EXHAUST TUBE	1
22	66350	下密封件	SEAL (LOWER)	1
22	66350001	密封件	SEAL	1
23	177261	上密封件	SEAL (UPPER)	1
23	8M0039076	密封件	SEAL	1
24	67295	水管(加长型)(JET)	TUBE Water (LONG)(JET)	1
24	8M0042788	长型水管	TUBE-WATER-LONG	1
24	74729	管(超长型)	TUBE (X-LONG)	1
24	8M0042790	水管	TUBE-WATER	1
25	991732	衬垫	GASKET	1
25	991734	衬垫	GASKET	1
26	18233A3	隔板总成	PLATE ASSEMBLY	1
26	18233A20	传动轴壳体板总成	PLATE ASSEMBLY Driveshaft Housing	1
27	8147012	密封件	SEAL	1
27	8M0043165	密封件-27.00英寸	SEAL-27.00 INCH	1
28	68011	支架	BRACKET	1
29	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
29	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	12
30	20033	定位销	PIN Dowel	2
30	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
31	38970	密封件	SEAL	1
32	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	6
33	183071	衬垫	GASKET	1
33	183076	衬垫	GASKET	1
34	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	4
35	69254	螺母	NUT	4
36	812834	排气管延长段	EXTENSION Exhaust	1
36	812834A2	排气延长总成	EXTENSION ASSEMBLY Exhaust	1
36	41942F3	排气管延长段(150/200)(JET)	EXTENSION Exhaust (150/200)(JET)	1
36	879288T71	排气管延长段	EXTENSION Exhaust	1
37	78246	衬垫	GASKET	1
37	782461	衬垫	GASKET	1
38	814618	护套	BOOT	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 147双缆连接套件 Dual Cable Attaching Kit

REF	零件编号	中文名称	英文名称	数量
-	92876A8	转向安装套件	ATTACHING KIT Steering	1
1	41055A1	支架总成	BRACKET ASSEMBLY	1
2	715651	转向拉索套管	TUBE Steering Cable	1
3	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
4	821203	锁紧垫圈	LOCKWASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
7	78968	内锁紧垫圈 (.250)	LOCKWASHER Internal (.250)	4
8	850791T	联轴器	COUPLER	1
9	73732	螺钉 (.375-24 x 1.120)	SCREW (.375-24 x 1.120)	2
10	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
11	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	3
11	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	3

图 148双机连接杆套件 Dual Engine Tie Bar Kit

REF	零件编号	中文名称	英文名称	数量
-	92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
1	71565A2	管总成	TUBE ASSEMBLY	1
2	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
3	41055	支架	MOUNT	1
4	42100	锁紧垫圈	TAB WASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	88404	锁紧垫圈	TAB WASHER	2
7	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
8	17729A1	支架	BRACKET	2
9	62055	螺钉(.312-24 x 1.250)	SCREW (.312-24 x 1.250)	4
10	17728	锁紧垫圈	TAB WASHER	4
11	140001	螺钉(0.375-24×1.38)	SCREW (.375-24 x 1.38)	2
12	34863	螺母 (.375-24)	NUT (.375-24)	6
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	6
13	979331	转向眼环	STEERING EYE	2
13	8M0026167	转向眼环	STEERING EYE	2
14	23651	衬套(1.625)	SLEEVE (1.625)	2
15	97931	管材(4.00英寸)	TUBING (4.00 Inches)	2
16	8149513	联轴器(15.00英寸)	COUPLER (15.00 Inches)	1
16	8M0026098	联轴器15英寸	COUPLER 15 In.	1
17	42099	螺母(.562-18)	NUT (.562-18)	1
18	821169	联轴器	COUPLING	1
19	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	1
20	94319	螺钉(.375-24 x 1.5)	SCREW (.375-24 x 1.5)	1

图 149发动机衬垫套件 Engine Gasket Set Components

REF	零件编号	中文名称	英文名称	数量
-	815791A00	发动机衬垫套件(不含气缸盖O型圈和密封件)	GASKET SET Engine Cylinder head o-rings and seal not included	1
0	857005A1	膜片组件	DIAPHRAGM KIT	1
0	987691	燃油泵衬垫	GASKET Fuel Pump	1
0	8M0204705	衬垫@2	GASKET @2	1
0	828292	化油器衬垫	GASKET Carb	3
0	892211	消音板衬垫	GASKET Sound Attenuator Plate	3
0	54029	O型圈(2.800x0.103)上端盖	O-RING (2.800 x .103) Upper End Cap	1
0	62700	O型圈(3.237x0.103)下端盖	O-RING (3.237 x .103) Lower End Cap	1
0	62386	节温器盖衬垫	GASKET Thermostat Cover	2
0	8M0204714	衬垫@4	GASKET @4	2
0	62386001	节温器盖衬垫	GASKET Thermostat Cover	2
0	8M0204714	衬垫@4	GASKET @4	2
0	146972	适配板衬垫	GASKET Adapter Plate	1
0	65800	曲轴载体密封垫	PACKING Crankshaft Carrier	1
0	190506	隔板衬垫	GASKET Divider Plate	1
0	814754	隔板密封件(12.50英寸)	SEAL (12.50 Inches) Divider Plate	1
0	78690	安全阀盖衬垫	GASKET Relief Valve Cover	2
0	78690002	衬垫	GASKET	2
0	78690002	安全阀盖衬垫	GASKET Relief Valve Cover	2
0	991764	排气板衬垫	GASKET Exhaust Plate	1
0	45711	倾斜管O型圈(0.612x0.103)	O-RING (.612 x .103) Tilt Tube	1
0	991734	驱动轴壳体垫片	GASKET Drive Shaft Housing	1
0	38970	水管密封件	SEAL Water Tube	1
0	38970	水泵体密封件	SEAL Water Pump Body	1
0	183076	驱动轴壳体板衬垫	GASKET Driveshaft Housing Plate	1
0	25439	O型圈(0.862x0.103)齿轮箱衬套	O-RING (.862 x .103) Gear Housing Bushing	1
0	426311	水泵底座衬垫	GASKET Water Pump Base	1
0	8M0204678	衬垫	GASKET	1
0	90011	O型圈(2.175x0.175)水泵底座	O-RING (2.175 x .175) Water Pump Base	1
0	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
0	856081	水泵底座下部衬垫	GASKET Water Pump Base-Lower	1
0	8M0090319	衬垫@5	GASKET @5	1
0	858524	水泵底座上部衬垫	GASKET Water Pump Base-Upper	1
0	31534	O型圈轴承载体-反向旋转	O-RING Bearing Carrier-Counter Rotation	1
0	8M0214920	O型圈	O RING	1
0	11338	衬垫	GASKET	2
0	167371	衬垫	GASKET	1

图 150排气歧管与排气板 Exhaust Manifold and Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	190503	衬垫	GASKET	1
2	8185622	分隔板	PLATE Divider	1
2	827323A2	分隔板	DIVIDER PLATE	1
3	814754	密封件(12.50英寸)	SEAL (12.50 Inches)	1
4	814634	卡箍	CLAMP	4
5	826356	螺钉带垫圈(.312-18 x 1.500)	SCREW AND WASHER (.312-18 x 1.500)	20
5	8263561	螺钉带垫圈(.312-18 x 1.500)	SCREW AND WASHER (.312-18 x 1.500)	20
6	814430	管接头(.500-14)	FITTING (.500-14)	1
6	8144301	接头	FITTING	1
7	92007	管接头(.250-18)(90度)	FITTING (.250-18) (90 DEGREES)	1
7	920071	90度弯头	FITTING (90 Degree)	1
8	830756109	软管(57.00英寸整卷)(裁切至23.5英寸)	HOSE (57.00 Inches Bulk) (Cut to 23.5 Inches)	1
8	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
9	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
9	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
10	68729	盖板	COVER	1
10	8M0039767	盖板	COVER	1
11	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
12	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
13	76451	垫圈	WASHER	1
14	14479	隔膜	DIAPHRAGM	1
14	144791	隔膜	DIAPHRAGM	1
15	16496	导水板	DEFLECTOR Water	1
16	16497A1	安装板	PLATE	1
17	78690	衬垫	GASKET	2
17	78690002	衬垫	GASKET	2
18	64878	弹簧(黑色)	SPRING (Black)	1
19	85303	垫圈	WASHER	1
20	14480	提动阀	POPPET	1
21	64872	护孔环	GROMMET	1
22	65848	托架	CARRIER	1
23	991763	衬垫	GASKET	1
23	991764	衬垫	GASKET	1
24	18260A2	排气板总成	PLATE ASSEMBLY Exhaust	1
24	18260T2	排气板总成	PLATE ASSEMBLY Exhaust	1
25	897721	连接器(.125-27)(直型)	CONNECTOR (.125-27) (STRAIGHT)	1
25	89772Q1	连接器(.125-27)	CONNECTOR (.125-27)	1
26	20033	定位销	PIN Dowel	2
26	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
27	8147011	密封件	SEAL	1
27	8M0043164	密封件	SEAL	1
28	680101	支架	BRACKET	1
29	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	8
29	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	8
30	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	6
31	69254	螺母	NUT	6
32	27132	衬套	BUSHING	1
33	19564	护孔环	GROMMET	1
33	8M0179867	护孔环	GROMMET	1
34	126021	护孔环	GROMMET	1
34	12602002	护孔环	GROMMET	1
34	19565	护孔环	GROMMET	1
34	19565002	护孔环	GROMMET	1
35	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
36	68783	螺钉(.312-18×2.50)	SCREW (.312-18 x 2.50)	1
37	66725	螺钉(.375-16×3.50)	SCREW (.375-16 x 3.50)	3
37	898833	螺钉(.375-16 x 3.500)	SCREW (.375-16 x 3.500)	3
38	812905A3	支架总成	BRACKET ASSEMBLY	1
38	812905T	前支架	BRACKET Front	1
39	90285	螺钉 (.312-18 x .625)	SCREW (.312-18 x .625)	4
40	56720	垫圈(0.330×0.750×0.060)不锈钢	WASHER (.330 x .750 x .060) Stainless Steel	4
41	187031	垫圈	WASHER	4
42	18778	护孔环	GROMMET	4
42	18778001	护孔环	GROMMET	4
43	18578A6	支架总成(后部)	BRACKET ASSEMBLY Rear	1
43	18578T09	支架总成(后部)	BRACKET ASSEMBLY Rear	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	812815A92	动力头总成	POWERHEAD ASSEMBLY	1
-	878365T00	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A94	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 151飞轮/启动电机 Flywheel/Starter Motor

REF	零件编号	中文名称	英文名称	数量
1	18896A1	盖板套件	COVER KIT	1
2	79022	标记	MARKER	1
3	37572	螺钉 (.190-32 x .380)	SCREW (.190-32 x .380)	2
4	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	2
5	89219	堵头	PLUG	1
5	89219001	堵头	PLUG	1
6	45907	黄色塞	PLUG Yellow	1
7	52901	螺母(0.625-18)	NUT (.625-18)	1
8	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
8	33001	垫圈	WASHER	1
9	817632A2	飞轮	FLYWHEEL	1
9	859238T16	飞轮总成	FLYWHEEL ASY	1
9	817632A12	飞轮	FLYWHEEL	1
9	859238T16	飞轮总成	FLYWHEEL ASY	1
10	9610A19	定子	STATOR	1
11	90045	螺钉(#10-32×1.375)	SCREW (#10-32 x 1.375)	4
12	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	4
13	96455A9	触发板总成	PLATE ASSEMBLY Trigger	1
14	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
14	893893	启动马达	STARTER MOTOR	1
15	56703	轴环	COLLAR	2
15	8M0034918	轴环	COLLAR	2
16	68042	橡胶止挡	STOP Rubber	2
16	8M0043376	停机开关	STOP	2
17	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
18	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
19	93388A7	线缆总成(黑色)	CABLE ASSEMBLY (BLACK)	1
19	93388A14	线缆总成(黄/黑)	CABLE ASSEMBLY Yellow/Black	1
20	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
21	20890	螺母 (.250-20)	NUT (.250-20)	1

图 152燃油管路 Fuel Lines

REF	零件编号	中文名称	英文名称	数量
1	82381329	管材(12.00英寸整料)(裁切为4.50英寸)	TUBING (12.00 Inches Bulk) (Cut to 4.50 Inch Length)	1
2	9912878	软管 (.187) (26.00英寸散装)	HOSE (.187) (26.00 Inches Bulk)	1
3	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	15
3	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	15
4	818993	三通接头	CONNECTOR Tee	1
5	830760	软管	HOSE	1
6	8189941	止回阀	CHECK VALVE	1
7	83075780	管材(28.00英寸整料)(裁切为2.00英寸)	TUBING (28.00 Inches Bulk) (Cut to 2.00 Inch Length)	1
7	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
8	830762	软管	HOSE	1
9	8162961	燃油滤清器	FILTER Fuel	1
9	816296Q2	燃油滤清器	FILTER Fuel	1
10	830756109	软管(57.00英寸整料)(裁切为11.00英寸)	HOSE (57.00 Inches Bulk) (Cut to 11.00 Inch Length)	1
10	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
11	830756109	软管(57.00英寸整料)(裁切为4.50英寸)	HOSE (57.00 Inches Bulk) (Cut to 4.50 Inch Length)	2
11	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	2
12	828292	衬垫	GASKET	3
13	27037	双头螺栓(.250-28×1.125)	STUD (.250-28 x 1.125)	6
13	270372	双头螺栓(.250-28×1.125)	STUD (.250-28 x 1.125)	6
14	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	6
15	20361	螺母(.250-28)	NUT (.250-28)	6
15	8267089	螺母(.250-28)	NUT (.250-28)	6
16	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	6
17	99130122	管材(20.00英尺整料)(裁切为9.00英寸)	TUBING (20.00 Feet Bulk) (Cut to 9.00 Inch Length)	1
17	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
18	9912878	软管(0.187英寸)(26.00英寸整料)(裁切为4.50英寸)	HOSE (.187) (26.00 Inches Bulk) (Cut to 4.50 Inch Length)	2
19	9912878	软管 (.187) (26.00英寸散装)	HOSE (.187) (26.00 Inches Bulk)	1
20	42859A2	加浓阀总成	VALVE ASSEMBLY Enrichner	1
21	633001	卡箍	CLAMP	1
21	633003	卡箍	CLAMP	1
22	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
23	9912688	管材(36.00英寸整料)(裁切为4.50英寸)	TUBING (36.00 Inches Bulk) (Cut to 4.50 Inch Length)	1
24	9912688	管材(36.00英寸整料)(裁切为3.75英寸)	TUBING (36.00 Inches Bulk) (Cut to 3.75 Inch Length)	1
25	45915	端子排	TERMINAL BLOCK	1
26	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
26	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
25	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	1
25	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
-	815791A92	发动机垫片组	GASKET SET Engine	1

图 153燃油泵 Fuel Pump

REF	零件编号	中文名称	英文名称	数量
-	14360A78	燃油泵套件	PUMP KIT Fuel	1
1	NSS	不单独销售燃油泵	NOT SOLD SEPARATE Fuel Pump	1
-	857005A1	膜片组件	DIAPHRAGM KIT	1
2	NSS	不单独销售碟形止回阀	NOT SOLD SEPARATE Disc Check Valve	2
3	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
4	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
5	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
6	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	1
10	987691	底座衬垫	GASKET Base	1
11	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
12	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
13	987752	安装板	PLATE	1
14	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	2
15	82130050	螺钉(M6×50)泵至曲轴箱	SCREW (M6 x 50) Pump to Crankcase	2
16	82104540		SCREW (M5 x 40) Fuel Pump	2
17	144303	底座	BASE	1
18	830757130	管材(.312)(70.00英寸散装)(裁切至6英寸)	TUBING (.312) (70.00 Inches Bulk) (Cut to 6 Inches)	1
19	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	2
20	NSS	不单独销售贴纸-墨西哥组装	NOT SOLD SEPARATE Decal-Assembled in Mexico	1
-	815791A00	发动机衬垫套件(不含气缸盖O型圈和密封件)	GASKET SET Engine Cylinder head o-rings and seal not included	1
-	878365T00	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T00	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T00	动力头总成	POWERHEAD ASSEMBLY	1

图 154齿轮箱（驱动轴）（标准/反向旋转） Gear Housing (Driveshaft)(Standard/Counter Rotation)

REF	零件编号	中文名称	英文名称	数量
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T85	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T81	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T82	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T86	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T83	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
1	9148T93	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
3	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
3	189783	螺柱(0.438×3.82英寸)	STUD (.438 x 3.82 Inches)	1
4	579203	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	562972	螺柱(0.312-18/0.324-24×3.380)	STUD (.312-18/.324-24 x 3.380)	1
6	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	67891	填充块	FILLER BLOCK	1
8	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	826134Q	阳极块	ANODE	2
10	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
11	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
12	85944975	管材(72.00英寸散装)裁切至10英寸	TUBING (72.00 Inches Bulk) Cut to 10 Inches	1
12	85944975	管材(72.00英寸散装)裁切至12英寸	TUBING (72.00 Inches Bulk) Cut to 12 Inches	1
13	859432	接头	FITTING	1
14	NSS	小齿轮(不单独销售)	NOT SOLD SEPARATE Pinion Gear	1
14	44101T3	小齿轮	GEAR Pinion	1
15	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
16	35921	螺母(0.625-18)	NUT (.625-18)	1
17	42637A1	垫片组	SHIM SET	AR
18	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	2
19	191833	密封件	SEAL	2
20	789022	换档轴	SHIFT SHAFT	1
21	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
22	77631A2	衬套总成	BUSHING ASSEMBLY	1
23	8164641	油封	SEAL Oil	1
24	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
25	440001	驱动轴	DRIVESHAFT	1
25	442091	驱动轴	DRIVESHAFT	1
26	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
27	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
28	8245191	固定座	RETAINER	1
29	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
30	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	1
31	426311	衬垫	GASKET	1
32	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
33	89238	油封	SEAL Oil	1
34	16977	油封	SEAL Oil	1
35	856081	下衬垫	GASKET Lower	1
36	858524	衬垫	GASKET	1
37	324351	面板	FACE PLATE	1
38	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
39	48752T	嵌件	INSERT	1
40	38970	密封件	SEAL	1
41	89984T3	叶轮	IMPELLER	1
42	56654	键	KEY	1
43	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
44	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
45	8267119	螺母(.250-28)	NUT (.250-28)	2
46	36001	垫圈	WASHER	1
47	13436	螺母	NUT	1
48	29804T	套筒	SLEEVE	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1
-	803033T1	轴承和密封套件(不含前轴承)	BEARING AND SEAL KIT (W/O Foward Bearing)	1
-	803034T1	轴承和密封套件(不含前轴承)	BEARING AND SEAL KIT (W/O Foward Bearing)	1
-	803615T2	小齿轮/前进齿轮总成	GEAR ASSEMBLY Pinion/Forward	1
-	803612T2	小齿轮/前进齿轮总成	GEAR ASSEMBLY Pinion/Forward	1
-	803616T1	小齿轮/前进齿轮总成	GEAR ASSEMBLY Pinion/Forward	1
-	803613T1	小齿轮/前进齿轮总成	GEAR ASSEMBLY Pinion/Forward	1
-	815791A00	发动机衬垫套件(不含气缸盖O型圈和密封件)	GASKET SET Engine Cylinder head o-rings and seal not included	1

图 155齿轮箱螺旋桨轴-反向旋转 Gear Housing Propeller Shaft - Counter Rotation

REF	零件编号	中文名称	英文名称	数量
-	9148T86	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T83	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
1	9148T93	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
3	789562	换挡凸轮	SHIFT CAM	1
4	828287	杆	ROD	1
5	44491A1	垫片组	SHIM SET	AR
5	8M0063266	垫片组	SHIM SET	AR
6	828830A2	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
7	814653T	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
8	815481	止推垫片	THRUST WASHER	1
9	815480	推力轴承	BEARING Thrust	1
10	828702A2	倒车齿轮总成-15/28齿	GEAR ASSEMBLY Reverse - 15/28	1
10	828704A2	倒车齿轮总成-14/28齿	GEAR ASSEMBLY Reverse - 14/28	1
11	15844	滚柱轴承总成	BEARING ASSEMBLY Roller	1
12	30893	弹簧	SPRING	1
13	859340T	离合器	CLUTCH	1
14	30632	十字销	PIN Cross	1
14	8M0100263	十字销	PIN Cross	1
15	828356	定位销	PIN Detent	1
16	828951	螺旋桨轴	PROPELLER SHAFT	1
17	828701A1	前进齿轮总成-15/28齿	GEAR ASSEMBLY Forward - 15/28	1
17	828703A1	前进齿轮总成-14/28齿	GEAR ASSEMBLY Forward - 14/28	1
18	1761552	垫片(0.202)	SPACER SHIM (.202)	AR
18	1761553	垫片(0.204)	SPACER SHIM (.204)	AR
18	1761514	垫片(0.206)	SPACER SHIM (.206)	AR
18	1761515	垫片(0.208)	SPACER SHIM (.208)	AR
18	1761516	垫片(0.210)	SPACER SHIM (.210)	AR
18	1761517	垫片(0.212)	SPACER SHIM (.212)	AR
18	1761518	垫片(0.214)	SPACER SHIM (.214)	AR
18	1761519	垫片(0.216)	SPACER SHIM (.216)	AR
18	1761520	垫片(0.218)	SPACER SHIM (.218)	AR
18	1761521	垫片(0.220)	SPACER SHIM (.220)	AR
18	1761522	垫片(0.222)	SPACER SHIM (.222)	AR
18	1761523	垫片(0.224)	SPACER SHIM (.224)	AR
18	1761524	垫片(0.226)	SPACER SHIM (.226)	AR
18	1761525	垫片(0.228)	SPACER SHIM (.228)	AR
18	1761526	垫片(0.230)	SPACER SHIM (.230)	AR
19	815480	推力轴承	BEARING Thrust	1
20	815481	止推垫片	THRUST WASHER	1
21	828831A3	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
22	814653T	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
23	18448	止推垫片	THRUST WASHER	2
24	15842	推力轴承	BEARING Thrust	2
25	8182911	推力座圈	RACE Thrust	2
26	814605	定位器	KEEPER	2
27	31534	O型圈	O-RING	1
27	8M0214920	O型圈	O RING	1
28	818290A4	轴承座总成	CARRIER ASSEMBLY Bearing	1
29	30956T	滚针轴承	BEARING Needle	1
30	14077	油封	SEAL Oil	1
31	76868	密封件	SEAL	1
31	8M0248882	油封@5	SEAL-OIL @5	1
32	183231	锁紧垫圈	TAB WASHER	1
33	30281	键	KEY	1
34	79448	固定座	RETAINER	1
34	8M2011027	固定座	RETAINER	1
35	31640T5	平衡鳍板	TRIM TAB	1
35	8M0236553	平衡鳍板	TRIM TAB	1
35	762145	阳极块	ANODE	1
35	76214Q5	阳极套件	ANODE KIT	1
36	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
36	8M0204686	螺钉	SCREW	1
37	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
38	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
39	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
39	8M0204653	螺母	NUT	2
40	NSS	不单独销售-反向旋转标识	NOT SOLD SEPARATE Decal-Counter Rotation	1
-	89238A2	密封套件	SEAL KIT	1
-	803034T1	轴承和密封套件(不含前轴承)	BEARING AND SEAL KIT (W/O Foward Bearing)	1
-	803491T1	离合器/凸轮从动件总成	FOLLOWER ASSEMBLY Clutch/Cam	1
-	815791A00	发动机衬垫套件(不含气缸盖O型圈和密封件)	GASKET SET Engine Cylinder head o-rings and seal not included	1
-	803616T1	小齿轮/前进齿轮总成	GEAR ASSEMBLY Pinion/Forward	1
-	803613T1	小齿轮/前进齿轮总成	GEAR ASSEMBLY Pinion/Forward	1

图 156齿轮箱螺旋桨轴-标准旋转 Gear Housing Propeller Shaft - Standard Rotation

REF	零件编号	中文名称	英文名称	数量
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T85	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T81	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T82	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
1	9148T93	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
3	789562	换挡凸轮	SHIFT CAM	1
4	828287	杆	ROD	1
5	878613A2	前进齿轮总成 1.87:1 - 15/28齿	GEAR ASSEMBLY Forward 1.87:1 - 15/28	1
5	803615T2	小齿轮/前进齿轮总成	GEAR ASSEMBLY Pinion/Forward	1
5	803615T2	小齿轮/前进齿轮总成	GEAR ASSEMBLY Pinion/Forward	1
5	878615A2	前进齿轮总成 2:1 - 14/28齿	GEAR ASSEMBLY Forward 2:1 - 14/28	1
5	803612T2	小齿轮/前进齿轮总成	GEAR ASSEMBLY Pinion/Forward	1
5	803612T2	小齿轮/前进齿轮总成	GEAR ASSEMBLY Pinion/Forward	1
6	44491A1	垫片组	SHIM SET	AR
6	8M0063266	垫片组	SHIM SET	AR
7	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
8	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
9	30895T	滚针轴承	BEARING Needle	1
10	856823	挡圈	RING Retaining	1
11	859340T	离合器	CLUTCH	1
12	30632	十字销	PIN Cross	1
12	8M0100263	十字销	PIN Cross	1
13	828356	定位销	PIN Detent	1
14	30893	弹簧	SPRING	1
15	94148	螺旋桨轴	PROPELLER SHAFT	1
16	828175A1	倒车齿轮总成-15/28齿	GEAR ASSEMBLY Reverse - 15/28	1
16	828177A1	倒车齿轮总成-14/28齿	GEAR ASSEMBLY Reverse - 14/28	1
17	824108	隔套	SPACER	1
18	681001	止推环	RING Thrust	1
19	88957T	滚珠轴承	BEARING Ball	1
20	31534	O型圈	O-RING	1
20	8M0214920	O型圈	O RING	1
21	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
22	30956T	滚针轴承	BEARING Needle	1
23	14077	油封(内侧)	SEAL Oil (INSIDE)	1
24	76868	油封(外侧)	SEAL (OUTSIDE)	1
24	8M0248882	油封@5	SEAL-OIL @5	1
25	30281	键	KEY	1
26	79447	锁紧垫圈	TAB WASHER	1
27	79448	固定座	RETAINER	1
27	8M2011027	固定座	RETAINER	1
28	31640T5	平衡鳍板	TRIM TAB	1
28	8M0236553	平衡鳍板	TRIM TAB	1
29	76214Q5	阳极套件	ANODE KIT	1
30	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
30	8M0204686	螺钉	SCREW	1
31	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
32	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
33	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
33	8M0204653	螺母	NUT	2
-	89238A2	密封套件	SEAL KIT	1
-	803491T1	离合器/凸轮从动件总成	FOLLOWER ASSEMBLY Clutch/Cam	1
-	803033T1	轴承和密封套件(不含前轴承)	BEARING AND SEAL KIT (W/O Foward Bearing)	1
-	815791A00	发动机衬垫套件(不含气缸盖O型圈和密封件)	GASKET SET Engine Cylinder head o-rings and seal not included	1

图 157仪表装置 Instrumentation

REF	零件编号	中文名称	英文名称	数量
1	19674A1	拉绳开关总成	SWITCH ASSEMBLY Lanyard	1
2	18303	螺钉 (.190-16 x 1.750) 不锈钢	SCREW (.190-16 x 1.750) Stainless Steel	2
3	813679	适配器	ADAPTER	1
4	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
5	32866	螺钉 (#10-32 x 2.00) 不锈钢	SCREW (#10-32 x 2.00) Stainless Steel	2
6	18321	安装夹	CLAMP Mounting	1
7	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	2
8	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4
9	79146	固定座	RETAINER	3
10	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
11	812497A2	二极管总成	DIODE ASSEMBLY	1
12	11149A2	线缆总成 (6.00英寸)	CABLE ASSEMBLY (6.00 Inches)	1

图 158喷射组件 Jet Components

REF	零件编号	中文名称	英文名称	数量
1	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	3
2	38833	垫圈	WASHER	3
3	94304	隔套	SPACER	3
4	13381	安装板	PLATE	1
5	821889A30	转速限制器	REV LIMITER	1
6	823147A5	适配器线束总成 - 转速限制器	HARNESS ASSEMBLY Adaptor - Rev Limiter	1
7	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
8	426311	衬垫	GASKET	1
9	89238	油封	SEAL Oil	1
10	16977	油封	SEAL Oil	1
11	856081	衬垫	GASKET	1
12	858524	衬垫	GASKET	1
13	32435	面板	FACE PLATE	1
14	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
15	48752T	嵌件	INSERT	1
16	38970	密封件	SEAL	1
17	89984T3	叶轮	IMPELLER	1
18	56654	键	KEY	1
19	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
20	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
21	8267119	螺母(.250-28)	NUT (.250-28)	2
22	19924275	螺钉 (.312-18 x 2.75)	SCREW (.312-18 x 2.75)	1
23	36001	垫圈	WASHER	1
24	29804T	套筒	SLEEVE	1
-	815791A00	发动机衬垫套件(不含气缸盖O型圈和密封件)	GASKET SET Engine Cylinder head o-rings and seal not included	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1

图 159喷泵总成 Jet Pump Assembly

REF	零件编号	中文名称	英文名称	数量
-	856143A3	喷泵总成	JET PUMP ASSEMBLY	1
1	803145T	泵壳	HOUSING Pump	1
2	878377	换挡连杆套件	SHIFT LINKAGE KIT	1
3	878382	凸轮	CAM	1
4	878380	倒车挡板(带缓冲)	GATE Reverse - With Bumper	1
5	827490	润滑油管	HOSE Lube	1
6	848497	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	4
7	855840	双头螺柱(.312-18 x 1.81)	STUD (.312-18 x 1.81)	6
8	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	6
9	85576890	进气壳体	HOUSING Intake	1
10	855771	衬套	LINER	1
11	855769150	驱动轴	SHAFT Drive	1
12	8796522	止推垫片	THRUST WASHER	1
13	8796531	滚珠轴承	BEARING Ball	2
14	8271891	套筒	SLEEVE	1
15	8271901	螺母	NUT	1
16	803985T	叶轮	IMPELLER	1
17	36001	垫圈	WASHER	6
18	801405875	键	KEY	1
19	801404875	叶轮垫片	SHIM Impeller	8
20	801403875	锁紧垫圈	TAB WASHER	1
21	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	2
22	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
23	801410	电缆支架	BRACKET Cable Support	1
24	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	1
25	801407	定位销	PIN Dowel	2
26	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
27	579203	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
28	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	3
29	48926	垫圈	WASHER	1
30	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
31	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
32	68299	不锈钢螺钉(.375-16 x 3.00)	SCREW (.375-16 x 3.00) Stainless Steel	1
33	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	1

图 160机油喷射组件 Oil Injection Components

REF	零件编号	中文名称	英文名称	数量
-	8742A20	遥控机油箱总成	TANK ASSEMBLY Remote Oil	1
-	8742A22	遥控机油箱总成	TANK ASSEMBLY Remote Oil	1
1	87421	油箱	TANK	1
2	NSS	不单独销售线缆	NOT SOLD SEPARATE Cord	1
3	816190A4	吸油总成不带传感器适配器	OIL PICK UP ASSEMBLY Without Sender Adapter	1
4	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
5	43298A2	盖总成	CAP ASSEMBLY	1
6	11332	O型圈(2.225 x .210)	O-RING (2.225 x .210)	1
7	99802	管	TUBE	1
8	99439	软管(114.00英寸)	HOSE (114.00 Inches)	1
9	12335A1	支架套件	BRACKET KIT	1
10	884481A1	支架套件	BRACKET KIT	1
11	12320	支架	BRACKET	2/3
12	79968	螺丝(#12-11 x .750)	SCREW (#12-11 x .750)	4/6
13	12323A1	绳索/挂钩套件	CORD/HOOK KIT	1
14	815698T	油泵	PUMP Oil	1
14	815699T	油泵总成	PUMP ASSEMBLY Oil	1
15	8141032	蜗杆衬套	BUSHING Worm	1
16	11379	O型圈	O-RING	1
17	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
18	859112	驱动齿轮轴承	BEARING Drive Gear	1
19	8591111	从动齿轮	GEAR Driven	1
20	32228	螺钉（#10-32 X 0.625）	SCREW (#10-32 x .625)	1
20	41507	螺钉（#10-32 X 1.120）	SCREW (#10-32 x 1.120)	1
21	193855	油门连杆至油泵总成	LINK ASSEMBLY Throttle Lever to Oil PUmp	1
22	424254	接头	FITTING	1
23	NSS	不单独销售塞	NOT SOLD SEPARATE Plug	1
24	830756109	软管(57.00英寸散装)(裁切至6英寸)	HOSE (57.00 Inches Bulk) (Cut to 6 Inches)	1
25	994436	储液罐	RESERVOIR	1
26	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
27	42118	垫圈	WASHER	6
28	42117	护孔环	GROMMET	3
29	42116	衬套	BUSHING	3
30	82381455	管材(25.00英寸散装)(裁切至4-3/4英寸)油箱至油泵	TUBING (25.00 Inches Bulk) (Cut to 4-3/4 Inches) Oil Reservoir to Oil Pump	1
31	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
32	43300A5	盖总成	CAP ASSEMBLY	1
33	99022A1	浮子总成	FLOAT ASSEMBLY	1
34	99265	压入式螺母	PUSH NUT	1
35	43307	衬垫	GASKET	1
36	NSS	不单独销售油箱警告贴纸	NOT SOLD SEPARATE Decal-reservoir Warning	1
37	8588531	软管至缸体止回阀	HOSE To Check Valve on Block	1
38	858955	连接器	CONNECTOR	2

图 161动力升降组件(铸造泵壳)金属电机壳 Power Trim Components (Cast Pump Housing) Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	855998A3	动力升降倾斜装置总成	POWER TRIM Complete	1
1	878265A4	配平电机	TRIM MOTOR	1
1	8M0031551	配平电机	TRIM MOTOR	1
2	NSS	电枢(不单独销售)	NOT SOLD SEPARATE Armature	1
3	NSS	端架(不单独销售)	NOT SOLD SEPARATE End Frame	1
4	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
5	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
6	8782451	驱动轴	DRIVESHAFT	1
7	878410A1	压力检查套件	PO CHECK KIT	1
8	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
8	893929A01	安全阀套件	VALVE KIT Relief	1
9	878241A02	轴套件	SHAFT KIT	1
9	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
10	878267	销	PIN	1
11	878235A1	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
11	878235A03	倾斜油缸套件	CYLINDER KIT Tilt	1
12	878239A1	导向套件	GUIDE KIT	1
12	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
13	878409A1	O型圈套件	O-RING KIT	1
13	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
14	878412A1	减震杆套件	SHOCK ROD KIT	1
14	8M0168219	减震杆套件	SHOCK ROD KIT	1
15	878242A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
15	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
16	878406A1	止回阀修理包	REPAIR KIT Check Valve	1
16	878406A02	止回阀修理包	REPAIR KIT Check Valve	1
17	878414A1	活塞总成	PISTON ASSEMBLY	1
17	878414T01	活塞总成	PISTON ASSEMBLY	1
18	878413A1	活塞总成	PISTON ASSEMBLY	1
19	878243A1	导向器总成	GUIDE ASSEMBLY	2
19	8M0021648	端盖总成	END CAP ASSEMBLY	2
20	878264A1	储液罐套件	RESERVOIR KIT	1
21	811613	塞子总成	PLUG ASSEMBLY	1
22	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
23	43450	垫圈	WASHER	4
23	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
24	892251A01	泵套件	PUMP KIT	1
25	878408A1	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
26	821539	三叶销	PIN Trilobe	1
27	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
28	4002319	垫圈	WASHER	6
29	818298Q1	阳极套件	ANODE KIT	1
30	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
30	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
31	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
31	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	996251	轴	SHAFT	1
32	99625002	轴	SHAFT	1
32	99625002	轴	SHAFT	11
33	69205	C形垫圈	C WASHER	1
33	8M0084613	C形垫圈	C-WASHER	1
34	26550	卡箍	CLAMP	2
35	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
36	828547353	导管(内径0.350x3英尺散装)(裁切至12英寸)	CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk) (Cut to 12 Inches)	1
37	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

图 162动力升降组件（可拆卸泵壳）金属电机壳 Power Trim Components (Removeable Pump Housing) Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	826729T2	完整动力升降总成	POWER TRIM ASSEMBLY Complete	1
1	811604F	歧管总成	MANIFOLD ASSEMBLY	1
2	878089	管塞 (.0625-27)	PLUG Pipe (.0625-27)	9
3	880952A1	倾斜油缸总成	CYLINDER ASSEMBLY Tilt	1
3	880952A03	ORD 8M0078330	ORD 8M0078330	1
4	823553T	升降活塞杆	ROD Trim Piston	1
4	880952A02	液压油缸套件	CYLINDER KIT-HYD	1
5	878239A1	导向套件	GUIDE KIT	1
5	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
6	811607A1	维修套件	REPAIR KIT	1
7	811610A1	止回阀套件	CHECK VALVE KIT	1
7	823553T	升降活塞杆	ROD Trim Piston	1
8	878243A1	导向器总成	GUIDE ASSEMBLY	2
8	8M0021648	端盖总成	END CAP ASSEMBLY	2
9	878413A1	活塞总成	PISTON ASSEMBLY	1
9	878414A1	活塞总成	PISTON ASSEMBLY	1
9	878414T01	活塞总成	PISTON ASSEMBLY	1
10	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
11	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
11	893929A01	安全阀套件	VALVE KIT Relief	1
12	812844	E型卡环	E RING	1
12	815949001	E形环	E-RING	1
13	811612A3	O型圈套件	O-RING KIT	1
14	811617T1	泵	PUMP	1
15	811613	塞子总成	PLUG ASSEMBLY	1
16	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
17	43450	垫圈	WASHER	4
17	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
18	811611	盖板	COVER	1
19	828710	驱动接头	DRIVE JOINT	1
20	828708T	配平电机	TRIM MOTOR	1
20	878265A4	配平电机	TRIM MOTOR	1
21	828709	螺钉	SCREW	2
21	881768A1	螺钉/垫圈套件	SCREW/WASHER KIT	2
21	811616	螺钉	SCREW	2
22	811614T	轴总成	SHAFT ASSEMBLY	1
22	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
23	878089	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
24	44431	槽销	PIN Groove	1
24	878267	销	PIN	1
25	821539	三叶销	PIN Trilobe	1
26	996251	轴	SHAFT	1
26	99625002	轴	SHAFT	1
27	818298Q1	阳极套件	ANODE KIT	1
28	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
28	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
29	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
29	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
30	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
31	4002319	垫圈	WASHER	6
32	26550	卡箍	CLAMP	2
33	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	2
34	69205	C形垫圈	C WASHER	2
34	8M0084613	C形垫圈	C-WASHER	2
35	996301	冲击板	STRIKER PLATE	2
35	8M0045383	冲击板	STRIKER PLATE	2
36	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
37	46335	螺母 (.375-24)	NUT (.375-24)	2
38	435301	警示贴纸-动力微调	DECAL Caution-Power Trim	1
39	828547353	导管 (.350内径 x 3.00英尺散装)	CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk)	1
40	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

图 163动力升降组件 8M0231193 Power Trim Components 8M0231193

REF	零件编号	中文名称	英文名称	数量
-	8M0231193	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0225363	电机套件	MOTOR KIT	1
2	8M0225369	阀套件	VALVE KIT	1
3	8M0225371	手动释放套件	MANUAL RELEASE KIT	1
4	8M0245633	倾斜油缸套件	TILT CYLINDER KIT	1
5	8M0225370	枢轴销套件	PIVOT PIN KIT	1
6	8M0244575	减震杆套件	SHOCK ROD KIT	1
7	8M0244425	销杆眼套件	PIN ROD EYE KIT	1
8	8M0232231	螺钉螺母套件	SCREW NUT KIT	1
9	8M0225373	记忆活塞套件	MEMORY PISTON KIT	1
10	8M0225368	储液罐套件	RESERVOIR KIT	1
11	8M0174135	储液罐塞总成	PLUG RESERVOIR ASSEMBLY	1
12	8M0237525	泵套件	PUMP KIT	1
13	8M0225367	升降杆套件	TRIM ROD KIT	1
14	8M0242846	升降杆套件	TRIM ROD KIT	1
15	8M0225372	重建套件	REBUILD KIT	1

图 164动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	8M0168222	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0142591	电机套件	MOTOR KIT	1
2	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
3	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
4	8M0090403	驱动联轴器	COUPLING Drive	1
5	8M0142996	压力检查套件	PO CHECK KIT	1
6	8M0060141	手动释放套件	MANUAL RELEASE KIT	1
7	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
8	878267	销	PIN	1
9	8M0168220	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
10	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
11	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
12	8M0142592	升降杆套件左舷	TRIM ROD KIT Port	1
12	8M0143001	活塞总成	PISTON ASSEMBLY	1
13	8M0143002	端盖总成	END CAP ASSEMBLY	1
14	878264A1	储液罐套件	RESERVOIR KIT	1
15	811613	塞子总成	PLUG ASSEMBLY	1
16	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
17	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
18	8M0143004	泵套件	PUMP KIT	1
19	878408A1	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
20	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
21	4002319	垫圈	WASHER	6
22	8M0161312	连杆销眼总成	PIN ROD EYE ASSEMBLY	1
23	8M0168219	减震杆套件	SHOCK ROD KIT	1
24	8M0167300	上倾斜销	PIN UPPER TILT	1
25	8M0050058	螺钉5/16-24 X .5	SCREW 5/16-24 X .5	1

图 165动力升降电机（可拆卸泵壳） Power Trim Motor (Removeable Pump Housing)

REF	零件编号	中文名称	英文名称	数量
-	828708T	配平电机	TRIM MOTOR	1
1	828714A1	电刷与密封套件	BRUSH AND SEAL KIT	1
2	828713T1	电枢套件	ARMATURE KIT	1
3	828715A1	端架（总成）	END FRAME (COMPLETE)	1

图 166簧片阀组与气缸盖 Reed Block and Cylinder Head

REF	零件编号	中文名称	英文名称	数量
1	858281T2	气缸盖	CYLINDER HEAD	2
1	858281A9	气缸盖套件	CYLINDER HEAD KIT	2
1	858281T1	气缸盖	CYLINDER HEAD	2
1	858281A10	气缸盖总成	CYLINDER HEAD ASSEMBLY	2
2	859100	堵头	PLUG	2
2	8591001	塞子总成(M10 x 1.5)黄铜	PLUG ASSEMBLY (M10 x 1.5) Brass	2
3	8584521	密封件	SEAL	2
4	8597721	密封件	SEAL	6
5	878217	螺丝 (.375-16 x 2.750)	SCREW (.375-16 x 2.750)	24
6	63779	定位销 (.250 x .625)	PIN Dowel (.250 x .625)	4
7	62386	衬垫	GASKET	2
7	62386001	衬垫	GASKET	2
8	90390A1	盖板套件	COVER KIT	2
9	75692	节温器	THERMOSTAT	2
10	40011149	螺钉 (M8 x 25) 不锈钢	SCREW (M8 x 25) Stainless Steel	4
11	974651	传感器(右舷)	SENDER (STBD.)	1
12	814612	热空气阀	VALVE Thermal Air	1
13	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
14	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	10
15	77653101	软管(48.00英寸散装)(裁切至12-3/4英寸)	HOSE (48.00 Inches Bulk) (Cut to 12-3/4 Inches)	1
16	68728	接头	FITTING	1
17	77653101	软管(48.00英寸散装)(裁切至13-1/2英寸)	HOSE (48.00 Inches Bulk) (Cut to 13-1/2 Inches)	1
18	815914	三通接头	T-FITTING	1
19	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
19	827602002	软管	HOSE	1
20	13536A13	温度传感器总成 (左舷) (2线)	SENSOR ASSEMBLY Temperature (PORT) (2-WIRE)	1
21	137151	固定座	RETAINER	2
22	81893414	螺钉（M8 x 14）	SCREW (M8 x 14)	2
23	43517A9	隔板总成	PLATE ASSEMBLY	1
24	28668	螺钉 (.250-20 x .875) 不锈钢	SCREW (.250-20 x .875) Stainless Steel	8
25	55098	J型卡扣	J CLIP	1
26	146972	衬垫	GASKET	1
27	855952T3	簧片阀总成	REED BLOCK ASSEMBLY	6
28	65292	J型卡扣	J CLIP	1
29	69205	C形垫圈	C WASHER	1
30	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
31	96529	螺钉 (.250-20 x 2.00)	SCREW (.250-20 x 2.00)	6
32	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	6
33	18787A18	气缸盖总成	CYLINDER HEAD ASSEMBLY	2
34	187851	衬垫	GASKET	2
-	815791A00	发动机衬垫套件(不含气缸盖O型圈和密封件)	GASKET SET Engine Cylinder head o-rings and seal not included	1
-	878365T00	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T00	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T00	动力头总成	POWERHEAD ASSEMBLY	1

图 167维修/支撑材料 Service/Support Material

零件编号	中文名称	英文名称	数量
80317000	零件手册135/140/150/200/XR6/MAGNUM III/140Jet(2.5L)(化油器)	PARTS MANUAL 135/140/150/200/XR6/MAGNUM III/140Jet (2.5L)(Carb)	1
10126000	用户手册2000	OWNERS MANUAL 2000	1
10126010	用户手册	OWNERS MANUAL	1
10126020	用户手册	OWNERS MANUAL	1
10126030	用户手册	OWNERS MANUAL	1
10126040	用户手册	OWNERS MANUAL	1
10126050	用户手册	OWNERS MANUAL	1
10140001	用户手册	OWNERS MANUAL	1
878079R01	维修手册	SERVICE MANUAL	1
11141050	安装手册	INSTALLATION MANUAL	1
813220A00	贴花套件	DECAL SET	1
830169A00	贴花套件	DECAL SET	1
879759A01	贴花套件	DECAL SET	1
879760A01	贴花套件	DECAL SET	1
879760A03	贴花套件	DECAL SET	1
891807A04	贴花套件	DECAL SET	1
804696A03	贴花套件	DECAL SET	1
808552A00	贴花套件	DECAL SET	1
812563A00	贴花套件	DECAL SET	1
808562A00	贴花套件	DECAL SET	1
808562A03	贴花套件	DECAL SET	1
826333A00	贴花套件	DECAL SET	1
813036A97	贴花套件	DECAL SET	1
850397A00	贴花套件	DECAL SET	1
879758A03	贴花套件	DECAL SET	1
813034A97	贴花套件	DECAL SET	1
813034A01	贴花套件	DECAL SET	1
813034A03	贴花套件	DECAL SET	1
888753A03	贴花套件	DECAL SET	1
815630A97	贴花套件	DECAL SET	1
808563A01	贴花套件	DECAL SET	1
808563A03	贴花套件	DECAL SET	1
826334A97	贴花套件	DECAL SET	1
824911A25	条纹贴纸(25英尺卷-需6英尺)	DECAL Striping (ROLL OF 25 FT. - NEED 6 FT.)	1
809846A96	贴花套件	DECAL SET	1
808681A01	贴花套件	DECAL SET	1
804668A00	EPA标签信息贴花	DECAL EPA Label Information	1
804669A00	EPA标签信息贴花	DECAL EPA Label Information	1
804669A01	EPA标签信息贴花	DECAL EPA Label Information	1
804669A02	EPA标签信息贴花	DECAL EPA Label Information	1
804669A03	EPA标签信息贴花	DECAL EPA Label Information	1
804669A04	EPA标签信息贴花	DECAL EPA Label Information	1
804669A05	EPA标签信息贴花	DECAL EPA Label Information	1

图 168电磁阀安装座 Solenoid Mounting

REF	零件编号	中文名称	英文名称	数量
1	8571641	安装板	PLATE	1
2	828991	卡扣	CLIP	1
2	828991T	卡扣	CLIP	1
3	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
4	49436	垫圈	WASHER	3
5	833155	护孔环	GROMMET	3
6	8502341	衬套	BUSHING	3
7	828791	卡扣	CLIP	4
8	8261151	连接器卡箍	CLAMP Connector	1
9	82239312	螺钉(M5 x 12)	SCREW (M5 x 12)	2
10	883072T2	电压调节器	REGULATOR Voltage	2
11	858413	支架	BRACKET	2
11	893771	连接器支架	BRACKET Connector	2
12	8308971	泡沫垫	FOAM PAD	2
13	82129135	螺钉(M6x35)	SCREW (M6 x 35)	4
14	13541	公插头(灰色导线)	PLUG Male (GRAY LEAD)	1
15	882751A1	继电器总成	RELAY ASSEMBLY	2
15	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
16	828102	支架	BRACKET	2
16	8M0207771	安装支架	BRACKET Mounting	2
17	818967	护孔环	GROMMET	2
17	8M0207785	护孔环	GROMMET	2
18	818968	衬套	BUSHING	2
18	8M0214955	衬套	BUSHING	2
19	NSS	微调继电器标识贴(不单独销售)	NOT SOLD SEPARATE Decal-Trim Relay	2
20	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	4
21	819514A11	升降线束总成	HARNESS ASSEMBLY Trim	1
22	817109A2	电磁阀总成(#10-32/.3125-18端子)	SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)	1
23	822179	护孔环	GROMMET	2
24	818968	衬套	BUSHING	2
24	8M0214955	衬套	BUSHING	2
25	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
25	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
26	856583A3	拉线总成	CABLE ASSEMBLY	1
27	82129114	螺钉 (M6 x 14)	SCREW (M6 x 14)	1
28	88439A34	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
29	68292	螺母(.312-18)	NUT (.312-18)	2
29	8M0204668	螺母(.312-18)	NUT (.312-18)	2
30	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
30	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
31	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
32	88807A16	黑色电缆总成(4.00英寸)	CABLE ASSEMBLY (4.00 Inches) Black	1
33	813938	盖形螺母(#10-32)	CAP NUT (#10-32)	2
34	93388A14	线缆总成(黄/黑)	CABLE ASSEMBLY Yellow/Black	1
35	55098	J型卡扣	J CLIP	1
35	8M0024808	J型夹	J-CLIP	1
36	88439A24	蓄电池负极电缆总成	CABLE ASSEMBLY Negative - Battery	1

图 169启动电机 Starter Motor

REF	零件编号	中文名称	英文名称	数量
-	79472T2	启动电机总成	STARTER MOTOR ASSEMBLY	1
-	884238T	启动电机总成	STARTER MOTOR ASSEMBLY	1
-	794721	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	90645	驱动套件	DRIVE KIT	1
2	13310T2	驱动器	DRIVE	1
2	13310T1	小齿轮总成	PINION ASSEMBLY	1
3	75660	安装板	PLATE	1
4	749681	贯穿螺栓	THRU BOLT	2
5	NSS	不单独销售垫圈(Amercian Bosch #WA3122)	NOT SOLD SEPARATE Washer (Amercian Bosch #WA3122)	1
6	792161	电枢	ARMATURE	1
6	79216	电枢	ARMATURE	1
7	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	61787	支架	HOLDER	2
9	NSS	不单独销售螺钉(American Bosch #02441-22-SC-30SM)	NOT SOLD SEPARATE Screw (American Bosch #02441-22-SC-30SM)	2
10	15386	端盖	END CAP	1

图 170旋转支架与转向臂 Swivel Bracket and Steering Arm

REF	零件编号	中文名称	英文名称	数量
1	8710T20	黑色旋转支架总成	SWIVEL BRACKET ASSEMBLY Black	1
2	33504	O型圈	O-RING	1
3	818764	衬套	BUSHING	2
4	816039	隔套	SPACER	1
5	87735	油封	SEAL Oil	1
6	74036	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	816432	止推垫片	THRUST WASHER	1
9	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
9	878182T	不锈钢下叉架	YOKE Bottom - Stainless Steel (STAINLESS STEEL)	1
10	67684	挡圈	RING Retaining	1
11	996301	冲击板	STRIKER PLATE	1
12	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
13	46335	螺母 (.375-24)	NUT (.375-24)	2
14	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
15	NSS	不单独销售-序列号覆膜标贴	NOT SOLD SEPARATE Decal-Serial Overlaminate	1
16	821180A6	调整传感器总成	SENDER ASSEMBLY Trim	1
17	852368	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
18	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	2
19	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
20	826432A2	转向臂旋转销总成-不锈钢	SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel	1
20	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
21	78689	螺钉（0.437-20 X 7.50）	SCREW (.437-20 x 7.50)	2
22	888821	缓冲垫	BUMPER	1
23	78687T	支架	MOUNT	2
23	77326	支架	MOUNT	2
24	66921	垫圈	WASHER	2
25	78688	垫圈	WASHER	2
26	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
27	92876A10	连杆总成	LINK ROD ASSEMBLY	1
28	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
29	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
30	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
31	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
32	859747	联轴器	COUPLER	1
33	859732	堵头	PLUG	1
34	859731	适配管接头	FITTING Adapter	1
35	85944975	管材（72英寸整料，需裁至52英寸）	TUBING (72.00 Inches Bulk) (Cut to 52 Inches)	1
36	859448	接头	FITTING	1
37	821555	护孔环	GROMMET	1
38	850181	捆扎带(11.750英寸)	TIE STRAP (11.750 Inches)	1

图 171油门杆与换挡轴 Throttle Lever and Shift Shaft

REF	零件编号	中文名称	英文名称	数量
1	41094A3	点火提前杆总成	LEVER ASSEMBLY Spark Advance	1
2	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
3	64015	螺母 (.250-20)	NUT (.250-20)	1
4	26852	尼龙帽	CAP Nylon	1
5	13627	螺钉 (.190-32 x 1.250)	SCREW (.190-32 x 1.250)	1
6	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
7	48039	盖帽	CAP	1
8	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	1
9	46438	螺母 (#10-32)	NUT (#10-32)	1
10	823235	弹簧	SPRING	1
11	55171	衬套	BUSHING	1
12	41095	节气门控制杆	LEVER Throttle Control	1
12	410952	节气门控制杆	LEVER Throttle Control	1
13	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
14	55164	衬套	BUSHING	1
15	64022	螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125)	1
16	64015	螺母（1/4-20）	NUT (.250-20) (1/4-20)	1
17	26852	尼龙帽	CAP Nylon	1
18	39483	闩锁	LATCH	1
19	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
20	20099	弹簧	SPRING	1
21	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
22	14638	套筒	BARREL	1
23	8302391	油门控制杆	ROD Throttle Control	1
24	932481	旋转衬套	BUSHING Swivel	1
25	828276	节气门凸轮	CAM Throttle	1
26	20353	螺柱 (.250-28 x 1.750)	STUD (.250-28 x 1.750)	1
27	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
28	814283T6	锚支架总成	BRACKET ASSEMBLY Anchor Anchor	1
29	98889	闩锁	LATCH	1
30	42975	传动螺钉	DRIVE SCREW	2
31	39519	杯套	CUP	1
32	52100	耐磨板	WEAR PLATE	1
33	38279	闩锁	LATCH	1
34	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
35	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
36	28782	螺钉(.312-18 x .880)不锈钢	SCREW (.312-18 x .880) Stainless Steel	3
37	814284	导向块	GUIDE BLOCK	1
38	20099	弹簧	SPRING	1
39	67073A1	连杆总成	LINK ROD ASSEMBLY	1
40	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
40	79932A17	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
41	NSS	弹性销(不单独销售)	NOT SOLD SEPARATE Roll Pin	1
42	NSS	不单独销售-换挡轴上杆	NOT SOLD SEPARATE Shift Shaft Lever-Upper	1
43	26856	衬套	BUSHING	1
44	29720	波形垫圈	WAVE WASHER	1
45	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
46	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
47	858863A1	开关	SWITCH	1
48	77478	螺钉 (#6-32 x .875)	SCREW (#6-32 x .875)	2
49	27882	垫圈	WASHER	2

图 172工具 Tools

零件编号	中文名称	英文名称	数量
815366A5	电池隔离器套件	ISOLATOR KIT Battery	1
58222A1	百分表工具	DIAL INDICATOR TOOL	1
890451	直流电压适配工具	ADAPTER TOOL Direct Voltage	1
52344	飞轮固定器工具(齿型)	FLYWHEEL HOLDER TOOL Teeth Type	1
849154T1	拉拔器总成	PULLER ASSEMBLY	1
99750A1	万用表	MULTI METER	1
24161	飞轮拉拔器盖工具	CAP TOOL Flywheel Puller	1
52024A1	开关总成	SWITCH ASSEMBLY	1
59339	维修用转速表	SERVICE TACHOMETER	1
892647A01	DMT万用表套件	MULTI-METER KIT DMT	1
850439T1	八腔测试仪	TESTER Eight Chamber EIGHT CHAMBER	1
63998A1	单腔间隙工具	GAP TOOL Single Chamber SINGLE CHAMBER	1
14443A1	测试线束总成	HARNESS ASSEMBLY Test	1
99379	正时灯	TIMING LIGHT	1
29287	量规工具	GAUGE TOOL	1
55919	驱动头	DRIVER HEAD	1
52344	飞轮固定器工具(齿型)	FLYWHEEL HOLDER TOOL Teeth Type	1
849154T1	拉拔器总成	PULLER ASSEMBLY	1
90455T	吊环	LIFTING EYE	1
904551	吊环	LIFTING EYE	1
904551	吊环	LIFTING EYE	1
77109A3	安装工具套件	INSTALLER KIT	1
52952T1	活塞销锁环拆卸工具	REMOVAL TOOL Piston Pin Lock Ring	1
74607A3	活塞销安装套件	INSTALLER KIT Piston Pin	1
65494T	环压缩工具	COMPRESSOR TOOL Ring	1
818773T	活塞环压缩工具(3.50)	COMPRESSOR TOOL Piston Ring (3.50)	1
24697	活塞环扩张工具	EXPANDER TOOL Piston Ring	1
30591T1	支架工具	STAND TOOL	1
24161	飞轮拉拔器盖工具	CAP TOOL Flywheel Puller	1
66274	扭矩扳手(0-150磅英寸)	TORQUE WRENCH (0-150 lb-in) (0-150 LB-IN)	1
37241	通用拉拔板	PULLER PLATE Universal	1
112301	对正工具	ALIGNMENT TOOL	1
99750A1	万用表	MULTI METER	1
52915A6	测试仪表套件	TEST GAUGE KIT	1
74951	扳手	SPANNER WRENCH	1
63209	加热灯	HEAT LAMP	1
44487T1	调整杆导向器拆卸工具	REMOVER TOOL Trim Rod Guide	1
44486A1	调整杆拆卸工具	REMOVAL TOOL Trim Rod	1

图 173顶罩 Top Cowl

REF	零件编号	中文名称	英文名称	数量
1	827328T7	顶罩总成(黑色)	TOP COWL ASSEMBLY Black	1
1	827328T8	银色顶罩总成	TOP COWL ASSEMBLY Silver	1
2	821256T1	黑色进气口	INLET Air - Black	1
2	821256T2	银色进气口	INLET Air - Silver	1
3	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	4
4	828344A1	隔音毯套装	SOUND BLANKET KIT	1
5	NSS	不单独出售-顶部隔音垫	NOT SOLD SEPARATE Sound Blanket-Top	1
6	823865	盖塞	CAP PLUG	2
7	831207A14	手柄总成黑色	HANDLE ASSEMBLY Black	1
8	812707	衬套	BUSHING	2
9	831214	隔套	SPACER	1
10	12134	波形垫圈	WASHER Wave	1
11	F481777	凸轮锁轴	CAM Latch Shaft	1
11	889566	凸轮	CAM	1
12	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
13	1993716	螺钉(M6 x 16)	SCREW (M6 x 16)	1
14	821249M2	前支架	BRACKET Front	3
15	815477	缓冲器锁扣	BUMPER Latch	3
16	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
17	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	6
18	8237951	挡圈	RING Retaining	1
19	815263	滚轮	ROLLER	1
20	8155381	滚动销	PIN Roll	1
21	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
22	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
23	47341A11	拉绳与手柄套件手动启动(用于手动启动)	ROPE AND HANDLE KIT Manual Starting (FOR MANUAL STARTING)	1
24	NSS	不单独销售贴纸-启动程序	NOT SOLD SEPARATE Decal-Starting Procedure	1

图 174艉板支架 Transom Brackets

REF	零件编号	中文名称	英文名称	数量
1	828334T03	艉板支架总成-右舷	BRACKET ASSEMBLY Transom-Starboard	1
2	828333T08	艉板支架总成-左舷	BRACKET ASSEMBLY Transom-Port	1
3	98727	润滑脂接头(左舷)	FITTING Grease (PORT)	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
10	54012	垫圈(0.530×0.870×0.105不锈钢)	WASHER (.530 x .870 x .105) Stainless Steel	4
11	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	99629T2	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	830899	张力弹簧	SPRING Tension	1
15	65830	尼龙衬套	NYLINER	2
16	830900	压缩弹簧	SPRING Compression	1
17	99633	旋钮	KNOB	1
18	99615	槽销	PIN Groove	1
19	99617	销	PIN	1
