水星 Mercury V-140 (INTERNATIONAL) 0T178500 THRU 1B226999 - 爆炸图零件明细

两冲程化油器 · USA - Cat.# 90-80317000 · 共 37 个部位 · 1527 条零件

1附件 2缓冲板与节气门杠杆 3泄放系统 4下罩 5化油器 6CDM安装座 7曲轴、活塞及连杆 8气缸体与端盖 9驱动轴壳与排气管 10双缆连接套件 11双机连接杆套件 12发动机衬垫套件 13排气歧管与排气板 14飞轮/启动电机 15燃油管路 16燃油泵 17齿轮箱（驱动轴）（标准/反向旋转）18齿轮箱螺旋桨轴-反向旋转 19齿轮箱螺旋桨轴-标准旋转 20仪表装置 21喷射组件 22喷泵总成 23机油喷射组件 24动力升降组件(铸造泵壳)金属电机壳 25动力升降组件（可拆卸泵壳）金属电机壳 26动力升降组件 8M0231193 27动力升降组件（塑料马达壳体）28动力升降电机（可拆卸泵壳）29簧片阀组与气缸盖 30维修/支撑材料 31电磁阀安装座 32启动电机 33旋转支架与转向臂 34油门杆与换挡轴 35工具 36顶罩 37艉板支架

图 1附件 Accessories

REF	零件编号	中文名称	英文名称	数量
1	15110A1	转速表 (6K)	TACHOMETER (6K)	1
1	15112A1	转速表(7K)	TACHOMETER (7K)	1
1	895283Q45	转速表套件(0-7000 RPM)黑面橙白刻度黑边框	TACHOMETER KIT (0-7000 RPM) Black Face, Orange/White Graduations, Black Bezel	1
2	79101	安装支架	BRACKET MOUNTING	1
2	79101T	支架	BRACKET	1
3	72729	楔形底座灯泡(14V - 1.9W)	LIGHT BULB Wedge Base (14V - 1.9W)	1
4	79888	灯泡插座	SOCKET Light Bulb	1
5	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	5
6	86322A7	电缆总成(1.50英尺)黑色微调表	CABLE ASSEMBLY (1.50 Feet) Black TRIM GAUGE	1
6	86323A5	电缆总成(1.50英尺)紫色微调表	CABLE ASSEMBLY (1.50 Feet) Purple TRIM GAUGE	1
7	15113A4	配平表	TRIM GAUGE	1
7	895292Q41	动力升降倾斜指示器黑面橙白刻度黑边框	GAUGE Power Trim Indicator, Black Face, Orange/White Graduations, Black Bezel	1
8	79480	安装支架-微调表	BRACKET MOUNTING - TRIM GAUGE	1
9	72729	灯泡楔形底座(14V-1.9W)微调表	LIGHT BULB Wedge Base (14V - 1.9W) TRIM GAUGE	1
10	79888	灯泡插座微调表	SOCKET Light Bulb TRIM GAUGE	1
11	26419	螺母(#8-32)黄铜微调表端子	NUT (#8-32) Brass TRIM GAUGE TERMINAL	4
12	26995	锁紧垫圈(#8)不锈钢微调表端子	LOCKWASHER (#8) Stainless Steel TRIM GAUGE TERMINAL	4
13	86396A8	转速表线束总成(5.00英尺)	HARNESS ASSEMBLY Tachometer (5.00 Feet)	1
14	68878A6	喇叭总成蜂鸣报警器(旧设计)	HORN ASSEMBLY Buzzer Alarm (OLD DESIGN)	1
15	68879	报警喇叭罩-(旧设计)	COVER ALARM HORN - (OLD DESIGN)	1
16	79697	报警喇叭隔片-(旧设计)	SPACER ALARM HORN - (OLD DESIGN)	2
16	8M0084588	隔套	SPACER	2
17	24676	垫圈(.200 x .440 x .032)报警喇叭-(旧设计)	WASHER (.200 x .440 x .032) ALARM HORN - (OLD DESIGN)	4
18	35401	螺钉(#10 x 1.00)报警喇叭-(旧设计)	SCREW (#10 x 1.00) ALARM HORN - (OLD DESIGN)	2
19	15166A1	温度表	TEMPERATURE GAUGE	1
19	895287Q41	水温表套件(100-240℉)黑面橙白刻度黑框	WATER TEMPERATURE GAUGE KIT (100-240 F) Black Face, Orange/White Graduations, Black Bezel	1
20	72729	楔形底座灯泡(14V - 1.9W)	LIGHT BULB Wedge Base (14V - 1.9W)	1
21	79888	灯泡插座	SOCKET Light Bulb	1
22	26427	垫圈	WASHER	2
23	79480	支架	BRACKET	1
24	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	5
25	86323A2	电缆总成(2英尺)紫色	CABLE ASSEMBLY (2.00 Feet) Purple	1
25	61600A16	电缆总成(17英寸)黑色	CABLE ASSEMBLY (17.00 Inches) Black	1
25	88032A3	电缆总成(23.00英尺)棕褐色/蓝色	CABLE ASSEMBLY (23.00 Feet) Tan/Blue	1
26	12415	温度传感器(旧设计)	SENDER Temperature (OLD DESIGN)	1
27	12419T	传感器罩-(旧设计)	COVER SENDER - (OLD DESIGN)	1
27	12419	盖板	COVER	1
28	12431T	塞子(旧设计)	PLUG (OLD DESIGN)	1

图 2缓冲板与节气门杠杆 Attenuator Plate and Throttle Levers

REF	零件编号	中文名称	英文名称	数量
1	817495A1	消音板总成	PLATE ASSEMBLY Sound Attenuator	1
2	892211	衬垫	GASKET	3
3	884891	螺钉(.250-28 x 2.500)带尼龙垫-不锈钢	SCREW (.250-28 x 2.500) With Nylon Patch - Stainless Steel	6
4	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	6
5	815784	盖帽	CAP	3
6	828277A1	连杆套件	LINKAGE KIT	1
7	8M0203923	节气门操纵杆	THROTTLE LEVER Throttle Lever	1
8	8M0203922	节气门操纵杆	THROTTLE LEVER Throttle Lever	1
9	NSS	不单独出售节气门连杆	NOT SOLD SEPARATE Throttle Link	1
10	18178	滚轮	ROLLER	1
11	15124	螺钉 (#10-32 x .750)	SCREW (#10-32 x .750)	3
12	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	3
13	69432	外锁紧垫圈(#10)	LOCKWASHER External (#10)	3
14	804668A00	EPA标签信息贴花	DECAL EPA Label Information	1
14	804669A00	EPA标签信息贴花	DECAL EPA Label Information	1
14	804669A01	EPA标签信息贴花	DECAL EPA Label Information	1
14	804669A02	EPA标签信息贴花	DECAL EPA Label Information	1
14	804669A03	EPA标签信息贴花	DECAL EPA Label Information	1
14	804669A04	EPA标签信息贴花	DECAL EPA Label Information	1
14	804669A05	EPA标签信息贴花	DECAL EPA Label Information	1
15	NSS	警示贴纸-空气箱(不单独销售)	NOT SOLD SEPARATE Decal-Caution Airbox	1
-	815791A00	发动机衬垫套件(不含气缸盖O型圈和密封件)	GASKET SET Engine Cylinder head o-rings and seal not included	1

图 3泄放系统 Bleed System

REF	零件编号	中文名称	英文名称	数量
1	99130122	管材(20英尺整卷)(裁切为9英寸)	TUBING (20.00 Feet Bulk) (Cut to 9 Inches)	2
1	892024122	管材(240英寸整卷)(裁切为9英寸)	TUBING (240.00 Inches Bulk) (Cut to 9 Inches)	2
2	99130122	管材(20英尺整卷)(裁切为12.5英寸)	TUBING (20.00 Feet Bulk) (Cut to 12-1/2 Inches)	2
2	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
2	892024122	管材(240英寸整卷)(裁切为12.5英寸)	TUBING (240.00 Inches Bulk) (Cut to 12-1/2 Inches)	2
3	99130122	管材(20英尺整卷)(裁切为14英寸)	TUBING (20.00 Feet Bulk) (Cut to 14 Inches)	2
3	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
3	892024122	管材(240英寸整卷)(裁切为14英寸)	TUBING (240.00 Inches Bulk) (Cut to 14 Inches)	2
4	99130122	管材(20英尺整卷)(裁切为19英寸)	TUBING (20.00 Feet Bulk) (Cut to 19 Inches)	1
4	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
4	892024122	管材(240英寸整卷)(裁切为19英寸)	TUBING (240.00 Inches Bulk) (Cut to 19 Inches)	1
5	99130122	管材(20英尺整卷)(裁切为24英寸)	TUBING (20.00 Feet Bulk) (Cut to 24 Inches)	1
5	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
5	892024122	管材(240英寸整卷)(裁切为24英寸)	TUBING (240.00 Inches Bulk) (Cut to 24 Inches)	1
6	99130122	管材(20英尺整卷)(裁切为27英寸)	TUBING (20.00 Feet Bulk) (Cut to 27 Inches)	1
6	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
6	892024122	管材(240英寸整卷)(裁切为27英寸)	TUBING (240.00 Inches Bulk) (Cut to 27 Inches)	1
7	426982	止回阀	CHECK VALVE	7
8	822715	弯头接头	FITTING Elbow	6
9	56759	倒钩接头	FITTING Barbed	4
10	426233	止回阀	CHECK VALVE	1
-	878365T00	动力头总成	POWERHEAD ASSEMBLY	1
-	812815R97	PH 135/150 2.0-RM	PH 135/150 2.0-RM	1
-	823434T00	动力头总成	POWERHEAD ASSEMBLY	1
-	823434R00	PH 150 -RM	PH 150 -RM	1
-	813043T00	动力头总成	POWERHEAD ASSEMBLY	1
-	813043R00	PH 200 -RM	PH 200 -RM	1

图 4下罩 Bottom Cowl

REF	零件编号	中文名称	英文名称	数量
1	9744A16	下罩壳总成(黑色)(无贴花)	BOTTOM COWL ASSEMBLY (BLACK)(Without Decals)	1
1	9744A17	下罩壳总成(灰色)(无贴花)	BOTTOM COWL ASSEMBLY Gray (Without Decals)	1
1	9744A16	下罩总成	BOTTOM COWL ASSEMBLY	1
1	9744A18	下罩壳总成(追踪者)(无贴花)	BOTTOM COWL ASSEMBLY (TRACKER)(Without Decals)	1
1	9744A16	下罩总成	BOTTOM COWL ASSEMBLY	1
2	9745A5	下罩壳总成(黑色)(无贴花)	BOTTOM COWL ASSEMBLY (BLACK)(Without Decals)	1
2	9745A6	下罩壳总成(灰色)(无贴花)	BOTTOM COWL ASSEMBLY (GRAY)(Without Decals)	1
2	9745A7	下罩壳总成(追踪者)(无贴花)	BOTTOM COWL ASSEMBLY (TRACKER)(Without Decals)	1
3	18701A1	密封套件	SEAL KIT	1
4	18699	螺钉(.250-20 x 1.320)(右舷)	SCREW (.250-20 x 1.320) (STARBOARD)	4
5	817519A1	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	2
6	813613	接头	FITTING	1
7	830756109	软管(57.00英寸散装)	HOSE (57.00 Inches Bulk)	1
7	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
8	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
8	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
10	18286A40	开关总成	SWITCH ASSEMBLY	1
10	8M0235192	微调开关	SWITCH TRIM	1
11	8124431	固定座	RETAINER	1
11	8M0032848	开关固定座	RETAINER Switch	1
12	815914	三通接头	T-FITTING	1
13	7765377	软管 (24.500英寸散装)	HOSE (24.500 Inches Bulk)	1
13	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	1
14	19648A3	手柄总成(黑色)	HANDLE ASSEMBLY (BLACK)	1
14	19648A2	左舷手柄总成	HANDLE ASSY PORT	1
14	19648A4	手柄总成(灰色)	HANDLE ASSEMBLY (GRAY)	1
14	19648A2	左舷手柄总成	HANDLE ASSY PORT	1
14	19648A7	手柄总成(追踪者型)	HANDLE ASSEMBLY (TRACKER)	1
15	19647A3	手柄总成(黑色)	HANDLE ASSEMBLY (BLACK)	1
15	19647A4	手柄总成(灰色)	HANDLE ASSEMBLY (GRAY)	1
15	19647A3	手柄总成	HANDLE ASSEMBLY	1
15	19647A7	手柄总成(追踪者型)	HANDLE ASSEMBLY (TRACKER)	1
16	65830	尼龙衬套	NYLINER	6
17	99611	波形垫圈	WAVE WASHER	3
18	19369	棘爪	PAWL	1
19	19370	棘爪	PAWL	1
20	69057	垫片(.281 x .734 x .063)	WASHER (.281 x .734 x .063)	3
21	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	2
22	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	2
23	19749	卡箍	CLAMP	1
24	197481	卡箍	CLAMP	1
25	92799	螺钉(#10-16x1.12)	SCREW (#10-16 x 1.12)	2
26	18872A1	盖板总成(黑色)	COVER ASSEMBLY (BLACK)	1
26	18872A2	盖板总成(灰色)	COVER ASSEMBLY (GRAY)	1
26	18872A1	盖总成	COVER ASSEMBLY	1
26	18872A4	盖板总成(追踪者型)	COVER ASSEMBLY (TRACKER)	1
27	8136921	锁紧螺母	LOCKNUT	2
28	8130764	前手柄	FRONT HANDLE	1
29	181921	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	1
30	19666	衬套	BUSHING	1
31	18727	杆	ROD	1

图 5化油器 Carburetor

REF	零件编号	中文名称	英文名称	数量
1	9242A33	化油器(上部)(WH-40)	CARBURETOR (TOP) (WH-40)	1
1	9242A34	化油器(中部)(WH-40)	CARBURETOR (CENTER) (WH-40)	1
1	9242A35	化油器(下部)(WH-40)	CARBURETOR (BOTTOM) ( WH-40)	1
1	7563A10	化油器(上部)(WH-35)	CARBURETOR (TOP) (WH-35)	1
1	7563A11	化油器(中部)(WH-35)	CARBURETOR (CENTER) (WH-35)	1
1	7563A12	化油器(下部)(WH-35)	CARBURATOR (BOTTOM) (WH-35)	1
1	7563A13	化油器(上部)(WH-38)	CARBURETOR (TOP) (WH-38)	1
1	7563A14	化油器(中部)(WH-38)	CARBURETOR (CENTER) (WH-38)	1
1	7563A15	化油器(下部)(WH-38)	CARBURETOR (BOTTOM) (WH-38)	1
2	6249	主量孔(.096)燃油室(WH-32)(WH-38)	JET Main (.096) FUEL BOWL(WH-32) (WH-38)	6
2	8423	量孔(.094)浮子室(WH-35)	JET (.094) FUEL BOWL (.094) (WH-35)	6
2	6680	量孔(.078)燃油室(WH-40)	JET (.078) FUEL BOWL (WH-40)	6
3	NSS		NOT SOLD SEPARATE Gasket-Cover Plate	3
4	6032	盖板	PLATE COVER	3
5	NSS	盖板螺钉(不单独销售)	NOT SOLD SEPARATE Screw-Cover Plate	15
6	7822	燃油室(WH-33)	BOWL Fuel (WH-33)	3
6	7823	燃油杯(顶部)	BOWL Fuel (TOP)	1
6	7822	燃油杯(中部/底部)	BOWL Fuel (CENTER/BOTTOM)	2
7	NSS	不单独销售燃油杯螺钉	NOT SOLD SEPARATE Screw-Fuel Bowl	18
8	6025	主量孔塞	PLUG MAIN JET	6
9	NSS	不单独出售主量孔垫片	NOT SOLD SEPARATE Gasket-Main Jet	6
10	4216	主量孔(.064)(WH-33)	JET (.064) MAIN FUEL (WH-33)	6
10	6246	主量孔(.048)(WH-32)	JET (.048) MAIN FUEL (WH-32)	6
10	6028	主燃油量孔(.050)(WH-35)	JET (.050) MAIN FUEL (WH-35)	6
10	6359	主燃油量孔(.052)(WH-38)	JET (.052) MAIN FUEL (WH-38)	6
10	6201	主量孔(.080)(WH-40)	JET (.080) MAIN FUEL (WH-40)	6
11	NSS	不单独出售浮子销螺钉	NOT SOLD SEPARATE Screw-Float Pin	6
12	NSS	不单独出售进油针阀座垫片	NOT SOLD SEPARATE Gasket--Inlet Needle and Seat	6
13	7824	进油针阀总成	NEEDLE/SEAT ASSEMBLY Inlet	6
14	NSS	喷嘴座垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Nozzle Boss	6
15	9267	浮子	FLOAT	6
16	NSS	浮子杆销(不单独销售)	NOT SOLD SEPARATE Pin-Float Lever	6
17	NSS		NOT SOLD SEPARATE Gasket-Fuel Bowl	3
18	4541	怠速空气量孔螺钉	SCREW IDLE AIR BLEED JET	6
19	NSS	泄放量孔塞垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Bleed Jet Plug	6
20	5213	主量孔(.056)怠速空气量孔(WH-33)	JET Main (.056) IKLE AIR BLEED (WH-33)	6
20	7831	主量孔(.058)怠速空气量孔(.058)(WH-32)	JET Main Fuel (.058) IDLE AIR BLEED (.058) (WH-32)	6
20	6487	主量孔(.060)怠速空气量孔(WH-35)	JET Main (.060) IKLE AIR BLEED (WH-35)	6
20	5317	怠速空气量孔(.046)(WH-38)	JET (.046) IDLE AIR BLEED (WH-38)	6
20	6246	怠速空气量孔(.048)(WH-40)	JET (.048) IDLE AIR BLEED (WH-40)	6
21	6027	节气门杠杆螺钉	SCREW THROTTLE LEVER	3
22	67752	节流阀杆	LEVER THROTTLE	3
23	NSS		NOT SOLD SEPARATE Spring-Throttle Return	3
24	6031	节气门杠杆垫片	SPACER THROTTLE LEVER	3
25	6022	节流阀轴	SHAFT THROTTLE	3
26	NSS	节气门轴挡圈(不单独销售)	NOT SOLD SEPARATE Ring-Retainer-Throttle Shaft	3
27	6023	节气门阀(WH-33)(WH-40)	VALVE Throttle (WH-33) (WH-40)	6
27	9496	节气门阀(WH-32)	VALVE Throttle (WH-32)	6
27	9545	节气门阀(WH-38)(WH-35)	VALVE Throttle (WH-38) (WH-35)	6
28	NSS		NOT SOLD SEPARATE Screw-Throttle Valve	12
-	6452	衬垫套件	GASKET KIT	1
-	8506	化油器修理包(WH-33)(WH-40)	REPAIR KIT Carburetor (WH-33) (WH-40)	1
-	7826	修理包(WH-32)(WH-35)(WH-38)	REPAIR KIT (WH-32)(WH-35)(WH-38)	1

图 6CDM安装座 CDM Mounting

REF	零件编号	中文名称	英文名称	数量
1	858425T2	线束总成	HARNESS ASSEMBLY	1
2	NSS	盖板(不单独销售)	NOT SOLD SEPARATE Cover	1
3	83296930	迷你保险丝 - 绿色 - 30安培	FUSE Mini - Green - 30 Ampere	AR
3	83296920	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	AR
3	832969T20	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	AR
4	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	3
5	828991	卡扣	CLIP	2
5	828991T	卡扣	CLIP	2
6	8571621	CDM安装板	PLATE CDM Mounting	1
7	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
8	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	1
8	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	1
9	49436	垫圈	WASHER	4
10	833155	护孔环	GROMMET	4
11	8502341	衬套	BUSHING	4
12	82129116	螺钉(M6 x 16)	SCREW (M6 x 16)	15
13	856583A3	拉线总成	CABLE ASSEMBLY	2
14	827509T7	CDM模块总成	CDM MODULE ASSEMBLY	6
-	857124A1	高压线总成	CABLE ASSEMBLY Hi-Tension	6
-	857074A1	护套/端子套件	BOOT/TERMINAL KIT	6
15	14814548	火花塞(NGK # BPZ8HS-10)	SPARK PLUG (NGK # BPZ8HS-10)	6
15	938	SP #QL78YC @4	SP #QL78YC @4	6
16	857163T1	CDM线束总成	HARNESS ASSEMBLY CDM	1
17	858414A1	编织电缆总成	CABLE ASSEMBLY Braided	1
18	828791	卡扣	CLIP	1
19	857166T1	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
20	13541	公插头	PLUG Male	1

图 7曲轴、活塞及连杆 Crankshaft, Pistons and Connecting Rods

REF	零件编号	中文名称	英文名称	数量
1	8745A5	曲轴总成(含8个39-67377)	CRANKSHAFT ASSEMBLY (INCLUDES 8 OF 39-67377)	1
2	67923	曲轴下球轴承	BEARING Ball CRANKSHAFT (LOWER)	1
2	67923T	滚珠轴承	BEARING Ball	1
3	67446	球轴承挡圈	RING BALL BEARING	1
4	99727A1	驱动齿轮	GEAR Drive	1
5	54196A6	密封载体总成	CARRIER ASSEMBLY SEAL	1
6	65800	填料载体	PACKING CARRIER	1
7	67377	曲轴密封环(.124厚度)	RING Sealing SEALING - CRANKSHAFT (.124 THICK)	AR
7	67377T	密封环	RING Sealing	AR
7	78633	曲轴密封环(.139厚度)	RING SEALING - CRANKSHAFT (.139 THICK)	AR
8	88903	保持式滚柱轴承	BEARING Roller RETAINED BEARING	2
8	88903T	轴承座圈	RACE Bearing	2
9	67444	保持轴承挡圈	RING Retaining RETAINED BEARING	2
10	67445	保持式滚柱轴承	BEARING Roller RETAINED BEARING	2
8	93495	非保持式滚柱轴承	BEARING Roller LOOSE BEARING	2
8	93495T	滚柱轴承	BEARING Roller	2
9	67444	非保持轴承挡圈	RING Retaining LOOSE BEARING	2
11	7441A3	活塞总成(右舷-标准)	PISTON ASSEMBLY (STARBOARD-STANDARD)	3
11	7441T36	活塞-右舷-标准	PISTON-STBD-STD	3
11	7443A2	活塞总成(右舷-加大0.015)	PISTON ASSEMBLY (STARBOARD - .015 O.S.)	AR
11	7443A12	活塞-右舷-0.015	PISTON-STBD-.015	AR
11	7445A2	活塞总成(右舷-加大0.030)	PISTON ASSEMBLY (STARBOARD-.030 O.S.)	AR
11	7445A12	活塞-右舷-0.030	PISTON-STBD-.030	AR
11	7442A3	活塞总成(左舷-标准)	PISTON ASSEMBLY (PORT-STANDARD)	3
11	7442T36	活塞-左舷-标准	PISTON-PORT-STD	3
11	7444A2	活塞总成(左舷-0.015加大)	PISTON ASSEMBLY (PORT-.015 O.S.)	AR
11	7444A12	活塞-左舷-0.015	PISTON-PORT-.015	AR
11	7446A2	活塞总成(左舷-0.030加大)	PISTON ASSEMBLY (PORT-.030 O.S.)	AR
11	7446T12	活塞-左舷-0.030	PISTON-PORT-.030	AR
12	93481A12	活塞环组-标准(标准)	RING SET Piston - Standard (STANDARD)	1
12	78918A4	活塞环组-0.015加大(0.015加大)	RING SET Piston - .015 Oversize (.015 O.S.)	AR
12	85636A4	活塞环组-0.030加大(0.030加大)	RING SET Piston - .030 Oversize (.030 O.S.)	AR
13	52035	锁环	RING Lock	12
13	857196	锁紧环	LOCK RING	12
14	8119A5	连杆总成	CONNECTING ROD ASSEMBLY	6
14	8119A6	连杆套件	CONN ROD KIT	6
15	93886	螺钉(0.312-28×0.875)连杆	SCREW (.312-28 x .875) CONNECTING ROD	12
16	47247	定位针垫圈	WASHER NEEDLE LOCATING	12
16	8M0032839	垫片@5	WASHER @5	12
17	17514A1	轴承套件	BEARING KIT	6
17	8M0234886	轴承保持架	CAGE BEARING	6
18	67483	活塞端滚针轴承	BEARING Needle PISTON END	174

图 8气缸体与端盖 Cylinder Block and End Caps

REF	零件编号	中文名称	英文名称	数量
1	8711A19	气缸体	CYLINDER BLOCK	1
2	76175	动力头螺柱(1-7/8英寸)	STUD POWERHEAD (1-7/8")	6
3	67065	动力头螺柱(5-1/2英寸)	STUD POWERHEAD (5-1/2")	2
3	670654	螺柱(.375-16/.375-24 x 5.620)	STUD (.375-16/.375-24 x 5.620)	2
3	78438	动力头螺柱(6-3/4英寸)	STUD POWERHEAD (6-3/4")	2
3	8M0034454	螺柱(.375-16/.375-24 x 6.87)	STUD (.375-16/.375-24 x 6.87)	2
4	20033	定位销	PIN Dowel LOCATING	2
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
5	67296	气缸体销(轴承座圈)	PIN CYLINDER BLOCK (BEARING RACE)	2
5	8M0036405	销	PIN	2
6	11338	密封垫片	GASKET SEALING	2
7	42249	启动马达上盖	COVER STARTER MOTOR (UPPER)	1
7	8M0088723	启动器支架	BRACKET-STARTER	1
8	73657	盖至曲轴箱螺钉(.312-18 x 1.50)	SCREW (.312-18 x 1.50) COVER TO CRANKCASE	2
9	26993	启动马达盖螺钉锁紧垫圈(0.312)	LOCKWASHER (.312) STARTER MOTOR COVER SCREW	4
9	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
10	76867	启动电机盖(下部)	COVER STARTER MOTOR (LOWER)	1
11	77065	盖至曲轴箱螺钉(.312-18 x 2)	SCREW (.312-18 x 2) COVER TO CRANKCASE	2
11	815549	螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00)	2
11A	99448	衬套	BUSHING	1
12	66717	曲轴箱至气缸体螺钉(.375-16 x 3.250)	SCREW (.375-16 x 3.250) CRANKCASE TO CYLINDER BLOCK	8
12	74824	曲轴箱至气缸体螺丝(.312-18 x 1.250)	SCREW (.312-18 x 1.250) CRANKCASE TO CYLINDER BLOCK	6
13	8454A1	上端盖总成	END CAP ASSEMBLY UPPER	1
13	8454T1	端盖总成	END CAP ASSY	1
14	54029	端盖O型圈(2.800 x .103)	O-RING (2.800 x .103) END CAP	1
15	74248		BEARING Roller END CAP (1.50 I.D.)	1
15	74248T	轴承	BEARING	1
16	41953	端盖密封件	SEAL END CAP	1
13	8454A2	上端盖总成	END CAP ASSEMBLY UPPER	1
13	8454T2	端盖总成	END CAP ASSY	1
14	54029	端盖O型圈(2.800 x .103)	O-RING (2.800 x .103) END CAP	1
15	93496		BEARING Roller END CAP (1.37 I.D.)	1
15	93496T	轴承	BEARING	1
16	41953	端盖密封件	SEAL END CAP	1
17	69034	上端盖至气缸体螺钉及锁紧垫圈(.312-18 x 1.00)	SCREW AND LOCKWASHER (.312-18 x 1.00) UPPER END CAP TO CYLINDER BLOCK	4
17	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	4
18	24220	气缸体定位螺钉(.190-24 x .190)	SCREW (.190-24 x .190) SET - CYLINDER BLOCK	2
19	38407	气缸体水套螺塞(.500-14)	PLUG (.500-14) CYLINDER BLOCK (WATER JACKET)	1
20	15094	飞轮盖至气缸体双头螺柱(.190-32 x 1.870)	STUD (.190-32 x 1.870) FLYWHEEL COVER TO CYLINDER BLOCK	1
21	15093	飞轮盖至支架双头螺柱(#10-32 x 1.00)	STUD (#10-32 x 1.00) FLYWHEEL COVER TO BRACKET	2
21	8M0034435	螺柱	STUD	2
22	67269	飞轮盖螺柱隔套	SPACER FLYWHEEL COVER STUD	1
23	492211	飞轮盖螺柱垫圈	WASHER FLYWHEEL COVER STUD	6
23	8M0204663	垫片@5	WASHER @5	6
24	72761	飞轮盖螺柱不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel FLYWHEEL COVER STUD	6
25	73651	飞轮盖螺柱螺母	NUT FLYWHEEL COVER STUD	3
25	816874	蝶形螺母 (#10-32)	WING NUT (#10-32)	3
26	42248	飞轮罩支架	BRACKET FLYWHEEL COVER	1
26	422482	支架	BRACKET	1
27	49668	支架至曲轴箱螺钉(.250-20 x .750)	SCREW (.250-20 x .750) BRACKET TO CRANKCASE	2
28	7809A1	下端盖总成	END CAP ASSEMBLY LOWER	1
28	7809T1	端盖总成	END CAP ASSEMBLY	1
29	62700	端盖O型圈(3.237 x .103)	O-RING (3.237 x .103) END CAP	1
30	41953	端盖密封件	SEAL END CAP	2
31	28636	下端盖至气缸体螺钉(.250-20 x .750)	SCREW (.250-20 x .750) LOWER END CAP TP CYLINDER BLOCK	4
32	26992	下端盖螺钉不锈钢锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel LOWER END CAP SCREW	4
33	64022	气缸体调节螺钉(.250-20 x 2.125)	SCREW (.250-20 x 2.125) SDJUSTING - CYLINDER BLOCK	1
34	64015	锁紧螺母(.250-20)-调节螺钉	NUT (.250-20) JAM - ADJUSTING SCREW	1
35	26852	调节螺钉尼龙帽	CAP Nylon NYLON - ADJUSTING SCREW	1
35	66517	气缸体泄流限制器	RESTRICTOR BLEED - CYLINDER BLOCK	1
-	90484A88	衬垫套件	GASKET SET	1
-	41282A88	动力头总成	POWERHEAD ASSEMBLY	1
-	41282T88	PH 135/150	PH 135/150	1

图 9驱动轴壳与排气管 Driveshaft Housing and Exhaust Tube

REF	零件编号	中文名称	英文名称	数量
1	8343A7	传动轴壳体总成(黑色)	HOUSING ASSEMBLY Driveshaft (BLACK)	1
1	8343A8	传动轴壳体总成(灰色)	HOUSING ASSEMBLY Driveshaft (GRAY)	1
1	8343A9	驱动轴壳体总成(OYSTER)	HOUSING ASSEMBLY Driveshaft (OYSTER)	1
1	8343A8	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	56295	驱动轴壳体/齿轮箱壳体双头螺柱(长型)(.437 x 2.69)	STUD (.437 x 2.69) DRIVE SHAFT HSG./GEAR HSG. (LONG)	2
2	74732	驱动轴壳体/齿轮箱壳体双头螺柱(加长型)	STUD DRIVE SHAFT HSG./GEAR HSG. (EXTRA LONG)	2
3	25067	下安装座螺钉缓冲垫	BUMPER LOWER MOUNT SCREW	2
4	63474	下安装座螺钉(.500-20 x 6.00)	SCREW (.500-20 x 6.00) LOWER MOUNT	2
4	898831	螺钉(.500-20 x 6.220)	SCREW (.500-20 x 6.220)	2
5	78249	下支架	MOUNT LOWER	2
5	77327	支架	MOUNT	2
6	49339	下部安装螺钉垫圈(.8125)	WASHER (.8125) LOWER MOUNT SCREW	2
7	25096	下安装座螺钉螺母	NUT LOWER MOUNST SCREW	2
8	88238A1	接地线总成	CABLE ASSEMBLY Ground	1
8	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
9	67076	下安装夹	CLAMP LOWER MOUNT	2
9	8M0036782	卡箍	CLAMP	2
10	66727	下安装座夹具固定螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250) LOWER MOUNT CLAMP ATTACHING	4
11	67077	下部安装夹盖（黑色）	COVER LOWER MOUNT CLAMP (BLACK)	2
11	8M4500752	盖板	COVER	2
11	67077T6	下安装座夹具盖(灰色)	COVER LOWER MOUNT CLAMP (GRAY)	2
11	67077F1	灰色盖板	COVER Gray	2
11	67077T10	下安装座夹具盖(OYSTER)	COVER LOWER MOUNT CLAMP (OYSTER)	2
11	67077F1	灰色盖板	COVER Gray	2
12	88417	盖固定螺钉(#12-24 x .620)	SCREW (#12-24 x .620) COVER ATTACHING	4
13	35521	盖至夹具螺钉尼龙螺母	NUT NYLON - COVER TO CLAMP SCREW	4
14	88238A2	接地线总成	CABLE ASSEMBLY Ground	1
14	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
15	41508	螺丝(.250-20 x .500)不锈钢接地线	SCREW (.250-20 x .500) Stainless Steel GROUND WIRE	1
16	73862	齿轮箱壳体螺柱垫圈	WASHER GEAR HOUSING STUD	1
17	29489	齿轮箱壳体螺柱盖形螺母	NUT GEAR HOUSIG STUD (CAP)	1
18	45176	齿轮箱壳体螺柱不锈钢垫圈(.453 x .812 x .105)	WASHER (.453 x .812 x .105) Stainless Steel GEAR HOUSING STUD	2
19	34933	齿轮箱壳体螺柱不锈钢螺母(.437-20)	NUT (.437-20) Stainless Steel GEAR HOUSING STUD	2
19	8M0204653	螺母	NUT	2
20	64649	驱动轴壳体堵头(黑灰)	PLUG DRIVE SHAFT HOUSING (BLACK & GRAY)	1
20	646491	驱动轴壳体堵头(OYSTER)	PLUG DRIVE SHAFT HOUSING (OYSTER)	1
21	89743	排气管	TUBE Exhaust	1
22	66350	排气管下密封件	SEAL EXHAUST TUBE - LOWER	1
22	66350001	密封件	SEAL	1
23	86027	排气管上密封件	SEAL EXHAUST TUBE - UPPER	1
24	67295	长轴型水管	TUBE Water WATER (LONG SHAFT)	1
24	8M0042788	长型水管	TUBE-WATER-LONG	1
24	74729	加长轴型水管	TUBE WATER (EXTRA LONG SHAFT)	1
24	8M0042790	水管	TUBE-WATER	1
25	99173	驱动轴壳体至板衬垫	GASKET DRIVE SHAFT HOUSING TO PLATE	1
25	991734	衬垫	GASKET	1
26	41945A6	驱动轴壳体板总成	PLATE ASSEMBLY DRIVE SHAFT HOUSING	1
27	707482	支架密封件(黑灰)	SEAL BRACKET (BLACK & GRAY)	1
28	68011	密封件固定支架(黑灰)	BRACKET SEAL RETAINING (BLACK & GRAY)	1
29	48408	支架至板螺钉(黑灰)(#10-16 x .500)	SCREW (#10-16 x .500) BRACKET TO PLATE (BLACK & GRAY)	12
30	20033	定位销	PIN Dowel LOCATING	2
30	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
31	38970	水管密封件	SEAL WATER TUBE	1
32	90192	延伸件至板不锈钢螺钉(.250-20 x .750)	SCREW (.250-20 x .750) Stainless Steel EXTENSION TO PLATE	6
33	99177	驱动轴壳体板至排气板衬垫	GASKET DRIVE SHAFT HOUSING PLATE TO EXHAUST PLATE	1
33	991772	衬垫	GASKET	1
34	25970	动力头螺柱垫圈	WASHER POWER HEAD STUD	4
34	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	4
35	69254	动力头螺柱螺母	NUT POWER HEAD STUD	4
36	41942	排气延伸管	EXTENSION EXHAUST	1
36	879288T71	排气管延长段	EXTENSION Exhaust	1
36	78148A1	隔套总成(加长型)	SPACER ASSEMBLY (EXTRA LONG)	1
36	20033	隔套定位销(加长型)	PIN Dowel LOCATING - SPACER - (EXTRA LONG)	2
36	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
-	90484A88	衬垫套件	GASKET SET

图 10双缆连接套件 Dual Cable Attaching Kit

REF	零件编号	中文名称	英文名称	数量
-	92876A8	转向安装套件	ATTACHING KIT Steering	1
1	41055A1	支架总成	BRACKET ASSEMBLY	1
2	715651	转向拉索套管	TUBE Steering Cable	1
3	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
4	821203	锁紧垫圈	LOCKWASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
7	78968	内锁紧垫圈 (.250)	LOCKWASHER Internal (.250)	4
8	850791T	联轴器	COUPLER	1
9	73732	螺钉 (.375-24 x 1.120)	SCREW (.375-24 x 1.120)	2
10	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
11	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	3
11	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	3

图 11双机连接杆套件 Dual Engine Tie Bar Kit

REF	零件编号	中文名称	英文名称	数量
-	92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
1	71565A2	管总成	TUBE ASSEMBLY	1
2	48462	O型圈 (.614 x .070)	O-RING (.614 x .070)	1
3	41055	支架	MOUNT	1
4	42100	锁紧垫圈	TAB WASHER	2
5	37984	螺母 (.875-14)	NUT (.875-14)	2
5	8M0041651	螺母 (.875-14)	NUT (.875-14)	2
6	88404	锁紧垫圈	TAB WASHER	2
7	38601	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	4
8	17729A1	支架	BRACKET	2
9	62055	螺钉(.312-24 x 1.250)	SCREW (.312-24 x 1.250)	4
10	17728	锁紧垫圈	TAB WASHER	4
11	140001	螺钉(0.375-24×1.38)	SCREW (.375-24 x 1.38)	2
12	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	6
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	6
13	979331	转向眼环	STEERING EYE	2
13	8M0026167	转向眼环	STEERING EYE	2
14	23651	衬套(1.625)	SLEEVE (1.625)	2
15	97931	管材(4.00英寸)	TUBING (4.00 Inches)	2
16	8149513	联轴器(15.00英寸)	COUPLER (15.00 Inches)	1
16	8M0026098	联轴器15英寸	COUPLER 15 In.	1
17	42099	螺母(.562-18)	NUT (.562-18)	1
18	821169	联轴器	COUPLING	1
19	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	1
19	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	1
20	94319	螺钉(.375-24 x 1.5)	SCREW (.375-24 x 1.5)	1

图 12发动机衬垫套件 Engine Gasket Set Components

REF	零件编号	中文名称	英文名称	数量
-	815791A00	发动机衬垫套件(不含气缸盖O型圈和密封件)	GASKET SET Engine Cylinder head o-rings and seal not included	1
0	857005A1	膜片组件	DIAPHRAGM KIT	1
0	987691	燃油泵衬垫	GASKET Fuel Pump	1
0	8M0204705	衬垫@2	GASKET @2	1
0	828292	化油器衬垫	GASKET Carb	3
0	892211	消音板衬垫	GASKET Sound Attenuator Plate	3
0	54029	O型圈(2.800x0.103)上端盖	O-RING (2.800 x .103) Upper End Cap	1
0	62700	O型圈(3.237x0.103)下端盖	O-RING (3.237 x .103) Lower End Cap	1
0	62386	节温器盖衬垫	GASKET Thermostat Cover	2
0	8M0204714	衬垫@4	GASKET @4	2
0	62386001	节温器盖衬垫	GASKET Thermostat Cover	2
0	8M0204714	衬垫@4	GASKET @4	2
0	146972	适配板衬垫	GASKET Adapter Plate	1
0	65800	曲轴载体密封垫	PACKING Crankshaft Carrier	1
0	190506	隔板衬垫	GASKET Divider Plate	1
0	814754	隔板密封件(12.50英寸)	SEAL (12.50 Inches) Divider Plate	1
0	78690	安全阀盖衬垫	GASKET Relief Valve Cover	2
0	78690002	衬垫	GASKET	2
0	78690002	安全阀盖衬垫	GASKET Relief Valve Cover	2
0	991764	排气板衬垫	GASKET Exhaust Plate	1
0	45711	倾斜管O型圈(0.612x0.103)	O-RING (.612 x .103) Tilt Tube	1
0	991734	驱动轴壳体垫片	GASKET Drive Shaft Housing	1
0	38970	水管密封件	SEAL Water Tube	1
0	38970	水泵体密封件	SEAL Water Pump Body	1
0	183076	驱动轴壳体板衬垫	GASKET Driveshaft Housing Plate	1
0	25439	O型圈(0.862x0.103)齿轮箱衬套	O-RING (.862 x .103) Gear Housing Bushing	1
0	426311	水泵底座衬垫	GASKET Water Pump Base	1
0	8M0204678	衬垫	GASKET	1
0	90011	O型圈(2.175x0.175)水泵底座	O-RING (2.175 x .175) Water Pump Base	1
0	8M0142854	O型圈(2.175 x 0.103)	O-RING (2.175 x .103)	1
0	856081	水泵底座下部衬垫	GASKET Water Pump Base-Lower	1
0	8M0090319	衬垫@5	GASKET @5	1
0	858524	水泵底座上部衬垫	GASKET Water Pump Base-Upper	1
0	31534	O型圈轴承载体-反向旋转	O-RING Bearing Carrier-Counter Rotation	1
0	8M0214920	O型圈	O RING	1
0	11338	衬垫	GASKET	2
0	167371	衬垫	GASKET	1

图 13排气歧管与排气板 Exhaust Manifold and Exhaust Plate

REF	零件编号	中文名称	英文名称	数量
1	90484	分隔板衬垫	GASKET DIVIDER PLATE	2
2	87321	分隔板	PLATE DIVIDER	1
2	87321T	安装板	PLATE	1
3	69668	分隔板密封件	SEAL DIVIDER PLATE	1
3	814754	密封件(12.50英寸)	SEAL (12.50 Inches)	1
4	95067	排气歧管盖	COVER EXHAUST MANIFOLD	1
5	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	21
6	65663A1	泄压阀盖(旧设计)	COVER RELIEF VALVE - (OLD DESIGN)	1
6	8M0237835	罩盖总成	COVER ASSY	1
7	38837	螺钉(.312-18 x 1.12)盖至气缸体(旧设计)	SCREW (.312-18 x 1.12) COVER TO CYLINDER BLOCK (OLD DESIGN)	2
8	88907	泄压阀板衬垫(旧设计)	GASKET RELIEF VALVE PLATE - (OLD DESIGN)	2
8	88907003	衬垫	GASKET	2
9	65664A1	泄压阀板总成(旧设计)	PLATE ASSEMBLY RELIEF VALVE - (OLD DESIGN)	1
10	64877	隔膜(旧设计)	DIAPHRAGM (OLD DESIGN)	1
10	648771	隔膜	DIAPHRAGM	1
11	76451	隔膜螺钉垫圈(旧设计)	WASHER DIAPHRAGM SCREW - (OLD DESIGN)	1
12	69570	螺钉(#10-16 x .750)隔膜至板(旧设计)	SCREW (#10-16 x .750) DIAPHRAGM TO PLATE (- (OLD DESIGN)	1
13	64878	弹簧(黑色)提升阀压缩(旧设计)	SPRING (Black) COMPRESSION POPPET VALVE - (OLD DESIGN)	1
14	86596	提升阀(旧设计)	POPPET VALVE VALVE - (OLD DESIGN)	1
15	64872	提升阀衬套(旧设计)	GROMMET POPPET VALVE - (OLD DESIGN)	1
16	65848	提升阀座(旧设计)	CARRIER POPPET VALVE - (OLD DESIGN)	1
17	14462A1	泄压阀盖(新设计)	COVER RELIEF VALVE - (NEW DESIGN)	1
18	74824	螺钉(.312-18 x 1.250)盖至气缸体(新设计)	SCREW (.312-18 x 1.250) COVER TO CYLINDER BLOCK (NEW DESIGN)	4
19	16497A1	泄压阀板(新设计)	PLATE RELIEF VALVE - (NEW DESIGN)	1
20	78690	泄压阀板衬垫(新设计)	GASKET RELIEF VALVE PLATE - (NEW DESIGN)	2
20	78690002	衬垫	GASKET	2
21	14479	隔膜(新设计)	DIAPHRAGM (NEW DESIGN)	1
21	144791	隔膜	DIAPHRAGM	1
22	16496	导水板(新设计)	DEFLECTOR Water (NEW DESIGN)	1
23	76451	隔膜螺钉垫圈(新设计)	WASHER DIAPHRAGM SCREW - (NEW DESIGN)	1
24	69570	螺钉(#10-16 x .750)隔膜至板(新设计)	SCREW (#10-16 x .750) DIAPHRAGM TO PLATE (NEW DESIGN)	1
25	64878	弹簧(黑色)提升阀压缩(新设计)	SPRING (Black) COMPRESSION POPPET VALVE - (NEW DESIGN)	1
26	14480	提升阀(新设计)	POPPET VALVE - (NEW DESIGN)	1
27	64872	提升阀衬套(新设计)	GROMMET POPPET VALVE - (NEW DESIGN)	1
28	65848	提升阀座(新设计)	CARRIER POPPET VALVE - (NEW DESIGN)	1
29	85303	提升阀弹簧垫圈(新设计)	WASHER POPPET SPRING - (NEW DESIGN)	1
30	43029A2	排气板总成(黑灰)	PLATE ASSEMBLY EXHAUST (BLACK & GRAY)	1
30	43029A5	隔板总成	PLATE ASSEMBLY	1
30	43029A4	排气板总成(牡蛎色)	PLATE ASSEMBLY EXHAUST (OYSTER)	1
30	43029A5	隔板总成	PLATE ASSEMBLY	1
31	99664	排气板弯头	ELBOW EXHAUST PLATE	1
31	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
32	20033	排气板定位销	PIN Dowel LOCATING - EXHAUST PLATE	2
32	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
33	707482	排气板密封件(黑灰)	SEAL EXHAUST PLATE (BLACK & GRAY)	1
34	68010	密封件固定支架(黑灰)	BRACKET SEAL RETAINING (BLACK & GRAY)	1
34	680101	支架	BRACKET	1
35	48408	螺钉(#10-16 x .500)支架至排气板(黑灰)	SCREW (#10-16 x .500) BRACKET TO EXHAUST PLATE (BLACK & GRAY)	8
36	25970	动力头螺柱垫圈	WASHER POWERHEAD STUD	6
36	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	6
37	69254	动力头螺柱螺母	NUT POWERHEAD STUD	6
38	27132	排气板衬套	BUSHING EXHAUST PLATE	1
39	66727	螺钉(.312-18 x 1.250)排气板固定	SCREW (.312-18 x 1.250) EXHAUST PLATE ATTACHING	1
40	68783	螺钉(.312-18 x 2.50)排气板固定	SCREW (.312-18 x 2.50) EXHAUST PLATE ATTACHING	1
41	66725	螺钉(.375-16 x 3.50)排气板固定	SCREW (.375-16 x 3.50) EXHAUST PLATE ATTACHING	3
41	898833	螺钉(.375-16 x 3.500)	SCREW (.375-16 x 3.500)	3
42	12602	排气板衬套	GROMMET EXHAUST PLATE	1
42	12602002	护孔环	GROMMET	1
43	18103	罩壳安装板(牡蛎色)	PLATE COWL MOUNTING (OYSTER)	1
43	181032	安装板	PLATE	1
44	93221	衬套(牡蛎色)	GROMMET (OYSTER)	1
44	93221002	护孔环	GROMMET	1
45	28636	螺钉(.250-20 x .750)(牡蛎色)	SCREW (.250-20 x .750) (OYSTER)	13
46	29245	垫圈(.281 x .500 x .060)不锈钢(牡蛎色)	WASHER (.281 x .500 x .060) Stainless Steel (OYSTER)	13
46	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	13
47	56374	螺母(.250-20)(牡蛎色)	NUT (.250-20) (OYSTER)	13
47	8267098	螺母 (.250-20) 不锈钢	NUT (.250-20) Stainless Steel	13
48	99776	排气板衬垫(2件装/牡蛎色)	GASKET EXHAUST PLATE (QTY. OF 2 W/OYSTER)	1
48	997761	衬垫	GASKET	1
-	90484A88	衬垫套件	GASKET SET	1
-	803062T1	提升阀套件	POPPET VALVE KIT	1

图 14飞轮/启动电机 Flywheel/Starter Motor

REF	零件编号	中文名称	英文名称	数量
1	18896A1	盖板套件	COVER KIT	1
2	79022	标记	MARKER	1
3	37572	螺钉 (.190-32 x .380)	SCREW (.190-32 x .380)	2
4	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	2
5	89219	堵头	PLUG	1
5	89219001	堵头	PLUG	1
6	45907	黄色塞	PLUG Yellow	1
7	52901	螺母(0.625-18)	NUT (.625-18)	1
8	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
8	33001	垫圈	WASHER	1
9	817632A2	飞轮	FLYWHEEL	1
9	859238T16	飞轮总成	FLYWHEEL ASY	1
9	817632A12	飞轮	FLYWHEEL	1
9	859238T16	飞轮总成	FLYWHEEL ASY	1
10	9610A19	定子	STATOR	1
11	90045	螺钉(#10-32×1.375)	SCREW (#10-32 x 1.375)	4
12	26996	锁紧垫圈(#10)(不锈钢)	LOCKWASHER (#10) Stainless Steel	4
13	96455A9	触发板总成	PLATE ASSEMBLY Trigger	1
14	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
14	893893	启动马达	STARTER MOTOR	1
15	56703	轴环	COLLAR	2
15	8M0034918	轴环	COLLAR	2
16	68042	橡胶止挡	STOP Rubber	2
16	8M0043376	停机开关	STOP	2
17	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
18	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
19	93388A7	线缆总成(黑色)	CABLE ASSEMBLY (BLACK)	1
19	93388A14	线缆总成(黄/黑)	CABLE ASSEMBLY Yellow/Black	1
20	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
21	20890	螺母 (.250-20)	NUT (.250-20)	1

图 15燃油管路 Fuel Lines

REF	零件编号	中文名称	英文名称	数量
1	82381335	管材(15.00英寸散装)(裁切至4-1/2英寸)	TUBING (15.00 Inches Bulk) (Cut to 4-1/2 Inches)	1
2	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
3	818993	三通接头	CONNECTOR Tee	1
4	830760	软管	HOSE	1
5	8189941	止回阀	CHECK VALVE	1
6	830757130	管材(.312)(70.00英寸散装)(裁切至2英寸)-至油泵	TUBING (.312) (70.00 Inches Bulk) (Cut to 2 Inches)- To Oil Pump	1
6	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
7	830762	软管	HOSE	1
8	816296Q2	燃油滤清器	FILTER Fuel	1
9	830756109	软管(57.00英寸散装)(裁切至11英寸)	HOSE (57.00 Inches Bulk) (Cut to 11 Inches)	1
9	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
10	830756109	软管(57.00英寸散装)(裁切至4-1/2英寸)	HOSE (57.00 Inches Bulk) (Cut to 4-1/2 Inches)	2
10	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	2
11	828292	衬垫	GASKET	3
12	270372	双头螺栓(.250-28×1.125)	STUD (.250-28 x 1.125)	6
13	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	6
14	8267089	螺母(.250-28)	NUT (.250-28)	6
15	55715	螺钉(.250-20×0.880)	SCREW (.250-20 x .880)	6
16	99130122	管材(20英尺整卷)(裁切为9英寸)	TUBING (20.00 Feet Bulk) (Cut to 9 Inches)	1
16	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
16	892024122	管材(240英寸整卷)(裁切为9英寸)	TUBING (240.00 Inches Bulk) (Cut to 9 Inches)	1
17	9912878	软管(.187)(26.00英寸散装)(裁切至4-1/4英寸)	HOSE (.187) (26.00 Inches Bulk) (Cut to 4-1/4 Inches)	2
18	9912878	软管(.187)(26.00英寸散装)(需26英寸)-至气缸盖	HOSE (.187) (26.00 Inches Bulk) (26 Inches RequiredI)- To Cylinder Head	1
19	819503A4	加浓阀电磁阀套件	SOLENOID KIT Enrichner Valve	1
20	633003	卡箍	CLAMP	1
21	73286	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
22	9912688	管材(36.00英寸散装)(裁切至4-1/2英寸)-至上化油器	TUBING (36.00 Inches Bulk) (Cut to 4-1/2 Inches)- To Top Carb	1
23	9912688	管材(36.00英寸散装)(裁切至3-3/4英寸)-至中化油器	TUBING (36.00 Inches Bulk) (Cut to 3-3/4 Inches)-To Middle Carb	1
24	85936157	管材(26.00英寸散装)(裁切至18英寸)	TUBING (26.00 Inches Bulk) (Cut to 18 Inches)	1
24	85682257	燃油软管-26英寸	HOSE-26 INCH FUEL	1
25	822769	连接器	CONNECTOR	1
26	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
-	815791A00	发动机衬垫套件(不含气缸盖O型圈和密封件)	GASKET SET Engine Cylinder head o-rings and seal not included	1
-	878365T00	动力头总成	POWERHEAD ASSEMBLY	1
-	812815R97	PH 135/150 2.0-RM	PH 135/150 2.0-RM	1
-	823434T00	动力头总成	POWERHEAD ASSEMBLY	1
-	823434R00	PH 150 -RM	PH 150 -RM	1
-	813043T00	动力头总成	POWERHEAD ASSEMBLY	1
-	813043R00	PH 200 -RM	PH 200 -RM	1

图 16燃油泵 Fuel Pump

REF	零件编号	中文名称	英文名称	数量
1	14360A43	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	橡胶止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve-Rubber	2
4	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
5	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
6	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
7	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
8	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
9	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
10	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
12	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
13	987691	衬垫	GASKET	1
13	8M0204705	衬垫@2	GASKET @2	1
14	144303	底座	BASE	1
15	987752	安装板	PLATE	1
16	99664	弯头	ELBOW	1
16	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
17	830756109	软管(57.00英寸散装)	HOSE (57.00 Inches Bulk)	1
17	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
18	99664	弯头	ELBOW	1
18	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
19	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2
20	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	42990A10	膜片组件	DIAPHAGM KIT	1
-	857005A1	膜片组件	DIAPHRAGM KIT	1
-	812815A92	动力头总成	POWERHEAD ASSEMBLY	1
-	878365T00	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	823434A93	动力头总成	POWERHEAD ASSEMBLY	1
-	823434T97	动力头总成	POWERHEAD ASSEMBLY	1
-	812817A92	动力头总成	POWERHEAD ASSEMBLY	1
-	812817T97	动力头总成	POWERHEAD ASSEMBLY	1
-	813043A94	动力头总成	POWERHEAD ASSEMBLY	1
-	813043T97	动力头总成	POWERHEAD ASSEMBLY	1

图 17齿轮箱（驱动轴）（标准/反向旋转） Gear Housing (Driveshaft)(Standard/Counter Rotation)

REF	零件编号	中文名称	英文名称	数量
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T85	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T81	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T82	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T86	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T83	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
1	9148T93	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
3	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
3	189783	螺柱(0.438×3.82英寸)	STUD (.438 x 3.82 Inches)	1
4	579203	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
5	562972	螺柱(0.312-18/0.324-24×3.380)	STUD (.312-18/.324-24 x 3.380)	1
6	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
7	67891	填充块	FILLER BLOCK	1
8	42647A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
9	826134Q	阳极块	ANODE	2
10	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
11	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
12	85944975	管材(72.00英寸散装)裁切至10英寸	TUBING (72.00 Inches Bulk) Cut to 10 Inches	1
12	85944975	管材(72.00英寸散装)裁切至12英寸	TUBING (72.00 Inches Bulk) Cut to 12 Inches	1
13	859432	接头	FITTING	1
14	NSS	小齿轮(不单独销售)	NOT SOLD SEPARATE Pinion Gear	1
14	44101T3	小齿轮	GEAR Pinion	1
15	92721	垫圈(.965×0.630)	WASHER (.965 x .630)	1
16	35921	螺母(0.625-18)	NUT (.625-18)	1
17	42637A1	垫片组	SHIM SET	AR
18	79953Q2	排水螺钉套件(.375-16 x .250)	SCREW KIT (.375-16 x .250) Drain	2
19	191833	密封件	SEAL	2
20	789022	换档轴	SHIFT SHAFT	1
21	25439	O型圈(.862×0.103)	O-RING (.862 x .103)	1
22	77631A2	衬套总成	BUSHING ASSEMBLY	1
23	8164641	油封	SEAL Oil	1
24	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
25	440001	驱动轴	DRIVESHAFT	1
25	442091	驱动轴	DRIVESHAFT	1
26	36387A1	轴承总成(滚子/外圈)	BEARING ASSEMBLY Roller/Cup	1
27	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
28	8245191	固定座	RETAINER	1
29	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
30	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	1
31	426311	衬垫	GASKET	1
32	90011	O型圈(2.175 x 0.175)	O-RING (2.175 x .175)	1
33	89238	油封	SEAL Oil	1
34	16977	油封	SEAL Oil	1
35	856081	下衬垫	GASKET Lower	1
36	858524	衬垫	GASKET	1
37	324351	面板	FACE PLATE	1
38	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
39	48752T	嵌件	INSERT	1
40	38970	密封件	SEAL	1
41	89984T3	叶轮	IMPELLER	1
42	56654	键	KEY	1
43	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
44	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
45	8267119	螺母(.250-28)	NUT (.250-28)	2
46	36001	垫圈	WASHER	1
47	13436	螺母	NUT	1
48	29804T	套筒	SLEEVE	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1
-	803033T1	轴承和密封套件(不含前轴承)	BEARING AND SEAL KIT (W/O Foward Bearing)	1
-	803034T1	轴承和密封套件(不含前轴承)	BEARING AND SEAL KIT (W/O Foward Bearing)	1
-	803615T2	小齿轮/前进齿轮总成	GEAR ASSEMBLY Pinion/Forward	1
-	803612T2	小齿轮/前进齿轮总成	GEAR ASSEMBLY Pinion/Forward	1
-	803616T1	小齿轮/前进齿轮总成	GEAR ASSEMBLY Pinion/Forward	1
-	803613T1	小齿轮/前进齿轮总成	GEAR ASSEMBLY Pinion/Forward	1
-	815791A00	发动机衬垫套件(不含气缸盖O型圈和密封件)	GASKET SET Engine Cylinder head o-rings and seal not included	1

图 18齿轮箱螺旋桨轴-反向旋转 Gear Housing Propeller Shaft - Counter Rotation

REF	零件编号	中文名称	英文名称	数量
-	9148T86	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T83	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
1	9148T93	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
3	789562	换挡凸轮	SHIFT CAM	1
4	828287	杆	ROD	1
5	44491A1	垫片组	SHIM SET	AR
5	8M0063266	垫片组	SHIM SET	AR
6	828830A2	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
7	814653T	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
8	815481	止推垫片	THRUST WASHER	1
9	815480	推力轴承	BEARING Thrust	1
10	828702A2	倒车齿轮总成-15/28齿	GEAR ASSEMBLY Reverse - 15/28	1
10	828704A2	倒车齿轮总成-14/28齿	GEAR ASSEMBLY Reverse - 14/28	1
11	15844	滚柱轴承总成	BEARING ASSEMBLY Roller	1
12	30893	弹簧	SPRING	1
13	859340T	离合器	CLUTCH	1
14	30632	十字销	PIN Cross	1
14	8M0100263	十字销	PIN Cross	1
15	828356	定位销	PIN Detent	1
16	828951	螺旋桨轴	PROPELLER SHAFT	1
17	828701A1	前进齿轮总成-15/28齿	GEAR ASSEMBLY Forward - 15/28	1
17	828703A1	前进齿轮总成-14/28齿	GEAR ASSEMBLY Forward - 14/28	1
18	1761552	垫片(0.202)	SPACER SHIM (.202)	AR
18	1761553	垫片(0.204)	SPACER SHIM (.204)	AR
18	1761514	垫片(0.206)	SPACER SHIM (.206)	AR
18	1761515	垫片(0.208)	SPACER SHIM (.208)	AR
18	1761516	垫片(0.210)	SPACER SHIM (.210)	AR
18	1761517	垫片(0.212)	SPACER SHIM (.212)	AR
18	1761518	垫片(0.214)	SPACER SHIM (.214)	AR
18	1761519	垫片(0.216)	SPACER SHIM (.216)	AR
18	1761520	垫片(0.218)	SPACER SHIM (.218)	AR
18	1761521	垫片(0.220)	SPACER SHIM (.220)	AR
18	1761522	垫片(0.222)	SPACER SHIM (.222)	AR
18	1761523	垫片(0.224)	SPACER SHIM (.224)	AR
18	1761524	垫片(0.226)	SPACER SHIM (.226)	AR
18	1761525	垫片(0.228)	SPACER SHIM (.228)	AR
18	1761526	垫片(0.230)	SPACER SHIM (.230)	AR
19	815480	推力轴承	BEARING Thrust	1
20	815481	止推垫片	THRUST WASHER	1
21	828831A3	轴承适配器总成	ADAPTER ASSEMBLY Bearing	1
22	814653T	滚针轴承总成	BEARING ASSEMBLY Needle Rollers	1
23	18448	止推垫片	THRUST WASHER	2
24	15842	推力轴承	BEARING Thrust	2
25	8182911	推力座圈	RACE Thrust	2
26	814605	定位器	KEEPER	2
27	31534	O型圈	O-RING	1
27	8M0214920	O型圈	O RING	1
28	818290A4	轴承座总成	CARRIER ASSEMBLY Bearing	1
29	30956T	滚针轴承	BEARING Needle	1
30	14077	油封	SEAL Oil	1
31	76868	密封件	SEAL	1
31	8M0248882	油封@5	SEAL-OIL @5	1
32	183231	锁紧垫圈	TAB WASHER	1
33	30281	键	KEY	1
34	79448	固定座	RETAINER	1
34	8M2011027	固定座	RETAINER	1
35	31640T5	平衡鳍板	TRIM TAB	1
35	8M0236553	平衡鳍板	TRIM TAB	1
35	762145	阳极块	ANODE	1
35	76214Q5	阳极套件	ANODE KIT	1
36	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
36	8M0204686	螺钉	SCREW	1
37	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
38	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
39	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
39	8M0204653	螺母	NUT	2
40	NSS	不单独销售-反向旋转标识	NOT SOLD SEPARATE Decal-Counter Rotation	1
-	89238A2	密封套件	SEAL KIT	1
-	803034T1	轴承和密封套件(不含前轴承)	BEARING AND SEAL KIT (W/O Foward Bearing)	1
-	803491T1	离合器/凸轮从动件总成	FOLLOWER ASSEMBLY Clutch/Cam	1
-	815791A00	发动机衬垫套件(不含气缸盖O型圈和密封件)	GASKET SET Engine Cylinder head o-rings and seal not included	1
-	803616T1	小齿轮/前进齿轮总成	GEAR ASSEMBLY Pinion/Forward	1
-	803613T1	小齿轮/前进齿轮总成	GEAR ASSEMBLY Pinion/Forward	1

图 19齿轮箱螺旋桨轴-标准旋转 Gear Housing Propeller Shaft - Standard Rotation

REF	零件编号	中文名称	英文名称	数量
-	9148T84	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T85	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T81	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
-	9148T82	齿轮箱总成(完整)(鱼雷体直径4.75英寸/120.65毫米)	GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter)	1
1	9148T93	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	89594A1	从动件总成	FOLLOWER ASSEMBLY	1
3	789562	换挡凸轮	SHIFT CAM	1
4	828287	杆	ROD	1
5	878613A2	前进齿轮总成 1.87:1 - 15/28齿	GEAR ASSEMBLY Forward 1.87:1 - 15/28	1
5	803615T2	小齿轮/前进齿轮总成	GEAR ASSEMBLY Pinion/Forward	1
5	803615T2	小齿轮/前进齿轮总成	GEAR ASSEMBLY Pinion/Forward	1
5	878615A2	前进齿轮总成 2:1 - 14/28齿	GEAR ASSEMBLY Forward 2:1 - 14/28	1
5	803612T2	小齿轮/前进齿轮总成	GEAR ASSEMBLY Pinion/Forward	1
5	803612T2	小齿轮/前进齿轮总成	GEAR ASSEMBLY Pinion/Forward	1
6	44491A1	垫片组	SHIM SET	AR
6	8M0063266	垫片组	SHIM SET	AR
7	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
8	NSS	杯状件(不单独销售)	NOT SOLD SEPARATE Cup	1
9	30895T	滚针轴承	BEARING Needle	1
10	856823	挡圈	RING Retaining	1
11	859340T	离合器	CLUTCH	1
12	30632	十字销	PIN Cross	1
12	8M0100263	十字销	PIN Cross	1
13	828356	定位销	PIN Detent	1
14	30893	弹簧	SPRING	1
15	94148	螺旋桨轴	PROPELLER SHAFT	1
16	828175A1	倒车齿轮总成-15/28齿	GEAR ASSEMBLY Reverse - 15/28	1
16	828177A1	倒车齿轮总成-14/28齿	GEAR ASSEMBLY Reverse - 14/28	1
17	824108	隔套	SPACER	1
18	681001	止推环	RING Thrust	1
19	88957T	滚珠轴承	BEARING Ball	1
20	31534	O型圈	O-RING	1
20	8M0214920	O型圈	O RING	1
21	43567T1	轴承座总成	CARRIER ASSEMBLY Bearing	1
22	30956T	滚针轴承	BEARING Needle	1
23	14077	油封(内侧)	SEAL Oil (INSIDE)	1
24	76868	油封(外侧)	SEAL (OUTSIDE)	1
24	8M0248882	油封@5	SEAL-OIL @5	1
25	30281	键	KEY	1
26	79447	锁紧垫圈	TAB WASHER	1
27	79448	固定座	RETAINER	1
27	8M2011027	固定座	RETAINER	1
28	31640T5	平衡鳍板	TRIM TAB	1
28	8M0236553	平衡鳍板	TRIM TAB	1
29	76214Q5	阳极套件	ANODE KIT	1
30	806327	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	1
30	8M0204686	螺钉	SCREW	1
31	65210	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
32	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	2
33	34933	螺母(.437-20)不锈钢	NUT (.437-20) Stainless Steel	2
33	8M0204653	螺母	NUT	2
-	89238A2	密封套件	SEAL KIT	1
-	803491T1	离合器/凸轮从动件总成	FOLLOWER ASSEMBLY Clutch/Cam	1
-	803033T1	轴承和密封套件(不含前轴承)	BEARING AND SEAL KIT (W/O Foward Bearing)	1
-	815791A00	发动机衬垫套件(不含气缸盖O型圈和密封件)	GASKET SET Engine Cylinder head o-rings and seal not included	1

图 20仪表装置 Instrumentation

REF	零件编号	中文名称	英文名称	数量
1	19674A1	拉绳开关总成	SWITCH ASSEMBLY Lanyard	1
2	18303	螺钉 (.190-16 x 1.750) 不锈钢	SCREW (.190-16 x 1.750) Stainless Steel	2
3	813679	适配器	ADAPTER	1
4	15920A54	拉绳总成	LANYARD ASSEMBLY	1
4	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
5	32866	螺钉 (#10-32 x 2.00) 不锈钢	SCREW (#10-32 x 2.00) Stainless Steel	2
6	18321	安装夹	CLAMP Mounting	1
7	24676	垫圈 (.200 x .440 x .032)	WASHER (.200 x .440 x .032)	2
8	68219	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	4
9	79146	固定座	RETAINER	3
10	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
10	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
11	812497A2	二极管总成	DIODE ASSEMBLY	1
11	898289A72	双拉绳二极管套件	DIODE KIT-LANYARD Dual	1
12	11149A2	线缆总成 (6.00英寸)	CABLE ASSEMBLY (6.00 Inches)	1

图 21喷射组件 Jet Components

REF	零件编号	中文名称	英文名称	数量
1	88447	螺钉 (.190-32 x 1.62)	SCREW (.190-32 x 1.62)	3
2	38833	垫圈	WASHER	3
3	94304	隔套	SPACER	3
4	13381	安装板	PLATE	1
5	821889A20	转速限制器	REV LIMITER	1
5	821889A30	转速限制器	REV LIMITER	1
6	823147A5	适配器线束总成 - 转速限制器	HARNESS ASSEMBLY Adaptor - Rev Limiter	1
7	801402	润滑脂套装	GREASE KIT	1
7	30500A2	润滑脂套装	GREASE KIT	1
8	42579A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
8	8M0077147	带水泵底座总成	BASE ASSY-W/P	1
9	426311	衬垫	GASKET	1
9	8M0204678	衬垫	GASKET	1
10	89238	油封	SEAL Oil	1
11	16977	油封	SEAL Oil	1
12	856081	衬垫	GASKET	1
12	8M0090319	衬垫@5	GASKET @5	1
13	856091	衬垫	GASKET	1
13	858524	衬垫	GASKET	1
14	32435	面板	FACE PLATE	1
14	8M0204677	面板	PLATE-FACE	1
15	96148A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
15	96148T1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
16	48752	嵌件	INSERT	1
16	48752T	嵌件	INSERT	1
17	38970	密封件	SEAL	1
18	899841	叶轮	IMPELLER	1
18	89984T3	叶轮	IMPELLER	1
19	56654	键	KEY	1
19	8M0214992	键@5	KEY @5	1
20	96411	螺钉(#14-8×2.25)	SCREW (#14-8 x 2.25)	1
20	8M0215009	螺钉	SCREW	1
21	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
21	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
22	13438	螺母(.250-28)	NUT (.250-28)	2
22	8267119	螺母(.250-28)	NUT (.250-28)	2
23	19924275	螺钉 (.312-18 x 2.75)	SCREW (.312-18 x 2.75)	1
24	36001	垫圈	WASHER	1
25	29804	套筒	SLEEVE	1
25	29804T	套筒	SLEEVE	1
-	815791A92	发动机垫片组	GASKET SET Engine	1
-	96148A5	水泵维修套件	REPAIR KIT Water Pump	1
-	96148A8	水泵维修套件	WATER PUMP REPAIR KIT	1
-	89238A2	密封套件	SEAL KIT	1

图 22喷泵总成 Jet Pump Assembly

REF	零件编号	中文名称	英文名称	数量
-	801400150	喷泵(黑色)	JET PUMP (BLACK)	1
-	801401150	喷泵(灰色)	JET PUMP (GRAY)	1
-	855766150	喷泵	JET PUMP	1
1	801411150	泵壳	HOUSING Pump	1
1A	827490	润滑油管	HOSE Lube	1
2	801414150	叶轮	IMPELLER	1
2	803984T	叶轮	IMPELLER	1
3	80141290	进气壳体	HOUSING Intake	1
3A	8271883	衬套	LINER	1
4	801413150	驱动轴	SHAFT Drive	1
4A	8271891	套筒	SLEEVE	1
4B	8271901	螺母	NUT	1
5	801405875	键	KEY	1
6	801404875	叶轮垫片	SHIM Impeller	8
7	801403875	锁紧垫圈	TAB WASHER	1
8	847568	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	6
8	812618	不锈钢螺钉(.312-18 x 1.00)带尼龙垫	SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch	6
9	19923088	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	4
10	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	2
11	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
12	801410	电缆支架	BRACKET Cable Support	1
13	67980	螺母(.312-18)	NUT (.312-18)	1
13	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	1
14	801407	定位销	PIN Dowel	2
15	78638	双头螺柱(.438 x 3.12)	STUD (.438 x 3.12)	1
15	786382	螺柱(.437-14/.437-20 x 3.120)	STUD (.437-14/.437-20 x 3.120)	1
16	579201	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
16	8M0133358	双头螺栓(.437-14/.437-20×2.060)	STUD (.437-14/.437-20 x 2.060)	2
17	69064	螺栓(.312-18 x 2.750)	BOLT (.312-18 x 2.750)	1
18	30667	双头螺栓(.250-20/.250-28×3.125)	STUD (.250-20/.250-28 x 3.125)	2
18	306671	螺柱	STUD	2
19	68299	不锈钢螺钉(.375-16 x 3.00)	SCREW (.375-16 x 3.00) Stainless Steel	1
20	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
20	8M0214963	垫圈	WASHER	1

图 23机油喷射组件 Oil Injection Components

REF	零件编号	中文名称	英文名称	数量
1	12430A1	传感器总成	SENSOR ASSEMBLY	1
2	48409	螺钉(#10-16 x .625)不锈钢传感器固定	SCREW (#10-16 x .625) Stainless Steel SENSOR ATTACHING	1
3	41470A11	报警模块总成	WARNING MODULE ASSEMBLY	1
3	41470A27	机油报警模块	MODULE-OILWARNING	1
4	38833	警告模块螺钉垫圈	WASHER WARNING MODULE SCREW	3
5	69020	螺钉(#10-32 x .875)警告模块至气缸体	SCREW (#10-32 x .875) WARNING MODULE TO CYLINDER BLOCK	3
5	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
6	41032	油泵总成	PUMP ASSEMBLY Oil	1
6	815698T	油泵	PUMP Oil	1
7	32228	油泵至曲轴箱螺钉 (#10-32 x .625)	SCREW (#10-32 x .625) OIL PUMP TO CRANKCASE	1
7	41507	油泵至曲轴箱螺钉 (#10-32 x 1.120)	SCREW (#10-32 x 1.120) OIL PUMP TO CRANKCASE	1
8	962556	节气门连杆至油泵	LINK THROTTLE LEVER TO OIL PUMP	1
8	193856	连接杆	LINK	1
9	41429A1	驱动齿轮轴承总成	BEARING ASSEMBLY DRIVE GEAR	1
9	41429A2	轴承总成	BEARING ASSEMBLY	1
10	12726	从动齿轮	GEAR Driven	1
10	14563	从动齿轮	GEAR Driven	1
11	4301619	油泵至三通油管	TUBING OIL PUMP TO TEE	1
11	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	1
12	11379	油泵O型圈	O-RING OIL PUMP	1
13	42813	警告模块导线螺钉 (#10-32 X .380)	SCREW (#10-32 X .380) WARNING MODULE LEAD	1
14	87421	油箱	TANK	1
15	43298A2	油箱盖总成	CAP ASSEMBLY OIL TANK	1
16	11332	O型圈(2.225 x .210)盖	O-RING (2.225 x .210) CAP	1
17	43295A5	壳体总成适配器	HOUSING ASSEMBLY Adaptor	1
17	816190A4	机油收集器总成(无传感器)	OIL PICK UP ASSEMBLY Without Sender	1
18	11332	O型圈(2.225 x .210)适配器壳体	O-RING (2.225 x .210) ADAPTOR HOUSING	1
19	99802	吸油管	TUBE OIL PICK-UP	1
20	NSS	不单独销售快速断开套件（需单独订购零件）	NOT SOLD SEPARATE Quick Disconnect Kit (Order parts separately)	1
21	99439	油管(114.00英寸)	HOSE (114.00 Inches) OIL	1
22	12540A3	壳体	HOUSING	1
23	12242A1	闩锁	LATCH	1
24	99443	油箱	RESERVOIR Oil	1
24	994436	储液罐	RESERVOIR	1
25	69020	油箱固定螺钉 (#10-32 x .875)	SCREW (#10-32 x .875) OIL RESERVOIR ATTACHING	3
25	690201	螺钉(#10-32 x .875)	SCREW (#10-32 x .875)	3
26	42118	油箱螺钉垫圈	WASHER OIL RESERVOIR SCREW	6
27	42117	油箱螺钉衬套	GROMMET OIL RESERVOIR SCREW	3
28	42116	油箱螺钉轴套	BUSHING OIL RESERVOIR SCREW	3
29	4301736	油箱至油泵油管 (5-1/4")	TUBING OIL RESERVOIR TO OIL PUMP (5-1/4")	1
29	82381455	油管（25.00英寸散装）	TUBING (25.00 Inches Bulk)	1
30	43300A1	油箱盖总成	CAP ASSEMBLY OIL RESERVOIR	1
30	43300A9	盖总成	CAP ASSEMBLY	1
31	43307	油箱盖衬垫	GASKET RESERVOIR CAP	1
31	43307T	衬垫	GASKET	1
32	99022A1	浮子总成	FLOAT ASSEMBLY	1
32	8M0187298	浮子总成	FLOAT ASSY	1
33	99265	压入式螺母	PUSH NUT	1
34	415821	油管卡箍(小)	CLAMP OIL HOSE (SMALL)	2
35	415823	油管卡箍(大)	CLAMP OIL HOSE (LARGE)	2
36	99127109	油管(57.00英寸散装)	LINE (57.00 Inches Bulk) OIL	1
36	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
37	42425	油管三通	TEE OIL TUBING	1
38	9072925	油管(6-3/4")	HOSE OIL (6-3/4")	1
30	34395A1	软管	HOSE	1
30	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
40	43278	止回阀接头（曲轴箱）	FITTING CHECK VALVE (CRANKCASE)	1
40	8781051	止回阀	CHECK VALVE	1

图 24动力升降组件(铸造泵壳)金属电机壳 Power Trim Components (Cast Pump Housing) Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	855998A3	动力升降倾斜装置总成	POWER TRIM Complete	1
1	878265A4	配平电机	TRIM MOTOR	1
1	8M0031551	配平电机	TRIM MOTOR	1
2	NSS	电枢(不单独销售)	NOT SOLD SEPARATE Armature	1
3	NSS	端架(不单独销售)	NOT SOLD SEPARATE End Frame	1
4	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
5	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
6	8782451	驱动轴	DRIVESHAFT	1
7	878410A1	压力检查套件	PO CHECK KIT	1
8	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
8	893929A01	安全阀套件	VALVE KIT Relief	1
9	878241A02	轴套件	SHAFT KIT	1
9	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
10	878267	销	PIN	1
11	878235A1	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
11	878235A03	倾斜油缸套件	CYLINDER KIT Tilt	1
12	878239A1	导向套件	GUIDE KIT	1
12	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
13	878409A1	O型圈套件	O-RING KIT	1
13	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
14	878412A1	减震杆套件	SHOCK ROD KIT	1
14	8M0168219	减震杆套件	SHOCK ROD KIT	1
15	878242A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
15	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
16	878406A1	止回阀修理包	REPAIR KIT Check Valve	1
16	878406A02	止回阀修理包	REPAIR KIT Check Valve	1
17	878414A1	活塞总成	PISTON ASSEMBLY	1
17	878414T01	活塞总成	PISTON ASSEMBLY	1
18	878413A1	活塞总成	PISTON ASSEMBLY	1
19	878243A1	导向器总成	GUIDE ASSEMBLY	2
19	8M0021648	端盖总成	END CAP ASSEMBLY	2
20	878264A1	储液罐套件	RESERVOIR KIT	1
21	811613	塞子总成	PLUG ASSEMBLY	1
22	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
23	43450	垫圈	WASHER	4
23	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
24	892251A01	泵套件	PUMP KIT	1
25	878408A1	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
26	821539	三叶销	PIN Trilobe	1
27	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
28	4002319	垫圈	WASHER	6
29	818298Q1	阳极套件	ANODE KIT	1
30	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
30	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
31	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
31	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
32	996251	轴	SHAFT	1
32	99625002	轴	SHAFT	1
32	99625002	轴	SHAFT	11
33	69205	C形垫圈	C WASHER	1
33	8M0084613	C形垫圈	C-WASHER	1
34	26550	卡箍	CLAMP	2
35	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
36	828547353	导管(内径0.350x3英尺散装)(裁切至12英寸)	CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk) (Cut to 12 Inches)	1
37	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

图 25动力升降组件（可拆卸泵壳）金属电机壳 Power Trim Components (Removeable Pump Housing) Metal Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	826729T2	完整动力升降总成	POWER TRIM ASSEMBLY Complete	1
1	811604F	歧管总成	MANIFOLD ASSEMBLY	1
2	878089	管塞 (.0625-27)	PLUG Pipe (.0625-27)	9
3	880952A1	倾斜油缸总成	CYLINDER ASSEMBLY Tilt	1
3	880952A03	ORD 8M0078330	ORD 8M0078330	1
4	823553T	升降活塞杆	ROD Trim Piston	1
4	880952A02	液压油缸套件	CYLINDER KIT-HYD	1
5	878239A1	导向套件	GUIDE KIT	1
5	878239A02	倾斜缸端盖套件	END CAP KIT Tilt Cylinder	1
6	811607A1	维修套件	REPAIR KIT	1
7	811610A1	止回阀套件	CHECK VALVE KIT	1
7	823553T	升降活塞杆	ROD Trim Piston	1
8	878243A1	导向器总成	GUIDE ASSEMBLY	2
8	8M0021648	端盖总成	END CAP ASSEMBLY	2
9	878413A1	活塞总成	PISTON ASSEMBLY	1
9	878414A1	活塞总成	PISTON ASSEMBLY	1
9	878414T01	活塞总成	PISTON ASSEMBLY	1
10	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
11	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
11	893929A01	安全阀套件	VALVE KIT Relief	1
12	812844	E型卡环	E RING	1
12	815949001	E形环	E-RING	1
13	811612A3	O型圈套件	O-RING KIT	1
14	811617T1	泵	PUMP	1
15	811613	塞子总成	PLUG ASSEMBLY	1
16	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
17	43450	垫圈	WASHER	4
17	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
18	811611	盖板	COVER	1
19	828710	驱动接头	DRIVE JOINT	1
20	828708T	配平电机	TRIM MOTOR	1
20	878265A4	配平电机	TRIM MOTOR	1
21	828709	螺钉	SCREW	2
21	881768A1	螺钉/垫圈套件	SCREW/WASHER KIT	2
21	811616	螺钉	SCREW	2
22	811614T	轴总成	SHAFT ASSEMBLY	1
22	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
23	878089	管塞 (.0625-27)	PLUG Pipe (.0625-27)	2
24	44431	槽销	PIN Groove	1
24	878267	销	PIN	1
25	821539	三叶销	PIN Trilobe	1
26	996251	轴	SHAFT	1
26	99625002	轴	SHAFT	1
27	818298Q1	阳极套件	ANODE KIT	1
28	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
28	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
29	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
29	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
30	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
31	4002319	垫圈	WASHER	6
32	26550	卡箍	CLAMP	2
33	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	2
34	69205	C形垫圈	C WASHER	2
34	8M0084613	C形垫圈	C-WASHER	2
35	996301	冲击板	STRIKER PLATE	2
35	8M0045383	冲击板	STRIKER PLATE	2
36	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
37	46335	螺母 (.375-24)	NUT (.375-24)	2
38	435301	警示贴纸-动力微调	DECAL Caution-Power Trim	1
39	828547353	导管 (.350内径 x 3.00英尺散装)	CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk)	1
40	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1

图 26动力升降组件 8M0231193 Power Trim Components 8M0231193

REF	零件编号	中文名称	英文名称	数量
-	8M0231193	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0225363	电机套件	MOTOR KIT	1
2	8M0225369	阀套件	VALVE KIT	1
3	8M0225371	手动释放套件	MANUAL RELEASE KIT	1
4	8M0245633	倾斜油缸套件	TILT CYLINDER KIT	1
5	8M0225370	枢轴销套件	PIVOT PIN KIT	1
6	8M0244575	减震杆套件	SHOCK ROD KIT	1
7	8M0244425	销杆眼套件	PIN ROD EYE KIT	1
8	8M0232231	螺钉螺母套件	SCREW NUT KIT	1
9	8M0225373	记忆活塞套件	MEMORY PISTON KIT	1
10	8M0225368	储液罐套件	RESERVOIR KIT	1
11	8M0174135	储液罐塞总成	PLUG RESERVOIR ASSEMBLY	1
12	8M0237525	泵套件	PUMP KIT	1
13	8M0225367	升降杆套件	TRIM ROD KIT	1
14	8M0242846	升降杆套件	TRIM ROD KIT	1
15	8M0225372	重建套件	REBUILD KIT	1

图 27动力升降组件（塑料马达壳体） Power Trim Components Plastic Motor Housing

REF	零件编号	中文名称	英文名称	数量
-	8M0168222	动力升降总成	POWER TRIM ASSEMBLY	1
1	8M0142591	电机套件	MOTOR KIT	1
2	82494830	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
3	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
4	8M0090403	驱动联轴器	COUPLING Drive	1
5	8M0142996	压力检查套件	PO CHECK KIT	1
6	8M0060141	手动释放套件	MANUAL RELEASE KIT	1
7	8M0142997	倾斜轴套件	TILT SHAFT KIT	1
8	878267	销	PIN	1
9	8M0142998	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
9	8M0168220	倾斜油缸总成	TILT CYLINDER ASSEMBLY	1
10	8M0142999	倾斜油缸O型圈套件	O RING KIT TILT CYLINDER	1
11	8M0143000	记忆活塞套件	MEMORY PISTON KIT	1
12	8M0142592	升降杆套件左舷	TRIM ROD KIT Port	1
13	8M0143001	活塞总成	PISTON ASSEMBLY	1
14	8M0143003	端盖总成	END CAP ASSEMBLY	1
15	878264A1	储液罐套件	RESERVOIR KIT	1
16	811613	塞子总成	PLUG ASSEMBLY	1
17	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	4
18	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	4
19	8M0143004	泵套件	PUMP KIT	1
20	8M0148385	动力升降倾斜装置维修包	REPAIR KIT Power Trim	1
21	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
22	4002319	垫圈	WASHER	6
23	8M0094889	销	PIN	1
23	8M0161312	连杆销眼总成	PIN ROD EYE ASSEMBLY	1
24	8M0143005	减震杆套件	SHOCK ROD KIT	1
24	8M0168219	减震杆套件	SHOCK ROD KIT	1

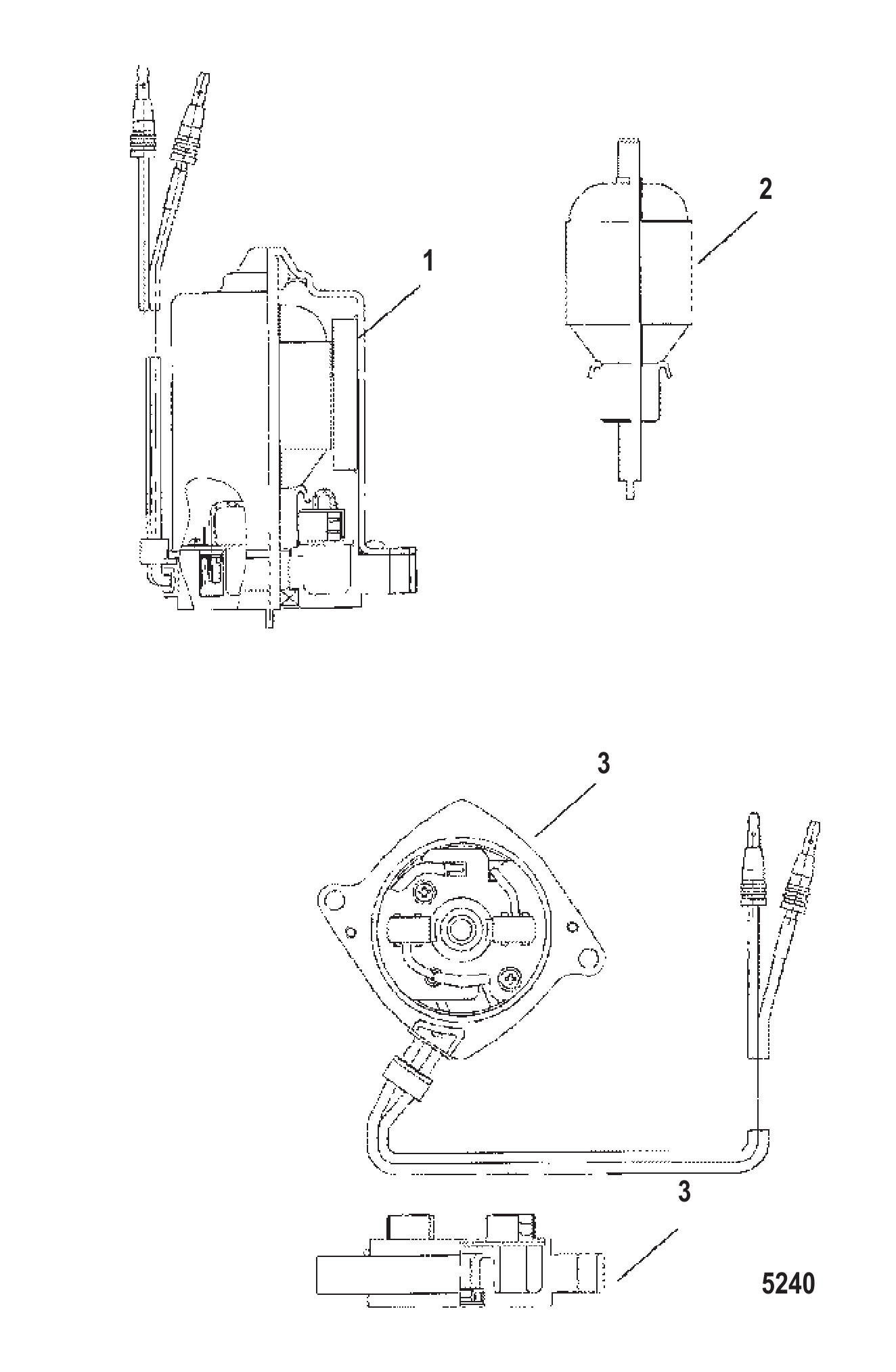

图 28动力升降电机（可拆卸泵壳） Power Trim Motor (Removeable Pump Housing)

REF	零件编号	中文名称	英文名称	数量
-	828708T	配平电机	TRIM MOTOR	1
1	828714A1	电刷与密封套件	BRUSH AND SEAL KIT	1
2	828713T1	电枢套件	ARMATURE KIT	1
3	828715A1	端架（总成）	END FRAME (COMPLETE)	1

图 29簧片阀组与气缸盖 Reed Block and Cylinder Head

REF	零件编号	中文名称	英文名称	数量
1	96423	气缸盖（两件式设计）	CYLINDER HEAD (2 PIECE DESIGN)	2
2	96278	气缸盖衬垫（两件式设计）	GASKET CYLINDER COVER - (2 PIECE DESIGN)	2
3	96283T	气缸盖（两件式设计）	COVER CYLINDER - (2 PIECE DESIGN)	2
3	96283	盖板	COVER	2
4	74824	气缸盖螺钉 (.312-18 x 1.250)（两件式设计）	SCREW (.312-18 x 1.250) CYLINDER COVER - (2 PIECE DESIGN)	40
5	184191	气缸盖（一件式设计）	CYLINDER HEAD (1 PIECE DESIGN)	2
5	18419F1	气缸盖	CYLINDER HEAD	2
6	96542	气缸盖衬垫	GASKET CYLINDER HEAD	2
6	96281T01	衬垫	GASKET	2
7	98534	气缸盖螺钉 (.375-16 x 2.30)	SCREW (.375-16 x 2.30) CYLINDER HEAD	24
8	25909	气缸盖螺钉垫圈 (.406 x .812 x .065)	WASHER (.406 x .812 x .065) CYLINDER HEAD SCREW	24
9	62386	衬垫	GASKET	2
9	8M0204714	衬垫@4	GASKET @4	2
10	90390A1	节温器盖套件	COVER KIT THERMOSTAT	2
11	77065	节温器盖螺钉 (.312-18 x 2)	SCREW (.312-18 x 2) THERMOSTAT COVER	2
11	815549	螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00)	2
11	35386	节温器盖螺钉 (.312-18 x 1.00)	SCREW (.312-18 x 1.00) THERMOSTAT COVER	2
12	68727	90度黄铜弯头接头 (.250-18)（水管用）	FITTING (.250-18) 90 Degree - Brass ELBOW - WATER HOSES	1
12	687271	90度弯头 (.250-18) - 黄铜	FITTING (.250-18) 90 Degree - Brass	1
13	7765377	配水软管（散装24.500英寸）	HOSE (24.500 Inches Bulk) WATER DISTRIBUTION	2
13	77653101	软管（散装48.00英寸）	HOSE (48.00 Inches Bulk)	2
14	68728	节温器盖至水管接头	FITTING THE THERMOSTAT COVER TO WATER HOSES	1
15	73498	水管卡箍	CLAMP WATER HOSES	4
15	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
16	97465	温度传感器（右舷）	SENDER Temperature (STARBOARD)	1
17	96282	温度传感器盖	COVER TEMPERATURE SENDER	1
20	99747A2	簧片阀壳体	HOUSING REED BLOCK	1
20	99747A9	簧片阀壳体	HOUSING REED BLOCK	1
21	24878	簧片阀壳体螺钉 (.250-20 x 1.25)	SCREW (.250-20 x 1.25) REED BLOCK HOUSING	1
21	69093	簧片阀壳体螺钉 (.250-20 x 1.50)	SCREW (.250-20 x 1.50) REED BLOCK HOUSING	8
21	69067	簧片阀壳体螺钉 (.250-20 x 1.375)	SCREW (.250-20 x 1.375) REED BLOCK HOUSING	1
22	93536	簧片阀壳体衬垫	GASKET REED BLOCK HOUSING	1
22	935361	衬垫	GASKET	1
23	65744	簧片阀衬垫	GASKET REED BLOCK	6
23	657443	衬垫	GASKET	6
24	75953	簧片阀组	REED BLOCK	6
25	75362A1	簧片组件	REED ASSEMBLY	6
26	96183	簧片夹	CLAMP Reed	12
26	961832	簧片夹	CLAMP Reed	12
27	57583	簧片至簧片阀螺钉 (#8-32 x .375)	SCREW (#8-32 x .375) REEDS TO REED BLOCK	60
27	57583T	螺丝#8-32×3/8	SCREW #8-32x3/8	60
28	65746	簧片阀固定螺钉 (.250-20 x .750)	SCREW (.250-20 x .750) REED BLOCK ATTACHING	12
29	27037	化油器安装螺柱 (.250-28 x 1.125)	STUD (.250-28 x 1.125) CARBURETOR MOUNTING	12
29	270372	双头螺栓(.250-28×1.125)	STUD (.250-28 x 1.125)	12
30	42658	簧片阀壳体泄油软管止回阀	CHECK VALVE BLEED HOSE TO REED BLOCK HOUSING	5
30	426585	止回阀	CHECK VALVE	5
31	15133	气缸体泄油软管接头（90度）	FITTING BLEED HOSE TO CYLINDER BLOCK (90 DEGREES)	5
32	99130122	泄油管路（散装20.00英尺）	TUBING (20.00 Feet Bulk) BLEED LINE	1
32	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
33	42657A1	止回阀	CHECK VALVE	1
33	42657A3	止回阀	CHECK VALVE	1
34	65857	泄油软管连接器（压入式）	CONNECTOR BLEED HOSE (PRESS-IN)	1
34	56759	倒钩接头	FITTING Barbed	1
35	64871A2	止回阀	CHECK VALVE	1
36	13536A7	温度传感器总成	SENSOR ASSEMBLY Temperature	1
37	13715	固定座	RETAINER	2
37	137151	固定座	RETAINER	2
38	98257	螺钉 (.312-18 x .500)	SCREW (.312-18 x .500)	2
39	187531	温度传感器（OYSTER）	SENDER Temperature (OYSTER)	1
40	88824A8	温度传感器线束总成（OYSTER）	CABLE ASSEMBLY TEMPERATURE SENDER - (OYSTER)	1
41	75692	节温器	THERMOSTAT	2
-	90484A88	衬垫套件	GASKET SET

图 30维修/支撑材料 Service/Support Material

REF	零件编号	中文名称	英文名称	数量
-	13752	零件手册 135/150马力（V6）	PARTS MANUAL 135/150 H.P (V-6)	-
-	976583	维修手册	SERVICE MANUAL	-
-	90484A88	衬垫套件	GASKET SET	-
-	13485A86	贴花套件（黑色）（135）	DECAL SET (BLACK) (135)	-
-	13486A88	贴花套件（黑色）（135 XD）	DECAL SET (BLACK) (135 XD)	-
-	13486A86	贴花套件（黑色）（150）	DECAL SET (BLACK) (150)	-
-	43248A85	贴花套件（黑色）（XR-2）	DECAL SET (BLACK) (XR-2)	-
-	11625A86	贴花套件（灰色）（135马拉松）	DECAL SET (GRAY) (135 MARATHON)	-
-	87548A85	贴花套件（灰色）（150）	DECAL SET (GRAY) (150)	-
-	78754A87	贴花套件（黑色）（2升马拉松）	DECAL SET (BLACK) (2 LITRE MARATHON)	-
-	13361A86	贴花套件（灰色）（2升马拉松）	DECAL SET (GRAY) (2 LITRE MARATHON)	-
-	12223A85	贴花套件（灰色）（麦格纳）	DECAL SET (GRAY) (MAGNUM)	-
-	18204A88	贴花套件（OYSTER）（斗式）	DECAL SET (OYSTER) (BUCKET STYLE)	-
-	19670A88	贴花套件（OYSTER）（蛤壳式）	DECAL SET (OYSTER) (CLAM SHELL STYLE)	-
-	11143880	用户指南(黑色)	OWNERS GUIDE (BLACK)	-
-	11142880	用户指南(灰色)	OWNERS GUIDE (GRAY)	-
-	18110881	用户指南（OYSTER）	OWNERS GUIDE (OYSTER)	-

图 31电磁阀安装座 Solenoid Mounting

REF	零件编号	中文名称	英文名称	数量
1	8571641	安装板	PLATE	1
2	828991	卡扣	CLIP	1
2	828991T	卡扣	CLIP	1
3	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	3
4	49436	垫圈	WASHER	3
5	833155	护孔环	GROMMET	3
6	8502341	衬套	BUSHING	3
7	828791	卡扣	CLIP	4
8	8261151	连接器卡箍	CLAMP Connector	1
9	82239312	螺钉(M5 x 12)	SCREW (M5 x 12)	2
10	883072T2	电压调节器	REGULATOR Voltage	2
11	858413	支架	BRACKET	2
11	893771	连接器支架	BRACKET Connector	2
12	8308971	泡沫垫	FOAM PAD	2
13	82129135	螺钉(M6x35)	SCREW (M6 x 35)	4
14	13541	公插头(灰色导线)	PLUG Male (GRAY LEAD)	1
15	882751A1	继电器总成	RELAY ASSEMBLY	2
15	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
16	828102	支架	BRACKET	2
16	8M0207771	安装支架	BRACKET Mounting	2
17	818967	护孔环	GROMMET	2
17	8M0207785	护孔环	GROMMET	2
18	818968	衬套	BUSHING	2
18	8M0214955	衬套	BUSHING	2
19	NSS	微调继电器标识贴(不单独销售)	NOT SOLD SEPARATE Decal-Trim Relay	2
20	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	4
21	819514A11	升降线束总成	HARNESS ASSEMBLY Trim	1
22	817109A2	电磁阀总成(#10-32/.3125-18端子)	SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)	1
23	822179	护孔环	GROMMET	2
24	818968	衬套	BUSHING	2
24	8M0214955	衬套	BUSHING	2
25	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
25	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
26	856583A3	拉线总成	CABLE ASSEMBLY	1
27	82129114	螺钉 (M6 x 14)	SCREW (M6 x 14)	1
28	88439A34	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
29	68292	螺母(.312-18)	NUT (.312-18)	2
29	8M0204668	螺母(.312-18)	NUT (.312-18)	2
30	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
30	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
31	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
32	88807A16	黑色电缆总成(4.00英寸)	CABLE ASSEMBLY (4.00 Inches) Black	1
33	813938	盖形螺母(#10-32)	CAP NUT (#10-32)	2
34	93388A14	线缆总成(黄/黑)	CABLE ASSEMBLY Yellow/Black	1
35	55098	J型卡扣	J CLIP	1
35	8M0024808	J型夹	J-CLIP	1
36	88439A24	蓄电池负极电缆总成	CABLE ASSEMBLY Negative - Battery	1

图 32启动电机 Starter Motor

REF	零件编号	中文名称	英文名称	数量
-	79472	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	90645	驱动套件	DRIVE KIT	1
2	75661	驱动小齿轮总成	PINION ASSEMBLY Drive	1
2	13310T1	小齿轮总成	PINION ASSEMBLY	1
3	75660	驱动端板	PLATE DRIVE END	1
4	74968	贯穿螺栓	BOLT THRU	2
6	N.S.S.	不单独销售贯穿螺栓垫圈	Not Sold Separate Washer-Thru Bolt	1
7	79216	电枢	ARMATURE	1
8	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
9	61787	电刷架	HOLDER BRUSH	2
9	898265014	电刷支架	HOLDER-BRUSH	2
10	68586	电刷及支架螺钉	SCREW BRUSH AND HOLDER	2
11	15386	换向器端盖	END CAP COMMUTATOR	1
11	15386001	端盖	END CAP	1

图 33旋转支架与转向臂 Swivel Bracket and Steering Arm

REF	零件编号	中文名称	英文名称	数量
1	8710A4	旋转支架总成（黑色）	SWIVEL BRACKET ASSEMBLY (BLACK)	1
1	8710A13	旋转支架总成（灰色）	SWIVEL BRACKET ASSEMBLY (GRAY)	1
1	8710T21	灰色旋转支架总成	SWIVEL BRACKET ASSEMBLY Gray	1
1	8710A15	旋转支架总成（OYSTER）	SWIVEL BRACKET ASSEMBLY (OYSTER)	1
1	8710T21	灰色旋转支架总成	SWIVEL BRACKET ASSEMBLY Gray	1
2	87735		SEAL Oil SWIVEL BRACKET (LOWER)	1
3	67669	旋转支架衬套（上下）	BUSHING SWIVEL BRACKET - (LOWER AND UPPER)	2
3	818764	衬套	BUSHING	2
4	33466	旋转支架O型圈（上）	O-RING SWIVEL BRACKET - (UPPER)	1
5	67668	旋转支架垫片（上）	SPACER SWIVEL BRACKET - (UPPER)	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	99608	转轴支架衬套	BUSHING SWIVEL BRACKET	2
7	821207	衬套	BUSHING	2
8	67706A18	转向臂旋转销总成（黑色）	SWIVEL PIN ASSEMBLY Steering Arm (BLACK)	1
8	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
8	67706A17	转向臂旋转销总成（灰色）	SWIVEL PIN ASSEMBLY Steering Arm (GRAY)	1
8	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
8	67706A19	转向臂旋转销总成（OYSTER）	SWIVEL PIN ASSEMBLY Steering Arm (OYSTER)	1
8	67706A55	转向臂转销总成	SWIVEL PIN ASSEMBLY Steering Arm	1
9	78689	螺钉(0.437-20×7.50)转向臂至上支架	SCREW (.437-20 x 7.50) STEERING ARM TO UPPER MOUNT	2
9	8M0176309	螺钉	SCREW	2
10	78687	橡胶支座（上）	MOUNT RUBBER - (UPPER)	2
10	78687T	支架	MOUNT	2
11	66921	上支座螺栓垫圈	WASHER UPPER MOUNT BOLT	2
12	78688	上支座螺栓垫圈	WASHER UPPER MOUNT BOLT	2
13	34933	螺母（0.437-20）不锈钢上部安装螺栓	NUT (.437-20) Stainless Steel UPPER MOUNT BOLT	2
13	8M0204653	螺母	NUT	2
14	92876A1	转向连杆总成（黑灰）	LINK ASSEMBLY Steering (BLACK & GRAY)	1
14	92876A12	连杆总成	LINK ROD ASSEMBLY	1
15	14000	转向连杆至转向臂螺钉 (.375-24 x 1.25)（黑灰）	SCREW (.375-24 x 1.25) STEERING LINK TO STEERING ARM (BLACK & GRAY)	1
15	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
16	34863	螺母(.375-24)转向连杆螺丝(黑灰)	NUT (.375-24) STEERING LINK SCREW (BLACK & GRAY)	2
16	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
17	34931	垫圈(.406x.734x.063)不锈钢转向连杆至转向臂(黑灰)	WASHER (.406 x .734 x .063) Stainless Steel STEERING LINK TO STEERING ARM (BLACK & GRAY)	2
18	78854		WAVE WASHER BOTTOM YOKE	1
19	86580A1	底部轭架总成（黑色）	YOKE ASSEMBLY Bottom (BLACK)	1
19	878182T	轭架底部-不锈钢	YOKE Bottom - Stainless Steel	1
19	86580A2	底部轭架总成（灰色）	YOKE ASSEMBLY Bottom (GRAY)	1
19	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
19	86580A3	下轭总成(牡蛎色)	YOKE ASSEMBLY Bottom (OYSTER)	1
19	86580A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
20	67684	卡环-底部轭架	RING Retaining BOTTOM YOKE	1
21	67670		WASHER THRUST - SWIVEL BRACKET	1
22	88882	缓冲垫-顶部轭架	BUMPER Top Yoke TOP YOKE	1
23	95164A9	调整传感器总成	SENDER ASSEMBLY Trim	1
23	8M0074846	ORDER 8M0098273	ORDER 8M0098273	1
24	56682	螺丝(#10-24x.750)配平传感器	SCREW (#10-24 x .750) TRIM SENDER	2
24	852368	螺钉（#10-24 X 0.750）	SCREW (#10-24 x .750)	2
25	26996	锁紧垫圈(#10)不锈钢配平传感器螺丝	LOCKWASHER (#10) Stainless Steel TRIM, SENDER SCREW	2
26	89302		WASHER (.203 x .406 x .040) TRIM SENDER SCREW	2
27	64014		SCREW (.250-28 x .500) SWIVEL BRACKET	1
28	54457	J型卡扣	J CLIP	1
-	90484A88	衬垫套件	GASKET SET

图 34油门杆与换挡轴 Throttle Lever and Shift Shaft

REF	零件编号	中文名称	英文名称	数量
1	74897		PIVOT TRIGGER PLATE	1
2	62459	球头总成触发板	BALL JOINT ASSEMBLY TRIGGER PLATE	1
2	62459T	球头节总成	BALL JOINT ASSY	1
3	45076	螺母(#10-32)黄铜连杆	NUT (#10-32) Brass LINK ROD	1
4	76035	触发板连杆	ROD TRIGGER PLATE	1
5	46438	螺母(#10-32)球头	NUT (#10-32) BALL JOINT	1
6	41094A3	点火提前杆总成	LEVER ASSEMBLY SPARK ADVANCE	1
7	64022	螺丝(.250-20x2.125)点火提前杆-止动	SCREW (.250-20 x 2.125) SPARK ADVANCE LEVER - STOP	1
8	64015	螺母(.250-20)点火提前止动螺丝	NUT (.250-20) SPARK ADVANCE STOP SCREW	1
9	26852	尼龙帽点火提前杆止动螺丝	CAP Nylon SPARK ADVANCE LEVER STOP SCREW	1
10	69560	螺丝(.190-32x1.250)点火提前杆-止动	SCREW (.190-32 x 1.250) SPARK ADVANCE LEVER -STOP	1
11	68219	螺母(#10-32)不锈钢点火提前杆止动螺丝	NUT (#10-32) Stainless Steel SPARK ADVANCE LEVER STOP SCREW	1
12	48039	点火提前杆止动螺丝帽	CAP SPARK ADVANCE LEVER STOP SCREW	1
13	41095T	油门控制杆	LEVER THROTTLE CONTROL	1
13	410952	杠杆	LEVER	1
14	55337	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
14	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
15	55164	油门杠杆衬套	BUSHING THROTTLE LEVER	1
16	55171	点火提前杆衬套	BUSHING SPARK ADVANCE LEVER	1
17	68784	节气门与点火提前杆弹簧	SPRING THROTTLE AND SPARK ADVANCE LEVER	1
18	68410	点火提前杆垫片	WASHER SPARK ADVANCE LEVER	1
18	46765	垫圈 (.390 x 1.50 x .120)	WASHER (.390 x 1.50 x .120)	1
19	64022	螺丝(.250-20x2.125)节气门杆-止动	SCREW (.250-20 x 2.125) THROTTLE LEVER - STOP	1
20	64015	螺母(.250-20)节气门杆止动螺丝	NUT (.250-20) THROTTLE LEVER STOP SCREW	1
21	26852	尼龙帽节气门杆止动螺丝	CAP Nylon THROTTLE LEVER STOP SCREW	1
22	39483	锁扣拉线	LATCH CABLE	1
23	22486	螺丝(.250-28x.880)拉线锁扣至节气门杆	SCREW (.250-28 x .880) CABLE LATCH TO THROTTLE LEVER	1
23	69026	螺钉 (.250-28 x .880)	SCREW (.250-28 x .880)	1
24	20099	拉线锁扣至节气门杆弹簧	SPRING CABLE LATCH TO THROTTLE LEVER	1
25	20586	螺母(.250-28)拉线锁扣螺丝	NUT (.250-28) CABLE LATCH SCREW	1
25	826709109	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
26	79949	节气门控制杆	ROD THROTTLE CONTROL	1
27	60572	节气门控制杆套筒	BARREL THROTTLE CONTROL ROD	2
27	8M0221994	筒形接头	BARREL FITTING	2
28	95791	节气门凸轮	CAM Throttle	1
29	20353	螺柱(.250-28x1.750)节气门凸轮固定	STUD (.250-28 x 1.750) THROTTLE CAM ATTACHING	1
30	26856	节气门凸轮衬套	BUSHING THROTTLE CAM	2
31	36069	节气门凸轮螺柱螺母	NUT THROTTLE CAM STUD	1
32	41050	节气门复位弹簧	SPRING THROTTLE RETURN	1
33	92032A2	控制线缆锚定支架	BRACKET ANCHOR - CONTROL CABLES	1
33	814283A2	支架总成	BRACKET ASSEMBLY	1
34	98889	控制线缆锁扣	LATCH CONTROL CABLE	1
35	42975	闩锁传动螺钉	DRIVE SCREW LATCH	2
36	39618	尼龙杆-换挡拉线锁定	LEVER NYLON - SHIFT CABLE LOCKING	1
36	87609A1	杠杆套件	LEVER KIT	1
37	47175	杆与盖固定销	PIN LEVER AND COVER FASTENING	3
38	90211	尼龙盖-换挡拉线	COVER NYLON - SHIFT CABLE	1
39	65799T	连杆-锁定杆到盖板	LINK LOCKING LEVER TO COVER	1
39	87609A1	杠杆套件	LEVER KIT	1
40	53167	螺丝(.312-18x.880)锚定支架固定	SCREW (.312-18 x .880) ANCHOR BRACKET ATTACHING	3
40	53167T	螺钉 0.312-18X 0.88	SCREW .312-18X .88	3
41	37896	连杆导向块	GUIDE BLOCK LINK ROD	1
42	20099	连杆至导向块弹簧	SPRING LINK ROD TO GUIDE BLOCK	1
43	67073A1	连杆总成	LINK ROD ASSEMBLY	1
44	52100	连杆耐磨板	WEAR PLATE LINK ROD	1
45	38279	锁扣控制拉线固定-锚定支架	LATCH CONTROL CABLE FASTENING-ANCHOR BRACKET	1
45	8M0036768	闩锁	LATCH	1
46	35462	垫圈(.2656x.625x.0625)不锈钢锁扣	WASHER (.2656 x .625 x .0625) Stainless Steel LATCH	1
47	36069	连杆螺母	NUT LINK ROD	1
48	79932A7	换挡轴总成 (长)	SHIFT SHAFT ASSEMBLY (LONG)	1
48	79932A16	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
48	79932A8	换挡轴总成(加长型)	SHIFT SHAFT ASSEMBLY (EXTRA LONG)	1
48	79932A17	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
49	29720	连杆波形垫圈	WAVE WASHER LINK ROD	1
50	26600	尼龙衬套-连杆	BUSHING NYLON - LINK ROD	1
51	35462	垫圈(.2656 x .625 x .0625)不锈钢连杆	WASHER (.2656 x .625 x .0625) Stainless Steel LINK ROD	1
52	36069	连杆至换挡轴螺母	NUT LINK ROD TO SHIFT SHAFT	1
53	39519	杯形套筒固定器-锚杆	CUP BARREL RETAINER - ANCHOR BAR	1

图 35工具 Tools

零件编号	中文名称	英文名称	数量
815366A5	电池隔离器套件	ISOLATOR KIT Battery	1
58222A1	百分表工具	DIAL INDICATOR TOOL	1
890451	直流电压适配工具	ADAPTER TOOL Direct Voltage	1
52344	飞轮固定器工具(齿型)	FLYWHEEL HOLDER TOOL Teeth Type	1
849154T1	拉拔器总成	PULLER ASSEMBLY	1
99750A1	万用表	MULTI METER	1
24161	飞轮拉拔器盖工具	CAP TOOL Flywheel Puller	1
52024A1	开关总成	SWITCH ASSEMBLY	1
59339	维修用转速表	SERVICE TACHOMETER	1
892647A01	DMT万用表套件	MULTI-METER KIT DMT	1
850439T1	八腔测试仪	TESTER Eight Chamber EIGHT CHAMBER	1
63998A1	单腔间隙工具	GAP TOOL Single Chamber SINGLE CHAMBER	1
14443A1	测试线束总成	HARNESS ASSEMBLY Test	1
99379	正时灯	TIMING LIGHT	1
29287	量规工具	GAUGE TOOL	1
55919	驱动头	DRIVER HEAD	1
52344	飞轮固定器工具(齿型)	FLYWHEEL HOLDER TOOL Teeth Type	1
849154T1	拉拔器总成	PULLER ASSEMBLY	1
90455T	吊环	LIFTING EYE	1
904551	吊环	LIFTING EYE	1
904551	吊环	LIFTING EYE	1
77109A3	安装工具套件	INSTALLER KIT	1
52952T1	活塞销锁环拆卸工具	REMOVAL TOOL Piston Pin Lock Ring	1
74607A3	活塞销安装套件	INSTALLER KIT Piston Pin	1
65494T	环压缩工具	COMPRESSOR TOOL Ring	1
818773T	活塞环压缩工具(3.50)	COMPRESSOR TOOL Piston Ring (3.50)	1
24697	活塞环扩张工具	EXPANDER TOOL Piston Ring	1
30591T1	支架工具	STAND TOOL	1
24161	飞轮拉拔器盖工具	CAP TOOL Flywheel Puller	1
66274	扭矩扳手(0-150磅英寸)	TORQUE WRENCH (0-150 lb-in) (0-150 LB-IN)	1
37241	通用拉拔板	PULLER PLATE Universal	1
112301	对正工具	ALIGNMENT TOOL	1
99750A1	万用表	MULTI METER	1
52915A6	测试仪表套件	TEST GAUGE KIT	1
74951	扳手	SPANNER WRENCH	1
63209	加热灯	HEAT LAMP	1
44487T1	调整杆导向器拆卸工具	REMOVER TOOL Trim Rod Guide	1
44486A1	调整杆拆卸工具	REMOVAL TOOL Trim Rod	1

图 36顶罩 Top Cowl

REF	零件编号	中文名称	英文名称	数量
1	827328T7	顶罩总成(黑色)	TOP COWL ASSEMBLY Black	1
1	827328T8	银色顶罩总成	TOP COWL ASSEMBLY Silver	1
2	821256T1	黑色进气口	INLET Air - Black	1
2	821256T2	银色进气口	INLET Air - Silver	1
3	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	4
4	828344A1	隔音毯套装	SOUND BLANKET KIT	1
5	NSS	不单独出售-顶部隔音垫	NOT SOLD SEPARATE Sound Blanket-Top	1
6	823865	盖塞	CAP PLUG	2
7	831207A14	手柄总成黑色	HANDLE ASSEMBLY Black	1
8	812707	衬套	BUSHING	2
9	831214	隔套	SPACER	1
10	12134	波形垫圈	WASHER Wave	1
11	F481777	凸轮锁轴	CAM Latch Shaft	1
11	889566	凸轮	CAM	1
12	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
13	1993716	螺钉(M6 x 16)	SCREW (M6 x 16)	1
14	821249M2	前支架	BRACKET Front	3
15	815477	缓冲器锁扣	BUMPER Latch	3
16	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	6
17	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	6
18	8237951	挡圈	RING Retaining	1
19	815263	滚轮	ROLLER	1
20	8155381	滚动销	PIN Roll	1
21	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
22	401366	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
23	47341A11	拉绳与手柄套件手动启动(用于手动启动)	ROPE AND HANDLE KIT Manual Starting (FOR MANUAL STARTING)	1
24	NSS	不单独销售贴纸-启动程序	NOT SOLD SEPARATE Decal-Starting Procedure	1

图 37艉板支架 Transom Brackets

REF	零件编号	中文名称	英文名称	数量
1	8718A1	艉板支架总成(右舷)(黑色)	BRACKET ASSEMBLY Transom (STARBOARD) (BLACK)	1
2	8716A1	艉板支架总成(左舷)(黑色)	BRACKET ASSEMBLY Transom (PORT) (BLACK)	1
2	8716A8	艉板支架总成	BRACKET ASSEMBLY Transom	1
1	8718A2	艉板支架总成(右舷)(灰色)	BRACKET ASSEMBLY Transom (STARBOARD) (GRAY)	1
1	8718F8	艉板支架	BRACKET Transom	1
2	8716A2	艉板支架总成(左舷)(灰色)	BRACKET ASSEMBLY Transom (PORT) (GRAY)	1
2	8716A9	艉板支架总成	BRACKET ASSEMBLY Transom	1
1	8718A3	艉板支架总成(右舷)(牡蛎色)	BRACKET ASSEMBLY Transom (STARBOARD) (OYSTER)	1
1	8718F8	艉板支架	BRACKET Transom	1
2	8716A3	艉板支架总成(左舷)(牡蛎色)	BRACKET ASSEMBLY Transom (PORT) (OYSTER)	1
2	8716A9	艉板支架总成	BRACKET ASSEMBLY Transom	1
3	98727	润滑配件左舷艉板支架	FITTING Grease PORT TRANSOM BRACKET	1
3	8M0169588	润滑脂接头	FITTING Grease	1
5	99170A1	倾斜管	TILT TUBE	1
5	99170A2	倾斜管套件	TUBE KIT Tilt	1
6	34862	螺母(1.00-14)倾斜管	NUT (1.00-14) TILT TUBE	1
6	859133	螺母(1.00-14)	NUT (1.00-14)	1
7	45711		O-RING (.612 x .103) TILT TUBE	1
8	88750	波形垫圈(1.62 x 1.05)倾斜管	WASHER Wave (1.62 x 1.05) TILT TUBE	2
9	56041	螺母(.875-14)倾斜管	NUT (.875-14) TILT TUBE	1
9	858869	螺母 (.875-14)	NUT (.875-14)	1
10	677551	螺钉(.500-20 x 4.500)艉板支架至艉板	SCREW (.500-20 x 4.500) TRANSOM BRACKET TO TRANSOM	4
10	8M0149747	螺钉	SCREW	4
11	28421	垫圈(1.5 x 3.05 x 0.13)不锈钢艉板支架螺栓	WASHER (1.5 x 3.05 x 0.13) Stainless Steel TRANSOM BRACKET BOLT	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	24501	艉板支架螺栓垫圈(上部-牡蛎色)	WASHER TRANSOM BRACKET BOLT (UPPER-OYSTER)	2
12	8M0027784	艉板支架螺栓螺母	NUT TRANSOM BRACKET BOLT	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	99629A2	倾斜锁杆总成	LEVER ASSEMBLY TILT LOCK	1
13	8M0115104	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	99611	倾斜杆波形垫圈	WAVE WASHER TILT LEVER	1
15	65830	倾斜杆尼龙衬套	NYLINER TILT LEVER	2
16	99633	倾斜锁杆旋钮(黑色)	KNOB TILT LOCK LEVER (BLACK)	1
16	99633T6	倾斜锁杆旋钮(灰色)	KNOB TILT LOCK LEVER (GRAY)	1
16	99633	旋钮	KNOB	1
16	99633T10	倾斜锁杆旋钮(牡蛎色)	KNOB TILT LOCK LEVER (OYSTER)	1
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99622	弹簧	SPRING	1
19	99604	槽销	PIN Groove	1
20	96930A1	倾斜锁螺栓总成	BOLT ASSEMBLY TILT LOCK	1
21	23161	螺栓螺母（3/8英寸-24牙）	NUT (.375-24) BOLT	1
-	90484A88	衬垫套件	GASKET SET
