水星 Mercury 90, 900 6 CYL ARCHIVE CAT 84516 - 爆炸图零件明细

两冲程 化油器 · ARCHIVE CAT 84516 · 共 22 个部位 · 784 条零件

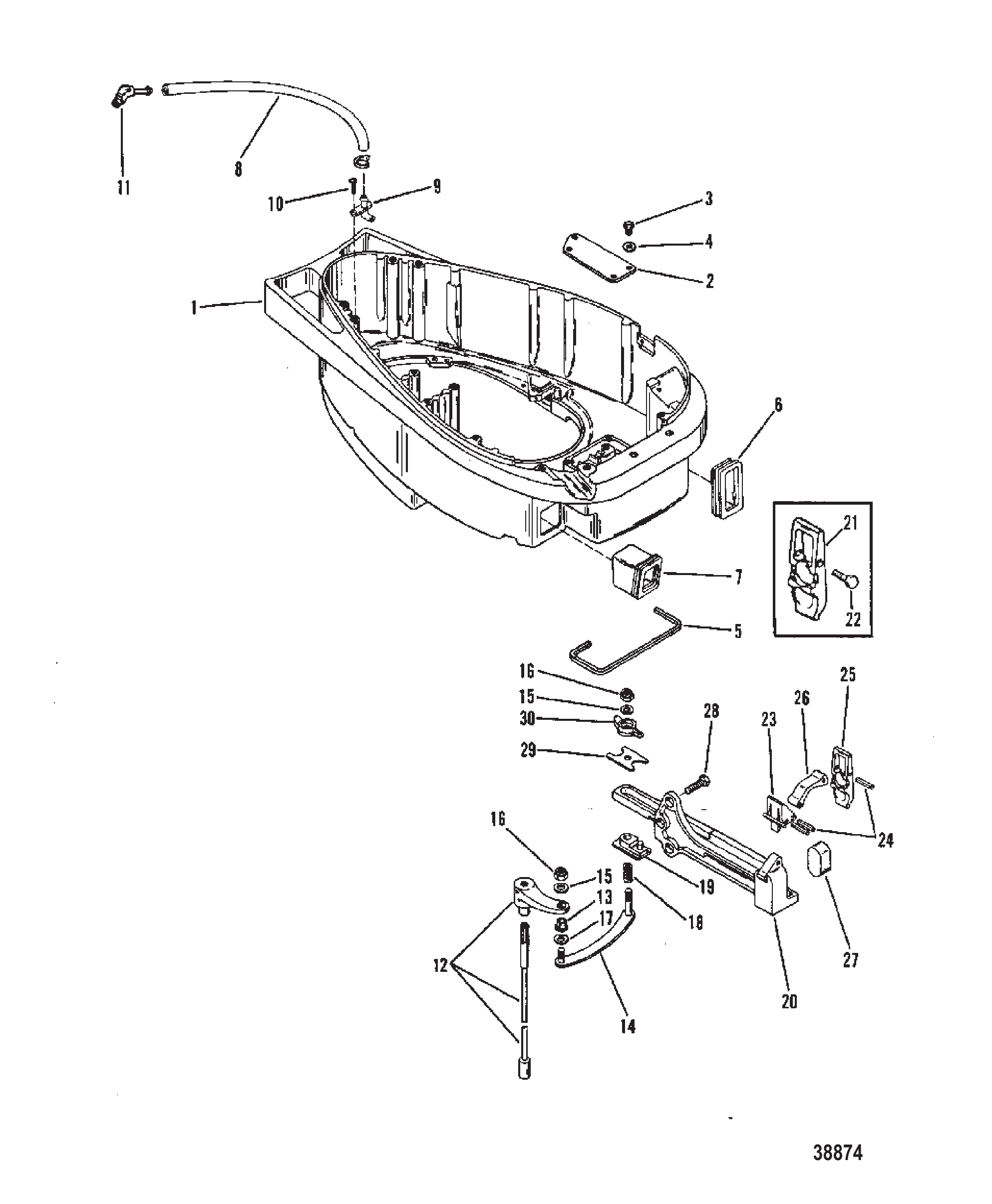

图 1底罩与换挡连杆 BOTTOM COWL AND SHIFT LINKAGE

REF	零件编号	中文名称	英文名称	数量
1	87081	底罩	COWL BOTTOM	1
1	8708T6	底罩	COWL BOTTOM	1
2	74303	进气口盖	COVER AIR INLET	1
3	62568	螺钉(#10-16 x .375)盖至底罩	SCREW (#10-16 x .375) COVER TO BOTTOM COWL	4
4	30164	垫圈(.192 x .375 x .0312)不锈钢盖螺钉	WASHER (.192 x .375 x .0312) Stainless Steel COVER SCREW	4
5	73646	底罩衬垫	GASKET BOTTOM COWL	1
6	39616	底罩控制线缆护套	BOOT CONTROL CABLES-BOTTOM COWL	1
7	37637	底罩燃油接头护套	BOOT FUEL CONNECTOR-BOTTOM COWL	1
8	99127109	管线(57.00英寸散装)示警管(14-3/4")	LINE (57.00 Inches Bulk) TELL TALE (14-3/4")	1
8	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
9	52889	示警软管至底罩喷嘴	NOZZLE TELL TALE HOSE TO BOTTOM COWL	1
10	48408	示流喷嘴至下罩盖螺钉(#10-16x0.500)	SCREW (#10-16 x .500) TELL TALE NOZZLE TO BOTTOM COWL	1
11	78279	示警软管至气缸体弯头	ELBOW TELL TALE HOSE TO CYLINDER BLOCK	1
11	8M0207781	弯头	ELBOW	1
12	60304A54	上部换挡轴总成	SHIFT SHAFT ASSEMBLY UPPER	1
13	26856	换挡轴衬套	BUSHING SHIFT SHAFT	1
14	73402	换挡连杆	SHIFT LINK	1
15	35462	垫圈(.2656 x .625 x .0625)不锈钢连杆	WASHER (.2656 x .625 x .0625) Stainless Steel LINK ROD	2
16	36069	连杆螺母	NUT LINK ROD	2
17	29720	连杆波形垫圈	WAVE WASHER LINK ROD	1
18	20099	连杆至导向块弹簧	SPRING LINK ROD TO GUIDE BLOCK	1
19	37896	连杆导向块	GUIDE BLOCK LINK ROD	1
20	52732A6	控制线缆锚定支架	BRACKET ANCHOR-CONTROL CABLES	1
21	98889	闩锁	LATCH	1
22	42975	闩锁传动螺钉	DRIVE SCREW LATCH	2
23	39618	尼龙换挡线缆锁定杆	LEVER NYLON-SHIFT CABLE LOCKING	1
23	87609A1	杠杆套件	LEVER KIT	1
24	47175	锁定杆及盖固定销	PIN LOCKING LEVER AND COVER FASTENING	3
25	90211	尼龙换挡线缆盖	COVER NYLON-SHIFT CABLE	1
26	65799T	连杆-锁定杆到盖板	LINK LOCKING LEVER TO COVER	1
26	87609A1	杠杆套件	LEVER KIT	1
27	39519	锚定杯形保持器	CUP BARREL RETAINER-ANCHOR	1
28	35386	螺钉(.312-18 x 1.00)锚定支架至气缸体	SCREW (.312-18 x 1.00) ANCHOR BRACKET TO CYLINDER BLOCK	3
29	52100	连杆耐磨板	WEAR PLATE LINK ROD	1
30	38279	控制线缆闩锁紧固件	LATCH CONTROL CABLE FASTENING	1
30	8M0036768	闩锁	LATCH	1
-	73645A87	衬垫套件	GASKET SET	1

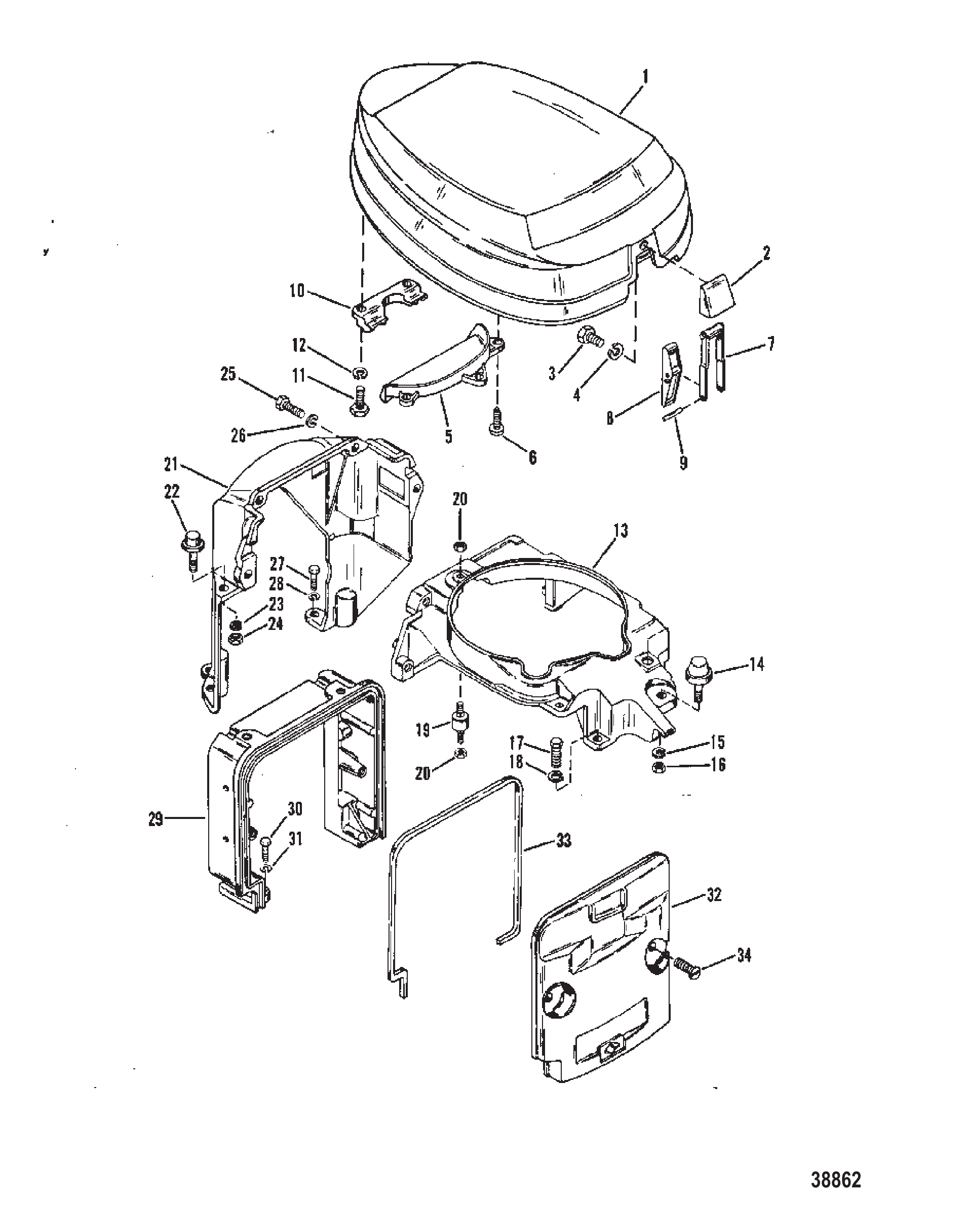

图 2顶罩与支撑支架 TOP COWL AND SUPPORT BRACKETS

REF	零件编号	中文名称	英文名称	数量
1	7934	顶盖总成	TOP COWL ASSEMBLY	1
1	6392F4	顶罩总成（水星款）	TOP COWL ASSEMBLY Mariner	1
1	6392T6	顶盖总成	TOP COWL ASSEMBLY	1
2	93122A1	固定座总成	RETAINER ASSEMBLY	1
2	76440	固定座总成	RETAINER ASSEMBLY	1
3	53167	螺钉 (.312-18 x .880)	SCREW (.312-18 x .880)	1
3	53167T	螺钉 0.312-18X 0.88	SCREW .312-18X .88	1
3	25299	螺钉(0.312-18x0.75)	SCREW (.312-18 x .75)	1
4	39107	锁紧垫圈(0.312-24)	LOCKWASHER (.312-24)	1
5	76370	护罩	SHIELD	1
5	76433	护罩	SHIELD	1
6	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	3
7	52739	顶罩锁扣铰链	HINGE COWL LATCH-TOP COWL	1
8	94918T	罩盖锁扣铰链杆	LEVER COWL LATCH HINGE	1
8	94918F1	杠杆	LEVER	1
9	58998		PIN COWL LATCH LEVER TO HINGE	1
10	55455	顶罩后部锁钩	HOOK TOP COWL LTECH-REAR	1
11	22956	螺钉(.250-28 x .880) 后锁钩至顶盖	SCREW (.250-28 x .880) REAR HOOK TO TOP COWL	2
12	26992	锁紧垫圈(.250)不锈钢 后锁钩螺钉	LOCKWASHER (.250) Stainless Steel REAR HOOK SCREW	2
13	73401	顶罩支撑框架	FRAME SUPPORT-TOP COWL	1
13	73401T	框架	FRAME	1
14	37640	支撑框架橡胶支座	MOUNT RUBBER-SUPPORT FRAME	1
15	26993	橡胶支座锁紧垫圈（0.312）	LOCKWASHER (.312) RUBBER MOUNT	1
15	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
16	28770	橡胶支座螺母（0.312-24不锈钢）	NUT (.312-24) Stainless Steel RUBBER MOUNT	1
17	37562	不锈钢螺钉(.312-18 x 1.00)	SCREW (.312-18 x 1.00) Stainless Steel	2
18	26993	支撑框架螺钉锁紧垫圈（0.312）	LOCKWASHER (.312) SUPPORT FRAME SCREW	2
18	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
19	90435	顶罩框架橡胶支架	MOUNT RUBBER-TOP COWL FRAME	3
20	20184	螺母(1/4-28X7/32)橡胶支架(上部)	NUT (1/4-28X7/32) RUBBR MOUNT (UPPER)	6
20	8M0207775	螺母 @5	NUT @5	6
21	52468	顶罩支撑支架-后部	BRACKET TOP COWL SUPPORT-REAR	1
22	31014	后支撑支架橡胶座	MOUNT RUBBER-REAR SUPPORT BRACKET	2
23	26992	不锈钢锁紧垫圈(.250)橡胶支座	LOCKWASHER (.250) Stainless Steel RUBBER MOUNT	2
24	29598	螺母 (.250-28) 不锈钢橡胶支座	NUT (.250-28) Stainless Steel RUBBER MOUNT	2
25	37562	螺丝(.312-18 x 1.00)不锈钢后支架至框架	SCREW (.312-18 x 1.00) Stainless Steel REAR BRACKET TO FRAME	4
26	26993	锁紧垫圈(.312)后支架螺丝	LOCKWASHER (.312) REAR BRACKET SCREW	4
26	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
27	37562	不锈钢螺钉(.312-18 x 1.00)	SCREW (.312-18 x 1.00) Stainless Steel	4
28	26993	锁紧垫圈(.312)后支架螺丝	LOCKWASHER (.312) REAR BRACKET SCREW	4
28	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
29	99649T	框架前支撑	FRAME FRONT SUPPORT	1
30	37562	螺丝(.312-18 x 1.00)不锈钢消音器盖	SCREW (.312-18 x 1.00) Stainless Steel SILENCER COVER	2
31	26993	锁紧垫圈(.312)框架螺丝	LOCKWASHER (.312) FRAME SCREW	2
31	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
32	89590	消音器盖	COVER SILENCER	1
33	76168A2	消音器盖衬垫	GASKET SILENCER COVER	1
34	28638	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	2

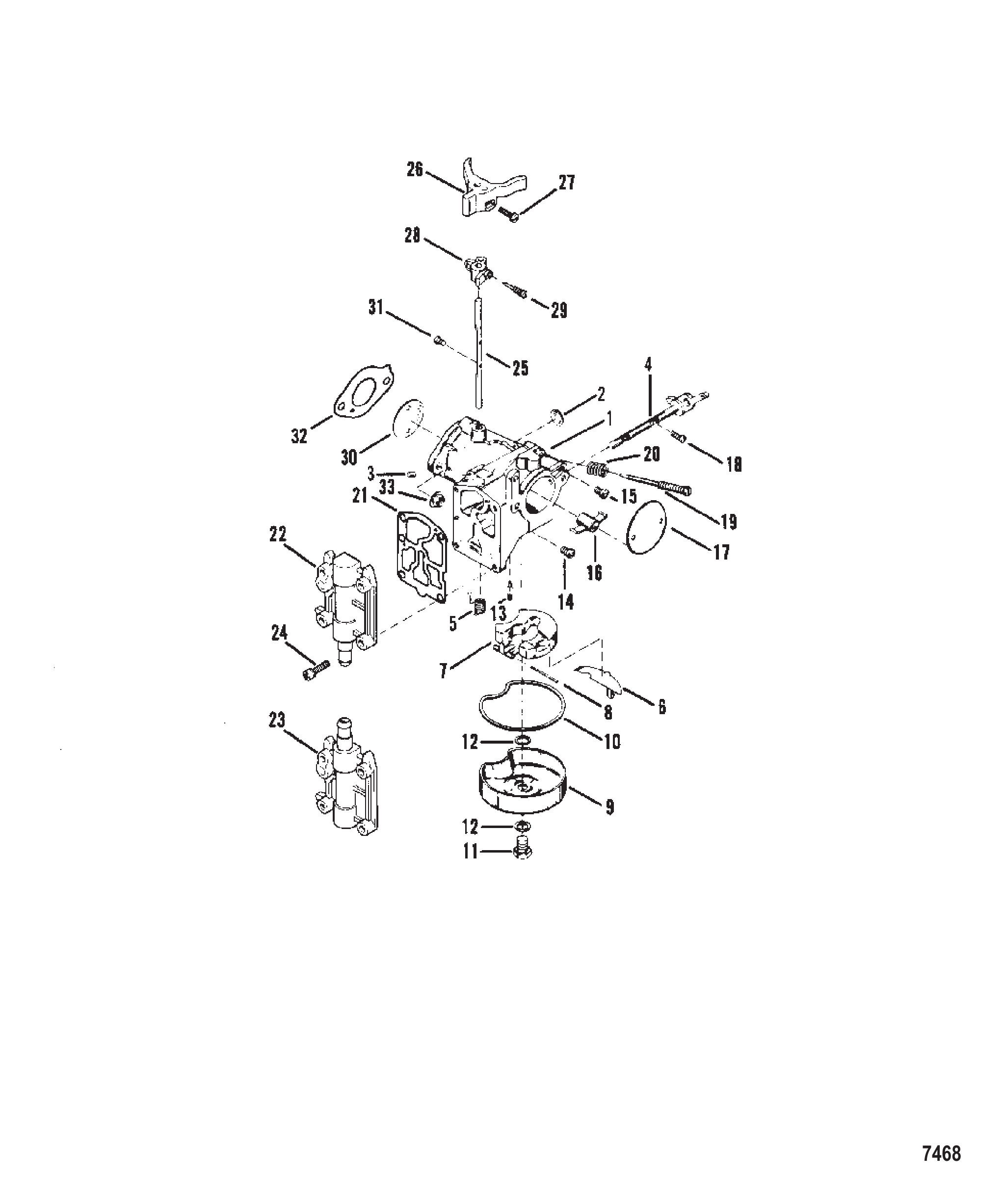

图 3化油器总成 CARBURETOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	6517A33	化油器总成	CARBURETOR ASSEMBLY	1
1	6517A34	化油器总成	CARBURETOR ASSEMBLY	1
1	6517A64	化油器KT-底置	CARBURETOR KT-BOT	1
2	NSS	大型主体通道(不单独销售)	NOT SOLD SEPARATE Large Body Channel	2
3	NSS	主体通道(不单独销售)	NOT SOLD SEPARATE Body Channel	6
4	96773A1	阻风门轴总成	SHAFT ASSEMBLY Choke	2
4	9296A1	阻风门轴套件	CHOKE SHAFT KIT	2
5	NSS	回位-节气门轴(不单独销售)	NOT SOLD SEPARATE Return-Throttle Shaft	2
6	7211A1	燃油杯挡板	BAFFLE Fuel Bowl	2
6	814483	燃油杯挡板	BAFFLE Fuel Bowl	2
7	9293	浮子	FLOAT	2
8	NSS	浮子固定件(不单独销售)	NOT SOLD SEPARATE Float Retaining	2
9	5127	燃油杯	BOWL Fuel	2
10	NSS	燃油杯(不单独销售)	NOT SOLD SEPARATE Fuel Bowl	2
11	9652	燃油杯至化油器螺钉	SCREW Fuel Bowl to Carburetor	2
12	NSS	燃油杯螺钉(不单独销售)	NOT SOLD SEPARATE Fuel Bowl Screw	4
13	9022	进油针阀及弹簧	NEEDLE AND SPRING Inlet	2
14	1457	主量孔(.057)	JET Main Fuel (.057)	2
15	7335	省油量孔(.098)	JET (.098) Economizer (.098)	2
16	64677	喉管	VENTURI	2
17	8665	阻风门片	SHUTTER Choke	2
18	NSS	阻风门片至轴连接件(不单独销售)	NOT SOLD SEPARATE Choke Shutter to Choke Shaft	4
19	NSS	怠速混合气调节件(不单独销售)	NOT SOLD SEPARATE Idle Mixture	2
20	NSS	怠速混合气螺钉(不单独销售)	NOT SOLD SEPARATE Idle Mixture Screw	2
21	NSS	不单独销售 燃油泵	NOT SOLD SEPARATE Fuel Pump	2
22	9653	盖板(上化油器)	COVER Plate (Upper Carburetor)	1
23	9654	盖板(下化油器)	COVER Plate (Lower Carburetor)	1
24	5132	滤清器体至化油器螺钉	SCREW Strainer Body to Carburetor	8
24	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	8
25	9020	油门轴	SHAFT Throttle	1
25	9656	油门轴	SHAFT Throttle	1
26	92880	节气门杠杆(上化油器)	LEVER Throttle (Upper Carburetor)	1
27	20847	节气门杠杆螺钉(上化油器)	SCREW Throttle Lever (Upper Carburetor)	2
27	6027	螺钉	SCREW	2
28	97	节气门杠杆(下化油器)	LEVER Throttle (Lower Carburetor)	1
28	8146791	油门杆	LEVER Throttle	1
29	6027	节气门杠杆螺钉(下化油器)	SCREW Throttle Lever (Lower Carburetor)	1
30	9649	节气门片	SHUTTER Throttle	2
31	NSS	节气门片至轴连接件(不单独销售)	NOT SOLD SEPARATE Throttle Shutter to Throttle Shaft	4
32	757911	化油器法兰衬垫	GASKET Carburetor Flange	2
33	64809	化油器安装柱螺母	NUT Carburetor Mounting Stud	4
--	9650	维修套件	REPAIR KIT	2
--	9651	衬垫套件	GASKET SET	2

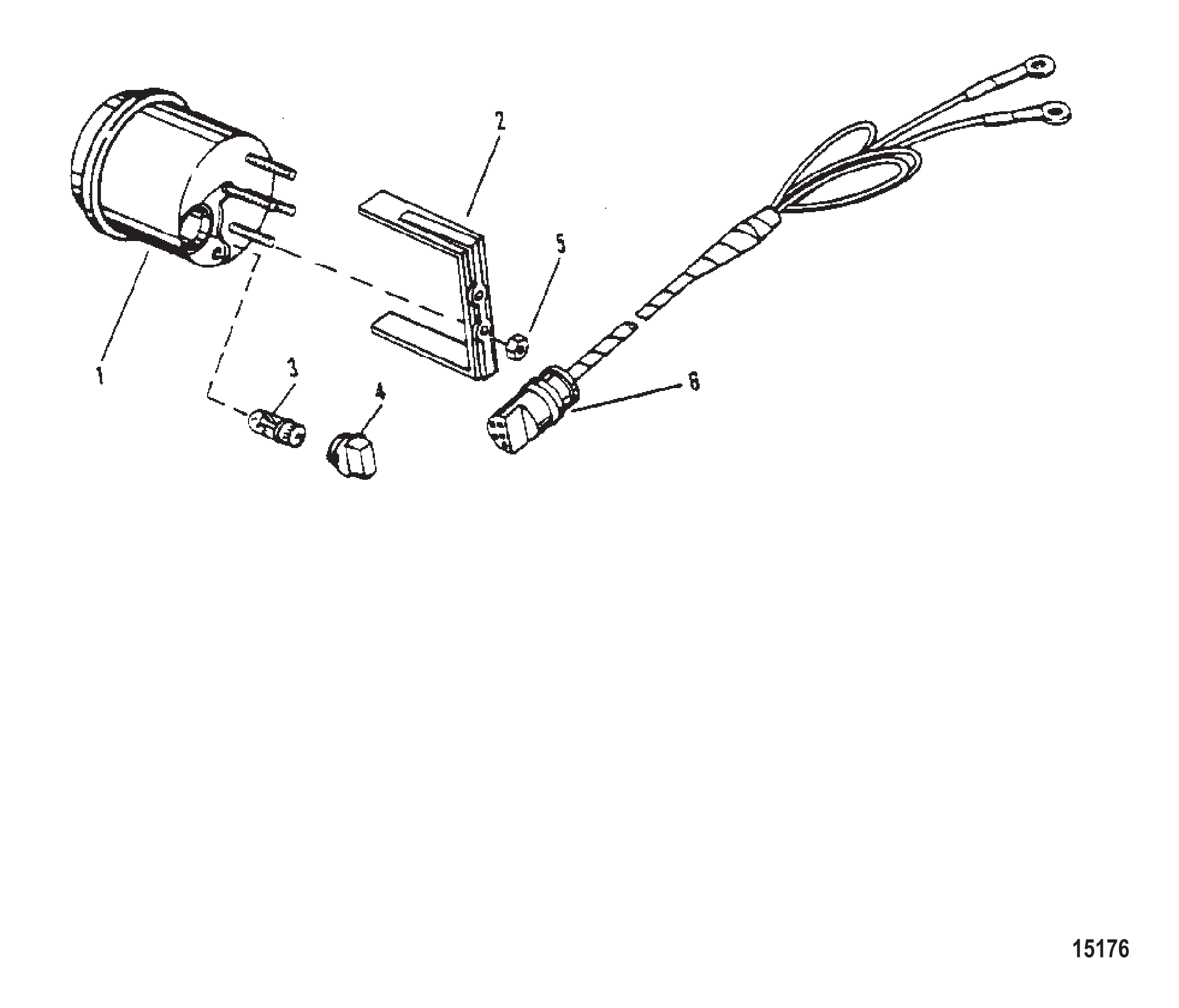

图 4转速表 TACHOMETER

REF	零件编号	中文名称	英文名称	数量
1	15110A1	转速表6K	TACHOMETER 6K	1
2	79101T	安装支架	BRACKET Mounting	1
3	72729	楔形底座灯泡(14V - 1.9W)	LIGHT BULB Wedge Base (14V - 1.9W)	1
4	79888	灯泡插座	SOCKET Light Bulb	1
5	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	5
6	86396A8	转速表线束总成(5.00英尺)	HARNESS ASSEMBLY Tachometer (5.00 Feet)	1

图 5动力升降组件 POWER TRIM COMPONENTS

REF	零件编号	中文名称	英文名称	数量
-	830250T3	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
1	811666A1	减震杆套件	SHOCK ROD KIT	1
1	8M0171821	减震杆套件	SHOCK ROD KIT	1
2	809872A2	O型圈维修包	O-RING KIT Rebuild	1
2	8M0171819	O型圈套件	O-RING KIT	1
3	810776A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
3	8M0171822	记忆活塞套件	MEMORY PISTON KIT	1
4	811669A1	气缸总成	CYLINDER ASSEMBLY	1
4	893916A01	气缸总成	CYLINDER ASSEMBLY	1
5	809873A1	配平限位阀套件	VALVE KIT Trim Limit	1
5	893905A02	阀套件	VALVE KIT	1
6	809874A1	泵总成	PUMP ASSEMBLY	1
6	893906A02	泵总成	PUMP ASSEMBLY	1
7	809885A2	电机套件	MOTOR KIT	1
7	893907A02	电机套件	MOTOR KIT	1
8	8134351	堵头	PLUG	1
9	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
9	893929A01	安全阀套件	VALVE KIT Relief	1
10	809875A1	歧管套件	MANIFOLD KIT	1
10	893909A02	歧管套件	MANIFOLD KIT	1
11	809876A1	电机螺钉套件	SCREW KIT Motor	1
12	88238A18	拉线总成	CABLE ASSEMBLY	1
13	809877A1	驱动轴/密封套件	DRIVESHAFT/SEAL KIT	1
14	809878A1	滤清器套件	FILTER KIT	1
14	893912A02	滤清器套件	FILTER KIT	1
15	809879A1	提升阀套件	POPPET KIT	1
15	893913A02	提升阀套件	POPPET KIT	1
-	809880A1	完整配平O型圈套件	O-RING KIT Complete Trim	1
-	893914A02	O型圈套件	O-RING KIT	1
16	821539	三叶销	PIN Trilobe	2
17	818898	锚销	PIN Anchor	1
18	996251	轴	SHAFT	1
18	99625002	轴	SHAFT	1
19	22740	卡扣	CLIP	2
20	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
21	69205	C形垫圈	C WASHER	1
21	8M0084613	C形垫圈	C-WASHER	1

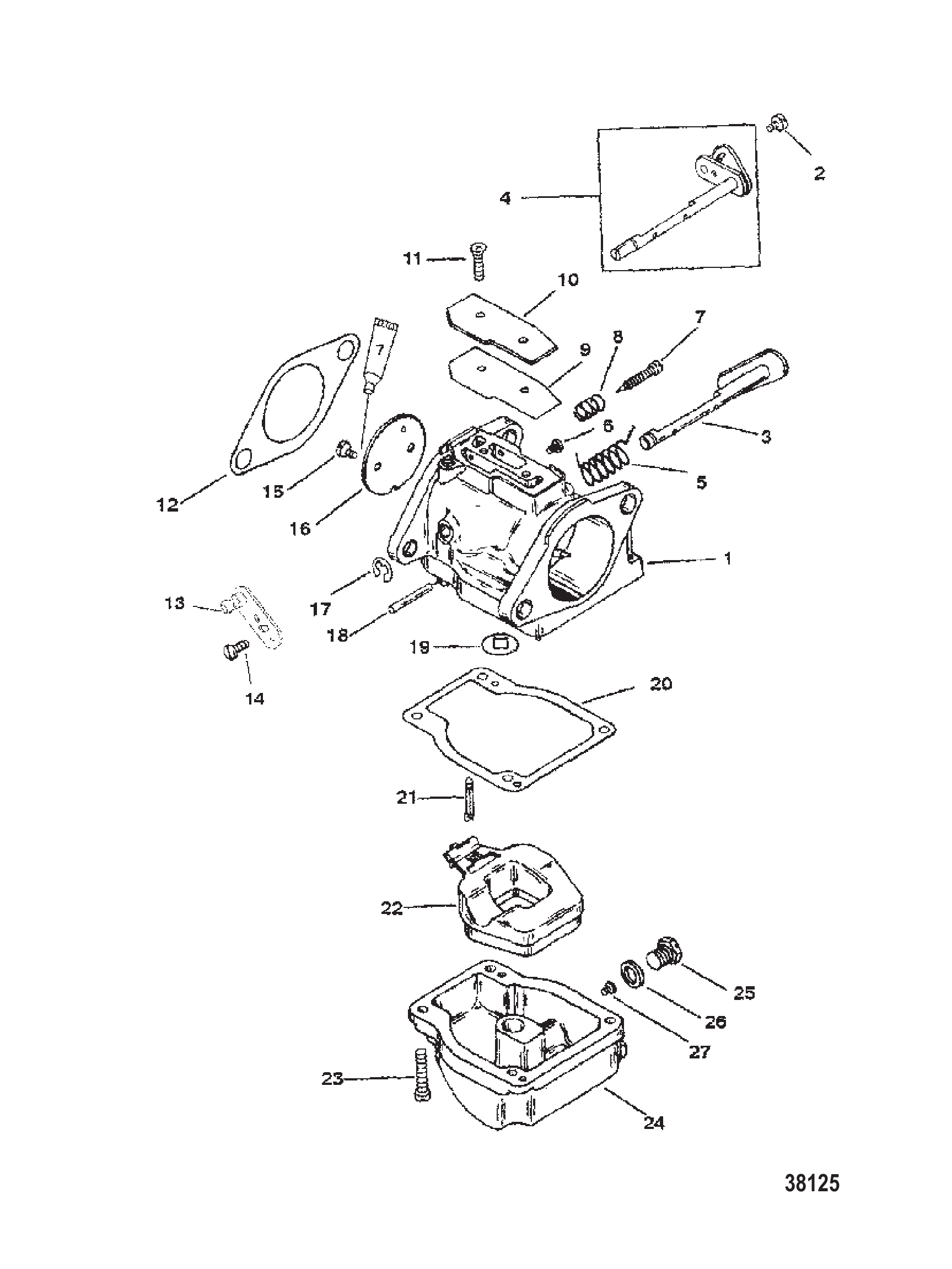

图 6化油器 CARBURETOR

REF	零件编号	中文名称	英文名称	数量
1	821679A17	化油器	CARBURETOR	1
1	821679A18	化油器	CARBURETOR	1
1	821679T18	化油器	CARBURETOR	1
1	821679A19	化油器	CARBURETOR	1
1	821679T19	化油器	CARBURETOR	1
1	821946A24	化油器	CARBURETOR	1
1	821946A45	化油器维修包	CARBURETOR KIT	1
1	821946A25	化油器	CARBURETOR	1
1	821946A46	化油器维修包	CARBURETOR KIT	1
1	821946A26	化油器	CARBURETOR	1
1	821946A47	化油器维修包	CARBURETOR KIT	1
1	821946A27	化油器	CARBURETOR	1
1	821946T42	化油器	CARBURETOR	1
1	821946A28	化油器	CARBURETOR	1
1	821946T43	化油器	CARBURETOR	1
1	821946A29	化油器	CARBURETOR	1
1	821946T44	化油器	CARBURETOR	1
2	823634	螺丝(上/下部)	SCREW (UPPER/BOTTOM)	2
3	823632	油门轴	SHAFT Throttle	1
4	823633	油门轴	SHAFT Throttle	1
4	823636	油门轴	SHAFT Throttle	1
3	823632	节气门轴(上/下部)	SHAFT Throttle (UPPER/BOTTOM)	2
4	823633	节气门轴(中央)	SHAFT Throttle (CENTER)	1
5	NSS	不单独销售 油门回位弹簧	NOT SOLD SEPARATE SPRING-THROTTLE RETURN	3
6	6247	主量孔(0.090)	JET Main (.090)	3
7	NSS	不单独销售 怠速针	NOT SOLD SEPARATE IDLE NEEDLE	3
8	NSS	不单独销售 怠速针弹簧	NOT SOLD SEPARATE SPRING-IDLE NEEDLE	3
9	NSS	不单独销售 盖板衬垫	NOT SOLD SEPARATE GASKET-COVER PLATE	3
10	811221	盖板	COVER PLATE	3
11	811220	盖板螺丝	SCREW Cover Plate	6
12	8144461	法兰衬垫	GASKET Flange	3
13	8113522	油泵杠杆(WME43/45-底部)	LEVER Oil Pump (WME43/45 - BOTTOM)	1
14	8086121	杠杆固定螺钉(WME43/45-底部)	SCREW Lever Retainer (WME43/45 - BOTTOM)	1
15	F10155	节气门螺丝	SCREW Throttle Valve	6
16	879194023	节气门阀	VALVE-THROTTLE	3
17	NSS	不单独销售 挡圈	NOT SOLD SEPARATE RETAINING RING	3
18	F10064	轴	SHAFT	3
19	NSS	不单独销售 喷油嘴衬垫	NOT SOLD SEPARATE GASKET-NOZZLE WELL	3
20	NSS	不单独销售 燃油杯衬垫	NOT SOLD SEPARATE GASKET-FUEL BOWL	3
21	879194011	进油阀	VALVE Inlet	3
22	9594	浮子	FLOAT	3
23	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	12
24	811695	燃油杯	BOWL Fuel	1
24	811693	燃油杯	BOWL Fuel	2
25	811694	塞套件	PLUG KIT	3
26	NSS	排水碗密封件(不单独销售)	NOT SOLD SEPARATE SEAL-BOWL DRAIN	3
27	6246	量孔(.048)	JET (.048)	3
27	6487	主量孔(0.060)	JET Main (.060)	3
27	4217	主量孔(.062)	JET Main (.062)	3
-	812867A97	衬垫套件	GASKET SET	1
-	8236354	化油器维修套件	REPAIR KIT Carburetor	1
-	8112231	化油器衬垫组	GASKET SET Carburetor	1

图 7维修/支撑材料 Service/Support Material

REF	零件编号	中文名称	英文名称	数量
0	88183801	零件手册-115EFI(四冲程)	PARTS MANUAL 115 EFI (4-Stroke) Parts Manual	1
0	881980	维修手册	SERVICE MANUAL	1
0	881980R03	SM O/B 115 EFI 4S	SM O/B 115 EFI 4S	1
0	10225030	用户手册	OWNERS MANUAL	1
0	858610A31	燃油软管总成	HOSE ASSEMBLY Fuel	1
0	8M0038610	带注油球的燃油软管总成(9英尺)	HOSE ASSEMBLY Fuel (9 Feet) With Primer Bulb	1
0	880177	组合扳手工具(10毫米)	SCRENCH TOOL (10 mm)	1
0	881828	星形头工具套件	STARBIT TOOL KIT	1
0	881649A01	贴花套件	DECAL SET	1
0	881649A05	贴花套件	DECAL SET	1
0	881840A01	贴花套件	DECAL SET	1
0	881840A03	贴花套件	DECAL SET	1
0	881840A03	贴花套件	DECAL SET	1
0	881840A05	贴花套件	DECAL SET	1
0	881650A01	贴花套件	DECAL SET	1
0	881650A03	贴花套件	DECAL SET	1
0	881650A03	贴花套件	DECAL SET	1
0	881702A01	贴花套件	DECAL SET	1
0	881839A01	EPA标签信息贴花	DECAL EPA Label Information	1
0	881839A02	EPA标签信息贴花	Decal EPA Label Information	1
0	881839A03	EPA标签信息贴花	DECAL EPA Label Information	1
0	816834A1	转速表	TACHOMETER	1
0	816932A1	温度表	TEMPERATURE GAUGE	1
0	86306	适配器	ADAPTER	1
0	86306A01	适配器	ADAPTER	1
0	817054A3	水压表总成	GAUGE ASSEMBLY Water Pressure	1
0	821400A2	动力升降倾斜传感器套件	SENDER KIT Power Trim	1
0	8M0074845	ORD 8M0098264	ORD 8M0098264	1
0	92876A8	转向安装套件	ATTACHING KIT Steering	1
0	92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
0	883040A1	转速表模块套件	TACH MODULE KIT	1

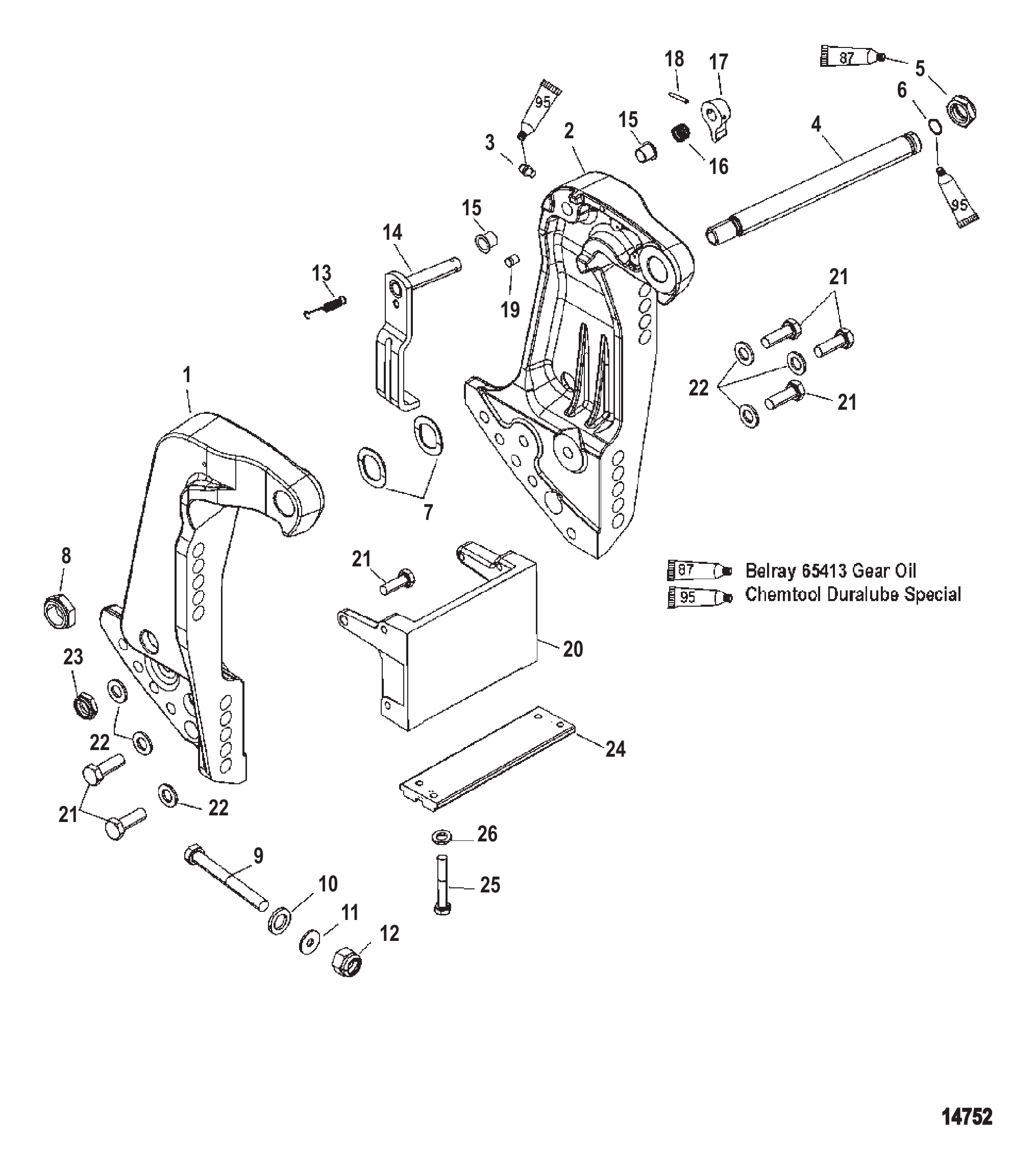

图 8艉板支架 TRANSOM BRACKET

REF	零件编号	中文名称	英文名称	数量
1	828334F1	艉板支架	BRACKET Transom	1
2	828333A3	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	828333T07	艉板支架总成-左舷	BRACKET ASSEMBLY Transom - Port	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	99170A2	倾斜管套件	TUBE KIT Tilt	1
4	826125A1	倾斜管	TILT TUBE	1
4	826125A1	倾斜管	TILT TUBE	1
5	859133	螺母(1.00-14)	NUT (1.00-14)	1
5	82671327	螺母(1.0-14)	NUT (1.0-14)	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	858869	螺母 (.875-14)	NUT (.875-14)	1
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	54012	垫圈(0.530×0.870×0.105不锈钢)	WASHER (.530 x .870 x .105) Stainless Steel	4
10	8M0204665	垫圈(0.530×0.880×0.104 630不锈钢)	WASHER (.530 x .880 x .104) 630 Stainless Steel	4
11	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
12	82671117	螺母(.500-20)	NUT (.500-20)	4
13	830899	张力弹簧	SPRING Tension	1
14	821176T1	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	8M0109798	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
15	65830	尼龙衬套	NYLINER	2
16	830900	压缩弹簧	SPRING Compression	1
17	99633	旋钮	KNOB	1
18	99615	槽销	PIN Groove	1
19	99617	销	PIN	1
19	893709	销	PIN	1
20	818771T1	锚支架	BRACKET Anchor	1
20	8M0086406	锚支架	BRACKET Anchor	1
21	858771	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
22	4002319	垫圈	WASHER	6
23	40114	螺母(M10 x 1.5)	NUT (M10 x 1.5)	1
24	818298Q1	阳极套件	ANODE KIT	1
25	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
25	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
26	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
26	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2

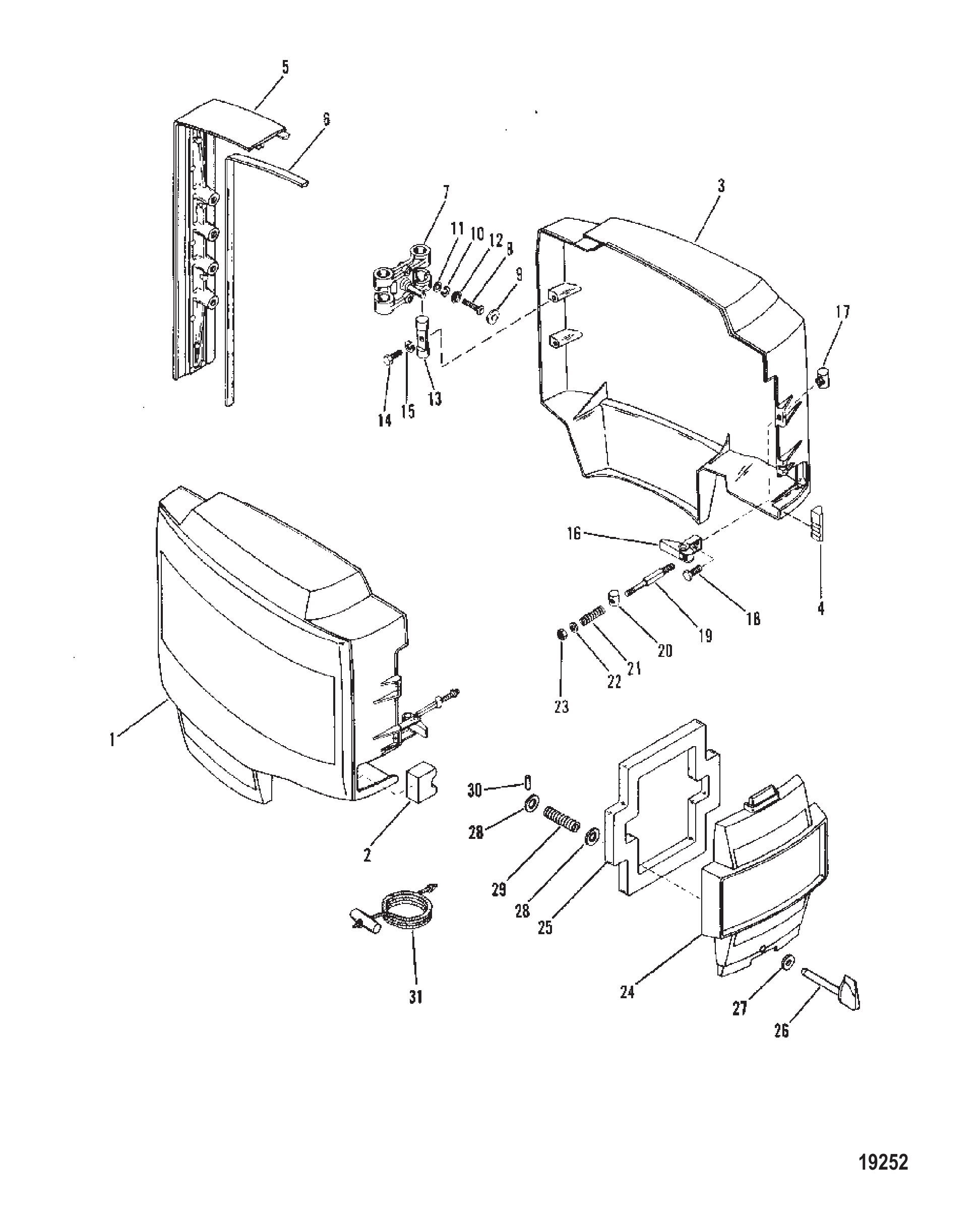

图 9外罩与前盖 COWLING AND FRONT COVER

REF	零件编号	中文名称	英文名称	数量
1	6228A1	顶罩总成(右舷黑色)	TOP COWL ASSEMBLY (STARBOARD BLACK)	1
1	6228A3	顶罩总成(右舷灰色)	TOP COWL ASSEMBLY (STARBOARD GRAY)	1
2	60297	燃油接头密封圈-罩	SEAL FUEL CONNECTOR -COWL	1
3	6227A1	顶罩总成(左舷黑色)	TOP COWL ASSEMBLY (PORT BLACK)	1
3	6227A17	顶罩总成(左舷灰色)	TOP COWL ASSEMBLY (PORT GRAY)	1
4	60298	控制电缆密封圈-罩	SEAL CONTROL CABLES-COWL	1
5	89717T	罩体密封后支架	BRACKET COWL SEALING-REAR	1
6	698761	后支架密封圈	SEAL REAR BRACKET	2
7	90980	罩体铰链支架	BRACKET COWL HINGE	2
8	45561	铰链支架下部螺钉(.250-20 x 1.12)	SCREW (.250-20 x 1.12) HINGE BRACKET-LOWER	2
8	455611	螺钉(.250-20 x 1.120)	SCREW (.250-20 x 1.120)	2
8	75794	铰链支架上部螺钉(1-1/8英寸)	SCREW HINGE BRACKET-UPPER (1-1/8")	2
9	75805	铰链支架螺钉帽(上部)	CAP HINGE BRACKET SCREW (UPPER)	2
10	26992	铰链支架螺钉不锈钢锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel HINGE BRACKET SCREW	4
11	37998	铰链支架螺钉垫圈	WASHER HINGE BRACKET SCREW	4
12	75806	铰链支架螺钉垫圈(上部)	WASHER HINGE BRACKET SCREW (UPPER)	2
13	90979	机罩铰链销	PIN COWL HINGE	4
14	28782	螺钉(.312-18 x .880)不锈钢 铰链销至机罩	SCREW (.312-18 x .880) Stainless Steel PIN TO COWL	4
15	26993	锁紧垫圈(.312)铰链销固定螺钉	LOCKWASHER (.312) PIN ATTACHING SCREW	4
15	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
16	46785A5	罩壳锁扣总成	LATCH ASSEMBLY Cowl	2
17	62628	机罩锁扣筒	BARREL COWL LATCH	2
18	31312	螺钉(#10-32 x 0.875)锁扣总成至筒体	SCREW (#10-32 x 0.875) LATCH ASSEMBLY TO BARREL	2
19	15222	机罩锁扣调节杆	BAR ADJUSTMENT-COWL LATCH	2
20	62629	机罩锁扣筒	BARREL COWL LATCH	2
21	62624	机罩锁扣张力弹簧	SPRING TENSION-COWL LATCH	2
22	30164	垫圈(.192 x .375 x .0312)不锈钢 调节杆至筒体	WASHER (.192 x .375 x .0312) Stainless Steel ADJUSTMENT BAR TO BARREL	2
23	45812	螺母(#10-32)不锈钢 调节杆至筒体	NUT (#10-32) Stainless Steel ADJUSTMENT BAR TO BARREL	2
23	859124	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	2
24	8774A6	前盖(黑色)	FRONT COVER (BLACK)	1
24	8774A7	前盖(灰色)	FRONT COVER (GRAY)	1
25	795511	隔音毯	BLANKET SOUND ABSORBING	1
26	14333	旋钮	KNOB	1
27	30771	垫圈	WASHER	2
28	75246	垫圈	WASHER	2
29	30772	弹簧	SPRING	1
30	29077	滚动销	PIN Roll	1
31	47341A1	拉绳与手柄套件 手动/应急启动(仅限手动启动)	ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING ONLY)	1
31	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1

图 10动力升降泵(Prestolite圆形电机) Power Trim Pump (Prestolite Round Motor)

REF	零件编号	中文名称	英文名称	数量
-	99186	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
1	8995	泵总成	PUMP ASSEMBLY	1
1	826729A10	ORD 8M0143217	ORD 8M0143217	1
2	8996	O型圈套件	O-RING KIT	1
3	8986	电枢	ARMATURE	1
4	8987	机架与磁场	FRAME AND FIELD	1
4	99186	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
5	8992	缸盖O型圈	O-RING HEAD	1
6	8993	电刷弹簧套件	SPRING KIT BRUSH	1
7	8988	换向器端盖	HEAD COMMUTATOR END	1
8	8989	电刷套件	BRUSH KIT	1
9	8994	贯穿螺栓套件	THRU BOLT KIT	1
10	8985	导线夹	CLAMP LEAD WIRE	1
11	8990	螺母密封垫	NUT PACKING	1
12	8991	O型圈螺母密封	O-RING PACKING NUT	1

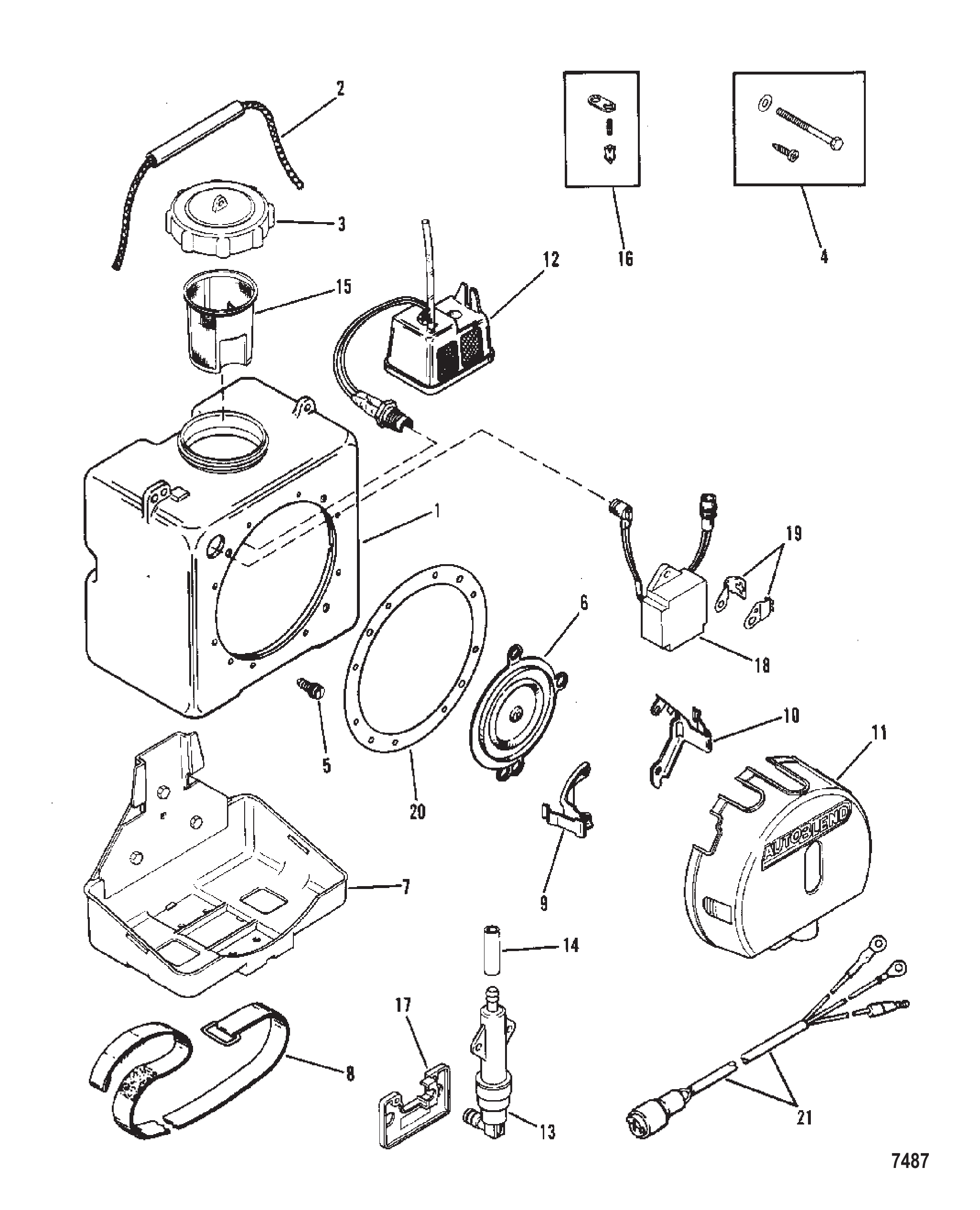

图 11自动混合装置 Auto-Blend

REF	零件编号	中文名称	英文名称	数量
-	130194	自动混合装置	AUTO BLEND ASSEMBLY	1
1	16612	油箱套件 机油	TANK KIT Oil	1
2	13996	手柄套件	HANDLE KIT	1
3	16619		CAP Oil Tank	1
4	16614	五金件套件	HARDWARE KIT	1
5	13979	放油塞套件	PLUG KIT Drain	1
6	16611	膜片组件	DIAPHRAGM KIT	1
7	16620	安装支架套件	BRACKET KIT Mounting	1
8	13993	箍带	BAND	1
9	13983	左支架	BRACKET Left	1
10	13984	右支架	BRACKET Right	1
11	16613	盖板	COVER	1
12	13985	机油滤清器/传感器套件	FILTER/SENSOR KIT Oil	1
13	18576	燃油滤清器套件	FILTER KIT Fuel	1
14	13992	乙烯基软管	VINYL TUBE	1
15	16618	机油滤网	STRAINER Oil	1
16	16615	止回阀套件	CHECK VALVE KIT	1
17	16621	安装板	PLATE	1
18	19265	模块套件	MODULE KIT	1
19	16623	支架套件	BRACKET KIT	1
20	16616	衬垫套件	GASKET KIT	1
21	14585A1	自动混合线束总成	HARNESS ASSEMBLY Auto Blend	1

图 12旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM

REF	零件编号	中文名称	英文名称	数量
1	818904T1	旋转支架	SWIVEL BRACKET	1
2	87735	下油封	SEAL Oil Lower	1
3	818764	衬套	BUSHING	2
4	33504	O型圈	O-RING	1
4	8M0214926	O型圈 @10	O RING @10	1
5	816039	隔套	SPACER	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
9	99661A26	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	99661A35	旋转销总成	SWIVEL PIN ASSEMBLY	1
10	92876A10	连杆总成	LINK ROD ASSEMBLY	1
10	92876A12	连杆总成	LINK ROD ASSEMBLY	1
11	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
12	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
13	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
14	42961A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
14	42961A06	底部轭架总成	YOKE ASSEMBLY Bottom	1
15	67684	挡圈	RING Retaining	1
16	816432	止推垫片	THRUST WASHER	1
17	NSS	不单独销售 贴纸, 序列号覆膜	NOT SOLD SEPARATE Decal, Serial Overlaminate	1
18	11288	下轭缓冲垫	BUMPER Bottom Yoke	1
18	11288001	下轭缓冲垫	BUMPER Bottom Yoke	1
19	88882	上轭缓冲垫	BUMPER Top Yoke	1

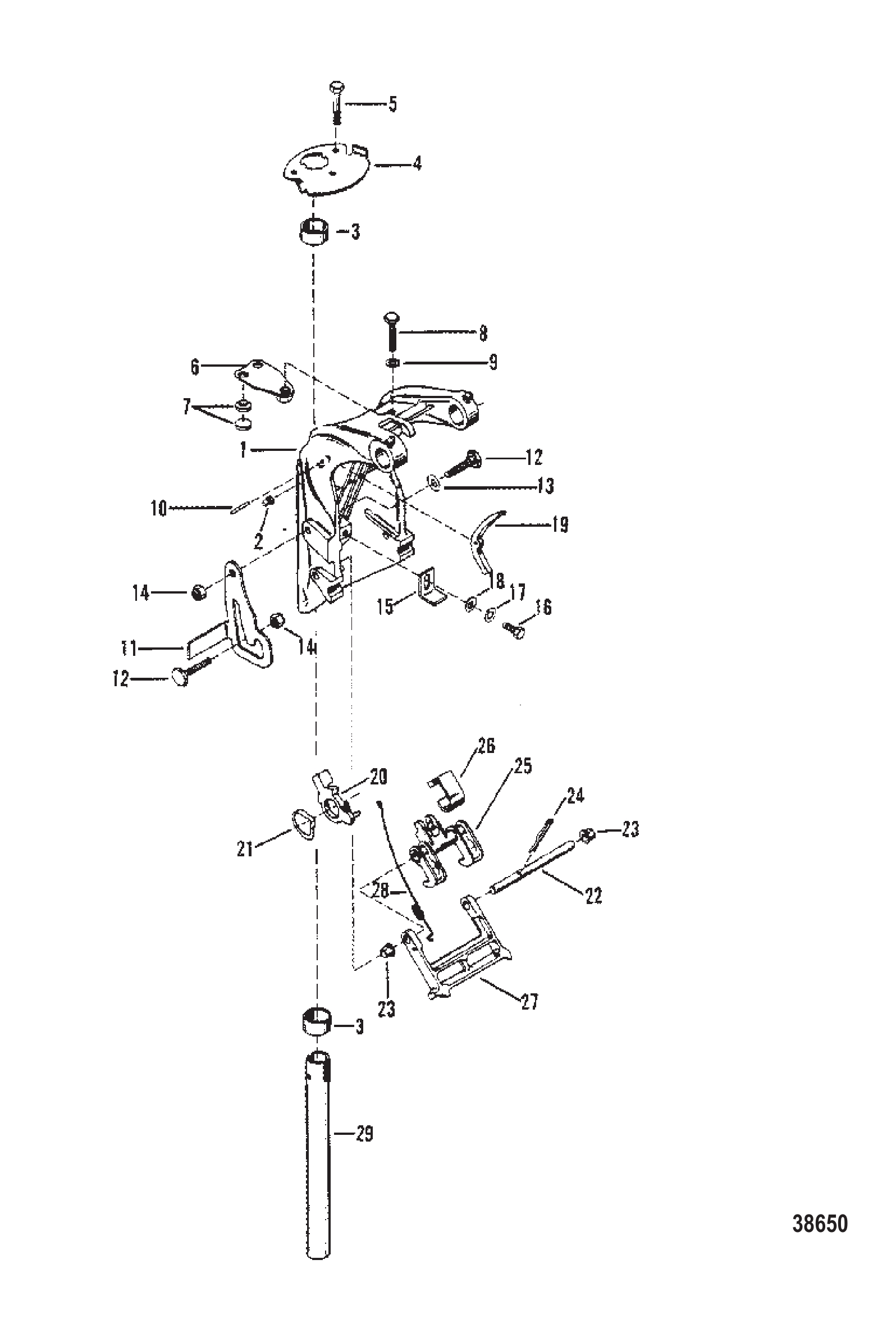

图 13旋转支架总成 SWIVEL BRACKET ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7324A1	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
2	74036	旋转支架润滑接头	FITTING Grease SWIVEL BRACKET	3
2	8M0169589	润滑脂接头	FITTING Grease	3
3	64028	转轴支架衬套	BUSHING SWIVEL BRACKET	2
4	77334	副驾驶板	PLATE CO-PILOT	1
5	78038	副驾驶盘至鞍座螺钉(.250-20x1.75)	SCREW (.250-20 x 1.75) CO-PILOT DISC TO SADDLE	3
6	72845A1	副驾驶夹板总成	PLATE ASSEMBLY CLAMP - CO-PILOT	1
7	20203	摩擦盘	DISC FRICTION	4
8	36154	夹板调节螺钉(.250-28x1.380)	SCREW (.250-28 x 1.380) CLAMP PLATE ADJUSTING	1
9	35462	垫圈(.2656 x .625 x .0625)不锈钢	WASHER (.2656 x .625 x .0625) Stainless Steel	1
10	25319	弹簧导向销(0.125x0.75英寸)	PIN (.125 x 0.75 Inches) SPRING GUIDE	1
11	879841	倾斜止动杆总成	LEVER ASSEMBLY TILT STOP	1
11	87984A1	倾斜止动杆总成	LEVER ASSEMBLY TILT STOP	1
12	41433	倾斜止动杆螺钉(.250-28x1.00)	SCREW (.250-28 x 1.00) TILT STOP LEVER	2
13	31030	杠杆锚定螺钉波形垫圈	WAVE WASHER LEVER ANCHOR SCREW	1
14	35888	倾斜止动杆螺钉不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel TILT STOP LEVER SCREW	2
15	72794	倒挡锁止块	STOP REVERSE LOCK	1
16	71056	螺丝(.250-28 x .560)倒车挡块至旋转支架	SCREW (.250-28 x .560) REVERSE STOP TO SWIVEL BRACKET	1
17	26992	锁紧垫圈(.250)不锈钢倒车挡块螺丝	LOCKWASHER (.250) Stainless Steel REVERSE STOP SCREW	1
18	71055	垫圈倒车挡块螺丝	WASHER REVERSE STOP SCREW	1
19	63554	导向弹簧	GUIDE SPRING	1
20	79744	拖钓支架控制杆	LEVER CONTROL - TROLL BRACKET	1
21	63631	拖钓支架杠杆波形垫圈	WAVE WASHER TROLL BRACKET LEVER	1
22	71419	倒挡锁止杆至开关支架	ROD REVERSE LOCK TO SWITCH BRACKET	1
23	26841	尼龙衬套-倒挡锁止杆连杆	BUSHING NYLON - REVERSE LOCK LEVER ROD	2
24	45882	倒挡锁止杆至连杆开口销	COTTER PIN REVERSE LOCK LEVER TO ROD	1
25	63628	倒挡锁止杆	LEVER REVERSE LOCK	1
25	63628T	杠杆	LEVER	1
26	61007	固定座-倒挡锁止杆	RETAINER ROD - REVERSE LOCK	1
27	63559	拖钓支架	BRACKET TROLL	1
27	63559T	支架	BRACKET	1
28	63630	拖钓支架延伸弹簧	SPRING EXTENSION - TROLL BRACKET	1
29	66559	旋转支架至鞍座管道	TUBE SWIVEL BRACKET TO SADDLE	1

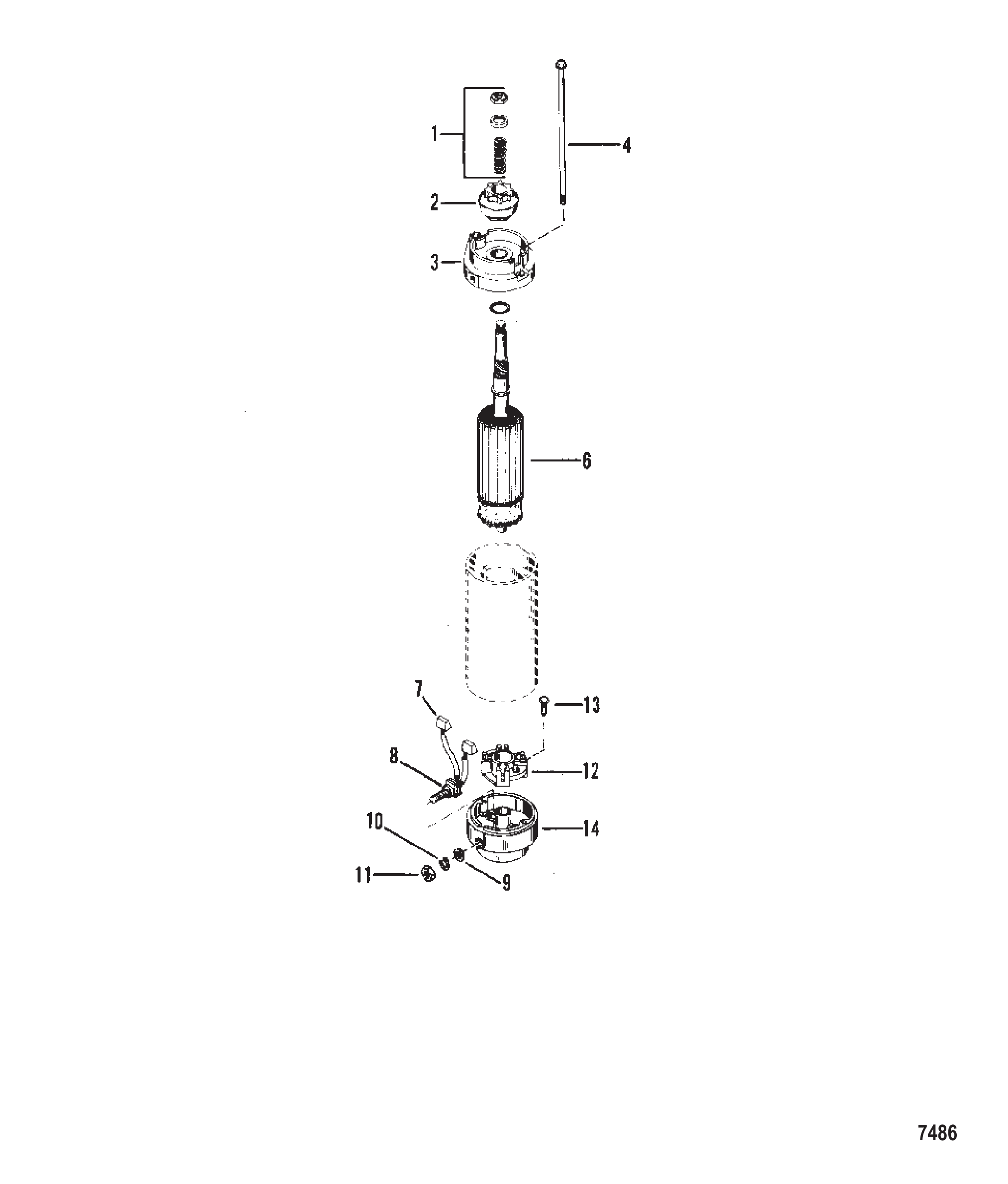

图 14启动电机总成 STARTER MOTOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
-	73521	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	90643	驱动套件	DRIVE KIT	1
2	68575	驱动总成	DRIVE ASSEMBLY	1
2	685753	驱动总成	DRIVE ASSEMBLY	1
3	75660		PLATE Drive End	1
4	75379	贯穿螺栓	BOLT Through	2
6	75382	电枢	ARMATURE	1
7	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
7	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	57387		BUSHING Insulating	1
9	38013		WASHER Input Stud	1
10	26992		LOCKWASHER (.250) Stainless Steel Input Stud	1
11	20890		NUT (.250-20) Input Stud	1
12	61787	电刷架	HOLDER Brush	2
12	898265014	电刷支架	HOLDER-BRUSH	2
13	68586		SCREW Brush and Holder	2
14	75383		END CAP Commutator	1

图 15齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)

REF	零件编号	中文名称	英文名称	数量
-	9539A4	齿轮箱总成短轴-黑色	GEAR HOUSING ASSEMBLY Short Shaft - Black	1
-	9539A5	齿轮箱总成长轴-黑色	GEAR HOUSING ASSEMBLY Long Shaft - Black	1
-	9539A6	齿轮箱总成短轴-灰色	GEAR HUSING ASSEMBLY Short Shaft - Gray	1
-	9539A7	齿轮箱总成长轴-灰色	GEAR HOUSING ASSEMBLY Long Shaft - Gray	1
1	9539A1	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9539T1	齿轮箱	GEAR HOUSING	1
1	9539A8	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9539T8	ORD 1643-9539T 1	ORD 1643-9539T 1	1
2	85822A1	速度表连接器总成	CONNECTOR ASSEMBLY Speedometer	1
2	85822A10	连接器总成	CONNECTOR ASSEMBLY	1
3	85500	定位销(.187 x .530)齿轮箱	PIN Dowel (.187 x .530) Gear Housing	2
3	8M0084726	定位销	PIN Dowel	2
4	33778	水泵/底座柱螺栓(2.625英寸)	STUD Water Pump/Base (2.625 Inch)	3
5	57933	柱螺栓(.437-14/.437-20 x 2.190)齿轮箱	STUD (.437-14/.437-20 x 2.190) Gear Housing	2
5	8M0034453	柱螺栓(7/16 x 2.19)	STUD (7/16 x 2.19)	2
6	62091	传动轴滚柱轴承	BEARING Roller Driveshaft	1
6	62091T	轴承	BEARING	1
7	72849A1	进水滤网总成	SCREEN ASSEMBLY Water Intake	1
8	36070	螺钉(#10-32 x 1.250)进水滤网至齿轮箱	SCREW (#10-32 x 1.250) Water Intake Screen to Gear Housing	1
9	45812	螺母(#10-32)不锈钢进水滤网螺钉	NUT (#10-32) Stainless Steel Water Intake Screen Screw	1
9	859124	螺母 (#10-32) 不锈钢	NUT (#10-32) Stainless Steel	1
10	92815	排气管支撑板	PLATE Support - Exhaust Tube	1
11	37721	排气管密封件	SEAL Exhaust Tube	1
11	37721001	密封件@2	SEAL @2	1
12	98097	传动轴小齿轮	GEAR Pinion Driveshaft	1
12	98097T	小齿轮	GEAR-PINION	1
13	55910	螺母(.437-20)小齿轮至传动轴	NUT (.437-20) Pinion Gear to Driveshaft	1
14	19552	水泵底座衬垫	GASKET Water Pump Base	1
15	26722	O型圈	O-RING	1
16	77177A1	水泵底座总成	BASE ASSEMBLY Water Pump	1
17	90562	密封件(1.254 x .312)	SEAL (1.254 x .312)	1
18	79831	油封	SEAL Oil	1
19	35973	定位销	PIN Dowel	2
20	19553	下衬垫	GASKET Lower	1
21	54705	面板	FACE PLATE	1
21	32768	面板	FACEPLATE	1
22	19551	上衬垫	GASKET Upper	1
23	89983	叶轮	IMPELLER	1
23	89983T	叶轮	IMPELLER	1
24	56662	叶轮驱动键	KEY Impeller Drive	1
24	8M0032837	键@5	KEY @5	1
25	77822A1	水泵壳体总成	BODY ASSEMBLY Water Pump	1
26	48753	嵌件	INSERT	1
27	38452	橡胶密封件	SEAL Rubber	1
28	38453	尼龙垫圈	WASHER Nylon	1
29	29245	垫圈(.281 x .500 x .060)不锈钢水泵体与底座柱螺栓	WASHER (.281 x .500 x .060) Stainless Steel Water Pump Body and Base Studs	3
29	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	3
30	13438	螺母(.250-28)水泵体与底座柱螺栓	NUT (.250-28) Water Pump Body and Base Studs	3
30	8267119	螺母(.250-28)	NUT (.250-28)	3
31	20273	橡胶O型圈	O-RING Rubber	1
32	78654A1	传动轴座总成	SEAT ASSEMBLY Driveshaft	1
33	86304	花键密封件-传动轴	SEAL Splined - Driveshaft	1
34	79953	螺钉(.375-16 x .250)润滑脂加注口	SCREW (.375-16 x .250) Grease Filler	1
34	79953Q04	放油螺钉套件	SCREW KIT Drain	1
35	67892	磁性放油螺钉	SCREW Magnetic Drain	1
35	8M0058389	放油螺钉套件	SCREW KIT Drain	1
36	19183	纤维垫圈(加注/放油螺钉)	WASHER Fiber Filler/Drain Screw	2
36	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
37	88181	润滑套筒-传动轴	SLEEVE Lubrication - Driveshaft	1
38	92881A1	轴承垫片组(齿轮箱用)(.002-3-5-10-20)	SHIM SET Bearing to Gear Housing(.002-3-5-10-20)	AR
39	77420A1	圆锥滚子轴承总成-传动轴	BEARING ASSEMBLY Roller Tapered - Driveshaft	1
39	8M0166756	轴承总成	BEARING ASSEMBLY	1
40	88025A2	驱动轴总成	DRIVESHAFT ASSEMLBY	1
40	98179	驱动轴	DRIVESHAFT	1
40	88024A2	驱动轴总成	DRIVESHAFT ASSEMBLY	1
40	98180	驱动轴	DRIVESHAFT	1
41	20254	驱动轴压缩弹簧	SPRING Compression - Driveshaft	1
42	30545	驱动轴销	PIN Driveshaft	1
43	76063A1	换挡轴总成	SHAFT ASSEMBLY Shift	1
44	29641	换挡轴E型卡环	E RING Shift Shaft	1
45	25439	O型圈(.862 x .103)换挡轴衬套	O-RING (.862 x .103) Shift Shaft Bushing	1
46	77631A2	换挡轴衬套总成	BUSHING ASSEMBLY Shift Shaft	1
47	76384	换挡轴衬套油封	SEAL Oil Shift Shaft Bushing	1
47	8M0246145	油封	OIL SEAL	1
48	77674	橡胶垫圈(.35 x .75 x .12)换挡轴衬套	WASHER (.35 x .75 x .12) Rubber - Shift Shaft Bushing	1
49	78036	倒挡锁定底座	BASE Reverse Locking	1
50	433081	倒挡锁定凸轮	CAM Reverse Locking	1
50	43308T1	凸轮	CAM	1
-	77177A3	水泵套件	WATER PUMP KIT	1
-	79831A1	密封套件	SEAL KIT	1
-	85491A87	衬垫套件	GASKET SET	1
-	85491A90	衬垫套件	GASKET SET	1

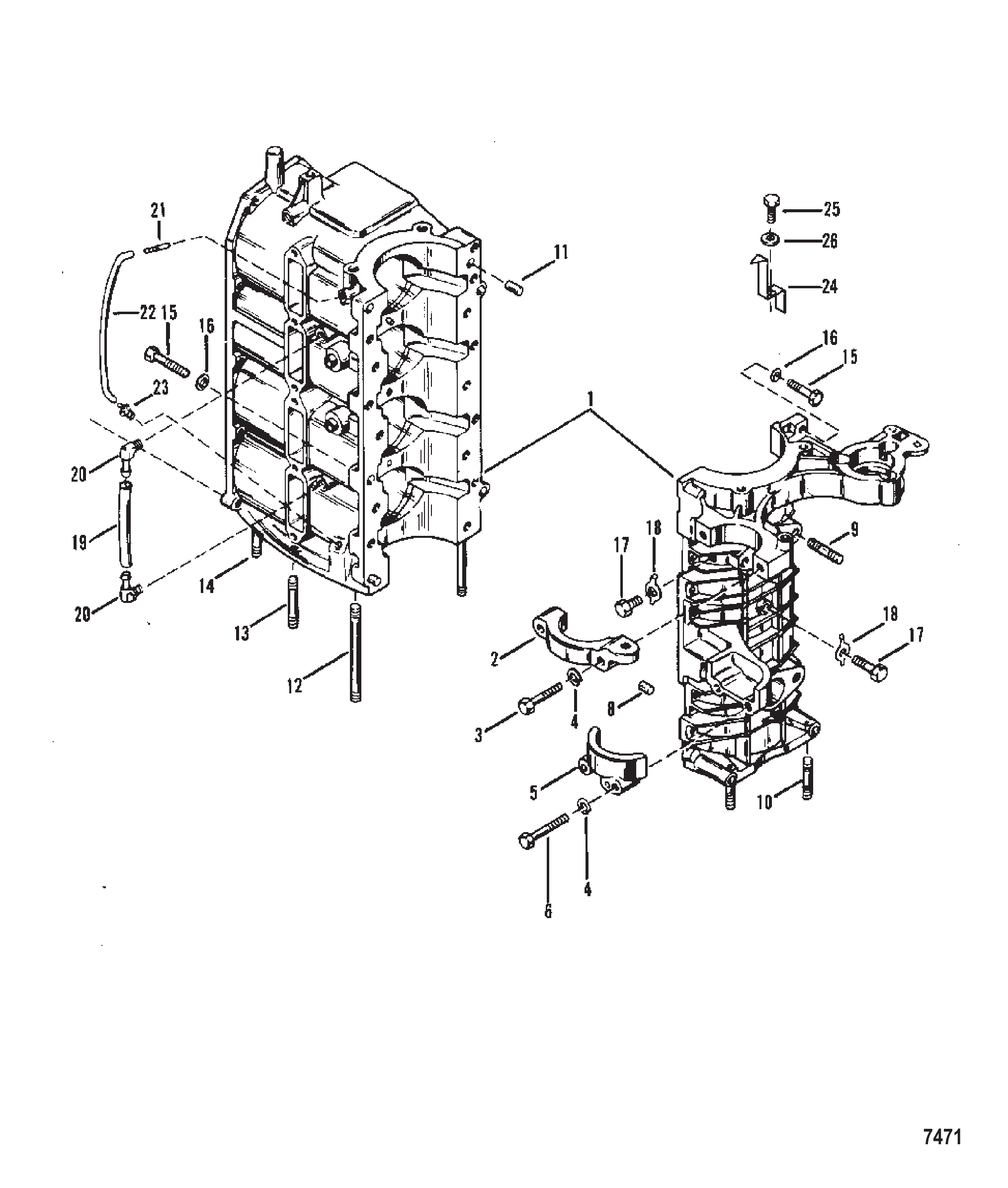

图 16气缸体与曲轴箱总成 CYLINDER BLOCK AND CRANKCASE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	8981A6	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
2	72038	启动电机上支架	BRACKET Upper Starter Motor	1
3	73279	支架至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸)	SCREW (.312-18 x 1.880) Bracket to Crankcase (1.875 Inch)	2
4	26993	支架螺钉锁紧垫圈(.312)	LOCKWASHER (.312) Bracket Screw	4
4	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
5	76867	启动电机下盖	COVER Lower Starter Motor	1
6	73279	盖至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸)	SCREW (.312-18 x 1.880) Cover to Crankcase (1.875 Inch)	2
8	20032	缸体至主轴承定位销	PIN Dowel Cylinder block to main bearing	2
9	68164	化油器双头螺柱(1.25英寸)	STUD Carburetor (1.25 Inch)	4
9	64936	螺柱	STUD	4
10	68165	曲轴箱至驱动轴壳体双头螺柱(1.625英寸)	STUD Crankcase to Driveshaft Housing (1.625 Inch)	2
11	20033	曲轴箱至缸体定位销	PIN Dowel Crankcase to Cylinder Block	2
11	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
12	87901	缸体至驱动轴壳体双头螺柱(4英寸)	STUD Cylinder block to drive shaft housing (4 Inch)	2
13	68166	缸体至驱动轴壳体双头螺柱(.312 x 2.125)(2.125英寸)	STUD (.312 x 2.125) Cylinder block to drive shaft housing (2.125 Inch)	2
14	68167	缸体至驱动轴壳体双头螺柱(.312-18/.312-24 x 2.560)(2.50英寸)	STUD (.312-18/.312-24 x 2.560) Cylinder block to drive shaft housing (2.50 Inch)	2
15	73657	曲轴箱至缸体螺钉(.312-18 x 1.50)(1.50英寸)	SCREW (.312-18 x 1.50) Crankcase to cylinder block (1.50 Inch)	13
15	31984	曲轴箱至缸体螺钉(.312-18 x 1.375)(1.375英寸)	SCREW (.312-18 x 1.375) Crankcase to cylinder block (1.375 Inch)	3
15	73275	曲轴箱至缸体螺钉(.312-18 x 2.88)(2.875英寸)	SCREW (.312-18 x 2.88) Crankcase to cylinder block (2.875 Inch)	2
16	70132	曲轴箱螺钉不锈钢垫圈(.323 x .563 x .063)	WASHER (.323 x .563 x .063) Stainless Steel Crankcase Screw	17
16	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	17
17	20359	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
17	98260	螺钉(.375-16 x .620)	SCREW (.375-16 x .620)	2
18	20091	中央轴承锁紧螺钉止动垫圈	TAB WASHER Center Bearing Locking Screw	3
19	99127109	平衡管(57英寸散装)-主轴承(5.50英寸)	LINE (57.00 Inches Bulk) Balance - Main Bearing (5.50 Inch)	1
19	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
20	99664	平衡管至缸体弯头	ELBOW Balance Tube to Cylinder Block	2
20	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	2
21	65857	上部泄放软管接头	CONNECTOR Upper Bleed Hose	1
21	56759	倒钩接头	FITTING Barbed	1
22	9938779	气缸泄放软管(11英寸)	HOSE Cylinder Bleed (11 Inch)	1
23	42867	下部泄放软管止回阀	CHECK VALVE Lower Bleed Hose	1
23	428671	止回阀	CHECK VALVE	1
24	99156	正时指示器	INDICATOR Timing	1
25	39349	指示器至曲轴箱不锈钢螺钉(.312-18 x .750)	SCREW (.312-18 x .750) Stainless Steel Indicator to Crankcase	1
26	26993	指示器螺钉锁紧垫圈(.312)	LOCKWASHER (.312) Indicator Screw	1
26	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
-	97469A87	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	97469T87	船用动力头	POWERHEAD MARINE	1

图 17杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES

REF	零件编号	中文名称	英文名称	数量
-	811286	零件手册(6/8/9.9/15马力)	PARTS MANUAL 6/8/9.9/15 Hp
-	12048930	用户指南(黑色)	OWNERS GUIDE (BLACK)
-	14138930	用户指南(灰色)	OWNERS GUIDE (GRAY)
-	14012A89	贴花套装(9.9/210帆动力)	DECAL SET (9.9/210 SAILPOWER)
-	12836A89	贴花套装(黑色-6至9.9马力)	DECAL SET (BLACK- 6 THRU 9.9)
-	13478A88	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	810458A92	贴花套装(灰色-6至15马力)	DECAL SET (GRAY- 6 THRU 15)
-	822787A93	贴花套装(灰色-8帆伴侣)	DECAL SET (GRAY 8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808522A94	贴花套装(黑色-6马力)	DECAL SET (BLACK-6)
-	808522A00	贴花套件	DECAL SET
-	808526A94	贴花套装(黑色-8马力)	DECAL SET (BLACK -8)
-	808526A00	贴花套件	DECAL SET
-	12836A94	贴花套装(黑色-9.9马力)	DECAL SET (BLACK- 9.9)
-	12836A00	贴花套件	DECAL SET
-	808523A94	贴花套装(9.9帆动力)	DECAL SET (9.9 SAILPOWER)
-	808523A96	贴花套件	DECAL SET
-	13478A94	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	13478A00	贴花套件	DECAL SET
-	808524A94	贴花套装(灰色-6马力)	DECAL SET (GRAY-6)
-	808524A03	贴花套件	DECAL SET
-	808545A94	贴花套装(灰色-8马力)	DECAL SET (GRAY-8)
-	808545A03	贴花套件	DECAL SET
-	808560A94	贴花套装(8帆伴侣)	DECAL SET (8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808525A94	贴花套装(灰色-9.9马力)	DECAL SET (GRAY-9.9)
-	808525A03	贴花套件	DECAL SET
-	808546A94	贴花套装(灰色-15马力)	DECAL SET (GRAY-15)
-	808546A03	贴花套件	DECAL SET

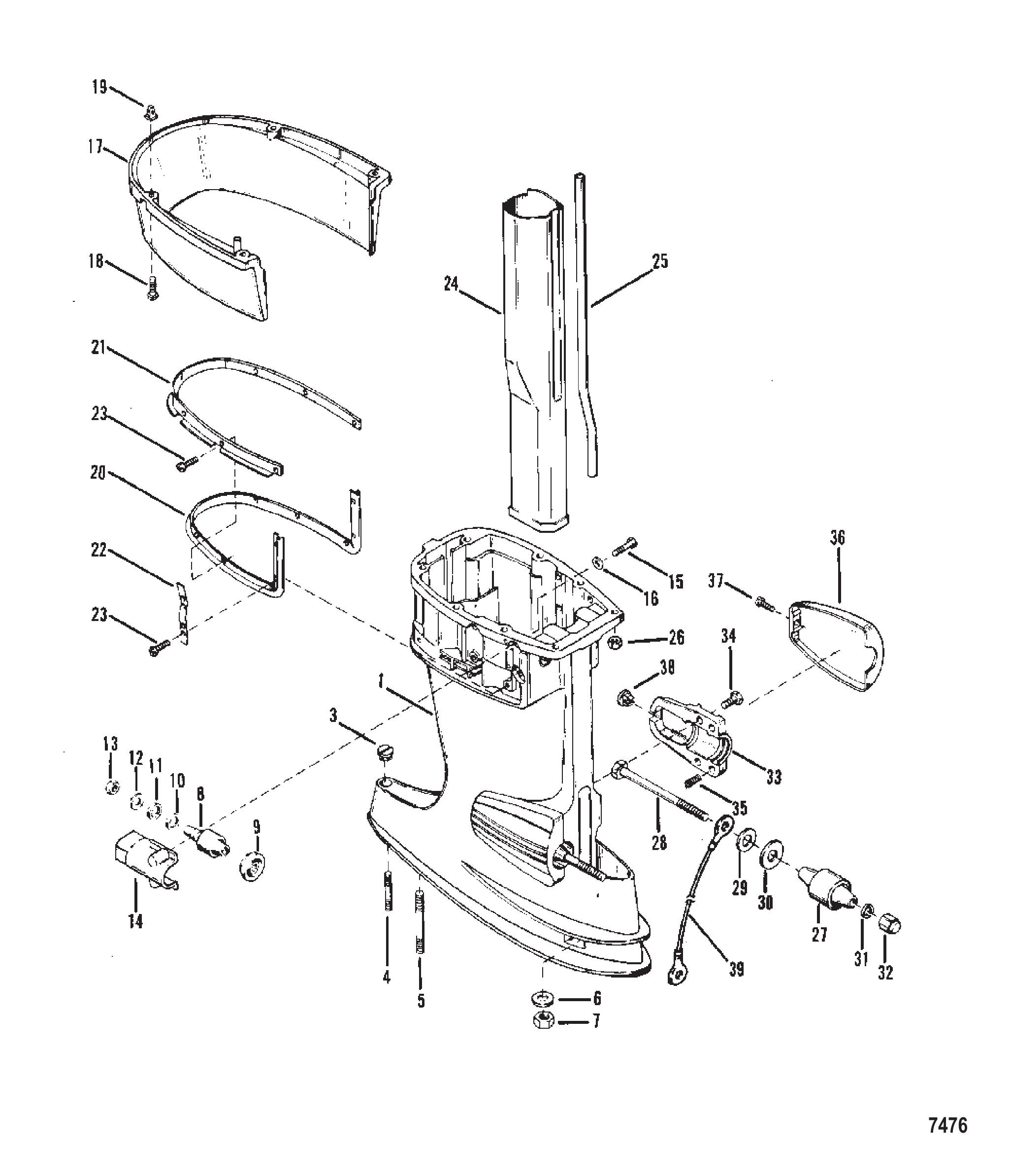

图 18驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	7512A10	驱动轴壳体总成(短轴)	HOUSING ASSEMBLY Driveshaft (Short Shaft)	1
1	7513A12	驱动轴壳体总成(长轴)	HOUSING ASSEMBLY Driveshaft (Long Shaft)	1
1	8189A10	黑色传动轴壳体总成	HOUSING ASSEMBLY Driveshaft Black	1
1	8189A11	灰色传动轴壳体总成	HOUSING ASSEMBLY Driveshaft Gray	1
3	64649	塑料螺塞-调整片螺钉孔	PLUG Plastic - Trim Tab Screw Hole	1
4	57932		STUD (.375-16/.375-24 x 1.750) Driveshaft Housing	1
4	8M0022145	螺柱(.375-16/.375-24 x 1.750)	STUD (.375-16/.375-24 x 1.750)	1
5	57935	驱动轴壳体双头螺柱(3英寸)	STUD Driveshaft Housing (3 Inch)	1
6	65791	齿轮箱壳体螺柱垫圈(0.438英寸)	WASHER Gear Housing Studs (0.438 Inch)	2
7	34933		NUT (.437-20) Stainless Steel Gear Housing Studs	2
7	8M0204653	螺母	NUT	2
8	93445	橡胶上支架	MOUNT Rubber - Upper	2
8	923373	支架	MOUNT	2
9	96401	上支架密封件	SEAL Upper Mount	2
10	27727		WASHER Upper Mount Bolt (37/64 I.D.)	2
11	66966		WASHER Rubber - Upper Mount Bolt	2
12	30514		WASHER Upper Mount Bolt	2
13	34933		NUT (.437-20) Stainless Steel Upper Mount Bolt	2
13	8M0204653	螺母	NUT	2
14	87883T	上减震座盖	COVER Upper Mount	2
14	87883	盖板	COVER	2
15	76630		SCREW (.250-20 x 1.00) Upper Mount Cover	4
15	8M0214943	螺钉	SCREW	4
16	29245		WASHER (.281 x .500 x .060) Stainless Steel Upper Mount Cover Screw	4
16	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	4
17	37687	驱动轴壳体调整盖	COVER Trim - Driveshaft Housing	1
17	37687F2	驱动轴壳体调整盖	COVER Trim - Driveshaft Housing	1
18	57807		SCREW (#10-16 x .750) Stainless Steel Trim Cover to Driveshaft Housing	4
19	92012		GROMMET Trim Cover Screw	4
19	8M0079730	密封圈套件	GROMMET KIT	4
20	38157	调整盖至驱动轴壳体密封件	SEAL Trim Cover to Driveshaft Housing	1
21	38158	调整盖密封条(后)	STRIP Retaining - Trim Cover Seal (Rear)	1
22	38154	调整盖密封条(侧)	STRIP Retaining - Trim Cover Seal (Side)	2
23	48408	固定条螺钉(#10-16 x .500)	SCREW (#10-16 x .500) Retaining Strip	8
24	695431	排气管	TUBE Exhaust	1
24	695441	排气管	TUBE Exhaust	1
25	37727	进水口管	TUBE Water Inlet	1
25	45679	进水口管	TUBE Water Inlet	1
26	64809	动力头螺柱螺母(0.313英寸)	NUT Powerhead Studs (0.313 Inch)	8
27	75304	下橡胶支座	MOUNT Rubber - Lower	2
27	75304T1	支架	MOUNT	2
28	75284		SCREW (.500-20 x 5.500) Lower Mount Screw	2
28	43426	下支座螺丝	SCREW Lower Mount Screw	2
29	28051		WASHER Lower Mount Screw	2
30	28053	下支座螺丝橡胶垫圈	WASHER Rubber - Lower Mount Screw	2
31	30119		WASHER (.875 Inch Outside Diameter) Lower Mount Screw	2
32	25096		NUT Lower Mount Screw	2
33	69592	下支座夹箍	CLAMP Lower Mount	2
33	69592F1	卡箍	CLAMP	2
34	29256		SCREW (.312-18 x .875) Lower Mount Clamp	4
35	35522		SPRING Tension - Lower Mount Clamp	4
36	35474T	下安装夹盖	COVER Lower Mount Clamp	2
36	35474F2	下支座夹箍盖	COVER Lower Mount Clamp Lower Mount Clamp	2
37	87884	盖至下支座夹箍螺丝(#12-14 x 0.920)	SCREW (#12-14 x .920) Cover to Lower Mount Clamp	2
38	35521		NUT Lower Mount Clamp Cover	2
39	88238A2	动力升降接地线组件(2根)	CABLE ASSEMBLY Ground Quanity of Two on Power Trim	1
39	88238A10	接地线总成	CABLE ASSEMBLY Ground	1

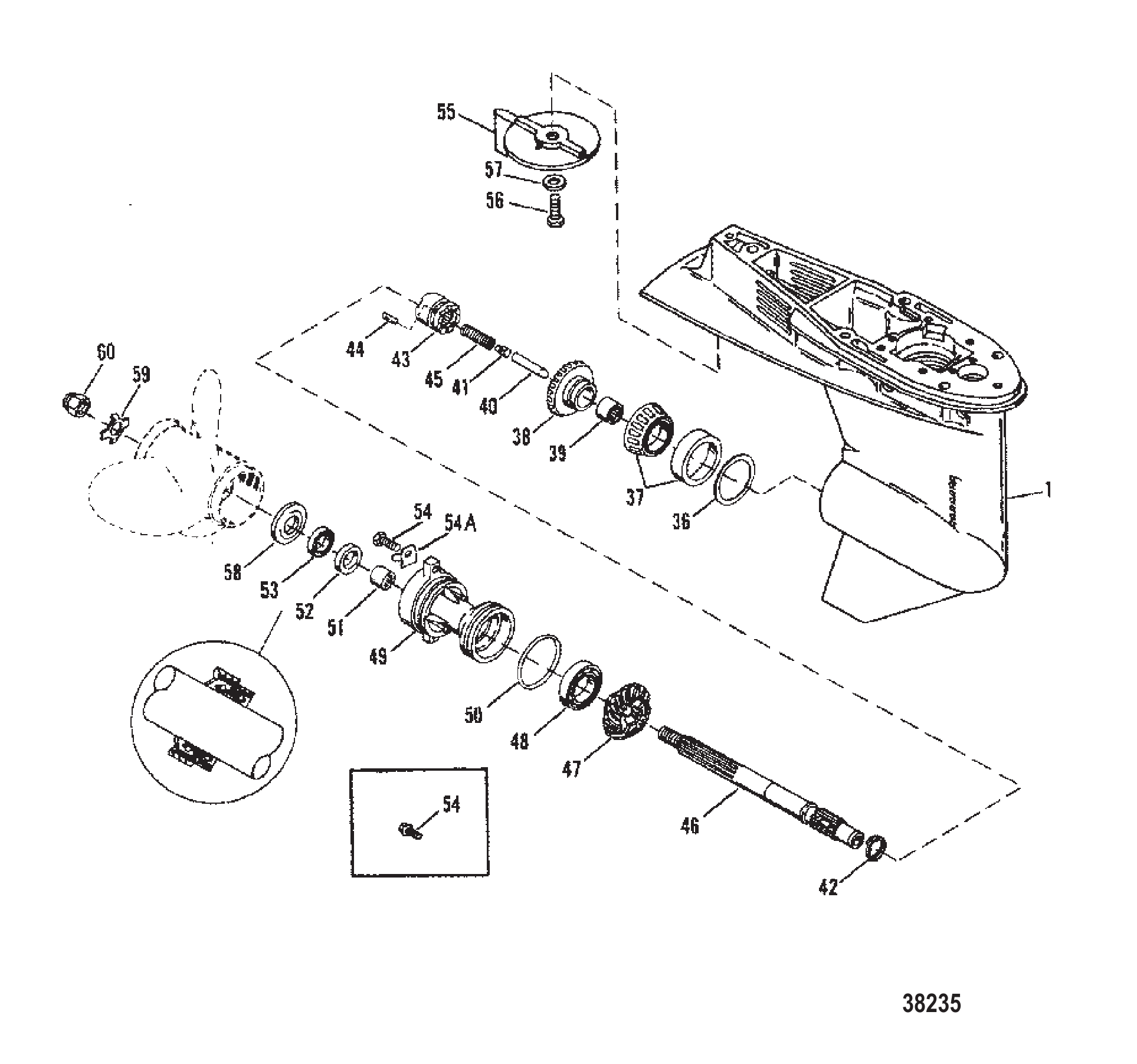

图 19齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)

REF	零件编号	中文名称	英文名称	数量
-	9760A8	齿轮箱总成(短型)(黑色)	GEAR HOUSING ASSEMBLY (SHORT) (BLACK)	1
-	9760A9	齿轮箱总成(短型)(灰色)	GEAR HOUSING ASSEMBLY (SHORT) (GRAY)	1
-	9760A24	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A21	齿轮箱总成(长型)(追踪者系列)	GEAR HOUSING ASSEMBLY (LONG) (TRACKER)	1
-	9760T27	ORD1671-9760T25	ORD1671- 9760T25	1
-	9760A12	齿轮箱总成(长型)(黑色)	GEAR HOUSING ASSEMBLY (LONG) (BLACK)	1
-	9760T25	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A13	齿轮箱总成(长型)(灰色)	GEAR HOUSING ASSEMBLY (LONG) (GRAY)	1
-	9760T26	ORD 1671-9760T25	ORD 1671-9760T25	1
-	9760A10	齿轮箱总成(加长)(黑色)	GEAR HOUSING ASSEMBLY (X-LONG) (BLACK)	1
-	9760T28	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9760A11	齿轮箱总成(加长)(灰色)	GEAR HOUSING ASSEMBLY (X-LONG) (GRAY)	1
-	9760T29	灰色齿轮箱	GEAR HOUSING-GR	1
1	9760A2	齿轮箱总成(基础款)(黑色)	GEAR HOUSING ASSEMBLY (BASIC)(BLACK)	1
1	9760T42	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9760A3	齿轮箱总成(基础款)(灰色)	GEAR HOUSING ASSEMBLY (BASIC)(GRAY)	1
1	9760T31	ORD 1671-9760T30	ORD 1671-9760T30	1
1	9760A20	齿轮箱总成(基础款)(TRACKER)	GEAR HOUSING ASSEMBLY (BASIC)(TRACKER)	1
1	9760T32	ORD 1671-9760T42	ORD 1671-9760T42	1
36	812769A1	垫片组	SHIM SET	AR
36	8M0063263	垫片组	SHIM SET	AR
37	812767A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
37	8M0103476	轴承总成	BEARING ASSY	1
38	813693A1	前进齿轮总成	GEAR ASSEMBLY Forward	1
38	813693T1	前进齿轮	GEAR Forward	1
39	21739	滚柱轴承	BEARING Roller	1
40	8129291	凸轮从动件	FOLLOWER Cam	1
41	20843	滑块	SLIDE	1
42	38114	弹簧	SPRING	1
43	813697	离合器	CLUTCH	1
43	813697T	离合器	CLUTCH	1
44	38113	十字销	PIN Cross	1
44	8M0020942	十字销@2	PIN-CROSS @2	1
45	815418	弹簧	SPRING	1
46	14493	螺旋桨轴	PROPELLER SHAFT	1
47	813695	倒挡齿轮	GEAR Reverse	1
47	813695T	倒挡齿轮	GEAR Reverse	1
48	20839	滚珠轴承	BEARING Ball	1
48	20839T	滚珠轴承	BEARING Ball	1
49	19291A3	轴承座总成	CARRIER ASSEMBLY Bearing	1
49	8M0168900	轴承座	BEARING CARRIER	1
50	815460	O型圈	O-RING	1
51	21700	滚针轴承	BEARING Needle	1
52	69188	油封	SEAL Oil	1
52	8M0205511	油封	SEAL Oil	1
53	69189	油封	SEAL Oil	1
53	8M0203757	油封	SEAL Oil	1
54	4000353	螺钉 (M8 x 25)	SCREW (M8 x 25)	2
54A	826613	锁紧垫圈	TAB WASHER	2
54	8136911	螺丝(M8×0.98)	SCREW (M8 x .98)	2
55	17264T2	调整片 锌制	TRIM TAB Zinc	1
56	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	1
57	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
57	8M0214963	垫圈	WASHER	1
58	73345A1	止推垫片	THRUST WASHER	1
59	76281	锁紧垫圈	TAB WASHER	1
59	8M0214942	锁紧垫片	WASHER Tab	1
60	69578A1	螺旋桨螺母套件	PROP NUT KIT	1
60	69578Q1	螺旋桨螺母套件	PROP NUT KIT	1
-	812867A91	发动机垫片组	GASKET SET Engine	1
-	812867A97	衬垫套件	GASKET SET	1
-	814669A2	齿轮箱密封套件	SEAL KIT Gear Housing	1

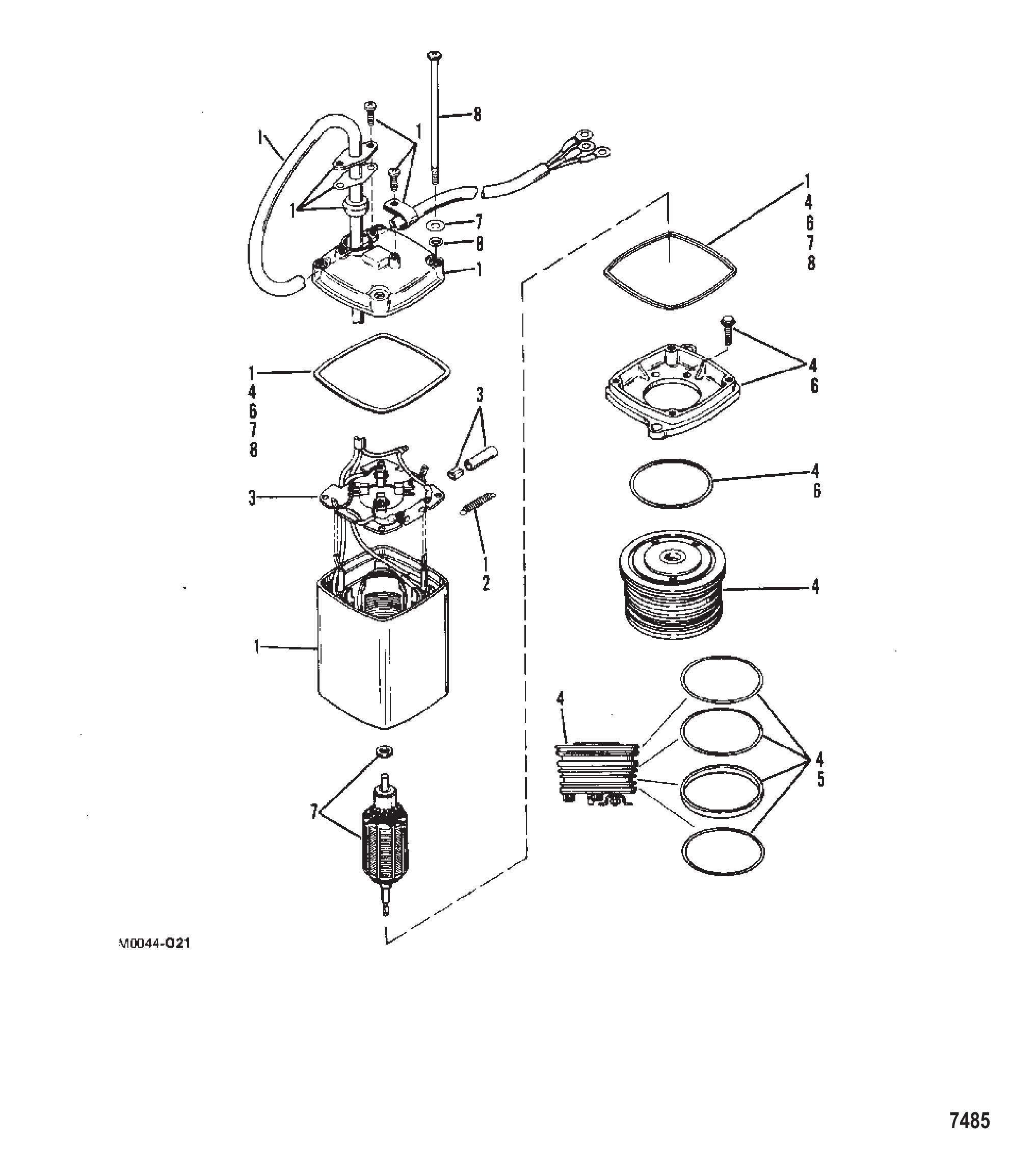

图 20动力升降泵(Eaton矩形电机) Power Trim Pump (Eaton Rectangular Motor)

REF	零件编号	中文名称	英文名称	数量
-	99186T	泵与电机总成	PUMP AND MOTOR	1
1	12659	机架与磁场套件	FRAME AND FIELD KIT	1
1	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
2	12665	电刷弹簧套件	SPRING KIT Brush	1
3	13506	电刷卡套件	BRUSH CARD KIT	1
3	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
4	12662	泵与端架套件	PUMP AND END FRAME KIT	1
4	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
5	12663	泵密封套件	SEAL KIT Pump	1
5	126631	泵密封套件	SEAL KIT Pump	1
6	12660	端架套件	END FRAME KIT	1
6	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
7	12661	电枢套件	ARMATURE KIT	1
7	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
8	12664	贯穿螺栓套件	THRU BOLT KIT	1

图 21曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS

REF	零件编号	中文名称	英文名称	数量
1	9611A1	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	63742	滚珠轴承	BEARING Ball	1
2	63742T	滚珠轴承	BEARING Ball	1
3	812877	挡圈	RING Retaining	1
4	91800	半圆键	KEY Woodruff	2
5	43019A2	齿轮总成	GEAR ASSEMBLY	1
6	812873A1	滚子轴承总成(顶部)	BEARING ASSEMBLY Roller (TOP)	1
7	419531	油封	SEAL Oil	1
8	812881A1	滚子轴承总成(中部)	BEARING ASSEMBLY Roller (CENTER)	2
9	9613A1	活塞总成	PISTON ASSEMBLY	3
9	9613T1	活塞	PISTON	3
9	9613A2	活塞总成	PISTON ASSEMBLY	AR
9	9613T2	活塞总成0.015	PISTON ASSY .015	AR
9	9613A3	活塞总成	PISTON ASSEMBLY	AR
9	9613T3	活塞	PISTON	AR
10	52035	锁环	RING Lock	6
10	857196	锁紧环	LOCK RING	6
11	19721A6	活塞环组	RING SET Piston	1
11	19721A1	活塞环组	RING SET Piston	AR
11	19721A2	活塞环组	RING SET Piston	AR
12	9612A2	连杆总成	CONNECTING ROD ASSEMBLY	3
12	9612A6	连杆总成	CONNECTING ROD ASSEMBLY	3
13	812876	垫圈	WASHER	6
13	8M0012298	止推垫片	THRUST WASHER	6
14	47270	轴承	BEARING	8
14	8M0214934	滚针轴承@200	BRG-NEEDLE @200	8
15	91012	螺钉(0.250-28特殊)	SCREW (.250-28 Special)	6
16	17514A1	轴承套件	BEARING KIT	3
16	8M0234886	轴承保持架	CAGE BEARING	3
-	811208T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	821744T92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T91	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811209T93	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1

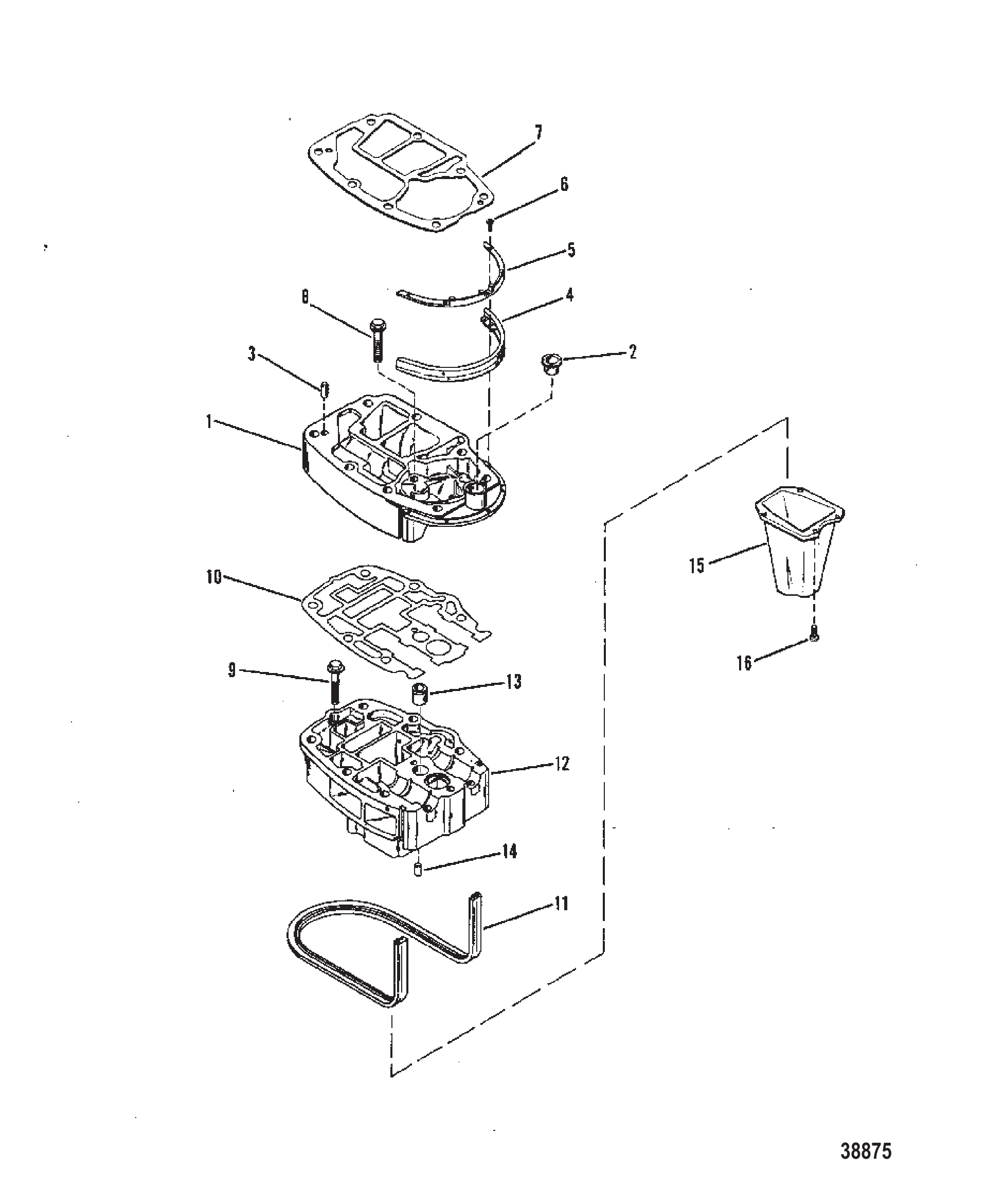

图 22排气延伸板 EXHAUST EXTENSION PLATE

REF	零件编号	中文名称	英文名称	数量
1	43289A2	排气延伸板总成	PLATE ASSEMBLY EXHAUST EXTENSION	1
2	27132	排气延伸板尼龙衬套	BUSHING NYLON-EXHAUST EXTENSION PLATE	1
3	23784	排气延伸板定位销	PIN Dowel EXHAUST EXTENSION PLATE	2
4	37918	排气延伸板密封件	SEAL EXHAUST EXTENSION PLATE	1
5	99358	排气延伸板固定条	STRIP RETAINING - EXHAUST EXTENSION PLATE	1
6	37571	螺钉(.190-32 x 0.500)	SCREW (.190-32 x .500)	5
7	69238	动力头衬垫	GASKET POWERHEAD	1
7	692381	衬垫	GASKET	1
8	66023	法兰头螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00) Flange Head	2
9	66023	法兰头螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00) Flange Head	7
10	66102	驱动轴壳体板衬垫	GASKET DRIVESHAFT HOUSING PLATE	1
10	661021	衬垫	GASKET	1
11	60898	驱动轴壳体板密封件	SEAL DRIVESHAFT HOUSING PLATE	1
12	43290A4	驱动轴壳体板总成	PLATE ASSEMBLY DRIVESHAFT HOUSING	1
13	38970	橡胶密封圈-进水管	SEAL RUBBER - WATER INLET TUBE	1
14	23784	驱动轴壳体板定位销	PIN Dowel DRIVESHAFT HOUSING PLATE	2
15	99698	排气管	TUBE Exhaust	1
16	65414	螺钉(3/4英寸)	SCREW (3/4 Inches)	4
-	73645A87	衬垫套件	GASKET SET	1
