舟一会 ZHOUYIHUI 船外机

水星 Mercury 90, 900 6 CYL 8071020 & Up - 爆炸图零件明细

两冲程 化油器 · Australia - Cat.# 90-92213 · 共 51 个部位 · 1949 条零件

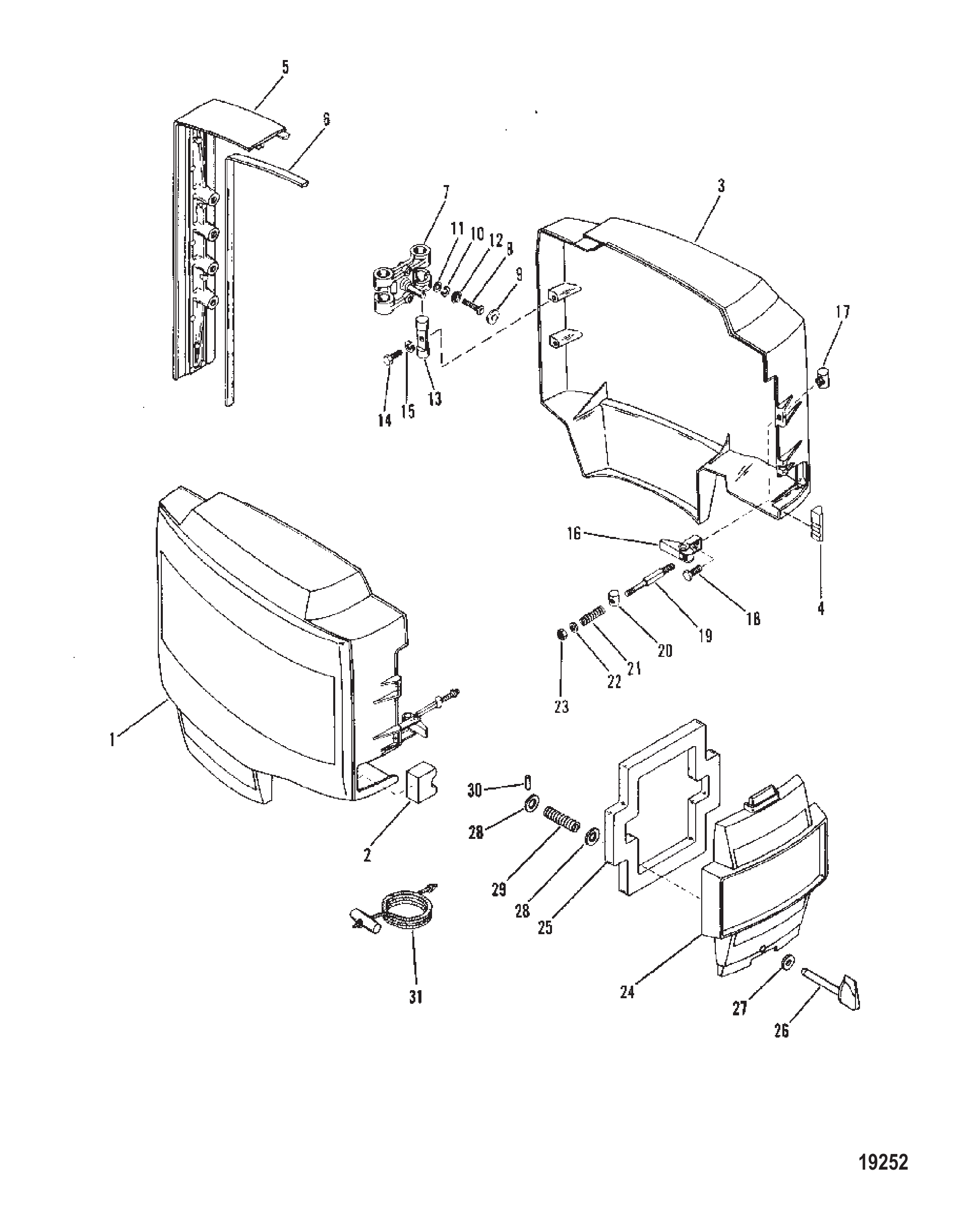

1底罩与换挡连杆2顶罩与支撑支架3化油器总成4转速表5动力升降组件6化油器7维修/支撑材料8艉板支架9外罩与前盖10动力升降泵(Prestolite圆形电机)11自动混合装置12旋转支架与转向臂13旋转支架总成14启动电机总成15齿轮箱（驱动轴）16气缸体与曲轴箱总成17杂项零件/附件18驱动轴外壳总成19齿轮箱(螺旋桨轴)20动力升降泵(Eaton矩形电机)21曲轴、活塞与连杆22排气延伸板23底罩与换挡连杆24化油器总成25化油器联动阻风门电磁阀26外罩与前盖27曲轴、活塞与连杆28气缸体与曲轴箱总成29驱动轴外壳总成30端盖、歧管及排气罩31排气延伸板32飞轮、启动电机及定子33燃油泵及油管总成34齿轮箱（驱动轴）35齿轮箱(螺旋桨轴)36液压泵总成(金属油箱)37液压泵总成(塑料油箱)38杂项零件/附件39动力升降组件(无断路器和保险丝)40动力升降组件(含断路器与保险丝)41动力升降油缸修理包(配合76509A3使用)42动力升降油缸修理包(配合92194A14使用)43螺旋桨(右旋)44启动电机总成45开关盒及启动电磁阀46旋转支架总成47油门杆及连杆48顶罩与支撑支架49艉板支架50升降油缸及液压软管51线束及点火线圈

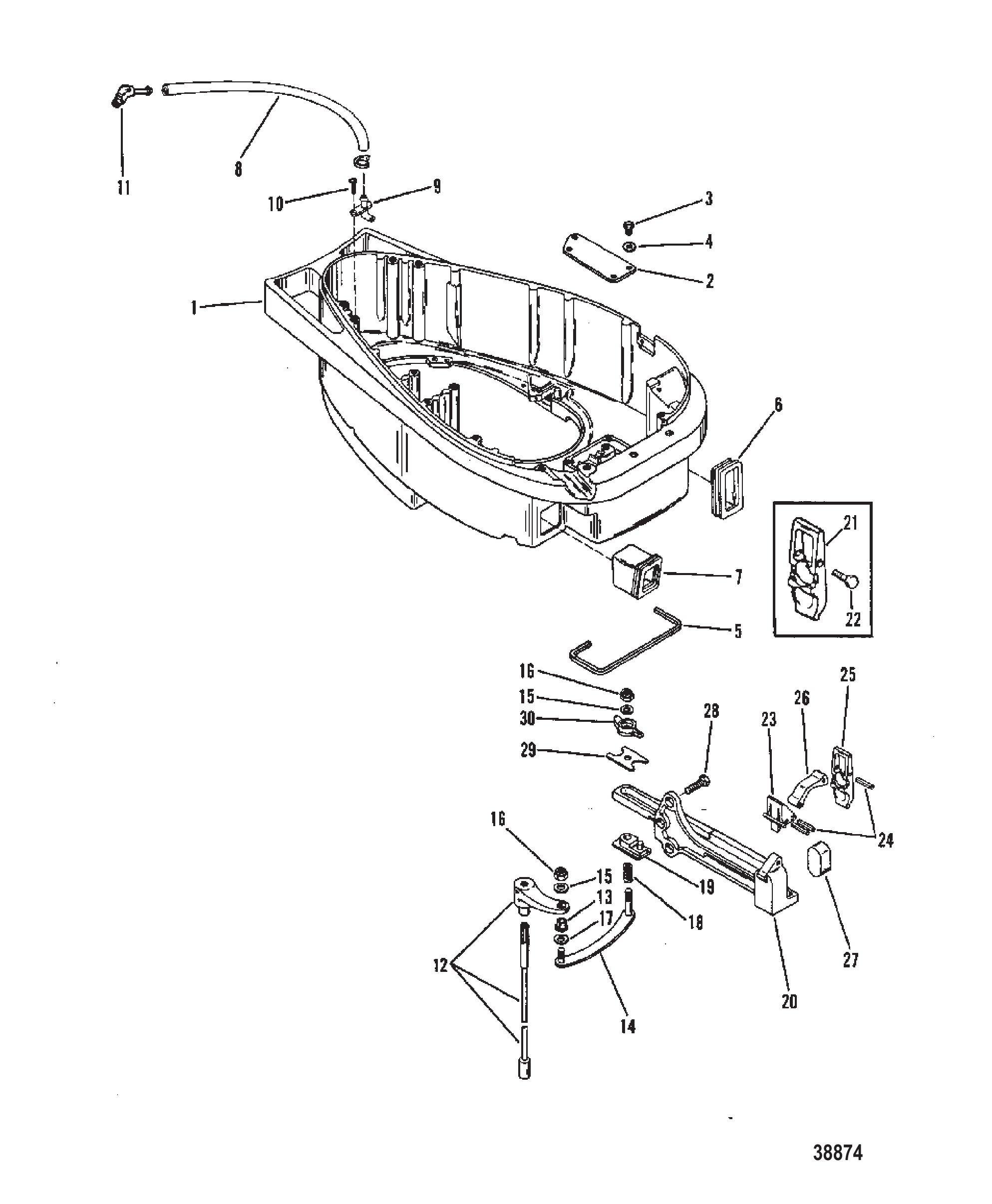

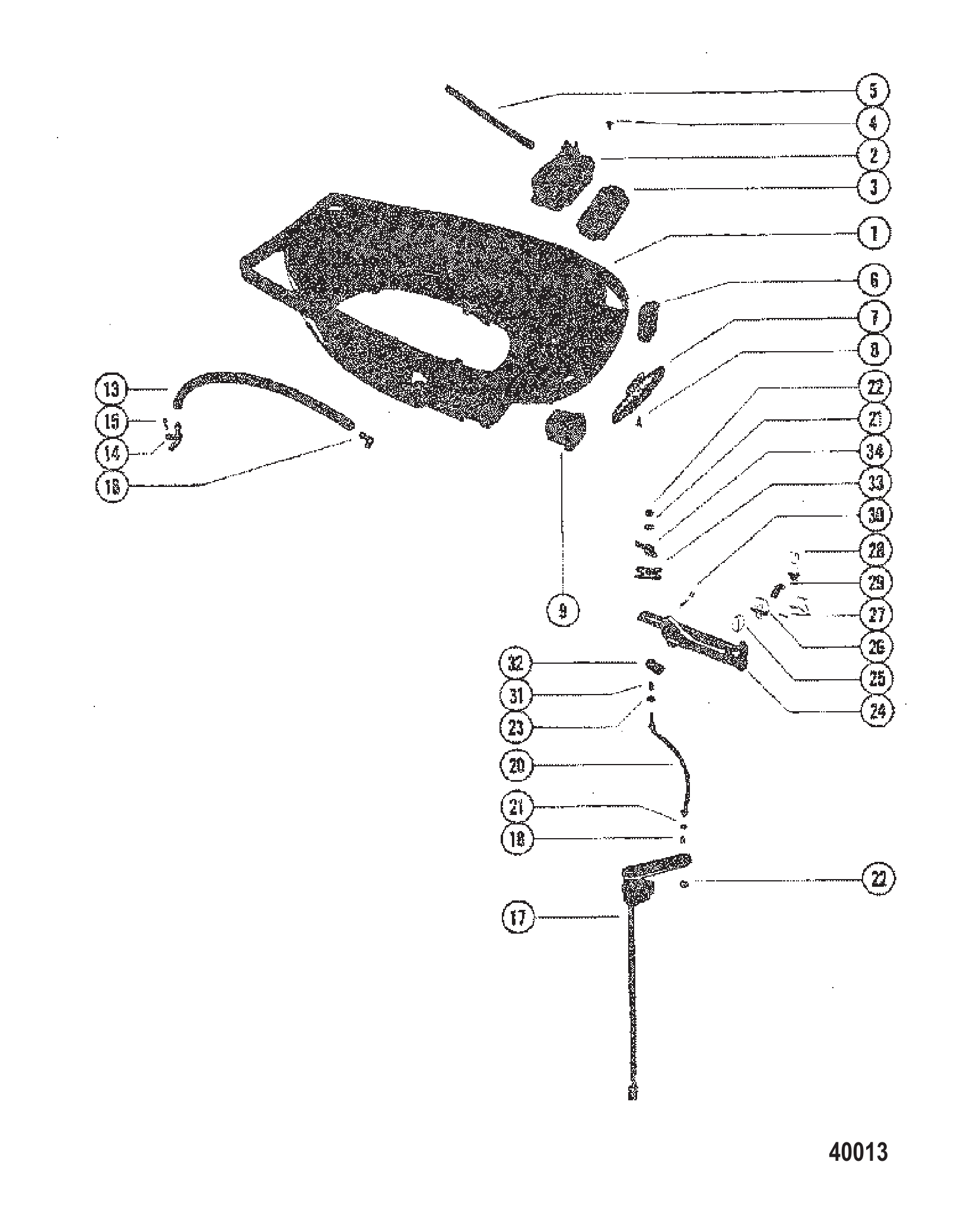

图 1底罩与换挡连杆 BOTTOM COWL AND SHIFT LINKAGE
底罩与换挡连杆 BOTTOM COWL AND SHIFT LINKAGE
REF零件编号中文名称英文名称数量
187081底罩COWL BOTTOM1
18708T6底罩COWL BOTTOM1
274303进气口盖COVER AIR INLET1
362568螺钉(#10-16 x .375)盖至底罩SCREW (#10-16 x .375) COVER TO BOTTOM COWL4
430164垫圈(.192 x .375 x .0312)不锈钢盖螺钉WASHER (.192 x .375 x .0312) Stainless Steel COVER SCREW4
573646底罩衬垫GASKET BOTTOM COWL1
639616底罩控制线缆护套BOOT CONTROL CABLES-BOTTOM COWL1
737637底罩燃油接头护套BOOT FUEL CONNECTOR-BOTTOM COWL1
899127109管线(57.00英寸散装)示警管(14-3/4")LINE (57.00 Inches Bulk) TELL TALE (14-3/4")1
88M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
952889示警软管至底罩喷嘴NOZZLE TELL TALE HOSE TO BOTTOM COWL1
1048408示流喷嘴至下罩盖螺钉(#10-16x0.500)SCREW (#10-16 x .500) TELL TALE NOZZLE TO BOTTOM COWL1
1178279示警软管至气缸体弯头ELBOW TELL TALE HOSE TO CYLINDER BLOCK1
118M0207781弯头ELBOW1
1260304A54上部换挡轴总成SHIFT SHAFT ASSEMBLY UPPER1
1326856换挡轴衬套BUSHING SHIFT SHAFT1
1473402换挡连杆SHIFT LINK1
1535462垫圈(.2656 x .625 x .0625)不锈钢连杆WASHER (.2656 x .625 x .0625) Stainless Steel LINK ROD2
1636069连杆螺母NUT LINK ROD2
1729720连杆波形垫圈WAVE WASHER LINK ROD1
1820099连杆至导向块弹簧SPRING LINK ROD TO GUIDE BLOCK1
1937896连杆导向块GUIDE BLOCK LINK ROD1
2052732A6控制线缆锚定支架BRACKET ANCHOR-CONTROL CABLES1
2198889闩锁LATCH1
2242975闩锁传动螺钉DRIVE SCREW LATCH2
2339618尼龙换挡线缆锁定杆LEVER NYLON-SHIFT CABLE LOCKING1
2387609A1杠杆套件LEVER KIT1
2447175锁定杆及盖固定销PIN LOCKING LEVER AND COVER FASTENING3
2590211尼龙换挡线缆盖COVER NYLON-SHIFT CABLE1
2665799T连杆-锁定杆到盖板LINK LOCKING LEVER TO COVER1
2687609A1杠杆套件LEVER KIT1
2739519锚定杯形保持器CUP BARREL RETAINER-ANCHOR1
2835386螺钉(.312-18 x 1.00)锚定支架至气缸体SCREW (.312-18 x 1.00) ANCHOR BRACKET TO CYLINDER BLOCK3
2952100连杆耐磨板WEAR PLATE LINK ROD1
3038279控制线缆闩锁紧固件LATCH CONTROL CABLE FASTENING1
308M0036768闩锁LATCH1
-73645A87衬垫套件GASKET SET1

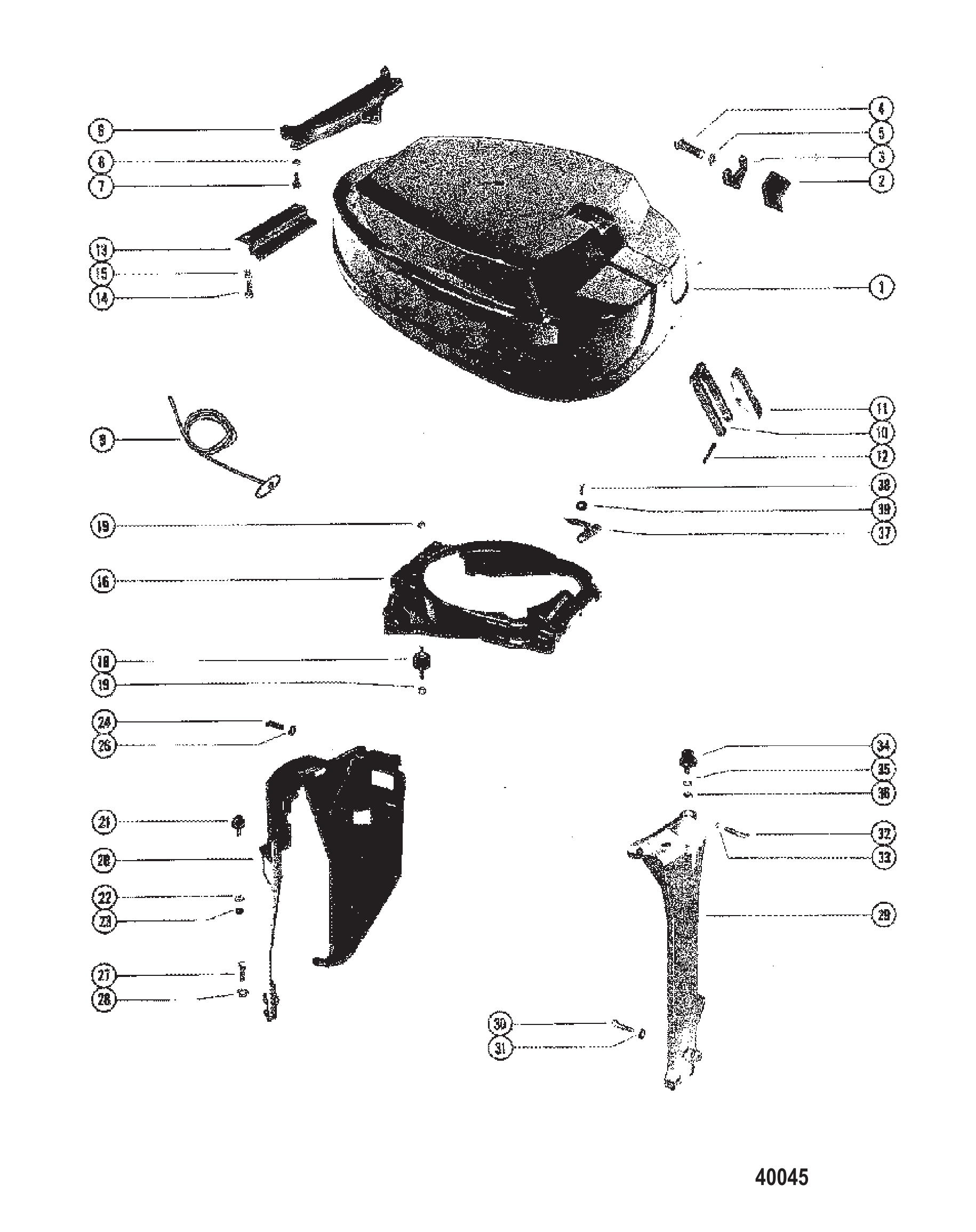

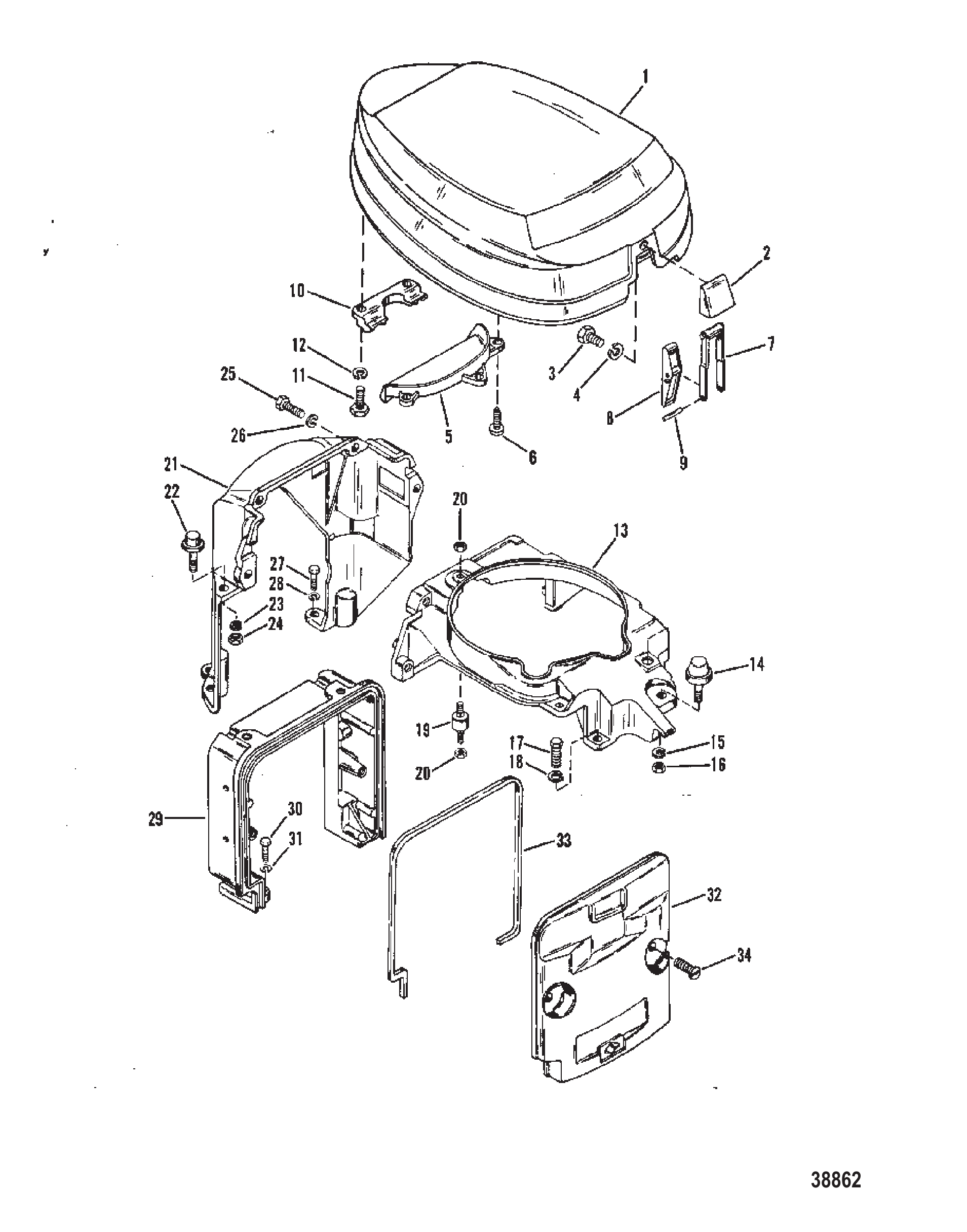

图 2顶罩与支撑支架 TOP COWL AND SUPPORT BRACKETS
顶罩与支撑支架 TOP COWL AND SUPPORT BRACKETS
REF零件编号中文名称英文名称数量
17934顶盖总成TOP COWL ASSEMBLY1
16392F4顶罩总成（水星款）TOP COWL ASSEMBLY Mariner1
16392T6顶盖总成TOP COWL ASSEMBLY1
293122A1固定座总成RETAINER ASSEMBLY1
276440固定座总成RETAINER ASSEMBLY1
353167螺钉 (.312-18 x .880)SCREW (.312-18 x .880)1
353167T螺钉 0.312-18X 0.88SCREW .312-18X .881
325299螺钉(0.312-18x0.75)SCREW (.312-18 x .75)1
439107锁紧垫圈(0.312-24)LOCKWASHER (.312-24)1
576370护罩SHIELD1
576433护罩SHIELD1
648409螺钉 (#10-16 x .625) 不锈钢SCREW (#10-16 x .625) Stainless Steel3
752739顶罩锁扣铰链HINGE COWL LATCH-TOP COWL1
894918T罩盖锁扣铰链杆LEVER COWL LATCH HINGE1
894918F1杠杆LEVER1
958998PIN COWL LATCH LEVER TO HINGE1
1055455顶罩后部锁钩HOOK TOP COWL LTECH-REAR1
1122956螺钉(.250-28 x .880) 后锁钩至顶盖SCREW (.250-28 x .880) REAR HOOK TO TOP COWL2
1226992锁紧垫圈(.250)不锈钢 后锁钩螺钉LOCKWASHER (.250) Stainless Steel REAR HOOK SCREW2
1373401顶罩支撑框架FRAME SUPPORT-TOP COWL1
1373401T框架FRAME1
1437640支撑框架橡胶支座MOUNT RUBBER-SUPPORT FRAME1
1526993橡胶支座锁紧垫圈（0.312）LOCKWASHER (.312) RUBBER MOUNT1
158M0204647锁紧垫圈 (.312)LOCKWASHER (.312)1
1628770橡胶支座螺母（0.312-24不锈钢）NUT (.312-24) Stainless Steel RUBBER MOUNT1
1737562不锈钢螺钉(.312-18 x 1.00)SCREW (.312-18 x 1.00) Stainless Steel2
1826993支撑框架螺钉锁紧垫圈（0.312）LOCKWASHER (.312) SUPPORT FRAME SCREW2
188M0204647锁紧垫圈 (.312)LOCKWASHER (.312)2
1990435顶罩框架橡胶支架MOUNT RUBBER-TOP COWL FRAME3
2020184螺母(1/4-28X7/32)橡胶支架(上部)NUT (1/4-28X7/32) RUBBR MOUNT (UPPER)6
208M0207775螺母 @5NUT @56
2152468顶罩支撑支架-后部BRACKET TOP COWL SUPPORT-REAR1
2231014后支撑支架橡胶座MOUNT RUBBER-REAR SUPPORT BRACKET2
2326992不锈钢锁紧垫圈(.250)橡胶支座LOCKWASHER (.250) Stainless Steel RUBBER MOUNT2
2429598螺母 (.250-28) 不锈钢橡胶支座NUT (.250-28) Stainless Steel RUBBER MOUNT2
2537562螺丝(.312-18 x 1.00)不锈钢后支架至框架SCREW (.312-18 x 1.00) Stainless Steel REAR BRACKET TO FRAME4
2626993锁紧垫圈(.312)后支架螺丝LOCKWASHER (.312) REAR BRACKET SCREW4
268M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
2737562不锈钢螺钉(.312-18 x 1.00)SCREW (.312-18 x 1.00) Stainless Steel4
2826993锁紧垫圈(.312)后支架螺丝LOCKWASHER (.312) REAR BRACKET SCREW4
288M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
2999649T框架前支撑FRAME FRONT SUPPORT1
3037562螺丝(.312-18 x 1.00)不锈钢消音器盖SCREW (.312-18 x 1.00) Stainless Steel SILENCER COVER2
3126993锁紧垫圈(.312)框架螺丝LOCKWASHER (.312) FRAME SCREW2
318M0204647锁紧垫圈 (.312)LOCKWASHER (.312)2
3289590消音器盖COVER SILENCER1
3376168A2消音器盖衬垫GASKET SILENCER COVER1
3428638螺钉(.250-20 x .750)SCREW (.250-20 x .750)2

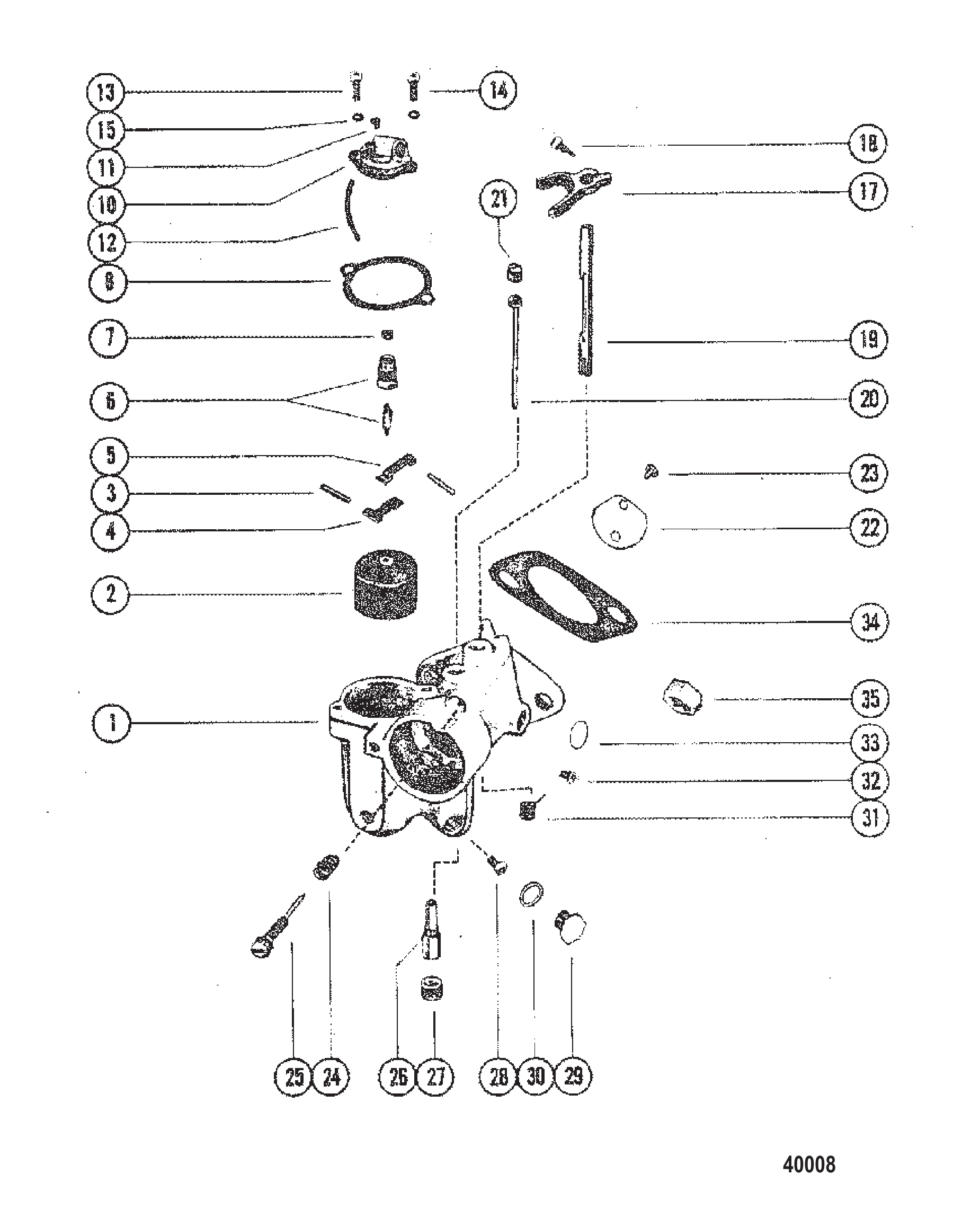

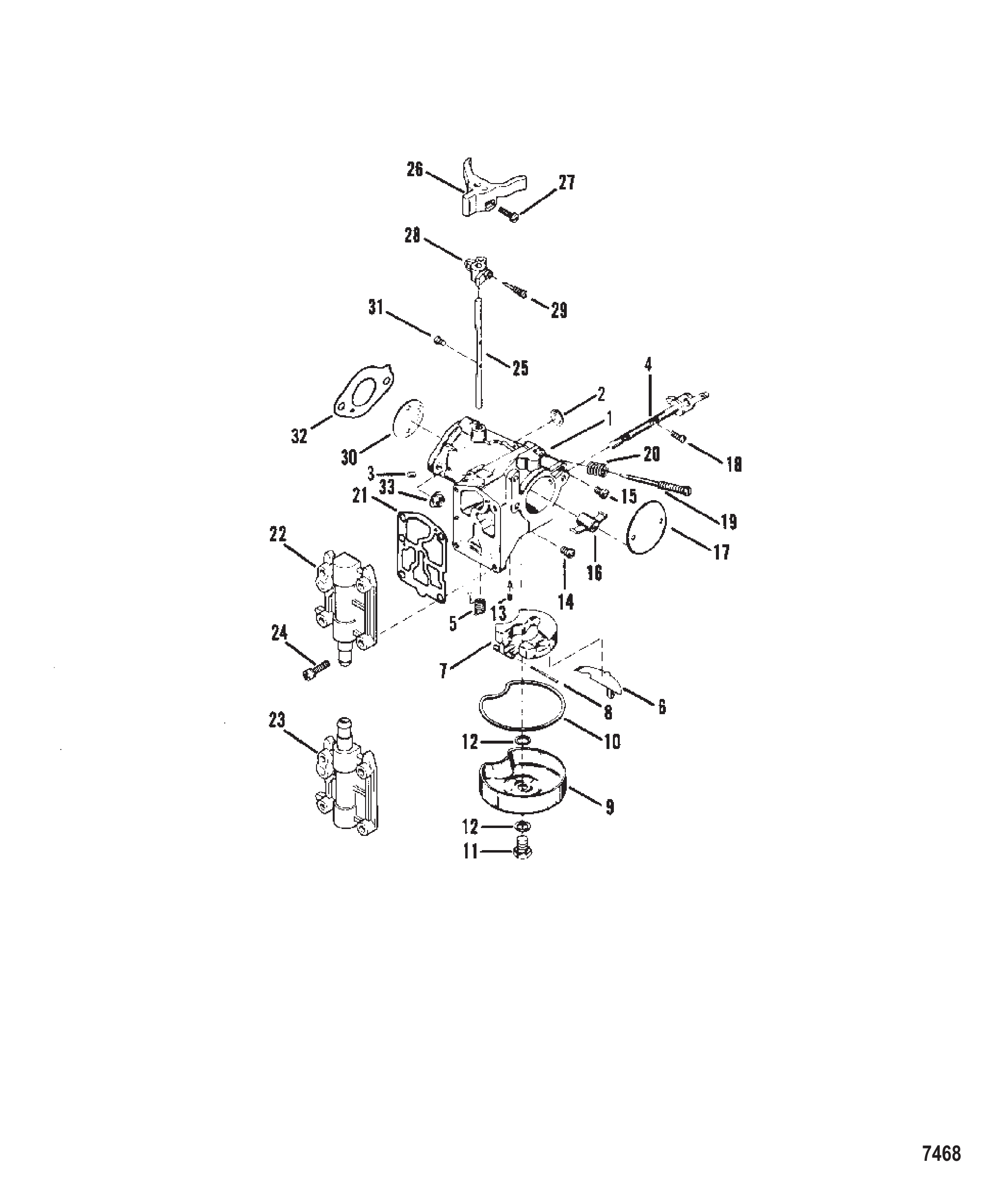

图 3化油器总成 CARBURETOR ASSEMBLY
化油器总成 CARBURETOR ASSEMBLY
REF零件编号中文名称英文名称数量
16517A33化油器总成CARBURETOR ASSEMBLY1
16517A34化油器总成CARBURETOR ASSEMBLY1
16517A64化油器KT-底置CARBURETOR KT-BOT1
2NSS大型主体通道(不单独销售)NOT SOLD SEPARATE Large Body Channel2
3NSS主体通道(不单独销售)NOT SOLD SEPARATE Body Channel6
496773A1阻风门轴总成SHAFT ASSEMBLY Choke2
49296A1阻风门轴套件CHOKE SHAFT KIT2
5NSS回位-节气门轴(不单独销售)NOT SOLD SEPARATE Return-Throttle Shaft2
67211A1燃油杯挡板BAFFLE Fuel Bowl2
6814483燃油杯挡板BAFFLE Fuel Bowl2
79293浮子FLOAT2
8NSS浮子固定件(不单独销售)NOT SOLD SEPARATE Float Retaining2
95127燃油杯BOWL Fuel2
10NSS燃油杯(不单独销售)NOT SOLD SEPARATE Fuel Bowl2
119652燃油杯至化油器螺钉SCREW Fuel Bowl to Carburetor2
12NSS燃油杯螺钉(不单独销售)NOT SOLD SEPARATE Fuel Bowl Screw4
139022进油针阀及弹簧NEEDLE AND SPRING Inlet2
141457主量孔(.057)JET Main Fuel (.057)2
157335省油量孔(.098)JET (.098) Economizer (.098)2
1664677喉管VENTURI2
178665阻风门片SHUTTER Choke2
18NSS阻风门片至轴连接件(不单独销售)NOT SOLD SEPARATE Choke Shutter to Choke Shaft4
19NSS怠速混合气调节件(不单独销售)NOT SOLD SEPARATE Idle Mixture2
20NSS怠速混合气螺钉(不单独销售)NOT SOLD SEPARATE Idle Mixture Screw2
21NSS不单独销售 燃油泵NOT SOLD SEPARATE Fuel Pump2
229653盖板(上化油器)COVER Plate (Upper Carburetor)1
239654盖板(下化油器)COVER Plate (Lower Carburetor)1
245132滤清器体至化油器螺钉SCREW Strainer Body to Carburetor8
24808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)8
259020油门轴SHAFT Throttle1
259656油门轴SHAFT Throttle1
2692880节气门杠杆(上化油器)LEVER Throttle (Upper Carburetor)1
2720847节气门杠杆螺钉(上化油器)SCREW Throttle Lever (Upper Carburetor)2
276027螺钉SCREW2
2897节气门杠杆(下化油器)LEVER Throttle (Lower Carburetor)1
288146791油门杆LEVER Throttle1
296027节气门杠杆螺钉(下化油器)SCREW Throttle Lever (Lower Carburetor)1
309649节气门片SHUTTER Throttle2
31NSS节气门片至轴连接件(不单独销售)NOT SOLD SEPARATE Throttle Shutter to Throttle Shaft4
32757911化油器法兰衬垫GASKET Carburetor Flange2
3364809化油器安装柱螺母NUT Carburetor Mounting Stud4
--9650维修套件REPAIR KIT2
--9651衬垫套件GASKET SET2

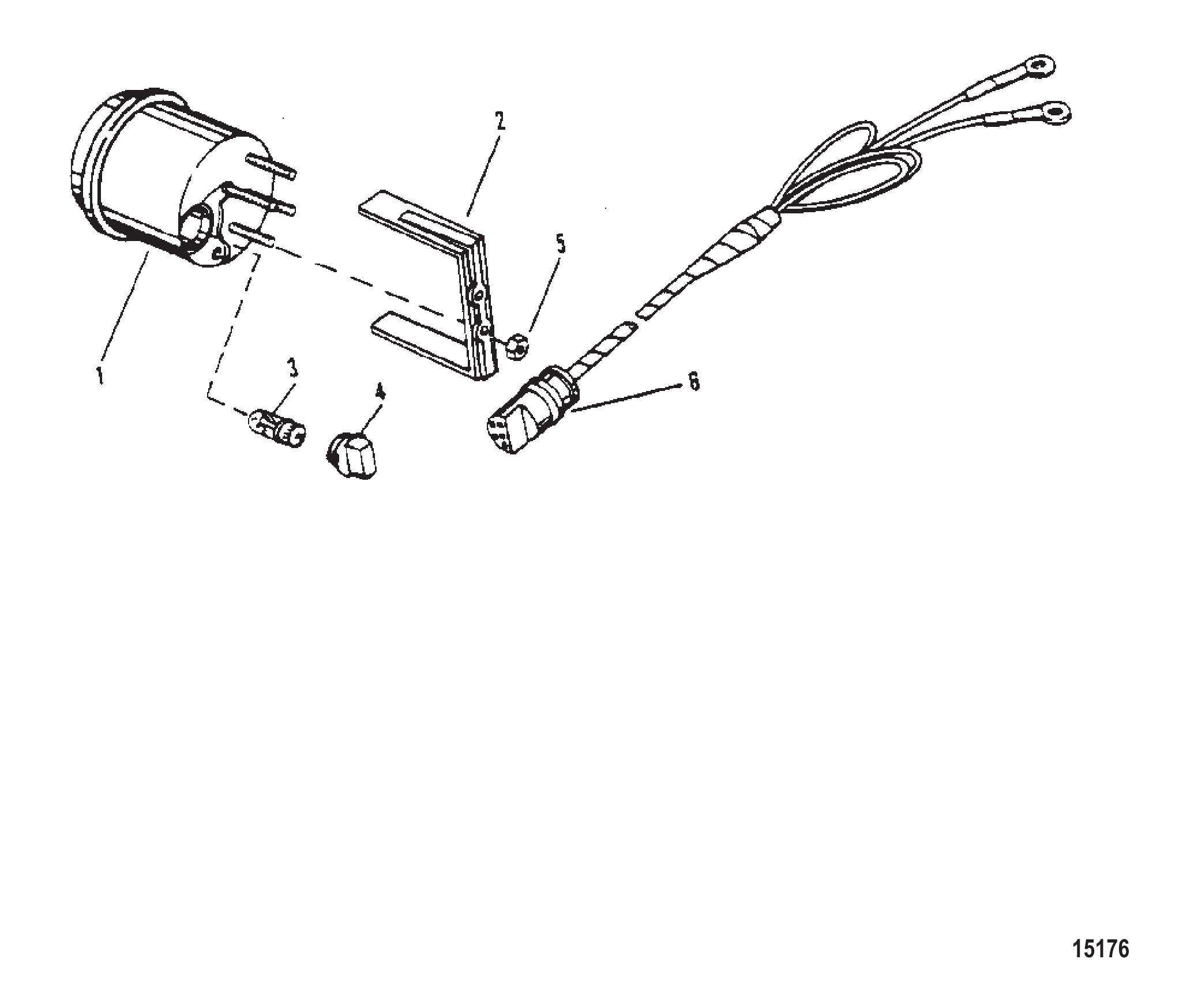

图 4转速表 TACHOMETER
转速表 TACHOMETER
REF零件编号中文名称英文名称数量
115110A1转速表6KTACHOMETER 6K1
279101T安装支架BRACKET Mounting1
372729楔形底座灯泡(14V - 1.9W)LIGHT BULB Wedge Base (14V - 1.9W)1
479888灯泡插座SOCKET Light Bulb1
526419黄铜螺母 (#8-32)NUT (#8-32) Brass5
686396A8转速表线束总成(5.00英尺)HARNESS ASSEMBLY Tachometer (5.00 Feet)1

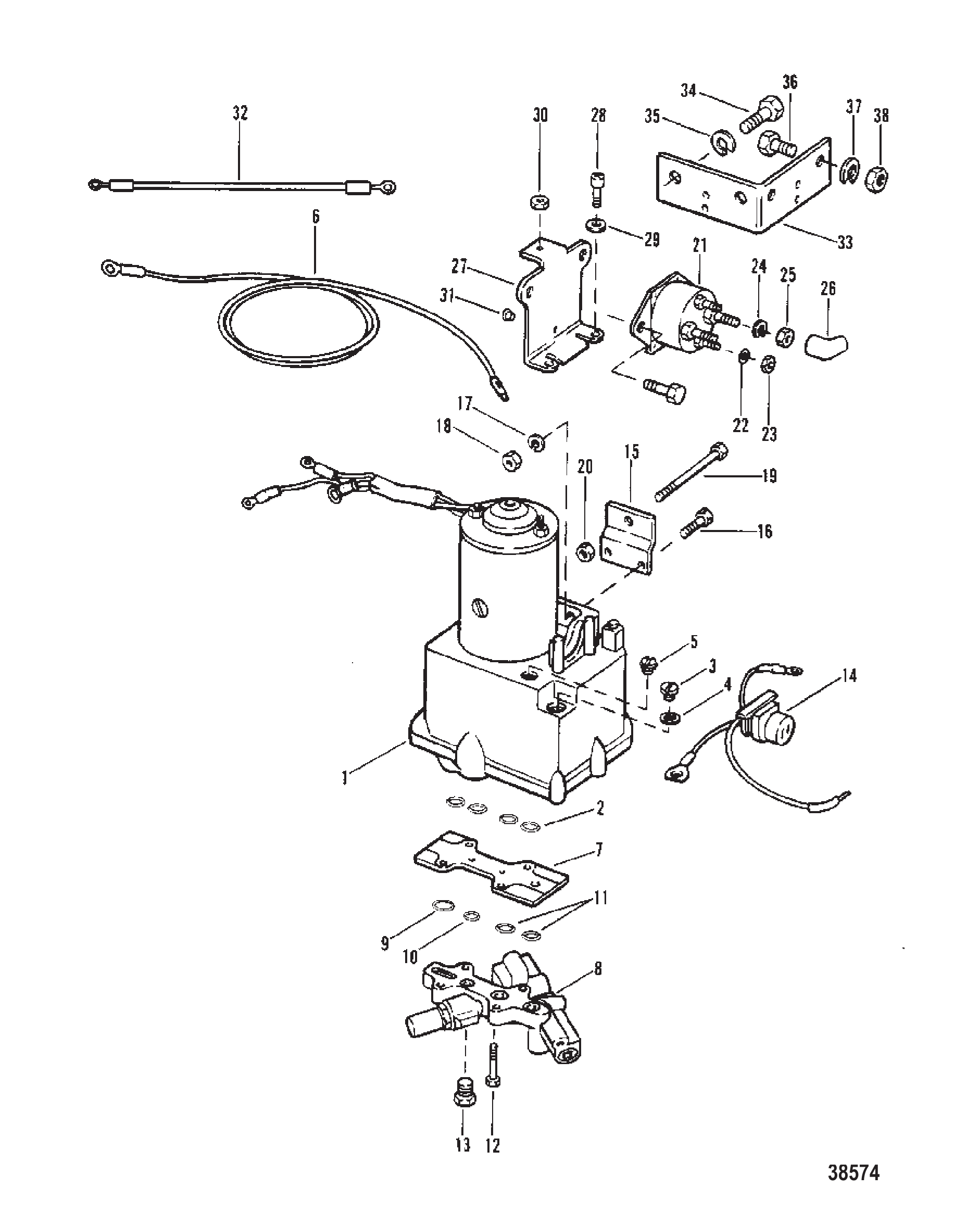

图 5动力升降组件 POWER TRIM COMPONENTS
动力升降组件 POWER TRIM COMPONENTS
REF零件编号中文名称英文名称数量
-830250T3动力升降泵总成PUMP ASSEMBLY Power Trim1
1811666A1减震杆套件SHOCK ROD KIT1
18M0171821减震杆套件SHOCK ROD KIT1
2809872A2O型圈维修包O-RING KIT Rebuild1
28M0171819O型圈套件O-RING KIT1
3810776A1记忆活塞总成PISTON ASSEMBLY Memory1
38M0171822记忆活塞套件MEMORY PISTON KIT1
4811669A1气缸总成CYLINDER ASSEMBLY1
4893916A01气缸总成CYLINDER ASSEMBLY1
5809873A1配平限位阀套件VALVE KIT Trim Limit1
5893905A02阀套件VALVE KIT1
6809874A1泵总成PUMP ASSEMBLY1
6893906A02泵总成PUMP ASSEMBLY1
7809885A2电机套件MOTOR KIT1
7893907A02电机套件MOTOR KIT1
88134351堵头PLUG1
9813442A2手动释放总成MANUAL RELEASE ASSEMBLY1
9893929A01安全阀套件VALVE KIT Relief1
10809875A1歧管套件MANIFOLD KIT1
10893909A02歧管套件MANIFOLD KIT1
11809876A1电机螺钉套件SCREW KIT Motor1
1288238A18拉线总成CABLE ASSEMBLY1
13809877A1驱动轴/密封套件DRIVESHAFT/SEAL KIT1
14809878A1滤清器套件FILTER KIT1
14893912A02滤清器套件FILTER KIT1
15809879A1提升阀套件POPPET KIT1
15893913A02提升阀套件POPPET KIT1
-809880A1完整配平O型圈套件O-RING KIT Complete Trim1
-893914A02O型圈套件O-RING KIT1
16821539三叶销PIN Trilobe2
17818898锚销PIN Anchor1
18996251轴SHAFT1
1899625002轴SHAFT1
1922740卡扣CLIP2
20878609螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
2169205C形垫圈C WASHER1
218M0084613C形垫圈C-WASHER1

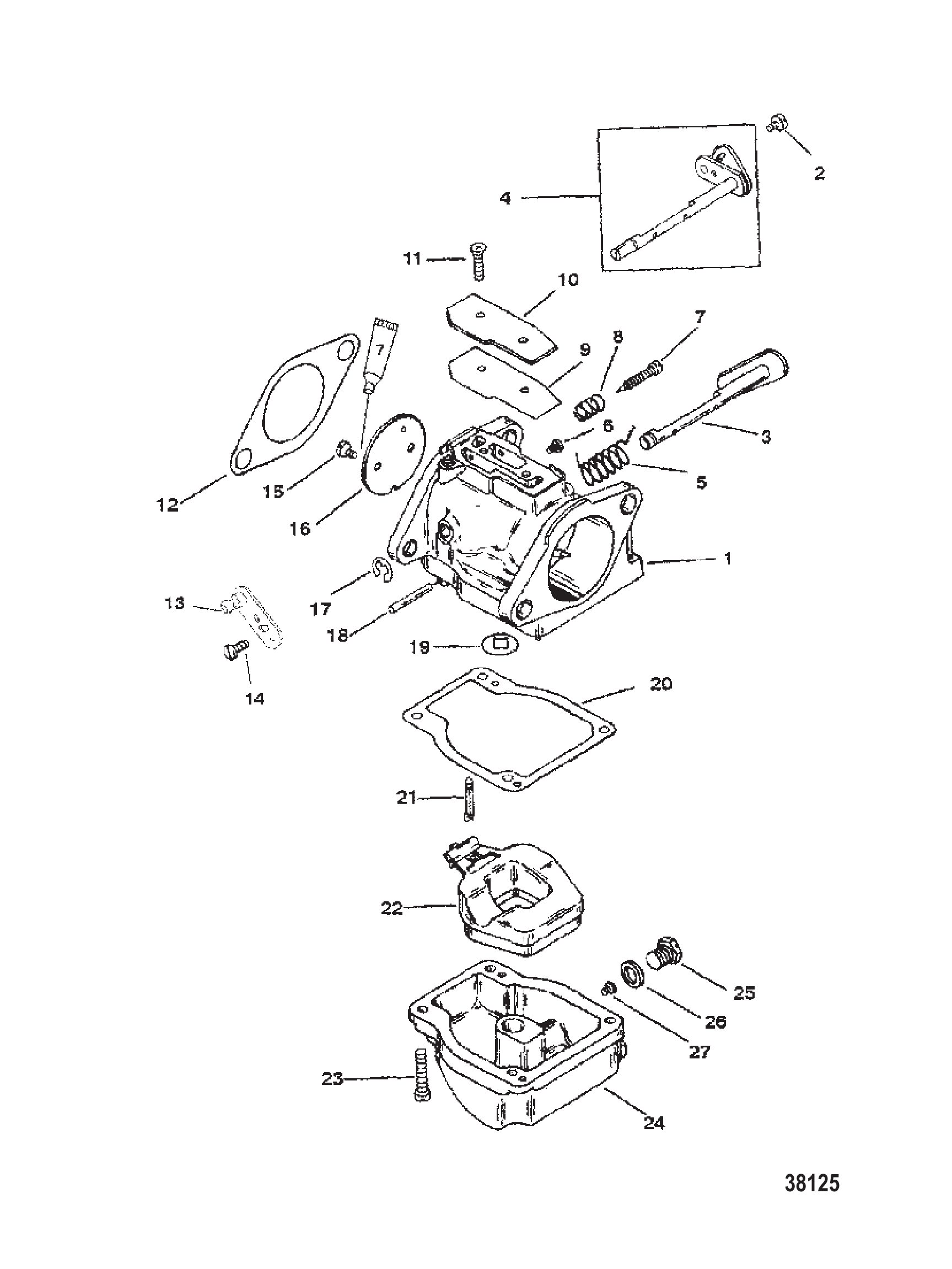

图 6化油器 CARBURETOR
化油器 CARBURETOR
REF零件编号中文名称英文名称数量
1821679A17化油器CARBURETOR1
1821679A18化油器CARBURETOR1
1821679T18化油器CARBURETOR1
1821679A19化油器CARBURETOR1
1821679T19化油器CARBURETOR1
1821946A24化油器CARBURETOR1
1821946A45化油器维修包CARBURETOR KIT1
1821946A25化油器CARBURETOR1
1821946A46化油器维修包CARBURETOR KIT1
1821946A26化油器CARBURETOR1
1821946A47化油器维修包CARBURETOR KIT1
1821946A27化油器CARBURETOR1
1821946T42化油器CARBURETOR1
1821946A28化油器CARBURETOR1
1821946T43化油器CARBURETOR1
1821946A29化油器CARBURETOR1
1821946T44化油器CARBURETOR1
2823634螺丝(上/下部)SCREW (UPPER/BOTTOM)2
3823632油门轴SHAFT Throttle1
4823633油门轴SHAFT Throttle1
4823636油门轴SHAFT Throttle1
3823632节气门轴(上/下部)SHAFT Throttle (UPPER/BOTTOM)2
4823633节气门轴(中央)SHAFT Throttle (CENTER)1
5NSS不单独销售 油门回位弹簧NOT SOLD SEPARATE SPRING-THROTTLE RETURN3
66247主量孔(0.090)JET Main (.090)3
7NSS不单独销售 怠速针NOT SOLD SEPARATE IDLE NEEDLE3
8NSS不单独销售 怠速针弹簧NOT SOLD SEPARATE SPRING-IDLE NEEDLE3
9NSS不单独销售 盖板衬垫NOT SOLD SEPARATE GASKET-COVER PLATE3
10811221盖板COVER PLATE3
11811220盖板螺丝SCREW Cover Plate6
128144461法兰衬垫GASKET Flange3
138113522油泵杠杆(WME43/45-底部)LEVER Oil Pump (WME43/45 - BOTTOM)1
148086121杠杆固定螺钉(WME43/45-底部)SCREW Lever Retainer (WME43/45 - BOTTOM)1
15F10155节气门螺丝SCREW Throttle Valve6
16879194023节气门阀VALVE-THROTTLE3
17NSS不单独销售 挡圈NOT SOLD SEPARATE RETAINING RING3
18F10064轴SHAFT3
19NSS不单独销售 喷油嘴衬垫NOT SOLD SEPARATE GASKET-NOZZLE WELL3
20NSS不单独销售 燃油杯衬垫NOT SOLD SEPARATE GASKET-FUEL BOWL3
21879194011进油阀VALVE Inlet3
229594浮子FLOAT3
23808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)12
24811695燃油杯BOWL Fuel1
24811693燃油杯BOWL Fuel2
25811694塞套件PLUG KIT3
26NSS排水碗密封件(不单独销售)NOT SOLD SEPARATE SEAL-BOWL DRAIN3
276246量孔(.048)JET (.048)3
276487主量孔(0.060)JET Main (.060)3
274217主量孔(.062)JET Main (.062)3
-812867A97衬垫套件GASKET SET1
-8236354化油器维修套件REPAIR KIT Carburetor1
-8112231化油器衬垫组GASKET SET Carburetor1
图 7维修/支撑材料 Service/Support Material
维修/支撑材料 Service/Support Material
REF零件编号中文名称英文名称数量
088183801零件手册-115EFI(四冲程)PARTS MANUAL 115 EFI (4-Stroke) Parts Manual1
0881980维修手册SERVICE MANUAL1
0881980R03SM O/B 115 EFI 4SSM O/B 115 EFI 4S1
010225030用户手册OWNERS MANUAL1
0858610A31燃油软管总成HOSE ASSEMBLY Fuel1
08M0038610带注油球的燃油软管总成(9英尺)HOSE ASSEMBLY Fuel (9 Feet) With Primer Bulb1
0880177组合扳手工具(10毫米)SCRENCH TOOL (10 mm)1
0881828星形头工具套件STARBIT TOOL KIT1
0881649A01贴花套件DECAL SET1
0881649A05贴花套件DECAL SET1
0881840A01贴花套件DECAL SET1
0881840A03贴花套件DECAL SET1
0881840A03贴花套件DECAL SET1
0881840A05贴花套件DECAL SET1
0881650A01贴花套件DECAL SET1
0881650A03贴花套件DECAL SET1
0881650A03贴花套件DECAL SET1
0881702A01贴花套件DECAL SET1
0881839A01EPA标签信息贴花DECAL EPA Label Information1
0881839A02EPA标签信息贴花Decal EPA Label Information1
0881839A03EPA标签信息贴花DECAL EPA Label Information1
0816834A1转速表TACHOMETER1
0816932A1温度表TEMPERATURE GAUGE1
086306适配器ADAPTER1
086306A01适配器ADAPTER1
0817054A3水压表总成GAUGE ASSEMBLY Water Pressure1
0821400A2动力升降倾斜传感器套件SENDER KIT Power Trim1
08M0074845ORD 8M0098264ORD 8M00982641
092876A8转向安装套件ATTACHING KIT Steering1
092876A9双机延长套件EXTENSION KIT Dual Engine1
0883040A1转速表模块套件TACH MODULE KIT1

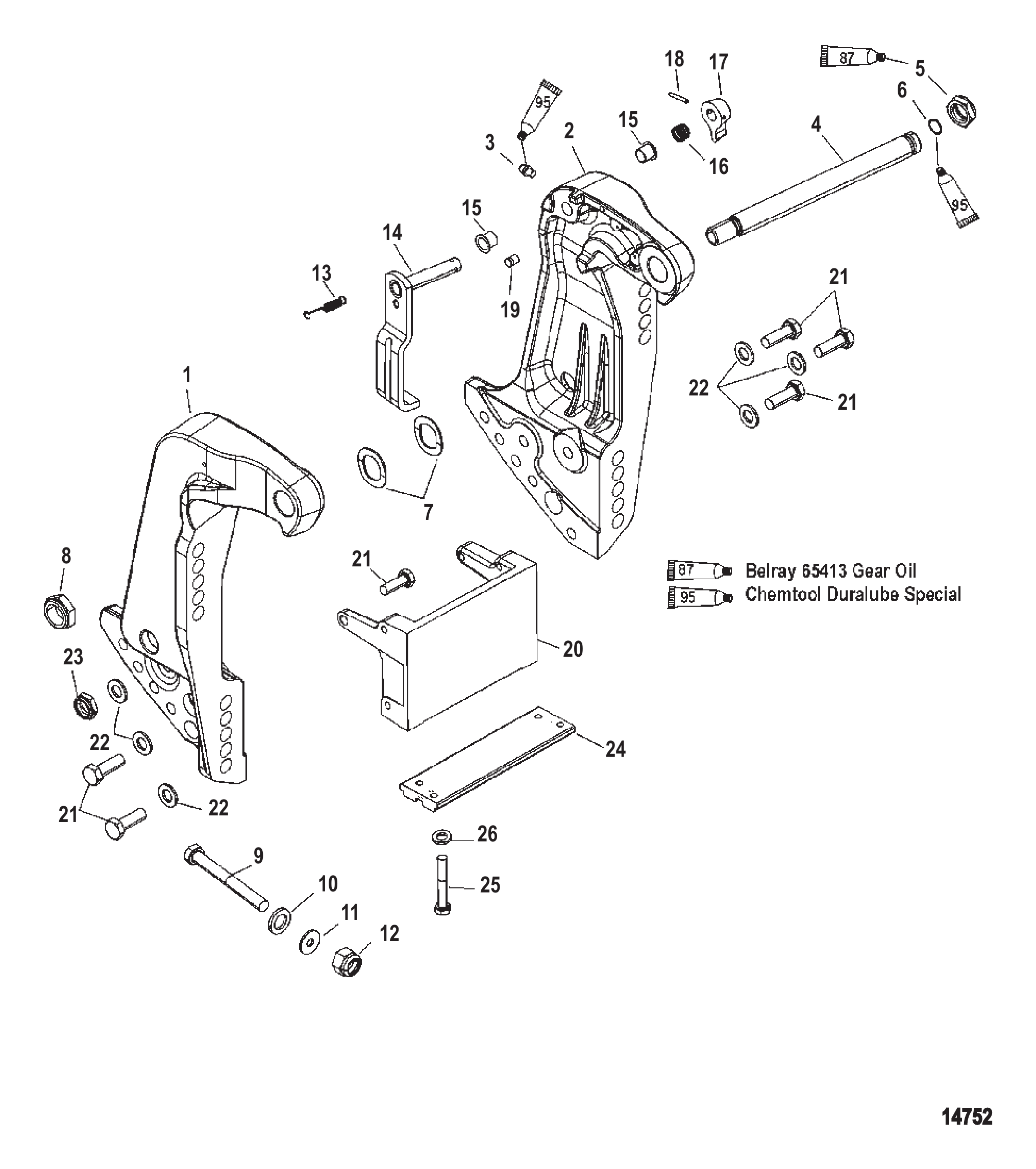

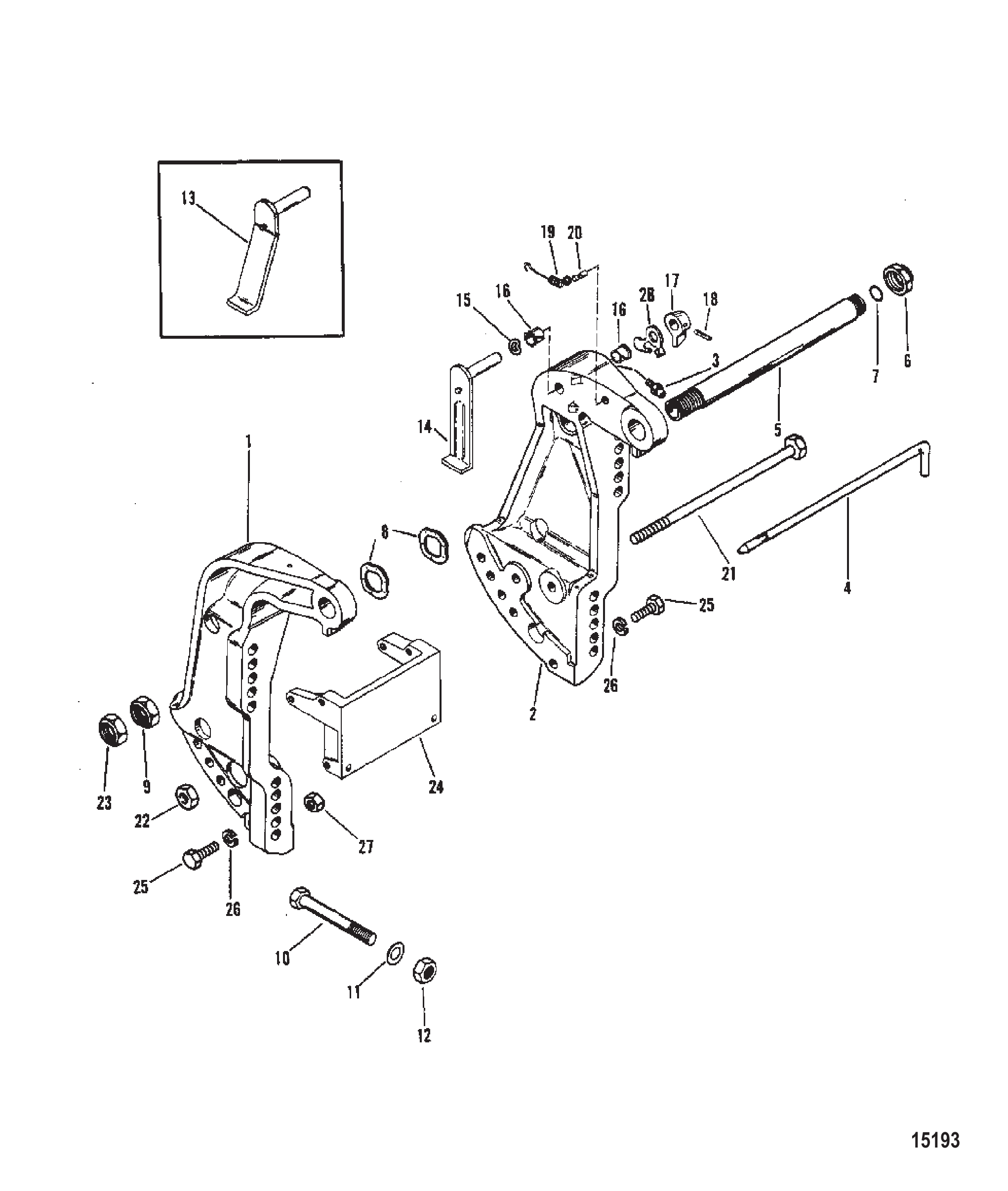

图 8艉板支架 TRANSOM BRACKET
艉板支架 TRANSOM BRACKET
REF零件编号中文名称英文名称数量
1828334F1艉板支架BRACKET Transom1
2828333A3艉板支架总成BRACKET ASSEMBLY Transom1
2828333T07艉板支架总成-左舷BRACKET ASSEMBLY Transom - Port1
398727润滑脂接头FITTING Grease1
38M0169588润滑脂接头FITTING Grease1
499170A2倾斜管套件TUBE KIT Tilt1
4826125A1倾斜管TILT TUBE1
4826125A1倾斜管TILT TUBE1
5859133螺母(1.00-14)NUT (1.00-14)1
582671327螺母(1.0-14)NUT (1.0-14)1
5826135尼龙锁紧螺母(1.00-14)NUT Lock (1.00-14) Nylon Insert1
645711O型圈 (.612 x .103)O-RING (.612 x .103)1
788750波浪垫圈 (1.62 x 1.05)WASHER Wave (1.62 x 1.05)2
8858869螺母 (.875-14)NUT (.875-14)1
8826164螺母 (.875-14)NUT (.875-14)1
88M0231351锁紧螺母NUT Lock1
9677551螺钉(.500-20×4.500)SCREW (.500-20 x 4.500)4
98M0149747螺钉SCREW4
1054012垫圈(0.530×0.870×0.105不锈钢)WASHER (.530 x .870 x .105) Stainless Steel4
108M0204665垫圈(0.530×0.880×0.104 630不锈钢)WASHER (.530 x .880 x .104) 630 Stainless Steel4
1128421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
118M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
1282671117螺母(.500-20)NUT (.500-20)4
13830899张力弹簧SPRING Tension1
14821176T1倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
148M0109798倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
1565830尼龙衬套NYLINER2
16830900压缩弹簧SPRING Compression1
1799633旋钮KNOB1
1899615槽销PIN Groove1
1999617销PIN1
19893709销PIN1
20818771T1锚支架BRACKET Anchor1
208M0086406锚支架BRACKET Anchor1
21858771螺钉 (M10 x 30)SCREW (M10 x 30)6
224002319垫圈WASHER6
2340114螺母(M10 x 1.5)NUT (M10 x 1.5)1
24818298Q1阳极套件ANODE KIT1
254000330螺钉(M6x25)SCREW (M6 x 25)2
258M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
2629245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
268M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2

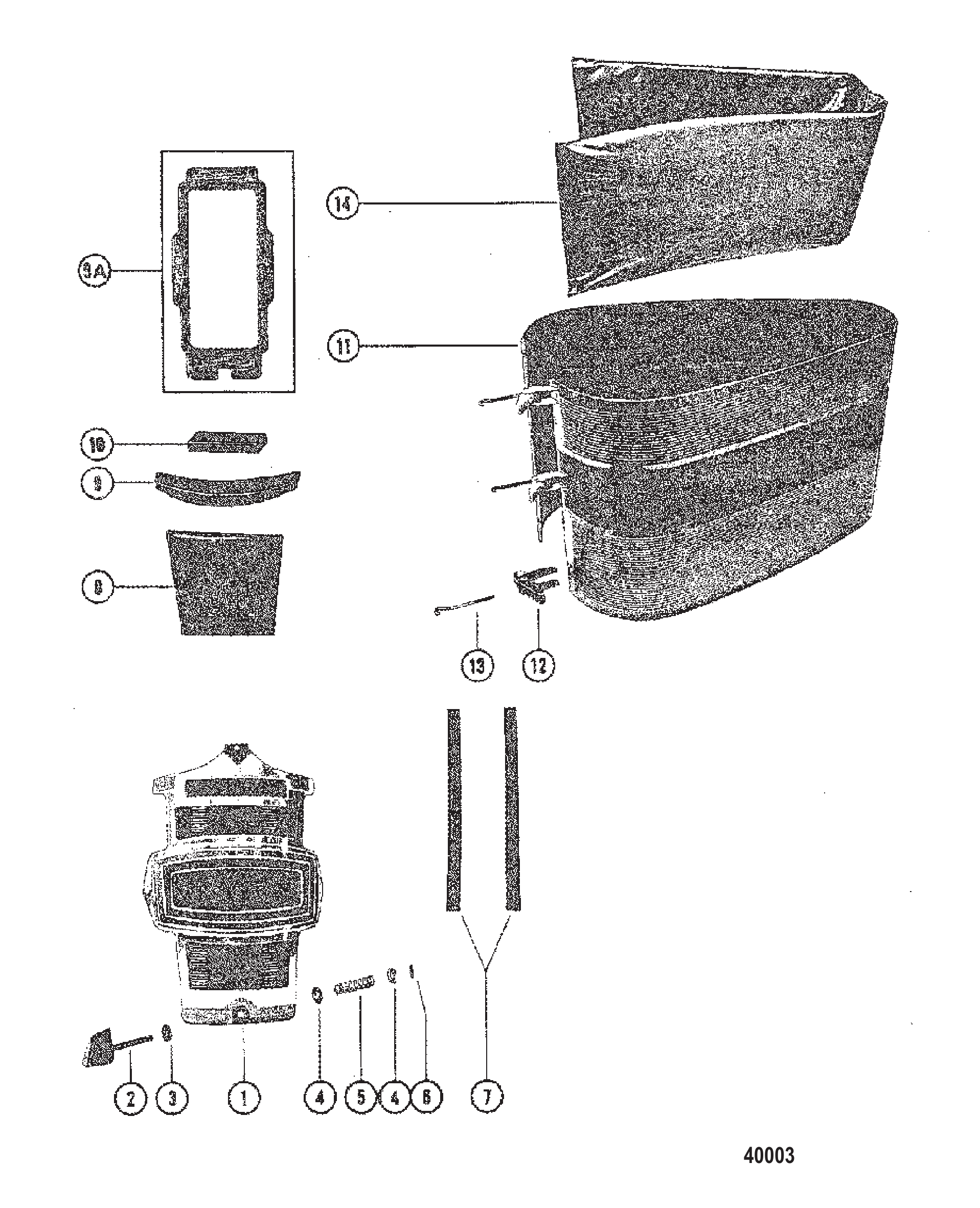

图 9外罩与前盖 COWLING AND FRONT COVER
外罩与前盖 COWLING AND FRONT COVER
REF零件编号中文名称英文名称数量
16228A1顶罩总成(右舷黑色)TOP COWL ASSEMBLY (STARBOARD BLACK)1
16228A3顶罩总成(右舷灰色)TOP COWL ASSEMBLY (STARBOARD GRAY)1
260297燃油接头密封圈-罩SEAL FUEL CONNECTOR -COWL1
36227A1顶罩总成(左舷黑色)TOP COWL ASSEMBLY (PORT BLACK)1
36227A17顶罩总成(左舷灰色)TOP COWL ASSEMBLY (PORT GRAY)1
460298控制电缆密封圈-罩SEAL CONTROL CABLES-COWL1
589717T罩体密封后支架BRACKET COWL SEALING-REAR1
6698761后支架密封圈SEAL REAR BRACKET2
790980罩体铰链支架BRACKET COWL HINGE2
845561铰链支架下部螺钉(.250-20 x 1.12)SCREW (.250-20 x 1.12) HINGE BRACKET-LOWER2
8455611螺钉(.250-20 x 1.120)SCREW (.250-20 x 1.120)2
875794铰链支架上部螺钉(1-1/8英寸)SCREW HINGE BRACKET-UPPER (1-1/8")2
975805铰链支架螺钉帽(上部)CAP HINGE BRACKET SCREW (UPPER)2
1026992铰链支架螺钉不锈钢锁紧垫圈(.250)LOCKWASHER (.250) Stainless Steel HINGE BRACKET SCREW4
1137998铰链支架螺钉垫圈WASHER HINGE BRACKET SCREW4
1275806铰链支架螺钉垫圈(上部)WASHER HINGE BRACKET SCREW (UPPER)2
1390979机罩铰链销PIN COWL HINGE4
1428782螺钉(.312-18 x .880)不锈钢 铰链销至机罩SCREW (.312-18 x .880) Stainless Steel PIN TO COWL4
1526993锁紧垫圈(.312)铰链销固定螺钉LOCKWASHER (.312) PIN ATTACHING SCREW4
158M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
1646785A5罩壳锁扣总成LATCH ASSEMBLY Cowl2
1762628机罩锁扣筒BARREL COWL LATCH2
1831312螺钉(#10-32 x 0.875)锁扣总成至筒体SCREW (#10-32 x 0.875) LATCH ASSEMBLY TO BARREL2
1915222机罩锁扣调节杆BAR ADJUSTMENT-COWL LATCH2
2062629机罩锁扣筒BARREL COWL LATCH2
2162624机罩锁扣张力弹簧SPRING TENSION-COWL LATCH2
2230164垫圈(.192 x .375 x .0312)不锈钢 调节杆至筒体WASHER (.192 x .375 x .0312) Stainless Steel ADJUSTMENT BAR TO BARREL2
2345812螺母(#10-32)不锈钢 调节杆至筒体NUT (#10-32) Stainless Steel ADJUSTMENT BAR TO BARREL2
23859124螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel2
248774A6前盖(黑色)FRONT COVER (BLACK)1
248774A7前盖(灰色)FRONT COVER (GRAY)1
25795511隔音毯BLANKET SOUND ABSORBING1
2614333旋钮KNOB1
2730771垫圈WASHER2
2875246垫圈WASHER2
2930772弹簧SPRING1
3029077滚动销PIN Roll1
3147341A1拉绳与手柄套件 手动/应急启动(仅限手动启动)ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING ONLY)1
3147341A11手动启动绳柄套件ROPE AND HANDLE KIT Manual Starting1
图 10动力升降泵(Prestolite圆形电机) Power Trim Pump (Prestolite Round Motor)
动力升降泵(Prestolite圆形电机) Power Trim Pump (Prestolite Round Motor)
REF零件编号中文名称英文名称数量
-99186动力升降泵总成PUMP ASSEMBLY Power Trim1
18995泵总成PUMP ASSEMBLY1
1826729A10ORD 8M0143217ORD 8M01432171
28996O型圈套件O-RING KIT1
38986电枢ARMATURE1
48987机架与磁场FRAME AND FIELD1
499186动力升降泵总成PUMP ASSEMBLY Power Trim1
58992缸盖O型圈O-RING HEAD1
68993电刷弹簧套件SPRING KIT BRUSH1
78988换向器端盖HEAD COMMUTATOR END1
88989电刷套件BRUSH KIT1
98994贯穿螺栓套件THRU BOLT KIT1
108985导线夹CLAMP LEAD WIRE1
118990螺母密封垫NUT PACKING1
128991O型圈螺母密封O-RING PACKING NUT1

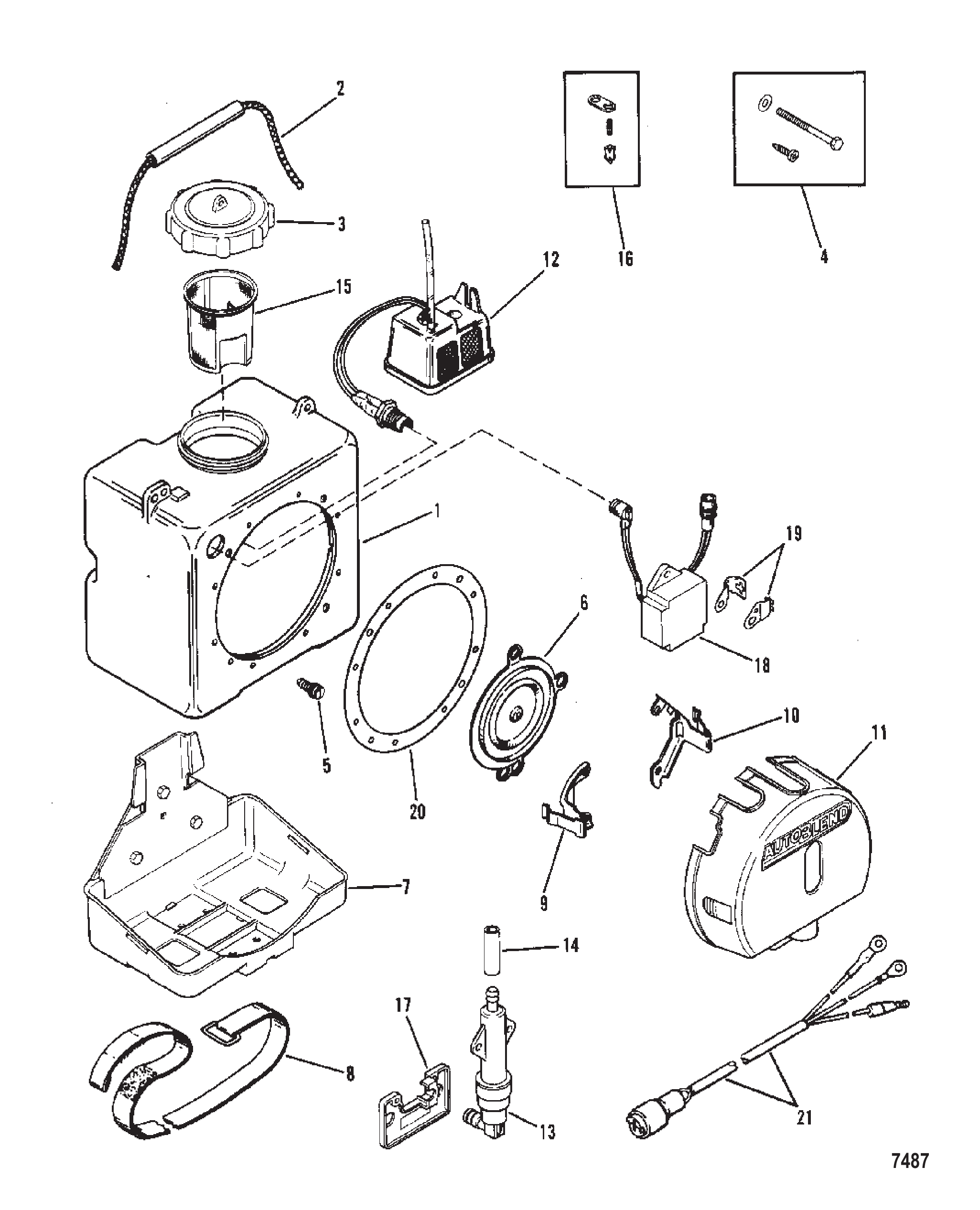

图 11自动混合装置 Auto-Blend
自动混合装置 Auto-Blend
REF零件编号中文名称英文名称数量
-130194自动混合装置AUTO BLEND ASSEMBLY1
116612油箱套件 机油TANK KIT Oil1
213996手柄套件HANDLE KIT1
316619CAP Oil Tank1
416614五金件套件HARDWARE KIT1
513979放油塞套件PLUG KIT Drain1
616611膜片组件DIAPHRAGM KIT1
716620安装支架套件BRACKET KIT Mounting1
813993箍带BAND1
913983左支架BRACKET Left1
1013984右支架BRACKET Right1
1116613盖板COVER1
1213985机油滤清器/传感器套件FILTER/SENSOR KIT Oil1
1318576燃油滤清器套件FILTER KIT Fuel1
1413992乙烯基软管VINYL TUBE1
1516618机油滤网STRAINER Oil1
1616615止回阀套件CHECK VALVE KIT1
1716621安装板PLATE1
1819265模块套件MODULE KIT1
1916623支架套件BRACKET KIT1
2016616衬垫套件GASKET KIT1
2114585A1自动混合线束总成HARNESS ASSEMBLY Auto Blend1
图 12旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM
旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM
REF零件编号中文名称英文名称数量
1818904T1旋转支架SWIVEL BRACKET1
287735下油封SEAL Oil Lower1
3818764衬套BUSHING2
433504O型圈O-RING1
48M0214926O型圈 @10O RING @101
5816039隔套SPACER1
674036润滑脂接头FITTING Grease2
68M0169589润滑脂接头FITTING Grease2
7821207衬套BUSHING2
864014螺钉(.250-28x.500)SCREW (.250-28 x .500)2
999661A26旋转销总成SWIVEL PIN ASSEMBLY1
999661A35旋转销总成SWIVEL PIN ASSEMBLY1
1092876A10连杆总成LINK ROD ASSEMBLY1
1092876A12连杆总成LINK ROD ASSEMBLY1
11849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)1
12826709113不锈钢螺母 (.375-24)NUT (.375-24) Stainless Steel2
128M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass2
1337828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel2
1442961A1底部轭架总成YOKE ASSEMBLY Bottom1
1442961A06底部轭架总成YOKE ASSEMBLY Bottom1
1567684挡圈RING Retaining1
16816432止推垫片THRUST WASHER1
17NSS不单独销售 贴纸, 序列号覆膜NOT SOLD SEPARATE Decal, Serial Overlaminate1
1811288下轭缓冲垫BUMPER Bottom Yoke1
1811288001下轭缓冲垫BUMPER Bottom Yoke1
1988882上轭缓冲垫BUMPER Top Yoke1

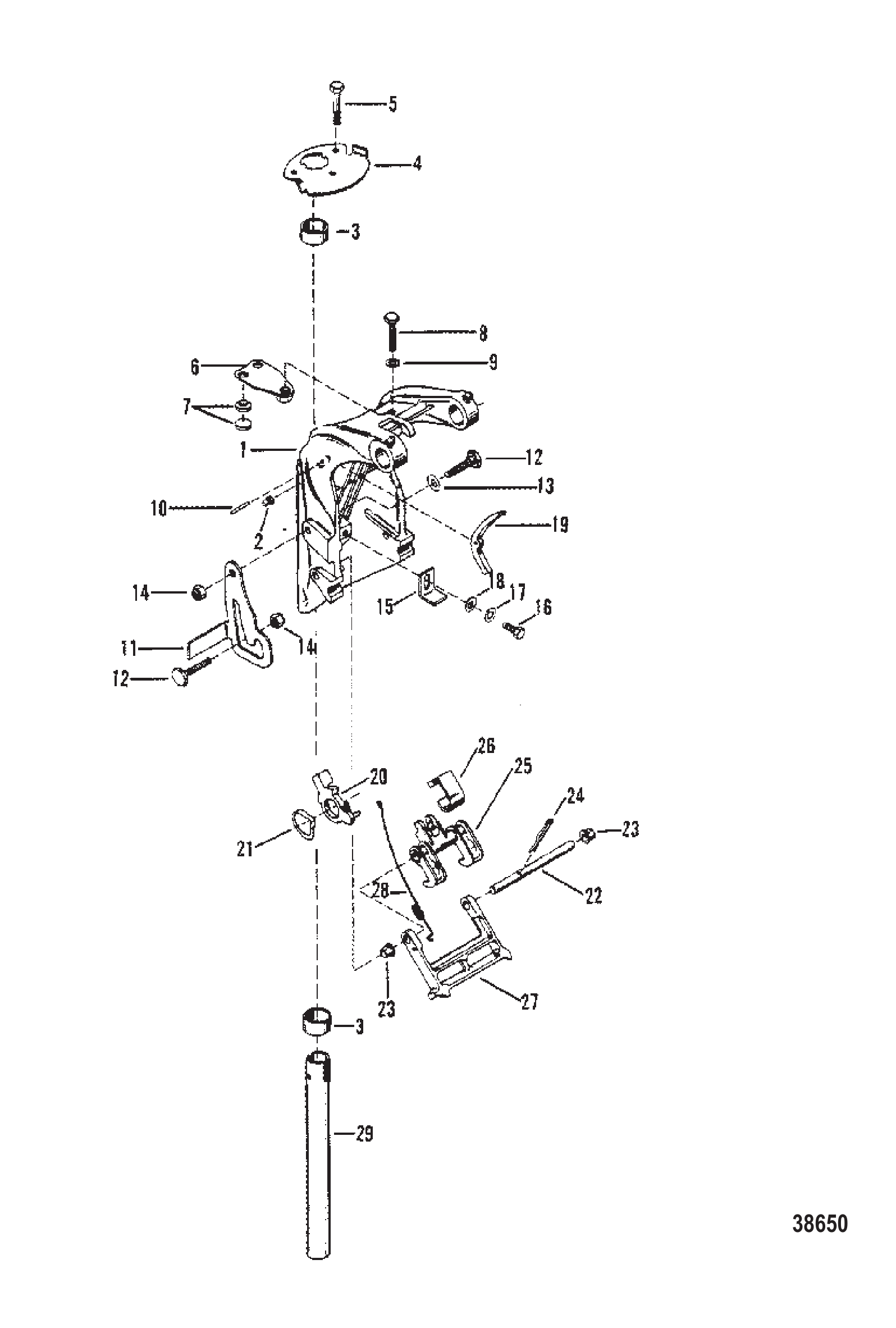

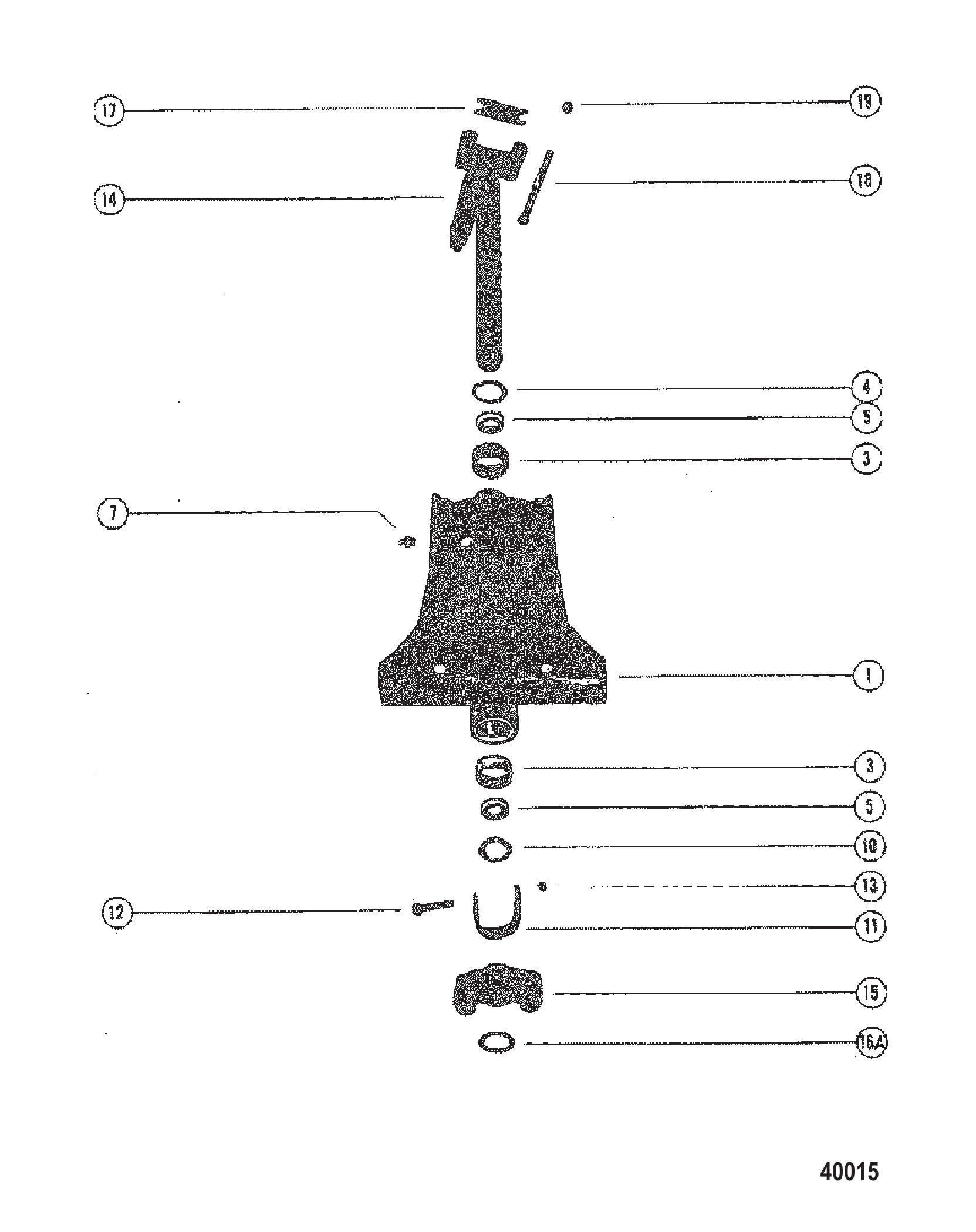

图 13旋转支架总成 SWIVEL BRACKET ASSEMBLY
旋转支架总成 SWIVEL BRACKET ASSEMBLY
REF零件编号中文名称英文名称数量
17324A1旋转支架总成SWIVEL BRACKET ASSEMBLY1
274036旋转支架润滑接头FITTING Grease SWIVEL BRACKET3
28M0169589润滑脂接头FITTING Grease3
364028转轴支架衬套BUSHING SWIVEL BRACKET2
477334副驾驶板PLATE CO-PILOT1
578038副驾驶盘至鞍座螺钉(.250-20x1.75)SCREW (.250-20 x 1.75) CO-PILOT DISC TO SADDLE3
672845A1副驾驶夹板总成PLATE ASSEMBLY CLAMP - CO-PILOT1
720203摩擦盘DISC FRICTION4
836154夹板调节螺钉(.250-28x1.380)SCREW (.250-28 x 1.380) CLAMP PLATE ADJUSTING1
935462垫圈(.2656 x .625 x .0625)不锈钢WASHER (.2656 x .625 x .0625) Stainless Steel1
1025319弹簧导向销(0.125x0.75英寸)PIN (.125 x 0.75 Inches) SPRING GUIDE1
11879841倾斜止动杆总成LEVER ASSEMBLY TILT STOP1
1187984A1倾斜止动杆总成LEVER ASSEMBLY TILT STOP1
1241433倾斜止动杆螺钉(.250-28x1.00)SCREW (.250-28 x 1.00) TILT STOP LEVER2
1331030杠杆锚定螺钉波形垫圈WAVE WASHER LEVER ANCHOR SCREW1
1435888倾斜止动杆螺钉不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel TILT STOP LEVER SCREW2
1572794倒挡锁止块STOP REVERSE LOCK1
1671056螺丝(.250-28 x .560)倒车挡块至旋转支架SCREW (.250-28 x .560) REVERSE STOP TO SWIVEL BRACKET1
1726992锁紧垫圈(.250)不锈钢倒车挡块螺丝LOCKWASHER (.250) Stainless Steel REVERSE STOP SCREW1
1871055垫圈倒车挡块螺丝WASHER REVERSE STOP SCREW1
1963554导向弹簧GUIDE SPRING1
2079744拖钓支架控制杆LEVER CONTROL - TROLL BRACKET1
2163631拖钓支架杠杆波形垫圈WAVE WASHER TROLL BRACKET LEVER1
2271419倒挡锁止杆至开关支架ROD REVERSE LOCK TO SWITCH BRACKET1
2326841尼龙衬套-倒挡锁止杆连杆BUSHING NYLON - REVERSE LOCK LEVER ROD2
2445882倒挡锁止杆至连杆开口销COTTER PIN REVERSE LOCK LEVER TO ROD1
2563628倒挡锁止杆LEVER REVERSE LOCK1
2563628T杠杆LEVER1
2661007固定座-倒挡锁止杆RETAINER ROD - REVERSE LOCK1
2763559拖钓支架BRACKET TROLL1
2763559T支架BRACKET1
2863630拖钓支架延伸弹簧SPRING EXTENSION - TROLL BRACKET1
2966559旋转支架至鞍座管道TUBE SWIVEL BRACKET TO SADDLE1

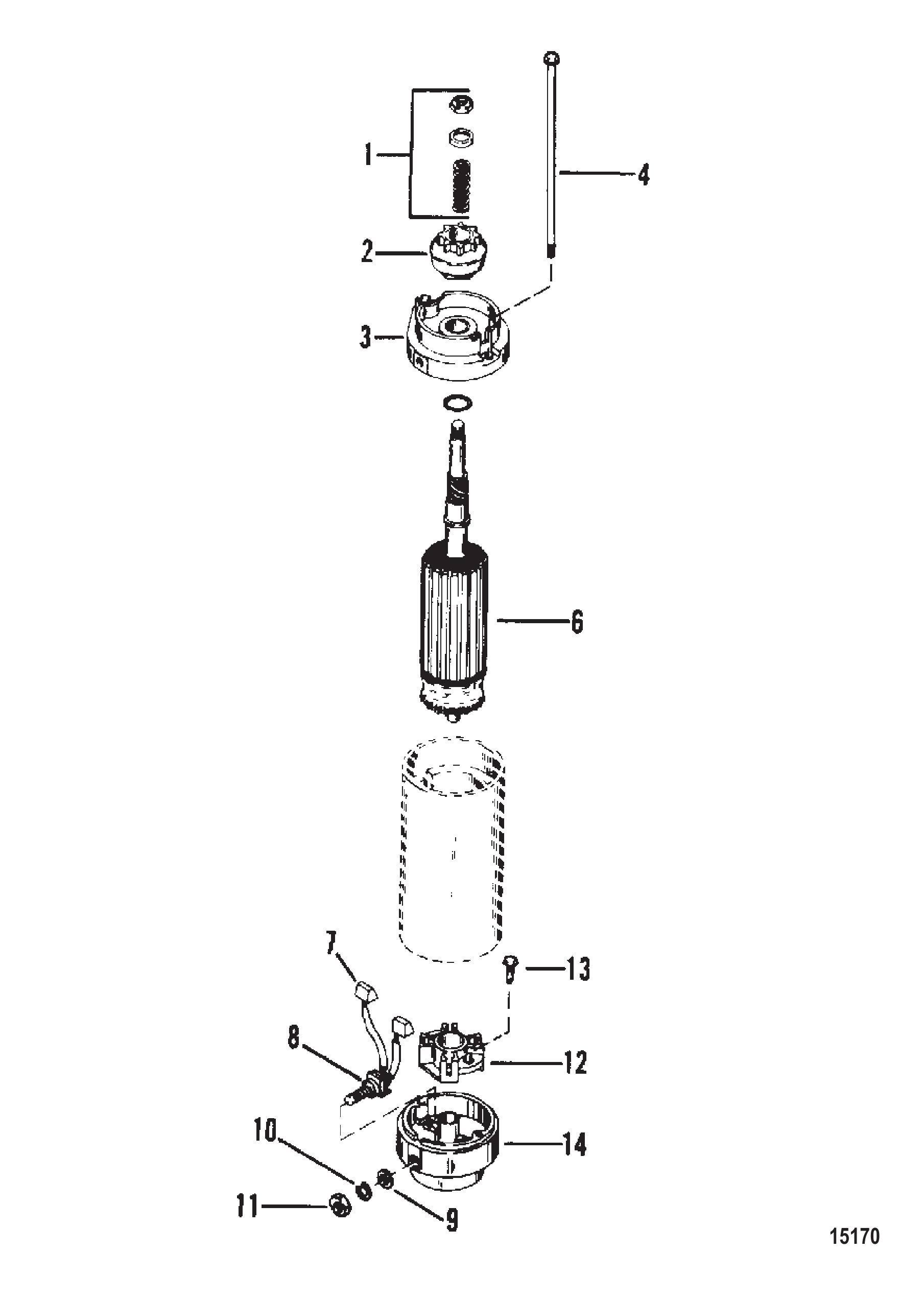

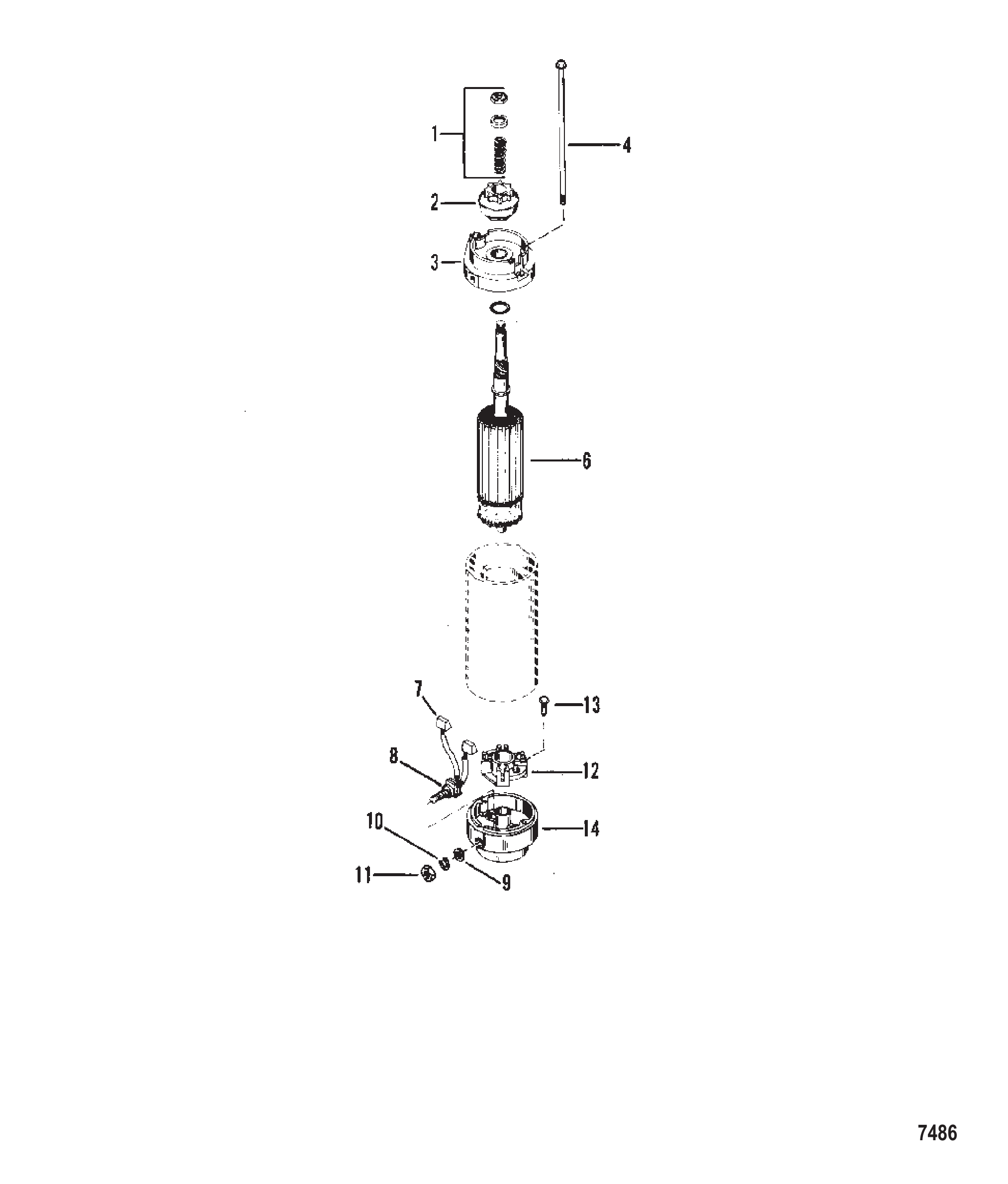

图 14启动电机总成 STARTER MOTOR ASSEMBLY
启动电机总成 STARTER MOTOR ASSEMBLY
REF零件编号中文名称英文名称数量
-73521启动电机总成STARTER MOTOR ASSEMBLY1
190643驱动套件DRIVE KIT1
268575驱动总成DRIVE ASSEMBLY1
2685753驱动总成DRIVE ASSEMBLY1
375660PLATE Drive End1
475379贯穿螺栓BOLT Through2
675382电枢ARMATURE1
775384电刷/弹簧套件BRUSH/SPRING KIT1
7898265016电刷/弹簧套件BRUSH/SPRING KIT1
857387BUSHING Insulating1
938013WASHER Input Stud1
1026992LOCKWASHER (.250) Stainless Steel Input Stud1
1120890NUT (.250-20) Input Stud1
1261787电刷架HOLDER Brush2
12898265014电刷支架HOLDER-BRUSH2
1368586SCREW Brush and Holder2
1475383END CAP Commutator1

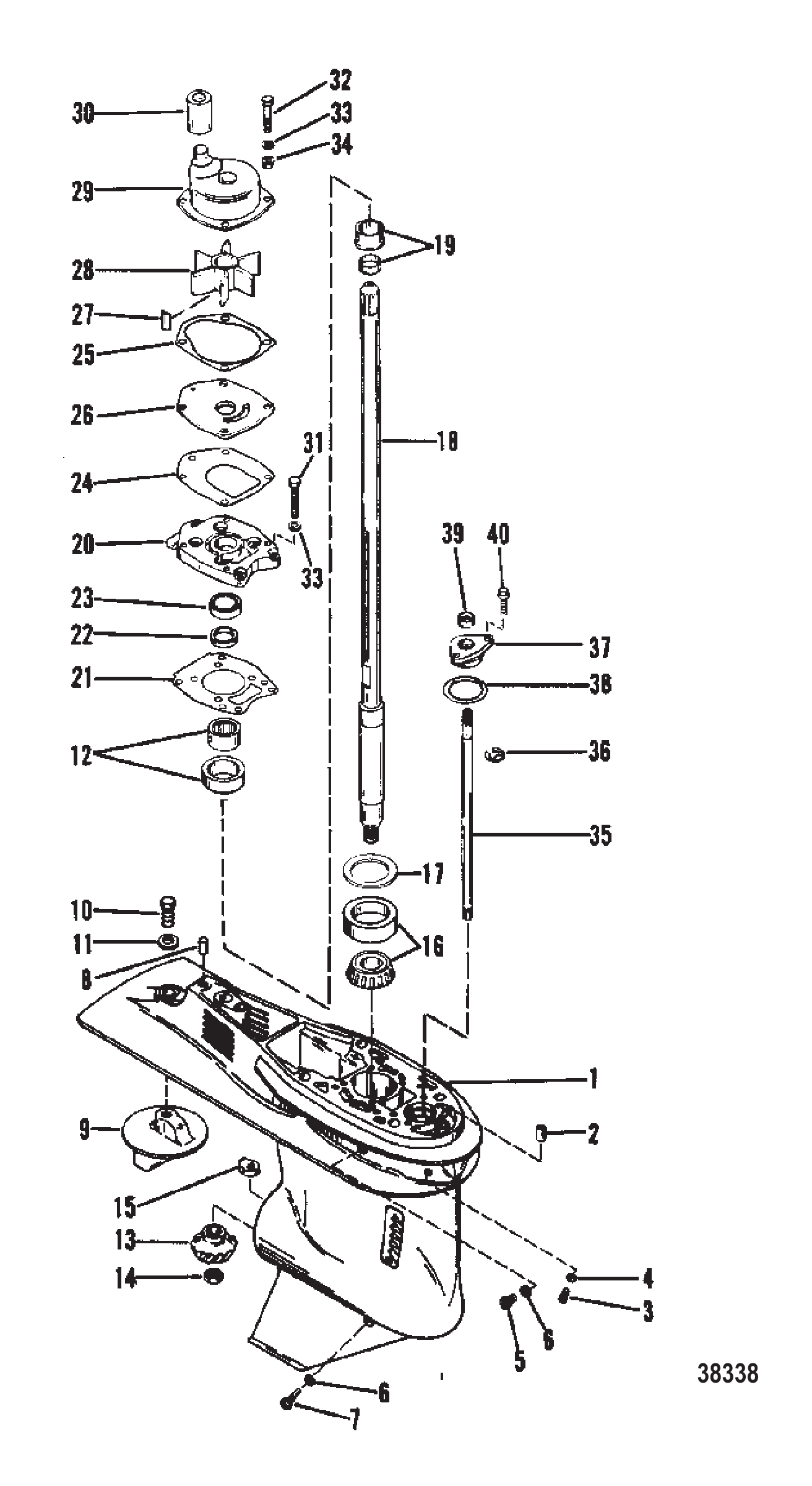

图 15齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)
齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)
REF零件编号中文名称英文名称数量
-9539A4齿轮箱总成短轴-黑色GEAR HOUSING ASSEMBLY Short Shaft - Black1
-9539A5齿轮箱总成长轴-黑色GEAR HOUSING ASSEMBLY Long Shaft - Black1
-9539A6齿轮箱总成短轴-灰色GEAR HUSING ASSEMBLY Short Shaft - Gray1
-9539A7齿轮箱总成长轴-灰色GEAR HOUSING ASSEMBLY Long Shaft - Gray1
19539A1齿轮箱总成GEAR HOUSING ASSEMBLY1
19539T1齿轮箱GEAR HOUSING1
19539A8齿轮箱总成GEAR HOUSING ASSEMBLY1
19539T8ORD 1643-9539T 1ORD 1643-9539T 11
285822A1速度表连接器总成CONNECTOR ASSEMBLY Speedometer1
285822A10连接器总成CONNECTOR ASSEMBLY1
385500定位销(.187 x .530)齿轮箱PIN Dowel (.187 x .530) Gear Housing2
38M0084726定位销PIN Dowel2
433778水泵/底座柱螺栓(2.625英寸)STUD Water Pump/Base (2.625 Inch)3
557933柱螺栓(.437-14/.437-20 x 2.190)齿轮箱STUD (.437-14/.437-20 x 2.190) Gear Housing2
58M0034453柱螺栓(7/16 x 2.19)STUD (7/16 x 2.19)2
662091传动轴滚柱轴承BEARING Roller Driveshaft1
662091T轴承BEARING1
772849A1进水滤网总成SCREEN ASSEMBLY Water Intake1
836070螺钉(#10-32 x 1.250)进水滤网至齿轮箱SCREW (#10-32 x 1.250) Water Intake Screen to Gear Housing1
945812螺母(#10-32)不锈钢进水滤网螺钉NUT (#10-32) Stainless Steel Water Intake Screen Screw1
9859124螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel1
1092815排气管支撑板PLATE Support - Exhaust Tube1
1137721排气管密封件SEAL Exhaust Tube1
1137721001密封件@2SEAL @21
1298097传动轴小齿轮GEAR Pinion Driveshaft1
1298097T小齿轮GEAR-PINION1
1355910螺母(.437-20)小齿轮至传动轴NUT (.437-20) Pinion Gear to Driveshaft1
1419552水泵底座衬垫GASKET Water Pump Base1
1526722O型圈O-RING1
1677177A1水泵底座总成BASE ASSEMBLY Water Pump1
1790562密封件(1.254 x .312)SEAL (1.254 x .312)1
1879831油封SEAL Oil1
1935973定位销PIN Dowel2
2019553下衬垫GASKET Lower1
2154705面板FACE PLATE1
2132768面板FACEPLATE1
2219551上衬垫GASKET Upper1
2389983叶轮IMPELLER1
2389983T叶轮IMPELLER1
2456662叶轮驱动键KEY Impeller Drive1
248M0032837键@5KEY @51
2577822A1水泵壳体总成BODY ASSEMBLY Water Pump1
2648753嵌件INSERT1
2738452橡胶密封件SEAL Rubber1
2838453尼龙垫圈WASHER Nylon1
2929245垫圈(.281 x .500 x .060)不锈钢水泵体与底座柱螺栓WASHER (.281 x .500 x .060) Stainless Steel Water Pump Body and Base Studs3
298M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel3
3013438螺母(.250-28)水泵体与底座柱螺栓NUT (.250-28) Water Pump Body and Base Studs3
308267119螺母(.250-28)NUT (.250-28)3
3120273橡胶O型圈O-RING Rubber1
3278654A1传动轴座总成SEAT ASSEMBLY Driveshaft1
3386304花键密封件-传动轴SEAL Splined - Driveshaft1
3479953螺钉(.375-16 x .250)润滑脂加注口SCREW (.375-16 x .250) Grease Filler1
3479953Q04放油螺钉套件SCREW KIT Drain1
3567892磁性放油螺钉SCREW Magnetic Drain1
358M0058389放油螺钉套件SCREW KIT Drain1
3619183纤维垫圈(加注/放油螺钉)WASHER Fiber Filler/Drain Screw2
368M0187157蓝色密封件@15SEAL-BLUE @152
3788181润滑套筒-传动轴SLEEVE Lubrication - Driveshaft1
3892881A1轴承垫片组(齿轮箱用)(.002-3-5-10-20)SHIM SET Bearing to Gear Housing(.002-3-5-10-20)AR
3977420A1圆锥滚子轴承总成-传动轴BEARING ASSEMBLY Roller Tapered - Driveshaft1
398M0166756轴承总成BEARING ASSEMBLY1
4088025A2驱动轴总成DRIVESHAFT ASSEMLBY1
4098179驱动轴DRIVESHAFT1
4088024A2驱动轴总成DRIVESHAFT ASSEMBLY1
4098180驱动轴DRIVESHAFT1
4120254驱动轴压缩弹簧SPRING Compression - Driveshaft1
4230545驱动轴销PIN Driveshaft1
4376063A1换挡轴总成SHAFT ASSEMBLY Shift1
4429641换挡轴E型卡环E RING Shift Shaft1
4525439O型圈(.862 x .103)换挡轴衬套O-RING (.862 x .103) Shift Shaft Bushing1
4677631A2换挡轴衬套总成BUSHING ASSEMBLY Shift Shaft1
4776384换挡轴衬套油封SEAL Oil Shift Shaft Bushing1
478M0246145油封OIL SEAL1
4877674橡胶垫圈(.35 x .75 x .12)换挡轴衬套WASHER (.35 x .75 x .12) Rubber - Shift Shaft Bushing1
4978036倒挡锁定底座BASE Reverse Locking1
50433081倒挡锁定凸轮CAM Reverse Locking1
5043308T1凸轮CAM1
-77177A3水泵套件WATER PUMP KIT1
-79831A1密封套件SEAL KIT1
-85491A87衬垫套件GASKET SET1
-85491A90衬垫套件GASKET SET1

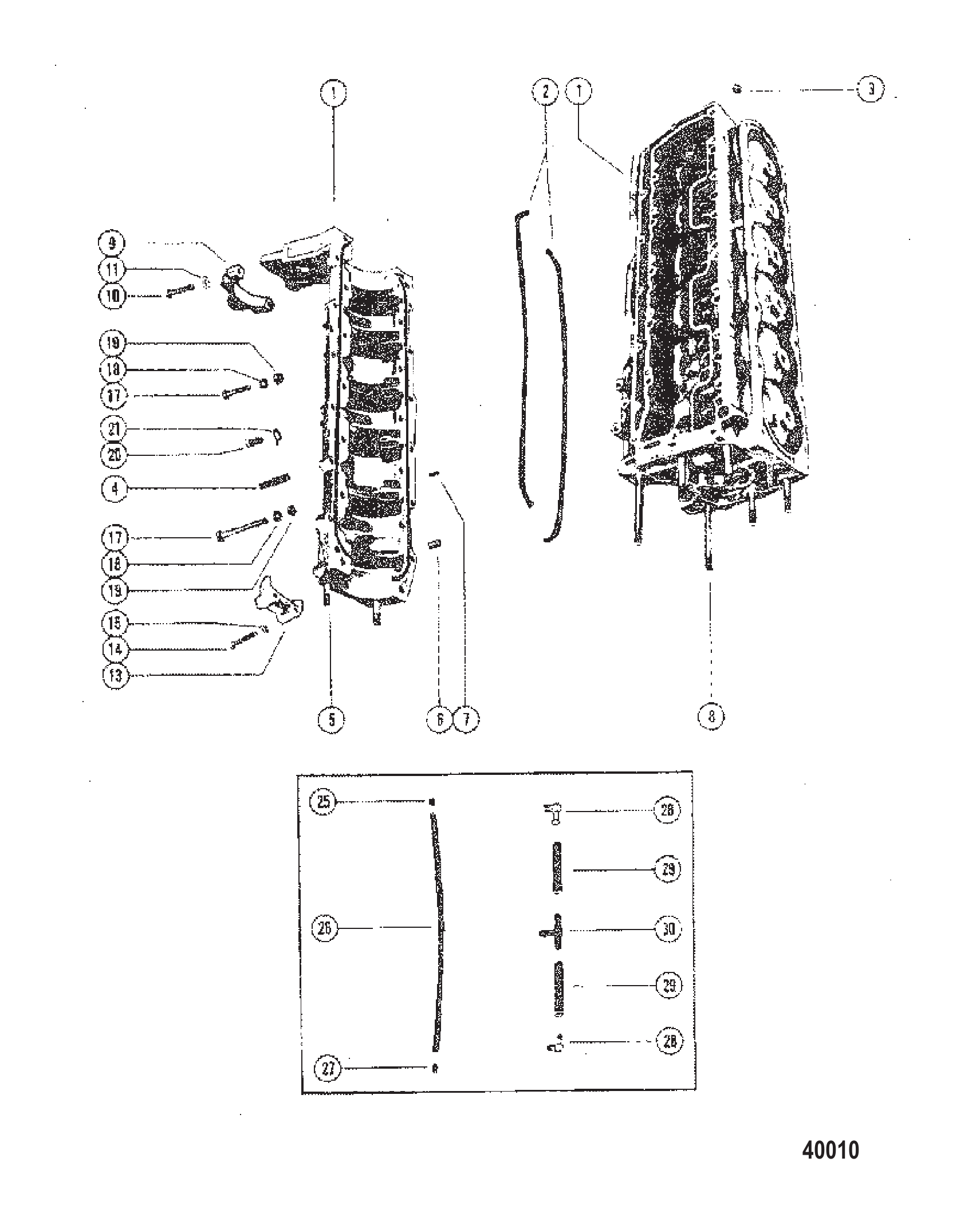

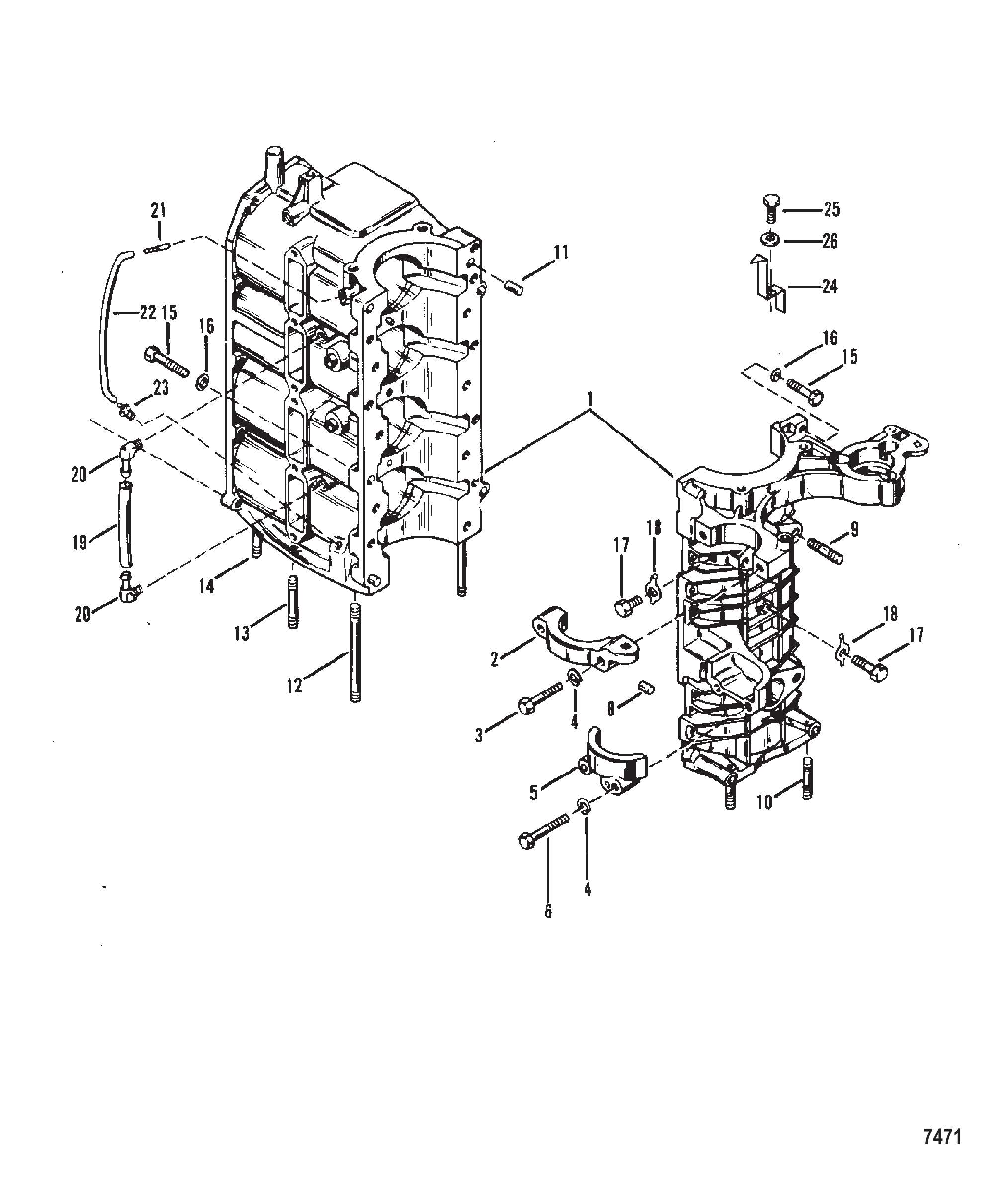

图 16气缸体与曲轴箱总成 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
气缸体与曲轴箱总成 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
REF零件编号中文名称英文名称数量
18981A6气缸体总成CYLINDER BLOCK ASSEMBLY1
272038启动电机上支架BRACKET Upper Starter Motor1
373279支架至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸)SCREW (.312-18 x 1.880) Bracket to Crankcase (1.875 Inch)2
426993支架螺钉锁紧垫圈(.312)LOCKWASHER (.312) Bracket Screw4
48M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
576867启动电机下盖COVER Lower Starter Motor1
673279盖至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸)SCREW (.312-18 x 1.880) Cover to Crankcase (1.875 Inch)2
820032缸体至主轴承定位销PIN Dowel Cylinder block to main bearing2
968164化油器双头螺柱(1.25英寸)STUD Carburetor (1.25 Inch)4
964936螺柱STUD4
1068165曲轴箱至驱动轴壳体双头螺柱(1.625英寸)STUD Crankcase to Driveshaft Housing (1.625 Inch)2
1120033曲轴箱至缸体定位销PIN Dowel Crankcase to Cylinder Block2
1143044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
1287901缸体至驱动轴壳体双头螺柱(4英寸)STUD Cylinder block to drive shaft housing (4 Inch)2
1368166缸体至驱动轴壳体双头螺柱(.312 x 2.125)(2.125英寸)STUD (.312 x 2.125) Cylinder block to drive shaft housing (2.125 Inch)2
1468167缸体至驱动轴壳体双头螺柱(.312-18/.312-24 x 2.560)(2.50英寸)STUD (.312-18/.312-24 x 2.560) Cylinder block to drive shaft housing (2.50 Inch)2
1573657曲轴箱至缸体螺钉(.312-18 x 1.50)(1.50英寸)SCREW (.312-18 x 1.50) Crankcase to cylinder block (1.50 Inch)13
1531984曲轴箱至缸体螺钉(.312-18 x 1.375)(1.375英寸)SCREW (.312-18 x 1.375) Crankcase to cylinder block (1.375 Inch)3
1573275曲轴箱至缸体螺钉(.312-18 x 2.88)(2.875英寸)SCREW (.312-18 x 2.88) Crankcase to cylinder block (2.875 Inch)2
1670132曲轴箱螺钉不锈钢垫圈(.323 x .563 x .063)WASHER (.323 x .563 x .063) Stainless Steel Crankcase Screw17
168M0042642垫圈(.323 x .562 x .063)WASHER (.323 x .562 x .063)17
1720359螺钉(.375-16 x 1.00)SCREW (.375-16 x 1.00)1
1798260螺钉(.375-16 x .620)SCREW (.375-16 x .620)2
1820091中央轴承锁紧螺钉止动垫圈TAB WASHER Center Bearing Locking Screw3
1999127109平衡管(57英寸散装)-主轴承(5.50英寸)LINE (57.00 Inches Bulk) Balance - Main Bearing (5.50 Inch)1
198M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
2099664平衡管至缸体弯头ELBOW Balance Tube to Cylinder Block2
2099664290度弯头接头(0.125-27x0.250)尼龙FITTING Elbow 90 Degree (.125-27 x .250) Nylon2
2165857上部泄放软管接头CONNECTOR Upper Bleed Hose1
2156759倒钩接头FITTING Barbed1
229938779气缸泄放软管(11英寸)HOSE Cylinder Bleed (11 Inch)1
2342867下部泄放软管止回阀CHECK VALVE Lower Bleed Hose1
23428671止回阀CHECK VALVE1
2499156正时指示器INDICATOR Timing1
2539349指示器至曲轴箱不锈钢螺钉(.312-18 x .750)SCREW (.312-18 x .750) Stainless Steel Indicator to Crankcase1
2626993指示器螺钉锁紧垫圈(.312)LOCKWASHER (.312) Indicator Screw1
268M0204647锁紧垫圈 (.312)LOCKWASHER (.312)1
-97469A87动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-97469T87船用动力头POWERHEAD MARINE1
图 17杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES
杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES
REF零件编号中文名称英文名称数量
-811286零件手册(6/8/9.9/15马力)PARTS MANUAL 6/8/9.9/15 Hp
-12048930用户指南(黑色)OWNERS GUIDE (BLACK)
-14138930用户指南(灰色)OWNERS GUIDE (GRAY)
-14012A89贴花套装(9.9/210帆动力)DECAL SET (9.9/210 SAILPOWER)
-12836A89贴花套装(黑色-6至9.9马力)DECAL SET (BLACK- 6 THRU 9.9)
-13478A88贴花套装(黑色-15马力)DECAL SET (BLACK-15)
-810458A92贴花套装(灰色-6至15马力)DECAL SET (GRAY- 6 THRU 15)
-822787A93贴花套装(灰色-8帆伴侣)DECAL SET (GRAY 8 SAILMATE)
-808560A03贴花套件DECAL SET
-808522A94贴花套装(黑色-6马力)DECAL SET (BLACK-6)
-808522A00贴花套件DECAL SET
-808526A94贴花套装(黑色-8马力)DECAL SET (BLACK -8)
-808526A00贴花套件DECAL SET
-12836A94贴花套装(黑色-9.9马力)DECAL SET (BLACK- 9.9)
-12836A00贴花套件DECAL SET
-808523A94贴花套装(9.9帆动力)DECAL SET (9.9 SAILPOWER)
-808523A96贴花套件DECAL SET
-13478A94贴花套装(黑色-15马力)DECAL SET (BLACK-15)
-13478A00贴花套件DECAL SET
-808524A94贴花套装(灰色-6马力)DECAL SET (GRAY-6)
-808524A03贴花套件DECAL SET
-808545A94贴花套装(灰色-8马力)DECAL SET (GRAY-8)
-808545A03贴花套件DECAL SET
-808560A94贴花套装(8帆伴侣)DECAL SET (8 SAILMATE)
-808560A03贴花套件DECAL SET
-808525A94贴花套装(灰色-9.9马力)DECAL SET (GRAY-9.9)
-808525A03贴花套件DECAL SET
-808546A94贴花套装(灰色-15马力)DECAL SET (GRAY-15)
-808546A03贴花套件DECAL SET

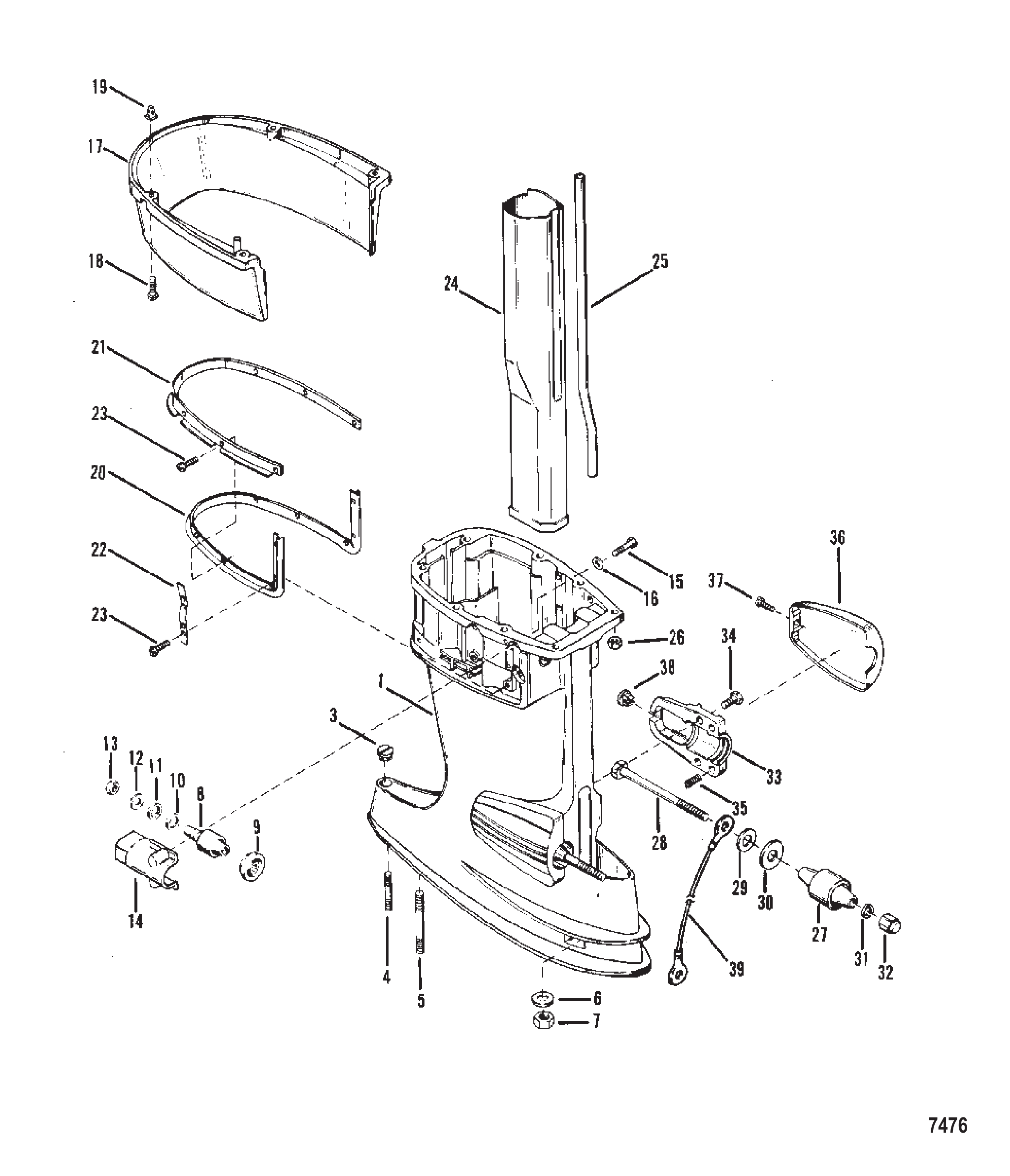

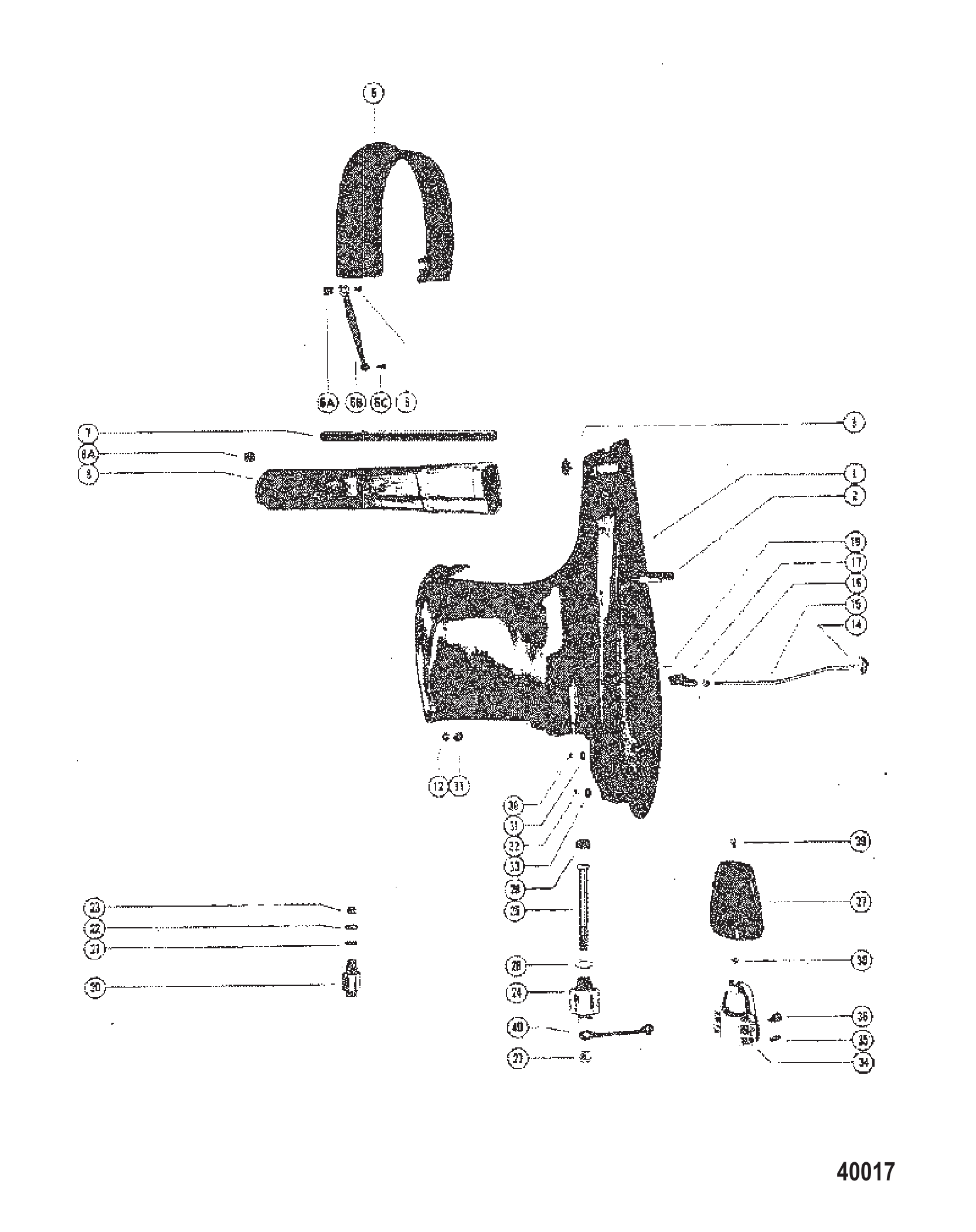

图 18驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY
驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY
REF零件编号中文名称英文名称数量
17512A10驱动轴壳体总成(短轴)HOUSING ASSEMBLY Driveshaft (Short Shaft)1
17513A12驱动轴壳体总成(长轴)HOUSING ASSEMBLY Driveshaft (Long Shaft)1
18189A10黑色传动轴壳体总成HOUSING ASSEMBLY Driveshaft Black1
18189A11灰色传动轴壳体总成HOUSING ASSEMBLY Driveshaft Gray1
364649塑料螺塞-调整片螺钉孔PLUG Plastic - Trim Tab Screw Hole1
457932STUD (.375-16/.375-24 x 1.750) Driveshaft Housing1
48M0022145螺柱(.375-16/.375-24 x 1.750)STUD (.375-16/.375-24 x 1.750)1
557935驱动轴壳体双头螺柱(3英寸)STUD Driveshaft Housing (3 Inch)1
665791齿轮箱壳体螺柱垫圈(0.438英寸)WASHER Gear Housing Studs (0.438 Inch)2
734933NUT (.437-20) Stainless Steel Gear Housing Studs2
78M0204653螺母NUT2
893445橡胶上支架MOUNT Rubber - Upper2
8923373支架MOUNT2
996401上支架密封件SEAL Upper Mount2
1027727WASHER Upper Mount Bolt (37/64 I.D.)2
1166966WASHER Rubber - Upper Mount Bolt2
1230514WASHER Upper Mount Bolt2
1334933NUT (.437-20) Stainless Steel Upper Mount Bolt2
138M0204653螺母NUT2
1487883T上减震座盖COVER Upper Mount2
1487883盖板COVER2
1576630SCREW (.250-20 x 1.00) Upper Mount Cover4
158M0214943螺钉SCREW4
1629245WASHER (.281 x .500 x .060) Stainless Steel Upper Mount Cover Screw4
168M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel4
1737687驱动轴壳体调整盖COVER Trim - Driveshaft Housing1
1737687F2驱动轴壳体调整盖COVER Trim - Driveshaft Housing1
1857807SCREW (#10-16 x .750) Stainless Steel Trim Cover to Driveshaft Housing4
1992012GROMMET Trim Cover Screw4
198M0079730密封圈套件GROMMET KIT4
2038157调整盖至驱动轴壳体密封件SEAL Trim Cover to Driveshaft Housing1
2138158调整盖密封条(后)STRIP Retaining - Trim Cover Seal (Rear)1
2238154调整盖密封条(侧)STRIP Retaining - Trim Cover Seal (Side)2
2348408固定条螺钉(#10-16 x .500)SCREW (#10-16 x .500) Retaining Strip8
24695431排气管TUBE Exhaust1
24695441排气管TUBE Exhaust1
2537727进水口管TUBE Water Inlet1
2545679进水口管TUBE Water Inlet1
2664809动力头螺柱螺母(0.313英寸)NUT Powerhead Studs (0.313 Inch)8
2775304下橡胶支座MOUNT Rubber - Lower2
2775304T1支架MOUNT2
2875284SCREW (.500-20 x 5.500) Lower Mount Screw2
2843426下支座螺丝SCREW Lower Mount Screw2
2928051WASHER Lower Mount Screw2
3028053下支座螺丝橡胶垫圈WASHER Rubber - Lower Mount Screw2
3130119WASHER (.875 Inch Outside Diameter) Lower Mount Screw2
3225096NUT Lower Mount Screw2
3369592下支座夹箍CLAMP Lower Mount2
3369592F1卡箍CLAMP2
3429256SCREW (.312-18 x .875) Lower Mount Clamp4
3535522SPRING Tension - Lower Mount Clamp4
3635474T下安装夹盖COVER Lower Mount Clamp2
3635474F2下支座夹箍盖COVER Lower Mount Clamp Lower Mount Clamp2
3787884盖至下支座夹箍螺丝(#12-14 x 0.920)SCREW (#12-14 x .920) Cover to Lower Mount Clamp2
3835521NUT Lower Mount Clamp Cover2
3988238A2动力升降接地线组件(2根)CABLE ASSEMBLY Ground Quanity of Two on Power Trim1
3988238A10接地线总成CABLE ASSEMBLY Ground1

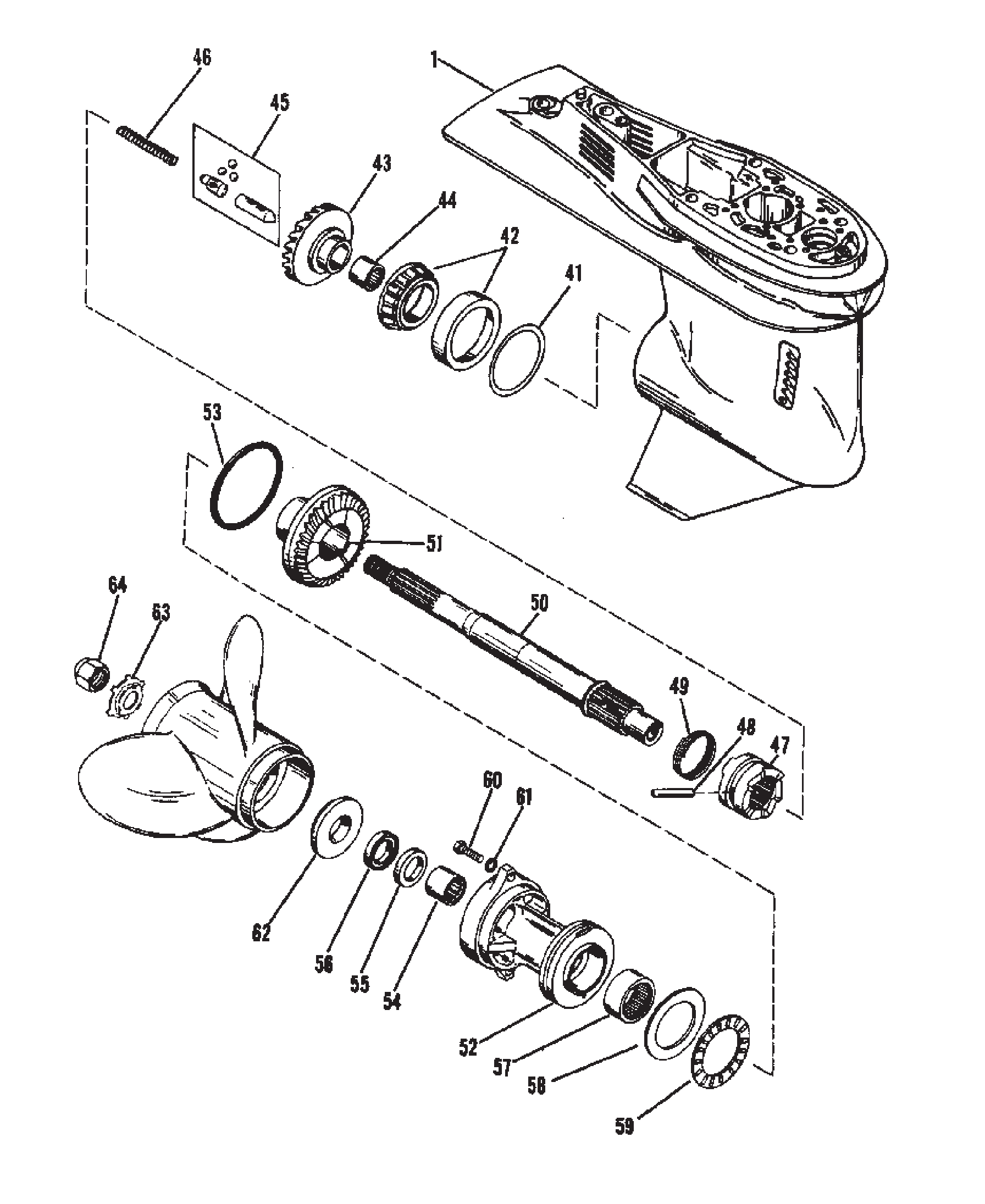

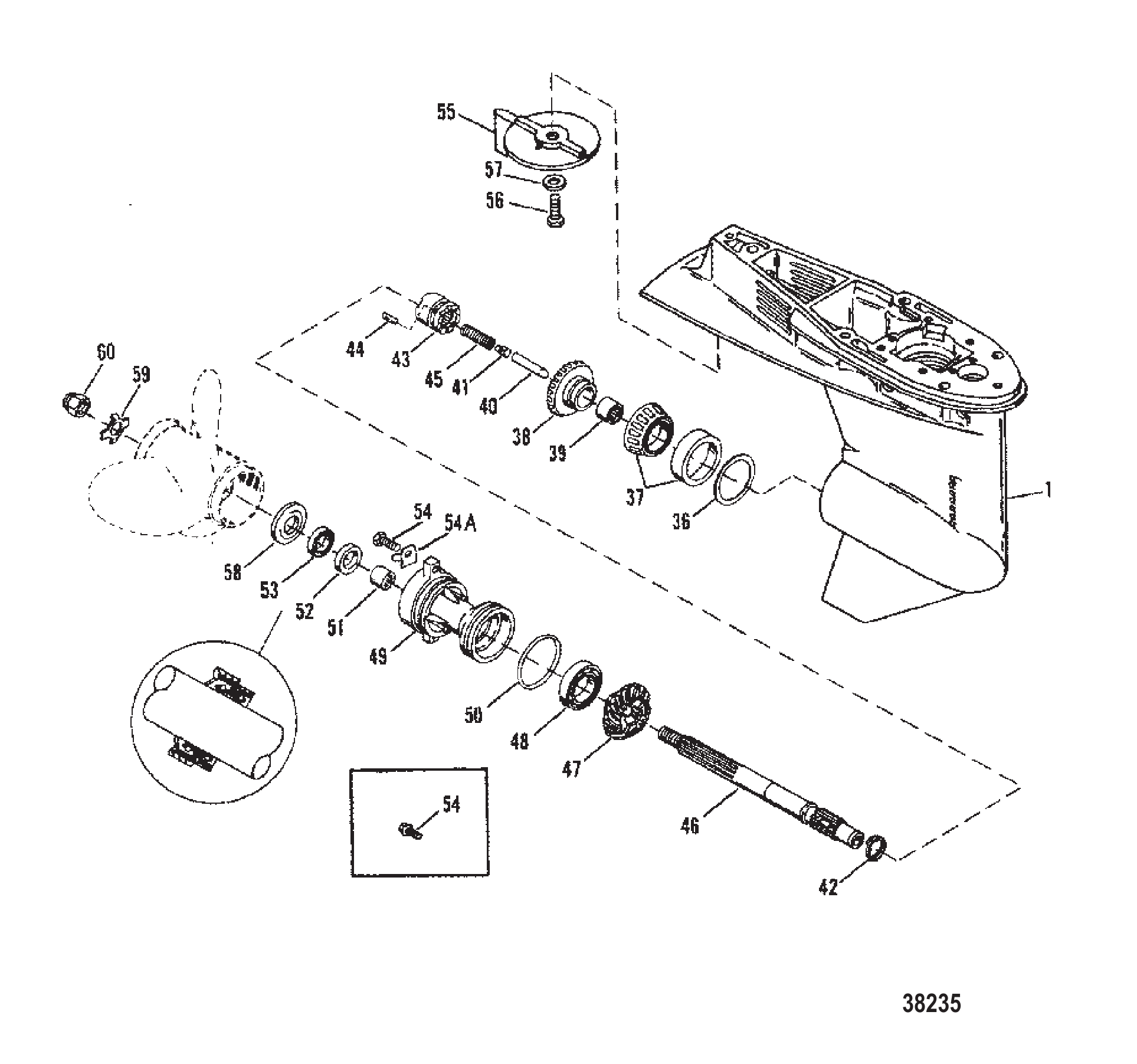

图 19齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)
齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)
REF零件编号中文名称英文名称数量
-9760A8齿轮箱总成(短型)(黑色)GEAR HOUSING ASSEMBLY (SHORT) (BLACK)1
-9760A9齿轮箱总成(短型)(灰色)GEAR HOUSING ASSEMBLY (SHORT) (GRAY)1
-9760A24齿轮箱总成GEAR HOUSING ASSEMBLY1
-9760A21齿轮箱总成(长型)(追踪者系列)GEAR HOUSING ASSEMBLY (LONG) (TRACKER)1
-9760T27ORD1671-9760T25ORD1671- 9760T251
-9760A12齿轮箱总成(长型)(黑色)GEAR HOUSING ASSEMBLY (LONG) (BLACK)1
-9760T25齿轮箱总成GEAR HOUSING ASSEMBLY1
-9760A13齿轮箱总成(长型)(灰色)GEAR HOUSING ASSEMBLY (LONG) (GRAY)1
-9760T26ORD 1671-9760T25ORD 1671-9760T251
-9760A10齿轮箱总成(加长)(黑色)GEAR HOUSING ASSEMBLY (X-LONG) (BLACK)1
-9760T28齿轮箱总成GEAR HOUSING ASSEMBLY1
-9760A11齿轮箱总成(加长)(灰色)GEAR HOUSING ASSEMBLY (X-LONG) (GRAY)1
-9760T29灰色齿轮箱GEAR HOUSING-GR1
19760A2齿轮箱总成(基础款)(黑色)GEAR HOUSING ASSEMBLY (BASIC)(BLACK)1
19760T42基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
19760A3齿轮箱总成(基础款)(灰色)GEAR HOUSING ASSEMBLY (BASIC)(GRAY)1
19760T31ORD 1671-9760T30ORD 1671-9760T301
19760A20齿轮箱总成(基础款)(TRACKER)GEAR HOUSING ASSEMBLY (BASIC)(TRACKER)1
19760T32ORD 1671-9760T42ORD 1671-9760T421
36812769A1垫片组SHIM SETAR
368M0063263垫片组SHIM SETAR
37812767A1圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
378M0103476轴承总成BEARING ASSY1
38813693A1前进齿轮总成GEAR ASSEMBLY Forward1
38813693T1前进齿轮GEAR Forward1
3921739滚柱轴承BEARING Roller1
408129291凸轮从动件FOLLOWER Cam1
4120843滑块SLIDE1
4238114弹簧SPRING1
43813697离合器CLUTCH1
43813697T离合器CLUTCH1
4438113十字销PIN Cross1
448M0020942十字销@2PIN-CROSS @21
45815418弹簧SPRING1
4614493螺旋桨轴PROPELLER SHAFT1
47813695倒挡齿轮GEAR Reverse1
47813695T倒挡齿轮GEAR Reverse1
4820839滚珠轴承BEARING Ball1
4820839T滚珠轴承BEARING Ball1
4919291A3轴承座总成CARRIER ASSEMBLY Bearing1
498M0168900轴承座BEARING CARRIER1
50815460O型圈O-RING1
5121700滚针轴承BEARING Needle1
5269188油封SEAL Oil1
528M0205511油封SEAL Oil1
5369189油封SEAL Oil1
538M0203757油封SEAL Oil1
544000353螺钉 (M8 x 25)SCREW (M8 x 25)2
54A826613锁紧垫圈TAB WASHER2
548136911螺丝(M8×0.98)SCREW (M8 x .98)2
5517264T2调整片 锌制TRIM TAB Zinc1
564000377螺钉 (M10 x 30)SCREW (M10 x 30)1
5745175垫圈(.406 x .750 x .104)WASHER (.406 x .750 x .104)1
578M0214963垫圈WASHER1
5873345A1止推垫片THRUST WASHER1
5976281锁紧垫圈TAB WASHER1
598M0214942锁紧垫片WASHER Tab1
6069578A1螺旋桨螺母套件PROP NUT KIT1
6069578Q1螺旋桨螺母套件PROP NUT KIT1
-812867A91发动机垫片组GASKET SET Engine1
-812867A97衬垫套件GASKET SET1
-814669A2齿轮箱密封套件SEAL KIT Gear Housing1

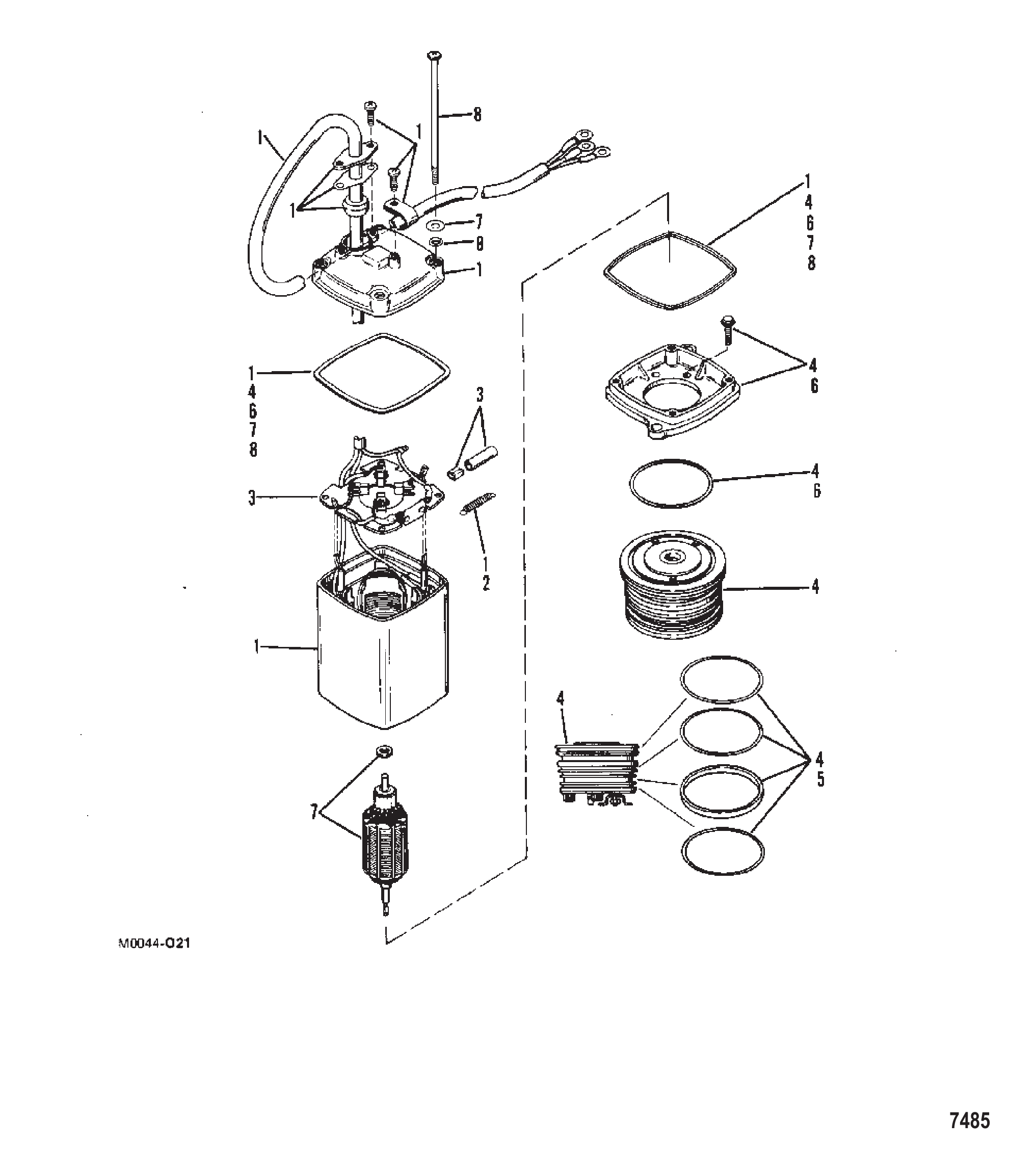

图 20动力升降泵(Eaton矩形电机) Power Trim Pump (Eaton Rectangular Motor)
动力升降泵(Eaton矩形电机) Power Trim Pump (Eaton Rectangular Motor)
REF零件编号中文名称英文名称数量
-99186T泵与电机总成PUMP AND MOTOR1
112659机架与磁场套件FRAME AND FIELD KIT1
1991861动力升降泵总成PUMP ASSEMBLY Power Trim1
212665电刷弹簧套件SPRING KIT Brush1
313506电刷卡套件BRUSH CARD KIT1
3991861动力升降泵总成PUMP ASSEMBLY Power Trim1
412662泵与端架套件PUMP AND END FRAME KIT1
4991861动力升降泵总成PUMP ASSEMBLY Power Trim1
512663泵密封套件SEAL KIT Pump1
5126631泵密封套件SEAL KIT Pump1
612660端架套件END FRAME KIT1
6991861动力升降泵总成PUMP ASSEMBLY Power Trim1
712661电枢套件ARMATURE KIT1
7991861动力升降泵总成PUMP ASSEMBLY Power Trim1
812664贯穿螺栓套件THRU BOLT KIT1

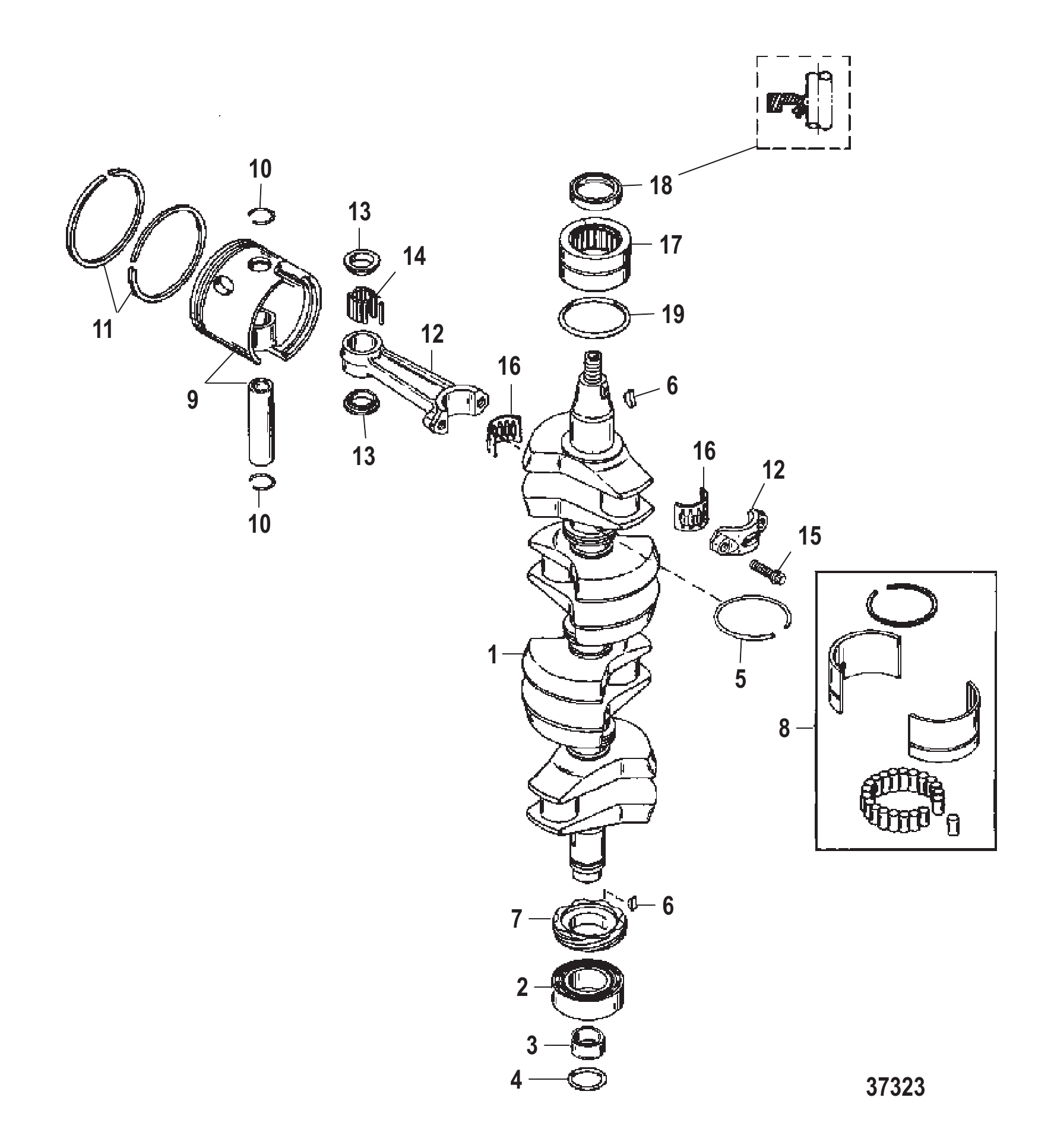

图 21曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS
曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS
REF零件编号中文名称英文名称数量
19611A1曲轴总成CRANKSHAFT ASSEMBLY1
263742滚珠轴承BEARING Ball1
263742T滚珠轴承BEARING Ball1
3812877挡圈RING Retaining1
491800半圆键KEY Woodruff2
543019A2齿轮总成GEAR ASSEMBLY1
6812873A1滚子轴承总成(顶部)BEARING ASSEMBLY Roller (TOP)1
7419531油封SEAL Oil1
8812881A1滚子轴承总成(中部)BEARING ASSEMBLY Roller (CENTER)2
99613A1活塞总成PISTON ASSEMBLY3
99613T1活塞PISTON3
99613A2活塞总成PISTON ASSEMBLYAR
99613T2活塞总成0.015PISTON ASSY .015AR
99613A3活塞总成PISTON ASSEMBLYAR
99613T3活塞PISTONAR
1052035锁环RING Lock6
10857196锁紧环LOCK RING6
1119721A6活塞环组RING SET Piston1
1119721A1活塞环组RING SET PistonAR
1119721A2活塞环组RING SET PistonAR
129612A2连杆总成CONNECTING ROD ASSEMBLY3
129612A6连杆总成CONNECTING ROD ASSEMBLY3
13812876垫圈WASHER6
138M0012298止推垫片THRUST WASHER6
1447270轴承BEARING8
148M0214934滚针轴承@200BRG-NEEDLE @2008
1591012螺钉(0.250-28特殊)SCREW (.250-28 Special)6
1617514A1轴承套件BEARING KIT3
168M0234886轴承保持架CAGE BEARING3
-811208T91动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-821744T92动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-811209T91动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-811209T93动力头总成(完整)POWERHEAD ASSEMBLY Complete1

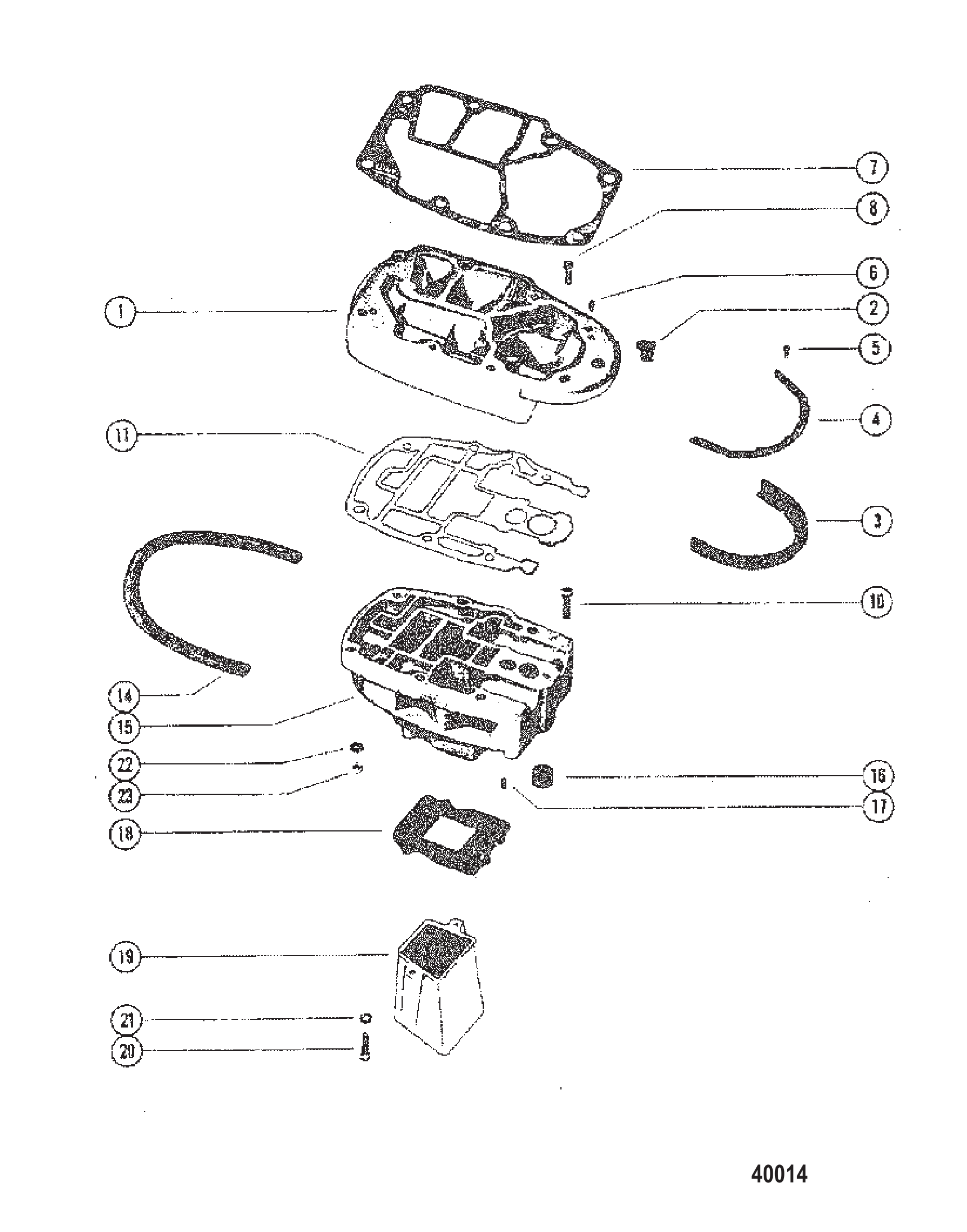

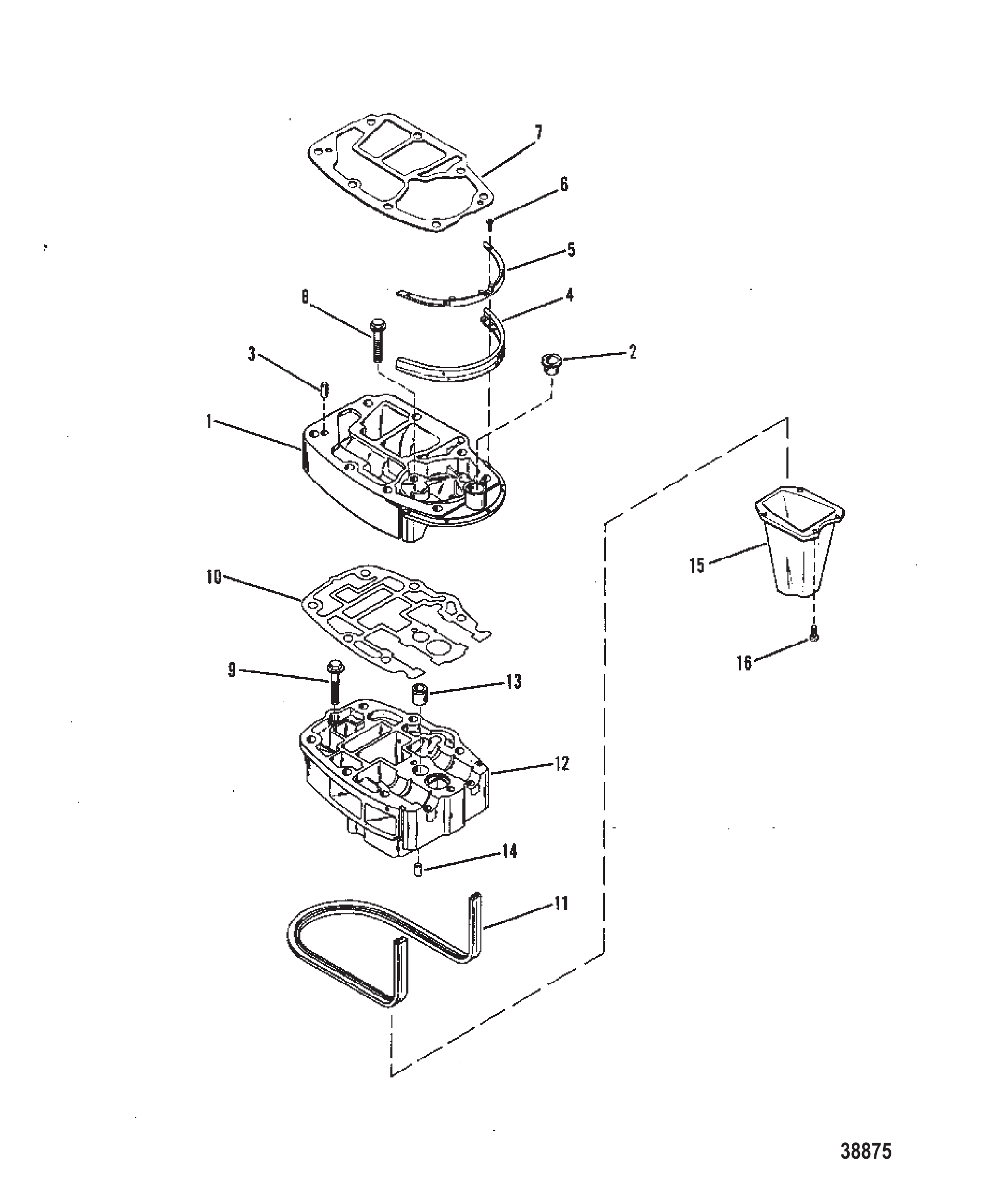

图 22排气延伸板 EXHAUST EXTENSION PLATE
排气延伸板 EXHAUST EXTENSION PLATE
REF零件编号中文名称英文名称数量
143289A2排气延伸板总成PLATE ASSEMBLY EXHAUST EXTENSION1
227132排气延伸板尼龙衬套BUSHING NYLON-EXHAUST EXTENSION PLATE1
323784排气延伸板定位销PIN Dowel EXHAUST EXTENSION PLATE2
437918排气延伸板密封件SEAL EXHAUST EXTENSION PLATE1
599358排气延伸板固定条STRIP RETAINING - EXHAUST EXTENSION PLATE1
637571螺钉(.190-32 x 0.500)SCREW (.190-32 x .500)5
769238动力头衬垫GASKET POWERHEAD1
7692381衬垫GASKET1
866023法兰头螺钉(.312-18 x 2.00)SCREW (.312-18 x 2.00) Flange Head2
966023法兰头螺钉(.312-18 x 2.00)SCREW (.312-18 x 2.00) Flange Head7
1066102驱动轴壳体板衬垫GASKET DRIVESHAFT HOUSING PLATE1
10661021衬垫GASKET1
1160898驱动轴壳体板密封件SEAL DRIVESHAFT HOUSING PLATE1
1243290A4驱动轴壳体板总成PLATE ASSEMBLY DRIVESHAFT HOUSING1
1338970橡胶密封圈-进水管SEAL RUBBER - WATER INLET TUBE1
1423784驱动轴壳体板定位销PIN Dowel DRIVESHAFT HOUSING PLATE2
1599698排气管TUBE Exhaust1
1665414螺钉(3/4英寸)SCREW (3/4 Inches)4
-73645A87衬垫套件GASKET SET1
图 23底罩与换挡连杆 BOTTOM COWL AND SHIFT LINKAGE
底罩与换挡连杆 BOTTOM COWL AND SHIFT LINKAGE
REF零件编号中文名称英文名称数量
17719A1下机罩BOTTOM COWL1
252862A2底罩滴水盘总成DRIP TRAY ASSEMBLY BOTTOM COWL1
337940滴水盘隔音垫SOUND PAD DRIP TRAY1
448408滴水盘到底罩螺丝(#10-16 x .500)SCREW (#10-16 x .500) DRIP TRAY TO BOTTOM COWL4
534395A1滴水盘到底罩软管(8")HOSE DRIP TRAY TO BOTTOM COWL (8")1
58M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
639616控制线护套BOOT CONTROL CABLES1
776369底罩垫片SPACER BOTTOM COWL1
848591垫片到底罩螺丝(#10-32 x .500)SCREW (#10-32 x .500) SPACER TO BOTTOM COWL2
937637燃油接头护套BOOT FUEL CONNECTOR1
1334395A1示位软管(21-1/2")HOSE TELL TALE (21-1/2")1
138M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
1452889示警软管至底罩喷嘴NOZZLE TELL TALE HOSE TO BOTTOM COWL1
1548408示流喷嘴至下罩盖螺钉(#10-16x0.500)SCREW (#10-16 x .500) TELL TALE NOZZLE TO BOTTOM COWL1
1678279示警软管至气缸体弯头ELBOW TELL TALE HOSE TO CYLINDER BLOCK1
168M0207781弯头ELBOW1
1760304A54上部换挡轴总成SHIFT SHAFT ASSEMBLY UPPER1
1826600换挡轴衬套BUSHING SHIFT SHAFT1
2048047A1连杆总成LINK ROD ASSEMBLY1
2073402换挡连杆SHIFT LINK1
2135462垫圈(.2656 x .625 x .0625)不锈钢连杆WASHER (.2656 x .625 x .0625) Stainless Steel LINK ROD2
2220664连杆螺母NUT LINK ROD2
22826709109不锈钢螺母(.250-28)NUT (.250-28) Stainless Steel2
2329720连杆波形垫圈WAVE WASHER LINK ROD1
2452732控制线缆锚定支架BRACKET ANCHOR-CONTROL CABLES1
2452732A6支架BRACKET1
2539519杯筒固定座CUP BARREL RETAINER1
2639618尼龙换挡线缆锁定杆LEVER NYLON-SHIFT CABLE LOCKING1
2687609A1杠杆套件LEVER KIT1
2747175锁定杆与盖销PIN LOCKING LEVER AND COVER3
2839667尼龙换挡线缆盖COVER NYLON-SHIFT CABLE1
2965799连杆-锁定杆到盖板LINK LOCKING LEVER TO COVER1
2987609A1杠杆套件LEVER KIT1
3024234螺钉(.312-18 x 1.00)锚定支架至气缸体SCREW (.312-18 x 1.00) ANCHOR BRACKET TO CYLINDER BLOCK3
3035386螺丝(.312-18 x 1.00)SCREW (.312-18 x 1.00)3
3120099连杆至导向块弹簧SPRING LINK ROD TO GUIDE BLOCK1
3237896连杆导向块GUIDE BLOCK LINK ROD1
3352100连杆耐磨板WEAR PLATE LINK ROD1
3438279控制线缆闩锁紧固件LATCH CONTROL CABLE FASTENING1
348M0036768闩锁LATCH1
图 24化油器总成 CARBURETOR ASSEMBLY
化油器总成 CARBURETOR ASSEMBLY
REF零件编号中文名称英文名称数量
17469A6化油器(上)CARBURETOR (TOP)1
17469A8化油器(中/底部)CARBURETOR (CENTER/BOTTOM)2
17469A10化油器(上)CARBURETOR (TOP)1
17469A14化油器CARBURETOR1
17469A12化油器(中/底部)CARBURETOR (CENTER/BOTTOM)2
17469A16化油器CARBURETOR2
17469A14化油器(上)CARBURETOR (TOP)1
17469A16化油器(中/底部)CARBURETOR (CENTER/BOTTOM)2
25353浮子总成FLOAT ASSEMBLY3
28673浮子总成FLOAT ASSEMBLY3
28673浮子总成FLOAT ASSEMBLY3
28983浮子总成FLOAT ASSEMBLY3
28673浮子总成FLOAT ASSEMBLY3
3NSSNOT SOLD SEPARATE PIN, FLOAT LEVER PINION6
4NSSNOT SOLD SEPARATE LEVER, FLOAT (LOWER)3
5NSSNOT SOLD SEPARATE LEVER, FLOAT (UPPER)3
64555进油针阀座/垫片NEEDLE Inlet SEAT/GASKET3
683181阀座套件VALVE SEAT KIT3
68318进油针阀座/垫片NEEDLE Inlet SEAT/GASKET3
683181阀座套件VALVE SEAT KIT3
7NSSNOT SOLD SEPARATE GASKET, INLET SEAT3
8NSSNOT SOLD SEPARATE GASKET, FLOAT BOWL COVER3
105680浮子室盖COVER FLOAT BOWL3
115733主量孔 (.092)JET Main (.092)3
125734省油器软管HOSE ECONIMIZER3
12892024122管(240.00英寸散装)TUBING (240.00 Inches Bulk)3
1352195浮子室盖螺钉SCREW FLOAT BOWL COVER3
144804浮子室盖螺钉SCREW FLOAT BOWL COVER3
1526995锁紧垫圈 (#8) 不锈钢 浮子室盖螺钉LOCKWASHER (#8) Stainless Steel FLOAT BOWL COVER SCREW6
1797节流阀杆LEVER THROTTLE3
178146791油门杆LEVER Throttle3
1820847节流阀止动杆螺钉SCREW THROTTLE STOP LEVER3
186027螺钉SCREW3
197614节流阀轴SHAFT THROTTLE1
193527节流阀轴SHAFT THROTTLE2
197942轴SHAFT2
20NSS怠速管不单独销售NOT SOLD SEPARATE TUBE, IDLE3
214540本体螺钉 (怠速管)SCREW BODY (IDLE TUBE)3
227874节气门片SHUTTER Throttle3
23NSS螺钉-节气门 (不单独销售)NOT SOLD SEPARATE SCREW, THROTTLE SHUTTER6
24NSSNOT SOLD SEPARATE SPRING, IDLE ADJUSTMENT SCREW3
25NSS怠速调节螺丝不单独销售NOT SOLD SEPARATE SCREW, IDLE ADJUSTMENT3
26NSS主喷嘴(不单独销售)NOT SOLD SEPARATE MAIN NOZZLE3
274542螺塞-主喷管SCREW PLUG - MAIN NOZZLE3
283794量孔(.074)JET (.074)OPT
286207量孔(.072)JET (.072)OPT
286030量孔(.070)JET (.070)OPT
286029标准量孔(.068)JET (.068) STANDARD3
294541螺塞-主燃油量孔通道SCREW PLUG - MAIN FUEL JET CHANNEL3
30NSSNOT SOLD SEPARATE GASKET, JET CHANNEL PLUG SCREW3
31NSSNOT SOLD SEPARATE SPRING, THROTTLE SHAFT RETURN3
324543本体通道螺钉SCREW BODY CHANNEL3
33NSSGODY通道韦尔奇塞不单独销售NOT SOLD SEPARATE WELCH PLUG, GODY CHANNEL3
--4808垫片组(每化油器1套)GASKET SET (1 PER CARBURETOR)3
--879194024衬垫套件GASKET KIT3
--7875维修零件包(每化油器1套)REPAIR PARTS KIT (1 PER CARB.)3
--51091化油器修理包REPAIR KIT-CARB3
--8984维修零件包(每化油器1套)REPAIR PARTS KIT (1 PER CARBURETOR)3
--51091化油器修理包REPAIR KIT-CARB3
3448164化油器法兰衬垫GASKET CARBURETOR FLANGE3
34481641衬垫GASKET3
3564809化油器双头螺栓螺母NUT CARBURETOR STUD6
-85653A32衬垫套件GASKET SET
-85653A87衬垫套件GASKET SET
-85943A1杠杆总成LEVER ASSEMBLY1
-52106A1塑料喉管VENTURI Plastic1

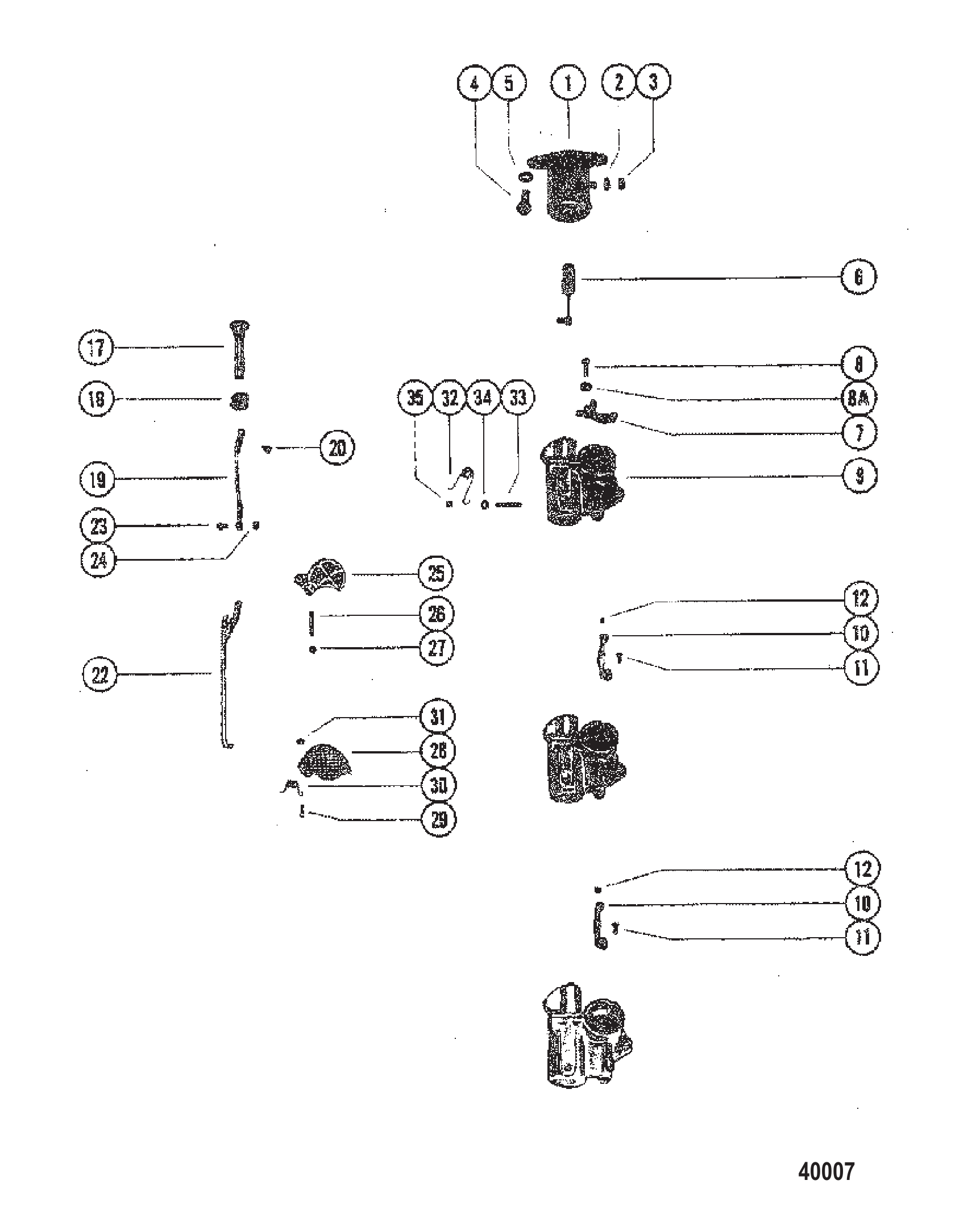

图 25化油器联动阻风门电磁阀 CARBURETOR LINKAGE CHOKE SOLENOID
化油器联动阻风门电磁阀 CARBURETOR LINKAGE CHOKE SOLENOID
REF零件编号中文名称英文名称数量
154293A4阻风门电磁阀总成SOLENOID ASSEMBLY Choke1
154293A10阻风门电磁阀总成SOLENOID ASSEMBLY Choke1
226996锁紧垫圈（#10）不锈钢电磁阀端子LOCKWASHER (#10) Stainless Steel SOLENOID TERMINAL1
368219螺母（#10-32）不锈钢电磁阀端子NUT (#10-32) Stainless Steel SOLENOID TERMINAL1
425299阻风门电磁阀螺丝(.312-18 x .75)SCREW (.312-18 x .75) CHOKE SOLENOID2
526993LOCKWASHER (.312) CHOKE SOLENOID SCREW2
58M0204647锁紧垫圈 (.312)LOCKWASHER (.312)2
690548A1柱塞连杆总成PLUNGER AND LINK ASSEMBLY1
785943A1节气门杠杆总成(上化油器)LEVER ASSEMBLY THROTTLE (UPPER CARBURETOR)1
860293螺钉 (#5-40 x .500) 油门杆SCREW (#5-40 x .500) THROTTLE LEVER1
8A74726节气门杠杆螺丝垫片WASHER THROTTLE LEVER SCREW1
97469A6化油器(上)CARBURETOR (TOP)1
97469A8化油器(中/底部)CARBURETOR (CENTER/BOTTOM)2
97469A10化油器(上)CARBURETOR (TOP)1
97469A14化油器CARBURETOR1
97469A12化油器(中/底部)CARBURETOR (CENTER/BOTTOM)2
97469A16化油器CARBURETOR2
97469A14化油器(上)CARBURETOR (TOP)1
97469A16化油器(中/底部)CARBURETOR (CENTER/BOTTOM)2
1053720A2联轴器总成COUPLING ASSEMBLY2
1166104节气门支架螺丝(#8-32 x .790)SCREW (#8-32 x .790) THROTTLE BRACKET2
1289694节气门联轴键KEY THROTTLE COUPLING2
1790242A1阻风门杆旋钮总成KNOB ASSEMBLY CHOKE ROD1
1820116阻风门拉索护套GROMMET CHOKE ROD1
1949589STRAP CHOKE KNOB TO CHOKE ROD1
2076196阻风门旋钮带条螺丝(5/8")SCREW STRAP TO CHOKE KNOB (5/8")1
2077137螺钉 (.190-16 x .620)SCREW (.190-16 x .620)1
2248203杆ROD1
2348591阻风门杆带条螺丝(#10-32 x .500)SCREW (#10-32 x .500) STRAP TO CHOKE ROD1
2446438阻风门杆带条螺丝螺母(#10-32)NUT (#10-32) STRAP TO CHOKE ROD SCREW1
2548152节气门片SHUTTER2
2669037阻风门挡板枢轴螺柱STUD CHOKE SHUTTER PIVOT2
2720110阻风门挡板螺柱螺母(#10-32)NUT (#10-32) CHOKE SHUTTER STUD2
2857819滤网SCREEN FILTER3
2922523化油器下滤网螺丝(.190-32 x .75)SCREW (.190-32 x .75) LOWER SCREEN TO CARBURETOR1
2923015化油器上滤网螺丝(.190-32 x 1.00)SCREW (.190-32 x 1.00) UPPER SCREEN TO CARBURETOR2
3057818上滤网螺丝弹簧SPRING UPPER SCREEN SCREW2
3120110滤网螺钉螺母（#10-32）NUT (#10-32) SCREEN SCREW3
3248230阻风门杆张力弹簧SPRING CHOKE ROD TENSION1
3339937阻风门杆弹簧到化油器螺柱STUD CHOKE ROD SPRING TO CARBURETOR1
33657461螺丝及锁紧垫圈(0.250-20牙x0.625英寸)SCREW AND LOCKWASHER (.250-20 x .625)1
3432427阻风门杆弹簧柱隔套SPACER CHOKE ROD SPRING STUD1
3546887阻风门杆弹簧柱螺母(1/4-28)NUT (1/4-28) CHOKE ROD SPRING STUD1
358M0207775螺母 @5NUT @51
图 26外罩与前盖 COWLING AND FRONT COVER
外罩与前盖 COWLING AND FRONT COVER
REF零件编号中文名称英文名称数量
15631A4罩盖总成前部(无标贴)COVER ASSEMBLY Cowl - Front (W/O DECALS)1
17928A3前盖组件FRONT COVER ASSEMBLY1
17928A3前盖总成(无贴花)FRONT COVER ASSEMBLY (W/O DECALS)1
256849前盖旋钮KNOB FRONT COVER1
330771旋钮盖垫圈(橡胶)WASHER COVER KNOB (RUBBER)2
459572盖旋钮垫片(塑料)WASHER COVER KNOB (PLASTIC)2
530772旋钮张力弹簧SPRING TENSION - KNOB1
629077PIN Roll TENSION SPRING TO KNOB1
731089消音条STRIP SOUND2
838674启动绳护套BLANKET STARTER ROPE1
935769上部消音密封SEAL SOUND - UPPER1
9A94924上部消音密封SEAL SOUND - UPPER1
1053334顶部消音密封SEAL SOUND - TOP1
114660A4环绕式罩盖总成(无标贴)WRAP AROUND COWL ASSEMBLY (W/O DECALS)1
1246785A1罩壳锁扣总成LATCH ASSEMBLY Cowl3
1330413罩锁钩HOOK COWL LATCH3
1430021消音护套(仅早期型号)BLANKET SOUND (EARLY MODELS ONLY)1
图 27曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS
曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS
REF零件编号中文名称英文名称数量
1827616A1曲轴CRANKSHAFT1
243011球轴承(下部)BEARING Ball (LOWER)1
243011T滚珠轴承BEARING Ball1
3786611耐磨套WEAR SLEEVE1
435126O型圈(.859 x .139)O-RING (.859 x .139)1
5818412A4环组件RING ASSEMBLY1
691800半圆键KEY Woodruff2
743019A1齿轮总成GEAR ASSEMBLY1
842943A1滚柱轴承总成BEARING ASSEMBLY Roller2
9826191A4活塞总成PISTON ASSEMBLY3
9826191T4活塞总成PISTON ASSEMBLY3
9821896A3活塞总成PISTON ASSEMBLYAR
9821896A4活塞总成PISTON ASSEMBLYAR
1052035锁环RING Lock6
10857196锁紧环LOCK RING6
11822321A12活塞环套件-标准RING KIT Piston - Standard1
11822321A1活塞环套件-加大0.015RING KIT Piston - .015 OversizeAR
11822321A2活塞环组RING SET PistonAR
12818846A3连杆总成CONNECTING ROD ASSEMBLY3
12818846T6连杆总成CONNECTING ROD ASSEMBLY3
13812876垫圈WASHER6
138M0012298止推垫片THRUST WASHER6
14818391滚针轴承BEARING Needle87
148M0214954滚针轴承@200BRG-NEEDLE @20087
1594320螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)6
1643012A1轴承/保持架套件BEARING/CAGE KIT3
168M0235070轴承保持架CAGE BEARING3
1743013A1滚子轴承总成(上部)BEARING ASSEMBLY Roller (UPPER)1
1743013T3滚柱轴承总成BEARING ASSEMBLY Roller1
1843993油封SEAL Oil1
188M0214932密封件SEAL1
19823683O型圈(1.989 x .070)O-RING (1.989 x .070)1
-43004A90衬垫套件GASKET SET1
-43004A99动力头衬垫套件GASKET SET Powerhead1
-809837A97动力头总成POWERHEAD ASSEMBLY1
-809837T97动力头总成POWERHEAD ASSEMBLY1
图 28气缸体与曲轴箱总成 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
气缸体与曲轴箱总成 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
REF零件编号中文名称英文名称数量
17697A3气缸体总成CYLINDER BLOCK ASSEMBLY1
18311A4气缸体总成CYLINDER BLOCK ASSEMBLY1
18311A4气缸体总成CYLINDER BLOCK ASSEMBLY1
253862曲轴箱至气缸体衬垫GASKET CRANKCASE TO CYLINDER BLOCK2
366517曲轴箱通气限流器RESTRICTOR CRANKCASE BLEED5
464280化油器柱(1-3/16英寸)STUD CARBURETOR (1-3/16")6
464936螺柱STUD6
564281曲轴箱至延伸板柱(.375-16/.375-24 x 1.880)STUD (.375-16/.375-24 x 1.880) CRANKCASE TO EXTENSION PLATE2
620033定位销曲轴箱至气缸体PIN Dowel CRANKCASE TO CYLINDER BLOCK2
643044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
763779定位销(.250 x .625)气缸体至主轴承PIN Dowel (.250 x .625) CYLINDER BLOCK TO MAIN BEARING3
864282气缸体至板柱(4英寸)STUD (4 In.) CYLINDER BLOCK TO PLATE (4")6
986473启动马达顶盖COVER STARTER MOTOR - TOP1
1069268顶盖螺钉(1-7/8英寸)SCREW TOP COVER (1-7/8")2
1073279螺钉(.312-18 x 1.880)SCREW (.312-18 x 1.880)2
1126993顶盖螺钉锁紧垫圈(.312)LOCKWASHER (.312) TOP COVER SCREWS2
118M0204647锁紧垫圈 (.312)LOCKWASHER (.312)2
1376867启动马达底盖COVER STARTER MOTOR - BOTTOM1
1469268底盖螺钉(1-7/8英寸)SCREW BOTTOM COVER (1-7/8")2
1473279螺钉(.312-18 x 1.880)SCREW (.312-18 x 1.880)2
1526993底盖螺钉锁紧垫圈(.312)LOCKWASHER (.312) BOTTOM COVER SCREW2
158M0204647锁紧垫圈 (.312)LOCKWASHER (.312)2
1757841曲轴箱至气缸体螺钉(.312-18 x 2.750)SCREW (.312-18 x 2.750) CRANKCASE TO CYLINDER BLOCK3
1732293曲轴箱至气缸体螺钉(.312-24 x 1.75)SCREW (.312-24 x 1.75) CRANKCASE TO CYLINDER BLOCK3
1773657曲轴箱至气缸体螺丝(.312-18 x 1.50)SCREW (.312-18 x 1.50) CRANKCASE TO CYLINDER BLOCK20
1753016曲轴箱至气缸体螺钉(1-1/4英寸)SCREW (1.25) CRANKCASE TO CYLINDER BLOCK (1-1/4")2
1774824螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)2
1822753曲轴箱螺钉垫圈WASHER CRANKCASE SCREWS25
1929250曲轴箱螺钉螺母(.312-24)(下部)NUT (.312-24) CRANKCASE SCREWS (LOWER)2
2020359中央主轴承锁紧螺钉(.375-16 x 1.00)SCREW (.375-16 x 1.00) CENTER MAIN BEARING LOCKING2
2120091轴承锁紧螺钉止动垫圈TAB WASHER BEARING LOCKING SCREW2
2577560上部泄放软管止回阀CHECK VALVE BLEED HOSE - UPPER1
2542866止回阀CHECK VALVE1
265493579泄放软管(22英寸)HOSE BLEED (22")1
269938779软管HOSE1
2777561下部泄放软管接头总成FITTING ASSEMBLY BLEED HOSE - LOWER1
27428671止回阀CHECK VALVE1
2825885平衡软管弯头ELBOW BALANCE HOSE2
2899664290度弯头接头(0.125-27x0.250)尼龙FITTING Elbow 90 Degree (.125-27 x .250) Nylon2
2934395A1主轴承平衡软管(6-1/4英寸)HOSE BALANCE - MAIN BEARING (6-1/4")2
298M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)2
3085578平衡软管三通TEE BALANCE HOSE1
308585531连接器CONNECTOR1
3097231泄放底座三通TEE BLEED BASE1
-85653A32衬垫套件GASKET SET1
-85653A87衬垫套件GASKET SET1
-78911A80动力头总成POWERHEAD ASSEMBLY1
-97472A32动力头总成POWERHEAD ASSEMBLY1
-97472A32动力头总成POWERHEAD ASSEMBLY1
图 29驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY
驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY
REF零件编号中文名称英文名称数量
15239A4驱动轴壳体总成-水星HOUSING ASSEMBLY Driveshaft - Mercury1
256295驱动轴壳体柱(.437 x 2.69)STUD (.437 x 2.69) DRIVESHAFT HOUSING2
364649PLUG PLASTIC - TRIM TAB SCREW HOLE1
537417装饰盖-驱动轴壳体COVER TRIM - DRIVESHAFT HOUSING1
657807调整盖至底罩不锈钢螺钉(#10-16 x .750)SCREW (#10-16 x .750) Stainless Steel TRIM COVER TO BOTTOM COWL4
6A92012调整盖螺钉塑料护套GROMMET PLASTIC - TRIM COVER SCREW4
6A8M0079730密封圈套件GROMMET KIT4
6B88238A4装饰盖螺钉线缆总成CABLE ASSEMBLY TRIM COVER SCREW2
6B88238T01拉线总成CABLE ASSEMBLY2
6C62568接地带固定螺钉(#10-16 x 0.375)SCREW (#10-16 x .375) GROUND STRAP ATTACHING2
760897进水口管TUBE WATER INLET1
878184管TUBE1
878184T管TUBE1
8A65638排气管护套BOOT EXHAUST TUBE2
1169254动力头柱螺母(3/8-24)NUT POWERHEAD STUDS (3/8-24)2
1225970动力头双头螺栓垫片WASHER POWERHEAD STUDS2
1220553垫圈(.406 x .734 x .063)WASHER (.406 x .734 x .063)2
1452887推杆导套GUIDE PUSH ROD1
1492704推杆导套GUIDE PUSH ROD1
1547558推杆ROD PUSH1
1592707推杆ROD PUSH1
1543417A2推杆总成PUSH ROD ASSY1
1647661推杆锁紧螺母NUT JAM - PUSH ROD1
1669254螺母NUT1
1628770不锈钢推杆防松螺母（0.312英寸-24牙）NUT (.312-24) Stainless Steel JAM - PUSH ROD2
1747559推杆轭YOKE PUSH ROD1
1789813推杆端头ROD END PUSH ROD1
1925191推杆开口销COTTER PIN PUSH ROD1
2075296橡胶安装座-上部MOUNT RUBBER - UPPER2
2147840橡胶垫圈-上部安装螺栓WASHER RUBBER - UPPER MOUNT BOLT2
2231263上支座螺栓垫圈WASHER UPPER MOUNT BOLT2
2334933螺母（0.437-20）不锈钢上部安装螺栓NUT (.437-20) Stainless Steel UPPER MOUNT BOLT2
238M0204653螺母NUT2
2475299下橡胶支座MOUNT RUBBER - LOWER2
2549318下部安装螺钉(5-1/2英寸)SCREW LOWER MOUNT (5-1/2")2
2575284螺钉 (0.500-20 x 5.500)SCREW (.500-20 x 5.500)2
2649339下部安装螺钉垫圈(.8125)WASHER (.8125) LOWER MOUNT SCREW2
2725096下安装螺丝螺母NUT LOWER MOUNT SCREW2
2825067下部安装螺钉橡胶缓冲垫BUMPER RUBBER - LOWER MOUNTING SCREW2
3034933齿轮箱壳体双头螺栓不锈钢螺母(.437-20)NUT (.437-20) Stainless Steel GEAR HOUSING STUDS2
308M0204653螺母NUT2
3145176齿轮箱双头螺栓不锈钢垫片(0.453 x 0.812 x 0.105)WASHER (.453 x .812 x .105) Stainless Steel GEAR HOUSING STUDS2
3229489齿轮箱双头螺栓螺母NUT GEAR HOUSING STUDS1
3345176齿轮箱双头螺栓不锈钢垫片(0.453 x 0.812 x 0.105)WASHER (.453 x .812 x .105) Stainless Steel GEAR HOUSING STUDS1
3435608下安装夹CLAMP LOWER MOUNT2
3535522弹簧张力-下安装夹SPRING TENSION - LOWER MOUNT CLAMP4
3629256螺丝（0.312-18 x 0.875）下安装夹SCREW (.312-18 x .875) LOWER MOUNT CLAMP4
3735474下安装夹盖COVER LOWER MOUNT CLAMP2
3735474T盖板COVER2
3835521下安装夹盖螺母NUT LOWER MOUNT CLAMP COVER2
3987884盖至下部夹具安装螺钉(#12-14 x .920)SCREW (#12-14 x .920) COVER TO LOWER CLAMP MOUNT2
4088238A2接地线总成CABLE ASSEMBLY Ground1
4088238A10接地线总成CABLE ASSEMBLY Ground1

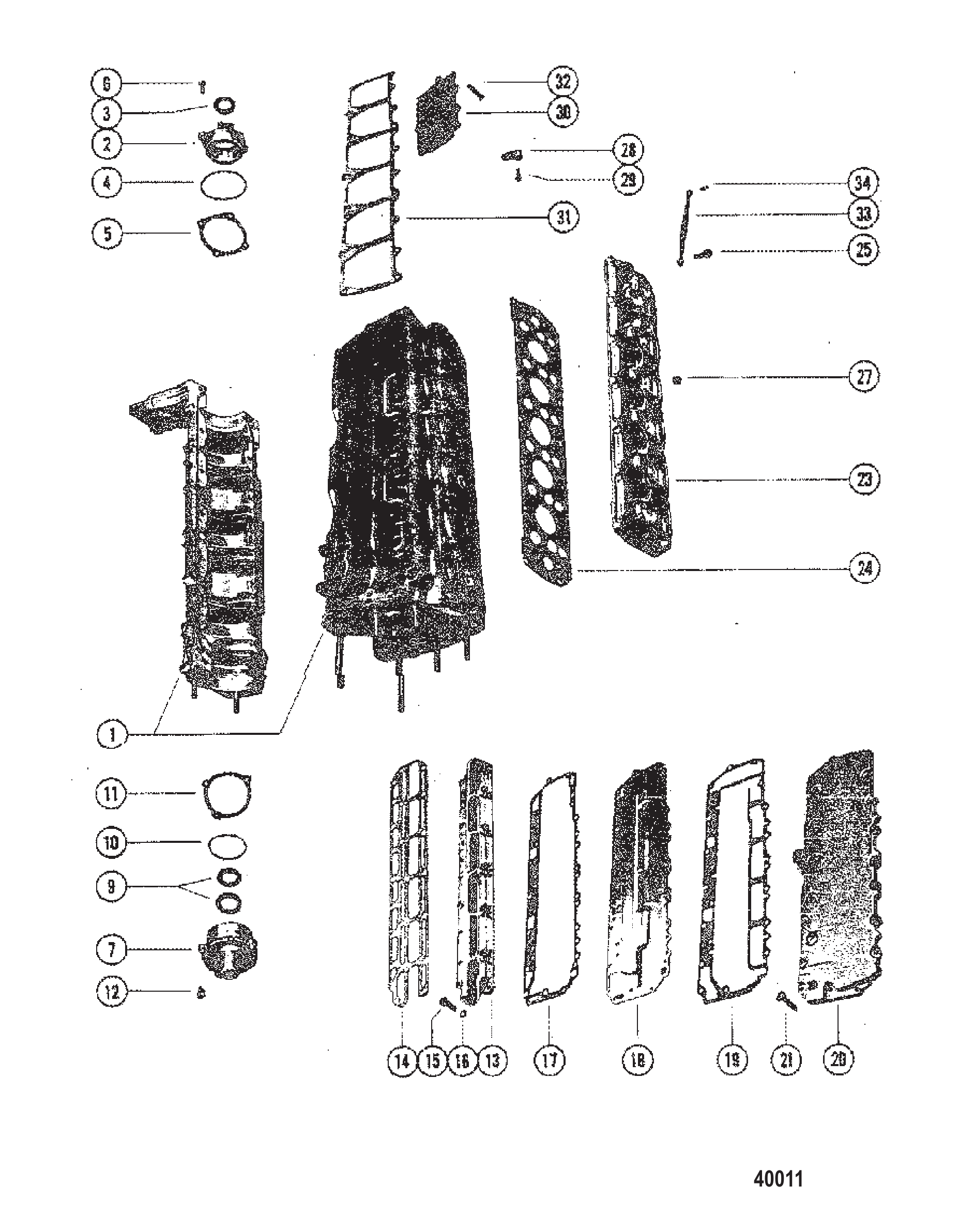

图 30端盖、歧管及排气罩 END CAPS, MANIFOLD AND EXHAUST COVERS
端盖、歧管及排气罩 END CAPS, MANIFOLD AND EXHAUST COVERS
REF零件编号中文名称英文名称数量
17697A3气缸体总成CYLINDER BLOCK ASSEMBLY1
18311A4气缸体总成CYLINDER BLOCK ASSEMBLY1
18311A4气缸体总成CYLINDER BLOCK ASSEMBLY1
27616A2端盖总成END CAP ASSEMBLY1
329476端盖油封SEAL Oil END CAP1
341953密封件SEAL1
447254O型圈O-RING1
573644A1端盖垫片(.006-10)SHIM END CAP (.006-10)AR
673169端盖螺钉(1英寸)SCREW END CAP (1")4
6812618不锈钢螺钉(.312-18 x 1.00)带尼龙垫SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch4
75410A1下端盖总成END CAP ASSEMBLY LOWER1
75410T1端盖总成END CAP ASSY1
929476端盖油封SEAL Oil END CAP2
941953密封件SEAL2
1032546端盖O型圈O-RING END CAP1
1120085A1端盖垫片组(.005-10)SHIM SET END CAP (.005-10)AR
1269034端盖螺钉及锁紧垫圈(.312-18 x 1.00)SCREW AND LOCKWASHER (.312-18 x 1.00) END CAP3
1230225螺钉带锁紧垫圈(.312-18 x 1.00)SCREW WITH LOCKWASHER (.312-18 x 1.00)3
1371808水套盖COVER WATER JACKET1
1472142水套盖衬垫GASKET WATER JACKET COVER1
14721421衬垫GASKET1
1553167水套盖螺钉(.312-18 x 0.880)SCREW (.312-18 x .880) WATER JACKET COVER23
1553167T螺钉 0.312-18X 0.88SCREW .312-18X .8823
1670132水套盖螺钉不锈钢垫片(0.323 x 0.563 x 0.063)WASHER (.323 x .563 x .063) Stainless Steel WATER JACKET COVER SCREW23
168M0042642垫圈(.323 x .562 x .063)WASHER (.323 x .562 x .063)23
1785495气缸体至挡板衬垫GASKET CYLINDER BLOCK TO BAFFLE PLATE1
17854952衬垫GASKET1
1875778排气歧管板PLATE EXHAUST MANIFOLD1
18757781挡板BAFFLE PLATE1
1985497挡板至排气歧管盖衬垫GASKET BAFFLE PLATE TO EXHAUST MANIFOLD COVER1
19854972衬垫GASKET1
2086316排气歧管盖COVER EXHAUST MANIFOLD1
2099896A1盖板COVER1
2153576歧管盖螺钉(.312-18 x 1.125)SCREW (.312-18 x 1.125) MANIFOLD COVER24
235070气缸体盖COVER CYLINDER BLOCK1
238368A1盖板COVER1
238368A1气缸体盖COVER CYLINDER BLOCK1
2485494气缸盖衬垫GASKET CYLINDER COVER1
24981853衬垫GASKET1
2498185气缸体衬垫GASKET CYLINDER BLOCK1
24981853衬垫GASKET1
2569100盖螺钉(1英寸)SCREW COVER (1")16
258M0214943螺钉SCREW16
2768307气缸体盖塞PLUG CYLINDER BLOCK COVER1
2837440安装支架BRACKET MOUNT SUPPORT1
2924234支架至气缸体螺钉(.312-18 x 1.00)SCREW (.312-18 x 1.00) BRACKET TO CYLINDER BLOCK1
2935386螺丝(.312-18 x 1.00)SCREW (.312-18 x 1.00)1
3087872换气口盖COVER TRANSFER PORT3
3185653换气口盖垫片GASKET TRANSFER PORT COVER1
31856730衬垫GASKET1
3228636换气口盖螺钉(.250-20 x 0.750)SCREW (.250-20 x .750) TRANSFER PORT COVER24
3346933A3气缸体盖接地带总成STRAP ASEMBLY Ground CYLINDER BLOCK COVER2
3462568SCREW (#10-16 x .375) GROUND STRAP2
-85653A32衬垫套件GASKET SET1
-85653A87衬垫套件GASKET SET1
图 31排气延伸板 EXHAUST EXTENSION PLATE
排气延伸板 EXHAUST EXTENSION PLATE
REF零件编号中文名称英文名称数量
198517A2排气延伸板总成PLATE ASSEMBLY EXHAUST EXTENSION1
227132排气延伸板尼龙衬套BUSHING NYLON - EXHAUST EXTENSION PLATE1
337918排气延伸板密封件SEAL EXHAUST EXTENSION PLATE1
499358密封条-板密封STRIP RETAINING - PLATE SEAL1
537571螺钉(.190-32 x .500)密封与固定条SCREW (.190-32 x .500) SEAL AND RETAINING STRIP5
623784排气延伸板定位销PIN Dowel EXHAUST EXTENSION PLATE2
769238动力头衬垫GASKET POWERHEAD1
7692381衬垫GASKET1
866023螺钉(.312-18 x 2.00)法兰头适配板至壳体板SCREW (.312-18 x 2.00) Flange Head ADAPTOR PLATE TO HOUSING PLATE2
1066023螺钉(.312-18 x 2.00)法兰头壳体板至驱动轴壳体SCREW (.312-18 x 2.00) Flange Head HOUSING PLATE TO DRIVESHAFT HOUSING7
1166102衬垫板至驱动轴壳体板GASKET PLATE TO DRIVESHAFT HOUSING PLATE1
11661021衬垫GASKET1
1460898驱动轴壳体板密封件SEAL DRIVESHAFT HOUSING PLATE1
1598518A4驱动轴壳体板总成PLATE ASSEMBLY DRIVESHAFT HOUSING1
1543290A4隔板总成PLATE ASSEMBLY1
1638970橡胶密封圈-进水管SEAL RUBBER - WATER INLET TUBE1
1723784驱动轴壳体板定位销PIN Dowel DRIVESHAFT HOUSING PLATE2
1862362扩音器衬垫GASKET MEGAPHONE1
1960437排气扩音器MEGAPHONE EXHAUST1
1999699排气扩音器MEGAPHONE Exhaust1
2060480扩音器螺钉(1-1/8")SCREW MEGAPHONE (1-1/8")3
2129245垫圈(.281 x .500 x .060)不锈钢扩音器螺钉WASHER (.281 x .500 x .060) Stainless Steel MEGAPHONE SCREW3
218M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel3
2225970动力头螺柱垫圈WASHER POWERHEAD STUD6
2220553垫圈(.406 x .734 x .063)WASHER (.406 x .734 x .063)6
2334932螺母(.375-24)动力头螺柱NUT (.375-24) POWERHEAD STUD6
2382671013不锈钢螺母 (.375-24)NUT (.375-24) Stainless Steel6
-85653A32衬垫套件GASKET SET1
-85653A87衬垫套件GASKET SET1

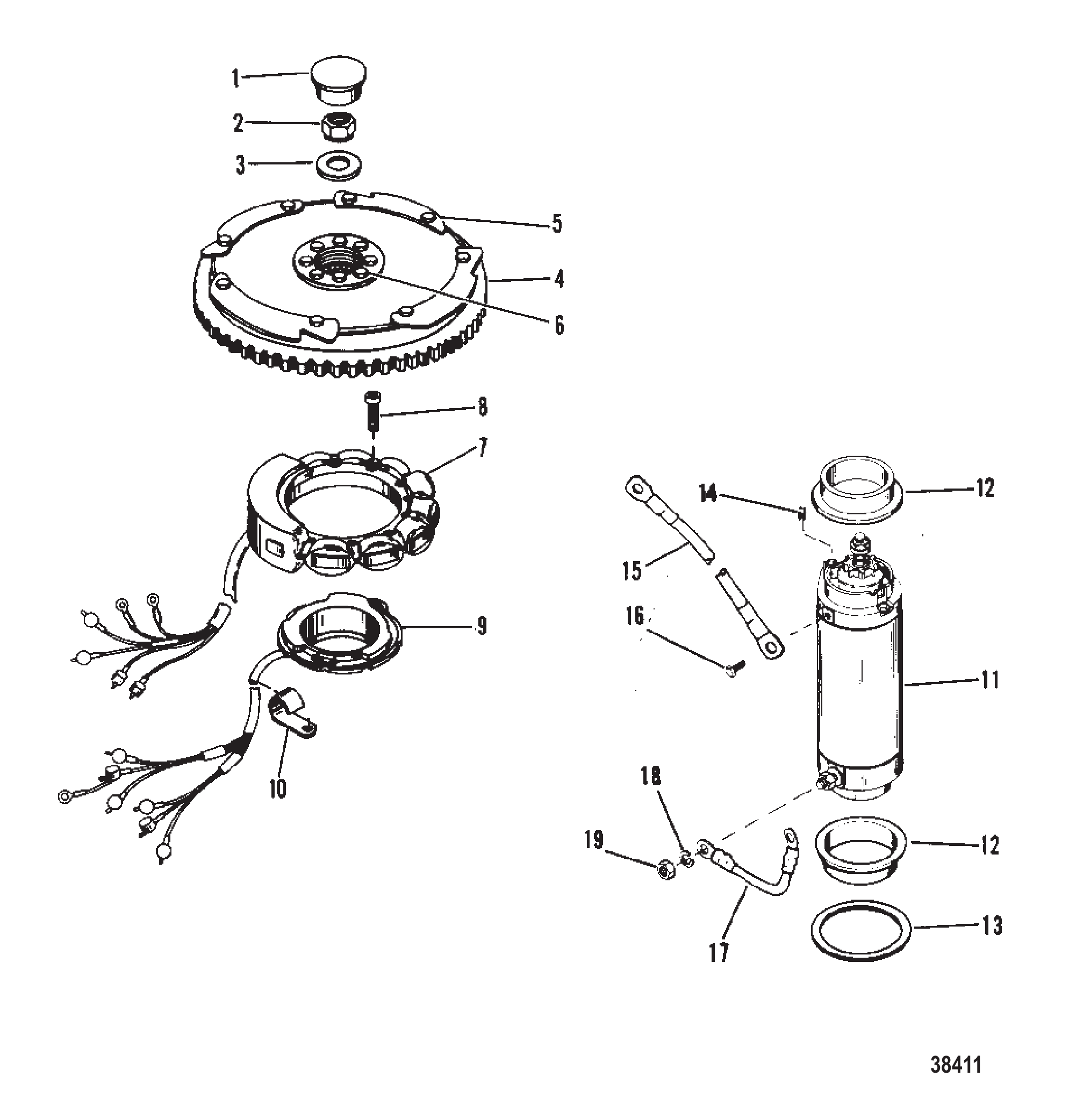

图 32飞轮、启动电机及定子 FLYWHEEL,STARTER MOTOR AND STATOR
飞轮、启动电机及定子 FLYWHEEL,STARTER MOTOR AND STATOR
REF零件编号中文名称英文名称数量
145907飞轮黄色塞PLUG Yellow FLYWHEEL1
252901螺母(.625-18)飞轮NUT (.625-18) FLYWHEEL1
368229垫圈(0.641x1.250x0.190)飞轮WASHER (.641 x 1.250 x .190) FLYWHEEL1
333001垫圈WASHER1
45977A28飞轮FLYWHEEL1
48722A7飞轮总成FLYWHEEL ASSEMBLY1
532417螺钉(.250-28 x .625)飞轮板SCREW (.250-28 x .625) FLYWHEEL PLATE8
668997螺钉(.312-24 x .750)飞轮毂SCREW (.312-24 x .750) FLYWHEEL HUB8
75454A8定子总成STATOR ASSEMBLY1
75454A17定子总成STATOR ASSEMBLY1
875840螺钉(#10-24 x .880)定子SCREW (#10-24 x .880) STATOR4
996455A6触发板TRIGGER PLATE1
996455A9触发板总成PLATE ASSEMBLY Trigger1
1061001J型夹触发器线束J CLIP TRIGGER HARNESS3
1172467启动电机总成STARTER MOTOR ASSEMBLY1
11898265010启动马达STARTER MOTOR1
1256703启动电机轴环COLLAR STARTER MOTOR2
128M0034918轴环COLLAR2
1356774启动马达垫片SPACER STARTER MOTORAR
1457247启动电机橡胶止动块STOP RUBBER-STARTER MOTOR2
148M0043376停机开关STOP2
1593388A1电缆总成(6.00英寸)黑色板至启动马达CABLE ASSEMBLY (6.00 Inches) Black PLATE TO STARTER MOTOR1
1669035螺钉和锁紧垫圈 (.250-20 x .625) 不锈钢 电缆至启动马达SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel CABLE TO STARTER MOTOR1
1793389A6电缆总成电磁阀至启动马达(黄色)CABLE ASSEMBLY SOLENOID TO STARTER MOTOR (YELLOW)1
1826992锁紧垫圈(.250) 不锈钢 起动机接线端LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL1
1964015螺母(.250-20) 起动机接线端NUT (.250-20) STARTER MOTOR TERMINAL1

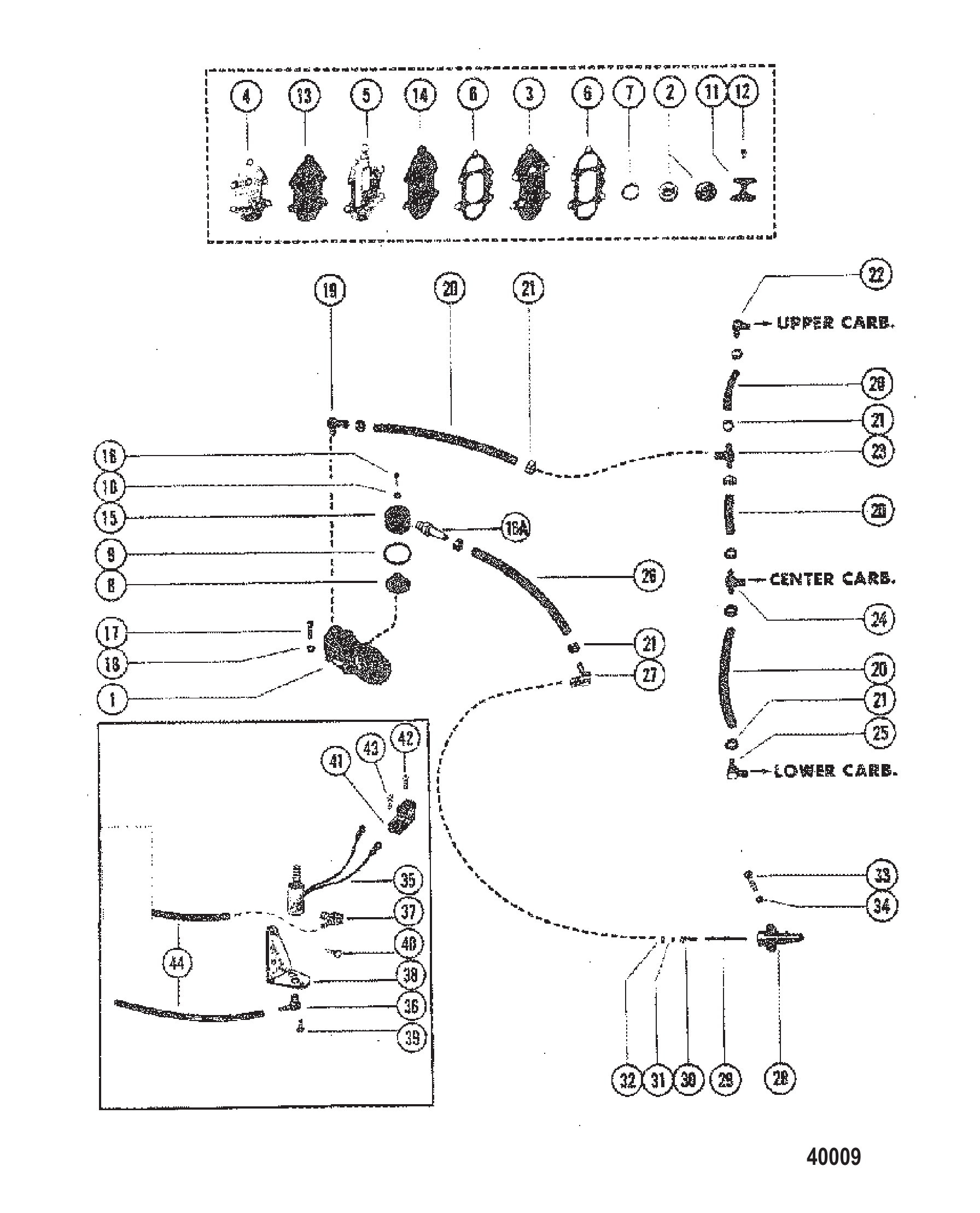

图 33燃油泵及油管总成 FUEL PUMP AND FUEL LINE ASSEMBLY
燃油泵及油管总成 FUEL PUMP AND FUEL LINE ASSEMBLY
REF零件编号中文名称英文名称数量
166530A6燃油泵总成PUMP ASSEMBLY Fuel1
230430A10止回阀总成CHECK VALVE ASSEMBLY1
28M0084277止回阀套件CHECK VALVE KIT1
389031A3膜片总成DIAPHRAGM ASSEMBLY1
4NSS燃油泵衬垫(不单独销售)NOT SOLD SEPARATE GASKET, FUEL PUMP1
5NSS不单独出售衬垫,脉冲室NOT SOLD SEPARATE GASKET, PULSE CHAMBER1
6NSS燃油泵衬垫(不单独销售)NOT SOLD SEPARATE GASKET, FUEL PUMP2
7NSS不单独出售衬垫,止回阀至壳体NOT SOLD SEPARATE GASKET, CHECK VALVE TO HOUSING2
859072燃油入口滤网SCREEN FUEL INLET1
935480O型圈(1.237 x .103)燃油入口盖O-RING (1.237 x .103) FUEL INLET COVER1
1038933O型圈盖螺钉O-RING COVER SCREW1
1123004止回阀固定器RETAINER CHACK VALVE1
1220037固定器螺钉SCREW RETAINER2
1243725螺钉（#6-32 x 0.380）SCREW (#6-32 x .380)2
1386295燃油泵底座BASE FUEL PUMP1
1487990燃油泵室CHAMBER FUEL PUMP1
14879901脉冲室PULSE CHAMBER1
1591078A1燃油入口盖总成COVER ASSEMBLY FUEL INLET1
1689766螺钉(#10-32 x .620)不锈钢燃油滤清器盖SCREW (#10-32 x .620) Stainless Steel FUEL FILTER COVER1
16A64705入口盖接头FITTING INLET COVER1
1773013螺钉10-32 x 1.50燃油泵SCREW 10-32 x 1.50 FUELD PUMP5
1826996锁紧垫圈(#10)不锈钢燃油泵螺钉LOCKWASHER (#10) Stainless Steel FUEL PUMP SCREW5
1964704燃油出口接头FITTING FUEL OUTLET1
1919688接头FITTING1
2031583109燃油管路燃油泵至化油器LINE Fuel FUEL PUMP TO CARBURETOR4
208M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)4
2168424燃油管固定夹CLAMP FUEL LINE ATTACHING10
2264704弯头接头-上部化油器FITTING ELBOW - UPPER CARBURETOR1
2219688接头FITTING1
2373318TEE Plastic FUEL LINE1
2464706三通中心化油器TEE CENTER CARBURETOR1
2464706001三通接头FITTING Tee1
2564704弯头接头-下部化油器FITTING ELBOW - LOWER CARBURETOR1
2519688接头FITTING1
2631583109燃油管路适配器至燃油泵(11")LINE Fuel ADAPTOR TO FUEL PUMP (11")1
268M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
2763981燃油管转接头FITTING FUEL LINE TO ADAPTOR1
2822833适配器止回单元(燃油管)ADAPTER CHECK UNIT (FUEL LINE)1
2830186适配器止回单元(燃油管)ADAPTER CHECK UNIT (FUEL LINE)1
2923069适配器阀杆止回单元STEM CHECK UNIT ADAPTOR1
2930187阀杆止回单元适配器STEM CHECK UNIT ADAPTORS1
2930185Q3油箱端快速断开总成-卡口式QUICK DISCONNECT ASSEMBLY Tank End - Bayonet Style1
3023067适配器阀杆弹簧SPRING ADAPTOR STEM1
3023067T弹簧SPRING1
3030189适配器阀杆弹簧SPRING ADAPTOR STEM1
3120415适配器阀杆O型圈O-RING ADAPTOR STEM1
3116524燃油接头O型圈O-RING Fuel Connector1
3230188适配器垫片WASHER ADAPTOR1
3336154螺丝(.250-28 x 1.380)适配器至底罩SCREW (.250-28 x 1.380) ADAPTOR TO BOTTOM COWL2
3436069适配器螺钉螺母NUT ADAPTOR SCREW2
3590365加浓阀VALVE Enrichner1
3542859A2加浓阀总成VALVE ASSEMBLY Enrichner1
3690275加浓阀连接器(底部)CONNECTOR ENRICHER VALVE (BOTTOM)1
3773817连接器(90度)加浓阀(侧面)CONNECTOR (90 Degree) ENRICHER VALVE (SIDE)1
3890345加浓阀支架BRACKET ENRICHER VALVE1
3989075阀至支架螺钉SCREW VALVE TO BRACKET2
4073286螺钉(.250-20 x .500)不锈钢支架至簧片块壳体SCREW (.250-20 x .500) Stainless Steel BRACKET TO REED BLOCK HOUSING2
4145915端子排簧片块壳体TERMINAL BLOCK REED BLOCK HOUSING1
4269079螺钉(#10-16 x .440)端子排SCREW (#10-16 x .440) TERMINAL BLOCK1
4320411螺钉(.190-24 x .62)导线至端子排SCREW (.190-24 x .62) WIRE TO TERMINAL BLOCK1
442698088燃油管路加浓阀LINE Fuel ENRICHER VALVE2
449912688管材 (36.00英寸散装)TUBING (36.00 Inches Bulk)2
-85653A32衬垫套件GASKET SET
-85653A87衬垫套件GASKET SET
图 34齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)
齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)
REF零件编号中文名称英文名称数量
-9011A7齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011A13齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011G34GC 75/90 XL -BLKGC 75/90 XL -BLK1
-9011A9齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011J19ORD 1667-9011J16ORD 1667-9011J161
-9011A14齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011J27ORD 1667-9011J24ORD 1667-9011J241
19011A6基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
19011T73齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
19011A8基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
19011T74ORD 1667-9011T73ORD 1667-9011T731
243043定位销-带孔(.375 x .625)(前)PIN Dowel - With Hole (.375 x .625) (FRONT)1
28M0084244定位销 0.375x0.620PIN Dowel, .375 x .6201
328653SCREW (#10-32 x 0.25) VENT1
420262通气螺钉垫圈WASHER VENT SCREW1
419643密封件SEAL1
579953SCREW (.375-16 x .250) GREASE FILLER1
579953Q04放油螺钉套件SCREW KIT Drain1
620260垫片 排放/加注螺丝WASHER DRAIN/FILLER SCREW2
68M0187157蓝色密封件@15SEAL-BLUE @152
767892SCREW Magnetic DRAIN1
78M0058389放油螺钉套件SCREW KIT Drain1
843044PIN Dowel - Without Hole (.375 x .625) (REAR) (QTY. OF 2 ON X-LONG)1
931640A1平衡板总成TRIM TAB ASSEMBLY1
931640Q4平衡鳍板TRIM TAB1
1015942SCREW (.437-14 x 1.250) TRIM TAB1
10825427不锈钢螺钉(0.437-14x1.250)SCREW (.437-14 x 1.250) Stainless Steel1
1145176WASHER (.453 x .812 x .105) Stainless Steel TRIM TAB SCREW1
1243040A1CARRIER ASSEMBLY ROLLER BEARING1
1243040T1托架总成CARRIER ASSEMBLY1
1344484小齿轮(13齿)GEAR Pinion (13 Teeth)1
1344484T小齿轮(13齿)GEAR Pinion (13 Teeth)1
1435921螺母(.625-18)小齿轮至驱动轴NUT (.625-18) PINION GEAR TO DRIVE SHAFT1
1576039换挡凸轮控制CAM Shift Control1
15760394换挡凸轮控制CAM Shift Control1
1642677A1圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
1744492A1垫片组SHIM SET1
178M0063265垫片组SHIM SET1
1843031A1驱动轴总成DRIVESHAFT ASSEMBLY1
1843032A4驱动轴总成DRIVESHAFT ASSEMBLY1
1942461A1套筒/环套件SLEEVE/RING KIT1
2043055A2盖总成COVER ASSEMBLY1
2043055A4水泵盖总成COVER ASSEMBLY Water Pump1
2143047盖衬垫至齿轮箱GASKET COVER TO GEAR HOUSING1
218M0214931衬垫GASKET1
2243036油封(下)SEAL Oil (LOWER)1
2343035油封(上)SEAL Oil (UPPER)1
238M0245495油封OIL SEAL1
2443033盖衬垫至面板GASKET COVER TO FACE PLATE1
24430331衬垫GASKET1
2543034水泵衬垫至面板GASKET WATER PUMP TO FACE PLATE1
25430341铝盖垫片GASKET Aluminum Cover1
2643050面板FACE PLATE1
26817275A2水泵上壳体套件HOUSING KIT Upper Water Pump1
2743037叶轮驱动键KEY IMPELLER DRIVE1
278M0204723键KEY1
28430261叶轮IMPELLER1
2843026T2叶轮IMPELLER1
2943024A3水泵总成PUMP ASSEMBLY Water1
29817275A2水泵上壳体套件HOUSING KIT Upper Water Pump1
3043023水管密封件SEAL WATER TUBE1
308M0204658密封件SEAL1
314000330SCREW (M6 x 25) COVER6
318M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS6
324000332SCREW (M6 x 35) WATER PUMP4
334002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)10
3443045INSULATOR WATER PUMP SCREW4
348M0204659绝缘体@4INSULATOR @44
3543048A1换挡轴总成SHIFT SHAFT ASSEMBLY1
3543049A1换挡轴总成SHIFT SHAFT ASSEMBLY1
3629641E RING SHIFT SHAFT1
3743052A1换挡轴衬套总成BUSHING ASSEMBLY SHIFT SHAFT1
3743052A4衬套总成BUSHING ASSEMBLY1
3845710O-RING (1.424 x .103) BUSHING1
388M0204681特殊O型圈1.424x0.103O-RING 1.424 x .103, Special1
3976384SEAL Oil BUSHING1
398M0246145油封OIL SEAL1
4040011128SCREW (M6 x 20) Stainless Steel BUSHING2
408M0204741六角带垫大帽螺钉(M6x1.0x20)SCREW (M6 x 1.0 x 20) Hex Wash HD2
-43035A1齿轮箱密封套件SEAL KIT Gear Housing
-43035A4齿轮箱密封套件SEAL KIT Gear Housing
-43024A4水泵维修套件REPAIR KIT Water Pump
-43024A7水泵维修套件REPAIR KIT Water Pump
-43004A86衬垫套件GASKET SET
-43004A99动力头衬垫套件GASKET SET Powerhead
图 35齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)
齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)
REF零件编号中文名称英文名称数量
-9011A7齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011A13齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011G34GC 75/90 XL -BLKGC 75/90 XL -BLK1
-9011A9齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011J19ORD 1667-9011J16ORD 1667-9011J161
-9011A14齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011J27ORD 1667-9011J24ORD 1667-9011J241
19011A6基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
19011T73齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
19011A8基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
19011T74ORD 1667-9011T73ORD 1667-9011T731
4144491A1垫片组SHIM SET1
418M0063266垫片组SHIM SET1
4230894A1圆锥轴承组BEARING SET Cup And Cone1
4312634A2前进齿轮总成GEAR ASSEMBLY Forward1
4312634T02齿轮总成GEAR ASSEMBLY1
4430895滚针轴承BEARING Needle1
4430895T滚针轴承BEARING Needle1
4512239A1凸轮从动件套件FOLLOWER KIT Cam1
45850315A1凸轮从动件套件FOLLOWER KIT Cam1
4630622弹簧SPRING1
4712777棘轮RATCHET1
47822539T离合器CLUTCH1
4830632十字离合器销PIN Cross CLUTCH1
488M0100263十字销PIN Cross1
4930893十字销固定弹簧SPRING CROSS PIN RETAINER1
5012238T螺旋桨轴PROPELLER SHAFT1
5112635倒挡齿轮GEAR Reverse1
5112635T倒挡齿轮GEAR-REVERSE1
5212596A2轴承座总成CARRIER ASSEMBLY Bearing1
528M0168901轴承座总成CARRIER ASSY.1
5397386O型圈 (3.609 x .139)O-RING (3.609 x .139)1
538M0214974O型圈O RING1
5430956滚针轴承BEARING Needle1
5430956T滚针轴承BEARING Needle1
5576868内密封件SEAL (INNER)1
558M0248882油封@5SEAL-OIL @51
5670081油封(外)SEAL Oil (OUTER)1
568M0205729密封件SEAL1
5712578滚针轴承BEARING Needle1
5712578T滚柱轴承BEARING Roller1
5812577止推垫片THRUST WASHER1
5912576推力轴承BEARING Thrust1
604000354螺栓(M8 x 30)轴承座SCREW (M8 x 30) BEARING CARRIER2
614002317垫圈(8.90 X 17.0 X 1.9SS)轴承座螺栓WASHER (8.90 X 17.0 X 1.9SS) BEARING CARRIER SCREW2
6213191A1止推垫片THRUST WASHER1
6213191Q01止推垫片THRUST WASHER1
6331210螺旋桨止动垫圈TAB WASHER PROPELLER1
63816629Q锁紧垫圈TAB WASHER1
6452707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
6452707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
-43035A1齿轮箱密封套件SEAL KIT Gear Housing
-43035A4齿轮箱密封套件SEAL KIT Gear Housing
-43004A86衬垫套件GASKET SET
-43004A99动力头衬垫套件GASKET SET Powerhead

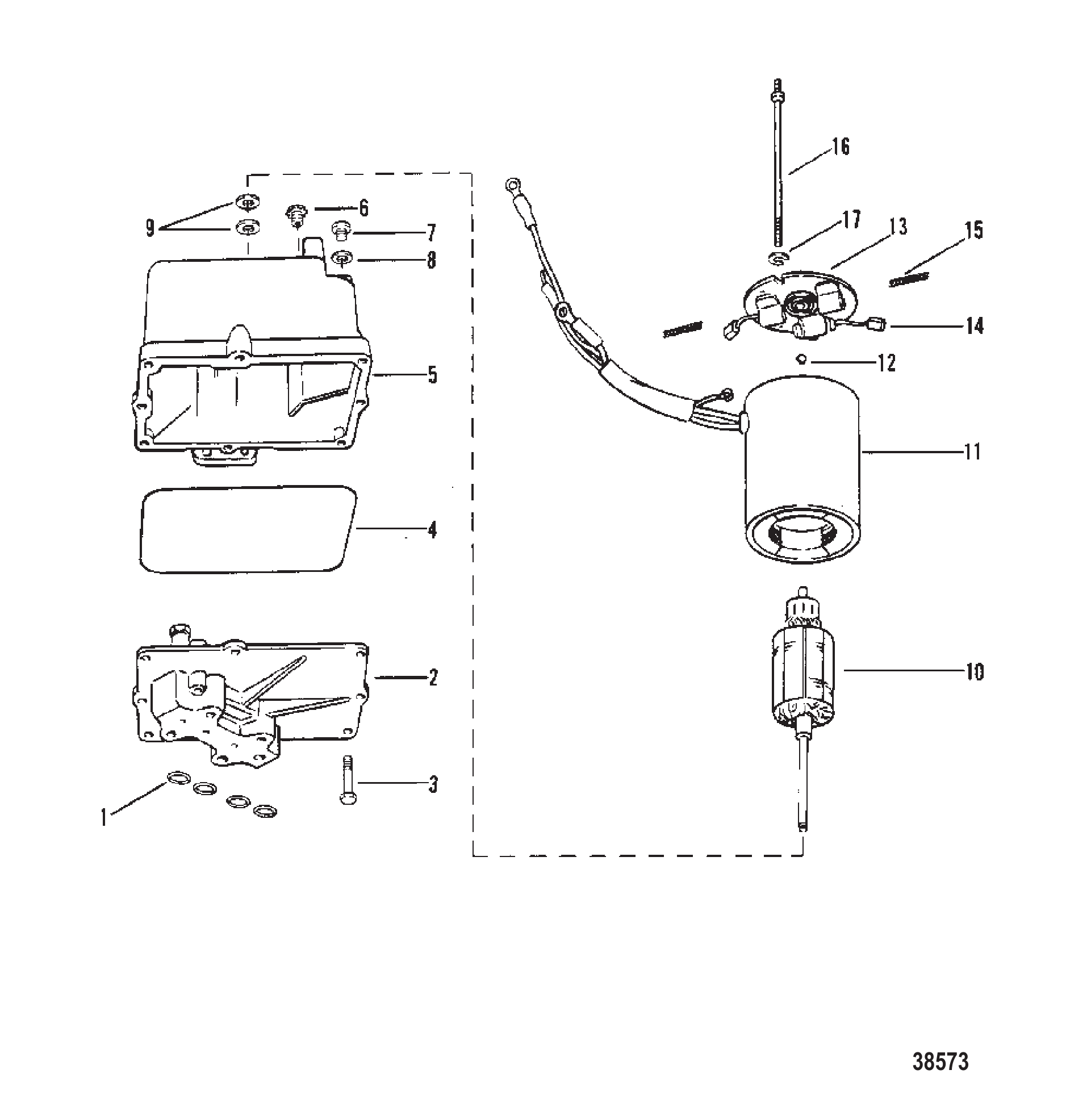

图 36液压泵总成(金属油箱) HYDRAULIC PUMP ASSEMBLY (METAL RESERVOIR)
液压泵总成(金属油箱) HYDRAULIC PUMP ASSEMBLY (METAL RESERVOIR)
REF零件编号中文名称英文名称数量
-76395A5液压泵总成(完整)PUMP ASSEMBLY Hydraulic COMPLETE1
148171O型圈 (.364 x 0.070) 液压泵O-RING (.364. x .070) HYDRAULIC PUMP4
22936阀体与齿轮总成VALVE BODY AND GEAR ASSEMBLY1
27734阀体与齿轮总成VALVE BODY AND GEAR ASSEMBLY1
320411螺钉（.190-24 x .62）阀体至油箱SCREW (.190-24 x .62) VALVE BODY TO RESERVOIR8
42937储液罐至阀体与齿轮密封件SEAL RESERVOIR TO VALVE BODY AND GEAR1
47735密封件SEAL1
52939储液罐总成RESERVOIR ASSEMBLY1
638257液压泵通气螺丝SCREW VENT - HYDRAULIC PUMP1
662269螺丝(#10-32 x .437)SCREW (#10-32 x .437)1
779953螺钉 (.375-16 x 0.250) 注油口-液压泵SCREW (.375-16 x .250) FILLER - HYDRAULIC PUMP1
779953Q04放油螺钉套件SCREW KIT Drain1
820260密封垫圈-注油螺钉WASHER SEALING - FILLER SCREW1
88M0187157蓝色密封件@15SEAL-BLUE @151
92623止推垫圈-电枢WASHER THRUST - ARMATUREAR
102943电枢磁场与框架ARMATURE FIELD AND FRAME1
112942磁场框架总成FIELD AND FRAME ASSEMBLY1
122944换向器端板滚珠BALL COMMUTATOR END PLATE1
132940换向器端板总成PLATE ASSEMBLY COMMUTATOR END1
142941换向器端板电刷组BRUSH SET COMMUTATOR END PLATE1
148989电刷套件BRUSH KIT1
152529电刷张力弹簧组SPRING SET BRUSH TENSION1
162938贯穿螺栓组-板与框架至储液罐BOLT SET THRU - PLATE AND FRAME TO RESERVOIR1
1726996锁紧垫圈(#10)不锈钢贯穿螺栓LOCKWASHER (#10) Stainless Steel THRU BOLT2

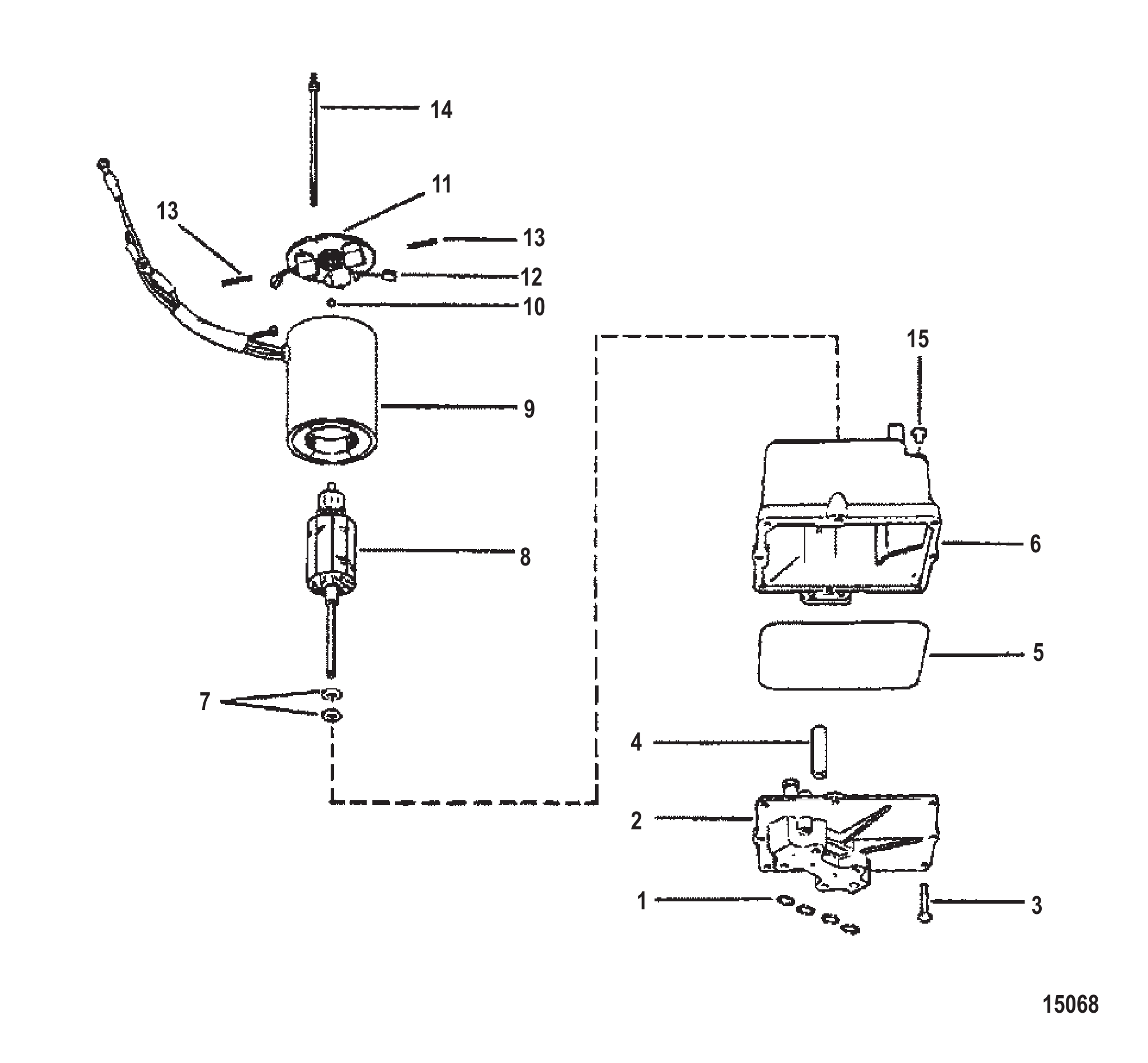

图 37液压泵总成(塑料油箱) HYDRAULIC PUMP ASSEMBLY (PLASTIC RESERVOIR)
液压泵总成(塑料油箱) HYDRAULIC PUMP ASSEMBLY (PLASTIC RESERVOIR)
REF零件编号中文名称英文名称数量
-92975A6液压泵总成PUMP ASSEMBLY Hydraulic1
148171O型圈 (.364 x 0.070) 液压泵O-RING (.364. x .070) HYDRAULIC PUMP4
28317阀体与齿轮总成VALVE BODY AND GEAR ASSEMBLY1
292975A32泵套件-微调PUMP KIT-TRIM1
369570螺钉 (#10-16 x 0.750) 阀体至储液罐SCREW (#10-16 x .750) VALVE BODY TO RESERVOIR8
47727联轴器与轴COUPLER AND SHAFT1
57735储液罐至阀体与齿轮密封件SEAL RESERVOIR TO VALVE BODY AND GEAR1
67731储液罐总成 (塑料)RESEROVIR ASSEMBLY (PLASTIC)1
77732止推垫圈-电枢WASHER THRUST - ARMATUREAR
87729电枢磁场与框架ARMATURE FIELD AND FRAME1
98261磁场框架总成FIELD AND FRAME ASSEMBLY1
107730换向器端板滚珠BALL COMMUTATOR END PLATE1
118262换向器端板总成PLATE ASSEMBLY COMMUTATOR END1
122941换向器端板电刷组BRUSH SET COMMUTATOR END PLATE1
128989电刷套件BRUSH KIT1
132529电刷张力弹簧组SPRING SET BRUSH TENSION1
147733贯穿螺栓组 板与框架至储液罐BOLT SET Thru- Plate and Frame to Reservoir1
157728储液罐注油塞FILL PLUG RESERVOIR1
图 38杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES
杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES
REF零件编号中文名称英文名称数量
-13725零件手册 70/75/80/90 马力 (3缸)PARTS MANUAL 70/75/80/90 Hp (3 Cylinder)
-43004A86衬垫套件GASKET SET
-43004A99动力头衬垫套件GASKET SET Powerhead
-43529A86贴花套件 (MERCURY 70)DECAL SET (MERCURY 70)
-43529A89贴花套件DECAL SET
-43575A87贴花套件 (MARINER 75)DECAL SET (MARINER 75)
-815628A92贴花套件DECAL SET
-13020A87贴花套件 (MERCURY 75) 手柄DECAL SET (MERCURY 75) HANDLE
-810457A90贴花套件DECAL SET
-43601A87贴花套件 (MARINER 75)DECAL SET (MARINER 75)
-13488A86贴花套件 (MERCURY 80)DECAL SET (MERCURY 80)
-13488A89贴花套件DECAL SET
-12565A87贴花套件 (MERCURY 90)DECAL SET (MERCURY 90)
-12565A89贴花套件DECAL SET
-11623A87贴花套件 (MARINER 90)DECAL SET (MARINER 90)
-815628A92贴花套件DECAL SET
-12428870使用手册（水星）OWNERS GUIDE (MERCURY)
-12428871用户手册MANUAL-OWNERS
-14699870使用手册（马林）OWNERS GUIDE (MARINER)
-14699871用户手册MANUAL-OWNERS
图 39动力升降组件(无断路器和保险丝) POWER TRIM COMPONENTS (WITHOUT CIRCUIT BREAKER AND FUSE)
动力升降组件(无断路器和保险丝) POWER TRIM COMPONENTS (WITHOUT CIRCUIT BREAKER AND FUSE)
REF零件编号中文名称英文名称数量
176395A5液压泵总成PUMP ASSEMBLY Hydraulic1
192975A6液压泵总成PUMP ASSEMBLY Hydraulic1
192975A32泵套件-微调PUMP KIT-TRIM1
248171O型圈 (.364 x 0.070) 歧管板O-RING (.364. x .070) MANIFOLD PLATE4
379953螺钉 (.375-16 x 0.250) 注油口-液压泵SCREW (.375-16 x .250) FILLER - HYDRAULIC PUMP1
379953Q04放油螺钉套件SCREW KIT Drain1
420260密封垫圈-注油螺钉WASHER SEALING - FILLER SCREW1
48M0187157蓝色密封件@15SEAL-BLUE @151
538257液压泵通气螺丝SCREW VENT - HYDRAULIC PUMP1
562269螺丝(#10-32 x .437)SCREW (#10-32 x .437)1
632979电池导线（正极）LEAD Battery (POSITIVE)1
632988电池导线（负极）LEAD Battery (NEGATIVE)1
745336歧管板PLATE MANIFOLD1
845197A2控制阀总成VALVE ASSEMBLY Control1
--48171O型圈 (.364 x 0.070) 歧管板 (参见编号#2)O-RING (.364. x .070) MANIFOLD PLATE (SEE REF. #2)4
945254O型圈 控制阀 (3/4英寸外径)O-RING CONTROL VALVE (3/4" O.D.)1
1048171O型圈 (.364 x 0.070) 控制阀O-RING (.364. x .070) CONTROL VALVE1
1145253O型圈 控制阀 (5/8英寸外径)O-RING CONTROL VALVE (5/8" O.D.)2
1256500SCREW (.250-28 x 1.250) VALVE AND MANIFOLD PLATE TO PUMP4
1346008控制阀堵头（1/2-20"）PLUG CONTROL VALVE (1/2-20")2
1474023A1线束总成HARNESS ASSEMBLY1
1545377安装支架BRACKET MOUNTING2
1545377T支架BRACKET2
1624234螺丝(0.312-18 x 1.00)安装支架至液压泵SCREW (.312-18 x 1.00) MOUNTING BRACKET TO HYDRAULIC PUMP4
1635386螺丝(.312-18 x 1.00)SCREW (.312-18 x 1.00)4
1739107锁紧垫圈（.312-24）安装支架螺钉LOCKWASHER (.312-24) MOUNTING BRACKET SCREW4
1821908螺母 (.312-18) 镀镉安装支架螺钉NUT (.312-18) Cad Plated MOUNTING BRACKET SCREW4
1968298螺栓(0.375-16 x 3.250)液压泵至船体BOLT (.375-16 x 3.250) HYDRAULIC PUMP TO BOAT2
2099405液压泵螺栓螺母NUT HYDRAULIC PUMP BOLT2
2082671112螺母（.375-16）NUT (.375-16)2
2168258启动电磁阀SOLENOID Starter2
21853654A1电磁阀SOLENOID2
2226996锁紧垫圈（#10）不锈钢电磁阀端子LOCKWASHER (#10) Stainless Steel SOLENOID TERMINAL4
2368219螺母（#10-32）不锈钢电磁阀端子NUT (#10-32) Stainless Steel SOLENOID TERMINAL4
2426993锁紧垫圈（.312）电磁阀端子LOCKWASHER (.312) SOLENOID TERMINAL4
248M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
2568292螺母（.312-18）电磁阀端子NUT (.312-18) SOLENOID TERMINAL4
258M0204668螺母(.312-18)NUT (.312-18)4
2646265橡胶护套-启动电磁阀端子BOOT RUBBER - STARTER SOLENOID TERMINAL4
2774407安装支架-启动电磁阀BRACKET MOUNTING - STARTER SOLENOID1
2774407T支架BRACKET1
2821140螺钉(.250-28 x .50)安装支架至液压泵SCREW (.250-28 x .50) MOUNTING BRACKET TO HYDRAULIC PUMP2
2926992锁紧垫圈(.250)不锈钢安装支架螺钉LOCKWASHER (.250) Stainless Steel MOUNTING BRACKET SCREW2
3024656安装支架至液压泵贯穿螺栓螺母NUT MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT1
3126901橡胶缓冲垫-电磁阀支架BUMPER RUBBER - SOLENOID BRACKET1
31269011橡胶缓冲垫BUMPER Rubber1
3255991电池引线LEAD Battery1
3279139A2跳线总成WIRE ASSEMBLY Jumper1
3255992跳线WIRE Jumper1
3374406安装支架-启动电磁阀BRACKET MOUNTING - STARTER SOLENOID1
3469028螺钉(.250-28 x .750)不锈钢安装支架至液压泵SCREW (.250-28 x .750) Stainless Steel MOUNTING BRACKET TO HYDRAULIC PUMP2
3526992锁紧垫圈(.250)不锈钢安装支架螺钉LOCKWASHER (.250) Stainless Steel MOUNTING BRACKET SCREW2
3634290螺钉(.250-20 x .625)启动电磁阀至安装支架SCREW (.250-20 x .625) STARTER SOLENOID TO MOUNTING BRACKET2
3726992锁紧垫圈(0.250)不锈钢启动电磁阀螺钉LOCKWASHER (.250) Stainless Steel STARTER SOLENOID SCREW2
3821825螺母(.250-28)启动电磁阀螺钉NUT (.250-28) STARTER SOLENOID SCREW4

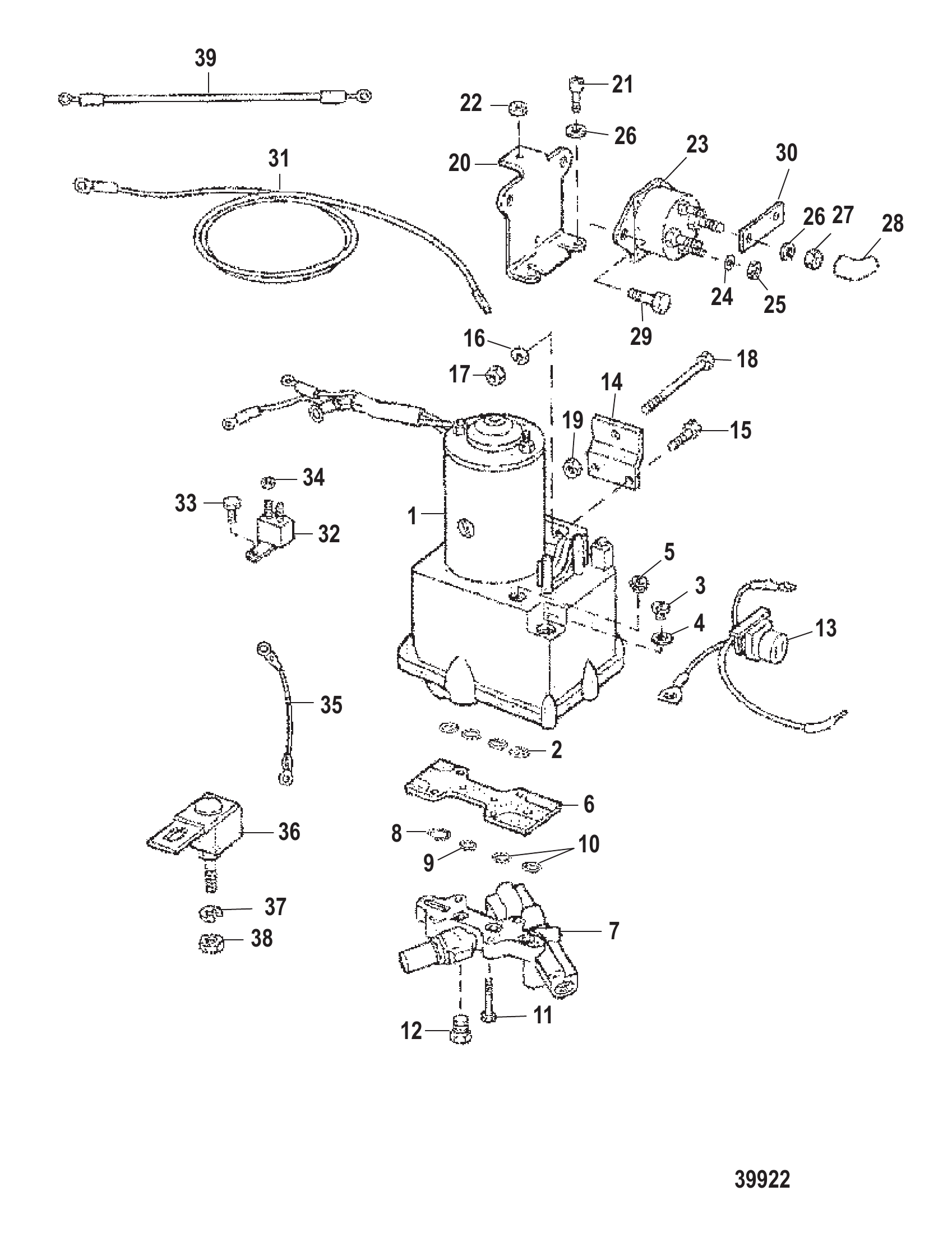

图 40动力升降组件(含断路器与保险丝) POWER TRIM COMPONENTS (WITH CIRCUIT BREAKER AND FUSE)
动力升降组件(含断路器与保险丝) POWER TRIM COMPONENTS (WITH CIRCUIT BREAKER AND FUSE)
REF零件编号中文名称英文名称数量
192975A6液压泵总成 (塑料储液罐)PUMP ASSEMBLY Hydraulic (PLASTIC RESERVOIR)1
248171O型圈 (.364 x 0.070) 歧管板O-RING (.364. x .070) MANIFOLD PLATE4
379953螺钉 (.375-16 x 0.250) 注油口-液压泵SCREW (.375-16 x .250) FILLER - HYDRAULIC PUMP1
379953Q04放油螺钉套件SCREW KIT Drain1
420260密封垫圈-注油螺钉WASHER SEALING - FILLER SCREW1
48M0187157蓝色密封件@15SEAL-BLUE @151
538257液压泵通气螺丝SCREW VENT - HYDRAULIC PUMP1
562269螺丝(#10-32 x .437)SCREW (#10-32 x .437)1
645336歧管板PLATE MANIFOLD1
745197A2控制阀总成VALVE ASSEMBLY Control1
--48171O型圈 (.364 x 0.070) 歧管板 (参见编号#2)O-RING (.364. x .070) MANIFOLD PLATE (SEE REF. #2)4
845254O型圈 控制阀 (3/4英寸外径)O-RING CONTROL VALVE (3/4" O.D.)1
948171O型圈（.364 x .070）控制阀（1/2"外径）O-RING (.364. x .070) CONTROL VALVE (1/2" O.D.)1
1045253O型圈 控制阀 (5/8英寸外径)O-RING CONTROL VALVE (5/8" O.D.)2
1156500SCREW (.250-28 x 1.250) VALVE AND MANIFOLD PLATE TO PUMP4
1246008控制阀堵头（1/2-20"）PLUG CONTROL VALVE (1/2-20")2
1379147A1线束总成HARNESS ASSEMBLY1
1379147A3线束总成HARNESS ASSEMBLY1
1445377安装支架BRACKET MOUNTING2
1445377T支架BRACKET2
1524234螺丝(0.312-18 x 1.00)安装支架至液压泵SCREW (.312-18 x 1.00) MOUNTING BRACKET TO HYDRAULIC PUMP4
1535386螺丝(.312-18 x 1.00)SCREW (.312-18 x 1.00)4
1639107锁紧垫圈（.312-24）安装支架螺钉LOCKWASHER (.312-24) MOUNTING BRACKET SCREW4
1721908螺母 (.312-18) 镀镉安装支架螺钉NUT (.312-18) Cad Plated MOUNTING BRACKET SCREW4
1868298螺栓(0.375-16 x 3.250)液压泵至船体BOLT (.375-16 x 3.250) HYDRAULIC PUMP TO BOAT2
1999405液压泵螺栓螺母NUT HYDRAULIC PUMP BOLT2
1982671112螺母（.375-16）NUT (.375-16)2
2094279启动电磁阀安装支架BRACKET MOUNTING, STARTER SOLENOID1
2148063安装支架至液压泵螺丝SCREW MOUNTING BRACKET TO HYDRAULIC PUMP2
2128638螺钉(.250-20 x .750)SCREW (.250-20 x .750)2
2224656安装支架至液压泵贯穿螺栓螺母NUT MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT1
2396158启动电磁阀SOLENOID Starter2
238M0185622电磁阀SOLENOID2
2426995锁紧垫圈 (#8) 不锈钢电磁阀端子LOCKWASHER (#8) Stainless Steel SOLENOID TERMINAL4
2526419螺母(#8-32)-黄铜电磁阀端子NUT (#8-32) Brass SOLENOID TERMINAL4
2626992锁紧垫圈 (.250) 不锈钢电磁阀端子LOCKWASHER (.250) Stainless Steel SOLENOID TERMINAL4
2794330螺母 (.250-20) 黄铜电磁阀端子NUT (.250-20) Brass SOLENOID TERMINAL4
2896535橡胶护套-启动电磁阀端子BOOT RUBBER - STARTER SOLENOID TERMINAL4
28861680绝缘体INSULATOR4
2991026启动电磁阀至安装支架螺丝SCREW STARTER SOLENOID TO MOUNTING BRACKET2
2941508螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel2
3094275电磁阀间连杆LINK SOLENOID TO SOLENOID1
3179139A13电缆总成 蓄电池 (正极)CABLE ASSEMBLY Battery (POSITIVE)1
3179138A1负极电缆总成CABLE ASSEMBLY (NEGATIVE)1
327914920安培电路断路器BREAKER Circuit - 20 Ampere1
328M008570520安培电路断路器BREAKER Circuit - 20 Ampere1
3330009断路器螺丝SCREW CIRCUIT BREAKER2
338M0113176螺钉SCREW2
3445076螺母(#10-32)黄铜断路器端子NUT (#10-32) Brass CIRCUIT BREAKER TERMINAL2
3587379A5电磁阀至断路器导线(红色)WIRE SOLENOID TO CIRCUIT BREAKER (RED)1
3679023A9090安培保险丝总成FUSE ASSEMBLY 90 Ampere1
3679023T9090安培保险丝总成FUSE ASSEMBLY 90 Ampere1
3796457酚醛垫圈(0.27x0.81x0.062)保险丝端子WASHER Phenolic (.27 x .81 x .062) FUSE TERMINAL1
3821825螺母(0.250-28)保险丝端子NUT (.250-28) FUSE TERMINAL1
3961600A9启动电磁阀导线(黑色)WIRE STARTER SOLENOID (BLACK)2

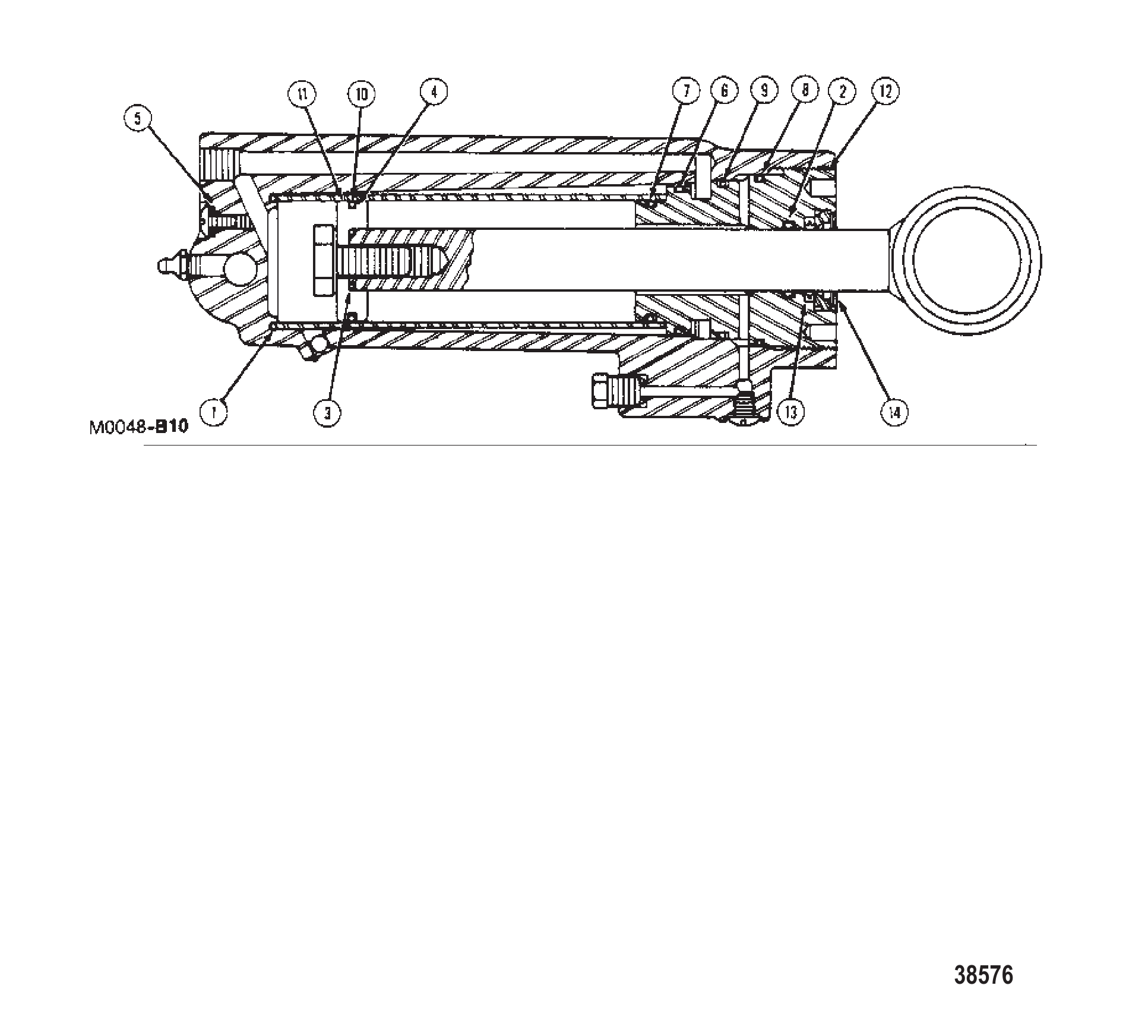

图 41动力升降油缸修理包(配合76509A3使用) POWER TRIM CYLINDER REPAIR KITS (USE WITH 76509A3)
动力升降油缸修理包(配合76509A3使用) POWER TRIM CYLINDER REPAIR KITS (USE WITH 76509A3)
REF零件编号中文名称英文名称数量
-64507A1维修套件(见下方备注)REPAIR KIT (SEE NOTE BELOW)1
1N.S.S.Not Sold Separate O-RING (1-1/2" X 1-5/8" X 1/16")1
2N.S.S.不单独销售(3/4" X 15/16" X 1/8")Not Sold Separate (3/4" X 15/16" X 1/8")1
3N.S.S.不单独销售O型圈(5/8" X 3/4" X 1/16")Not Sold Separate O-RING (5/8" X 3/4" X 1/16")1
4N.S.S.Not Sold Separate O-RING (1-1/4" X 1-7/16" X 1/16")1
5N.S.S.Not Sold Separate O-RING (7/32" X 11/32" X 1/16")2
6N.S.S.Not Sold Separate O-RING (1-5/8" X 1-13/16" X 1/8")1
7N.S.S.Not Sold Separate O-RING (1-5/16" X 1-1/2" X 1/8")1
8N.S.S.Not Sold Separate O-RING (1-7/8" X 2" X 1/8")1
9N.S.S.Not Sold Separate O-RING (1-3/4" X 1-15/16" X 1/8")1
10N.S.S.不单独销售 密封件-活塞滑块Not Sold Separate SEAL, SLIPPER - PISTON1
11N.S.S.不单独销售 活塞杆-重型Not Sold Separate PISTON, ROD - HEAVY DUTY1
1264505A1活塞固定环总成RETAINER ASSEMBLY PISTON1
13N.S.S.不单独销售 刮杆Not Sold Separate ROD, SCRAPER1
14N.S.S.不单独销售 刮片固定环Not Sold Separate RETAINER, SCRAPER1

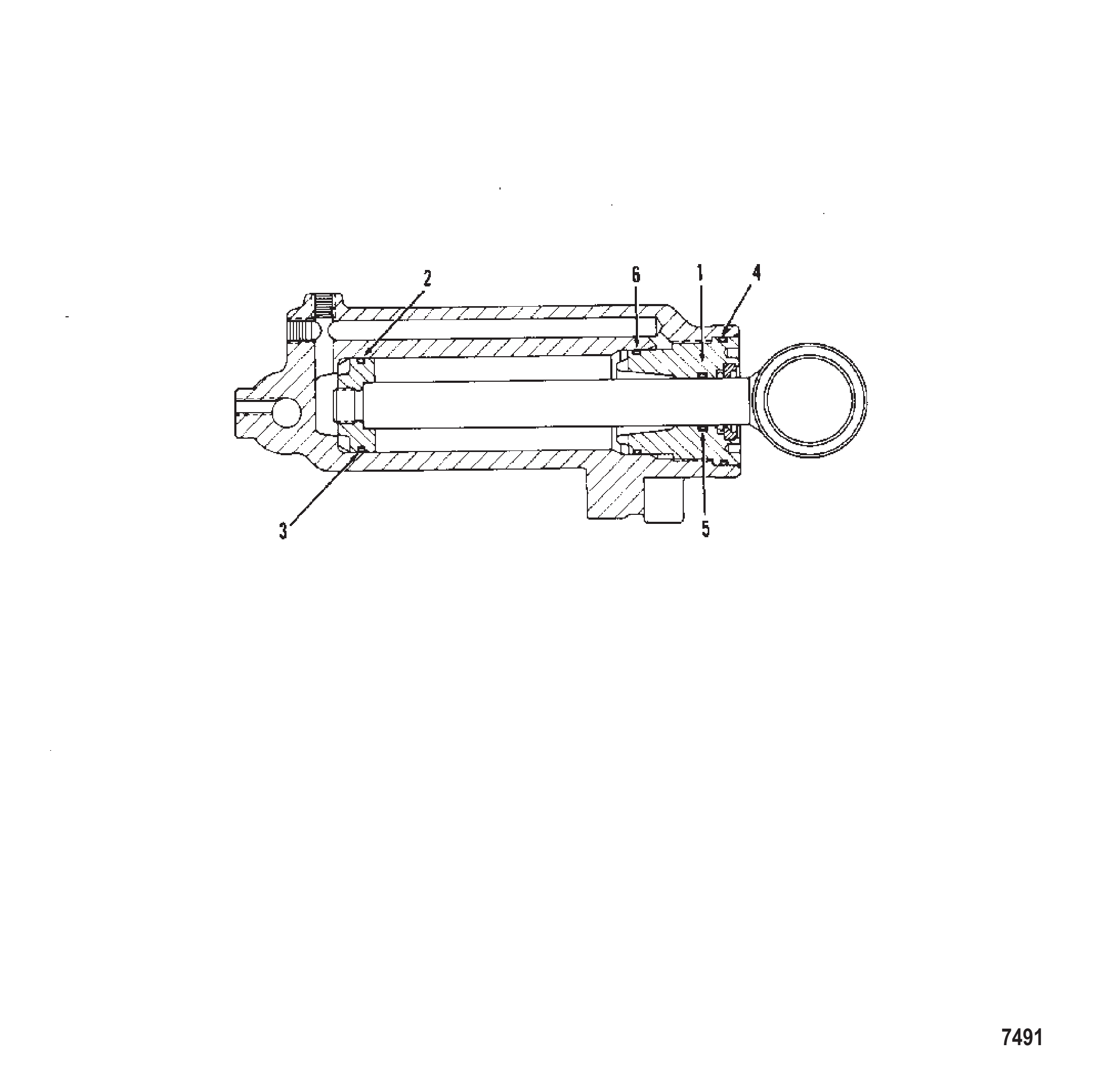

图 42动力升降油缸修理包(配合92194A14使用) POWER TRIM CYLINDER REPAIR KITS Use with 92194A14
动力升降油缸修理包(配合92194A14使用) POWER TRIM CYLINDER REPAIR KITS Use with 92194A14
REF零件编号中文名称英文名称数量
-92188A2维修套件(见备注)REPAIR KIT (SEE NOTE)1
1N.S.S.气缸盖不单独销售Not Sold Separate Cylinder Cap1
2N.S.S.O型圈(1-1/4"x1-1/2"x1/8")不单独销售Not Sold Separate O-Ring (1-1/4" x 1-1/2" x 1/8")1
3N.S.S.垫片不单独销售Not Sold Separate Spacer1
4N.S.S.O型圈(1-7/8"x2-1/16"x3/32")不单独销售Not Sold Separate O-Ring (1-7/8" x 2-1/16" x 3/32")1
5N.S.S.O型圈(3/4"x15/16"x3/32")不单独销售Not Sold Separate O-Ring (3/4" x 15/16" x 3/32")1
6N.S.S.O型圈(1-1/2"x1-3/4"x3/32")不单独销售Not Sold Separate O-Ring (1-1/2" x 1-3/4" x 3/32")1
图 43螺旋桨(右旋) PROPELLERS (RIGHT HAND ROTATION)
螺旋桨(右旋) PROPELLERS (RIGHT HAND ROTATION)
REF零件编号中文名称英文名称数量
-77338A4螺旋桨总成(铝制)(螺距11")PROPELLER ASSEMBLY (ALUMINUM)(PITCH 11")1
-77340A4螺旋桨总成(铝制)(螺距13")PROPELLER ASSEMBLY (ALUMINUM)(PITCH 13")1
-77340A45BLMX 14X13BLMX 14X131
-77342A4螺旋桨总成(铝制)(螺距15")PROPELLER ASSEMBLY (ALUMINUM)(PITCH 15")1
-77342A45BLMX 13.8X15BLMX 13.8X151
-77344A4螺旋桨总成(铝制)(螺距17")PROPELLER ASSEMBLY (ALUMINUM)(PITCH 17")1
-77344A45BLMX 13.3X17BLMX 13.3X171
-77346A4螺旋桨总成(铝制)(螺距19")PROPELLER ASSEMBLY (ALUMINUM)(PITCH 19")1
-77346A45BLMX 13X19BLMX 13X191
-77348A4螺旋桨总成(铝制)(螺距21")PROPELLER ASSEMBLY (ALUMINUM)(PITCH 21")1
-77348A45BLMX 12.8X21BLMX 12.8X211
-77350A4螺旋桨总成(铝制)(螺距23")PROPELLER ASSEMBLY (ALUMINUM)(PITCH 23")1
-77350A45BLMX 12.5X23BLMX 12.5X231
图 44启动电机总成 STARTER MOTOR ASSEMBLY
启动电机总成 STARTER MOTOR ASSEMBLY
REF零件编号中文名称英文名称数量
-72467启动电机总成STARTER MOTOR ASSEMBLY1
190644驱动套件DRIVE KIT1
268575驱动总成DRIVE ASSEMBLY1
2685753驱动总成DRIVE ASSEMBLY1
374966驱动端板总成PLATE ASSEMBLY DRIVE END1
375660安装板PLATE1
474968贯穿螺栓BOLT THRU2
561789贯穿螺栓锁紧垫圈LOCKWASHER THRU BOLT2
674964电枢ARMATURE1
763292电刷组BRUSH SET1
7898265016电刷/弹簧套件BRUSH/SPRING KIT1
857387绝缘衬套BUSHING INSULATING1
938013输入柱垫圈WASHER INPUT STUD1
1026992不锈钢输入柱锁紧垫圈(.250)LOCKWASHER (.250) Stainless Steel INPUT STUD1
1120890输入柱螺母(.250-20)NUT (.250-20) INPUT STUD1
1261787电刷架HOLDER BRUSH2
12898265014电刷支架HOLDER-BRUSH2
1368586电刷及支架螺钉SCREW BRUSH AND HOLDER2
1468579换向器端盖总成END CAP ASSEMBLY COMMUTATOR1
1415386001端盖END CAP1

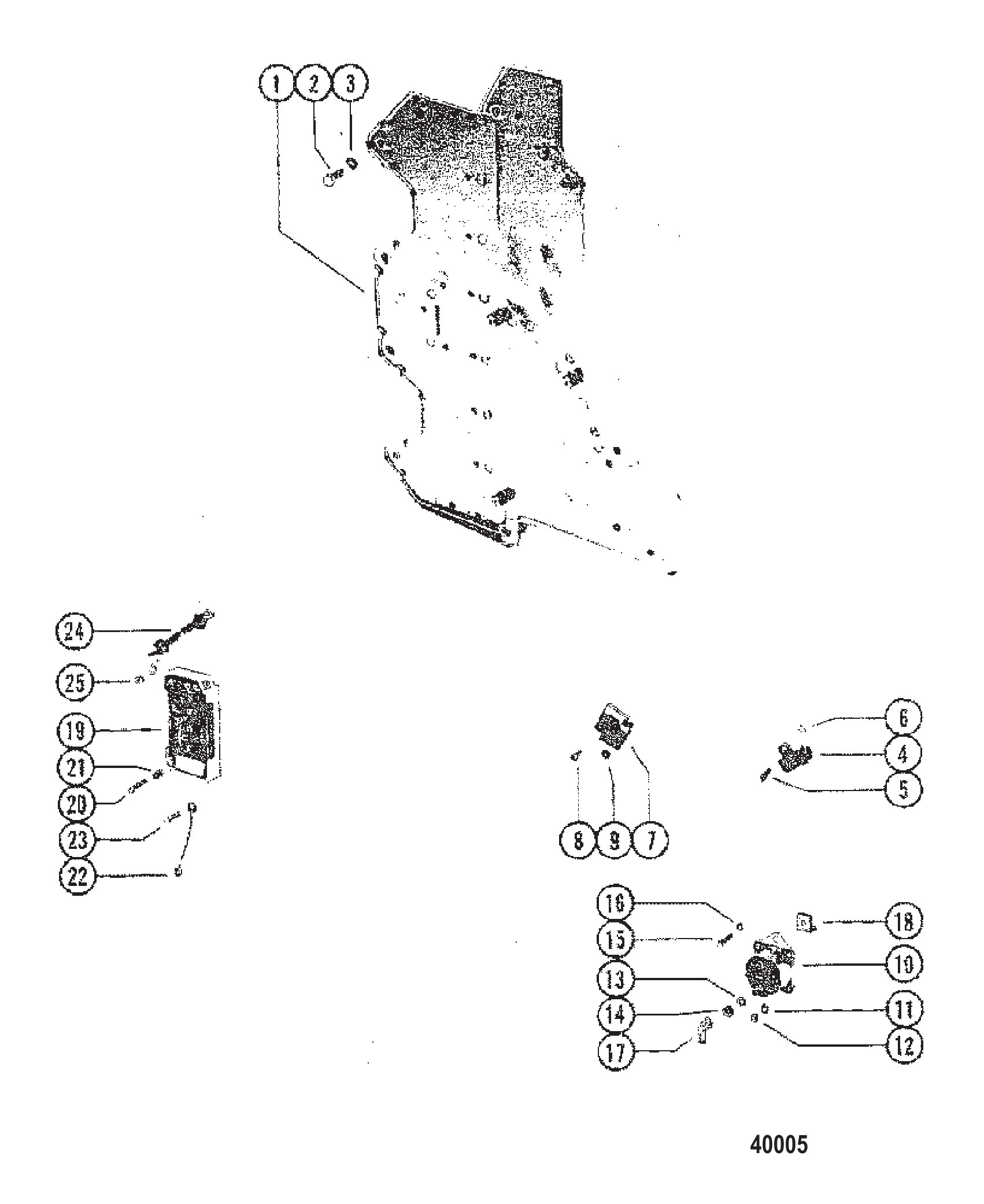

图 45开关盒及启动电磁阀 SWITCH BOX AND STARTER SOLENOID
开关盒及启动电磁阀 SWITCH BOX AND STARTER SOLENOID
REF零件编号中文名称英文名称数量
189748电气安装板PLATE ELECTRICAL MOUNTING1
286885螺钉(.250-20 x 1.500)不锈钢板至气缸体SCREW (.250-20 x 1.500) Stainless Steel PLATE TO CYLINDER BLOCK4
228636螺钉(.250-20 x .750)板至气缸体SCREW (.250-20 x .750) PLATE TO CYLINDER BLOCK3
245561螺钉（.250-20 x 1.12）板至气缸体SCREW (.250-20 x 1.12) PLATE TO CYLINDER BLOCK2
2455611螺钉(.250-20 x 1.120)SCREW (.250-20 x 1.120)2
329245垫圈(.281 x .500 x .060)不锈钢板螺钉WASHER (.281 x .500 x .060) Stainless Steel PLATE SCREW7
38M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel7
433386A3SWITCH ASSEMLBY MERCURY1
525764螺钉（.190-32 x .50）汞开关至板SCREW (.190-32 x .50) MERCURY SWITCH TO PLATE1
645076螺母（#10-32）黄铜线至汞开关NUT (#10-32) Brass WIRE TO MERCURY SWITCH1
762351A1整流器RECTIFIER1
78M0058226整流器RECTIFIER1
825764螺钉（.190-32 x .50）整流器至点火板SCREW (.190-32 x .50) RECTIFIER TO IGNITION PLATE2
945076螺母(#10-32)黄铜整流器端子NUT (#10-32) Brass RECTIFIER TERMINALS3
10853654A1电磁阀SOLENOID1
1096054启动电磁阀总成SOLENOID ASSEMBLY Starter1
108M0185149启动电磁阀SOLENOID START1
1126996锁紧垫圈（#10）不锈钢电磁阀端子LOCKWASHER (#10) Stainless Steel SOLENOID TERMINALS2
1126995锁紧垫圈（#8）不锈钢电磁阀端子LOCKWASHER (#8) Stainless Steel SOLENOID TERMINALS2
1268219螺母（#10-32）不锈钢电磁阀端子NUT (#10-32) Stainless Steel SOLENOID TERMINALS2
1226419螺母（#8-32）黄铜电磁阀端子NUT (#8-32) Brass SOLENOID TERMINALS2
1326993锁紧垫圈（.312）电磁阀端子LOCKWASHER (.312) SOLENOID TERMINALS2
138M0204647锁紧垫圈 (.312)LOCKWASHER (.312)2
1326992锁紧垫圈（.250）不锈钢电磁阀端子LOCKWASHER (.250) Stainless Steel SOLENOID TERMINALS2
1468292螺母（.312-18）电磁阀端子NUT (.312-18) SOLENOID TERMINALS2
148M0204668螺母(.312-18)NUT (.312-18)2
1494330螺母（.250-20）黄铜电磁阀端子NUT (.250-20) Brass SOLENOID TERMINALS2
1538601螺钉（.250-28 x 1.250）启动电磁阀至板SCREW (.250-28 x 1.250) STARTER SOLENOID TO PLATE2
1626992锁紧垫圈(0.250)不锈钢启动电磁阀螺钉LOCKWASHER (.250) Stainless Steel STARTER SOLENOID SCREW2
1746265端子护套-启动电磁阀BOOT TERMINAL - STARTER SOLENOID1
1890547定位器-启动电磁阀LOCATOR STARTER SOLENOID1
197778A3开关盒总成SWITCHBOX ASSEMBLY2
197778A12开关盒总成SWITCHBOX ASSEMBLY2
2020619螺钉（#12-24 x 1.25）开关盒SCREW (#12-24 x 1.25) SWITCH BOX4
2194304开关盒螺丝垫片SPACER SWITCH BOX SCREW4
2260871A10线束总成-开关盒WIRE ASSEMBLY SWITCH BOX2
2362568螺钉（#10-16 x .375）线SCREW (#10-16 x .375) WIRE2
2462310A3电缆总成-开关盒至开关盒（白/黑）CABLE ASSEMBLY SWITCH BOX TO SWITCH BOX (WHITE/BLACK)1
2545076螺母(#10-32)黄铜开关盒端子NUT (#10-32) Brass SWITCH BOX TERMINAL20
图 46旋转支架总成 SWIVEL BRACKET ASSEMBLY
旋转支架总成 SWIVEL BRACKET ASSEMBLY
REF零件编号中文名称英文名称数量
17670A5旋转支架总成SWIVEL BRACKET ASSEMBLY1
369341转轴支架衬套BUSHING SWIVEL BRACKET2
469342垫圈-旋转销上WASHER SWIVEL PIN-UPPER1
537448旋转支架油封SEAL Oil SWIVEL BRACKET2
774036旋转支架润滑接头FITTING Grease SWIVEL BRACKET4
78M0169589润滑脂接头FITTING Grease4
1088507波形垫圈-旋转销下WAVE WASHER SWIVEL PIN-LOWER1
1128205止动带-驱动轴壳体至旋转支架STRAP Stop DRIVESHAFT HOUSING TO SWIVEL BRACKET1
1128205T绑带STRAP1
1228200螺钉（.375-24 x 2.875）止动带至驱动轴壳体SCREW (.375-24 x 2.875) STRAP STOP TO DRIVESHAFT HOUSING1
1325269螺母(.375-24)止动带紧固螺丝NUT (.375-24) STRAP STOP FASTENING SCREW1
1473593A2转向臂转销总成SWIVEL PIN ASSEMBLY Steering Arm1
1573984轭架YOKE1
1573984T下轭架BOTTOM YOKE1
16A73591卡环-底部轭架RING Retaining BOTTOM YOKE1
1728203转向臂缓冲器BUMPER STEERING ARM1
1849554螺栓(.437-20 x 5.875)转向臂至上支架BOLT (.437-20 x 5.875) STEERING ARM TO UPPER MOUNT2
1934933螺母（.437-20）不锈钢转向臂螺栓NUT (.437-20) Stainless Steel STEERING ARM BOLT2
198M0204653螺母NUT2

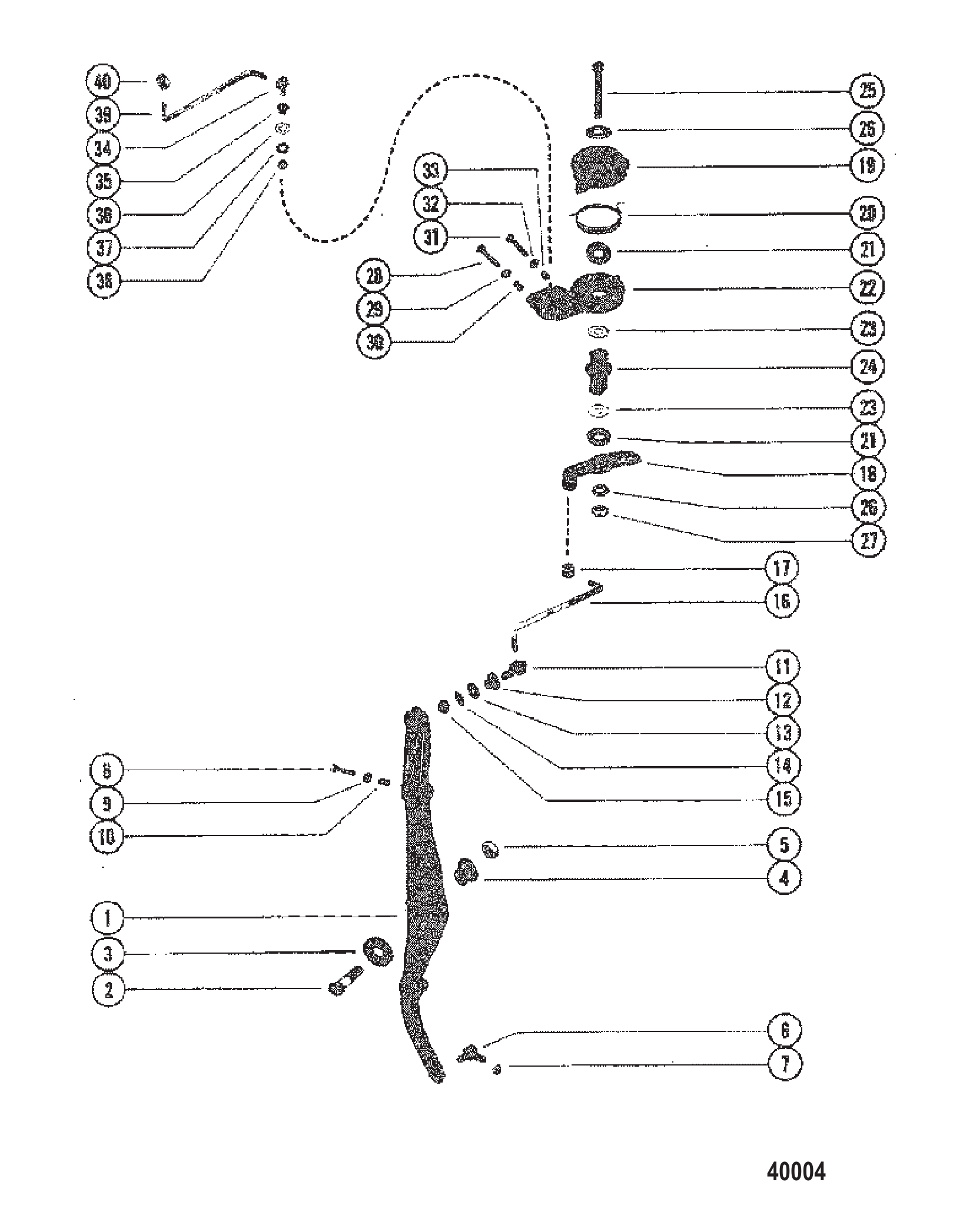

图 47油门杆及连杆 THROTTLE LEVER AND LINK RODS
油门杆及连杆 THROTTLE LEVER AND LINK RODS
REF零件编号中文名称英文名称数量
179900节流阀杆LEVER THROTTLE1
237559螺钉-油门杆至排气罩SCREW THROTTLE LEVER TO EXHAUST COVER1
231830螺栓(.375-24×1.75)BOLT (.375-24 x 1.75)1
329395垫圈（.390 x 1.00 x .06）油门杆螺钉WASHER (.390 x 1.00 x .06) THROTTLE LEVER SCREW1
38M0042641垫圈(0.390×1.00×0.06)WASHER (.390 x 1.00 x .06)1
445818衬套-油门杆螺钉BUSHING THROTTLE LEVER SCREW1
520509节气门杆螺丝螺母NUT THROTTLE LEVER SCREW1
58M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass1
637587旋转接头-油门杆至油门线SWIVEL THROTTLE LEVER TO THROTTLE CABLE1
735888螺母（.250-28）不锈钢油门线至旋转接头NUT (.250-28) Stainless Steel THROTTLE CABLE TO SWIVEL1
875168调节螺钉-油门杆SCREW ADJUSTING - THROTTLE LEVER2
929598螺母（.250-28）不锈钢调节螺钉NUT (.250-28) Stainless Steel ADJUSTING SCREW2
1052023尼龙帽-调节螺钉CAP NYLON - ADJUSTING SCREW2
1177013A1旋转接头-油门杆SWIVEL THROTTLE LEVER1
1226856衬套-旋转接头BUSHING SWIVEL1
1333786垫圈-旋转接头WASHER SWIVEL1
1373288垫圈(.220 x .500 x .030)不锈钢WASHER (.220 x .500 x .030) Stainless Steel1
1429402WAVE WASHER SWIVEL1
1545774螺母-旋转接头至油门杆NUT SWIVEL TO THROTTLE LEVER1
1685300油门连杆LINK ROD THROTTLE1
1774213筒形连杆-油门凸轮BARREL LINK ROD TO THROTTLE CAM1
1885441节气门凸轮CAM Throttle1
1985082壳体-油门（上）HOUSING THROTTLE - UPPER1
2095721扭簧-轴SPRING TORSION - SHAFT1
2185303塑料垫圈-油门凸轮WASHER PLASTIC - THROTTLE CAM2
2279903壳体-油门（下）HOUSING THROTTLE - LOWER1
2279903F1壳体HOUSING1
2386498波形垫圈-轴WAVE WASHER SHAFT2
2487937轴-油门和点火提前SHAFT THROTTLE AND SPARK ADVANCE1
2528239螺钉（.250-20 x 2.50）油门壳体SCREW (.250-20 x 2.50) THROTTLE HOUSING1
2635462垫圈（.2656 x .625 x .0625）不锈钢油门壳体螺钉WASHER (.2656 x .625 x .0625) Stainless Steel THROTTLE HOUSING SCREW2
2772008螺母（.250-20）油门壳体螺钉NUT (.250-20) THROTTLE HOUSING SCREW1
278267088螺母 (.250-20)NUT (.250-20)1
2875168调节螺钉-下壳体（2-1/4英寸）SCREW ADJUSTING - LOWER HOUSING (2-1/4")1
2929598螺母（.250-28）不锈钢调节螺钉NUT (.250-28) Stainless Steel ADJUSTING SCREW1
3052023尼龙帽-调节螺钉CAP NYLON - ADJUSTING SCREW1
3160464调节螺钉-下壳体（2-1/8英寸）SCREW ADJUSTING - LOWER HOUSING (2-1/8")1
3268219NUT (#10-32) Stainless Steel ADJUSTING SCREW1
3348039尼龙帽-调节螺钉CAP NYLON - ADJUSTING SCREW1
3477013A1旋转接头-火花连杆SWIVEL SPARK LINK1
3526856衬套-旋转接头BUSHING SWIVEL1
3633786垫圈-旋转接头WASHER SWIVEL1
3673288垫圈(.220 x .500 x .030)不锈钢WASHER (.220 x .500 x .030) Stainless Steel1
3729402WAVE WASHER SWIVEL1
3845774螺母-旋转接头NUT SWIVEL1
3985301火花连杆SPARK LINK1
4074897枢轴-火花连杆至触发器PIVOT SPARK LINK TO TRIGGER1
4074897T枢轴PIVOT1
图 48顶罩与支撑支架 TOP COWL AND SUPPORT BRACKETS
顶罩与支撑支架 TOP COWL AND SUPPORT BRACKETS
REF零件编号中文名称英文名称数量
15999罩（无贴花）COWL (WITHOUT DECALS)1
17934T顶罩TOP COWL1
17934顶罩总成（无贴花）TOP COWL ASSEMBLY (WITHOUT DECALS)1
17934T顶罩TOP COWL1
293122A1固定器总成-顶罩RETAINER ASSEMBLY TOP COWL1
252733A16固定器总成-顶罩RETAINER ASSEMBLY TOP COWL1
252733A9固定器总成RETAINER ASSY1
335496缓冲垫-顶罩固定器PAD BUMPER - TOP COWL RETAINER1
474824螺钉（.312-18 x 1.250）固定器至顶罩SCREW (.312-18 x 1.250) RETAINER TO TOP COWL1
453167SCREW (.312-18 x .880) RETAINER TO TOP COWL1
453167T螺钉 0.312-18X 0.88SCREW .312-18X .881
539107LOCKWASHER (.312-24) RETAINER SCREW1
676370护罩-顶罩（后）SHIELD TOP COWL - REAR1
737370螺钉 (#10-32 x .580) 护罩至上罩SCREW (#10-32 x .580) SHIELD TO TOP COWL3
837371护罩螺钉锁紧垫圈LOCKWASHER SHIELD SCREW3
947341A1拉绳与手柄套件 手动/应急启动器(仅限手动启动)ROPE AND HANDLE KIT Manual/Emergency Start STARTER (FOR MANUAL STARTING ONLY)1
947341A11手动启动绳柄套件ROPE AND HANDLE KIT Manual Starting1
1052739上罩铰链锁扣HINGE COWL LATCH - TOP COWL1
1194918罩盖锁扣铰链杆LEVER COWL LATCH HINGE1
1194918F1杠杆LEVER1
1258998PIN COWL LATCH LEVER TO HINGE1
1355455顶盖锁钩-后部HOOK TOP COWL LATCH - REAR1
1422956螺钉(.250-28 x .880) 后锁钩至顶盖SCREW (.250-28 x .880) REAR HOOK TO TOP COWL2
1526992锁紧垫圈(.250)不锈钢 后锁钩螺钉LOCKWASHER (.250) Stainless Steel REAR HOOK SCREW2
1679897上罩支撑框架FRAME TOP COWL SUPPORT1
1679897A4框架FRAME1
1890435上罩框架橡胶支座MOUNT RUBBER - TOP COWL FRAME3
1846096上罩框架橡胶支座MOUNT RUBBER - TOP COWL FRAMEOPT
1935888螺母 (.250-28) 不锈钢橡胶支座NUT (.250-28) Stainless Steel RUBBER MOUNT6
2086472上罩后支撑支架BRACKET TOP COWL SUPPORT - REAR1
2131014橡胶支座-后支撑架MOUNT RUBBER - REAR SUPPORT BRACKET2
2226992不锈钢锁紧垫圈(.250)橡胶支座LOCKWASHER (.250) Stainless Steel RUBBER MOUNT2
2329598螺母 (.250-28) 不锈钢橡胶支座NUT (.250-28) Stainless Steel RUBBER MOUNT2
2437562螺丝(.312-18 x 1.00)不锈钢后支架至框架SCREW (.312-18 x 1.00) Stainless Steel REAR BRACKET TO FRAME4
2626993锁紧垫圈(.312)后支架螺丝LOCKWASHER (.312) REAR BRACKET SCREW4
268M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
2737562螺钉 (.312-18 x 1.00) 不锈钢后支架至下罩SCREW (.312-18 x 1.00) Stainless Steel REAR BRACKET TO BOTTOM COWL4
2826993后支撑支架螺钉锁紧垫圈 (.312)LOCKWASHER (.312) REAR SUPPORT BRACKET SCREW4
288M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
2989232A1上罩前支架总成BRACKET ASSEMBLY TOP COWL - FRONT1
2942706A1支架总成BRACKET ASSEMBLY1
3069092螺钉 (1.25) 前支架至下罩SCREW (1.25) FRONT BRACKET TO BOTTOM COWL2
3060411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)2
3126993前支撑支架螺钉锁紧垫圈 (.312)LOCKWASHER (.312) FRONT SUPPORT BRACKET SCREW2
318M0204647锁紧垫圈 (.312)LOCKWASHER (.312)2
3269092螺钉 (1.25) 前支架至上罩框架SCREW (1.25) FRONT BRACKET TO TOP COWL FRAME2
3260411螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)2
3326993前支撑支架螺钉锁紧垫圈 (.312)LOCKWASHER (.312) FRONT SUPPORT BRACKET SCREW2
338M0204647锁紧垫圈 (.312)LOCKWASHER (.312)2
3437640橡胶支座-前支撑架MOUNT RUBBER - FRONT SUPPORT BRACKET1
3526993橡胶支座锁紧垫圈（0.312）LOCKWASHER (.312) RUBBER MOUNT1
358M0204647锁紧垫圈 (.312)LOCKWASHER (.312)1
3628770橡胶支座螺母（0.312-24不锈钢）NUT (.312-24) Stainless Steel RUBBER MOUNT1
3787991正时指针POINTER TIMING1
3828636螺钉 (.250-20 x .750) 正时指针SCREW (.250-20 x .750) TIMING POINTER1
3935462垫圈 (.2656 x .625 x .0625) 不锈钢正时指针螺钉WASHER (.2656 x .625 x .0625) Stainless Steel TIMING POINTER SCREW1
图 49艉板支架 TRANSOM BRACKET
艉板支架 TRANSOM BRACKET
REF零件编号中文名称英文名称数量
18718F7艉板支架右舷, 黑色BRACKET Transom Starboard, Black1
28716A8艉板支架总成左舷, 黑色BRACKET ASSEMBLY Transom Port, Black1
18718F8艉板支架右舷, 灰色BRACKET Transom Starboard, Gray1
28716A9艉板支架总成左舷, 灰色BRACKET ASSEMBLY Transom Port, Gray1
398727润滑脂加注口接头FITTING Grease Port1
38M0169588润滑脂接头FITTING Grease1
449930A1非动力倾斜锁止销总成PIN ASSEMBLY Tilt Lock Non Power Trim1
48M0026068倾斜锁销总成PIN ASSEMBLY Tilt Lock1
599170A1动力倾斜管TILT TUBE Power Trim1
599170A2倾斜管套件TUBE KIT Tilt1
690068F2螺母黑色NUT Black1
6859133螺母(1.00-14)NUT (1.00-14)1
690068F3螺母 (1.00-14) 灰色NUT (1.00-14) Gray1
6859133螺母(1.00-14)NUT (1.00-14)1
745711O型圈 (.612 x .103)O-RING (.612 x .103)1
888750波浪垫圈 (1.62 x 1.05)WASHER Wave (1.62 x 1.05)2
956041螺母 (.875-14)NUT (.875-14)1
9858869螺母 (.875-14)NUT (.875-14)1
10814259螺钉 (.500-20 x 4.00)SCREW (.500-20 x 4.00)4
1128421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
118M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
128M0027784螺母NUT4
1282671117螺母(.500-20)NUT (.500-20)4
1399629A2非动力及三油缸动力倾斜操纵杆总成LEVER ASSEMBLY Non Power Trim And Three Ram Power Trim1
138M0115104倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
14821176A1单油缸动力倾斜锁止杆总成LEVER ASSEMBLY Tilt Lock Single Ram Power Trim1
148M0109798倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
1599611波形垫圈WAVE WASHER1
1665830尼龙衬套NYLINER2
1799633旋钮KNOB1
1899615槽销PIN Groove1
1999622弹簧SPRING1
2099604槽销PIN Groove1
2196930A1动力倾斜螺栓总成BOLT ASSEMBLY Power Trim1
2223161螺母 (.375-24) 动力倾斜NUT (.375-24) Power Trim1
2337984螺母 (.875-14) 动力倾斜NUT (.875-14) Power Trim1
238M0041651螺母 (.875-14)NUT (.875-14)1
24818771F1锚支架黑色BRACKET Anchor Black1
248M0086406锚支架BRACKET Anchor1
24818771T6锚支架灰色BRACKET Anchor Gray1
24818771T8ORD 818771T 1ORD 818771T 11
254000377螺钉 (M10 x 30) 单缸动力升降SCREW (M10 x 30) Single Ram Power Trim6
26400258锁紧垫圈 (M10) 不锈钢单油缸动力倾斜LOCKWASHER (M10) Stainless Steel Single Ram Power Trim6
2740114螺母 (M10 x 1.5) 单油缸动力倾斜NUT (M10 x 1.5) Single Ram Power Trim1
28814207停机开关STOP1

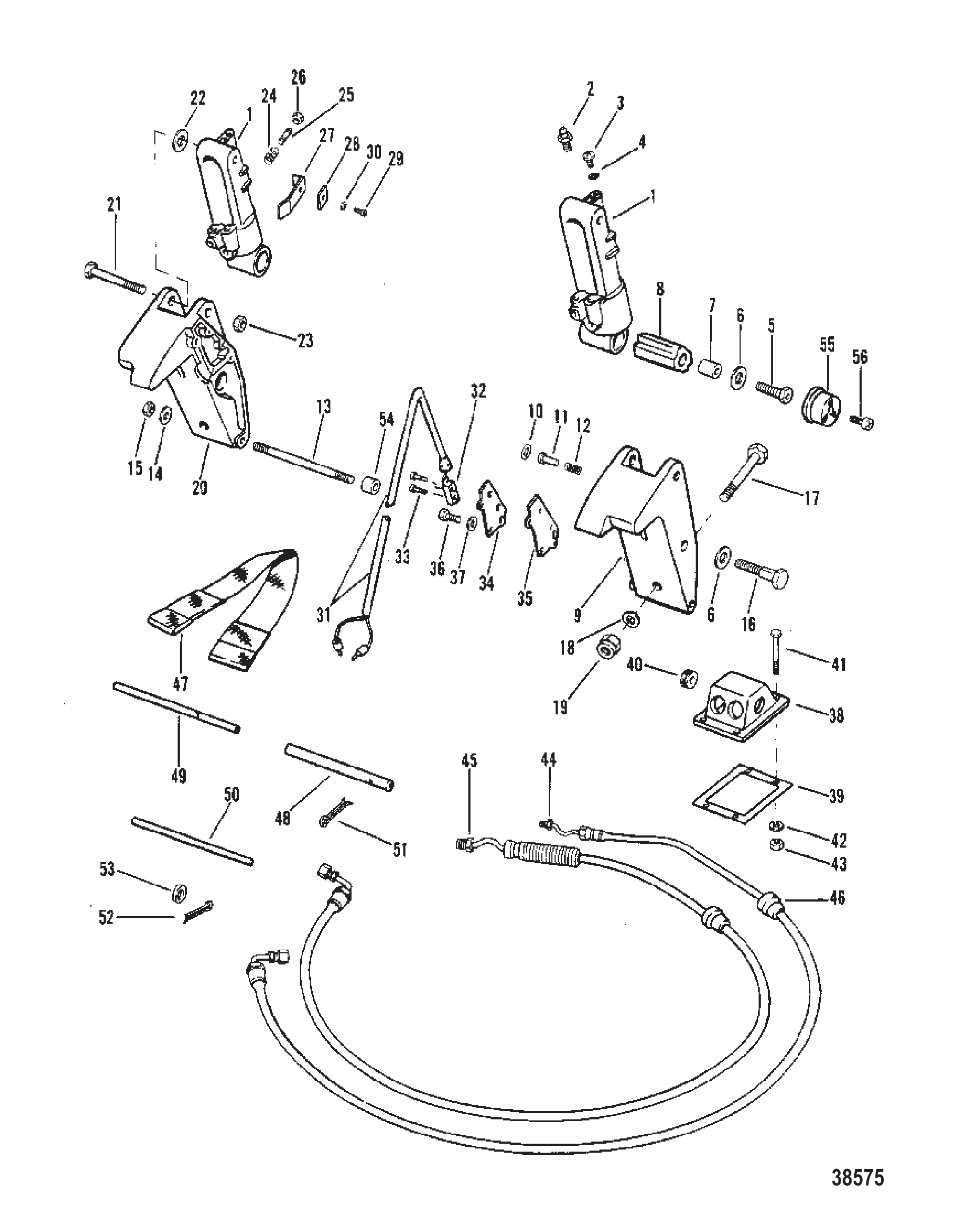

图 50升降油缸及液压软管 TRIM CYLINDERS AND HYDRAULIC HOSES
升降油缸及液压软管 TRIM CYLINDERS AND HYDRAULIC HOSES
REF零件编号中文名称英文名称数量
176509A3配平油缸TRIM CYLINDER2
192194A14配平油缸TRIM CYLINDER2
192194A14配平油缸TRIM CYLINDER2
274036润滑脂接头-配平油缸FITTING Grease TRIM CYLINDER2
28M0169589润滑脂接头FITTING Grease2
345265螺钉(#10-32x0.3125)放气SCREW (#10-32 x .3125) BLEED4
445016O型圈-放气螺钉O-RING BLEED SCREW4
545264螺钉(0.500-20x1.500)配平油缸SCREW (.500-20 x 1.500) TRIM CYLINDER2
592050螺钉(0.500-20x1.500)配平油缸SCREW (.500-20 x 1.500) TRIM CYLINDER2
628421垫圈(1.5x3.05x0.13)不锈钢配平油缸螺栓WASHER (1.5 x 3.05 x 0.13) Stainless Steel TRIM CYLINDER BOLT4
68M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
745280垫片-配平油缸下部SPACER TRIM CYLINDER - LOWER2
894907A1橡胶衬套-配平油缸BUSHING RUBBER - TRIM CYLINDER2
989108A3支架-配平油缸(左舷)BRACKET TRIM CYLINDER (PORT)1
1070608油封-左舷支架SEAL Oil PORT BRACKET1
1189290柱塞-限位开关驱动PLUNGER LIMIT SWITCH ACTUATING1
1295881张力弹簧-限位开关柱塞SPRING TENSION - LIMIT SWITCH PLUNGER1
1345282STUD (.312-24 x 16.620) MOUNTING BRACKET1
1426993锁紧垫圈(0.312)安装支架双头螺栓LOCKWASHER (.312) MOUNTING BRACKET STUD2
148M0204647锁紧垫圈 (.312)LOCKWASHER (.312)2
1528770螺母(0.312-24)不锈钢安装支架双头螺栓NUT (.312-24) Stainless Steel MOUNTING BRACKET STUD2
1645263螺钉(0.500-20x2.250)安装支架SCREW (.500-20 x .2.250) MOUNTING BRACKET2
1768298BOLT (.375-16 x 3.250) MOUNTING BRACKET TO TRANSOM6
1789673SCREW (.375-16 x 5.00) MOUNTING BRACKET TO TRANSOM2
1868410垫圈-安装支架螺栓WASHER MOUNTING BRACKET BOLT6
1846765垫圈 (.390 x 1.50 x .120)WASHER (.390 x 1.50 x .120)6
1999405螺母-安装支架螺栓NUT MOUNTING BRACKET BOLT8
1982671112螺母（.375-16）NUT (.375-16)8
2089111支架-配平油缸(右舷)BRACKET TRIM CYLINDER (STARBOARD)1
2089111T支架BRACKET1
2145328SCREW (.437-20 x 3.560) TRIM CYLINDER TO MOUNTING BRACKET2
2237807WASHER TRIM CYLINDER SCREW1
2320696平衡油缸螺钉螺母NUT TRIM CYLINDER SCREW2
2424390张力弹簧-调节螺栓SPRING TENSION - ADJUSTING STUD1
2521085双头螺栓(#10-32x0.930)调节-切断限位开关STUD (#10-32 x .930) ADJUSTING - CUT-OUT LIMIT SWITCH1
258M0034461螺柱STUD1
2645812螺母(#10-32)不锈钢锁紧-限位开关调节螺栓NUT (#10-32) Stainless Steel JAM - LIMIT SWITCH ADJUSTING STUD1
26859124螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel1
2745508凸轮-限位开关调节螺栓CAM LIMIT SWITCH ADJUSTING STUD1
2799897凸轮CAM1
2886967挡板-限位开关凸轮PLATE RETAINING - LIMIT SWITCH CAM1
2968513螺钉(#10-32x0.375)不锈钢挡板与凸轮SCREW (#10-32 x .375) Stainless Steel RETAINING PLATE AND CAM1
3026996锁紧垫圈(#10)不锈钢挡板与凸轮螺钉LOCKWASHER (#10) Stainless Steel RETAINING PLATE AND CAM SCREW1
3145326A2切断限位开关总成SWITCH ASSEMBLY CUT- OUT LIMIT1
3245354橡胶衬套-切断限位开关BUSHING RUBBER - CUT-OUT LIMIT SWITCH1
3347255切断限位开关螺钉(#4-40×0.625)SCREW (#4-40 x .625) CUT OUT LIMIT SWITCH2
3489272限位开关盖COVER LIMIT SWITCH1
3589273限位开关盖衬垫GASKET LIMIT SWITCH COVER1
35892731衬垫GASKET1
3634994螺钉 (#10-32 x 1.00) 不锈钢 限位开关盖SCREW (#10-32 x 1.00) Stainless Steel LIMIT SWITCH COVER4
3738833限位开关盖螺钉垫圈WASHER LIMIT SWITCH COVER SCREW4
3887774A1艉板进水口盖COVER INLET - TRANSOM1
3987775进水口盖衬垫GASKET INLET COVER1
4045507橡胶衬套 - 进水口盖GROMMET RUBBER - INLET COVER1
4132866进水口盖板固定螺钉(#10-32×2.00不锈钢)SCREW (#10-32 x 2.00) Stainless Steel INLET COVER TO BOAT4
4226996锁紧垫圈 (#10) 不锈钢 进水口盖螺钉LOCKWASHER (#10) Stainless Steel INLET COVER SCREW4
4368219螺母 (#10-32) 不锈钢 进水口盖螺钉NUT (#10-32) Stainless Steel INLET COVER SCREW4
4497153A1平衡油缸至控制阀软管(5英尺-12/32"外径)HOSE TRIM-CYLINDER TO CONTROL VALVE (5') - 12/32" O.D.2
4488005软管HOSE2
4597154A1升降油缸至控制阀软管(5英尺-17/32"外径)HOSE LIFT-CYLINDER TO CONTROL VALVE (5') - 17/32" O.D.2
4588006软管HOSE2
4635977橡胶护圈(3/8"内径-1"长)GROMMET RUBBER (3/8" I.D. - 1" LONG)4
4697191橡胶护圈(3/8"内径-7/8"长)GROMMET RUBBER (3/8" I.D. - 7/8" LONG)2
4635977护孔环GROMMET2
4697000橡胶护圈(7/16"内径-7/8"长)GROMMET RUBBER (7/16" I.D. -7/8" LONG)2
4612602002护孔环GROMMET2
4773519A1拉带 倾斜止动STRAP Tilt Stop1
4869259安装管 - 倾斜止动TUBE MOUNTING - TILT STOP1
4977669安装管销PIN MOUNTING TUBE1
5063473缓冲管TUBE CUSHION1
5136391开口销 安装管销COTTER PIN MOUNTING TUBE PIN1
5136002开口销COTTER PIN1
5245882COTTER PIN TILT PIN RETAINING1
5339304倾斜销垫片WASHER TILT PIN1
5489112安装支架衬套BUSHING MOUNTING BRACKET2
5570679配平油缸盖COVER TRIM CYLINDER2
5637655平衡油缸盖螺钉(#10-32×0.500)SCREW (#10-32 x .500) TRIM CYLINDER COVER2

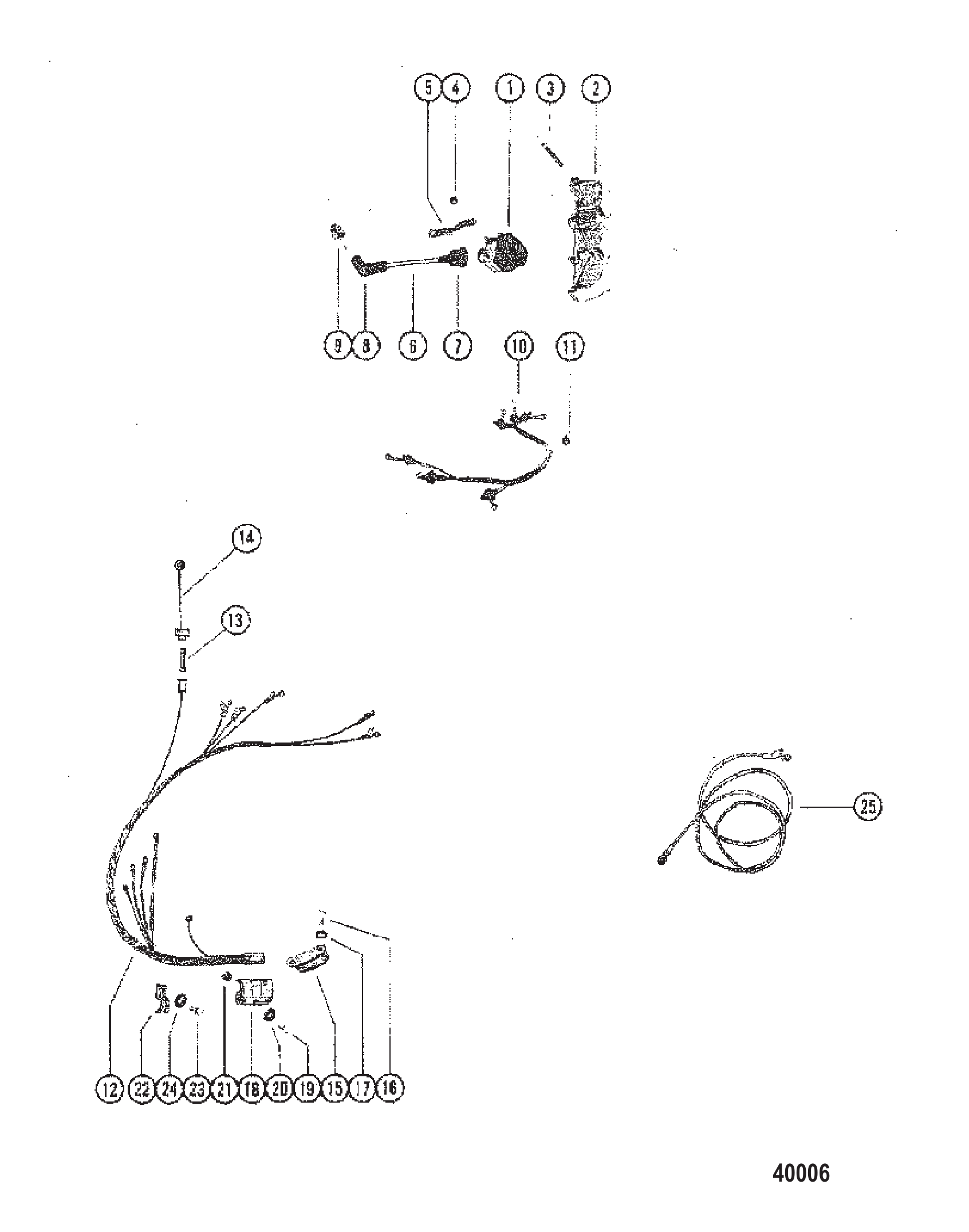

图 51线束及点火线圈 WIRING HARNESS AND IGNITION COIL
线束及点火线圈 WIRING HARNESS AND IGNITION COIL
REF零件编号中文名称英文名称数量
17370A2点火线圈总成COIL ASSEMBLY Ignition6
273218点火线圈盖COVER IGNITION COIL2
243542盖板COVER2
388856螺钉 (.190-32 x 2.00) 点火线圈盖SCREW (.190-32 x 2.00) IGNITION COIL COVER12
445076螺母(#10-32)黄铜点火线圈端子NUT (#10-32) Brass IGNITION COIL TERMINAL12
560466A1线缆总成 黑色 (2.50英寸) 点火线圈CABLE ASSEMBLY Black (2.50 Inches) IGNITION COIL6
690816A25高压线总成WIRE ASSEMBLY HIGH TENSION6
6813715A1引线LEAD WIRE6
72854线圈端护套BOOT COIL END6
72854T01护套@3BOOT @36
863709A1火花塞端护套/端子套件BOOT/TERMINAL KIT SPARK PLUG END6
968057火花塞 (冠军 #L76-V)SPARK PLUG (CHAMPION #L76-V)6
9896329827SP #L76V @4SP #L76V @46
1085537A2线圈到开关盒线束总成(#2,4和6)HARNESS ASSEMBLY COIL TO SWITCH BOX (#2, 4 AND 6)1
1085537A1线束总成 线圈至开关盒 (#1, 3 和 5)HARNESS ASSEMBLY COIL TO SWITCH BOX (#1, 3 AND 5)1
1163153J型卡扣 线束至线圈盖J CLIP HARNESS TO COIL COVER2
1289564A1线束总成HARNESS ASSEMBLY1
1296188A4线束总成HARNESS ASSEMBLY1
1296188A2线束总成HARNESS ASSEMBLY1
1296188A4线束总成HARNESS ASSEMBLY1
1379091保险丝20安培FUSE 20 Ampere1
138M0207796保险丝20安培FUSE 20 AMP1
1495084A2保险丝座线缆总成CABLE ASSEMBLY FUSE HOLDER1
1588608线束夹CLAMP WIRING HARNESS1
1628636线束夹螺钉（0.250-20 x 0.750）SCREW (.250-20 x .750) WIRING HARNESS CLAMP2
1726996锁紧垫圈 (#10) 不锈钢线束夹螺钉LOCKWASHER (#10) Stainless Steel WIRING HARNESS CLAMP SCREW2
1889047线束支架BRACKET WIRING HARNESS1
1924637螺钉 (#10-32 x .875) 线束支架SCREW (#10-32 x .875) WIRING HARNESS BRACKET2
2038833支架螺钉垫圈WASHER BRACKET SCREW2
2120110螺母 (#10-32) 支架螺钉NUT (#10-32) BRACKET SCREW2
2288751线束夹CLAMP WIRING HARNESS1
2328636线束夹螺钉（0.250-20 x 0.750）SCREW (.250-20 x .750) WIRING HARNESS CLAMP1
2420533夹紧螺钉垫圈WASHER CLAMP SCREW1
2588439A3正极电缆总成-蓄电池CABLE ASSEMBLY Positive - Battery1
2588439A4蓄电池负极电缆总成CABLE ASSEMBLY Battery - Negative1
