两冲程 化油器 · Canada - Cat.# 90-13290 · 共 51 个部位 · 1855 条零件

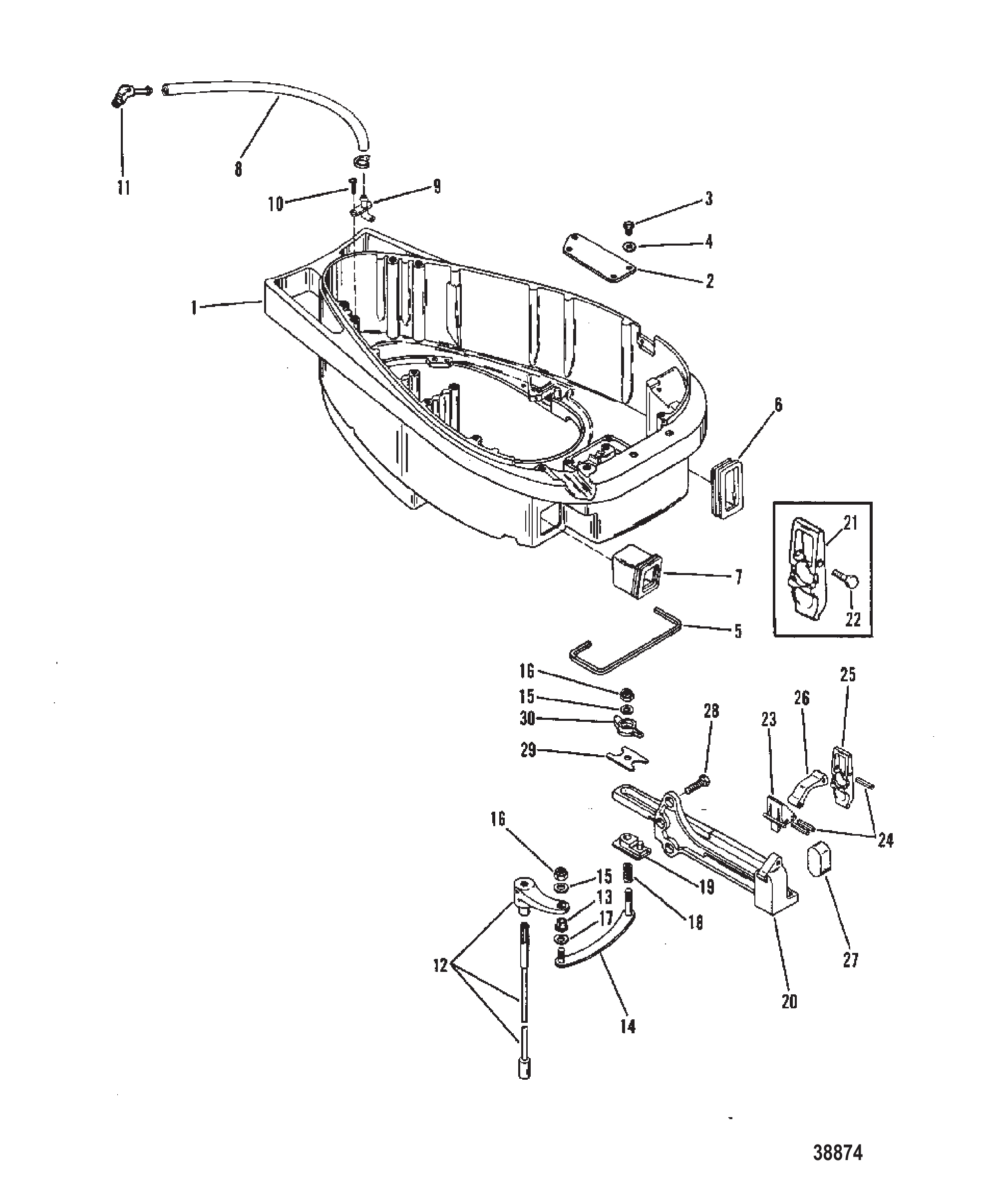

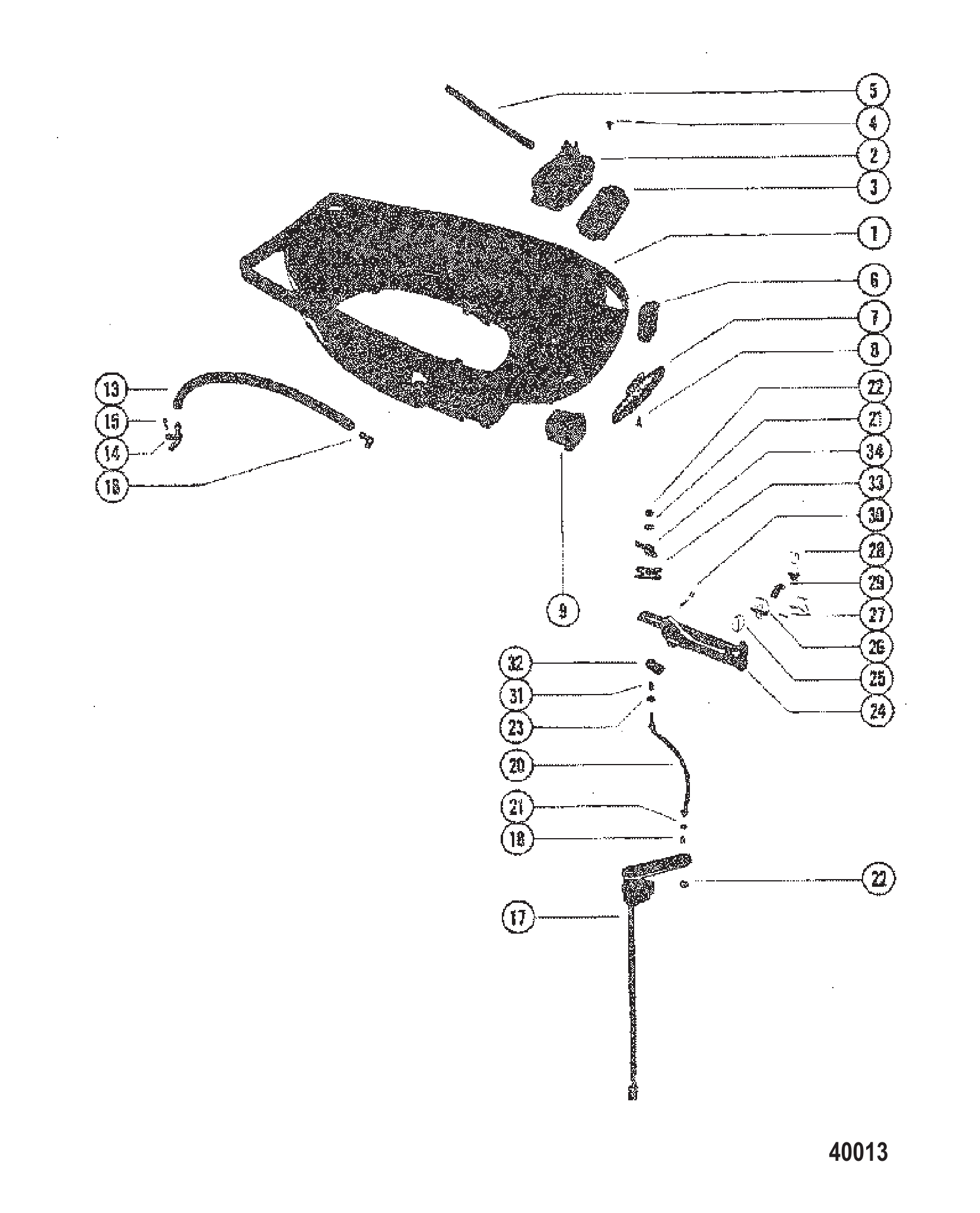

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 87081 | 底罩 | COWL BOTTOM | 1 |
| 1 | 8708T6 | 底罩 | COWL BOTTOM | 1 |
| 2 | 74303 | 进气口盖 | COVER AIR INLET | 1 |
| 3 | 62568 | 螺钉(#10-16 x .375)盖至底罩 | SCREW (#10-16 x .375) COVER TO BOTTOM COWL | 4 |
| 4 | 30164 | 垫圈(.192 x .375 x .0312)不锈钢盖螺钉 | WASHER (.192 x .375 x .0312) Stainless Steel COVER SCREW | 4 |
| 5 | 73646 | 底罩衬垫 | GASKET BOTTOM COWL | 1 |
| 6 | 39616 | 底罩控制线缆护套 | BOOT CONTROL CABLES-BOTTOM COWL | 1 |
| 7 | 37637 | 底罩燃油接头护套 | BOOT FUEL CONNECTOR-BOTTOM COWL | 1 |
| 8 | 99127109 | 管线(57.00英寸散装)示警管(14-3/4") | LINE (57.00 Inches Bulk) TELL TALE (14-3/4") | 1 |
| 8 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 9 | 52889 | 示警软管至底罩喷嘴 | NOZZLE TELL TALE HOSE TO BOTTOM COWL | 1 |
| 10 | 48408 | 示流喷嘴至下罩盖螺钉(#10-16x0.500) | SCREW (#10-16 x .500) TELL TALE NOZZLE TO BOTTOM COWL | 1 |
| 11 | 78279 | 示警软管至气缸体弯头 | ELBOW TELL TALE HOSE TO CYLINDER BLOCK | 1 |
| 11 | 8M0207781 | 弯头 | ELBOW | 1 |
| 12 | 60304A54 | 上部换挡轴总成 | SHIFT SHAFT ASSEMBLY UPPER | 1 |
| 13 | 26856 | 换挡轴衬套 | BUSHING SHIFT SHAFT | 1 |
| 14 | 73402 | 换挡连杆 | SHIFT LINK | 1 |
| 15 | 35462 | 垫圈(.2656 x .625 x .0625)不锈钢连杆 | WASHER (.2656 x .625 x .0625) Stainless Steel LINK ROD | 2 |
| 16 | 36069 | 连杆螺母 | NUT LINK ROD | 2 |
| 17 | 29720 | 连杆波形垫圈 | WAVE WASHER LINK ROD | 1 |
| 18 | 20099 | 连杆至导向块弹簧 | SPRING LINK ROD TO GUIDE BLOCK | 1 |
| 19 | 37896 | 连杆导向块 | GUIDE BLOCK LINK ROD | 1 |
| 20 | 52732A6 | 控制线缆锚定支架 | BRACKET ANCHOR-CONTROL CABLES | 1 |
| 21 | 98889 | 闩锁 | LATCH | 1 |
| 22 | 42975 | 闩锁传动螺钉 | DRIVE SCREW LATCH | 2 |
| 23 | 39618 | 尼龙换挡线缆锁定杆 | LEVER NYLON-SHIFT CABLE LOCKING | 1 |
| 23 | 87609A1 | 杠杆套件 | LEVER KIT | 1 |
| 24 | 47175 | 锁定杆及盖固定销 | PIN LOCKING LEVER AND COVER FASTENING | 3 |
| 25 | 90211 | 尼龙换挡线缆盖 | COVER NYLON-SHIFT CABLE | 1 |
| 26 | 65799T | 连杆-锁定杆到盖板 | LINK LOCKING LEVER TO COVER | 1 |
| 26 | 87609A1 | 杠杆套件 | LEVER KIT | 1 |
| 27 | 39519 | 锚定杯形保持器 | CUP BARREL RETAINER-ANCHOR | 1 |
| 28 | 35386 | 螺钉(.312-18 x 1.00)锚定支架至气缸体 | SCREW (.312-18 x 1.00) ANCHOR BRACKET TO CYLINDER BLOCK | 3 |
| 29 | 52100 | 连杆耐磨板 | WEAR PLATE LINK ROD | 1 |
| 30 | 38279 | 控制线缆闩锁紧固件 | LATCH CONTROL CABLE FASTENING | 1 |
| 30 | 8M0036768 | 闩锁 | LATCH | 1 |
| - | 73645A87 | 衬垫套件 | GASKET SET | 1 |

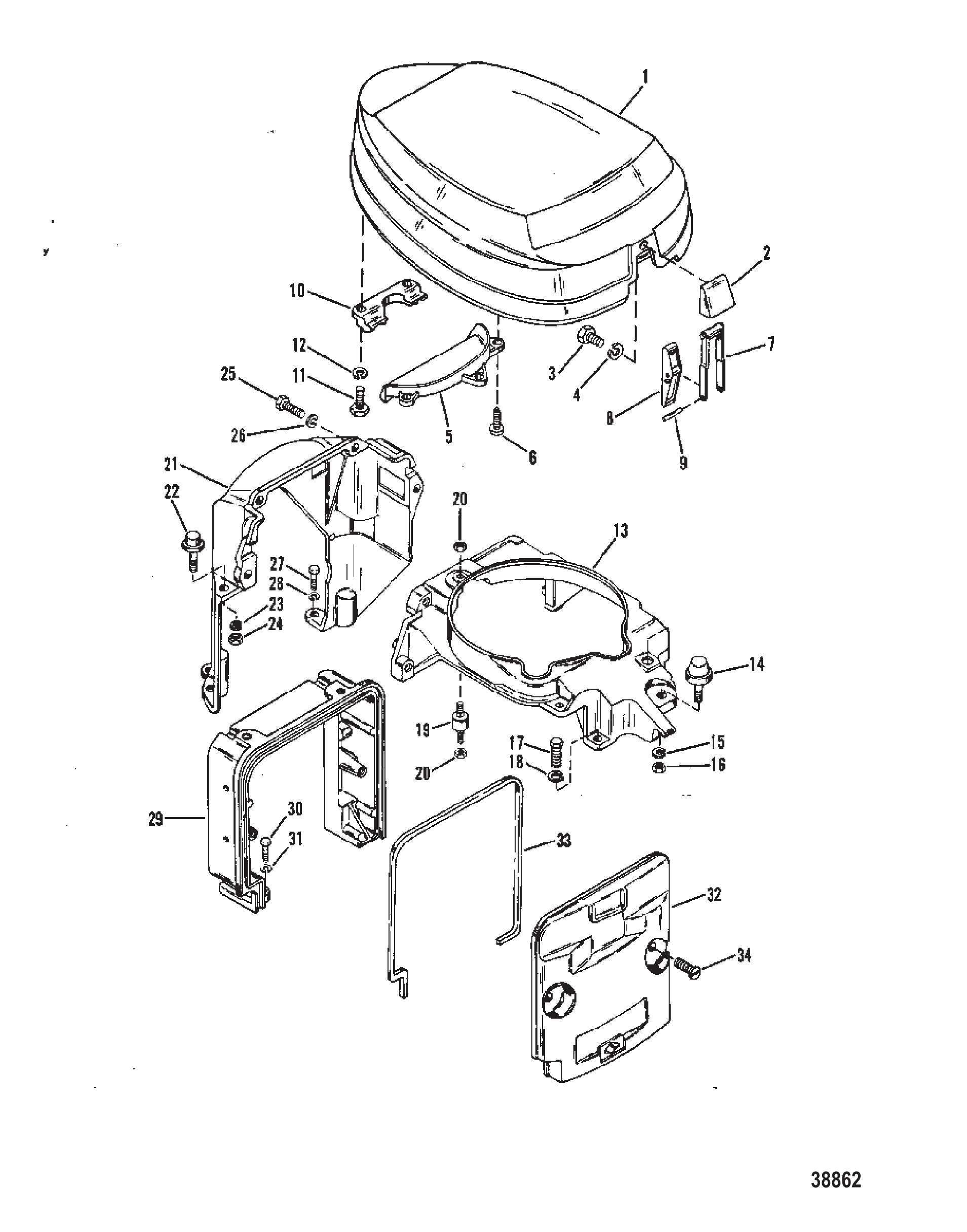

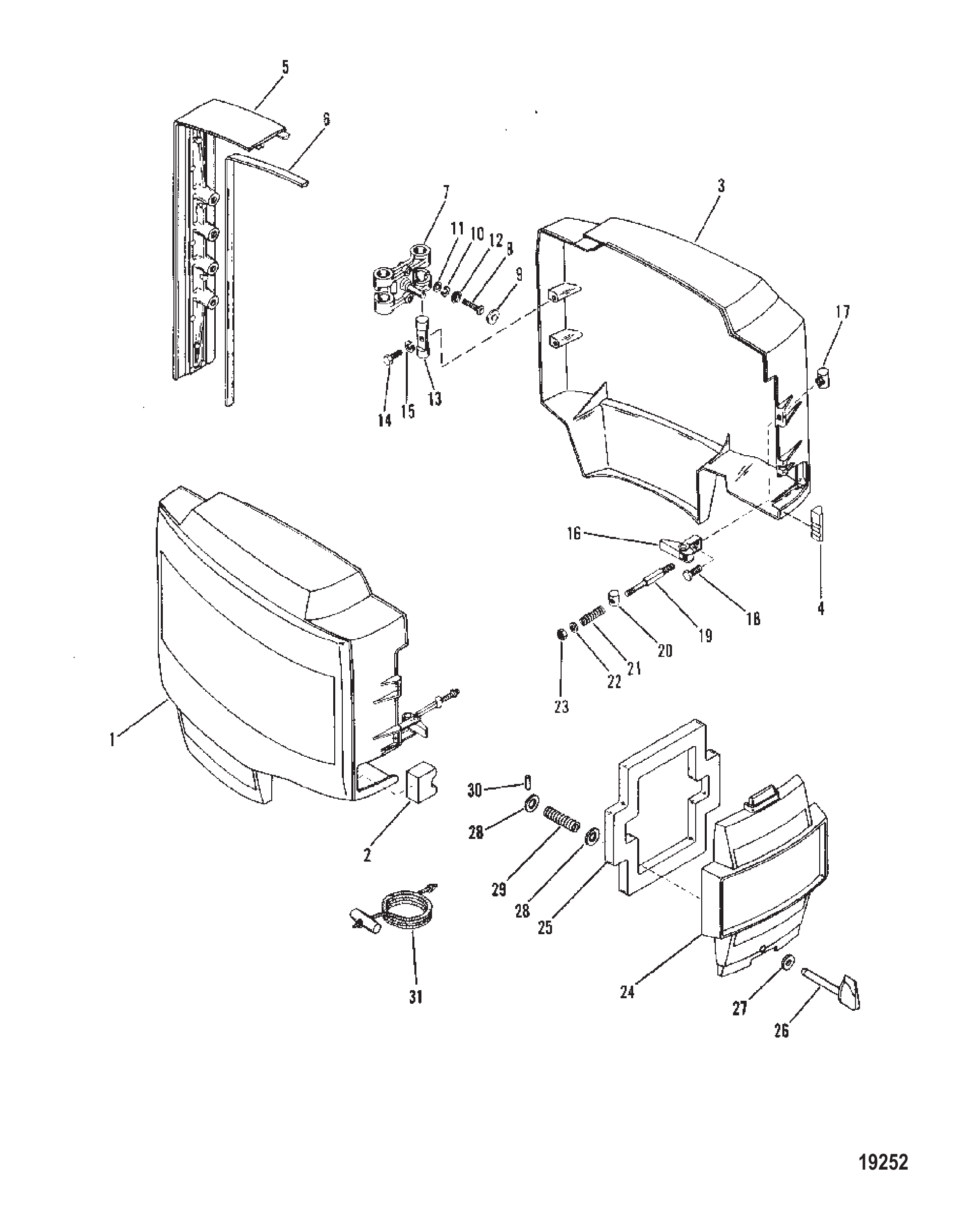

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

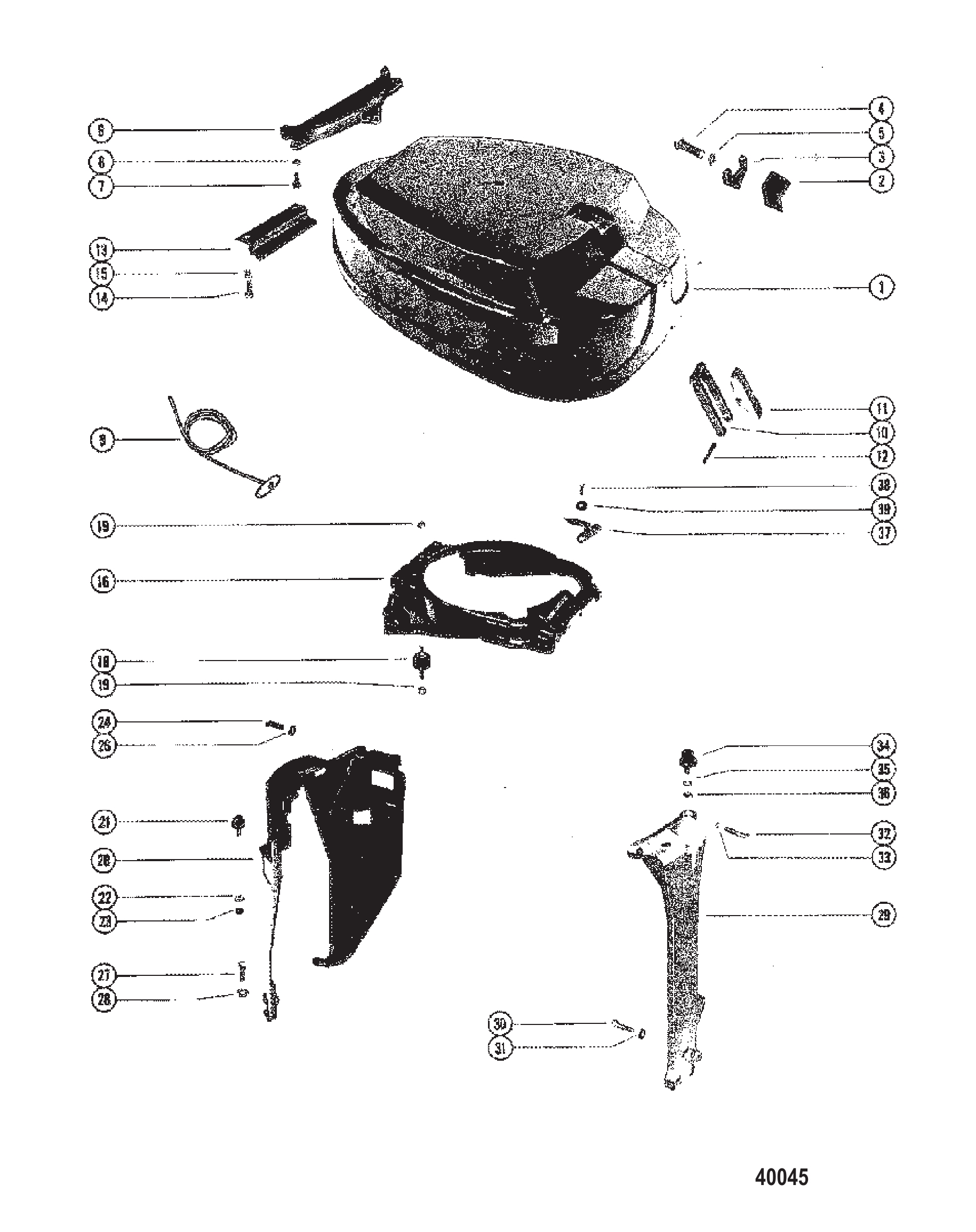

| 1 | 7934 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 1 | 6392F4 | 顶罩总成（水星款） | TOP COWL ASSEMBLY Mariner | 1 |
| 1 | 6392T6 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 2 | 93122A1 | 固定座总成 | RETAINER ASSEMBLY | 1 |
| 2 | 76440 | 固定座总成 | RETAINER ASSEMBLY | 1 |
| 3 | 53167 | 螺钉 (.312-18 x .880) | SCREW (.312-18 x .880) | 1 |
| 3 | 53167T | 螺钉 0.312-18X 0.88 | SCREW .312-18X .88 | 1 |
| 3 | 25299 | 螺钉(0.312-18x0.75) | SCREW (.312-18 x .75) | 1 |
| 4 | 39107 | 锁紧垫圈(0.312-24) | LOCKWASHER (.312-24) | 1 |
| 5 | 76370 | 护罩 | SHIELD | 1 |
| 5 | 76433 | 护罩 | SHIELD | 1 |
| 6 | 48409 | 螺钉 (#10-16 x .625) 不锈钢 | SCREW (#10-16 x .625) Stainless Steel | 3 |
| 7 | 52739 | 顶罩锁扣铰链 | HINGE COWL LATCH-TOP COWL | 1 |
| 8 | 94918T | 罩盖锁扣铰链杆 | LEVER COWL LATCH HINGE | 1 |
| 8 | 94918F1 | 杠杆 | LEVER | 1 |
| 9 | 58998 | PIN COWL LATCH LEVER TO HINGE | 1 | |
| 10 | 55455 | 顶罩后部锁钩 | HOOK TOP COWL LTECH-REAR | 1 |
| 11 | 22956 | 螺钉(.250-28 x .880) 后锁钩至顶盖 | SCREW (.250-28 x .880) REAR HOOK TO TOP COWL | 2 |
| 12 | 26992 | 锁紧垫圈(.250)不锈钢 后锁钩螺钉 | LOCKWASHER (.250) Stainless Steel REAR HOOK SCREW | 2 |
| 13 | 73401 | 顶罩支撑框架 | FRAME SUPPORT-TOP COWL | 1 |
| 13 | 73401T | 框架 | FRAME | 1 |
| 14 | 37640 | 支撑框架橡胶支座 | MOUNT RUBBER-SUPPORT FRAME | 1 |
| 15 | 26993 | 橡胶支座锁紧垫圈（0.312） | LOCKWASHER (.312) RUBBER MOUNT | 1 |
| 15 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 1 |
| 16 | 28770 | 橡胶支座螺母（0.312-24不锈钢） | NUT (.312-24) Stainless Steel RUBBER MOUNT | 1 |
| 17 | 37562 | 不锈钢螺钉(.312-18 x 1.00) | SCREW (.312-18 x 1.00) Stainless Steel | 2 |
| 18 | 26993 | 支撑框架螺钉锁紧垫圈（0.312） | LOCKWASHER (.312) SUPPORT FRAME SCREW | 2 |
| 18 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 19 | 90435 | 顶罩框架橡胶支架 | MOUNT RUBBER-TOP COWL FRAME | 3 |
| 20 | 20184 | 螺母(1/4-28X7/32)橡胶支架(上部) | NUT (1/4-28X7/32) RUBBR MOUNT (UPPER) | 6 |
| 20 | 8M0207775 | 螺母 @5 | NUT @5 | 6 |
| 21 | 52468 | 顶罩支撑支架-后部 | BRACKET TOP COWL SUPPORT-REAR | 1 |
| 22 | 31014 | 后支撑支架橡胶座 | MOUNT RUBBER-REAR SUPPORT BRACKET | 2 |
| 23 | 26992 | 不锈钢锁紧垫圈(.250)橡胶支座 | LOCKWASHER (.250) Stainless Steel RUBBER MOUNT | 2 |
| 24 | 29598 | 螺母 (.250-28) 不锈钢橡胶支座 | NUT (.250-28) Stainless Steel RUBBER MOUNT | 2 |
| 25 | 37562 | 螺丝(.312-18 x 1.00)不锈钢后支架至框架 | SCREW (.312-18 x 1.00) Stainless Steel REAR BRACKET TO FRAME | 4 |
| 26 | 26993 | 锁紧垫圈(.312)后支架螺丝 | LOCKWASHER (.312) REAR BRACKET SCREW | 4 |
| 26 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 4 |
| 27 | 37562 | 不锈钢螺钉(.312-18 x 1.00) | SCREW (.312-18 x 1.00) Stainless Steel | 4 |
| 28 | 26993 | 锁紧垫圈(.312)后支架螺丝 | LOCKWASHER (.312) REAR BRACKET SCREW | 4 |
| 28 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 4 |
| 29 | 99649T | 框架前支撑 | FRAME FRONT SUPPORT | 1 |
| 30 | 37562 | 螺丝(.312-18 x 1.00)不锈钢消音器盖 | SCREW (.312-18 x 1.00) Stainless Steel SILENCER COVER | 2 |
| 31 | 26993 | 锁紧垫圈(.312)框架螺丝 | LOCKWASHER (.312) FRAME SCREW | 2 |
| 31 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 32 | 89590 | 消音器盖 | COVER SILENCER | 1 |
| 33 | 76168A2 | 消音器盖衬垫 | GASKET SILENCER COVER | 1 |
| 34 | 28638 | 螺钉(.250-20 x .750) | SCREW (.250-20 x .750) | 2 |

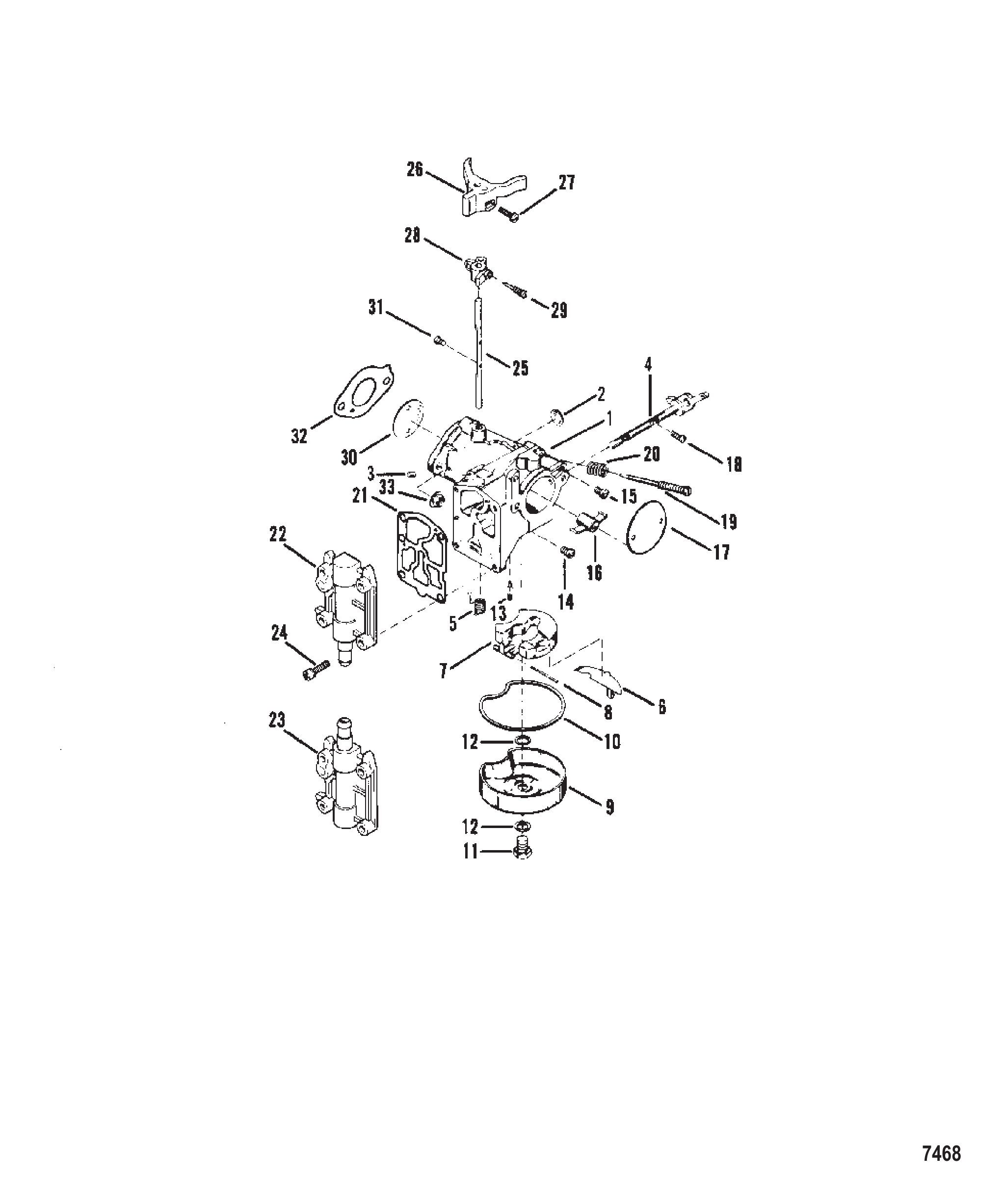

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 6517A33 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 6517A34 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 6517A64 | 化油器KT-底置 | CARBURETOR KT-BOT | 1 |
| 2 | NSS | 大型主体通道(不单独销售) | NOT SOLD SEPARATE Large Body Channel | 2 |
| 3 | NSS | 主体通道(不单独销售) | NOT SOLD SEPARATE Body Channel | 6 |
| 4 | 96773A1 | 阻风门轴总成 | SHAFT ASSEMBLY Choke | 2 |
| 4 | 9296A1 | 阻风门轴套件 | CHOKE SHAFT KIT | 2 |
| 5 | NSS | 回位-节气门轴(不单独销售) | NOT SOLD SEPARATE Return-Throttle Shaft | 2 |
| 6 | 7211A1 | 燃油杯挡板 | BAFFLE Fuel Bowl | 2 |
| 6 | 814483 | 燃油杯挡板 | BAFFLE Fuel Bowl | 2 |
| 7 | 9293 | 浮子 | FLOAT | 2 |
| 8 | NSS | 浮子固定件(不单独销售) | NOT SOLD SEPARATE Float Retaining | 2 |
| 9 | 5127 | 燃油杯 | BOWL Fuel | 2 |
| 10 | NSS | 燃油杯(不单独销售) | NOT SOLD SEPARATE Fuel Bowl | 2 |
| 11 | 9652 | 燃油杯至化油器螺钉 | SCREW Fuel Bowl to Carburetor | 2 |
| 12 | NSS | 燃油杯螺钉(不单独销售) | NOT SOLD SEPARATE Fuel Bowl Screw | 4 |
| 13 | 9022 | 进油针阀及弹簧 | NEEDLE AND SPRING Inlet | 2 |
| 14 | 1457 | 主量孔(.057) | JET Main Fuel (.057) | 2 |
| 15 | 7335 | 省油量孔(.098) | JET (.098) Economizer (.098) | 2 |
| 16 | 64677 | 喉管 | VENTURI | 2 |
| 17 | 8665 | 阻风门片 | SHUTTER Choke | 2 |
| 18 | NSS | 阻风门片至轴连接件(不单独销售) | NOT SOLD SEPARATE Choke Shutter to Choke Shaft | 4 |
| 19 | NSS | 怠速混合气调节件(不单独销售) | NOT SOLD SEPARATE Idle Mixture | 2 |
| 20 | NSS | 怠速混合气螺钉(不单独销售) | NOT SOLD SEPARATE Idle Mixture Screw | 2 |
| 21 | NSS | 不单独销售 燃油泵 | NOT SOLD SEPARATE Fuel Pump | 2 |
| 22 | 9653 | 盖板(上化油器) | COVER Plate (Upper Carburetor) | 1 |
| 23 | 9654 | 盖板(下化油器) | COVER Plate (Lower Carburetor) | 1 |
| 24 | 5132 | 滤清器体至化油器螺钉 | SCREW Strainer Body to Carburetor | 8 |
| 24 | 808612 | 螺钉及垫圈 (#8-32 x .750) | SCREW AND WASHER (#8-32 x .750) | 8 |
| 25 | 9020 | 油门轴 | SHAFT Throttle | 1 |
| 25 | 9656 | 油门轴 | SHAFT Throttle | 1 |
| 26 | 92880 | 节气门杠杆(上化油器) | LEVER Throttle (Upper Carburetor) | 1 |
| 27 | 20847 | 节气门杠杆螺钉(上化油器) | SCREW Throttle Lever (Upper Carburetor) | 2 |
| 27 | 6027 | 螺钉 | SCREW | 2 |
| 28 | 97 | 节气门杠杆(下化油器) | LEVER Throttle (Lower Carburetor) | 1 |
| 28 | 8146791 | 油门杆 | LEVER Throttle | 1 |
| 29 | 6027 | 节气门杠杆螺钉(下化油器) | SCREW Throttle Lever (Lower Carburetor) | 1 |
| 30 | 9649 | 节气门片 | SHUTTER Throttle | 2 |
| 31 | NSS | 节气门片至轴连接件(不单独销售) | NOT SOLD SEPARATE Throttle Shutter to Throttle Shaft | 4 |
| 32 | 757911 | 化油器法兰衬垫 | GASKET Carburetor Flange | 2 |
| 33 | 64809 | 化油器安装柱螺母 | NUT Carburetor Mounting Stud | 4 |
| -- | 9650 | 维修套件 | REPAIR KIT | 2 |
| -- | 9651 | 衬垫套件 | GASKET SET | 2 |

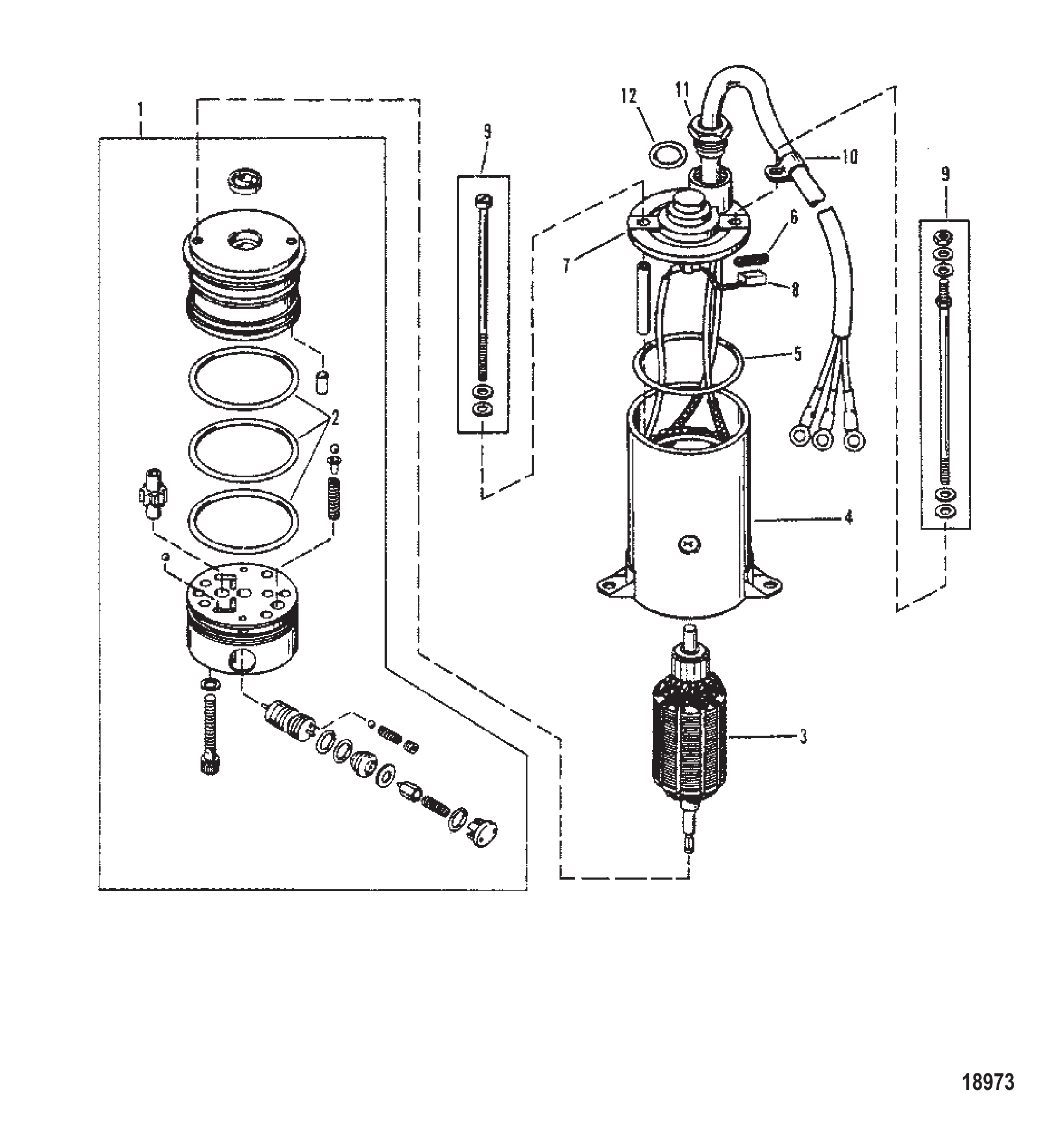

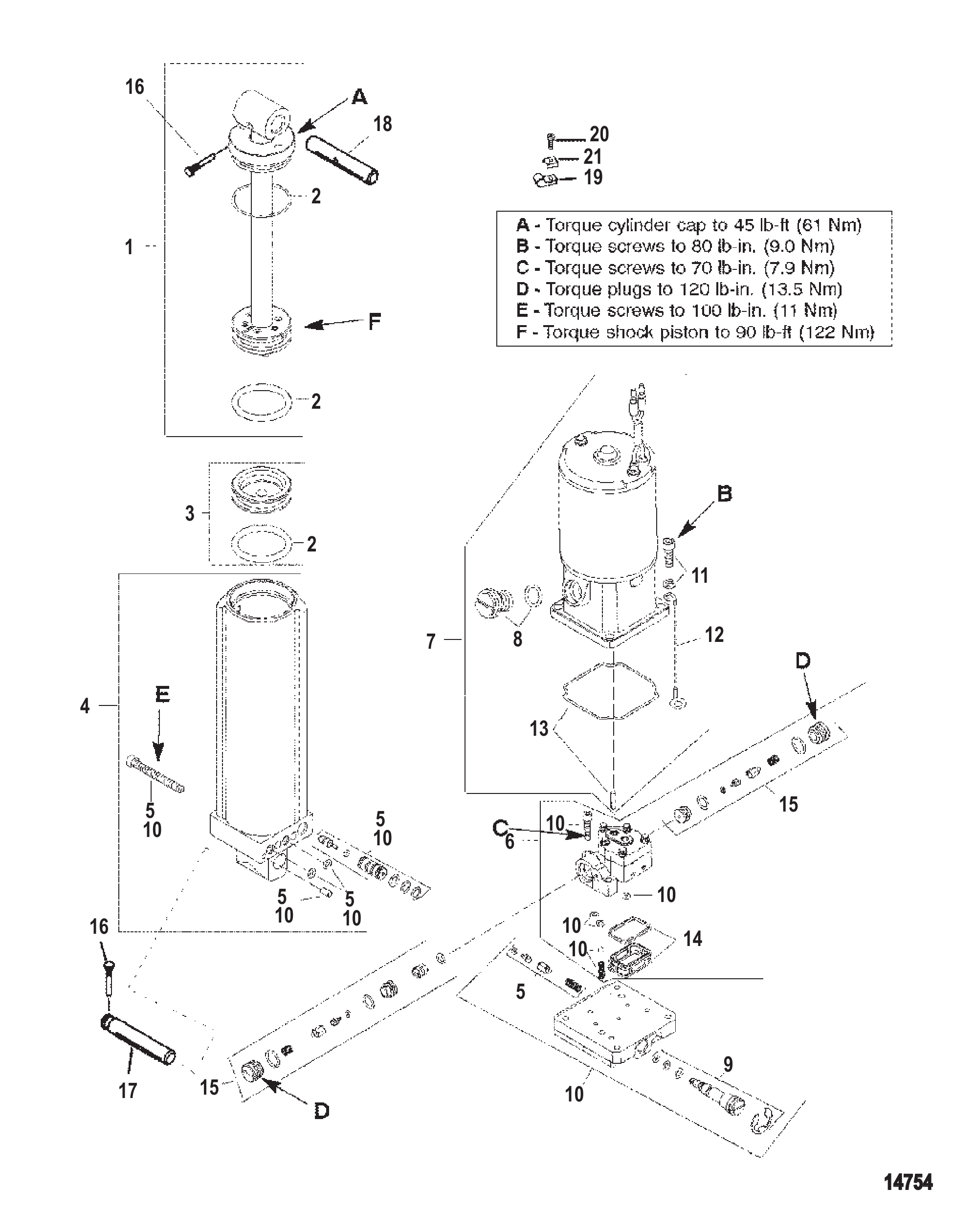

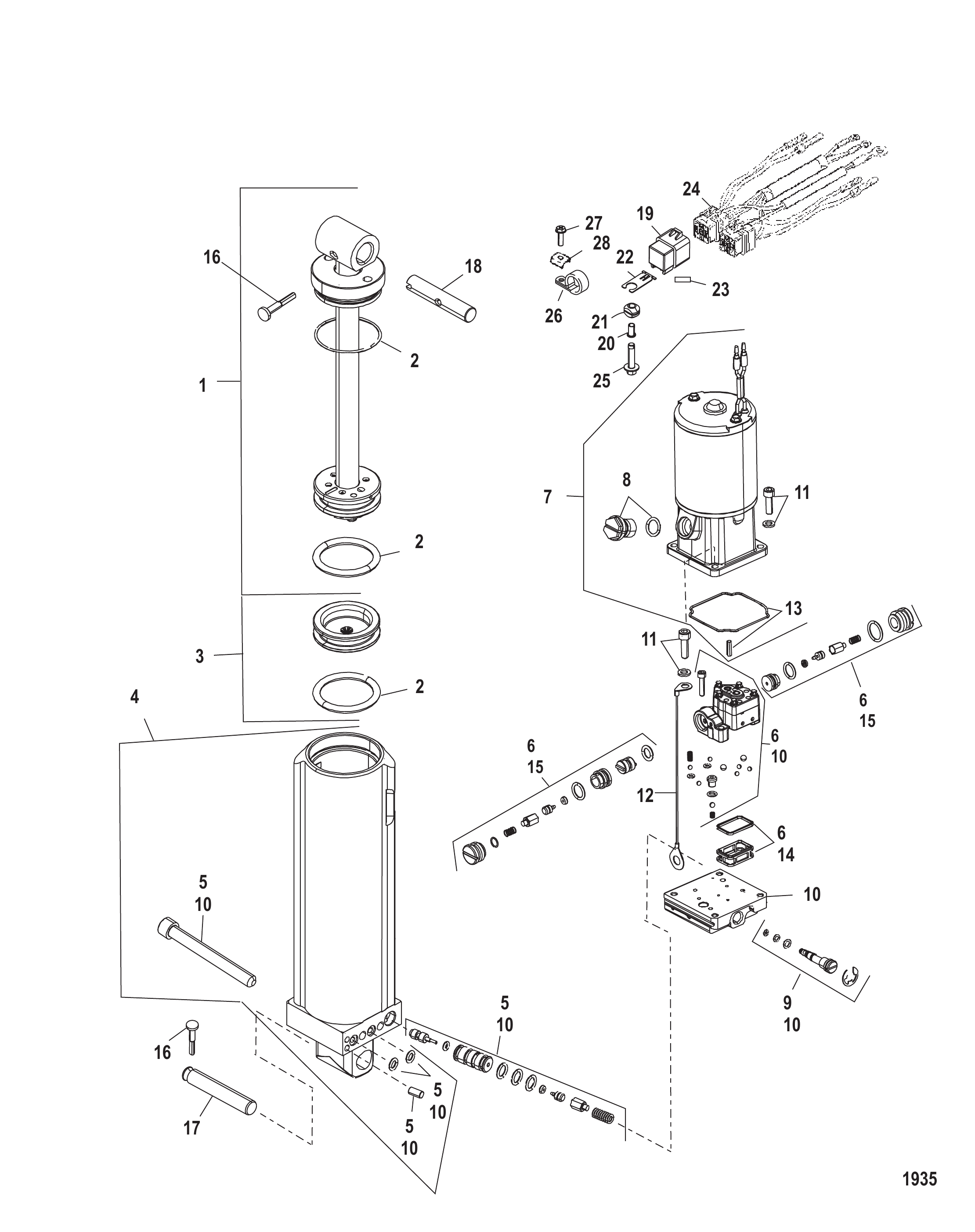

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

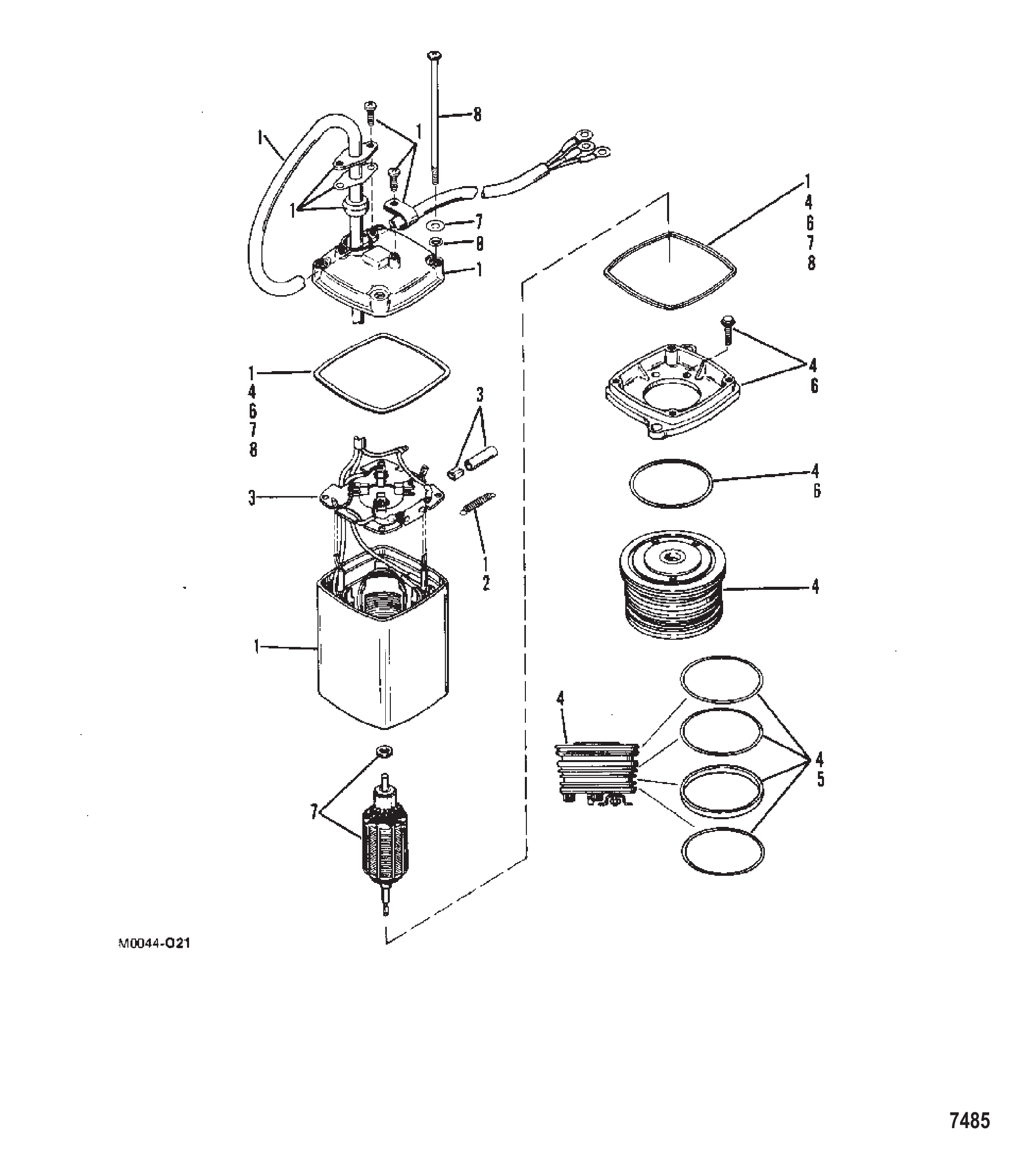

| - | 830250T3 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 1 | 811666A1 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 1 | 8M0171821 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 2 | 809872A2 | O型圈维修包 | O-RING KIT Rebuild | 1 |
| 2 | 8M0171819 | O型圈套件 | O-RING KIT | 1 |
| 3 | 810776A1 | 记忆活塞总成 | PISTON ASSEMBLY Memory | 1 |
| 3 | 8M0171822 | 记忆活塞套件 | MEMORY PISTON KIT | 1 |
| 4 | 811669A1 | 气缸总成 | CYLINDER ASSEMBLY | 1 |
| 4 | 893916A01 | 气缸总成 | CYLINDER ASSEMBLY | 1 |
| 5 | 809873A1 | 配平限位阀套件 | VALVE KIT Trim Limit | 1 |
| 5 | 893905A02 | 阀套件 | VALVE KIT | 1 |
| 6 | 809874A1 | 泵总成 | PUMP ASSEMBLY | 1 |
| 6 | 893906A02 | 泵总成 | PUMP ASSEMBLY | 1 |
| 7 | 809885A2 | 电机套件 | MOTOR KIT | 1 |
| 7 | 893907A02 | 电机套件 | MOTOR KIT | 1 |
| 8 | 8134351 | 堵头 | PLUG | 1 |
| 9 | 813442A2 | 手动释放总成 | MANUAL RELEASE ASSEMBLY | 1 |
| 9 | 893929A01 | 安全阀套件 | VALVE KIT Relief | 1 |
| 10 | 809875A1 | 歧管套件 | MANIFOLD KIT | 1 |
| 10 | 893909A02 | 歧管套件 | MANIFOLD KIT | 1 |
| 11 | 809876A1 | 电机螺钉套件 | SCREW KIT Motor | 1 |
| 12 | 88238A18 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 13 | 809877A1 | 驱动轴/密封套件 | DRIVESHAFT/SEAL KIT | 1 |
| 14 | 809878A1 | 滤清器套件 | FILTER KIT | 1 |
| 14 | 893912A02 | 滤清器套件 | FILTER KIT | 1 |
| 15 | 809879A1 | 提升阀套件 | POPPET KIT | 1 |
| 15 | 893913A02 | 提升阀套件 | POPPET KIT | 1 |
| - | 809880A1 | 完整配平O型圈套件 | O-RING KIT Complete Trim | 1 |
| - | 893914A02 | O型圈套件 | O-RING KIT | 1 |
| 16 | 821539 | 三叶销 | PIN Trilobe | 2 |
| 17 | 818898 | 锚销 | PIN Anchor | 1 |
| 18 | 996251 | 轴 | SHAFT | 1 |
| 18 | 99625002 | 轴 | SHAFT | 1 |
| 19 | 22740 | 卡扣 | CLIP | 2 |
| 20 | 878609 | 螺钉 (#10-16 x .600) | SCREW (#10-16 x .600) | 1 |
| 21 | 69205 | C形垫圈 | C WASHER | 1 |
| 21 | 8M0084613 | C形垫圈 | C-WASHER | 1 |

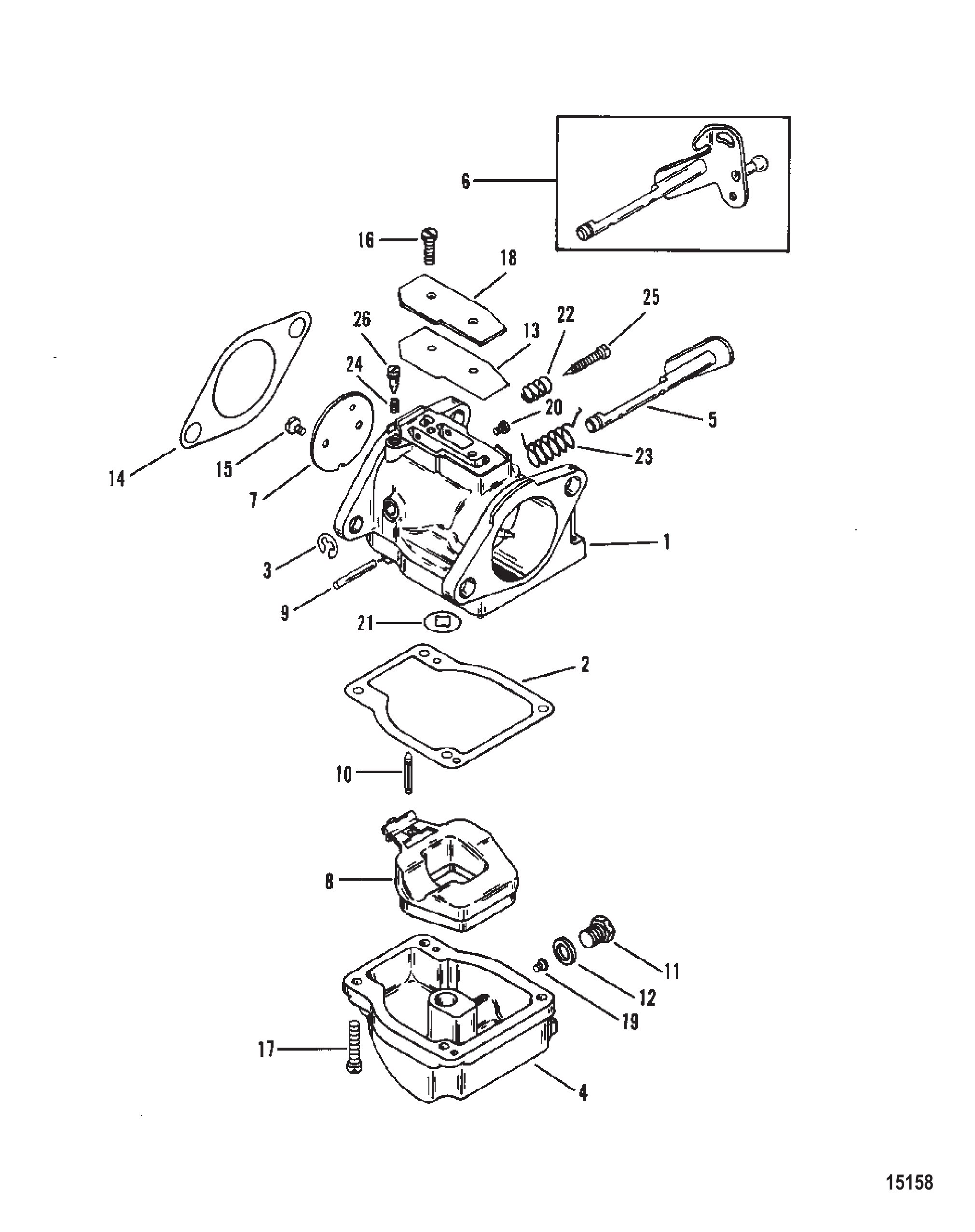

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

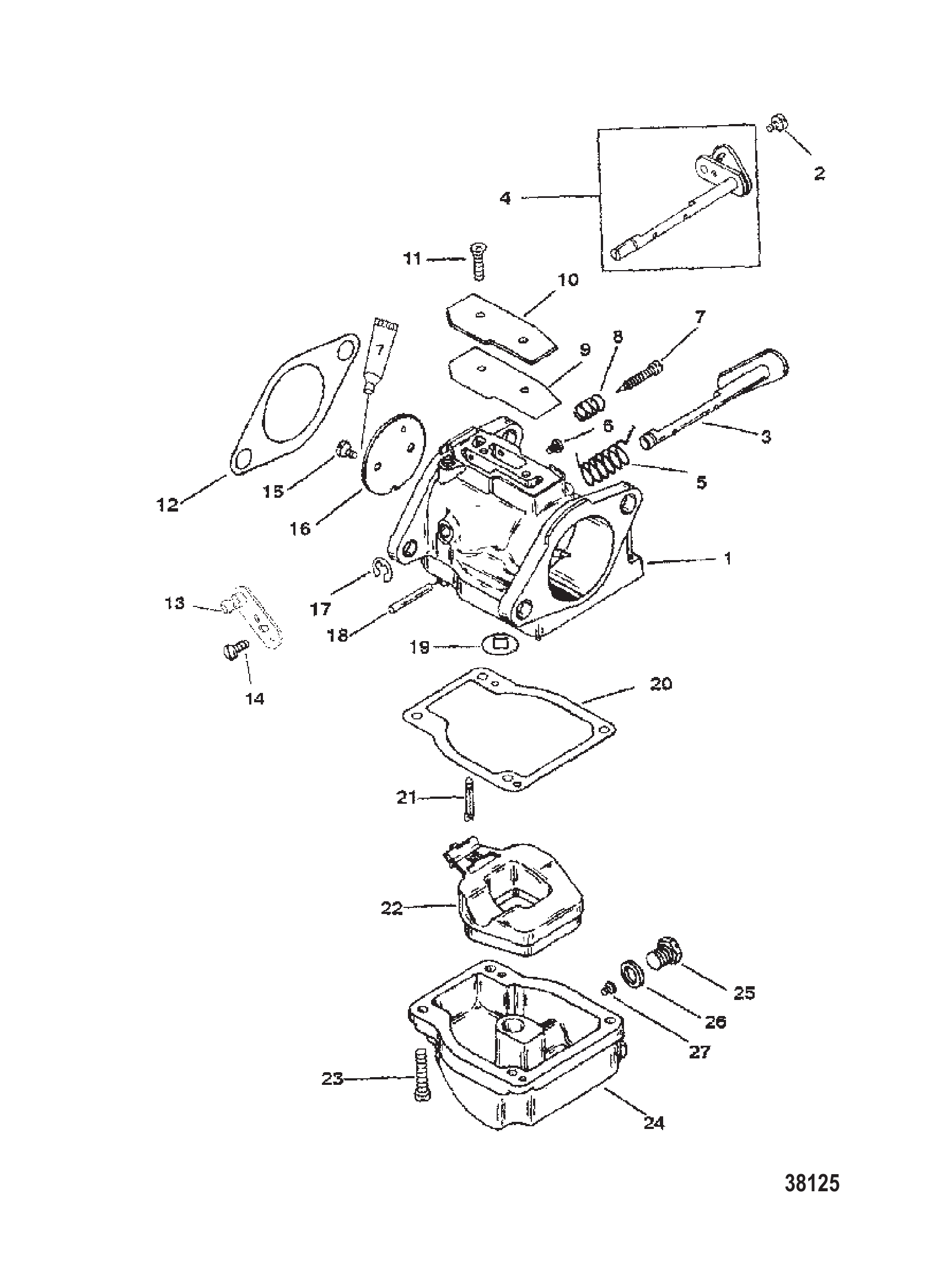

| 1 | 821679A17 | 化油器 | CARBURETOR | 1 |
| 1 | 821679A18 | 化油器 | CARBURETOR | 1 |
| 1 | 821679T18 | 化油器 | CARBURETOR | 1 |
| 1 | 821679A19 | 化油器 | CARBURETOR | 1 |
| 1 | 821679T19 | 化油器 | CARBURETOR | 1 |
| 1 | 821946A24 | 化油器 | CARBURETOR | 1 |
| 1 | 821946A45 | 化油器维修包 | CARBURETOR KIT | 1 |
| 1 | 821946A25 | 化油器 | CARBURETOR | 1 |
| 1 | 821946A46 | 化油器维修包 | CARBURETOR KIT | 1 |
| 1 | 821946A26 | 化油器 | CARBURETOR | 1 |
| 1 | 821946A47 | 化油器维修包 | CARBURETOR KIT | 1 |
| 1 | 821946A27 | 化油器 | CARBURETOR | 1 |
| 1 | 821946T42 | 化油器 | CARBURETOR | 1 |
| 1 | 821946A28 | 化油器 | CARBURETOR | 1 |
| 1 | 821946T43 | 化油器 | CARBURETOR | 1 |
| 1 | 821946A29 | 化油器 | CARBURETOR | 1 |
| 1 | 821946T44 | 化油器 | CARBURETOR | 1 |
| 2 | 823634 | 螺丝(上/下部) | SCREW (UPPER/BOTTOM) | 2 |
| 3 | 823632 | 油门轴 | SHAFT Throttle | 1 |
| 4 | 823633 | 油门轴 | SHAFT Throttle | 1 |
| 4 | 823636 | 油门轴 | SHAFT Throttle | 1 |
| 3 | 823632 | 节气门轴(上/下部) | SHAFT Throttle (UPPER/BOTTOM) | 2 |
| 4 | 823633 | 节气门轴(中央) | SHAFT Throttle (CENTER) | 1 |
| 5 | NSS | 不单独销售 油门回位弹簧 | NOT SOLD SEPARATE SPRING-THROTTLE RETURN | 3 |
| 6 | 6247 | 主量孔(0.090) | JET Main (.090) | 3 |
| 7 | NSS | 不单独销售 怠速针 | NOT SOLD SEPARATE IDLE NEEDLE | 3 |
| 8 | NSS | 不单独销售 怠速针弹簧 | NOT SOLD SEPARATE SPRING-IDLE NEEDLE | 3 |
| 9 | NSS | 不单独销售 盖板衬垫 | NOT SOLD SEPARATE GASKET-COVER PLATE | 3 |
| 10 | 811221 | 盖板 | COVER PLATE | 3 |
| 11 | 811220 | 盖板螺丝 | SCREW Cover Plate | 6 |
| 12 | 8144461 | 法兰衬垫 | GASKET Flange | 3 |
| 13 | 8113522 | 油泵杠杆(WME43/45-底部) | LEVER Oil Pump (WME43/45 - BOTTOM) | 1 |
| 14 | 8086121 | 杠杆固定螺钉(WME43/45-底部) | SCREW Lever Retainer (WME43/45 - BOTTOM) | 1 |
| 15 | F10155 | 节气门螺丝 | SCREW Throttle Valve | 6 |
| 16 | 879194023 | 节气门阀 | VALVE-THROTTLE | 3 |
| 17 | NSS | 不单独销售 挡圈 | NOT SOLD SEPARATE RETAINING RING | 3 |
| 18 | F10064 | 轴 | SHAFT | 3 |
| 19 | NSS | 不单独销售 喷油嘴衬垫 | NOT SOLD SEPARATE GASKET-NOZZLE WELL | 3 |
| 20 | NSS | 不单独销售 燃油杯衬垫 | NOT SOLD SEPARATE GASKET-FUEL BOWL | 3 |
| 21 | 879194011 | 进油阀 | VALVE Inlet | 3 |
| 22 | 9594 | 浮子 | FLOAT | 3 |
| 23 | 808612 | 螺钉及垫圈 (#8-32 x .750) | SCREW AND WASHER (#8-32 x .750) | 12 |
| 24 | 811695 | 燃油杯 | BOWL Fuel | 1 |
| 24 | 811693 | 燃油杯 | BOWL Fuel | 2 |
| 25 | 811694 | 塞套件 | PLUG KIT | 3 |
| 26 | NSS | 排水碗密封件(不单独销售) | NOT SOLD SEPARATE SEAL-BOWL DRAIN | 3 |
| 27 | 6246 | 量孔(.048) | JET (.048) | 3 |
| 27 | 6487 | 主量孔(0.060) | JET Main (.060) | 3 |
| 27 | 4217 | 主量孔(.062) | JET Main (.062) | 3 |
| - | 812867A97 | 衬垫套件 | GASKET SET | 1 |
| - | 8236354 | 化油器维修套件 | REPAIR KIT Carburetor | 1 |
| - | 8112231 | 化油器衬垫组 | GASKET SET Carburetor | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 0 | 88183801 | 零件手册-115EFI(四冲程) | PARTS MANUAL 115 EFI (4-Stroke) Parts Manual | 1 |
| 0 | 881980 | 维修手册 | SERVICE MANUAL | 1 |
| 0 | 881980R03 | SM O/B 115 EFI 4S | SM O/B 115 EFI 4S | 1 |
| 0 | 10225030 | 用户手册 | OWNERS MANUAL | 1 |
| 0 | 858610A31 | 燃油软管总成 | HOSE ASSEMBLY Fuel | 1 |
| 0 | 8M0038610 | 带注油球的燃油软管总成(9英尺) | HOSE ASSEMBLY Fuel (9 Feet) With Primer Bulb | 1 |
| 0 | 880177 | 组合扳手工具(10毫米) | SCRENCH TOOL (10 mm) | 1 |
| 0 | 881828 | 星形头工具套件 | STARBIT TOOL KIT | 1 |
| 0 | 881649A01 | 贴花套件 | DECAL SET | 1 |
| 0 | 881649A05 | 贴花套件 | DECAL SET | 1 |
| 0 | 881840A01 | 贴花套件 | DECAL SET | 1 |
| 0 | 881840A03 | 贴花套件 | DECAL SET | 1 |
| 0 | 881840A03 | 贴花套件 | DECAL SET | 1 |
| 0 | 881840A05 | 贴花套件 | DECAL SET | 1 |
| 0 | 881650A01 | 贴花套件 | DECAL SET | 1 |
| 0 | 881650A03 | 贴花套件 | DECAL SET | 1 |
| 0 | 881650A03 | 贴花套件 | DECAL SET | 1 |
| 0 | 881702A01 | 贴花套件 | DECAL SET | 1 |
| 0 | 881839A01 | EPA标签信息贴花 | DECAL EPA Label Information | 1 |
| 0 | 881839A02 | EPA标签信息贴花 | Decal EPA Label Information | 1 |
| 0 | 881839A03 | EPA标签信息贴花 | DECAL EPA Label Information | 1 |

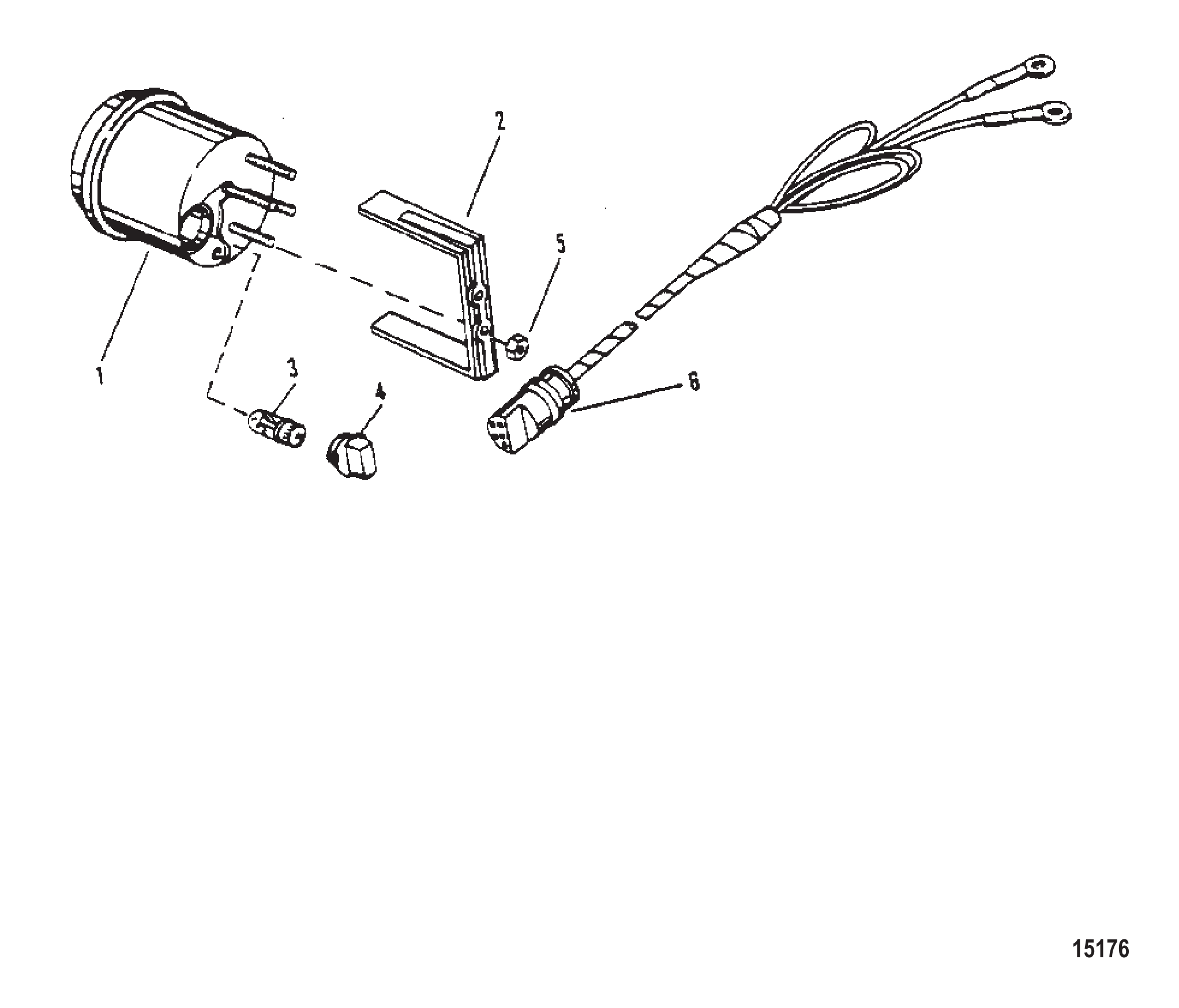

| 0 | 816834A1 | 转速表 | TACHOMETER | 1 |
| 0 | 816932A1 | 温度表 | TEMPERATURE GAUGE | 1 |
| 0 | 86306 | 适配器 | ADAPTER | 1 |
| 0 | 86306A01 | 适配器 | ADAPTER | 1 |
| 0 | 817054A3 | 水压表总成 | GAUGE ASSEMBLY Water Pressure | 1 |
| 0 | 821400A2 | 动力升降倾斜传感器套件 | SENDER KIT Power Trim | 1 |
| 0 | 8M0074845 | ORD 8M0098264 | ORD 8M0098264 | 1 |
| 0 | 92876A8 | 转向安装套件 | ATTACHING KIT Steering | 1 |
| 0 | 92876A9 | 双机延长套件 | EXTENSION KIT Dual Engine | 1 |
| 0 | 883040A1 | 转速表模块套件 | TACH MODULE KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

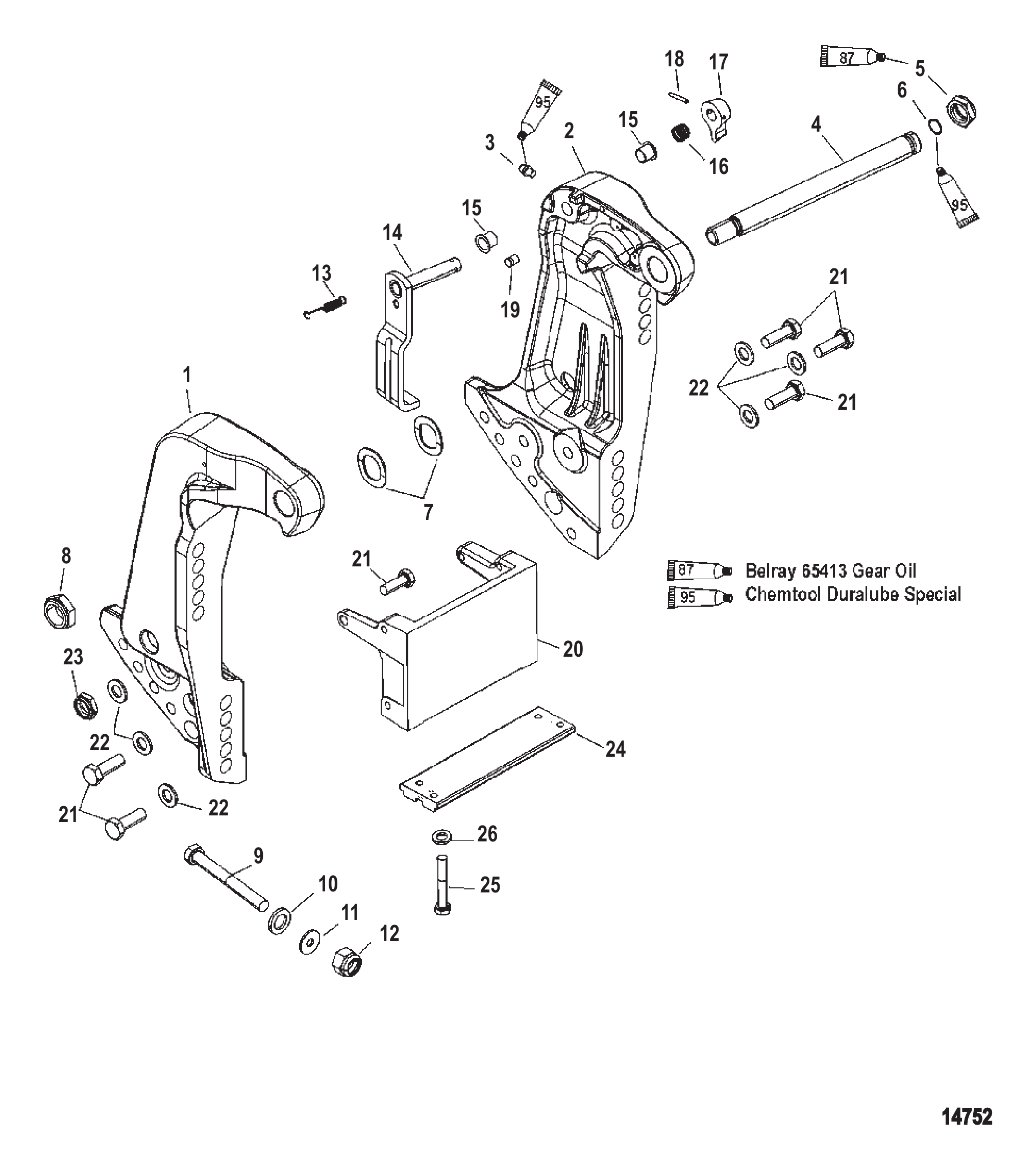

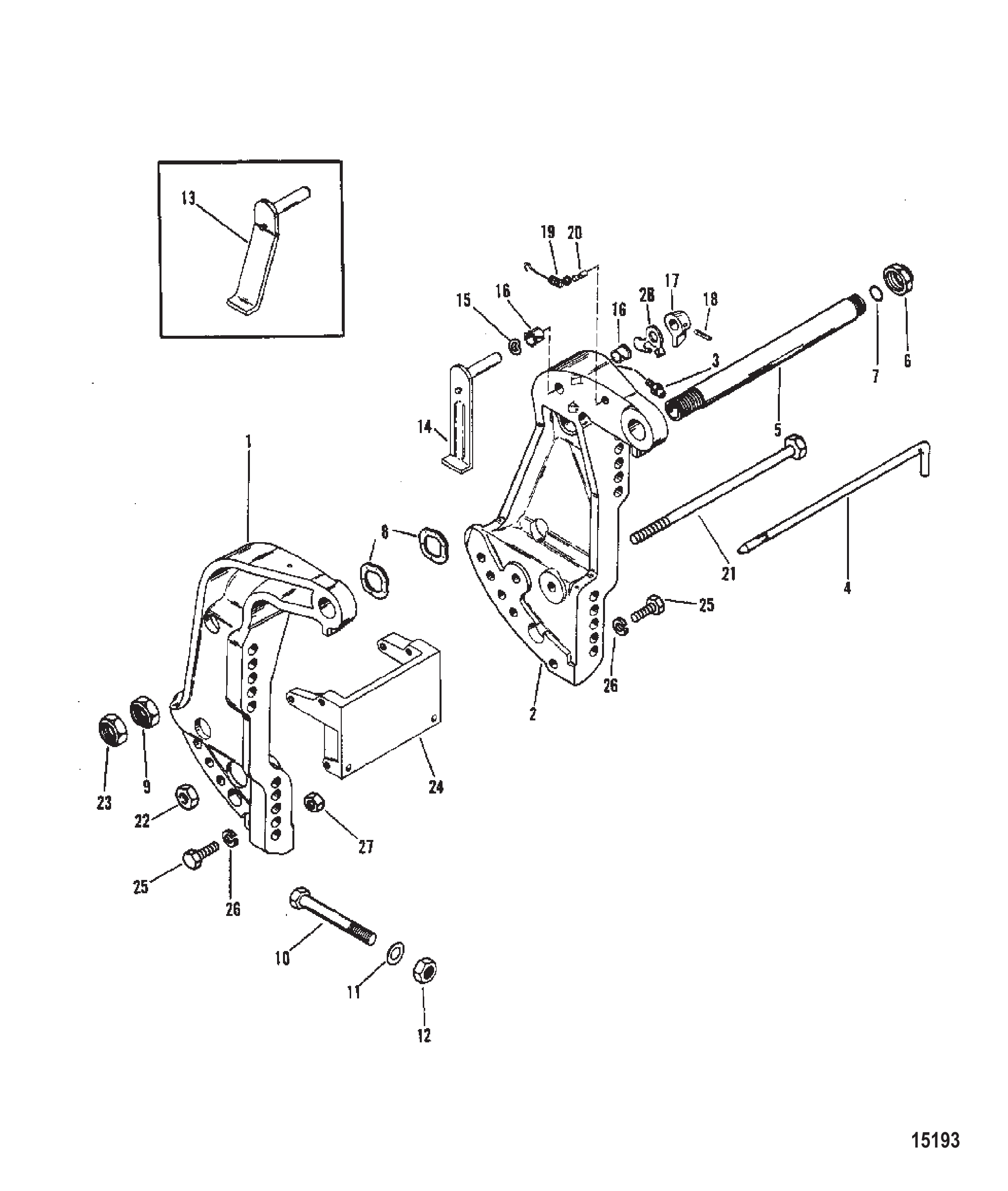

| 1 | 828334F1 | 艉板支架 | BRACKET Transom | 1 |
| 2 | 828333A3 | 艉板支架总成 | BRACKET ASSEMBLY Transom | 1 |
| 2 | 828333T07 | 艉板支架总成-左舷 | BRACKET ASSEMBLY Transom - Port | 1 |
| 3 | 98727 | 润滑脂接头 | FITTING Grease | 1 |
| 3 | 8M0169588 | 润滑脂接头 | FITTING Grease | 1 |
| 4 | 99170A2 | 倾斜管套件 | TUBE KIT Tilt | 1 |
| 4 | 826125A1 | 倾斜管 | TILT TUBE | 1 |
| 4 | 826125A1 | 倾斜管 | TILT TUBE | 1 |
| 5 | 859133 | 螺母(1.00-14) | NUT (1.00-14) | 1 |
| 5 | 82671327 | 螺母(1.0-14) | NUT (1.0-14) | 1 |
| 5 | 826135 | 尼龙锁紧螺母(1.00-14) | NUT Lock (1.00-14) Nylon Insert | 1 |
| 6 | 45711 | O型圈 (.612 x .103) | O-RING (.612 x .103) | 1 |
| 7 | 88750 | 波浪垫圈 (1.62 x 1.05) | WASHER Wave (1.62 x 1.05) | 2 |
| 8 | 858869 | 螺母 (.875-14) | NUT (.875-14) | 1 |
| 8 | 826164 | 螺母 (.875-14) | NUT (.875-14) | 1 |
| 8 | 8M0231351 | 锁紧螺母 | NUT Lock | 1 |
| 9 | 677551 | 螺钉(.500-20×4.500) | SCREW (.500-20 x 4.500) | 4 |
| 9 | 8M0149747 | 螺钉 | SCREW | 4 |
| 10 | 54012 | 垫圈(0.530×0.870×0.105不锈钢) | WASHER (.530 x .870 x .105) Stainless Steel | 4 |
| 10 | 8M0204665 | 垫圈(0.530×0.880×0.104 630不锈钢) | WASHER (.530 x .880 x .104) 630 Stainless Steel | 4 |
| 11 | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 11 | 8M0204648 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 12 | 82671117 | 螺母(.500-20) | NUT (.500-20) | 4 |
| 13 | 830899 | 张力弹簧 | SPRING Tension | 1 |
| 14 | 821176T1 | 倾斜锁定杆总成 | LEVER ASSEMBLY Tilt Lock | 1 |
| 14 | 8M0109798 | 倾斜锁定杆总成 | LEVER ASSEMBLY Tilt Lock | 1 |
| 15 | 65830 | 尼龙衬套 | NYLINER | 2 |
| 16 | 830900 | 压缩弹簧 | SPRING Compression | 1 |
| 17 | 99633 | 旋钮 | KNOB | 1 |
| 18 | 99615 | 槽销 | PIN Groove | 1 |
| 19 | 99617 | 销 | PIN | 1 |
| 19 | 893709 | 销 | PIN | 1 |
| 20 | 818771T1 | 锚支架 | BRACKET Anchor | 1 |
| 20 | 8M0086406 | 锚支架 | BRACKET Anchor | 1 |
| 21 | 858771 | 螺钉 (M10 x 30) | SCREW (M10 x 30) | 6 |
| 22 | 4002319 | 垫圈 | WASHER | 6 |
| 23 | 40114 | 螺母(M10 x 1.5) | NUT (M10 x 1.5) | 1 |
| 24 | 818298Q1 | 阳极套件 | ANODE KIT | 1 |
| 25 | 4000330 | 螺钉(M6x25) | SCREW (M6 x 25) | 2 |
| 25 | 8M0204707 | 不锈钢六角大帽螺钉(M6x25) | SCREW M6 x 25 HX HD CAP SS | 2 |
| 26 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 26 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 6228A1 | 顶罩总成(右舷黑色) | TOP COWL ASSEMBLY (STARBOARD BLACK) | 1 |
| 1 | 6228A3 | 顶罩总成(右舷灰色) | TOP COWL ASSEMBLY (STARBOARD GRAY) | 1 |
| 2 | 60297 | 燃油接头密封圈-罩 | SEAL FUEL CONNECTOR -COWL | 1 |
| 3 | 6227A1 | 顶罩总成(左舷黑色) | TOP COWL ASSEMBLY (PORT BLACK) | 1 |
| 3 | 6227A17 | 顶罩总成(左舷灰色) | TOP COWL ASSEMBLY (PORT GRAY) | 1 |
| 4 | 60298 | 控制电缆密封圈-罩 | SEAL CONTROL CABLES-COWL | 1 |
| 5 | 89717T | 罩体密封后支架 | BRACKET COWL SEALING-REAR | 1 |
| 6 | 698761 | 后支架密封圈 | SEAL REAR BRACKET | 2 |
| 7 | 90980 | 罩体铰链支架 | BRACKET COWL HINGE | 2 |
| 8 | 45561 | 铰链支架下部螺钉(.250-20 x 1.12) | SCREW (.250-20 x 1.12) HINGE BRACKET-LOWER | 2 |
| 8 | 455611 | 螺钉(.250-20 x 1.120) | SCREW (.250-20 x 1.120) | 2 |
| 8 | 75794 | 铰链支架上部螺钉(1-1/8英寸) | SCREW HINGE BRACKET-UPPER (1-1/8") | 2 |
| 9 | 75805 | 铰链支架螺钉帽(上部) | CAP HINGE BRACKET SCREW (UPPER) | 2 |
| 10 | 26992 | 铰链支架螺钉不锈钢锁紧垫圈(.250) | LOCKWASHER (.250) Stainless Steel HINGE BRACKET SCREW | 4 |
| 11 | 37998 | 铰链支架螺钉垫圈 | WASHER HINGE BRACKET SCREW | 4 |
| 12 | 75806 | 铰链支架螺钉垫圈(上部) | WASHER HINGE BRACKET SCREW (UPPER) | 2 |
| 13 | 90979 | 机罩铰链销 | PIN COWL HINGE | 4 |
| 14 | 28782 | 螺钉(.312-18 x .880)不锈钢 铰链销至机罩 | SCREW (.312-18 x .880) Stainless Steel PIN TO COWL | 4 |
| 15 | 26993 | 锁紧垫圈(.312)铰链销固定螺钉 | LOCKWASHER (.312) PIN ATTACHING SCREW | 4 |
| 15 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 4 |
| 16 | 46785A5 | 罩壳锁扣总成 | LATCH ASSEMBLY Cowl | 2 |
| 17 | 62628 | 机罩锁扣筒 | BARREL COWL LATCH | 2 |
| 18 | 31312 | 螺钉(#10-32 x 0.875)锁扣总成至筒体 | SCREW (#10-32 x 0.875) LATCH ASSEMBLY TO BARREL | 2 |
| 19 | 15222 | 机罩锁扣调节杆 | BAR ADJUSTMENT-COWL LATCH | 2 |
| 20 | 62629 | 机罩锁扣筒 | BARREL COWL LATCH | 2 |
| 21 | 62624 | 机罩锁扣张力弹簧 | SPRING TENSION-COWL LATCH | 2 |
| 22 | 30164 | 垫圈(.192 x .375 x .0312)不锈钢 调节杆至筒体 | WASHER (.192 x .375 x .0312) Stainless Steel ADJUSTMENT BAR TO BARREL | 2 |
| 23 | 45812 | 螺母(#10-32)不锈钢 调节杆至筒体 | NUT (#10-32) Stainless Steel ADJUSTMENT BAR TO BARREL | 2 |
| 23 | 859124 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 2 |
| 24 | 8774A6 | 前盖(黑色) | FRONT COVER (BLACK) | 1 |
| 24 | 8774A7 | 前盖(灰色) | FRONT COVER (GRAY) | 1 |
| 25 | 795511 | 隔音毯 | BLANKET SOUND ABSORBING | 1 |
| 26 | 14333 | 旋钮 | KNOB | 1 |
| 27 | 30771 | 垫圈 | WASHER | 2 |
| 28 | 75246 | 垫圈 | WASHER | 2 |
| 29 | 30772 | 弹簧 | SPRING | 1 |
| 30 | 29077 | 滚动销 | PIN Roll | 1 |
| 31 | 47341A1 | 拉绳与手柄套件 手动/应急启动(仅限手动启动) | ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING ONLY) | 1 |
| 31 | 47341A11 | 手动启动绳柄套件 | ROPE AND HANDLE KIT Manual Starting | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 99186 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 1 | 8995 | 泵总成 | PUMP ASSEMBLY | 1 |
| 1 | 826729A10 | ORD 8M0143217 | ORD 8M0143217 | 1 |
| 2 | 8996 | O型圈套件 | O-RING KIT | 1 |
| 3 | 8986 | 电枢 | ARMATURE | 1 |
| 4 | 8987 | 机架与磁场 | FRAME AND FIELD | 1 |
| 4 | 99186 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 5 | 8992 | 缸盖O型圈 | O-RING HEAD | 1 |
| 6 | 8993 | 电刷弹簧套件 | SPRING KIT BRUSH | 1 |
| 7 | 8988 | 换向器端盖 | HEAD COMMUTATOR END | 1 |
| 8 | 8989 | 电刷套件 | BRUSH KIT | 1 |
| 9 | 8994 | 贯穿螺栓套件 | THRU BOLT KIT | 1 |
| 10 | 8985 | 导线夹 | CLAMP LEAD WIRE | 1 |
| 11 | 8990 | 螺母密封垫 | NUT PACKING | 1 |
| 12 | 8991 | O型圈螺母密封 | O-RING PACKING NUT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

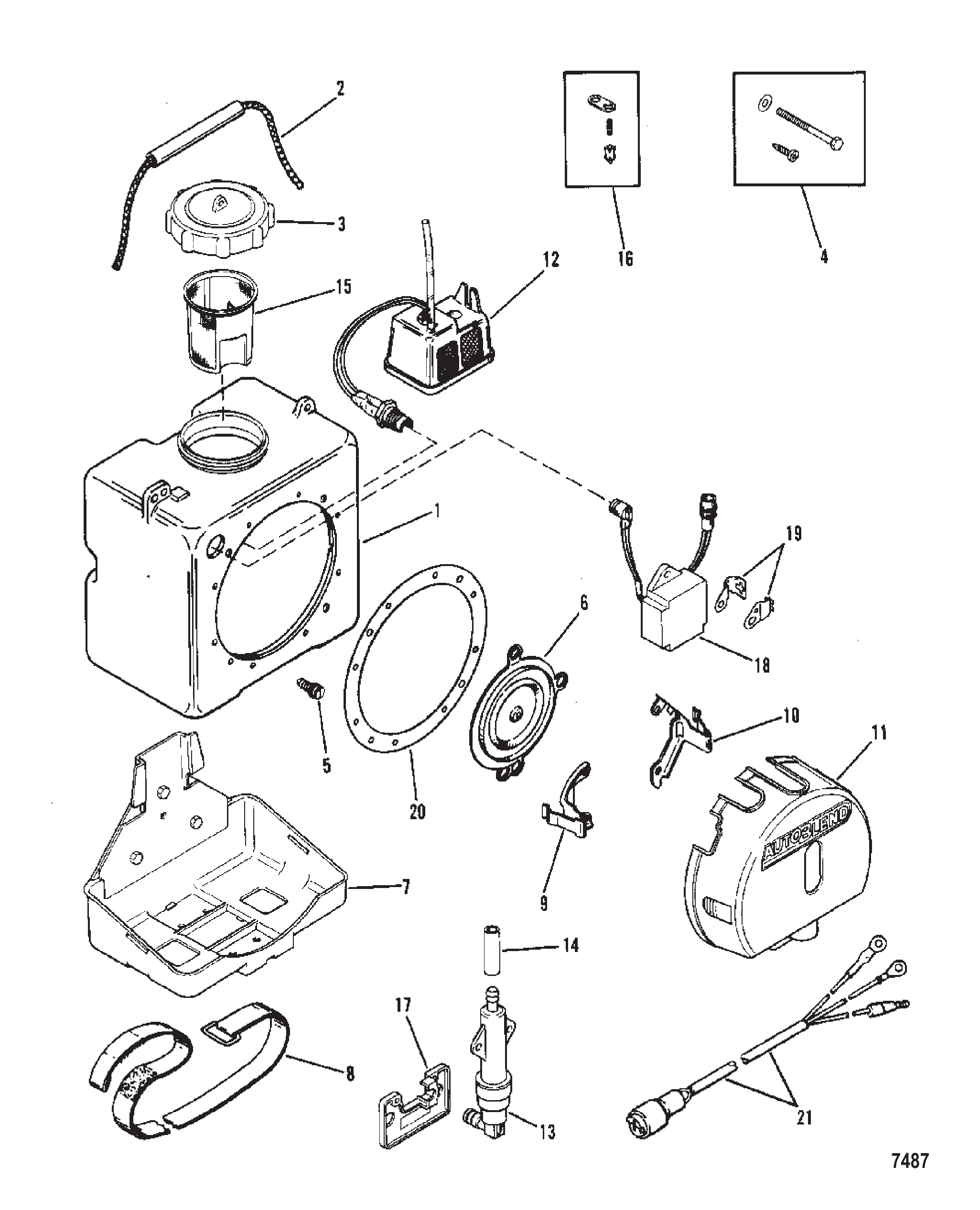

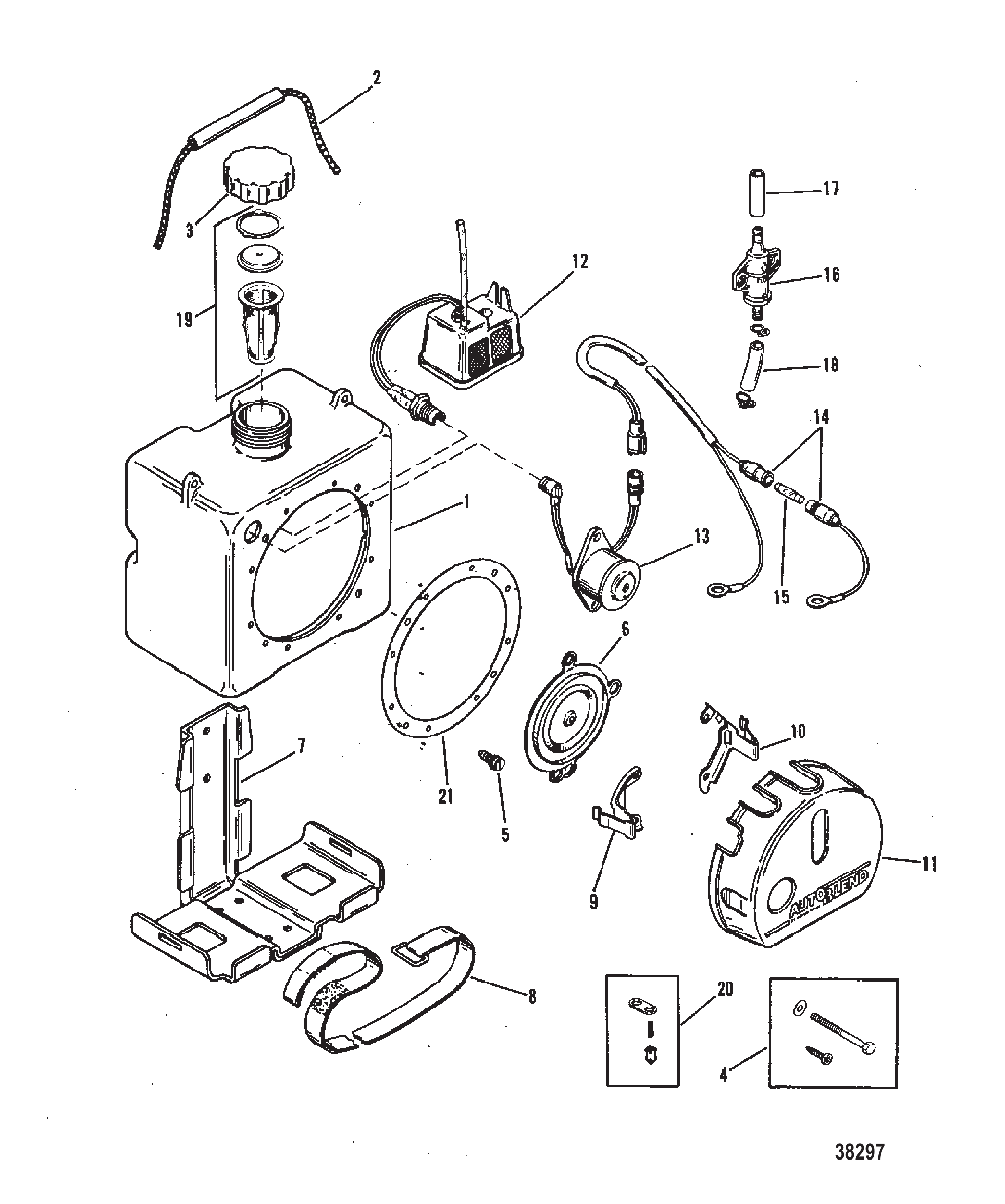

| - | 130194 | 自动混合装置 | AUTO BLEND ASSEMBLY | 1 |
| 1 | 16612 | 油箱套件 机油 | TANK KIT Oil | 1 |
| 2 | 13996 | 手柄套件 | HANDLE KIT | 1 |
| 3 | 16619 | CAP Oil Tank | 1 | |
| 4 | 16614 | 五金件套件 | HARDWARE KIT | 1 |
| 5 | 13979 | 放油塞套件 | PLUG KIT Drain | 1 |
| 6 | 16611 | 膜片组件 | DIAPHRAGM KIT | 1 |
| 7 | 16620 | 安装支架套件 | BRACKET KIT Mounting | 1 |
| 8 | 13993 | 箍带 | BAND | 1 |
| 9 | 13983 | 左支架 | BRACKET Left | 1 |
| 10 | 13984 | 右支架 | BRACKET Right | 1 |
| 11 | 16613 | 盖板 | COVER | 1 |
| 12 | 13985 | 机油滤清器/传感器套件 | FILTER/SENSOR KIT Oil | 1 |
| 13 | 18576 | 燃油滤清器套件 | FILTER KIT Fuel | 1 |
| 14 | 13992 | 乙烯基软管 | VINYL TUBE | 1 |
| 15 | 16618 | 机油滤网 | STRAINER Oil | 1 |
| 16 | 16615 | 止回阀套件 | CHECK VALVE KIT | 1 |
| 17 | 16621 | 安装板 | PLATE | 1 |
| 18 | 19265 | 模块套件 | MODULE KIT | 1 |
| 19 | 16623 | 支架套件 | BRACKET KIT | 1 |
| 20 | 16616 | 衬垫套件 | GASKET KIT | 1 |
| 21 | 14585A1 | 自动混合线束总成 | HARNESS ASSEMBLY Auto Blend | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

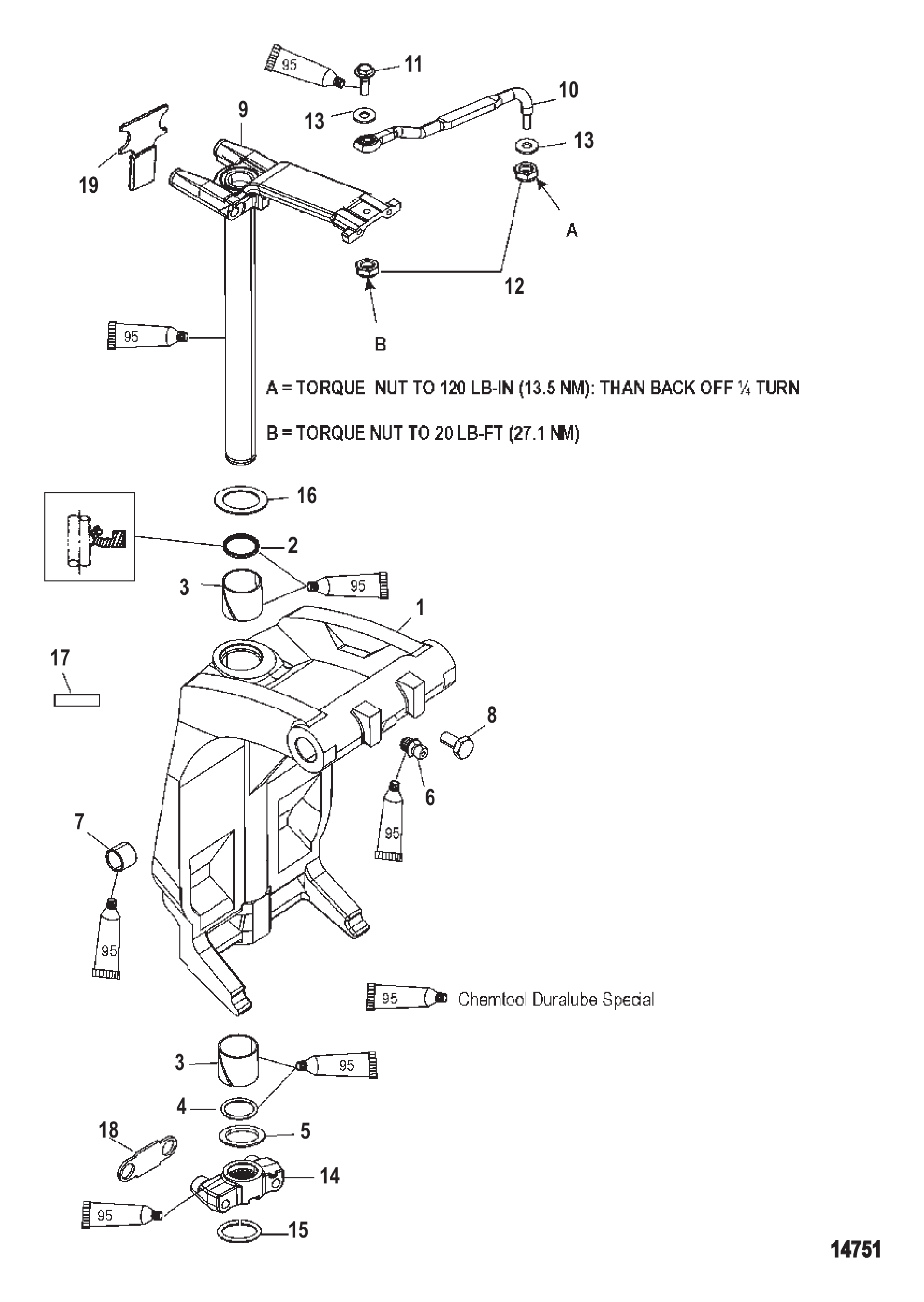

| 1 | 818904T1 | 旋转支架 | SWIVEL BRACKET | 1 |
| 2 | 87735 | 下油封 | SEAL Oil Lower | 1 |
| 3 | 818764 | 衬套 | BUSHING | 2 |
| 4 | 33504 | O型圈 | O-RING | 1 |
| 4 | 8M0214926 | O型圈 @10 | O RING @10 | 1 |
| 5 | 816039 | 隔套 | SPACER | 1 |
| 6 | 74036 | 润滑脂接头 | FITTING Grease | 2 |
| 6 | 8M0169589 | 润滑脂接头 | FITTING Grease | 2 |
| 7 | 821207 | 衬套 | BUSHING | 2 |
| 8 | 64014 | 螺钉(.250-28x.500) | SCREW (.250-28 x .500) | 2 |
| 9 | 99661A26 | 旋转销总成 | SWIVEL PIN ASSEMBLY | 1 |
| 9 | 99661A35 | 旋转销总成 | SWIVEL PIN ASSEMBLY | 1 |
| 10 | 92876A10 | 连杆总成 | LINK ROD ASSEMBLY | 1 |
| 10 | 92876A12 | 连杆总成 | LINK ROD ASSEMBLY | 1 |
| 11 | 849838 | 螺钉(.375-24 x 1.250) | SCREW (.375-24 x 1.250) | 1 |
| 12 | 826709113 | 不锈钢螺母 (.375-24) | NUT (.375-24) Stainless Steel | 2 |
| 12 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 2 |
| 13 | 37828 | 不锈钢垫圈 (.390 x .625 x .062) | WASHER (.390 x .625 x .062) Stainless Steel | 2 |
| 14 | 42961A1 | 底部轭架总成 | YOKE ASSEMBLY Bottom | 1 |
| 14 | 42961A06 | 底部轭架总成 | YOKE ASSEMBLY Bottom | 1 |
| 15 | 67684 | 挡圈 | RING Retaining | 1 |
| 16 | 816432 | 止推垫片 | THRUST WASHER | 1 |
| 17 | NSS | 不单独销售 贴纸, 序列号覆膜 | NOT SOLD SEPARATE Decal, Serial Overlaminate | 1 |
| 18 | 11288 | 下轭缓冲垫 | BUMPER Bottom Yoke | 1 |
| 18 | 11288001 | 下轭缓冲垫 | BUMPER Bottom Yoke | 1 |
| 19 | 88882 | 上轭缓冲垫 | BUMPER Top Yoke | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

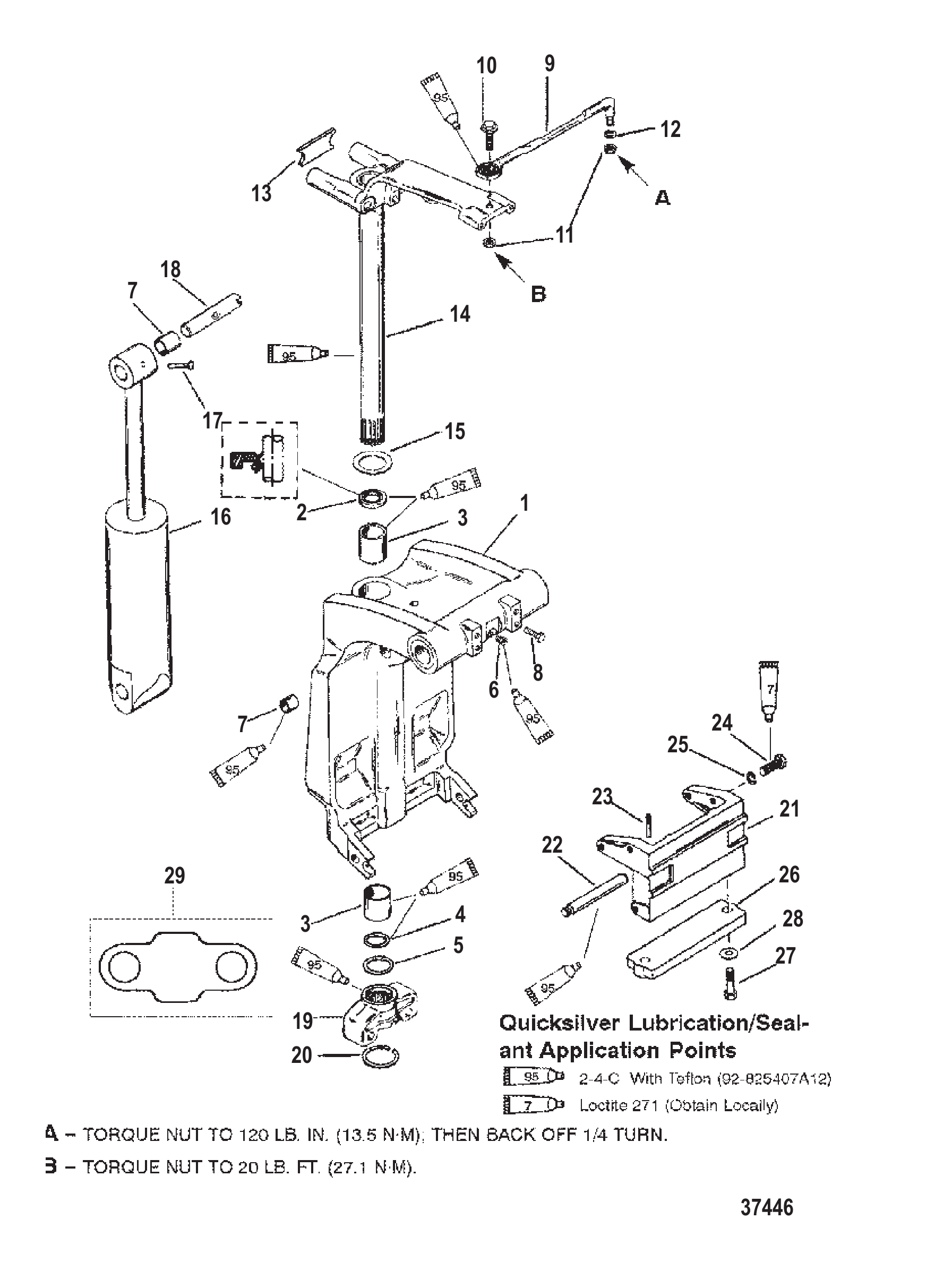

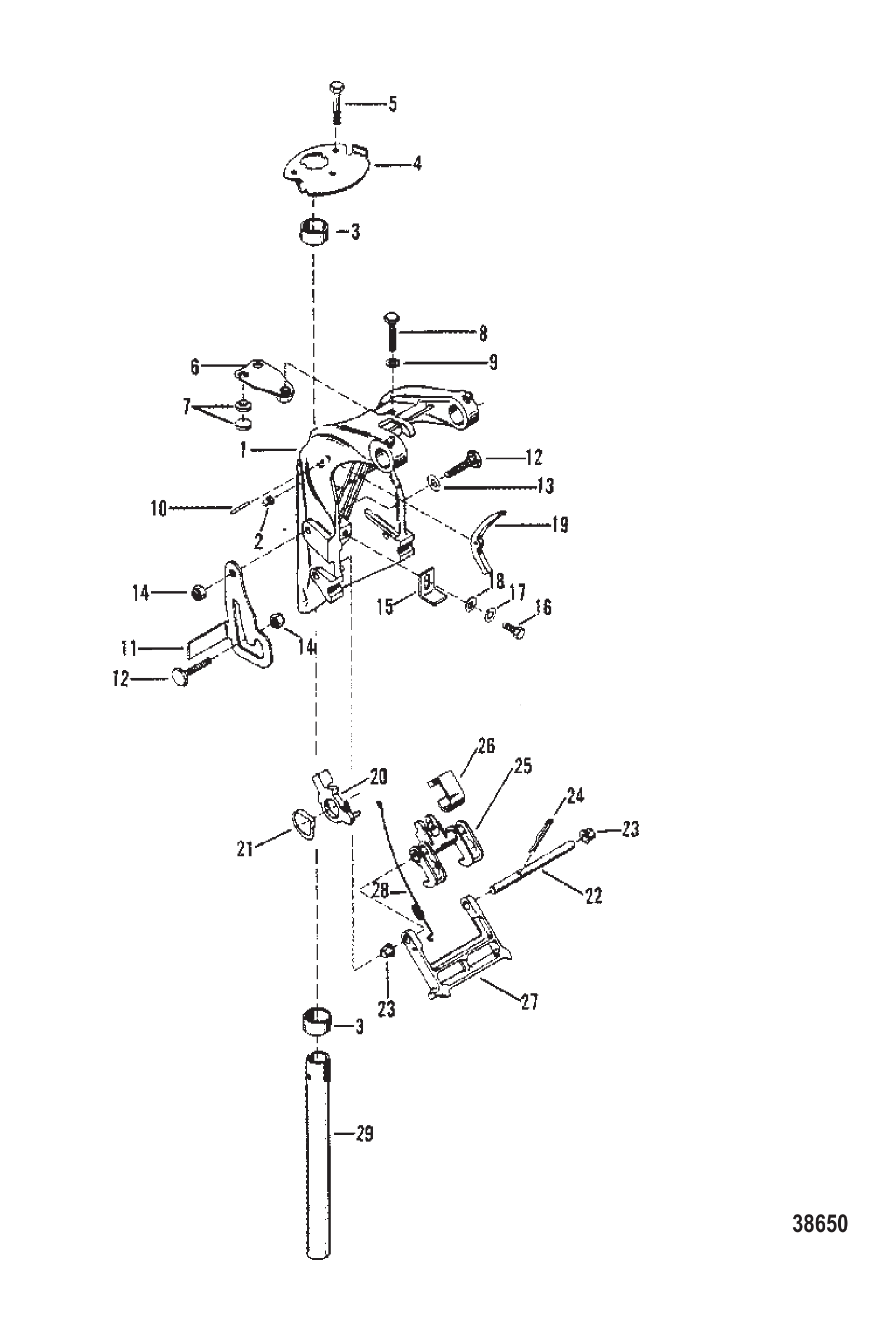

| 1 | 7324A1 | 旋转支架总成 | SWIVEL BRACKET ASSEMBLY | 1 |
| 2 | 74036 | 旋转支架润滑接头 | FITTING Grease SWIVEL BRACKET | 3 |
| 2 | 8M0169589 | 润滑脂接头 | FITTING Grease | 3 |
| 3 | 64028 | 转轴支架衬套 | BUSHING SWIVEL BRACKET | 2 |
| 4 | 77334 | 副驾驶板 | PLATE CO-PILOT | 1 |
| 5 | 78038 | 副驾驶盘至鞍座螺钉(.250-20x1.75) | SCREW (.250-20 x 1.75) CO-PILOT DISC TO SADDLE | 3 |
| 6 | 72845A1 | 副驾驶夹板总成 | PLATE ASSEMBLY CLAMP - CO-PILOT | 1 |
| 7 | 20203 | 摩擦盘 | DISC FRICTION | 4 |
| 8 | 36154 | 夹板调节螺钉(.250-28x1.380) | SCREW (.250-28 x 1.380) CLAMP PLATE ADJUSTING | 1 |
| 9 | 35462 | 垫圈(.2656 x .625 x .0625)不锈钢 | WASHER (.2656 x .625 x .0625) Stainless Steel | 1 |
| 10 | 25319 | 弹簧导向销(0.125x0.75英寸) | PIN (.125 x 0.75 Inches) SPRING GUIDE | 1 |
| 11 | 879841 | 倾斜止动杆总成 | LEVER ASSEMBLY TILT STOP | 1 |
| 11 | 87984A1 | 倾斜止动杆总成 | LEVER ASSEMBLY TILT STOP | 1 |
| 12 | 41433 | 倾斜止动杆螺钉(.250-28x1.00) | SCREW (.250-28 x 1.00) TILT STOP LEVER | 2 |
| 13 | 31030 | 杠杆锚定螺钉波形垫圈 | WAVE WASHER LEVER ANCHOR SCREW | 1 |
| 14 | 35888 | 倾斜止动杆螺钉不锈钢螺母(.250-28) | NUT (.250-28) Stainless Steel TILT STOP LEVER SCREW | 2 |
| 15 | 72794 | 倒挡锁止块 | STOP REVERSE LOCK | 1 |
| 16 | 71056 | 螺丝(.250-28 x .560)倒车挡块至旋转支架 | SCREW (.250-28 x .560) REVERSE STOP TO SWIVEL BRACKET | 1 |
| 17 | 26992 | 锁紧垫圈(.250)不锈钢倒车挡块螺丝 | LOCKWASHER (.250) Stainless Steel REVERSE STOP SCREW | 1 |
| 18 | 71055 | 垫圈倒车挡块螺丝 | WASHER REVERSE STOP SCREW | 1 |
| 19 | 63554 | 导向弹簧 | GUIDE SPRING | 1 |
| 20 | 79744 | 拖钓支架控制杆 | LEVER CONTROL - TROLL BRACKET | 1 |
| 21 | 63631 | 拖钓支架杠杆波形垫圈 | WAVE WASHER TROLL BRACKET LEVER | 1 |
| 22 | 71419 | 倒挡锁止杆至开关支架 | ROD REVERSE LOCK TO SWITCH BRACKET | 1 |
| 23 | 26841 | 尼龙衬套-倒挡锁止杆连杆 | BUSHING NYLON - REVERSE LOCK LEVER ROD | 2 |
| 24 | 45882 | 倒挡锁止杆至连杆开口销 | COTTER PIN REVERSE LOCK LEVER TO ROD | 1 |
| 25 | 63628 | 倒挡锁止杆 | LEVER REVERSE LOCK | 1 |
| 25 | 63628T | 杠杆 | LEVER | 1 |
| 26 | 61007 | 固定座-倒挡锁止杆 | RETAINER ROD - REVERSE LOCK | 1 |
| 27 | 63559 | 拖钓支架 | BRACKET TROLL | 1 |
| 27 | 63559T | 支架 | BRACKET | 1 |
| 28 | 63630 | 拖钓支架延伸弹簧 | SPRING EXTENSION - TROLL BRACKET | 1 |
| 29 | 66559 | 旋转支架至鞍座管道 | TUBE SWIVEL BRACKET TO SADDLE | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

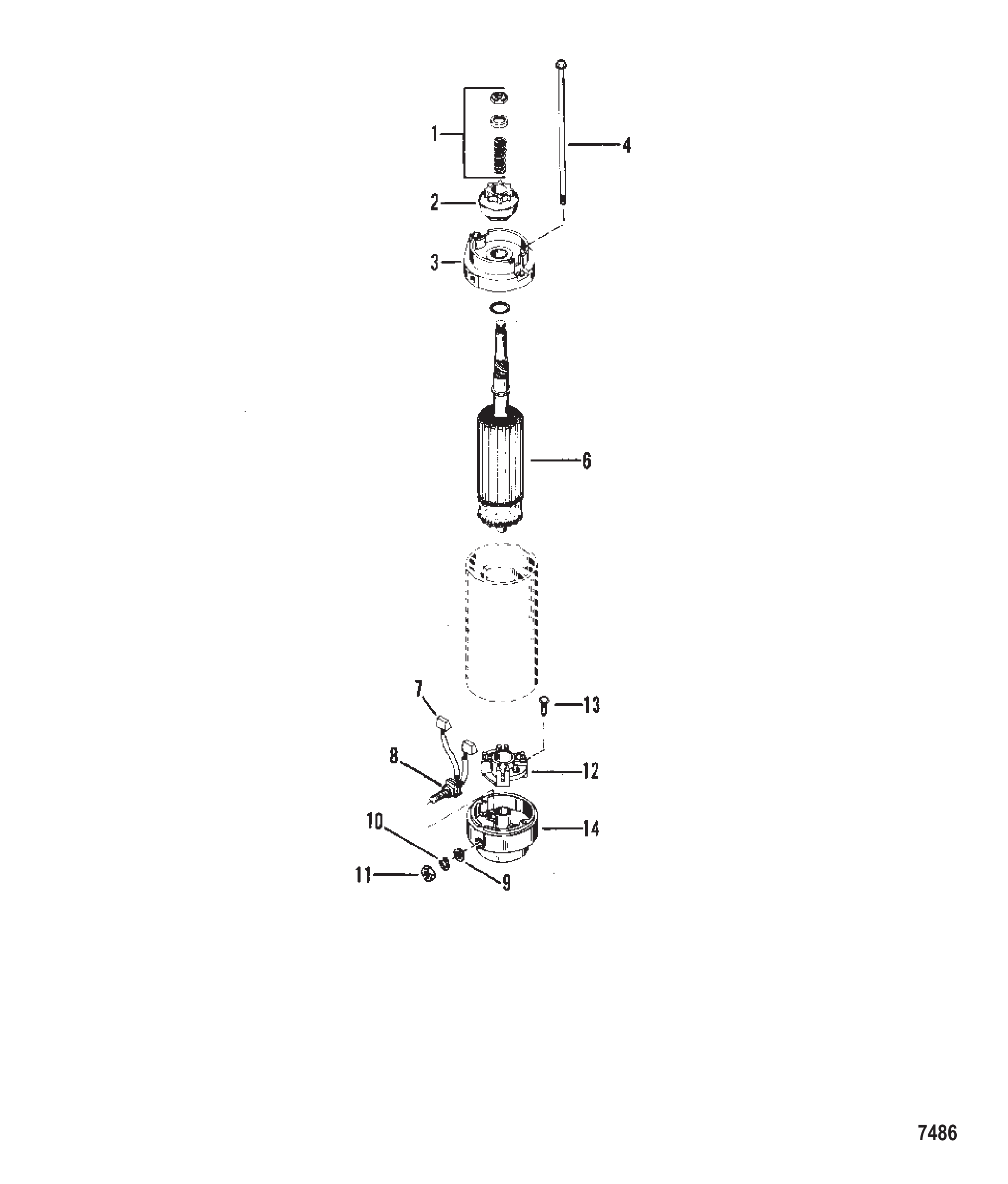

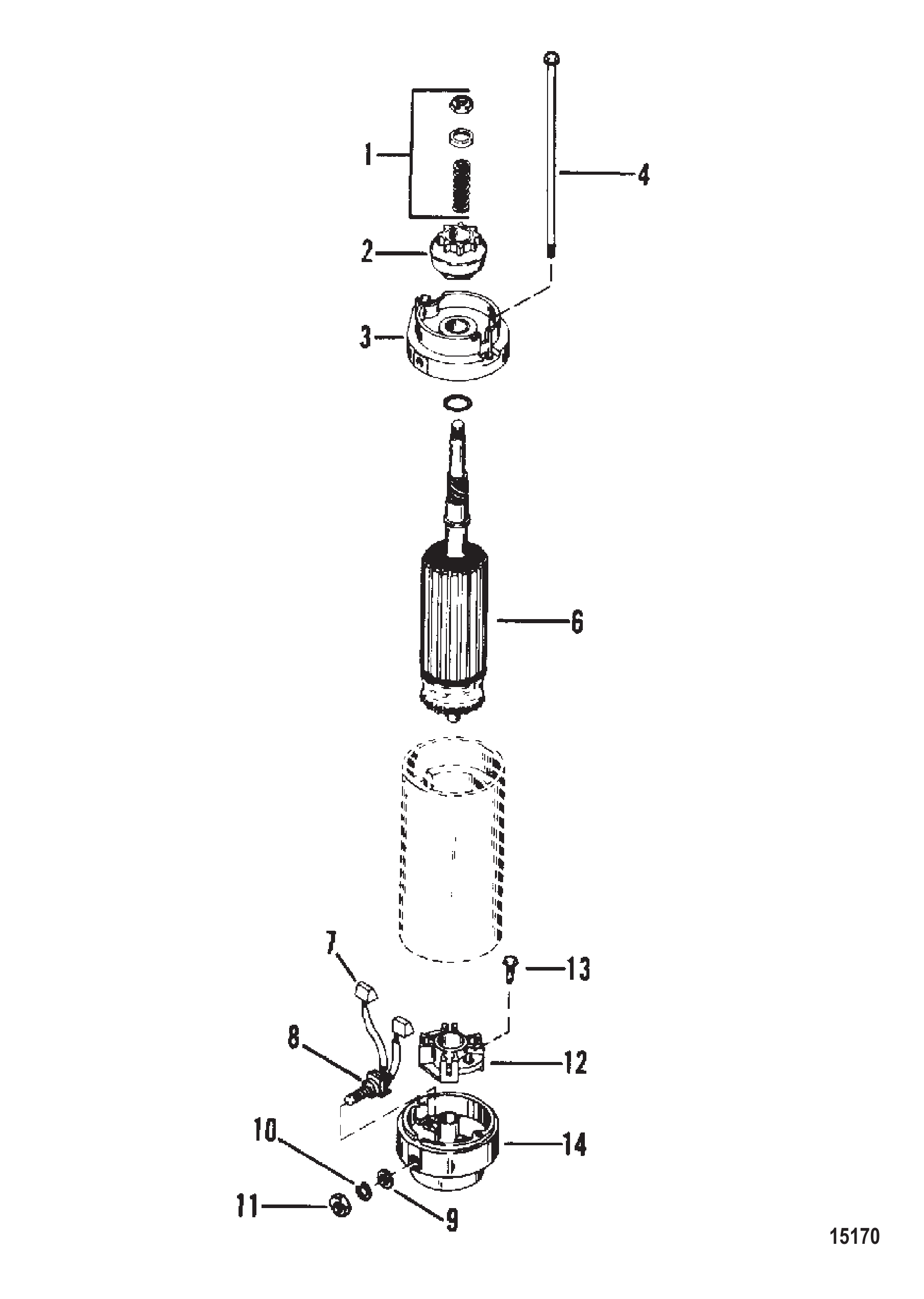

| - | 73521 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 1 | 90643 | 驱动套件 | DRIVE KIT | 1 |
| 2 | 68575 | 驱动总成 | DRIVE ASSEMBLY | 1 |
| 2 | 685753 | 驱动总成 | DRIVE ASSEMBLY | 1 |
| 3 | 75660 | PLATE Drive End | 1 | |
| 4 | 75379 | 贯穿螺栓 | BOLT Through | 2 |
| 6 | 75382 | 电枢 | ARMATURE | 1 |
| 7 | 75384 | 电刷/弹簧套件 | BRUSH/SPRING KIT | 1 |
| 7 | 898265016 | 电刷/弹簧套件 | BRUSH/SPRING KIT | 1 |
| 8 | 57387 | BUSHING Insulating | 1 | |
| 9 | 38013 | WASHER Input Stud | 1 | |
| 10 | 26992 | LOCKWASHER (.250) Stainless Steel Input Stud | 1 | |
| 11 | 20890 | NUT (.250-20) Input Stud | 1 | |
| 12 | 61787 | 电刷架 | HOLDER Brush | 2 |
| 12 | 898265014 | 电刷支架 | HOLDER-BRUSH | 2 |
| 13 | 68586 | SCREW Brush and Holder | 2 | |
| 14 | 75383 | END CAP Commutator | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

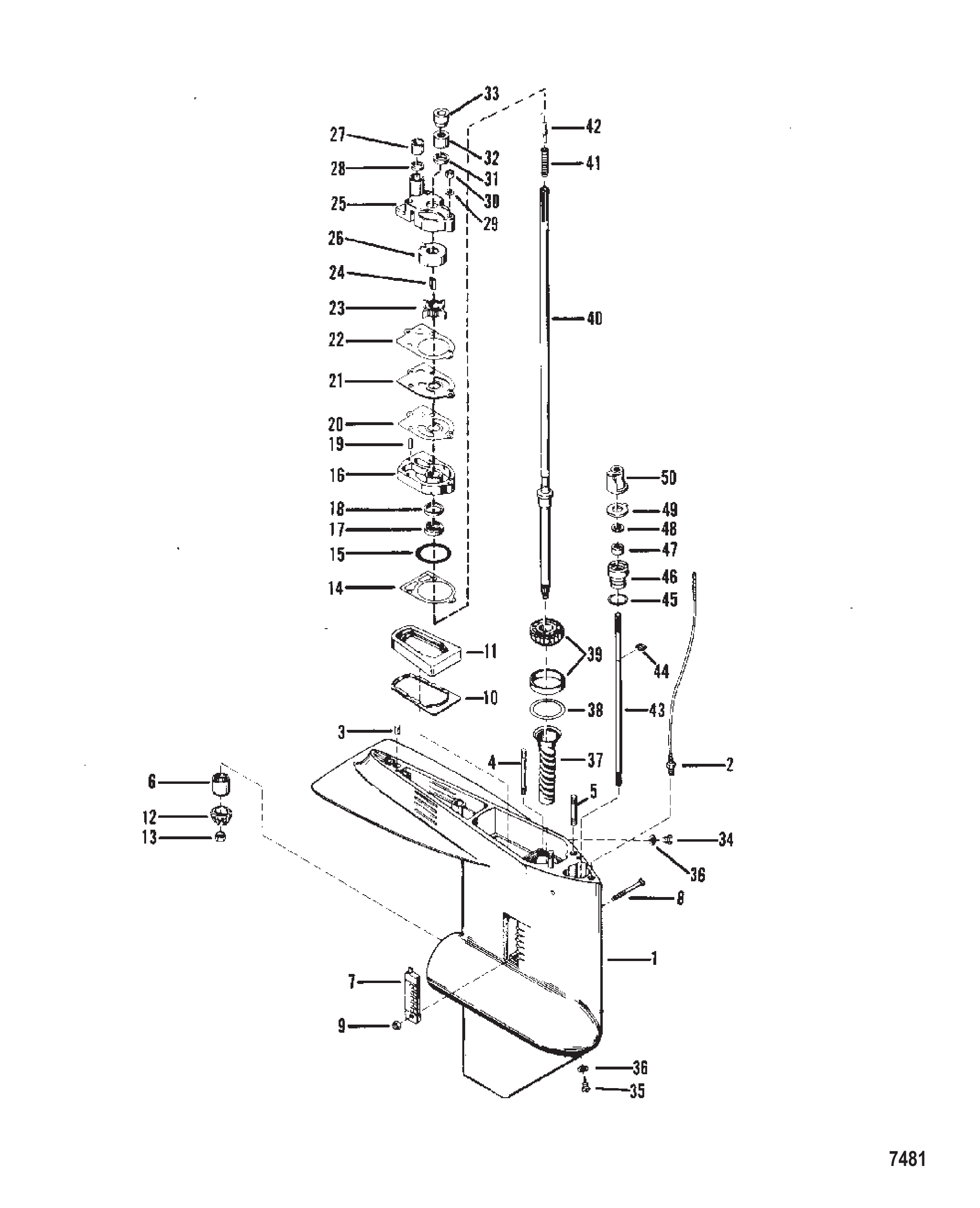

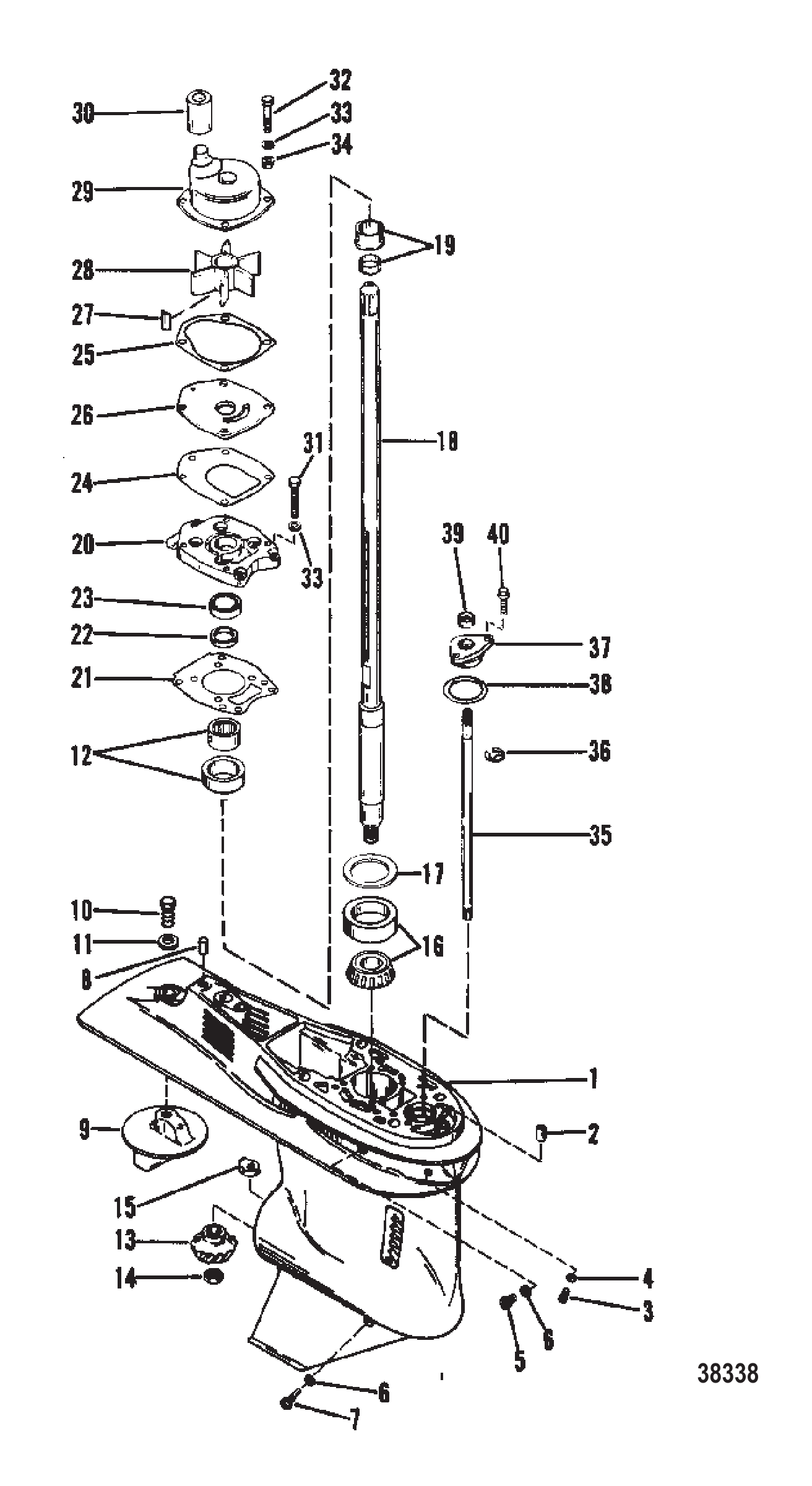

| - | 9539A4 | 齿轮箱总成短轴-黑色 | GEAR HOUSING ASSEMBLY Short Shaft - Black | 1 |
| - | 9539A5 | 齿轮箱总成长轴-黑色 | GEAR HOUSING ASSEMBLY Long Shaft - Black | 1 |
| - | 9539A6 | 齿轮箱总成短轴-灰色 | GEAR HUSING ASSEMBLY Short Shaft - Gray | 1 |
| - | 9539A7 | 齿轮箱总成长轴-灰色 | GEAR HOUSING ASSEMBLY Long Shaft - Gray | 1 |
| 1 | 9539A1 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 9539T1 | 齿轮箱 | GEAR HOUSING | 1 |
| 1 | 9539A8 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 9539T8 | ORD 1643-9539T 1 | ORD 1643-9539T 1 | 1 |
| 2 | 85822A1 | 速度表连接器总成 | CONNECTOR ASSEMBLY Speedometer | 1 |
| 2 | 85822A10 | 连接器总成 | CONNECTOR ASSEMBLY | 1 |
| 3 | 85500 | 定位销(.187 x .530)齿轮箱 | PIN Dowel (.187 x .530) Gear Housing | 2 |
| 3 | 8M0084726 | 定位销 | PIN Dowel | 2 |
| 4 | 33778 | 水泵/底座柱螺栓(2.625英寸) | STUD Water Pump/Base (2.625 Inch) | 3 |
| 5 | 57933 | 柱螺栓(.437-14/.437-20 x 2.190)齿轮箱 | STUD (.437-14/.437-20 x 2.190) Gear Housing | 2 |
| 5 | 8M0034453 | 柱螺栓(7/16 x 2.19) | STUD (7/16 x 2.19) | 2 |
| 6 | 62091 | 传动轴滚柱轴承 | BEARING Roller Driveshaft | 1 |
| 6 | 62091T | 轴承 | BEARING | 1 |
| 7 | 72849A1 | 进水滤网总成 | SCREEN ASSEMBLY Water Intake | 1 |
| 8 | 36070 | 螺钉(#10-32 x 1.250)进水滤网至齿轮箱 | SCREW (#10-32 x 1.250) Water Intake Screen to Gear Housing | 1 |
| 9 | 45812 | 螺母(#10-32)不锈钢进水滤网螺钉 | NUT (#10-32) Stainless Steel Water Intake Screen Screw | 1 |
| 9 | 859124 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 1 |
| 10 | 92815 | 排气管支撑板 | PLATE Support - Exhaust Tube | 1 |
| 11 | 37721 | 排气管密封件 | SEAL Exhaust Tube | 1 |
| 11 | 37721001 | 密封件@2 | SEAL @2 | 1 |
| 12 | 98097 | 传动轴小齿轮 | GEAR Pinion Driveshaft | 1 |
| 12 | 98097T | 小齿轮 | GEAR-PINION | 1 |
| 13 | 55910 | 螺母(.437-20)小齿轮至传动轴 | NUT (.437-20) Pinion Gear to Driveshaft | 1 |
| 14 | 19552 | 水泵底座衬垫 | GASKET Water Pump Base | 1 |
| 15 | 26722 | O型圈 | O-RING | 1 |
| 16 | 77177A1 | 水泵底座总成 | BASE ASSEMBLY Water Pump | 1 |
| 17 | 90562 | 密封件(1.254 x .312) | SEAL (1.254 x .312) | 1 |
| 18 | 79831 | 油封 | SEAL Oil | 1 |
| 19 | 35973 | 定位销 | PIN Dowel | 2 |
| 20 | 19553 | 下衬垫 | GASKET Lower | 1 |
| 21 | 54705 | 面板 | FACE PLATE | 1 |
| 21 | 32768 | 面板 | FACEPLATE | 1 |
| 22 | 19551 | 上衬垫 | GASKET Upper | 1 |
| 23 | 89983 | 叶轮 | IMPELLER | 1 |
| 23 | 89983T | 叶轮 | IMPELLER | 1 |
| 24 | 56662 | 叶轮驱动键 | KEY Impeller Drive | 1 |
| 24 | 8M0032837 | 键@5 | KEY @5 | 1 |
| 25 | 77822A1 | 水泵壳体总成 | BODY ASSEMBLY Water Pump | 1 |
| 26 | 48753 | 嵌件 | INSERT | 1 |
| 27 | 38452 | 橡胶密封件 | SEAL Rubber | 1 |
| 28 | 38453 | 尼龙垫圈 | WASHER Nylon | 1 |
| 29 | 29245 | 垫圈(.281 x .500 x .060)不锈钢水泵体与底座柱螺栓 | WASHER (.281 x .500 x .060) Stainless Steel Water Pump Body and Base Studs | 3 |
| 29 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 3 |
| 30 | 13438 | 螺母(.250-28)水泵体与底座柱螺栓 | NUT (.250-28) Water Pump Body and Base Studs | 3 |
| 30 | 8267119 | 螺母(.250-28) | NUT (.250-28) | 3 |
| 31 | 20273 | 橡胶O型圈 | O-RING Rubber | 1 |
| 32 | 78654A1 | 传动轴座总成 | SEAT ASSEMBLY Driveshaft | 1 |
| 33 | 86304 | 花键密封件-传动轴 | SEAL Splined - Driveshaft | 1 |
| 34 | 79953 | 螺钉(.375-16 x .250)润滑脂加注口 | SCREW (.375-16 x .250) Grease Filler | 1 |
| 34 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 35 | 67892 | 磁性放油螺钉 | SCREW Magnetic Drain | 1 |
| 35 | 8M0058389 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 36 | 19183 | 纤维垫圈(加注/放油螺钉) | WASHER Fiber Filler/Drain Screw | 2 |
| 36 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 2 |
| 37 | 88181 | 润滑套筒-传动轴 | SLEEVE Lubrication - Driveshaft | 1 |
| 38 | 92881A1 | 轴承垫片组(齿轮箱用)(.002-3-5-10-20) | SHIM SET Bearing to Gear Housing(.002-3-5-10-20) | AR |
| 39 | 77420A1 | 圆锥滚子轴承总成-传动轴 | BEARING ASSEMBLY Roller Tapered - Driveshaft | 1 |
| 39 | 8M0166756 | 轴承总成 | BEARING ASSEMBLY | 1 |
| 40 | 88025A2 | 驱动轴总成 | DRIVESHAFT ASSEMLBY | 1 |
| 40 | 98179 | 驱动轴 | DRIVESHAFT | 1 |
| 40 | 88024A2 | 驱动轴总成 | DRIVESHAFT ASSEMBLY | 1 |
| 40 | 98180 | 驱动轴 | DRIVESHAFT | 1 |
| 41 | 20254 | 驱动轴压缩弹簧 | SPRING Compression - Driveshaft | 1 |
| 42 | 30545 | 驱动轴销 | PIN Driveshaft | 1 |
| 43 | 76063A1 | 换挡轴总成 | SHAFT ASSEMBLY Shift | 1 |
| 44 | 29641 | 换挡轴E型卡环 | E RING Shift Shaft | 1 |
| 45 | 25439 | O型圈(.862 x .103)换挡轴衬套 | O-RING (.862 x .103) Shift Shaft Bushing | 1 |
| 46 | 77631A2 | 换挡轴衬套总成 | BUSHING ASSEMBLY Shift Shaft | 1 |
| 47 | 76384 | 换挡轴衬套油封 | SEAL Oil Shift Shaft Bushing | 1 |
| 47 | 8M0246145 | 油封 | OIL SEAL | 1 |
| 48 | 77674 | 橡胶垫圈(.35 x .75 x .12)换挡轴衬套 | WASHER (.35 x .75 x .12) Rubber - Shift Shaft Bushing | 1 |
| 49 | 78036 | 倒挡锁定底座 | BASE Reverse Locking | 1 |
| 50 | 433081 | 倒挡锁定凸轮 | CAM Reverse Locking | 1 |
| 50 | 43308T1 | 凸轮 | CAM | 1 |
| - | 77177A3 | 水泵套件 | WATER PUMP KIT | 1 |
| - | 79831A1 | 密封套件 | SEAL KIT | 1 |
| - | 85491A87 | 衬垫套件 | GASKET SET | 1 |
| - | 85491A90 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

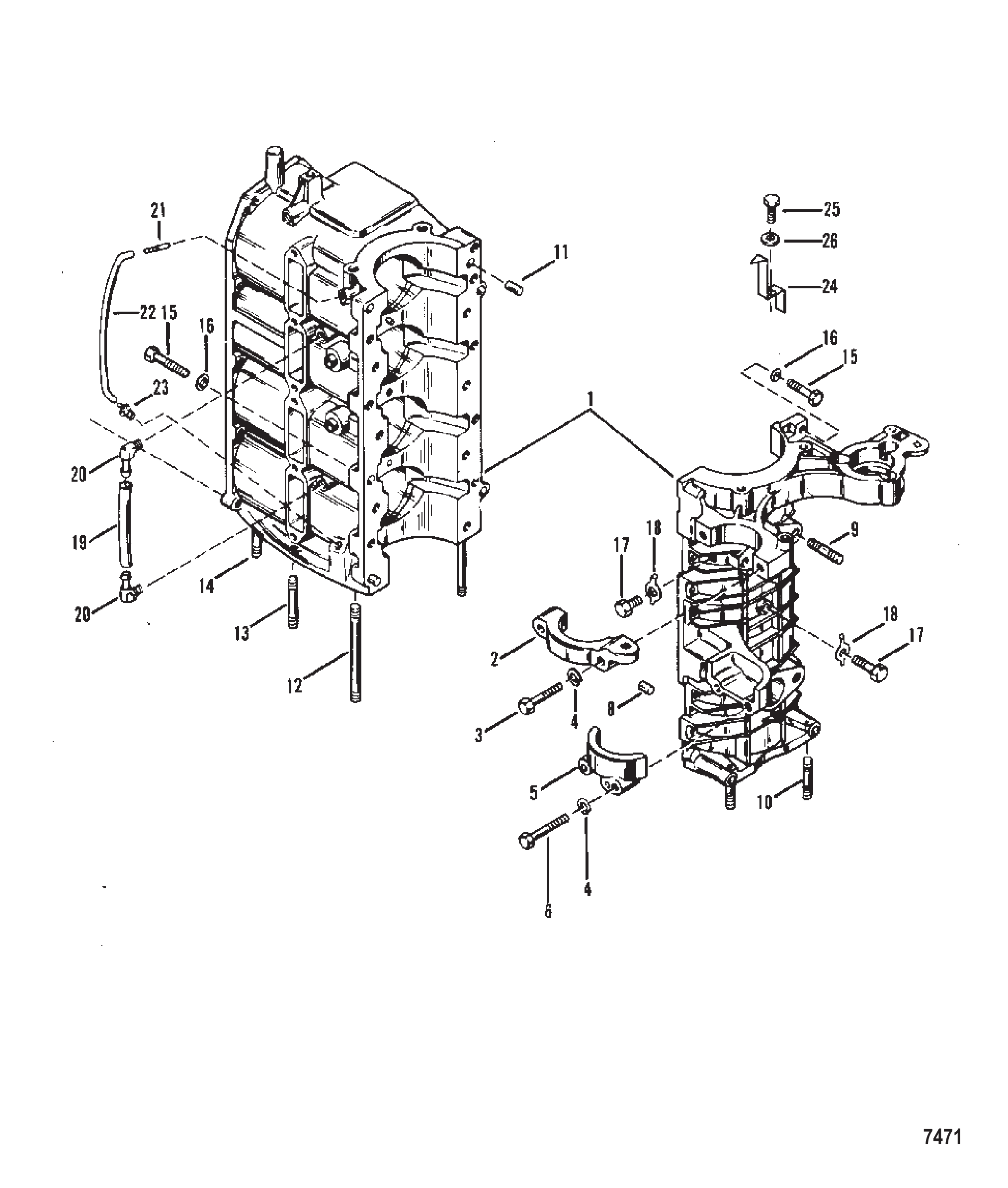

| 1 | 8981A6 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 2 | 72038 | 启动电机上支架 | BRACKET Upper Starter Motor | 1 |
| 3 | 73279 | 支架至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸) | SCREW (.312-18 x 1.880) Bracket to Crankcase (1.875 Inch) | 2 |
| 4 | 26993 | 支架螺钉锁紧垫圈(.312) | LOCKWASHER (.312) Bracket Screw | 4 |
| 4 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 4 |
| 5 | 76867 | 启动电机下盖 | COVER Lower Starter Motor | 1 |
| 6 | 73279 | 盖至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸) | SCREW (.312-18 x 1.880) Cover to Crankcase (1.875 Inch) | 2 |
| 8 | 20032 | 缸体至主轴承定位销 | PIN Dowel Cylinder block to main bearing | 2 |
| 9 | 68164 | 化油器双头螺柱(1.25英寸) | STUD Carburetor (1.25 Inch) | 4 |
| 9 | 64936 | 螺柱 | STUD | 4 |
| 10 | 68165 | 曲轴箱至驱动轴壳体双头螺柱(1.625英寸) | STUD Crankcase to Driveshaft Housing (1.625 Inch) | 2 |
| 11 | 20033 | 曲轴箱至缸体定位销 | PIN Dowel Crankcase to Cylinder Block | 2 |
| 11 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 2 |
| 12 | 87901 | 缸体至驱动轴壳体双头螺柱(4英寸) | STUD Cylinder block to drive shaft housing (4 Inch) | 2 |
| 13 | 68166 | 缸体至驱动轴壳体双头螺柱(.312 x 2.125)(2.125英寸) | STUD (.312 x 2.125) Cylinder block to drive shaft housing (2.125 Inch) | 2 |
| 14 | 68167 | 缸体至驱动轴壳体双头螺柱(.312-18/.312-24 x 2.560)(2.50英寸) | STUD (.312-18/.312-24 x 2.560) Cylinder block to drive shaft housing (2.50 Inch) | 2 |
| 15 | 73657 | 曲轴箱至缸体螺钉(.312-18 x 1.50)(1.50英寸) | SCREW (.312-18 x 1.50) Crankcase to cylinder block (1.50 Inch) | 13 |
| 15 | 31984 | 曲轴箱至缸体螺钉(.312-18 x 1.375)(1.375英寸) | SCREW (.312-18 x 1.375) Crankcase to cylinder block (1.375 Inch) | 3 |
| 15 | 73275 | 曲轴箱至缸体螺钉(.312-18 x 2.88)(2.875英寸) | SCREW (.312-18 x 2.88) Crankcase to cylinder block (2.875 Inch) | 2 |
| 16 | 70132 | 曲轴箱螺钉不锈钢垫圈(.323 x .563 x .063) | WASHER (.323 x .563 x .063) Stainless Steel Crankcase Screw | 17 |
| 16 | 8M0042642 | 垫圈(.323 x .562 x .063) | WASHER (.323 x .562 x .063) | 17 |
| 17 | 20359 | 螺钉(.375-16 x 1.00) | SCREW (.375-16 x 1.00) | 1 |
| 17 | 98260 | 螺钉(.375-16 x .620) | SCREW (.375-16 x .620) | 2 |
| 18 | 20091 | 中央轴承锁紧螺钉止动垫圈 | TAB WASHER Center Bearing Locking Screw | 3 |
| 19 | 99127109 | 平衡管(57英寸散装)-主轴承(5.50英寸) | LINE (57.00 Inches Bulk) Balance - Main Bearing (5.50 Inch) | 1 |
| 19 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 20 | 99664 | 平衡管至缸体弯头 | ELBOW Balance Tube to Cylinder Block | 2 |
| 20 | 996642 | 90度弯头接头(0.125-27x0.250)尼龙 | FITTING Elbow 90 Degree (.125-27 x .250) Nylon | 2 |
| 21 | 65857 | 上部泄放软管接头 | CONNECTOR Upper Bleed Hose | 1 |
| 21 | 56759 | 倒钩接头 | FITTING Barbed | 1 |
| 22 | 9938779 | 气缸泄放软管(11英寸) | HOSE Cylinder Bleed (11 Inch) | 1 |
| 23 | 42867 | 下部泄放软管止回阀 | CHECK VALVE Lower Bleed Hose | 1 |
| 23 | 428671 | 止回阀 | CHECK VALVE | 1 |
| 24 | 99156 | 正时指示器 | INDICATOR Timing | 1 |
| 25 | 39349 | 指示器至曲轴箱不锈钢螺钉(.312-18 x .750) | SCREW (.312-18 x .750) Stainless Steel Indicator to Crankcase | 1 |
| 26 | 26993 | 指示器螺钉锁紧垫圈(.312) | LOCKWASHER (.312) Indicator Screw | 1 |
| 26 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 1 |
| - | 97469A87 | 动力头总成(完整) | POWERHEAD ASSEMBLY Complete | 1 |
| - | 97469T87 | 船用动力头 | POWERHEAD MARINE | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 811286 | 零件手册(6/8/9.9/15马力) | PARTS MANUAL 6/8/9.9/15 Hp | |
| - | 12048930 | 用户指南(黑色) | OWNERS GUIDE (BLACK) | |
| - | 14138930 | 用户指南(灰色) | OWNERS GUIDE (GRAY) | |
| - | 14012A89 | 贴花套装(9.9/210帆动力) | DECAL SET (9.9/210 SAILPOWER) | |
| - | 12836A89 | 贴花套装(黑色-6至9.9马力) | DECAL SET (BLACK- 6 THRU 9.9) | |
| - | 13478A88 | 贴花套装(黑色-15马力) | DECAL SET (BLACK-15) | |
| - | 810458A92 | 贴花套装(灰色-6至15马力) | DECAL SET (GRAY- 6 THRU 15) | |
| - | 822787A93 | 贴花套装(灰色-8帆伴侣) | DECAL SET (GRAY 8 SAILMATE) | |
| - | 808560A03 | 贴花套件 | DECAL SET | |
| - | 808522A94 | 贴花套装(黑色-6马力) | DECAL SET (BLACK-6) | |
| - | 808522A00 | 贴花套件 | DECAL SET | |
| - | 808526A94 | 贴花套装(黑色-8马力) | DECAL SET (BLACK -8) | |
| - | 808526A00 | 贴花套件 | DECAL SET | |
| - | 12836A94 | 贴花套装(黑色-9.9马力) | DECAL SET (BLACK- 9.9) | |
| - | 12836A00 | 贴花套件 | DECAL SET | |
| - | 808523A94 | 贴花套装(9.9帆动力) | DECAL SET (9.9 SAILPOWER) | |
| - | 808523A96 | 贴花套件 | DECAL SET | |
| - | 13478A94 | 贴花套装(黑色-15马力) | DECAL SET (BLACK-15) | |
| - | 13478A00 | 贴花套件 | DECAL SET | |
| - | 808524A94 | 贴花套装(灰色-6马力) | DECAL SET (GRAY-6) | |
| - | 808524A03 | 贴花套件 | DECAL SET | |
| - | 808545A94 | 贴花套装(灰色-8马力) | DECAL SET (GRAY-8) | |
| - | 808545A03 | 贴花套件 | DECAL SET | |
| - | 808560A94 | 贴花套装(8帆伴侣) | DECAL SET (8 SAILMATE) | |
| - | 808560A03 | 贴花套件 | DECAL SET | |
| - | 808525A94 | 贴花套装(灰色-9.9马力) | DECAL SET (GRAY-9.9) | |
| - | 808525A03 | 贴花套件 | DECAL SET | |
| - | 808546A94 | 贴花套装(灰色-15马力) | DECAL SET (GRAY-15) | |
| - | 808546A03 | 贴花套件 | DECAL SET |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

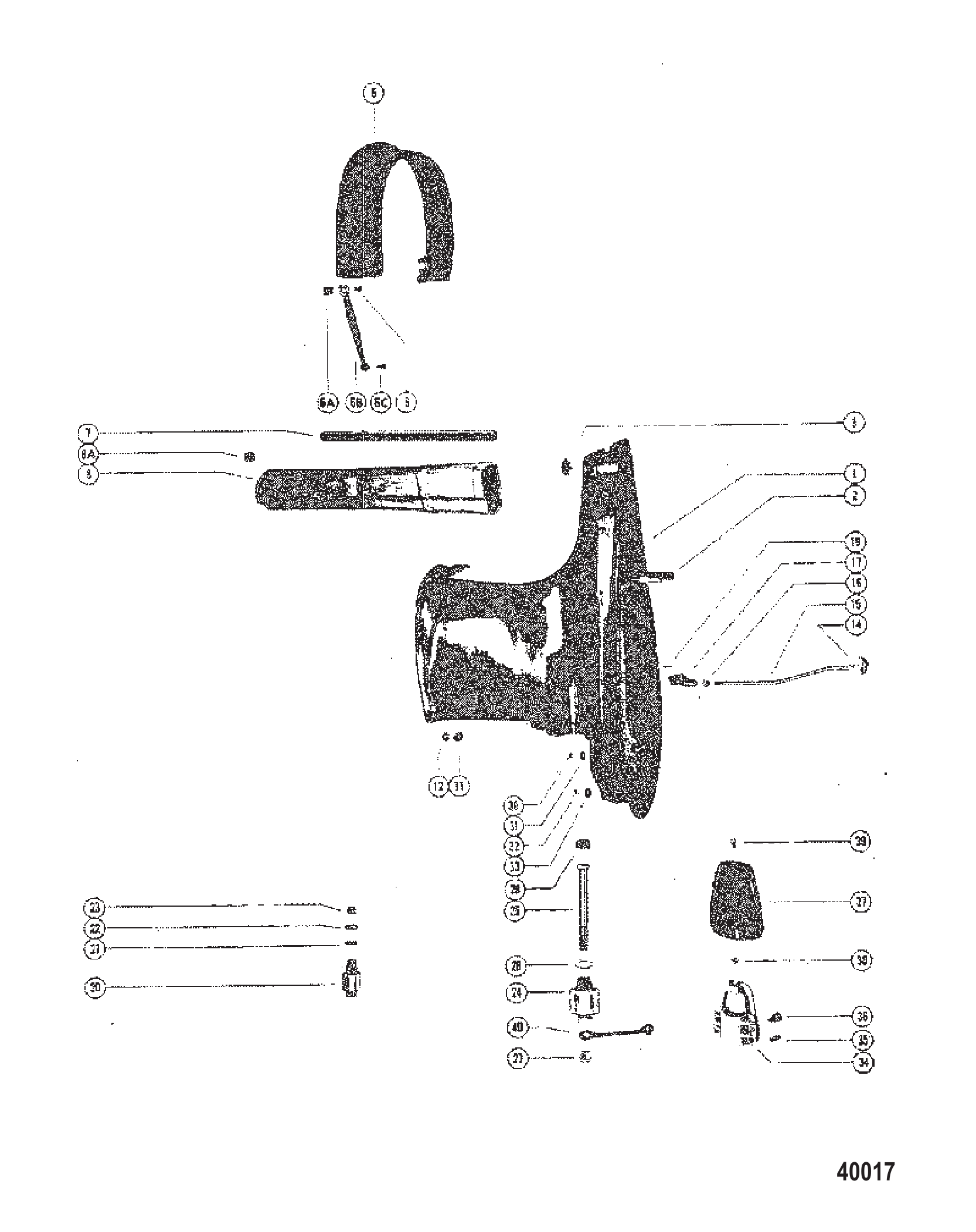

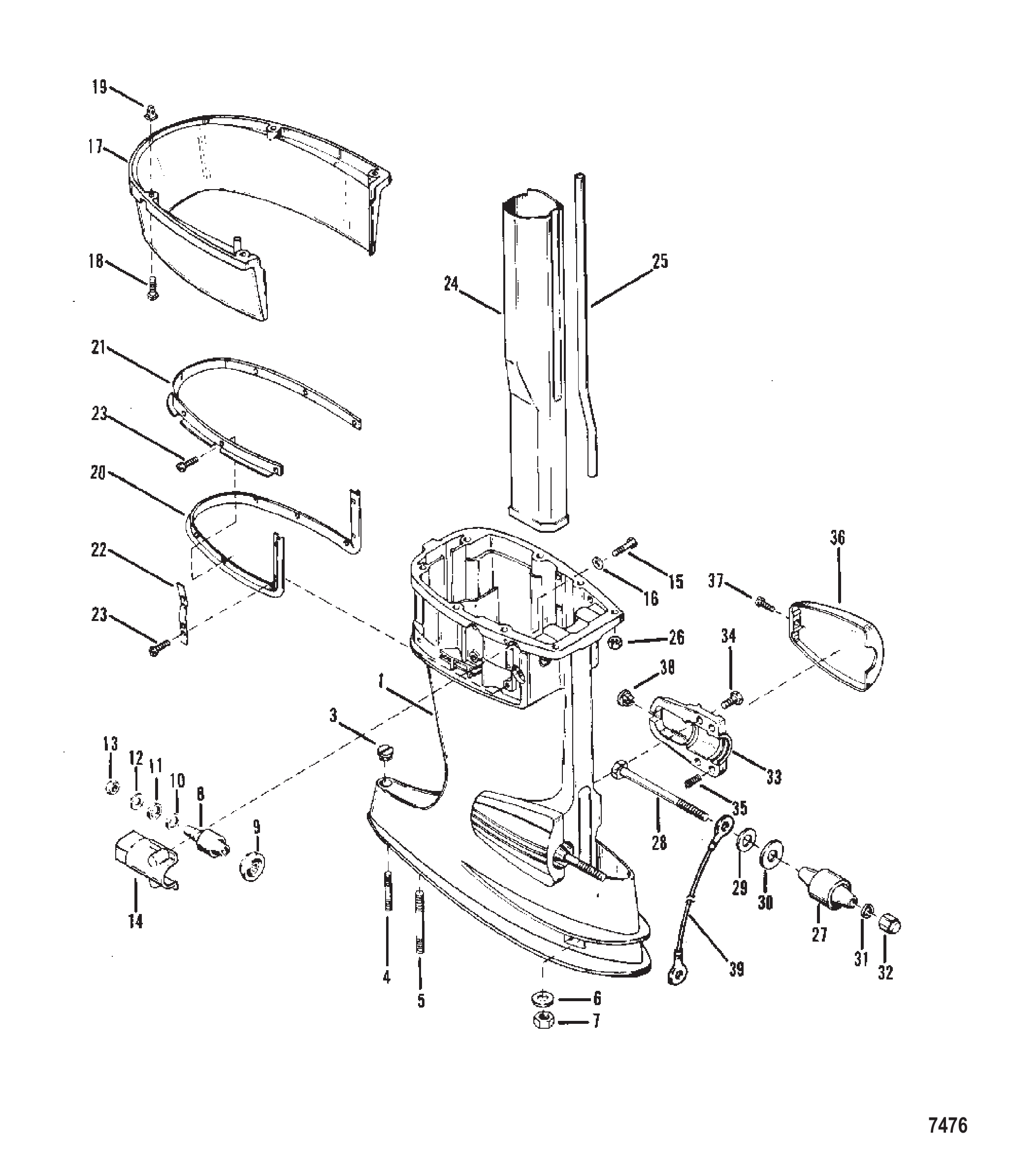

| 1 | 7512A10 | 驱动轴壳体总成(短轴) | HOUSING ASSEMBLY Driveshaft (Short Shaft) | 1 |
| 1 | 7513A12 | 驱动轴壳体总成(长轴) | HOUSING ASSEMBLY Driveshaft (Long Shaft) | 1 |
| 1 | 8189A10 | 黑色传动轴壳体总成 | HOUSING ASSEMBLY Driveshaft Black | 1 |
| 1 | 8189A11 | 灰色传动轴壳体总成 | HOUSING ASSEMBLY Driveshaft Gray | 1 |
| 3 | 64649 | 塑料螺塞-调整片螺钉孔 | PLUG Plastic - Trim Tab Screw Hole | 1 |
| 4 | 57932 | STUD (.375-16/.375-24 x 1.750) Driveshaft Housing | 1 | |
| 4 | 8M0022145 | 螺柱(.375-16/.375-24 x 1.750) | STUD (.375-16/.375-24 x 1.750) | 1 |
| 5 | 57935 | 驱动轴壳体双头螺柱(3英寸) | STUD Driveshaft Housing (3 Inch) | 1 |
| 6 | 65791 | 齿轮箱壳体螺柱垫圈(0.438英寸) | WASHER Gear Housing Studs (0.438 Inch) | 2 |
| 7 | 34933 | NUT (.437-20) Stainless Steel Gear Housing Studs | 2 | |
| 7 | 8M0204653 | 螺母 | NUT | 2 |
| 8 | 93445 | 橡胶上支架 | MOUNT Rubber - Upper | 2 |
| 8 | 923373 | 支架 | MOUNT | 2 |
| 9 | 96401 | 上支架密封件 | SEAL Upper Mount | 2 |
| 10 | 27727 | WASHER Upper Mount Bolt (37/64 I.D.) | 2 | |
| 11 | 66966 | WASHER Rubber - Upper Mount Bolt | 2 | |
| 12 | 30514 | WASHER Upper Mount Bolt | 2 | |
| 13 | 34933 | NUT (.437-20) Stainless Steel Upper Mount Bolt | 2 | |
| 13 | 8M0204653 | 螺母 | NUT | 2 |
| 14 | 87883T | 上减震座盖 | COVER Upper Mount | 2 |
| 14 | 87883 | 盖板 | COVER | 2 |
| 15 | 76630 | SCREW (.250-20 x 1.00) Upper Mount Cover | 4 | |
| 15 | 8M0214943 | 螺钉 | SCREW | 4 |
| 16 | 29245 | WASHER (.281 x .500 x .060) Stainless Steel Upper Mount Cover Screw | 4 | |
| 16 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 4 |
| 17 | 37687 | 驱动轴壳体调整盖 | COVER Trim - Driveshaft Housing | 1 |
| 17 | 37687F2 | 驱动轴壳体调整盖 | COVER Trim - Driveshaft Housing | 1 |
| 18 | 57807 | SCREW (#10-16 x .750) Stainless Steel Trim Cover to Driveshaft Housing | 4 | |
| 19 | 92012 | GROMMET Trim Cover Screw | 4 | |
| 19 | 8M0079730 | 密封圈套件 | GROMMET KIT | 4 |
| 20 | 38157 | 调整盖至驱动轴壳体密封件 | SEAL Trim Cover to Driveshaft Housing | 1 |
| 21 | 38158 | 调整盖密封条(后) | STRIP Retaining - Trim Cover Seal (Rear) | 1 |
| 22 | 38154 | 调整盖密封条(侧) | STRIP Retaining - Trim Cover Seal (Side) | 2 |
| 23 | 48408 | 固定条螺钉(#10-16 x .500) | SCREW (#10-16 x .500) Retaining Strip | 8 |
| 24 | 695431 | 排气管 | TUBE Exhaust | 1 |
| 24 | 695441 | 排气管 | TUBE Exhaust | 1 |
| 25 | 37727 | 进水口管 | TUBE Water Inlet | 1 |
| 25 | 45679 | 进水口管 | TUBE Water Inlet | 1 |
| 26 | 64809 | 动力头螺柱螺母(0.313英寸) | NUT Powerhead Studs (0.313 Inch) | 8 |
| 27 | 75304 | 下橡胶支座 | MOUNT Rubber - Lower | 2 |
| 27 | 75304T1 | 支架 | MOUNT | 2 |
| 28 | 75284 | SCREW (.500-20 x 5.500) Lower Mount Screw | 2 | |
| 28 | 43426 | 下支座螺丝 | SCREW Lower Mount Screw | 2 |
| 29 | 28051 | WASHER Lower Mount Screw | 2 | |
| 30 | 28053 | 下支座螺丝橡胶垫圈 | WASHER Rubber - Lower Mount Screw | 2 |
| 31 | 30119 | WASHER (.875 Inch Outside Diameter) Lower Mount Screw | 2 | |
| 32 | 25096 | NUT Lower Mount Screw | 2 | |
| 33 | 69592 | 下支座夹箍 | CLAMP Lower Mount | 2 |
| 33 | 69592F1 | 卡箍 | CLAMP | 2 |
| 34 | 29256 | SCREW (.312-18 x .875) Lower Mount Clamp | 4 | |
| 35 | 35522 | SPRING Tension - Lower Mount Clamp | 4 | |
| 36 | 35474T | 下安装夹盖 | COVER Lower Mount Clamp | 2 |
| 36 | 35474F2 | 下支座夹箍盖 | COVER Lower Mount Clamp Lower Mount Clamp | 2 |
| 37 | 87884 | 盖至下支座夹箍螺丝(#12-14 x 0.920) | SCREW (#12-14 x .920) Cover to Lower Mount Clamp | 2 |
| 38 | 35521 | NUT Lower Mount Clamp Cover | 2 | |
| 39 | 88238A2 | 动力升降接地线组件(2根) | CABLE ASSEMBLY Ground Quanity of Two on Power Trim | 1 |
| 39 | 88238A10 | 接地线总成 | CABLE ASSEMBLY Ground | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

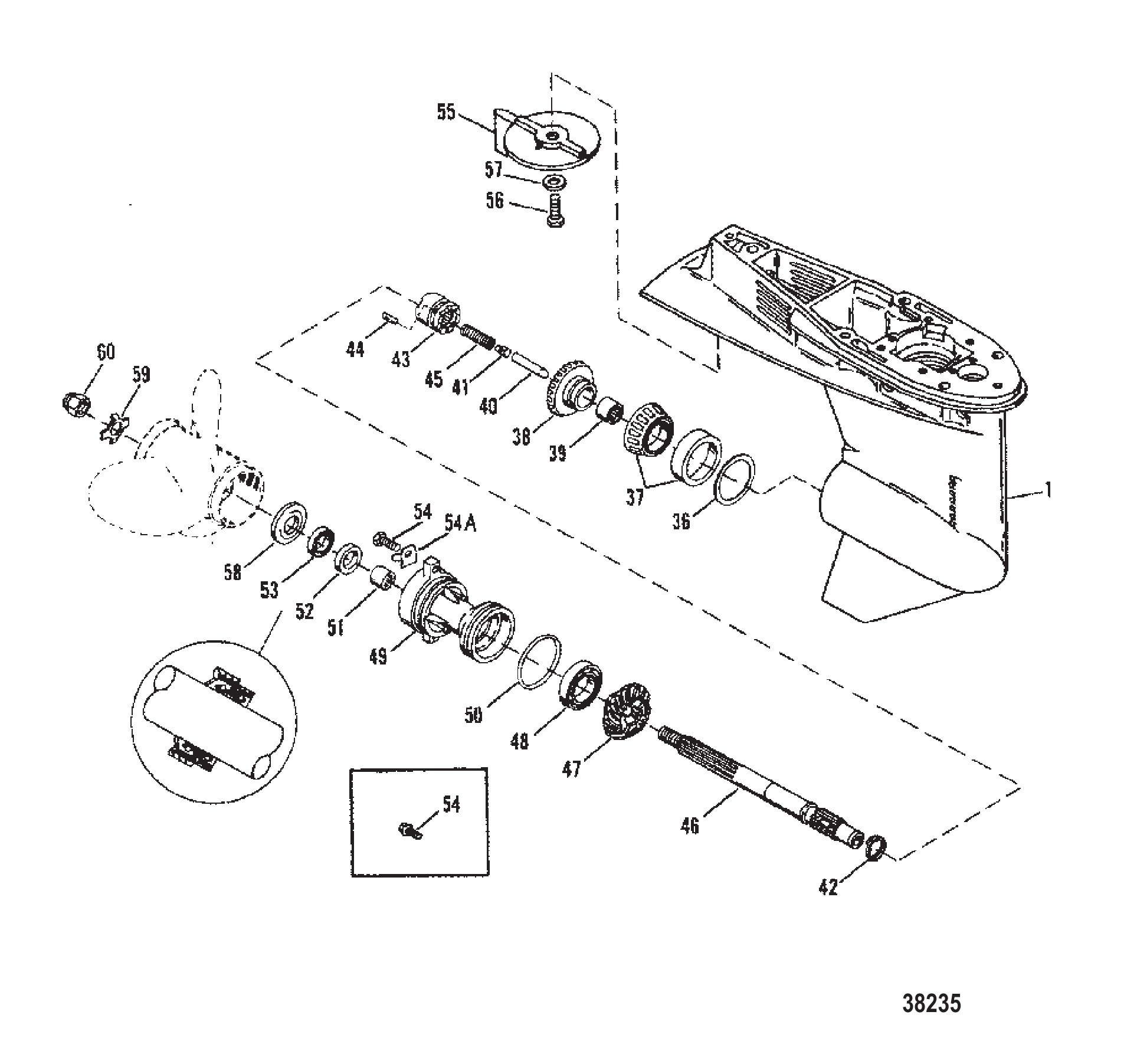

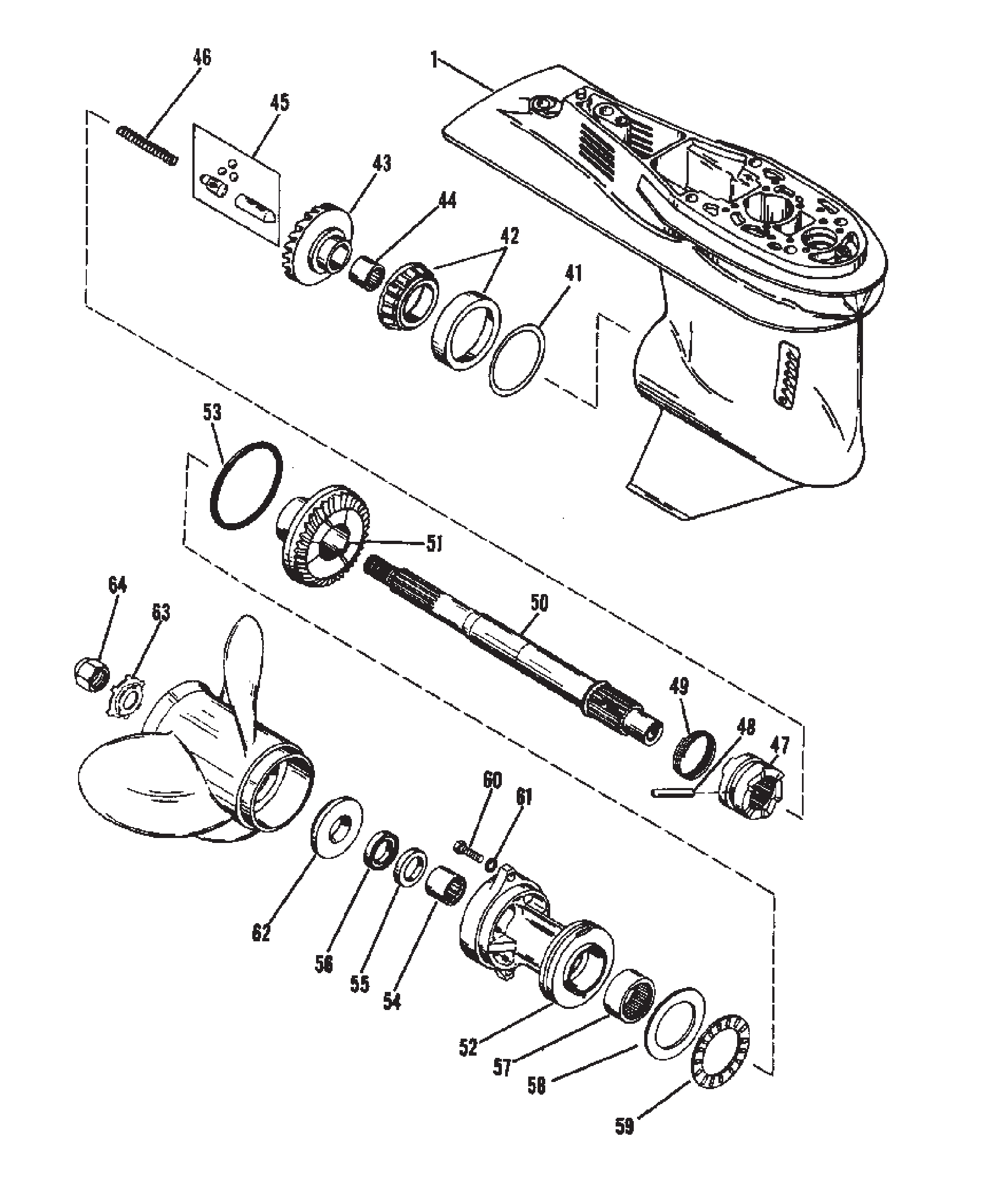

| - | 9760A8 | 齿轮箱总成(短型)(黑色) | GEAR HOUSING ASSEMBLY (SHORT) (BLACK) | 1 |
| - | 9760A9 | 齿轮箱总成(短型)(灰色) | GEAR HOUSING ASSEMBLY (SHORT) (GRAY) | 1 |
| - | 9760A24 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 9760A21 | 齿轮箱总成(长型)(追踪者系列) | GEAR HOUSING ASSEMBLY (LONG) (TRACKER) | 1 |
| - | 9760T27 | ORD1671-9760T25 | ORD1671- 9760T25 | 1 |
| - | 9760A12 | 齿轮箱总成(长型)(黑色) | GEAR HOUSING ASSEMBLY (LONG) (BLACK) | 1 |
| - | 9760T25 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 9760A13 | 齿轮箱总成(长型)(灰色) | GEAR HOUSING ASSEMBLY (LONG) (GRAY) | 1 |
| - | 9760T26 | ORD 1671-9760T25 | ORD 1671-9760T25 | 1 |
| - | 9760A10 | 齿轮箱总成(加长)(黑色) | GEAR HOUSING ASSEMBLY (X-LONG) (BLACK) | 1 |
| - | 9760T28 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 9760A11 | 齿轮箱总成(加长)(灰色) | GEAR HOUSING ASSEMBLY (X-LONG) (GRAY) | 1 |
| - | 9760T29 | 灰色齿轮箱 | GEAR HOUSING-GR | 1 |
| 1 | 9760A2 | 齿轮箱总成(基础款)(黑色) | GEAR HOUSING ASSEMBLY (BASIC)(BLACK) | 1 |
| 1 | 9760T42 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 1 | 9760A3 | 齿轮箱总成(基础款)(灰色) | GEAR HOUSING ASSEMBLY (BASIC)(GRAY) | 1 |
| 1 | 9760T31 | ORD 1671-9760T30 | ORD 1671-9760T30 | 1 |
| 1 | 9760A20 | 齿轮箱总成(基础款)(TRACKER) | GEAR HOUSING ASSEMBLY (BASIC)(TRACKER) | 1 |
| 1 | 9760T32 | ORD 1671-9760T42 | ORD 1671-9760T42 | 1 |
| 36 | 812769A1 | 垫片组 | SHIM SET | AR |
| 36 | 8M0063263 | 垫片组 | SHIM SET | AR |
| 37 | 812767A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 37 | 8M0103476 | 轴承总成 | BEARING ASSY | 1 |
| 38 | 813693A1 | 前进齿轮总成 | GEAR ASSEMBLY Forward | 1 |
| 38 | 813693T1 | 前进齿轮 | GEAR Forward | 1 |
| 39 | 21739 | 滚柱轴承 | BEARING Roller | 1 |
| 40 | 8129291 | 凸轮从动件 | FOLLOWER Cam | 1 |
| 41 | 20843 | 滑块 | SLIDE | 1 |
| 42 | 38114 | 弹簧 | SPRING | 1 |
| 43 | 813697 | 离合器 | CLUTCH | 1 |
| 43 | 813697T | 离合器 | CLUTCH | 1 |
| 44 | 38113 | 十字销 | PIN Cross | 1 |
| 44 | 8M0020942 | 十字销@2 | PIN-CROSS @2 | 1 |
| 45 | 815418 | 弹簧 | SPRING | 1 |
| 46 | 14493 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 47 | 813695 | 倒挡齿轮 | GEAR Reverse | 1 |
| 47 | 813695T | 倒挡齿轮 | GEAR Reverse | 1 |
| 48 | 20839 | 滚珠轴承 | BEARING Ball | 1 |
| 48 | 20839T | 滚珠轴承 | BEARING Ball | 1 |
| 49 | 19291A3 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 49 | 8M0168900 | 轴承座 | BEARING CARRIER | 1 |
| 50 | 815460 | O型圈 | O-RING | 1 |
| 51 | 21700 | 滚针轴承 | BEARING Needle | 1 |
| 52 | 69188 | 油封 | SEAL Oil | 1 |
| 52 | 8M0205511 | 油封 | SEAL Oil | 1 |
| 53 | 69189 | 油封 | SEAL Oil | 1 |
| 53 | 8M0203757 | 油封 | SEAL Oil | 1 |
| 54 | 4000353 | 螺钉 (M8 x 25) | SCREW (M8 x 25) | 2 |
| 54A | 826613 | 锁紧垫圈 | TAB WASHER | 2 |
| 54 | 8136911 | 螺丝(M8×0.98) | SCREW (M8 x .98) | 2 |
| 55 | 17264T2 | 调整片 锌制 | TRIM TAB Zinc | 1 |
| 56 | 4000377 | 螺钉 (M10 x 30) | SCREW (M10 x 30) | 1 |
| 57 | 45175 | 垫圈(.406 x .750 x .104) | WASHER (.406 x .750 x .104) | 1 |
| 57 | 8M0214963 | 垫圈 | WASHER | 1 |
| 58 | 73345A1 | 止推垫片 | THRUST WASHER | 1 |
| 59 | 76281 | 锁紧垫圈 | TAB WASHER | 1 |
| 59 | 8M0214942 | 锁紧垫片 | WASHER Tab | 1 |
| 60 | 69578A1 | 螺旋桨螺母套件 | PROP NUT KIT | 1 |
| 60 | 69578Q1 | 螺旋桨螺母套件 | PROP NUT KIT | 1 |
| - | 812867A91 | 发动机垫片组 | GASKET SET Engine | 1 |
| - | 812867A97 | 衬垫套件 | GASKET SET | 1 |
| - | 814669A2 | 齿轮箱密封套件 | SEAL KIT Gear Housing | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 99186T | 泵与电机总成 | PUMP AND MOTOR | 1 |
| 1 | 12659 | 机架与磁场套件 | FRAME AND FIELD KIT | 1 |
| 1 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 2 | 12665 | 电刷弹簧套件 | SPRING KIT Brush | 1 |
| 3 | 13506 | 电刷卡套件 | BRUSH CARD KIT | 1 |
| 3 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 4 | 12662 | 泵与端架套件 | PUMP AND END FRAME KIT | 1 |
| 4 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 5 | 12663 | 泵密封套件 | SEAL KIT Pump | 1 |
| 5 | 126631 | 泵密封套件 | SEAL KIT Pump | 1 |
| 6 | 12660 | 端架套件 | END FRAME KIT | 1 |
| 6 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 7 | 12661 | 电枢套件 | ARMATURE KIT | 1 |
| 7 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 8 | 12664 | 贯穿螺栓套件 | THRU BOLT KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

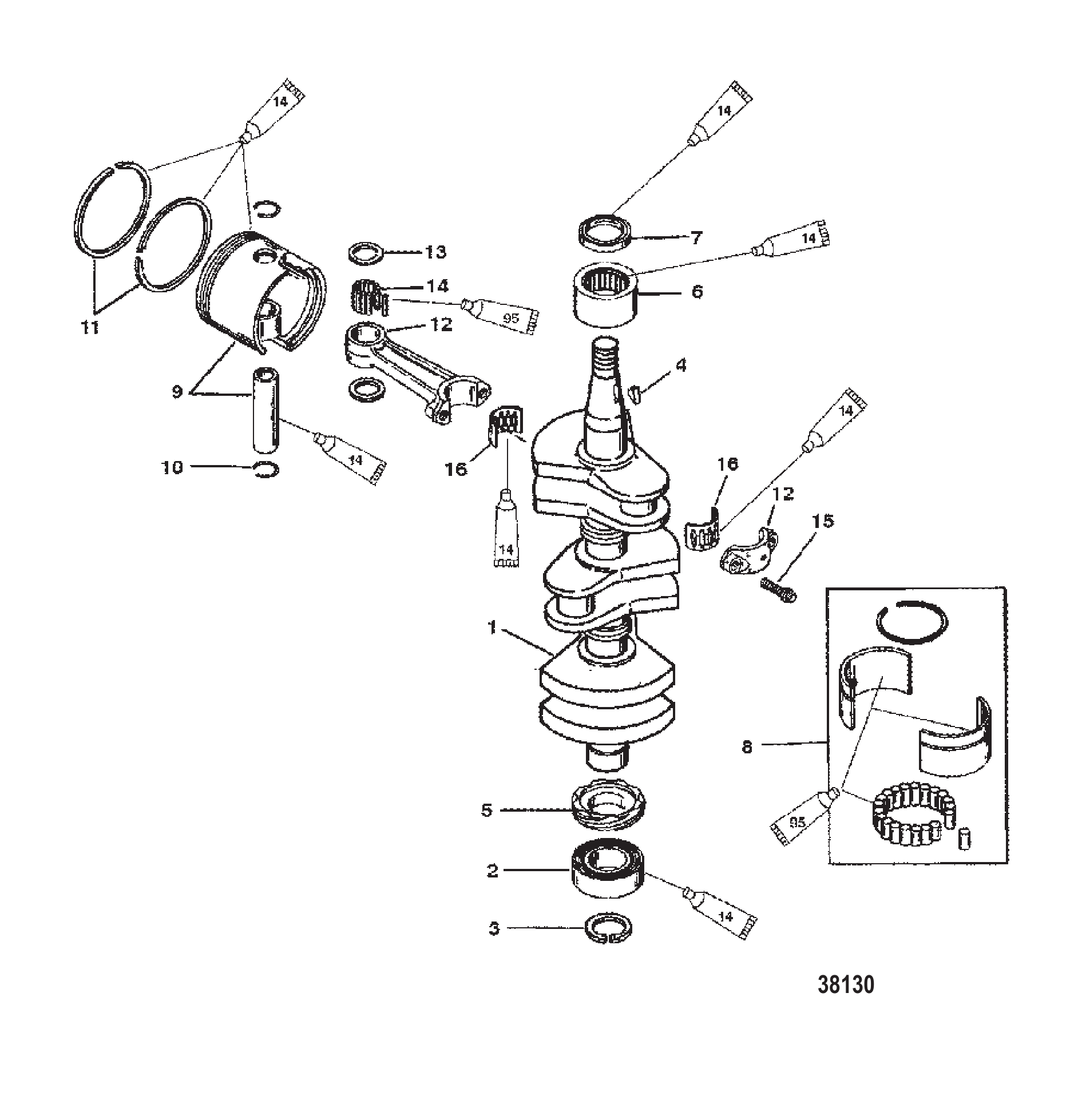

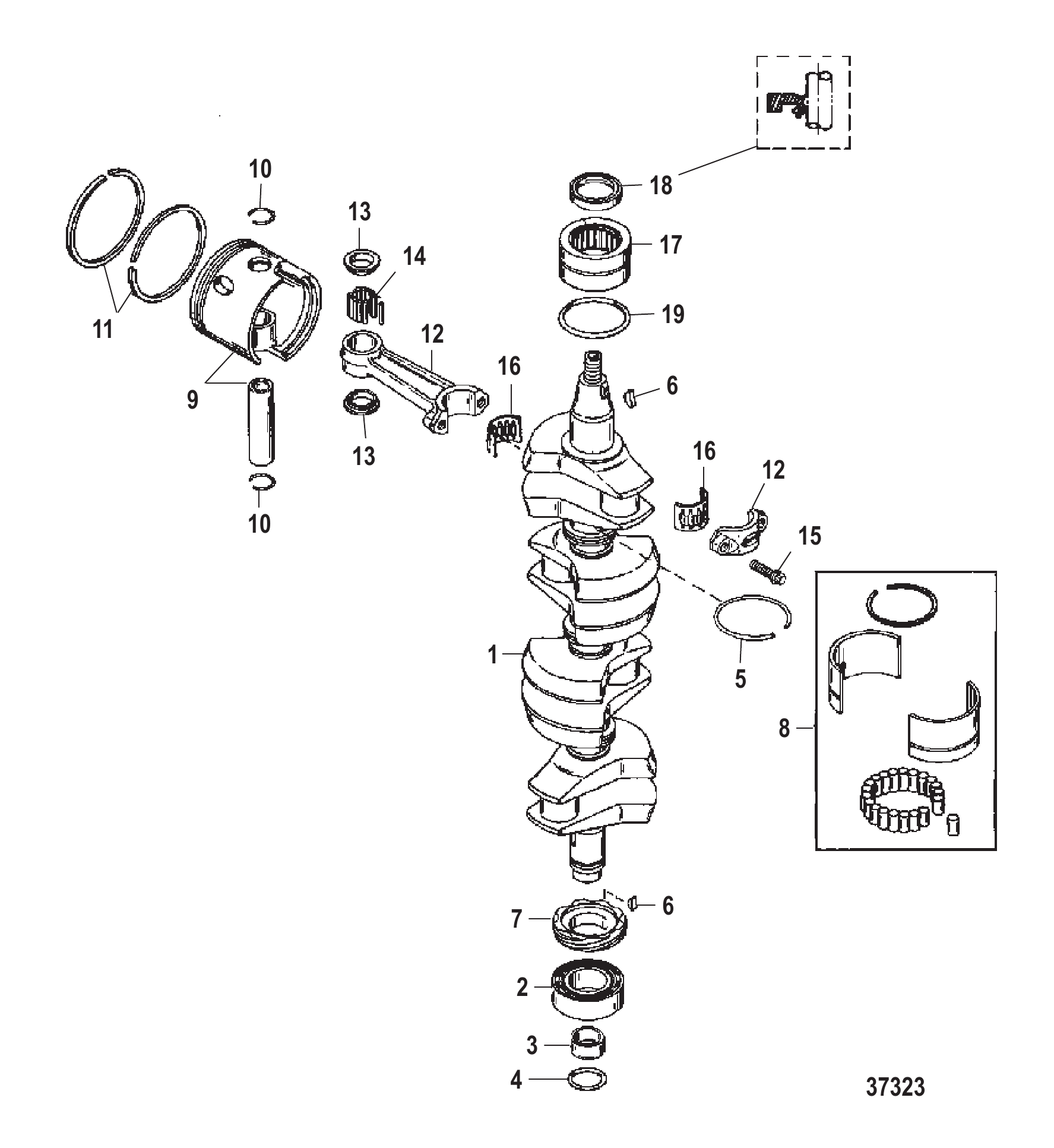

| 1 | 9611A1 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 2 | 63742 | 滚珠轴承 | BEARING Ball | 1 |
| 2 | 63742T | 滚珠轴承 | BEARING Ball | 1 |
| 3 | 812877 | 挡圈 | RING Retaining | 1 |
| 4 | 91800 | 半圆键 | KEY Woodruff | 2 |
| 5 | 43019A2 | 齿轮总成 | GEAR ASSEMBLY | 1 |
| 6 | 812873A1 | 滚子轴承总成(顶部) | BEARING ASSEMBLY Roller (TOP) | 1 |
| 7 | 419531 | 油封 | SEAL Oil | 1 |
| 8 | 812881A1 | 滚子轴承总成(中部) | BEARING ASSEMBLY Roller (CENTER) | 2 |
| 9 | 9613A1 | 活塞总成 | PISTON ASSEMBLY | 3 |
| 9 | 9613T1 | 活塞 | PISTON | 3 |
| 9 | 9613A2 | 活塞总成 | PISTON ASSEMBLY | AR |
| 9 | 9613T2 | 活塞总成0.015 | PISTON ASSY .015 | AR |
| 9 | 9613A3 | 活塞总成 | PISTON ASSEMBLY | AR |
| 9 | 9613T3 | 活塞 | PISTON | AR |
| 10 | 52035 | 锁环 | RING Lock | 6 |
| 10 | 857196 | 锁紧环 | LOCK RING | 6 |
| 11 | 19721A6 | 活塞环组 | RING SET Piston | 1 |
| 11 | 19721A1 | 活塞环组 | RING SET Piston | AR |
| 11 | 19721A2 | 活塞环组 | RING SET Piston | AR |
| 12 | 9612A2 | 连杆总成 | CONNECTING ROD ASSEMBLY | 3 |
| 12 | 9612A6 | 连杆总成 | CONNECTING ROD ASSEMBLY | 3 |
| 13 | 812876 | 垫圈 | WASHER | 6 |
| 13 | 8M0012298 | 止推垫片 | THRUST WASHER | 6 |
| 14 | 47270 | 轴承 | BEARING | 8 |
| 14 | 8M0214934 | 滚针轴承@200 | BRG-NEEDLE @200 | 8 |
| 15 | 91012 | 螺钉(0.250-28特殊) | SCREW (.250-28 Special) | 6 |
| 16 | 17514A1 | 轴承套件 | BEARING KIT | 3 |
| 16 | 8M0234886 | 轴承保持架 | CAGE BEARING | 3 |
| - | 811208T91 | 动力头总成(完整) | POWERHEAD ASSEMBLY Complete | 1 |
| - | 821744T92 | 动力头总成(完整) | POWERHEAD ASSEMBLY Complete | 1 |
| - | 811209T91 | 动力头总成(完整) | POWERHEAD ASSEMBLY Complete | 1 |
| - | 811209T93 | 动力头总成(完整) | POWERHEAD ASSEMBLY Complete | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

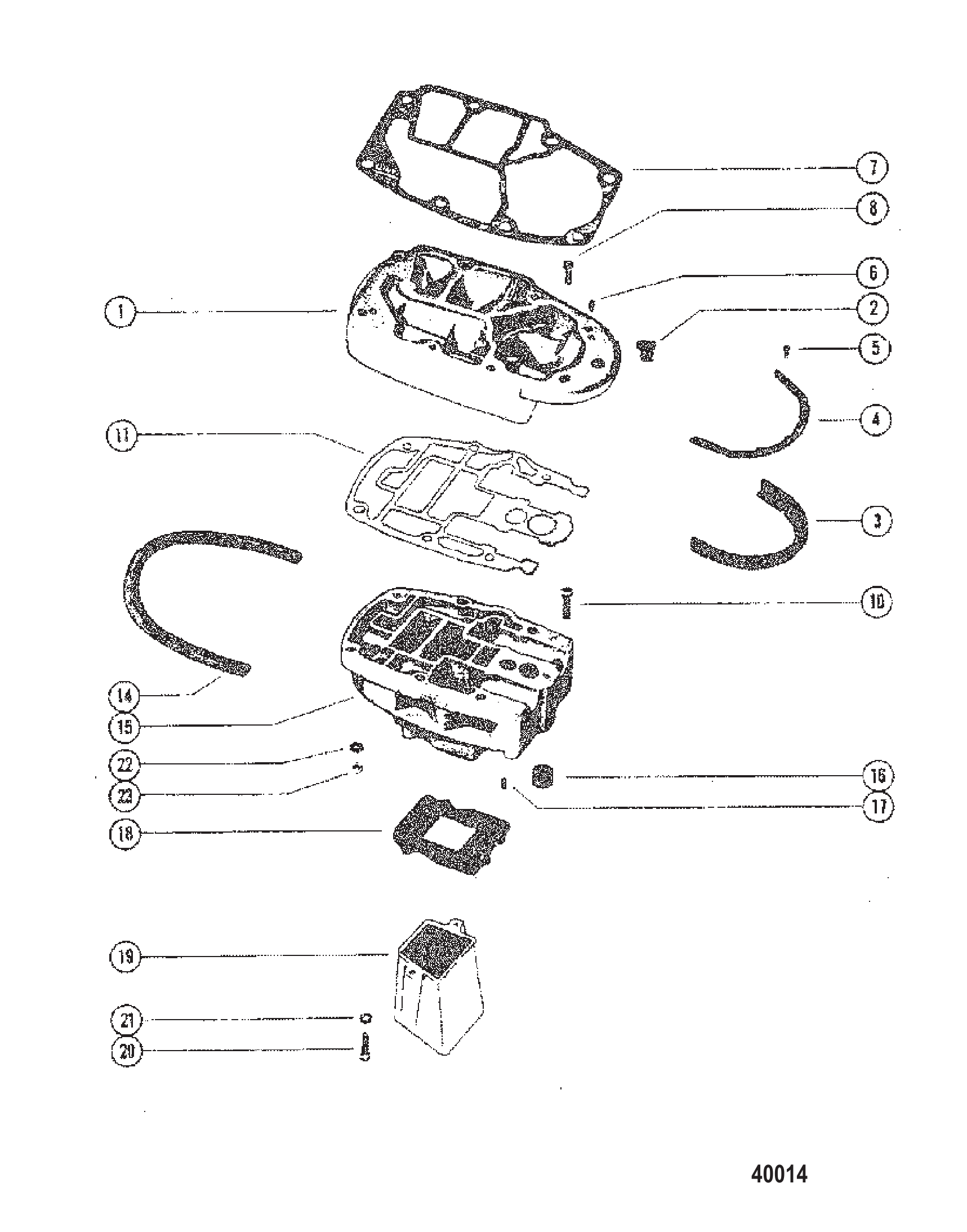

| 1 | 43289A2 | 排气延伸板总成 | PLATE ASSEMBLY EXHAUST EXTENSION | 1 |
| 2 | 27132 | 排气延伸板尼龙衬套 | BUSHING NYLON-EXHAUST EXTENSION PLATE | 1 |
| 3 | 23784 | 排气延伸板定位销 | PIN Dowel EXHAUST EXTENSION PLATE | 2 |
| 4 | 37918 | 排气延伸板密封件 | SEAL EXHAUST EXTENSION PLATE | 1 |
| 5 | 99358 | 排气延伸板固定条 | STRIP RETAINING - EXHAUST EXTENSION PLATE | 1 |
| 6 | 37571 | 螺钉(.190-32 x 0.500) | SCREW (.190-32 x .500) | 5 |
| 7 | 69238 | 动力头衬垫 | GASKET POWERHEAD | 1 |
| 7 | 692381 | 衬垫 | GASKET | 1 |
| 8 | 66023 | 法兰头螺钉(.312-18 x 2.00) | SCREW (.312-18 x 2.00) Flange Head | 2 |
| 9 | 66023 | 法兰头螺钉(.312-18 x 2.00) | SCREW (.312-18 x 2.00) Flange Head | 7 |
| 10 | 66102 | 驱动轴壳体板衬垫 | GASKET DRIVESHAFT HOUSING PLATE | 1 |
| 10 | 661021 | 衬垫 | GASKET | 1 |
| 11 | 60898 | 驱动轴壳体板密封件 | SEAL DRIVESHAFT HOUSING PLATE | 1 |
| 12 | 43290A4 | 驱动轴壳体板总成 | PLATE ASSEMBLY DRIVESHAFT HOUSING | 1 |
| 13 | 38970 | 橡胶密封圈-进水管 | SEAL RUBBER - WATER INLET TUBE | 1 |
| 14 | 23784 | 驱动轴壳体板定位销 | PIN Dowel DRIVESHAFT HOUSING PLATE | 2 |
| 15 | 99698 | 排气管 | TUBE Exhaust | 1 |
| 16 | 65414 | 螺钉(3/4英寸) | SCREW (3/4 Inches) | 4 |
| - | 73645A87 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 130194 | 自动混合装置 | AUTO BLEND ASSEMBLY | 1 |
| 1 | 16612 | 油箱套件 机油 | TANK KIT Oil | 1 |
| 2 | 13996 | 手柄套件 | HANDLE KIT | 1 |
| 3 | 16619 | CAP Oil Tank | 1 | |
| 4 | 16614 | 五金件套件 | HARDWARE KIT | 1 |
| 5 | 13979 | 放油塞套件 | PLUG KIT Drain | 1 |
| 6 | 16611 | 膜片组件 | DIAPHRAGM KIT | 1 |
| 7 | 16620 | 安装支架套件 | BRACKET KIT Mounting | 1 |
| 8 | 13993 | 箍带 | BAND | 1 |
| 9 | 13983 | 左支架 | BRACKET Left | 1 |
| 10 | 13984 | 右支架 | BRACKET Right | 1 |
| 11 | 16613 | 盖板 | COVER | 1 |
| 12 | 13985 | 机油滤清器/传感器套件 | FILTER/SENSOR KIT Oil | 1 |
| 13 | 18576 | 燃油滤清器套件 | FILTER KIT Fuel | 1 |
| 14 | 13992 | 乙烯基软管 | VINYL TUBE | 1 |
| 15 | 16618 | 机油滤网 | STRAINER Oil | 1 |
| 16 | 16615 | 止回阀套件 | CHECK VALVE KIT | 1 |
| 17 | 16621 | 安装板 | PLATE | 1 |
| 18 | 19265 | 模块套件 | MODULE KIT | 1 |
| 19 | 16623 | 支架套件 | BRACKET KIT | 1 |
| 20 | 16616 | 衬垫套件 | GASKET KIT | 1 |
| 21 | 14585A1 | 自动混合线束总成 | HARNESS ASSEMBLY Auto Blend | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 1301931 | 自动混合器 | AUTO-BLEND | 1 |
| 1 | 13982 | 油箱套件 机油 | TANK KIT Oil | 1 |
| 1 | 16612 | 油箱套件 机油 | TANK KIT Oil | 1 |
| 2 | 13996 | 手柄套件 | HANDLE KIT | 1 |
| 3 | 13986 | 机油箱盖 | CAP OIL TANK | 1 |
| 4 | 16614 | 五金件套件 | HARDWARE KIT | 1 |
| 5 | 13979 | 放油塞套件 | PLUG KIT Drain | 1 |
| 6 | 16611 | 膜片组件 | DIAPHRAGM KIT | 1 |
| 7 | 13990 | 支架 | BRACKET | 1 |
| 8 | 13993 | 箍带 | BAND | 1 |
| 9 | 13983 | 支架(左) | BRACKET (LEFT) | 1 |
| 10 | 13984 | 支架(右) | BRACKET (RIGHT) | 1 |
| 11 | 16613 | 盖板 | COVER | 1 |
| 12 | 13985 | 机油滤清器/传感器套件 | FILTER/SENSOR KIT Oil | 1 |
| 13 | 13987 | 喇叭套件 | HORN KIT | 1 |
| 14 | 13988 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 15 | 13989 | 保险丝(0.5安培) | FUSE (.5 AMP) | 1 |
| 16 | 18089 | 燃油滤清器套件 | FILTER KIT Fuel | 1 |
| 17 | 13992 | 乙烯基软管 | VINYL TUBE | 1 |
| 18 | 13995 | 燃油管套件 | TUBE KIT Fuel | 1 |
| 19 | 15387A1 | 机油滤网总成 | STRAINER ASSEMBLY Oil | 1 |
| 20 | 16615 | 止回阀套件 | CHECK VALVE KIT | 1 |
| 21 | 16616 | 衬垫套件 | GASKET KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 7719A1 | 下机罩 | BOTTOM COWL | 1 |
| 2 | 52862A2 | 底罩滴水盘总成 | DRIP TRAY ASSEMBLY BOTTOM COWL | 1 |
| 3 | 37940 | 滴水盘隔音垫 | SOUND PAD DRIP TRAY | 1 |
| 4 | 48408 | 滴水盘到底罩螺丝(#10-16 x .500) | SCREW (#10-16 x .500) DRIP TRAY TO BOTTOM COWL | 4 |
| 5 | 34395A1 | 滴水盘到底罩软管(8") | HOSE DRIP TRAY TO BOTTOM COWL (8") | 1 |
| 5 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 6 | 39616 | 控制线护套 | BOOT CONTROL CABLES | 1 |
| 7 | 76369 | 底罩垫片 | SPACER BOTTOM COWL | 1 |
| 8 | 48591 | 垫片到底罩螺丝(#10-32 x .500) | SCREW (#10-32 x .500) SPACER TO BOTTOM COWL | 2 |
| 9 | 37637 | 燃油接头护套 | BOOT FUEL CONNECTOR | 1 |
| 13 | 34395A1 | 示位软管(21-1/2") | HOSE TELL TALE (21-1/2") | 1 |
| 13 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 14 | 52889 | 示警软管至底罩喷嘴 | NOZZLE TELL TALE HOSE TO BOTTOM COWL | 1 |
| 15 | 48408 | 示流喷嘴至下罩盖螺钉(#10-16x0.500) | SCREW (#10-16 x .500) TELL TALE NOZZLE TO BOTTOM COWL | 1 |
| 16 | 78279 | 示警软管至气缸体弯头 | ELBOW TELL TALE HOSE TO CYLINDER BLOCK | 1 |
| 16 | 8M0207781 | 弯头 | ELBOW | 1 |
| 17 | 60304A54 | 上部换挡轴总成 | SHIFT SHAFT ASSEMBLY UPPER | 1 |
| 18 | 26600 | 换挡轴衬套 | BUSHING SHIFT SHAFT | 1 |
| 20 | 48047A1 | 连杆总成 | LINK ROD ASSEMBLY | 1 |
| 20 | 73402 | 换挡连杆 | SHIFT LINK | 1 |
| 21 | 35462 | 垫圈(.2656 x .625 x .0625)不锈钢连杆 | WASHER (.2656 x .625 x .0625) Stainless Steel LINK ROD | 2 |
| 22 | 20664 | 连杆螺母 | NUT LINK ROD | 2 |
| 22 | 826709109 | 不锈钢螺母(.250-28) | NUT (.250-28) Stainless Steel | 2 |
| 23 | 29720 | 连杆波形垫圈 | WAVE WASHER LINK ROD | 1 |
| 24 | 52732 | 控制线缆锚定支架 | BRACKET ANCHOR-CONTROL CABLES | 1 |
| 24 | 52732A6 | 支架 | BRACKET | 1 |
| 25 | 39519 | 杯筒固定座 | CUP BARREL RETAINER | 1 |
| 26 | 39618 | 尼龙换挡线缆锁定杆 | LEVER NYLON-SHIFT CABLE LOCKING | 1 |
| 26 | 87609A1 | 杠杆套件 | LEVER KIT | 1 |
| 27 | 47175 | 锁定杆与盖销 | PIN LOCKING LEVER AND COVER | 3 |
| 28 | 39667 | 尼龙换挡线缆盖 | COVER NYLON-SHIFT CABLE | 1 |
| 29 | 65799 | 连杆-锁定杆到盖板 | LINK LOCKING LEVER TO COVER | 1 |
| 29 | 87609A1 | 杠杆套件 | LEVER KIT | 1 |
| 30 | 24234 | 螺钉(.312-18 x 1.00)锚定支架至气缸体 | SCREW (.312-18 x 1.00) ANCHOR BRACKET TO CYLINDER BLOCK | 3 |
| 30 | 35386 | 螺丝(.312-18 x 1.00) | SCREW (.312-18 x 1.00) | 3 |
| 31 | 20099 | 连杆至导向块弹簧 | SPRING LINK ROD TO GUIDE BLOCK | 1 |
| 32 | 37896 | 连杆导向块 | GUIDE BLOCK LINK ROD | 1 |
| 33 | 52100 | 连杆耐磨板 | WEAR PLATE LINK ROD | 1 |
| 34 | 38279 | 控制线缆闩锁紧固件 | LATCH CONTROL CABLE FASTENING | 1 |
| 34 | 8M0036768 | 闩锁 | LATCH | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 9012A71 | 化油器 上部, 75 - WME-17 | CARBURETOR Top, 75 - WME-17 | 1 |
| 1 | 9012A72 | 化油器 中部, 75 - WME-17 | CARBURETOR Center, 75 - WME-17 | 1 |
| 1 | 9012A73 | 化油器 下部, 75 - WME-17 | CARBURETOR Bottom, 75 - WME-17 | 1 |
| 1 | 9012A58 | 化油器 上部, 75 通用 - WME-18 | CARBURETOR Top, 75 COMM. - WME-18 | 1 |
| 1 | 9012A59 | 化油器 中部, 75 通用 - WME-18 | CARBURETOR Center, 75 COMM. - WME-18 | 1 |
| 1 | 9012A60 | 化油器 下部, 75 通用 - WME-18 | CARBURETOR Bottom, 75 COMM. - WME-18 | 1 |
| 1 | 9012A64 | 化油器 上部, 90 - WME-19 | CARBURETOR Top, 90 - WME-19 | 1 |
| 1 | 9012A65 | 化油器 中部, 90 - WME-19 | CARBURETOR Center, 90 - WME-19 | 1 |
| 1 | 9012A66 | 化油器 下部, 90 - WME-19 | CARBURETOR Bottom, 90 - WME-19 | 1 |
| 1 | 9012A74 | 化油器 上部, 75 通用 - WME-25 | CARBURETOR Top, 75 COMM. - WME-25 | 1 |
| 1 | 9012A75 | 化油器 中部, 75 通用 - WME-25 | CARBURETOR Center, 75 COMM. - WME-25 | 1 |
| 1 | 9012A76 | 化油器 下部, 75 通用 - WME-25 | CARBURETOR Bottom, 75 COMM. - WME-25 | 1 |
| 2 | NSS | NOT SOLD SEPARATE Gasket, Fuel Bowl | 3 | |
| 3 | NSS | 非单独销售挡圈 | NOT SOLD SEPARATE Retaining Ring | 3 |
| 4 | 9589 | 燃油上浮子室 | BOWL Fuel Upper | 1 |
| 4 | 811696 | 燃油杯 | BOWL Fuel | 1 |
| 4 | 9590 | 燃油中/下浮子室 | BOWL Fuel Center, Lower | 2 |
| 4 | 811693 | 燃油杯 | BOWL Fuel | 2 |
| 4 | 811696 | 燃油上浮子室 | BOWL Fuel Upper | 1 |
| 4 | 811693 | 燃油中/下浮子室 | BOWL Fuel Center, Lower | 2 |
| 5 | 9591 | 节流阀上/下轴 | SHAFT Throttle Upper, Lower | 2 |
| 6 | 19270 | 节流阀中轴 | SHAFT Throttle Center | 1 |
| 7 | 9593 | 节流阀 75/75通用 | VALVE Throttle 75/75 COMM. | 3 |
| 7 | 811216 | 节流阀 90 | VALVE Throttle 90 | 3 |
| 8 | 9594 | 浮子 | FLOAT | 3 |
| 9 | NSS | NOT SOLD SEPARATE Float Shaft | 3 | |
| 10 | 9595 | 进油针阀 | VALVE Inlet Needle | 3 |
| 10 | 879194011 | 进油阀 | VALVE Inlet | 3 |
| 11 | 9596 | 堵头 | PLUG | 3 |
| 11 | 95961 | 油杯放油塞 | PLUG Bowl Drain | 3 |
| 11 | 811694 | 堵头套件 WME-25 | PLUG KIT WME-25 | 3 |
| 12 | NSS | 垫片(不单独销售) | NOT SOLD SEPARATE Gasket | 3 |
| 13 | NSS | 不单独出售 盖板衬垫 | NOT SOLD SEPARATE Gasket, Cover Plate | 3 |
| 14 | 151723 | 法兰衬垫 | GASKET Flange | 3 |
| 14 | 151724 | 衬垫 | GASKET | 3 |
| 15 | NSS | 不单独出售 节流阀螺钉 | NOT SOLD SEPARATE Screw, Throttle Valve | 6 |
| 16 | 9597 | 螺钉 盖板, WME-8/9/15 | SCREW Cover Plate, WME-8/9/15 | 6 |
| 16 | 811220 | 螺钉 盖板 WME-17/18/19/25 | SCREW Cover Plate WME-17/18/19/25 | 6 |
| 17 | 5132 | 燃油杯螺钉 | SCREW Fuel Bowl | 12 |
| 17 | 808612 | 螺钉及垫圈 (#8-32 x .750) | SCREW AND WASHER (#8-32 x .750) | 12 |
| 18 | 9598 | 盖板 WME-8/9/15 | COVER PLATE WME-8/9/15 | 3 |
| 18 | 811221 | 盖板 WME-17/18/19/25 | COVER PLATE WME-17/18/19/25 | 3 |
| 19 | 4216 | 量孔 (.064) 主燃油,75通用 | JET (.064) Main Fuel,75 COMM. | 3 |
| 19 | 6029 | 量孔 (.068) 主燃油, 75 | JET (.068) Main Fuel, 75 | 3 |
| 19 | 4215 | 量孔 (.066) 主燃油, 90 | JET Main Fuel (.066) Main Fuel, 90 | 3 |
| 20 | 8423 | 量孔 (.094) 通气孔 | JET (.094) Vent, .094 | 3 |
| 21 | NSS | 不单独出售 喷嘴井衬垫 | NOT SOLD SEPARATE Gasket, Nozzle Well | 3 |
| 22 | NSS | NOT SOLD SEPARATE Spring, Idle Needle | 3 | |
| 23 | NSS | 不单独出售 节流阀回位弹簧 | NOT SOLD SEPARATE Spring, Throttle Return | 3 |
| 24 | NSS | 怠速空气弹簧（不单独销售） | NOT SOLD SEPARATE Spring, Idle Air | 3 |
| 25 | NSS | NOT SOLD SEPARATE Idle Needle | 3 | |
| 26 | NSS | NOT SOLD SEPARATE Idle Air Needle | 3 | |
| -- | 823635 | 维修套件 | REPAIR KIT | 1 |
| -- | 8236354 | 化油器维修套件 | REPAIR KIT Carburetor | 1 |
| -- | 8112231 | 化油器衬垫组 | GASKET SET Carburetor | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 7469A14 | 化油器(上) | CARBURETOR (TOP) | 1 |
| 1 | 7472A27 | 化油器(上) | CARBURETOR (TOP) | 1 |
| 1A | 7469A15 | 化油器(中) | CARBURETOR (CENTER) | 1 |
| 1A | 7472A28 | 化油器(中) | CARBURETOR (CENTER) | 1 |
| 2 | 7469A16 | 化油器(下) | CARBURETOR (BOTTOM) | 1 |
| 2 | 7472A29 | 化油器(下) | CARBURETOR (BOTTOM) | 1 |
| 3 | 85943A1 | 节气门杠杆总成(上化油器) | LEVER ASSEMBLY THROTTLE (UPPER CARBURETOR) | 1 |
| 4 | 60293 | 螺钉 (#5-40 x .500) 油门杆 | SCREW (#5-40 x .500) THROTTLE LEVER | 1 |
| 5 | 74726 | 垫圈 | WASHER | 1 |
| 6 | 53720A2 | 联轴器总成 | COUPLING ASSEMBLY | 2 |
| 7 | 66104 | 节气门支架螺丝(#8-32 x .790) | SCREW (#8-32 x .790) THROTTLE BRACKET | 2 |
| 8 | 89694 | 节气门联轴键 | KEY THROTLE COUPLING | 2 |
| 9 | 90365 | 加浓阀 | VALVE Enrichner | 1 |
| 9 | 42859A2 | 加浓阀总成 | VALVE ASSEMBLY Enrichner | 1 |
| 10 | 90275 | 加浓阀连接器（底部） | CONNECTOR ENRICHNER VALVE (BOTTOM) | 1 |
| 11 | 73817 | 加浓阀连接器（90度侧向） | CONNECTOR (90 Degree) ENRICHNER VALVE (SIDE) | 1 |
| 12 | 90345 | 加浓阀支架 | BRACKET ENRICHNER VALVE | 1 |
| 13 | 89075 | 阀至支架螺钉 | SCREW VALVE TO BRACKET | 2 |
| 14 | 42859A2 | 加浓阀总成 | VALVE ASSEMBLY Enrichner | 1 |
| 16 | 73286 | 化油器不锈钢螺丝（0.250-20×0.500） | SCREW (.250-20 x .500) Stainless Steel CARBURETOR | 2 |
| 17 | 45915 | 端子排簧片块壳体 | TERMINAL BLOCK REED BLOCK HOUSING | 1 |
| 18 | 69079 | 螺钉(#10-16 x .440)端子排 | SCREW (#10-16 x .440) TERMINAL BLOCK | 1 |
| 19 | 20411 | 螺钉(.190-24 x .62)导线至端子排 | SCREW (.190-24 x .62) WIRE TO TERMINAL BLOCK | 1 |
| 20 | 9912688 | 加浓阀管路（36英寸散装） | TUBING (36.00 Inches Bulk) ENRICHNER VALVE | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 7928A3 | 前盖组件 | FRONT COVER ASSEMBLY | 1 |
| 2 | 56849 | 前盖旋钮 | KNOB FRONT COVER | 1 |
| 3 | 30771 | 旋钮盖垫圈(橡胶) | WASHER COVER KNOB (RUBBER) | 2 |
| 4 | 59572 | 盖旋钮垫片(塑料) | WASHER COVER KNOB (PLASTIC) | 2 |
| 5 | 30772 | 旋钮张力弹簧 | SPRING TENSION - KNOB | 1 |
| 6 | 29077 | PIN Roll TENSION SPRING TO KNOB | 1 | |
| 7 | 38674 | 启动绳护套 | BLANKET STARTER ROPE | 1 |
| 8 | 94924 | 上部消音密封 | SEAL SOUND - UPPER | 1 |
| 9 | 4660A4 | 环绕式外罩总成 | WRAP AROUND COWL ASSEMBLY | 1 |
| 10 | 46785A1 | 罩壳锁扣总成 | LATCH ASSEMBLY Cowl | 3 |
| 11 | 30413 | 罩锁钩 | HOOK COWL LATCH | 3 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 6497A7 | 前盖 | FRONT COVER | 1 |
| 2 | 56849 | 前盖旋钮 | KNOB FRONT COVER | 1 |
| 3 | 30771 | 旋钮盖垫圈(橡胶) | WASHER COVER KNOB (RUBBER) | 2 |
| 4 | 59572 | 盖旋钮垫片(塑料) | WASHER COVER KNOB (PLASTIC) | 2 |
| 5 | 30772 | 旋钮张力弹簧 | SPRING TENSION - KNOB | 1 |
| 6 | 29077 | PIN Roll TENSION SPRING TO KNOB | 1 | |
| 7 | 77790 | 消音条 | STRIP SOUNG | 2 |
| 8 | 38674 | 启动绳护套 | BLANKET STARTER ROPE | 1 |
| 10 | 77544 | 顶部消音密封 | SEAL SOUND - TOP | 1 |
| 11 | 6498A9 | 环绕式外罩 | WRAP AROUND COWL | 1 |
| 12 | 46785A1 | 罩壳锁扣总成 | LATCH ASSEMBLY Cowl | 3 |
| 13 | 30413 | 罩锁钩 | HOOK COWL LATCH | 3 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 827616A1 | 曲轴 | CRANKSHAFT | 1 |
| 2 | 43011 | 球轴承(下部) | BEARING Ball (LOWER) | 1 |
| 2 | 43011T | 滚珠轴承 | BEARING Ball | 1 |
| 3 | 786611 | 耐磨套 | WEAR SLEEVE | 1 |
| 4 | 35126 | O型圈(.859 x .139) | O-RING (.859 x .139) | 1 |
| 5 | 818412A4 | 环组件 | RING ASSEMBLY | 1 |
| 6 | 91800 | 半圆键 | KEY Woodruff | 2 |
| 7 | 43019A1 | 齿轮总成 | GEAR ASSEMBLY | 1 |
| 8 | 42943A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 2 |
| 9 | 826191A4 | 活塞总成 | PISTON ASSEMBLY | 3 |
| 9 | 826191T4 | 活塞总成 | PISTON ASSEMBLY | 3 |
| 9 | 821896A3 | 活塞总成 | PISTON ASSEMBLY | AR |
| 9 | 821896A4 | 活塞总成 | PISTON ASSEMBLY | AR |
| 10 | 52035 | 锁环 | RING Lock | 6 |
| 10 | 857196 | 锁紧环 | LOCK RING | 6 |
| 11 | 822321A12 | 活塞环套件-标准 | RING KIT Piston - Standard | 1 |
| 11 | 822321A1 | 活塞环套件-加大0.015 | RING KIT Piston - .015 Oversize | AR |
| 11 | 822321A2 | 活塞环组 | RING SET Piston | AR |
| 12 | 818846A3 | 连杆总成 | CONNECTING ROD ASSEMBLY | 3 |
| 12 | 818846T6 | 连杆总成 | CONNECTING ROD ASSEMBLY | 3 |
| 13 | 812876 | 垫圈 | WASHER | 6 |
| 13 | 8M0012298 | 止推垫片 | THRUST WASHER | 6 |
| 14 | 818391 | 滚针轴承 | BEARING Needle | 87 |
| 14 | 8M0214954 | 滚针轴承@200 | BRG-NEEDLE @200 | 87 |
| 15 | 94320 | 螺钉(.375-24 x 1.250) | SCREW (.375-24 x 1.250) | 6 |
| 16 | 43012A1 | 轴承/保持架套件 | BEARING/CAGE KIT | 3 |
| 16 | 8M0235070 | 轴承保持架 | CAGE BEARING | 3 |
| 17 | 43013A1 | 滚子轴承总成(上部) | BEARING ASSEMBLY Roller (UPPER) | 1 |
| 17 | 43013T3 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 18 | 43993 | 油封 | SEAL Oil | 1 |
| 18 | 8M0214932 | 密封件 | SEAL | 1 |
| 19 | 823683 | O型圈(1.989 x .070) | O-RING (1.989 x .070) | 1 |
| - | 43004A90 | 衬垫套件 | GASKET SET | 1 |
| - | 43004A99 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 809837A97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 809837T97 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 7697A3 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 1 | 8311A4 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 1 | 8311A4 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 2 | 53862 | 曲轴箱至气缸体衬垫 | GASKET CRANKCASE TO CYLINDER BLOCK | 2 |
| 3 | 66517 | 曲轴箱通气限流器 | RESTRICTOR CRANKCASE BLEED | 5 |
| 4 | 64280 | 化油器柱(1-3/16英寸) | STUD CARBURETOR (1-3/16") | 6 |
| 4 | 64936 | 螺柱 | STUD | 6 |
| 5 | 64281 | 曲轴箱至延伸板柱(.375-16/.375-24 x 1.880) | STUD (.375-16/.375-24 x 1.880) CRANKCASE TO EXTENSION PLATE | 2 |
| 6 | 20033 | 定位销曲轴箱至气缸体 | PIN Dowel CRANKCASE TO CYLINDER BLOCK | 2 |
| 6 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 2 |
| 7 | 63779 | 定位销(.250 x .625)气缸体至主轴承 | PIN Dowel (.250 x .625) CYLINDER BLOCK TO MAIN BEARING | 3 |
| 8 | 64282 | 气缸体至板柱(4英寸) | STUD (4 In.) CYLINDER BLOCK TO PLATE (4") | 6 |
| 9 | 86473 | 启动马达顶盖 | COVER STARTER MOTOR - TOP | 1 |
| 10 | 69268 | 顶盖螺钉(1-7/8英寸) | SCREW TOP COVER (1-7/8") | 2 |
| 10 | 73279 | 螺钉(.312-18 x 1.880) | SCREW (.312-18 x 1.880) | 2 |
| 11 | 26993 | 顶盖螺钉锁紧垫圈(.312) | LOCKWASHER (.312) TOP COVER SCREWS | 2 |
| 11 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 13 | 76867 | 启动马达底盖 | COVER STARTER MOTOR - BOTTOM | 1 |
| 14 | 69268 | 底盖螺钉(1-7/8英寸) | SCREW BOTTOM COVER (1-7/8") | 2 |
| 14 | 73279 | 螺钉(.312-18 x 1.880) | SCREW (.312-18 x 1.880) | 2 |
| 15 | 26993 | 底盖螺钉锁紧垫圈(.312) | LOCKWASHER (.312) BOTTOM COVER SCREW | 2 |
| 15 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 17 | 57841 | 曲轴箱至气缸体螺钉(.312-18 x 2.750) | SCREW (.312-18 x 2.750) CRANKCASE TO CYLINDER BLOCK | 3 |
| 17 | 32293 | 曲轴箱至气缸体螺钉(.312-24 x 1.75) | SCREW (.312-24 x 1.75) CRANKCASE TO CYLINDER BLOCK | 3 |
| 17 | 73657 | 曲轴箱至气缸体螺丝(.312-18 x 1.50) | SCREW (.312-18 x 1.50) CRANKCASE TO CYLINDER BLOCK | 20 |
| 17 | 53016 | 曲轴箱至气缸体螺钉(1-1/4英寸) | SCREW (1.25) CRANKCASE TO CYLINDER BLOCK (1-1/4") | 2 |
| 17 | 74824 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 2 |
| 18 | 22753 | 曲轴箱螺钉垫圈 | WASHER CRANKCASE SCREWS | 25 |
| 19 | 29250 | 曲轴箱螺钉螺母(.312-24)(下部) | NUT (.312-24) CRANKCASE SCREWS (LOWER) | 2 |
| 20 | 20359 | 中央主轴承锁紧螺钉(.375-16 x 1.00) | SCREW (.375-16 x 1.00) CENTER MAIN BEARING LOCKING | 2 |
| 21 | 20091 | 轴承锁紧螺钉止动垫圈 | TAB WASHER BEARING LOCKING SCREW | 2 |
| 25 | 77560 | 上部泄放软管止回阀 | CHECK VALVE BLEED HOSE - UPPER | 1 |
| 25 | 42866 | 止回阀 | CHECK VALVE | 1 |
| 26 | 5493579 | 泄放软管(22英寸) | HOSE BLEED (22") | 1 |
| 26 | 9938779 | 软管 | HOSE | 1 |
| 27 | 77561 | 下部泄放软管接头总成 | FITTING ASSEMBLY BLEED HOSE - LOWER | 1 |
| 27 | 428671 | 止回阀 | CHECK VALVE | 1 |
| 28 | 25885 | 平衡软管弯头 | ELBOW BALANCE HOSE | 2 |
| 28 | 996642 | 90度弯头接头(0.125-27x0.250)尼龙 | FITTING Elbow 90 Degree (.125-27 x .250) Nylon | 2 |
| 29 | 34395A1 | 主轴承平衡软管(6-1/4英寸) | HOSE BALANCE - MAIN BEARING (6-1/4") | 2 |
| 29 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 2 |
| 30 | 85578 | 平衡软管三通 | TEE BALANCE HOSE | 1 |
| 30 | 8585531 | 连接器 | CONNECTOR | 1 |
| 30 | 97231 | 泄放底座三通 | TEE BLEED BASE | 1 |
| - | 85653A32 | 衬垫套件 | GASKET SET | 1 |
| - | 85653A87 | 衬垫套件 | GASKET SET | 1 |
| - | 78911A80 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 97472A32 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 97472A32 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 5239A4 | 驱动轴壳体总成-水星 | HOUSING ASSEMBLY Driveshaft - Mercury | 1 |
| 2 | 56295 | 驱动轴壳体柱(.437 x 2.69) | STUD (.437 x 2.69) DRIVESHAFT HOUSING | 2 |
| 3 | 64649 | PLUG PLASTIC - TRIM TAB SCREW HOLE | 1 | |
| 5 | 37417 | 装饰盖-驱动轴壳体 | COVER TRIM - DRIVESHAFT HOUSING | 1 |
| 6 | 57807 | 调整盖至底罩不锈钢螺钉(#10-16 x .750) | SCREW (#10-16 x .750) Stainless Steel TRIM COVER TO BOTTOM COWL | 4 |
| 6A | 92012 | 调整盖螺钉塑料护套 | GROMMET PLASTIC - TRIM COVER SCREW | 4 |
| 6A | 8M0079730 | 密封圈套件 | GROMMET KIT | 4 |
| 6B | 88238A4 | 装饰盖螺钉线缆总成 | CABLE ASSEMBLY TRIM COVER SCREW | 2 |
| 6B | 88238T01 | 拉线总成 | CABLE ASSEMBLY | 2 |
| 6C | 62568 | 接地带固定螺钉(#10-16 x 0.375) | SCREW (#10-16 x .375) GROUND STRAP ATTACHING | 2 |
| 7 | 60897 | 进水口管 | TUBE WATER INLET | 1 |
| 8 | 78184 | 管 | TUBE | 1 |
| 8 | 78184T | 管 | TUBE | 1 |
| 8A | 65638 | 排气管护套 | BOOT EXHAUST TUBE | 2 |
| 11 | 69254 | 动力头柱螺母(3/8-24) | NUT POWERHEAD STUDS (3/8-24) | 2 |
| 12 | 25970 | 动力头双头螺栓垫片 | WASHER POWERHEAD STUDS | 2 |
| 12 | 20553 | 垫圈(.406 x .734 x .063) | WASHER (.406 x .734 x .063) | 2 |
| 14 | 52887 | 推杆导套 | GUIDE PUSH ROD | 1 |
| 14 | 92704 | 推杆导套 | GUIDE PUSH ROD | 1 |
| 15 | 47558 | 推杆 | ROD PUSH | 1 |
| 15 | 92707 | 推杆 | ROD PUSH | 1 |
| 15 | 43417A2 | 推杆总成 | PUSH ROD ASSY | 1 |
| 16 | 47661 | 推杆锁紧螺母 | NUT JAM - PUSH ROD | 1 |
| 16 | 69254 | 螺母 | NUT | 1 |
| 16 | 28770 | 不锈钢推杆防松螺母（0.312英寸-24牙） | NUT (.312-24) Stainless Steel JAM - PUSH ROD | 2 |
| 17 | 47559 | 推杆轭 | YOKE PUSH ROD | 1 |
| 17 | 89813 | 推杆端头 | ROD END PUSH ROD | 1 |
| 19 | 25191 | 推杆开口销 | COTTER PIN PUSH ROD | 1 |
| 20 | 75296 | 橡胶安装座-上部 | MOUNT RUBBER - UPPER | 2 |
| 21 | 47840 | 橡胶垫圈-上部安装螺栓 | WASHER RUBBER - UPPER MOUNT BOLT | 2 |
| 22 | 31263 | 上支座螺栓垫圈 | WASHER UPPER MOUNT BOLT | 2 |
| 23 | 34933 | 螺母（0.437-20）不锈钢上部安装螺栓 | NUT (.437-20) Stainless Steel UPPER MOUNT BOLT | 2 |
| 23 | 8M0204653 | 螺母 | NUT | 2 |
| 24 | 75299 | 下橡胶支座 | MOUNT RUBBER - LOWER | 2 |
| 25 | 49318 | 下部安装螺钉(5-1/2英寸) | SCREW LOWER MOUNT (5-1/2") | 2 |
| 25 | 75284 | 螺钉 (0.500-20 x 5.500) | SCREW (.500-20 x 5.500) | 2 |
| 26 | 49339 | 下部安装螺钉垫圈(.8125) | WASHER (.8125) LOWER MOUNT SCREW | 2 |
| 27 | 25096 | 下安装螺丝螺母 | NUT LOWER MOUNT SCREW | 2 |
| 28 | 25067 | 下部安装螺钉橡胶缓冲垫 | BUMPER RUBBER - LOWER MOUNTING SCREW | 2 |
| 30 | 34933 | 齿轮箱壳体双头螺栓不锈钢螺母(.437-20) | NUT (.437-20) Stainless Steel GEAR HOUSING STUDS | 2 |
| 30 | 8M0204653 | 螺母 | NUT | 2 |
| 31 | 45176 | 齿轮箱双头螺栓不锈钢垫片(0.453 x 0.812 x 0.105) | WASHER (.453 x .812 x .105) Stainless Steel GEAR HOUSING STUDS | 2 |
| 32 | 29489 | 齿轮箱双头螺栓螺母 | NUT GEAR HOUSING STUDS | 1 |
| 33 | 45176 | 齿轮箱双头螺栓不锈钢垫片(0.453 x 0.812 x 0.105) | WASHER (.453 x .812 x .105) Stainless Steel GEAR HOUSING STUDS | 1 |
| 34 | 35608 | 下安装夹 | CLAMP LOWER MOUNT | 2 |
| 35 | 35522 | 弹簧张力-下安装夹 | SPRING TENSION - LOWER MOUNT CLAMP | 4 |
| 36 | 29256 | 螺丝（0.312-18 x 0.875）下安装夹 | SCREW (.312-18 x .875) LOWER MOUNT CLAMP | 4 |
| 37 | 35474 | 下安装夹盖 | COVER LOWER MOUNT CLAMP | 2 |
| 37 | 35474T | 盖板 | COVER | 2 |
| 38 | 35521 | 下安装夹盖螺母 | NUT LOWER MOUNT CLAMP COVER | 2 |
| 39 | 87884 | 盖至下部夹具安装螺钉(#12-14 x .920) | SCREW (#12-14 x .920) COVER TO LOWER CLAMP MOUNT | 2 |
| 40 | 88238A2 | 接地线总成 | CABLE ASSEMBLY Ground | 1 |
| 40 | 88238A10 | 接地线总成 | CABLE ASSEMBLY Ground | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8311A4 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 1 | 8310A4 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 2 | 7616A2 | 端盖总成 | END CAP ASSEMBLY | 1 |
| 3 | 41953 | 端盖密封件 | SEAL END CAP | 1 |
| 4 | 47254 | O型圈 | O-RING | 1 |
| 5 | 73644A1 | 端盖垫片(.006-10) | SHIM END CAP (.006-10) | AR |
| 6 | 73169 | 端盖螺钉(1英寸) | SCREW END CAP (1") | 4 |
| 6 | 812618 | 不锈钢螺钉(.312-18 x 1.00)带尼龙垫 | SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch | 4 |
| 7 | 5410A1 | 下端盖总成 | END CAP ASSEMBLY LOWER | 1 |
| 7 | 5410T1 | 端盖总成 | END CAP ASSY | 1 |
| 8 | 41953 | 端盖密封件 | SEAL END CAP | 2 |
| 9 | 32546 | 端盖O型圈 | O-RING END CAP | 1 |
| 10 | 20085A1 | 端盖垫片组(.005-10) | SHIM SET END CAP (.005-10) | AR |
| 11 | 69034 | 端盖螺钉及锁紧垫圈(.312-18 x 1.00) | SCREW AND LOCKWASHER (.312-18 x 1.00) END CAP | 3 |
| 11 | 30225 | 螺钉带锁紧垫圈(.312-18 x 1.00) | SCREW WITH LOCKWASHER (.312-18 x 1.00) | 3 |
| 12 | 71808 | 水套盖 | COVER WATER JACKET | 1 |
| 13 | 721421 | 水套盖衬垫 | GASKET WATER JACKET COVER | 1 |
| 14 | 53167 | 水套盖螺钉(.312-18 x 0.880) | SCREW (.312-18 x .880) WATER JACKET COVER | 23 |
| 14 | 53167T | 螺钉 0.312-18X 0.88 | SCREW .312-18X .88 | 23 |
| 15 | 70132 | 垫圈(0.323×0.563×0.063)不锈钢 | WASHER (.323 x .563 x .063) Stainless Steel | 23 |
| 15 | 8M0042642 | 垫圈(.323 x .562 x .063) | WASHER (.323 x .562 x .063) | 23 |
| 16 | 854952 | 气缸体至挡板衬垫 | GASKET CYLINDER BLOCK TO BAFFLE PLATE | 1 |
| 17 | 75778T | 排气歧管挡板 | PLATE Baffle EXHAUST MANIFOLD | 1 |
| 17 | 757781 | 挡板 | BAFFLE PLATE | 1 |
| 18 | 854972 | 衬垫 | GASKET | 1 |
| 19 | 99896A1 | 排气歧管盖 | COVER EXHAUST MANIFOLD | 1 |
| 20 | 53576 | 歧管盖螺钉(.312-18 x 1.125) | SCREW (.312-18 x 1.125) MANIFOLD COVER | 24 |
| 21 | 8368A1 | 气缸体盖 | COVER CYLINDER BLOCK | 1 |
| 22 | 981852 | 气缸体盖衬垫 | GASKET CYLINDER BLOCK COVER | 1 |
| 22 | 981853 | 衬垫 | GASKET | 1 |
| 23 | 69100 | 盖螺钉(1英寸) | SCREW COVER (1") | 16 |
| 23 | 8M0214943 | 螺钉 | SCREW | 16 |
| 24 | 46933A3 | 接地带总成 | STRAP ASEMBLY Ground | 2 |
| 25 | 62568 | SCREW (#10-16 x .375) GROUND STRAP | 2 | |
| 26 | 96829A1 | 温度开关总成 | SWITCH ASSEMBLY Temperature | 1 |
| 27 | 37440 | 安装支架 | BRACKET MOUNT SUPPORT | 1 |
| 28 | 35386 | 支架至气缸体螺钉(.312-18 x 1.00) | SCREW (.312-18 x 1.00) BRACKET TO CYLINDER BLOCK | 1 |
| 29 | 87872 | 换气口盖 | COVER TRANSFER PORT | 3 |
| 30 | 856531 | 换气口盖垫片 | GASKET TRANSFER PORT COVER | 1 |
| 30 | 856730 | 衬垫 | GASKET | 1 |
| 31 | 28636 | 换气口盖螺钉(.250-20 x 0.750) | SCREW (.250-20 x .750) TRANSFER PORT COVER | 24 |
| - | 85653A87 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 98517A2 | 排气延伸板总成 | PLATE ASSEMBLY EXHAUST EXTENSION | 1 |
| 2 | 27132 | 排气延伸板尼龙衬套 | BUSHING NYLON - EXHAUST EXTENSION PLATE | 1 |
| 3 | 37918 | 排气延伸板密封件 | SEAL EXHAUST EXTENSION PLATE | 1 |
| 4 | 99358 | 密封条-板密封 | STRIP RETAINING - PLATE SEAL | 1 |
| 5 | 37571 | 螺钉(.190-32 x .500)密封与固定条 | SCREW (.190-32 x .500) SEAL AND RETAINING STRIP | 5 |
| 6 | 23784 | 排气延伸板定位销 | PIN Dowel EXHAUST EXTENSION PLATE | 2 |
| 7 | 69238 | 动力头衬垫 | GASKET POWERHEAD | 1 |
| 7 | 692381 | 衬垫 | GASKET | 1 |
| 8 | 66023 | 螺钉(.312-18 x 2.00)法兰头适配板至壳体板 | SCREW (.312-18 x 2.00) Flange Head ADAPTOR PLATE TO HOUSING PLATE | 2 |
| 10 | 66023 | 螺钉(.312-18 x 2.00)法兰头壳体板至驱动轴壳体 | SCREW (.312-18 x 2.00) Flange Head HOUSING PLATE TO DRIVESHAFT HOUSING | 7 |
| 11 | 66102 | 衬垫板至驱动轴壳体板 | GASKET PLATE TO DRIVESHAFT HOUSING PLATE | 1 |
| 11 | 661021 | 衬垫 | GASKET | 1 |
| 14 | 60898 | 驱动轴壳体板密封件 | SEAL DRIVESHAFT HOUSING PLATE | 1 |
| 15 | 98518A4 | 驱动轴壳体板总成 | PLATE ASSEMBLY DRIVESHAFT HOUSING | 1 |
| 15 | 43290A4 | 隔板总成 | PLATE ASSEMBLY | 1 |
| 16 | 38970 | 橡胶密封圈-进水管 | SEAL RUBBER - WATER INLET TUBE | 1 |
| 17 | 23784 | 驱动轴壳体板定位销 | PIN Dowel DRIVESHAFT HOUSING PLATE | 2 |
| 18 | 62362 | 扩音器衬垫 | GASKET MEGAPHONE | 1 |
| 19 | 60437 | 排气扩音器 | MEGAPHONE EXHAUST | 1 |
| 19 | 99699 | 排气扩音器 | MEGAPHONE Exhaust | 1 |
| 20 | 60480 | 扩音器螺钉(1-1/8") | SCREW MEGAPHONE (1-1/8") | 3 |
| 21 | 29245 | 垫圈(.281 x .500 x .060)不锈钢扩音器螺钉 | WASHER (.281 x .500 x .060) Stainless Steel MEGAPHONE SCREW | 3 |
| 21 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 3 |
| 22 | 25970 | 动力头螺柱垫圈 | WASHER POWERHEAD STUD | 6 |
| 22 | 20553 | 垫圈(.406 x .734 x .063) | WASHER (.406 x .734 x .063) | 6 |
| 23 | 34932 | 螺母(.375-24)动力头螺柱 | NUT (.375-24) POWERHEAD STUD | 6 |
| 23 | 82671013 | 不锈钢螺母 (.375-24) | NUT (.375-24) Stainless Steel | 6 |
| - | 85653A32 | 衬垫套件 | GASKET SET | 1 |
| - | 85653A87 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 45907 | 飞轮黄色塞 | PLUG Yellow FLYWHEEL | 1 |
| 2 | 52901 | 螺母(.625-18)飞轮 | NUT (.625-18) FLYWHEEL | 1 |
| 3 | 68229 | 垫圈(0.641x1.250x0.190)飞轮 | WASHER (.641 x 1.250 x .190) FLYWHEEL | 1 |
| 3 | 33001 | 垫圈 | WASHER | 1 |
| 4 | 8722A7 | 飞轮总成 | FLYWHEEL ASSEMBLY | 1 |
| 5 | 32417 | 螺钉(.250-28 x .625)飞轮板 | SCREW (.250-28 x .625) FLYWHEEL PLATE | 8 |
| 6 | 68997 | 螺钉(.312-24 x .750)飞轮毂 | SCREW (.312-24 x .750) FLYWHEEL HUB | 8 |
| 7 | 5454A17 | 定子总成 | STATOR ASSEMBLY | 1 |
| 8 | 75840 | 螺钉(#10-24 x .880)定子 | SCREW (#10-24 x .880) STATOR | 4 |
| 9 | 96455A9 | 触发板总成 | PLATE ASSEMBLY Trigger | 1 |
| 10 | 61001 | J型夹触发器线束 | J CLIP TRIGGER HARNESS | 1 |
| 11 | 72467 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 11 | 898265010 | 启动马达 | STARTER MOTOR | 1 |
| 12 | 56703 | 启动电机轴环 | COLLAR STARTER MOTOR | 2 |
| 12 | 8M0034918 | 轴环 | COLLAR | 2 |
| 13 | 56774 | 启动马达垫片 | SPACER STARTER MOTOR | AR |
| 14 | 57247 | 止动橡胶 - 启动马达 | STOP RUBBER - STARTER MOTOR | 2 |
| 14 | 8M0043376 | 停机开关 | STOP | 2 |
| 15 | 93388A1 | 电缆总成(6.00英寸)黑色板至启动马达 | CABLE ASSEMBLY (6.00 Inches) Black PLATE TO STARTER MOTOR | 1 |
| 16 | 69035 | 螺钉和锁紧垫圈 (.250-20 x .625) 不锈钢 电缆至启动马达 | SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel CABLE TO STARTER MOTOR | 1 |
| 17 | 93389A6 | 电缆总成电磁阀至启动马达(黄色) | CABLE ASSEMBLY SOLENOID TO STARTER MOTOR (YELLOW) | 1 |
| 18 | 26992 | 锁紧垫圈(.250) 不锈钢 起动机接线端 | LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL | 1 |
| 19 | 64015 | 螺母(.250-20) 起动机接线端 | NUT (.250-20) STARTER MOTOR TERMINAL | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 14360A15 | 燃油泵总成 | PUMP ASSEMBLY Fuel | 1 |
| 2 | 42990A1 | 膜片组件 | DIAPHRAGM KIT | 1 |
| 2 | 857005A1 | 膜片组件 | DIAPHRAGM KIT | 1 |
| 3 | NSS | NOT SOLD SEPARATE CHECK VALVE-RUBBER | 2 | |
| 4 | NSS | NOT SOLD SEPARATE GASKET-BOOST | 1 | |
| 5 | NSS | NOT SOLD SEPARATE DIAPHRAGM | 2 | |
| 6 | NSS | NOT SOLD SEPARATE GASKET-PULSE | 1 | |
| 7 | NSS | NOT SOLD SEPARATE SPRING | 1 | |
| 8 | NSS | NOT SOLD SEPARATE CAP | 1 | |
| 9 | NSS | NOT SOLD SEPARATE CHECK VALVE | 2 | |
| 10 | NSS | NOT SOLD SEPARATE RETAINER | 2 | |
| 11 | NSS | NOT SOLD SEPARATE SPRING | 1 | |
| 12 | NSS | NOT SOLD SEPARATE CAP | 1 | |
| 13 | 987691 | 底座衬垫 | GASKET BASE | 1 |
| 13 | 8M0204705 | 衬垫@2 | GASKET @2 | 1 |
| 14 | NSS | 安装板衬垫（不单独销售） | NOT SOLD SEPARATE GASKET-MOUNTING PLATE | 1 |
| 15 | 144303 | 燃油泵底座 | BASE FUEL PUMP | 1 |
| 16 | 98775A2 | 燃油泵板 | PLATE FUEL PUMP | 1 |
| 16 | 987752 | 安装板 | PLATE | 1 |
| 17 | 56800 | 管塞 (.0625-27) | PLUG Pipe (.0625-27) | 1 |
| 18 | 19688 | 接头 | FITTING | 1 |
| 19 | 4000310 | 螺钉(M5 x 40)燃油泵 | SCREW (M5 x 40) FUEL PUMP | 2 |
| 20 | 16452 | 燃油泵至曲轴箱螺丝（#12-24×2.00） | SCREW (#12-24 x 2.00) FUEL PUMP TO CRANKCASE | 2 |
| 21 | 9912976 | 油管 | TUBING | 1 |
| 21 | 8M0108349 | 软管 (70英寸散装) | HOSE (70 Inches Bulk) | 1 |
| 22 | 164941 | 燃油滤清器 | FILTER Fuel | 1 |
| 22 | 816296Q2 | 燃油滤清器 | FILTER Fuel | 1 |
| 23 | 90077 | 燃油管束带 | TIE STRAP FUEL TUBING | AR |
| 23 | 816311T | 捆扎带 (8.00英寸) | TIE STRAP (8.00 Inches) | AR |
| 24 | 64705 | 燃油管接头 | FITTING FUEL LINE | 1 |
| 25 | 99127109 | 管路(57.00英寸 散装) | LINE (57.00 Inches Bulk) | 4 |
| 25 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 4 |
| 26 | 19688 | 上部化油器接头 | FITTING UPPER CARBURETOR | 1 |
| 27 | 18214 | 燃油管路三通 | TEE FUEL LINE | 1 |
| 28 | 64706 | 三通中心化油器 | TEE CENTER CARBURETOR | 1 |
| 28 | 64706001 | 三通接头 | FITTING Tee | 1 |
| 29 | 19688 | 化油器下部接头 | FITTING LOWER CARBURETOR | 1 |
| 30 | 36221 | 燃油管路至适配器弯头 | ELBOW FUEL LINE TO ADAPTOR | 1 |
| 31 | 30186 | 止回转接器总成 | ADAPTER CHECK UNIT | 1 |
| 32 | 30187 | 适配器阀杆止回单元 | STEM CHECK UNIT ADAPTOR | 1 |
| 32 | 30185Q3 | 油箱端快速断开总成-卡口式 | QUICK DISCONNECT ASSEMBLY Tank End - Bayonet Style | 1 |
| 33 | 30189 | 适配器阀杆弹簧 | SPRING ADAPTOR STEM | 1 |
| 34 | 20415 | 适配器阀杆O型圈 | O-RING ADAPTOR STEM | 1 |
| 34 | 16524 | 燃油接头O型圈 | O-RING Fuel Connector | 1 |
| 35 | 30188 | 适配器垫片 | WASHER ADAPTOR | 1 |
| 36 | 36154 | 螺丝(.250-28 x 1.380)适配器至底罩 | SCREW (.250-28 x 1.380) ADAPTOR TO BOTTOM COWL | 2 |
| 37 | 36069 | 适配器螺钉螺母 | NUT ADAPTOR SCREW | 2 |
| 38 | 14439A2 | 安装板 | PLATE MOUNTING | 1 |
| 39 | 20189 | 安装板至曲轴箱螺丝（0.190-32×0.75） | SCREW (.190-32 x .75) PALTE TO CRANKCASE | 5 |
| 40 | 26996 | 安装板螺丝防松垫圈（#10不锈钢） | LOCKWASHER (#10) Stainless Steel PLATE SCREW | 5 |
| 41 | 18176 | 软管 | HOSE | 1 |
| 42 | 18175 | 软管 | HOSE | 1 |
| - | 18176A1 | 软管套件 | HOSE KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 13527A1 | 燃油泵总成 | PUMP ASSEMBLY Fuel | 1 |
| 2 | 30430A14 | 止回阀总成 | CHECK VALVE ASSEMBLY | 1 |
| 2 | 8M0084277 | 止回阀套件 | CHECK VALVE KIT | 1 |
| 3 | 89031A3 | 膜片总成 | DIAPHRAGM ASSEMBLY | 1 |
| 4 | NSS | 不单独销售 燃油泵垫片 | NOT SOLD SEPARATE GASKET-FUEL PUMP | 1 |
| 5 | NSS | NOT SOLD SEPARATE GASKET-PULSE CHAMBER | 1 | |
| 6 | NSS | 不单独销售 燃油泵垫片 | NOT SOLD SEPARATE GASKET-FUEL PUMP | 2 |
| 7 | NSS | 止回阀至壳体衬垫 (不单独销售) | NOT SOLD SEPARATE GASKET-CHECK VALVE TO HOUSING | 2 |
| 8 | 59072 | 燃油入口滤网 | SCREEN FUEL INLET | 1 |
| 9 | 35480 | O型圈(1.237 x .103)燃油入口盖 | O-RING (1.237 x .103) FUEL INLET COVER | 1 |
| 10 | 38933 | O型圈盖螺钉 | O-RING COVER SCREW | 1 |
| 11 | 23004 | 止回阀固定座 | RETAINER CHECK VALVE | 1 |
| 12 | 43723 | 固定螺丝（#6-32×0.500） | SCREW (#6-32 x .500) RETAINER | 2 |
| 13 | 86295 | 燃油泵底座 | BASE FUEL PUMP | 1 |
| 14 | 879901 | 燃油泵脉冲室 | PULSE CHAMBER FUEL PUMP | 1 |
| 15 | 91078A1 | 燃油入口盖总成 | COVER ASSEMBLY FUEL INLET | 1 |
| 16 | 89766 | 螺钉(#10-32 x .620)不锈钢燃油滤清器盖 | SCREW (#10-32 x .620) Stainless Steel FUEL FILTER COVER | 1 |
| 17 | 64705 | 入口盖接头 | FITTING INLET COVER | 1 |
| 18 | F1979 | 燃油泵螺丝（1.5英寸） | SCREW FUEL PUMP (1-1/2") | 5 |
| 18 | 41772 | 螺钉(#10-24x0.500) | SCREW (#10-24 x .500) | 5 |
| 19 | 26996 | 锁紧垫圈(#10)(不锈钢) | LOCKWASHER (#10) Stainless Steel | 5 |
| 20 | 19688 | 燃油出口接头 | FITTING FUEL OUTLET | 1 |
| 21 | 86026 | 固定弹簧 | RETAINER SPRING | 1 |
| 22 | 86207 | 压缩弹簧 | SPRING COMPRESSION | 1 |
| 23 | 86252 | 弹簧端帽 | CAP SPRING END | 1 |
| 24 | 99127109 | 管路（57英寸散装，无在线过滤器） | LINE (57.00 Inches Bulk) (W/O INLINE FILTER) | 4 |
| 24 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 4 |
| 25 | 68424 | 燃油管固定夹 | CLAMP FUEL LINE ATTACHING | 10 |
| 26 | 19688 | 弯头接头-上部化油器 | FITTING ELBOW - UPPER CARBURETOR | 1 |
| 27 | 73318 | TEE Plastic FUEL LINE | 1 | |
| 28 | 64706 | 三通中心化油器 | TEE CENTER CARBURETOR | 1 |
| 28 | 64706001 | 三通接头 | FITTING Tee | 1 |
| 29 | 19688 | 化油器下部接头 | FITTING LOWER CARBURETOR | 1 |
| 30 | 99127109 | 适配器至燃油泵管路（57英寸散装/18.5英寸） | LINE (57.00 Inches Bulk) ADAPTOR TO FUEL PUMP (18-1/2") | 1 |
| 30 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 31 | 63981 | 燃油管转接头 | FITTING FUEL LINE TO ADAPTOR | 1 |
| 32 | 30186 | 止回转接器总成 | ADAPTER CHECK UNIT | 1 |
| 33 | 30187 | 适配器阀杆止回单元 | STEM CHECK UNIT ADAPTOR | 1 |
| 33 | 30185Q3 | 油箱端快速断开总成-卡口式 | QUICK DISCONNECT ASSEMBLY Tank End - Bayonet Style | 1 |
| 34 | 30189 | 适配器阀杆弹簧 | SPRING ADAPTOR STEM | 1 |
| 35 | 20415 | 适配器阀杆O型圈 | O-RING ADAPTOR STEM | 1 |
| 35 | 16524 | 燃油接头O型圈 | O-RING Fuel Connector | 1 |
| 36 | 30188 | 适配器垫片 | WASHER ADAPTOR | 1 |
| 37 | 36154 | 适配器至底罩螺丝（0.250-28×1.380） | SCREW (.250-28 x 1.380) ADAPTOR TO BOTTON COWL | 2 |
| 38 | 36069 | 适配器螺钉螺母 | NUT ADAPTOR SCREW | 2 |
| 39 | 99127109 | 管路(57.00英寸 散装) | LINE (57.00 Inches Bulk) | 1 |
| 39 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 40 | 68424 | 燃油管路卡箍（带在线过滤器） | CLAMP FUEL LINE -WITH INLINE FILTER | 2 |
| 41 | 16494 | 燃油滤清器 | FILTER Fuel | 1 |
| 41 | 816296Q03 | 燃油滤清器@3 | FILTER-FUEL @3 | 1 |
| 42 | 26404 | 燃油过滤器卡箍（带在线过滤器） | CLAMP FUEL FILTER -WITH INLINE FILTER | 1 |
| 43 | 78291 | 燃油过滤器卡箍螺丝（0.190-24×0.500，带在线过滤器） | SCREW (.190-24 x .500) FUEL FILTER CLAMP -WITH INLINE FILTER | 1 |
| 44 | 69205 | C形垫圈 | C WASHER | 1 |
| 44 | 8M0084613 | C形垫圈 | C-WASHER | 1 |
| 45 | 26996 | 卡箍螺丝防松垫圈（#10不锈钢，带在线过滤器） | LOCKWASHER (#10) Stainless Steel CLAMP SCREW -WITH INLINE FILTER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 9011A7 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 9011A13 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 9011G34 | GC 75/90 XL -BLK | GC 75/90 XL -BLK | 1 |
| - | 9011A9 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 9011J19 | ORD 1667-9011J16 | ORD 1667-9011J16 | 1 |
| - | 9011A14 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 9011J27 | ORD 1667-9011J24 | ORD 1667-9011J24 | 1 |
| 1 | 9011A6 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 1 | 9011T73 | 齿轮箱-基础型-黑 | GEAR HSG-BASIC-BL | 1 |
| 1 | 9011A8 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 1 | 9011T74 | ORD 1667-9011T73 | ORD 1667-9011T73 | 1 |
| 2 | 43043 | 定位销-带孔(.375 x .625)(前) | PIN Dowel - With Hole (.375 x .625) (FRONT) | 1 |
| 2 | 8M0084244 | 定位销 0.375x0.620 | PIN Dowel, .375 x .620 | 1 |
| 3 | 28653 | SCREW (#10-32 x 0.25) VENT | 1 | |
| 4 | 20262 | 通气螺钉垫圈 | WASHER VENT SCREW | 1 |
| 4 | 19643 | 密封件 | SEAL | 1 |
| 5 | 79953 | SCREW (.375-16 x .250) GREASE FILLER | 1 | |
| 5 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 6 | 20260 | 垫片 排放/加注螺丝 | WASHER DRAIN/FILLER SCREW | 2 |
| 6 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 2 |
| 7 | 67892 | SCREW Magnetic DRAIN | 1 | |
| 7 | 8M0058389 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 8 | 43044 | PIN Dowel - Without Hole (.375 x .625) (REAR) (QTY. OF 2 ON X-LONG) | 1 | |
| 9 | 31640A1 | 平衡板总成 | TRIM TAB ASSEMBLY | 1 |
| 9 | 31640Q4 | 平衡鳍板 | TRIM TAB | 1 |
| 10 | 15942 | SCREW (.437-14 x 1.250) TRIM TAB | 1 | |
| 10 | 825427 | 不锈钢螺钉(0.437-14x1.250) | SCREW (.437-14 x 1.250) Stainless Steel | 1 |
| 11 | 45176 | WASHER (.453 x .812 x .105) Stainless Steel TRIM TAB SCREW | 1 | |
| 12 | 43040A1 | CARRIER ASSEMBLY ROLLER BEARING | 1 | |
| 12 | 43040T1 | 托架总成 | CARRIER ASSEMBLY | 1 |
| 13 | 44484 | 小齿轮(13齿) | GEAR Pinion (13 Teeth) | 1 |
| 13 | 44484T | 小齿轮(13齿) | GEAR Pinion (13 Teeth) | 1 |
| 14 | 35921 | 螺母(.625-18)小齿轮至驱动轴 | NUT (.625-18) PINION GEAR TO DRIVE SHAFT | 1 |
| 15 | 76039 | 换挡凸轮控制 | CAM Shift Control | 1 |
| 15 | 760394 | 换挡凸轮控制 | CAM Shift Control | 1 |
| 16 | 42677A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 17 | 44492A1 | 垫片组 | SHIM SET | 1 |
| 17 | 8M0063265 | 垫片组 | SHIM SET | 1 |
| 18 | 43031A1 | 驱动轴总成 | DRIVESHAFT ASSEMBLY | 1 |
| 18 | 43032A4 | 驱动轴总成 | DRIVESHAFT ASSEMBLY | 1 |
| 19 | 42461A1 | 套筒/环套件 | SLEEVE/RING KIT | 1 |
| 20 | 43055A2 | 盖总成 | COVER ASSEMBLY | 1 |
| 20 | 43055A4 | 水泵盖总成 | COVER ASSEMBLY Water Pump | 1 |
| 21 | 43047 | 盖衬垫至齿轮箱 | GASKET COVER TO GEAR HOUSING | 1 |
| 21 | 8M0214931 | 衬垫 | GASKET | 1 |
| 22 | 43036 | 油封(下) | SEAL Oil (LOWER) | 1 |
| 23 | 43035 | 油封(上) | SEAL Oil (UPPER) | 1 |
| 23 | 8M0245495 | 油封 | OIL SEAL | 1 |
| 24 | 43033 | 盖衬垫至面板 | GASKET COVER TO FACE PLATE | 1 |
| 24 | 430331 | 衬垫 | GASKET | 1 |
| 25 | 43034 | 水泵衬垫至面板 | GASKET WATER PUMP TO FACE PLATE | 1 |
| 25 | 430341 | 铝盖垫片 | GASKET Aluminum Cover | 1 |
| 26 | 43050 | 面板 | FACE PLATE | 1 |
| 26 | 817275A2 | 水泵上壳体套件 | HOUSING KIT Upper Water Pump | 1 |
| 27 | 43037 | 叶轮驱动键 | KEY IMPELLER DRIVE | 1 |
| 27 | 8M0204723 | 键 | KEY | 1 |
| 28 | 430261 | 叶轮 | IMPELLER | 1 |
| 28 | 43026T2 | 叶轮 | IMPELLER | 1 |
| 29 | 43024A3 | 水泵总成 | PUMP ASSEMBLY Water | 1 |
| 29 | 817275A2 | 水泵上壳体套件 | HOUSING KIT Upper Water Pump | 1 |
| 30 | 43023 | 水管密封件 | SEAL WATER TUBE | 1 |
| 30 | 8M0204658 | 密封件 | SEAL | 1 |
| 31 | 4000330 | SCREW (M6 x 25) COVER | 6 | |
| 31 | 8M0204707 | 不锈钢六角大帽螺钉(M6x25) | SCREW M6 x 25 HX HD CAP SS | 6 |
| 32 | 4000332 | SCREW (M6 x 35) WATER PUMP | 4 | |
| 33 | 4002315 | 垫圈(6.60x12.5x1.5mm-不锈钢) | WASHER (6.60 X 12.5 X 1.5 mm -SS) | 10 |
| 34 | 43045 | INSULATOR WATER PUMP SCREW | 4 | |
| 34 | 8M0204659 | 绝缘体@4 | INSULATOR @4 | 4 |
| 35 | 43048A1 | 换挡轴总成 | SHIFT SHAFT ASSEMBLY | 1 |
| 35 | 43049A1 | 换挡轴总成 | SHIFT SHAFT ASSEMBLY | 1 |
| 36 | 29641 | E RING SHIFT SHAFT | 1 | |
| 37 | 43052A1 | 换挡轴衬套总成 | BUSHING ASSEMBLY SHIFT SHAFT | 1 |
| 37 | 43052A4 | 衬套总成 | BUSHING ASSEMBLY | 1 |
| 38 | 45710 | O-RING (1.424 x .103) BUSHING | 1 | |
| 38 | 8M0204681 | 特殊O型圈1.424x0.103 | O-RING 1.424 x .103, Special | 1 |
| 39 | 76384 | SEAL Oil BUSHING | 1 | |
| 39 | 8M0246145 | 油封 | OIL SEAL | 1 |
| 40 | 40011128 | SCREW (M6 x 20) Stainless Steel BUSHING | 2 | |
| 40 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 2 |
| - | 43035A1 | 齿轮箱密封套件 | SEAL KIT Gear Housing | |
| - | 43035A4 | 齿轮箱密封套件 | SEAL KIT Gear Housing | |
| - | 43024A4 | 水泵维修套件 | REPAIR KIT Water Pump | |
| - | 43024A7 | 水泵维修套件 | REPAIR KIT Water Pump | |
| - | 43004A86 | 衬垫套件 | GASKET SET | |
| - | 43004A99 | 动力头衬垫套件 | GASKET SET Powerhead |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 9011A7 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 9011A13 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 9011G34 | GC 75/90 XL -BLK | GC 75/90 XL -BLK | 1 |
| - | 9011A9 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 9011J19 | ORD 1667-9011J16 | ORD 1667-9011J16 | 1 |
| - | 9011A14 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 9011J27 | ORD 1667-9011J24 | ORD 1667-9011J24 | 1 |
| 1 | 9011A6 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 1 | 9011T73 | 齿轮箱-基础型-黑 | GEAR HSG-BASIC-BL | 1 |
| 1 | 9011A8 | 基础齿轮箱总成 | GEAR HOUSING ASSEMBLY Basic | 1 |
| 1 | 9011T74 | ORD 1667-9011T73 | ORD 1667-9011T73 | 1 |
| 41 | 44491A1 | 垫片组 | SHIM SET | 1 |
| 41 | 8M0063266 | 垫片组 | SHIM SET | 1 |
| 42 | 30894A1 | 圆锥轴承组 | BEARING SET Cup And Cone | 1 |
| 43 | 12634A2 | 前进齿轮总成 | GEAR ASSEMBLY Forward | 1 |
| 43 | 12634T02 | 齿轮总成 | GEAR ASSEMBLY | 1 |
| 44 | 30895 | 滚针轴承 | BEARING Needle | 1 |
| 44 | 30895T | 滚针轴承 | BEARING Needle | 1 |
| 45 | 12239A1 | 凸轮从动件套件 | FOLLOWER KIT Cam | 1 |
| 45 | 850315A1 | 凸轮从动件套件 | FOLLOWER KIT Cam | 1 |
| 46 | 30622 | 弹簧 | SPRING | 1 |
| 47 | 12777 | 棘轮 | RATCHET | 1 |
| 47 | 822539T | 离合器 | CLUTCH | 1 |
| 48 | 30632 | 十字离合器销 | PIN Cross CLUTCH | 1 |
| 48 | 8M0100263 | 十字销 | PIN Cross | 1 |
| 49 | 30893 | 十字销固定弹簧 | SPRING CROSS PIN RETAINER | 1 |
| 50 | 12238T | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 51 | 12635 | 倒挡齿轮 | GEAR Reverse | 1 |
| 51 | 12635T | 倒挡齿轮 | GEAR-REVERSE | 1 |
| 52 | 12596A2 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 52 | 8M0168901 | 轴承座总成 | CARRIER ASSY. | 1 |
| 53 | 97386 | O型圈 (3.609 x .139) | O-RING (3.609 x .139) | 1 |
| 53 | 8M0214974 | O型圈 | O RING | 1 |
| 54 | 30956 | 滚针轴承 | BEARING Needle | 1 |
| 54 | 30956T | 滚针轴承 | BEARING Needle | 1 |
| 55 | 76868 | 内密封件 | SEAL (INNER) | 1 |
| 55 | 8M0248882 | 油封@5 | SEAL-OIL @5 | 1 |
| 56 | 70081 | 油封(外) | SEAL Oil (OUTER) | 1 |
| 56 | 8M0205729 | 密封件 | SEAL | 1 |
| 57 | 12578 | 滚针轴承 | BEARING Needle | 1 |
| 57 | 12578T | 滚柱轴承 | BEARING Roller | 1 |
| 58 | 12577 | 止推垫片 | THRUST WASHER | 1 |
| 59 | 12576 | 推力轴承 | BEARING Thrust | 1 |
| 60 | 4000354 | 螺栓(M8 x 30)轴承座 | SCREW (M8 x 30) BEARING CARRIER | 2 |
| 61 | 4002317 | 垫圈(8.90 X 17.0 X 1.9SS)轴承座螺栓 | WASHER (8.90 X 17.0 X 1.9SS) BEARING CARRIER SCREW | 2 |
| 62 | 13191A1 | 止推垫片 | THRUST WASHER | 1 |
| 62 | 13191Q01 | 止推垫片 | THRUST WASHER | 1 |
| 63 | 31210 | 螺旋桨止动垫圈 | TAB WASHER PROPELLER | 1 |
| 63 | 816629Q | 锁紧垫圈 | TAB WASHER | 1 |
| 64 | 52707A1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| 64 | 52707Q1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| - | 43035A1 | 齿轮箱密封套件 | SEAL KIT Gear Housing | |
| - | 43035A4 | 齿轮箱密封套件 | SEAL KIT Gear Housing | |
| - | 43004A86 | 衬垫套件 | GASKET SET | |
| - | 43004A99 | 动力头衬垫套件 | GASKET SET Powerhead |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 830250T5 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 1 | 811666A1 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 1 | 8M0171821 | 减震杆套件 | SHOCK ROD KIT | 1 |
| 2 | 809872A2 | O型圈维修包 | O-RING KIT Rebuild | 1 |
| 2 | 8M0171819 | O型圈套件 | O-RING KIT | 1 |
| 3 | 810776A1 | 记忆活塞总成 | PISTON ASSEMBLY Memory | 1 |
| 3 | 8M0171822 | 记忆活塞套件 | MEMORY PISTON KIT | 1 |
| 4 | 811669A1 | 气缸总成 | CYLINDER ASSEMBLY | 1 |
| 4 | 893916A01 | 气缸总成 | CYLINDER ASSEMBLY | 1 |
| 5 | 809873A1 | 配平限位阀套件 | VALVE KIT Trim Limit | 1 |
| 5 | 893905A02 | 阀套件 | VALVE KIT | 1 |
| 6 | 809874A1 | 泵总成 | PUMP ASSEMBLY | 1 |
| 6 | 893906A02 | 泵总成 | PUMP ASSEMBLY | 1 |
| 7 | 809885A2 | 电机套件 | MOTOR KIT | 1 |
| 7 | 893907A02 | 电机套件 | MOTOR KIT | 1 |
| 8 | 8134351 | 堵头 | PLUG | 1 |
| 9 | 813442A2 | 手动释放总成 | MANUAL RELEASE ASSEMBLY | 1 |
| 9 | 893929A01 | 安全阀套件 | VALVE KIT Relief | 1 |
| 10 | 809875A1 | 歧管套件 | MANIFOLD KIT | 1 |
| 10 | 893909A02 | 歧管套件 | MANIFOLD KIT | 1 |
| 11 | 809876A1 | 电机螺钉套件 | SCREW KIT Motor | 1 |
| 12 | 88238A18 | 拉线总成 | CABLE ASSEMBLY | 1 |
| 13 | 809877A1 | 驱动轴/密封套件 | DRIVESHAFT/SEAL KIT | 1 |
| 14 | 809878A1 | 滤清器套件 | FILTER KIT | 1 |
| 14 | 893912A02 | 滤清器套件 | FILTER KIT | 1 |
| 15 | 809879A1 | 提升阀套件 | POPPET KIT | 1 |
| 15 | 893913A02 | 提升阀套件 | POPPET KIT | 1 |
| - | 809880A1 | O-RING KIT (Complete Trim) | 1 | |
| - | 893914A02 | O型圈套件 | O-RING KIT | 1 |
| 16 | 821539 | 三叶销 | PIN Trilobe | 2 |
| 17 | 818898 | 锚销 | PIN Anchor | 1 |
| 18 | 996251 | 轴 | SHAFT | 1 |
| 18 | 99625002 | 轴 | SHAFT | 1 |
| 19 | 828151A1 | 继电器总成 | RELAY ASSEMBLY | 2 |
| 19 | 8M0207773 | 调整继电器总成 | RELAY ASSEMBLY Trim | 2 |
| 20 | 818968 | 衬套 | BUSHING | 2 |
| 20 | 8M0214955 | 衬套 | BUSHING | 2 |
| 21 | 818967 | 护孔环 | GROMMET | 2 |
| 21 | 8M0207785 | 护孔环 | GROMMET | 2 |
| 22 | 828102 | 支架 | BRACKET | 2 |
| 22 | 8M0207771 | 安装支架 | BRACKET Mounting | 2 |
| 23 | NSS | 微调继电器标识贴(不单独销售) | NOT SOLD SEPARATE Decal-Trim Relay | 2 |
| 24 | 819514A15 | 升降线束总成 | HARNESS ASSEMBLY Trim | 1 |
| 24 | 8M0092077 | 升降线束总成 | HARNESS ASSEMBLY Trim | 1 |
| 25 | 82129125 | 螺丝(M6 x 25毫米) | SCREW (M6 x 25 mm) | 2 |
| 26 | 22740 | 卡扣 | CLIP | 2 |
| 27 | 878609 | 螺钉 (#10-16 x .600) | SCREW (#10-16 x .600) | 1 |
| 28 | 69205 | C形垫圈 | C WASHER | 1 |
| 28 | 8M0084613 | C形垫圈 | C-WASHER | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 99186T | 泵与电机总成 | PUMP AND MOTOR | 1 |
| 1 | 12659 | 机架与磁场套件 | FRAME AND FIELD KIT | 1 |
| 1 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 2 | 12665 | 电刷弹簧套件 | SPRING KIT Brush | 1 |
| 3 | 13506 | 电刷卡套件 | BRUSH CARD KIT | 1 |
| 3 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 4 | 12662 | 泵与端架套件 | PUMP AND END FRAME KIT | 1 |
| 4 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 5 | 12663 | 泵密封套件 | SEAL KIT Pump | 1 |
| 5 | 126631 | 泵密封套件 | SEAL KIT Pump | 1 |
| 6 | 12660 | 端架套件 | END FRAME KIT | 1 |
| 6 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 7 | 12661 | 电枢套件 | ARMATURE KIT | 1 |
| 7 | 991861 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 8 | 12664 | 贯穿螺栓套件 | THRU BOLT KIT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 99186 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 1 | 8995 | 泵总成 | PUMP ASSEMBLY | 1 |
| 1 | 826729A10 | ORD 8M0143217 | ORD 8M0143217 | 1 |
| 2 | 8996 | O型圈套件 | O-RING KIT | 1 |
| 3 | 8986 | 电枢 | ARMATURE | 1 |
| 4 | 8987 | 机架与磁场 | FRAME AND FIELD | 1 |
| 4 | 99186 | 动力升降泵总成 | PUMP ASSEMBLY Power Trim | 1 |
| 5 | 8992 | 缸盖O型圈 | O-RING HEAD | 1 |
| 6 | 8993 | 电刷弹簧套件 | SPRING KIT BRUSH | 1 |
| 7 | 8988 | 换向器端盖 | HEAD COMMUTATOR END | 1 |
| 8 | 8989 | 电刷套件 | BRUSH KIT | 1 |
| 9 | 8994 | 贯穿螺栓套件 | THRU BOLT KIT | 1 |
| 10 | 8985 | 导线夹 | CLAMP LEAD WIRE | 1 |
| 11 | 8990 | 螺母密封垫 | NUT PACKING | 1 |
| 12 | 8991 | O型圈螺母密封 | O-RING PACKING NUT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 81589890 | 零件手册 75/90马力(3缸) | PARTS MANUAL 75/90 Hp (3 Cylinder) | 1 |
| - | 136452 | 维修手册 | SERVICE MANUAL | 1 |
| - | 43004A90 | 衬垫套件 | GASKET SET | 1 |
| - | 43004A99 | 动力头衬垫套件 | GASKET SET Powerhead | 1 |
| - | 810457A90 | 贴花套装 黑色75 | DECAL SET Black 75 | 1 |
| - | 12565A89 | 贴花套装 黑色90 | DECAL SET Black 90 | 1 |
| - | 43601A87 | 贴花套装 商用灰色75 | DECAL SET Commercial, Gray 75 | 1 |
| - | 815628A92 | 贴花套装 灰色75/90 | DECAL SET Gray 75/90 | 1 |
| - | 12428920 | 用户指南 黑色 | OWNERS GUIDE Black | 1 |
| - | 14699920 | 用户指南 灰色 | OWNERS GUIDE Gray | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 72467 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 1 | 90644 | 驱动套件 | DRIVE KIT | 1 |
| 2 | 68575 | 驱动总成 | DRIVE ASSEMBLY | 1 |
| 2 | 685753 | 驱动总成 | DRIVE ASSEMBLY | 1 |
| 3 | 74966 | 驱动端板总成 | PLATE ASSEMBLY DRIVE END | 1 |
| 3 | 75660 | 安装板 | PLATE | 1 |
| 4 | 74968 | 贯穿螺栓 | BOLT THRU | 2 |
| 5 | 61789 | 贯穿螺栓锁紧垫圈 | LOCKWASHER THRU BOLT | 2 |
| 6 | 74964 | 电枢 | ARMATURE | 1 |
| 7 | 63292 | 电刷组 | BRUSH SET | 1 |
| 7 | 898265016 | 电刷/弹簧套件 | BRUSH/SPRING KIT | 1 |
| 8 | 57387 | 绝缘衬套 | BUSHING INSULATING | 1 |
| 9 | 38013 | 输入柱垫圈 | WASHER INPUT STUD | 1 |
| 10 | 26992 | 不锈钢输入柱锁紧垫圈(.250) | LOCKWASHER (.250) Stainless Steel INPUT STUD | 1 |
| 11 | 20890 | 输入柱螺母(.250-20) | NUT (.250-20) INPUT STUD | 1 |
| 12 | 61787 | 电刷架 | HOLDER BRUSH | 2 |
| 12 | 898265014 | 电刷支架 | HOLDER-BRUSH | 2 |
| 13 | 68586 | 电刷及支架螺钉 | SCREW BRUSH AND HOLDER | 2 |
| 14 | 68579 | 换向器端盖总成 | END CAP ASSEMBLY COMMUTATOR | 1 |
| 14 | 15386001 | 端盖 | END CAP | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 89748 | 电气安装板 | PLATE ELECTRICAL MOUNTING | 1 |
| 2 | 86885 | 螺钉(.250-20 x 1.500)不锈钢板至气缸体 | SCREW (.250-20 x 1.500) Stainless Steel PLATE TO CYLINDER BLOCK | 4 |
| 2 | 28636 | 螺钉(.250-20 x .750)板至气缸体 | SCREW (.250-20 x .750) PLATE TO CYLINDER BLOCK | 3 |
| 2 | 45561 | 螺钉（.250-20 x 1.12）板至气缸体 | SCREW (.250-20 x 1.12) PLATE TO CYLINDER BLOCK | 2 |
| 2 | 455611 | 螺钉(.250-20 x 1.120) | SCREW (.250-20 x 1.120) | 2 |
| 3 | 29245 | 垫圈(.281 x .500 x .060)不锈钢板螺钉 | WASHER (.281 x .500 x .060) Stainless Steel PLATE SCREW | 7 |
| 3 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 7 |
| 4 | 33386A3 | SWITCH ASSEMLBY MERCURY | 1 | |
| 5 | 25764 | 螺钉（.190-32 x .50）汞开关至板 | SCREW (.190-32 x .50) MERCURY SWITCH TO PLATE | 1 |
| 6 | 45076 | 螺母（#10-32）黄铜线至汞开关 | NUT (#10-32) Brass WIRE TO MERCURY SWITCH | 1 |
| 7 | 62351A1 | 整流器 | RECTIFIER | 1 |
| 7 | 8M0058226 | 整流器 | RECTIFIER | 1 |
| 8 | 25764 | 螺钉（.190-32 x .50）整流器至点火板 | SCREW (.190-32 x .50) RECTIFIER TO IGNITION PLATE | 2 |
| 9 | 45076 | 螺母(#10-32)黄铜整流器端子 | NUT (#10-32) Brass RECTIFIER TERMINALS | 3 |
| 10 | 853654A1 | 电磁阀 | SOLENOID | 1 |
| 10 | 96054 | 启动电磁阀总成 | SOLENOID ASSEMBLY Starter | 1 |
| 10 | 8M0185149 | 启动电磁阀 | SOLENOID START | 1 |
| 11 | 26996 | 锁紧垫圈（#10）不锈钢电磁阀端子 | LOCKWASHER (#10) Stainless Steel SOLENOID TERMINALS | 2 |
| 11 | 26995 | 锁紧垫圈（#8）不锈钢电磁阀端子 | LOCKWASHER (#8) Stainless Steel SOLENOID TERMINALS | 2 |
| 12 | 68219 | 螺母（#10-32）不锈钢电磁阀端子 | NUT (#10-32) Stainless Steel SOLENOID TERMINALS | 2 |
| 12 | 26419 | 螺母（#8-32）黄铜电磁阀端子 | NUT (#8-32) Brass SOLENOID TERMINALS | 2 |
| 13 | 26993 | 锁紧垫圈（.312）电磁阀端子 | LOCKWASHER (.312) SOLENOID TERMINALS | 2 |
| 13 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 13 | 26992 | 锁紧垫圈（.250）不锈钢电磁阀端子 | LOCKWASHER (.250) Stainless Steel SOLENOID TERMINALS | 2 |
| 14 | 68292 | 螺母（.312-18）电磁阀端子 | NUT (.312-18) SOLENOID TERMINALS | 2 |
| 14 | 8M0204668 | 螺母(.312-18) | NUT (.312-18) | 2 |
| 14 | 94330 | 螺母（.250-20）黄铜电磁阀端子 | NUT (.250-20) Brass SOLENOID TERMINALS | 2 |
| 15 | 38601 | 螺钉（.250-28 x 1.250）启动电磁阀至板 | SCREW (.250-28 x 1.250) STARTER SOLENOID TO PLATE | 2 |
| 16 | 26992 | 锁紧垫圈(0.250)不锈钢启动电磁阀螺钉 | LOCKWASHER (.250) Stainless Steel STARTER SOLENOID SCREW | 2 |
| 17 | 46265 | 端子护套-启动电磁阀 | BOOT TERMINAL - STARTER SOLENOID | 1 |
| 18 | 90547 | 定位器-启动电磁阀 | LOCATOR STARTER SOLENOID | 1 |
| 19 | 7778A3 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 19 | 7778A12 | 开关盒总成 | SWITCHBOX ASSEMBLY | 2 |
| 20 | 20619 | 螺钉（#12-24 x 1.25）开关盒 | SCREW (#12-24 x 1.25) SWITCH BOX | 4 |
| 21 | 94304 | 开关盒螺丝垫片 | SPACER SWITCH BOX SCREW | 4 |
| 22 | 60871A10 | 线束总成-开关盒 | WIRE ASSEMBLY SWITCH BOX | 2 |
| 23 | 62568 | 螺钉（#10-16 x .375）线 | SCREW (#10-16 x .375) WIRE | 2 |
| 24 | 62310A3 | 电缆总成-开关盒至开关盒（白/黑） | CABLE ASSEMBLY SWITCH BOX TO SWITCH BOX (WHITE/BLACK) | 1 |
| 25 | 45076 | 螺母(#10-32)黄铜开关盒端子 | NUT (#10-32) Brass SWITCH BOX TERMINAL | 20 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8710A20 | 旋转支架总成 | SWIVEL BRACKET ASSEMBLY | 1 |
| 1 | 8710A21 | 旋转支架总成 | SWIVEL BRACKET ASSEMBLY | 1 |
| 1 | 8710T21 | 灰色旋转支架总成 | SWIVEL BRACKET ASSEMBLY Gray | 1 |
| 1 | 818904A1 | 旋转支架总成 | SWIVEL BRACKET ASSEMBLY | 1 |
| 1 | 8M0220957 | 旋转支架总成 | SWIVEL BRKT ASSY | 1 |
| 1 | 818904A2 | 旋转支架总成 | SWIVEL BRACKET ASSEMBLY | 1 |
| 1 | 818904T2 | 支架总成-灰色 | BRACKET ASY-GRAY | 1 |
| 1 | 818904A3 | 旋转支架总成 | SWIVEL BRACKET ASSEMBLY | 1 |
| 1 | 818904T4 | 支架总成-钢/灰色 | BRKT ASY-STEEL/GR | 1 |
| 2 | 87735 | 油封(下) | SEAL Oil (LOWER) | 1 |
| 3 | 818764 | 衬套 | BUSHING | 2 |
| 4 | 33504 | O型圈 | O-RING | 1 |
| 4 | 8M0214926 | O型圈 @10 | O RING @10 | 1 |
| 5 | 816039 | 隔套 | SPACER | 1 |
| 6 | 74036 | 润滑脂接头 | FITTING Grease | 2 |
| 6 | 8M0169589 | 润滑脂接头 | FITTING Grease | 2 |
| 7 | 821207 | 衬套 | BUSHING | 2 |
| 8 | 64014 | 螺钉(.250-28x.500) | SCREW (.250-28 x .500) | 2 |
| 9 | 92876A1 | 转向连杆总成 | LINK ASSEMBLY Steering | 1 |
| 9 | 92876A12 | 连杆总成 | LINK ROD ASSEMBLY | 1 |
| 10 | 14000 | 螺钉(.375-24x1.25) | SCREW (.375-24 x 1.25) | 1 |
| 10 | 849838 | 螺钉(.375-24 x 1.250) | SCREW (.375-24 x 1.250) | 1 |
| 11 | 34863 | 螺母 (.375-24) | NUT (.375-24) | 2 |
| 11 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 2 |
| 12 | 34931 | 不锈钢垫圈(.406x.734x.063) | WASHER (.406 x .734 x .063) Stainless Steel | 2 |
| 13 | 888821 | 缓冲垫 | BUMPER | 1 |
| 13 | 8M0000516 | 上轭缓冲垫 | BUMPER Top Yoke | 1 |
| 14 | 99661A26 | 旋转销总成 | SWIVEL PIN ASSEMBLY | 1 |
| 14 | 99661A35 | 旋转销总成 | SWIVEL PIN ASSEMBLY | 1 |
| 14 | 99661A27 | 旋转销总成 | SWIVEL PIN ASSEMBLY | 1 |
| 14 | 99661A36 | ORD 99661A35 | ORD 99661A35 | 1 |
| 14 | 99661A28 | 旋转销总成 | SWIVEL PIN ASSEMBLY | 1 |
| 14 | 99661A35 | 旋转销总成 | SWIVEL PIN ASSEMBLY | 1 |
| 15 | 816432 | 止推垫片 | THRUST WASHER | 1 |
| 16 | 99724A2 | 减震器 | SHOCK ABSORBER | 1 |
| 16 | 99724T15 | 减震器-黑色 | SHOCK ABSORBER-BL | 1 |
| 16 | 99724A3 | 减震器 | SHOCK ABSORBER | 1 |
| 16 | 99724T15 | 减震器-黑色 | SHOCK ABSORBER-BL | 1 |
| 16 | 99724A15 | 减震器冲压件A12 | SHOCK STAMPED A12 | 1 |
| 16 | 99724T15 | 减震器-黑色 | SHOCK ABSORBER-BL | 1 |
| 16 | 99724A16 | 减震器冲压件A12 | SHOCK STAMPED A12 | 1 |
| 16 | 99724T15 | 减震器-黑色 | SHOCK ABSORBER-BL | 1 |
| 17 | 821539 | 三叶销 | PIN Trilobe | 1 |
| 18 | 996251 | 轴(上部) | SHAFT (UPPER) | 1 |
| 18 | 99625002 | 轴 | SHAFT | 1 |
| 19 | 42961A1 | 底部轭架总成 | YOKE ASSEMBLY Bottom | 1 |
| 19 | 42961A06 | 底部轭架总成 | YOKE ASSEMBLY Bottom | 1 |
| 19 | 42961A2 | 底部轭架总成 | YOKE ASSEMBLY Bottom | 1 |
| 19 | 42961T2 | ORD 42961A06 | ORD 42961A06 | 1 |
| 19 | 42961A4 | 底部轭架总成 | YOKE ASSEMBLY Bottom | 1 |
| 19 | 42961A5 | 轭架总成 | YOKE ASSEMBLY | 1 |
| 20 | 67684 | 挡圈 | RING Retaining | 1 |
| 21 | 99653 | 支架 | BRACKET | 1 |
| 22 | 99619 | 轴(下部) | SHAFT (LOWER) | 1 |
| 23 | 821539 | 三叶销 | PIN Trilobe | 1 |
| 24 | 4000377 | 螺钉 (M10 x 30) | SCREW (M10 x 30) | 6 |
| 25 | 4002319 | 垫圈 | WASHER | 6 |
| 25 | 400256 | 锁紧垫圈 (M6) | LOCKWASHER (M6) | 6 |
| 26 | 818298A1 | 阳极套件 | ANODE KIT | 1 |
| 26 | 818298Q1 | 阳极套件 | ANODE KIT | 1 |
| 27 | 4000330 | 螺钉(M6x25) | SCREW (M6 x 25) | 2 |
| 27 | 8M0204707 | 不锈钢六角大帽螺钉(M6x25) | SCREW M6 x 25 HX HD CAP SS | 2 |
| 28 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 28 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 29 | 11288 | 下轭缓冲垫 | BUMPER Bottom Yoke | 1 |
| 29 | 11288001 | 下轭缓冲垫 | BUMPER Bottom Yoke | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 79900 | 节流阀杆 | LEVER THROTTLE | 1 |
| 2 | 37559 | 螺钉-油门杆至排气罩 | SCREW THROTTLE LEVER TO EXHAUST COVER | 1 |
| 2 | 31830 | 螺栓(.375-24×1.75) | BOLT (.375-24 x 1.75) | 1 |
| 3 | 29395 | 垫圈（.390 x 1.00 x .06）油门杆螺钉 | WASHER (.390 x 1.00 x .06) THROTTLE LEVER SCREW | 1 |
| 3 | 8M0042641 | 垫圈(0.390×1.00×0.06) | WASHER (.390 x 1.00 x .06) | 1 |
| 4 | 45818 | 衬套-油门杆螺钉 | BUSHING THROTTLE LEVER SCREW | 1 |
| 5 | 20509 | 节气门杆螺丝螺母 | NUT THROTTLE LEVER SCREW | 1 |
| 5 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 1 |
| 6 | 37587 | 旋转接头-油门杆至油门线 | SWIVEL THROTTLE LEVER TO THROTTLE CABLE | 1 |
| 7 | 35888 | 螺母（.250-28）不锈钢油门线至旋转接头 | NUT (.250-28) Stainless Steel THROTTLE CABLE TO SWIVEL | 1 |
| 8 | 75168 | 调节螺钉-油门杆 | SCREW ADJUSTING - THROTTLE LEVER | 2 |
| 9 | 29598 | 螺母（.250-28）不锈钢调节螺钉 | NUT (.250-28) Stainless Steel ADJUSTING SCREW | 2 |
| 10 | 52023 | 尼龙帽-调节螺钉 | CAP NYLON - ADJUSTING SCREW | 2 |
| 11 | 77013A1 | 旋转接头-油门杆 | SWIVEL THROTTLE LEVER | 1 |
| 12 | 26856 | 衬套-旋转接头 | BUSHING SWIVEL | 1 |
| 13 | 33786 | 垫圈-旋转接头 | WASHER SWIVEL | 1 |
| 13 | 73288 | 垫圈(.220 x .500 x .030)不锈钢 | WASHER (.220 x .500 x .030) Stainless Steel | 1 |
| 14 | 29402 | WAVE WASHER SWIVEL | 1 | |
| 15 | 45774 | 螺母-旋转接头至油门杆 | NUT SWIVEL TO THROTTLE LEVER | 1 |
| 16 | 85300 | 油门连杆 | LINK ROD THROTTLE | 1 |
| 17 | 74213 | 筒形连杆-油门凸轮 | BARREL LINK ROD TO THROTTLE CAM | 1 |
| 18 | 85441 | 节气门凸轮 | CAM Throttle | 1 |
| 19 | 85082 | 壳体-油门（上） | HOUSING THROTTLE - UPPER | 1 |
| 20 | 95721 | 扭簧-轴 | SPRING TORSION - SHAFT | 1 |
| 21 | 85303 | 塑料垫圈-油门凸轮 | WASHER PLASTIC - THROTTLE CAM | 2 |
| 22 | 79903 | 壳体-油门（下） | HOUSING THROTTLE - LOWER | 1 |
| 22 | 79903F1 | 壳体 | HOUSING | 1 |
| 23 | 86498 | 波形垫圈-轴 | WAVE WASHER SHAFT | 2 |
| 24 | 87937 | 轴-油门和点火提前 | SHAFT THROTTLE AND SPARK ADVANCE | 1 |
| 25 | 28239 | 螺钉（.250-20 x 2.50）油门壳体 | SCREW (.250-20 x 2.50) THROTTLE HOUSING | 1 |
| 26 | 35462 | 垫圈（.2656 x .625 x .0625）不锈钢油门壳体螺钉 | WASHER (.2656 x .625 x .0625) Stainless Steel THROTTLE HOUSING SCREW | 2 |
| 27 | 72008 | 螺母（.250-20）油门壳体螺钉 | NUT (.250-20) THROTTLE HOUSING SCREW | 1 |
| 27 | 8267088 | 螺母 (.250-20) | NUT (.250-20) | 1 |
| 28 | 75168 | 调节螺钉-下壳体（2-1/4英寸） | SCREW ADJUSTING - LOWER HOUSING (2-1/4") | 1 |
| 29 | 29598 | 螺母（.250-28）不锈钢调节螺钉 | NUT (.250-28) Stainless Steel ADJUSTING SCREW | 1 |
| 30 | 52023 | 尼龙帽-调节螺钉 | CAP NYLON - ADJUSTING SCREW | 1 |
| 31 | 60464 | 调节螺钉-下壳体（2-1/8英寸） | SCREW ADJUSTING - LOWER HOUSING (2-1/8") | 1 |
| 32 | 68219 | NUT (#10-32) Stainless Steel ADJUSTING SCREW | 1 | |
| 33 | 48039 | 尼龙帽-调节螺钉 | CAP NYLON - ADJUSTING SCREW | 1 |
| 34 | 77013A1 | 旋转接头-火花连杆 | SWIVEL SPARK LINK | 1 |
| 35 | 26856 | 衬套-旋转接头 | BUSHING SWIVEL | 1 |
| 36 | 33786 | 垫圈-旋转接头 | WASHER SWIVEL | 1 |
| 36 | 73288 | 垫圈(.220 x .500 x .030)不锈钢 | WASHER (.220 x .500 x .030) Stainless Steel | 1 |
| 37 | 29402 | WAVE WASHER SWIVEL | 1 | |
| 38 | 45774 | 螺母-旋转接头 | NUT SWIVEL | 1 |
| 39 | 85301 | 火花连杆 | SPARK LINK | 1 |
| 40 | 74897 | 枢轴-火花连杆至触发器 | PIVOT SPARK LINK TO TRIGGER | 1 |
| 40 | 74897T | 枢轴 | PIVOT | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 5999 | 罩（无贴花） | COWL (WITHOUT DECALS) | 1 |
| 1 | 7934T | 顶罩 | TOP COWL | 1 |
| 1 | 7934 | 顶罩总成（无贴花） | TOP COWL ASSEMBLY (WITHOUT DECALS) | 1 |
| 1 | 7934T | 顶罩 | TOP COWL | 1 |
| 2 | 93122A1 | 固定器总成-顶罩 | RETAINER ASSEMBLY TOP COWL | 1 |
| 2 | 52733A16 | 固定器总成-顶罩 | RETAINER ASSEMBLY TOP COWL | 1 |
| 2 | 52733A9 | 固定器总成 | RETAINER ASSY | 1 |
| 3 | 35496 | 缓冲垫-顶罩固定器 | PAD BUMPER - TOP COWL RETAINER | 1 |
| 4 | 74824 | 螺钉（.312-18 x 1.250）固定器至顶罩 | SCREW (.312-18 x 1.250) RETAINER TO TOP COWL | 1 |
| 4 | 53167 | SCREW (.312-18 x .880) RETAINER TO TOP COWL | 1 | |
| 4 | 53167T | 螺钉 0.312-18X 0.88 | SCREW .312-18X .88 | 1 |
| 5 | 39107 | LOCKWASHER (.312-24) RETAINER SCREW | 1 | |
| 6 | 76370 | 护罩-顶罩（后） | SHIELD TOP COWL - REAR | 1 |
| 7 | 37370 | 螺钉 (#10-32 x .580) 护罩至上罩 | SCREW (#10-32 x .580) SHIELD TO TOP COWL | 3 |
| 8 | 37371 | 护罩螺钉锁紧垫圈 | LOCKWASHER SHIELD SCREW | 3 |
| 9 | 47341A1 | 拉绳与手柄套件 手动/应急启动器(仅限手动启动) | ROPE AND HANDLE KIT Manual/Emergency Start STARTER (FOR MANUAL STARTING ONLY) | 1 |
| 9 | 47341A11 | 手动启动绳柄套件 | ROPE AND HANDLE KIT Manual Starting | 1 |
| 10 | 52739 | 上罩铰链锁扣 | HINGE COWL LATCH - TOP COWL | 1 |
| 11 | 94918 | 罩盖锁扣铰链杆 | LEVER COWL LATCH HINGE | 1 |
| 11 | 94918F1 | 杠杆 | LEVER | 1 |
| 12 | 58998 | PIN COWL LATCH LEVER TO HINGE | 1 | |
| 13 | 55455 | 顶盖锁钩-后部 | HOOK TOP COWL LATCH - REAR | 1 |
| 14 | 22956 | 螺钉(.250-28 x .880) 后锁钩至顶盖 | SCREW (.250-28 x .880) REAR HOOK TO TOP COWL | 2 |
| 15 | 26992 | 锁紧垫圈(.250)不锈钢 后锁钩螺钉 | LOCKWASHER (.250) Stainless Steel REAR HOOK SCREW | 2 |
| 16 | 79897 | 上罩支撑框架 | FRAME TOP COWL SUPPORT | 1 |
| 16 | 79897A4 | 框架 | FRAME | 1 |
| 18 | 90435 | 上罩框架橡胶支座 | MOUNT RUBBER - TOP COWL FRAME | 3 |
| 18 | 46096 | 上罩框架橡胶支座 | MOUNT RUBBER - TOP COWL FRAME | OPT |
| 19 | 35888 | 螺母 (.250-28) 不锈钢橡胶支座 | NUT (.250-28) Stainless Steel RUBBER MOUNT | 6 |
| 20 | 86472 | 上罩后支撑支架 | BRACKET TOP COWL SUPPORT - REAR | 1 |
| 21 | 31014 | 橡胶支座-后支撑架 | MOUNT RUBBER - REAR SUPPORT BRACKET | 2 |
| 22 | 26992 | 不锈钢锁紧垫圈(.250)橡胶支座 | LOCKWASHER (.250) Stainless Steel RUBBER MOUNT | 2 |
| 23 | 29598 | 螺母 (.250-28) 不锈钢橡胶支座 | NUT (.250-28) Stainless Steel RUBBER MOUNT | 2 |
| 24 | 37562 | 螺丝(.312-18 x 1.00)不锈钢后支架至框架 | SCREW (.312-18 x 1.00) Stainless Steel REAR BRACKET TO FRAME | 4 |
| 26 | 26993 | 锁紧垫圈(.312)后支架螺丝 | LOCKWASHER (.312) REAR BRACKET SCREW | 4 |
| 26 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 4 |
| 27 | 37562 | 螺钉 (.312-18 x 1.00) 不锈钢后支架至下罩 | SCREW (.312-18 x 1.00) Stainless Steel REAR BRACKET TO BOTTOM COWL | 4 |
| 28 | 26993 | 后支撑支架螺钉锁紧垫圈 (.312) | LOCKWASHER (.312) REAR SUPPORT BRACKET SCREW | 4 |
| 28 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 4 |
| 29 | 89232A1 | 上罩前支架总成 | BRACKET ASSEMBLY TOP COWL - FRONT | 1 |
| 29 | 42706A1 | 支架总成 | BRACKET ASSEMBLY | 1 |
| 30 | 69092 | 螺钉 (1.25) 前支架至下罩 | SCREW (1.25) FRONT BRACKET TO BOTTOM COWL | 2 |
| 30 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 2 |
| 31 | 26993 | 前支撑支架螺钉锁紧垫圈 (.312) | LOCKWASHER (.312) FRONT SUPPORT BRACKET SCREW | 2 |
| 31 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 32 | 69092 | 螺钉 (1.25) 前支架至上罩框架 | SCREW (1.25) FRONT BRACKET TO TOP COWL FRAME | 2 |
| 32 | 60411 | 螺钉(.312-18 x 1.250) | SCREW (.312-18 x 1.250) | 2 |
| 33 | 26993 | 前支撑支架螺钉锁紧垫圈 (.312) | LOCKWASHER (.312) FRONT SUPPORT BRACKET SCREW | 2 |
| 33 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 34 | 37640 | 橡胶支座-前支撑架 | MOUNT RUBBER - FRONT SUPPORT BRACKET | 1 |
| 35 | 26993 | 橡胶支座锁紧垫圈（0.312） | LOCKWASHER (.312) RUBBER MOUNT | 1 |
| 35 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 1 |
| 36 | 28770 | 橡胶支座螺母（0.312-24不锈钢） | NUT (.312-24) Stainless Steel RUBBER MOUNT | 1 |
| 37 | 87991 | 正时指针 | POINTER TIMING | 1 |
| 38 | 28636 | 螺钉 (.250-20 x .750) 正时指针 | SCREW (.250-20 x .750) TIMING POINTER | 1 |
| 39 | 35462 | 垫圈 (.2656 x .625 x .0625) 不锈钢正时指针螺钉 | WASHER (.2656 x .625 x .0625) Stainless Steel TIMING POINTER SCREW | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8718F7 | 艉板支架右舷, 黑色 | BRACKET Transom Starboard, Black | 1 |
| 2 | 8716A8 | 艉板支架总成左舷, 黑色 | BRACKET ASSEMBLY Transom Port, Black | 1 |
| 1 | 8718F8 | 艉板支架右舷, 灰色 | BRACKET Transom Starboard, Gray | 1 |
| 2 | 8716A9 | 艉板支架总成左舷, 灰色 | BRACKET ASSEMBLY Transom Port, Gray | 1 |
| 3 | 98727 | 润滑脂加注口接头 | FITTING Grease Port | 1 |
| 3 | 8M0169588 | 润滑脂接头 | FITTING Grease | 1 |
| 4 | 49930A1 | 非动力倾斜锁止销总成 | PIN ASSEMBLY Tilt Lock Non Power Trim | 1 |
| 4 | 8M0026068 | 倾斜锁销总成 | PIN ASSEMBLY Tilt Lock | 1 |
| 5 | 99170A1 | 动力倾斜管 | TILT TUBE Power Trim | 1 |
| 5 | 99170A2 | 倾斜管套件 | TUBE KIT Tilt | 1 |
| 6 | 90068F2 | 螺母黑色 | NUT Black | 1 |
| 6 | 859133 | 螺母(1.00-14) | NUT (1.00-14) | 1 |
| 6 | 90068F3 | 螺母 (1.00-14) 灰色 | NUT (1.00-14) Gray | 1 |
| 6 | 859133 | 螺母(1.00-14) | NUT (1.00-14) | 1 |
| 7 | 45711 | O型圈 (.612 x .103) | O-RING (.612 x .103) | 1 |
| 8 | 88750 | 波浪垫圈 (1.62 x 1.05) | WASHER Wave (1.62 x 1.05) | 2 |
| 9 | 56041 | 螺母 (.875-14) | NUT (.875-14) | 1 |
| 9 | 858869 | 螺母 (.875-14) | NUT (.875-14) | 1 |
| 10 | 814259 | 螺钉 (.500-20 x 4.00) | SCREW (.500-20 x 4.00) | 4 |
| 11 | 28421 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 11 | 8M0204648 | 垫圈(1.5x3.05x0.13)不锈钢 | WASHER (1.5 x 3.05 x 0.13) Stainless Steel | 4 |
| 12 | 8M0027784 | 螺母 | NUT | 4 |
| 12 | 82671117 | 螺母(.500-20) | NUT (.500-20) | 4 |
| 13 | 99629A2 | 非动力及三油缸动力倾斜操纵杆总成 | LEVER ASSEMBLY Non Power Trim And Three Ram Power Trim | 1 |
| 13 | 8M0115104 | 倾斜锁定杆总成 | LEVER ASSEMBLY Tilt Lock | 1 |
| 14 | 821176A1 | 单油缸动力倾斜锁止杆总成 | LEVER ASSEMBLY Tilt Lock Single Ram Power Trim | 1 |
| 14 | 8M0109798 | 倾斜锁定杆总成 | LEVER ASSEMBLY Tilt Lock | 1 |
| 15 | 99611 | 波形垫圈 | WAVE WASHER | 1 |
| 16 | 65830 | 尼龙衬套 | NYLINER | 2 |
| 17 | 99633 | 旋钮 | KNOB | 1 |
| 18 | 99615 | 槽销 | PIN Groove | 1 |
| 19 | 99622 | 弹簧 | SPRING | 1 |
| 20 | 99604 | 槽销 | PIN Groove | 1 |
| 21 | 96930A1 | 动力倾斜螺栓总成 | BOLT ASSEMBLY Power Trim | 1 |
| 22 | 23161 | 螺母 (.375-24) 动力倾斜 | NUT (.375-24) Power Trim | 1 |
| 23 | 37984 | 螺母 (.875-14) 动力倾斜 | NUT (.875-14) Power Trim | 1 |
| 23 | 8M0041651 | 螺母 (.875-14) | NUT (.875-14) | 1 |
| 24 | 818771F1 | 锚支架黑色 | BRACKET Anchor Black | 1 |
| 24 | 8M0086406 | 锚支架 | BRACKET Anchor | 1 |
| 24 | 818771T6 | 锚支架灰色 | BRACKET Anchor Gray | 1 |
| 24 | 818771T8 | ORD 818771T 1 | ORD 818771T 1 | 1 |
| 25 | 4000377 | 螺钉 (M10 x 30) 单缸动力升降 | SCREW (M10 x 30) Single Ram Power Trim | 6 |
| 26 | 400258 | 锁紧垫圈 (M10) 不锈钢单油缸动力倾斜 | LOCKWASHER (M10) Stainless Steel Single Ram Power Trim | 6 |
| 27 | 40114 | 螺母 (M10 x 1.5) 单油缸动力倾斜 | NUT (M10 x 1.5) Single Ram Power Trim | 1 |
| 28 | 814207 | 停机开关 | STOP | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 7370A2 | 点火线圈总成 | COIL ASSEMBLY Ignition | 6 |
| 2 | 73218 | 点火线圈盖 | COVER IGNITION COIL | 2 |
| 2 | 43542 | 盖板 | COVER | 2 |
| 3 | 88856 | 螺钉 (.190-32 x 2.00) 点火线圈盖 | SCREW (.190-32 x 2.00) IGNITION COIL COVER | 12 |
| 4 | 45076 | 螺母(#10-32)黄铜点火线圈端子 | NUT (#10-32) Brass IGNITION COIL TERMINAL | 12 |
| 5 | 60466A1 | 线缆总成 黑色 (2.50英寸) 点火线圈 | CABLE ASSEMBLY Black (2.50 Inches) IGNITION COIL | 6 |
| 6 | 90816A25 | 高压线总成 | WIRE ASSEMBLY HIGH TENSION | 6 |
| 6 | 813715A1 | 引线 | LEAD WIRE | 6 |
| 7 | 2854 | 线圈端护套 | BOOT COIL END | 6 |
| 7 | 2854T01 | 护套@3 | BOOT @3 | 6 |
| 8 | 63709A1 | 火花塞端护套/端子套件 | BOOT/TERMINAL KIT SPARK PLUG END | 6 |
| 9 | 68057 | 火花塞 (冠军 #L76-V) | SPARK PLUG (CHAMPION #L76-V) | 6 |
| 9 | 896329827 | SP #L76V @4 | SP #L76V @4 | 6 |
| 10 | 85537A2 | 线圈到开关盒线束总成(#2,4和6) | HARNESS ASSEMBLY COIL TO SWITCH BOX (#2, 4 AND 6) | 1 |
| 10 | 85537A1 | 线束总成 线圈至开关盒 (#1, 3 和 5) | HARNESS ASSEMBLY COIL TO SWITCH BOX (#1, 3 AND 5) | 1 |
| 11 | 63153 | J型卡扣 线束至线圈盖 | J CLIP HARNESS TO COIL COVER | 2 |
| 12 | 89564A1 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 12 | 96188A4 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 12 | 96188A2 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 12 | 96188A4 | 线束总成 | HARNESS ASSEMBLY | 1 |
| 13 | 79091 | 保险丝20安培 | FUSE 20 Ampere | 1 |
| 13 | 8M0207796 | 保险丝20安培 | FUSE 20 AMP | 1 |
| 14 | 95084A2 | 保险丝座线缆总成 | CABLE ASSEMBLY FUSE HOLDER | 1 |
| 15 | 88608 | 线束夹 | CLAMP WIRING HARNESS | 1 |
| 16 | 28636 | 线束夹螺钉（0.250-20 x 0.750） | SCREW (.250-20 x .750) WIRING HARNESS CLAMP | 2 |
| 17 | 26996 | 锁紧垫圈 (#10) 不锈钢线束夹螺钉 | LOCKWASHER (#10) Stainless Steel WIRING HARNESS CLAMP SCREW | 2 |
| 18 | 89047 | 线束支架 | BRACKET WIRING HARNESS | 1 |
| 19 | 24637 | 螺钉 (#10-32 x .875) 线束支架 | SCREW (#10-32 x .875) WIRING HARNESS BRACKET | 2 |
| 20 | 38833 | 支架螺钉垫圈 | WASHER BRACKET SCREW | 2 |
| 21 | 20110 | 螺母 (#10-32) 支架螺钉 | NUT (#10-32) BRACKET SCREW | 2 |
| 22 | 88751 | 线束夹 | CLAMP WIRING HARNESS | 1 |
| 23 | 28636 | 线束夹螺钉（0.250-20 x 0.750） | SCREW (.250-20 x .750) WIRING HARNESS CLAMP | 1 |
| 24 | 20533 | 夹紧螺钉垫圈 | WASHER CLAMP SCREW | 1 |
| 25 | 88439A3 | 正极电缆总成-蓄电池 | CABLE ASSEMBLY Positive - Battery | 1 |
| 25 | 88439A4 | 蓄电池负极电缆总成 | CABLE ASSEMBLY Battery - Negative | 1 |
