两冲程 化油器 · ARCHIVE CAT 59344 · 共 16 个部位 · 652 条零件

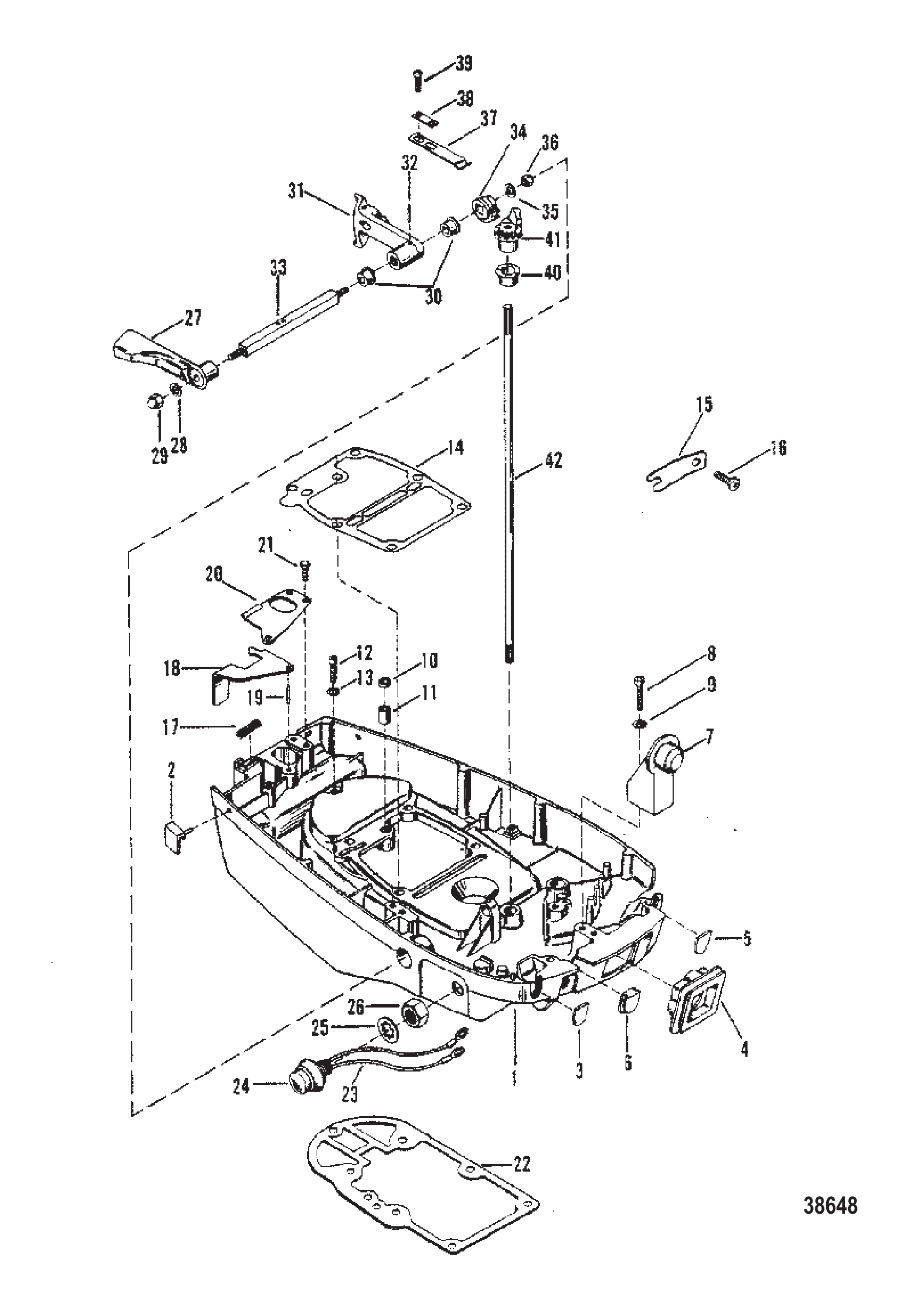

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 6587A5 | 底罩总成 | COWL ASSEMBLY BOTTOM | 1 |
| 2 | 95925 | 下机罩塞 | PLUG BOTTOM COWL | 3 |
| 3 | 74360 | 下机罩塞 | PLUG BOTTOM COWL | 1 |
| 4 | 39778 | 阻风门轴衬套-底罩 | GROMMET CHOKE SHAFT - BOTTOM COWL | 1 |
| 5 | 66353 | 检修孔盖 | COVER ACCESS HOLE | 1 |
| 6 | 65479 | 检修孔盖 | COVER ACCESS HOLE | 1 |
| 7 | 39474 | 底罩锚定闩锁 | ANCHOR LATCH - BOTTOM COWL | 1 |
| 8 | 22483 | 螺钉(.250-28 x 1.12)闩锁锚定 | SCREW (.250-28 x 1.12) LATCH ANCHOR | 2 |
| 9 | 26992 | 锁紧垫圈(.250)不锈钢闩锁锚定螺钉 | LOCKWASHER (.250) Stainless Steel LATCH ANCHOR SCREW | 2 |
| 10 | 86214 | 尼龙轴承-出水管 | BEARING NYLON - WATER OUTLET TUBE | 1 |
| 10 | 13127 | 隔套 | SPACER | 1 |
| 11 | 36556 | 出水管橡胶密封件(外径0.5英寸) | SEAL (.500 Inch Outside Diameter) RUBBER - WATER OUTLET TUBE | 1 |
| 12 | 38111 | 底罩螺丝(3/4英寸) | SCREW BOTTOM COWL (3/4") | 1 |
| 13 | 26992 | 锁紧垫圈(0.250英寸)不锈钢底罩螺丝 | LOCKWASHER (.250) Stainless Steel BOTTOM COWL SCREW | 1 |
| 14 | 89937 | 动力头至适配板衬垫 | GASKET POWERHEAD TO ADOPTOR PLATE | 1 |
| 15 | 74354 | 固定座 | RETAINER | 1 |
| 16 | 48408 | 螺钉(#10-16 x 0.500) | SCREW (#10-16 x .500) | 1 |
| 17 | 78810 | 拉线弹簧至锁臂 | SPRING CALBE TO ARM LATCH | 1 |
| 18 | 78809 | 锁臂-底罩 | LATCH ARM - BOTTOM COWL | 1 |
| 19 | 71422 | 定位滚针轴承 | BEARING Needle ARM LOCATING | 1 |
| 19 | 714221 | 轴承 | BEARING | 1 |
| 20 | 78808 | 锁体-底罩 | LATCH BODY - BOTTOM COWL | 1 |
| 21 | 32228 | 螺丝(#10-32 x 0.625英寸)锁至底罩 | SCREW (#10-32 x .625) LATCH TO BOTTOM COWL | 3 |
| 22 | 39050 | 衬垫 | GASKET | 1 |
| 23 | 69508A31 | 停机开关总成 | SWITCH ASSEMBLY Stop | 1 |
| 24 | 99525A1 | 停止开关盖总成 | COVER ASSEMBLY STOP SWITCH | 1 |
| 25 | 69845 | 停止开关锁紧垫圈 | LOCKWASHER STOP SWITCH | 1 |
| 26 | 69844 | 停机开关螺母 | NUT STOP SWITCH | 1 |
| 27 | 66376 | 换挡控制手柄 | HANDLE SHIFT CONTROL | 1 |
| 27 | 93730T | 手柄 | HANDLE | 1 |
| 27 | 93730 | 换挡控制手柄 | HANDLE SHIFT CONTROL | 1 |
| 27 | 93730T | 手柄 | HANDLE | 1 |
| 28 | 29245 | 垫圈(0.281x0.500x0.060英寸)不锈钢换挡控制轴 | WASHER (.281 x .500 x .060) Stainless Steel SHIFT CONTROL SHAFT | 1 |
| 28 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 29 | 39305 | 换挡手柄螺母至换挡控制轴 | NUT SHIFT HANDLE TO SHIFT CONTROL SHAFT | 1 |
| 29 | 826709109 | 不锈钢螺母(.250-28) | NUT (.250-28) Stainless Steel | 1 |
| 30 | 66375 | 尼龙衬套-换挡控制轴 | BUSHING NYLON - SHIFT CONTROL SHAFT | 2 |
| 31 | 74350 | 换挡控制杆(遥控) | LEVER SHIFT CONTROL (REMOTE) | 1 |
| 32 | 25905 | 换挡杆销至换挡控制轴 | PIN SHIFT LEVER TO SHIFT CONTROL SHAFT | 1 |
| 33 | 66379 | 换挡控制轴 | SHAFT SHIFT CONTROL | 1 |
| 34 | 66377 | 扇形齿轮 | SECTOR GEAR | 1 |
| 35 | 29245 | 垫圈(0.281x0.500x0.060英寸)不锈钢换挡控制轴 | WASHER (.281 x .500 x .060) Stainless Steel SHIFT CONTROL SHAFT | 1 |
| 35 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 1 |
| 36 | 20361 | 螺母(0.250-28牙)扇形齿轮至换挡控制轴 | NUT (.250-28) SECTOR GEAR TO SHIFT CONTROL SHAFT | 1 |
| 36 | 8267089 | 螺母(.250-28) | NUT (.250-28) | 1 |
| 37 | 39627 | 定位弹簧-换挡控制杆 | SPRING DETENT - SHIFT CONTROL LEVER | 1 |
| 38 | 39601 | 定位弹簧板 | PLATE DETENT SPRING | 1 |
| 39 | 25764 | 螺钉(.190-32 x .50) | SCREW (.190-32 x .50) | 2 |
| 40 | 27132 | 尼龙衬套-上换挡轴 | BUSHING NYLON - UPPER SHIFT SHAFT | 1 |
| 41 | 86686A1 | 扇形齿轮换挡轴 | SECTOR GEAR SHIFT SHAFT | 1 |
| 42 | 71660 | 换档轴 | SHIFT SHAFT | 1 |
| - | 89014A80 | 衬垫套件 | GASKET SET |

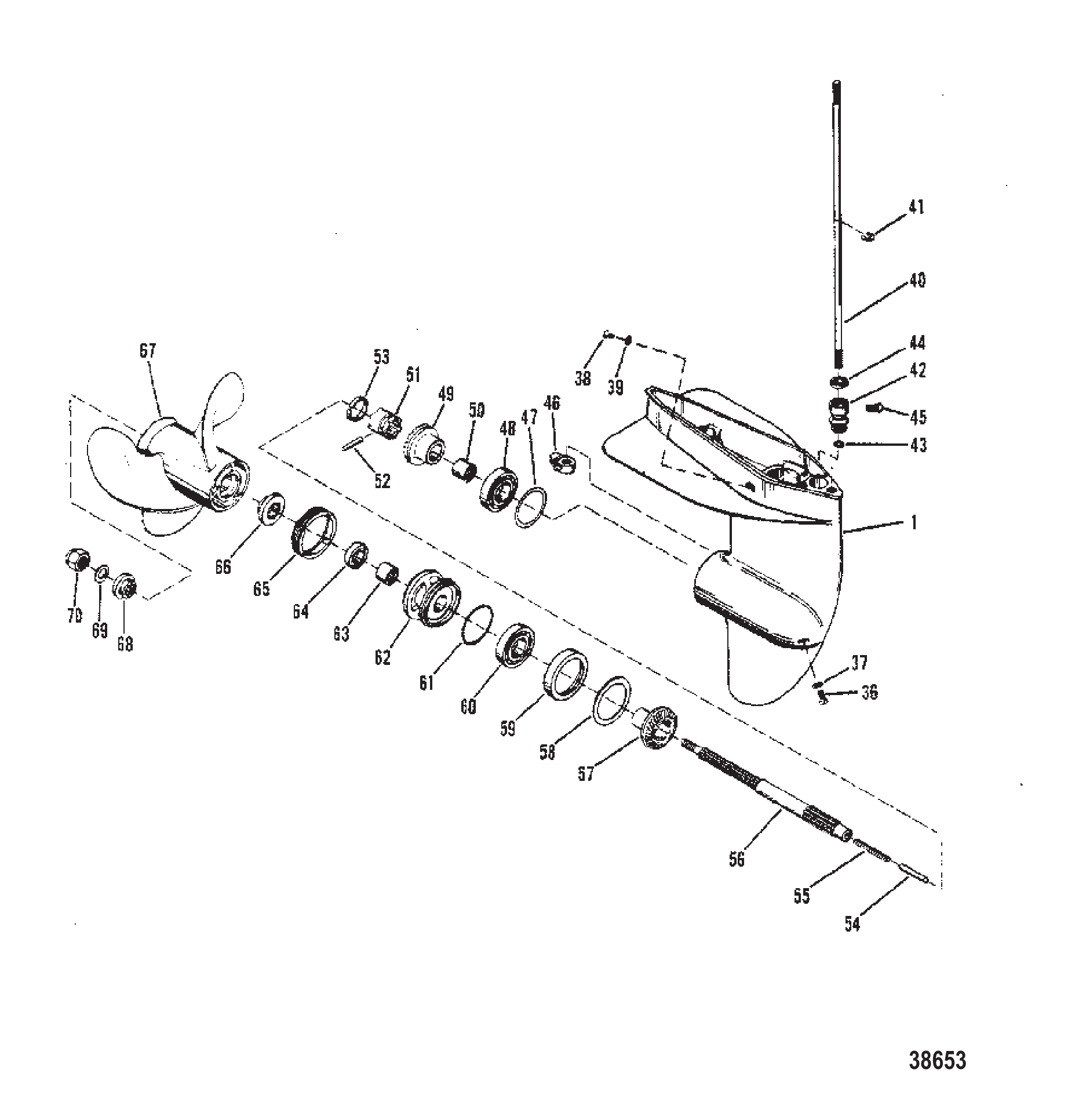

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 7360A12 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 7360A13 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 7360A29 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 7360A30 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 7360A11 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 36 | 79953 | 螺钉 (.375-16 x .250) 润滑脂加注孔 | SCREW (.375-16 x .250) GREASE FILLER HOLE | 1 |
| 36 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 37 | 20260 | 润滑脂加注孔螺钉垫圈 | WASHER GREASE FILLER HOLE SCREW | 1 |
| 37 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 1 |
| 38 | 28653 | 螺钉 (#10-32 x 0.25) 通气孔 | SCREW (#10-32 x 0.25) VENT HOLE | 1 |
| 39 | 20262 | 通气孔螺钉垫圈 | WASHER VENT HOLE SCREW | 1 |
| 39 | 19643 | 密封件 | SEAL | 1 |
| 40 | 71659A1 | 换挡轴总成 | SHIFT SHAFT ASSEMLBY | 1 |
| 40 | 71658A1 | 换挡轴总成 | SHIFT SHAFT ASSEMBLY | 1 |
| 41 | 22899 | 换挡轴挡圈 | RING Retaining SHIFT SHAFT | 1 |
| 42 | 30676A1 | 换挡轴衬套总成 | BUSHING ASSEMBLY SHIFT SHAFT | 1 |
| 43 | 26802 | O型圈(0.424x0.103)换挡轴衬套 | O-RING (.424 x .103) SHIFT SHAFT BUSHING | 1 |
| 44 | 30696 | 换挡轴衬套油封 | SEAL Oil SHIFT SHAFT BUSHING | 1 |
| 45 | 39149 | 螺钉 (#10-24 x .500) 换挡轴衬套 | SCREW (#10-24 x .500) SHIFT SHAFT BUSHING | 1 |
| 46 | 44434 | 换档凸轮 | CAM SHIFT | 1 |
| 47 | 30522A1 | 滚珠轴承垫片组(0.002-3-5-10) | SHIM ASSEMBLY BALL BEARING (.002-3-5-10) | AR |
| 48 | 21889 | 前进齿轮滚珠轴承 | BEARING Ball FOWARD GEAR | 1 |
| 49 | 48577A3 | 前进齿轮总成 | GEAR ASSEMBLY Forward | 1 |
| 50 | 22458 | 前进档滚柱轴承 | BEARING Roller FORWARD GEAR | 1 |
| 51 | 63314 | 棘轮滑动离合器 | RATCHET SLIDING CLUTCH | 1 |
| 52 | 30535 | 棘轮到螺旋桨轴十字销 | PIN Cross RATCHET TO PROPELLER SHAFT | 1 |
| 53 | 32449 | 十字销固定环 | RING Retaining CROSS PIN | 1 |
| 54 | 31334 | 换档凸轮从动件 | FOLLOWER SHIFT CAM | 1 |
| 55 | 76298 | 凸轮从动件压缩弹簧 | SPRING COMPRESSION - CAM FOLLOWER | 1 |
| 56 | 75667A2 | 螺旋桨轴总成 | PROELLER SHAFT ASSEMBLY | 1 |
| 57 | 63316 | 倒挡齿轮 | GEAR Reverse | 1 |
| 58 | 30532A1 | 止推垫片调整垫片组(.002-3-5-10) | SHIM ASSEMBLY THRUST WASHER (.002-3-5-10) | AR |
| 59 | 71479 | 倒档齿轮止推套 | SLEEVE THRUST - REVERSE GEAR | 1 |
| 60 | 21889 | 倒档齿轮滚珠轴承 | BEARING Ball REVERSE GEAR | 1 |
| 61 | 30529 | 轴承座O型圈(1.925 x .103) | O-RING (1.925 x .103) BEARING CARRIER | 1 |
| 62 | 72673A1 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 62 | 72673T1 | 托架总成 | CARRIER ASSY | 1 |
| 63 | 22458 | 轴承座滚柱轴承 | BEARING Roller BEARING CARRIER | 1 |
| 64 | 66022 | 轴承座油封 | SEAL Oil BEARING CARRIER | 1 |
| 65 | 86236 | 齿轮箱盖 | COVER GEAR HOUSING | 1 |
| 66 | 86665A1 | 螺旋桨导环 | COLLAR PROPELLER GUIDE | 1 |
| 67 | 47670A10 | 螺旋桨(随发动机发货) | PROPELLER (SHIPPED WITH ENGINE) | 1 |
| 67 | 87572A10 | 螺旋桨(随发动机发货) | PROPELLER (SHIPPED WITH ENGINE) | 1 |
| 67 | 47922A10 | 螺旋桨 | PROPELLER | OPT |
| 67 | 47926A10 | 螺旋桨 | PROBPELLER | OPT |
| 67 | 47922A10 | 螺旋桨 | PROPELLER | OPT |
| 68 | 65439 | 螺旋桨轴隔套 | SPACER PROPELLER SHAFT | 1 |
| 68 | 64075A1 | 螺旋桨螺母套件 | PROP NUT KIT | 1 |
| 69 | 79552 | 螺旋桨轴不锈钢垫片(.453 x .750 x .062) | WASHER (.453 x .750 x .062) Stainless Steel PROPELLER SHAFT | OPT |
| 70 | 64075A1 | 螺旋桨螺母套件 | PROP NUT KIT PROPELLER | 1 |
| 70 | 89103 | 螺旋桨螺母 | NUT PROPELLER | 1 |
| 70 | 64075A1 | 螺旋桨螺母套件 | PROP NUT KIT | 1 |
| - | 89014A80 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

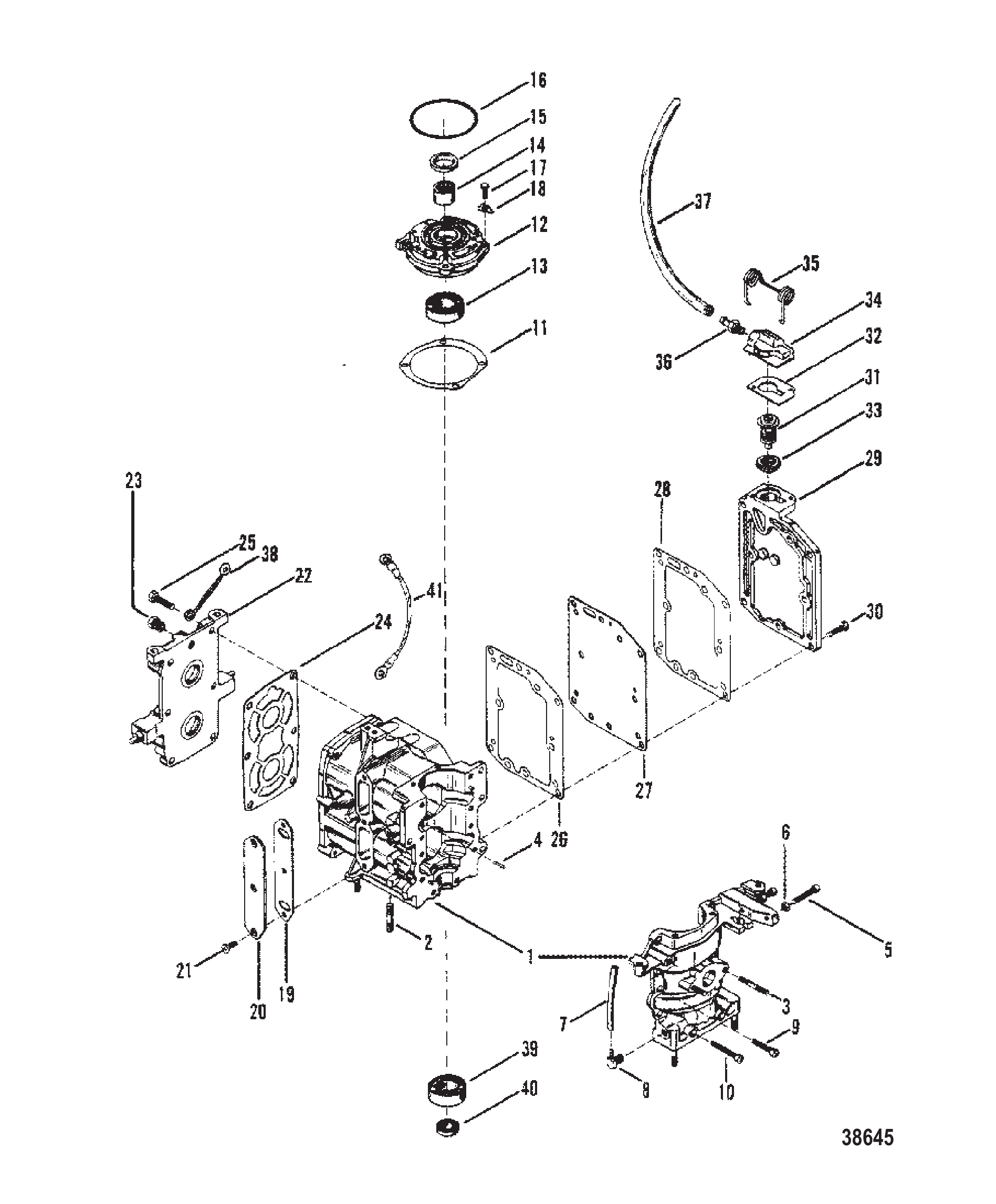

| 1 | 7693A2 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 1 | 7694A2 | 气缸体总成 | CYLINDER BLOCK ASSEMLBY | 1 |
| 2 | 72809 | 双头螺柱(0.250-20/0.250-28牙x1.620英寸)缸体曲轴箱至驱动轴壳体 | STUD (.250-20/.250-28 x 1.620) BLOCK AND CRANKCASE TO DRIVE SHAFT HOUSING | 6 |
| 2 | 728091 | 螺柱 (.250 x 1.620) | STUD (.250 x 1.620) | 6 |
| 3 | 66357 | 双头螺柱(0.250-28牙x1.00英寸)化油器安装 | STUD (.250-28 x 1.00) CARBURETOR MOUNTING | 2 |
| 3 | 657461 | 螺丝及锁紧垫圈(0.250-20牙x0.625英寸) | SCREW AND LOCKWASHER (.250-20 x .625) | 2 |
| 4 | 85500 | 曲轴箱至气缸体定位销(.187 x .530) | PIN Dowel (.187 x .530) CRANKCASE TO CYLINDER BLOCK | 2 |
| 4 | 8M0084726 | 定位销 | PIN Dowel | 2 |
| 5 | 54467 | 调节螺丝-节气门控制(1-1/4英寸) | SCREW ADJ - THROTTLE CONTROL (1-1/4") | 2 |
| 5 | 69560 | 螺钉 (.190-32 x 1.250) | SCREW (.190-32 x 1.250) | 2 |
| 6 | 68219 | 螺母(#10-32牙)不锈钢节气门控制调节螺丝 | NUT (#10-32) Stainless Steel THROTTLE CONTROL ADJUSTING SCREW | 2 |
| 7 | 99130122 | 管材(20英尺散装)泄放管(4英寸) | TUBING (20.00 Feet Bulk) BLEED DRAIN (4") | 1 |
| 7 | 892024122 | 管(240.00英寸散装) | TUBING (240.00 Inches Bulk) | 1 |
| 8 | 42863 | 止回阀泄放-曲轴箱(底部) | CHECK VALVE BLEED - CRANKCASE (BOTTOM) | 1 |
| 9 | 76621 | 曲轴箱至气缸体螺丝 | SCREW CRANKCASE TO CYLINDER BLOCK | 8 |
| 10 | 73280 | 曲轴箱至气缸体螺丝 | SCREW CRANKCASE TO CYLINDER BLOCK | 2 |
| 11 | 31412A1 | 垫片 | SHIM | AR |
| 12 | 6413A1 | 上轴承壳体总成 | HOUSING ASSEMBLY Bearing UPPER | 1 |
| 13 | 72961 | 上轴承壳体滚珠轴承 | BEARING Ball UPPER BEARING HOUSING | 1 |
| 14 | 31410 | 上轴承壳体滚柱轴承 | BEARING Roller UPPER BEARING HOUSING | 1 |
| 15 | 66301 | 上轴承壳体油封 | SEAL Oil UPPER BEARING HOUSING | 1 |
| 16 | 20863 | 上轴承壳体O型圈 | O-RING UPPER BEARING HOUSING | 1 |
| 17 | 76611 | 螺丝(0.216-24牙x0.500英寸)上轴承座 | SCREW (.216-24 x .500) UPPER BEARING HOUSING | 4 |
| 18 | 78102 | 锁紧垫圈 | TAB WASHER | 4 |
| 19 | 78032 | 进气盖衬垫 | GASKET INTAKE COVER | 1 |
| 19 | 780321 | 衬垫 | GASKET | 1 |
| 19 | 43336 | 进气盖衬垫 | GASKET INTAKE COVER | 1 |
| 20 | 78033 | 进气盖 | COVER INTAKE | 1 |
| 21 | 26537 | 螺丝(#10-24牙x0.500英寸)进气盖至气缸体 | SCREW (#10-24 x .500) INTAKE COVER TO CYLINDER BLOCK | 3 |
| 22 | 7465A1 | 气缸体盖总成 | COVER ASSEMBLY CYLINDER BLOCK | 1 |
| 23 | 32802 | 管塞(0.125-27牙)气缸盖 | PLUG Pipe (.125-27) CYLINDER COVER | 1 |
| 23 | 328022 | 黄铜管塞 (.125-27) | PLUG Pipe (.125-27) Brass | 1 |
| 23 | 99664 | 气缸盖弯头 | ELBOW CYLINDER COVER | 1 |
| 23 | 996642 | 90度弯头接头(0.125-27x0.250)尼龙 | FITTING Elbow 90 Degree (.125-27 x .250) Nylon | 1 |
| 24 | 41382 | 气缸体盖衬垫 | GASKET CYLINDER BLOCK COVER | 1 |
| 25 | 76630 | 螺钉 (.250-20 x 1.00) | SCREW (.250-20 x 1.00) | 6 |
| 25 | 8M0214943 | 螺钉 | SCREW | 6 |
| 26 | 41383 | 气缸体至挡板衬垫 | GASKET CYLINDER BLOCK TO BAFFLE PLATE | 1 |
| 27 | 85935 | 挡板-排气歧管 | PLATE BAFFLE - EXHAUST MANIFOLD | 1 |
| 28 | 41383 | 挡板衬垫 | GASKET BAFFLE PLATE | 1 |
| 29 | 74919 | 排气歧管盖 | COVER EXHAUST MANIFOLD | 1 |
| 29 | 74919T | 盖板 | COVER | 1 |
| 28 | 89014 | 挡板衬垫 | GASKET BAFFLE PLATE | 1 |
| 29 | 89013A1 | 排气歧管盖 | COVER EXHAUST MANIFOLD | 1 |
| 30 | 28668 | 螺钉 (.250-20 x .875) 不锈钢 | SCREW (.250-20 x .875) Stainless Steel | 8 |
| 31 | 75692 | 节温器 | THERMOSTAT | 1 |
| 32 | 88346 | 节温器盖衬垫 | GASKET THERMOSTAT COVER | 1 |
| 33 | 62386 | 节温器衬垫 | GASKET THERMOSTAT | 1 |
| 33 | 8M0204714 | 衬垫@4 | GASKET @4 | 1 |
| 34 | 85920 | 节温器盖 | COVER THERMOSTAT | 1 |
| 35 | 88464 | 弹簧固定座-节温器盖 | SPRING RETAINER - THERMOSTAT COVER | 1 |
| 36 | 29111 | 节温器盖连接器 | CONNECTOR THERMOSTAT COVER | 1 |
| 36 | 291112 | 接头 | FITTING | 1 |
| 37 | 34395A1 | 示警软管 | HOSE TELL-TALE | 1 |
| 37 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 38 | 46933A1 | 接地线 | GROUND WIRE | 1 |
| 39 | 72961 | 球轴承(下部) | BEARING Ball (LOWER) | 1 |
| 40 | 66301 | 曲轴箱油封(下) | SEAL Oil CRANKCASE (LOWER) | 1 |
| 41 | 63415A6 | 电线总成黑色(电气) | WIRE ASSEMBLY BLACK (ELECTRIC) | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

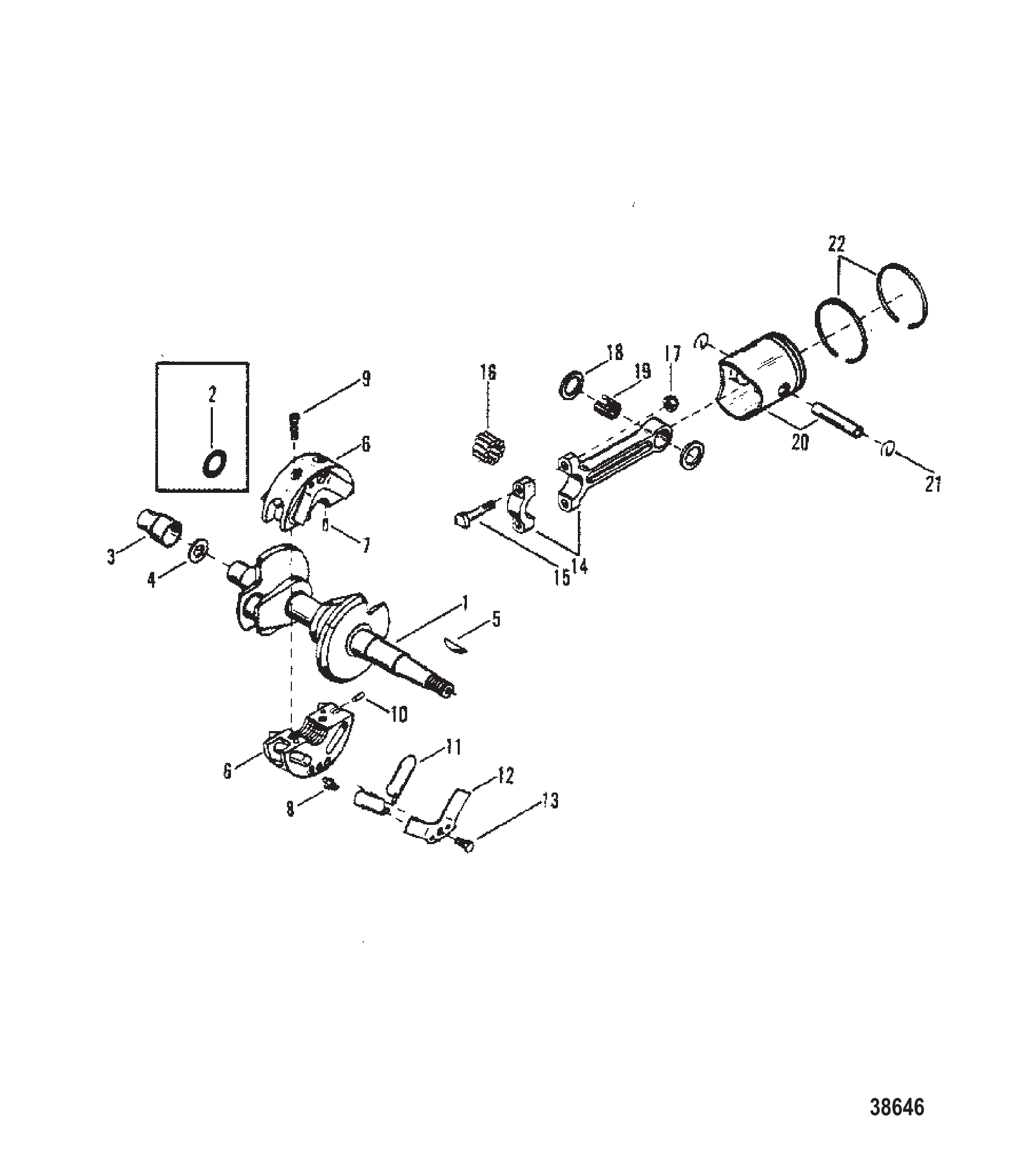

| 1 | 5275 | 曲轴 | CRANKSHAFT | 1 |
| 2 | 72793 | 曲轴油封 | SEAL CRANKSHAFT | 1 |
| 1 | 7271A2 | 曲轴总成 | CRANKSHAFT ASSEMBLY | 1 |
| 3 | 79952A1 | 托架总成 | CARRIER ASSEMBLY | 1 |
| 4 | 79960 | 毛毡垫圈 | WASHER FELT | 1 |
| 5 | 20094 | KEY Woodruff CRANKSHAFT | 1 | |
| 6 | 8122A5 | 主轴承总成(阀门型) | BEARING ASSEMBLY Main (VALVE TYPE) | 1 |
| 7 | 20032 | PIN Dowel MAIN BEARING | 2 | |
| 8 | 65855 | PIN Dowel REED LOCATING | 8 | |
| 9 | 56781 | 主轴承夹紧螺钉 | SCREW MAIN BEARING CLAMPING | 2 |
| 10 | 20032 | 主轴承定位销 | PIN Dowel MAIN BEARING TO BLOCK | 1 |
| 11 | 31942A1 | 匹配簧片组-主轴承 | REED SET MATCHED - MAIN BEARING | 1 |
| 12 | 20053 | 主轴承簧片阀限位器 | STOP Reed MAIN BEARING REED VALVES | 4 |
| 13 | 27304 | 簧片止动安装螺钉 | SCREW REED STOP MOUNTING | 4 |
| 14 | 7395A2 | 连杆总成 | CONNECTING ROD ASSEMBLY | 2 |
| 15 | 87374 | 连杆螺丝(.250-28 x 1.030) | SCREW (.250-28 x 1.030) CONNECTING ROD | 4 |
| 16 | 26815 | 曲柄销滚针轴承 | BEARING Needle CRANKPIN | 58 |
| 16 | 8M0045032 | 滚针轴承@100 | NEEDLE BRG @100 | 58 |
| 17 | 20061 | 连杆螺钉螺母 | NUT CONNECTING ROD SCREW | 4 |
| 18 | 65967 | 滚针轴承挡圈 | WASHER NEEDLE BEARING RETAINING | 4 |
| 19 | 31505 | 活塞销滚针轴承 | BEARING Needle PISTON PIN | 40 |
| 20 | 7391A3 | 活塞总成（2环） | PISTON ASSEMBLY (2 RING) | 2 |
| 20 | 7391T3 | 活塞 | PISTON | 2 |
| 21 | 21666 | 活塞销锁环 | LOCK RING PISTON PIN | 4 |
| 22 | 21665A12 | 活塞环组 | RING SET Piston | 1 |
| - | 75376A79 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 87123A80 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 75380A79 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |
| - | 87181A80 | 动力头总成 | POWERHEAD ASSEMBLY | 1 |

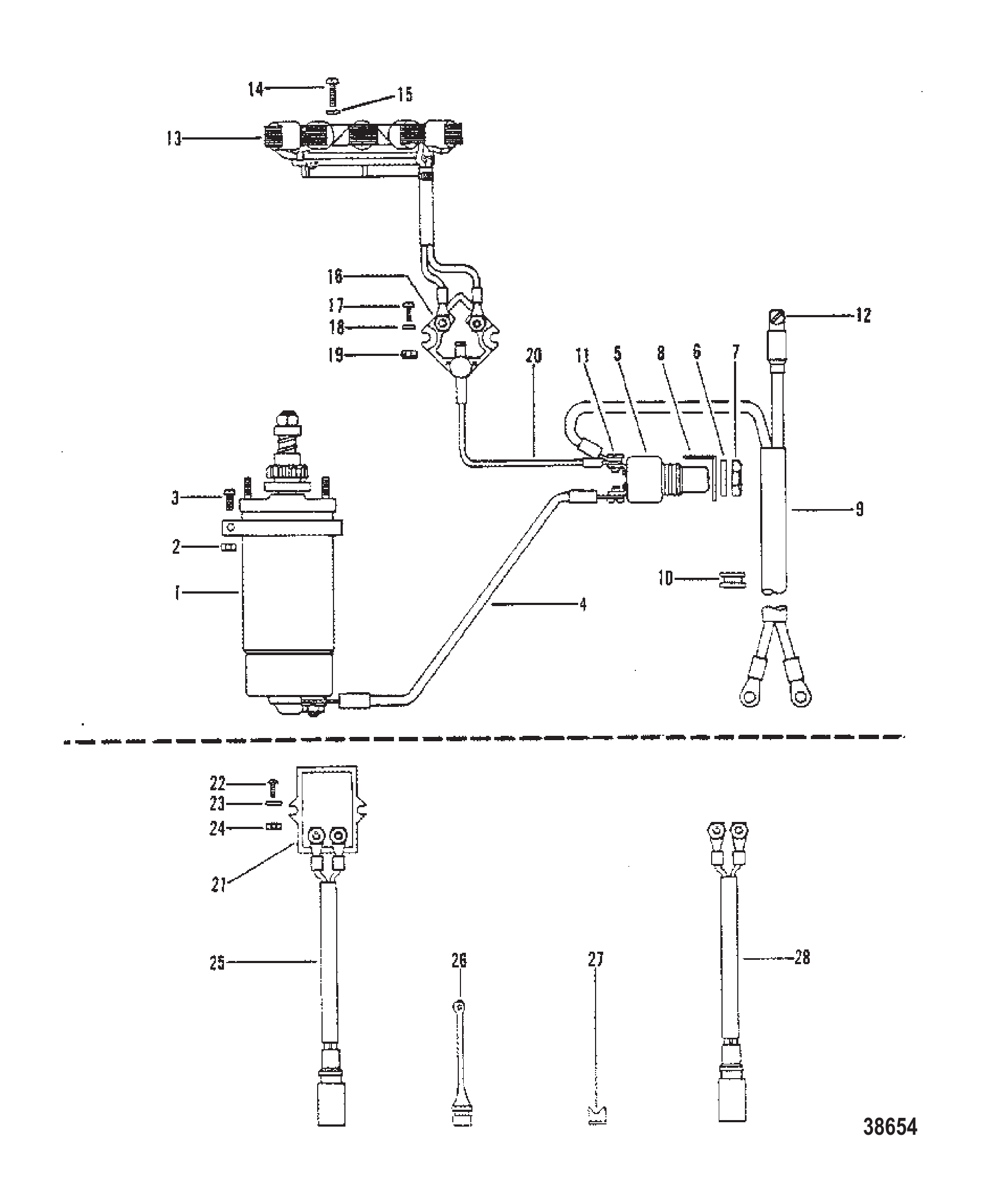

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 78011 | 启动电机总成 | STARTER MOTOR ASSEMBLY | 1 |
| 2 | 55511 | 螺钉(.312-18 x 1.500) | SCREW (.312-18 x 1.500) | 2 |
| 3 | 26993 | 锁紧垫圈(.312)启动电机螺钉 | LOCKWASHER (.312) STARTER MOTOR SCREW | 2 |
| 3 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 2 |
| 4 | 76741A1 | 启动开关线束总成(黄色) | WIRE ASSEMBLY STARTING SWITCH (YELLOW) | 1 |
| 5 | 73883 | 启动开关总成 | SWITCH ASSEMBLY Starting | 1 |
| 6 | 30516 | 启动开关垫圈 | WASHER STARTING SWITCH | 1 |
| 7 | 74394 | 启动开关螺母 | NUT STARTING SWITCH | 1 |
| 8 | 74515 | 启动开关护套 | PROTECTOR STARTING SWITCH | 1 |
| 9 | 72535A4 | 蓄电池电缆总成 | CABLE ASSEMBLY BATTERY | 1 |
| 10 | 86361 | 蓄电池电缆护圈 | GROMMET BATTERY CABLE | 1 |
| 11 | 45742 | 蓄电池电缆固定螺钉(.190-32 x .312) | SCREW (.190-32 x .312) BATTERY CABLE ATTACHING | 1 |
| 12 | 98253 | 蓄电池电缆固定螺钉(.250-20 x .500) | SCREW (.250-20 x .500) BATTERY CABLE ATTACHING | 1 |
| 13 | 74367A12 | 照明定子总成 | LIGHTING STATOR ASSEMBLY | 1 |
| 13 | 74367A15 | 定子 | STATOR | 1 |
| 14 | 73696 | 照明定子固定螺钉(1-5/8英寸) | SCREW LIGHTING STATOR ATTACHING (1-5/8") | 2 |
| 15 | 26996 | 锁紧垫圈(#10)不锈钢照明定子螺钉 | LOCKWASHER (#10) Stainless Steel LIGHTING STATOR SCREW | 2 |
| 16 | 62351A2 | 整流器总成 | RECTIFIER ASSEMBLY | 1 |
| 16 | 8M0058226 | 整流器 | RECTIFIER | 1 |
| 17 | 48408 | 整流器螺钉(#10-16 x .500) | SCREW (#10-16 x .500) RECTIFIER | 2 |
| 18 | 62769 | 整流器螺钉隔套 | SPACER RECTIFIER SCREW | 1 |
| 19 | 45076 | 螺母(#10-32)黄铜整流器端子 | NUT (#10-32) Brass RECTIFIER TERMINAL | 3 |
| 20 | 61393A9 | 线束总成 | WIRE ASSEMBLY | 1 |
| 21 | 95845 | 电压调节器 | REGULATOR Voltage | 1 |
| 21 | 95845T | 电压调节器 | REGULATOR-VOLTAGE | 1 |
| 22 | 92799 | 螺钉(#10-16x1.12) | SCREW (#10-16 x 1.12) | 2 |
| 23 | 62769 | 电压调节器螺钉隔套 | SPACER VOLTAGE REGULATOR SCREW | 2 |
| 24 | 45076 | 螺母(#10-32)黄铜电压调节器端子 | NUT (#10-32) Brass VOLTAGE REGULATOR TERMINAL | 2 |
| 25 | 74725A2 | 线束总成(黑/红) | HARNESS ASSEMBLY (BLACK/RED) | 1 |
| 26 | 71663 | 线束插头 | PLUG HARNESS | 1 |
| 27 | 74361 | 线束至下罩插头 | PLUG HARNESS TO BOTTOM COWL | 1 |
| 28 | 65017A4 | 照明线束总成(外部) | HARNESS ASSEMBLY LIGHTING (EXTERNAL) | 1 |
| 13 | 74367A12 | 照明定子总成 | LIGHTING STATOR ASSEMBLY | 1 |
| 13 | 74367A15 | 定子 | STATOR | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

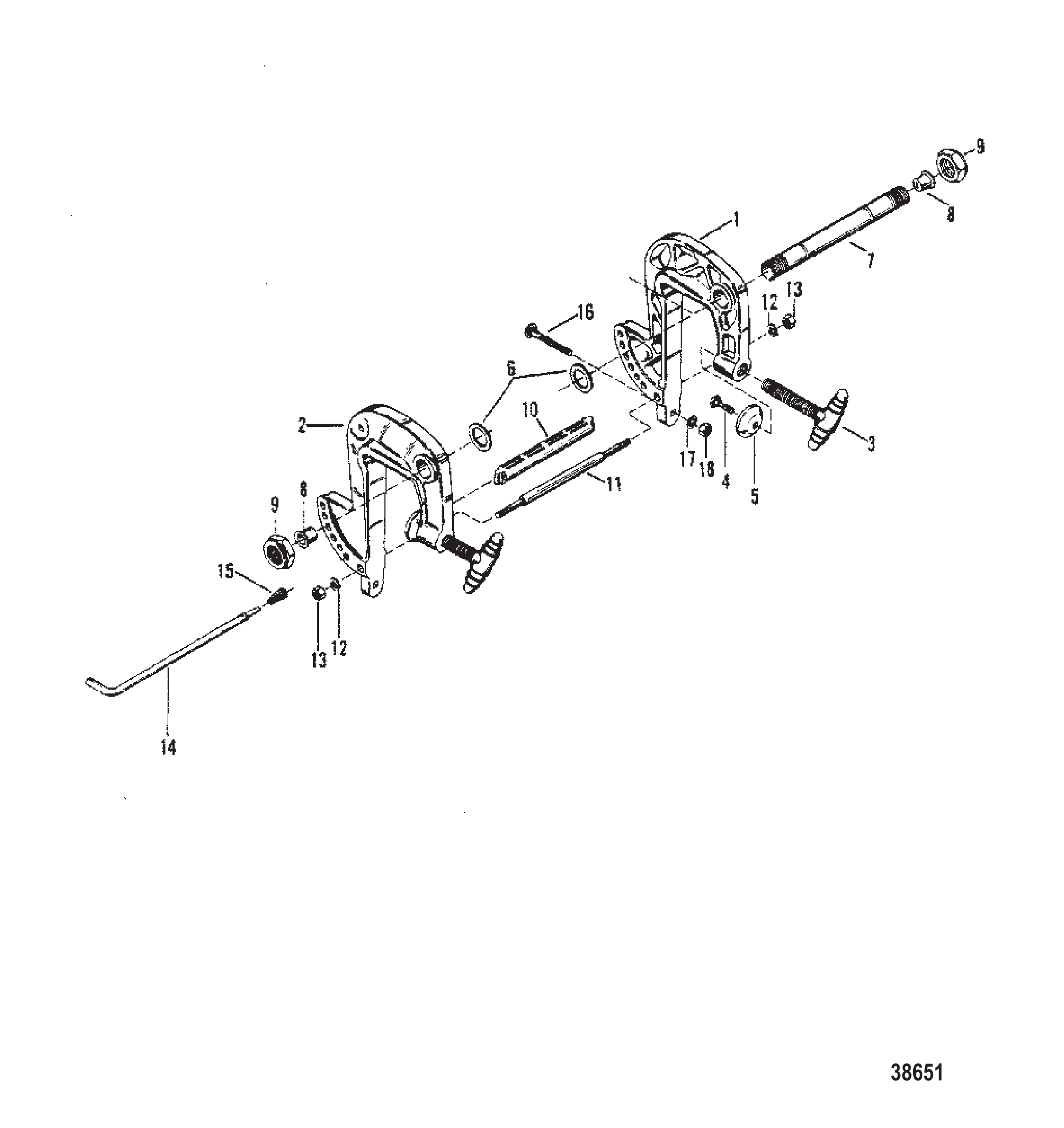

| 1 | 5570A3 | 夹紧支架总成(左舷) | CLAMP BRACKET ASSEMBLY (PORT) | 1 |
| 2 | 5571A3 | 夹紧支架总成(右舷) | CLAMP BRACKET ASSEMBLY (STARBOARD) | 1 |
| 3 | 77190A3 | 蝶形螺钉总成 | THUMB SCREW ASSEMBLY | 2 |
| 4 | 76804 | 蝶形螺钉 | SCREW THUMB SCREW | 2 |
| 4 | 768042 | 六角凸肩螺钉 | SHOULDER SCREW Hex | 2 |
| 5 | 73719 | 蝶形螺丝垫圈 | WASHER THUMB SCREW | 2 |
| 5 | 818884 | 垫圈 | WASHER | 2 |
| 6 | 71421 | 倾斜管尼龙垫圈-夹紧至旋转支架 | WASHER Nylon TILT TUBE - CLAMP TO SWIVEL BRACKET | 2 |
| 7 | 96962 | 倾斜管夹紧至旋转支架 | TILT TUBE CLAMP TO SWIVEL BRACKET | 1 |
| 8 | 39333 | 倾斜管塞 | PLUG TILT TUBE | 2 |
| 9 | 93164 | 倾斜管紧固螺母(.875) | NUT (.875) TILT TUBE FASTENING | 2 |
| 10 | 71420 | 提手 | HANDLE CARRYING | 1 |
| 11 | 71417 | 夹紧支架螺柱 | STUD CLAMP BRACKET | 1 |
| 12 | 26992 | 夹紧支架螺柱不锈钢锁紧垫圈(.250) | LOCKWASHER (.250) Stainless Steel CLAMP BRACKET STUD | 2 |
| 13 | 29598 | 夹紧支架螺柱不锈钢螺母(.250-28) | NUT (.250-28) Stainless Steel CLAMP BRACKET STUD | 2 |
| 14 | 71418A2 | 倾斜锁销总成 | PIN ASSEMBLY Tilt Lock | 1 |
| 15 | 62143 | 倾斜锁止销弹簧 | SPRING TILT LOCK PIN | 1 |
| 16 | 67982 | 夹紧支架至船体螺栓 | BOLT CLAMP BRACKET TO BOAT | 2 |
| 17 | 67983 | 夹紧支架螺钉垫圈 | WASHER CLAMP BRACKET SCREW | 2 |
| 18 | 56374 | 夹紧支架螺钉螺母(.250-20) | NUT (.250-20) CLAMP BRACKET SCREW | 2 |
| 18 | 8267098 | 螺母 (.250-20) 不锈钢 | NUT (.250-20) Stainless Steel | 2 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 13716 | 零件手册7.5/9.8马力 | PARTS MANUAL 7.5 /9.8 H.P. | 1 |
| - | 110853 | 操作手册 | OPERATION MANUAL | 1 |
| - | 89569A80 | 贴花套件 | DECAL SET | AR |
| - | 13479A86 | 贴花套件 | DECAL SET | AR |
| - | 43162A84 | 贴花套件 | DECAL SET | AR |
| - | 13479A86 | 贴花套件 | DECAL SET | AR |
| - | 13479A86 | 贴花套件 | DECAL SET | AR |
| - | 89571A80 | 贴花套件 | DECAL SET | AR |
| - | 13053A86 | 贴花套件 | DECAL SET | AR |
| - | 43166A84 | 贴花套件 | DECAL SET | AR |
| - | 13053A86 | 贴花套件 | DECAL SET | AR |
| - | 13053A86 | 贴花套件 | DECAL SET | AR |
| - | 89014A80 | 发动机大修垫片套装 | GASKET SET (MOTOR OVERHAUL) | AR |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

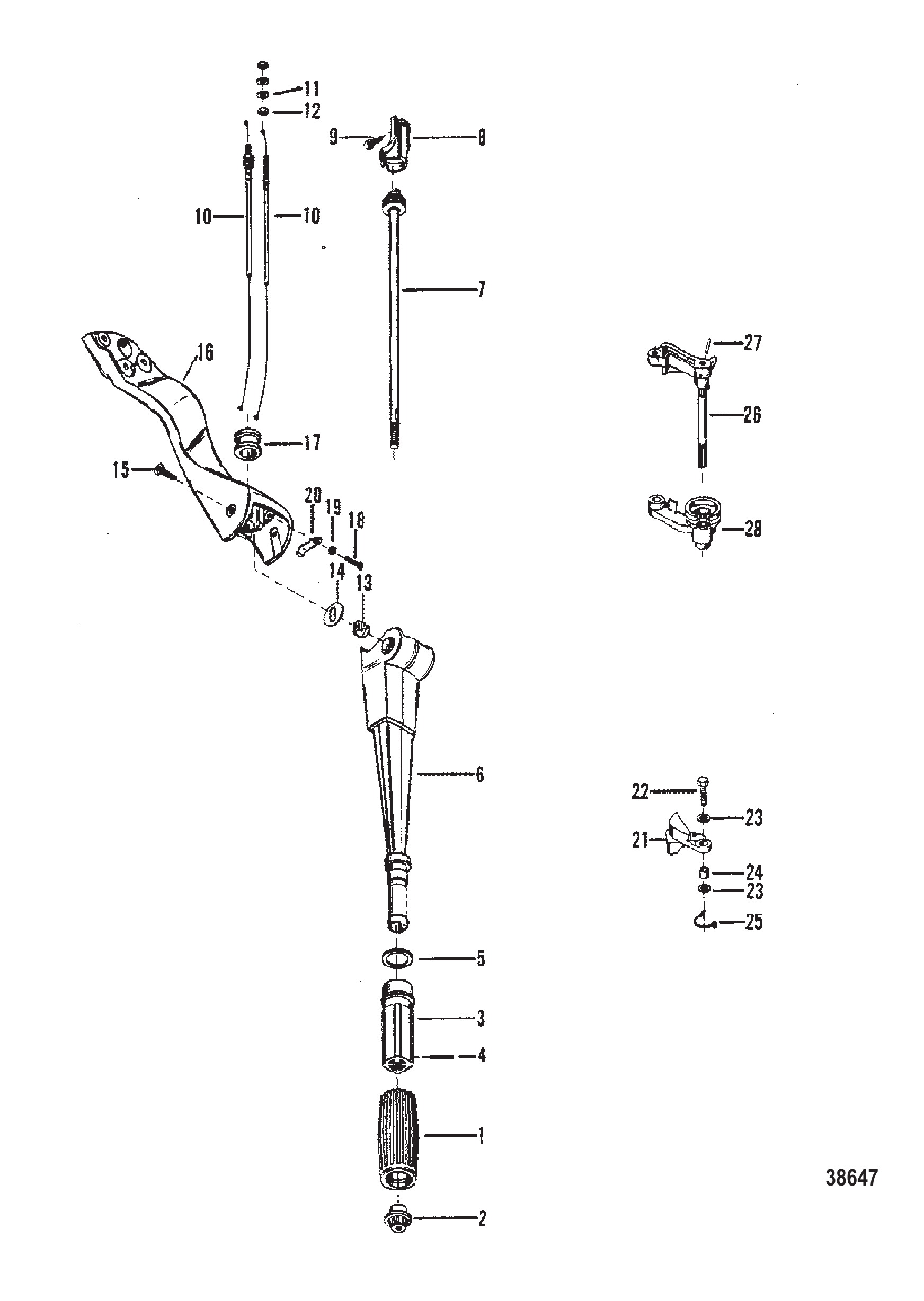

| - | 77194A2 | 转向手柄总成 | HANDLE ASSEMBLY Steering | 1 |
| 1 | 60854 | 握柄 | GRIP HANDLE | 1 |
| 2 | 77237 | 手柄盖 | CAP HANDLE | 1 |
| 3 | 77238A1 | 节流阀轴手柄 | HANDLE THROTTLE SHAFT | 1 |
| 4 | 31656 | 转向手柄销 | PIN STEERING HANDLE | 1 |
| 5 | 62252 | 垫圈 | WASHER | 1 |
| 6 | 77194 | 转向手柄臂 | ARM STEERING HANDLE | 1 |
| 7 | 97379 | 节流阀轴 | SHAFT THROTTLE | 1 |
| 7 | 973791 | 油门轴 | SHAFT Throttle | |
| 8 | 77203 | 线缆导块 | BLOCK CABLE GUIDE | 1 |
| 9 | 69069 | 导块至转向臂螺钉(.250-28 x .750) | SCREW (.250-28 x .750) BLOCK TO STEERING ARM | 1 |
| 10 | 86210 | 油门拉线 | CABLE THROTTLE | 2 |
| 11 | 37998 | 油门拉线垫圈 | WASHER THROTTLE CABLE | 4 |
| 12 | 21825 | 螺母(.250-28)油门拉线 | NUT (.250-28) THROTTLE CABLE | 4 |
| 13 | 48003 | 转向手柄支架枢轴 | PIVOT STEERING HANDLE TO BRACKET | 2 |
| 14 | 48002015 | 垫片(.015) | SHIM (.015) | AR |
| 15 | 96138 | 螺钉(.250-28 x .620) | SCREW (.250-28 x .620) | 2 |
| 16 | 96432 | 转向臂支架 | BRACKET STEERING ARM | 1 |
| 16 | 96432F1 | 转向支架 | STEERING BRACKET | 1 |
| 17 | 67272 | 转向臂支架衬套 | GROMMET STEERING ARM BRACKET | 1 |
| 18 | 62233 | 螺钉(#10-16x0.625) | SCREW (#10-16 x .625) | 2 |
| 19 | 30164 | 不锈钢止动弹簧垫圈(.192 x .375 x .0312) | WASHER (.192 x .375 x .0312) Stainless Steel DETENT SPRING | 4 |
| 20 | 72847 | 定位弹簧-转向手柄 | SPRING DETENT - STEERING HANDLE | 2 |
| 21 | 86212 | 限速器从动件 | FOLLOWER OVER - SPEED LIMITER | 1 |
| 22 | 20653 | 螺钉(.250-28 x 1.00) | SCREW (.250-28 x 1.00) | 1 |
| 23 | 29245 | 限速器从动件螺钉不锈钢垫圈(.281 x .500 x .060) | WASHER (.281 x .500 x .060) Stainless Steel SPEED LIMITER FOLLOWER SCREW | 2 |
| 23 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 24 | 63320 | 限速器从动件螺钉衬套 | BUSHING SPEED LIMITER FOLLOWER SCREW | 1 |
| 25 | 39042 | 空档限速器从动件弹簧 | SPRING NEUTRAL SPEED LIMITER FOLLOWER | 1 |
| 26 | 66374A2 | 节流控制杆总成 | LEVER ASSEMBLY THROTTLE CONTROL | 1 |
| 27 | 76207 | 节流控制杆滚销 | PIN Roll THROTTLE CONTROL LEVER | 1 |
| 28 | 86070 | 节流阀卷轴 | SPOOL THROTTLE | 1 |

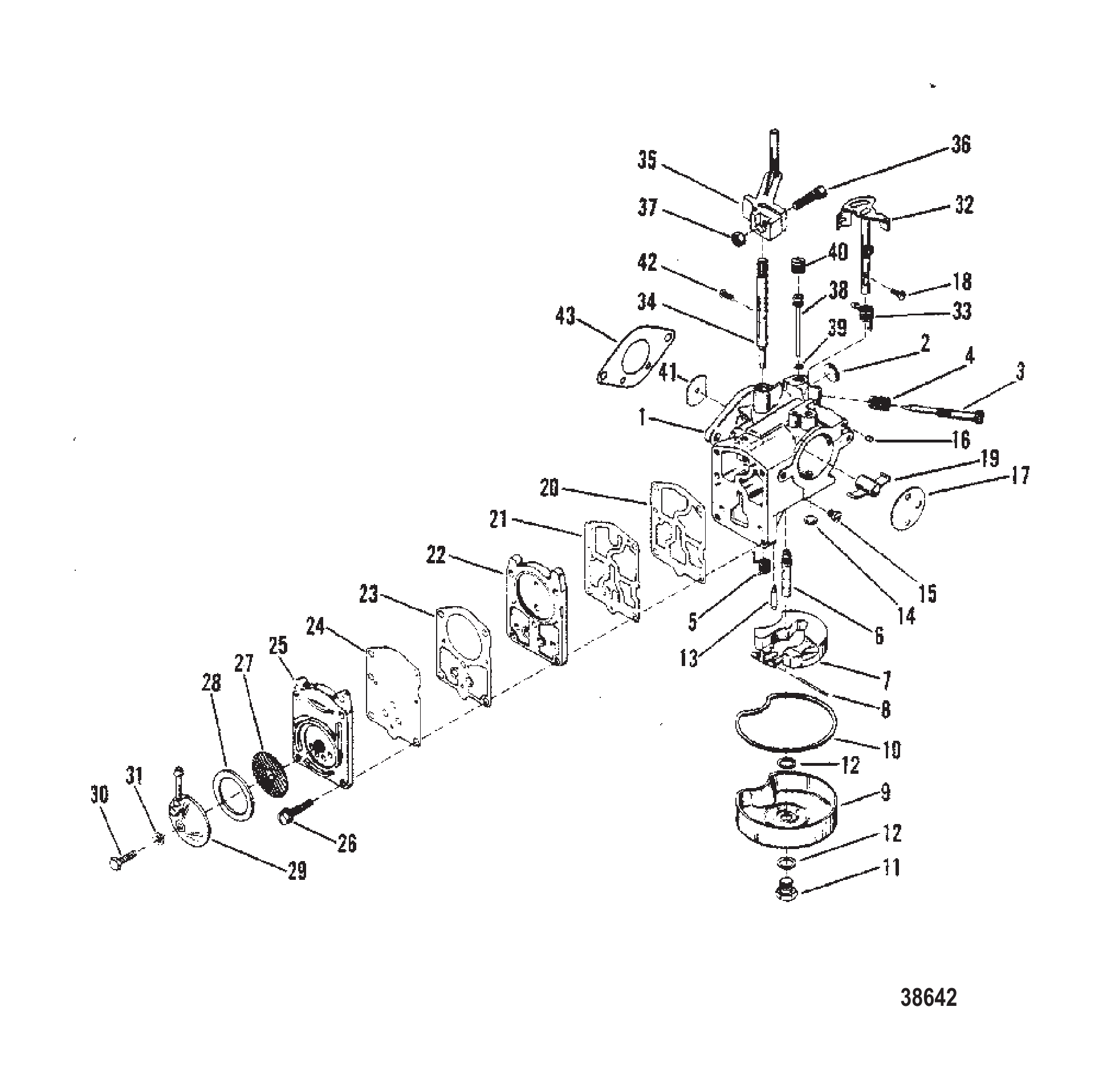

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

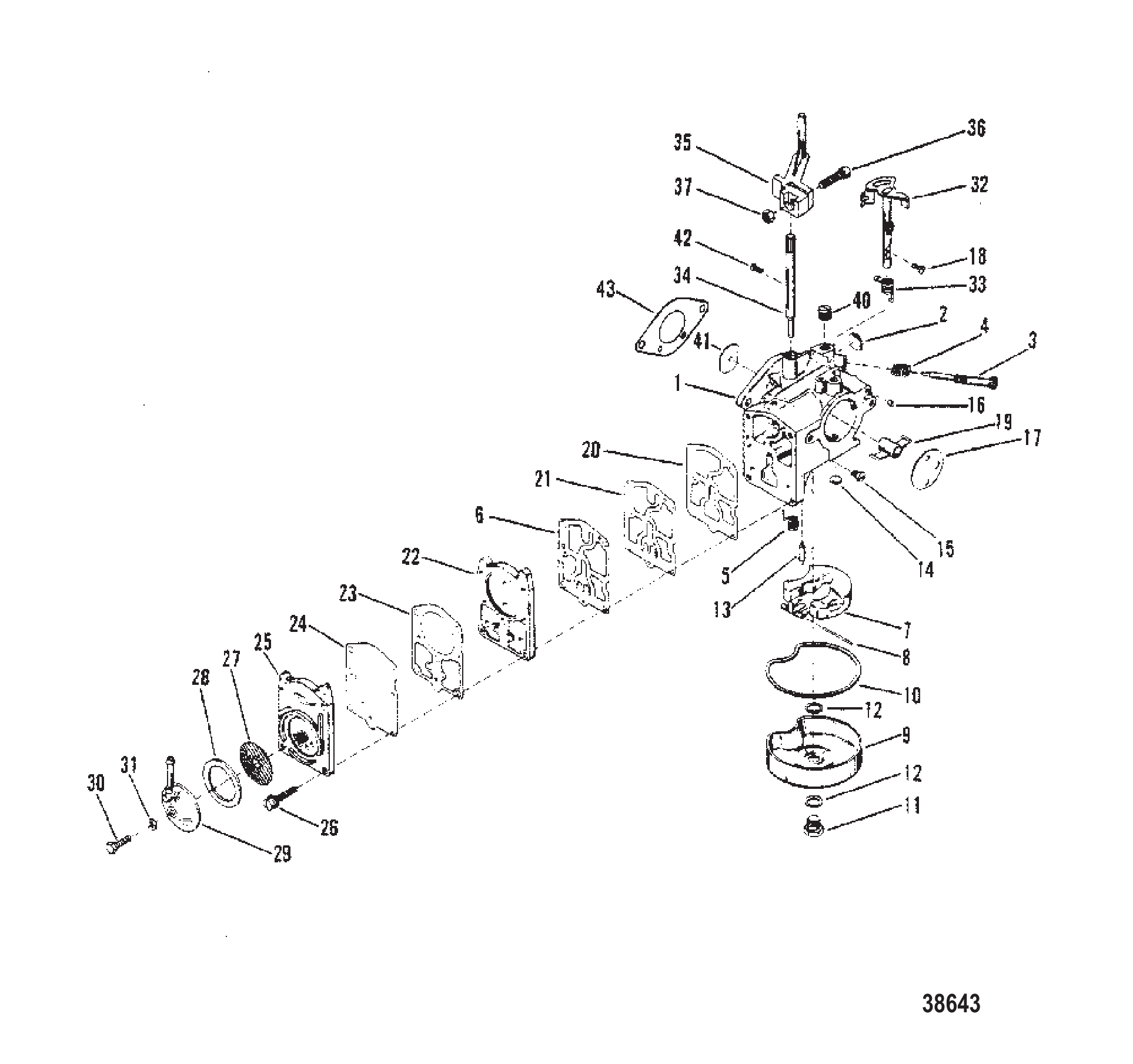

| 1 | 7902 | 化油器总成(完整) | CARBURETOR ASSEMBLY COMPLETE | 1 |
| 1 | 8783A14 | 化油器 | CARBURETOR | 1 |
| 1 | 7909 | 化油器总成(完整) | CARBURETOR ASSEMBLY COMPLETE | 1 |
| 1 | 8782A13 | 化油器 | CARBURETOR | 1 |
| 2 | NSS | 不单独销售 水道闷塞(大) | NOT SOLD SEPARATE WELCH PLUG, BODY CHANNEL (LARGE) | 1 |
| 3 | NSS | 不单独销售 ISCREW, DLE混合气 | NOT SOLD SEPARATE ISCREW, DLE MIXTURE | 1 |
| 4 | NSS | 怠速混合螺钉弹簧（不单独销售） | NOT SOLD SEPARATE SPRING, IDLE MIXTURE SCREW | 1 |
| 5 | NSS | 不单独销售 节气门轴回位弹簧 | NOT SOLD SEPARATE SPRING, RETURN - THROTTLE SHAFT | 1 |
| 6 | NSS | 主喷嘴(不单独销售) | NOT SOLD SEPARATE MAIN NOZZLE | 1 |
| 7 | 9293 | 浮子 | FLOAT | 1 |
| 8 | NSS | 不单独销售 浮子销 | NOT SOLD SEPARATE PIN, FLOAT | 1 |
| 9 | 5127 | 燃油杯 | BOWL Fuel | 1 |
| 10 | NSS | 燃油碗垫片(不单独销售) | NOT SOLD SEPARATE GASKET, FUEL BOWL | 1 |
| 11 | 5128 | 燃油杯螺钉 | SCREW FUEL BOWL | 1 |
| 12 | NSS | 油杯螺钉衬垫（不单独销售） | NOT SOLD SEPARATE GASKET, FUEL BOWL SCREW | 2 |
| 13 | 6141 | 进油针阀 | NEEDLE Inlet | 1 |
| 14 | NSS | 不单独销售 韦尔奇塞,主体通道(小) | NOT SOLD SEPARATE WELCH PLUG, BODY CHANNEL (SMALL) | 1 |
| 15 | 7570 | 主喷油嘴0.040 | JET .040 MAIN FUEL | 1 |
| 15 | 2407 | 主量孔(.039) | JET Main Fuel (.039) | 1 |
| 16 | NSS | 不单独销售 水道闷塞 | NOT SOLD SEPARATE PLUG, BODY CHANNEL | 2 |
| 17 | 7274 | 阻风门片 | SHUTTER Choke | 1 |
| 18 | NSS | 不单独销售 阻风门螺丝 | NOT SOLD SEPARATE SCREW, CHOKE SHUTTER | 2 |
| 19 | 69764 | 喉管 | VENTURI | 1 |
| 20 | NSS | 燃油泵膜片衬垫（不单独销售） | NOT SOLD SEPARATE GASKET, FUEL PUMP DIAPHRAGM | 1 |
| 21 | NSS | 燃油泵膜片（不单独销售） | NOT SOLD SEPARATE DIAPHRAGM, FUEL PUMP | 1 |
| 22 | 5129 | 燃油泵体 | BODY FUEL PUMP | 1 |
| 23 | NSS | 燃油泵膜片衬垫（不单独销售） | NOT SOLD SEPARATE GASKET, FUEL PUMP DIAPHRAGM | 1 |
| 24 | NSS | 燃油泵膜片（不单独销售） | NOT SOLD SEPARATE DIAPHRAGM, FUEL PUMP | 1 |
| 25 | 5131 | 滤清器壳体 | BODY STRAINER | 1 |
| 26 | 5132 | 滤清器体螺丝 | SCREW STRAINER BODY | 4 |
| 26 | 808612 | 螺钉及垫圈 (#8-32 x .750) | SCREW AND WASHER (#8-32 x .750) | 4 |
| 27 | 5758 | 滤网 | SCREEN STRAINER | 1 |
| 28 | 5207 | 滤清器盖衬垫 | GASKET STRAINER COVER | 1 |
| 29 | 8149 | 滤清器盖(进口) | COVER STRAINER (INLET) | 1 |
| 29 | 99941 | 盖板 | COVER | 1 |
| 30 | NSS | 不单独销售 滤清器盖螺丝 | NOT SOLD SEPARATE SCREW, STRAINER COVER | 1 |
| 31 | NSS | NOT SOLD SEPARATE GASKET, STRAINER COVER SCREW | 1 | |
| 32 | 7273 | 阻风门轴 | SHAFT Choke | 1 |
| 33 | NSS | 不单独销售 回位弹簧-阻风门轴 | NOT SOLD SEPARATE SPRING, RETURN - CHOKE SHAFT | 1 |
| 34 | 7571 | 油门轴 | SHAFT Throttle | 1 |
| 35 | 44425 | 节流阀杆 | LEVER THROTTLE | 1 |
| 36 | 20646 | 螺丝(0.190-32牙x0.62英寸)节气门杆 | SCREW (.190-32 x .62) THROTTLE LEVER | 1 |
| 36 | 38055 | 螺钉(0.190-32x0.620) | SCREW (.190-32 x .620) | 1 |
| 37 | 87599 | 节气门杆螺丝螺母 | NUT THROTTLE LEVER SCREW | 1 |
| 38 | NSS | 怠速管 (不单独销售) | NOT SOLD SEPARATE IDLE TUBE | 1 |
| 39 | NSS | NOT SOLD SEPARATE GASKET, IDLE TUBE | 1 | |
| 40 | 23178 | 螺丝塞-怠速管 | SCREW PLUG - IDLE TUBE | 1 |
| 41 | 7572 | 节气门片 | SHUTTER Throttle | 1 |
| 42 | NSS | 螺钉-节气门 (不单独销售) | NOT SOLD SEPARATE SCREW, THROTTLE SHUTTER | 2 |
| 43 | 63309 | 化油器法兰衬垫 | GASKET CARBURETOR FLANGE | 1 |
| - | 5135 | 衬垫套件 | GASKET SET | 1 |
| - | 5137 | 膜片/衬垫套件 | DIAPHRAGM/GASKET KIT | 1 |
| - | 7569 | 维修零件包 | REPAIR PARTS KIT | 1 |
| - | 879194026 | 化油器修理包 | REPAIR KIT-CARB | 1 |
| - | 7573 | 维修零件包 | REPAIR PARTS KIT | 1 |
| - | 879194026 | 化油器修理包 | REPAIR KIT-CARB | 1 |
| - | 89014A80 | 衬垫套件 | GASKET SET | 1 |

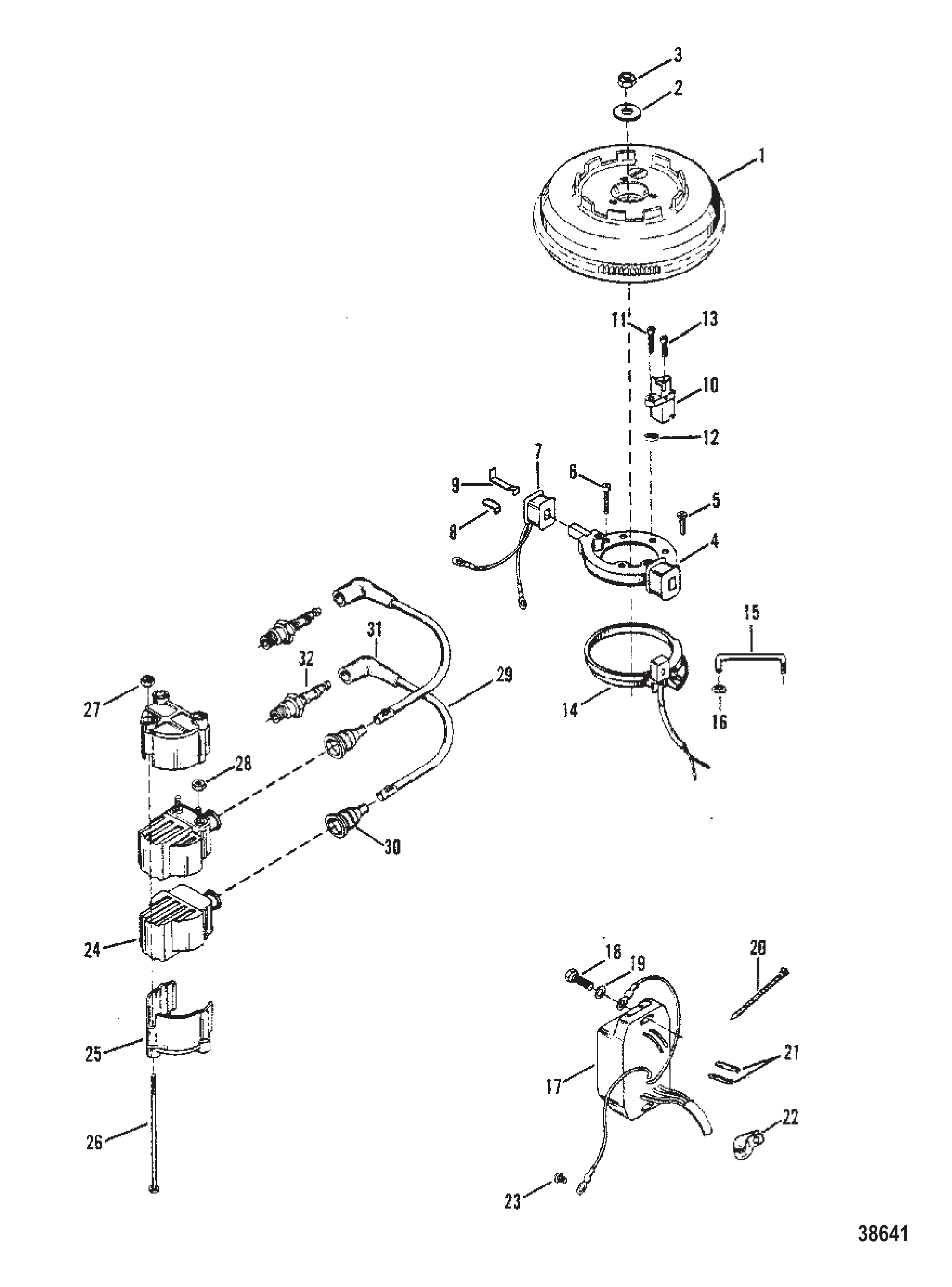

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 6105A9 | 飞轮总成 | FLYWHEEL ASSEMBLY | 1 |
| 2 | 36245 | 垫圈飞轮螺母 | WASHER FLYWHEEL NUT | 1 |
| 3 | 20696 | 飞轮螺母 | NUT FLYWHEEL | 1 |
| 4 | 5209A3 | 定子总成 | STATOR ASSEMBLY | 1 |
| 4 | 5209A9 | 叠片总成 | LAMINATION ASSY | 1 |
| 5 | 35400 | 螺丝定子至端盖(3/8") | SCREW STATOR TO END CAP (3/8") | 1 |
| 6 | 66707 | 定子至端盖螺丝(7/8英寸) | SCREW STATOR TO END CAP(7/8") | 3 |
| 7 | 6119A1 | 线圈总成(5-1/2"和6-3/8"引线) | COIL ASSEMBLY (5-1/2" AND 6-3/8" LEADS) | 1 |
| 7 | 6120A1 | 线圈总成(1-3/4"和3-1/2"引线) | COIL ASSEMBLY (1-3/4" AND 3-1/2" LEADS) | 1 |
| 8 | 59538 | 卡箍线圈固定 | CLIP COIL RETAINING | 2 |
| 8 | 59538T | 卡箍@2 | CLIP @2 | 2 |
| 9 | 85446 | 卡箍线圈固定 | CLIP COIL RETAINING | 2 |
| 10 | 85365 | 接线端子排定子 | TERMINAL BLOCK STATOR | 1 |
| 11 | 20646 | 螺丝(.190-32 x .62)接线端子排至定子 | SCREW (.190-32 x .62) TERMINAL BLOCK TO STATOR | 1 |
| 11 | 38055 | 螺钉(0.190-32x0.620) | SCREW (.190-32 x .620) | 1 |
| 12 | 46438 | 螺母(#10-32)接线端子排螺丝 | NUT (#10-32) TERMINAL BLOCK SCREW | 1 |
| 13 | 22654 | 螺丝(.190-32 x .38)引线至接线端子排 | SCREW (.190-32 x .38) LEADS TO TERMINAL BLOCK | 1 |
| 14 | 7283A2 | 触发器壳体总成 | HOUSING ASSEMBLY Trigger | 1 |
| 14 | 7283A3 | 触发板 | TRIGGER PLATE | 1 |
| 15 | 42501 | 连杆触发器壳体至节气门杆 | LINK TRIGGER HOUSING TO THROTTLE LEVER | 1 |
| 16 | 65110 | 推螺母-连杆至触发器壳体 | NUT PUSH - LINK TO TRIGGER HOUSING | 1 |
| 17 | 6222A10 | 开关盒总成 | SWITCHBOX ASSEMBLY | 1 |
| 17 | 899883229 | 开关盒总成 | SWITCH BOX ASSY | 1 |
| 18 | 20189 | 螺丝(0.190-32牙x0.75英寸)开关盒固定 | SCREW (.190-32 x .75) SWITCH BOX ATTACHING | 2 |
| 19 | 56681 | 垫圈(0.203x0.500x0.032英寸)开关盒固定螺丝 | WASHER (.203 x .500 x .032) SWITCH BOX ATTACHING SCREW | 2 |
| 19 | 8M0204666 | 垫圈 (.203 x .500 x .032) | WASHER (.203 x .500 x .032) | 2 |
| 20 | 61990 | 扎带(14.00英寸) | TIE STRAP (14.00 Inches) | 5 |
| 21 | 5790811 | 套管(10英寸散装)开关盒引线 | SLEEVE (10.00 Inches Bulk) SWITCH BOX LEADS | 2 |
| 22 | 53883 | 开关盒引线夹 | CLIP SWITCH BOX LEADS | 1 |
| 23 | 45218 | 螺丝(#10-32牙x0.380英寸)接地线至气缸体 | SCREW (#10-32 x .380) GROUND LEAD TO CYLINDER BLOCK | 1 |
| 24 | 5288A2 | 点火线圈总成 | COIL ASSEMBLY Ignition | 2 |
| 24 | 8M0166172 | 点火线圈 | IGNITION COIL | 2 |
| 25 | 66355 | 点火线圈盖 | COVER IGNITION COIL | 2 |
| 26 | 72074 | 线圈盖至后支架螺钉(4-5/8") | SCREW COIL COVER TO REAR BRACKET (4-5/8") | 3 |
| 27 | 20110 | 线圈盖螺钉螺母(#10-32) | NUT (#10-32) COIL COVER SCREW | 3 |
| 28 | 45076 | 螺母(#10-32)黄铜点火线圈端子 | NUT (#10-32) Brass IGNITION COIL TERMINAL | 4 |
| 29 | 99215A25 | 高压导线总成 | LEAD ASSEMBLY HIGH TENSION | 2 |
| 29 | 813715A1 | 引线 | LEAD WIRE | 2 |
| 30 | 2854 | 点火线圈护套 | BOOT IGNITION COIL | 2 |
| 30 | 2854T01 | 护套@3 | BOOT @3 | 2 |
| 31 | 63709A1 | 火花塞护套/端子套件 | BOOT/TERMINAL KIT SPARK PLUG | 2 |
| 32 | 97186 | 火花塞(NGK #B9HS-10) | SPARK PLUG (NGK #B9HS-10) | 2 |
| 32 | 813418 | NGK BR9HS @10 | NGK BR9HS @10 | 2 |
| 32 | 86866 | 火花塞 | SPARK PLUG | |
| 32 | 896329828 | SP #QL77JC4 @4 | SP #QL77JC4 @4 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8783A4 | 化油器总成(完整) | CARBURETOR ASSEMBLY COMPLETE | 1 |
| 1 | 8783A14 | 化油器 | CARBURETOR | 1 |
| 1 | 8782A3 | 化油器总成(完整) | CARBURETOR ASSEMBLY COMPLETE | 1 |
| 1 | 8782A13 | 化油器 | CARBURETOR | 1 |
| 2 | NSS | 不单独销售 WLECH塞,主体通道(大) | NOT SOLD SEPARATE WLECH PLUG, BODY CHANNEL (LARGE) | 1 |
| 3 | NSS | 怠速混合螺钉（不单独销售） | NOT SOLD SEPARATE SCREW, IDLE MIXTURE | 1 |
| 4 | NSS | 怠速混合螺钉弹簧（不单独销售） | NOT SOLD SEPARATE SPRING, IDLE MIXTURE SCREW | 1 |
| 5 | NSS | 不单独销售 节气门轴回位弹簧 | NOT SOLD SEPARATE SPRING, RETURN - THROTTLE SHAFT | 1 |
| 6 | NSS | 燃油泵膜片衬垫（不单独销售） | NOT SOLD SEPARATE GASKET, FUEL PUMP DIAPHRAGM | 1 |
| 7 | 9293 | 浮子 | FLOAT | 1 |
| 8 | NSS | 不单独销售 浮子销 | NOT SOLD SEPARATE PIN, FLOAT | 1 |
| 9 | 5127 | 燃油杯 | BOWL Fuel | 1 |
| 10 | NSS | 燃油碗垫片(不单独销售) | NOT SOLD SEPARATE GASKET, FUEL BOWL | 1 |
| 11 | 9025 | 燃油杯螺钉 | SCREW FUEL BOWL | 1 |
| 12 | NSS | 油杯螺钉衬垫（不单独销售） | NOT SOLD SEPARATE GASKET, FUEL BOWL SCREW | 2 |
| 13 | 9022 | 进油针阀及弹簧 | NEEDLE AND SPRING Inlet | 1 |
| 14 | NSS | 不单独销售 韦尔奇塞,主体通道(小) | NOT SOLD SEPARATE WELCH PLUG, BODY CHANNEL (SMALL) | 1 |
| 15 | 7570 | 主喷油嘴0.040 | JET .040 MAIN FUEL | 1 |
| 15 | 2407 | 主量孔(.039) | JET Main Fuel (.039) | 1 |
| 16 | NSS | 不单独销售 水道闷塞 | NOT SOLD SEPARATE PLUG, BODY CHANNEL | 2 |
| 17 | 7274 | 阻风门片 | SHUTTER Choke | 1 |
| 18 | NSS | 不单独销售 阻风门螺丝 | NOT SOLD SEPARATE SCREW, CHOKE SHUTTER | 2 |
| 19 | NSS | 不单独销售 喉管 | NOT SOLD SEPARATE VENTURI | 1 |
| 20 | NSS | 燃油泵膜片衬垫（不单独销售） | NOT SOLD SEPARATE GASKET, FUEL PUMP DIAPHRAGM | 1 |
| 21 | NSS | 燃油泵膜片（不单独销售） | NOT SOLD SEPARATE DIAPHRAGM, FUEL PUMP | 1 |
| 22 | 5129 | 燃油泵体 | BODY FUEL PUMP | 1 |
| 23 | NSS | 燃油泵膜片衬垫（不单独销售） | NOT SOLD SEPARATE GASKET, FUEL PUMP DIAPHRAGM | 1 |
| 24 | NSS | NOT SOLD SEPARATE DIAPHRAGM | 1 | |
| 25 | 5131 | 滤清器壳体 | BODY STRAINER | 1 |
| 26 | 5132 | 滤清器体螺丝 | SCREW STRAINER BODY | 4 |
| 26 | 808612 | 螺钉及垫圈 (#8-32 x .750) | SCREW AND WASHER (#8-32 x .750) | 4 |
| 27 | 5758 | 滤网 | SCREEN STRAINER | 1 |
| 28 | 5207 | 滤清器盖衬垫 | GASKET STRAINER COVER | 1 |
| 29 | 8149 | 滤清器盖(进口) | COVER STRAINER (INLET) | 1 |
| 29 | 99941 | 盖板 | COVER | 1 |
| 30 | NSS | 不单独销售 滤清器盖螺丝 | NOT SOLD SEPARATE SCREW, STRAINER COVER | 1 |
| 31 | NSS | NOT SOLD SEPARATE GASKET, STRAINER COVER SCREW | 1 | |
| 32 | 7273 | 阻风门轴 | SHAFT Choke | 1 |
| 33 | NSS | 不单独销售 回位弹簧-阻风门轴 | NOT SOLD SEPARATE SPRING, RETURN - CHOKE SHAFT | 1 |
| 34 | 7571 | 油门轴 | SHAFT Throttle | 1 |
| 35 | 44425 | 节流阀杆 | LEVER THROTTLE | 1 |
| 36 | 20646 | 螺丝(0.190-32牙x0.62英寸)节气门杆 | SCREW (.190-32 x .62) THROTTLE LEVER | 1 |
| 36 | 38055 | 螺钉(0.190-32x0.620) | SCREW (.190-32 x .620) | 1 |
| 37 | 87599 | 节气门杆螺丝螺母 | NUT THROTTLE LEVER SCREW | 1 |
| 40 | 23178 | 螺丝塞-怠速管 | SCREW PLUG - IDLE TUBE | 1 |
| 41 | 7572 | 节气门片 | SHUTTER Throttle | 1 |
| 42 | NSS | 螺钉-节气门 (不单独销售) | NOT SOLD SEPARATE SCREW, THROTTLE SHUTTER | 2 |
| 43 | 63309 | 化油器法兰衬垫 | GASKET CARBURETOR FLANGE | 1 |
| - | 9026 | 维修零件包 | REPAIR PARTS KIT | 1 |
| - | 9027 | 膜片/衬垫套件 | DIAPHRAGM/GASKET KIT | 1 |
| - | 89014A80 | 衬垫套件 | GASKET SET | 1 |

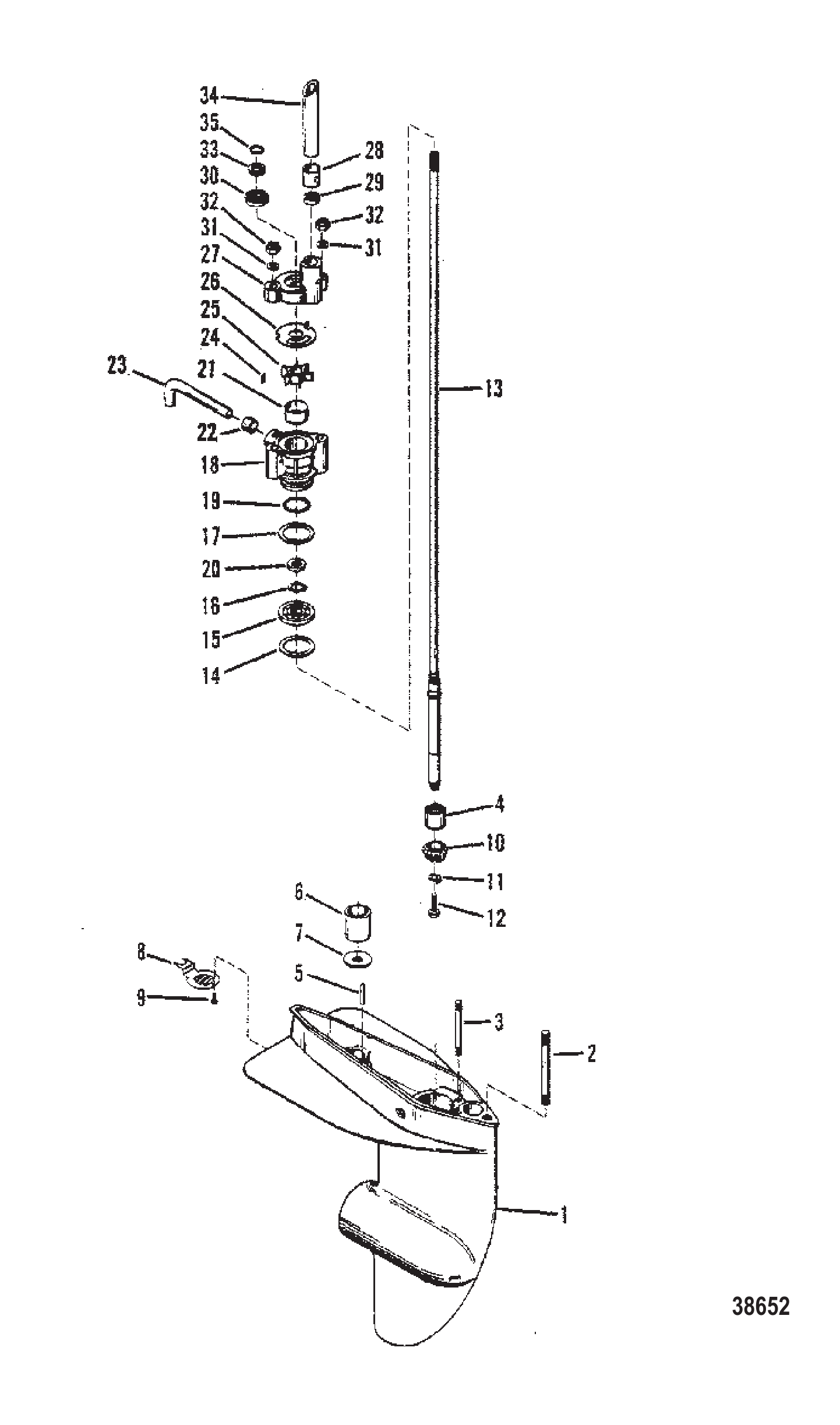

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 7360A12 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 7360A13 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 7360A29 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| - | 7360A30 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 1 | 7360A11 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 2 | 58138 | 齿轮箱螺柱(3-7/16") | STUD GEAR HOUSING (3-7/16") | 1 |
| 3 | 58136 | 水泵螺柱(2-3/4") | STUD WATER PUMP (2-3/4") | 2 |
| 4 | 22756 | 滚柱轴承 | BEARING Roller | 1 |
| 5 | 20032 | 定位销 | PIN Dowel | 1 |
| 6 | 33613 | 橡胶密封件 | SEAL RUBBER | 1 |
| 7 | 86215 | 尼龙轴承 | BEARING NYLON | 1 |
| 8 | 33425 | 进气滤网 | SCREEN INTAKE | 1 |
| 9 | 28642 | 进气滤网螺钉(#2 x 0.25) | SCREW (#2 x 0.25) INTAKE SCREEN | 1 |
| 10 | 98696 | 小齿轮 | GEAR Pinion | 1 |
| 11 | 30377 | 小齿轮螺钉锁紧垫圈 | TAB WASHER PINION GEAR SCREW | 1 |
| 12 | 30376 | 小齿轮驱动轴螺丝(#12-28x0.75) | SCREW (#12-28 x .750) PINION GEAR TO DRIVE SHAFT | 1 |
| 13 | 75034 | 驱动轴 | DRIVESHAFT | 1 |
| 13 | 75033 | 驱动轴 | DRIVESHAFT | 1 |
| 13 | 95873A1 | 驱动轴 | DRIVESHAFT | 1 |
| 13 | 95874A1 | 驱动轴 | DRIVESHAFT | 1 |
| 14 | 30527A1 | 滚珠轴承垫片组(0.002-3-5-10) | SHIM ASSEMBLY BALL BEARING (.002-3-5-10) | AR |
| 15 | 70944 | 驱动轴滚珠轴承 | BEARING Ball DRIVE SHAFT | 1 |
| 16 | 30523 | 驱动轴球轴承挡圈 | RING Retaining BALL BEARING TO DRIVE SHAFT | 1 |
| 17 | 30527A1 | 球轴承垫片组(.002-2-5-10) | SHIM ASSEMBLY BALL BEARING (.002-2-5-10) | AR |
| 18 | 70941A1 | 水泵总成 | HOUSING ASSEMBLY Water Pump | 1 |
| 18 | 70941T01 | 壳体总成 | HOUSING ASY | 1 |
| 18 | 92970A1 | 水泵总成 | HOUSING ASSEMBLY Water Pump | 1 |
| 19 | 29439 | O型圈 | O-RING | 1 |
| 20 | 30900 | 油封 | SEAL Oil | 1 |
| 20 | 30900T | 密封件@2 | SEAL @2 | 1 |
| 20 | 96063 | 油封 | SEAL Oil | 1 |
| 20 | 897153 | 油封@3 | SEAL-OIL @3 | 1 |
| 21 | 70977 | 嵌件 | INSERT | 1 |
| 21 | 70977T | 嵌件 | INSERT | 1 |
| 22 | 33613 | 进水管密封 | SEAL WATER INTAKE TUBE | 1 |
| 23 | 34293 | 进水管道 | TUBE WATER INTAKE | 1 |
| 24 | 56655 | 叶轮驱动键 | KEY IMPELLER DRIVE | 1 |
| 24 | 8M0032835 | 键 | KEY | 1 |
| 25 | 89981 | 叶轮 | IMPELLER | 1 |
| 25 | 89980 | 叶轮 | IMPELLER | 1 |
| 26 | 46895 | 水泵面板 | FACE PLATE WATER PUMP | 1 |
| 27 | 93224A1 | 水泵盖总成 | COVER ASSEMBLY Water Pump | 1 |
| 28 | 36558 | 水泵盖密封件 | SEAL WATER PUMP COVER | 1 |
| 29 | 86214 | 水泵盖尼龙轴承 | BEARING NYLON - WATER PUMP COVER | 1 |
| 29 | 13127 | 隔套 | SPACER | 1 |
| 30 | 30913 | 水泵盖油封 | SEAL Oil WATER PUMP COVER | 1 |
| 31 | 20533 | 水泵双头螺栓垫圈 | WASHER WATER PUMP STUDS | 2 |
| 32 | 20361 | 水泵螺柱螺母(.250-28) | NUT (.250-28) WATER PUMP STUDS | 2 |
| 32 | 8267089 | 螺母(.250-28) | NUT (.250-28) | 2 |
| 33 | 30526 | 橡胶环 | RING RUBBER | 1 |
| 34 | 31792 | 进水管导向套 | SLEEVE GUIDE - WATER INLET TUBE | 1 |
| 34 | 31792T | 套管@5 | SLEEVE @5 | 1 |
| 35 | 62704 | 驱动轴O型圈(.362 x .103) | O-RING (.362 x .103) DRIVE SHAFT | 1 |
| - | 89014A80 | 衬垫套件 | GASKET SET | 1 |
| - | 77066A1 | 水泵密封套件 | SEAL KIT Water Pump | 1 |
| - | 70941A3 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| - | 92970A5 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |

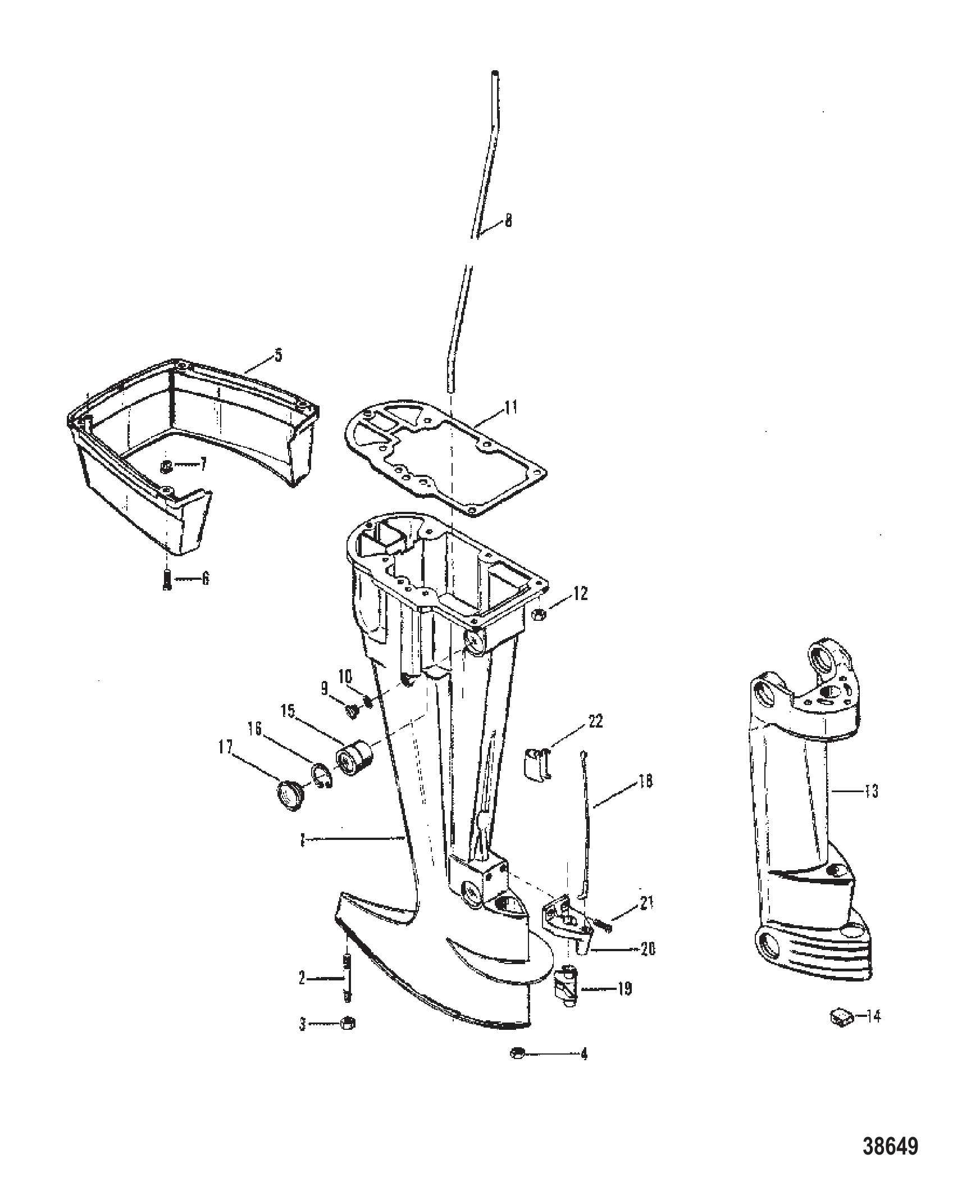

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 8451A1 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 1 | 8453A1 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 2 | 66373 | 螺柱 | STUD | 1 |
| 3 | 35814 | 螺母(.312-24)不锈钢 | NUT (.312-24) Stainless Steel | 1 |
| 3 | 82670911 | 螺母(.312-24)不锈钢 | NUT (.312-24) Stainless Steel | 1 |
| 4 | 34863 | 螺母 (.375-24) | NUT (.375-24) | 1 |
| 4 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 1 |
| 5 | 96515 | 装饰盖 | COVER TRIM | 1 |
| 5 | 96515F1 | 配平盖 | TRIM COVER | 1 |
| 6 | 69013 | 螺钉(#10-16 x .880)装饰盖 | SCREW (#10-16 x .880) TRIM COVER | 4 |
| 7 | 92012 | 装饰盖螺钉衬套 | GROMMET TRIM COVER SCREW | 4 |
| 7 | 8M0079730 | 密封圈套件 | GROMMET KIT | 4 |
| 8 | 39061 | 水管 | TUBE WATER | 1 |
| 8 | 39062 | 水管 | TUBE WATER | 1 |
| 9 | 79953 | 螺钉(.375-16 x .250)平头-驱动轴壳体 | SCREW (.375-16 x .250) FLUSH - DRIVE SHAFT HOUSING | 1 |
| 9 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 10 | 20260 | 密封垫圈-平头螺钉 | WASHER SEALING - FLUSH SCREW | 1 |
| 10 | 8M0187157 | 蓝色密封件@15 | SEAL-BLUE @15 | 1 |
| 11 | 39050 | 衬垫 | GASKET | 1 |
| 12 | 24652 | 螺母(.250-28) | NUT (.250-28) | 6 |
| 13 | 8448A2 | 鞍座总成 | SADDLE ASSEMBLY | 1 |
| 14 | 64076 | 推力缓冲器-鞍座 | BUMPER THRUST - SADDLE | 1 |
| 15 | 79896A1 | 上下支座 | MOUNT LOWER AND UPPER | 4 |
| 15 | 79896A1 | 上支架 | MOUNT UPPER | 2 |
| 15 | 79895A1 | 下支架 | MOUNT LOWER | 2 |
| 16 | 26406 | 挡圈-上下支座 | RING RETAINING - UPPER AND LOWER MOUNT | 4 |
| 17 | 79907 | 下安装盖 | COVER LOWER MOUNT | 2 |
| 18 | 71057 | 倒挡锁连杆 | LINK ROD REVERSE LOCK | 1 |
| 19 | 65216 | 倒挡锁凸轮 | CAM REVERSE LOCK | 1 |
| 20 | 72007 | 倒挡锁凸轮固定座 | RETAINER REVERSE LOCK CAM | 1 |
| 21 | 65414 | 凸轮固定座螺钉(3/4") | SCREW CAM RETAINER (3/4") | 2 |
| 22 | 93145 | 驱动轴座 | BLOCK DRIVE SHAFT | 1 |
| - | 89014A80 | 衬垫套件 | GASKET SET | 1 |

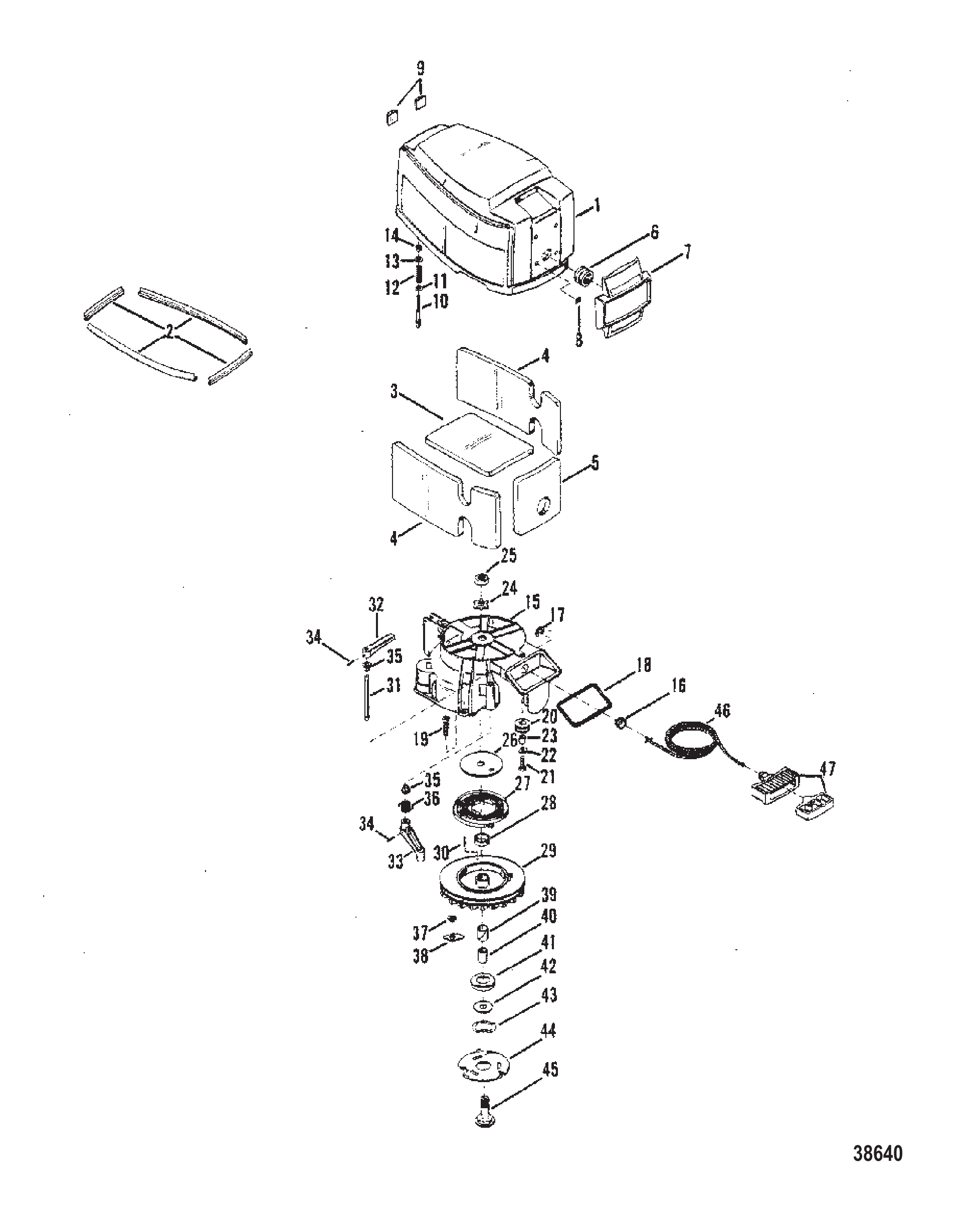

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 7264A10 | 顶盖总成 | TOP COWL ASSEMBLY | 1 |
| 2 | 654893 | 顶罩密封件(16-1/2") | SEAL TOP COWL (16-1/2") | 5 |
| 3 | 66942 | 早期型发动机顶部隔音毯 | BLANKET SOUND - TOP EARLY STYLE ENGINE | 1 |
| 4 | 85544 | 早期型发动机侧面隔音毯 | BLANKET SOUND - SIDE EARLY STYLE ENGINE | 2 |
| 5 | 69522 | 早期型发动机前部隔音毯 | BLANKET SOUND - FRONT EARLY STYLE ENGINE | 1 |
| 6 | 39086 | 顶罩锁扣衬套 | GROMMET COWL LATCH - TOP COWL | 1 |
| 7 | 71502 | 前盖 | COVER FRONT | 2 |
| 8 | 65517 | 前盖至顶罩速度螺母 | NUT SPEED - FRONT COVER TO TOP COWL | 4 |
| 9 | 69346 | 后罩缓冲垫 | BUMPER COWL - REAR | 2 |
| 10 | 72856 | 顶罩锁扣销 | PIN TOP COWL CATCH | 1 |
| 11 | 98500 | 顶罩锁扣下垫圈 | WASHER TOP COWL CATCH (LOWER) | 1 |
| 12 | 79351 | 罩锁扣压缩弹簧 | SPRING COMPRESSION -- COWL CATCH | 1 |
| 13 | 65567 | 顶罩锁扣上垫圈不锈钢(.265 x .750 x .048) | WASHER (.265 x .750 x .048) Stainless Steel TOP COWL CATCH (UPPER) | 1 |
| 14 | 20184 | 罩锁扣至顶罩螺母(1/4-28X7/32) | NUT (1/4-28X7/32) COWL CATCH TO TOP COWL | 1 |
| 14 | 8M0207775 | 螺母 @5 | NUT @5 | 1 |
| 15 | 91871A1 | 启动器壳体总成 | HOUSING ASSEMBLY Starter | 1 |
| 16 | 77859A1 | 绳索导向器(铝制) | ROPE GUIDE (ALUMINUM) | 1 |
| 16 | 58657 | 绳索导向器(塑料) | ROPE GUIDE (PLASTIC) | 1 |
| 17 | 77860 | 绳索导向器挡圈(铝制) | RING RETAINING - ROPE GUIDE (ALUMINUM) | 1 |
| 17 | 72168 | 绳索导向器挡圈(塑料) | RING RETAINING - ROPE GUIDE (PLASTIC) | 1 |
| 18 | 654991 | 启动器壳体至顶罩密封件 | SEAL STARTER HOUSING TO TOP COWL | 1 |
| 19 | 72862 | 启动器壳体至曲轴箱螺钉(.250-28 x 1.00) | SCREW (.250-28 x 1.00) STARTER HOUSING TO CRANKCASE | |
| 20 | 93695 | 启动器拉索滑轮 | PULLEY STARTER CABLE | 1 |
| 21 | 28789 | 线缆滑轮螺钉(.190-24 x .750) | SCREW (.190-24 x .750) CABLE PULLERY | 1 |
| 22 | 22887 | 线缆滑轮螺钉垫圈 | WASHER CABLE PULLEY SCREW | 1 |
| 23 | 30977 | 线缆滑轮隔套 | SPACER CABLE PULLEY | 1 |
| 23 | 309772 | 隔套 | SPACER | 1 |
| 24 | 20165 | 滑轮轴螺母锁紧垫圈 | TAB WASHER SHEAVE SHAFT NUT | 1 |
| 25 | 20166 | 滑轮轴螺母(左旋螺纹) | NUT SHEAVE SHAFT (LEFT HAND THREAD) | 1 |
| 26 | 20155 | 启动器弹簧固定座 | RETAINER STARTER SPRING | 1 |
| 27 | 29340A1 | 启动器回位弹簧 | SPRING STARTER REWIND | 1 |
| 27 | 29340T02 | 回卷弹簧 | SPRING-RECOIL | 1 |
| 28 | 28912 | 启动器弹簧导向衬套 | BUSHING STARTER SPRING GUIDE | 1 |
| 29 | 93696A2 | 启动器滑轮总成 | SHEAVE ASSEMBLY Starter | 1 |
| 30 | 22896 | 启动线缆固定销 | PIN RETAINER - STARTER CABLE | 1 |
| 31 | 74359 | 联锁轴 | SHAFT INTERLOCK | 1 |
| 32 | 74353 | 锁定杆 | LEVER LOCK | 1 |
| 33 | 74351 | 杠杆随动件 | LEVER FOLLOWER | 1 |
| 34 | 38489 | 联锁轴滚销 | PIN Roll INTERLOCK SHAFT | 2 |
| 35 | 26856 | 尼龙衬套-联锁轴 | BUSHING NYLON - INTERLOCK SHAFT | 2 |
| 36 | 74347 | 扭簧-联锁轴 | SPRING TORSION - INTERLOCK SHAFT | 1 |
| 37 | 36206 | 启动棘爪波形垫圈 | WAVE WASHER STARTER PAWL | 3 |
| 38 | 30596 | 启动器棘爪 | PAWL STARTER | 3 |
| 39 | 28919 | 尼龙衬套-滑轮轴间隔套 | BUSHING NYLON - SHEAVE SHAFT SPACER | 1 |
| 40 | 61005 | 滑轮轴间隔套 | SPACER SHEAVE SHAFT | 1 |
| 41 | 26179 | 滑轮轴至启动滑轮固定器 | RETAINER SHEAVE SHAFT TO STARTER SHEAVE | 1 |
| 42 | 35559 | 滑轮轴固定器垫圈 | WASHER SHEAVE SHAFT RETAINER | 1 |
| 43 | 20160 | 张力固定器波形垫圈 | WAVE WASHER RETAINER TENSION | 1 |
| 44 | 30595 | 启动爪挡板 | PLATE RETAINER - STARTER PAWL | 1 |
| 45 | 35558 | 滑轮轴 | SHAFT Sheave | 1 |
| 46 | 28985A2 | 启动机电缆总成 | CABLE ASSEMBLY Starter | 1 |
| 46 | 12066Q10 | 启动绳@2 | ROPE-STARTER@2 | 1 |
| 47 | 79470A1 | 绳索固定组件 | RETAINER KIT Rope | 1 |

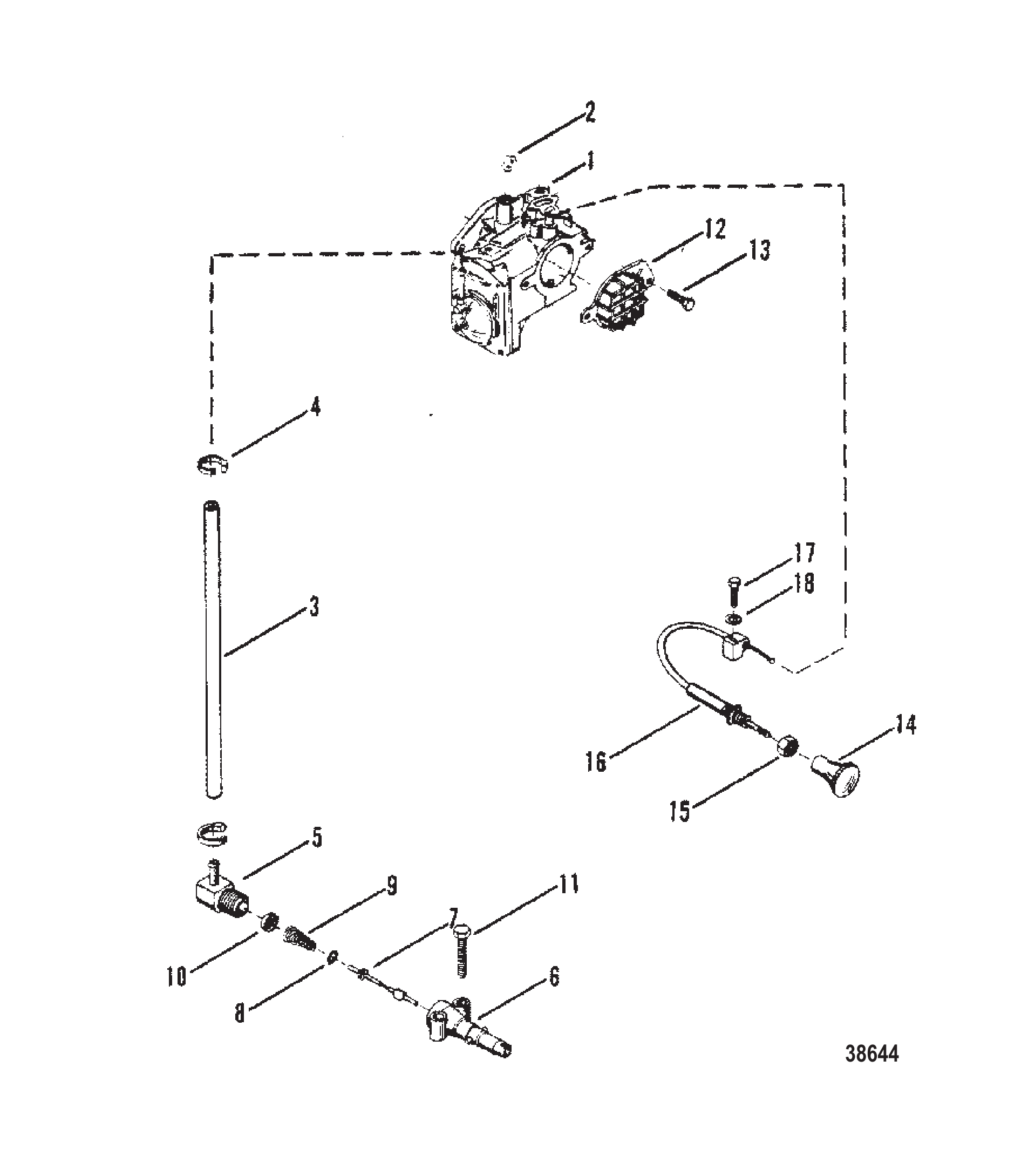

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 7902 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 8783A14 | 化油器 | CARBURETOR | 1 |
| 1 | 8783A4 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 8783A14 | 化油器 | CARBURETOR | 1 |
| 1 | 7909 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 8782A13 | 化油器 | CARBURETOR | 1 |
| 1 | 8782A3 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 8782A13 | 化油器 | CARBURETOR | 1 |
| 2 | 24652 | 化油器安装螺母(.250-28) | NUT (.250-28) CARBURETOR ATTACHING | 2 |
| 3 | 99127109 | 适配器至化油器管路(57英寸散装) | LINE (57.00 Inches Bulk) ADAPTOR TO CARBURETOR | 1 |
| 3 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 4 | 68424 | 燃油管固定夹 | CLAMP FUEL LINE ATTACHING | 2 |
| 5 | 63981 | 燃油管转接头 | FITTING FUEL LINE TO ADAPTOR | 1 |
| 6 | 22833 | 适配器止回单元(燃油管) | ADAPTER CHECK UNIT (FUEL LINE) | 1 |
| 7 | 23069 | 适配器阀杆止回单元 | STEM CHECK UNIT ADAPTOR | 1 |
| 8 | 20415 | 适配器阀杆O型圈 | O-RING ADAPTOR STEM | 1 |
| 8 | 16524 | 燃油接头O型圈 | O-RING Fuel Connector | 1 |
| 9 | 23067 | 适配器阀杆弹簧 | SPRING ADAPTOR STEM | 1 |
| 9 | 23067T | 弹簧 | SPRING | 1 |
| 10 | 30188 | 适配器垫片 | WASHER ADAPTOR | 1 |
| 11 | 37923 | 适配器至下罩盖螺钉(.250-28x1.250) | SCREW (.250-28 x 1.250) ADAPTOR TO BOTTOM COWL | 1 |
| 12 | 65552 | 化油器滤网 | SCREEN CARBURETOR | 1 |
| 13 | 69022 | 滤网至化油器不锈钢螺钉(#10-32x0.500) | SCREW (#10-32 x .500) Stainless Steel SCREEN TO CARBURETOR | 2 |
| 14 | 86381 | 阻风门旋钮 | KNOB CHOKE | 1 |
| 15 | 73710 | 阻风门拉索至下罩盖螺母 | NUT CHOKE CABLE TO BOTTOM COWL | 1 |
| 16 | 72465 | 阻风门拉索 | CABLE Choke | 1 |
| 17 | 45862 | 阻风门拉索至化油器螺钉(#10-32x0.875) | SCREW (#10-32 x .875) CHOKE CABLE TO CARBURETOR | 1 |
| 18 | 34680 | 阻风门拉索螺钉垫片 | WASHER CHOKE CABLE SCREW | 1 |
| - | 89014A80 | 衬垫套件 | GASKET SET |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

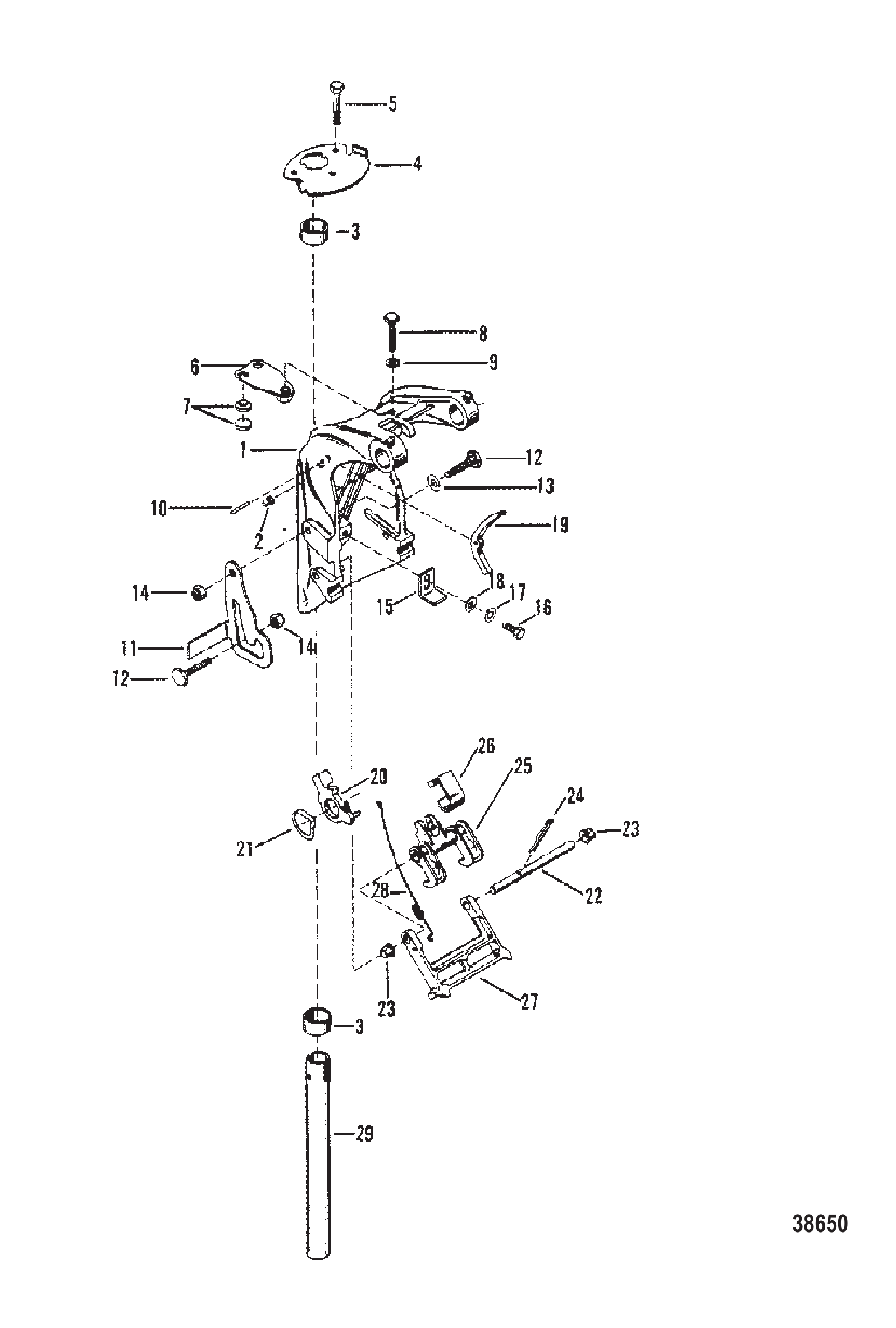

| 1 | 7324A1 | 旋转支架总成 | SWIVEL BRACKET ASSEMBLY | 1 |
| 2 | 74036 | 旋转支架润滑接头 | FITTING Grease SWIVEL BRACKET | 3 |
| 2 | 8M0169589 | 润滑脂接头 | FITTING Grease | 3 |
| 3 | 64028 | 转轴支架衬套 | BUSHING SWIVEL BRACKET | 2 |
| 4 | 77334 | 副驾驶板 | PLATE CO-PILOT | 1 |
| 5 | 78038 | 副驾驶板至鞍座螺钉(.250-20 x 1.75) | SCREW (.250-20 x 1.75) CO-PILOT PLATE, TO SADDLE | 3 |
| 6 | 72845A1 | 副驾驶夹板总成 | PLATE ASSEMBLY CLAMP - CO-PILOT | 1 |
| 7 | 20203 | 摩擦盘 | DISC FRICTION | 4 |
| 8 | 36154 | 夹板调节螺钉(.250-28x1.380) | SCREW (.250-28 x 1.380) CLAMP PLATE ADJUSTING | 1 |
| 9 | 35462 | 夹板调节螺钉不锈钢垫圈(.2656 x .625 x .0625) | WASHER (.2656 x .625 x .0625) Stainless Steel CLAMP PLATE ADJUSTING SCREW | 1 |
| 10 | 25319 | 弹簧导向销(0.125x0.75英寸) | PIN (.125 x 0.75 Inches) SPRING GUIDE | 1 |
| 11 | 87984A1 | 杠杆总成 | LEVER ASSEMBLY | 1 |
| 11 | 879841 | 杠杆总成 | LEVER ASSEMBLY | 1 |
| 12 | 41433 | 倾斜止动杆螺钉(.250-28x1.00) | SCREW (.250-28 x 1.00) TILT STOP LEVER | 2 |
| 13 | 31030 | 杠杆锚定螺钉波形垫圈 | WAVE WASHER LEVER ANCHOR SCREW | 1 |
| 14 | 20361 | 螺母(.250-28)倾斜止动杆螺钉 | NUT (.250-28) TILT STOP LEVER SCREW | 2 |
| 14 | 8267089 | 螺母(.250-28) | NUT (.250-28) | 2 |
| 15 | 72794 | 倒挡锁止块 | STOP REVERSE LOCK | 1 |
| 16 | 71056 | 螺丝(.250-28 x .560)倒车挡块至旋转支架 | SCREW (.250-28 x .560) REVERSE STOP TO SWIVEL BRACKET | 1 |
| 17 | 26992 | 锁紧垫圈(.250)不锈钢倒车挡块螺丝 | LOCKWASHER (.250) Stainless Steel REVERSE STOP SCREW | 1 |
| 18 | 71055 | 垫圈倒车挡块螺丝 | WASHER REVERSE STOP SCREW | 1 |
| 19 | 63554 | 导向弹簧 | GUIDE SPRING | 1 |
| 20 | 79744 | 拖钓支架控制杆 | LEVER CONTROL - TROLL BRACKET | 1 |
| 21 | 63631 | 拖钓支架杠杆波形垫圈 | WAVE WASHER TROLL BRACKET LEVER | 1 |
| 22 | 71419 | 倒挡锁止杆至开关支架 | ROD REVERSE LOCK TO SWITCH BRACKET | 1 |
| 23 | 26841 | 尼龙衬套-倒挡锁止杆连杆 | BUSHING NYLON - REVERSE LOCK LEVER ROD | 2 |
| 24 | 45882 | 倒挡锁止杆至连杆开口销 | COTTER PIN REVERSE LOCK LEVER TO ROD | 1 |
| 25 | 63628 | 倒挡锁止杆 | LEVER REVERSE LOCK | 1 |
| 25 | 63628T | 杠杆 | LEVER | 1 |
| 26 | 61007 | 固定座-倒挡锁止杆 | RETAINER ROD - REVERSE LOCK | 1 |
| 27 | 63559 | 拖钓支架 | BRACKET TROLL | 1 |
| 27 | 63559T | 支架 | BRACKET | 1 |
| 28 | 63630 | 拖钓支架延伸弹簧 | SPRING EXTENSION - TROLL BRACKET | 1 |
| 29 | 66559 | 旋转支架至鞍座管道 | TUBE SWIVEL BRACKET TO SADDLE | 1 |
