水星 Mercury 8W HP (Marathon) 677-383147 & Up - 爆炸图零件明细

两冲程 化油器 · Cat.# 90-11360 · 共 40 个部位 · 1439 条零件

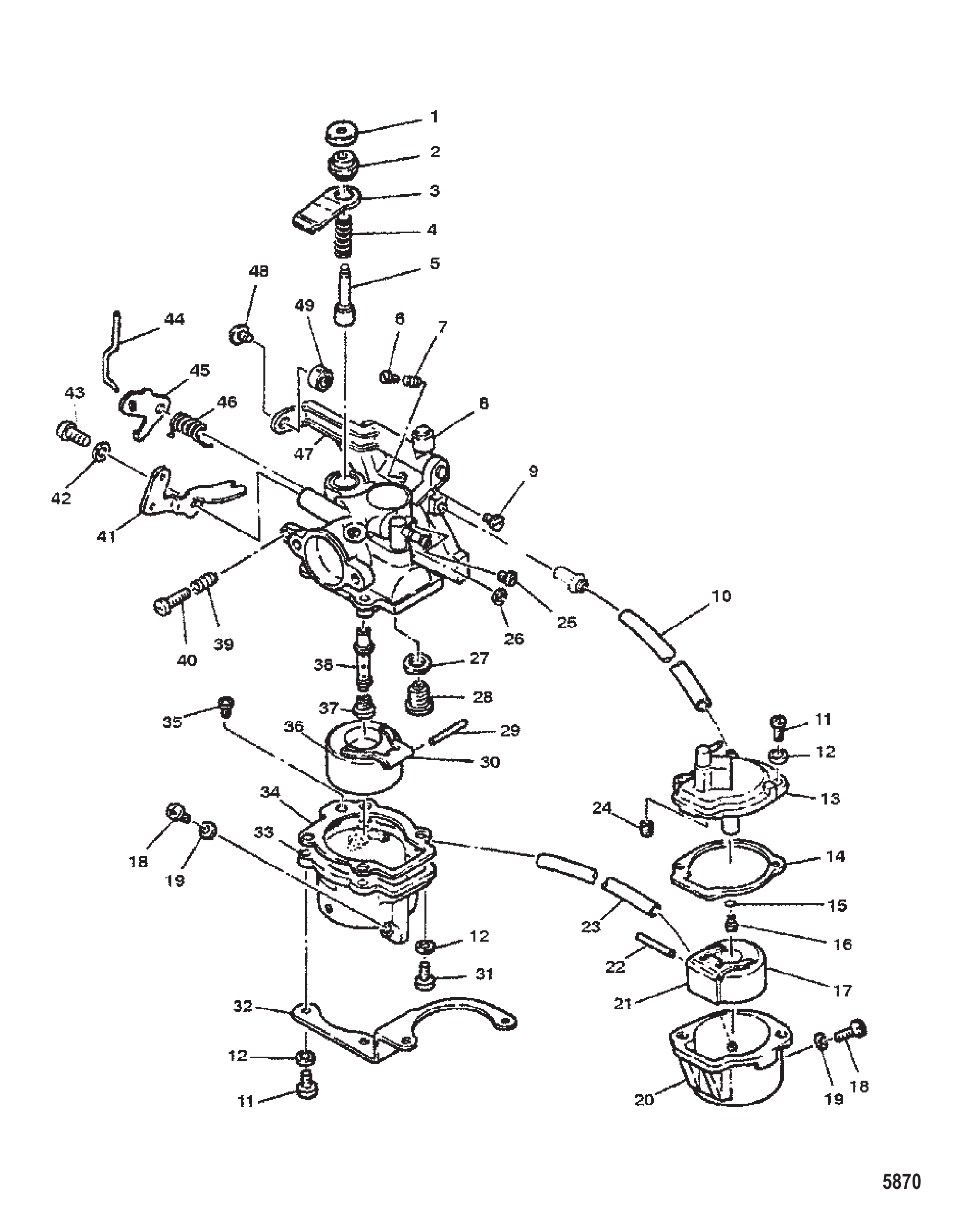

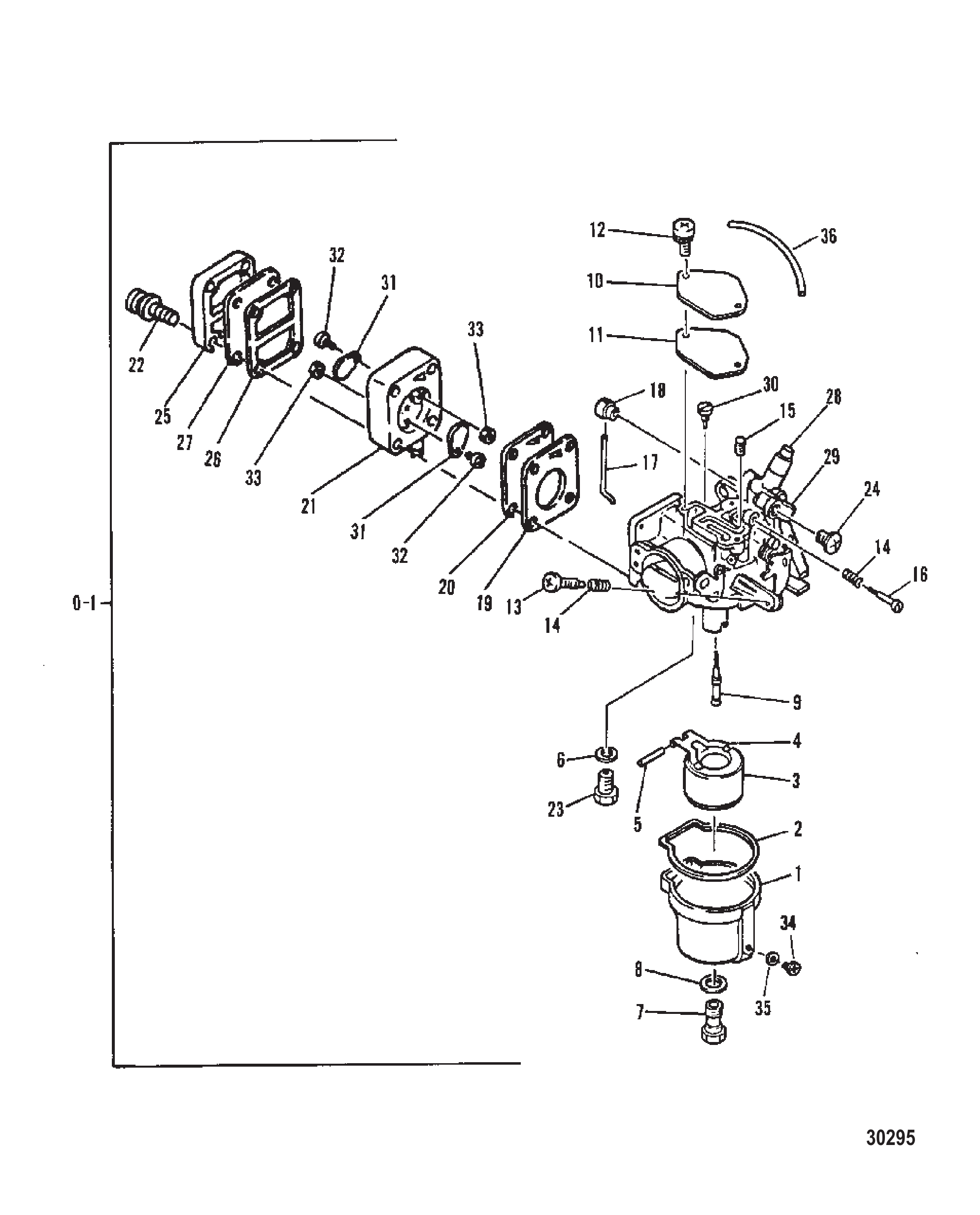

图 1化油器 CARBURETOR

REF	零件编号	中文名称	英文名称	数量
0-1	9523M	化油器总成	CARBURETOR ASSEMBLY	1
0-1	7189M	化油器总成	CARBURETOR ASSEMBLY	1
0-1	9523M	化油器总成	CARBURETOR ASSEMBLY	1
1	14217M	浮子室	FLOAT BOWL	1
1	84252M	浮子室	FLOAT BOWL	1
2	43115M	浮子室垫片	GASKET FLOAT CHAMBER	1
3	14180M	浮子	FLOAT	1
3	80450M	浮子	FLOAT	1
4	80202M	浮子臂	FLOAT ARM	1
5	80451M	浮子销	PIN FLOAT	1
5	80201M	浮子销	PIN FLOAT	1
5	80451M	销	PIN	1
6	80261M	阀座垫圈	WASHER VALVE SEAT	1
7	83289M	主量孔(#80)	MAIN JET (#80)	1
7	84670M	主量孔(#78)	JET Main (#78)	1
8	80267M	衬垫	GASKET	1
8	80267	衬垫	GASKET	1
9	14272M	主喷管(#66)	NOZZLE MAIN (#66)	1
9	94664M	主喷管(#66)	NOZZLE MAIN (#66)	1
10	84258M	安装板	PLATE	1
11	84259M	衬垫	GASKET	1
12	84260M	螺钉	SCREW	2
12	83509M	螺钉（M4×10）	SCREW (M4 x 10)	2
13	82623M	怠速调节螺钉	SCREW IDLE SPEED	1
13	83509M	螺钉（M4×10）	SCREW (M4 x 10)	1
14	80329M	弹簧	SPRING	2
14	814460M	弹簧	SPRING	2
15	95404M	怠速量孔(#44)	JET Pilot (#44)	1
15	94665M	怠速量孔(#42)	JET Pilot (#42)	1
16	80573M	怠速混合气螺钉	SCREW IDLE MIXTURE	1
17	83299M	杆	ROD	1
18	83300M	杆端固定器	RETAINER LEVER END	1
19	84261M	泵垫片	GASKET PUMP	2
19	815009	衬垫	GASKET	2
20	84262M	隔膜泵	DIAPHRAGM PUMP	1
21	99966M	泵盖	COVER PUMP	1
22	80954M	螺钉	SCREW	4
23	14216M	阀座	VALVE SEAT	1
23	11930M	阀座	SEAT Valve	1
23	80447M	阀座总成	VALVE SEAT ASSEMBLY	1
24	80091M	螺钉	SCREW	1
25	84266M	泵盖	COVER PUMP	1
26	84264M	盖衬垫	GASKET COVER	1
26	84264	衬垫	GASKET	1
27	84265M	隔膜泵	DIAPHRAGM PUMP	1
28	80227M	导向销衬套	BUSHING GUIDE PIN	1
29	81148M	油门臂总成	ARM ASSEMBLY Throttle	1
30	80434M	螺钉	SCREW	1
31	41888M	止回阀	CHECK VALVE	2
32	11837M	螺钉	SCREW	2
32	94801M	螺钉	SCREW	2
32	813484M	螺钉	SCREW	2
33	82537M	螺母	NUT	2
34	82512M	螺钉	SCREW	1
35	14218M	衬垫	GASKET	1
36	14281M	管	TUBE	1
-	814480M	维修套件	REPAIR KIT	1
-	84473M	维修套件	REPAIR KIT	1
-	84473T	化油器修理包	REPAIR KIT-CARB	1

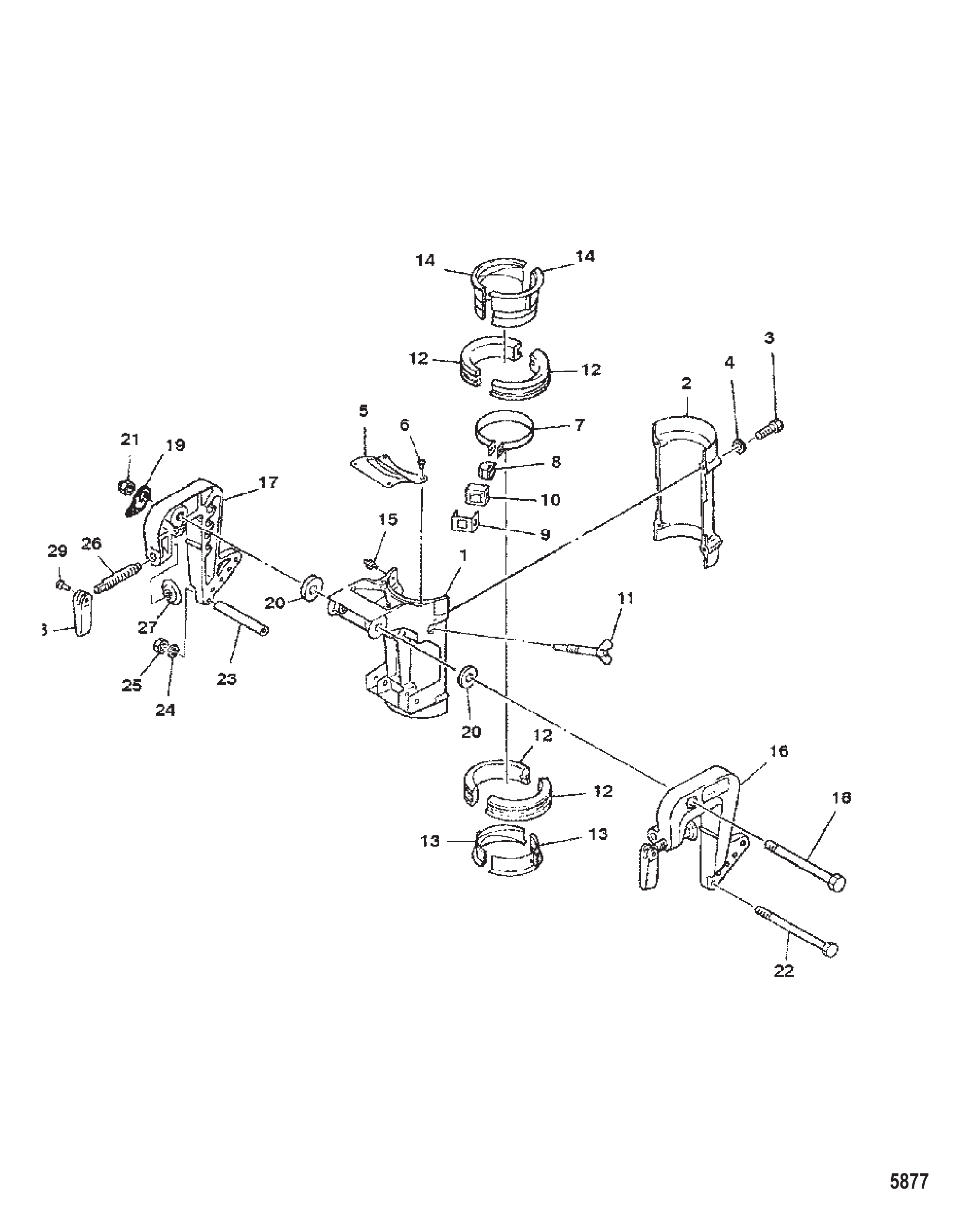

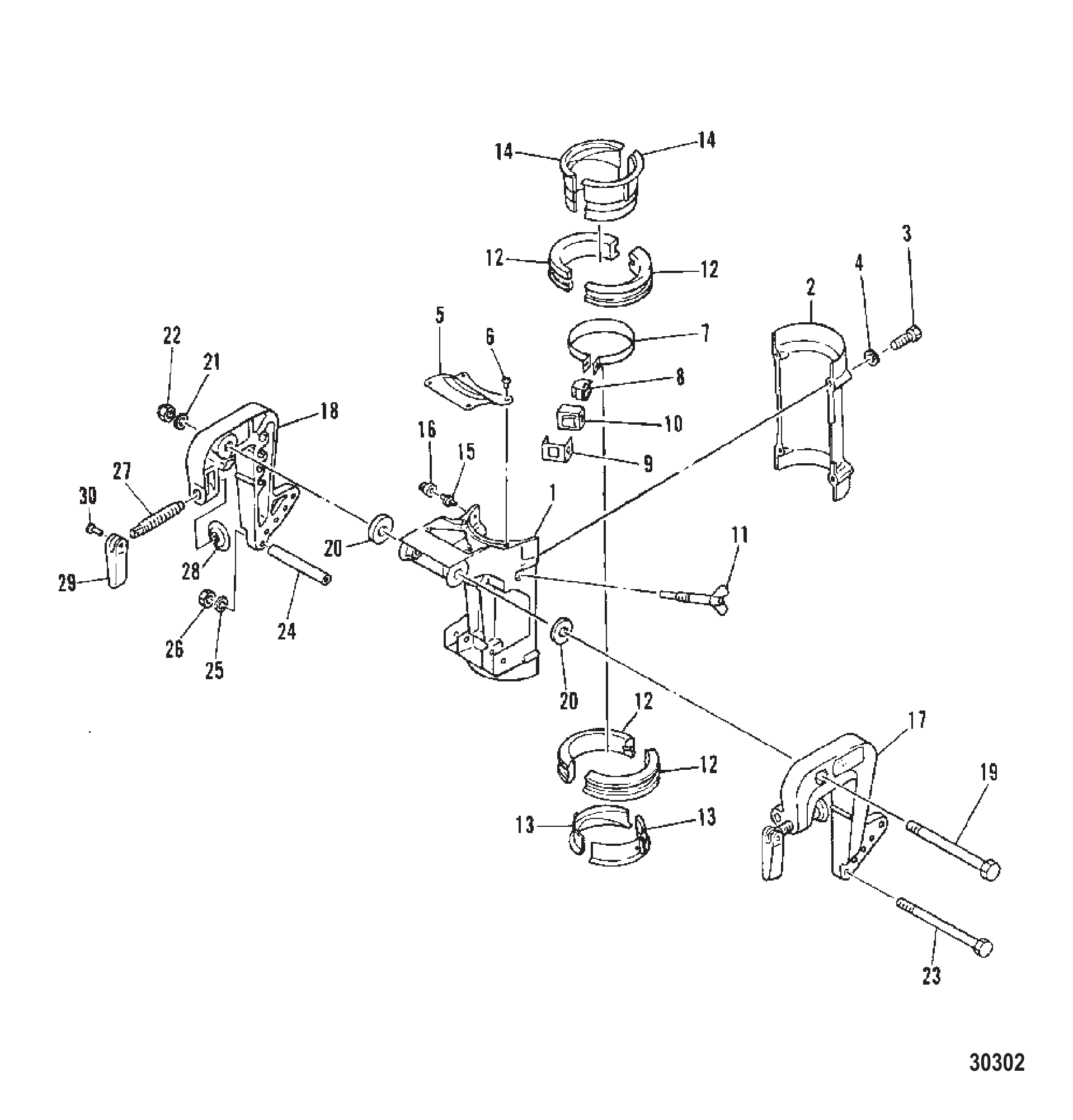

图 2夹紧旋转支架 CLAMP AND SWIVEL BRACKET

REF	零件编号	中文名称	英文名称	数量
1	9256M	旋转支架(前)	SWIVEL BRACKET (FRONT)	1
2	80520M	旋转支架（后）	SWIVEL BRACKET (REAR)	1
3	82457M	螺栓	BOLT	4
3	827043M	螺栓	BOLT	4
4	82214M	垫圈	WASHER	4
5	81065M	盖板	COVER	1
6	14265M	铆钉	RIVET	4
6	81908M	铆钉	RIVET	4
6	14265M	铆钉	RIVET	4
7	82889M	摩擦支架	BRACKET FRICTION	1
8	82890M	摩擦片	FRICTION PLATE	1
9	82891M	摩擦片	FRICTION PLATE	1
10	82892M	盖板	COVER	1
11	81055M	摩擦片螺钉	SCREW FRICTION PLATE	1
12	81056M	枢轴衬套	BUSHING PIVOT SHAFT	4
13	95605M	枢轴衬套	BUSHING PIVOT SHAFT	2
14	80513M	枢轴套环	COLLAR PIVOT SHAFT	2
14	80513T	衬套	BUSHING	2
15	82369M	黄油嘴	FITTING GREASE	1
16	81439M	黄油嘴盖	CAP GREASE FITTING	1
17	6702M	左舷夹紧支架	CLAMP BRACKET Port	1
17	821596A1	左舷夹紧支架总成	CLAMP BRACKET ASSEMBLY Port	1
18	6703M	夹具支架(右舷)	CLAMP BRACKET (STARBOARD)	1
19	98969M	螺栓	BOLT	1
20	98970M	垫圈	WASHER	2
21	81806M	垫圈	WASHER	1
22	81785M	锁紧螺母	LOCKNUT	1
23	82921M	螺栓	BOLT	1
24	82116M	隔套	SPACER	1
25	82214M	锁紧垫圈	WASHER LOCK	1
26	82389M	螺母	NUT	1
27	81755M	艉板夹紧螺钉	SCREW TRANSOM CLAMP	2
28	80638M	艉板夹垫	PAD TRANSOM CLAMP	2
29	80048M	艉板夹手柄	HANDLE TRANSOM CLAMP	2
29	809959M	手柄	HANDLE	2
30	81888M	销	PIN	2

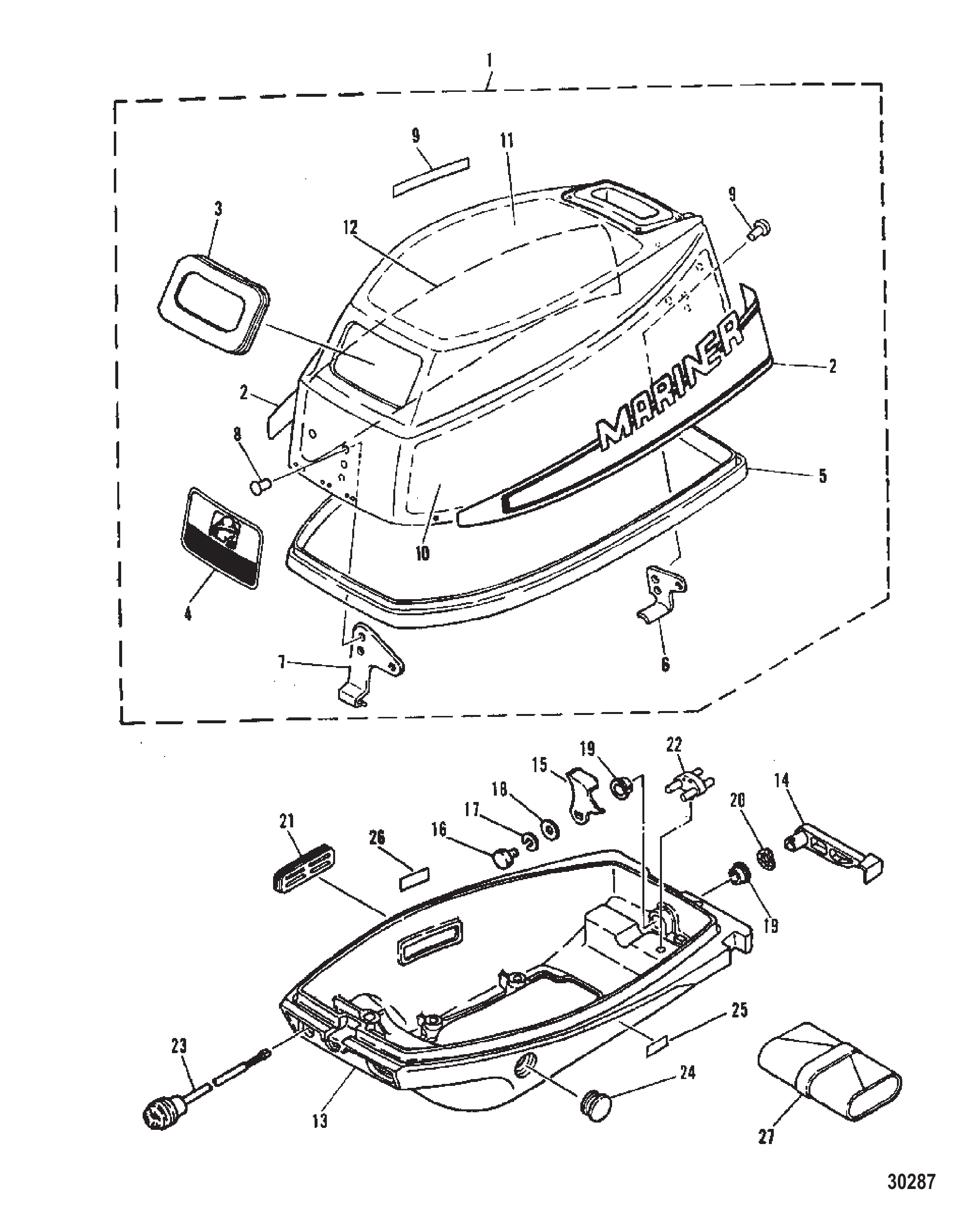

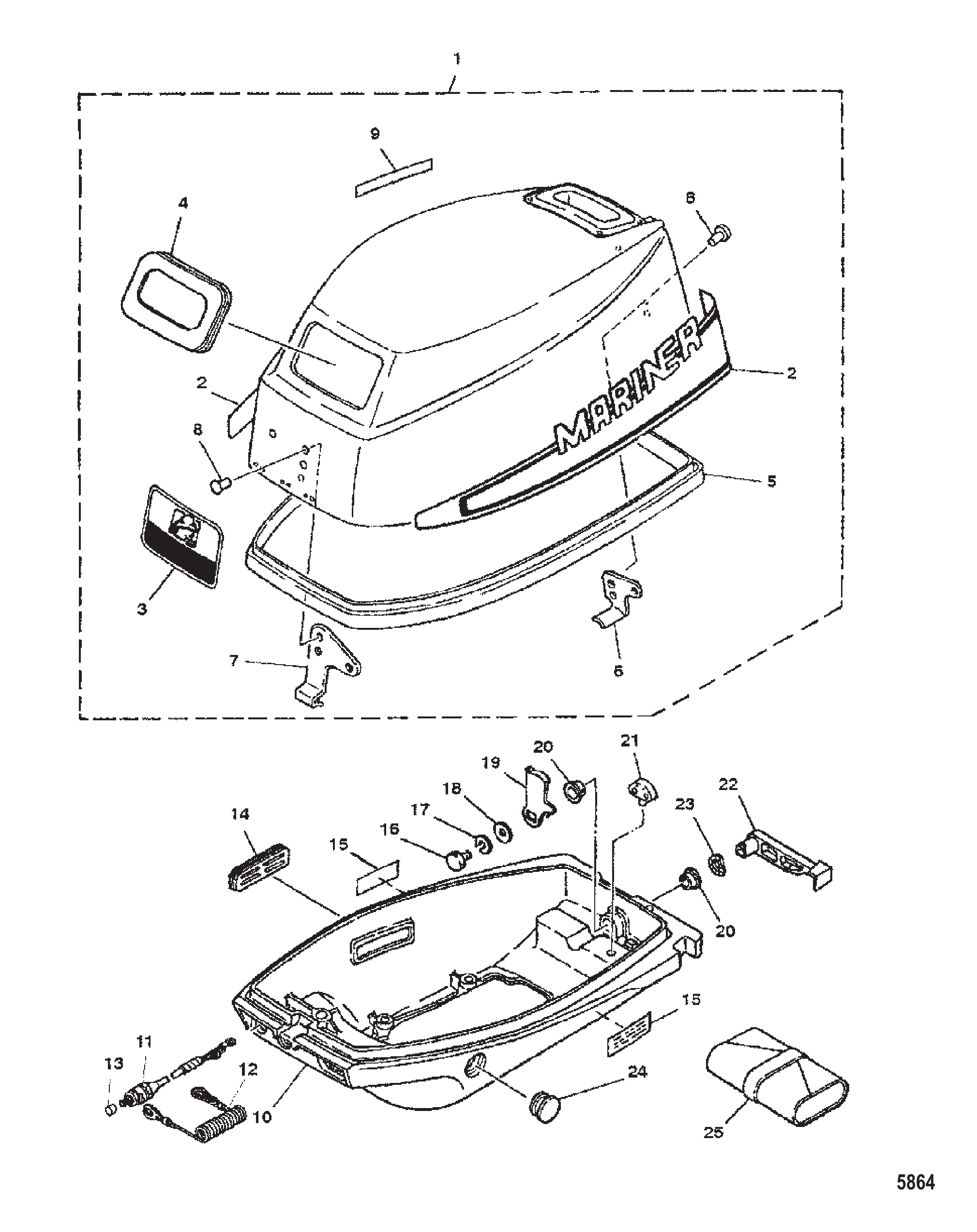

图 3外罩 COWLING

REF	零件编号	中文名称	英文名称	数量
1	9378M	顶盖总成	TOP COWL ASSEMBLY	1
1	8396M	顶盖总成	TOP COWL ASSEMBLY	1
1	9378M	顶盖总成	TOP COWL ASSEMBLY	1
2	95400M	侧后标贴套装	DECAL SET Side And Rear	1
2	98972M	侧面贴花套装	DECAL SIDE SET	1
2	95400M	侧后标贴套装	DECAL SET Side And Rear	1
3	91653M	密封件	SEAL	1
4	95401M	前贴花	DECAL Front	1
4	98966M	前标牌	DECAL FRONT	1
4	95401M	前贴花	DECAL Front	1
5	95587M	密封件	SEAL	1
6	94655M	卡箍固定架	HOLDER CLAMP BAND	1
7	94656M	挂钩	HOOK	1
8	83599M	铆钉	RIVET	4
8	814489M	铆钉	RIVET	4
9	81202M	换挡指示贴花	DECAL Shift Indicator	1
10	83273M	隔音毯	SOUND BLANKET	1
10	83232M	覆盖件	BLANKET	1
11	83274M	隔音毯	SOUND BLANKET	1
11	84321M	隔音毯	SOUND BLANKET	1
12	95637M	隔音毯	SOUND BLANKET	1
12	83232M	覆盖件	BLANKET	1
13	9379M	底部罩壳	COWLING BOTTOM	1
13	9288M	底部罩壳	COWLING BOTTOM	1
13	9379M	外罩	COWLING	1
14	95402M	杠杆夹	LEVER CLAMP	1
15	84914M	卡箍	CLAMP	1
16	84303M	螺栓	BOLT	1
16	91772M	螺栓	BOLT	1
17	82214M	垫圈	WASHER	1
18	81794M	垫圈	WASHER	1
19	81949M	衬套	BUSHING	2
20	81869M	波形垫圈	WASHER WAVE	1
21	83277M	护孔环	GROMMET	1
22	80033M	驱动销固定座	HOLDER DRIVE PIN	1
23	94772M	停机开关总成	SWITCH ASSEMBLY Stop	1
23	91622M	开关	SWITCH	1
24	84669M	护孔环	GROMMET	1
25	14270M	贴花	DECAL	1
25	95638M	贴花	DECAL	2
26	14271M	贴花	DECAL	1
27	80277M	工具包	TOOL KIT	1
27	803581	工具包	TOOL KIT	1

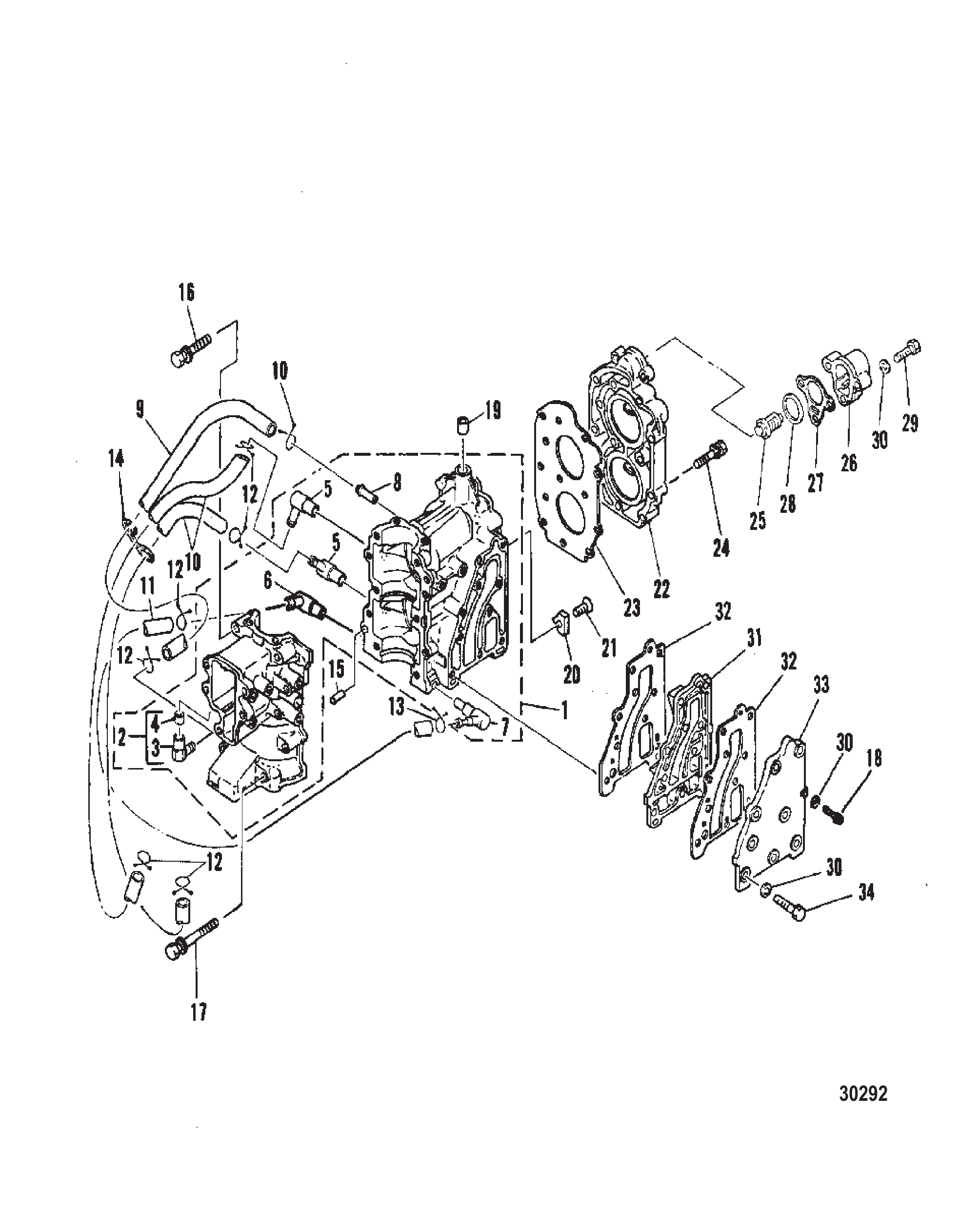

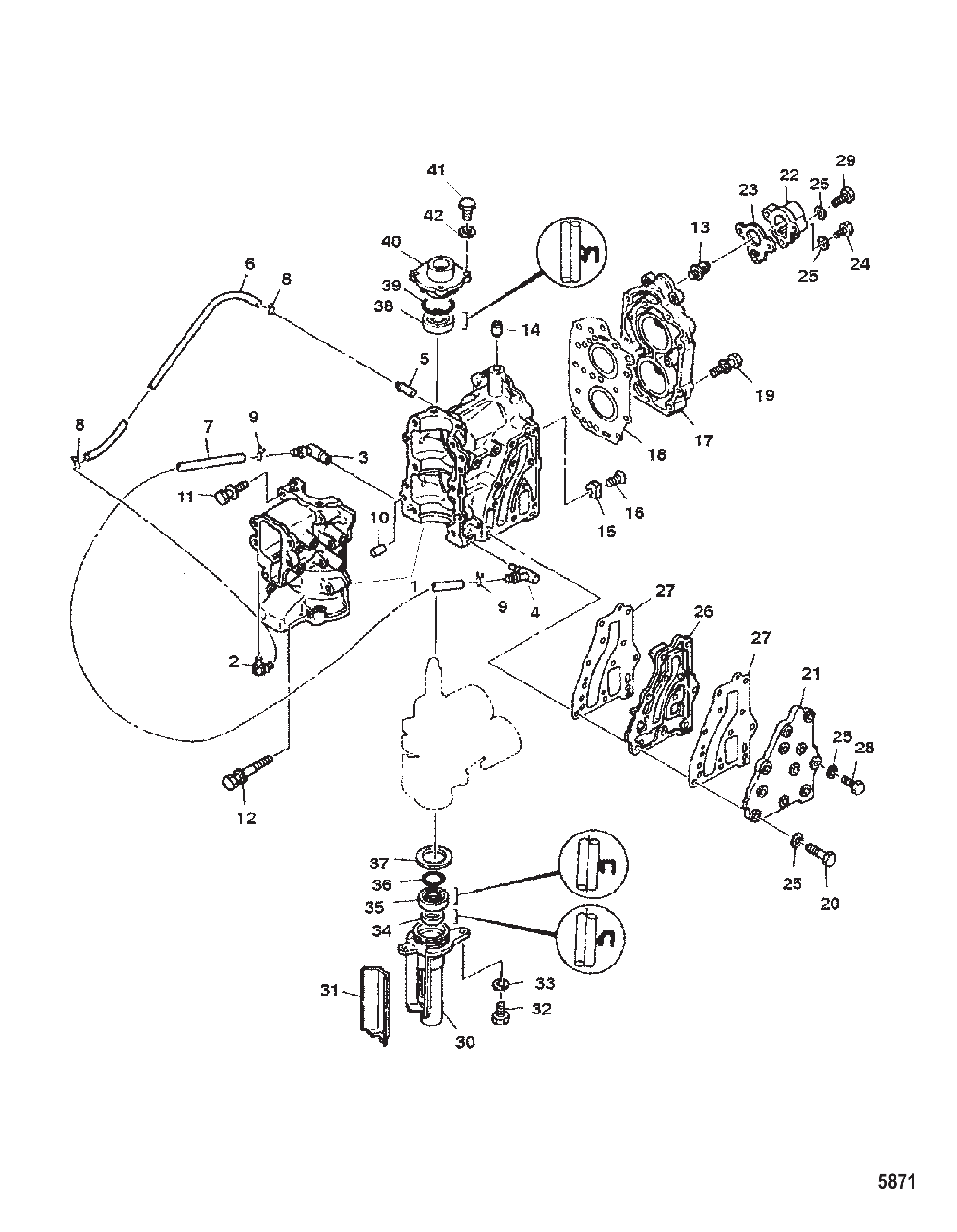

图 4曲轴箱和气缸盖 CRANKCASE AND CYLINDER HEAD

REF	零件编号	中文名称	英文名称	数量
1	6973M	曲轴箱总成	CRANKCASE ASSEMBLY	1
2	80727M	止回阀总成	CHECK VALVE ASSEMBLY	1
3	82975M	排水弯头	ELBOW DRAIN	1
4	80107M	止回阀	VALVE CHECK	1
5	82692M	止回阀总成	CHECK VALVE ASSEMBLY	2
6	84661M	放油接头	FITTING Drain	1
7	83326M	排水管接头	FITTING DRAIN	1
8	80122M	排水管接头	FITTING DRAIN	1
9	81658M	软管	HOSE	1
9	811045M	软管	HOSE	1
10	84235M	软管	HOSE	2
10	811045M	软管	HOSE	2
11	82992M	软管	HOSE	1
11	82012M	软管	HOSE	1
12	82046M	卡箍	CLAMP	6
13	84656M	卡箍	CLAMP	2
13	98974M	卡扣	CLIP	2
14	82038M	卡箍	CLAMP	1
15	82359M	定位销	PIN Dowel	2
16	95592M	带垫圈螺栓	BOLT WITH WASHER	8
17	95593M	带垫圈螺栓	BOLT WITH WASHER	2
18	84247M	螺栓	BOLT	1
18	826957M	螺栓	BOLT	1
19	14214M	定位销	PIN Dowel	1
19	82161M	定位销	PIN DOWEL	1
19	14214M	定位销	PIN Dowel	1
20	84732M	阳极块	ANODE	1
21	95594M	螺钉	SCREW	1
22	6964M	气缸盖	HEAD CYLINDER	1
23	95595M	气缸盖衬垫	GASKET CYLINDER HEAD	1
23	95595	衬垫	GASKET	1
24	43092M	螺栓(M6 x 14)带垫圈	BOLT (M6 x 14) WITH WASHER	13
25	11919M	节温器	THERMOSTAT	1
25	11919001	节温器	THERMOSTAT	1
25	83282M	节温器	THERMOSTAT	1
26	83241M	节温器盖	COVER THERMOSTAT	1
27	83242M	节温器盖衬垫	GASKET THERMOSTAT COVER	1
27	83242	衬垫	GASKET	1
28	81835M	垫圈	WASHER	1
29	82405M	螺栓	BOLT	3
30	82214M	垫圈	WASHER	14
31	95596M	排气内盖	COVER Exhaust Inner	1
32	95596M	排气罩	COVER Exhaust	2
33	95598M	排气外盖	COVER Exhaust Outer	1
34	84237M	螺栓	BOLT	10
34	83285M	螺栓	BOLT	10
-	95403M	动力头总成	POWERHEAD ASSEMBLY	1
-	83783M	动力头总成	POWERHEAD ASSEMBLY	1
-	84161M	衬垫套件	GASKET SET	1

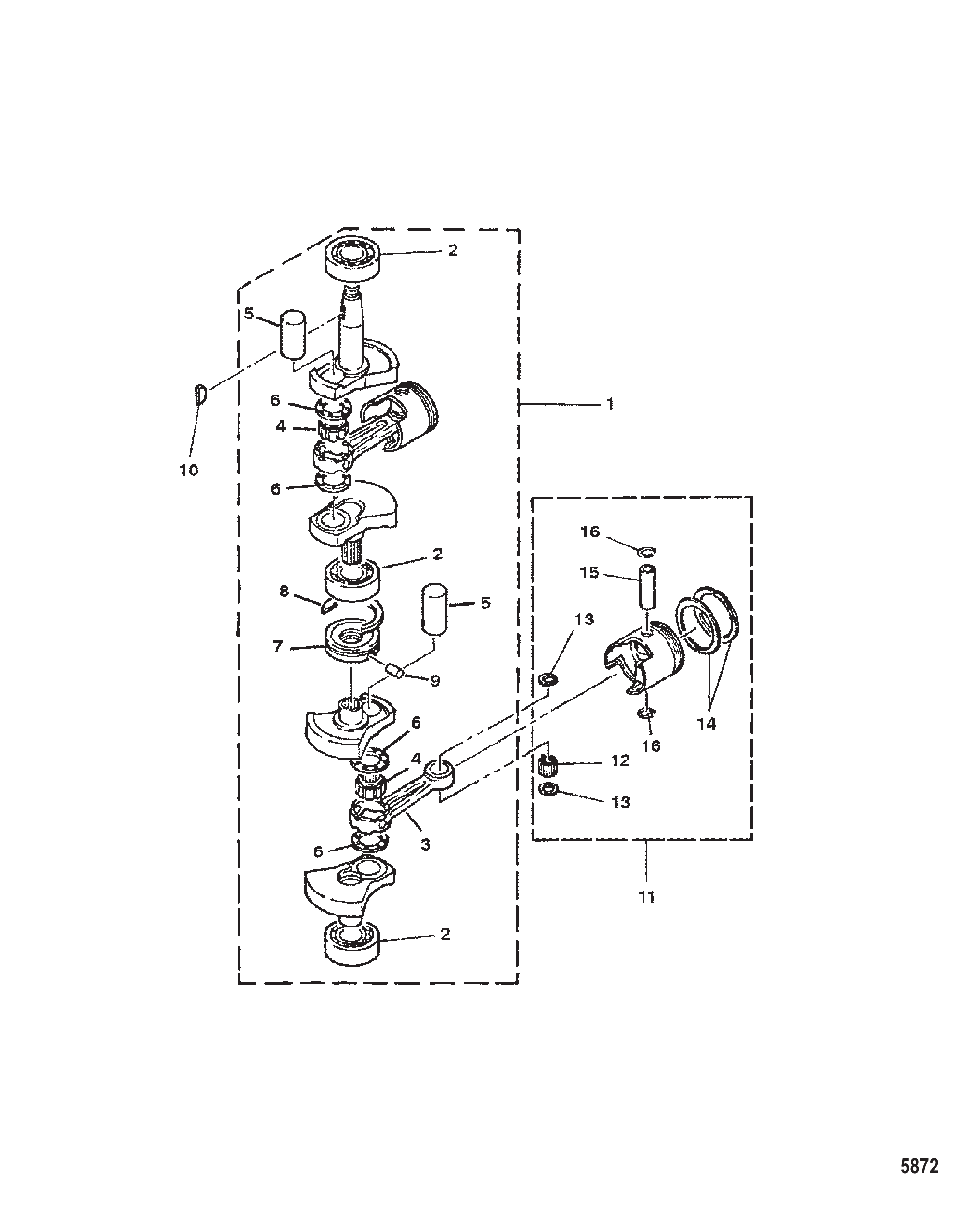

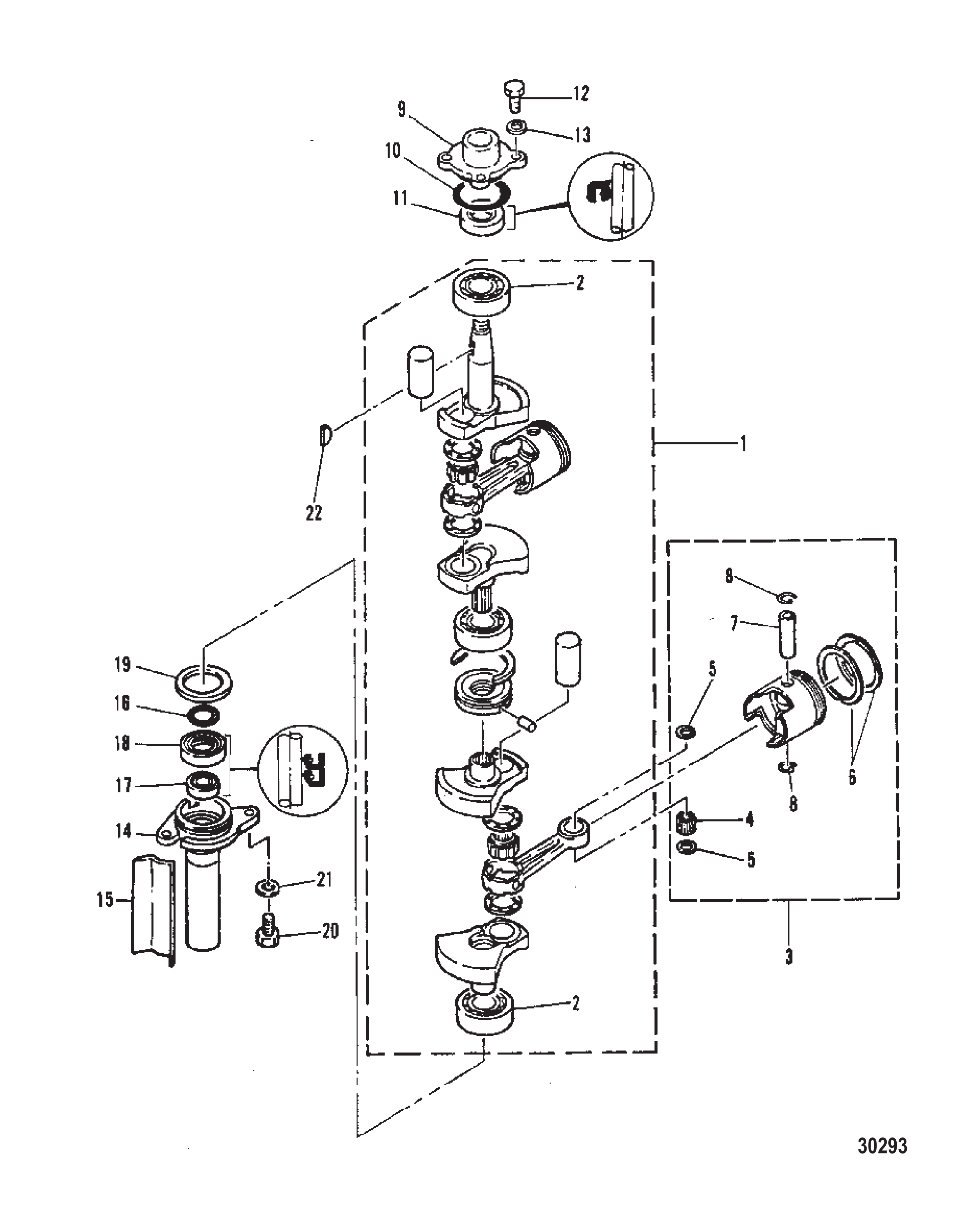

图 5曲轴与活塞 CRANKSHAFT AND PISTON

REF	零件编号	中文名称	英文名称	数量
1	9380M	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	82299M	轴承	BEARING	2
2	18859T	轴承	BEARING	2
3	8224M	活塞(标准)	PISTON (STD)	2
3	8225M	活塞(一级加大51.25MM)	PISTON (1ST O.S. 51.25MM)	AR
3	8226M	活塞(二级加大51.50MM)	PISTON (2ND O.S. 51.50MM)	AR
4	82350M	滚针轴承	BEARING Needle	56
5	81816M	垫圈	WASHER	4
6	80422M	活塞环组(标准)	RING SET Piston (STD)	2
6	80422T	活塞环组	RING SET Piston	2
6	80423M	活塞环组(一级加大51.25MM)	RING SET Piston (1ST O.S. 51.25MM)	2
6	80423T	活塞环组	RING SET Piston	2
6	80424M	活塞环组(二级加大51.50MM)	RING SET Piston (2ND O.S. 51.50MM)	2
7	95601M	活塞销	PIN PISTON	2
7	80005M	活塞销	PIN Piston	2
8	82342M	活塞销卡簧	CLIP PISTON PIN	4
9	83246M	上油封壳体	HOUSING OIL SEAL UPPER	1
10	82276M	O型圈	O-RING	1
11	14195M	上油封	SEAL Oil UPPER	1
11	94663M	上油封	SEAL Oil UPPER	1
11	18843M	油封	SEAL Oil	1
12	82423M	螺栓	BOLT	4
13	82214M	垫圈	WASHER	4
14	94661M	下部油封壳体	HOUSING OIL SEAL LOWER	1
14	814493M	壳体	HOUSING	1
15	94662M	密封件	SEAL	1
16	95602M	O型圈	O-RING	1
17	82165M	油封	SEAL Oil	1
18	94663M	下部油封	SEAL Oil LOWER	1
18	18843M	油封	SEAL Oil	1
19	81841M	垫圈	WASHER	1
20	91725M	螺栓	BOLT	2
20	826957M	螺栓	BOLT	2
21	82214M	垫圈	WASHER	2
22	81913M	飞轮键	KEY FLYWHEEL	1
22	893761	键	KEY	1

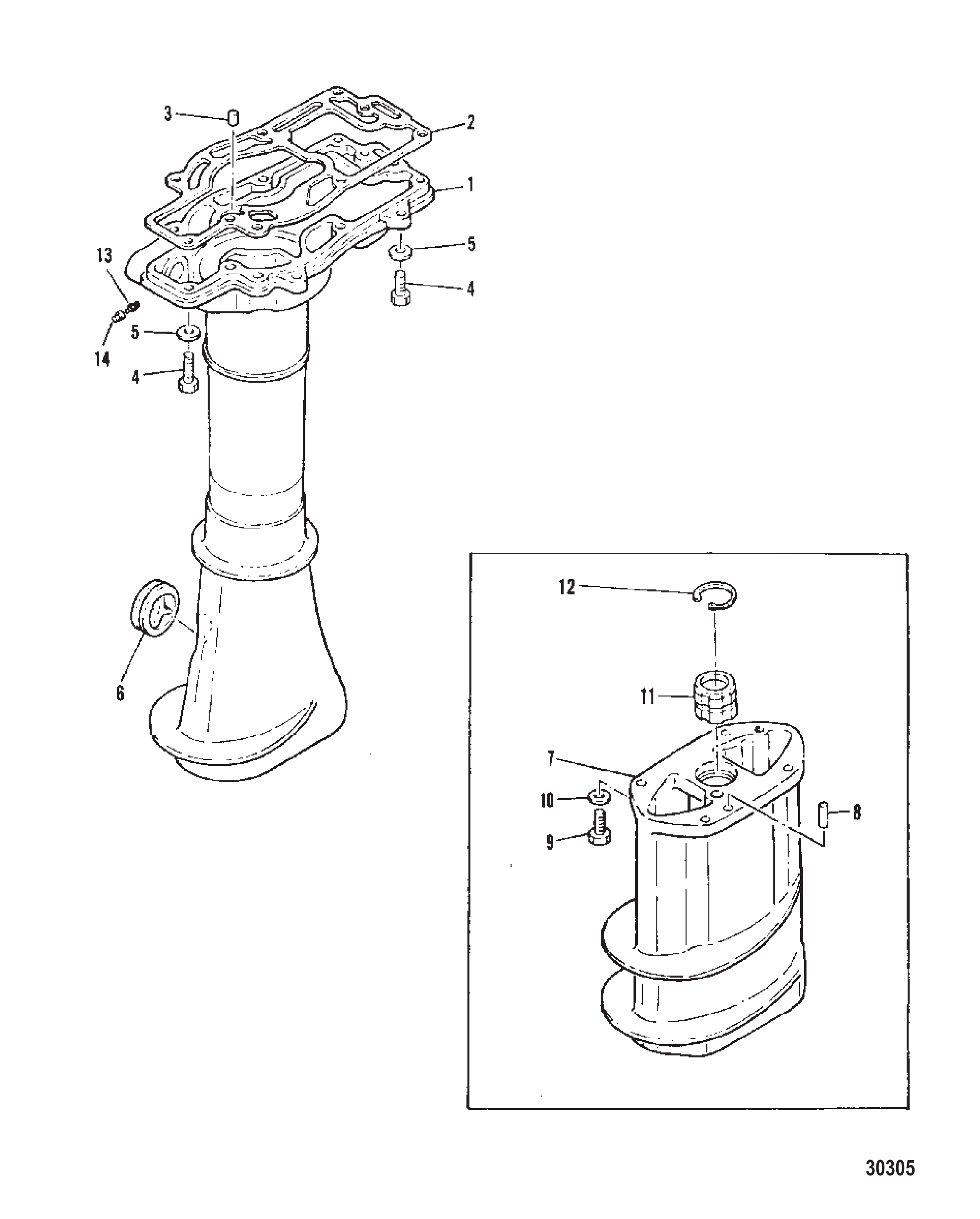

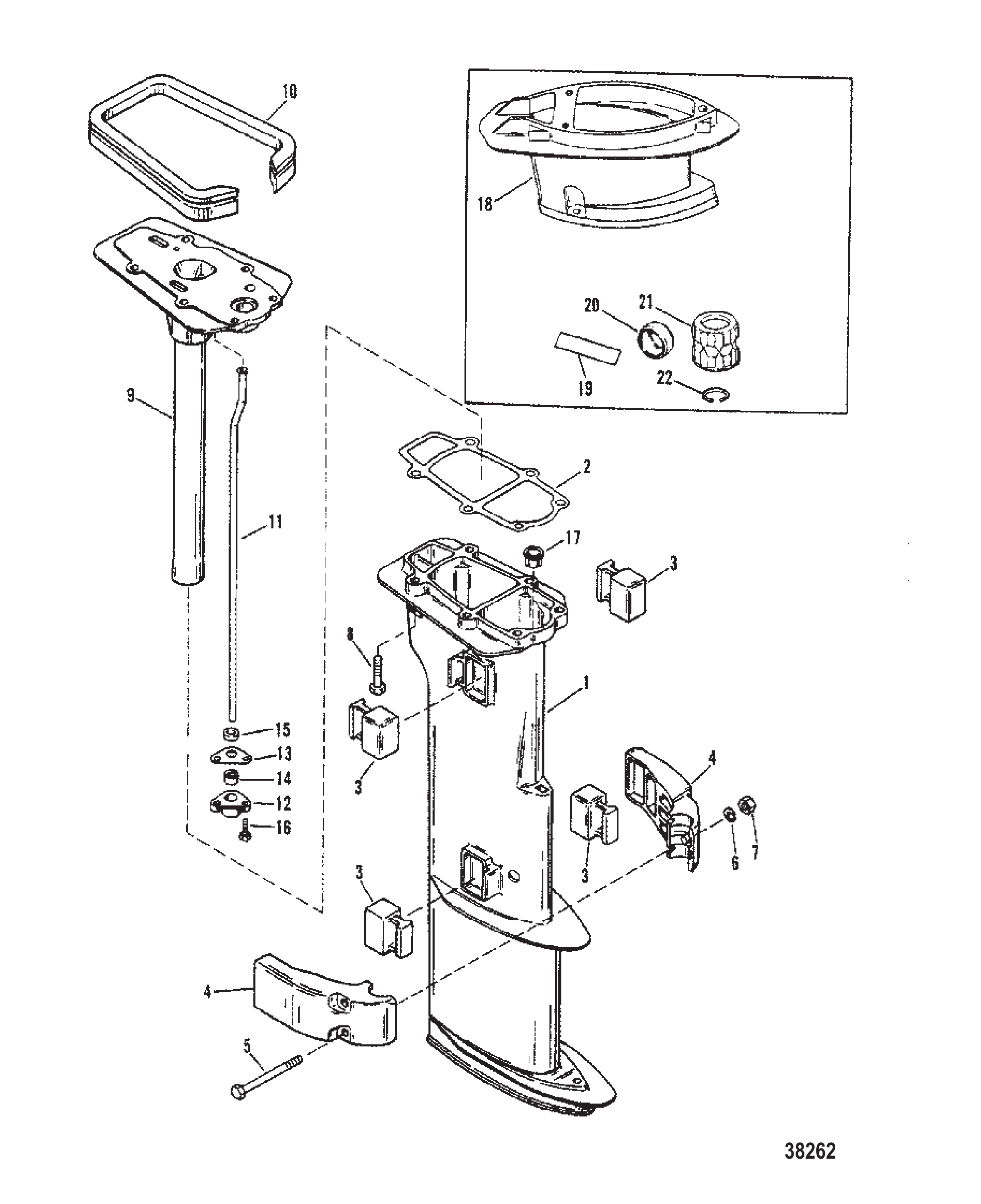

图 6驱动轴壳体 DRIVESHAFT HOUSING

REF	零件编号	中文名称	英文名称	数量
1	9396M	驱动轴壳体	HOUSING Driveshaft	1
1	9271M	驱动轴壳体	HOUSING Driveshaft	1
2	83280M	衬垫	GASKET	1
2	83280	衬垫	GASKET	1
3	82359M	定位销	PIN Dowel	2
4	82453M	螺栓	BOLT	7
4	82405M	螺栓	BOLT	7
5	82214M	垫圈	WASHER	7
6	80533M	盖板	COVER	1
7	83194M	延长件	EXTENSION	1
7	82309M	延长件	EXTENSION	1
7	82505M	延长件	EXTENSION	1
8	82354M	定位销	PIN DOWEL	2
9	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	4
10	82214M	垫圈	WASHER	4
11	82574M	衬套	BUSHING	1
12	82863M	卡环	RING Snap	1
13	82369M	黄油嘴	FITTING GREASE	1
14	81439M	黄油嘴盖	CAP GREASE FITTING	1
-	84223M	延长套件	EXTENSION KIT	1
-	84229M	延长套件	EXTENSION KIT	1
-	84230M	延长套件	EXTENSION KIT

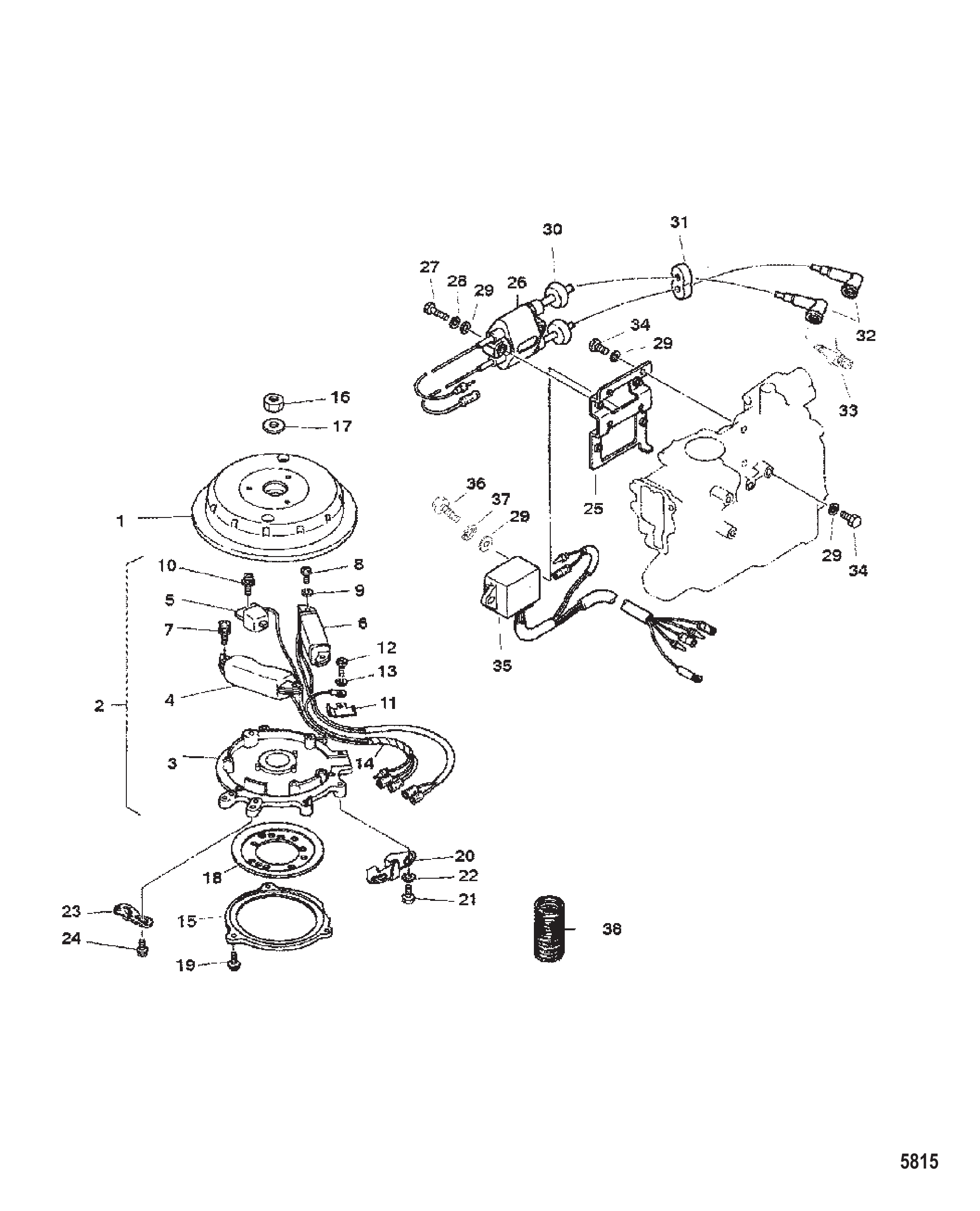

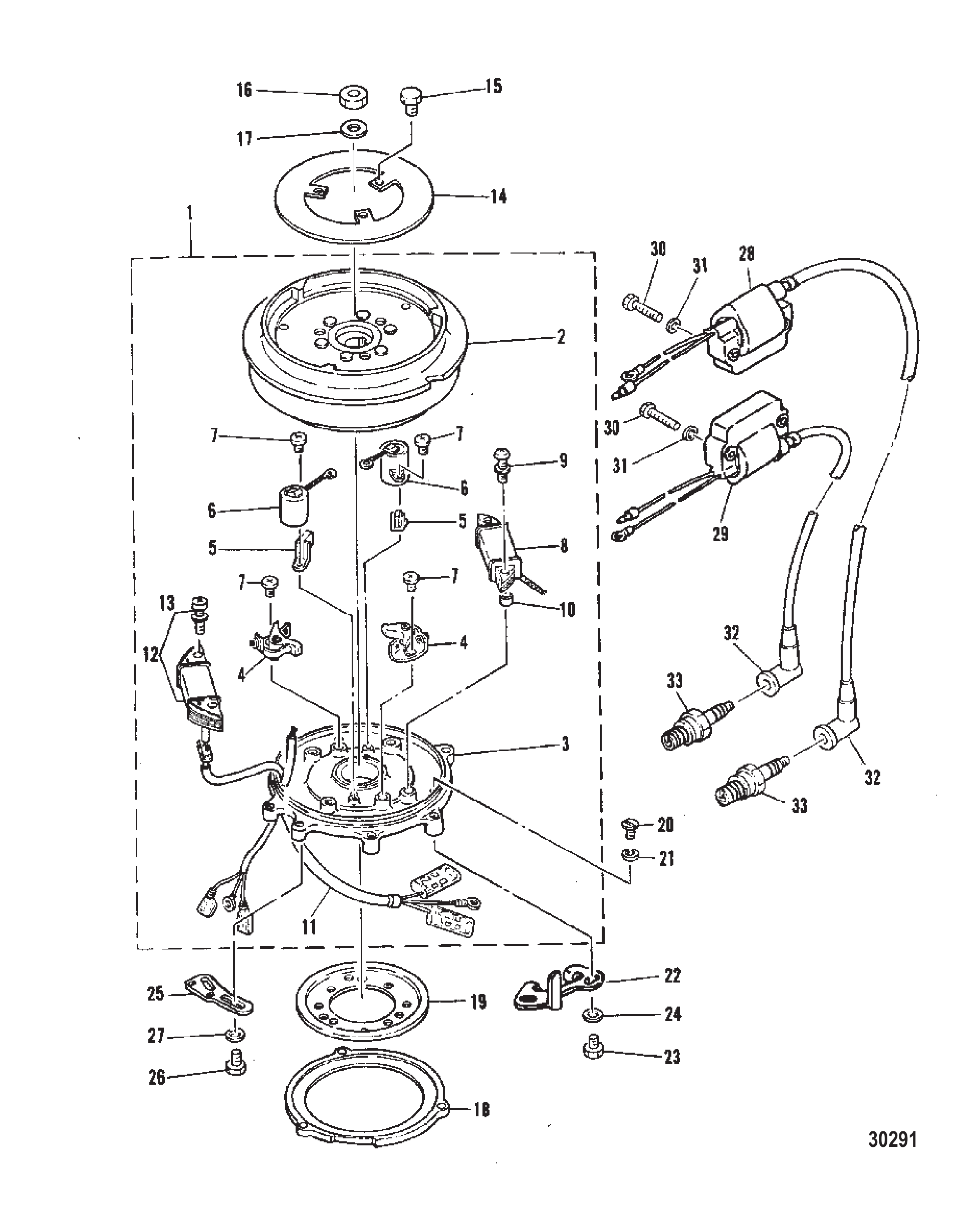

图 7飞轮磁电机 FLYWHEEL MAGNETO

REF	零件编号	中文名称	英文名称	数量
1	8051M	飞轮磁电机总成(带照明线圈)	FLYWHEEL MAGNETO ASSEMBLY With Lighting Coil	1
2	94659M	飞轮总成	FLYWHEEL ASSEMBLY	1
3	94658M	磁电机底座	BASE MAGNETO	1
4	80930M	断电器总成	BREAKER POINT ASSEMBLY	2
5	80025M	润滑器	LUBRICATOR	2
6	80558M	电容器	CONDENSER	2
7	80023M	螺钉	SCREW	4
7	82500M	螺钉(M4 x 8)	SCREW (M4 x 8)	4
8	83281M	初级点火线圈	COIL Ignition PRIMARY IGNITION	1
8	83281T	点火线圈	IGNITION COIL	1
9	80557M	螺钉	SCREW	2
9	82522M	螺钉	SCREW	2
10	80555M	隔套	SPACER	2
11	95591M	引线总成	LEAD WIRE ASSEMBLY	1
12	83315M	照明线圈(80W)	COIL Lighting (80W)	1
13	80557M	螺钉	SCREW	2
13	82522M	螺钉	SCREW	2
14	82877M	盖板	COVER	1
15	84315M	螺栓	BOLT	3
15	84088M	螺丝 (M6 x 10)	SCREW (M6 x 10)	3
16	81769M	螺母	NUT	1
17	81805M	垫圈	WASHER	1
18	84667M	磁电机底座护圈	RETAINER MAGNETO BASE	1
19	84668M	磁电机底座护圈	RETAINER MAGNETO BASE	1
20	83523M	螺钉	SCREW	3
21	82214M	垫圈	WASHER	3
22	83266M	磁电机底座止动块	STOPPER MAGNETO BASE	1
23	84247M	螺栓	BOLT	2
23	826957M	螺栓	BOLT	2
24	82214M	垫圈	WASHER	2
25	83264M	加速凸轮	CAM ACCEL	1
26	82879M	螺栓	BOLT	2
27	82211M	垫圈	WASHER	2
28	96569M	初级点火线圈	COIL Ignition PRIMARY	1
28	94777M	点火线圈	IGNITION COIL	1
29	96570M	次级点火线圈	COIL Ignition SECONDARY	1
29	94778M	点火线圈	COIL-IGNITION	1
30	84237M	螺栓	BOLT	4
30	83285M	螺栓	BOLT	4
31	82214M	垫圈	WASHER	4
32	84319M	火花塞帽(标准)	CAP Spark Plug (STD)	2
32	63709A1	护套/端子套件	BOOT/TERMINAL KIT	2
32	82788M	火花塞帽总成(选配)	CAP ASSEMBLY Spark Plug (OPT)	2
32	63709A1	护套/端子套件	BOOT/TERMINAL KIT	2
33	53098	火花塞 (AC#M42FF)	SPARK PLUG (AC#M42FF)	2
33	8M0114739	火花塞B7HS-82 @4	SP B7HS-82 @4	2

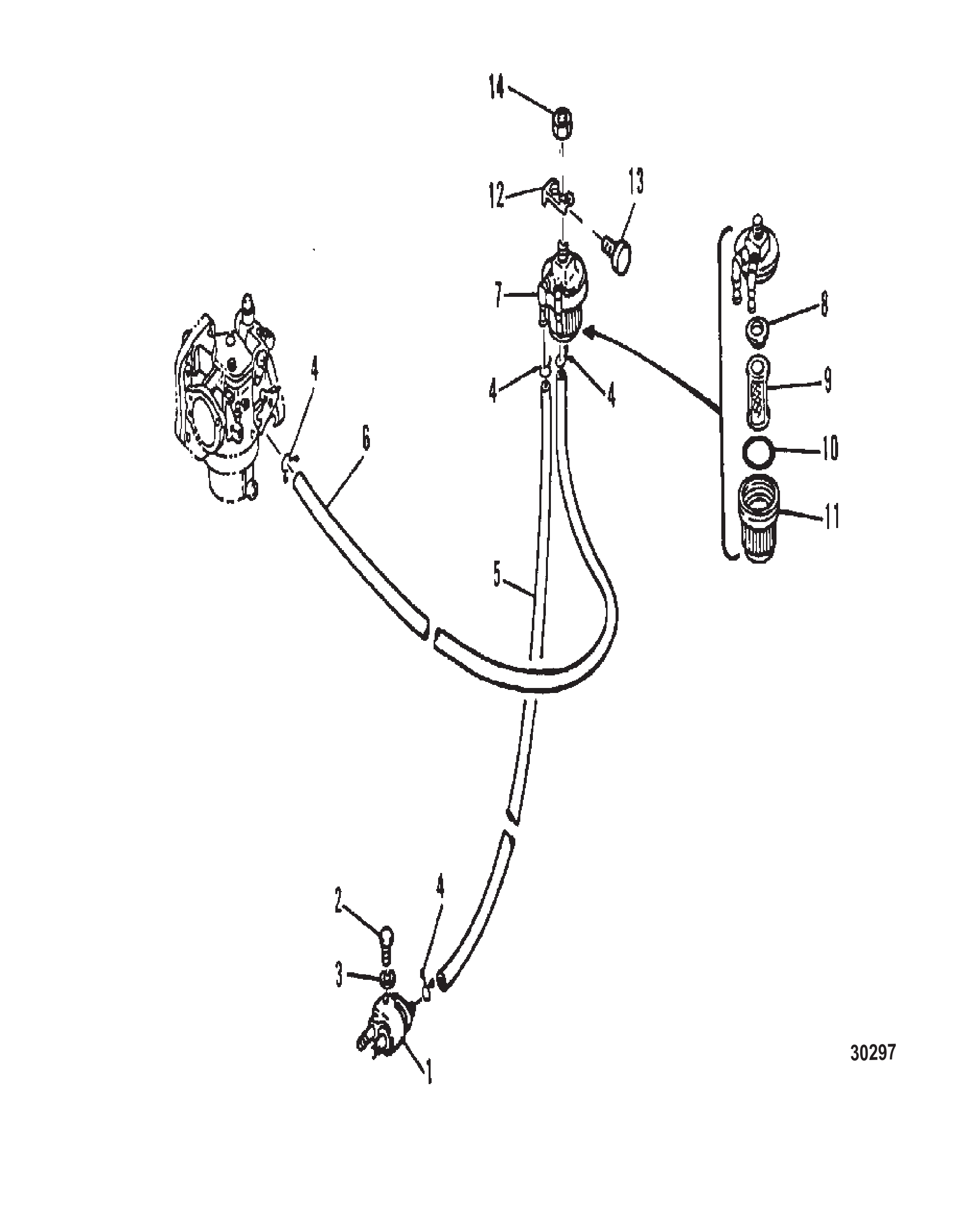

图 8燃油管路和滤清器 FUEL LINES AND FILTER

REF	零件编号	中文名称	英文名称	数量
1	14187M	燃油接头	CONNECTOR FUEL CONNECTOR	1
2	83539M	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
2	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
3	82214M	垫圈	WASHER	1
4	82047M	卡箍	CLAMP	4
5	83772M	过滤器连接软管	HOSE CONNECTOR TO FILTER	1
5	82012M	软管	HOSE	1
6	83219M	过滤器至化油器软管	HOSE FILTER TO CARBURETOR	1
6	82012M	软管	HOSE	1
7	11931M	滤清器总成	FILTER ASSEMBLY	1
7	826964T	燃油滤清器	FILTER Fuel	1
8	82790M	过滤器垫片	GASKET FILTER	1
9	11934M	滤清器	FILTER	1
9	826965T	燃油滤清器	FILTER-FUEL	1
10	84957M	O型圈	O-RING	1
11	11935M	滤杯	CUP FILTER	1
12	80620M	滤清器支架	BRACKET FILTER	1
13	84315M	螺栓	BOLT	1
13	84088M	螺丝 (M6 x 10)	SCREW (M6 x 10)	1
14	82382M	螺母	NUT	1
-	84161M	衬垫套件	GASKET SET	1

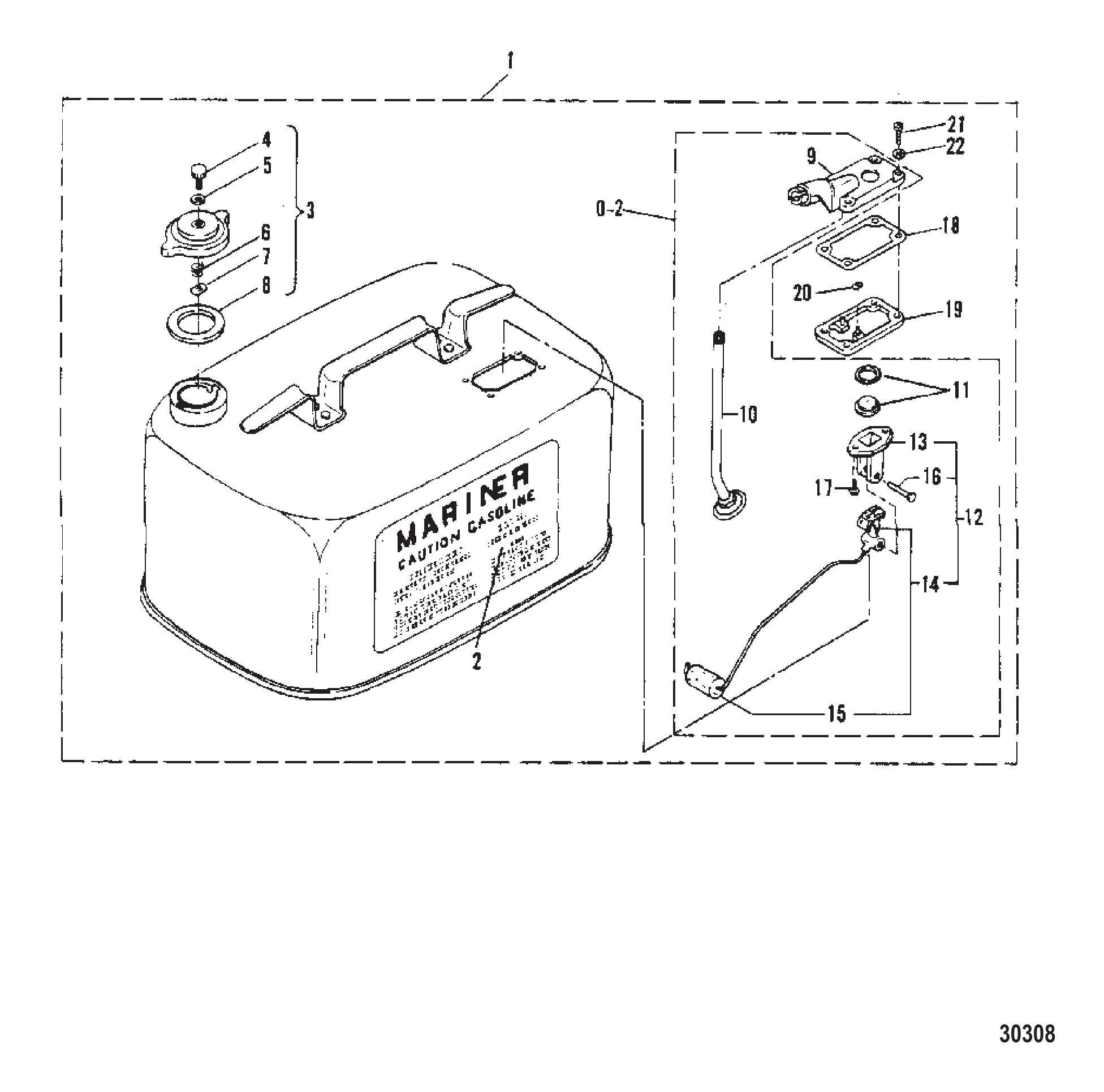

图 9非原装燃油箱 FUEL TANK Not Original Equipment

REF	零件编号	中文名称	英文名称	数量
1	1529A26	燃油箱总成(6加仑)	TANK ASSEMBLY Fuel COMPLETE (6 GALLON)	1
1	812410A1	燃油箱总成	TANK ASSEMBLY Fuel	1
2	99734A1	燃油箱贴花	DECAL FUEL TANK	1
2	13921	贴花	DECAL	1
3	41098A1	加注口盖总成	CAP ASSEMBLY Filler	1
3	18962M	燃油箱盖	CAP Fuel Tank	1
4	25575	螺钉 通气-加注口盖	SCREW VENT-FILLER CAP	1
5	492211	通气螺钉垫圈	WASHER VENT SCREW	1
5	8M0204663	垫片@5	WASHER @5	1
6	22227	张力弹簧-通气螺钉	SPRING TENSION-VENT SCREW	1
7	28587	螺母 调速弹簧固定器	NUT SPEED-SPRING RETAINER	1
8	41065	衬垫 加注口盖至燃油箱	GASKET FILLER CAP TO FUEL TANK	1
0-2	64841A1	连接器/仪表总成	CONNECTOR/GAUGE ASSEMBLY COMPLETE	1
9	64841A3	燃油箱盖	COVER FUEL TANK	1
9	17792A1	浮子组件总成	BODY ASSEMBLY PickUp	1
10	75239	管	TUBE	1
11	98542A1	燃油表视窗总成	WINDOW ASSEMBLY FUEL GAUGE	1
12	28897A2	燃油表总成	GAUGE ASSEMBLY Fuel COMPLETE	1
13	20430	燃油表固定架	RETAINER FUEL GAUGE	1
14	28897A1	指针与浮子总成	INDICATOR AND FLOAT ASSEMBLY	1
15	99274	燃油表浮子	FLOAT FUEL GAUGE	1
16	20426	铆钉 指针至固定架	RIVET INDICATOR TO RETAINER	1
17	62568	螺钉(#10-16 x .375) 固定架至燃油箱盖	SCREW (#10-16 x .375) RETAINER TO FUEL TANK COVER	2
18	28862	衬垫 盖总成至框架	GASKET COVER ASSEMBLY TO FRAME	1
19	28860	框架固定件-燃油箱盖	FRAME RETAINING-FUEL TANK COVER	1
20	28903	螺母 固定框架至燃油箱	NUT RETAINING FRAME TO FUEL TANK	2
21	20411	螺钉(.190-24 x .62) 燃油箱盖至燃油箱	SCREW (.190-24 x .62) FUEL TANK COVER TO FUEL TANK	4
22	29070	燃油箱盖紧固螺钉垫圈	WASHER FUEL TANK COVER FASTENING SCREW	4

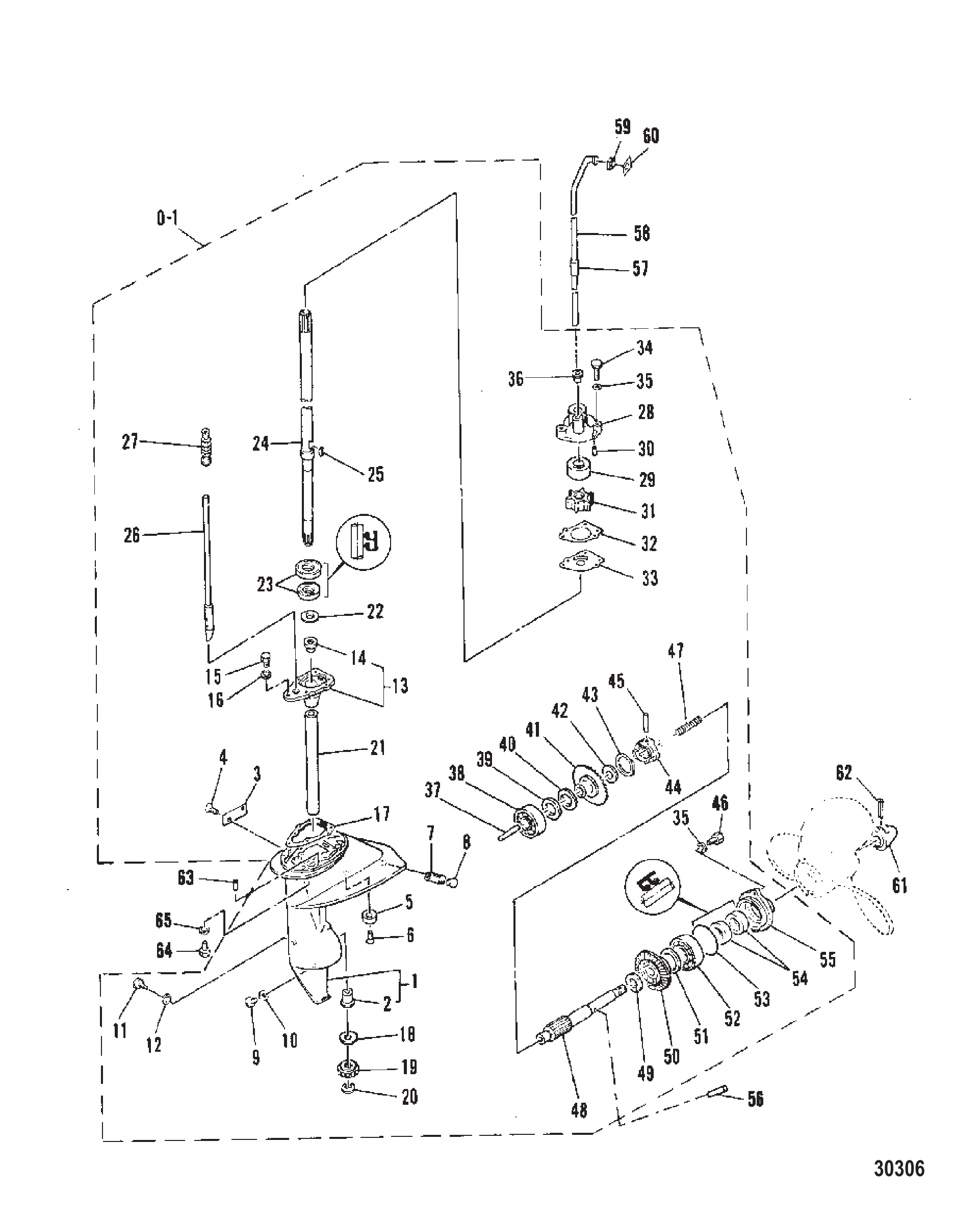

图 10齿轮箱总成 GEARHOUSING ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
0-1	6888M	齿轮箱总成(短轴)	GEAR HOUSING ASSEMBLY (SHORT SHAFT)	1
0-1	9835M	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
0-1	6889M	齿轮箱总成（长轴）	GEAR HOUSING ASSEMBLY (LONG SHAFT)	1
0-1	9836M	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	6942M	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
2	80536M	驱动轴衬套	BUSHING DRIVE SHAFT	1
3	83091M	进水口盖	COVER WATER INLET	1
4	84238M	螺钉	SCREW	2
4	95467M	螺钉	SCREW	2
5	11922M	阳极块	ANODE	1
5	95609M	阳极块	ANODE	1
5	95609M	阳极块	ANODE	1
6	91772M	螺栓	BOLT	1
6	82791M	螺栓	BOLT	1
7	80246M	进水口卡箍	CLAMP WATER INLET	1
8	81920M	堵头	PLUG	1
9	81924M	堵头	PLUG	3
10	81987M	衬垫	GASKET	3
10	81987	衬垫	GASKET	3
11	81752M	定位螺钉	SCREW DETENT	1
12	95610M	衬垫	GASKET	1
12	95610	衬垫	GASKET	1
13	80537M	轴承壳体	HOUSING BEARING	1
14	80536M	衬套	BUSHING	1
15	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	2
16	82214M	垫圈	WASHER	2
17	80535M	下壳体衬垫	GASKET LOWER CASING	1
18	80538M	止推垫片(0.8MM)	THRUST WASHER (0.8MM)	1
18	80539M	止推垫片(1.0MM)	THRUST WASHER (1.0MM)	1
18	80540M	止推垫片(1.2MM)	THRUST WASHER (1.2MM)	1
18	80541M	止推垫片(1.4MM)	THRUST WASHER (1.4MM)	1
19	82542M	小齿轮	GEAR Pinion	1
20	82332M	卡环	RING Snap	1
21	81983M	套筒	SLEEVE	1
22	81809M	垫圈	WASHER	AR
23	82228M	油封	SEAL Oil	2
24	81086M	驱动轴(短型-644MM)	DRIVESHAFT (SHORT-644MM)	1
24	81087M	驱动轴(长型-784MM)	DRIVESHAFT (LONG-784MM)	1
24	83748M	驱动轴(超长型-834MM)	DRIVESHAFT (ULTRA LONG-834MM)	1
24	83753M	驱动轴(超超长型-911MM)	DRIVESHAFT (SUPER ULTRA LONG-911MM)	1
25	81912M	水泵键	KEY WATER PUMP	1
26	81071M	换挡凸轮(短型-311MM)	SHIFT CAM (SHORT-311MM)	1
26	81072M	换挡凸轮(长型-451MM)	SHIFT CAM (LONG-451MM)	1
26	83744M	换挡凸轮总成(超长型-501MM)	CAM ASSEMBLY Shift (ULTRA LONG-501MM)	1
26	83750M	换挡凸轮总成(超超长型-578MM)	CAM ASSEMBLY Shift (SUPER ULTRA LONG-578MM)	1
27	15304M	换挡杆护套	BOOT SHIFT ROD	1
28	81074M	水泵壳体	HOUSING Water Pump	1
28	81074T	水泵壳体	HOUSING Water Pump	1
29	80902M	滤芯	INSERT CARTRIDGE	1
29	81076M	滤芯插入件(镀铬,选配)	INSERT CARTRIDGE (CHROME, OPT)	1
30	82357M	定位销	PIN Dowel	2
31	95611M	叶轮	IMPELLER	1
32	81075M	水泵衬垫	GASKET WATER PUMP	1
32	81075	衬垫	GASKET	1
33	81077M	滤芯外板	OUTER PLATE CARTRIDGE	1
33	81078M	滤芯外板(镀铬,选配)	OUTER PLATE CARTRIDGE (CHROME, OPT)	1
34	82457M	螺栓	BOLT	3
34	827043M	螺栓	BOLT	3
35	82214M	垫圈	WASHER	5
36	80532M	橡胶水封	RUBBER WATER SEAL	1
37	81014M	换挡柱塞	PLUNGER SHIFT	1
38	82291M	前进齿轮轴承	BEARING FORWARD GEAR	1
38	82291T	轴承	BEARING	1
39	80543M	齿轮调整垫片(0.1MM)	SHIM GEAR ADJUST (0.1MM)	AR
40	80174M	齿轮调整垫片(0.3MM)	SHIM GEAR ADJUST (0.3MM)	AR
40	80175M	齿轮调整垫片(0.5MM)	SHIM GEAR ADJUST (0.5MM)	AR
41	80542M	前进齿轮	GEAR Forward	1
42	82560M	垫圈	WASHER	1
43	82339M	十字销环	RING CROSS PIN	1
44	81089M	离合器爪	CLUTCH DOG	1
45	82362M	定位销	PIN Dowel	1
46	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	2
47	82077M	弹簧	SPRING	1
48	95406M	螺旋桨轴	PROPELLER SHAFT	1
48	81088M	螺旋桨轴	SHAFT PROPELLER	1
49	81824M	止推垫片	THRUST WASHER	1
50	80544M	倒挡齿轮	GEAR Reverse	1
51	80258M	齿轮调整垫片(0.1MM)	SHIM GEAR ADJUST (0.1MM)	AR
51	19148005	垫片 @2	SHIM @2	AR
51	80259M	齿轮调整垫片(0.3MM)	SHIM GEAR ADJUST (0.3MM)	AR
51	80260M	齿轮调整垫片(0.5MM)	SHIM GEAR ADJUST (0.5MM)	AR
51	879172251	垫片 @5	SHIM @5	AR
52	82294M	倒挡齿轮滚柱轴承	BEARING Roller REVERSE GEAR	1
52	8528001	轴承	BEARING	1
53	82283M	O型圈	O-RING	1
53	15377M	O型圈	O-RING	1
53	15377M	O型圈	O-RING	1
54	82226M	油封	SEAL Oil	2
55	82548M	下壳体盖	CAP LOWER CASING	1
56	81901M	驱动销	PIN Drive	1
57	82021M	套管(短/长型)	SLEEVE (SHORT AND LONG)	1
58	82547M	水管(短型-373MM)	TUBE Water (SHORT-373MM)	1
58	81079M	水管(长型-513MM)	TUBE Water (LONG-513MM)	1
58	83745M	水管(超长型-563MM)	TUBE WATER (ULTRA LONG-563MM)	1
58	83752M	水管(超超长型-640MM)	TUBE WATER (SUPER ULTRA LONG-640MM)	1
59	81080M	橡胶水封	RUBBER WATER SEAL	1
60	81081M	水管固定板	SET PLATE WATER TUBE	1
61	80545M	螺旋桨固定螺母	PROP NUT PROPELLER	1
61	859931	螺旋桨螺母	PROP NUT	1
62	82132M	开口销	COTTER PIN	1
62	89961	销	PIN	1
63	82354M	定位销	PIN DOWEL	2
64	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	4
65	82214M	垫圈	WASHER	4
-	84172M	下部单元衬垫套件	GASKET SET Lower Unit	1
0000	1			REPAIR KIT
0000	1			REPAIR KIT Water Pump
-	95615M	水泵套件-镀铬	PUMP KIT Water Pump - Chrome	1
-	84161M	衬垫套件	GASKET SET	1

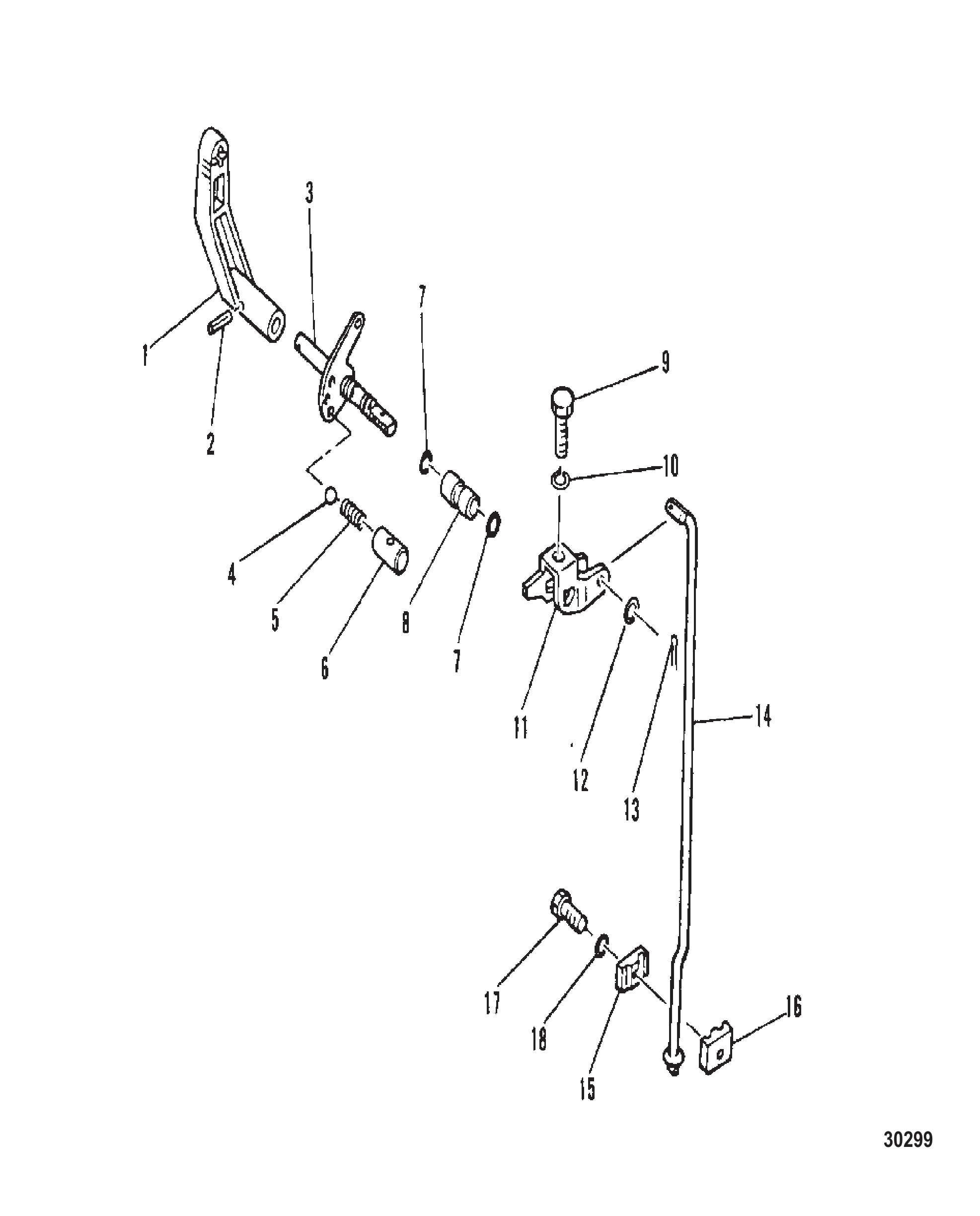

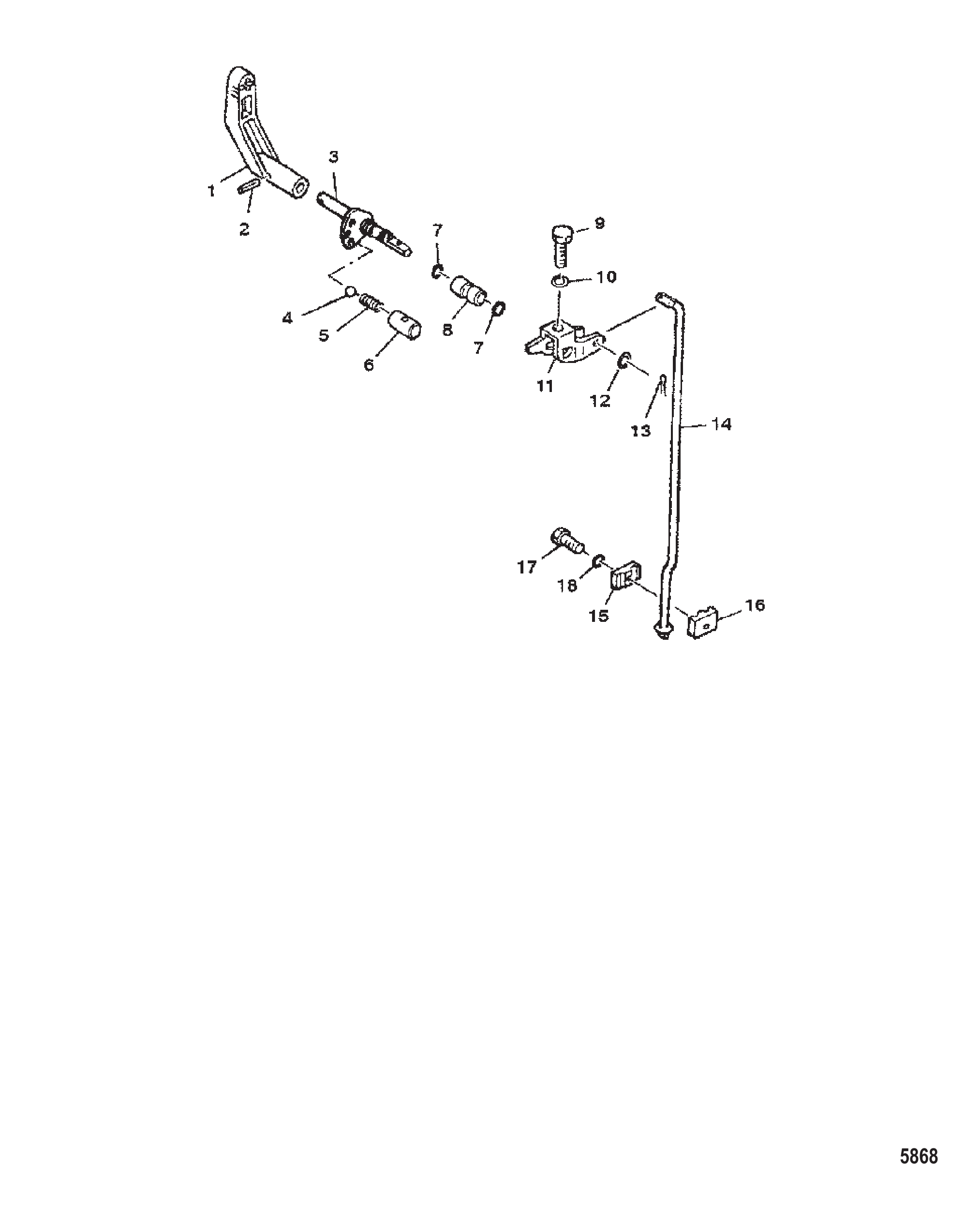

图 11换挡联动装置 GEAR SHIFT LINKAGE

REF	零件编号	中文名称	英文名称	数量
1	81066M	换挡手柄	GEAR SHIFT HANDLE	1
2	82155M	滚销	PIN ROLL	1
3	81068M	换挡轴	SHAFT CHANGE	1
4	82348M	钢球	BALL	1
5	82084M	弹簧	SPRING	1
6	81061M	衬套	BUSHING	1
7	82263M	O型圈	O-RING	2
7	814496M	O型圈	O-RING	2
8	83094M	换挡杆衬套	BUSHING SHIFT ROD LEVER	1
9	82447M	螺栓	BOLT	1
10	82208M	垫圈	WASHER	1
10	82186M	垫圈	WASHER	1
11	81390M	换挡轴杆	LEVER Shift Shaft	1
12	82213M	垫圈	WASHER	1
13	82125M	开口销	COTTER PIN	1
14	82680M	换挡连杆	SHIFT ROD	1
15	80049M	换挡杆连接器	CONNECTOR SHIFT ROD	1
16	80050M	换挡杆连接器	CONNECTOR SHIFT ROD	1
17	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
18	82214M	垫圈	WASHER	1

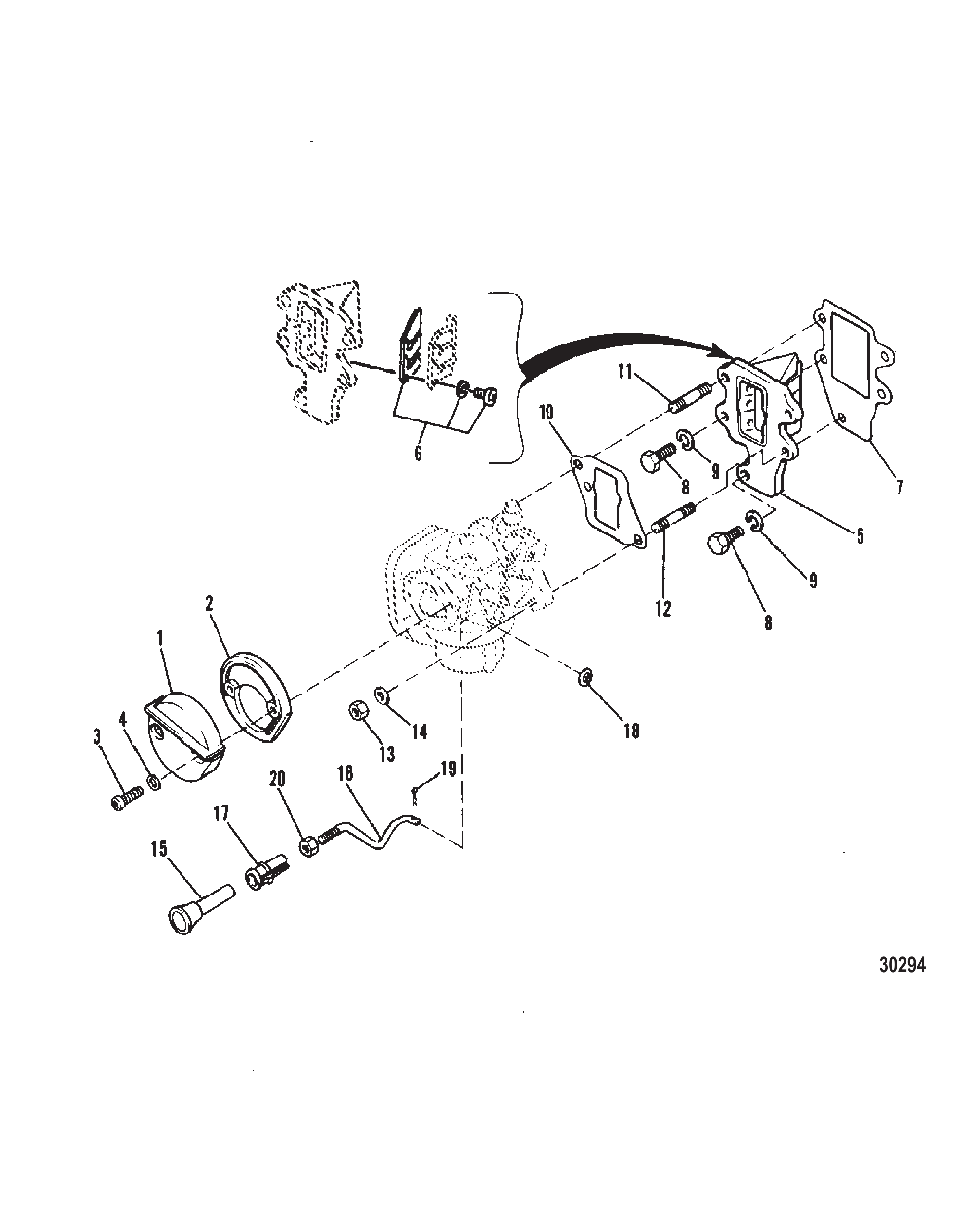

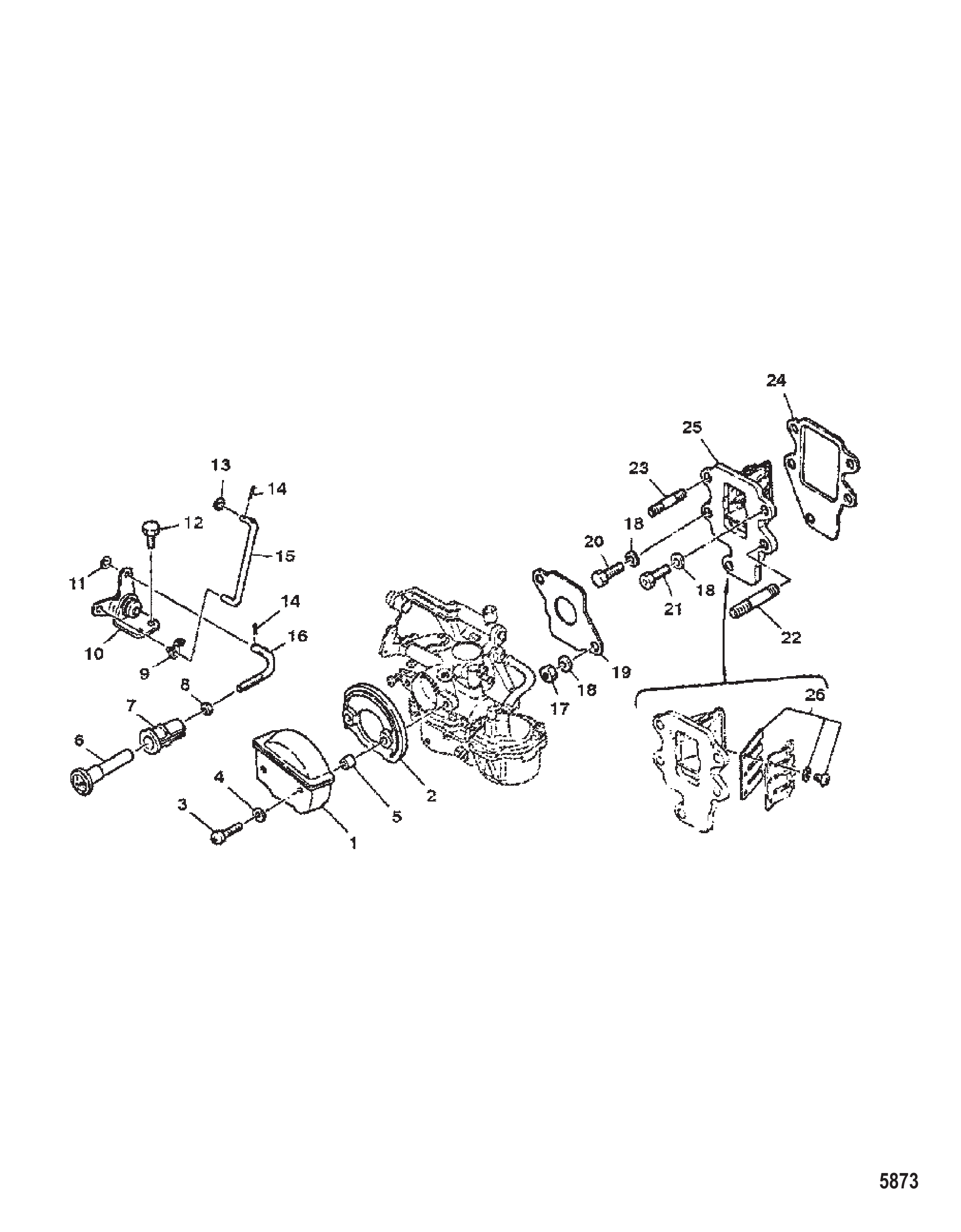

图 12进气歧管 INTAKE MANIFOLD

REF	零件编号	中文名称	英文名称	数量
1	82864M	进气盖(外)	COVER AIR INTAKE (OUTER)	1
2	80154M	进气盖(内)	COVER AIR INTAKE (INNER)	1
3	81703M	螺钉	SCREW	2
3	84438M	螺钉	SCREW	2
4	82211M	垫圈	WASHER	2
5	83243M	簧片阀总成	REED VALVE ASSEMBLY	1
6	84662M	簧片组(不含止动片)	REED SET (REED STOPS NOT INCLUDED)	1
7	83244M	簧片阀垫片	GASKET REED VALVE	1
8	82423M	螺栓	BOLT	3
9	82214M	锁紧垫圈	WASHER LOCK	3
10	83245M	化油器衬垫	GASKET CARBURETOR	1
11	80232M	螺柱	STUD	1
12	84249M	螺柱	STUD	1
13	82381M	螺母	NUT	2
13	82390M	螺母 (M6)	NUT (M6)	2
14	82214M	垫圈	WASHER	2
15	83287M	阻风门旋钮	KNOB Choke	1
16	83265M	阻风门连杆	ROD CHOKE LINK	1
17	80231M	护孔环	GROMMET	1
18	82847M	垫圈	WASHER	1
19	82050M	开口销	COTTER PIN	1
20	80245M	螺母	NUT	1
-	84161M	衬垫套件	GASKET SET	1

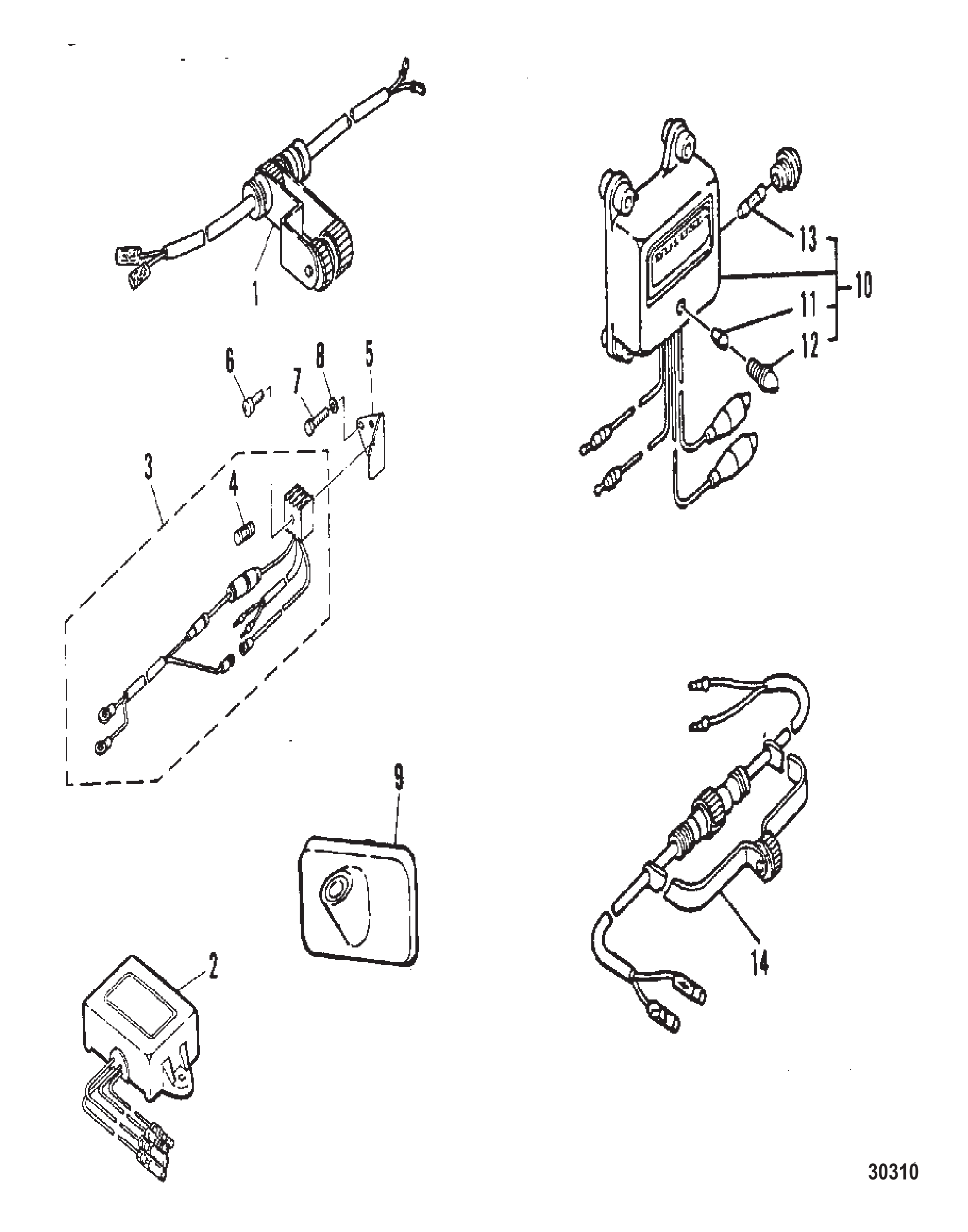

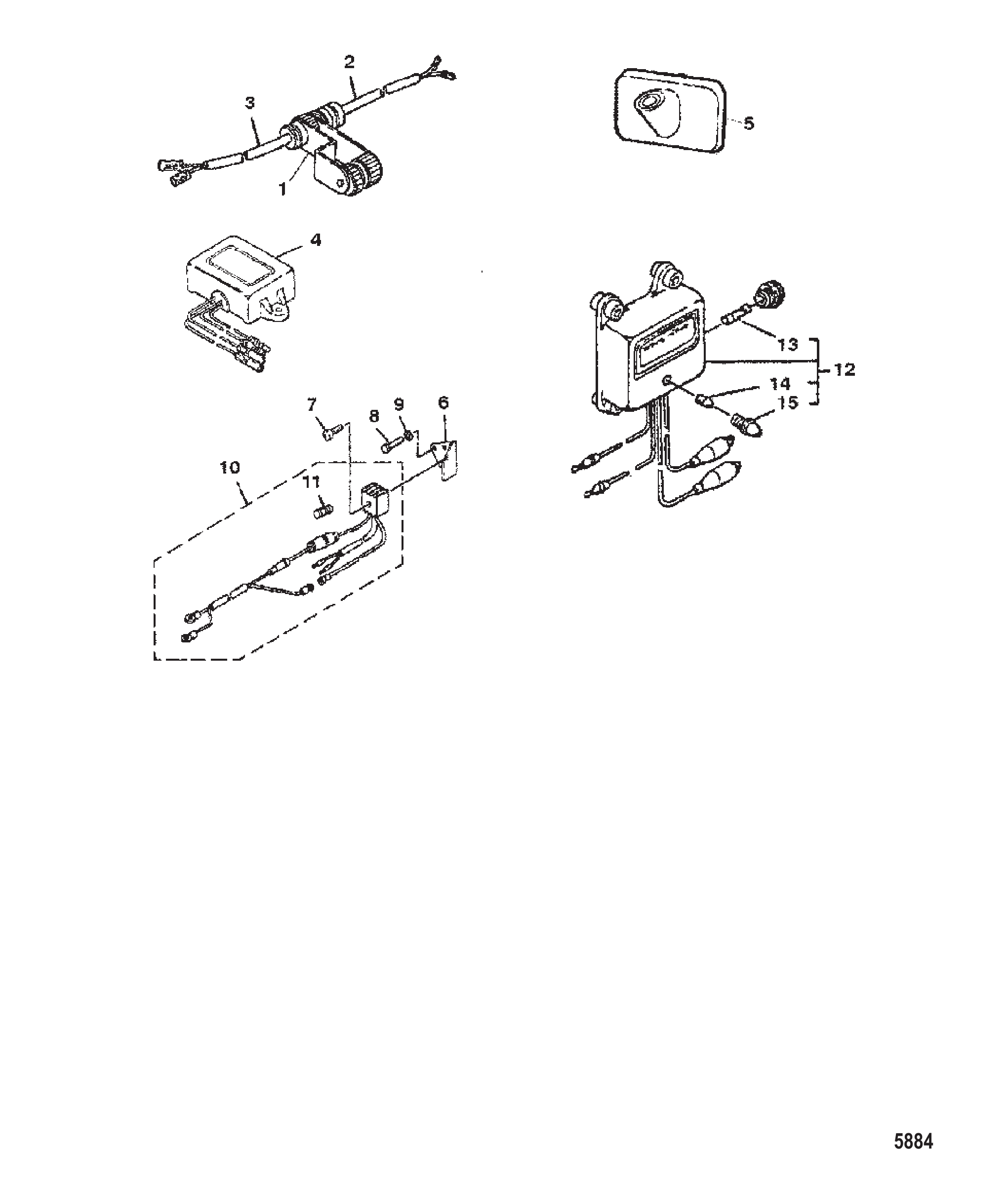

图 13可选零件 OPTIONAL PARTS

REF	零件编号	中文名称	英文名称	数量
1	84124M	连接器（用于遥控熄火开关）	CONNECTOR (USED WITH REMOTE KILL SWITCH)	1
2	84125M	电压调节器总成	REGULATOR ASSEMBLY Voltage	1
2	84125T	电压调节器	REGULATOR Voltage	1
3	84329M	整流器总成发动机支架	RECTIFIER ASSEMBLY ENGINE MOUNT	1
3	8M0060278	整流器	RECTIFIER	1
4	81522M	保险丝(12V-20A)	FUSE (12V-20A)	1
5	84680M	整流器安装板	PLATE RECTIFIER MOUNTING	1
6	82492M	螺钉	SCREW	1
6	83108M	螺钉	SCREW	1
7	84315M	螺栓	BOLT	2
7	84088M	螺丝 (M6 x 10)	SCREW (M6 x 10)	2
8	82199M	锁紧垫圈	WASHER LOCK	2
8	82214M	垫圈	WASHER	2
9	97130M	垂直拉绳导向器	ROPE GUIDE VERTICAL PULL	1
10	80713M	整流器	RECTIFIER	1
11	83731M	整流器灯泡 (12V-3W)	BULB RETIFIER (12V-3W)	1
12	83732M	整流器透镜	LENS RECTIFIER	1
13	83733M	整流器保险丝 (12V-7A)	FUSE RECTIFIER (12V-7A)	1
14	80052M	线束总成	HARNESS ASSEMBLY	1

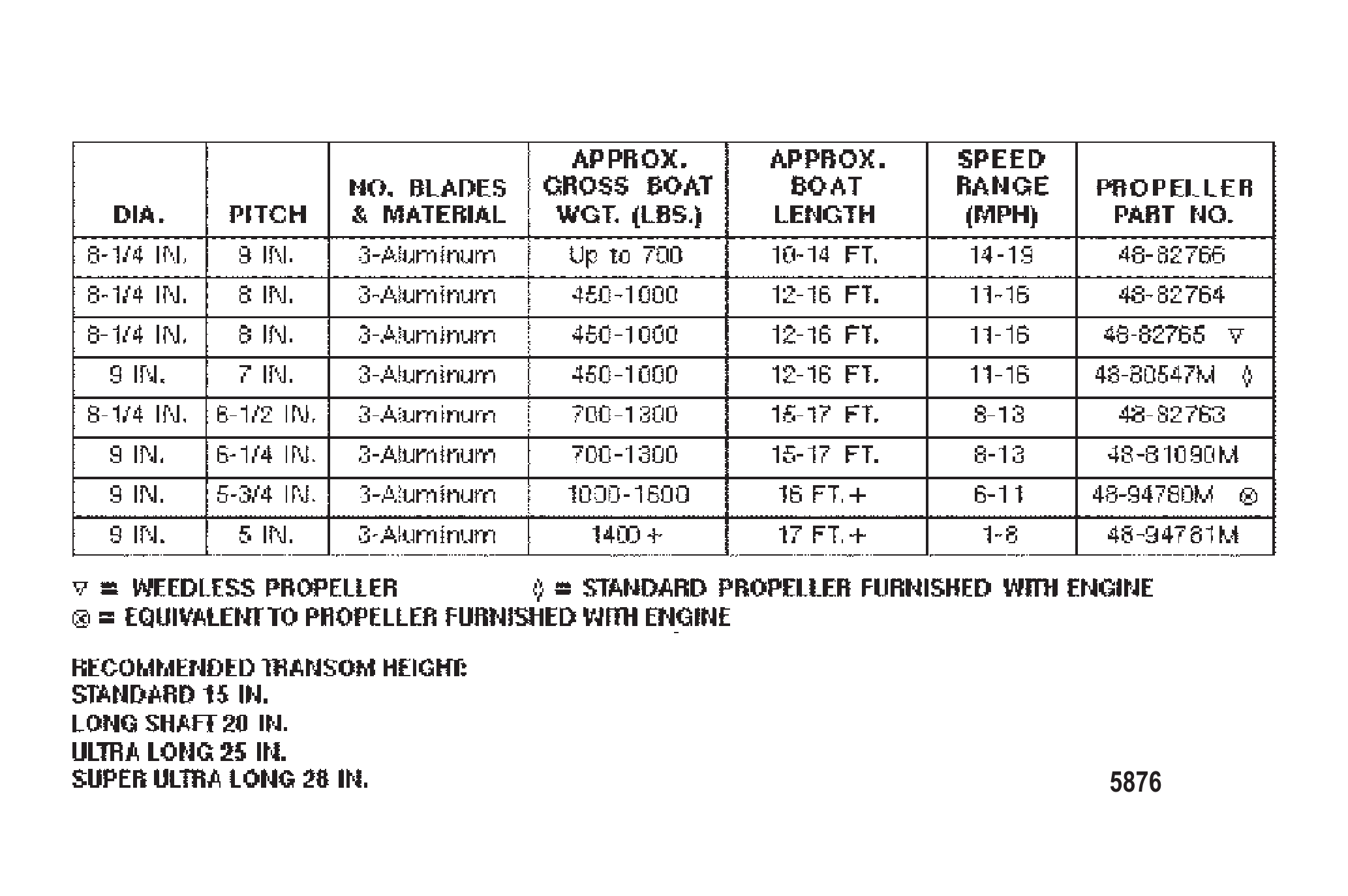

图 14螺旋桨图表 PROP CHART

REF	零件编号	中文名称	英文名称	数量
-	82766	螺旋桨	PROPELLER	1
-	82764	螺旋桨	PROPELLER	1
-	82765	螺旋桨	PROPELLER	1
-	80547M	螺旋桨	PROPELLER	1
-	82763	螺旋桨	PROPELLER	1
-	81090M	螺旋桨	PROPELLER	1
-	94780M	螺旋桨	PROPELLER	1
-	94781M	螺旋桨	PROPELLER	1

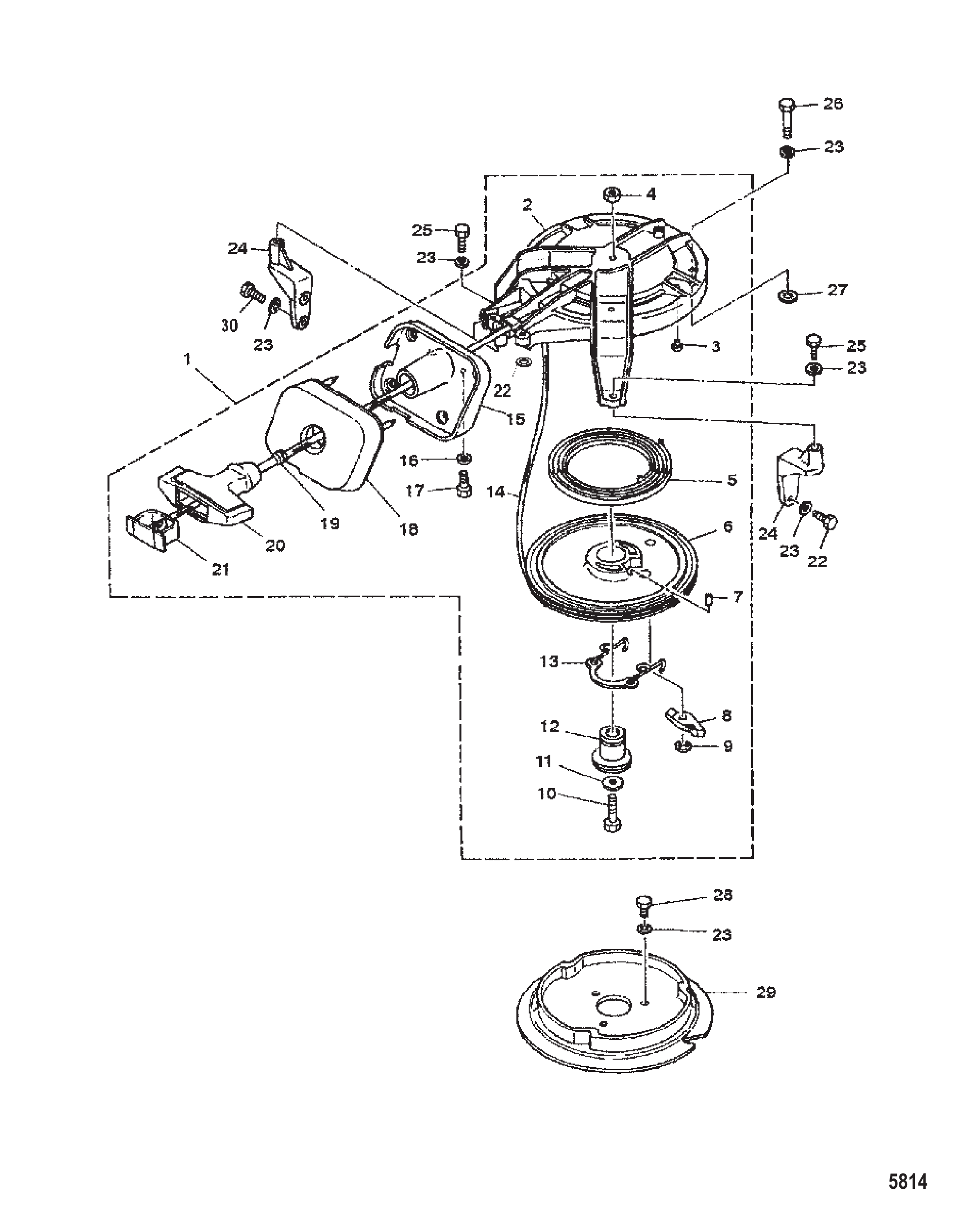

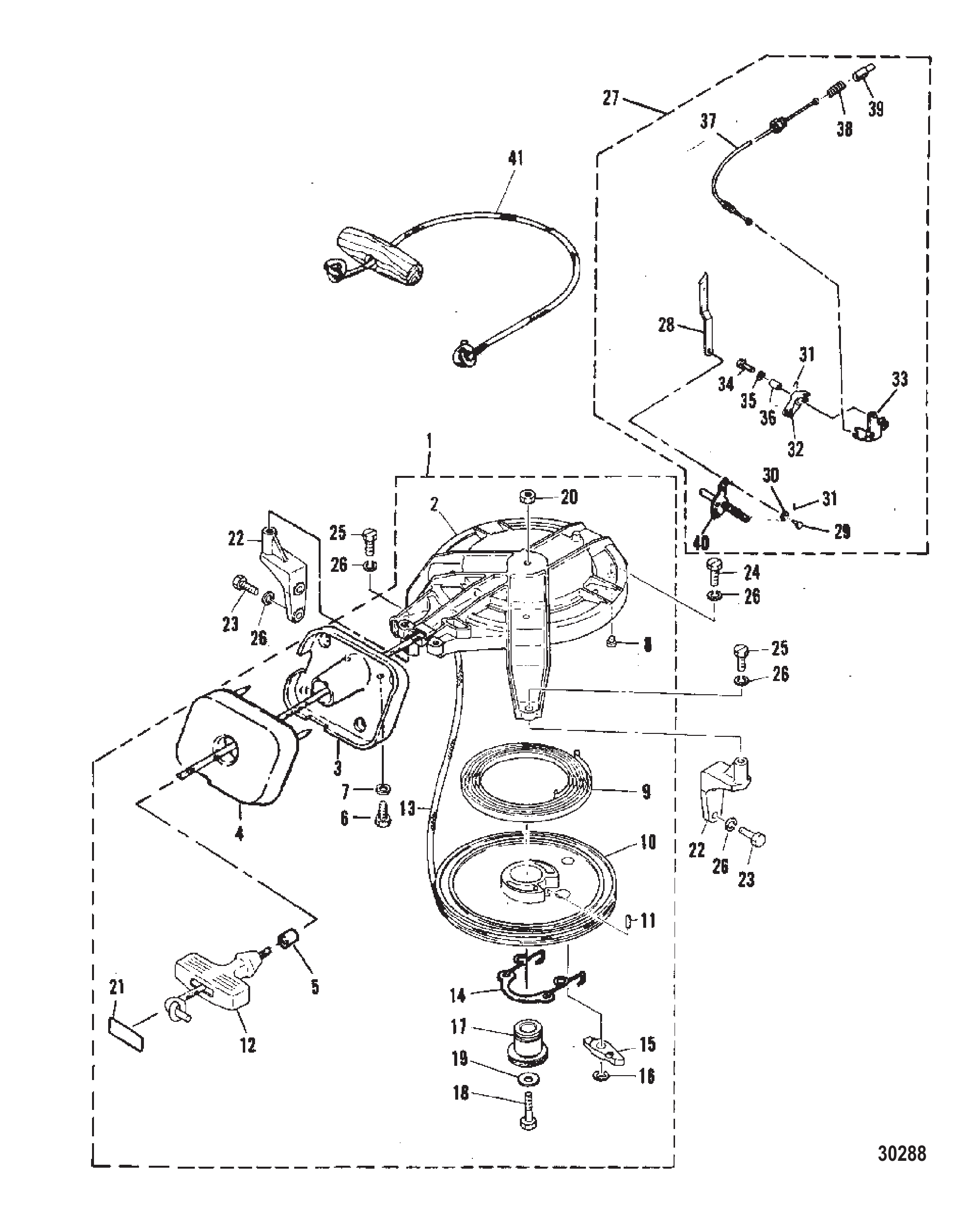

图 15反冲启动器 RECOIL STARTER

REF	零件编号	中文名称	英文名称	数量
1	9254M	手拉启动器总成	STARTER ASSEMBLY Recoil	1
1	827169M	手拉启动器总成	STARTER ASSEMBLY Recoil	1
2	8398M	启动器壳体	HOUSING Starter	1
3	96567M	启动绳导向器	GUIDE STARTER ROPE	1
4	98967M	密封件	SEAL	1
5	98968M	护孔环	GROMMET	1
6	84247M	螺栓	BOLT	2
6	826957M	螺栓	BOLT	2
7	82214M	垫圈	WASHER	2
7	82214M	垫圈	WASHER	2
8	80604M	堵头	PLUG	1
9	95588M	弹簧	SPRING	1
10	83250M	启动滑轮	SHEAVE Starter	1
11	82157M	滚销	PIN ROLL	1
12	80063M	启动手柄	HANDLE STARTER	1
12	814491A1	手柄	HANDLE	1
13	79629A1	启动绳	ROPE Starter	1
13	12066Q10	启动绳@2	ROPE-STARTER@2	1
14	95589M	驱动爪弹簧	SPRING PAWL DRIVE	1
15	83252M	驱动爪	PAWL DRIVE	1
16	84895M	卡环	RING Snap	1
17	95590M	轴	SHAFT	1
18	84237M	螺栓	BOLT	1
18	83285M	螺栓	BOLT	1
19	81557M	垫圈	WASHER	1
20	82380M	螺母	NUT	1
20	82389M	螺母	NUT	1
21	41882M	盖板	COVER	1
21	814491A1	手柄	HANDLE	1
22	83258M	支架	BRACKET	2
23	82423M	螺栓	BOLT	4
24	83285M	螺栓	BOLT	1
25	83539M	螺栓 (M6 x 20)	BOLT (M6 x 20)	2
25	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	2
26	82214M	垫圈	WASHER	7
27	81560M	启动器安全套件	SAFETY KIT Starter	1
28	83254M	连接杆	LINK	1
29	80501M	磁电机控制杆U型销	PIN Clevis MAGNETO CONTROL LEVER	1
30	83768M	垫圈	WASHER	1
31	82051M	开口销	COTTER PIN	2
32	83253M	臂	ARM	1
33	83259M	支架	BRACKET	1
34	83539M	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
34	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
35	82979M	垫圈	WASHER	1
35	83769M	垫圈	WASHER	1
36	81974M	轴环	COLLAR	1
37	96568M	启动器锁定线总成	WIRE COMPLETE STARTER LOCKOUT	1
38	82079M	弹簧	SPRING	1
39	81106M	启动器锁定柱塞	PLUNGER STARTER LOCKOUT	1
40	83279M	换挡轴	SHAFT CHANGE	1
41	47341A1	手动/应急启动绳柄套件	ROPE AND HANDLE KIT Manual/Emergency Start	1
41	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1

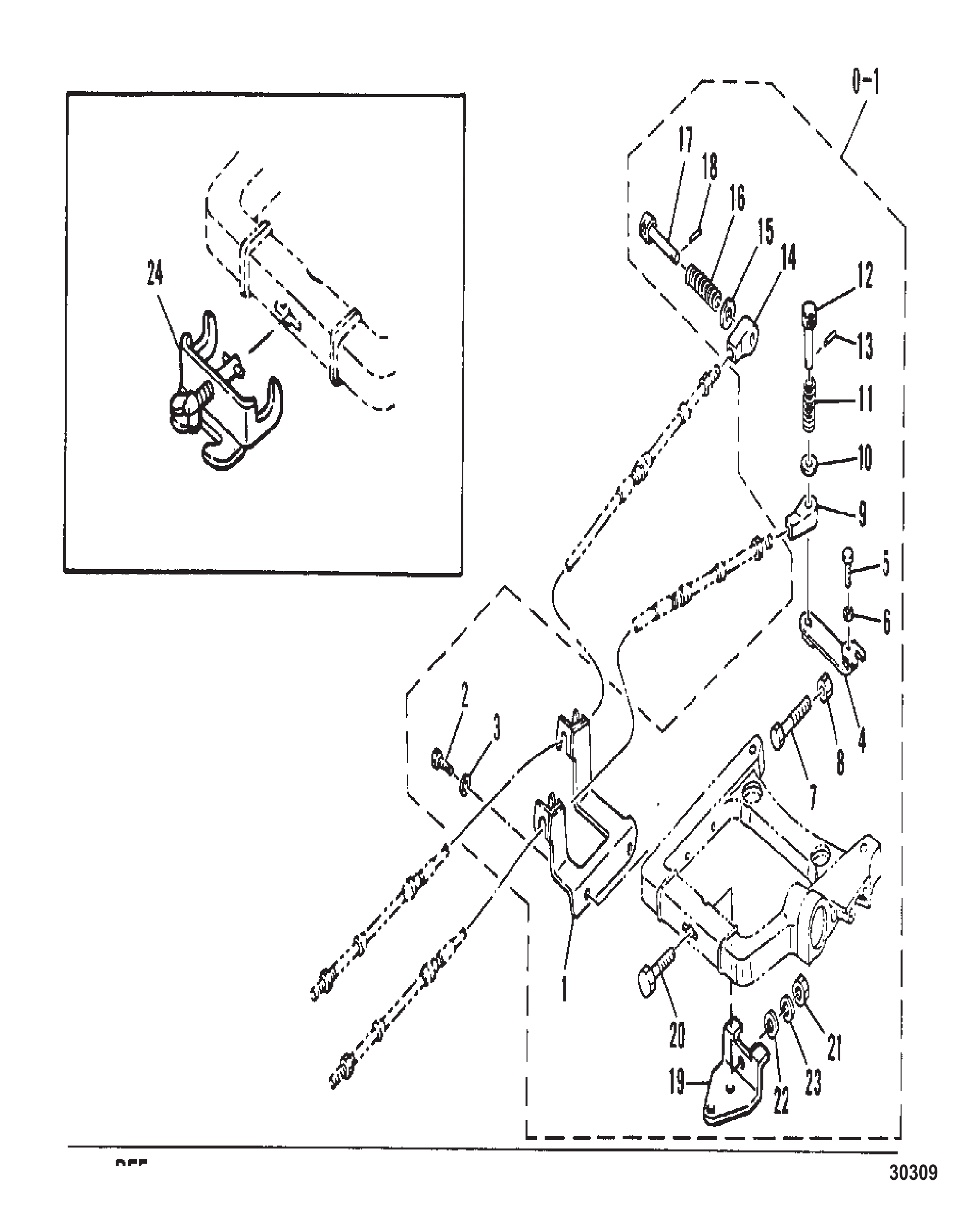

图 16遥控附件套件 REMOTE CONTROL ATTACHING KIT

REF	零件编号	中文名称	英文名称	数量
0-1	43986A1	遥控器安装套件	ATTACHING KIT Remote Control	1
1	84224M	拉索支架	BRACKET CABLE	1
2	84541M	螺栓	BOLT	2
3	82214M	垫圈	WASHER	2
4	84225M	油门控制杆	LEVER THROTTLE CONTROL	1
5	82447M	螺栓	BOLT	1
6	82211M	垫圈	WASHER	1
7	92536M	螺栓	BOLT	1
7	84657M	螺栓	BOLT	1
8	83611M	螺母	NUT	1
8	82389M	螺母	NUT	1
9	84227M	拉索端头	END Cable	1
10	82217M	垫圈	WASHER	1
11	83725M	弹簧	SPRING	1
12	83726M	挂钩	HOOK	1
12	814499M	挂钩	HOOK	1
13	82146M	滚销	PIN ROLL	1
14	83724M	拉索端头	END Cable	1
15	82217M	垫圈	WASHER	1
16	83721M	弹簧	SPRING	1
17	83722M	挂钩	HOOK	1
17	814500M	挂钩	HOOK	1
18	82146M	滚销	PIN ROLL	1
19	11670M		BRACKET STEERING ATTACHING .	1
19	11670T	支架	BRACKET	1
19	83698M		HOOK STEERING ATTACHING .	1
20	91636M	螺栓	BOLT	1
21	81785M	锁紧螺母	LOCKNUT	1
22	82220M	垫圈	WASHER	1
23	82218M	锁紧垫圈	LOCKWASHER	1
24	83727M	转向支架(绳索式,选配)	BRACKET STEERING (ROPE TYPE, OPT)	1

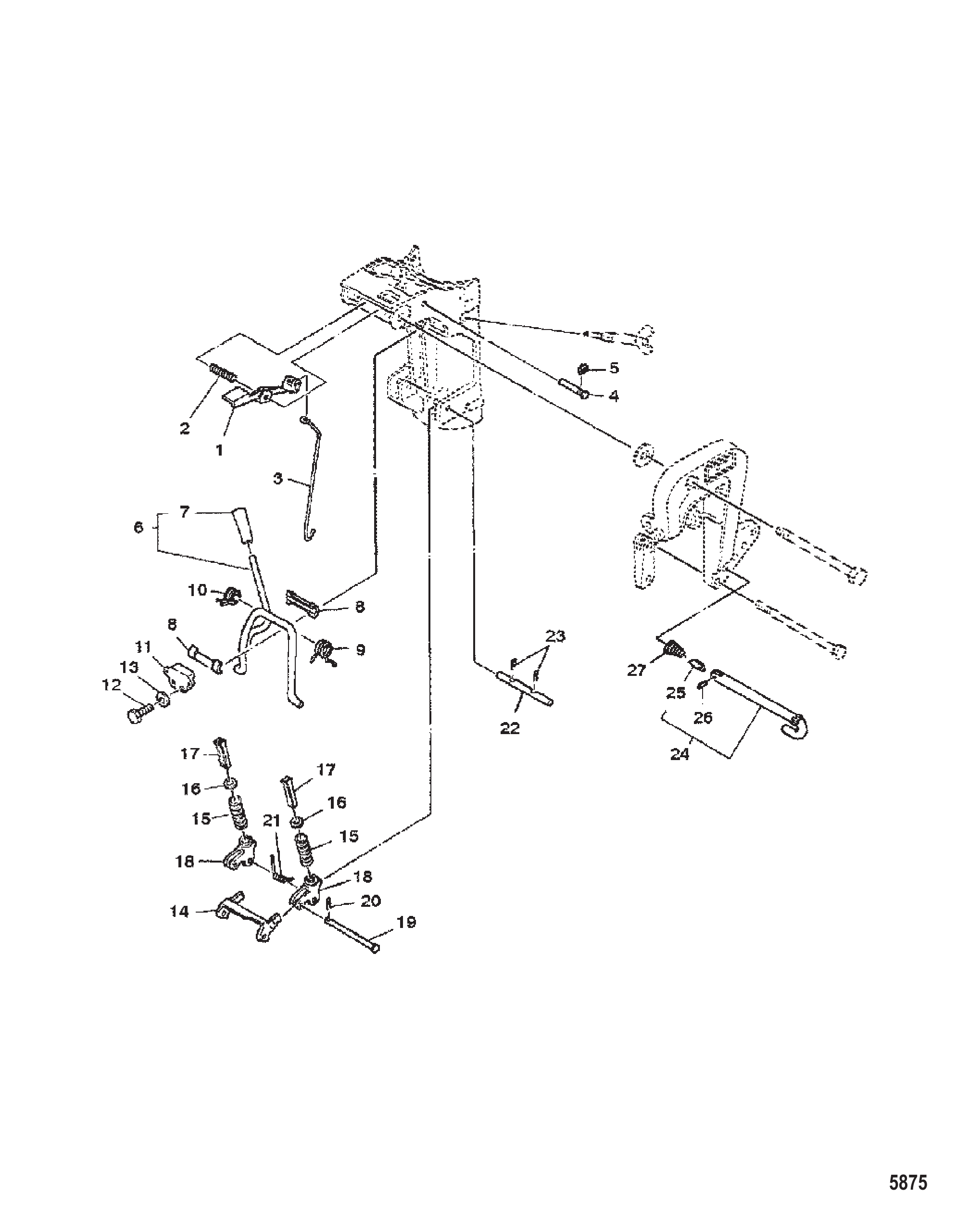

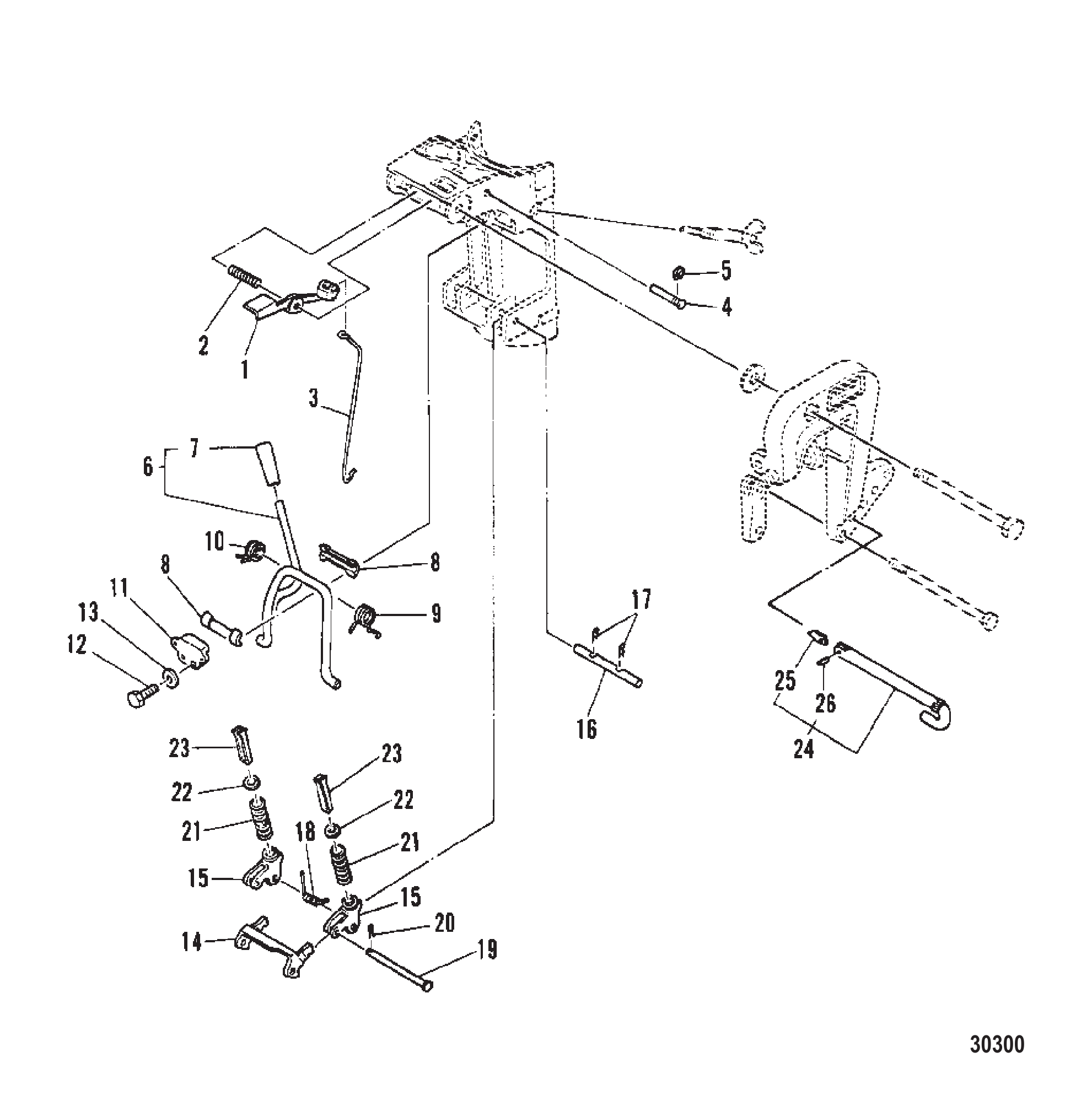

图 17倒挡锁 REVERSE LOCK

REF	零件编号	中文名称	英文名称	数量
1	84664M	倾斜杆	LEVER Tilt	1
2	82090M	弹簧	SPRING	1
3	84665M	倾斜锁定杆	TILT LOCK ROD	1
4	84666M	销	PIN	1
5	82327M	卡簧	CIRCLIP	1
6	80519M	倾斜止动杆总成	LEVER ASSEMBLY Tilt Stop	1
7	80100M	倾斜旋钮	TILT KNOB	1
8	80097M	衬套	BUSHING	2
9	82111M	弹簧	SPRING	1
10	82110M	弹簧	SPRING	1
11	80976M	倾斜支架	BRACKET TILT	1
12	82453M	螺栓	BOLT	2
12	82405M	螺栓	BOLT	2
13	82214M	垫圈	WASHER	2
14	80522M	倾斜锁止板	PLATE TILT LOCK	1
15	80523M	倾斜锁止板	PLATE TILT LOCK	2
16	80527M	倒档锁止轴	SHAFT REVERSE LOCK	1
17	82049M	开口销	COTTER PIN	2
18	82112M	弹簧	SPRING	1
19	81883M	销	PIN	1
20	82051M	开口销	COTTER PIN	1
21	82097M	弹簧	SPRING	2
21	83749M	弹簧	SPRING	2
22	80525M	停机开关	STOP	2
23	80521M	倾斜锁臂	TILT LOCK ARM	2
24	80266M	倾斜锁销总成	PIN ASSEMBLY Tilt Lock	1
25	82857M	止动板	PLATE Stopper	1
26	82144M	滚销	PIN ROLL	1

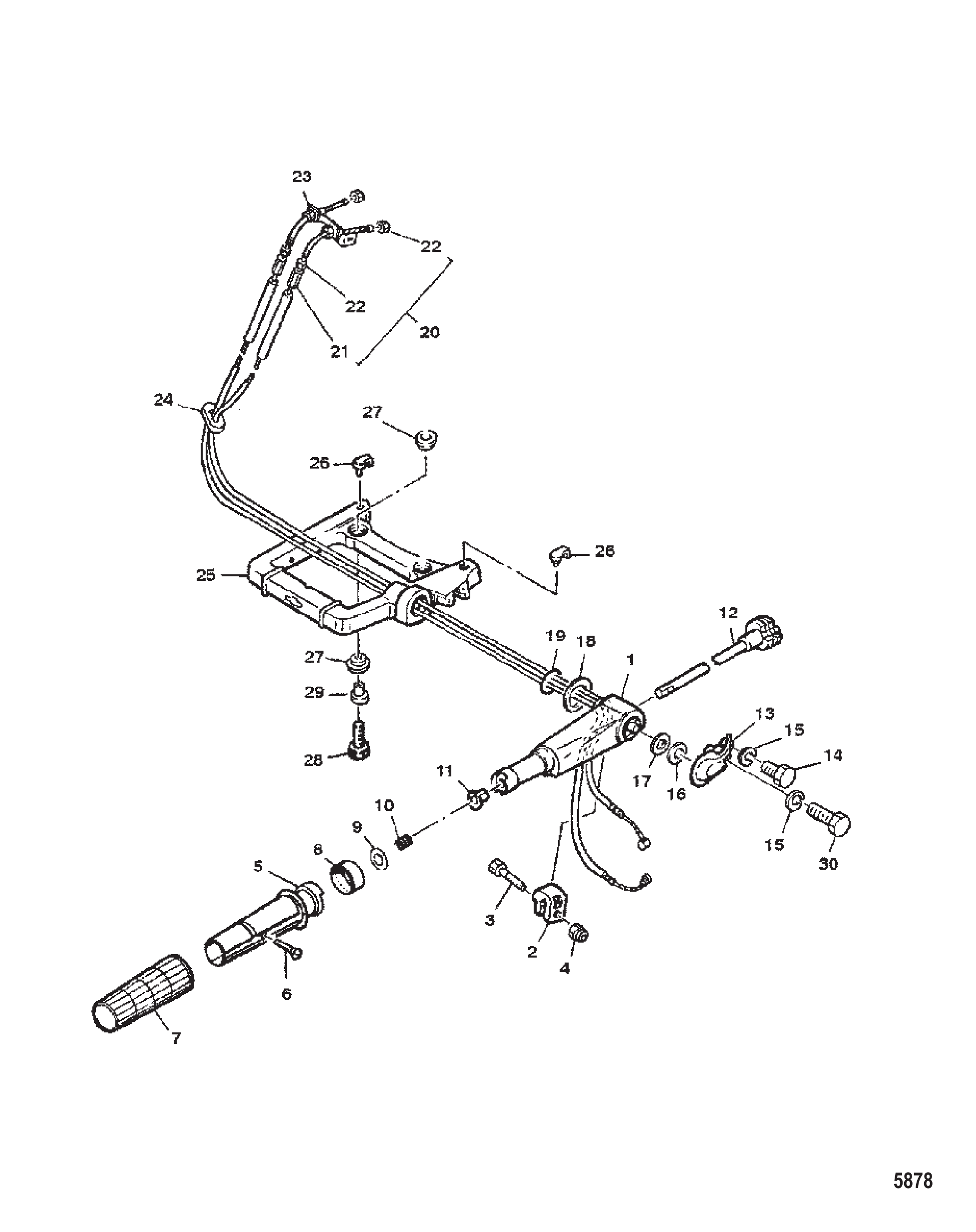

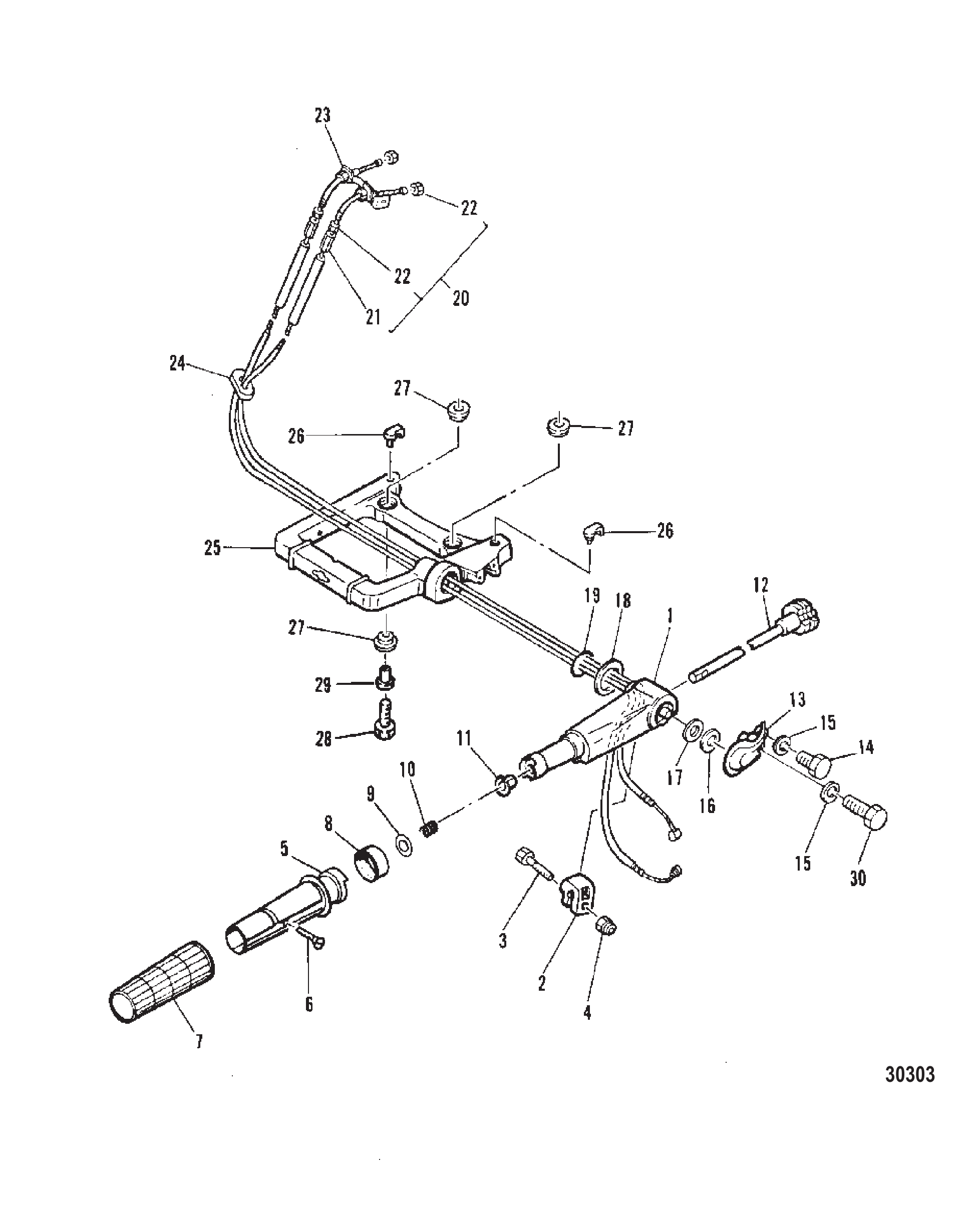

图 18转向手柄 STEERING HANDLE

REF	零件编号	中文名称	英文名称	数量
1	83093M	转向手柄	HANDLE Steering	1
2	82895M	摩擦片	FRICTION PIECE	1
3	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
4	83056M	螺母	NUT	1
5	80504M	转向手柄握把	GRIP STEERING HANDLE	1
6	84300M	螺钉	SCREW	1
6	811916M	螺钉	SCREW	1
7	80509M	橡胶手柄	RUBBER HANDLE	1
8	98971M	节气门指示器	INDICATOR THROTTLE	1
9	82220M	垫圈	WASHER	1
10	82095M	弹簧	SPRING	1
11	81945M	衬套	BUSHING	1
12	81280M	节流阀杆	LEVER THROTTLE	1
13	95614M	转向臂枢轴盖	CAP STEERING ARM PIVOT	1
14	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
15	82214M	锁紧垫圈	WASHER LOCK	2
16	80506M	垫片 (0.5MM)	SPACER (O.5MM)	1
16	80507M	垫片 (0.6MM)	SPACER (0.6MM)	1
16	898103217	垫片 @5	SPACER @5	1
16	80508M	垫片 (0.8MM)	SPACER (O.8MM)	1
17	82118M	隔套	SPACER	1
18	82121M	隔套	SPACER	1
19	82272M	O型圈	O-RING	1
20	95405M	油门拉索总成	CABLE ASSEMBLY Throttle	2
21	81778M	调节螺母	NUT ADJUSTING	1
22	81761M	螺母	NUT	3
23	81037M	节气门拉线固定座	STAY THROTTLE WIRE	1
24	81373M	护孔环	GROMMET	1
25	81054M	转向支架	BRACKET Steering	1
26	80510M	摩擦垫片	SPACER FRICTION	2
27	80515M	护孔环	GROMMET	4
28	82466M	螺栓	BOLT	2
28	82442M	螺栓	BOLT	2
29	82956M	衬套	BUSHING	2
30	82457M	螺栓	BOLT	1
30	827043M	螺栓	BOLT	1

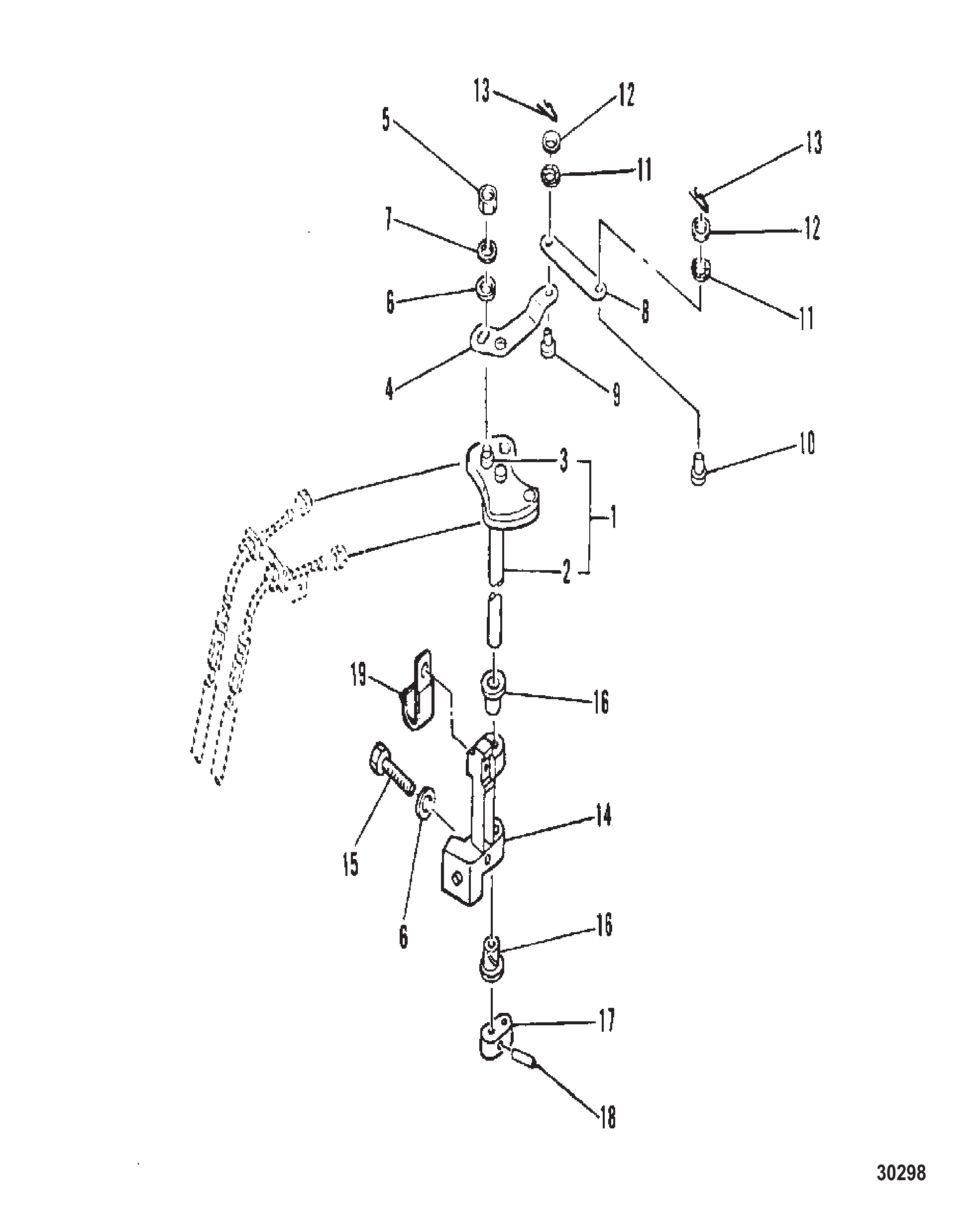

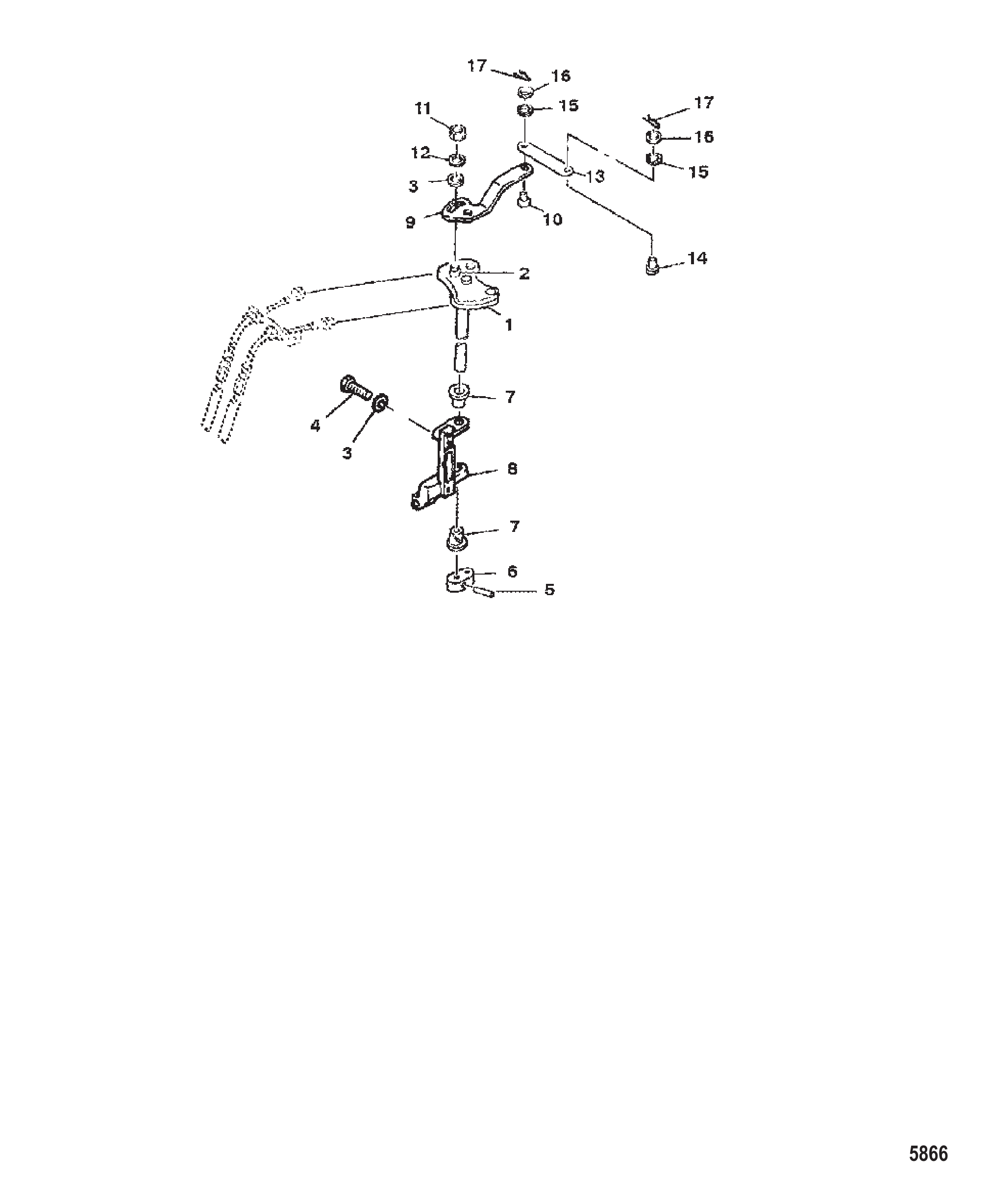

图 19节气门联动装置 THROTTLE LINKAGE

REF	零件编号	中文名称	英文名称	数量
1	83070M	节气门轴总成	THROTTLE SHAFT ASSEMBLY	1
2	82888M	连杆轴	SHAFT LINK CONNECTOR	1
2	83070M	节气门轴总成	THROTTLE SHAFT ASSEMBLY	1
3	82872M	杠杆凸台	BOSS LEVER	1
4	83267M	磁电机控制杆	LEVER Magneto Control	1
5	82380M	螺母	NUT	1
5	82389M	螺母	NUT	1
6	82214M	垫圈	WASHER	3
7	82212M	锁紧垫圈	LOCKWASHER	1
8	83268M	磁电机控制杆	LEVER MAGNETO CONTROL	1
9	80501M	磁电机控制U型销	PIN Clevis MAGNETO CONTROL	1
10	81878M	销	PIN	1
11	81865M	波形垫圈	WASHER WAVE	2
12	82209M	垫圈	WASHER	2
13	82051M	开口销	COTTER PIN	2
14	83269M	支架	BRACKET	1
15	83285M	螺栓	BOLT	2
16	81945M	衬套	BUSHING	2
17	81091M	撑杆	STAY	1
18	14264M	滚动销	PIN Roll	1
19	82040M	卡箍	CLAMP	1

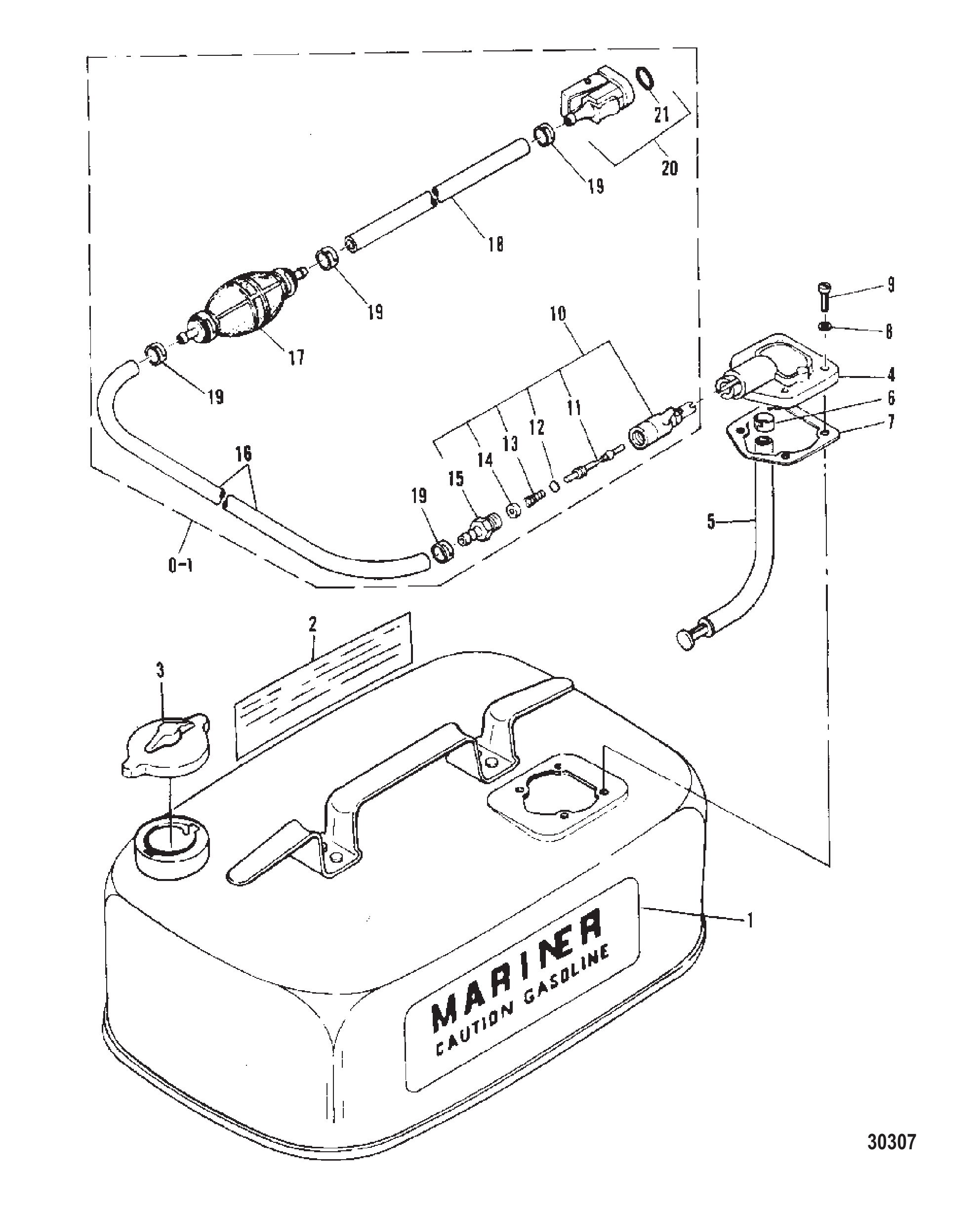

图 20燃油箱/油管（原厂配件） FUEL TANK/LINE Original Equipment

REF	零件编号	中文名称	英文名称	数量
1	95488M	侧贴标(水手系列)	DECAL SIDE (MARINER)	1
2	95489M	侧贴标(警示)	DECAL SIDE (CAUTION)	1
3	14618M	燃油箱盖	CAP Fuel Tank	1
3	18962M	燃油箱盖	CAP Fuel Tank	1
3	95490M	燃油箱盖	CAP Fuel Tank	1
3	18962M	燃油箱盖	CAP Fuel Tank	1
4	83584M	燃油接头壳体总成	HOUSING ASSEMBLY FUEL CONNECTOR	1
5	83626M	吸油软管	HOSE PICKUP	1
5	94727M	软管	HOSE	1
6	80752M		CLAMP PICKUP HOSE .	1
6	16725M	卡箍	CLAMP	1
7	81320M	壳体总成衬垫	GASKET HOUSING ASS'Y	1
8	95501M	密封件	SEAL	4
8	80271M	垫圈	WASHER	4
8	95501M	密封件	SEAL	4
9	95502M	螺钉	SCREW	4
9	82526M	螺钉	SCREW	4
9	83356M	螺钉	SCREW	4
0-1	16721M	燃油管路总成	LINE ASSEMBLY Fuel	1
0-1	95491M	燃油管路总成	LINE ASSEMBLY Fuel	1
0-1	16721M	燃油管路总成	LINE ASSEMBLY Fuel	1
10	30185A3	燃油卡口总成	BAYONET ASSEMBLY Fuel	1
10	30185Q3	油箱端快速断开总成-卡口式	QUICK DISCONNECT ASSEMBLY Tank End - Bayonet Style	1
11	30187	卡口阀体阀杆	STEM BAYONET BODY	1
11	30185Q3	油箱端快速断开总成-卡口式	QUICK DISCONNECT ASSEMBLY Tank End - Bayonet Style	1
12	20415	卡口阀体阀杆O型圈	O-RING BAYONET BODY STEM	1
12	16524	燃油接头O型圈	O-RING Fuel Connector	1
13	30189	卡口体杆弹簧	SPRING BAYONET BODY STEM	1
14	30188	盖垫圈	WASHER CAP	1
15	63187	倒刺接头(0.250-18)燃油管	FITTING Barb (.250-18) FUEL LINE	1
16	16722M		HOSE FUEL TANK TO PRIMER BULB .	1
16	94727M	软管	HOSE	1
16	82024M		HOSE FUEL TANK TO PRIMER BULB .	1
16	94727M	软管	HOSE	1
17	16723M	注油球	PRIMER BULB	1
17	89396Q01	注油球@4	PRIMER BULB @4	1
17	81325M	注油球	PRIMER BULB	1
17	89396Q01	注油球@4	PRIMER BULB @4	1
18	16724M		HOSE PRIMER BULT TO FUEL CONNECTOR .	1
18	94727M	软管	HOSE	1
18	82023M		HOSE PRIMER BULT TO FUEL CONNECTOR .	1
18	94727M	软管	HOSE	1
19	16725M	软管卡箍	CLAMP HOSE	4
19	80752M	软管卡箍	CLAMP HOSE	4
19	16725M	卡箍	CLAMP	4
20	14213M	燃油连接器	CONNECTOR Fuel	1
20	14213Q	燃油接头@2	FITTING-FUEL@2	1
20	81042M	燃油接头壳体总成	HOUSING ASSEMBLY FUEL CONNECTOR	1
20	14213Q	燃油接头@2	FITTING-FUEL@2	1
21	82789M	O型圈	O-RING	1

图 21化油器 CARBURETOR

REF	零件编号	中文名称	英文名称	数量
-	811009T	化油器	CARBURETOR	1
1	80196M	盖板	COVER	1
2	80197M	盖帽	CAP	1
3	80199M	安装板	PLATE	1
4	80194M	弹簧	SPRING	1
5	80195M	柱塞	PLUNGER	1
6	80573M	螺钉	SCREW	1
7	8095791	弹簧	SPRING	1
8	80227M	衬套	BUSHING	1
9	811011M	怠速量孔(#110)	JET Pilot (#110)	1
10	97591M	软管	HOSE	1
11	83509M	螺钉（M4×10）	SCREW (M4 x 10)	4
12	82206M	锁紧垫圈	LOCKWASHER	6
13	94745M	盖板	COVER	1
14	94691M	衬垫	GASKET	1
15	94695M	O型圈	O-RING	1
16	94694M	怠速量孔(#50)	JET Pilot (#50)	1
17	94696M	浮子	FLOAT	1
18	811248M	螺钉 (M4 x 5)	SCREW (M4 x 5)	2
19	13999M	衬垫	GASKET	2
20	94744M	本体	BODY	1
21	94697M	臂	ARM	1
22	811249M	浮子销	PIN Float	1
23	94746M	软管	HOSE	1
24	95430M	阀座	VALVE SEAT	1
25	94743M	怠速量孔(#48)	JET Pilot (#48)	1
26	94722M	挡圈	RING Retaining	1
27	80205M	衬垫	GASKET	1
28	11930M	阀座	SEAT Valve	1
29	80451M	销	PIN	1
30	80203M	臂	ARM	1
31	83509M	螺钉（M4×10）	SCREW (M4 x 10)	2
32	94747M	支架	BRACKET	1
33	94735M	本体	BODY	1
34	80740M	衬垫	GASKET	1
35	83089M	量孔(#70)	JET (#70) (#70)	1
36	80450M	浮子	FLOAT	1
37	94737M	主量孔(#68)	JET Main (#68)	1
38	811010M	主喷管	MAIN NOZZLE	1
39	80193M	弹簧	SPRING	1
40	827147M	螺钉	SCREW	1
41	80198M	杠杆	LEVER	1
42	83115M	轴环	COLLAR	1
43	83112M	螺钉	SCREW	1
44	94742M	杆	ROD	1
45	94741M	杠杆	LEVER	1
46	80574M	弹簧	SPRING	1
47	94740M	轴	SHAFT	1
48	826939M	螺钉	SCREW	1
49	83300M	固定座	RETAINER	1
-	95600M	动力头衬垫套件	GASKET SET Powerhead	1
-	94756M	化油器维修套件	REPAIR KIT Carburetor	1

图 22夹紧旋转支架 CLAMP AND SWIVEL BRACKET

REF	零件编号	中文名称	英文名称	数量
1	9256M	旋转支架	SWIVEL BRACKET	1
2	80520M	旋转支架（后）	SWIVEL BRACKET (REAR)	1
3	827043M	螺栓	BOLT	4
4	881379	垫圈	WASHER	4
4	82214M	垫圈	WASHER	4
5	81065M	盖板	COVER	1
6	14265M	铆钉	RIVET	4
7	82889M	支架	BRACKET	1
8	82890M	摩擦片	FRICTION PLATE	1
9	82891M	摩擦片	FRICTION PLATE	1
10	82892M	盖板	COVER	1
11	81055M	螺钉	SCREW	1
12	81056M	衬套	BUSHING	4
13	95605M	衬套	BUSHING	2
14	80513T	衬套	BUSHING	2
15	82369M	接头	FITTING	1
16	821596A1	左舷夹紧支架总成	CLAMP BRACKET ASSEMBLY Port	1
17	9834M	右舷夹紧支架	CLAMP BRACKET Starboard	1
18	19247M	螺栓	BOLT	1
19	811270M	安装板	PLATE	1
20	98970M	垫圈	WASHER	2
21	81785M	锁紧螺母	LOCKNUT	1
22	82921M	螺栓	BOLT	1
23	82116M	隔套	SPACER	1
24	82214M	垫圈	WASHER	1
25	8528163	螺母	NUT	1
26	81755M	螺钉	SCREW	2
27	80638M	垫	PAD	2
28	11868M	手柄	HANDLE	2
29	81889M	销	PIN	2

图 23外罩 COWLING

REF	零件编号	中文名称	英文名称	数量
1	9378M	顶盖总成	TOP COWL ASSEMBLY	1
2	95400M	侧后标贴套装	DECAL SET Side And Rear	1
3	95401M	前贴花	DECAL Front	1
4	91653M	密封件	SEAL	1
5	95587M	密封件	SEAL	1
6	94655M	支架	HOLDER	1
7	94656M	挂钩	HOOK	1
8	814489M	铆钉	RIVET	4
9	81202M	换挡指示贴花	DECAL Shift Indicator	1
10	9394M	下机罩	BOTTOM COWL	1
11	851902M	停机开关总成	SWITCH ASSEMBLY Stop	1
12	97756M	止动器	STOPPER	1
13	852837	盖帽	CAP	1
14	83277M	护孔环	GROMMET	1
15	94730M	侧面标贴	DECAL Side	2
16	91772M	螺栓	BOLT	1
17	82214M	垫圈	WASHER	1
17	881379	垫圈	WASHER	1
17	82214M	垫圈	WASHER	1
18	81794M	垫圈	WASHER	1
18	804339	垫圈	WASHER	1
18	81794M	垫圈	WASHER	1
19	84914M	卡箍	CLAMP	1
19	84914001	杠杆	LEVER	1
20	81949M	衬套	BUSHING	2
21	80033M	支架	HOLDER	1
22	95402M	杠杆	LEVER	1
23	81869M	垫圈	WASHER	1
24	84669M	护孔环	GROMMET	1
25	81669M	工具包	TOOL KIT	1
25	803581	工具包	TOOL KIT	1

图 24曲轴箱和气缸盖 CRANKCASE AND CYLINDER HEAD

REF	零件编号	中文名称	英文名称	数量
1	827168M	曲轴箱	CRANKCASE	1
2	80727M	止回阀总成	CHECK VALVE ASSEMBLY	1
3	84661M	放油接头	FITTING Drain	1
4	83326M	接头	FITTING	1
5	80122M	接头	FITTING	1
6	811045M	软管	HOSE	1
7	82012M	软管	HOSE	1
8	82046M	卡箍	CLAMP	2
9	98974M	卡扣	CLIP	2
10	82359M	定位销	PIN Dowel	2
11	95592M	螺栓	BOLT	8
12	95593M	螺栓	BOLT	2
13	11919M	节温器	THERMOSTAT	1
13	11919001	节温器	THERMOSTAT	1
14	14214M	定位销	PIN Dowel	1
15	84732M	阳极块	ANODE	1
16	95594M	螺钉	SCREW	1
17	8213M	气缸盖	CYLINDER HEAD	1
18	95595M	衬垫	GASKET	1
18	95595	衬垫	GASKET	1
19	43092M	螺栓(M6x14)	BOLT (M6 x 14)	13
20	804124	螺栓	BOLT	10
21	95598M	排气外盖	COVER Exhaust (OUTER)	1
22	83241M	盖板	COVER	1
23	83242M	衬垫	GASKET	1
23	83242	衬垫	GASKET	1
24	82405M	螺栓	BOLT	1
25	82214M	垫圈	WASHER	14
26	95596M	排气内盖	COVER Exhaust (INNER)	1
27	95597	衬垫	GASKET	2
28	826957M	螺栓	BOLT	1
29	14262M	螺栓	BOLT	2
30	814493M	下壳体	HOUSING (LOWER)	1
31	94762M	密封件	SEAL	1
32	826957M	螺栓	BOLT	2
33	881379	垫圈	WASHER	2
33	82214M	垫圈	WASHER	2
34	82165M	油封	SEAL Oil	1
35	18843M	油封	SEAL Oil	1
36	95602M	O型圈	O-RING	1
37	81841M	垫圈	WASHER	1
38	14195M	油封	SEAL Oil	1
39	82276M	O型圈	O-RING	1
40	83246M	上壳体	HOUSING (UPPER)	1
41	852776	螺栓	BOLT	4
42	881379	垫圈	WASHER	4
42	82214M	垫圈	WASHER	4
-	827167M	动力头总成	POWERHEAD ASSEMBLY	1
-	95600M	动力头衬垫套件	GASKET SET Powerhead	1

图 25曲轴与活塞 CRANKSHAFT AND PISTON

REF	零件编号	中文名称	英文名称	数量
1	9255M	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	18859T	轴承	BEARING	3
3	9492M	连杆	CONNECTING ROD	2
4	94769M	轴承	BEARING	2
5	14193M	销	PIN	2
6	84620M	垫圈	WASHER	4
7	84618M	密封件	SEAL	1
7	84618001	密封件	SEAL	1
8	82935M	卡环	RING Snap	1
9	82145M	销	PIN	1
10	18856M	键	KEY	1
10	893761	键	KEY	1
11	8224M	活塞	PISTON	2
11	8225M	活塞	PISTON	AR
11	8226M	活塞	PISTON	AR
12	82350M	滚针轴承	BEARING Needle	56
13	81816M	垫圈	WASHER	4
14	80422T	活塞环组	RING SET Piston	2
14	80423T	活塞环组	RING SET Piston	AR
14	80424M	活塞环组	RING SET Piston	AR
15	80005M	活塞销	PIN Piston	2
16	82342M	卡扣	CLIP	4
-	827167M	动力头总成	POWERHEAD ASSEMBLY	1
-	95600M	动力头衬垫套件	GASKET SET Powerhead	1

图 26驱动轴壳体 DRIVESHAFT HOUSING

REF	零件编号	中文名称	英文名称	数量
1	8827A3	壳体总成(短型)(黑色)	HOUSING ASSEMBLY (SHORT) (BLACK)	1
1	822154A1	壳体总成	HOUSING ASSEMBLY	1
1	8829A3	壳体总成(长型)(黑色)	HOUSING ASSEMBLY (LONG) (BLACK)	1
1	822155A1	壳体总成	HOUSING ASSEMBLY	1
1	8827A4	壳体总成(短型)(灰色)	HOUSING ASSEMBLY (SHORT) (GRAY)	1
1	822154A2	壳体总成	HOUSING ASSEMBLY	1
1	8829A4	壳体总成(长型)(灰色)	HOUSING ASSEMBLY (LONG) (GRAY)	1
1	822155A2	壳体总成	HOUSING ASSEMBLY	1
2	195991	驱动轴壳体衬垫	GASKET DRIVESHAFT HOUSING	1
2	195992	驱动轴壳体衬垫	GASKET Driveshaft Housing	1
3	421891	支架	MOUNT	4
3	8M0039074	支架	MOUNT	4
4	N.L.A.	已停产的安装盖(见备注)	NO LONGER AVAILABLE COVER-MOUNT (SEE NOTE)	2
4	42374F6	安装盖(黑色)	COVER Mount (BLACK)	2
4	42374F5	安装盖(灰色)	COVER MOUNT (GRAY)	2
4	42374F6	安装盖	COVER Mount	2
5	4009238	螺钉(M6x80)安装盖	SCREW (M6 x 80) MOUNT COVER	2
6	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
7	400212	螺母(M6)不锈钢盖螺钉	NUT (M6) Stainless Steel COVER SCREW	2
8	40011131	螺钉(M6x35)不锈钢驱动轴壳体至安装板	SCREW (M6 x 35) Stainless Steel DRIVESHAFT HOUSING TO PLATE	4
9	413448	适配板(无管)(6/8)	ADAPTER PLATE (NO TUBE) (6/8)	1
9	41344A4	适配板总成(1英寸内径管)	ADAPTER PLATE ASSEMBLY (1"I.D. TUBE)	1
9	41344A3	适配板总成(1-1/8英寸内径管)(15)	ADAPTER PLATE ASSEMBLY (1-1/8"I.D. TUBE) (15)	1
10	11287	适配板密封件	SEAL Adapter Plate	1
10	11287001	适配板密封件	SEAL Adapter Plate	1
11	42123	水管(短型)	TUBE Water (SHORT)	1
11	42122	水管(长型)	TUBE Water (LONG)	1
11	421231	水管(加长型)	TUBE Water (X-LONG)	1
12	42371	水管固定座	HOLDER WATER TUBE	1
13	192012	水管壳体衬垫	GASKET WATER TUBE HOUSING	1
14	42380	水管密封件	SEAL WATER TUBE	1
14	42380001	水管密封件	SEAL Water Tube	1
15	42465	水管隔套	SPACER WATER TUBE	1
16	40011107	螺钉(M5x16)不锈钢壳体至适配板	SCREW (M5 x 16) Stainless Steel HOUSING TO ADAPTOR PLATE	2
17	445551	轴承座(长型)	BLOCK Bearing (LONG)	1
18	124262	驱动轴延长壳体(加长型)	HOUSING Drive Shaft Extension (X-LONG)	1
19	123691	衬套(加长型)	BUSHING X-LONG	1
20	123702	轴承壳体(加长型)	HOUSING BEARING (X-LONG)	1
21	14107	轴承护圈(加长型)	RETAINER BEARING (X-LONG)	1
21	14107001	固定座	RETAINER	1
22	14094	卡环(加长型)	RING Snap X-LONG	1
-	42213A14	旋转管更换总成(黑色)	SWIVEL TUBE REPLACEMENT COMPLETE (BLACK)	1
-	42213A15	旋转管更换总成(灰色)	SWIVEL TUBE REPLACEMENT COMPLETE (GRAY)	1
-	42213A14	旋转管更换件	SWIVEL TUBE REPLACEMENT	1

图 27飞轮磁电机 FLYWHEEL MAGNETO

REF	零件编号	中文名称	英文名称	数量
1	9303M	转子总成	ROTOR ASSEMBLY	1
2	827157M	底座总成	BASE ASSEMBLY	1
3	827158M	底座	BASE	1
4	41829M	充电线圈总成	COIL ASSEMBLY Charge	1
4	41829T	线圈	COIL	1
5	41830M	脉冲线圈总成	COIL ASSEMBLY Pulser	1
6	15313M	照明线圈	COIL Lighting	1
7	96346M	螺钉	SCREW	2
8	83108M	螺钉	SCREW	2
9	82186M	垫圈	WASHER	2
10	91691M	螺钉	SCREW	1
11	11437M	卡箍	CLAMP	1
12	82500M	螺钉(M4 x 8)	SCREW (M4 x 8)	1
13	82206M	锁紧垫圈	LOCKWASHER	1
14	11439M	电线	WIRE	1
15	84667M	固定座	RETAINER	1
16	81769M	螺母	NUT	1
17	81805M	垫圈	WASHER	1
18	84668M	固定座	RETAINER	1
19	827160M	螺钉 (M5 x 10)	SCREW (M5 x 10)	3
20	827161M	止动器	STOPPER	1
21	826957M	螺栓	BOLT	2
22	881379	垫圈	WASHER	2
22	82214M	垫圈	WASHER	2
23	94731M	凸轮	CAM	1
24	827162M	螺栓	BOLT	2
25	827163M	支架	BRACKET	1
26	95188T	点火线圈	COIL Ignition	1
27	82405M	螺栓	BOLT	2
28	82212M	锁紧垫圈	LOCKWASHER	2
29	881379	垫圈	WASHER	7
29	82214M	垫圈	WASHER	7
30	82069M	护孔环	GROMMET	2
31	827164M	护孔环	GROMMET	1
32	63709A1	护套/端子套件	BOOT/TERMINAL KIT	2
33	82370M1	火花塞	SPARK PLUG	2
33	813472	NGK BR6HS @10	NGK BR6HS @10	2
34	84368M	螺栓	BOLT	5
35	827165M	CDI单元	CDI UNIT	1
36	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	2
37	82213M	垫圈	WASHER	2
38	827166M	管	TUBE	1

图 28燃油管路和滤清器 FUEL LINES AND FILTER

REF	零件编号	中文名称	英文名称	数量
1	14187M	燃油接头	CONNECTOR FUEL CONNECTOR	1
2	83539M	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
2	84058M	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
3	82214M	垫圈	WASHER	1
4	82047M	卡箍	CLAMP	4
5	83772M	过滤器连接软管	HOSE CONNECTOR TO FILTER	1
5	82012M	软管	HOSE	1
6	83219M	过滤器至化油器软管	HOSE FILTER TO CARBURETOR	1
6	82012M	软管	HOSE	1
7	11931M	滤清器总成	FILTER ASSEMBLY	1
7	826964T	燃油滤清器	FILTER Fuel	1
8	82790M	过滤器垫片	GASKET FILTER	1
9	11934M	滤清器	FILTER	1
9	826965T	燃油滤清器	FILTER-FUEL	1
10	84957M	O型圈	O-RING	1
11	11935M	滤杯	CUP FILTER	1
12	80620M	滤清器支架	BRACKET FILTER	1
13	84315M	螺栓	BOLT	1
13	84088M	螺丝 (M6 x 10)	SCREW (M6 x 10)	1
14	82382M	螺母	NUT	1
-	84161M	衬垫套件	GASKET SET	1

图 29燃油箱/油管（原厂配件） FUEL TANK/LINE Original Equipment

REF	零件编号	中文名称	英文名称	数量
1	95488M	侧贴标(水手系列)	DECAL SIDE (MARINER)	1
2	95489M	侧贴标(警示)	DECAL SIDE (CAUTION)	1
3	14618M	燃油箱盖	CAP Fuel Tank	1
3	18962M	燃油箱盖	CAP Fuel Tank	1
3	95490M	燃油箱盖	CAP Fuel Tank	1
3	18962M	燃油箱盖	CAP Fuel Tank	1
4	83584M	燃油接头壳体总成	HOUSING ASSEMBLY FUEL CONNECTOR	1
5	83626M	吸油软管	HOSE PICKUP	1
5	94727M	软管	HOSE	1
6	80752M		CLAMP PICKUP HOSE .	1
6	16725M	卡箍	CLAMP	1
7	81320M	壳体总成衬垫	GASKET HOUSING ASS'Y	1
8	95501M	密封件	SEAL	4
8	80271M	垫圈	WASHER	4
8	95501M	密封件	SEAL	4
9	95502M	螺钉	SCREW	4
9	82526M	螺钉	SCREW	4
9	83356M	螺钉	SCREW	4
0-1	16721M	燃油管路总成	LINE ASSEMBLY Fuel	1
0-1	95491M	燃油管路总成	LINE ASSEMBLY Fuel	1
0-1	16721M	燃油管路总成	LINE ASSEMBLY Fuel	1
10	30185A3	燃油卡口总成	BAYONET ASSEMBLY Fuel	1
10	30185Q3	油箱端快速断开总成-卡口式	QUICK DISCONNECT ASSEMBLY Tank End - Bayonet Style	1
11	30187	卡口阀体阀杆	STEM BAYONET BODY	1
11	30185Q3	油箱端快速断开总成-卡口式	QUICK DISCONNECT ASSEMBLY Tank End - Bayonet Style	1
12	20415	卡口阀体阀杆O型圈	O-RING BAYONET BODY STEM	1
12	16524	燃油接头O型圈	O-RING Fuel Connector	1
13	30189	卡口体杆弹簧	SPRING BAYONET BODY STEM	1
14	30188	盖垫圈	WASHER CAP	1
15	63187	倒刺接头(0.250-18)燃油管	FITTING Barb (.250-18) FUEL LINE	1
16	16722M		HOSE FUEL TANK TO PRIMER BULB .	1
16	94727M	软管	HOSE	1
16	82024M		HOSE FUEL TANK TO PRIMER BULB .	1
16	94727M	软管	HOSE	1
17	16723M	注油球	PRIMER BULB	1
17	89396Q01	注油球@4	PRIMER BULB @4	1
17	81325M	注油球	PRIMER BULB	1
17	89396Q01	注油球@4	PRIMER BULB @4	1
18	16724M		HOSE PRIMER BULT TO FUEL CONNECTOR .	1
18	94727M	软管	HOSE	1
18	82023M		HOSE PRIMER BULT TO FUEL CONNECTOR .	1
18	94727M	软管	HOSE	1
19	16725M	软管卡箍	CLAMP HOSE	4
19	80752M	软管卡箍	CLAMP HOSE	4
19	16725M	卡箍	CLAMP	4
20	14213M	燃油连接器	CONNECTOR Fuel	1
20	14213Q	燃油接头@2	FITTING-FUEL@2	1
20	81042M	燃油接头壳体总成	HOUSING ASSEMBLY FUEL CONNECTOR	1
20	14213Q	燃油接头@2	FITTING-FUEL@2	1
21	82789M	O型圈	O-RING	1
