水星 Mercury 80 JET 9793577 THRU 0P016999 - 爆炸图零件明细

两冲程化油器 · Belgium - Cat.# 90-1779394 · 共 40 个部位 · 1752 条零件

1附件 2缓冲板 3泄放系统（序列号USA-0G301751/BEL-9885505及以上）4下机罩 5化油器WME-32/32A/33/34/40/40A 6化油器WME-50/51/52/79/80/81 7副驾驶装置 8曲轴、活塞与连杆 9气缸体与曲轴箱 10驱动轴壳体 11电气组件（USA-0G437999/BEL-9926999及以下）12电气组件（USA-0G438000/BEL-9937000及以上）13排气板 14飞轮/启动马达 USA:0G437999/BEL:9926999 及以下 15飞轮/启动电机（USA-0G438000/BEL-9927000及以上）16燃油泵 17齿轮箱（驱动轴）（3爪反向离合器）18齿轮箱（驱动轴）（6爪倒车离合器）19齿轮箱（螺旋桨轴）（3爪倒车离合器）20齿轮箱（螺旋桨轴）（6爪倒车离合器）21齿轮箱对照表（2.07:1/2.31:1齿轮比）22进气歧管与簧片阀组 23喷泵总成 24喷泵组件 25钥匙对照表 26机油喷射系统（USA-0G301751/BEL-9885505及以上）27机油喷射系统（USA:0G301750/BEL:9885504及以下）28动力升降倾斜装置（黑色注油塞）（G359967/9934136及以下）29动力升降倾斜装置（黄色注油塞）（G359968/9934137及以上）30维修/支撑材料 31启动马达 32转向手柄组件 33旋转支架与转向臂 34油门杆与联动装置 35舵柄适配器套件（JET 80）36专用工具 37顶罩（序列号USA-0G301750/BEL-9885504及以下）38顶罩（序列号USA-0G301751/BEL-9885505及以上）39艉板支架（序列号USA-0G589999/BEL-9973099及以下）40艉板支架（序列号USA-0G590000/BEL-9973100及以上）

图 1附件 ACCESSORIES

零件编号	中文名称	英文名称	数量
828155A5	化油器防冰套件	ANTI-ICING KIT Carburetor	1
12092A10	延长套件	EXTENSION KIT	1
12092A11	延长套件	EXTENSION KIT	1
12092A10	延长套件	EXTENSION KIT	1
44357A2	冲洗附件	FLUSHING ATTACHMENT	1
44357Q2	冲洗附件	FLUSHING ATTACHMENT	1
827927A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
877680Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
827927A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
877680Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
17146A8	燃油管路总成(8英尺)	LINE ASSEMBLY Fuel (8 Feet)	1
877681Q8	燃油软管总成(8英尺)	HOSE ASSEMBLY Fuel (8 Feet)	1
17146A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
877681Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
822379A12	燃油管路总成(12英尺)	LINE ASSEMBLY Fuel (12 Feet)	1
877683Q12	燃油软管总成(12英尺)	HOSE ASSEMBLY Fuel (12 Feet)	1
88334A2	防腐电极套件	MERCATHODE KIT	1
8M0180081	防腐电极套件	MERCATHODE KIT	1
86300A5	防腐电极监测器	MERCATHODE MONITOR	1
850000A3	舵柄适配器套件65 JET	TILLER HANDLE ADAPTER KIT 65 JET	1
12022A18	舵柄套件	TILLER HANDLE KIT	1
12022A19	舵柄套件	TILLER HANDLE KIT	1
12022A18	舵柄套件	TILLER HANDLE KIT	1
12022A34	舵柄套件	TILLER HANDLE KIT	1
12022A41	转向手柄套件	STEERING HANDLE KIT	1
12022A35	舵柄套件	TILLER HANDLE KIT	1
12022A41	转向手柄套件	STEERING HANDLE KIT	1
17334A2	视觉警告系统(低油位/过热)	VISUAL WARNING SYSTEM (LOW OIL/OVERHEAT)	1
88825A6	电压调节器套件	REGULATOR KIT Voltage	1

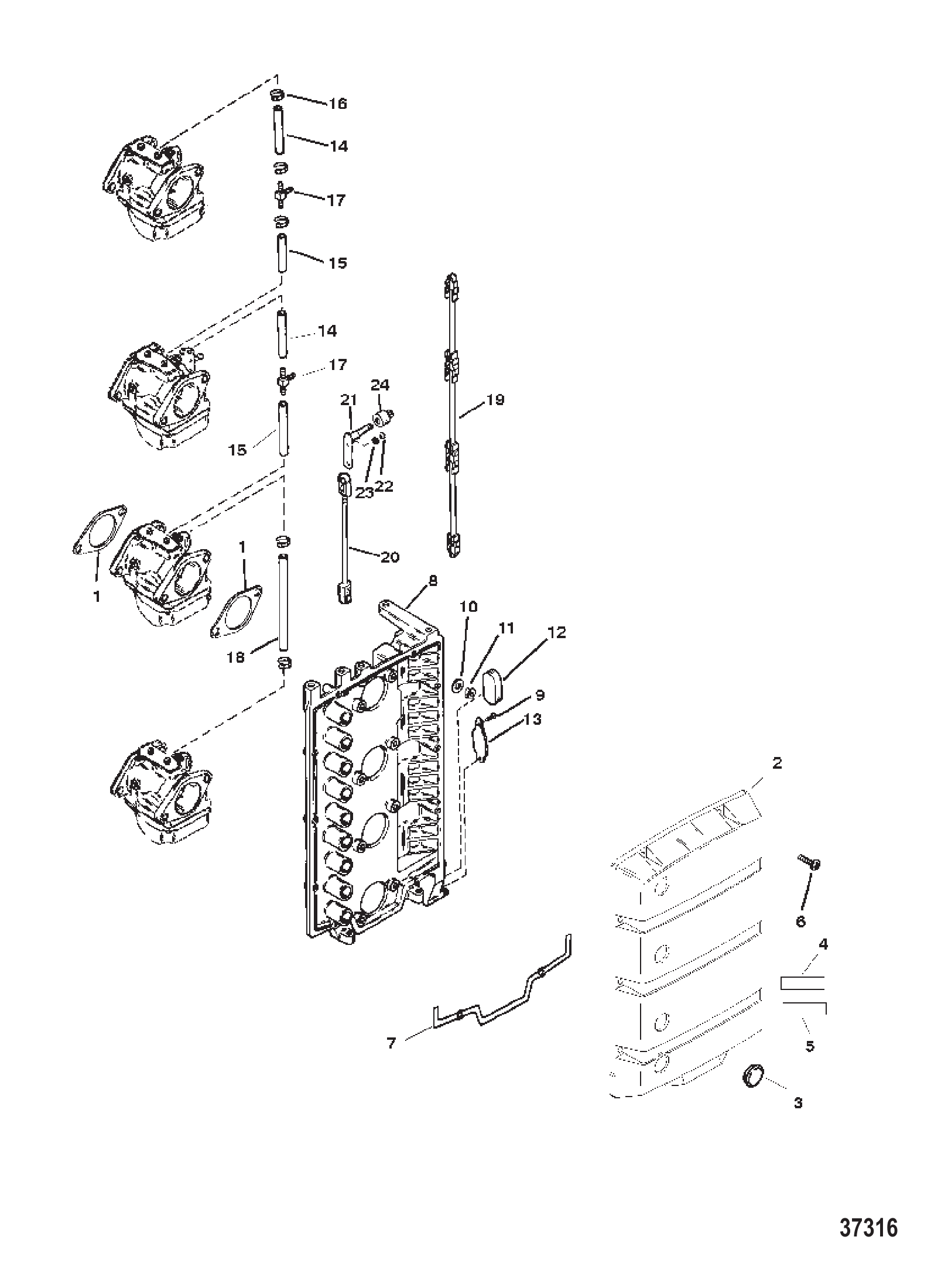

图 2缓冲板 ATTENUATOR PLATE

REF	零件编号	中文名称	英文名称	数量
1	151723	衬垫	GASKET	8
2	44342A1	盖板	COVER	1
3	815784	盖帽	CAP	4
4	NSS	正时贴纸（不单独销售）	NOT SOLD SEPARATE Decal-Timing	1
5	NSS	不单独出售空气箱警示贴纸	NOT SOLD SEPARATE Decal-Caution-Airbox	1
6	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	8
6	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	8
7	828479	衬垫	GASKET	1
8	44340A2	衰减器板总成	PLATE ASSEMBLY Attenuator	1
9	42975	传动螺钉	DRIVE SCREW	2
10	4002217	垫圈	WASHER	2
11	823861	螺母	NUT	6
11	826365	螺母 (M8)	NUT (M8)	6
12	39519	杯套	CUP	1
13	98889	闩锁	LATCH	1
14	9912878	软管(.187)(26英寸整料)(裁切至1-1/2英寸)	HOSE (.187) (26.00 Inches Bulk) (Cut to 1-1/2 IN.)	2
15	9912878	软管(0.187)(26.00英寸散装)(裁切至3-1/4英寸)	HOSE (.187) (26.00 Inches Bulk) (Cut to 3-1/4 IN.)	2
16	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
16	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
17	17762	异径三通	REDUCING TEE	2
17	830285	接头三通	FITTING TEE	2
18	9912878	软管(.187)(26英寸整料)(裁切至5-1/4英寸)	HOSE (.187) (26.00 Inches Bulk) (Cut to 5-1/4 IN.)	1
19	825203	节气门连杆(主)	LINK Throttle (MAIN)	1
19	825203T	连接杆	LINK	1
20	193859	连杆	LINK ROD	1
21	11399A1	臂总成	ARM ASSEMBLY	1
22	40056103	螺钉 (M5 x 6)	SCREW (M5 x 6)	1
23	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
23	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
24	67748	滚轮	ROLLER	1
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1

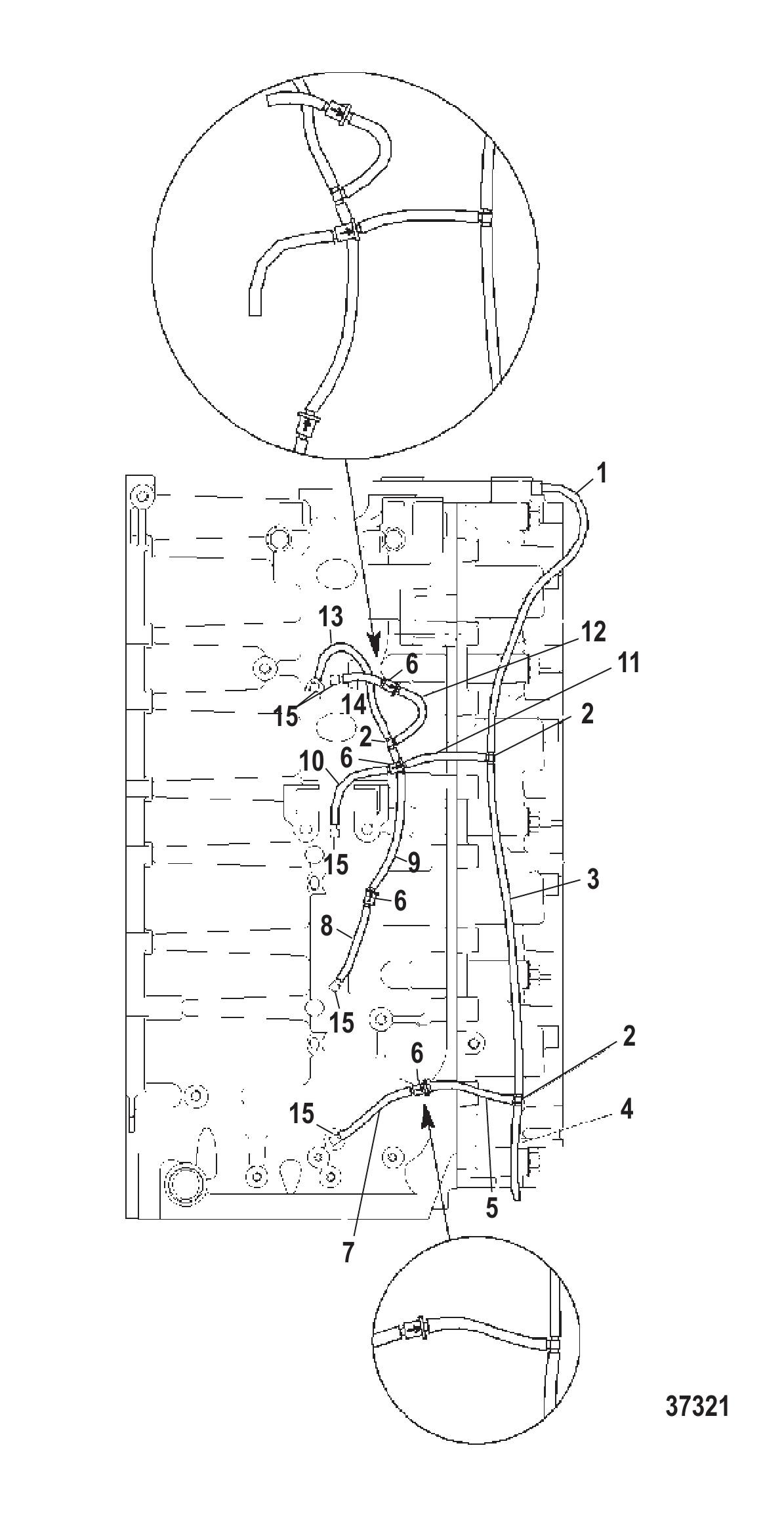

图 3泄放系统（序列号USA-0G301751/BEL-9885505及以上） BLEED SYSTEM S/#-USA-0G301751/BEL-9885505 AND UP

REF	零件编号	中文名称	英文名称	数量
1	99130122	管材(20英尺整卷)(9英寸)	TUBING (20.00 Feet Bulk) (9 IN.)	1
2	59169	接头	FITTING	3
2	59169003	三通接头	FITTING Tee	3
3	99130122	管材(20英尺整卷)(9英寸)	TUBING (20.00 Feet Bulk) (9 IN.)	1
3	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
4	99130122	管材(20英尺整卷)(4.5英寸)	TUBING (20.00 Feet Bulk) (4-1/2 IN.)	1
4	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
5	99130122	管材(20英尺整卷)(2.5英寸)	TUBING (20.00 Feet Bulk) (2-1/2 IN.)	1
5	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
6	149126	止回阀	CHECK VALVE	4
7	99130122	管材(20英尺整卷)(2.5英寸)	TUBING (20.00 Feet Bulk) (2-1/2 IN.)	1
7	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
8	99130122	管材(20英尺整卷)(2.5英寸)	TUBING (20.00 Feet Bulk) (2-1/2 IN.)	1
8	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
9	99130122	管材(20英尺整卷)(4.5英寸)	TUBING (20.00 Feet Bulk) (4-1/2 IN.)	1
9	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
10	99130122	管材(20英尺整卷)(2.5英寸)	TUBING (20.00 Feet Bulk) (2-1/2 IN.)	1
10	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
11	99130122	管材(20英尺整卷)(2.5英寸)	TUBING (20.00 Feet Bulk) (2-1/2 IN.)	1
11	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
12	99130122	管材(20英尺整卷)(2.5英寸)	TUBING (20.00 Feet Bulk) (2-1/2 IN.)	1
12	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
13	99130122	管材(20英尺整卷)(6英寸)	TUBING (20.00 Feet Bulk) (6 IN.)	1
13	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
14	99130122	管材(20英尺整卷)(1.5英寸)	TUBING (20.00 Feet Bulk) (1-1/2 IN.)	1
14	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
15	15133	接头	FITTING	5
-	17791A97	动力头总成	POWERHEAD ASSEMBLY	1
-	17791T97	动力头总成	POWERHEAD ASSEMBLY	1

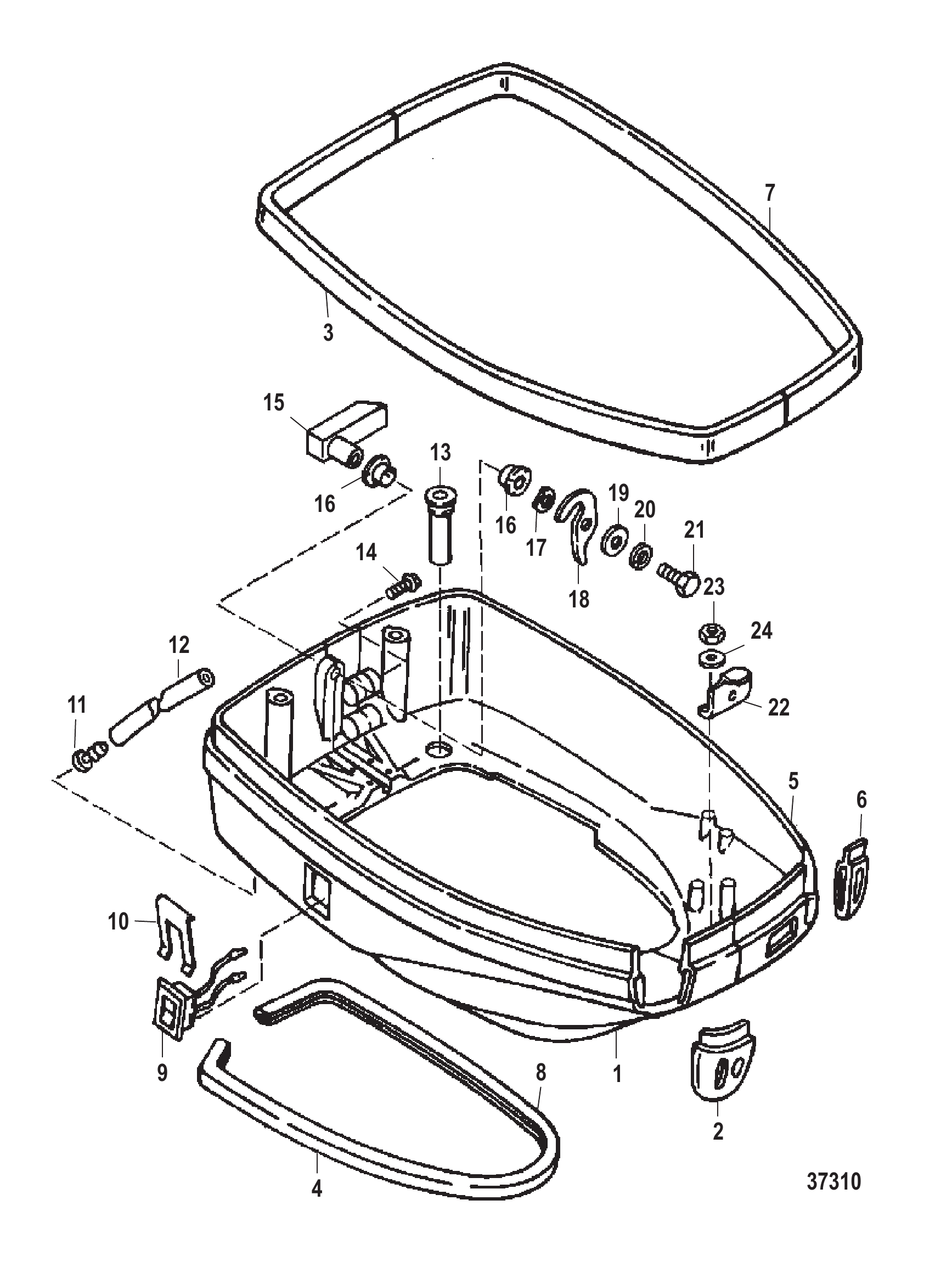

图 4下机罩 BOTTOM COWL

REF	零件编号	中文名称	英文名称	数量
1	821873A1	右舷下罩总成	BOTTOM COWL ASSEMBLY Starboard	1
1	821873A2	右舷下罩总成	BOTTOM COWL ASSEMBLY Starboard	1
1	821873A3	右舷下罩总成	BOTTOM COWL ASSEMBLY Starboard	1
2	822556	护孔环	GROMMET	1
2	822556003	护孔环	GROMMET	1
3	8253182	密封条(36.00英寸)	SEAL (36.00 Inches)	1
3	8M0109216	罩盖密封	SEAL- COWL	1
4	8238052	下罩密封条	SEAL Lower Cowl	1
5	821874A1	左舷下罩总成	BOTTOM COWL ASSEMBLY Port	1
5	8M0107328	底部罩盖-左舷	COWL-BOTTOM, PORT	1
5	821874A2	左舷下罩总成	BOTTOM COWL ASSEMBLY Port	1
5	821874A3	左舷下罩总成	BOTTOM COWL ASSEMBLY Port	1
6	822555	护孔环	GROMMET	1
6	822555001	护孔环	GROMMET	1
7	8253182	密封条(36.00英寸)	SEAL (36.00 Inches)	1
7	8M0109216	罩盖密封	SEAL- COWL	1
8	8238052	下罩密封条	SEAL Lower Cowl	1
9	850691	开关	SWITCH	1
9	8M0235192	微调开关	SWITCH TRIM	1
10	8124431	固定件(适用处使用)	RETAINER (USE WHERE APPLICABLE)	1
10	8M0032848	开关固定座	RETAINER Switch	1
11	813613	接头	FITTING	1
12	83075780	管材(28.00英寸散装)	TUBING (28.00 Inches Bulk)	1
12	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
13	817519A2	排水单向阀总成	CHECK VALVE ASSEMBLY Drain	2
14	82130040	螺钉(M6 x 40)	SCREW (M6 x 40)	3
15	820000A2	手柄	HANDLE	1
15	8M0041366	手柄总成-黑色	HANDLE ASSY-BLACK	1
15	820000A3	手柄	HANDLE	1
15	820000A2	手柄	HANDLE	1
15	820000A6	手柄	HANDLE	1
15	820000A2	手柄	HANDLE	1
16	812707	衬套	BUSHING	2
17	F2047	波形垫圈	WASHER Wave	1
18	F481777	凸轮锁轴	CAM Latch Shaft	1
18	8M0001081	凸轮	CAM	1
19	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
19	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
20	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
21	28635	不锈钢螺丝(.250-20 x .620)	SCREW (.250-20 x .620) Stainless Steel	1
22	8223631	固定座	RETAINER	1
22	822363T1	固定座	RETAINER	1
23	8268336	螺母 (M6)	NUT (M6)	2
23	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
24	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	2
24	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	2

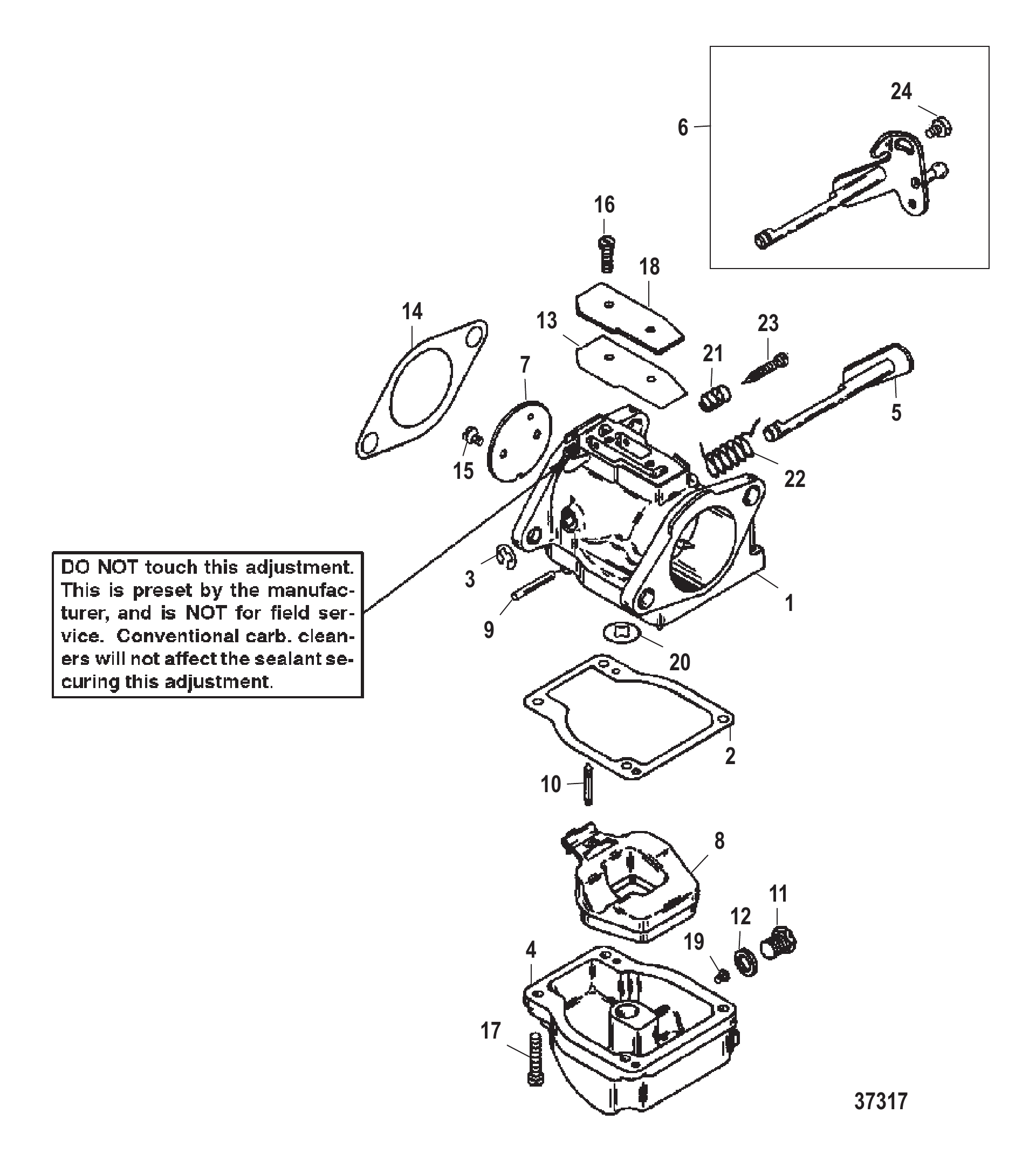

图 5化油器WME-32/32A/33/34/40/40A CARBURETOR WME-32/32A/33/34/40/40A

REF	零件编号	中文名称	英文名称	数量
1	821679A34	化油器	CARBURETOR	1
1	821679A35	化油器	CARBURETOR	1
1	823799T40	化油器	CARBURETOR	1
1	821679A36	化油器	CARBURETOR	1
1	823799T41	化油器	CARBURETOR	1
1	821679A37	化油器	CARBURETOR	1
1	823799T42	化油器	CARBURETOR	1
1	821946A10	化油器	CARBURETOR	1
1	884586T07	化油器(WME 111-1)	CARBURETOR (WME 111-1)	1
1	821946A11	化油器	CARBURETOR	1
1	884586T08	化油器(WME 111-2)	CARBURETOR (WME 111-2)	1
1	821946A12	化油器	CARBURETOR	1
1	884586T09	化油器(WME 111-3)	CARBURETOR (WME 111-3)	1
1	821946A13	化油器	CARBURETOR	1
1	884586T10	化油器(WME 111-4)	CARBURETOR (WME 111-4)	1
1	824902A9	化油器	CARBURETOR	1
1	884586T07	化油器(WME 111-1)	CARBURETOR (WME 111-1)	1
1	824902A10	化油器	CARBURETOR	1
1	884586T08	化油器(WME 111-2)	CARBURETOR (WME 111-2)	1
1	824902A11	化油器	CARBURETOR	1
1	884586T09	化油器(WME 111-3)	CARBURETOR (WME 111-3)	1
1	824902A12	化油器	CARBURETOR	1
1	884586T10	化油器(WME 111-4)	CARBURETOR (WME 111-4)	1
1	821680A1	化油器	CARBURETOR	1
1	884587T07	化油器(125-WME 112-1)	CARBURETOR (125-WME 112-1)	1
1	821680A2	化油器	CARBURETOR	1
1	884587T08	化油器(125-WME 112-2)	CARBURETOR (125-WME 112-2)	1
1	821680A3	化油器	CARBURETOR	1
1	884587T09	化油器(125-WME 112-3)	CARBURETOR (125-WME 112-3)	1
1	821680A4	化油器	CARBURETOR	1
1	884587T10	化油器(125-WME 112-4)	CARBURETOR (125-WME 112-4)	1
2	NSS		NOT SOLD SEPARATE Gasket-Fuel Bowl	4
3	NSS	非单独销售挡圈	NOT SOLD SEPARATE Retaining Ring	4
4	811693	燃油杯	BOWL Fuel	AR
4	811696	燃油杯	BOWL Fuel	1
5	823632	油门轴	SHAFT Throttle	3
6	8236321	油门轴	SHAFT Throttle	1
7	97241	油门阀	VALVE Throttle	4
8	9594	浮子	FLOAT	4
9	F10064	轴	SHAFT	4
10	879194011	进油阀	VALVE Inlet	4
11	811694	塞套件	PLUG KIT	4
12	802731	油封组(含4个油封)	SEAL (CONSISTS OF 4 SEALS)	1
13	NSS		NOT SOLD SEPARATE Gasket-Cover Plate	4
14	151723	衬垫	GASKET	4
14	151724	衬垫	GASKET	4
15	F10155	节气门螺丝	SCREW Throttle Valve	8
16	811220	盖板螺丝	SCREW Cover Plate	8
17	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	16
18	811221	盖板	COVER PLATE	4
19	5317	量孔(.046)	JET (.046)	1
19	6246	量孔(.048)	JET (.048)	1
19	6028	量孔(.050)	JET (.050)	1
19	6359	量孔(.052)	JET (.052)	2
19	5225	主量孔(.054)	JET Main (.054)	1
19	5213	主量孔(.056)	JET Main (.056)	2
19	4217	主量孔(.062)	JET Main (.062)	1
19	4215	燃油主量孔(.066)	JET Main Fuel (.066)	1
19	6029	量孔(.068)	JET (.068)	AR
19	6030	量孔(.070)	JET (.070)	1
19	6207	量孔(.072)	JET (.072)	1
20	808738	衬垫	GASKET	4
21	NSS		NOT SOLD SEPARATE Spring-Idle Needle	4
22	NSS		NOT SOLD SEPARATE Spring-Throttle Return	4
23	NSS		NOT SOLD SEPARATE Idle Needle	4
24	823634	螺钉	SCREW	2
-	8112231	化油器衬垫组	GASKET SET Carburetor	1
-	8236354	化油器维修套件	REPAIR KIT Carburetor	1
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1

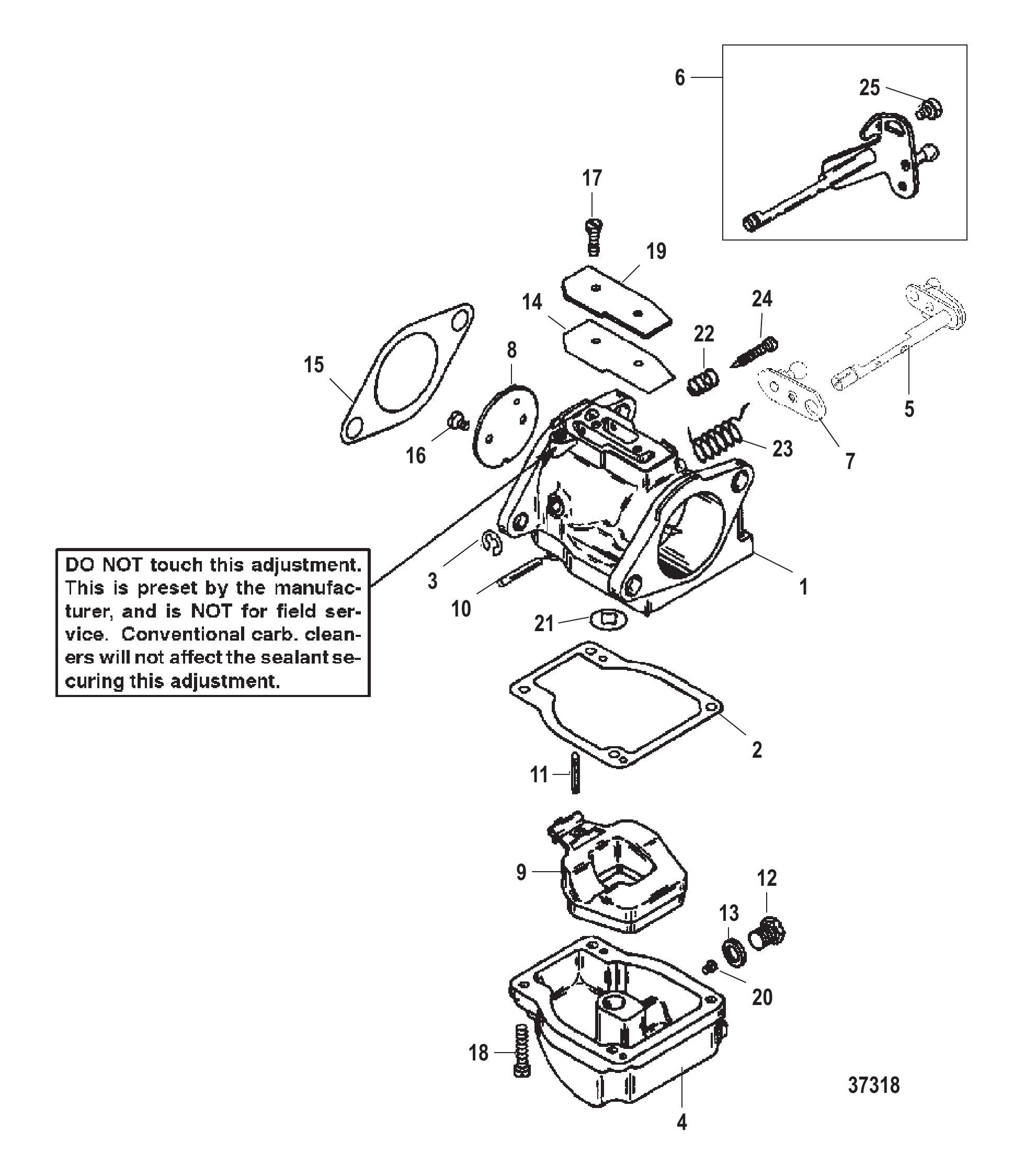

图 6化油器WME-50/51/52/79/80/81 CARBURETOR WME-50/51/52/79/80/81

REF	零件编号	中文名称	英文名称	数量
1	821679A29	化油器	CARBURETOR	1
1	821679A30	化油器	CARBURETOR	1
1	823799T40	化油器	CARBURETOR	1
1	821679A31	化油器	CARBURETOR	1
1	823799T41	化油器	CARBURETOR	1
1	821679A32	化油器	CARBURETOR	1
1	823799T42	化油器	CARBURETOR	1
1	824902A5	化油器	CARBURETOR	1
1	884586T07	化油器(WME 111-1)	CARBURETOR (WME 111-1)	1
1	824902A6	化油器	CARBURETOR	1
1	884586T08	化油器(WME 111-2)	CARBURETOR (WME 111-2)	1
1	824902A7	化油器	CARBURETOR	1
1	884586T09	化油器(WME 111-3)	CARBURETOR (WME 111-3)	1
1	824902A8	化油器	CARBURETOR	1
1	884586T10	化油器(WME 111-4)	CARBURETOR (WME 111-4)	1
1	821680A5	化油器	CARBURETOR	1
1	884587T07	化油器(125-WME 112-1)	CARBURETOR (125-WME 112-1)	1
1	821680A6	化油器	CARBURETOR	1
1	884587T08	化油器(125-WME 112-2)	CARBURETOR (125-WME 112-2)	1
1	821680A7	化油器	CARBURETOR	1
1	884587T09	化油器(125-WME 112-3)	CARBURETOR (125-WME 112-3)	1
1	821680A8	化油器	CARBURETOR	1
1	884587T10	化油器(125-WME 112-4)	CARBURETOR (125-WME 112-4)	1
1	823799A19	化油器	CARBURETOR	1
1	823799T39	化油器	CARBURETOR	1
1	823799A20	化油器	CARBURETOR	1
1	823799T40	化油器	CARBURETOR	1
1	823799A21	化油器	CARBURETOR	1
1	823799T41	化油器	CARBURETOR	1
1	823799A22	化油器	CARBURETOR	1
1	823799T42	化油器	CARBURETOR	1
1	824902A19	化油器	CARBURETOR	1
1	884586T07	化油器(WME 111-1)	CARBURETOR (WME 111-1)	1
1	824902A20	化油器	CARBURETOR	1
1	884586T08	化油器(WME 111-2)	CARBURETOR (WME 111-2)	1
1	824902A21	化油器	CARBURETOR	1
1	884586T09	化油器(WME 111-3)	CARBURETOR (WME 111-3)	1
1	824902A22	化油器	CARBURETOR	1
1	884586T10	化油器(WME 111-4)	CARBURETOR (WME 111-4)	1
1	824894A4	化油器	CARBURETOR	1
1	884587T07	化油器(125-WME 112-1)	CARBURETOR (125-WME 112-1)	1
1	824894A5	化油器	CARBURETOR	1
1	884587T08	化油器(125-WME 112-2)	CARBURETOR (125-WME 112-2)	1
1	824894A6	化油器	CARBURETOR	1
1	884587T09	化油器(125-WME 112-3)	CARBURETOR (125-WME 112-3)	1
1	824894A7	化油器	CARBURETOR	1
1	884587T10	化油器(125-WME 112-4)	CARBURETOR (125-WME 112-4)	1
2	NSS		NOT SOLD SEPARATE Gasket-Fuel Bowl	4
3	NSS	非单独销售挡圈	NOT SOLD SEPARATE Retaining Ring	4
4	811693	燃油杯	BOWL Fuel	4
5	823632	节流阀轴(WME-1/3/4)	SHAFT Throttle (WME-1/3/4)	3
6	8236321	节流阀轴(WME-2)	SHAFT Throttle (WME-2)	1
7	8087461	节流阀杆(WME-1/3/4)	LEVER Throttle (WME-1/3/4)	3
8	97241	油门阀	VALVE Throttle	4
8	97244	油门阀	VALVE Throttle	4
9	9594	浮子	FLOAT	4
10	F10064	轴	SHAFT	4
11	879194011	进油阀	VALVE Inlet	4
12	811694	塞套件	PLUG KIT	4
13	802731	油封组(含4个油封)	SEAL (CONSISTS OF 4 SEALS)	1
14	NSS		NOT SOLD SEPARATE Gasket-Cover Plate	4
15	151723	衬垫	GASKET	4
15	151724	衬垫	GASKET	4
16	F10155	节气门螺丝	SCREW Throttle Valve	8
17	811220	盖板螺丝	SCREW Cover Plate	8
18	808612	螺钉及垫圈 (#8-32 x .750)	SCREW AND WASHER (#8-32 x .750)	16
19	811221	盖板	COVER PLATE	4
20	6359	量孔(.052)	JET (.052)	1
20	6028	量孔(.050)	JET (.050)	2
20	6359	量孔(.052)	JET (.052)	1
20	4217	主量孔(.062)	JET Main (.062)	3
20	4216	量孔(.064)	JET (.064)	1
20	6030	量孔(.070)	JET (.070)	1
20	6201	量孔(.080)	JET (.080)	2
20	3518	量孔(.082)	JET (.082)	1
20	6359	量孔(.052)	JET (.052)	1
20	6028	量孔(.050)	JET (.050)	2
20	6359	量孔(.052)	JET (.052)	1
20	6487	主量孔(0.060)	JET Main (.060)	1
20	4216	量孔(.064)	JET (.064)	1
20	4217	主量孔(.062)	JET Main (.062)	3
20	6030	量孔(.070)	JET (.070)	1
20	6201	量孔(.080)	JET (.080)	2
20	3518	量孔(.082)	JET (.082)	1
21	808738	衬垫	GASKET	4
22	NSS		NOT SOLD SEPARATE Spring-Idle Needle	2
23	NSS		NOT SOLD SEPARATE Spring-Throttle Return	4
24	NSS		NOT SOLD SEPARATE Idle Needle	2
25	823634	螺钉	SCREW	3
-	8112231	化油器衬垫组	GASKET SET Carburetor	1
-	8236354	化油器维修套件	REPAIR KIT Carburetor	1
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1

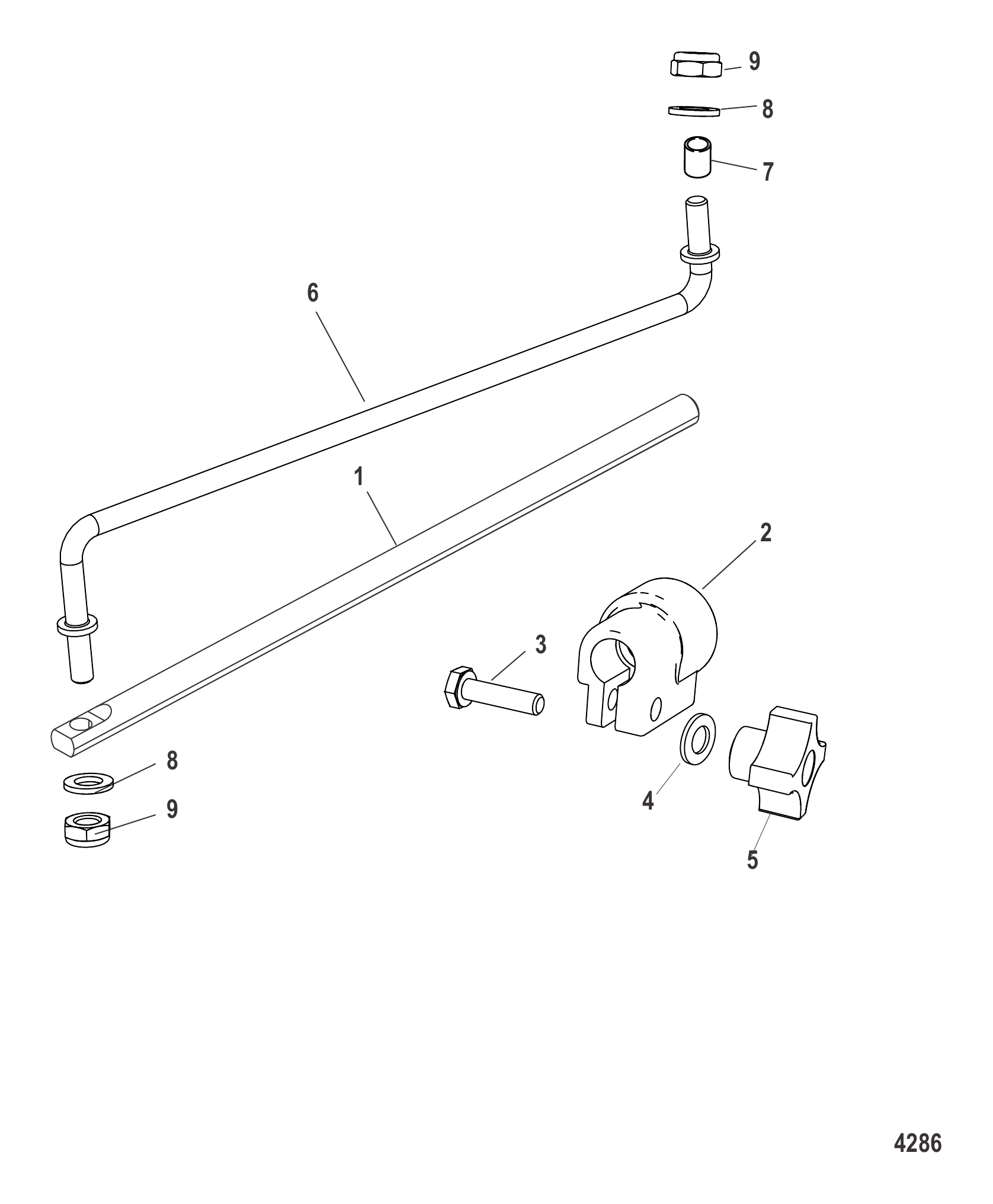

图 7副驾驶装置 Co-Pilot

REF	零件编号	中文名称	英文名称	数量
-	52148A7	副驾驶装置总成	CO-PILOT ASSEMBLY	1
1	521481	导向杆	PILOT ROD	1
2	8M0103848	螺母总成	NUT ASSEMBLY	1
3	56500	螺丝(.250-28 x 1.250)	SCREW (.250-28 x 1.250)	1
4	77674	垫圈(.35 x .75 x .12)	WASHER (.35 x .75 x .12)	1
5	821621	叉形旋钮	KNOB Prong	1
6	873491	杆	ROD	1
7	521512	衬套	BUSHING	1
8	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
8	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2
9	826709111	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	2

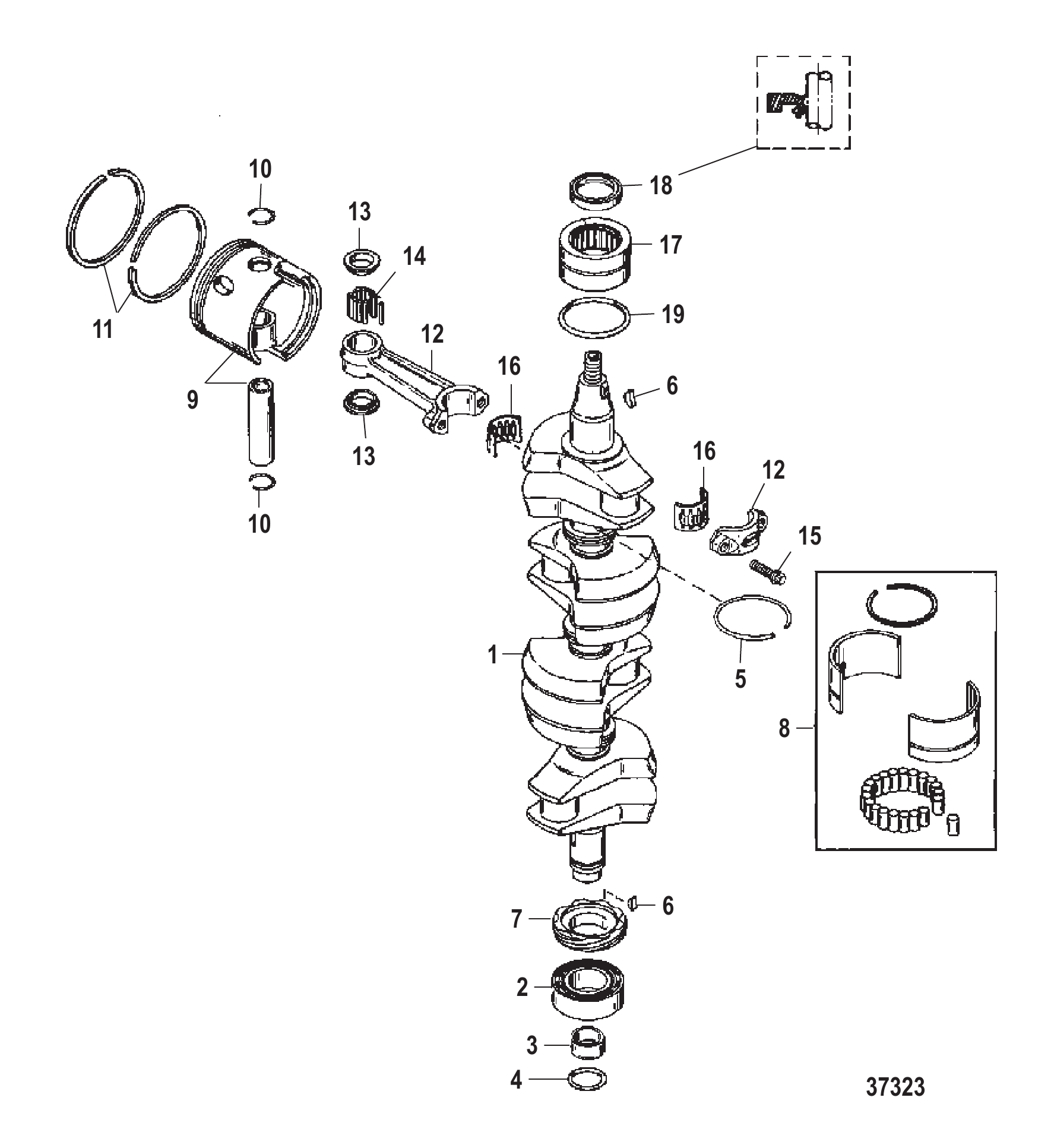

图 8曲轴、活塞与连杆 CRANKSHAFT, PISTONS AND CONNECTING RODS

REF	零件编号	中文名称	英文名称	数量
1	9193A5	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	43011	球轴承(下部)	BEARING Ball (LOWER)	1
2	43011T	滚珠轴承	BEARING Ball	1
3	786611	耐磨套	WEAR SLEEVE	1
4	35126	O型圈(.859 x .139)	O-RING (.859 x .139)	1
5	818412A4	环组件	RING ASSEMBLY	2
6	91800	半圆键	KEY Woodruff	2
7	43019A1	齿轮总成	GEAR ASSEMBLY	1
8	42943A1	滚柱轴承总成	BEARING ASSEMBLY Roller	3
9	826191A4	活塞总成	PISTON ASSEMBLY	4
9	826191T4	活塞总成	PISTON ASSEMBLY	4
9	821896A3	活塞总成	PISTON ASSEMBLY	AR
9	821896A4	活塞总成	PISTON ASSEMBLY	AR
10	52035	锁环	RING Lock	8
10	857196	锁紧环	LOCK RING	8
11	822321A12	活塞环套件-标准	RING KIT Piston - Standard	1
11	822321A1	活塞环套件-加大0.015	RING KIT Piston - .015 Oversize	AR
11	822321A2	活塞环组	RING SET Piston	AR
12	818846A3	连杆总成	CONNECTING ROD ASSEMBLY	4
12	818846T6	连杆总成	CONNECTING ROD ASSEMBLY	4
13	812876	垫圈	WASHER	8
13	8M0012298	止推垫片	THRUST WASHER	8
14	818391	滚针轴承	BEARING Needle	116
14	8M0214954	滚针轴承@200	BRG-NEEDLE @200	116
15	94320	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	8
16	43012A1	轴承/保持架套件	BEARING/CAGE KIT	4
16	8M0235070	轴承保持架	CAGE BEARING	4
17	43013A1	滚子轴承总成(上部)	BEARING ASSEMBLY Roller (UPPER)	1
17	43013T3	滚柱轴承总成	BEARING ASSEMBLY Roller	1
18	43993	油封	SEAL Oil	1
18	8M0214932	密封件	SEAL	1
19	823683	O型圈(1.989 x .070)	O-RING (1.989 x .070)	1
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1
-	17791A97	动力头总成	POWERHEAD ASSEMBLY	1
-	17791T97	动力头总成	POWERHEAD ASSEMBLY	1

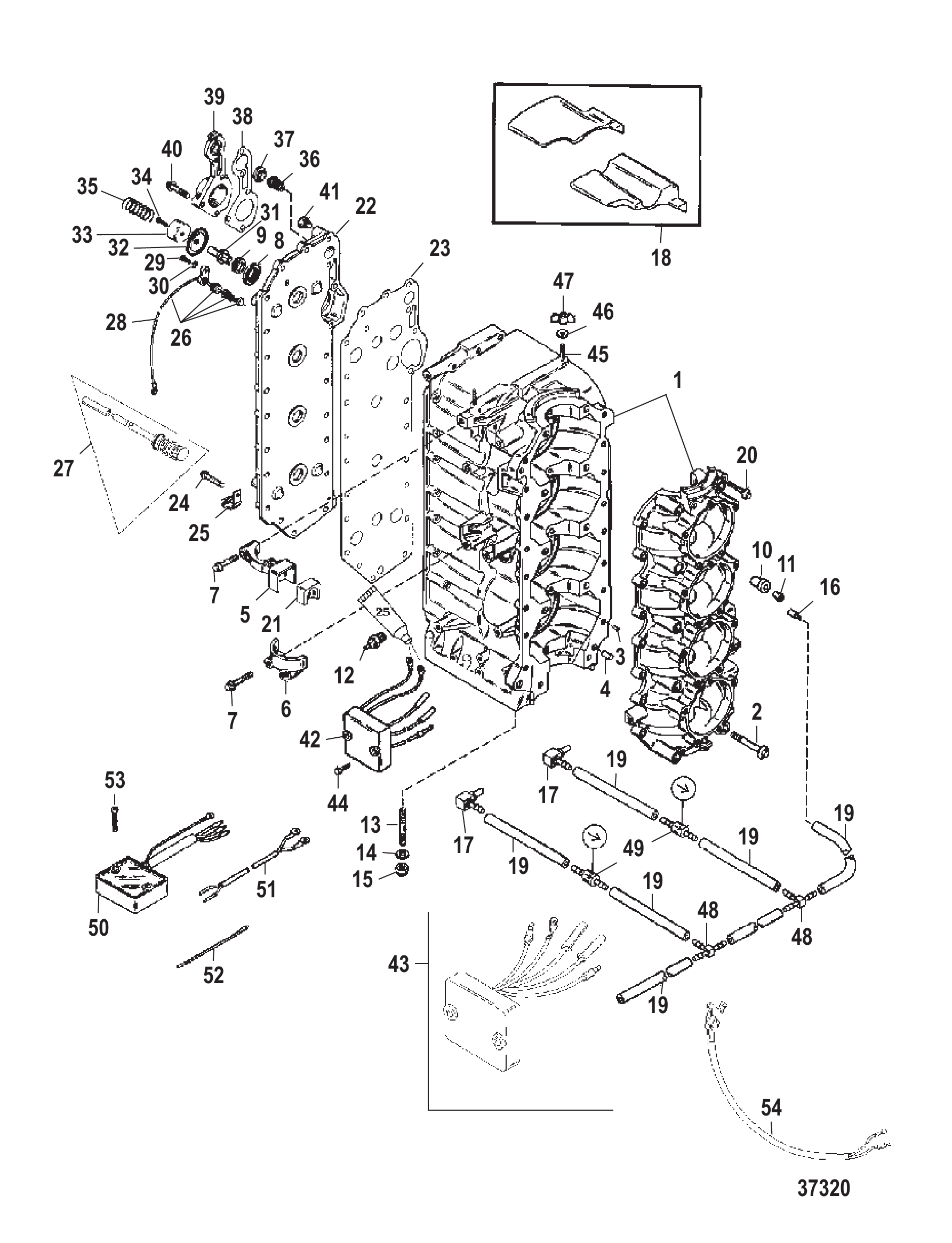

图 9气缸体与曲轴箱 CYLINDER BLOCK AND CRANKCASE

REF	零件编号	中文名称	英文名称	数量
1	9191A24	气缸体	CYLINDER BLOCK	1
2	4009680	螺钉(M10×80)	SCREW (M10 x 80)	10
3	67296	销(轴承座圈)	PIN (BEARING RACE)	4
3	8M0036405	销	PIN	4
4	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	1
5	428841	上盖	COVER (TOP)	1
5	428842	盖板	COVER	1
6	76867	下盖	COVER (BOTTOM)	1
7	81742750	螺钉(M8 x 50)	SCREW (M8 x 50)	4
8	65848	托架	CARRIER	1
9	64872	护孔环	GROMMET	1
10	813801A1	托架总成	CARRIER ASSEMBLY	1
11	42657A3	止回阀	CHECK VALVE	3
12	146532	止回阀	CHECK VALVE	2
12	891664	止回阀	CHECK VALVE	2
13	8216761	双头螺柱(M10)	STUD (M10)	8
13	821676A1	螺柱套件	STUD KIT	8
14	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	8
14	8M0214963	垫圈	WASHER	8
15	13914	螺母(M10)	NUT (M10)	8
15	40140	螺母(M10)	NUT (M10)	8
16	426231	止回阀(压入式)	CHECK VALVE (PRESS-IN)	1
16	426233	止回阀	CHECK VALVE	1
17	15133	接头	FITTING	2
18	824703A1	塞套件	PLUG KIT	1
19	99130122	油管(20.00英尺散装)	TUBING (20.00 Feet Bulk)	1
19	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
20	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	16
21	99162	护套	BOOT	1
21	99162001	护套	BOOT	1
22	9196A2	盖板	COVER	1
23	443284	衬垫	GASKET	1
24	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	18
25	814634	卡箍	CLAMP	5
26	787991	温度传感器(37.50英寸)	SENDER Temperature (37.50 Inch)	1
27	787992	温度传感器	SENDER Temperature	1
28	44552	固定座	RETAINER	1
28	889733	固定座	RETAINER	1
29	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	1
30	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
30	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
31	86596T	提升阀	POPPET VALVE	1
32	64877	隔膜	DIAPHRAGM	1
32	648771	隔膜	DIAPHRAGM	1
33	94182	垫圈	WASHER	1
34	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
35	18336	弹簧	SPRING	1
35	42996	不锈钢弹簧	SPRING (Stainless Steel)	1
36	14586	节温器	THERMOSTAT	1
37	62386	衬垫	GASKET	1
37	8M0204714	衬垫@4	GASKET @4	1
38	430065	衬垫	GASKET	1
38	430068	衬垫	GASKET	1
39	428853	盖板	COVER	1
39	8M0047619	盖板	COVER	1
40	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	1
40	81742755	螺钉(M8x55)	SCREW (M8 x 55)	4
41	328022	黄铜管塞 (.125-27)	PLUG Pipe (.125-27) Brass	1
42	14857A11	机油报警模块总成	MODULE ASSEMBLY Oil Warning	1
42	14857A16	机油报警模块	MODULE-OILWARNING	1
43	14857A13	机油报警模块总成	MODULE ASSEMBLY Oil Warning	1
43	14857A16	机油报警模块	MODULE-OILWARNING	1
44	4010630	不锈钢螺钉(M6x30)	SCREW (M6 x 30) Stainless Steel	2
45	8161946	螺柱	STUD	2
45	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
46	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
46	8M0204663	垫片@5	WASHER @5	2
47	816872	蝶形螺母	WING NUT	2
48	59169	三通接头	FITTING (TEE)	2
48	59169003	三通接头	FITTING Tee	2
49	149122	止回阀	CHECK VALVE	2
49	149125	止回阀	CHECK VALVE	2
50	821889A51	转速限制器	REV LIMITER	1
51	823147A7	限速器线束总成(适用时使用)	HARNESS ASSEMBLY Rev Limiter (USE WHERE APPLICABLE)	1
52	11149A8	适配器线束总成(适用时使用)	HARNESS ASSEMBLY Adapter (USE WHERE APPLICABLE)	1
53	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2
53	82130030	螺钉 (M6 x 30)	SCREW (M6 x 30)	2
54	855212A1	适配器线束总成	HARNESS ASSEMBLY Adaptor	1
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1
-	17791A97	动力头总成	POWERHEAD ASSEMBLY	1
-	17791T97	动力头总成	POWERHEAD ASSEMBLY	1

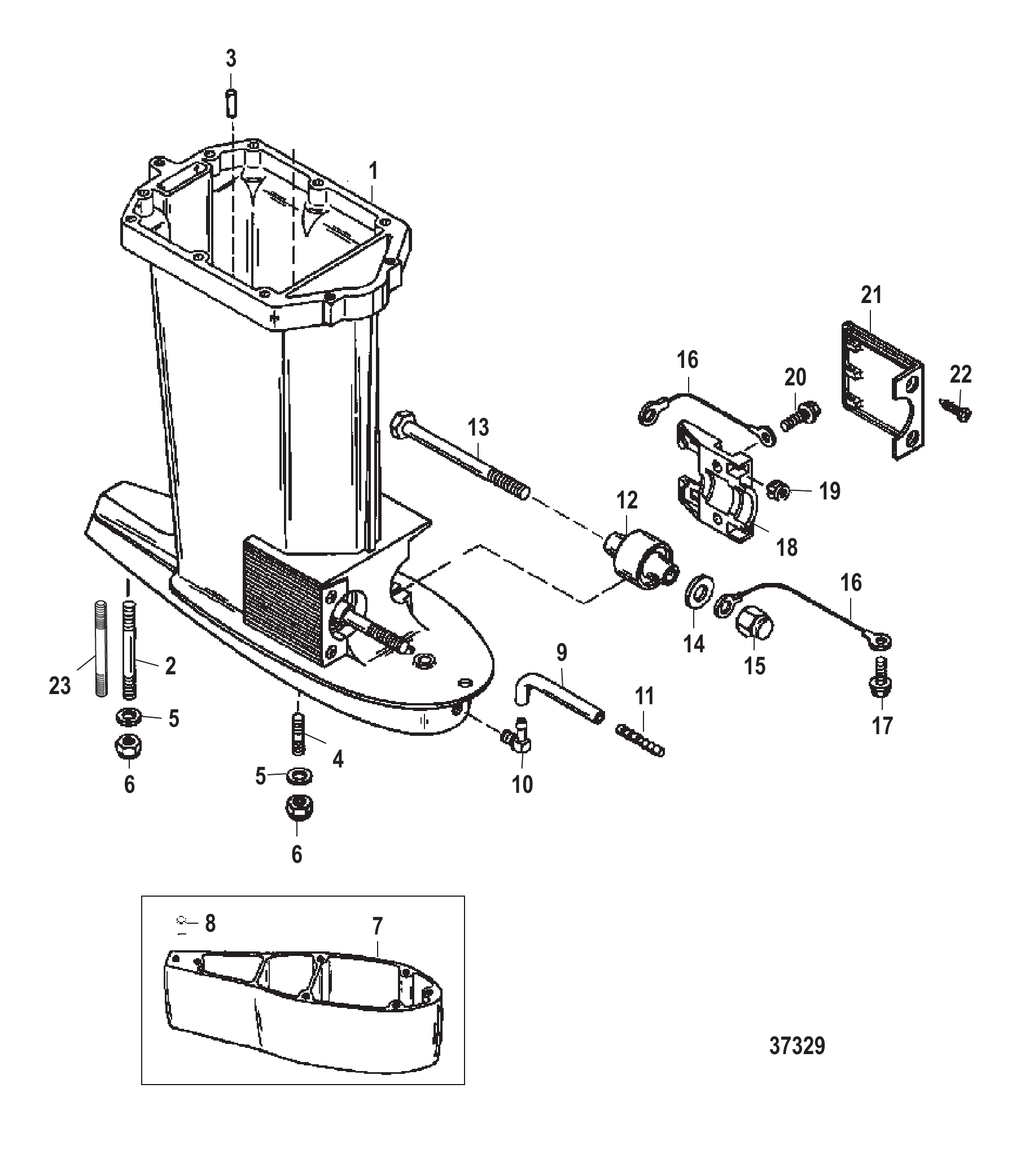

图 10驱动轴壳体 DRIVESHAFT HOUSING

REF	零件编号	中文名称	英文名称	数量
1	8974A23	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8974A24	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8974T23	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8974A25	驱动轴壳体套件	HOUSING KIT Driveshaft	1
1	8974A28	驱动轴壳体套件	HOUSING KIT Driveshaft	1
1	8974A26	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8974A27	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	903501	双头螺柱(M10×100)	STUD (M10 x 100)	1
3	23784	定位销	PIN Dowel	2
4	9035012	双头螺柱(M10×63)	STUD (M10 x 63)	4
4	903503	双头螺柱(M10×190)	STUD (M10 x 190)	4
5	856774	垫圈(0.406×0.750×0.105)不锈钢	WASHER (.406 x .750 x .105) Stainless Steel	5
5	8M0214963	垫圈	WASHER	5
6	13914	螺母(M10)	NUT (M10)	5
6	40140	螺母(M10)	NUT (M10)	5
7	12092A3	隔套套件	SPACER KIT	1
7	12092A4	隔套套件	SPACER KIT	1
8	43043	定位销-带孔(0.375×0.625)	PIN Dowel - With Hole (.375 x .625)	1
8	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
8	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)
9	85822A4	速度计传感器总成	PICKUP ASSEMBLY Speedometer	1
10	43335	90度接头(.125-27)尼龙	CONNECTOR 90 Degree (.125-27) Nylon	1
10	433351	90度接头-带防振密封	CONNECTOR 90 Degree - With Vibraseal	1
11	85822	直通接头	CONNECTOR Straight	1
11	85822T	直通接头	CONNECTOR Straight	1
12	443431	支架	MOUNT	2
12	44343T1	支架	MOUNT	2
13	42973	螺栓(M12×154)	BOLT (M12 x 154)	2
13	898835001	螺钉(M12 x 154)	SCREW (M12 x 154)	2
14	30119	垫圈(外径0.875英寸)	WASHER (.875 Inch Outside Diameter)	2
15	43528	螺母(M12)	NUT (M12)	2
15	8M0204662	螺母	NUT	2
16	88238A10	接地线总成	CABLE ASSEMBLY Ground	2
17	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
18	93192	卡箍	CLAMP	2
18	8M0036730	卡箍	CLAMP	2
19	35521	螺母	NUT	4
20	4010725	螺钉 (M8 x 25)	SCREW (M8 x 25)	4
21	67077T	黑色盖	COVER Black	2
21	8M4500752	盖板	COVER	2
21	67077F1	灰色盖板	COVER Gray	2
21	67077T	黑色盖	COVER Black	2
21	67077F2	盖板	COVER	2
21	8M4500752	盖板	COVER	2
22	88417	螺钉(#12-24×0.620)	SCREW (#12-24 x .620)	4
23	903502	双头螺柱(M10×227)	STUD (M10 x 227)	1

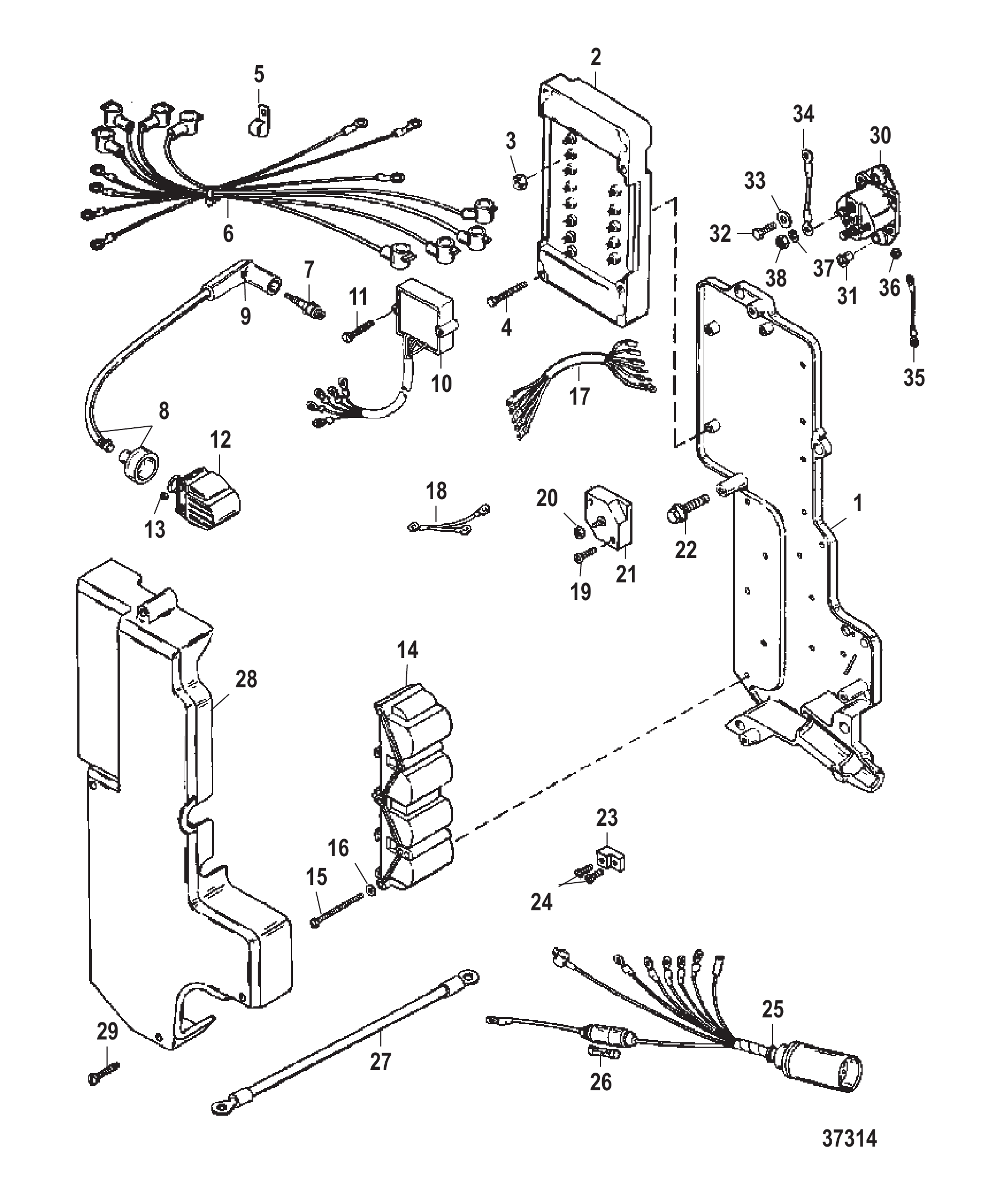

图 11电气组件（USA-0G437999/BEL-9926999及以下） ELECTRICAL COMPONENTS USA-0G437999/BEL-9926999 AND BELOW

REF	零件编号	中文名称	英文名称	数量
-	13541	公插头	PLUG Male	2
1	443314	点火板	IGNITION PLATE	1
2	5772A7	开关盒总成	SWITCHBOX ASSEMBLY	1
3	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	13
4	40011110	螺钉(M5×30不锈钢)	SCREW (M5 x 30) Stainless Steel	4
5	63153	J型卡扣	J CLIP	1
6	43442A3	主线路束总成	HARNESS ASSEMBLY Primary	1
7	8167372	火花塞(NGK BP8H-N-10)	SPARK PLUG (NGK #BP8H-N-10)	4
7	816737Q	NGK BP8HN-10@10	NGK BP8HN-10@10	4
7	8168372	火花塞(加拿大/比利时 NGK#BPZ8H-N-10)	SPARK PLUG (CAN/BELGIUM NGK#BPZ8H-N-10)	4
7	938	SP #QL78YC @4	SP #QL78YC @4	4
8	813715A8	点火电缆组	CABLE SET Ignition	1
8	821945A57	高压电缆总成	CABLE ASSEMBLY Hi Tension	1
9	63709A1	护套/端子套件	BOOT/TERMINAL KIT	4
10	815279T	电压调节器	REGULATOR Voltage	1
10	8M0084173	电压调节器	VOLTAGE REGULATOR	1
11	4010635	螺钉(M6 x 35) 不锈钢	SCREW (M6 x 35) Stainless Steel	2
12	832757A4	线圈套件	COIL KIT	4
12	8M0230859	点火线圈总成	COIL IGNITION ASY	4
13	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	8
14	87554	盖板	COVER	1
15	40007114	螺钉(M5×50)	SCREW (M5 x 50)	5
16	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	5
17	821546A3	线束总成	HARNESS ASSEMBLY	1
18	824912A3	电缆总成(6-1/2英寸)	CABLE ASSEMBLY (6-1/2 IN.)	1
18	824912A4	电缆总成(4-3/4英寸)	CABLE ASSEMBLY (4-3/4 IN.)	1
19	40007107	螺钉(M5×16)	SCREW (M5 x 16)	2
20	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	3
21	17602A2	端子排	TERMINAL BLOCK	1
21	17602T02	接线端子总成	TERMINAL BLOCK ASSEMBLY	1
22	82155025	螺丝(M8 x 25 mm)不锈钢	SCREW (M8 x 25 mm) Stainless Steel	4
23	45915	端子排	TERMINAL BLOCK	2
24	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	4
25	43443A9	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
26	79091	保险丝20安培	FUSE 20 Ampere	1
26	8M0207796	保险丝20安培	FUSE 20 AMP	1
27	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
27	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
28	13550T1	盖板	COVER	1
29	40007114	螺钉(M5×50)	SCREW (M5 x 50)	3
29	40011110	螺钉(M5×30不锈钢)	SCREW (M5 x 30) Stainless Steel	1
30	817109A2	电磁阀总成(#10-32/.3125-18端子)	SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)	1
31	818968	衬套	BUSHING	2
31	8M0214955	衬套	BUSHING	2
32	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	2
33	4002314	垫圈	WASHER	2
34	88807A6	黑色电缆总成 (3.50 英寸)	CABLE ASSEMBLY (3.50 Inches) Black	AR
35	87379A34	电线(4.25英寸红色/按需使用)	WIRE (4.25 Inch) Red (USE WHERE APPLICABLE)	1
35	79139A22	线束总成	WIRE ASSEMBLY	1
36	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
37	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
38	68292	螺母(.312-18)	NUT (.312-18)	2
38	8M0204668	螺母(.312-18)	NUT (.312-18)	2

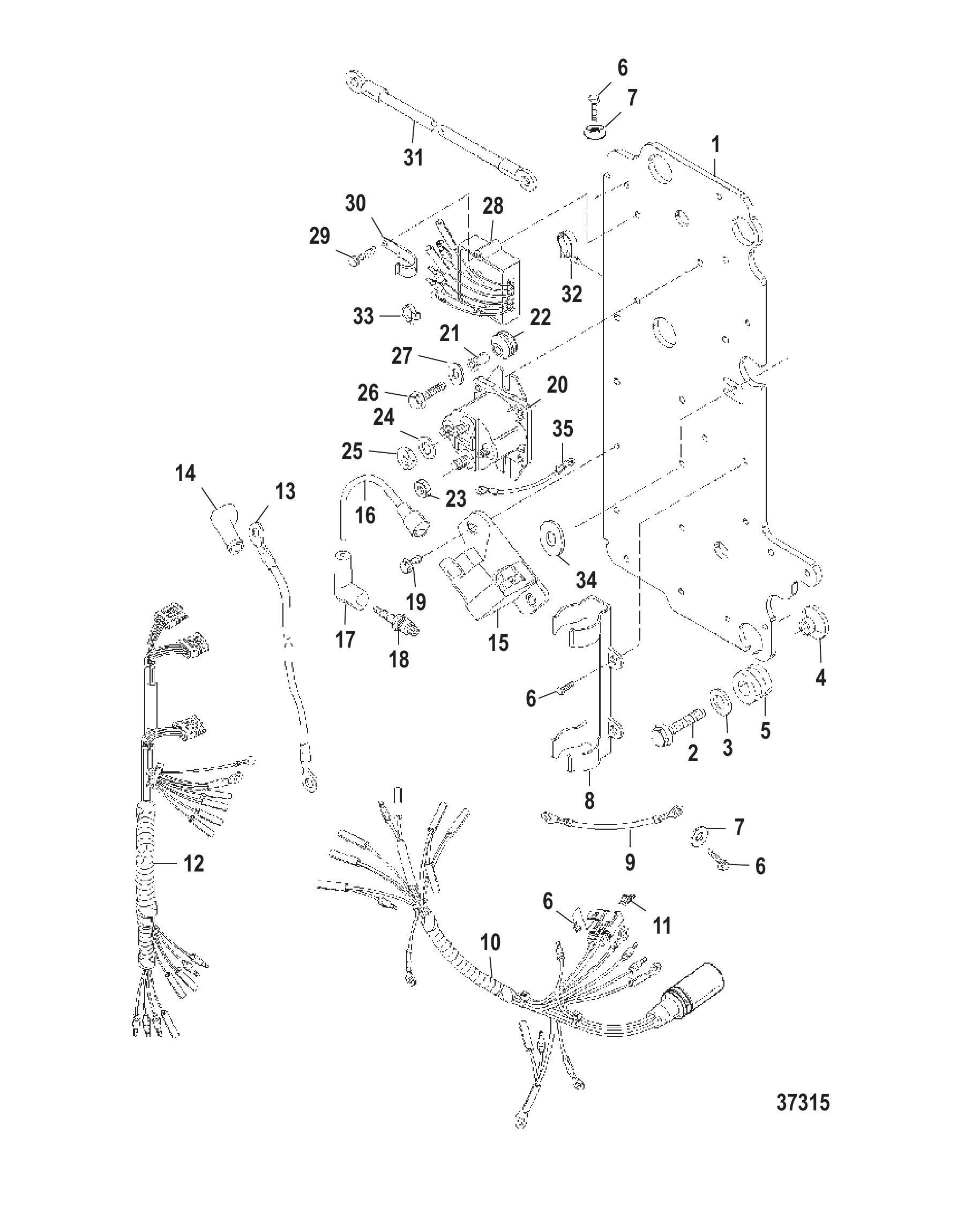

图 12电气组件（USA-0G438000/BEL-9937000及以上） ELECTRICAL COMPONENTS USA-0G438000/BEL-9937000 AND UP

REF	零件编号	中文名称	英文名称	数量
1	832753	点火板	IGNITION PLATE	1
2	40011150	螺钉(M8×30)不锈钢	SCREW (M8 x 30) Stainless Steel	3
3	56720	垫圈(0.330×0.750×0.060)不锈钢	WASHER (.330 x .750 x .060) Stainless Steel	3
4	850234	衬套	BUSHING	3
4	8502341	衬套	BUSHING	3
5	833155	护孔环	GROMMET	3
6	82239312	螺钉(M5 x 12)	SCREW (M5 x 12)	5
7	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	2
8	826115	卡箍	CLAMP	1
8	8261151	连接器卡箍	CLAMP Connector	1
9	88807A44	电缆总成(10英寸)	CABLE ASSEMBLY (10 IN.)	1
10	850043A2	发动机线束总成	HARNESS ASSEMBLY Engine	1
11	812619	黄色保险丝-20安培	FUSE Yellow - 20 Ampere	1
12	850045A2	点火线束总成	HARNESS ASSEMBLY Ignition	1
13	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
14	830233	红色绝缘护套	BOOT Insulator - Red	1
15	827509A4	CDM模块总成	CDM MODULE ASSEMBLY	4
15	827509A10	CDM模块总成	CDM MODULE ASSEMBLY	4
15	827509A10	CDM模块总成	CDM MODULE ASSEMBLY	4
16	821945A61	高压电缆总成	CABLE ASSEMBLY Hi Tension	4
17	63709A1	护套/端子套件	BOOT/TERMINAL KIT	4
18	8167372	火花塞(NGK BP8H-N-10)	SPARK PLUG (NGK #BP8H-N-10)	4
18	816737Q	NGK BP8HN-10@10	NGK BP8HN-10@10	4
18	8168372	火花塞(NGK BPZ8H-N-10)	SPARK PLUG (NGK#BPZ8H-N-10)	4
18	938	SP #QL78YC @4	SP #QL78YC @4	4
19	82129116	螺钉(M6 x 16)	SCREW (M6 x 16)	8
20	817109A2	电磁阀总成(#10-32/.3125-18端子)	SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)	1
21	818968	衬套	BUSHING	2
21	8M0214955	衬套	BUSHING	2
22	822179	护孔环	GROMMET	2
23	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
24	26993	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
24	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
25	68292	螺母(.312-18)	NUT (.312-18)	2
25	8M0204668	螺母(.312-18)	NUT (.312-18)	2
26	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
27	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
27	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
28	854515	电压调节器	REGULATOR Voltage	1
28	8M0084173	电压调节器	VOLTAGE REGULATOR	1
29	82129135	螺钉(M6x35)	SCREW (M6 x 35)	2
30	54457	J型卡扣	J CLIP	1
31	93388A8	黑色电缆总成(12.5英寸)	CABLE ASSEMBLY (12.5 Inchs) Black	1
32	834813	卡箍	CLAMP	2
33	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
33	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	1
34	36001	垫圈	WASHER	1
35	88807A16	黑色电缆总成(4.00英寸)	CABLE ASSEMBLY (4.00 Inches) Black	1

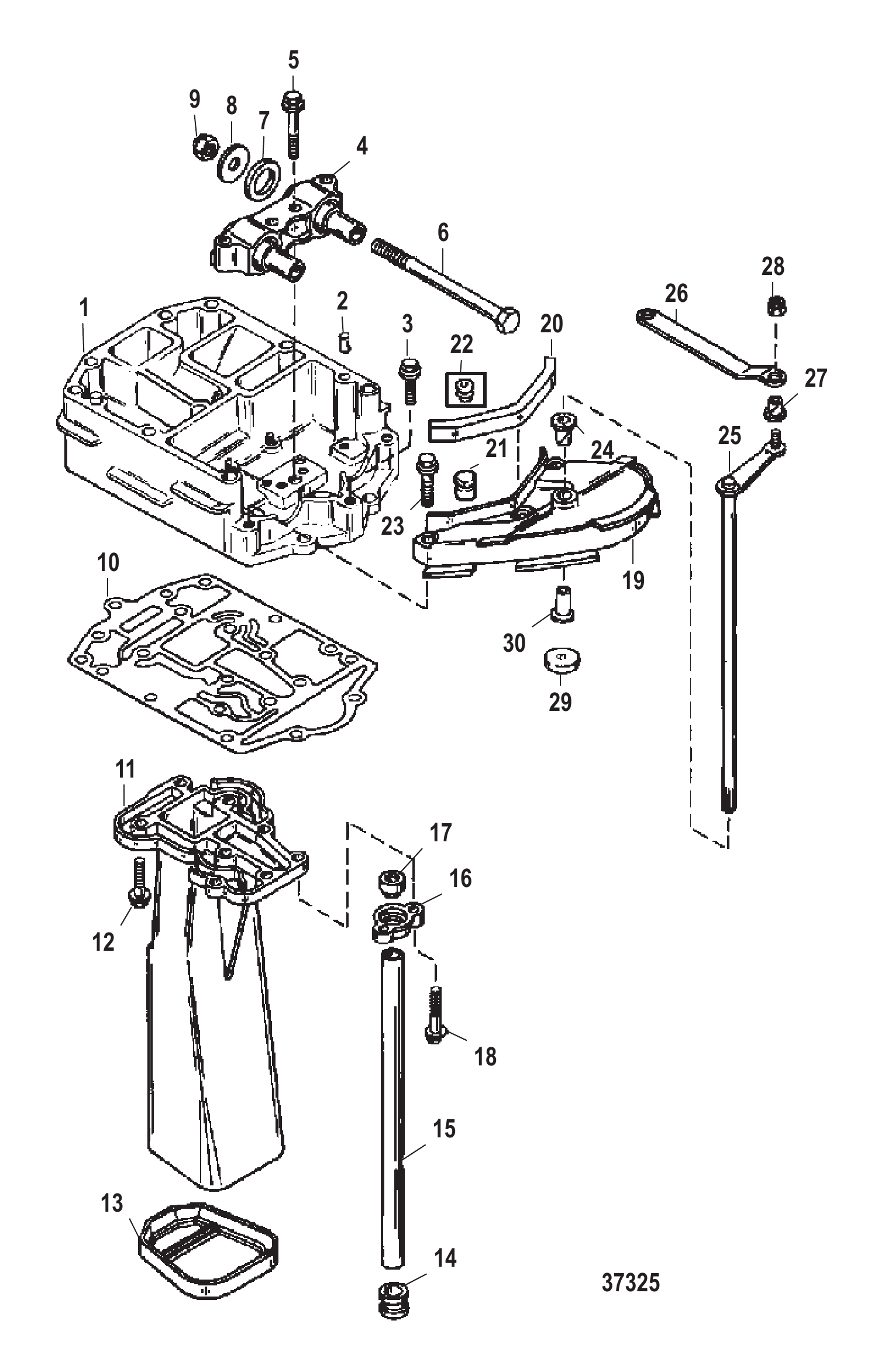

图 13排气板 EXHAUST PLATE

REF	零件编号	中文名称	英文名称	数量
1	42954A5	排气板总成	PLATE ASSEMBLY Exhaust	1
2	23784	定位销	PIN Dowel	3
3	40011151	不锈钢螺钉(M8×35)	SCREW (M8 x 35) Stainless Steel	2
3	40011158	不锈钢螺钉(M8×70)	SCREW (M8 x 70) Stainless Steel	1
4	443442	支架(2.375英寸)	MOUNT (2.375 Inch)	1
4	881900T03	支架	MOUNT	1
5	4010750	螺钉(M8 x 50)	SCREW (M8 x 50)	4
6	42974	螺栓(M12×175)	BOLT (M12 x 175)	2
6	8M0238139	螺钉	SCREW	2
7	934161	氯丁橡胶垫圈	WASHER Neoprene	2
7	32834	垫圈(0.9375x1.750x0.172)	WASHER (.9375 x 1.750 x .172)	2
8	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
8	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	2
9	90099	螺母(M12)	NUT (M12)	2
9	896963	螺母(M12)	NUT (M12)	2
10	430086	衬垫	GASKET	1
11	429664	排气管	TUBE Exhaust	1
11	87917216T	排气管	TUBE-EXHAUST	1
12	40011151	不锈钢螺钉(M8×35)	SCREW (M8 x 35) Stainless Steel	6
13	42962	密封件	SEAL	1
13	8M0039075	密封件	SEAL	1
14	894171	护孔环	GROMMET	1
14	89417004	护孔环	GROMMET	1
15	8246601	水管	TUBE Water	1
15	8M0042791	长型水管	TUBE-WATER-LONG	1
15	8246602	水管	TUBE Water	1
15	8M0042792	水管-XL	TUBE-WATER-XL	1
16	824661	卡箍	CLAMP	1
17	814080	上密封件	SEAL (UPPER)	1
17	814080001	密封件	SEAL	1
18	4010750	螺钉(M8 x 50)	SCREW (M8 x 50)	2
19	42953A5	支架总成(下部)	BRACKET ASSEMBLY (LOWER)	1
19	42953A6	支架总成(下部)	BRACKET ASSEMBLY (LOWER)	1
19	42953A7	支架总成(下部)	BRACKET ASSEMBLY (LOWER)	1
20	43405	密封件	SEAL	1
21	126021	护孔环	GROMMET	1
21	12602002	护孔环	GROMMET	1
22	19565	护孔环	GROMMET	1
22	19565002	护孔环	GROMMET	1
23	81742750	螺钉(M8 x 50)	SCREW (M8 x 50)	3
24	48237	衬套	BUSHING	1
25	79932A19	换挡轴(上部)	SHIFT SHAFT (UPPER)	1
25	79932A20	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
26	42912A3	换挡连杆	SHIFT LINK	1
25	79932A9	换挡轴总成(上部)	SHIFT SHAFT ASSEMBLY (UPPER)	1
26	42912A1	换挡连杆	SHIFT LINK	1
27	48475	衬套	BUSHING	2
28	8268336	螺母 (M6)	NUT (M6)	1
28	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
29	813745	隔套	SPACER	1
29	11289	隔套	SPACER	1
30	43585	联轴器	COUPLING	1
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1

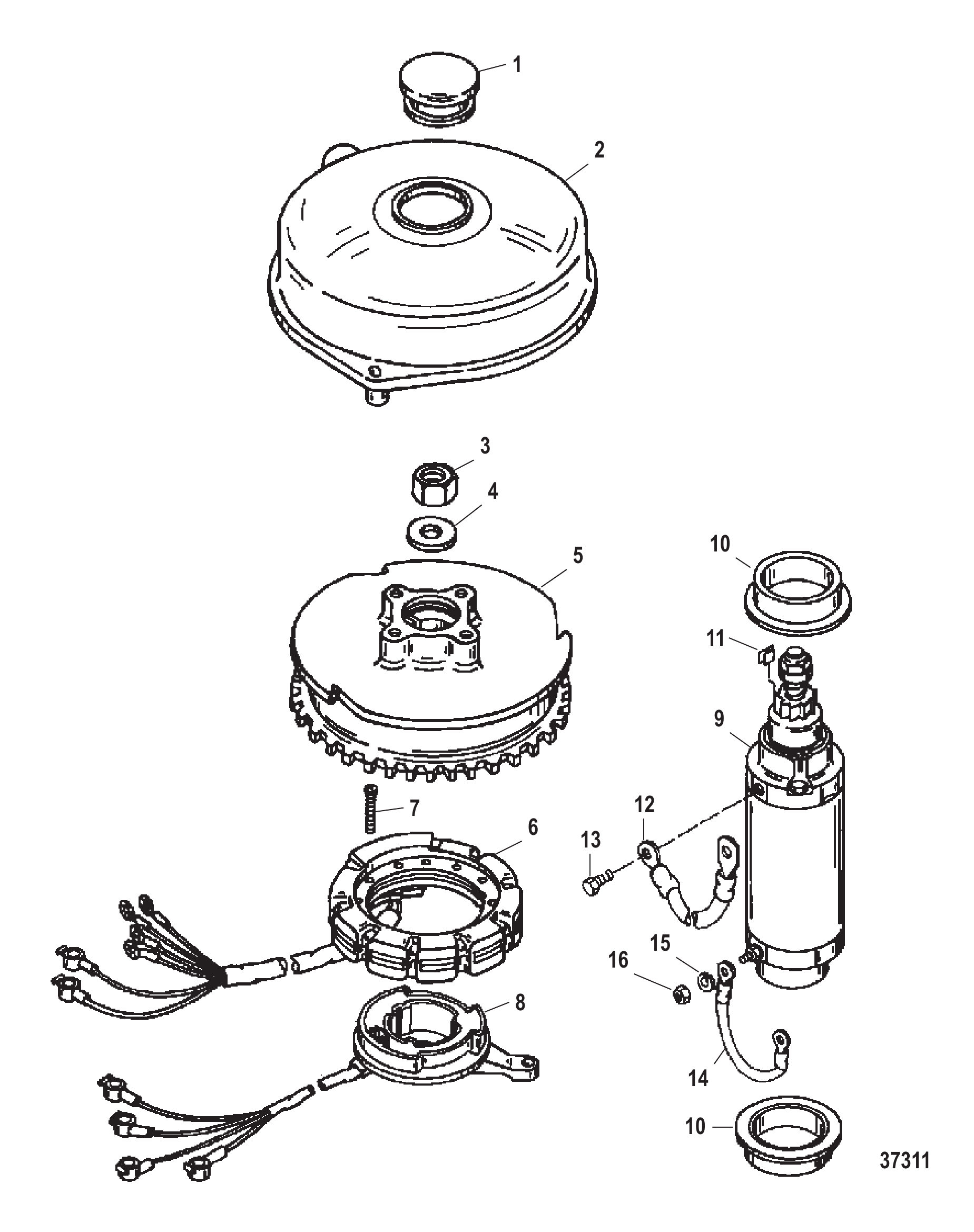

图 14飞轮/启动马达 USA:0G437999/BEL:9926999 及以下 FLYWHEEL/STARTER MOTOR USA:0G437999/BEL:9926999 AND BELOW

REF	零件编号	中文名称	英文名称	数量
1	45907	黄色塞	PLUG Yellow	1
2	812777T1	盖总成	COVER ASSEMBLY	1
3	42979	螺母(M16)	NUT (M16)	1
4	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
4	33001	垫圈	WASHER	1
5	9008A62	飞轮总成	FLYWHEEL ASSEMBLY	1
5	859236T13	飞轮总成	FLYWHEEL ASSY	1
6	9710A45	定子	STATOR	1
7	4007325	螺丝(M5 x 25)	SCREW (M5 x 25)	4
8	99021A6	触发器总成	TRIGGER ASSEMBLY	1
9	660153	启动电机总成	STARTER MOTOR ASSEMBLY	1
9	893892T	启动电机总成	STARTER MOTOR ASSEMBLY	1
10	56703	轴环	COLLAR	2
10	8M0034918	轴环	COLLAR	2
11	57247	停机开关	STOP	2
11	8M0043376	停机开关	STOP	2
12	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
13	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
14	93388A6	线缆总成(5.500英寸)	CABLE ASSEMBLY (5.500 Inches)	1
15	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
16	64015	螺母 (.250-20)	NUT (.250-20)	1

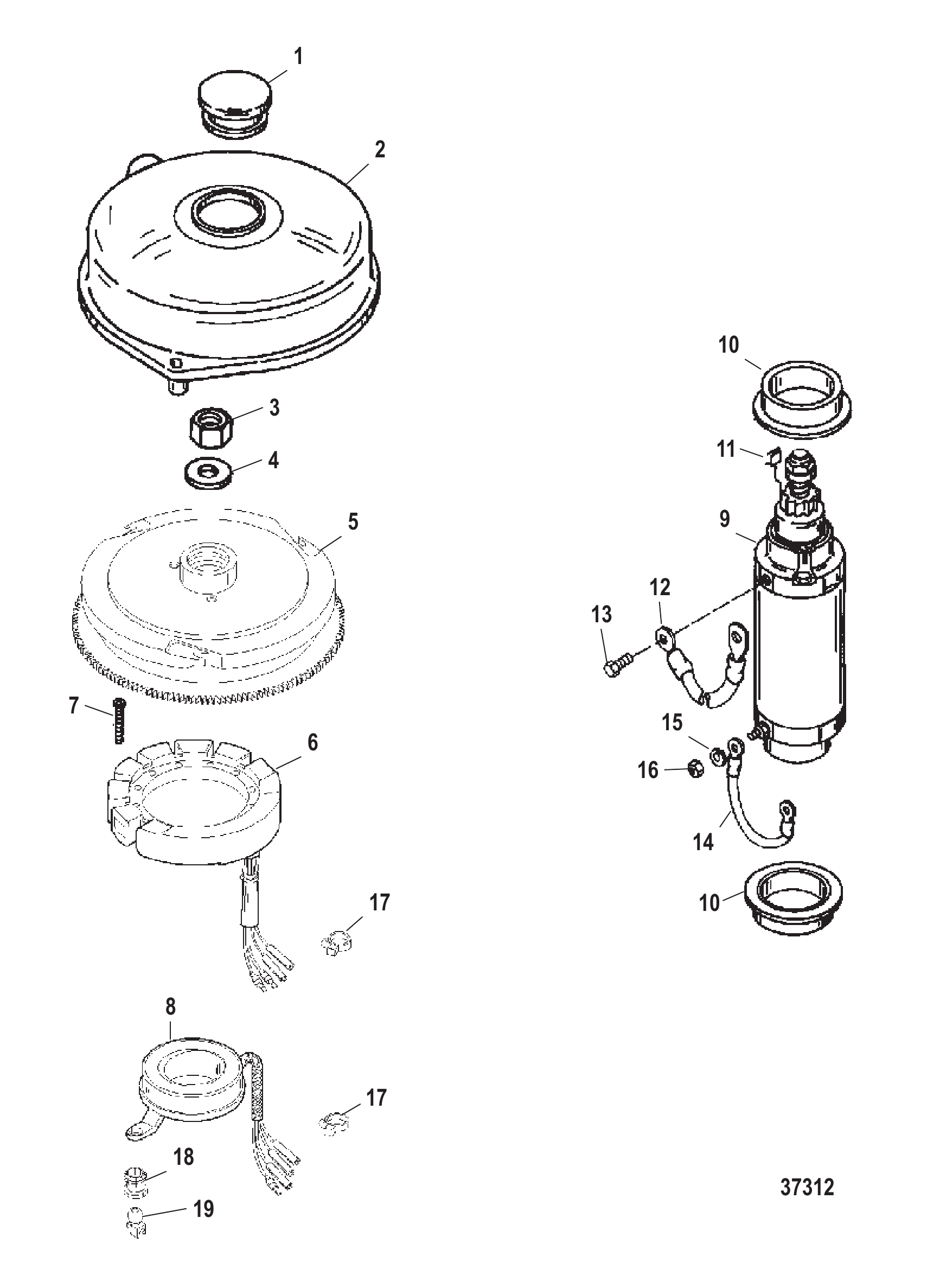

图 15飞轮/启动电机（USA-0G438000/BEL-9927000及以上） FLYWHEEL/ STARTER MOTOR USA-0G438000/BEL-9927000 AND UP

REF	零件编号	中文名称	英文名称	数量
1	45907	黄色塞	PLUG Yellow	1
2	812777T1	盖总成	COVER ASSEMBLY	1
3	42979	螺母(M16)	NUT (M16)	1
4	68229	垫圈(.641 x 1.250 x .190)	WASHER (.641 x 1.250 x .190)	1
4	33001	垫圈	WASHER	1
5	9008A64	飞轮总成	FLYWHEEL ASSEMBLY	1
5	878227T2	飞轮总成	FLYWHEEL ASSEMBLY	1
6	832075A4	点火定子套件	IGNITION STATOR KIT	1
6	832075A21	定子总成	STATOR ASSEMBLY	1
7	4007330	螺丝(M5 x 30)	SCREW (M5 x 30)	4
7	4013930	螺丝(M5 x 30)	SCREW (M5 x 30)	4
8	854513T	触发器总成	TRIGGER ASSEMBLY	1
9	660153	启动电机总成	STARTER MOTOR ASSEMBLY	1
9	893892T	启动电机总成	STARTER MOTOR ASSEMBLY	1
10	56703	轴环	COLLAR	2
10	8M0034918	轴环	COLLAR	2
11	57247	停机开关	STOP	2
11	8M0043376	停机开关	STOP	2
12	93388A1	电缆总成(6.00英寸)黑色	CABLE ASSEMBLY (6.00 Inches) Black	1
13	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
14	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
15	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
16	64015	螺母 (.250-20)	NUT (.250-20)	1
17	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	3
18	93254	旋转底座	SWIVEL BASE	1
19	93421	旋转球头	SWIVEL BALL	1

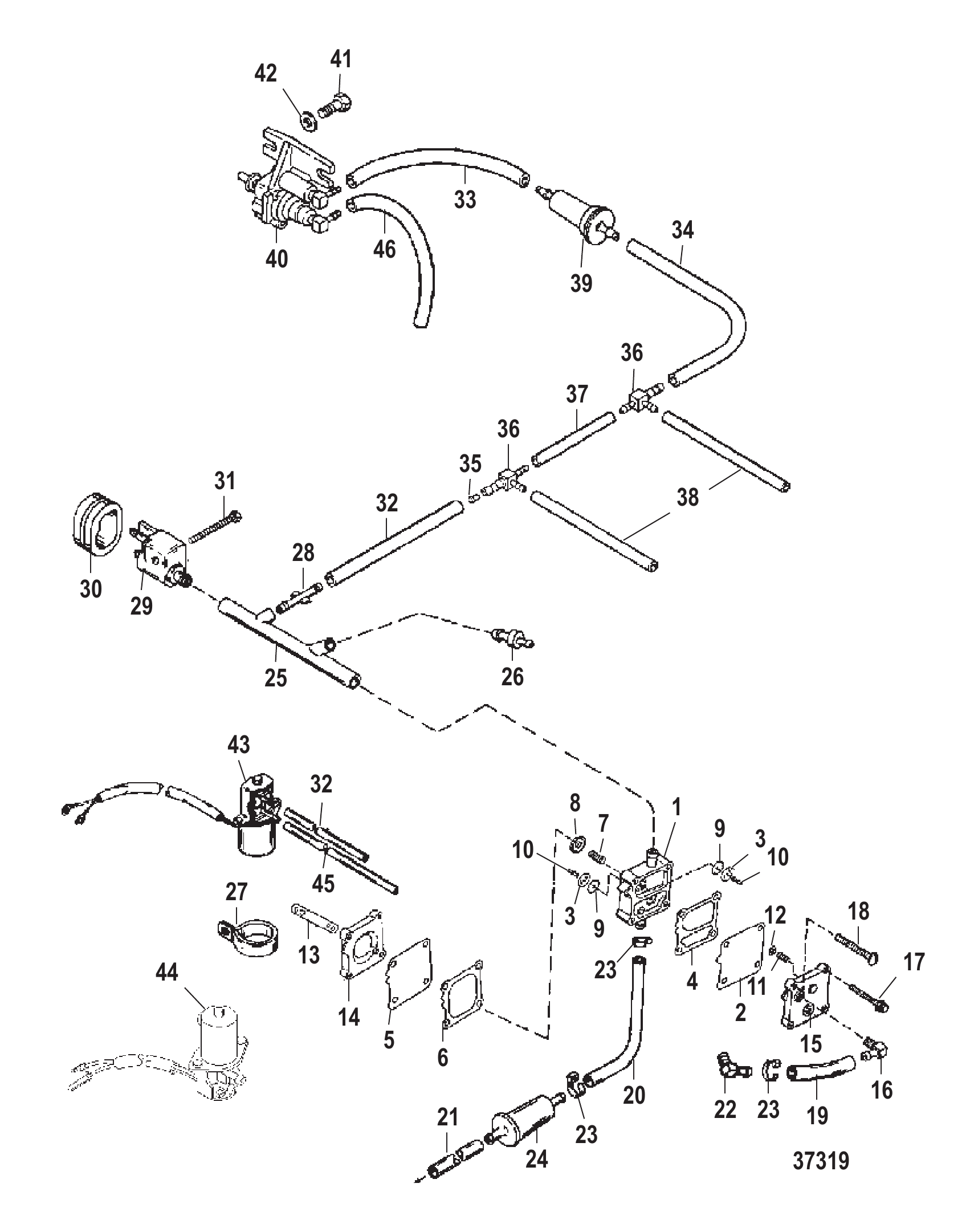

图 16燃油泵 FUEL PUMP

REF	零件编号	中文名称	英文名称	数量
1	14360A43	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	42990A10	膜片组件	DIAPHAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	1
4	NSS	增压垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Boost	1
5	NSS	膜片(不单独销售)	NOT SOLD SEPARATE Diaphragm	2
6	NSS	脉冲垫片(不单独销售)	NOT SOLD SEPARATE Gasket-Pulse	1
7	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
8	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
9	NSS	止回阀(不单独销售)	NOT SOLD SEPARATE Check Valve	2
10	NSS	固定座(不单独销售)	NOT SOLD SEPARATE Retainer	2
11	NSS	弹簧(不单独销售)	NOT SOLD SEPARATE Spring	1
12	NSS	盖帽(不单独销售)	NOT SOLD SEPARATE Cap	1
13	987691	衬垫	GASKET	1
13	8M0204705	衬垫@2	GASKET @2	1
14	144303	底座	BASE	1
15	987752	安装板	PLATE	1
16	99664	弯头	ELBOW	1
16	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
17	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
18	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2
19	83075780	管材(28英寸整卷)(裁切为4英寸)	TUBING (28.00 Inches Bulk) (Cut to 4 IN.)	1
19	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
20	83075780	管材(28英寸整卷)(裁切为8-1/2英寸)	TUBING (28.00 Inches Bulk) (Cut to 8-1/2 IN.)	1
20	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
21	83075780	管材(28英寸整卷)(裁切为2英寸)	TUBING (28.00 Inches Bulk) (Cut to 2 IN.)	1
21	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	1
22	99664	曲轴箱弯头	ELBOW To Crankcase	1
22	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
23	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
23	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
24	8162961	燃油滤清器	FILTER Fuel	1
24	816296Q2	燃油滤清器	FILTER Fuel	1
25	822554	成型软管	MOLDED HOSE	1
26	8189941	机油泵止回阀	CHECK VALVE To Oil Pump	1
27	18887	卡箍	CLAMP	1
27	188871	卡箍	CLAMP	1
28	822771	连接器	CONNECTOR	1
29	816856A3	燃油接头总成-塑料	CONNECTOR ASSEMBLY Fuel - Plastic	1
29	816856Q3	燃油接头总成	CONNECTOR ASSEMBLY Fuel	1
-	16524	燃油接头O型圈	O-RING Fuel Connector	1
30	145091	护孔环	GROMMET	1
31	4010635	螺钉(M6 x 35) 不锈钢	SCREW (M6 x 35) Stainless Steel	1
32	1430165	管材(38英寸整卷)(裁切为15英寸)	TUBING (38.00 Inches Bulk) (Cut to 15 IN.)	2
33	1430165	管材(38英寸整卷)(裁切为13英寸)	TUBING (38.00 Inches Bulk) (Cut to 13 IN.)	1
34	1430165	管材(38英寸整卷)(裁切为1-1/4英寸)	TUBING (38.00 Inches Bulk) (Cut to 1-1/4 IN.)	1
35	17608	流量限制器	FLOW RESTRICTOR	1
36	830570	三通接头	FITTING Tee	2
37	99130122	管材(20英尺整卷)(裁切为4-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 4-1/2 IN.)	1
37	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	1
38	99130122	管材(20英尺整卷)(裁切为2-1/2英寸)	TUBING (20.00 Feet Bulk) (Cut to 2-1/2 IN.)	2
38	892024122	管(240.00英寸散装)	TUBING (240.00 Inches Bulk)	2
39	18206	滤清器	FILTER	1
39	8M0207786	滤清器	FILTER	1
40	14687A2	加速泵总成	PUMP ASSEMBLY Accelerator	1
40	14687A4	加速泵总成	PUMP ASSEMBLY Accelerator	1
-	811287	维修套件	REPAIR KIT	1
41	4009416	螺钉(M6 x 16)	SCREW (M6 x 16)	2
42	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	2
43	43739	加浓阀	VALVE Enrichner	1
43	819503A2	电磁阀组件	SOLENOID KIT	1
44	437391	加浓阀	VALVE Enrichiner	1
44	819503A1	电磁阀总成-加浓阀	SOLENOID ASSEMBLY Enrichner Valve	1
45	1430165	管材(38英寸整卷)接上三通	TUBING (38.00 Inches Bulk) To Upper Tee	1
45	9912688	管材(36英寸整卷)接上三通	TUBING (36.00 Inches Bulk) To Upper Tee	1
46	9912688	管材(36英寸整卷)(裁切为5-1/4英寸)接下三通	TUBING (36.00 Inches Bulk) (Cut to 5-1/4 IN.) To Lower Tee	1
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1
-	17791A97	动力头总成	POWERHEAD ASSEMBLY	1
-	17791T97	动力头总成	POWERHEAD ASSEMBLY	1

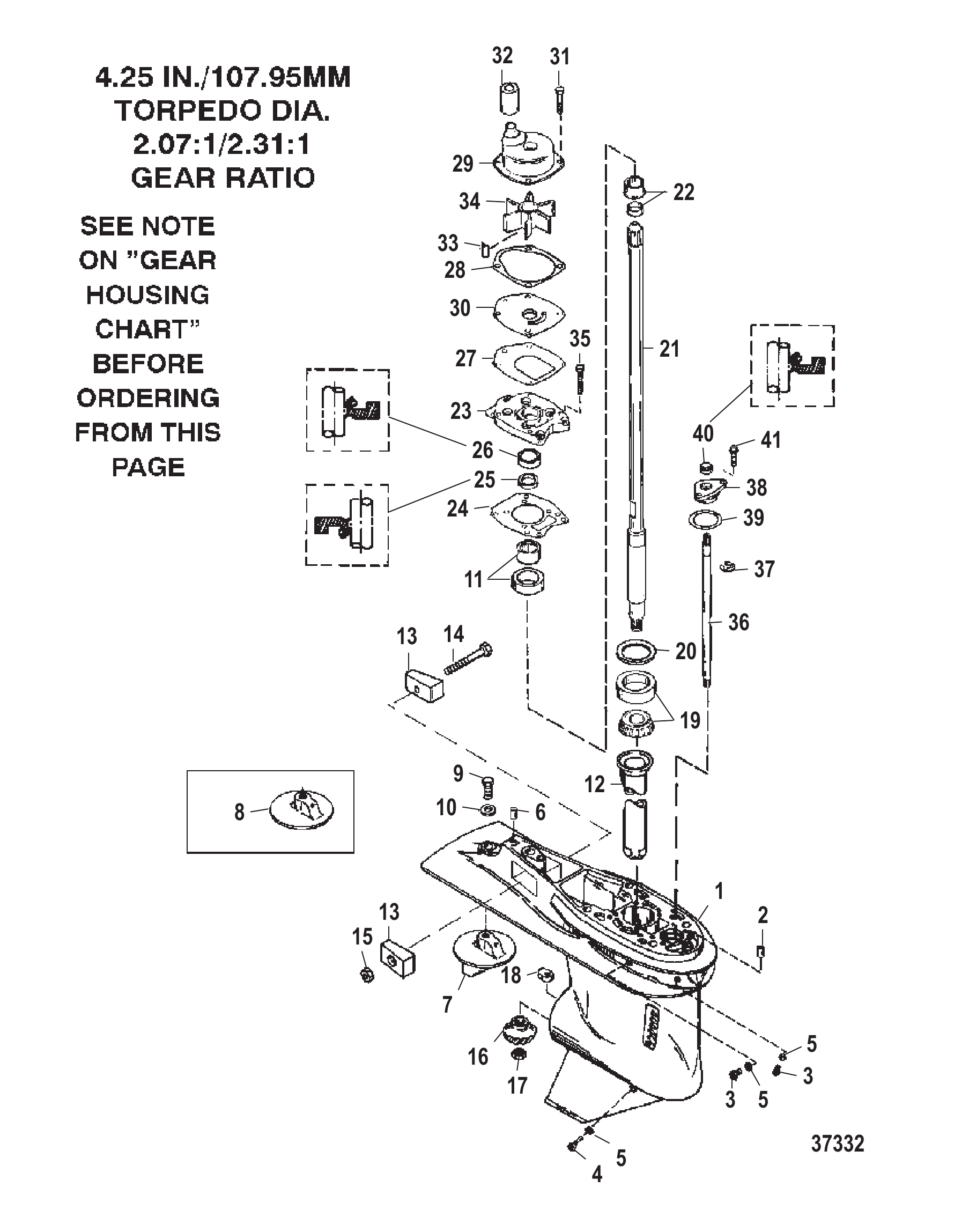

图 17齿轮箱（驱动轴）（3爪反向离合器） GEAR HOUSING (DRIVESHAFT)(3 JAW REVERSE CLUTCH)

REF	零件编号	中文名称	英文名称	数量
1	9011A73	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011A74	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011T74	ORD 1667-9011T73	ORD 1667-9011T73	1
1	9011A80	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011T80	ORD 1667-9011T73	ORD 1667-9011T73	1
2	43043	定位销-带孔(.375 x .625)(前)(X-LONG上2个)	PIN Dowel - With Hole (.375 x .625) (FRONT) (QTY. OF 2 ON X-LONG)	1
2	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
3	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	2
3	79953Q04	放油螺钉套件	SCREW KIT Drain	2
4	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
4	8M0058389	放油螺钉套件	SCREW KIT Drain	1
5	19183	纤维垫圈	WASHER Fiber	3
5	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
6	43044	定位销-无孔(.375 x .625)(后)	PIN Dowel - Without Hole (.375 x .625) (REAR)	1
7	316404	平衡鳍板	TRIM TAB	1
7	31640Q4	平衡鳍板	TRIM TAB	1
8	316405	平衡鳍板	TRIM TAB	1
8	8M0236553	平衡鳍板	TRIM TAB	1
9	825427	不锈钢螺钉(0.437-14x1.250)	SCREW (.437-14 x 1.250) Stainless Steel	1
10	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	1
11	43040A1	托架总成	CARRIER ASSEMBLY	1
11	43040T1	托架总成	CARRIER ASSEMBLY	1
12	43046	注油管	TUBE Oiler	1
13	826134	阳极块	ANODE	2
13	826134Q	阳极块	ANODE	2
14	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
15	8268336	螺母 (M6)	NUT (M6)	1
15	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
16	19672A1	小齿轮总成	GEAR ASSEMBLY Pinion	1
16	881259A1	齿轮组	GEAR SET	1
16	44484	小齿轮(13齿)	GEAR Pinion (13 Teeth)	1
16	44484T	小齿轮(13齿)	GEAR Pinion (13 Teeth)	1
17	35921	螺母(0.625-18)	NUT (.625-18)	1
18	76039	换挡凸轮控制	CAM Shift Control	1
18	760394	换挡凸轮控制	CAM Shift Control	1
19	42677A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
20	44492A1	垫片组	SHIM SET	1
20	8M0063265	垫片组	SHIM SET	1
21	43031A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
21	43032A4	驱动轴总成	DRIVESHAFT ASSEMBLY	1
22	42461A1	套筒/环套件	SLEEVE/RING KIT	1
23	43055A4	水泵盖总成	COVER ASSEMBLY Water Pump	1
23	8M0113262	水泵盖总成	COVER ASSEMBLY Water Pump	1
24	430472	衬垫	GASKET	1
24	8M0214931	衬垫	GASKET	1
25	43036	油封(下)	SEAL Oil (LOWER)	1
26	43035	油封(上)	SEAL Oil (UPPER)	1
26	8M0245495	油封	OIL SEAL	1
27	430331	衬垫	GASKET	1
28	817277	衬垫	GASKET	1
28	8172771	水泵上垫片	GASKET Water Pump, Upper	1
29	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
30	817276	面板	FACEPLATE	1
30	8M0204709	面板	FACEPLATE	1
31	8248327	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
31	8M0214957	螺钉	SCREW	4
32	430232	密封件	SEAL	1
33	43037	键	KEY	1
33	8M0204723	键	KEY	1
34	430262	叶轮	IMPELLER	1
34	43026T2	叶轮	IMPELLER	1
35	8248326	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	6
36	43048A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
36	43049A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
37	29641	E型卡环	E RING	1
38	43052A4	衬套总成	BUSHING ASSEMBLY	1
39	45710	O型圈(1.424x0.103)	O-RING (1.424 x .103)	1
39	8M0204681	特殊O型圈1.424x0.103	O-RING 1.424 x .103, Special	1
40	8164641	油封	SEAL Oil	1
40	8M0246145	油封	OIL SEAL	1
41	8248326	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	43024A7	水泵维修套件	REPAIR KIT Water Pump	1
-	8M0113799	水泵修理包	REPAIR KIT-W/P	1
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1

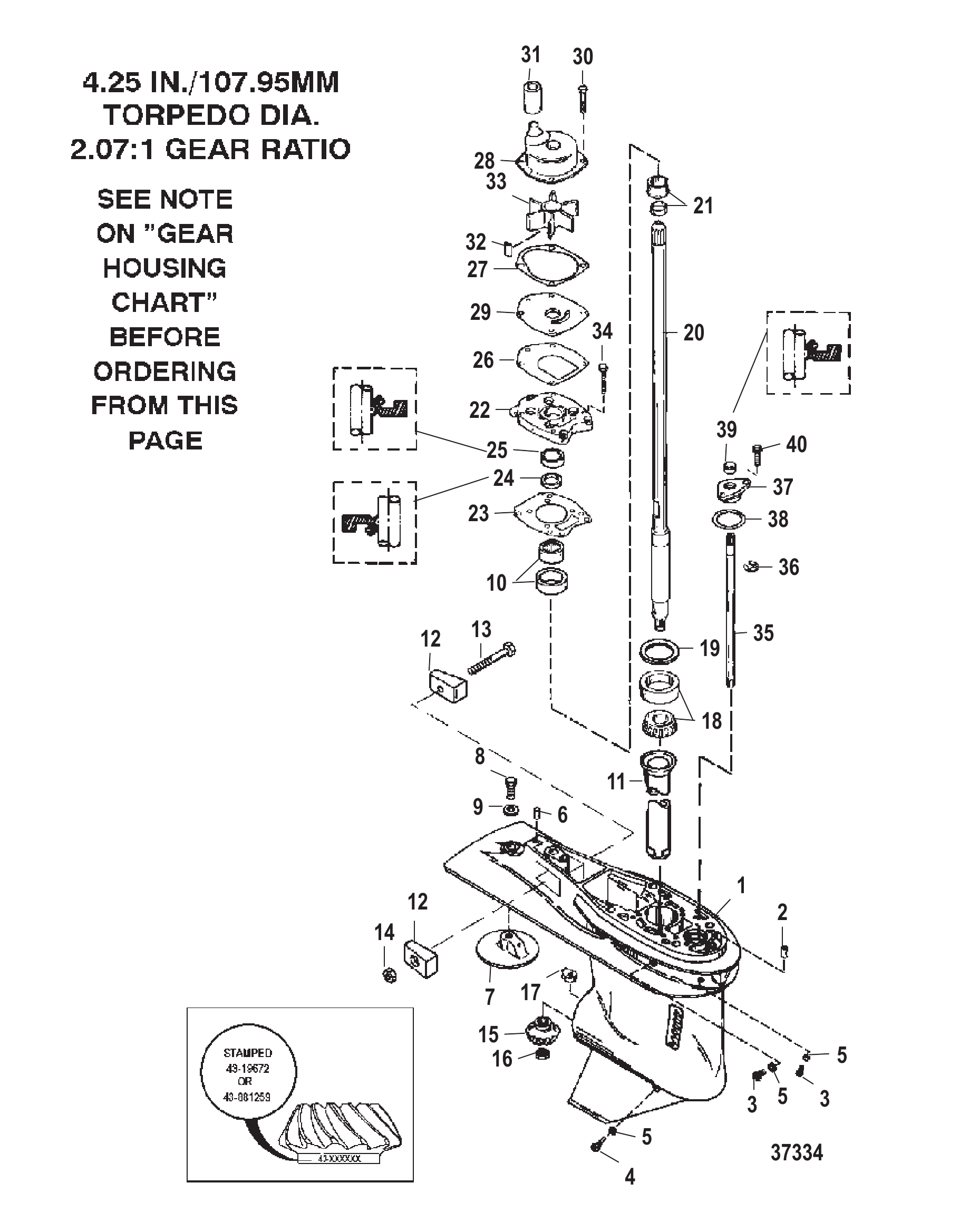

图 18齿轮箱（驱动轴）（6爪倒车离合器） GEAR HOUSING (DRIVESHAFT)(6 JAW REVERSE CLUTCH)

REF	零件编号	中文名称	英文名称	数量
1	9011G8	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9011G9	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
1	9011G60	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
2	43043	定位销-带孔(.375 x .625)(前)	PIN Dowel - With Hole (.375 x .625) (FRONT)	1
2	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
3	79953A2	螺丝套件(.375-16 x .250)	SCREW KIT (.375-16 x .250)	2
3	79953Q04	放油螺钉套件	SCREW KIT Drain	2
4	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
4	8M0058389	放油螺钉套件	SCREW KIT Drain	1
5	19183	纤维垫圈	WASHER Fiber	3
5	8M0187157	蓝色密封件@15	SEAL-BLUE @15	3
6	43044	定位销-无孔(.375 x .625)(后)	PIN Dowel - Without Hole (.375 x .625) (REAR)	1
7	316405	平衡鳍板	TRIM TAB	1
7	8M0236553	平衡鳍板	TRIM TAB	1
8	825427	不锈钢螺钉(0.437-14x1.250)	SCREW (.437-14 x 1.250) Stainless Steel	1
9	45176	垫圈(.453 x .812 x .105)不锈钢	WASHER (.453 x .812 x .105) Stainless Steel	1
10	43040A1	托架总成	CARRIER ASSEMBLY	1
10	43040T1	托架总成	CARRIER ASSEMBLY	1
11	43046	注油管	TUBE Oiler	1
12	826134	阳极块	ANODE	2
12	826134Q	阳极块	ANODE	2
13	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
14	8268336	螺母 (M6)	NUT (M6)	1
14	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
15	19672	小齿轮(同属43-850035A3)(14齿)	GEAR Pinion (ALSO PART OF 43-850035A3)(14 TEETH)	1
15	881260A5	小齿轮/前进齿轮总成	GEAR ASSEMBLY Pinion/Forward	1
15	44484	小齿轮(13齿)(属43-850033A2)	GEAR Pinion (13 Teeth) (PART OF 43-850033A2)	1
15	44484T	小齿轮(13齿)	GEAR Pinion (13 Teeth)	1
16	35921	螺母(0.625-18)	NUT (.625-18)	1
17	850307	换挡凸轮控制	CAM Shift Control	1
18	42677A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
18	883047A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
19	44492A1	垫片组	SHIM SET	1
19	8M0063265	垫片组	SHIM SET	1
20	43031A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
20	43032A4	驱动轴总成	DRIVESHAFT ASSEMBLY	1
21	42461A1	套筒/环套件	SLEEVE/RING KIT	1
22	43055A4	水泵盖总成	COVER ASSEMBLY Water Pump	1
22	8M0113262	水泵盖总成	COVER ASSEMBLY Water Pump	1
23	430472	衬垫	GASKET	1
23	8M0214931	衬垫	GASKET	1
24	43036	油封(下)	SEAL Oil (LOWER)	1
25	43035	油封(上)	SEAL Oil (UPPER)	1
25	8M0245495	油封	OIL SEAL	1
26	430331	衬垫	GASKET	1
27	817277	衬垫	GASKET	1
27	8172771	水泵上垫片	GASKET Water Pump, Upper	1
28	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
29	817276	面板	FACEPLATE	1
29	8M0204709	面板	FACEPLATE	1
30	8248327	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
30	8M0214957	螺钉	SCREW	4
31	430232	密封件	SEAL	1
32	43037	键	KEY	1
32	8M0204723	键	KEY	1
33	430262	叶轮	IMPELLER	1
33	43026T2	叶轮	IMPELLER	1
34	8248326	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	6
35	853906A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
35	853908A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
36	29641	E型卡环	E RING	1
37	43052A4	衬套总成	BUSHING ASSEMBLY	1
38	45710	O型圈(1.424x0.103)	O-RING (1.424 x .103)	1
38	8M0204681	特殊O型圈1.424x0.103	O-RING 1.424 x .103, Special	1
39	8164641	油封	SEAL Oil	1
39	8M0246145	油封	OIL SEAL	1
40	8248326	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	43024A7	水泵维修套件	REPAIR KIT Water Pump	1
-	8M0113799	水泵修理包	REPAIR KIT-W/P	1
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1

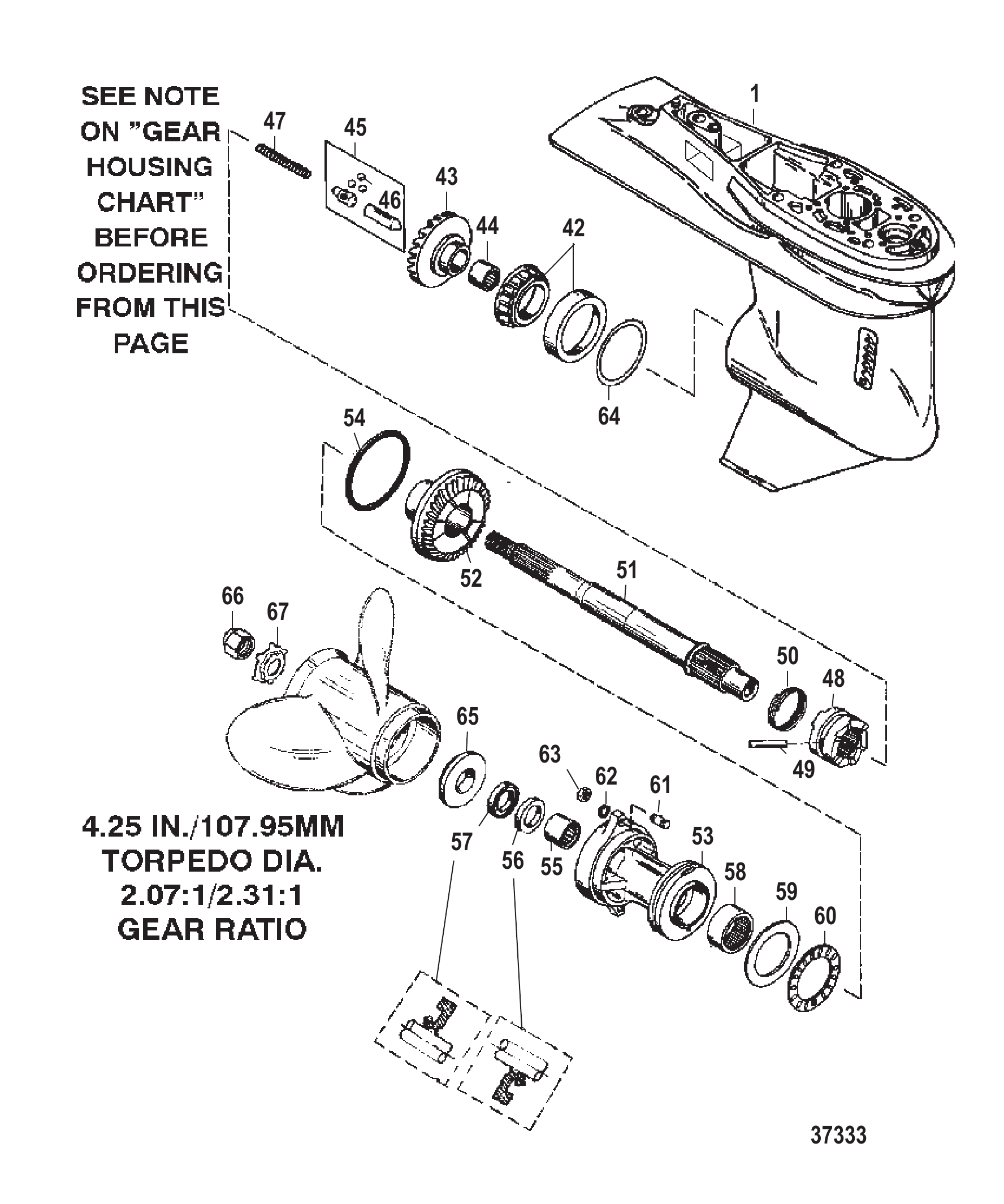

图 19齿轮箱（螺旋桨轴）（3爪倒车离合器） GEAR HOUSING (PROP SHAFT)(3 JAW REVERSE CLUTCH)

REF	零件编号	中文名称	英文名称	数量
1	9011A73	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011A74	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011T74	ORD 1667-9011T73	ORD 1667-9011T73	1
1	9011A80	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011T80	ORD 1667-9011T73	ORD 1667-9011T73	1
42	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
43	NSS	前进齿轮(不单独销售/属于43-19672A1部件)	NOT SOLD SEPARATE Forward Gear(PART OF 43-19672A1)	1
43	12634A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
43	12634T02	齿轮总成	GEAR ASSEMBLY	1
44	30895	滚针轴承	BEARING Needle	1
44	30895T	滚针轴承	BEARING Needle	1
45	12239A1	凸轮从动件套件	FOLLOWER KIT Cam	1
45	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
46	44530	钢球	BALL	3
47	30622	弹簧	SPRING	1
48	822539	离合器	CLUTCH	1
48	822539T	离合器	CLUTCH	1
49	30632	十字销	PIN Cross	1
49	8M0100263	十字销	PIN Cross	1
50	30893	弹簧	SPRING	1
51	12238T	螺旋桨轴	PROPELLER SHAFT	1
52	NSS	倒车齿轮(不单独销售/属于43-19672A1部件)	NOT SOLD SEPARATE Reverse Gear (PART OF 43-19672A1)	1
52	12635	倒挡齿轮	GEAR Reverse	1
52	12635T	倒挡齿轮	GEAR-REVERSE	1
53	12596A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
53	8M0168901	轴承座总成	CARRIER ASSY.	1
54	97386	O型圈 (3.609 x .139)	O-RING (3.609 x .139)	1
54	8M0214974	O型圈	O RING	1
55	30956	滚针轴承	BEARING Needle	1
55	30956T	滚针轴承	BEARING Needle	1
56	76868	内密封件	SEAL (INNER)	1
56	8M0248882	油封@5	SEAL-OIL @5	1
57	70081	油封(外)	SEAL Oil (OUTER)	1
57	8M0205729	密封件	SEAL	1
58	12578	滚针轴承	BEARING Needle	1
58	12578T	滚柱轴承	BEARING Roller	1
59	12577	止推垫片	THRUST WASHER	1
60	12576	推力轴承	BEARING Thrust	1
61	429172	双头螺柱(M8×48)	STUD (M8 x 48)	2
61	8M0034456	双头螺柱(M8×1.25×48)	STUD (M8 X 1.25 X 48)	2
62	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
62	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2
63	401198	螺母 (M8)	NUT (M8)	2
63	401378	螺母 (M8)	NUT (M8)	2
64	44491A1	垫片组	SHIM SET	1
64	8M0063266	垫片组	SHIM SET	1
65	13191A1	止推垫片	THRUST WASHER	1
65	13191Q01	止推垫片	THRUST WASHER	1
66	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
66	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
67	816629	锁紧垫圈	TAB WASHER	1
67	816629Q	锁紧垫圈	TAB WASHER	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1

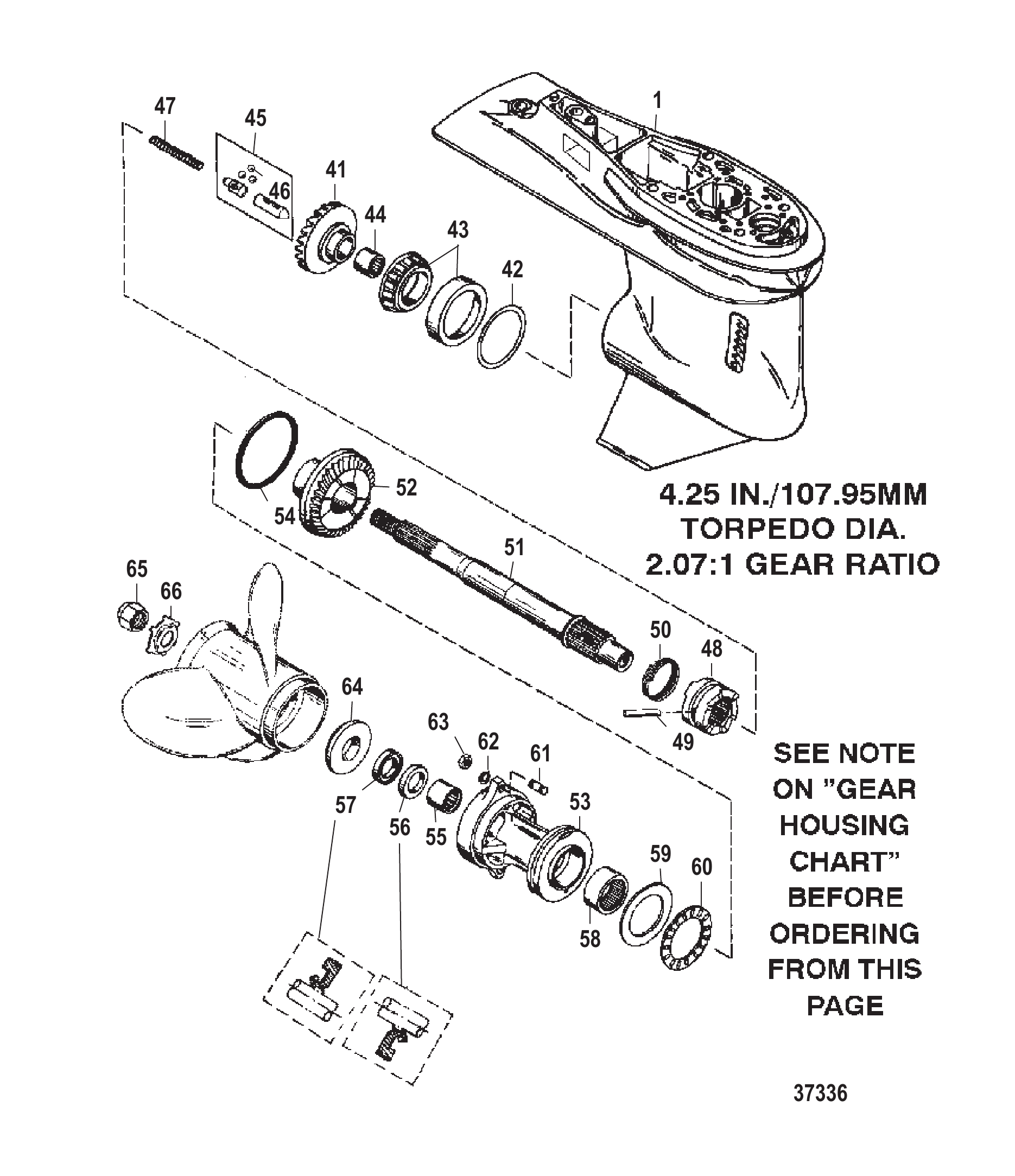

图 20齿轮箱（螺旋桨轴）（6爪倒车离合器） GEAR HOUSING (PROP SHAFT)(6 JAW REVERSE CLUTCH)

REF	零件编号	中文名称	英文名称	数量
1	9011G8	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011G9	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011G60	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
41	850035A3	前进齿轮套件(29齿)	GEAR KIT Forward (29 TEETH)	1
41	881260A5	小齿轮/前进齿轮总成	GEAR ASSEMBLY Pinion/Forward	1
41	850033A2	前进齿轮套件(30齿)	GEAR KIT Forward (30 TEETH)	1
41	859472A3	前进齿轮总成-30齿	GEAR ASSEMBLY Forward - 30 Teeth	1
42	44491A1	垫片组	SHIM SET	1
42	8M0063266	垫片组	SHIM SET	1
43	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
44	30895	滚针轴承	BEARING Needle	1
44	30895T	滚针轴承	BEARING Needle	1
45	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
46	44530	钢球	BALL	3
47	850327	弹簧	SPRING	1
48	850048	离合器	CLUTCH	1
48	850048T	离合器	CLUTCH	1
49	30632	十字销	PIN Cross	1
49	8M0100263	十字销	PIN Cross	1
50	30893	弹簧	SPRING	1
51	850308	螺旋桨轴	PROPELLER SHAFT	1
51	8M0140445	螺旋桨轴	PROPELLER SHAFT	1
52	850036	倒车齿轮(29齿)	GEAR Reverse (29 Teeth)	1
52	850036T	倒车齿轮-29齿	GEAR Reverse - 29 Teeth	1
52	850034	倒车齿轮(30齿)	GEAR Reverse (30 Teeth)	1
52	850034T	倒车齿轮(30齿)	GEAR Reverse (30 Teeth)	1
53	12596A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
53	8M0168901	轴承座总成	CARRIER ASSY.	1
54	97386	O型圈 (3.609 x .139)	O-RING (3.609 x .139)	1
54	8M0214974	O型圈	O RING	1
55	30956	滚针轴承	BEARING Needle	1
55	30956T	滚针轴承	BEARING Needle	1
56	70080	油封(内)	SEAL Oil (INNER)	1
56	8M0205728	密封件	SEAL	1
57	70081	油封(外)	SEAL Oil (OUTER)	1
57	8M0205729	密封件	SEAL	1
58	12578	滚针轴承	BEARING Needle	1
58	12578T	滚柱轴承	BEARING Roller	1
59	12577	止推垫片	THRUST WASHER	1
60	12576	推力轴承	BEARING Thrust	1
61	429172	双头螺柱(M8×48)	STUD (M8 x 48)	2
61	8M0034456	双头螺柱(M8×1.25×48)	STUD (M8 X 1.25 X 48)	2
62	70132	垫圈(0.323×0.563×0.063)不锈钢	WASHER (.323 x .563 x .063) Stainless Steel	2
62	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	2
63	401198	螺母 (M8)	NUT (M8)	2
63	401378	螺母 (M8)	NUT (M8)	2
64	13191A1	止推垫片	THRUST WASHER	1
64	13191Q01	止推垫片	THRUST WASHER	1
65	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
65	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
66	816629	锁紧垫圈	TAB WASHER	1
66	816629Q	锁紧垫圈	TAB WASHER	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1

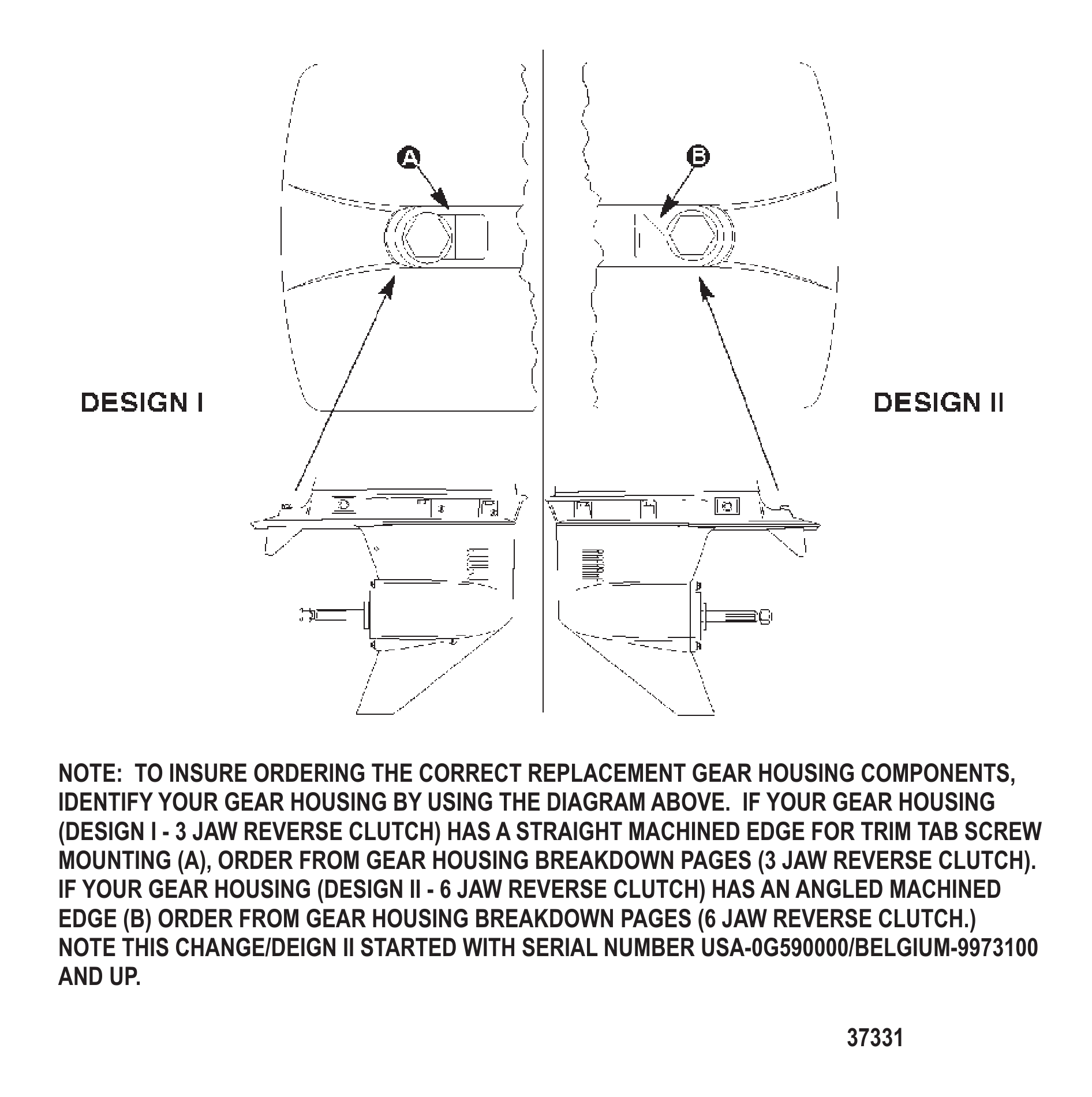

图 21齿轮箱对照表（2.07:1/2.31:1齿轮比） GEAR HOUSING CHART (2.07:1/2.31:1 GEAR RATIO)

REF	零件编号	中文名称	英文名称	数量
-	9011G10	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011J6	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G12	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011J9	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G11	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G98	ORD 1667-9011J6	ORD 1667- 9011J6	1
-	9011G13	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011J12	ORD1667-9011J9	ORD1667- 9011J 9	1
-	9011G27	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G81	ORD 1667-9011J45	ORD 1667-9011J45	1
-	9011G1	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011J15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G2	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011J18	ORD 1667-9011J15	ORD 1667-9011J15	1
-	9011G39	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011J7	GC 100-125 LG BLK	GC 100-125 LG BLK	1
-	9011G40	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011J10	GC 100-125 KL BLK	GC 100-125 KL BLK	1
-	9011G41	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G99	ORD 1667-9011J7	ORD 1667-9011J7	1
-	9011G42	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G27	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G81	ORD 1667-9011J45	ORD 1667-9011J45	1
-	9011G33	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011J16	GC 100-125 LB BLK	GC 100-125 LB BLK	1
-	9011G36	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011J19	ORD 1667-9011J16	ORD 1667-9011J16	1

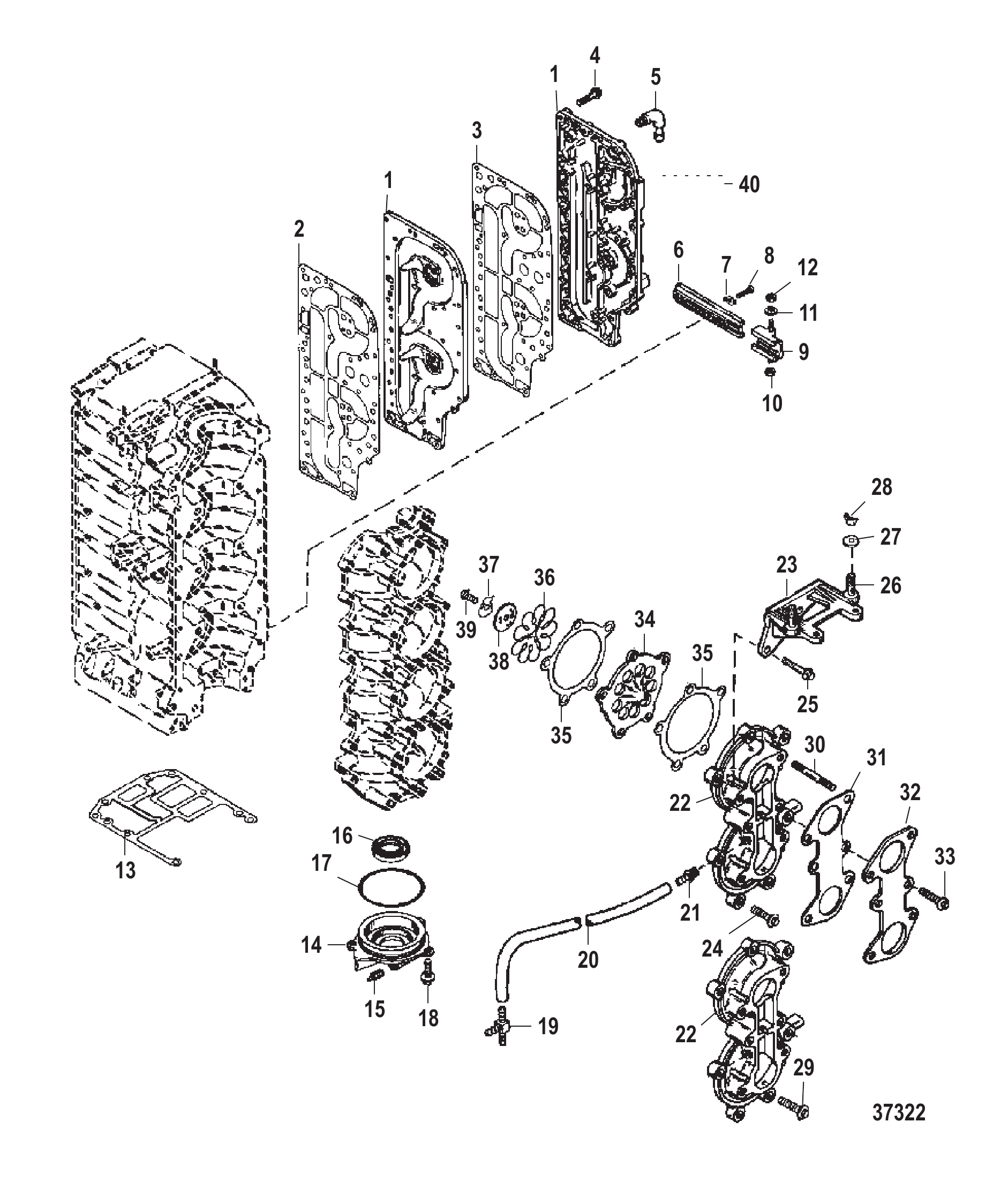

图 22进气歧管与簧片阀组 INDUCTION MANIFOLD AND REED BLOCK

REF	零件编号	中文名称	英文名称	数量
1	44325A1	排气盖板套件	COVER/PLATE KIT Exhaust	1
2	8127755	衬垫	GASKET	1
2	812775A01	衬垫套件	GASKET SET	1
3	8127754	衬垫	GASKET	1
3	812775A01	衬垫套件	GASKET SET	1
4	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	35
5	99664	弯头	ELBOW	1
5	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
6	42881A1	换挡拨叉总成	SHIFT RAIL ASSEMBLY	1
7	42981	锁紧垫圈	TAB WASHER	2
8	40001134	螺钉 (M8 x 25)	SCREW (M8 x 25)	2
9	988851	滑块	SLIDE	1
10	8268336	螺母 (M6)	NUT (M6)	1
10	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
11	35459	垫圈	WASHER	1
12	8268336	螺母 (M6)	NUT (M6)	1
12	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
13	430075	衬垫	GASKET	1
14	9004A3	下端盖总成	END CAP ASSEMBLY Lower	1
14	858552T2	下端盖总成	CAP ASSEMBLY Lower End	1
15	426582	止回阀	CHECK VALVE	1
15	426585	止回阀	CHECK VALVE	1
16	41953	密封件	SEAL	1
17	89224	O型圈	O-RING	1
18	4010825	螺丝(M10 x 25)六角法兰-不锈钢	SCREW (M10 x 25) Hex Flange - Stainless Steel	3
19	13033	三通接头	TEE FITTING	1
20	1430165	管材(38英寸整料)(裁切至5-1/2英寸)	TUBING (38.00 Inches Bulk) (5-1/2 IN.)	2
21	130351	直通接头	FITTING (STRAIGHT)	2
22	13545A1	进气歧管总成	MANIFOLD ASSEMBLY Induction	2
23	827514	支架	BRACKET	1
24	82127335	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	12
25	81742740	螺钉 (M8 x 40)	SCREW (M8 x 40)	2
26	8161946	螺柱	STUD	2
26	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
27	49221	垫圈(0.187 x 0.500 x 0.062 氯丁橡胶)	WASHER (.187 x .500 x .062) Neoprene	2
27	8M0204663	垫片@5	WASHER @5	2
28	816872	蝶形螺母	WING NUT	2
29	40001167	螺钉(M8 x 110)(#4气缸)	SCREW (M8 x 110) (#4 CYLINDER)	2
30	824470	双头螺柱(M8 x 1.25)(#1,2,3气缸)	STUD (M8 x 1.25) (#1, 2, 3 CYLINDER)	6
31	134612	衬垫	GASKET	2
32	13460	盖板	COVER	2
33	81742755	螺钉(M8x55)	SCREW (M8 x 55)	4
34	42963A11	簧片阀总成	REED BLOCK ASSEMBLY	4
34	8M0219198	簧片阀总成	REED BLOCK ASSY	4
35	139376	衬垫	GASKET	8
36	43018A1	簧片组	REED SET	4
37	42982	锁紧垫圈	TAB WASHER	4
37	429821	锁紧垫圈	TAB WASHER	4
38	42924	固定座	RETAINER	4
39	4000171	螺钉(M6 x 16)	SCREW (M6 x 16)	4
40	85557711	EPA标签信息贴花	DECAL EPA Label Information	1
40	855577A11	REF SOB 09-18	REF SOB 09-18	1
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1
-	17791A97	动力头总成	POWERHEAD ASSEMBLY	1
-	17791T97	动力头总成	POWERHEAD ASSEMBLY	1

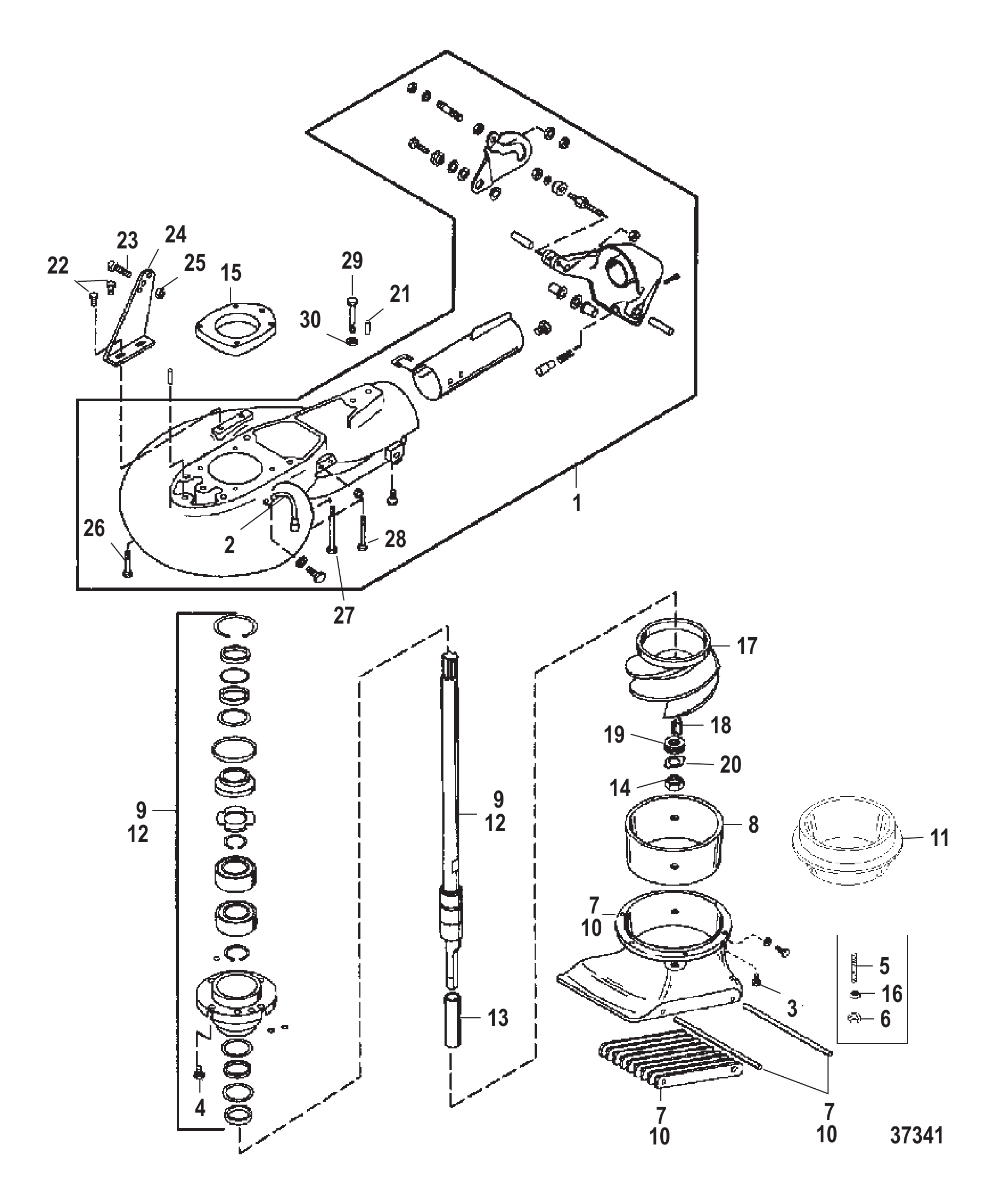

图 23喷泵总成 JET PUMP ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
-	801400115	喷泵总成	JET PUMP ASSEMBLY	1
-	856143A1	喷泵总成	JET PUMP ASSEMBLY	1
-	856143A1	喷泵总成	JET PUMP ASSEMBLY	1
1	85576790	泵壳	HOUSING Pump	1
1	855767T90	泵壳	HOUSING Pump	1
1	80141190	泵壳	HOUSING Pump	1
1	801411T90	泵壳总成	HOUSING ASSY-PUMP	1
2	827490	润滑油管	HOSE Lube	1
3	848497	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	6
4	19923088	螺钉(.250-20 x .875)	SCREW (.250-20 x .875)	4
4	848497	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	4
5	855840	双头螺柱(.312-18 x 1.81)	STUD (.312-18 x 1.81)	6
6	67980	螺母(.312-18)	NUT (.312-18)	6
6	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	6
7	80141290	进气壳体	HOUSING Intake	1
8	8271883	衬套	LINER	1
9	80141390	驱动轴	DRIVESHAFT	1
10	85576890	进气壳体	HOUSING Intake	1
11	855771	衬套	LINER	1
12	85576990	驱动轴	DRIVESHAFT	1
13	8271891	套筒	SLEEVE	1
14	8271901	螺母	NUT	1
15	808747	泵适配器	ADAPTER Pump	1
16	36001	垫圈	WASHER	6
17	801414115	叶轮	IMPELLER	1
17	855708115	叶轮	IMPELLER	1
17	855708115	叶轮	IMPELLER	1
18	801405875	键	KEY	1
19	801404875	叶轮垫片	SHIM Impeller	8
20	801403875	锁紧垫圈	TAB WASHER	1
21	801407	定位销	PIN Dowel	2
22	19923062	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	2
23	60411	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	1
24	801410	电缆支架	BRACKET Cable Support	1
25	67980	螺母(.312-18)	NUT (.312-18)	1
25	82670910	不锈钢螺母(.312-18)	NUT (.312-18) Stainless Steel	1
26	4010860	不锈钢六角法兰螺钉(M10 x 60)	SCREW (M10 x 60) Hex Flange - Stainless Steel	2
27	4010890	不锈钢六角法兰螺钉(M10 x 90)	SCREW (M10 x 90) Hex Flange - Stainless Steel	1
28	4010870	不锈钢六角法兰螺钉(M10 x 70)	SCREW (M10 x 70) Hex Flange - Stainless Steel	1
29	843575	螺丝(.375-16 x 4.00)不锈钢	SCREW (.375-16 x 4.00) Stainless Steel	1
30	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
30	8M0214963	垫圈	WASHER	1

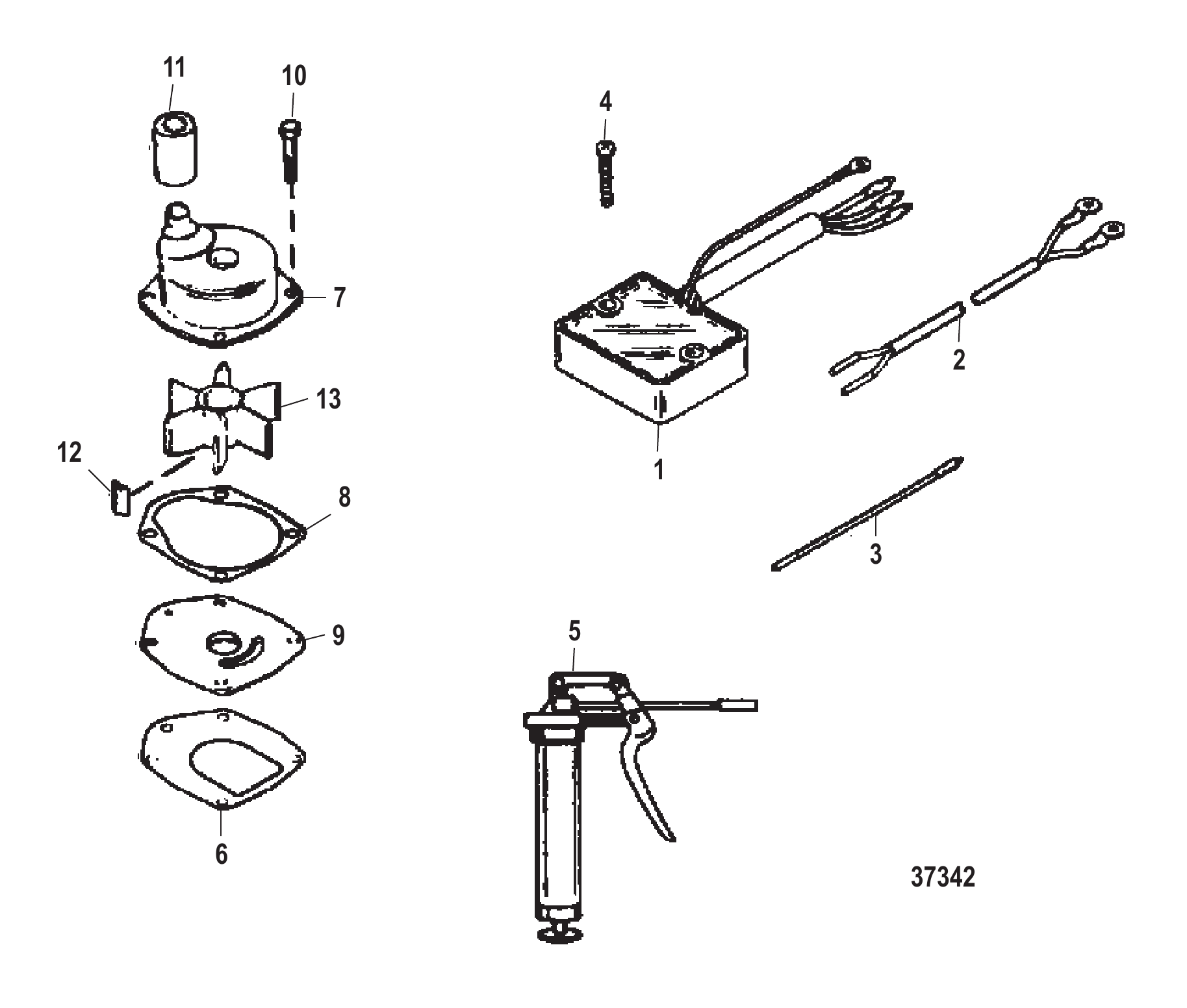

图 24喷泵组件 JET PUMP COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	821889A51	转速限制器	REV LIMITER	1
2	823147A7	转速限制器线束总成	HARNESS ASSEMBLY Rev Limiter	1
3	11149A8	适配器线束总成	HARNESS ASSEMBLY Adapter	1
4	82130050	螺钉(M6 x 50)	SCREW (M6 x 50)	2
5	30500A2	润滑脂套装	GREASE KIT	1
5	30500K2	注脂枪与润滑剂	GUN AND LUBE	1
6	430331	衬垫	GASKET	1
7	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
8	817277	衬垫	GASKET	1
8	8172771	水泵上垫片	GASKET Water Pump, Upper	1
9	817276	面板	FACEPLATE	1
9	8M0204709	面板	FACEPLATE	1
10	82684430	螺钉 (M6 x 30)	SCREW (M6 x 30)	4
11	430232	密封件	SEAL	1
12	43037	键	KEY	1
12	8M0204723	键	KEY	1
13	430262	叶轮	IMPELLER	1
13	43026T2	叶轮	IMPELLER	1
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing	1
-	43024A7	水泵维修套件	REPAIR KIT Water Pump	1
-	8M0113799	水泵修理包	REPAIR KIT-W/P	1
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1

图 25钥匙对照表 Key Chart

零件编号	中文名称	英文名称	数量
894911	点火钥匙(1A)	KEY Ignition (1A)	1
894912	点火钥匙(1B)	KEY Ignition (1B)	1
894913	点火钥匙(1C)	KEY Ignition (1C)	1
894914	点火钥匙(1D)	KEY Ignition (1D)	1
894915	点火钥匙(1E)	KEY Ignition (1E)	1
894916	点火钥匙(1F)	KEY Ignition (1F)	1
894917	点火钥匙(2A)	KEY Ignition (2A)	1
894918	点火钥匙(2B)	KEY Ignition (2B)	1
894919	点火钥匙(2C)	KEY Ignition (2C)	1
8949110	点火钥匙(2D)	KEY Ignition (2D)	1
8949111	点火钥匙(2E)	KEY Ignition (2E)	1
8949112	点火钥匙(2F)	KEY Ignition (2F)	1

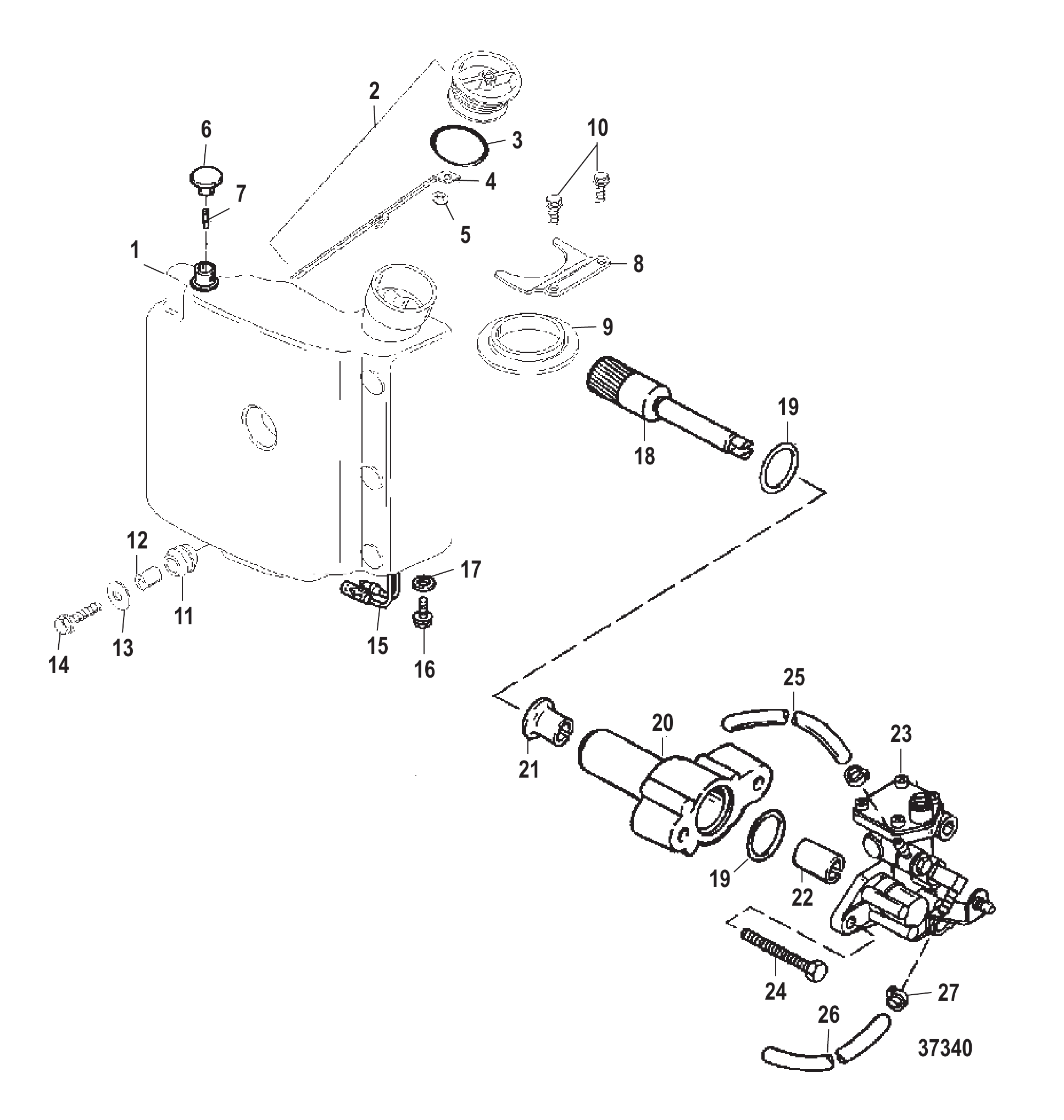

图 26机油喷射系统（USA-0G301751/BEL-9885505及以上） OIL INJECTION (USA-0G301751/BEL-9885505 AND UP)

REF	零件编号	中文名称	英文名称	数量
1	828362A2	油箱总成	TANK ASSEMBLY Oil	1
2	828475A1	盖帽	CAP	1
3	26318	O型圈	O-RING	1
3	26318T	O型圈	O-RING	1
4	828793	量油尺	DIPSTICK	1
5	113161	螺母	NUT	1
5	65110	螺母	NUT	1
6	19299A1	通风组件	VENT ASSEMBLY	1
7	64871	阀门	VALVE	1
8	8287201	支架	BRACKET	1
9	99160	护套	BOOT	1
9	99160001	护套	BOOT	1
10	4010620	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	2
11	825380	护孔环	GROMMET	1
11	825380001	护孔环	GROMMET	1
12	828350	衬套	BUSHING	1
13	817274	垫圈(0.344×1.00×0.063)不锈钢	WASHER (.344 x 1.00 x .063) Stainless Steel	1
14	81893435	螺钉(M8×35)	SCREW (M8 x 35)	1
14	8M0103814	螺钉 (M8 x 35 毫米)	SCREW (M8 x 35 MM)	1
15	12886A6	开关总成	SWITCH ASSEMBLY	1
16	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
17	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
18	430204	从动齿轮	GEAR Driven	1
19	62705	O型圈	O-RING	2
19	8M0204667	O型圈×2	O RING @2	2
20	17335A3	适配器组件	ADAPTER ASSEMBLY	1
21	17597	衬套	BUSHING	1
22	17596	衬套	BUSHING	1
23	443453	油泵	PUMP Oil	1
23	44345T3	油泵	PUMP Oil	1
24	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
25	82381329	油管(12英寸散装)(6英寸)至油泵	TUBING (12.00 Inches Bulk) (6 IN.) To Oil Pump	1
25	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	1
26	82381455	管材(25英寸散装)(11英寸)	TUBING (25.00 Inches Bulk) (11 IN.)	1
27	69355	扎带(5.50英寸)	TIE STRAP (5.50 Inches)	AR
27	8M0214940	扎带	TIE STRAP	AR
27	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
27	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1

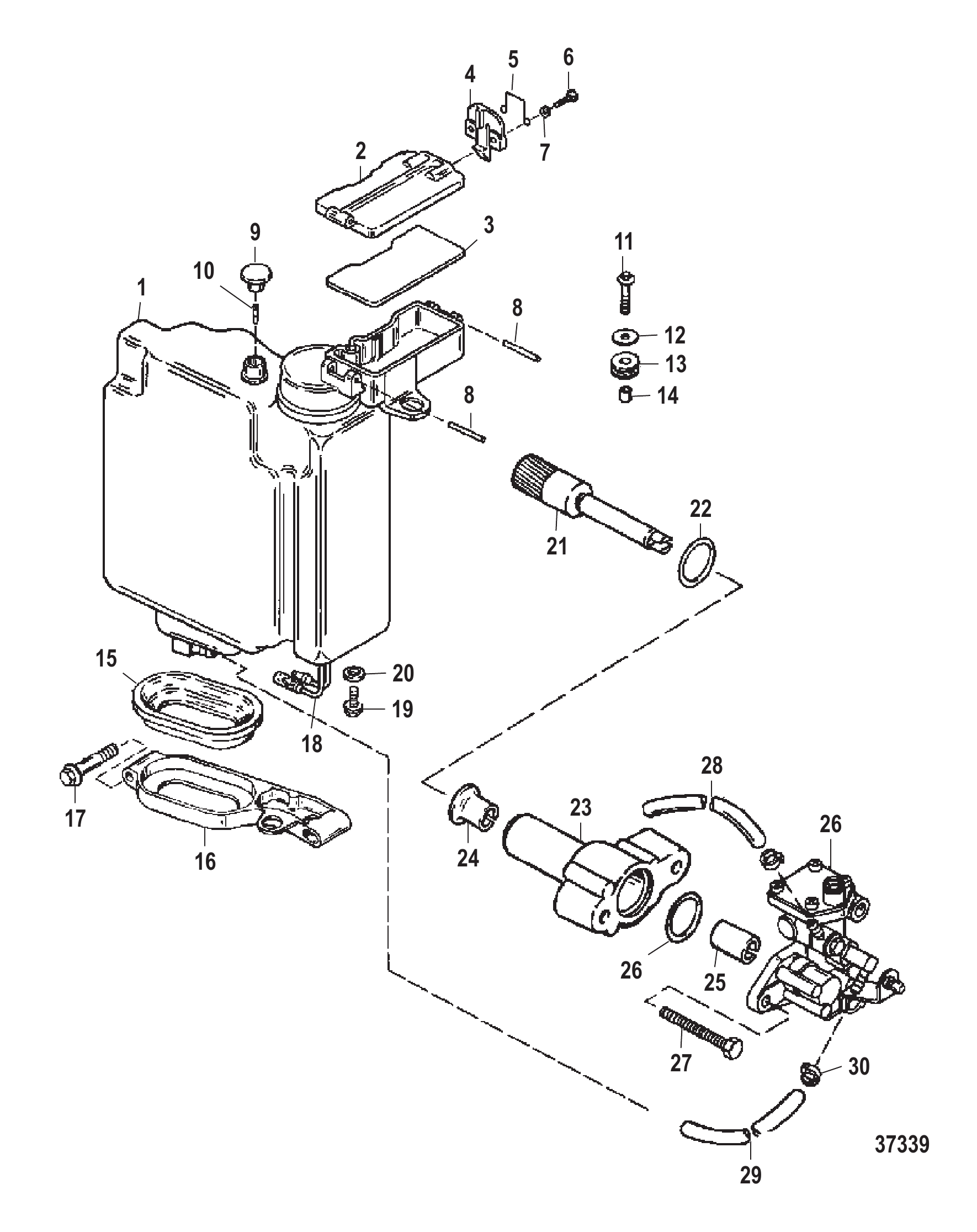

图 27机油喷射系统（USA:0G301750/BEL:9885504及以下） OIL INJECTION (USA:0G301750/BEL:9885504 AND BELOW)

REF	零件编号	中文名称	英文名称	数量
1	828362A3	油箱总成	TANK ASSEMBLY Oil	1
2	821902A1	盖总成	COVER ASSEMBLY	1
3	8220612	衬垫	GASKET	1
4	824612	闩锁	LATCH	1
5	824611	弹簧	SPRING	1
6	4005666	螺钉(M3.5 x 13)	SCREW (M3.5 x 13)	2
7	27882	垫圈	WASHER	2
8	822059	槽销	PIN Groove	1
8	825259	滚销(.093 X 1.250)	PIN Roll (.093 X 1.250)	1
9	19299A1	通风组件	VENT ASSEMBLY	1
10	64871	阀门	VALVE	1
11	4010630	不锈钢螺钉(M6x30)	SCREW (M6 x 30) Stainless Steel	1
12	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
12	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
13	42117	护孔环	GROMMET	1
14	42116	衬套	BUSHING	1
15	99161	护套	BOOT	1
16	42888	油箱底座支架	BRACKET Oil Tank Base	1
17	82155050	螺钉(M8x50)不锈钢	SCREW (M8 x 50) Stainless Steel	2
18	12886A6	开关总成	SWITCH ASSEMBLY	1
19	58376	螺钉(.164-18 x .375)	SCREW (.164-18 x .375)	1
20	72761	不锈钢垫圈(.203 x .562 x .060)	WASHER (.203 x .562 x .060) Stainless Steel	1
21	430204	从动齿轮	GEAR Driven	1
22	62705	O型圈	O-RING	2
22	8M0204667	O型圈×2	O RING @2	2
23	17335A3	适配器组件	ADAPTER ASSEMBLY	1
24	17597	衬套	BUSHING	1
25	17596	衬套	BUSHING	1
26	443453	油泵	PUMP Oil	1
26	44345T3	油泵	PUMP Oil	1
27	82104540	螺钉(M5 x 40)	SCREW (M5 x 40)	2
28	82381329	油泵用管(12英寸散装)(5-1/2英寸)	TUBING (12.00 Inches Bulk) (5-1/2 IN.) to Oil Pump	1
28	82381335	油管(15.00英寸散装)	TUBING (15.00 Inches Bulk)	1
29	82381455	管材(25英寸散装)(11英寸)	TUBING (25.00 Inches Bulk) (11 IN.)	1
30	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
30	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
30	69355	扎带(5.50英寸)	TIE STRAP (5.50 Inches)	AR
30	8M0214940	扎带	TIE STRAP	AR
-	13461A90	衬垫套件	GASKET SET	1
-	13461A99	衬垫套件	GASKET SET	1

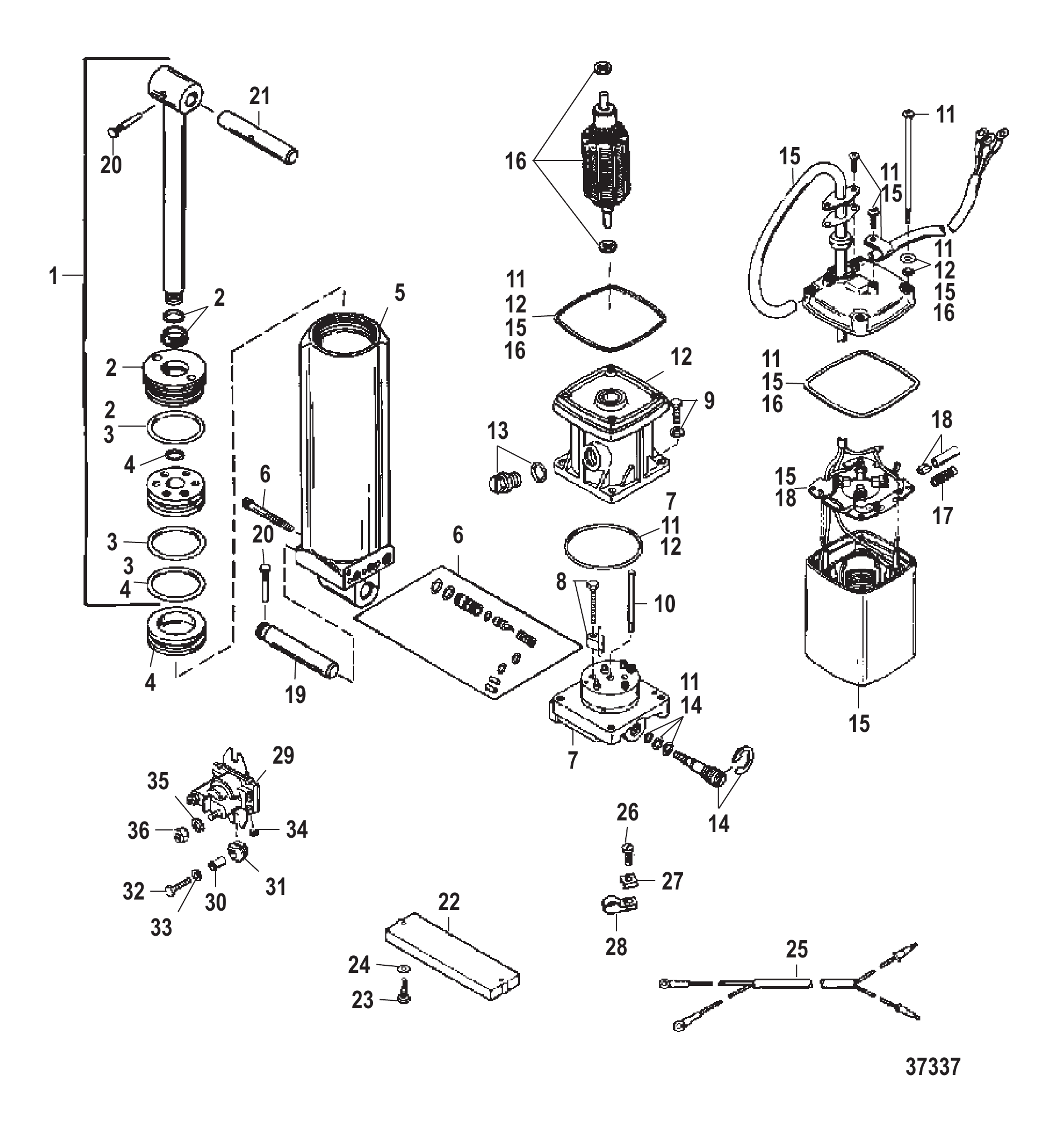

图 28动力升降倾斜装置（黑色注油塞）（G359967/9934136及以下） POWER TRIM (BLACK FILL PLUG)(G359967/9934136 AND BELOW

REF	零件编号	中文名称	英文名称	数量
-	824051	配平泵总成	PUMP ASSEMBLY Trim	1
1	811666A1	减震杆套件	SHOCK ROD KIT	1
1	8M0171821	减震杆套件	SHOCK ROD KIT	1
2	813428	升降缸端盖总成	END CAP ASSEMBLY Trim Cylinder	1
3	813432A3	气缸密封套件	SEAL KIT Cylinder	1
4	810776	记忆活塞套件	PISTON KIT Memory	1
5	811669A1	气缸总成	CYLINDER ASSEMBLY	1
5	893916A01	气缸总成	CYLINDER ASSEMBLY	1
6	811678A6	螺钉与密封套件	SCREW AND SEAL KIT	1
7	809901A2	泵/歧管总成	PUMP/MANIFOLD ASSEMBLY	1
8	823180A1	摇臂套件	ROCKER ARM KIT	1
8	809901A2	泵/歧管总成	PUMP/MANIFOLD ASSEMBLY	1
9	813436	螺钉套件	SCREW KIT	1
10	8116711	驱动轴	DRIVESHAFT	1
11	811626A3	密封套件(含箱体螺栓)	SEAL KIT (W/CASE BOLTS)	1
11	809901A2	泵/歧管总成	PUMP/MANIFOLD ASSEMBLY	1
12	8116731	储液罐套件	RESERVOIR KIT	1
12	809901A2	泵/歧管总成	PUMP/MANIFOLD ASSEMBLY	1
13	813435	塞套件	PLUG KIT	1
13	8134351	堵头	PLUG	1
14	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
14	893929A01	安全阀套件	VALVE KIT Relief	1
15	8116241	机架与磁场套件	FRAME AND FIELD KIT	1
15	809901A2	泵/歧管总成	PUMP/MANIFOLD ASSEMBLY	1
16	8116271	电枢套件	ARMATURE KIT	1
16	809901A2	泵/歧管总成	PUMP/MANIFOLD ASSEMBLY	1
17	12665	电刷弹簧套件	SPRING KIT Brush	1
18	811625	电刷卡套件	BRUSH CARD KIT	1
19	818898	锚销	PIN Anchor	1
20	821539	三叶销	PIN Trilobe	2
21	996251	轴	SHAFT	1
21	99625002	轴	SHAFT	1
22	818298A1	阳极套件	ANODE KIT	1
22	818298Q1	阳极套件	ANODE KIT	1
23	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
23	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
24	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
24	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
25	17201A2	电缆总成 (17.00 英寸)	CABLE ASSEMBLY (17.00 Inches)	1
26	817626	螺钉(#10-16×0.380)	SCREW (#10-16 x .380)	2
26	878607	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2
27	69205	C形垫圈	C WASHER	2
27	8M0084613	C形垫圈	C-WASHER	2
28	22875	卡扣	CLIP	2
29	818997A1	电磁阀总成	SOLENOID ASSEMBLY	2
29	8M0185145	电磁阀总成	SOLENOID ASSEMBLY	2
30	818968	衬套	BUSHING	4
30	8M0214955	衬套	BUSHING	4
31	818967	护孔环	GROMMET	4
31	8M0207785	护孔环	GROMMET	4
32	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	4
33	4002314	垫圈	WASHER	4
34	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	4
35	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	4
36	64015	螺母 (.250-20)	NUT (.250-20)	4

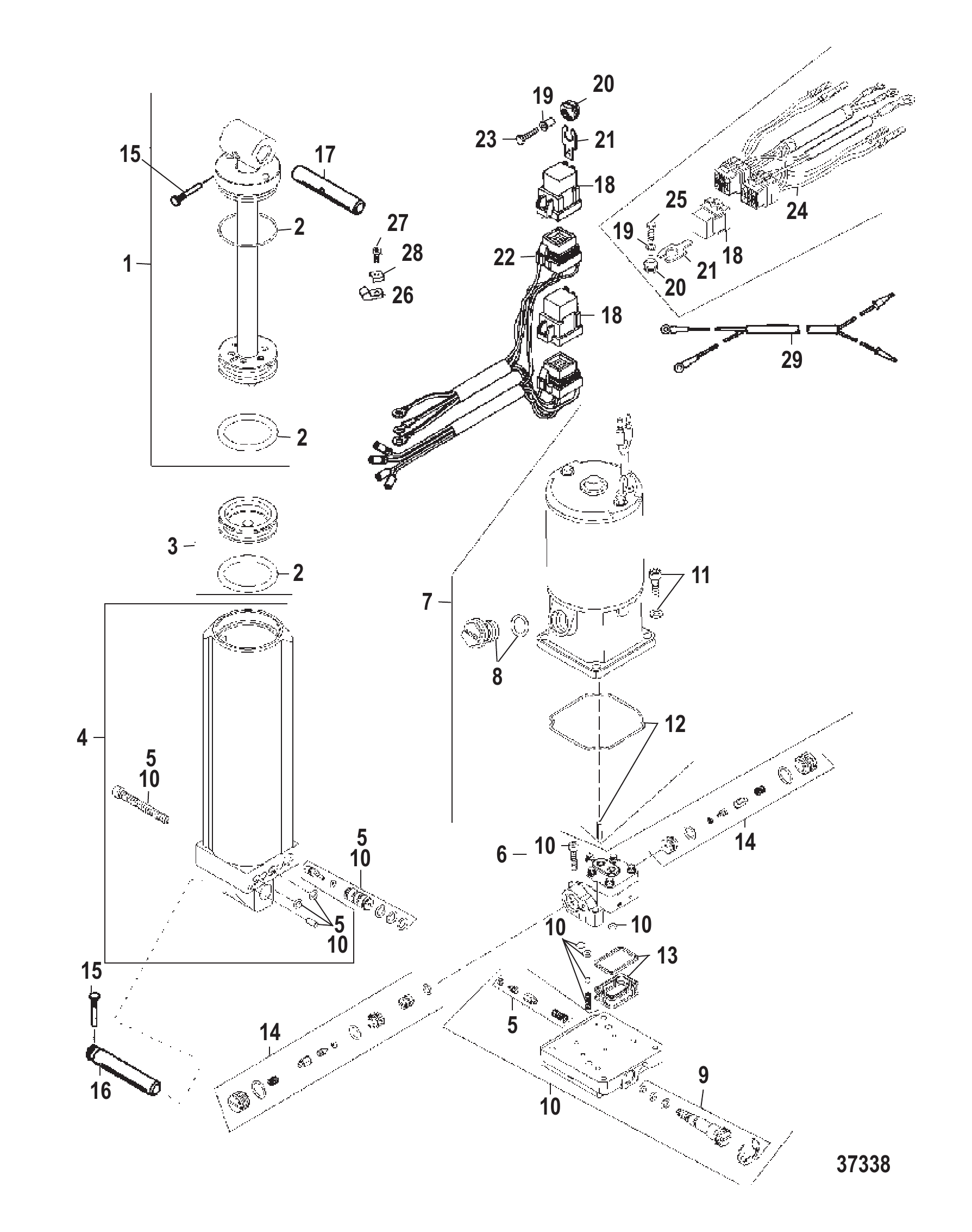

图 29动力升降倾斜装置（黄色注油塞）（G359968/9934137及以上） POWER TRIM (YELLOW FILL PLUG)(G359968/9934137 AND UP

REF	零件编号	中文名称	英文名称	数量
-	830250A3	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
1	811666A1	减震杆套件	SHOCK ROD KIT	1
1	8M0171821	减震杆套件	SHOCK ROD KIT	1
2	809872A2	O型圈维修包	O-RING KIT Rebuild	1
2	8M0171819	O型圈套件	O-RING KIT	1
3	810776A1	记忆活塞总成	PISTON ASSEMBLY Memory	1
3	8M0171822	记忆活塞套件	MEMORY PISTON KIT	1
4	811669A1	气缸总成	CYLINDER ASSEMBLY	1
4	893916A01	气缸总成	CYLINDER ASSEMBLY	1
5	809873A1	配平限位阀套件	VALVE KIT Trim Limit	1
5	893905A02	阀套件	VALVE KIT	1
6	809874A1	泵总成	PUMP ASSEMBLY	1
6	893906A02	泵总成	PUMP ASSEMBLY	1
7	809885A2	电机套件	MOTOR KIT	1
7	893907A02	电机套件	MOTOR KIT	1
8	8134351	堵头	PLUG	1
9	813442A2	手动释放总成	MANUAL RELEASE ASSEMBLY	1
9	893929A01	安全阀套件	VALVE KIT Relief	1
10	809875A1	歧管套件	MANIFOLD KIT	1
10	893909A02	歧管套件	MANIFOLD KIT	1
11	809876A1	螺丝套件(电机)	SCREW KIT (MOTOR)	1
12	809877A1	驱动轴/密封套件	DRIVESHAFT/SEAL KIT	1
13	809878A1	滤清器套件	FILTER KIT	1
13	893912A02	滤清器套件	FILTER KIT	1
14	809879A1	提升阀套件	POPPET KIT	1
14	893913A02	提升阀套件	POPPET KIT	1
-	809880A1	O型圈套件(完整调整)	O-RING KIT (COMPLETE TRIM)	1
-	893914A02	O型圈套件	O-RING KIT	1
15	821539	三叶销	PIN Trilobe	2
16	818898	锚销	PIN Anchor	1
17	996251	轴	SHAFT	1
17	99625002	轴	SHAFT	1
18	828151A1	继电器总成	RELAY ASSEMBLY	2
18	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
19	818968	衬套	BUSHING	2
19	8M0214955	衬套	BUSHING	2
20	818967	护孔环	GROMMET	2
20	8M0207785	护孔环	GROMMET	2
21	828102	支架	BRACKET	2
21	8M0207771	安装支架	BRACKET Mounting	2
22	819514A4	升降线束总成	HARNESS ASSEMBLY Trim	1
23	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	2
24	819514A15	升降线束总成	HARNESS ASSEMBLY Trim	1
24	8M0092077	升降线束总成	HARNESS ASSEMBLY Trim	1
25	82129125	螺丝(M6 x 25毫米)	SCREW (M6 x 25 mm)	2
26	22740	卡扣	CLIP	2
27	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	2
27	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	2
28	69205	C形垫圈	C WASHER	2
28	8M0084613	C形垫圈	C-WASHER	2
29	17201A2	电缆总成 (17.00 英寸)	CABLE ASSEMBLY (17.00 Inches)	1

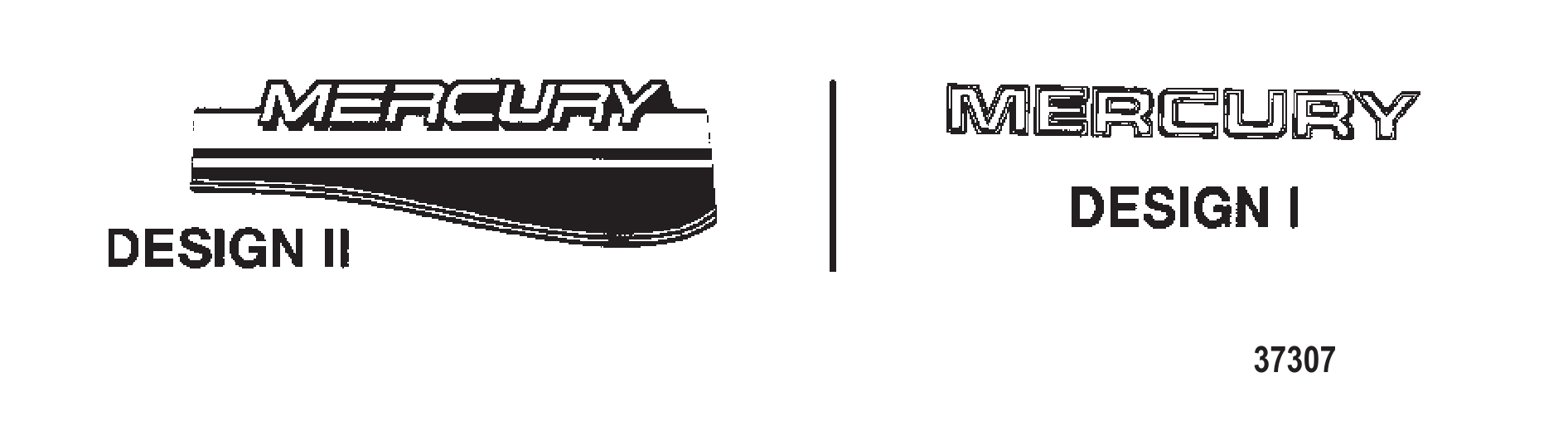

图 30维修/支撑材料 Service/Support Material

零件编号	中文名称	英文名称	数量
1779394	零件手册100/115/125马力80喷泵(4缸)	PARTS MANUAL 100/115/125 Hp 80 Jet (4 Cylinder)	1
830234R2	维修手册	SERVICE MANUAL	1
8M0127990	维修手册	MANUAL-SERVICE	1
823404A94	贴花套件	DECAL SET	1
823404A96	贴花套件	DECAL SET	1
823407A94	贴花套件	DECAL SET	1
823407A00	贴花套装(黑色115-红色)	DECAL SET (Black 115 - Red)	1
823410A94	贴花套件	DECAL SET	1
823410A00	贴花套装(黑色125-红色)	DECAL SET (Black 125 - Red)	1
826321A95	贴花套件	DECAL SET	1
826321A00	贴花套装(黑色80喷射)	DECAL SET (Black 80 Jet)	1
823404A96	贴花套件	DECAL SET	1
823407A96	贴花套件	DECAL SET	1
823407A00	贴花套装(黑色115-红色)	DECAL SET (Black 115 - Red)	1
809718A96	贴花套件	DECAL SET	1
823410A96	贴花套件	DECAL SET	1
823410A00	贴花套装(黑色125-红色)	DECAL SET (Black 125 - Red)	1
809719A96	贴花套件	DECAL SET	1
826321A96	贴花套件	DECAL SET	1
826321A00	贴花套装(黑色80喷射)	DECAL SET (Black 80 Jet)	1
823411A94	贴花套件	DECAL SET	1
823411A97	贴花套件	DECAL SET	1
823412A94	贴花套件	DECAL SET	1
823412A03	贴花套装(灰色115)	DECAL SET (Gray 115)	1
823413A94	贴花套件	DECAL SET	1
823413A03	贴花套装(灰色125)	DECAL SET (Gray 125)	1
826330A95	贴花套件	DECAL SET	1
826330A97	贴花套件	DECAL SET	1
823411A97	贴花套件	DECAL SET	1
823412A97	贴花套件	DECAL SET	1
823412A03	贴花套装(灰色115)	DECAL SET (Gray 115)	1
850445A97	贴花套件	DECAL SET	1
823412A03	贴花套装(灰色115)	DECAL SET (Gray 115)	1
823413A97	贴花套件	DECAL SET	1
823413A03	贴花套装(灰色125)	DECAL SET (Gray 125)	1
850446A97	贴花套件	DECAL SET	1
823413A03	贴花套装(灰色125)	DECAL SET (Gray 125)	1
826330A97	贴花套件	DECAL SET	1
824911	贴条(整卷)	DECAL STRIPE (BULK ROLL)	1
824911A25	条纹贴花	DECAL Striping	1
824735A94	贴花套件	DECAL SET	1
808623A94	贴花套件	DECAL SET	1
824735A96	贴花套件	DECAL SET	1
808623A96	贴花套件	DECAL SET	1
10180980	用户手册	OWNERS MANUAL	1
10162980	用户手册	OWNERS MANUAL	1
10138980	用户手册	OWNERS MANUAL	1
85557711	EPA标签信息贴花	DECAL EPA Label Information	1
855577A11	REF SOB 09-18	REF SOB 09-18	1

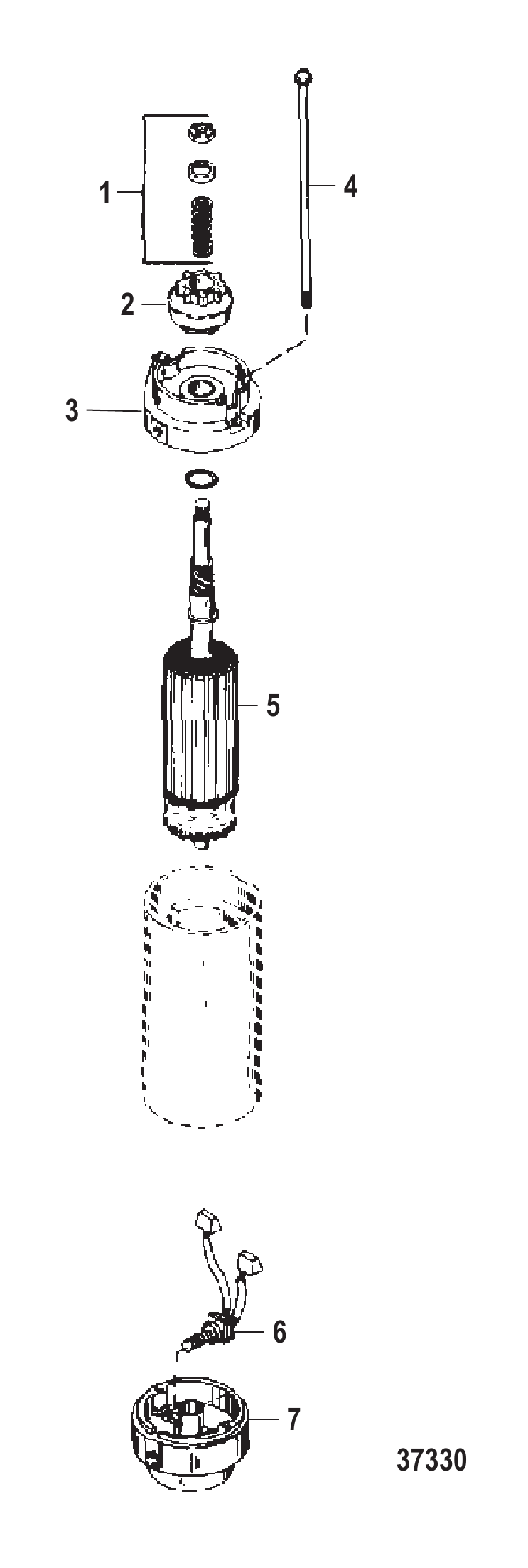

图 31启动马达 STARTER MOTOR

REF	零件编号	中文名称	英文名称	数量
-	660153	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	15383	驱动套件	DRIVE KIT	1
2	133101	驱动器	DRIVE	1
2	13310T1	小齿轮总成	PINION ASSEMBLY	1
3	75660	安装板	PLATE	1
4	15384	贯穿螺栓	THRU BOLT	2
5	15385	电枢	ARMATURE	1
6	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
6	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
7	15386	端盖	END CAP	1
7	15386001	端盖	END CAP	1

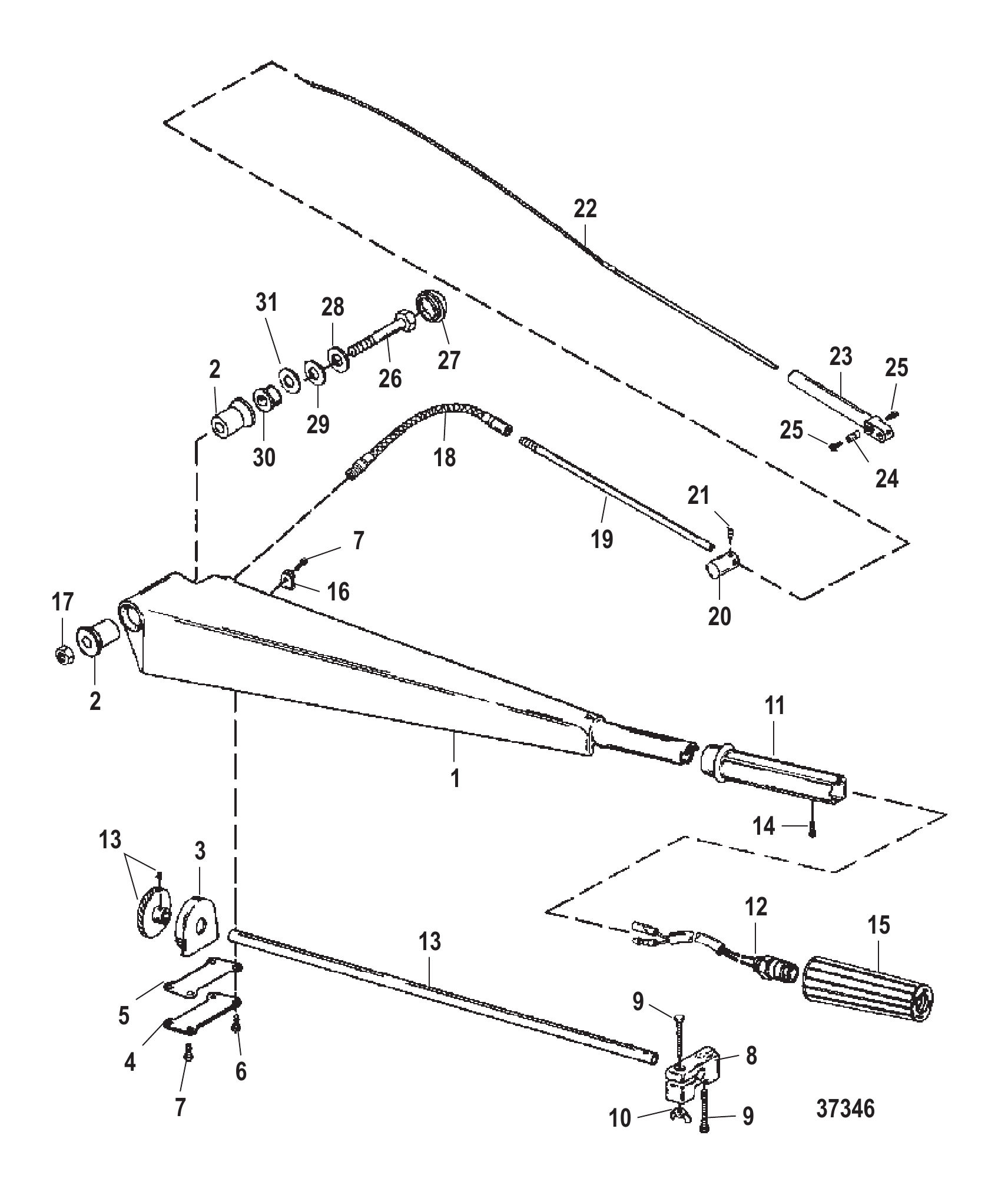

图 32转向手柄组件 STEERING HANDLE COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	12020A3	转向臂手柄总成	HANDLE ASSEMBLY Steering Arm	1
1	12020A4	转向臂手柄总成	HANDLE ASSEMBLY Steering Arm	1
1	12020A3	转向臂手柄总成	HANDLE ASSEMBLY Steering Arm	1
-	74036	润滑脂接头	FITTING Grease	1
-	8M0169589	润滑脂接头	FITTING Grease	1
2	429922	衬套	BUSHING	2
2	42992T02	衬套	BUSHING	2
3	48414	壳体	HOUSING	1
4	48519	安装板	PLATE	1
5	48518	衬垫	GASKET	1
6	8128321	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
6	878609	螺钉 (#10-16 x .600)	SCREW (#10-16 x .600)	1
7	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	4
7	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	4
8	12013	卡箍	CLAMP	1
8	889729	卡箍	CLAMP	1
9	40007112	螺钉(M5 x 40)	SCREW (M5 x 40)	2
10	816873	蝶形螺母	WING NUT	1
10	816874	蝶形螺母 (#10-32)	WING NUT (#10-32)	1
11	823609A15	停机开关套件-油门手柄	SWITCH KIT Stop - Throttle Handle	1
12	823609A5	停机开关总成	SWITCH ASSEMBLY Stop	1
12	8M0104612	开关总成	SWITCH ASSY	1
13	12018A4	油门拉线管总成	TUBE ASSEMBLY Throttle	1
14	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
15	99589	握把	GRIP	1
15	8M0221732	外握把	GRIP OUTER	1
16	648551	卡箍	CLAMP	2
17	13914	螺母(M10)	NUT (M10)	1
17	40140	螺母(M10)	NUT (M10)	1
18	785512	导管	CONDUIT	1
18	8885242	导管	CONDUIT	1
19	895663	导向管	GUIDE TUBE	1
20	89578	套筒	BARREL	1
21	824081	紧定螺钉(#10-32)	SET SCREW (#10-32)	1
22	120191	拉线总成	CABLE ASSEMBLY	1
23	434332	导套	GUIDE	1
24	20007	锚定件	ANCHOR	1
25	20518	紧定螺钉(#8-32)	SET SCREW (#8-32)	2
25	8M0204644	螺钉组	SCREW SET	2
26	823567105	螺丝(M10 x 105)六角法兰-不锈钢	SCREW (M10 x 105) Hex Flange - Stainless Steel	1
27	48416	盖帽	CAP	1
28	4002319	垫圈	WASHER	1
29	12024	垫圈(0.402 x 0.787 x 0.039 贝氏)	WASHER (.402 x .787 x .039 Bellevi)	1
30	14601	隔套	SPACER	1
30	146011	隔套	SPACER	1
31	45175	垫圈(.406 x .750 x .104)	WASHER (.406 x .750 x .104)	1
31	8M0214963	垫圈	WASHER	1

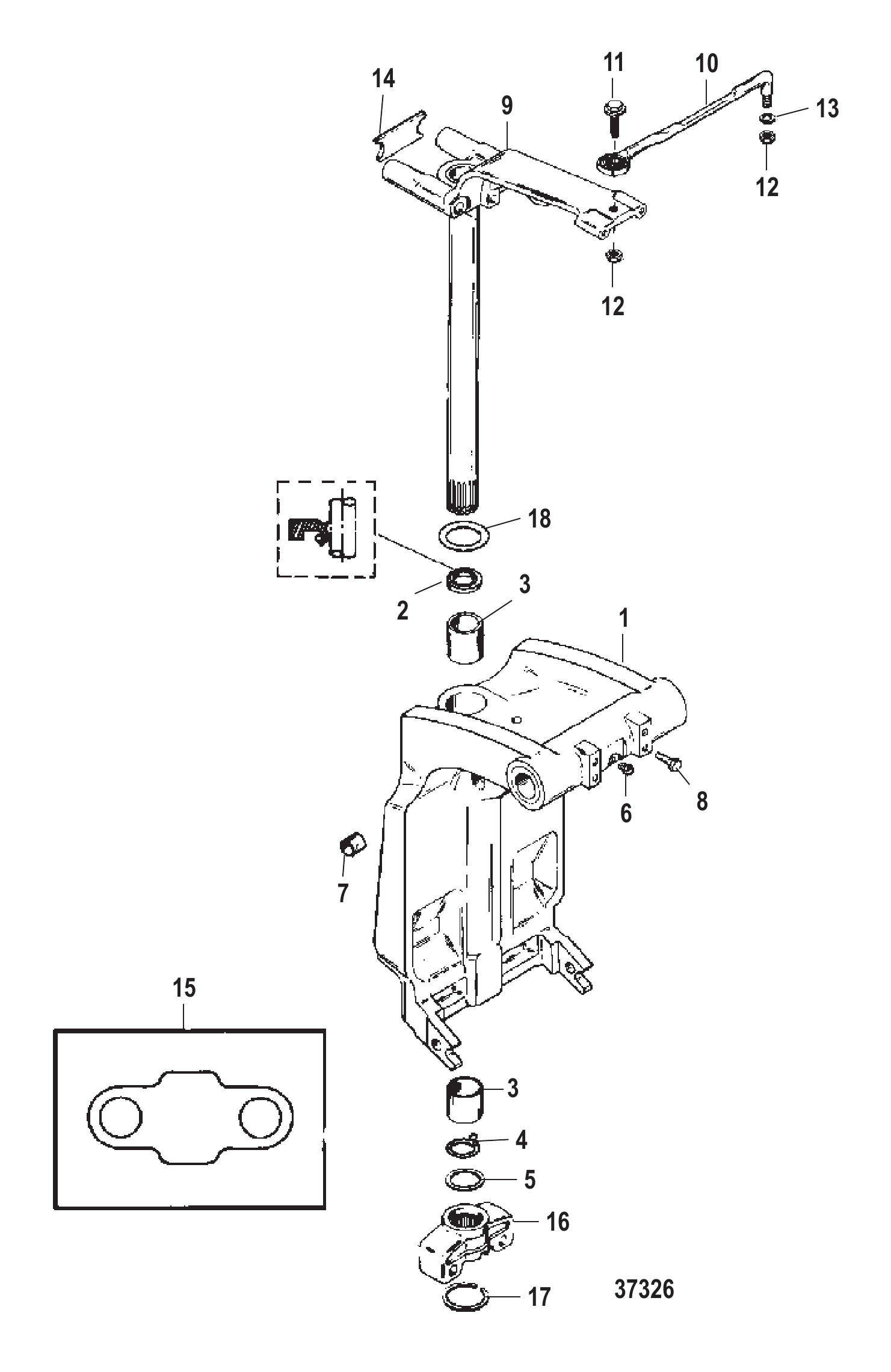

图 33旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM

REF	零件编号	中文名称	英文名称	数量
1	818904A1	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	818904A2	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	818904T2	支架总成-灰色	BRACKET ASY-GRAY	1
1	818904A3	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	818904T4	支架总成-钢/灰色	BRKT ASY-STEEL/GR	1
2	87735	油封(下)	SEAL Oil (LOWER)	1
3	818764	衬套	BUSHING	2
4	33504	O型圈	O-RING	1
4	8M0214926	O型圈 @10	O RING @10	1
5	816039	隔套	SPACER	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
9	99661A26	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	99661A35	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	99661A27	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	99661A36	ORD 99661A35	ORD 99661A35	1
9	99661A28	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	99661A35	旋转销总成	SWIVEL PIN ASSEMBLY	1
10	92876A1	转向连杆总成	LINK ASSEMBLY Steering	1
10	92876A12	连杆总成	LINK ROD ASSEMBLY	1
11	14000	螺钉(.375-24x1.25)	SCREW (.375-24 x 1.25)	1
11	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
12	34863	螺母 (.375-24)	NUT (.375-24)	2
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
13	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	2
14	888821	缓冲垫	BUMPER	1
14	8M0000516	上轭缓冲垫	BUMPER Top Yoke	1
15	11288	下轭缓冲垫	BUMPER Bottom Yoke	1
15	11288001	下轭缓冲垫	BUMPER Bottom Yoke	1
16	42961A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
16	42961A06	底部轭架总成	YOKE ASSEMBLY Bottom	1
16	42961A2	底部轭架总成	YOKE ASSEMBLY Bottom	1
16	42961T2	ORD 42961A06	ORD 42961A06	1
16	42961A4	底部轭架总成	YOKE ASSEMBLY Bottom	1
16	42961A5	轭架总成	YOKE ASSEMBLY	1
17	67684	挡圈	RING Retaining	1
18	816432	止推垫片	THRUST WASHER	1

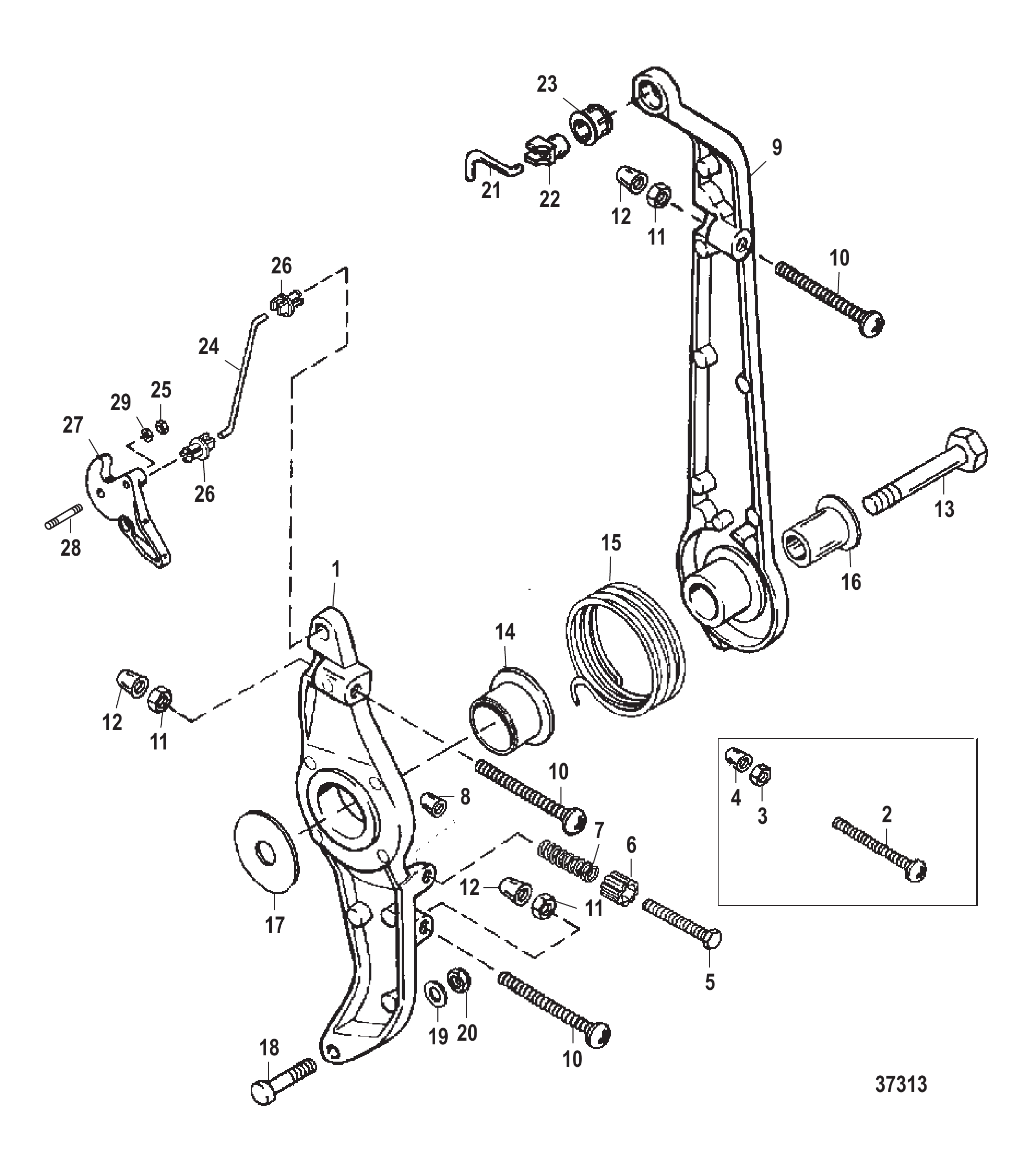

图 34油门杆与联动装置 THROTTLE LEVER AND LINKAGE

REF	零件编号	中文名称	英文名称	数量
1	44333	油门杆	LEVER Throttle	1
2	817582	调节螺钉(M5 x 35)	SCREW Adjusting (M5 x 35)	1
3	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
4	48039	盖帽	CAP	1
5	827009	螺钉(M5 x 40)	SCREW (M5 x 40)	1
6	826264	盖帽	CAP	1
7	826382	弹簧	SPRING	1
8	48039	盖帽	CAP	1
9	44335	点火提前杆	LEVER Spark Advance	1
9	884307T	杠杆	LEVER	1
10	814776	调节螺钉(M6 x 55)	SCREW Adjusting (M6 x 55)	3
11	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	3
12	42942	盖帽	CAP	3
13	4007180	螺丝(M10 x 45)	SCREW (M10 x 45)	1
14	55171	衬套	BUSHING	1
15	86310	弹簧	SPRING	1
15	73375	弹簧	SPRING	1
16	812930A1	衬套	BUSHING	1
17	42980	垫圈	WASHER	1
18	42927	嵌件	INSERT	1
19	35459	垫圈	WASHER	1
20	8268336	螺母 (M6)	NUT (M6)	1
20	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
21	44338	点火提前杆	SPARK ADVANCE ROD	1
21	878170	点火提前杆	ROD Spark Advance	1
22	93421	旋转球头	SWIVEL BALL	1
23	93254	旋转底座	SWIVEL BASE	1
24	44337	连接杆	LINK	1
24	878173	连接杆	LINK	1
25	8268336	螺母 (M6)	NUT (M6)	1
25	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
26	932481	衬套	BUSHING	2
26	8M0215006	旋转衬套	BUSHING Swivel	2
27	14518T1	节气门凸轮	CAM Throttle	1
27	14518A2	节气门凸轮总成	CAM ASSEMBLY Throttle	1
27	14518A2	节气门凸轮总成	CAM ASSEMBLY Throttle	1
28	42984	螺柱	STUD	1
28	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	1
28	8161946	螺柱	STUD	1
28	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	1
29	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1

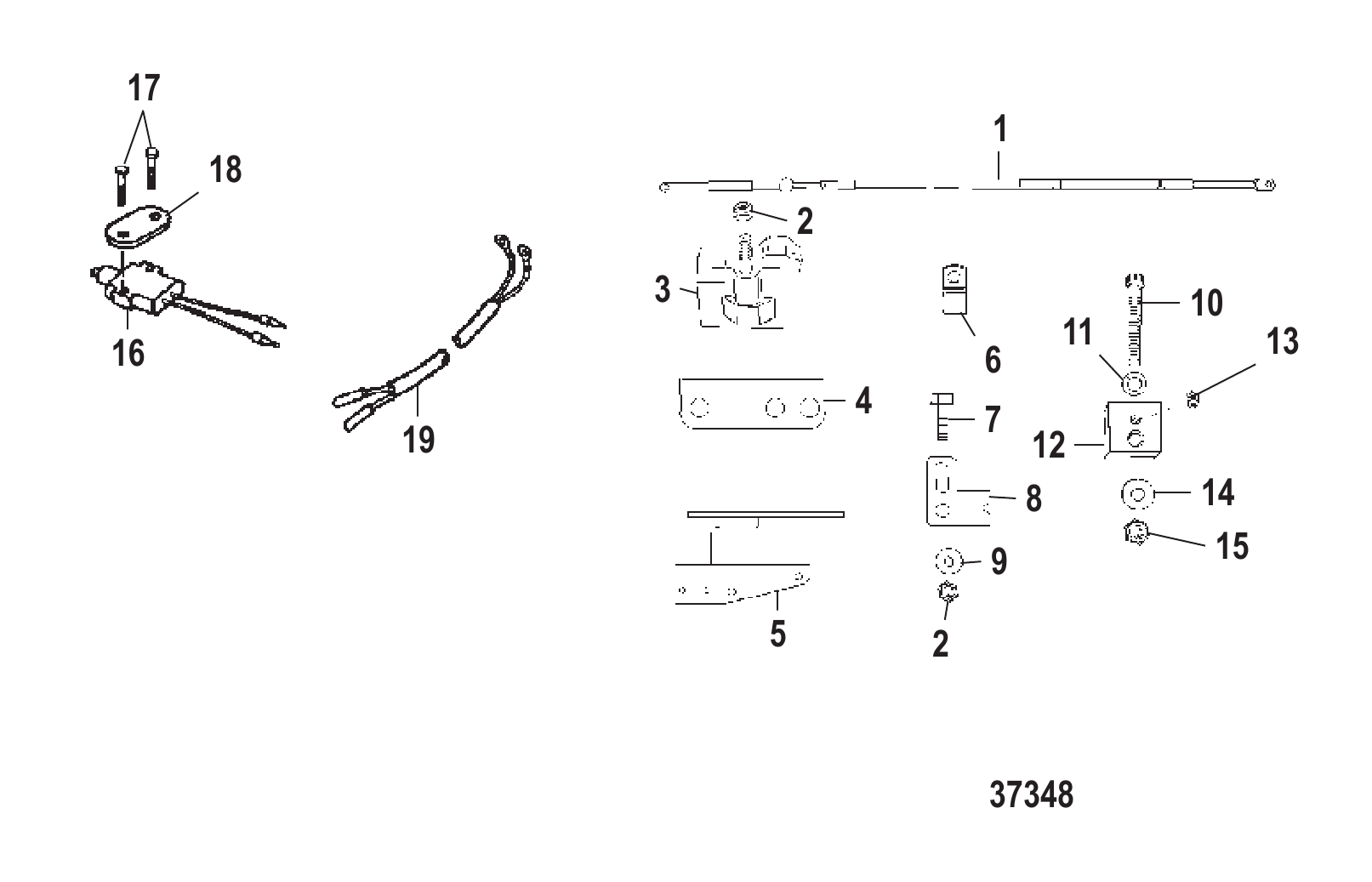

图 35舵柄适配器套件（JET 80） TILLER HANDLE ADAPTOR KIT (JET 80)

REF	零件编号	中文名称	英文名称	数量
-	850000A3	舵柄适配器套件65 JET	TILLER HANDLE ADAPTER KIT 65 JET	1
1	832001A6	换挡线缆总成	CABLE ASSEMBLY Shift	1
2	8268336	螺母 (M6)	NUT (M6)	2
2	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
3	988851	滑块	SLIDE	1
4	828095	支架	BRACKET	1
5	8249303	支架	BRACKET	1
5	824930T3	支架	BRACKET	1
6	64646	卡扣	CLIP	1
7	40011126	不锈钢螺丝(M6 x 13)	SCREW (M6 x 13) Stainless Steel	1
8	828096	换挡线缆固定块	BLOCK Shift Cable-Retaining	1
9	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
9	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
10	71958	螺丝(.250-28 x 1.75)	SCREW (.250-28 x 1.75)	1
11	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
12	828094	换挡线缆固定块	BLOCK Shift Cable-Retaining	1
13	72734	紧定螺丝(#10-32 x .310)	SET SCREW (#10-32 x .310)	1
14	35459	垫圈	WASHER	1
15	35888	不锈钢螺母(.250-28)	NUT (.250-28) Stainless Steel	1
16	813960A3	开关	SWITCH	1
16	8M0052927	开关总成	SWITCH ASSY	1
17	4001168	不锈钢螺丝(M3.5 x 20)	SCREW (M3.5 x 20) Stainless Steel	2
17	88075020	螺丝(M3 x 20)	SCREW (M3 x 20)	2
18	824923	安装板	PLATE	1
19	824934A1	拉线总成	CABLE ASSEMBLY	1

图 36专用工具 TOOLS SPECIAL

REF	零件编号	中文名称	英文名称	数量
-	36392	化油器量具	GAUGE TOOL Carburetor	1
-	52344	飞轮固定器工具(齿型)	FLYWHEEL HOLDER TOOL Teeth Type	1
-	73687A2	飞轮拉拔器套件	PULLER KIT Flywheel	1
-	849154T1	拉拔器总成	PULLER ASSEMBLY	1
-	99750A1	万用表	MULTI METER	1
-	52024A1	开关总成	SWITCH ASSEMBLY	1
-	59339	维修用转速表	SERVICE TACHOMETER	1
-	892647A01	DMT万用表套件	MULTI-METER KIT DMT	1
-	850439T1	八腔测试仪	TESTER Eight Chamber	1
-	63998A1	单腔间隙工具	GAP TOOL Single Chamber	1
-	850439	火花测试器	SPARK TESTER	1
-	850439T1	八腔测试仪	TESTER Eight Chamber	1
-	99379	正时灯	TIMING LIGHT	1
-	825207A1	TPI/CDM测试线束总成	HARNESS ASSEMBLY TPI/CDM Test	1
-	112301	对正工具	ALIGNMENT TOOL	1
-	NSS	夹头(不单独销售)(SNAP ON - CG41-14)	NOT SOLD SEPARATE Collet (SNAP ON - CG41-14)	1
-	NSS	膨胀杆(不单独销售)(SNAP ON - CG41-11)	NOT SOLD SEPARATE Expanding Rod (SNAP ON - CG41-11)	1
-	822778A3	下压力套件	DOWN PRESSURE KIT	1
-	99750A1	万用表	MULTI METER	1
-	74951	扳手	SPANNER WRENCH	1
-	63209	加热灯	HEAT LAMP	1
-	29287	量规工具	GAUGE TOOL	1
-	52344	飞轮固定器工具(齿型)	FLYWHEEL HOLDER TOOL Teeth Type	1
-	73687A2	飞轮拉拔器套件	PULLER KIT Flywheel	1
-	849154T1	拉拔器总成	PULLER ASSEMBLY	1
-	90455	吊环	LIFTING EYE	1
-	904551	吊环	LIFTING EYE	1
-	77109A3	安装工具套件	INSTALLER KIT	1
-	74607A3	活塞销安装套件	INSTALLER KIT Piston Pin	1
-	24697	活塞环扩张工具	EXPANDER TOOL Piston Ring	1
-	812549	动力头支架	STAND Powerhead	1
-	812549T	动力头支架	STAND Powerhead	1
-	24161	飞轮拉拔器盖工具	CAP TOOL Flywheel Puller	1
-	66274	扭矩扳手(0-150磅英寸)	TORQUE WRENCH (0-150 lb-in)	1

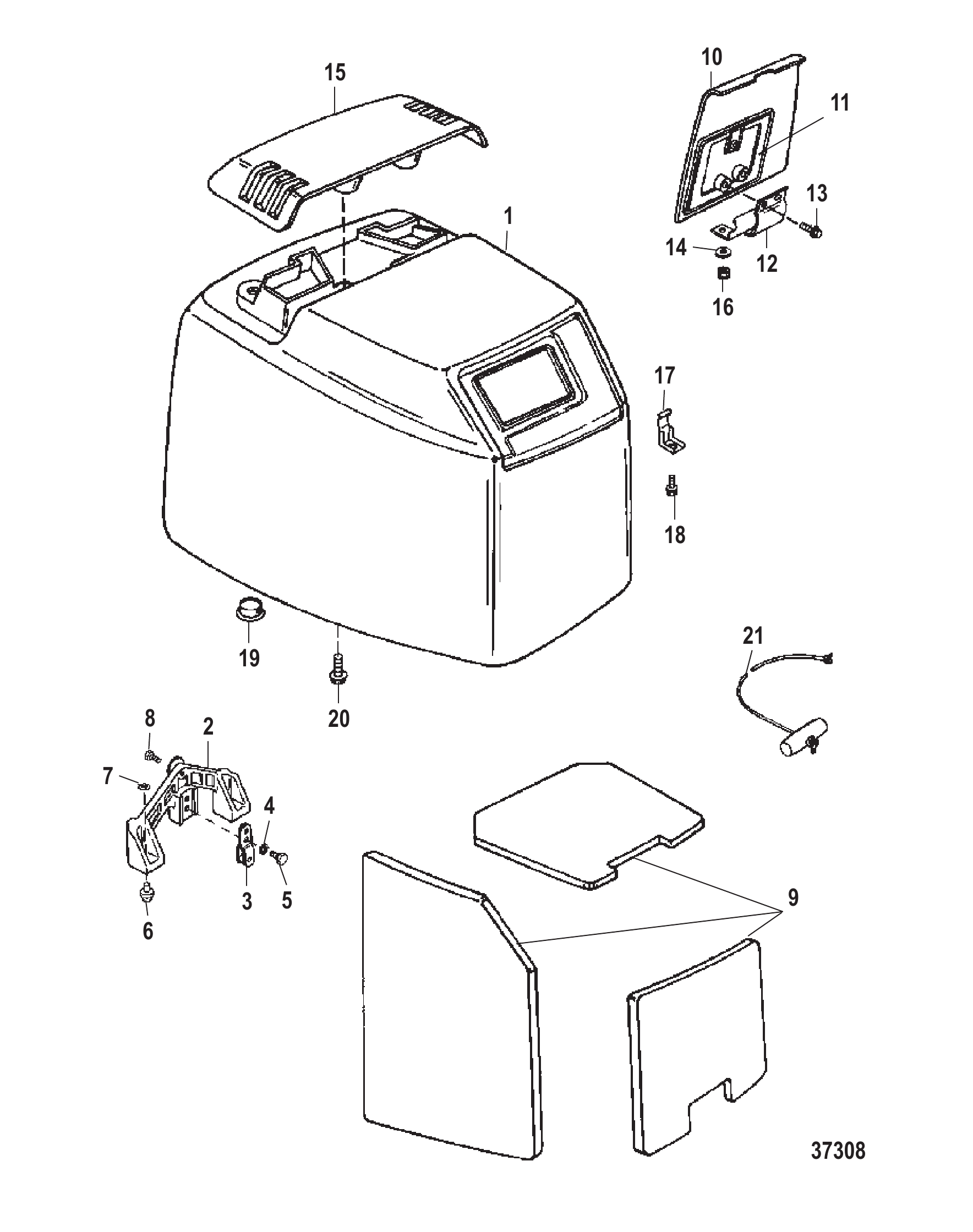

图 37顶罩（序列号USA-0G301750/BEL-9885504及以下） TOP COWL (S/N-USA-0G301750/ BEL-9885504 AND BELOW)

REF	零件编号	中文名称	英文名称	数量
1	828354A11	顶盖总成	TOP COWL ASSEMBLY	1
1	828354A12	顶盖总成	TOP COWL ASSEMBLY	1
1	828354A13	顶盖总成	TOP COWL ASSEMBLY	1
2	8198131	盖板锁扣支架	BRACKET Cover Latch	1
2	819813T1	盖板锁扣支架	BRACKET Cover Latch	1
3	18173	锁扣滚轮支架总成	BRACKET ASSEMBLY Latch Roller	1
3	893763	滚轮锁扣支架	BRACKET Roller Latch	1
4	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
5	90285	螺钉 (.312-18 x .625)	SCREW (.312-18 x .625)	2
6	F481434	罩盖锁扣导架	GUIDE Cowl Latch Bracket	2
7	91925	压入式螺母	PUSH NUT	4
8	822512	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	3
9	823583A1	隔音毯套装	SOUND BLANKET KIT	1
9	823583A02	隔音毯套装(预涂压敏胶)	SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive)	1
10	821912A1	检修门	TRAP DOOR	1
10	821912A2	检修门	TRAP DOOR	1
10	821912A3	检修门	TRAP DOOR	1
11	8239671	检修门密封条	SEAL Trap Door	1
12	8220551	铰链销	PIN Hinge	1
13	82104512	螺钉(M5 x 12)	SCREW (M5 x 12)	2
14	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	2
14	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	2
15	821875F1	上盖	CAP Upper	1
15	8218751	上盖-黑色	CAP-UPPER-BLACK	1
15	821875F2	上盖	CAP Upper	1
15	821875F1	上盖	CAP Upper	1
15	821875F3	上盖	CAP Upper	1
15	821875F1	上盖	CAP Upper	1
16	8268336	螺母 (M6)	NUT (M6)	2
16	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
17	8239601	卡扣	CATCH	1
18	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
18	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
19	823865	盖塞	CAP PLUG	2
20	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	4
21	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1

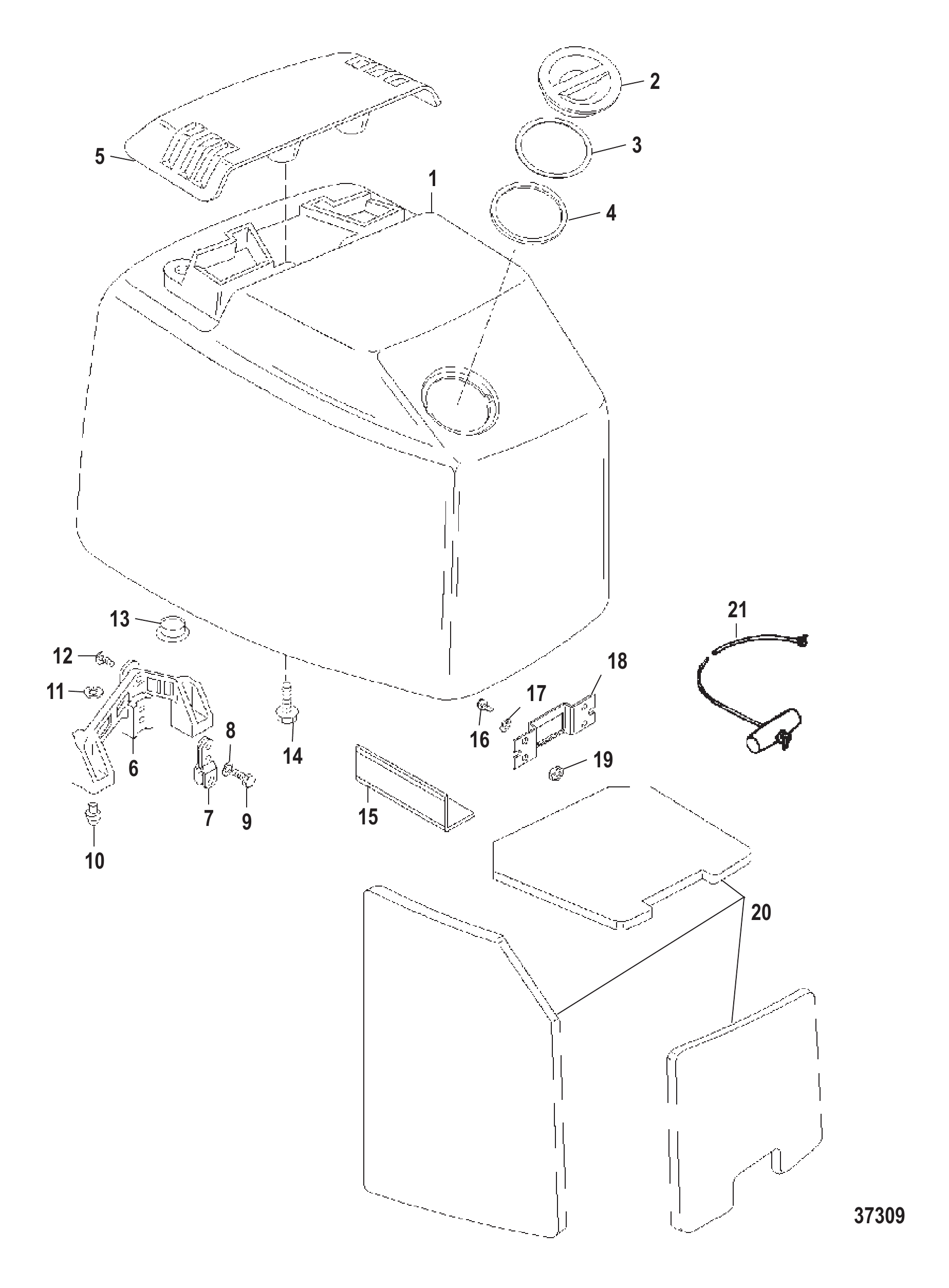

图 38顶罩（序列号USA-0G301751/BEL-9885505及以上） TOP COWL (S/N-USA-0G301751/BEL-9885505 AND UP)

REF	零件编号	中文名称	英文名称	数量
1	828354A8	顶盖总成	TOP COWL ASSEMBLY	1
1	828354A9	顶盖总成	TOP COWL ASSEMBLY	1
1	828354T9	银色顶罩总成	TOP COWL ASSEMBLY Silver	1
1	828354A10	银色顶罩与黑色盖总成	TOP COWL ASSEMBLY Silver Cowl And Black Cap	1
2	828716A2	盖帽	CAP	1
3	828352	密封件	SEAL	1
4	8283511	密封件	SEAL	1
5	821875F1	上盖	CAP Upper	1
5	8218751	上盖-黑色	CAP-UPPER-BLACK	1
5	821875F2	上盖	CAP Upper	1
5	821875F1	上盖	CAP Upper	1
6	8198131	盖板锁扣支架	BRACKET Cover Latch	1
6	819813T1	盖板锁扣支架	BRACKET Cover Latch	1
7	18173	锁扣滚轮支架总成	BRACKET ASSEMBLY Latch Roller	1
7	893763	滚轮锁扣支架	BRACKET Roller Latch	1
8	53166	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
9	90285	螺钉 (.312-18 x .625)	SCREW (.312-18 x .625)	2
10	F481434	罩盖锁扣导架	GUIDE Cowl Latch Bracket	2
11	91925	压入式螺母	PUSH NUT	4
12	822512	螺钉 (.250-20 x 1.00)	SCREW (.250-20 x 1.00)	3
13	823865	盖塞	CAP PLUG	2
14	82130016	螺钉(M6 x 16)	SCREW (M6 x 16)	4
15	823830	支架	SUPPORT	2
16	8231871	螺钉(M4×14.5)	SCREW (M4 x 14.5)	2
17	26995	防松垫圈(#8不锈钢)	LOCKWASHER (#8) Stainless Steel	2
18	8233941	支架	BRACKET	1
19	8237515	螺母(M4)	NUT (M4)	2
20	823583A1	隔音毯套装	SOUND BLANKET KIT	1
20	823583A02	隔音毯套装(预涂压敏胶)	SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive)	1
21	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1

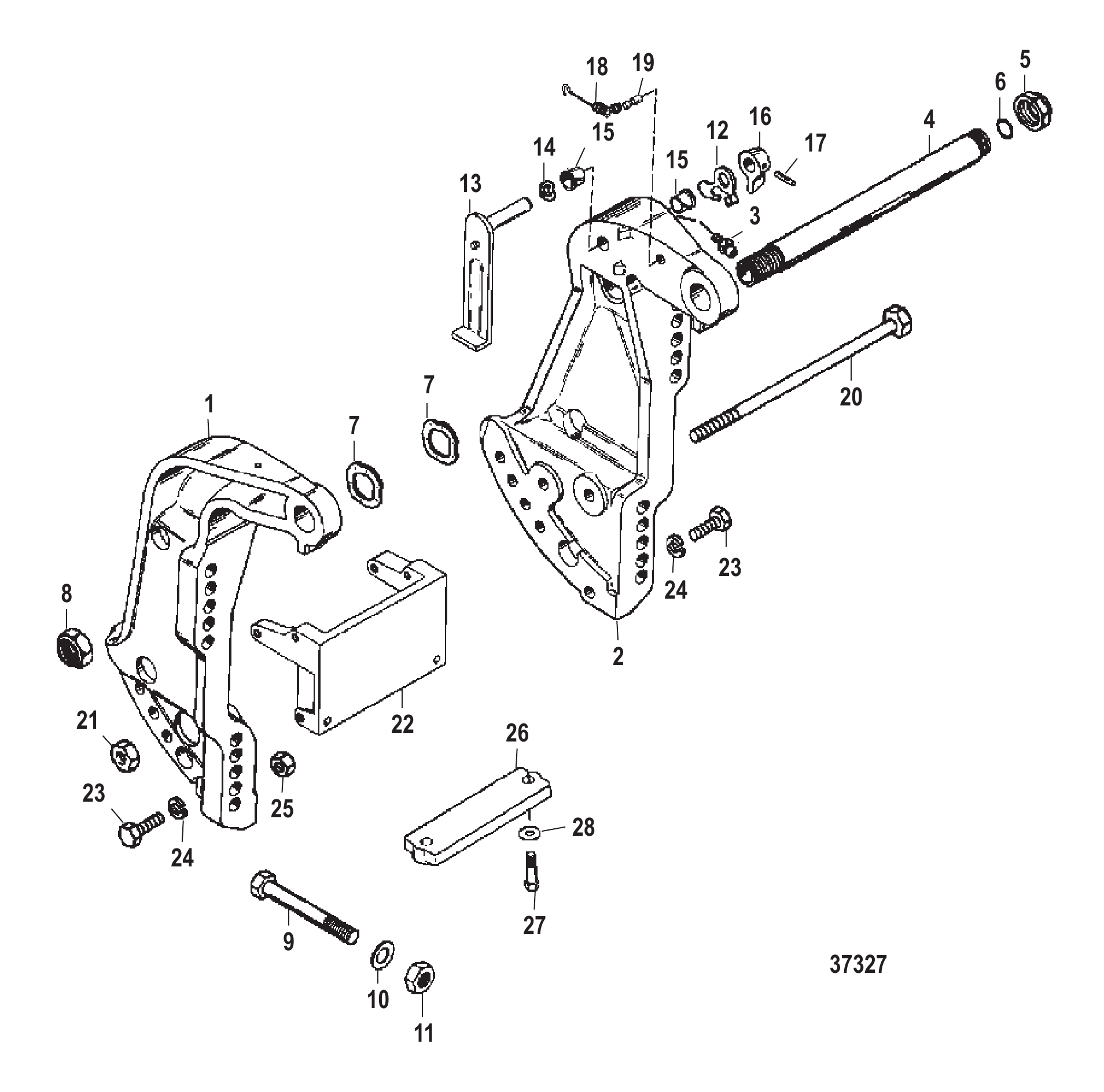

图 39艉板支架（序列号USA-0G589999/BEL-9973099及以下） TRANSOM BRACKET (S/N-USA-0G589999/BEL-9973099 AND BELOW)

REF	零件编号	中文名称	英文名称	数量
1	8718F7	艉板支架	BRACKET Transom	1
1	8718F8	艉板支架	BRACKET Transom	1
1	8718F10	艉板支架	BRACKET Transom	1
2	8716A8	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	8716A9	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	8716A10	艉板支架总成	BRACKET ASSEMBLY Transom	1
3	98727	润滑脂接头(左舷)	FITTING Grease (PORT)	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	99170A2	倾斜管套件	TUBE KIT Tilt	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
10	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0027784	螺母	NUT	4
11	82671117	螺母(.500-20)	NUT (.500-20)	4
12	814207	停机开关	STOP	1
13	821176A1	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	8M0109798	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	99611	波形垫圈	WAVE WASHER	1
15	65830	尼龙衬套	NYLINER	2
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99622	弹簧	SPRING	1
19	99604	槽销	PIN Groove	1
20	96930A1	螺栓总成	BOLT ASSEMBLY	1
21	23161	螺母 (.375-24)	NUT (.375-24)	1
22	818771F1	锚支架	BRACKET Anchor	1
22	8M0086406	锚支架	BRACKET Anchor	1
22	818771F6	锚支架	BRACKET Anchor	1
22	818771T8	ORD 818771T 1	ORD 818771T 1	1
22	818771F8	锚支架	BRACKET Anchor	1
22	818771T8	ORD 818771T 1	ORD 818771T 1	1
23	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
24	4002319	垫圈	WASHER	6
25	40114	螺母(M10 x 1.5)	NUT (M10 x 1.5)	1
26	818298A1	阳极套件	ANODE KIT	1
26	818298Q1	阳极套件	ANODE KIT	1
27	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
27	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
28	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
28	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2

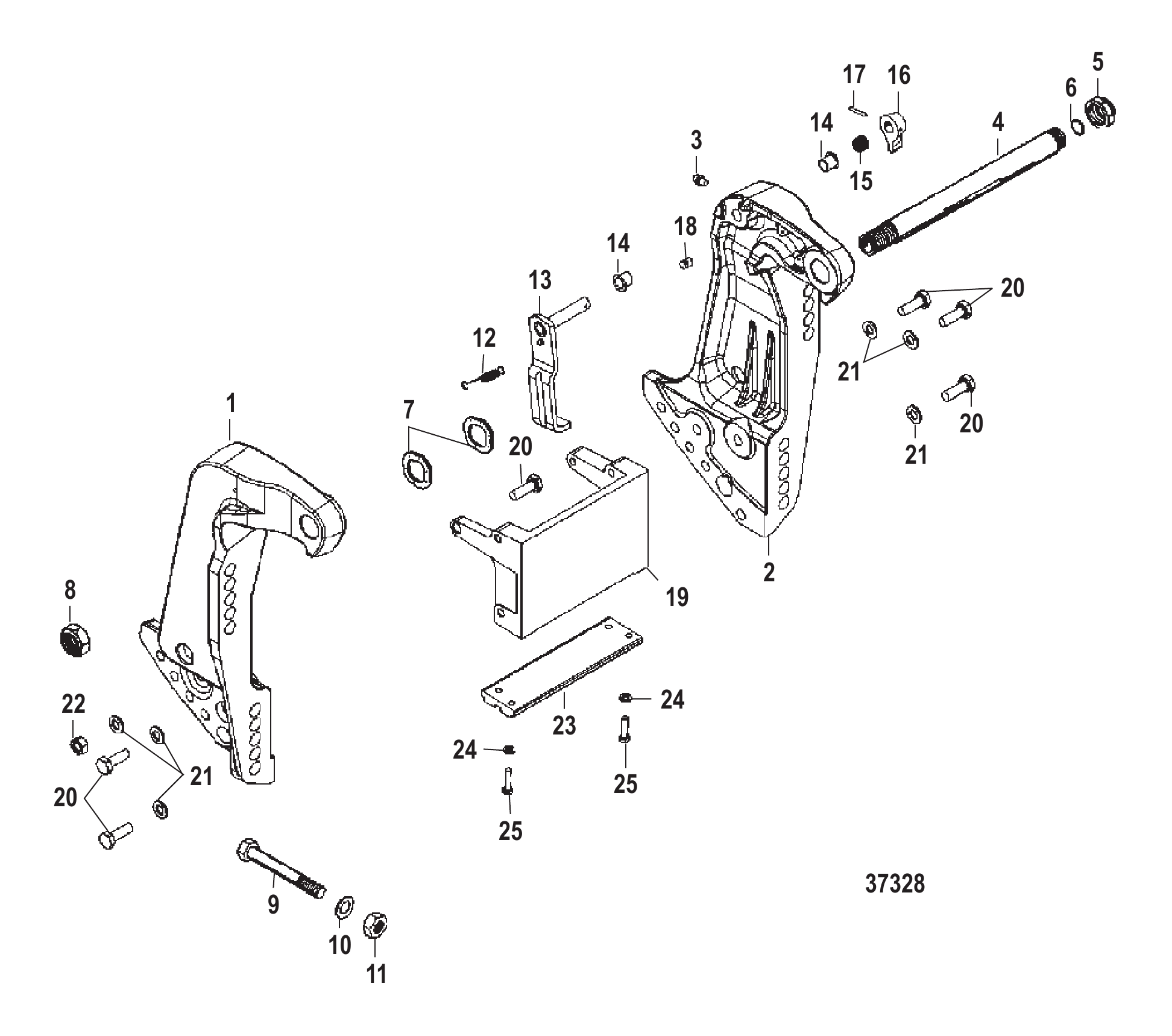

图 40艉板支架（序列号USA-0G590000/BEL-9973100及以上） TRANSOM BRACKET (S/N-USA-0G590000/BEL-9973100 AND UP)

REF	零件编号	中文名称	英文名称	数量
1	828334F1	艉板支架	BRACKET Transom	1
1	828334F2	艉板支架	BRACKET Transom	1
2	828333A3	艉板支架总成	BRACKET ASSEMBLY Transom	1
2	828333T07	艉板支架总成-左舷	BRACKET ASSEMBLY Transom - Port	1
2	828333A4	艉板支架总成	BRACKET ASSEMBLY Transom	1
3	98727	润滑脂接头	FITTING Grease	1
3	8M0169588	润滑脂接头	FITTING Grease	1
4	99170A2	倾斜管套件	TUBE KIT Tilt	1
4	826125A1	倾斜管	TILT TUBE	1
5	826135	尼龙锁紧螺母(1.00-14)	NUT Lock (1.00-14) Nylon Insert	1
6	45711	O型圈 (.612 x .103)	O-RING (.612 x .103)	1
7	88750	波浪垫圈 (1.62 x 1.05)	WASHER Wave (1.62 x 1.05)	2
8	826164	螺母 (.875-14)	NUT (.875-14)	1
8	8M0231351	锁紧螺母	NUT Lock	1
9	677551	螺钉(.500-20×4.500)	SCREW (.500-20 x 4.500)	4
9	8M0149747	螺钉	SCREW	4
10	28421	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
10	8M0204648	垫圈(1.5x3.05x0.13)不锈钢	WASHER (1.5 x 3.05 x 0.13) Stainless Steel	4
11	8M0027784	螺母	NUT	4
11	82671117	螺母(.500-20)	NUT (.500-20)	4
12	830899	张力弹簧	SPRING Tension	1
13	821176A1	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
13	8M0109798	倾斜锁定杆总成	LEVER ASSEMBLY Tilt Lock	1
14	65830	尼龙衬套	NYLINER	2
15	830900	压缩弹簧	SPRING Compression	1
16	99633	旋钮	KNOB	1
17	99615	槽销	PIN Groove	1
18	99617	销	PIN	1
18	893709	销	PIN	1
19	818771F1	锚支架	BRACKET Anchor	1
19	8M0086406	锚支架	BRACKET Anchor	1
19	818771F6	锚支架	BRACKET Anchor	1
19	818771T8	ORD 818771T 1	ORD 818771T 1	1
20	4000377	螺钉 (M10 x 30)	SCREW (M10 x 30)	6
21	4002319	垫圈	WASHER	6
21	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	6
22	40114	螺母(M10 x 1.5)	NUT (M10 x 1.5)	1
23	818298A1	阳极套件	ANODE KIT	1
23	818298Q1	阳极套件	ANODE KIT	1
24	4000330	螺钉(M6x25)	SCREW (M6 x 25)	2
24	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	2
25	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
25	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
