两冲程 化油器 · ARCHIVE CAT 52330 · 共 8 个部位 · 390 条零件
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

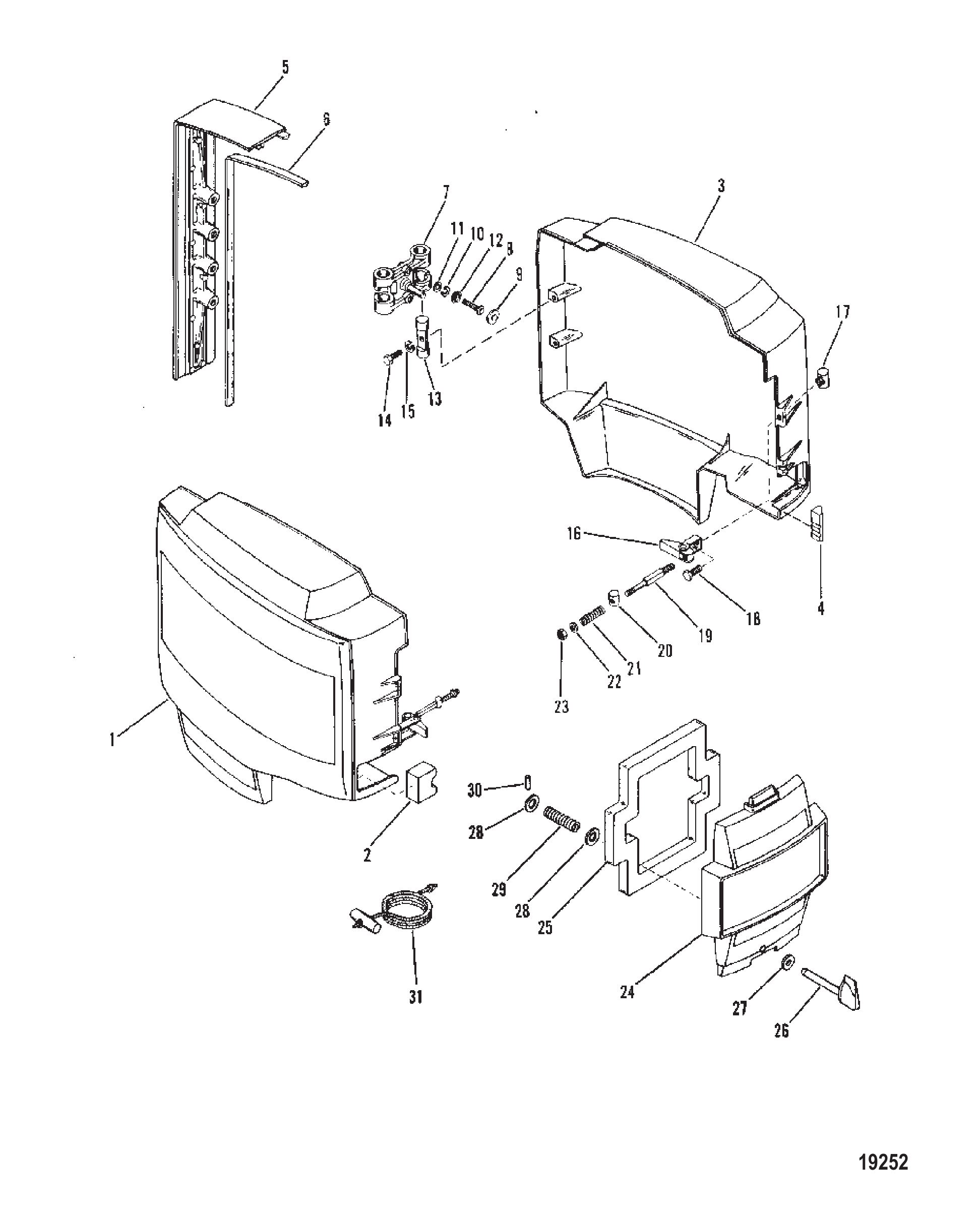

| 1 | 6228A1 | 顶罩总成(右舷黑色) | TOP COWL ASSEMBLY (STARBOARD BLACK) | 1 |
| 1 | 6228A3 | 顶罩总成(右舷灰色) | TOP COWL ASSEMBLY (STARBOARD GRAY) | 1 |
| 2 | 60297 | 燃油接头密封圈-罩 | SEAL FUEL CONNECTOR -COWL | 1 |
| 3 | 6227A1 | 顶罩总成(左舷黑色) | TOP COWL ASSEMBLY (PORT BLACK) | 1 |
| 3 | 6227A17 | 顶罩总成(左舷灰色) | TOP COWL ASSEMBLY (PORT GRAY) | 1 |
| 4 | 60298 | 控制电缆密封圈-罩 | SEAL CONTROL CABLES-COWL | 1 |
| 5 | 89717T | 罩体密封后支架 | BRACKET COWL SEALING-REAR | 1 |
| 6 | 698761 | 后支架密封圈 | SEAL REAR BRACKET | 2 |
| 7 | 90980 | 罩体铰链支架 | BRACKET COWL HINGE | 2 |
| 8 | 45561 | 铰链支架下部螺钉(.250-20 x 1.12) | SCREW (.250-20 x 1.12) HINGE BRACKET-LOWER | 2 |
| 8 | 455611 | 螺钉(.250-20 x 1.120) | SCREW (.250-20 x 1.120) | 2 |
| 8 | 75794 | 铰链支架上部螺钉(1-1/8英寸) | SCREW HINGE BRACKET-UPPER (1-1/8") | 2 |
| 9 | 75805 | 铰链支架螺钉帽(上部) | CAP HINGE BRACKET SCREW (UPPER) | 2 |
| 10 | 26992 | 铰链支架螺钉不锈钢锁紧垫圈(.250) | LOCKWASHER (.250) Stainless Steel HINGE BRACKET SCREW | 4 |
| 11 | 37998 | 铰链支架螺钉垫圈 | WASHER HINGE BRACKET SCREW | 4 |
| 12 | 75806 | 铰链支架螺钉垫圈(上部) | WASHER HINGE BRACKET SCREW (UPPER) | 2 |
| 13 | 90979 | 机罩铰链销 | PIN COWL HINGE | 4 |
| 14 | 28782 | 螺钉(.312-18 x .880)不锈钢 铰链销至机罩 | SCREW (.312-18 x .880) Stainless Steel PIN TO COWL | 4 |
| 15 | 26993 | 锁紧垫圈(.312)铰链销固定螺钉 | LOCKWASHER (.312) PIN ATTACHING SCREW | 4 |
| 15 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 4 |
| 16 | 46785A5 | 罩壳锁扣总成 | LATCH ASSEMBLY Cowl | 2 |
| 17 | 62628 | 机罩锁扣筒 | BARREL COWL LATCH | 2 |
| 18 | 31312 | 螺钉(#10-32 x 0.875)锁扣总成至筒体 | SCREW (#10-32 x 0.875) LATCH ASSEMBLY TO BARREL | 2 |
| 19 | 15222 | 机罩锁扣调节杆 | BAR ADJUSTMENT-COWL LATCH | 2 |
| 20 | 62629 | 机罩锁扣筒 | BARREL COWL LATCH | 2 |
| 21 | 62624 | 机罩锁扣张力弹簧 | SPRING TENSION-COWL LATCH | 2 |
| 22 | 30164 | 垫圈(.192 x .375 x .0312)不锈钢 调节杆至筒体 | WASHER (.192 x .375 x .0312) Stainless Steel ADJUSTMENT BAR TO BARREL | 2 |
| 23 | 45812 | 螺母(#10-32)不锈钢 调节杆至筒体 | NUT (#10-32) Stainless Steel ADJUSTMENT BAR TO BARREL | 2 |
| 23 | 859124 | 螺母 (#10-32) 不锈钢 | NUT (#10-32) Stainless Steel | 2 |
| 24 | 8774A6 | 前盖(黑色) | FRONT COVER (BLACK) | 1 |
| 24 | 8774A7 | 前盖(灰色) | FRONT COVER (GRAY) | 1 |
| 25 | 795511 | 隔音毯 | BLANKET SOUND ABSORBING | 1 |
| 26 | 14333 | 旋钮 | KNOB | 1 |
| 27 | 30771 | 垫圈 | WASHER | 2 |
| 28 | 75246 | 垫圈 | WASHER | 2 |
| 29 | 30772 | 弹簧 | SPRING | 1 |
| 30 | 29077 | 滚动销 | PIN Roll | 1 |
| 31 | 47341A1 | 拉绳与手柄套件 手动/应急启动(仅限手动启动) | ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING ONLY) | 1 |
| 31 | 47341A11 | 手动启动绳柄套件 | ROPE AND HANDLE KIT Manual Starting | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

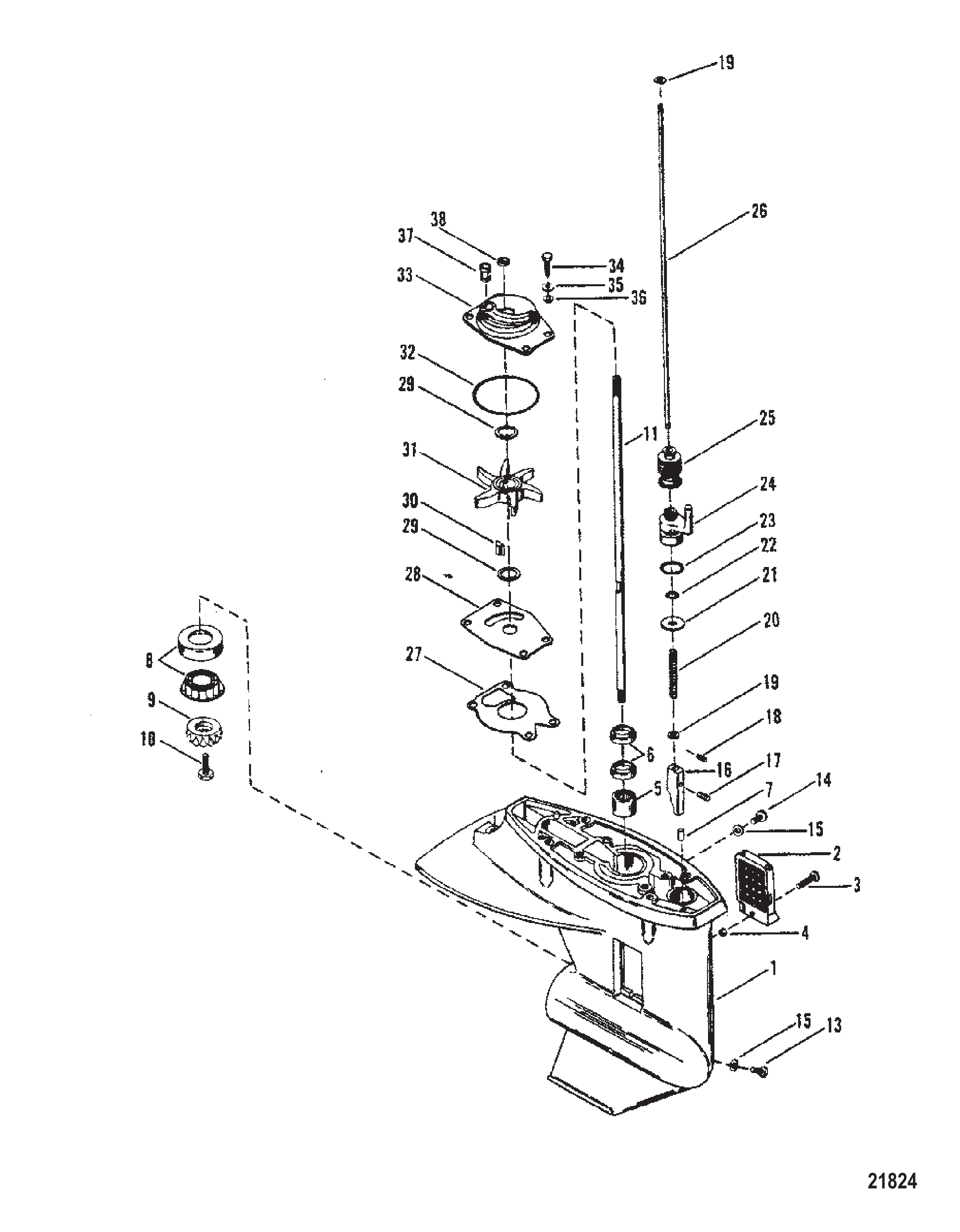

| - | 8669A13 | 齿轮箱总成(短型)(黑色) | GEAR HOUSING ASSEMBLY (SHORT) (BLACK) | 1 |
| - | 8669T13 | 齿轮箱外壳SH-BLK | GEAR HSG. SH-BLK | 1 |
| - | 8669A14 | 齿轮箱总成(长型)(黑色) | GEAR HOUSING ASSEMBLY (LONG) (BLACK) | 1 |
| - | 8669T14 | GC 20/25 2S LG | GC 20/25 2S LG | 1 |
| - | 8669A15 | 齿轮箱总成(短型)(灰色) | GEAR HOUSING ASSEMBLY (SHORT) (GRAY) | 1 |
| - | 8669T13 | 齿轮箱外壳SH-BLK | GEAR HSG. SH-BLK | 1 |
| - | 8669A16 | 齿轮箱总成(长型)(灰色) | GEAR HOUSING ASSEMBLY (LONG) (GRAY) | 1 |
| - | 8669T16 | ORD 1665-8669T14 | ORD 1665-8669T14 | 1 |
| - | 8669A23 | 齿轮箱总成(短型)(追踪者系列) | GEAR HOUSING ASSEMBLY (SHORT) (TRACKER) | 1 |
| - | 8669A24 | 齿轮箱总成(长型)(追踪者系列) | GEAR HOUSING ASSEMBLY (LONG) (TRACKER) | 1 |
| 1 | 8669A21 | 齿轮箱总成(基础黑色) | GEAR HOUSING ASSEMBLY Basic-Black (BLACK) | 1 |
| 1 | 8M0083538 | GC BASIC 25 2S | GC BASIC 25 2S | 1 |
| 1 | 8669A22 | 齿轮箱总成(基础灰色) | GEAR HOUSING ASSEMBLY Basic-Gray (GRAY) | 1 |
| 1 | 8669A21 | 齿轮箱总成基础型-黑色 | GEAR HOUSING ASSEMBLY Basic-Black | 1 |
| 1 | 8669A25 | 齿轮箱总成(追踪者系列) | GEAR HOUSING ASSEMBLY (TRACKER) | 1 |
| 1 | 8669A39 | 齿轮箱总成 | GEAR HOUSING ASSEMBLY | 1 |
| 2 | 41134 | 右舷进水口滤网 | SCREEN WATER INLET-STARBOARD | 1 |
| 2 | 41133 | 进水口滤网 | SCREEN Water Inlet Port | 1 |
| 3 | 40031112 | 螺钉(M5 x 40) | SCREW (M5 x 40) | 1 |
| 4 | 400263 | 螺母(M5)滤网螺钉 | NUT (M5) SCREEN SCREW | 1 |
| 5 | 41326 | 滚柱轴承上 | BEARING Roller UPPER | 1 |
| 6 | 99325 | 齿轮箱密封件 | SEAL GEAR HOUSING | 2 |
| 7 | 85500 | PIN Dowel (.187 x .530) GEAR HOUSING | 2 | |
| 7 | 8M0084726 | 定位销 | PIN Dowel | 2 |
| 8 | 98294A1 | 滚柱轴承总成 | BEARING ASSEMBLY Roller | 1 |
| 9 | 98302 | 小齿轮 | GEAR Pinion | 1 |
| 10 | 49908 | 小齿轮螺钉(0.250-28x0.75英寸) | SCREW (.250-28 x .750) PINION GEAR | 1 |
| 11 | 99199 | 驱动轴(短轴) | DRIVESHAFT (SHORT SHAFT) | 1 |
| 11 | 99198 | 驱动轴(长轴) | DRIVESHAFT (LONG SHAFT) | 1 |
| 13 | 14834A1 | 磁性放油螺钉 | SCREW DRAIN - MAGNETIC | 1 |
| 13 | 8M0058389 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 14 | 28634A1 | 润滑脂加注螺钉套件 | SCREW KIT GREASE FILLER | 1 |
| 14 | 79953Q04 | 放油螺钉套件 | SCREW KIT Drain | 1 |
| 15 | 805726 | O型圈(放油/加注螺钉用) | O-RING Rubber DRAIN AND FILLER SCREW | 2 |
| 15 | 8M0204684 | 橡胶O型圈 | O-RING Rubber | 2 |
| 16 | 85562A1 | 凸轮总成(无钢印) | CAM ASSEMBLY (NO STAMPING) | 1 |
| 16 | 85562A2 | 换挡凸轮(钢印85662--1) | SHIFT CAM (STAMPED 85662--1) | 1 |
| 17 | 85096 | 驱动销 | PIN Drive | 1 |
| 18 | 85593 | 销(.078 x .437) | PIN (.078 x .437) | 1 |
| 19 | 29245 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 19 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 20 | 93007 | 弹簧 | SPRING | 1 |
| 21 | 85091 | 垫圈 | WASHER | 1 |
| 22 | 85594 | O型圈(.239 x .174) | O-RING (.239 x .174) | 1 |
| 23 | 35276 | O型圈(.734 x .139) | O-RING (.734 x .139) | 1 |
| 24 | 93878 | 固定座 | RETAINER | 1 |
| 25 | 85552 | 换档轴防尘罩 | BOOT SHIFT SHAFT | 1 |
| 25 | 85552001 | 护套 | BOOT | 1 |
| 26 | 85126 | 换挡轴(短轴) | SHIFT SHAFT (SHORT SHAFT) | 1 |
| 26 | 86293 | 换挡轴(长轴) | SHIFT SHAFT (LONG SHAFT) | 1 |
| 27 | 993261 | 水泵衬垫 | GASKET WATER PUMP | 1 |
| 28 | 85083 | 面板 | FACE PLATE | 1 |
| 29 | 86645 | 叶轮垫圈 | WASHER IMPELLER | 2 |
| 29 | 8M0204722 | 垫圈 | WASHER | 2 |
| 30 | 85119 | 叶轮驱动键 | KEY IMPELLER DRIVE | 1 |
| 30 | 8M0214993 | 键@5 | KEY @5 | 1 |
| 31 | 850893 | 叶轮 | IMPELLER | 1 |
| 31 | 8M0204712 | 叶轮 | IMPELLER | 1 |
| 32 | 69202 | 水泵O型圈 | O-RING WATER PUMP | 1 |
| 33 | 99157A1 | 水泵总成 | PUMP ASSEMBLY Water | 1 |
| 33 | 99157A02 | 水泵总成 | PUMP ASSEMBLY Water | 1 |
| 34 | 90883 | 螺钉(M5×16)(16毫米)-与参考号36配套使用 | SCREW (M5 x 16) (16MM)- Use with Reference #36 | 4 |
| 35 | 89302 | 垫圈(0.203×0.406×0.040)-与参考号36配套使用 | WASHER (.203 x .406 x .040) Use with Reference #36 | 4 |
| 36 | 85095 | 衬套-与参考号36配套使用 | BUSHING Use with Reference #36 | 4 |
| 36 | 8M0214959 | 衬套@5 | BUSHING @5 | 4 |
| 34 | 4000328 | 螺钉(M6×16)-不与参考号36配套使用 | SCREW (M6 x 16) Use without Reference #36 | 4 |
| 34 | 8M0214928 | 螺钉(M6 x 16) | SCREW (M6 x 16) | 4 |
| 35 | 29245 | 不锈钢垫圈(0.281×0.500×0.060)-不与参考号36配套使用 | WASHER (.281 x .500 x .060) Stainless Steel Use without Reference #36 | 4 |
| 35 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 4 |
| 37 | 85090 | 水管密封件 | SEAL WATER TUBE | 1 |
| 37 | 85090001 | 密封件 | SEAL | 1 |
| 38 | 86203 | 橡胶传动轴O型圈 | O-RING DRIVE SHAFT - RUBBER | 1 |
| - | 99157A2 | 水泵维修套件 | REPAIR KIT Water Pump | 1 |
| - | 99157T2 | 水泵套件 | PUMP KIT Water | 1 |
| - | 85090A2 | 密封套件 | SEAL KIT | 1 |
| - | 41499A87 | 衬垫套件 | GASKET SET | 1 |
| - | 41499A88 | 衬垫套件 | GASKET SET | 1 |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| - | 9148A8 | 齿轮箱总成-标准旋转1.87:1传动比(完整) | GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (COMPLETE) | 1 |
| 1 | 9148A11 | 齿轮箱总成(基础) | GEAR HOUSING ASSEMBLY (BASIC) | 1 |
| 1 | 9148T47 | 齿轮箱-基础型-黑 | GEAR HSG-BASIC-BL | 1 |
| 48 | 78956 | 换挡凸轮 | SHIFT CAM | 1 |
| 48 | 789562 | 换挡凸轮 | SHIFT CAM | 1 |
| 49 | 89594A1 | 凸轮从动件总成 | FOLLOWER ASSEMBLY CAM | 1 |
| 50 | 79911 | 离合器作动杆 | ROD CLUTCH ACTUATOR | 1 |
| 50 | 79911A1 | 杆 | ROD | 1 |
| 51 | 79910 | 压缩弹簧 | SPRING COMPRESSION | 2 |
| 52 | 78910 | 压缩弹簧垫圈 | WASHER COMPRESSION SPRING | 1 |
| 53 | 78906 | PIN SPRING LOCATOR | 1 | |
| 53 | 8M0084245 | 弹簧定位销 | PIN Spring Locator | 1 |
| 54 | 47397A1 | 轴承外圈垫片组(.002-3-5-10) | SHIM SET BEARING OUTER RACE (.002-3-5-10) | AR |
| 55 | 78172A1 | 圆锥滚子轴承总成 | BEARING ASSEMBLY Taper Roller | 1 |
| 56 | 44104A2 | 前进齿轮总成 | GEAR ASSEMBLY Forward | 1 |
| 56 | 44104T2 | 齿轮组 | GEAR SET | 1 |
| 57 | 43999 | 滚子轴承(外径1.308) | BEARING Roller (1.308 O.D.) | 2 |
| 57 | 73363 | 滚子轴承(外径1.313) | BEARING Roller (1.313 O.D.) | 2 |
| 57 | 73363T | 轴承 | BEARING | 2 |
| 58 | 78959 | 棘轮滑动离合器 | RATCHET SLIDING CLUTCH | 1 |
| 58 | 823174T | ORD 8M0100493 | ORD 8M0100493 | 1 |
| 59 | 78905 | 棘轮到螺旋桨轴十字销 | PIN Cross RATCHET TO PROPELLER SHAFT | 1 |
| 59 | 8M0084243 | 十字销 | PIN Cross | 1 |
| 60 | 78909 | 棘轮定位销 | PIN Detent RATCHET | 2 |
| 61 | 78962 | 十字销固定弹簧 | SPRING RETAINING-CROSS PIN | 2 |
| 62 | 94148 | 螺旋桨轴 | PROPELLER SHAFT | 1 |
| 63 | N.S.S. | 不单独出售(43-44104A2部件) | Not Sold Separate (PART OF 43-44104A2) | 1 |
| 64 | 68100 | 止推环 | RING THRUST | 1 |
| 64 | 681001 | 止推环 | RING Thrust | 1 |
| 65 | 88957A1 | 滚珠轴承-倒档齿轮 | BEARING Ball BALL-REVERSE GEAR | 1 |
| 65 | 88957T | 滚珠轴承 | BEARING Ball | 1 |
| 66 | 31534 | 轴承座O型圈 | O-RING BEARING CARRIER | 1 |
| 66 | 8M0214920 | O型圈 | O RING | 1 |
| 67 | 43567A1 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 67 | 43567T1 | 轴承座总成 | CARRIER ASSEMBLY Bearing | 1 |
| 68 | 30956 | 滚针轴承-轴承座 | BEARING Needle BEARING CARRIER | 1 |
| 68 | 30956T | 滚针轴承 | BEARING Needle | 1 |
| 69 | 76868 | 轴承座密封 | SEAL BEARING CARRIER | 2 |
| 69 | 8M0248882 | 油封@5 | SEAL-OIL @5 | 2 |
| 70 | 30281 | 轴承座定位键 | KEY LOCATING-BEARING CARRIER | 1 |
| 71 | 79447 | 齿轮箱盖锁紧垫圈 | TAB WASHER GEAR HOUSING COVER | 1 |
| 72 | 79448 | 齿轮箱固定座 | RETAINER GEAR HOUSING | 1 |
| 72 | 8M2011027 | 固定座 | RETAINER | 1 |
| 73 | 31640A1 | TRIM TAB ASSEMBLY GEAR HOUSING | 1 | |
| 73 | 31640Q4 | 平衡鳍板 | TRIM TAB | 1 |
| 74 | 66024 | 螺钉(.437-14 x 1.75)调整片到齿轮箱(1-3/4") | SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING (1-3/4") | 1 |
| 75 | 67891 | 填充块 | FILLER BLOCK FILLER BLOCK | 1 |
| 75 | 8M0039169 | 填充块 | FILLER BLOCK | 1 |
| 76 | 34933 | 螺母(.437-20)不锈钢驱动轴壳体螺柱 | NUT (.437-20) Stainless Steel DRIVE SHAFT HOUSING STUDS | 2 |
| 76 | 8M0204653 | 螺母 | NUT | 2 |
| 77 | 65210 | 螺钉(.375-16 x 1.00)齿轮箱 | SCREW (.375-16 x 1.00) GEAR HOUSING | 1 |
| 78 | 13171 | 推力毂 | THRUST HUB | 1 |
| 78 | 835467Q01 | 止推垫片套件 | THRUST WASHER KIT | 1 |
| 79 | 31211A2 | 花键垫圈-螺旋桨螺母 | WASHER Splined SPLINED-PROPELLER NUT | 1 |
| 79 | 31211Q03 | 垫圈总成 | WASHER ASSEMBLY | 1 |
| 80 | 31210 | 螺旋桨螺母锁紧垫圈 | TAB WASHER PROPELLER NUT | 1 |
| 80 | 816629Q | 锁紧垫圈 | TAB WASHER | 1 |
| 81 | 52707A1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| 81 | 52707Q1 | 螺旋桨螺母套件 (.750-16) | PROP NUT KIT (.750-16) | 1 |
| 82 | 423511 | 螺旋桨轴齿形锁紧垫圈 | LOCKWASHER Toothed PROPELLER SHAFT | 1 |
| 83 | 45176 | 垫圈(.453 x .812 x .105)不锈钢驱动轴壳体螺柱 | WASHER (.453 x .812 x .105) Stainless Steel DRIVE SHAFT HOUSING STUDS | 2 |
| - | 89238A2 | 密封套件 | SEAL KIT | 1 |
| - | 14697A87 | 衬垫套件 | GASKET SET |
| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|

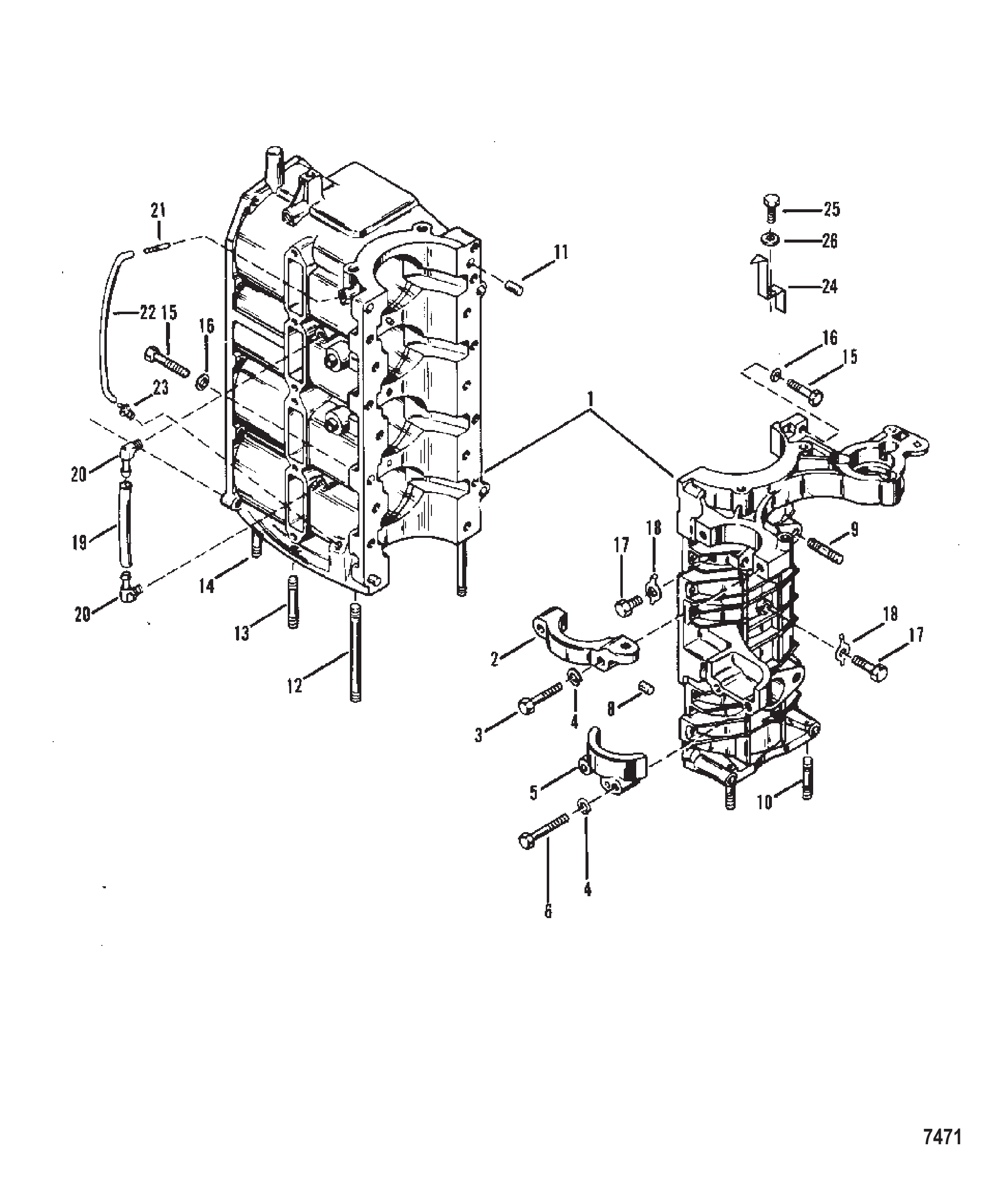

| 1 | 8981A6 | 气缸体总成 | CYLINDER BLOCK ASSEMBLY | 1 |
| 2 | 72038 | 启动电机上支架 | BRACKET Upper Starter Motor | 1 |
| 3 | 73279 | 支架至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸) | SCREW (.312-18 x 1.880) Bracket to Crankcase (1.875 Inch) | 2 |
| 4 | 26993 | 支架螺钉锁紧垫圈(.312) | LOCKWASHER (.312) Bracket Screw | 4 |
| 4 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 4 |
| 5 | 76867 | 启动电机下盖 | COVER Lower Starter Motor | 1 |
| 6 | 73279 | 盖至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸) | SCREW (.312-18 x 1.880) Cover to Crankcase (1.875 Inch) | 2 |
| 8 | 20032 | 缸体至主轴承定位销 | PIN Dowel Cylinder block to main bearing | 2 |
| 9 | 68164 | 化油器双头螺柱(1.25英寸) | STUD Carburetor (1.25 Inch) | 4 |
| 9 | 64936 | 螺柱 | STUD | 4 |
| 10 | 68165 | 曲轴箱至驱动轴壳体双头螺柱(1.625英寸) | STUD Crankcase to Driveshaft Housing (1.625 Inch) | 2 |
| 11 | 20033 | 曲轴箱至缸体定位销 | PIN Dowel Crankcase to Cylinder Block | 2 |
| 11 | 43044 | 定位销-无孔(.375 x .625) | PIN Dowel - Without Hole (.375 x .625) | 2 |
| 12 | 87901 | 缸体至驱动轴壳体双头螺柱(4英寸) | STUD Cylinder block to drive shaft housing (4 Inch) | 2 |
| 13 | 68166 | 缸体至驱动轴壳体双头螺柱(.312 x 2.125)(2.125英寸) | STUD (.312 x 2.125) Cylinder block to drive shaft housing (2.125 Inch) | 2 |
| 14 | 68167 | 缸体至驱动轴壳体双头螺柱(.312-18/.312-24 x 2.560)(2.50英寸) | STUD (.312-18/.312-24 x 2.560) Cylinder block to drive shaft housing (2.50 Inch) | 2 |
| 15 | 73657 | 曲轴箱至缸体螺钉(.312-18 x 1.50)(1.50英寸) | SCREW (.312-18 x 1.50) Crankcase to cylinder block (1.50 Inch) | 13 |
| 15 | 31984 | 曲轴箱至缸体螺钉(.312-18 x 1.375)(1.375英寸) | SCREW (.312-18 x 1.375) Crankcase to cylinder block (1.375 Inch) | 3 |
| 15 | 73275 | 曲轴箱至缸体螺钉(.312-18 x 2.88)(2.875英寸) | SCREW (.312-18 x 2.88) Crankcase to cylinder block (2.875 Inch) | 2 |
| 16 | 70132 | 曲轴箱螺钉不锈钢垫圈(.323 x .563 x .063) | WASHER (.323 x .563 x .063) Stainless Steel Crankcase Screw | 17 |
| 16 | 8M0042642 | 垫圈(.323 x .562 x .063) | WASHER (.323 x .562 x .063) | 17 |
| 17 | 20359 | 螺钉(.375-16 x 1.00) | SCREW (.375-16 x 1.00) | 1 |
| 17 | 98260 | 螺钉(.375-16 x .620) | SCREW (.375-16 x .620) | 2 |
| 18 | 20091 | 中央轴承锁紧螺钉止动垫圈 | TAB WASHER Center Bearing Locking Screw | 3 |
| 19 | 99127109 | 平衡管(57英寸散装)-主轴承(5.50英寸) | LINE (57.00 Inches Bulk) Balance - Main Bearing (5.50 Inch) | 1 |
| 19 | 8M0108355 | 软管(57英寸 散装) | HOSE (57 Inches Bulk) | 1 |
| 20 | 99664 | 平衡管至缸体弯头 | ELBOW Balance Tube to Cylinder Block | 2 |
| 20 | 996642 | 90度弯头接头(0.125-27x0.250)尼龙 | FITTING Elbow 90 Degree (.125-27 x .250) Nylon | 2 |
| 21 | 65857 | 上部泄放软管接头 | CONNECTOR Upper Bleed Hose | 1 |
| 21 | 56759 | 倒钩接头 | FITTING Barbed | 1 |
| 22 | 9938779 | 气缸泄放软管(11英寸) | HOSE Cylinder Bleed (11 Inch) | 1 |
| 23 | 42867 | 下部泄放软管止回阀 | CHECK VALVE Lower Bleed Hose | 1 |
| 23 | 428671 | 止回阀 | CHECK VALVE | 1 |
| 24 | 99156 | 正时指示器 | INDICATOR Timing | 1 |
| 25 | 39349 | 指示器至曲轴箱不锈钢螺钉(.312-18 x .750) | SCREW (.312-18 x .750) Stainless Steel Indicator to Crankcase | 1 |
| 26 | 26993 | 指示器螺钉锁紧垫圈(.312) | LOCKWASHER (.312) Indicator Screw | 1 |
| 26 | 8M0204647 | 锁紧垫圈 (.312) | LOCKWASHER (.312) | 1 |
| - | 97469A87 | 动力头总成(完整) | POWERHEAD ASSEMBLY Complete | 1 |
| - | 97469T87 | 船用动力头 | POWERHEAD MARINE | 1 |

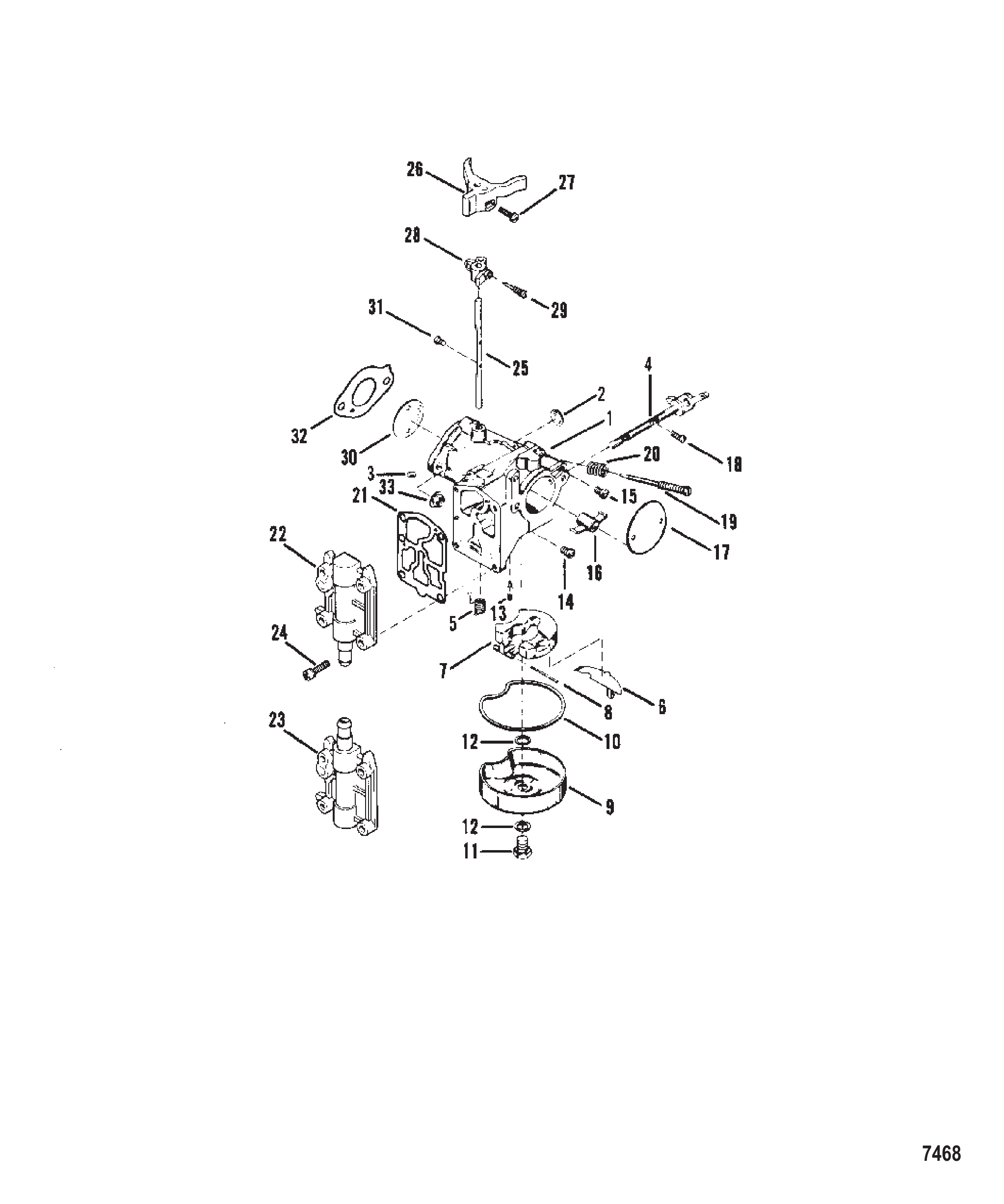

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 6517A33 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 6517A34 | 化油器总成 | CARBURETOR ASSEMBLY | 1 |
| 1 | 6517A64 | 化油器KT-底置 | CARBURETOR KT-BOT | 1 |
| 2 | NSS | 大型主体通道(不单独销售) | NOT SOLD SEPARATE Large Body Channel | 2 |
| 3 | NSS | 主体通道(不单独销售) | NOT SOLD SEPARATE Body Channel | 6 |
| 4 | 96773A1 | 阻风门轴总成 | SHAFT ASSEMBLY Choke | 2 |
| 4 | 9296A1 | 阻风门轴套件 | CHOKE SHAFT KIT | 2 |
| 5 | NSS | 回位-节气门轴(不单独销售) | NOT SOLD SEPARATE Return-Throttle Shaft | 2 |
| 6 | 7211A1 | 燃油杯挡板 | BAFFLE Fuel Bowl | 2 |
| 6 | 814483 | 燃油杯挡板 | BAFFLE Fuel Bowl | 2 |
| 7 | 9293 | 浮子 | FLOAT | 2 |
| 8 | NSS | 浮子固定件(不单独销售) | NOT SOLD SEPARATE Float Retaining | 2 |
| 9 | 5127 | 燃油杯 | BOWL Fuel | 2 |
| 10 | NSS | 燃油杯(不单独销售) | NOT SOLD SEPARATE Fuel Bowl | 2 |
| 11 | 9652 | 燃油杯至化油器螺钉 | SCREW Fuel Bowl to Carburetor | 2 |
| 12 | NSS | 燃油杯螺钉(不单独销售) | NOT SOLD SEPARATE Fuel Bowl Screw | 4 |
| 13 | 9022 | 进油针阀及弹簧 | NEEDLE AND SPRING Inlet | 2 |
| 14 | 1457 | 主量孔(.057) | JET Main Fuel (.057) | 2 |
| 15 | 7335 | 省油量孔(.098) | JET (.098) Economizer (.098) | 2 |
| 16 | 64677 | 喉管 | VENTURI | 2 |
| 17 | 8665 | 阻风门片 | SHUTTER Choke | 2 |
| 18 | NSS | 阻风门片至轴连接件(不单独销售) | NOT SOLD SEPARATE Choke Shutter to Choke Shaft | 4 |
| 19 | NSS | 怠速混合气调节件(不单独销售) | NOT SOLD SEPARATE Idle Mixture | 2 |
| 20 | NSS | 怠速混合气螺钉(不单独销售) | NOT SOLD SEPARATE Idle Mixture Screw | 2 |
| 21 | NSS | 不单独销售 燃油泵 | NOT SOLD SEPARATE Fuel Pump | 2 |
| 22 | 9653 | 盖板(上化油器) | COVER Plate (Upper Carburetor) | 1 |
| 23 | 9654 | 盖板(下化油器) | COVER Plate (Lower Carburetor) | 1 |
| 24 | 5132 | 滤清器体至化油器螺钉 | SCREW Strainer Body to Carburetor | 8 |
| 24 | 808612 | 螺钉及垫圈 (#8-32 x .750) | SCREW AND WASHER (#8-32 x .750) | 8 |
| 25 | 9020 | 油门轴 | SHAFT Throttle | 1 |
| 25 | 9656 | 油门轴 | SHAFT Throttle | 1 |
| 26 | 92880 | 节气门杠杆(上化油器) | LEVER Throttle (Upper Carburetor) | 1 |
| 27 | 20847 | 节气门杠杆螺钉(上化油器) | SCREW Throttle Lever (Upper Carburetor) | 2 |
| 27 | 6027 | 螺钉 | SCREW | 2 |
| 28 | 97 | 节气门杠杆(下化油器) | LEVER Throttle (Lower Carburetor) | 1 |
| 28 | 8146791 | 油门杆 | LEVER Throttle | 1 |
| 29 | 6027 | 节气门杠杆螺钉(下化油器) | SCREW Throttle Lever (Lower Carburetor) | 1 |
| 30 | 9649 | 节气门片 | SHUTTER Throttle | 2 |
| 31 | NSS | 节气门片至轴连接件(不单独销售) | NOT SOLD SEPARATE Throttle Shutter to Throttle Shaft | 4 |
| 32 | 757911 | 化油器法兰衬垫 | GASKET Carburetor Flange | 2 |
| 33 | 64809 | 化油器安装柱螺母 | NUT Carburetor Mounting Stud | 4 |
| -- | 9650 | 维修套件 | REPAIR KIT | 2 |
| -- | 9651 | 衬垫套件 | GASKET SET | 2 |

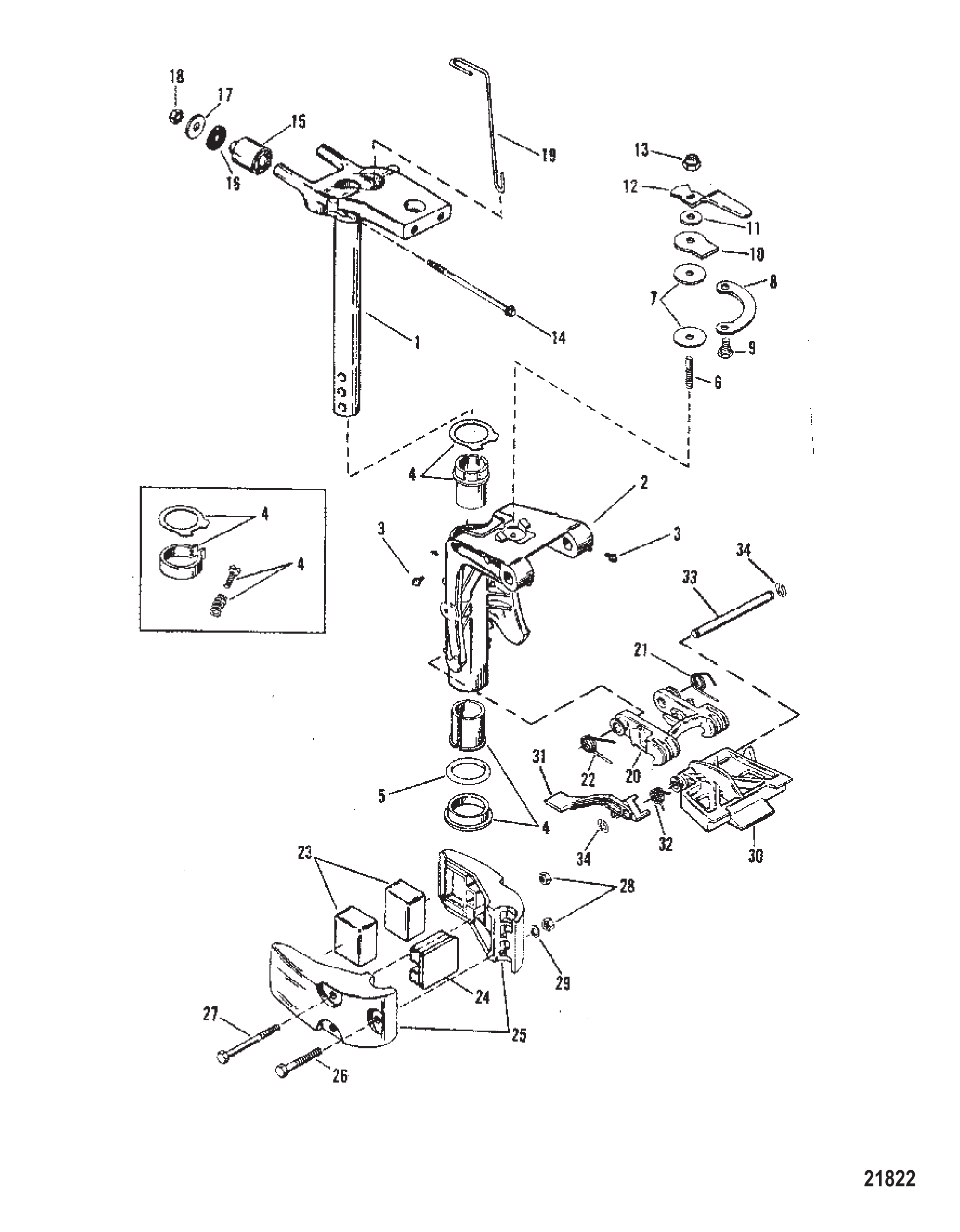

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 822238A2 | 旋转头(黑色) | SWIVEL HEAD (BLACK) | 1 |
| 1 | 822238A9 | 旋转头 | SWIVEL HEAD | 1 |
| 1 | 822238A3 | 旋转头(灰色) | SWIVEL HEAD (GRAY) | 1 |
| 1 | 822238A9 | 旋转头 | SWIVEL HEAD | 1 |
| 2 | 8692A13 | 旋转支架(黑色) | SWIVEL BRACKET (BLACK) | 1 |
| 2 | 822237A3 | 旋转支架 | SWIVEL BRACKET | 1 |
| 2 | 8692A14 | 旋转支架(灰色) | SWIVEL BRACKET (GRAY) | 1 |
| 2 | 822237A4 | 旋转支架 | SWIVEL BRACKET | 1 |
| 3 | 74036 | 润滑脂接头 | FITTING Grease | 3 |
| 3 | 8M0169589 | 润滑脂接头 | FITTING Grease | 3 |
| 4 | 11139A2 | 夹具总成 | CLAMP ASSEMBLY | 1 |
| 5 | 86993 | 旋转管O型圈 | O-RING SWIVEL TUBE | 1 |
| 1 | 822238A5 | 旋转头(黑色) | SWIVEL HEAD (BLACK) | 1 |
| 1 | 822238A9 | 旋转头 | SWIVEL HEAD | 1 |
| 1 | 822238A6 | 旋转头(灰色) | SWIVEL HEAD (GRAY) | 1 |
| 1 | 822238A9 | 旋转头 | SWIVEL HEAD | 1 |
| 1 | 822238A7 | 旋转头(TRACKER) | SWIVEL HEAD (TRACKER) | 1 |
| 1 | 822238A9 | 旋转头 | SWIVEL HEAD | 1 |
| 2 | 822237A3 | 旋转支架(黑色) | SWIVEL BRACKET (BLACK) | 1 |
| 2 | 822237A4 | 旋转支架(灰色) | SWIVEL BRACKET (GRAY) | 1 |
| 2 | 822237A3 | 旋转支架 | SWIVEL BRACKET | 1 |
| 2 | 822237A5 | 旋转支架(TRACKER) | SWIVEL BRACKET (TRACKER) | 1 |
| 2 | 822237A4 | 旋转支架 | SWIVEL BRACKET | 1 |
| 3 | 74036 | 润滑脂接头 | FITTING Grease | 3 |
| 3 | 8M0169589 | 润滑脂接头 | FITTING Grease | 3 |
| 4 | 85154A1 | 衬套套装 | BUSHING KIT | 1 |
| 5 | 86993 | O型圈 | O-RING | 1 |
| 6 | 821961 | 杆 | ROD | 1 |
| 7 | 8165621 | 圆盘 | DISC | 2 |
| 8 | 821958 | 旋转头板 | PLATE Swivel Head | 1 |
| 8 | 821958A1 | 板组件套件 | PLATE KIT | 1 |
| 9 | 768041 | 螺钉 | SCREW | 2 |
| 9 | 768042 | 六角凸肩螺钉 | SHOULDER SCREW Hex | 2 |
| 10 | 821957 | 制动板 | BRAKE PLATE | 1 |
| 11 | 29330 | 垫圈 | WASHER | 1 |
| 12 | 821959 | 手柄 | HANDLE | 1 |
| 13 | 34863 | 螺母 (.375-24) | NUT (.375-24) | 1 |
| 13 | 8M0204726 | 黄铜螺母 (.375-24) | NUT (.375-24) Brass | 1 |
| 14 | 12516 | 螺丝 M8×133.35(上支架) | SCREW (M8 x 133.35) UPPER MOUNT | 2 |
| 14 | 125161 | 螺丝 M8×133 | SCREW (M8 x 133) | 2 |
| 15 | 14894 | 上支架 | MOUNT UPPER | 2 |
| 16 | 85172 | 橡胶垫圈(上支架螺丝) | WASHER RUBBER - UPPER MOUNT SCREW | 2 |
| 17 | 43430 | 上部支架螺钉垫圈 | WASHER UPPER MOUNT SCREW | 2 |
| 18 | 400213 | 螺母 M8不锈钢(上支架螺丝) | NUT (M8) Stainless Steel UPPER MOUNT SCREW | 2 |
| 19 | 16554 | 倒挡钩杆 | ROD REVERSE HOOK | 1 |
| 20 | 98830A2 | 倒挡锁钩总成 | HOOK ASSEMBLY REVERSE LOCK | 1 |
| 21 | 96018 | 倒挡钩弹簧(左舷) | SPRING REVERSE HOOK - PORT | 1 |
| 22 | 97427 | 弹簧(右舷-电动) | SPRING (STARBOARD - ELECTRIC) | 1 |
| 22 | 12755 | 弹簧(右舷-手动/电动手柄) | SPRING (STBD - MANUAL/ELECTRIC HANDLE) | 1 |
| 22 | 879894 | 弹簧 | SPRING | 1 |
| 23 | 85122 | 下支架 | MOUNT LOWER | 2 |
| 23 | 85122001 | 下支架 | MOUNT Lower | 2 |
| 24 | 85123 | 前缓冲垫 | BUMPER Front | 1 |
| 24 | 85123001 | 前缓冲垫 | BUMPER Front | 1 |
| 25 | 17232A1 | 下支架盖(黑色) | COVER LOWER MOUNT (BLACK) | 1 |
| 25 | 17232A2 | 下支架盖(灰色) | COVER LOWER MOUNT (GRAY) | 1 |
| 25 | 17232A1 | 盖板 | COVER | 1 |
| 25 | 17232A3 | 下支架盖(TRACKER) | COVER LOWER MOUNT (TRACKER) | 1 |
| 26 | 4009259 | 螺丝 60mm | SCREW (60 MM) | 1 |
| 26 | 1994360 | 螺钉 (M8 x 60) | SCREW (M8 x 60) | 1 |
| 27 | 4009263 | 螺丝 100mm | SCREW (100 MM) | 2 |
| 27 | 19943100 | 螺丝(M8 x 100) | SCREW (M8 x 100) | 2 |
| 28 | 400213 | 不锈钢螺母 (M8) | NUT (M8) Stainless Steel | 3 |
| 29 | 36001 | 垫圈 | WASHER | 3 |
| 30 | 12756 | 支架 | BRACKET | 1 |
| 31 | 12758 | 控制杆 | LEVER CONTROL | 1 |
| 32 | 12754 | 弹簧 | SPRING | 1 |
| 33 | 13195 | 销 | PIN | 1 |
| 34 | 13194 | 挡圈 | RING Retaining | 2 |
| - | 41499A87 | 衬垫套件 | GASKET SET | 2 |
| - | 41499A88 | 衬垫套件 | GASKET SET | 2 |

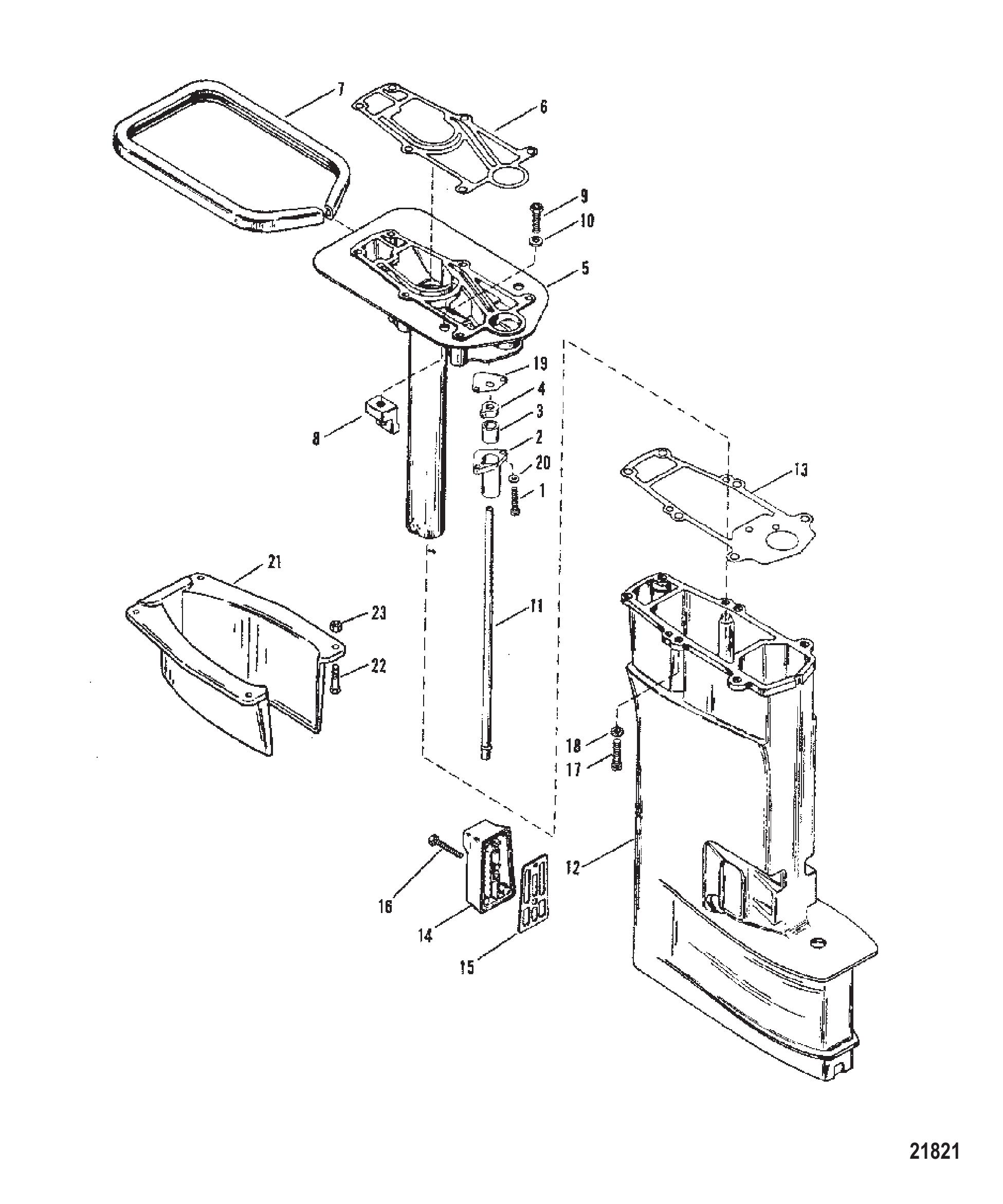

| REF | 零件编号 | 中文名称 | 英文名称 | 数量 |
|---|---|---|---|---|
| 1 | 400035 | 螺丝 M5×16(配合参考号20使用) | SCREW (M5 x 16) (Use W/Reference #20) | 2 |
| 1 | 40011107 | 不锈钢螺钉(M5x16) | SCREW (M5 x 16) Stainless Steel | 2 |
| 2 | 96248A1 | 水管壳体总成 | HOUSING ASSEMBLY WATER TUBE | 1 |
| 3 | 25329 | 水管密封件 | SEAL WATER TUBE | 1 |
| 4 | 96247 | 水管隔套 | SPACER WATER TUBE | 1 |
| 4 | 889715 | 水管隔套 | SPACER Water Tube | 1 |
| 5 | 99702A6 | 适配板总成 | ADAPTER PLATE ASSEMBLY | 1 |
| 5 | 99702A7 | 适配板总成 | ADAPTER PLATE ASSEMBLY | 1 |
| 6 | 416704 | 适配板垫片 | GASKET ADAPTOR PLATE | 1 |
| 6 | 41670006 | 适配板垫片 | GASKET Adaptor Plate | 1 |
| 7 | 158662 | 适配板密封件 | SEAL ADAPTOR PLATE | 1 |
| 8 | 41211 | 上支架托架 | BRACKET UPPER MOUNT | 2 |
| 9 | 40011128 | 螺丝 M6×20不锈钢(不配合参考号10使用) | SCREW (M6 x 20) Stainless Steel (Use Without Reference #10) | 2 |
| 9 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 2 |
| 9 | 40007128 | 螺丝 M6×20(配合参考号10使用) | SCREW (M6 x 20) (Use With Reference #10) | 2 |
| 10 | 29245 | 垫圈（0.281 x 0.500 x 0.060）不锈钢（适用处使用） | WASHER (.281 x .500 x .060) Stainless Steel (USE WHERE APPLICABLE) | 2 |
| 10 | 8M0204649 | 不锈钢垫圈(0.281x0.500x0.060) | WASHER (.281 x .500 x .060) Stainless Steel | 2 |
| 11 | 85116 | 水管(短轴) | TUBE Water (SHORT SHAFT) | 1 |
| 11 | 86292 | 水管(长轴) | TUBE Water (LONG SHAFT) | 1 |
| 12 | 9097A2 | 驱动轴壳体总成(短轴)(黑色) | HOUSING ASSEMBLY Driveshaft (SHORT SHAFT) (BLACK) | 1 |
| 12 | 9097T5 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 12 | 9098A2 | 驱动轴壳体总成(长轴)(黑色) | HOUSING ASSEMBLY Driveshaft (LONG SHAFT) (BLACK) | 1 |
| 12 | 9098T5 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 12 | 9097A3 | 驱动轴壳体总成(短轴)(灰色) | HOUSING ASSEMBLY Driveshaft (SHORT SHAFT) (GRAY) | 1 |
| 12 | 9097T6 | 驱动轴壳体-灰色 | DRIVESHAFT HSG-GR | 1 |
| 12 | 9098A3 | 驱动轴壳体总成(长轴)(灰色) | HOUSING ASSEMBLY Driveshaft (LONG SHAFT) (GRAY) | 1 |
| 12 | 9098A6 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 12 | 9097A4 | 驱动轴壳体总成(短轴)(TRACKER) | HOUSING ASSEMBLY Driveshaft (SHORT) (TRACKER) | 1 |
| 12 | 9098A4 | 驱动轴壳体总成(长轴)(TRACKER) | HOUSING ASSEMBLY Driveshaft (LONG) (TRACKER) | 1 |
| 12 | 9098T5 | 驱动轴壳体总成 | HOUSING ASSEMBLY Driveshaft | 1 |
| 13 | 433373 | 驱动轴壳体垫片 | GASKET DRIVE SHAFT HOUSING | 1 |
| 13 | 433374 | 驱动轴壳体垫片 | GASKET Drive Shaft Housing | 1 |
| 14 | 14534 | 怠速泄压盖 | COVER IDLE RELIEF | 1 |
| 15 | 14621 | 盖衬垫 | GASKET COVER | 1 |
| 16 | 14742 | 盖螺钉(.250-20 x 1.25) | SCREW (.250-20 x 1.25) COVER | 1 |
| 17 | 4000360 | 驱动轴壳体至缸体螺钉(60mm) | SCREW DRIVE SHAFT HOUSING TO BLOCK (60 MM) | 6 |
| 17 | 1993870 | 螺钉(M8 x 70) | SCREW (M8 x 70) | 6 |
| 18 | 4002317 | 驱动轴壳体螺钉垫圈(8.90 X 17.0 X 1.9不锈钢) | WASHER (8.90 X 17.0 X 1.9SS) DRIVE SHAFT HOUSING SCREW | 6 |
| 19 | 19583 | 衬垫(按需使用) | GASKET (USE WHERE APPLICABLE) | 1 |
| 19 | 433373 | 衬垫 | GASKET | 1 |
| 20 | 30164 | 壳体螺钉垫圈(.192 x .375 x .0312不锈钢) | WASHER (.192 x .375 x .0312) Stainless Steel HOUSING SCREW | 2 |
| 21 | 17258T | 配平盖(黑色) | TRIM COVER (BLACK) | 1 |
| 21 | 17258T6 | 配平盖(灰色) | TRIM COVER (GRAY) | 1 |
| 21 | 17258T | 配平盖 | TRIM COVER | 1 |
| 21 | 17258F4 | 配平盖(追踪器型) | TRIM COVER (TRACKER) | 1 |
| 21 | 17258T | 配平盖 | TRIM COVER | 1 |
| 22 | 40011128 | 配平盖螺钉(M6 x 20不锈钢) | SCREW (M6 x 20) Stainless Steel TRIM COVER | 4 |
| 22 | 8M0204741 | 六角带垫大帽螺钉(M6x1.0x20) | SCREW (M6 x 1.0 x 20) Hex Wash HD | 4 |
| 23 | 401196 | 配平盖螺钉螺母(M6) | NUT (M6) TRIM COVER SCREW | 4 |
| - | 41499A87 | 衬垫套件 | GASKET SET | 1 |
| - | 41499A88 | 衬垫套件 | GASKET SET | 1 |
