水星 Mercury 80, 800 4 CYL 8067015 THRU 8127014 - 爆炸图零件明细

两冲程 化油器 · Australia - Cat.# 90-90672 · 共 38 个部位 · 1534 条零件

1外罩与前盖2杂项零件/附件3齿轮箱（驱动轴）4齿轮箱(螺旋桨轴)5气缸体与曲轴箱总成6化油器总成7旋转支架总成8驱动轴外壳总成9底罩与换挡连杆10化油器总成11化油器连杆12夹紧支架与倒挡锁(短轴)13外罩与前盖14曲轴、活塞与连杆15气缸体与曲轴箱总成16驱动轴外壳总成17端盖、歧管与排气罩18排气延伸板19飞轮、定子与点火线圈20燃油泵及油管21齿轮箱（驱动轴）22齿轮箱(螺旋桨轴)23液压泵总成(金属油箱)24液压泵总成(塑料油箱)25杂项零件/附件26动力升降组件(无断路器和保险丝)27动力升降组件(含断路器与保险丝)28动力升降油缸修理包(配合76509A3使用)29动力升降油缸修理包(配合92194A14使用)30螺旋桨(右旋)31启动马达与线束32启动电机总成（博世）33启动电机总成（普雷斯特olite）34旋转支架总成35油门杆与点火提前杆36顶罩与支撑支架37艉板支架（长轴）38升降油缸及液压软管

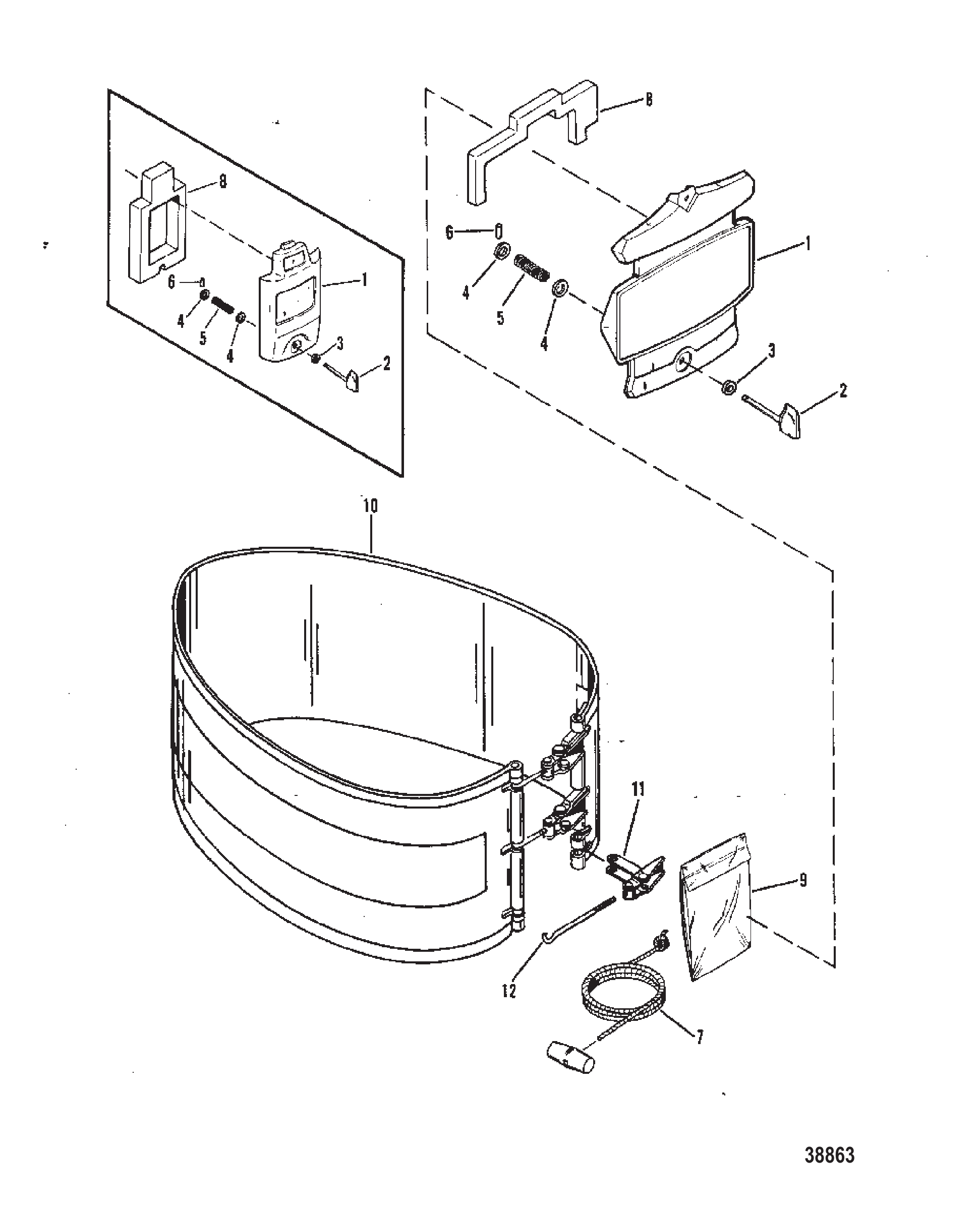

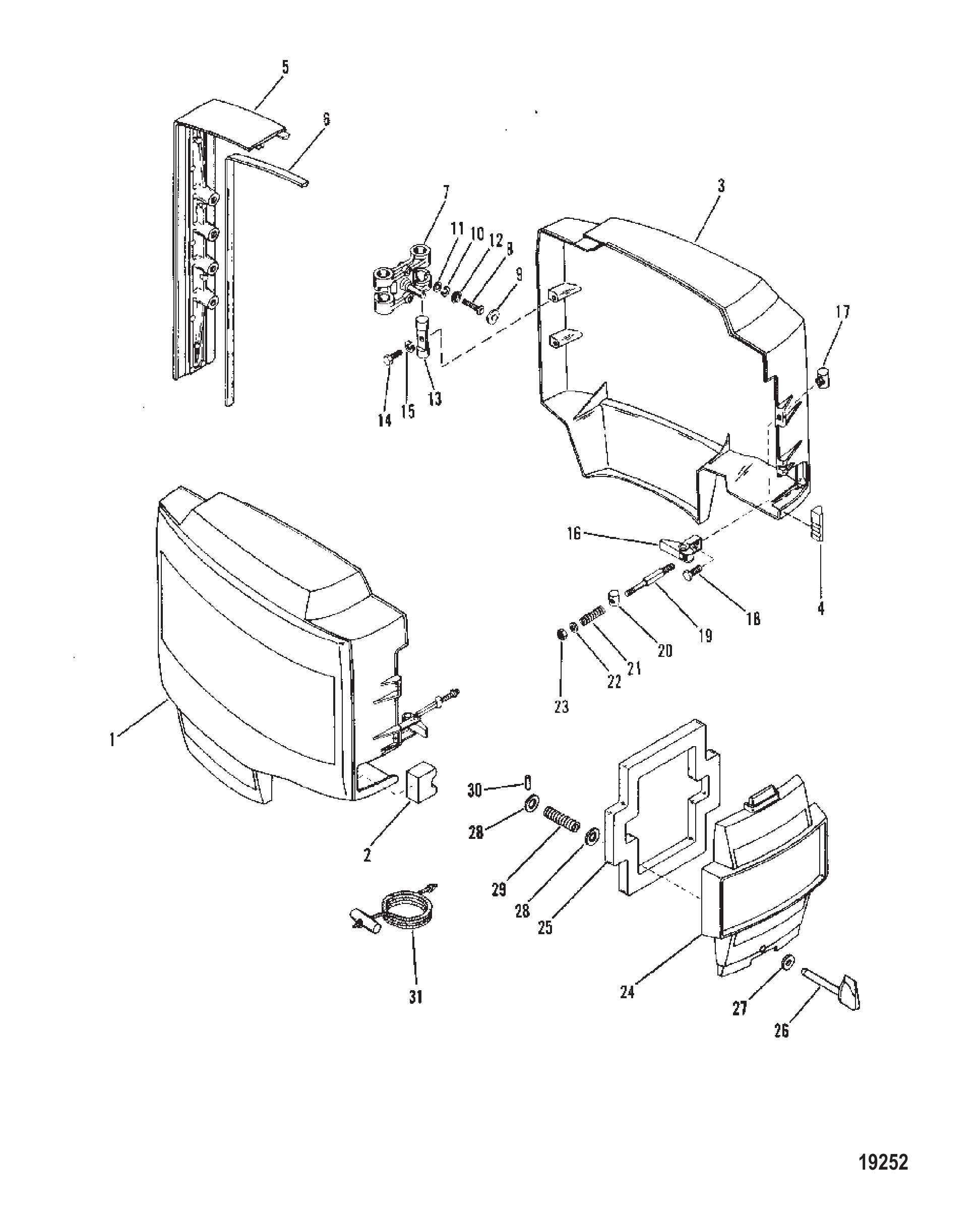

图 1外罩与前盖 COWLING AND FRONT COVER
外罩与前盖 COWLING AND FRONT COVER
REF零件编号中文名称英文名称数量
16228A1顶罩总成(右舷黑色)TOP COWL ASSEMBLY (STARBOARD BLACK)1
16228A3顶罩总成(右舷灰色)TOP COWL ASSEMBLY (STARBOARD GRAY)1
260297燃油接头密封圈-罩SEAL FUEL CONNECTOR -COWL1
36227A1顶罩总成(左舷黑色)TOP COWL ASSEMBLY (PORT BLACK)1
36227A17顶罩总成(左舷灰色)TOP COWL ASSEMBLY (PORT GRAY)1
460298控制电缆密封圈-罩SEAL CONTROL CABLES-COWL1
589717T罩体密封后支架BRACKET COWL SEALING-REAR1
6698761后支架密封圈SEAL REAR BRACKET2
790980罩体铰链支架BRACKET COWL HINGE2
845561铰链支架下部螺钉(.250-20 x 1.12)SCREW (.250-20 x 1.12) HINGE BRACKET-LOWER2
8455611螺钉(.250-20 x 1.120)SCREW (.250-20 x 1.120)2
875794铰链支架上部螺钉(1-1/8英寸)SCREW HINGE BRACKET-UPPER (1-1/8")2
975805铰链支架螺钉帽(上部)CAP HINGE BRACKET SCREW (UPPER)2
1026992铰链支架螺钉不锈钢锁紧垫圈(.250)LOCKWASHER (.250) Stainless Steel HINGE BRACKET SCREW4
1137998铰链支架螺钉垫圈WASHER HINGE BRACKET SCREW4
1275806铰链支架螺钉垫圈(上部)WASHER HINGE BRACKET SCREW (UPPER)2
1390979机罩铰链销PIN COWL HINGE4
1428782螺钉(.312-18 x .880)不锈钢 铰链销至机罩SCREW (.312-18 x .880) Stainless Steel PIN TO COWL4
1526993锁紧垫圈(.312)铰链销固定螺钉LOCKWASHER (.312) PIN ATTACHING SCREW4
158M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
1646785A5罩壳锁扣总成LATCH ASSEMBLY Cowl2
1762628机罩锁扣筒BARREL COWL LATCH2
1831312螺钉(#10-32 x 0.875)锁扣总成至筒体SCREW (#10-32 x 0.875) LATCH ASSEMBLY TO BARREL2
1915222机罩锁扣调节杆BAR ADJUSTMENT-COWL LATCH2
2062629机罩锁扣筒BARREL COWL LATCH2
2162624机罩锁扣张力弹簧SPRING TENSION-COWL LATCH2
2230164垫圈(.192 x .375 x .0312)不锈钢 调节杆至筒体WASHER (.192 x .375 x .0312) Stainless Steel ADJUSTMENT BAR TO BARREL2
2345812螺母(#10-32)不锈钢 调节杆至筒体NUT (#10-32) Stainless Steel ADJUSTMENT BAR TO BARREL2
23859124螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel2
248774A6前盖(黑色)FRONT COVER (BLACK)1
248774A7前盖(灰色)FRONT COVER (GRAY)1
25795511隔音毯BLANKET SOUND ABSORBING1
2614333旋钮KNOB1
2730771垫圈WASHER2
2875246垫圈WASHER2
2930772弹簧SPRING1
3029077滚动销PIN Roll1
3147341A1拉绳与手柄套件 手动/应急启动(仅限手动启动)ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING ONLY)1
3147341A11手动启动绳柄套件ROPE AND HANDLE KIT Manual Starting1
图 2杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES
杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES
REF零件编号中文名称英文名称数量
-814201200 XRI(EFI)(V-6)维修200 XRI (EFI) (V-6) Service1
-8140981维修手册SERVICE MANUAL1
-8162491维修手册SERVICE MANUAL1
-14697A87衬垫套件GASKET SET1
-813032A89贴花套件DECAL SET1
-814171A89纪念版贴花套装DECAL SET (ANNIVERSARY MODEL)1
-13492900用户指南OWNERS GUIDE1

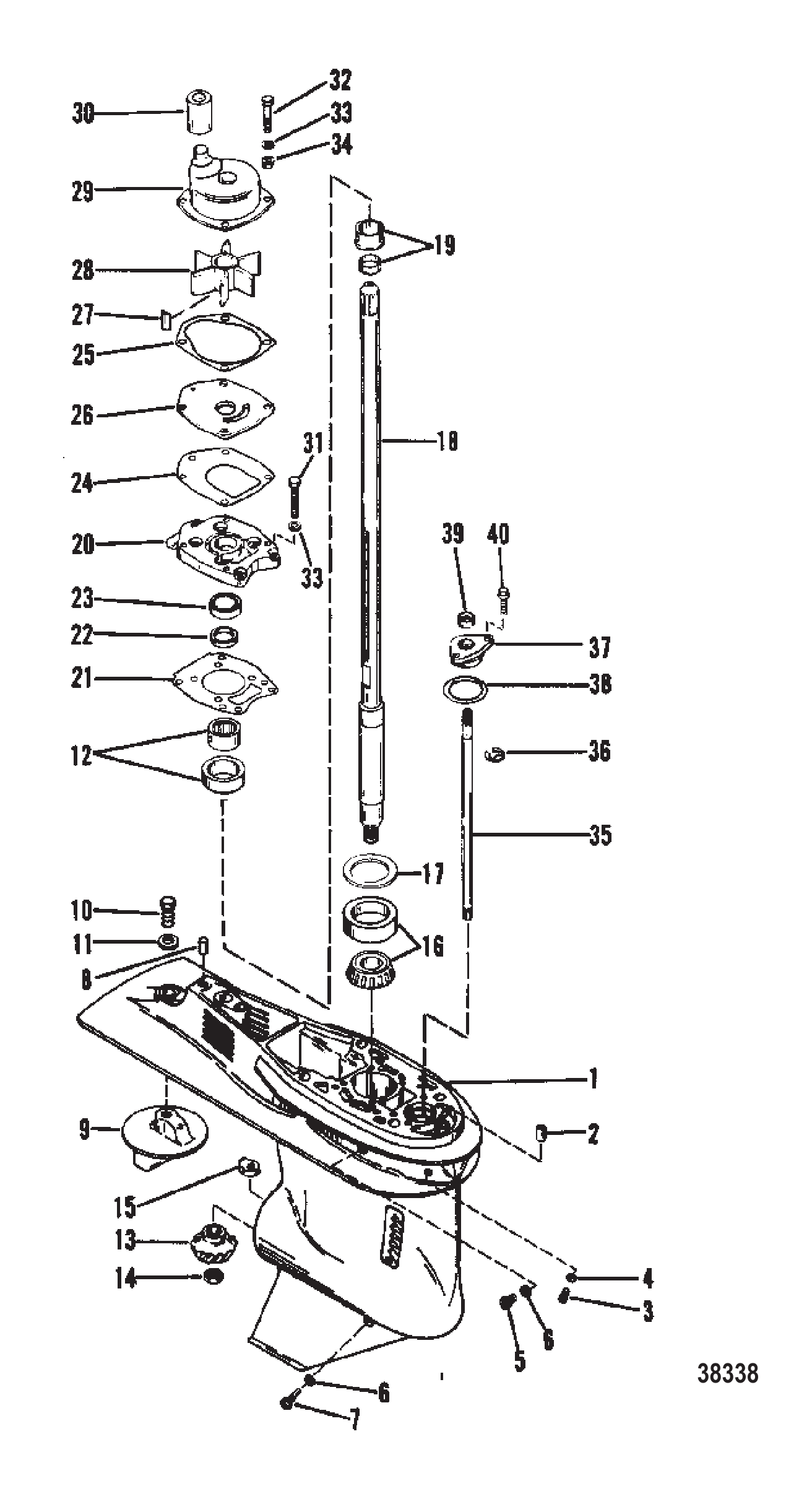

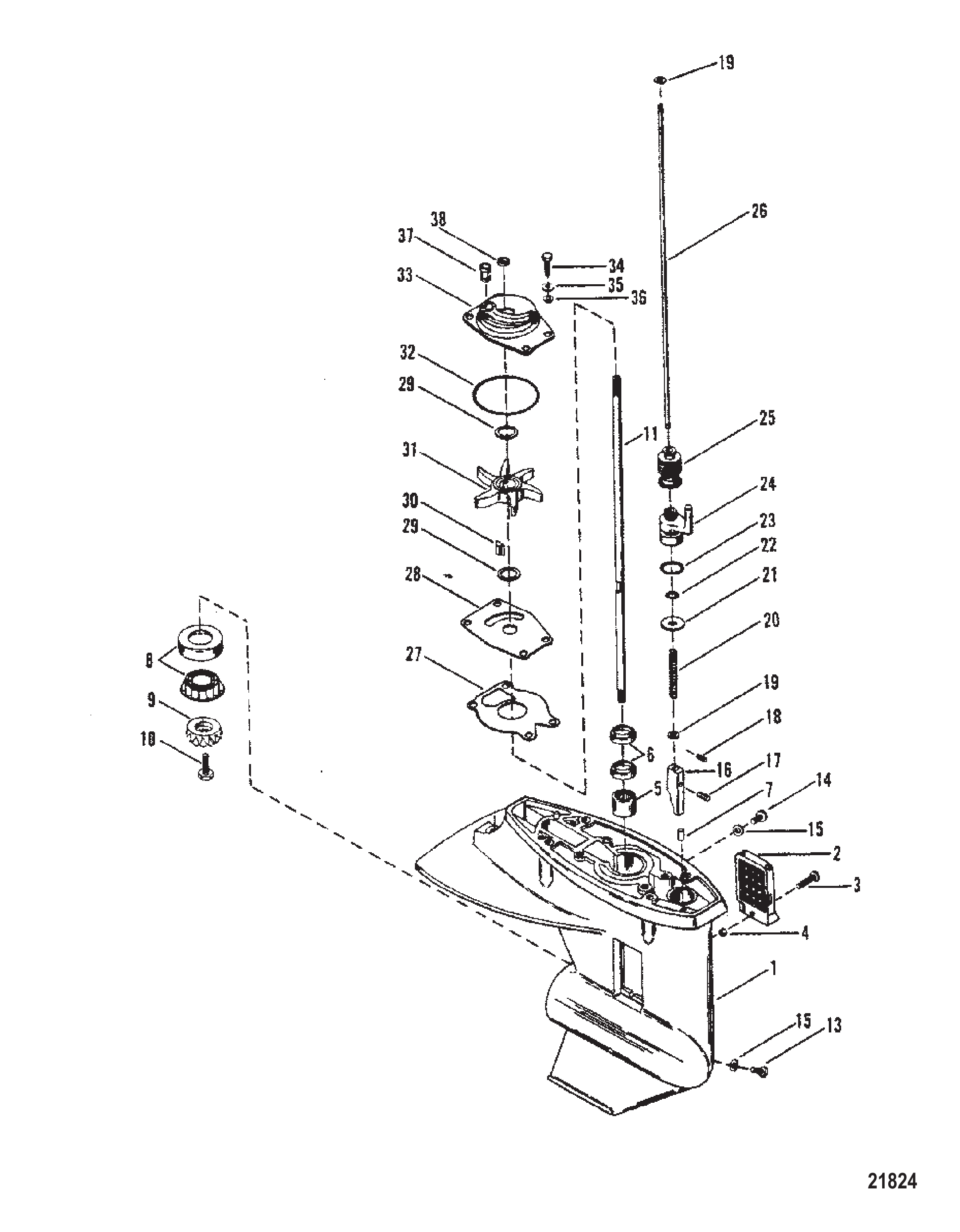

图 3齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)
齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)
REF零件编号中文名称英文名称数量
-8669A13齿轮箱总成(短型)(黑色)GEAR HOUSING ASSEMBLY (SHORT) (BLACK)1
-8669T13齿轮箱外壳SH-BLKGEAR HSG. SH-BLK1
-8669A14齿轮箱总成(长型)(黑色)GEAR HOUSING ASSEMBLY (LONG) (BLACK)1
-8669T14GC 20/25 2S LGGC 20/25 2S LG1
-8669A15齿轮箱总成(短型)(灰色)GEAR HOUSING ASSEMBLY (SHORT) (GRAY)1
-8669T13齿轮箱外壳SH-BLKGEAR HSG. SH-BLK1
-8669A16齿轮箱总成(长型)(灰色)GEAR HOUSING ASSEMBLY (LONG) (GRAY)1
-8669T16ORD 1665-8669T14ORD 1665-8669T141
-8669A23齿轮箱总成(短型)(追踪者系列)GEAR HOUSING ASSEMBLY (SHORT) (TRACKER)1
-8669A24齿轮箱总成(长型)(追踪者系列)GEAR HOUSING ASSEMBLY (LONG) (TRACKER)1
18669A21齿轮箱总成(基础黑色)GEAR HOUSING ASSEMBLY Basic-Black (BLACK)1
18M0083538GC BASIC 25 2SGC BASIC 25 2S1
18669A22齿轮箱总成(基础灰色)GEAR HOUSING ASSEMBLY Basic-Gray (GRAY)1
18669A21齿轮箱总成基础型-黑色GEAR HOUSING ASSEMBLY Basic-Black1
18669A25齿轮箱总成(追踪者系列)GEAR HOUSING ASSEMBLY (TRACKER)1
18669A39齿轮箱总成GEAR HOUSING ASSEMBLY1
241134右舷进水口滤网SCREEN WATER INLET-STARBOARD1
241133进水口滤网SCREEN Water Inlet Port1
340031112螺钉(M5 x 40)SCREW (M5 x 40)1
4400263螺母(M5)滤网螺钉NUT (M5) SCREEN SCREW1
541326滚柱轴承上BEARING Roller UPPER1
699325齿轮箱密封件SEAL GEAR HOUSING2
785500PIN Dowel (.187 x .530) GEAR HOUSING2
78M0084726定位销PIN Dowel2
898294A1滚柱轴承总成BEARING ASSEMBLY Roller1
998302小齿轮GEAR Pinion1
1049908小齿轮螺钉(0.250-28x0.75英寸)SCREW (.250-28 x .750) PINION GEAR1
1199199驱动轴(短轴)DRIVESHAFT (SHORT SHAFT)1
1199198驱动轴(长轴)DRIVESHAFT (LONG SHAFT)1
1314834A1磁性放油螺钉SCREW DRAIN - MAGNETIC1
138M0058389放油螺钉套件SCREW KIT Drain1
1428634A1润滑脂加注螺钉套件SCREW KIT GREASE FILLER1
1479953Q04放油螺钉套件SCREW KIT Drain1
15805726O型圈(放油/加注螺钉用)O-RING Rubber DRAIN AND FILLER SCREW2
158M0204684橡胶O型圈O-RING Rubber2
1685562A1凸轮总成(无钢印)CAM ASSEMBLY (NO STAMPING)1
1685562A2换挡凸轮(钢印85662--1)SHIFT CAM (STAMPED 85662--1)1
1785096驱动销PIN Drive1
1885593销(.078 x .437)PIN (.078 x .437)1
1929245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
198M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
2093007弹簧SPRING1
2185091垫圈WASHER1
2285594O型圈(.239 x .174)O-RING (.239 x .174)1
2335276O型圈(.734 x .139)O-RING (.734 x .139)1
2493878固定座RETAINER1
2585552换档轴防尘罩BOOT SHIFT SHAFT1
2585552001护套BOOT1
2685126换挡轴(短轴)SHIFT SHAFT (SHORT SHAFT)1
2686293换挡轴(长轴)SHIFT SHAFT (LONG SHAFT)1
27993261水泵衬垫GASKET WATER PUMP1
2885083面板FACE PLATE1
2986645叶轮垫圈WASHER IMPELLER2
298M0204722垫圈WASHER2
3085119叶轮驱动键KEY IMPELLER DRIVE1
308M0214993键@5KEY @51
31850893叶轮IMPELLER1
318M0204712叶轮IMPELLER1
3269202水泵O型圈O-RING WATER PUMP1
3399157A1水泵总成PUMP ASSEMBLY Water1
3399157A02水泵总成PUMP ASSEMBLY Water1
3490883螺钉(M5×16)(16毫米)-与参考号36配套使用SCREW (M5 x 16) (16MM)- Use with Reference #364
3589302垫圈(0.203×0.406×0.040)-与参考号36配套使用WASHER (.203 x .406 x .040) Use with Reference #364
3685095衬套-与参考号36配套使用BUSHING Use with Reference #364
368M0214959衬套@5BUSHING @54
344000328螺钉(M6×16)-不与参考号36配套使用SCREW (M6 x 16) Use without Reference #364
348M0214928螺钉(M6 x 16)SCREW (M6 x 16)4
3529245不锈钢垫圈(0.281×0.500×0.060)-不与参考号36配套使用WASHER (.281 x .500 x .060) Stainless Steel Use without Reference #364
358M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel4
3785090水管密封件SEAL WATER TUBE1
3785090001密封件SEAL1
3886203橡胶传动轴O型圈O-RING DRIVE SHAFT - RUBBER1
-99157A2水泵维修套件REPAIR KIT Water Pump1
-99157T2水泵套件PUMP KIT Water1
-85090A2密封套件SEAL KIT1
-41499A87衬垫套件GASKET SET1
-41499A88衬垫套件GASKET SET1

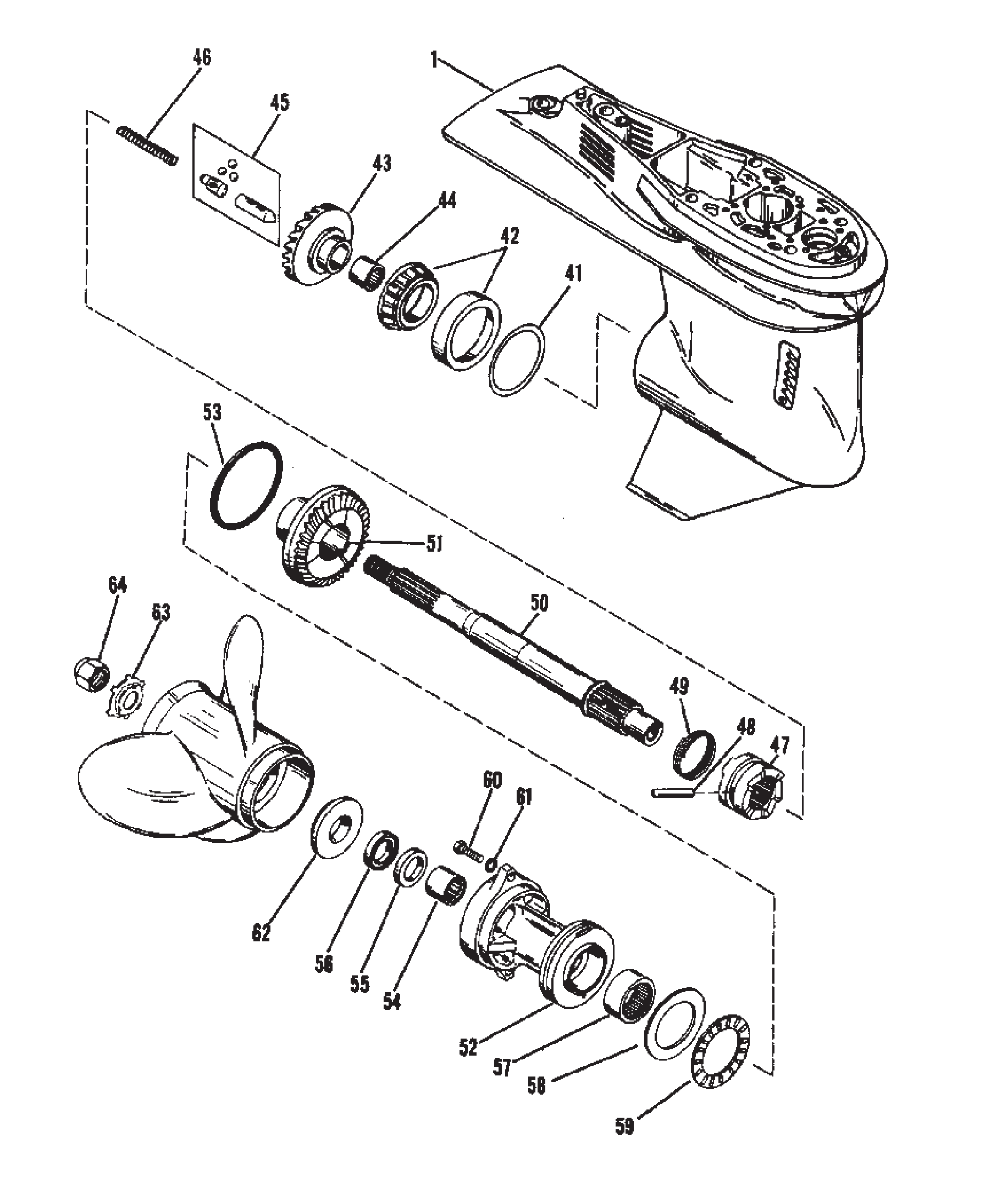

图 4齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)
齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)
REF零件编号中文名称英文名称数量
-9148A8齿轮箱总成-标准旋转1.87:1传动比(完整)GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (COMPLETE)1
19148A11齿轮箱总成(基础)GEAR HOUSING ASSEMBLY (BASIC)1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
4878956换挡凸轮SHIFT CAM1
48789562换挡凸轮SHIFT CAM1
4989594A1凸轮从动件总成FOLLOWER ASSEMBLY CAM1
5079911离合器作动杆ROD CLUTCH ACTUATOR1
5079911A1杆ROD1
5179910压缩弹簧SPRING COMPRESSION2
5278910压缩弹簧垫圈WASHER COMPRESSION SPRING1
5378906PIN SPRING LOCATOR1
538M0084245弹簧定位销PIN Spring Locator1
5447397A1轴承外圈垫片组(.002-3-5-10)SHIM SET BEARING OUTER RACE (.002-3-5-10)AR
5578172A1圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
5644104A2前进齿轮总成GEAR ASSEMBLY Forward1
5644104T2齿轮组GEAR SET1
5743999滚子轴承(外径1.308)BEARING Roller (1.308 O.D.)2
5773363滚子轴承(外径1.313)BEARING Roller (1.313 O.D.)2
5773363T轴承BEARING2
5878959棘轮滑动离合器RATCHET SLIDING CLUTCH1
58823174TORD 8M0100493ORD 8M01004931
5978905棘轮到螺旋桨轴十字销PIN Cross RATCHET TO PROPELLER SHAFT1
598M0084243十字销PIN Cross1
6078909棘轮定位销PIN Detent RATCHET2
6178962十字销固定弹簧SPRING RETAINING-CROSS PIN2
6294148螺旋桨轴PROPELLER SHAFT1
63N.S.S.不单独出售(43-44104A2部件)Not Sold Separate (PART OF 43-44104A2)1
6468100止推环RING THRUST1
64681001止推环RING Thrust1
6588957A1滚珠轴承-倒档齿轮BEARING Ball BALL-REVERSE GEAR1
6588957T滚珠轴承BEARING Ball1
6631534轴承座O型圈O-RING BEARING CARRIER1
668M0214920O型圈O RING1
6743567A1轴承座总成CARRIER ASSEMBLY Bearing1
6743567T1轴承座总成CARRIER ASSEMBLY Bearing1
6830956滚针轴承-轴承座BEARING Needle BEARING CARRIER1
6830956T滚针轴承BEARING Needle1
6976868轴承座密封SEAL BEARING CARRIER2
698M0248882油封@5SEAL-OIL @52
7030281轴承座定位键KEY LOCATING-BEARING CARRIER1
7179447齿轮箱盖锁紧垫圈TAB WASHER GEAR HOUSING COVER1
7279448齿轮箱固定座RETAINER GEAR HOUSING1
728M2011027固定座RETAINER1
7331640A1TRIM TAB ASSEMBLY GEAR HOUSING1
7331640Q4平衡鳍板TRIM TAB1
7466024螺钉(.437-14 x 1.75)调整片到齿轮箱(1-3/4")SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING (1-3/4")1
7567891填充块FILLER BLOCK FILLER BLOCK1
758M0039169填充块FILLER BLOCK1
7634933螺母(.437-20)不锈钢驱动轴壳体螺柱NUT (.437-20) Stainless Steel DRIVE SHAFT HOUSING STUDS2
768M0204653螺母NUT2
7765210螺钉(.375-16 x 1.00)齿轮箱SCREW (.375-16 x 1.00) GEAR HOUSING1
7813171推力毂THRUST HUB1
78835467Q01止推垫片套件THRUST WASHER KIT1
7931211A2花键垫圈-螺旋桨螺母WASHER Splined SPLINED-PROPELLER NUT1
7931211Q03垫圈总成WASHER ASSEMBLY1
8031210螺旋桨螺母锁紧垫圈TAB WASHER PROPELLER NUT1
80816629Q锁紧垫圈TAB WASHER1
8152707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
8152707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
82423511螺旋桨轴齿形锁紧垫圈LOCKWASHER Toothed PROPELLER SHAFT1
8345176垫圈(.453 x .812 x .105)不锈钢驱动轴壳体螺柱WASHER (.453 x .812 x .105) Stainless Steel DRIVE SHAFT HOUSING STUDS2
-89238A2密封套件SEAL KIT1
-14697A87衬垫套件GASKET SET

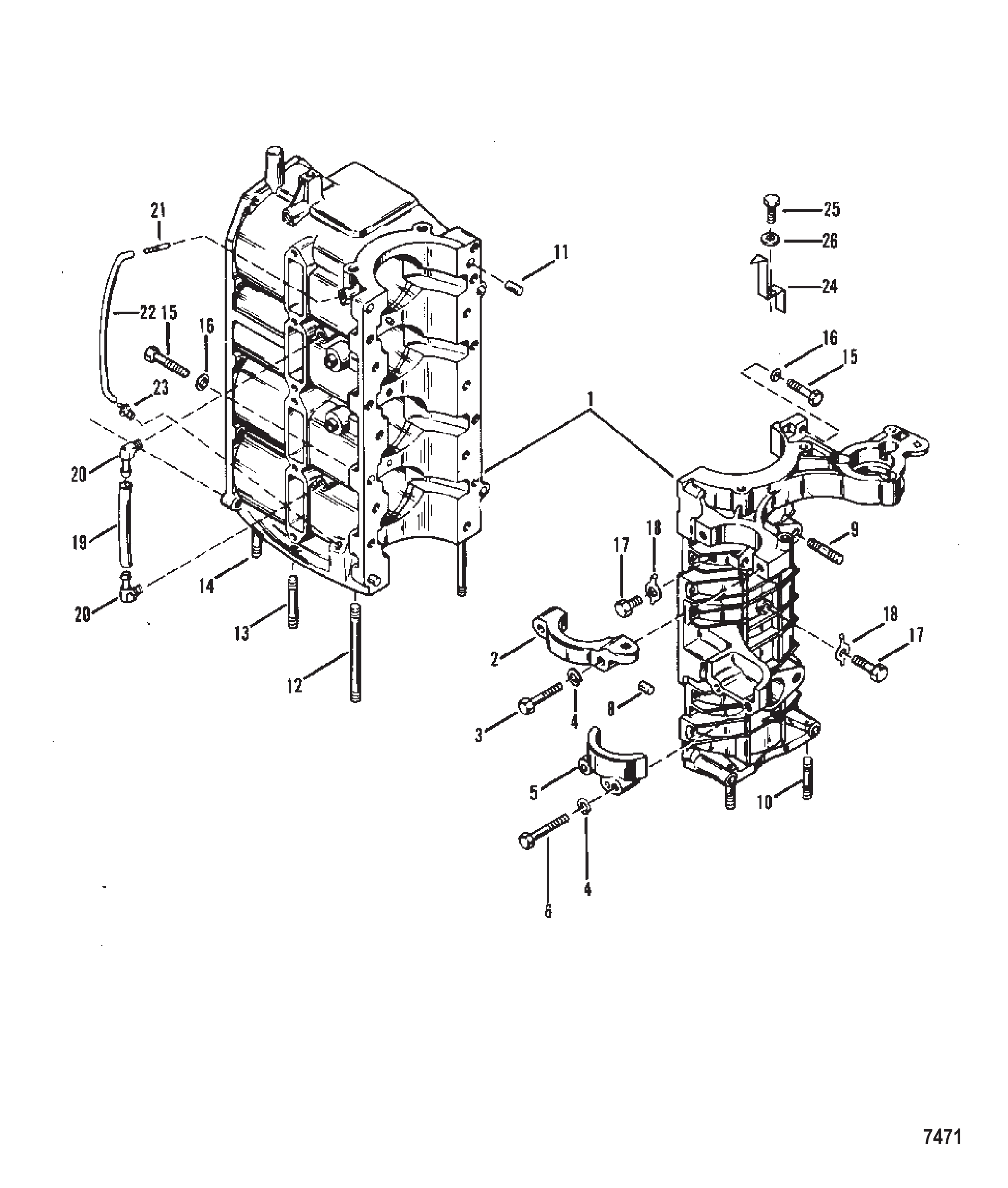

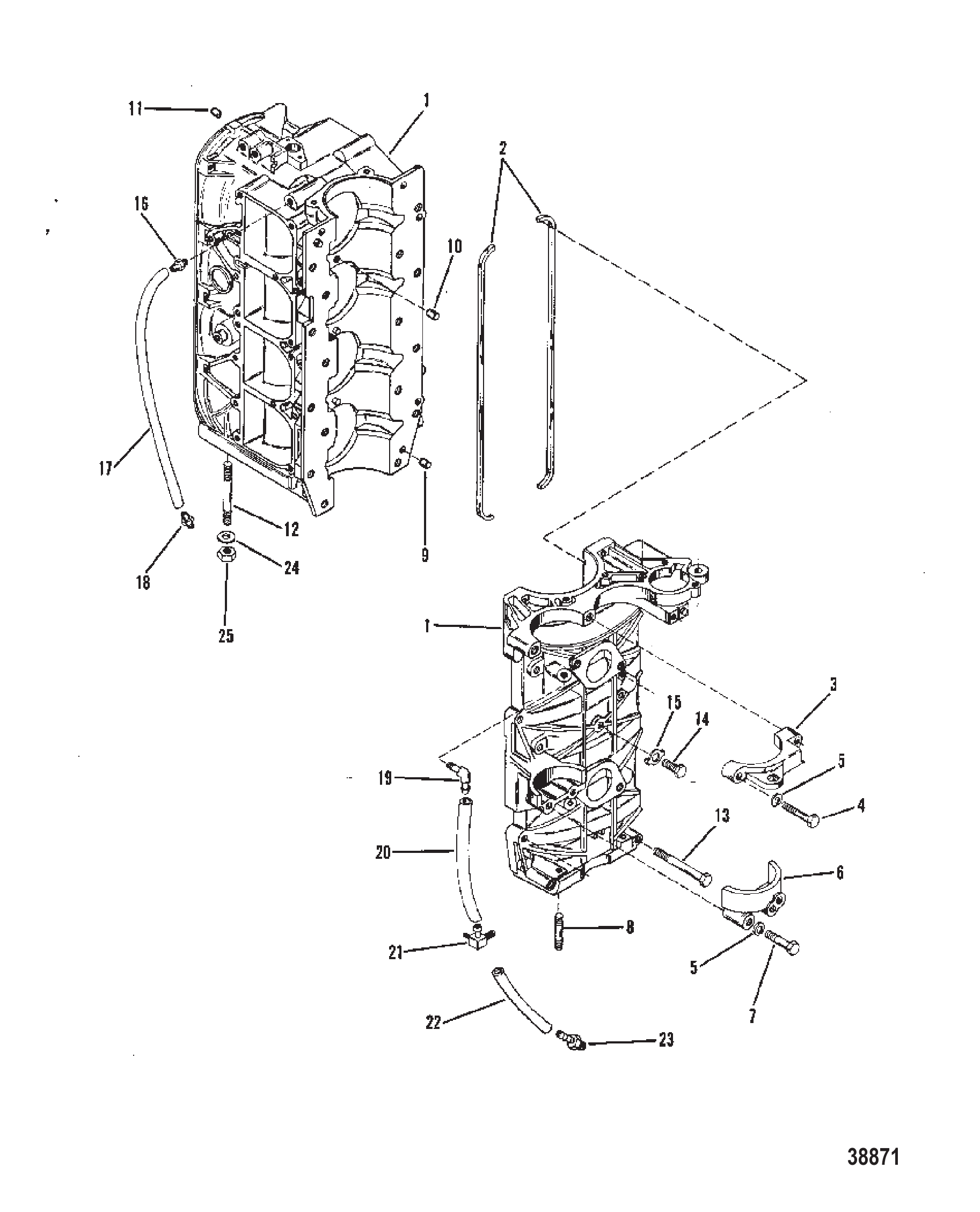

图 5气缸体与曲轴箱总成 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
气缸体与曲轴箱总成 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
REF零件编号中文名称英文名称数量
18981A6气缸体总成CYLINDER BLOCK ASSEMBLY1
272038启动电机上支架BRACKET Upper Starter Motor1
373279支架至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸)SCREW (.312-18 x 1.880) Bracket to Crankcase (1.875 Inch)2
426993支架螺钉锁紧垫圈(.312)LOCKWASHER (.312) Bracket Screw4
48M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
576867启动电机下盖COVER Lower Starter Motor1
673279盖至曲轴箱螺钉(.312-18 x 1.880)(1.875英寸)SCREW (.312-18 x 1.880) Cover to Crankcase (1.875 Inch)2
820032缸体至主轴承定位销PIN Dowel Cylinder block to main bearing2
968164化油器双头螺柱(1.25英寸)STUD Carburetor (1.25 Inch)4
964936螺柱STUD4
1068165曲轴箱至驱动轴壳体双头螺柱(1.625英寸)STUD Crankcase to Driveshaft Housing (1.625 Inch)2
1120033曲轴箱至缸体定位销PIN Dowel Crankcase to Cylinder Block2
1143044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
1287901缸体至驱动轴壳体双头螺柱(4英寸)STUD Cylinder block to drive shaft housing (4 Inch)2
1368166缸体至驱动轴壳体双头螺柱(.312 x 2.125)(2.125英寸)STUD (.312 x 2.125) Cylinder block to drive shaft housing (2.125 Inch)2
1468167缸体至驱动轴壳体双头螺柱(.312-18/.312-24 x 2.560)(2.50英寸)STUD (.312-18/.312-24 x 2.560) Cylinder block to drive shaft housing (2.50 Inch)2
1573657曲轴箱至缸体螺钉(.312-18 x 1.50)(1.50英寸)SCREW (.312-18 x 1.50) Crankcase to cylinder block (1.50 Inch)13
1531984曲轴箱至缸体螺钉(.312-18 x 1.375)(1.375英寸)SCREW (.312-18 x 1.375) Crankcase to cylinder block (1.375 Inch)3
1573275曲轴箱至缸体螺钉(.312-18 x 2.88)(2.875英寸)SCREW (.312-18 x 2.88) Crankcase to cylinder block (2.875 Inch)2
1670132曲轴箱螺钉不锈钢垫圈(.323 x .563 x .063)WASHER (.323 x .563 x .063) Stainless Steel Crankcase Screw17
168M0042642垫圈(.323 x .562 x .063)WASHER (.323 x .562 x .063)17
1720359螺钉(.375-16 x 1.00)SCREW (.375-16 x 1.00)1
1798260螺钉(.375-16 x .620)SCREW (.375-16 x .620)2
1820091中央轴承锁紧螺钉止动垫圈TAB WASHER Center Bearing Locking Screw3
1999127109平衡管(57英寸散装)-主轴承(5.50英寸)LINE (57.00 Inches Bulk) Balance - Main Bearing (5.50 Inch)1
198M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
2099664平衡管至缸体弯头ELBOW Balance Tube to Cylinder Block2
2099664290度弯头接头(0.125-27x0.250)尼龙FITTING Elbow 90 Degree (.125-27 x .250) Nylon2
2165857上部泄放软管接头CONNECTOR Upper Bleed Hose1
2156759倒钩接头FITTING Barbed1
229938779气缸泄放软管(11英寸)HOSE Cylinder Bleed (11 Inch)1
2342867下部泄放软管止回阀CHECK VALVE Lower Bleed Hose1
23428671止回阀CHECK VALVE1
2499156正时指示器INDICATOR Timing1
2539349指示器至曲轴箱不锈钢螺钉(.312-18 x .750)SCREW (.312-18 x .750) Stainless Steel Indicator to Crankcase1
2626993指示器螺钉锁紧垫圈(.312)LOCKWASHER (.312) Indicator Screw1
268M0204647锁紧垫圈 (.312)LOCKWASHER (.312)1
-97469A87动力头总成(完整)POWERHEAD ASSEMBLY Complete1
-97469T87船用动力头POWERHEAD MARINE1

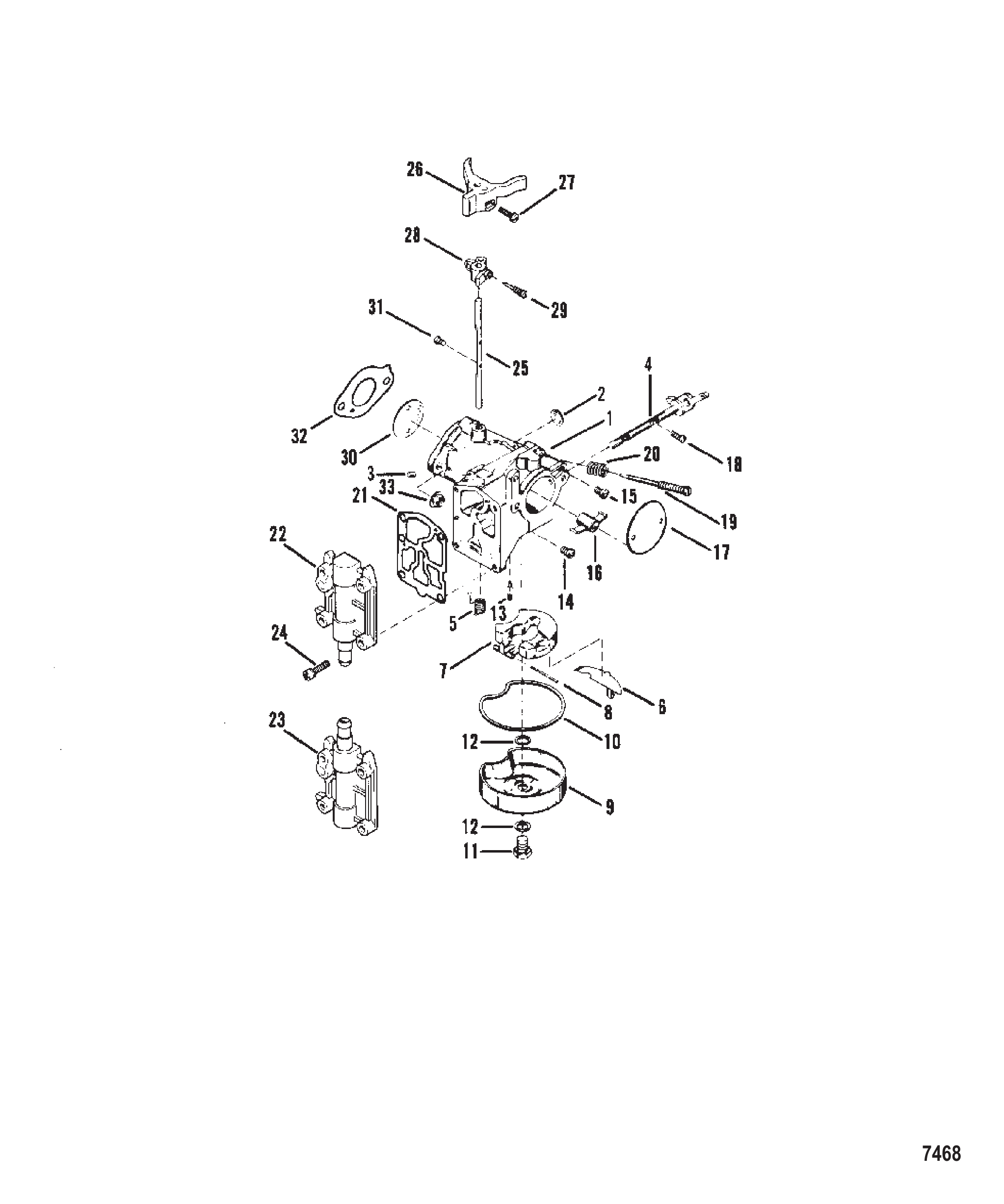

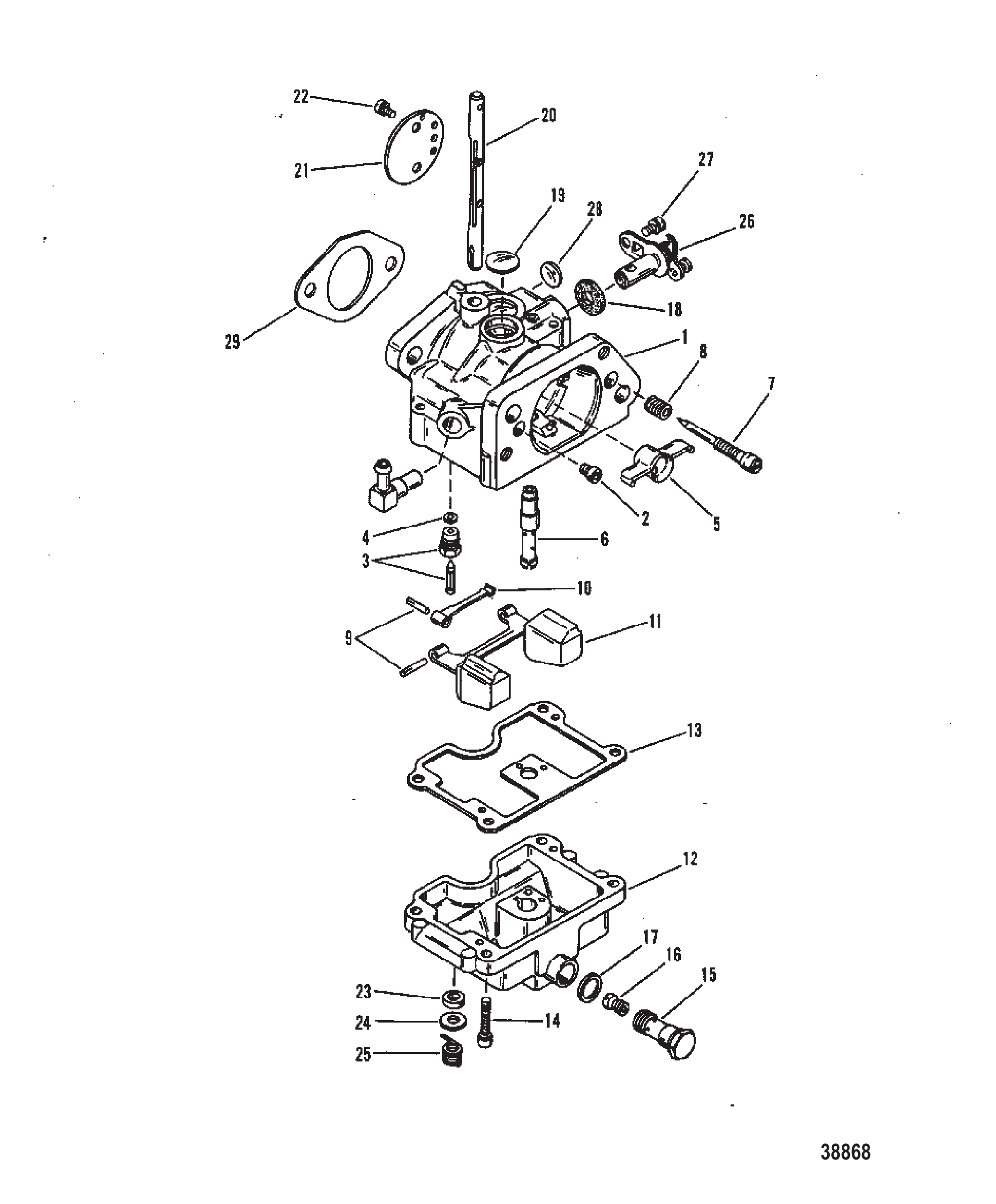

图 6化油器总成 CARBURETOR ASSEMBLY
化油器总成 CARBURETOR ASSEMBLY
REF零件编号中文名称英文名称数量
16517A33化油器总成CARBURETOR ASSEMBLY1
16517A34化油器总成CARBURETOR ASSEMBLY1
16517A64化油器KT-底置CARBURETOR KT-BOT1
2NSS大型主体通道(不单独销售)NOT SOLD SEPARATE Large Body Channel2
3NSS主体通道(不单独销售)NOT SOLD SEPARATE Body Channel6
496773A1阻风门轴总成SHAFT ASSEMBLY Choke2
49296A1阻风门轴套件CHOKE SHAFT KIT2
5NSS回位-节气门轴(不单独销售)NOT SOLD SEPARATE Return-Throttle Shaft2
67211A1燃油杯挡板BAFFLE Fuel Bowl2
6814483燃油杯挡板BAFFLE Fuel Bowl2
79293浮子FLOAT2
8NSS浮子固定件(不单独销售)NOT SOLD SEPARATE Float Retaining2
95127燃油杯BOWL Fuel2
10NSS燃油杯(不单独销售)NOT SOLD SEPARATE Fuel Bowl2
119652燃油杯至化油器螺钉SCREW Fuel Bowl to Carburetor2
12NSS燃油杯螺钉(不单独销售)NOT SOLD SEPARATE Fuel Bowl Screw4
139022进油针阀及弹簧NEEDLE AND SPRING Inlet2
141457主量孔(.057)JET Main Fuel (.057)2
157335省油量孔(.098)JET (.098) Economizer (.098)2
1664677喉管VENTURI2
178665阻风门片SHUTTER Choke2
18NSS阻风门片至轴连接件(不单独销售)NOT SOLD SEPARATE Choke Shutter to Choke Shaft4
19NSS怠速混合气调节件(不单独销售)NOT SOLD SEPARATE Idle Mixture2
20NSS怠速混合气螺钉(不单独销售)NOT SOLD SEPARATE Idle Mixture Screw2
21NSS不单独销售 燃油泵NOT SOLD SEPARATE Fuel Pump2
229653盖板(上化油器)COVER Plate (Upper Carburetor)1
239654盖板(下化油器)COVER Plate (Lower Carburetor)1
245132滤清器体至化油器螺钉SCREW Strainer Body to Carburetor8
24808612螺钉及垫圈 (#8-32 x .750)SCREW AND WASHER (#8-32 x .750)8
259020油门轴SHAFT Throttle1
259656油门轴SHAFT Throttle1
2692880节气门杠杆(上化油器)LEVER Throttle (Upper Carburetor)1
2720847节气门杠杆螺钉(上化油器)SCREW Throttle Lever (Upper Carburetor)2
276027螺钉SCREW2
2897节气门杠杆(下化油器)LEVER Throttle (Lower Carburetor)1
288146791油门杆LEVER Throttle1
296027节气门杠杆螺钉(下化油器)SCREW Throttle Lever (Lower Carburetor)1
309649节气门片SHUTTER Throttle2
31NSS节气门片至轴连接件(不单独销售)NOT SOLD SEPARATE Throttle Shutter to Throttle Shaft4
32757911化油器法兰衬垫GASKET Carburetor Flange2
3364809化油器安装柱螺母NUT Carburetor Mounting Stud4
--9650维修套件REPAIR KIT2
--9651衬垫套件GASKET SET2

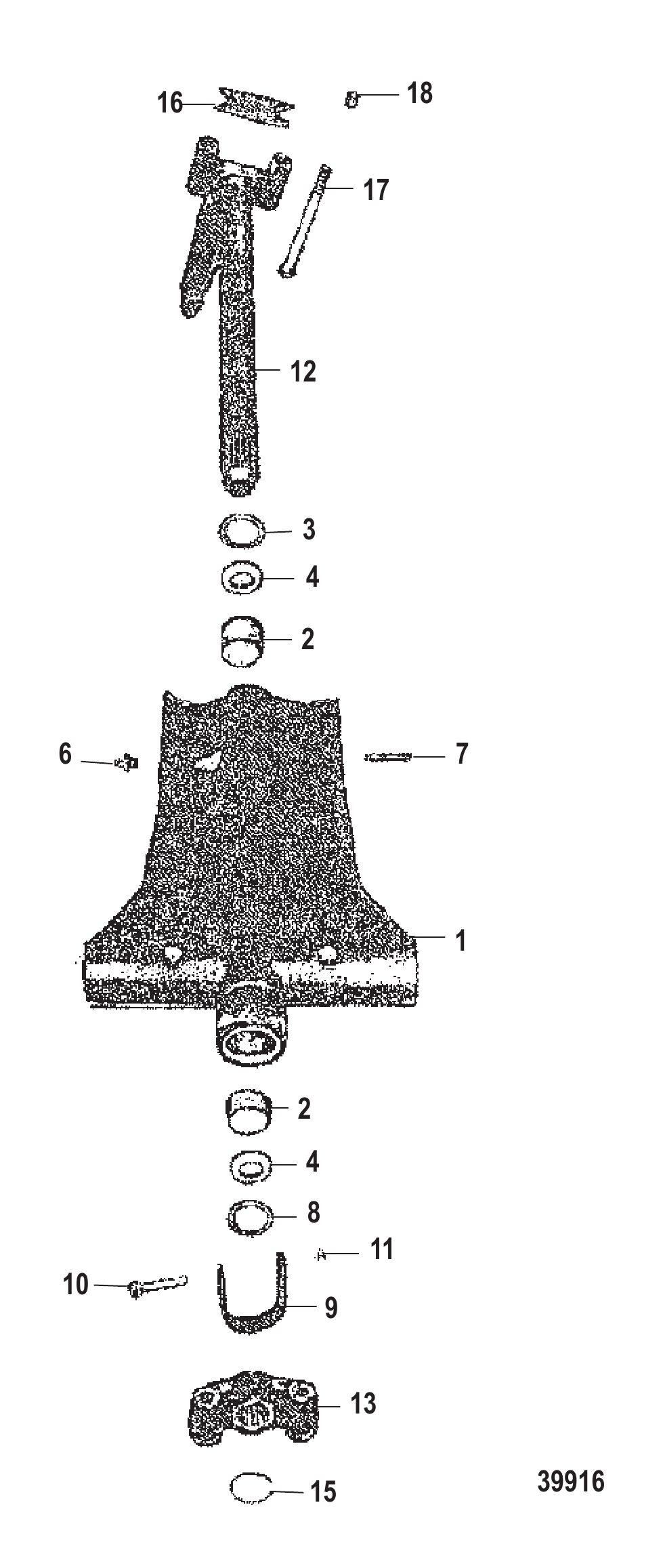

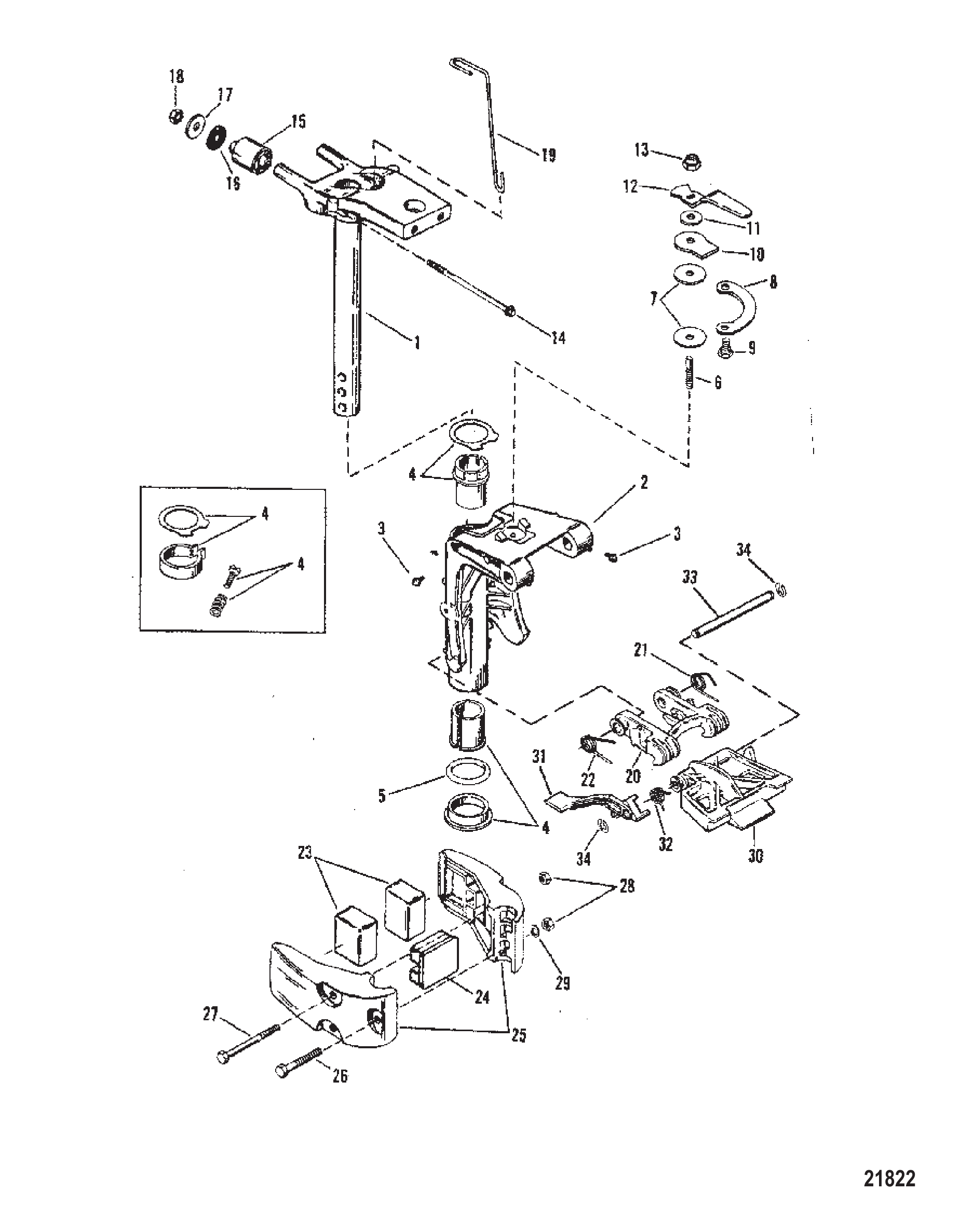

图 7旋转支架总成 SWIVEL BRACKET ASSEMBLY
旋转支架总成 SWIVEL BRACKET ASSEMBLY
REF零件编号中文名称英文名称数量
1822238A2旋转头(黑色)SWIVEL HEAD (BLACK)1
1822238A9旋转头SWIVEL HEAD1
1822238A3旋转头(灰色)SWIVEL HEAD (GRAY)1
1822238A9旋转头SWIVEL HEAD1
28692A13旋转支架(黑色)SWIVEL BRACKET (BLACK)1
2822237A3旋转支架SWIVEL BRACKET1
28692A14旋转支架(灰色)SWIVEL BRACKET (GRAY)1
2822237A4旋转支架SWIVEL BRACKET1
374036润滑脂接头FITTING Grease3
38M0169589润滑脂接头FITTING Grease3
411139A2夹具总成CLAMP ASSEMBLY1
586993旋转管O型圈O-RING SWIVEL TUBE1
1822238A5旋转头(黑色)SWIVEL HEAD (BLACK)1
1822238A9旋转头SWIVEL HEAD1
1822238A6旋转头(灰色)SWIVEL HEAD (GRAY)1
1822238A9旋转头SWIVEL HEAD1
1822238A7旋转头(TRACKER)SWIVEL HEAD (TRACKER)1
1822238A9旋转头SWIVEL HEAD1
2822237A3旋转支架(黑色)SWIVEL BRACKET (BLACK)1
2822237A4旋转支架(灰色)SWIVEL BRACKET (GRAY)1
2822237A3旋转支架SWIVEL BRACKET1
2822237A5旋转支架(TRACKER)SWIVEL BRACKET (TRACKER)1
2822237A4旋转支架SWIVEL BRACKET1
374036润滑脂接头FITTING Grease3
38M0169589润滑脂接头FITTING Grease3
485154A1衬套套装BUSHING KIT1
586993O型圈O-RING1
6821961杆ROD1
78165621圆盘DISC2
8821958旋转头板PLATE Swivel Head1
8821958A1板组件套件PLATE KIT1
9768041螺钉SCREW2
9768042六角凸肩螺钉SHOULDER SCREW Hex2
10821957制动板BRAKE PLATE1
1129330垫圈WASHER1
12821959手柄HANDLE1
1334863螺母 (.375-24)NUT (.375-24)1
138M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass1
1412516螺丝 M8×133.35(上支架)SCREW (M8 x 133.35) UPPER MOUNT2
14125161螺丝 M8×133SCREW (M8 x 133)2
1514894上支架MOUNT UPPER2
1685172橡胶垫圈(上支架螺丝)WASHER RUBBER - UPPER MOUNT SCREW2
1743430上部支架螺钉垫圈WASHER UPPER MOUNT SCREW2
18400213螺母 M8不锈钢(上支架螺丝)NUT (M8) Stainless Steel UPPER MOUNT SCREW2
1916554倒挡钩杆ROD REVERSE HOOK1
2098830A2倒挡锁钩总成HOOK ASSEMBLY REVERSE LOCK1
2196018倒挡钩弹簧(左舷)SPRING REVERSE HOOK - PORT1
2297427弹簧(右舷-电动)SPRING (STARBOARD - ELECTRIC)1
2212755弹簧(右舷-手动/电动手柄)SPRING (STBD - MANUAL/ELECTRIC HANDLE)1
22879894弹簧SPRING1
2385122下支架MOUNT LOWER2
2385122001下支架MOUNT Lower2
2485123前缓冲垫BUMPER Front1
2485123001前缓冲垫BUMPER Front1
2517232A1下支架盖(黑色)COVER LOWER MOUNT (BLACK)1
2517232A2下支架盖(灰色)COVER LOWER MOUNT (GRAY)1
2517232A1盖板COVER1
2517232A3下支架盖(TRACKER)COVER LOWER MOUNT (TRACKER)1
264009259螺丝 60mmSCREW (60 MM)1
261994360螺钉 (M8 x 60)SCREW (M8 x 60)1
274009263螺丝 100mmSCREW (100 MM)2
2719943100螺丝(M8 x 100)SCREW (M8 x 100)2
28400213不锈钢螺母 (M8)NUT (M8) Stainless Steel3
2936001垫圈WASHER3
3012756支架BRACKET1
3112758控制杆LEVER CONTROL1
3212754弹簧SPRING1
3313195销PIN1
3413194挡圈RING Retaining2
-41499A87衬垫套件GASKET SET2
-41499A88衬垫套件GASKET SET2

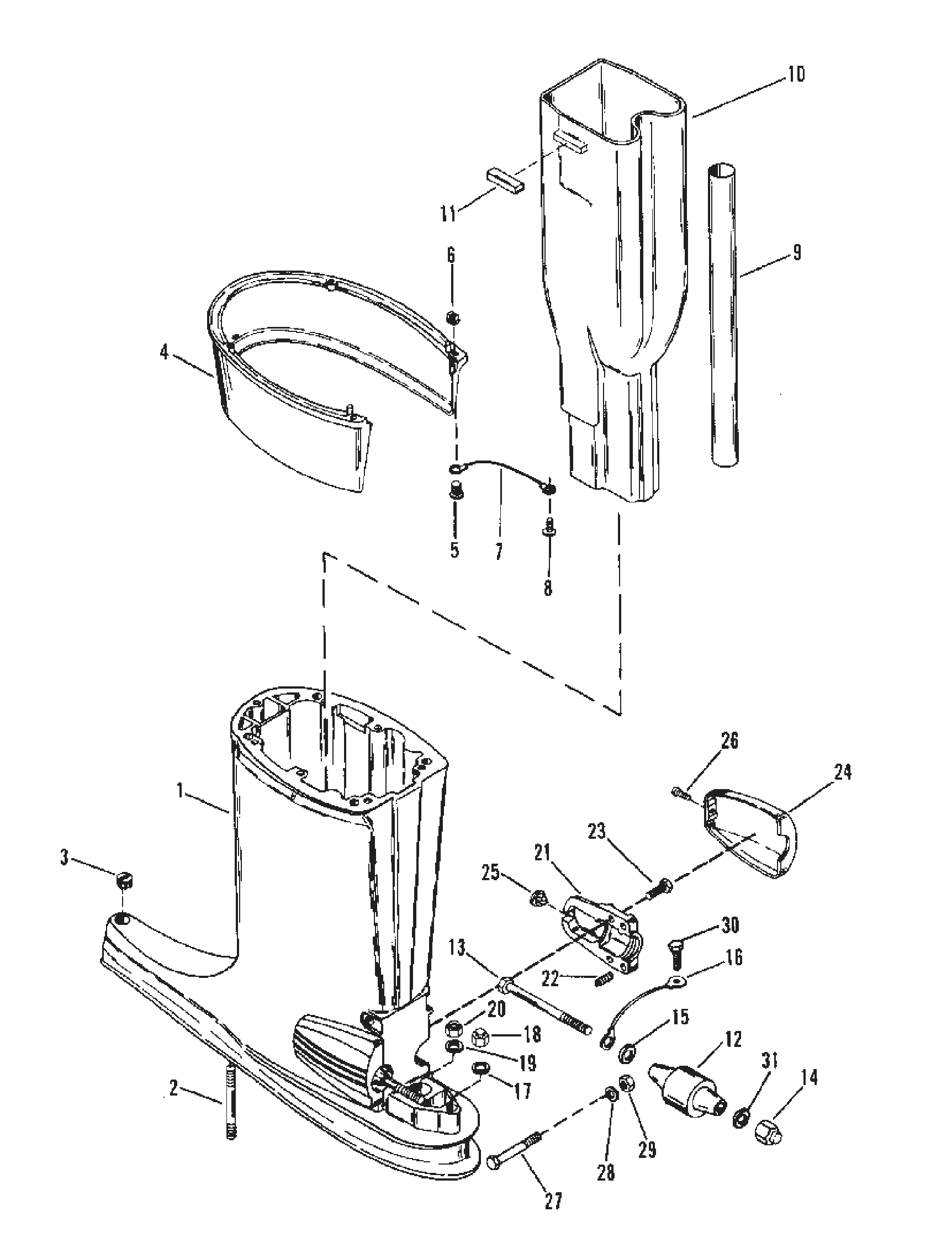

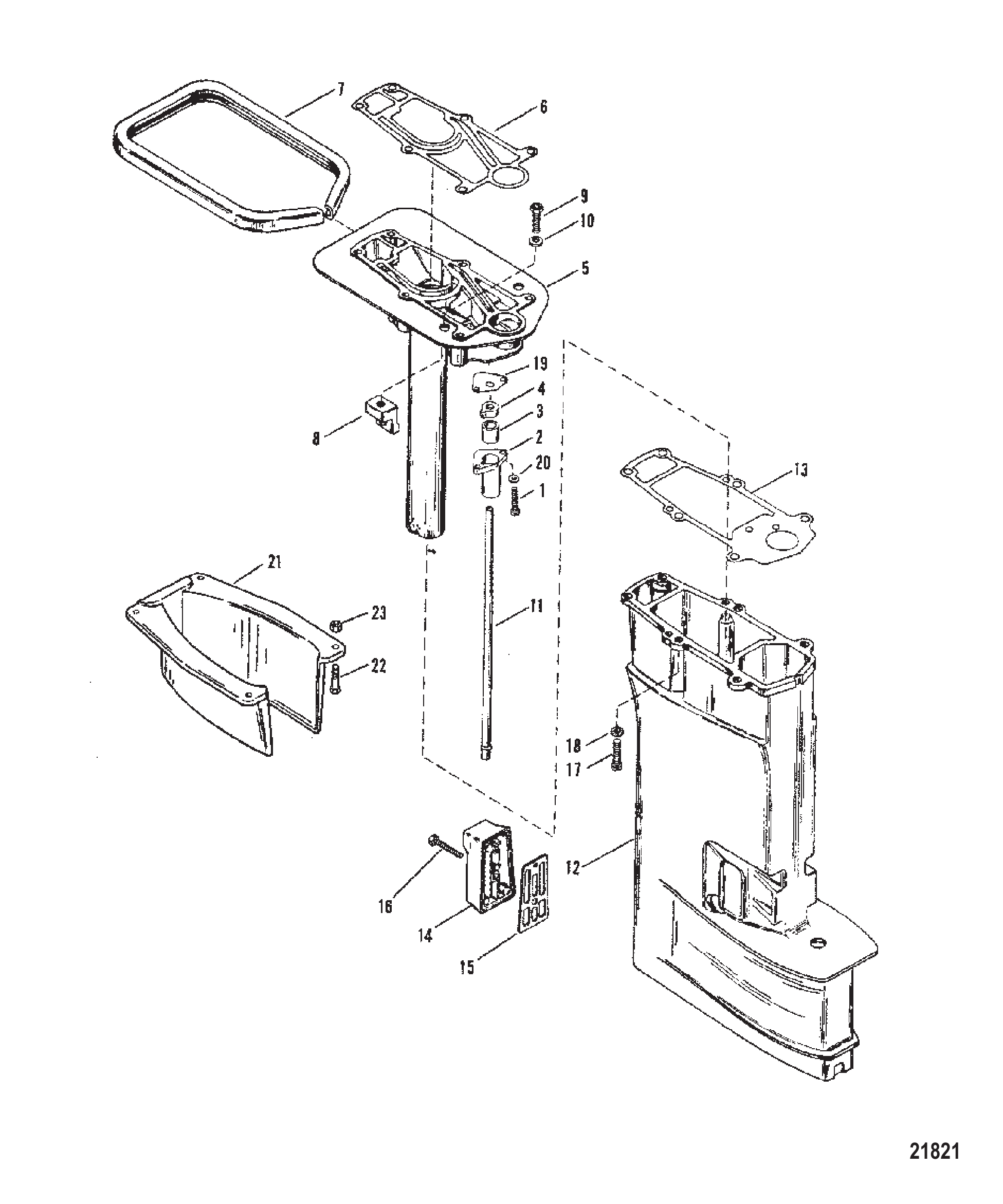

图 8驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY
驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY
REF零件编号中文名称英文名称数量
1400035螺丝 M5×16(配合参考号20使用)SCREW (M5 x 16) (Use W/Reference #20)2
140011107不锈钢螺钉(M5x16)SCREW (M5 x 16) Stainless Steel2
296248A1水管壳体总成HOUSING ASSEMBLY WATER TUBE1
325329水管密封件SEAL WATER TUBE1
496247水管隔套SPACER WATER TUBE1
4889715水管隔套SPACER Water Tube1
599702A6适配板总成ADAPTER PLATE ASSEMBLY1
599702A7适配板总成ADAPTER PLATE ASSEMBLY1
6416704适配板垫片GASKET ADAPTOR PLATE1
641670006适配板垫片GASKET Adaptor Plate1
7158662适配板密封件SEAL ADAPTOR PLATE1
841211上支架托架BRACKET UPPER MOUNT2
940011128螺丝 M6×20不锈钢(不配合参考号10使用)SCREW (M6 x 20) Stainless Steel (Use Without Reference #10)2
98M0204741六角带垫大帽螺钉(M6x1.0x20)SCREW (M6 x 1.0 x 20) Hex Wash HD2
940007128螺丝 M6×20(配合参考号10使用)SCREW (M6 x 20) (Use With Reference #10)2
1029245垫圈（0.281 x 0.500 x 0.060）不锈钢（适用处使用）WASHER (.281 x .500 x .060) Stainless Steel (USE WHERE APPLICABLE)2
108M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
1185116水管(短轴)TUBE Water (SHORT SHAFT)1
1186292水管(长轴)TUBE Water (LONG SHAFT)1
129097A2驱动轴壳体总成(短轴)(黑色)HOUSING ASSEMBLY Driveshaft (SHORT SHAFT) (BLACK)1
129097T5驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
129098A2驱动轴壳体总成(长轴)(黑色)HOUSING ASSEMBLY Driveshaft (LONG SHAFT) (BLACK)1
129098T5驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
129097A3驱动轴壳体总成(短轴)(灰色)HOUSING ASSEMBLY Driveshaft (SHORT SHAFT) (GRAY)1
129097T6驱动轴壳体-灰色DRIVESHAFT HSG-GR1
129098A3驱动轴壳体总成(长轴)(灰色)HOUSING ASSEMBLY Driveshaft (LONG SHAFT) (GRAY)1
129098A6驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
129097A4驱动轴壳体总成(短轴)(TRACKER)HOUSING ASSEMBLY Driveshaft (SHORT) (TRACKER)1
129098A4驱动轴壳体总成(长轴)(TRACKER)HOUSING ASSEMBLY Driveshaft (LONG) (TRACKER)1
129098T5驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
13433373驱动轴壳体垫片GASKET DRIVE SHAFT HOUSING1
13433374驱动轴壳体垫片GASKET Drive Shaft Housing1
1414534怠速泄压盖COVER IDLE RELIEF1
1514621盖衬垫GASKET COVER1
1614742盖螺钉(.250-20 x 1.25)SCREW (.250-20 x 1.25) COVER1
174000360驱动轴壳体至缸体螺钉(60mm)SCREW DRIVE SHAFT HOUSING TO BLOCK (60 MM)6
171993870螺钉(M8 x 70)SCREW (M8 x 70)6
184002317驱动轴壳体螺钉垫圈(8.90 X 17.0 X 1.9不锈钢)WASHER (8.90 X 17.0 X 1.9SS) DRIVE SHAFT HOUSING SCREW6
1919583衬垫(按需使用)GASKET (USE WHERE APPLICABLE)1
19433373衬垫GASKET1
2030164壳体螺钉垫圈(.192 x .375 x .0312不锈钢)WASHER (.192 x .375 x .0312) Stainless Steel HOUSING SCREW2
2117258T配平盖(黑色)TRIM COVER (BLACK)1
2117258T6配平盖(灰色)TRIM COVER (GRAY)1
2117258T配平盖TRIM COVER1
2117258F4配平盖(追踪器型)TRIM COVER (TRACKER)1
2117258T配平盖TRIM COVER1
2240011128配平盖螺钉(M6 x 20不锈钢)SCREW (M6 x 20) Stainless Steel TRIM COVER4
228M0204741六角带垫大帽螺钉(M6x1.0x20)SCREW (M6 x 1.0 x 20) Hex Wash HD4
23401196配平盖螺钉螺母(M6)NUT (M6) TRIM COVER SCREW4
-41499A87衬垫套件GASKET SET1
-41499A88衬垫套件GASKET SET1

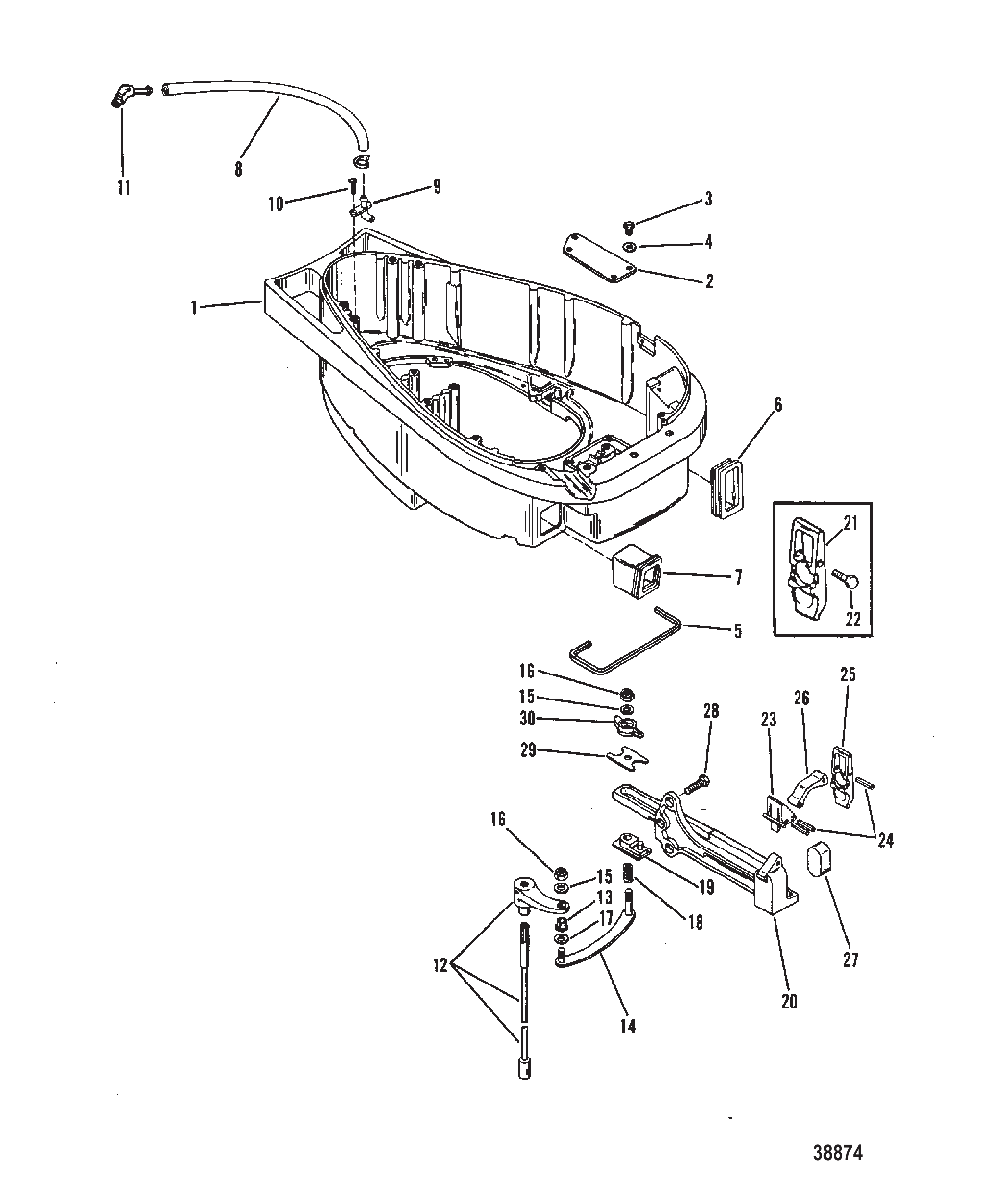

图 9底罩与换挡连杆 BOTTOM COWL AND SHIFT LINKAGE
底罩与换挡连杆 BOTTOM COWL AND SHIFT LINKAGE
REF零件编号中文名称英文名称数量
187081底罩COWL BOTTOM1
18708T6底罩COWL BOTTOM1
274303进气口盖COVER AIR INLET1
362568螺钉(#10-16 x .375)盖至底罩SCREW (#10-16 x .375) COVER TO BOTTOM COWL4
430164垫圈(.192 x .375 x .0312)不锈钢盖螺钉WASHER (.192 x .375 x .0312) Stainless Steel COVER SCREW4
573646底罩衬垫GASKET BOTTOM COWL1
639616底罩控制线缆护套BOOT CONTROL CABLES-BOTTOM COWL1
737637底罩燃油接头护套BOOT FUEL CONNECTOR-BOTTOM COWL1
899127109管线(57.00英寸散装)示警管(14-3/4")LINE (57.00 Inches Bulk) TELL TALE (14-3/4")1
88M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
952889示警软管至底罩喷嘴NOZZLE TELL TALE HOSE TO BOTTOM COWL1
1048408示流喷嘴至下罩盖螺钉(#10-16x0.500)SCREW (#10-16 x .500) TELL TALE NOZZLE TO BOTTOM COWL1
1178279示警软管至气缸体弯头ELBOW TELL TALE HOSE TO CYLINDER BLOCK1
118M0207781弯头ELBOW1
1260304A54上部换挡轴总成SHIFT SHAFT ASSEMBLY UPPER1
1326856换挡轴衬套BUSHING SHIFT SHAFT1
1473402换挡连杆SHIFT LINK1
1535462垫圈(.2656 x .625 x .0625)不锈钢连杆WASHER (.2656 x .625 x .0625) Stainless Steel LINK ROD2
1636069连杆螺母NUT LINK ROD2
1729720连杆波形垫圈WAVE WASHER LINK ROD1
1820099连杆至导向块弹簧SPRING LINK ROD TO GUIDE BLOCK1
1937896连杆导向块GUIDE BLOCK LINK ROD1
2052732A6控制线缆锚定支架BRACKET ANCHOR-CONTROL CABLES1
2198889闩锁LATCH1
2242975闩锁传动螺钉DRIVE SCREW LATCH2
2339618尼龙换挡线缆锁定杆LEVER NYLON-SHIFT CABLE LOCKING1
2387609A1杠杆套件LEVER KIT1
2447175锁定杆及盖固定销PIN LOCKING LEVER AND COVER FASTENING3
2590211尼龙换挡线缆盖COVER NYLON-SHIFT CABLE1
2665799T连杆-锁定杆到盖板LINK LOCKING LEVER TO COVER1
2687609A1杠杆套件LEVER KIT1
2739519锚定杯形保持器CUP BARREL RETAINER-ANCHOR1
2835386螺钉(.312-18 x 1.00)锚定支架至气缸体SCREW (.312-18 x 1.00) ANCHOR BRACKET TO CYLINDER BLOCK3
2952100连杆耐磨板WEAR PLATE LINK ROD1
3038279控制线缆闩锁紧固件LATCH CONTROL CABLE FASTENING1
308M0036768闩锁LATCH1
-73645A87衬垫套件GASKET SET1
图 10化油器总成 CARBURETOR ASSEMBLY
化油器总成 CARBURETOR ASSEMBLY
REF零件编号中文名称英文名称数量
16071A41化油器总成CARBURETOR ASSEMBLY1
16071A57化油器CARBURETOR1
16071A42化油器总成CARBURETOR ASSEMBLY1
16071A58化油器CARBURETOR1
16071A57化油器CARBURETOR1
16071A58化油器CARBURETOR1
25733主量孔 (.092)JET Main (.092)2
3192711进油针阀组件NEEDLE AND SEAT Inlet2
4NSS不单独出售-进油针阀与阀座垫片NOT SOLD SEPARATE GASKET-INLET NEEDLE AND SEAT2
552106A1塑料喉管VENTURI Plastic2
6NSSNOT SOLD SEPARATE NOZZLE2
7NSS不单独销售 怠速针NOT SOLD SEPARATE IDLE NEEDLE2
8NSSNOT SOLD SEPARATE SPRING-IDLE MIXTURE2
9NSS浮子销(不单独销售)NOT SOLD SEPARATE FLOAT PIN6
10NSS浮子杆(不单独销售)NOT SOLD SEPARATE FLOAT LEVER2
1119273浮子FLOAT2
126195燃油杯BOWL Fuel2
129483燃油杯BOWL Fuel2
13NSS不单独销售 燃油杯衬垫NOT SOLD SEPARATE GASKET-FUEL BOWL2
14NSSNOT SOLD SEPARATE SCREW-FUEL BOWL8
156199主量孔塞PLUG MAIN JET2
163518主量孔(.082)JET (.082) MAIN2
17NSSNOT SOLD SEPARATE GASKET-MAIN JET PLUG2
18NSS燃油入口滤网(不单独销售)NOT SOLD SEPARATE SCREEN-FUEL INLET2
19NSS不单独出售-韦氏塞(9/16英寸)NOT SOLD SEPARATE WELCH PLUG (9/16")4
204807油门轴SHAFT Throttle1
207942节流阀轴SHAFT THROTTLE1
217639节气门阀VALVE THROTTLE2
22NSSNOT SOLD SEPARATE SCREW-VALVE TO THROTTLE SHAFT4
236204节气门轴密封SEAL THROTTLE SHAFT2
246203节气门轴垫圈WASHER THROTTLE SHAFT2
25NSS不单独销售 油门回位弹簧NOT SOLD SEPARATE SPRING-THROTTLE RETURN2
266198加浓阀总成VALVE ASSEMBLY ENRICHMENT2
27NSSNOT SOLD SEPARATE SCREW-ENRICHMENT BRACKET2
28NSS不单独出售-韦氏塞(7/16英寸)NOT SOLD SEPARATE WELCH PLUG (7/16")2
2973377化油器衬垫GASKET CARBURETOR2
29733771衬垫GASKET2
-6200衬垫套件GASKET KIT2
-19274维修套件REPAIR KIT2
-812953化油器维修套件REPAIR KIT - CARB2
-19272维修套件REPAIR KIT2
-812953化油器维修套件REPAIR KIT - CARB2
-73645A87衬垫套件GASKET SET1

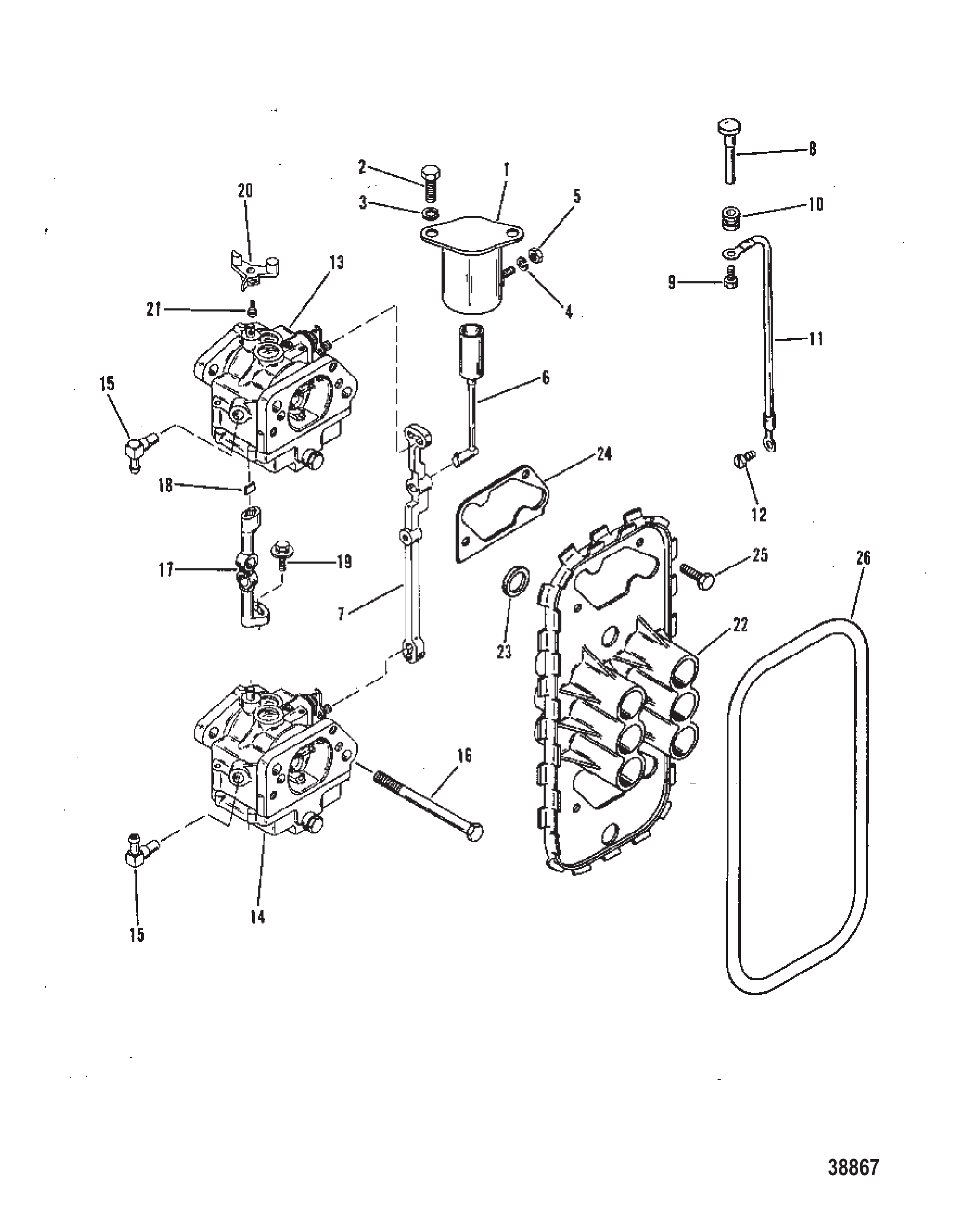

图 11化油器连杆 CARBURETOR LINKAGE
化油器连杆 CARBURETOR LINKAGE
REF零件编号中文名称英文名称数量
154293A10阻风门电磁阀总成SOLENOID ASSEMBLY Choke1
259645螺钉 (0.312-18 x 0.750)SCREW (.312-18 x .750)2
2824941螺钉 (0.312-18 x 0.750)SCREW (.312-18 x .750)2
326993LOCKWASHER (.312) CHOKE SOLENOID SCREW2
38M0204647锁紧垫圈 (.312)LOCKWASHER (.312)2
426996锁紧垫圈(#10)不锈钢阻风门电磁阀端子LOCKWASHER (#10) Stainless Steel CHOKE SOLENOID TERMINAL1
568219螺母(#10-32)不锈钢阻风门电磁阀端子NUT (#10-32) Stainless Steel CHOKE SOLENOID TERMINAL1
689008A2柱塞总成PLUNGER ASSEMBLY1
773400阻风门拉杆ROD Choke1
890242A1旋钮总成KNOB ASSEMBLY1
977137螺钉(.190-16 x .620)阻风门拉线至旋钮SCREW (.190-16 x .620) WIRE TO CHOKE KNOB1
1020116阻风门旋钮护圈GROMMET CHOKE KNOB1
1174263阻风门旋钮至拉杆线(黑色)WIRE CHOKE KNOB TO CHOKE ROD (BLACK)1
1262568螺钉(#10-16 x .375)拉线至阻风门拉杆SCREW (#10-16 x .375) WIRE TO CHOKE ROD1
136071A41化油器总成(上部)CARBURETOR ASSEMBLY (TOP)1
136071A57化油器CARBURETOR1
146071A42化油器总成(下部)CARBURETOR ASSEMBLY (BOTTOM)1
146071A58化油器CARBURETOR1
1564704化油器接头FITTING CARBURETOR2
1519688接头FITTING2
1652743螺钉(.312-18 x 3.750)SCREW (.312-18 x 3.750)4
1753720A2下部化油器联轴器总成COUPLING ASSEMBLY LOWER CARBURETOR1
1889694KEY COUPLING1
1966104螺钉 (#8-32 x 0.790)SCREW (#8-32 x .790)1
2073847节气门执行器(上部化油器)ACTUATOR THROTTLE (UPPER CARBURETOR)1
2160293螺钉(#5-40 x .500)SCREW (#5-40 x .500)1
2273408化油器板PLATE CARBURETOR1
2373398化油器板衬垫GASKET CARBURETOR PLATE2
2476952化油器板至化油器衬垫GASKET CARBURETOR PLATE TO CARBURETOR2
2528635不锈钢螺钉(.250-20 x .620)板至化油器SCREW (.250-20 x .620) Stainless Steel PLATE TO CARBURETOR4
2673647化油器板密封件SEAL CARBURETOR PLATE1

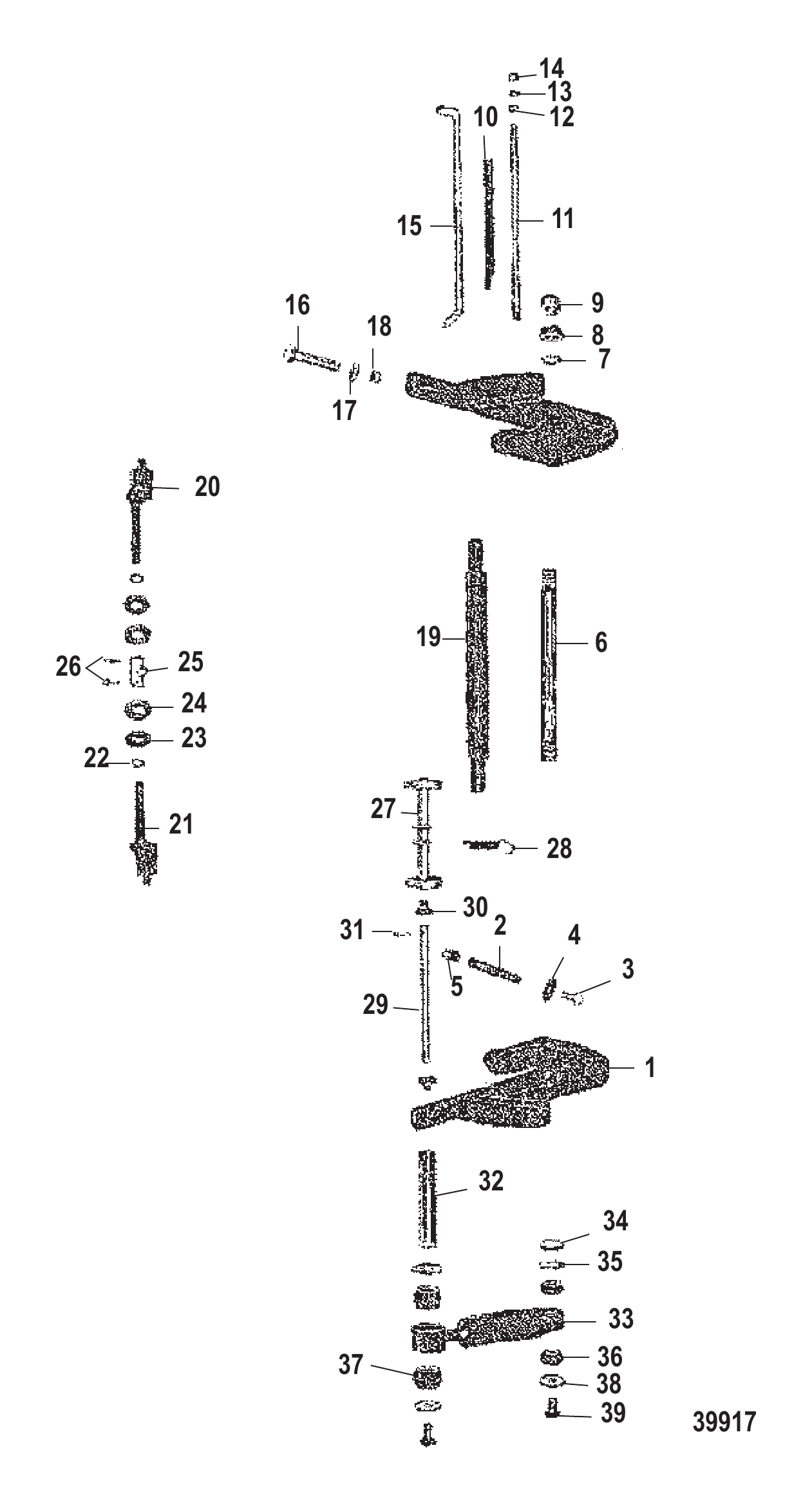

图 12夹紧支架与倒挡锁(短轴) CLAMP BRACKET AND REVERSE LOCK (SHORT SHAFT)
夹紧支架与倒挡锁(短轴) CLAMP BRACKET AND REVERSE LOCK (SHORT SHAFT)
REF零件编号中文名称英文名称数量
17374A4夹具支架总成CLAMP BRACKET ASSEMBLY2
18394A2夹具支架总成CLAMP BRACKET ASSEMBLY2
278492A1蝶形螺钉总成THUMB SCREW ASSEMBLY2
378495螺丝(.312-24 x .680)蝶形螺丝SCREW (.312-24 x .680) THUMB SCREW2
478493蝶形螺丝垫圈WASHER THUMB SCREW2
575043拇指螺丝帽CAP THUMB SCREW2
674528倾斜管TILT TUBE1
68M0041936倾斜管TILT TUBE1
789634倾斜管垫圈WASHER TILT TUBE2
856041螺母(.875-14)倾斜管NUT (.875-14) TILT TUBE2
8858869螺母 (.875-14)NUT (.875-14)2
953078倾斜管塑料盖CAP PLASTIC - TILT TUBE2
1059624夹紧支架螺柱隔套SPACER CLAMP BRACKET STUD1
1159625螺柱STUD1
1236001卡箍支架双头螺栓垫圈WASHER CLAMP BRACKET STUD1
1326993锁紧垫圈(.312)夹支架螺柱LOCKWASHER (.312) CLAMP BRACKET STUD2
138M0204647锁紧垫圈 (.312)LOCKWASHER (.312)2
1428770螺母(.312-24)不锈钢-夹支架螺柱NUT (.312-24) Stainless Steel CLAMP BRACKET STUD2
1549930A1倾斜锁销总成PIN ASSEMBLY Tilt Lock1
158M0026068倾斜锁销总成PIN ASSEMBLY Tilt Lock1
1668298夹紧支架固定螺栓（0.375-16 x 3.250）BOLT (.375-16 x 3.250) CLAMP BRACKET TO TRANSOM2
1768410夹紧支架螺栓垫圈WASHER CLAMP BRACKET BOLT2
1746765垫圈 (.390 x 1.50 x .120)WASHER (.390 x 1.50 x .120)2
1668299螺丝(.375-16 x 3.00)不锈钢夹紧支架至艉板SCREW (.375-16 x 3.00) Stainless Steel CLAMP BRACKET TO TRANSOM2
1768300WASHER (..88 x .39 x .06) CLAMP BRACKET BOLT2
1899405夹紧支架螺栓螺母NUT CLAMP BRACKET BOLT4
1882671112螺母（.375-16）NUT (.375-16)4
1928416上部减震器安装销PIN UPPER SHOCK MOUNTING1
2076386倾斜锁定总成（右舷）TILT LOCK ASSEMBLY STARBOARD1
2176385倾斜锁定总成（左舷）TILT LOCK ASSEMBLY PORT1
2176385T杠杆LEVER1
2262702O-RING (.301 x .070) TILT LOCK2
22627021O型圈(.301 x .070)O-RING (.301 x .070)2
2376388倾斜锁紧垫片WASHER TILT LOCK2
2422734旋转支架油封(倾斜锁)SEAL Oil SWIVEL BRACKET (TILT LOCK)2
2579659倾斜锁定联轴器COUPLING TILT LOCK1
2647959倾斜锁联轴器开口销COTTER PIN TILT LOCK COUPLING2
2787431倒挡锁定总成LOCK ASSEMBLY Reverse2
2792405A1倒挡锁定总成LOCK ASSEMBLY Reverse1
2714664A3倒车锁REVERESE LOCK1
2878203A1弹簧SPRING1
2878203A2弹簧SPRING1
2878203A2弹簧SPRING1
2956349SHAFT REVERSE LOCK PIVOT1
3069132枢轴衬套BUSHING PIVOT SHAFT2
3145882轴锁紧开口销COTTER PIN LOCK TO SHAFT1
3265447下减震器安装销PIN LOWER SHOCK MOUNTING2
32696531销PIN2
3358780A3水星减震器SHOCK ABSORBER MERCURY2
3358780A7减震器SHOCK ABSORBER2
3473203上减震器衬套至支架BUSHING UPPER SHOCK BUSHING TO BRACKET2
3528196上衬套固定垫片(内)WASHER UPPER BUSHING RETAINER (INNER)2
3632171BUSHING RUBBER - SHOCK ABSORBER (UPPER)4
3728198BUSHING RUBBER - SHOCK ABSORBER (LOWER)4
3869374上下减震销垫片(下)WASHER UPPER/LOWER SHOCK PIN (LOWER)4
3969375上下减震销螺丝SCREW UPPER AND LOWER SHOCK PIN4
-73645A32衬垫套件GASKET SET1
-73645A87衬垫套件GASKET SET1
图 13外罩与前盖 COWLING AND FRONT COVER
外罩与前盖 COWLING AND FRONT COVER
REF零件编号中文名称英文名称数量
17927A8前盖组件FRONT COVER ASSEMBLY1
16393A6前盖FRONT COVER1
256849旋钮KNOB1
273786旋钮KNOB1
330771旋钮盖垫圈(橡胶)WASHER COVER KNOB (RUBBER)2
475246旋钮盖垫圈(钢制)WASHER COVER KNOB (STEEL)2
530772旋钮盖张力弹簧SPRING TENSION-COVER KNOB1
629077PIN Roll TENSION SPRING TO KNOB1
747341A1手动/应急启动拉绳手柄套件ROPE AND HANDLE KIT Manual/Emergency Start STARTER1
747341A11手动启动绳柄套件ROPE AND HANDLE KIT Manual Starting1
894923消音垫PAD SOUND ABSORBING2
876434消音密封条SEAL SOUND ABSORBING2
938674隔音毯BLANKET SOUND ABSORBING1
103248A16环绕式外罩总成WRAP AROUND COWL ASSEMBLY1
106394A7环绕式外罩WRAP AROUND COWL1
1146785A1罩壳锁扣总成LATCH ASSEMBLY Cowl2
1230413罩锁钩HOOK COWL LATCH2

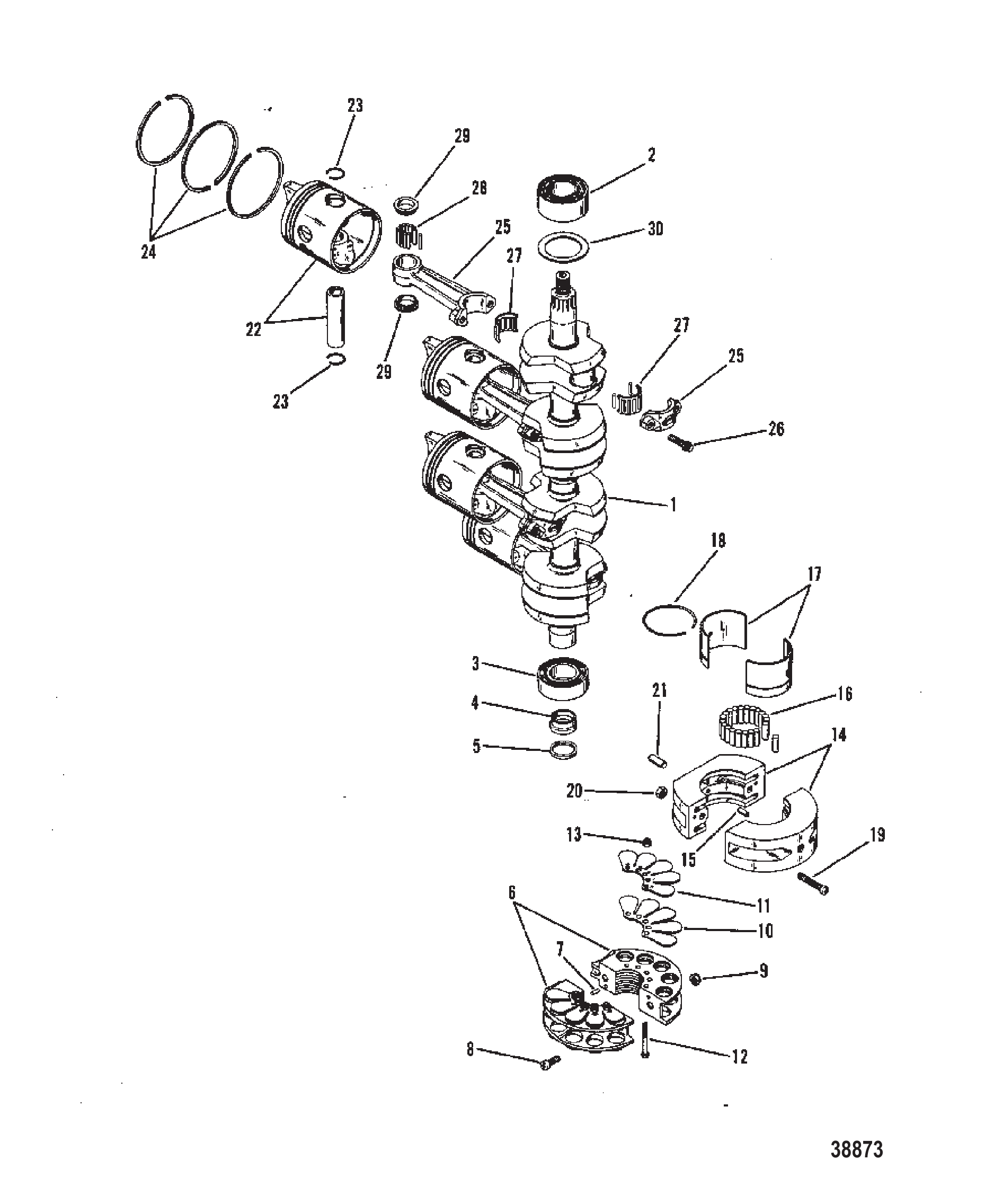

图 14曲轴、活塞与连杆 CRANKSHAFT, PISTON AND CONNECTING ROD
曲轴、活塞与连杆 CRANKSHAFT, PISTON AND CONNECTING ROD
REF零件编号中文名称英文名称数量
19074A2曲轴总成CRANKSHAFT ASSEMBLY1
262567上部滚珠轴承BEARING Ball UPPER1
262567T滚珠轴承BALL BEARING1
363742下球轴承BEARING Ball LOWER1
363742T滚珠轴承BEARING Ball1
454196A6托架总成CARRIER ASSEMBLY1
565800填料载体PACKING CARRIER1
65266A5主轴承总成(阀门型)BEARING ASSEMBLY Main (VALVE TYPE)2
65266T5簧片阀总成REED BLOCK ASSY2
720032PIN Dowel MAIN BEARING4
845775主轴承螺钉（#12-28 x 0.560）SCREW (#12-28 x .560) MAIN BEARING4
945774主轴承夹紧螺钉螺母NUT MAIN BEARING CLAMPING SCREW4
1056007A1匹配主轴承的簧片组REED SET MATCHED-MAIN BEARING2
1156008主轴承簧片阀限位器STOP Reed MAIN BEARING REED VALVES8
1262204簧片止动安装螺钉SCREW REED STOP MOUNTING20
1353153簧片止动安装螺钉螺母NUT REED STOP MOUNTING SCREW20
145397A4中央主轴承总成BEARING ASSEMBLY Center Main1
1520032定位销中心主轴承PIN Dowel CENTER MAIN BEARING2
1671422滚针轴承BEARING Needle56
16714221轴承BEARING56
1726113外座圈(配对)RACE OUTER (PAIR)1
1726113T中心主座圈RACE-CENTER MAIN1
1826933外座圈卡紧卡环RING Snap OUTER RACE CLAMPING1
1922968中心主轴承夹紧螺钉(.250-28 x 1.25)SCREW (.250-28 x 1.25) CENTER MAIN BEARING CLAMPING2
2020184主轴承夹紧螺钉螺母(1/4-28X7/32)NUT (1/4-28X7/32) MAIN BEARING CLAMPING SCREW2
208M0207775螺母 @5NUT @52
2147246阶梯式定位销PIN Dowel STEPPED1
228896A3活塞总成PISTON ASSEMBLY4
229137A12标准活塞总成PISTON ASSY-STD4
228897A2活塞总成PISTON ASSEMBLYAR
229137A13活塞总成-.015PISTON ASSY-.015AR
228898A2活塞总成PISTON ASSEMBLYAR
229137A14活塞总成-.030PISTON ASSY-.030AR
2352035锁环RING Lock8
23857196锁紧环LOCK RING8
2478816A12环RING1
2478811A12活塞环组-.015加大RING SET Piston - .015 Oversize1
2488392A12活塞环组-.030加大RING SET Piston - .030 Oversize1
258101A3连杆总成CONNECTING ROD ASSEMBLY4
2691012连杆专用螺钉（.250-28）SCREW (.250-28 Special) CONNECTING ROD8
2762596A1曲柄销轴承总成BEARING ASSEMBLY CRANKPIN4
2847270活塞销轴承BEARING PISTON PIN116
288M0214934滚针轴承@200BRG-NEEDLE @200116
2947247定位针垫圈WASHER NEEDLE LOCATING8
298M0032839垫片@5WASHER @58
3038095A1上部滚珠轴承垫片SHIM UPPER BALL BEARINGAR
-73645A87衬垫套件GASKET SET1
图 15气缸体与曲轴箱总成 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
气缸体与曲轴箱总成 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
REF零件编号中文名称英文名称数量
18338A3气缸体总成CYLINDER BLOCK ASSEMBLY1
253650曲轴箱至气缸体衬垫GASKET CRANKCASE TO CYLINDER BLOCK2
356029启动电机盖(上部)COVER STARTER MOTOR(UPPER)1
356029T盖板COVER1
431984螺钉(.312-18 x 1.375)盖至曲轴箱SCREW (.312-18 x 1.375) COVER TO CRANKCASE1
435385螺钉(.312-18 x 1-3/4)盖至曲轴箱SCREW (.312-18 x 1-3/4) COVER TO CRANKCASE1
526993盖螺钉锁紧垫圈(.312)LOCKWASHER (.312) COVER SCREW4
58M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
676867启动电机盖(下部)COVER STARTER MOTOR (LOWER)1
773279螺钉(.312-18 x 1.880)盖至曲轴箱SCREW (.312-18 x 1.880) COVER TO CRANKCASE1
773658盖至曲轴箱螺钉(5-1/2英寸)SCREW COVER TO CRANKCASE (5-1/2")1
864281双头螺柱(.375-16/.375-24 x 1.880)STUD (.375-16/.375-24 x 1.880)2
920033定位销曲轴箱至气缸体PIN Dowel CRANKCASE TO CYLINDER BLOCK2
943044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
1063779定位销(.250 x .625)气缸体至主轴承PIN Dowel (.250 x .625) CYLINDER BLOCK TO MAIN BEARING2
1166517曲轴箱通气限流器RESTRICTOR CRANKCASE BLEED3
1264282双头螺柱(4英寸)气缸体至排气板STUD (4 In.) CYLINDER BLOCK TO EXHAUST PLATE (4")6
1357841螺钉(.312-18 x 2.750)SCREW (.312-18 x 2.750)2
1374824螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)2
1373657螺钉(0.312-18 x 1.50)SCREW (.312-18 x 1.50)12
1420359螺钉(.375-16 x 1.00)SCREW (.375-16 x 1.00)1
1520091轴承锁紧螺钉止动垫圈TAB WASHER BEARING LOCKING SCREW1
1642866顶部泄放软管单向阀CHECK VALVE BLEED HOSE-TOP1
179938779气缸泄放软管(15-1/2英寸)HOSE CYLINDER BLEED (15-1/2")1
1842867底部泄放软管单向阀CHECK VALVE BLEED HOSE-BOTTOM1
18428671止回阀CHECK VALVE1
1999664弯头ELBOW1
1999664290度弯头接头(0.125-27x0.250)尼龙FITTING Elbow 90 Degree (.125-27 x .250) Nylon1
2099127109平衡管路(散装57英寸)(6-1/4英寸)LINE (57.00 Inches Bulk) BALANCE (6-1/4")1
208M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
21130342三通平衡软管至气缸体-下部TEE BALANCE HOSE TO CYLINDER BLOCK-LOWER1
229938779平衡软管(5英寸)HOSE BALANCE (5")1
2365857进气口盖连接器CONNECTOR AIR INLET COVER1
2356759倒钩接头FITTING Barbed1
2425970动力头双头螺栓垫片WASHER POWERHEAD STUDS8
2420553垫圈(.406 x .734 x .063)WASHER (.406 x .734 x .063)8
2569254动力头双头螺栓螺母NUT POWERHEAD STUDS2
2534932动力头双头螺栓螺母(.375-24)NUT (.375-24) POWERHEAD STUDS6
2582671013不锈钢螺母 (.375-24)NUT (.375-24) Stainless Steel6
-97471A32动力头POWERHEAD1
-97471T87船用动力头POWERHEAD MARINE1
-97471A87动力头总成POWERHEAD ASSEMBLY1
-97471T87船用动力头POWERHEAD MARINE1
图 16驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY
驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY
REF零件编号中文名称英文名称数量
15239A4驱动轴壳体总成-水星HOUSING ASSEMBLY Driveshaft - Mercury1
15239A51驱动轴壳体总成-马林HOUSING ASSEMBLY Driveshaft - Mariner1
256295双头螺柱(.437 x 2.69)STUD (.437 x 2.69)2
364649PLUG PLASTIC - TRIM TAB SCREW HOLE1
437417水星装饰盖COVER TRIM MERCURY1
437417F2马林装饰盖COVER TRIM MARINER1
557807不锈钢螺钉(#10-16 x 0.750)SCREW (#10-16 x .750) Stainless Steel4
692012装饰盖螺钉衬套GROMMET TRIM COVER SCREW4
68M0079730密封圈套件GROMMET KIT4
788238A4装饰盖螺钉线缆总成CABLE ASSEMBLY TRIM COVER SCREW2
788238T01拉线总成CABLE ASSEMBLY2
862568接地带固定螺钉(#10-16 x 0.375)SCREW (#10-16 x .375) GROUND STRAP ATTACHING2
960897进水口管TUBE WATER INLET1
1078184T排气管TUBE EXHAUST1
1165638排气管护套BOOT EXHAUST TUBE2
1275298下橡胶支座MOUNT RUBBER - LOWER2
1343426上支座螺钉SCREW UPPER MOUNT2
1425096支座螺钉螺母NUT MOUNT SCREW2
1530119上支座螺钉垫片(外径0.875英寸)WASHER (.875 Inch Outside Diameter) UPPER MOUNT SCREW2
1688238A2接地线总成CABLE ASSEMBLY Ground1
1688238A10接地线总成CABLE ASSEMBLY Ground1
1745176齿轮箱双头螺栓不锈钢垫片(0.453 x 0.812 x 0.105)WASHER (.453 x .812 x .105) Stainless Steel GEAR HOUSING STUDS1
1829489齿轮箱双头螺栓螺母NUT GEAR HOUSING STUDS1
1945176齿轮箱双头螺栓不锈钢垫片(0.453 x 0.812 x 0.105)WASHER (.453 x .812 x .105) Stainless Steel GEAR HOUSING STUDS2
2034933齿轮箱不锈钢螺母(.437-20)NUT (.437-20) Stainless Steel GEAR HOUSING2
208M0204653螺母NUT2
2135608下安装夹至驱动轴壳体CLAMP LOWER MOUNT TO DRIVESHAFT HOUSING2
2235522弹簧张力-下安装夹SPRING TENSION - LOWER MOUNT CLAMP4
2329256螺钉 (0.312-18 x 0.875)SCREW (.312-18 x .875)4
2435474T下安装夹盖COVER LOWER MOUNT CLAMP2
2435474F2下安装夹盖COVER Lower Mount Clamp2
2535521下安装夹盖螺母NUT LOWER MOUNT CLAMP COVER2
2687884螺钉 (#12-14 x 0.920)SCREW (#12-14 x .920)2
2728200驱动轴壳体螺钉(.375-24 x 2.875)SCREW (.375-24 x 2.875) DRIVESHAFT HOUSING1
2834714壳体螺钉垫圈WASHER HOUSING SCREW2
2925269壳体螺钉螺母(.375-24)NUT (.375-24) HOUSING SCREW1
3041508螺丝(.250-20 x .500)不锈钢接地线SCREW (.250-20 x .500) Stainless Steel GROUND WIRE1
3149339下支座垫片(0.8125)WASHER (.8125) LOWER MOUNT2

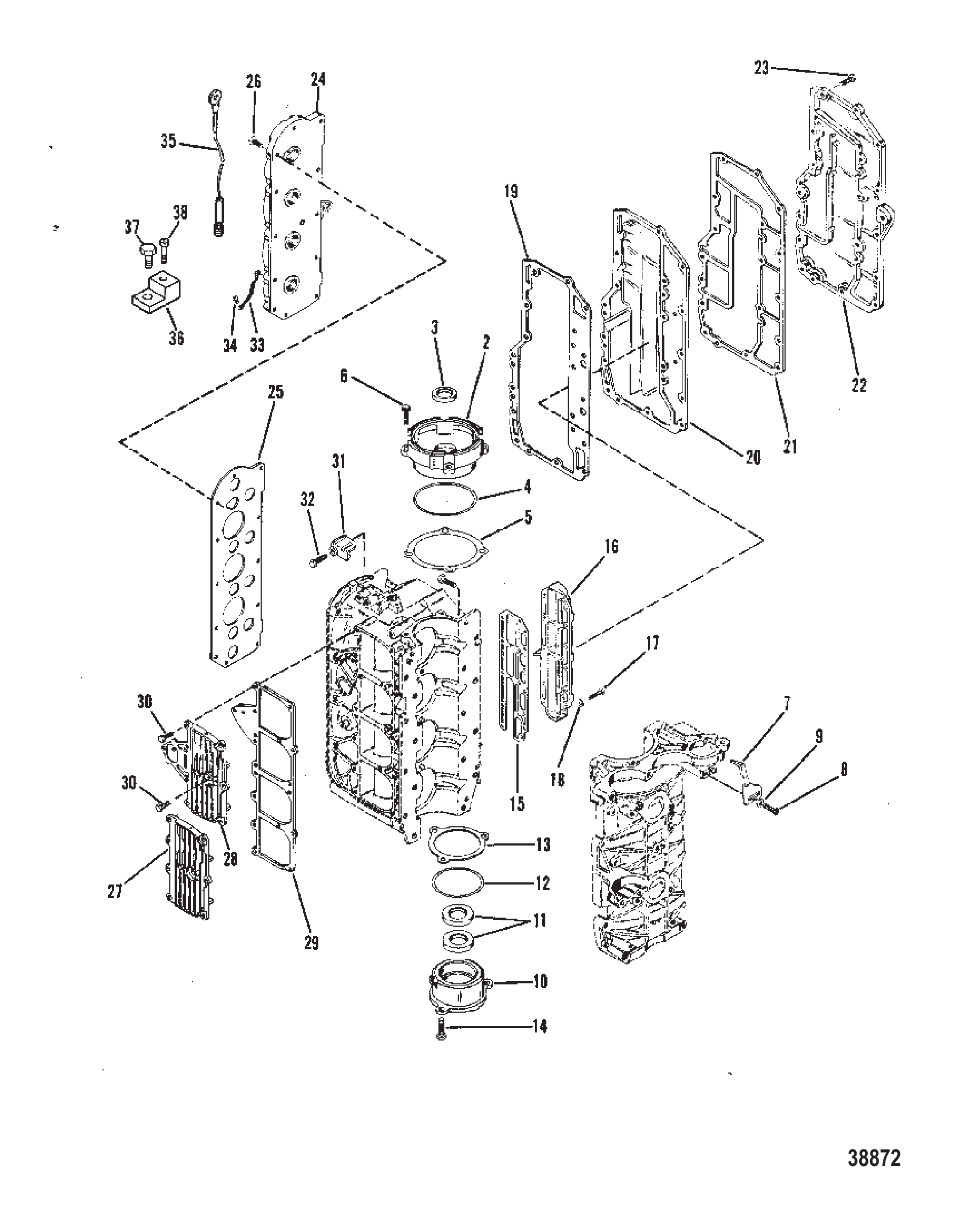

图 17端盖、歧管与排气罩 END CAPS, MANIFOLD AND EXHAUST COVER
端盖、歧管与排气罩 END CAPS, MANIFOLD AND EXHAUST COVER
REF零件编号中文名称英文名称数量
25940A2上端盖总成END CAP ASSEMBLY UPPER1
341953密封件SEAL1
447254O型圈O-RING1
573644A1端盖至曲轴箱垫片(.006-10)SHIM END CAP TO CRANKCASE (.006-10)AR
673169上端盖螺钉(1英寸)SCREW UPPER END CAP (1")4
6812618不锈钢螺钉(.312-18 x 1.00)带尼龙垫SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch4
743352正时指针POINTER TIMING1
898510正时指针螺钉(.250-20 x 0.75)(3/4英寸)SCREW (.250-20 x .75) TIMING POINTER (3/4")1
865746螺钉(.250-20 x .750)SCREW (.250-20 x .750)1
920533正时指针螺钉垫片WASHER TIMING POINTER SCREW1
105410A1下端盖总成END CAP ASSEMBLY LOWER1
105410T1端盖总成END CAP ASSY1
1141953密封件SEAL2
1232546O型圈O-RING1
1320085A1端盖至曲轴箱垫片组(.005-10)SHIM SET END CAP TO CRANKCASE (.005-10)AR
1469034螺钉带锁紧垫圈(.312-18 x 1.00)SCREW AND LOCKWASHER (.312-18 x 1.00)3
1430225螺钉带锁紧垫圈(.312-18 x 1.00)SCREW WITH LOCKWASHER (.312-18 x 1.00)3
1573665水套盖衬垫GASKET WATER JACKET COVER1
1676198气缸体水套盖COVER WATER JACKET-CYLINDER BLOCK1
1753167水套盖螺钉(.312-18 x 0.880)SCREW (.312-18 x .880) WATER JACKET COVER16
1753167T螺钉 0.312-18X 0.88SCREW .312-18X .8816
1870132水套盖螺钉不锈钢垫片(0.323 x 0.563 x 0.063)WASHER (.323 x .563 x .063) Stainless Steel WATER JACKET COVER SCREW16
188M0042642垫圈(.323 x .562 x .063)WASHER (.323 x .562 x .063)16
19854981气缸体至挡板衬垫GASKET CYLINDER BLOCK TO BAFFLE PLATE1
2073436挡板PLATE BAFFLE1
21854961挡板至排气盖垫片GASKET BAFFLE PLATE TO EXHAUST COVER1
2278277A1排气歧管盖COVER EXHAUST MANIFOLD1
2353576歧管盖螺钉(.312-18 x 1.125)SCREW (.312-18 x 1.125) MANIFOLD COVER18
248340气缸体盖COVER CYLINDER BLOCK1
25961711气缸体盖衬垫GASKET CYLINDER BLOCK COVER1
2669100气缸体盖螺钉(1英寸)SCREW CYLINDER BLOCK COVER (1")12
268M0214943螺钉SCREW12
27733201上换气口盖COVER TRANSFER PORT-TOP1
2714429T上换气口盖COVER TRANSFER PORT-TOP1
2714429A1换气盖TRANSFER COVER1
2887872下换气口盖COVER TRANSFER PORT-BOTTOM1
2973645换气口盖垫片GASKET TRANSFER PORT COVER1
3049668换气口盖螺钉(.250-20 x 0.750)SCREW (.250-20 x .750) TRANSFER PORT COVER14
3137440气缸体支座支架BRACKET MOUNT SUPPORT-CYLINDER BLOCK1
3235386螺丝(.312-18 x 1.00)SCREW (.312-18 x 1.00)1
3346933A3接地带总成STRAP ASEMBLY Ground2
3462568SCREW (#10-16 x .375) GROUND STRAP2
3596829A1温度开关总成SWITCH ASSEMBLY Temperature1
3645915端子排TERMINAL BLOCK1
3762568SCREW (#10-16 x .375) TERMINAL BLOCK1
3828192SCREW (#10-24 x .50) TERMINAL BLOCK1
3872169螺钉(#10-24x0.500)SCREW (#10-24 x .500)1
-73645A87衬垫套件GASKET SET1

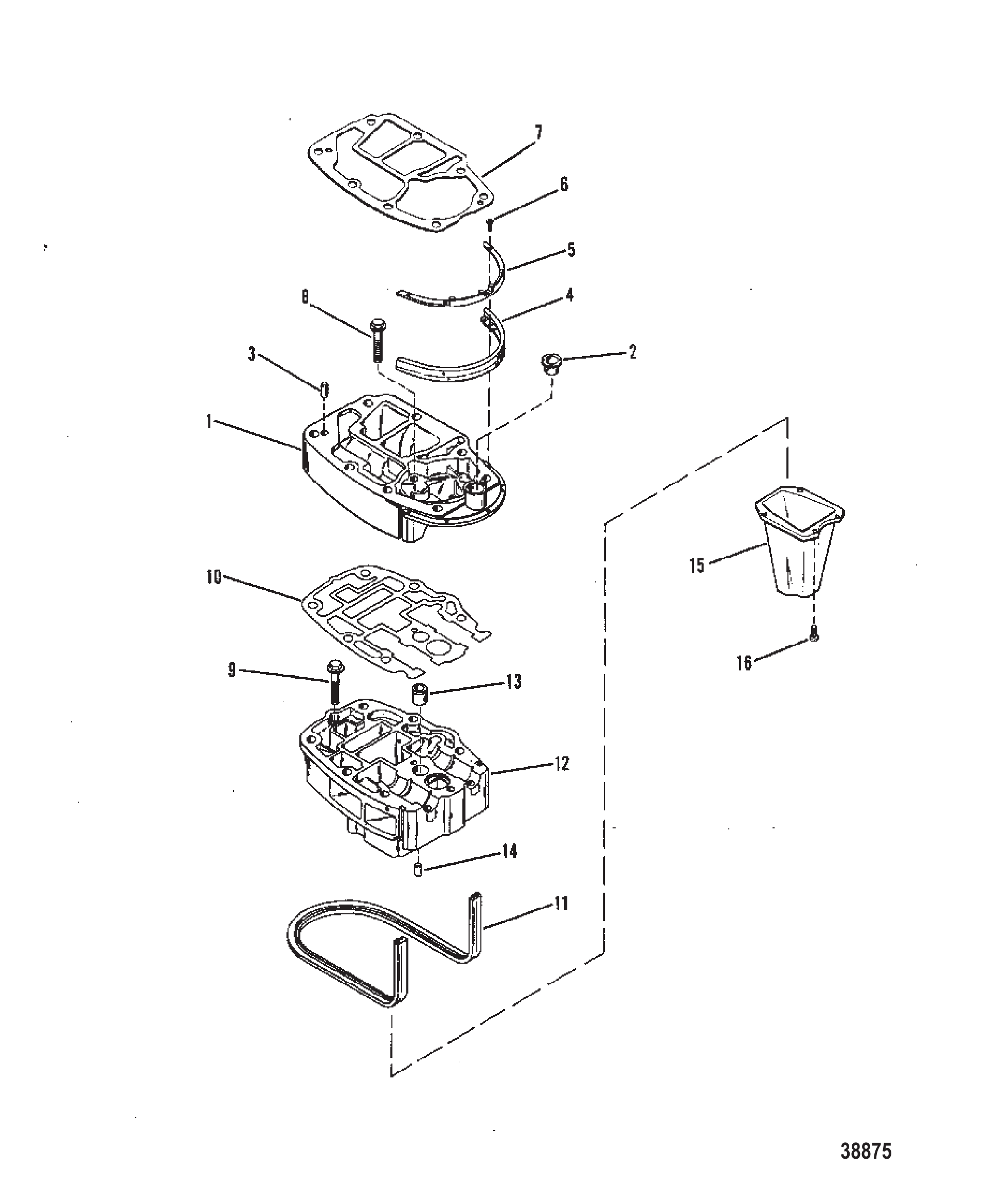

图 18排气延伸板 EXHAUST EXTENSION PLATE
排气延伸板 EXHAUST EXTENSION PLATE
REF零件编号中文名称英文名称数量
143289A2排气延伸板总成PLATE ASSEMBLY EXHAUST EXTENSION1
227132排气延伸板尼龙衬套BUSHING NYLON-EXHAUST EXTENSION PLATE1
323784排气延伸板定位销PIN Dowel EXHAUST EXTENSION PLATE2
437918排气延伸板密封件SEAL EXHAUST EXTENSION PLATE1
599358排气延伸板固定条STRIP RETAINING - EXHAUST EXTENSION PLATE1
637571螺钉(.190-32 x 0.500)SCREW (.190-32 x .500)5
769238动力头衬垫GASKET POWERHEAD1
7692381衬垫GASKET1
866023法兰头螺钉(.312-18 x 2.00)SCREW (.312-18 x 2.00) Flange Head2
966023法兰头螺钉(.312-18 x 2.00)SCREW (.312-18 x 2.00) Flange Head7
1066102驱动轴壳体板衬垫GASKET DRIVESHAFT HOUSING PLATE1
10661021衬垫GASKET1
1160898驱动轴壳体板密封件SEAL DRIVESHAFT HOUSING PLATE1
1243290A4驱动轴壳体板总成PLATE ASSEMBLY DRIVESHAFT HOUSING1
1338970橡胶密封圈-进水管SEAL RUBBER - WATER INLET TUBE1
1423784驱动轴壳体板定位销PIN Dowel DRIVESHAFT HOUSING PLATE2
1599698排气管TUBE Exhaust1
1665414螺钉(3/4英寸)SCREW (3/4 Inches)4
-73645A87衬垫套件GASKET SET1

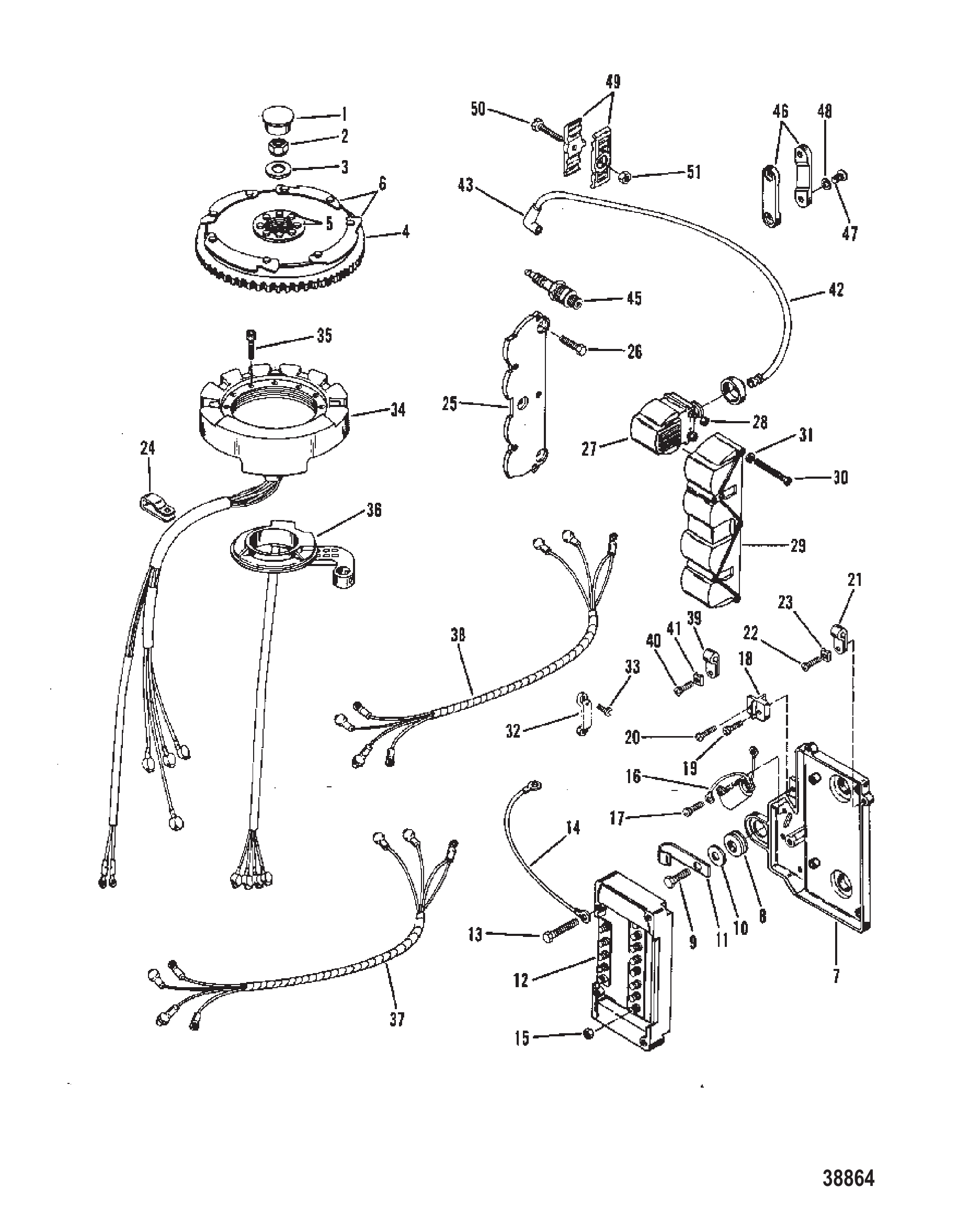

图 19飞轮、定子与点火线圈 FLYWHEEL, STATOR AND IGNITION COIL
飞轮、定子与点火线圈 FLYWHEEL, STATOR AND IGNITION COIL
REF零件编号中文名称英文名称数量
145907塞子 黄色 飞轮拉拔器螺纹PLUG Yellow FLYWHEEL PULLER THREADS1
252901螺母(.625-18)飞轮NUT (.625-18) FLYWHEEL1
368229垫圈（0.641 x 1.250 x 0.190）飞轮螺母WASHER (.641 x 1.250 x .190) FLYWHEEL NUT1
333001垫圈WASHER1
48722A6飞轮总成FLYWHEEL ASSEMBLY1
568997螺钉(.312-24 x .750)SCREW (.312-24 x .750)8
632417螺钉(.250-28 x .625)SCREW (.250-28 x .625)8
790332开关盒安装板PLATE SWITCH BOX1
857009开关盒护孔环GROMMET SWITCH BOX3
857009001护孔环GROMMET3
959645螺钉 (0.312-18 x 0.750)SCREW (.312-18 x .750)3
9824941螺钉 (0.312-18 x 0.750)SCREW (.312-18 x .750)3
1056720开关盒板螺钉不锈钢垫片(0.330 x 0.750 x 0.060)WASHER (.330 x .750 x .060) Stainless Steel SWITCH BOX PLATE SCREW3
1147483开关盒线束和燃油管J型夹J CLIP SWITCH BOX WIRES AND FUEL LINE1
125772A2开关盒总成SWITCHBOX ASSEMBLY1
125772A7开关盒总成SWITCHBOX ASSEMBLY1
1320619螺钉（#12-24 x 1.25）SCREW (#12-24 x 1.25)4
1465999A5线束总成WIRE ASSEMBLY2
1545076螺母(#10-32)黄铜开关盒端子NUT (#10-32) Brass SWITCH BOX TERMINAL13
1658124A19水银开关总成MERCURY SWITCH ASSEMBLY1
1737571螺钉(.190-32 x 0.500)SCREW (.190-32 x .500)1
1866986端子排TERMINAL BLOCK1
1920646螺钉(0.190-32x0.62)SCREW (.190-32 x .62)1
1938055螺钉(0.190-32x0.620)SCREW (.190-32 x .620)1
2042813螺钉（#10-32 X 0.380）SCREW (#10-32 X .380)1
2122875线束夹CLIP WIRES AND HARNESS2
2235519螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)2
2369205C形垫圈线夹螺钉C WASHER CLIP SCREW2
238M0084613C形垫圈C-WASHER2
2447483触发板线束J型夹J CLIP TRIGGER PLATE HARNESS1
2573395板 安装-点火线圈PLATE MOUNTING-IGNITION COIL1
2628668螺钉 (.250-20 x .875) 不锈钢SCREW (.250-20 x .875) Stainless Steel3
277370A13点火线圈总成COIL ASSEMBLY Ignition4
278M0230859点火线圈总成COIL IGNITION ASY4
2845076螺母(#10-32)黄铜点火线圈端子NUT (#10-32) Brass IGNITION COIL TERMINAL8
2987554点火线圈盖COVER IGNITION COIL1
3088856螺钉(0.190-32 x 2.00)SCREW (.190-32 x 2.00)5
3130164垫圈(.192 x .375 x .0312)不锈钢盖螺钉WASHER (.192 x .375 x .0312) Stainless Steel COVER SCREW5
3277672主线束带STRAP PRIMARY HARNESS1
3348408固定带螺钉(#10-16 x 0.500)SCREW (#10-16 x .500) STRAP ATTACHING2
345454A26定子总成STATOR ASSEMBLY1
3575840螺钉 (#10-24 x 0.880)SCREW (#10-24 x .880)4
3696453A2触发板总成TRIGGER PLATE ASSEMBLY1
3777617主线束总成（1-2缸）HARNESS ASSEMBLY PRIMARY (CYLINDERS 1 AND 2)1
3877618主线束总成（3-4缸）HARNESS ASSEMBLY PRIMARY (CYLINDERS 3 AND 4)1
3939844线束固定夹CLAMP HARNESS ATTACHING1
3945806卡箍CLAMP1
4035519螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)1
4169205线束夹螺钉C型垫圈C WASHER HARNESS CLAMP SCREW1
418M0084613C形垫圈C-WASHER1
4299215A25火花塞导线总成LEAD ASSEMBLY SPARK PLUG4
42813715A1引线LEAD WIRE4
4363709A1火花塞护套/端子套件BOOT/TERMINAL KIT SPARK PLUG4
4597182火花塞（NGK-BUHW-2）SPARK PLUG (NGK-BUHW-2)4
45896329833SP #L78V @4SP #L78V @44
4514103570火花塞SPARK PLUG4
4514103QORD 896329838ORD 8963298384
4678278导线固定器RETAINER WIRE2
4735519导线固定器螺钉（#10-16 x 0.500）SCREW (#10-16 x .500) WIRE RETAINER2
4821273导线固定器螺钉垫圈WASHER WIRE RETAINER SCREW2
4963319火花塞导线固定器RETAINER SPARK PLUG WIRE2
5046378螺钉(.250-28 x 1.00)SCREW (.250-28 x 1.00)1
5120013固定器螺钉螺母（0.250-28）NUT (.250-28) RETAINER SCREW1

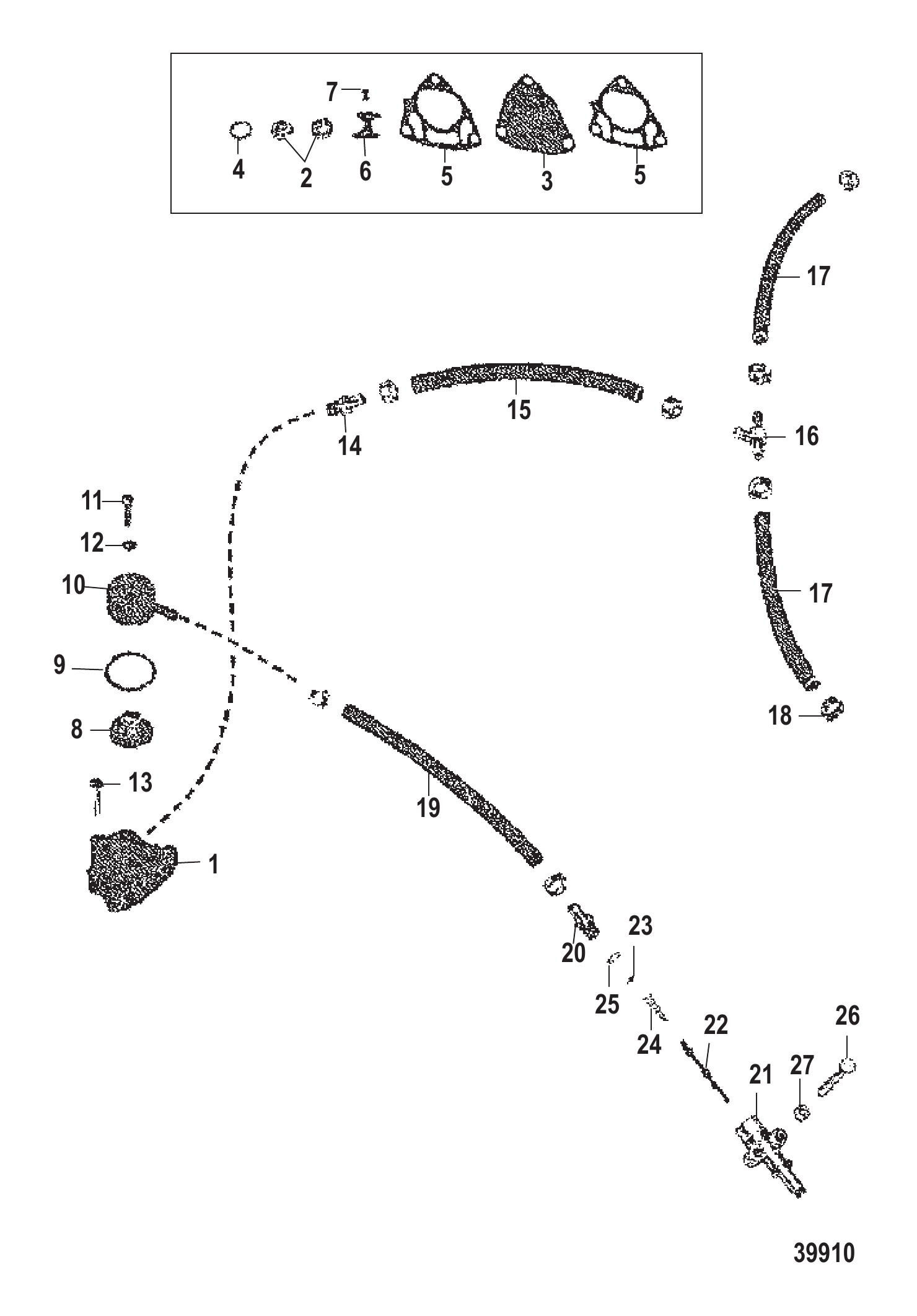

图 20燃油泵及油管 FUEL PUMP AND FUEL LINES
燃油泵及油管 FUEL PUMP AND FUEL LINES
REF零件编号中文名称英文名称数量
173434A1燃油泵总成PUMP ASSEMBLY Fuel1
173434A5燃油泵总成PUMP ASSEMBLY Fuel1
230430A5止回阀总成CHECK VALVE ASSEMBLY1
28M0084276止回阀套件CHECK VALVE KIT1
355278A2膜片组件DIAPHRAGM KIT1
355278A5膜片总成DIAPHRAGM ASSEMBLY1
4NSS止回阀衬垫(不单独销售)NOT SOLD SEPARATE GASKET, CHECK VALVE2
5NSS燃油泵衬垫(不单独销售)NOT SOLD SEPARATE GASKET, FUEL PUMP2
623004止回阀固定座RETAINER CHECK VALVE1
720037止回阀至燃油泵螺丝(1/4")SCREW CHECK VALVE TO FUEL PUMP (1/4")2
743725螺钉（#6-32 x 0.380）SCREW (#6-32 x .380)2
873532燃油滤清器FILTER Fuel1
935480燃油泵盖O型圈（1.237 x 0.103）O-RING (1.237 x .103) COVER TO FUEL PUMP1
1094321燃油泵盖COVER FUEL PUMP1
1014805A2盖板COVER1
1137370燃油泵盖螺钉（#10-32 x 0.580）SCREW (#10-32 x .580) COVER TO FUEL PUMP1
1225848盖螺钉衬垫GASKET COVER SCREW1
1370939燃油泵至上转移盖螺丝(1-7/8")SCREW FUEL PUMP TO UPPER TRANSFER COVER (1-7/8")1
1369067螺丝(.250-20 x 1.375)燃油泵至上转移盖SCREW (.250-20 x 1.375) FUEL PUMP TO UPPER TRANSFER COVER2
1464705燃油泵接头(出口)FITTING FUEL PUMP (OUTLET)1
1531583109燃油三通至燃油泵管路(11")LINE Fuel TEE TO FUEL PUMP (11")1
158M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
1673318TEE Plastic FUEL LINE1
1731583109化油器至三通管路(3")LINE Fuel CARBURETOR TO TEE TO CARBURETOR (3")2
178M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)2
1868424燃油管固定夹CLAMP FUEL LINE ATTACHING8
1931583109适配器至燃油泵管路(15")LINE Fuel ADAPTOR TO FUEL PUMP (15")1
198M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
2063187倒刺接头 (.250-18) 燃油管至适配器FITTING Barb (.250-18) FUEL LINE TO ADAPTOR1
2122833适配器止回单元(燃油管)ADAPTER CHECK UNIT (FUEL LINE)1
2130186适配器止回单元(燃油管)ADAPTER CHECK UNIT (FUEL LINE)1
2223069适配器阀杆止回单元STEM CHECK UNIT ADAPTOR1
2230187适配器阀杆止回单元STEM CHECK UNIT ADAPTOR1
2230185Q3油箱端快速断开总成-卡口式QUICK DISCONNECT ASSEMBLY Tank End - Bayonet Style1
2320415适配器阀杆O型圈O-RING ADAPTOR STEM1
2316524燃油接头O型圈O-RING Fuel Connector1
2320415适配器阀杆O型圈O-RING ADAPTOR STEM1
2316524燃油接头O型圈O-RING Fuel Connector1
2423067适配器阀杆弹簧SPRING ADAPTOR STEM1
2423067T弹簧SPRING1
2431089适配器杆条STRIP ADAPTOR STEM1
2530188适配器垫片WASHER ADAPTOR1
2636154螺丝(.250-28 x 1.380)适配器至底罩SCREW (.250-28 x 1.380) ADAPTOR TO BOTTOM COWL2
2736069适配器螺钉螺母NUT ADAPTOR SCREW2
-73645A32衬垫套件GASKET SET1
-73645A87衬垫套件GASKET SET1
图 21齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)
齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)
REF零件编号中文名称英文名称数量
-9011A7齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011A13齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011G34GC 75/90 XL -BLKGC 75/90 XL -BLK1
-9011A9齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011J19ORD 1667-9011J16ORD 1667-9011J161
-9011A14齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011J27ORD 1667-9011J24ORD 1667-9011J241
19011A6基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
19011T73齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
19011A8基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
19011T74ORD 1667-9011T73ORD 1667-9011T731
243043定位销-带孔(.375 x .625)(前)PIN Dowel - With Hole (.375 x .625) (FRONT)1
28M0084244定位销 0.375x0.620PIN Dowel, .375 x .6201
328653SCREW (#10-32 x 0.25) VENT1
420262通气螺钉垫圈WASHER VENT SCREW1
419643密封件SEAL1
579953SCREW (.375-16 x .250) GREASE FILLER1
579953Q04放油螺钉套件SCREW KIT Drain1
620260垫片 排放/加注螺丝WASHER DRAIN/FILLER SCREW2
68M0187157蓝色密封件@15SEAL-BLUE @152
767892SCREW Magnetic DRAIN1
78M0058389放油螺钉套件SCREW KIT Drain1
843044PIN Dowel - Without Hole (.375 x .625) (REAR) (QTY. OF 2 ON X-LONG)1
931640A1平衡板总成TRIM TAB ASSEMBLY1
931640Q4平衡鳍板TRIM TAB1
1015942SCREW (.437-14 x 1.250) TRIM TAB1
10825427不锈钢螺钉(0.437-14x1.250)SCREW (.437-14 x 1.250) Stainless Steel1
1145176WASHER (.453 x .812 x .105) Stainless Steel TRIM TAB SCREW1
1243040A1CARRIER ASSEMBLY ROLLER BEARING1
1243040T1托架总成CARRIER ASSEMBLY1
1344484小齿轮(13齿)GEAR Pinion (13 Teeth)1
1344484T小齿轮(13齿)GEAR Pinion (13 Teeth)1
1435921螺母(.625-18)小齿轮至驱动轴NUT (.625-18) PINION GEAR TO DRIVE SHAFT1
1576039换挡凸轮控制CAM Shift Control1
15760394换挡凸轮控制CAM Shift Control1
1642677A1圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
1744492A1垫片组SHIM SET1
178M0063265垫片组SHIM SET1
1843031A1驱动轴总成DRIVESHAFT ASSEMBLY1
1843032A4驱动轴总成DRIVESHAFT ASSEMBLY1
1942461A1套筒/环套件SLEEVE/RING KIT1
2043055A2盖总成COVER ASSEMBLY1
2043055A4水泵盖总成COVER ASSEMBLY Water Pump1
2143047盖衬垫至齿轮箱GASKET COVER TO GEAR HOUSING1
218M0214931衬垫GASKET1
2243036油封(下)SEAL Oil (LOWER)1
2343035油封(上)SEAL Oil (UPPER)1
238M0245495油封OIL SEAL1
2443033盖衬垫至面板GASKET COVER TO FACE PLATE1
24430331衬垫GASKET1
2543034水泵衬垫至面板GASKET WATER PUMP TO FACE PLATE1
25430341铝盖垫片GASKET Aluminum Cover1
2643050面板FACE PLATE1
26817275A2水泵上壳体套件HOUSING KIT Upper Water Pump1
2743037叶轮驱动键KEY IMPELLER DRIVE1
278M0204723键KEY1
28430261叶轮IMPELLER1
2843026T2叶轮IMPELLER1
2943024A3水泵总成PUMP ASSEMBLY Water1
29817275A2水泵上壳体套件HOUSING KIT Upper Water Pump1
3043023水管密封件SEAL WATER TUBE1
308M0204658密封件SEAL1
314000330SCREW (M6 x 25) COVER6
318M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS6
324000332SCREW (M6 x 35) WATER PUMP4
334002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)10
3443045INSULATOR WATER PUMP SCREW4
348M0204659绝缘体@4INSULATOR @44
3543048A1换挡轴总成SHIFT SHAFT ASSEMBLY1
3543049A1换挡轴总成SHIFT SHAFT ASSEMBLY1
3629641E RING SHIFT SHAFT1
3743052A1换挡轴衬套总成BUSHING ASSEMBLY SHIFT SHAFT1
3743052A4衬套总成BUSHING ASSEMBLY1
3845710O-RING (1.424 x .103) BUSHING1
388M0204681特殊O型圈1.424x0.103O-RING 1.424 x .103, Special1
3976384SEAL Oil BUSHING1
398M0246145油封OIL SEAL1
4040011128SCREW (M6 x 20) Stainless Steel BUSHING2
408M0204741六角带垫大帽螺钉(M6x1.0x20)SCREW (M6 x 1.0 x 20) Hex Wash HD2
-43035A1齿轮箱密封套件SEAL KIT Gear Housing
-43035A4齿轮箱密封套件SEAL KIT Gear Housing
-43024A4水泵维修套件REPAIR KIT Water Pump
-43024A7水泵维修套件REPAIR KIT Water Pump
-43004A86衬垫套件GASKET SET
-43004A99动力头衬垫套件GASKET SET Powerhead
图 22齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)
齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)
REF零件编号中文名称英文名称数量
-9011A7齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011A13齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011G34GC 75/90 XL -BLKGC 75/90 XL -BLK1
-9011A9齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011J19ORD 1667-9011J16ORD 1667-9011J161
-9011A14齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011J27ORD 1667-9011J24ORD 1667-9011J241
19011A6基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
19011T73齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
19011A8基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
19011T74ORD 1667-9011T73ORD 1667-9011T731
4144491A1垫片组SHIM SET1
418M0063266垫片组SHIM SET1
4230894A1圆锥轴承组BEARING SET Cup And Cone1
4312634A2前进齿轮总成GEAR ASSEMBLY Forward1
4312634T02齿轮总成GEAR ASSEMBLY1
4430895滚针轴承BEARING Needle1
4430895T滚针轴承BEARING Needle1
4512239A1凸轮从动件套件FOLLOWER KIT Cam1
45850315A1凸轮从动件套件FOLLOWER KIT Cam1
4630622弹簧SPRING1
4712777棘轮RATCHET1
47822539T离合器CLUTCH1
4830632十字离合器销PIN Cross CLUTCH1
488M0100263十字销PIN Cross1
4930893十字销固定弹簧SPRING CROSS PIN RETAINER1
5012238T螺旋桨轴PROPELLER SHAFT1
5112635倒挡齿轮GEAR Reverse1
5112635T倒挡齿轮GEAR-REVERSE1
5212596A2轴承座总成CARRIER ASSEMBLY Bearing1
528M0168901轴承座总成CARRIER ASSY.1
5397386O型圈 (3.609 x .139)O-RING (3.609 x .139)1
538M0214974O型圈O RING1
5430956滚针轴承BEARING Needle1
5430956T滚针轴承BEARING Needle1
5576868内密封件SEAL (INNER)1
558M0248882油封@5SEAL-OIL @51
5670081油封(外)SEAL Oil (OUTER)1
568M0205729密封件SEAL1
5712578滚针轴承BEARING Needle1
5712578T滚柱轴承BEARING Roller1
5812577止推垫片THRUST WASHER1
5912576推力轴承BEARING Thrust1
604000354螺栓(M8 x 30)轴承座SCREW (M8 x 30) BEARING CARRIER2
614002317垫圈(8.90 X 17.0 X 1.9SS)轴承座螺栓WASHER (8.90 X 17.0 X 1.9SS) BEARING CARRIER SCREW2
6213191A1止推垫片THRUST WASHER1
6213191Q01止推垫片THRUST WASHER1
6331210螺旋桨止动垫圈TAB WASHER PROPELLER1
63816629Q锁紧垫圈TAB WASHER1
6452707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
6452707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
-43035A1齿轮箱密封套件SEAL KIT Gear Housing
-43035A4齿轮箱密封套件SEAL KIT Gear Housing
-43004A86衬垫套件GASKET SET
-43004A99动力头衬垫套件GASKET SET Powerhead

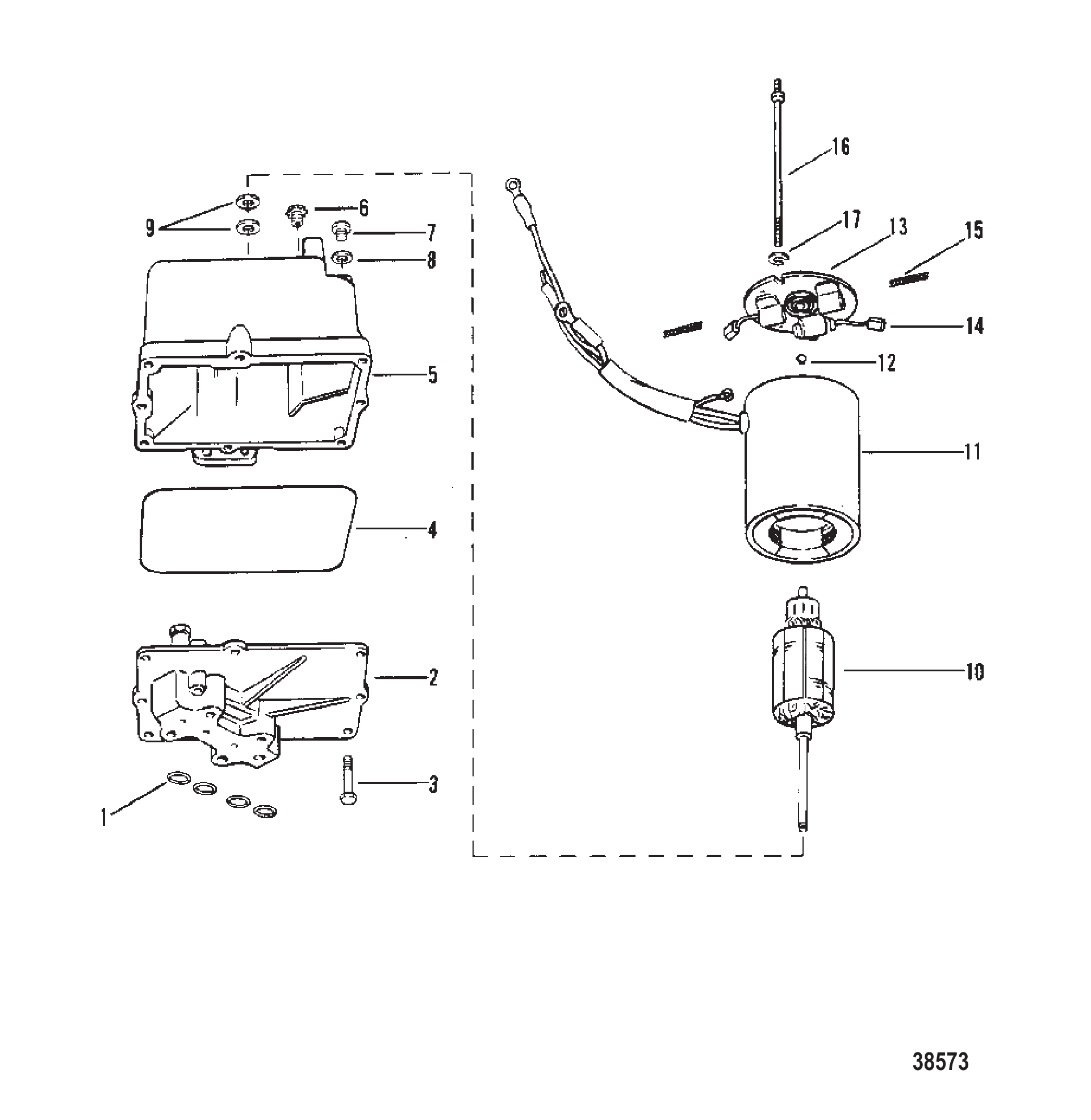

图 23液压泵总成(金属油箱) HYDRAULIC PUMP ASSEMBLY (METAL RESERVOIR)
液压泵总成(金属油箱) HYDRAULIC PUMP ASSEMBLY (METAL RESERVOIR)
REF零件编号中文名称英文名称数量
-76395A5液压泵总成(完整)PUMP ASSEMBLY Hydraulic COMPLETE1
148171O型圈 (.364 x 0.070) 液压泵O-RING (.364. x .070) HYDRAULIC PUMP4
22936阀体与齿轮总成VALVE BODY AND GEAR ASSEMBLY1
27734阀体与齿轮总成VALVE BODY AND GEAR ASSEMBLY1
320411螺钉（.190-24 x .62）阀体至油箱SCREW (.190-24 x .62) VALVE BODY TO RESERVOIR8
42937储液罐至阀体与齿轮密封件SEAL RESERVOIR TO VALVE BODY AND GEAR1
47735密封件SEAL1
52939储液罐总成RESERVOIR ASSEMBLY1
638257液压泵通气螺丝SCREW VENT - HYDRAULIC PUMP1
662269螺丝(#10-32 x .437)SCREW (#10-32 x .437)1
779953螺钉 (.375-16 x 0.250) 注油口-液压泵SCREW (.375-16 x .250) FILLER - HYDRAULIC PUMP1
779953Q04放油螺钉套件SCREW KIT Drain1
820260密封垫圈-注油螺钉WASHER SEALING - FILLER SCREW1
88M0187157蓝色密封件@15SEAL-BLUE @151
92623止推垫圈-电枢WASHER THRUST - ARMATUREAR
102943电枢磁场与框架ARMATURE FIELD AND FRAME1
112942磁场框架总成FIELD AND FRAME ASSEMBLY1
122944换向器端板滚珠BALL COMMUTATOR END PLATE1
132940换向器端板总成PLATE ASSEMBLY COMMUTATOR END1
142941换向器端板电刷组BRUSH SET COMMUTATOR END PLATE1
148989电刷套件BRUSH KIT1
152529电刷张力弹簧组SPRING SET BRUSH TENSION1
162938贯穿螺栓组-板与框架至储液罐BOLT SET THRU - PLATE AND FRAME TO RESERVOIR1
1726996锁紧垫圈(#10)不锈钢贯穿螺栓LOCKWASHER (#10) Stainless Steel THRU BOLT2

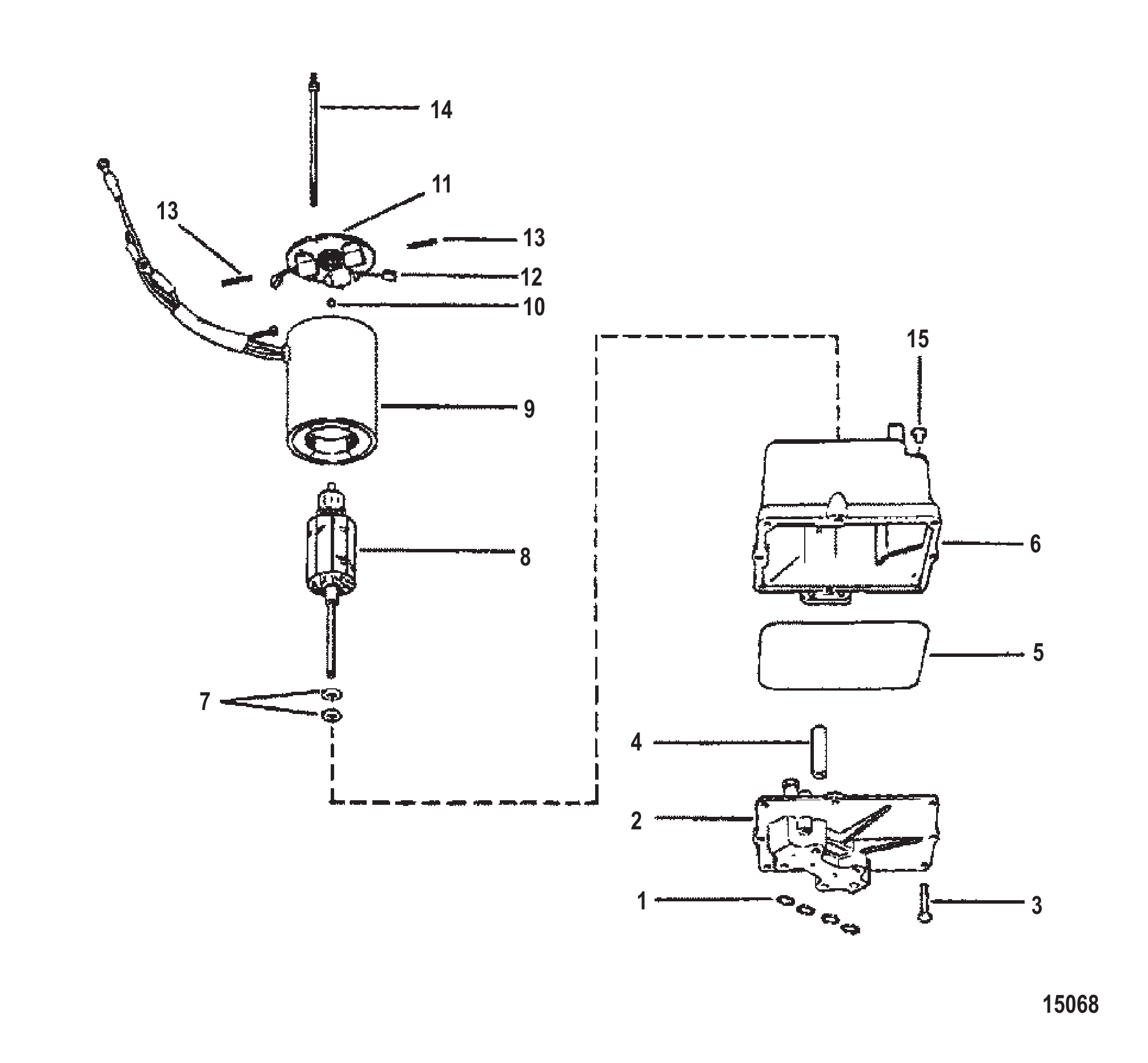

图 24液压泵总成(塑料油箱) HYDRAULIC PUMP ASSEMBLY (PLASTIC RESERVOIR)
液压泵总成(塑料油箱) HYDRAULIC PUMP ASSEMBLY (PLASTIC RESERVOIR)
REF零件编号中文名称英文名称数量
-92975A6液压泵总成PUMP ASSEMBLY Hydraulic1
148171O型圈 (.364 x 0.070) 液压泵O-RING (.364. x .070) HYDRAULIC PUMP4
28317阀体与齿轮总成VALVE BODY AND GEAR ASSEMBLY1
292975A32泵套件-微调PUMP KIT-TRIM1
369570螺钉 (#10-16 x 0.750) 阀体至储液罐SCREW (#10-16 x .750) VALVE BODY TO RESERVOIR8
47727联轴器与轴COUPLER AND SHAFT1
57735储液罐至阀体与齿轮密封件SEAL RESERVOIR TO VALVE BODY AND GEAR1
67731储液罐总成 (塑料)RESEROVIR ASSEMBLY (PLASTIC)1
77732止推垫圈-电枢WASHER THRUST - ARMATUREAR
87729电枢磁场与框架ARMATURE FIELD AND FRAME1
98261磁场框架总成FIELD AND FRAME ASSEMBLY1
107730换向器端板滚珠BALL COMMUTATOR END PLATE1
118262换向器端板总成PLATE ASSEMBLY COMMUTATOR END1
122941换向器端板电刷组BRUSH SET COMMUTATOR END PLATE1
128989电刷套件BRUSH KIT1
132529电刷张力弹簧组SPRING SET BRUSH TENSION1
147733贯穿螺栓组 板与框架至储液罐BOLT SET Thru- Plate and Frame to Reservoir1
157728储液罐注油塞FILL PLUG RESERVOIR1
图 25杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES
杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES
REF零件编号中文名称英文名称数量
-13725零件手册 70/75/80/90 马力 (3缸)PARTS MANUAL 70/75/80/90 Hp (3 Cylinder)
-43004A86衬垫套件GASKET SET
-43004A99动力头衬垫套件GASKET SET Powerhead
-43529A86贴花套件 (MERCURY 70)DECAL SET (MERCURY 70)
-43529A89贴花套件DECAL SET
-43575A87贴花套件 (MARINER 75)DECAL SET (MARINER 75)
-815628A92贴花套件DECAL SET
-13020A87贴花套件 (MERCURY 75) 手柄DECAL SET (MERCURY 75) HANDLE
-810457A90贴花套件DECAL SET
-43601A87贴花套件 (MARINER 75)DECAL SET (MARINER 75)
-13488A86贴花套件 (MERCURY 80)DECAL SET (MERCURY 80)
-13488A89贴花套件DECAL SET
-12565A87贴花套件 (MERCURY 90)DECAL SET (MERCURY 90)
-12565A89贴花套件DECAL SET
-11623A87贴花套件 (MARINER 90)DECAL SET (MARINER 90)
-815628A92贴花套件DECAL SET
-12428870使用手册（水星）OWNERS GUIDE (MERCURY)
-12428871用户手册MANUAL-OWNERS
-14699870使用手册（马林）OWNERS GUIDE (MARINER)
-14699871用户手册MANUAL-OWNERS

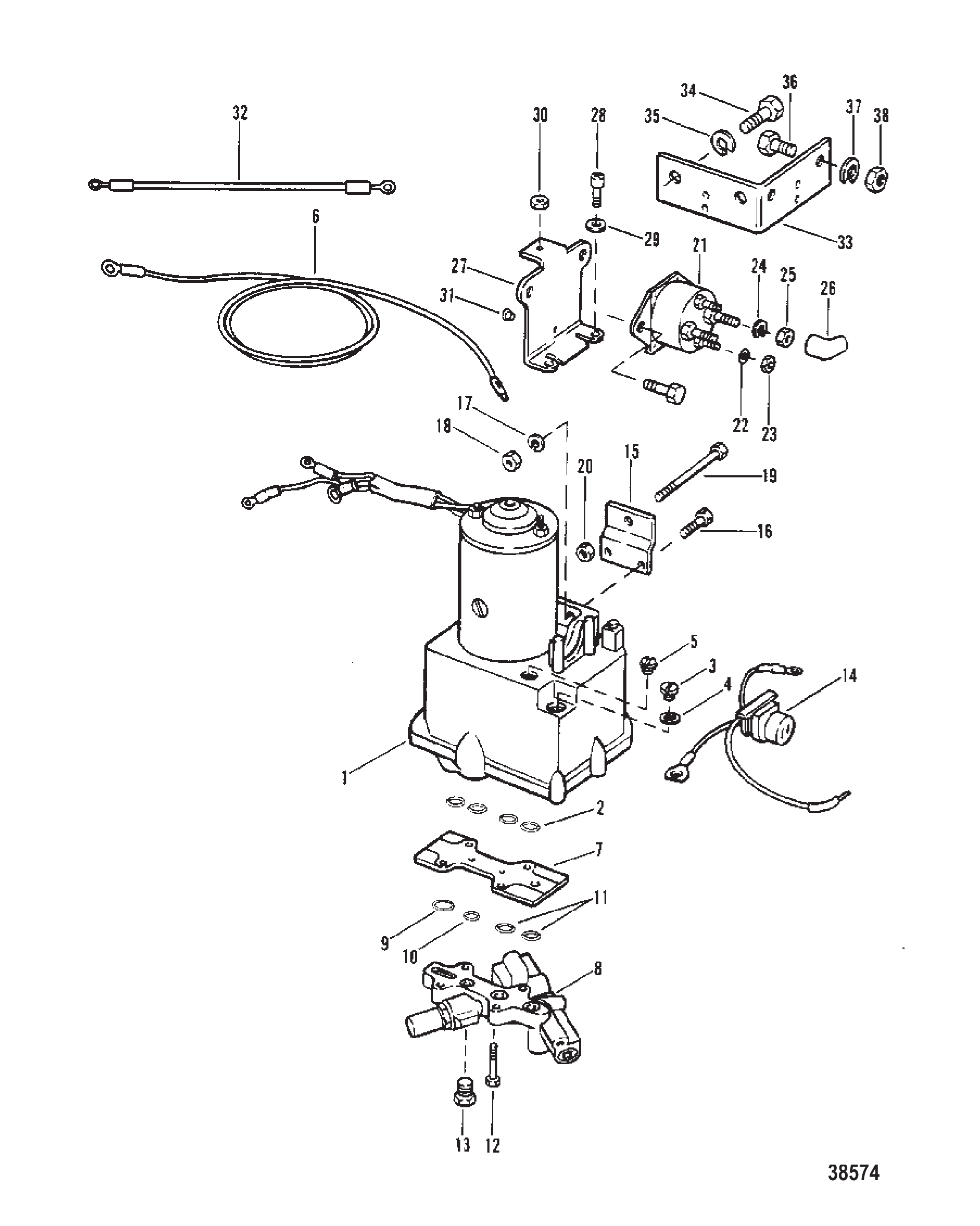

图 26动力升降组件(无断路器和保险丝) POWER TRIM COMPONENTS (WITHOUT CIRCUIT BREAKER AND FUSE)
动力升降组件(无断路器和保险丝) POWER TRIM COMPONENTS (WITHOUT CIRCUIT BREAKER AND FUSE)
REF零件编号中文名称英文名称数量
176395A5液压泵总成（金属油箱）PUMP ASSEMBLY Hydraulic (METAL RESERVOIR)1
192975A32泵套件-微调PUMP KIT-TRIM1
192975A6液压泵总成 (塑料储液罐)PUMP ASSEMBLY Hydraulic (PLASTIC RESERVOIR)1
192975A32泵套件-微调PUMP KIT-TRIM1
248171O型圈 (.364 x 0.070) 歧管板O-RING (.364. x .070) MANIFOLD PLATE4
379953螺钉（.375-16 x .250）液压泵注油口SCREW (.375-16 x .250) FILLER - HYDRUALIC PUMP1
379953Q04放油螺钉套件SCREW KIT Drain1
420260垫圈WASHER1
48M0187157蓝色密封件@15SEAL-BLUE @151
562269螺钉 (#10-32 x 0.437) 通气口-液压泵SCREW (#10-32 x .437) VENT - HYDRAULIC PUMP1
632979电池导线（正极）LEAD Battery (POSITIVE)1
632988电池导线（负极）LEAD Battery (NEGATIVE)1
745336歧管板PLATE MANIFOLD1
845197A2控制阀总成VALVE ASSEMBLY Control1
--48171O型圈（.364 x .070）（参见编号#2）O-RING (.364. x .070) (SEE REF. #2)4
945254O型圈 控制阀 (3/4英寸外径)O-RING CONTROL VALVE (3/4" O.D.)1
1048171O型圈（.364 x .070）控制阀（1/2"外径）O-RING (.364. x .070) CONTROL VALVE (1/2" O.D.)1
1145253O型圈 控制阀 (5/8英寸外径)O-RING CONTROL VALVE (5/8" O.D.)2
1256500螺丝(.250-28 x 1.250)SCREW (.250-28 x 1.250)4
1346008控制阀堵头（1/2-20"）PLUG CONTROL VALVE (1/2-20")2
1474023A1线束总成HARNESS ASSEMBLY1
1545377安装支架BRACKET MOUNTING2
1545377T支架BRACKET2
1635386螺丝(.312-18 x 1.00)SCREW (.312-18 x 1.00)4
1739107锁紧垫圈(0.312-24)LOCKWASHER (.312-24)4
1821908螺母（.312-18）镀镉NUT (.312-18) Cad Plated4
1968298螺栓（.375-16 x 3.250）液压泵至船体BOLT (.375-16 x 3.250) HYDRUALIC PUMP TO BOAT2
2099405螺母NUT2
2082671112螺母（.375-16）NUT (.375-16)2
2168258启动电磁阀SOLENOID Starter2
21853654A1电磁阀SOLENOID2
2226996锁紧垫圈（#10）不锈钢电磁阀端子LOCKWASHER (#10) Stainless Steel SOLENOID TERMINAL4
2368219螺母（#10-32）不锈钢电磁阀端子NUT (#10-32) Stainless Steel SOLENOID TERMINAL4
2426993锁紧垫圈（.312）电磁阀端子LOCKWASHER (.312) SOLENOID TERMINAL4
248M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
2568292螺母（.312-18）电磁阀端子NUT (.312-18) SOLENOID TERMINAL4
258M0204668螺母(.312-18)NUT (.312-18)4
2646265橡胶护套-启动电磁阀端子BOOT RUBBER - STARTER SOLENOID TERMINAL4
2774407安装支架-启动电磁阀BRACKET MOUNTING - STARTER SOLENOID1
2774407T支架BRACKET1
2821140螺钉（.250-28 x .50）SCREW (.250-28 x .50)2
2926992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel2
3024656螺母NUT1
3126901橡胶缓冲垫-电磁阀支架BUMPER RUBBER - SOLENOID BRACKET1
31269011橡胶缓冲垫BUMPER Rubber1
3279139A2跳线总成（正极）WIRE ASSEMBLY Jumper (POSITIVE)1
3255992跳线（负极）WIRE Jumper (NEGATIVE)1
3374406安装支架-启动电磁阀BRACKET MOUNTING - STARTER SOLENOID1
3469028螺钉（.250-28 x .750）不锈钢SCREW (.250-28 x .750) Stainless Steel2
3526992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel2
3632417螺钉(.250-28 x .625)SCREW (.250-28 x .625)2
3726992锁紧垫圈(.250)不锈钢LOCKWASHER (.250) Stainless Steel2
3821825螺母(.250-28)NUT (.250-28)4

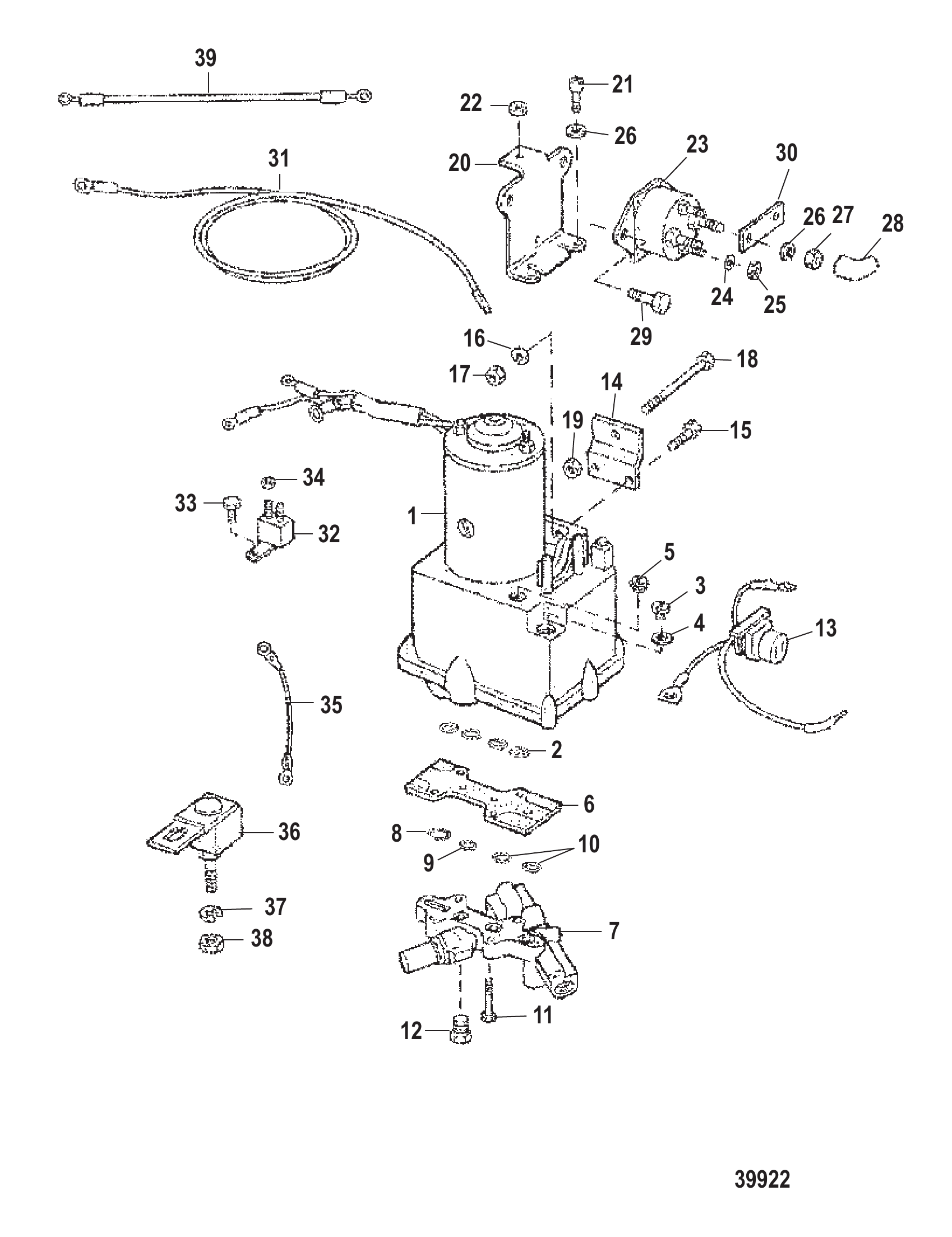

图 27动力升降组件(含断路器与保险丝) POWER TRIM COMPONENTS (WITH CIRCUIT BREAKER AND FUSE)
动力升降组件(含断路器与保险丝) POWER TRIM COMPONENTS (WITH CIRCUIT BREAKER AND FUSE)
REF零件编号中文名称英文名称数量
192975A6液压泵总成 (塑料储液罐)PUMP ASSEMBLY Hydraulic (PLASTIC RESERVOIR)1
248171O型圈 (.364 x 0.070) 歧管板O-RING (.364. x .070) MANIFOLD PLATE4
379953螺钉 (.375-16 x 0.250) 注油口-液压泵SCREW (.375-16 x .250) FILLER - HYDRAULIC PUMP1
379953Q04放油螺钉套件SCREW KIT Drain1
420260密封垫圈-注油螺钉WASHER SEALING - FILLER SCREW1
48M0187157蓝色密封件@15SEAL-BLUE @151
538257液压泵通气螺丝SCREW VENT - HYDRAULIC PUMP1
562269螺丝(#10-32 x .437)SCREW (#10-32 x .437)1
645336歧管板PLATE MANIFOLD1
745197A2控制阀总成VALVE ASSEMBLY Control1
--48171O型圈 (.364 x 0.070) 歧管板 (参见编号#2)O-RING (.364. x .070) MANIFOLD PLATE (SEE REF. #2)4
845254O型圈 控制阀 (3/4英寸外径)O-RING CONTROL VALVE (3/4" O.D.)1
948171O型圈（.364 x .070）控制阀（1/2"外径）O-RING (.364. x .070) CONTROL VALVE (1/2" O.D.)1
1045253O型圈 控制阀 (5/8英寸外径)O-RING CONTROL VALVE (5/8" O.D.)2
1156500SCREW (.250-28 x 1.250) VALVE AND MANIFOLD PLATE TO PUMP4
1246008控制阀堵头（1/2-20"）PLUG CONTROL VALVE (1/2-20")2
1379147A1线束总成HARNESS ASSEMBLY1
1379147A3线束总成HARNESS ASSEMBLY1
1445377安装支架BRACKET MOUNTING2
1445377T支架BRACKET2
1524234螺丝(0.312-18 x 1.00)安装支架至液压泵SCREW (.312-18 x 1.00) MOUNTING BRACKET TO HYDRAULIC PUMP4
1535386螺丝(.312-18 x 1.00)SCREW (.312-18 x 1.00)4
1639107锁紧垫圈（.312-24）安装支架螺钉LOCKWASHER (.312-24) MOUNTING BRACKET SCREW4
1721908螺母 (.312-18) 镀镉安装支架螺钉NUT (.312-18) Cad Plated MOUNTING BRACKET SCREW4
1868298螺栓(0.375-16 x 3.250)液压泵至船体BOLT (.375-16 x 3.250) HYDRAULIC PUMP TO BOAT2
1999405液压泵螺栓螺母NUT HYDRAULIC PUMP BOLT2
1982671112螺母（.375-16）NUT (.375-16)2
2094279启动电磁阀安装支架BRACKET MOUNTING, STARTER SOLENOID1
2148063安装支架至液压泵螺丝SCREW MOUNTING BRACKET TO HYDRAULIC PUMP2
2128638螺钉(.250-20 x .750)SCREW (.250-20 x .750)2
2224656安装支架至液压泵贯穿螺栓螺母NUT MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT1
2396158启动电磁阀SOLENOID Starter2
238M0185622电磁阀SOLENOID2
2426995锁紧垫圈 (#8) 不锈钢电磁阀端子LOCKWASHER (#8) Stainless Steel SOLENOID TERMINAL4
2526419螺母(#8-32)-黄铜电磁阀端子NUT (#8-32) Brass SOLENOID TERMINAL4
2626992锁紧垫圈 (.250) 不锈钢电磁阀端子LOCKWASHER (.250) Stainless Steel SOLENOID TERMINAL4
2794330螺母 (.250-20) 黄铜电磁阀端子NUT (.250-20) Brass SOLENOID TERMINAL4
2896535橡胶护套-启动电磁阀端子BOOT RUBBER - STARTER SOLENOID TERMINAL4
28861680绝缘体INSULATOR4
2991026启动电磁阀至安装支架螺丝SCREW STARTER SOLENOID TO MOUNTING BRACKET2
2941508螺钉(0.250-20×0.500)不锈钢SCREW (.250-20 x .500) Stainless Steel2
3094275电磁阀间连杆LINK SOLENOID TO SOLENOID1
3179139A13电缆总成 蓄电池 (正极)CABLE ASSEMBLY Battery (POSITIVE)1
3179138A1负极电缆总成CABLE ASSEMBLY (NEGATIVE)1
327914920安培电路断路器BREAKER Circuit - 20 Ampere1
328M008570520安培电路断路器BREAKER Circuit - 20 Ampere1
3330009断路器螺丝SCREW CIRCUIT BREAKER2
338M0113176螺钉SCREW2
3445076螺母(#10-32)黄铜断路器端子NUT (#10-32) Brass CIRCUIT BREAKER TERMINAL2
3587379A5电磁阀至断路器导线(红色)WIRE SOLENOID TO CIRCUIT BREAKER (RED)1
3679023A9090安培保险丝总成FUSE ASSEMBLY 90 Ampere1
3679023T9090安培保险丝总成FUSE ASSEMBLY 90 Ampere1
3796457酚醛垫圈(0.27x0.81x0.062)保险丝端子WASHER Phenolic (.27 x .81 x .062) FUSE TERMINAL1
3821825螺母(0.250-28)保险丝端子NUT (.250-28) FUSE TERMINAL1
3961600A9启动电磁阀导线(黑色)WIRE STARTER SOLENOID (BLACK)2

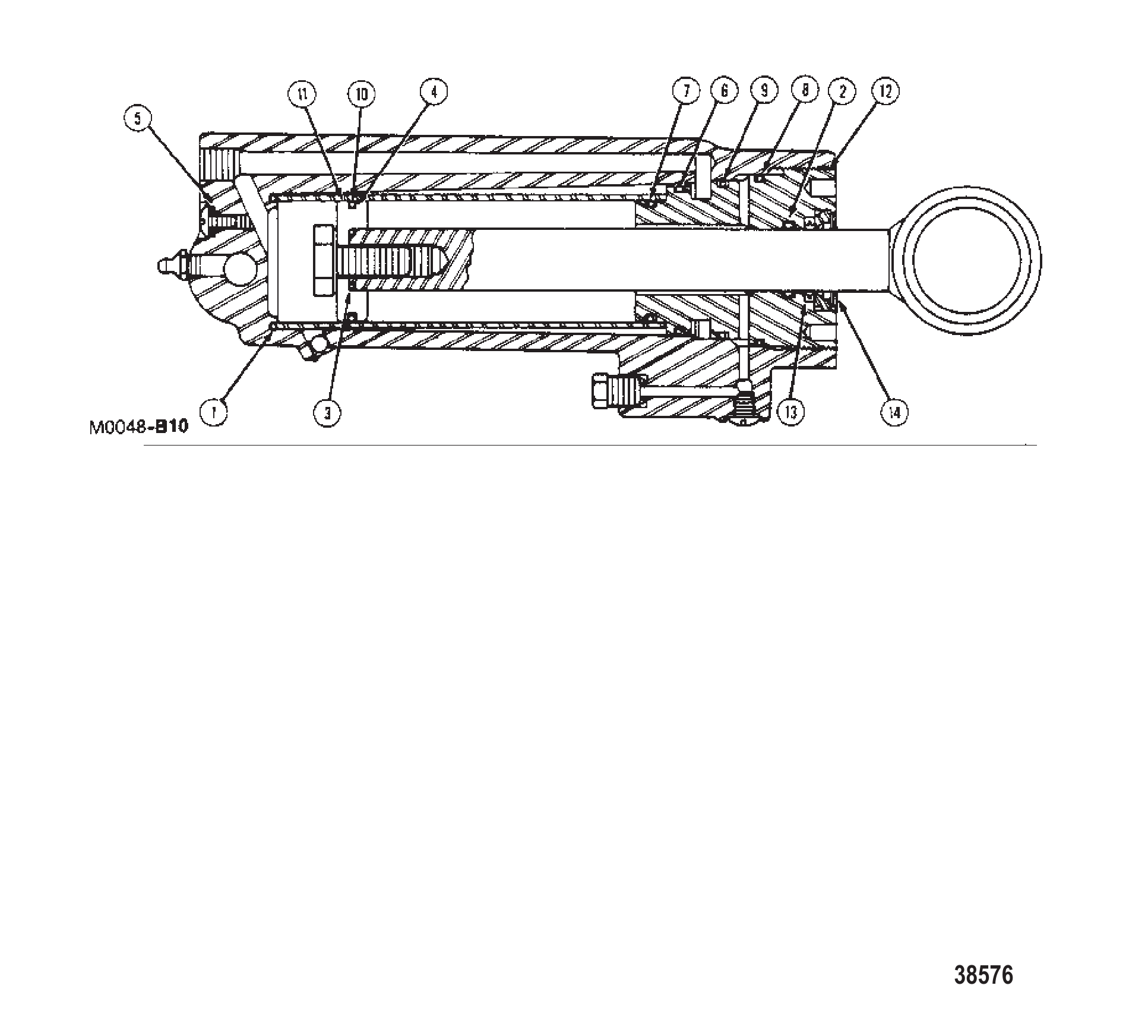

图 28动力升降油缸修理包(配合76509A3使用) POWER TRIM CYLINDER REPAIR KITS (USE WITH 76509A3)
动力升降油缸修理包(配合76509A3使用) POWER TRIM CYLINDER REPAIR KITS (USE WITH 76509A3)
REF零件编号中文名称英文名称数量
-64507A1维修套件(见下方备注)REPAIR KIT (SEE NOTE BELOW)1
1N.S.S.Not Sold Separate O-RING (1-1/2" X 1-5/8" X 1/16")1
2N.S.S.不单独销售(3/4" X 15/16" X 1/8")Not Sold Separate (3/4" X 15/16" X 1/8")1
3N.S.S.不单独销售O型圈(5/8" X 3/4" X 1/16")Not Sold Separate O-RING (5/8" X 3/4" X 1/16")1
4N.S.S.Not Sold Separate O-RING (1-1/4" X 1-7/16" X 1/16")1
5N.S.S.Not Sold Separate O-RING (7/32" X 11/32" X 1/16")2
6N.S.S.Not Sold Separate O-RING (1-5/8" X 1-13/16" X 1/8")1
7N.S.S.Not Sold Separate O-RING (1-5/16" X 1-1/2" X 1/8")1
8N.S.S.Not Sold Separate O-RING (1-7/8" X 2" X 1/8")1
9N.S.S.Not Sold Separate O-RING (1-3/4" X 1-15/16" X 1/8")1
10N.S.S.不单独销售 密封件-活塞滑块Not Sold Separate SEAL, SLIPPER - PISTON1
11N.S.S.不单独销售 活塞杆-重型Not Sold Separate PISTON, ROD - HEAVY DUTY1
1264505A1活塞固定环总成RETAINER ASSEMBLY PISTON1
13N.S.S.不单独销售 刮杆Not Sold Separate ROD, SCRAPER1
14N.S.S.不单独销售 刮片固定环Not Sold Separate RETAINER, SCRAPER1

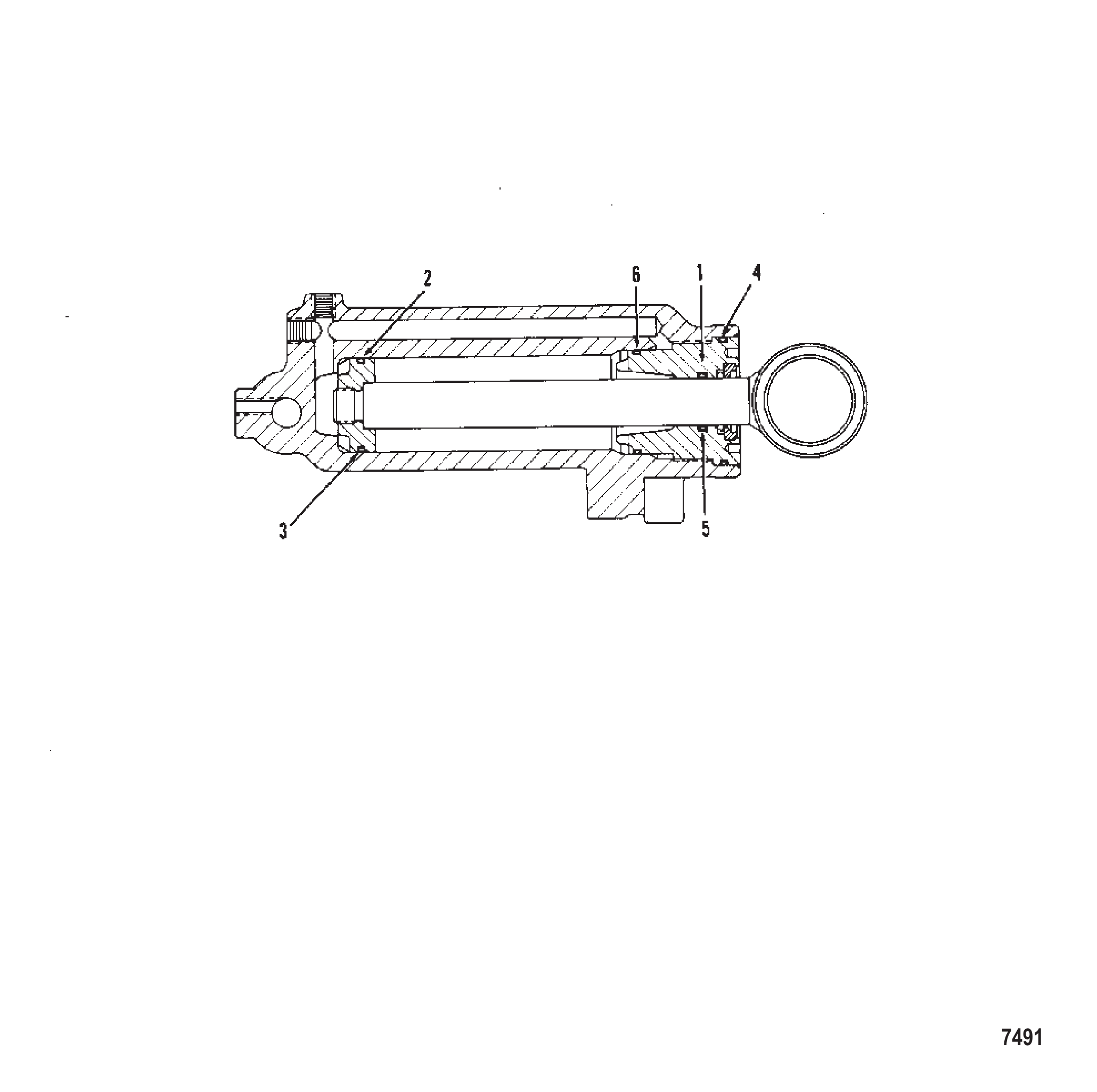

图 29动力升降油缸修理包(配合92194A14使用) POWER TRIM CYLINDER REPAIR KITS Use with 92194A14
动力升降油缸修理包(配合92194A14使用) POWER TRIM CYLINDER REPAIR KITS Use with 92194A14
REF零件编号中文名称英文名称数量
-92188A2维修套件(见备注)REPAIR KIT (SEE NOTE)1
1N.S.S.气缸盖不单独销售Not Sold Separate Cylinder Cap1
2N.S.S.O型圈(1-1/4"x1-1/2"x1/8")不单独销售Not Sold Separate O-Ring (1-1/4" x 1-1/2" x 1/8")1
3N.S.S.垫片不单独销售Not Sold Separate Spacer1
4N.S.S.O型圈(1-7/8"x2-1/16"x3/32")不单独销售Not Sold Separate O-Ring (1-7/8" x 2-1/16" x 3/32")1
5N.S.S.O型圈(3/4"x15/16"x3/32")不单独销售Not Sold Separate O-Ring (3/4" x 15/16" x 3/32")1
6N.S.S.O型圈(1-1/2"x1-3/4"x3/32")不单独销售Not Sold Separate O-Ring (1-1/2" x 1-3/4" x 3/32")1
图 30螺旋桨(右旋) PROPELLERS (RIGHT HAND ROTATION)
螺旋桨(右旋) PROPELLERS (RIGHT HAND ROTATION)
REF零件编号中文名称英文名称数量
-77338A4螺旋桨总成(铝制)(螺距11")PROPELLER ASSEMBLY (ALUMINUM)(PITCH 11")1
-77340A4螺旋桨总成(铝制)(螺距13")PROPELLER ASSEMBLY (ALUMINUM)(PITCH 13")1
-77340A45BLMX 14X13BLMX 14X131
-77342A4螺旋桨总成(铝制)(螺距15")PROPELLER ASSEMBLY (ALUMINUM)(PITCH 15")1
-77342A45BLMX 13.8X15BLMX 13.8X151
-77344A4螺旋桨总成(铝制)(螺距17")PROPELLER ASSEMBLY (ALUMINUM)(PITCH 17")1
-77344A45BLMX 13.3X17BLMX 13.3X171
-77346A4螺旋桨总成(铝制)(螺距19")PROPELLER ASSEMBLY (ALUMINUM)(PITCH 19")1
-77346A45BLMX 13X19BLMX 13X191
-77348A4螺旋桨总成(铝制)(螺距21")PROPELLER ASSEMBLY (ALUMINUM)(PITCH 21")1
-77348A45BLMX 12.8X21BLMX 12.8X211
-77350A4螺旋桨总成(铝制)(螺距23")PROPELLER ASSEMBLY (ALUMINUM)(PITCH 23")1
-77350A45BLMX 12.5X23BLMX 12.5X231

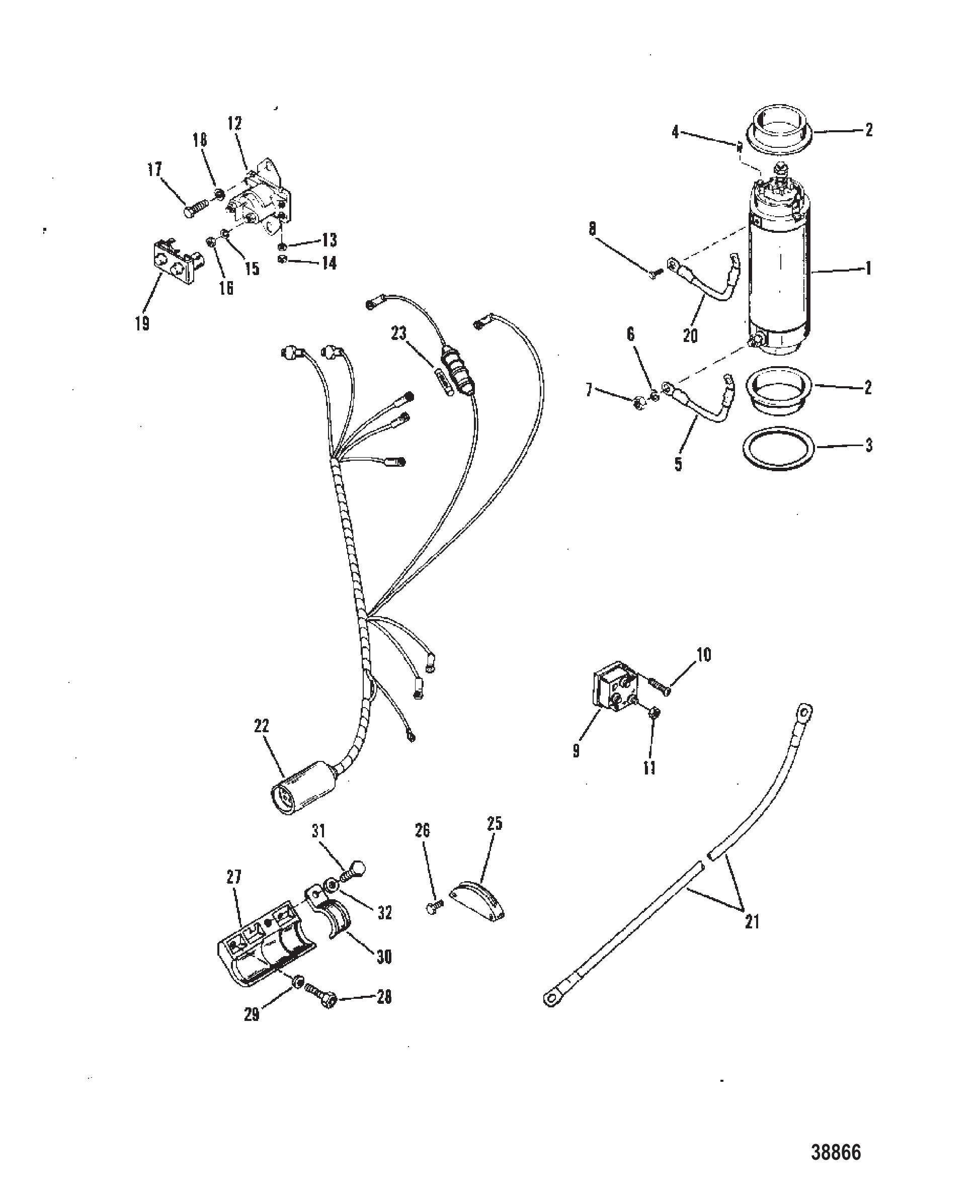

图 31启动马达与线束 STARTER MOTOR AND WIRING HARNESS
启动马达与线束 STARTER MOTOR AND WIRING HARNESS
REF零件编号中文名称英文名称数量
166015启动电机总成STARTER MOTOR ASSEMBLY1
1893891T启动电机总成STARTER MOTOR ASSEMBLY1
256703启动电机橡胶衬套COLLAR RUBBER-STARTER MOTOR2
28M0034918轴环COLLAR2
356774衬套支架垫片SPACER COLLAR TO BRACKET1
457247启动电机橡胶止动块STOP RUBBER-STARTER MOTOR2
48M0043376停机开关STOP2
593389A8电机至电磁阀导线（黄色）WIRE MOTOR TO SOLENOID (YELLOW)1
626992锁紧垫圈(.250) 不锈钢 起动机接线端LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL1
764015螺母(.250-20) 起动机接线端NUT (.250-20) STARTER MOTOR TERMINAL1
869035螺丝与锁紧垫圈(.250-20 x .625)不锈钢SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel1
962351A1整流器RECTIFIER1
98M0058226整流器RECTIFIER1
1037656整流器至安装板螺钉（#10-32 x 0.620）SCREW (#10-32 x .620) RECTIFIER TO PLATE2
1145076螺母(#10-32)黄铜整流器端子NUT (#10-32) Brass RECTIFIER TERMINAL3
1296054启动电磁阀总成SOLENOID ASSEMBLY Starter1
128M0185149启动电磁阀SOLENOID START1
1326995锁紧垫圈 (#8) 不锈钢电磁阀端子LOCKWASHER (#8) Stainless Steel SOLENOID TERMINAL2
1426419螺母(#8-32)-黄铜电磁阀端子NUT (#8-32) Brass SOLENOID TERMINAL2
1526992锁紧垫圈 (.250) 不锈钢电磁阀端子LOCKWASHER (.250) Stainless Steel SOLENOID TERMINAL2
1694330螺母 (.250-20) 黄铜电磁阀端子NUT (.250-20) Brass SOLENOID TERMINAL2
1728635不锈钢螺丝(.250-20 x .620)SCREW (.250-20 x .620) Stainless Steel2
1826992锁紧垫圈 (.250) 不锈钢 电磁阀螺钉LOCKWASHER (.250) Stainless Steel SOLENOID SCREW2
1997861绝缘体-启动电磁阀INSULATOR STARTER SOLENOID1
2093388A1接地电缆总成（6英寸，黑色）CABLE ASSEMBLY (6.00 Inches) Black GROUND1
2188439A3正极电缆总成-蓄电池CABLE ASSEMBLY Positive - Battery1
2188439A4蓄电池负极电缆总成CABLE ASSEMBLY Battery - Negative1
2296233A2线束总成HARNESS ASSEMBLY1
2379091保险丝20安培FUSE 20 Ampere1
238M0207796保险丝20安培FUSE 20 AMP1
2588608线束夹CLAMP WIRING HARNESS1
2628636线束夹螺钉（0.250-20 x 0.750）SCREW (.250-20 x .750) WIRING HARNESS CLAMP2
2789047线束支架BRACKET WIRING HARNESS1
2832228线束支架螺钉（#10-32 x 0.625）SCREW (#10-32 x .625) WIRING HARNESS BRACKET2
2938833支架螺钉垫圈WASHER BRACKET SCREW2
3088751线束夹CLAMP WIRING HARNESS1
3128636线束夹螺钉（0.250-20 x 0.750）SCREW (.250-20 x .750) WIRING HARNESS CLAMP1
3220533夹紧螺钉垫圈WASHER CLAMP SCREW1

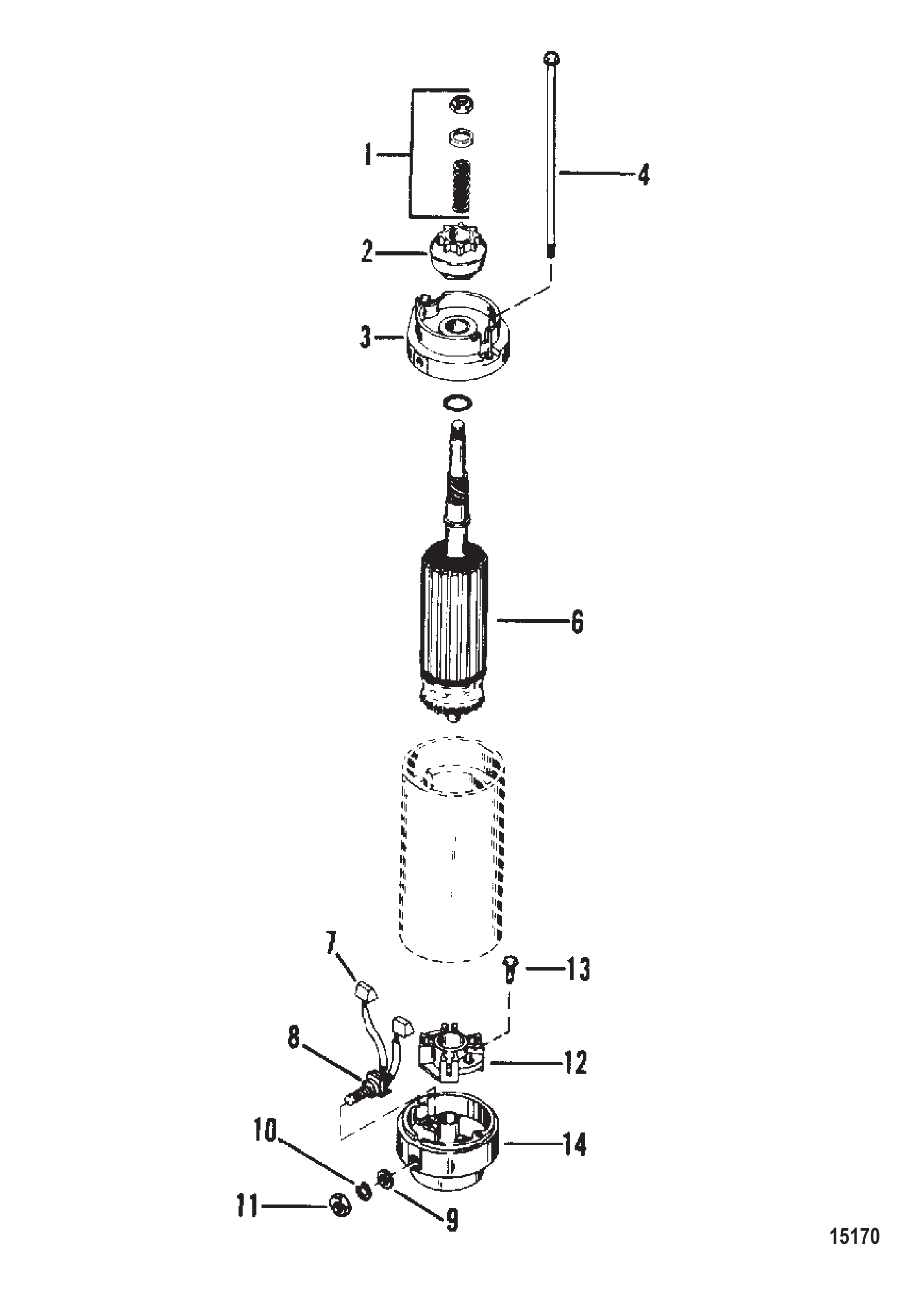

图 32启动电机总成（博世） STARTER MOTOR ASSEMBLY (BOSCH)
启动电机总成（博世） STARTER MOTOR ASSEMBLY (BOSCH)
REF零件编号中文名称英文名称数量
-66015启动电机总成STARTER MOTOR ASSEMBLY1
-893891T启动电机总成STARTER MOTOR ASSEMBLY1
190643驱动套件DRIVE KIT1
268575驱动总成DRIVE ASSEMBLY1
2685753驱动总成DRIVE ASSEMBLY1
375660驱动端板PLATE DRIVE END1
475385贯穿螺栓BOLT THRU2
675386电枢ARMATURE1
775384电刷/弹簧套件BRUSH/SPRING KIT1
7898265016电刷/弹簧套件BRUSH/SPRING KIT1
857387绝缘衬套BUSHING INSULATING1
938013输入柱垫圈WASHER INPUT STUD1
1026992不锈钢输入柱锁紧垫圈(.250)LOCKWASHER (.250) Stainless Steel INPUT STUD1
1120890输入柱螺母(.250-20)NUT (.250-20) INPUT STUD1
1261787电刷架HOLDER BRUSH2
12898265014电刷支架HOLDER-BRUSH2
1368586电刷及支架螺钉SCREW BRUSH AND HOLDER2
1479215换向器端盖END CAP COMMUTATOR1
1415386001端盖END CAP1

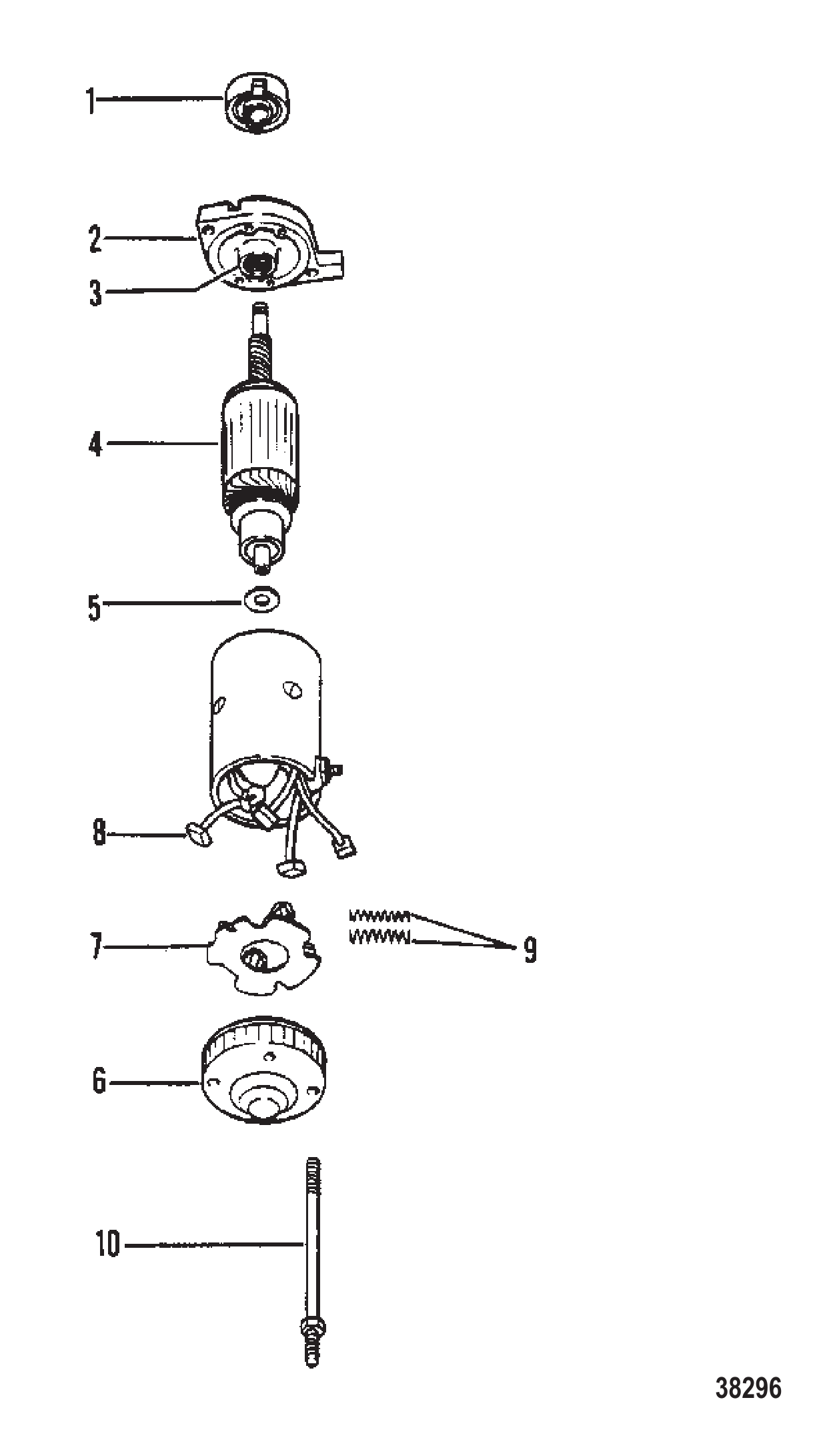

图 33启动电机总成（普雷斯特olite） STARTER MOTOR ASSEMBLY (PRESTOLITE)
启动电机总成（普雷斯特olite） STARTER MOTOR ASSEMBLY (PRESTOLITE)
REF零件编号中文名称英文名称数量
18848驱动电机MOTOR DRIVE1
28852驱动端板总成PLATE ASSEMBLY DRIVE END1
38853驱动端板衬套BUSHING DRIVE END PLATE1
48857电枢ARMATURE1
58856电枢止推垫片组件PACKAGE ARMATURE THRUST WASHER1
68849换向器端盖总成END CAP ASSEMBLY COMMUTATOR1
78850电刷板/支架总成PLATE/HOLDER ASSEMBLY Brush1
88851电刷与端子套装BRUSH AND TERMINAL SET1
98854电刷弹簧组 (每套2弹簧)SPRING SET BRUSH (2 SPRINGS PER SET)2
108855贯穿螺栓 - 端盖至端板 (1/4-28)BOLT THRU - END CAP TO END PLATE (1/4-28)1
图 34旋转支架总成 SWIVEL BRACKET ASSEMBLY
旋转支架总成 SWIVEL BRACKET ASSEMBLY
REF零件编号中文名称英文名称数量
17256A2旋转支架总成SWIVEL BRACKET ASSEMBLY1
17670A5旋转支架总成SWIVEL BRACKET ASSEMBLY1
269341转轴支架衬套BUSHING SWIVEL BRACKET2
369342旋转销垫片-上部WASHER SWIVEL PIN - UPPER1
437448旋转支架油封SEAL Oil SWIVEL BRACKET2
674036润滑脂接头FITTING Grease4
68M0169589润滑脂接头FITTING Grease4
725598倒挡锁弹簧连接销(短轴)PIN REVERSE LOCK SPRING ATTACHING (SHORT SHAFT)1
888507旋转销波形垫片(下部)WAVE WASHER SWIVEL PIN (LOWER)1
928205驱动轴壳体至旋转支架止动带STRAP Stop DRIVE SHAFT HOUSING TO SWIVEL BRACKET1
928205T绑带STRAP1
1056743螺丝(.375-24 x 3.125)止动带至壳体SCREW (.375-24 x 3.125) STRAP STOP TO HOUSING1
1028200螺丝(.375-24 x 2.875)止动带至壳体SCREW (.375-24 x 2.875) STRAP STOP TO HOUSING1
1125269螺母(.375-24)止动带紧固螺丝NUT (.375-24) STRAP STOP FASTENING SCREW1
1273594A2转向臂转销总成SWIVEL PIN ASSEMBLY Steering Arm1
1273593A2转向臂转销总成SWIVEL PIN ASSEMBLY Steering Arm1
1373984底部轭架YOKE BOTTOM1
1373984T下轭架BOTTOM YOKE1
1573591轭架固定环RING Retaining YOKE ATTACHING1
1628203转向臂缓冲器BUMPER STEERING ARM1
1749554螺栓(.437-20 x 5.875)转向臂至上支架BOLT (.437-20 x 5.875) STEERING ARM TO UPPER MOUNT2
1834933螺母(.437-20)不锈钢转向臂螺栓紧固NUT (.437-20) Stainless Steel STEERING ARM BOLT FASTENING2
188M0204653螺母NUT2

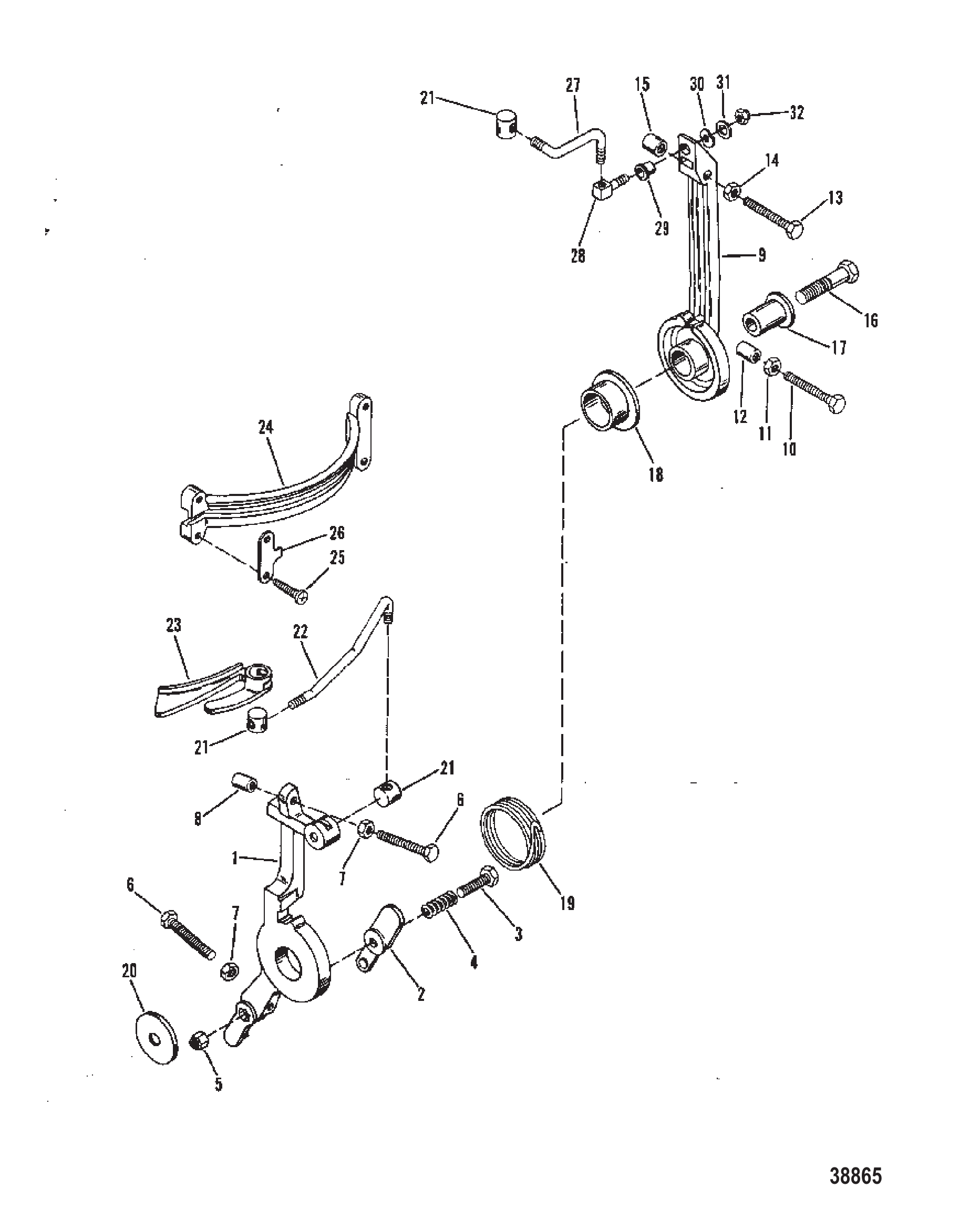

图 35油门杆与点火提前杆 THROTTLE LEVER AND SPARK ADVANCE LEVER
油门杆与点火提前杆 THROTTLE LEVER AND SPARK ADVANCE LEVER
REF零件编号中文名称英文名称数量
173416T油门杆LEVER Throttle1
173416杠杆LEVER1
273404油门杆锁扣LATCH THROTTLE LEVER1
359702螺钉 (.250-28 x .875) 不锈钢SCREW (.250-28 x .875) Stainless Steel1
420099卡扣螺钉弹簧SPRING LATCH SCREW1
536069锁扣螺钉螺母NUT LATCH SCREW1
673654油门杆调节螺钉（1-3/4英寸）SCREW ADJUSTING-THROTTLE LEVER (1-3/4")2
669029螺钉(.250-28 x 1.750)SCREW (.250-28 x 1.750)2
729598调节螺钉用0.250-28不锈钢防松螺母NUT (.250-28) Stainless Steel JAM-ADJUSTING SCREW2
852023调节螺钉尼龙帽CAP NYLONG-ADJUSTING SCREW1
973414点火提前臂ARM SPARK ADVANCE1
1073656点火提前臂调节螺钉（1-3/8英寸）SCREW ADJUSTING-SPARK ADVANCE ARM (1-3/8")1
1168219调节螺钉防松螺母（#10-32不锈钢）NUT (#10-32) Stainless Steel JAM-ADJUSTING SCREW1
1248039调节螺钉尼龙帽CAP NYLON-ADJUSTING SCREW1
1373655点火提前臂调节螺钉（2英寸）SCREW ADJUSTING-APRK ADVANCE ARM (2")1
1367916螺钉(0.250-28x2.00)SCREW (.250-28 x 2.00)1
1429598调节螺钉用0.250-28不锈钢防松螺母NUT (.250-28) Stainless Steel JAM-ADJUSTING SCREW1
1552023调节螺钉尼龙帽CAP NYLON-ADJUSTING SCREW1
1655337螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
16818165螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
1755164BUSHING LEVER AND ARM SCREW1
1855171杆臂螺钉法兰衬套BUSHING FLANGE-LEVER AND ARM SCREW1
1986310杆臂螺钉回位弹簧SPRING RETURN-LEVER AND ARM SCREW1
1973375弹簧SPRING1
2046765杆臂螺钉垫圈（0.390 x 1.50 x 0.120）WASHER (.390 x 1.50 x .120) LEVER AND ARM SCREW1
2160572杆臂尼龙套筒BARREL NYLON-LEVER AND ARM3
218M0221994筒形接头BARREL FITTING3
2273374油门连杆LINK ROD THROTTLE1
2373432节气门凸轮CAM Throttle1
2477001油门凸轮壳体HOUSING THROTTLE CAM1
2569013壳体至曲轴箱螺钉（#10-16 x 0.880）SCREW (#10-16 x .880) HOUSING TO CRANKCASE4
2677158油门凸轮壳体垫片SPACER THROTTLE CAM HOUSING1
2777010点火提前连杆LINK ROD SPARK ADVANCE1
2876158A1连杆至摆臂旋转接头总成SWIVEL ASSEMBLY LINK ROD TO ARM1
2926856连杆旋转接头尼龙衬套BUSHING NYLON-LINK ROD SWIVEL1
3029402连杆万向接头波形垫圈WAVE WASHER LINK ROD SWIVEL1
3133786WASHER LINK ROD SWIVEL1
3173288垫圈(.220 x .500 x .030)不锈钢WASHER (.220 x .500 x .030) Stainless Steel1
3220110连杆旋转接头螺母（#10-32）NUT (#10-32) LINK ROD SWIVEL1

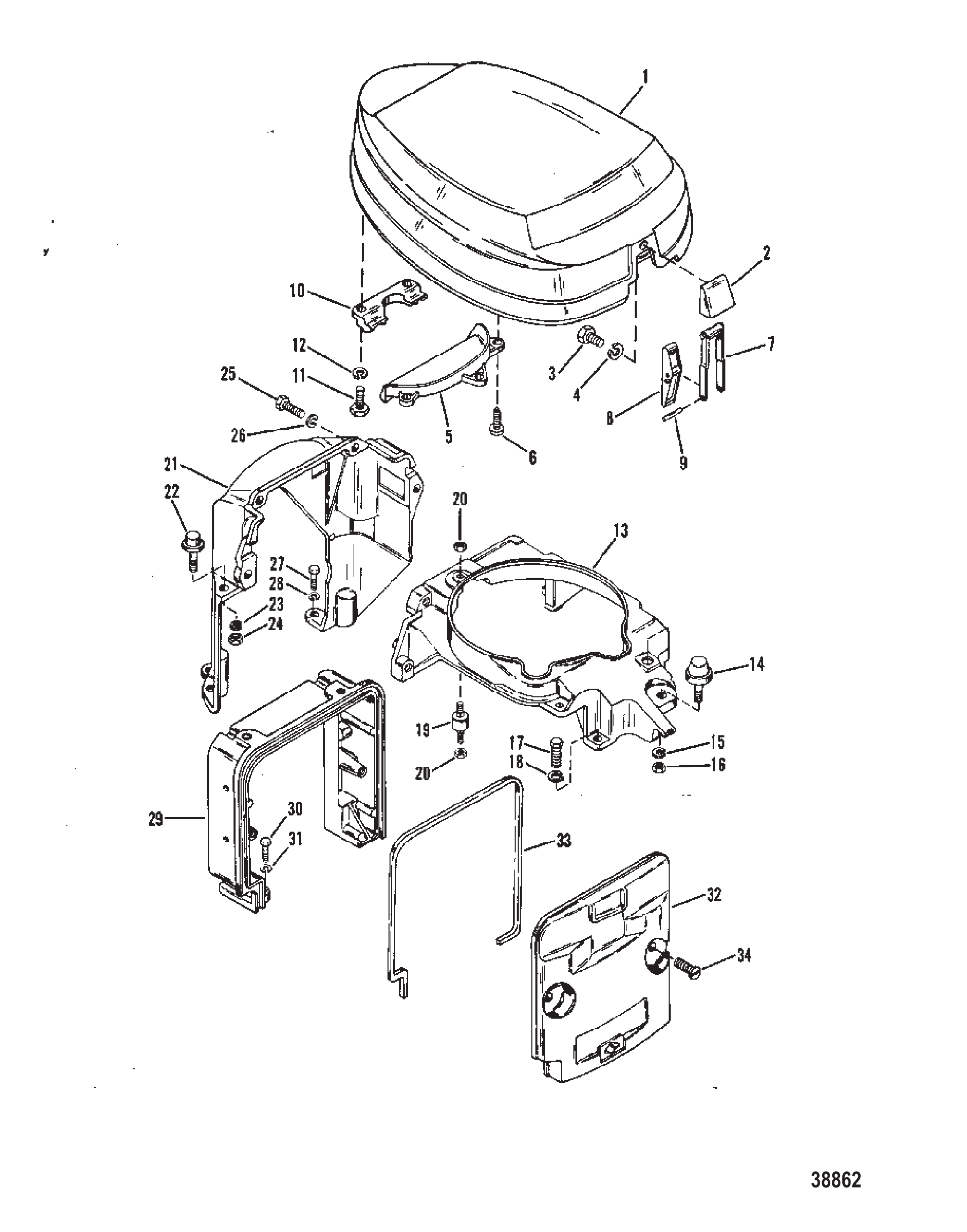

图 36顶罩与支撑支架 TOP COWL AND SUPPORT BRACKETS
顶罩与支撑支架 TOP COWL AND SUPPORT BRACKETS
REF零件编号中文名称英文名称数量
17934顶盖总成TOP COWL ASSEMBLY1
16392F4顶罩总成（水星款）TOP COWL ASSEMBLY Mariner1
16392T6顶盖总成TOP COWL ASSEMBLY1
293122A1固定座总成RETAINER ASSEMBLY1
276440固定座总成RETAINER ASSEMBLY1
353167螺钉 (.312-18 x .880)SCREW (.312-18 x .880)1
353167T螺钉 0.312-18X 0.88SCREW .312-18X .881
325299螺钉(0.312-18x0.75)SCREW (.312-18 x .75)1
439107锁紧垫圈(0.312-24)LOCKWASHER (.312-24)1
576370护罩SHIELD1
576433护罩SHIELD1
648409螺钉 (#10-16 x .625) 不锈钢SCREW (#10-16 x .625) Stainless Steel3
752739顶罩锁扣铰链HINGE COWL LATCH-TOP COWL1
894918T罩盖锁扣铰链杆LEVER COWL LATCH HINGE1
894918F1杠杆LEVER1
958998PIN COWL LATCH LEVER TO HINGE1
1055455顶罩后部锁钩HOOK TOP COWL LTECH-REAR1
1122956螺钉(.250-28 x .880) 后锁钩至顶盖SCREW (.250-28 x .880) REAR HOOK TO TOP COWL2
1226992锁紧垫圈(.250)不锈钢 后锁钩螺钉LOCKWASHER (.250) Stainless Steel REAR HOOK SCREW2
1373401顶罩支撑框架FRAME SUPPORT-TOP COWL1
1373401T框架FRAME1
1437640支撑框架橡胶支座MOUNT RUBBER-SUPPORT FRAME1
1526993橡胶支座锁紧垫圈（0.312）LOCKWASHER (.312) RUBBER MOUNT1
158M0204647锁紧垫圈 (.312)LOCKWASHER (.312)1
1628770橡胶支座螺母（0.312-24不锈钢）NUT (.312-24) Stainless Steel RUBBER MOUNT1
1737562不锈钢螺钉(.312-18 x 1.00)SCREW (.312-18 x 1.00) Stainless Steel2
1826993支撑框架螺钉锁紧垫圈（0.312）LOCKWASHER (.312) SUPPORT FRAME SCREW2
188M0204647锁紧垫圈 (.312)LOCKWASHER (.312)2
1990435顶罩框架橡胶支架MOUNT RUBBER-TOP COWL FRAME3
2020184螺母(1/4-28X7/32)橡胶支架(上部)NUT (1/4-28X7/32) RUBBR MOUNT (UPPER)6
208M0207775螺母 @5NUT @56
2152468顶罩支撑支架-后部BRACKET TOP COWL SUPPORT-REAR1
2231014后支撑支架橡胶座MOUNT RUBBER-REAR SUPPORT BRACKET2
2326992不锈钢锁紧垫圈(.250)橡胶支座LOCKWASHER (.250) Stainless Steel RUBBER MOUNT2
2429598螺母 (.250-28) 不锈钢橡胶支座NUT (.250-28) Stainless Steel RUBBER MOUNT2
2537562螺丝(.312-18 x 1.00)不锈钢后支架至框架SCREW (.312-18 x 1.00) Stainless Steel REAR BRACKET TO FRAME4
2626993锁紧垫圈(.312)后支架螺丝LOCKWASHER (.312) REAR BRACKET SCREW4
268M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
2737562不锈钢螺钉(.312-18 x 1.00)SCREW (.312-18 x 1.00) Stainless Steel4
2826993锁紧垫圈(.312)后支架螺丝LOCKWASHER (.312) REAR BRACKET SCREW4
288M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
2999649T框架前支撑FRAME FRONT SUPPORT1
3037562螺丝(.312-18 x 1.00)不锈钢消音器盖SCREW (.312-18 x 1.00) Stainless Steel SILENCER COVER2
3126993锁紧垫圈(.312)框架螺丝LOCKWASHER (.312) FRAME SCREW2
318M0204647锁紧垫圈 (.312)LOCKWASHER (.312)2
3289590消音器盖COVER SILENCER1
3376168A2消音器盖衬垫GASKET SILENCER COVER1
3428638螺钉(.250-20 x .750)SCREW (.250-20 x .750)2

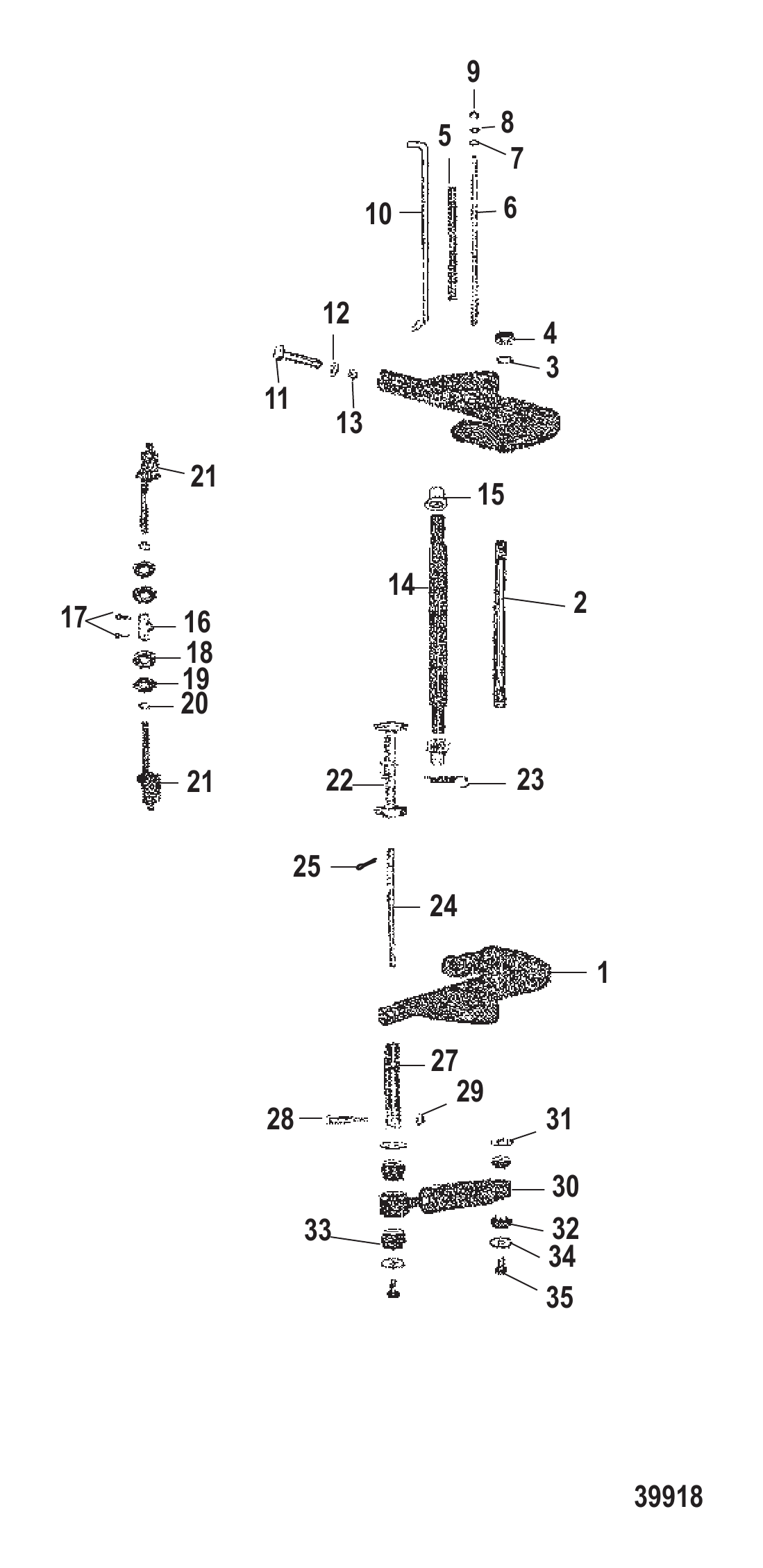

图 37艉板支架（长轴） TRANSOM BRACKET (LONG SHAFT)
艉板支架（长轴） TRANSOM BRACKET (LONG SHAFT)
REF零件编号中文名称英文名称数量
17799艉板支架BRACKET Transom2
18822A1艉板支架TRANSOM BRACKET2
289099倾斜管TILT TUBE1
389297波形垫圈WAVE WASHER2
456041螺母(.875-14)倾斜管NUT (.875-14) TILT TUBE2
4858869螺母 (.875-14)NUT (.875-14)2
587642艉板支架螺柱垫片SPACER TRANSOM BRACKET STUD1
687643螺柱STUD1
736001艉板支架螺柱垫圈WASHER TRANSOM BRACKET STUD1
826993艉板支架螺柱锁紧垫圈(.312)LOCKWASHER (.312) TRANSOM BRACKET STUD2
88M0204647锁紧垫圈 (.312)LOCKWASHER (.312)2
928770艉板支架螺柱螺母(.312-24不锈钢)NUT (.312-24) Stainless Steel TRANSOM BRACKET STUD2
1049930A1倾斜锁销总成PIN ASSEMBLY Tilt Lock1
108M0026068倾斜锁销总成PIN ASSEMBLY Tilt Lock1
1189673艉板支架固定螺钉(.375-16×5.00)SCREW (.375-16 x 5.00) TRANSOM BRACKET TO TRANSOM2
1268410艉板支架螺栓垫圈WASHER TRANSOM BRACKET BOLT2
1246765垫圈 (.390 x 1.50 x .120)WASHER (.390 x 1.50 x .120)2
1399405艉板支架螺栓螺母NUT TRANSOM BRACKET BOLT2
1382671112螺母（.375-16）NUT (.375-16)2
1167755艉板支架固定螺栓(6英寸)BOLT TRANSOM BRACKET TO TRANSOM (6")2
11677552螺钉(0.500-20 x 6.500)SCREW (.500-20 x 6.500)2
1228421垫圈(1.5 x 3.05 x 0.13)不锈钢艉板支架螺栓WASHER (1.5 x 3.05 x 0.13) Stainless Steel TRANSOM BRACKET BOLT2
128M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel2
138M0027784艉板支架螺栓螺母NUT TRANSOM BRACKET BOLT2
1382671117螺母(.500-20)NUT (.500-20)2
1489116上部减震器安装销PIN UPPER SHOCK MOUNTING1
1589117上部减震器安装销衬套BUSHING UPPER SHOCK MOUNTING PIN2
1679659倾斜锁定联轴器COUPLING TILT LOCK1
1747959倾斜锁定开口销COTTER PIN TILT LOCK2
1822734旋转支架油封(倾斜锁)SEAL Oil SWIVEL BRACKET (TILT LOCK)2
1976388倾斜锁紧垫片WASHER TILT LOCK2
2062702O-RING (.301 x .070) TILT LOCK2
20627021O型圈(.301 x .070)O-RING (.301 x .070)2
2189105倾斜锁定装置TILT LOCK2
2287431倒挡锁定总成LOCK ASSEMBLY Reverse2
2292405A1倒挡锁定总成LOCK ASSEMBLY Reverse2
2214664A3倒车锁REVERESE LOCK2
2378203A1弹簧SPRING1
2378203A2弹簧SPRING1
2378203A2弹簧SPRING1
2456349SHAFT REVERSE LOCK PIVOT1
2545882轴锁紧开口销COTTER PIN LOCK TO SHAFT1
2728414下减震器安装销PIN LOWER SHOCK MOUNTING2
2821937下部减震销螺钉(2英寸)SCREW LOWER SHOCK PIN (2")2
2920184下部减震销螺钉螺母(1/4-28×7/32)NUT (1/4-28X7/32) LOWER SHOCK PIN SCREW2
298M0207775螺母 @5NUT @52
3058780A3水星减震器SHOCK ABSORBER MERCURY2
3058780A7减震器SHOCK ABSORBER2
3128196上衬套固定垫片(内)WASHER UPPER BUSHING RETAINER (INNER)2
3232171橡胶衬套-减震器(上部)BUSHING RUBBER, - SHOCK ABSORBER (UPPER)4
3328198BUSHING RUBBER - SHOCK ABSORBER (LOWER)4
3469374上下减震销垫片(下)WASHER UPPER/LOWER SHOCK PIN (LOWER)4
3569375上下减震销螺丝SCREW UPPER AND LOWER SHOCK PIN4
-73645A32衬垫套件GASKET SET1
-73645A87衬垫套件GASKET SET1

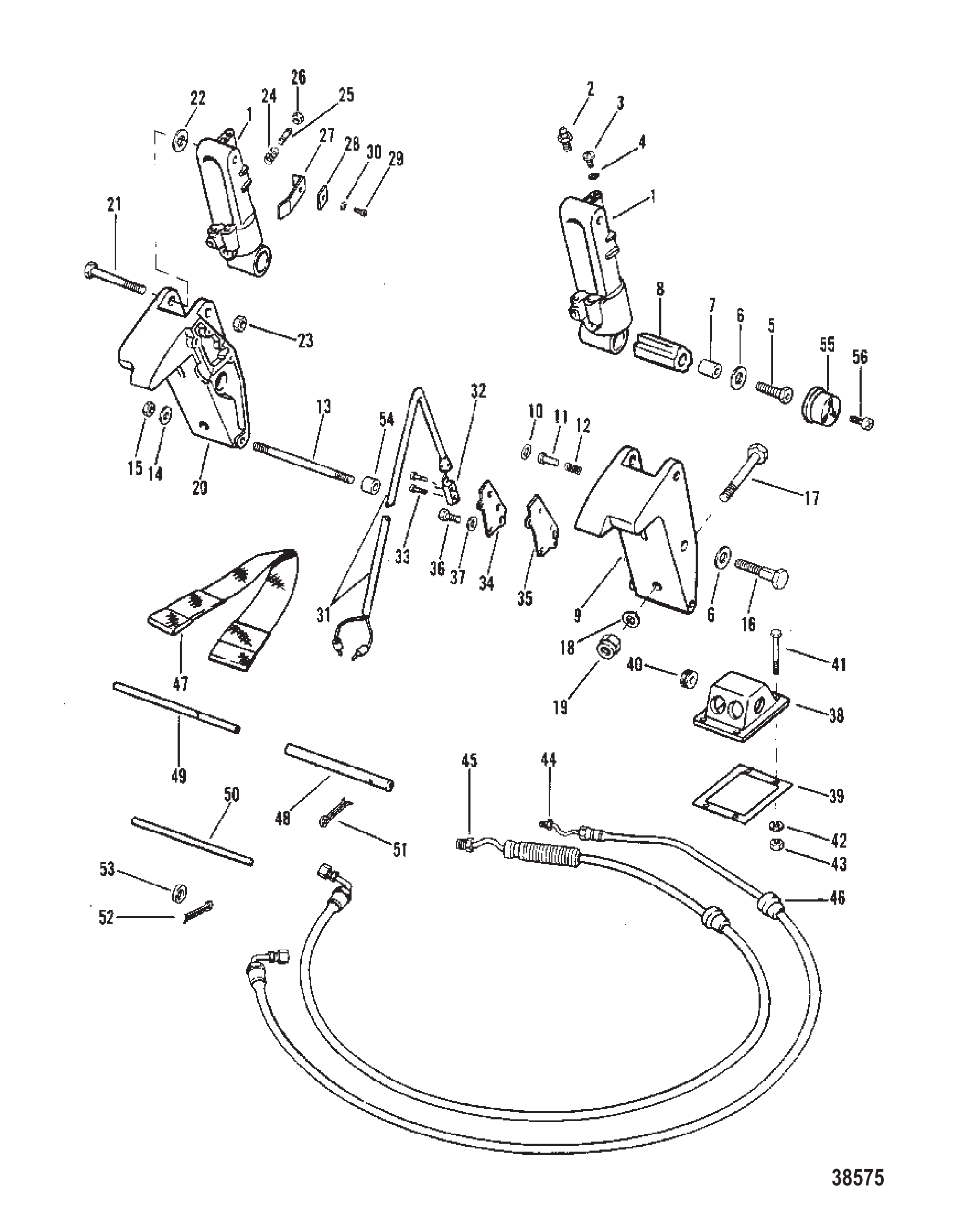

图 38升降油缸及液压软管 TRIM CYLINDERS AND HYDRAULIC HOSES
升降油缸及液压软管 TRIM CYLINDERS AND HYDRAULIC HOSES
REF零件编号中文名称英文名称数量
176509A3配平油缸TRIM CYLINDER2
192194A14配平油缸TRIM CYLINDER2
192194A14配平油缸TRIM CYLINDER2
274036润滑脂接头-配平油缸FITTING Grease TRIM CYLINDER2
28M0169589润滑脂接头FITTING Grease2
345265螺钉(#10-32x0.3125)放气SCREW (#10-32 x .3125) BLEED4
445016O型圈-放气螺钉O-RING BLEED SCREW4
545264螺钉(0.500-20x1.500)配平油缸SCREW (.500-20 x 1.500) TRIM CYLINDER2
592050螺钉(0.500-20x1.500)配平油缸SCREW (.500-20 x 1.500) TRIM CYLINDER2
628421垫圈(1.5x3.05x0.13)不锈钢配平油缸螺栓WASHER (1.5 x 3.05 x 0.13) Stainless Steel TRIM CYLINDER BOLT4
68M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
745280垫片-配平油缸下部SPACER TRIM CYLINDER - LOWER2
894907A1橡胶衬套-配平油缸BUSHING RUBBER - TRIM CYLINDER2
989108A3支架-配平油缸(左舷)BRACKET TRIM CYLINDER (PORT)1
1070608油封-左舷支架SEAL Oil PORT BRACKET1
1189290柱塞-限位开关驱动PLUNGER LIMIT SWITCH ACTUATING1
1295881张力弹簧-限位开关柱塞SPRING TENSION - LIMIT SWITCH PLUNGER1
1345282STUD (.312-24 x 16.620) MOUNTING BRACKET1
1426993锁紧垫圈(0.312)安装支架双头螺栓LOCKWASHER (.312) MOUNTING BRACKET STUD2
148M0204647锁紧垫圈 (.312)LOCKWASHER (.312)2
1528770螺母(0.312-24)不锈钢安装支架双头螺栓NUT (.312-24) Stainless Steel MOUNTING BRACKET STUD2
1645263螺钉(0.500-20x2.250)安装支架SCREW (.500-20 x .2.250) MOUNTING BRACKET2
1768298BOLT (.375-16 x 3.250) MOUNTING BRACKET TO TRANSOM6
1789673SCREW (.375-16 x 5.00) MOUNTING BRACKET TO TRANSOM2
1868410垫圈-安装支架螺栓WASHER MOUNTING BRACKET BOLT6
1846765垫圈 (.390 x 1.50 x .120)WASHER (.390 x 1.50 x .120)6
1999405螺母-安装支架螺栓NUT MOUNTING BRACKET BOLT8
1982671112螺母（.375-16）NUT (.375-16)8
2089111支架-配平油缸(右舷)BRACKET TRIM CYLINDER (STARBOARD)1
2089111T支架BRACKET1
2145328SCREW (.437-20 x 3.560) TRIM CYLINDER TO MOUNTING BRACKET2
2237807WASHER TRIM CYLINDER SCREW1
2320696平衡油缸螺钉螺母NUT TRIM CYLINDER SCREW2
2424390张力弹簧-调节螺栓SPRING TENSION - ADJUSTING STUD1
2521085双头螺栓(#10-32x0.930)调节-切断限位开关STUD (#10-32 x .930) ADJUSTING - CUT-OUT LIMIT SWITCH1
258M0034461螺柱STUD1
2645812螺母(#10-32)不锈钢锁紧-限位开关调节螺栓NUT (#10-32) Stainless Steel JAM - LIMIT SWITCH ADJUSTING STUD1
26859124螺母 (#10-32) 不锈钢NUT (#10-32) Stainless Steel1
2745508凸轮-限位开关调节螺栓CAM LIMIT SWITCH ADJUSTING STUD1
2799897凸轮CAM1
2886967挡板-限位开关凸轮PLATE RETAINING - LIMIT SWITCH CAM1
2968513螺钉(#10-32x0.375)不锈钢挡板与凸轮SCREW (#10-32 x .375) Stainless Steel RETAINING PLATE AND CAM1
3026996锁紧垫圈(#10)不锈钢挡板与凸轮螺钉LOCKWASHER (#10) Stainless Steel RETAINING PLATE AND CAM SCREW1
3145326A2切断限位开关总成SWITCH ASSEMBLY CUT- OUT LIMIT1
3245354橡胶衬套-切断限位开关BUSHING RUBBER - CUT-OUT LIMIT SWITCH1
3347255切断限位开关螺钉(#4-40×0.625)SCREW (#4-40 x .625) CUT OUT LIMIT SWITCH2
3489272限位开关盖COVER LIMIT SWITCH1
3589273限位开关盖衬垫GASKET LIMIT SWITCH COVER1
35892731衬垫GASKET1
3634994螺钉 (#10-32 x 1.00) 不锈钢 限位开关盖SCREW (#10-32 x 1.00) Stainless Steel LIMIT SWITCH COVER4
3738833限位开关盖螺钉垫圈WASHER LIMIT SWITCH COVER SCREW4
3887774A1艉板进水口盖COVER INLET - TRANSOM1
3987775进水口盖衬垫GASKET INLET COVER1
4045507橡胶衬套 - 进水口盖GROMMET RUBBER - INLET COVER1
4132866进水口盖板固定螺钉(#10-32×2.00不锈钢)SCREW (#10-32 x 2.00) Stainless Steel INLET COVER TO BOAT4
4226996锁紧垫圈 (#10) 不锈钢 进水口盖螺钉LOCKWASHER (#10) Stainless Steel INLET COVER SCREW4
4368219螺母 (#10-32) 不锈钢 进水口盖螺钉NUT (#10-32) Stainless Steel INLET COVER SCREW4
4497153A1平衡油缸至控制阀软管(5英尺-12/32"外径)HOSE TRIM-CYLINDER TO CONTROL VALVE (5') - 12/32" O.D.2
4488005软管HOSE2
4597154A1升降油缸至控制阀软管(5英尺-17/32"外径)HOSE LIFT-CYLINDER TO CONTROL VALVE (5') - 17/32" O.D.2
4588006软管HOSE2
4635977橡胶护圈(3/8"内径-1"长)GROMMET RUBBER (3/8" I.D. - 1" LONG)4
4697191橡胶护圈(3/8"内径-7/8"长)GROMMET RUBBER (3/8" I.D. - 7/8" LONG)2
4635977护孔环GROMMET2
4697000橡胶护圈(7/16"内径-7/8"长)GROMMET RUBBER (7/16" I.D. -7/8" LONG)2
4612602002护孔环GROMMET2
4773519A1拉带 倾斜止动STRAP Tilt Stop1
4869259安装管 - 倾斜止动TUBE MOUNTING - TILT STOP1
4977669安装管销PIN MOUNTING TUBE1
5063473缓冲管TUBE CUSHION1
5136391开口销 安装管销COTTER PIN MOUNTING TUBE PIN1
5136002开口销COTTER PIN1
5245882COTTER PIN TILT PIN RETAINING1
5339304倾斜销垫片WASHER TILT PIN1
5489112安装支架衬套BUSHING MOUNTING BRACKET2
5570679配平油缸盖COVER TRIM CYLINDER2
5637655平衡油缸盖螺钉(#10-32×0.500)SCREW (#10-32 x .500) TRIM CYLINDER COVER2
