水星 Mercury 8 HP 0A197112 THRU 0D280999 - 爆炸图零件明细

两冲程化油器 · USA - Cat.# 90-811286 · 共 86 个部位 · 3629 条零件

1化油器（WMC5A/WMC5B/WMC7/WMC7A/WMC19/WMC19A）2化油器总成（15）3化油器 WMC 17\17B\17C\18\18A\18B\20/20A/20B\23 4夹箍支架 5外罩 6曲轴、活塞和飞轮（15）7曲轴、活塞和飞轮（6/8/9.9）8气缸体和盖 9驱动轴壳体 10电气组件 11电气组件（电压调节器和线束）12燃油滤清器总成 13齿轮箱（驱动轴）（设计II-参见参考号41）14齿轮箱（驱动轴-设计 I-参考编号 #17）15齿轮箱（螺旋桨轴-设计 I-参考驱动轴图纸）16齿轮箱（螺旋桨轴-设计II-参见驱动轴图纸）17点火组件 18连杆和组件（电动长杆带遥控）19手动启动器（设计 I）20手动启动器（设计II）21杂项零件/附件 22遥控安装组件 23旋转支架和转向手柄 24油门和换挡联动装置（侧换挡型号）25油门和换挡联动装置（舵柄换挡型号）26化油器总成（15）27手动启动器 28化油器总成 29曲轴、活塞和飞轮（15）30气缸体和盖 31点火组件 32齿轮箱（螺旋桨轴-设计II-参见驱动轴图纸）33点火组件 34杂项零件/附件 35专用工具 36夹箍支架 37齿轮箱（螺旋桨轴-设计 I-参考驱动轴图纸）38气缸体与盖 39化油器（15）（美国-序列号-0G112449/比利时-序列号-9831799 及以下）40曲轴、活塞和飞轮（6/8/9.9）41燃油滤清器总成(USA-1B153167/BEL-0P360020及以下)42连杆和组件（电动长杆带遥控）43电气组件 44驱动轴壳体 45旋转支架和转向手柄 46润滑图表 47附件 48油门和换挡联动装置（舵柄换挡）49工具 50燃油滤清器总成 51化油器（9.9/15）（美国-序列号-0G112450/比利时-序列号-9831800 及以上）52旋转支架 53曲轴活塞与飞轮 54齿轮箱（驱动轴）（设计II-参见参考号41）55化油器联动装置 56齿轮箱（驱动轴）（2.00:1齿轮比）57遥控安装组件 58油门和换挡联动装置 59维修/支撑材料 60手动启动器（设计 I）61手动启动器（设计II）62电气组件 63齿轮箱（驱动轴-设计 I-参考编号 #17）64化油器（WMC5A/WMC5B/WMC7/WMC7A/WMC19/WMC19A）65油门与换挡联动装置（侧换挡）66连杆和组件 67齿轮箱螺旋桨轴-2.00:1齿轮比 68衬垫组件-完整-动力头与下部单元 69化油器（6/8）（9.9 -美国-序列号-0G112449/比利时-序列号-9831799 及以下）70油门和换挡联动装置（侧换挡型号）71电气组件（电压调节器和线束）72驱动轴壳体 73化油器 WMC 17\17B\17C\18\18A\18B\20/20A/20B\23 74曲轴（6/8）（9.9-美国-0G112449/比利时-9831799 及以下）75夹紧支架 76燃油滤清器总成 77燃油滤清器总成(USA-1B153168/BEL-0P360021及以上)78油门和换挡联动装置（舵柄换挡型号）79配件贴纸 Mariner 80曲轴（15）（9.9-序列号-美国-0G112450/比利时-9831800 及以上）81燃油箱总成（6.6加仑）82外罩 83旋转头与转向手柄 84外罩 85遥控连接组件 86燃油箱总成（3.2加仑）

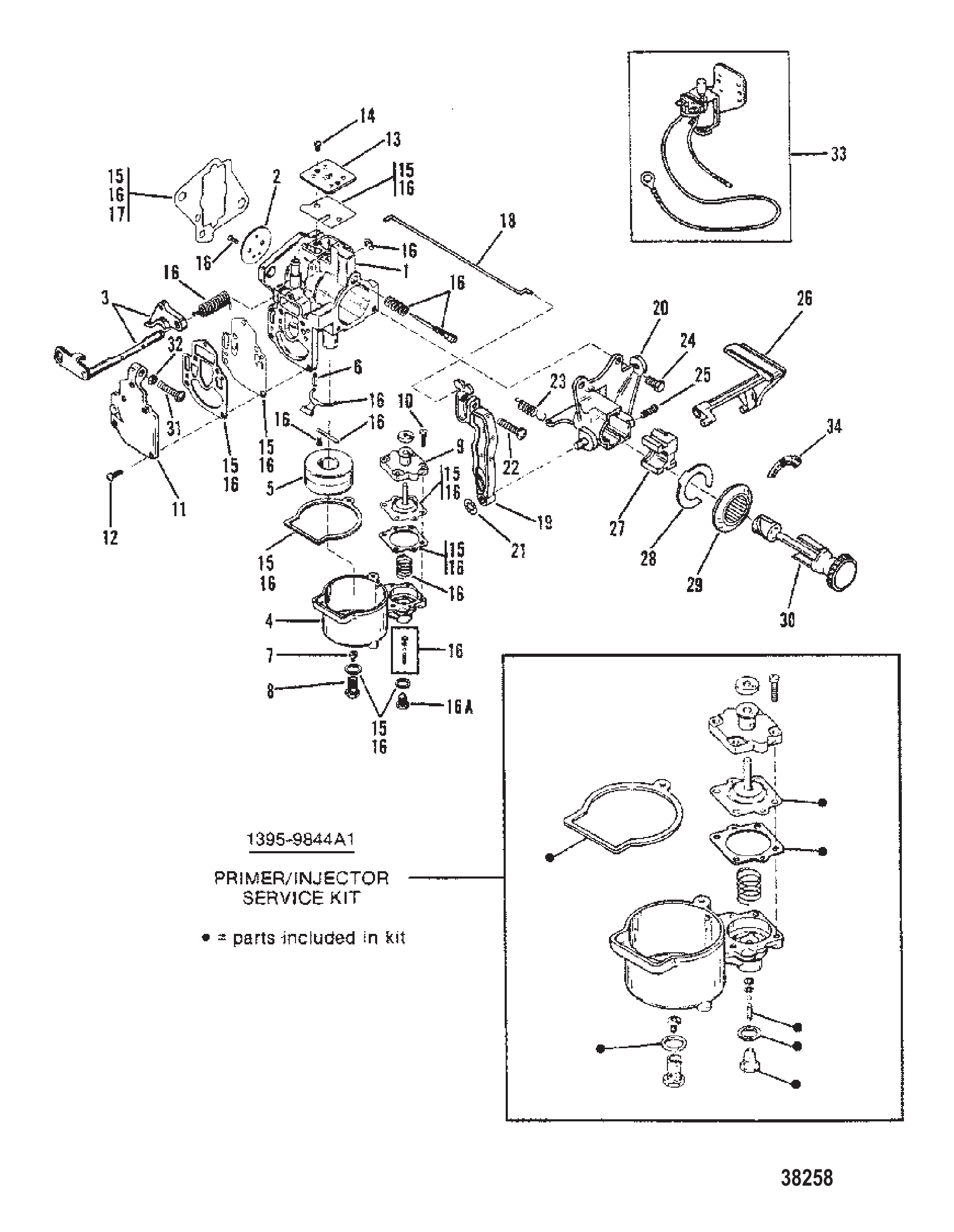

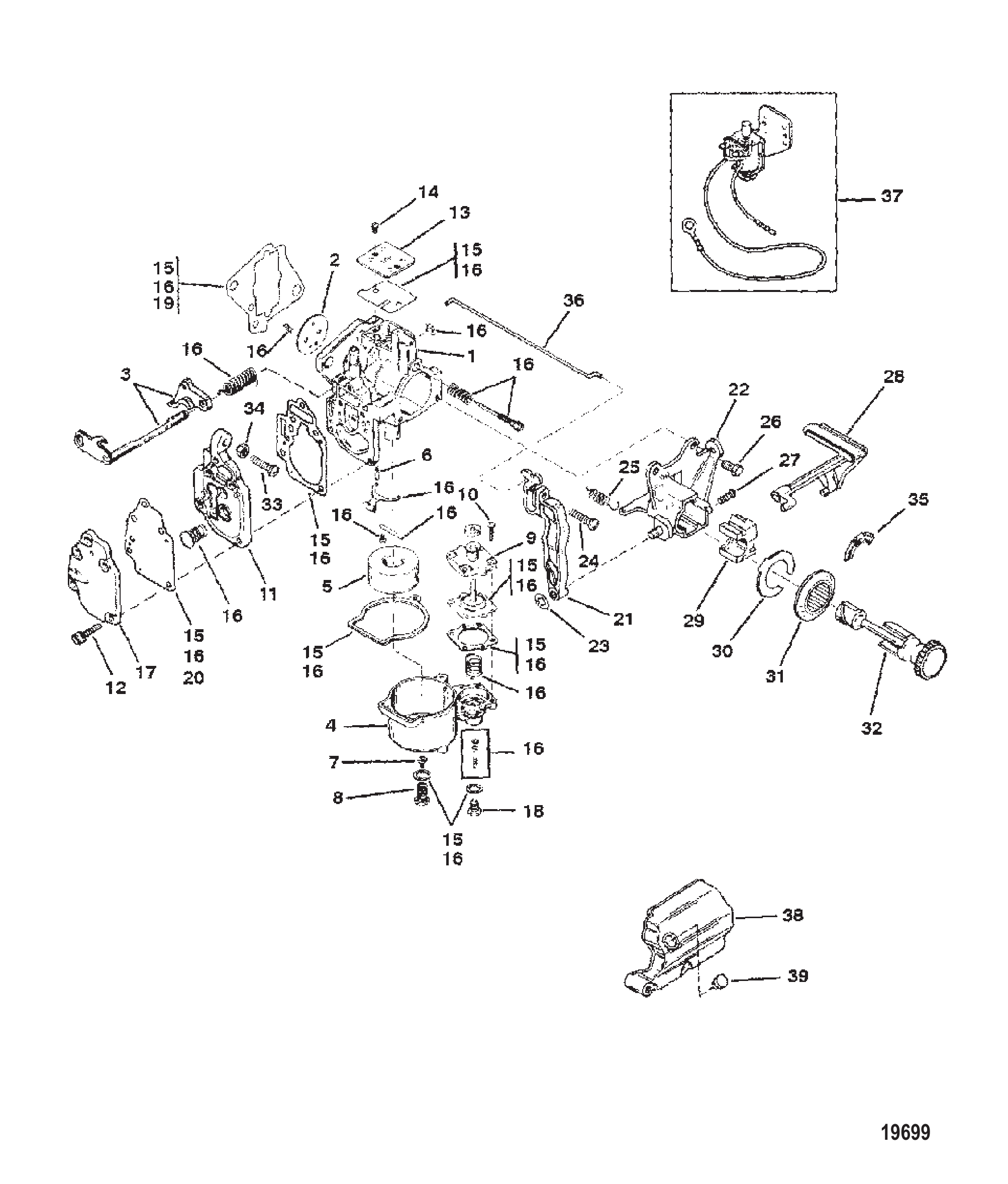

图 1化油器（WMC5A/WMC5B/WMC7/WMC7A/WMC19/WMC19A） CARBURETOR (WMC5A/WMC5B/WMC7/WMC7A/WMC19/WMC19A)

REF	零件编号	中文名称	英文名称	数量
1	9503A5	化油器总成	CARBURETOR ASSEMBLY	1
1	9266A7	化油器总成	CARBURETOR ASSEMBLY	1
1	9266T22	化油器	CARBURETOR	1
1	8846A8	化油器总成	CARBURETOR ASSEMBLY	1
1	8846A24	化油器维修包	CARBURETOR KIT	1
2	9473	油门阀	VALVE Throttle	1
3	9472	油门轴	SHAFT Throttle	1
3	804707	轴	SHAFT	1
4	9164	燃油杯	BOWL Fuel	1
5	9169	浮子	FLOAT	1
5	91691	浮子	FLOAT	1
6	9855	进油针阀	VALVE INLET NEEDLE	1
6	803861	进油针阀	VALVE Inlet Needle	1
7	9548	主燃油喷嘴(.039)	JET MAIN FUEL (.039)	1
7	5317	主燃油喷嘴(.046)	JET (.046) MAIN FUEL	1
7	5213	主量孔(.056)	JET Main (.056)	1
8	9171	量孔固定塞	PLUG JET RETAINER	1
9	813618	膜片盖	COVER DIAPHRAGM	1
10	9174	膜片盖螺丝	SCREW DIAPHRAGM COVER	4
10	9697	螺钉	SCREW	4
11	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
12	9173	燃油泵盖螺丝	SCREW FUEL PUMP COVER	5
13	9177	盖板	PLATE COVER	1
14	9172	盖板螺钉	SCREW COVER PLATE	2
14	9696	螺钉	SCREW	2
15	9761	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
15	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
16	9475	维修零件包	REPAIR PARTS KIT	1
16	96481	维修套件	REPAIR KIT	1
16A	9762	堵头	PLUG	1
17	192061	化油器衬垫	GASKET Carburetor	1
18	445541	怠速线	IDLE WIRE	1
19	128053	快怠速杆	LEVER Fast Idle	1
20	12803	启动泵支架	BRACKET Primer	1
21	97877	快怠速杠杆推螺母	PUSH NUT FAST IDLE LEVER	1
21	821979	螺母	NUT	1
22	79964	螺钉(#6-32 x .750)快怠速杠杆	SCREW (#6-32 x .750) FAST IDLE LEVER	1
22	12110	螺丝 (#6-32 x .750)	SCREW (#6-32 x .750)	1
23	11277	张力弹簧	SPRING Tension	1
24	40056110	螺钉(M5 x 30)启动泵支架	SCREW (M5 x 30) PRIMER BRACKET	2
25	79965	螺钉(#8-32 x .500)不锈钢启动泵支架	SCREW (#8-32 x .500) Stainless Steel PRIMER BRACKET	1
26	112731	启动泵杆	LEVER Primer	1
27	11280	凸轮块	CAM BLOCK	1
28	11278	固定夹	CLIP Retaining	1
29	12804A1	阻风门面板总成	BEZEL ASSEMBLY Choke	1
30	12802	启动泵旋钮	KNOB PRIMER	1
30	128022	启动泵旋钮	PRIMER KNOB	1
31	40056110	螺钉(M5×30) 化油器止动	SCREW (M5 x 30) STOP-CARBURETOR	1
32	400211	螺母(M5)不锈钢止动螺钉	NUT (M5) Stainless Steel STOP CREW	1
33	823433	电动阻风门	CHOKE Electric	1
34	12970	贴纸 (慢/快)	DECAL (SLOW/FAST)	1
34	129701	贴花	DECAL	1
-	42364A91	衬垫套件	GASKET SET	1
-	42364A92	发动机垫片组	GASKET SET Engine	1

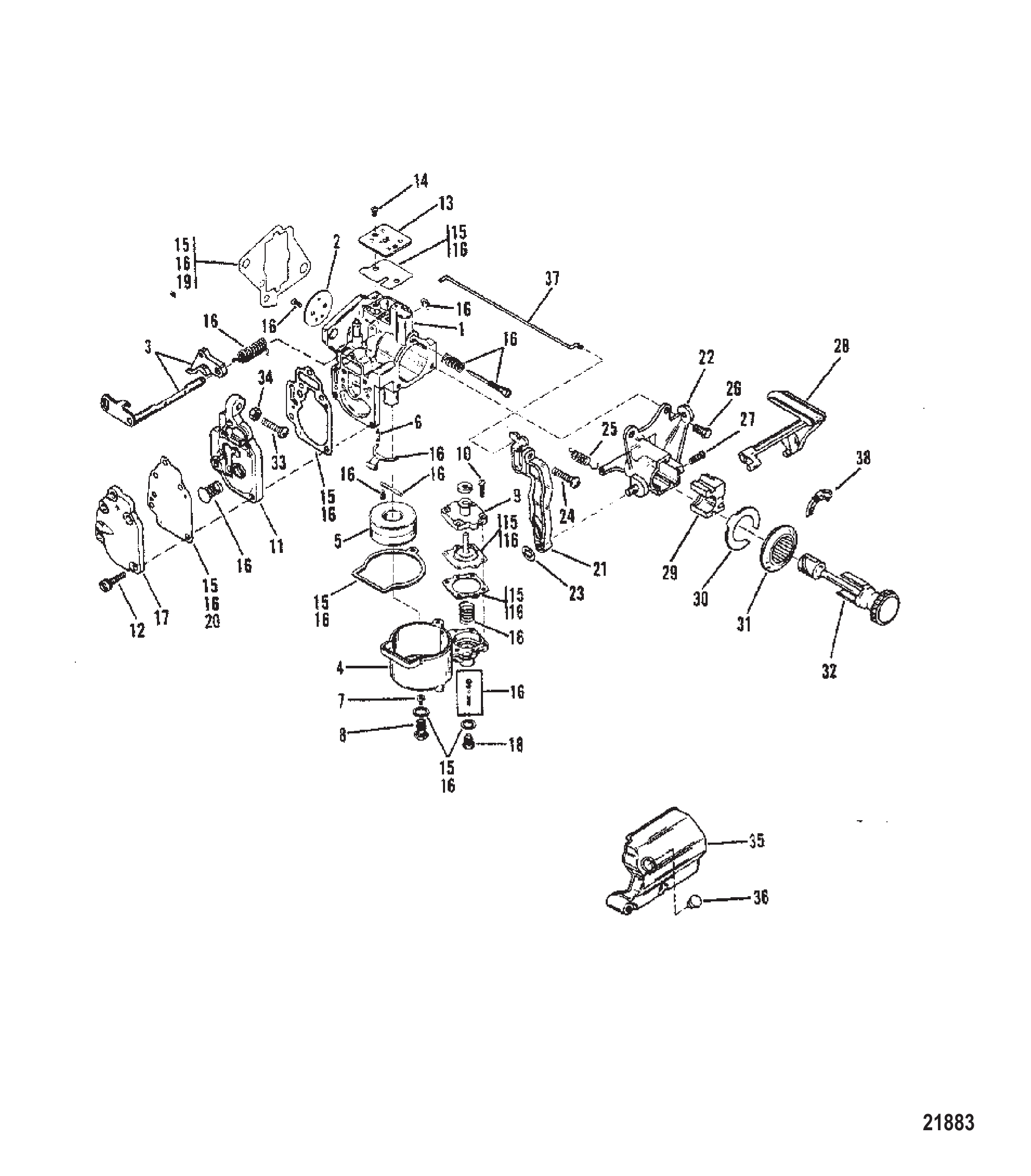

图 2化油器总成（15） CARBURETOR ASSEMBLY (15)

REF	零件编号	中文名称	英文名称	数量
1	9726A3	化油器(WMC-39)	CARBURETOR (WMC-39)	1
1	9726T19	化油器	CARBURETOR	1
2	19268	节气门阀(WMC-28)	VALVE Throttle (WMC-28)	1
2	823716	节气门阀(WMC-39)	VALVE Throttle (WMC-39)	1
3	19267	节气门轴(含螺钉和弹簧)	SHAFT Throttle (INCLS.SCREW & SPRING)	1
4	9164	燃油杯	BOWL Fuel	1
5	9169	浮子	FLOAT	1
5	91691	浮子	FLOAT	1
6	9855	阀门	VALVE	1
6	803861	进油针阀	VALVE Inlet Needle	1
7	4215	燃油主量孔(.066)	JET Main Fuel (.066)	1
8	9171	量孔固定塞	PLUG JET RETAINER	1
9	813618	膜片盖	COVER DIAPHRAGM	1
10	9697	膜片盖螺丝	SCREW DIAPHRAGM COVER	4
11	15827A1	本体	BODY	1
11	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
12	9643	燃油泵盖螺丝	SCREW FUEL PUMP COVER	5
13	9699	盖板	PLATE COVER	1
14	9696	盖板螺钉	SCREW COVER PLATE	2
15	9803	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
15	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
16	19269	维修零件包	REPAIR PARTS KIT	1
16	8237072	维修套件	REPAIR KIT	1
17	9637	燃油泵盖	COVER FUEL PUMP	1
18	9762	堵头	PLUG	1
19	192061	化油器衬垫	GASKET Carburetor	1
20	9635	膜片/衬垫	DIAPHRAGM/GASKET	1
21	128053	快怠速杆	LEVER Fast Idle	1
22	12803	启动泵支架	BRACKET Primer	1
23	97877	压入式螺母	PUSH NUT	1
23	821979	螺母	NUT	1
24	79964	螺丝 (#6-32 x .750)	SCREW (#6-32 x .750)	1
24	12110	螺丝 (#6-32 x .750)	SCREW (#6-32 x .750)	1
25	11277	张力弹簧	SPRING Tension	1
26	40056110	螺丝(M5 x 30)	SCREW (M5 x 30)	2
26	400018	螺钉(M5 x 12)	SCREW (M5 x 12)	2
27	79965	螺丝 (#8-32 x .500) 不锈钢	SCREW (#8-32 x .500) Stainless Steel	1
28	112731	启动泵杆	LEVER Primer	1
29	11280	凸轮块	CAM BLOCK	1
30	11278	固定夹	CLIP Retaining	1
31	12804A1	阻风门面板总成	BEZEL ASSEMBLY Choke	1
32	128022	启动泵旋钮	PRIMER KNOB	1
33	40056110	螺丝(M5 x 30)	SCREW (M5 x 30)	1
34	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
35	17442	盖板	COVER	1
36	47579	堵头	PLUG	1
37	445541	怠速线	IDLE WIRE	1
38	12970	贴纸 (慢/快)	DECAL (SLOW/FAST)	1
38	129701	贴花	DECAL	1

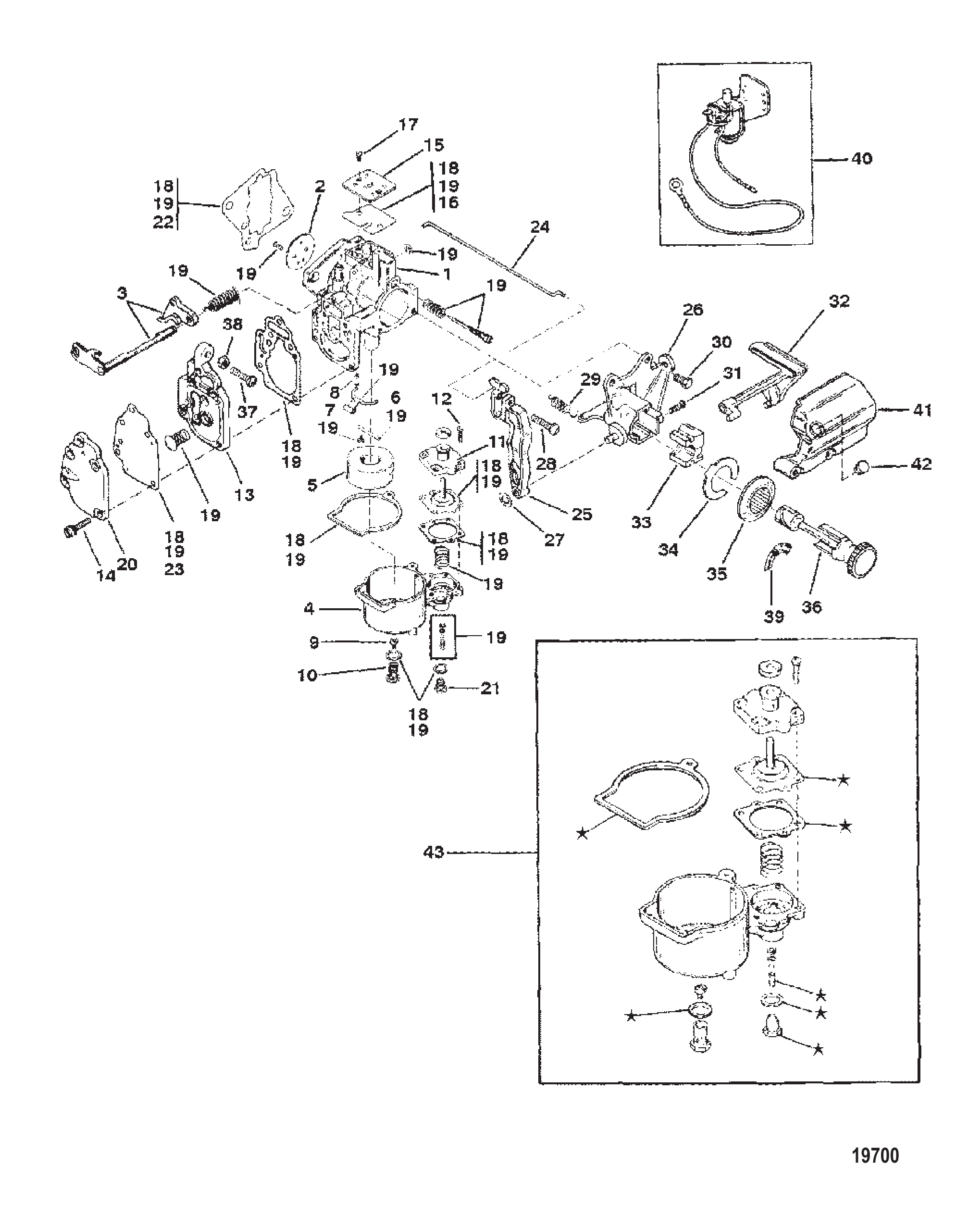

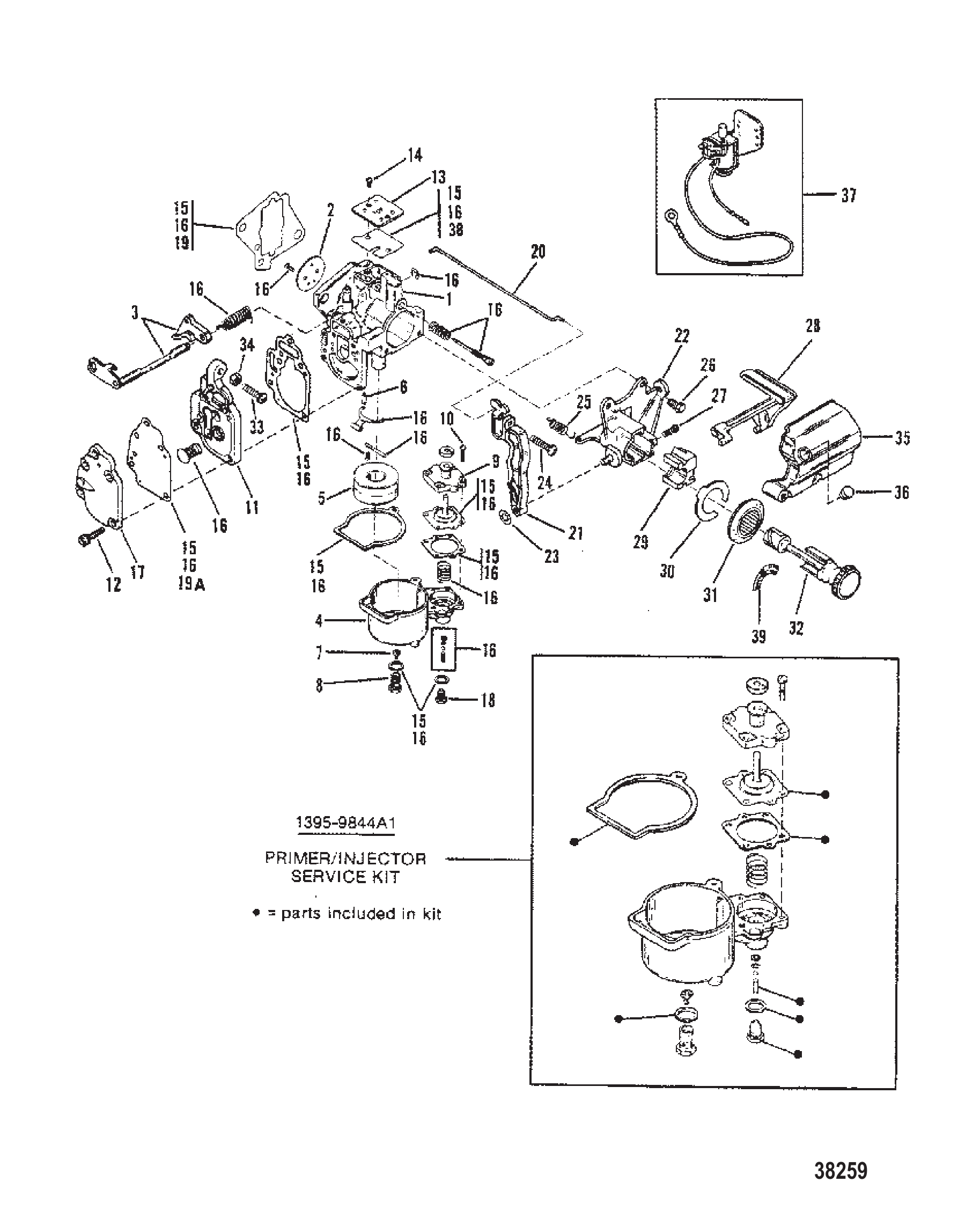

图 3化油器 WMC 17\17B\17C\18\18A\18B\20/20A/20B\23 CARBURETOR WMC 17\17B\17C\18\18A\18B\20/20A/20B\23

$化油器 WMC 17\17B\17C\18\18A\18B\20/20A/20B\23 CARBURETOR WMC 17\17B\17C\18\18A\18B\20/20A/20B\23$

REF	零件编号	中文名称	英文名称	数量
1	9503A11	化油器(6)(WMC-20B)	CARBURETOR (6)(WMC-20B)	1
1	9503T21	化油器 (WMC-78A)	CARBURETOR (WMC-78A)	1
1	9266A12	化油器(8)(WMC-18B)	CARBURETOR (8)(WMC-18B)	1
1	9266T22	化油器	CARBURETOR	1
1	8846A14	化油器(9.9)(WMC-23)	CARBURETOR (9.9)(WMC-23)	1
1	8846A24	化油器维修包	CARBURETOR KIT	1
2	9473	油门阀	VALVE Throttle	1
2	815133	节气门阀(WMC-23)	VALVE Throttle (WMC-23)	1
3	9472	节气门轴(WMC-17/18/20)	SHAFT Throttle (WMC-17/18/20)	1
3	804707	轴	SHAFT	1
3	9698	轴(WMC-17C/18A/18B/20A/20B)	SHAFT (WMC-17C/18A/18B/20A/20B)	1
3	804707	轴	SHAFT	1
3	813022	节气门轴(WMC-23)(含螺钉/弹簧)	SHAFT Throttle (WMC-23)(INCL.SCREW/SPRING)	1
4	9164	燃油杯	BOWL Fuel	1
5	9169	浮子	FLOAT	1
5	91691	浮子	FLOAT	1
6	9855	阀门	VALVE	1
6	803861	进油针阀	VALVE Inlet Needle	1
7	5315	主量孔(0.042)(6)	JET Main Fuel (.042) (6)	1
7	5317	量孔(0.046)(8)	JET (.046) (8)	1
7	5213	主量孔(0.056)(9.9)	JET Main (.056) (9.9)	1
7	6359	量孔(0.052)(9.9)	JET (.052) (9.9)	1
8	9171	量孔固定塞	PLUG JET RETAINER	1
9	813618	膜片盖	COVER DIAPHRAGM	1
10	9174	螺钉(WMC-17/18/20)	SCREW (WMC-17/18/20)	4
10	9697	螺钉	SCREW	4
10	9697	螺钉(WMC-17B/17C/18A/18B/20A/20B/23)	SCREW (WMC-17B/17C/18A/18B/20A/20B/23)	4
11	15827A1	本体	BODY	1
11	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
12	9643	燃油泵盖螺丝	SCREW FUEL PUMP COVER	5
13	9177	板(WMC-17/18/20)	PLATE (WMC-17/18/20)	1
13	9699	板(WMC-17B/17C/18A/18B/20A/20B/23)	PLATE (WMC-17B/17C/18A/18B/20A/20B/23)	1
14	9172	螺钉(WMC-17/18/20)	SCREW (WMC-17/18/20)	2
14	9696	螺钉	SCREW	2
14	9696	螺钉(WMC-17B/17C/18A/18B/20A/20B/23)	SCREW (WMC-17B/17C/18A/18B/20A/20B/23)	2
15	9725	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
15	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
16	9648	维修零件包	REPAIR PARTS KIT	1
16	96481	维修套件	REPAIR KIT	1
16	813023	维修套件(WMC-23)	REPAIR KIT (WMC-23)	1
16	8237072	维修套件	REPAIR KIT	1
17	9637	燃油泵盖	COVER FUEL PUMP	1
18	9762	堵头	PLUG	1
19	192061	化油器衬垫	GASKET Carburetor	1
19A	9635	膜片/衬垫	DIAPHRAGM/GASKET	1
20	445541	怠速线	IDLE WIRE	1
21	128053	快怠速杆	LEVER Fast Idle	1
22	12803	启动泵支架	BRACKET Primer	1
23	97877	压入式螺母	PUSH NUT	1
23	821979	螺母	NUT	1
24	79964	螺丝 (#6-32 x .750)	SCREW (#6-32 x .750)	1
24	12110	螺丝 (#6-32 x .750)	SCREW (#6-32 x .750)	1
25	11277	张力弹簧	SPRING Tension	1
26	40056110	螺丝(M5 x 30)	SCREW (M5 x 30)	2
26	400018	螺钉(M5 x 12)	SCREW (M5 x 12)	2
27	79965	螺丝 (#8-32 x .500) 不锈钢	SCREW (#8-32 x .500) Stainless Steel	1
28	112731	启动泵杆	LEVER Primer	1
29	11280	凸轮块	CAM BLOCK	1
30	11278	固定夹	CLIP Retaining	1
31	12804A1	阻风门面板总成	BEZEL ASSEMBLY Choke	1
32	128022	启动泵旋钮	PRIMER KNOB	1
33	40056110	螺丝(M5 x 30)	SCREW (M5 x 30)	1
33	92799	螺钉(#10-16x1.12)	SCREW (#10-16 x 1.12)	1
34	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
35	17442	盖板	COVER	1
36	47579	堵头	PLUG	1
37	823433	电动阻风门	CHOKE Electric	1
38	44426	电控阻风门衬垫	GASKET ELECTRIC CHOKE	1
39	12970	贴纸 (慢/快)	DECAL (SLOW/FAST)	1
39	129701	贴花	DECAL	1

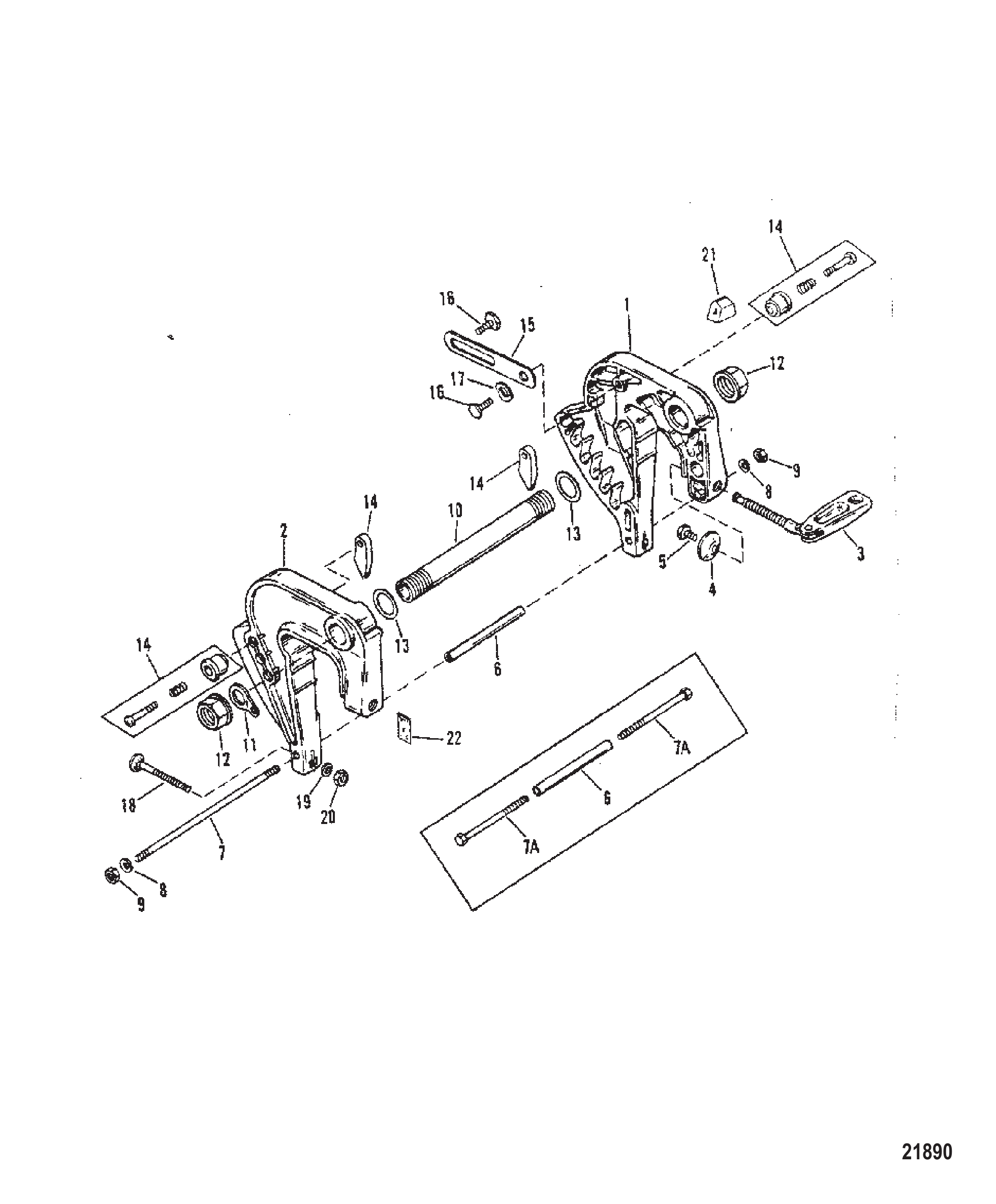

图 4夹箍支架 CLAMP BRACKET

REF	零件编号	中文名称	英文名称	数量
1	8894A5	夹具支架总成 (左舷) (黑色)	CLAMP BRACKET ASSEMBLY (PORT) (BLACK)	1
1	8894A11	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
1	8894A6	夹具支架总成 (左舷) (灰色)	CLAMP BRACKET ASSEMBLY (PORT) (GRAY)	1
1	8894A12	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
2	8892A3	夹具支架总成 (右舷) (黑色)	CLAMP BRACKET ASSEMBLY (STARBOARD) (BLACK)	1
2	8894A11	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
2	8892A4	夹具支架总成 (右舷) (灰色)	CLAMP BRACKET ASSEMBLY (STARBOARD) (GRAY)	1
2	8894A12	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
3	92767A1	蝶形螺丝总成 (14 mm)	THUMB SCREW ASSEMBLY (14 mm)	2
3	92767A3	蝶形螺丝总成 (16 mm)	THUMB SCREW ASSEMBLY (16 mm)	2
4	73719	蝶形螺丝垫圈	WASHER THUMB SCREW	2
4	818884	垫圈	WASHER	2
5	768041	垫圈固定螺丝	SCREW WASHER ATTACHING	2
5	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
6	43431	夹紧支架螺柱隔套	SPACER CLAMP BRACKET STUD	1
6	818539	隔套	SPACER	1
6	8M0084719	隔套	SPACER	1
7	42129	夹紧支架螺柱	STUD CLAMP BRACKET	1
7A	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	2
8	400256	夹紧支架螺柱防松垫圈(M6)	LOCKWASHER (M6) CLAMP BRACKET STUD	2
9	400212	夹紧支架螺柱不锈钢螺母(M6)	NUT (M6) Stainless Steel CLAMP BRACKET STUD	2
10	42078	倾斜管	TILT TUBE	1
11	30954	安全卡扣	CLIP SAFETY	1
11	8M0085928	卡扣	CLIP	1
12	93164	倾斜管螺母(.875)	NUT (.875) TILT TUBE	2
13	71421	倾斜管尼龙垫圈	WASHER Nylon TILT TUBE	2
14	42390A1	倾斜回位杆总成	LEVER ASSEMBLY Tilt Return	2
15	90901	倾斜限位带-左舷侧	STRAP TILT STOP - PORT SIDE	1
16	42498	限位带至夹紧支架螺钉(M6x1.0)	SCREW (M6 x 1.0) STRAP TO CLAMP BRACKET	2
17	31030	倾斜限位带螺钉波形垫圈	WAVE WASHER TILT STOP STRAT SCREW	1
18	43216	夹紧支架至艉板螺栓(.250-20x3.50)	BOLT (.250-20 x 3.50) CLAMP TO TRANSOM	2
19	67983	夹紧支架螺栓垫圈	WASHER CLAMP BRACKET BOLT	2
21	814427	倾斜锁定滑块(新设计)	SHUTTLE TILT LOCK (NEW DESIGN)	1
22	12869	倾斜位置标贴	DECAL Tilt Position	1

图 5外罩 COWLS

REF	零件编号	中文名称	英文名称	数量
1	9205A13	顶罩总成(黑色)	TOP COWL ASSEMBLY (BLACK)	1
1	9420T10	顶盖总成	TOP COWL ASSEMBLY	1
1	9420A9	顶罩总成(灰色)	TOP COWL ASSEMBLY (GRAY)	1
1	8M0094069	顶罩	TOP COWL	1
2	444621	密封件	SEAL	1
2	8M0043151	罩壳密封条	COWL-SEAL	1
3	13691A1	隔音毯套装	SOUND BLANKET KIT	1
3	13691A02	隔音毯套装(预涂压敏胶)	SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive)	1
4	16471A1	盖锁扣	LATCH Cowl	1
5	817104A3	罩壳锁扣总成	LATCH ASSEMBLY Cowl	1
6	180402	锁钩	LATCH HOOK	1
7	11354	后护板(黑色)	SHIELD REAR (BLACK)	1
7	12873	后护板(灰色)	SHIELD REAR (GRAY)	1
7	12873T	护罩	SHIELD	1
8	400018	后护板螺钉(M5x12)	SCREW (M5 x 12) REAR SHIELD	2
9	9204A1	底罩(黑色)	BOTTOM COWL (BLACK)	1
9	9204A2	底罩(灰色)	BOTTOM COWL (GRAY)	1
9A	15061	堵头	PLUG	1
9A	15061001	堵头	PLUG	1
10	12154	底罩塞(手动)	PLUG BOTTOM COWL (MANUAL)	1
10	121532	底罩护线环(电动)	GROMMET Bottom Cowl (ELECTRIC)	1
11	11083A6	停机开关总成	SWITCH ASSEMBLY Stop	1
12	15920A54	拉绳总成	LANYARD ASSEMBLY	1
12	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
13	120441	停止开关黄铜固定座	RETAINER Brass STOP SWITCH	1
13	8M0032846	黄铜固定座	RETAINER Brass	1
14	44461A1	罩壳锁杆	LEVER Cowl Latch	1
15	76470	罩壳锁杆衬套	BUSHING COWL LATCH LEVEER	1
16	11394	锁扣隔套	SPACER LATCH	1
17	40019130	锁扣与锁杆螺钉(M6x30)	SCREW (M6 x 30) LATCH AND LEVER	1
17	40019131	锁扣与锁杆螺钉(M6x35)	SCREW (M6 x 35) LATCH AND LEVER	1
18	69708	锁扣与锁杆螺钉波形垫圈	WAVE WASHER LATCH AND LEVER SCREW	1

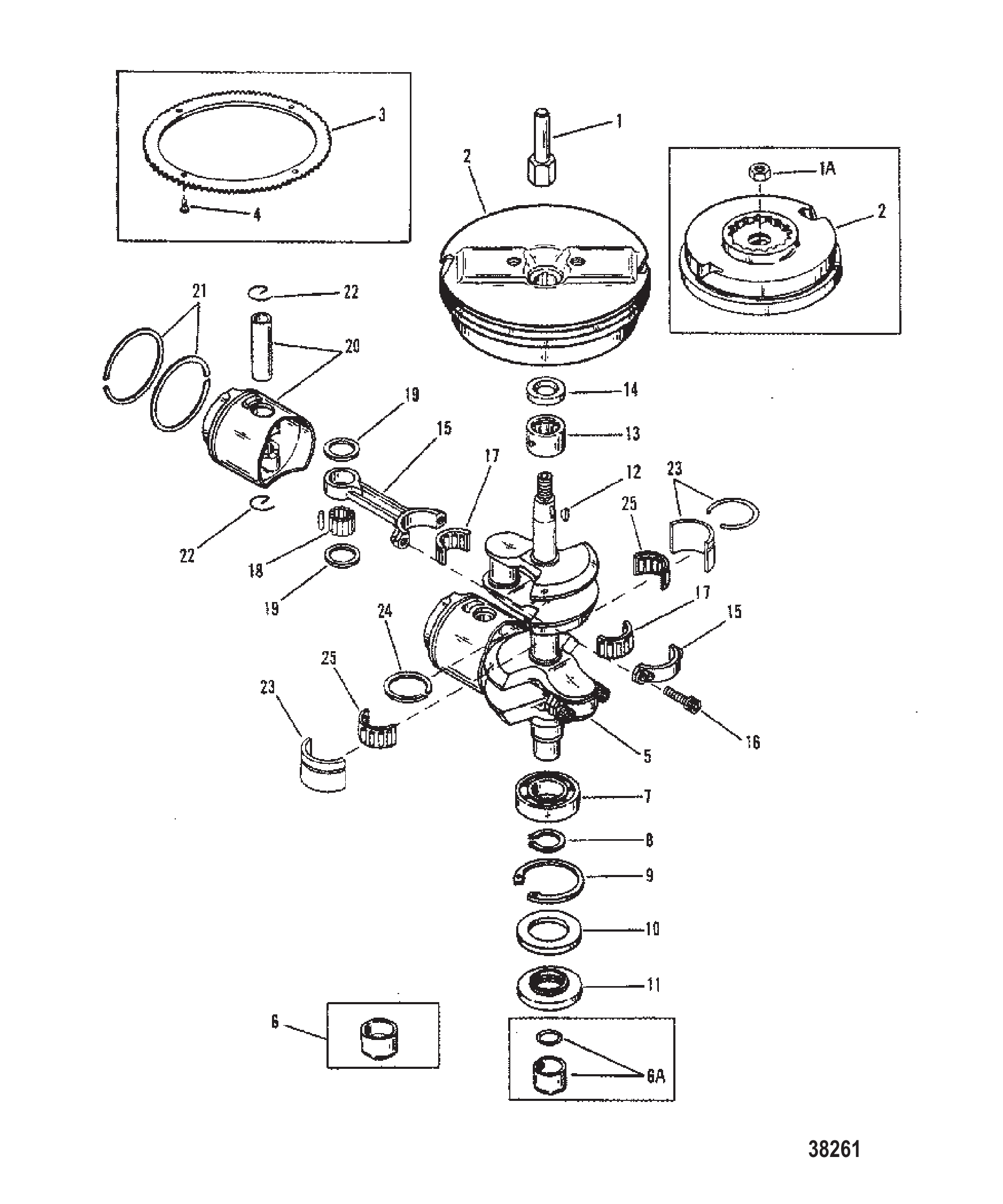

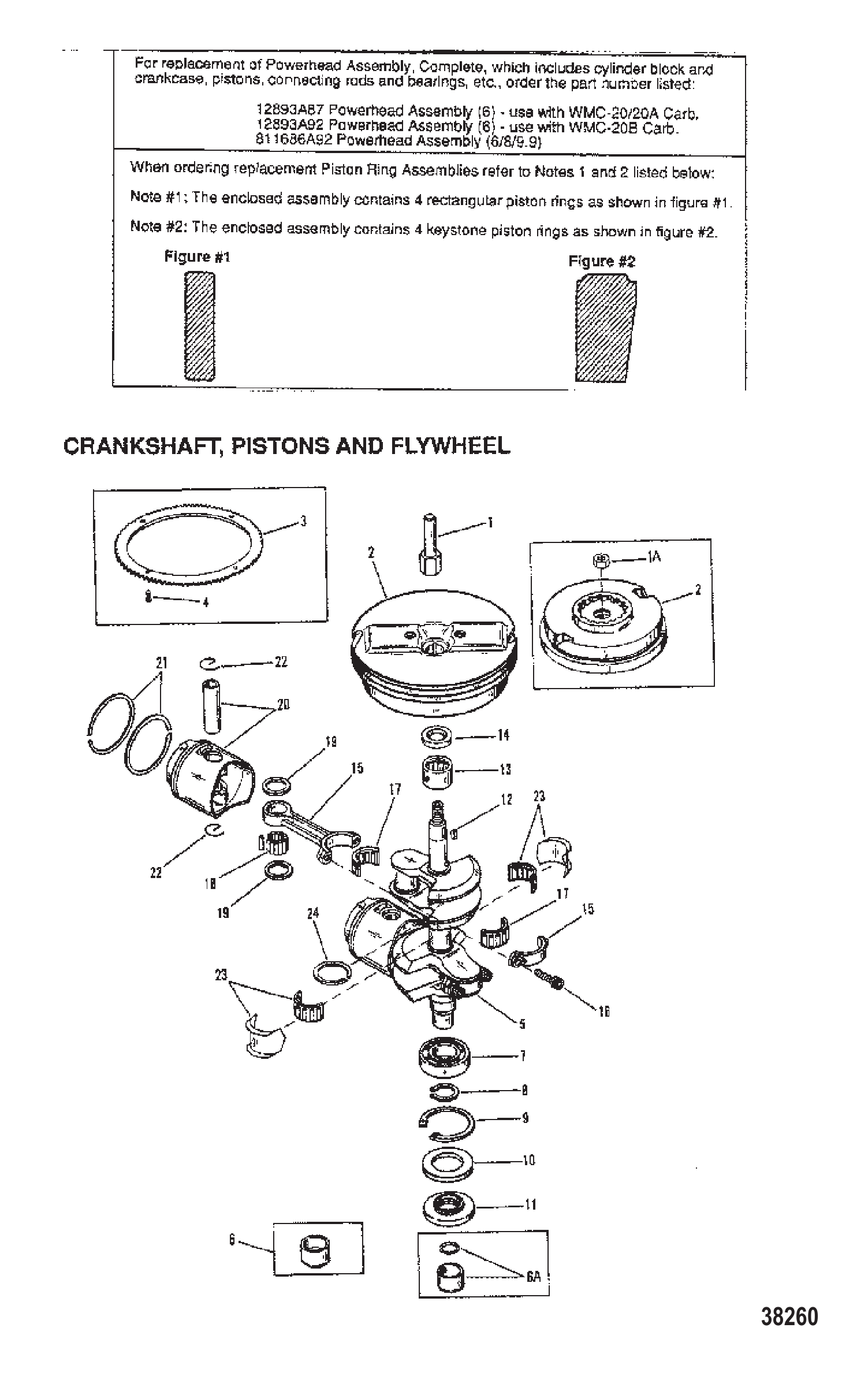

图 6曲轴、活塞和飞轮（15） CRANKSHAFT, PISTONS AND FLYWHEEL (15)

REF	零件编号	中文名称	英文名称	数量
1	42691	飞轮轴	SHAFT FLYWHEEL	1
1A	818591	螺母(M14)	NUT (M14)	1
2	8908A2	飞轮总成	FLYWHEEL ASSEMBLY	1
2	859231T6	飞轮	FLYWHEEL	1
2	818540A2	飞轮总成	FLYWHEEL ASSEMBLY	1
2	859231T19	飞轮总成	FLYWHEEL ASY	1
3	99301	飞轮齿圈	RING GEAR FLYWHEEL	1
4	40039106	螺钉(M5×13)齿圈至飞轮	SCREW (M5 x 13) RING GEAR TO FLYWHEEL	4
4	88190313	螺钉 (M5 x 13)	SCREW (M5 x 13)	4
5	8471A2	曲轴总成	CRANKSHAFT ASSEMBLY	1
5	8M0083309	曲轴总成	CRANKSHAFT ASSY	1
6	42890	曲轴油封(设计I型)	SEAL Oil CRANKSHAFT (DESIGN I)	1
6	818630A1	套筒	SLEEVE	1
6A	818630A1	套筒(含O型圈-设计II型)	SLEEVE (INCLUDES O-RING - DESIGN II)	1
7	41341	曲轴下球轴承	BEARING Ball CRANKSHAFT-LOWER	1
8	20940	卡环-球轴承(小号)(旧设计)	RING Snap BALL BEARING (SMALL) (OLD DESIGN)	1
9	42132	挡圈	RING Retaining	1
10	13031	下垫圈	WASHER LOWER	1
11	125661	下油封	SEAL Oil - Lower	1
12	20094	半圆键	KEY Woodruff	1
13	41342	曲轴上滚柱轴承	BEARING Roller CRANKSHAFT-UPPER	1
13	878158	滚柱轴承	BEARING Roller	1
14	125671	曲轴上油封	SEAL Oil - Upper CRANKSHAFT	1
15	8477A2	连杆总成	CONNECTING ROD ASSEMBLY	2
16	823460	连杆螺钉(M5x16)	SCREW (M5 x 16) CONNECTING ROD	4
17	42076A1	滚柱轴承总成	BEARING ASSEMBLY Roller	3
18	42186	活塞端滚针轴承	BEARING Needle PISTON END	48
19	43348	推力轴承	BEARING Thrust	4
19	8M0012297	止推垫圈@2	WASHER-THRST@2	4
20	9747A2	活塞总成(标准)	PISTON ASSEMBLY (STANDARD)	2
20	9747T2	活塞总成	PISTON ASSEMBLY	2
20	9747A4	活塞总成(.015加大)	PISTON ASSEMBLY (.015 O.S.)	2
21	18212A4	活塞环组(标准)	RING SET Piston (STANDARD)	1
21	18212A1	活塞环组(.015加大)	RING SET Piston (.015 O.S.)	2
22	42202	锁紧环	LOCK RING	4
23	17794A1	轴承	BEARING	1
24	818901	主轴承油封	SEAL MAIN BEARING	1
25	42076A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
-	19072A88	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	19072T88	船用动力头	POWERHEAD MARINE	1

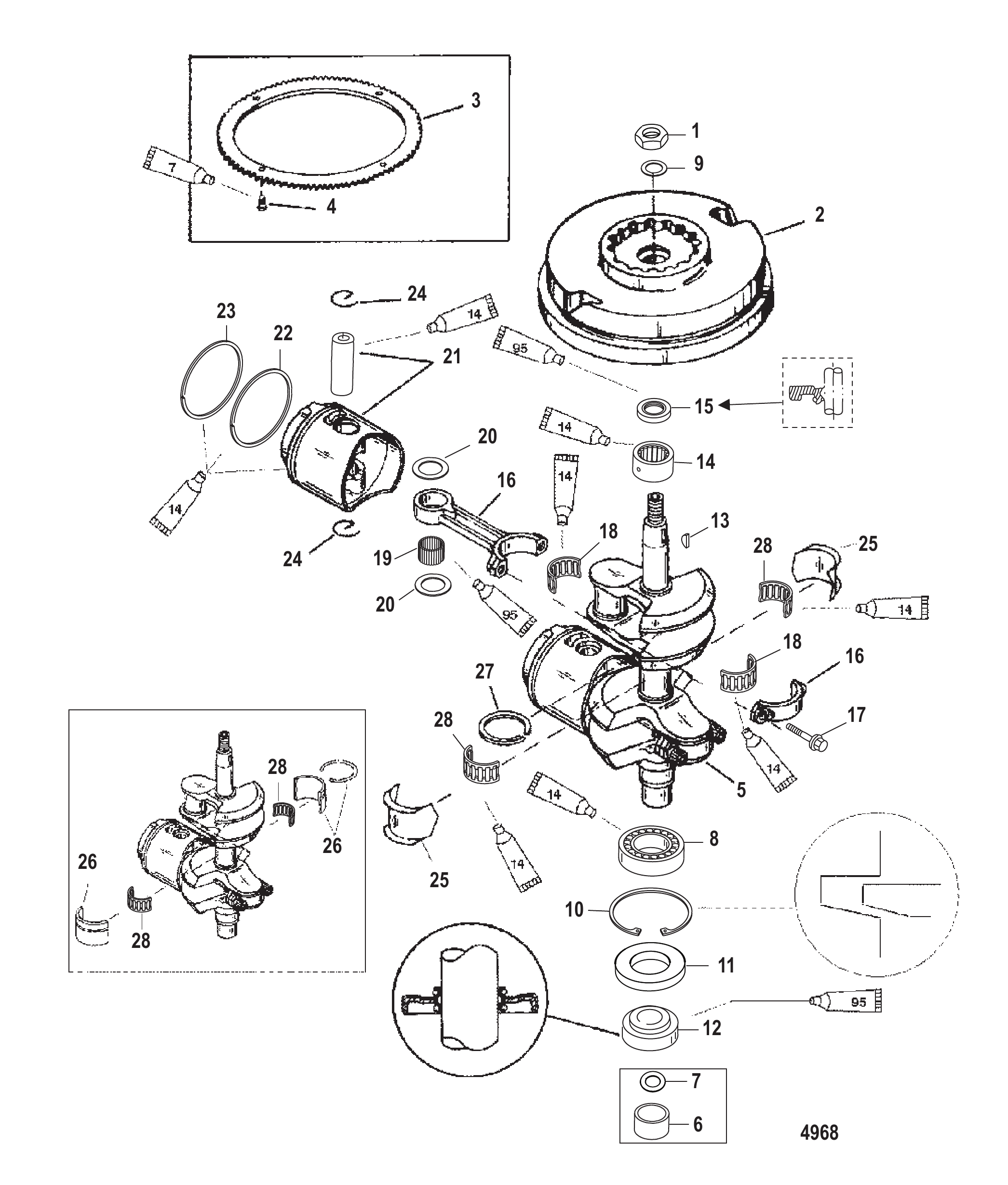

图 7曲轴、活塞和飞轮（6/8/9.9） CRANKSHAFT, PISTONS AND FLYWHEEL (6/8/9.9)

REF	零件编号	中文名称	英文名称	数量
1	42691	飞轮轴	SHAFT FLYWHEEL	1
1A	818591	螺母(M14)	NUT (M14)	1
2	8908A2	飞轮总成	FLYWHEEL ASSEMBLY	1
2	859231T6	飞轮	FLYWHEEL	1
2	818540A2	飞轮总成	FLYWHEEL ASSEMBLY	1
2	859231T19	飞轮总成	FLYWHEEL ASY	1
3	99301	飞轮齿圈	RING GEAR FLYWHEEL	1
4	40039106	螺钉(M5×13)齿圈至飞轮	SCREW (M5 x 13) RING GEAR TO FLYWHEEL	4
4	88190313	螺钉 (M5 x 13)	SCREW (M5 x 13)	4
5	8471A2	曲轴总成	CRANKSHAFT ASSEMBLY	1
5	8M0083309	曲轴总成	CRANKSHAFT ASSY	1
6	42890	油封(设计I型)	SEAL Oil (DESIGN I)	1
6	818630A1	套筒	SLEEVE	1
6A	818630A1	套筒(含O型圈-设计II型)	SLEEVE (INCLUDES O-RING - DESIGN II)	1
7	41341	下球轴承	BEARING Ball LOWER	1
8	20940	卡环(小号)(旧设计)	RING Snap (SMALL) (OLD DESIGN)	1
9	42132	挡圈	RING Retaining	1
10	13031	下垫圈	WASHER LOWER	1
11	125661	下油封	SEAL Oil - Lower	1
12	20094	半圆键	KEY Woodruff	1
13	41342	滚柱轴承	BEARING Roller	1
13	878158	滚柱轴承	BEARING Roller	1
14	125671	上油封	SEAL Oil - Upper	1
15	8477A2	连杆总成	CONNECTING ROD ASSEMBLY	2
16	823460	螺钉(M5×16)	SCREW (M5 x 16)	4
17	42076A1	滚柱轴承总成	BEARING ASSEMBLY Roller	3
18	42186	活塞端滚针轴承	BEARING Needle PISTON END	48
19	43348	推力轴承	BEARING Thrust	4
19	8M0012297	止推垫圈@2	WASHER-THRST@2	4
20	9756A2	活塞总成	PISTON ASSEMBLY	2
20	9756T2	活塞总成	PISTON ASSEMBLY	2
21	42079A4	环组件	RING ASSEMBLY	1
21	18514A4	活塞环组	RING SET Piston	1
22	42202	锁紧环	LOCK RING	4
23	41373A1	主轴承中心轴承套件	BEARING KIT Center Main MAIN BEARING	1
24	818901	主轴承油封	SEAL MAIN BEARING	1
-	12893A87	动力总成完整组件	POWERHEAD ASSEMBLY COMPLETE	1
-	12893T97	动力头总成	POWERHEAD ASSEMBLY	1
-	12893A92	动力总成完整组件	POWERHEAD ASSEMBLY COMPLETE	1
-	12893T97	动力头总成	POWERHEAD ASSEMBLY	1
-	811686A92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811686T97	动力头总成	POWERHEAD ASSEMBLY	1

图 8气缸体和盖 CYLINDER BLOCK AND COVERS

REF	零件编号	中文名称	英文名称	数量
1	8473A13	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	8473T20	气缸体	CYLINDER BLOCK	1
1	8473A12	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	8473T21	气缸体	CYLINDER BLOCK	1
1	9727A2	气缸体	CYLINDER BLOCK	1
1	9727T2	气缸体	CYLINDER BLOCK	1
2	85171	气缸体定位销	PIN Dowel CYLINDER BLOCK	2
3	42463	化油器螺柱	STUD CARBURETOR	2
3	424632	双头螺柱(M8x37.1)	STUD (M8 x 37.1)	2
4	42698	泄放软管止回阀	CHECK VALVE BLEED HOSE	1
4	426982	止回阀	CHECK VALVE	1
5	1383556	泄放软管	HOSE BLEED	1
5	99130100	软管-48英寸	TUBING-48 INCH	1
6	42984	气缸体螺柱	STUD CYLINDER BLOCK	2
6	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
7	421251	螺钉(M8x55)曲轴箱至气缸体	SCREW (M8 x 55) CRANKCASE TO CYLINDER BLOCK	6
7	42125	螺钉(M8x55)	SCREW (M8 x 55)	6
7A	17866	槽销	PIN Groove	1
8	400634	螺母(M6)气缸体螺柱	NUT (M6) CYLINDER BLOCK STUD	2
8	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
9	191861	动力头衬垫	GASKET Powerhead	1
10	42381A2	簧片阀总成	REED BLOCK ASSEMBLY	1
10	828435A3	簧片阀组	REED BLOCK	1
11	42657A1	止回阀	CHECK VALVE	1
11	42657A3	止回阀	CHECK VALVE	1
12	42137	簧片阀密封件	SEAL REED BLOCK	1
13	195981	簧片阀衬垫	GASKET REED BLOCK	1
13	195982	衬垫	GASKET	1
14	4000171	螺钉(M6x16)簧片阀	SCREW (M6 x 16) REED BLOCK	3
15	42044	簧片	REED	2
15	825141	簧片	REED	2
16	179031	簧片止挡	STOP Reed	2
16	828435A3	簧片阀组	REED BLOCK	2
17	4005764	螺钉(M3.5x8)簧片固定	SCREW (M3.5 x 8) REED ATTACHING	6
18	400213	螺母(M8)不锈钢化油器螺柱	NUT (M8) Stainless Steel CARBURETOR STUD	2
19	42521	排气盖	COVER EXHAUST	1
19	8M0048005	排气盖总成	COVER EXHAUST MAN	1
20	40062129	螺钉(M6x25)排气盖至气缸体	SCREW (M6 x 25) EXHAUST COVER TO CYLINDER BLOCK	11
21	19185	排气盖衬垫	GASKET EXHAUST COVER	1
22	423651	挡板	PLATE Baffle	1
22	42365	挡板	PLATE Baffle	1
23	19184	挡板衬垫	GASKET BAFFLE PLATE	1
24	19107F1	进气盖	COVER Intake	1
25	56759	倒钩接头	FITTING Barbed	1
24	17863A1	进气盖总成	COVER ASSEMBLY Intake	1
25	15133	接头	FITTING	1
26	1383556	软管	HOSE	2
26	99130100	软管-48英寸	TUBING-48 INCH	2
27	59169	接头	FITTING	1
27	59169003	三通接头	FITTING Tee	1
28	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	AR
29	192031	进气盖衬垫	GASKET INTAKE COVER	1
30	40062129	螺钉(M6x25)盖至气缸体	SCREW (M6 x 25) COVER TO CYLINDER BLOCK	3
31	99127109	示警管(57英寸散装)	LINE (57.00 Inches Bulk) TELL TALE	1
31	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
32	94848	示警软管接头-底部罩	FITTING TELL TALE HOSE-BOTTOM COWL	1
33	8906A1	盖总成	COVER ASSEMBLY	1
33	8906A02	盖总成	COVER ASSEMBLY	1
34	192071	衬垫	GASKET	1
34	19207002	衬垫	GASKET	1
35	146732	节温器盖	COVER THERMOSTAT	1
35	8M0039352	盖板	COVER	1
36	192051	衬垫	GASKET	1
36	19205002	衬垫	GASKET	1
37	40062129	螺钉(M6x25)	SCREW (M6 x 25)	2
38	14586	节温器(120)	THERMOSTAT (120)	1
39	62386	节温器衬垫	GASKET THERMOSTAT	1
39	8M0204714	衬垫@4	GASKET @4	1
40	29111	连接器(直型)(新设计)	CONNECTOR (STRAIGHT)(NEW DESIGN)	1
40	291112	接头	FITTING	1
40	99664	弯头(旧设计)	ELBOW (OLD DESIGN)	1
40	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
41	40062129	螺钉(M6x25)盖固定	SCREW (M6 x 25) COVER ATTACHING	6
-	12893A87	动力头总成	POWERHEAD ASSEMBLY	1
-	12893T97	动力头总成	POWERHEAD ASSEMBLY	1
-	12893A92	动力头总成	POWERHEAD ASSEMBLY	1
-	12893T97	动力头总成	POWERHEAD ASSEMBLY	1
-	811686A92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811686T97	动力头总成	POWERHEAD ASSEMBLY	1
-	19072A88	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	19072T88	船用动力头	POWERHEAD MARINE	1

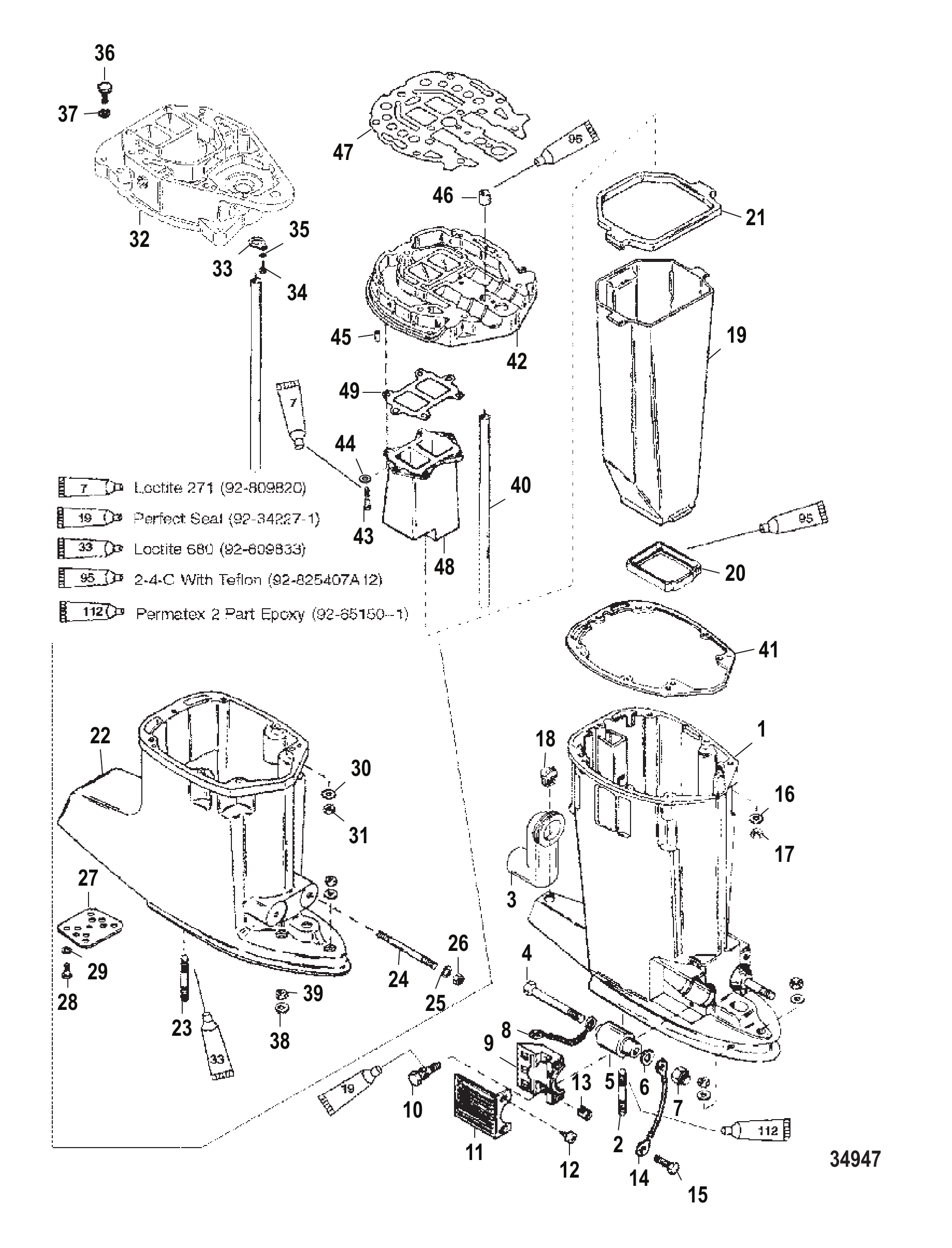

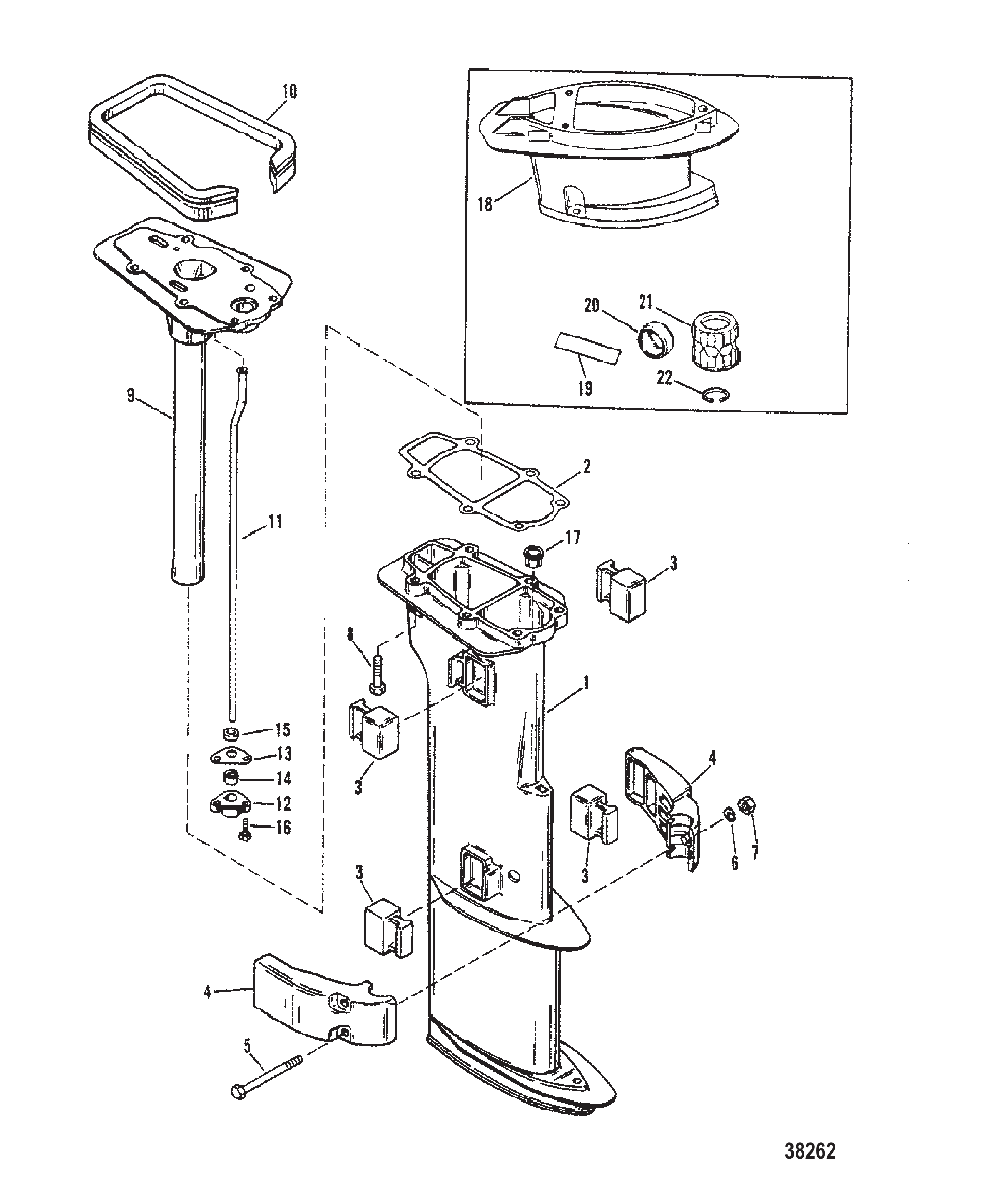

图 9驱动轴壳体 DRIVESHAFT HOUSING

REF	零件编号	中文名称	英文名称	数量
1	8343T15	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	59579	双头螺柱(.437-14/.437-20 x 2.812)	STUD (.437-14/.437-20 x 2.812)	2
3	849330	怠速排气套	BOOT Idle Exhaust	1
4	63474	螺钉(.500-20 x 6.00)	SCREW (.500-20 x 6.00)	2
4	898831	螺钉(.500-20 x 6.220)	SCREW (.500-20 x 6.220)	2
5	816054T1	下支架	MOUNT Lower	2
6	816056	垫圈	WASHER	4
7	82670817	螺母(.500-20)	NUT (.500-20)	2
7	898832	螺母(.500-20)	NUT (.500-20)	2
8	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
9	67076	卡箍	CLAMP	2
9	8M0036782	卡箍	CLAMP	2
10	66727	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	4
11	67077T	黑色盖	COVER Black	2
11	8M4500752	盖板	COVER	2
12	88417	螺钉(#12-24×0.620)	SCREW (#12-24 x .620)	4
13	35521	螺母	NUT	4
14	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
15	41508	螺钉(0.250-20×0.500)不锈钢	SCREW (.250-20 x .500) Stainless Steel	1
16	822838	垫圈 (.401 x .745 x .097)	WASHER (.401 x .745 x .097)	10
17	46335	螺母 (.375-24)	NUT (.375-24)	10
18	64649	堵头	PLUG	1
19	18276	排气管	TUBE Exhaust	1
19	18276T	排气管	EXHAUST TUBE	1
20	66350	下密封件	SEAL (LOWER)	1
20	66350001	密封件	SEAL	1
21	177261	上密封件	SEAL (UPPER)	1
21	8M0039076	密封件	SEAL	1
22	818900T8	驱动轴壳体	HOUSING Driveshaft	1
22	818900T24	驱动轴壳体	HOUSING Driveshaft	1
23	59579	双头螺柱(.437-14/.437-20 x 2.812)	STUD (.437-14/.437-20 x 2.812)	2
24	818908	双头螺柱 (.500-13/.500-20 x 4.120)	STUD (.500-13/.500-20 x 4.120)	2
25	816056	垫圈	WASHER	2
26	28040	螺母(.500-20)	NUT (.500-20)	2
26	898832	螺母(.500-20)	NUT (.500-20)	2
27	818909	排气挡板	PLATE Exhaust Blockoff	1
28	39349	螺钉(.312-18×0.75)不锈钢	SCREW (.312-18 x .750) Stainless Steel	1
29	847539	垫圈	WASHER	1
30	822838	垫圈 (.401 x .745 x .097)	WASHER (.401 x .745 x .097)	10
31	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
31	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
31	34932	螺母 (.375-24)	NUT (.375-24)	8
31	82671013	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	8
32	848284T11	排气延伸板总成	PLATE ASSEMBLY Extension - Exhaust	1
33	8476581	固定座	RETAINER	1
34	28635	不锈钢螺丝(.250-20 x .620)	SCREW (.250-20 x .620) Stainless Steel	1
35	26992	锁紧垫圈(.250)不锈钢	LOCKWASHER (.250) Stainless Steel	1
36	91903	螺钉(.437-14 x 1.750)	SCREW (.437-14 x 1.750)	3
37	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	3
38	822836	垫圈(.445 x .805 x .108)	WASHER (.445 x .805 x .108)	3
39	134391	螺母 (.4375-20)	NUT (.4375-20)	3
39	859116	螺母(.437-20)	NUT (.437-20)	3
40	8476503	水管	TUBE Water	1
40	67295	水管	TUBE Water	1
40	8M0042788	长型水管	TUBE-WATER-LONG	1
41	991734	衬垫	GASKET	1
42	18233A5	隔板总成	PLATE ASSEMBLY	1
43	90192	螺钉(.250-20 x .750)不锈钢	SCREW (.250-20 x .750) Stainless Steel	6
43	823258	螺钉 (.312-18 x 1.250) (.312-18 X 1-1/4)	SCREW (.312-18 x 1.250) (.312-18 X 1-1/4)	6
44	822714	垫圈	WASHER	6
45	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
45	823106	定位销 (.875)	PIN Dowel (.875)	2
45	8M0043826	定位销	PIN Dowel	2
46	88397	密封件	SEAL	1
46	38970	密封件	SEAL	1
47	183074	衬垫	GASKET	1
48	848545T1	排气管延长段	EXTENSION Exhaust	1
48	41942F3	排气管延长段	EXTENSION Exhaust	1
48	879288T71	排气管延长段	EXTENSION Exhaust	1
49	782461	衬垫	GASKET	1
-	813859A95	衬垫套件	GASKET SET	1

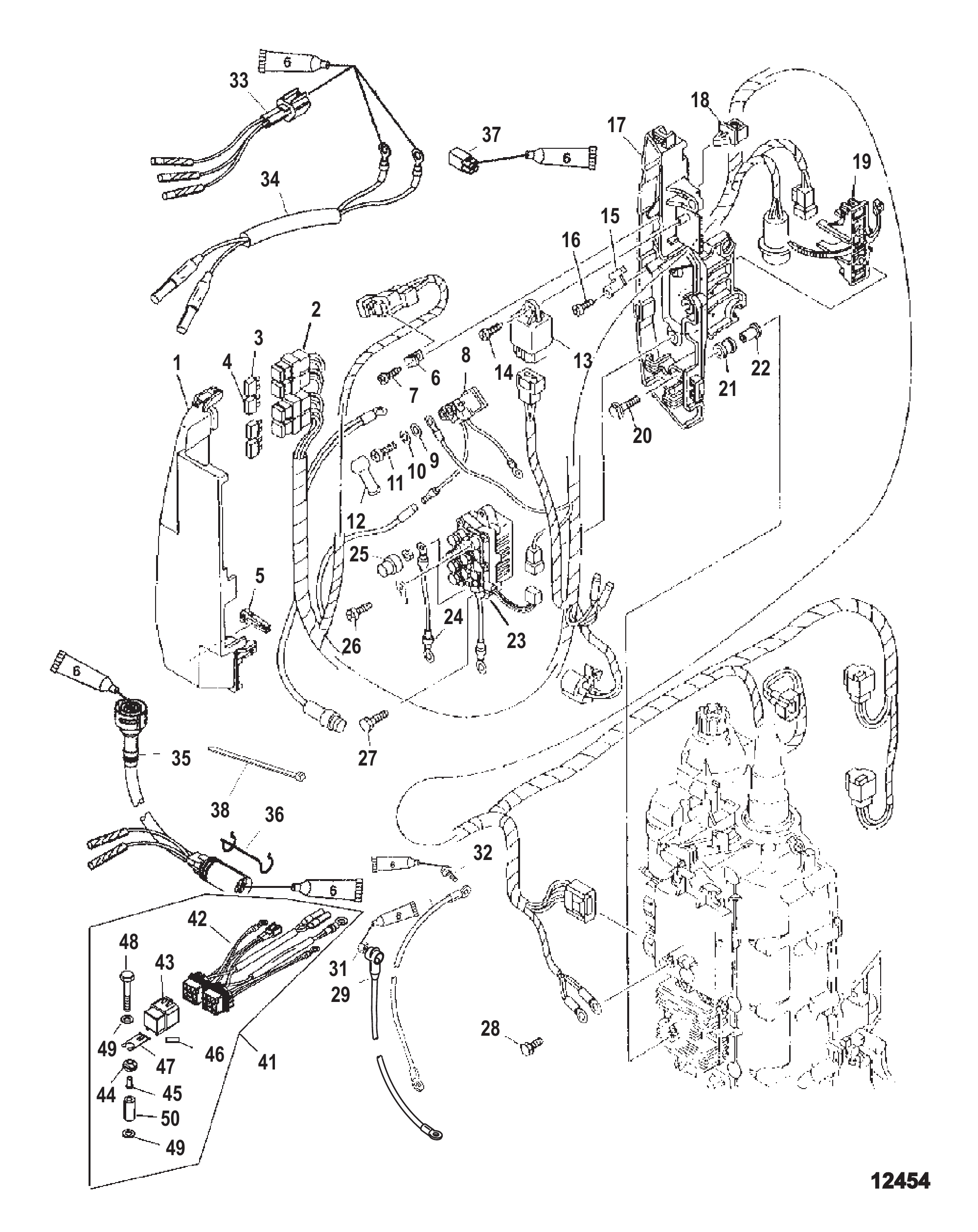

图 10电气组件 ELECTRIC COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	95815	上盖	COVER (TOP)	1
2	95828	下盖	COVER (BOTTOM)	1
3	95810A1	启动开关总成	SWITCH ASSEMBLY Start	1
4	55741	护套	BOOT	1
4	55741001	护套	BOOT	1
5	88890A2	开关总成	SWITCH ASSEMBLY	1
6	79139A20	电缆总成（红色）	CABLE ASSEMBLY (RED)	1
10	95814	绑带	STRAP	1
11	95813	紧固件	FASTENER	1
12	40056108	螺钉（M5×20）	SCREW (M5 x 20)	1
12	40019108	螺钉（M5×20）	SCREW (M5 x 20)	1
13	4005727	螺钉	SCREW	2
14	45771	垫圈	WASHER	2
15	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
16	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
17	816770	整流器	RECTIFIER	1
17	8M0058226	整流器	RECTIFIER	1
18	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	2
19	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	3
20	96054	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
20	8M0185149	启动电磁阀	SOLENOID START	1
21	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
22	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	2
23	64015	螺母 (.250-20)	NUT (.250-20)	2
24	88809A5	电线总成（黄色）	WIRE ASSEMBLY (YELLOW)	1
25	88439A8	电池电缆总成(红色)	CABLE ASSEMBLY Battery (RED)	1
25	88439A27	电缆总成红色-电池	CABLE ASSEMBLY Red - Battery	1
25	88439A6	电池电缆总成(黑色)	CABLE ASSEMBLY Battery (BLACK)	1
25	88439A28	电缆总成电池-黑色	CABLE ASSEMBLY Battery - Black	1
26	92439	支架(旧设计)	BRACKET (OLD DESIGN)	1
27	4000327	螺钉(M6×14)(旧设计)	SCREW (M6 x 14) (OLD DESIGN)	1
28	35044	垫圈(0.281×0.625×0.065)不锈钢(旧设计)	WASHER (.281 x .625 x .065) Stainless Steel (OLD DESIGN)	1
29	400212	螺母(M6)不锈钢(旧设计)	NUT (M6) Stainless Steel (OLD DESIGN)	1
30	815504310	蜗轮卡箍(旧设计)	CLAMP Worm Gear (OLD DESIGN)	1
31	86704A2	定子总成	STATOR ASSEMBLY	1
31	86704A10	辅助定子	STATOR Auxiliary	1
32	4000123	螺丝(M5 x 30)	SCREW (M5 x 30)	3
33	90983A1	启动电机总成	STARTER MOTOR ASSEMBLY	1
33	8M0033984	启动马达	STARTER MOTOR	1
34	96561	驱动套件	DRIVE KIT	1
35	96562	驱动器	DRIVE	1
36	96563	端盖	END CAP	1
36	96563T	端盖	END CAP	1
37	96565	电枢	ARMATURE	1
38	96564	端盖	END CAP	1
38	96564T	端盖	END CAP	1
39	96566	贯穿螺栓	THRU BOLT	1
40	421251	螺钉(M8x55)	SCREW (M8 x 55)	2
40	42125	螺钉(M8x55)	SCREW (M8 x 55)	2
41	424291	固定座	RETAINER	1
42	12334A2	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
43	79091	保险丝20安培	FUSE 20 Ampere	1
43	8M0207796	保险丝20安培	FUSE 20 AMP	1
44	134731	保险丝座(旧设计)	HOLDER Fuse (OLD DESIGN)	1
45	12152	固定座	RETAINER	1
46	92753	固定座	RETAINER	1
47	55098	J型卡扣	J CLIP	1
47	8M0024808	J型夹	J-CLIP	1

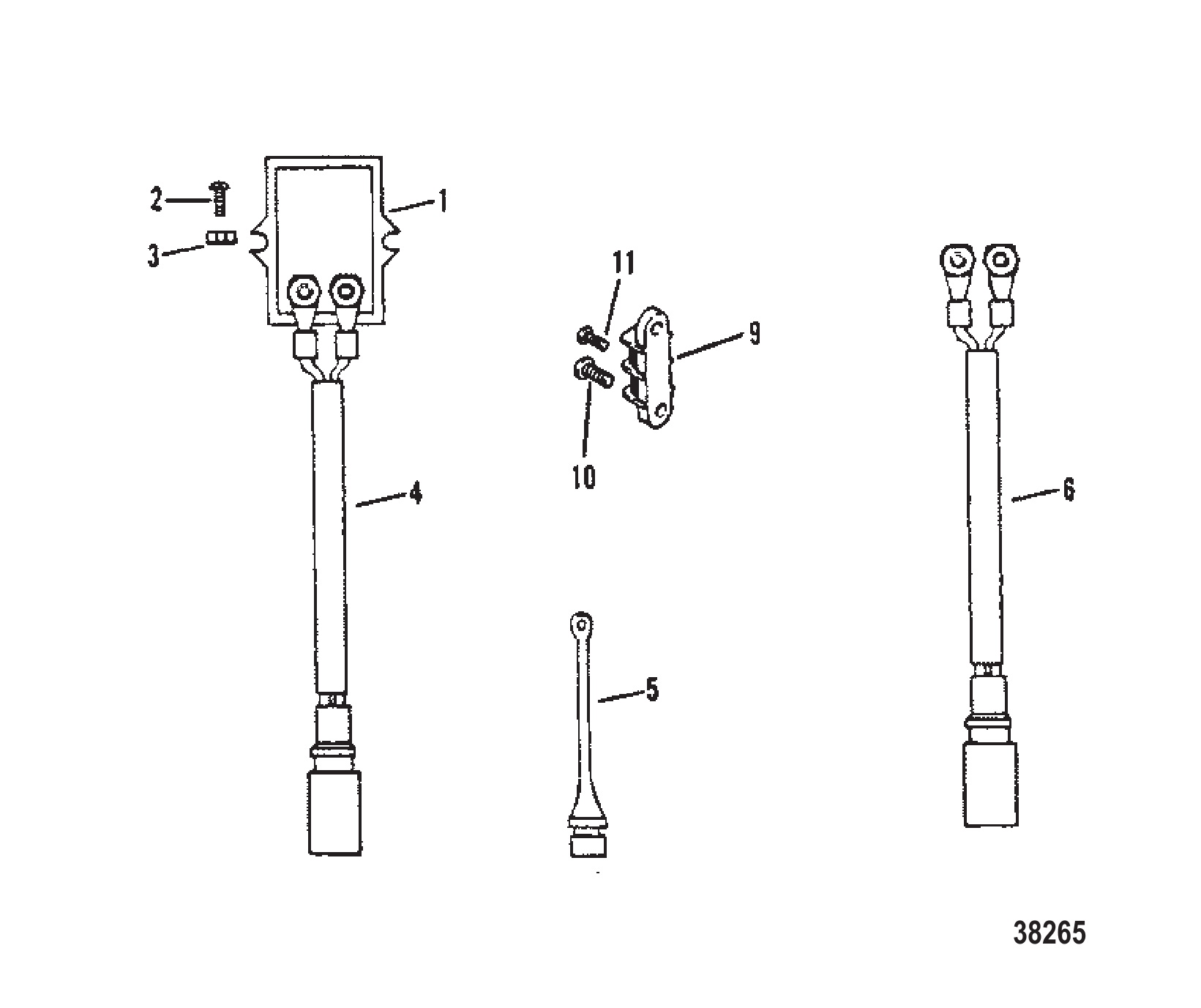

图 11电气组件（电压调节器和线束） ELECTRIC COMPONENTS (VOLTAGE REGULATOR AND HARNESS)

REF	零件编号	中文名称	英文名称	数量
1	95845	电压调节器	REGULATOR Voltage	1
1	95845T	电压调节器	REGULATOR-VOLTAGE	1
2	92799	螺钉(#10-16x1.12)	SCREW (#10-16 x 1.12)	2
3	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
4	74725A2	线束总成(黑/红)(20英寸)	HARNESS ASSEMBLY (BLACK/RED) (20")	1
5	71663	堵头	PLUG	1
6	65017A2	线束总成(黑/黑)	HARNESS ASSEMBLY (BLACK/BLACK)	1
6	65017A10	电池端线束总成(黑/红)(62英寸)	HARNESS ASSEMBLY Battery End (BLACK/RED) (62")	1
9	63813	端子排	TERMINAL BLOCK	1
9	638131	端子排	TERMINAL BLOCK	1
10	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	2
11	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2

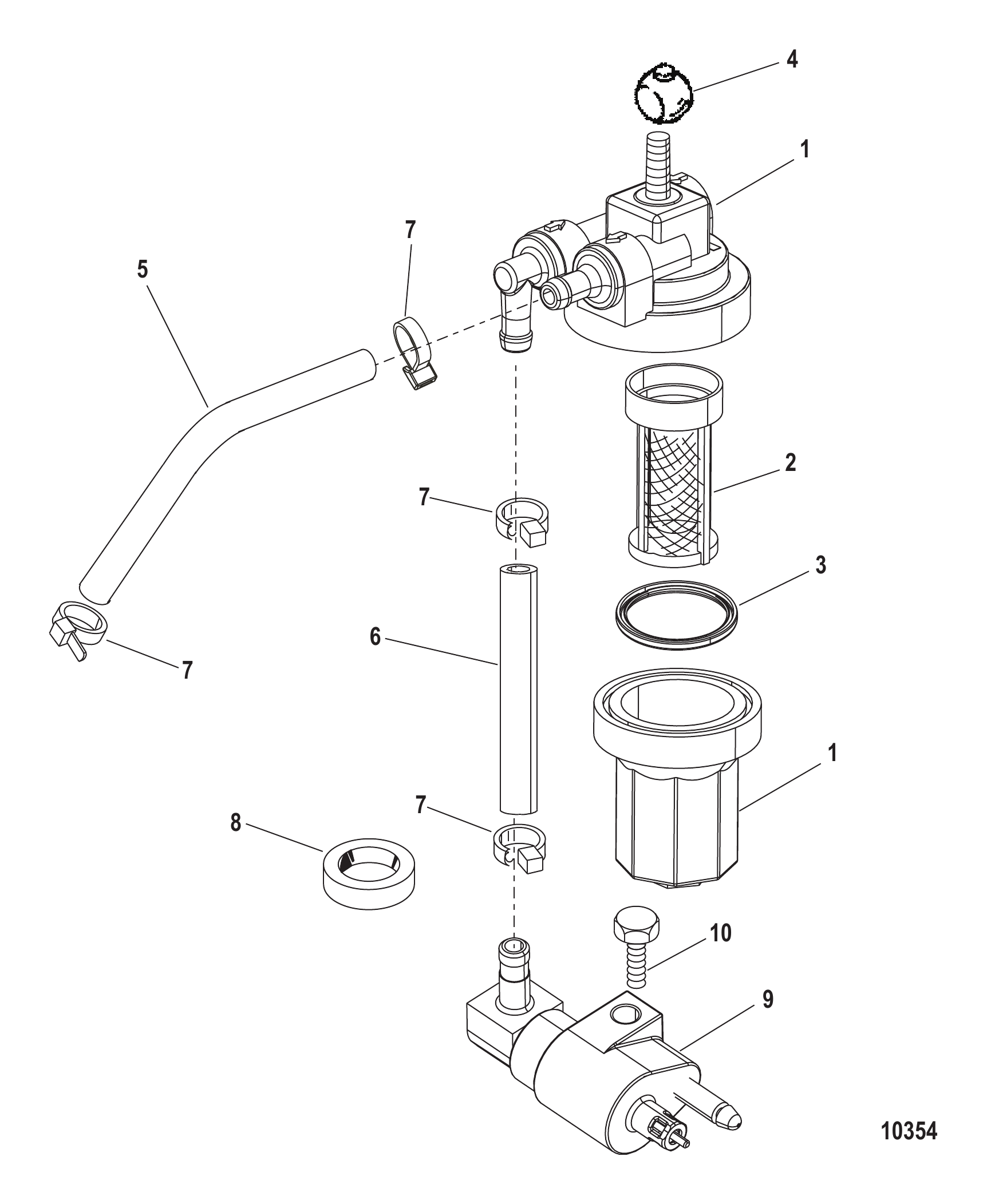

图 12燃油滤清器总成 FUEL FILTER ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	87946A15	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
1	889527A07	滤清器套件	FILTER KIT	1
2	91935	球形燃油滤清器	BALL FUEL FILTER	1
2	858731	球形燃油滤清器	BALL Fuel Filter	1
3	87946A3	滤清器总成	FILTER ASSEMBLY	1
3	87946Q04	燃油滤清器套件	FILTER KIT Fuel	1
4	98277	燃油滤清器密封件	SEAL FUEL FILTER	1
4	897536	密封件	SEAL	1
5	99127109	滤清器至化油器油管(57英寸散装)	LINE (57.00 Inches Bulk) FILTER TO CARBURETOR	1
5	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
6	99127109	滤清器至适配器油管(57英寸散装)	LINE (57.00 Inches Bulk) FILTER TO ADAPTOR	1
6	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
7	816311	燃油管束带(8英寸)	TIE STRAP (8.00 Inches) FUEL LINE	4
7	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
8	18202	护孔环	GROMMET	1
9	15781A9	燃油连接器套件(90度)(新设计)	CONNECTOR KIT Fuel (90 DEG.) (NEW DESIGN)	1
9	14187M	直通连接器(旧设计)	CONNECTOR (STRAIGHT) (OLD DESIGN)	1
10	4000331	适配器螺丝(M6x30)	SCREW (M6 x 30) ADAPTOR	AR
10	4000330	适配器螺丝(M6x25)	SCREW (M6 x 25) ADAPTOR	AR
10	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	AR

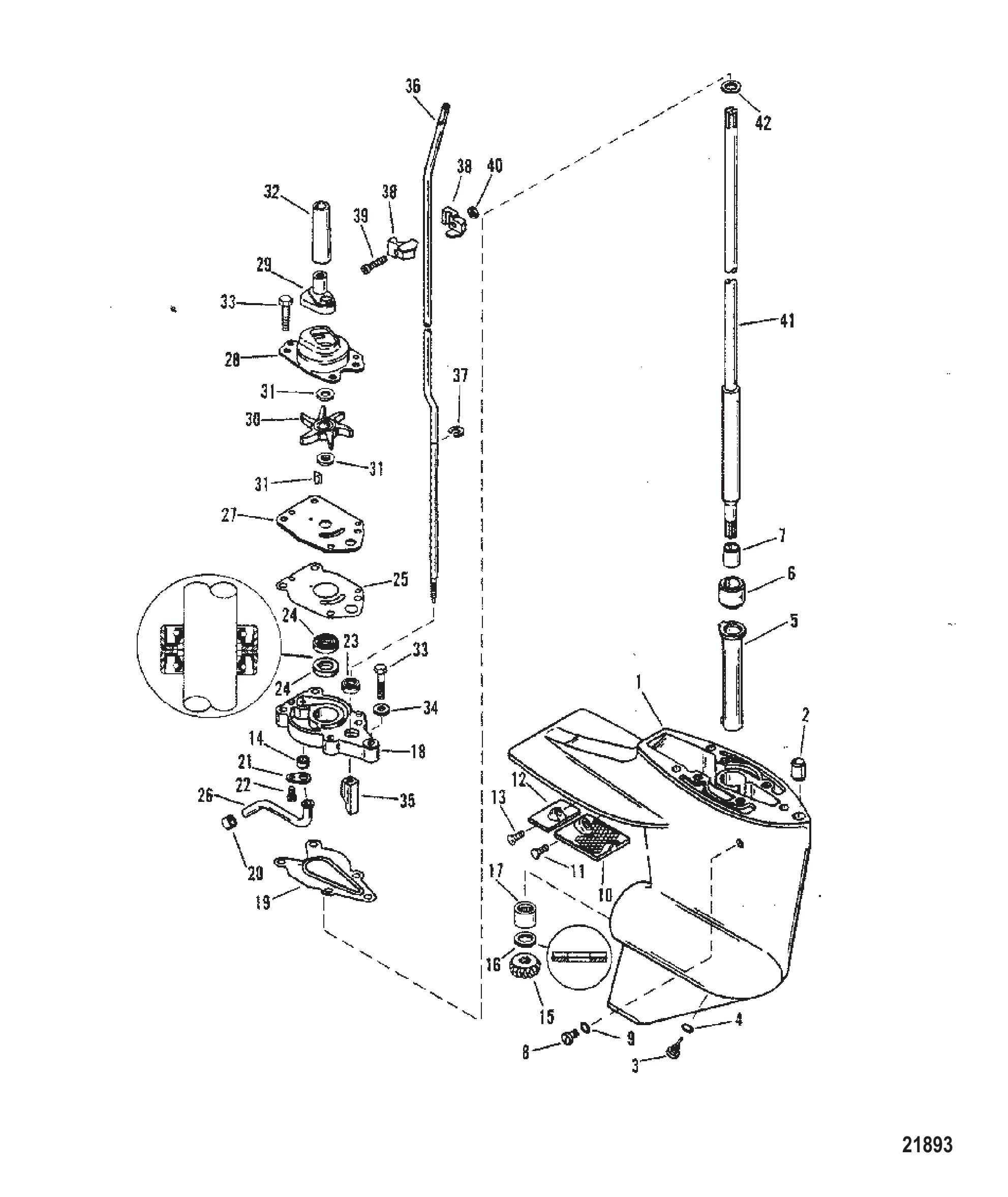

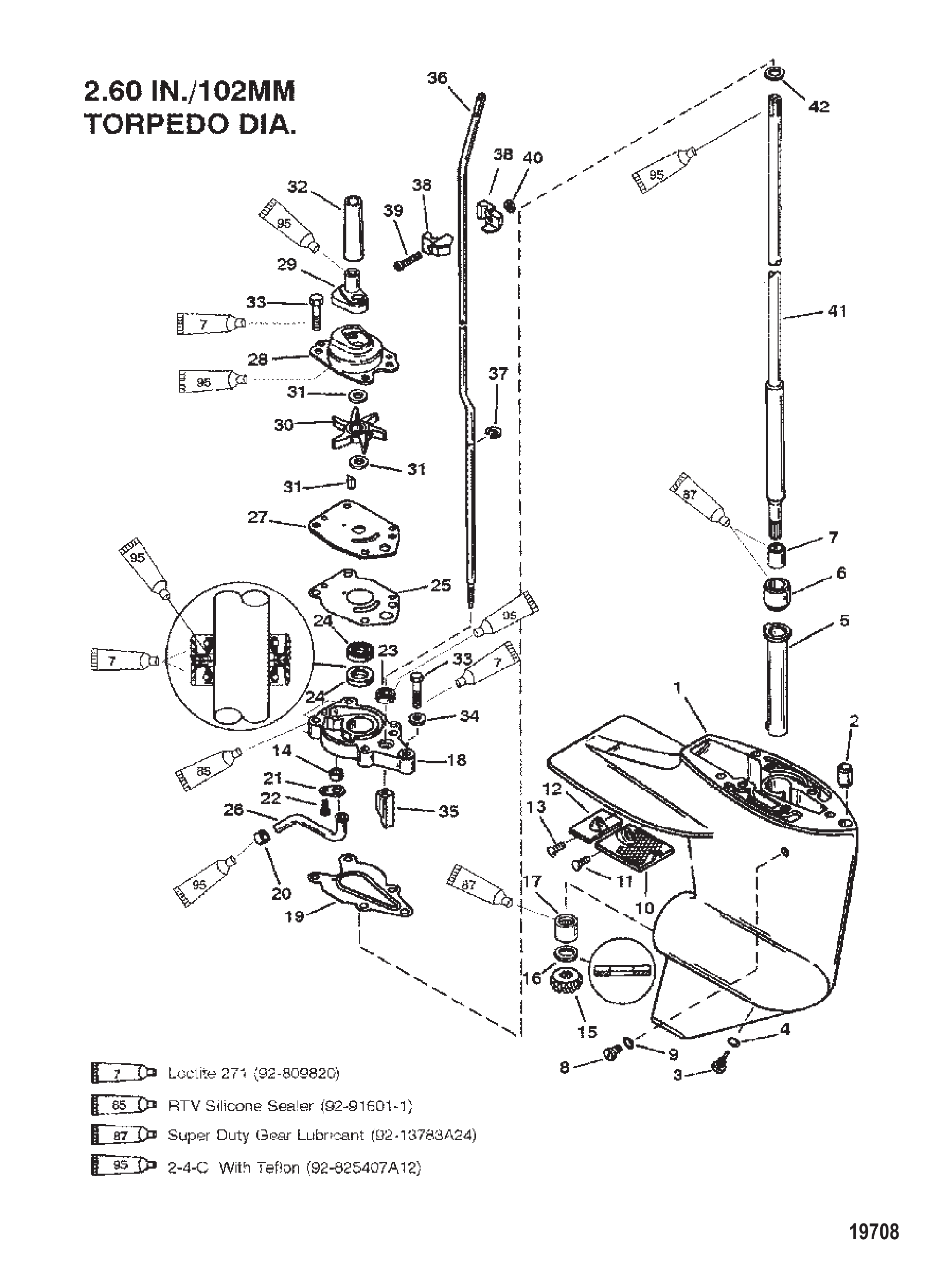

图 13齿轮箱（驱动轴）（设计II-参见参考号41） Gear Hsg (Driveshaft)(Design II-Refer to Reference #41)

REF	零件编号	中文名称	英文名称	数量
-	8833A13	齿轮箱总成(短型)-黑色	GEAR HOUSING ASSEMBLY COMPLETE (SHORT)- BLACK	1
-	8833T13	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833A15	齿轮箱总成(长型)黑色	GEAR HOUSING ASSEMBLY COMPLETE (LONG) BLACK	1
-	8833T15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833A14	齿轮箱总成(短型)-灰色	GEAR HOUSING ASSEMBLY COMPLETE (SHORT)- GRAY	1
-	8833T14	齿轮箱-短型-灰	GEAR HSG-SHORT-GR	1
-	8833A16	齿轮箱总成(长型)灰色	GEAR HOUSING ASSEMBLY COMPLETE (LONG) GRAY	1
-	8833T16	ORD 1666-8833T15	ORD 1666-8833T15	1
1	8833A17	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	8M0083312	GC BASIC9.9/15 4S	GC BASIC9.9/15 4S	1
1	8833A18	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic-Gray	1
1	8833A17	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
2	12009	齿轮箱衬套(0.31x0.45x0.50)	BUSHING (.31 x .45 x .50) GEAR HOUSING	1
3	14834A1	螺钉	SCREW	1
3	8M0058389	放油螺钉套件	SCREW KIT Drain	1
4	805726	橡胶O型圈	O-RING Rubber	1
4	8M0204684	橡胶O型圈	O-RING Rubber	1
5	822244A1	衬套总成	SLEEVE ASSEMBLY	1
6	823944	套筒	SLEEVE	1
7	823943	衬套	BUSHING	1
8	28634A1	螺钉套件	SCREW KIT	1
8	79953Q04	放油螺钉套件	SCREW KIT Drain	1
9	805726	橡胶O型圈	O-RING Rubber	1
9	8M0204684	橡胶O型圈	O-RING Rubber	1
10	421991	滤网	SCREEN	1
11	13954	螺丝(0.250-14x0.88)	SCREW (.250-14 x .88)	2
12	42121A2	阳极总成	ANODE ASSEMBLY	1
12	42121Q02	铝阳极@2	ANODE(ALUM) @2	1
13	13954	螺丝(0.250-14x0.88)	SCREW (.250-14 x .88)	1
14	42133	密封件	SEAL	1
15	8219251	小齿轮-13-26	GEAR Pinion - 13-26	1
16	41369	止推垫圈	WASHER THRUST	1
17	22756	滚柱轴承	BEARING Roller	1
18	42040A5	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	42040T5	水泵底座总成	BASE ASSEMBLY Water Pump	1
19	192042	衬垫	GASKET	1
19	192043	衬垫	GASKET	1
20	33613	密封件	SEAL	1
21	42375	固定座	RETAINER	1
22	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
23	822236	四角密封环	QUAD RING	1
24	41365	油封	SEAL Oil	2
24	413651	油封	SEAL Oil	2
25	19202	水泵板衬垫	GASKET Water Pump Plate	1
25	19202001	衬垫	GASKET	1
26	42185A1	水管总成	TUBE ASSEMBLY Water	1
27	42200	面板	FACE PLATE	1
28	42089A2	盖总成	COVER ASSEMBLY	1
29	421021	密封件	SEAL	1
30	420382	叶轮	IMPELLER	1
30	42038Q02	叶轮	IMPELLER	1
31	42376A2	键总成	KEY ASSEMBLY	1
31	8M0173458	叶轮键	KEY IMPELLER	1
32	44467	导套	GUIDE	1
33	4000331	水泵螺丝(M6x30)	SCREW (M6 x 30) WATER PUMP	5
34	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
34	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
35	42039	换档凸轮	CAM SHIFT	1
36	42145	换档轴(短)	SHIFT SHAFT (SHORT)	1
36	8M0026064	换档轴-短	SHAFT-SHIFT SHORT	1
36	42146	换档轴(长)	SHIFT SHAFT (LONG)	1
36	8M0026065	换档轴-长	SHAFT-SHIFT-LONG	1
37	42389	E型卡环	E RING	1
38	42126	导套	GUIDE	2
38	8M0036770	导套	GUIDE	2
39	40056109	螺丝(M5 x 25)	SCREW (M5 x 25)	1
39	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	1
40	400633	导向螺丝螺母(M5)	NUT (M5) GUIDE SCREW	1
40	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
41	823389	驱动轴(短)	DRIVESHAFT (SHORT)	1
41	823390	驱动轴(长型)	DRIVESHAFT (LONG)	1
42	822248	止推垫片	THRUST WASHER	1
-	42364A92	发动机垫片组	GASKET SET Engine	1
-	41365A3	密封套件	SEAL KIT	1
-	42089A5	水泵套件	PUMP KIT Water	1

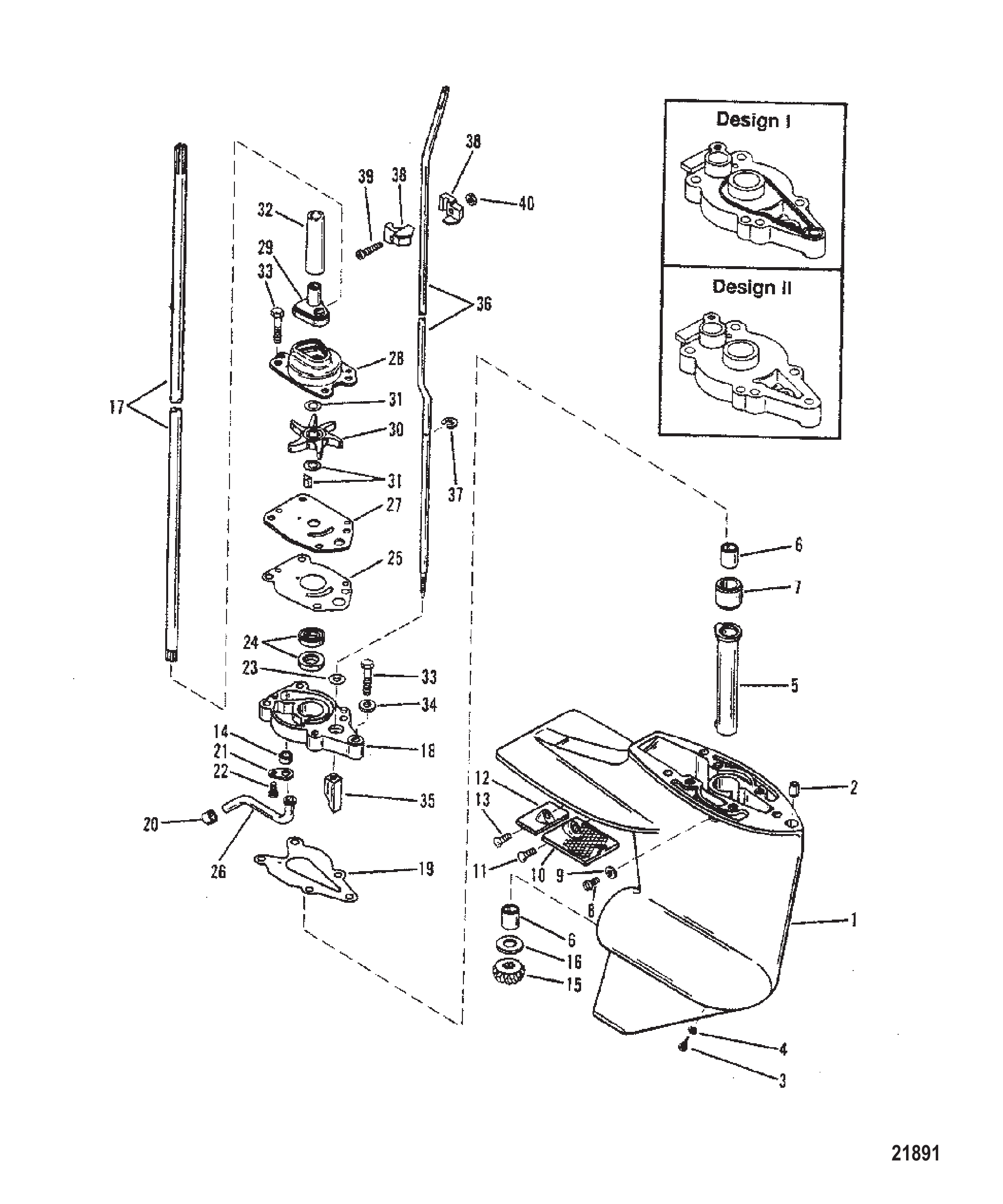

图 14齿轮箱（驱动轴-设计 I-参考编号 #17） Gear Hsg (Driveshaft-Design I-Refer to Reference #17)

REF	零件编号	中文名称	英文名称	数量
-	8833A9	齿轮箱总成完整组件(短型)(黑色)	GEAR HOUSING ASSEMBLY COMPLETE (SHORT) (BLACK)	1
-	8833T13	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833A10	齿轮箱总成完整组件(长型)(黑色)	GEAR HOUSING ASSEMBLY COMPLETE (LONG) (BLACK)	1
-	8833T15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833A11	齿轮箱总成完整组件(短型)(灰色)	GEAR HOUSING ASSEMBLY COMPLETE (SHORT) (GRAY)	1
-	8833T14	齿轮箱-短型-灰	GEAR HSG-SHORT-GR	1
-	8833A12	齿轮箱总成完整组件(长型)(灰色)	GEAR HOUSING ASSEMBLY COMPLETE (LONG) (GRAY)	1
-	8833T16	ORD 1666-8833T15	ORD 1666-8833T15	1
1	8833A1	齿轮箱总成(黑色)	GEAR HOUSING ASSEMBLY (BLACK)	1
1	8833A4	齿轮箱总成(灰色)	GEAR HOUSING ASSEMBLY (GRAY)	1
2	12009	衬套 (0.31 x 0.45 x 0.50)	BUSHING (.31 x .45 x .50)	1
3	67892	磁性螺钉	SCREW Magnetic	1
3	8M0058389	放油螺钉套件	SCREW KIT Drain	1
4	19183	纤维垫圈	WASHER Fiber	1
4	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
5	42086A1	衬套套件	SLEEVE KIT	1
6	41345	套筒	SLEEVE	2
7	42191	套筒	SLEEVE	1
7	42191001	套筒	SLEEVE	1
8	28653	螺丝(#10-32x0.25)	SCREW (#10-32 x 0.25)	1
8	79953	螺钉(0.375-16x0.250)	SCREW (.375-16 x .250)	1
8	79953Q04	放油螺钉套件	SCREW KIT Drain	1
9	19643	密封件(配10-32螺钉使用)	SEAL (USE WITH 10-32 SCREW)	1
9	19183	纤维垫圈(配0.375-16×0.250螺钉使用)	WASHER Fiber (USE WITH .375-16 X .250 SCREW)	1
9	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
10	421991	滤网	SCREEN	1
11	13954	螺丝(0.250-14x0.88)	SCREW (.250-14 x .88)	1
12	42121A2	阳极总成	ANODE ASSEMBLY	1
12	42121Q02	铝阳极@2	ANODE(ALUM) @2	1
13	13954	螺丝(0.250-14x0.88)	SCREW (.250-14 x .88)	1
14	42133	密封件	SEAL	1
15	420411	小齿轮	GEAR Pinion	1
16	41369	止推垫圈	WASHER THRUST	1
17	42192	驱动轴(短)	DRIVESHAFT (SHORT)	1
17	42193	驱动轴(长型)	DRIVESHAFT (LONG)	1
17	12367	驱动轴(加长型)	DRIVESHAFT (X-LONG)	1
18	42040A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	42040T5	水泵底座总成	BASE ASSEMBLY Water Pump	1
19	NLA		No Longer Available GASKET (SEE DESIGN I DRAWING)	1
19	192041	衬垫(参见设计II图纸)	GASKET (SEE DESIGN II DRAWING)	1
19	42040A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
20	33613	密封件	SEAL	1
21	42375	固定座	RETAINER	1
22	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
23	822236	四角密封环	QUAD RING	1
24	41365	油封	SEAL Oil	2
24	413651	油封	SEAL Oil	2
25	19202	水泵板衬垫	GASKET Water Pump Plate	1
25	19202001	衬垫	GASKET	1
26	42185A1	水管总成	TUBE ASSEMBLY Water	1
27	42200	面板	FACE PLATE	1
28	42089A2	盖总成	COVER ASSEMBLY	1
29	421021	密封件	SEAL	1
30	420382	叶轮	IMPELLER	1
30	42038Q02	叶轮	IMPELLER	1
31	42376A1	键总成	KEY ASSEMBLY	1
31	8M0173458	叶轮键	KEY IMPELLER	1
32	44467	导套	GUIDE	1
33	4000331	水泵螺丝(M6x30)	SCREW (M6 x 30) WATER PUMP	5
34	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
34	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
35	42039	换档凸轮	CAM SHIFT	1
36	42145	换档轴(短)	SHIFT SHAFT (SHORT)	1
36	8M0026064	换档轴-短	SHAFT-SHIFT SHORT	1
36	42146	换档轴(长)	SHIFT SHAFT (LONG)	1
36	8M0026065	换档轴-长	SHAFT-SHIFT-LONG	1
36	12368	换挡轴(加长型)	SHIFT SHAFT (X-LONG)	1
37	42389	E型卡环	E RING	1
38	42126	导套	GUIDE	2
38	8M0036770	导套	GUIDE	2
39	40056109	螺丝(M5 x 25)	SCREW (M5 x 25)	1
39	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	1
40	400633	导向螺丝螺母(M5)	NUT (M5) GUIDE SCREW	1
40	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
-	41365A3	密封套件	SEAL KIT	1
-	42089A5	水泵套件	PUMP KIT Water	1
-	42364A92	发动机垫片组	GASKET SET Engine	1

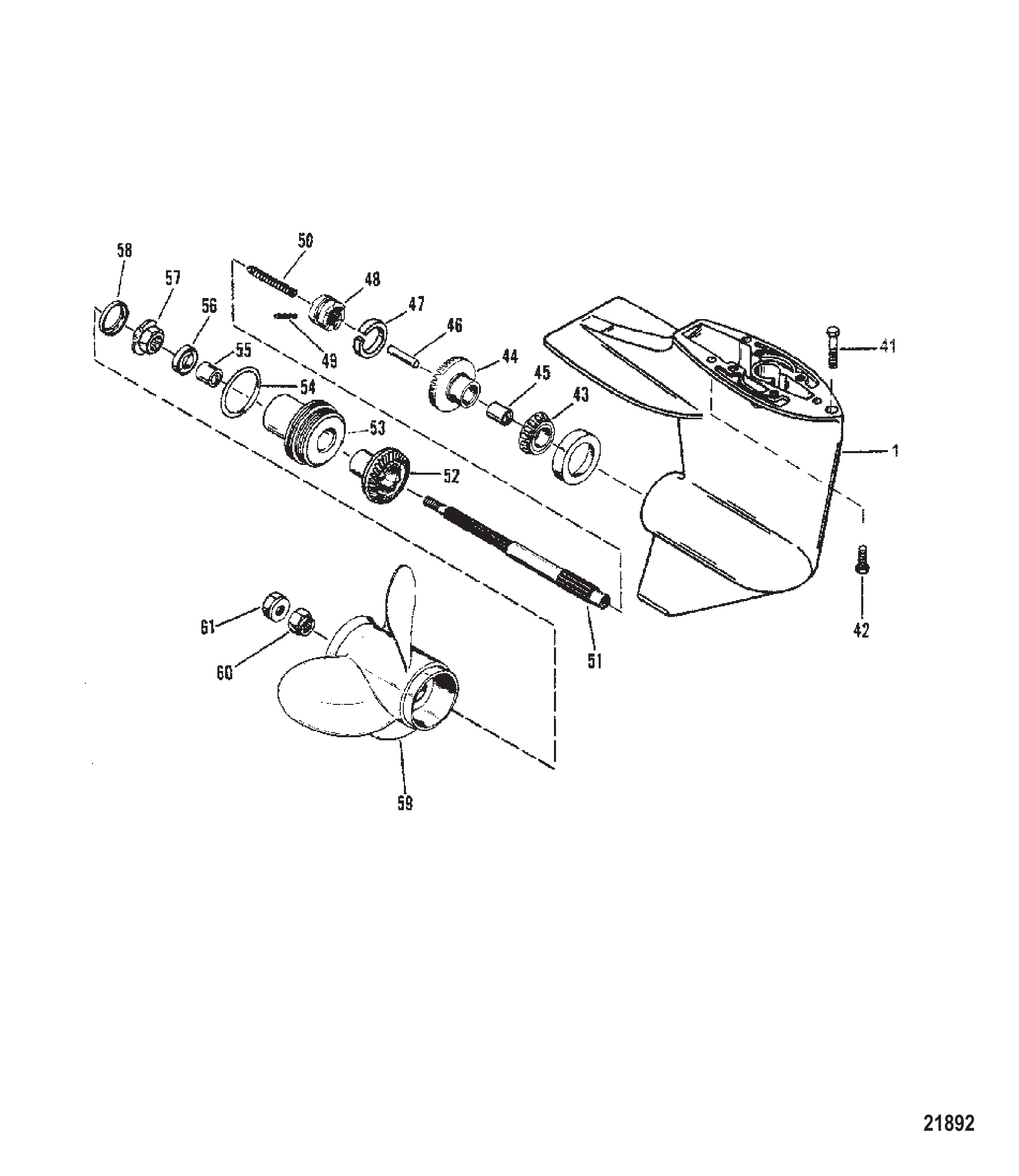

图 15齿轮箱（螺旋桨轴-设计 I-参考驱动轴图纸） Gear Hsg (Propshaft-Design I-Refer to Driveshaft Drawing)

REF	零件编号	中文名称	英文名称	数量
-	8833A9	齿轮箱总成完整组件(短型)(黑色)	GEAR HOUSING ASSEMBLY COMPLETE (SHORT) (BLACK)	1
-	8833T13	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833A10	齿轮箱总成完整组件(长型)(黑色)	GEAR HOUSING ASSEMBLY COMPLETE (LONG) (BLACK)	1
-	8833T15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833A11	齿轮箱总成完整组件(短型)(灰色)	GEAR HOUSING ASSEMBLY COMPLETE (SHORT) (GRAY)	1
-	8833T14	齿轮箱-短型-灰	GEAR HSG-SHORT-GR	1
-	8833A12	齿轮箱总成完整组件(长型)(灰色)	GEAR HOUSING ASSEMBLY COMPLETE (LONG) (GRAY)	1
-	8833T16	ORD 1666-8833T15	ORD 1666-8833T15	1
1	8833A1	齿轮箱总成(黑色)	GEAR HOUSING ASSEMBLY (BLACK)	1
1	8833A4	齿轮箱总成(灰色)	GEAR HOUSING ASSEMBLY (GRAY)	1
41	13403	螺钉	SCREW	1
41	82407110	螺钉(M8 x 50)	SCREW (M8 x 50)	1
42	13402	螺钉 (M8 x 30)	SCREW (M8 x 30)	2
42	8240717	螺钉 (M8 x 30)	SCREW (M8 x 30)	2
43	41347A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
43	821321A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
44	41371A1	前进齿轮总成	GEAR ASSEMBLY Forward	1
45	41367	衬套	BUSHING	1
46	813139	凸轮从动件	FOLLOWER Cam	1
47	32449	挡圈	RING Retaining	1
48	43217	离合器	CLUTCH	1
49	30535	十字销	PIN Cross	1
50	42204	弹簧	SPRING	1
51	41370	螺旋桨轴	PROPELLER SHAFT	1
52	44115	倒挡齿轮	GEAR Reverse	1
52	44115T	倒档齿轮	REVERSE GEAR	1
53	42144A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
53	42144T2	轴承座	BEARING CARRIER	1
54	33145	O型圈(1.984x0.139)	O-RING (1.984 x .139)	1
54	8M0214923	O型圈(1.98x1.39)	O-RING (1.98 x 1.39)	1
55	41368	衬套	BUSHING	1
56	66022	油封	SEAL Oil	1
57	42037	推力毂	THRUST HUB	1
58	42201	盖帽	CAP	1
59	42522A12	螺旋桨(9×9英寸)	PROPELLER (9" X 9")	1
59	828156A12	黑色MAX螺旋桨9x9右旋铝3叶	BLACK MAX PROPELLER 9 X 9 RH AL 3 BL	1
59	17874A12	螺旋桨 (9"×10-1/2")	PROPELLER (9" X 10-1/2")	1
59	828158A12	螺旋桨 Black Max	PROPELLER Black Max	1
59	42524A12	螺旋桨 (SAILPOWER)	PROPELLER (SAILPOWER)	1
59	828150A12	黑色MAX螺旋桨 9.8 x 6.5 右旋铝3叶	BLACK MAX PROPELLER 9.8 X 6.5 RH AL 3 BL	1
60	42091	隔套	SPACER	1
60	420911	隔套	SPACER	1
61	13914	螺母(M10)	NUT (M10)	1
61	40140	螺母(M10)	NUT (M10)	1
-	42364A92	发动机垫片组	GASKET SET Engine	1
-	41365A3	密封套件	SEAL KIT	1

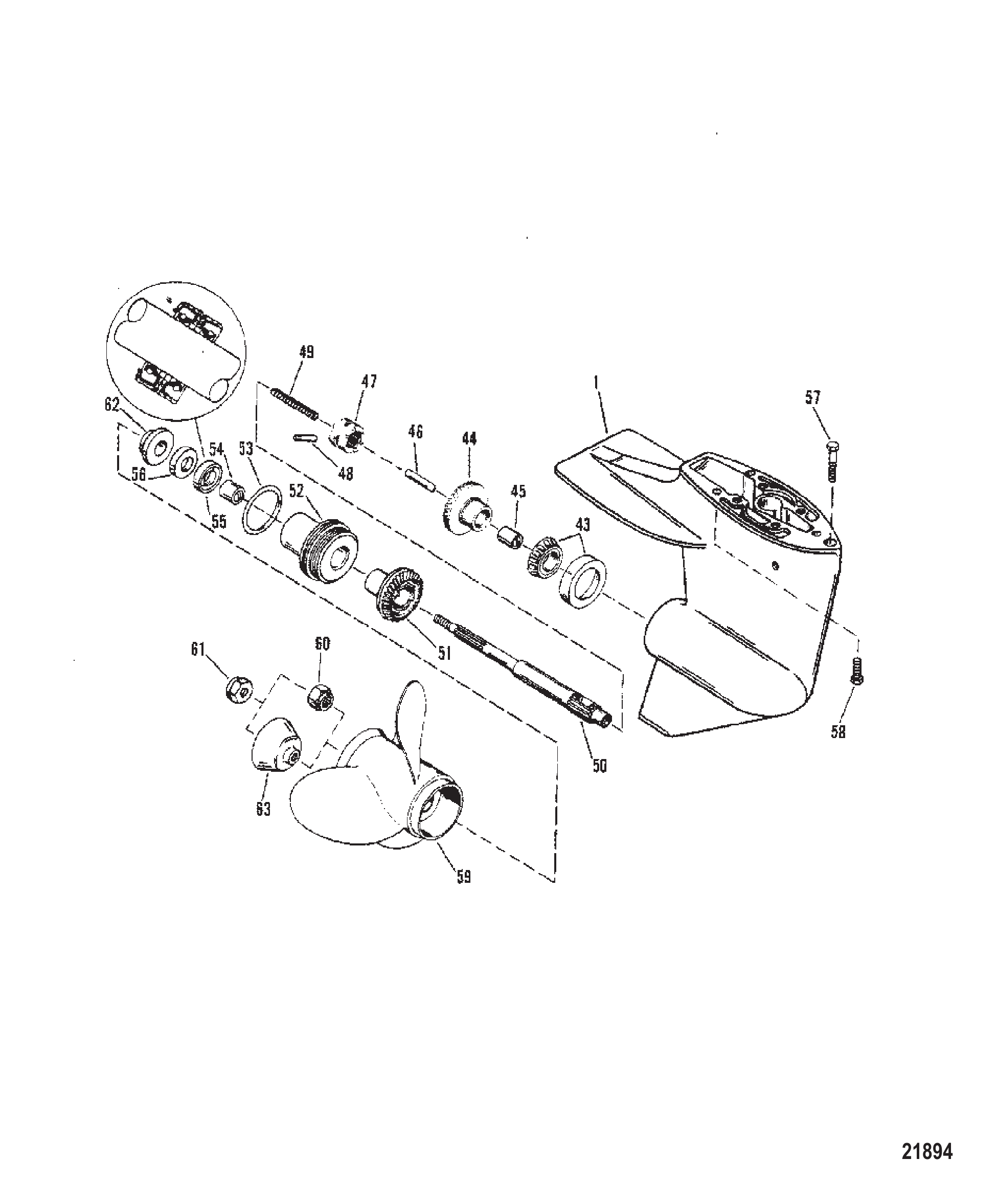

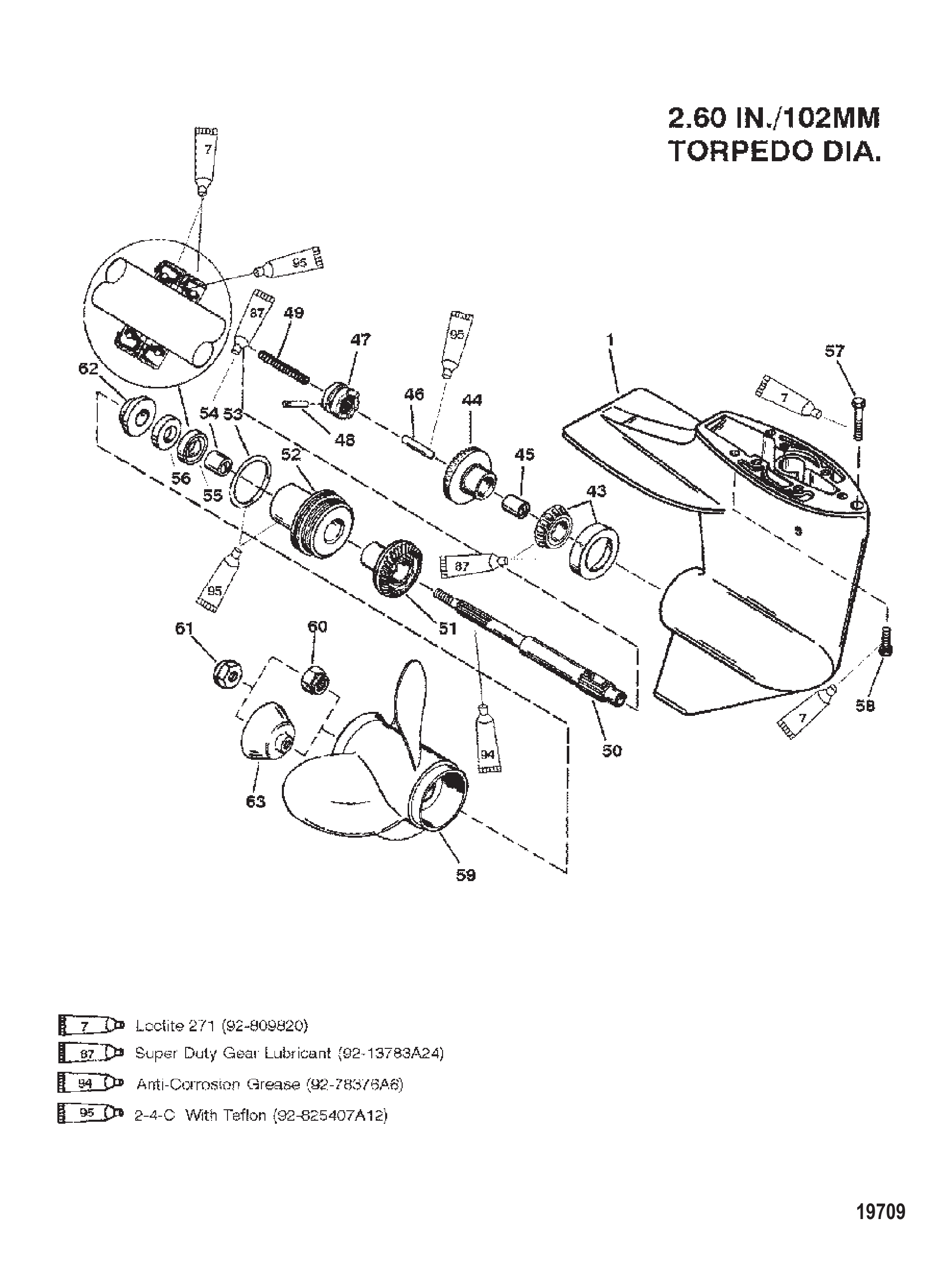

图 16齿轮箱（螺旋桨轴-设计II-参见驱动轴图纸） Gear Hsg (Propshaft-Design II-Refer to Driveshaft Drawing)

REF	零件编号	中文名称	英文名称	数量
-	8833A13	齿轮箱总成(短型)黑色	GEAR HOUSING ASSEMBLY COMPLETE (SHORT) BLACK	1
-	8833T13	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833A15	齿轮箱总成(长型)黑色	GEAR HOUSING ASSEMBLY COMPLETE (LONG) BLACK	1
-	8833T15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833A14	齿轮箱总成(短型)灰色	GEAR HOUSING ASSEMBLY COMPLETE (SHORT) GRAY	1
-	8833T14	齿轮箱-短型-灰	GEAR HSG-SHORT-GR	1
-	8833A16	齿轮箱总成(长型)灰色	GEAR HOUSING ASSEMBLY COMPLETE (LONG) GRAY	1
-	8833T16	ORD 1666-8833T15	ORD 1666-8833T15	1
1	8833A17	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	8M0083312	GC BASIC9.9/15 4S	GC BASIC9.9/15 4S	1
1	8833A18	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic-Gray	1
1	8833A17	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
43	41347A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
43	821321A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
44	821924A1	前进齿轮总成	GEAR ASSEMBLY Forward	1
45	41367	衬套	BUSHING	1
46	813139	凸轮从动件	FOLLOWER Cam	1
47	821930	离合器	CLUTCH	1
47	821930A1	离合器总成	CLUTCH ASSEMBLY	1
48	823951	十字销	PIN Cross	1
49	42204	弹簧	SPRING	1
50	821929	螺旋桨轴	PROPELLER SHAFT	1
51	8219261	倒档齿轮-13/26	GEAR Reverse - 13/26	1
51	821926T1	倒档齿轮-13/26	GEAR Reverse - 13/26	1
52	42144A3	轴承座总成	CARRIER ASSEMBLY Bearing	1
52	42144T3	轴承座	CARRIER Bearing	1
53	33145	O型圈(1.984x0.139)	O-RING (1.984 x .139)	1
53	8M0214923	O型圈(1.98x1.39)	O-RING (1.98 x 1.39)	1
54	821927	衬套	BUSHING	1
55	99325	密封件	SEAL	1
56	821928	油封	SEAL Oil	1
57	13403	螺钉	SCREW	1
57	82407110	螺钉(M8 x 50)	SCREW (M8 x 50)	1
58	13402	螺钉 (M8 x 30)	SCREW (M8 x 30)	2
58	8240717	螺钉 (M8 x 30)	SCREW (M8 x 30)	2
59	42522A12	螺旋桨 (9 x 9)	PROPELLER (9 x 9)	1
59	828156A12	黑色MAX螺旋桨9x9右旋铝3叶	BLACK MAX PROPELLER 9 X 9 RH AL 3 BL	1
59	42524A12	螺旋桨 (9.75 x 6.50)	PROPELLER (9.75 x 6.50)	1
59	828150A12	黑色MAX螺旋桨 9.8 x 6.5 右旋铝3叶	BLACK MAX PROPELLER 9.8 X 6.5 RH AL 3 BL	1
60	420911	隔套	SPACER	1
61	13914	螺母(M10)	NUT (M10)	1
61	40140	螺母(M10)	NUT (M10)	1
62	821932	推力毂	THRUST HUB	1
63	822559	反向排气罩杯	CUP Reverse Exhaust Block	1
63	822559Q01	杯套	CUP	1
-	42364A92	发动机垫片组	GASKET SET Engine	1
-	41365A3	密封套件	SEAL KIT	1

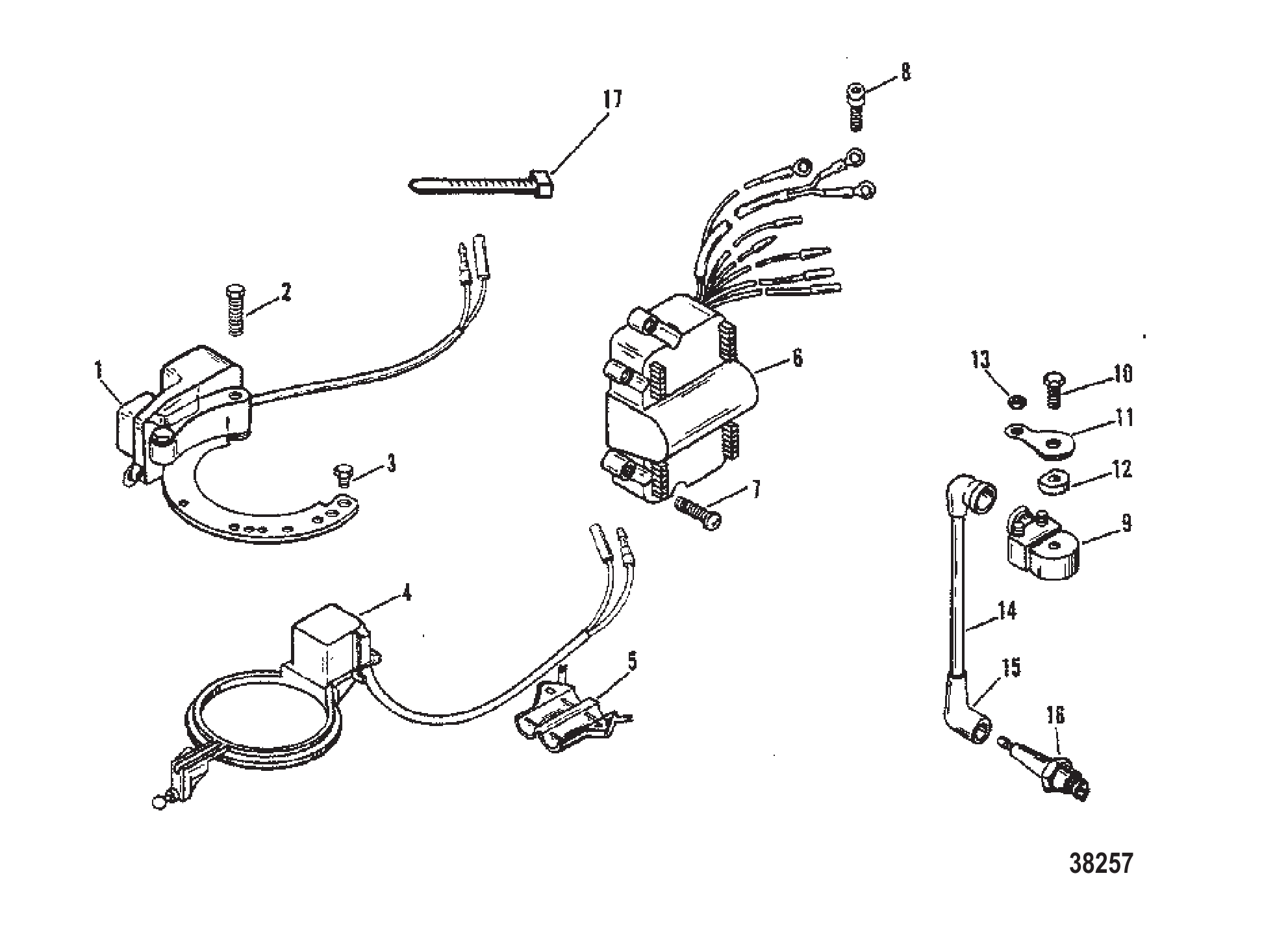

图 17点火组件 IGNITION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	86617A13	定子总成	STATOR ASSEMBLY	1
1	86617A20	定子总成	STATOR ASSEMBLY	1
2	4000120	螺丝(M5 x 25)	SCREW (M5 x 25)	2
3	400018	螺钉 (M5 x 12) (手动)	SCREW (M5 x 12) (MANUAL)	1
4	98450A5	触发器总成	TRIGGER ASSEMBLY	1
4	98450A10	触发器总成	TRIGGER ASSEMBLY	1
5	11100	触发线夹	CLIP TRIGGER LEAD	1
6	7452A15	开关盒总成	SWITCHBOX ASSEMBLY	1
6	7452A19	开关盒总成	SWITCHBOX ASSEMBLY	1
7	40019108	螺钉 (M5 x 20) 开关盒至气缸体	SCREW (M5 x 20) SWITCH BOX TO CYLINDER BLOCK	2
8	48408	螺钉 (#10-16 x .500) 接地线	SCREW (#10-16 x .500) GROUND WIRE	1
9	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	2
9	8M0230859	点火线圈总成	COIL IGNITION ASY	2
10	40112	螺钉 (M6 x 45) 点火线圈	SCREW (M6 x 45) IGNITION COIL	2
11	88173	锁紧垫圈	TAB WASHER	2
12	88171	线圈衬套	BUSHING COIL	2
13	45076	螺母 (#10-32) 黄铜线圈端子	NUT (#10-32) Brass COIL TERMINAL	4
14	813715A2	高压线组 (5和8.25英寸) 高压	CABLE SET High Tension (5 and 8.25 Inch) HIGH TENSION	1
15	63709A1	火花塞护套/端子套件	BOOT/TERMINAL KIT SPARK PLUG	2
16	12343	火花塞 (NGK #BP8HS-10)	SPARK PLUG (NGK #BP8HS-10)	2
16	8M0114745	SP BP8HS-10 @4	SP BP8HS-10 @4	2
16	8167372	火花塞 (NGK#BP8H-N-10)	SPARK PLUG (NGK#BP8H-N-10	2
16	816737Q	NGK BP8HN-10@10	NGK BP8HN-10@10	2
16	14814548	火花塞 (NGK #BPZ8HS-10) (加拿大/比利时)	SPARK PLUG (NGK # BPZ8HS-10) (CAN./BEL.)	2
16	938	SP #QL78YC @4	SP #QL78YC @4	2
16	8168372	火花塞 (NGK#BPZ-8H-N-10-加拿大/比利时)	SPARK PLUG (NGK#BPZ-8H-N-10-CAN/BEL.)	2
16	938	SP #QL78YC @4	SP #QL78YC @4	2
16	19424	火花塞 (NGK#BP8HS-15)	SPARK PLUG (NGK#BP8HS-15)	2
16	8M0114746	SP BP8HS-15 @4	SP BP8HS-15 @4	2
16	14814568	火花塞 (NGK#BPZ8HS-15)	SPARK PLUG (NGK#BPZ8HS-15)	2
17	69355	扎带(5.50英寸)	TIE STRAP (5.50 Inches)	1
17	8M0214940	扎带	TIE STRAP	1

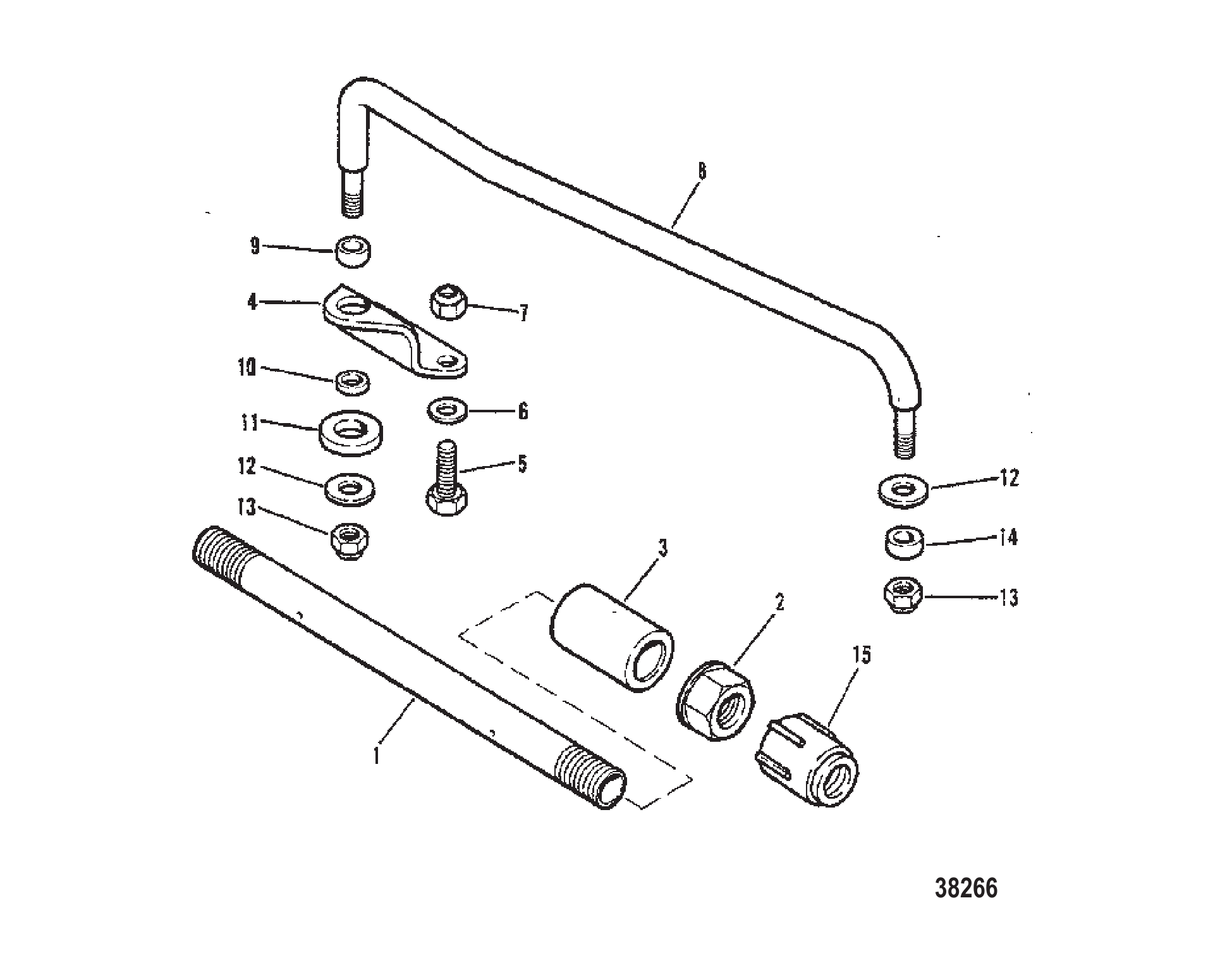

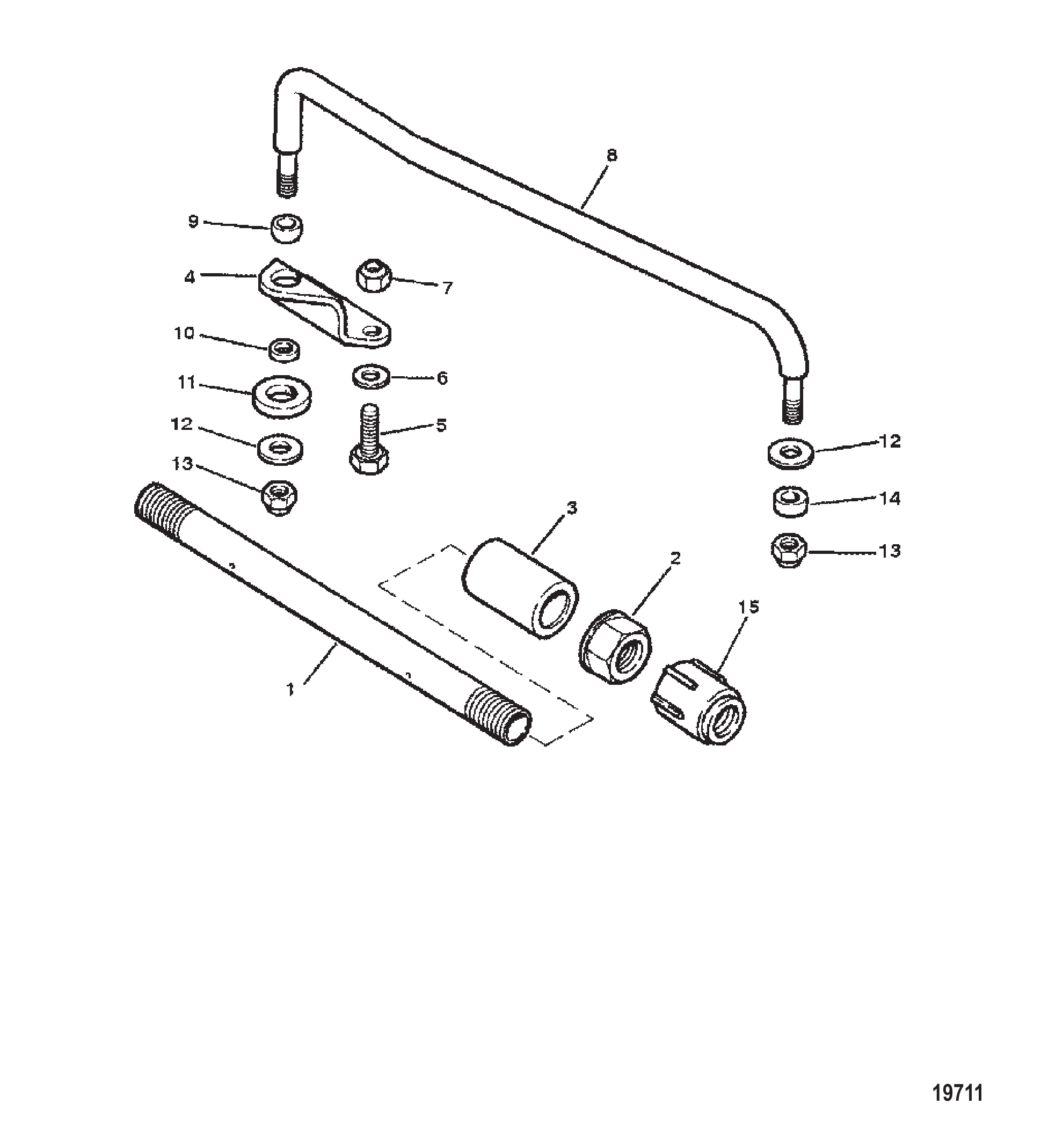

图 18连杆和组件（电动长杆带遥控） LINK ROD AND COMPONENTS (ELECTRIC LONG W/REMOTE CONTROL)

REF	零件编号	中文名称	英文名称	数量
1	30664	管	TUBE	1
1	8M0041936	倾斜管	TILT TUBE	1
2	93164	螺母 (0.875)	NUT (.875)	2
3	113841	隔套	SPACER	1
4	11607	支架	BRACKET	1
5	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	2
6	56720	垫圈(0.330×0.750×0.060)不锈钢	WASHER (.330 x .750 x .060) Stainless Steel	2
7	400635	螺母 (M8)	NUT (M8)	2
7	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
8	11606	拉杆 (右舷)	TIE ROD (STARBOARD)	1
8	11606T	ORD 11606A 1	ORD 11606A 1	1
9	29698	球头关节	BALL JOINT	1
10	71970	垫圈(0.390×0.546×0.12)	WASHER (.390 x .546 x .12)	1
10	8M0109680	垫圈(0.39×0.546×0.12)	WASHER (.39 X .546 X.12)	1
11	30521	垫圈(0.97×0.56×0.19)	WASHER (.97 x .56 x .19)	1
12	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	3
13	34863	螺母 (.375-24)	NUT (.375-24)	2
13	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
14	66751	垫片(0.250x0.390x0.630)不锈钢	SPACER (.250 x .390 x .630) Stainless Steel	1
14	8M0151156	隔套	SPACER	1
15	78862A2	密封套件	SEAL KIT	1
15	19624A1	密封套件	SEAL KIT	1

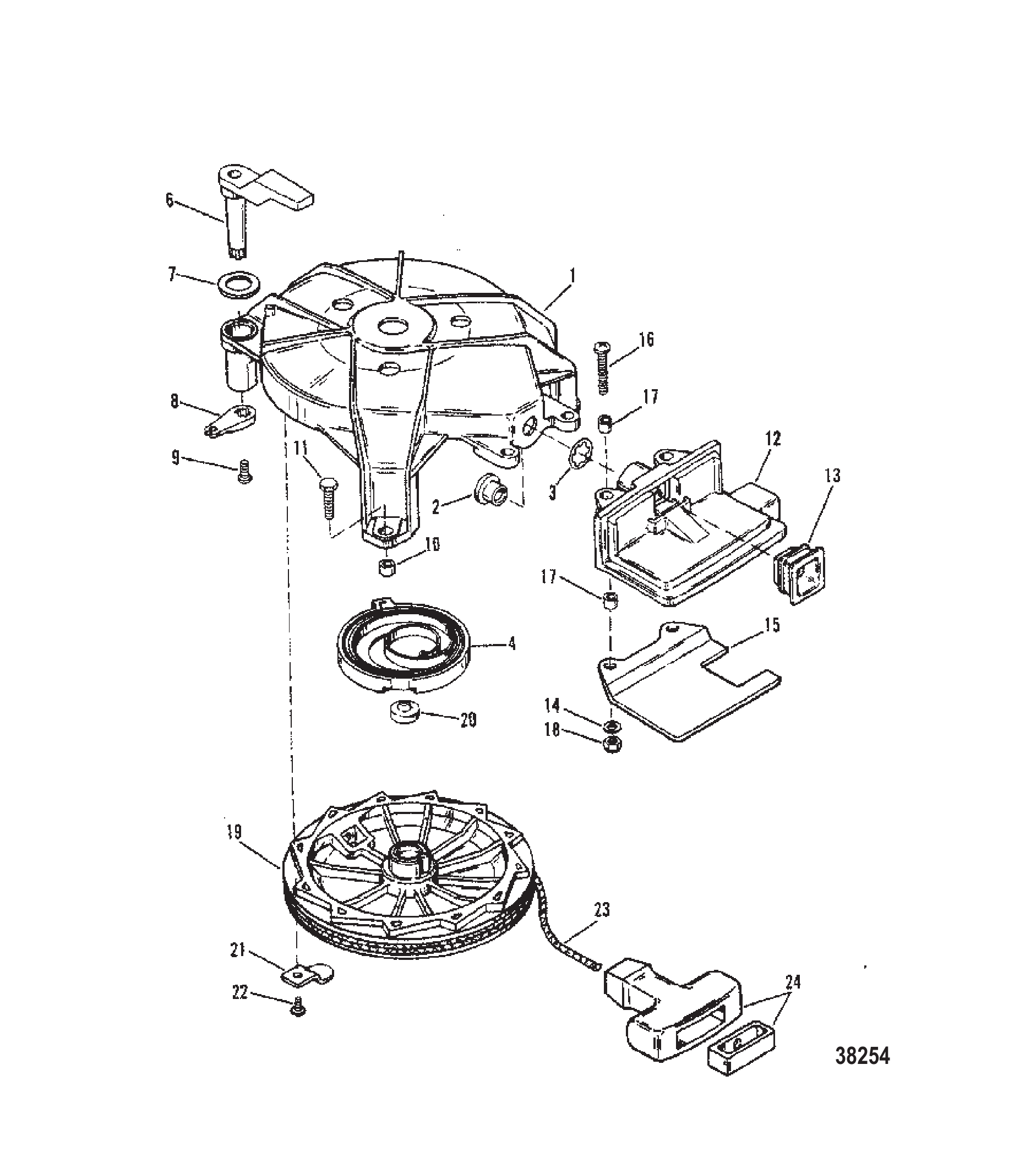

图 19手动启动器（设计 I） MANUAL STARTER (DESIGN I)

REF	零件编号	中文名称	英文名称	数量
1	42207A1	启动器壳体总成	HOUSING ASSEMBLY STARTER	1
2	42690	启动绳衬套	BUSHING STARTER ROPE	1
2	8M0183792	绳索衬套	ROPE BUSHING	1
3	42689	挡圈	RING Retaining	1
3	818853	挡圈	RING Retaining	1
4	42194A2	反冲启动器弹簧总成	SPRING ASSEMBLY Recoil Starter	1
6	42171	锁杆 (上)	LEVER LOCK (UPPER)	1
6	42171T	杠杆	LEVER	1
7	56681	垫圈 (.203 x .500 x .032) 上锁杆	WASHER (.203 x .500 x .032) UPPER LOCK LEVER	1
7	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
8	42173	锁杆 (下)	LEVER LOCK (LOWER)	1
8	42173T	杠杆	LEVER	1
9	48408	螺钉 (#10-16 x .500) 下锁杆	SCREW (#10-16 x .500) LOWER LOCK LEVER	1
10	43787	启动器壳体螺钉隔套	SPACER STARTER HOUSING SCREW	3
11	40011128	螺钉 (M6 x 20) 不锈钢启动器壳体固定	SCREW (M6 x 20) Stainless Steel STARTER HOUSING ATTACHING	3
11	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	3
12	42094	支架	REST	1
12	19018T	支架-启动器手柄	REST-STARTER HDL	1
12	19018	支架	REST	1
12	19018T	支架-启动器手柄	REST-STARTER HDL	1
13	44180	绳索衬套	BUSHING Rope	1
14	4002313	支架螺钉垫圈	WASHER REST SCREW	2
15	12674	支架	SUPPORT	1
16	40019111	螺钉 (M5 x 35) 支架至启动器壳体	SCREW (M5 x 35) REST TO STARTER HOUSING	2
17	309772	支架螺钉隔套	SPACER REST SCREW	4
18	400633	螺母 (M5) 支架螺钉	NUT (M5) REST SCREW	2
18	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	2
19	42034A1	启动器滑轮	SHEAVE STARTER	1
19	42034A2	启动器回绕滑轮总成	PULLEY ASSEMBLY Starter Rewind	1
20	427071	启动器滑轮盖	CAP STARTER SHEAVE	1
20	817362	启动器滑轮盖 (盖塞)	CAP STARTER SHEAVE (CAP PLUG)	1
21	42209	启动器滑轮挡片	TAB STARTER SHEAVE	3
22	48408	螺钉 (#10-16 x .500) 挡片	SCREW (#10-16 x .500) TAB	3
23	12066A9	启动绳	ROPE STARTER	1
23	12066Q10	启动绳@2	ROPE-STARTER@2	1
24	85174A1	启动绳手柄总成	HANDLE ASSEMBLY STARTER ROPE	1

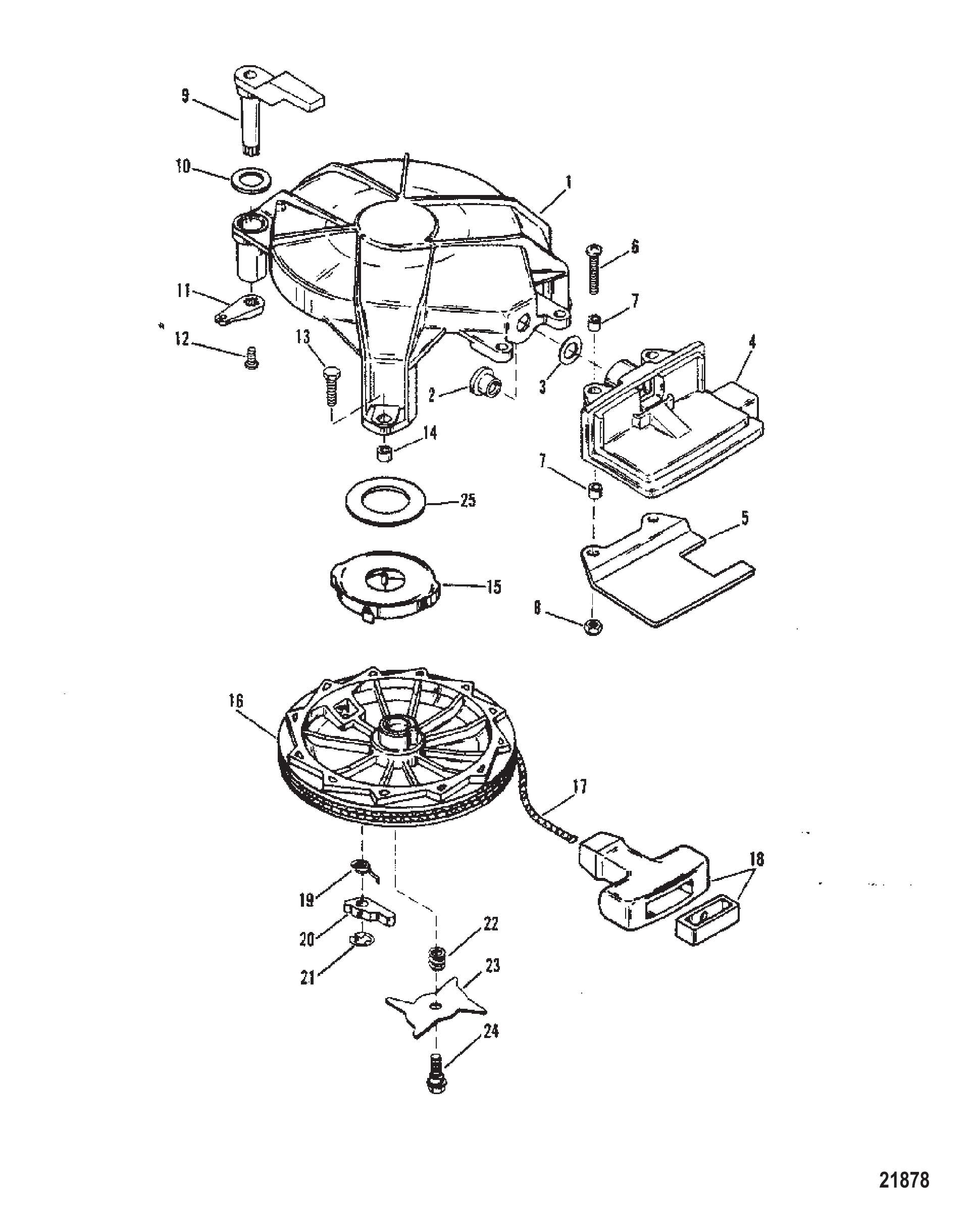

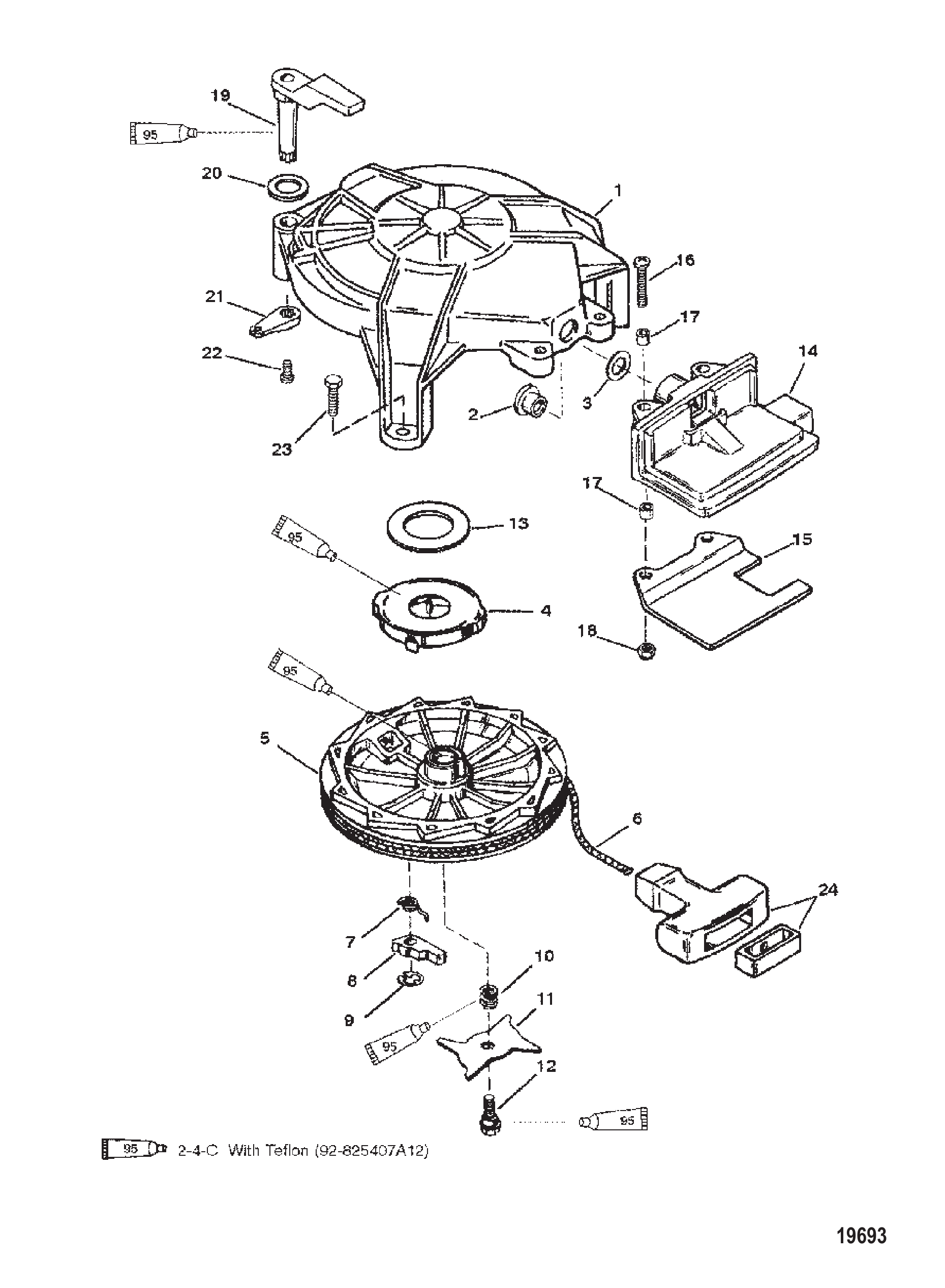

图 20手动启动器（设计II） Manual Starter (Design II)

REF	零件编号	中文名称	英文名称	数量
1	422071	启动器壳体	HOUSING Starter	1
1	42207T02	ORD 8M0070659	ORD 8M0070659	1
2	42690	衬套	BUSHING	1
2	8M0183792	绳索衬套	ROPE BUSHING	1
3	818853	挡圈	RING Retaining	1
4	19018	支架	REST	1
4	19018T	支架-启动器手柄	REST-STARTER HDL	1
5	12674	支架	SUPPORT	1
6	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	2
7	309772	隔套	SPACER	4
8	400633	螺母 (M5)	NUT (M5)	4
8	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	4
9	42171	锁杆 (上)	LEVER LOCK (UPPER)	1
9	42171T	杠杆	LEVER	1
10	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
10	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
11	42173	锁杆 (下)	LEVER LOCK (LOWER)	1
11	42173T	杠杆	LEVER	1
12	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
13	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	3
13	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	3
14	43787	启动器壳体螺钉隔套	SPACER STARTER HOUSING SCREW	3
15	86857	弹簧	SPRING	1
15	86857T01	弹簧	SPRING	1
16	420343	启动器滑轮	PULLEY Starter	1
16	42034T04	滑轮-启动器	SHEAVE-STARTER	1
17	12066A9	绳索	ROPE	1
17	12066Q10	启动绳@2	ROPE-STARTER@2	1
18	85174A1	手柄总成	HANDLE ASSEMBLY	1
19	86851	弹簧	SPRING	2
19	86851T02	弹簧 @2	SPRING @2	2
20	86850	凸轮	CAM	2
20	868501	凸轮	CAM	2
21	86849	挡圈	RING Retaining	2
21	86849T01	环 @2	RING @2	2
22	86852	弹簧	SPRING	1
22	868523	弹簧	SPRING	1
23	86853	凸轮	CAM	1
23	86853T01	凸轮	CAM	1
24	818838	螺钉	SCREW	1
24	826253	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	1
25	90478	垫	PAD	1
25	833161T	毛毡垫	PAD-FELT	1

图 21杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES

REF	零件编号	中文名称	英文名称	数量
-	814201	200 XRI(EFI)(V-6)维修	200 XRI (EFI) (V-6) Service	1
-	8140981	维修手册	SERVICE MANUAL	1
-	8162491	维修手册	SERVICE MANUAL	1
-	14697A87	衬垫套件	GASKET SET	1
-	813032A89	贴花套件	DECAL SET	1
-	814171A89	纪念版贴花套装	DECAL SET (ANNIVERSARY MODEL)	1
-	13492900	用户指南	OWNERS GUIDE	1

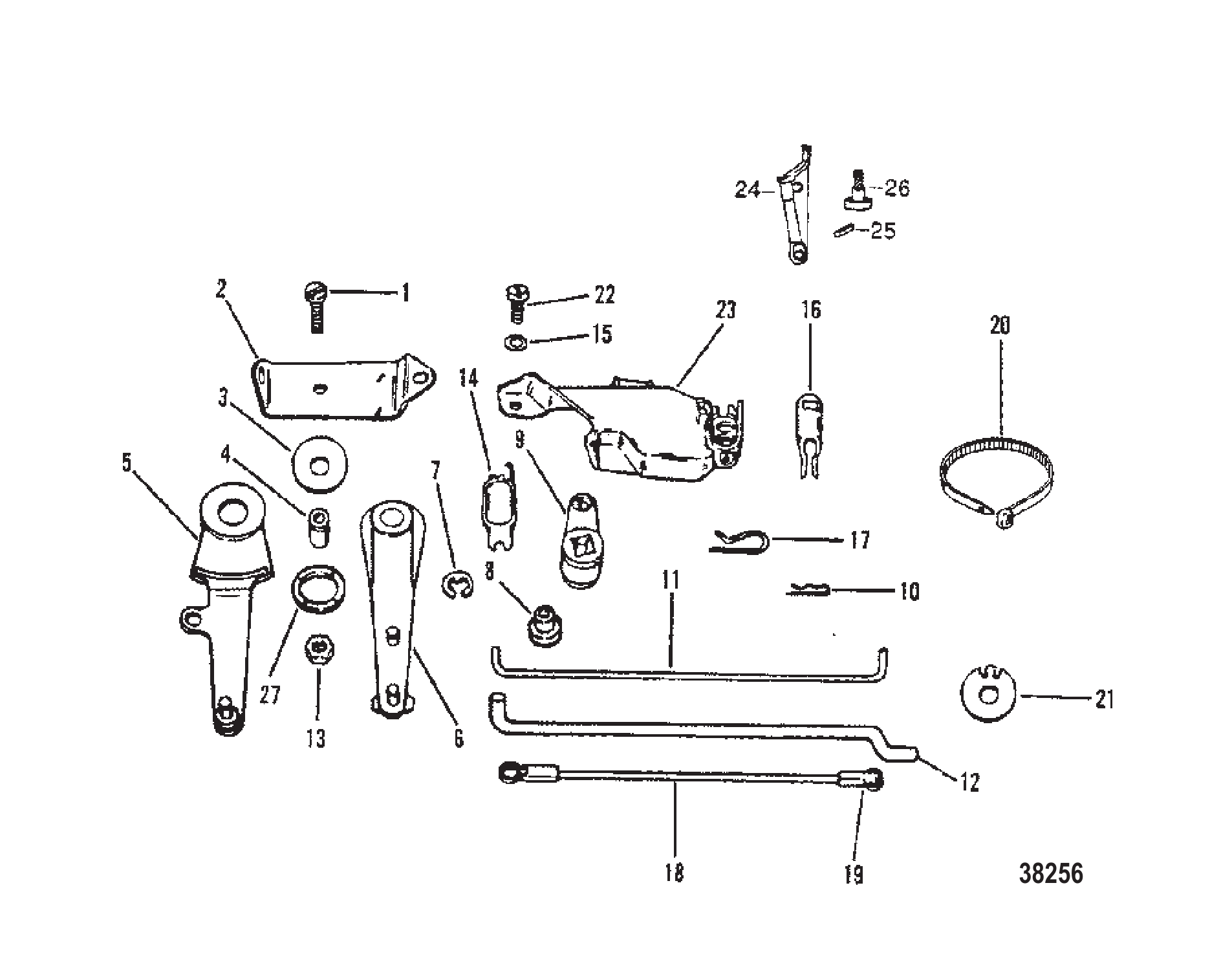

图 22遥控安装组件 REMOTE CONTROL ATTACHING COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	4000332	螺钉(M6x35)	SCREW (M6 x 35)	1
2	42809	控制臂支架	BRACKET Control Arm	1
3	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	2
3	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	2
3	12132	垫圈(0.520x1.500x0.06)	WASHER (.520 x 1.500 x .06)	1
3	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	1
4	42806	衬套	BUSHING	1
4	823807	衬套	BUSHING	1
5	42810A2	控制臂	CONTROL ARM	1
5	42810A8	控制臂总成	ARM ASSEMBLY Control	1
5	42810A4	控制臂	CONTROL ARM	1
5	42810A8	控制臂总成	ARM ASSEMBLY Control	1
6	428071	节气门控制臂	ARM Throttle Control	1
6	428071	节气门控制臂	ARM Throttle Control	1
7	61319	E型卡环	E RING	1
8	12136	衬套	BUSHING	1
8	889731	衬套	BUSHING	1
9	42800	杠杆	LEVER	1
10	21071	开口销	COTTER PIN	1
10	210711	开口销	COTTER PIN	1
11	42741	换挡连杆	SHIFT LINK	1
11	815550A1	换档轴	SHIFT SHAFT	1
5	42810A8	控制臂总成	ARM ASSEMBLY Control	1
8	12136	衬套	BUSHING	1
8	889731	衬套	BUSHING	1
10	21071	开口销	COTTER PIN	1
10	210711	开口销	COTTER PIN	1
12	8155691	换挡连杆	SHIFT LINK	1
12	878169	换挡连杆	SHIFT LINK	1
13	400634	螺母 (M6)	NUT (M6)	1
13	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
14	428021	固定座	RETAINER	1
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
16	424291	固定座	RETAINER	2
17	11372	卡扣	CLIP	1
18	19385A2	节气门连杆总成	LINK ASSEMBLY Throttle	1
18	8M0084741	节气门连杆总成	LINK ASY-THROTTLE	1
19	19384	插座	SOCKET	1
19	8M0084742	插座	SOCKET	1
20	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
20	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
21	11371	锁紧垫圈（旧设计）	TAB WASHER (OLD DESIGN)	1
22	4000171	螺钉(M6 x 16)	SCREW (M6 x 16)	2
23	42805A3	支架总成	BRACKET ASSEMBLY	1
24	11373	锁销	PIN Latch	1
25	23928	销	PIN	1
25	239281	滚动销	PIN Roll	1
26	42975	传动螺钉	DRIVE SCREW	1
27	12134	波形垫圈	WASHER Wave	1

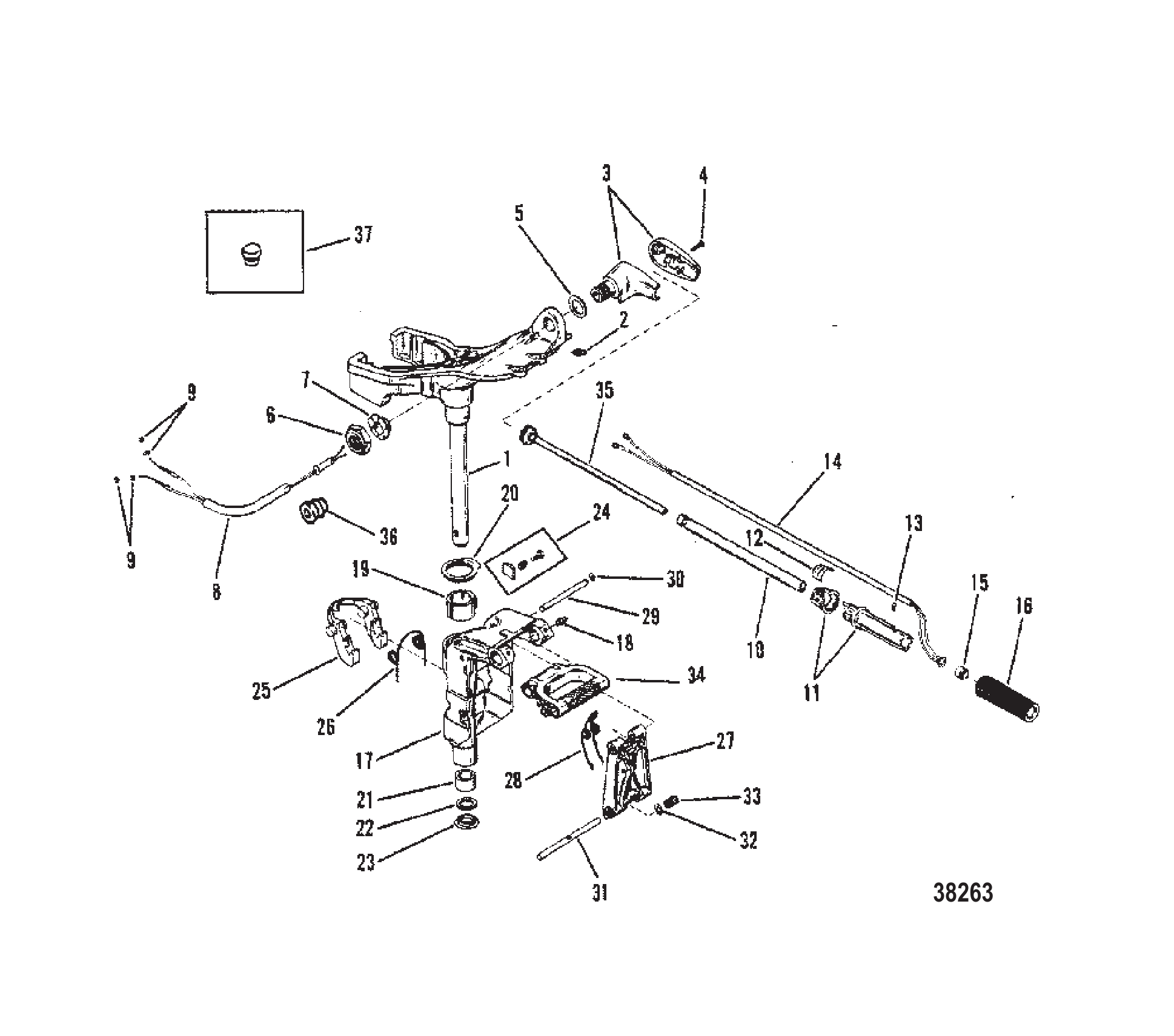

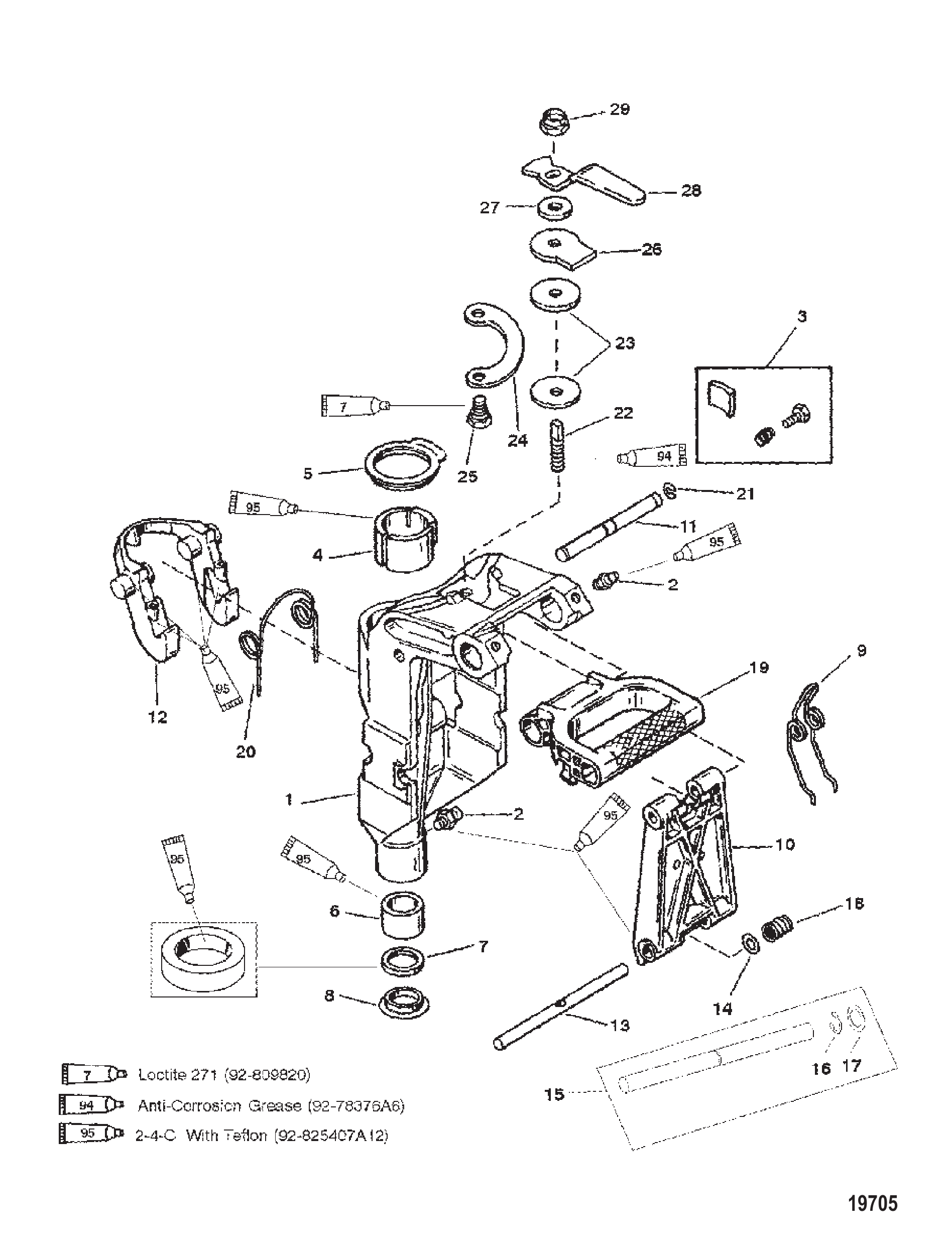

图 23旋转支架和转向手柄 SWIVEL BRACKET AND STEERING HANDLE

REF	零件编号	中文名称	英文名称	数量
1	42213A6	旋转管（黑色）	SWIVEL TUBE (BLACK)	1
1	42213A14	旋转管更换件	SWIVEL TUBE REPLACEMENT	1
1	42213A7	旋转管（灰色）	SWIVEL TUBE (GRAY)	1
1	42213A15	旋转管更换件	SWIVEL TUBE REPLACEMENT	1
1	42213A14	旋转管替换件（黑色）	SWIVEL TUBE REPLACEMENT (BLACK)	1
1	42213A15	旋转管替换件（灰色）	SWIVEL TUBE REPLACEMENT (GRAY)	1
1	42213A14	旋转管更换件	SWIVEL TUBE REPLACEMENT	1
2	74036	润滑脂接头	FITTING Grease	1
2	8M0169589	润滑脂接头	FITTING Grease	1
3	NLA	已停产支架（黑色）（订单号42213A14）	No Longer Available BRACKET (BLACK) (ORDER 42213A14)	1
3	NLA	已停产支架（灰色）（订单号4213A15）	No Longer Available BRACKET (GRAY) (ORDER 4213A15)	1
3	44397A15	支架总成（黑色）	BRACKET ASSEMBLY (BLACK)	1
3	44397A16	支架总成（灰色）	BRACKET ASSEMBLY (GRAY)	1
4	40019109	螺丝(M5 x 25)	SCREW (M5 x 25)	3
4	4005688	螺钉（M4×20）	SCREW (M4 x 20)	3
4	40011110	螺钉(M5×30不锈钢)	SCREW (M5 x 30) Stainless Steel	3
5	177821	支架垫圈	WASHER BRACKET	1
5	177821	垫圈	WASHER	1
6	90068F2	支架螺母（黑色）	NUT BRACKET (BLACK)	1
6	859133	螺母(1.00-14)	NUT (1.00-14)	1
6	90068F3	支架螺母（1.00-14）（灰色）	NUT (1.00-14) BRACKET (GRAY)	1
6	859133	螺母(1.00-14)	NUT (1.00-14)	1
6	816880	螺母	NUT	1
7	85973	支架衬套	BUSHING BRACKET	1
7	817026	衬套	BUSHING	1
8	42210	油门拉索（舵柄换挡）	CABLE THROTTLE (TILLER HANDLE SHIFT)	1
8	422111	油门拉索（侧换挡）	CABLE THROTTLE (SIDE SHIFT)	1
9	400212	油门拉索不锈钢螺母（M6）	NUT (M6) Stainless Steel THROTTLE CABLE	AR
10	99333A2	转向管总成	TUBE ASSEMBLY STEERING	1
11	14025A4	油门手柄总成（舵柄换挡）	HANDLE ASSEMBLY Throttle (TILLER HANDLE SHIFT)	1
11	823609A10	停机开关套件-油门手柄	SWITCH KIT Stop - Throttle Handle	1
11	14170A5	油门手柄总成（侧换挡）	HANDLE ASSEMBLY Throttle (SIDE SHIFT)	1
11	823609A10	停机开关套件-油门手柄	SWITCH KIT Stop - Throttle Handle	1
12	13239	油门贴花（贴于手柄）	DECAL THROTTLE (APPLY ON HANDLE)	1
12	140121	油门贴花（贴于管身）（黑色）	DECAL THROTTLE (APPLY ON TUBE) (BLACK)	1
12	140122	贴花（贴于管身-灰色3-1/3"×1-1/4"）	DECAL (APPLY ON TUBE - GRAY 3-1/3" X 1-1/4")	1
12	140123	贴花（贴于管身-3.15"×2-1/2"）	DECAL (APPLY ON TUBE - 3.15"X 2-1/2")	1
12	140124	贴花（国际符号）	DECAL (INTERNATIONAL SYMBOLS)	1
13	37342	油门手柄螺钉（#12-14×0.375）	SCREW (#12-14 x .375) THROTTLE HANDLE	1
14	823609A10	停机开关套件-油门手柄	SWITCH KIT Stop - Throttle Handle	1
15	11099A1	停机开关护套总成	BOOT ASSEMBLY STOP SWITCH	1
16	99589	橡胶握把	GRIP RUBBER	1
16	8M0221732	外握把	GRIP OUTER	1
17	8831A1	旋转支架总成（黑色）	SWIVEL BRACKET ASSEMBLY (BLACK)	1
17	8831A13	旋转支架-黑色	SWIVEL BRKT-BLACK	1
17	8831A2	旋转支架总成（灰色）	SWIVEL BRACKET ASSEMBLY (GRAY)	1
17	8831A14	ORD 3402-8831A13	ORD 3402-8831A13	1
18	74036	润滑脂接头	FITTING Grease	3
18	8M0169589	润滑脂接头	FITTING Grease	3
19	42140	上衬套	BUSHING UPPER	1
20	420801	推力轴承-上	BEARING Thrust - Upper	1
20	42080T01	轴承	BEARING	1
21	42139	下衬套	BUSHING LOWER	1
22	42077	密封件	SEAL	1
23	42373	下止推垫圈	THRUST WASHER LOWER	1
24	42124A1	副驾驶板总成	PLATE ASSEMBLY CO-PILOT	1
25	42141	倒挡锁钩	HOOK REVERSE LOCK	1
25	8M0075731	倒挡钩	HOOK Reverse	1
26	42127	倒挡钩弹簧	SPRING REVERSE HOOK	1
27	420822	支架	BRACKET	1
27	42082T04	支架	BRACKET	1
28	42130	弹簧	SPRING	1
28	421301	弹簧	SPRING	1
29	42081	销	PIN	1
29	420811	销	PIN	1
30	13194	挡圈	RING Retaining	2
31	42083	枢轴销	PIN Pivot	1
31	830741A1	枢轴销总成	PIN ASSEMBLY Pivot	1
32	8M0027716	枢轴销不锈钢垫圈（0.390×0.600×0.032）	WASHER (.390 x .600 x .032) Stainless Steel PIVOT PIN	1
33	42128	弹簧	SPRING	1
34	42085F1	提手	CARRYING HANDLE	1
34	420852	手柄-黑色	HANDLE-BLACK	1
35	975501	管总成	TUBE ASSEMBLY	1
36	12602	护孔环	GROMMET	1
36	12602002	护孔环	GROMMET	1
37	19564	护孔环	GROMMET	1
37	8M0179867	护孔环	GROMMET	1

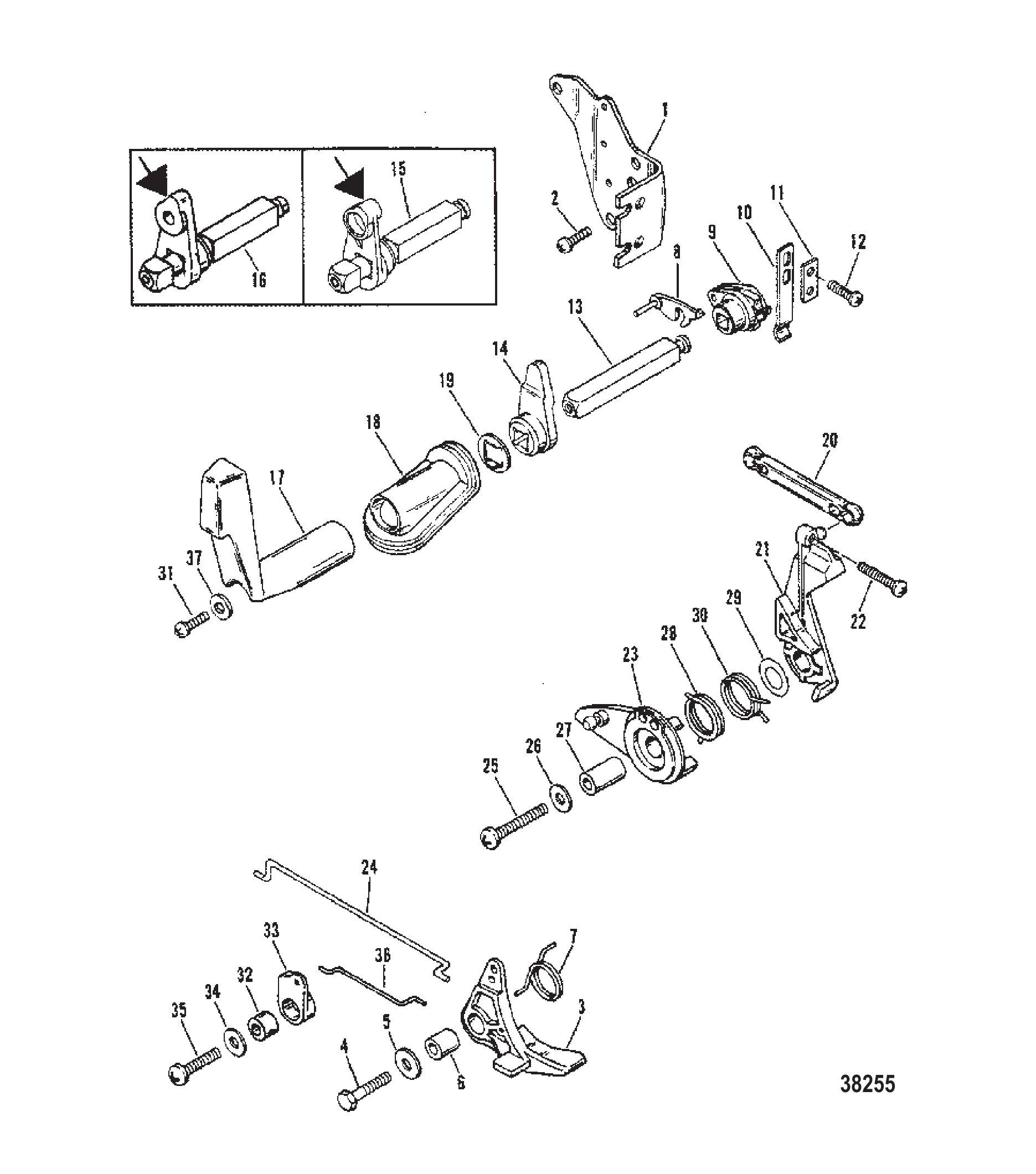

图 24油门和换挡联动装置（侧换挡型号） THROTTLE AND SHIFT LINKAGE (SIDE SHIFT MODELS)

REF	零件编号	中文名称	英文名称	数量
1	42181	线缆支架	BRACKET Cable	1
2	4000117	螺钉（M5×20）	SCREW (M5 x 20)	2
3	125732	杠杆	LEVER	1
3	421592	杠杆	LEVER	1
4	4000331	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
5	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
5	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
6	421581	衬套	BUSHING	1
7	42160	弹簧	SPRING	1
8	42156	杠杆	LEVER	1
9	42153	杠杆	LEVER	1
10	39627	弹簧	SPRING	1
11	39601	板（旧设计）	PLATE (OLD DESIGN)	1
12	4000114	螺钉(M5×16)	SCREW (M5 x 16)	2
12	400035	螺钉(M5×16)	SCREW (M5 x 16)	2
12	400011	螺钉（M5×8）	SCREW (M5 x 8)	2
13	42152	换挡轴（两件式）	SHIFT SHAFT (2 PIECE SHIFT SHAFT)	1
14	421541	执行器（两件式换挡轴）	ACTUATOR (2 PIECE SHIFT SHAFT)	1
15	815550A1	换挡轴（带球窝）	SHIFT SHAFT ( W/BALL SOCKET)	1
16	8155501	换挡轴（无球窝）	SHIFT SHAFT (W/O BALL SOCKET)	1
17	42157	换挡手柄（配合参考号13、14或15使用）	SHIFT HANDLE (USE W/REF. #13 & 14 OR 15)	1
17	815550A1	换档轴	SHIFT SHAFT	1
17	421571	换挡手柄（配合参考号16使用）	SHIFT HANDLE (USE W/REF. #16)	1
18	44459	护孔环	GROMMET	1
18	44459001	护孔环	GROMMET	1
19	12003	锁紧垫圈（旧设计）	TAB WASHER (OLD DESIGN)	1
20	421671	正时连杆	TIMING LINK	1
21	421631	控制杆	LEVER Control	1
22	40056110	螺丝(M5 x 30)	SCREW (M5 x 30)	1
22	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	1
23	421662	执行器	ACTUATOR	1
24	42161	互锁连杆	LINK INTERLOCK	1
25	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
26	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
26	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
27	421621	衬套	BUSHING	1
28	13676	弹簧	SPRING	1
29	69708	波形垫圈	WAVE WASHER	1
30	42164	弹簧	SPRING	1
31	40056107	螺钉(M5×16)	SCREW (M5 x 16)	1
32	42182	衬套	BUSHING	1
32	421821	衬套	BUSHING	1
33	42183	执行器	ACTUATOR	1
34	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
34	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
35	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	1
35	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	1
36	42184	连接杆	LINK	1
37	4002314	垫圈	WASHER	1

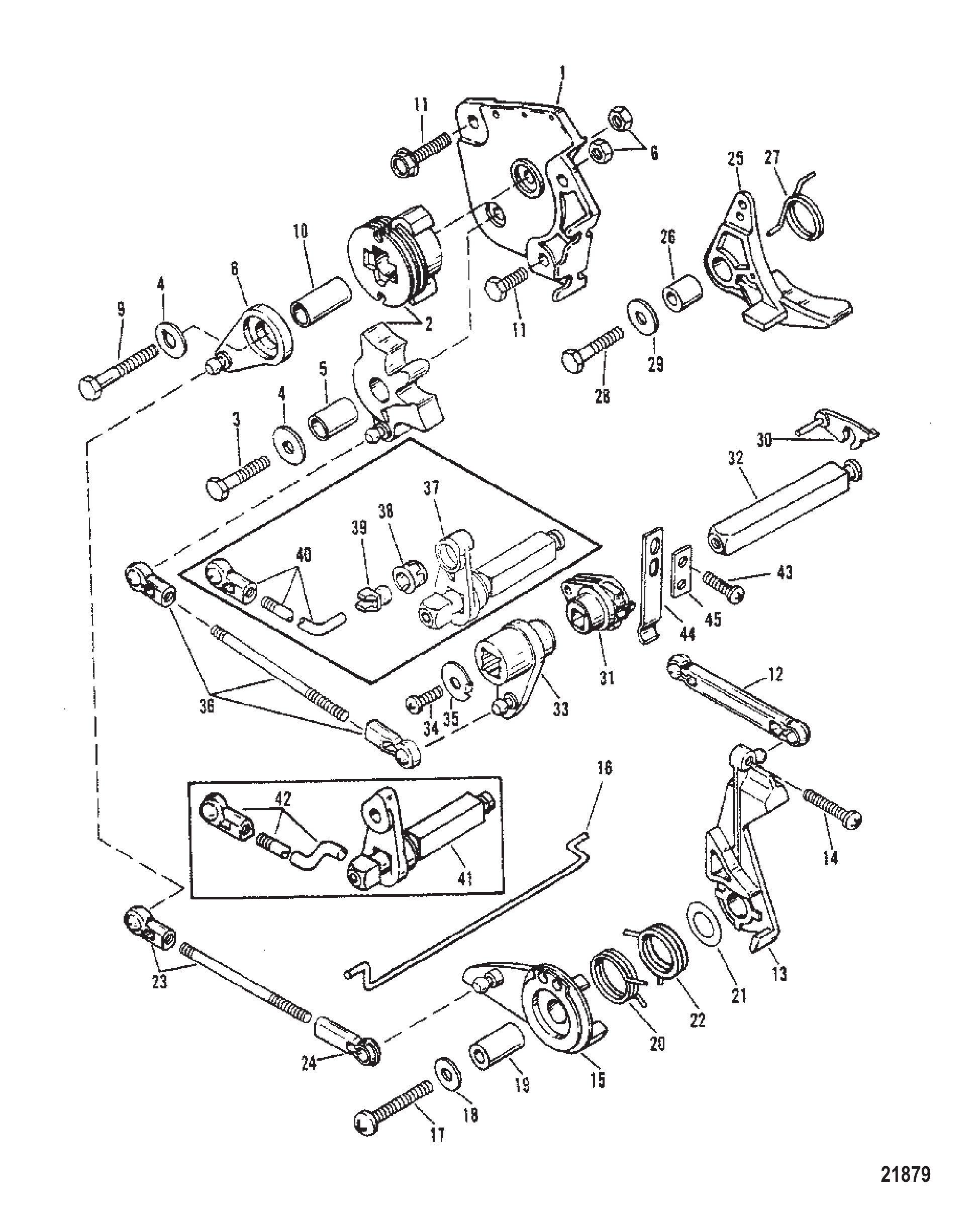

图 25油门和换挡联动装置（舵柄换挡型号） THROTTLE AND SHIFT LINKAGE (TILLER HANDLE SHIFT MODELS)

REF	零件编号	中文名称	英文名称	数量
1	42148	控制平台	CONTROL PLATFORM	1
1	421482	控制平台	CONTROL PLATFORM	1
2	94085A1	齿轮	GEAR	1
3	4000331	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
4	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	2
4	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	2
5	42149	短隔套	SPACER (SHORT)	1
5	856737	隔套	SPACER	1
6	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
8	42151	主操纵杆	LEVER Primary	1
9	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
10	42150	长隔套	SPACER (LONG)	1
10	856738	隔套	SPACER	1
11	4000171	螺钉(M6 x 16)	SCREW (M6 x 16)	2
12	421671	正时连杆	TIMING LINK	1
13	421631	控制杆	LEVER Control	1
14	40056110	螺丝(M5 x 30)	SCREW (M5 x 30)	1
14	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	1
15	421662	执行器	ACTUATOR	1
16	42161	互锁连杆	LINK INTERLOCK	1
17	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
18	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
18	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
19	421621	衬套	BUSHING	1
20	42164	弹簧	SPRING	1
21	69708	波形垫圈	WAVE WASHER	1
22	13676	弹簧	SPRING	1
23	19385A1	节气门连杆总成	LINK ASSEMBLY Throttle	1
23	8M0084745	节气门连杆总成	LINK ASY-THROTTLE	1
24	19384	插座	SOCKET	1
24	8M0084742	插座	SOCKET	1
25	42159	杠杆	LEVER	1
25	421592	杠杆	LEVER	1
26	421581	衬套	BUSHING	1
27	42160	弹簧	SPRING	1
28	4000331	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
29	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
29	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
30	42156	杠杆	LEVER	1
31	42153	杠杆	LEVER	1
32	42152	换挡轴（两件式）	SHIFT SHAFT (2 PIECE SHIFT SHAFT)	1
33	421551	换挡杆(两件式换挡轴)	LEVER (2 PIECE SHIFT SHAFT)	1
34	400035	螺钉(M5x16)(两件式换挡轴)	SCREW (M5 x 16) (2 PIECE SHIFT SHAFT)	1
35	11371	锁紧垫圈(两件式换挡轴)	TAB WASHER (2 PIECE SHIFT SHAFT)	1
36	1938511	换挡连杆(两件式换挡轴)	SHIFT LINK (2 PIECE SHIFT SHAFT)	1
37	815550A1	换挡轴(整体式换挡轴)	SHIFT SHAFT (1 PIECE SHIFT SHAFT)	1
38	93254	旋转底座(整体式换挡轴)	SWIVEL BASE (1 PIECE SHIFT SHAFT)	1
39	93421	旋转球头(整体式换挡轴)	SWIVEL BALL (1 PIECE SHIFT SHAFT)	1
40	1938522	快速连杆(整体式换挡轴)	SWIFT LINK (1 PIECE SHIFT SHAFT)	1
40	815550A1	换档轴	SHIFT SHAFT	1
41	8155501	换档轴	SHIFT SHAFT	1
42	815567A1	换挡连杆	SHIFT LINK	1
42	815567T02	换挡连杆总成	SHIFT LINK ASSY	1
43	4000114	螺钉(M5×16)	SCREW (M5 x 16)	2
43	400035	螺钉(M5×16)	SCREW (M5 x 16)	2
43	400011	螺钉（M5×8）	SCREW (M5 x 8)	2
44	39627	弹簧	SPRING	1
45	39601	板（旧设计）	PLATE (OLD DESIGN)	2

图 26化油器总成（15） CARBURETOR ASSEMBLY (15)

REF	零件编号	中文名称	英文名称	数量
1	9726A3	化油器(WMC-39)	CARBURETOR (WMC-39)	1
1	9726T19	化油器	CARBURETOR	1
2	19268	节气门阀(WMC-28)	VALVE Throttle (WMC-28)	1
2	823716	节气门阀(WMC-39)	VALVE Throttle (WMC-39)	1
3	19267	节气门轴(含螺钉和弹簧)	SHAFT Throttle (INCLS.SCREW & SPRING)	1
4	9164	燃油杯	BOWL Fuel	1
5	9169	浮子	FLOAT	1
5	91691	浮子	FLOAT	1
6	9855	阀门	VALVE	1
6	803861	进油针阀	VALVE Inlet Needle	1
7	4215	燃油主量孔(.066)	JET Main Fuel (.066)	1
8	9171	量孔固定塞	PLUG JET RETAINER	1
9	813618	膜片盖	COVER DIAPHRAGM	1
10	9697	膜片盖螺丝	SCREW DIAPHRAGM COVER	4
11	15827A1	本体	BODY	1
11	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
12	9643	燃油泵盖螺丝	SCREW FUEL PUMP COVER	5
13	9699	盖板	PLATE COVER	1
14	9696	盖板螺钉	SCREW COVER PLATE	2
15	9803	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
15	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
16	19269	维修零件包	REPAIR PARTS KIT	1
16	8237072	维修套件	REPAIR KIT	1
17	9637	燃油泵盖	COVER FUEL PUMP	1
18	9762	堵头	PLUG	1
19	192061	化油器衬垫	GASKET Carburetor	1
20	9635	膜片/衬垫	DIAPHRAGM/GASKET	1
21	128053	快怠速杆	LEVER Fast Idle	1
22	12803	启动泵支架	BRACKET Primer	1
23	97877	压入式螺母	PUSH NUT	1
23	821979	螺母	NUT	1
24	79964	螺丝 (#6-32 x .750)	SCREW (#6-32 x .750)	1
24	12110	螺丝 (#6-32 x .750)	SCREW (#6-32 x .750)	1
25	11277	张力弹簧	SPRING Tension	1
26	40056110	螺丝(M5 x 30)	SCREW (M5 x 30)	2
26	400018	螺钉(M5 x 12)	SCREW (M5 x 12)	2
27	79965	螺丝 (#8-32 x .500) 不锈钢	SCREW (#8-32 x .500) Stainless Steel	1
28	112731	启动泵杆	LEVER Primer	1
29	11280	凸轮块	CAM BLOCK	1
30	11278	固定夹	CLIP Retaining	1
31	12804A1	阻风门面板总成	BEZEL ASSEMBLY Choke	1
32	128022	启动泵旋钮	PRIMER KNOB	1
33	40056110	螺丝(M5 x 30)	SCREW (M5 x 30)	1
34	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
35	17442	盖板	COVER	1
36	47579	堵头	PLUG	1
37	445541	怠速线	IDLE WIRE	1
38	12970	贴纸 (慢/快)	DECAL (SLOW/FAST)	1
38	129701	贴花	DECAL	1

图 27手动启动器 Manual Starter

REF	零件编号	中文名称	英文名称	数量
-	42207A6	手拉启动器总成	STARTER ASSEMBLY Recoil	1
-	42207A7	手拉启动器总成	STARTER ASSEMBLY Recoil	1
1	422072	启动器壳体	HOUSING Starter	1
1	42207T02	ORD 8M0070659	ORD 8M0070659	1
2	42690	衬套	BUSHING	1
2	8M0183792	绳索衬套	ROPE BUSHING	1
3	818853	挡圈	RING Retaining	1
4	868571	弹簧	SPRING	1
4	86857T01	弹簧	SPRING	1
5	420345	启动器滑轮	PULLEY Starter	1
5	42034T04	滑轮-启动器	SHEAVE-STARTER	1
6	12066A9	绳索	ROPE	1
6	12066Q10	启动绳@2	ROPE-STARTER@2	1
7	86851	弹簧	SPRING	2
7	86851T02	弹簧 @2	SPRING @2	2
8	868501	凸轮	CAM	2
9	868491	挡圈	RING Retaining	2
9	86849T01	环 @2	RING @2	2
10	86852	弹簧	SPRING	1
10	868523	弹簧	SPRING	1
11	86853	凸轮	CAM	1
11	86853T01	凸轮	CAM	1
12	818838	螺钉	SCREW	1
12	826253	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	1
13	90478	垫	PAD	1
13	833161T	毛毡垫	PAD-FELT	1
14	19018	支架	REST	1
14	19018T	支架-启动器手柄	REST-STARTER HDL	1
15	12674	支架	SUPPORT	1
16	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	2
17	309772	隔套	SPACER	4
18	400633	螺母 (M5)	NUT (M5)	2
18	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	2
19	42171	上操纵杆	LEVER (UPPER)	1
19	42171T	杠杆	LEVER	1
20	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
20	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
21	42173	下操纵杆	LEVER (LOWER)	1
21	42173T	杠杆	LEVER	1
22	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
23	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	3
23	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	3
24	85174A1	手柄总成	HANDLE ASSEMBLY	1

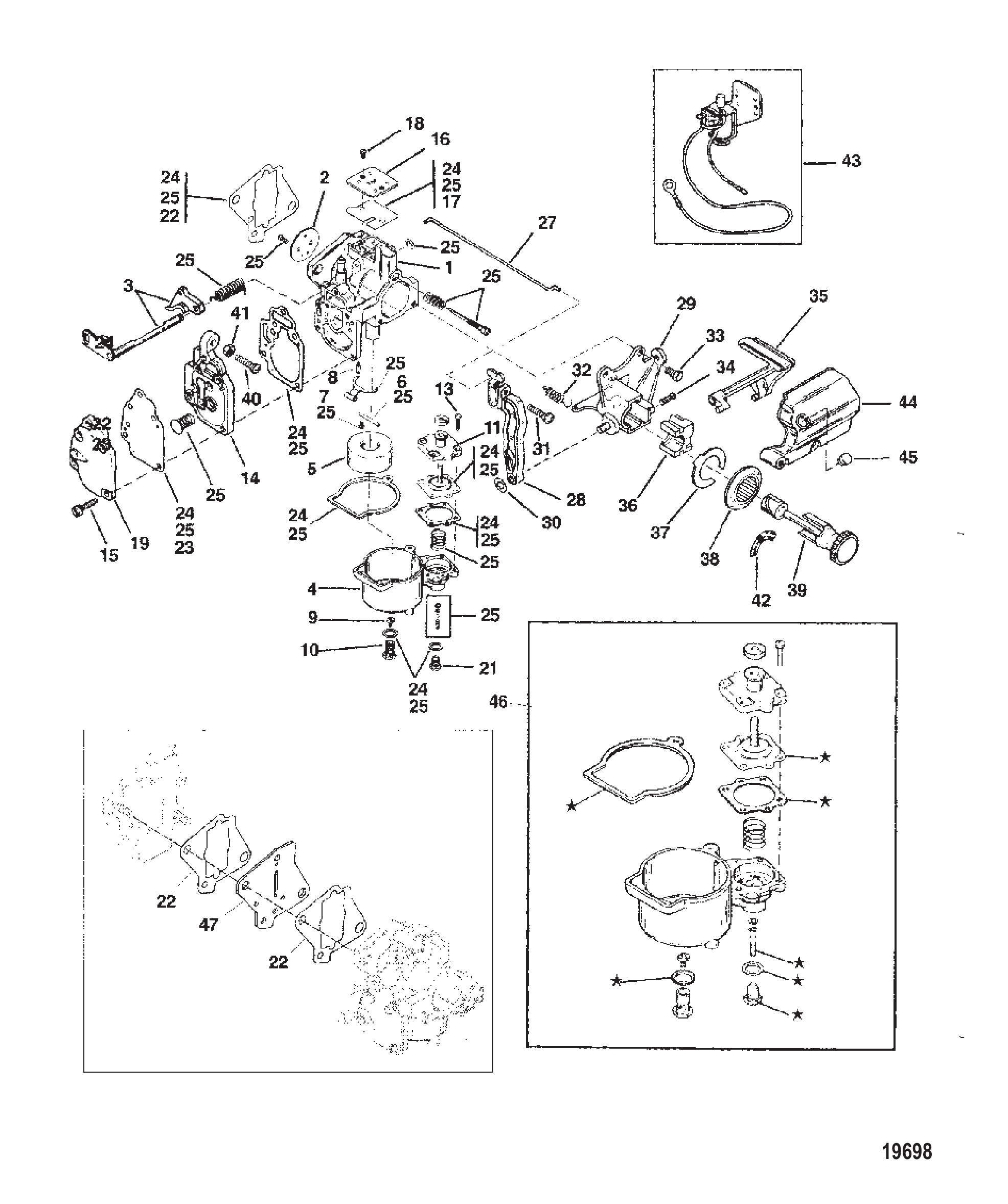

图 28化油器总成 Carburetor Assembly

REF	零件编号	中文名称	英文名称	数量
1	9503A20	化油器 (6)(WMC-66)	CARBURETOR (6)(WMC-66)	1
1	9503T21	化油器 (WMC-78A) (6)	CARBURETOR (WMC-78A) (6)	1
1	9266A21	化油器 (8)(WMC-74)	CARBURETOR (8)(WMC-74)	1
1	9266T22	化油器	CARBURETOR	1
1	9266T22	化油器 (8)(WMC-79A)	CARBURETOR (8)(WMC-79A)	1
1	8846T20	化油器 (WMC-61)	CARBURETOR (WMC-61)	1
1	8846T28	化油器 (WMC-102)	CARBURETOR (WMC-102)	1
1	8846T25	化油器 (WMC-80A) (9.9)	CARBURETOR (WMC-80A) (9.9)	1
1	8846T28	化油器 (WMC-102)	CARBURETOR (WMC-102)	1
1	9726T11	化油器 (15)(WMC-63)	CARBURETOR (15)(WMC-63)	1
1	9726T18	化油器(WMC-83)	CARBURETOR (WMC-83)	1
1	9726T15	化油器 (WMC-77) (15)	CARBURETOR (WMC-77) (15)	1
1	9726T18	化油器(WMC-83)	CARBURETOR (WMC-83)	1
1	9726T18	化油器 (WMC-83) (15)	CARBURETOR (WMC-83) (15)	1
2	9473	油门阀	VALVE Throttle	1
2	815133	油门阀	VALVE Throttle	1
2	94731	油门阀	VALVE Throttle	1
2	823716	油门阀	VALVE Throttle	1
3	804707	轴	SHAFT	1
4	8M0138645	螺钉	SCREW	1
5	804996	弹簧	SPRING	1
6	813022	油门轴	SHAFT Throttle	1
6	19267	油门轴	SHAFT Throttle	1
7	F10167	环	RING	1
8	9164	燃油杯	BOWL Fuel	1
9	824401	浮子杆	LEVER Float	1
10	91691	浮子	FLOAT	1
11	F10064	轴	SHAFT	1
12	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
13	803861	进油针阀	VALVE Inlet Needle	1
14	5315	主燃油喷嘴 (.042)	JET Main Fuel (.042)	1
14	5317	量孔(.046)	JET (.046)	1
14	6246	量孔(.048)	JET (.048)	1
14	6207	量孔(.072)	JET (.072)	1
15	9171	堵头	PLUG	1
16	813618	盖板	COVER	1
16	823648	膜片盖	COVER Diaphragm	1
17	9697	螺钉	SCREW	4
18	15827A1	本体	BODY	1
18	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
19	9643	螺钉	SCREW	5
20	9699	安装板	PLATE	1
21	44426	衬垫	GASKET	1
22	9696	螺钉	SCREW	2
23	96371	燃油泵盖	COVER Fuel Pump	1
23	9637	盖板	COVER	1
24	9633	衬垫	GASKET	1
25	9762	堵头	PLUG	1
26	192061	化油器衬垫	GASKET Carburetor	1
27	9635	膜片/衬垫	DIAPHRAGM/GASKET	1
28	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
29	8237072	维修套件	REPAIR KIT	1
-	42364A92	发动机垫片组	GASKET SET Engine	1

图 29曲轴、活塞和飞轮（15） CRANKSHAFT, PISTONS AND FLYWHEEL (15)

REF	零件编号	中文名称	英文名称	数量
1	42691	飞轮轴	SHAFT FLYWHEEL	1
1A	818591	螺母(M14)	NUT (M14)	1
2	8908A2	飞轮总成	FLYWHEEL ASSEMBLY	1
2	859231T6	飞轮	FLYWHEEL	1
2	818540A2	飞轮总成	FLYWHEEL ASSEMBLY	1
2	859231T19	飞轮总成	FLYWHEEL ASY	1
3	99301	飞轮齿圈	RING GEAR FLYWHEEL	1
4	40039106	螺钉(M5×13)齿圈至飞轮	SCREW (M5 x 13) RING GEAR TO FLYWHEEL	4
4	88190313	螺钉 (M5 x 13)	SCREW (M5 x 13)	4
5	8471A2	曲轴总成	CRANKSHAFT ASSEMBLY	1
5	8M0083309	曲轴总成	CRANKSHAFT ASSY	1
6	42890	曲轴油封(设计I型)	SEAL Oil CRANKSHAFT (DESIGN I)	1
6	818630A1	套筒	SLEEVE	1
6A	818630A1	套筒(含O型圈-设计II型)	SLEEVE (INCLUDES O-RING - DESIGN II)	1
7	41341	曲轴下球轴承	BEARING Ball CRANKSHAFT-LOWER	1
8	20940	卡环-球轴承(小号)(旧设计)	RING Snap BALL BEARING (SMALL) (OLD DESIGN)	1
9	42132	挡圈	RING Retaining	1
10	13031	下垫圈	WASHER LOWER	1
11	125661	下油封	SEAL Oil - Lower	1
12	20094	半圆键	KEY Woodruff	1
13	41342	曲轴上滚柱轴承	BEARING Roller CRANKSHAFT-UPPER	1
13	878158	滚柱轴承	BEARING Roller	1
14	125671	曲轴上油封	SEAL Oil - Upper CRANKSHAFT	1
15	8477A2	连杆总成	CONNECTING ROD ASSEMBLY	2
16	823460	连杆螺钉(M5x16)	SCREW (M5 x 16) CONNECTING ROD	4
17	42076A1	滚柱轴承总成	BEARING ASSEMBLY Roller	3
18	42186	活塞端滚针轴承	BEARING Needle PISTON END	48
19	43348	推力轴承	BEARING Thrust	4
19	8M0012297	止推垫圈@2	WASHER-THRST@2	4
20	9747A2	活塞总成(标准)	PISTON ASSEMBLY (STANDARD)	2
20	9747T2	活塞总成	PISTON ASSEMBLY	2
20	9747A4	活塞总成(.015加大)	PISTON ASSEMBLY (.015 O.S.)	2
21	18212A4	活塞环组(标准)	RING SET Piston (STANDARD)	1
21	18212A1	活塞环组(.015加大)	RING SET Piston (.015 O.S.)	2
22	42202	锁紧环	LOCK RING	4
23	17794A1	轴承	BEARING	1
24	818901	主轴承油封	SEAL MAIN BEARING	1
25	42076A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
-	19072A88	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	19072T88	船用动力头	POWERHEAD MARINE	1

图 30气缸体和盖 CYLINDER BLOCK AND COVERS

REF	零件编号	中文名称	英文名称	数量
1	8473A13	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	8473T20	气缸体	CYLINDER BLOCK	1
1	8473A12	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	8473T21	气缸体	CYLINDER BLOCK	1
1	9727A2	气缸体	CYLINDER BLOCK	1
1	9727T2	气缸体	CYLINDER BLOCK	1
2	85171	气缸体定位销	PIN Dowel CYLINDER BLOCK	2
3	42463	化油器螺柱	STUD CARBURETOR	2
3	424632	双头螺柱(M8x37.1)	STUD (M8 x 37.1)	2
4	42698	泄放软管止回阀	CHECK VALVE BLEED HOSE	1
4	426982	止回阀	CHECK VALVE	1
5	1383556	泄放软管	HOSE BLEED	1
5	99130100	软管-48英寸	TUBING-48 INCH	1
6	42984	气缸体螺柱	STUD CYLINDER BLOCK	2
6	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
7	421251	螺钉(M8x55)曲轴箱至气缸体	SCREW (M8 x 55) CRANKCASE TO CYLINDER BLOCK	6
7	42125	螺钉(M8x55)	SCREW (M8 x 55)	6
7A	17866	槽销	PIN Groove	1
8	400634	螺母(M6)气缸体螺柱	NUT (M6) CYLINDER BLOCK STUD	2
8	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
9	191861	动力头衬垫	GASKET Powerhead	1
10	42381A2	簧片阀总成	REED BLOCK ASSEMBLY	1
10	828435A3	簧片阀组	REED BLOCK	1
11	42657A1	止回阀	CHECK VALVE	1
11	42657A3	止回阀	CHECK VALVE	1
12	42137	簧片阀密封件	SEAL REED BLOCK	1
13	195981	簧片阀衬垫	GASKET REED BLOCK	1
13	195982	衬垫	GASKET	1
14	4000171	螺钉(M6x16)簧片阀	SCREW (M6 x 16) REED BLOCK	3
15	42044	簧片	REED	2
15	825141	簧片	REED	2
16	179031	簧片止挡	STOP Reed	2
16	828435A3	簧片阀组	REED BLOCK	2
17	4005764	螺钉(M3.5x8)簧片固定	SCREW (M3.5 x 8) REED ATTACHING	6
18	400213	螺母(M8)不锈钢化油器螺柱	NUT (M8) Stainless Steel CARBURETOR STUD	2
19	42521	排气盖	COVER EXHAUST	1
19	8M0048005	排气盖总成	COVER EXHAUST MAN	1
20	40062129	螺钉(M6x25)排气盖至气缸体	SCREW (M6 x 25) EXHAUST COVER TO CYLINDER BLOCK	11
21	19185	排气盖衬垫	GASKET EXHAUST COVER	1
22	423651	挡板	PLATE Baffle	1
22	42365	挡板	PLATE Baffle	1
23	19184	挡板衬垫	GASKET BAFFLE PLATE	1
24	19107F1	进气盖	COVER Intake	1
25	56759	倒钩接头	FITTING Barbed	1
24	17863A1	进气盖总成	COVER ASSEMBLY Intake	1
25	15133	接头	FITTING	1
26	1383556	软管	HOSE	2
26	99130100	软管-48英寸	TUBING-48 INCH	2
27	59169	接头	FITTING	1
27	59169003	三通接头	FITTING Tee	1
28	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	AR
29	192031	进气盖衬垫	GASKET INTAKE COVER	1
30	40062129	螺钉(M6x25)盖至气缸体	SCREW (M6 x 25) COVER TO CYLINDER BLOCK	3
31	99127109	示警管(57英寸散装)	LINE (57.00 Inches Bulk) TELL TALE	1
31	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
32	94848	示警软管接头-底部罩	FITTING TELL TALE HOSE-BOTTOM COWL	1
33	8906A1	盖总成	COVER ASSEMBLY	1
33	8906A02	盖总成	COVER ASSEMBLY	1
34	192071	衬垫	GASKET	1
34	19207002	衬垫	GASKET	1
35	146732	节温器盖	COVER THERMOSTAT	1
35	8M0039352	盖板	COVER	1
36	192051	衬垫	GASKET	1
36	19205002	衬垫	GASKET	1
37	40062129	螺钉(M6x25)	SCREW (M6 x 25)	2
38	14586	节温器(120)	THERMOSTAT (120)	1
39	62386	节温器衬垫	GASKET THERMOSTAT	1
39	8M0204714	衬垫@4	GASKET @4	1
40	29111	连接器(直型)(新设计)	CONNECTOR (STRAIGHT)(NEW DESIGN)	1
40	291112	接头	FITTING	1
40	99664	弯头(旧设计)	ELBOW (OLD DESIGN)	1
40	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
41	40062129	螺钉(M6x25)盖固定	SCREW (M6 x 25) COVER ATTACHING	6
-	12893A87	动力头总成	POWERHEAD ASSEMBLY	1
-	12893T97	动力头总成	POWERHEAD ASSEMBLY	1
-	12893A92	动力头总成	POWERHEAD ASSEMBLY	1
-	12893T97	动力头总成	POWERHEAD ASSEMBLY	1
-	811686A92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811686T97	动力头总成	POWERHEAD ASSEMBLY	1
-	19072A88	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	19072T88	船用动力头	POWERHEAD MARINE	1

图 31点火组件 IGNITION COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	86617A13	定子总成	STATOR ASSEMBLY	1
1	86617A20	定子总成	STATOR ASSEMBLY	1
2	4000120	螺丝(M5 x 25)	SCREW (M5 x 25)	2
3	400018	螺钉 (M5 x 12) (手动)	SCREW (M5 x 12) (MANUAL)	1
4	98450A5	触发器总成	TRIGGER ASSEMBLY	1
4	98450A10	触发器总成	TRIGGER ASSEMBLY	1
5	11100	触发线夹	CLIP TRIGGER LEAD	1
6	7452A15	开关盒总成	SWITCHBOX ASSEMBLY	1
6	7452A19	开关盒总成	SWITCHBOX ASSEMBLY	1
7	40019108	螺钉 (M5 x 20) 开关盒至气缸体	SCREW (M5 x 20) SWITCH BOX TO CYLINDER BLOCK	2
8	48408	螺钉 (#10-16 x .500) 接地线	SCREW (#10-16 x .500) GROUND WIRE	1
9	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	2
9	8M0230859	点火线圈总成	COIL IGNITION ASY	2
10	40112	螺钉 (M6 x 45) 点火线圈	SCREW (M6 x 45) IGNITION COIL	2
11	88173	锁紧垫圈	TAB WASHER	2
12	88171	线圈衬套	BUSHING COIL	2
13	45076	螺母 (#10-32) 黄铜线圈端子	NUT (#10-32) Brass COIL TERMINAL	4
14	813715A2	高压线组 (5和8.25英寸) 高压	CABLE SET High Tension (5 and 8.25 Inch) HIGH TENSION	1
15	63709A1	火花塞护套/端子套件	BOOT/TERMINAL KIT SPARK PLUG	2
16	12343	火花塞 (NGK #BP8HS-10)	SPARK PLUG (NGK #BP8HS-10)	2
16	8M0114745	SP BP8HS-10 @4	SP BP8HS-10 @4	2
16	8167372	火花塞 (NGK#BP8H-N-10)	SPARK PLUG (NGK#BP8H-N-10	2
16	816737Q	NGK BP8HN-10@10	NGK BP8HN-10@10	2
16	14814548	火花塞 (NGK #BPZ8HS-10) (加拿大/比利时)	SPARK PLUG (NGK # BPZ8HS-10) (CAN./BEL.)	2
16	938	SP #QL78YC @4	SP #QL78YC @4	2
16	8168372	火花塞 (NGK#BPZ-8H-N-10-加拿大/比利时)	SPARK PLUG (NGK#BPZ-8H-N-10-CAN/BEL.)	2
16	938	SP #QL78YC @4	SP #QL78YC @4	2
16	19424	火花塞 (NGK#BP8HS-15)	SPARK PLUG (NGK#BP8HS-15)	2
16	8M0114746	SP BP8HS-15 @4	SP BP8HS-15 @4	2
16	14814568	火花塞 (NGK#BPZ8HS-15)	SPARK PLUG (NGK#BPZ8HS-15)	2
17	69355	扎带(5.50英寸)	TIE STRAP (5.50 Inches)	1
17	8M0214940	扎带	TIE STRAP	1

图 32齿轮箱（螺旋桨轴-设计II-参见驱动轴图纸） Gear Hsg (Propshaft-Design II-Refer to Driveshaft Drawing)

REF	零件编号	中文名称	英文名称	数量
-	8833A13	齿轮箱总成(短型)黑色	GEAR HOUSING ASSEMBLY COMPLETE (SHORT) BLACK	1
-	8833T13	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833A15	齿轮箱总成(长型)黑色	GEAR HOUSING ASSEMBLY COMPLETE (LONG) BLACK	1
-	8833T15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833A14	齿轮箱总成(短型)灰色	GEAR HOUSING ASSEMBLY COMPLETE (SHORT) GRAY	1
-	8833T14	齿轮箱-短型-灰	GEAR HSG-SHORT-GR	1
-	8833A16	齿轮箱总成(长型)灰色	GEAR HOUSING ASSEMBLY COMPLETE (LONG) GRAY	1
-	8833T16	ORD 1666-8833T15	ORD 1666-8833T15	1
1	8833A17	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	8M0083312	GC BASIC9.9/15 4S	GC BASIC9.9/15 4S	1
1	8833A18	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic-Gray	1
1	8833A17	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
43	41347A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
43	821321A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
44	821924A1	前进齿轮总成	GEAR ASSEMBLY Forward	1
45	41367	衬套	BUSHING	1
46	813139	凸轮从动件	FOLLOWER Cam	1
47	821930	离合器	CLUTCH	1
47	821930A1	离合器总成	CLUTCH ASSEMBLY	1
48	823951	十字销	PIN Cross	1
49	42204	弹簧	SPRING	1
50	821929	螺旋桨轴	PROPELLER SHAFT	1
51	8219261	倒档齿轮-13/26	GEAR Reverse - 13/26	1
51	821926T1	倒档齿轮-13/26	GEAR Reverse - 13/26	1
52	42144A3	轴承座总成	CARRIER ASSEMBLY Bearing	1
52	42144T3	轴承座	CARRIER Bearing	1
53	33145	O型圈(1.984x0.139)	O-RING (1.984 x .139)	1
53	8M0214923	O型圈(1.98x1.39)	O-RING (1.98 x 1.39)	1
54	821927	衬套	BUSHING	1
55	99325	密封件	SEAL	1
56	821928	油封	SEAL Oil	1
57	13403	螺钉	SCREW	1
57	82407110	螺钉(M8 x 50)	SCREW (M8 x 50)	1
58	13402	螺钉 (M8 x 30)	SCREW (M8 x 30)	2
58	8240717	螺钉 (M8 x 30)	SCREW (M8 x 30)	2
59	42522A12	螺旋桨 (9 x 9)	PROPELLER (9 x 9)	1
59	828156A12	黑色MAX螺旋桨9x9右旋铝3叶	BLACK MAX PROPELLER 9 X 9 RH AL 3 BL	1
59	42524A12	螺旋桨 (9.75 x 6.50)	PROPELLER (9.75 x 6.50)	1
59	828150A12	黑色MAX螺旋桨 9.8 x 6.5 右旋铝3叶	BLACK MAX PROPELLER 9.8 X 6.5 RH AL 3 BL	1
60	420911	隔套	SPACER	1
61	13914	螺母(M10)	NUT (M10)	1
61	40140	螺母(M10)	NUT (M10)	1
62	821932	推力毂	THRUST HUB	1
63	822559	反向排气罩杯	CUP Reverse Exhaust Block	1
63	822559Q01	杯套	CUP	1
-	42364A92	发动机垫片组	GASKET SET Engine	1
-	41365A3	密封套件	SEAL KIT	1

图 33点火组件 Ignition Components

REF	零件编号	中文名称	英文名称	数量
1	86617A13	定子总成	STATOR ASSEMBLY	1
1	86617A20	定子总成	STATOR ASSEMBLY	1
2	4000120	螺丝(M5 x 25)	SCREW (M5 x 25)	2
3	400018	螺钉 (M5 x 12) (手动)	SCREW (M5 x 12) (MANUAL)	1
4	98450A5	触发器总成	TRIGGER ASSEMBLY	1
4	98450A10	触发器总成	TRIGGER ASSEMBLY	1
5	11100	触发线夹	CLIP TRIGGER LEAD	1
6	7452A15	开关盒总成	SWITCHBOX ASSEMBLY	1
6	7452A19	开关盒总成	SWITCHBOX ASSEMBLY	1
7	40019108	螺钉 (M5 x 20) 开关盒至气缸体	SCREW (M5 x 20) SWITCH BOX TO CYLINDER BLOCK	2
8	48408	螺钉 (#10-16 x .500) 接地线	SCREW (#10-16 x .500) GROUND WIRE	1
9	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	2
9	8M0230859	点火线圈总成	COIL IGNITION ASY	2
10	40112	螺钉 (M6 x 45) 点火线圈	SCREW (M6 x 45) IGNITION COIL	2
11	88173	锁紧垫圈	TAB WASHER	2
12	88171	线圈衬套	BUSHING COIL	2
13	45076	螺母 (#10-32) 黄铜线圈端子	NUT (#10-32) Brass COIL TERMINAL	4
14	813715A2	高压线组 (5和8.25英寸) 高压	CABLE SET High Tension (5 and 8.25 Inch) HIGH TENSION	1
15	63709A1	火花塞护套/端子套件	BOOT/TERMINAL KIT SPARK PLUG	2
16	12343	火花塞 (NGK #BP8HS-10)	SPARK PLUG (NGK #BP8HS-10)	2
16	8M0114745	SP BP8HS-10 @4	SP BP8HS-10 @4	2
16	8167372	火花塞 (NGK#BP8H-N-10)	SPARK PLUG (NGK#BP8H-N-10	2
16	816737Q	NGK BP8HN-10@10	NGK BP8HN-10@10	2
16	14814548	火花塞 (NGK #BPZ8HS-10) (加拿大/比利时)	SPARK PLUG (NGK # BPZ8HS-10) (CAN./BEL.)	2
16	938	SP #QL78YC @4	SP #QL78YC @4	2
16	8168372	火花塞 (NGK#BPZ-8H-N-10-加拿大/比利时)	SPARK PLUG (NGK#BPZ-8H-N-10-CAN/BEL.)	2
16	938	SP #QL78YC @4	SP #QL78YC @4	2
16	19424	火花塞 (NGK#BP8HS-15)	SPARK PLUG (NGK#BP8HS-15)	2
16	8M0114746	SP BP8HS-15 @4	SP BP8HS-15 @4	2
16	14814568	火花塞 (NGK#BPZ8HS-15)	SPARK PLUG (NGK#BPZ8HS-15)	2
17	69355	扎带(5.50英寸)	TIE STRAP (5.50 Inches)	1
17	8M0214940	扎带	TIE STRAP	1

图 34杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES

REF	零件编号	中文名称	英文名称
-	811286	零件手册(6/8/9.9/15马力)	PARTS MANUAL 6/8/9.9/15 Hp
-	12048930	用户指南(黑色)	OWNERS GUIDE (BLACK)
-	14138930	用户指南(灰色)	OWNERS GUIDE (GRAY)
-	14012A89	贴花套装(9.9/210帆动力)	DECAL SET (9.9/210 SAILPOWER)
-	12836A89	贴花套装(黑色-6至9.9马力)	DECAL SET (BLACK- 6 THRU 9.9)
-	13478A88	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	810458A92	贴花套装(灰色-6至15马力)	DECAL SET (GRAY- 6 THRU 15)
-	822787A93	贴花套装(灰色-8帆伴侣)	DECAL SET (GRAY 8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808522A94	贴花套装(黑色-6马力)	DECAL SET (BLACK-6)
-	808522A00	贴花套件	DECAL SET
-	808526A94	贴花套装(黑色-8马力)	DECAL SET (BLACK -8)
-	808526A00	贴花套件	DECAL SET
-	12836A94	贴花套装(黑色-9.9马力)	DECAL SET (BLACK- 9.9)
-	12836A00	贴花套件	DECAL SET
-	808523A94	贴花套装(9.9帆动力)	DECAL SET (9.9 SAILPOWER)
-	808523A96	贴花套件	DECAL SET
-	13478A94	贴花套装(黑色-15马力)	DECAL SET (BLACK-15)
-	13478A00	贴花套件	DECAL SET
-	808524A94	贴花套装(灰色-6马力)	DECAL SET (GRAY-6)
-	808524A03	贴花套件	DECAL SET
-	808545A94	贴花套装(灰色-8马力)	DECAL SET (GRAY-8)
-	808545A03	贴花套件	DECAL SET
-	808560A94	贴花套装(8帆伴侣)	DECAL SET (8 SAILMATE)
-	808560A03	贴花套件	DECAL SET
-	808525A94	贴花套装(灰色-9.9马力)	DECAL SET (GRAY-9.9)
-	808525A03	贴花套件	DECAL SET
-	808546A94	贴花套装(灰色-15马力)	DECAL SET (GRAY-15)
-	808546A03	贴花套件	DECAL SET

图 35专用工具 Tools Special

REF	零件编号	中文名称	英文名称	数量

图 36夹箍支架 CLAMP BRACKET

REF	零件编号	中文名称	英文名称	数量
1	8894A5	夹具支架总成 (左舷) (黑色)	CLAMP BRACKET ASSEMBLY (PORT) (BLACK)	1
1	8894A11	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
1	8894A6	夹具支架总成 (左舷) (灰色)	CLAMP BRACKET ASSEMBLY (PORT) (GRAY)	1
1	8894A12	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
2	8892A3	夹具支架总成 (右舷) (黑色)	CLAMP BRACKET ASSEMBLY (STARBOARD) (BLACK)	1
2	8894A11	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
2	8892A4	夹具支架总成 (右舷) (灰色)	CLAMP BRACKET ASSEMBLY (STARBOARD) (GRAY)	1
2	8894A12	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
3	92767A1	蝶形螺丝总成 (14 mm)	THUMB SCREW ASSEMBLY (14 mm)	2
3	92767A3	蝶形螺丝总成 (16 mm)	THUMB SCREW ASSEMBLY (16 mm)	2
4	73719	蝶形螺丝垫圈	WASHER THUMB SCREW	2
4	818884	垫圈	WASHER	2
5	768041	垫圈固定螺丝	SCREW WASHER ATTACHING	2
5	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
6	43431	夹紧支架螺柱隔套	SPACER CLAMP BRACKET STUD	1
6	818539	隔套	SPACER	1
6	8M0084719	隔套	SPACER	1
7	42129	夹紧支架螺柱	STUD CLAMP BRACKET	1
7A	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	2
8	400256	夹紧支架螺柱防松垫圈(M6)	LOCKWASHER (M6) CLAMP BRACKET STUD	2
9	400212	夹紧支架螺柱不锈钢螺母(M6)	NUT (M6) Stainless Steel CLAMP BRACKET STUD	2
10	42078	倾斜管	TILT TUBE	1
11	30954	安全卡扣	CLIP SAFETY	1
11	8M0085928	卡扣	CLIP	1
12	93164	倾斜管螺母(.875)	NUT (.875) TILT TUBE	2
13	71421	倾斜管尼龙垫圈	WASHER Nylon TILT TUBE	2
14	42390A1	倾斜回位杆总成	LEVER ASSEMBLY Tilt Return	2
15	90901	倾斜限位带-左舷侧	STRAP TILT STOP - PORT SIDE	1
16	42498	限位带至夹紧支架螺钉(M6x1.0)	SCREW (M6 x 1.0) STRAP TO CLAMP BRACKET	2
17	31030	倾斜限位带螺钉波形垫圈	WAVE WASHER TILT STOP STRAT SCREW	1
18	43216	夹紧支架至艉板螺栓(.250-20x3.50)	BOLT (.250-20 x 3.50) CLAMP TO TRANSOM	2
19	67983	夹紧支架螺栓垫圈	WASHER CLAMP BRACKET BOLT	2
21	814427	倾斜锁定滑块(新设计)	SHUTTLE TILT LOCK (NEW DESIGN)	1
22	12869	倾斜位置标贴	DECAL Tilt Position	1

图 37齿轮箱（螺旋桨轴-设计 I-参考驱动轴图纸） Gear Hsg (Propshaft-Design I-Refer to Driveshaft Drawing)

REF	零件编号	中文名称	英文名称	数量
-	8833A9	齿轮箱总成完整组件(短型)(黑色)	GEAR HOUSING ASSEMBLY COMPLETE (SHORT) (BLACK)	1
-	8833T13	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833A10	齿轮箱总成完整组件(长型)(黑色)	GEAR HOUSING ASSEMBLY COMPLETE (LONG) (BLACK)	1
-	8833T15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833A11	齿轮箱总成完整组件(短型)(灰色)	GEAR HOUSING ASSEMBLY COMPLETE (SHORT) (GRAY)	1
-	8833T14	齿轮箱-短型-灰	GEAR HSG-SHORT-GR	1
-	8833A12	齿轮箱总成完整组件(长型)(灰色)	GEAR HOUSING ASSEMBLY COMPLETE (LONG) (GRAY)	1
-	8833T16	ORD 1666-8833T15	ORD 1666-8833T15	1
1	8833A1	齿轮箱总成(黑色)	GEAR HOUSING ASSEMBLY (BLACK)	1
1	8833A4	齿轮箱总成(灰色)	GEAR HOUSING ASSEMBLY (GRAY)	1
41	13403	螺钉	SCREW	1
41	82407110	螺钉(M8 x 50)	SCREW (M8 x 50)	1
42	13402	螺钉 (M8 x 30)	SCREW (M8 x 30)	2
42	8240717	螺钉 (M8 x 30)	SCREW (M8 x 30)	2
43	41347A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
43	821321A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
44	41371A1	前进齿轮总成	GEAR ASSEMBLY Forward	1
45	41367	衬套	BUSHING	1
46	813139	凸轮从动件	FOLLOWER Cam	1
47	32449	挡圈	RING Retaining	1
48	43217	离合器	CLUTCH	1
49	30535	十字销	PIN Cross	1
50	42204	弹簧	SPRING	1
51	41370	螺旋桨轴	PROPELLER SHAFT	1
52	44115	倒挡齿轮	GEAR Reverse	1
52	44115T	倒档齿轮	REVERSE GEAR	1
53	42144A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
53	42144T2	轴承座	BEARING CARRIER	1
54	33145	O型圈(1.984x0.139)	O-RING (1.984 x .139)	1
54	8M0214923	O型圈(1.98x1.39)	O-RING (1.98 x 1.39)	1
55	41368	衬套	BUSHING	1
56	66022	油封	SEAL Oil	1
57	42037	推力毂	THRUST HUB	1
58	42201	盖帽	CAP	1
59	42522A12	螺旋桨(9×9英寸)	PROPELLER (9" X 9")	1
59	828156A12	黑色MAX螺旋桨9x9右旋铝3叶	BLACK MAX PROPELLER 9 X 9 RH AL 3 BL	1
59	17874A12	螺旋桨 (9"×10-1/2")	PROPELLER (9" X 10-1/2")	1
59	828158A12	螺旋桨 Black Max	PROPELLER Black Max	1
59	42524A12	螺旋桨 (SAILPOWER)	PROPELLER (SAILPOWER)	1
59	828150A12	黑色MAX螺旋桨 9.8 x 6.5 右旋铝3叶	BLACK MAX PROPELLER 9.8 X 6.5 RH AL 3 BL	1
60	42091	隔套	SPACER	1
60	420911	隔套	SPACER	1
61	13914	螺母(M10)	NUT (M10)	1
61	40140	螺母(M10)	NUT (M10)	1
-	42364A92	发动机垫片组	GASKET SET Engine	1
-	41365A3	密封套件	SEAL KIT	1

图 38气缸体与盖 Cylinder Block and Covers

REF	零件编号	中文名称	英文名称	数量
1	8473A13	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	8473T20	气缸体	CYLINDER BLOCK	1
1	8473A12	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
1	8473T21	气缸体	CYLINDER BLOCK	1
1	9727A2	气缸体	CYLINDER BLOCK	1
1	9727T2	气缸体	CYLINDER BLOCK	1
2	85171	气缸体定位销	PIN Dowel CYLINDER BLOCK	2
3	42463	化油器螺柱	STUD CARBURETOR	2
3	424632	双头螺柱(M8x37.1)	STUD (M8 x 37.1)	2
4	42698	泄放软管止回阀	CHECK VALVE BLEED HOSE	1
4	426982	止回阀	CHECK VALVE	1
5	1383556	泄放软管	HOSE BLEED	1
5	99130100	软管-48英寸	TUBING-48 INCH	1
6	42984	气缸体螺柱	STUD CYLINDER BLOCK	2
6	8161949	双头螺柱(M6 x 44)	STUD (M6 x 44)	2
7	421251	螺钉(M8x55)曲轴箱至气缸体	SCREW (M8 x 55) CRANKCASE TO CYLINDER BLOCK	6
7	42125	螺钉(M8x55)	SCREW (M8 x 55)	6
7A	17866	槽销	PIN Groove	1
8	400634	螺母(M6)气缸体螺柱	NUT (M6) CYLINDER BLOCK STUD	2
8	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
9	191861	动力头衬垫	GASKET Powerhead	1
10	42381A2	簧片阀总成	REED BLOCK ASSEMBLY	1
10	828435A3	簧片阀组	REED BLOCK	1
11	42657A1	止回阀	CHECK VALVE	1
11	42657A3	止回阀	CHECK VALVE	1
12	42137	簧片阀密封件	SEAL REED BLOCK	1
13	195981	簧片阀衬垫	GASKET REED BLOCK	1
13	195982	衬垫	GASKET	1
14	4000171	螺钉(M6x16)簧片阀	SCREW (M6 x 16) REED BLOCK	3
15	42044	簧片	REED	2
15	825141	簧片	REED	2
16	179031	簧片止挡	STOP Reed	2
16	828435A3	簧片阀组	REED BLOCK	2
17	4005764	螺钉(M3.5x8)簧片固定	SCREW (M3.5 x 8) REED ATTACHING	6
18	400213	螺母(M8)不锈钢化油器螺柱	NUT (M8) Stainless Steel CARBURETOR STUD	2
19	42521	排气盖	COVER EXHAUST	1
19	8M0048005	排气盖总成	COVER EXHAUST MAN	1
20	40062129	螺钉(M6x25)排气盖至气缸体	SCREW (M6 x 25) EXHAUST COVER TO CYLINDER BLOCK	11
21	19185	排气盖衬垫	GASKET EXHAUST COVER	1
22	423651	挡板	PLATE Baffle	1
22	42365	挡板	PLATE Baffle	1
23	19184	挡板衬垫	GASKET BAFFLE PLATE	1
24	19107F1	进气盖	COVER Intake	1
25	56759	倒钩接头	FITTING Barbed	1
24	17863A1	进气盖总成	COVER ASSEMBLY Intake	1
25	15133	接头	FITTING	1
26	1383556	软管	HOSE	2
26	99130100	软管-48英寸	TUBING-48 INCH	2
27	59169	接头	FITTING	1
27	59169003	三通接头	FITTING Tee	1
28	56762	扎带(4.00英寸)	TIE STRAP (4.00 Inches)	AR
29	192031	进气盖衬垫	GASKET INTAKE COVER	1
30	40062129	螺钉(M6x25)盖至气缸体	SCREW (M6 x 25) COVER TO CYLINDER BLOCK	3
31	99127109	示警管(57英寸散装)	LINE (57.00 Inches Bulk) TELL TALE	1
31	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
32	94848	示警软管接头-底部罩	FITTING TELL TALE HOSE-BOTTOM COWL	1
33	8906A1	盖总成	COVER ASSEMBLY	1
33	8906A02	盖总成	COVER ASSEMBLY	1
34	192071	衬垫	GASKET	1
34	19207002	衬垫	GASKET	1
35	146732	节温器盖	COVER THERMOSTAT	1
35	8M0039352	盖板	COVER	1
36	192051	衬垫	GASKET	1
36	19205002	衬垫	GASKET	1
37	40062129	螺钉(M6x25)	SCREW (M6 x 25)	2
38	14586	节温器(120)	THERMOSTAT (120)	1
39	62386	节温器衬垫	GASKET THERMOSTAT	1
39	8M0204714	衬垫@4	GASKET @4	1
40	29111	连接器(直型)(新设计)	CONNECTOR (STRAIGHT)(NEW DESIGN)	1
40	291112	接头	FITTING	1
40	99664	弯头(旧设计)	ELBOW (OLD DESIGN)	1
40	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
41	40062129	螺钉(M6x25)盖固定	SCREW (M6 x 25) COVER ATTACHING	6
-	12893A87	动力头总成	POWERHEAD ASSEMBLY	1
-	12893T97	动力头总成	POWERHEAD ASSEMBLY	1
-	12893A92	动力头总成	POWERHEAD ASSEMBLY	1
-	12893T97	动力头总成	POWERHEAD ASSEMBLY	1
-	811686A92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811686T97	动力头总成	POWERHEAD ASSEMBLY	1
-	19072A88	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	19072T88	船用动力头	POWERHEAD MARINE	1

图 39化油器（15）（美国-序列号-0G112449/比利时-序列号-9831799 及以下） Carb (15)(USA-S/N-0G112449/BEL-S/N-9831799 & Below)

REF	零件编号	中文名称	英文名称	数量
1	9726A3	化油器	CARBURETOR	1
1	9726T19	化油器	CARBURETOR	1
2	823716	油门阀	VALVE Throttle	1
3	19267	节气门轴 (含螺丝和弹簧)	SHAFT Throttle (INCLS. SCREW & SPRING)	1
4	9164	燃油杯	BOWL Fuel	1
5	91691	浮子	FLOAT	1
6	879194048	进气阀	VALVE-INLET	1
6	803861	进油针阀	VALVE Inlet Needle	1
7	4215	燃油主量孔(.066)	JET Main Fuel (.066)	1
8	9171	堵头	PLUG	1
9	813618	盖板	COVER	1
10	9697	螺钉	SCREW	4
11	15827A1	本体	BODY	1
11	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
12	9643	螺钉	SCREW	5
13	9699	安装板	PLATE	1
14	9696	螺钉	SCREW	2
15	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
16	8237072	维修套件	REPAIR KIT	1
17	9637	盖板	COVER	1
18	9762	堵头	PLUG	1
19	192061	化油器衬垫	GASKET Carburetor	1
20	9635	膜片/衬垫	DIAPHRAGM/GASKET	1
21	128053	快怠速杆	LEVER Fast Idle	1
22	12803	启动泵支架	BRACKET Primer	1
23	821979	螺母	NUT	1
24	79964	螺丝 (#6-32 x .750)	SCREW (#6-32 x .750)	1
24	12110	螺丝 (#6-32 x .750)	SCREW (#6-32 x .750)	1
25	11277	张力弹簧	SPRING Tension	1
26	400018	螺钉(M5 x 12)	SCREW (M5 x 12)	2
27	79965	螺丝 (#8-32 x .500) 不锈钢	SCREW (#8-32 x .500) Stainless Steel	1
28	112731	启动泵杆	LEVER Primer	1
29	11280	凸轮块	CAM BLOCK	1
30	11278	固定夹	CLIP Retaining	1
31	12804A1	阻风门面板总成	BEZEL ASSEMBLY Choke	1
32	128022	启动泵旋钮	PRIMER KNOB	1
33	40056110	螺丝(M5 x 30)	SCREW (M5 x 30)	1
34	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
35	12970	贴纸 (慢/快)	DECAL (SLOW/FAST)	1
35	129701	贴花	DECAL	1
36	445541	怠速线	IDLE WIRE	1
37	823433	电动阻风门	CHOKE Electric	1
38	174421	化油器盖	COVER Carburetor	1
39	47579	堵头	PLUG	1
-	42364A92	发动机垫片组	GASKET SET Engine	1

图 40曲轴、活塞和飞轮（6/8/9.9） CRANKSHAFT, PISTONS AND FLYWHEEL (6/8/9.9)

REF	零件编号	中文名称	英文名称	数量
1	42691	飞轮轴	SHAFT FLYWHEEL	1
1A	818591	螺母(M14)	NUT (M14)	1
2	8908A2	飞轮总成	FLYWHEEL ASSEMBLY	1
2	859231T6	飞轮	FLYWHEEL	1
2	818540A2	飞轮总成	FLYWHEEL ASSEMBLY	1
2	859231T19	飞轮总成	FLYWHEEL ASY	1
3	99301	飞轮齿圈	RING GEAR FLYWHEEL	1
4	40039106	螺钉(M5×13)齿圈至飞轮	SCREW (M5 x 13) RING GEAR TO FLYWHEEL	4
4	88190313	螺钉 (M5 x 13)	SCREW (M5 x 13)	4
5	8471A2	曲轴总成	CRANKSHAFT ASSEMBLY	1
5	8M0083309	曲轴总成	CRANKSHAFT ASSY	1
6	42890	油封(设计I型)	SEAL Oil (DESIGN I)	1
6	818630A1	套筒	SLEEVE	1
6A	818630A1	套筒(含O型圈-设计II型)	SLEEVE (INCLUDES O-RING - DESIGN II)	1
7	41341	下球轴承	BEARING Ball LOWER	1
8	20940	卡环(小号)(旧设计)	RING Snap (SMALL) (OLD DESIGN)	1
9	42132	挡圈	RING Retaining	1
10	13031	下垫圈	WASHER LOWER	1
11	125661	下油封	SEAL Oil - Lower	1
12	20094	半圆键	KEY Woodruff	1
13	41342	滚柱轴承	BEARING Roller	1
13	878158	滚柱轴承	BEARING Roller	1
14	125671	上油封	SEAL Oil - Upper	1
15	8477A2	连杆总成	CONNECTING ROD ASSEMBLY	2
16	823460	螺钉(M5×16)	SCREW (M5 x 16)	4
17	42076A1	滚柱轴承总成	BEARING ASSEMBLY Roller	3
18	42186	活塞端滚针轴承	BEARING Needle PISTON END	48
19	43348	推力轴承	BEARING Thrust	4
19	8M0012297	止推垫圈@2	WASHER-THRST@2	4
20	9756A2	活塞总成	PISTON ASSEMBLY	2
20	9756T2	活塞总成	PISTON ASSEMBLY	2
21	42079A4	环组件	RING ASSEMBLY	1
21	18514A4	活塞环组	RING SET Piston	1
22	42202	锁紧环	LOCK RING	4
23	41373A1	主轴承中心轴承套件	BEARING KIT Center Main MAIN BEARING	1
24	818901	主轴承油封	SEAL MAIN BEARING	1
-	12893A87	动力总成完整组件	POWERHEAD ASSEMBLY COMPLETE	1
-	12893T97	动力头总成	POWERHEAD ASSEMBLY	1
-	12893A92	动力总成完整组件	POWERHEAD ASSEMBLY COMPLETE	1
-	12893T97	动力头总成	POWERHEAD ASSEMBLY	1
-	811686A92	动力头总成(完整)	POWERHEAD ASSEMBLY Complete	1
-	811686T97	动力头总成	POWERHEAD ASSEMBLY	1

图 41燃油滤清器总成(USA-1B153167/BEL-0P360020及以下) Fuel Filter Assembly (USA-1B153167/BEL-0P360020 and Below)

REF	零件编号	中文名称	英文名称	数量
1	891642A11	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
1	889527A07	滤清器套件	FILTER KIT	1
2	858731	球形燃油滤清器	BALL Fuel Filter	1
3	87946K04	燃油滤清器套件（水星品牌）	FILTER KIT Fuel (Mercury Brand)	1
3	87946Q04	燃油滤清器套件（快银品牌）	FILTER KIT Fuel (Quicksilver Brand)	1
4	98277	密封件	SEAL	1
4	897536	密封件	SEAL	1
5	830756109	软管(57英寸整卷)(裁切为6英寸长度)	HOSE (57.00 Inches Bulk) (Cut to 6.00 Inch Length)	1
5	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
6	830756109	软管(57英寸整卷)(裁切为4.25英寸长度)	HOSE (57.00 Inches Bulk) (Cut to 4.25 Inch Length)	1
6	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
7	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
8	18202	护孔环	GROMMET	1
9	15781A9	燃油连接套件	CONNECTOR KIT Fuel	1
10	4000330	螺钉(M6x25)	SCREW (M6 x 25)	1
10	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	1

图 42连杆和组件（电动长杆带遥控） LINK ROD AND COMPONENTS (ELECTRIC LONG W/REMOTE CONTROL)

REF	零件编号	中文名称	英文名称	数量
1	30664	管	TUBE	1
1	8M0041936	倾斜管	TILT TUBE	1
2	93164	螺母 (0.875)	NUT (.875)	2
3	113841	隔套	SPACER	1
4	11607	支架	BRACKET	1
5	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	2
6	56720	垫圈(0.330×0.750×0.060)不锈钢	WASHER (.330 x .750 x .060) Stainless Steel	2
7	400635	螺母 (M8)	NUT (M8)	2
7	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
8	11606	拉杆 (右舷)	TIE ROD (STARBOARD)	1
8	11606T	ORD 11606A 1	ORD 11606A 1	1
9	29698	球头关节	BALL JOINT	1
10	71970	垫圈(0.390×0.546×0.12)	WASHER (.390 x .546 x .12)	1
10	8M0109680	垫圈(0.39×0.546×0.12)	WASHER (.39 X .546 X.12)	1
11	30521	垫圈(0.97×0.56×0.19)	WASHER (.97 x .56 x .19)	1
12	34931	不锈钢垫圈(.406x.734x.063)	WASHER (.406 x .734 x .063) Stainless Steel	3
13	34863	螺母 (.375-24)	NUT (.375-24)	2
13	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
14	66751	垫片(0.250x0.390x0.630)不锈钢	SPACER (.250 x .390 x .630) Stainless Steel	1
14	8M0151156	隔套	SPACER	1
15	78862A2	密封套件	SEAL KIT	1
15	19624A1	密封套件	SEAL KIT	1

图 43电气组件 ELECTRIC COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	95815	上盖	COVER (TOP)	1
2	95828	下盖	COVER (BOTTOM)	1
3	95810A1	启动开关总成	SWITCH ASSEMBLY Start	1
4	55741	护套	BOOT	1
4	55741001	护套	BOOT	1
5	88890A2	开关总成	SWITCH ASSEMBLY	1
6	79139A20	电缆总成（红色）	CABLE ASSEMBLY (RED)	1
10	95814	绑带	STRAP	1
11	95813	紧固件	FASTENER	1
12	40056108	螺钉（M5×20）	SCREW (M5 x 20)	1
12	40019108	螺钉（M5×20）	SCREW (M5 x 20)	1
13	4005727	螺钉	SCREW	2
14	45771	垫圈	WASHER	2
15	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	1
16	69570	螺钉(#10-16 x .750)	SCREW (#10-16 x .750)	1
17	816770	整流器	RECTIFIER	1
17	8M0058226	整流器	RECTIFIER	1
18	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	2
19	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	3
20	96054	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
20	8M0185149	启动电磁阀	SOLENOID START	1
21	4000327	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
22	26419	黄铜螺母 (#8-32)	NUT (#8-32) Brass	2
23	64015	螺母 (.250-20)	NUT (.250-20)	2
24	88809A5	电线总成（黄色）	WIRE ASSEMBLY (YELLOW)	1
25	88439A8	电池电缆总成(红色)	CABLE ASSEMBLY Battery (RED)	1
25	88439A27	电缆总成红色-电池	CABLE ASSEMBLY Red - Battery	1
25	88439A6	电池电缆总成(黑色)	CABLE ASSEMBLY Battery (BLACK)	1
25	88439A28	电缆总成电池-黑色	CABLE ASSEMBLY Battery - Black	1
26	92439	支架(旧设计)	BRACKET (OLD DESIGN)	1
27	4000327	螺钉(M6×14)(旧设计)	SCREW (M6 x 14) (OLD DESIGN)	1
28	35044	垫圈(0.281×0.625×0.065)不锈钢(旧设计)	WASHER (.281 x .625 x .065) Stainless Steel (OLD DESIGN)	1
29	400212	螺母(M6)不锈钢(旧设计)	NUT (M6) Stainless Steel (OLD DESIGN)	1
30	815504310	蜗轮卡箍(旧设计)	CLAMP Worm Gear (OLD DESIGN)	1
31	86704A2	定子总成	STATOR ASSEMBLY	1
31	86704A10	辅助定子	STATOR Auxiliary	1
32	4000123	螺丝(M5 x 30)	SCREW (M5 x 30)	3
33	90983A1	启动电机总成	STARTER MOTOR ASSEMBLY	1
33	8M0033984	启动马达	STARTER MOTOR	1
34	96561	驱动套件	DRIVE KIT	1
35	96562	驱动器	DRIVE	1
36	96563	端盖	END CAP	1
36	96563T	端盖	END CAP	1
37	96565	电枢	ARMATURE	1
38	96564	端盖	END CAP	1
38	96564T	端盖	END CAP	1
39	96566	贯穿螺栓	THRU BOLT	1
40	421251	螺钉(M8x55)	SCREW (M8 x 55)	2
40	42125	螺钉(M8x55)	SCREW (M8 x 55)	2
41	424291	固定座	RETAINER	1
42	12334A2	发动机线束总成	HARNESS ASSEMBLY Engine Wiring	1
43	79091	保险丝20安培	FUSE 20 Ampere	1
43	8M0207796	保险丝20安培	FUSE 20 AMP	1
44	134731	保险丝座(旧设计)	HOLDER Fuse (OLD DESIGN)	1
45	12152	固定座	RETAINER	1
46	92753	固定座	RETAINER	1
47	55098	J型卡扣	J CLIP	1
47	8M0024808	J型夹	J-CLIP	1

图 44驱动轴壳体 DRIVESHAFT HOUSING

REF	零件编号	中文名称	英文名称	数量
1	8827A3	壳体总成(短型)(黑色)	HOUSING ASSEMBLY (SHORT) (BLACK)	1
1	822154A1	壳体总成	HOUSING ASSEMBLY	1
1	8829A3	壳体总成(长型)(黑色)	HOUSING ASSEMBLY (LONG) (BLACK)	1
1	822155A1	壳体总成	HOUSING ASSEMBLY	1
1	8827A4	壳体总成(短型)(灰色)	HOUSING ASSEMBLY (SHORT) (GRAY)	1
1	822154A2	壳体总成	HOUSING ASSEMBLY	1
1	8829A4	壳体总成(长型)(灰色)	HOUSING ASSEMBLY (LONG) (GRAY)	1
1	822155A2	壳体总成	HOUSING ASSEMBLY	1
2	195991	驱动轴壳体衬垫	GASKET DRIVESHAFT HOUSING	1
2	195992	驱动轴壳体衬垫	GASKET Driveshaft Housing	1
3	421891	支架	MOUNT	4
3	8M0039074	支架	MOUNT	4
4	N.L.A.	已停产的安装盖(见备注)	NO LONGER AVAILABLE COVER-MOUNT (SEE NOTE)	2
4	42374F6	安装盖(黑色)	COVER Mount (BLACK)	2
4	42374F5	安装盖(灰色)	COVER MOUNT (GRAY)	2
4	42374F6	安装盖	COVER Mount	2
5	4009238	螺钉(M6x80)安装盖	SCREW (M6 x 80) MOUNT COVER	2
6	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
7	400212	螺母(M6)不锈钢盖螺钉	NUT (M6) Stainless Steel COVER SCREW	2
8	40011131	螺钉(M6x35)不锈钢驱动轴壳体至安装板	SCREW (M6 x 35) Stainless Steel DRIVESHAFT HOUSING TO PLATE	4
9	413448	适配板(无管)(6/8)	ADAPTER PLATE (NO TUBE) (6/8)	1
9	41344A4	适配板总成(1英寸内径管)	ADAPTER PLATE ASSEMBLY (1"I.D. TUBE)	1
9	41344A3	适配板总成(1-1/8英寸内径管)(15)	ADAPTER PLATE ASSEMBLY (1-1/8"I.D. TUBE) (15)	1
10	11287	适配板密封件	SEAL Adapter Plate	1
10	11287001	适配板密封件	SEAL Adapter Plate	1
11	42123	水管(短型)	TUBE Water (SHORT)	1
11	42122	水管(长型)	TUBE Water (LONG)	1
11	421231	水管(加长型)	TUBE Water (X-LONG)	1
12	42371	水管固定座	HOLDER WATER TUBE	1
13	192012	水管壳体衬垫	GASKET WATER TUBE HOUSING	1
14	42380	水管密封件	SEAL WATER TUBE	1
14	42380001	水管密封件	SEAL Water Tube	1
15	42465	水管隔套	SPACER WATER TUBE	1
16	40011107	螺钉(M5x16)不锈钢壳体至适配板	SCREW (M5 x 16) Stainless Steel HOUSING TO ADAPTOR PLATE	2
17	445551	轴承座(长型)	BLOCK Bearing (LONG)	1
18	124262	驱动轴延长壳体(加长型)	HOUSING Drive Shaft Extension (X-LONG)	1
19	123691	衬套(加长型)	BUSHING X-LONG	1
20	123702	轴承壳体(加长型)	HOUSING BEARING (X-LONG)	1
21	14107	轴承护圈(加长型)	RETAINER BEARING (X-LONG)	1
21	14107001	固定座	RETAINER	1
22	14094	卡环(加长型)	RING Snap X-LONG	1
-	42213A14	旋转管更换总成(黑色)	SWIVEL TUBE REPLACEMENT COMPLETE (BLACK)	1
-	42213A15	旋转管更换总成(灰色)	SWIVEL TUBE REPLACEMENT COMPLETE (GRAY)	1
-	42213A14	旋转管更换件	SWIVEL TUBE REPLACEMENT	1

图 45旋转支架和转向手柄 SWIVEL BRACKET AND STEERING HANDLE

REF	零件编号	中文名称	英文名称	数量
1	42213A6	旋转管（黑色）	SWIVEL TUBE (BLACK)	1
1	42213A14	旋转管更换件	SWIVEL TUBE REPLACEMENT	1
1	42213A7	旋转管（灰色）	SWIVEL TUBE (GRAY)	1
1	42213A15	旋转管更换件	SWIVEL TUBE REPLACEMENT	1
1	42213A14	旋转管替换件（黑色）	SWIVEL TUBE REPLACEMENT (BLACK)	1
1	42213A15	旋转管替换件（灰色）	SWIVEL TUBE REPLACEMENT (GRAY)	1
1	42213A14	旋转管更换件	SWIVEL TUBE REPLACEMENT	1
2	74036	润滑脂接头	FITTING Grease	1
2	8M0169589	润滑脂接头	FITTING Grease	1
3	NLA	已停产支架（黑色）（订单号42213A14）	No Longer Available BRACKET (BLACK) (ORDER 42213A14)	1
3	NLA	已停产支架（灰色）（订单号4213A15）	No Longer Available BRACKET (GRAY) (ORDER 4213A15)	1
3	44397A15	支架总成（黑色）	BRACKET ASSEMBLY (BLACK)	1
3	44397A16	支架总成（灰色）	BRACKET ASSEMBLY (GRAY)	1
4	40019109	螺丝(M5 x 25)	SCREW (M5 x 25)	3
4	4005688	螺钉（M4×20）	SCREW (M4 x 20)	3
4	40011110	螺钉(M5×30不锈钢)	SCREW (M5 x 30) Stainless Steel	3
5	177821	支架垫圈	WASHER BRACKET	1
5	177821	垫圈	WASHER	1
6	90068F2	支架螺母（黑色）	NUT BRACKET (BLACK)	1
6	859133	螺母(1.00-14)	NUT (1.00-14)	1
6	90068F3	支架螺母（1.00-14）（灰色）	NUT (1.00-14) BRACKET (GRAY)	1
6	859133	螺母(1.00-14)	NUT (1.00-14)	1
6	816880	螺母	NUT	1
7	85973	支架衬套	BUSHING BRACKET	1
7	817026	衬套	BUSHING	1
8	42210	油门拉索（舵柄换挡）	CABLE THROTTLE (TILLER HANDLE SHIFT)	1
8	422111	油门拉索（侧换挡）	CABLE THROTTLE (SIDE SHIFT)	1
9	400212	油门拉索不锈钢螺母（M6）	NUT (M6) Stainless Steel THROTTLE CABLE	AR
10	99333A2	转向管总成	TUBE ASSEMBLY STEERING	1
11	14025A4	油门手柄总成（舵柄换挡）	HANDLE ASSEMBLY Throttle (TILLER HANDLE SHIFT)	1
11	823609A10	停机开关套件-油门手柄	SWITCH KIT Stop - Throttle Handle	1
11	14170A5	油门手柄总成（侧换挡）	HANDLE ASSEMBLY Throttle (SIDE SHIFT)	1
11	823609A10	停机开关套件-油门手柄	SWITCH KIT Stop - Throttle Handle	1
12	13239	油门贴花（贴于手柄）	DECAL THROTTLE (APPLY ON HANDLE)	1
12	140121	油门贴花（贴于管身）（黑色）	DECAL THROTTLE (APPLY ON TUBE) (BLACK)	1
12	140122	贴花（贴于管身-灰色3-1/3"×1-1/4"）	DECAL (APPLY ON TUBE - GRAY 3-1/3" X 1-1/4")	1
12	140123	贴花（贴于管身-3.15"×2-1/2"）	DECAL (APPLY ON TUBE - 3.15"X 2-1/2")	1
12	140124	贴花（国际符号）	DECAL (INTERNATIONAL SYMBOLS)	1
13	37342	油门手柄螺钉（#12-14×0.375）	SCREW (#12-14 x .375) THROTTLE HANDLE	1
14	823609A10	停机开关套件-油门手柄	SWITCH KIT Stop - Throttle Handle	1
15	11099A1	停机开关护套总成	BOOT ASSEMBLY STOP SWITCH	1
16	99589	橡胶握把	GRIP RUBBER	1
16	8M0221732	外握把	GRIP OUTER	1
17	8831A1	旋转支架总成（黑色）	SWIVEL BRACKET ASSEMBLY (BLACK)	1
17	8831A13	旋转支架-黑色	SWIVEL BRKT-BLACK	1
17	8831A2	旋转支架总成（灰色）	SWIVEL BRACKET ASSEMBLY (GRAY)	1
17	8831A14	ORD 3402-8831A13	ORD 3402-8831A13	1
18	74036	润滑脂接头	FITTING Grease	3
18	8M0169589	润滑脂接头	FITTING Grease	3
19	42140	上衬套	BUSHING UPPER	1
20	420801	推力轴承-上	BEARING Thrust - Upper	1
20	42080T01	轴承	BEARING	1
21	42139	下衬套	BUSHING LOWER	1
22	42077	密封件	SEAL	1
23	42373	下止推垫圈	THRUST WASHER LOWER	1
24	42124A1	副驾驶板总成	PLATE ASSEMBLY CO-PILOT	1
25	42141	倒挡锁钩	HOOK REVERSE LOCK	1
25	8M0075731	倒挡钩	HOOK Reverse	1
26	42127	倒挡钩弹簧	SPRING REVERSE HOOK	1
27	420822	支架	BRACKET	1
27	42082T04	支架	BRACKET	1
28	42130	弹簧	SPRING	1
28	421301	弹簧	SPRING	1
29	42081	销	PIN	1
29	420811	销	PIN	1
30	13194	挡圈	RING Retaining	2
31	42083	枢轴销	PIN Pivot	1
31	830741A1	枢轴销总成	PIN ASSEMBLY Pivot	1
32	8M0027716	枢轴销不锈钢垫圈（0.390×0.600×0.032）	WASHER (.390 x .600 x .032) Stainless Steel PIVOT PIN	1
33	42128	弹簧	SPRING	1
34	42085F1	提手	CARRYING HANDLE	1
34	420852	手柄-黑色	HANDLE-BLACK	1
35	975501	管总成	TUBE ASSEMBLY	1
36	12602	护孔环	GROMMET	1
36	12602002	护孔环	GROMMET	1
37	19564	护孔环	GROMMET	1
37	8M0179867	护孔环	GROMMET	1

图 46润滑图表 Lube Chart

REF	零件编号	中文名称	英文名称	数量
-	NOPART	无零件清单	NO PARTS LIST	1

图 47附件 Accessories

零件编号	中文名称	英文名称	数量
86306A01	适配器	ADAPTER	1
821400A2	动力升降倾斜传感器套件	SENDER KIT Power Trim	1
8M0074845	ORD 8M0098264	ORD 8M0098264	1
92876A8	转向安装套件	ATTACHING KIT Steering	1
92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
883040A1	转速表模块套件	TACH MODULE KIT	1

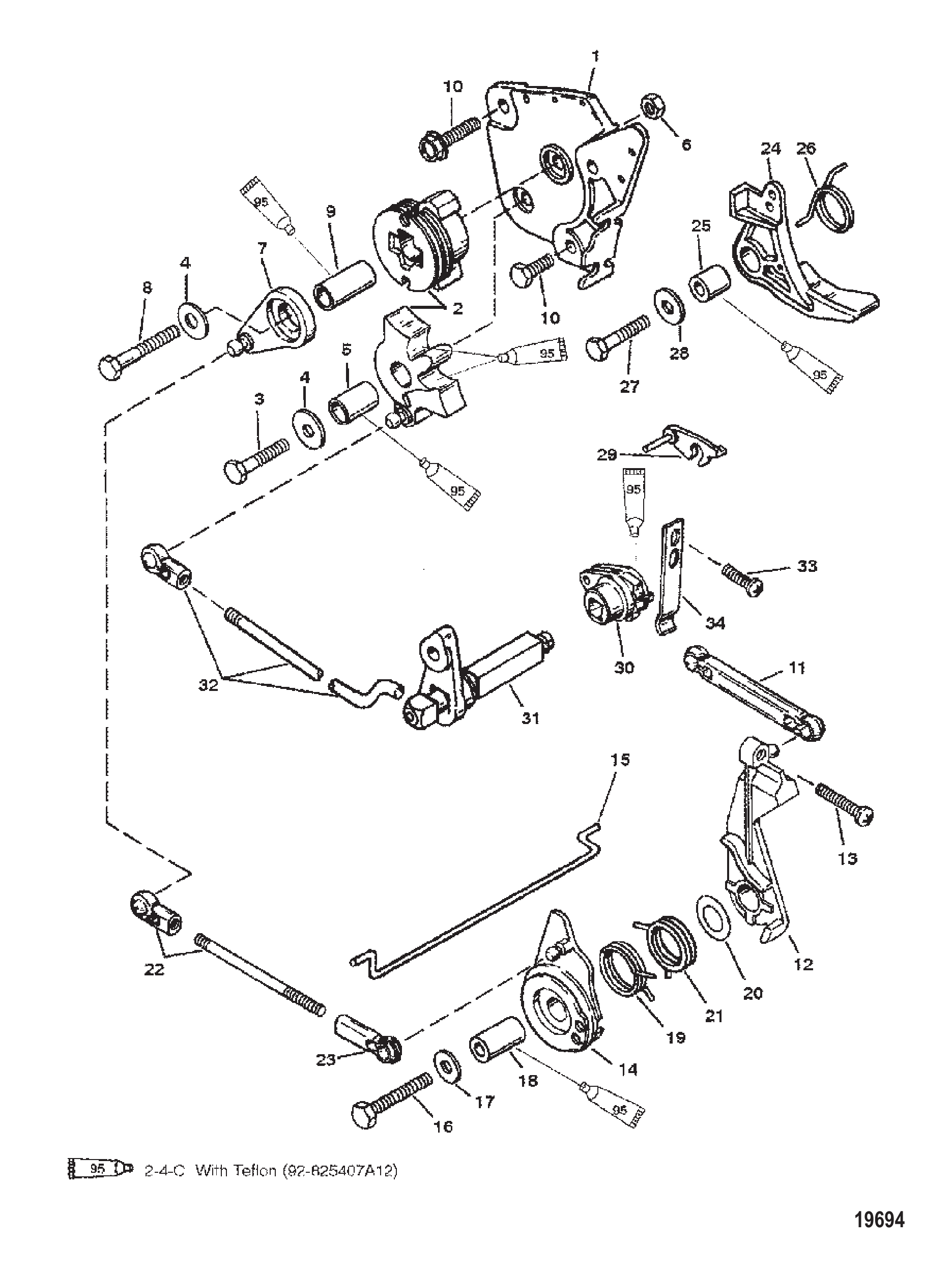

图 48油门和换挡联动装置（舵柄换挡） Throttle and Shift Linkage (Tiller Handle Shift)

REF	零件编号	中文名称	英文名称	数量
1	421481	控制平台	CONTROL PLATFORM	1
1	8M0047593	控制平台	PLATFORM-CONTROL	1
2	94085A1	齿轮	GEAR	1
3	826650	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
4	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	2
4	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	2
5	42149	短隔套	SPACER (SHORT)	1
5	856737	隔套	SPACER	1
6	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
7	42151	主操纵杆	LEVER Primary	1
8	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
9	42150	长隔套	SPACER (LONG)	1
9	856738	隔套	SPACER	1
10	4000171	螺钉(M6 x 16)	SCREW (M6 x 16)	2
11	421671	正时连杆	TIMING LINK	1
12	421631	控制杆	LEVER Control	1
13	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	1
14	421662	执行器	ACTUATOR	1
15	42161	互锁连杆	LINK INTERLOCK	1
16	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
17	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
18	421621	衬套	BUSHING	1
19	42164	弹簧	SPRING	1
20	69708	波形垫圈	WAVE WASHER	1
21	13676	弹簧	SPRING	1
22	19385A1	节气门连杆总成	LINK ASSEMBLY Throttle	1
22	8M0084745	节气门连杆总成	LINK ASY-THROTTLE	1
23	19384	插座	SOCKET	1
23	8M0084742	插座	SOCKET	1
24	421592	杠杆	LEVER	1
25	421581	衬套	BUSHING	1
26	42160	弹簧	SPRING	1
27	4000331	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
28	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
29	42156	杠杆	LEVER	1
30	42153	杠杆	LEVER	1
31	8155501	换档轴	SHIFT SHAFT	1
32	815567A1	换挡连杆	SHIFT LINK	1
32	815567T02	换挡连杆总成	SHIFT LINK ASSY	1
33	400011	螺钉（M5×8）	SCREW (M5 x 8)	2
34	39627	弹簧	SPRING	1

图 49工具 Tools

REF	零件编号	中文名称	英文名称	数量
-	824785A1	衬套和密封安装工具	INSTALLER TOOL Bushing And Seal	1
-	13664	轴承座安装工具, 6/15马力	INSTALLER TOOL Bearing Carrier, 6/15 Hp	1
-	83165M	轴承拉拔器总成	PULLER ASSEMBLY Bearing	1
-	83165T	拉拔器总成	PULLER ASSEMBLY	1
-	31229A7	轴承拉拔器套件	PULLER KIT Bearing	1
-	824787	衬套拆卸工具	REMOVAL TOOL Bushing	1
-	36392	化油器量具	GAUGE TOOL Carburetor	1
-	29287	量规工具	GAUGE TOOL	1
-	824788A1	轴承拆卸工具	REMOVAL TOOL Bearing	1
-	824790A1	驱动轴衬套安装工具	INSTALLATION TOOL Driveshaft Bushing	1
-	83163M	飞轮固定工具	HOLDER TOOL Flywheel	1
-	8M0161873	固定工具	HOLDER TOOL	1
-	24937A1	固定工具	HOLDER TOOL	1
-	8M0161873	固定工具	HOLDER TOOL	1
-	24937A1	固定工具	HOLDER TOOL	1
-	83164M	飞轮拉拔器	FLYWHEEL PULLER	1
-	8M0227579	飞轮拉拔器	FLYWHEEL PULLER	1
-	13655	心轴	MANDREL	1
-	13655T	心轴	MANDREL	1
-	99750A1	万用表	MULTI METER	1
-	13663A1	活塞销安装工具	INSTALLER TOOL Piston Pin	1
-	13663T1	活塞销安装工具	INSTALLER TOOL Piston Pin	1
-	24697	活塞环扩张工具	EXPANDER TOOL Piston Ring	1
-	13662A1	动力头支架工具	STAND TOOL Powerhead	1
-	13662T1	动力头支架工具	STAND TOOL Powerhead	1
-	37241	通用拉拔板	PULLER PLATE Universal	1
-	59339	维修用转速表	SERVICE TACHOMETER	1
-	892647A01	DMT万用表套件	MULTI-METER KIT DMT	1
-	34569A1	滑动锤拉拔器总成	PULLER ASSEMBLY Slide Hammer	1
-	24283	卡簧钳	PLIERS Snap Ring	1
-	850439T1	八腔测试仪	TESTER Eight Chamber (EIGHT CHAMBER)	1
-	63998A1	单腔间隙工具	GAP TOOL Single Chamber (SINGLE CHAMBER)	1
-	99379	正时灯	TIMING LIGHT	1
-	66274	扭矩扳手(0-150磅英寸)	TORQUE WRENCH (0-150 lb-in)	1
-	37241	通用拉拔板	PULLER PLATE Universal	1
-	NSS	不单独销售膨胀杆(Snap On #CG-40-4)	NOT SOLD SEPARATE Expanding Rod (Snap On #CG-40-4)	1
-	NSS	不单独销售夹头(Snap On #CG-40-15)	NOT SOLD SEPARATE Collet (Snap On #CG-40-15)	1
-	NSS	非单独销售膨胀杆(Snap-On #CG40A6)	NOT SOLD SEPARATE Expanding Rod (Snap-On #CG40A6)	1

图 50燃油滤清器总成 FUEL FILTER ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	87946A15	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
1	889527A07	滤清器套件	FILTER KIT	1
2	91935	球形燃油滤清器	BALL FUEL FILTER	1
2	858731	球形燃油滤清器	BALL Fuel Filter	1
3	87946A3	滤清器总成	FILTER ASSEMBLY	1
3	87946Q04	燃油滤清器套件	FILTER KIT Fuel	1
4	98277	燃油滤清器密封件	SEAL FUEL FILTER	1
4	897536	密封件	SEAL	1
5	99127109	滤清器至化油器油管(57英寸散装)	LINE (57.00 Inches Bulk) FILTER TO CARBURETOR	1
5	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
6	99127109	滤清器至适配器油管(57英寸散装)	LINE (57.00 Inches Bulk) FILTER TO ADAPTOR	1
6	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
7	816311	燃油管束带(8英寸)	TIE STRAP (8.00 Inches) FUEL LINE	4
7	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
8	18202	护孔环	GROMMET	1
9	15781A9	燃油连接器套件(90度)(新设计)	CONNECTOR KIT Fuel (90 DEG.) (NEW DESIGN)	1
9	14187M	直通连接器(旧设计)	CONNECTOR (STRAIGHT) (OLD DESIGN)	1
10	4000331	适配器螺丝(M6x30)	SCREW (M6 x 30) ADAPTOR	AR
10	4000330	适配器螺丝(M6x25)	SCREW (M6 x 25) ADAPTOR	AR
10	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	AR

图 51化油器（9.9/15）（美国-序列号-0G112450/比利时-序列号-9831800 及以上） Carb (9.9/15)(USA-S/N-0G112450/BEL-S/N-9831800 & Up)

REF	零件编号	中文名称	英文名称	数量
-	8846A16	化油器	CARBURETOR	1
-	8846T28	化油器 (WMC-102)	CARBURETOR (WMC-102)	1
-	8846A17	化油器	CARBURETOR	1
-	8846T28	化油器 (WMC-102)	CARBURETOR (WMC-102)	1
-	9726A5	化油器	CARBURETOR	1
-	9726T18	化油器(WMC-83)	CARBURETOR (WMC-83)	1
2	94731	油门阀	VALVE Throttle	1
2	823716	油门阀	VALVE Throttle	1
3	813022	节气门轴 (含螺丝/弹簧)	SHAFT Throttle (INCL. SCREW/SPRING)	1
3	19267	节气门轴 (含螺丝/弹簧)	SHAFT Throttle (INCL. SCREW/SPRING)	1
4	9164	燃油杯	BOWL Fuel	1
5	91691	浮子	FLOAT	1
6	F10064	轴	SHAFT	1
7	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
8	879194048	进气阀	VALVE-INLET	1
8	803861	进油针阀	VALVE Inlet Needle	1
9	6246	量孔(.048)	JET (.048)	1
9	6207	量孔(.072)	JET (.072)	1
10	9171	堵头	PLUG	1
11	823648	膜片盖	COVER Diaphragm	1
12	9697	螺钉	SCREW	4
13	15827A1	本体	BODY	1
13	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
14	9643	螺钉	SCREW	5
15	9699	安装板	PLATE	1
16	44426	衬垫	GASKET	1
17	9696	螺钉	SCREW	2
18	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
19	8237072	维修套件	REPAIR KIT	1
20	9637	盖板	COVER	1
21	9762	堵头	PLUG	1
22	192061	化油器衬垫(适用时使用)	GASKET Carburetor (USE WHERE APPLICABLE)	1
23	9635	膜片/衬垫	DIAPHRAGM/GASKET	1
24	445541	怠速线	IDLE WIRE	1
25	128053	快怠速杆	LEVER Fast Idle	1
26	12803	启动泵支架	BRACKET Primer	1
27	821979	螺母	NUT	1
28	79964	螺丝 (#6-32 x .750)	SCREW (#6-32 x .750)	1
28	12110	螺丝 (#6-32 x .750)	SCREW (#6-32 x .750)	1
29	11277	张力弹簧	SPRING Tension	1
30	400018	螺钉(M5 x 12)	SCREW (M5 x 12)	2
31	79965	螺丝 (#8-32 x .500) 不锈钢	SCREW (#8-32 x .500) Stainless Steel	1
32	112731	启动泵杆	LEVER Primer	1
33	11280	凸轮块	CAM BLOCK	1
34	11278	固定夹	CLIP Retaining	1
35	12804A1	阻风门面板总成	BEZEL ASSEMBLY Choke	1
36	128022	启动泵旋钮	PRIMER KNOB	1
37	40056110	螺丝(M5 x 30)	SCREW (M5 x 30)	1
38	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
39	12970	贴纸 (慢/快)	DECAL (SLOW/FAST)	1
39	129701	贴花	DECAL	1
40	823433	电动阻风门	CHOKE Electric	1
41	174421	化油器盖	COVER Carburetor	1
42	47579	堵头	PLUG	1
43	9844A1	维修套件注油器/喷油器 (内容物见图示-标星号部分)	SERVICE KIT Primer/Injector (See Illustration for Contents-Indicated by a Star)	1
-	42364A92	发动机垫片组	GASKET SET Engine	1
-	12750A1	限流板	RESTRICTOR PLATE	1

图 52旋转支架 Swivel Bracket

REF	零件编号	中文名称	英文名称	数量
1	8831A6	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A13	旋转支架-黑色	SWIVEL BRKT-BLACK	1
1	8831A7	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A14	ORD 3402-8831A13	ORD 3402-8831A13	1
1	8831A5	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A13	旋转支架-黑色	SWIVEL BRKT-BLACK	1
1	8831A8	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831T08	旋转支架-黑色	BRKT-SWIVEL-BLACK	1
1	8831A9	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A8	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A10	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8831A8	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
2	74036	润滑脂接头	FITTING Grease	3
2	8M0169589	润滑脂接头	FITTING Grease	3
3	42124A2	副驾驶板总成	PLATE ASSEMBLY Co-Pilot	1
4	421402	轴承	BEARING	1
5	420801	推力轴承-上	BEARING Thrust - Upper	1
5	42080T01	轴承	BEARING	1
6	42139	衬套	BUSHING	1
7	42077	密封件	SEAL	1
8	42373	止推垫片	THRUST WASHER	1
9	421301	弹簧	SPRING	1
10	420824	支架	BRACKET	1
10	42082T04	支架	BRACKET	1
11	420811	销	PIN	1
12	421411	倒挡锁钩	HOOK Reverse Lock	1
12	8M0075731	倒挡钩	HOOK Reverse	1
13	42083	枢轴销	PIN Pivot	1
13	830741A1	枢轴销总成	PIN ASSEMBLY Pivot	1
14	8M0027716	垫圈 (0.390 x 0.600 x 0.032) 不锈钢	WASHER (.390 x .600 x .032) Stainless Steel	1
15	830741A1	枢轴销总成	PIN ASSEMBLY Pivot	1
16	NSS	不单独销售	NOT SOLD SEPARATE	1
17	8M0027716	垫圈 (0.390 x 0.600 x 0.032) 不锈钢	WASHER (.390 x .600 x .032) Stainless Steel	1
18	42128	弹簧	SPRING	1
19	42085F4	提手	CARRYING HANDLE	1
19	420852	手柄-黑色	HANDLE-BLACK	1
19	42085F2	提手	CARRYING HANDLE	1
19	42085F5	提手	CARRYING HANDLE	1
19	42085F3	提手	CARRYING HANDLE	1
19	420852	手柄-黑色	HANDLE-BLACK	1
20	42127	弹簧	SPRING	1
21	13194	挡圈	RING Retaining	2
22	821961	杆	ROD	1
23	8165621	圆盘	DISC	2
24	821958A1	板组件套件	PLATE KIT	1
25	82130014	螺钉 (M6 x 14)	SCREW (M6 x 14)	2
26	821957	制动板	BRAKE PLATE	1
27	29330	垫圈	WASHER	1
28	821959	手柄	HANDLE	1
29	34863	螺母 (.375-24)	NUT (.375-24)	1
29	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
-	8237011	副驾驶贴花	DECAL Co-Pilot	1

图 53曲轴活塞与飞轮 Crankshaft Pistons and Flywheel

REF	零件编号	中文名称	英文名称	数量
1	818591	螺母(M14)	NUT (M14)	1
2	859231T4	飞轮总成	FLYWHEEL ASSEMBLY	1
2	859231T18	飞轮	FLYWHEEL	1
3	99301	齿圈	RING GEAR	1
4	88190313	螺钉 (M5 x 13)	SCREW (M5 x 13)	4
5	8471A2	曲轴总成	CRANKSHAFT ASSEMBLY	1
5	8M0083309	曲轴总成	CRANKSHAFT ASSY	1
6	818630A1	套筒	SLEEVE	1
7	NSS	不单独销售（O型圈）	NOT SOLD SEPARATE (O Ring)	1
8	41341	滚珠轴承	BEARING Ball	1
9	824451	垫圈(内径.610x外径.890x厚度.062)	WASHER (.610 Inside Diamter x .890 Outside Diameter x .062)	1
10	42132	挡圈	RING Retaining	1
11	13031	垫圈	WASHER	1
12	125661	下油封	SEAL Oil - Lower	1
13	20094	半圆键	KEY Woodruff	1
14	878158	滚柱轴承	BEARING Roller	1
15	125671	上油封	SEAL Oil - Upper	1
16	8477A2	连杆总成	CONNECTING ROD ASSEMBLY	2
17	823460	螺钉(M5×16)	SCREW (M5 x 16)	4
18	42076A1	滚柱轴承总成	BEARING ASSEMBLY Roller	2
19	42186	滚针轴承	BEARING Needle	48
20	43348	推力轴承	BEARING Thrust	4
20	8M0012297	止推垫圈@2	WASHER-THRST@2	4
21	9756T2	活塞总成	PISTON ASSEMBLY	2
21	9747T2	活塞总成	PISTON ASSEMBLY	2
21	9747A4	活塞总成	PISTON ASSEMBLY	2
22	18514A4	活塞环组	RING SET Piston	2
22	18212A4	活塞环组	RING SET Piston	2
22	18212A1	活塞环组	RING SET Piston	2
23	NSS	不单独销售 (活塞环-顶部)	NOT SOLD SEPARATE (Piston Ring-Top)	2
23	NSS	不单独销售 (活塞环-顶部)	NOT SOLD SEPARATE (Piston Ring-Top)	2
24	422021	锁紧环	LOCK RING	4
25	41373A1	中央主轴承套件	BEARING KIT Center Main	1
26	17794A1	轴承	BEARING	1
27	818901	密封件	SEAL	1
28	42076A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
-	12893T97	动力头总成	POWERHEAD ASSEMBLY	1
-	811686T97	动力头总成	POWERHEAD ASSEMBLY	1
-	19072T97	动力头总成	POWERHEAD ASSEMBLY	1

图 54齿轮箱（驱动轴）（设计II-参见参考号41） Gear Hsg (Driveshaft)(Design II-Refer to Reference #41)

REF	零件编号	中文名称	英文名称	数量
-	8833A13	齿轮箱总成(短型)-黑色	GEAR HOUSING ASSEMBLY COMPLETE (SHORT)- BLACK	1
-	8833T13	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833A15	齿轮箱总成(长型)黑色	GEAR HOUSING ASSEMBLY COMPLETE (LONG) BLACK	1
-	8833T15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833A14	齿轮箱总成(短型)-灰色	GEAR HOUSING ASSEMBLY COMPLETE (SHORT)- GRAY	1
-	8833T14	齿轮箱-短型-灰	GEAR HSG-SHORT-GR	1
-	8833A16	齿轮箱总成(长型)灰色	GEAR HOUSING ASSEMBLY COMPLETE (LONG) GRAY	1
-	8833T16	ORD 1666-8833T15	ORD 1666-8833T15	1
1	8833A17	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	8M0083312	GC BASIC9.9/15 4S	GC BASIC9.9/15 4S	1
1	8833A18	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic-Gray	1
1	8833A17	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
2	12009	齿轮箱衬套(0.31x0.45x0.50)	BUSHING (.31 x .45 x .50) GEAR HOUSING	1
3	14834A1	螺钉	SCREW	1
3	8M0058389	放油螺钉套件	SCREW KIT Drain	1
4	805726	橡胶O型圈	O-RING Rubber	1
4	8M0204684	橡胶O型圈	O-RING Rubber	1
5	822244A1	衬套总成	SLEEVE ASSEMBLY	1
6	823944	套筒	SLEEVE	1
7	823943	衬套	BUSHING	1
8	28634A1	螺钉套件	SCREW KIT	1
8	79953Q04	放油螺钉套件	SCREW KIT Drain	1
9	805726	橡胶O型圈	O-RING Rubber	1
9	8M0204684	橡胶O型圈	O-RING Rubber	1
10	421991	滤网	SCREEN	1
11	13954	螺丝(0.250-14x0.88)	SCREW (.250-14 x .88)	2
12	42121A2	阳极总成	ANODE ASSEMBLY	1
12	42121Q02	铝阳极@2	ANODE(ALUM) @2	1
13	13954	螺丝(0.250-14x0.88)	SCREW (.250-14 x .88)	1
14	42133	密封件	SEAL	1
15	8219251	小齿轮-13-26	GEAR Pinion - 13-26	1
16	41369	止推垫圈	WASHER THRUST	1
17	22756	滚柱轴承	BEARING Roller	1
18	42040A5	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	42040T5	水泵底座总成	BASE ASSEMBLY Water Pump	1
19	192042	衬垫	GASKET	1
19	192043	衬垫	GASKET	1
20	33613	密封件	SEAL	1
21	42375	固定座	RETAINER	1
22	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
23	822236	四角密封环	QUAD RING	1
24	41365	油封	SEAL Oil	2
24	413651	油封	SEAL Oil	2
25	19202	水泵板衬垫	GASKET Water Pump Plate	1
25	19202001	衬垫	GASKET	1
26	42185A1	水管总成	TUBE ASSEMBLY Water	1
27	42200	面板	FACE PLATE	1
28	42089A2	盖总成	COVER ASSEMBLY	1
29	421021	密封件	SEAL	1
30	420382	叶轮	IMPELLER	1
30	42038Q02	叶轮	IMPELLER	1
31	42376A2	键总成	KEY ASSEMBLY	1
31	8M0173458	叶轮键	KEY IMPELLER	1
32	44467	导套	GUIDE	1
33	4000331	水泵螺丝(M6x30)	SCREW (M6 x 30) WATER PUMP	5
34	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
34	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
35	42039	换档凸轮	CAM SHIFT	1
36	42145	换档轴(短)	SHIFT SHAFT (SHORT)	1
36	8M0026064	换档轴-短	SHAFT-SHIFT SHORT	1
36	42146	换档轴(长)	SHIFT SHAFT (LONG)	1
36	8M0026065	换档轴-长	SHAFT-SHIFT-LONG	1
37	42389	E型卡环	E RING	1
38	42126	导套	GUIDE	2
38	8M0036770	导套	GUIDE	2
39	40056109	螺丝(M5 x 25)	SCREW (M5 x 25)	1
39	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	1
40	400633	导向螺丝螺母(M5)	NUT (M5) GUIDE SCREW	1
40	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
41	823389	驱动轴(短)	DRIVESHAFT (SHORT)	1
41	823390	驱动轴(长型)	DRIVESHAFT (LONG)	1
42	822248	止推垫片	THRUST WASHER	1
-	42364A92	发动机垫片组	GASKET SET Engine	1
-	41365A3	密封套件	SEAL KIT	1
-	42089A5	水泵套件	PUMP KIT Water	1

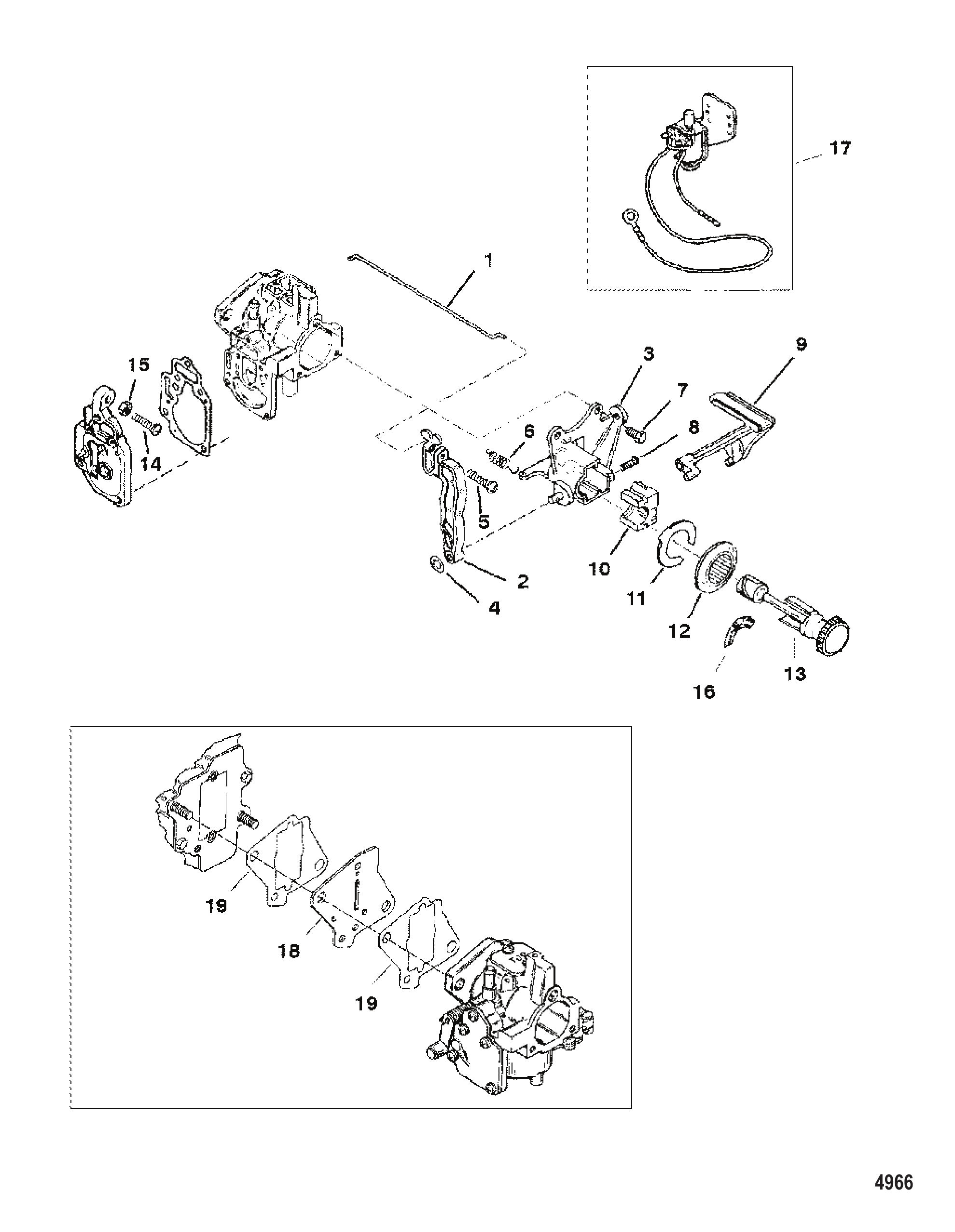

图 55化油器联动装置 Carburetor Linkage

REF	零件编号	中文名称	英文名称	数量
1	445541	怠速线	IDLE WIRE	1
2	128053	快怠速杆	LEVER Fast Idle	1
3	12803	启动泵支架	BRACKET Primer	1
4	821979	螺母	NUT	1
5	79964	螺丝 (#6-32 x .750)	SCREW (#6-32 x .750)	1
5	12110	螺丝 (#6-32 x .750)	SCREW (#6-32 x .750)	1
6	11277	张力弹簧	SPRING Tension	1
7	400018	螺钉(M5 x 12)	SCREW (M5 x 12)	2
8	79965	螺丝 (#8-32 x .500) 不锈钢	SCREW (#8-32 x .500) Stainless Steel	1
9	112731	启动泵杆	LEVER Primer	1
10	11280	凸轮块	CAM BLOCK	1
11	11278	固定夹	CLIP Retaining	1
12	12804A1	阻风门面板总成	BEZEL ASSEMBLY Choke	1
13	128022	启动泵旋钮	PRIMER KNOB	1
14	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	1
15	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
16	129701	阻风门边框贴花	DECAL Bezel Choke	1
17	823433	电动阻风门	CHOKE Electric	1
18	12750A1	限流板	RESTRICTOR PLATE	1
19	192061	化油器衬垫	GASKET Carburetor	2
-	42364A92	发动机垫片组	GASKET SET Engine	1

图 56齿轮箱（驱动轴）（2.00:1齿轮比） Gear Housing (Driveshaft)(2.00:1 Gear Ratio)

REF	零件编号	中文名称	英文名称	数量
-	8833A13	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833T13	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833A15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833T15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833A14	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833T14	齿轮箱-短型-灰	GEAR HSG-SHORT-GR	1
-	8833A16	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833T16	ORD 1666-8833T15	ORD 1666-8833T15	1
-	8833A19	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8833T19	齿轮箱总成	GEAR HSG-COMP-TRA	1
1	8833A17	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	8M0083312	GC BASIC9.9/15 4S	GC BASIC9.9/15 4S	1
1	8833A18	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic-Gray	1
1	8833A17	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	8833A20	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
2	12009	衬套 (0.31 x 0.45 x 0.50)	BUSHING (.31 x .45 x .50)	1
3	67892A1	磁吸式注油/放油塞套件	FITTING KIT Magnetic, Plug Fill/Drain	1
3	8M0058389	放油螺钉套件	SCREW KIT Drain	1
4	19183	纤维垫圈	WASHER Fiber	1
4	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
5	822244A1	衬套总成	SLEEVE ASSEMBLY	1
6	823944	套筒	SLEEVE	1
7	823943	衬套	BUSHING	1
8	79953	螺钉(0.375-16x0.250)	SCREW (.375-16 x .250)	1
8	79953Q04	放油螺钉套件	SCREW KIT Drain	1
9	19183	纤维垫圈	WASHER Fiber	1
9	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
10	421991	滤网	SCREEN	1
11	13954	螺丝(0.250-14x0.88)	SCREW (.250-14 x .88)	2
12	42121A2	阳极总成	ANODE ASSEMBLY	1
12	42121Q02	铝阳极@2	ANODE(ALUM) @2	1
13	13954	螺丝(0.250-14x0.88)	SCREW (.250-14 x .88)	1
14	42133	密封件	SEAL	1
15	8219251	小齿轮 - 13-26 (13齿)	GEAR Pinion - 13-26 (13 TEETH)	1
16	41369	垫圈	WASHER	1
17	22756	滚柱轴承	BEARING Roller	1
18	42040A5	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	42040T5	水泵底座总成	BASE ASSEMBLY Water Pump	1
19	192042	衬垫	GASKET	1
19	192043	衬垫	GASKET	1
20	33613	密封件	SEAL	1
21	42375	固定座	RETAINER	1
22	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
23	822236	四角密封环	QUAD RING	1
24	413651	油封	SEAL Oil	2
25	19202	水泵板衬垫	GASKET Water Pump Plate	1
25	19202001	衬垫	GASKET	1
26	42185A1	水管总成	TUBE ASSEMBLY Water	1
27	42200	面板	FACE PLATE	1
28	42089A2	盖总成	COVER ASSEMBLY	1
29	421021	密封件	SEAL	1
30	420382	叶轮	IMPELLER	1
30	42038Q02	叶轮	IMPELLER	1
31	42376A2	键总成	KEY ASSEMBLY	1
31	8M0173458	叶轮键	KEY IMPELLER	1
32	444671	导套	GUIDE	1
33	8248327	螺钉 (M6 x 30)	SCREW (M6 x 30)	5
33	8M0214957	螺钉	SCREW	5
34	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
34	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
35	42039	凸轮	CAM	1
36	42145	换档轴	SHIFT SHAFT	1
36	8M0026064	换档轴-短	SHAFT-SHIFT SHORT	1
36	42146	换档轴	SHIFT SHAFT	1
36	8M0026065	换档轴-长	SHAFT-SHIFT-LONG	1
37	42389	E型卡环	E RING	1
38	42126	导套	GUIDE	2
38	8M0036770	导套	GUIDE	2
39	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	1
40	400633	螺母 (M5)	NUT (M5)	1
40	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
41	823389	驱动轴	DRIVESHAFT	1
41	823390	驱动轴	DRIVESHAFT	1
42	822248	止推垫片	THRUST WASHER	1
-	41365A3	密封套件	SEAL KIT	1
-	42089A5	水泵套件	PUMP KIT Water	1
-	42364A92	发动机垫片组	GASKET SET Engine	1

图 57遥控安装组件 REMOTE CONTROL ATTACHING COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	4000332	螺钉(M6x35)	SCREW (M6 x 35)	1
2	42809	控制臂支架	BRACKET Control Arm	1
3	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	2
3	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	2
3	12132	垫圈(0.520x1.500x0.06)	WASHER (.520 x 1.500 x .06)	1
3	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	1
4	42806	衬套	BUSHING	1
4	823807	衬套	BUSHING	1
5	42810A2	控制臂	CONTROL ARM	1
5	42810A8	控制臂总成	ARM ASSEMBLY Control	1
5	42810A4	控制臂	CONTROL ARM	1
5	42810A8	控制臂总成	ARM ASSEMBLY Control	1
6	428071	节气门控制臂	ARM Throttle Control	1
6	428071	节气门控制臂	ARM Throttle Control	1
7	61319	E型卡环	E RING	1
8	12136	衬套	BUSHING	1
8	889731	衬套	BUSHING	1
9	42800	杠杆	LEVER	1
10	21071	开口销	COTTER PIN	1
10	210711	开口销	COTTER PIN	1
11	42741	换挡连杆	SHIFT LINK	1
11	815550A1	换档轴	SHIFT SHAFT	1
5	42810A8	控制臂总成	ARM ASSEMBLY Control	1
8	12136	衬套	BUSHING	1
8	889731	衬套	BUSHING	1
10	21071	开口销	COTTER PIN	1
10	210711	开口销	COTTER PIN	1
12	8155691	换挡连杆	SHIFT LINK	1
12	878169	换挡连杆	SHIFT LINK	1
13	400634	螺母 (M6)	NUT (M6)	1
13	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
14	428021	固定座	RETAINER	1
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
16	424291	固定座	RETAINER	2
17	11372	卡扣	CLIP	1
18	19385A2	节气门连杆总成	LINK ASSEMBLY Throttle	1
18	8M0084741	节气门连杆总成	LINK ASY-THROTTLE	1
19	19384	插座	SOCKET	1
19	8M0084742	插座	SOCKET	1
20	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
20	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
21	11371	锁紧垫圈（旧设计）	TAB WASHER (OLD DESIGN)	1
22	4000171	螺钉(M6 x 16)	SCREW (M6 x 16)	2
23	42805A3	支架总成	BRACKET ASSEMBLY	1
24	11373	锁销	PIN Latch	1
25	23928	销	PIN	1
25	239281	滚动销	PIN Roll	1
26	42975	传动螺钉	DRIVE SCREW	1
27	12134	波形垫圈	WASHER Wave	1

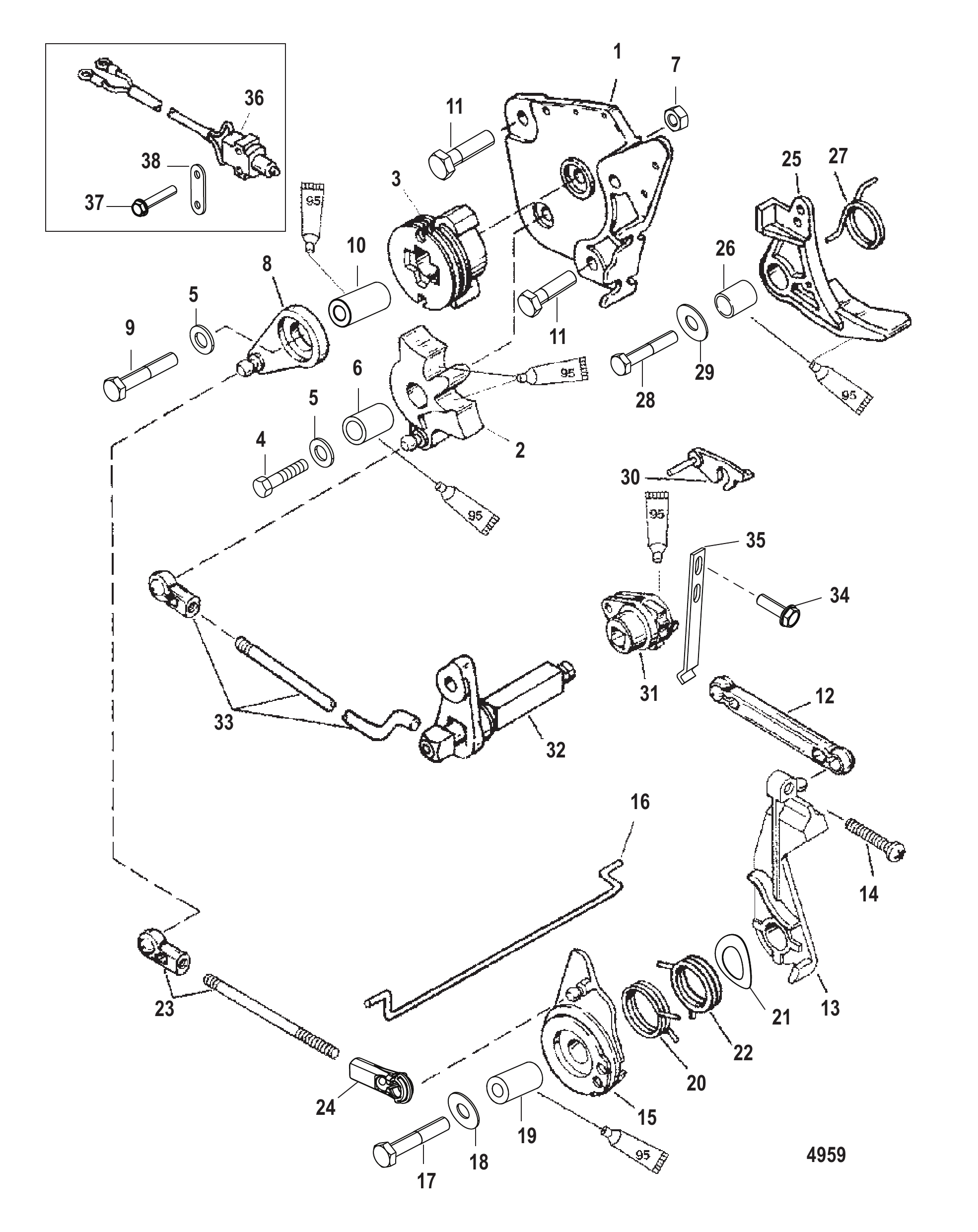

图 58油门和换挡联动装置 Throttle and Shift Linkage

REF	零件编号	中文名称	英文名称	数量
1	421483	控制平台	CONTROL PLATFORM	1
1	8M0047593	控制平台	PLATFORM-CONTROL	1
2	94085A1	齿轮	GEAR	1
3	NSS	不单独销售（齿轮）	NOT SOLD SEPARATE (Gear)	1
4	826650	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
5	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	2
5	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	2
6	856737	垫片（短）	SPACER (Short)	1
7	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
8	42151	主操纵杆	LEVER Primary	1
9	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
10	856738	垫片（长）	SPACER (Long)	1
11	4000328	螺钉(M6 x 16)	SCREW (M6 x 16)	2
11	8M0214928	螺钉(M6 x 16)	SCREW (M6 x 16)	2
12	421671	正时连杆	TIMING LINK	1
13	421631	控制杆	LEVER Control	1
14	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	1
15	421662	执行器	ACTUATOR	1
16	42161	互锁连杆	LINK INTERLOCK	1
17	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
18	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
19	421621	衬套	BUSHING	1
20	42164	弹簧	SPRING	1
21	69708	波形垫圈	WAVE WASHER	1
22	13676	弹簧	SPRING	1
23	19385A1	节气门连杆总成	LINK ASSEMBLY Throttle	1
23	8M0084745	节气门连杆总成	LINK ASY-THROTTLE	1
24	19384	插座	SOCKET	1
24	8M0084742	插座	SOCKET	1
25	421592	杠杆	LEVER	1
26	421581	衬套	BUSHING	1
27	42160	弹簧	SPRING	1
28	4000331	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
29	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
30	42156	杠杆	LEVER	1
31	42153	杠杆	LEVER	1
32	8155501	换档轴	SHIFT SHAFT	1
33	815567A1	换挡连杆	SHIFT LINK	1
33	815567T02	换挡连杆总成	SHIFT LINK ASSY	1
34	400011	螺钉（M5×8）	SCREW (M5 x 8)	2
35	39627	弹簧	SPRING	1
36	813960A4	开关总成	SWITCH ASSEMBLY	1
37	88075020	螺丝(M3 x 20)	SCREW (M3 x 20)	2
38	824923	安装板	PLATE	1

图 59维修/支撑材料 Service/Support Material

零件编号	中文名称	英文名称	数量
88183801	零件手册-115EFI(四冲程)	PARTS MANUAL 115 EFI (4-Stroke) Parts Manual	1
881980	维修手册	SERVICE MANUAL	1
881980R03	SM O/B 115 EFI 4S	SM O/B 115 EFI 4S	1
10225030	用户手册	OWNERS MANUAL	1
858610A31	燃油软管总成	HOSE ASSEMBLY Fuel	1
8M0038610	带注油球的燃油软管总成(9英尺)	HOSE ASSEMBLY Fuel (9 Feet) With Primer Bulb	1
880177	组合扳手工具(10毫米)	SCRENCH TOOL (10 mm)	1
881828	星形头工具套件	STARBIT TOOL KIT	1
881649A01	贴花套件	DECAL SET	1
881649A05	贴花套件	DECAL SET	1
881840A01	贴花套件	DECAL SET	1
881840A03	贴花套件	DECAL SET	1
881840A03	贴花套件	DECAL SET	1
881840A05	贴花套件	DECAL SET	1
881650A01	贴花套件	DECAL SET	1
881650A03	贴花套件	DECAL SET	1
881650A03	贴花套件	DECAL SET	1
881702A01	贴花套件	DECAL SET	1
881839A01	EPA标签信息贴花	DECAL EPA Label Information	1
881839A02	EPA标签信息贴花	Decal EPA Label Information	1
881839A03	EPA标签信息贴花	DECAL EPA Label Information	1
816834A1	转速表	TACHOMETER	1
816932A1	温度表	TEMPERATURE GAUGE	1
86306	适配器	ADAPTER	1
86306A01	适配器	ADAPTER	1
817054A3	水压表总成	GAUGE ASSEMBLY Water Pressure	1
821400A2	动力升降倾斜传感器套件	SENDER KIT Power Trim	1
8M0074845	ORD 8M0098264	ORD 8M0098264	1
92876A8	转向安装套件	ATTACHING KIT Steering	1
92876A9	双机延长套件	EXTENSION KIT Dual Engine	1
883040A1	转速表模块套件	TACH MODULE KIT	1

图 60手动启动器（设计 I） MANUAL STARTER (DESIGN I)

REF	零件编号	中文名称	英文名称	数量
1	42207A1	启动器壳体总成	HOUSING ASSEMBLY STARTER	1
2	42690	启动绳衬套	BUSHING STARTER ROPE	1
2	8M0183792	绳索衬套	ROPE BUSHING	1
3	42689	挡圈	RING Retaining	1
3	818853	挡圈	RING Retaining	1
4	42194A2	反冲启动器弹簧总成	SPRING ASSEMBLY Recoil Starter	1
6	42171	锁杆 (上)	LEVER LOCK (UPPER)	1
6	42171T	杠杆	LEVER	1
7	56681	垫圈 (.203 x .500 x .032) 上锁杆	WASHER (.203 x .500 x .032) UPPER LOCK LEVER	1
7	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
8	42173	锁杆 (下)	LEVER LOCK (LOWER)	1
8	42173T	杠杆	LEVER	1
9	48408	螺钉 (#10-16 x .500) 下锁杆	SCREW (#10-16 x .500) LOWER LOCK LEVER	1
10	43787	启动器壳体螺钉隔套	SPACER STARTER HOUSING SCREW	3
11	40011128	螺钉 (M6 x 20) 不锈钢启动器壳体固定	SCREW (M6 x 20) Stainless Steel STARTER HOUSING ATTACHING	3
11	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	3
12	42094	支架	REST	1
12	19018T	支架-启动器手柄	REST-STARTER HDL	1
12	19018	支架	REST	1
12	19018T	支架-启动器手柄	REST-STARTER HDL	1
13	44180	绳索衬套	BUSHING Rope	1
14	4002313	支架螺钉垫圈	WASHER REST SCREW	2
15	12674	支架	SUPPORT	1
16	40019111	螺钉 (M5 x 35) 支架至启动器壳体	SCREW (M5 x 35) REST TO STARTER HOUSING	2
17	309772	支架螺钉隔套	SPACER REST SCREW	4
18	400633	螺母 (M5) 支架螺钉	NUT (M5) REST SCREW	2
18	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	2
19	42034A1	启动器滑轮	SHEAVE STARTER	1
19	42034A2	启动器回绕滑轮总成	PULLEY ASSEMBLY Starter Rewind	1
20	427071	启动器滑轮盖	CAP STARTER SHEAVE	1
20	817362	启动器滑轮盖 (盖塞)	CAP STARTER SHEAVE (CAP PLUG)	1
21	42209	启动器滑轮挡片	TAB STARTER SHEAVE	3
22	48408	螺钉 (#10-16 x .500) 挡片	SCREW (#10-16 x .500) TAB	3
23	12066A9	启动绳	ROPE STARTER	1
23	12066Q10	启动绳@2	ROPE-STARTER@2	1
24	85174A1	启动绳手柄总成	HANDLE ASSEMBLY STARTER ROPE	1

图 61手动启动器（设计II） Manual Starter (Design II)

REF	零件编号	中文名称	英文名称	数量
1	422071	启动器壳体	HOUSING Starter	1
1	42207T02	ORD 8M0070659	ORD 8M0070659	1
2	42690	衬套	BUSHING	1
2	8M0183792	绳索衬套	ROPE BUSHING	1
3	818853	挡圈	RING Retaining	1
4	19018	支架	REST	1
4	19018T	支架-启动器手柄	REST-STARTER HDL	1
5	12674	支架	SUPPORT	1
6	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	2
7	309772	隔套	SPACER	4
8	400633	螺母 (M5)	NUT (M5)	4
8	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	4
9	42171	锁杆 (上)	LEVER LOCK (UPPER)	1
9	42171T	杠杆	LEVER	1
10	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
10	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	1
11	42173	锁杆 (下)	LEVER LOCK (LOWER)	1
11	42173T	杠杆	LEVER	1
12	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
13	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	3
13	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	3
14	43787	启动器壳体螺钉隔套	SPACER STARTER HOUSING SCREW	3
15	86857	弹簧	SPRING	1
15	86857T01	弹簧	SPRING	1
16	420343	启动器滑轮	PULLEY Starter	1
16	42034T04	滑轮-启动器	SHEAVE-STARTER	1
17	12066A9	绳索	ROPE	1
17	12066Q10	启动绳@2	ROPE-STARTER@2	1
18	85174A1	手柄总成	HANDLE ASSEMBLY	1
19	86851	弹簧	SPRING	2
19	86851T02	弹簧 @2	SPRING @2	2
20	86850	凸轮	CAM	2
20	868501	凸轮	CAM	2
21	86849	挡圈	RING Retaining	2
21	86849T01	环 @2	RING @2	2
22	86852	弹簧	SPRING	1
22	868523	弹簧	SPRING	1
23	86853	凸轮	CAM	1
23	86853T01	凸轮	CAM	1
24	818838	螺钉	SCREW	1
24	826253	螺钉(.250-20 x .625)	SCREW (.250-20 x .625)	1
25	90478	垫	PAD	1
25	833161T	毛毡垫	PAD-FELT	1

图 62电气组件 Electrical Components

REF	零件编号	中文名称	英文名称	数量
1	881363T	盖板	COVER	1
2	881364T2	线束总成	HARNESS ASSEMBLY	1
2	881364T04	线束	HARNESS	1
2	881364T1	线束总成	HARNESS ASSEMBLY	1
2	881364T04	线束	HARNESS	1
3	804291	保险丝20安培	FUSE 20 Ampere	4
3	832969T20	迷你保险丝-黄色-20安	FUSE Mini - Yellow - 20 Ampere	4
4	80429110	30安保险丝	FUSE 30 Ampere	4
4	8M0057159	30A保险丝	FUSE-30A	4
0	891824010	保险丝盖	COVER Fuse	4
0	891824020	保险丝盖	COVER Fuse	4
5	804289	保险丝拔取器	PULLER Fuse	1
6	881362	支架	BRACKET	1
7	8813511	螺钉	SCREW	1
8	881352T	继电器	RELAY	1
8	8M0098898	继电器	RELAY	1
9	82214M	垫圈	WASHER	2
10	881355	锁紧垫圈	LOCKWASHER	2
10	82212M	锁紧垫圈	LOCKWASHER	2
11	881354	螺钉	SCREW	2
11	96671M	螺钉	SCREW	2
12	804284	护套	BOOT	2
12	804284001	护套	BOOT	2
13	881350T	继电器	RELAY	1
14	881351	螺钉	SCREW	1
15	881353	卡箍	CLAMP	1
16	8813511	螺钉	SCREW	1
17	881359T	支架	BRACKET	1
17	881363A01	盖/支架套件	COVER/BRACKET KIT	1
18	881361	卡箍	CLAMP	1
19	881360	卡箍	CLAMP	1
20	804270	螺栓(M6×28)	BOLT (M6 x 28)	5
21	881304	护孔环	GROMMET	5
22	82851M	衬套	BUSHING	5
22	804344003	轴环	COLLAR	5
23	881356T1	继电器总成	RELAY ASSEMBLY	1
23	882751A3	升降继电器套件	RELAY KIT Trim	1
24	881357	引线	LEAD WIRE	1
25	881358	盖帽	CAP	1
26	8248324	螺钉(M6 x 16)	SCREW (M6 x 16)	2
27	825702	螺栓 (M6 x 20)	BOLT (M6 x 20)	2
27	8257021	螺栓 (M6 x 20)	BOLT (M6 x 20)	2
28	804604	螺栓 (M6 x 20)	BOLT (M6 x 20)	1
29	88439A33	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
30	88439A10	蓄电池负极电缆总成	CABLE ASSEMBLY Negative - Battery	1
31	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	1
32	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	1
32	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	1
33	858723T1	适配器/升降线束总成	HARNESS ASSEMBLY Adapter/Trim	1
34	858914T1	升降马达适配器线束总成	HARNESS ASSEMBLY Trim Motor Adaptor	1
35	858740T4	遥控适配器线束总成	HARNESS ASSEMBLY Adapter Assembly Remote	1
36	92753	固定座	RETAINER	1
37	859249T1	连接器	CONNECTOR	1
38	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
39	8272822	高压警告标贴	DECAL Warning High Voltage	1
40	881865	挂档启动警示标贴	DECAL Caution-Start in Gear Start in Gear	1
41	828151A2	升降继电器套件	TRIM RELAY KIT	1
41	882751A3	升降继电器套件	RELAY KIT Trim	1
42	826802A24	升降线束总成	HARNESS ASSEMBLY Trim	1
43	828151A1	继电器总成	RELAY ASSEMBLY	2
43	8M0207773	调整继电器总成	RELAY ASSEMBLY Trim	2
44	818967	护孔环	GROMMET	1
44	8M0207785	护孔环	GROMMET	1
45	818968	衬套	BUSHING	1
45	8M0214955	衬套	BUSHING	1
46	NSS	标贴(不单独销售)	NOT SOLD SEPARATE Decal	1
47	828102	支架	BRACKET	1
47	8M0207771	安装支架	BRACKET Mounting	1
48	824868	螺钉(M6×75)	SCREW (M6 x 75)	1
49	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	2
49	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	2
50	823807	衬套	BUSHING	1

图 63齿轮箱（驱动轴-设计 I-参考编号 #17） Gear Hsg (Driveshaft-Design I-Refer to Reference #17)

REF	零件编号	中文名称	英文名称	数量
-	8833A9	齿轮箱总成完整组件(短型)(黑色)	GEAR HOUSING ASSEMBLY COMPLETE (SHORT) (BLACK)	1
-	8833T13	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833A10	齿轮箱总成完整组件(长型)(黑色)	GEAR HOUSING ASSEMBLY COMPLETE (LONG) (BLACK)	1
-	8833T15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833A11	齿轮箱总成完整组件(短型)(灰色)	GEAR HOUSING ASSEMBLY COMPLETE (SHORT) (GRAY)	1
-	8833T14	齿轮箱-短型-灰	GEAR HSG-SHORT-GR	1
-	8833A12	齿轮箱总成完整组件(长型)(灰色)	GEAR HOUSING ASSEMBLY COMPLETE (LONG) (GRAY)	1
-	8833T16	ORD 1666-8833T15	ORD 1666-8833T15	1
1	8833A1	齿轮箱总成(黑色)	GEAR HOUSING ASSEMBLY (BLACK)	1
1	8833A4	齿轮箱总成(灰色)	GEAR HOUSING ASSEMBLY (GRAY)	1
2	12009	衬套 (0.31 x 0.45 x 0.50)	BUSHING (.31 x .45 x .50)	1
3	67892	磁性螺钉	SCREW Magnetic	1
3	8M0058389	放油螺钉套件	SCREW KIT Drain	1
4	19183	纤维垫圈	WASHER Fiber	1
4	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
5	42086A1	衬套套件	SLEEVE KIT	1
6	41345	套筒	SLEEVE	2
7	42191	套筒	SLEEVE	1
7	42191001	套筒	SLEEVE	1
8	28653	螺丝(#10-32x0.25)	SCREW (#10-32 x 0.25)	1
8	79953	螺钉(0.375-16x0.250)	SCREW (.375-16 x .250)	1
8	79953Q04	放油螺钉套件	SCREW KIT Drain	1
9	19643	密封件(配10-32螺钉使用)	SEAL (USE WITH 10-32 SCREW)	1
9	19183	纤维垫圈(配0.375-16×0.250螺钉使用)	WASHER Fiber (USE WITH .375-16 X .250 SCREW)	1
9	8M0187157	蓝色密封件@15	SEAL-BLUE @15	1
10	421991	滤网	SCREEN	1
11	13954	螺丝(0.250-14x0.88)	SCREW (.250-14 x .88)	1
12	42121A2	阳极总成	ANODE ASSEMBLY	1
12	42121Q02	铝阳极@2	ANODE(ALUM) @2	1
13	13954	螺丝(0.250-14x0.88)	SCREW (.250-14 x .88)	1
14	42133	密封件	SEAL	1
15	420411	小齿轮	GEAR Pinion	1
16	41369	止推垫圈	WASHER THRUST	1
17	42192	驱动轴(短)	DRIVESHAFT (SHORT)	1
17	42193	驱动轴(长型)	DRIVESHAFT (LONG)	1
17	12367	驱动轴(加长型)	DRIVESHAFT (X-LONG)	1
18	42040A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
18	42040T5	水泵底座总成	BASE ASSEMBLY Water Pump	1
19	NLA		No Longer Available GASKET (SEE DESIGN I DRAWING)	1
19	192041	衬垫(参见设计II图纸)	GASKET (SEE DESIGN II DRAWING)	1
19	42040A3	水泵底座总成	BASE ASSEMBLY Water Pump	1
20	33613	密封件	SEAL	1
21	42375	固定座	RETAINER	1
22	48408	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
23	822236	四角密封环	QUAD RING	1
24	41365	油封	SEAL Oil	2
24	413651	油封	SEAL Oil	2
25	19202	水泵板衬垫	GASKET Water Pump Plate	1
25	19202001	衬垫	GASKET	1
26	42185A1	水管总成	TUBE ASSEMBLY Water	1
27	42200	面板	FACE PLATE	1
28	42089A2	盖总成	COVER ASSEMBLY	1
29	421021	密封件	SEAL	1
30	420382	叶轮	IMPELLER	1
30	42038Q02	叶轮	IMPELLER	1
31	42376A1	键总成	KEY ASSEMBLY	1
31	8M0173458	叶轮键	KEY IMPELLER	1
32	44467	导套	GUIDE	1
33	4000331	水泵螺丝(M6x30)	SCREW (M6 x 30) WATER PUMP	5
34	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
34	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	1
35	42039	换档凸轮	CAM SHIFT	1
36	42145	换档轴(短)	SHIFT SHAFT (SHORT)	1
36	8M0026064	换档轴-短	SHAFT-SHIFT SHORT	1
36	42146	换档轴(长)	SHIFT SHAFT (LONG)	1
36	8M0026065	换档轴-长	SHAFT-SHIFT-LONG	1
36	12368	换挡轴(加长型)	SHIFT SHAFT (X-LONG)	1
37	42389	E型卡环	E RING	1
38	42126	导套	GUIDE	2
38	8M0036770	导套	GUIDE	2
39	40056109	螺丝(M5 x 25)	SCREW (M5 x 25)	1
39	40011109	螺钉 (M5 x 25) 不锈钢	SCREW (M5 x 25) Stainless Steel	1
40	400633	导向螺丝螺母(M5)	NUT (M5) GUIDE SCREW	1
40	401385	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
-	41365A3	密封套件	SEAL KIT	1
-	42089A5	水泵套件	PUMP KIT Water	1
-	42364A92	发动机垫片组	GASKET SET Engine	1

图 64化油器（WMC5A/WMC5B/WMC7/WMC7A/WMC19/WMC19A） CARBURETOR (WMC5A/WMC5B/WMC7/WMC7A/WMC19/WMC19A)

REF	零件编号	中文名称	英文名称	数量
1	9503A5	化油器总成	CARBURETOR ASSEMBLY	1
1	9266A7	化油器总成	CARBURETOR ASSEMBLY	1
1	9266T22	化油器	CARBURETOR	1
1	8846A8	化油器总成	CARBURETOR ASSEMBLY	1
1	8846A24	化油器维修包	CARBURETOR KIT	1
2	9473	油门阀	VALVE Throttle	1
3	9472	油门轴	SHAFT Throttle	1
3	804707	轴	SHAFT	1
4	9164	燃油杯	BOWL Fuel	1
5	9169	浮子	FLOAT	1
5	91691	浮子	FLOAT	1
6	9855	进油针阀	VALVE INLET NEEDLE	1
6	803861	进油针阀	VALVE Inlet Needle	1
7	9548	主燃油喷嘴(.039)	JET MAIN FUEL (.039)	1
7	5317	主燃油喷嘴(.046)	JET (.046) MAIN FUEL	1
7	5213	主量孔(.056)	JET Main (.056)	1
8	9171	量孔固定塞	PLUG JET RETAINER	1
9	813618	膜片盖	COVER DIAPHRAGM	1
10	9174	膜片盖螺丝	SCREW DIAPHRAGM COVER	4
10	9697	螺钉	SCREW	4
11	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
12	9173	燃油泵盖螺丝	SCREW FUEL PUMP COVER	5
13	9177	盖板	PLATE COVER	1
14	9172	盖板螺钉	SCREW COVER PLATE	2
14	9696	螺钉	SCREW	2
15	9761	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
15	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
16	9475	维修零件包	REPAIR PARTS KIT	1
16	96481	维修套件	REPAIR KIT	1
16A	9762	堵头	PLUG	1
17	192061	化油器衬垫	GASKET Carburetor	1
18	445541	怠速线	IDLE WIRE	1
19	128053	快怠速杆	LEVER Fast Idle	1
20	12803	启动泵支架	BRACKET Primer	1
21	97877	快怠速杠杆推螺母	PUSH NUT FAST IDLE LEVER	1
21	821979	螺母	NUT	1
22	79964	螺钉(#6-32 x .750)快怠速杠杆	SCREW (#6-32 x .750) FAST IDLE LEVER	1
22	12110	螺丝 (#6-32 x .750)	SCREW (#6-32 x .750)	1
23	11277	张力弹簧	SPRING Tension	1
24	40056110	螺钉(M5 x 30)启动泵支架	SCREW (M5 x 30) PRIMER BRACKET	2
25	79965	螺钉(#8-32 x .500)不锈钢启动泵支架	SCREW (#8-32 x .500) Stainless Steel PRIMER BRACKET	1
26	112731	启动泵杆	LEVER Primer	1
27	11280	凸轮块	CAM BLOCK	1
28	11278	固定夹	CLIP Retaining	1
29	12804A1	阻风门面板总成	BEZEL ASSEMBLY Choke	1
30	12802	启动泵旋钮	KNOB PRIMER	1
30	128022	启动泵旋钮	PRIMER KNOB	1
31	40056110	螺钉(M5×30) 化油器止动	SCREW (M5 x 30) STOP-CARBURETOR	1
32	400211	螺母(M5)不锈钢止动螺钉	NUT (M5) Stainless Steel STOP CREW	1
33	823433	电动阻风门	CHOKE Electric	1
34	12970	贴纸 (慢/快)	DECAL (SLOW/FAST)	1
34	129701	贴花	DECAL	1
-	42364A91	衬垫套件	GASKET SET	1
-	42364A92	发动机垫片组	GASKET SET Engine	1

图 65油门与换挡联动装置（侧换挡） Throttle and Shift Linkage (Side Shift)

REF	零件编号	中文名称	英文名称	数量
1	421811	线缆支架	BRACKET Cable	1
2	4000171	螺钉(M6 x 16)	SCREW (M6 x 16)	2
3	40056107	螺钉(M5×16)	SCREW (M5 x 16)	1
4	4002314	垫圈	WASHER	1
5	421571	换挡手柄	SHIFT HANDLE	1
6	44459	护孔环	GROMMET	1
6	44459001	护孔环	GROMMET	1
7	8155501	换档轴	SHIFT SHAFT	1
8	42156	杠杆	LEVER	1
9	42153	杠杆	LEVER	1
10	39627	弹簧	SPRING	1
11	400011	螺钉（M5×8）	SCREW (M5 x 8)	2
12	421671	正时连杆	TIMING LINK	1
13	421631	控制杆	LEVER Control	1
14	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	1
15	69708	波形垫圈	WAVE WASHER	1
16	42164	弹簧	SPRING	1
17	13676	弹簧	SPRING	1
18	421662	执行器	ACTUATOR	1
19	421621	衬套	BUSHING	1
20	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
21	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
22	42161	互锁连杆	LINK INTERLOCK	1
23	421592	杠杆	LEVER	1
24	42160	弹簧	SPRING	1
25	4000331	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
26	69056	垫圈(.255 x .620 x .030) 不锈钢	WASHER (.255 x .620 x .030) Stainless Steel	1
27	421581	衬套	BUSHING	1

图 66连杆和组件 Link Rod and Components

REF	零件编号	中文名称	英文名称	数量
1	306641	倾斜管	TILT TUBE	1
1	8M0041936	倾斜管	TILT TUBE	1
2	93164	螺母 (0.875)	NUT (.875)	2
3	113841	隔套	SPACER	1
4	11607	支架	BRACKET	1
5	4000354	螺钉 (M8 x 30)	SCREW (M8 x 30)	2
6	56720	垫圈(0.330×0.750×0.060)不锈钢	WASHER (.330 x .750 x .060) Stainless Steel	2
7	400635	螺母 (M8)	NUT (M8)	2
7	401388	不锈钢螺母 (M8)	NUT (M8) Stainless Steel	2
8	11606	拉杆 (右舷)	TIE ROD (STARBOARD)	1
8	11606T	ORD 11606A 1	ORD 11606A 1	1
8	14071	拉杆 (左舷)	TIE ROD (PORT)	1
8	11606A2	左舷安装套件	ATTACHING KIT Port	1
9	29698	球头关节	BALL JOINT	1
10	71970	垫圈(0.390×0.546×0.12)	WASHER (.390 x .546 x .12)	1
10	8M0109680	垫圈(0.39×0.546×0.12)	WASHER (.39 X .546 X.12)	1
11	30521	垫圈(0.97×0.56×0.19)	WASHER (.97 x .56 x .19)	1
12	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	3
13	34863	螺母 (.375-24)	NUT (.375-24)	2
13	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
14	66751	垫片(0.250x0.390x0.630)不锈钢	SPACER (.250 x .390 x .630) Stainless Steel	1
14	8M0151156	隔套	SPACER	1
15	19624A1	密封套件	SEAL KIT	1

图 67齿轮箱螺旋桨轴-2.00:1齿轮比 Gear Housing Propeller Shaft - 2.00:1 Gear Ratio

REF	零件编号	中文名称	英文名称	数量
-	8833A13	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833T13	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833A15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833T15	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833A14	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833T14	齿轮箱-短型-灰	GEAR HSG-SHORT-GR	1
-	8833A16	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	8833T16	ORD 1666-8833T15	ORD 1666-8833T15	1
-	8833A19	齿轮箱总成(完整)	GEAR HOUSING ASSEMBLY Complete	1
-	8833T19	齿轮箱总成	GEAR HSG-COMP-TRA	1
1	8833A17	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	8M0083312	GC BASIC9.9/15 4S	GC BASIC9.9/15 4S	1
1	8833A18	齿轮箱总成基础型-灰色	GEAR HOUSING ASSEMBLY Basic-Gray	1
1	8833A17	齿轮箱总成基础型-黑色	GEAR HOUSING ASSEMBLY Basic-Black	1
1	8833A20	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
43	821321A1	滚柱轴承总成	BEARING ASSEMBLY Roller	1
44	821924A1	前进齿轮总成 (26齿)	GEAR ASSEMBLY Forward (26 TEETH)	1
45	41367	衬套	BUSHING	1
46	813139	凸轮从动件	FOLLOWER Cam	1
47	821930A1	离合器总成	CLUTCH ASSEMBLY	1
48	823951	十字销	PIN Cross	1
49	42204	弹簧	SPRING	1
50	821929	螺旋桨轴	PROPELLER SHAFT	1
51	8219261	倒挡齿轮 - 13/26 (26齿)	GEAR Reverse - 13/26 (26 TEETH)	1
51	821926T1	倒档齿轮-13/26	GEAR Reverse - 13/26	1
52	42144A3	轴承座总成	CARRIER ASSEMBLY Bearing	1
52	42144T3	轴承座	CARRIER Bearing	1
53	33145	O型圈(1.984x0.139)	O-RING (1.984 x .139)	1
53	8M0214923	O型圈(1.98x1.39)	O-RING (1.98 x 1.39)	1
54	821927	衬套	BUSHING	1
55	99325	密封件	SEAL	1
56	821928	油封	SEAL Oil	1
57	82407110	螺钉(M8 x 50)	SCREW (M8 x 50)	1
58	8240717	螺钉 (M8 x 30)	SCREW (M8 x 30)	2
59	828156A12	黑色MAX螺旋桨9x9右旋铝3叶	BLACK MAX PROPELLER 9 X 9 RH AL 3 BL	1
59	828152A12	黑色MAX螺旋桨9.3x7右旋铝3叶	BLACK MAX PROPELLER 9.3 X 7 RH AL 3 BL	1
59	828150A12	黑色MAX螺旋桨 9.8 x 6.5 右旋铝3叶	BLACK MAX PROPELLER 9.8 X 6.5 RH AL 3 BL	1
60	420911	隔套	SPACER	1
61	13914	螺母(M10)	NUT (M10)	1
61	40140	螺母(M10)	NUT (M10)	1
62	821932	推力毂 (1.390直径)	THRUST HUB (1.390 DIA.)	1
62	8219321	推力毂 (1.510直径)	THRUST HUB (1.510 DIA.)	1
63	822559A1	倒挡排气块杯总成	CUP ASSEMBLY Reverse Exhaust Block	1
63	822559Q01	杯套	CUP	1
-	41365A3	密封套件	SEAL KIT	1
-	42364A92	发动机垫片组	GASKET SET Engine	1

图 68衬垫组件-完整-动力头与下部单元 Gasket Set Components-Complete-Powerhead and Lower Unit

REF	零件编号	中文名称	英文名称	数量
-	42364A92	发动机衬垫套件 (动力头和下部单元)	GASKET SET Engine (Powerhead and Lower Unit)	1
0	195982	簧片阀衬垫	GASKET Reed Block	1
0	19184	衬垫	GASKET	1
0	19185	排气盖衬垫	GASKET Exhaust Cover	1
0	192071	气缸体盖衬垫	GASKET Cylinder Block Cover	1
0	19207002	衬垫	GASKET	1
0	192031		GASKET Intake Cover	1
0	192051	节温器盖衬垫	GASKET Thermostat Cover	1
0	19205002	衬垫	GASKET	1
0	191861	动力头适配板至缸体衬垫	GASKET Powerhead Adapter Plate to Block	1
0	42380	水管密封件	SEAL Water Tube	1
0	42380001	水管密封件	SEAL Water Tube	1
0	192012	水管衬垫	GASKET Water Tube	1
0	195992	驱动轴壳体衬垫	GASKET Driveshaft Housing Driveshaft Housing	1
0	33145	O型圈(1.984x0.139)	O-RING (1.984 x .139)	1
0	8M0214923	O型圈(1.98x1.39)	O-RING (1.98 x 1.39)	1
0	33613	进水管密封	SEAL Water Inlet Tube	1
0	192043	水泵底座衬垫	GASKET Water Pump Base	1
0	42133	密封件	SEAL	1
0	822236	四角密封环	QUAD RING	1
0	421021	密封件	SEAL	1
0	19202	水泵板衬垫	GASKET Water Pump Plate Water Pump Plate	1
0	19202001	衬垫	GASKET	1
0	19643	密封件	SEAL	1
0	191833	密封件	SEAL	2
0	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
0	192061	化油器衬垫	GASKET Carburetor	1
0	62386	衬垫	GASKET	1
0	8M0204714	衬垫@4	GASKET @4	1
0	NSS	不单独出售 (水泵底座)	NOT SOLD SEPARATE (Base-Water Pump)	1

图 69化油器（6/8）（9.9 -美国-序列号-0G112449/比利时-序列号-9831799 及以下） Carb (6/8)(9.9 -USA-S/N-0G112449/BEL-S/N-9831799 & Below)

REF	零件编号	中文名称	英文名称	数量
1	9266A14	化油器	CARBURETOR	1
1	9266T22	化油器	CARBURETOR	1
1	9266A16	化油器	CARBURETOR	1
1	9266T22	化油器	CARBURETOR	1
1	9503A13	化油器	CARBURETOR	1
1	9503T21	化油器 (WMC-78A)	CARBURETOR (WMC-78A)	1
1	8846A14	化油器	CARBURETOR	1
1	8846A24	化油器维修包	CARBURETOR KIT	1
2	9473	油门阀	VALVE Throttle	1
2	94731	油门阀	VALVE Throttle	1
2	815133	油门阀	VALVE Throttle	1
3	9698	轴	SHAFT	1
3	804707	轴	SHAFT	1
3	96981	轴	SHAFT	1
3	813022	节气门轴 (含螺丝/弹簧)	SHAFT Throttle (INCL. SCREW/SPRING)	1
4	9164	燃油杯	BOWL Fuel	1
5	91691	浮子	FLOAT	1
6	F10064	轴	SHAFT	1
7	5902	螺钉(#6-32 x .187)	SCREW (#6-32 x .187)	1
8	879194048	进气阀	VALVE-INLET	1
8	803861	进油针阀	VALVE Inlet Needle	1
9	5315	主燃油喷嘴 (.042)	JET Main Fuel (.042)	1
9	5317	量孔(.046)	JET (.046)	1
9	6359	量孔(.052)	JET (.052)	1
10	9171	堵头	PLUG	1
11	813618	盖板	COVER	1
12	823648	膜片盖	COVER Diaphragm	1
13	9697	螺钉	SCREW	4
14	15827A1	本体	BODY	1
14	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
15	9643	螺钉	SCREW	5
16	9699	安装板	PLATE	1
17	44426	衬垫	GASKET	1
18	9696	螺钉	SCREW	2
19	96371	燃油泵盖	COVER Fuel Pump	1
20	9637	盖板	COVER	1
21	9762	堵头	PLUG	1
22	192061	化油器衬垫(适用时使用)	GASKET Carburetor (USE WHERE APPLICABLE)	1
23	9635	膜片/衬垫	DIAPHRAGM/GASKET	1
24	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
25	96481	维修套件	REPAIR KIT	1
26	8237072	维修套件	REPAIR KIT	1
27	445541	怠速线	IDLE WIRE	1
28	128053	快怠速杆	LEVER Fast Idle	1
29	12803	启动泵支架	BRACKET Primer	1
30	821979	螺母	NUT	1
31	79964	螺丝 (#6-32 x .750)	SCREW (#6-32 x .750)	1
31	12110	螺丝 (#6-32 x .750)	SCREW (#6-32 x .750)	1
32	11277	张力弹簧	SPRING Tension	1
33	400018	螺钉(M5 x 12)	SCREW (M5 x 12)	2
34	79965	螺丝 (#8-32 x .500) 不锈钢	SCREW (#8-32 x .500) Stainless Steel	1
35	112731	启动泵杆	LEVER Primer	1
36	11280	凸轮块	CAM BLOCK	1
37	11278	固定夹	CLIP Retaining	1
38	12804A1	阻风门面板总成	BEZEL ASSEMBLY Choke	1
39	128022	启动泵旋钮	PRIMER KNOB	1
40	40056110	螺丝(M5 x 30)	SCREW (M5 x 30)	1
41	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
42	12970	贴纸 (慢/快)	DECAL (SLOW/FAST)	1
42	129701	贴花	DECAL	1
43	823433	电动阻风门	CHOKE Electric	1
44	174421	化油器盖	COVER Carburetor	1
45	47579	堵头	PLUG	1
46	9844A1	维修套件注油器/喷油器 (内容物见图示-标星号部分)	SERVICE KIT Primer/Injector (See Illustration for Contents -Indicated by a Star)	1
47	12750A1	限流板	RESTRICTOR PLATE	1
-	42364A92	发动机垫片组	GASKET SET Engine	1

图 70油门和换挡联动装置（侧换挡型号） THROTTLE AND SHIFT LINKAGE (SIDE SHIFT MODELS)

REF	零件编号	中文名称	英文名称	数量
1	42181	线缆支架	BRACKET Cable	1
2	4000117	螺钉（M5×20）	SCREW (M5 x 20)	2
3	125732	杠杆	LEVER	1
3	421592	杠杆	LEVER	1
4	4000331	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
5	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
5	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
6	421581	衬套	BUSHING	1
7	42160	弹簧	SPRING	1
8	42156	杠杆	LEVER	1
9	42153	杠杆	LEVER	1
10	39627	弹簧	SPRING	1
11	39601	板（旧设计）	PLATE (OLD DESIGN)	1
12	4000114	螺钉(M5×16)	SCREW (M5 x 16)	2
12	400035	螺钉(M5×16)	SCREW (M5 x 16)	2
12	400011	螺钉（M5×8）	SCREW (M5 x 8)	2
13	42152	换挡轴（两件式）	SHIFT SHAFT (2 PIECE SHIFT SHAFT)	1
14	421541	执行器（两件式换挡轴）	ACTUATOR (2 PIECE SHIFT SHAFT)	1
15	815550A1	换挡轴（带球窝）	SHIFT SHAFT ( W/BALL SOCKET)	1
16	8155501	换挡轴（无球窝）	SHIFT SHAFT (W/O BALL SOCKET)	1
17	42157	换挡手柄（配合参考号13、14或15使用）	SHIFT HANDLE (USE W/REF. #13 & 14 OR 15)	1
17	815550A1	换档轴	SHIFT SHAFT	1
17	421571	换挡手柄（配合参考号16使用）	SHIFT HANDLE (USE W/REF. #16)	1
18	44459	护孔环	GROMMET	1
18	44459001	护孔环	GROMMET	1
19	12003	锁紧垫圈（旧设计）	TAB WASHER (OLD DESIGN)	1
20	421671	正时连杆	TIMING LINK	1
21	421631	控制杆	LEVER Control	1
22	40056110	螺丝(M5 x 30)	SCREW (M5 x 30)	1
22	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	1
23	421662	执行器	ACTUATOR	1
24	42161	互锁连杆	LINK INTERLOCK	1
25	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
26	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
26	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
27	421621	衬套	BUSHING	1
28	13676	弹簧	SPRING	1
29	69708	波形垫圈	WAVE WASHER	1
30	42164	弹簧	SPRING	1
31	40056107	螺钉(M5×16)	SCREW (M5 x 16)	1
32	42182	衬套	BUSHING	1
32	421821	衬套	BUSHING	1
33	42183	执行器	ACTUATOR	1
34	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
34	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
35	40011128	不锈钢螺钉(M6x20)	SCREW (M6 x 20) Stainless Steel	1
35	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	1
36	42184	连接杆	LINK	1
37	4002314	垫圈	WASHER	1

图 71电气组件（电压调节器和线束） ELECTRIC COMPONENTS (VOLTAGE REGULATOR AND HARNESS)

REF	零件编号	中文名称	英文名称	数量
1	95845	电压调节器	REGULATOR Voltage	1
1	95845T	电压调节器	REGULATOR-VOLTAGE	1
2	92799	螺钉(#10-16x1.12)	SCREW (#10-16 x 1.12)	2
3	45076	黄铜螺母(#10-32)	NUT (#10-32) Brass	2
4	74725A2	线束总成(黑/红)(20英寸)	HARNESS ASSEMBLY (BLACK/RED) (20")	1
5	71663	堵头	PLUG	1
6	65017A2	线束总成(黑/黑)	HARNESS ASSEMBLY (BLACK/BLACK)	1
6	65017A10	电池端线束总成(黑/红)(62英寸)	HARNESS ASSEMBLY Battery End (BLACK/RED) (62")	1
9	63813	端子排	TERMINAL BLOCK	1
9	638131	端子排	TERMINAL BLOCK	1
10	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	2
11	62568	螺钉（#10-16 x 0.375）	SCREW (#10-16 x .375)	2

图 72驱动轴壳体 Driveshaft Housing

REF	零件编号	中文名称	英文名称	数量
1	8827A3	壳体总成(短型)(黑色)	HOUSING ASSEMBLY (SHORT) (BLACK)	1
1	822154A1	壳体总成	HOUSING ASSEMBLY	1
1	8829A3	壳体总成(长型)(黑色)	HOUSING ASSEMBLY (LONG) (BLACK)	1
1	822155A1	壳体总成	HOUSING ASSEMBLY	1
1	8827A4	壳体总成(短型)(灰色)	HOUSING ASSEMBLY (SHORT) (GRAY)	1
1	822154A2	壳体总成	HOUSING ASSEMBLY	1
1	8829A4	壳体总成(长型)(灰色)	HOUSING ASSEMBLY (LONG) (GRAY)	1
1	822155A2	壳体总成	HOUSING ASSEMBLY	1
2	195991	驱动轴壳体衬垫	GASKET DRIVESHAFT HOUSING	1
2	195992	驱动轴壳体衬垫	GASKET Driveshaft Housing	1
3	421891	支架	MOUNT	4
3	8M0039074	支架	MOUNT	4
4	N.L.A.	已停产的安装盖(见备注)	NO LONGER AVAILABLE COVER-MOUNT (SEE NOTE)	2
4	42374F6	安装盖(黑色)	COVER Mount (BLACK)	2
4	42374F5	安装盖(灰色)	COVER MOUNT (GRAY)	2
4	42374F6	安装盖	COVER Mount	2
5	4009238	螺钉(M6x80)安装盖	SCREW (M6 x 80) MOUNT COVER	2
6	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
7	400212	螺母(M6)不锈钢盖螺钉	NUT (M6) Stainless Steel COVER SCREW	2
8	40011131	螺钉(M6x35)不锈钢驱动轴壳体至安装板	SCREW (M6 x 35) Stainless Steel DRIVESHAFT HOUSING TO PLATE	4
9	413448	适配板(无管)(6/8)	ADAPTER PLATE (NO TUBE) (6/8)	1
9	41344A4	适配板总成(1英寸内径管)	ADAPTER PLATE ASSEMBLY (1"I.D. TUBE)	1
9	41344A3	适配板总成(1-1/8英寸内径管)(15)	ADAPTER PLATE ASSEMBLY (1-1/8"I.D. TUBE) (15)	1
10	11287	适配板密封件	SEAL Adapter Plate	1
10	11287001	适配板密封件	SEAL Adapter Plate	1
11	42123	水管(短型)	TUBE Water (SHORT)	1
11	42122	水管(长型)	TUBE Water (LONG)	1
11	421231	水管(加长型)	TUBE Water (X-LONG)	1
12	42371	水管固定座	HOLDER WATER TUBE	1
13	192012	水管壳体衬垫	GASKET WATER TUBE HOUSING	1
14	42380	水管密封件	SEAL WATER TUBE	1
14	42380001	水管密封件	SEAL Water Tube	1
15	42465	水管隔套	SPACER WATER TUBE	1
16	40011107	螺钉(M5x16)不锈钢壳体至适配板	SCREW (M5 x 16) Stainless Steel HOUSING TO ADAPTOR PLATE	2
17	445551	轴承座(长型)	BLOCK Bearing (LONG)	1
18	124262	驱动轴延长壳体(加长型)	HOUSING Drive Shaft Extension (X-LONG)	1
19	123691	衬套(加长型)	BUSHING X-LONG	1
20	123702	轴承壳体(加长型)	HOUSING BEARING (X-LONG)	1
21	14107	轴承护圈(加长型)	RETAINER BEARING (X-LONG)	1
21	14107001	固定座	RETAINER	1
22	14094	卡环(加长型)	RING Snap X-LONG	1
-	42213A14	旋转管更换总成(黑色)	SWIVEL TUBE REPLACEMENT COMPLETE (BLACK)	1
-	42213A15	旋转管更换总成(灰色)	SWIVEL TUBE REPLACEMENT COMPLETE (GRAY)	1
-	42213A14	旋转管更换件	SWIVEL TUBE REPLACEMENT	1

图 73化油器 WMC 17\17B\17C\18\18A\18B\20/20A/20B\23 CARBURETOR WMC 17\17B\17C\18\18A\18B\20/20A/20B\23

$化油器 WMC 17\17B\17C\18\18A\18B\20/20A/20B\23 CARBURETOR WMC 17\17B\17C\18\18A\18B\20/20A/20B\23$

REF	零件编号	中文名称	英文名称	数量
1	9503A11	化油器(6)(WMC-20B)	CARBURETOR (6)(WMC-20B)	1
1	9503T21	化油器 (WMC-78A)	CARBURETOR (WMC-78A)	1
1	9266A12	化油器(8)(WMC-18B)	CARBURETOR (8)(WMC-18B)	1
1	9266T22	化油器	CARBURETOR	1
1	8846A14	化油器(9.9)(WMC-23)	CARBURETOR (9.9)(WMC-23)	1
1	8846A24	化油器维修包	CARBURETOR KIT	1
2	9473	油门阀	VALVE Throttle	1
2	815133	节气门阀(WMC-23)	VALVE Throttle (WMC-23)	1
3	9472	节气门轴(WMC-17/18/20)	SHAFT Throttle (WMC-17/18/20)	1
3	804707	轴	SHAFT	1
3	9698	轴(WMC-17C/18A/18B/20A/20B)	SHAFT (WMC-17C/18A/18B/20A/20B)	1
3	804707	轴	SHAFT	1
3	813022	节气门轴(WMC-23)(含螺钉/弹簧)	SHAFT Throttle (WMC-23)(INCL.SCREW/SPRING)	1
4	9164	燃油杯	BOWL Fuel	1
5	9169	浮子	FLOAT	1
5	91691	浮子	FLOAT	1
6	9855	阀门	VALVE	1
6	803861	进油针阀	VALVE Inlet Needle	1
7	5315	主量孔(0.042)(6)	JET Main Fuel (.042) (6)	1
7	5317	量孔(0.046)(8)	JET (.046) (8)	1
7	5213	主量孔(0.056)(9.9)	JET Main (.056) (9.9)	1
7	6359	量孔(0.052)(9.9)	JET (.052) (9.9)	1
8	9171	量孔固定塞	PLUG JET RETAINER	1
9	813618	膜片盖	COVER DIAPHRAGM	1
10	9174	螺钉(WMC-17/18/20)	SCREW (WMC-17/18/20)	4
10	9697	螺钉	SCREW	4
10	9697	螺钉(WMC-17B/17C/18A/18B/20A/20B/23)	SCREW (WMC-17B/17C/18A/18B/20A/20B/23)	4
11	15827A1	本体	BODY	1
11	9702	盖/燃油泵套件	COVER/FUEL PUMP KIT	1
12	9643	燃油泵盖螺丝	SCREW FUEL PUMP COVER	5
13	9177	板(WMC-17/18/20)	PLATE (WMC-17/18/20)	1
13	9699	板(WMC-17B/17C/18A/18B/20A/20B/23)	PLATE (WMC-17B/17C/18A/18B/20A/20B/23)	1
14	9172	螺钉(WMC-17/18/20)	SCREW (WMC-17/18/20)	2
14	9696	螺钉	SCREW	2
14	9696	螺钉(WMC-17B/17C/18A/18B/20A/20B/23)	SCREW (WMC-17B/17C/18A/18B/20A/20B/23)	2
15	9725	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
15	97611	衬垫/膜片套件	GASKET/DIAPHRAGM KIT	1
16	9648	维修零件包	REPAIR PARTS KIT	1
16	96481	维修套件	REPAIR KIT	1
16	813023	维修套件(WMC-23)	REPAIR KIT (WMC-23)	1
16	8237072	维修套件	REPAIR KIT	1
17	9637	燃油泵盖	COVER FUEL PUMP	1
18	9762	堵头	PLUG	1
19	192061	化油器衬垫	GASKET Carburetor	1
19A	9635	膜片/衬垫	DIAPHRAGM/GASKET	1
20	445541	怠速线	IDLE WIRE	1
21	128053	快怠速杆	LEVER Fast Idle	1
22	12803	启动泵支架	BRACKET Primer	1
23	97877	压入式螺母	PUSH NUT	1
23	821979	螺母	NUT	1
24	79964	螺丝 (#6-32 x .750)	SCREW (#6-32 x .750)	1
24	12110	螺丝 (#6-32 x .750)	SCREW (#6-32 x .750)	1
25	11277	张力弹簧	SPRING Tension	1
26	40056110	螺丝(M5 x 30)	SCREW (M5 x 30)	2
26	400018	螺钉(M5 x 12)	SCREW (M5 x 12)	2
27	79965	螺丝 (#8-32 x .500) 不锈钢	SCREW (#8-32 x .500) Stainless Steel	1
28	112731	启动泵杆	LEVER Primer	1
29	11280	凸轮块	CAM BLOCK	1
30	11278	固定夹	CLIP Retaining	1
31	12804A1	阻风门面板总成	BEZEL ASSEMBLY Choke	1
32	128022	启动泵旋钮	PRIMER KNOB	1
33	40056110	螺丝(M5 x 30)	SCREW (M5 x 30)	1
33	92799	螺钉(#10-16x1.12)	SCREW (#10-16 x 1.12)	1
34	400211	不锈钢螺母(M5)	NUT (M5) Stainless Steel	1
35	17442	盖板	COVER	1
36	47579	堵头	PLUG	1
37	823433	电动阻风门	CHOKE Electric	1
38	44426	电控阻风门衬垫	GASKET ELECTRIC CHOKE	1
39	12970	贴纸 (慢/快)	DECAL (SLOW/FAST)	1
39	129701	贴花	DECAL	1

图 74曲轴（6/8）（9.9-美国-0G112449/比利时-9831799 及以下） Crankshaft (6/8)(9.9-USA-0G112449/BEL-9831799 & Below)

REF	零件编号	中文名称	英文名称	数量
1	9205A13	顶罩总成(黑色)	TOP COWL ASSEMBLY (BLACK)	1
1	9420T10	顶盖总成	TOP COWL ASSEMBLY	1
1	9420A9	顶罩总成(灰色)	TOP COWL ASSEMBLY (GRAY)	1
1	8M0094069	顶罩	TOP COWL	1
2	444621	密封件	SEAL	1
2	8M0043151	罩壳密封条	COWL-SEAL	1
3	13691A1	隔音毯套装	SOUND BLANKET KIT	1
3	13691A02	隔音毯套装(预涂压敏胶)	SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive)	1
4	16471A1	盖锁扣	LATCH Cowl	1
5	817104A3	罩壳锁扣总成	LATCH ASSEMBLY Cowl	1
6	180402	锁钩	LATCH HOOK	1
7	11354	后护板(黑色)	SHIELD REAR (BLACK)	1
7	12873	后护板(灰色)	SHIELD REAR (GRAY)	1
7	12873T	护罩	SHIELD	1
8	400018	后护板螺钉(M5x12)	SCREW (M5 x 12) REAR SHIELD	2
9	9204A1	底罩(黑色)	BOTTOM COWL (BLACK)	1
9	9204A2	底罩(灰色)	BOTTOM COWL (GRAY)	1
9A	15061	堵头	PLUG	1
9A	15061001	堵头	PLUG	1
10	12154	底罩塞(手动)	PLUG BOTTOM COWL (MANUAL)	1
10	121532	底罩护线环(电动)	GROMMET Bottom Cowl (ELECTRIC)	1
11	11083A6	停机开关总成	SWITCH ASSEMBLY Stop	1
12	15920A54	拉绳总成	LANYARD ASSEMBLY	1
12	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
13	120441	停止开关黄铜固定座	RETAINER Brass STOP SWITCH	1
13	8M0032846	黄铜固定座	RETAINER Brass	1
14	44461A1	罩壳锁杆	LEVER Cowl Latch	1
15	76470	罩壳锁杆衬套	BUSHING COWL LATCH LEVEER	1
16	11394	锁扣隔套	SPACER LATCH	1
17	40019130	锁扣与锁杆螺钉(M6x30)	SCREW (M6 x 30) LATCH AND LEVER	1
17	40019131	锁扣与锁杆螺钉(M6x35)	SCREW (M6 x 35) LATCH AND LEVER	1
18	69708	锁扣与锁杆螺钉波形垫圈	WAVE WASHER LATCH AND LEVER SCREW	1

图 75夹紧支架 Clamp Bracket

REF	零件编号	中文名称	英文名称	数量
1	8894A5	夹具支架总成 (左舷) (黑色)	CLAMP BRACKET ASSEMBLY (PORT) (BLACK)	1
1	8894A11	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
1	8894A6	夹具支架总成 (左舷) (灰色)	CLAMP BRACKET ASSEMBLY (PORT) (GRAY)	1
1	8894A12	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
2	8892A3	夹具支架总成 (右舷) (黑色)	CLAMP BRACKET ASSEMBLY (STARBOARD) (BLACK)	1
2	8894A11	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
2	8892A4	夹具支架总成 (右舷) (灰色)	CLAMP BRACKET ASSEMBLY (STARBOARD) (GRAY)	1
2	8894A12	夹具支架总成	CLAMP BRACKET ASSEMBLY	1
3	92767A1	蝶形螺丝总成 (14 mm)	THUMB SCREW ASSEMBLY (14 mm)	2
3	92767A3	蝶形螺丝总成 (16 mm)	THUMB SCREW ASSEMBLY (16 mm)	2
4	73719	蝶形螺丝垫圈	WASHER THUMB SCREW	2
4	818884	垫圈	WASHER	2
5	768041	垫圈固定螺丝	SCREW WASHER ATTACHING	2
5	768042	六角凸肩螺钉	SHOULDER SCREW Hex	2
6	43431	夹紧支架螺柱隔套	SPACER CLAMP BRACKET STUD	1
6	818539	隔套	SPACER	1
6	8M0084719	隔套	SPACER	1
7	42129	夹紧支架螺柱	STUD CLAMP BRACKET	1
7A	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	2
8	400256	夹紧支架螺柱防松垫圈(M6)	LOCKWASHER (M6) CLAMP BRACKET STUD	2
9	400212	夹紧支架螺柱不锈钢螺母(M6)	NUT (M6) Stainless Steel CLAMP BRACKET STUD	2
10	42078	倾斜管	TILT TUBE	1
11	30954	安全卡扣	CLIP SAFETY	1
11	8M0085928	卡扣	CLIP	1
12	93164	倾斜管螺母(.875)	NUT (.875) TILT TUBE	2
13	71421	倾斜管尼龙垫圈	WASHER Nylon TILT TUBE	2
14	42390A1	倾斜回位杆总成	LEVER ASSEMBLY Tilt Return	2
15	90901	倾斜限位带-左舷侧	STRAP TILT STOP - PORT SIDE	1
16	42498	限位带至夹紧支架螺钉(M6x1.0)	SCREW (M6 x 1.0) STRAP TO CLAMP BRACKET	2
17	31030	倾斜限位带螺钉波形垫圈	WAVE WASHER TILT STOP STRAT SCREW	1
18	43216	夹紧支架至艉板螺栓(.250-20x3.50)	BOLT (.250-20 x 3.50) CLAMP TO TRANSOM	2
19	67983	夹紧支架螺栓垫圈	WASHER CLAMP BRACKET BOLT	2
21	814427	倾斜锁定滑块(新设计)	SHUTTLE TILT LOCK (NEW DESIGN)	1
22	12869	倾斜位置标贴	DECAL Tilt Position	1

图 76燃油滤清器总成 Fuel Filter Assembly

REF	零件编号	中文名称	英文名称	数量
1	87946A15	燃油滤清器总成	FILTER ASSEMBLY Fuel	1
1	889527A07	滤清器套件	FILTER KIT	1
2	91935	球形燃油滤清器	BALL FUEL FILTER	1
2	858731	球形燃油滤清器	BALL Fuel Filter	1
3	87946A3	滤清器总成	FILTER ASSEMBLY	1
3	87946Q04	燃油滤清器套件	FILTER KIT Fuel	1
4	98277	燃油滤清器密封件	SEAL FUEL FILTER	1
4	897536	密封件	SEAL	1
5	99127109	滤清器至化油器油管(57英寸散装)	LINE (57.00 Inches Bulk) FILTER TO CARBURETOR	1
5	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
6	99127109	滤清器至适配器油管(57英寸散装)	LINE (57.00 Inches Bulk) FILTER TO ADAPTOR	1
6	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
7	816311	燃油管束带(8英寸)	TIE STRAP (8.00 Inches) FUEL LINE	4
7	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
8	18202	护孔环	GROMMET	1
9	15781A9	燃油连接器套件(90度)(新设计)	CONNECTOR KIT Fuel (90 DEG.) (NEW DESIGN)	1
9	14187M	直通连接器(旧设计)	CONNECTOR (STRAIGHT) (OLD DESIGN)	1
10	4000331	适配器螺丝(M6x30)	SCREW (M6 x 30) ADAPTOR	AR
10	4000330	适配器螺丝(M6x25)	SCREW (M6 x 25) ADAPTOR	AR
10	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	AR

图 77燃油滤清器总成(USA-1B153168/BEL-0P360021及以上) Fuel Filter Assembly (USA-1B153168/BEL-0P360021 and Up)

REF	零件编号	中文名称	英文名称	数量
1	889527A07	滤清器套件	FILTER KIT	1
2	896375K01	燃油滤清器套件	FILTER KIT Fuel	1
2	896375Q01	燃油滤清器套件	FILTER KIT Fuel	1
3	98277001	燃油滤清器密封件	SEAL Fuel Filter	1
4	858731	球形燃油滤清器	BALL Fuel Filter	1
5	830756109	软管(57.00英寸散装)	HOSE (57.00 Inches Bulk)	1
5	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
6	830756109	软管(57.00英寸散装)	HOSE (57.00 Inches Bulk)	1
6	8M0108355	软管(57英寸散装)	HOSE (57 Inches Bulk)	1
7	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	4
8	18202	护孔环	GROMMET	1
9	15781A9	燃油连接套件	CONNECTOR KIT Fuel	1
10	4000330	螺钉(M6x25)	SCREW (M6 x 25)	1
10	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	1

图 78油门和换挡联动装置（舵柄换挡型号） THROTTLE AND SHIFT LINKAGE (TILLER HANDLE SHIFT MODELS)

REF	零件编号	中文名称	英文名称	数量
1	42148	控制平台	CONTROL PLATFORM	1
1	421482	控制平台	CONTROL PLATFORM	1
2	94085A1	齿轮	GEAR	1
3	4000331	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
4	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	2
4	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	2
5	42149	短隔套	SPACER (SHORT)	1
5	856737	隔套	SPACER	1
6	400212	螺母(M6)不锈钢	NUT (M6) Stainless Steel	2
8	42151	主操纵杆	LEVER Primary	1
9	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
10	42150	长隔套	SPACER (LONG)	1
10	856738	隔套	SPACER	1
11	4000171	螺钉(M6 x 16)	SCREW (M6 x 16)	2
12	421671	正时连杆	TIMING LINK	1
13	421631	控制杆	LEVER Control	1
14	40056110	螺丝(M5 x 30)	SCREW (M5 x 30)	1
14	40019111	螺钉 (M5 x 35)	SCREW (M5 x 35)	1
15	421662	执行器	ACTUATOR	1
16	42161	互锁连杆	LINK INTERLOCK	1
17	4000333	螺钉(M6 x 40)	SCREW (M6 x 40)	1
18	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
18	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
19	421621	衬套	BUSHING	1
20	42164	弹簧	SPRING	1
21	69708	波形垫圈	WAVE WASHER	1
22	13676	弹簧	SPRING	1
23	19385A1	节气门连杆总成	LINK ASSEMBLY Throttle	1
23	8M0084745	节气门连杆总成	LINK ASY-THROTTLE	1
24	19384	插座	SOCKET	1
24	8M0084742	插座	SOCKET	1
25	42159	杠杆	LEVER	1
25	421592	杠杆	LEVER	1
26	421581	衬套	BUSHING	1
27	42160	弹簧	SPRING	1
28	4000331	螺钉 (M6 x 30)	SCREW (M6 x 30)	1
29	4002316	垫圈(6.60 X 17.0 X 1.5不锈钢)	WASHER (6.60 X 17.0 X 1.5SS)	1
29	8M0214930	垫圈6.60 x 17.0 x 1.5	WASHER 6.60 x 17.0 x 1.5	1
30	42156	杠杆	LEVER	1
31	42153	杠杆	LEVER	1
32	42152	换挡轴（两件式）	SHIFT SHAFT (2 PIECE SHIFT SHAFT)	1
33	421551	换挡杆(两件式换挡轴)	LEVER (2 PIECE SHIFT SHAFT)	1
34	400035	螺钉(M5x16)(两件式换挡轴)	SCREW (M5 x 16) (2 PIECE SHIFT SHAFT)	1
35	11371	锁紧垫圈(两件式换挡轴)	TAB WASHER (2 PIECE SHIFT SHAFT)	1
36	1938511	换挡连杆(两件式换挡轴)	SHIFT LINK (2 PIECE SHIFT SHAFT)	1
37	815550A1	换挡轴(整体式换挡轴)	SHIFT SHAFT (1 PIECE SHIFT SHAFT)	1
38	93254	旋转底座(整体式换挡轴)	SWIVEL BASE (1 PIECE SHIFT SHAFT)	1
39	93421	旋转球头(整体式换挡轴)	SWIVEL BALL (1 PIECE SHIFT SHAFT)	1
40	1938522	快速连杆(整体式换挡轴)	SWIFT LINK (1 PIECE SHIFT SHAFT)	1
40	815550A1	换档轴	SHIFT SHAFT	1
41	8155501	换档轴	SHIFT SHAFT	1
42	815567A1	换挡连杆	SHIFT LINK	1
42	815567T02	换挡连杆总成	SHIFT LINK ASSY	1
43	4000114	螺钉(M5×16)	SCREW (M5 x 16)	2
43	400035	螺钉(M5×16)	SCREW (M5 x 16)	2
43	400011	螺钉（M5×8）	SCREW (M5 x 8)	2
44	39627	弹簧	SPRING	1
45	39601	板（旧设计）	PLATE (OLD DESIGN)	2

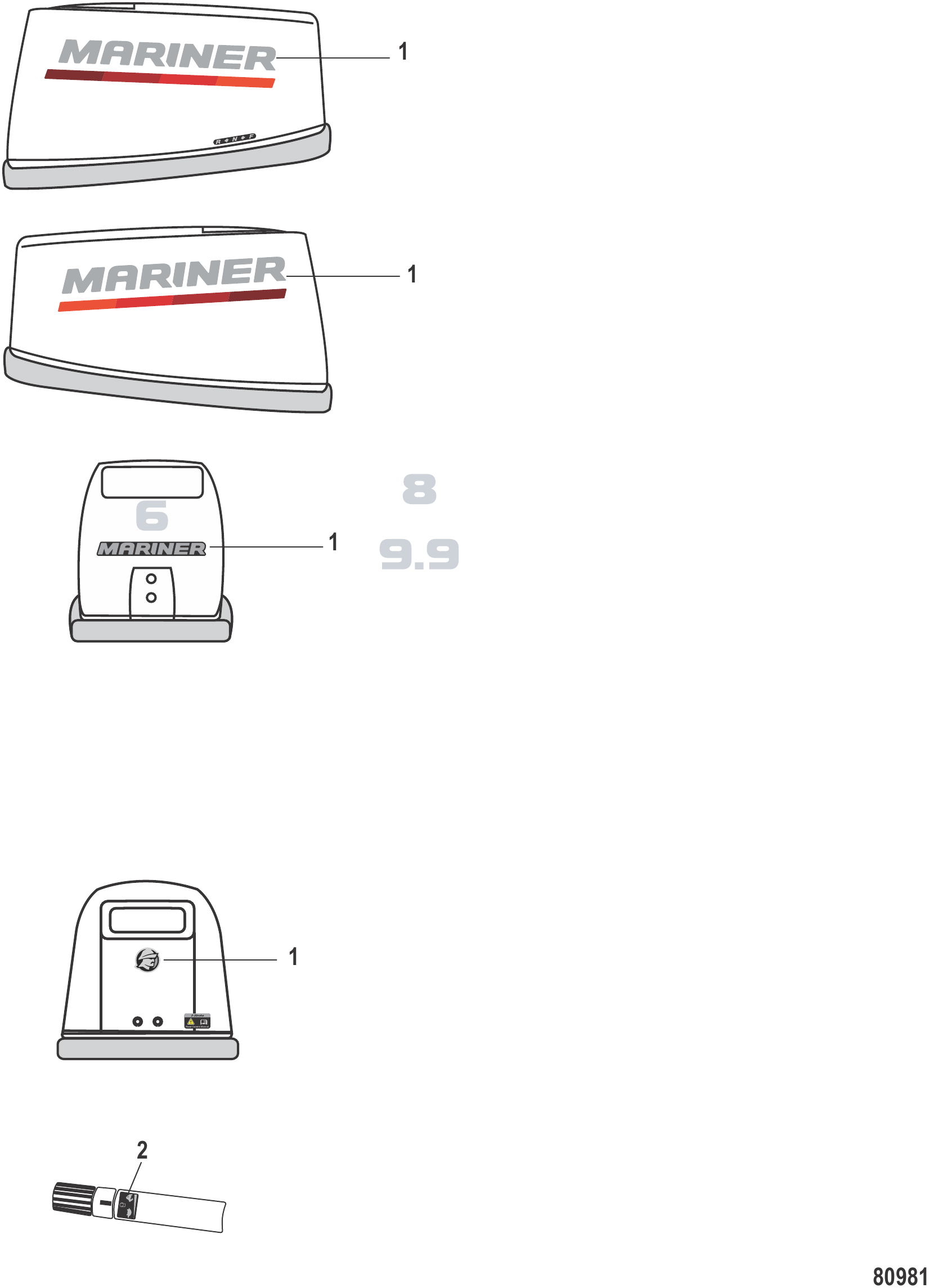

图 79配件贴纸 Mariner Accessories Decal Mariner

REF	零件编号	中文名称	英文名称	数量
1	8M0242337	贴花套装 Mariner 2 - 9.9 马力	DECAL SET Mariner 2 - 9.9 HP	1
2	8M0097201	舵柄贴花	DECAL Tiller	1

图 80曲轴（15）（9.9-序列号-美国-0G112450/比利时-9831800 及以上） Crankshaft (15)(9.9-S/N-USA-0G112450/BEL-9831800 & Up)

REF	零件编号	中文名称	英文名称	数量
1	9205A13	顶罩总成(黑色)	TOP COWL ASSEMBLY (BLACK)	1
1	9420T10	顶盖总成	TOP COWL ASSEMBLY	1
1	9420A9	顶罩总成(灰色)	TOP COWL ASSEMBLY (GRAY)	1
1	8M0094069	顶罩	TOP COWL	1
2	444621	密封件	SEAL	1
2	8M0043151	罩壳密封条	COWL-SEAL	1
3	13691A1	隔音毯套装	SOUND BLANKET KIT	1
3	13691A02	隔音毯套装(预涂压敏胶)	SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive)	1
4	16471A1	盖锁扣	LATCH Cowl	1
5	817104A3	罩壳锁扣总成	LATCH ASSEMBLY Cowl	1
6	180402	锁钩	LATCH HOOK	1
7	11354	后护板(黑色)	SHIELD REAR (BLACK)	1
7	12873	后护板(灰色)	SHIELD REAR (GRAY)	1
7	12873T	护罩	SHIELD	1
8	400018	后护板螺钉(M5x12)	SCREW (M5 x 12) REAR SHIELD	2
9	9204A1	底罩(黑色)	BOTTOM COWL (BLACK)	1
9	9204A2	底罩(灰色)	BOTTOM COWL (GRAY)	1
9A	15061	堵头	PLUG	1
9A	15061001	堵头	PLUG	1
10	12154	底罩塞(手动)	PLUG BOTTOM COWL (MANUAL)	1
10	121532	底罩护线环(电动)	GROMMET Bottom Cowl (ELECTRIC)	1
11	11083A6	停机开关总成	SWITCH ASSEMBLY Stop	1
12	15920A54	拉绳总成	LANYARD ASSEMBLY	1
12	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
13	120441	停止开关黄铜固定座	RETAINER Brass STOP SWITCH	1
13	8M0032846	黄铜固定座	RETAINER Brass	1
14	44461A1	罩壳锁杆	LEVER Cowl Latch	1
15	76470	罩壳锁杆衬套	BUSHING COWL LATCH LEVEER	1
16	11394	锁扣隔套	SPACER LATCH	1
17	40019130	锁扣与锁杆螺钉(M6x30)	SCREW (M6 x 30) LATCH AND LEVER	1
17	40019131	锁扣与锁杆螺钉(M6x35)	SCREW (M6 x 35) LATCH AND LEVER	1
18	69708	锁扣与锁杆螺钉波形垫圈	WAVE WASHER LATCH AND LEVER SCREW	1

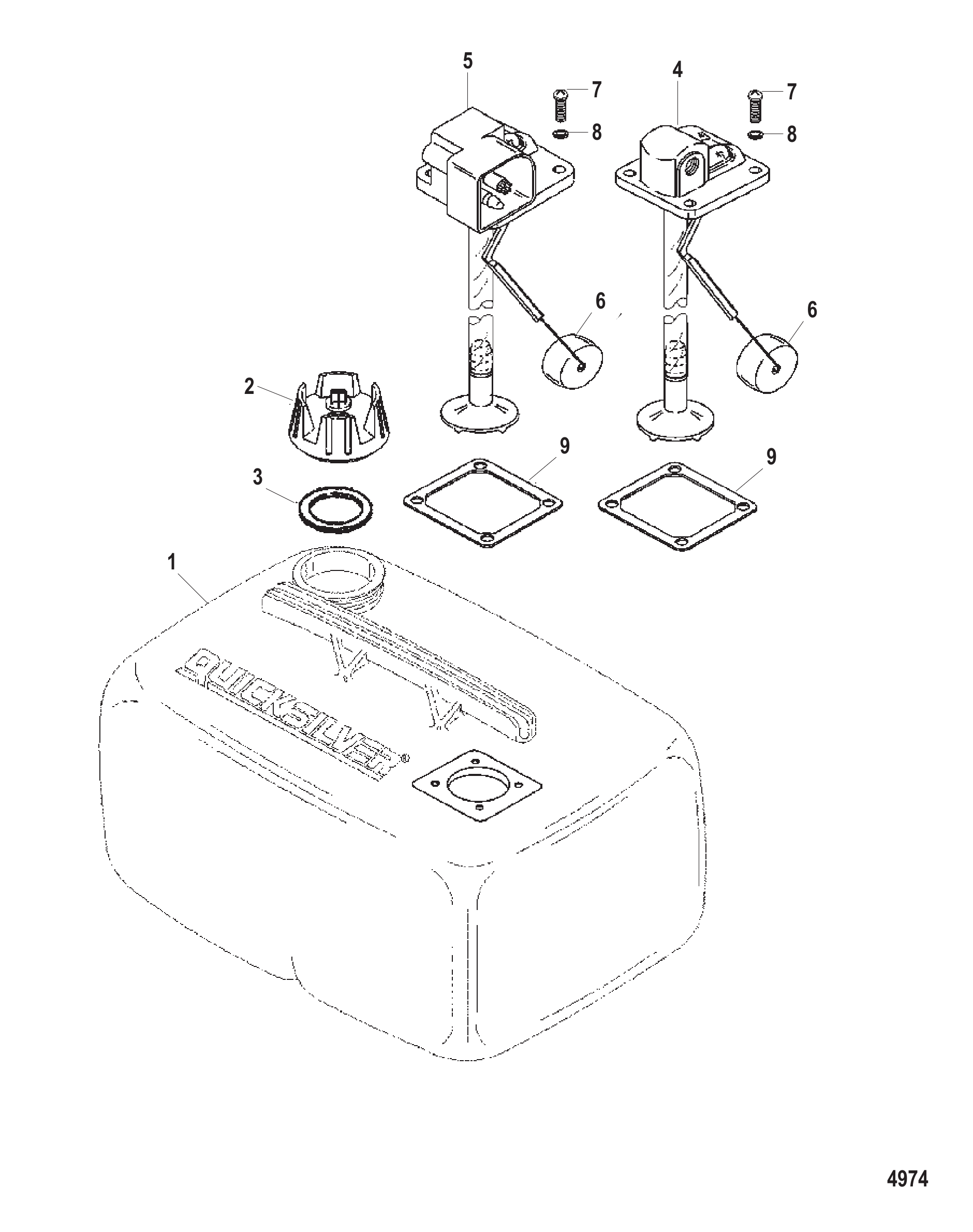

图 81燃油箱总成（6.6加仑） Fuel Tank Assembly (6.6 Gallon)

REF	零件编号	中文名称	英文名称	数量
1	859065A1	燃油箱总成	TANK ASSEMBLY Fuel Fuel	1
1	859065A3	燃油箱总成	TANK ASSEMBLY Fuel Fuel	1
2	816976Q1	燃油箱盖总成-手动通风	CAP ASSEMBLY Fuel-Manual Vent Fuel	1
3	8169771	燃油箱盖衬垫	GASKET Fuel Cap Fuel Cap	1
4	859059A3	燃油吸油总成	PICK UP ASSEMBLY Fuel	1
4	8M0047609	带表吸油总成	PICK UP ASSEMBLY With Gauge	1
5	859066A3	燃油吸油总成	PICK UP ASSEMBLY Fuel	1
5	8M0084090	吸油总成	PICK UP ASSY	1
6	859056	浮子	FLOAT	1
7	40056107	螺钉(M5×16)	SCREW (M5 x 16)	4
8	859080	纤维垫圈	WASHER (Fiber)	4
9	859072	吸油体衬垫	GASKET Pick UP Body	1

图 82外罩 Cowls

REF	零件编号	中文名称	英文名称	数量
1	9205A13	顶罩总成(黑色)	TOP COWL ASSEMBLY (BLACK)	1
1	9420T10	顶盖总成	TOP COWL ASSEMBLY	1
1	9420A9	顶罩总成(灰色)	TOP COWL ASSEMBLY (GRAY)	1
1	8M0094069	顶罩	TOP COWL	1
2	444621	密封件	SEAL	1
2	8M0043151	罩壳密封条	COWL-SEAL	1
3	13691A1	隔音毯套装	SOUND BLANKET KIT	1
3	13691A02	隔音毯套装(预涂压敏胶)	SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive)	1
4	16471A1	盖锁扣	LATCH Cowl	1
5	817104A3	罩壳锁扣总成	LATCH ASSEMBLY Cowl	1
6	180402	锁钩	LATCH HOOK	1
7	11354	后护板(黑色)	SHIELD REAR (BLACK)	1
7	12873	后护板(灰色)	SHIELD REAR (GRAY)	1
7	12873T	护罩	SHIELD	1
8	400018	后护板螺钉(M5x12)	SCREW (M5 x 12) REAR SHIELD	2
9	9204A1	底罩(黑色)	BOTTOM COWL (BLACK)	1
9	9204A2	底罩(灰色)	BOTTOM COWL (GRAY)	1
9A	15061	堵头	PLUG	1
9A	15061001	堵头	PLUG	1
10	12154	底罩塞(手动)	PLUG BOTTOM COWL (MANUAL)	1
10	121532	底罩护线环(电动)	GROMMET Bottom Cowl (ELECTRIC)	1
11	11083A6	停机开关总成	SWITCH ASSEMBLY Stop	1
12	15920A54	拉绳总成	LANYARD ASSEMBLY	1
12	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
13	120441	停止开关黄铜固定座	RETAINER Brass STOP SWITCH	1
13	8M0032846	黄铜固定座	RETAINER Brass	1
14	44461A1	罩壳锁杆	LEVER Cowl Latch	1
15	76470	罩壳锁杆衬套	BUSHING COWL LATCH LEVEER	1
16	11394	锁扣隔套	SPACER LATCH	1
17	40019130	锁扣与锁杆螺钉(M6x30)	SCREW (M6 x 30) LATCH AND LEVER	1
17	40019131	锁扣与锁杆螺钉(M6x35)	SCREW (M6 x 35) LATCH AND LEVER	1
18	69708	锁扣与锁杆螺钉波形垫圈	WAVE WASHER LATCH AND LEVER SCREW	1

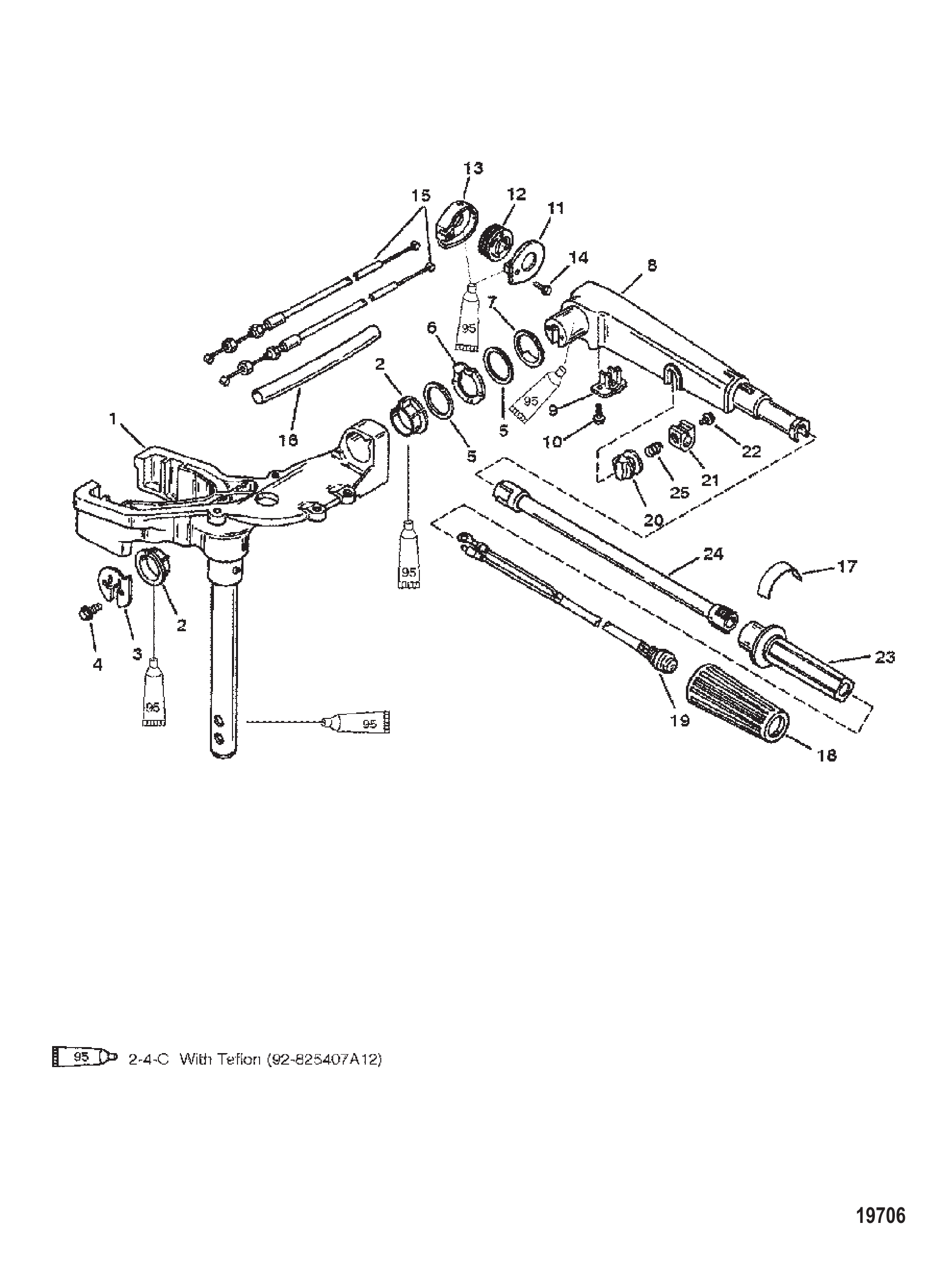

图 83旋转头与转向手柄 Swivel Head and Steering Handle

REF	零件编号	中文名称	英文名称	数量
1	42213A24	旋转头	SWIVEL HEAD	1
1	42213A25	旋转头	SWIVEL HEAD	1
1	42213A26	旋转头	SWIVEL HEAD	1
1	42213A24	旋转头	SWIVEL HEAD	1
2	823939	衬套	BUSHING	2
3	822147	舵柄手柄板	PLATE Tiller Handle	1
3	8221471	安装板	PLATE	1
4	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	2
4	4006731	螺钉(M6 x 16)	SCREW (M6 x 16)	2
5	822145	垫圈	WASHER	2
6	826792	波形垫圈	WAVE WASHER	1
7	822146	垫圈	WASHER	1
8	821468A8	转向手柄臂总成	ARM ASSEMBLY Steering Handle	1
8	821468A66	转向手柄臂总成	ARM ASSEMBLY Steering Handle	1
8	821468A9	转向手柄臂总成	ARM ASSEMBLY Steering Handle	1
8	821468T9	ORD 821468A66	ORD 821468A66	1
9	822441	固定座	RETAINER	1
10	40011107	不锈钢螺钉(M5x16)	SCREW (M5 x 16) Stainless Steel	1
11	822148A3	盖板套件	COVER KIT	1
11	822148A2	盖板套件	COVER KIT	1
12	822150	滑轮	PULLEY	1
13	NSS	不单独出售-滑轮壳体(属于参考号11部件)	NOT SOLD SEPARATE Pulley Case (PART OF REF. #11)	1
14	812832	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
14	878608	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
15	432429	节气门拉索	CABLE Throttle	2
15	43242T09	节气门拉索	CABLE-THROTTLE	2
15	432426	节气门拉索	CABLE Throttle	2
16	9600910	套筒	SLEEVE	1
16	960099	套管(12.00英寸)	SLEEVE (12.00 Inches)	1
17	8242002	贴花	DECAL	1
17	8242001	贴花	DECAL	1
17	8242004	贴花	DECAL	1
18	99589	握把	GRIP	1
18	8M0221732	外握把	GRIP OUTER	1
19	823609A1	停机开关总成	SWITCH ASSEMBLY Stop	1
19	8M0104615	开关总成	SWITCH ASSY	1
20	821972	节气门旋钮	KNOB Throttle	1
20	821972T	节气门旋钮	KNOB Throttle	1
21	821971	节气门锁	LOCK Throttle	1
21	892995	节气门锁	LOCK Throttle	1
22	4000330	螺钉(M6x25)	SCREW (M6 x 25)	1
22	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	1
23	822429	节气门手柄	HANDLE Throttle	1
23	821465	节气门手柄	HANDLE Throttle	1
24	821463A1	舵柄管	TILLER TUBE	1
24	821463T01	舵柄管	TUBE-TILLER	1
25	96203	弹簧	SPRING	1

图 84外罩 COWLS

REF	零件编号	中文名称	英文名称	数量
1	9205A13	顶罩总成(黑色)	TOP COWL ASSEMBLY (BLACK)	1
1	9420T10	顶盖总成	TOP COWL ASSEMBLY	1
1	9420A9	顶罩总成(灰色)	TOP COWL ASSEMBLY (GRAY)	1
1	8M0094069	顶罩	TOP COWL	1
2	444621	密封件	SEAL	1
2	8M0043151	罩壳密封条	COWL-SEAL	1
3	13691A1	隔音毯套装	SOUND BLANKET KIT	1
3	13691A02	隔音毯套装(预涂压敏胶)	SOUND BLANKET KIT (Pre-Applied Pressure Sensitive Adhesive)	1
4	16471A1	盖锁扣	LATCH Cowl	1
5	817104A3	罩壳锁扣总成	LATCH ASSEMBLY Cowl	1
6	180402	锁钩	LATCH HOOK	1
7	11354	后护板(黑色)	SHIELD REAR (BLACK)	1
7	12873	后护板(灰色)	SHIELD REAR (GRAY)	1
7	12873T	护罩	SHIELD	1
8	400018	后护板螺钉(M5x12)	SCREW (M5 x 12) REAR SHIELD	2
9	9204A1	底罩(黑色)	BOTTOM COWL (BLACK)	1
9	9204A2	底罩(灰色)	BOTTOM COWL (GRAY)	1
9A	15061	堵头	PLUG	1
9A	15061001	堵头	PLUG	1
10	12154	底罩塞(手动)	PLUG BOTTOM COWL (MANUAL)	1
10	121532	底罩护线环(电动)	GROMMET Bottom Cowl (ELECTRIC)	1
11	11083A6	停机开关总成	SWITCH ASSEMBLY Stop	1
12	15920A54	拉绳总成	LANYARD ASSEMBLY	1
12	15920Q54	拉绳总成	LANYARD ASSEMBLY	1
13	120441	停止开关黄铜固定座	RETAINER Brass STOP SWITCH	1
13	8M0032846	黄铜固定座	RETAINER Brass	1
14	44461A1	罩壳锁杆	LEVER Cowl Latch	1
15	76470	罩壳锁杆衬套	BUSHING COWL LATCH LEVEER	1
16	11394	锁扣隔套	SPACER LATCH	1
17	40019130	锁扣与锁杆螺钉(M6x30)	SCREW (M6 x 30) LATCH AND LEVER	1
17	40019131	锁扣与锁杆螺钉(M6x35)	SCREW (M6 x 35) LATCH AND LEVER	1
18	69708	锁扣与锁杆螺钉波形垫圈	WAVE WASHER LATCH AND LEVER SCREW	1

图 85遥控连接组件 Remote Control Attaching Components

REF	零件编号	中文名称	英文名称	数量
1	4000332	螺钉(M6x35)	SCREW (M6 x 35)	1
2	42809	控制臂支架	BRACKET Control Arm	1
3	56681	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	2
3	8M0204666	垫圈 (.203 x .500 x .032)	WASHER (.203 x .500 x .032)	2
3	12132	垫圈(0.520x1.500x0.06)	WASHER (.520 x 1.500 x .06)	1
3	65567	不锈钢垫圈(0.265x0.750x0.048)	WASHER (.265 x .750 x .048) Stainless Steel	1
4	42806	衬套	BUSHING	1
4	823807	衬套	BUSHING	1
5	42810A2	控制臂	CONTROL ARM	1
5	42810A8	控制臂总成	ARM ASSEMBLY Control	1
5	42810A4	控制臂	CONTROL ARM	1
5	42810A8	控制臂总成	ARM ASSEMBLY Control	1
6	428071	节气门控制臂	ARM Throttle Control	1
6	428071	节气门控制臂	ARM Throttle Control	1
7	61319	E型卡环	E RING	1
8	12136	衬套	BUSHING	1
8	889731	衬套	BUSHING	1
9	42800	杠杆	LEVER	1
10	21071	开口销	COTTER PIN	1
10	210711	开口销	COTTER PIN	1
11	42741	换挡连杆	SHIFT LINK	1
11	815550A1	换档轴	SHIFT SHAFT	1
5	42810A8	控制臂总成	ARM ASSEMBLY Control	1
8	12136	衬套	BUSHING	1
8	889731	衬套	BUSHING	1
10	21071	开口销	COTTER PIN	1
10	210711	开口销	COTTER PIN	1
12	8155691	换挡连杆	SHIFT LINK	1
12	878169	换挡连杆	SHIFT LINK	1
13	400634	螺母 (M6)	NUT (M6)	1
13	401386	螺母(M6)不锈钢	NUT (M6) Stainless Steel	1
14	428021	固定座	RETAINER	1
15	29245	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
15	8M0204649	不锈钢垫圈(0.281x0.500x0.060)	WASHER (.281 x .500 x .060) Stainless Steel	2
16	424291	固定座	RETAINER	2
17	11372	卡扣	CLIP	1
18	19385A2	节气门连杆总成	LINK ASSEMBLY Throttle	1
18	8M0084741	节气门连杆总成	LINK ASY-THROTTLE	1
19	19384	插座	SOCKET	1
19	8M0084742	插座	SOCKET	1
20	816311	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
20	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
21	11371	锁紧垫圈（旧设计）	TAB WASHER (OLD DESIGN)	1
22	4000171	螺钉(M6 x 16)	SCREW (M6 x 16)	2
23	42805A3	支架总成	BRACKET ASSEMBLY	1
24	11373	锁销	PIN Latch	1
25	23928	销	PIN	1
25	239281	滚动销	PIN Roll	1
26	42975	传动螺钉	DRIVE SCREW	1
27	12134	波形垫圈	WASHER Wave	1

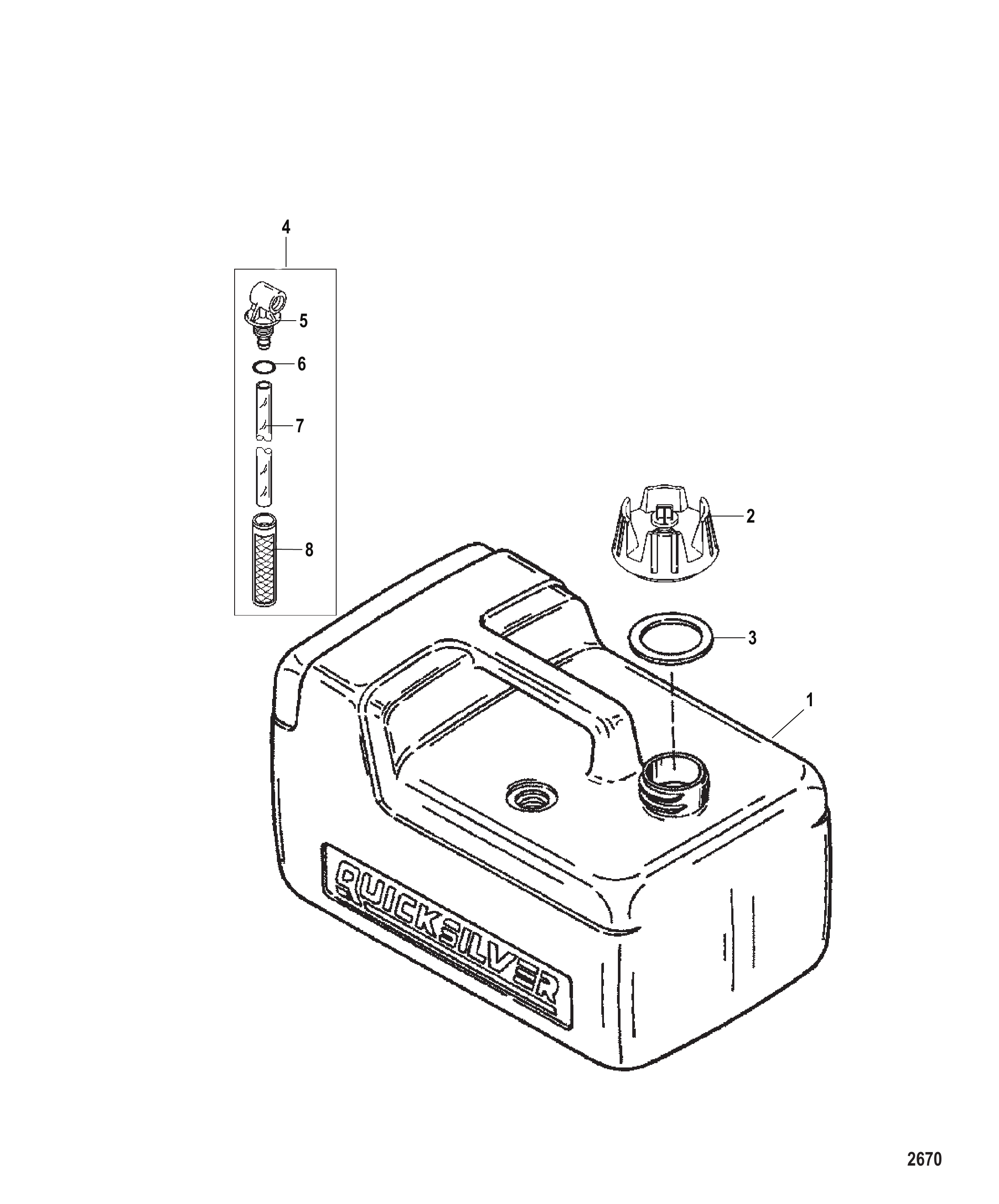

图 86燃油箱总成（3.2加仑） Fuel Tank Assembly (3.2 Gallon)

REF	零件编号	中文名称	英文名称	数量
1	859060A2	燃油箱总成	TANK ASSEMBLY Fuel Fuel	1
2	816976Q1	燃油箱盖总成-手动通风	CAP ASSEMBLY Fuel-Manual Vent Fuel	1
3	8169771	燃油箱盖衬垫	GASKET Fuel Cap Fuel Cap	1
4	823531A1	燃油管路连接套件	CONNECTOR KIT Fuel Fuel	1
4	8M0175544	燃油连接套件3.2	CONN KIT FUEL 3.2	1
5	NSS	不单独出售(连接器)	NOT SOLD SEPARATE (Connector)	1
6	823533	O型圈	O-RING	1
7	NSS	不单独出售(管路)	NOT SOLD SEPARATE (Tube)	1
8	823534	燃油滤清器滤网	SCREEN Fuel Filter	1
