水星 Mercury 75 4 CYL 7208573 THRU 09854990 - 爆炸图零件明细

两冲程 化油器 · Canada - Cat.# 90-13289 · 共 54 个部位 · 1870 条零件

1自动混合器2旋转支架与转向臂3启动电机总成（博世）4驱动轴外壳总成5杂项零件/附件6燃油泵与油管(方形燃油泵)7艉板支架8端盖、歧管与排气罩9飞轮、定子与点火线圈10启动电机总成（普雷斯特olite）11化油器连杆12气缸体与曲轴箱总成13齿轮箱（驱动轴）14底罩与换挡连杆15排气延伸板16化油器总成17动力升降组件18启动马达与线束19动力升降泵(Prestolite圆形电机)20曲轴、活塞与连杆21油门杆与点火提前杆22自动混合装置(无警报喇叭)23齿轮箱(螺旋桨轴)24动力升降泵(Eaton矩形电机)25外罩与前盖26燃油泵与油管(三角形燃油泵)27顶罩与支撑支架28自动混合器29自动混合装置(无警报喇叭)30底罩与换挡连杆31化油器总成32化油器连杆33外罩与前盖34曲轴、活塞与连杆35气缸体与曲轴箱总成36驱动轴外壳总成37端盖、歧管与排气罩38排气延伸板39飞轮、定子与点火线圈40燃油泵与油管(方形燃油泵)41燃油泵与油管(三角形燃油泵)42齿轮箱（驱动轴）43齿轮箱(螺旋桨轴)44杂项零件/附件45动力升降组件46动力升降泵(Eaton矩形电机)47动力升降泵(Prestolite圆形电机)48启动马达与线束49启动电机总成（博世）50启动电机总成（普雷斯特olite）51旋转支架与转向臂52油门杆与点火提前杆53顶罩与支撑支架54艉板支架

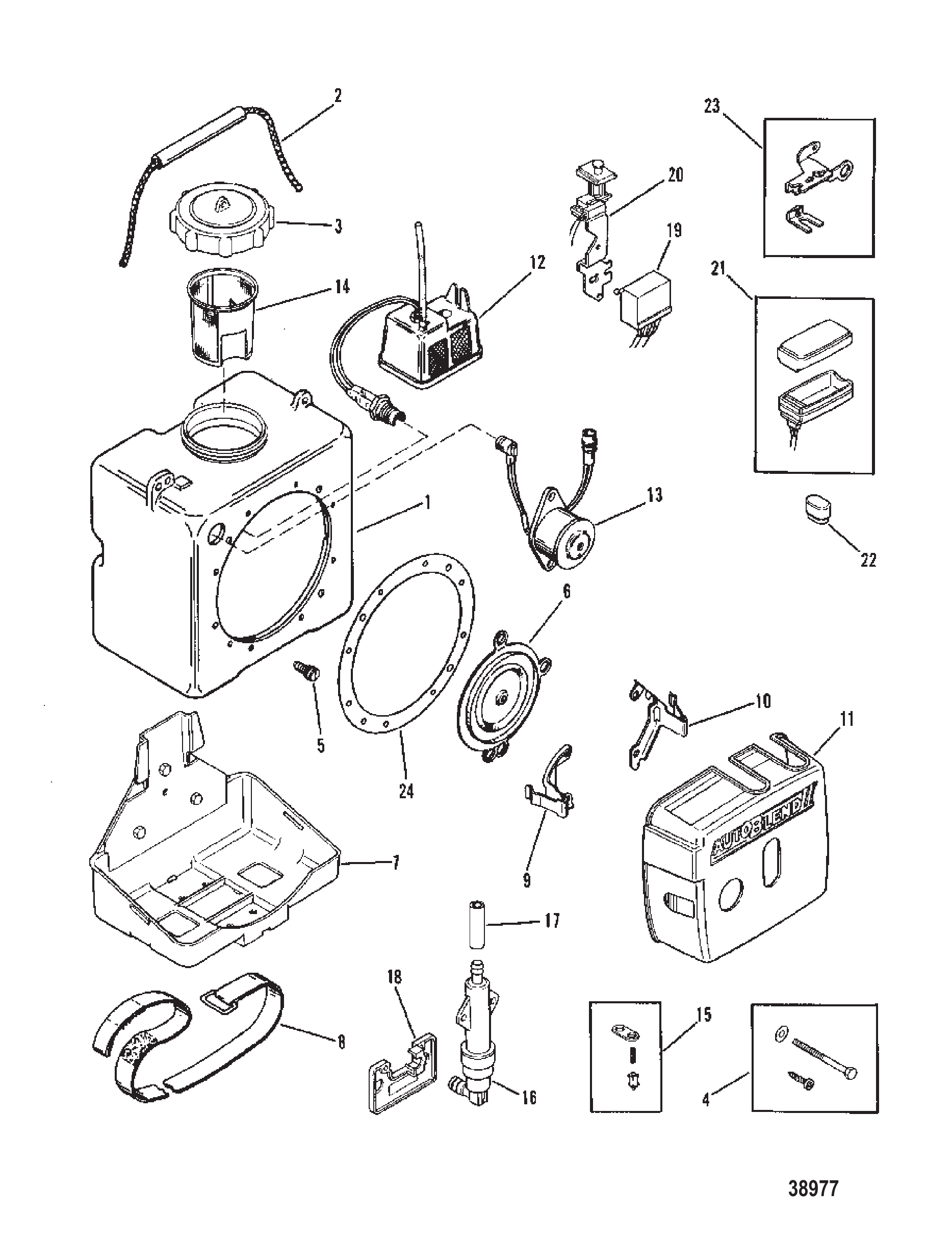

图 1自动混合器 AUTO-BLEND

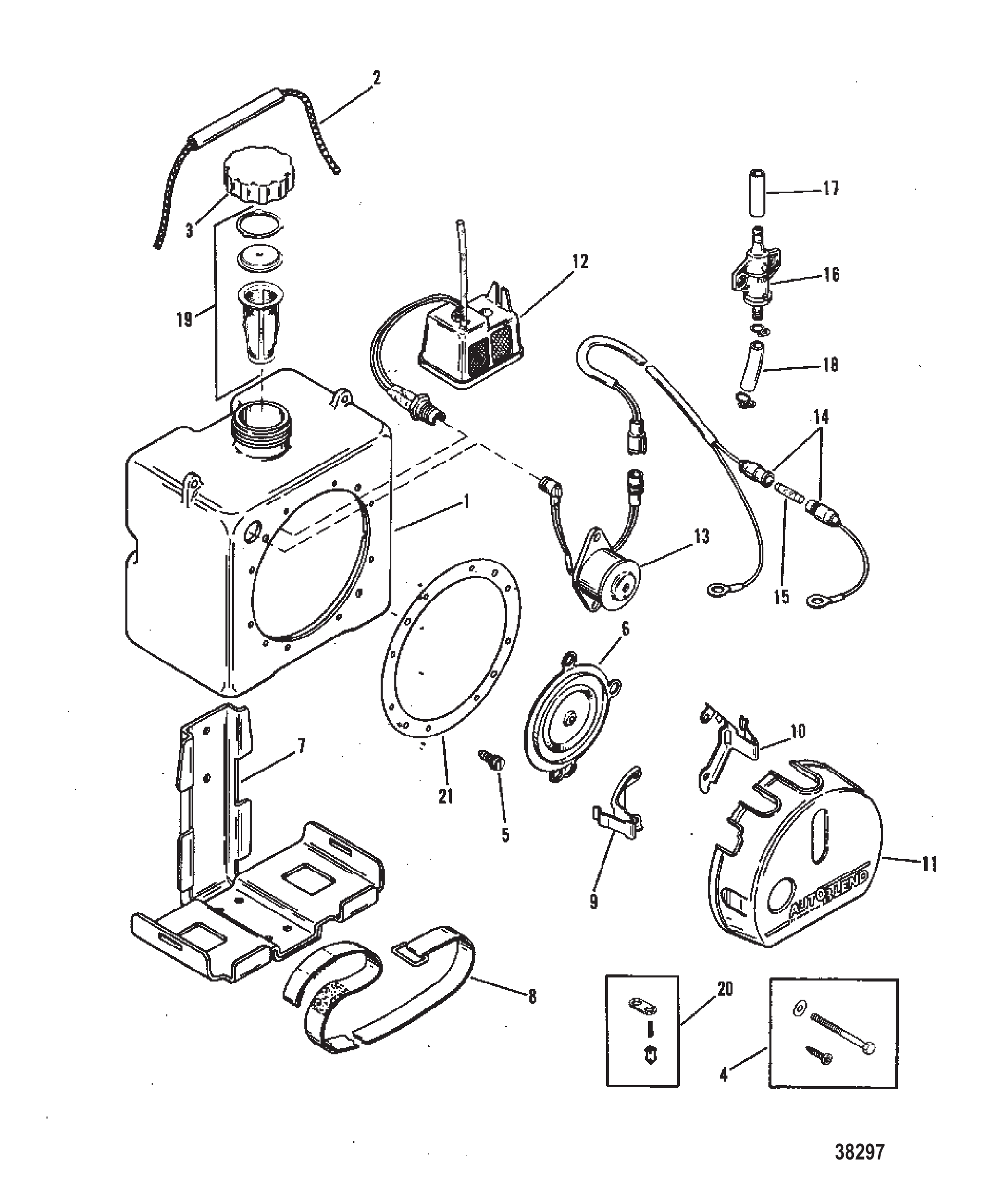

自动混合器 AUTO-BLEND
REF零件编号中文名称英文名称数量
-1301930自动混合器AUTO-BLEND1
113982油箱套件 机油TANK KIT Oil1
116612油箱套件 机油TANK KIT Oil1
213996手柄套件HANDLE KIT1
313986机油箱盖CAP OIL TANK1
413994五金件套件HARDWARE KIT1
416614五金件套件HARDWARE KIT1
513979放油塞套件PLUG KIT Drain1
616611膜片组件DIAPHRAGM KIT1
713990支架BRACKET1
813993箍带BAND1
913983支架(左)BRACKET (LEFT)1
1013984支架(右)BRACKET (RIGHT)1
1113991盖板COVER1
1116613盖板COVER1
1213985机油滤清器/传感器套件FILTER/SENSOR KIT Oil1
1313987喇叭套件HORN KIT1
1413988线束总成HARNESS ASSEMBLY1
1513989保险丝(0.5安培)FUSE (.5 AMP)1
1613981燃油滤清器套件FILTER KIT Fuel1
1618089燃油滤清器套件FILTER KIT Fuel1
1713992乙烯基软管VINYL TUBE1
1813995燃油管套件TUBE KIT Fuel1
1915387A1机油滤网总成STRAINER ASSEMBLY Oil1
2016615止回阀套件CHECK VALVE KIT1
2116616衬垫套件GASKET KIT1

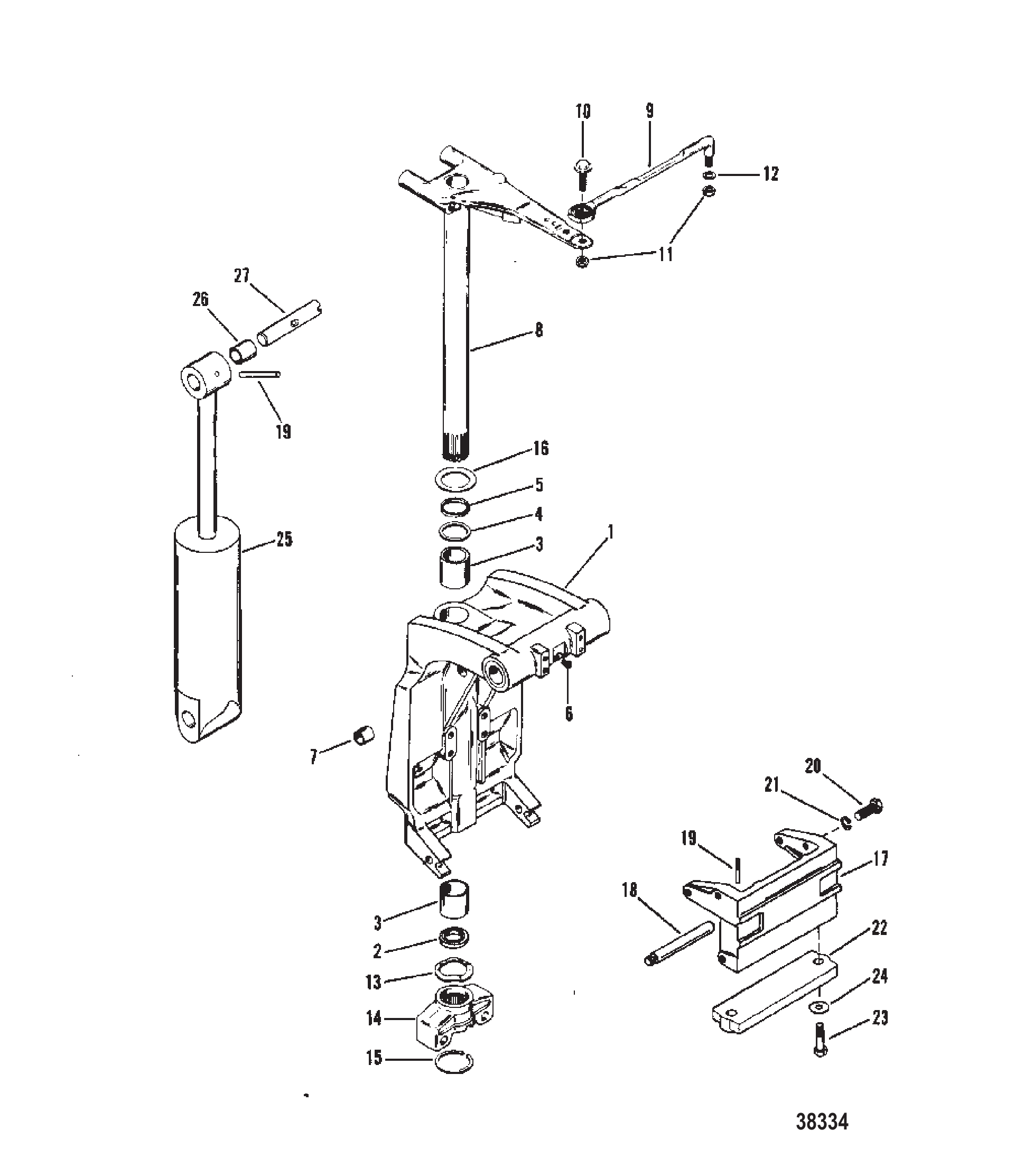

图 2旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM
旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM
REF零件编号中文名称英文名称数量
1818904T1旋转支架SWIVEL BRACKET1
287735下油封SEAL Oil Lower1
3818764衬套BUSHING2
433504O型圈O-RING1
48M0214926O型圈 @10O RING @101
5816039隔套SPACER1
674036润滑脂接头FITTING Grease2
68M0169589润滑脂接头FITTING Grease2
7821207衬套BUSHING2
864014螺钉(.250-28x.500)SCREW (.250-28 x .500)2
999661A26旋转销总成SWIVEL PIN ASSEMBLY1
999661A35旋转销总成SWIVEL PIN ASSEMBLY1
1092876A10连杆总成LINK ROD ASSEMBLY1
1092876A12连杆总成LINK ROD ASSEMBLY1
11849838螺钉(.375-24 x 1.250)SCREW (.375-24 x 1.250)1
12826709113不锈钢螺母 (.375-24)NUT (.375-24) Stainless Steel2
128M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass2
1337828不锈钢垫圈 (.390 x .625 x .062)WASHER (.390 x .625 x .062) Stainless Steel2
1442961A1底部轭架总成YOKE ASSEMBLY Bottom1
1442961A06底部轭架总成YOKE ASSEMBLY Bottom1
1567684挡圈RING Retaining1
16816432止推垫片THRUST WASHER1
17NSS不单独销售 贴纸, 序列号覆膜NOT SOLD SEPARATE Decal, Serial Overlaminate1
1811288下轭缓冲垫BUMPER Bottom Yoke1
1811288001下轭缓冲垫BUMPER Bottom Yoke1
1988882上轭缓冲垫BUMPER Top Yoke1

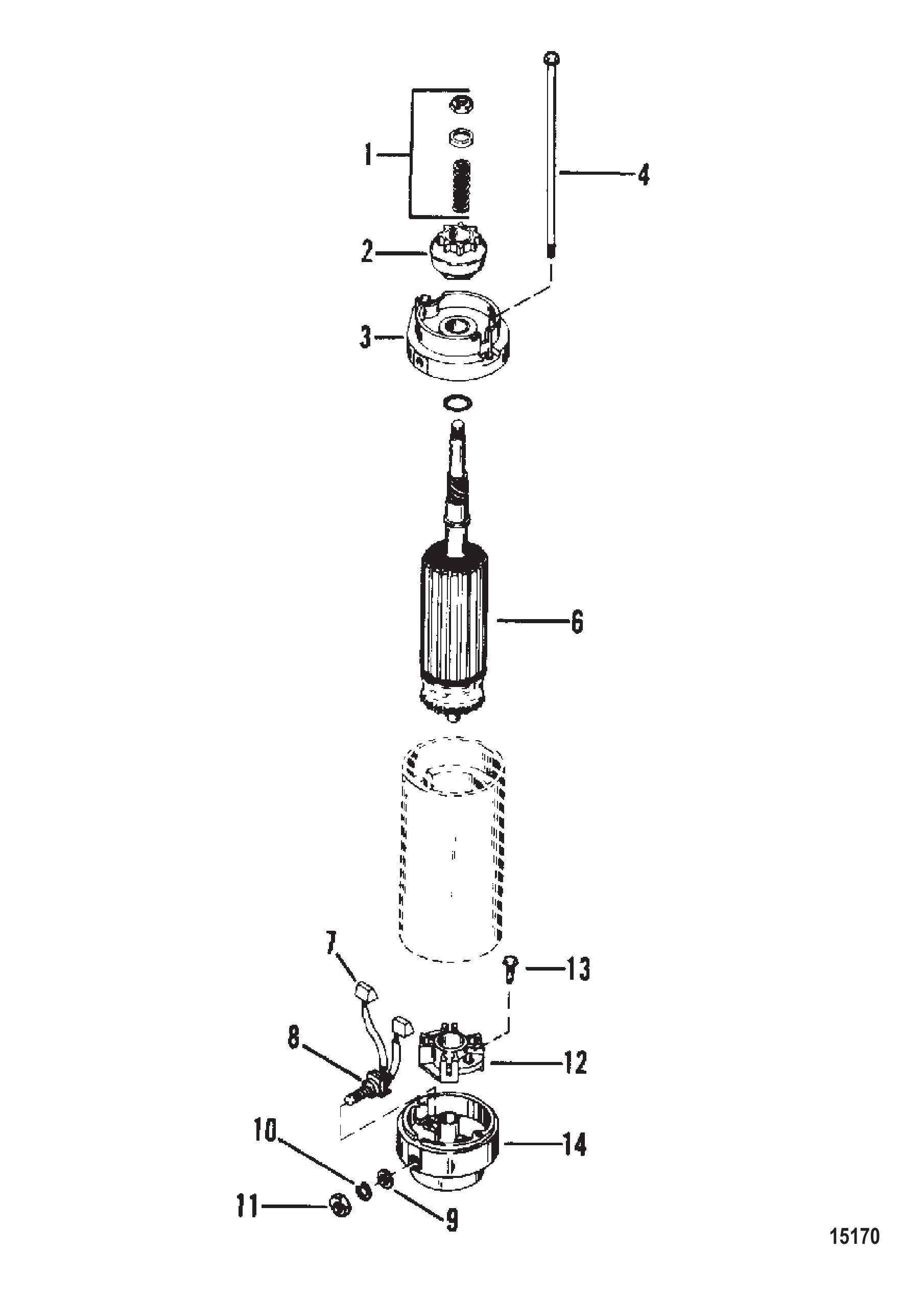

图 3启动电机总成（博世） STARTER MOTOR ASSEMBLY (BOSCH)
启动电机总成（博世） STARTER MOTOR ASSEMBLY (BOSCH)
REF零件编号中文名称英文名称数量
-66015启动电机总成STARTER MOTOR ASSEMBLY1
-893891T启动电机总成STARTER MOTOR ASSEMBLY1
190643驱动套件DRIVE KIT1
268575驱动总成DRIVE ASSEMBLY1
2685753驱动总成DRIVE ASSEMBLY1
375660驱动端板PLATE DRIVE END1
475385贯穿螺栓BOLT THRU2
675386电枢ARMATURE1
775384电刷/弹簧套件BRUSH/SPRING KIT1
7898265016电刷/弹簧套件BRUSH/SPRING KIT1
857387绝缘衬套BUSHING INSULATING1
938013输入柱垫圈WASHER INPUT STUD1
1026992不锈钢输入柱锁紧垫圈(.250)LOCKWASHER (.250) Stainless Steel INPUT STUD1
1120890输入柱螺母(.250-20)NUT (.250-20) INPUT STUD1
1261787电刷架HOLDER BRUSH2
12898265014电刷支架HOLDER-BRUSH2
1368586电刷及支架螺钉SCREW BRUSH AND HOLDER2
1479215换向器端盖END CAP COMMUTATOR1
1415386001端盖END CAP1

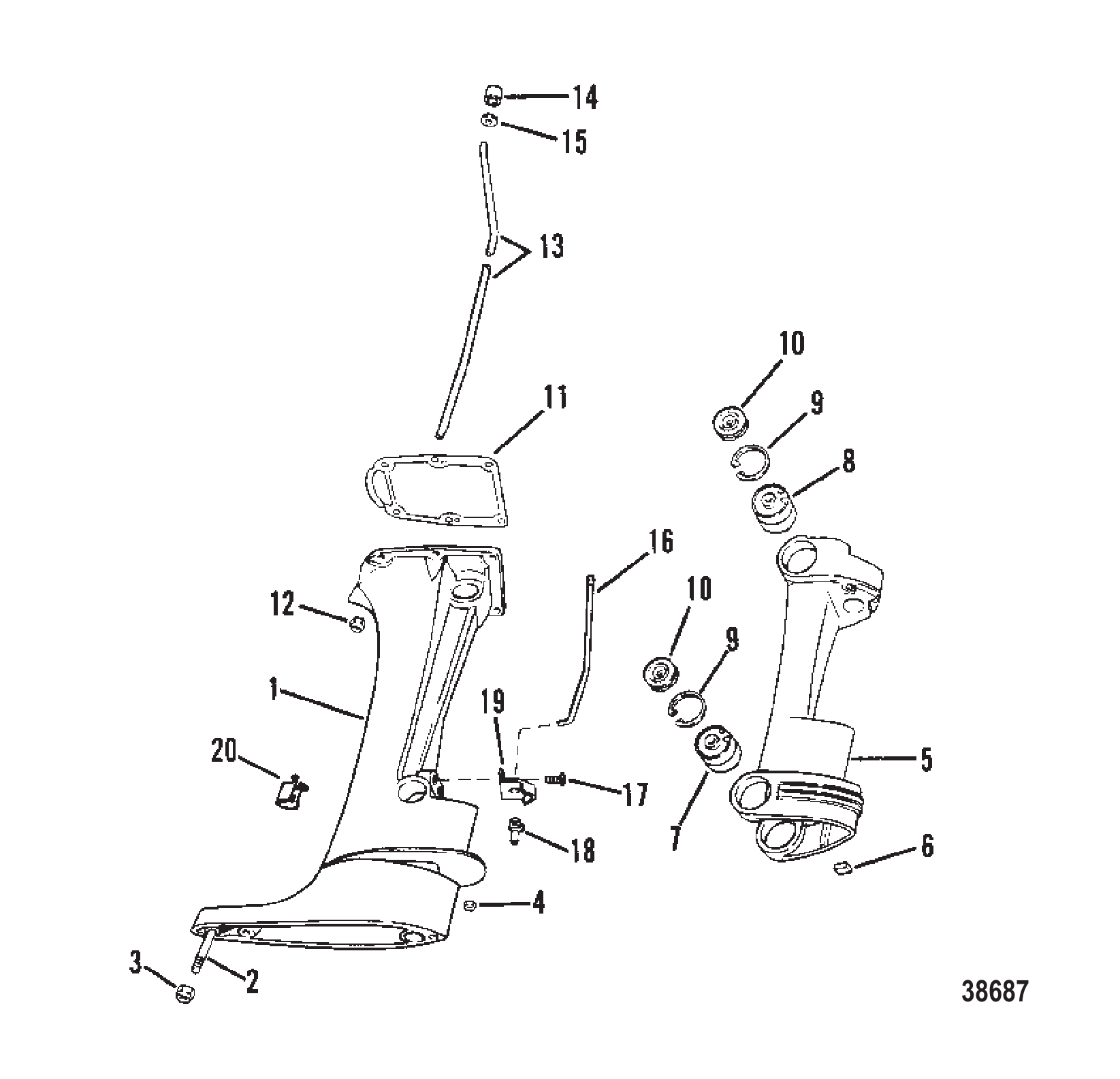

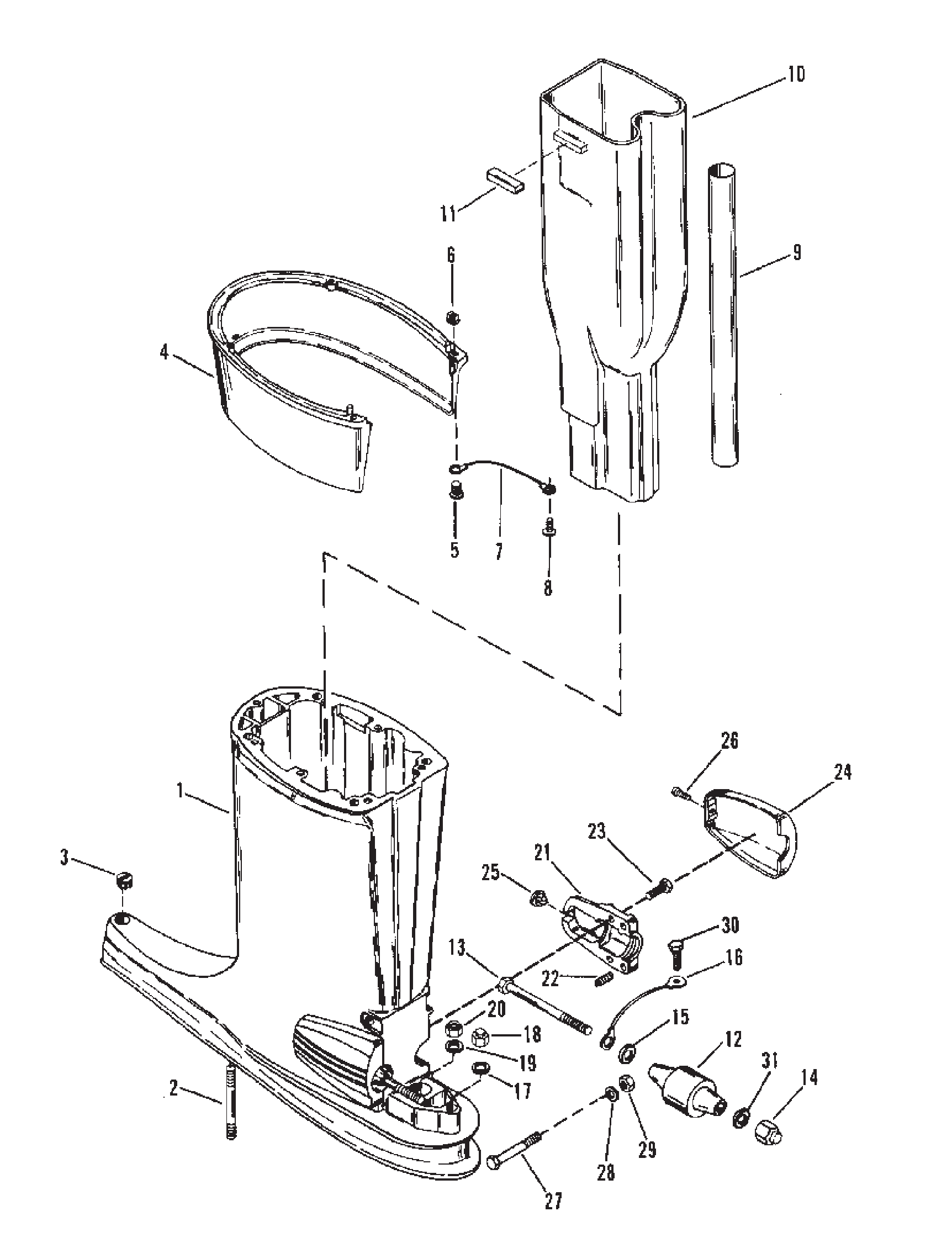

图 4驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY
驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY
REF零件编号中文名称英文名称数量
18456A1驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
18452A1驱动轴壳体总成HOUSING ASSEMBLY Driveshaft1
266373驱动轴壳体至齿轮箱螺柱STUD DRIVE SHAFT HOUSING TO GEAR HOUSING1
335814驱动轴壳体螺柱不锈钢螺母(.312-24)NUT (.312-24) Stainless Steel DRIVE SHAFT HOUSING STUD1
382670911螺母(.312-24)不锈钢NUT (.312-24) Stainless Steel1
434863齿轮箱螺柱螺母(.375-24)NUT (.375-24) GEAR HOUSING STUD1
48M0204726黄铜螺母 (.375-24)NUT (.375-24) Brass1
58450A1鞍座SADDLE1
664076推力缓冲器-鞍座BUMPER THRUST - SADDLE1
779896A1下支架MOUNT LOWER2
779896A1下支架MOUNT LOWER2
879985A1上部安装总成MOUNT ASSEMBLY UPPER2
879896A1上支架MOUNT UPPER2
926406上下安装环RING UPPER AND LOWER MOUNT4
1079907上下安装盖COVER UPPER AND LOWER MOUNT4
1159079衬垫GASKET1
1224652螺母(.250-28)NUT (.250-28)6
1331940出水管道TUBE WATER OUTLET1
1332077出水管道TUBE WATER OUTLET1
1436556出水管橡胶密封件(外径0.5英寸)SEAL (.500 Inch Outside Diameter) RUBBER - WATER OUTLET TUBE1
1513127出水管密封尼龙垫片SPACER NYLON - OUTLET TUBE SEAL1
1671057倒挡锁连杆LINK ROD REVERSE LOCK1
1765414螺钉SCREW2
1865216倒挡锁凸轮CAM REVERSE LOCK1
1972007倒挡锁凸轮固定座RETAINER REVERSE LOCK CAM1
2093145驱动轴挡块BLOCK DRIVESHAFT1
-78139A80衬垫套件GASKET SET1
图 5杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES
杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES
REF零件编号中文名称英文名称数量
-814201200 XRI(EFI)(V-6)维修200 XRI (EFI) (V-6) Service1
-8140981维修手册SERVICE MANUAL1
-8162491维修手册SERVICE MANUAL1
-14697A87衬垫套件GASKET SET1
-813032A89贴花套件DECAL SET1
-814171A89纪念版贴花套装DECAL SET (ANNIVERSARY MODEL)1
-13492900用户指南OWNERS GUIDE1

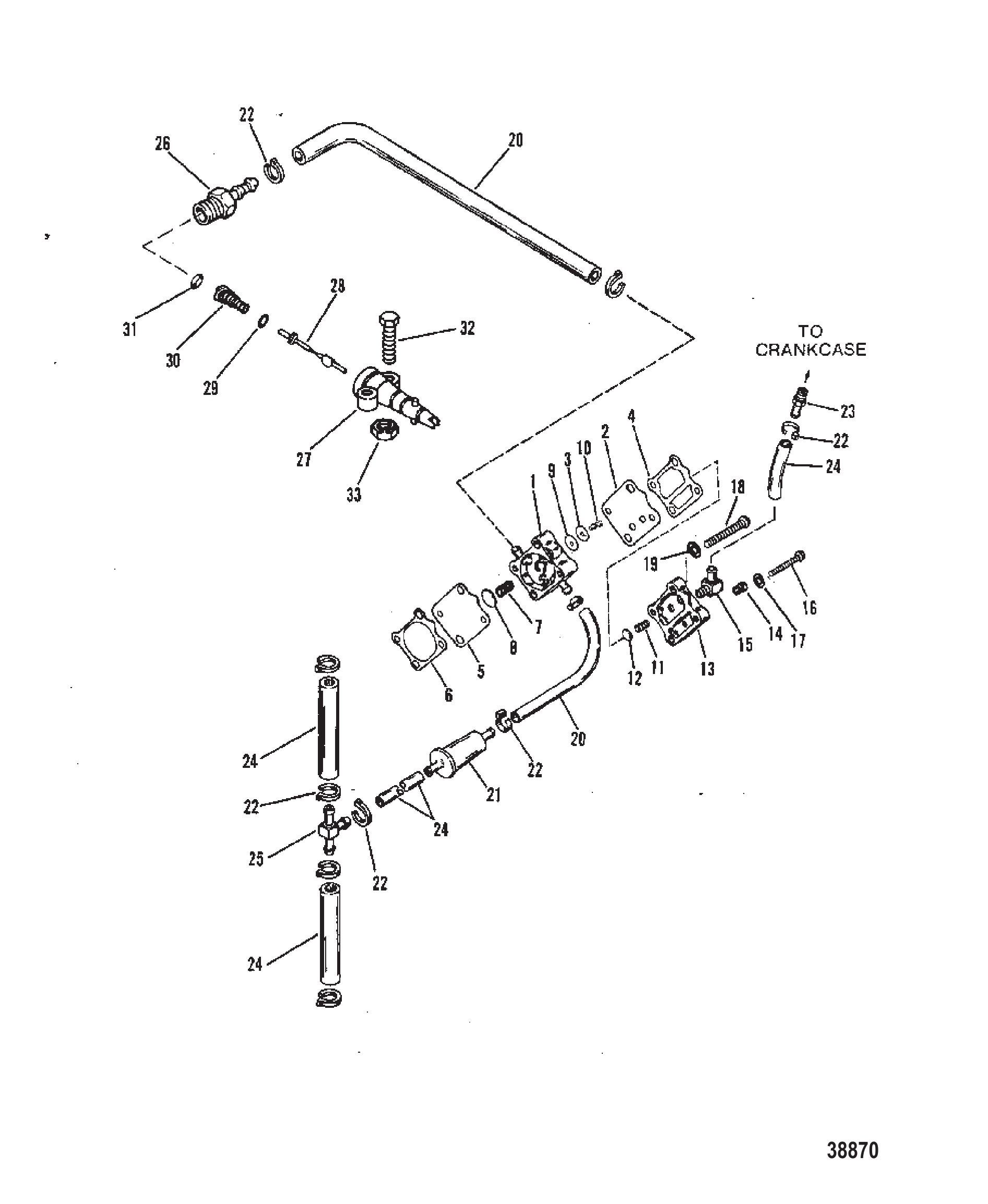

图 6燃油泵与油管(方形燃油泵) FUEL PUMP AND FUEL LINES (SQUARE FUEL PUMP)
燃油泵与油管(方形燃油泵) FUEL PUMP AND FUEL LINES (SQUARE FUEL PUMP)
REF零件编号中文名称英文名称数量
114360A15燃油泵总成PUMP ASSEMBLY Fuel1
114360A78燃油泵套件PUMP KIT Fuel1
242990A1膜片组件DIAPHRAGM KIT1
2857005A1膜片组件DIAPHRAGM KIT1
3NSSNOT SOLD SEPARATE CHECK VALVE-RUBBER2
4NSSNOT SOLD SEPARATE GASKET-BOOST1
5NSSNOT SOLD SEPARATE DIAPHRAGM2
6NSSNOT SOLD SEPARATE GASKET-PULSE1
7NSSNOT SOLD SEPARATE SPRING1
8NSSNOT SOLD SEPARATE CAP1
9NSS橡胶圆盘 (不单独销售)NOT SOLD SEPARATE DISC-RUBBER2
10NSSNOT SOLD SEPARATE RETAINER2
11NSSNOT SOLD SEPARATE SPRING1
12NSSNOT SOLD SEPARATE CAP1
1398775A2燃油泵板PLATE FUEL PUMP1
13987752安装板PLATE1
1456800管塞 (.0625-27)PLUG Pipe (.0625-27)1
1564704接头FITTING1
1519688接头FITTING1
1690190燃油泵螺钉SCREW FUEL PUMP1
1673013燃油泵螺钉（10-32 x 1.50）SCREW 10-32 x 1.50 FUEL PUMP1
1727736燃油泵螺钉垫圈WASHER FUEL PUMP SCREW1
1789302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)1
1840057132燃油泵螺钉SCREW FUEL PUMP2
194002215燃油泵螺钉垫圈WASHER FUEL PUMP SCREW2
209912970油管TUBING2
208M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)2
21134301燃油滤清器FILTER Fuel1
21816296Q2燃油滤清器FILTER Fuel1
2273498燃油管卡箍CLAMP FUEL TUBINGAR
22816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
2364705燃油管接头FITTING FUEL LINE1
2499127109管路(57.00英寸 散装)LINE (57.00 Inches Bulk)4
248M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)4
2573318TEE Plastic FUEL LINE1
2634982燃油管转接头连接器CONNECTOR FUEL LINE TO ADAPTOR1
2730186止回转接器总成ADAPTER CHECK UNIT1
2830187适配器阀杆止回单元STEM CHECK UNIT ADAPTOR1
2830185Q3油箱端快速断开总成-卡口式QUICK DISCONNECT ASSEMBLY Tank End - Bayonet Style1
2920415适配器阀杆O型圈O-RING ADAPTOR STEM1
2916524燃油接头O型圈O-RING Fuel Connector1
3030189适配器阀杆弹簧SPRING ADAPTOR STEM1
3130188适配器垫片WASHER ADAPTOR1
3236154螺钉(.250-28 x 1.380)SCREW (.250-28 x 1.380)2
3336069适配器螺钉螺母NUT ADAPTOR SCREW2
-73645A87衬垫套件GASKET SET1

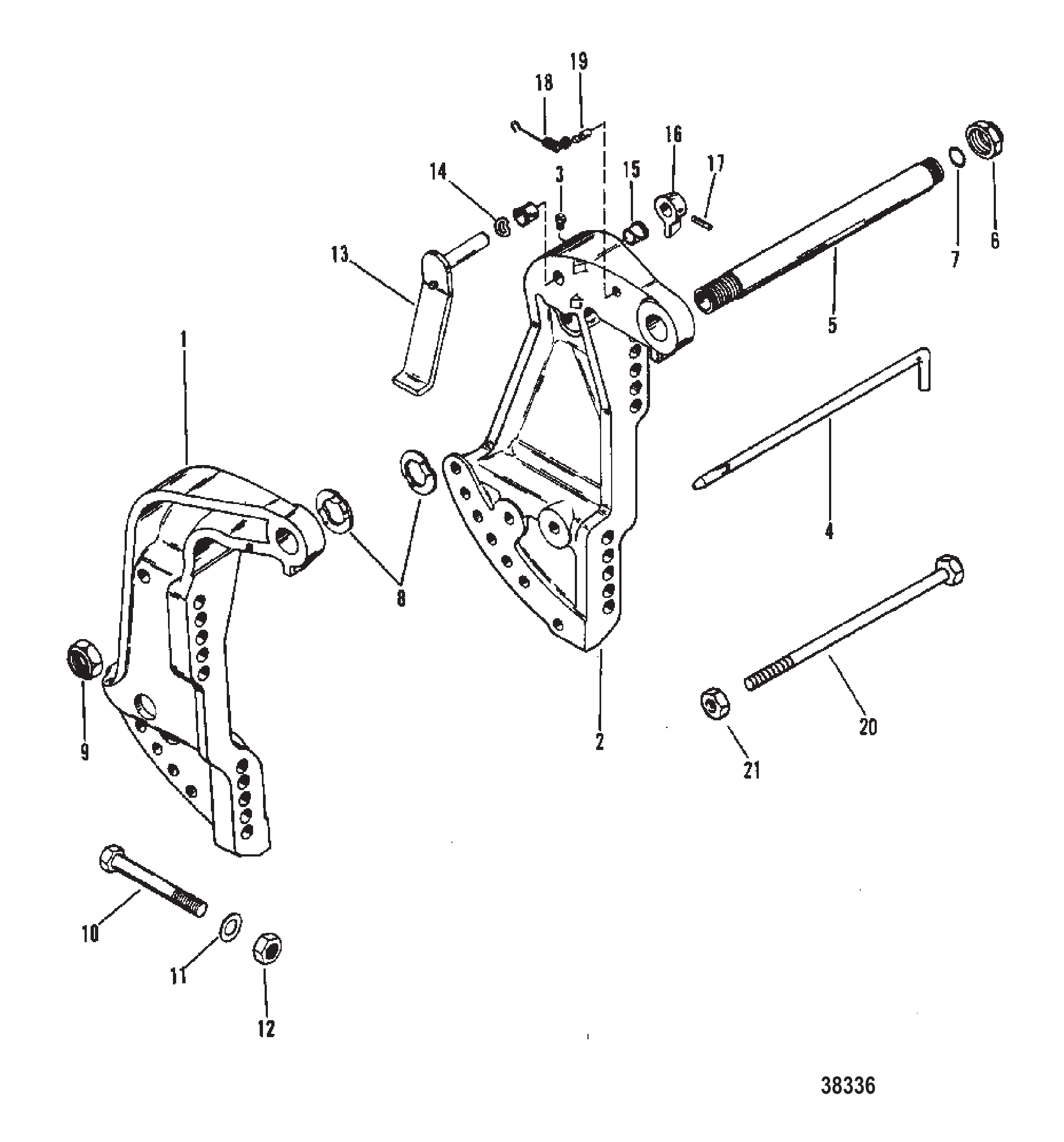

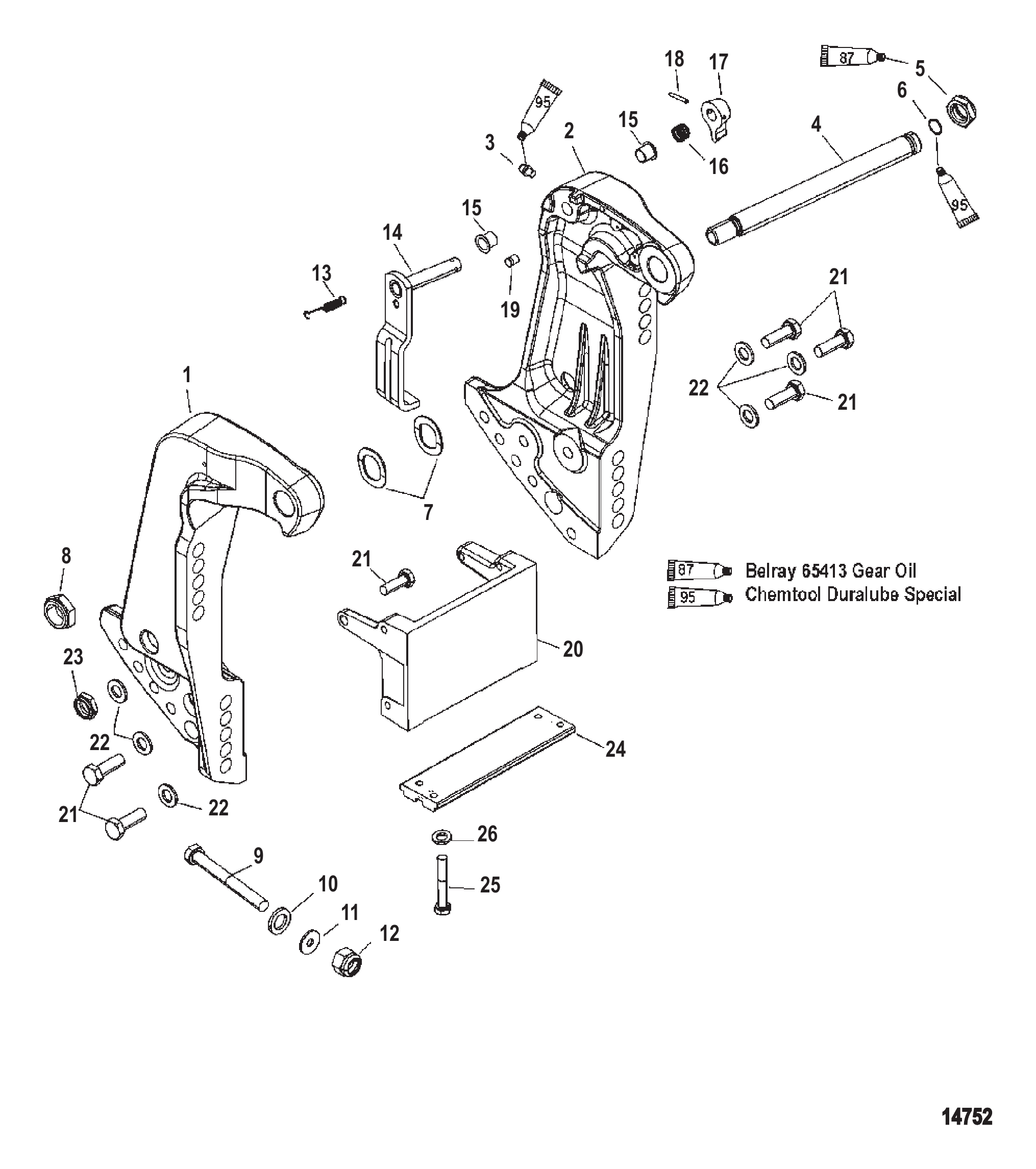

图 7艉板支架 TRANSOM BRACKET
艉板支架 TRANSOM BRACKET
REF零件编号中文名称英文名称数量
1828334F1艉板支架BRACKET Transom1
2828333A3艉板支架总成BRACKET ASSEMBLY Transom1
2828333T07艉板支架总成-左舷BRACKET ASSEMBLY Transom - Port1
398727润滑脂接头FITTING Grease1
38M0169588润滑脂接头FITTING Grease1
499170A2倾斜管套件TUBE KIT Tilt1
4826125A1倾斜管TILT TUBE1
4826125A1倾斜管TILT TUBE1
5859133螺母(1.00-14)NUT (1.00-14)1
582671327螺母(1.0-14)NUT (1.0-14)1
5826135尼龙锁紧螺母(1.00-14)NUT Lock (1.00-14) Nylon Insert1
645711O型圈 (.612 x .103)O-RING (.612 x .103)1
788750波浪垫圈 (1.62 x 1.05)WASHER Wave (1.62 x 1.05)2
8858869螺母 (.875-14)NUT (.875-14)1
8826164螺母 (.875-14)NUT (.875-14)1
88M0231351锁紧螺母NUT Lock1
9677551螺钉(.500-20×4.500)SCREW (.500-20 x 4.500)4
98M0149747螺钉SCREW4
1054012垫圈(0.530×0.870×0.105不锈钢)WASHER (.530 x .870 x .105) Stainless Steel4
108M0204665垫圈(0.530×0.880×0.104 630不锈钢)WASHER (.530 x .880 x .104) 630 Stainless Steel4
1128421垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
118M0204648垫圈(1.5x3.05x0.13)不锈钢WASHER (1.5 x 3.05 x 0.13) Stainless Steel4
1282671117螺母(.500-20)NUT (.500-20)4
13830899张力弹簧SPRING Tension1
14821176T1倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
148M0109798倾斜锁定杆总成LEVER ASSEMBLY Tilt Lock1
1565830尼龙衬套NYLINER2
16830900压缩弹簧SPRING Compression1
1799633旋钮KNOB1
1899615槽销PIN Groove1
1999617销PIN1
19893709销PIN1
20818771T1锚支架BRACKET Anchor1
208M0086406锚支架BRACKET Anchor1
21858771螺钉 (M10 x 30)SCREW (M10 x 30)6
224002319垫圈WASHER6
2340114螺母(M10 x 1.5)NUT (M10 x 1.5)1
24818298Q1阳极套件ANODE KIT1
254000330螺钉(M6x25)SCREW (M6 x 25)2
258M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS2
2629245不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2
268M0204649不锈钢垫圈(0.281x0.500x0.060)WASHER (.281 x .500 x .060) Stainless Steel2

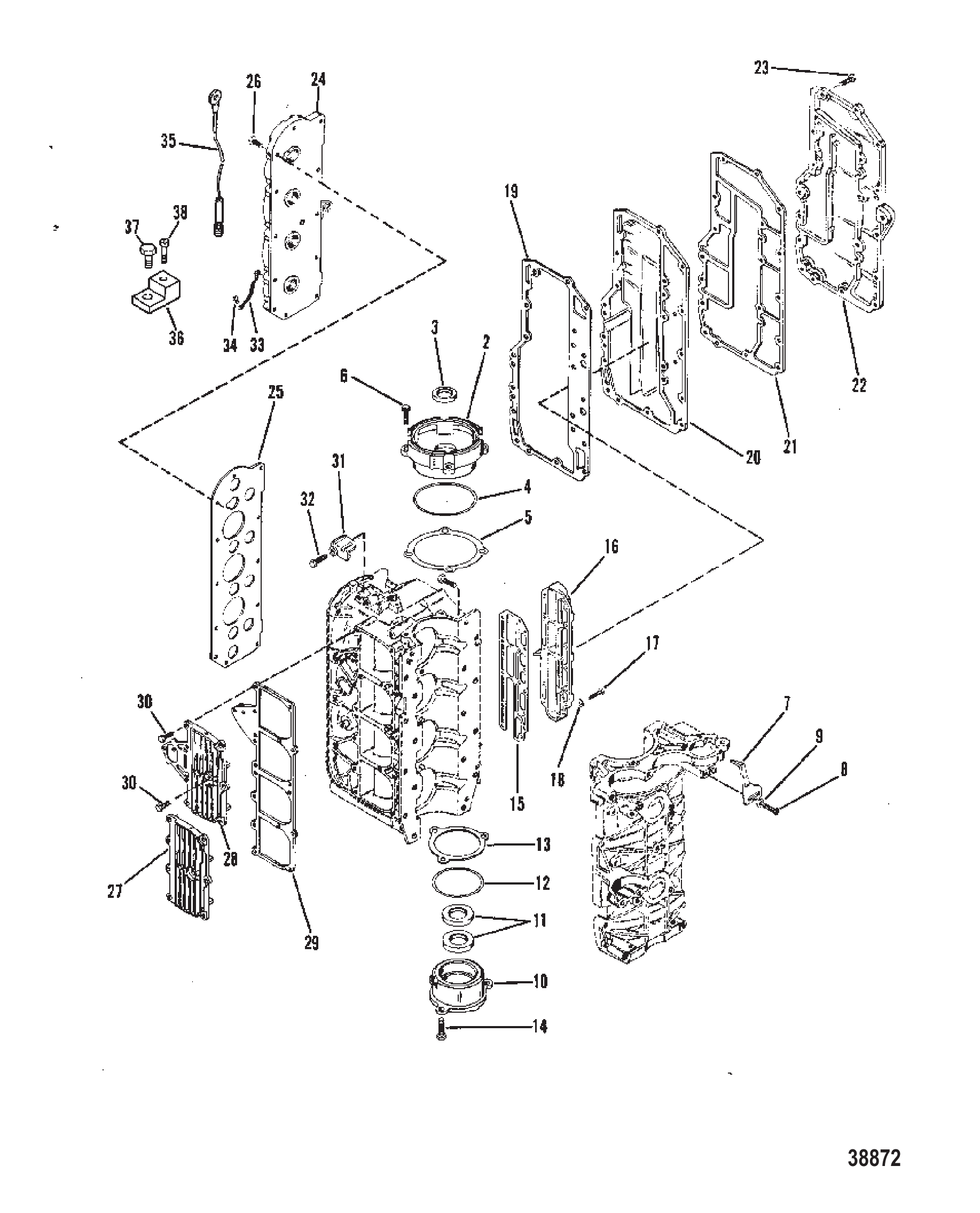

图 8端盖、歧管与排气罩 END CAPS, MANIFOLD AND EXHAUST COVER
端盖、歧管与排气罩 END CAPS, MANIFOLD AND EXHAUST COVER
REF零件编号中文名称英文名称数量
25940A2上端盖总成END CAP ASSEMBLY UPPER1
341953密封件SEAL1
447254O型圈O-RING1
573644A1端盖至曲轴箱垫片(.006-10)SHIM END CAP TO CRANKCASE (.006-10)AR
673169上端盖螺钉(1英寸)SCREW UPPER END CAP (1")4
6812618不锈钢螺钉(.312-18 x 1.00)带尼龙垫SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch4
743352正时指针POINTER TIMING1
898510正时指针螺钉(.250-20 x 0.75)(3/4英寸)SCREW (.250-20 x .75) TIMING POINTER (3/4")1
865746螺钉(.250-20 x .750)SCREW (.250-20 x .750)1
920533正时指针螺钉垫片WASHER TIMING POINTER SCREW1
105410A1下端盖总成END CAP ASSEMBLY LOWER1
105410T1端盖总成END CAP ASSY1
1141953密封件SEAL2
1232546O型圈O-RING1
1320085A1端盖至曲轴箱垫片组(.005-10)SHIM SET END CAP TO CRANKCASE (.005-10)AR
1469034螺钉带锁紧垫圈(.312-18 x 1.00)SCREW AND LOCKWASHER (.312-18 x 1.00)3
1430225螺钉带锁紧垫圈(.312-18 x 1.00)SCREW WITH LOCKWASHER (.312-18 x 1.00)3
1573665水套盖衬垫GASKET WATER JACKET COVER1
1676198气缸体水套盖COVER WATER JACKET-CYLINDER BLOCK1
1753167水套盖螺钉(.312-18 x 0.880)SCREW (.312-18 x .880) WATER JACKET COVER16
1753167T螺钉 0.312-18X 0.88SCREW .312-18X .8816
1870132水套盖螺钉不锈钢垫片(0.323 x 0.563 x 0.063)WASHER (.323 x .563 x .063) Stainless Steel WATER JACKET COVER SCREW16
188M0042642垫圈(.323 x .562 x .063)WASHER (.323 x .562 x .063)16
19854981气缸体至挡板衬垫GASKET CYLINDER BLOCK TO BAFFLE PLATE1
2073436挡板PLATE BAFFLE1
21854961挡板至排气盖垫片GASKET BAFFLE PLATE TO EXHAUST COVER1
2278277A1排气歧管盖COVER EXHAUST MANIFOLD1
2353576歧管盖螺钉(.312-18 x 1.125)SCREW (.312-18 x 1.125) MANIFOLD COVER18
248340气缸体盖COVER CYLINDER BLOCK1
25961711气缸体盖衬垫GASKET CYLINDER BLOCK COVER1
2669100气缸体盖螺钉(1英寸)SCREW CYLINDER BLOCK COVER (1")12
268M0214943螺钉SCREW12
27733201上换气口盖COVER TRANSFER PORT-TOP1
2714429T上换气口盖COVER TRANSFER PORT-TOP1
2714429A1换气盖TRANSFER COVER1
2887872下换气口盖COVER TRANSFER PORT-BOTTOM1
2973645换气口盖垫片GASKET TRANSFER PORT COVER1
3049668换气口盖螺钉(.250-20 x 0.750)SCREW (.250-20 x .750) TRANSFER PORT COVER14
3137440气缸体支座支架BRACKET MOUNT SUPPORT-CYLINDER BLOCK1
3235386螺丝(.312-18 x 1.00)SCREW (.312-18 x 1.00)1
3346933A3接地带总成STRAP ASEMBLY Ground2
3462568SCREW (#10-16 x .375) GROUND STRAP2
3596829A1温度开关总成SWITCH ASSEMBLY Temperature1
3645915端子排TERMINAL BLOCK1
3762568SCREW (#10-16 x .375) TERMINAL BLOCK1
3828192SCREW (#10-24 x .50) TERMINAL BLOCK1
3872169螺钉(#10-24x0.500)SCREW (#10-24 x .500)1
-73645A87衬垫套件GASKET SET1
图 9飞轮、定子与点火线圈 FLYWHEEL, STATOR AND IGNITION COIL

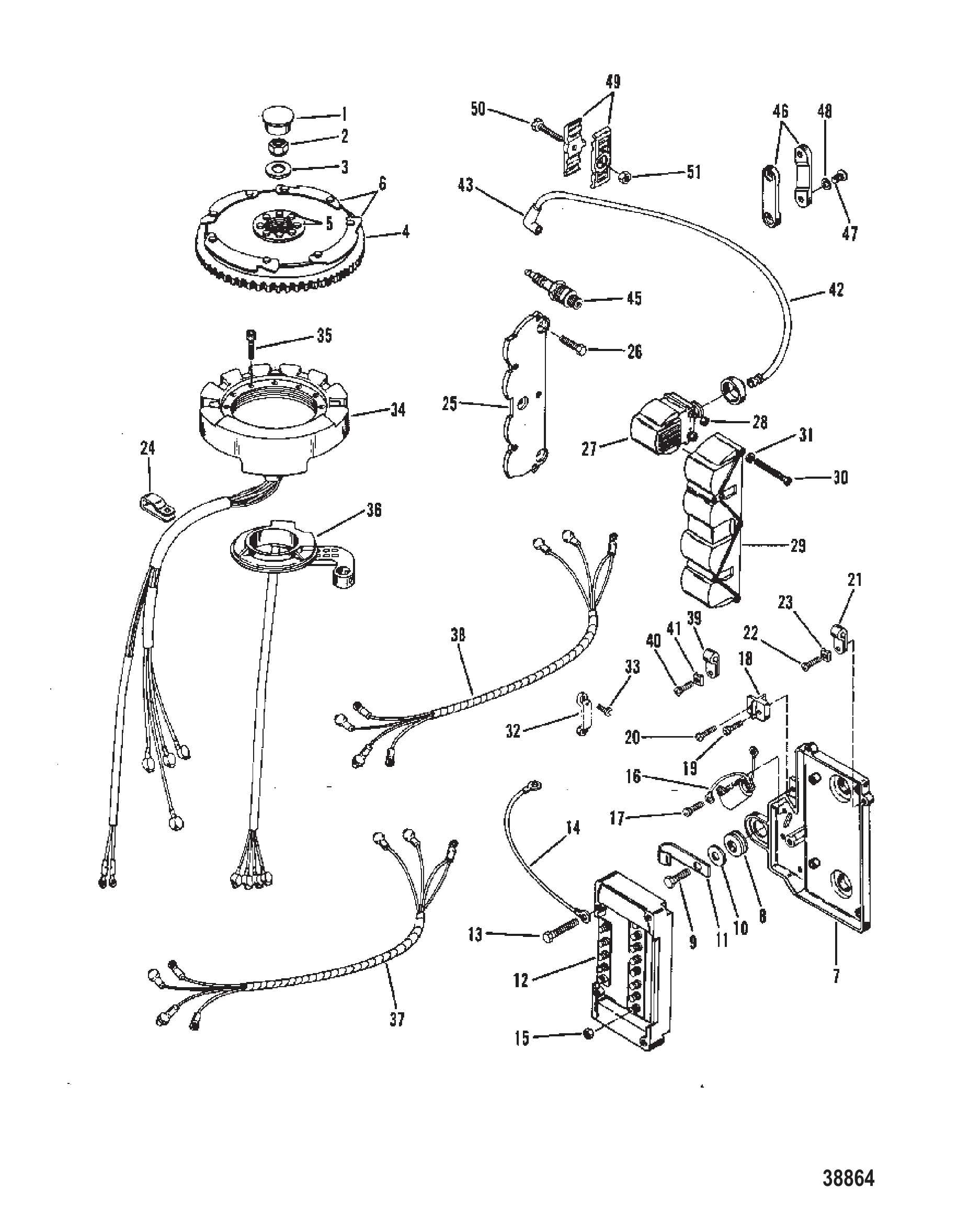

飞轮、定子与点火线圈 FLYWHEEL, STATOR AND IGNITION COIL
REF零件编号中文名称英文名称数量
145907塞子 黄色 飞轮拉拔器螺纹PLUG Yellow FLYWHEEL PULLER THREADS1
252901螺母(.625-18)飞轮NUT (.625-18) FLYWHEEL1
368229垫圈（0.641 x 1.250 x 0.190）飞轮螺母WASHER (.641 x 1.250 x .190) FLYWHEEL NUT1
333001垫圈WASHER1
48722A6飞轮总成FLYWHEEL ASSEMBLY1
568997螺钉(.312-24 x .750)SCREW (.312-24 x .750)8
632417螺钉(.250-28 x .625)SCREW (.250-28 x .625)8
790332开关盒安装板PLATE SWITCH BOX1
857009开关盒护孔环GROMMET SWITCH BOX3
857009001护孔环GROMMET3
959645螺钉 (0.312-18 x 0.750)SCREW (.312-18 x .750)3
9824941螺钉 (0.312-18 x 0.750)SCREW (.312-18 x .750)3
1056720开关盒板螺钉不锈钢垫片(0.330 x 0.750 x 0.060)WASHER (.330 x .750 x .060) Stainless Steel SWITCH BOX PLATE SCREW3
1147483开关盒线束和燃油管J型夹J CLIP SWITCH BOX WIRES AND FUEL LINE1
125772A2开关盒总成SWITCHBOX ASSEMBLY1
125772A7开关盒总成SWITCHBOX ASSEMBLY1
1320619螺钉（#12-24 x 1.25）SCREW (#12-24 x 1.25)4
1465999A5线束总成WIRE ASSEMBLY2
1545076螺母(#10-32)黄铜开关盒端子NUT (#10-32) Brass SWITCH BOX TERMINAL13
1658124A19水银开关总成MERCURY SWITCH ASSEMBLY1
1737571螺钉(.190-32 x 0.500)SCREW (.190-32 x .500)1
1866986端子排TERMINAL BLOCK1
1920646螺钉(0.190-32x0.62)SCREW (.190-32 x .62)1
1938055螺钉(0.190-32x0.620)SCREW (.190-32 x .620)1
2042813螺钉（#10-32 X 0.380）SCREW (#10-32 X .380)1
2122875线束夹CLIP WIRES AND HARNESS2
2235519螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)2
2369205C形垫圈线夹螺钉C WASHER CLIP SCREW2
238M0084613C形垫圈C-WASHER2
2447483触发板线束J型夹J CLIP TRIGGER PLATE HARNESS1
2573395板 安装-点火线圈PLATE MOUNTING-IGNITION COIL1
2628668螺钉 (.250-20 x .875) 不锈钢SCREW (.250-20 x .875) Stainless Steel3
277370A13点火线圈总成COIL ASSEMBLY Ignition4
278M0230859点火线圈总成COIL IGNITION ASY4
2845076螺母(#10-32)黄铜点火线圈端子NUT (#10-32) Brass IGNITION COIL TERMINAL8
2987554点火线圈盖COVER IGNITION COIL1
3088856螺钉(0.190-32 x 2.00)SCREW (.190-32 x 2.00)5
3130164垫圈(.192 x .375 x .0312)不锈钢盖螺钉WASHER (.192 x .375 x .0312) Stainless Steel COVER SCREW5
3277672主线束带STRAP PRIMARY HARNESS1
3348408固定带螺钉(#10-16 x 0.500)SCREW (#10-16 x .500) STRAP ATTACHING2
345454A26定子总成STATOR ASSEMBLY1
3575840螺钉 (#10-24 x 0.880)SCREW (#10-24 x .880)4
3696453A2触发板总成TRIGGER PLATE ASSEMBLY1
3777617主线束总成（1-2缸）HARNESS ASSEMBLY PRIMARY (CYLINDERS 1 AND 2)1
3877618主线束总成（3-4缸）HARNESS ASSEMBLY PRIMARY (CYLINDERS 3 AND 4)1
3939844线束固定夹CLAMP HARNESS ATTACHING1
3945806卡箍CLAMP1
4035519螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)1
4169205线束夹螺钉C型垫圈C WASHER HARNESS CLAMP SCREW1
418M0084613C形垫圈C-WASHER1
4299215A25火花塞导线总成LEAD ASSEMBLY SPARK PLUG4
42813715A1引线LEAD WIRE4
4363709A1火花塞护套/端子套件BOOT/TERMINAL KIT SPARK PLUG4
4597182火花塞（NGK-BUHW-2）SPARK PLUG (NGK-BUHW-2)4
45896329833SP #L78V @4SP #L78V @44
4514103570火花塞SPARK PLUG4
4514103QORD 896329838ORD 8963298384
4678278导线固定器RETAINER WIRE2
4735519导线固定器螺钉（#10-16 x 0.500）SCREW (#10-16 x .500) WIRE RETAINER2
4821273导线固定器螺钉垫圈WASHER WIRE RETAINER SCREW2
4963319火花塞导线固定器RETAINER SPARK PLUG WIRE2
5046378螺钉(.250-28 x 1.00)SCREW (.250-28 x 1.00)1
5120013固定器螺钉螺母（0.250-28）NUT (.250-28) RETAINER SCREW1

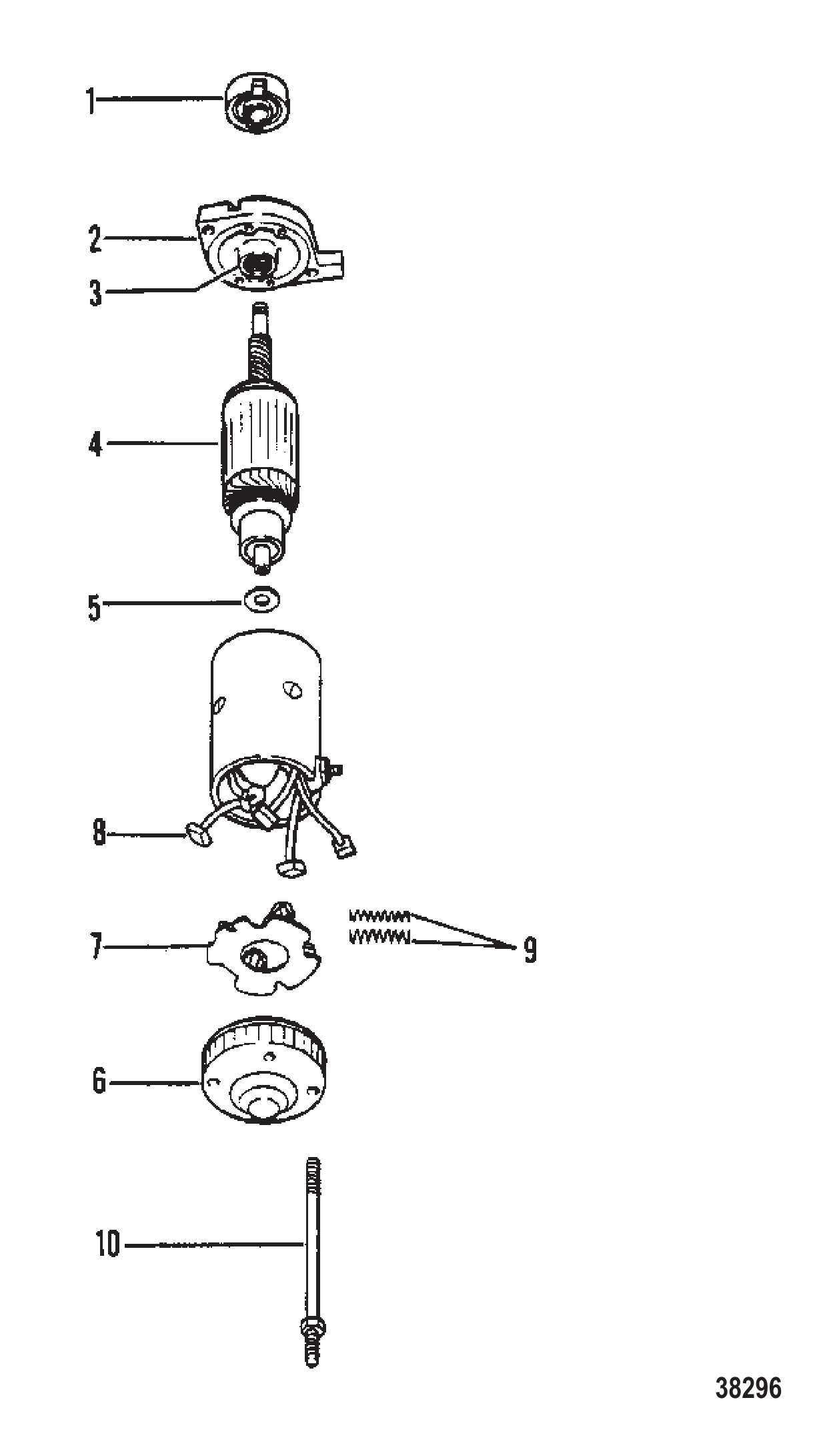

图 10启动电机总成（普雷斯特olite） STARTER MOTOR ASSEMBLY (PRESTOLITE)
启动电机总成（普雷斯特olite） STARTER MOTOR ASSEMBLY (PRESTOLITE)
REF零件编号中文名称英文名称数量
18848驱动电机MOTOR DRIVE1
28852驱动端板总成PLATE ASSEMBLY DRIVE END1
38853驱动端板衬套BUSHING DRIVE END PLATE1
48857电枢ARMATURE1
58856电枢止推垫片组件PACKAGE ARMATURE THRUST WASHER1
68849换向器端盖总成END CAP ASSEMBLY COMMUTATOR1
78850电刷板/支架总成PLATE/HOLDER ASSEMBLY Brush1
88851电刷与端子套装BRUSH AND TERMINAL SET1
98854电刷弹簧组 (每套2弹簧)SPRING SET BRUSH (2 SPRINGS PER SET)2
108855贯穿螺栓 - 端盖至端板 (1/4-28)BOLT THRU - END CAP TO END PLATE (1/4-28)1

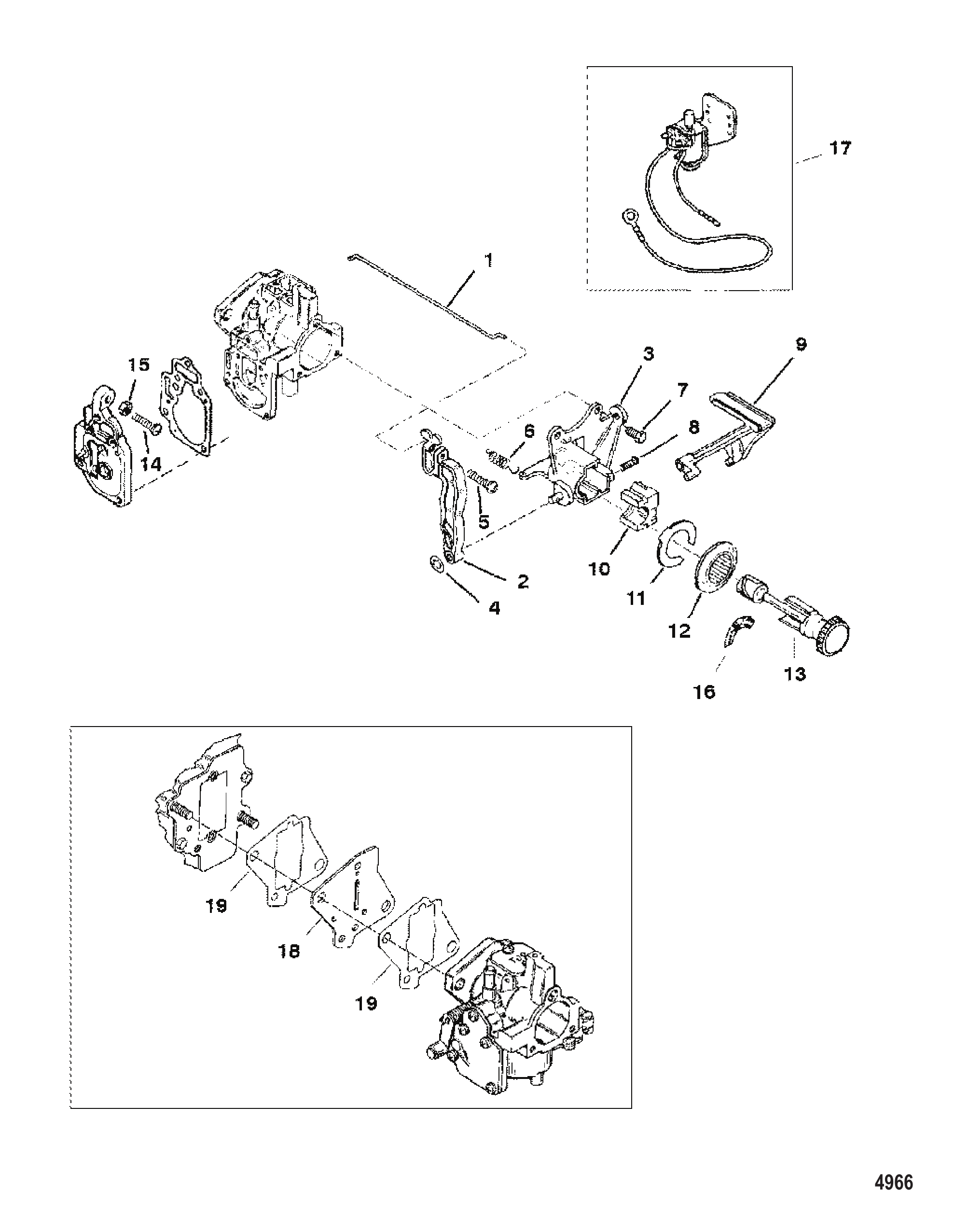

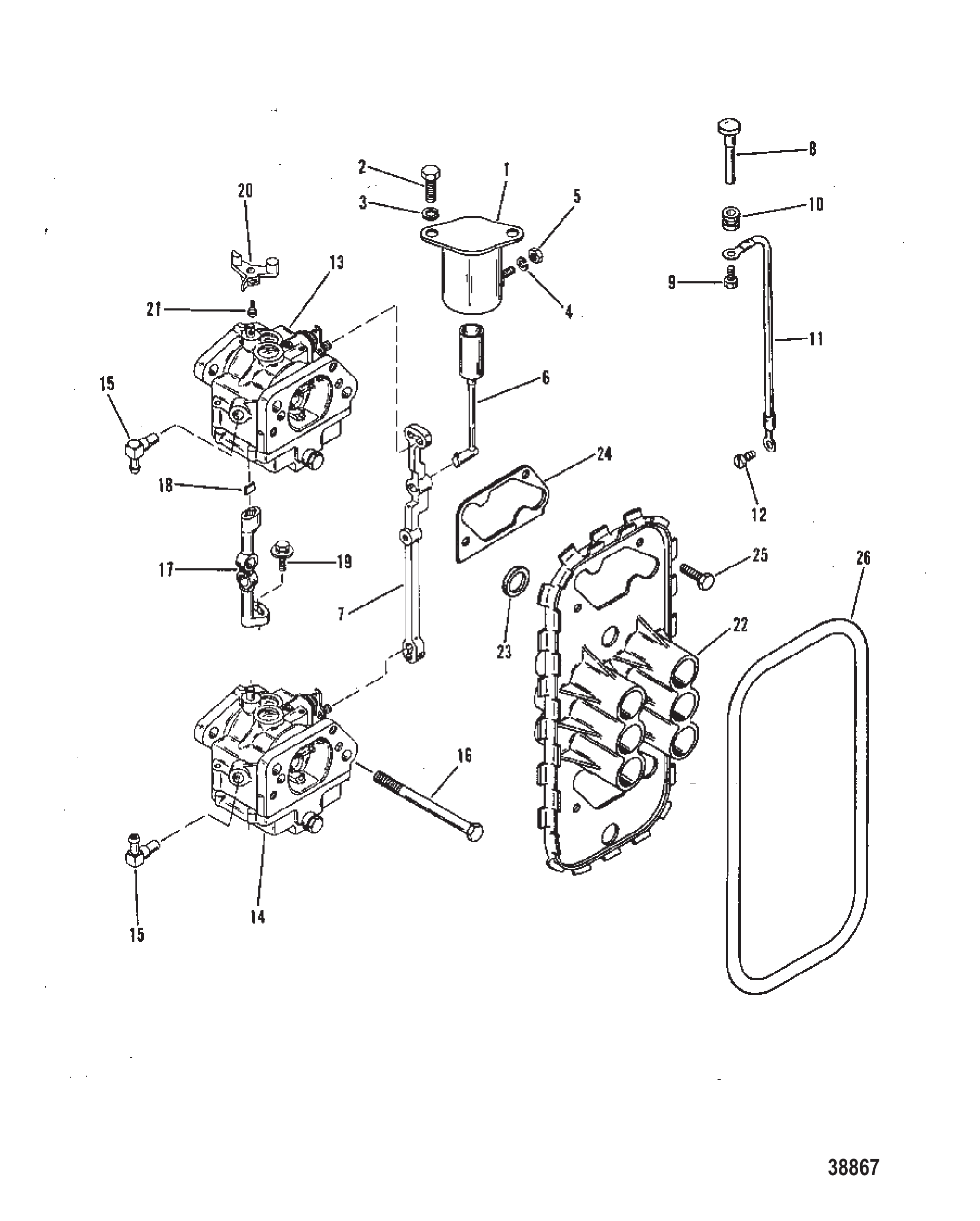

图 11化油器连杆 CARBURETOR LINKAGE
化油器连杆 CARBURETOR LINKAGE
REF零件编号中文名称英文名称数量
1445541怠速线IDLE WIRE1
2128053快怠速杆LEVER Fast Idle1
312803启动泵支架BRACKET Primer1
4821979螺母NUT1
579964螺丝 (#6-32 x .750)SCREW (#6-32 x .750)1
512110螺丝 (#6-32 x .750)SCREW (#6-32 x .750)1
611277张力弹簧SPRING Tension1
7400018螺钉(M5 x 12)SCREW (M5 x 12)2
879965螺丝 (#8-32 x .500) 不锈钢SCREW (#8-32 x .500) Stainless Steel1
9112731启动泵杆LEVER Primer1
1011280凸轮块CAM BLOCK1
1111278固定夹CLIP Retaining1
1212804A1阻风门面板总成BEZEL ASSEMBLY Choke1
13128022启动泵旋钮PRIMER KNOB1
1440019111螺钉 (M5 x 35)SCREW (M5 x 35)1
15400211不锈钢螺母(M5)NUT (M5) Stainless Steel1
16129701阻风门边框贴花DECAL Bezel Choke1
17823433电动阻风门CHOKE Electric1
1812750A1限流板RESTRICTOR PLATE1
19192061化油器衬垫GASKET Carburetor2
-42364A92发动机垫片组GASKET SET Engine1

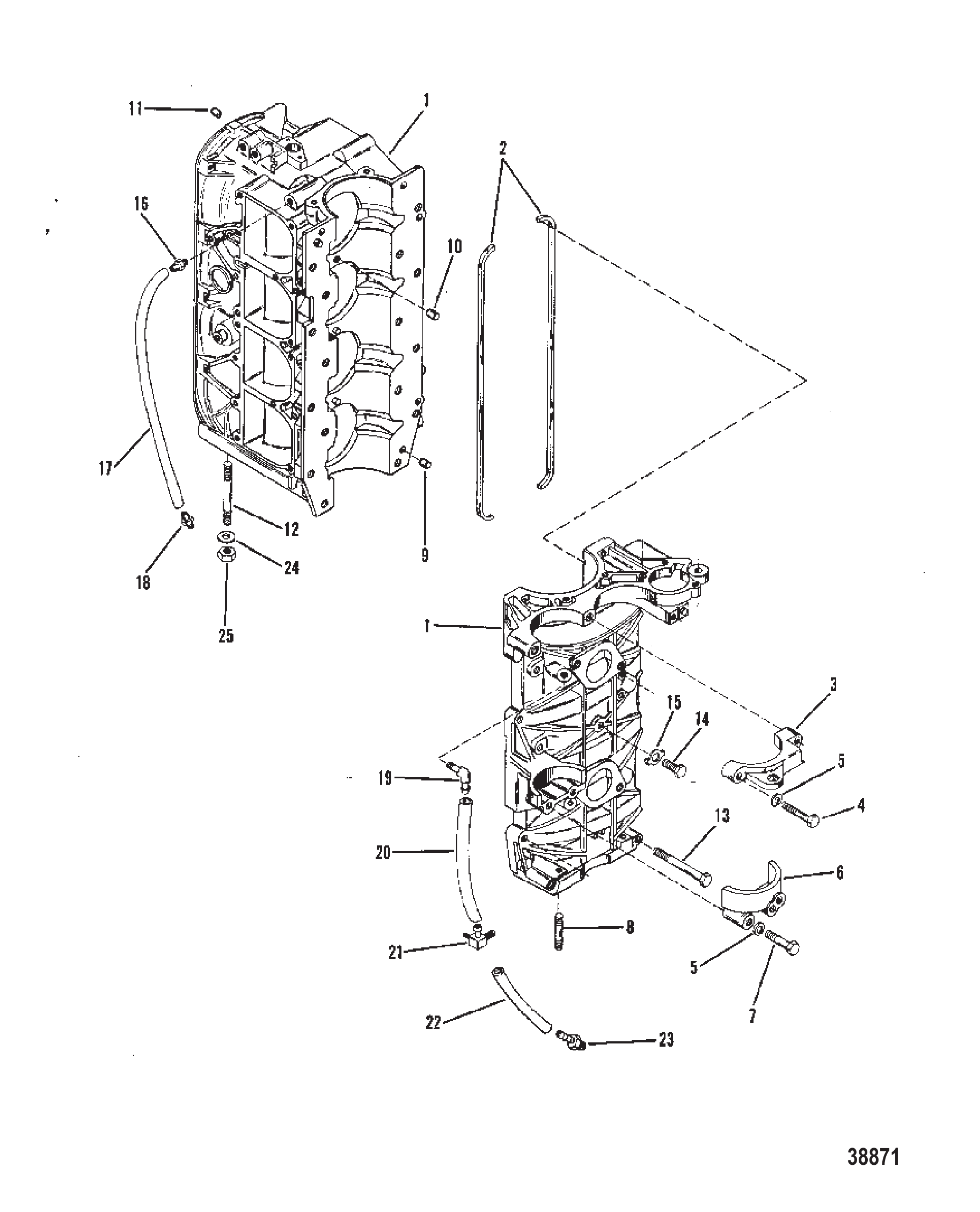

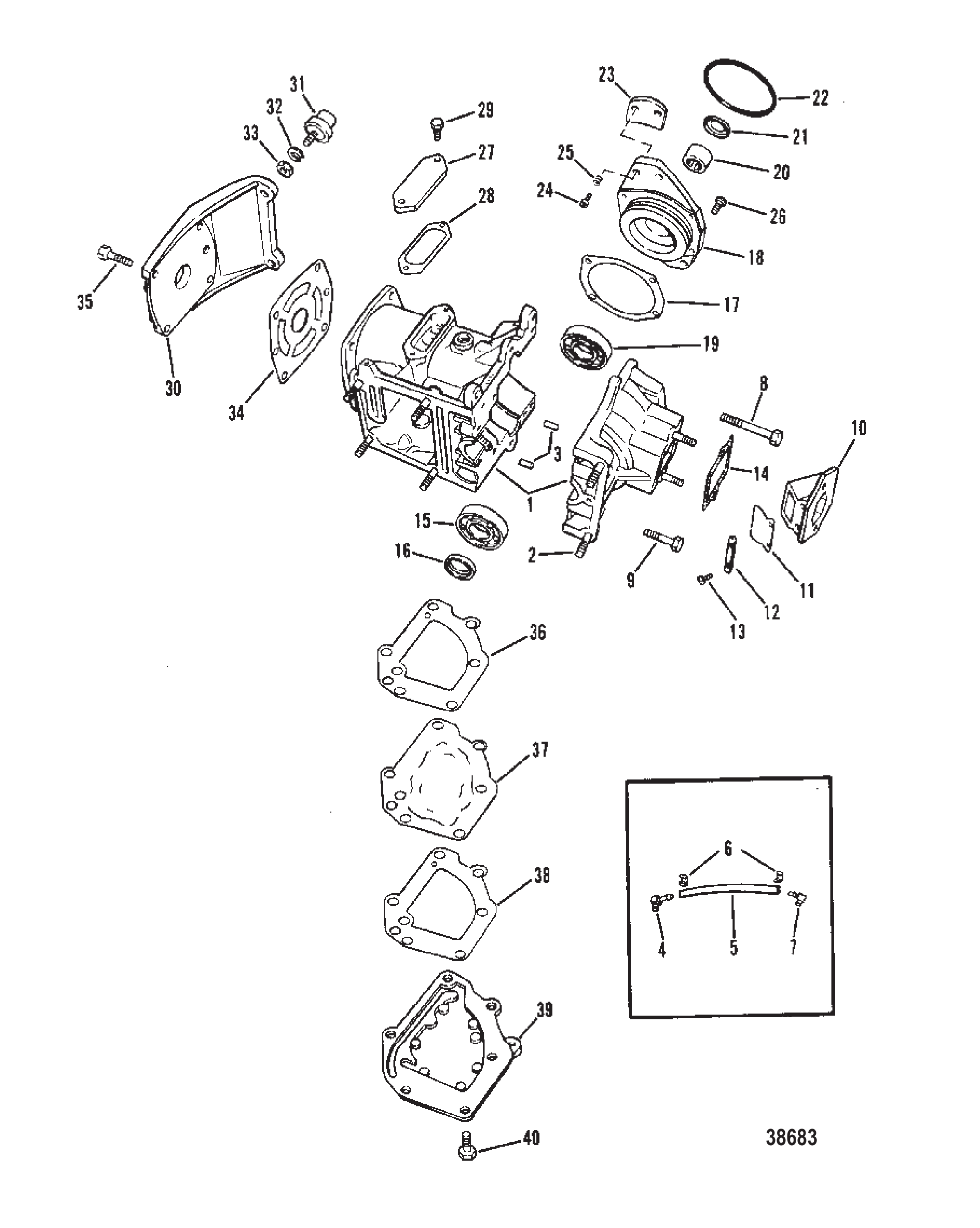

图 12气缸体与曲轴箱总成 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
气缸体与曲轴箱总成 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
REF零件编号中文名称英文名称数量
18694A3气缸体CYLINDER BLOCK1
266021螺柱STUD8
385500曲轴箱至气缸体定位销(.187 x .530)PIN Dowel (.187 x .530) CRANKCASE TO CYLINDER BLOCK2
38M0084726定位销PIN Dowel2
489275泄放接头FITTING BLEED DRAIN1
59912688泄放管(36英寸散装)TUBING (36.00 Inches Bulk) BLEED DRAIN1
668424泄放软管固定夹CLAMP BLEED HOSE ATTACHING2
788780泄放示位管弯头ELBOW Tell-Tale Tubing BLEED DRAIN1
7887801弯头配件90度(.0625-27)FITTING Elbow 90 Degree (.0625-27)1
873280曲轴箱至气缸体螺钉(1-1/2英寸)SCREW CRANKCASE TO CYLINDER BLOCK (1-1/2")2
976621曲轴箱至气缸体螺钉(1英寸)SCREW CRANKCASE TO CYLINDER BLOCK (1")8
1070726簧片阀组REED BLOCK1
1135836簧片进气阀REED INLET VALVE2
1222215簧片压板RETAINER REED2
1328430螺钉(#6-32 x .25)SCREW (#6-32 x .25)4
1435739簧片阀组至曲轴箱垫片GASKET REED BLOCK TO CRANKCASE1
14357391衬垫GASKET1
1572961曲轴箱滚珠轴承(下)BEARING Ball CRANKCASE (LOWER)1
1656397曲轴箱油封(下)SEAL Oil CRANKCASE (LOWER)1
1731412A1垫片SHIMAR
186352A1上轴承壳体总成HOUSING ASSEMBLY Bearing UPPER1
1972961上轴承壳体滚珠轴承BEARING Ball UPPER BEARING HOUSING1
2031410上轴承壳体滚柱轴承BEARING Roller UPPER BEARING HOUSING1
2166301上轴承壳体油封SEAL Oil UPPER BEARING HOUSING1
2220863上轴承壳体O型圈O-RING UPPER BEARING HOUSING1
2334598压紧夹CLAMP HOLD DOWN2
2436205螺钉(#10-24 x .563)SCREW (#10-24 x .563)4
2534731压环弹簧夹SPRING HOLD DOWN RING CLAMP4
2639002螺钉(1/2英寸)SCREW (1/2")4
2735658换气口盖COVER TRANSFER COVER1
2835657换气口盖垫片GASKET TRANSFER PORT COVER1
2920720螺钉(.190-24 x .62)SCREW (.190-24 x .62)2
307070A1气缸体盖总成COVER ASSEMBLY CYLINDER BLOCK1
3166019橡胶支座-盖板至上罩MOUNT RUBBER - COVER TO TOP COWL2
3220202橡胶支座锁紧垫圈LOCKWASHER RUBBER MOUNT2
3322053螺母(.312-24)橡胶支座至盖板NUT (.312-24) RUBBER MOUNT TO COVER2
34416151盖板至气缸体衬垫GASKET COVER TO CYLINDER BLOCK1
3576630螺钉 (.250-20 x 1.00)SCREW (.250-20 x 1.00)4
358M0214943螺钉SCREW4
36416141气缸体至挡板衬垫GASKET CYLINDER BLOCK TO BAFFLE PLATE1
3746234挡板-排气歧管PLATE BAFFLE - EXHAUST MANIFOLD1
38416141衬垫GASKET1
3946171排气歧管盖COVER EXHAUST MANIFOLD1
4049668螺钉(.250-20 x .750)SCREW (.250-20 x .750)6
-78139A80衬垫套件GASKET SET
-87096A79动力头总成POWERHEAD ASSEMBLY1

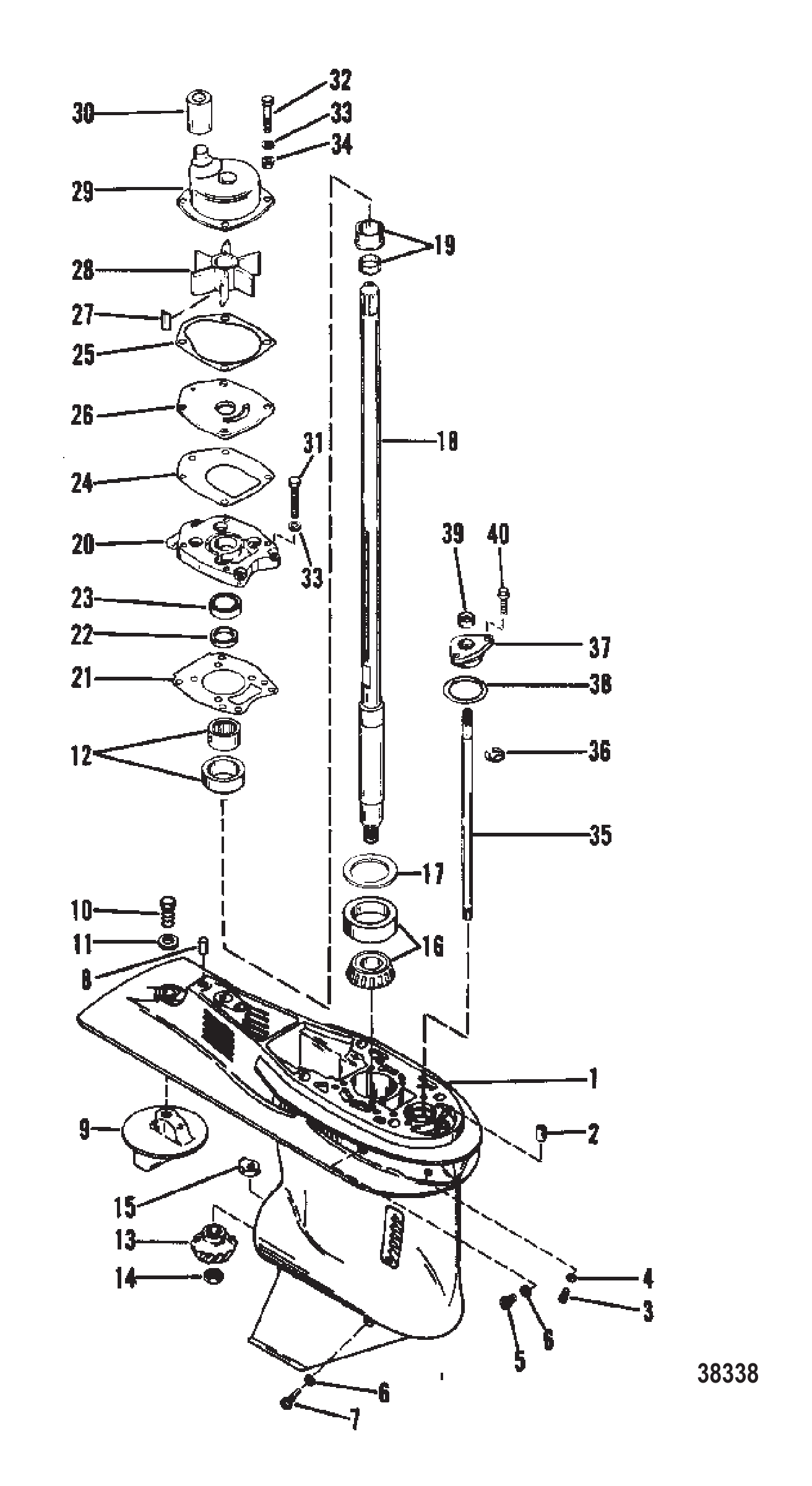

图 13齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)
齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)
REF零件编号中文名称英文名称数量
-7360A29齿轮箱总成(完整)GEAR HOUSING ASSEMBLY COMPLETE1
-7360A30齿轮箱总成(完整)GEAR HOUSING ASSEMBLY COMPLETE1
17360A11齿轮箱总成GEAR HOUSING ASSEMBLY1
258138齿轮箱螺柱(3.5英寸)STUD GEAR HOUSING (3-1/2")1
358136水泵壳体螺柱(2.75英寸)STUD WATER PUMP HOUSING (2-3/4")2
422756驱动轴滚柱轴承BEARING Roller DRIVE SHAFT1
520032定位销PIN Dowel LOCATING1
633613进水管橡胶密封SEAL RUBBER - WATER INTAKE TUBE1
786215进水管尼龙轴承密封BEARING NYLON - INTAKE TUBE SEAL1
833425进水滤网SCREEN WATER INTAKE1
925612进水滤网螺丝SCREW WATER INTAKE SCREEN1
1098696小齿轮GEAR Pinion1
1130377小齿轮螺钉锁紧垫圈TAB WASHER PINION GEAR SCREW1
1230376小齿轮驱动轴螺丝(#12-28x0.75)SCREW (#12-28 x .750) PINION GEAR TO DRIVE SHAFT1
1395873A1驱动轴DRIVESHAFT1
1395874A1驱动轴DRIVESHAFT1
1430527A1滚珠轴承垫片组(0.002-3-5-10)SHIM ASSEMBLY BALL BEARING (.002-3-5-10)AR
1570944驱动轴滚珠轴承BEARING Ball DRIVE SHAFT1
1630523球轴承挡圈RING Retaining BALL BEARING1
1730527A1滚珠轴承垫片组(0.002-3-5-10)SHIM ASSEMBLY BALL BEARING (.002-3-5-10)AR
1870941A1水泵总成HOUSING ASSEMBLY Water Pump1
1870941T01壳体总成HOUSING ASY1
1892970A1水泵总成HOUSING ASSEMBLY Water Pump1
1929439O型圈O-RING1
2030900油封SEAL Oil1
2030900T密封件@2SEAL @21
2096063油封SEAL Oil1
20897153油封@3SEAL-OIL @31
2170977嵌件INSERT1
2170977T嵌件INSERT1
2233613进水管密封SEAL WATER INTAKE TUBE1
2334293进水管道TUBE WATER INTAKE1
2456655叶轮驱动键KEY IMPELLER DRIVE1
248M0032835键KEY1
2589981叶轮IMPELLER1
2589980叶轮IMPELLER1
2646895水泵面板FACE PLATE WATER PUMP1
2793224A1水泵盖总成COVER ASSEMBLY Water Pump1
2836558水泵盖密封件SEAL WATER PUMP COVER1
3030913水泵盖油封SEAL Oil WATER PUMP COVER1
3120533垫圈WASHER2
3213438水泵壳体螺柱螺母(.250-28)NUT (.250-28) WATER PUMP HOUSING STUD2
328267119螺母(.250-28)NUT (.250-28)2
3330526橡胶环-离心甩水环RING RUBBER - CENTRIFUGAL SLINGER1
3431792进水管导向套SLEEVE GUIDE - INLET TUBE1
3431792T套管@5SLEEVE @51
-78139A80衬垫套件GASKET SET1
-70941A3水泵维修套件REPAIR KIT Water Pump1
-92970A5水泵维修套件REPAIR KIT Water Pump1
-77066A1水泵密封套件SEAL KIT Water Pump1

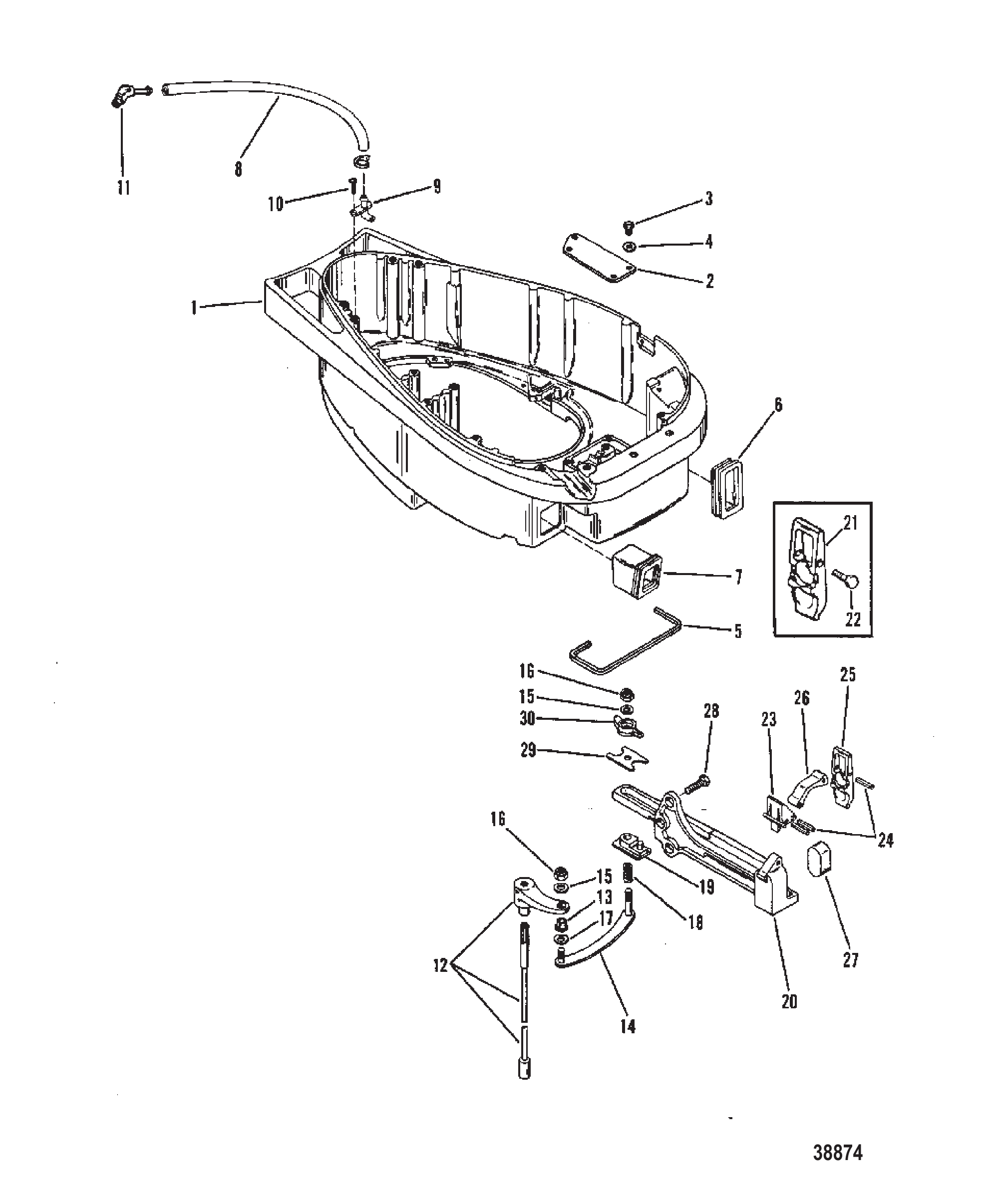

图 14底罩与换挡连杆 BOTTOM COWL AND SHIFT LINKAGE
底罩与换挡连杆 BOTTOM COWL AND SHIFT LINKAGE
REF零件编号中文名称英文名称数量
187081底罩COWL BOTTOM1
18708T6底罩COWL BOTTOM1
274303进气口盖COVER AIR INLET1
362568螺钉(#10-16 x .375)盖至底罩SCREW (#10-16 x .375) COVER TO BOTTOM COWL4
430164垫圈(.192 x .375 x .0312)不锈钢盖螺钉WASHER (.192 x .375 x .0312) Stainless Steel COVER SCREW4
573646底罩衬垫GASKET BOTTOM COWL1
639616底罩控制线缆护套BOOT CONTROL CABLES-BOTTOM COWL1
737637底罩燃油接头护套BOOT FUEL CONNECTOR-BOTTOM COWL1
899127109管线(57.00英寸散装)示警管(14-3/4")LINE (57.00 Inches Bulk) TELL TALE (14-3/4")1
88M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
952889示警软管至底罩喷嘴NOZZLE TELL TALE HOSE TO BOTTOM COWL1
1048408示流喷嘴至下罩盖螺钉(#10-16x0.500)SCREW (#10-16 x .500) TELL TALE NOZZLE TO BOTTOM COWL1
1178279示警软管至气缸体弯头ELBOW TELL TALE HOSE TO CYLINDER BLOCK1
118M0207781弯头ELBOW1
1260304A54上部换挡轴总成SHIFT SHAFT ASSEMBLY UPPER1
1326856换挡轴衬套BUSHING SHIFT SHAFT1
1473402换挡连杆SHIFT LINK1
1535462垫圈(.2656 x .625 x .0625)不锈钢连杆WASHER (.2656 x .625 x .0625) Stainless Steel LINK ROD2
1636069连杆螺母NUT LINK ROD2
1729720连杆波形垫圈WAVE WASHER LINK ROD1
1820099连杆至导向块弹簧SPRING LINK ROD TO GUIDE BLOCK1
1937896连杆导向块GUIDE BLOCK LINK ROD1
2052732A6控制线缆锚定支架BRACKET ANCHOR-CONTROL CABLES1
2198889闩锁LATCH1
2242975闩锁传动螺钉DRIVE SCREW LATCH2
2339618尼龙换挡线缆锁定杆LEVER NYLON-SHIFT CABLE LOCKING1
2387609A1杠杆套件LEVER KIT1
2447175锁定杆及盖固定销PIN LOCKING LEVER AND COVER FASTENING3
2590211尼龙换挡线缆盖COVER NYLON-SHIFT CABLE1
2665799T连杆-锁定杆到盖板LINK LOCKING LEVER TO COVER1
2687609A1杠杆套件LEVER KIT1
2739519锚定杯形保持器CUP BARREL RETAINER-ANCHOR1
2835386螺钉(.312-18 x 1.00)锚定支架至气缸体SCREW (.312-18 x 1.00) ANCHOR BRACKET TO CYLINDER BLOCK3
2952100连杆耐磨板WEAR PLATE LINK ROD1
3038279控制线缆闩锁紧固件LATCH CONTROL CABLE FASTENING1
308M0036768闩锁LATCH1
-73645A87衬垫套件GASKET SET1

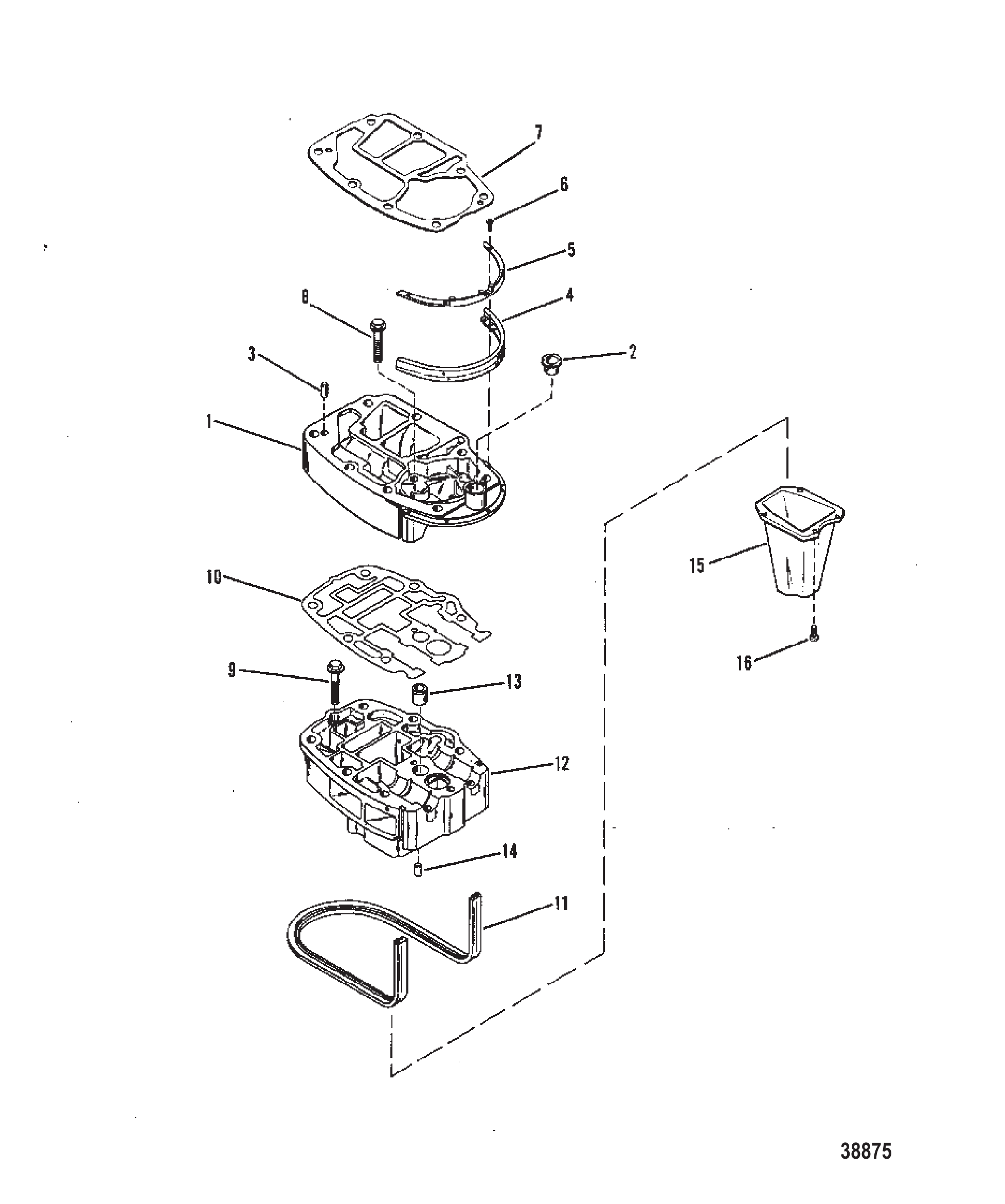

图 15排气延伸板 EXHAUST EXTENSION PLATE
排气延伸板 EXHAUST EXTENSION PLATE
REF零件编号中文名称英文名称数量
143289A2排气延伸板总成PLATE ASSEMBLY EXHAUST EXTENSION1
227132排气延伸板尼龙衬套BUSHING NYLON-EXHAUST EXTENSION PLATE1
323784排气延伸板定位销PIN Dowel EXHAUST EXTENSION PLATE2
437918排气延伸板密封件SEAL EXHAUST EXTENSION PLATE1
599358排气延伸板固定条STRIP RETAINING - EXHAUST EXTENSION PLATE1
637571螺钉(.190-32 x 0.500)SCREW (.190-32 x .500)5
769238动力头衬垫GASKET POWERHEAD1
7692381衬垫GASKET1
866023法兰头螺钉(.312-18 x 2.00)SCREW (.312-18 x 2.00) Flange Head2
966023法兰头螺钉(.312-18 x 2.00)SCREW (.312-18 x 2.00) Flange Head7
1066102驱动轴壳体板衬垫GASKET DRIVESHAFT HOUSING PLATE1
10661021衬垫GASKET1
1160898驱动轴壳体板密封件SEAL DRIVESHAFT HOUSING PLATE1
1243290A4驱动轴壳体板总成PLATE ASSEMBLY DRIVESHAFT HOUSING1
1338970橡胶密封圈-进水管SEAL RUBBER - WATER INLET TUBE1
1423784驱动轴壳体板定位销PIN Dowel DRIVESHAFT HOUSING PLATE2
1599698排气管TUBE Exhaust1
1665414螺钉(3/4英寸)SCREW (3/4 Inches)4
-73645A87衬垫套件GASKET SET1

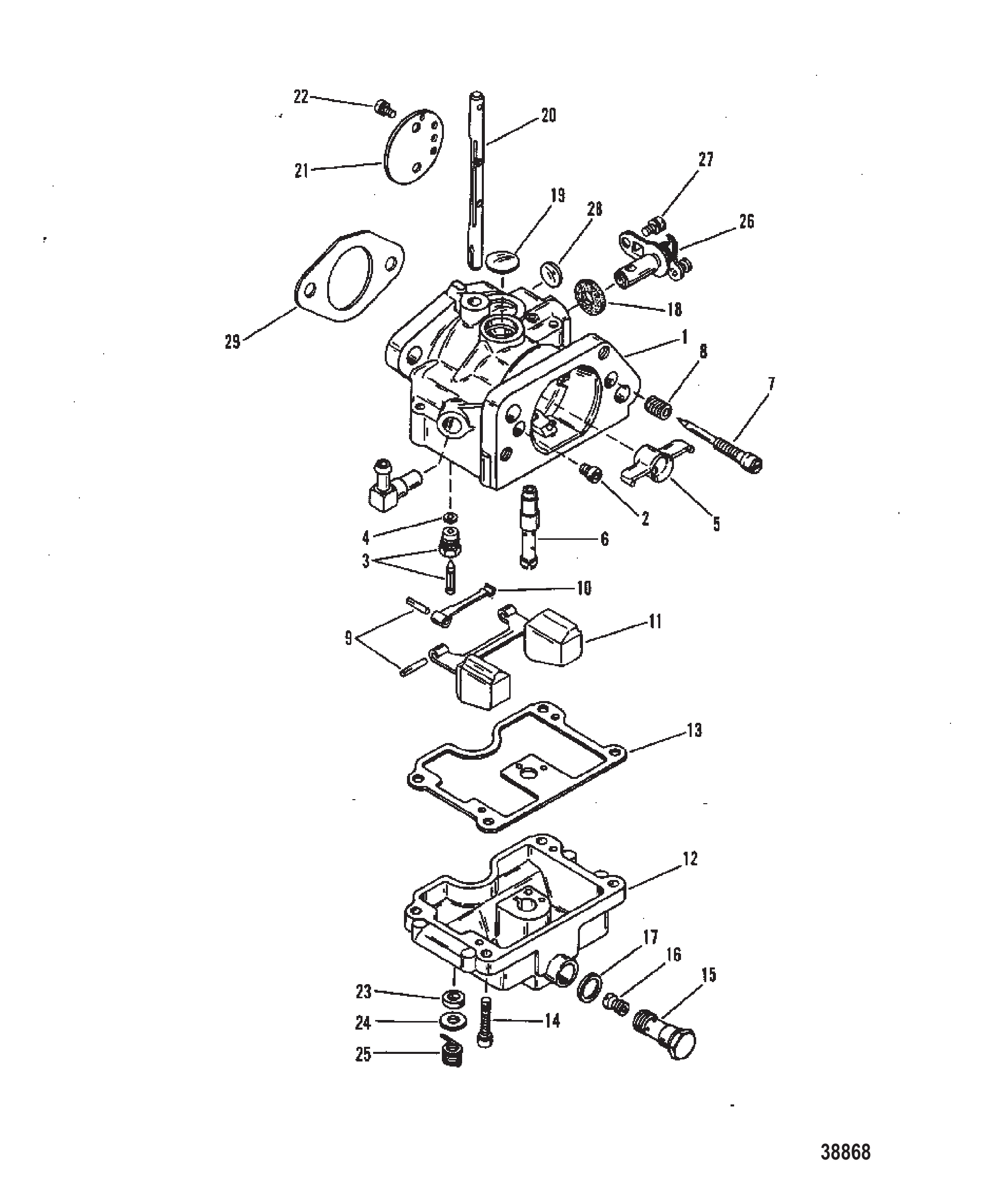

图 16化油器总成 CARBURETOR ASSEMBLY
化油器总成 CARBURETOR ASSEMBLY
REF零件编号中文名称英文名称数量
19503A20化油器 (6)(WMC-66)CARBURETOR (6)(WMC-66)1
19503T21化油器 (WMC-78A) (6)CARBURETOR (WMC-78A) (6)1
19266A21化油器 (8)(WMC-74)CARBURETOR (8)(WMC-74)1
19266T22化油器CARBURETOR1
19266T22化油器 (8)(WMC-79A)CARBURETOR (8)(WMC-79A)1
18846T20化油器 (WMC-61)CARBURETOR (WMC-61)1
18846T28化油器 (WMC-102)CARBURETOR (WMC-102)1
18846T25化油器 (WMC-80A) (9.9)CARBURETOR (WMC-80A) (9.9)1
18846T28化油器 (WMC-102)CARBURETOR (WMC-102)1
19726T11化油器 (15)(WMC-63)CARBURETOR (15)(WMC-63)1
19726T18化油器(WMC-83)CARBURETOR (WMC-83)1
19726T15化油器 (WMC-77) (15)CARBURETOR (WMC-77) (15)1
19726T18化油器(WMC-83)CARBURETOR (WMC-83)1
19726T18化油器 (WMC-83) (15)CARBURETOR (WMC-83) (15)1
29473油门阀VALVE Throttle1
2815133油门阀VALVE Throttle1
294731油门阀VALVE Throttle1
2823716油门阀VALVE Throttle1
3804707轴SHAFT1
48M0138645螺钉SCREW1
5804996弹簧SPRING1
6813022油门轴SHAFT Throttle1
619267油门轴SHAFT Throttle1
7F10167环RING1
89164燃油杯BOWL Fuel1
9824401浮子杆LEVER Float1
1091691浮子FLOAT1
11F10064轴SHAFT1
125902螺钉(#6-32 x .187)SCREW (#6-32 x .187)1
13803861进油针阀VALVE Inlet Needle1
145315主燃油喷嘴 (.042)JET Main Fuel (.042)1
145317量孔(.046)JET (.046)1
146246量孔(.048)JET (.048)1
146207量孔(.072)JET (.072)1
159171堵头PLUG1
16813618盖板COVER1
16823648膜片盖COVER Diaphragm1
179697螺钉SCREW4
1815827A1本体BODY1
189702盖/燃油泵套件COVER/FUEL PUMP KIT1
199643螺钉SCREW5
209699安装板PLATE1
2144426衬垫GASKET1
229696螺钉SCREW2
2396371燃油泵盖COVER Fuel Pump1
239637盖板COVER1
249633衬垫GASKET1
259762堵头PLUG1
26192061化油器衬垫GASKET Carburetor1
279635膜片/衬垫DIAPHRAGM/GASKET1
2897611衬垫/膜片套件GASKET/DIAPHRAGM KIT1
298237072维修套件REPAIR KIT1
-42364A92发动机垫片组GASKET SET Engine1

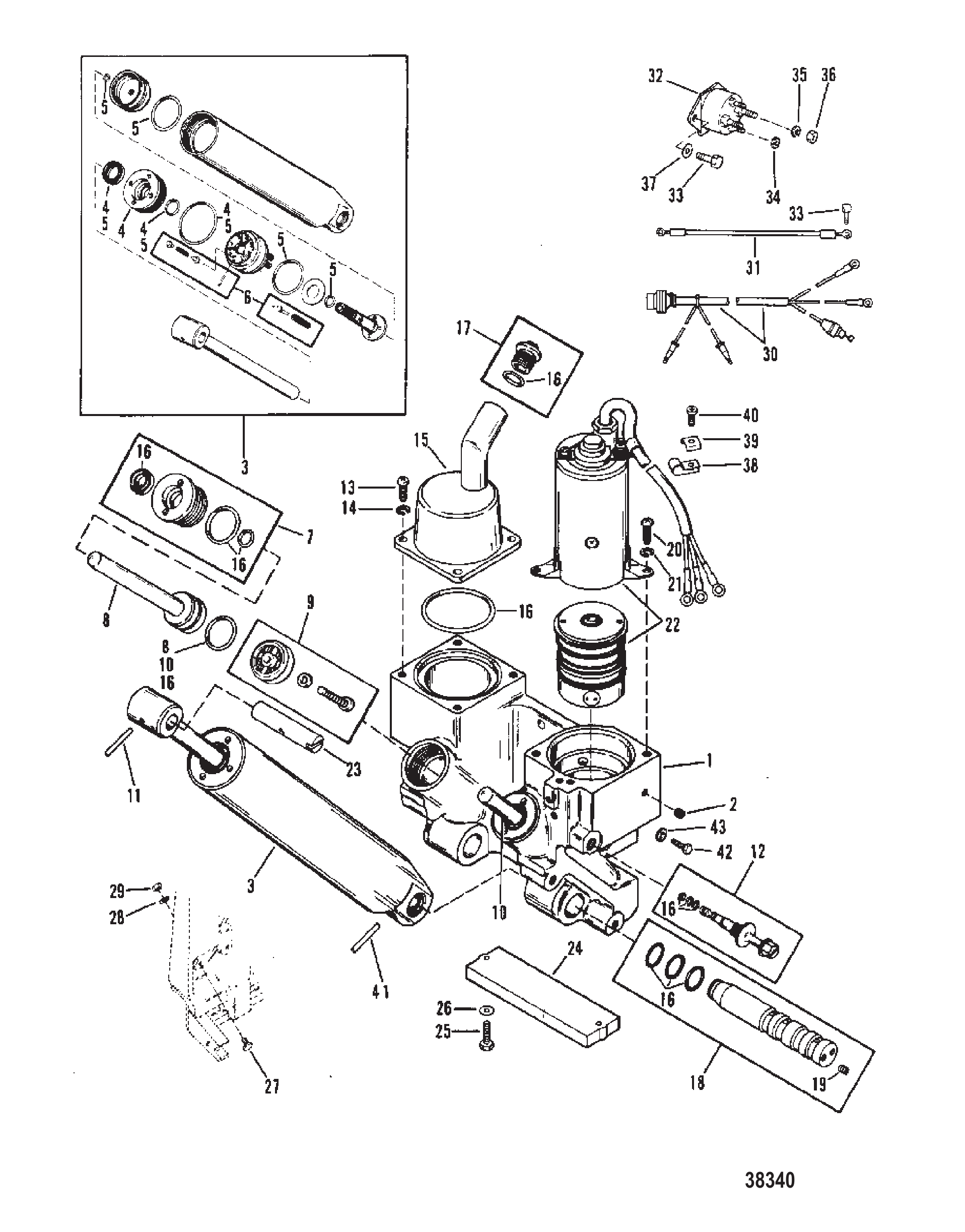

图 17动力升降组件 POWER TRIM COMPONENTS
动力升降组件 POWER TRIM COMPONENTS
REF零件编号中文名称英文名称数量
-830250T3动力升降泵总成PUMP ASSEMBLY Power Trim1
1811666A1减震杆套件SHOCK ROD KIT1
18M0171821减震杆套件SHOCK ROD KIT1
2809872A2O型圈维修包O-RING KIT Rebuild1
28M0171819O型圈套件O-RING KIT1
3810776A1记忆活塞总成PISTON ASSEMBLY Memory1
38M0171822记忆活塞套件MEMORY PISTON KIT1
4811669A1气缸总成CYLINDER ASSEMBLY1
4893916A01气缸总成CYLINDER ASSEMBLY1
5809873A1配平限位阀套件VALVE KIT Trim Limit1
5893905A02阀套件VALVE KIT1
6809874A1泵总成PUMP ASSEMBLY1
6893906A02泵总成PUMP ASSEMBLY1
7809885A2电机套件MOTOR KIT1
7893907A02电机套件MOTOR KIT1
88134351堵头PLUG1
9813442A2手动释放总成MANUAL RELEASE ASSEMBLY1
9893929A01安全阀套件VALVE KIT Relief1
10809875A1歧管套件MANIFOLD KIT1
10893909A02歧管套件MANIFOLD KIT1
11809876A1电机螺钉套件SCREW KIT Motor1
1288238A18拉线总成CABLE ASSEMBLY1
13809877A1驱动轴/密封套件DRIVESHAFT/SEAL KIT1
14809878A1滤清器套件FILTER KIT1
14893912A02滤清器套件FILTER KIT1
15809879A1提升阀套件POPPET KIT1
15893913A02提升阀套件POPPET KIT1
-809880A1完整配平O型圈套件O-RING KIT Complete Trim1
-893914A02O型圈套件O-RING KIT1
16821539三叶销PIN Trilobe2
17818898锚销PIN Anchor1
18996251轴SHAFT1
1899625002轴SHAFT1
1922740卡扣CLIP2
20878609螺钉 (#10-16 x .600)SCREW (#10-16 x .600)1
2169205C形垫圈C WASHER1
218M0084613C形垫圈C-WASHER1

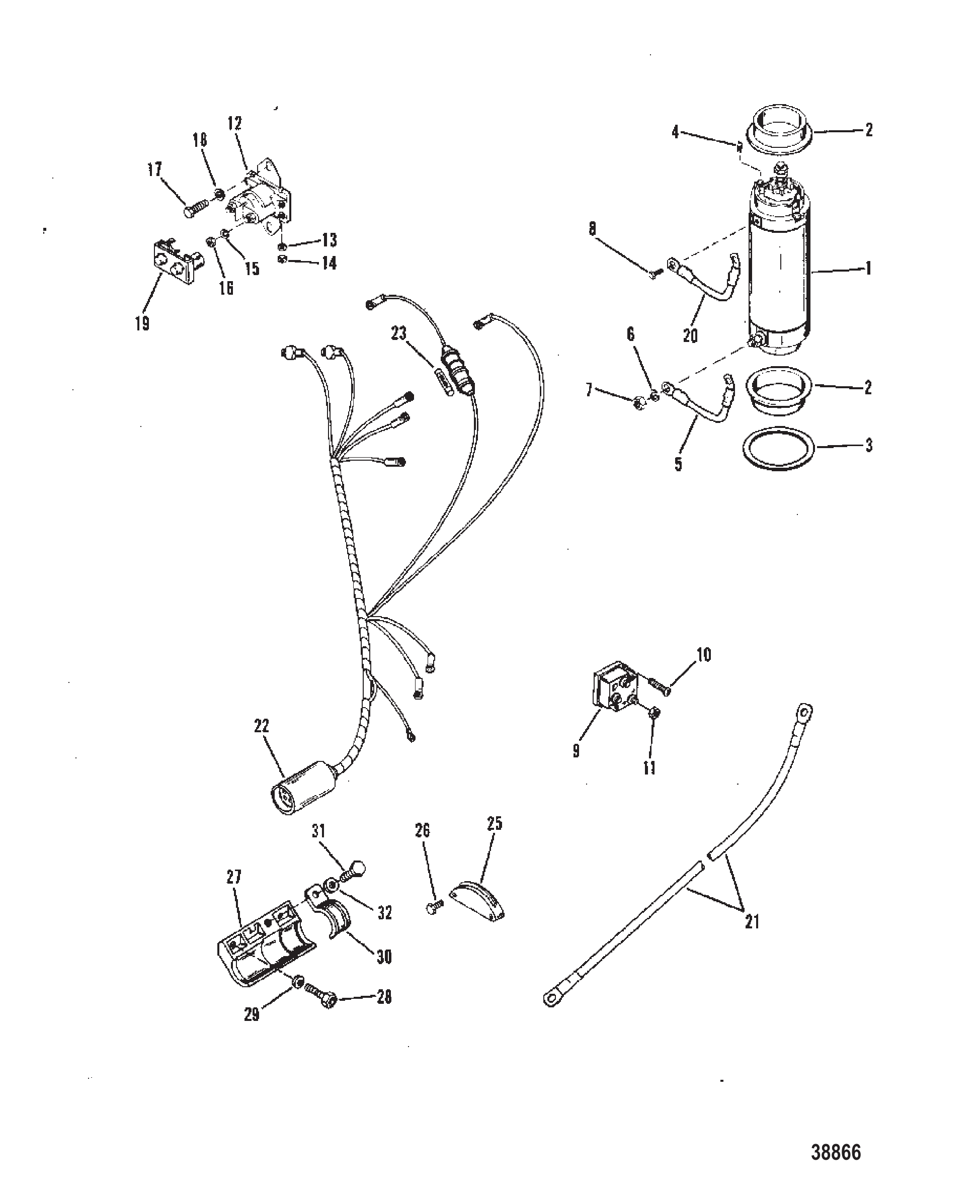

图 18启动马达与线束 STARTER MOTOR AND WIRING HARNESS
启动马达与线束 STARTER MOTOR AND WIRING HARNESS
REF零件编号中文名称英文名称数量
166015启动电机总成STARTER MOTOR ASSEMBLY1
1893891T启动电机总成STARTER MOTOR ASSEMBLY1
256703启动电机橡胶衬套COLLAR RUBBER-STARTER MOTOR2
28M0034918轴环COLLAR2
356774衬套支架垫片SPACER COLLAR TO BRACKET1
457247启动电机橡胶止动块STOP RUBBER-STARTER MOTOR2
48M0043376停机开关STOP2
593389A8电机至电磁阀导线（黄色）WIRE MOTOR TO SOLENOID (YELLOW)1
626992锁紧垫圈(.250) 不锈钢 起动机接线端LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL1
764015螺母(.250-20) 起动机接线端NUT (.250-20) STARTER MOTOR TERMINAL1
869035螺丝与锁紧垫圈(.250-20 x .625)不锈钢SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel1
962351A1整流器RECTIFIER1
98M0058226整流器RECTIFIER1
1037656整流器至安装板螺钉（#10-32 x 0.620）SCREW (#10-32 x .620) RECTIFIER TO PLATE2
1145076螺母(#10-32)黄铜整流器端子NUT (#10-32) Brass RECTIFIER TERMINAL3
1296054启动电磁阀总成SOLENOID ASSEMBLY Starter1
128M0185149启动电磁阀SOLENOID START1
1326995锁紧垫圈 (#8) 不锈钢电磁阀端子LOCKWASHER (#8) Stainless Steel SOLENOID TERMINAL2
1426419螺母(#8-32)-黄铜电磁阀端子NUT (#8-32) Brass SOLENOID TERMINAL2
1526992锁紧垫圈 (.250) 不锈钢电磁阀端子LOCKWASHER (.250) Stainless Steel SOLENOID TERMINAL2
1694330螺母 (.250-20) 黄铜电磁阀端子NUT (.250-20) Brass SOLENOID TERMINAL2
1728635不锈钢螺丝(.250-20 x .620)SCREW (.250-20 x .620) Stainless Steel2
1826992锁紧垫圈 (.250) 不锈钢 电磁阀螺钉LOCKWASHER (.250) Stainless Steel SOLENOID SCREW2
1997861绝缘体-启动电磁阀INSULATOR STARTER SOLENOID1
2093388A1接地电缆总成（6英寸，黑色）CABLE ASSEMBLY (6.00 Inches) Black GROUND1
2188439A3正极电缆总成-蓄电池CABLE ASSEMBLY Positive - Battery1
2188439A4蓄电池负极电缆总成CABLE ASSEMBLY Battery - Negative1
2296233A2线束总成HARNESS ASSEMBLY1
2379091保险丝20安培FUSE 20 Ampere1
238M0207796保险丝20安培FUSE 20 AMP1
2588608线束夹CLAMP WIRING HARNESS1
2628636线束夹螺钉（0.250-20 x 0.750）SCREW (.250-20 x .750) WIRING HARNESS CLAMP2
2789047线束支架BRACKET WIRING HARNESS1
2832228线束支架螺钉（#10-32 x 0.625）SCREW (#10-32 x .625) WIRING HARNESS BRACKET2
2938833支架螺钉垫圈WASHER BRACKET SCREW2
3088751线束夹CLAMP WIRING HARNESS1
3128636线束夹螺钉（0.250-20 x 0.750）SCREW (.250-20 x .750) WIRING HARNESS CLAMP1
3220533夹紧螺钉垫圈WASHER CLAMP SCREW1
图 19动力升降泵(Prestolite圆形电机) Power Trim Pump (Prestolite Round Motor)
动力升降泵(Prestolite圆形电机) Power Trim Pump (Prestolite Round Motor)
REF零件编号中文名称英文名称数量
-99186动力升降泵总成PUMP ASSEMBLY Power Trim1
18995泵总成PUMP ASSEMBLY1
1826729A10ORD 8M0143217ORD 8M01432171
28996O型圈套件O-RING KIT1
38986电枢ARMATURE1
48987机架与磁场FRAME AND FIELD1
499186动力升降泵总成PUMP ASSEMBLY Power Trim1
58992缸盖O型圈O-RING HEAD1
68993电刷弹簧套件SPRING KIT BRUSH1
78988换向器端盖HEAD COMMUTATOR END1
88989电刷套件BRUSH KIT1
98994贯穿螺栓套件THRU BOLT KIT1
108985导线夹CLAMP LEAD WIRE1
118990螺母密封垫NUT PACKING1
128991O型圈螺母密封O-RING PACKING NUT1

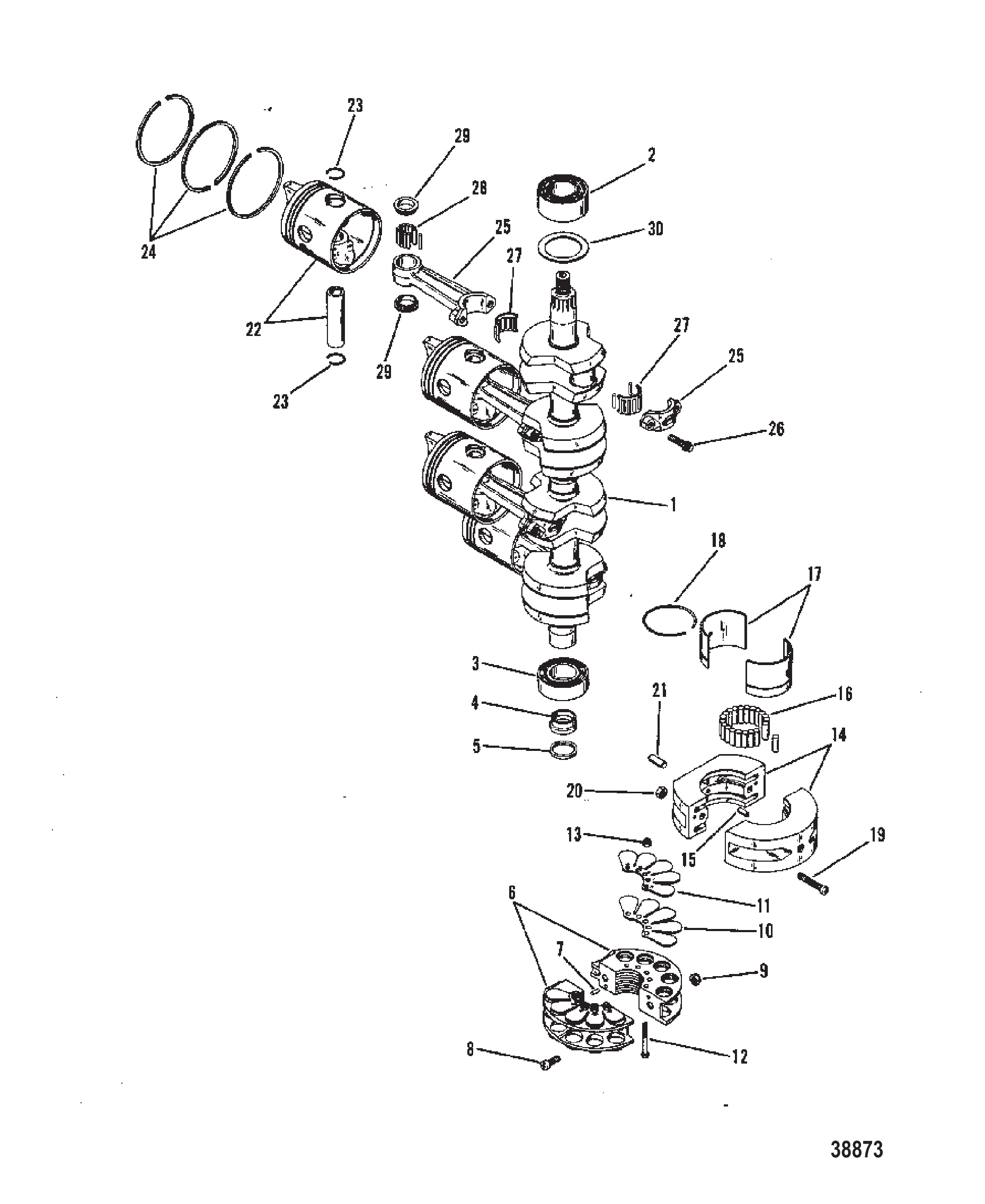

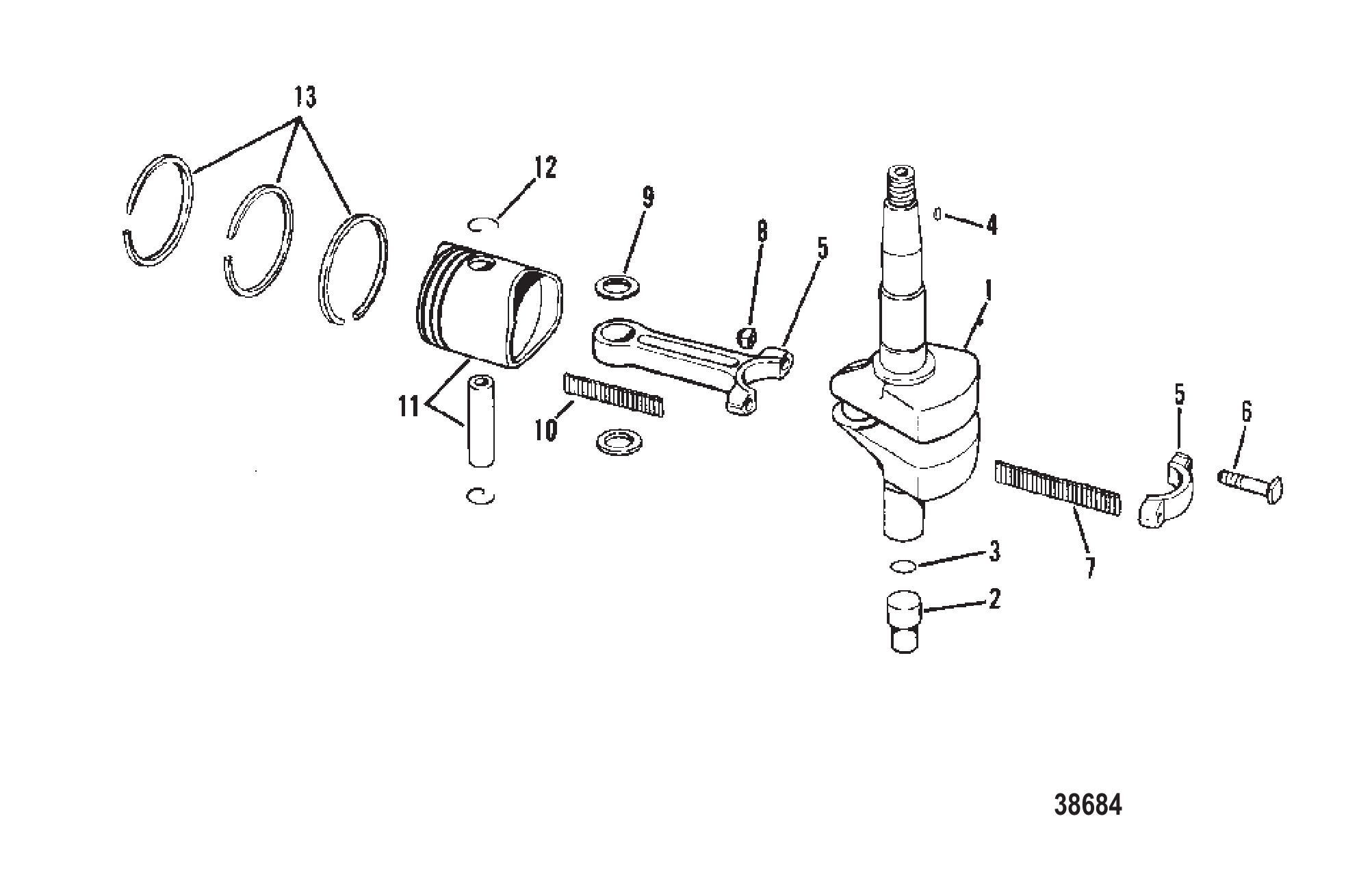

图 20曲轴、活塞与连杆 CRANKSHAFT, PISTON AND CONNECTING ROD
曲轴、活塞与连杆 CRANKSHAFT, PISTON AND CONNECTING ROD
REF零件编号中文名称英文名称数量
17334A2曲轴总成CRANKSHAFT ASSEMBLY1
279952A1托架总成CARRIER ASSEMBLY1
362704O型圈 (.362 x .103)O-RING (.362 x .103)1
420094KEY Woodruff CRANKSHAFT2
57395A2连杆总成CONNECTING ROD ASSEMBLY1
687374连杆螺丝(.250-28 x 1.030)SCREW (.250-28 x 1.030) CONNECTING ROD2
726815曲柄销滚针轴承BEARING Needle CRANKPIN29
78M0045032滚针轴承@100NEEDLE BRG @10029
820061连杆螺钉螺母NUT CONNECTING ROD SCREW2
965967滚针轴承挡圈WASHER NEEDLE BEARING RETAINING2
1031505活塞销滚针轴承BEARING Needle PISTON PIN20
117391A3活塞总成PISTON ASSEMBLY1
117391T3活塞PISTON1
1221666活塞销锁环LOCK RING PISTON PIN2
1321665A12活塞环组RING SET Piston1
-78139A80衬垫套件GASKET SET1

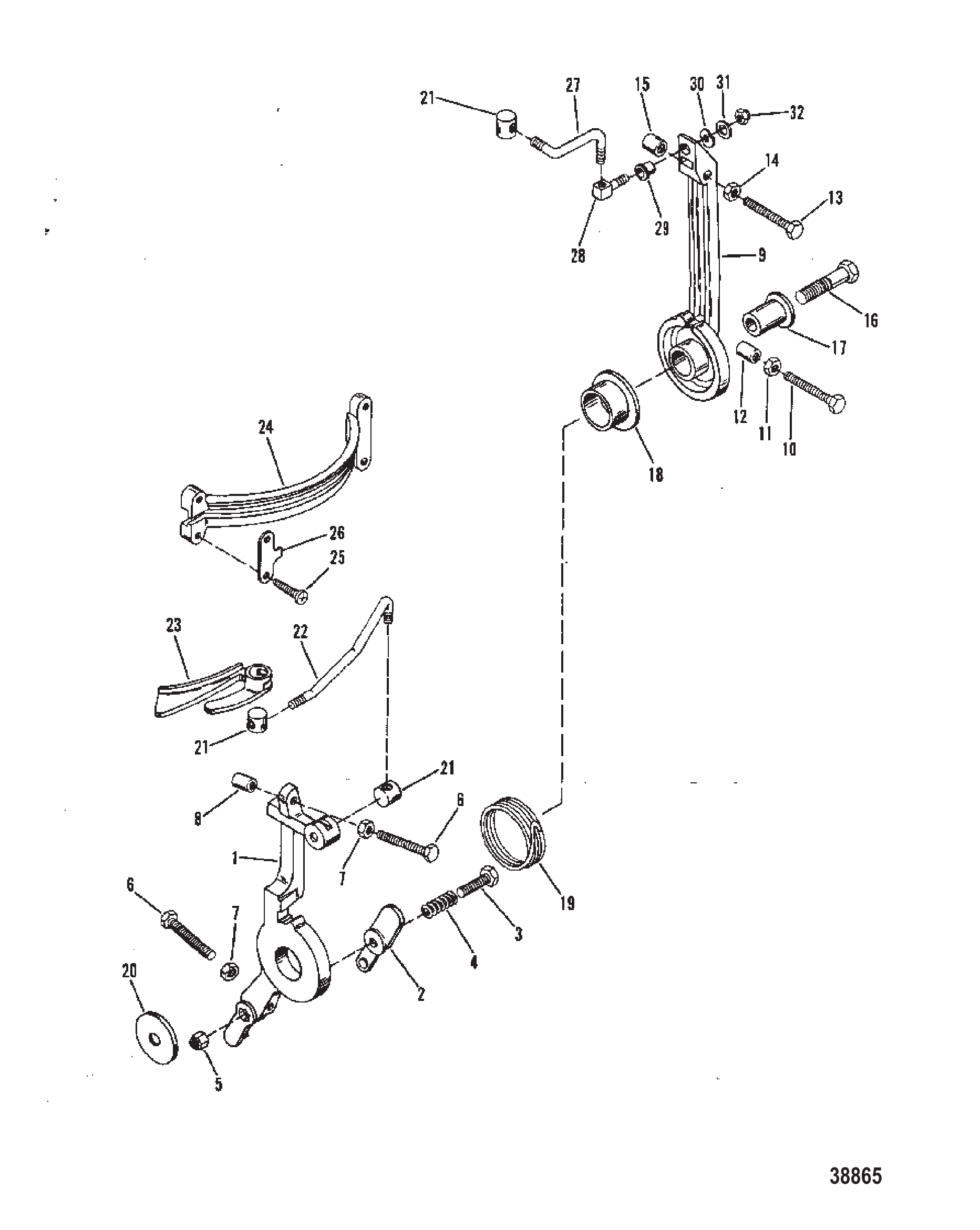

图 21油门杆与点火提前杆 THROTTLE LEVER AND SPARK ADVANCE LEVER
油门杆与点火提前杆 THROTTLE LEVER AND SPARK ADVANCE LEVER
REF零件编号中文名称英文名称数量
173416T油门杆LEVER Throttle1
173416杠杆LEVER1
273404油门杆锁扣LATCH THROTTLE LEVER1
359702螺钉 (.250-28 x .875) 不锈钢SCREW (.250-28 x .875) Stainless Steel1
420099卡扣螺钉弹簧SPRING LATCH SCREW1
536069锁扣螺钉螺母NUT LATCH SCREW1
673654油门杆调节螺钉（1-3/4英寸）SCREW ADJUSTING-THROTTLE LEVER (1-3/4")2
669029螺钉(.250-28 x 1.750)SCREW (.250-28 x 1.750)2
729598调节螺钉用0.250-28不锈钢防松螺母NUT (.250-28) Stainless Steel JAM-ADJUSTING SCREW2
852023调节螺钉尼龙帽CAP NYLONG-ADJUSTING SCREW1
973414点火提前臂ARM SPARK ADVANCE1
1073656点火提前臂调节螺钉（1-3/8英寸）SCREW ADJUSTING-SPARK ADVANCE ARM (1-3/8")1
1168219调节螺钉防松螺母（#10-32不锈钢）NUT (#10-32) Stainless Steel JAM-ADJUSTING SCREW1
1248039调节螺钉尼龙帽CAP NYLON-ADJUSTING SCREW1
1373655点火提前臂调节螺钉（2英寸）SCREW ADJUSTING-APRK ADVANCE ARM (2")1
1367916螺钉(0.250-28x2.00)SCREW (.250-28 x 2.00)1
1429598调节螺钉用0.250-28不锈钢防松螺母NUT (.250-28) Stainless Steel JAM-ADJUSTING SCREW1
1552023调节螺钉尼龙帽CAP NYLON-ADJUSTING SCREW1
1655337螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
16818165螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
1755164BUSHING LEVER AND ARM SCREW1
1855171杆臂螺钉法兰衬套BUSHING FLANGE-LEVER AND ARM SCREW1
1986310杆臂螺钉回位弹簧SPRING RETURN-LEVER AND ARM SCREW1
1973375弹簧SPRING1
2046765杆臂螺钉垫圈（0.390 x 1.50 x 0.120）WASHER (.390 x 1.50 x .120) LEVER AND ARM SCREW1
2160572杆臂尼龙套筒BARREL NYLON-LEVER AND ARM3
218M0221994筒形接头BARREL FITTING3
2273374油门连杆LINK ROD THROTTLE1
2373432节气门凸轮CAM Throttle1
2477001油门凸轮壳体HOUSING THROTTLE CAM1
2569013壳体至曲轴箱螺钉（#10-16 x 0.880）SCREW (#10-16 x .880) HOUSING TO CRANKCASE4
2677158油门凸轮壳体垫片SPACER THROTTLE CAM HOUSING1
2777010点火提前连杆LINK ROD SPARK ADVANCE1
2876158A1连杆至摆臂旋转接头总成SWIVEL ASSEMBLY LINK ROD TO ARM1
2926856连杆旋转接头尼龙衬套BUSHING NYLON-LINK ROD SWIVEL1
3029402连杆万向接头波形垫圈WAVE WASHER LINK ROD SWIVEL1
3133786WASHER LINK ROD SWIVEL1
3173288垫圈(.220 x .500 x .030)不锈钢WASHER (.220 x .500 x .030) Stainless Steel1
3220110连杆旋转接头螺母（#10-32）NUT (#10-32) LINK ROD SWIVEL1

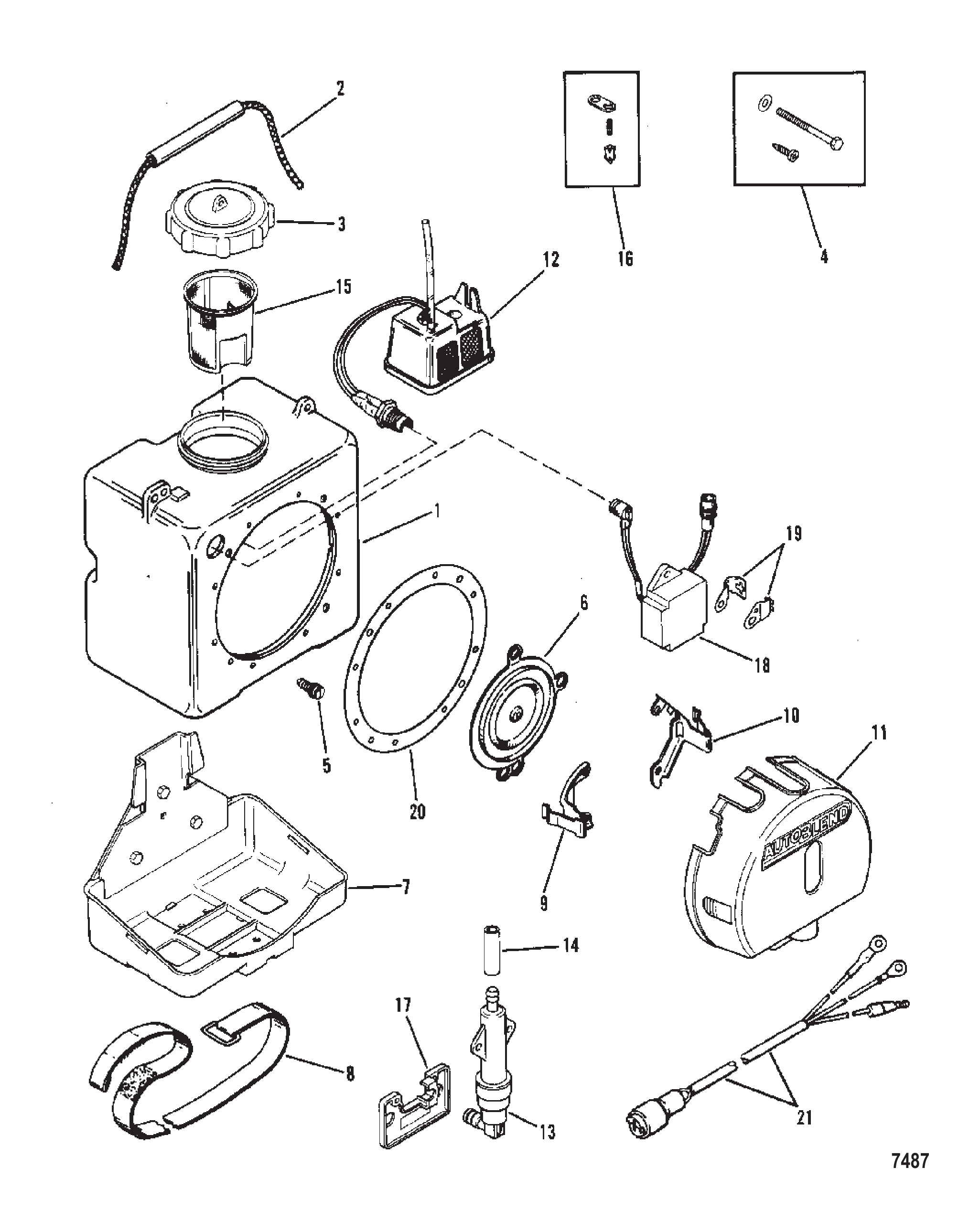

图 22自动混合装置(无警报喇叭) AUTO-BLEND (WITHOUT WARNING HORN)
自动混合装置(无警报喇叭) AUTO-BLEND (WITHOUT WARNING HORN)
REF零件编号中文名称英文名称数量
1130194自动混合装置AUTO BLEND ASSEMBLY1
116612油箱套件 机油TANK KIT Oil1
213996手柄套件HANDLE KIT1
316619机油箱盖CAP OIL TANK1
416614五金件套件HARDWARE KIT1
513979放油塞套件PLUG KIT Drain1
616611膜片组件DIAPHRAGM KIT1
716620安装支架套件BRACKET KIT Mounting1
813993箍带BAND1
913983支架(左)BRACKET (LEFT)1
1013984支架(右)BRACKET (RIGHT)1
1116613盖板COVER1
1213985机油滤清器/传感器套件FILTER/SENSOR KIT Oil1
1316617燃油滤清器套件FILTER KIT Fuel1
1318576燃油滤清器套件FILTER KIT Fuel1
1413992乙烯基软管VINYL TUBE1
1516618机油滤网STRAINER Oil1
1616615止回阀套件CHECK VALVE KIT1
1716621安装板PLATE1
1816622模块套件MODULE KIT1
1819265模块套件MODULE KIT1
1916623支架套件BRACKET KIT1
2016616衬垫套件GASKET KIT1
2114585A1自动混合线束总成HARNESS ASSEMBLY AUTO-BLEND1

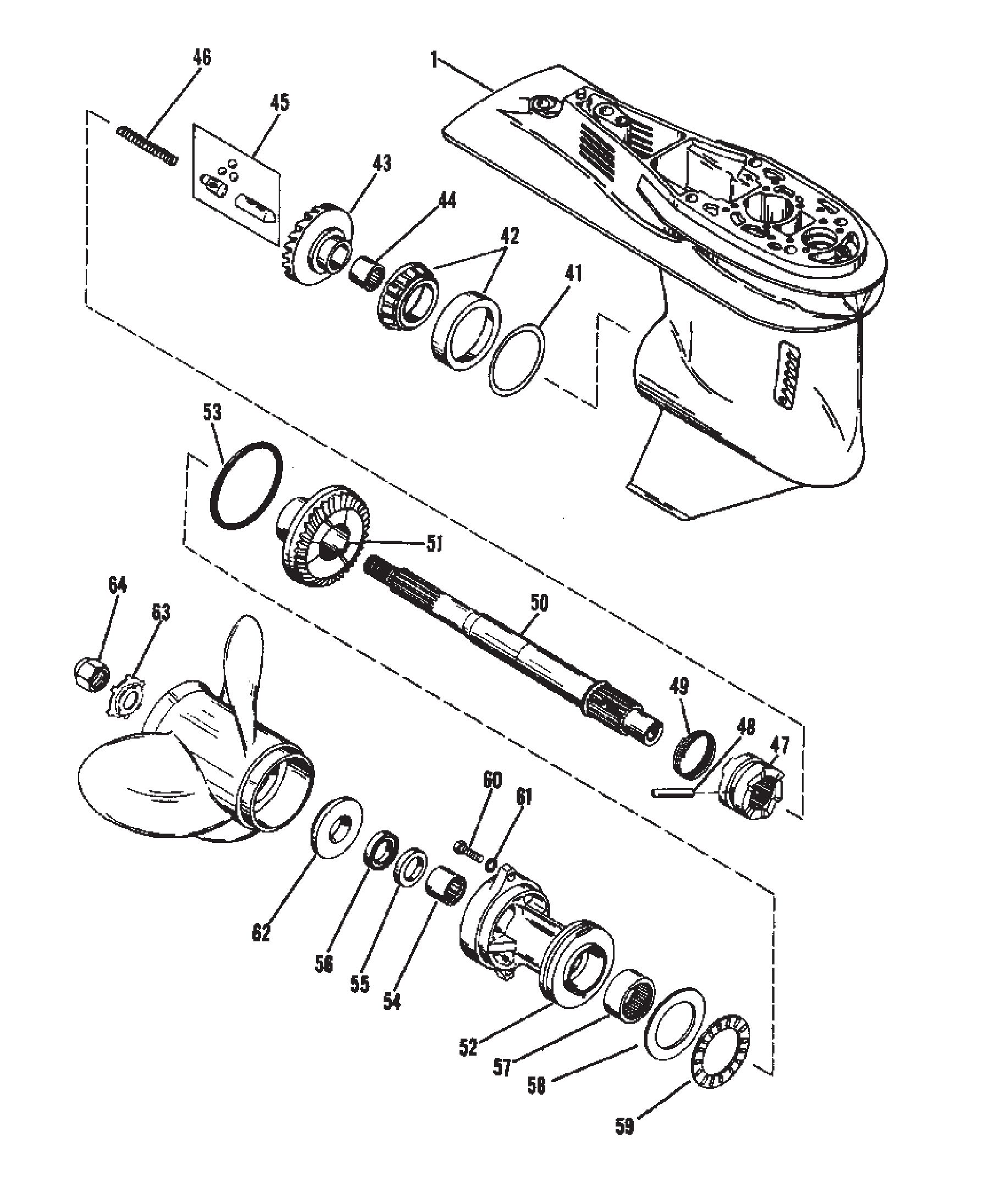

图 23齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)
齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)
REF零件编号中文名称英文名称数量
-9148A8齿轮箱总成-标准旋转1.87:1传动比(完整)GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (COMPLETE)1
19148A11齿轮箱总成(基础)GEAR HOUSING ASSEMBLY (BASIC)1
19148T47齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
4878956换挡凸轮SHIFT CAM1
48789562换挡凸轮SHIFT CAM1
4989594A1凸轮从动件总成FOLLOWER ASSEMBLY CAM1
5079911离合器作动杆ROD CLUTCH ACTUATOR1
5079911A1杆ROD1
5179910压缩弹簧SPRING COMPRESSION2
5278910压缩弹簧垫圈WASHER COMPRESSION SPRING1
5378906PIN SPRING LOCATOR1
538M0084245弹簧定位销PIN Spring Locator1
5447397A1轴承外圈垫片组(.002-3-5-10)SHIM SET BEARING OUTER RACE (.002-3-5-10)AR
5578172A1圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
5644104A2前进齿轮总成GEAR ASSEMBLY Forward1
5644104T2齿轮组GEAR SET1
5743999滚子轴承(外径1.308)BEARING Roller (1.308 O.D.)2
5773363滚子轴承(外径1.313)BEARING Roller (1.313 O.D.)2
5773363T轴承BEARING2
5878959棘轮滑动离合器RATCHET SLIDING CLUTCH1
58823174TORD 8M0100493ORD 8M01004931
5978905棘轮到螺旋桨轴十字销PIN Cross RATCHET TO PROPELLER SHAFT1
598M0084243十字销PIN Cross1
6078909棘轮定位销PIN Detent RATCHET2
6178962十字销固定弹簧SPRING RETAINING-CROSS PIN2
6294148螺旋桨轴PROPELLER SHAFT1
63N.S.S.不单独出售(43-44104A2部件)Not Sold Separate (PART OF 43-44104A2)1
6468100止推环RING THRUST1
64681001止推环RING Thrust1
6588957A1滚珠轴承-倒档齿轮BEARING Ball BALL-REVERSE GEAR1
6588957T滚珠轴承BEARING Ball1
6631534轴承座O型圈O-RING BEARING CARRIER1
668M0214920O型圈O RING1
6743567A1轴承座总成CARRIER ASSEMBLY Bearing1
6743567T1轴承座总成CARRIER ASSEMBLY Bearing1
6830956滚针轴承-轴承座BEARING Needle BEARING CARRIER1
6830956T滚针轴承BEARING Needle1
6976868轴承座密封SEAL BEARING CARRIER2
698M0248882油封@5SEAL-OIL @52
7030281轴承座定位键KEY LOCATING-BEARING CARRIER1
7179447齿轮箱盖锁紧垫圈TAB WASHER GEAR HOUSING COVER1
7279448齿轮箱固定座RETAINER GEAR HOUSING1
728M2011027固定座RETAINER1
7331640A1TRIM TAB ASSEMBLY GEAR HOUSING1
7331640Q4平衡鳍板TRIM TAB1
7466024螺钉(.437-14 x 1.75)调整片到齿轮箱(1-3/4")SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING (1-3/4")1
7567891填充块FILLER BLOCK FILLER BLOCK1
758M0039169填充块FILLER BLOCK1
7634933螺母(.437-20)不锈钢驱动轴壳体螺柱NUT (.437-20) Stainless Steel DRIVE SHAFT HOUSING STUDS2
768M0204653螺母NUT2
7765210螺钉(.375-16 x 1.00)齿轮箱SCREW (.375-16 x 1.00) GEAR HOUSING1
7813171推力毂THRUST HUB1
78835467Q01止推垫片套件THRUST WASHER KIT1
7931211A2花键垫圈-螺旋桨螺母WASHER Splined SPLINED-PROPELLER NUT1
7931211Q03垫圈总成WASHER ASSEMBLY1
8031210螺旋桨螺母锁紧垫圈TAB WASHER PROPELLER NUT1
80816629Q锁紧垫圈TAB WASHER1
8152707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
8152707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
82423511螺旋桨轴齿形锁紧垫圈LOCKWASHER Toothed PROPELLER SHAFT1
8345176垫圈(.453 x .812 x .105)不锈钢驱动轴壳体螺柱WASHER (.453 x .812 x .105) Stainless Steel DRIVE SHAFT HOUSING STUDS2
-89238A2密封套件SEAL KIT1
-14697A87衬垫套件GASKET SET
图 24动力升降泵(Eaton矩形电机) Power Trim Pump (Eaton Rectangular Motor)
动力升降泵(Eaton矩形电机) Power Trim Pump (Eaton Rectangular Motor)
REF零件编号中文名称英文名称数量
-99186T泵与电机总成PUMP AND MOTOR1
112659机架与磁场套件FRAME AND FIELD KIT1
1991861动力升降泵总成PUMP ASSEMBLY Power Trim1
212665电刷弹簧套件SPRING KIT Brush1
313506电刷卡套件BRUSH CARD KIT1
3991861动力升降泵总成PUMP ASSEMBLY Power Trim1
412662泵与端架套件PUMP AND END FRAME KIT1
4991861动力升降泵总成PUMP ASSEMBLY Power Trim1
512663泵密封套件SEAL KIT Pump1
5126631泵密封套件SEAL KIT Pump1
612660端架套件END FRAME KIT1
6991861动力升降泵总成PUMP ASSEMBLY Power Trim1
712661电枢套件ARMATURE KIT1
7991861动力升降泵总成PUMP ASSEMBLY Power Trim1
812664贯穿螺栓套件THRU BOLT KIT1

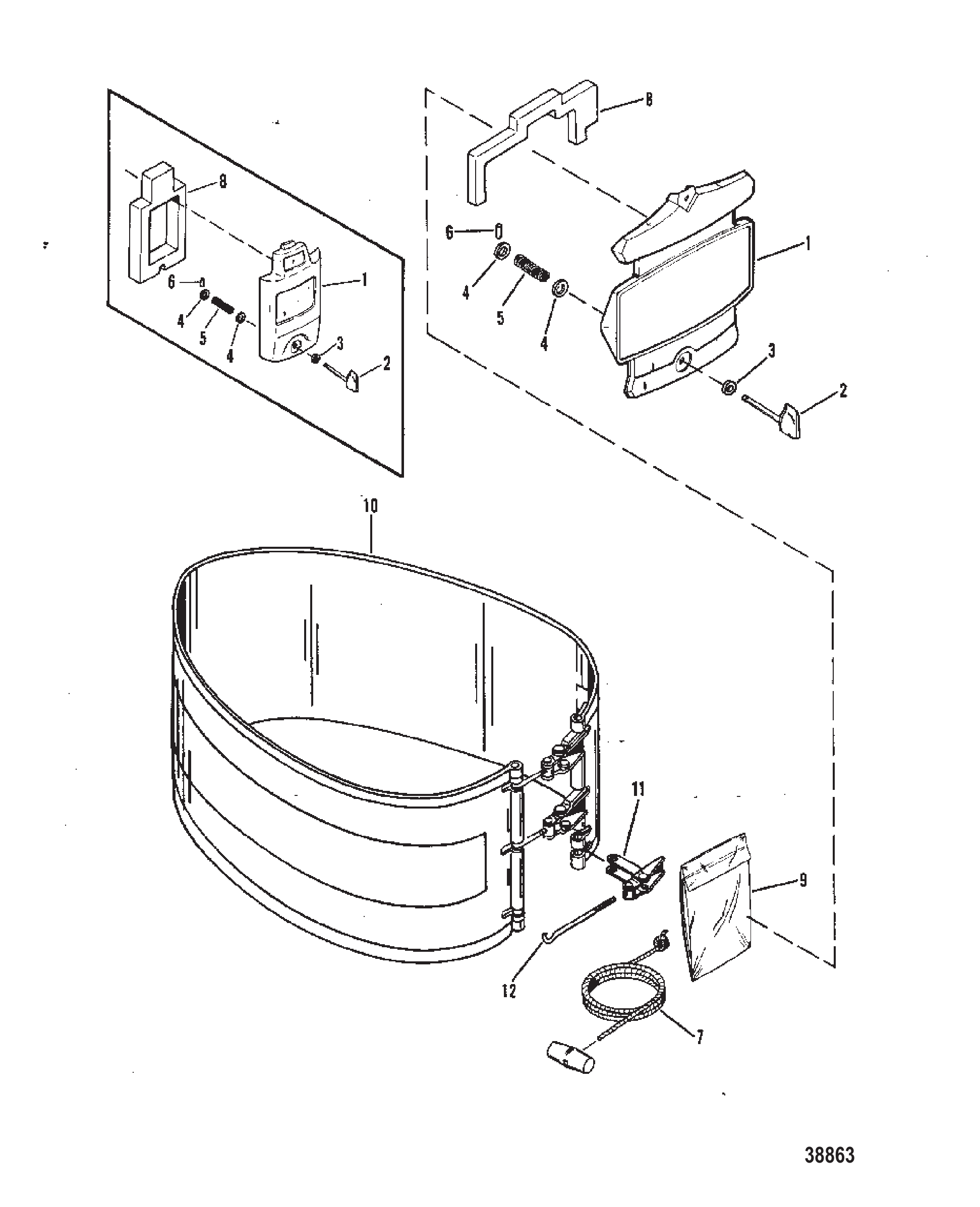

图 25外罩与前盖 COWLING AND FRONT COVER
外罩与前盖 COWLING AND FRONT COVER
REF零件编号中文名称英文名称数量
17927A8前盖组件FRONT COVER ASSEMBLY1
16393A6前盖FRONT COVER1
256849旋钮KNOB1
273786旋钮KNOB1
330771旋钮盖垫圈(橡胶)WASHER COVER KNOB (RUBBER)2
475246旋钮盖垫圈(钢制)WASHER COVER KNOB (STEEL)2
530772旋钮盖张力弹簧SPRING TENSION-COVER KNOB1
629077PIN Roll TENSION SPRING TO KNOB1
747341A1手动/应急启动拉绳手柄套件ROPE AND HANDLE KIT Manual/Emergency Start STARTER1
747341A11手动启动绳柄套件ROPE AND HANDLE KIT Manual Starting1
894923消音垫PAD SOUND ABSORBING2
876434消音密封条SEAL SOUND ABSORBING2
938674隔音毯BLANKET SOUND ABSORBING1
103248A16环绕式外罩总成WRAP AROUND COWL ASSEMBLY1
106394A7环绕式外罩WRAP AROUND COWL1
1146785A1罩壳锁扣总成LATCH ASSEMBLY Cowl2
1230413罩锁钩HOOK COWL LATCH2

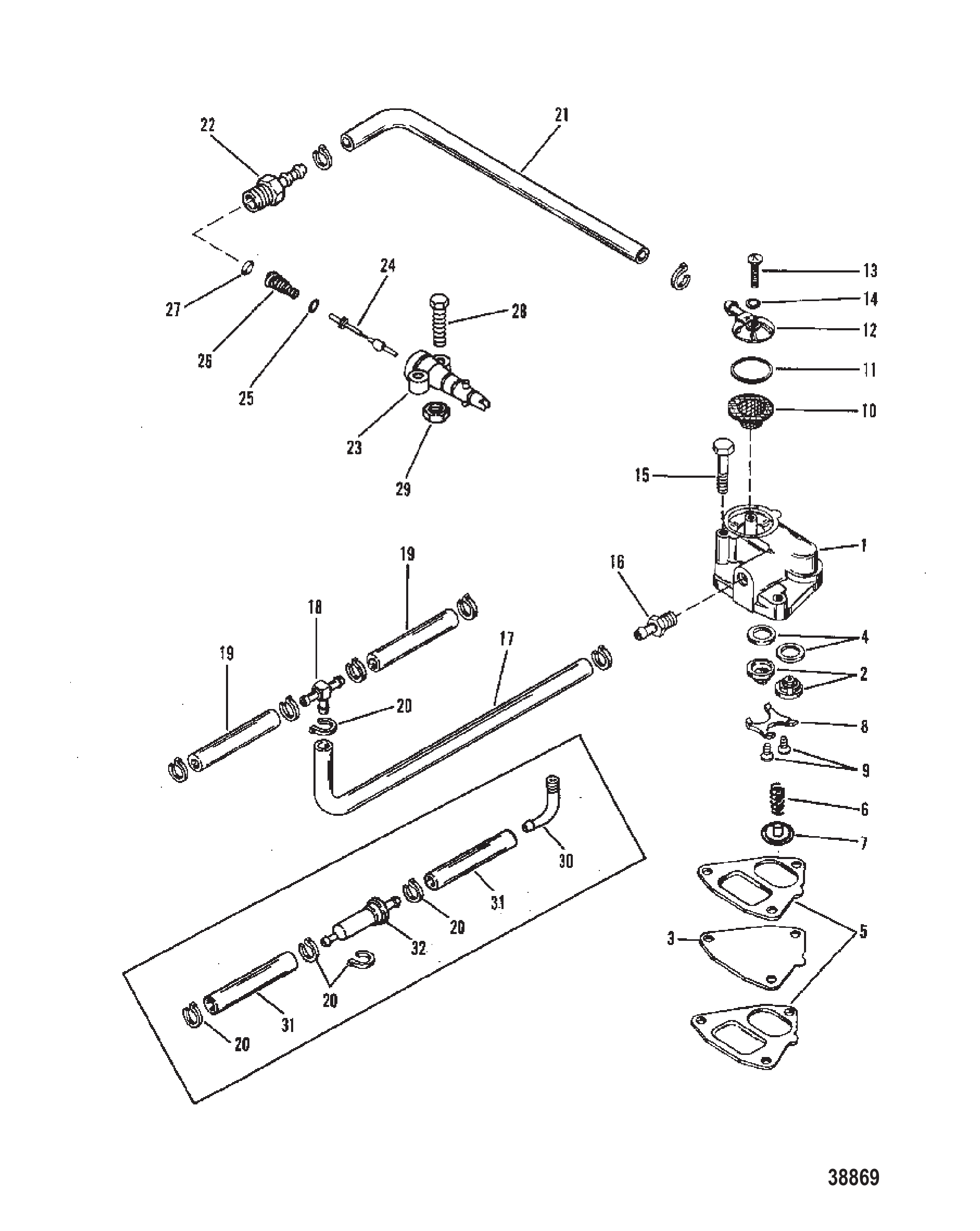

图 26燃油泵与油管(三角形燃油泵) FUEL PUMP AND FUEL LINES (TRIANGLE FUEL PUMP)
燃油泵与油管(三角形燃油泵) FUEL PUMP AND FUEL LINES (TRIANGLE FUEL PUMP)
REF零件编号中文名称英文名称数量
173434A5燃油泵总成PUMP ASSEMBLY Fuel1
230430A13止回阀总成CHECK VALVE ASSEMBLY1
28M0084276止回阀套件CHECK VALVE KIT1
355278A5膜片总成DIAPHRAGM ASSEMBLY1
4NSS止回阀衬垫（不单独销售）NOT SOLD SEPARATE GASKET-CHECK VALVE2
5NSS不单独销售 燃油泵垫片NOT SOLD SEPARATE GASKET-FUEL PUMP2
686207弹簧SPRING1
786252盖帽CAP1
823004止回阀固定座RETAINER CHECK VALVE1
943725螺钉（#6-32 x 0.380）SCREW (#6-32 x .380)2
1073532燃油滤清器FILTER Fuel1
1135480燃油泵盖O型圈（1.237 x 0.103）O-RING (1.237 x .103) COVER TO FUEL PUMP1
1214805A2燃油滤清器盖COVER FUEL FILTER1
1337370燃油泵盖螺钉（#10-32 x 0.580）SCREW (#10-32 x .580) COVER TO FUEL PUMP1
1425848盖螺钉衬垫GASKET COVER SCREW1
1570939螺钉SCREW1
1569067螺钉(.250-20×1.375)SCREW (.250-20 x 1.375)2
1664705燃油泵接头FITTING FUEL PUMP1
1799127109燃油泵三通油管（散装57英寸，截取11英寸）LINE (57.00 Inches Bulk) TEE TO FUEL PUMP(11")1
178M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
1873318TEE Plastic FUEL LINE1
1999127109油管（散装57英寸，截取3英寸）LINE (57.00 Inches Bulk) (CUT TO 3 INCHES)2
198M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)2
2073498燃油管卡箍CLAMP FUEL LINE8
20816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)8
2199127109燃油泵转接油管（散装57英寸，截取15英寸）LINE (57.00 Inches Bulk) ADAPTOR TO FUEL PUMP (15")1
218M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
2263187倒刺接头 (.250-18) 燃油管至适配器FITTING Barb (.250-18) FUEL LINE TO ADAPTOR1
2330186止回转接器总成ADAPTER CHECK UNIT1
2430187适配器阀杆止回单元STEM CHECK UNIT ADAPTOR1
2430185Q3油箱端快速断开总成-卡口式QUICK DISCONNECT ASSEMBLY Tank End - Bayonet Style1
2520415适配器阀杆O型圈O-RING ADAPTOR STEM1
2516524燃油接头O型圈O-RING Fuel Connector1
2630189适配器阀杆弹簧SPRING ADAPTOR STEM1
2730188适配器垫片WASHER ADAPTOR1
2836154螺钉(.250-28 x 1.380)SCREW (.250-28 x 1.380)2
2936069适配器螺钉螺母NUT ADAPTOR SCREW2
306470490度弯头FITTING (90 DEG. )1
3019688接头FITTING1
3199127109管路(57.00英寸 散装)LINE (57.00 Inches Bulk)1
318M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
3213430燃油滤清器FILTER Fuel1
32816296Q03燃油滤清器@3FILTER-FUEL @31
-73645A87衬垫套件GASKET SET1

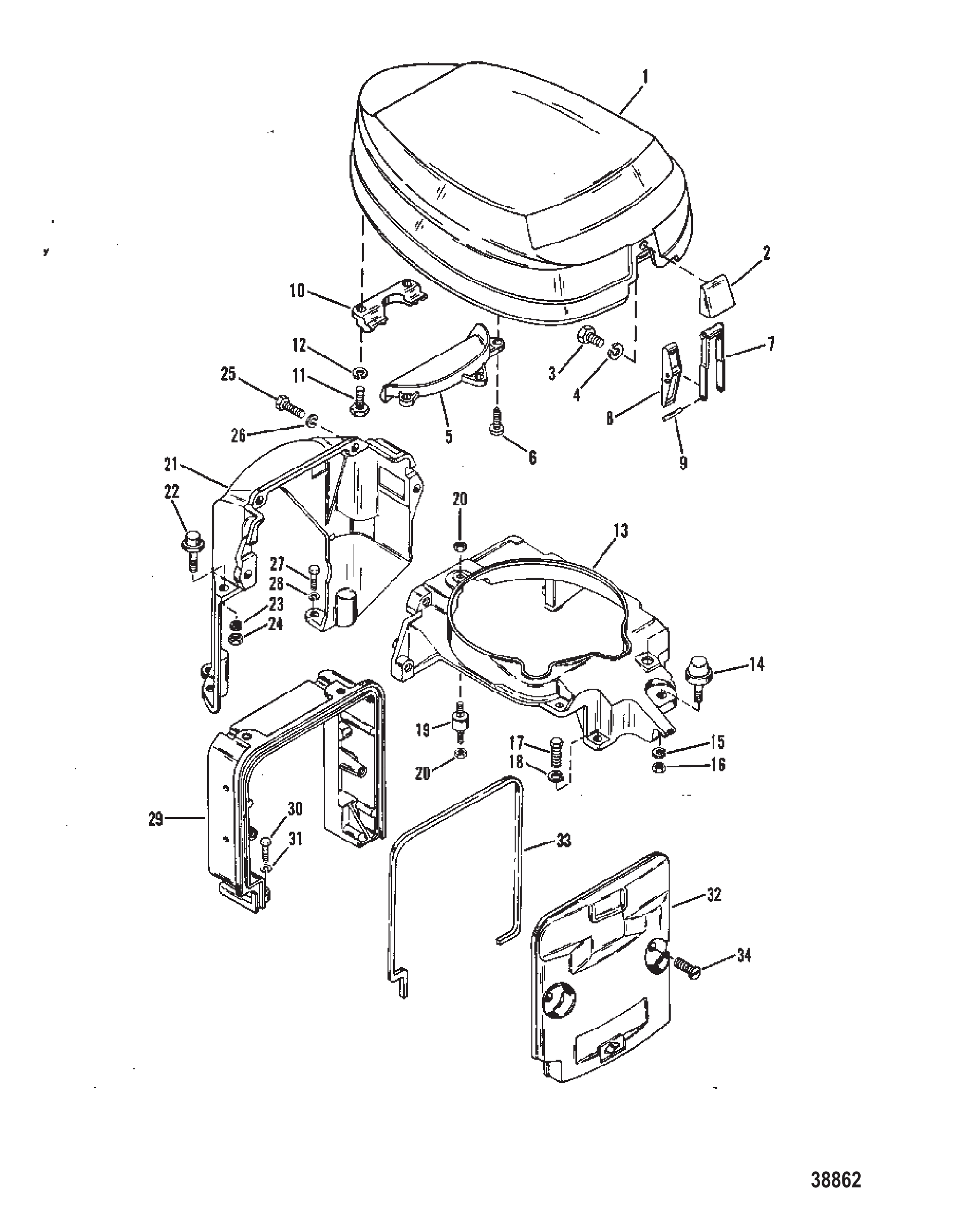

图 27顶罩与支撑支架 TOP COWL AND SUPPORT BRACKETS
顶罩与支撑支架 TOP COWL AND SUPPORT BRACKETS
REF零件编号中文名称英文名称数量
17934顶盖总成TOP COWL ASSEMBLY1
16392F4顶罩总成（水星款）TOP COWL ASSEMBLY Mariner1
16392T6顶盖总成TOP COWL ASSEMBLY1
293122A1固定座总成RETAINER ASSEMBLY1
276440固定座总成RETAINER ASSEMBLY1
353167螺钉 (.312-18 x .880)SCREW (.312-18 x .880)1
353167T螺钉 0.312-18X 0.88SCREW .312-18X .881
325299螺钉(0.312-18x0.75)SCREW (.312-18 x .75)1
439107锁紧垫圈(0.312-24)LOCKWASHER (.312-24)1
576370护罩SHIELD1
576433护罩SHIELD1
648409螺钉 (#10-16 x .625) 不锈钢SCREW (#10-16 x .625) Stainless Steel3
752739顶罩锁扣铰链HINGE COWL LATCH-TOP COWL1
894918T罩盖锁扣铰链杆LEVER COWL LATCH HINGE1
894918F1杠杆LEVER1
958998PIN COWL LATCH LEVER TO HINGE1
1055455顶罩后部锁钩HOOK TOP COWL LTECH-REAR1
1122956螺钉(.250-28 x .880) 后锁钩至顶盖SCREW (.250-28 x .880) REAR HOOK TO TOP COWL2
1226992锁紧垫圈(.250)不锈钢 后锁钩螺钉LOCKWASHER (.250) Stainless Steel REAR HOOK SCREW2
1373401顶罩支撑框架FRAME SUPPORT-TOP COWL1
1373401T框架FRAME1
1437640支撑框架橡胶支座MOUNT RUBBER-SUPPORT FRAME1
1526993橡胶支座锁紧垫圈（0.312）LOCKWASHER (.312) RUBBER MOUNT1
158M0204647锁紧垫圈 (.312)LOCKWASHER (.312)1
1628770橡胶支座螺母（0.312-24不锈钢）NUT (.312-24) Stainless Steel RUBBER MOUNT1
1737562不锈钢螺钉(.312-18 x 1.00)SCREW (.312-18 x 1.00) Stainless Steel2
1826993支撑框架螺钉锁紧垫圈（0.312）LOCKWASHER (.312) SUPPORT FRAME SCREW2
188M0204647锁紧垫圈 (.312)LOCKWASHER (.312)2
1990435顶罩框架橡胶支架MOUNT RUBBER-TOP COWL FRAME3
2020184螺母(1/4-28X7/32)橡胶支架(上部)NUT (1/4-28X7/32) RUBBR MOUNT (UPPER)6
208M0207775螺母 @5NUT @56
2152468顶罩支撑支架-后部BRACKET TOP COWL SUPPORT-REAR1
2231014后支撑支架橡胶座MOUNT RUBBER-REAR SUPPORT BRACKET2
2326992不锈钢锁紧垫圈(.250)橡胶支座LOCKWASHER (.250) Stainless Steel RUBBER MOUNT2
2429598螺母 (.250-28) 不锈钢橡胶支座NUT (.250-28) Stainless Steel RUBBER MOUNT2
2537562螺丝(.312-18 x 1.00)不锈钢后支架至框架SCREW (.312-18 x 1.00) Stainless Steel REAR BRACKET TO FRAME4
2626993锁紧垫圈(.312)后支架螺丝LOCKWASHER (.312) REAR BRACKET SCREW4
268M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
2737562不锈钢螺钉(.312-18 x 1.00)SCREW (.312-18 x 1.00) Stainless Steel4
2826993锁紧垫圈(.312)后支架螺丝LOCKWASHER (.312) REAR BRACKET SCREW4
288M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
2999649T框架前支撑FRAME FRONT SUPPORT1
3037562螺丝(.312-18 x 1.00)不锈钢消音器盖SCREW (.312-18 x 1.00) Stainless Steel SILENCER COVER2
3126993锁紧垫圈(.312)框架螺丝LOCKWASHER (.312) FRAME SCREW2
318M0204647锁紧垫圈 (.312)LOCKWASHER (.312)2
3289590消音器盖COVER SILENCER1
3376168A2消音器盖衬垫GASKET SILENCER COVER1
3428638螺钉(.250-20 x .750)SCREW (.250-20 x .750)2
图 28自动混合器 AUTO-BLEND
自动混合器 AUTO-BLEND
REF零件编号中文名称英文名称数量
-130195自动混合装置AUTO BLEND ASSEMBLY1
116612油箱套件 机油TANK KIT Oil1
213996手柄套件HANDLE KIT1
316619机油箱盖CAP OIL TANK1
416614五金件套件HARDWARE KIT1
513979放油塞套件PLUG KIT Drain1
616611膜片组件DIAPHRAGM KIT1
716620安装支架套件BRACKET KIT Mounting1
813993箍带BAND1
913983支架(左)BRACKET (LEFT)1
1013984支架(右)BRACKET (RIGHT)1
1116626盖板COVER1
1216624机油滤清器及液位传感器套件SENSOR KIT Oil Filter And Level1
1316625喇叭套件HORN KIT1
1416618机油滤网STRAINER Oil1
1516615止回阀套件CHECK VALVE KIT1
1618576燃油滤清器套件FILTER KIT Fuel1
1713992乙烯基软管VINYL TUBE1
1816621安装板PLATE1
1916627模块套件MODULE KIT1
2016628测试按钮套件TEST BUTTON KIT1
2116629电池盒套件(使用9伏电池)CASE KIT Battery (USE 9 VOLT BATTERY)1
2216630密封圈套件GROMMET KIT1
2316631支架套件BRACKET KIT1
2416616衬垫套件GASKET KIT1
图 29自动混合装置(无警报喇叭) AUTO-BLEND (WITHOUT WARNING HORN)
自动混合装置(无警报喇叭) AUTO-BLEND (WITHOUT WARNING HORN)
REF零件编号中文名称英文名称数量
1130194自动混合装置AUTO BLEND ASSEMBLY1
116612油箱套件 机油TANK KIT Oil1
213996手柄套件HANDLE KIT1
316619机油箱盖CAP OIL TANK1
416614五金件套件HARDWARE KIT1
513979放油塞套件PLUG KIT Drain1
616611膜片组件DIAPHRAGM KIT1
716620安装支架套件BRACKET KIT Mounting1
813993箍带BAND1
913983支架(左)BRACKET (LEFT)1
1013984支架(右)BRACKET (RIGHT)1
1116613盖板COVER1
1213985机油滤清器/传感器套件FILTER/SENSOR KIT Oil1
1316617燃油滤清器套件FILTER KIT Fuel1
1318576燃油滤清器套件FILTER KIT Fuel1
1413992乙烯基软管VINYL TUBE1
1516618机油滤网STRAINER Oil1
1616615止回阀套件CHECK VALVE KIT1
1716621安装板PLATE1
1816622模块套件MODULE KIT1
1819265模块套件MODULE KIT1
1916623支架套件BRACKET KIT1
2016616衬垫套件GASKET KIT1
2114585A1自动混合线束总成HARNESS ASSEMBLY AUTO-BLEND1
图 30底罩与换挡连杆 BOTTOM COWL AND SHIFT LINKAGE
底罩与换挡连杆 BOTTOM COWL AND SHIFT LINKAGE
REF零件编号中文名称英文名称数量
187081底罩COWL BOTTOM1
18708T6底罩COWL BOTTOM1
274303进气口盖COVER AIR INLET1
362568螺钉(#10-16 x .375)盖至底罩SCREW (#10-16 x .375) COVER TO BOTTOM COWL4
430164垫圈(.192 x .375 x .0312)不锈钢盖螺钉WASHER (.192 x .375 x .0312) Stainless Steel COVER SCREW4
573646底罩衬垫GASKET BOTTOM COWL1
639616底罩控制线缆护套BOOT CONTROL CABLES-BOTTOM COWL1
737637底罩燃油接头护套BOOT FUEL CONNECTOR-BOTTOM COWL1
899127109管线(57.00英寸散装)示警管(14-3/4")LINE (57.00 Inches Bulk) TELL TALE (14-3/4")1
88M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
952889示警软管至底罩喷嘴NOZZLE TELL TALE HOSE TO BOTTOM COWL1
1048408示流喷嘴至下罩盖螺钉(#10-16x0.500)SCREW (#10-16 x .500) TELL TALE NOZZLE TO BOTTOM COWL1
1178279示警软管至气缸体弯头ELBOW TELL TALE HOSE TO CYLINDER BLOCK1
118M0207781弯头ELBOW1
1260304A54上部换挡轴总成SHIFT SHAFT ASSEMBLY UPPER1
1326856换挡轴衬套BUSHING SHIFT SHAFT1
1473402换挡连杆SHIFT LINK1
1535462垫圈(.2656 x .625 x .0625)不锈钢连杆WASHER (.2656 x .625 x .0625) Stainless Steel LINK ROD2
1636069连杆螺母NUT LINK ROD2
1729720连杆波形垫圈WAVE WASHER LINK ROD1
1820099连杆至导向块弹簧SPRING LINK ROD TO GUIDE BLOCK1
1937896连杆导向块GUIDE BLOCK LINK ROD1
2052732A6控制线缆锚定支架BRACKET ANCHOR-CONTROL CABLES1
2198889闩锁LATCH1
2242975闩锁传动螺钉DRIVE SCREW LATCH2
2339618尼龙换挡线缆锁定杆LEVER NYLON-SHIFT CABLE LOCKING1
2387609A1杠杆套件LEVER KIT1
2447175锁定杆及盖固定销PIN LOCKING LEVER AND COVER FASTENING3
2590211尼龙换挡线缆盖COVER NYLON-SHIFT CABLE1
2665799T连杆-锁定杆到盖板LINK LOCKING LEVER TO COVER1
2687609A1杠杆套件LEVER KIT1
2739519锚定杯形保持器CUP BARREL RETAINER-ANCHOR1
2835386螺钉(.312-18 x 1.00)锚定支架至气缸体SCREW (.312-18 x 1.00) ANCHOR BRACKET TO CYLINDER BLOCK3
2952100连杆耐磨板WEAR PLATE LINK ROD1
3038279控制线缆闩锁紧固件LATCH CONTROL CABLE FASTENING1
308M0036768闩锁LATCH1
-73645A87衬垫套件GASKET SET1
图 31化油器总成 CARBURETOR ASSEMBLY
化油器总成 CARBURETOR ASSEMBLY
REF零件编号中文名称英文名称数量
16071A41化油器总成CARBURETOR ASSEMBLY1
16071A57化油器CARBURETOR1
16071A42化油器总成CARBURETOR ASSEMBLY1
16071A58化油器CARBURETOR1
16071A57化油器CARBURETOR1
16071A58化油器CARBURETOR1
25733主量孔 (.092)JET Main (.092)2
3192711进油针阀组件NEEDLE AND SEAT Inlet2
4NSS不单独出售-进油针阀与阀座垫片NOT SOLD SEPARATE GASKET-INLET NEEDLE AND SEAT2
552106A1塑料喉管VENTURI Plastic2
6NSSNOT SOLD SEPARATE NOZZLE2
7NSS不单独销售 怠速针NOT SOLD SEPARATE IDLE NEEDLE2
8NSSNOT SOLD SEPARATE SPRING-IDLE MIXTURE2
9NSS浮子销(不单独销售)NOT SOLD SEPARATE FLOAT PIN6
10NSS浮子杆(不单独销售)NOT SOLD SEPARATE FLOAT LEVER2
1119273浮子FLOAT2
126195燃油杯BOWL Fuel2
129483燃油杯BOWL Fuel2
13NSS不单独销售 燃油杯衬垫NOT SOLD SEPARATE GASKET-FUEL BOWL2
14NSSNOT SOLD SEPARATE SCREW-FUEL BOWL8
156199主量孔塞PLUG MAIN JET2
163518主量孔(.082)JET (.082) MAIN2
17NSSNOT SOLD SEPARATE GASKET-MAIN JET PLUG2
18NSS燃油入口滤网(不单独销售)NOT SOLD SEPARATE SCREEN-FUEL INLET2
19NSS不单独出售-韦氏塞(9/16英寸)NOT SOLD SEPARATE WELCH PLUG (9/16")4
204807油门轴SHAFT Throttle1
207942节流阀轴SHAFT THROTTLE1
217639节气门阀VALVE THROTTLE2
22NSSNOT SOLD SEPARATE SCREW-VALVE TO THROTTLE SHAFT4
236204节气门轴密封SEAL THROTTLE SHAFT2
246203节气门轴垫圈WASHER THROTTLE SHAFT2
25NSS不单独销售 油门回位弹簧NOT SOLD SEPARATE SPRING-THROTTLE RETURN2
266198加浓阀总成VALVE ASSEMBLY ENRICHMENT2
27NSSNOT SOLD SEPARATE SCREW-ENRICHMENT BRACKET2
28NSS不单独出售-韦氏塞(7/16英寸)NOT SOLD SEPARATE WELCH PLUG (7/16")2
2973377化油器衬垫GASKET CARBURETOR2
29733771衬垫GASKET2
-6200衬垫套件GASKET KIT2
-19274维修套件REPAIR KIT2
-812953化油器维修套件REPAIR KIT - CARB2
-19272维修套件REPAIR KIT2
-812953化油器维修套件REPAIR KIT - CARB2
-73645A87衬垫套件GASKET SET1
图 32化油器连杆 CARBURETOR LINKAGE
化油器连杆 CARBURETOR LINKAGE
REF零件编号中文名称英文名称数量
154293A10阻风门电磁阀总成SOLENOID ASSEMBLY Choke1
259645螺钉 (0.312-18 x 0.750)SCREW (.312-18 x .750)2
2824941螺钉 (0.312-18 x 0.750)SCREW (.312-18 x .750)2
326993LOCKWASHER (.312) CHOKE SOLENOID SCREW2
38M0204647锁紧垫圈 (.312)LOCKWASHER (.312)2
426996锁紧垫圈(#10)不锈钢阻风门电磁阀端子LOCKWASHER (#10) Stainless Steel CHOKE SOLENOID TERMINAL1
568219螺母(#10-32)不锈钢阻风门电磁阀端子NUT (#10-32) Stainless Steel CHOKE SOLENOID TERMINAL1
689008A2柱塞总成PLUNGER ASSEMBLY1
773400阻风门拉杆ROD Choke1
890242A1旋钮总成KNOB ASSEMBLY1
977137螺钉(.190-16 x .620)阻风门拉线至旋钮SCREW (.190-16 x .620) WIRE TO CHOKE KNOB1
1020116阻风门旋钮护圈GROMMET CHOKE KNOB1
1174263阻风门旋钮至拉杆线(黑色)WIRE CHOKE KNOB TO CHOKE ROD (BLACK)1
1262568螺钉(#10-16 x .375)拉线至阻风门拉杆SCREW (#10-16 x .375) WIRE TO CHOKE ROD1
136071A41化油器总成(上部)CARBURETOR ASSEMBLY (TOP)1
136071A57化油器CARBURETOR1
146071A42化油器总成(下部)CARBURETOR ASSEMBLY (BOTTOM)1
146071A58化油器CARBURETOR1
1564704化油器接头FITTING CARBURETOR2
1519688接头FITTING2
1652743螺钉(.312-18 x 3.750)SCREW (.312-18 x 3.750)4
1753720A2下部化油器联轴器总成COUPLING ASSEMBLY LOWER CARBURETOR1
1889694KEY COUPLING1
1966104螺钉 (#8-32 x 0.790)SCREW (#8-32 x .790)1
2073847节气门执行器(上部化油器)ACTUATOR THROTTLE (UPPER CARBURETOR)1
2160293螺钉(#5-40 x .500)SCREW (#5-40 x .500)1
2273408化油器板PLATE CARBURETOR1
2373398化油器板衬垫GASKET CARBURETOR PLATE2
2476952化油器板至化油器衬垫GASKET CARBURETOR PLATE TO CARBURETOR2
2528635不锈钢螺钉(.250-20 x .620)板至化油器SCREW (.250-20 x .620) Stainless Steel PLATE TO CARBURETOR4
2673647化油器板密封件SEAL CARBURETOR PLATE1
图 33外罩与前盖 COWLING AND FRONT COVER
外罩与前盖 COWLING AND FRONT COVER
REF零件编号中文名称英文名称数量
17927A8前盖组件FRONT COVER ASSEMBLY1
16393A6前盖FRONT COVER1
256849旋钮KNOB1
273786旋钮KNOB1
330771旋钮盖垫圈(橡胶)WASHER COVER KNOB (RUBBER)2
475246旋钮盖垫圈(钢制)WASHER COVER KNOB (STEEL)2
530772旋钮盖张力弹簧SPRING TENSION-COVER KNOB1
629077PIN Roll TENSION SPRING TO KNOB1
747341A1手动/应急启动拉绳手柄套件ROPE AND HANDLE KIT Manual/Emergency Start STARTER1
747341A11手动启动绳柄套件ROPE AND HANDLE KIT Manual Starting1
894923消音垫PAD SOUND ABSORBING2
876434消音密封条SEAL SOUND ABSORBING2
938674隔音毯BLANKET SOUND ABSORBING1
103248A16环绕式外罩总成WRAP AROUND COWL ASSEMBLY1
106394A7环绕式外罩WRAP AROUND COWL1
1146785A1罩壳锁扣总成LATCH ASSEMBLY Cowl2
1230413罩锁钩HOOK COWL LATCH2
图 34曲轴、活塞与连杆 CRANKSHAFT, PISTON AND CONNECTING ROD
曲轴、活塞与连杆 CRANKSHAFT, PISTON AND CONNECTING ROD
REF零件编号中文名称英文名称数量
19074A2曲轴总成CRANKSHAFT ASSEMBLY1
262567上部滚珠轴承BEARING Ball UPPER1
262567T滚珠轴承BALL BEARING1
363742下球轴承BEARING Ball LOWER1
363742T滚珠轴承BEARING Ball1
454196A6托架总成CARRIER ASSEMBLY1
565800填料载体PACKING CARRIER1
65266A5主轴承总成(阀门型)BEARING ASSEMBLY Main (VALVE TYPE)2
65266T5簧片阀总成REED BLOCK ASSY2
720032PIN Dowel MAIN BEARING4
845775主轴承螺钉（#12-28 x 0.560）SCREW (#12-28 x .560) MAIN BEARING4
945774主轴承夹紧螺钉螺母NUT MAIN BEARING CLAMPING SCREW4
1056007A1匹配主轴承的簧片组REED SET MATCHED-MAIN BEARING2
1156008主轴承簧片阀限位器STOP Reed MAIN BEARING REED VALVES8
1262204簧片止动安装螺钉SCREW REED STOP MOUNTING20
1353153簧片止动安装螺钉螺母NUT REED STOP MOUNTING SCREW20
145397A4中央主轴承总成BEARING ASSEMBLY Center Main1
1520032定位销中心主轴承PIN Dowel CENTER MAIN BEARING2
1671422滚针轴承BEARING Needle56
16714221轴承BEARING56
1726113外座圈(配对)RACE OUTER (PAIR)1
1726113T中心主座圈RACE-CENTER MAIN1
1826933外座圈卡紧卡环RING Snap OUTER RACE CLAMPING1
1922968中心主轴承夹紧螺钉(.250-28 x 1.25)SCREW (.250-28 x 1.25) CENTER MAIN BEARING CLAMPING2
2020184主轴承夹紧螺钉螺母(1/4-28X7/32)NUT (1/4-28X7/32) MAIN BEARING CLAMPING SCREW2
208M0207775螺母 @5NUT @52
2147246阶梯式定位销PIN Dowel STEPPED1
228896A3活塞总成PISTON ASSEMBLY4
229137A12标准活塞总成PISTON ASSY-STD4
228897A2活塞总成PISTON ASSEMBLYAR
229137A13活塞总成-.015PISTON ASSY-.015AR
228898A2活塞总成PISTON ASSEMBLYAR
229137A14活塞总成-.030PISTON ASSY-.030AR
2352035锁环RING Lock8
23857196锁紧环LOCK RING8
2478816A12环RING1
2478811A12活塞环组-.015加大RING SET Piston - .015 Oversize1
2488392A12活塞环组-.030加大RING SET Piston - .030 Oversize1
258101A3连杆总成CONNECTING ROD ASSEMBLY4
2691012连杆专用螺钉（.250-28）SCREW (.250-28 Special) CONNECTING ROD8
2762596A1曲柄销轴承总成BEARING ASSEMBLY CRANKPIN4
2847270活塞销轴承BEARING PISTON PIN116
288M0214934滚针轴承@200BRG-NEEDLE @200116
2947247定位针垫圈WASHER NEEDLE LOCATING8
298M0032839垫片@5WASHER @58
3038095A1上部滚珠轴承垫片SHIM UPPER BALL BEARINGAR
-73645A87衬垫套件GASKET SET1
图 35气缸体与曲轴箱总成 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
气缸体与曲轴箱总成 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
REF零件编号中文名称英文名称数量
18338A3气缸体总成CYLINDER BLOCK ASSEMBLY1
253650曲轴箱至气缸体衬垫GASKET CRANKCASE TO CYLINDER BLOCK2
356029启动电机盖(上部)COVER STARTER MOTOR(UPPER)1
356029T盖板COVER1
431984螺钉(.312-18 x 1.375)盖至曲轴箱SCREW (.312-18 x 1.375) COVER TO CRANKCASE1
435385螺钉(.312-18 x 1-3/4)盖至曲轴箱SCREW (.312-18 x 1-3/4) COVER TO CRANKCASE1
526993盖螺钉锁紧垫圈(.312)LOCKWASHER (.312) COVER SCREW4
58M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
676867启动电机盖(下部)COVER STARTER MOTOR (LOWER)1
773279螺钉(.312-18 x 1.880)盖至曲轴箱SCREW (.312-18 x 1.880) COVER TO CRANKCASE1
773658盖至曲轴箱螺钉(5-1/2英寸)SCREW COVER TO CRANKCASE (5-1/2")1
864281双头螺柱(.375-16/.375-24 x 1.880)STUD (.375-16/.375-24 x 1.880)2
920033定位销曲轴箱至气缸体PIN Dowel CRANKCASE TO CYLINDER BLOCK2
943044定位销-无孔(.375 x .625)PIN Dowel - Without Hole (.375 x .625)2
1063779定位销(.250 x .625)气缸体至主轴承PIN Dowel (.250 x .625) CYLINDER BLOCK TO MAIN BEARING2
1166517曲轴箱通气限流器RESTRICTOR CRANKCASE BLEED3
1264282双头螺柱(4英寸)气缸体至排气板STUD (4 In.) CYLINDER BLOCK TO EXHAUST PLATE (4")6
1357841螺钉(.312-18 x 2.750)SCREW (.312-18 x 2.750)2
1374824螺钉(.312-18 x 1.250)SCREW (.312-18 x 1.250)2
1373657螺钉(0.312-18 x 1.50)SCREW (.312-18 x 1.50)12
1420359螺钉(.375-16 x 1.00)SCREW (.375-16 x 1.00)1
1520091轴承锁紧螺钉止动垫圈TAB WASHER BEARING LOCKING SCREW1
1642866顶部泄放软管单向阀CHECK VALVE BLEED HOSE-TOP1
179938779气缸泄放软管(15-1/2英寸)HOSE CYLINDER BLEED (15-1/2")1
1842867底部泄放软管单向阀CHECK VALVE BLEED HOSE-BOTTOM1
18428671止回阀CHECK VALVE1
1999664弯头ELBOW1
1999664290度弯头接头(0.125-27x0.250)尼龙FITTING Elbow 90 Degree (.125-27 x .250) Nylon1
2099127109平衡管路(散装57英寸)(6-1/4英寸)LINE (57.00 Inches Bulk) BALANCE (6-1/4")1
208M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
21130342三通平衡软管至气缸体-下部TEE BALANCE HOSE TO CYLINDER BLOCK-LOWER1
229938779平衡软管(5英寸)HOSE BALANCE (5")1
2365857进气口盖连接器CONNECTOR AIR INLET COVER1
2356759倒钩接头FITTING Barbed1
2425970动力头双头螺栓垫片WASHER POWERHEAD STUDS8
2420553垫圈(.406 x .734 x .063)WASHER (.406 x .734 x .063)8
2569254动力头双头螺栓螺母NUT POWERHEAD STUDS2
2534932动力头双头螺栓螺母(.375-24)NUT (.375-24) POWERHEAD STUDS6
2582671013不锈钢螺母 (.375-24)NUT (.375-24) Stainless Steel6
-97471A32动力头POWERHEAD1
-97471T87船用动力头POWERHEAD MARINE1
-97471A87动力头总成POWERHEAD ASSEMBLY1
-97471T87船用动力头POWERHEAD MARINE1
图 36驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY
驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY
REF零件编号中文名称英文名称数量
15239A4驱动轴壳体总成-水星HOUSING ASSEMBLY Driveshaft - Mercury1
15239A51驱动轴壳体总成-马林HOUSING ASSEMBLY Driveshaft - Mariner1
256295双头螺柱(.437 x 2.69)STUD (.437 x 2.69)2
364649PLUG PLASTIC - TRIM TAB SCREW HOLE1
437417水星装饰盖COVER TRIM MERCURY1
437417F2马林装饰盖COVER TRIM MARINER1
557807不锈钢螺钉(#10-16 x 0.750)SCREW (#10-16 x .750) Stainless Steel4
692012装饰盖螺钉衬套GROMMET TRIM COVER SCREW4
68M0079730密封圈套件GROMMET KIT4
788238A4装饰盖螺钉线缆总成CABLE ASSEMBLY TRIM COVER SCREW2
788238T01拉线总成CABLE ASSEMBLY2
862568接地带固定螺钉(#10-16 x 0.375)SCREW (#10-16 x .375) GROUND STRAP ATTACHING2
960897进水口管TUBE WATER INLET1
1078184T排气管TUBE EXHAUST1
1165638排气管护套BOOT EXHAUST TUBE2
1275298下橡胶支座MOUNT RUBBER - LOWER2
1343426上支座螺钉SCREW UPPER MOUNT2
1425096支座螺钉螺母NUT MOUNT SCREW2
1530119上支座螺钉垫片(外径0.875英寸)WASHER (.875 Inch Outside Diameter) UPPER MOUNT SCREW2
1688238A2接地线总成CABLE ASSEMBLY Ground1
1688238A10接地线总成CABLE ASSEMBLY Ground1
1745176齿轮箱双头螺栓不锈钢垫片(0.453 x 0.812 x 0.105)WASHER (.453 x .812 x .105) Stainless Steel GEAR HOUSING STUDS1
1829489齿轮箱双头螺栓螺母NUT GEAR HOUSING STUDS1
1945176齿轮箱双头螺栓不锈钢垫片(0.453 x 0.812 x 0.105)WASHER (.453 x .812 x .105) Stainless Steel GEAR HOUSING STUDS2
2034933齿轮箱不锈钢螺母(.437-20)NUT (.437-20) Stainless Steel GEAR HOUSING2
208M0204653螺母NUT2
2135608下安装夹至驱动轴壳体CLAMP LOWER MOUNT TO DRIVESHAFT HOUSING2
2235522弹簧张力-下安装夹SPRING TENSION - LOWER MOUNT CLAMP4
2329256螺钉 (0.312-18 x 0.875)SCREW (.312-18 x .875)4
2435474T下安装夹盖COVER LOWER MOUNT CLAMP2
2435474F2下安装夹盖COVER Lower Mount Clamp2
2535521下安装夹盖螺母NUT LOWER MOUNT CLAMP COVER2
2687884螺钉 (#12-14 x 0.920)SCREW (#12-14 x .920)2
2728200驱动轴壳体螺钉(.375-24 x 2.875)SCREW (.375-24 x 2.875) DRIVESHAFT HOUSING1
2834714壳体螺钉垫圈WASHER HOUSING SCREW2
2925269壳体螺钉螺母(.375-24)NUT (.375-24) HOUSING SCREW1
3041508螺丝(.250-20 x .500)不锈钢接地线SCREW (.250-20 x .500) Stainless Steel GROUND WIRE1
3149339下支座垫片(0.8125)WASHER (.8125) LOWER MOUNT2
图 37端盖、歧管与排气罩 END CAPS, MANIFOLD AND EXHAUST COVER
端盖、歧管与排气罩 END CAPS, MANIFOLD AND EXHAUST COVER
REF零件编号中文名称英文名称数量
25940A2上端盖总成END CAP ASSEMBLY UPPER1
341953密封件SEAL1
447254O型圈O-RING1
573644A1端盖至曲轴箱垫片(.006-10)SHIM END CAP TO CRANKCASE (.006-10)AR
673169上端盖螺钉(1英寸)SCREW UPPER END CAP (1")4
6812618不锈钢螺钉(.312-18 x 1.00)带尼龙垫SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch4
743352正时指针POINTER TIMING1
898510正时指针螺钉(.250-20 x 0.75)(3/4英寸)SCREW (.250-20 x .75) TIMING POINTER (3/4")1
865746螺钉(.250-20 x .750)SCREW (.250-20 x .750)1
920533正时指针螺钉垫片WASHER TIMING POINTER SCREW1
105410A1下端盖总成END CAP ASSEMBLY LOWER1
105410T1端盖总成END CAP ASSY1
1141953密封件SEAL2
1232546O型圈O-RING1
1320085A1端盖至曲轴箱垫片组(.005-10)SHIM SET END CAP TO CRANKCASE (.005-10)AR
1469034螺钉带锁紧垫圈(.312-18 x 1.00)SCREW AND LOCKWASHER (.312-18 x 1.00)3
1430225螺钉带锁紧垫圈(.312-18 x 1.00)SCREW WITH LOCKWASHER (.312-18 x 1.00)3
1573665水套盖衬垫GASKET WATER JACKET COVER1
1676198气缸体水套盖COVER WATER JACKET-CYLINDER BLOCK1
1753167水套盖螺钉(.312-18 x 0.880)SCREW (.312-18 x .880) WATER JACKET COVER16
1753167T螺钉 0.312-18X 0.88SCREW .312-18X .8816
1870132水套盖螺钉不锈钢垫片(0.323 x 0.563 x 0.063)WASHER (.323 x .563 x .063) Stainless Steel WATER JACKET COVER SCREW16
188M0042642垫圈(.323 x .562 x .063)WASHER (.323 x .562 x .063)16
19854981气缸体至挡板衬垫GASKET CYLINDER BLOCK TO BAFFLE PLATE1
2073436挡板PLATE BAFFLE1
21854961挡板至排气盖垫片GASKET BAFFLE PLATE TO EXHAUST COVER1
2278277A1排气歧管盖COVER EXHAUST MANIFOLD1
2353576歧管盖螺钉(.312-18 x 1.125)SCREW (.312-18 x 1.125) MANIFOLD COVER18
248340气缸体盖COVER CYLINDER BLOCK1
25961711气缸体盖衬垫GASKET CYLINDER BLOCK COVER1
2669100气缸体盖螺钉(1英寸)SCREW CYLINDER BLOCK COVER (1")12
268M0214943螺钉SCREW12
27733201上换气口盖COVER TRANSFER PORT-TOP1
2714429T上换气口盖COVER TRANSFER PORT-TOP1
2714429A1换气盖TRANSFER COVER1
2887872下换气口盖COVER TRANSFER PORT-BOTTOM1
2973645换气口盖垫片GASKET TRANSFER PORT COVER1
3049668换气口盖螺钉(.250-20 x 0.750)SCREW (.250-20 x .750) TRANSFER PORT COVER14
3137440气缸体支座支架BRACKET MOUNT SUPPORT-CYLINDER BLOCK1
3235386螺丝(.312-18 x 1.00)SCREW (.312-18 x 1.00)1
3346933A3接地带总成STRAP ASEMBLY Ground2
3462568SCREW (#10-16 x .375) GROUND STRAP2
3596829A1温度开关总成SWITCH ASSEMBLY Temperature1
3645915端子排TERMINAL BLOCK1
3762568SCREW (#10-16 x .375) TERMINAL BLOCK1
3828192SCREW (#10-24 x .50) TERMINAL BLOCK1
3872169螺钉(#10-24x0.500)SCREW (#10-24 x .500)1
-73645A87衬垫套件GASKET SET1
图 38排气延伸板 EXHAUST EXTENSION PLATE
排气延伸板 EXHAUST EXTENSION PLATE
REF零件编号中文名称英文名称数量
143289A2排气延伸板总成PLATE ASSEMBLY EXHAUST EXTENSION1
227132排气延伸板尼龙衬套BUSHING NYLON-EXHAUST EXTENSION PLATE1
323784排气延伸板定位销PIN Dowel EXHAUST EXTENSION PLATE2
437918排气延伸板密封件SEAL EXHAUST EXTENSION PLATE1
599358排气延伸板固定条STRIP RETAINING - EXHAUST EXTENSION PLATE1
637571螺钉(.190-32 x 0.500)SCREW (.190-32 x .500)5
769238动力头衬垫GASKET POWERHEAD1
7692381衬垫GASKET1
866023法兰头螺钉(.312-18 x 2.00)SCREW (.312-18 x 2.00) Flange Head2
966023法兰头螺钉(.312-18 x 2.00)SCREW (.312-18 x 2.00) Flange Head7
1066102驱动轴壳体板衬垫GASKET DRIVESHAFT HOUSING PLATE1
10661021衬垫GASKET1
1160898驱动轴壳体板密封件SEAL DRIVESHAFT HOUSING PLATE1
1243290A4驱动轴壳体板总成PLATE ASSEMBLY DRIVESHAFT HOUSING1
1338970橡胶密封圈-进水管SEAL RUBBER - WATER INLET TUBE1
1423784驱动轴壳体板定位销PIN Dowel DRIVESHAFT HOUSING PLATE2
1599698排气管TUBE Exhaust1
1665414螺钉(3/4英寸)SCREW (3/4 Inches)4
-73645A87衬垫套件GASKET SET1
图 39飞轮、定子与点火线圈 FLYWHEEL, STATOR AND IGNITION COIL
飞轮、定子与点火线圈 FLYWHEEL, STATOR AND IGNITION COIL
REF零件编号中文名称英文名称数量
145907塞子 黄色 飞轮拉拔器螺纹PLUG Yellow FLYWHEEL PULLER THREADS1
252901螺母(.625-18)飞轮NUT (.625-18) FLYWHEEL1
368229垫圈（0.641 x 1.250 x 0.190）飞轮螺母WASHER (.641 x 1.250 x .190) FLYWHEEL NUT1
333001垫圈WASHER1
48722A6飞轮总成FLYWHEEL ASSEMBLY1
568997螺钉(.312-24 x .750)SCREW (.312-24 x .750)8
632417螺钉(.250-28 x .625)SCREW (.250-28 x .625)8
790332开关盒安装板PLATE SWITCH BOX1
857009开关盒护孔环GROMMET SWITCH BOX3
857009001护孔环GROMMET3
959645螺钉 (0.312-18 x 0.750)SCREW (.312-18 x .750)3
9824941螺钉 (0.312-18 x 0.750)SCREW (.312-18 x .750)3
1056720开关盒板螺钉不锈钢垫片(0.330 x 0.750 x 0.060)WASHER (.330 x .750 x .060) Stainless Steel SWITCH BOX PLATE SCREW3
1147483开关盒线束和燃油管J型夹J CLIP SWITCH BOX WIRES AND FUEL LINE1
125772A2开关盒总成SWITCHBOX ASSEMBLY1
125772A7开关盒总成SWITCHBOX ASSEMBLY1
1320619螺钉（#12-24 x 1.25）SCREW (#12-24 x 1.25)4
1465999A5线束总成WIRE ASSEMBLY2
1545076螺母(#10-32)黄铜开关盒端子NUT (#10-32) Brass SWITCH BOX TERMINAL13
1658124A19水银开关总成MERCURY SWITCH ASSEMBLY1
1737571螺钉(.190-32 x 0.500)SCREW (.190-32 x .500)1
1866986端子排TERMINAL BLOCK1
1920646螺钉(0.190-32x0.62)SCREW (.190-32 x .62)1
1938055螺钉(0.190-32x0.620)SCREW (.190-32 x .620)1
2042813螺钉（#10-32 X 0.380）SCREW (#10-32 X .380)1
2122875线束夹CLIP WIRES AND HARNESS2
2235519螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)2
2369205C形垫圈线夹螺钉C WASHER CLIP SCREW2
238M0084613C形垫圈C-WASHER2
2447483触发板线束J型夹J CLIP TRIGGER PLATE HARNESS1
2573395板 安装-点火线圈PLATE MOUNTING-IGNITION COIL1
2628668螺钉 (.250-20 x .875) 不锈钢SCREW (.250-20 x .875) Stainless Steel3
277370A13点火线圈总成COIL ASSEMBLY Ignition4
278M0230859点火线圈总成COIL IGNITION ASY4
2845076螺母(#10-32)黄铜点火线圈端子NUT (#10-32) Brass IGNITION COIL TERMINAL8
2987554点火线圈盖COVER IGNITION COIL1
3088856螺钉(0.190-32 x 2.00)SCREW (.190-32 x 2.00)5
3130164垫圈(.192 x .375 x .0312)不锈钢盖螺钉WASHER (.192 x .375 x .0312) Stainless Steel COVER SCREW5
3277672主线束带STRAP PRIMARY HARNESS1
3348408固定带螺钉(#10-16 x 0.500)SCREW (#10-16 x .500) STRAP ATTACHING2
345454A26定子总成STATOR ASSEMBLY1
3575840螺钉 (#10-24 x 0.880)SCREW (#10-24 x .880)4
3696453A2触发板总成TRIGGER PLATE ASSEMBLY1
3777617主线束总成（1-2缸）HARNESS ASSEMBLY PRIMARY (CYLINDERS 1 AND 2)1
3877618主线束总成（3-4缸）HARNESS ASSEMBLY PRIMARY (CYLINDERS 3 AND 4)1
3939844线束固定夹CLAMP HARNESS ATTACHING1
3945806卡箍CLAMP1
4035519螺钉(#10-16 x 0.500)SCREW (#10-16 x .500)1
4169205线束夹螺钉C型垫圈C WASHER HARNESS CLAMP SCREW1
418M0084613C形垫圈C-WASHER1
4299215A25火花塞导线总成LEAD ASSEMBLY SPARK PLUG4
42813715A1引线LEAD WIRE4
4363709A1火花塞护套/端子套件BOOT/TERMINAL KIT SPARK PLUG4
4597182火花塞（NGK-BUHW-2）SPARK PLUG (NGK-BUHW-2)4
45896329833SP #L78V @4SP #L78V @44
4514103570火花塞SPARK PLUG4
4514103QORD 896329838ORD 8963298384
4678278导线固定器RETAINER WIRE2
4735519导线固定器螺钉（#10-16 x 0.500）SCREW (#10-16 x .500) WIRE RETAINER2
4821273导线固定器螺钉垫圈WASHER WIRE RETAINER SCREW2
4963319火花塞导线固定器RETAINER SPARK PLUG WIRE2
5046378螺钉(.250-28 x 1.00)SCREW (.250-28 x 1.00)1
5120013固定器螺钉螺母（0.250-28）NUT (.250-28) RETAINER SCREW1
图 40燃油泵与油管(方形燃油泵) FUEL PUMP AND FUEL LINES (SQUARE FUEL PUMP)
燃油泵与油管(方形燃油泵) FUEL PUMP AND FUEL LINES (SQUARE FUEL PUMP)
REF零件编号中文名称英文名称数量
114360A15燃油泵总成PUMP ASSEMBLY Fuel1
114360A78燃油泵套件PUMP KIT Fuel1
242990A1膜片组件DIAPHRAGM KIT1
2857005A1膜片组件DIAPHRAGM KIT1
3NSSNOT SOLD SEPARATE CHECK VALVE-RUBBER2
4NSSNOT SOLD SEPARATE GASKET-BOOST1
5NSSNOT SOLD SEPARATE DIAPHRAGM2
6NSSNOT SOLD SEPARATE GASKET-PULSE1
7NSSNOT SOLD SEPARATE SPRING1
8NSSNOT SOLD SEPARATE CAP1
9NSS橡胶圆盘 (不单独销售)NOT SOLD SEPARATE DISC-RUBBER2
10NSSNOT SOLD SEPARATE RETAINER2
11NSSNOT SOLD SEPARATE SPRING1
12NSSNOT SOLD SEPARATE CAP1
1398775A2燃油泵板PLATE FUEL PUMP1
13987752安装板PLATE1
1456800管塞 (.0625-27)PLUG Pipe (.0625-27)1
1564704接头FITTING1
1519688接头FITTING1
1690190燃油泵螺钉SCREW FUEL PUMP1
1673013燃油泵螺钉（10-32 x 1.50）SCREW 10-32 x 1.50 FUEL PUMP1
1727736燃油泵螺钉垫圈WASHER FUEL PUMP SCREW1
1789302垫圈(0.203×0.406×0.040)WASHER (.203 x .406 x .040)1
1840057132燃油泵螺钉SCREW FUEL PUMP2
194002215燃油泵螺钉垫圈WASHER FUEL PUMP SCREW2
209912970油管TUBING2
208M0108349软管 (70英寸散装)HOSE (70 Inches Bulk)2
21134301燃油滤清器FILTER Fuel1
21816296Q2燃油滤清器FILTER Fuel1
2273498燃油管卡箍CLAMP FUEL TUBINGAR
22816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)AR
2364705燃油管接头FITTING FUEL LINE1
2499127109管路(57.00英寸 散装)LINE (57.00 Inches Bulk)4
248M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)4
2573318TEE Plastic FUEL LINE1
2634982燃油管转接头连接器CONNECTOR FUEL LINE TO ADAPTOR1
2730186止回转接器总成ADAPTER CHECK UNIT1
2830187适配器阀杆止回单元STEM CHECK UNIT ADAPTOR1
2830185Q3油箱端快速断开总成-卡口式QUICK DISCONNECT ASSEMBLY Tank End - Bayonet Style1
2920415适配器阀杆O型圈O-RING ADAPTOR STEM1
2916524燃油接头O型圈O-RING Fuel Connector1
3030189适配器阀杆弹簧SPRING ADAPTOR STEM1
3130188适配器垫片WASHER ADAPTOR1
3236154螺钉(.250-28 x 1.380)SCREW (.250-28 x 1.380)2
3336069适配器螺钉螺母NUT ADAPTOR SCREW2
-73645A87衬垫套件GASKET SET1
图 41燃油泵与油管(三角形燃油泵) FUEL PUMP AND FUEL LINES (TRIANGLE FUEL PUMP)
燃油泵与油管(三角形燃油泵) FUEL PUMP AND FUEL LINES (TRIANGLE FUEL PUMP)
REF零件编号中文名称英文名称数量
173434A5燃油泵总成PUMP ASSEMBLY Fuel1
230430A13止回阀总成CHECK VALVE ASSEMBLY1
28M0084276止回阀套件CHECK VALVE KIT1
355278A5膜片总成DIAPHRAGM ASSEMBLY1
4NSS止回阀衬垫（不单独销售）NOT SOLD SEPARATE GASKET-CHECK VALVE2
5NSS不单独销售 燃油泵垫片NOT SOLD SEPARATE GASKET-FUEL PUMP2
686207弹簧SPRING1
786252盖帽CAP1
823004止回阀固定座RETAINER CHECK VALVE1
943725螺钉（#6-32 x 0.380）SCREW (#6-32 x .380)2
1073532燃油滤清器FILTER Fuel1
1135480燃油泵盖O型圈（1.237 x 0.103）O-RING (1.237 x .103) COVER TO FUEL PUMP1
1214805A2燃油滤清器盖COVER FUEL FILTER1
1337370燃油泵盖螺钉（#10-32 x 0.580）SCREW (#10-32 x .580) COVER TO FUEL PUMP1
1425848盖螺钉衬垫GASKET COVER SCREW1
1570939螺钉SCREW1
1569067螺钉(.250-20×1.375)SCREW (.250-20 x 1.375)2
1664705燃油泵接头FITTING FUEL PUMP1
1799127109燃油泵三通油管（散装57英寸，截取11英寸）LINE (57.00 Inches Bulk) TEE TO FUEL PUMP(11")1
178M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
1873318TEE Plastic FUEL LINE1
1999127109油管（散装57英寸，截取3英寸）LINE (57.00 Inches Bulk) (CUT TO 3 INCHES)2
198M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)2
2073498燃油管卡箍CLAMP FUEL LINE8
20816311T捆扎带 (8.00英寸)TIE STRAP (8.00 Inches)8
2199127109燃油泵转接油管（散装57英寸，截取15英寸）LINE (57.00 Inches Bulk) ADAPTOR TO FUEL PUMP (15")1
218M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
2263187倒刺接头 (.250-18) 燃油管至适配器FITTING Barb (.250-18) FUEL LINE TO ADAPTOR1
2330186止回转接器总成ADAPTER CHECK UNIT1
2430187适配器阀杆止回单元STEM CHECK UNIT ADAPTOR1
2430185Q3油箱端快速断开总成-卡口式QUICK DISCONNECT ASSEMBLY Tank End - Bayonet Style1
2520415适配器阀杆O型圈O-RING ADAPTOR STEM1
2516524燃油接头O型圈O-RING Fuel Connector1
2630189适配器阀杆弹簧SPRING ADAPTOR STEM1
2730188适配器垫片WASHER ADAPTOR1
2836154螺钉(.250-28 x 1.380)SCREW (.250-28 x 1.380)2
2936069适配器螺钉螺母NUT ADAPTOR SCREW2
306470490度弯头FITTING (90 DEG. )1
3019688接头FITTING1
3199127109管路(57.00英寸 散装)LINE (57.00 Inches Bulk)1
318M0108355软管(57英寸 散装)HOSE (57 Inches Bulk)1
3213430燃油滤清器FILTER Fuel1
32816296Q03燃油滤清器@3FILTER-FUEL @31
-73645A87衬垫套件GASKET SET1
图 42齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)
齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)
REF零件编号中文名称英文名称数量
-9011A7齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011A13齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011G34GC 75/90 XL -BLKGC 75/90 XL -BLK1
-9011A9齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011J19ORD 1667-9011J16ORD 1667-9011J161
-9011A14齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011J27ORD 1667-9011J24ORD 1667-9011J241
19011A6基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
19011T73齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
19011A8基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
19011T74ORD 1667-9011T73ORD 1667-9011T731
243043定位销-带孔(.375 x .625)(前)PIN Dowel - With Hole (.375 x .625) (FRONT)1
28M0084244定位销 0.375x0.620PIN Dowel, .375 x .6201
328653SCREW (#10-32 x 0.25) VENT1
420262通气螺钉垫圈WASHER VENT SCREW1
419643密封件SEAL1
579953SCREW (.375-16 x .250) GREASE FILLER1
579953Q04放油螺钉套件SCREW KIT Drain1
620260垫片 排放/加注螺丝WASHER DRAIN/FILLER SCREW2
68M0187157蓝色密封件@15SEAL-BLUE @152
767892SCREW Magnetic DRAIN1
78M0058389放油螺钉套件SCREW KIT Drain1
843044PIN Dowel - Without Hole (.375 x .625) (REAR) (QTY. OF 2 ON X-LONG)1
931640A1平衡板总成TRIM TAB ASSEMBLY1
931640Q4平衡鳍板TRIM TAB1
1015942SCREW (.437-14 x 1.250) TRIM TAB1
10825427不锈钢螺钉(0.437-14x1.250)SCREW (.437-14 x 1.250) Stainless Steel1
1145176WASHER (.453 x .812 x .105) Stainless Steel TRIM TAB SCREW1
1243040A1CARRIER ASSEMBLY ROLLER BEARING1
1243040T1托架总成CARRIER ASSEMBLY1
1344484小齿轮(13齿)GEAR Pinion (13 Teeth)1
1344484T小齿轮(13齿)GEAR Pinion (13 Teeth)1
1435921螺母(.625-18)小齿轮至驱动轴NUT (.625-18) PINION GEAR TO DRIVE SHAFT1
1576039换挡凸轮控制CAM Shift Control1
15760394换挡凸轮控制CAM Shift Control1
1642677A1圆锥滚子轴承总成BEARING ASSEMBLY Taper Roller1
1744492A1垫片组SHIM SET1
178M0063265垫片组SHIM SET1
1843031A1驱动轴总成DRIVESHAFT ASSEMBLY1
1843032A4驱动轴总成DRIVESHAFT ASSEMBLY1
1942461A1套筒/环套件SLEEVE/RING KIT1
2043055A2盖总成COVER ASSEMBLY1
2043055A4水泵盖总成COVER ASSEMBLY Water Pump1
2143047盖衬垫至齿轮箱GASKET COVER TO GEAR HOUSING1
218M0214931衬垫GASKET1
2243036油封(下)SEAL Oil (LOWER)1
2343035油封(上)SEAL Oil (UPPER)1
238M0245495油封OIL SEAL1
2443033盖衬垫至面板GASKET COVER TO FACE PLATE1
24430331衬垫GASKET1
2543034水泵衬垫至面板GASKET WATER PUMP TO FACE PLATE1
25430341铝盖垫片GASKET Aluminum Cover1
2643050面板FACE PLATE1
26817275A2水泵上壳体套件HOUSING KIT Upper Water Pump1
2743037叶轮驱动键KEY IMPELLER DRIVE1
278M0204723键KEY1
28430261叶轮IMPELLER1
2843026T2叶轮IMPELLER1
2943024A3水泵总成PUMP ASSEMBLY Water1
29817275A2水泵上壳体套件HOUSING KIT Upper Water Pump1
3043023水管密封件SEAL WATER TUBE1
308M0204658密封件SEAL1
314000330SCREW (M6 x 25) COVER6
318M0204707不锈钢六角大帽螺钉(M6x25)SCREW M6 x 25 HX HD CAP SS6
324000332SCREW (M6 x 35) WATER PUMP4
334002315垫圈(6.60x12.5x1.5mm-不锈钢)WASHER (6.60 X 12.5 X 1.5 mm -SS)10
3443045INSULATOR WATER PUMP SCREW4
348M0204659绝缘体@4INSULATOR @44
3543048A1换挡轴总成SHIFT SHAFT ASSEMBLY1
3543049A1换挡轴总成SHIFT SHAFT ASSEMBLY1
3629641E RING SHIFT SHAFT1
3743052A1换挡轴衬套总成BUSHING ASSEMBLY SHIFT SHAFT1
3743052A4衬套总成BUSHING ASSEMBLY1
3845710O-RING (1.424 x .103) BUSHING1
388M0204681特殊O型圈1.424x0.103O-RING 1.424 x .103, Special1
3976384SEAL Oil BUSHING1
398M0246145油封OIL SEAL1
4040011128SCREW (M6 x 20) Stainless Steel BUSHING2
408M0204741六角带垫大帽螺钉(M6x1.0x20)SCREW (M6 x 1.0 x 20) Hex Wash HD2
-43035A1齿轮箱密封套件SEAL KIT Gear Housing
-43035A4齿轮箱密封套件SEAL KIT Gear Housing
-43024A4水泵维修套件REPAIR KIT Water Pump
-43024A7水泵维修套件REPAIR KIT Water Pump
-43004A86衬垫套件GASKET SET
-43004A99动力头衬垫套件GASKET SET Powerhead
图 43齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)
齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)
REF零件编号中文名称英文名称数量
-9011A7齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011A13齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011G34GC 75/90 XL -BLKGC 75/90 XL -BLK1
-9011A9齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011J19ORD 1667-9011J16ORD 1667-9011J161
-9011A14齿轮箱总成GEAR HOUSING ASSEMBLY1
-9011J27ORD 1667-9011J24ORD 1667-9011J241
19011A6基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
19011T73齿轮箱-基础型-黑GEAR HSG-BASIC-BL1
19011A8基础齿轮箱总成GEAR HOUSING ASSEMBLY Basic1
19011T74ORD 1667-9011T73ORD 1667-9011T731
4144491A1垫片组SHIM SET1
418M0063266垫片组SHIM SET1
4230894A1圆锥轴承组BEARING SET Cup And Cone1
4312634A2前进齿轮总成GEAR ASSEMBLY Forward1
4312634T02齿轮总成GEAR ASSEMBLY1
4430895滚针轴承BEARING Needle1
4430895T滚针轴承BEARING Needle1
4512239A1凸轮从动件套件FOLLOWER KIT Cam1
45850315A1凸轮从动件套件FOLLOWER KIT Cam1
4630622弹簧SPRING1
4712777棘轮RATCHET1
47822539T离合器CLUTCH1
4830632十字离合器销PIN Cross CLUTCH1
488M0100263十字销PIN Cross1
4930893十字销固定弹簧SPRING CROSS PIN RETAINER1
5012238T螺旋桨轴PROPELLER SHAFT1
5112635倒挡齿轮GEAR Reverse1
5112635T倒挡齿轮GEAR-REVERSE1
5212596A2轴承座总成CARRIER ASSEMBLY Bearing1
528M0168901轴承座总成CARRIER ASSY.1
5397386O型圈 (3.609 x .139)O-RING (3.609 x .139)1
538M0214974O型圈O RING1
5430956滚针轴承BEARING Needle1
5430956T滚针轴承BEARING Needle1
5576868内密封件SEAL (INNER)1
558M0248882油封@5SEAL-OIL @51
5670081油封(外)SEAL Oil (OUTER)1
568M0205729密封件SEAL1
5712578滚针轴承BEARING Needle1
5712578T滚柱轴承BEARING Roller1
5812577止推垫片THRUST WASHER1
5912576推力轴承BEARING Thrust1
604000354螺栓(M8 x 30)轴承座SCREW (M8 x 30) BEARING CARRIER2
614002317垫圈(8.90 X 17.0 X 1.9SS)轴承座螺栓WASHER (8.90 X 17.0 X 1.9SS) BEARING CARRIER SCREW2
6213191A1止推垫片THRUST WASHER1
6213191Q01止推垫片THRUST WASHER1
6331210螺旋桨止动垫圈TAB WASHER PROPELLER1
63816629Q锁紧垫圈TAB WASHER1
6452707A1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
6452707Q1螺旋桨螺母套件 (.750-16)PROP NUT KIT (.750-16)1
-43035A1齿轮箱密封套件SEAL KIT Gear Housing
-43035A4齿轮箱密封套件SEAL KIT Gear Housing
-43004A86衬垫套件GASKET SET
-43004A99动力头衬垫套件GASKET SET Powerhead
图 44杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES
杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES
REF零件编号中文名称英文名称数量
-13725零件手册 70/75/80/90 马力 (3缸)PARTS MANUAL 70/75/80/90 Hp (3 Cylinder)
-43004A86衬垫套件GASKET SET
-43004A99动力头衬垫套件GASKET SET Powerhead
-43529A86贴花套件 (MERCURY 70)DECAL SET (MERCURY 70)
-43529A89贴花套件DECAL SET
-43575A87贴花套件 (MARINER 75)DECAL SET (MARINER 75)
-815628A92贴花套件DECAL SET
-13020A87贴花套件 (MERCURY 75) 手柄DECAL SET (MERCURY 75) HANDLE
-810457A90贴花套件DECAL SET
-43601A87贴花套件 (MARINER 75)DECAL SET (MARINER 75)
-13488A86贴花套件 (MERCURY 80)DECAL SET (MERCURY 80)
-13488A89贴花套件DECAL SET
-12565A87贴花套件 (MERCURY 90)DECAL SET (MERCURY 90)
-12565A89贴花套件DECAL SET
-11623A87贴花套件 (MARINER 90)DECAL SET (MARINER 90)
-815628A92贴花套件DECAL SET
-12428870使用手册（水星）OWNERS GUIDE (MERCURY)
-12428871用户手册MANUAL-OWNERS
-14699870使用手册（马林）OWNERS GUIDE (MARINER)
-14699871用户手册MANUAL-OWNERS
图 45动力升降组件 POWER TRIM COMPONENTS
动力升降组件 POWER TRIM COMPONENTS
REF零件编号中文名称英文名称数量
199659A21歧管总成MANIFOLD ASSEMBLY1
199659A22歧管总成MANIFOLD ASSEMBLY1
299616管塞歧管PIPE PLUG MANIFOLD11
341493A7升降油缸总成TRIM CYLINDER ASSEMBLY1
341493A4升降油缸总成TRIM CYLINDER ASSEMBLY1
441492A1导向器总成GUIDE ASSEMBLY1
541478A1维修套件REPAIR KIT1
641482A2止回阀套件CHECK VALVE KIT1
799638A1导向总成装饰杆GUIDE ASSEMBLY TRIM ROD2
843397A6PISTON/ROD ASSEMBLY Power Trim PORT1
912184A1升降过滤器总成TRIM FILTER ASSEMBLY1
1043398A3PISTON/ROD ASSEMBLY Power Trim STARBOARD1
1113794沟槽销-升降油缸(上)PIN Groove TRIM CYLINDER (UPPER)1
1299660A1阀门总成VALVE ASSEMBLY1
134000327螺钉(M6x14)-盖板SCREW (M6 x 14) COVER4
1443450盖板螺丝垫圈WASHER COVER SCREW4
1599642歧管盖COVER MANIFOLD1
1648462A1O型圈套件O-RING KIT1
1799609A1塞子总成PLUG ASSEMBLY1
1899641A1轴总成SHAFT ASSEMBLY1
1999616轴管塞PIPE PLUG SHAFT2
204008820螺钉(M6x20)-泵与马达SCREW (M6 x 20) PUMP AND MOTOR2
21400256锁紧垫圈 (M6)LOCKWASHER (M6)2
2299186T泵与电机总成PUMP AND MOTOR1
2399625SHAFT UPPER1
2443396A1阳极总成ANODE ASSEMBLY1
254000332螺钉(M6x35)-阳极SCREW (M6 x 35) ANODE2
2629245垫圈(0.281x0.500x0.060)-不锈钢阳极螺钉WASHER (.281 x .500 x .060) Stainless Steel ANODE SCREW2
27996301撞板-升降轴STRIKER PLATE TRIM SHAFT2
2858643锁紧垫圈 (.375)LOCKWASHER (.375)2
2946335螺母 (.375-24)NUT (.375-24)2
3099695A1线束总成-动力升降控制HARNESS ASSEMBLY Control POWER TRIM1
3187379A14线束总成(2.750英寸)(红色)WIRE ASSEMBLY (2.750 Inches) (RED)1
3188807A13电缆总成(3-1/2"-黑色)CABLE ASSEMBLY (3-1/2" - BLACK)2
3296158启动电磁阀SOLENOID Starter2
3340007106螺丝(M5 x 13)启动电磁阀SCREW (M5 x 13) STARTER SOLENOID5
3426419螺母(#8-32)-黄铜电磁阀端子NUT (#8-32) Brass SOLENOID TERMINAL4
3526992锁紧垫圈 (.250) 不锈钢电磁阀端子LOCKWASHER (.250) Stainless Steel SOLENOID TERMINAL4
3664015NUT (.250-20) SOLENOID TERMINAL4
374002314启动电磁阀螺丝垫圈WASHER STARTER SOLENOID SCREW2
3822875CLIP PUMP WIRE2
3969205C形垫圈线夹螺钉C WASHER CLIP SCREW2
4069079螺钉(#10-16x0.440)-夹子到艉板支架SCREW (#10-16 x .440) CLIP TO TRANSOM BRACKET2
4144431沟槽销-升降油缸(下)PIN Groove TRIM CYLINDER (LOWER)1
424000377SCREW (M10 x 30) MANIFOLD6
43400258锁紧垫圈(M10)-不锈钢歧管螺钉LOCKWASHER (M10) Stainless Steel MANIFOLD SCREW6
图 46动力升降泵(Eaton矩形电机) Power Trim Pump (Eaton Rectangular Motor)
动力升降泵(Eaton矩形电机) Power Trim Pump (Eaton Rectangular Motor)
REF零件编号中文名称英文名称数量
-99186T泵与电机总成PUMP AND MOTOR1
112659机架与磁场套件FRAME AND FIELD KIT1
1991861动力升降泵总成PUMP ASSEMBLY Power Trim1
212665电刷弹簧套件SPRING KIT Brush1
313506电刷卡套件BRUSH CARD KIT1
3991861动力升降泵总成PUMP ASSEMBLY Power Trim1
412662泵与端架套件PUMP AND END FRAME KIT1
4991861动力升降泵总成PUMP ASSEMBLY Power Trim1
512663泵密封套件SEAL KIT Pump1
5126631泵密封套件SEAL KIT Pump1
612660端架套件END FRAME KIT1
6991861动力升降泵总成PUMP ASSEMBLY Power Trim1
712661电枢套件ARMATURE KIT1
7991861动力升降泵总成PUMP ASSEMBLY Power Trim1
812664贯穿螺栓套件THRU BOLT KIT1
图 47动力升降泵(Prestolite圆形电机) Power Trim Pump (Prestolite Round Motor)
动力升降泵(Prestolite圆形电机) Power Trim Pump (Prestolite Round Motor)
REF零件编号中文名称英文名称数量
-99186动力升降泵总成PUMP ASSEMBLY Power Trim1
18995泵总成PUMP ASSEMBLY1
1826729A10ORD 8M0143217ORD 8M01432171
28996O型圈套件O-RING KIT1
38986电枢ARMATURE1
48987机架与磁场FRAME AND FIELD1
499186动力升降泵总成PUMP ASSEMBLY Power Trim1
58992缸盖O型圈O-RING HEAD1
68993电刷弹簧套件SPRING KIT BRUSH1
78988换向器端盖HEAD COMMUTATOR END1
88989电刷套件BRUSH KIT1
98994贯穿螺栓套件THRU BOLT KIT1
108985导线夹CLAMP LEAD WIRE1
118990螺母密封垫NUT PACKING1
128991O型圈螺母密封O-RING PACKING NUT1
图 48启动马达与线束 STARTER MOTOR AND WIRING HARNESS
启动马达与线束 STARTER MOTOR AND WIRING HARNESS
REF零件编号中文名称英文名称数量
166015启动电机总成STARTER MOTOR ASSEMBLY1
1893891T启动电机总成STARTER MOTOR ASSEMBLY1
256703启动电机橡胶衬套COLLAR RUBBER-STARTER MOTOR2
28M0034918轴环COLLAR2
356774衬套支架垫片SPACER COLLAR TO BRACKET1
457247启动电机橡胶止动块STOP RUBBER-STARTER MOTOR2
48M0043376停机开关STOP2
593389A8电机至电磁阀导线（黄色）WIRE MOTOR TO SOLENOID (YELLOW)1
626992锁紧垫圈(.250) 不锈钢 起动机接线端LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL1
764015螺母(.250-20) 起动机接线端NUT (.250-20) STARTER MOTOR TERMINAL1
869035螺丝与锁紧垫圈(.250-20 x .625)不锈钢SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel1
962351A1整流器RECTIFIER1
98M0058226整流器RECTIFIER1
1037656整流器至安装板螺钉（#10-32 x 0.620）SCREW (#10-32 x .620) RECTIFIER TO PLATE2
1145076螺母(#10-32)黄铜整流器端子NUT (#10-32) Brass RECTIFIER TERMINAL3
1296054启动电磁阀总成SOLENOID ASSEMBLY Starter1
128M0185149启动电磁阀SOLENOID START1
1326995锁紧垫圈 (#8) 不锈钢电磁阀端子LOCKWASHER (#8) Stainless Steel SOLENOID TERMINAL2
1426419螺母(#8-32)-黄铜电磁阀端子NUT (#8-32) Brass SOLENOID TERMINAL2
1526992锁紧垫圈 (.250) 不锈钢电磁阀端子LOCKWASHER (.250) Stainless Steel SOLENOID TERMINAL2
1694330螺母 (.250-20) 黄铜电磁阀端子NUT (.250-20) Brass SOLENOID TERMINAL2
1728635不锈钢螺丝(.250-20 x .620)SCREW (.250-20 x .620) Stainless Steel2
1826992锁紧垫圈 (.250) 不锈钢 电磁阀螺钉LOCKWASHER (.250) Stainless Steel SOLENOID SCREW2
1997861绝缘体-启动电磁阀INSULATOR STARTER SOLENOID1
2093388A1接地电缆总成（6英寸，黑色）CABLE ASSEMBLY (6.00 Inches) Black GROUND1
2188439A3正极电缆总成-蓄电池CABLE ASSEMBLY Positive - Battery1
2188439A4蓄电池负极电缆总成CABLE ASSEMBLY Battery - Negative1
2296233A2线束总成HARNESS ASSEMBLY1
2379091保险丝20安培FUSE 20 Ampere1
238M0207796保险丝20安培FUSE 20 AMP1
2588608线束夹CLAMP WIRING HARNESS1
2628636线束夹螺钉（0.250-20 x 0.750）SCREW (.250-20 x .750) WIRING HARNESS CLAMP2
2789047线束支架BRACKET WIRING HARNESS1
2832228线束支架螺钉（#10-32 x 0.625）SCREW (#10-32 x .625) WIRING HARNESS BRACKET2
2938833支架螺钉垫圈WASHER BRACKET SCREW2
3088751线束夹CLAMP WIRING HARNESS1
3128636线束夹螺钉（0.250-20 x 0.750）SCREW (.250-20 x .750) WIRING HARNESS CLAMP1
3220533夹紧螺钉垫圈WASHER CLAMP SCREW1
图 49启动电机总成（博世） STARTER MOTOR ASSEMBLY (BOSCH)
启动电机总成（博世） STARTER MOTOR ASSEMBLY (BOSCH)
REF零件编号中文名称英文名称数量
-66015启动电机总成STARTER MOTOR ASSEMBLY1
-893891T启动电机总成STARTER MOTOR ASSEMBLY1
190643驱动套件DRIVE KIT1
268575驱动总成DRIVE ASSEMBLY1
2685753驱动总成DRIVE ASSEMBLY1
375660驱动端板PLATE DRIVE END1
475385贯穿螺栓BOLT THRU2
675386电枢ARMATURE1
775384电刷/弹簧套件BRUSH/SPRING KIT1
7898265016电刷/弹簧套件BRUSH/SPRING KIT1
857387绝缘衬套BUSHING INSULATING1
938013输入柱垫圈WASHER INPUT STUD1
1026992不锈钢输入柱锁紧垫圈(.250)LOCKWASHER (.250) Stainless Steel INPUT STUD1
1120890输入柱螺母(.250-20)NUT (.250-20) INPUT STUD1
1261787电刷架HOLDER BRUSH2
12898265014电刷支架HOLDER-BRUSH2
1368586电刷及支架螺钉SCREW BRUSH AND HOLDER2
1479215换向器端盖END CAP COMMUTATOR1
1415386001端盖END CAP1
图 50启动电机总成（普雷斯特olite） STARTER MOTOR ASSEMBLY (PRESTOLITE)
启动电机总成（普雷斯特olite） STARTER MOTOR ASSEMBLY (PRESTOLITE)
REF零件编号中文名称英文名称数量
18848驱动电机MOTOR DRIVE1
28852驱动端板总成PLATE ASSEMBLY DRIVE END1
38853驱动端板衬套BUSHING DRIVE END PLATE1
48857电枢ARMATURE1
58856电枢止推垫片组件PACKAGE ARMATURE THRUST WASHER1
68849换向器端盖总成END CAP ASSEMBLY COMMUTATOR1
78850电刷板/支架总成PLATE/HOLDER ASSEMBLY Brush1
88851电刷与端子套装BRUSH AND TERMINAL SET1
98854电刷弹簧组 (每套2弹簧)SPRING SET BRUSH (2 SPRINGS PER SET)2
108855贯穿螺栓 - 端盖至端板 (1/4-28)BOLT THRU - END CAP TO END PLATE (1/4-28)1
图 51旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM
旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM
REF零件编号中文名称英文名称数量
18710A4旋转支架总成SWIVEL BRACKET ASSEMBLY1
18710A13旋转支架总成SWIVEL BRACKET ASSEMBLY1
287735SEAL Oil SWIVEL BRACKET (LOWER)1
367669衬套 旋转支架 - 下部和上部BUSHING SWIVEL BRACKET - LOWER AND UPPER2
433466O形环 旋转支架 - 上部O-RING SWIVEL BRACKET - UPPER1
567668垫片 旋转支架 - 上部SPACER SWIVEL BRACKET - UPPER1
674036润滑脂接头FITTING Grease2
799608转轴支架衬套BUSHING SWIVEL BRACKET2
899661A2旋转销总成SWIVEL PIN ASSEMBLY1
899661A4水手型万向销总成SWIVEL PIN ASSEMBLY Mariner1
812079A2旋转销总成SWIVEL PIN ASSEMBLY1
812079A3旋转销总成SWIVEL PIN ASSEMBLY1
992876A1转向连杆总成LINK ASSEMBLY Steering1
1014000SCREW (.375-24 x 1.25) STEERING LINK TO STEERING ARM1
1134863NUT (.375-24) STEERING LINK SCREW2
1234931WASHER (.406 x .734 x .063) Stainless Steel STEERING LINK TO STEERING ARM2
1378854WAVE WASHER BOTTOM YOKE1
1442961A1底部轭架总成YOKE ASSEMBLY Bottom1
1442961A2底部轭架总成YOKE ASSEMBLY Bottom1
1567684卡环-底部轭架RING Retaining BOTTOM YOKE1
1667670WASHER THRUST - SWIVEL BRACKET1
1799653减震器支架BRACKET SHOCK ABSORBER1
1899619减震器轴(下)SHAFT SHOCK ABSORBER (LOWER)1
1913794减震器槽销PIN Groove SHOCK ABSORBER2
204000377支架螺钉(M10 x 30)SCREW (M10 x 30) BRACKET6
21400258支架螺钉锁紧垫圈(M10)不锈钢LOCKWASHER (M10) Stainless Steel BRACKET SCREW6
2243396A1阳极总成ANODE ASSEMBLY1
234000332螺钉(M6x35)-阳极SCREW (M6 x 35) ANODE2
2429245垫圈(0.281x0.500x0.060)-不锈钢阳极螺钉WASHER (.281 x .500 x .060) Stainless Steel ANODE SCREW2
2599724A2减震器SHOCK ABSORBER1
2599724A3减震器SHOCK ABSORBER1
-41760A2减震器维修包REPAIR KIT Shock Absorber1
2699608减震器衬套BUSHING SHOCK ABSORBER2
2799625减震器轴(上)SHAFT SHOCK ABSORBER (UPPER)1
-43004A86衬垫套件GASKET SET
图 52油门杆与点火提前杆 THROTTLE LEVER AND SPARK ADVANCE LEVER
油门杆与点火提前杆 THROTTLE LEVER AND SPARK ADVANCE LEVER
REF零件编号中文名称英文名称数量
173416T油门杆LEVER Throttle1
173416杠杆LEVER1
273404油门杆锁扣LATCH THROTTLE LEVER1
359702螺钉 (.250-28 x .875) 不锈钢SCREW (.250-28 x .875) Stainless Steel1
420099卡扣螺钉弹簧SPRING LATCH SCREW1
536069锁扣螺钉螺母NUT LATCH SCREW1
673654油门杆调节螺钉（1-3/4英寸）SCREW ADJUSTING-THROTTLE LEVER (1-3/4")2
669029螺钉(.250-28 x 1.750)SCREW (.250-28 x 1.750)2
729598调节螺钉用0.250-28不锈钢防松螺母NUT (.250-28) Stainless Steel JAM-ADJUSTING SCREW2
852023调节螺钉尼龙帽CAP NYLONG-ADJUSTING SCREW1
973414点火提前臂ARM SPARK ADVANCE1
1073656点火提前臂调节螺钉（1-3/8英寸）SCREW ADJUSTING-SPARK ADVANCE ARM (1-3/8")1
1168219调节螺钉防松螺母（#10-32不锈钢）NUT (#10-32) Stainless Steel JAM-ADJUSTING SCREW1
1248039调节螺钉尼龙帽CAP NYLON-ADJUSTING SCREW1
1373655点火提前臂调节螺钉（2英寸）SCREW ADJUSTING-APRK ADVANCE ARM (2")1
1367916螺钉(0.250-28x2.00)SCREW (.250-28 x 2.00)1
1429598调节螺钉用0.250-28不锈钢防松螺母NUT (.250-28) Stainless Steel JAM-ADJUSTING SCREW1
1552023调节螺钉尼龙帽CAP NYLON-ADJUSTING SCREW1
1655337螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
16818165螺钉 (.375-16 x 1.75)SCREW (.375-16 x 1.75)1
1755164BUSHING LEVER AND ARM SCREW1
1855171杆臂螺钉法兰衬套BUSHING FLANGE-LEVER AND ARM SCREW1
1986310杆臂螺钉回位弹簧SPRING RETURN-LEVER AND ARM SCREW1
1973375弹簧SPRING1
2046765杆臂螺钉垫圈（0.390 x 1.50 x 0.120）WASHER (.390 x 1.50 x .120) LEVER AND ARM SCREW1
2160572杆臂尼龙套筒BARREL NYLON-LEVER AND ARM3
218M0221994筒形接头BARREL FITTING3
2273374油门连杆LINK ROD THROTTLE1
2373432节气门凸轮CAM Throttle1
2477001油门凸轮壳体HOUSING THROTTLE CAM1
2569013壳体至曲轴箱螺钉（#10-16 x 0.880）SCREW (#10-16 x .880) HOUSING TO CRANKCASE4
2677158油门凸轮壳体垫片SPACER THROTTLE CAM HOUSING1
2777010点火提前连杆LINK ROD SPARK ADVANCE1
2876158A1连杆至摆臂旋转接头总成SWIVEL ASSEMBLY LINK ROD TO ARM1
2926856连杆旋转接头尼龙衬套BUSHING NYLON-LINK ROD SWIVEL1
3029402连杆万向接头波形垫圈WAVE WASHER LINK ROD SWIVEL1
3133786WASHER LINK ROD SWIVEL1
3173288垫圈(.220 x .500 x .030)不锈钢WASHER (.220 x .500 x .030) Stainless Steel1
3220110连杆旋转接头螺母（#10-32）NUT (#10-32) LINK ROD SWIVEL1
图 53顶罩与支撑支架 TOP COWL AND SUPPORT BRACKETS
顶罩与支撑支架 TOP COWL AND SUPPORT BRACKETS
REF零件编号中文名称英文名称数量
17934顶盖总成TOP COWL ASSEMBLY1
16392F4顶罩总成（水星款）TOP COWL ASSEMBLY Mariner1
16392T6顶盖总成TOP COWL ASSEMBLY1
293122A1固定座总成RETAINER ASSEMBLY1
276440固定座总成RETAINER ASSEMBLY1
353167螺钉 (.312-18 x .880)SCREW (.312-18 x .880)1
353167T螺钉 0.312-18X 0.88SCREW .312-18X .881
325299螺钉(0.312-18x0.75)SCREW (.312-18 x .75)1
439107锁紧垫圈(0.312-24)LOCKWASHER (.312-24)1
576370护罩SHIELD1
576433护罩SHIELD1
648409螺钉 (#10-16 x .625) 不锈钢SCREW (#10-16 x .625) Stainless Steel3
752739顶罩锁扣铰链HINGE COWL LATCH-TOP COWL1
894918T罩盖锁扣铰链杆LEVER COWL LATCH HINGE1
894918F1杠杆LEVER1
958998PIN COWL LATCH LEVER TO HINGE1
1055455顶罩后部锁钩HOOK TOP COWL LTECH-REAR1
1122956螺钉(.250-28 x .880) 后锁钩至顶盖SCREW (.250-28 x .880) REAR HOOK TO TOP COWL2
1226992锁紧垫圈(.250)不锈钢 后锁钩螺钉LOCKWASHER (.250) Stainless Steel REAR HOOK SCREW2
1373401顶罩支撑框架FRAME SUPPORT-TOP COWL1
1373401T框架FRAME1
1437640支撑框架橡胶支座MOUNT RUBBER-SUPPORT FRAME1
1526993橡胶支座锁紧垫圈（0.312）LOCKWASHER (.312) RUBBER MOUNT1
158M0204647锁紧垫圈 (.312)LOCKWASHER (.312)1
1628770橡胶支座螺母（0.312-24不锈钢）NUT (.312-24) Stainless Steel RUBBER MOUNT1
1737562不锈钢螺钉(.312-18 x 1.00)SCREW (.312-18 x 1.00) Stainless Steel2
1826993支撑框架螺钉锁紧垫圈（0.312）LOCKWASHER (.312) SUPPORT FRAME SCREW2
188M0204647锁紧垫圈 (.312)LOCKWASHER (.312)2
1990435顶罩框架橡胶支架MOUNT RUBBER-TOP COWL FRAME3
2020184螺母(1/4-28X7/32)橡胶支架(上部)NUT (1/4-28X7/32) RUBBR MOUNT (UPPER)6
208M0207775螺母 @5NUT @56
2152468顶罩支撑支架-后部BRACKET TOP COWL SUPPORT-REAR1
2231014后支撑支架橡胶座MOUNT RUBBER-REAR SUPPORT BRACKET2
2326992不锈钢锁紧垫圈(.250)橡胶支座LOCKWASHER (.250) Stainless Steel RUBBER MOUNT2
2429598螺母 (.250-28) 不锈钢橡胶支座NUT (.250-28) Stainless Steel RUBBER MOUNT2
2537562螺丝(.312-18 x 1.00)不锈钢后支架至框架SCREW (.312-18 x 1.00) Stainless Steel REAR BRACKET TO FRAME4
2626993锁紧垫圈(.312)后支架螺丝LOCKWASHER (.312) REAR BRACKET SCREW4
268M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
2737562不锈钢螺钉(.312-18 x 1.00)SCREW (.312-18 x 1.00) Stainless Steel4
2826993锁紧垫圈(.312)后支架螺丝LOCKWASHER (.312) REAR BRACKET SCREW4
288M0204647锁紧垫圈 (.312)LOCKWASHER (.312)4
2999649T框架前支撑FRAME FRONT SUPPORT1
3037562螺丝(.312-18 x 1.00)不锈钢消音器盖SCREW (.312-18 x 1.00) Stainless Steel SILENCER COVER2
3126993锁紧垫圈(.312)框架螺丝LOCKWASHER (.312) FRAME SCREW2
318M0204647锁紧垫圈 (.312)LOCKWASHER (.312)2
3289590消音器盖COVER SILENCER1
3376168A2消音器盖衬垫GASKET SILENCER COVER1
3428638螺钉(.250-20 x .750)SCREW (.250-20 x .750)2
图 54艉板支架 TRANSOM BRACKET
艉板支架 TRANSOM BRACKET
REF零件编号中文名称英文名称数量
18718A1艉板支架总成(右舷)BRACKET ASSEMBLY Transom (STARBOARD)1
18718A2艉板支架总成(右舷)BRACKET ASSEMBLY Transom (STARBOARD)1
28716A1艉板支架总成(左舷)BRACKET ASSEMBLY Transom (PORT)1
28716A2艉板支架总成(左舷)BRACKET ASSEMBLY Transom (PORT)1
398727润滑配件左舷艉板支架FITTING Grease PORT TRANSOM BRACKET1
449930A1倾斜锁销总成(非动力配平)PIN ASSEMBLY Tilt Lock (NON-POWER TRIM)1
599170A1倾斜管TILT TUBE1
634862螺母(1.00-14)倾斜管NUT (1.00-14) TILT TUBE1
745711O-RING (.612 x .103) TILT TUBE2
888750波形垫圈(1.62 x 1.05)倾斜管WASHER Wave (1.62 x 1.05) TILT TUBE2
956041螺母(.875-14)倾斜管NUT (.875-14) TILT TUBE1
10677551螺钉(.500-20 x 4.500)艉板支架至艉板SCREW (.500-20 x 4.500) TRANSOM BRACKET TO TRANSOM4
1128421垫圈(1.5 x 3.05 x 0.13)不锈钢艉板支架螺栓WASHER (1.5 x 3.05 x 0.13) Stainless Steel TRANSOM BRACKET BOLT4
128M0027784艉板支架螺栓螺母NUT TRANSOM BRACKET BOLT4
1399629A2倾斜锁杆总成LEVER ASSEMBLY TILT LOCK1
1499611倾斜杆波形垫圈WAVE WASHER TILT LEVER1
1565830倾斜杆尼龙衬套NYLINER TILT LEVER2
1699633倾斜锁杆旋钮KNOB TILT LOCK LEVER1
1699633T6倾斜锁杆旋钮KNOB TILT LOCK LEVER1
1799615槽销PIN Groove1
1899622弹簧SPRING1
1999604槽销PIN Groove1
2096930A1倾斜锁螺栓总成BOLT ASSEMBLY TILT LOCK1
2123161螺母 (.375-24)NUT (.375-24)1
