水星 Mercury 75 4 CYL 6432901 THRU 09854990 - 爆炸图零件明细

两冲程 化油器 · USA - Cat.# 90-13289 · 共 54 个部位 · 1870 条零件

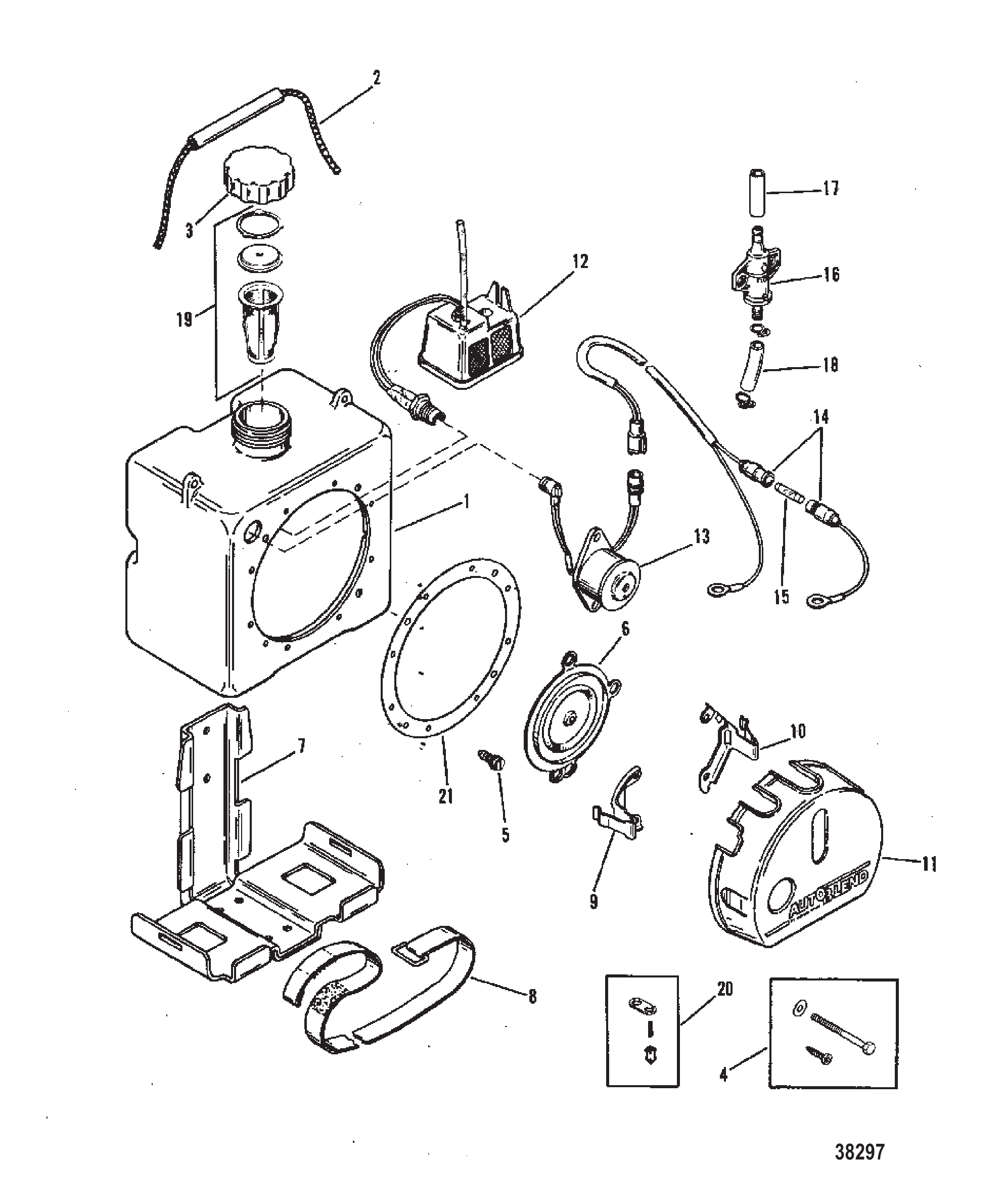

图 1自动混合器 AUTO-BLEND

REF	零件编号	中文名称	英文名称	数量
-	130195	自动混合装置	AUTO BLEND ASSEMBLY	1
1	16612	油箱套件 机油	TANK KIT Oil	1
2	13996	手柄套件	HANDLE KIT	1
3	16619	机油箱盖	CAP OIL TANK	1
4	16614	五金件套件	HARDWARE KIT	1
5	13979	放油塞套件	PLUG KIT Drain	1
6	16611	膜片组件	DIAPHRAGM KIT	1
7	16620	安装支架套件	BRACKET KIT Mounting	1
8	13993	箍带	BAND	1
9	13983	支架(左)	BRACKET (LEFT)	1
10	13984	支架(右)	BRACKET (RIGHT)	1
11	16626	盖板	COVER	1
12	16624	机油滤清器及液位传感器套件	SENSOR KIT Oil Filter And Level	1
13	16625	喇叭套件	HORN KIT	1
14	16618	机油滤网	STRAINER Oil	1
15	16615	止回阀套件	CHECK VALVE KIT	1
16	18576	燃油滤清器套件	FILTER KIT Fuel	1
17	13992	乙烯基软管	VINYL TUBE	1
18	16621	安装板	PLATE	1
19	16627	模块套件	MODULE KIT	1
20	16628	测试按钮套件	TEST BUTTON KIT	1
21	16629	电池盒套件(使用9伏电池)	CASE KIT Battery (USE 9 VOLT BATTERY)	1
22	16630	密封圈套件	GROMMET KIT	1
23	16631	支架套件	BRACKET KIT	1
24	16616	衬垫套件	GASKET KIT	1

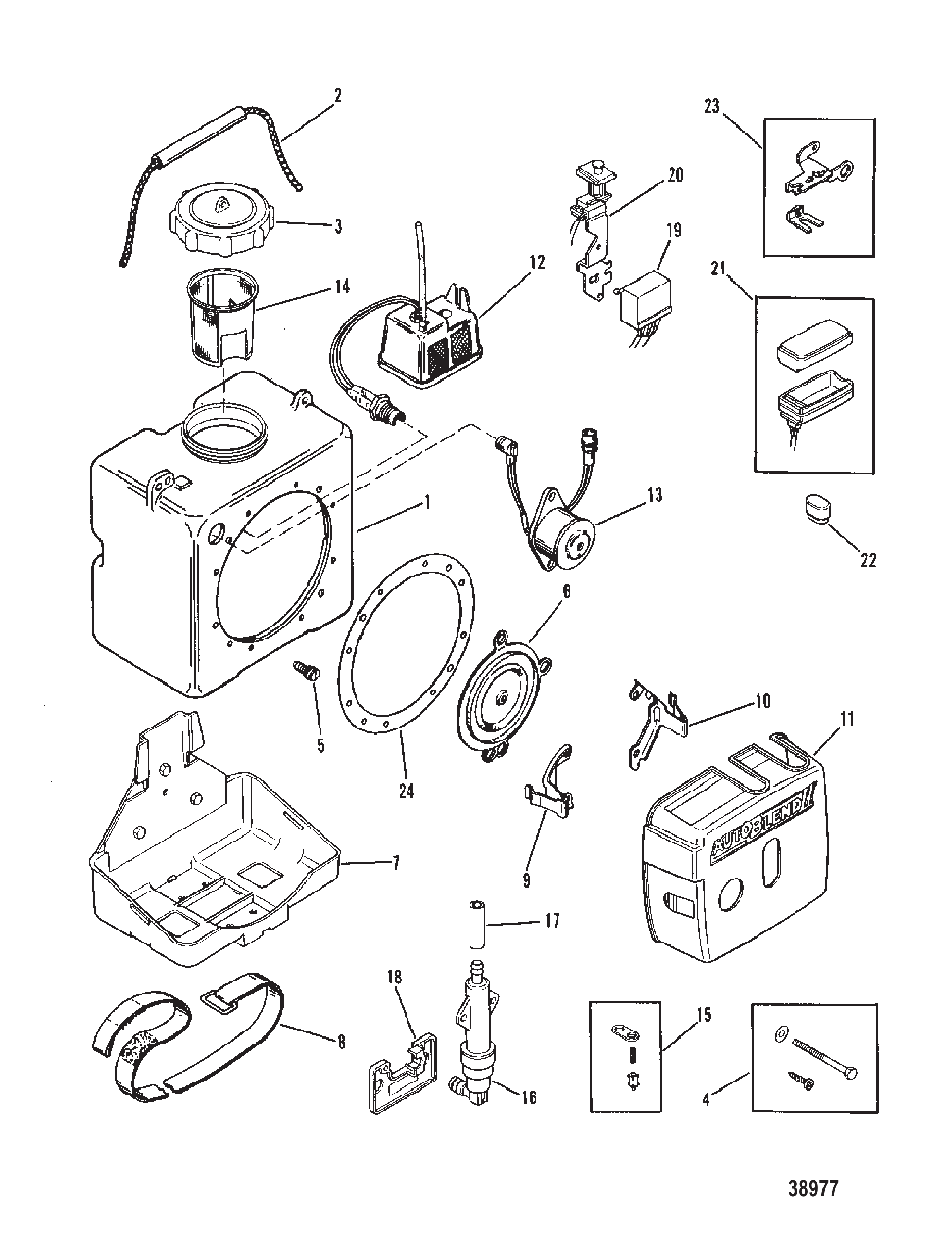

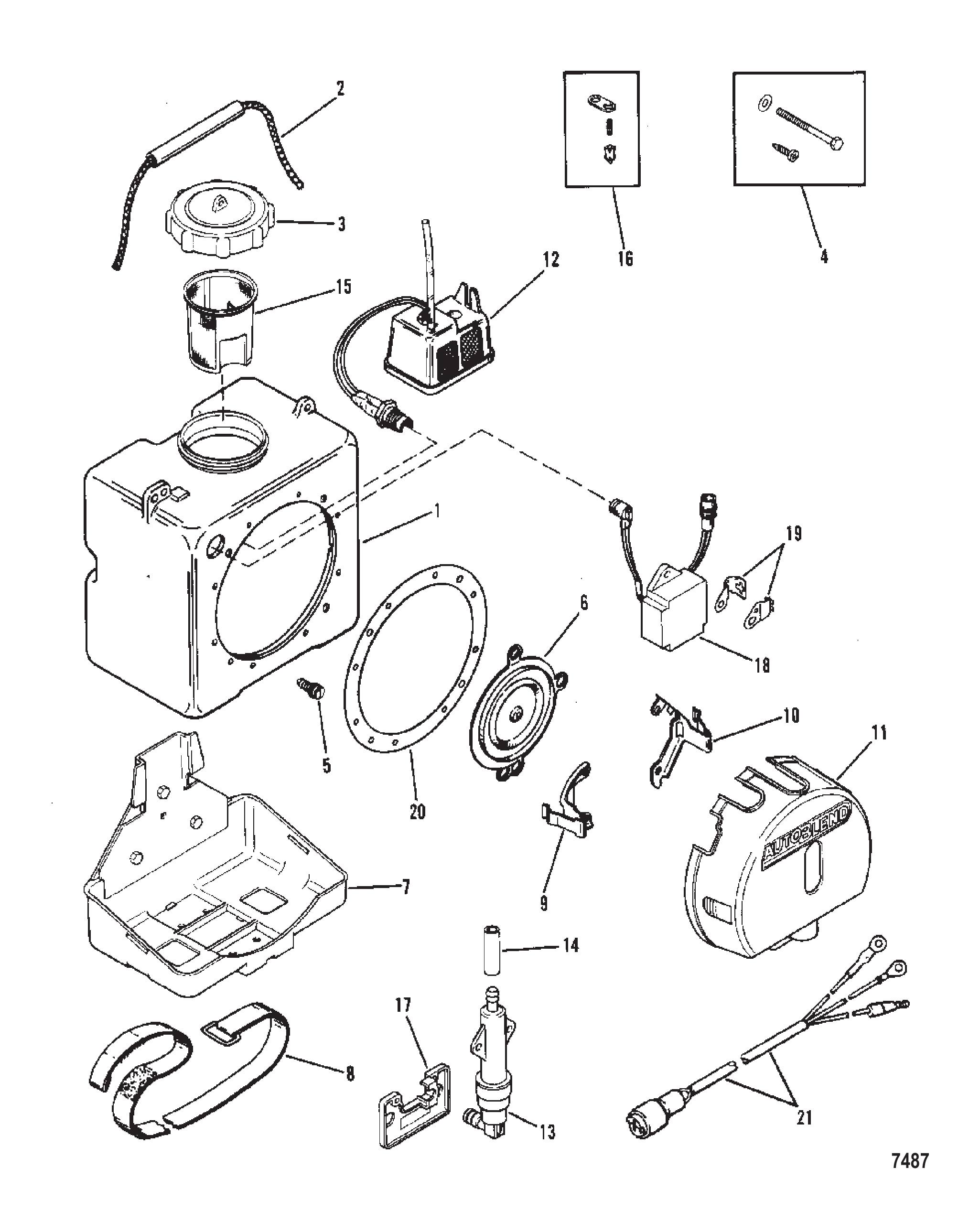

图 2自动混合装置(无警报喇叭) AUTO-BLEND (WITHOUT WARNING HORN)

REF	零件编号	中文名称	英文名称	数量
1	130194	自动混合装置	AUTO BLEND ASSEMBLY	1
1	16612	油箱套件 机油	TANK KIT Oil	1
2	13996	手柄套件	HANDLE KIT	1
3	16619	机油箱盖	CAP OIL TANK	1
4	16614	五金件套件	HARDWARE KIT	1
5	13979	放油塞套件	PLUG KIT Drain	1
6	16611	膜片组件	DIAPHRAGM KIT	1
7	16620	安装支架套件	BRACKET KIT Mounting	1
8	13993	箍带	BAND	1
9	13983	支架(左)	BRACKET (LEFT)	1
10	13984	支架(右)	BRACKET (RIGHT)	1
11	16613	盖板	COVER	1
12	13985	机油滤清器/传感器套件	FILTER/SENSOR KIT Oil	1
13	16617	燃油滤清器套件	FILTER KIT Fuel	1
13	18576	燃油滤清器套件	FILTER KIT Fuel	1
14	13992	乙烯基软管	VINYL TUBE	1
15	16618	机油滤网	STRAINER Oil	1
16	16615	止回阀套件	CHECK VALVE KIT	1
17	16621	安装板	PLATE	1
18	16622	模块套件	MODULE KIT	1
18	19265	模块套件	MODULE KIT	1
19	16623	支架套件	BRACKET KIT	1
20	16616	衬垫套件	GASKET KIT	1
21	14585A1	自动混合线束总成	HARNESS ASSEMBLY AUTO-BLEND	1

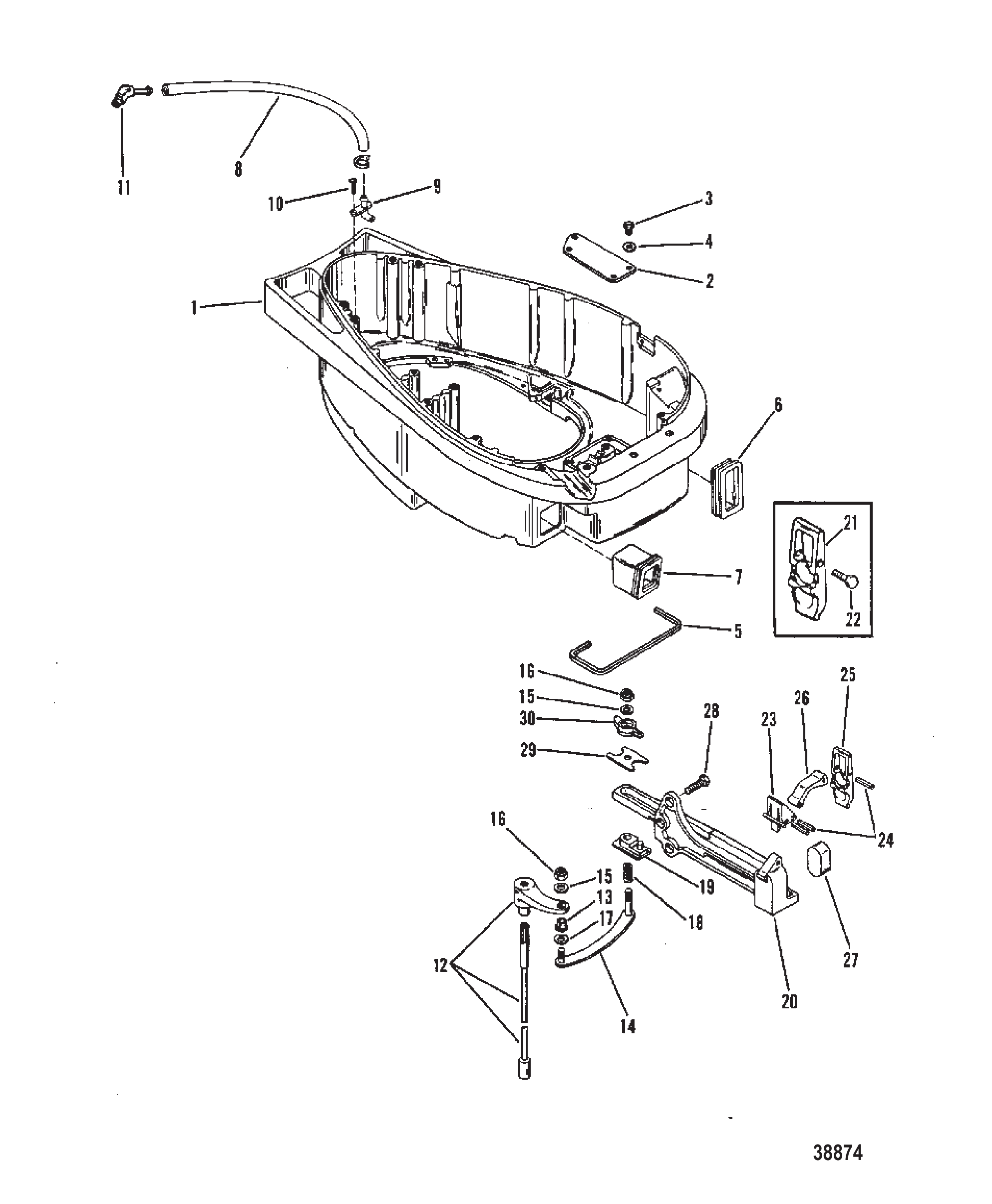

图 3底罩与换挡连杆 BOTTOM COWL AND SHIFT LINKAGE

REF	零件编号	中文名称	英文名称	数量
1	87081	底罩	COWL BOTTOM	1
1	8708T6	底罩	COWL BOTTOM	1
2	74303	进气口盖	COVER AIR INLET	1
3	62568	螺钉(#10-16 x .375)盖至底罩	SCREW (#10-16 x .375) COVER TO BOTTOM COWL	4
4	30164	垫圈(.192 x .375 x .0312)不锈钢盖螺钉	WASHER (.192 x .375 x .0312) Stainless Steel COVER SCREW	4
5	73646	底罩衬垫	GASKET BOTTOM COWL	1
6	39616	底罩控制线缆护套	BOOT CONTROL CABLES-BOTTOM COWL	1
7	37637	底罩燃油接头护套	BOOT FUEL CONNECTOR-BOTTOM COWL	1
8	99127109	管线(57.00英寸散装)示警管(14-3/4")	LINE (57.00 Inches Bulk) TELL TALE (14-3/4")	1
8	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
9	52889	示警软管至底罩喷嘴	NOZZLE TELL TALE HOSE TO BOTTOM COWL	1
10	48408	示流喷嘴至下罩盖螺钉(#10-16x0.500)	SCREW (#10-16 x .500) TELL TALE NOZZLE TO BOTTOM COWL	1
11	78279	示警软管至气缸体弯头	ELBOW TELL TALE HOSE TO CYLINDER BLOCK	1
11	8M0207781	弯头	ELBOW	1
12	60304A54	上部换挡轴总成	SHIFT SHAFT ASSEMBLY UPPER	1
13	26856	换挡轴衬套	BUSHING SHIFT SHAFT	1
14	73402	换挡连杆	SHIFT LINK	1
15	35462	垫圈(.2656 x .625 x .0625)不锈钢连杆	WASHER (.2656 x .625 x .0625) Stainless Steel LINK ROD	2
16	36069	连杆螺母	NUT LINK ROD	2
17	29720	连杆波形垫圈	WAVE WASHER LINK ROD	1
18	20099	连杆至导向块弹簧	SPRING LINK ROD TO GUIDE BLOCK	1
19	37896	连杆导向块	GUIDE BLOCK LINK ROD	1
20	52732A6	控制线缆锚定支架	BRACKET ANCHOR-CONTROL CABLES	1
21	98889	闩锁	LATCH	1
22	42975	闩锁传动螺钉	DRIVE SCREW LATCH	2
23	39618	尼龙换挡线缆锁定杆	LEVER NYLON-SHIFT CABLE LOCKING	1
23	87609A1	杠杆套件	LEVER KIT	1
24	47175	锁定杆及盖固定销	PIN LOCKING LEVER AND COVER FASTENING	3
25	90211	尼龙换挡线缆盖	COVER NYLON-SHIFT CABLE	1
26	65799T	连杆-锁定杆到盖板	LINK LOCKING LEVER TO COVER	1
26	87609A1	杠杆套件	LEVER KIT	1
27	39519	锚定杯形保持器	CUP BARREL RETAINER-ANCHOR	1
28	35386	螺钉(.312-18 x 1.00)锚定支架至气缸体	SCREW (.312-18 x 1.00) ANCHOR BRACKET TO CYLINDER BLOCK	3
29	52100	连杆耐磨板	WEAR PLATE LINK ROD	1
30	38279	控制线缆闩锁紧固件	LATCH CONTROL CABLE FASTENING	1
30	8M0036768	闩锁	LATCH	1
-	73645A87	衬垫套件	GASKET SET	1

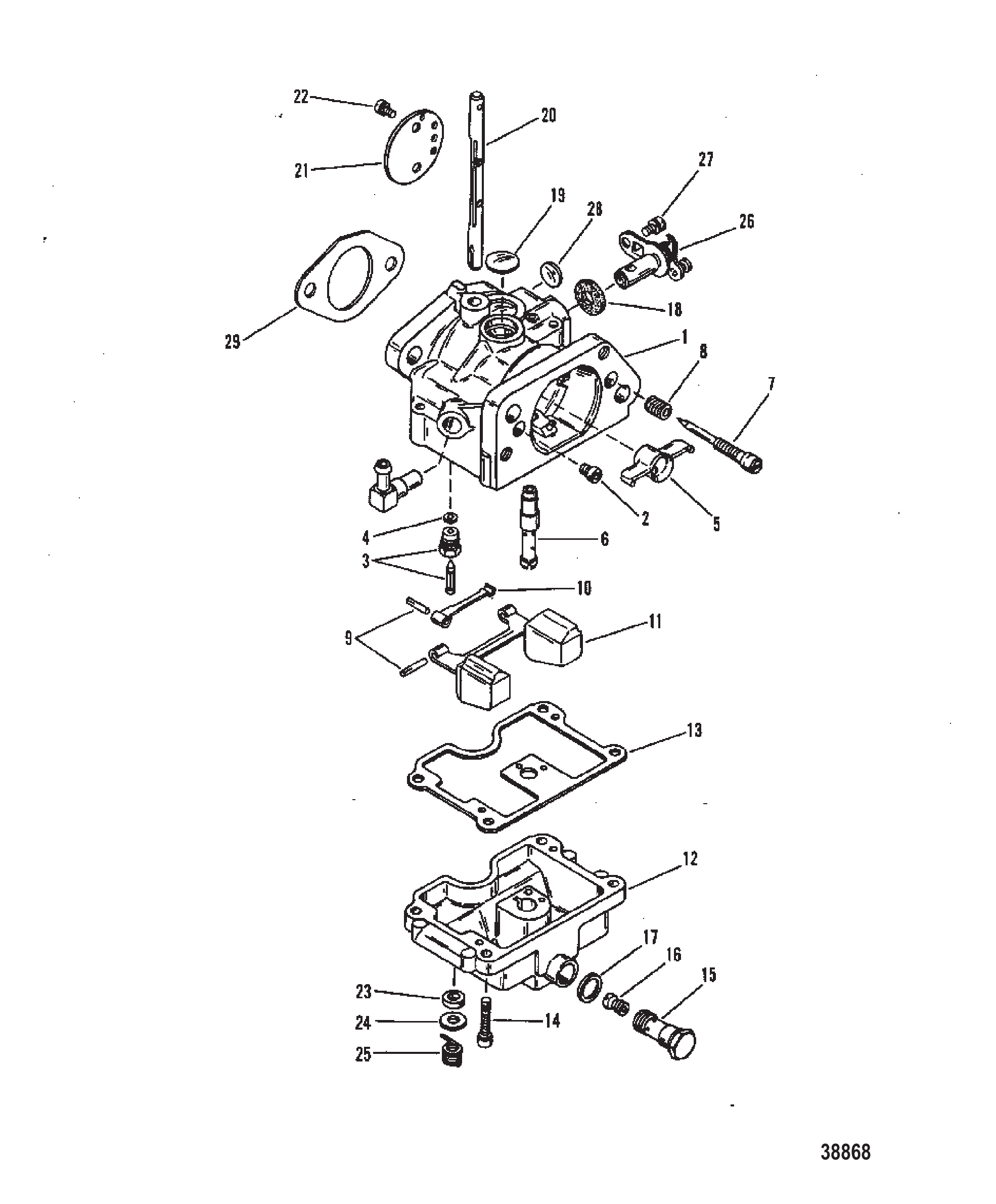

图 4化油器总成 CARBURETOR ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	6071A41	化油器总成	CARBURETOR ASSEMBLY	1
1	6071A57	化油器	CARBURETOR	1
1	6071A42	化油器总成	CARBURETOR ASSEMBLY	1
1	6071A58	化油器	CARBURETOR	1
1	6071A57	化油器	CARBURETOR	1
1	6071A58	化油器	CARBURETOR	1
2	5733	主量孔 (.092)	JET Main (.092)	2
3	192711	进油针阀组件	NEEDLE AND SEAT Inlet	2
4	NSS	不单独出售-进油针阀与阀座垫片	NOT SOLD SEPARATE GASKET-INLET NEEDLE AND SEAT	2
5	52106A1	塑料喉管	VENTURI Plastic	2
6	NSS		NOT SOLD SEPARATE NOZZLE	2
7	NSS	不单独销售 怠速针	NOT SOLD SEPARATE IDLE NEEDLE	2
8	NSS		NOT SOLD SEPARATE SPRING-IDLE MIXTURE	2
9	NSS	浮子销(不单独销售)	NOT SOLD SEPARATE FLOAT PIN	6
10	NSS	浮子杆(不单独销售)	NOT SOLD SEPARATE FLOAT LEVER	2
11	19273	浮子	FLOAT	2
12	6195	燃油杯	BOWL Fuel	2
12	9483	燃油杯	BOWL Fuel	2
13	NSS	不单独销售 燃油杯衬垫	NOT SOLD SEPARATE GASKET-FUEL BOWL	2
14	NSS		NOT SOLD SEPARATE SCREW-FUEL BOWL	8
15	6199	主量孔塞	PLUG MAIN JET	2
16	3518	主量孔(.082)	JET (.082) MAIN	2
17	NSS		NOT SOLD SEPARATE GASKET-MAIN JET PLUG	2
18	NSS	燃油入口滤网(不单独销售)	NOT SOLD SEPARATE SCREEN-FUEL INLET	2
19	NSS	不单独出售-韦氏塞(9/16英寸)	NOT SOLD SEPARATE WELCH PLUG (9/16")	4
20	4807	油门轴	SHAFT Throttle	1
20	7942	节流阀轴	SHAFT THROTTLE	1
21	7639	节气门阀	VALVE THROTTLE	2
22	NSS		NOT SOLD SEPARATE SCREW-VALVE TO THROTTLE SHAFT	4
23	6204	节气门轴密封	SEAL THROTTLE SHAFT	2
24	6203	节气门轴垫圈	WASHER THROTTLE SHAFT	2
25	NSS	不单独销售 油门回位弹簧	NOT SOLD SEPARATE SPRING-THROTTLE RETURN	2
26	6198	加浓阀总成	VALVE ASSEMBLY ENRICHMENT	2
27	NSS		NOT SOLD SEPARATE SCREW-ENRICHMENT BRACKET	2
28	NSS	不单独出售-韦氏塞(7/16英寸)	NOT SOLD SEPARATE WELCH PLUG (7/16")	2
29	73377	化油器衬垫	GASKET CARBURETOR	2
29	733771	衬垫	GASKET	2
-	6200	衬垫套件	GASKET KIT	2
-	19274	维修套件	REPAIR KIT	2
-	812953	化油器维修套件	REPAIR KIT - CARB	2
-	19272	维修套件	REPAIR KIT	2
-	812953	化油器维修套件	REPAIR KIT - CARB	2
-	73645A87	衬垫套件	GASKET SET	1

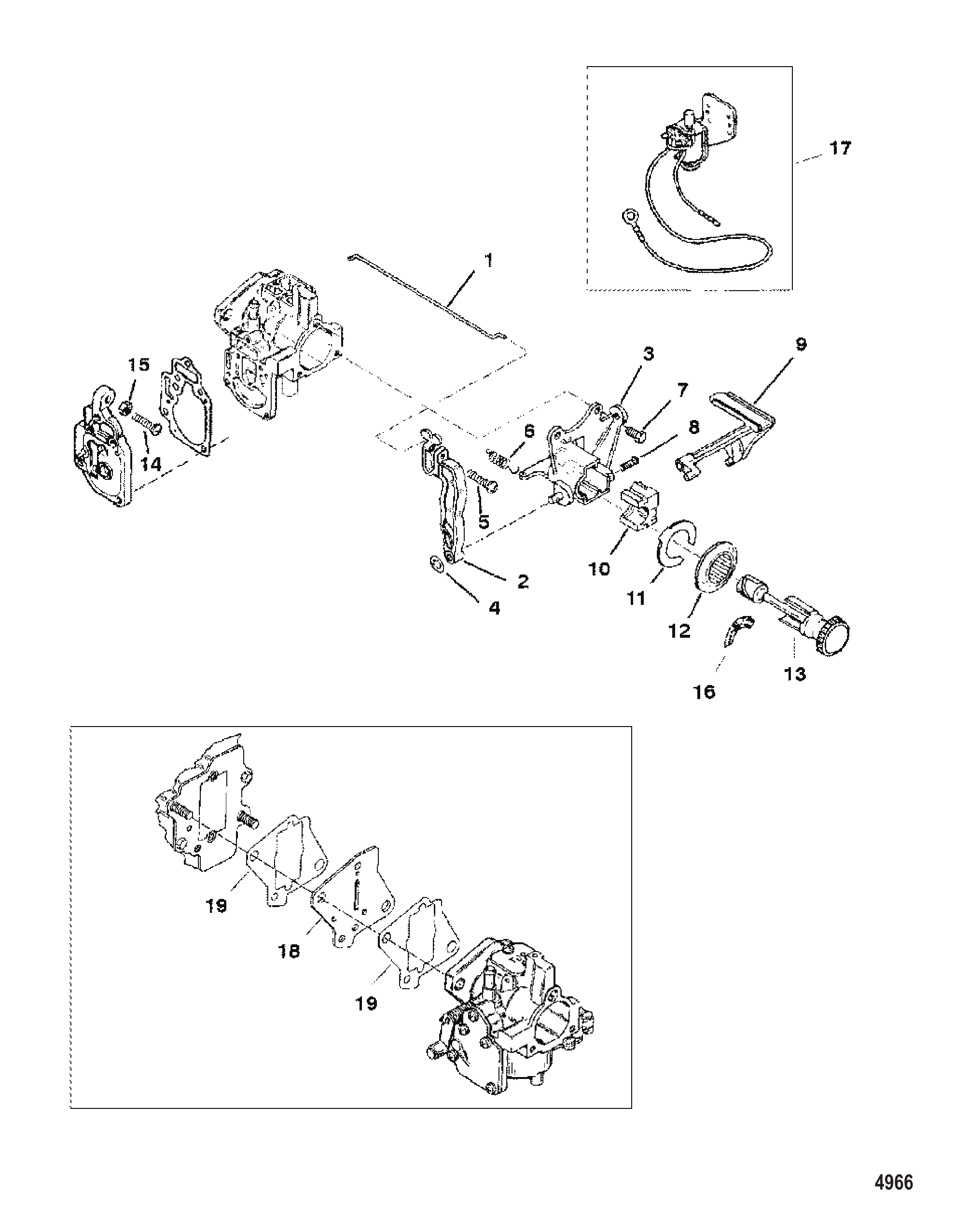

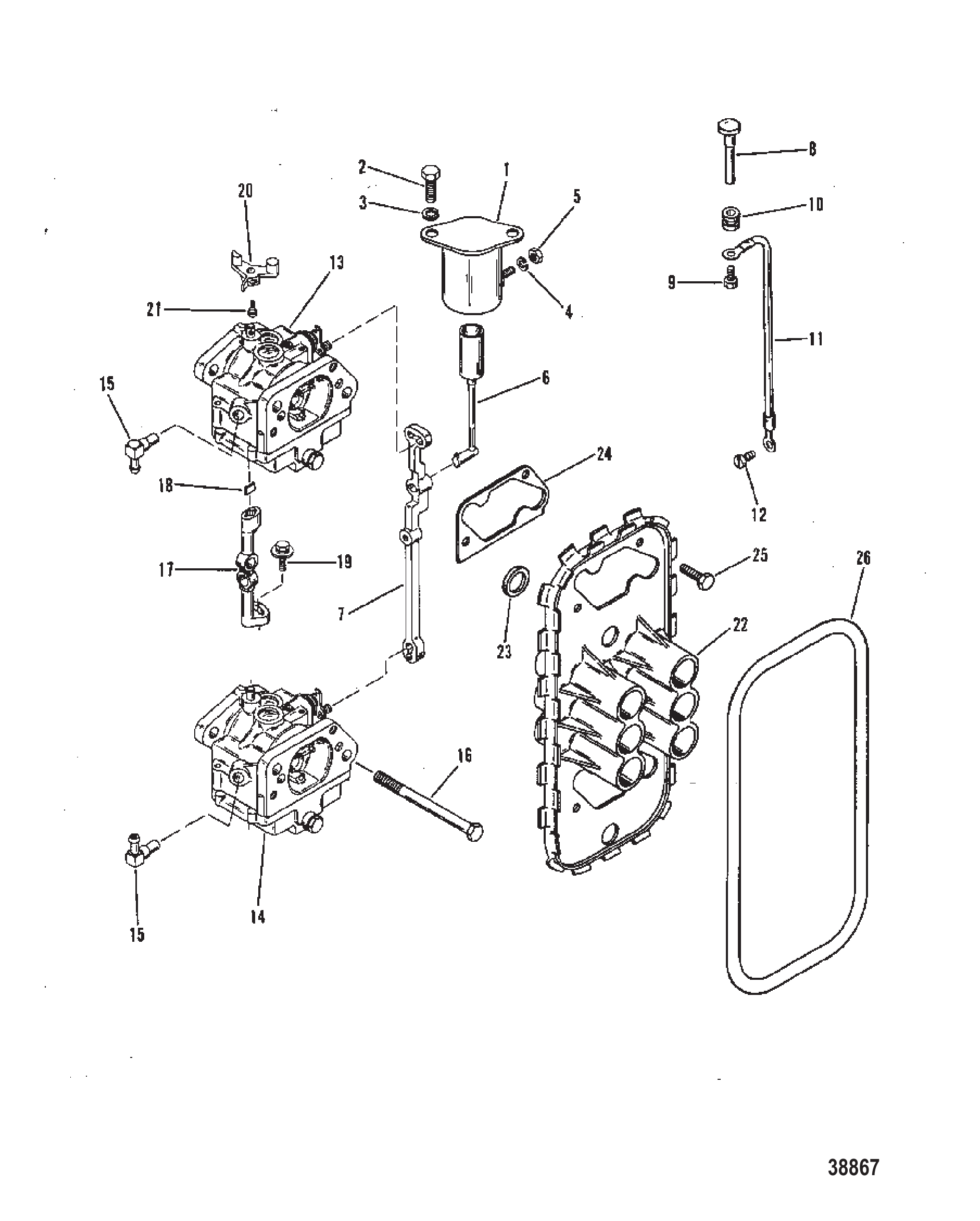

图 5化油器连杆 CARBURETOR LINKAGE

REF	零件编号	中文名称	英文名称	数量
1	54293A10	阻风门电磁阀总成	SOLENOID ASSEMBLY Choke	1
2	59645	螺钉 (0.312-18 x 0.750)	SCREW (.312-18 x .750)	2
2	824941	螺钉 (0.312-18 x 0.750)	SCREW (.312-18 x .750)	2
3	26993		LOCKWASHER (.312) CHOKE SOLENOID SCREW	2
3	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
4	26996	锁紧垫圈(#10)不锈钢阻风门电磁阀端子	LOCKWASHER (#10) Stainless Steel CHOKE SOLENOID TERMINAL	1
5	68219	螺母(#10-32)不锈钢阻风门电磁阀端子	NUT (#10-32) Stainless Steel CHOKE SOLENOID TERMINAL	1
6	89008A2	柱塞总成	PLUNGER ASSEMBLY	1
7	73400	阻风门拉杆	ROD Choke	1
8	90242A1	旋钮总成	KNOB ASSEMBLY	1
9	77137	螺钉(.190-16 x .620)阻风门拉线至旋钮	SCREW (.190-16 x .620) WIRE TO CHOKE KNOB	1
10	20116	阻风门旋钮护圈	GROMMET CHOKE KNOB	1
11	74263	阻风门旋钮至拉杆线(黑色)	WIRE CHOKE KNOB TO CHOKE ROD (BLACK)	1
12	62568	螺钉(#10-16 x .375)拉线至阻风门拉杆	SCREW (#10-16 x .375) WIRE TO CHOKE ROD	1
13	6071A41	化油器总成(上部)	CARBURETOR ASSEMBLY (TOP)	1
13	6071A57	化油器	CARBURETOR	1
14	6071A42	化油器总成(下部)	CARBURETOR ASSEMBLY (BOTTOM)	1
14	6071A58	化油器	CARBURETOR	1
15	64704	化油器接头	FITTING CARBURETOR	2
15	19688	接头	FITTING	2
16	52743	螺钉(.312-18 x 3.750)	SCREW (.312-18 x 3.750)	4
17	53720A2	下部化油器联轴器总成	COUPLING ASSEMBLY LOWER CARBURETOR	1
18	89694		KEY COUPLING	1
19	66104	螺钉 (#8-32 x 0.790)	SCREW (#8-32 x .790)	1
20	73847	节气门执行器(上部化油器)	ACTUATOR THROTTLE (UPPER CARBURETOR)	1
21	60293	螺钉(#5-40 x .500)	SCREW (#5-40 x .500)	1
22	73408	化油器板	PLATE CARBURETOR	1
23	73398	化油器板衬垫	GASKET CARBURETOR PLATE	2
24	76952	化油器板至化油器衬垫	GASKET CARBURETOR PLATE TO CARBURETOR	2
25	28635	不锈钢螺钉(.250-20 x .620)板至化油器	SCREW (.250-20 x .620) Stainless Steel PLATE TO CARBURETOR	4
26	73647	化油器板密封件	SEAL CARBURETOR PLATE	1

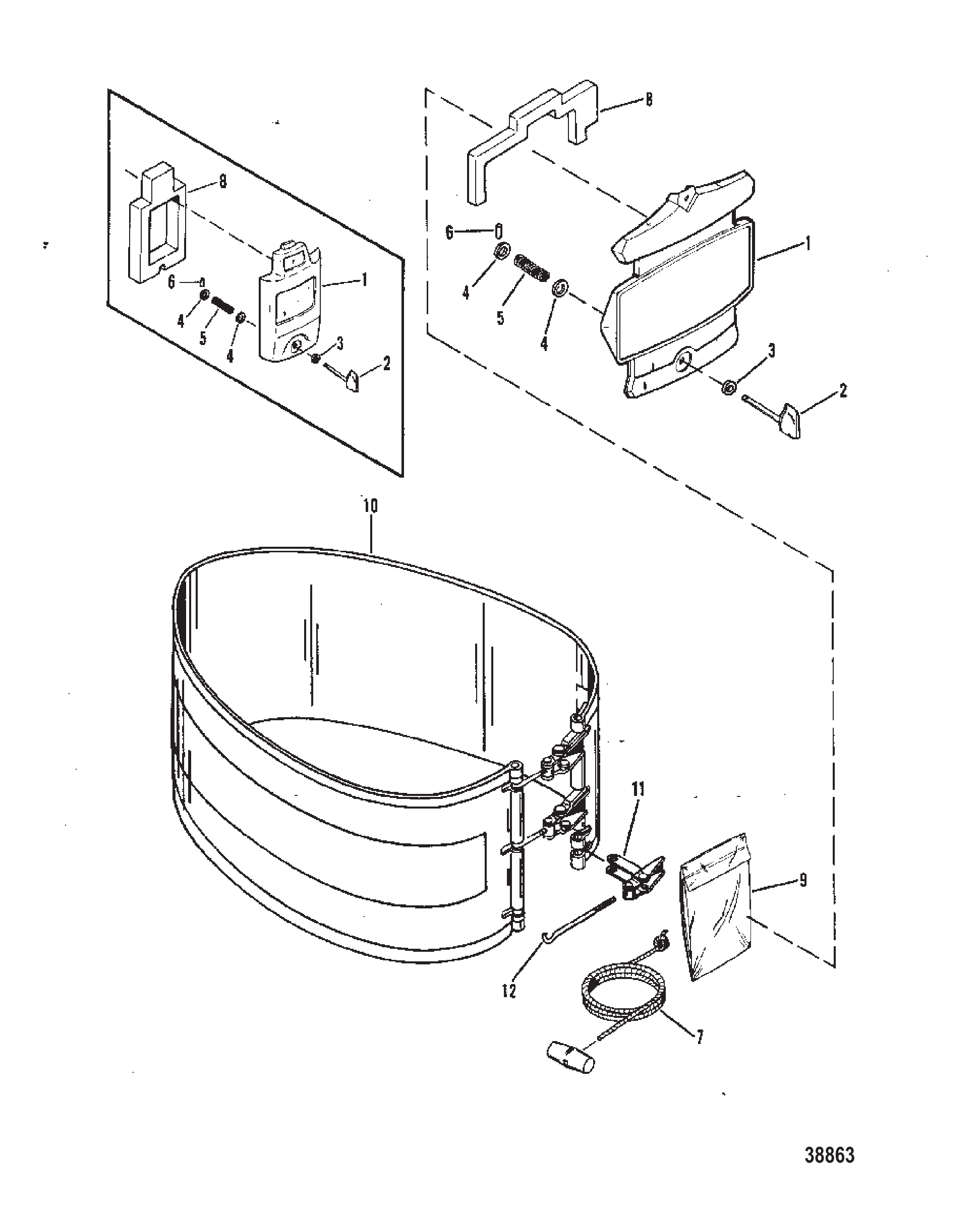

图 6外罩与前盖 COWLING AND FRONT COVER

REF	零件编号	中文名称	英文名称	数量
1	7927A8	前盖组件	FRONT COVER ASSEMBLY	1
1	6393A6	前盖	FRONT COVER	1
2	56849	旋钮	KNOB	1
2	73786	旋钮	KNOB	1
3	30771	旋钮盖垫圈(橡胶)	WASHER COVER KNOB (RUBBER)	2
4	75246	旋钮盖垫圈(钢制)	WASHER COVER KNOB (STEEL)	2
5	30772	旋钮盖张力弹簧	SPRING TENSION-COVER KNOB	1
6	29077		PIN Roll TENSION SPRING TO KNOB	1
7	47341A1	手动/应急启动拉绳手柄套件	ROPE AND HANDLE KIT Manual/Emergency Start STARTER	1
7	47341A11	手动启动绳柄套件	ROPE AND HANDLE KIT Manual Starting	1
8	94923	消音垫	PAD SOUND ABSORBING	2
8	76434	消音密封条	SEAL SOUND ABSORBING	2
9	38674	隔音毯	BLANKET SOUND ABSORBING	1
10	3248A16	环绕式外罩总成	WRAP AROUND COWL ASSEMBLY	1
10	6394A7	环绕式外罩	WRAP AROUND COWL	1
11	46785A1	罩壳锁扣总成	LATCH ASSEMBLY Cowl	2
12	30413	罩锁钩	HOOK COWL LATCH	2

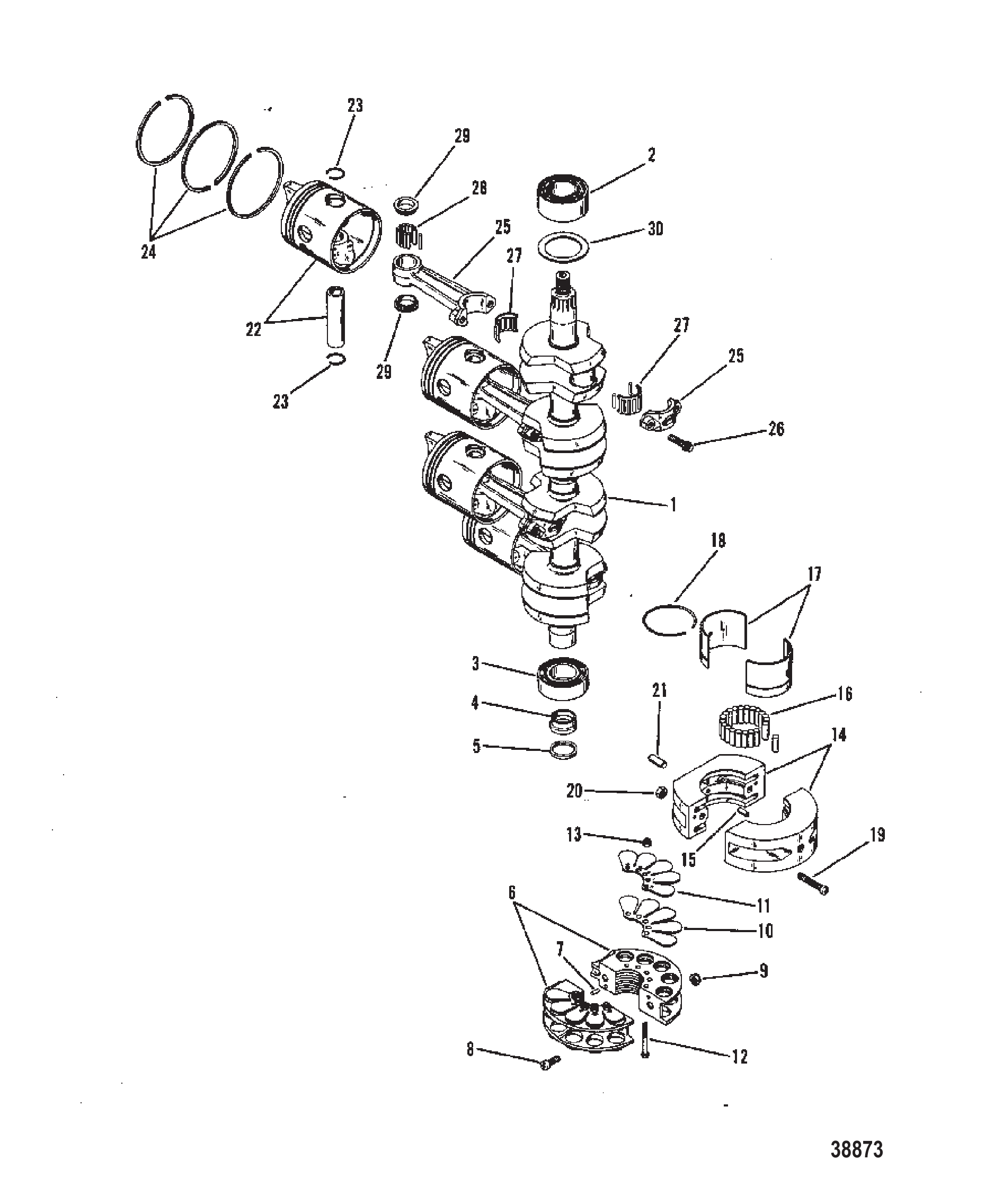

图 7曲轴、活塞与连杆 CRANKSHAFT, PISTON AND CONNECTING ROD

REF	零件编号	中文名称	英文名称	数量
1	9074A2	曲轴总成	CRANKSHAFT ASSEMBLY	1
2	62567	上部滚珠轴承	BEARING Ball UPPER	1
2	62567T	滚珠轴承	BALL BEARING	1
3	63742	下球轴承	BEARING Ball LOWER	1
3	63742T	滚珠轴承	BEARING Ball	1
4	54196A6	托架总成	CARRIER ASSEMBLY	1
5	65800	填料载体	PACKING CARRIER	1
6	5266A5	主轴承总成(阀门型)	BEARING ASSEMBLY Main (VALVE TYPE)	2
6	5266T5	簧片阀总成	REED BLOCK ASSY	2
7	20032		PIN Dowel MAIN BEARING	4
8	45775	主轴承螺钉（#12-28 x 0.560）	SCREW (#12-28 x .560) MAIN BEARING	4
9	45774	主轴承夹紧螺钉螺母	NUT MAIN BEARING CLAMPING SCREW	4
10	56007A1	匹配主轴承的簧片组	REED SET MATCHED-MAIN BEARING	2
11	56008	主轴承簧片阀限位器	STOP Reed MAIN BEARING REED VALVES	8
12	62204	簧片止动安装螺钉	SCREW REED STOP MOUNTING	20
13	53153	簧片止动安装螺钉螺母	NUT REED STOP MOUNTING SCREW	20
14	5397A4	中央主轴承总成	BEARING ASSEMBLY Center Main	1
15	20032	定位销中心主轴承	PIN Dowel CENTER MAIN BEARING	2
16	71422	滚针轴承	BEARING Needle	56
16	714221	轴承	BEARING	56
17	26113	外座圈(配对)	RACE OUTER (PAIR)	1
17	26113T	中心主座圈	RACE-CENTER MAIN	1
18	26933	外座圈卡紧卡环	RING Snap OUTER RACE CLAMPING	1
19	22968	中心主轴承夹紧螺钉(.250-28 x 1.25)	SCREW (.250-28 x 1.25) CENTER MAIN BEARING CLAMPING	2
20	20184	主轴承夹紧螺钉螺母(1/4-28X7/32)	NUT (1/4-28X7/32) MAIN BEARING CLAMPING SCREW	2
20	8M0207775	螺母 @5	NUT @5	2
21	47246	阶梯式定位销	PIN Dowel STEPPED	1
22	8896A3	活塞总成	PISTON ASSEMBLY	4
22	9137A12	标准活塞总成	PISTON ASSY-STD	4
22	8897A2	活塞总成	PISTON ASSEMBLY	AR
22	9137A13	活塞总成-.015	PISTON ASSY-.015	AR
22	8898A2	活塞总成	PISTON ASSEMBLY	AR
22	9137A14	活塞总成-.030	PISTON ASSY-.030	AR
23	52035	锁环	RING Lock	8
23	857196	锁紧环	LOCK RING	8
24	78816A12	环	RING	1
24	78811A12	活塞环组-.015加大	RING SET Piston - .015 Oversize	1
24	88392A12	活塞环组-.030加大	RING SET Piston - .030 Oversize	1
25	8101A3	连杆总成	CONNECTING ROD ASSEMBLY	4
26	91012	连杆专用螺钉（.250-28）	SCREW (.250-28 Special) CONNECTING ROD	8
27	62596A1	曲柄销轴承总成	BEARING ASSEMBLY CRANKPIN	4
28	47270	活塞销轴承	BEARING PISTON PIN	116
28	8M0214934	滚针轴承@200	BRG-NEEDLE @200	116
29	47247	定位针垫圈	WASHER NEEDLE LOCATING	8
29	8M0032839	垫片@5	WASHER @5	8
30	38095A1	上部滚珠轴承垫片	SHIM UPPER BALL BEARING	AR
-	73645A87	衬垫套件	GASKET SET	1

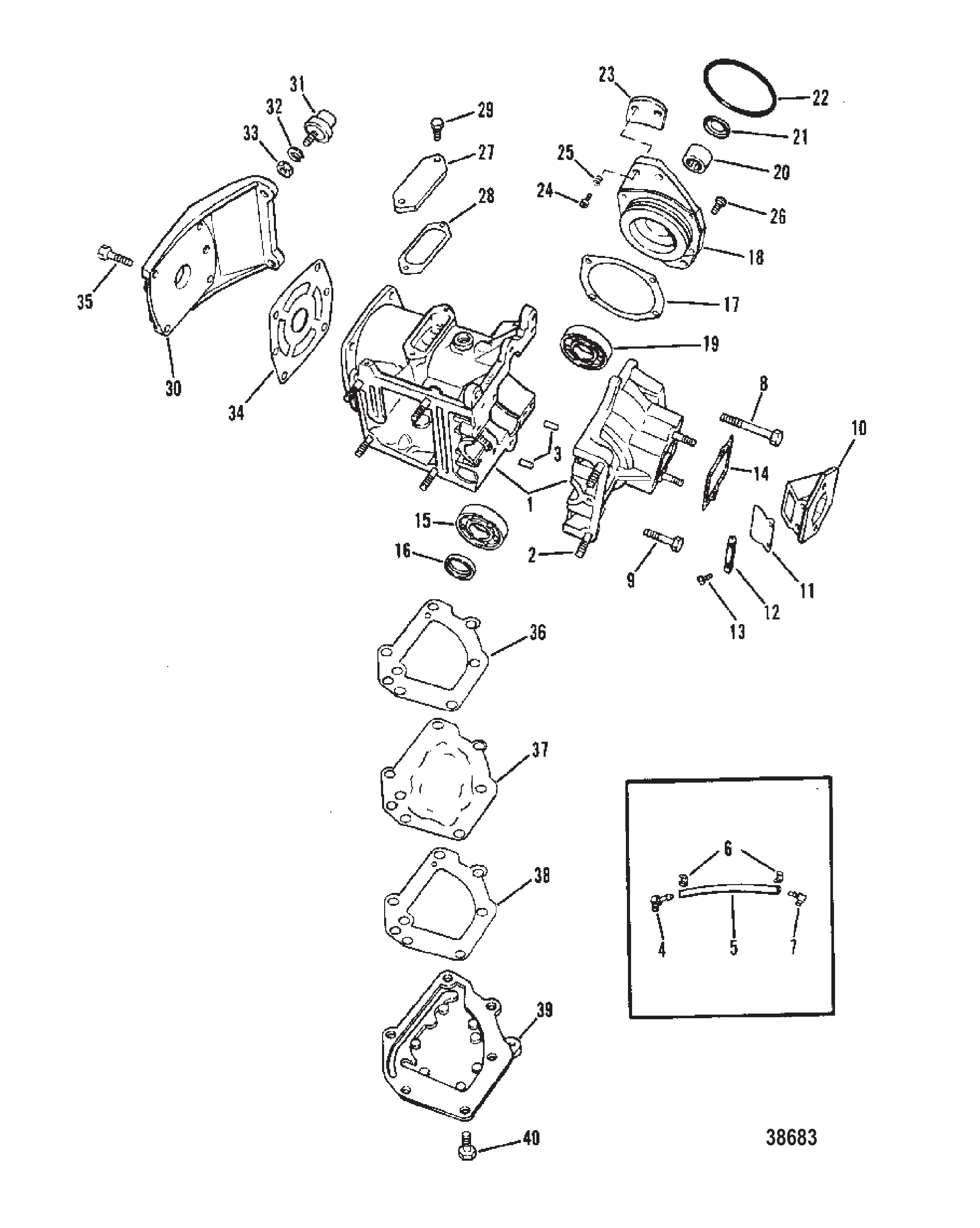

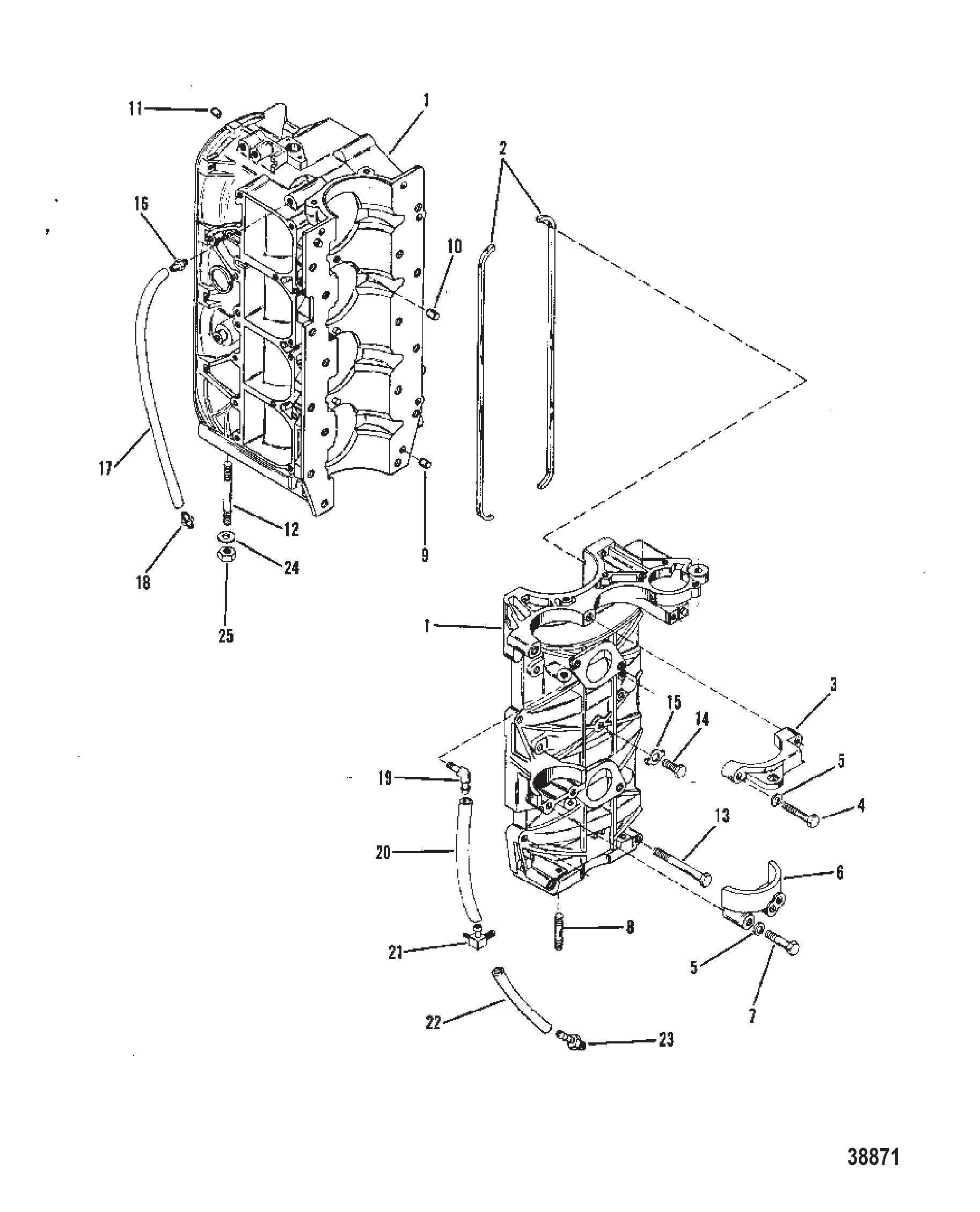

图 8气缸体与曲轴箱总成 CYLINDER BLOCK AND CRANKCASE ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	8338A3	气缸体总成	CYLINDER BLOCK ASSEMBLY	1
2	53650	曲轴箱至气缸体衬垫	GASKET CRANKCASE TO CYLINDER BLOCK	2
3	56029	启动电机盖(上部)	COVER STARTER MOTOR(UPPER)	1
3	56029T	盖板	COVER	1
4	31984	螺钉(.312-18 x 1.375)盖至曲轴箱	SCREW (.312-18 x 1.375) COVER TO CRANKCASE	1
4	35385	螺钉(.312-18 x 1-3/4)盖至曲轴箱	SCREW (.312-18 x 1-3/4) COVER TO CRANKCASE	1
5	26993	盖螺钉锁紧垫圈(.312)	LOCKWASHER (.312) COVER SCREW	4
5	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
6	76867	启动电机盖(下部)	COVER STARTER MOTOR (LOWER)	1
7	73279	螺钉(.312-18 x 1.880)盖至曲轴箱	SCREW (.312-18 x 1.880) COVER TO CRANKCASE	1
7	73658	盖至曲轴箱螺钉(5-1/2英寸)	SCREW COVER TO CRANKCASE (5-1/2")	1
8	64281	双头螺柱(.375-16/.375-24 x 1.880)	STUD (.375-16/.375-24 x 1.880)	2
9	20033	定位销曲轴箱至气缸体	PIN Dowel CRANKCASE TO CYLINDER BLOCK	2
9	43044	定位销-无孔(.375 x .625)	PIN Dowel - Without Hole (.375 x .625)	2
10	63779	定位销(.250 x .625)气缸体至主轴承	PIN Dowel (.250 x .625) CYLINDER BLOCK TO MAIN BEARING	2
11	66517	曲轴箱通气限流器	RESTRICTOR CRANKCASE BLEED	3
12	64282	双头螺柱(4英寸)气缸体至排气板	STUD (4 In.) CYLINDER BLOCK TO EXHAUST PLATE (4")	6
13	57841	螺钉(.312-18 x 2.750)	SCREW (.312-18 x 2.750)	2
13	74824	螺钉(.312-18 x 1.250)	SCREW (.312-18 x 1.250)	2
13	73657	螺钉(0.312-18 x 1.50)	SCREW (.312-18 x 1.50)	12
14	20359	螺钉(.375-16 x 1.00)	SCREW (.375-16 x 1.00)	1
15	20091	轴承锁紧螺钉止动垫圈	TAB WASHER BEARING LOCKING SCREW	1
16	42866	顶部泄放软管单向阀	CHECK VALVE BLEED HOSE-TOP	1
17	9938779	气缸泄放软管(15-1/2英寸)	HOSE CYLINDER BLEED (15-1/2")	1
18	42867	底部泄放软管单向阀	CHECK VALVE BLEED HOSE-BOTTOM	1
18	428671	止回阀	CHECK VALVE	1
19	99664	弯头	ELBOW	1
19	996642	90度弯头接头(0.125-27x0.250)尼龙	FITTING Elbow 90 Degree (.125-27 x .250) Nylon	1
20	99127109	平衡管路(散装57英寸)(6-1/4英寸)	LINE (57.00 Inches Bulk) BALANCE (6-1/4")	1
20	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
21	130342	三通平衡软管至气缸体-下部	TEE BALANCE HOSE TO CYLINDER BLOCK-LOWER	1
22	9938779	平衡软管(5英寸)	HOSE BALANCE (5")	1
23	65857	进气口盖连接器	CONNECTOR AIR INLET COVER	1
23	56759	倒钩接头	FITTING Barbed	1
24	25970	动力头双头螺栓垫片	WASHER POWERHEAD STUDS	8
24	20553	垫圈(.406 x .734 x .063)	WASHER (.406 x .734 x .063)	8
25	69254	动力头双头螺栓螺母	NUT POWERHEAD STUDS	2
25	34932	动力头双头螺栓螺母(.375-24)	NUT (.375-24) POWERHEAD STUDS	6
25	82671013	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	6
-	97471A32	动力头	POWERHEAD	1
-	97471T87	船用动力头	POWERHEAD MARINE	1
-	97471A87	动力头总成	POWERHEAD ASSEMBLY	1
-	97471T87	船用动力头	POWERHEAD MARINE	1

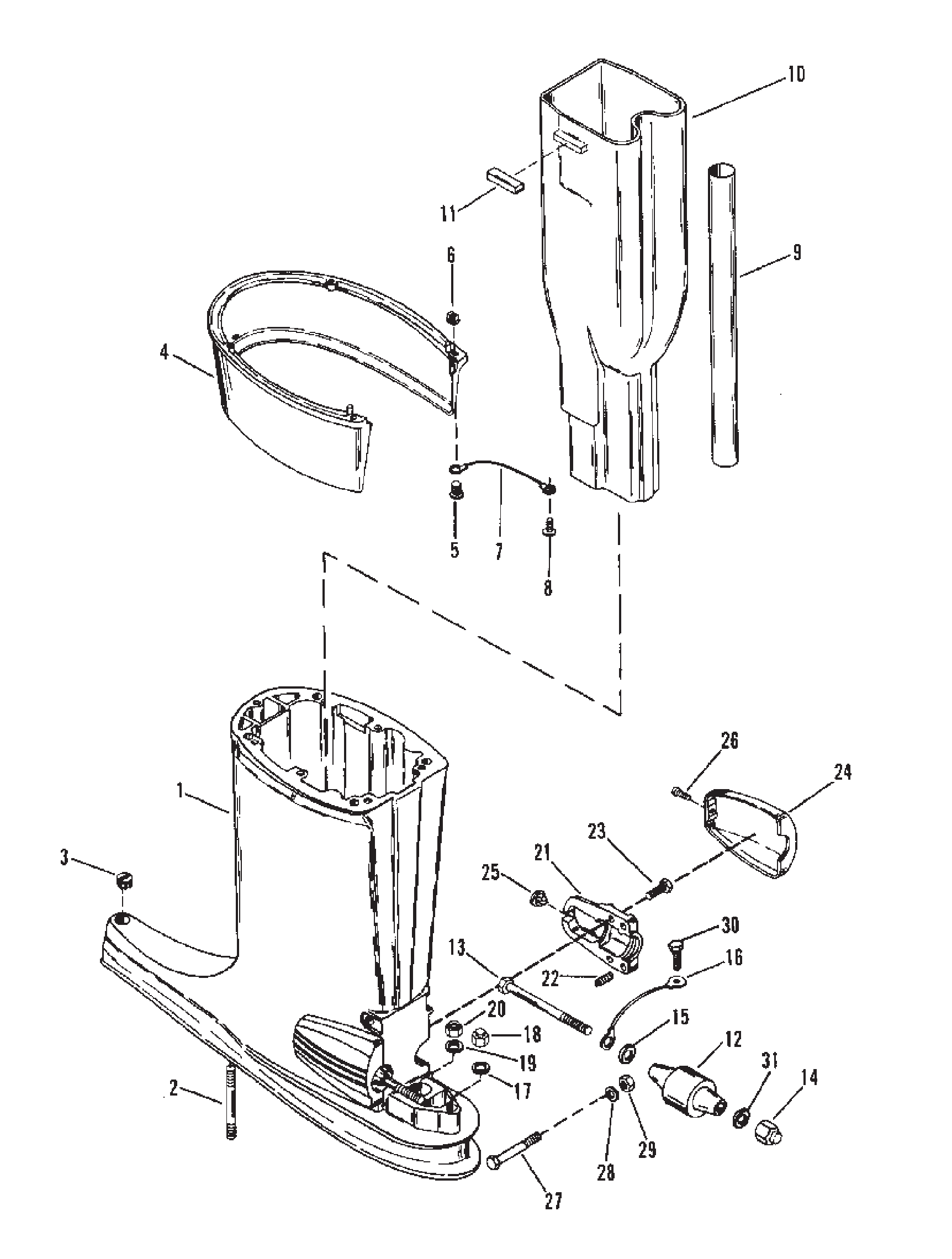

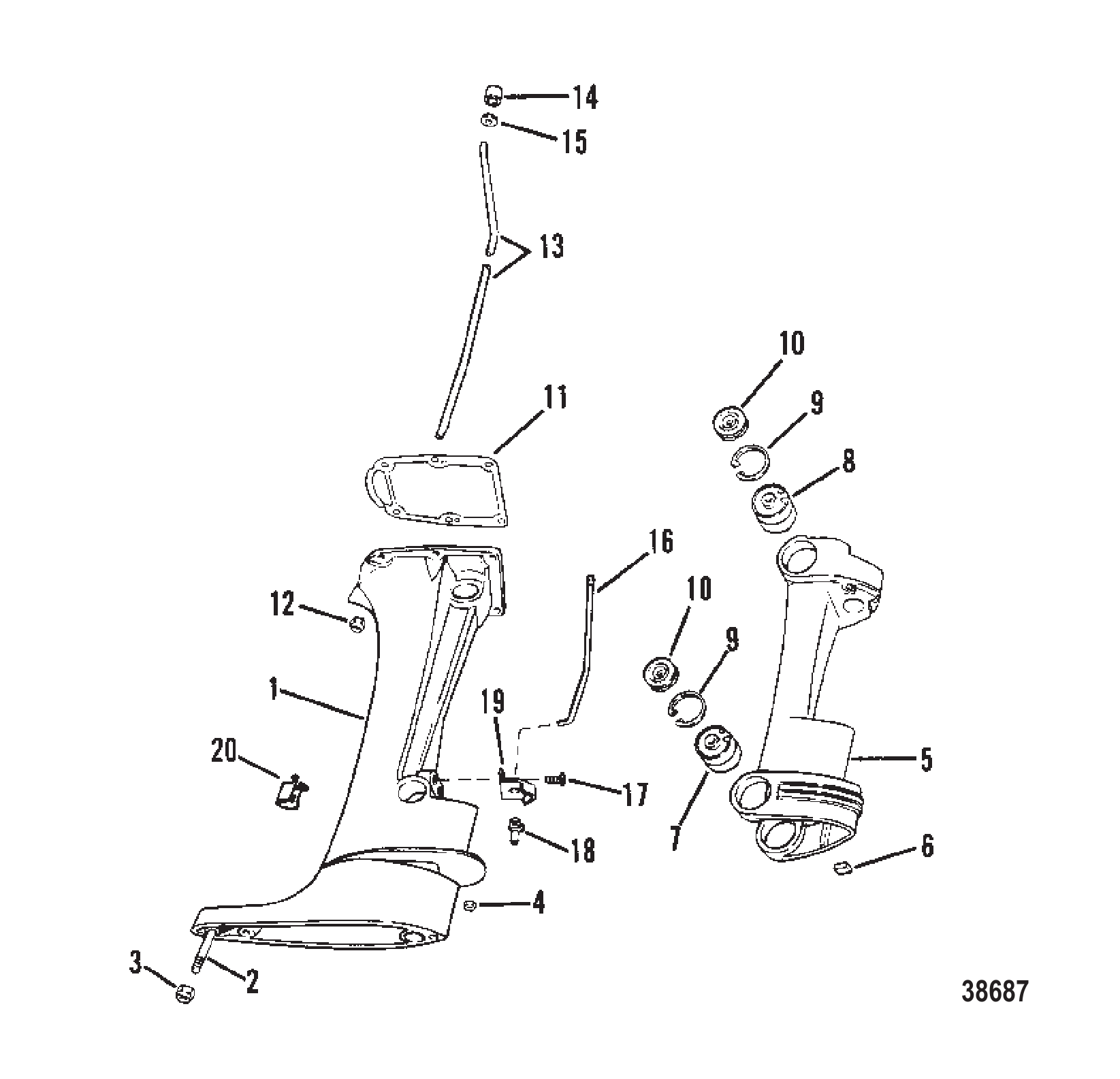

图 9驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	5239A4	驱动轴壳体总成-水星	HOUSING ASSEMBLY Driveshaft - Mercury	1
1	5239A51	驱动轴壳体总成-马林	HOUSING ASSEMBLY Driveshaft - Mariner	1
2	56295	双头螺柱(.437 x 2.69)	STUD (.437 x 2.69)	2
3	64649		PLUG PLASTIC - TRIM TAB SCREW HOLE	1
4	37417	水星装饰盖	COVER TRIM MERCURY	1
4	37417F2	马林装饰盖	COVER TRIM MARINER	1
5	57807	不锈钢螺钉(#10-16 x 0.750)	SCREW (#10-16 x .750) Stainless Steel	4
6	92012	装饰盖螺钉衬套	GROMMET TRIM COVER SCREW	4
6	8M0079730	密封圈套件	GROMMET KIT	4
7	88238A4	装饰盖螺钉线缆总成	CABLE ASSEMBLY TRIM COVER SCREW	2
7	88238T01	拉线总成	CABLE ASSEMBLY	2
8	62568	接地带固定螺钉(#10-16 x 0.375)	SCREW (#10-16 x .375) GROUND STRAP ATTACHING	2
9	60897	进水口管	TUBE WATER INLET	1
10	78184T	排气管	TUBE EXHAUST	1
11	65638	排气管护套	BOOT EXHAUST TUBE	2
12	75298	下橡胶支座	MOUNT RUBBER - LOWER	2
13	43426	上支座螺钉	SCREW UPPER MOUNT	2
14	25096	支座螺钉螺母	NUT MOUNT SCREW	2
15	30119	上支座螺钉垫片(外径0.875英寸)	WASHER (.875 Inch Outside Diameter) UPPER MOUNT SCREW	2
16	88238A2	接地线总成	CABLE ASSEMBLY Ground	1
16	88238A10	接地线总成	CABLE ASSEMBLY Ground	1
17	45176	齿轮箱双头螺栓不锈钢垫片(0.453 x 0.812 x 0.105)	WASHER (.453 x .812 x .105) Stainless Steel GEAR HOUSING STUDS	1
18	29489	齿轮箱双头螺栓螺母	NUT GEAR HOUSING STUDS	1
19	45176	齿轮箱双头螺栓不锈钢垫片(0.453 x 0.812 x 0.105)	WASHER (.453 x .812 x .105) Stainless Steel GEAR HOUSING STUDS	2
20	34933	齿轮箱不锈钢螺母(.437-20)	NUT (.437-20) Stainless Steel GEAR HOUSING	2
20	8M0204653	螺母	NUT	2
21	35608	下安装夹至驱动轴壳体	CLAMP LOWER MOUNT TO DRIVESHAFT HOUSING	2
22	35522	弹簧张力-下安装夹	SPRING TENSION - LOWER MOUNT CLAMP	4
23	29256	螺钉 (0.312-18 x 0.875)	SCREW (.312-18 x .875)	4
24	35474T	下安装夹盖	COVER LOWER MOUNT CLAMP	2
24	35474F2	下安装夹盖	COVER Lower Mount Clamp	2
25	35521	下安装夹盖螺母	NUT LOWER MOUNT CLAMP COVER	2
26	87884	螺钉 (#12-14 x 0.920)	SCREW (#12-14 x .920)	2
27	28200	驱动轴壳体螺钉(.375-24 x 2.875)	SCREW (.375-24 x 2.875) DRIVESHAFT HOUSING	1
28	34714	壳体螺钉垫圈	WASHER HOUSING SCREW	2
29	25269	壳体螺钉螺母(.375-24)	NUT (.375-24) HOUSING SCREW	1
30	41508	螺丝(.250-20 x .500)不锈钢接地线	SCREW (.250-20 x .500) Stainless Steel GROUND WIRE	1
31	49339	下支座垫片(0.8125)	WASHER (.8125) LOWER MOUNT	2

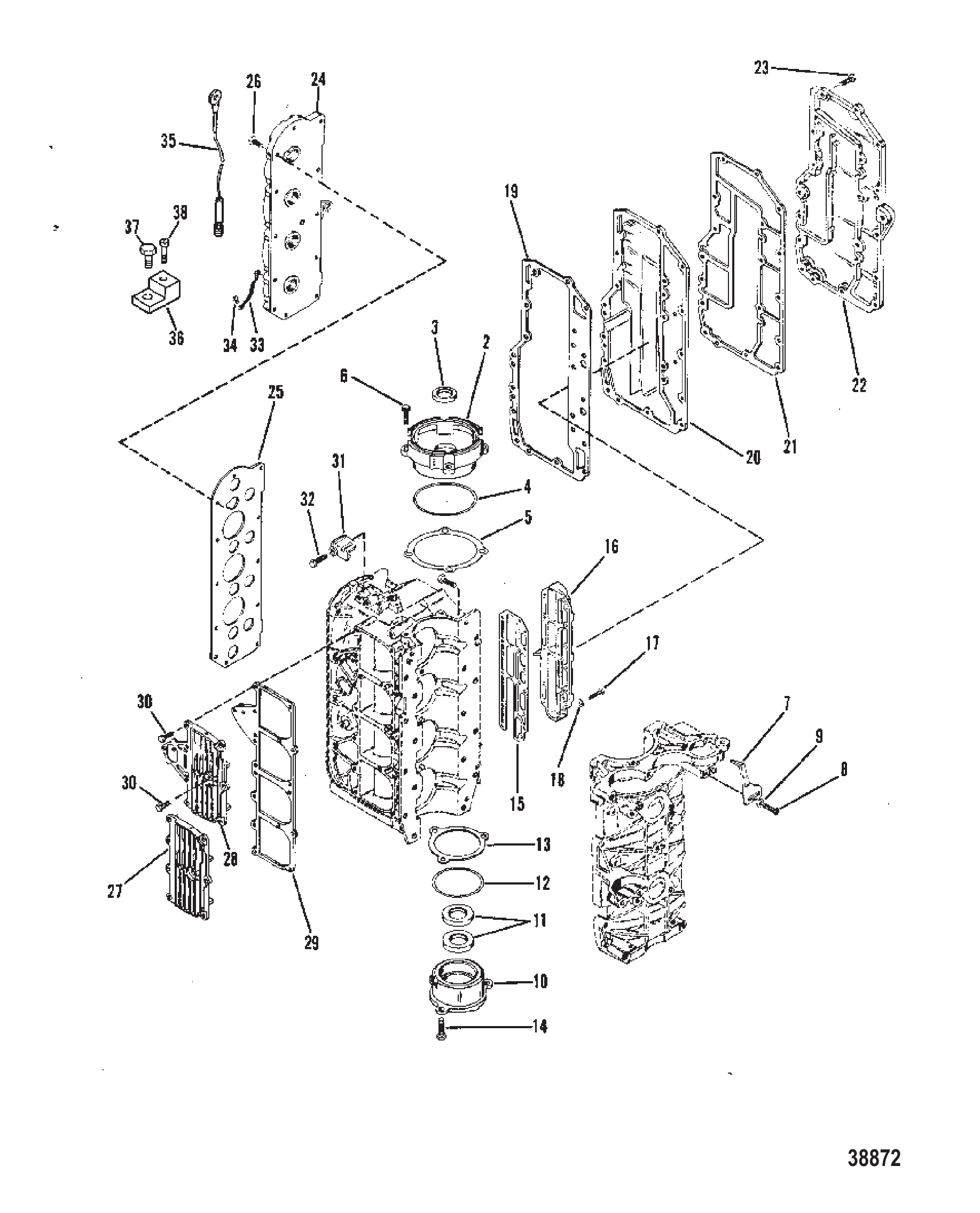

图 10端盖、歧管与排气罩 END CAPS, MANIFOLD AND EXHAUST COVER

REF	零件编号	中文名称	英文名称	数量
2	5940A2	上端盖总成	END CAP ASSEMBLY UPPER	1
3	41953	密封件	SEAL	1
4	47254	O型圈	O-RING	1
5	73644A1	端盖至曲轴箱垫片(.006-10)	SHIM END CAP TO CRANKCASE (.006-10)	AR
6	73169	上端盖螺钉(1英寸)	SCREW UPPER END CAP (1")	4
6	812618	不锈钢螺钉(.312-18 x 1.00)带尼龙垫	SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch	4
7	43352	正时指针	POINTER TIMING	1
8	98510	正时指针螺钉(.250-20 x 0.75)(3/4英寸)	SCREW (.250-20 x .75) TIMING POINTER (3/4")	1
8	65746	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	1
9	20533	正时指针螺钉垫片	WASHER TIMING POINTER SCREW	1
10	5410A1	下端盖总成	END CAP ASSEMBLY LOWER	1
10	5410T1	端盖总成	END CAP ASSY	1
11	41953	密封件	SEAL	2
12	32546	O型圈	O-RING	1
13	20085A1	端盖至曲轴箱垫片组(.005-10)	SHIM SET END CAP TO CRANKCASE (.005-10)	AR
14	69034	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW AND LOCKWASHER (.312-18 x 1.00)	3
14	30225	螺钉带锁紧垫圈(.312-18 x 1.00)	SCREW WITH LOCKWASHER (.312-18 x 1.00)	3
15	73665	水套盖衬垫	GASKET WATER JACKET COVER	1
16	76198	气缸体水套盖	COVER WATER JACKET-CYLINDER BLOCK	1
17	53167	水套盖螺钉(.312-18 x 0.880)	SCREW (.312-18 x .880) WATER JACKET COVER	16
17	53167T	螺钉 0.312-18X 0.88	SCREW .312-18X .88	16
18	70132	水套盖螺钉不锈钢垫片(0.323 x 0.563 x 0.063)	WASHER (.323 x .563 x .063) Stainless Steel WATER JACKET COVER SCREW	16
18	8M0042642	垫圈(.323 x .562 x .063)	WASHER (.323 x .562 x .063)	16
19	854981	气缸体至挡板衬垫	GASKET CYLINDER BLOCK TO BAFFLE PLATE	1
20	73436	挡板	PLATE BAFFLE	1
21	854961	挡板至排气盖垫片	GASKET BAFFLE PLATE TO EXHAUST COVER	1
22	78277A1	排气歧管盖	COVER EXHAUST MANIFOLD	1
23	53576	歧管盖螺钉(.312-18 x 1.125)	SCREW (.312-18 x 1.125) MANIFOLD COVER	18
24	8340	气缸体盖	COVER CYLINDER BLOCK	1
25	961711	气缸体盖衬垫	GASKET CYLINDER BLOCK COVER	1
26	69100	气缸体盖螺钉(1英寸)	SCREW CYLINDER BLOCK COVER (1")	12
26	8M0214943	螺钉	SCREW	12
27	733201	上换气口盖	COVER TRANSFER PORT-TOP	1
27	14429T	上换气口盖	COVER TRANSFER PORT-TOP	1
27	14429A1	换气盖	TRANSFER COVER	1
28	87872	下换气口盖	COVER TRANSFER PORT-BOTTOM	1
29	73645	换气口盖垫片	GASKET TRANSFER PORT COVER	1
30	49668	换气口盖螺钉(.250-20 x 0.750)	SCREW (.250-20 x .750) TRANSFER PORT COVER	14
31	37440	气缸体支座支架	BRACKET MOUNT SUPPORT-CYLINDER BLOCK	1
32	35386	螺丝(.312-18 x 1.00)	SCREW (.312-18 x 1.00)	1
33	46933A3	接地带总成	STRAP ASEMBLY Ground	2
34	62568		SCREW (#10-16 x .375) GROUND STRAP	2
35	96829A1	温度开关总成	SWITCH ASSEMBLY Temperature	1
36	45915	端子排	TERMINAL BLOCK	1
37	62568		SCREW (#10-16 x .375) TERMINAL BLOCK	1
38	28192		SCREW (#10-24 x .50) TERMINAL BLOCK	1
38	72169	螺钉(#10-24x0.500)	SCREW (#10-24 x .500)	1
-	73645A87	衬垫套件	GASKET SET	1

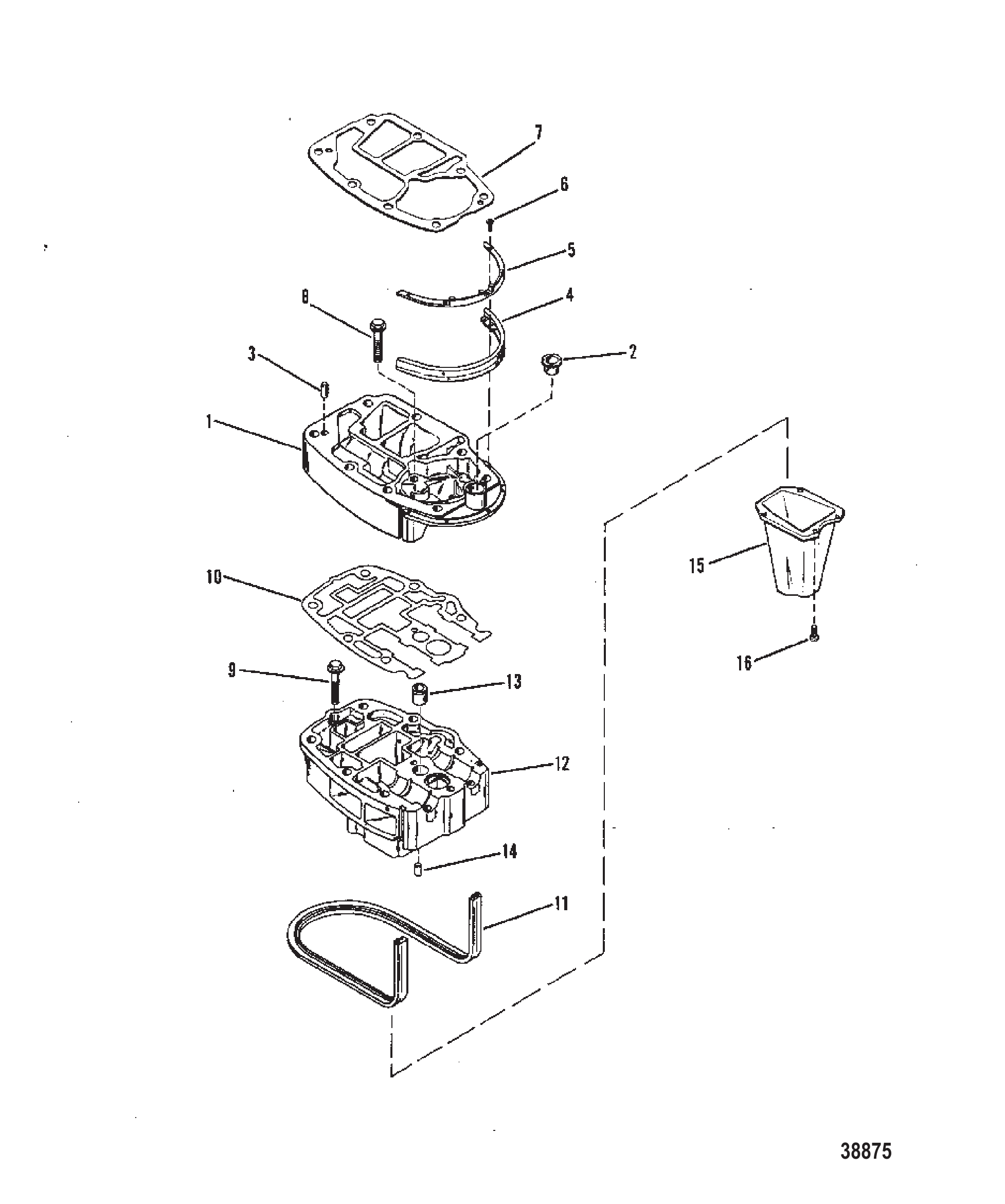

图 11排气延伸板 EXHAUST EXTENSION PLATE

REF	零件编号	中文名称	英文名称	数量
1	43289A2	排气延伸板总成	PLATE ASSEMBLY EXHAUST EXTENSION	1
2	27132	排气延伸板尼龙衬套	BUSHING NYLON-EXHAUST EXTENSION PLATE	1
3	23784	排气延伸板定位销	PIN Dowel EXHAUST EXTENSION PLATE	2
4	37918	排气延伸板密封件	SEAL EXHAUST EXTENSION PLATE	1
5	99358	排气延伸板固定条	STRIP RETAINING - EXHAUST EXTENSION PLATE	1
6	37571	螺钉(.190-32 x 0.500)	SCREW (.190-32 x .500)	5
7	69238	动力头衬垫	GASKET POWERHEAD	1
7	692381	衬垫	GASKET	1
8	66023	法兰头螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00) Flange Head	2
9	66023	法兰头螺钉(.312-18 x 2.00)	SCREW (.312-18 x 2.00) Flange Head	7
10	66102	驱动轴壳体板衬垫	GASKET DRIVESHAFT HOUSING PLATE	1
10	661021	衬垫	GASKET	1
11	60898	驱动轴壳体板密封件	SEAL DRIVESHAFT HOUSING PLATE	1
12	43290A4	驱动轴壳体板总成	PLATE ASSEMBLY DRIVESHAFT HOUSING	1
13	38970	橡胶密封圈-进水管	SEAL RUBBER - WATER INLET TUBE	1
14	23784	驱动轴壳体板定位销	PIN Dowel DRIVESHAFT HOUSING PLATE	2
15	99698	排气管	TUBE Exhaust	1
16	65414	螺钉(3/4英寸)	SCREW (3/4 Inches)	4
-	73645A87	衬垫套件	GASKET SET	1

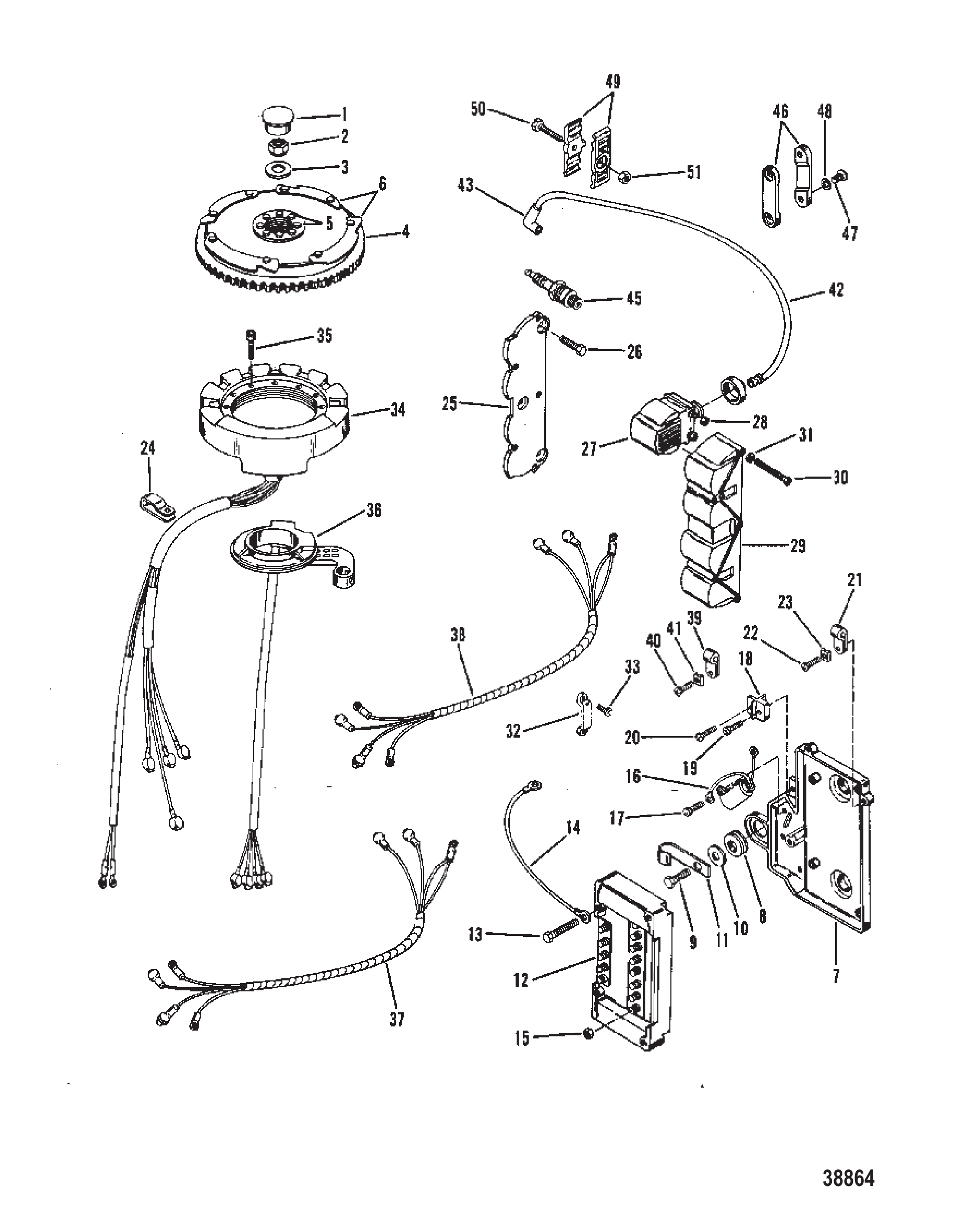

图 12飞轮、定子与点火线圈 FLYWHEEL, STATOR AND IGNITION COIL

REF	零件编号	中文名称	英文名称	数量
1	45907	塞子 黄色 飞轮拉拔器螺纹	PLUG Yellow FLYWHEEL PULLER THREADS	1
2	52901	螺母(.625-18)飞轮	NUT (.625-18) FLYWHEEL	1
3	68229	垫圈（0.641 x 1.250 x 0.190）飞轮螺母	WASHER (.641 x 1.250 x .190) FLYWHEEL NUT	1
3	33001	垫圈	WASHER	1
4	8722A6	飞轮总成	FLYWHEEL ASSEMBLY	1
5	68997	螺钉(.312-24 x .750)	SCREW (.312-24 x .750)	8
6	32417	螺钉(.250-28 x .625)	SCREW (.250-28 x .625)	8
7	90332	开关盒安装板	PLATE SWITCH BOX	1
8	57009	开关盒护孔环	GROMMET SWITCH BOX	3
8	57009001	护孔环	GROMMET	3
9	59645	螺钉 (0.312-18 x 0.750)	SCREW (.312-18 x .750)	3
9	824941	螺钉 (0.312-18 x 0.750)	SCREW (.312-18 x .750)	3
10	56720	开关盒板螺钉不锈钢垫片(0.330 x 0.750 x 0.060)	WASHER (.330 x .750 x .060) Stainless Steel SWITCH BOX PLATE SCREW	3
11	47483	开关盒线束和燃油管J型夹	J CLIP SWITCH BOX WIRES AND FUEL LINE	1
12	5772A2	开关盒总成	SWITCHBOX ASSEMBLY	1
12	5772A7	开关盒总成	SWITCHBOX ASSEMBLY	1
13	20619	螺钉（#12-24 x 1.25）	SCREW (#12-24 x 1.25)	4
14	65999A5	线束总成	WIRE ASSEMBLY	2
15	45076	螺母(#10-32)黄铜开关盒端子	NUT (#10-32) Brass SWITCH BOX TERMINAL	13
16	58124A19	水银开关总成	MERCURY SWITCH ASSEMBLY	1
17	37571	螺钉(.190-32 x 0.500)	SCREW (.190-32 x .500)	1
18	66986	端子排	TERMINAL BLOCK	1
19	20646	螺钉(0.190-32x0.62)	SCREW (.190-32 x .62)	1
19	38055	螺钉(0.190-32x0.620)	SCREW (.190-32 x .620)	1
20	42813	螺钉（#10-32 X 0.380）	SCREW (#10-32 X .380)	1
21	22875	线束夹	CLIP WIRES AND HARNESS	2
22	35519	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	2
23	69205	C形垫圈线夹螺钉	C WASHER CLIP SCREW	2
23	8M0084613	C形垫圈	C-WASHER	2
24	47483	触发板线束J型夹	J CLIP TRIGGER PLATE HARNESS	1
25	73395	板 安装-点火线圈	PLATE MOUNTING-IGNITION COIL	1
26	28668	螺钉 (.250-20 x .875) 不锈钢	SCREW (.250-20 x .875) Stainless Steel	3
27	7370A13	点火线圈总成	COIL ASSEMBLY Ignition	4
27	8M0230859	点火线圈总成	COIL IGNITION ASY	4
28	45076	螺母(#10-32)黄铜点火线圈端子	NUT (#10-32) Brass IGNITION COIL TERMINAL	8
29	87554	点火线圈盖	COVER IGNITION COIL	1
30	88856	螺钉(0.190-32 x 2.00)	SCREW (.190-32 x 2.00)	5
31	30164	垫圈(.192 x .375 x .0312)不锈钢盖螺钉	WASHER (.192 x .375 x .0312) Stainless Steel COVER SCREW	5
32	77672	主线束带	STRAP PRIMARY HARNESS	1
33	48408	固定带螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500) STRAP ATTACHING	2
34	5454A26	定子总成	STATOR ASSEMBLY	1
35	75840	螺钉 (#10-24 x 0.880)	SCREW (#10-24 x .880)	4
36	96453A2	触发板总成	TRIGGER PLATE ASSEMBLY	1
37	77617	主线束总成（1-2缸）	HARNESS ASSEMBLY PRIMARY (CYLINDERS 1 AND 2)	1
38	77618	主线束总成（3-4缸）	HARNESS ASSEMBLY PRIMARY (CYLINDERS 3 AND 4)	1
39	39844	线束固定夹	CLAMP HARNESS ATTACHING	1
39	45806	卡箍	CLAMP	1
40	35519	螺钉(#10-16 x 0.500)	SCREW (#10-16 x .500)	1
41	69205	线束夹螺钉C型垫圈	C WASHER HARNESS CLAMP SCREW	1
41	8M0084613	C形垫圈	C-WASHER	1
42	99215A25	火花塞导线总成	LEAD ASSEMBLY SPARK PLUG	4
42	813715A1	引线	LEAD WIRE	4
43	63709A1	火花塞护套/端子套件	BOOT/TERMINAL KIT SPARK PLUG	4
45	97182	火花塞（NGK-BUHW-2）	SPARK PLUG (NGK-BUHW-2)	4
45	896329833	SP #L78V @4	SP #L78V @4	4
45	14103570	火花塞	SPARK PLUG	4
45	14103Q	ORD 896329838	ORD 896329838	4
46	78278	导线固定器	RETAINER WIRE	2
47	35519	导线固定器螺钉（#10-16 x 0.500）	SCREW (#10-16 x .500) WIRE RETAINER	2
48	21273	导线固定器螺钉垫圈	WASHER WIRE RETAINER SCREW	2
49	63319	火花塞导线固定器	RETAINER SPARK PLUG WIRE	2
50	46378	螺钉(.250-28 x 1.00)	SCREW (.250-28 x 1.00)	1
51	20013	固定器螺钉螺母（0.250-28）	NUT (.250-28) RETAINER SCREW	1

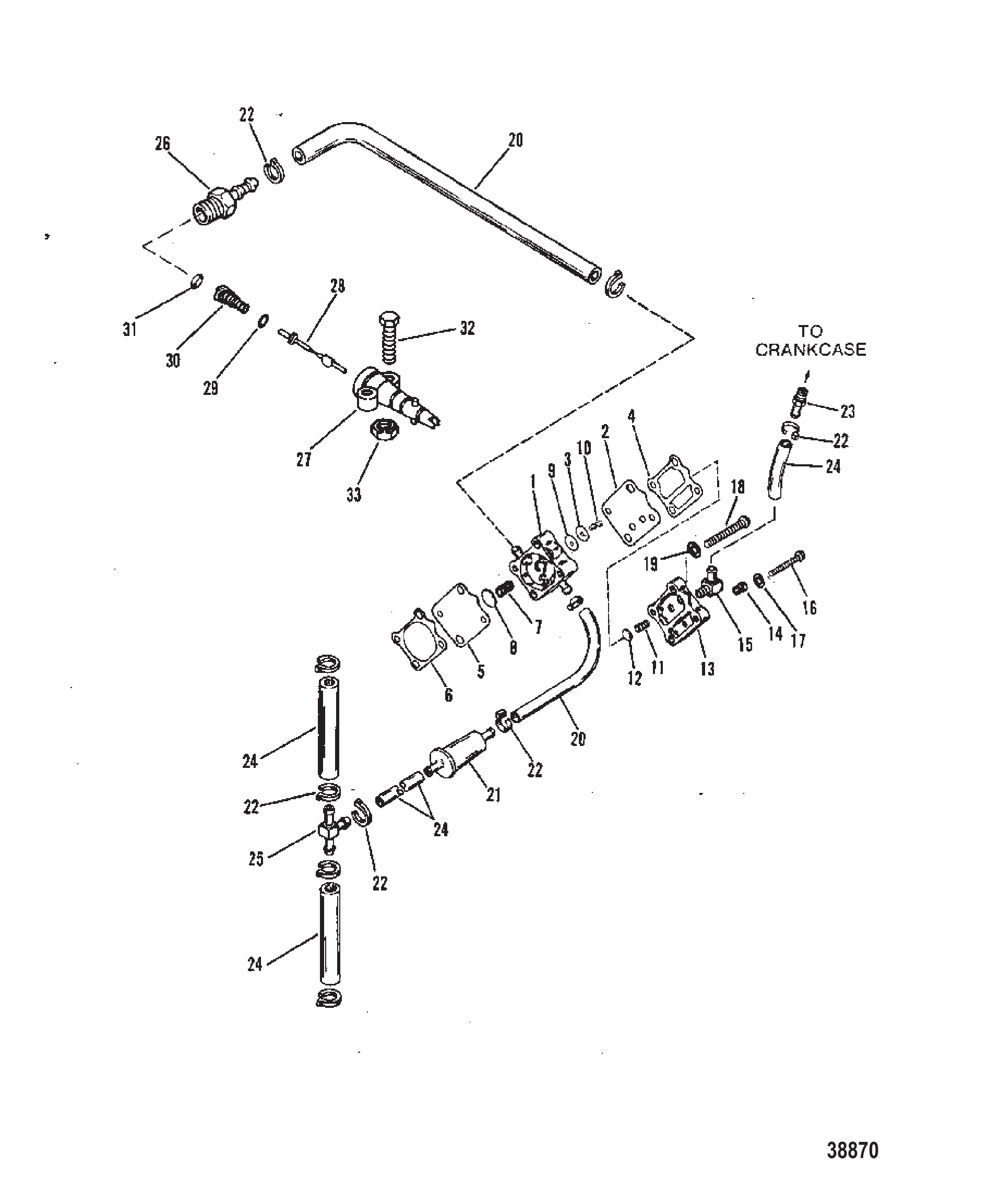

图 13燃油泵与油管(方形燃油泵) FUEL PUMP AND FUEL LINES (SQUARE FUEL PUMP)

REF	零件编号	中文名称	英文名称	数量
1	14360A15	燃油泵总成	PUMP ASSEMBLY Fuel	1
1	14360A78	燃油泵套件	PUMP KIT Fuel	1
2	42990A1	膜片组件	DIAPHRAGM KIT	1
2	857005A1	膜片组件	DIAPHRAGM KIT	1
3	NSS		NOT SOLD SEPARATE CHECK VALVE-RUBBER	2
4	NSS		NOT SOLD SEPARATE GASKET-BOOST	1
5	NSS		NOT SOLD SEPARATE DIAPHRAGM	2
6	NSS		NOT SOLD SEPARATE GASKET-PULSE	1
7	NSS		NOT SOLD SEPARATE SPRING	1
8	NSS		NOT SOLD SEPARATE CAP	1
9	NSS	橡胶圆盘 (不单独销售)	NOT SOLD SEPARATE DISC-RUBBER	2
10	NSS		NOT SOLD SEPARATE RETAINER	2
11	NSS		NOT SOLD SEPARATE SPRING	1
12	NSS		NOT SOLD SEPARATE CAP	1
13	98775A2	燃油泵板	PLATE FUEL PUMP	1
13	987752	安装板	PLATE	1
14	56800	管塞 (.0625-27)	PLUG Pipe (.0625-27)	1
15	64704	接头	FITTING	1
15	19688	接头	FITTING	1
16	90190	燃油泵螺钉	SCREW FUEL PUMP	1
16	73013	燃油泵螺钉（10-32 x 1.50）	SCREW 10-32 x 1.50 FUEL PUMP	1
17	27736	燃油泵螺钉垫圈	WASHER FUEL PUMP SCREW	1
17	89302	垫圈(0.203×0.406×0.040)	WASHER (.203 x .406 x .040)	1
18	40057132	燃油泵螺钉	SCREW FUEL PUMP	2
19	4002215	燃油泵螺钉垫圈	WASHER FUEL PUMP SCREW	2
20	9912970	油管	TUBING	2
20	8M0108349	软管 (70英寸散装)	HOSE (70 Inches Bulk)	2
21	134301	燃油滤清器	FILTER Fuel	1
21	816296Q2	燃油滤清器	FILTER Fuel	1
22	73498	燃油管卡箍	CLAMP FUEL TUBING	AR
22	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	AR
23	64705	燃油管接头	FITTING FUEL LINE	1
24	99127109	管路(57.00英寸 散装)	LINE (57.00 Inches Bulk)	4
24	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	4
25	73318		TEE Plastic FUEL LINE	1
26	34982	燃油管转接头连接器	CONNECTOR FUEL LINE TO ADAPTOR	1
27	30186	止回转接器总成	ADAPTER CHECK UNIT	1
28	30187	适配器阀杆止回单元	STEM CHECK UNIT ADAPTOR	1
28	30185Q3	油箱端快速断开总成-卡口式	QUICK DISCONNECT ASSEMBLY Tank End - Bayonet Style	1
29	20415	适配器阀杆O型圈	O-RING ADAPTOR STEM	1
29	16524	燃油接头O型圈	O-RING Fuel Connector	1
30	30189	适配器阀杆弹簧	SPRING ADAPTOR STEM	1
31	30188	适配器垫片	WASHER ADAPTOR	1
32	36154	螺钉(.250-28 x 1.380)	SCREW (.250-28 x 1.380)	2
33	36069	适配器螺钉螺母	NUT ADAPTOR SCREW	2
-	73645A87	衬垫套件	GASKET SET	1

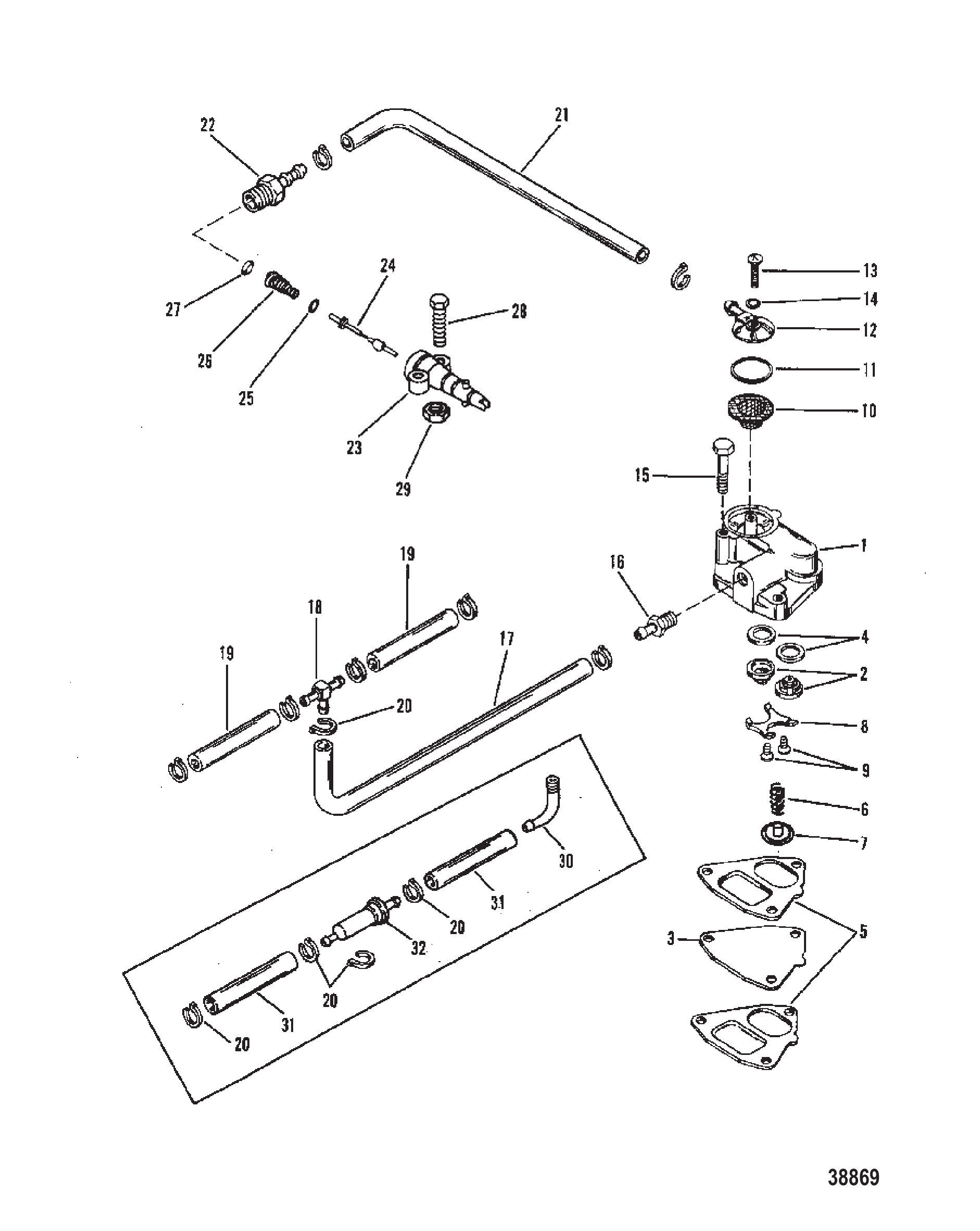

图 14燃油泵与油管(三角形燃油泵) FUEL PUMP AND FUEL LINES (TRIANGLE FUEL PUMP)

REF	零件编号	中文名称	英文名称	数量
1	73434A5	燃油泵总成	PUMP ASSEMBLY Fuel	1
2	30430A13	止回阀总成	CHECK VALVE ASSEMBLY	1
2	8M0084276	止回阀套件	CHECK VALVE KIT	1
3	55278A5	膜片总成	DIAPHRAGM ASSEMBLY	1
4	NSS	止回阀衬垫（不单独销售）	NOT SOLD SEPARATE GASKET-CHECK VALVE	2
5	NSS	不单独销售 燃油泵垫片	NOT SOLD SEPARATE GASKET-FUEL PUMP	2
6	86207	弹簧	SPRING	1
7	86252	盖帽	CAP	1
8	23004	止回阀固定座	RETAINER CHECK VALVE	1
9	43725	螺钉（#6-32 x 0.380）	SCREW (#6-32 x .380)	2
10	73532	燃油滤清器	FILTER Fuel	1
11	35480	燃油泵盖O型圈（1.237 x 0.103）	O-RING (1.237 x .103) COVER TO FUEL PUMP	1
12	14805A2	燃油滤清器盖	COVER FUEL FILTER	1
13	37370	燃油泵盖螺钉（#10-32 x 0.580）	SCREW (#10-32 x .580) COVER TO FUEL PUMP	1
14	25848	盖螺钉衬垫	GASKET COVER SCREW	1
15	70939	螺钉	SCREW	1
15	69067	螺钉(.250-20×1.375)	SCREW (.250-20 x 1.375)	2
16	64705	燃油泵接头	FITTING FUEL PUMP	1
17	99127109	燃油泵三通油管（散装57英寸，截取11英寸）	LINE (57.00 Inches Bulk) TEE TO FUEL PUMP(11")	1
17	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
18	73318		TEE Plastic FUEL LINE	1
19	99127109	油管（散装57英寸，截取3英寸）	LINE (57.00 Inches Bulk) (CUT TO 3 INCHES)	2
19	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	2
20	73498	燃油管卡箍	CLAMP FUEL LINE	8
20	816311T	捆扎带 (8.00英寸)	TIE STRAP (8.00 Inches)	8
21	99127109	燃油泵转接油管（散装57英寸，截取15英寸）	LINE (57.00 Inches Bulk) ADAPTOR TO FUEL PUMP (15")	1
21	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
22	63187	倒刺接头 (.250-18) 燃油管至适配器	FITTING Barb (.250-18) FUEL LINE TO ADAPTOR	1
23	30186	止回转接器总成	ADAPTER CHECK UNIT	1
24	30187	适配器阀杆止回单元	STEM CHECK UNIT ADAPTOR	1
24	30185Q3	油箱端快速断开总成-卡口式	QUICK DISCONNECT ASSEMBLY Tank End - Bayonet Style	1
25	20415	适配器阀杆O型圈	O-RING ADAPTOR STEM	1
25	16524	燃油接头O型圈	O-RING Fuel Connector	1
26	30189	适配器阀杆弹簧	SPRING ADAPTOR STEM	1
27	30188	适配器垫片	WASHER ADAPTOR	1
28	36154	螺钉(.250-28 x 1.380)	SCREW (.250-28 x 1.380)	2
29	36069	适配器螺钉螺母	NUT ADAPTOR SCREW	2
30	64704	90度弯头	FITTING (90 DEG. )	1
30	19688	接头	FITTING	1
31	99127109	管路(57.00英寸 散装)	LINE (57.00 Inches Bulk)	1
31	8M0108355	软管(57英寸 散装)	HOSE (57 Inches Bulk)	1
32	13430	燃油滤清器	FILTER Fuel	1
32	816296Q03	燃油滤清器@3	FILTER-FUEL @3	1
-	73645A87	衬垫套件	GASKET SET	1

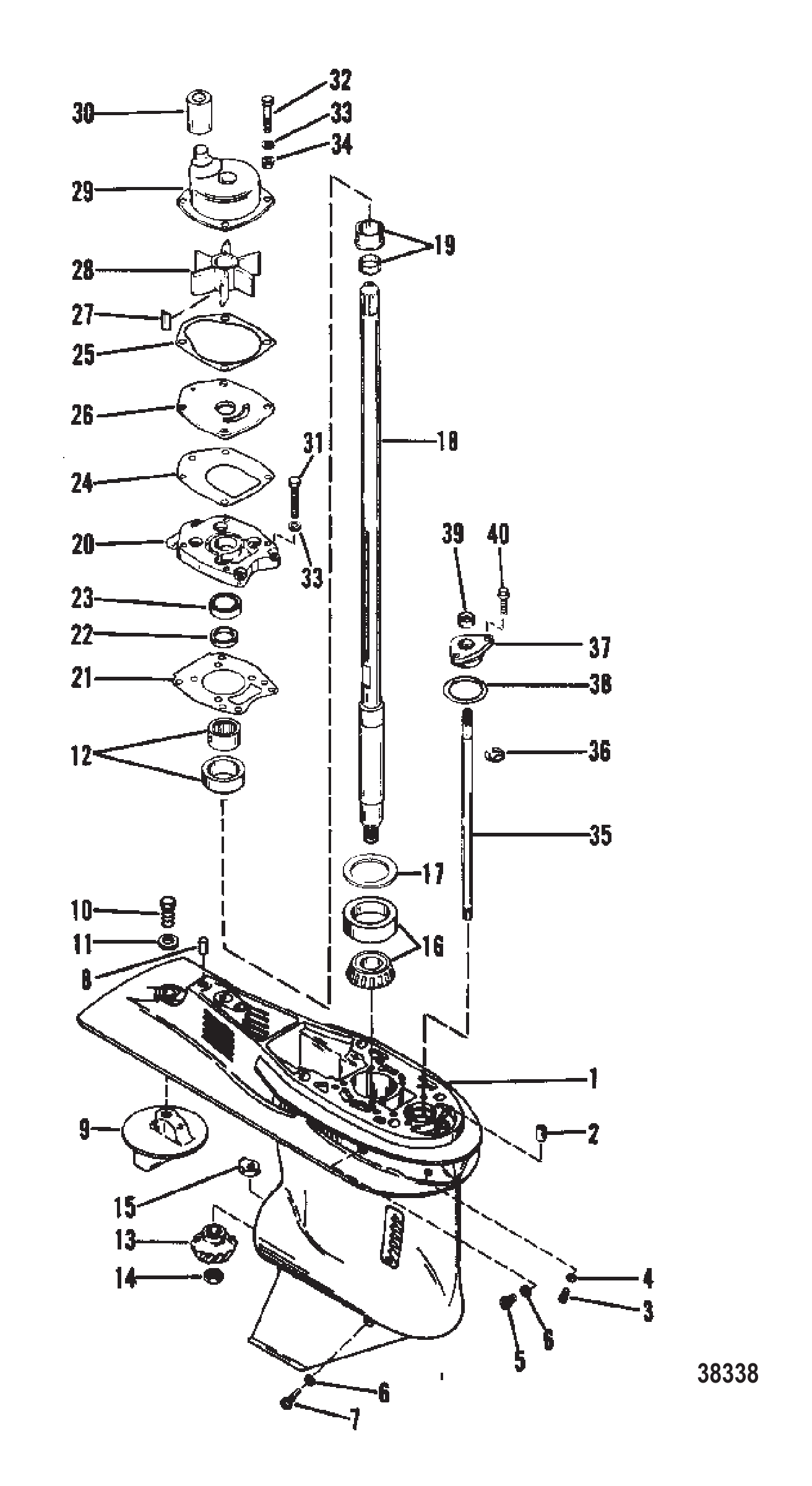

图 15齿轮箱（驱动轴） GEAR HOUSING (DRIVESHAFT)

REF	零件编号	中文名称	英文名称	数量
-	9011A7	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011A13	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G34	GC 75/90 XL -BLK	GC 75/90 XL -BLK	1
-	9011A9	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011J19	ORD 1667-9011J16	ORD 1667-9011J16	1
-	9011A14	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011J27	ORD 1667-9011J24	ORD 1667-9011J24	1
1	9011A6	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011T73	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9011A8	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011T74	ORD 1667-9011T73	ORD 1667-9011T73	1
2	43043	定位销-带孔(.375 x .625)(前)	PIN Dowel - With Hole (.375 x .625) (FRONT)	1
2	8M0084244	定位销 0.375x0.620	PIN Dowel, .375 x .620	1
3	28653		SCREW (#10-32 x 0.25) VENT	1
4	20262	通气螺钉垫圈	WASHER VENT SCREW	1
4	19643	密封件	SEAL	1
5	79953		SCREW (.375-16 x .250) GREASE FILLER	1
5	79953Q04	放油螺钉套件	SCREW KIT Drain	1
6	20260	垫片 排放/加注螺丝	WASHER DRAIN/FILLER SCREW	2
6	8M0187157	蓝色密封件@15	SEAL-BLUE @15	2
7	67892		SCREW Magnetic DRAIN	1
7	8M0058389	放油螺钉套件	SCREW KIT Drain	1
8	43044		PIN Dowel - Without Hole (.375 x .625) (REAR) (QTY. OF 2 ON X-LONG)	1
9	31640A1	平衡板总成	TRIM TAB ASSEMBLY	1
9	31640Q4	平衡鳍板	TRIM TAB	1
10	15942		SCREW (.437-14 x 1.250) TRIM TAB	1
10	825427	不锈钢螺钉(0.437-14x1.250)	SCREW (.437-14 x 1.250) Stainless Steel	1
11	45176		WASHER (.453 x .812 x .105) Stainless Steel TRIM TAB SCREW	1
12	43040A1		CARRIER ASSEMBLY ROLLER BEARING	1
12	43040T1	托架总成	CARRIER ASSEMBLY	1
13	44484	小齿轮(13齿)	GEAR Pinion (13 Teeth)	1
13	44484T	小齿轮(13齿)	GEAR Pinion (13 Teeth)	1
14	35921	螺母(.625-18)小齿轮至驱动轴	NUT (.625-18) PINION GEAR TO DRIVE SHAFT	1
15	76039	换挡凸轮控制	CAM Shift Control	1
15	760394	换挡凸轮控制	CAM Shift Control	1
16	42677A1	圆锥滚子轴承总成	BEARING ASSEMBLY Taper Roller	1
17	44492A1	垫片组	SHIM SET	1
17	8M0063265	垫片组	SHIM SET	1
18	43031A1	驱动轴总成	DRIVESHAFT ASSEMBLY	1
18	43032A4	驱动轴总成	DRIVESHAFT ASSEMBLY	1
19	42461A1	套筒/环套件	SLEEVE/RING KIT	1
20	43055A2	盖总成	COVER ASSEMBLY	1
20	43055A4	水泵盖总成	COVER ASSEMBLY Water Pump	1
21	43047	盖衬垫至齿轮箱	GASKET COVER TO GEAR HOUSING	1
21	8M0214931	衬垫	GASKET	1
22	43036	油封(下)	SEAL Oil (LOWER)	1
23	43035	油封(上)	SEAL Oil (UPPER)	1
23	8M0245495	油封	OIL SEAL	1
24	43033	盖衬垫至面板	GASKET COVER TO FACE PLATE	1
24	430331	衬垫	GASKET	1
25	43034	水泵衬垫至面板	GASKET WATER PUMP TO FACE PLATE	1
25	430341	铝盖垫片	GASKET Aluminum Cover	1
26	43050	面板	FACE PLATE	1
26	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
27	43037	叶轮驱动键	KEY IMPELLER DRIVE	1
27	8M0204723	键	KEY	1
28	430261	叶轮	IMPELLER	1
28	43026T2	叶轮	IMPELLER	1
29	43024A3	水泵总成	PUMP ASSEMBLY Water	1
29	817275A2	水泵上壳体套件	HOUSING KIT Upper Water Pump	1
30	43023	水管密封件	SEAL WATER TUBE	1
30	8M0204658	密封件	SEAL	1
31	4000330		SCREW (M6 x 25) COVER	6
31	8M0204707	不锈钢六角大帽螺钉(M6x25)	SCREW M6 x 25 HX HD CAP SS	6
32	4000332		SCREW (M6 x 35) WATER PUMP	4
33	4002315	垫圈(6.60x12.5x1.5mm-不锈钢)	WASHER (6.60 X 12.5 X 1.5 mm -SS)	10
34	43045		INSULATOR WATER PUMP SCREW	4
34	8M0204659	绝缘体@4	INSULATOR @4	4
35	43048A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
35	43049A1	换挡轴总成	SHIFT SHAFT ASSEMBLY	1
36	29641		E RING SHIFT SHAFT	1
37	43052A1	换挡轴衬套总成	BUSHING ASSEMBLY SHIFT SHAFT	1
37	43052A4	衬套总成	BUSHING ASSEMBLY	1
38	45710		O-RING (1.424 x .103) BUSHING	1
38	8M0204681	特殊O型圈1.424x0.103	O-RING 1.424 x .103, Special	1
39	76384		SEAL Oil BUSHING	1
39	8M0246145	油封	OIL SEAL	1
40	40011128		SCREW (M6 x 20) Stainless Steel BUSHING	2
40	8M0204741	六角带垫大帽螺钉(M6x1.0x20)	SCREW (M6 x 1.0 x 20) Hex Wash HD	2
-	43035A1	齿轮箱密封套件	SEAL KIT Gear Housing
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing
-	43024A4	水泵维修套件	REPAIR KIT Water Pump
-	43024A7	水泵维修套件	REPAIR KIT Water Pump
-	43004A86	衬垫套件	GASKET SET
-	43004A99	动力头衬垫套件	GASKET SET Powerhead

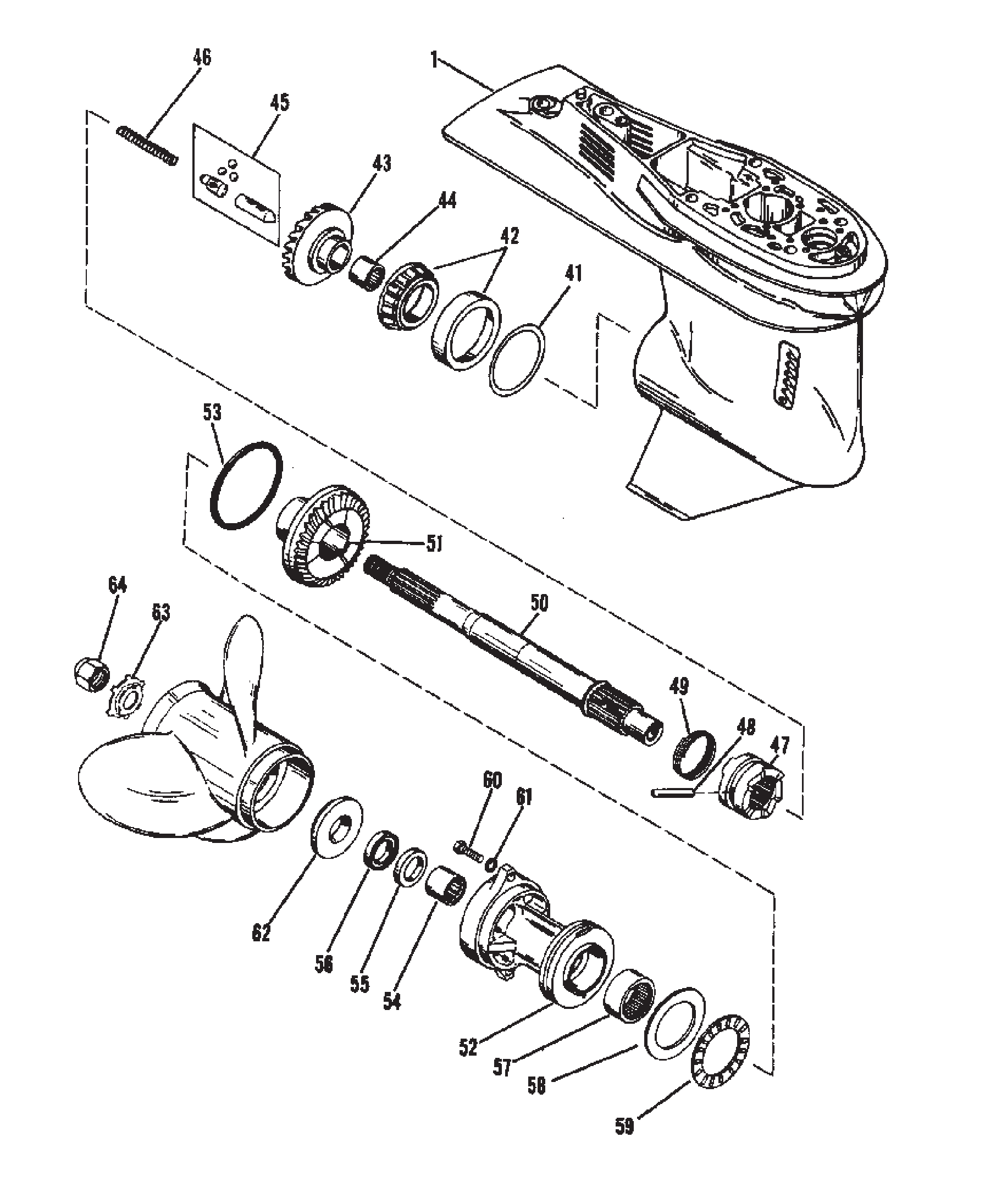

图 16齿轮箱(螺旋桨轴) GEAR HOUSING (PROPELLER SHAFT)

REF	零件编号	中文名称	英文名称	数量
-	9011A7	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011A13	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011G34	GC 75/90 XL -BLK	GC 75/90 XL -BLK	1
-	9011A9	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011J19	ORD 1667-9011J16	ORD 1667-9011J16	1
-	9011A14	齿轮箱总成	GEAR HOUSING ASSEMBLY	1
-	9011J27	ORD 1667-9011J24	ORD 1667-9011J24	1
1	9011A6	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011T73	齿轮箱-基础型-黑	GEAR HSG-BASIC-BL	1
1	9011A8	基础齿轮箱总成	GEAR HOUSING ASSEMBLY Basic	1
1	9011T74	ORD 1667-9011T73	ORD 1667-9011T73	1
41	44491A1	垫片组	SHIM SET	1
41	8M0063266	垫片组	SHIM SET	1
42	30894A1	圆锥轴承组	BEARING SET Cup And Cone	1
43	12634A2	前进齿轮总成	GEAR ASSEMBLY Forward	1
43	12634T02	齿轮总成	GEAR ASSEMBLY	1
44	30895	滚针轴承	BEARING Needle	1
44	30895T	滚针轴承	BEARING Needle	1
45	12239A1	凸轮从动件套件	FOLLOWER KIT Cam	1
45	850315A1	凸轮从动件套件	FOLLOWER KIT Cam	1
46	30622	弹簧	SPRING	1
47	12777	棘轮	RATCHET	1
47	822539T	离合器	CLUTCH	1
48	30632	十字离合器销	PIN Cross CLUTCH	1
48	8M0100263	十字销	PIN Cross	1
49	30893	十字销固定弹簧	SPRING CROSS PIN RETAINER	1
50	12238T	螺旋桨轴	PROPELLER SHAFT	1
51	12635	倒挡齿轮	GEAR Reverse	1
51	12635T	倒挡齿轮	GEAR-REVERSE	1
52	12596A2	轴承座总成	CARRIER ASSEMBLY Bearing	1
52	8M0168901	轴承座总成	CARRIER ASSY.	1
53	97386	O型圈 (3.609 x .139)	O-RING (3.609 x .139)	1
53	8M0214974	O型圈	O RING	1
54	30956	滚针轴承	BEARING Needle	1
54	30956T	滚针轴承	BEARING Needle	1
55	76868	内密封件	SEAL (INNER)	1
55	8M0248882	油封@5	SEAL-OIL @5	1
56	70081	油封(外)	SEAL Oil (OUTER)	1
56	8M0205729	密封件	SEAL	1
57	12578	滚针轴承	BEARING Needle	1
57	12578T	滚柱轴承	BEARING Roller	1
58	12577	止推垫片	THRUST WASHER	1
59	12576	推力轴承	BEARING Thrust	1
60	4000354	螺栓(M8 x 30)轴承座	SCREW (M8 x 30) BEARING CARRIER	2
61	4002317	垫圈(8.90 X 17.0 X 1.9SS)轴承座螺栓	WASHER (8.90 X 17.0 X 1.9SS) BEARING CARRIER SCREW	2
62	13191A1	止推垫片	THRUST WASHER	1
62	13191Q01	止推垫片	THRUST WASHER	1
63	31210	螺旋桨止动垫圈	TAB WASHER PROPELLER	1
63	816629Q	锁紧垫圈	TAB WASHER	1
64	52707A1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
64	52707Q1	螺旋桨螺母套件 (.750-16)	PROP NUT KIT (.750-16)	1
-	43035A1	齿轮箱密封套件	SEAL KIT Gear Housing
-	43035A4	齿轮箱密封套件	SEAL KIT Gear Housing
-	43004A86	衬垫套件	GASKET SET
-	43004A99	动力头衬垫套件	GASKET SET Powerhead

图 17杂项零件/附件 MISCELLANEOUS PARTS/ACCESSORIES

REF	零件编号	中文名称	英文名称	数量
-	13725	零件手册 70/75/80/90 马力 (3缸)	PARTS MANUAL 70/75/80/90 Hp (3 Cylinder)
-	43004A86	衬垫套件	GASKET SET
-	43004A99	动力头衬垫套件	GASKET SET Powerhead
-	43529A86	贴花套件 (MERCURY 70)	DECAL SET (MERCURY 70)
-	43529A89	贴花套件	DECAL SET
-	43575A87	贴花套件 (MARINER 75)	DECAL SET (MARINER 75)
-	815628A92	贴花套件	DECAL SET
-	13020A87	贴花套件 (MERCURY 75) 手柄	DECAL SET (MERCURY 75) HANDLE
-	810457A90	贴花套件	DECAL SET
-	43601A87	贴花套件 (MARINER 75)	DECAL SET (MARINER 75)
-	13488A86	贴花套件 (MERCURY 80)	DECAL SET (MERCURY 80)
-	13488A89	贴花套件	DECAL SET
-	12565A87	贴花套件 (MERCURY 90)	DECAL SET (MERCURY 90)
-	12565A89	贴花套件	DECAL SET
-	11623A87	贴花套件 (MARINER 90)	DECAL SET (MARINER 90)
-	815628A92	贴花套件	DECAL SET
-	12428870	使用手册（水星）	OWNERS GUIDE (MERCURY)
-	12428871	用户手册	MANUAL-OWNERS
-	14699870	使用手册（马林）	OWNERS GUIDE (MARINER)
-	14699871	用户手册	MANUAL-OWNERS

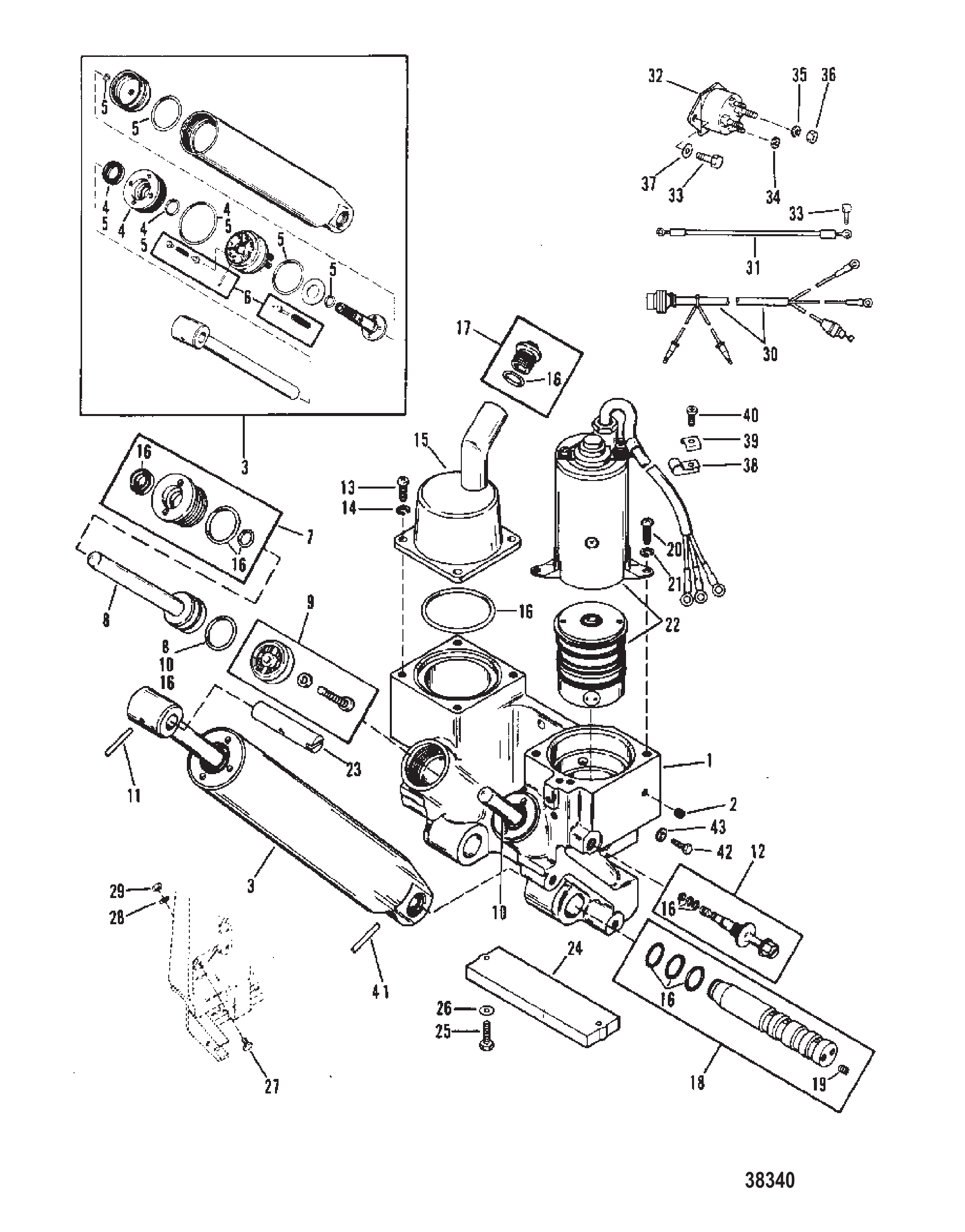

图 18动力升降组件 POWER TRIM COMPONENTS

REF	零件编号	中文名称	英文名称	数量
1	99659A21	歧管总成	MANIFOLD ASSEMBLY	1
1	99659A22	歧管总成	MANIFOLD ASSEMBLY	1
2	99616	管塞歧管	PIPE PLUG MANIFOLD	11
3	41493A7	升降油缸总成	TRIM CYLINDER ASSEMBLY	1
3	41493A4	升降油缸总成	TRIM CYLINDER ASSEMBLY	1
4	41492A1	导向器总成	GUIDE ASSEMBLY	1
5	41478A1	维修套件	REPAIR KIT	1
6	41482A2	止回阀套件	CHECK VALVE KIT	1
7	99638A1	导向总成装饰杆	GUIDE ASSEMBLY TRIM ROD	2
8	43397A6		PISTON/ROD ASSEMBLY Power Trim PORT	1
9	12184A1	升降过滤器总成	TRIM FILTER ASSEMBLY	1
10	43398A3		PISTON/ROD ASSEMBLY Power Trim STARBOARD	1
11	13794	沟槽销-升降油缸(上)	PIN Groove TRIM CYLINDER (UPPER)	1
12	99660A1	阀门总成	VALVE ASSEMBLY	1
13	4000327	螺钉(M6x14)-盖板	SCREW (M6 x 14) COVER	4
14	43450	盖板螺丝垫圈	WASHER COVER SCREW	4
15	99642	歧管盖	COVER MANIFOLD	1
16	48462A1	O型圈套件	O-RING KIT	1
17	99609A1	塞子总成	PLUG ASSEMBLY	1
18	99641A1	轴总成	SHAFT ASSEMBLY	1
19	99616	轴管塞	PIPE PLUG SHAFT	2
20	4008820	螺钉(M6x20)-泵与马达	SCREW (M6 x 20) PUMP AND MOTOR	2
21	400256	锁紧垫圈 (M6)	LOCKWASHER (M6)	2
22	99186T	泵与电机总成	PUMP AND MOTOR	1
23	99625		SHAFT UPPER	1
24	43396A1	阳极总成	ANODE ASSEMBLY	1
25	4000332	螺钉(M6x35)-阳极	SCREW (M6 x 35) ANODE	2
26	29245	垫圈(0.281x0.500x0.060)-不锈钢阳极螺钉	WASHER (.281 x .500 x .060) Stainless Steel ANODE SCREW	2
27	996301	撞板-升降轴	STRIKER PLATE TRIM SHAFT	2
28	58643	锁紧垫圈 (.375)	LOCKWASHER (.375)	2
29	46335	螺母 (.375-24)	NUT (.375-24)	2
30	99695A1	线束总成-动力升降控制	HARNESS ASSEMBLY Control POWER TRIM	1
31	87379A14	线束总成(2.750英寸)(红色)	WIRE ASSEMBLY (2.750 Inches) (RED)	1
31	88807A13	电缆总成(3-1/2"-黑色)	CABLE ASSEMBLY (3-1/2" - BLACK)	2
32	96158	启动电磁阀	SOLENOID Starter	2
33	40007106	螺丝(M5 x 13)启动电磁阀	SCREW (M5 x 13) STARTER SOLENOID	5
34	26419	螺母(#8-32)-黄铜电磁阀端子	NUT (#8-32) Brass SOLENOID TERMINAL	4
35	26992	锁紧垫圈 (.250) 不锈钢电磁阀端子	LOCKWASHER (.250) Stainless Steel SOLENOID TERMINAL	4
36	64015		NUT (.250-20) SOLENOID TERMINAL	4
37	4002314	启动电磁阀螺丝垫圈	WASHER STARTER SOLENOID SCREW	2
38	22875		CLIP PUMP WIRE	2
39	69205	C形垫圈线夹螺钉	C WASHER CLIP SCREW	2
40	69079	螺钉(#10-16x0.440)-夹子到艉板支架	SCREW (#10-16 x .440) CLIP TO TRANSOM BRACKET	2
41	44431	沟槽销-升降油缸(下)	PIN Groove TRIM CYLINDER (LOWER)	1
42	4000377		SCREW (M10 x 30) MANIFOLD	6
43	400258	锁紧垫圈(M10)-不锈钢歧管螺钉	LOCKWASHER (M10) Stainless Steel MANIFOLD SCREW	6

图 19动力升降泵(Eaton矩形电机) Power Trim Pump (Eaton Rectangular Motor)

REF	零件编号	中文名称	英文名称	数量
-	99186T	泵与电机总成	PUMP AND MOTOR	1
1	12659	机架与磁场套件	FRAME AND FIELD KIT	1
1	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
2	12665	电刷弹簧套件	SPRING KIT Brush	1
3	13506	电刷卡套件	BRUSH CARD KIT	1
3	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
4	12662	泵与端架套件	PUMP AND END FRAME KIT	1
4	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
5	12663	泵密封套件	SEAL KIT Pump	1
5	126631	泵密封套件	SEAL KIT Pump	1
6	12660	端架套件	END FRAME KIT	1
6	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
7	12661	电枢套件	ARMATURE KIT	1
7	991861	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
8	12664	贯穿螺栓套件	THRU BOLT KIT	1

图 20动力升降泵(Prestolite圆形电机) Power Trim Pump (Prestolite Round Motor)

REF	零件编号	中文名称	英文名称	数量
-	99186	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
1	8995	泵总成	PUMP ASSEMBLY	1
1	826729A10	ORD 8M0143217	ORD 8M0143217	1
2	8996	O型圈套件	O-RING KIT	1
3	8986	电枢	ARMATURE	1
4	8987	机架与磁场	FRAME AND FIELD	1
4	99186	动力升降泵总成	PUMP ASSEMBLY Power Trim	1
5	8992	缸盖O型圈	O-RING HEAD	1
6	8993	电刷弹簧套件	SPRING KIT BRUSH	1
7	8988	换向器端盖	HEAD COMMUTATOR END	1
8	8989	电刷套件	BRUSH KIT	1
9	8994	贯穿螺栓套件	THRU BOLT KIT	1
10	8985	导线夹	CLAMP LEAD WIRE	1
11	8990	螺母密封垫	NUT PACKING	1
12	8991	O型圈螺母密封	O-RING PACKING NUT	1

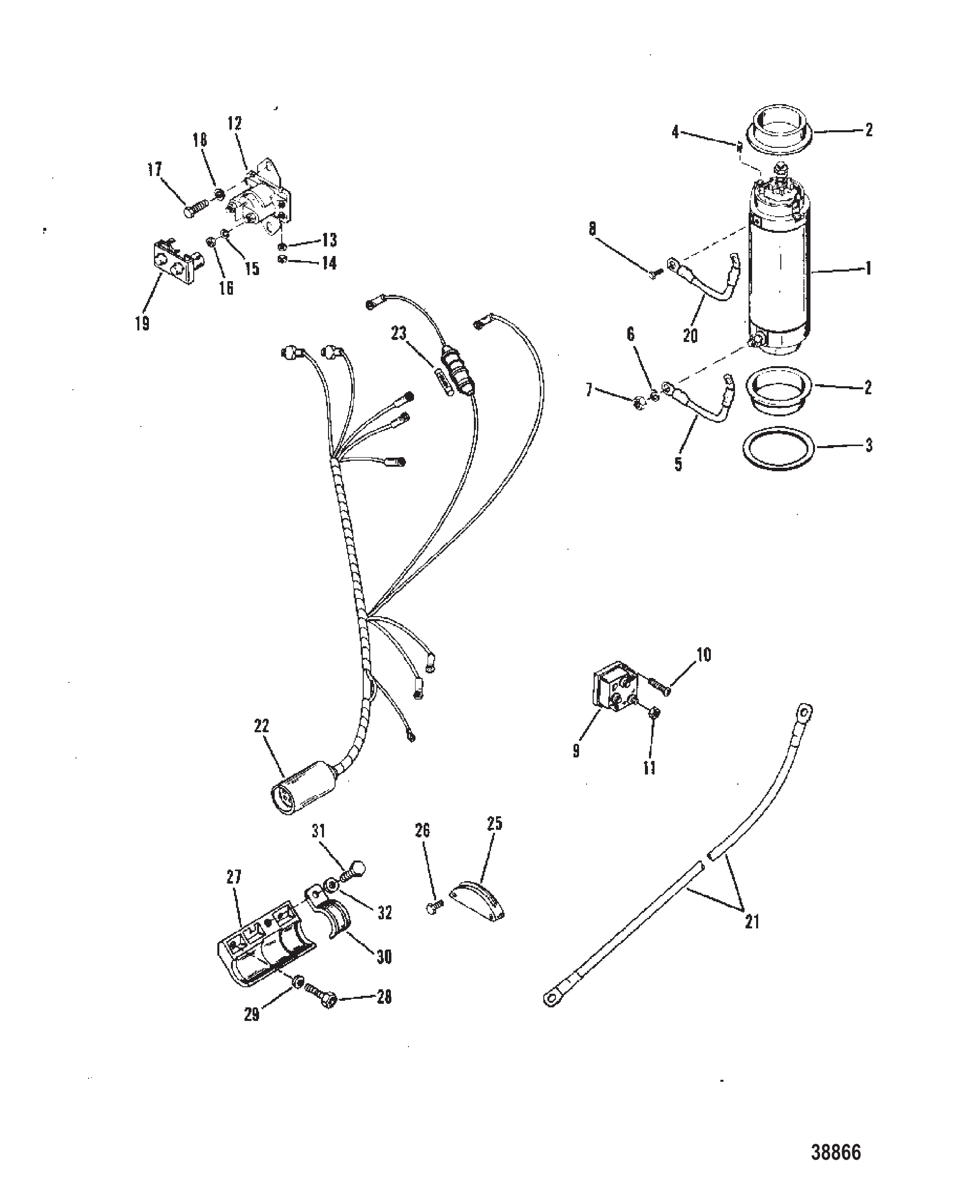

图 21启动马达与线束 STARTER MOTOR AND WIRING HARNESS

REF	零件编号	中文名称	英文名称	数量
1	66015	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	893891T	启动电机总成	STARTER MOTOR ASSEMBLY	1
2	56703	启动电机橡胶衬套	COLLAR RUBBER-STARTER MOTOR	2
2	8M0034918	轴环	COLLAR	2
3	56774	衬套支架垫片	SPACER COLLAR TO BRACKET	1
4	57247	启动电机橡胶止动块	STOP RUBBER-STARTER MOTOR	2
4	8M0043376	停机开关	STOP	2
5	93389A8	电机至电磁阀导线（黄色）	WIRE MOTOR TO SOLENOID (YELLOW)	1
6	26992	锁紧垫圈(.250) 不锈钢 起动机接线端	LOCKWASHER (.250) Stainless Steel STARTER MOTOR TERMINAL	1
7	64015	螺母(.250-20) 起动机接线端	NUT (.250-20) STARTER MOTOR TERMINAL	1
8	69035	螺丝与锁紧垫圈(.250-20 x .625)不锈钢	SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel	1
9	62351A1	整流器	RECTIFIER	1
9	8M0058226	整流器	RECTIFIER	1
10	37656	整流器至安装板螺钉（#10-32 x 0.620）	SCREW (#10-32 x .620) RECTIFIER TO PLATE	2
11	45076	螺母(#10-32)黄铜整流器端子	NUT (#10-32) Brass RECTIFIER TERMINAL	3
12	96054	启动电磁阀总成	SOLENOID ASSEMBLY Starter	1
12	8M0185149	启动电磁阀	SOLENOID START	1
13	26995	锁紧垫圈 (#8) 不锈钢电磁阀端子	LOCKWASHER (#8) Stainless Steel SOLENOID TERMINAL	2
14	26419	螺母(#8-32)-黄铜电磁阀端子	NUT (#8-32) Brass SOLENOID TERMINAL	2
15	26992	锁紧垫圈 (.250) 不锈钢电磁阀端子	LOCKWASHER (.250) Stainless Steel SOLENOID TERMINAL	2
16	94330	螺母 (.250-20) 黄铜电磁阀端子	NUT (.250-20) Brass SOLENOID TERMINAL	2
17	28635	不锈钢螺丝(.250-20 x .620)	SCREW (.250-20 x .620) Stainless Steel	2
18	26992	锁紧垫圈 (.250) 不锈钢 电磁阀螺钉	LOCKWASHER (.250) Stainless Steel SOLENOID SCREW	2
19	97861	绝缘体-启动电磁阀	INSULATOR STARTER SOLENOID	1
20	93388A1	接地电缆总成（6英寸，黑色）	CABLE ASSEMBLY (6.00 Inches) Black GROUND	1
21	88439A3	正极电缆总成-蓄电池	CABLE ASSEMBLY Positive - Battery	1
21	88439A4	蓄电池负极电缆总成	CABLE ASSEMBLY Battery - Negative	1
22	96233A2	线束总成	HARNESS ASSEMBLY	1
23	79091	保险丝20安培	FUSE 20 Ampere	1
23	8M0207796	保险丝20安培	FUSE 20 AMP	1
25	88608	线束夹	CLAMP WIRING HARNESS	1
26	28636	线束夹螺钉（0.250-20 x 0.750）	SCREW (.250-20 x .750) WIRING HARNESS CLAMP	2
27	89047	线束支架	BRACKET WIRING HARNESS	1
28	32228	线束支架螺钉（#10-32 x 0.625）	SCREW (#10-32 x .625) WIRING HARNESS BRACKET	2
29	38833	支架螺钉垫圈	WASHER BRACKET SCREW	2
30	88751	线束夹	CLAMP WIRING HARNESS	1
31	28636	线束夹螺钉（0.250-20 x 0.750）	SCREW (.250-20 x .750) WIRING HARNESS CLAMP	1
32	20533	夹紧螺钉垫圈	WASHER CLAMP SCREW	1

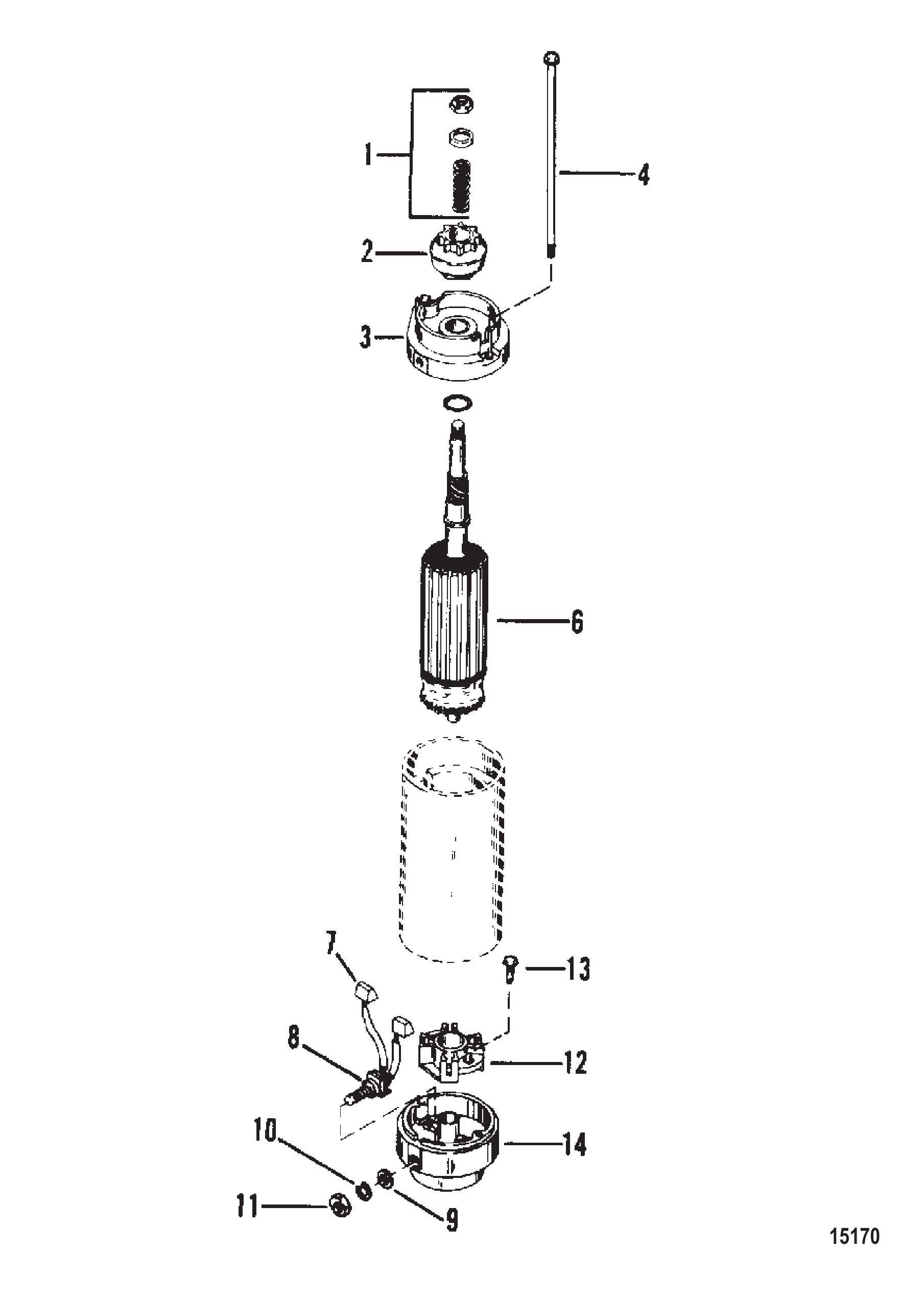

图 22启动电机总成（博世） STARTER MOTOR ASSEMBLY (BOSCH)

REF	零件编号	中文名称	英文名称	数量
-	66015	启动电机总成	STARTER MOTOR ASSEMBLY	1
-	893891T	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	90643	驱动套件	DRIVE KIT	1
2	68575	驱动总成	DRIVE ASSEMBLY	1
2	685753	驱动总成	DRIVE ASSEMBLY	1
3	75660	驱动端板	PLATE DRIVE END	1
4	75385	贯穿螺栓	BOLT THRU	2
6	75386	电枢	ARMATURE	1
7	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
7	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	57387	绝缘衬套	BUSHING INSULATING	1
9	38013	输入柱垫圈	WASHER INPUT STUD	1
10	26992	不锈钢输入柱锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel INPUT STUD	1
11	20890	输入柱螺母(.250-20)	NUT (.250-20) INPUT STUD	1
12	61787	电刷架	HOLDER BRUSH	2
12	898265014	电刷支架	HOLDER-BRUSH	2
13	68586	电刷及支架螺钉	SCREW BRUSH AND HOLDER	2
14	79215	换向器端盖	END CAP COMMUTATOR	1
14	15386001	端盖	END CAP	1

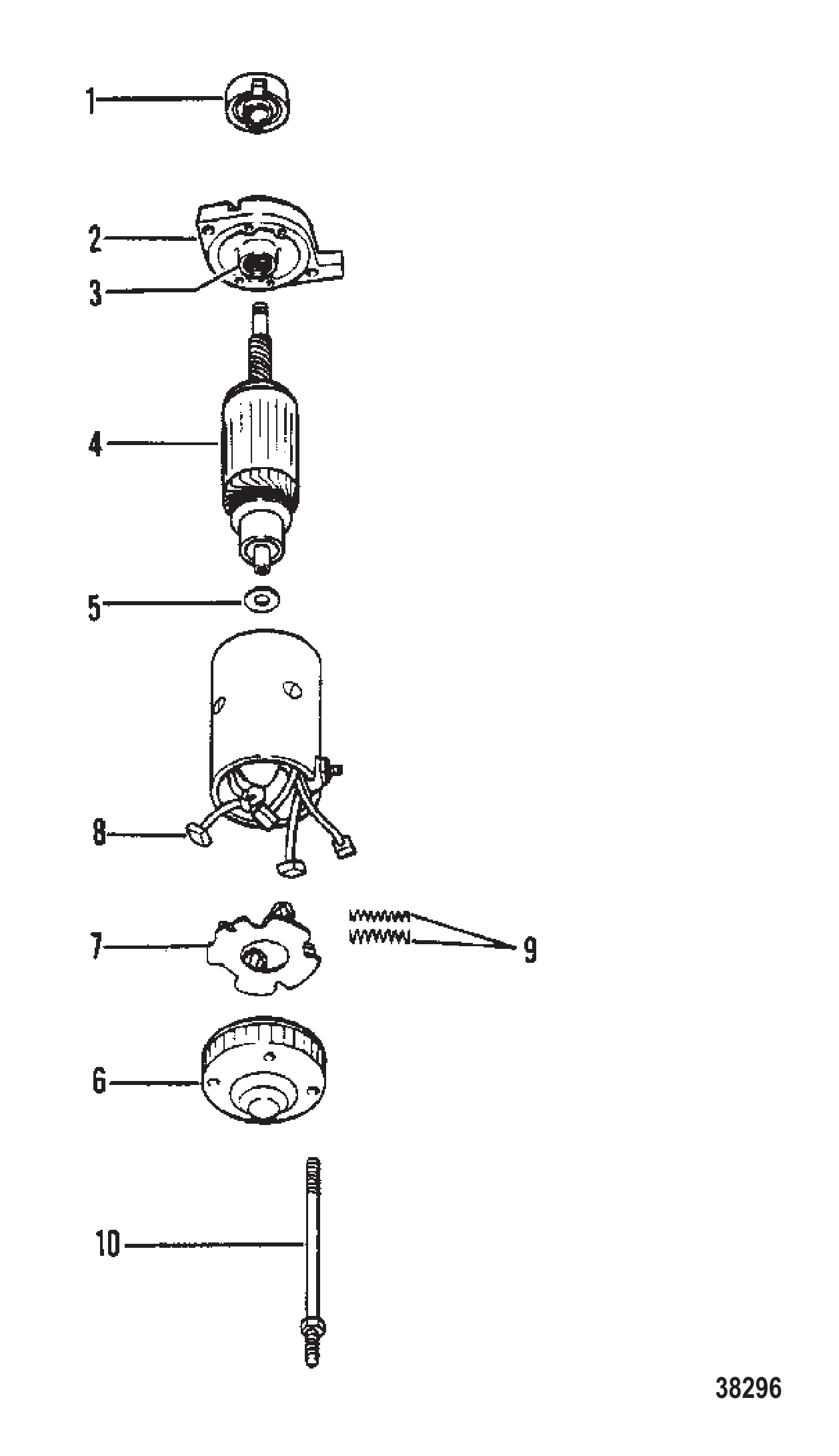

图 23启动电机总成（普雷斯特olite） STARTER MOTOR ASSEMBLY (PRESTOLITE)

REF	零件编号	中文名称	英文名称	数量
1	8848	驱动电机	MOTOR DRIVE	1
2	8852	驱动端板总成	PLATE ASSEMBLY DRIVE END	1
3	8853	驱动端板衬套	BUSHING DRIVE END PLATE	1
4	8857	电枢	ARMATURE	1
5	8856	电枢止推垫片组件	PACKAGE ARMATURE THRUST WASHER	1
6	8849	换向器端盖总成	END CAP ASSEMBLY COMMUTATOR	1
7	8850	电刷板/支架总成	PLATE/HOLDER ASSEMBLY Brush	1
8	8851	电刷与端子套装	BRUSH AND TERMINAL SET	1
9	8854	电刷弹簧组 (每套2弹簧)	SPRING SET BRUSH (2 SPRINGS PER SET)	2
10	8855	贯穿螺栓 - 端盖至端板 (1/4-28)	BOLT THRU - END CAP TO END PLATE (1/4-28)	1

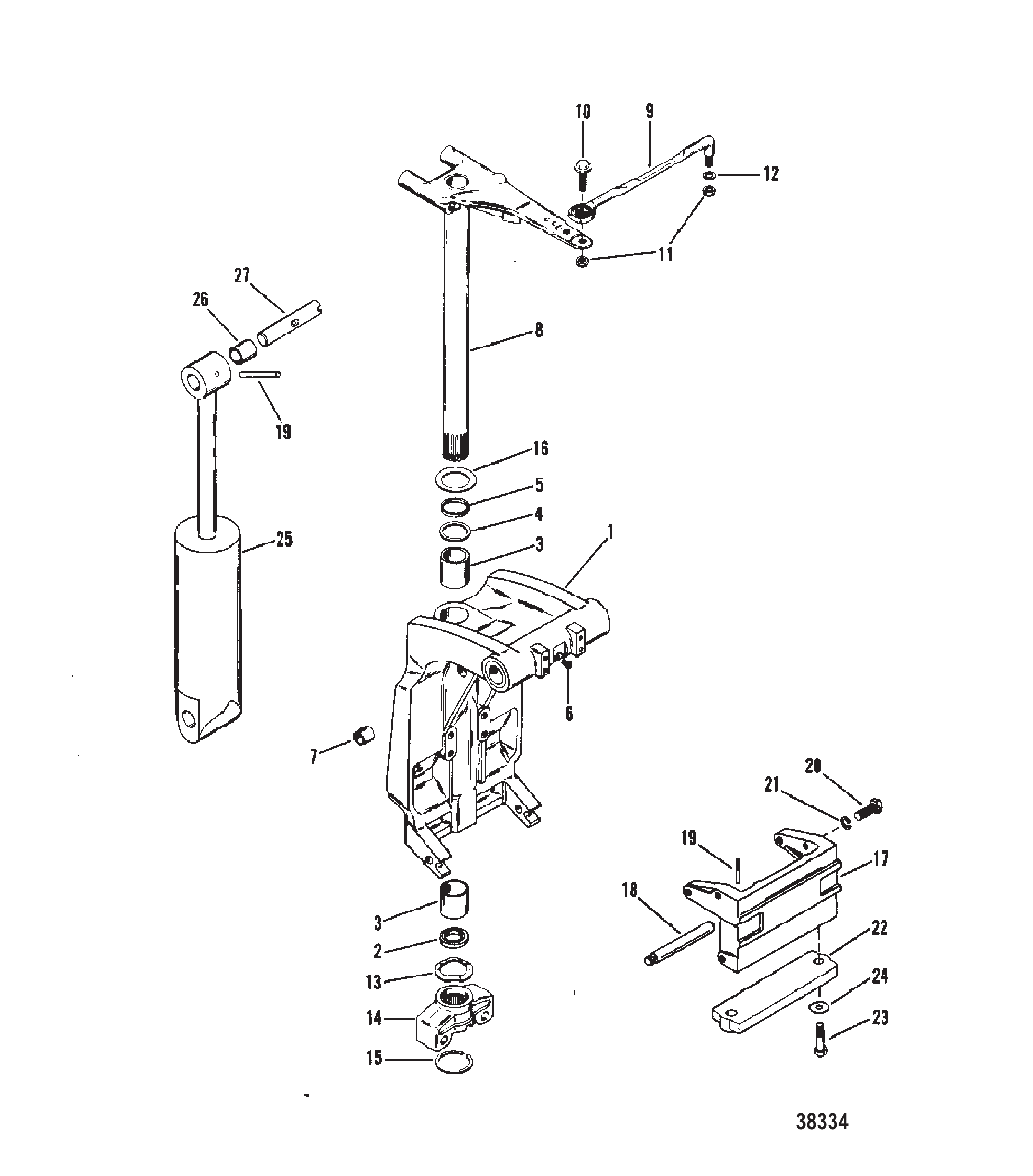

图 24旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM

REF	零件编号	中文名称	英文名称	数量
1	8710A4	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
1	8710A13	旋转支架总成	SWIVEL BRACKET ASSEMBLY	1
2	87735		SEAL Oil SWIVEL BRACKET (LOWER)	1
3	67669	衬套 旋转支架 - 下部和上部	BUSHING SWIVEL BRACKET - LOWER AND UPPER	2
4	33466	O形环 旋转支架 - 上部	O-RING SWIVEL BRACKET - UPPER	1
5	67668	垫片 旋转支架 - 上部	SPACER SWIVEL BRACKET - UPPER	1
6	74036	润滑脂接头	FITTING Grease	2
7	99608	转轴支架衬套	BUSHING SWIVEL BRACKET	2
8	99661A2	旋转销总成	SWIVEL PIN ASSEMBLY	1
8	99661A4	水手型万向销总成	SWIVEL PIN ASSEMBLY Mariner	1
8	12079A2	旋转销总成	SWIVEL PIN ASSEMBLY	1
8	12079A3	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	92876A1	转向连杆总成	LINK ASSEMBLY Steering	1
10	14000		SCREW (.375-24 x 1.25) STEERING LINK TO STEERING ARM	1
11	34863		NUT (.375-24) STEERING LINK SCREW	2
12	34931		WASHER (.406 x .734 x .063) Stainless Steel STEERING LINK TO STEERING ARM	2
13	78854		WAVE WASHER BOTTOM YOKE	1
14	42961A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
14	42961A2	底部轭架总成	YOKE ASSEMBLY Bottom	1
15	67684	卡环-底部轭架	RING Retaining BOTTOM YOKE	1
16	67670		WASHER THRUST - SWIVEL BRACKET	1
17	99653	减震器支架	BRACKET SHOCK ABSORBER	1
18	99619	减震器轴(下)	SHAFT SHOCK ABSORBER (LOWER)	1
19	13794	减震器槽销	PIN Groove SHOCK ABSORBER	2
20	4000377	支架螺钉(M10 x 30)	SCREW (M10 x 30) BRACKET	6
21	400258	支架螺钉锁紧垫圈(M10)不锈钢	LOCKWASHER (M10) Stainless Steel BRACKET SCREW	6
22	43396A1	阳极总成	ANODE ASSEMBLY	1
23	4000332	螺钉(M6x35)-阳极	SCREW (M6 x 35) ANODE	2
24	29245	垫圈(0.281x0.500x0.060)-不锈钢阳极螺钉	WASHER (.281 x .500 x .060) Stainless Steel ANODE SCREW	2
25	99724A2	减震器	SHOCK ABSORBER	1
25	99724A3	减震器	SHOCK ABSORBER	1
-	41760A2	减震器维修包	REPAIR KIT Shock Absorber	1
26	99608	减震器衬套	BUSHING SHOCK ABSORBER	2
27	99625	减震器轴(上)	SHAFT SHOCK ABSORBER (UPPER)	1
-	43004A86	衬垫套件	GASKET SET

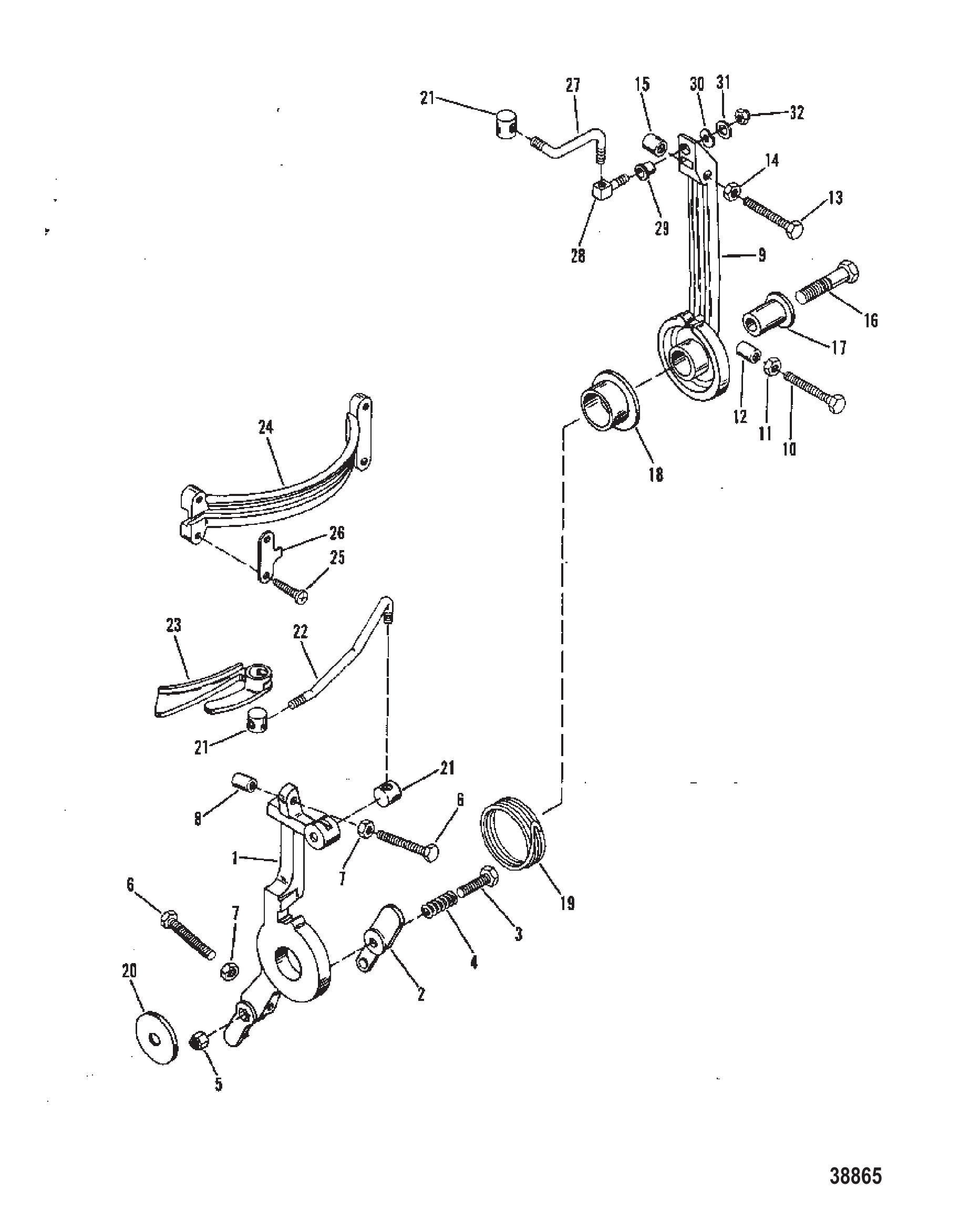

图 25油门杆与点火提前杆 THROTTLE LEVER AND SPARK ADVANCE LEVER

REF	零件编号	中文名称	英文名称	数量
1	73416T	油门杆	LEVER Throttle	1
1	73416	杠杆	LEVER	1
2	73404	油门杆锁扣	LATCH THROTTLE LEVER	1
3	59702	螺钉 (.250-28 x .875) 不锈钢	SCREW (.250-28 x .875) Stainless Steel	1
4	20099	卡扣螺钉弹簧	SPRING LATCH SCREW	1
5	36069	锁扣螺钉螺母	NUT LATCH SCREW	1
6	73654	油门杆调节螺钉（1-3/4英寸）	SCREW ADJUSTING-THROTTLE LEVER (1-3/4")	2
6	69029	螺钉(.250-28 x 1.750)	SCREW (.250-28 x 1.750)	2
7	29598	调节螺钉用0.250-28不锈钢防松螺母	NUT (.250-28) Stainless Steel JAM-ADJUSTING SCREW	2
8	52023	调节螺钉尼龙帽	CAP NYLONG-ADJUSTING SCREW	1
9	73414	点火提前臂	ARM SPARK ADVANCE	1
10	73656	点火提前臂调节螺钉（1-3/8英寸）	SCREW ADJUSTING-SPARK ADVANCE ARM (1-3/8")	1
11	68219	调节螺钉防松螺母（#10-32不锈钢）	NUT (#10-32) Stainless Steel JAM-ADJUSTING SCREW	1
12	48039	调节螺钉尼龙帽	CAP NYLON-ADJUSTING SCREW	1
13	73655	点火提前臂调节螺钉（2英寸）	SCREW ADJUSTING-APRK ADVANCE ARM (2")	1
13	67916	螺钉(0.250-28x2.00)	SCREW (.250-28 x 2.00)	1
14	29598	调节螺钉用0.250-28不锈钢防松螺母	NUT (.250-28) Stainless Steel JAM-ADJUSTING SCREW	1
15	52023	调节螺钉尼龙帽	CAP NYLON-ADJUSTING SCREW	1
16	55337	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
16	818165	螺钉 (.375-16 x 1.75)	SCREW (.375-16 x 1.75)	1
17	55164		BUSHING LEVER AND ARM SCREW	1
18	55171	杆臂螺钉法兰衬套	BUSHING FLANGE-LEVER AND ARM SCREW	1
19	86310	杆臂螺钉回位弹簧	SPRING RETURN-LEVER AND ARM SCREW	1
19	73375	弹簧	SPRING	1
20	46765	杆臂螺钉垫圈（0.390 x 1.50 x 0.120）	WASHER (.390 x 1.50 x .120) LEVER AND ARM SCREW	1
21	60572	杆臂尼龙套筒	BARREL NYLON-LEVER AND ARM	3
21	8M0221994	筒形接头	BARREL FITTING	3
22	73374	油门连杆	LINK ROD THROTTLE	1
23	73432	节气门凸轮	CAM Throttle	1
24	77001	油门凸轮壳体	HOUSING THROTTLE CAM	1
25	69013	壳体至曲轴箱螺钉（#10-16 x 0.880）	SCREW (#10-16 x .880) HOUSING TO CRANKCASE	4
26	77158	油门凸轮壳体垫片	SPACER THROTTLE CAM HOUSING	1
27	77010	点火提前连杆	LINK ROD SPARK ADVANCE	1
28	76158A1	连杆至摆臂旋转接头总成	SWIVEL ASSEMBLY LINK ROD TO ARM	1
29	26856	连杆旋转接头尼龙衬套	BUSHING NYLON-LINK ROD SWIVEL	1
30	29402	连杆万向接头波形垫圈	WAVE WASHER LINK ROD SWIVEL	1
31	33786		WASHER LINK ROD SWIVEL	1
31	73288	垫圈(.220 x .500 x .030)不锈钢	WASHER (.220 x .500 x .030) Stainless Steel	1
32	20110	连杆旋转接头螺母（#10-32）	NUT (#10-32) LINK ROD SWIVEL	1

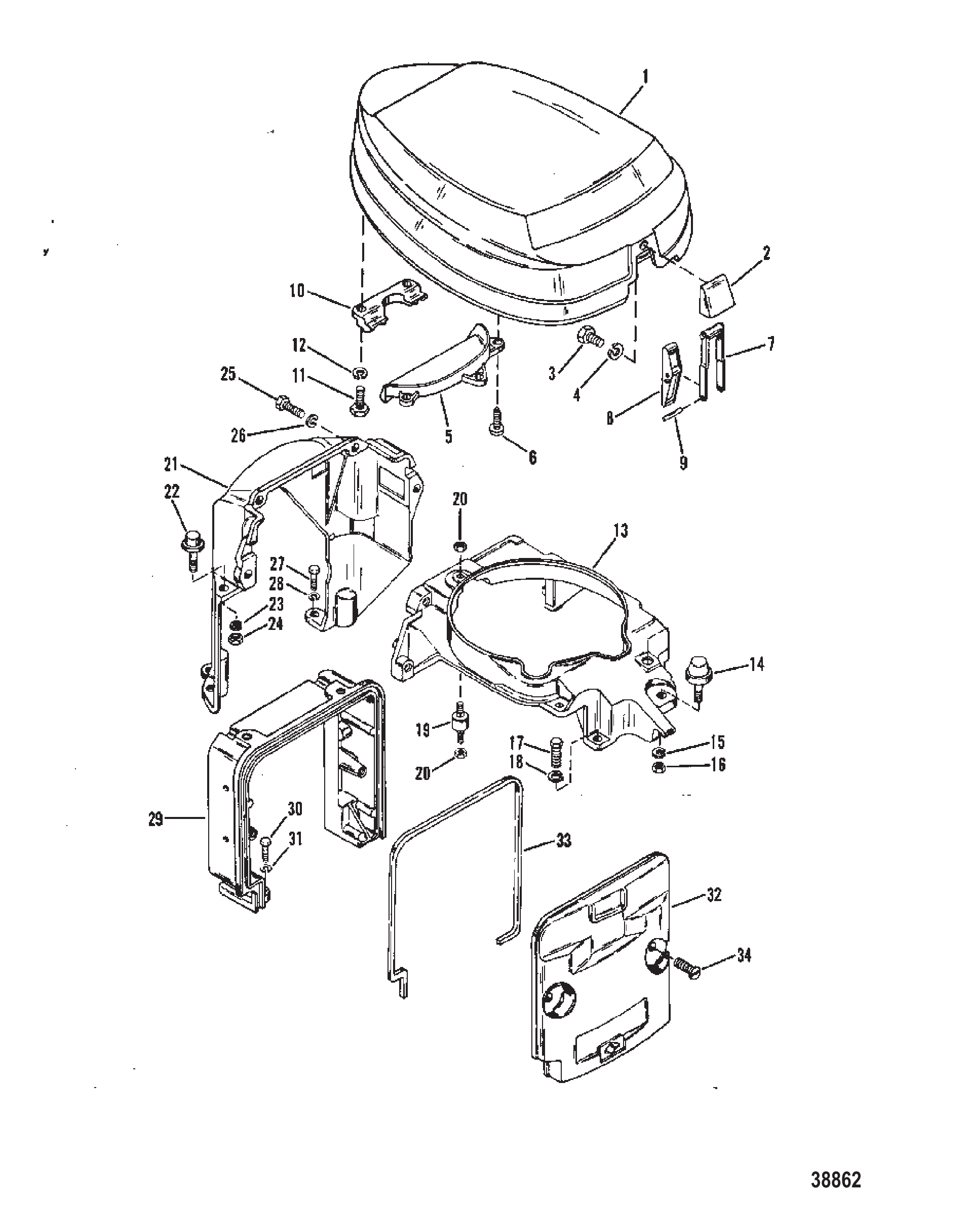

图 26顶罩与支撑支架 TOP COWL AND SUPPORT BRACKETS

REF	零件编号	中文名称	英文名称	数量
1	7934	顶盖总成	TOP COWL ASSEMBLY	1
1	6392F4	顶罩总成（水星款）	TOP COWL ASSEMBLY Mariner	1
1	6392T6	顶盖总成	TOP COWL ASSEMBLY	1
2	93122A1	固定座总成	RETAINER ASSEMBLY	1
2	76440	固定座总成	RETAINER ASSEMBLY	1
3	53167	螺钉 (.312-18 x .880)	SCREW (.312-18 x .880)	1
3	53167T	螺钉 0.312-18X 0.88	SCREW .312-18X .88	1
3	25299	螺钉(0.312-18x0.75)	SCREW (.312-18 x .75)	1
4	39107	锁紧垫圈(0.312-24)	LOCKWASHER (.312-24)	1
5	76370	护罩	SHIELD	1
5	76433	护罩	SHIELD	1
6	48409	螺钉 (#10-16 x .625) 不锈钢	SCREW (#10-16 x .625) Stainless Steel	3
7	52739	顶罩锁扣铰链	HINGE COWL LATCH-TOP COWL	1
8	94918T	罩盖锁扣铰链杆	LEVER COWL LATCH HINGE	1
8	94918F1	杠杆	LEVER	1
9	58998		PIN COWL LATCH LEVER TO HINGE	1
10	55455	顶罩后部锁钩	HOOK TOP COWL LTECH-REAR	1
11	22956	螺钉(.250-28 x .880) 后锁钩至顶盖	SCREW (.250-28 x .880) REAR HOOK TO TOP COWL	2
12	26992	锁紧垫圈(.250)不锈钢 后锁钩螺钉	LOCKWASHER (.250) Stainless Steel REAR HOOK SCREW	2
13	73401	顶罩支撑框架	FRAME SUPPORT-TOP COWL	1
13	73401T	框架	FRAME	1
14	37640	支撑框架橡胶支座	MOUNT RUBBER-SUPPORT FRAME	1
15	26993	橡胶支座锁紧垫圈（0.312）	LOCKWASHER (.312) RUBBER MOUNT	1
15	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	1
16	28770	橡胶支座螺母（0.312-24不锈钢）	NUT (.312-24) Stainless Steel RUBBER MOUNT	1
17	37562	不锈钢螺钉(.312-18 x 1.00)	SCREW (.312-18 x 1.00) Stainless Steel	2
18	26993	支撑框架螺钉锁紧垫圈（0.312）	LOCKWASHER (.312) SUPPORT FRAME SCREW	2
18	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
19	90435	顶罩框架橡胶支架	MOUNT RUBBER-TOP COWL FRAME	3
20	20184	螺母(1/4-28X7/32)橡胶支架(上部)	NUT (1/4-28X7/32) RUBBR MOUNT (UPPER)	6
20	8M0207775	螺母 @5	NUT @5	6
21	52468	顶罩支撑支架-后部	BRACKET TOP COWL SUPPORT-REAR	1
22	31014	后支撑支架橡胶座	MOUNT RUBBER-REAR SUPPORT BRACKET	2
23	26992	不锈钢锁紧垫圈(.250)橡胶支座	LOCKWASHER (.250) Stainless Steel RUBBER MOUNT	2
24	29598	螺母 (.250-28) 不锈钢橡胶支座	NUT (.250-28) Stainless Steel RUBBER MOUNT	2
25	37562	螺丝(.312-18 x 1.00)不锈钢后支架至框架	SCREW (.312-18 x 1.00) Stainless Steel REAR BRACKET TO FRAME	4
26	26993	锁紧垫圈(.312)后支架螺丝	LOCKWASHER (.312) REAR BRACKET SCREW	4
26	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
27	37562	不锈钢螺钉(.312-18 x 1.00)	SCREW (.312-18 x 1.00) Stainless Steel	4
28	26993	锁紧垫圈(.312)后支架螺丝	LOCKWASHER (.312) REAR BRACKET SCREW	4
28	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	4
29	99649T	框架前支撑	FRAME FRONT SUPPORT	1
30	37562	螺丝(.312-18 x 1.00)不锈钢消音器盖	SCREW (.312-18 x 1.00) Stainless Steel SILENCER COVER	2
31	26993	锁紧垫圈(.312)框架螺丝	LOCKWASHER (.312) FRAME SCREW	2
31	8M0204647	锁紧垫圈 (.312)	LOCKWASHER (.312)	2
32	89590	消音器盖	COVER SILENCER	1
33	76168A2	消音器盖衬垫	GASKET SILENCER COVER	1
34	28638	螺钉(.250-20 x .750)	SCREW (.250-20 x .750)	2

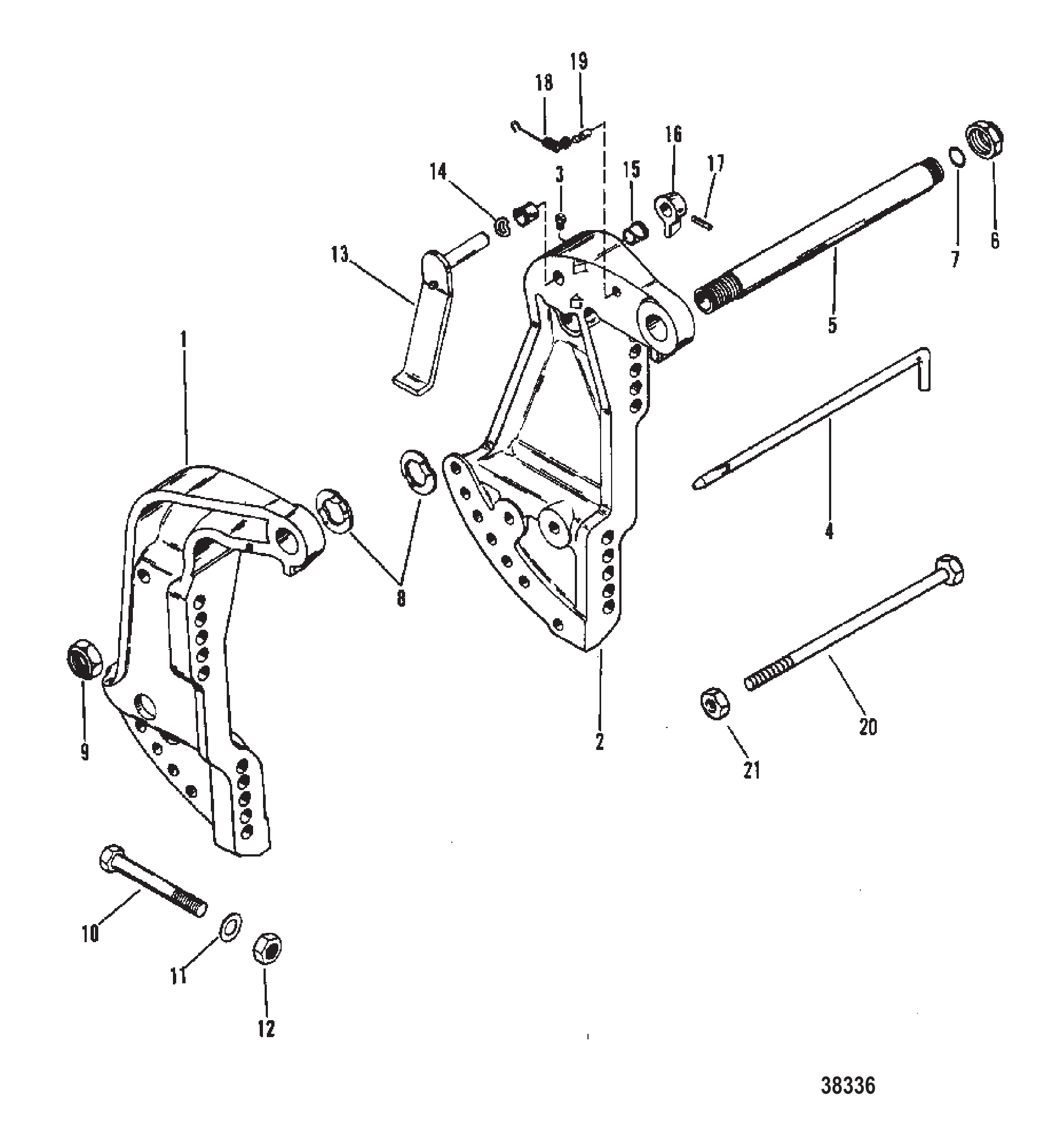

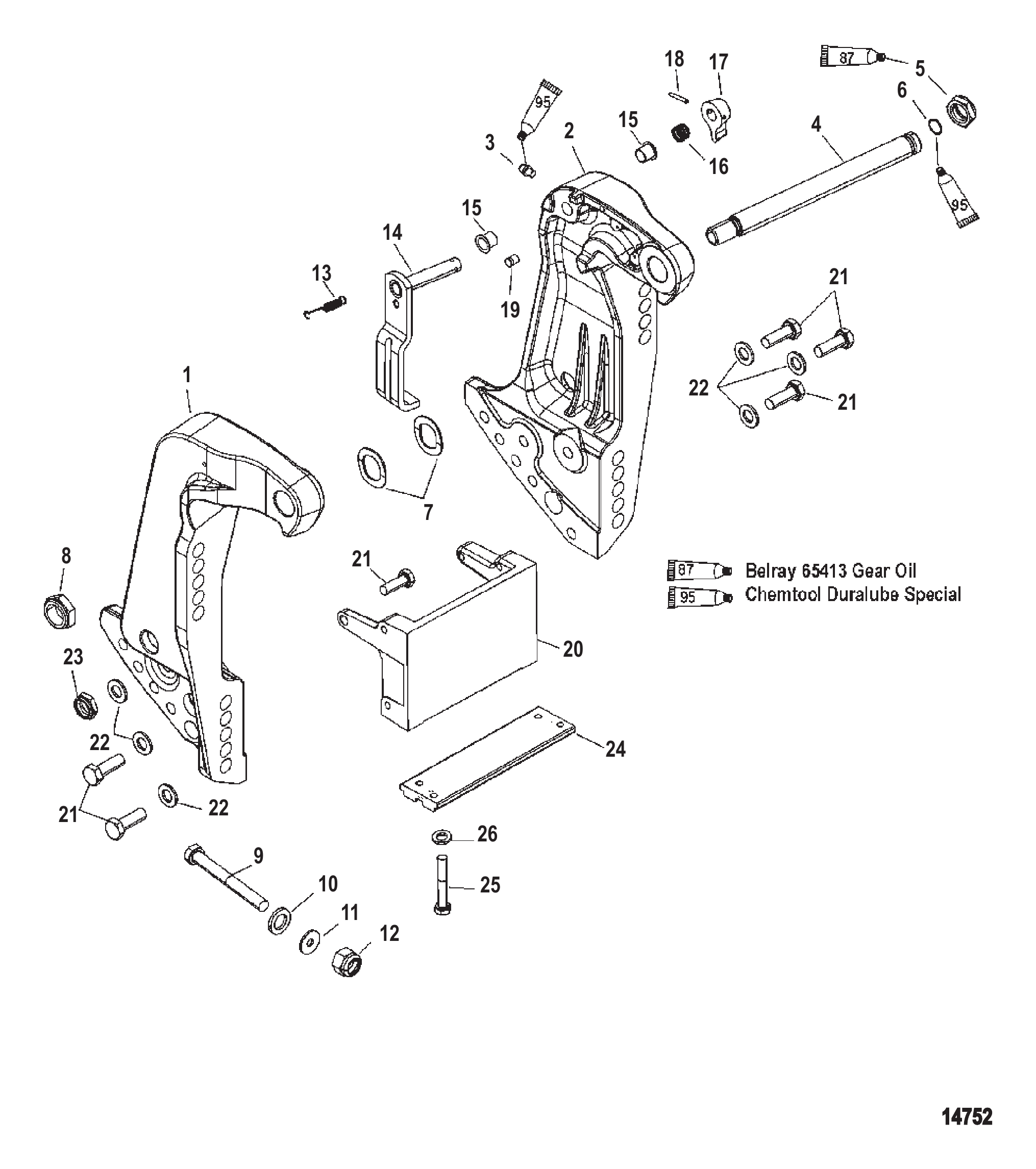

图 27艉板支架 TRANSOM BRACKET

REF	零件编号	中文名称	英文名称	数量
1	8718A1	艉板支架总成(右舷)	BRACKET ASSEMBLY Transom (STARBOARD)	1
1	8718A2	艉板支架总成(右舷)	BRACKET ASSEMBLY Transom (STARBOARD)	1
2	8716A1	艉板支架总成(左舷)	BRACKET ASSEMBLY Transom (PORT)	1
2	8716A2	艉板支架总成(左舷)	BRACKET ASSEMBLY Transom (PORT)	1
3	98727	润滑配件左舷艉板支架	FITTING Grease PORT TRANSOM BRACKET	1
4	49930A1	倾斜锁销总成(非动力配平)	PIN ASSEMBLY Tilt Lock (NON-POWER TRIM)	1
5	99170A1	倾斜管	TILT TUBE	1
6	34862	螺母(1.00-14)倾斜管	NUT (1.00-14) TILT TUBE	1
7	45711		O-RING (.612 x .103) TILT TUBE	2
8	88750	波形垫圈(1.62 x 1.05)倾斜管	WASHER Wave (1.62 x 1.05) TILT TUBE	2
9	56041	螺母(.875-14)倾斜管	NUT (.875-14) TILT TUBE	1
10	677551	螺钉(.500-20 x 4.500)艉板支架至艉板	SCREW (.500-20 x 4.500) TRANSOM BRACKET TO TRANSOM	4
11	28421	垫圈(1.5 x 3.05 x 0.13)不锈钢艉板支架螺栓	WASHER (1.5 x 3.05 x 0.13) Stainless Steel TRANSOM BRACKET BOLT	4
12	8M0027784	艉板支架螺栓螺母	NUT TRANSOM BRACKET BOLT	4
13	99629A2	倾斜锁杆总成	LEVER ASSEMBLY TILT LOCK	1
14	99611	倾斜杆波形垫圈	WAVE WASHER TILT LEVER	1
15	65830	倾斜杆尼龙衬套	NYLINER TILT LEVER	2
16	99633	倾斜锁杆旋钮	KNOB TILT LOCK LEVER	1
16	99633T6	倾斜锁杆旋钮	KNOB TILT LOCK LEVER	1
17	99615	槽销	PIN Groove	1
18	99622	弹簧	SPRING	1
19	99604	槽销	PIN Groove	1
20	96930A1	倾斜锁螺栓总成	BOLT ASSEMBLY TILT LOCK	1
21	23161	螺母 (.375-24)	NUT (.375-24)	1

图 28自动混合器 AUTO-BLEND

REF	零件编号	中文名称	英文名称	数量
-	1301930	自动混合器	AUTO-BLEND	1
1	13982	油箱套件 机油	TANK KIT Oil	1
1	16612	油箱套件 机油	TANK KIT Oil	1
2	13996	手柄套件	HANDLE KIT	1
3	13986	机油箱盖	CAP OIL TANK	1
4	13994	五金件套件	HARDWARE KIT	1
4	16614	五金件套件	HARDWARE KIT	1
5	13979	放油塞套件	PLUG KIT Drain	1
6	16611	膜片组件	DIAPHRAGM KIT	1
7	13990	支架	BRACKET	1
8	13993	箍带	BAND	1
9	13983	支架(左)	BRACKET (LEFT)	1
10	13984	支架(右)	BRACKET (RIGHT)	1
11	13991	盖板	COVER	1
11	16613	盖板	COVER	1
12	13985	机油滤清器/传感器套件	FILTER/SENSOR KIT Oil	1
13	13987	喇叭套件	HORN KIT	1
14	13988	线束总成	HARNESS ASSEMBLY	1
15	13989	保险丝(0.5安培)	FUSE (.5 AMP)	1
16	13981	燃油滤清器套件	FILTER KIT Fuel	1
16	18089	燃油滤清器套件	FILTER KIT Fuel	1
17	13992	乙烯基软管	VINYL TUBE	1
18	13995	燃油管套件	TUBE KIT Fuel	1
19	15387A1	机油滤网总成	STRAINER ASSEMBLY Oil	1
20	16615	止回阀套件	CHECK VALVE KIT	1
21	16616	衬垫套件	GASKET KIT	1

图 29旋转支架与转向臂 SWIVEL BRACKET AND STEERING ARM

REF	零件编号	中文名称	英文名称	数量
1	818904T1	旋转支架	SWIVEL BRACKET	1
2	87735	下油封	SEAL Oil Lower	1
3	818764	衬套	BUSHING	2
4	33504	O型圈	O-RING	1
4	8M0214926	O型圈 @10	O RING @10	1
5	816039	隔套	SPACER	1
6	74036	润滑脂接头	FITTING Grease	2
6	8M0169589	润滑脂接头	FITTING Grease	2
7	821207	衬套	BUSHING	2
8	64014	螺钉(.250-28x.500)	SCREW (.250-28 x .500)	2
9	99661A26	旋转销总成	SWIVEL PIN ASSEMBLY	1
9	99661A35	旋转销总成	SWIVEL PIN ASSEMBLY	1
10	92876A10	连杆总成	LINK ROD ASSEMBLY	1
10	92876A12	连杆总成	LINK ROD ASSEMBLY	1
11	849838	螺钉(.375-24 x 1.250)	SCREW (.375-24 x 1.250)	1
12	826709113	不锈钢螺母 (.375-24)	NUT (.375-24) Stainless Steel	2
12	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	2
13	37828	不锈钢垫圈 (.390 x .625 x .062)	WASHER (.390 x .625 x .062) Stainless Steel	2
14	42961A1	底部轭架总成	YOKE ASSEMBLY Bottom	1
14	42961A06	底部轭架总成	YOKE ASSEMBLY Bottom	1
15	67684	挡圈	RING Retaining	1
16	816432	止推垫片	THRUST WASHER	1
17	NSS	不单独销售 贴纸, 序列号覆膜	NOT SOLD SEPARATE Decal, Serial Overlaminate	1
18	11288	下轭缓冲垫	BUMPER Bottom Yoke	1
18	11288001	下轭缓冲垫	BUMPER Bottom Yoke	1
19	88882	上轭缓冲垫	BUMPER Top Yoke	1

图 30启动电机总成（博世） STARTER MOTOR ASSEMBLY (BOSCH)

REF	零件编号	中文名称	英文名称	数量
-	66015	启动电机总成	STARTER MOTOR ASSEMBLY	1
-	893891T	启动电机总成	STARTER MOTOR ASSEMBLY	1
1	90643	驱动套件	DRIVE KIT	1
2	68575	驱动总成	DRIVE ASSEMBLY	1
2	685753	驱动总成	DRIVE ASSEMBLY	1
3	75660	驱动端板	PLATE DRIVE END	1
4	75385	贯穿螺栓	BOLT THRU	2
6	75386	电枢	ARMATURE	1
7	75384	电刷/弹簧套件	BRUSH/SPRING KIT	1
7	898265016	电刷/弹簧套件	BRUSH/SPRING KIT	1
8	57387	绝缘衬套	BUSHING INSULATING	1
9	38013	输入柱垫圈	WASHER INPUT STUD	1
10	26992	不锈钢输入柱锁紧垫圈(.250)	LOCKWASHER (.250) Stainless Steel INPUT STUD	1
11	20890	输入柱螺母(.250-20)	NUT (.250-20) INPUT STUD	1
12	61787	电刷架	HOLDER BRUSH	2
12	898265014	电刷支架	HOLDER-BRUSH	2
13	68586	电刷及支架螺钉	SCREW BRUSH AND HOLDER	2
14	79215	换向器端盖	END CAP COMMUTATOR	1
14	15386001	端盖	END CAP	1

图 31驱动轴外壳总成 DRIVESHAFT HOUSING ASSEMBLY

REF	零件编号	中文名称	英文名称	数量
1	8456A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
1	8452A1	驱动轴壳体总成	HOUSING ASSEMBLY Driveshaft	1
2	66373	驱动轴壳体至齿轮箱螺柱	STUD DRIVE SHAFT HOUSING TO GEAR HOUSING	1
3	35814	驱动轴壳体螺柱不锈钢螺母(.312-24)	NUT (.312-24) Stainless Steel DRIVE SHAFT HOUSING STUD	1
3	82670911	螺母(.312-24)不锈钢	NUT (.312-24) Stainless Steel	1
4	34863	齿轮箱螺柱螺母(.375-24)	NUT (.375-24) GEAR HOUSING STUD	1
4	8M0204726	黄铜螺母 (.375-24)	NUT (.375-24) Brass	1
5	8450A1	鞍座	SADDLE	1
6	64076	推力缓冲器-鞍座	BUMPER THRUST - SADDLE	1
7	79896A1	下支架	MOUNT LOWER	2
7	79896A1	下支架	MOUNT LOWER	2
8	79985A1	上部安装总成	MOUNT ASSEMBLY UPPER	2
8	79896A1	上支架	MOUNT UPPER	2
9	26406	上下安装环	RING UPPER AND LOWER MOUNT	4
10	79907	上下安装盖	COVER UPPER AND LOWER MOUNT	4
11	59079	衬垫	GASKET	1
12	24652	螺母(.250-28)	NUT (.250-28)	6
13	31940	出水管道	TUBE WATER OUTLET	1
13	32077	出水管道	TUBE WATER OUTLET	1
14	36556	出水管橡胶密封件(外径0.5英寸)	SEAL (.500 Inch Outside Diameter) RUBBER - WATER OUTLET TUBE	1
15	13127	出水管密封尼龙垫片	SPACER NYLON - OUTLET TUBE SEAL	1
16	71057	倒挡锁连杆	LINK ROD REVERSE LOCK	1
17	65414	螺钉	SCREW	2
18	65216	倒挡锁凸轮	CAM REVERSE LOCK	1
19	72007	倒挡锁凸轮固定座	RETAINER REVERSE LOCK CAM	1
20	93145	驱动轴挡块	BLOCK DRIVESHAFT	1
-	78139A80	衬垫套件	GASKET SET	1
